Parts list — exactly as printed45 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 7 | 5100010938 | Support cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 8 | 5000011523 | Hexagonal head cap screw | 4 | M16 x 30 210Nm/155ft.lbs | DIN933 | ADD TO CART |
| 9 | 5000010880 | Hexagon nut | 2 | ADD TO CART | |
| 13 | 5100009632 | Axle | 1 | PARTS REQUEST | |
|
COMING Axle
5100009632 · qty on machine: 1 | |||||
| 14 | 5000010376 | Flat washer | 1 | ADD TO CART | |
| 15 | 5000014316 | Hexagonal head cap screw | 1 | M12 x 16 86Nm/63ft.lbs | DIN933 | ADD TO CART |
| 16 | 5100009950 | Cover plate cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 17 | 5100041159 | Control | 1 | ADD TO CART | |
| 18 | 5000011553 | Cheese head screw | 2 | ADD TO CART | |
| 29 | 5000011550 | Cheese head screw | 2 | M6 x 25 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 51 | 5000204408 | Screw | 4 | DE M 6x 16 | DIN7500 | ADD TO CART |
| 60 | 5100003725 | Support | 1 | ADD TO CART | |
| 61 | 5100051256 | Bush | 2 | ADD TO CART | |
| 62 | 5100005558 | Shockmount | 2 | 50 x 18 M10 x 20 | ADD TO CART |
| 63 | 5000010883 | Hexagon nut | 1 | ADD TO CART | |
| 64 | 5000010624 | Flat washer | 2 | ADD TO CART | |
| 65 | 5100010504 | Gasket | 1 | ADD TO CART | |
| 66 | 5100010505 | Plate | 1 | ADD TO CART | |
| 67 | 5000204408 | Screw | 2 | DE M 6x 16 | DIN7500 | ADD TO CART |
| 68 | 5100010503 | Profiled joint | 1 | ADD TO CART | |
| 69 | 5100049577 | Control | 1 | ADD TO CART | |
| 70 | 5100049610 | Throttle | 1 | ADD TO CART | |
| 3 | 5000011528 | Cheese head screw | 8 | M12 x 35 86Nm/63ft.lbs | ISO4762 | ADD TO CART |
| 4 | 5000021465 | Lock washer | 8 | ADD TO CART | |
| 5 | 5000103880 | Pipe guide | 1 | ADD TO CART | |
| 19 | 5100013738 | Plate | 1 | ADD TO CART | |
| 20 | 5000017908 | Cheese head screw | 1 | M5 x 20 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 21 | 5000021679 | Hexagon nut | 1 | M6 | DIN980 | ADD TO CART |
| 22 | 5000012624 | Gasket | 2 | A14 x 18 | DIN7603 | ADD TO CART |
| 23 | 5000043201 | Banjo bolt | 1 | 10-3 | DIN7643 | ADD TO CART |
| 24 | 5100052270 | V-belt | 1 | ADD TO CART | |
| 25 | 5100009634 | Apron | 1 | ADD TO CART | |
| 26 | 5000097110 | Bar | 2 | ADD TO CART | |
| 27 | 5100009635 | Bar | 1 | ADD TO CART | |
| 28 | 5000103962 | Cheese head screw | 6 | M8 x 18 25Nm/18ft.lbs | DINENISO4762 | ADD TO CART |
| 30 | 5100002779 | Belt guard | 1 | ADD TO CART | |
| 31 | 5000220202 | Screw | 3 | ADD TO CART | |
| 32 | 5000011466 | Hexagonal head cap screw | 1 | M6 x 40 10Nm/7ft.lbs | DIN933 | ADD TO CART |
| 47 | 5000017312 | Hexagon nut | 1 | M5 | DIN980 | PARTS REQUEST |
|
COMING Hexagon nut
5000017312 · qty on machine: 1 M5 | DIN980 | |||||
| 48 | 5000096691 | Pipe clamp | 1 | ADD TO CART | |
| 49 | 5000010624 | Flat washer | 1 | ADD TO CART | |
| 50 | 5000011552 | Cheese head screw | 1 | M6 x 18 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 54 | 5100013657 | Plate | 1 | ADD TO CART | |
| 55 | 5000010622 | Flat washer | 2 | ADD TO CART | |
| 56 | 5000011544 | Cheese head screw | 2 | 25Nm/18ft.lbs | ISO4762 | ADD TO CART |
Page 14 — DPU45Yeh US Oversize
Parts list — exactly as printed36 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005497 | Upper mass | 1 | ADD TO CART | |
| 2 | 5100064564 | Diesel engine | 1 | PARTS REQUEST | |
|
COMING Diesel engine
5100064564 · qty on machine: 1 | |||||
| 3 | 5000011436 | Hexagonal head cap screw | 4 | M10 x 45 49Nm/36ft.lbs | DIN933 | ADD TO CART |
| 4 | 5000033988 | Lockwasher | 4 | ADD TO CART | |
| 5 | 5000216568 | Suction hose | 1 | ADD TO CART | |
| 6 | 5000058009 | Worm drive hose clip | 2 | PARTS REQUEST | |
|
COMING Worm drive hose clip
5000058009 · qty on machine: 2 | |||||
| 7 | 5000204558 | Plate | 1 | ADD TO CART | |
| 8 | 5000204807 | Rubber profile | 1 | ADD TO CART | |
| 9 | 5000011544 | Cheese head screw | 5 | 25Nm/18ft.lbs | ISO4762 | ADD TO CART |
| 10 | 5000206414 | Fixation | 1 | ADD TO CART | |
| 11 | 5000011552 | Cheese head screw | 2 | M6 x 18 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 12 | 5000216576 | Oil drain cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 13 | 5000209499 | Centrifugal clutch | 1 | ADD TO CART | |
| 14 | 5000209508 | V-belt pulley half | 2 | ADD TO CART | |
| 15 | 5000058668 | Distance washer | 2 | ADD TO CART | |
| 16 | 5000204806 | Locknut | 4 | ADD TO CART | |
| 17 | 5000220232 | Gasket | 1 | ADD TO CART | |
| 19 | 5000010742 | Washer | 4 | PARTS REQUEST | |
|
COMING Washer
5000010742 · qty on machine: 4 | |||||
| 20 | 5000012629 | Cheese head screw | 4 | ADD TO CART | |
| 21 | 5100021329 | Battery | 1 | ADD TO CART | |
| 22 | 5100011287 | Battery protection cpl. | 2 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 25 | 5000220336 | Side cap | 1 | ADD TO CART | |
| 26 | 5000220325 | Screw | 2 | M 12x 35 | ADD TO CART |
| 27 | 5100064559 | Protective frame | 1 | ADD TO CART | |
| 28 | 5000021465 | Lock washer | 8 | ADD TO CART | |
| 29 | 5000013569 | Cheese head screw | 4 | M12 x 50 86Nm/63ft.lbs | ISO4762 | PARTS REQUEST |
|
COMING Cheese head screw
5000013569 · qty on machine: 4 M12 x 50
86Nm/63ft.lbs | ISO4762 | |||||
| 30 | 5000103930 | Hook | 1 | ADD TO CART | |
| 31 | 5000011422 | Hexagonal head cap screw | 4 | M12 x 35 86Nm/63ft.lbs | DIN933 | ADD TO CART |
| 32 | 5000010366 | Hexagon nut | 4 | M12X1.75 | DIN985 | ADD TO CART |
| 33 | 5000102442 | Cover plate | 1 | PARTS REQUEST | |
|
COMING Cover plate
5000102442 · qty on machine: 1 | |||||
| 34 | 5000102443 | Bar | 1 | ADD TO CART | |
| 35 | 5000105944 | Screw | 5 | DE M8 x 20 | DIN7500 | ADD TO CART |
| 40 | 5100011307 | Positive pol cover | 1 | ADD TO CART | |
| 41 | 5100015202 | Pole terminal positive | 1 | ADD TO CART | |
| 42 | 5100015203 | Pole terminal negative | 1 | ADD TO CART | |
| 43 | 5000124255 | Shockmount | 14 | ADD TO CART | |
Page 18 — Battery protection cpl.
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011289 | Battery protection | 1 | ADD TO CART | |
| 2 | 5100010149 | Pad | 2 | ADD TO CART | |
| 3 | 5100011304 | Starting device cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5000216678 | Gasket | 1 | ADD TO CART | |
| 5 | 5000220233 | Gasket | 1 | ADD TO CART | |
| 6 | 5000220432 | Insert | 1 | PARTS REQUEST | |
|
COMING Insert
5000220432 · qty on machine: 1 | |||||
| 7 | 5000210194 | Corrugated-head screw | 4 | ADD TO CART | |
| 8 | 5100011341 | Tie cable | 7 | ADD TO CART | |
| 9 | 5100013772 | Cable harness | 1 | ADD TO CART | |
| 10 | 5100010865 | Battery boost cable | 1 | ADD TO CART | |
| 11 | 5100015100 | Positive pole strap | 1 | ADD TO CART | |
| 12 | 5100010866 | Negative pole strap | 1 | ADD TO CART | |
| 13 | 5000047388 | Zip tie | 1 | ADD TO CART | |
| 14 | 5000058696 | Nose cap | 1 | ADD TO CART | |
| 15 | 5100009601 | Bush | 1 | ADD TO CART | |
| 16 | 5100011308 | Compression spring | 1 | ADD TO CART | |
| 17 | 5000013574 | Cheese head screw | 1 | 25Nm/18ft.lbs | ADD TO CART |
Page 20 — Battery cover cpl.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 14 | 5000220118 | Key | 1 | ADD TO CART | |
| 15 | 5100020618 | Filter mat | 2 | ADD TO CART | |
| 1 | 5100020824 | Battery cover | 1 | ADD TO CART | |
| 2 | 5100010085 | Housing | 1 | ADD TO CART | |
| 3 | 5100013773 | Helix cable | 1 | ADD TO CART | |
| 4 | 5100009911 | Gasket | 1 | ADD TO CART | |
| 5 | 5100020556 | Insulating cushion | 1 | ADD TO CART | |
| 6 | 5000210194 | Corrugated-head screw | 8 | ADD TO CART | |
| 7 | 5100011296 | Ignition starter switch | 1 | ADD TO CART | |
| 8 | 5000129797 | Led | 1 | ADD TO CART | |
| 9 | 5000220234 | Acoustic signal | 1 | ADD TO CART | |
| 10 | 5100011309 | Working hour meter | 1 | ADD TO CART | |
Page 22 — DPU45Yeh US Undersize
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000011421 | Hexagonal head cap screw | 4 | M12 x 40 86Nm/63ft.lbs | DIN933 | PARTS REQUEST |
|
COMING Hexagonal head cap screw
5000011421 · qty on machine: 4 M12 x 40
86Nm/63ft.lbs | DIN933 | |||||
| 3 | 5000011529 | Cheese head screw | 4 | M12 x 30 86Nm/63ft.lbs | ISO4762 | ADD TO CART |
| 4 | 5100072823 | Screw m 6x 25 | 1 | 10Nm/7ft.lbs | ADD TO CART |
| 5 | 5000019156 | Gasket | 1 | ADD TO CART | |
| 6 | 5000021988 | Lock washer | 8 | ADD TO CART | |
| 7 | 5000031565 | Lockwasher | 8 | ADD TO CART | |
| 8 | 5000034442 | Bushing | 3 | ADD TO CART | |
| 9 | 5000039191 | Hexagonal head cap screw | 8 | M16 x 1,5 x 55 210Nm/155ft.lbs | DIN961 | ADD TO CART |
| 10 | 5000044442 | Extension plate | 2 | PARTS REQUEST | |
|
COMING Extension plate
5000044442 · qty on machine: 2 | |||||
| 12 | 5000068222 | Plug (threaded) | 1 | ADD TO CART | |
| 13 | 5000094518 | Cheese head screw | 12 | M12 x 120 120Nm/89ft.lbs | ISO4762 | ADD TO CART |
| 14 | 5000102105 | Support | 4 | ADD TO CART | |
| 15 | 5000102356 | Baseplate | 1 | ADD TO CART | |
| 16 | 5000220163 | Exciter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 17 | 5002004814 | Shockmount | 4 | ADD TO CART | |
| 18 | 5000017123 | Pipe clamp | 1 | ADD TO CART | |
Page 24 — DPU45Yeh US Exciter
Parts list — exactly as printed39 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000099059 | Exciter housing | 1 | ADD TO CART | |
| 2 | 5000220059 | Shaft | 1 | ADD TO CART | |
| 3 | 5000220082 | Eccentric weight | 2 | ADD TO CART | |
| 4 | 5000220168 | Eccentric weight | 1 | ADD TO CART | |
| 5 | 5100077127 | Gear wheel | 1 | ADD TO CART | |
| 6 | 5000039110 | Cover | 1 | ADD TO CART | |
| 7 | 5000102144 | Vent cover | 1 | ADD TO CART | |
| 8 | 5000103469 | Cylindrical roller bearing | 4 | ADD TO CART | |
| 9 | 5001103030 | Vent screw | 1 | ADD TO CART | |
| 10 | 5000220077 | Shaft | 1 | ADD TO CART | |
| 11 | 5100077130 | Adjusting sleeve | 1 | ADD TO CART | |
| 12 | 5000220170 | Eccentric weight | 2 | ADD TO CART | |
| 13 | 5100076341 | V-belt pulley | 1 | PARTS REQUEST | |
|
COMING V-belt pulley
5100076341 · qty on machine: 1 | |||||
| 14 | 5000220079 | Bolt | 1 | ADD TO CART | |
| 15 | 5000220106 | Indexing bolt | 1 | ADD TO CART | |
| 16 | 5000043382 | Tripping pin | 1 | PARTS REQUEST | |
|
COMING Tripping pin
5000043382 · qty on machine: 1 | |||||
| 17 | 5000102724 | Belt guard | 1 | ADD TO CART | |
| 19 | 5000102721 | Cover plate | 1 | ADD TO CART | |
| 20 | 5000048854 | Rotary shaft seal | 1 | 48 x 72 x 7,4 | ADD TO CART |
| 21 | 5000044634 | Cheese head screw | 2 | M16 x 30 295Nm/218ft.lbs | ISO4762 | ADD TO CART |
| 22 | 5000021988 | Lock washer | 5 | ADD TO CART | |
| 23 | 5000043812 | Cheese head screw | 1 | M16 x 50 295Nm/218ft.lbs | ISO4762 | ADD TO CART |
| 24 | 5000126300 | Cheese head screw | 2 | M16 x 45 295Nm/218ft.lbs | ISO4762 | ADD TO CART |
| 25 | 5000011552 | Cheese head screw | 14 | M6 x 18 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 27 | 5100009501 | Screw | 6 | M6 x 16 10Nm/7ft.lbs | ADD TO CART |
| 28 | 5100072823 | Screw m 6x 25 | 5 | 10Nm/7ft.lbs | ADD TO CART |
| 29 | 5002006113 | Retaining ring | 2 | ADD TO CART | |
| 30 | 5002007057 | Retaining ring | 1 | 90 x 3 | DIN472 | ADD TO CART |
| 31 | 5002004822 | Retaining ring | 2 | 55 x 2 | DIN471 | ADD TO CART |
| 32 | 5000220133 | Grooved ball bearing | 1 | ADD TO CART | |
| 33 | 5002001399 | Fitting key | 1 | A10 x 8 x 28 | DIN6885 | ADD TO CART |
| 34 | 5000048604 | Cylinder cover | 1 | ADD TO CART | |
| 35 | 5000124717 | Washer | 1 | ADD TO CART | |
| 36 | 5000014663 | Hexagonal head cap screw | 1 | 10Nm/7ft.lbs | DIN933 | ADD TO CART |
| 37 | 5000220384 | Retaining ring | 1 | 26x 1,20 | DIN472 | ADD TO CART |
| 38 | 5000043203 | Lip seal ring | 1 | 30 x 20 x 6 | ADD TO CART |
| 39 | 5000220383 | Grooved ball bearing | 2 | ADD TO CART | |
| 40 | 5002006991 | O-ring | 1 | 24 x 3 | ADD TO CART |
| 41 | 5000220081 | Bolt cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
Page 28 — Center pole cpl.
Parts list — exactly as printed29 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 7 | 5000010883 | Hexagon nut | 1 | ADD TO CART | |
| 8 | 5100005106 | Square tube cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 9 | 5000211795 | Corrugated-head screw | 8 | ADD TO CART | |
| 10 | 5100005538 | Bellows | 1 | ADD TO CART | |
| 11 | 5000043928 | Threaded spindle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Threaded spindle cpl.
5000043928 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 12 | 5000202866 | Locknut | 1 | M16 | EN1661 | ADD TO CART |
| 13 | 5000043233 | Shockmount | 1 | 60 x 40 | ADD TO CART |
| 15 | 5100005541 | Lock | 1 | ADD TO CART | |
| 16 | 5000129818 | Shockmount | 2 | ADD TO CART | |
| 17 | 5000010742 | Washer | 2 | PARTS REQUEST | |
|
COMING Washer
5000010742 · qty on machine: 2 | |||||
| 18 | 5000011543 | Socket head screw | 2 | 24Nm/18ft.lbs | ISO4762 | ADD TO CART |
| 19 | 5100010497 | Shockmount | 4 | ADD TO CART | |
| 20 | 5000010882 | Hexagon nut | 4 | ADD TO CART | |
| 21 | 5100005526 | Flange | 1 | ADD TO CART | |
| 22 | 5000069225 | Screwed socket | 1 | ADD TO CART | |
| 23 | 5100005553 | Hose pipe | 1 | PARTS REQUEST | |
|
COMING Hose pipe
5100005553 · qty on machine: 1 | |||||
| 24 | 5100027083 | Center pole head cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 25 | 5000011539 | Cheese head screw | 4 | M8 x 40 25Nm/18ft.lbs | ISO4762 | ADD TO CART |
| 26 | 5000215035 | Shockmount | 2 | ADD TO CART | |
| 27 | 5000011527 | Cheese head screw | 2 | ADD TO CART | |
| 1 | 5100009952 | Center pole tube | 1 | ADD TO CART | |
| 2 | 5100005543 | Lock | 1 | ADD TO CART | |
| 3 | 5000010622 | Flat washer | 2 | ADD TO CART | |
| 4 | 5000013574 | Cheese head screw | 2 | ADD TO CART | |
| 5 | 5100002007 | Retaining handle | 2 | ADD TO CART | |
| 6 | 5000037090 | Cheese head screw | 1 | M10 x 100 49Nm/36ft.lbs | ISO4762 | ADD TO CART |
| 14 | 5100051255 | Bush | 2 | ADD TO CART | |
| 28 | 5100005124 | Clamp | 1 | ADD TO CART | |
| 29 | 5000011554 | Cheese head screw | 4 | ADD TO CART | |
Page 32 — Center pole head cpl.
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005537 | Center pole head | 1 | ADD TO CART | |
| 2 | 5000126164 | Slide bush | 1 | ADD TO CART | |
| 3 | 5000069726 | Long face pinion | 1 | ADD TO CART | |
| 4 | 5000125926 | Spacer | 2 | ADD TO CART | |
| 5 | 5000018194 | O-ring | 2 | ADD TO CART | |
| 6 | 5000068752 | O-ring | 2 | ADD TO CART | |
| 7 | 5100005559 | Compression spring | 1 | ADD TO CART | |
| 8 | 5100005138 | Control piston | 1 | ADD TO CART | |
| 9 | 5100005532 | Guide ring | 1 | KB 55x50x5,5 HG517 | ADD TO CART |
| 10 | 5100005533 | Gasket | 1 | ADD TO CART | |
| 11 | 5000012082 | Seal ring | 1 | A16 x 20 | DIN7603 | ADD TO CART |
| 12 | 5000011050 | Plug (threaded) | 1 | M16 x 1,5 | DIN908 | ADD TO CART |
| 13 | 5000039235 | O-ring | 1 | 58 x 3 | ADD TO CART |
Page 34 — DPU45Yeh US Centrifugal clutch
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000216649 | Retaining ring | 1 | ADD TO CART | |
| 2 | 5000216650 | Threaded pin | 4 | ADD TO CART | |
| 3 | 5000216651 | Alarm | 1 | ADD TO CART | |
| 4 | 5000022625 | Grooved ball bearing | 1 | ADD TO CART | |
| 5 | 5000216653 | Retaining ring | 1 | ADD TO CART | |
| 6 | 5000201717 | Retaining ring | 1 | A40 x 1,75 | PARTS REQUEST |
|
COMING Retaining ring
5000201717 · qty on machine: 1 A40 x 1,75 | |||||
| 7 | 5000059740 | Fixing disc | 1 | ADD TO CART | |
| 8 | 5000216654 | Hub | 1 | ADD TO CART | |
| 9 | 5000216655 | Centrifugal weight | 2 | ADD TO CART | |
| 10 | 5000048944 | Lining | 2 | ADD TO CART | |
| 11 | 5000125881 | Cover washer | 1 | ADD TO CART | |
| 12 | 5000201719 | Lock washer | 2 | PARTS REQUEST | |
|
COMING Lock washer
5000201719 · qty on machine: 2 | |||||
| 13 | 5000201718 | Cheese head screw | 2 | PARTS REQUEST | |
|
COMING Cheese head screw
5000201718 · qty on machine: 2 | |||||
| 14 | 5000216656 | Spring | 2 | ADD TO CART | |
Page 36 — DPU45Yeh US Decals
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 34 | 5100068273 | Type label | 2 | ADD TO CART | |
| 35 | 5000220000 | Instruction label | 1 | ADD TO CART | |
| 36 | 5000222085 | Label symbol | 1 | ADD TO CART | |
| 37 | 5000129784 | Decal-sound power level | 1 | ADD TO CART | |
| 38 | 5000219175 | Labels | 1 | ADD TO CART | |
| 39 | 5000216633 | Instruction label | 1 | ADD TO CART | |
| 52 | 5000219259 | Labels | 1 | ADD TO CART | |
| 53 | 5100011227 | Label hav 24h | 1 | ADD TO CART | |
| 57 | 5100026807 | Labels (start stop) | 1 | ADD TO CART | |
| 58 | 1000184310 | Label | 3 | PARTS REQUEST | |
|
COMING Label
1000184310 · qty on machine: 3 | |||||

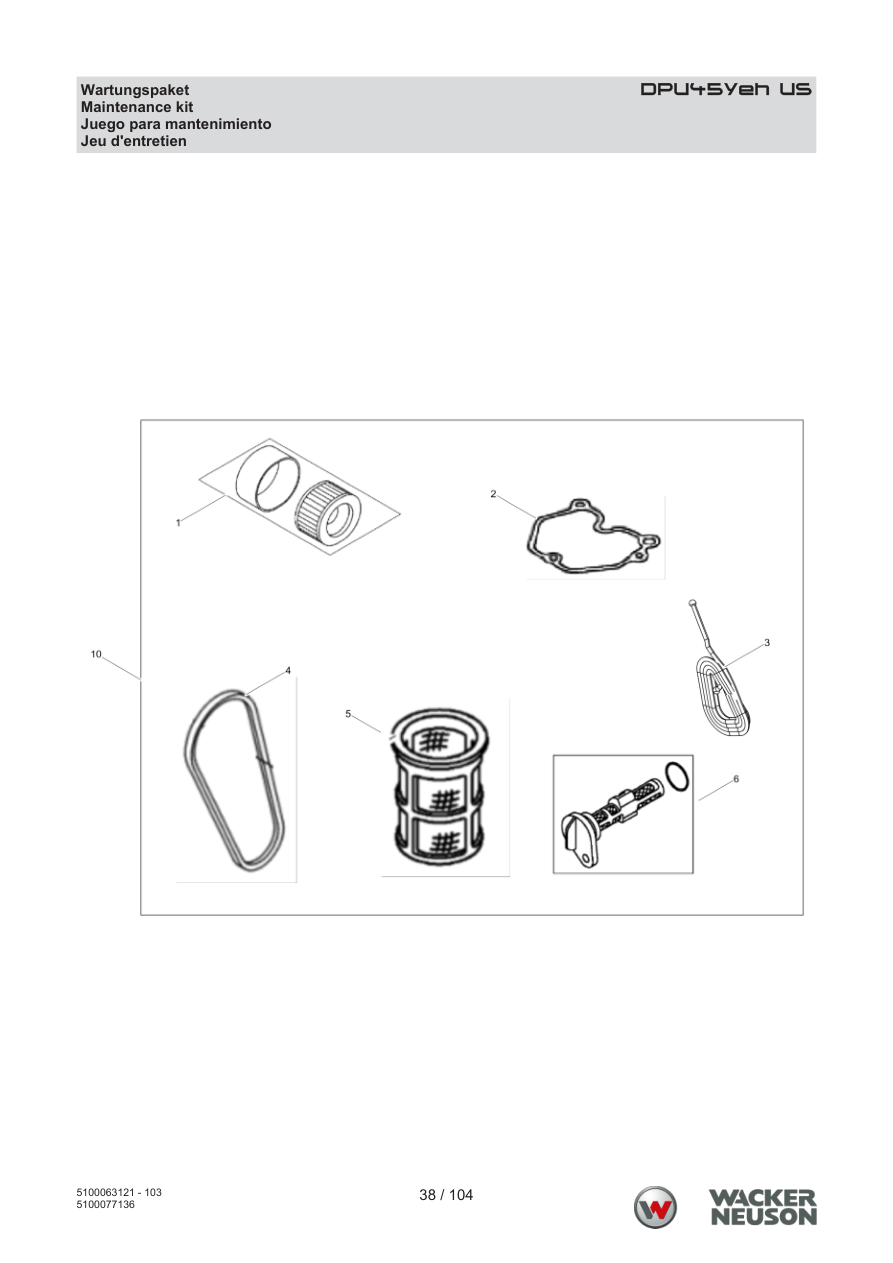

Page 38 — DPU45Yeh US Maintenance kit
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000217854 | Air filter insert | 1 | ADD TO CART | |
| 2 | 5000217846 | Gasket | 1 | ADD TO CART | |
| 3 | 5000210554 | Rope | 1 | ADD TO CART | |
| 4 | 5100052270 | V-belt | 1 | ADD TO CART | |
| 5 | 5100059741 | Fuel filter | 1 | ADD TO CART | |
| 6 | 5100059723 | Oil filter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Oil filter cpl.
5100059723 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 10 | 5100071766 | Maintenance kit | 1 | PARTS REQUEST | |
|
COMING Maintenance kit
5100071766 · qty on machine: 1 | |||||
Page 40 — Cylinder housing
Parts list — exactly as printed25 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 34 | 5000210613 | Crankshaft gasket | 1 | ADD TO CART | |
| 35 | 5100061528 | Crankcase cover | 1 | ADD TO CART | |
| 38 | 5100061531 | Slide bearing | 1 | ADD TO CART | |
| 38 | 5100061543 | Slide bearing 0,25 | 1 | PARTS REQUEST | |
|
COMING Slide bearing 0,25
5100061543 · qty on machine: 1 | |||||
| 38 | 5100061546 | Slide bearing 0,5 | 1 | ADD TO CART | |
| 40 | 5000210490 | Electric wire | 1 | ADD TO CART | |
| 41 | 5000085522 | Screw | 15 | M8 x 35 25Nm/18ft.lbs | ADD TO CART |
| 45 | 5000119726 | Bracket | 1 | ADD TO CART | |
| 46 | 5000085532 | Ball bearing | 1 | ADD TO CART | |
| 47 | 5000119727 | Oil seal | 1 | ADD TO CART | |
| 48 | 5000119727 | Oil seal | 1 | ADD TO CART | |
| 1 | 5100066570 | Cylinder housing cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 5 | 5100031962 | Head gasket | 1 | ADD TO CART | |
| 11 | 5000210612 | O-ring | 1 | ADD TO CART | |
| 12 | 5000213226 | Pin | 2 | ADD TO CART | |
| 13 | 5000210485 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000210485 · qty on machine: 1 | |||||
| 26 | 5000210486 | Cover | 1 | ADD TO CART | |
| 27 | 5000210614 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000210614 · qty on machine: 1 | |||||
| 28 | 5000119715 | Pin | 2 | ADD TO CART | |
| 29 | 5000217932 | Screw locking | 1 | ADD TO CART | |
| 30 | 5000119720 | Threaded bolt | 1 | M6 x 18 | PARTS REQUEST |
|
COMING Threaded bolt
5000119720 · qty on machine: 1 M6 x 18 | |||||
| 31 | 5000119721 | Bolt | 2 | M6 x 22 | ADD TO CART |
| 32 | 5000119722 | Nut | 3 | ADD TO CART | |
| 49 | 5000217934 | Needle bearing | 1 | ADD TO CART | |
| 50 | 5000073622 | Screw | 1 | M8 x 12 25Nm/18ft.lbs | ADD TO CART |
Page 42 — Oil drain
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000213227 | Screw plug | 2 | ADD TO CART | |
| 2 | 5000150327 | Oil dip stick cpl. | 2 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5100039305 | O-ring | 2 | ADD TO CART | |
| 5 | 5000073608 | Washer | 2 | ADD TO CART | |
Page 44 — DPU45Yeh US Cylinder head
Parts list — exactly as printed33 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000217834 | Hexagonal head cap screw | 2 | ADD TO CART | |
| 2 | 5000217835 | Hexagonal head cap screw | 2 | ADD TO CART | |
| 3 | 5100066579 | Cylinder head | 1 | ADD TO CART | |
| 8 | 5100000729 | Intake valve | 1 | PARTS REQUEST | |
|
COMING Intake valve
5100000729 · qty on machine: 1 | |||||
| 9 | 5100000730 | Exhaust valve | 1 | PARTS REQUEST | |
|
COMING Exhaust valve
5100000730 · qty on machine: 1 | |||||
| 10 | 5000217841 | Spring | 2 | ADD TO CART | |
| 11 | 5000217842 | Spring housing | 2 | ADD TO CART | |
| 12 | 5000217850 | Spring holder | 2 | ADD TO CART | |
| 14 | 5100000731 | Rocker arm cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 15 | 5100000732 | Support | 1 | ADD TO CART | |
| 16 | 5100000733 | Inlet rocker arm | 1 | ADD TO CART | |
| 18 | 5000096764 | Control | 1 | ADD TO CART | |
| 19 | 5000119736 | Locknut | 1 | ADD TO CART | |
| 20 | 5100000734 | Exhaust rocker arm | 1 | ADD TO CART | |
| 22 | 5000096764 | Control | 1 | ADD TO CART | |
| 23 | 5000119736 | Locknut | 1 | ADD TO CART | |
| 24 | 5000119737 | Clamp | 2 | ADD TO CART | |
| 25 | 5100031963 | Seal | 2 | PARTS REQUEST | |
|
COMING Seal
5100031963 · qty on machine: 2 | |||||
| 26 | 5000217896 | Gasket | 1 | ADD TO CART | |
| 27 | 5000085537 | Valve cap | 2 | ADD TO CART | |
| 28 | 5100059780 | Valve seat | 1 | ADD TO CART | |
| 29 | 5000213231 | Washer | 2 | ADD TO CART | |
| 30 | 5000217849 | Bracket | 1 | PARTS REQUEST | |
|
COMING Bracket
5000217849 · qty on machine: 1 | |||||
| 31 | 5000073641 | Pin | 1 | ADD TO CART | |
| 32 | 5000217935 | Screw | 2 | ADD TO CART | |
| 33 | 5000073630 | Stud | 2 | M 6x 55 | ADD TO CART |
| 34 | 5000119722 | Nut | 2 | ADD TO CART | |
| 36 | 5000217846 | Gasket | 1 | ADD TO CART | |
| 37 | 5000217851 | Cover | 1 | ADD TO CART | |
| 39 | 5000217837 | Shaft cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 42 | 5000217898 | Spring | 1 | ADD TO CART | |
| 45 | 5000073648 | Pin | 1 | ADD TO CART | |
| 48 | 5100039148 | Flange screw | 3 | PARTS REQUEST | |
|
COMING Flange screw
5100039148 · qty on machine: 3 | |||||
Page 48 — DPU45Yeh US Air Filter
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000217852 | Air filter seal | 1 | ADD TO CART | |
| 2 | 5000213232 | Flange nut | 3 | ADD TO CART | |
| 3 | 5000217886 | Air filter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5000217892 | Air cleaner cover | 1 | ADD TO CART | |
| 5 | 5000217887 | Air filter housing cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 6 | 5100061548 | Console | 1 | ADD TO CART | |
| 10 | 5000217853 | Wing nut | 1 | PARTS REQUEST | |
|
COMING Wing nut
5000217853 · qty on machine: 1 | |||||
| 11 | 5000217854 | Air filter insert | 1 | ADD TO CART | |
| 14 | 5000217855 | Wing nut | 1 | PARTS REQUEST | |
|
COMING Wing nut
5000217855 · qty on machine: 1 | |||||
| 16 | 5000150361 | Flange screw | 1 | M6 x 20 | ADD TO CART |
| 17 | 5000217936 | Threaded bolt | 3 | ADD TO CART | |
Page 50 — DPU45Yeh US Pre-filter
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000217893 | Prefilter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5000217894 | Bracket | 1 | ADD TO CART | |
| 5 | 5100000766 | Screw | 3 | ADD TO CART | |
Page 52 — DPU45Yeh US Exhaust
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000210617 | Gasket | 1 | ADD TO CART | |
| 2 | 5100066580 | Muffler cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 3 | 5100066581 | Exhaust | 1 | PARTS REQUEST | |
|
COMING Exhaust
5100066581 · qty on machine: 1 | |||||
| 5 | 5100066582 | Covering | 1 | ADD TO CART | |
| 6 | 5100066571 | Covering | 2 | ADD TO CART | |
| 7 | 5100066572 | Hexagonal head cap screw | 10 | ADD TO CART | |
| 8 | 5200019993 | Bolt | 2 | M8 x 20 | ADD TO CART |
| 10 | 5000073640 | Stud | 2 | M 8x 18 | ADD TO CART |
| 11 | 5200019999 | Nut | 2 | ADD TO CART | |
| 13 | 5100059775 | Exhaustdeflector cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
Page 54 — DPU45Yeh US Camshaft
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000217856 | Valve tappet | 2 | ADD TO CART | |
| 2 | 5000217857 | Tappet | 1 | ADD TO CART | |
| 7 | 5000217858 | Valve push rod | 2 | ADD TO CART | |
| 8 | 5100061551 | Camshaft cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
Page 56 — DPU45Yeh US Crankshaft
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100061552 | Crankshaft cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 10 | 5000073674 | Washer | 1 | ADD TO CART | |
| 11 | 5000210518 | Fitting key | 1 | 7 x 36 | ADD TO CART |
| 12 | 5200019993 | Bolt | 1 | M8 x 20 | ADD TO CART |
Page 58 — DPU45Yeh US Flywheel
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000210505 | Hexagon nut | 1 | ADD TO CART | |
| 2 | 5000210508 | Washer | 1 | ADD TO CART | |
| 3 | 5000210506 | Flywheel | 1 | ADD TO CART | |
| 6 | 5000217918 | Gear | 1 | PARTS REQUEST | |
|
COMING Gear
5000217918 · qty on machine: 1 | |||||
| 7 | 5000073670 | Wrench | 1 | 4 x 4 x 12 | PARTS REQUEST |
|
COMING Wrench
5000073670 · qty on machine: 1 4 x 4 x 12 | |||||
Page 60 — DPU45Yeh US Piston, Connecting Rod
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100061539 | Piston cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 1 | 5100061550 | Piston cpl. 0,25 | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 1 | 5100061554 | Piston cpl. 0,5 | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 3 | 5000210510 | Piston packing | 1 | ADD TO CART | |
| 3 | 5100061553 | Set of piston rings 0,25 | 1 | ADD TO CART | |
| 3 | 5100061555 | Set of piston rings 0,5 | 1 | ADD TO CART | |
| 9 | 5000150339 | Piston pin | 1 | ADD TO CART | |
| 10 | 5000085550 | Snap ring | 2 | ADD TO CART | |
| 28 | 5100061556 | Connecting rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 32 | 5000150340 | Hexagonal head cap screw | 2 | ADD TO CART | |
| 33 | 5100061529 | Bearing 0,5 | 1 | PARTS REQUEST | |
|
COMING Bearing 0,5
5100061529 · qty on machine: 1 | |||||
| 33 | 5100061557 | Bearing | 1 | ADD TO CART | |
| 33 | 5100061558 | Bearing 0,25 | 1 | PARTS REQUEST | |
|
COMING Bearing 0,25
5100061558 · qty on machine: 1 | |||||
| 39 | 5100060807 | Bushing-piston pin | 1 | ADD TO CART | |
Page 62 — DPU45Yeh US Balance shaft
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000217940 | Shaft | 1 | ADD TO CART | |
| 6 | 5100061530 | Grooved ball bearing | 2 | ADD TO CART | |
Page 64 — Oil pump, governor
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000073698 | Oil pump | 1 | ADD TO CART | |
| 7 | 5000210520 | Cover | 1 | ADD TO CART | |
| 8 | 5000210618 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000210618 · qty on machine: 1 | |||||
| 9 | 5000073648 | Pin | 1 | ADD TO CART | |
| 10 | 5000119897 | Screw | 3 | ADD TO CART | |
| 12 | 5100059723 | Oil filter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Oil filter cpl.
5100059723 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 14 | 5000073693 | O-ring | 1 | 22,4 x 1,8 | ADD TO CART |
| 15 | 5000073659 | Screw | 1 | M6 x 16 10Nm/7ft.lbs | ADD TO CART |
| 17 | 5000210527 | Gasket | 1 | ADD TO CART | |
| 18 | 5000217883 | Lever cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 27 | 5000119854 | Pin | 1 | ADD TO CART | |
| 28 | 5000119867 | Bearing | 2 | ADD TO CART | |
| 29 | 5000210526 | Oil seal | 1 | ADD TO CART | |
| 30 | 5000087375 | Washer | 1 | ADD TO CART | |
| 31 | 5000217943 | Speed control module cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 32 | 5000217882 | Weight | 1 | ADD TO CART | |
Page 66 — Oil pressure switch
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000119728 | Screw locking | 1 | ADD TO CART | |
Page 68 — Covering
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000217901 | Grommet | 1 | ADD TO CART | |
| 2 | 5000217863 | Cover | 1 | ADD TO CART | |
| 3 | 5000217920 | Gasket | 1 | ADD TO CART | |
| 4 | 5000210540 | Sleeve | 1 | ADD TO CART | |
| 5 | 5000150361 | Flange screw | 1 | M6 x 20 | ADD TO CART |
Page 70 — Air filter housing
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100000735 | Housing | 1 | ADD TO CART | |
| 3 | 5000213238 | Grommet | 4 | ADD TO CART | |
| 4 | 5000210542 | Sleeve | 4 | ADD TO CART | |
| 5 | 5100000751 | Gasket | 1 | ADD TO CART | |
| 6 | 5000213240 | Flange screw | 4 | ADD TO CART | |
Page 72 — DPU45Yeh US Injection pump, Injection valve
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100066573 | Injection pump cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 28 | 5100061536 | Injection valve cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 29 | 5100061537 | Injection valve cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 32 | 5000073728 | Nut | 1 | ADD TO CART | |
| 33 | 5100000753 | Injector holder cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 37 | 5100000763 | Spring pin | 1 | ADD TO CART | |
| 38 | 5000073729 | Spring | 1 | ADD TO CART | |
| 39 | 5000073730 | Spring housing | 1 | ADD TO CART | |
| 40 | 5000073731 | Plate | 1 | ADD TO CART | |
| 41 | 5000073732 | Pin | 2 | ADD TO CART | |
| 42 | 5200020198 | Shim set | 1 | ADD TO CART | |
| 70 | 5000217880 | Injection pipe | 1 | ADD TO CART | |
| 76 | 5000217881 | Support | 1 | ADD TO CART | |
Page 74 — DPU45Yeh US Fuel Tank, Fuel Lines
Parts list — exactly as printed24 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100061538 | Fuel filter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5100066574 | Bracket | 1 | ADD TO CART | |
| 3 | 5000217877 | Fixing device | 1 | ADD TO CART | |
| 4 | 5100059739 | Fuel cock cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 5 | 5000153986 | O-ring | 1 | ADD TO CART | |
| 6 | 5100061540 | Fuel tank cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 8 | 5000213242 | Screw plug | 1 | ADD TO CART | |
| 9 | 5000119882 | Gasket | 1 | ADD TO CART | |
| 10 | 5000213241 | Cap | 1 | ADD TO CART | |
| 11 | 5100059741 | Fuel filter | 1 | ADD TO CART | |
| 12 | 5100059743 | Shockmount | 4 | ADD TO CART | |
| 13 | 5000217878 | Bolt | 1 | ADD TO CART | |
| 14 | 5000085567 | Washer | 1 | ADD TO CART | |
| 15 | 5200019879 | Hexagonal flange head screw | 1 | M8 x 45 25Nm/18ft.lbs | PARTS REQUEST |
|
COMING Hexagonal flange head screw
5200019879 · qty on machine: 1 M8 x 45
25Nm/18ft.lbs | |||||
| 16 | 5000119722 | Nut | 2 | ADD TO CART | |
| 17 | 5100066575 | Screw | 2 | ADD TO CART | |
| 19 | 5000210560 | Fuel pipe cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 20 | 5000119891 | Pipe | 1 | ADD TO CART | |
| 21 | 5000217931 | Clamp | 2 | PARTS REQUEST | |
|
COMING Clamp
5000217931 · qty on machine: 2 | |||||
| 22 | 5100000750 | Pipe cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 23 | 5200020209 | Clip | 1 | PARTS REQUEST | |
|
COMING Clip
5200020209 · qty on machine: 1 | |||||
| 25 | 5100000762 | Clamp | 1 | ADD TO CART | |
| 26 | 5000217927 | Protective hose | 1 | ADD TO CART | |
| 27 | 5000217929 | Clamp | 1 | ADD TO CART | |
Page 76 — DPU45Yeh US Governor
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100031899 | Throttle control bracket | 1 | ADD TO CART | |
| 2 | 5100000727 | Lever | 1 | ADD TO CART | |
| 5 | 5100000764 | Screw | 1 | ADD TO CART | |
| 6 | 5100000728 | Bracket | 1 | ADD TO CART | |
| 7 | 5000210538 | Bolt | 1 | ADD TO CART | |
| 8 | 5000217829 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
5000217829 · qty on machine: 1 | |||||
| 9 | 5000073784 | Handle | 1 | ADD TO CART | |
| 10 | 5100039293 | Hexagon nut | 1 | ADD TO CART | |
| 11 | 5100031900 | Nut | 2 | ADD TO CART | |
| 12 | 5000210536 | Spring | 1 | ADD TO CART | |
| 13 | 5000210533 | Hexagonal head cap screw | 1 | M6 x 14 | ADD TO CART |
| 14 | 5000150361 | Flange screw | 1 | M6 x 20 | ADD TO CART |
| 16 | 5000213215 | Washer | 1 | PARTS REQUEST | |
|
COMING Washer
5000213215 · qty on machine: 1 | |||||
| 17 | 5000155336 | Plate | 1 | ADD TO CART | |
| 19 | 5100066576 | Tension spring | 1 | ADD TO CART | |
| 20 | 5100030564 | Spring | 1 | ADD TO CART | |
| 28 | 5000213219 | Nut | 1 | ADD TO CART | |
| 31 | 5000213254 | Cable holder | 1 | ADD TO CART | |
| 35 | 5000073609 | O-ring | 1 | 18 x 2,2 | ADD TO CART |
| 36 | 5000119859 | Electric wire | 1 | ADD TO CART | |
Page 78 — DPU45Yeh US Recoil starter
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000210544 | Rewind starter | 1 | ADD TO CART | |
| 3 | 5000210545 | Housing | 1 | ADD TO CART | |
| 4 | 5000217921 | Pulley | 1 | ADD TO CART | |
| 6 | 5100061544 | Ratchet | 1 | ADD TO CART | |
| 7 | 5000210548 | Brush spring | 1 | ADD TO CART | |
| 8 | 5000210549 | Disc | 1 | ADD TO CART | |
| 9 | 5000210550 | Spring | 1 | ADD TO CART | |
| 10 | 5000210551 | Spring | 1 | ADD TO CART | |
| 11 | 5000210552 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
5000210552 · qty on machine: 1 | |||||
| 12 | 5000210553 | Handle | 1 | ADD TO CART | |
| 13 | 5000210554 | Rope | 1 | ADD TO CART | |
| 14 | 5000210555 | Starter pulley | 1 | ADD TO CART | |
| 15 | 5000119905 | Mushroom head bolt | 2 | M 6x 8 | ADD TO CART |
| 16 | 5000119897 | Screw | 3 | ADD TO CART | |
| 17 | 5000119897 | Screw | 2 | ADD TO CART | |
Page 80 — DPU45Yeh US Starter
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100059768 | Starter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Starter cpl.
5100059768 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 2 | 5000217543 | Pinion gear | 1 | ADD TO CART | |
| 3 | 5000217540 | Magnetic switch | 1 | ADD TO CART | |
| 4 | 5100030569 | Motor armature | 1 | ADD TO CART | |
| 5 | 5100030570 | Coil | 1 | ADD TO CART | |
| 6 | 5000217546 | Cover | 1 | ADD TO CART | |
| 7 | 5000217548 | Bushing | 1 | ADD TO CART | |
| 8 | 5000217547 | Brush holder | 4 | ADD TO CART | |
| 9 | 5000217538 | Housing | 1 | ADD TO CART | |
| 10 | 5000217539 | Bushing | 1 | ADD TO CART | |
| 11 | 5000217541 | Shift lever cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 12 | 5100030572 | Threaded bolt | 2 | ADD TO CART | |
| 13 | 5000210585 | Screw | 2 | M10 x 30 | ADD TO CART |
| 14 | 5000119919 | Nut | 1 | ADD TO CART | |
Page 82 — DPU45Yeh US Wiring harness
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100059769 | Regulator cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5100030573 | Bracket | 1 | ADD TO CART | |
| 3 | 5100000757 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100000757 · qty on machine: 1 | |||||
| 4 | 5100000758 | Fuse | 1 | ADD TO CART | |
| 5 | 5000210593 | Screw | 2 | M4 x 10 | ADD TO CART |
| 6 | 5000119897 | Screw | 2 | ADD TO CART | |
| 7 | 5000150361 | Flange screw | 2 | M6 x 20 | ADD TO CART |
Page 84 — DPU45Yeh US Dynamo
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100000759 | Dynamo | 1 | ADD TO CART | |
| 2 | 5100000760 | Stator | 1 | PARTS REQUEST | |
|
COMING Stator
5100000760 · qty on machine: 1 | |||||
| 3 | 5100000761 | Wheel | 1 | PARTS REQUEST | |
|
COMING Wheel
5100000761 · qty on machine: 1 | |||||
| 4 | 5100059770 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
5100059770 · qty on machine: 1 | |||||
| 5 | 5100030574 | Screw | 3 | ADD TO CART | |
| 6 | 5000119897 | Screw | 1 | ADD TO CART | |
| 7 | 5000150361 | Flange screw | 3 | M6 x 20 | ADD TO CART |
Page 88 — DPU45Yeh US Seal Kit, Tool
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100000746 | Set-gaskets | 1 | ADD TO CART | |
| 2 | 5100031962 | Head gasket | 1 | ADD TO CART | |
| 8 | 5000210612 | O-ring | 1 | ADD TO CART | |
| 9 | 5000210613 | Crankshaft gasket | 1 | ADD TO CART | |
| 10 | 5000210614 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000210614 · qty on machine: 1 | |||||
| 11 | 5100039305 | O-ring | 1 | ADD TO CART | |
| 12 | 5000217846 | Gasket | 1 | ADD TO CART | |
| 13 | 5100031963 | Seal | 1 | PARTS REQUEST | |
|
COMING Seal
5100031963 · qty on machine: 1 | |||||
| 14 | 5000119738 | Gasket | 1 | ADD TO CART | |
| 15 | 5000217852 | Air filter seal | 1 | ADD TO CART | |
| 16 | 5100061545 | Gasket | 1 | ADD TO CART | |
| 17 | 5000217900 | Gasket | 1 | ADD TO CART | |
| 18 | 5000210617 | Gasket | 2 | ADD TO CART | |
| 19 | 5000217919 | Gasket | 1 | ADD TO CART | |
| 20 | 5000210618 | O-ring | 2 | PARTS REQUEST | |
|
COMING O-ring
5000210618 · qty on machine: 2 | |||||
| 21 | 5000217930 | Gasket | 1 | ADD TO CART | |
| 22 | 5000073608 | Washer | 1 | ADD TO CART | |
| 23 | 5000119882 | Gasket | 2 | ADD TO CART | |
| 24 | 5000073751 | O-ring | 1 | 15 x 1,3 | ADD TO CART |
| 25 | 5000073693 | O-ring | 1 | 22,4 x 1,8 | ADD TO CART |
Page 90 — Extension plate kit
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000126290 | Extension plate kit | 1 | PARTS REQUEST | |
|
COMING Extension plate kit
5000126290 · qty on machine: 1 | |||||
| 2 | 5000125662 | Extension plate | 2 | PARTS REQUEST | |
|
COMING Extension plate
5000125662 · qty on machine: 2 | |||||
| 1 | 5000045201 | Extension plate kit | 1 | PARTS REQUEST | |
|
COMING Extension plate kit
5000045201 · qty on machine: 1 | |||||
| 2 | 5000044442 | Extension plate | 2 | PARTS REQUEST | |
|
COMING Extension plate
5000044442 · qty on machine: 2 | |||||
| 1 | 5000043246 | Extension plate kit | 1 | PARTS REQUEST | |
|
COMING Extension plate kit
5000043246 · qty on machine: 1 | |||||
| 2 | 5000043245 | Extension plate | 1 | PARTS REQUEST | |
|
COMING Extension plate
5000043245 · qty on machine: 1 | |||||
Page 96 — DPU45Yeh US Bolt kit
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000067519 | Set of screws | 1 | PARTS REQUEST | |
|
COMING Set of screws
5000067519 · qty on machine: 1 | |||||
Page 98 — DPU45Yeh US Sliding device PGV 4045-5545
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5000058330 | Urethane plate | 1 | ADD TO CART | |
| 4 | 5000047577 | Bushing | 10 | PARTS REQUEST | |
|
COMING Bushing
5000047577 · qty on machine: 10 | |||||
| 5 | 5000058358 | Bar | 2 | ADD TO CART | |
| 6 | 5000033198 | Lockwasher | 10 | ADD TO CART | |
| 7 | 5000011456 | Hexagonal head cap screw | 10 | ADD TO CART | |
| 8 | 5000011531 | Cheese head screw | 4 | M12 x 20 86Nm/63ft.lbs | ISO4762 | ADD TO CART |
| 9 | 5000011423 | Hexagonal head cap screw | 2 | M12 x 30 210Nm/155ft.lbs | DIN933 | ADD TO CART |
| 10 | 5100010935 | Plate | 1 | ADD TO CART | |
| 11 | 5100009997 | Urethane pad pgv 4045-5545 | 1 | PARTS REQUEST | |
|
COMING Urethane pad pgv 4045-5545
5100009997 · qty on machine: 1 | |||||
| 1 | 5000202884 | Angle | 1 | ADD TO CART | |
| 2 | 5100010936 | Angle rear | 1 | ADD TO CART | |
Page 100 — Kit-retrofit dpu40../45../55..
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026895 | Document-box | 1 | ADD TO CART | |
| 2 | 5100028391 | Bracket | 1 | ADD TO CART | |
| 4 | 5000047388 | Zip tie | 3 | ADD TO CART | |
| 5 | 5000011535 | Cheese head screw | 2 | 49Nm/36ft.lbs | ADD TO CART |
| 6 | 5000017313 | Hexagon nut | 2 | ADD TO CART | |
| 7 | 5000010375 | Flat washer | 2 | ADD TO CART | |
| 8 | 5100028390 | Kit-retrofit dpu40../45../55.. | 1 | PARTS REQUEST | |
|
COMING Kit-retrofit dpu40../45../55..
5100028390 · qty on machine: 1 | |||||
The machine itself
Price by quote
Get a quote
Tell us where the machine is headed and we'll quote it with freight. One call, no games.
Machine
Engine
Wacker Neuson DPU45 vibratory plate.
List price: $19,425.00
Keep-it-running spares
All listed parts →Every part that fits this machine
1000184310
Label
5000010366
Hexagon nut
$0.95
5000010375
Flat washer
$0.95
5000010376
Flat washer
$0.95
5000010622
Flat washer
$0.95
5000010624
Flat washer
$0.95
5000010742
Washer
5000010880
Hexagon nut
$0.95
5000010882
Hexagon nut
$0.95
5000010883
Hexagon nut
$0.95
5000011050
Plug (threaded)
$7.95
5000011421
Hexagonal head cap screw
5000011422
Hexagonal head cap screw
$0.95
5000011423
Hexagonal head cap screw
$0.95
5000011436
Hexagonal head cap screw
$0.95
5000011456
Hexagonal head cap screw
$0.95
5000011466
Hexagonal head cap screw
$0.95
5000011523
Hexagonal head cap screw
$1.95
5000011527
Cheese head screw
$1.95
5000011528
Cheese head screw
$0.95
5000011529
Cheese head screw
$0.95
5000011531
Cheese head screw
$1.95
5000011535
Cheese head screw
$0.95
5000011539
Cheese head screw
$0.95
5000011543
Socket head screw
$0.95
5000011544
Cheese head screw
$0.95
5000011550
Cheese head screw
$0.95
5000011552
Cheese head screw
$0.95
5000011553
Cheese head screw
$0.95
5000011554
Cheese head screw
$0.95
5000012082
Seal ring
$0.95
5000012624
Gasket
$7.95
5000012629
Cheese head screw
$0.95
5000013569
Cheese head screw
5000013574
Cheese head screw
$0.95
5000014316
Hexagonal head cap screw
$0.95
5000014663
Hexagonal head cap screw
$0.95
5000017123
Pipe clamp
$1.95
5000017312
Hexagon nut
5000017313
Hexagon nut
$0.95
5000017908
Cheese head screw
$0.95
5000018194
O-ring
$0.95
5000019156
Gasket
$0.95
5000021465
Lock washer
$1.95
5000021679
Hexagon nut
$0.95
5000021988
Lock washer
$2.95
5000022625
Grooved ball bearing
$18.95
5000031565
Lockwasher
$0.95
5000033198
Lockwasher
$0.95
5000033988
Lockwasher
$0.95
5000034442
Bushing
$16.95
5000037090
Cheese head screw
$0.95
5000039110
Cover
$16.95
5000039116
Gear wheel
5000039191
Hexagonal head cap screw
$3.95
5000039235
O-ring
$0.95
5000043201
Banjo bolt
$4.95
5000043203
Lip seal ring
$13.95
5000043233
Shockmount
$26.95
5000043245
Extension plate
5000043246
Extension plate kit
5000043382
Tripping pin
5000043812
Cheese head screw
$2.95
5000043928
Threaded spindle cpl.
5000044442
Extension plate
5000044634
Cheese head screw
$1.95
5000045201
Extension plate kit
5000047388
Zip tie
$0.95
5000047577
Bushing
5000048604
Cylinder cover
$494.95
5000048854
Rotary shaft seal
$23.95
5000048944
Lining
$49.95
5000058009
Worm drive hose clip
5000058330
Urethane plate
$580.95
5000058358
Bar
$140.95
5000058668
Distance washer
$6.95
5000058696
Nose cap
$20.95
5000059740
Fixing disc
$5.95
5000067519
Set of screws
5000068222
Plug (threaded)
$5.95
5000068752
O-ring
$0.95
5000069225
Screwed socket
$10.95
5000069726
Long face pinion
$421.95
5000073608
Washer
$3.95
5000073609
O-ring
$2.95
5000073622
Screw
$1.95
5000073630
Stud
$2.95
5000073640
Stud
$2.95
5000073641
Pin
$2.95
5000073648
Pin
$4.95
5000073659
Screw
$1.95
5000073670
Wrench
5000073674
Washer
$8.95
5000073693
O-ring
$2.95
5000073698
Oil pump
$61.95
5000073728
Nut
$28.95
5000073729
Spring
$7.95
5000073730
Spring housing
$6.95
5000073731
Plate
$26.95
5000073732
Pin
$3.95
5000073751
O-ring
$1.95
5000073784
Handle
$7.95
5000085522
Screw
$2.95
5000085532
Ball bearing
$60.95
5000085537
Valve cap
$9.95
5000085550
Snap ring
$4.95
5000085567
Washer
$2.95
5000087375
Washer
$21.95
5000094518
Cheese head screw
$3.95
5000096691
Pipe clamp
$1.95
5000096764
Control
$8.95
5000097110
Bar
$88.95
5000099059
Exciter housing
$1,017.95
5000102105
Support
$132.95
5000102144
Vent cover
$47.95
5000102356
Baseplate
$3,459.95
5000102442
Cover plate
5000102443
Bar
$65.95
5000102721
Cover plate
$79.95
5000102724
Belt guard
$218.95
5000103469
Cylindrical roller bearing
$83.95
5000103880
Pipe guide
$8.95
5000103930
Hook
$99.95
5000103962
Cheese head screw
$0.95
5000105944
Screw
$0.95
5000119715
Pin
$3.95
5000119720
Threaded bolt
5000119721
Bolt
$2.95
5000119722
Nut
$2.95
5000119726
Bracket
$4.95
5000119727
Oil seal
$7.95
5000119728
Screw locking
$6.95
5000119736
Locknut
$1.95
5000119737
Clamp
$2.95
5000119738
Gasket
$26.95
5000119854
Pin
$3.95
5000119859
Electric wire
$8.95
5000119867
Bearing
$27.95
5000119882
Gasket
$1.95
5000119891
Pipe
$9.95
5000119897
Screw
$1.95
5000119905
Mushroom head bolt
$1.95
5000119919
Nut
$2.95
5000124255
Shockmount
$5.95
5000124717
Washer
$0.95
5000125662
Extension plate
5000125881
Cover washer
$13.95
5000125926
Spacer
$51.95
5000126164
Slide bush
$2.95
5000126290
Extension plate kit
5000126300
Cheese head screw
$2.95
5000129784
Decal-sound power level
$2.95
5000129797
Led
$27.95
5000129814
V-belt
$36.95
5000129818
Shockmount
$15.95
5000150327
Oil dip stick cpl.
$11.95
5000150339
Piston pin
$34.95
5000150340
Hexagonal head cap screw
$13.95
5000150361
Flange screw
$1.95
5000153986
O-ring
$2.95
5000155336
Plate
$8.95
5000201717
Retaining ring
5000201718
Cheese head screw
5000201719
Lock washer
5000202866
Locknut
$1.95
5000202884
Angle
$369.95
5000204408
Screw
$0.95
5000204558
Plate
$158.95
5000204806
Locknut
$4.95
5000204807
Rubber profile
$18.95
5000206414
Fixation
$125.95
5000209499
Centrifugal clutch
$757.95
5000209508
V-belt pulley half
$19.95
5000210194
Corrugated-head screw
$0.95
5000210485
Gasket
5000210486
Cover
$2.95
5000210490
Electric wire
$11.95
5000210505
Hexagon nut
$22.95
5000210506
Flywheel
$497.95
5000210508
Washer
$11.95
5000210510
Piston packing
$104.95
5000210518
Fitting key
$5.95
5000210520
Cover
$13.95
5000210526
Oil seal
$4.95
5000210527
Gasket
$1.95
5000210533
Hexagonal head cap screw
$1.95
5000210536
Spring
$4.95
5000210538
Bolt
$4.95
5000210540
Sleeve
$8.95
5000210542
Sleeve
$6.95
5000210544
Rewind starter
$249.95
5000210545
Housing
$182.95
5000210548
Brush spring
$62.95
5000210549
Disc
$28.95
5000210550
Spring
$11.95
5000210551
Spring
$6.95
5000210552
Screw
5000210553
Handle
$32.95
5000210554
Rope
$26.95
5000210555
Starter pulley
$80.95
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
