Wacker Neuson DPU5260 Vibratory Plate
Factory parts book · interactive
Wacker Neuson DPU5260 Vibratory Plate
The parts bench

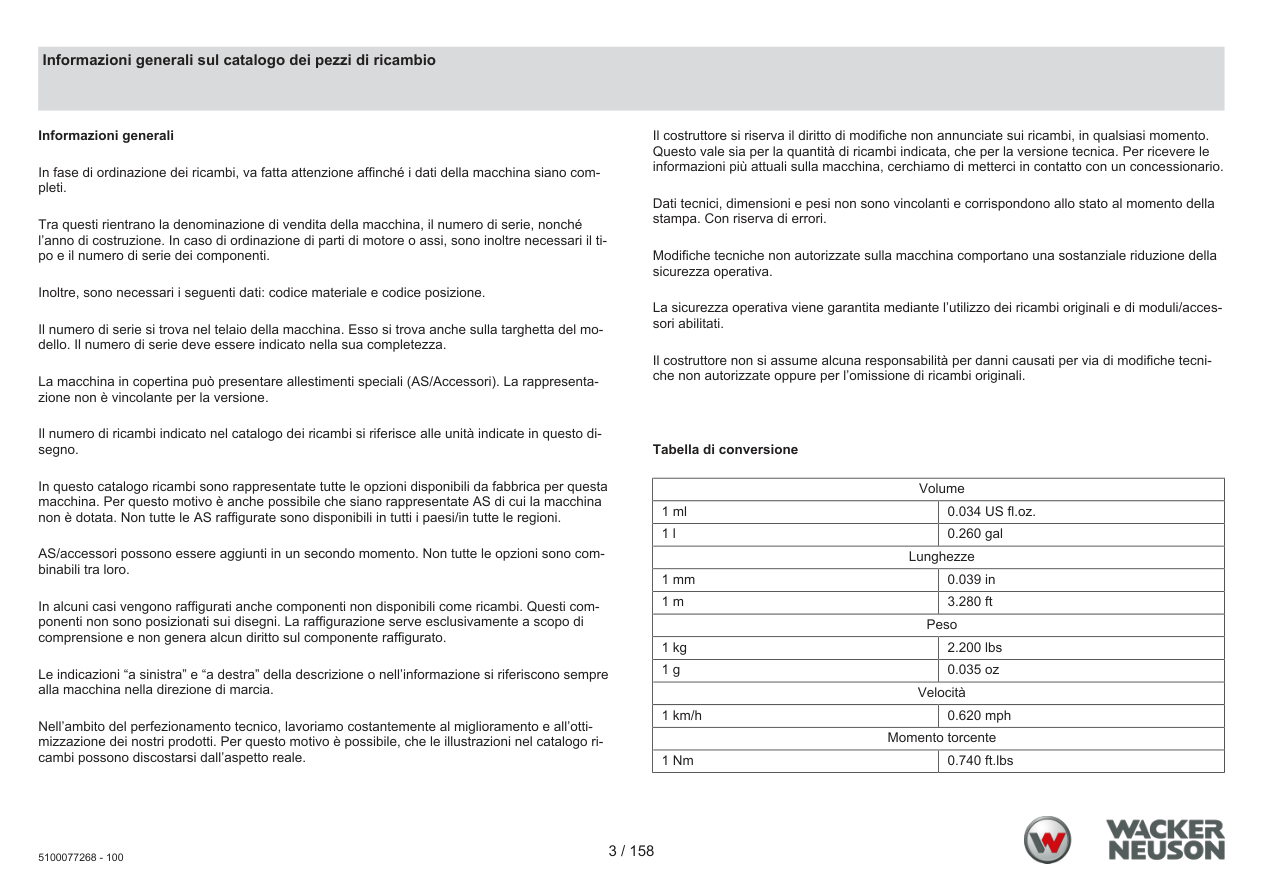

Need the PDF? ↓Page 3 — Fuel filter (Option) SP
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 1000389249 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
1000389249 · qty on machine: 1 | |||||
| 1 | 1000386655 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000386655 · qty on machine: 1 | |||||
| 3 | 1000389229 | Screw joint | 2 | PARTS REQUEST | |
|
COMING Screw joint
1000389229 · qty on machine: 2 | |||||
| 4 | 1000386656 | Filter insert | 1 | PARTS REQUEST | |
|
COMING Filter insert
1000386656 · qty on machine: 1 | |||||
| 5 | 1000433955 | Filter housing | 1 | PARTS REQUEST | |
|
COMING Filter housing
1000433955 · qty on machine: 1 | |||||
| 6 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 7 | 1000389241 | Hose clamp | 4 | PARTS REQUEST | |
|
COMING Hose clamp
1000389241 · qty on machine: 4 | |||||
| 8 | 1000389247 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389247 · qty on machine: 1 | |||||
| 9 | 1000434006 | Pressure limit reliefvalve | 1 | PARTS REQUEST | |
|
COMING Pressure limit reliefvalve
1000434006 · qty on machine: 1 | |||||
| 10 | 1000389230 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389230 · qty on machine: 1 | |||||
| 11 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 12 | 1000088388 | Screw | 3 | PARTS REQUEST | |
|
COMING Screw
1000088388 · qty on machine: 3 | |||||
| 13 | 1000433952 | Arm | 1 | PARTS REQUEST | |
|
COMING Arm
1000433952 · qty on machine: 1 | |||||
| 14 | 1000328508 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
1000328508 · qty on machine: 1 | |||||
| 15 | 1000433949 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433949 · qty on machine: 1 | |||||
| 16 | 1000433950 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433950 · qty on machine: 1 | |||||
| 17 | 1000389262 | Fuel pump | 1 | PARTS REQUEST | |
|
COMING Fuel pump
1000389262 · qty on machine: 1 | |||||

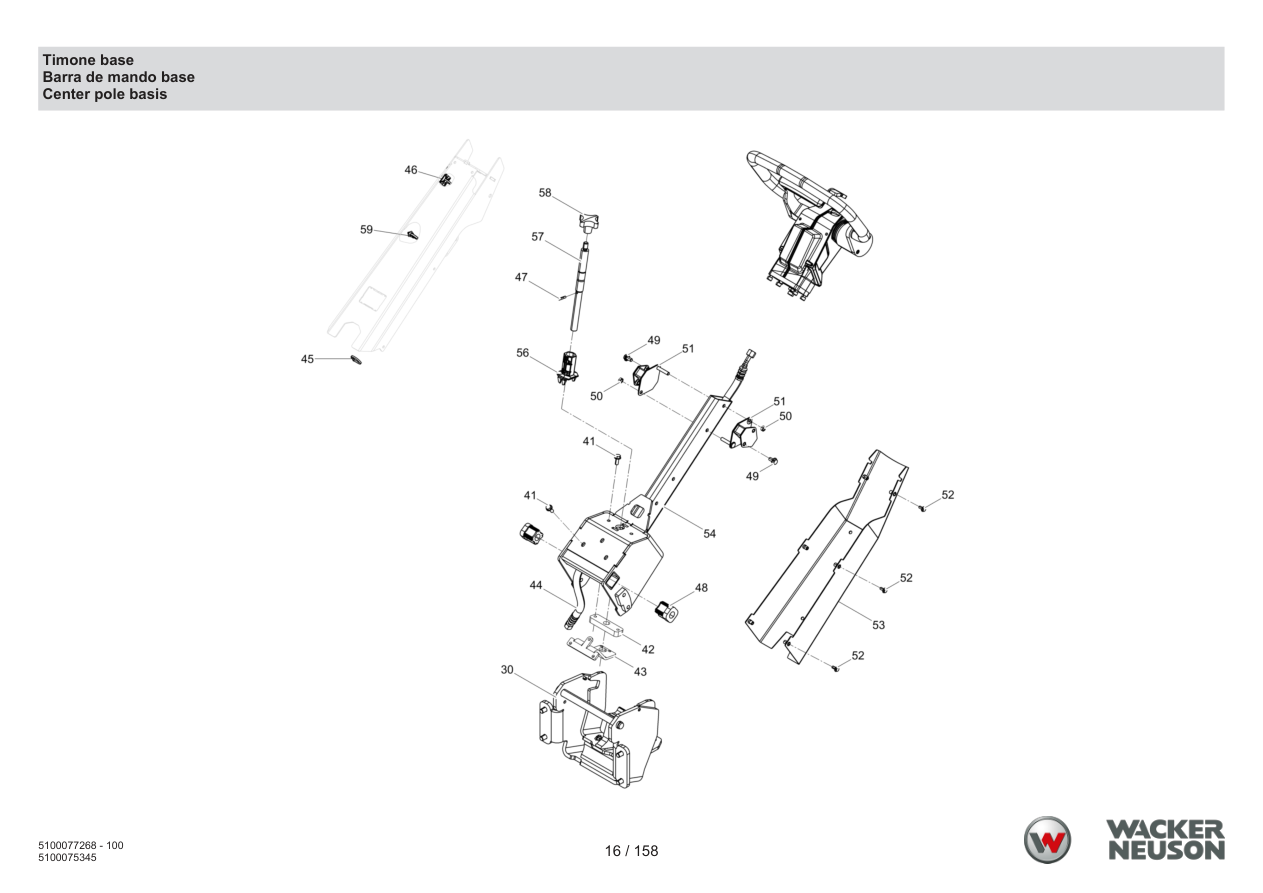

Page 16 — Tiller base
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5100069616 | Support cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Support cpl.
5100069616 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 41 | 5000105944 | Screw | 5 | ADD TO CART | |
| 42 | 5100071927 | Threaded plate | 1 | ADD TO CART | |
| 43 | 5100071926 | Holder | 1 | ADD TO CART | |
| 44 | 5100070487 | Hose pipe | 1 | ADD TO CART | |
| 45 | 5000038489 | Tie cable | 3 | PARTS REQUEST | |
|
COMING Tie cable
5000038489 · qty on machine: 3 | |||||
| 46 | 5100017849 | Clamp | 1 | ADD TO CART | |
| 47 | 5100070161 | Groove pin | 1 | ADD TO CART | |
| 48 | 5100069614 | Bushing | 2 | ADD TO CART | |
| 49 | 5000211795 | Corrugated-head screw | 8 | ADD TO CART | |
| 50 | 5000010882 | Hexagon nut | 4 | ADD TO CART | |
| 51 | 5100073065 | Shockmount | 4 | ADD TO CART | |
| 52 | 5000210194 | Corrugated-head screw | 6 | ADD TO CART | |
| 53 | 5100069541 | Covering cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 54 | 5100069532 | Center pole lower part welded | 1 | ADD TO CART | |
| 56 | 5100069543 | Collar | 1 | ADD TO CART | |
| 57 | 5100069612 | Spindle | 1 | ADD TO CART | |
| 58 | 5100005496 | Star-handle | 1 | ADD TO CART | |
| 59 | 5100064264 | Cable tie | 2 | ADD TO CART | |

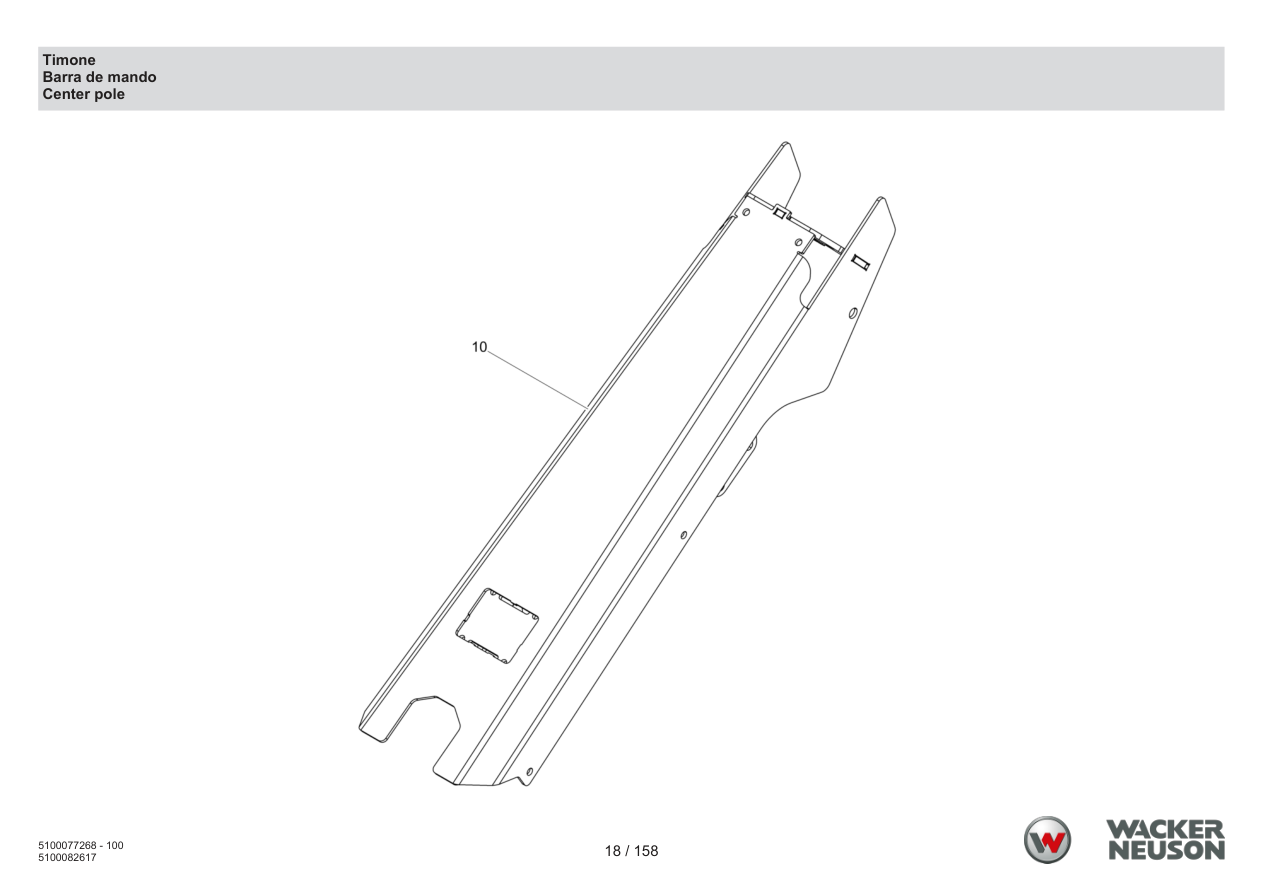

Page 18 — Tiller
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100069538 | Center pole | 1 | ADD TO CART | |

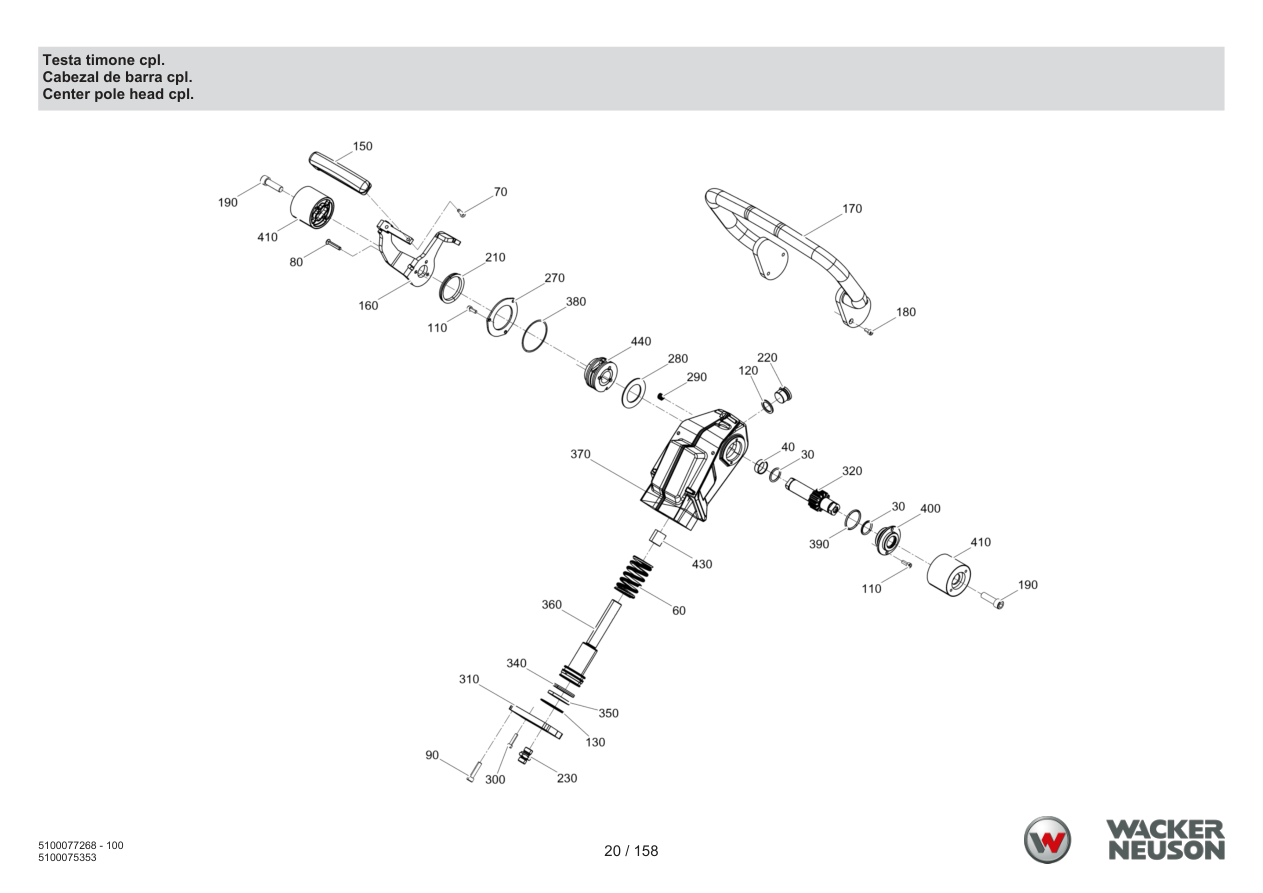

Page 20 — Tiller head cpl.
Parts list — exactly as printed33 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 30 | 5100050265 | O-ring | 2 | PARTS REQUEST | |
|
COMING O-ring
5100050265 · qty on machine: 2 | |||||
| 40 | 5100057490 | Bushing | 1 | ADD TO CART | |
| 60 | 5100047169 | Compression spring | 1 | ADD TO CART | |
| 70 | 5000222605 | Oval head screw | 2 | ADD TO CART | |
| 80 | 5100050634 | Screw | 3 | PARTS REQUEST | |
|
COMING Screw
5100050634 · qty on machine: 3 | |||||
| 90 | 5100078571 | Cheese head screw | 4 | ADD TO CART | |
| 110 | 5000011553 | Cheese head screw | 5 | ADD TO CART | |
| 120 | 5000032006 | Gasket | 1 | ADD TO CART | |
| 130 | 5100050264 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5100050264 · qty on machine: 1 | |||||
| 150 | 5100049058 | Gas lever | 1 | ADD TO CART | |
| 160 | 5100049057 | Speed control lever | 1 | ADD TO CART | |
| 170 | 5100049037 | Shackle | 1 | ADD TO CART | |
| 180 | 5000011554 | Cheese head screw | 4 | ADD TO CART | |
| 190 | 5000011527 | Cheese head screw | 2 | ADD TO CART | |
| 210 | 5100047194 | V-ring | 1 | ADD TO CART | |
| 220 | 5100019617 | Oil plug | 1 | ADD TO CART | |
| 230 | 5000069225 | Screwed socket | 1 | ADD TO CART | |
| 270 | 5100049052 | Cover disc | 1 | ADD TO CART | |
| 280 | 5100049047 | Check disc | 1 | ADD TO CART | |
| 290 | 5100050638 | Compression spring | 6 | ADD TO CART | |
| 300 | 5000011550 | Cheese head screw | 2 | ADD TO CART | |
| 310 | 5100049042 | Cylinder cover | 1 | ADD TO CART | |
| 320 | 5100049040 | Gear | 1 | ADD TO CART | |
| 340 | 5100047191 | Piston packing | 1 | ADD TO CART | |
| 350 | 5100047192 | Guide belt | 1 | ADD TO CART | |
| 360 | 5100049038 | Control piston | 1 | ADD TO CART | |
| 370 | 5100057461 | Center pole head | 1 | ADD TO CART | |
| 380 | 5100064265 | O-ring | 1 | ADD TO CART | |
| 390 | 5000068752 | O-ring | 1 | ADD TO CART | |
| 400 | 5100062246 | Bearing | 1 | ADD TO CART | |
| 410 | 5100064552 | Shockmount | 2 | ADD TO CART | |
| 430 | 5100069303 | Slide bush | 1 | ADD TO CART | |
| 440 | 5100057464 | Robe drum | 1 | ADD TO CART | |

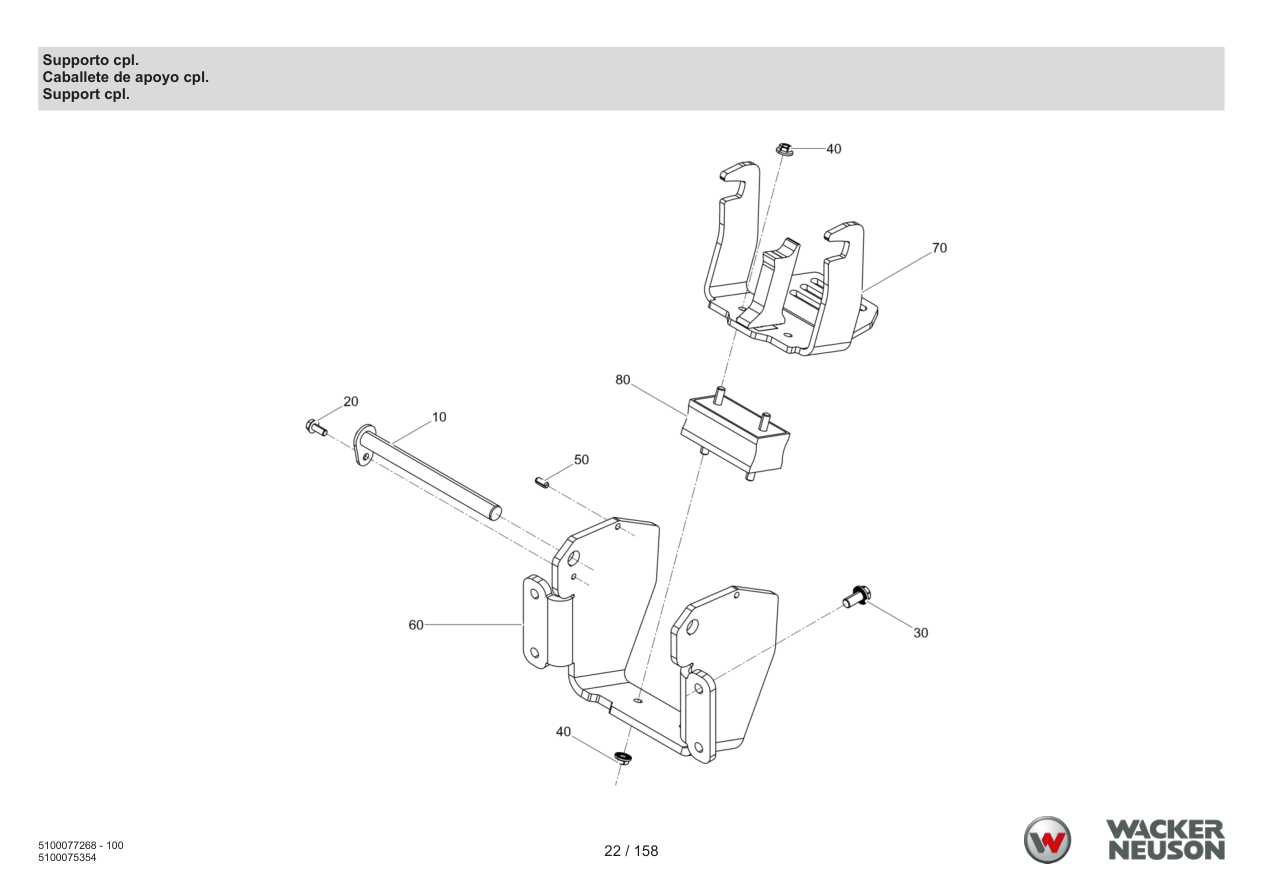

Page 22 — Support cpl.
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100005617 | Bolt | 1 | ADD TO CART | |
| 20 | 5000105944 | Screw | 1 | ADD TO CART | |
| 30 | 5100018059 | Corrugated-head screw | 4 | ADD TO CART | |
| 40 | 5000216640 | Locknut | 4 | ADD TO CART | |
| 50 | 5100057239 | Roll pin | 2 | ADD TO CART | |
| 60 | 5100069520 | Support | 1 | ADD TO CART | |
| 70 | 5100069523 | Pedal welded | 1 | ADD TO CART | |
| 80 | 5100073066 | Shockmount | 1 | ADD TO CART | |

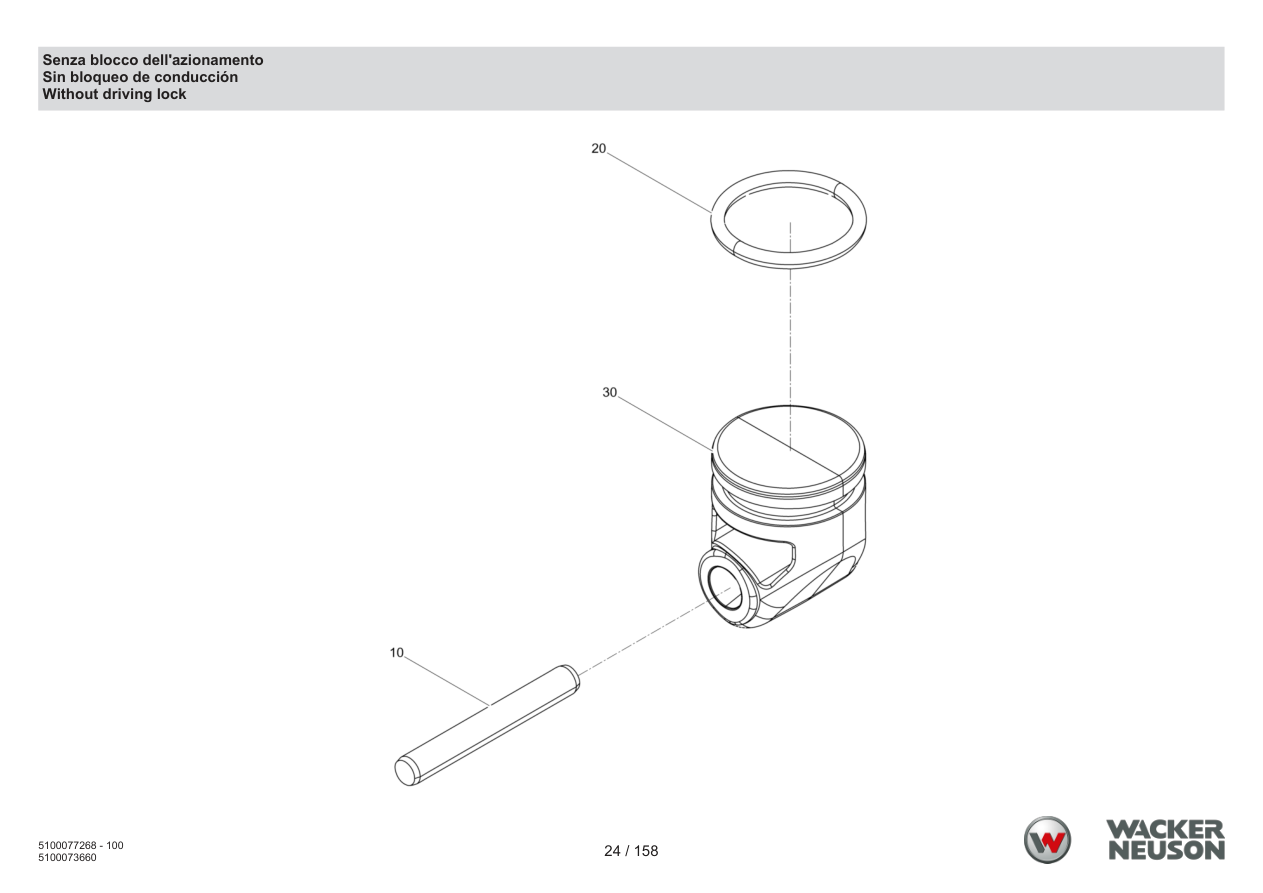

Page 24 — Without drive lock
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100050262 | Straight pin | 1 | PARTS REQUEST | |
|
COMING Straight pin
5100050262 · qty on machine: 1 | |||||
| 20 | 5100050265 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5100050265 · qty on machine: 1 | |||||
| 30 | 5100060887 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
5100060887 · qty on machine: 1 | |||||

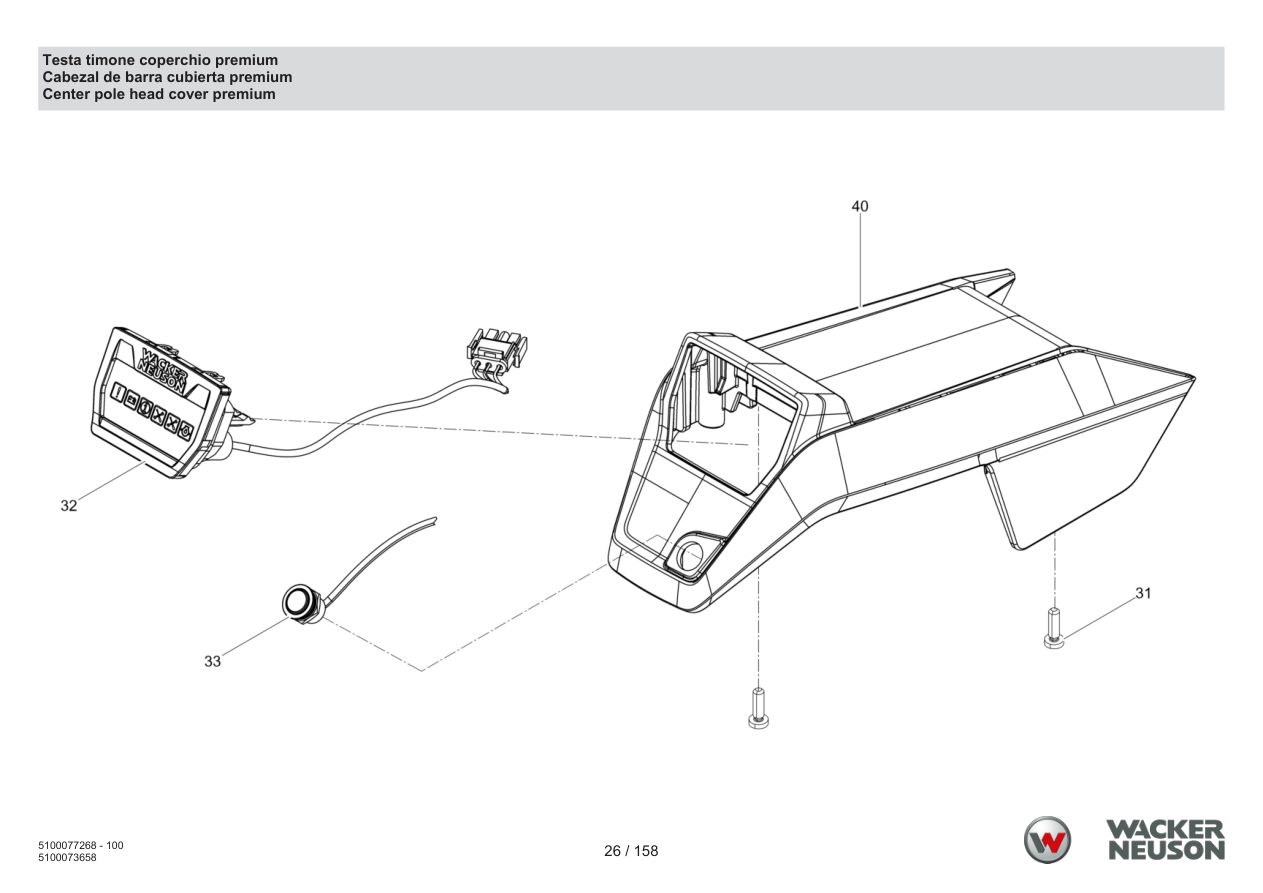

Page 26 — Tiller Head Premium Cover
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 31 | 5000222605 | Oval head screw | 7 | ADD TO CART | |
| 32 | 5100045957 | Display unit | 1 | ADD TO CART | |
| 33 | 5100053682 | Push button with plug | 1 | ADD TO CART | |
| 40 | 5100061974 | Bonnet | 1 | ADD TO CART | |

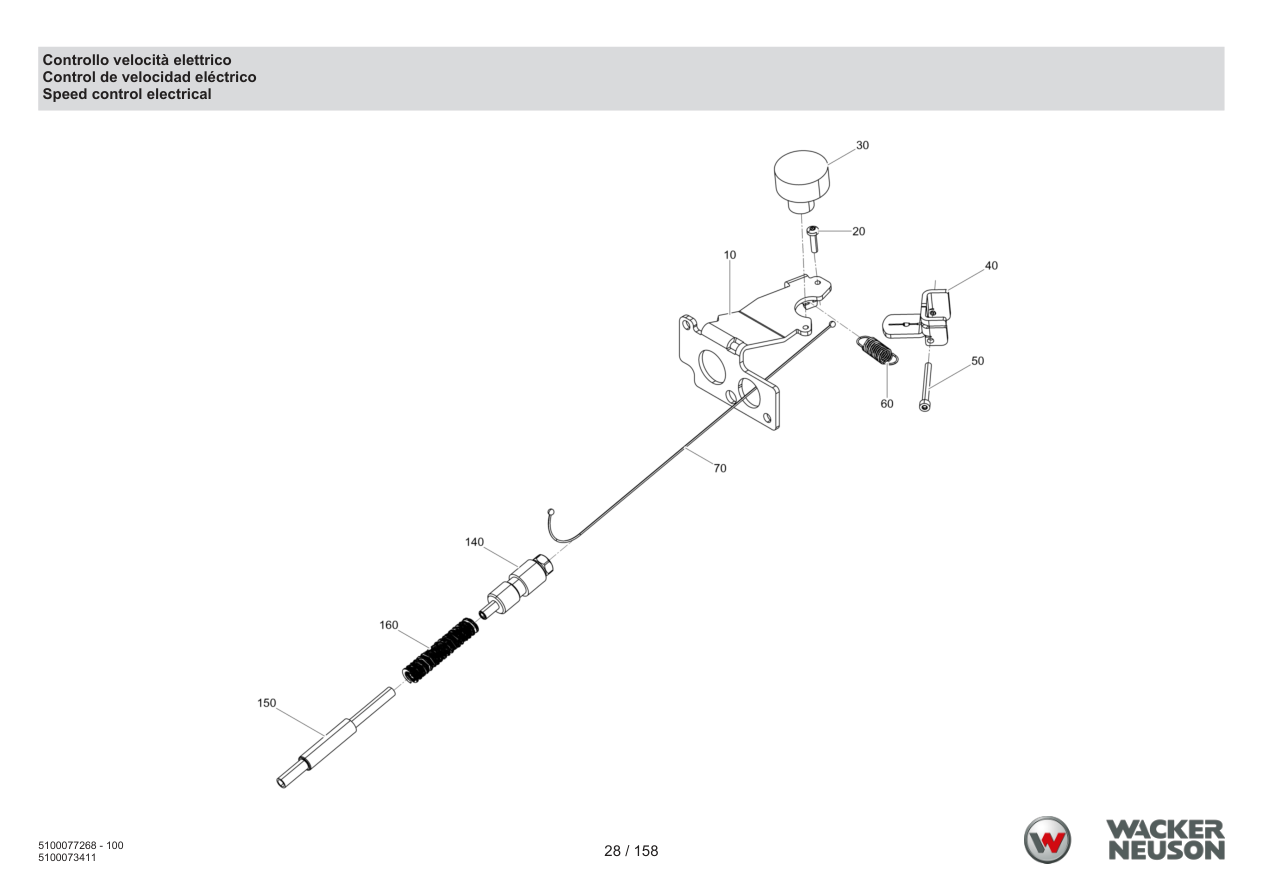

Page 28 — Speed control electrical
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100057510 | Holder | 1 | ADD TO CART | |
| 20 | 5100049413 | Screw | 2 | ADD TO CART | |
| 30 | 5100057255 | Angle sensor | 1 | PARTS REQUEST | |
|
COMING Angle sensor
5100057255 · qty on machine: 1 | |||||
| 40 | 5100057511 | Lever | 1 | ADD TO CART | |
| 50 | 5100057236 | Screw | 1 | ADD TO CART | |
| 60 | 5100058139 | Tension spring | 1 | ADD TO CART | |
| 70 | 5100057256 | Rope | 1 | ADD TO CART | |
| 140 | 5100049056 | Bolt | 1 | ADD TO CART | |
| 150 | 5100049055 | Sleeve | 1 | ADD TO CART | |
| 160 | 5100050637 | Compression spring | 1 | ADD TO CART | |

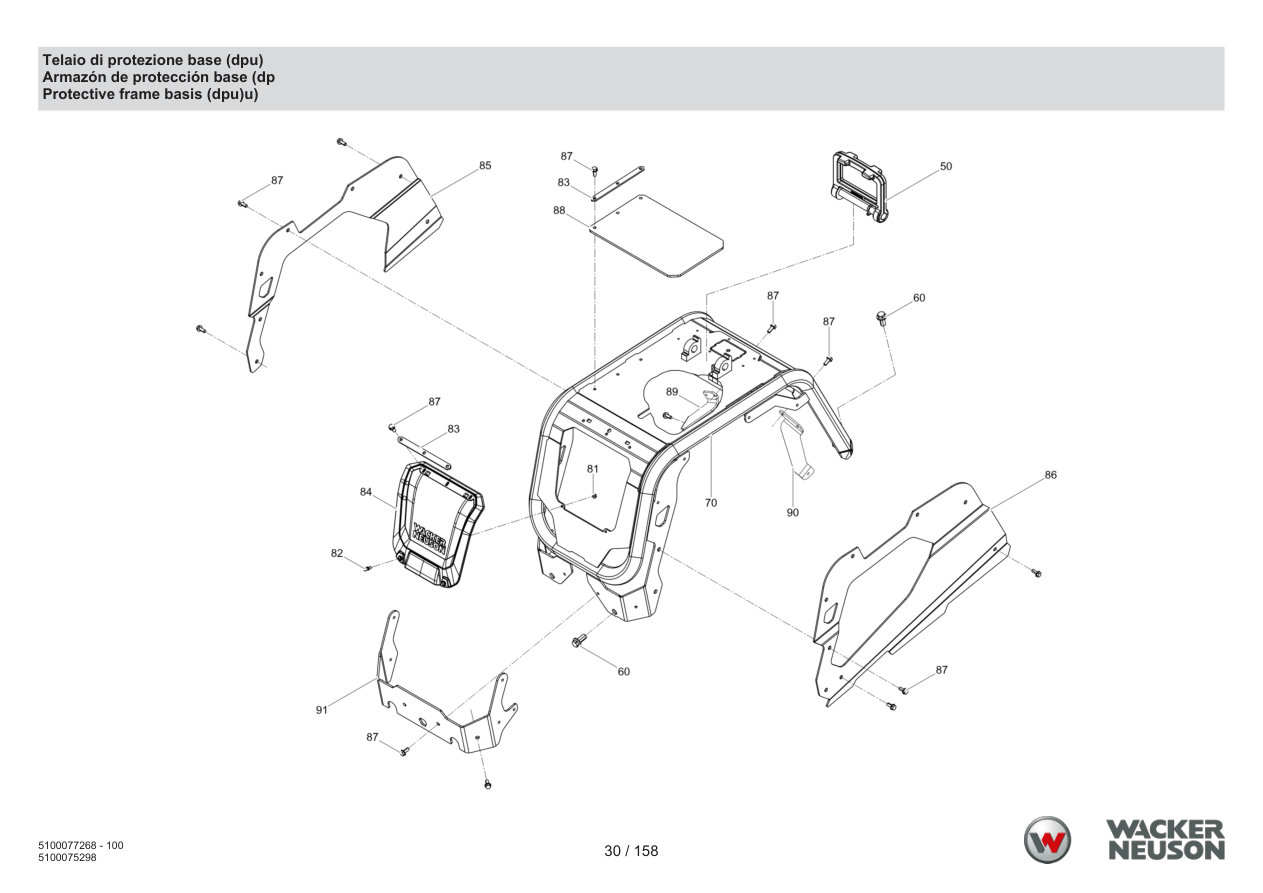

Page 30 — Base protection frame (dpu)
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 50 | 5100059129 | Jack ring cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Jack ring cpl.
5100059129 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 60 | 5100061590 | Corrugated-head screw | 4 | PARTS REQUEST | |
|
COMING Corrugated-head screw
5100061590 · qty on machine: 4 | |||||
| 70 | 5100057173 | Protective frame | 1 | ADD TO CART | |
| 81 | 5000095948 | Hexagon nut | 2 | ADD TO CART | |
| 82 | 5100071802 | Ball pin | 2 | PARTS REQUEST | |
|
COMING Ball pin
5100071802 · qty on machine: 2 | |||||
| 83 | 5100071735 | Plate | 2 | ADD TO CART | |
| 84 | 5100070053 | Covering big | 1 | PARTS REQUEST | |
|
COMING Covering big
5100070053 · qty on machine: 1 | |||||
| 85 | 5100069596 | Cover right | 1 | ADD TO CART | |
| 86 | 5100069595 | Cover left | 1 | ADD TO CART | |
| 87 | 5000105944 | Screw | 29 | ADD TO CART | |
| 88 | 5100077231 | Cover plate | 6 | ADD TO CART | |
| 89 | 5100080707 | Holder right | 1 | ADD TO CART | |
| 90 | 5100080706 | Holder left | 1 | ADD TO CART | |
| 91 | 5100049700 | Cover front | 1 | PARTS REQUEST | |
|
COMING Cover front
5100049700 · qty on machine: 1 | |||||

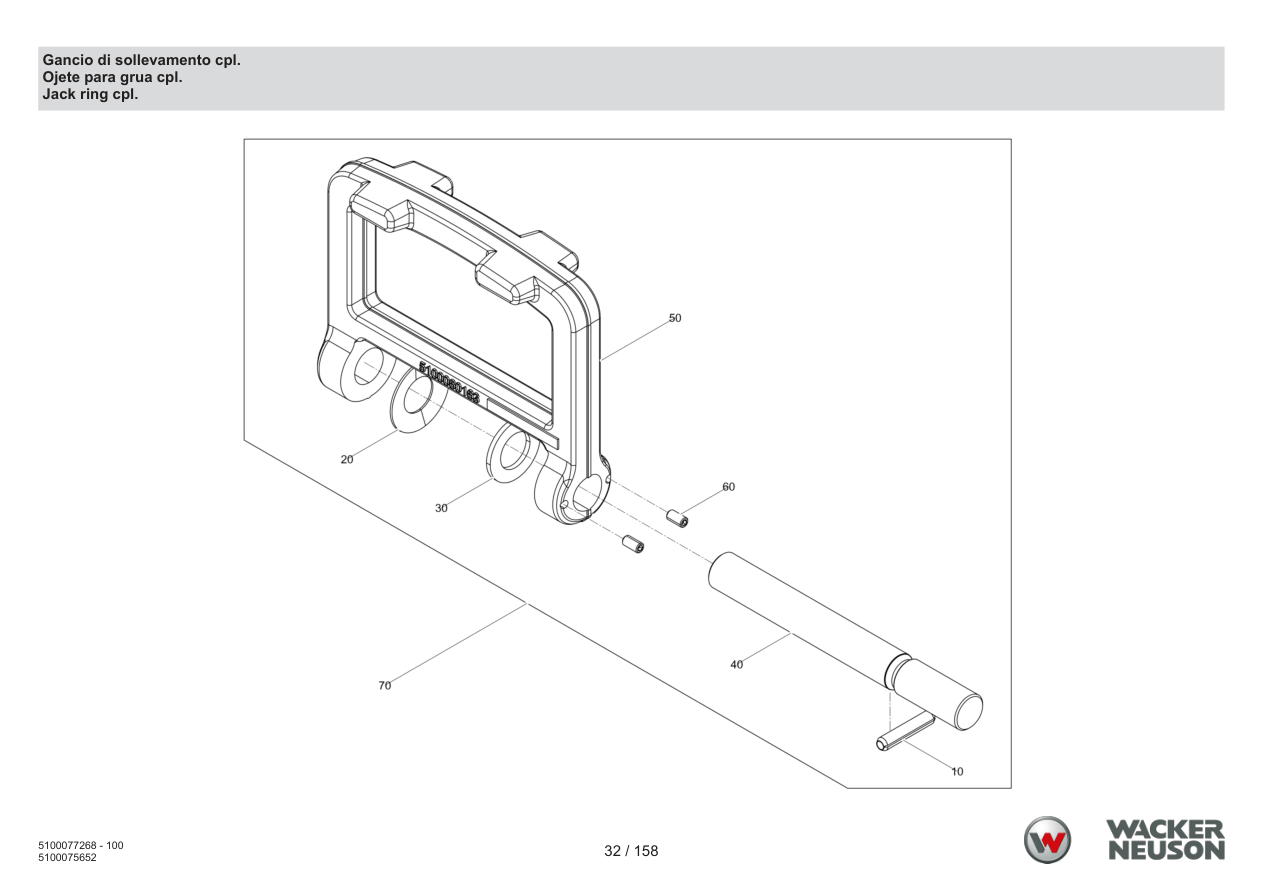

Page 32 — Lifting hook cpl.
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100058126 | Roll pin | 1 | ADD TO CART | |
| 20 | 5000202829 | Cup spring | 1 | ADD TO CART | |
| 30 | 5100058131 | Washer | 1 | PARTS REQUEST | |
|
COMING Washer
5100058131 · qty on machine: 1 | |||||
| 40 | 5100057560 | Axle | 1 | ADD TO CART | |
| 50 | 5100057544 | Jack ring | 1 | ADD TO CART | |
| 60 | 5000126187 | Threaded pin | 2 | ADD TO CART | |
| 70 | 5100059129 | Jack ring cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Jack ring cpl.
5100059129 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||

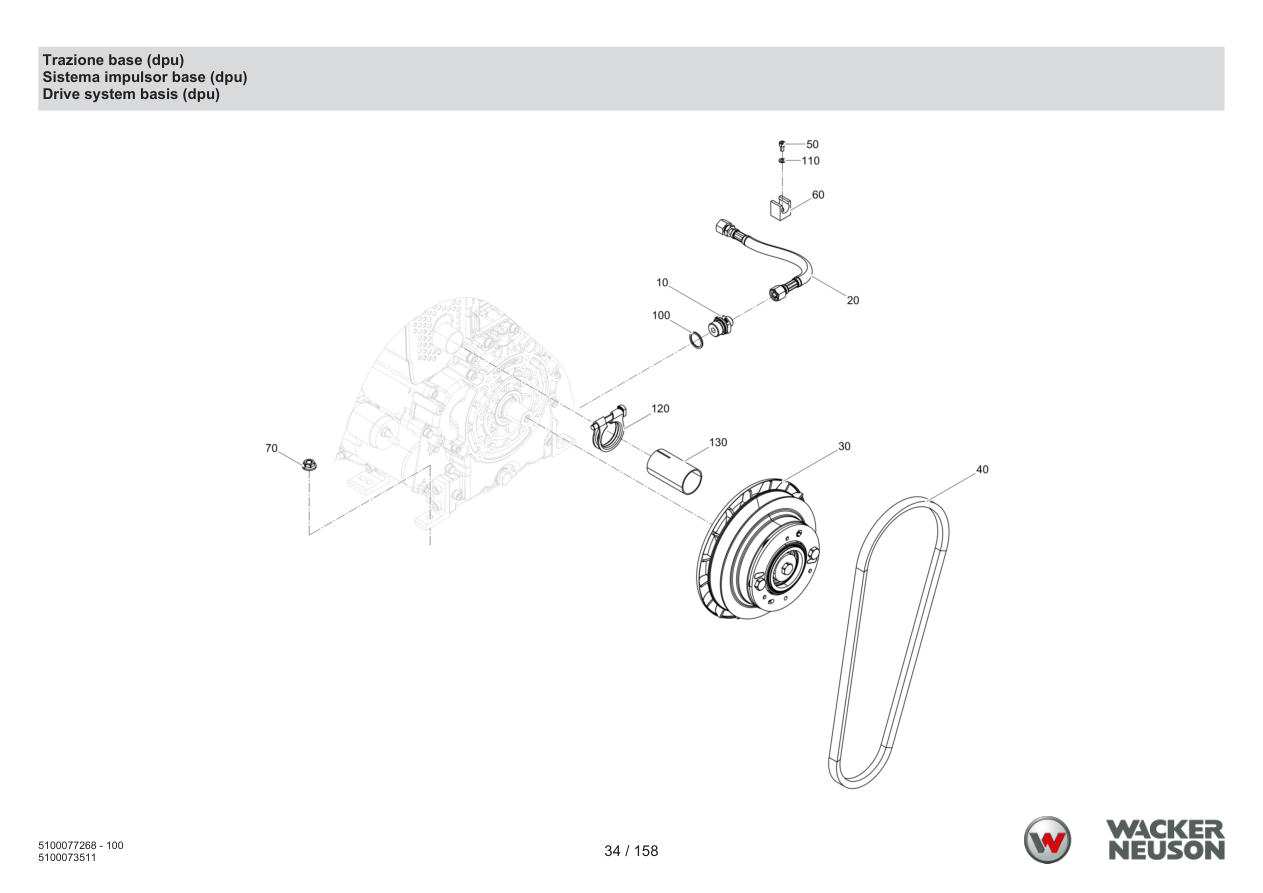

Page 34 — Drive base (dpu)
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100058553 | Screwed socket | 1 | PARTS REQUEST | |
|
COMING Screwed socket
5100058553 · qty on machine: 1 | |||||
| 20 | 5100058552 | Oil drain hose | 1 | ADD TO CART | |
| 30 | 5100057460 | Coupling cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Coupling cpl.
5100057460 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 40 | 5100051763 | V-belt | 1 | ADD TO CART | |
| 50 | 5000024617 | Cheese head screw | 1 | ADD TO CART | |
| 60 | 5100010281 | Clamp | 1 | ADD TO CART | |
| 70 | 5000216640 | Locknut | 4 | ADD TO CART | |
| 100 | 5002004664 | Gasket | 1 | ADD TO CART | |
| 110 | 5000010625 | Flat washer | 1 | ADD TO CART | |
| 120 | 5100077637 | Pipe clamp | 1 | ADD TO CART | |
| 130 | 5100072543 | Exhaust | 1 | ADD TO CART | |

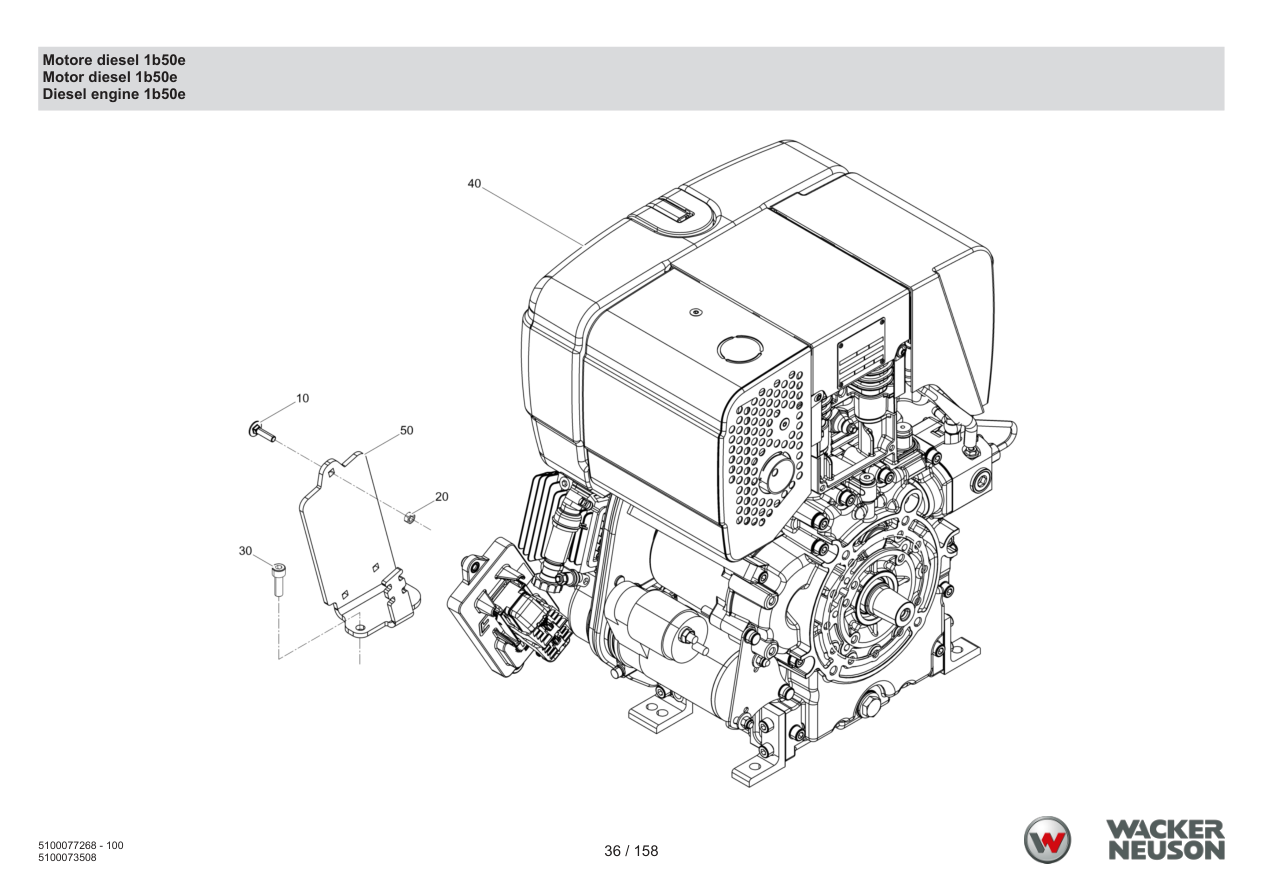

Page 36 — Diesel engine 1b50e
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000164579 | Carriage bolt | 3 | PARTS REQUEST | |
|
COMING Carriage bolt
5000164579 · qty on machine: 3 | |||||
| 20 | 5000010880 | Hexagon nut | 3 | ADD TO CART | |
| 30 | 5000011542 | Cheese head screw | 2 | ADD TO CART | |
| 40 | 5100057165 | Diesel engine | 1 | PARTS REQUEST | |
|
COMING Diesel engine
5100057165 · qty on machine: 1 | |||||
| 50 | 5100058147 | Fixing plate | 1 | ADD TO CART | |

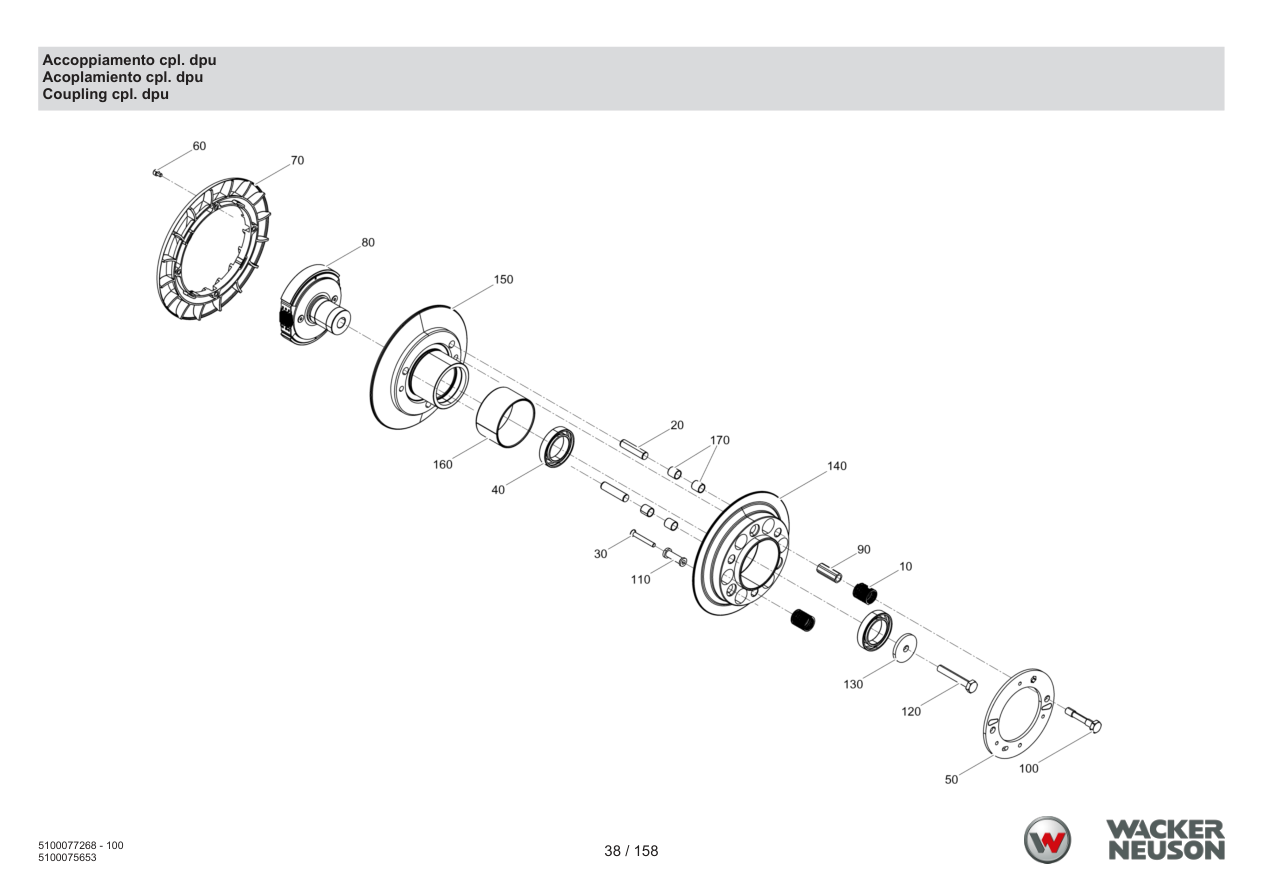

Page 38 — Coupling cpl. dpu
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100050636 | Compression spring | 6 | ADD TO CART | |
| 20 | 5100057034 | Pin | 3 | ADD TO CART | |
| 30 | 5100057237 | Screw | 3 | ADD TO CART | |
| 40 | 5100047174 | Grooved ball bearing | 2 | ADD TO CART | |
| 50 | 5100057035 | Covering | 1 | ADD TO CART | |
| 60 | 5000049190 | Cheese head screw | 4 | ADD TO CART | |
| 70 | 5100066120 | Fan wheel | 1 | ADD TO CART | |
| 80 | 5100068649 | Centrifugal clutch | 1 | ADD TO CART | |
| 90 | 5100057032 | Sleeve | 2 | ADD TO CART | |
| 100 | 5100059965 | Hexagonal head cap screw | 2 | ADD TO CART | |
| 110 | 5100057036 | Spacer | 3 | ADD TO CART | |
| 120 | 5100078570 | Hexagonal head cap screw | 1 | ADD TO CART | |
| 130 | 5100049024 | Washer | 1 | ADD TO CART | |
| 140 | 5100077229 | V-belt pulley half | 1 | ADD TO CART | |
| 150 | 5100077230 | Clutch drum | 1 | ADD TO CART | |
| 160 | 5100057492 | Bushing | 1 | ADD TO CART | |
| 170 | 5100057491 | Bushing | 6 | ADD TO CART | |

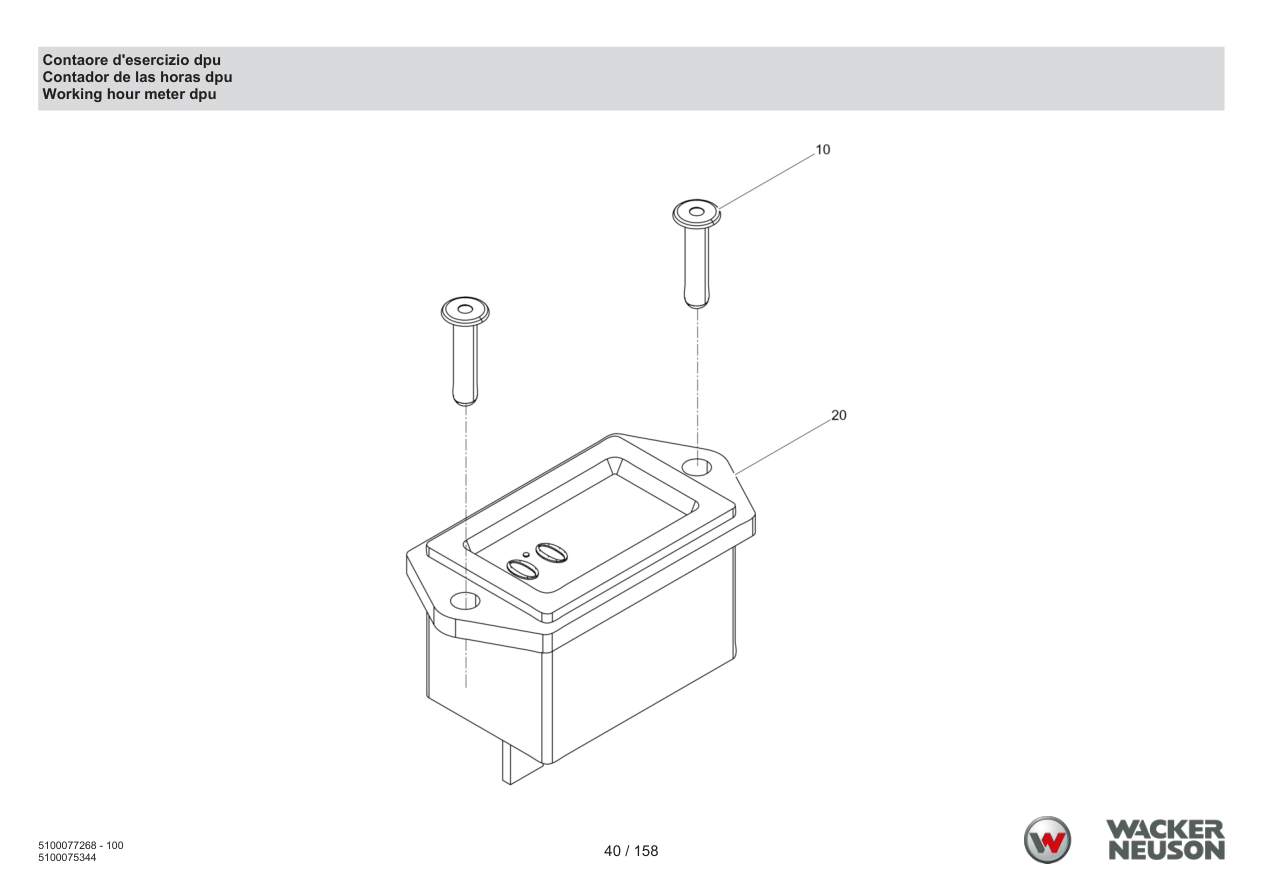

Page 40 — Operating hour meter dpu
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100059277 | Blind rivet | 2 | PARTS REQUEST | |
|
COMING Blind rivet
5100059277 · qty on machine: 2 | |||||
| 20 | 5100011309 | Working hour meter | 1 | ADD TO CART | |

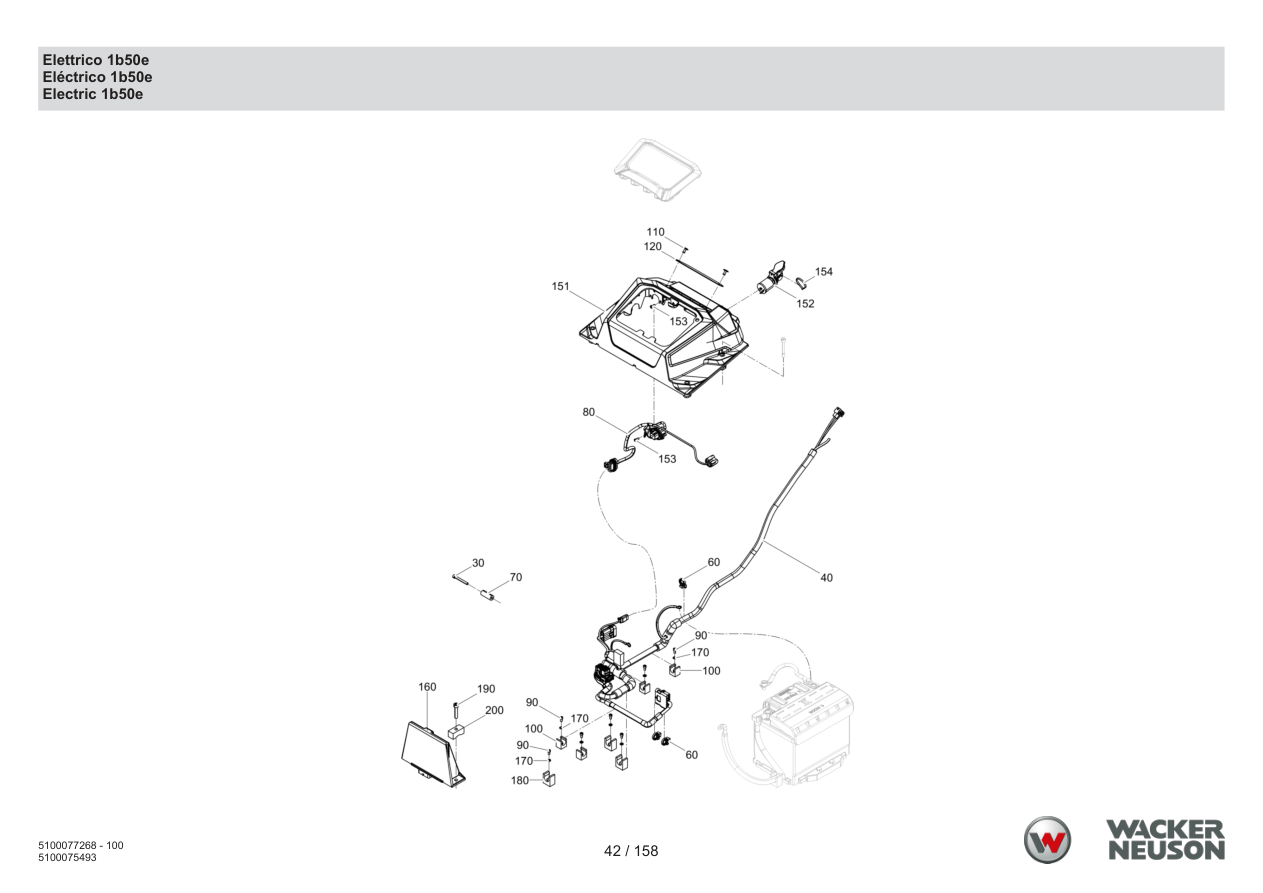

Page 42 — Electrical 1b50e
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 30 | 5000013000 | Cheese head screw | 1 | ADD TO CART | |
| 40 | 5100055766 | Wire harness | 1 | ADD TO CART | |
| 60 | 5100064264 | Cable tie | 3 | ADD TO CART | |
| 70 | 5100070236 | Bushing spacer | 1 | ADD TO CART | |
| 80 | 5100067810 | Wire harness | 1 | PARTS REQUEST | |
|
COMING Wire harness
5100067810 · qty on machine: 1 | |||||
| 90 | 5000024617 | Cheese head screw | 7 | ADD TO CART | |
| 100 | 5100010281 | Clamp | 4 | ADD TO CART | |
| 110 | 5100060234 | Blind rivet | 2 | PARTS REQUEST | |
|
COMING Blind rivet
5100060234 · qty on machine: 2 | |||||
| 120 | 5100072016 | Plate (compatec) | 1 | ADD TO CART | |
| 151 | 5100070051 | Batterieschutz | 1 | ADD TO CART | |
| 152 | 5000220116 | Switch | 1 | ADD TO CART | |
| 153 | 5100058845 | Oval head screw | 2 | ADD TO CART | |
| 154 | 5000038489 | Tie cable | 1 | PARTS REQUEST | |
|
COMING Tie cable
5000038489 · qty on machine: 1 | |||||
| 160 | 5100049692 | Control unit | 1 | ADD TO CART | |
| 170 | 5000010625 | Flat washer | 7 | ADD TO CART | |
| 180 | 5000210107 | Clamp | 3 | ADD TO CART | |
| 190 | 5000011539 | Cheese head screw | 2 | ADD TO CART | |
| 200 | 5100079742 | Plate | 2 | ADD TO CART | |

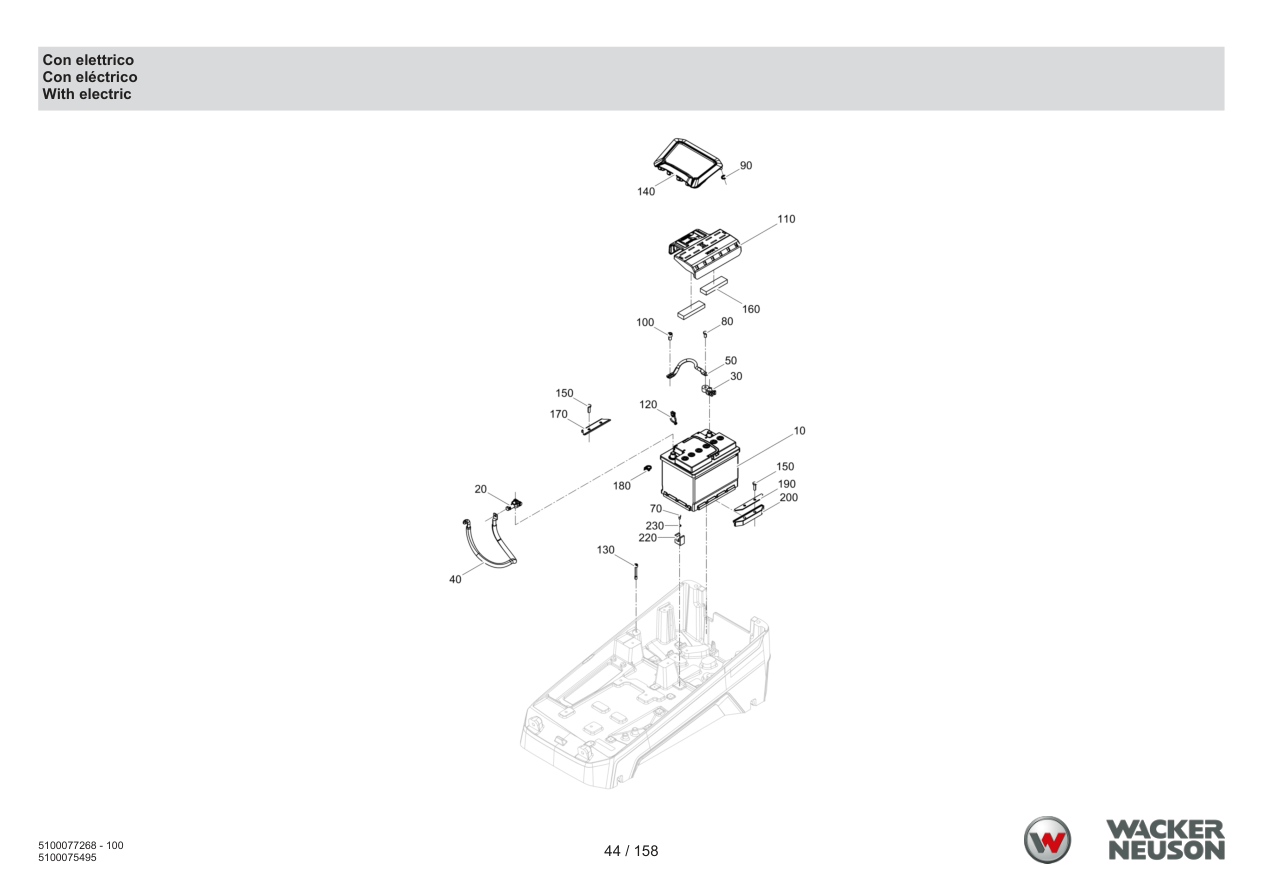

Page 44 — With electric
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100021329 | Battery | 1 | ADD TO CART | |
| 20 | 5100015202 | Pole terminal positive | 1 | ADD TO CART | |
| 30 | 5100047417 | Pole terminal negative | 1 | ADD TO CART | |
| 40 | 5100045630 | Positive pole cable | 1 | PARTS REQUEST | |
|
COMING Positive pole cable
5100045630 · qty on machine: 1 | |||||
| 50 | 5100045609 | Minus-pole cable | 1 | PARTS REQUEST | |
|
COMING Minus-pole cable
5100045609 · qty on machine: 1 | |||||
| 70 | 5000024617 | Cheese head screw | 1 | ADD TO CART | |
| 80 | 5000012361 | Hexagonal head cap screw | 1 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5000012361 · qty on machine: 1 | |||||
| 90 | 5100050092 | Retaining disk | 1 | ADD TO CART | |
| 100 | 5000012381 | Cheese head screw | 1 | ADD TO CART | |
| 110 | 5100071238 | Battery protection | 1 | ADD TO CART | |
| 120 | 5100066464 | Cable tie | 6 | ADD TO CART | |
| 130 | 5000216659 | Screw | 4 | ADD TO CART | |
| 140 | 5100070052 | Covering | 1 | ADD TO CART | |
| 150 | 5000011457 | Hexagonal head cap screw | 4 | ADD TO CART | |
| 160 | 5100020618 | Filter mat | 2 | ADD TO CART | |
| 170 | 5100069524 | Battery clamp | 1 | ADD TO CART | |
| 180 | 5100064264 | Cable tie | 4 | ADD TO CART | |
| 190 | 5100069525 | Support | 1 | ADD TO CART | |
| 200 | 5100069526 | Holder | 1 | ADD TO CART | |
| 220 | 5100010281 | Clamp | 1 | ADD TO CART | |
| 230 | 5000010625 | Flat washer | 1 | ADD TO CART | |

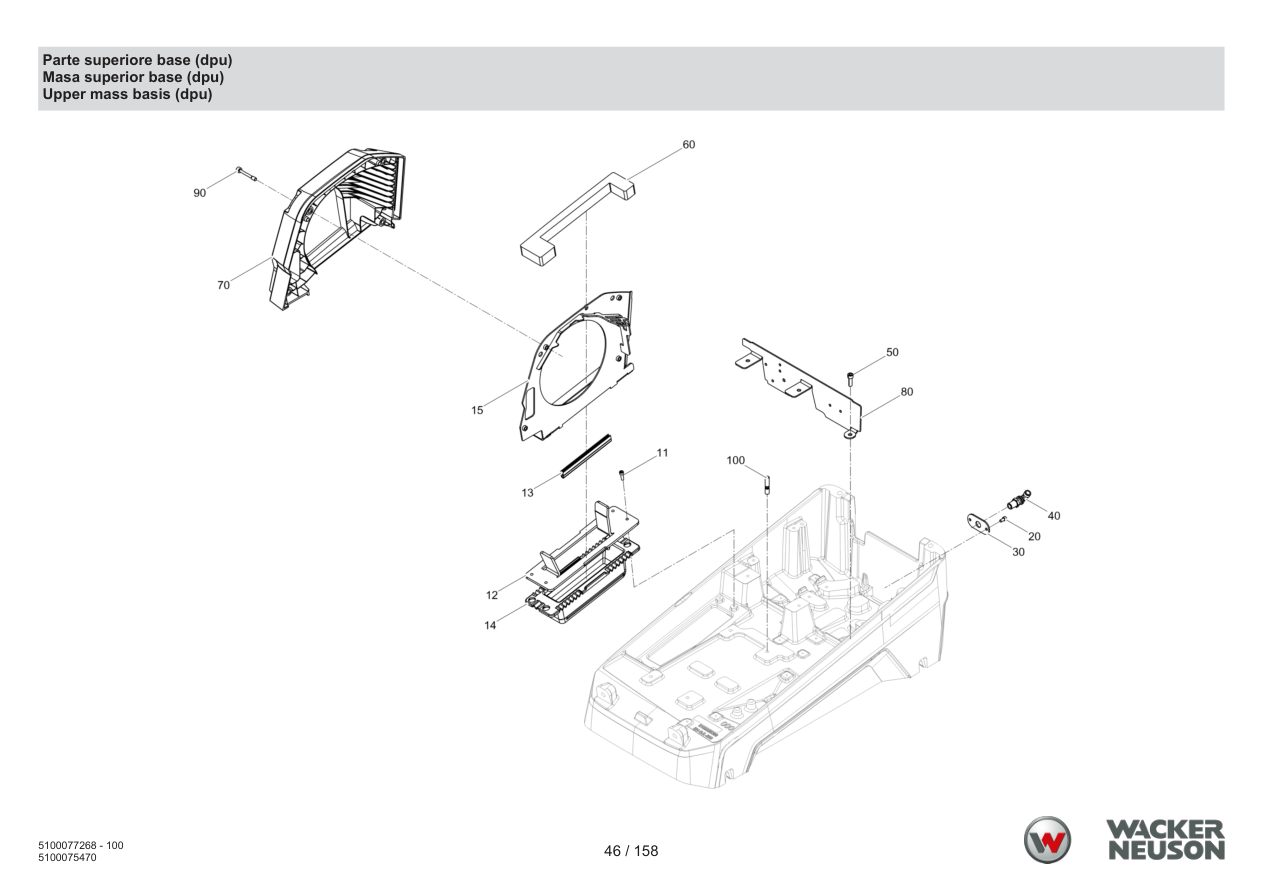

Page 46 — Upper part base (dpu)
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 11 | 5000011551 | Cheese head screw | 4 | ADD TO CART | |
| 12 | 5100057186 | Belt stabilizer | 1 | ADD TO CART | |
| 13 | 5100070163 | Edge protection | 1 | ADD TO CART | |
| 14 | 5100056999 | Stone guard | 1 | ADD TO CART | |
| 15 | 5100058143 | Belt guard cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 20 | 5000011554 | Cheese head screw | 2 | ADD TO CART | |
| 30 | 5100072539 | Plate | 1 | ADD TO CART | |
| 40 | 5000205238 | Screw connection | 1 | ADD TO CART | |
| 50 | 5000011542 | Cheese head screw | 1 | ADD TO CART | |
| 60 | 5100066547 | Gasket | 1 | ADD TO CART | |
| 70 | 5100069598 | Belt guard | 1 | ADD TO CART | |
| 80 | 5100070008 | Separating plate | 1 | ADD TO CART | |
| 90 | 5000216659 | Screw | 4 | ADD TO CART | |
| 100 | 5100064497 | Stud bolt | 4 | ADD TO CART | |

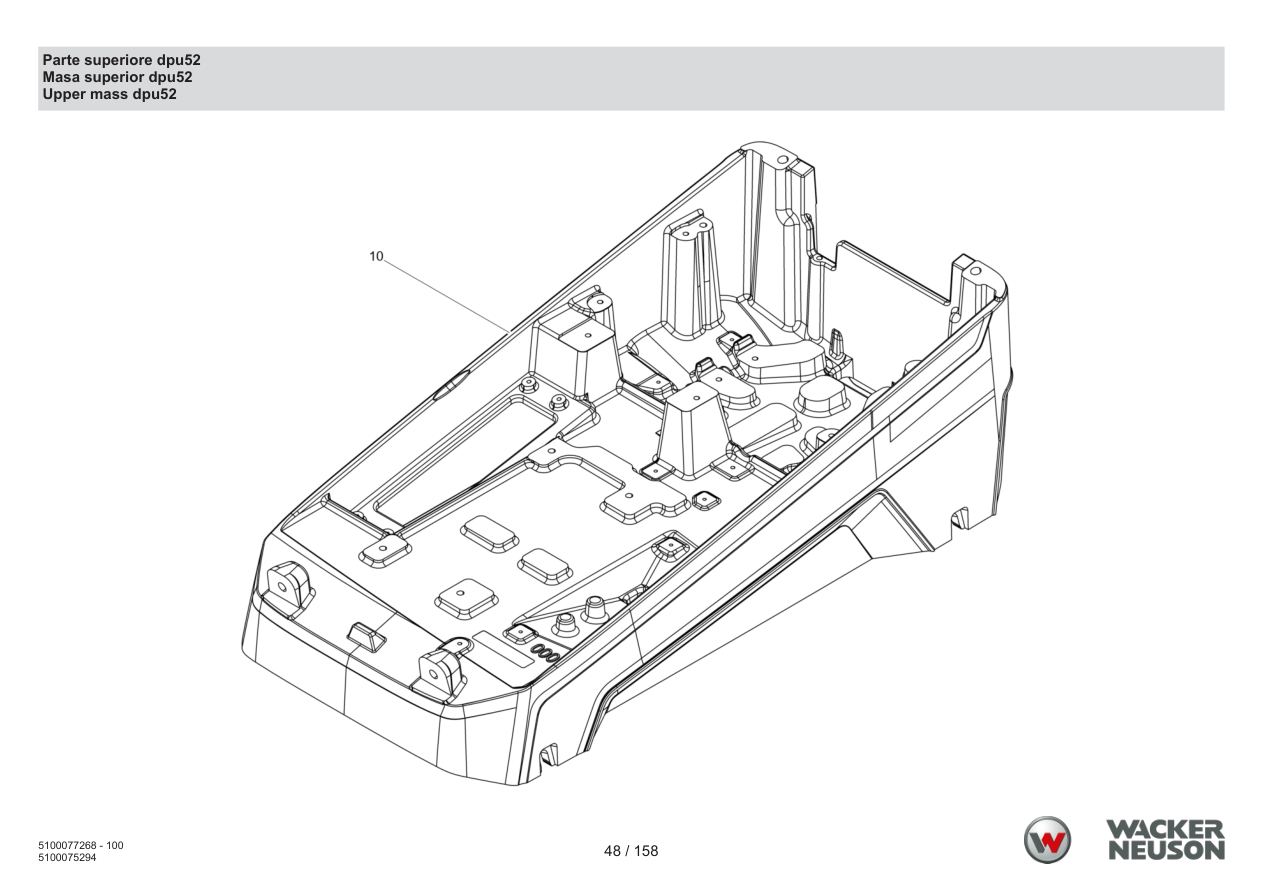

Page 48 — Upper part dpu52
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5100056018 | Upper mass | 1 | ADD TO CART | |

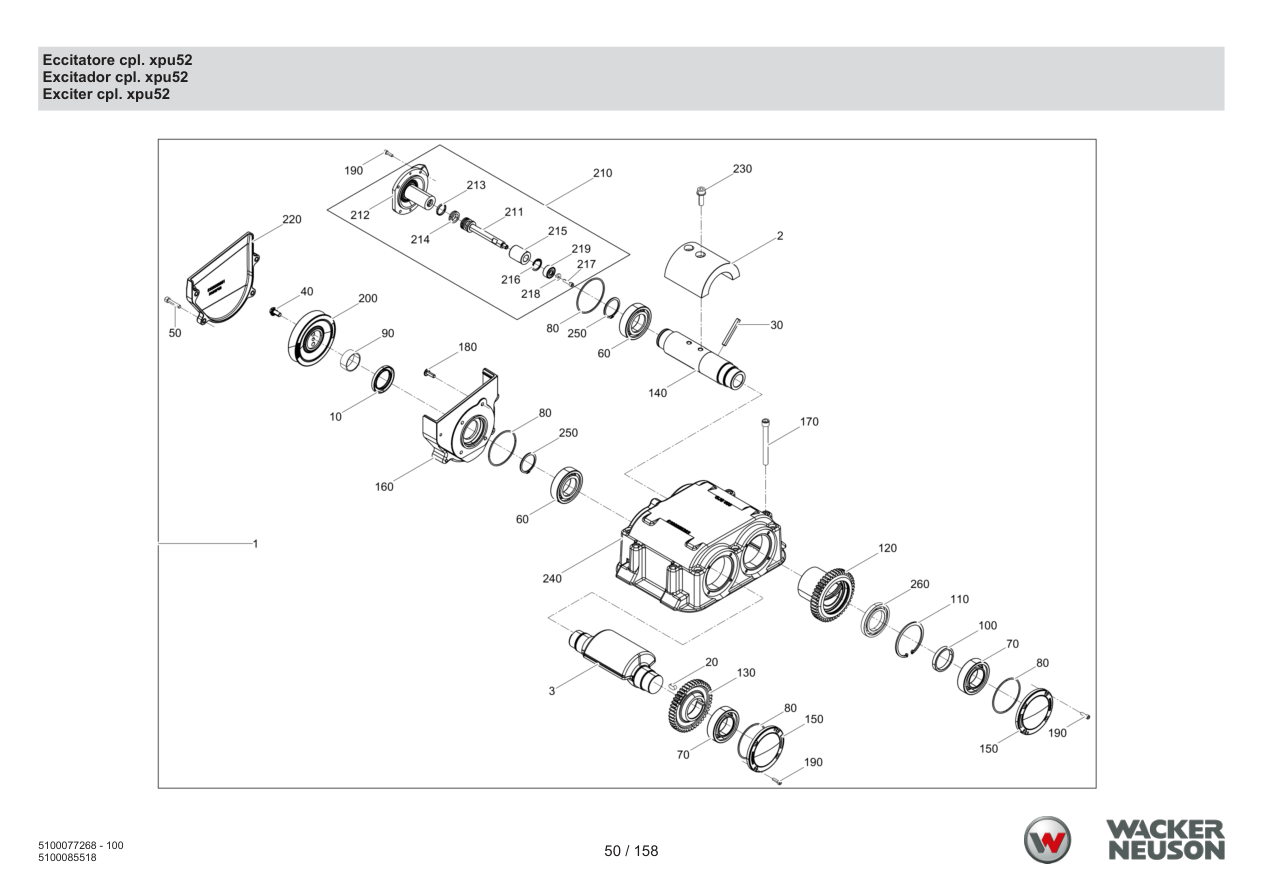

Page 50 — Exciter cpl. xpu52
Parts list — exactly as printed38 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100084738 | Exciter cpl. xpu52 | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Exciter cpl. xpu52
5100084738 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 2 | 5100057708 | Eccentric weight | 1 | ADD TO CART | |
| 3 | 5100056586 | Eccentric shaft | 1 | ADD TO CART | |
| 10 | 5100047183 | Rotary shaft seal | 1 | ADD TO CART | |
| 20 | 5100047188 | Fitting key | 1 | ADD TO CART | |
| 30 | 5100047408 | Tripping pin | 1 | ADD TO CART | |
| 40 | 5100068052 | Corrugated-head screw | 2 | ADD TO CART | |
| 50 | 5000011539 | Cheese head screw | 4 | ADD TO CART | |
| 60 | 5100057784 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 70 | 5100057783 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 80 | 5100010516 | O-ring | 4 | ADD TO CART | |
| 90 | 5100047189 | Bearing inner ring | 1 | ADD TO CART | |
| 100 | 5100047403 | Spacer sleeve | 1 | PARTS REQUEST | |
|
COMING Spacer sleeve
5100047403 · qty on machine: 1 | |||||
| 110 | 5002007057 | Retaining ring | 1 | ADD TO CART | |
| 120 | 5100047166 | Adjusting sleeve | 1 | ADD TO CART | |
| 130 | 5100047168 | Gear wheel | 1 | ADD TO CART | |
| 140 | 5100056768 | Hollow shaft xpu | 1 | ADD TO CART | |
| 150 | 5100056765 | Cover | 2 | ADD TO CART | |
| 160 | 5100056860 | Belt guard | 1 | ADD TO CART | |
| 170 | 5000094518 | Cheese head screw | 10 | ADD TO CART | |
| 180 | 5100077058 | Pan head screw | 4 | ADD TO CART | |
| 190 | 5100082309 | Cheese head screw m 6x 20 | 12 | PARTS REQUEST | |
|
COMING Cheese head screw m 6x 20
5100082309 · qty on machine: 12 | |||||
| 200 | 5100048224 | V-belt pulley | 1 | ADD TO CART | |
| 210 | 5100058928 | Adjustment cylinder cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 211 | 5100056998 | Piston rod | 1 | ADD TO CART | |
| 212 | 5100056997 | Adjustment cylinder | 1 | ADD TO CART | |
| 213 | 5100047190 | Piston guide ring | 1 | ADD TO CART | |
| 214 | 5100047193 | Grooved ring | 1 | ADD TO CART | |
| 215 | 5100047406 | Piston | 1 | ADD TO CART | |
| 216 | 5100047184 | Retaining ring | 1 | ADD TO CART | |
| 217 | 5000220001 | Cheese head screw | 1 | ADD TO CART | |
| 218 | 5000124717 | Washer | 1 | ADD TO CART | |
| 218 | 5100047119 | Inclined ball bearing | 1 | ADD TO CART | |
| 220 | 5100056861 | Belt guard cover | 1 | ADD TO CART | |
| 230 | 5000220325 | Screw | 2 | ADD TO CART | |
| 240 | 5100055384 | Exciter housing | 1 | ADD TO CART | |
| 250 | 5002006113 | Retaining ring | 2 | ADD TO CART | |
| 260 | 5000220133 | Grooved ball bearing | 1 | ADD TO CART | |

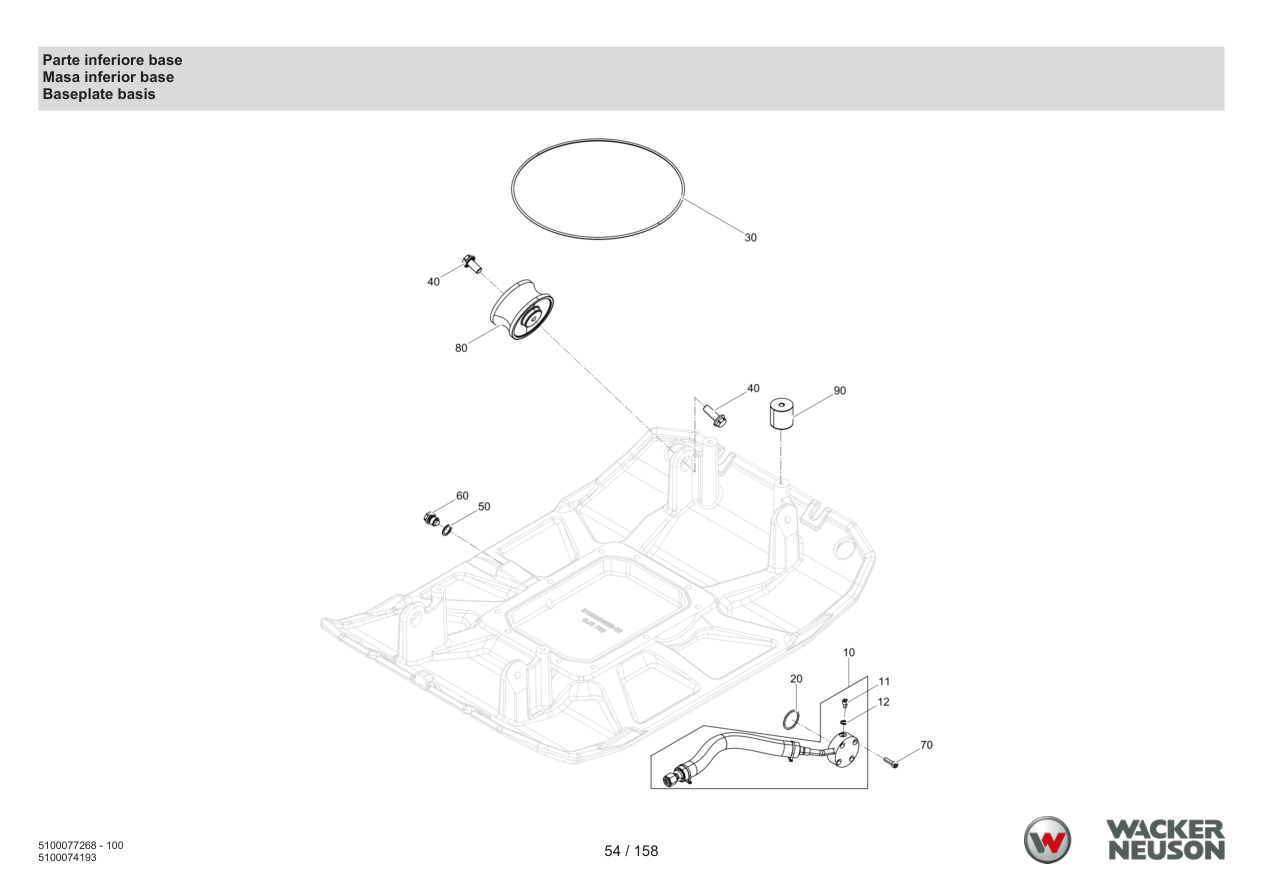

Page 54 — Lower part base
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100046191 | Hose pipe | 1 | ADD TO CART | |
| 11 | 5000014425 | Cheese head screw | 1 | PARTS REQUEST | |
|
COMING Cheese head screw
5000014425 · qty on machine: 1 | |||||
| 12 | 5100022402 | Gasket | 1 | ADD TO CART | |
| 20 | 5100047663 | O-ring | 1 | ADD TO CART | |
| 30 | 5100057493 | O-ring | 1 | ADD TO CART | |
| 40 | 5100018059 | Corrugated-head screw | 8 | ADD TO CART | |
| 50 | 5100047185 | Seal ring | 1 | ADD TO CART | |
| 60 | 5000014535 | Plug (threaded) | 1 | ADD TO CART | |
| 70 | 5000012373 | Cheese head screw | 4 | ADD TO CART | |
| 80 | 5002004814 | Shockmount | 4 | ADD TO CART | |
| 90 | 5000216644 | Shockmount | 4 | ADD TO CART | |

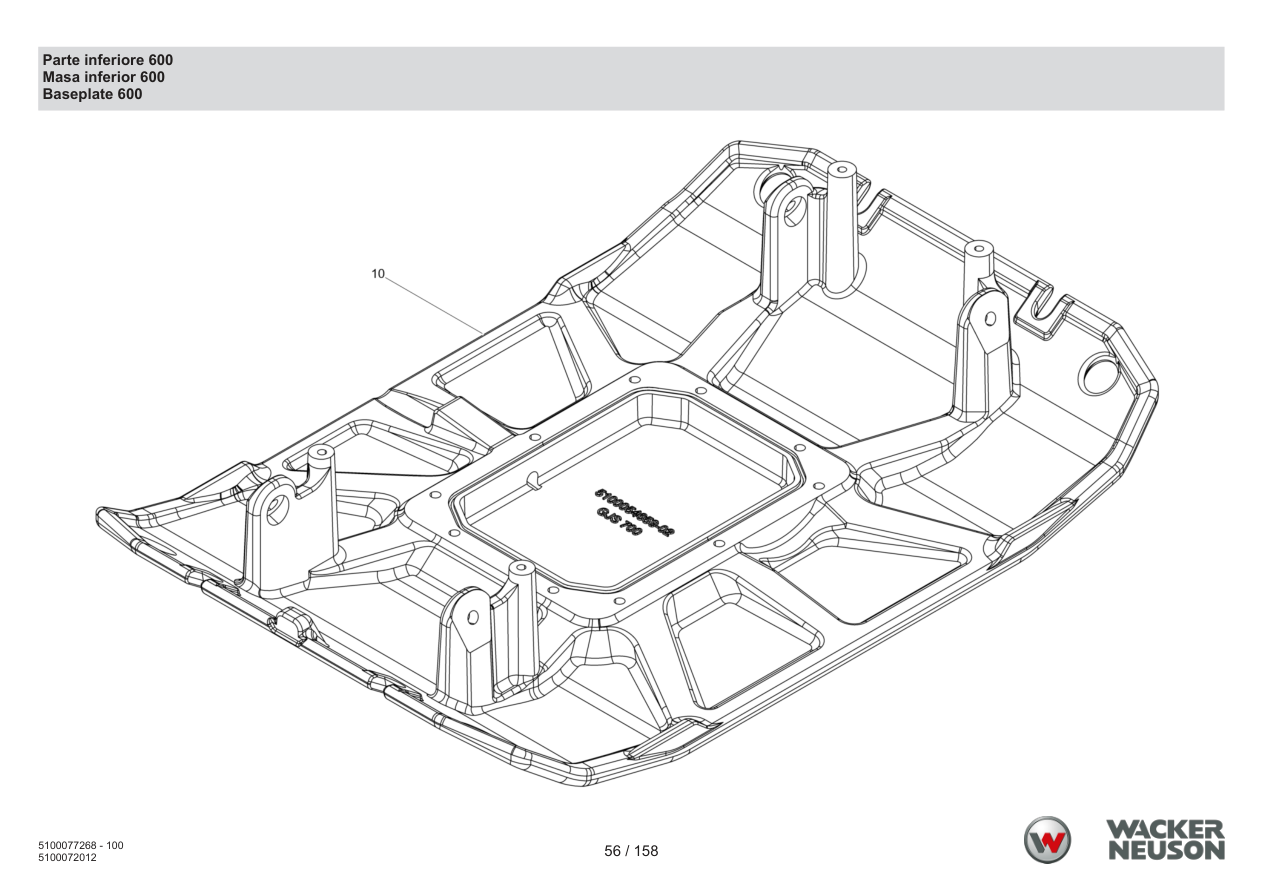

Page 56 — Lower part 600
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100055380 | Baseplate | 1 | ADD TO CART | |

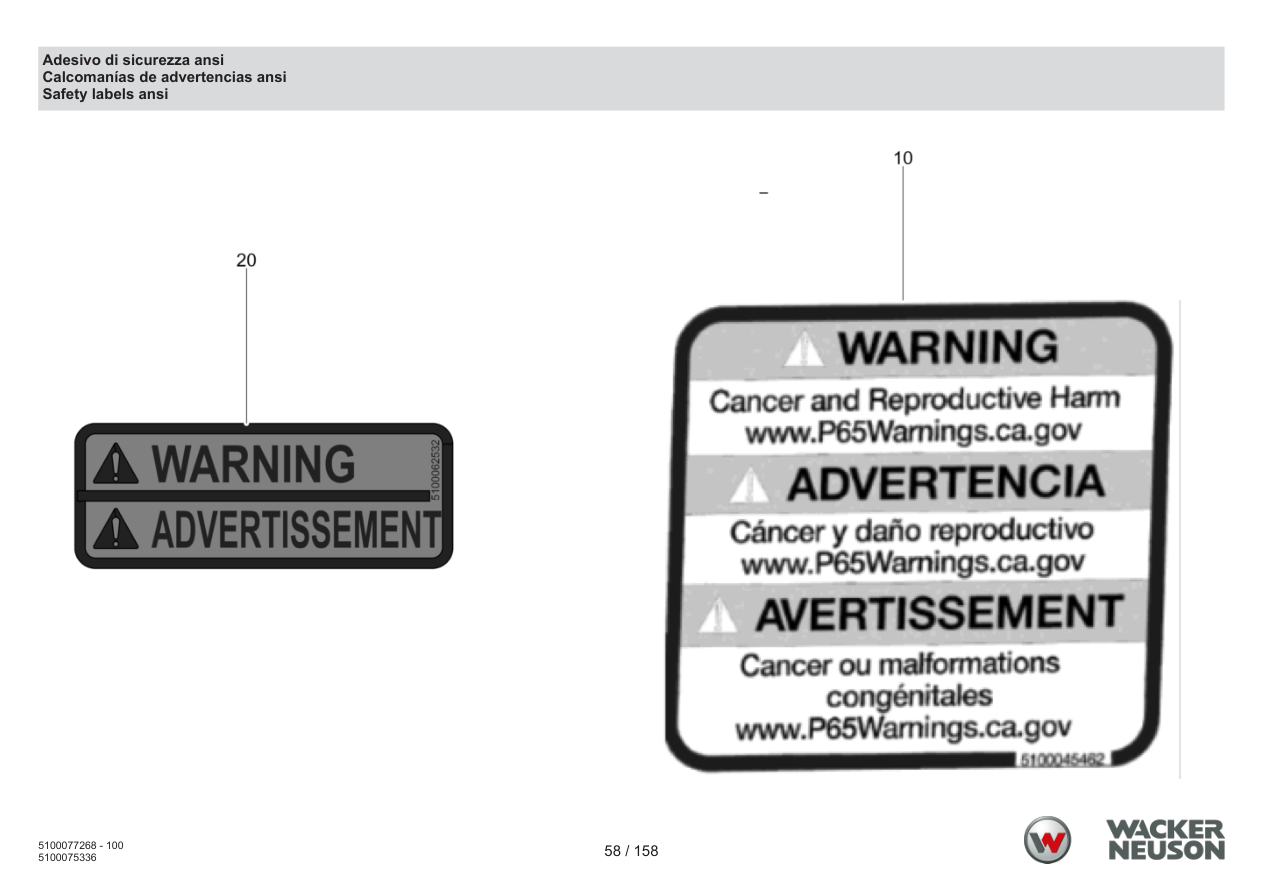

Page 58 — Safety sticker ansi
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||
| 20 | 5100062532 | Label | 1 | ADD TO CART | |

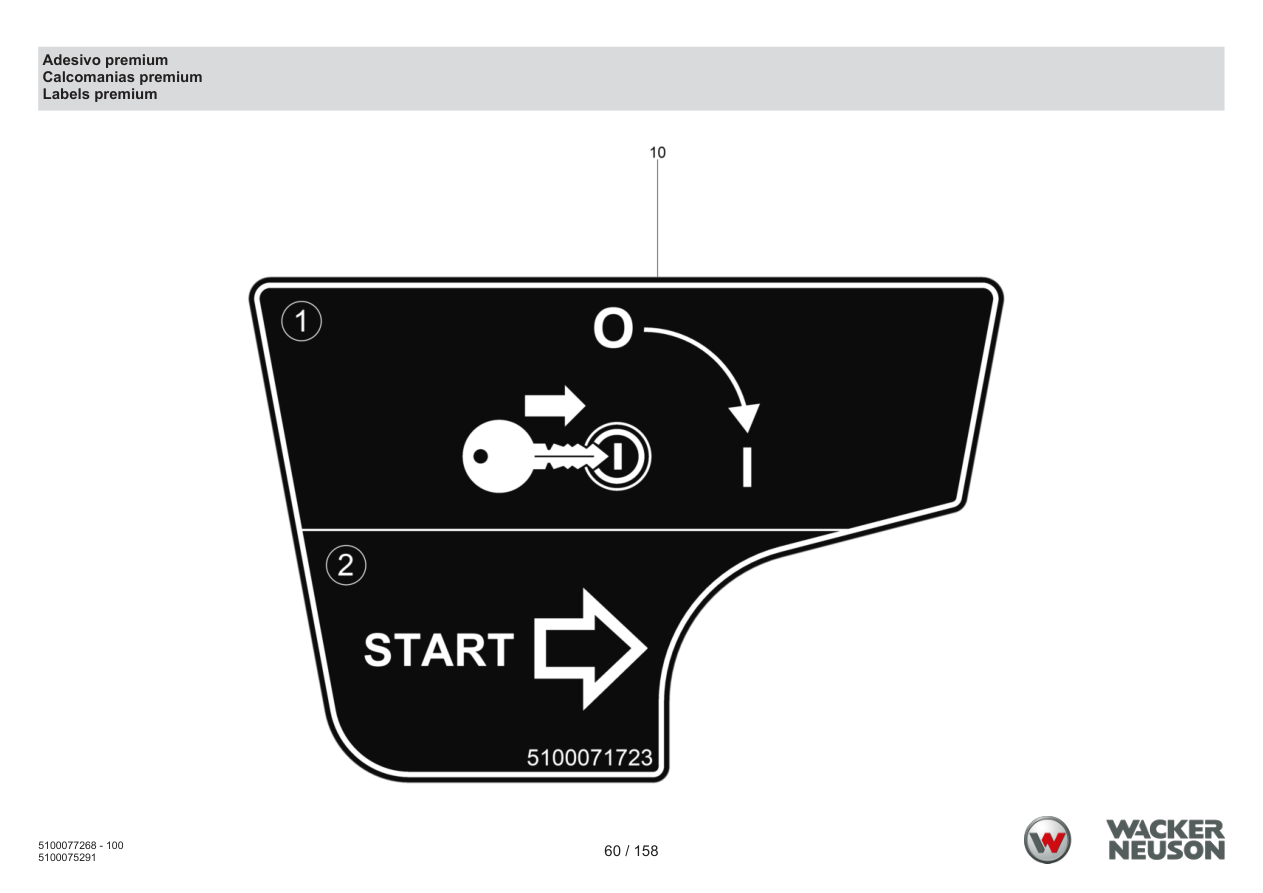

Page 60 — Premium sticker
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100071723 | Label idcl_start premium | 1 | ADD TO CART | |

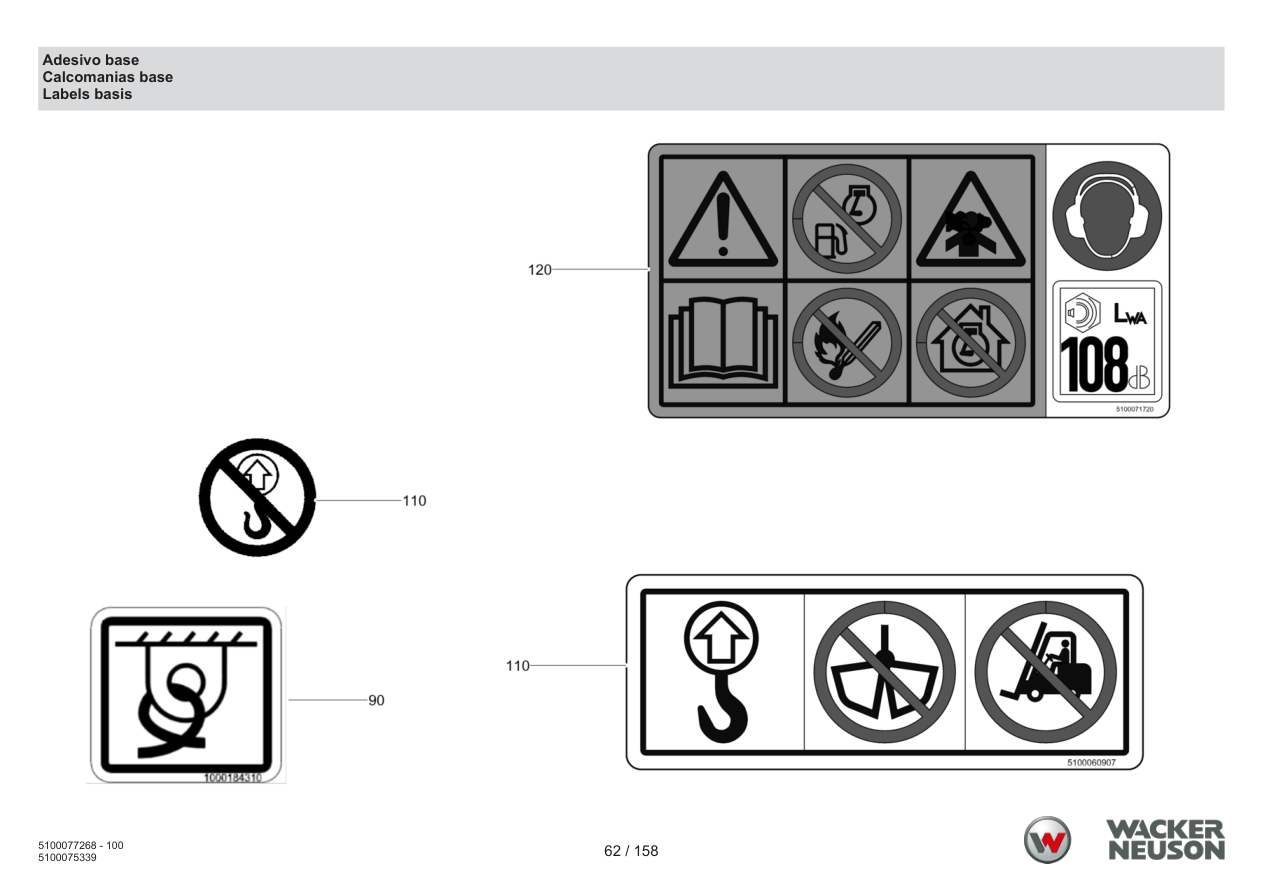

Page 62 — Base sticker
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 90 | 5100085618 | Label | 8 | PARTS REQUEST | |
|
COMING Label
5100085618 · qty on machine: 8 | |||||
| 100 | 5000220000 | Instruction label | 1 | ADD TO CART | |
| 110 | 5100060907 | Label | 1 | ADD TO CART | |
| 120 | 5100071720 | Label sdcl_exhaust fumes om | 1 | ADD TO CART | |

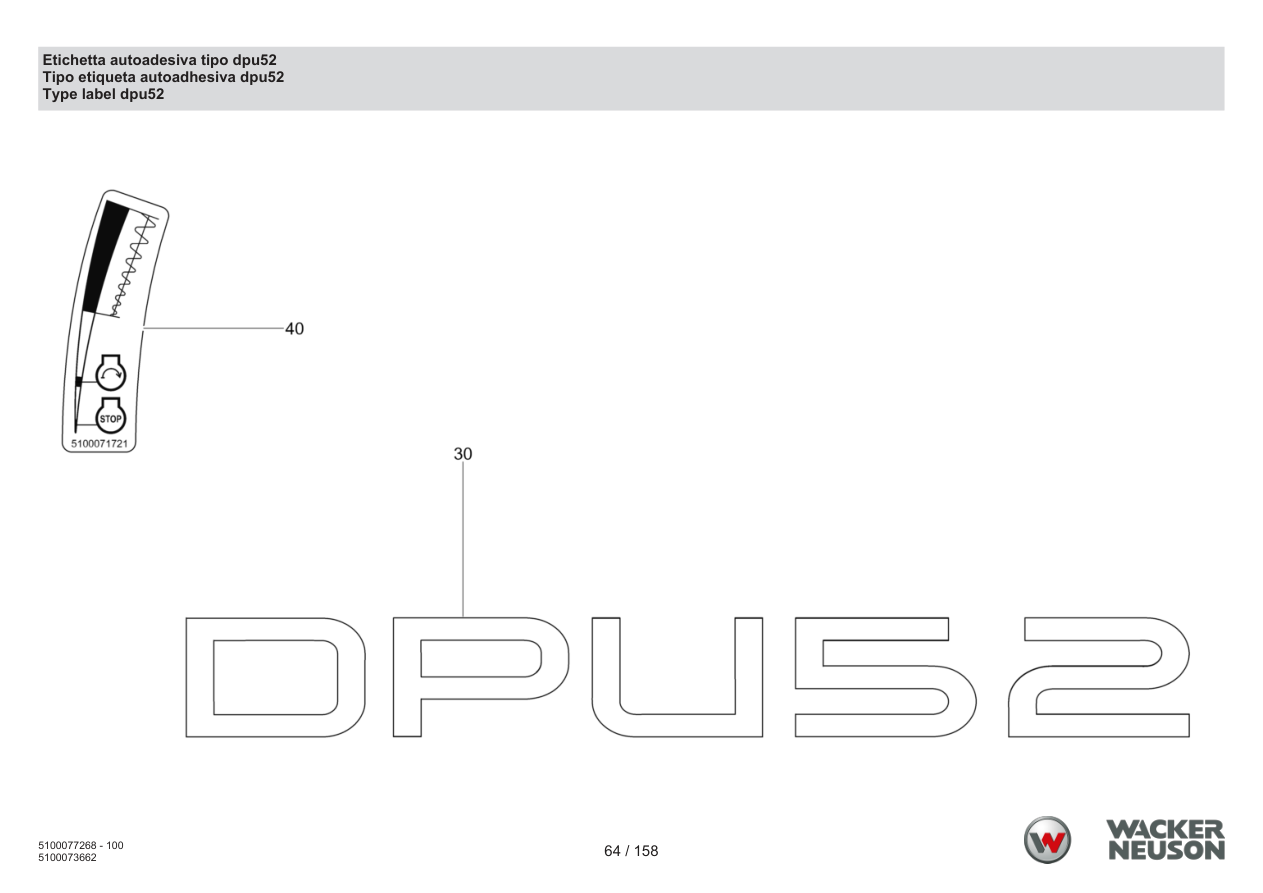

Page 64 — Self-adhesive label type dpu52
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 30 | 5100080755 | Type label dpu52 | 2 | PARTS REQUEST | |
|
COMING Type label dpu52
5100080755 · qty on machine: 2 | |||||
| 40 | 5100071721 | Label idcl_speed dpu | 1 | ADD TO CART | |

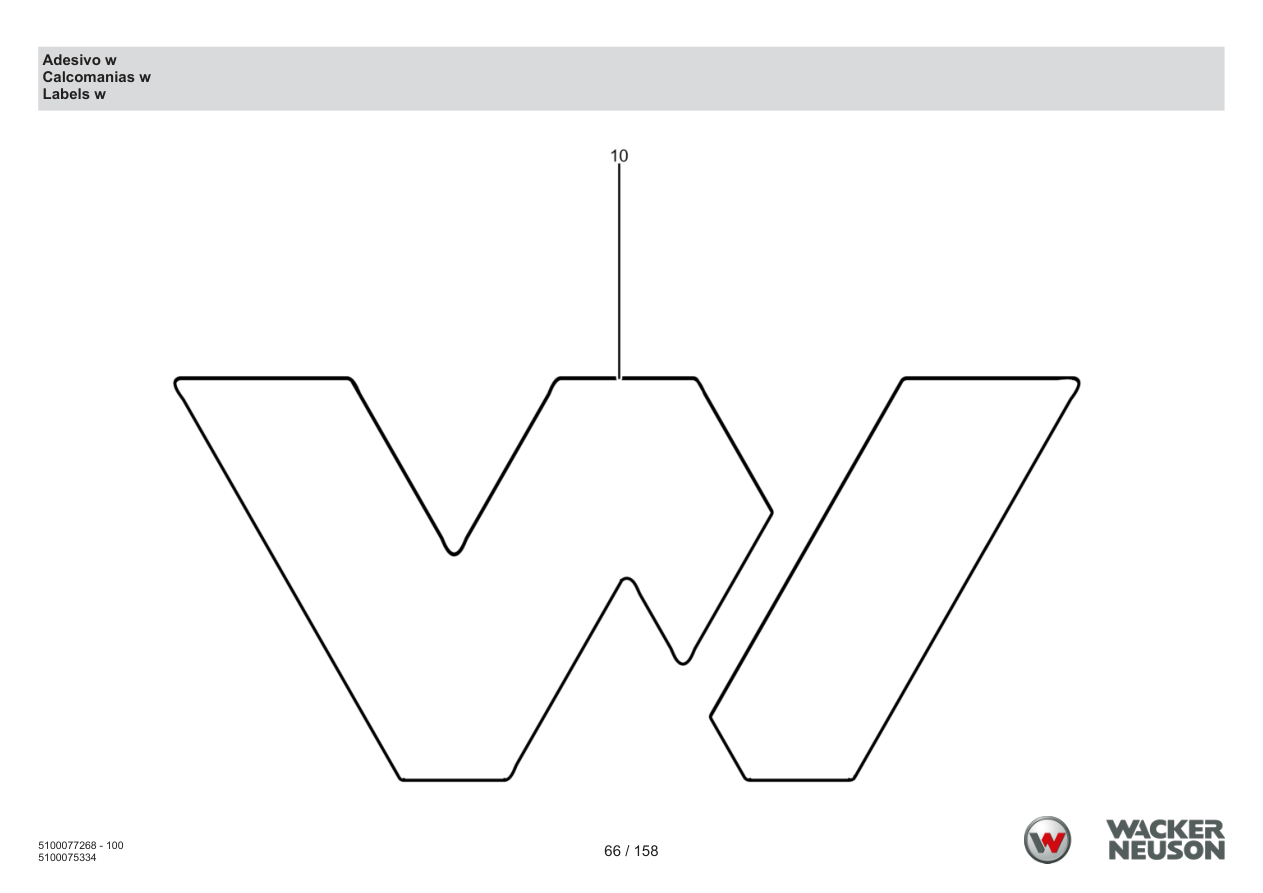

Page 66 — Sticker w
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100058733 | Label symbol | 2 | ADD TO CART | |

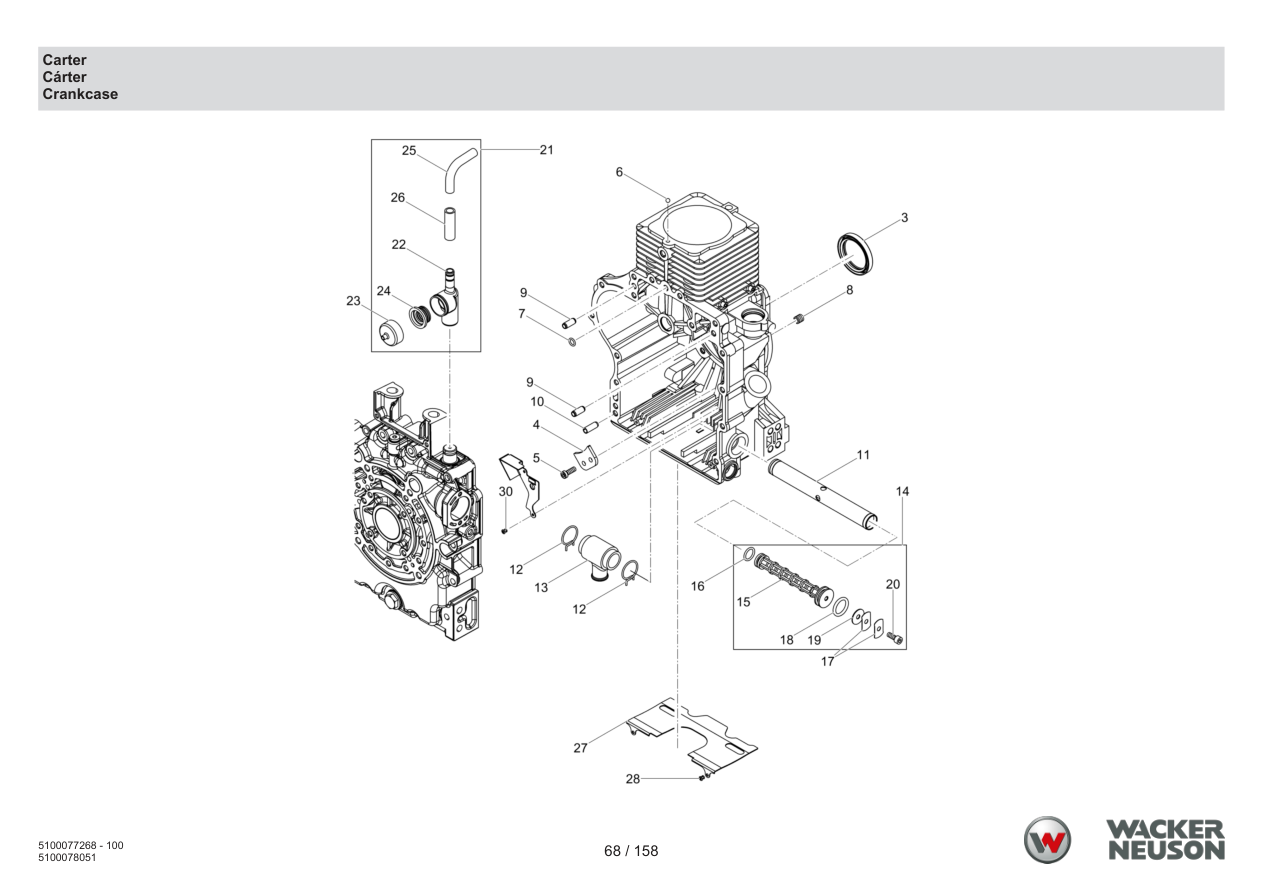

Page 68 — Housing
Parts list — exactly as printed27 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 26 | 5100068972 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100068972 · qty on machine: 1 | |||||
| 3 | 5100069008 | Rotary shaft seal | 1 | ADD TO CART | |
| 4 | 5100069019 | Plate | 3 | ADD TO CART | |
| 5 | 5100069030 | Cheese head screw | 6 | ADD TO CART | |
| 6 | 5100069041 | Ball | 1 | ADD TO CART | |
| 7 | 5004101560 | O-ring | 1 | ADD TO CART | |
| 8 | 5000151353 | Threaded pin | 1 | ADD TO CART | |
| 9 | 5000108694 | Straight pin | 2 | ADD TO CART | |
| 10 | 5100069052 | Dowel pin | 1 | ADD TO CART | |
| 11 | 5100068964 | Housing | 1 | ADD TO CART | |
| 12 | 5000108688 | Clip | 2 | ADD TO CART | |
| 13 | 5000108691 | Suction port | 1 | ADD TO CART | |
| 14 | 5100016522 | Oil filter | 1 | ADD TO CART | |
| 15 | 5100068966 | Oil filter | 1 | PARTS REQUEST | |
|
COMING Oil filter
5100068966 · qty on machine: 1 | |||||
| 16 | 5100053372 | O-ring | 1 | ADD TO CART | |
| 17 | 5000151230 | Oil filter spring | 2 | ADD TO CART | |
| 18 | 5000151229 | O-ring | 1 | ADD TO CART | |
| 19 | 5000108851 | Washer | 1 | ADD TO CART | |
| 20 | 5000151231 | Cheese head screw | 1 | ADD TO CART | |
| 21 | 5100068967 | Bleeder valve | 1 | ADD TO CART | |
| 22 | 5100068969 | Housing | 1 | ADD TO CART | |
| 23 | 5100068970 | Cap | 1 | ADD TO CART | |
| 24 | 5100032125 | Diaphragm | 1 | PARTS REQUEST | |
|
COMING Diaphragm
5100032125 · qty on machine: 1 | |||||
| 25 | 5100068971 | Fuel hose | 1 | PARTS REQUEST | |
|
COMING Fuel hose
5100068971 · qty on machine: 1 | |||||
| 27 | 5100068973 | Baffle | 1 | ADD TO CART | |
| 28 | 5100038898 | Blind rivet | 2 | ADD TO CART | |
| 30 | 5100038898 | Blind rivet | 2 | ADD TO CART | |

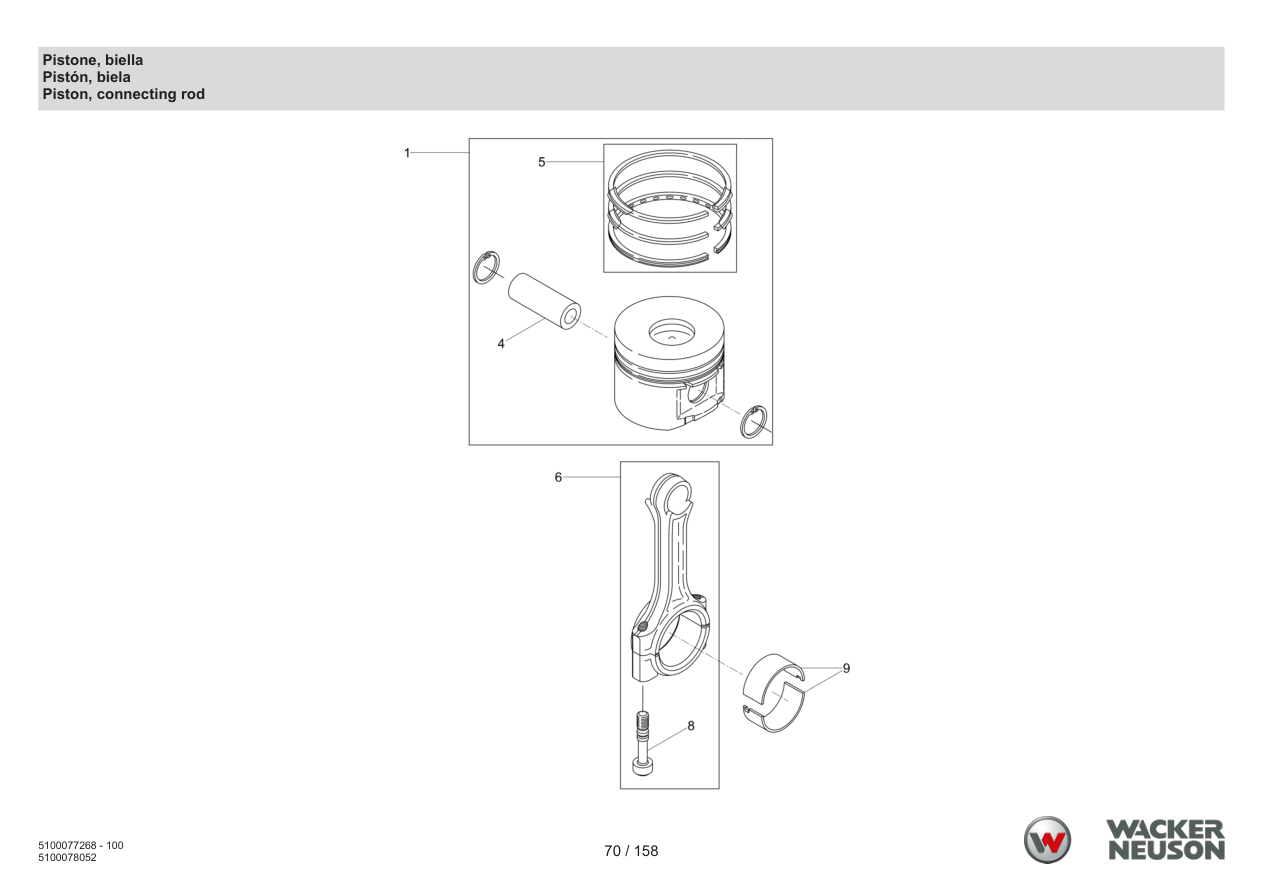

Page 70 — Piston, Connecting rod
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100068990 | Piston | 1 | ADD TO CART | |
| 4 | 5100068993 | Piston pin | 1 | PARTS REQUEST | |
|
COMING Piston pin
5100068993 · qty on machine: 1 | |||||
| 5 | 5100068994 | Set of piston rings | 1 | ADD TO CART | |
| 6 | 5100068995 | Connecting rod | 1 | ADD TO CART | |
| 8 | 5000108022 | Connecting rod screw | 2 | ADD TO CART | |
| 9 | 5100068996 | Connecting rod bearing | 1 | ADD TO CART | |
| 9 | 5100068998 | Connecting rod bearing | 1 | ADD TO CART | |

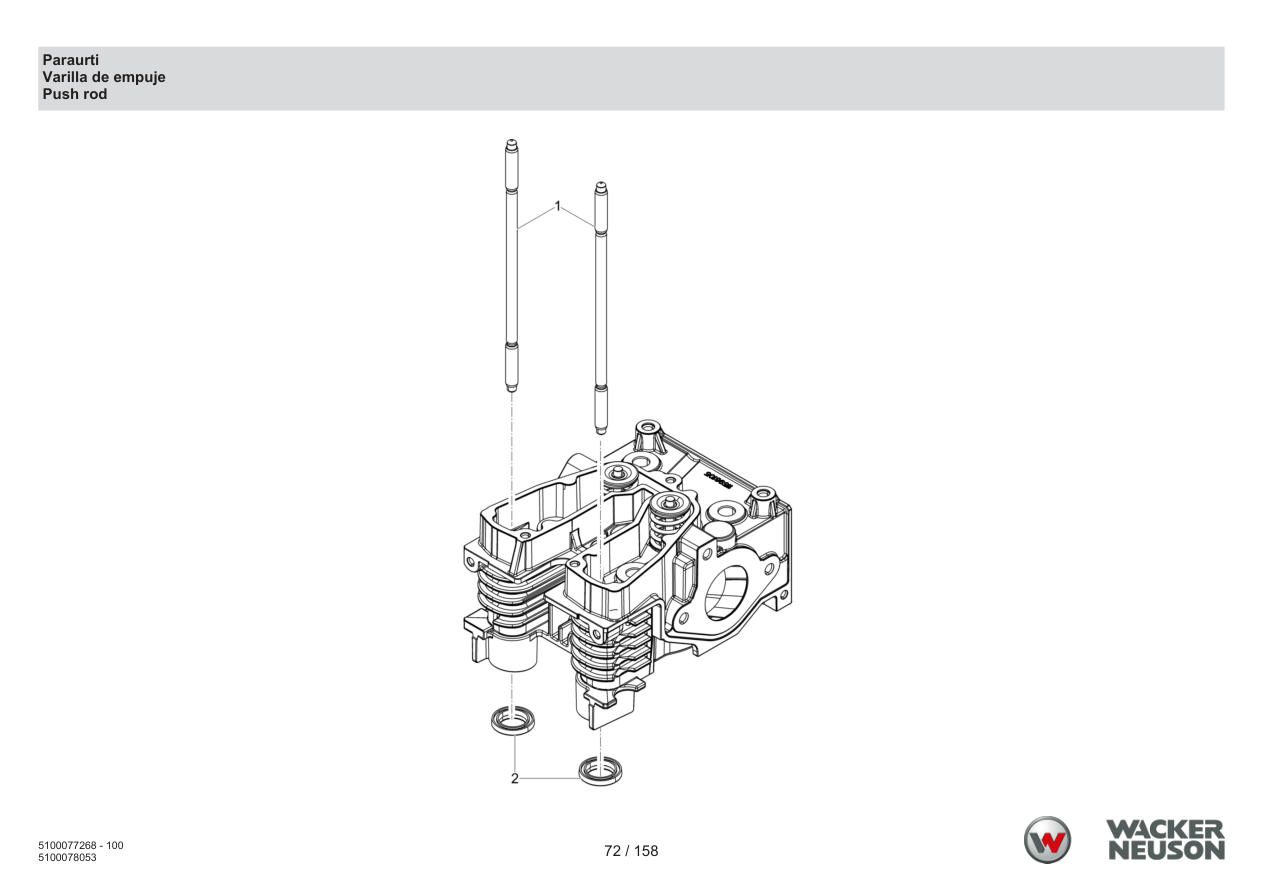

Page 72 — Bumper
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100069020 | Valve push rod | 2 | ADD TO CART | |
| 2 | 5000108770 | Seal ring | 2 | ADD TO CART | |

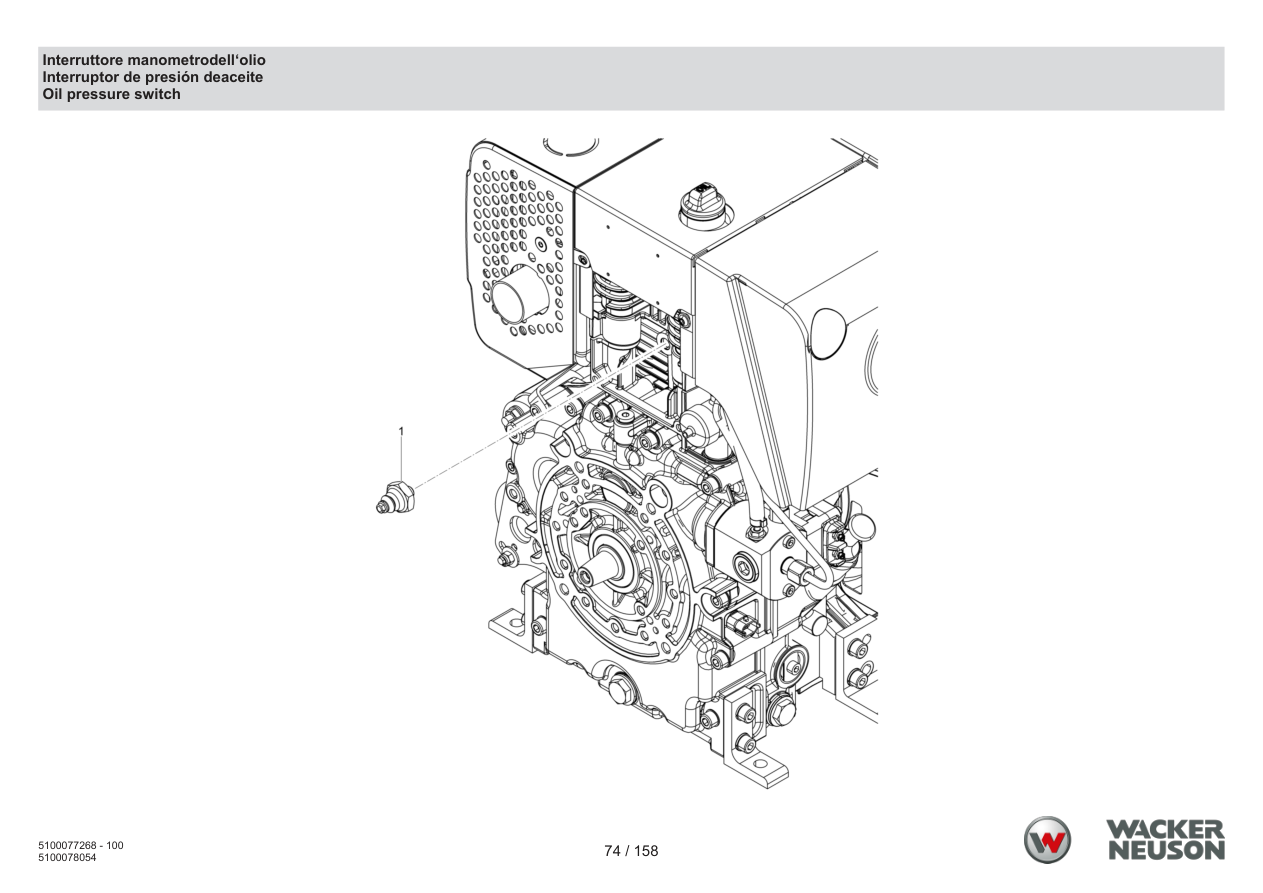

Page 74 — Interruttore manometrodell‘olio
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000107867 | Oil pressure switch | 1 | ADD TO CART | |

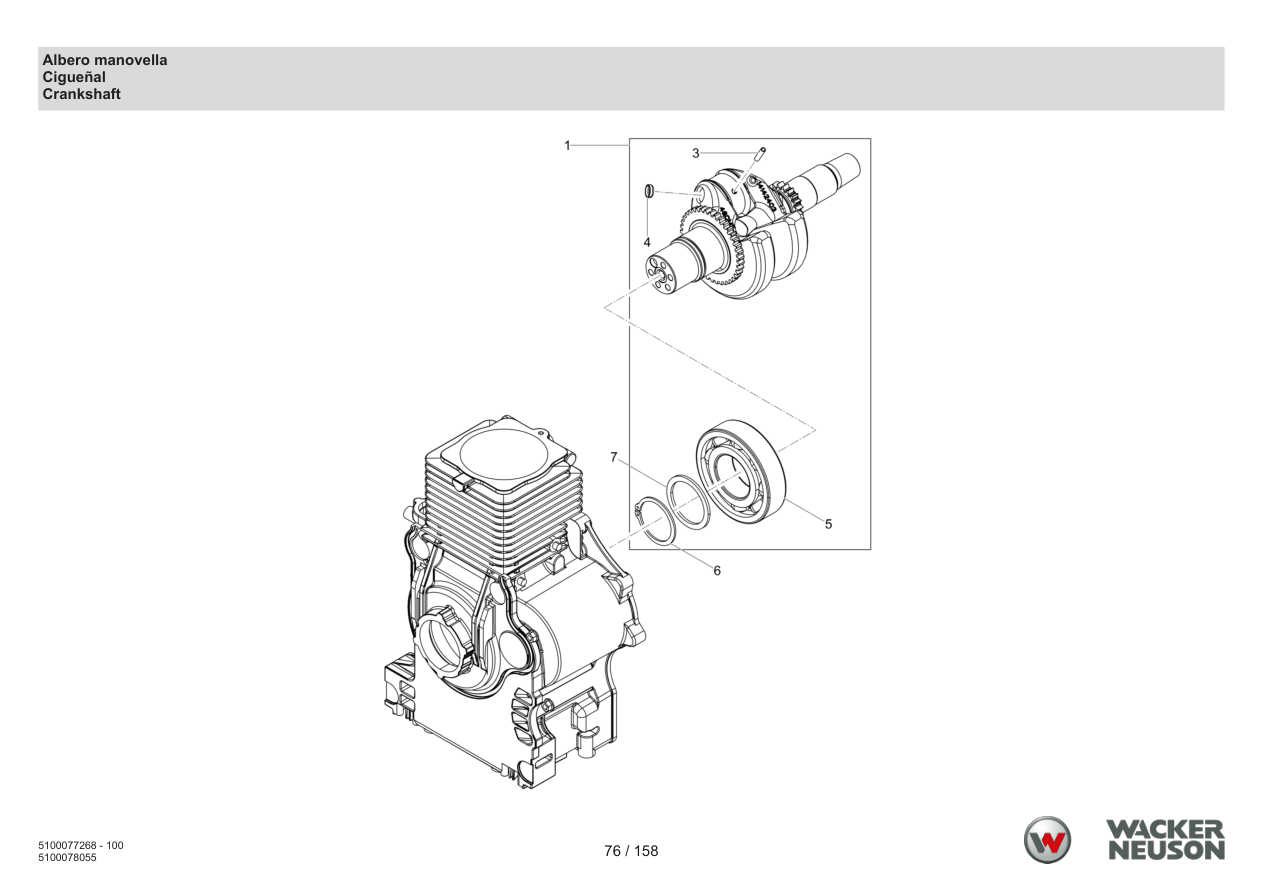

Page 76 — Crankshaft
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100077987 | Crankshaft | 1 | PARTS REQUEST | |
|
COMING Crankshaft
5100077987 · qty on machine: 1 | |||||
| 3 | 5100068984 | Bush | 1 | ADD TO CART | |
| 4 | 5100068985 | Cover | 1 | PARTS REQUEST | |
|
COMING Cover
5100068985 · qty on machine: 1 | |||||
| 5 | 5100068987 | Grooved ball bearing | 1 | ADD TO CART | |
| 6 | 5100068988 | Retaining ring | 1 | ADD TO CART | |
| 7 | 5100068989 | Supporting washer | 1 | ADD TO CART | |

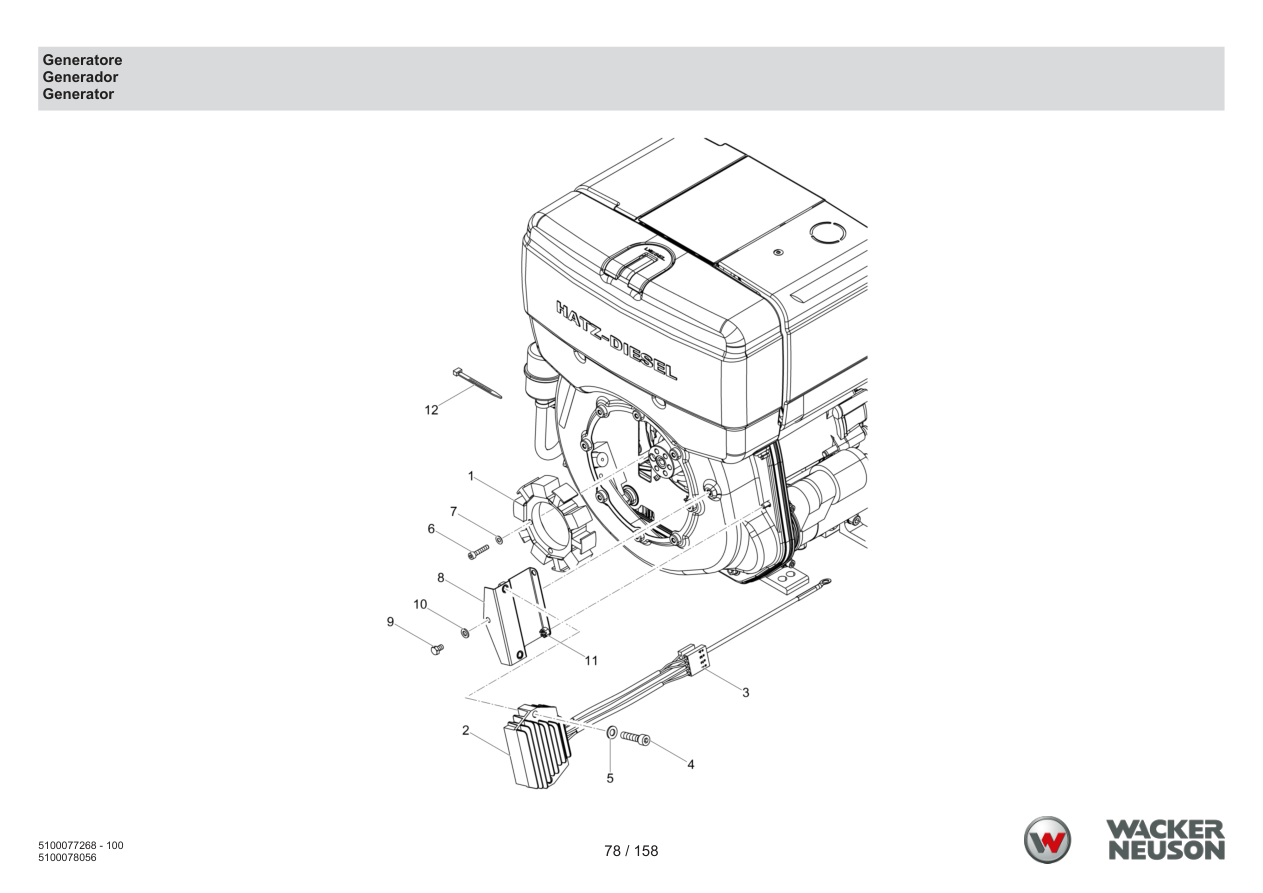

Page 78 — Generator
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100077998 | Stator | 1 | ADD TO CART | |
| 2 | 5000212093 | Regulator | 1 | ADD TO CART | |
| 3 | 5000099522 | Pin bushing | 1 | ADD TO CART | |
| 4 | 5000202440 | Hexagon socket head screw | 2 | ADD TO CART | |
| 5 | 5000151553 | Washer | 2 | ADD TO CART | |
| 6 | 5000217620 | Cheese head screw | 4 | PARTS REQUEST | |
|
COMING Cheese head screw
5000217620 · qty on machine: 4 | |||||
| 7 | 5000217612 | Spring washer | 4 | ADD TO CART | |
| 8 | 5100068940 | Bracket | 1 | PARTS REQUEST | |
|
COMING Bracket
5100068940 · qty on machine: 1 | |||||
| 9 | 5100068941 | Hexagonal head cap screw | 1 | ADD TO CART | |
| 10 | 5000151324 | Washer | 2 | ADD TO CART | |
| 11 | 5100068943 | Nut | 2 | ADD TO CART | |
| 12 | 5100068944 | Tie cable | 5 | ADD TO CART | |

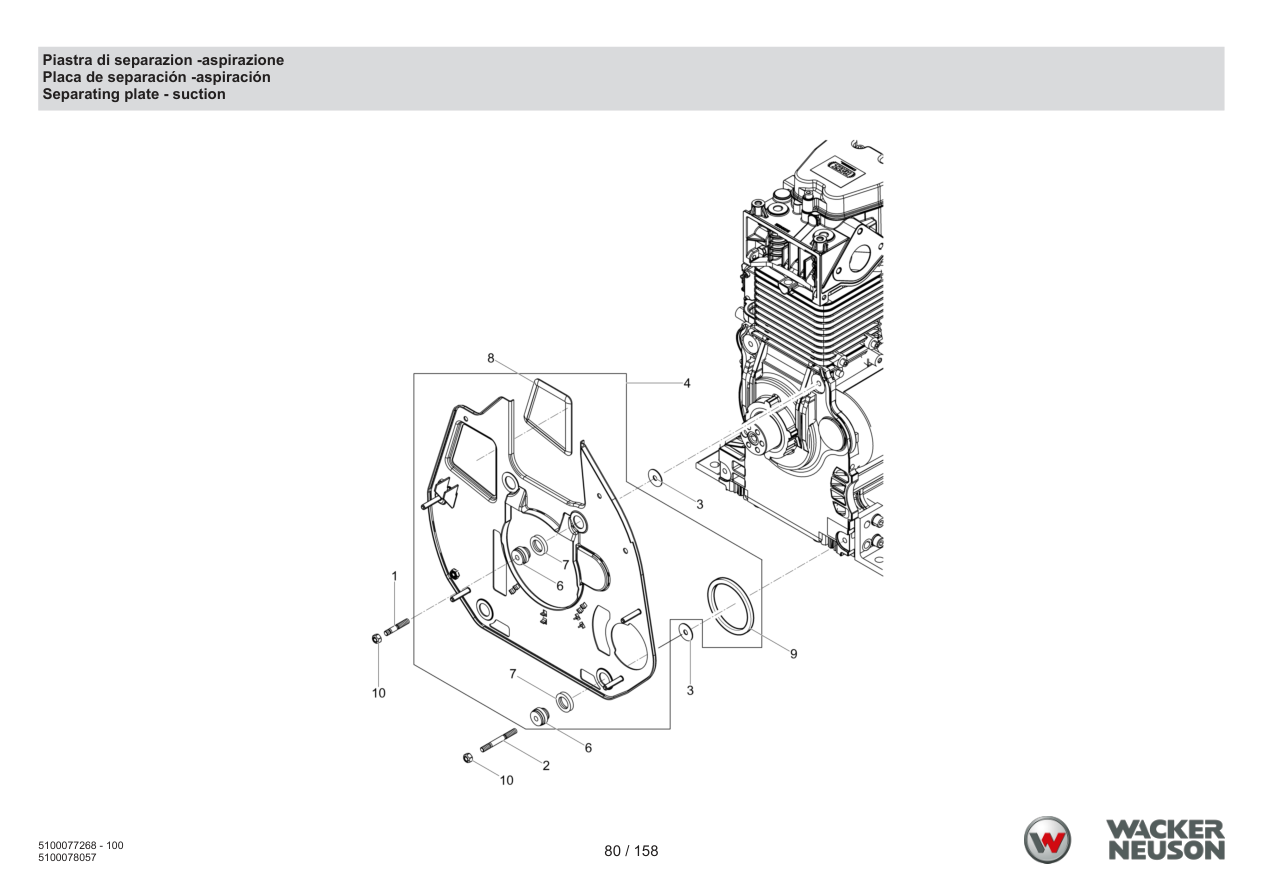

Page 80 — Separation plate - suction
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100038988 | Stud | 2 | PARTS REQUEST | |
|
COMING Stud
5100038988 · qty on machine: 2 | |||||
| 2 | 5000108850 | Stud bolt | 2 | ADD TO CART | |
| 3 | 5000108851 | Washer | 4 | ADD TO CART | |
| 4 | 5100069046 | Baffle plate | 1 | ADD TO CART | |
| 6 | 5000209664 | Spacer sleeve | 4 | ADD TO CART | |
| 7 | 5000107800 | Sealing ring | 4 | ADD TO CART | |
| 8 | 5100069047 | Cover | 1 | ADD TO CART | |
| 9 | 5000217605 | Seal ring | 1 | ADD TO CART | |
| 10 | 5000129021 | Locknut | 2 | ADD TO CART | |

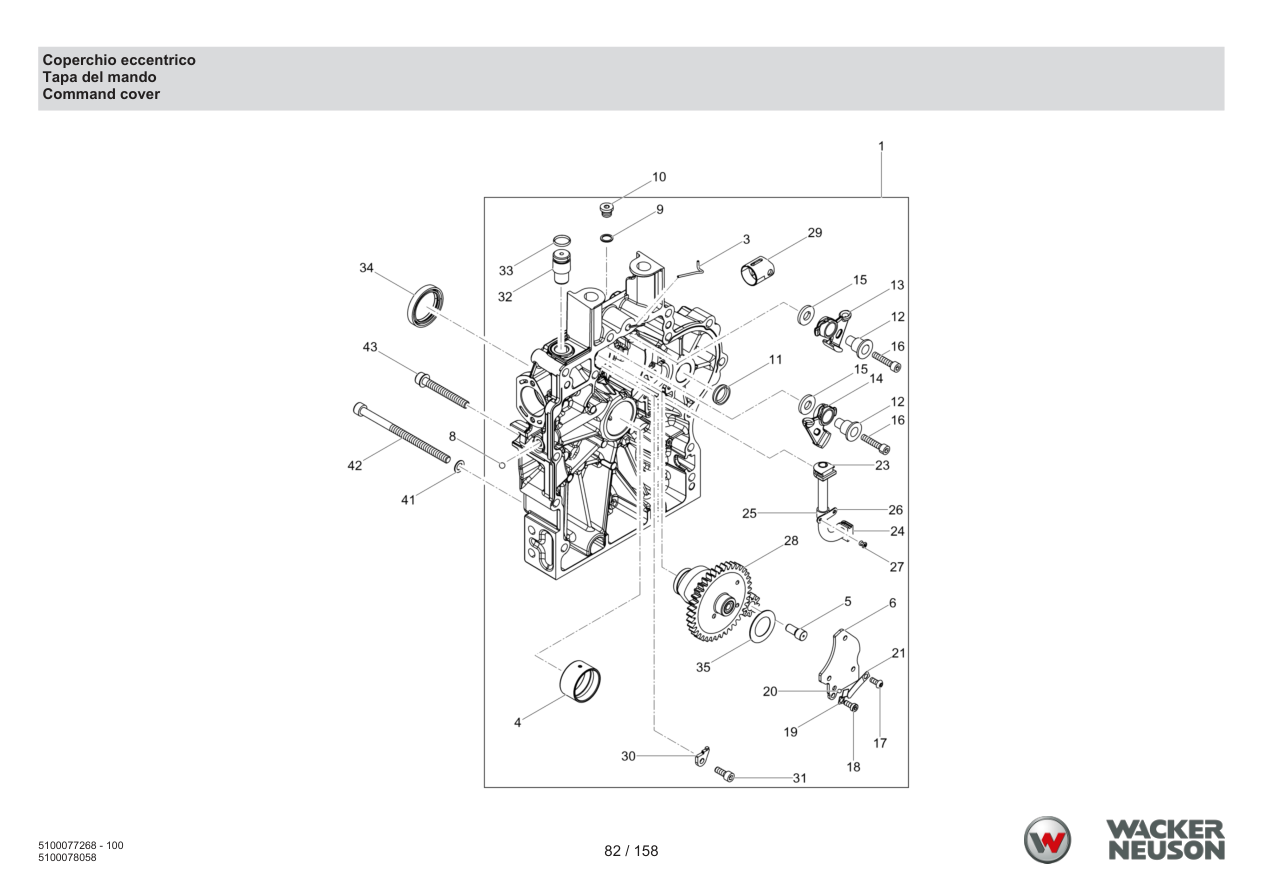

Page 82 — Eccentric cover
Parts list — exactly as printed40 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100069023 | Command cover | 1 | ADD TO CART | |
| 3 | 5100069024 | Jet | 1 | ADD TO CART | |
| 4 | 5100069025 | Slide bearing | 1 | ADD TO CART | |
| 5 | 5100069026 | Bolt | 1 | ADD TO CART | |
| 6 | 5100069027 | Cover | 1 | ADD TO CART | |
| 8 | 5100069031 | Ball | 1 | ADD TO CART | |
| 9 | 5000071121 | Sealing ring | 1 | ADD TO CART | |
| 10 | 5000151213 | Screw plug | 1 | ADD TO CART | |
| 11 | 5000202451 | Push-in plug | 1 | ADD TO CART | |
| 12 | 5000094936 | Cam follower spindle shaft | 2 | ADD TO CART | |
| 13 | 5100069032 | Exhaust rocker arm | 1 | PARTS REQUEST | |
|
COMING Exhaust rocker arm
5100069032 · qty on machine: 1 | |||||
| 14 | 5100069033 | Rocker arm | 1 | ADD TO CART | |
| 15 | 5000104365 | Washer | 2 | ADD TO CART | |
| 16 | 5000217112 | Cheese head screw | 2 | ADD TO CART | |
| 17 | 5100013784 | Countersunk screw | 1 | ADD TO CART | |
| 18 | 5000151308 | Cheese head screw | 3 | ADD TO CART | |
| 19 | 5000108778 | Retaining strap | 1 | ADD TO CART | |
| 20 | 5100069034 | Ball | 1 | ADD TO CART | |
| 21 | 5000108777 | Spring | 1 | ADD TO CART | |
| 23 | 5100068965 | Grommet | 1 | ADD TO CART | |
| 24 | 5100068900 | Grommet | 1 | ADD TO CART | |
| 25 | 5100068912 | Hose | 1 | ADD TO CART | |
| 26 | 5100068924 | Plate | 1 | ADD TO CART | |
| 27 | 5100038898 | Blind rivet | 2 | ADD TO CART | |
| 28 | 5100068936 | Plate | 1 | ADD TO CART | |
| 29 | 5100051905 | Tappet | 1 | ADD TO CART | |
| 30 | 5000126526 | Guide | 1 | ADD TO CART | |
| 31 | 5000207610 | Cheese head screw | 1 | ADD TO CART | |
| 32 | 5100068948 | Adapter | 1 | ADD TO CART | |
| 33 | 5100068975 | O-ring | 1 | ADD TO CART | |
| 34 | 5002006727 | Rotary shaft seal | 1 | ADD TO CART | |
| 35 | 5000108701 | Shim ring | 1 | ADD TO CART | |
| 35 | 5000108702 | Shim | 1 | ADD TO CART | |
| 35 | 5000108703 | Shim | 1 | ADD TO CART | |
| 35 | 5000108704 | Shim | 1 | ADD TO CART | |
| 35 | 5000108705 | Shim ring | 1 | ADD TO CART | |
| 35 | 5000108706 | Shim ring | 1 | ADD TO CART | |
| 41 | 5000151371 | Cheese head screw | 2 | ADD TO CART | |
| 42 | 5000107556 | Gasket | 2 | ADD TO CART | |
| 43 | 5100068963 | Cheese head screw | 14 | ADD TO CART | |

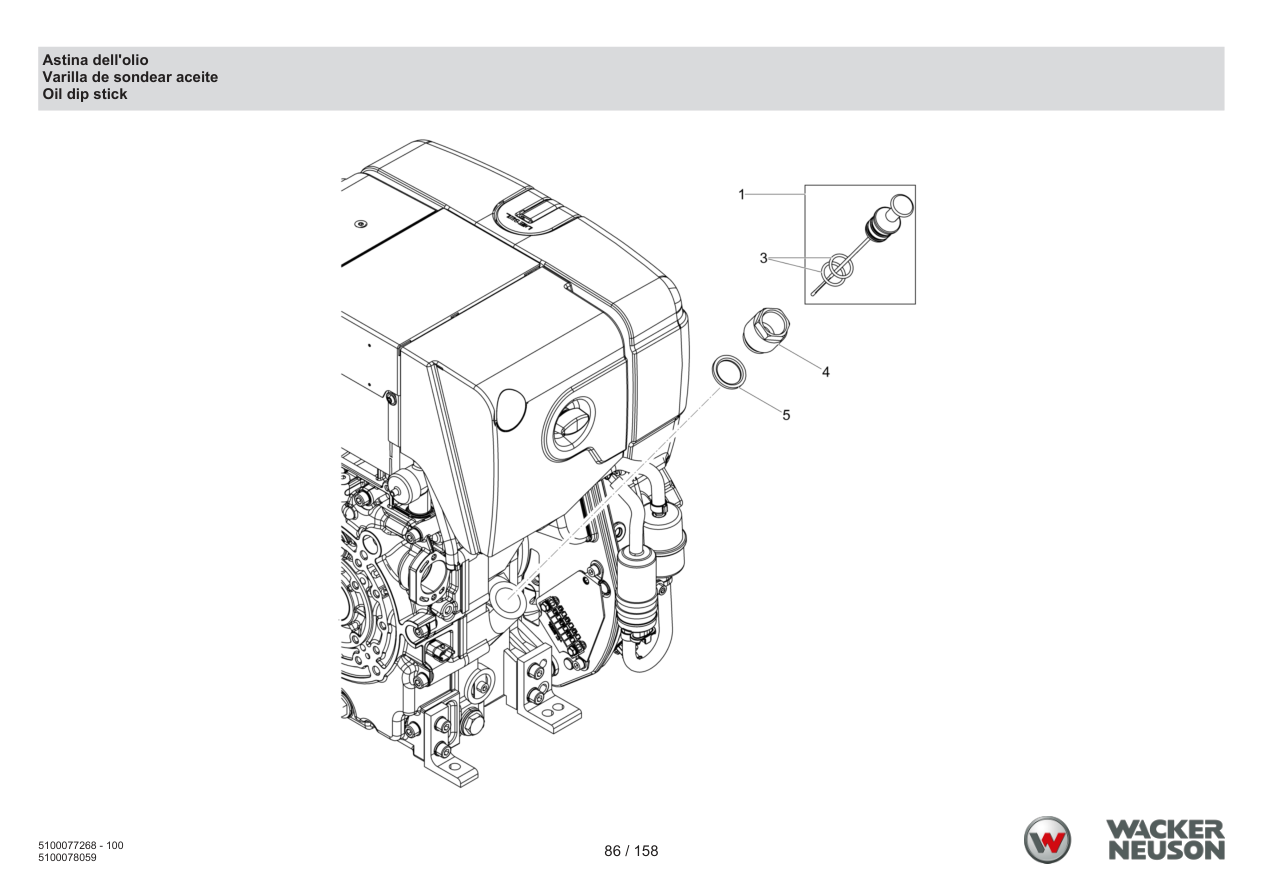

Page 86 — Oil dipstick
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100068981 | Dip stick | 1 | ADD TO CART | |
| 3 | 5000094933 | O-ring | 2 | ADD TO CART | |
| 4 | 5100068982 | Connector | 1 | ADD TO CART | |
| 5 | 5000151217 | Gasket | 1 | ADD TO CART | |

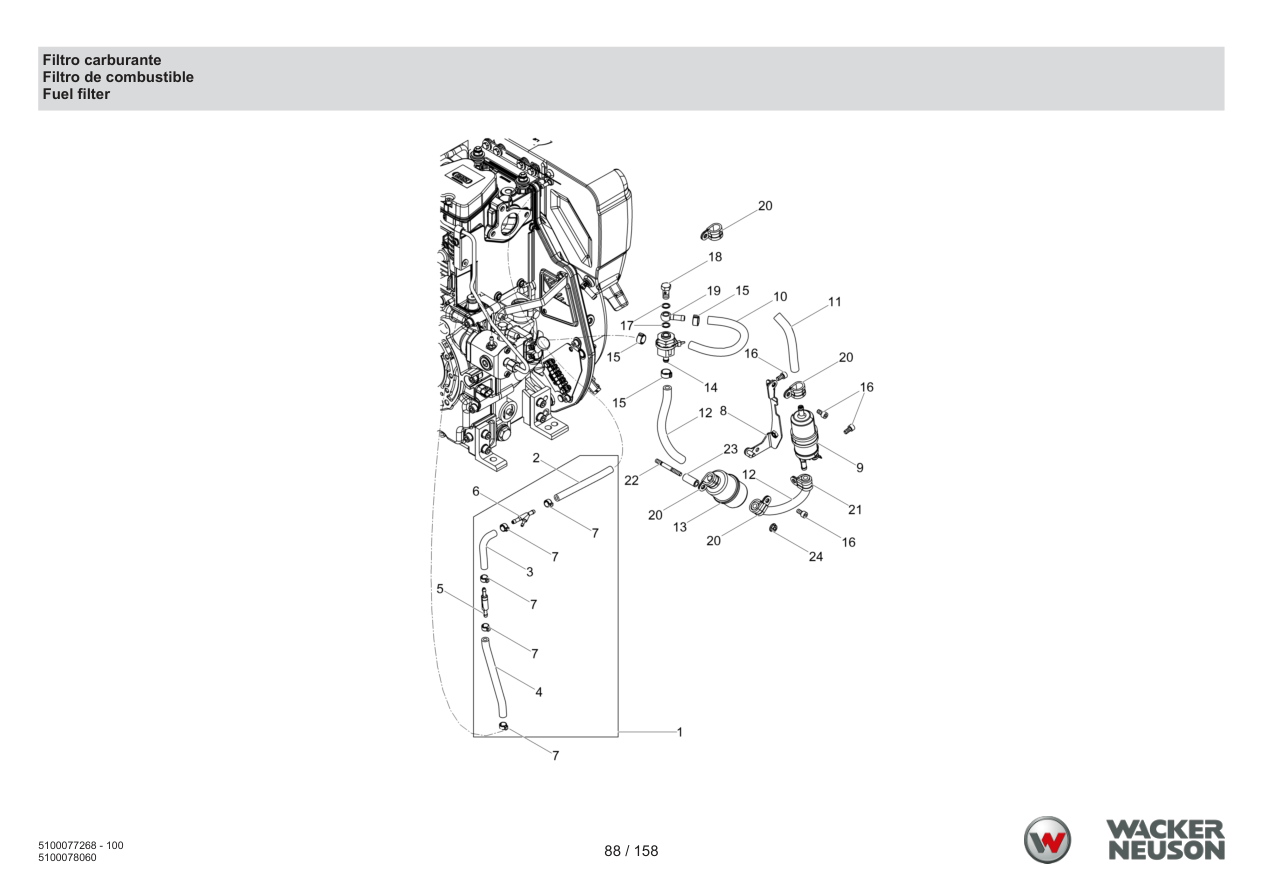

Page 88 — Fuel filter
Parts list — exactly as printed24 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100077985 | Fuel pipe cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Fuel pipe cpl.
5100077985 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 2 | 5000104414 | Wire | 1 | PARTS REQUEST | |
|
COMING Wire
5000104414 · qty on machine: 1 | |||||
| 3 | 5000207528 | Fuel pipe | 1 | ADD TO CART | |
| 4 | 5100068905 | Fuel hose | 1 | ADD TO CART | |
| 5 | 5000108882 | Valve | 1 | ADD TO CART | |
| 6 | 5000128959 | Tee-stem for hose | 1 | ADD TO CART | |
| 7 | 5000207586 | Clamp | 5 | ADD TO CART | |
| 8 | 5100077986 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100077986 · qty on machine: 1 | |||||
| 9 | 5100077988 | Fuel pump | 1 | ADD TO CART | |
| 10 | 5100068910 | Fuel hose | 1 | ADD TO CART | |
| 11 | 5100077989 | Fuel hose | 1 | PARTS REQUEST | |
|
COMING Fuel hose
5100077989 · qty on machine: 1 | |||||
| 12 | 5100051942 | Fuel hose | 2 | ADD TO CART | |
| 13 | 5200007502 | Fuel filter | 1 | ADD TO CART | |
| 14 | 5100062275 | Back pressure valve | 1 | ADD TO CART | |
| 15 | 5000203655 | Clamp | 3 | ADD TO CART | |
| 16 | 5000129016 | Cheese head screw | 4 | ADD TO CART | |
| 17 | 5000071121 | Sealing ring | 2 | ADD TO CART | |
| 18 | 5000207566 | Banjo bolt | 1 | ADD TO CART | |
| 19 | 5000107422 | Banjo fitting | 1 | ADD TO CART | |
| 20 | 5000107451 | Clamp | 5 | ADD TO CART | |
| 21 | 5000109710 | Tie cable | 1 | PARTS REQUEST | |
|
COMING Tie cable
5000109710 · qty on machine: 1 | |||||
| 22 | 5000108850 | Stud bolt | 1 | ADD TO CART | |
| 23 | 5100077990 | Bushing | 1 | PARTS REQUEST | |
|
COMING Bushing
5100077990 · qty on machine: 1 | |||||
| 24 | 5100077991 | Hexagon nut m6 | 1 | PARTS REQUEST | |
|
COMING Hexagon nut m6
5100077991 · qty on machine: 1 | |||||

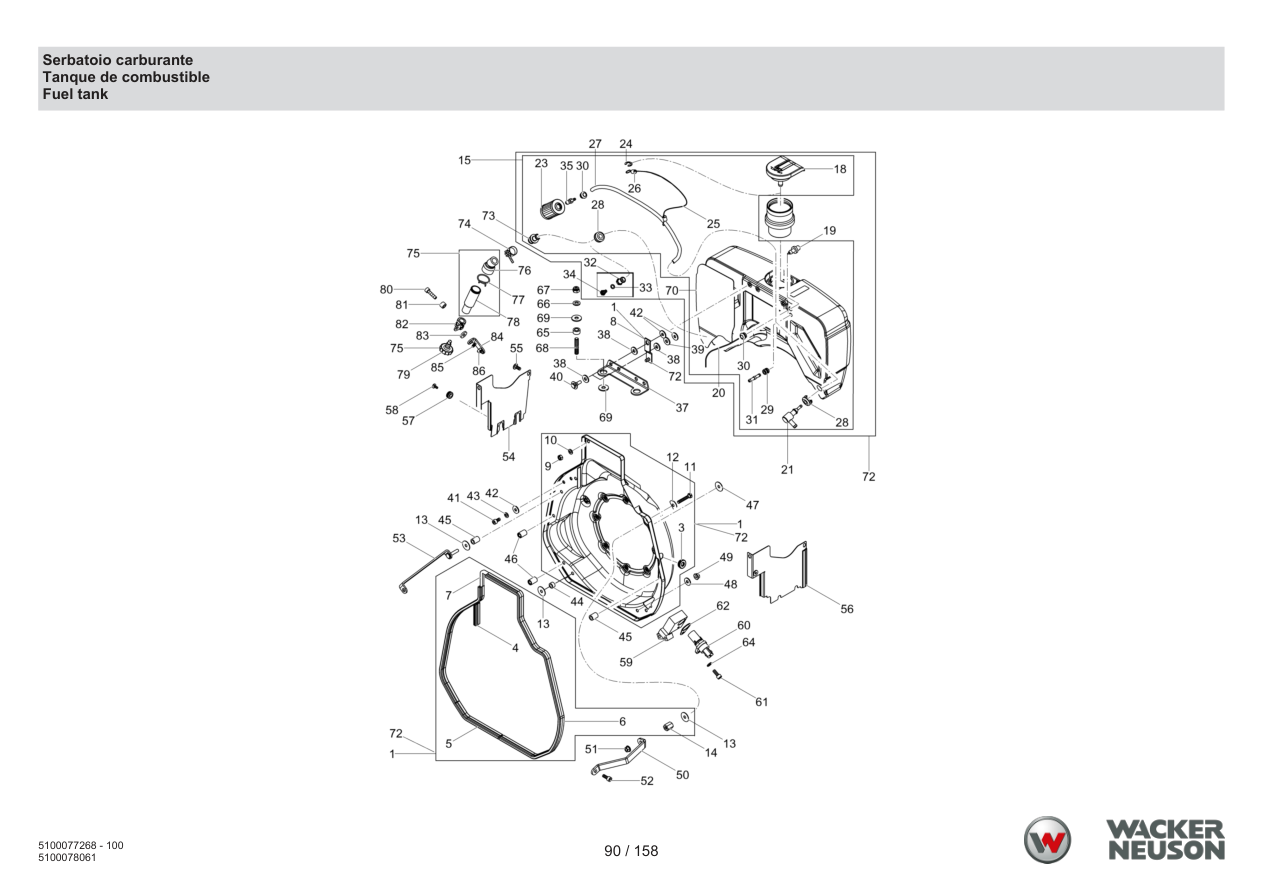

Page 90 — Fuel tank
Parts list — exactly as printed80 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100069050 | Housing | 1 | ADD TO CART | |
| 3 | 5000108838 | Sleeve | 1 | ADD TO CART | |
| 4 | 5100069053 | Sealing rail | 1 | ADD TO CART | |
| 5 | 5100069054 | Sealing rail | 1 | ADD TO CART | |
| 6 | 5100069055 | Sealing rail | 1 | ADD TO CART | |
| 7 | 5100069056 | Edge protection | 1 | ADD TO CART | |
| 8 | 5000108896 | Brace | 1 | ADD TO CART | |
| 9 | 5000151323 | Locknut | 2 | ADD TO CART | |
| 10 | 5000151456 | Lock washer | 2 | ADD TO CART | |
| 11 | 5100069057 | Hexagonal head cap screw | 1 | ADD TO CART | |
| 12 | 5100069058 | Disc | 1 | ADD TO CART | |
| 13 | 5000108851 | Washer | 3 | ADD TO CART | |
| 14 | 5100069059 | Hexagon nut | 1 | ADD TO CART | |
| 15 | 5100078012 | Fuel tank cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Fuel tank cpl.
5100078012 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 18 | 5000108861 | Cap | 1 | ADD TO CART | |
| 19 | 5000108870 | Valve | 1 | ADD TO CART | |
| 20 | 5100069062 | Hose | 1 | ADD TO CART | |
| 21 | 5100068898 | Connecting nipple | 1 | ADD TO CART | |
| 23 | 5100068909 | Fuel filter | 1 | ADD TO CART | |
| 24 | 5000107398 | Lock washer | 1 | ADD TO CART | |
| 25 | 5100068920 | Cord | 1 | ADD TO CART | |
| 26 | 5100068931 | End sleeve for strand | 2 | ADD TO CART | |
| 27 | 5100068942 | Fuel hose | 1 | ADD TO CART | |
| 28 | 5000108874 | Sleeve | 2 | ADD TO CART | |
| 29 | 5000108885 | Sleeve | 1 | ADD TO CART | |
| 30 | 5100038991 | Grommet | 2 | ADD TO CART | |
| 31 | 5000128962 | Nipple | 1 | ADD TO CART | |
| 32 | 5000128956 | Threaded nipple | 1 | ADD TO CART | |
| 33 | 5000128346 | Gasket | 1 | ADD TO CART | |
| 69 | 5000108892 | Disc | 4 | ADD TO CART | |
| 34 | 5000128958 | Connecting screw | 1 | ADD TO CART | |
| 35 | 5000151533 | Connector | 1 | ADD TO CART | |
| 37 | 5100068953 | Angle | 1 | ADD TO CART | |
| 38 | 5000108791 | Disc | 8 | ADD TO CART | |
| 39 | 5000107401 | Washer | 2 | ADD TO CART | |
| 40 | 5000202347 | Hexagonal head cap screw | 4 | ADD TO CART | |
| 41 | 5000129016 | Cheese head screw | 4 | ADD TO CART | |
| 42 | 5000151540 | Washer | 8 | ADD TO CART | |
| 43 | 5000151456 | Lock washer | 4 | ADD TO CART | |
| 44 | 5100068960 | Bush | 1 | ADD TO CART | |
| 45 | 5000151486 | Sleeve | 2 | ADD TO CART | |
| 46 | 5000108852 | Spacer tube | 2 | ADD TO CART | |
| 47 | 5000108851 | Washer | 2 | ADD TO CART | |
| 48 | 5000151540 | Washer | 2 | ADD TO CART | |
| 49 | 5100038987 | Hexagon nut | 5 | PARTS REQUEST | |
|
COMING Hexagon nut
5100038987 · qty on machine: 5 | |||||
| 50 | 5100068961 | Bracket | 1 | ADD TO CART | |
| 51 | 5100038987 | Hexagon nut | 1 | PARTS REQUEST | |
|
COMING Hexagon nut
5100038987 · qty on machine: 1 | |||||
| 52 | 5000151231 | Cheese head screw | 1 | ADD TO CART | |
| 53 | 5100078014 | Holder | 1 | ADD TO CART | |
| 54 | 5100068899 | Air duct plate | 1 | ADD TO CART | |
| 55 | 5100038983 | Countersunk screw | 4 | ADD TO CART | |
| 56 | 5100068901 | Air duct plate | 1 | ADD TO CART | |
| 57 | 5000108842 | Sleeve | 4 | ADD TO CART | |
| 58 | 5000108844 | Screw | 4 | ADD TO CART | |
| 59 | 5100068902 | Bracket | 1 | ADD TO CART | |
| 60 | 5100062448 | Speed sensor | 1 | PARTS REQUEST | |
|
COMING Speed sensor
5100062448 · qty on machine: 1 | |||||
| 61 | 5000202437 | Cheese head screw | 1 | ADD TO CART | |
| 62 | 5100068903 | Plate | 4 | ADD TO CART | |
| 63 | 5100068904 | Plate | 4 | ADD TO CART | |
| 64 | 5000151324 | Washer | 1 | ADD TO CART | |
| 65 | 5000108894 | Sleeve | 2 | ADD TO CART | |
| 66 | 5000151553 | Washer | 2 | ADD TO CART | |
| 67 | 5000151530 | Locknut | 2 | ADD TO CART | |
| 68 | 5000151526 | Stud | 2 | ADD TO CART | |
| 70 | 5100078015 | Heat shield | 1 | PARTS REQUEST | |
|
COMING Heat shield
5100078015 · qty on machine: 1 | |||||
| 72 | 5100078016 | Fuel tank | 1 | PARTS REQUEST | |
|
COMING Fuel tank
5100078016 · qty on machine: 1 | |||||
| 73 | 5000209870 | Connecting nipple | 1 | PARTS REQUEST | |
|
COMING Connecting nipple
5000209870 · qty on machine: 1 | |||||
| 74 | 5000202465 | Clamp | 1 | ADD TO CART | |
| 75 | 5000209871 | Water separator cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 76 | 5000202412 | Fuel hose | 1 | ADD TO CART | |
| 77 | 5000108688 | Clip | 1 | ADD TO CART | |
| 78 | 5000209707 | Water separator | 1 | ADD TO CART | |
| 79 | 5000202461 | Screw | 1 | ADD TO CART | |
| 80 | 5000129010 | Cheese head screw | 1 | ADD TO CART | |
| 81 | 5100039000 | Bush | 1 | ADD TO CART | |
| 82 | 5200022037 | Clip | 1 | ADD TO CART | |
| 83 | 5000107401 | Washer | 1 | ADD TO CART | |
| 84 | 5100078017 | Angle | 1 | PARTS REQUEST | |
|
COMING Angle
5100078017 · qty on machine: 1 | |||||
| 85 | 5000151456 | Lock washer | 1 | ADD TO CART | |
| 86 | 5000151323 | Locknut | 1 | ADD TO CART | |

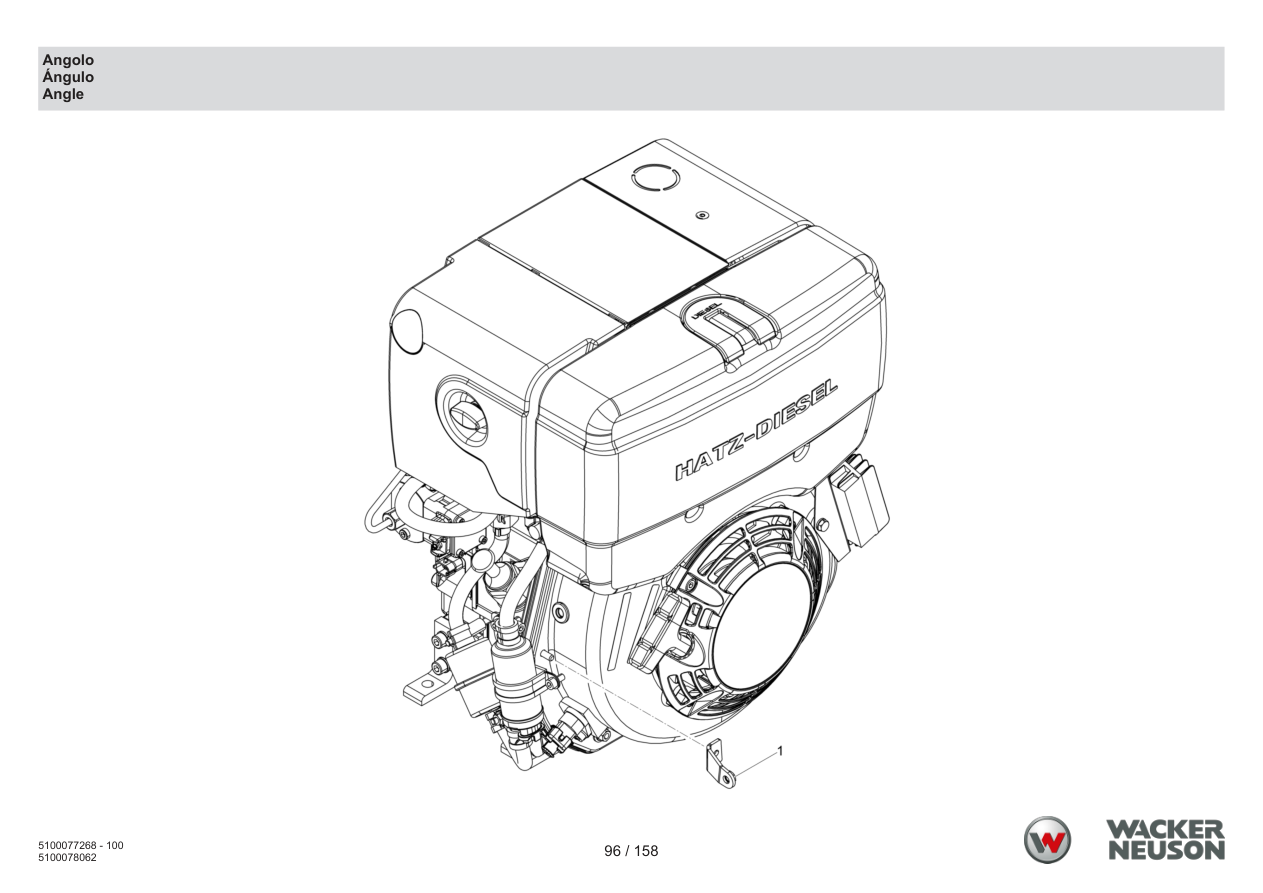

Page 96 — Angle
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100068914 | Angle | 1 | ADD TO CART | |

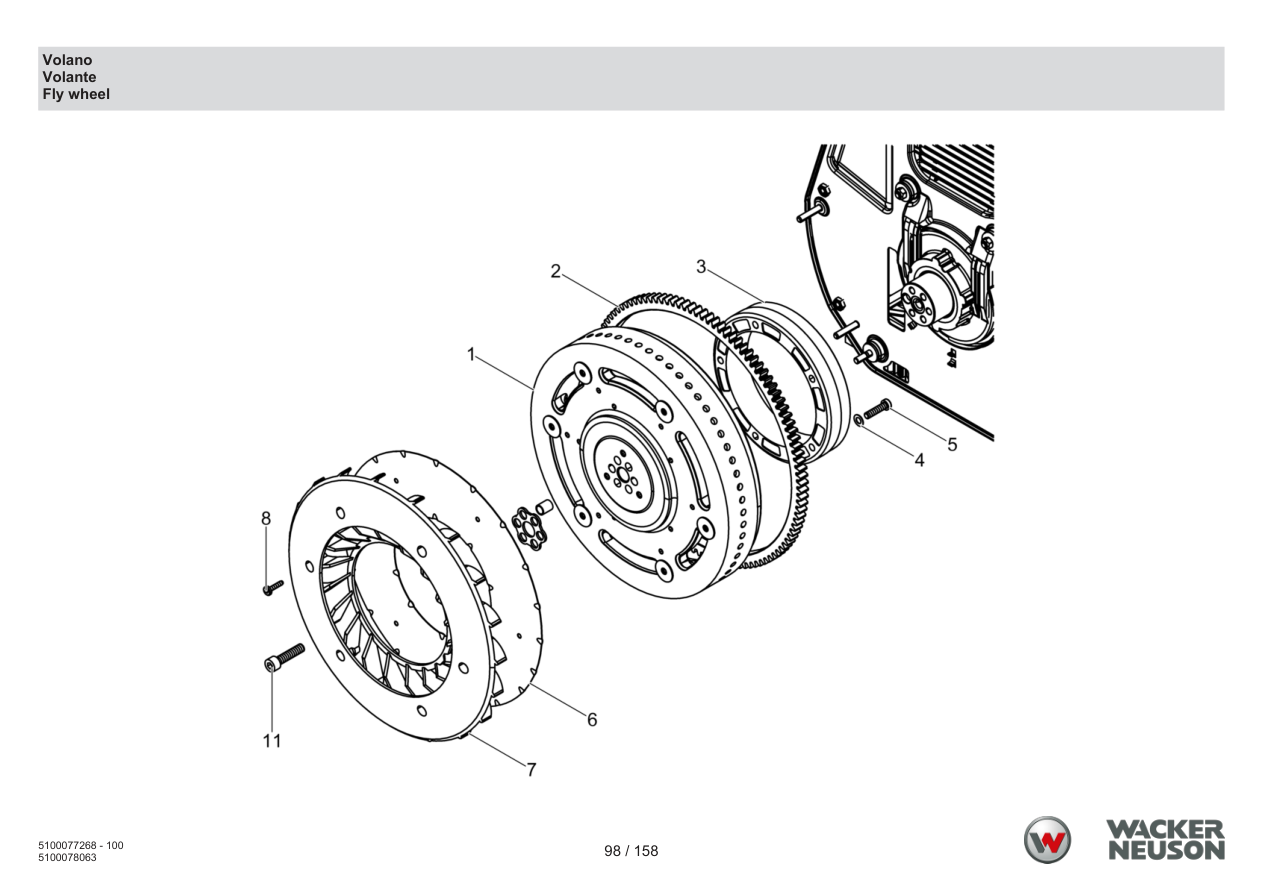

Page 98 — Flywheel
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100069039 | Fly wheel | 1 | ADD TO CART | |
| 2 | 5100069051 | Gear crown | 1 | ADD TO CART | |
| 3 | 5100068968 | Rotor | 1 | ADD TO CART | |
| 4 | 5000151290 | Spring washer | 5 | ADD TO CART | |
| 5 | 5000203133 | Hexagon socket head screw | 5 | ADD TO CART | |
| 6 | 5100068980 | Disc | 1 | ADD TO CART | |
| 7 | 5100068992 | Fan wheel | 1 | ADD TO CART | |
| 8 | 5100051903 | Cheese head screw | 6 | ADD TO CART | |
| 11 | 5100069028 | Cheese head screw | 6 | ADD TO CART | |

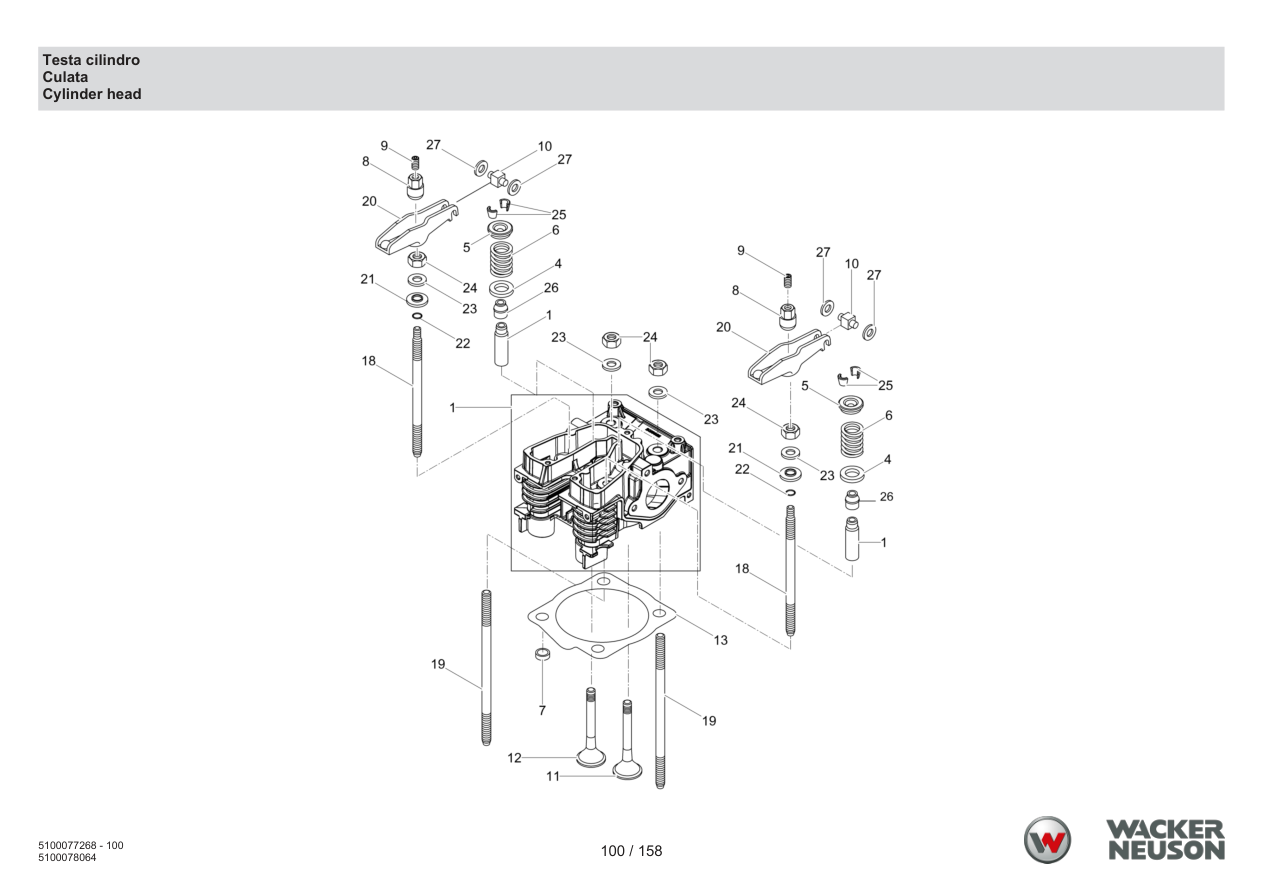

Page 100 — Cylinder Head
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100068999 | Cylinder head | 1 | ADD TO CART | |
| 4 | 5100069001 | Disc | 2 | ADD TO CART | |
| 5 | 5100069002 | Spring holder | 2 | ADD TO CART | |
| 6 | 5100069003 | Compression spring | 2 | ADD TO CART | |
| 7 | 5100069005 | Centering bus | 2 | ADD TO CART | |
| 8 | 5000108732 | Nut | 2 | ADD TO CART | |
| 9 | 5000129001 | Threaded pin | 2 | ADD TO CART | |
| 10 | 5100069006 | Slider | 2 | PARTS REQUEST | |
|
COMING Slider
5100069006 · qty on machine: 2 | |||||
| 11 | 5100069007 | Intake valve | 1 | ADD TO CART | |
| 12 | 5100069009 | Exhaust valve | 1 | ADD TO CART | |
| 13 | 5100069014 | Cylinder head gasket | 1 | ADD TO CART | |
| 13 | 5100069013 | Cylinder head gasket | 1 | ADD TO CART | |
| 13 | 5100069012 | Cylinder head gasket | 1 | ADD TO CART | |
| 13 | 5100069011 | Cylinder head gasket | 1 | ADD TO CART | |
| 13 | 5100069010 | Cylinder head gasket | 1 | ADD TO CART | |
| 18 | 5100069015 | Threaded stud bolt | 2 | ADD TO CART | |
| 19 | 5100069017 | Threaded stud bolt | 2 | ADD TO CART | |
| 20 | 5100069018 | Rocker arm | 2 | ADD TO CART | |
| 21 | 5000205486 | One-way flat washer | 2 | ADD TO CART | |
| 22 | 5000205485 | O-ring | 2 | ADD TO CART | |
| 23 | 5000151287 | Washer | 4 | PARTS REQUEST | |
|
COMING Washer
5000151287 · qty on machine: 4 | |||||
| 24 | 5000202334 | Locknut | 4 | ADD TO CART | |
| 25 | 5000108734 | Spring holder | 2 | ADD TO CART | |
| 26 | 5100013781 | Gasket | 2 | PARTS REQUEST | |
|
COMING Gasket
5100013781 · qty on machine: 2 | |||||
| 27 | 5000108730 | Disc | 4 | ADD TO CART | |
| 27 | 5000202301 | Washer | 4 | ADD TO CART | |

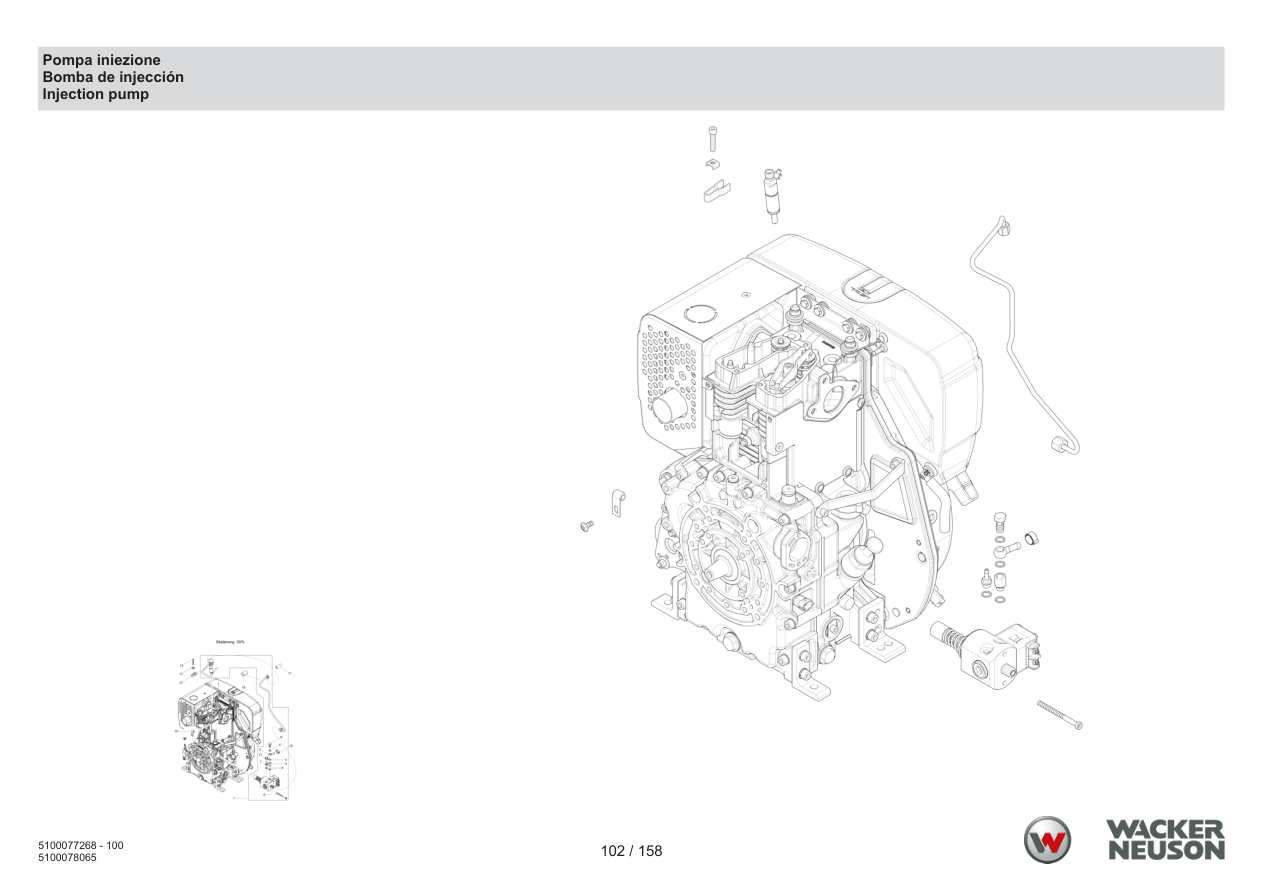

Page 102 — Injection pump
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100069036 | Injection pump | 1 | ADD TO CART | |
| 3 | 5100062307 | Adaptor | 4 | ADD TO CART | |
| 4 | 5000071121 | Sealing ring | 1 | ADD TO CART | |
| 5 | 5000107422 | Banjo fitting | 1 | ADD TO CART | |
| 6 | 5000207566 | Banjo bolt | 1 | ADD TO CART | |
| 7 | 5100069037 | Hose nipple | 1 | ADD TO CART | |
| 8 | 5100062309 | Cheese head screw m6x75 | 2 | ADD TO CART | |
| 11 | 5000209721 | Fuel hose | 1 | ADD TO CART | |
| 12 | 5000108807 | Holder | 1 | ADD TO CART | |
| 13 | 5000108808 | Washer | 1 | ADD TO CART | |
| 14 | 5100069042 | Screw plug | 1 | PARTS REQUEST | |
|
COMING Screw plug
5100069042 · qty on machine: 1 | |||||
| 15 | 5100069043 | Bracket | 1 | ADD TO CART | |
| 16 | 5100069044 | Protective hose | 1 | ADD TO CART | |
| 17 | 5000207586 | Clamp | 1 | ADD TO CART | |
| 18 | 5000203655 | Clamp | 1 | ADD TO CART | |

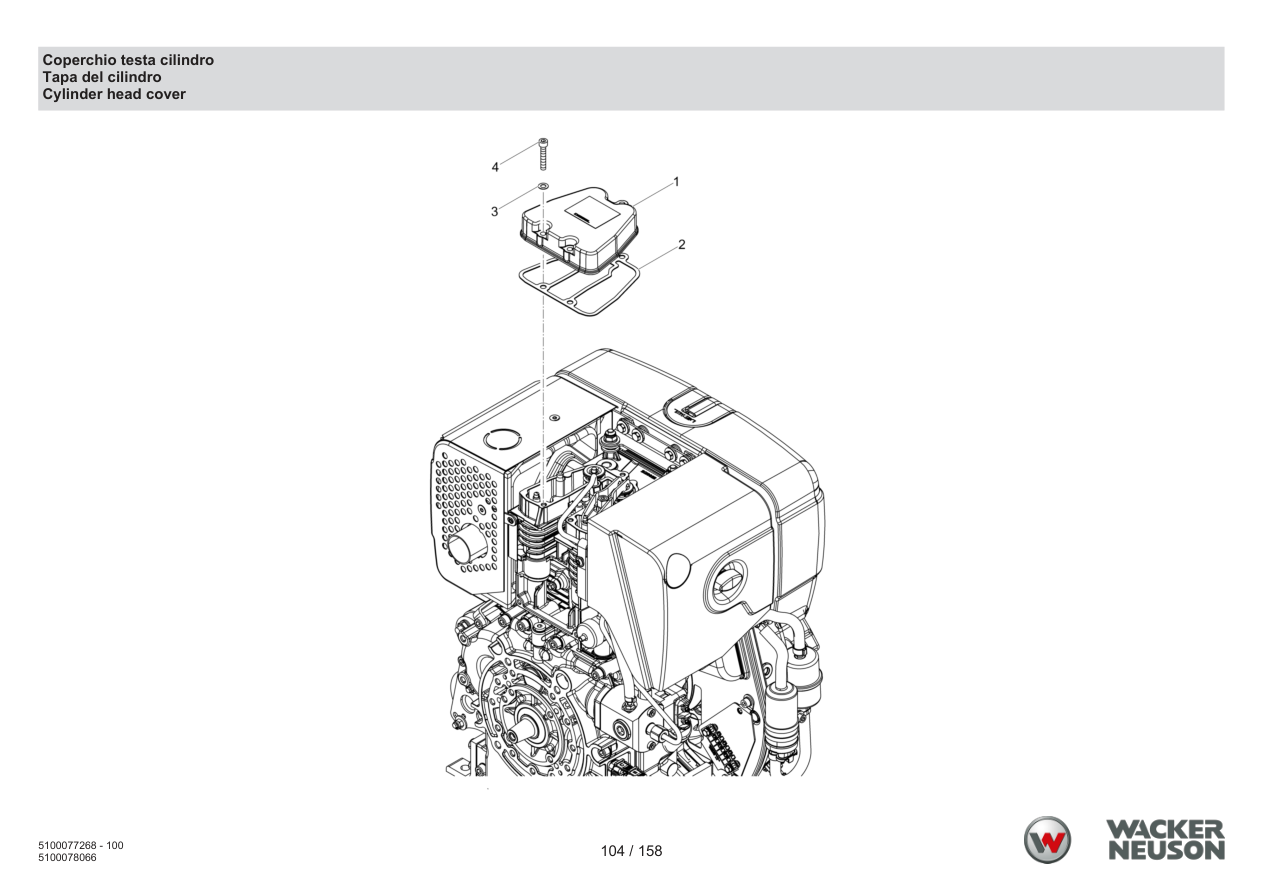

Page 104 — Cylinder Head Cover
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100069021 | Cylinder head cover | 1 | ADD TO CART | |
| 2 | 5100069022 | Sealing rail | 1 | ADD TO CART | |
| 3 | 5000151290 | Spring washer | 3 | ADD TO CART | |
| 4 | 5000129002 | Cheese head screw | 3 | ADD TO CART | |

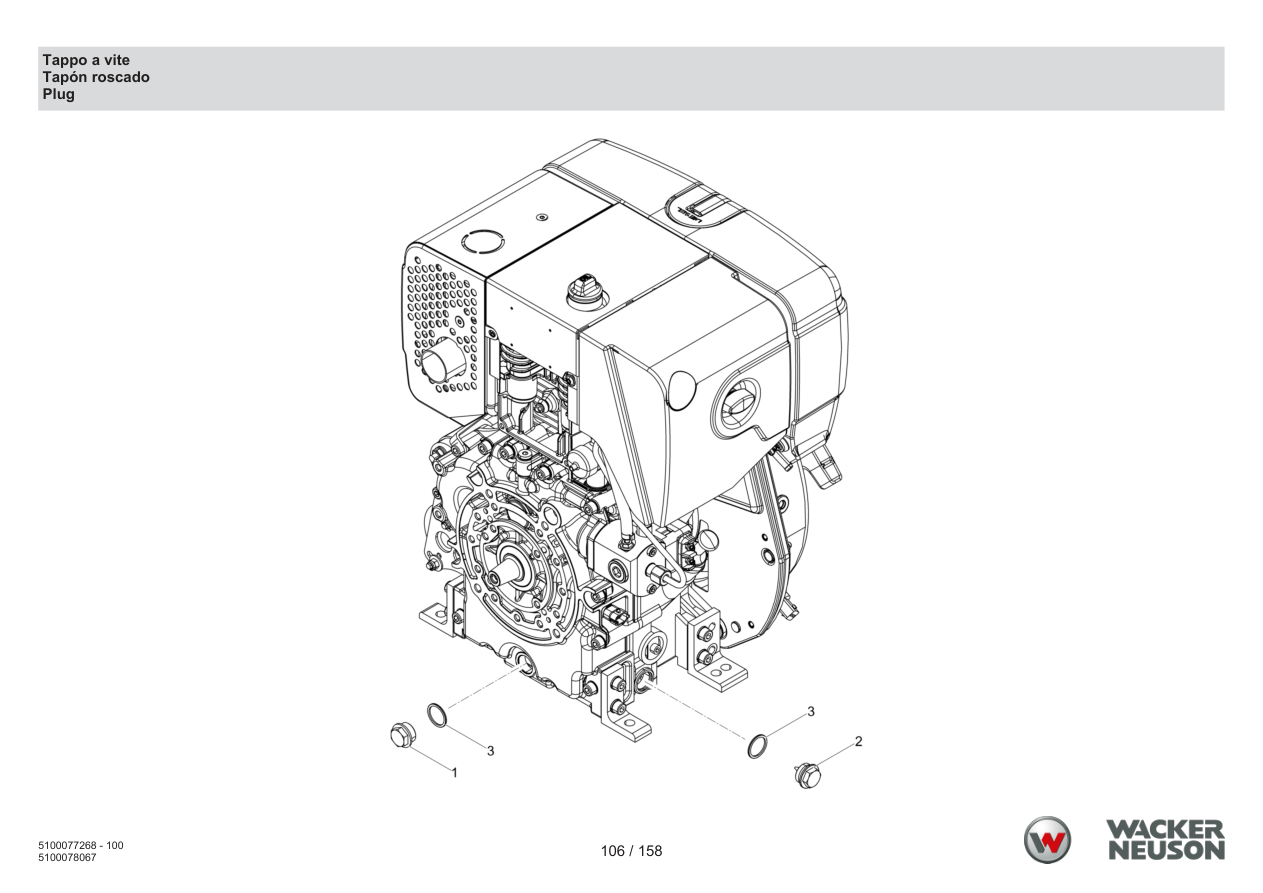

Page 106 — Sealing Screw
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000094958 | Plug (threaded) | 1 | ADD TO CART | |
| 2 | 5000202314 | Oil plug | 1 | ADD TO CART | |
| 3 | 5000202416 | Oil seal | 2 | ADD TO CART | |

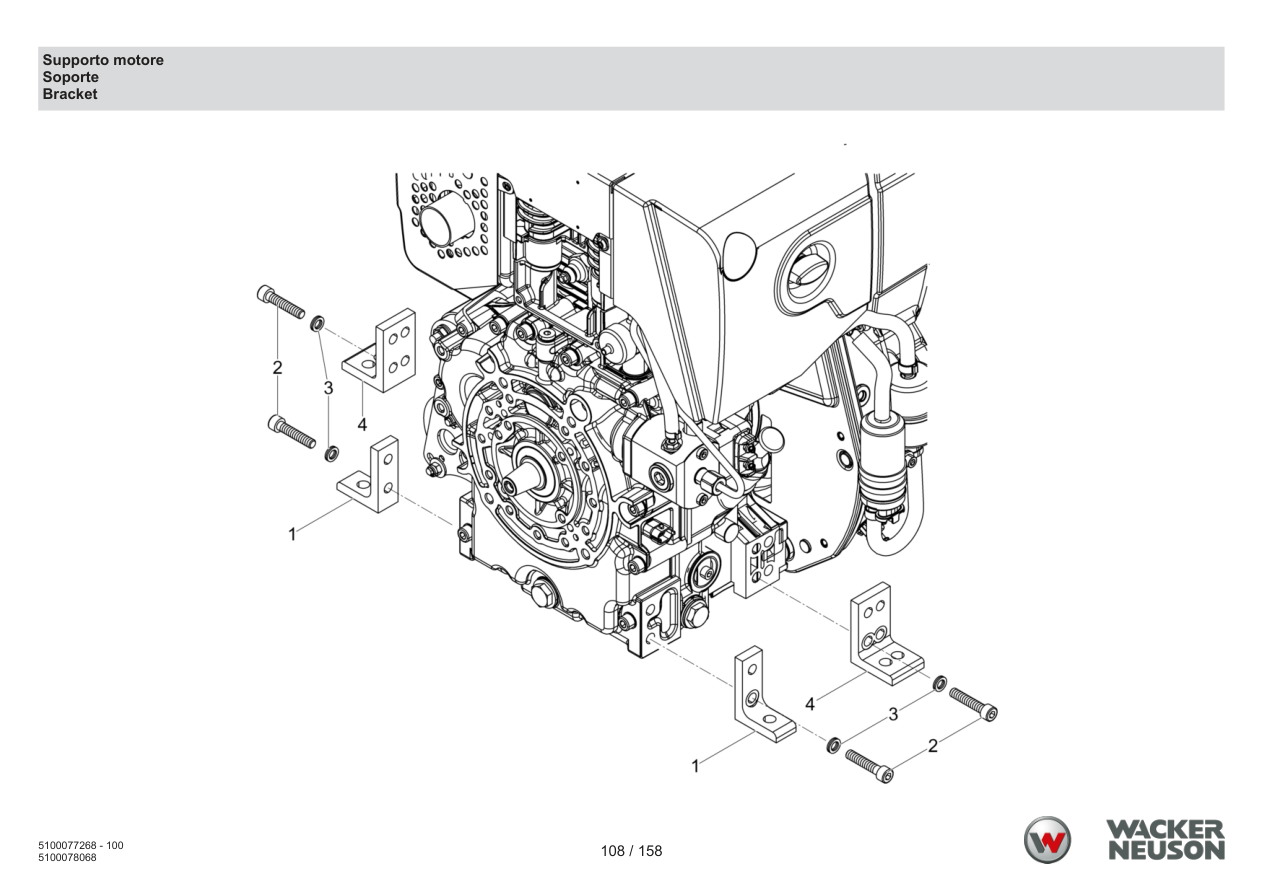

Page 108 — Engine Mount
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100068976 | Engine pedestal | 2 | ADD TO CART | |
| 2 | 5100068977 | Cheese head screw | 8 | ADD TO CART | |
| 3 | 5100068978 | Disc | 8 | ADD TO CART | |
| 4 | 5100068979 | Engine pedestal | 2 | ADD TO CART | |

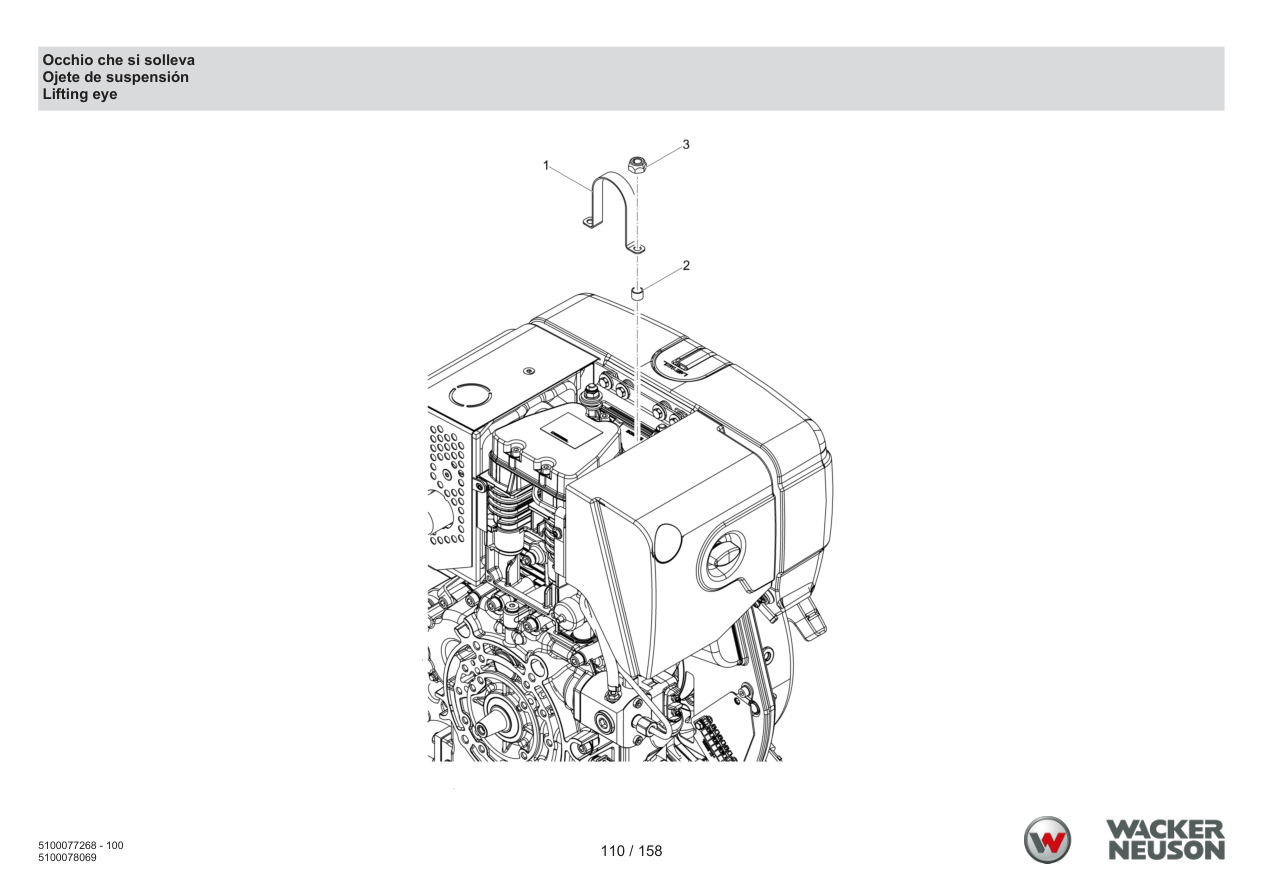

Page 110 — Lifting eye
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000151292 | Lifting point | 1 | ADD TO CART | |
| 2 | 5000151274 | Protective hose | 2 | ADD TO CART | |
| 3 | 5000207589 | Locknut | 2 | ADD TO CART | |

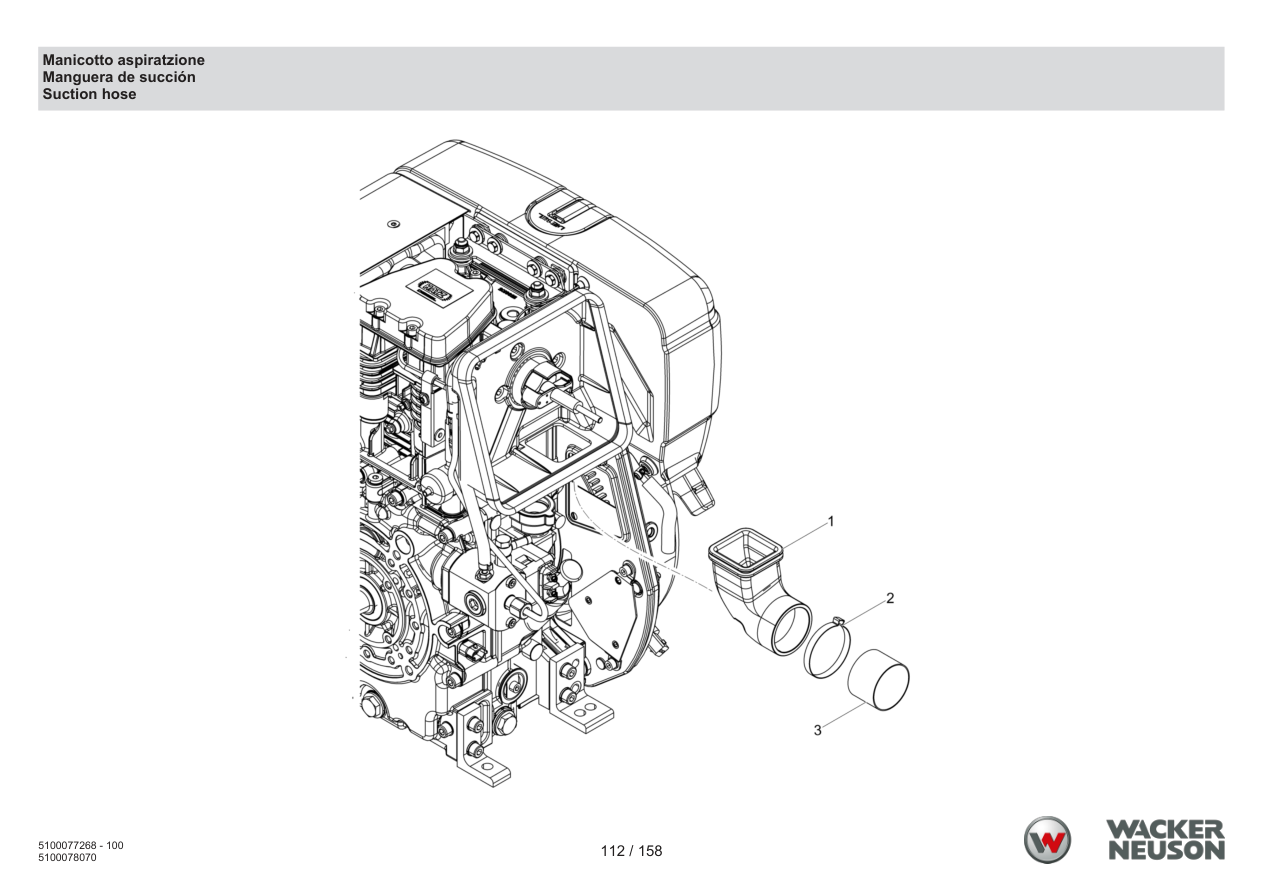

Page 112 — Intake sleeve
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100078011 | Collar | 1 | PARTS REQUEST | |
|
COMING Collar
5100078011 · qty on machine: 1 | |||||
| 2 | 5100077995 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
5100077995 · qty on machine: 1 | |||||
| 3 | 5100078006 | Bushing | 1 | PARTS REQUEST | |
|
COMING Bushing
5100078006 · qty on machine: 1 | |||||

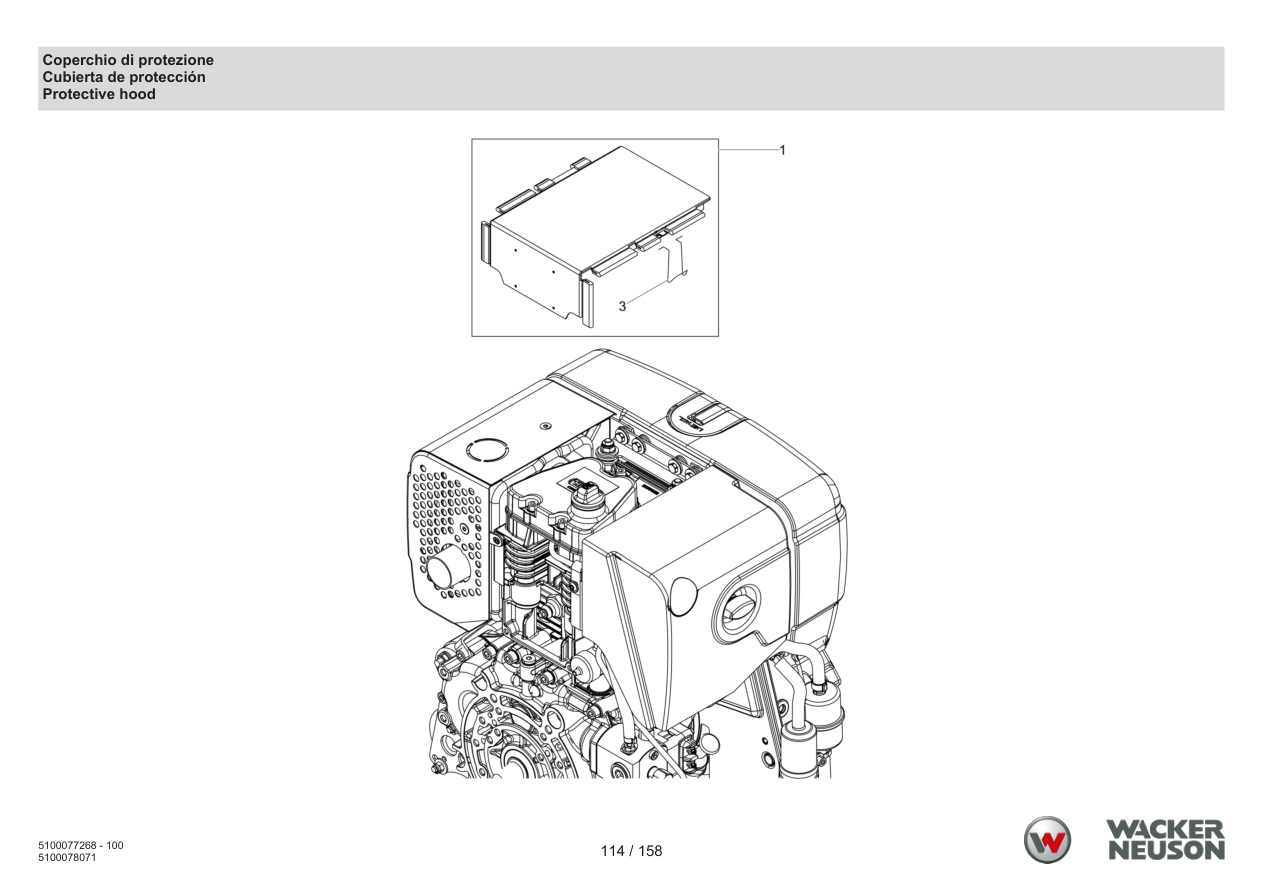

Page 114 — Protective cover
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100069048 | Protective hood | 1 | ADD TO CART | |
| 3 | 5100069049 | Carter manovella | 1 | ADD TO CART | |

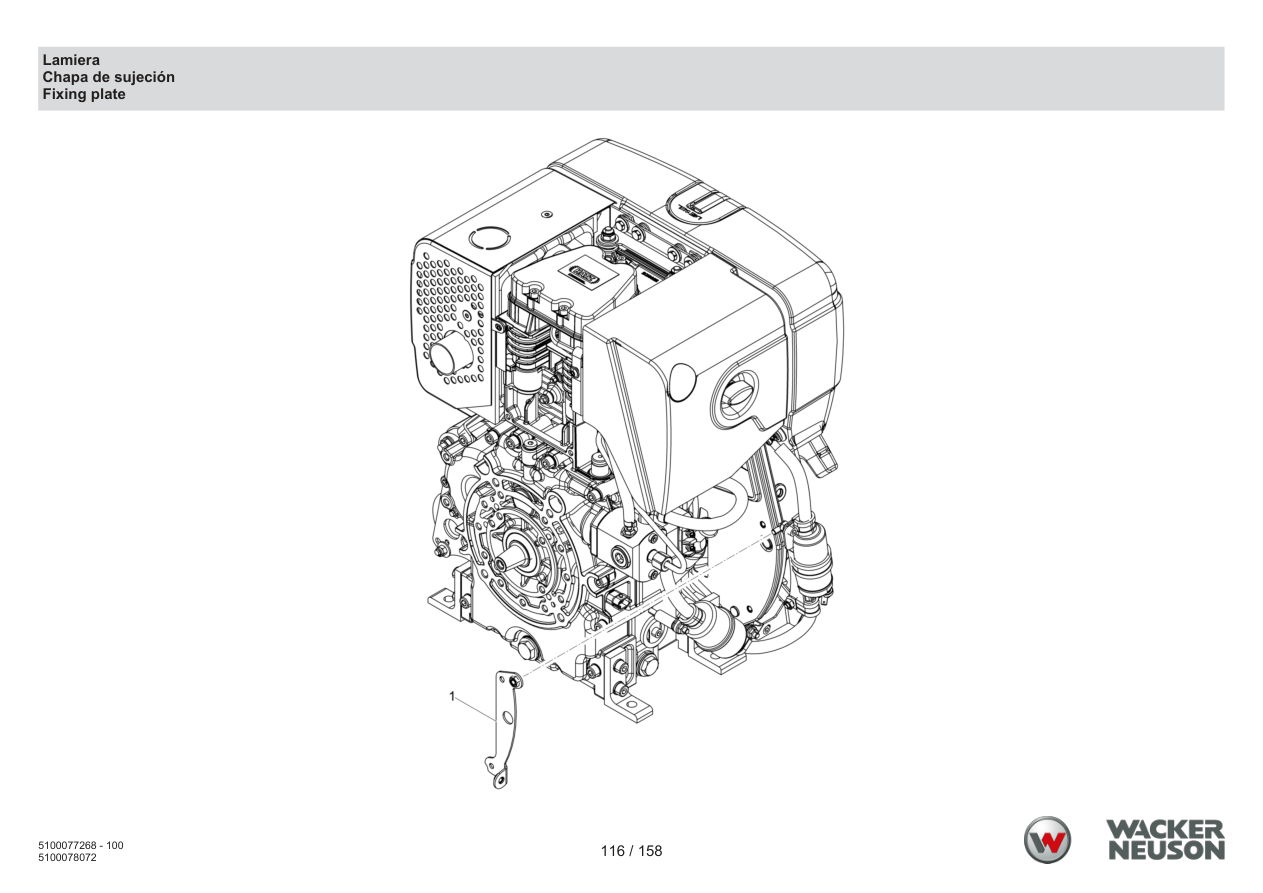

Page 116 — Sheet metal
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100068915 | Fixing plate | 1 | ADD TO CART | |

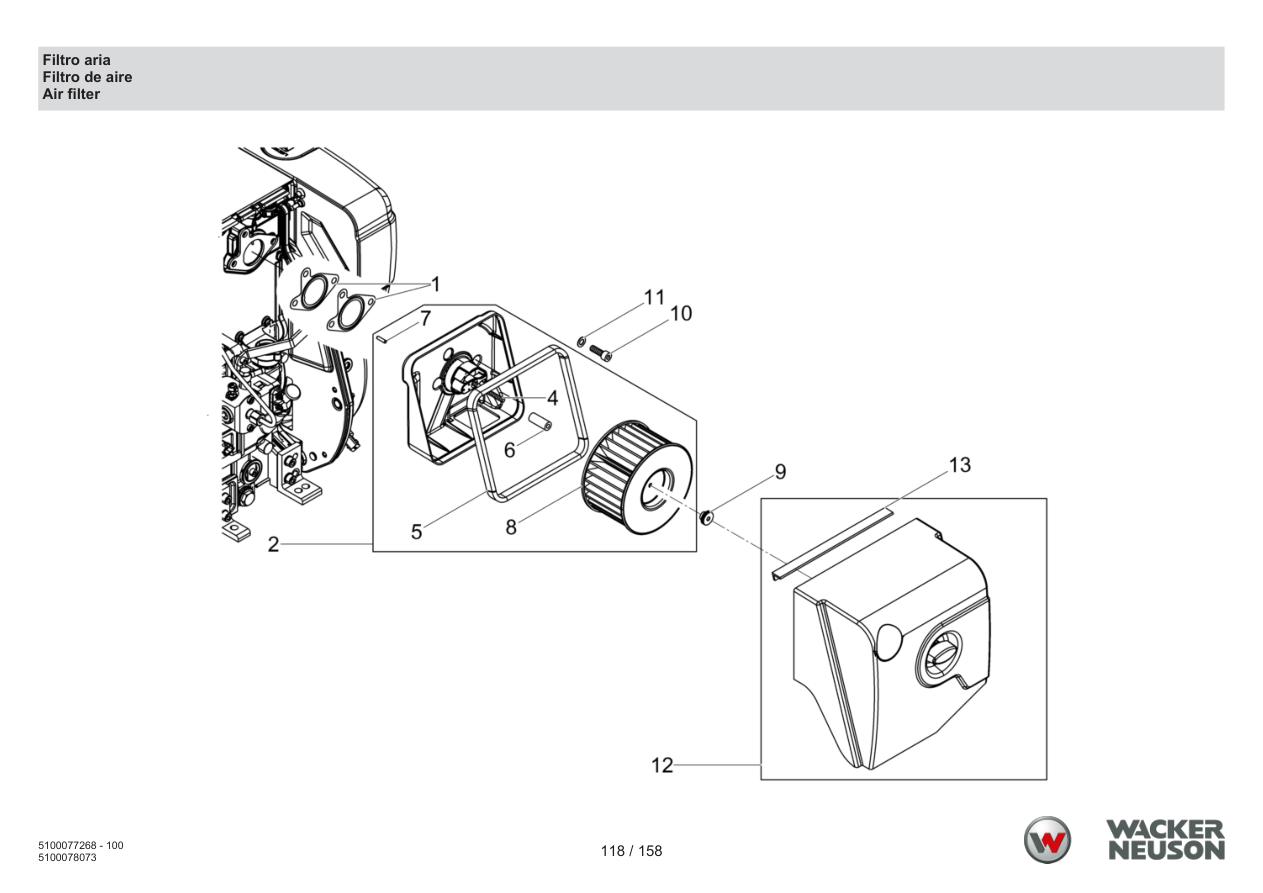

Page 118 — Air Filter
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100068916 | Sealing rail | 2 | ADD TO CART | |
| 2 | 5100077992 | Air filter housing | 1 | PARTS REQUEST | |
|
COMING Air filter housing
5100077992 · qty on machine: 1 | |||||
| 4 | 5100068918 | Hexagonal head cap screw | 1 | ADD TO CART | |
| 5 | 5100068919 | Sealing rail | 1 | PARTS REQUEST | |
|
COMING Sealing rail
5100068919 · qty on machine: 1 | |||||
| 6 | 5000151574 | Sleeve | 1 | ADD TO CART | |
| 7 | 5100068921 | Grooved pin | 1 | ADD TO CART | |
| 8 | 5100068922 | Air cleaner | 1 | ADD TO CART | |
| 9 | 5000108904 | Nut | 1 | ADD TO CART | |
| 10 | 5000151559 | Cheese head screw | 3 | ADD TO CART | |
| 11 | 5200022048 | Spring washer | 3 | PARTS REQUEST | |
|
COMING Spring washer
5200022048 · qty on machine: 3 | |||||
| 12 | 5100077993 | Air cleaner cover | 1 | PARTS REQUEST | |
|
COMING Air cleaner cover
5100077993 · qty on machine: 1 | |||||
| 13 | 5100068928 | Sealing rail | 1 | ADD TO CART | |

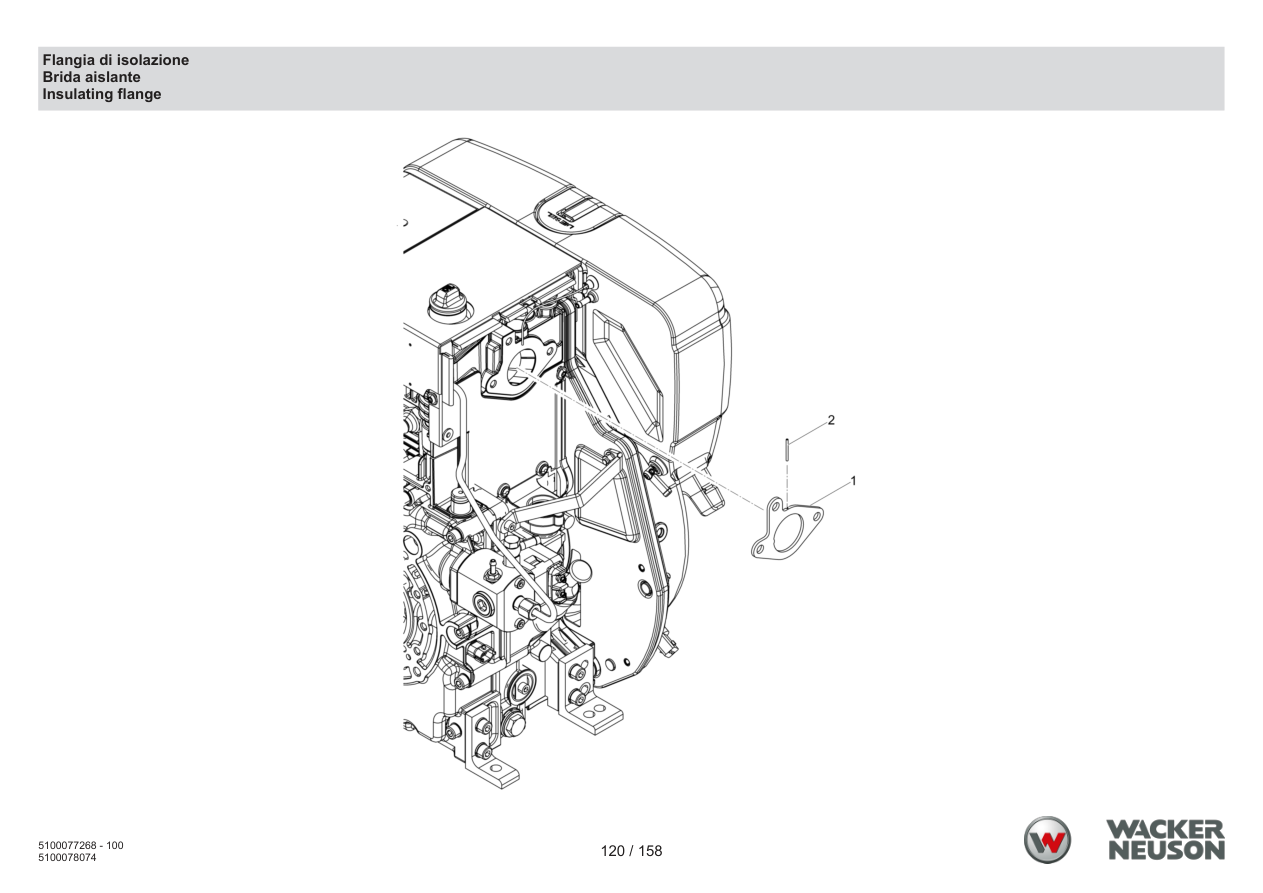

Page 120 — Insulation flange
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100068923 | Insulating flange | 1 | ADD TO CART | |
| 2 | 5100068925 | Pipe | 1 | ADD TO CART | |

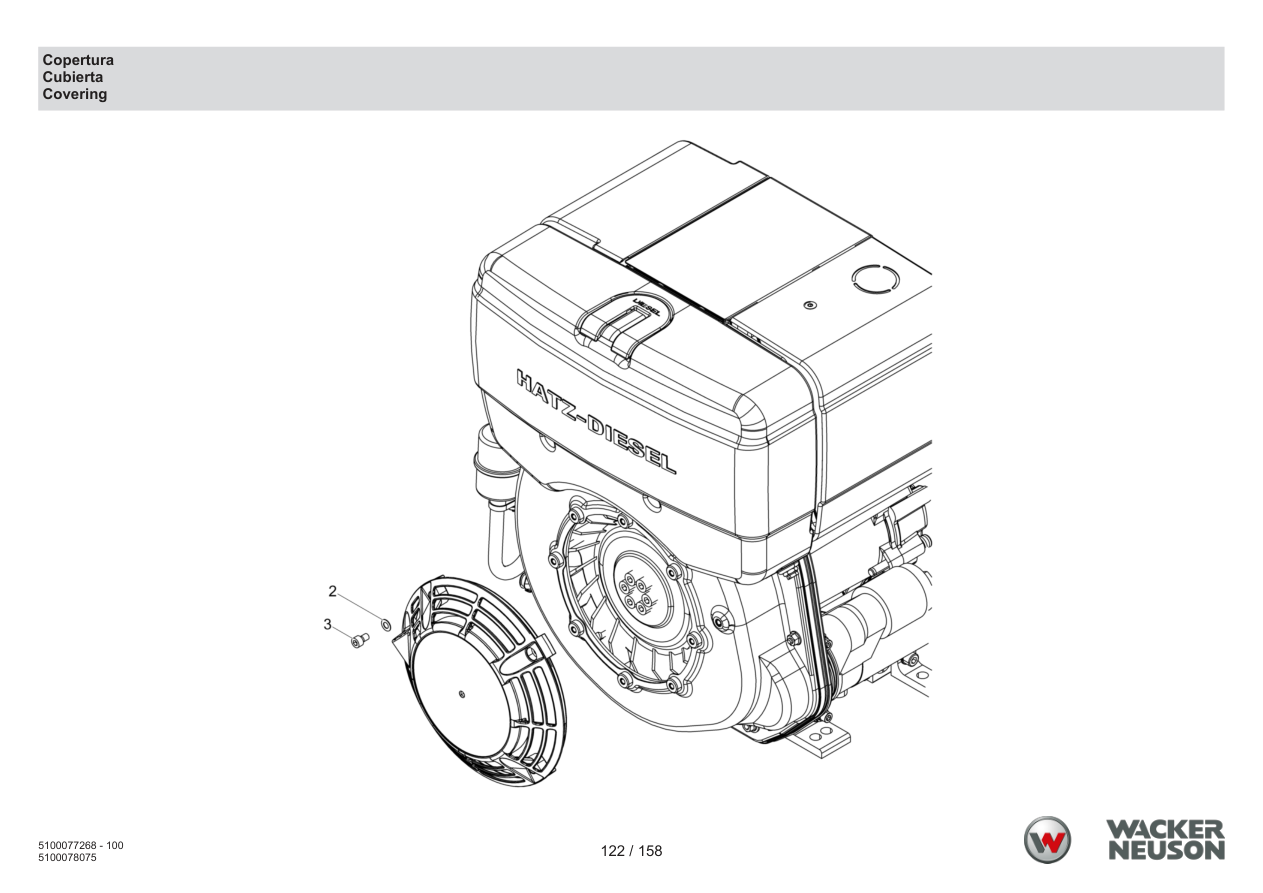

Page 122 — Cover
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000151290 | Spring washer | 4 | ADD TO CART | |
| 3 | 5000129016 | Cheese head screw | 4 | ADD TO CART | |

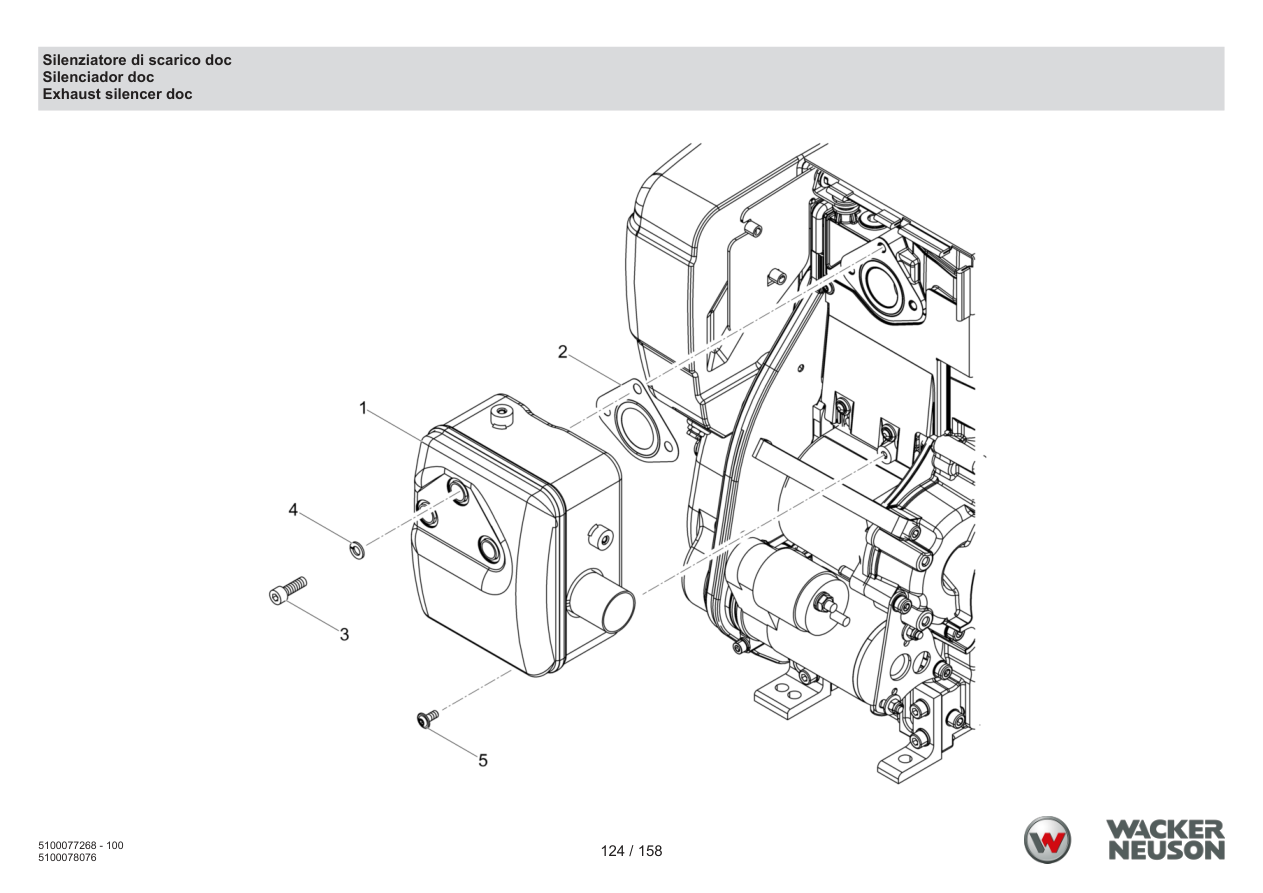

Page 124 — Exhaust muffler doc
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100077994 | Muffler | 1 | PARTS REQUEST | |
|
COMING Muffler
5100077994 · qty on machine: 1 | |||||
| 2 | 5100068930 | Gasket | 1 | ADD TO CART | |
| 3 | 5000202457 | Hexagon socket head screw | 3 | ADD TO CART | |
| 4 | 5000151218 | Lock washer | 3 | ADD TO CART | |
| 5 | 5100038983 | Countersunk screw | 1 | ADD TO CART | |

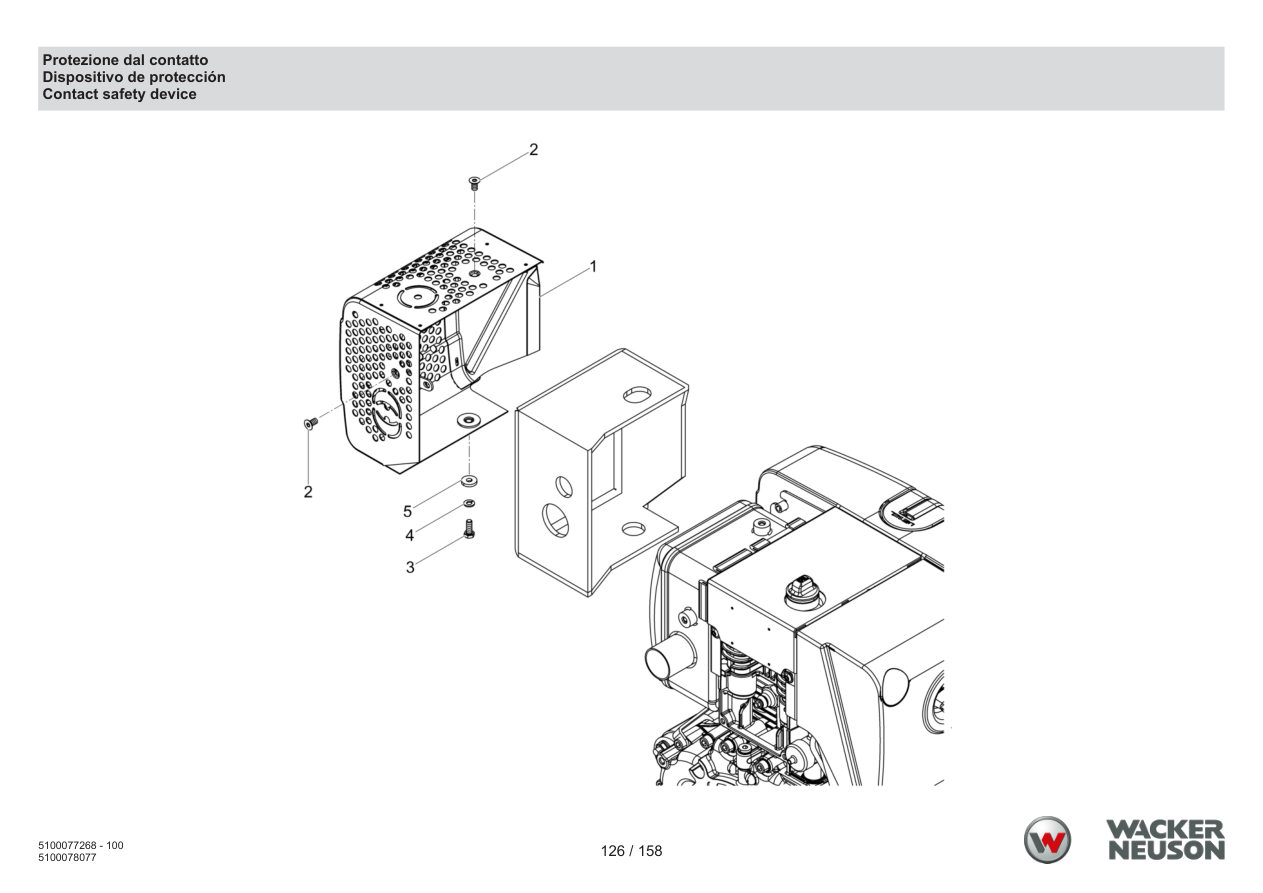

Page 126 — Contact guard
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100077997 | Contact safety device | 1 | PARTS REQUEST | |
|
COMING Contact safety device
5100077997 · qty on machine: 1 | |||||
| 2 | 5000151387 | Countersunk screw | 2 | ADD TO CART | |
| 3 | 5000202338 | Hexagonal head cap screw | 1 | ADD TO CART | |
| 4 | 5000151456 | Lock washer | 1 | ADD TO CART | |
| 5 | 5000107401 | Washer | 1 | ADD TO CART | |

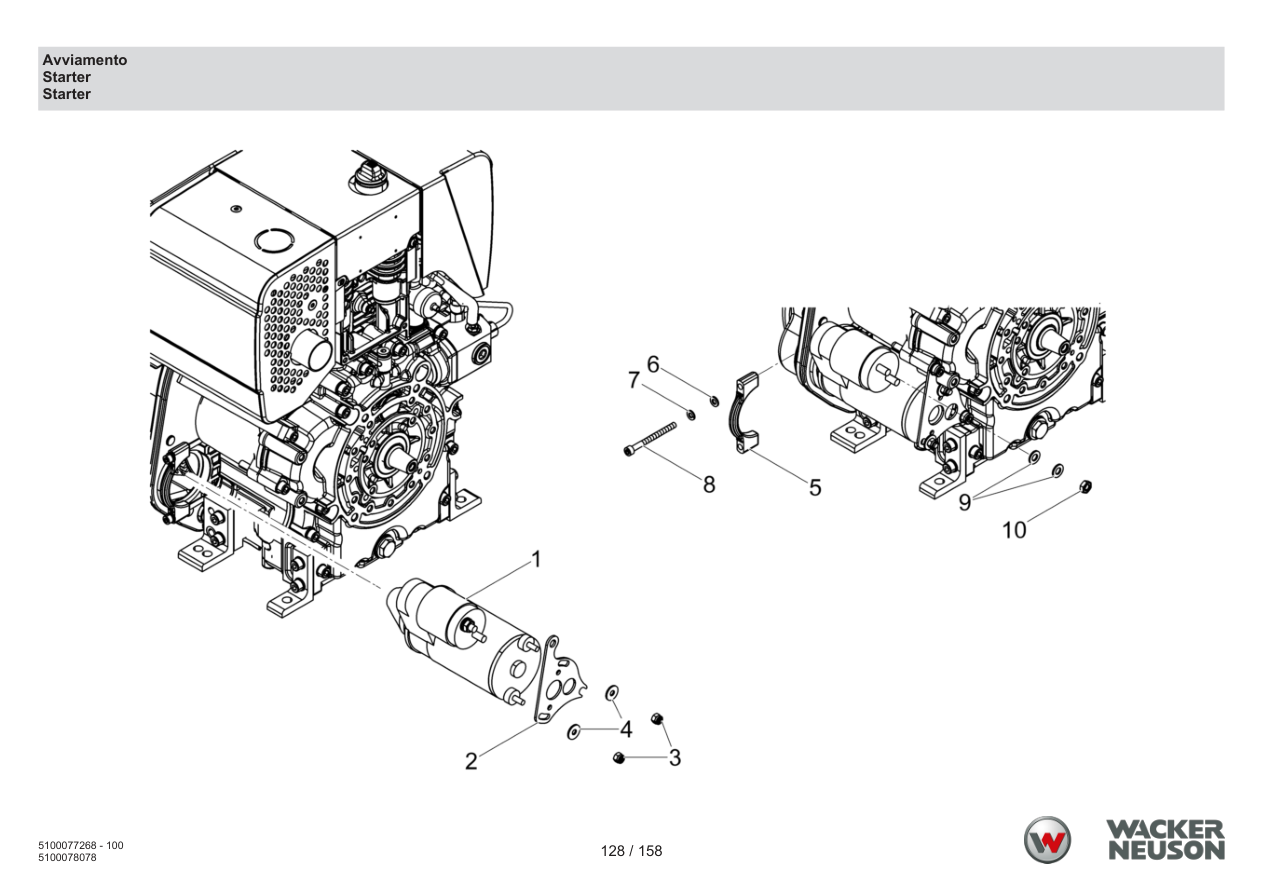

Page 128 — Starting
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100068934 | Starter | 1 | ADD TO CART | |
| 2 | 5100068935 | Bracket | 1 | PARTS REQUEST | |
|
COMING Bracket
5100068935 · qty on machine: 1 | |||||
| 3 | 5100068937 | Hexagon nut | 2 | ADD TO CART | |
| 4 | 5000151540 | Washer | 2 | ADD TO CART | |
| 5 | 5000217604 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
5000217604 · qty on machine: 1 | |||||
| 6 | 5000151324 | Washer | 2 | ADD TO CART | |
| 7 | 5000151456 | Lock washer | 2 | ADD TO CART | |
| 8 | 5100068938 | Cheese head screw | 2 | ADD TO CART | |
| 9 | 5000151553 | Washer | 2 | ADD TO CART | |
| 10 | 5000108848 | Nut | 1 | ADD TO CART | |
Page 130 — Control box
Parts list — exactly as printed1 rows

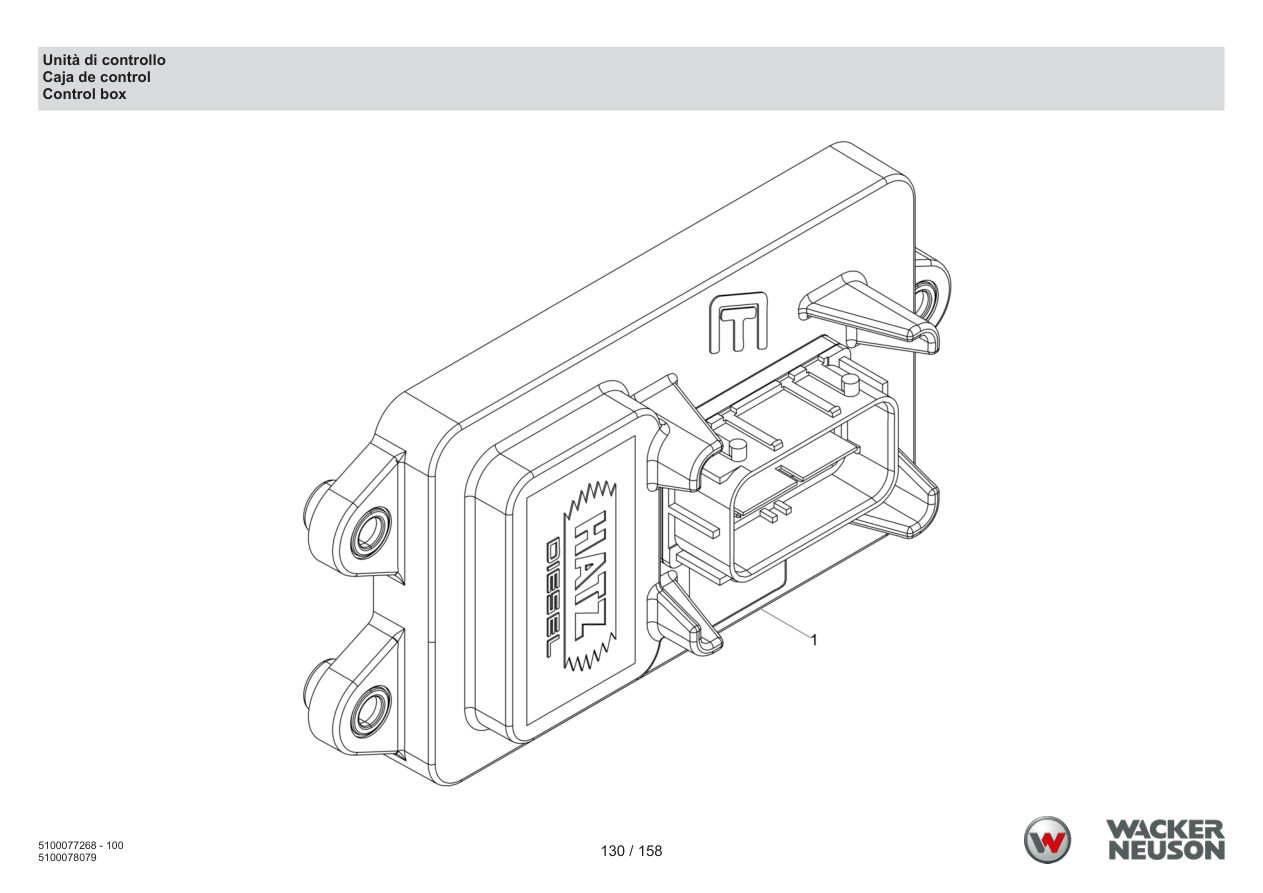

| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100068945 | Control box | 1 | ADD TO CART | |

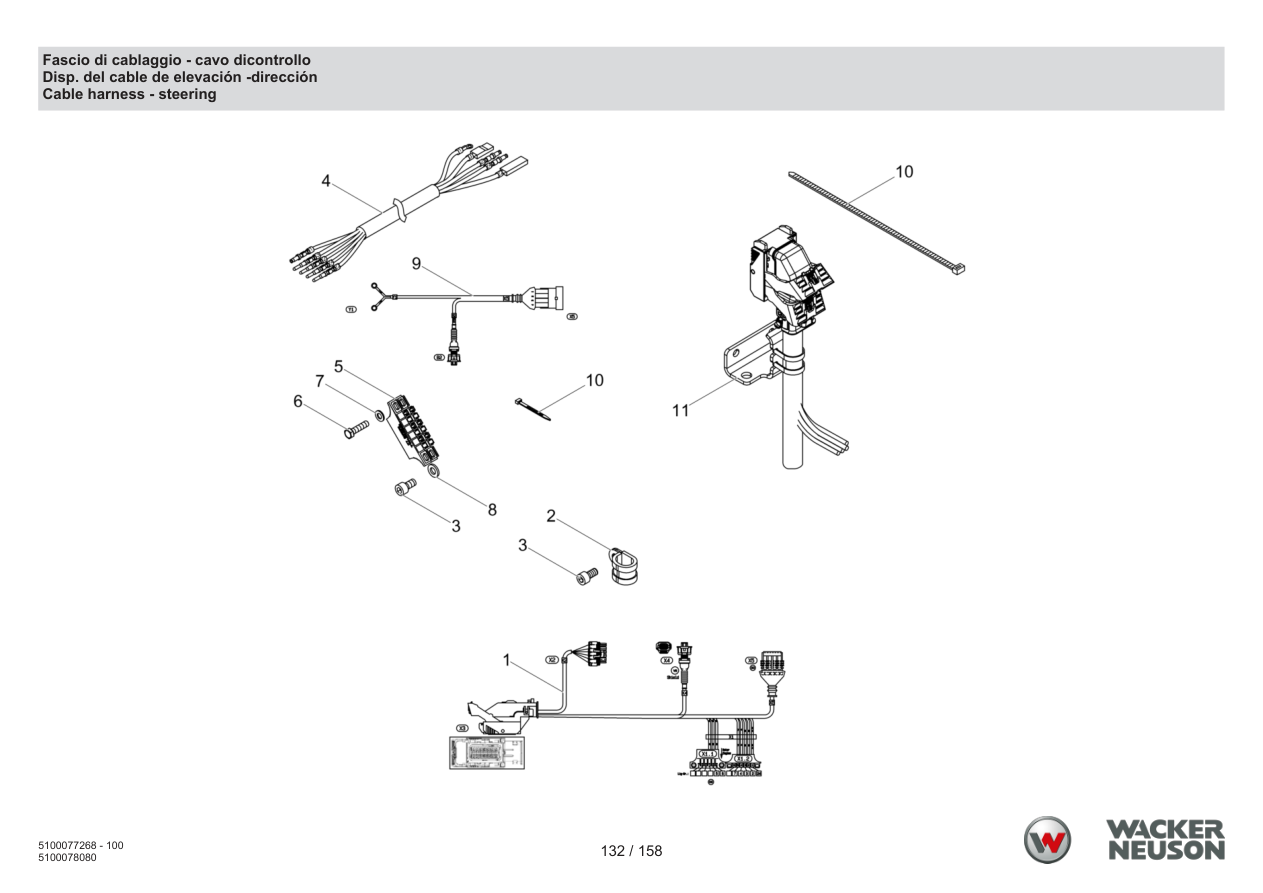

Page 132 — Wiring harness - control cable
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100078000 | Cable harness - steering | 1 | PARTS REQUEST | |
|
COMING Cable harness - steering
5100078000 · qty on machine: 1 | |||||
| 2 | 5000107451 | Clamp | 1 | ADD TO CART | |
| 3 | 5000129016 | Cheese head screw | 3 | ADD TO CART | |
| 4 | 5100068950 | Cable harness | 1 | ADD TO CART | |
| 5 | 5100068951 | Plug cap | 1 | ADD TO CART | |
| 6 | 5100068952 | Hexagonal head cap screw | 2 | ADD TO CART | |
| 7 | 5000129517 | Washer | 2 | ADD TO CART | |
| 8 | 5000151324 | Washer | 2 | ADD TO CART | |
| 9 | 5100078001 | Wire harness | 2 | ADD TO CART | |
| 10 | 5000109710 | Tie cable | 7 | PARTS REQUEST | |
|
COMING Tie cable
5000109710 · qty on machine: 7 | |||||
| 11 | 5100068949 | Bracket | 1 | ADD TO CART | |

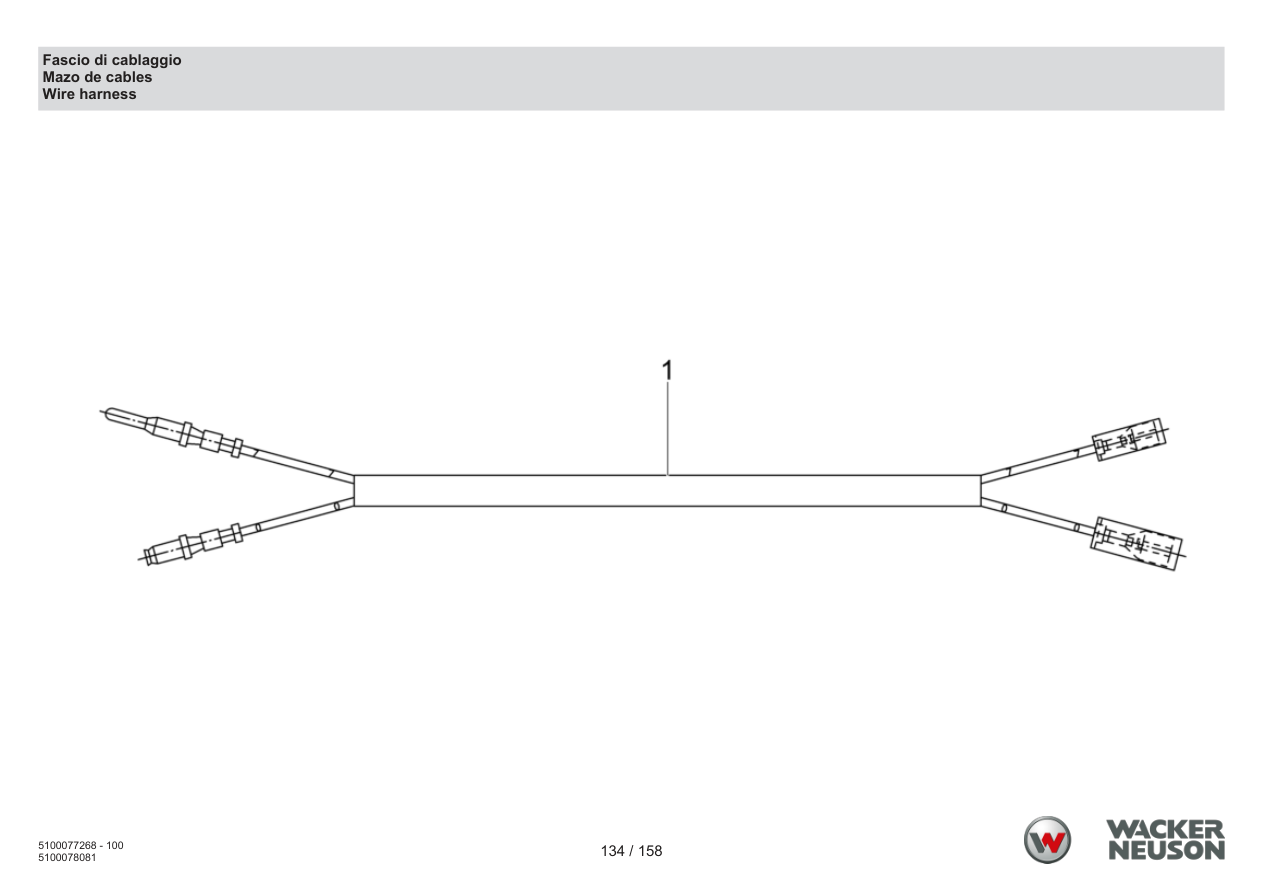

Page 134 — Wiring harness
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100078002 | Wire harness | 1 | PARTS REQUEST | |
|
COMING Wire harness
5100078002 · qty on machine: 1 | |||||

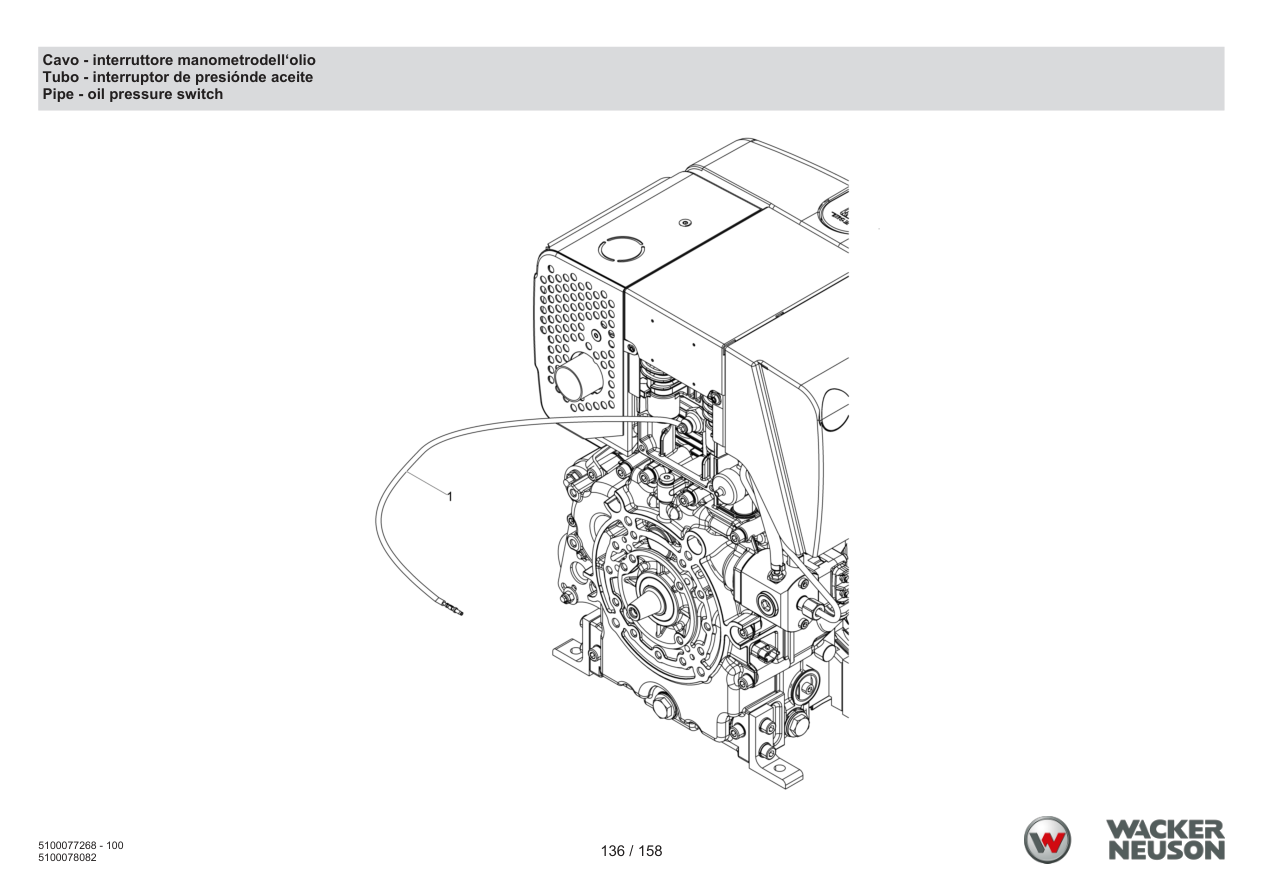

Page 136 — Cavo - interruttore manometrodell‘olio
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100068959 | Electric wire | 1 | ADD TO CART | |

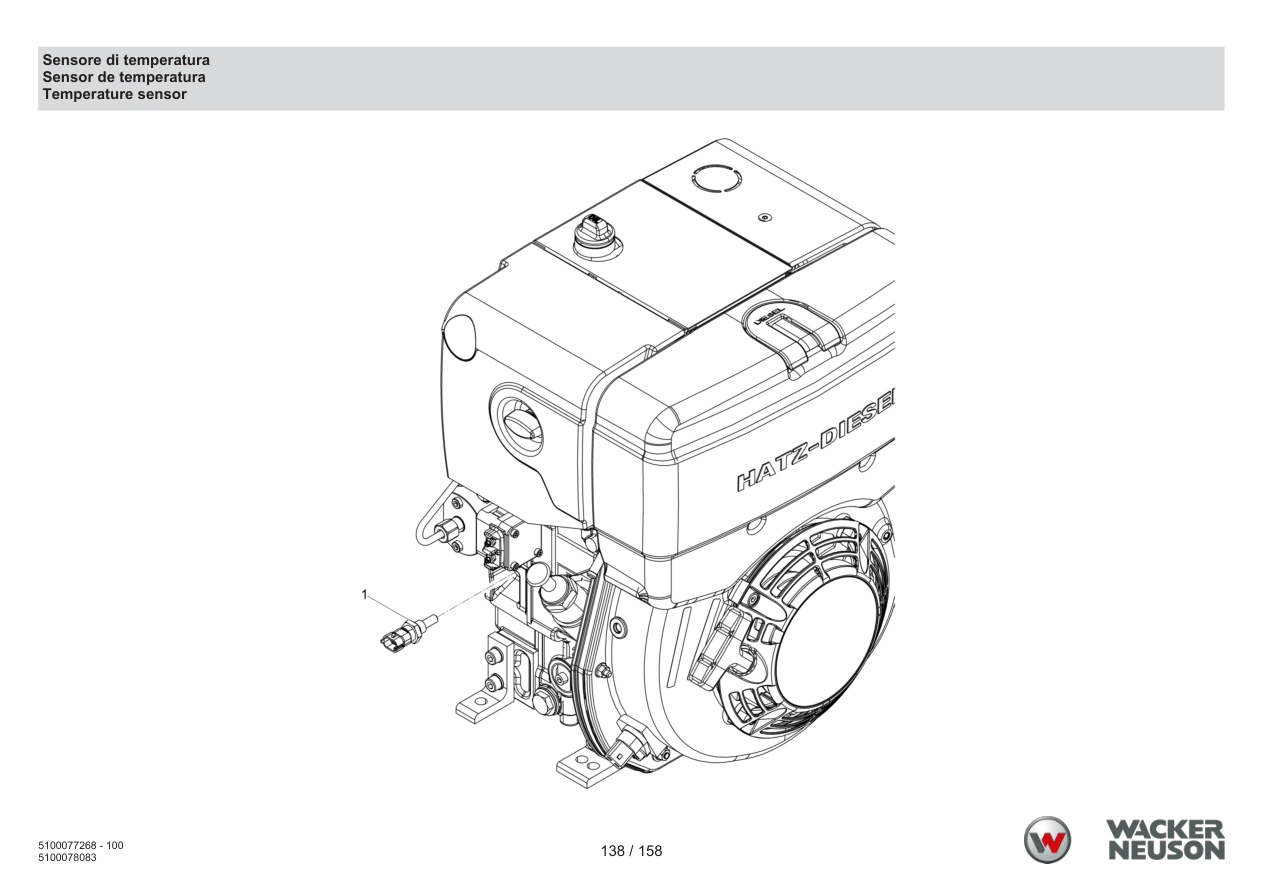

Page 138 — Temperature sensor
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100062316 | Temperature sensor | 1 | ADD TO CART | |

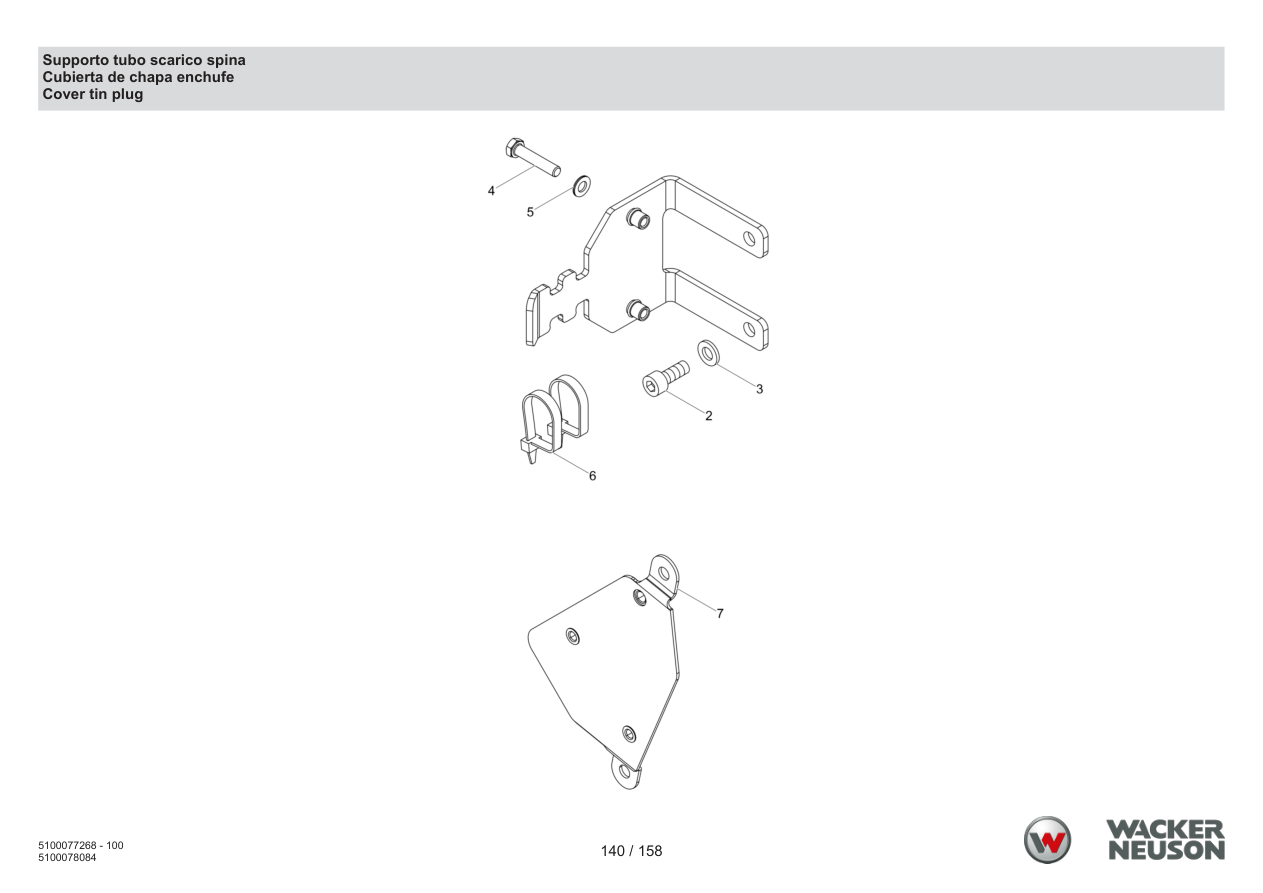

Page 140 — Exhaust pipe drain plug support
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000151231 | Cheese head screw | 2 | ADD TO CART | |
| 3 | 5000151324 | Washer | 2 | ADD TO CART | |
| 4 | 5000203135 | Screw | 2 | ADD TO CART | |
| 5 | 5000129517 | Washer | 2 | ADD TO CART | |
| 6 | 5000109710 | Tie cable | 2 | PARTS REQUEST | |
|
COMING Tie cable
5000109710 · qty on machine: 2 | |||||
| 7 | 5100068954 | Bracket | 1 | ADD TO CART | |

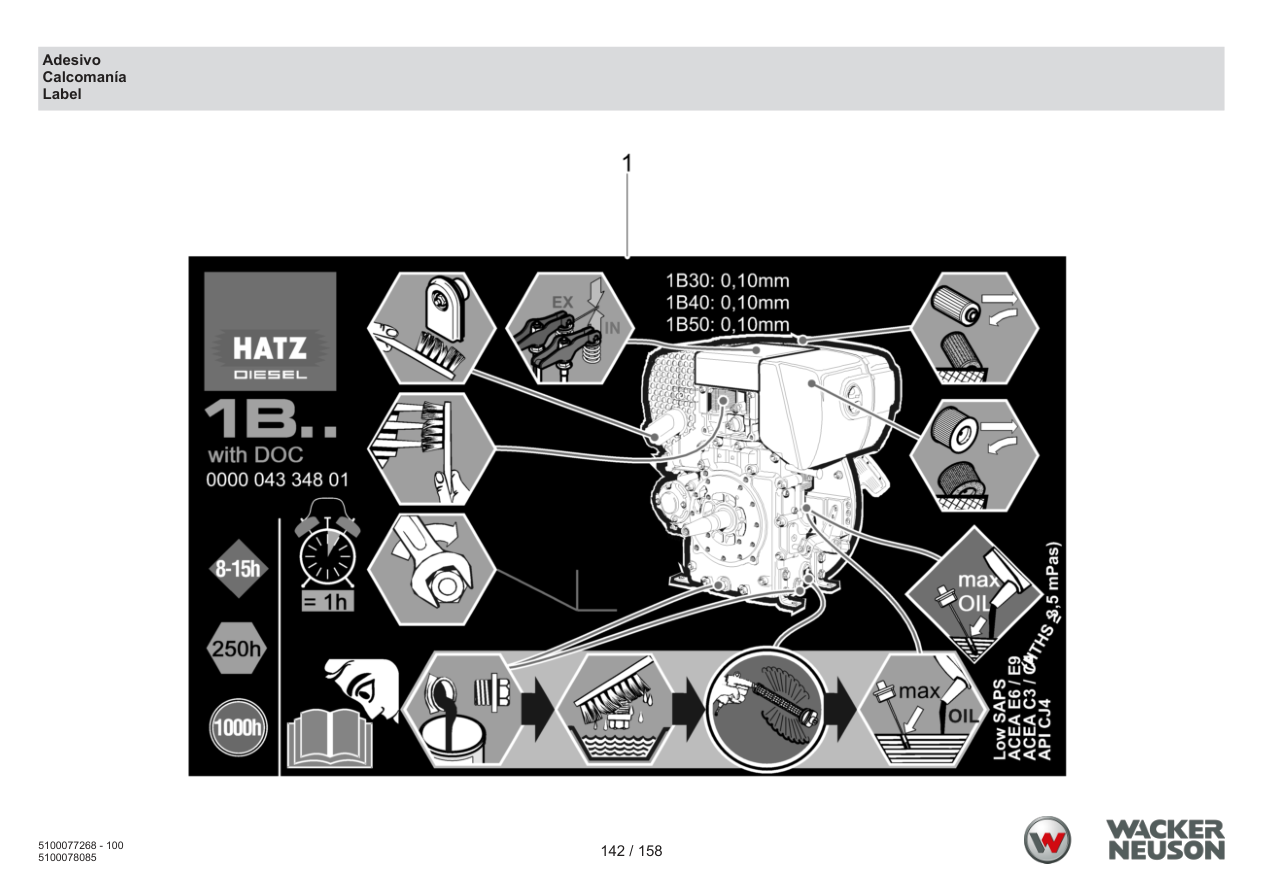

Page 142 — Adhesive label
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100068986 | Information sign | 1 | PARTS REQUEST | |
|
COMING Information sign
5100068986 · qty on machine: 1 | |||||

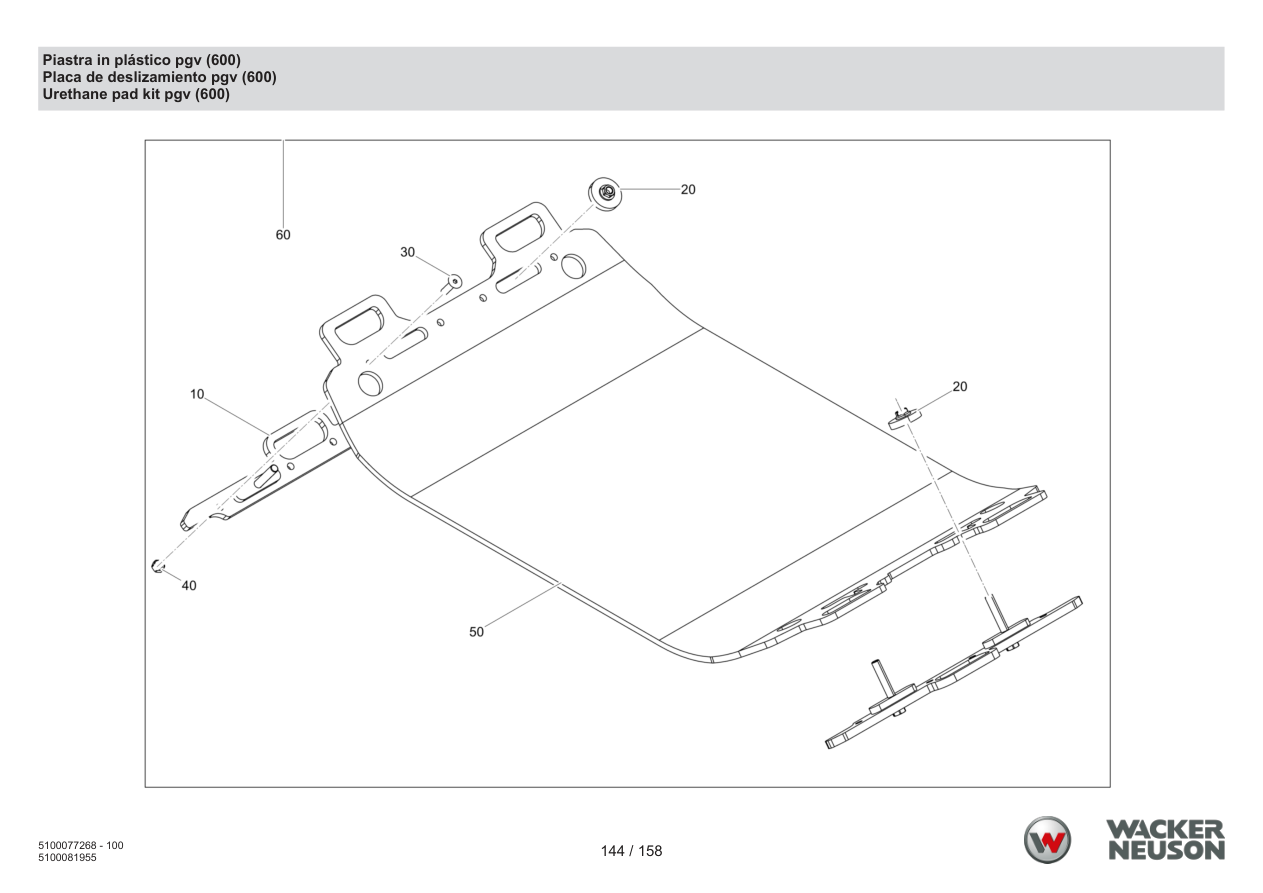

Page 144 — Sliding plate pgv (600)
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100072540 | Fastening strip cpl. | 2 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 20 | 5100072541 | Disc cpl. | 4 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 30 | 5000206837 | Countersunk bolt | 4 | ADD TO CART | |
| 40 | 5000125153 | Hexagon nut | 4 | PARTS REQUEST | |
|
COMING Hexagon nut
5000125153 · qty on machine: 4 | |||||
| 50 | 5100051740 | Urethane plate (600) | 1 | ADD TO CART | |
| 60 | 5100066303 | Urethane pad kit pgvdpu/bpu 52/62 60cm | 1 | PARTS REQUEST | |
|
COMING Urethane pad kit pgvdpu/bpu 52/62 60cm
5100066303 · qty on machine: 1 | |||||

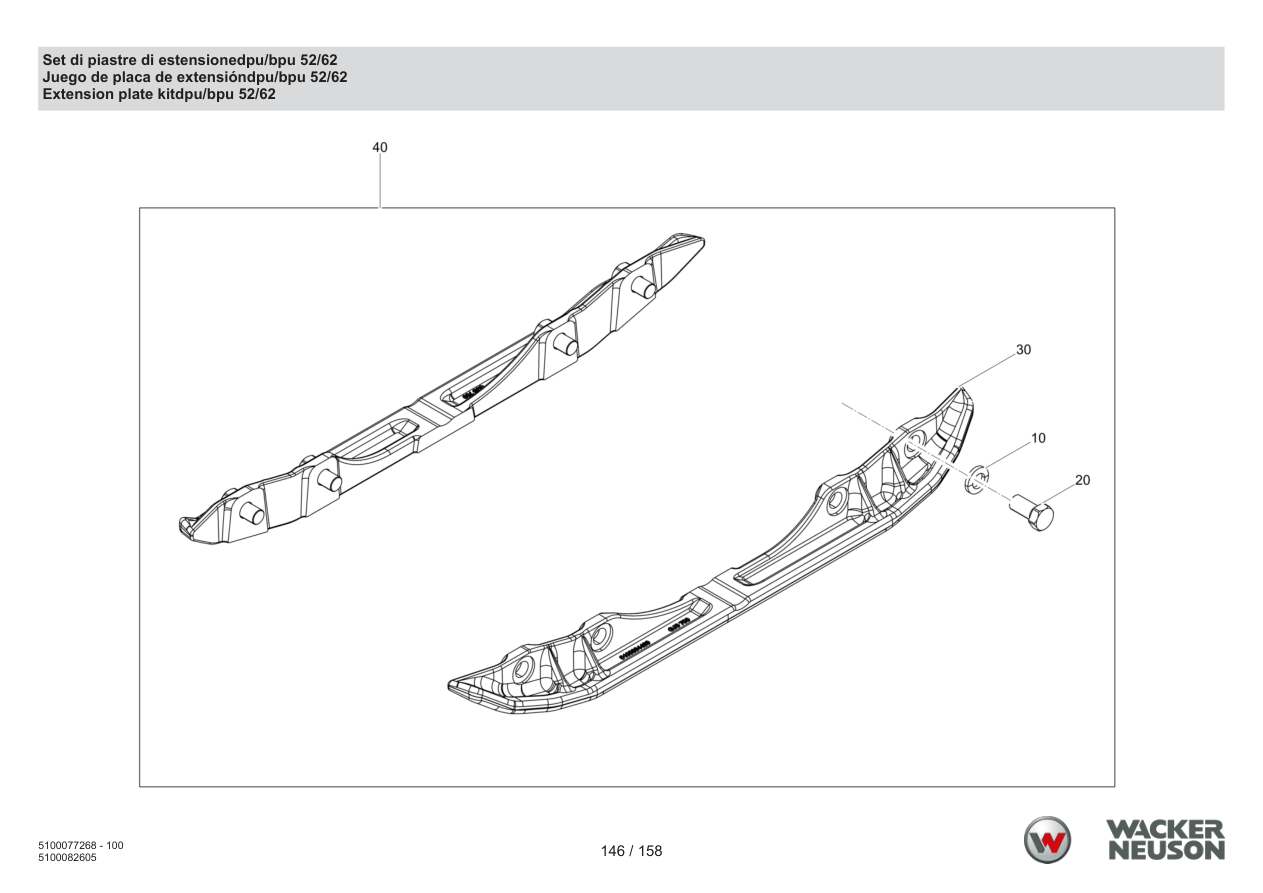

Page 146 — Extension plate set dpu/bpu 52/62
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100070830 | Lock washer | 8 | ADD TO CART | |
| 20 | 5100064495 | Hexagonal head cap screw | 8 | ADD TO CART | |
| 30 | 5100064498 | Extension plate | 2 | ADD TO CART | |
| 40 | 5100082421 | Extension plate xpu 52/62 | 1 | PARTS REQUEST | |
|
COMING Extension plate xpu 52/62
5100082421 · qty on machine: 1 | |||||

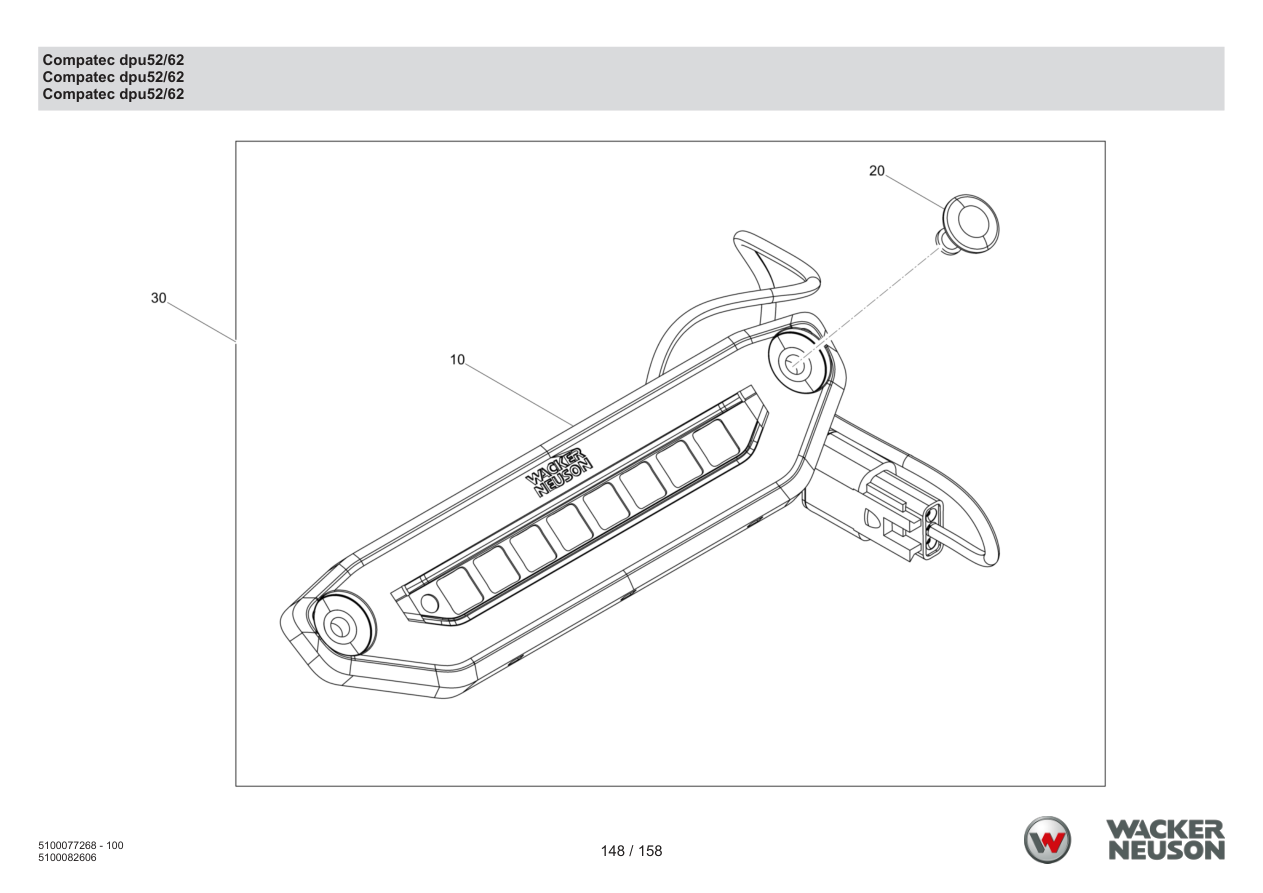

Page 148 — Compatec dpu52/62
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100062096 | Display | 1 | PARTS REQUEST | |
|
COMING Display
5100062096 · qty on machine: 1 | |||||
| 20 | 5100060234 | Blind rivet | 2 | PARTS REQUEST | |
|
COMING Blind rivet
5100060234 · qty on machine: 2 | |||||
| 30 | 5100082420 | Compatec dpu52/62 | 1 | PARTS REQUEST | |
|
COMING Compatec dpu52/62
5100082420 · qty on machine: 1 | |||||

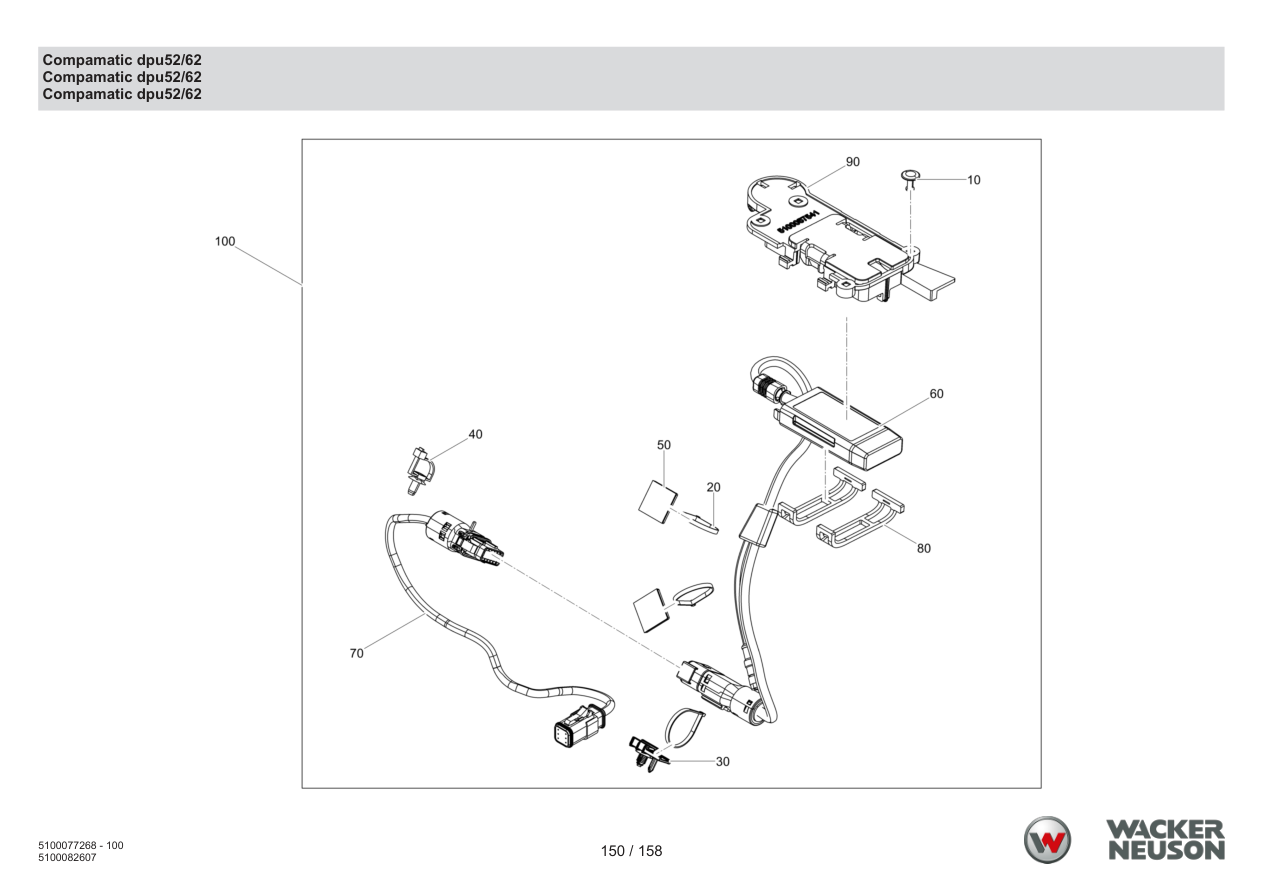

Page 150 — Compamatic dpu52/62
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 30 | 5100072083 | Clip | 1 | PARTS REQUEST | |
|
COMING Clip
5100072083 · qty on machine: 1 | |||||
| 10 | 5100076963 | Blind rivet | 4 | PARTS REQUEST | |
|
COMING Blind rivet
5100076963 · qty on machine: 4 | |||||
| 20 | 5000038489 | Tie cable | 3 | PARTS REQUEST | |
|
COMING Tie cable
5000038489 · qty on machine: 3 | |||||
| 40 | 5100011341 | Tie cable | 1 | ADD TO CART | |
| 50 | 5100081787 | Clamp | 2 | PARTS REQUEST | |
|
COMING Clamp
5100081787 · qty on machine: 2 | |||||
| 60 | 5100081720 | Telematik modul tu700 | 1 | PARTS REQUEST | |
|
COMING Telematik modul tu700
5100081720 · qty on machine: 1 | |||||
| 70 | 5100047419 | Wire harness | 1 | ADD TO CART | |
| 80 | 5100041922 | Tightening strap | 2 | ADD TO CART | |
| 90 | 5100057541 | Holder (telematik) | 1 | PARTS REQUEST | |
|
COMING Holder (telematik)
5100057541 · qty on machine: 1 | |||||
| 100 | 5100082419 | Compamatic dpu52/62 | 1 | PARTS REQUEST | |
|
COMING Compamatic dpu52/62
5100082419 · qty on machine: 1 | |||||

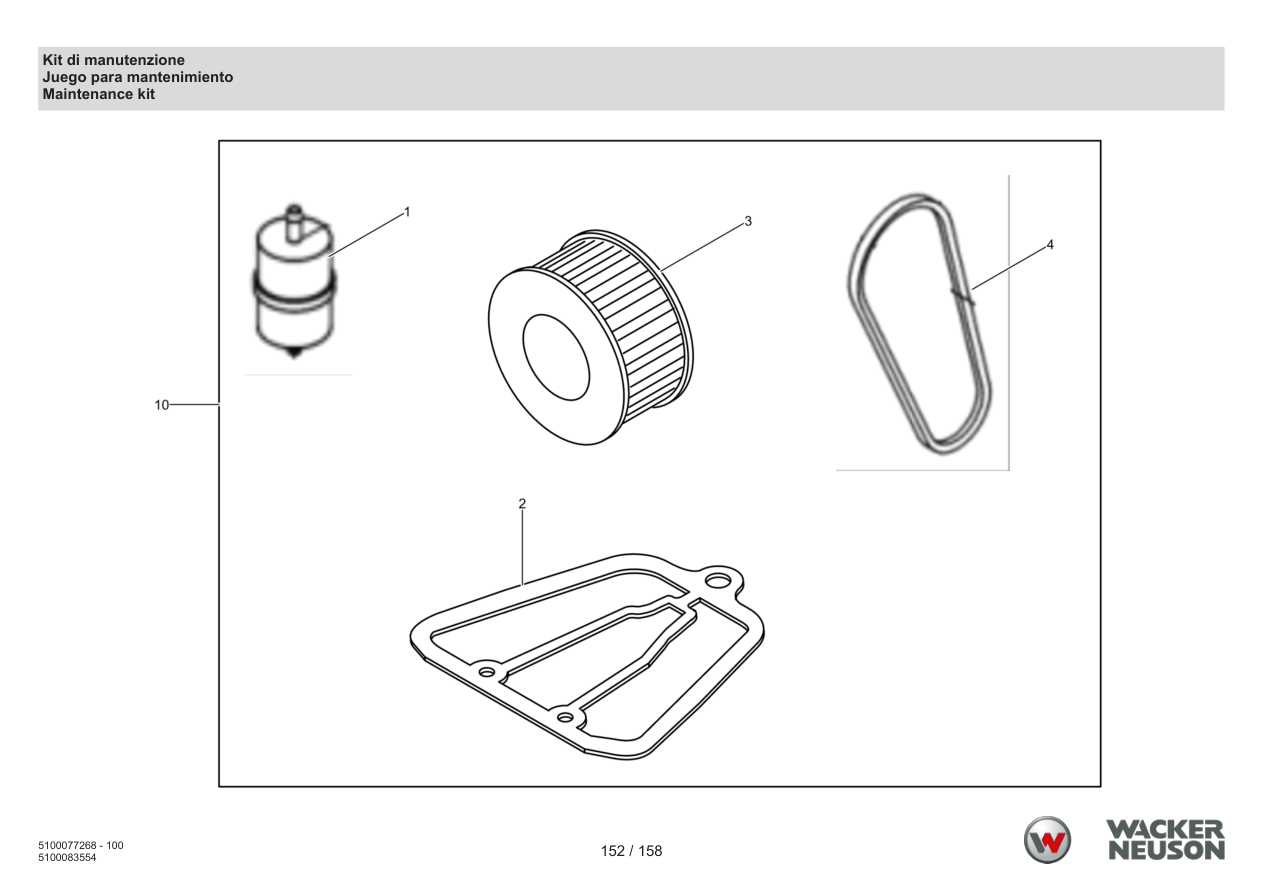

Page 152 — Maintenance kit
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100046186 | Diesel filter insert | 1 | ADD TO CART | |
| 2 | 5100069022 | Sealing rail | 1 | ADD TO CART | |
| 3 | 5100068922 | Air cleaner | 1 | ADD TO CART | |
| 4 | 5100051763 | V-belt | 1 | ADD TO CART | |
| 10 | 5100083225 | Maintenance kit dpu52/62 | 1 | ADD TO CART | |

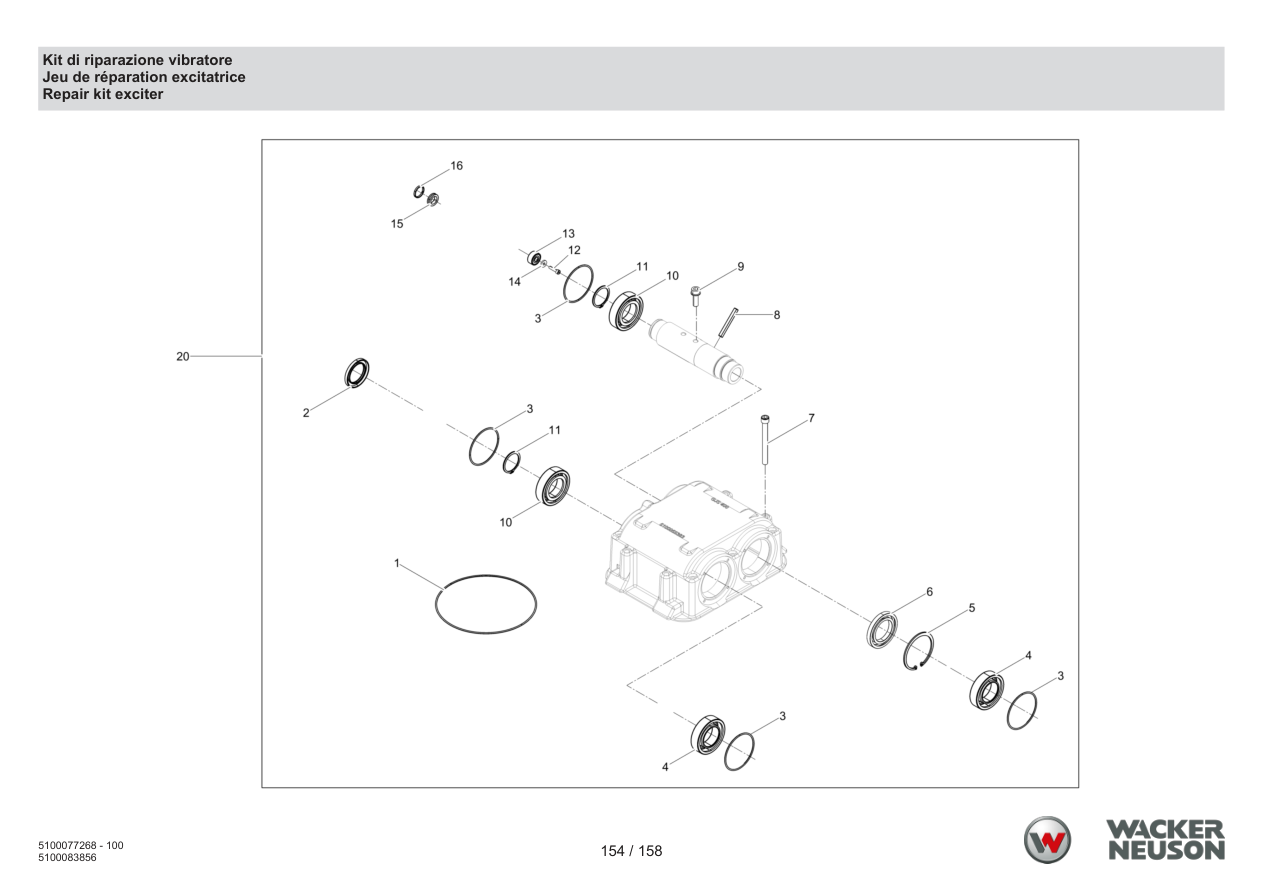

Page 154 — Vibrator repair kit
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100057493 | O-ring | 1 | ADD TO CART | |
| 2 | 5100047183 | Rotary shaft seal | 2 | ADD TO CART | |
| 3 | 5100010516 | O-ring | 4 | ADD TO CART | |
| 4 | 5100057783 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 5 | 5002007057 | Retaining ring | 1 | ADD TO CART | |
| 6 | 5000220133 | Grooved ball bearing | 1 | ADD TO CART | |
| 7 | 5000094518 | Cheese head screw | 10 | ADD TO CART | |
| 8 | 5100047408 | Tripping pin | 1 | ADD TO CART | |
| 9 | 5000220325 | Screw | 1 | ADD TO CART | |
| 10 | 5100057784 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 11 | 5002006113 | Retaining ring | 2 | ADD TO CART | |
| 12 | 5000220001 | Cheese head screw | 1 | ADD TO CART | |
| 13 | 5000124717 | Washer | 1 | ADD TO CART | |
| 14 | 5100047119 | Inclined ball bearing | 1 | ADD TO CART | |
| 15 | 5100047193 | Grooved ring | 1 | ADD TO CART | |
| 16 | 5100047190 | Piston guide ring | 1 | ADD TO CART | |
| 20 | 5100083254 | Repair kit exciter | 1 | PARTS REQUEST | |
|
COMING Repair kit exciter
5100083254 · qty on machine: 1 | |||||
The machine itself
Price by quote
Get a quote
Tell us where the machine is headed and we'll quote it with freight. One call, no games.
Machine
Engine
Wacker Neuson DPU5260 vibratory plate.
List price: $20,750.00
Keep-it-running spares
All listed parts →Every part that fits this machine
1000088388
Screw
1000139973
Screw
1000328508
Clamp
1000386655
Fuel filter
1000386656
Filter insert
1000389229
Screw joint
1000389230
Fuel line
1000389241
Hose clamp
1000389247
Fuel line
1000389249
Plug
1000389262
Fuel pump
1000433949
Fuel filter
1000433950
Fuel filter
1000433952
Arm
1000433955
Filter housing
1000434006
Pressure limit reliefvalve
5000010625
Flat washer
$0.95
5000010880
Hexagon nut
$0.95
5000010882
Hexagon nut
$0.95
5000011457
Hexagonal head cap screw
$1.95
5000011527
Cheese head screw
$1.95
5000011539
Cheese head screw
$0.95
5000011542
Cheese head screw
$0.95
5000011550
Cheese head screw
$0.95
5000011551
Cheese head screw
$0.95
5000011553
Cheese head screw
$0.95
5000011554
Cheese head screw
$0.95
5000012361
Hexagonal head cap screw
5000012373
Cheese head screw
$0.95
5000012381
Cheese head screw
$7.95
5000013000
Cheese head screw
$4.95
5000014425
Cheese head screw
5000014535
Plug (threaded)
$6.95
5000024617
Cheese head screw
$0.95
5000032006
Gasket
$1.95
5000038489
Tie cable
5000049190
Cheese head screw
$0.95
5000068752
O-ring
$0.95
5000069225
Screwed socket
$10.95
5000071121
Sealing ring
$5.95
5000094518
Cheese head screw
$3.95
5000094933
O-ring
$6.95
5000094936
Cam follower spindle shaft
$62.95
5000094958
Plug (threaded)
$18.95
5000095948
Hexagon nut
$0.95
5000099522
Pin bushing
$36.95
5000104365
Washer
$16.95
5000104414
Wire
5000105944
Screw
$0.95
5000107398
Lock washer
$7.95
5000107401
Washer
$11.95
5000107422
Banjo fitting
$53.95
5000107451
Clamp
$16.95
5000107556
Gasket
$7.95
5000107800
Sealing ring
$6.95
5000107867
Oil pressure switch
$52.95
5000108022
Connecting rod screw
$53.95
5000108688
Clip
$11.95
5000108691
Suction port
$58.95
5000108694
Straight pin
$7.95
5000108701
Shim ring
$33.95
5000108702
Shim
$33.95
5000108703
Shim
$34.95
5000108704
Shim
$22.95
5000108705
Shim ring
$15.95
5000108706
Shim ring
$15.95
5000108730
Disc
$11.95
5000108732
Nut
$73.95
5000108734
Spring holder
$23.95
5000108770
Seal ring
$13.95
5000108777
Spring
$7.95
5000108778
Retaining strap
$11.95
5000108791
Disc
$11.95
5000108807
Holder
$35.95
5000108808
Washer
$11.95
5000108838
Sleeve
$9.95
5000108842
Sleeve
$9.95
5000108844
Screw
$7.95
5000108848
Nut
$11.95
5000108850
Stud bolt
$7.95
5000108851
Washer
$11.95
5000108852
Spacer tube
$16.95
5000108861
Cap
$69.95
5000108870
Valve
$55.95
5000108874
Sleeve
$14.95
5000108882
Valve
$43.95
5000108885
Sleeve
$20.95
5000108892
Disc
$11.95
5000108894
Sleeve
$8.95
5000108896
Brace
$16.95
5000108904
Nut
$11.95
5000109710
Tie cable
5000124717
Washer
$0.95
5000125153
Hexagon nut
5000126187
Threaded pin
$0.95
5000126526
Guide
$43.95
5000128346
Gasket
$5.95
5000128956
Threaded nipple
$27.95
5000128958
Connecting screw
$17.95
5000128959
Tee-stem for hose
$16.95
5000128962
Nipple
$20.95
5000129001
Threaded pin
$7.95
5000129002
Cheese head screw
$7.95
5000129010
Cheese head screw
$7.95
5000129016
Cheese head screw
$7.95
5000129021
Locknut
$11.95
5000129517
Washer
$7.95
5000151213
Screw plug
$11.95
5000151217
Gasket
$6.95
5000151218
Lock washer
$7.95
5000151229
O-ring
$9.95
5000151230
Oil filter spring
$11.95
5000151231
Cheese head screw
$7.95
5000151274
Protective hose
$9.95
5000151287
Washer
5000151290
Spring washer
$7.95
5000151292
Lifting point
$35.95
5000151308
Cheese head screw
$7.95
5000151323
Locknut
$7.95
5000151324
Washer
$7.95
5000151353
Threaded pin
$16.95
5000151371
Cheese head screw
$3.95
5000151387
Countersunk screw
$7.95
5000151456
Lock washer
$7.95
5000151486
Sleeve
$15.95
5000151526
Stud
$7.95
5000151530
Locknut
$11.95
5000151533
Connector
$40.95
5000151540
Washer
$7.95
5000151553
Washer
$7.95
5000151559
Cheese head screw
$7.95
5000151574
Sleeve
$20.95
5000164579
Carriage bolt
5000202301
Washer
$7.95
5000202314
Oil plug
$56.95
5000202334
Locknut
$7.95
5000202338
Hexagonal head cap screw
$7.95
5000202347
Hexagonal head cap screw
$7.95
5000202412
Fuel hose
$30.95
5000202416
Oil seal
$7.95
5000202437
Cheese head screw
$7.95
5000202440
Hexagon socket head screw
$7.95
5000202451
Push-in plug
$7.95
5000202457
Hexagon socket head screw
$7.95
5000202461
Screw
$26.95
5000202465
Clamp
$35.95
5000202829
Cup spring
$1.95
5000203133
Hexagon socket head screw
$7.95
5000203135
Screw
$7.95
5000203655
Clamp
$16.95
5000205238
Screw connection
$28.95
5000205485
O-ring
$6.95
5000205486
One-way flat washer
$46.95
5000206837
Countersunk bolt
$1.95
5000207528
Fuel pipe
$14.95
5000207566
Banjo bolt
$35.95
5000207586
Clamp
$16.95
5000207589
Locknut
$11.95
5000207610
Cheese head screw
$5.95
5000209664
Spacer sleeve
$35.95
5000209707
Water separator
$43.95
5000209721
Fuel hose
$9.95
5000209870
Connecting nipple
5000209871
Water separator cpl.
$63.95
5000210107
Clamp
$10.95
5000210194
Corrugated-head screw
$0.95
5000211795
Corrugated-head screw
$1.95
5000212093
Regulator
$527.95
5000216640
Locknut
$1.95
5000216644
Shockmount
$16.95
5000216659
Screw
$3.95
5000217112
Cheese head screw
$7.95
5000217604
Clamp
5000217605
Seal ring
$14.95
5000217612
Spring washer
$5.95
5000217620
Cheese head screw
5000220000
Instruction label
$2.95
5000220001
Cheese head screw
$0.95
5000220116
Switch
$87.95
5000220133
Grooved ball bearing
$34.95
5000220325
Screw
$2.95
5000222605
Oval head screw
$0.95
5002004664
Gasket
$0.95
5002004814
Shockmount
$68.95
5002006113
Retaining ring
$0.95
5002006727
Rotary shaft seal
$36.95
5002007057
Retaining ring
$1.95
5004101560
O-ring
$6.95
5100005496
Star-handle
$29.95
5100005617
Bolt
$42.95
5100010281
Clamp
$6.95
5100010516
O-ring
$0.95
5100011309
Working hour meter
$127.95
5100011341
Tie cable
$1.95
5100013781
Gasket
5100013784
Countersunk screw
$5.95
5100015202
Pole terminal positive
$19.95
5100016522
Oil filter
$41.95
5100017849
Clamp
$2.95
5100018059
Corrugated-head screw
$2.95
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
