Wacker Neuson DPU6555 Vibratory Plate
Factory parts book · interactive
Wacker Neuson DPU6555 Vibratory Plate
Pick your options below. We build the exact machine and start your quote.
The parts bench

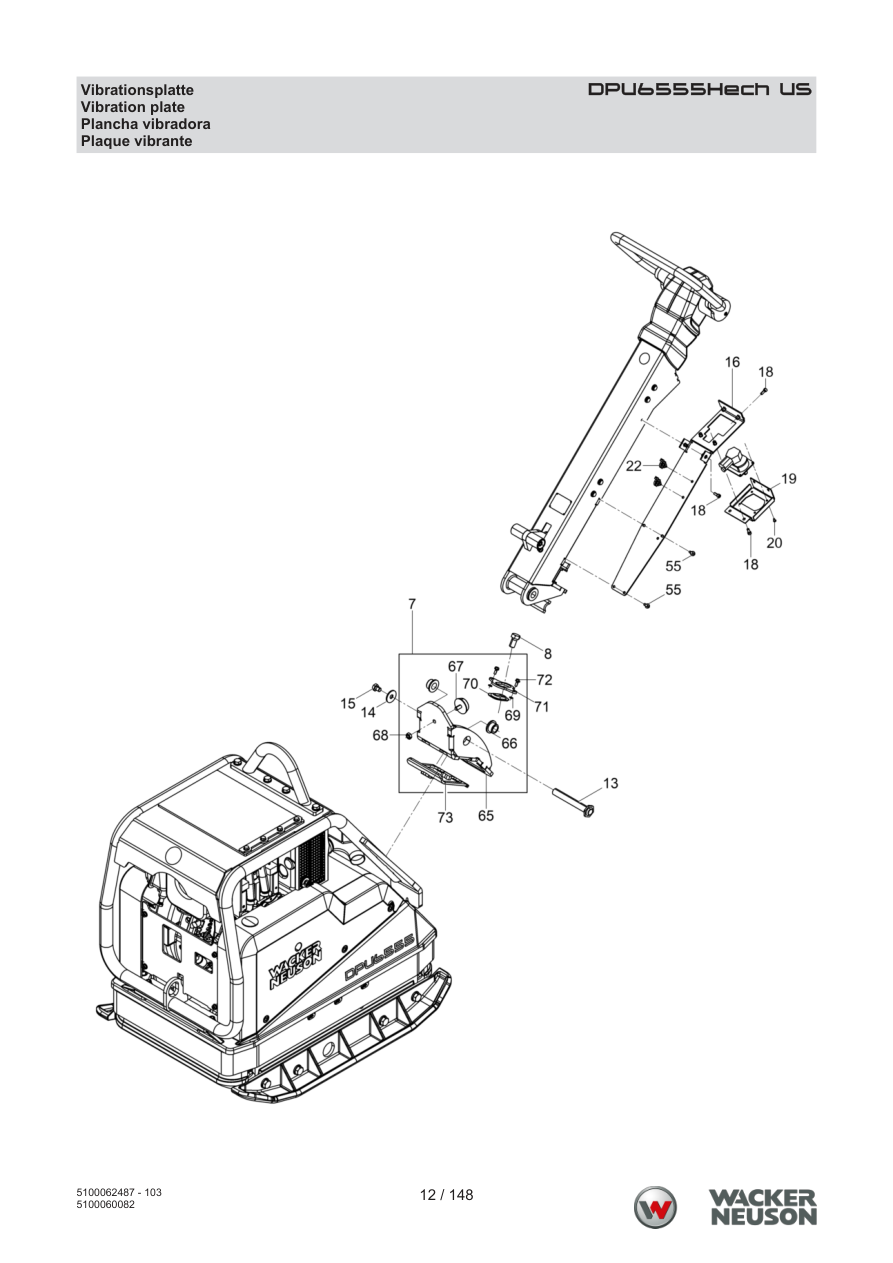

Need the PDF? ↓Page 12 — DPU6555Hech US Vibration plate
Parts list — exactly as printed37 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 19 | 5100057762 | Housing | 1 | ADD TO CART | |
| 20 | 5100066501 | Blind rivet | 4 | ADD TO CART | |
| 22 | 5100011341 | Tie cable | 3 | 25Nm/18ft.lbs | ADD TO CART |
| 55 | 5000204408 | Screw | 4 | DE M 6x 16 | DIN7500 | ADD TO CART |
| 65 | 5100003725 | Support | 1 | ADD TO CART | |
| 66 | 5100051256 | Bush | 2 | ADD TO CART | |
| 67 | 5100005558 | Shockmount | 1 | 50 x 18 M10 x 20 | ADD TO CART |
| 68 | 5000010883 | Hexagon nut | 1 | ADD TO CART | |
| 69 | 5000010624 | Flat washer | 2 | ADD TO CART | |
| 70 | 5100010504 | Gasket | 1 | ADD TO CART | |
| 71 | 5100010505 | Plate | 1 | ADD TO CART | |
| 72 | 5000204408 | Screw | 2 | DE M 6x 16 | DIN7500 | ADD TO CART |
| 73 | 5100010503 | Profiled joint | 1 | ADD TO CART | |
| 3 | 5000011528 | Cheese head screw | 8 | M12 x 35 86Nm/63ft.lbs | ISO4762 | ADD TO CART |
| 4 | 5000021465 | Lock washer | 8 | ADD TO CART | |
| 21 | 5000095074 | Connector | 1 | ADD TO CART | |
| 24 | 5000012624 | Gasket | 2 | A14 x 18 | DIN7603 | ADD TO CART |
| 25 | 5000043201 | Banjo bolt | 1 | 10-3 | DIN7643 | ADD TO CART |
| 27 | 5000094072 | V-belt | 1 | 17 x 1080 | ADD TO CART |
| 28 | 5100009633 | Apron | 1 | ADD TO CART | |
| 29 | 5000097110 | Bar | 2 | ADD TO CART | |
| 30 | 5100009635 | Bar | 1 | ADD TO CART | |
| 31 | 5000103962 | Cheese head screw | 6 | M8 x 18 25Nm/18ft.lbs | DINENISO4762 | ADD TO CART |
| 32 | 5000011550 | Cheese head screw | 2 | M6 x 25 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 33 | 5100002778 | Belt guard | 1 | ADD TO CART | |
| 34 | 5000220202 | Screw | 3 | ADD TO CART | |
| 35 | 5000220365 | Protective hood | 1 | ADD TO CART | |
| 36 | 5000220325 | Screw | 3 | M 12x 35 | ADD TO CART |
| 37 | 5100057763 | Guard plate | 1 | ADD TO CART | |
| 38 | 5000129420 | Socket head cap screw | 4 | ADD TO CART | |
| 7 | 5100010938 | Support cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 8 | 5000011523 | Hexagonal head cap screw | 4 | M16 x 30 210Nm/155ft.lbs | ISO4017 | ADD TO CART |
| 13 | 5100009632 | Axle | 1 | PARTS REQUEST | |
|
COMING Axle
5100009632 · qty on machine: 1 | |||||
| 14 | 5000010376 | Flat washer | 1 | ADD TO CART | |
| 15 | 5000014316 | Hexagonal head cap screw | 1 | M12 x 16 86Nm/63ft.lbs | DIN933 | ADD TO CART |
| 16 | 5100057759 | Cover plate cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 18 | 5000011553 | Cheese head screw | 6 | ADD TO CART | |

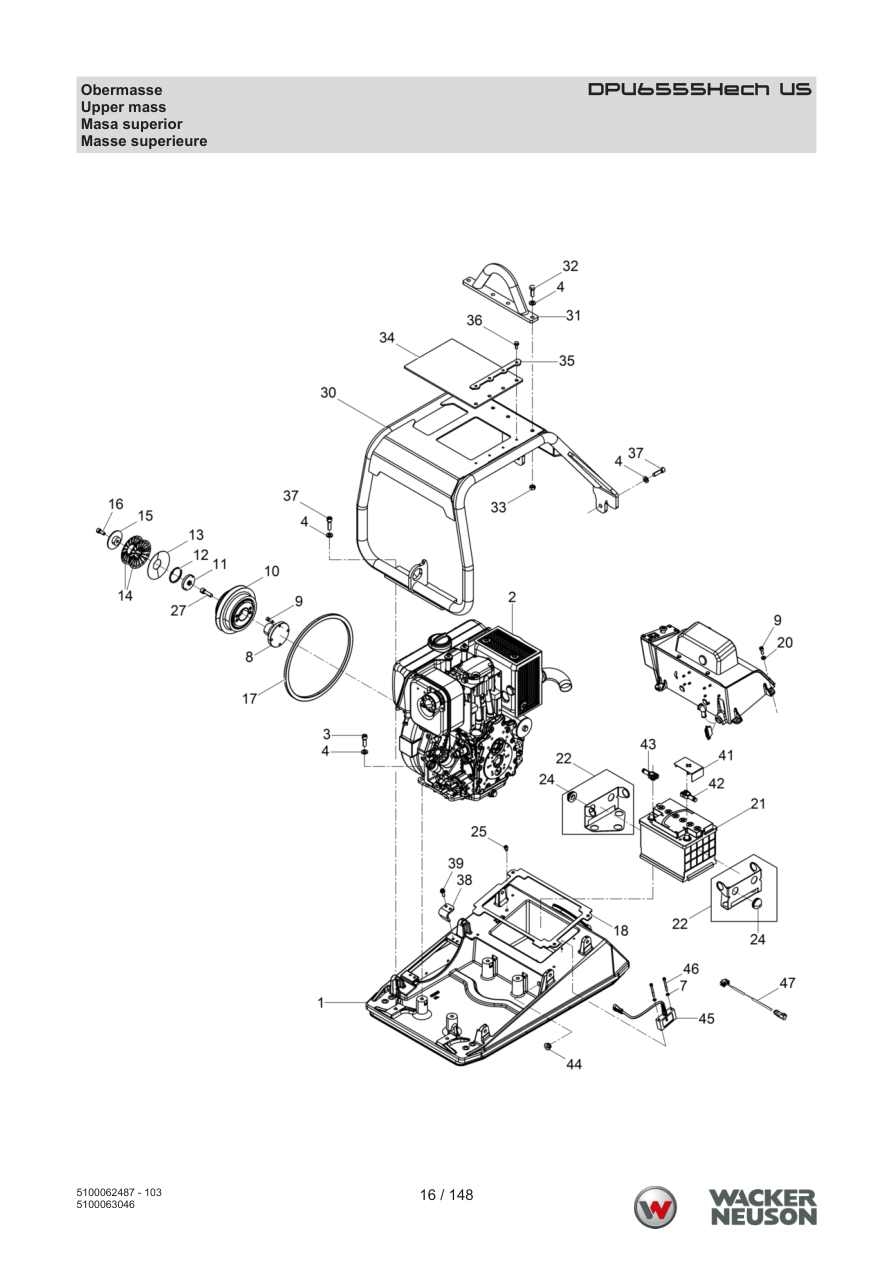

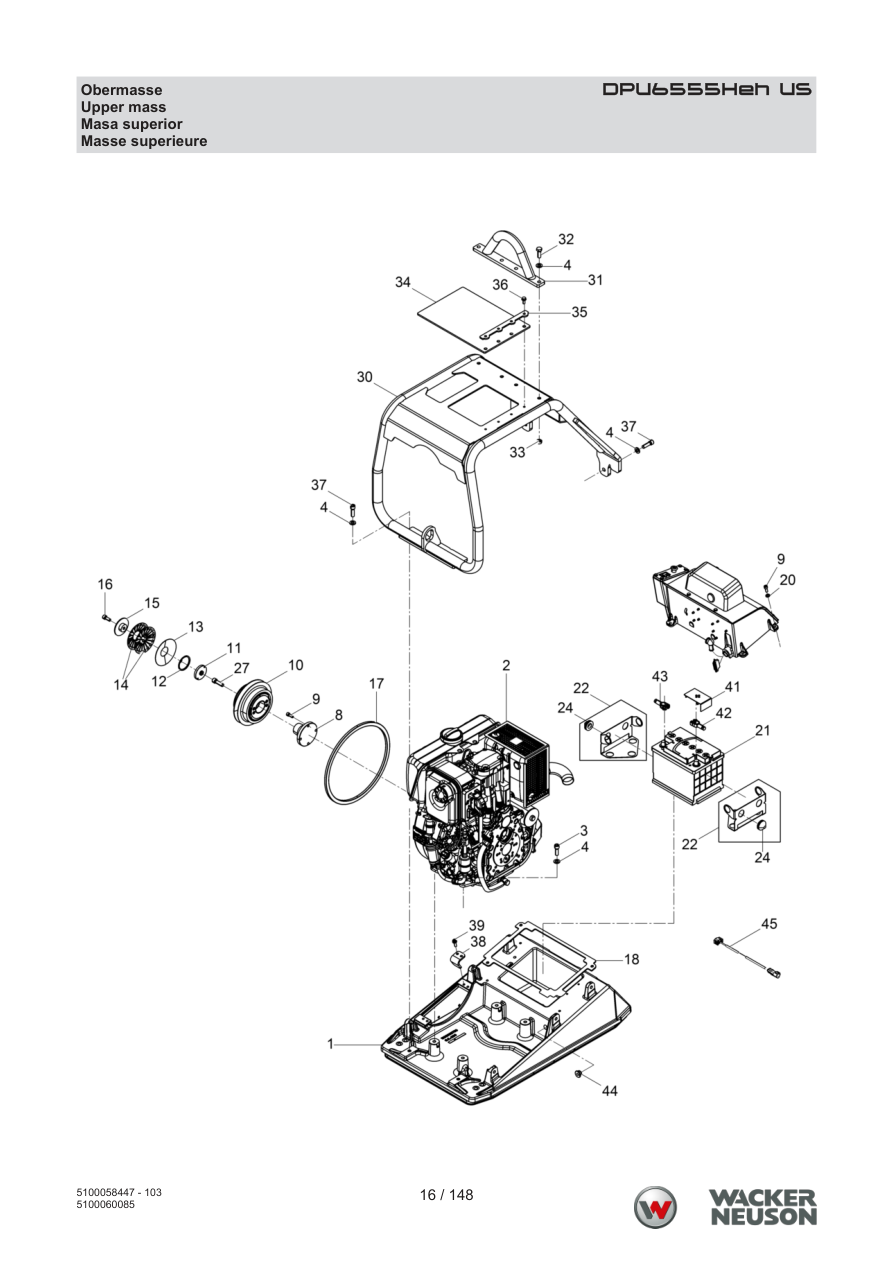

Page 16 — DPU6555Hech US Oversize
Parts list — exactly as printed39 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100003737 | Upper mass | 1 | ADD TO CART | |
| 2 | 5100077337 | Diesel engine | 1 | PARTS REQUEST | |
|
COMING Diesel engine
5100077337 · qty on machine: 1 | |||||
| 3 | 5000011528 | Cheese head screw | 4 | M12 x 35 86Nm/63ft.lbs | ISO4762 | ADD TO CART |
| 4 | 5000021465 | Lock washer | 12 | ADD TO CART | |
| 7 | 5000010624 | Flat washer | 2 | ADD TO CART | |
| 8 | 5000069900 | Flange | 1 | ADD TO CART | |
| 9 | 5000012629 | Cheese head screw | 8 | ADD TO CART | |
| 10 | 5000102208 | Coupling cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Coupling cpl.
5000102208 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 11 | 5000058546 | Disc | 1 | ADD TO CART | |
| 12 | 5000021147 | Retaining ring | 1 | 60 x 2 | DIN472 | ADD TO CART |
| 13 | 5000048273 | Seal | 1 | ADD TO CART | |
| 14 | 5000048374 | Cup spring | 2 | ADD TO CART | |
| 15 | 5000058547 | Button | 1 | ADD TO CART | |
| 16 | 5000011534 | Cheese head screw | 1 | 49Nm/36ft.lbs | ISO4762 | ADD TO CART |
| 17 | 5000048539 | Seal | 1 | PARTS REQUEST | |
|
COMING Seal
5000048539 · qty on machine: 1 | |||||
| 18 | 5000220183 | Gasket | 1 | ADD TO CART | |
| 20 | 5000010742 | Washer | 4 | PARTS REQUEST | |
|
COMING Washer
5000010742 · qty on machine: 4 | |||||
| 21 | 5100021329 | Battery | 1 | ADD TO CART | |
| 22 | 5100011287 | Battery protection cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 24 | 5000124255 | Shockmount | 14 | ADD TO CART | |
| 25 | 5000013574 | Cheese head screw | 1 | ADD TO CART | |
| 27 | 5100010091 | Cheese head screw | 1 | ADD TO CART | |
| 30 | 5000220379 | Protective frame | 1 | ADD TO CART | |
| 31 | 5000099055 | Hook | 1 | ADD TO CART | |
| 32 | 5000011422 | Hexagonal head cap screw | 4 | M12 x 35 86Nm/63ft.lbs | DIN933 | ADD TO CART |
| 33 | 5000010366 | Hexagon nut | 4 | ADD TO CART | |
| 34 | 5000099535 | Plate | 1 | ADD TO CART | |
| 35 | 5000099047 | Bar | 1 | ADD TO CART | |
| 36 | 5000105944 | Screw | 4 | DE M8 x 20 | DIN7500 | ADD TO CART |
| 37 | 5000201094 | Cheese head screw | 4 | M12 x 50 120Nm/89ft.lbs | ISO4762 | ADD TO CART |
| 38 | 5000220334 | Angle | 2 | ADD TO CART | |
| 39 | 5000129420 | Socket head cap screw | 4 | ADD TO CART | |
| 41 | 5100011307 | Positive pol cover | 1 | ADD TO CART | |
| 42 | 5100015202 | Pole terminal positive | 1 | ADD TO CART | |
| 43 | 5100015203 | Pole terminal negative | 1 | ADD TO CART | |
| 44 | 5100061473 | Cable passage | 1 | ADD TO CART | |
| 45 | 5100009674 | Sensor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 46 | 5000037071 | Cheese head screw | 2 | 10Nm/7ft.lbs | ADD TO CART |
| 47 | 5100076070 | Cable harness | 1 | ADD TO CART | |

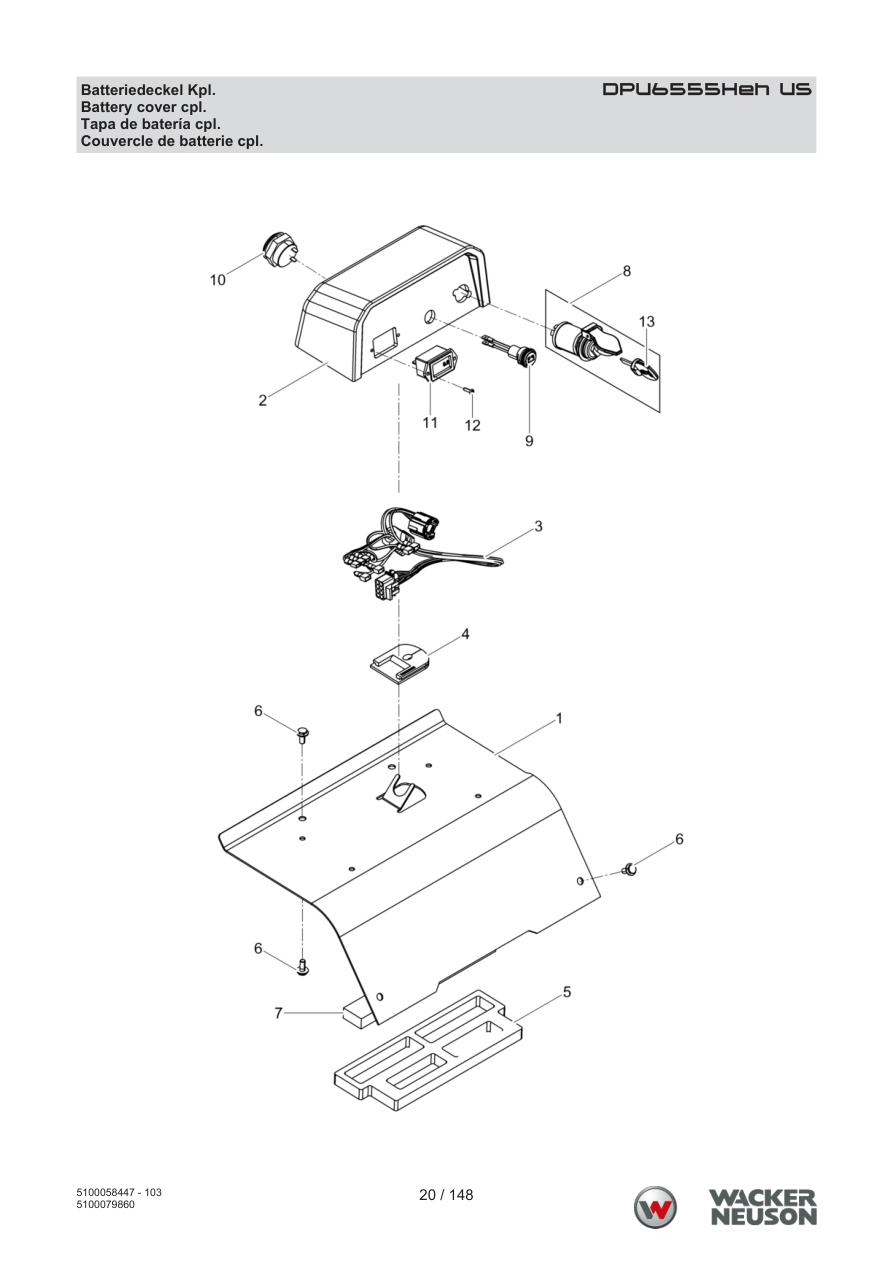

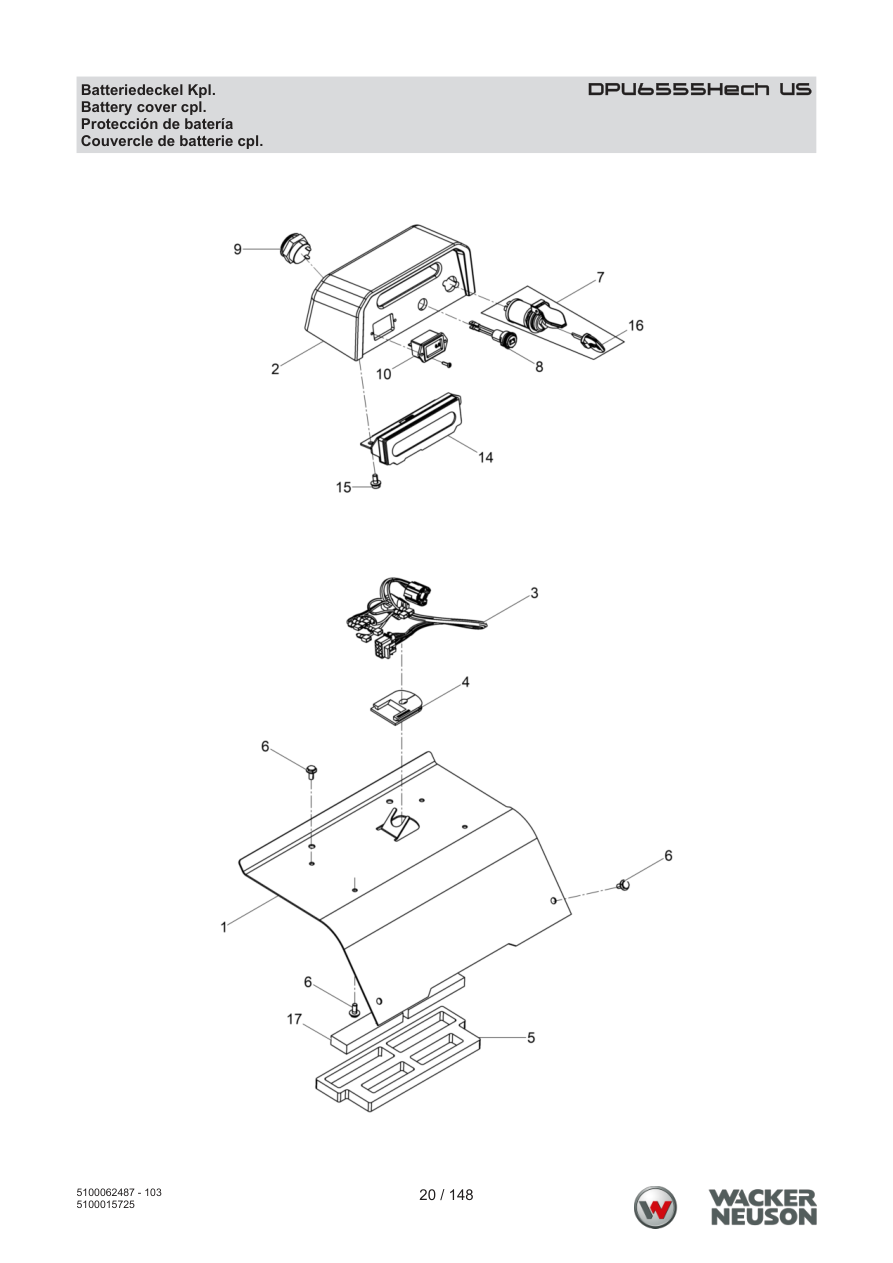

Page 20 — Battery cover cpl.
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100079561 | Battery cover | 1 | PARTS REQUEST | |
|
COMING Battery cover
5100079561 · qty on machine: 1 | |||||
| 2 | 5100005886 | Housing | 1 | ADD TO CART | |
| 3 | 5100009620 | Helix cable | 1 | ADD TO CART | |
| 4 | 5100009911 | Gasket | 1 | ADD TO CART | |
| 5 | 5100020556 | Insulating cushion | 1 | ADD TO CART | |
| 6 | 5000210194 | Corrugated-head screw | 8 | ADD TO CART | |
| 7 | 5100011296 | Ignition starter switch | 1 | ADD TO CART | |
| 8 | 5000129797 | Led | 1 | ADD TO CART | |
| 9 | 5000220234 | Acoustic signal | 1 | ADD TO CART | |
| 10 | 5100011309 | Working hour meter | 1 | ADD TO CART | |
| 14 | 5100009673 | Display cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 15 | 5100010512 | Corrugated-head screw | 2 | ADD TO CART | |
| 16 | 5000220118 | Key | 1 | ADD TO CART | |
| 17 | 5100020618 | Filter mat | 2 | ADD TO CART | |

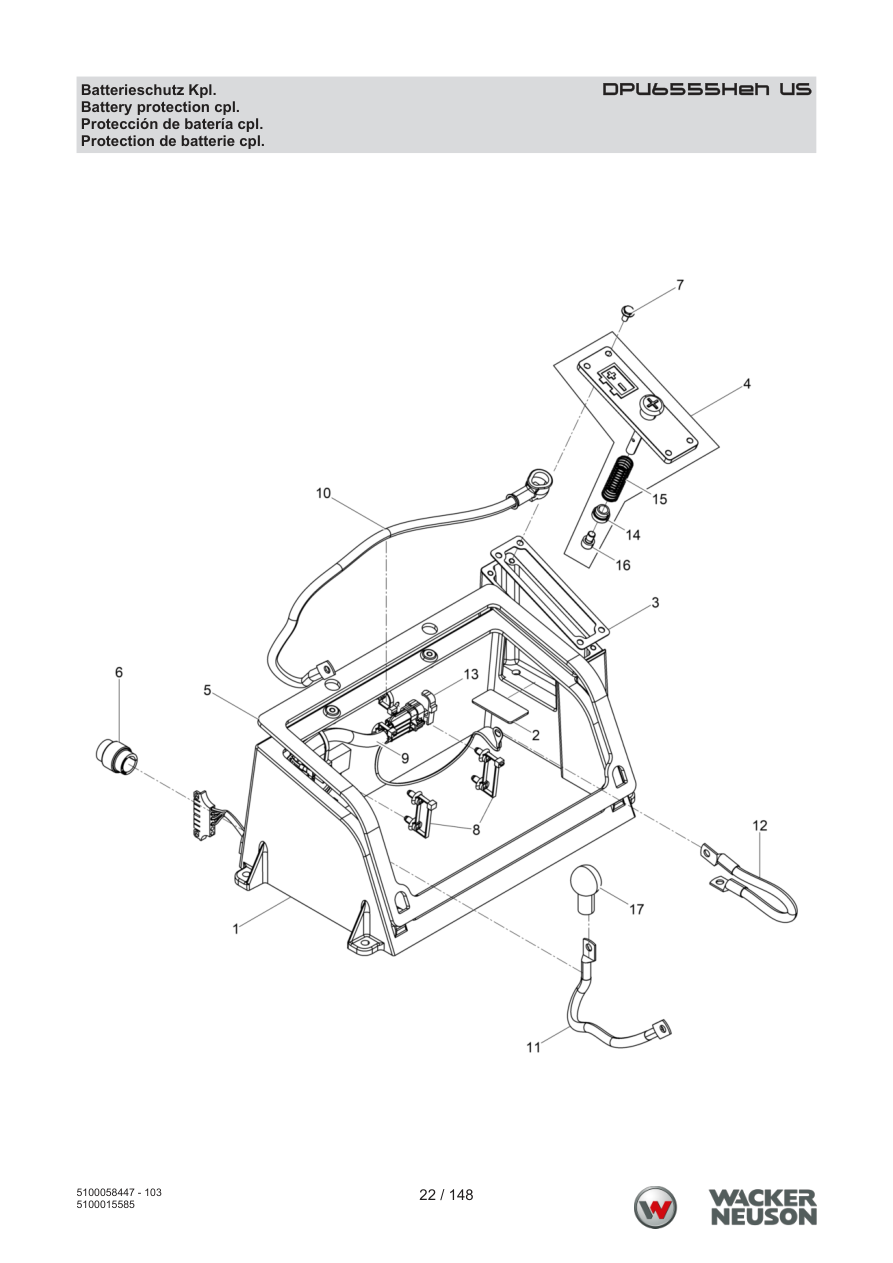

Page 22 — Battery protection cpl.
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011288 | Battery protection | 1 | ADD TO CART | |
| 2 | 5100010149 | Pad | 1 | ADD TO CART | |
| 3 | 5000216678 | Gasket | 1 | ADD TO CART | |
| 4 | 5100011304 | Starting device cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 5 | 5000220173 | Gasket | 1 | ADD TO CART | |
| 6 | 5000220432 | Insert | 1 | PARTS REQUEST | |
|
COMING Insert
5000220432 · qty on machine: 1 | |||||
| 7 | 5000210194 | Corrugated-head screw | 4 | ADD TO CART | |
| 8 | 5100011341 | Tie cable | 9 | ADD TO CART | |
| 9 | 5100009683 | Cable harness | 1 | ADD TO CART | |
| 10 | 5100010865 | Battery boost cable | 1 | ADD TO CART | |
| 11 | 5100015100 | Positive pole strap | 1 | ADD TO CART | |
| 12 | 5100010866 | Negative pole strap | 1 | ADD TO CART | |
| 13 | 5000047388 | Cable tie | 1 | ADD TO CART | |
| 14 | 5100009601 | Bush | 1 | ADD TO CART | |
| 15 | 5100011308 | Compression spring | 1 | ADD TO CART | |
| 16 | 5000013574 | Cheese head screw | 1 | 25Nm/18ft.lbs | ADD TO CART |
| 17 | 5000058696 | Nose cap | 1 | ADD TO CART | |

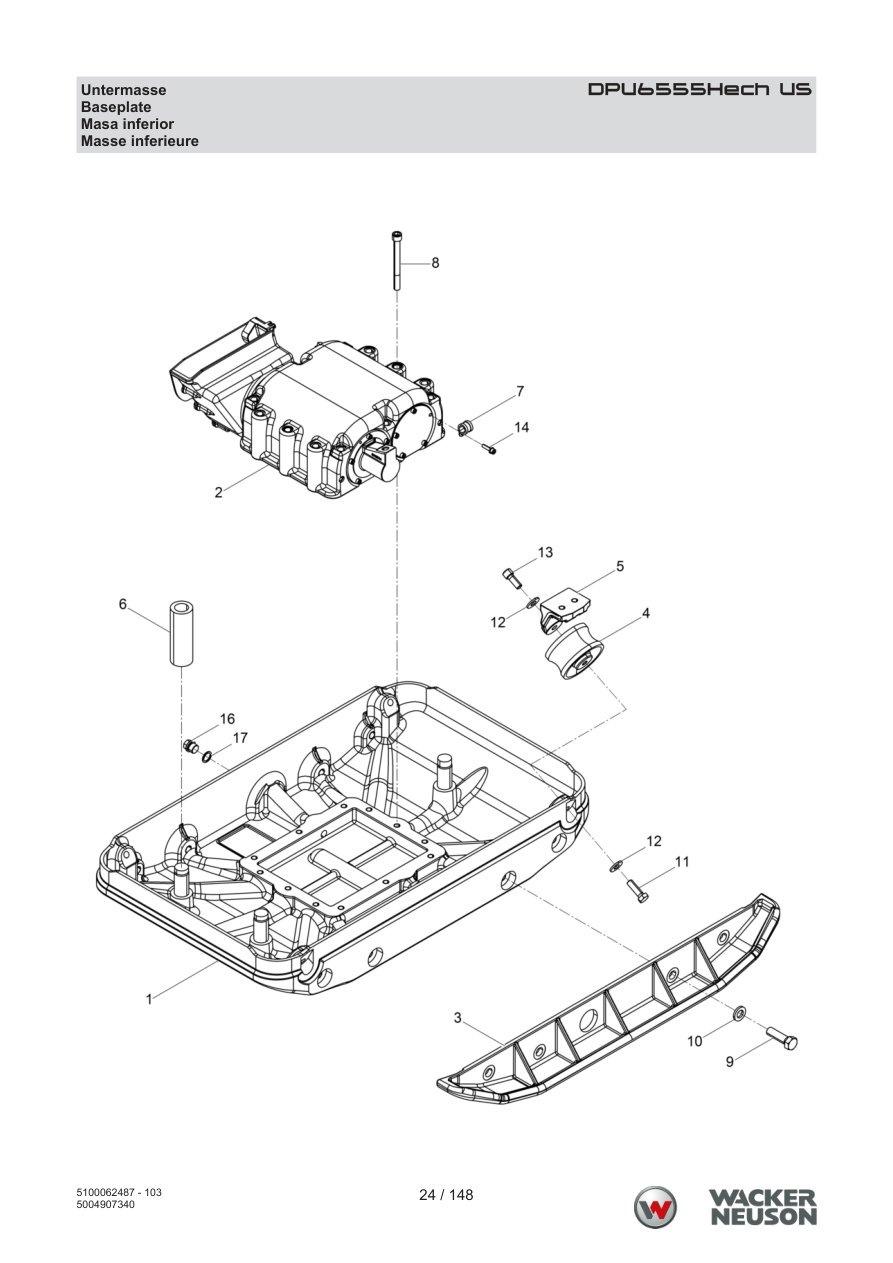

Page 24 — DPU6555Hech US Undersize
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000102083 | Baseplate | 1 | ADD TO CART | |
| 2 | 5000220084 | Exciter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Exciter cpl.
5000220084 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5000044442 | Extension plate 8 cm | 2 | PARTS REQUEST | |
|
COMING Extension plate 8 cm
5000044442 · qty on machine: 2 | |||||
| 4 | 5002004814 | Shockmount | 4 | ADD TO CART | |
| 5 | 5000102105 | Support | 4 | ADD TO CART | |
| 6 | 5000034442 | Bushing | 3 | ADD TO CART | |
| 7 | 5000017123 | Pipe clamp | 1 | ADD TO CART | |
| 8 | 5000094518 | Cheese head screw | 12 | M12 x 120 120Nm/89ft.lbs | ISO4762 | ADD TO CART |
| 9 | 5000039191 | Hexagonal head cap screw | 8 | M16 x 1,5 x 55 210Nm/155ft.lbs | DIN961 | ADD TO CART |
| 10 | 5000021988 | Lock washer | 8 | ADD TO CART | |
| 11 | 5000011421 | Hexagonal head cap screw | 4 | M12 x 40 86Nm/63ft.lbs | DIN933 | PARTS REQUEST |
|
COMING Hexagonal head cap screw
5000011421 · qty on machine: 4 M12 x 40
86Nm/63ft.lbs | DIN933 | |||||
| 12 | 5000031565 | Lockwasher | 8 | ADD TO CART | |
| 13 | 5000011529 | Cheese head screw | 4 | 86Nm/63ft.lbs | ISO4762 | ADD TO CART |
| 14 | 5100072823 | Screw m 6x 25 | 1 | 10Nm/7ft.lbs | ADD TO CART |
| 16 | 5000068222 | Plug (threaded) | 1 | ADD TO CART | |
| 17 | 5000019156 | Gasket | 1 | ADD TO CART | |
| 19 | 5000219702 | Flange | 1 | ADD TO CART | |

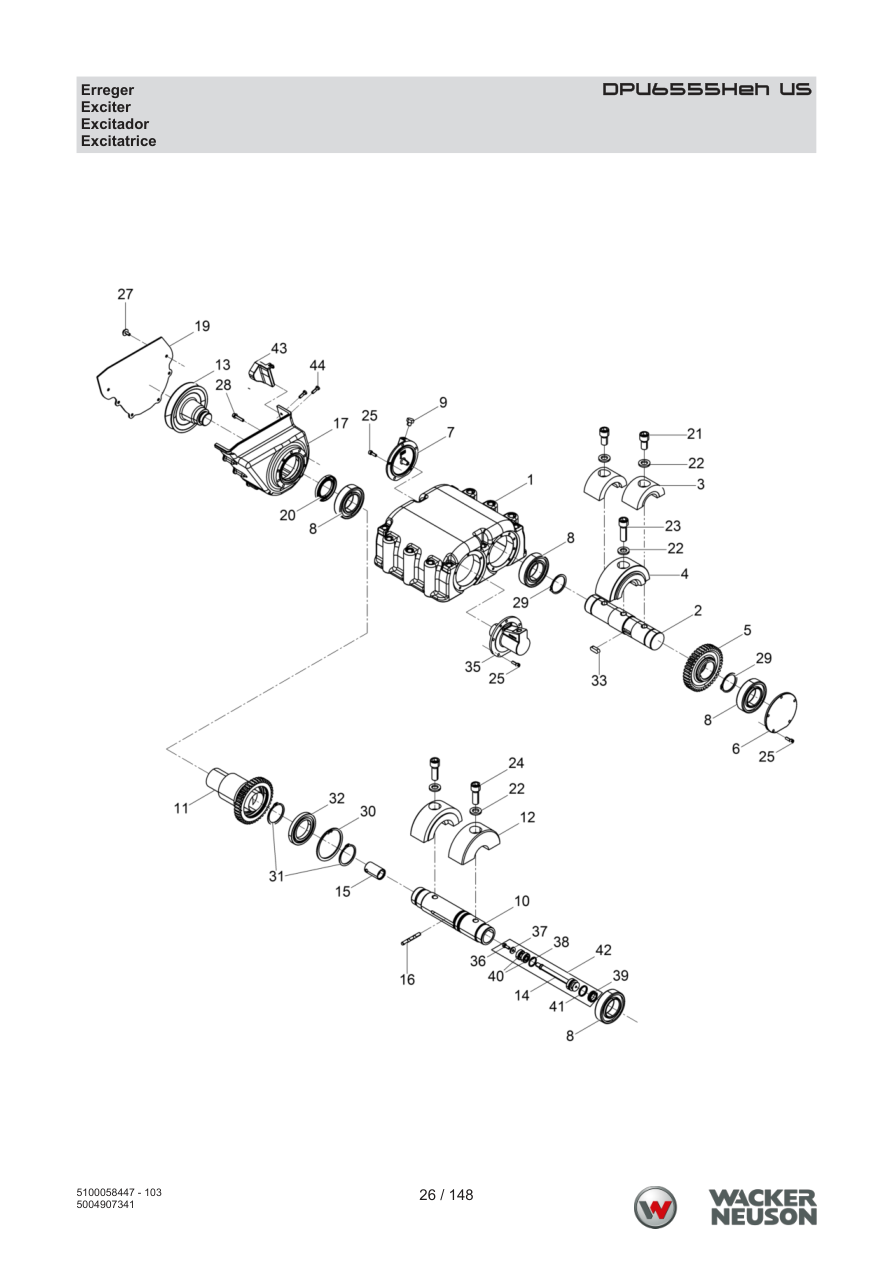

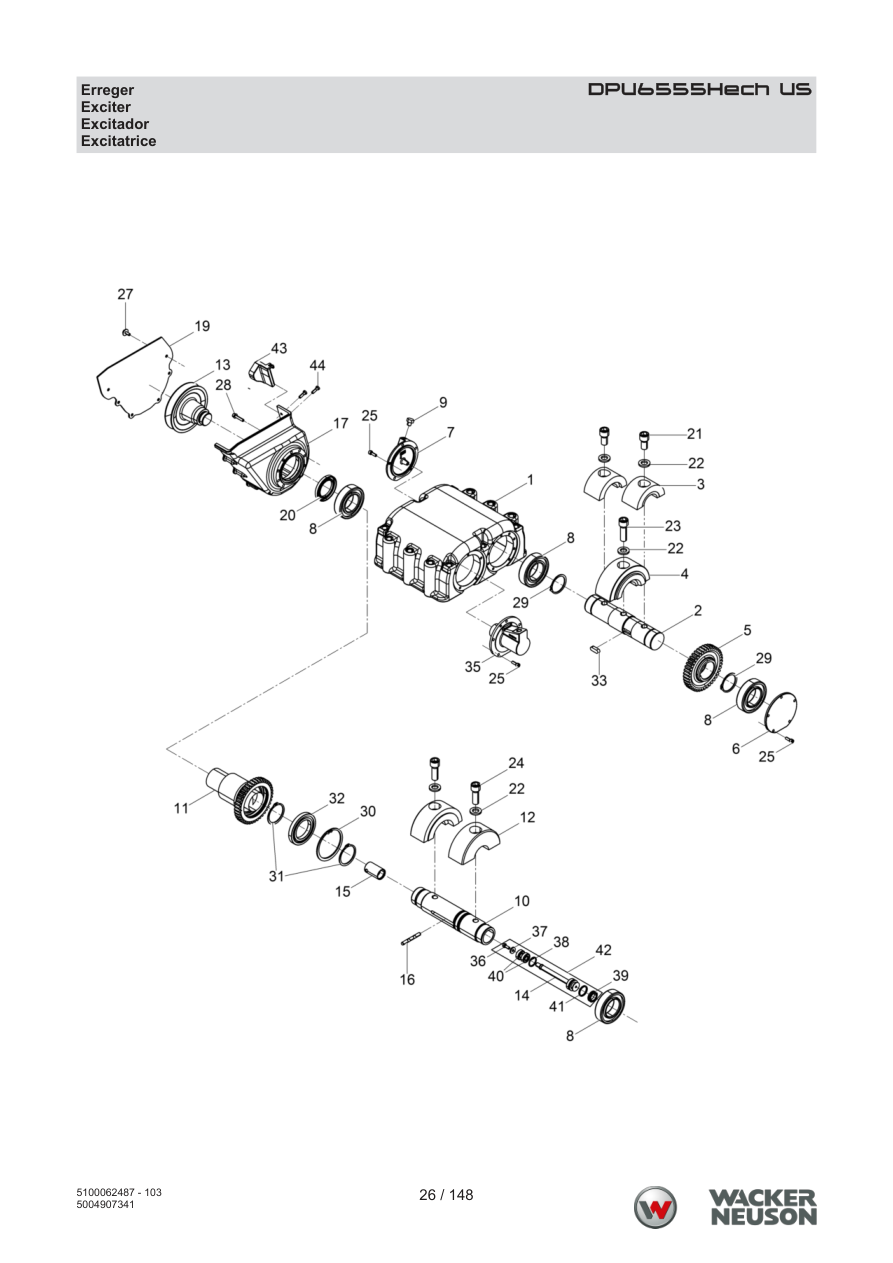

Page 26 — DPU6555Hech US Exciter
Parts list — exactly as printed41 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000099059 | Exciter housing | 1 | ADD TO CART | |
| 2 | 5000220059 | Shaft | 1 | ADD TO CART | |
| 3 | 5000220082 | Eccentric weight | 2 | ADD TO CART | |
| 4 | 5000220110 | Eccentric weight | 1 | ADD TO CART | |
| 5 | 5100077127 | Gear wheel | 1 | ADD TO CART | |
| 6 | 5000039110 | Cover | 1 | ADD TO CART | |
| 7 | 5000102144 | Vent cover | 1 | ADD TO CART | |
| 8 | 5000103469 | Cylindrical roller bearing | 4 | ADD TO CART | |
| 9 | 5001103030 | Vent screw | 1 | ADD TO CART | |
| 10 | 5000220077 | Shaft | 1 | ADD TO CART | |
| 11 | 5100077130 | Adjusting sleeve | 1 | ADD TO CART | |
| 12 | 5000220083 | Eccentric weight | 2 | ADD TO CART | |
| 13 | 5000129859 | V-belt pulley | 1 | ADD TO CART | |
| 14 | 5000220079 | Bolt | 1 | ADD TO CART | |
| 15 | 5000220106 | Indexing bolt | 1 | ADD TO CART | |
| 16 | 5000043382 | Tripping pin | 1 | PARTS REQUEST | |
|
COMING Tripping pin
5000043382 · qty on machine: 1 | |||||
| 17 | 5000201522 | Protective box | 1 | PARTS REQUEST | |
|
COMING Protective box
5000201522 · qty on machine: 1 | |||||
| 19 | 5000104124 | Plate | 1 | ADD TO CART | |
| 20 | 5000048854 | Rotary shaft seal | 1 | 48 x 72 x 7,4 | ADD TO CART |
| 21 | 5000044634 | Cheese head screw | 2 | M16 x 30 295Nm/218ft.lbs | ISO4762 | ADD TO CART |
| 22 | 5000021988 | Lock washer | 5 | ADD TO CART | |
| 23 | 5000043812 | Cheese head screw | 1 | M16 x 50 295Nm/218ft.lbs | ISO4762 | ADD TO CART |
| 24 | 5000126300 | Cheese head screw | 2 | M16 x 45 295Nm/218ft.lbs | ISO4762 | ADD TO CART |
| 25 | 5000011552 | Cheese head screw | 14 | M6 x 18 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 27 | 5100009501 | Screw | 6 | M6 x 16 10Nm/7ft.lbs | ADD TO CART |
| 28 | 5100072822 | Screw m 6x 30 | 9 | 10Nm/7ft.lbs | ADD TO CART |
| 29 | 5002006113 | Retaining ring | 2 | ADD TO CART | |
| 30 | 5002007057 | Retaining ring | 1 | 90 x 3 | DIN472 | ADD TO CART |
| 31 | 5002004822 | Retaining ring | 2 | 55 x 2 | DIN471 | ADD TO CART |
| 32 | 5000220133 | Grooved ball bearing | 1 | ADD TO CART | |
| 33 | 5002001399 | Fitting key | 1 | A10 x 8 x 28 | DIN6885 | ADD TO CART |
| 35 | 5000048604 | Cylinder cover | 1 | ADD TO CART | |
| 36 | 5000124717 | Washer | 1 | ADD TO CART | |
| 37 | 5000014663 | Hexagonal head cap screw | 1 | 10Nm/7ft.lbs | ISO4017 | ADD TO CART |
| 38 | 5000220384 | Retaining ring | 1 | 26x 1,20 | DIN472 | ADD TO CART |
| 39 | 5000043203 | Lip seal ring | 1 | 30 x 20 x 6 | ADD TO CART |
| 40 | 5000220383 | Grooved ball bearing | 2 | ADD TO CART | |
| 41 | 5002006991 | O-ring | 1 | 24 x 3 | ADD TO CART |
| 42 | 5000220081 | Bolt cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 43 | 5100003656 | Belt guide | 1 | ADD TO CART | |
| 44 | 5100013871 | Oval head screw | 2 | 6 x 20 | ADD TO CART |

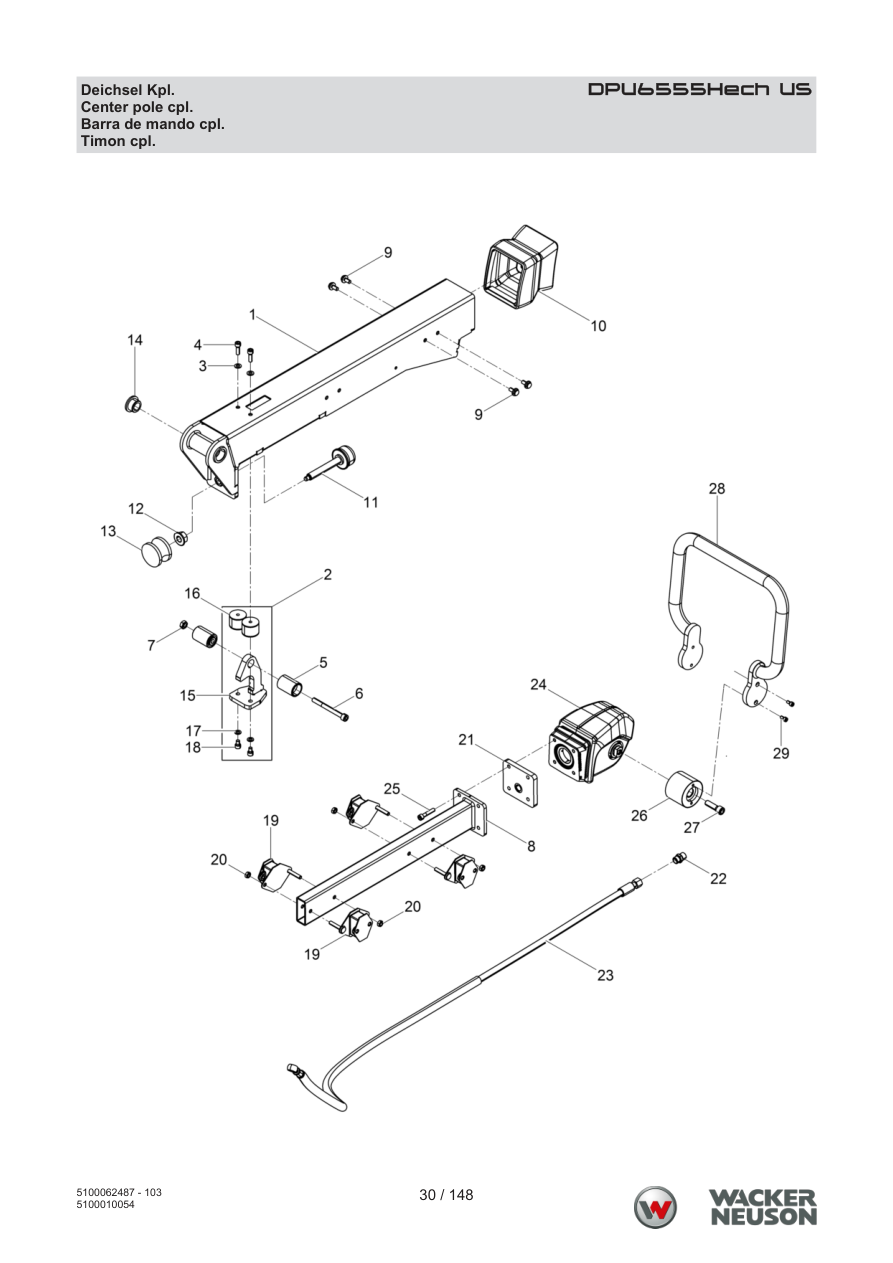

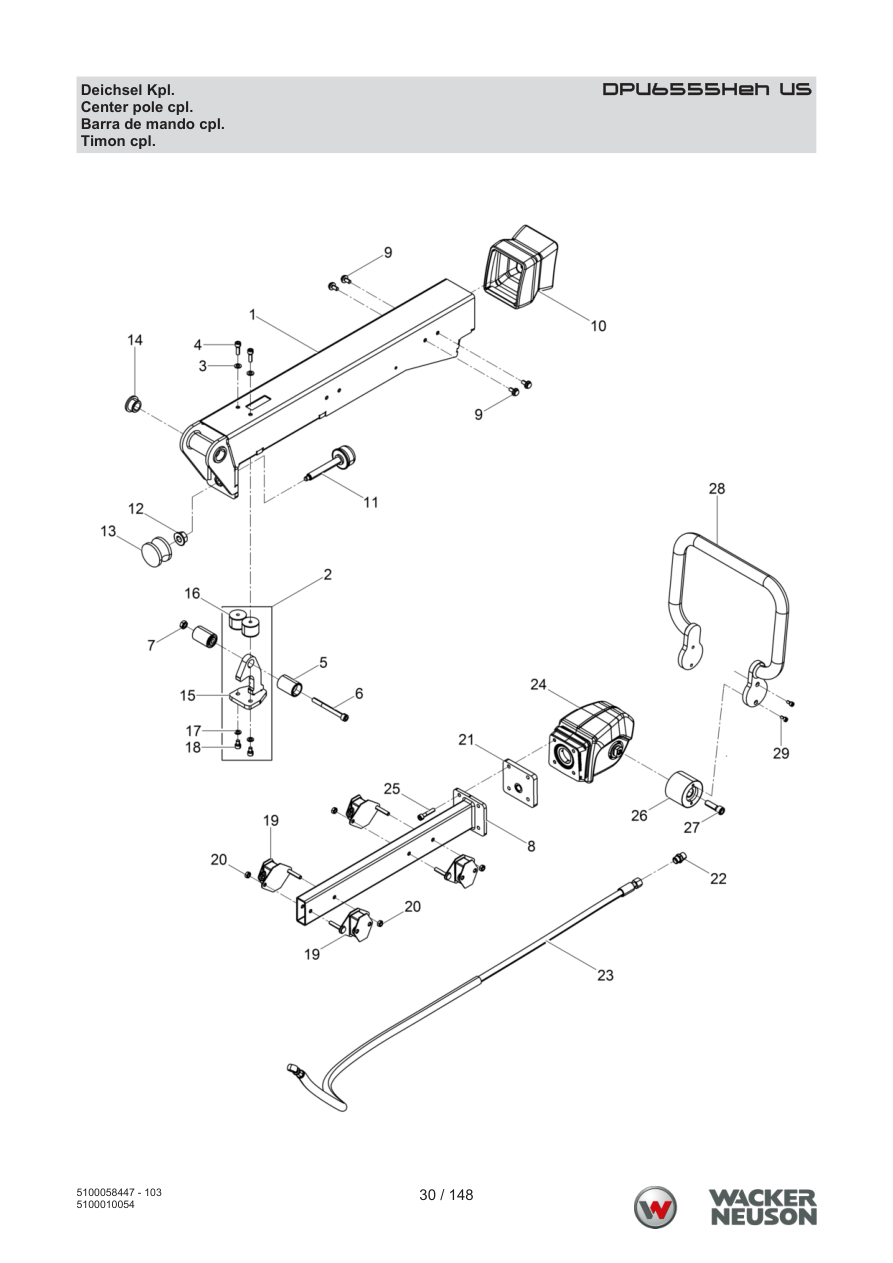

Page 30 — Center pole cpl.
Parts list — exactly as printed29 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100009952 | Center pole tube | 1 | ADD TO CART | |
| 2 | 5100005543 | Lock | 1 | ADD TO CART | |
| 3 | 5000010622 | Flat washer | 2 | ADD TO CART | |
| 4 | 5000013574 | Cheese head screw | 2 | ADD TO CART | |
| 5 | 5100002007 | Retaining handle | 2 | ADD TO CART | |
| 6 | 5000037090 | Cheese head screw | 1 | M10 x 100 49Nm/36ft.lbs | ISO4762 | ADD TO CART |
| 7 | 5000010883 | Hexagon nut | 1 | ADD TO CART | |
| 8 | 5100005106 | Square tube cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 9 | 5000211795 | Corrugated-head screw | 8 | ADD TO CART | |
| 10 | 5100005538 | Bellows | 1 | ADD TO CART | |
| 11 | 5000043928 | Threaded spindle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Threaded spindle cpl.
5000043928 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 12 | 5000202866 | Locknut | 1 | M16 | EN1661 | ADD TO CART |
| 13 | 5000043233 | Shockmount | 1 | 60 x 40 | ADD TO CART |
| 14 | 5100051255 | Bush | 2 | ADD TO CART | |
| 15 | 5100005541 | Lock | 1 | ADD TO CART | |
| 16 | 5000129818 | Shockmount | 2 | ADD TO CART | |
| 17 | 5000010742 | Washer | 2 | PARTS REQUEST | |
|
COMING Washer
5000010742 · qty on machine: 2 | |||||
| 18 | 5000011543 | Socket head screw | 2 | 24Nm/18ft.lbs | ISO4762 | ADD TO CART |
| 19 | 5100010497 | Shockmount | 4 | ADD TO CART | |
| 20 | 5000010882 | Hexagon nut | 4 | ADD TO CART | |
| 21 | 5100005526 | Flange | 1 | ADD TO CART | |
| 22 | 5000069225 | Screwed socket | 1 | ADD TO CART | |
| 23 | 5100005553 | Hose pipe | 1 | PARTS REQUEST | |
|
COMING Hose pipe
5100005553 · qty on machine: 1 | |||||
| 24 | 5100027083 | Center pole head cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 25 | 5000011539 | Cheese head screw | 4 | M8 x 40 25Nm/18ft.lbs | ISO4762 | ADD TO CART |
| 26 | 5000215035 | Shockmount | 2 | ADD TO CART | |
| 27 | 5000011527 | Cheese head screw | 2 | ADD TO CART | |
| 28 | 5100005124 | Clamp | 1 | ADD TO CART | |
| 29 | 5000011554 | Cheese head screw | 4 | ADD TO CART | |

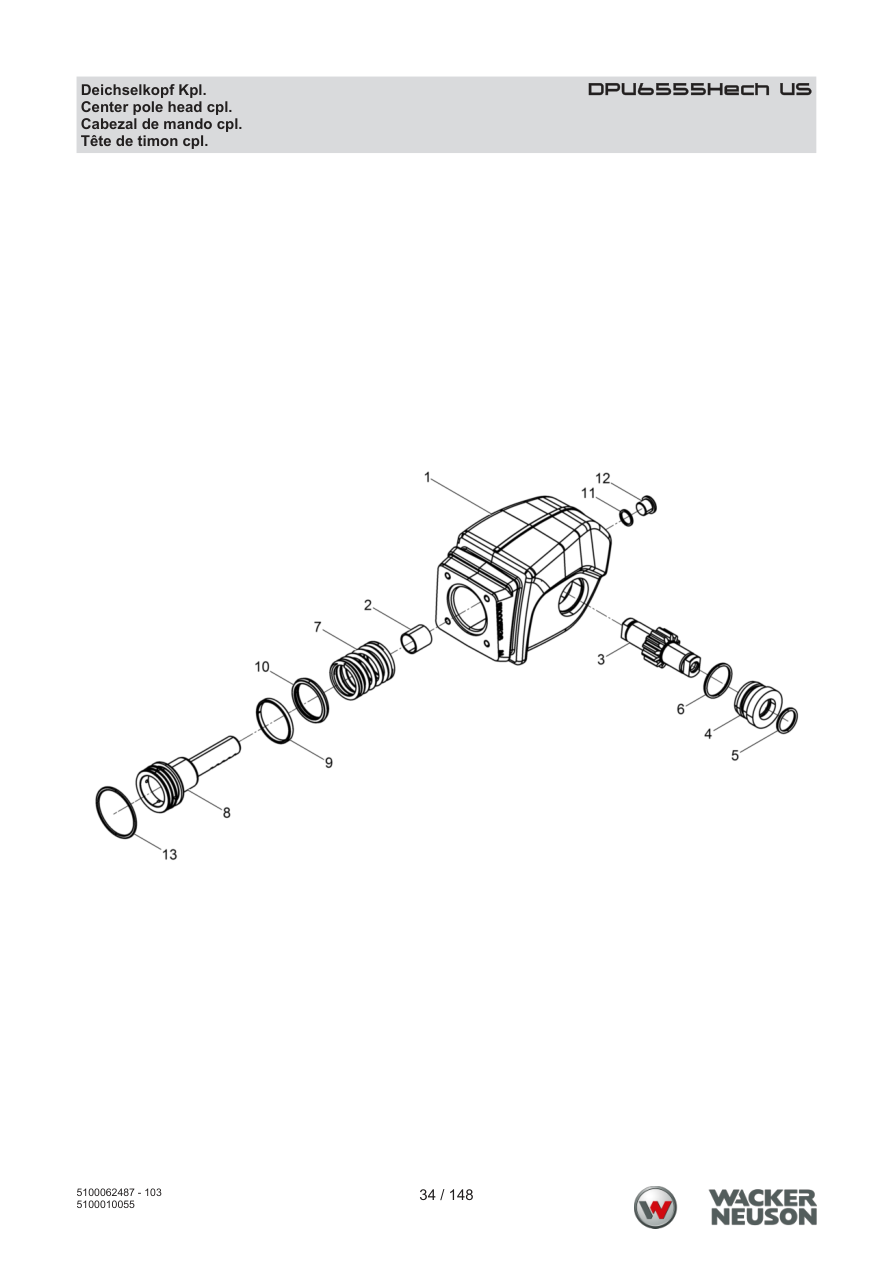

Page 34 — Center pole head cpl.
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005537 | Center pole head | 1 | ADD TO CART | |
| 2 | 5000126164 | Slide bush | 1 | ADD TO CART | |
| 3 | 5000069726 | Long face pinion | 1 | ADD TO CART | |
| 4 | 5000125926 | Spacer | 2 | ADD TO CART | |
| 5 | 5000018194 | O-ring | 2 | ADD TO CART | |
| 6 | 5000068752 | O-ring | 2 | ADD TO CART | |
| 7 | 5100005559 | Compression spring | 1 | ADD TO CART | |
| 8 | 5100005138 | Control piston | 1 | ADD TO CART | |
| 9 | 5100005532 | Guide ring | 1 | KB 55x50x5,5 HG517 | ADD TO CART |
| 10 | 5100005533 | Gasket | 1 | ADD TO CART | |
| 11 | 5000012082 | Seal ring | 1 | A16 x 20 | DIN7603 | ADD TO CART |
| 12 | 5000011050 | Plug (threaded) | 1 | M16 x 1,5 | DIN908 | ADD TO CART |
| 13 | 5000039235 | O-ring | 1 | 58 x 3 | ADD TO CART |

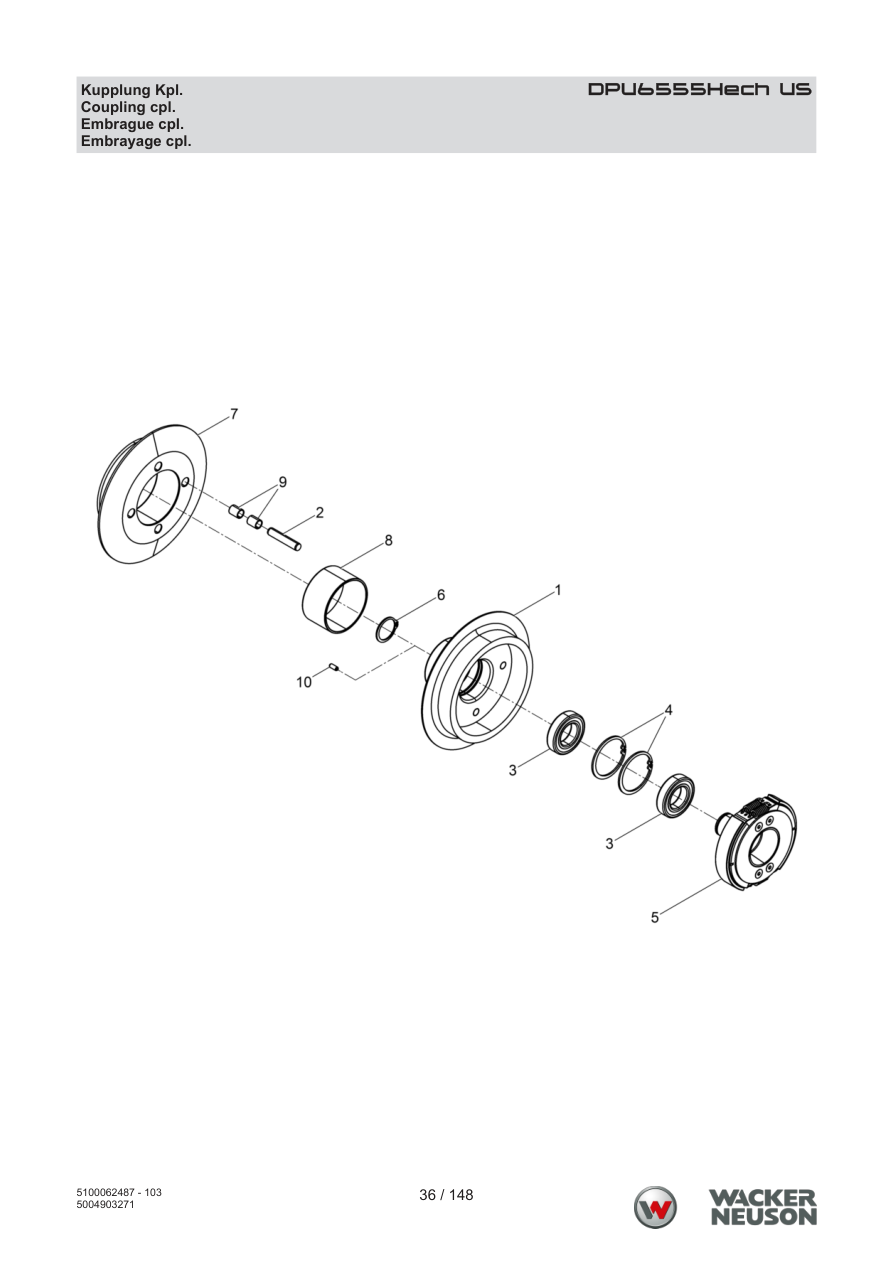

Page 36 — Coupling cpl.
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000058541 | Clutch drum | 1 | 49Nm/36ft.lbs | ADD TO CART |
| 2 | 5000058539 | Pin | 4 | ADD TO CART | |
| 3 | 5000039999 | Grooved ball bearing | 2 | ADD TO CART | |
| 4 | 5002003826 | Retaining ring | 2 | 55 x 2 | DIN472 | ADD TO CART |
| 5 | 5000201992 | Centrifugal clutch | 1 | ADD TO CART | |
| 6 | 5002001815 | Retaining ring | 1 | 30 x 1,5 | DIN471 | ADD TO CART |
| 7 | 5000058540 | V-belt pulley | 1 | ADD TO CART | |
| 8 | 5000058536 | Bushing | 1 | ADD TO CART | |
| 9 | 5000058551 | Bush | 8 | ADD TO CART | |
| 10 | 5000013591 | Spring pin | 2 | 5 x 12 | DIN1481 | PARTS REQUEST |
|
COMING Spring pin
5000013591 · qty on machine: 2 5 x 12 | DIN1481 | |||||

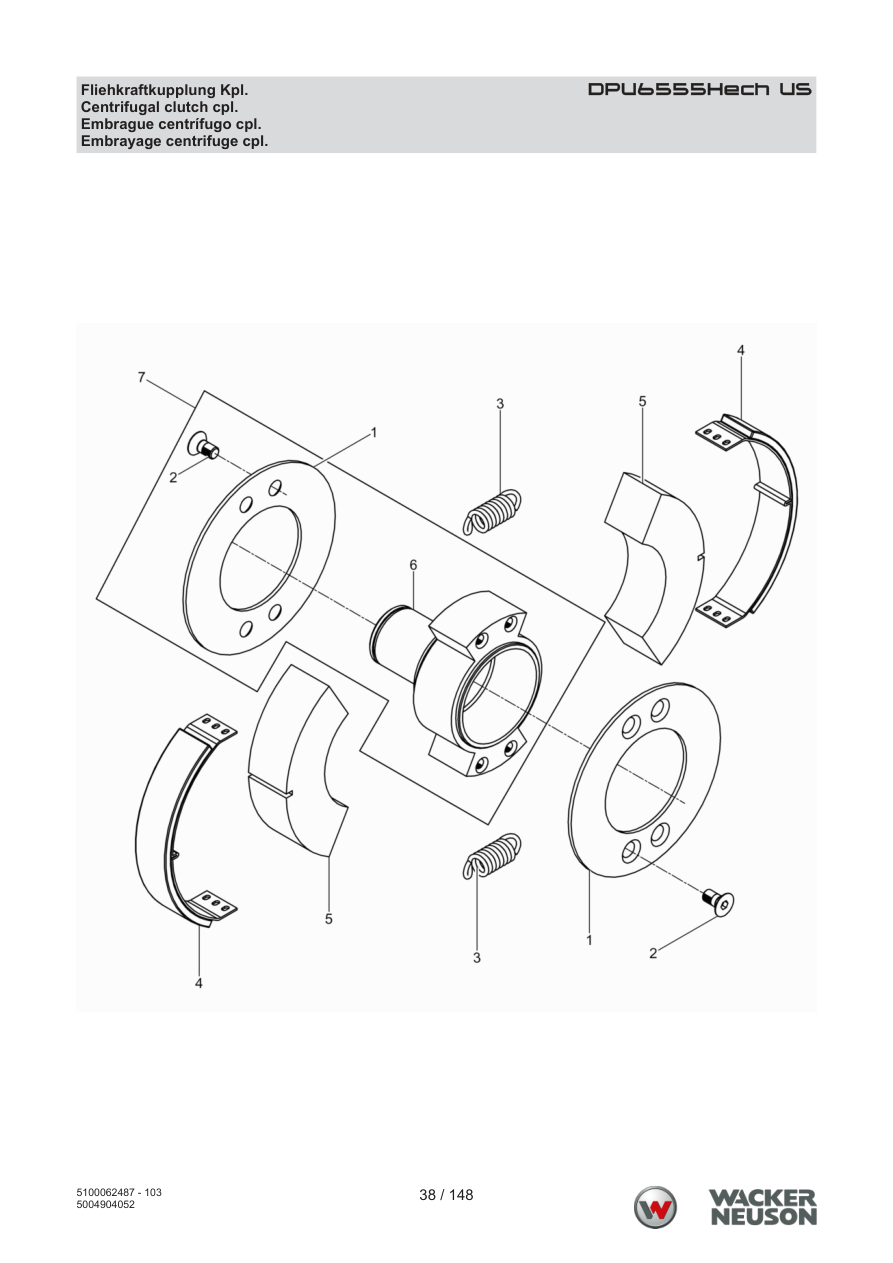

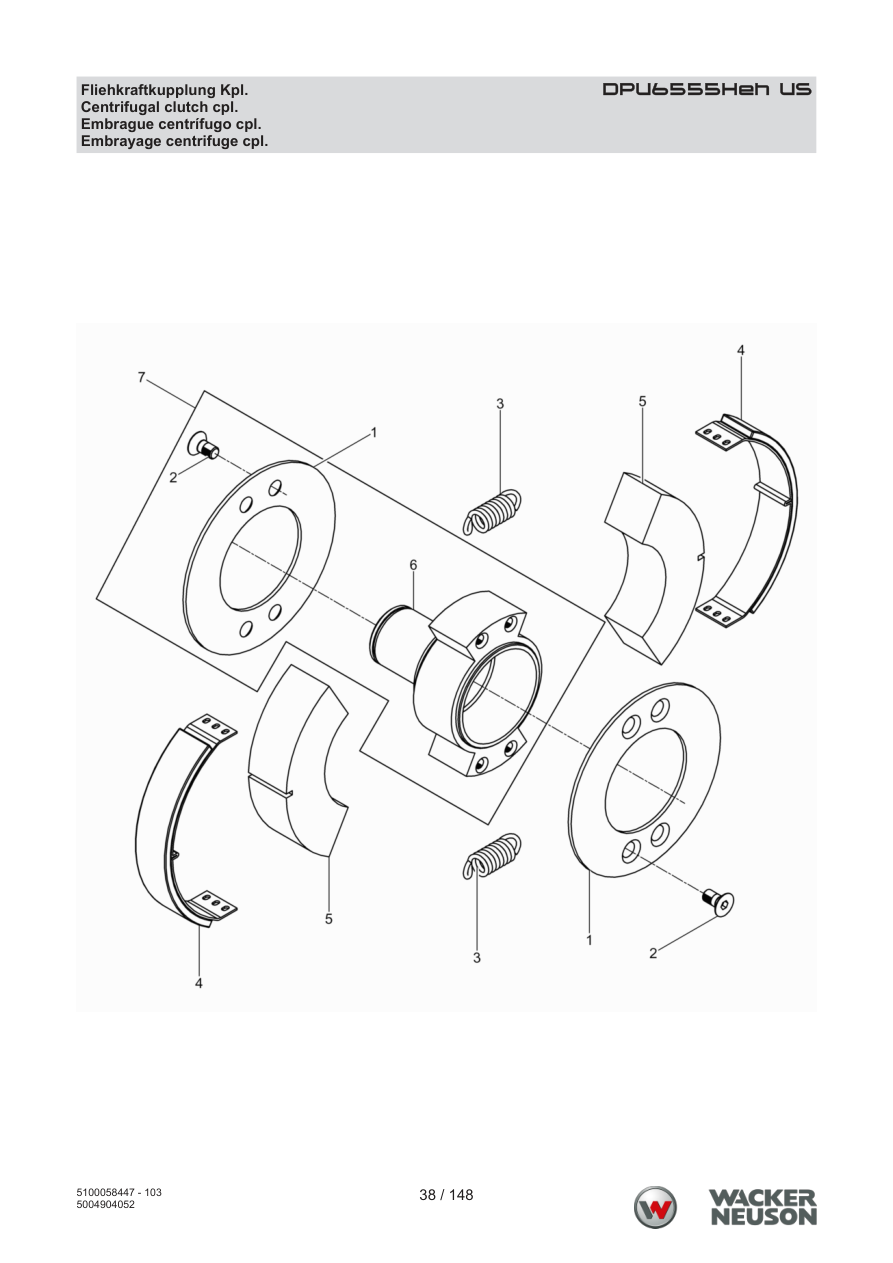

Page 38 — Centrifugal clutch cpl.
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000201994 | Fixing disc | 2 | ADD TO CART | |
| 2 | 5000024338 | Countersunk screw | 8 | M6 x 10 | DIN963 | ADD TO CART |
| 3 | 5000045979 | Tension spring | 4 | ADD TO CART | |
| 4 | 5002006075 | Lining | 2 | ADD TO CART | |
| 5 | 5000049506 | Centrifugal weight | 2 | ADD TO CART | |
| 6 | 5000201993 | Hub | 1 | ADD TO CART | |
| 7 | 5000203003 | Hub kit | 1 | ADD TO CART | |

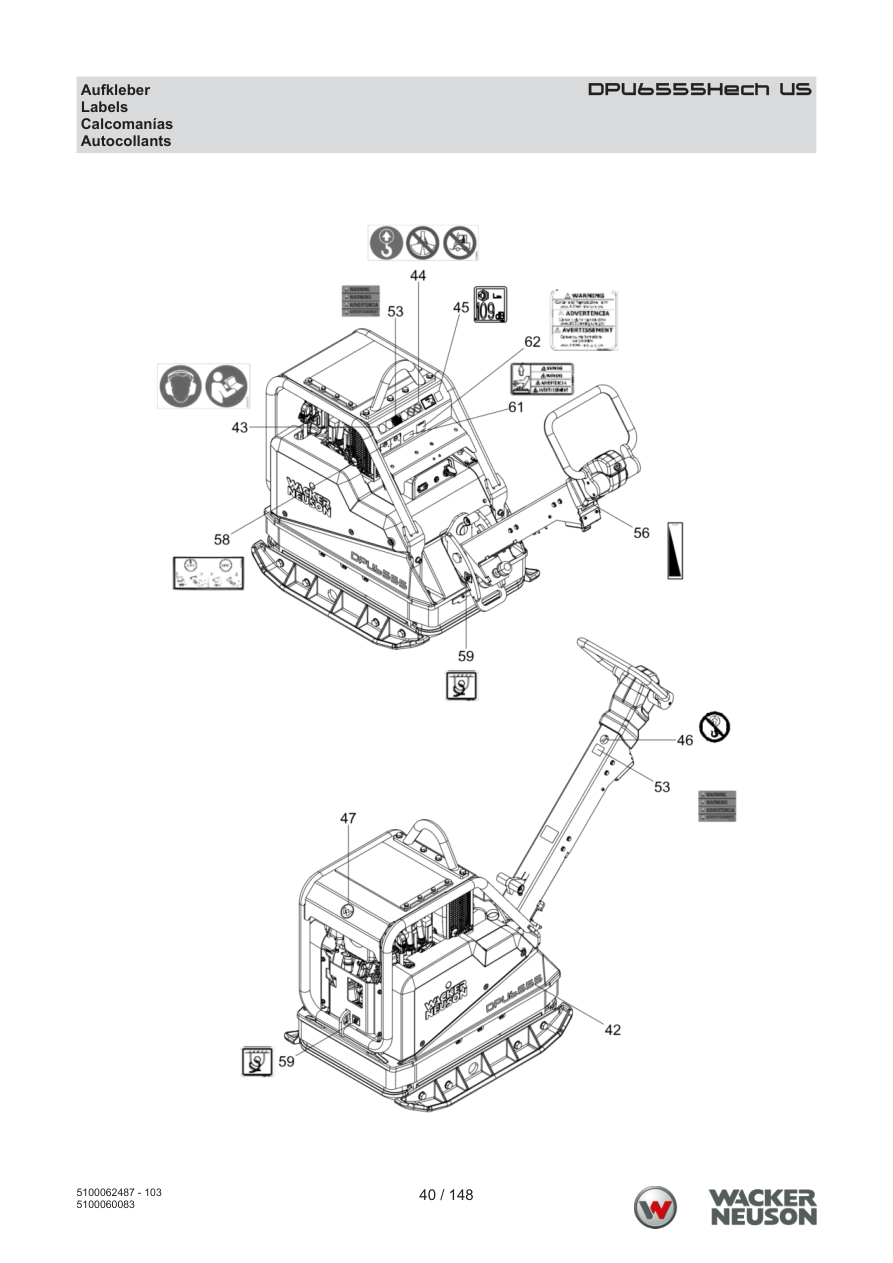

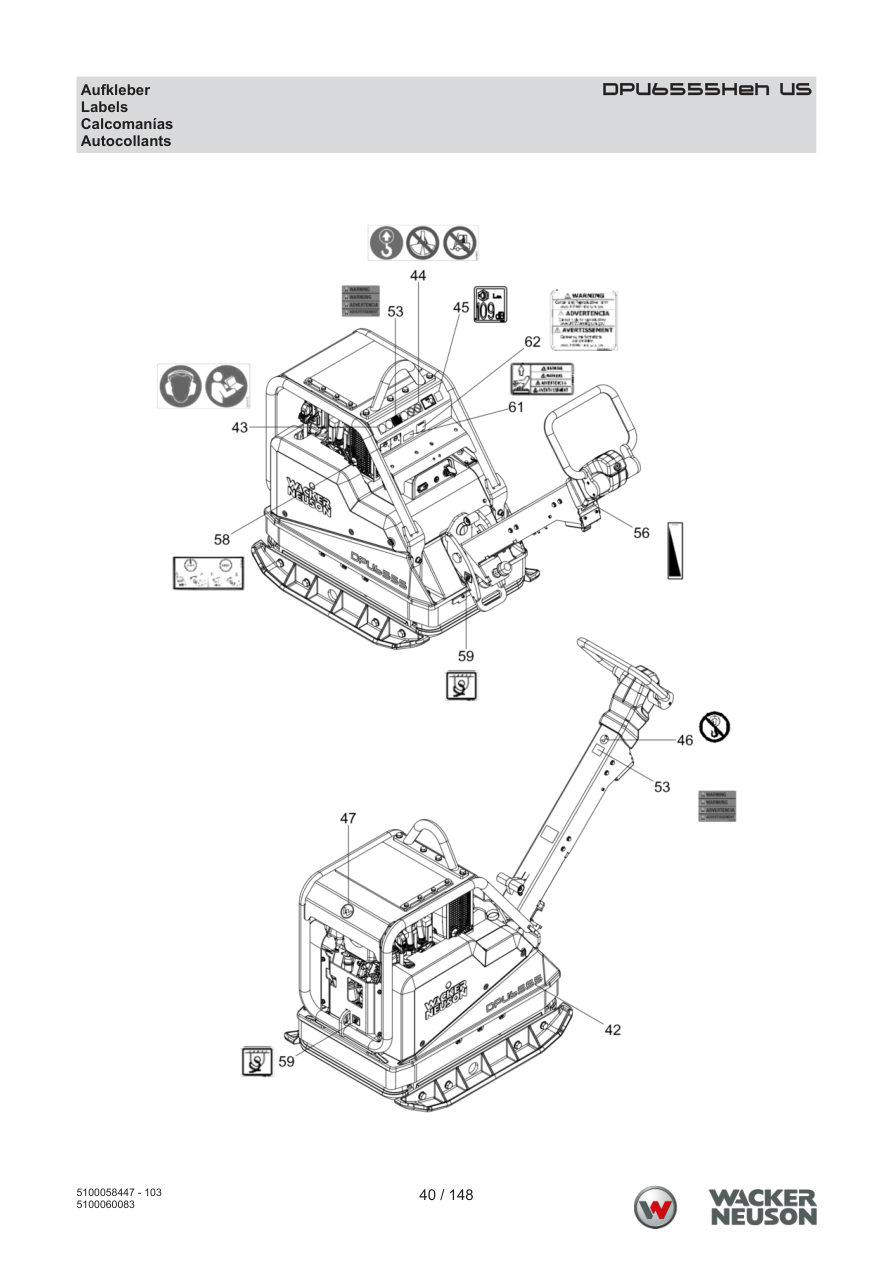

Page 40 — DPU6555Hech US Sticker
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 42 | 5000220386 | Type label | 2 | ADD TO CART | |
| 43 | 5000219175 | Labels | 1 | ADD TO CART | |
| 44 | 5000216633 | Instruction label | 1 | ADD TO CART | |
| 45 | 5000064925 | Decal-sound power level | 1 | ADD TO CART | |
| 46 | 5000220000 | Instruction label | 1 | ADD TO CART | |
| 47 | 5000222085 | Label symbol | 1 | ADD TO CART | |
| 53 | 5000219176 | Labels | 2 | ADD TO CART | |
| 56 | 5000219259 | Labels | 1 | ADD TO CART | |
| 58 | 5100026807 | Labels (start stop) | 1 | ADD TO CART | |
| 59 | 1000184310 | Label | 3 | PARTS REQUEST | |
|
COMING Label
1000184310 · qty on machine: 3 | |||||
| 61 | 5100031713 | Label hot surface us | 1 | ADD TO CART | |
| 62 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||

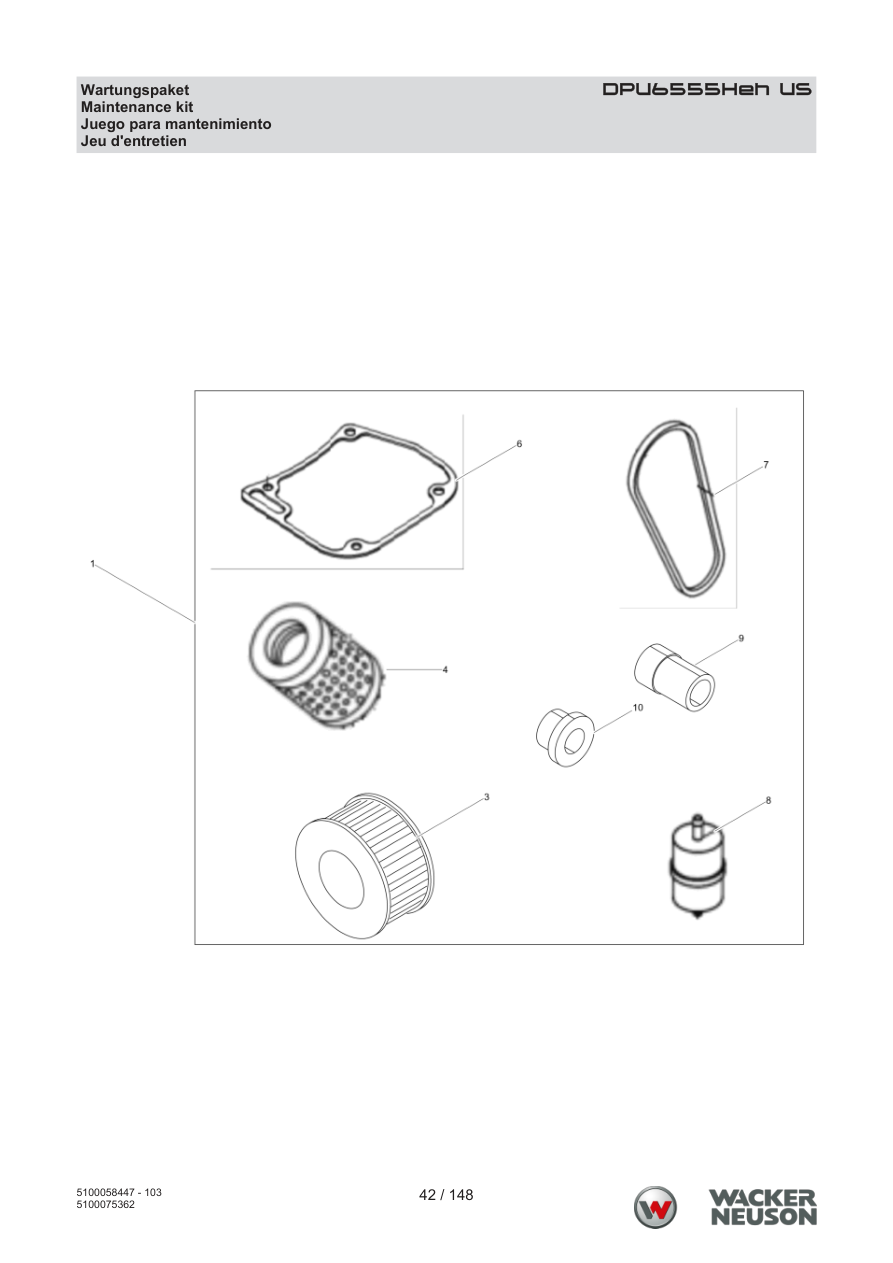

Page 42 — DPU6555Hech US Maintenance kit
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000129629 | Maintenance kit | 1 | PARTS REQUEST | |
|
COMING Maintenance kit
5000129629 · qty on machine: 1 | |||||
| 3 | 5000095091 | Air cleaner element | 1 | ADD TO CART | |
| 4 | 5000094930 | Element | 1 | ADD TO CART | |
| 6 | 5000098445 | Gasket | 1 | ADD TO CART | |
| 7 | 5000094072 | V-belt | 1 | 17 x 1080 | ADD TO CART |
| 8 | 5000022832 | Fuel filter | 1 | ADD TO CART | |
| 9 | 5100051255 | Bush | 2 | ADD TO CART | |
| 10 | 5100051256 | Bush | 2 | ADD TO CART | |

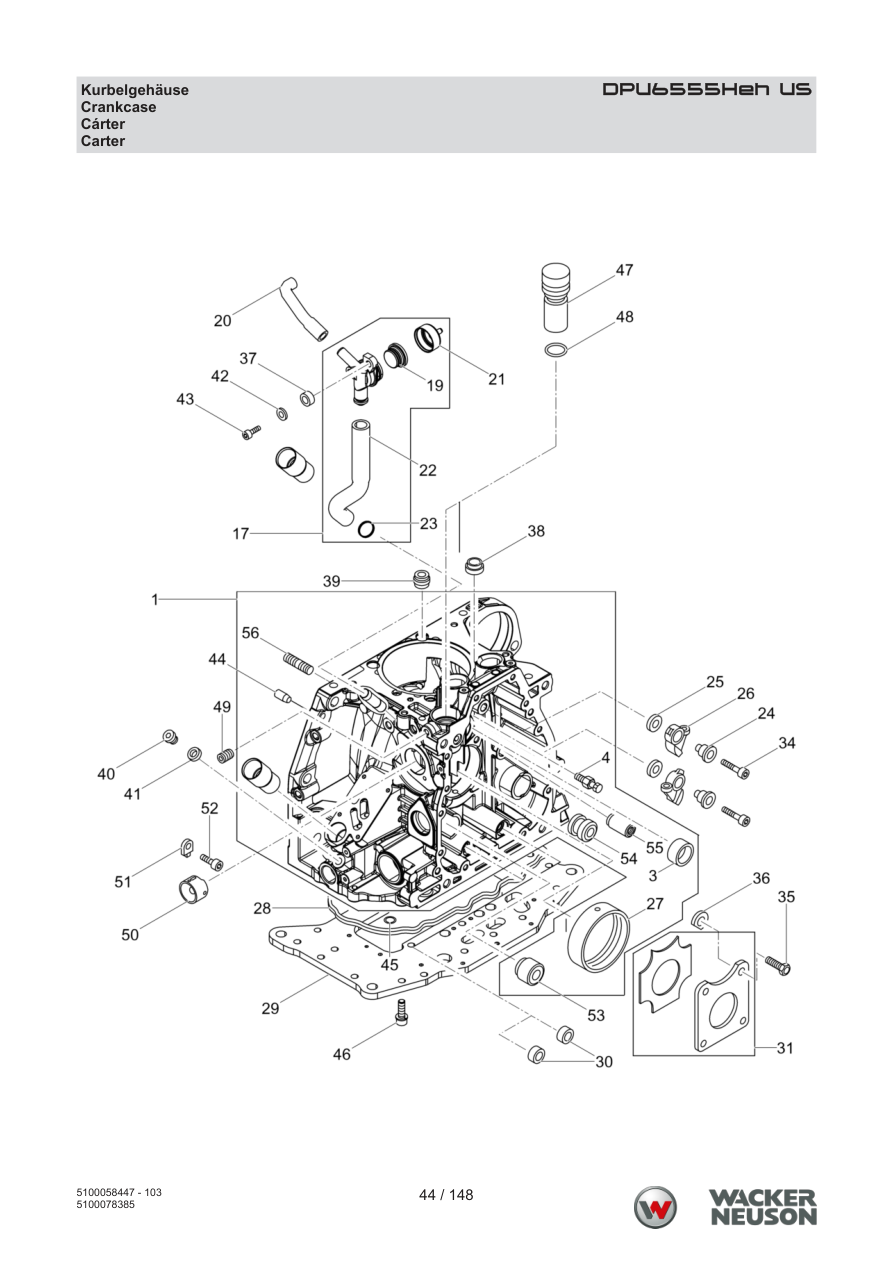

Page 44 — Crankcase
Parts list — exactly as printed41 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100065038 | Crankcase | 1 | ADD TO CART | |
| 3 | 5000226589 | Bearing bush | 1 | ADD TO CART | |
| 4 | 5000094922 | Lubrication jet | 1 | PARTS REQUEST | |
|
COMING Lubrication jet
5000094922 · qty on machine: 1 | |||||
| 17 | 5000207561 | Bleeder valve | 1 | ADD TO CART | |
| 19 | 5100032125 | Diaphragm | 1 | PARTS REQUEST | |
|
COMING Diaphragm
5100032125 · qty on machine: 1 | |||||
| 20 | 5000098462 | Breather tube | 1 | ADD TO CART | |
| 21 | 5000098461 | Cap | 1 | ADD TO CART | |
| 22 | 5000098463 | Hose | 1 | ADD TO CART | |
| 23 | 5000102470 | Clip | 1 | ADD TO CART | |
| 24 | 5000094936 | Cam follower spindle shaft | 2 | ADD TO CART | |
| 25 | 5000104365 | Washer | 2 | 10.1 x 22 x 3 | ADD TO CART |
| 26 | 5000094937 | Sliding lever | 2 | ADD TO CART | |
| 27 | 5100062247 | Main bearing | 1 | ADD TO CART | |
| 28 | 5000094952 | Gasket | 1 | ADD TO CART | |
| 29 | 5100078487 | Engine support | 1 | PARTS REQUEST | |
|
COMING Engine support
5100078487 · qty on machine: 1 | |||||
| 30 | 5000094935 | Washer | 2 | ADD TO CART | |
| 31 | 5100030356 | Check disc cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 34 | 5000217112 | Cheese head screw | 2 | M6 x 30 | ADD TO CART |
| 35 | 5000098456 | Hexagonal head cap screw | 4 | ADD TO CART | |
| 36 | 5100032121 | Shim | 4 | ADD TO CART | |
| 36 | 5000098455 | Washer | 4 | ADD TO CART | |
| 37 | 5100062250 | Bush | 2 | PARTS REQUEST | |
|
COMING Bush
5100062250 · qty on machine: 2 | |||||
| 38 | 5000097403 | Grommet | 2 | ADD TO CART | |
| 39 | 5100051909 | Gasket | 2 | ADD TO CART | |
| 40 | 5000151213 | Screw plug | 1 | M10 X 1 | DIN908 | ADD TO CART |
| 41 | 5000071121 | Sealing ring | 1 | A10 x 13,5 | ADD TO CART |
| 42 | 5000151290 | Spring washer | 2 | A6 | DIN137 | ADD TO CART |
| 43 | 5000151231 | Cheese head screw | 2 | M6 x 16 | ISO4762 | ADD TO CART |
| 44 | 5000108694 | Straight pin | 4 | 8m6 x 20 | DIN6325 | ADD TO CART |
| 45 | 5000094934 | O-ring | 2 | 9,5 x 2,5 | ADD TO CART |
| 46 | 5000202463 | Hexagon socket head screw | 22 | M8 x 25 | ADD TO CART |
| 47 | 5100062262 | Cylinder | 1 | ADD TO CART | |
| 48 | 5000095008 | O-ring | 1 | 22,0 x 1,6 | ADD TO CART |
| 49 | 5000020348 | Threaded pin | 1 | M8 x 16 | DIN916 | ADD TO CART |
| 50 | 5100051905 | Tappet | 1 | ADD TO CART | |
| 51 | 5000126526 | Guide | 1 | ADD TO CART | |
| 52 | 5000207610 | Cheese head screw | 1 | M6 x 16 | ADD TO CART |
| 53 | 5000207596 | Push-in plug | 1 | ADD TO CART | |
| 54 | 5000207597 | Push-in plug | 1 | ADD TO CART | |
| 55 | 5000202406 | Bush | 1 | ADD TO CART | |
| 56 | 5100013800 | Stud | 8 | ADD TO CART | |

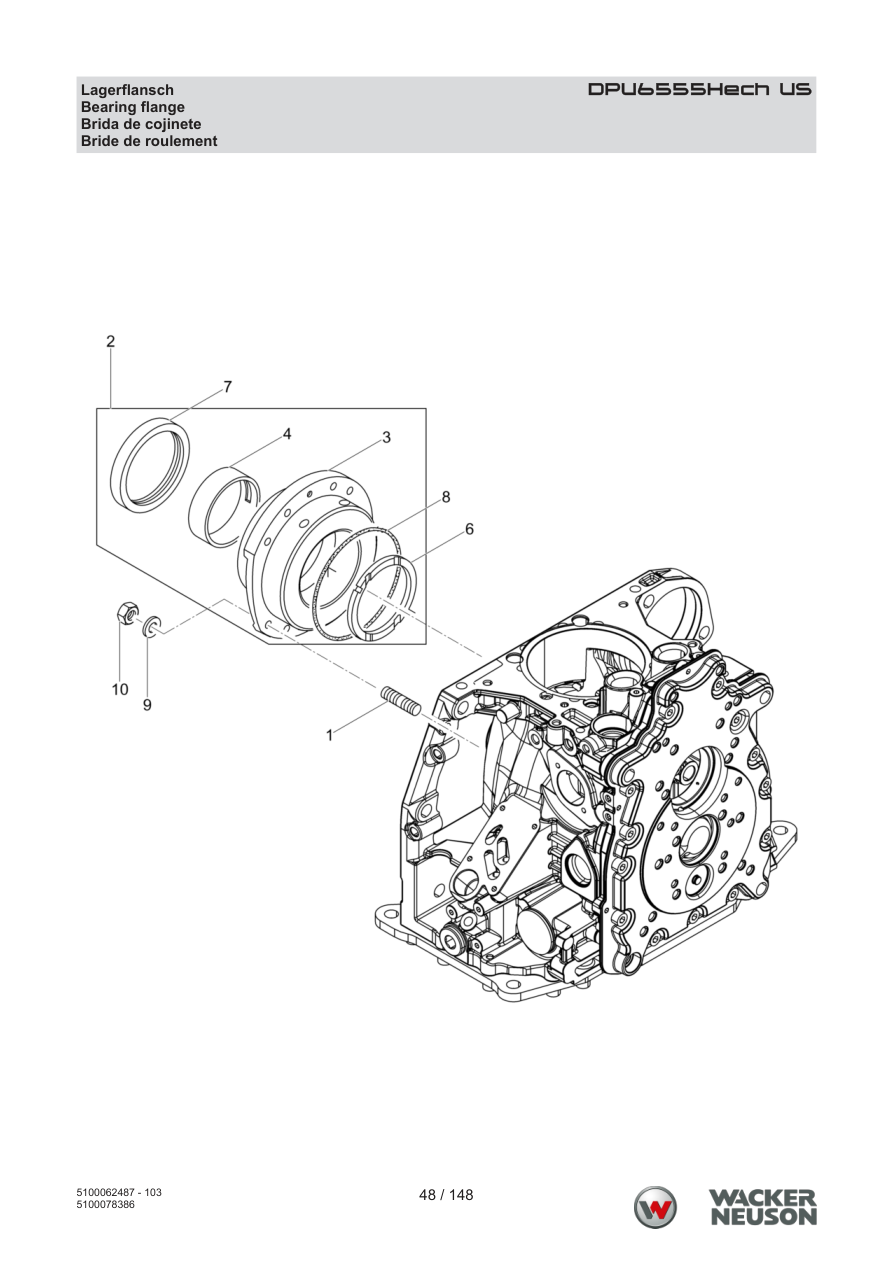

Page 48 — DPU6555Hech US Bearing flange
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013800 | Stud | 8 | ADD TO CART | |
| 2 | 5100062274 | Bearing flange cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 3 | 5000128939 | Bearing flange | 1 | ADD TO CART | |
| 4 | 5100062286 | Main bearing | 1 | ADD TO CART | |
| 4 | 5100062298 | Main bearing 0,5 | 1 | ADD TO CART | |
| 6 | 5000094871 | Plate | 1 | ADD TO CART | |
| 7 | 5000094875 | Shaft seal | 1 | ADD TO CART | |
| 8 | 5000094872 | O-ring | 1 | ADD TO CART | |
| 9 | 5000202460 | Washer | 8 | ADD TO CART | |
| 10 | 5000094876 | Hexagon nut | 8 | M8 | ISO4032 | PARTS REQUEST |
|
COMING Hexagon nut
5000094876 · qty on machine: 8 M8 | ISO4032 | |||||

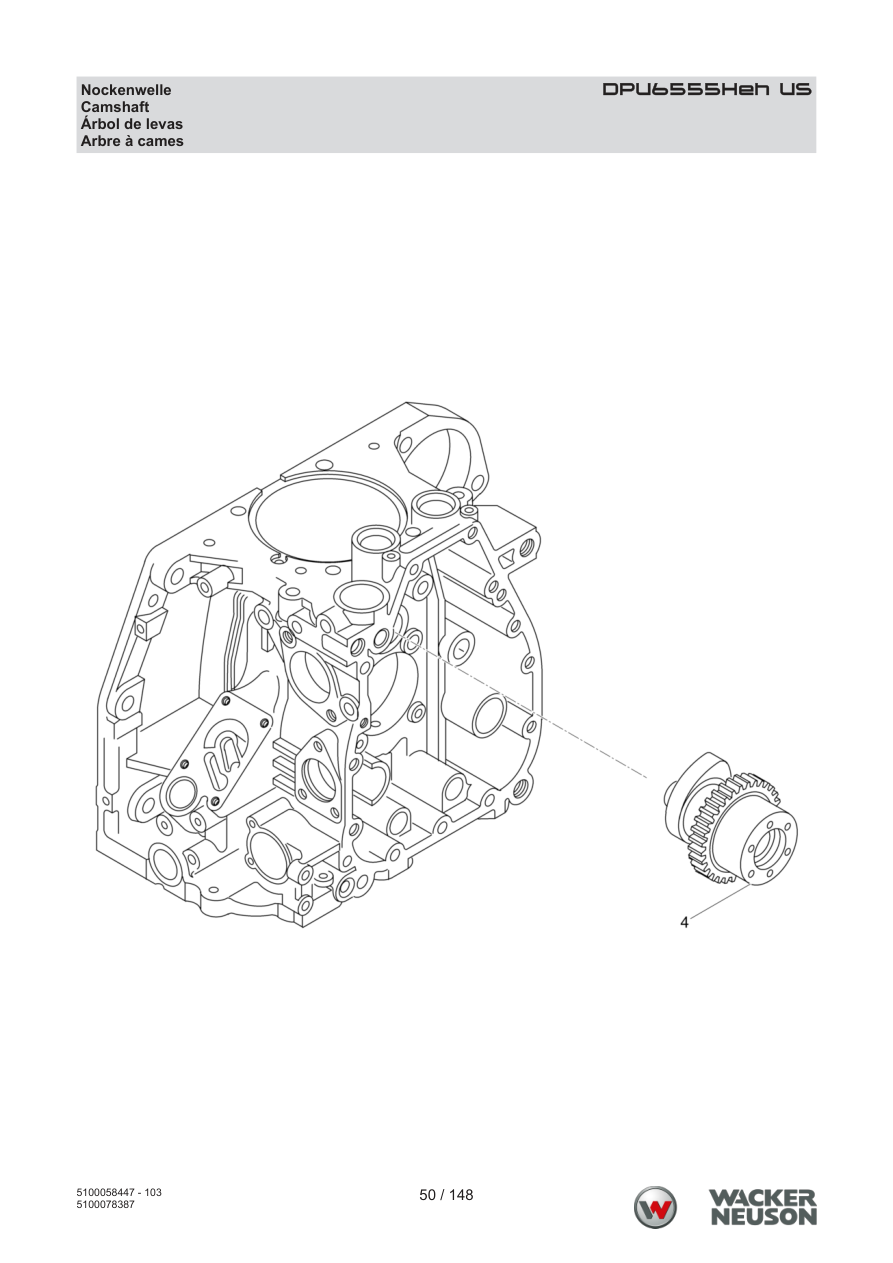

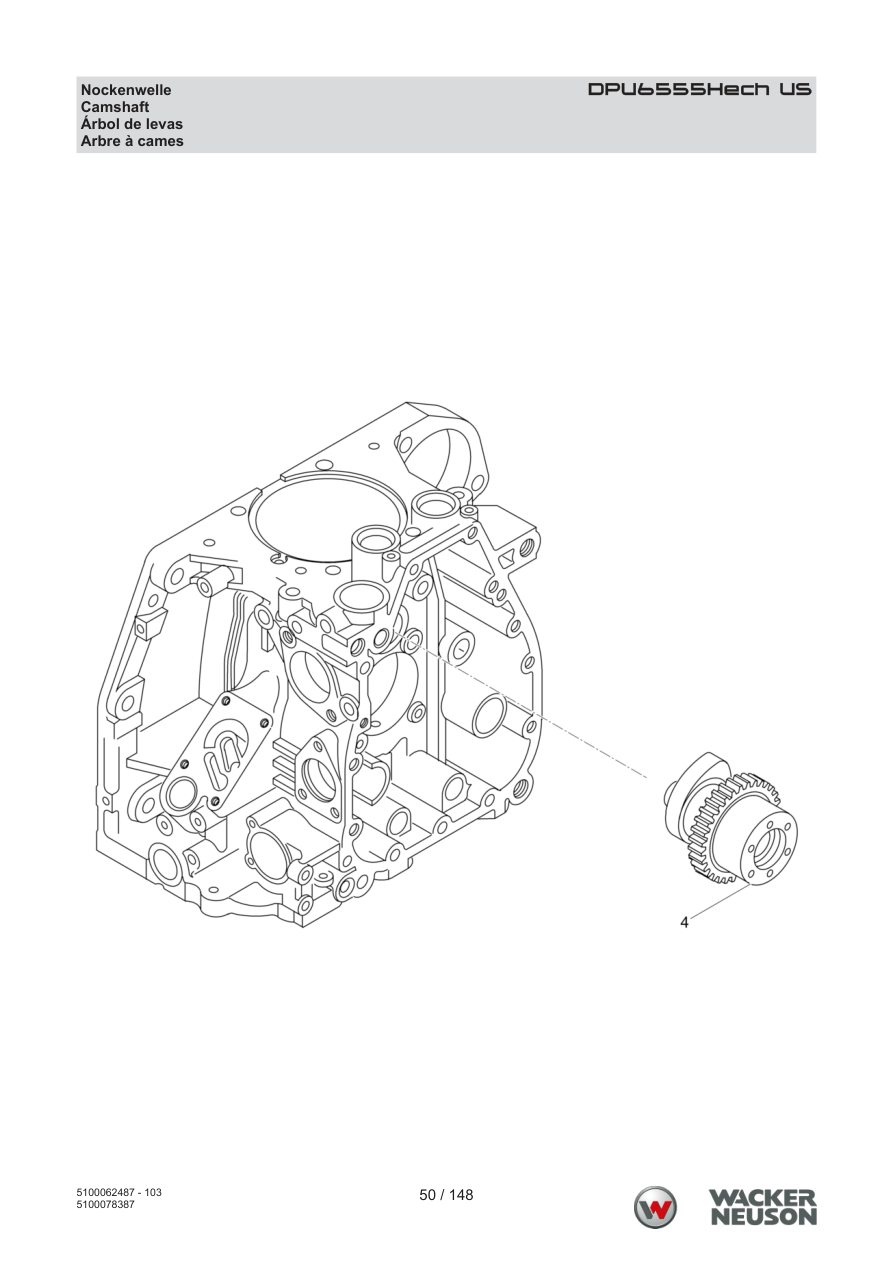

Page 50 — DPU6555Hech US Camshaft
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 4 | 5100078494 | Camshaft | 1 | PARTS REQUEST | |
|
COMING Camshaft
5100078494 · qty on machine: 1 | |||||

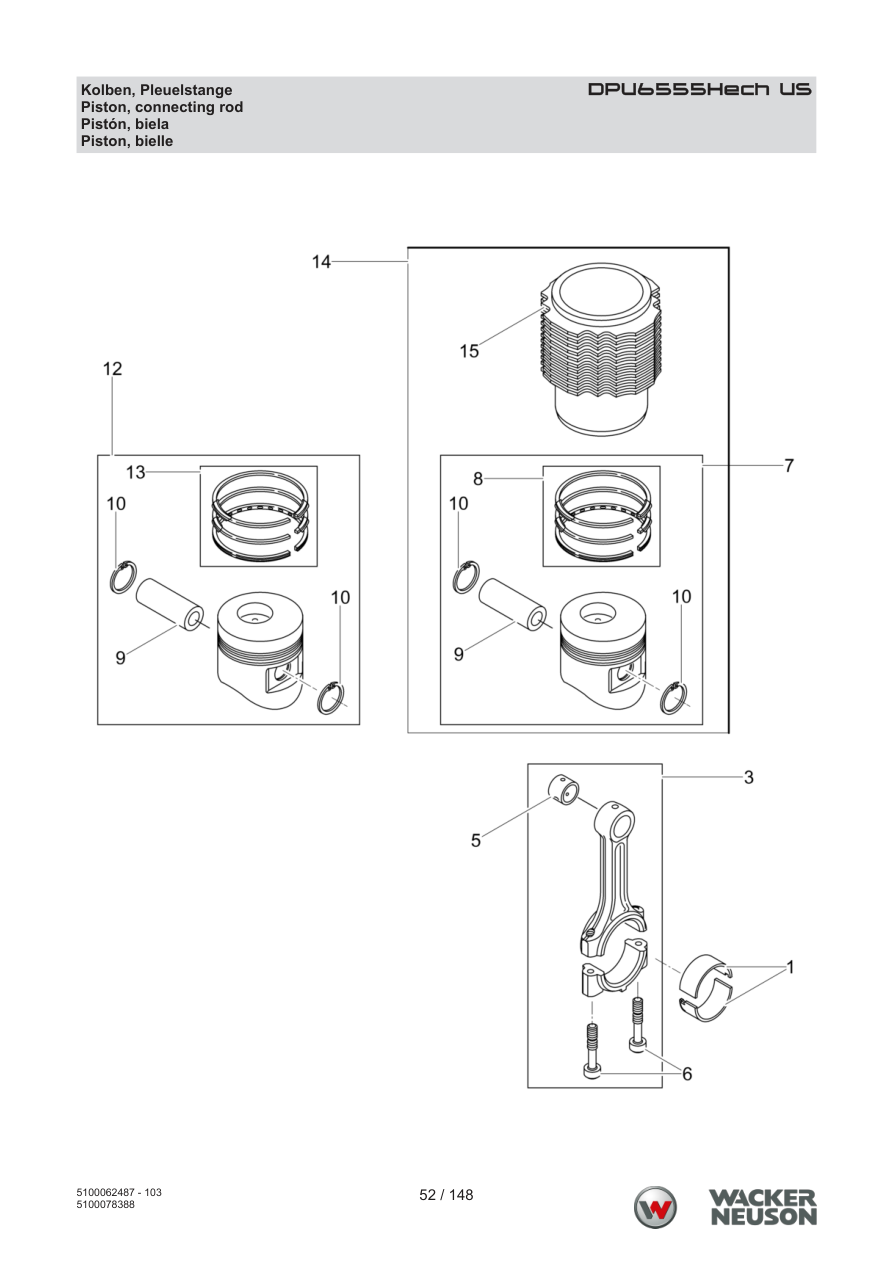

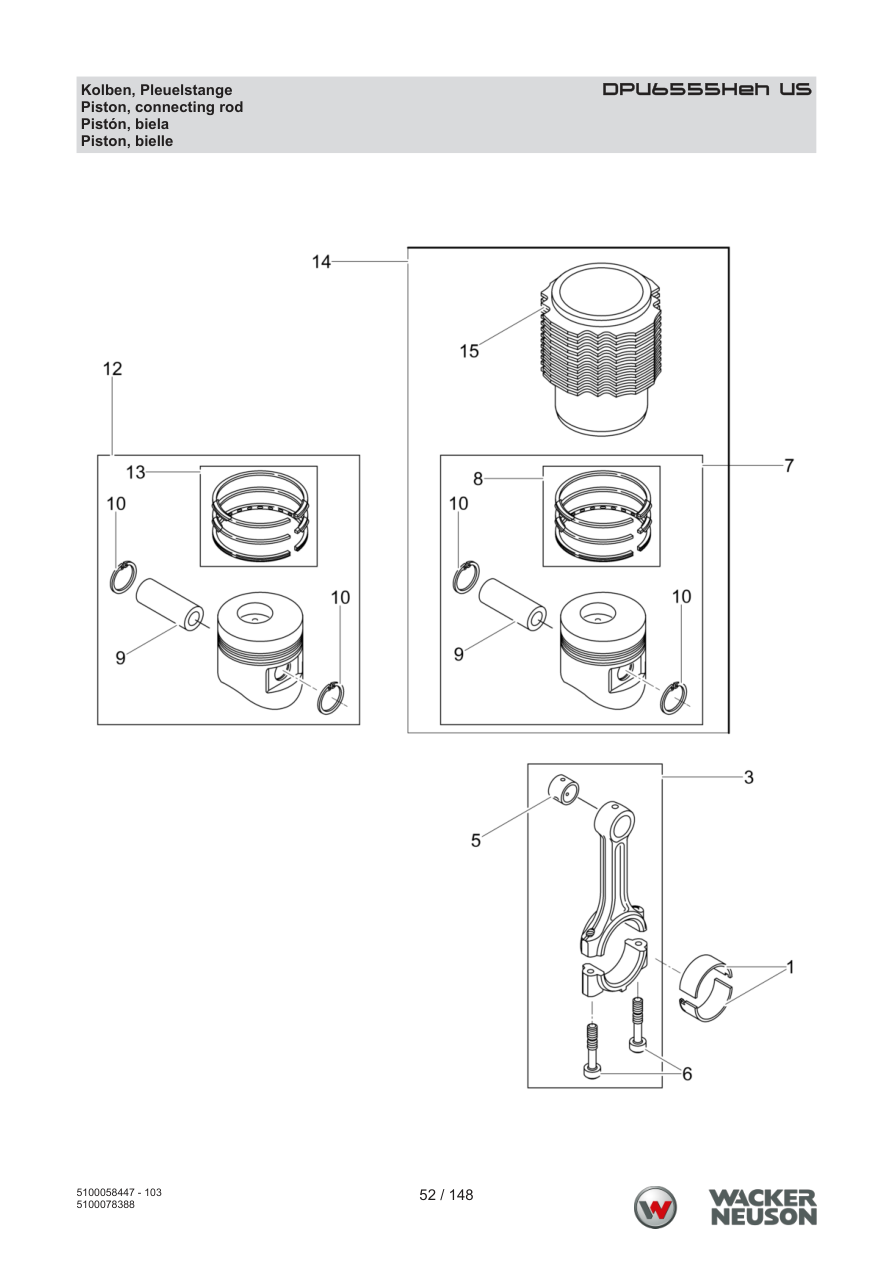

Page 52 — DPU6555Hech US Piston, Connecting Rod
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000094866 | Bearing | 1 | ADD TO CART | |
| 1 | 5000107222 | Connecting rod bearing | 1 | ADD TO CART | |
| 3 | 5100051962 | Connecting rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 5 | 5100078485 | Slide bearing | 1 | PARTS REQUEST | |
|
COMING Slide bearing
5100078485 · qty on machine: 1 | |||||
| 6 | 5000105927 | Connecting rod screw | 2 | ADD TO CART | |
| 7 | 5100062328 | Piston | 1 | ADD TO CART | |
| 8 | 5100062258 | Set of piston rings | 1 | ADD TO CART | |
| 9 | 5100062269 | Piston pin | 1 | ADD TO CART | |
| 10 | 5100051908 | Retaining ring | 2 | ADD TO CART | |
| 12 | 5100062280 | Piston +0,5 | 1 | ADD TO CART | |
| 13 | 5100062291 | Set of piston rings | 1 | ADD TO CART | |
| 14 | 5000210276 | Cylinder with piston epa2 | 1 | ADD TO CART | |

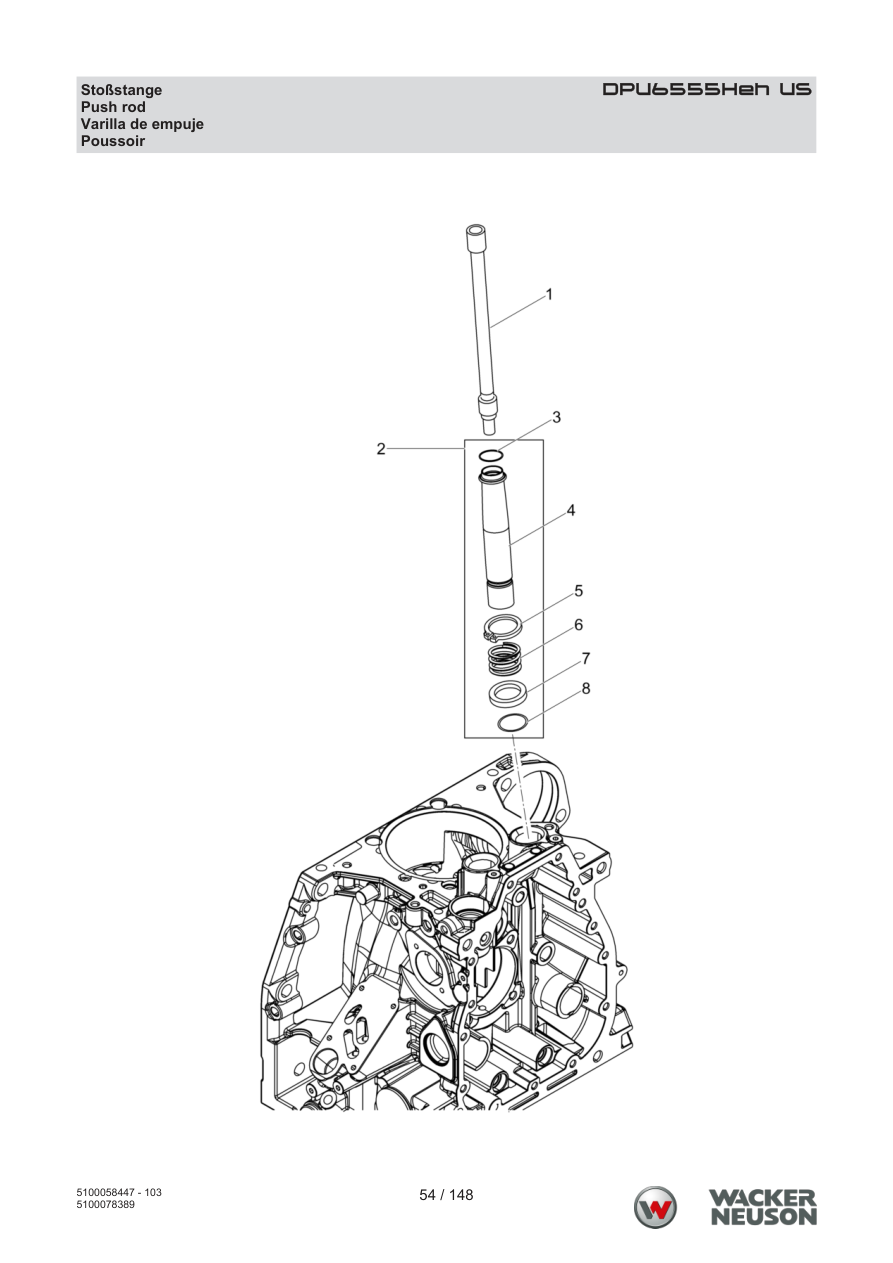

Page 54 — DPU6555Hech US Bumper
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000098457 | Push rod (valve lifter) | 2 | ADD TO CART | |
| 2 | 5100062302 | Protective pipe cpl. | 2 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 3 | 5100051913 | O-ring | 2 | ADD TO CART | |
| 4 | 5000094943 | Pipe | 2 | ADD TO CART | |
| 5 | 5000094942 | Retaining ring | 2 | 24 x 1,75 | DIN471 | ADD TO CART |
| 6 | 5000094941 | Spring | 2 | ADD TO CART | |
| 7 | 5000094940 | Washer | 2 | ADD TO CART | |
| 8 | 5000094939 | O-ring | 2 | ADD TO CART | |

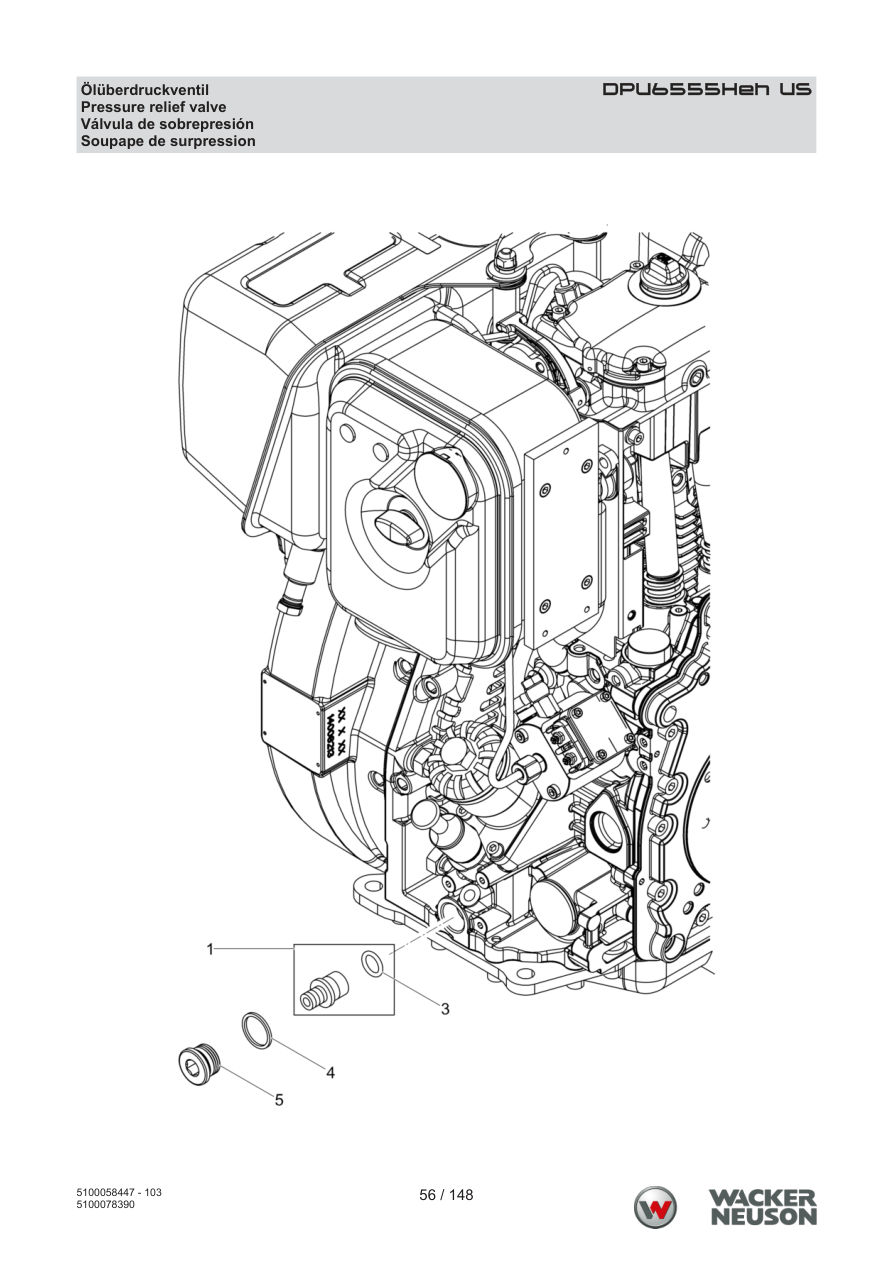

Page 56 — Pressure relief valve
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000106530 | Valve | 1 | ADD TO CART | |
| 3 | 5000126922 | O-ring | 1 | 18 x 2 | ADD TO CART |
| 4 | 5000094948 | Gasket | 1 | A24 x 29 | DIN7603 | PARTS REQUEST |
|
COMING Gasket
5000094948 · qty on machine: 1 A24 x 29 | DIN7603 | |||||
| 5 | 5100062313 | Plug (threaded) m24x1,5 | 1 | ADD TO CART | |

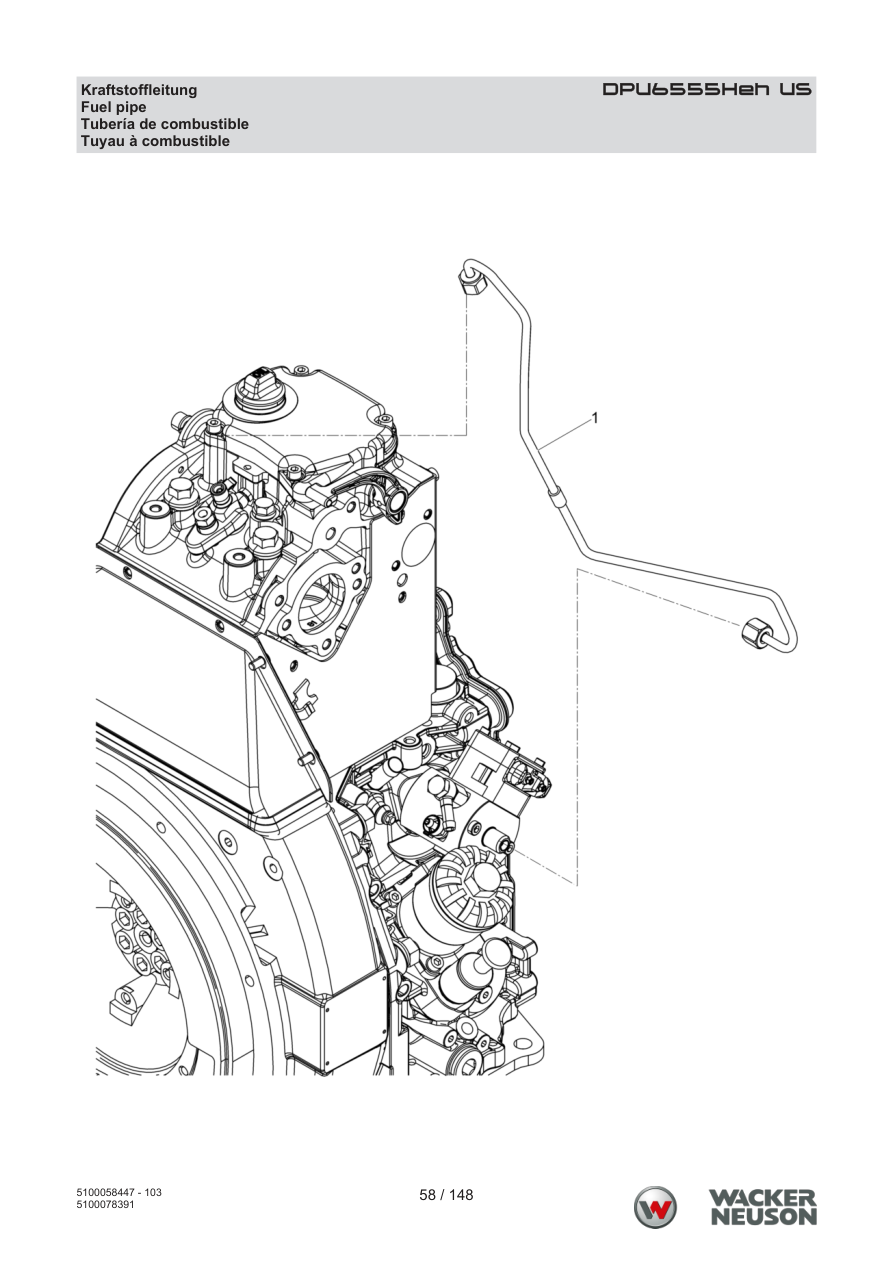

Page 58 — DPU6555Hech US Fuel line
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100062324 | Fuel pressure pipe cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |

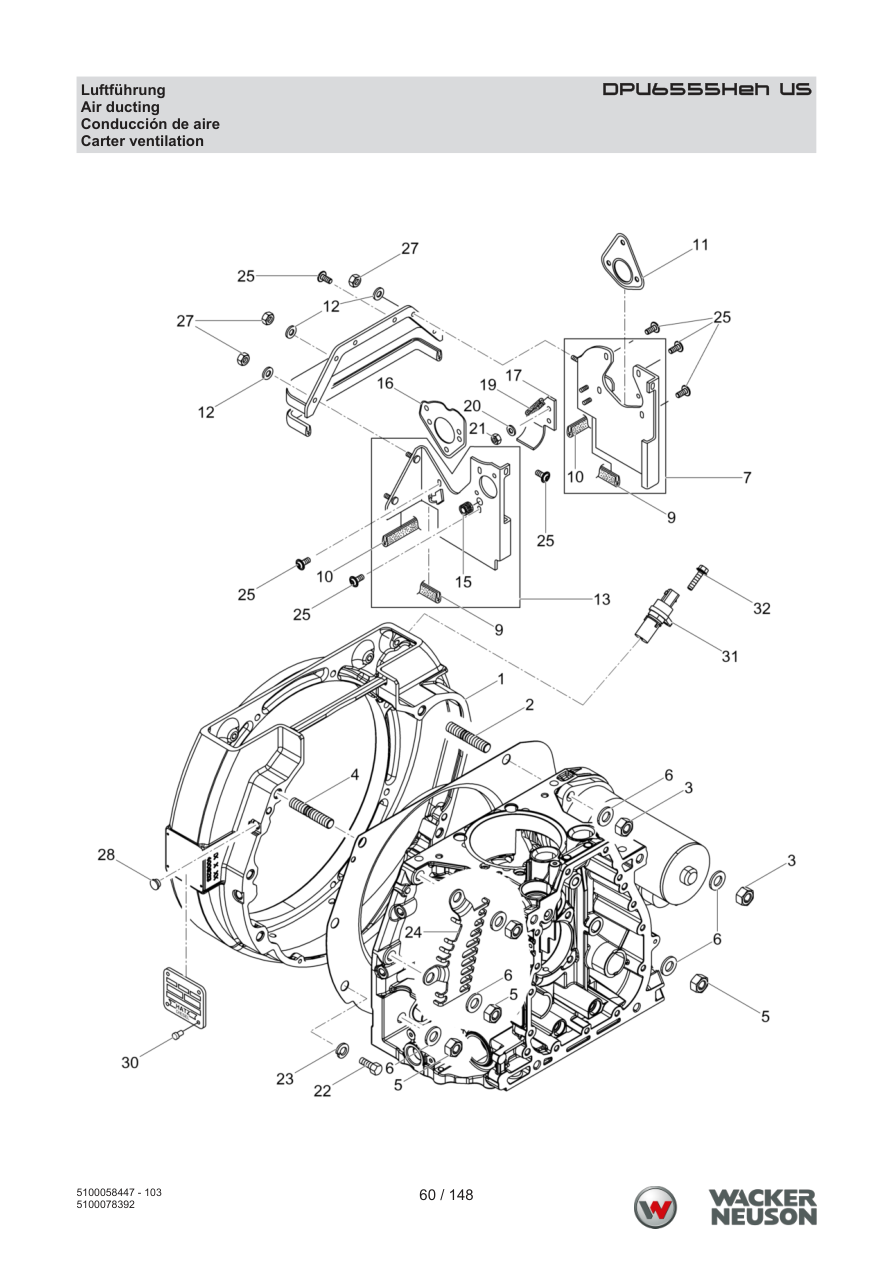

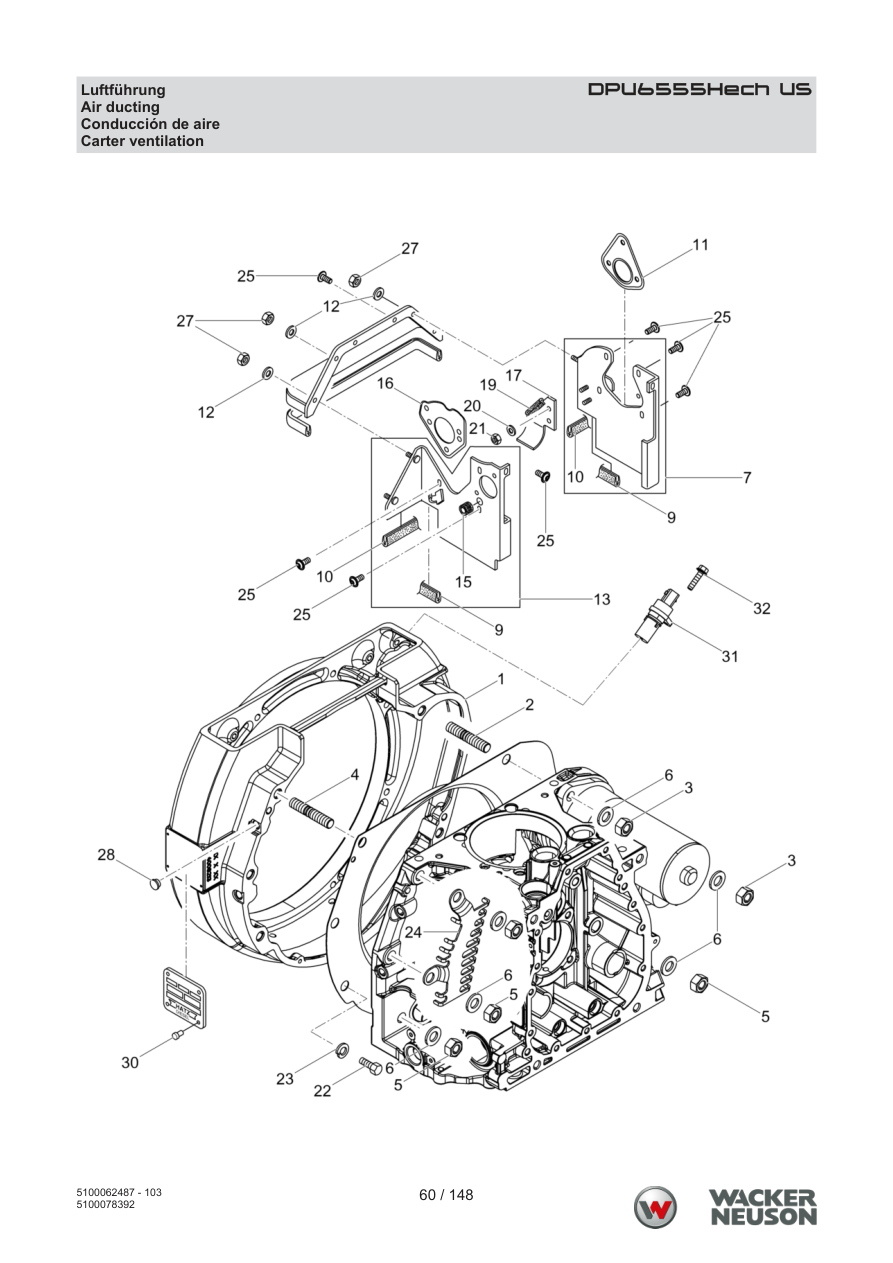

Page 60 — Air ducting
Parts list — exactly as printed27 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100062329 | Coupling housing | 1 | ADD TO CART | |
| 2 | 5000203131 | Threaded bolt | 2 | M12 x 50 | ADD TO CART |
| 3 | 5000097428 | Hexagon nut | 2 | ADD TO CART | |
| 4 | 5000010937 | Stud bolt | 4 | M12 x 40 | PARTS REQUEST |
|
COMING Stud bolt
5000010937 · qty on machine: 4 M12 x 40 | |||||
| 5 | 5000207530 | Locknut | 4 | ADD TO CART | |
| 6 | 5100030645 | Washer | 6 | PARTS REQUEST | |
|
COMING Washer
5100030645 · qty on machine: 6 | |||||
| 7 | 5000207579 | Baffle | 1 | ADD TO CART | |
| 9 | 5000105050 | Profiled joint | 2 | ADD TO CART | |
| 10 | 5000105051 | Profiled joint | 2 | ADD TO CART | |
| 11 | 5000217098 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000217098 · qty on machine: 1 | |||||
| 12 | 5000207593 | Spring washer | 4 | ADD TO CART | |
| 13 | 5000098460 | Left cover | 1 | ADD TO CART | |
| 15 | 5000107379 | Grommet | 1 | ADD TO CART | |
| 16 | 5000207554 | Gasket | 1 | ADD TO CART | |
| 17 | 5000207581 | Baffle | 1 | ADD TO CART | |
| 19 | 5000207540 | Seal | 1 | ADD TO CART | |
| 20 | 5000151540 | Washer | 2 | A6,4 | DIN9021 | ADD TO CART |
| 21 | 5000129021 | Locknut | 2 | ADD TO CART | |
| 22 | 5000202338 | Hexagonal head cap screw | 2 | M6 x 16 | DIN933 | ADD TO CART |
| 23 | 5000151456 | Lock washer | 2 | 6 | DIN128 | ADD TO CART |
| 24 | 5100062248 | Contact safety device | 1 | ADD TO CART | |
| 25 | 5100038983 | Countersunk screw | 10 | ADD TO CART | |
| 27 | 5000151323 | Locknut | 4 | M6 | ISO4032 | ADD TO CART |
| 28 | 5000207605 | Push-in plug | 2 | ADD TO CART | |
| 30 | 5000203628 | Rivet | 4 | ADD TO CART | |
| 31 | 5100062448 | Speed sensor | 1 | PARTS REQUEST | |
|
COMING Speed sensor
5100062448 · qty on machine: 1 | |||||
| 32 | 5100062249 | Hexagonal head cap screw m6x25 | 1 | ADD TO CART | |

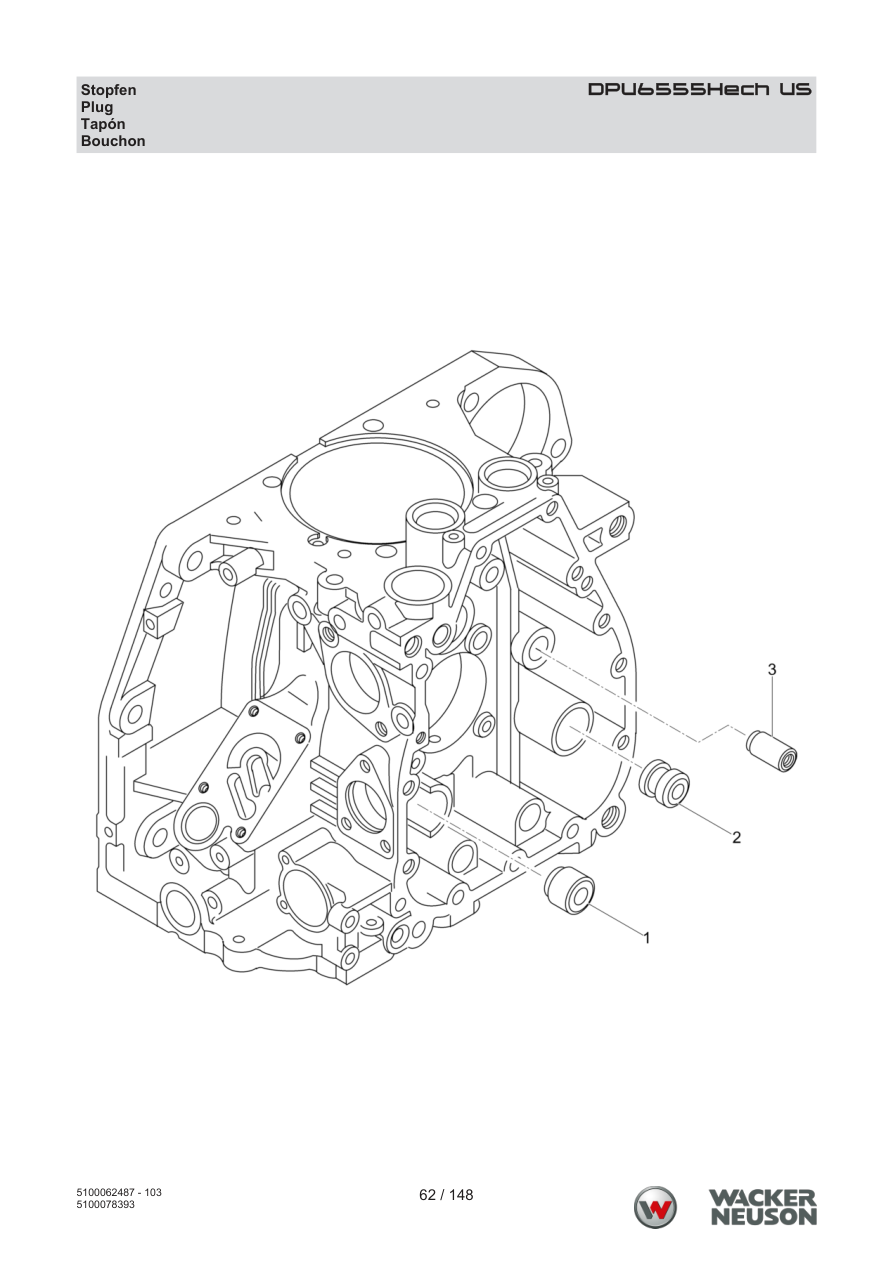

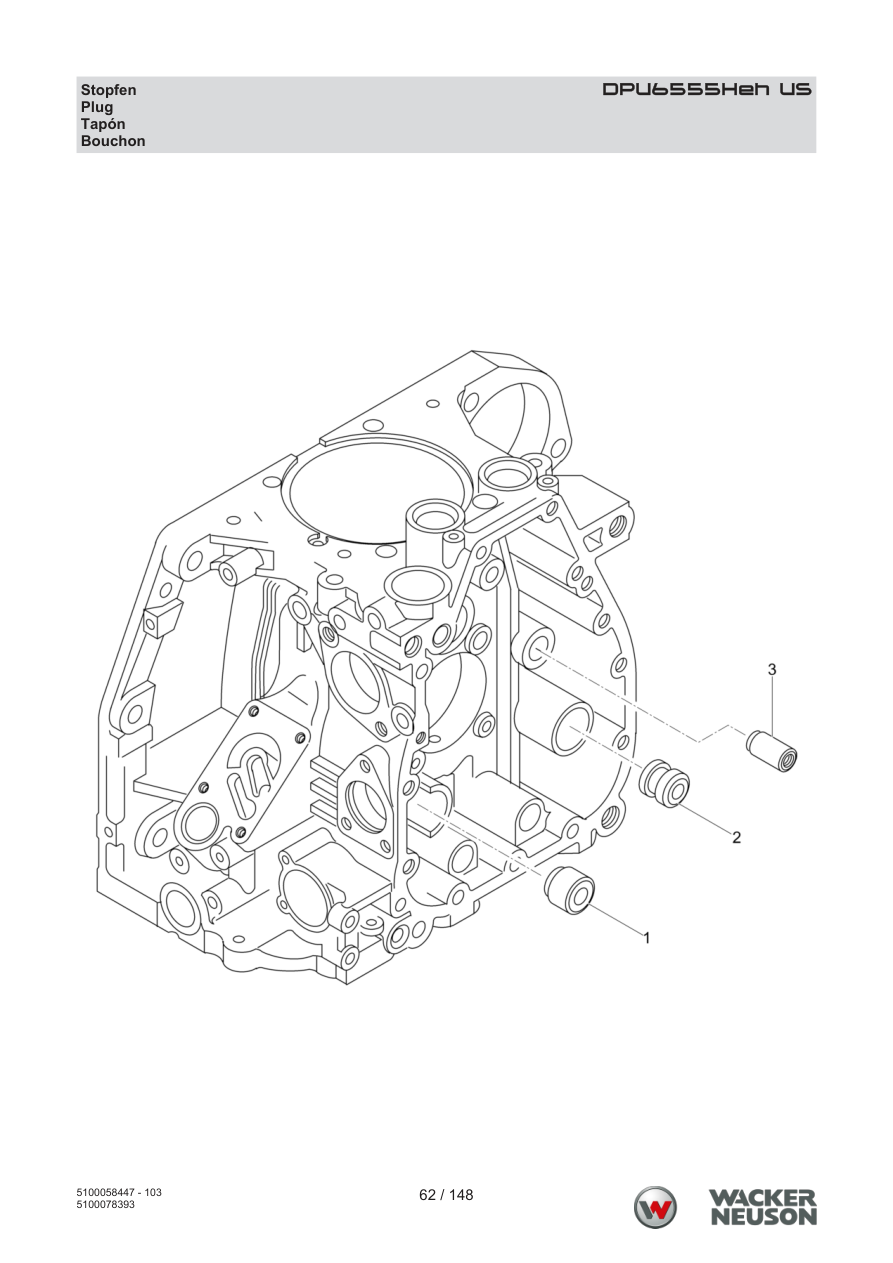

Page 62 — DPU6555Hech US Plug
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000207596 | Push-in plug | 1 | ADD TO CART | |
| 2 | 5000207597 | Push-in plug | 1 | ADD TO CART | |
| 3 | 5000202406 | Bush | 1 | ADD TO CART | |

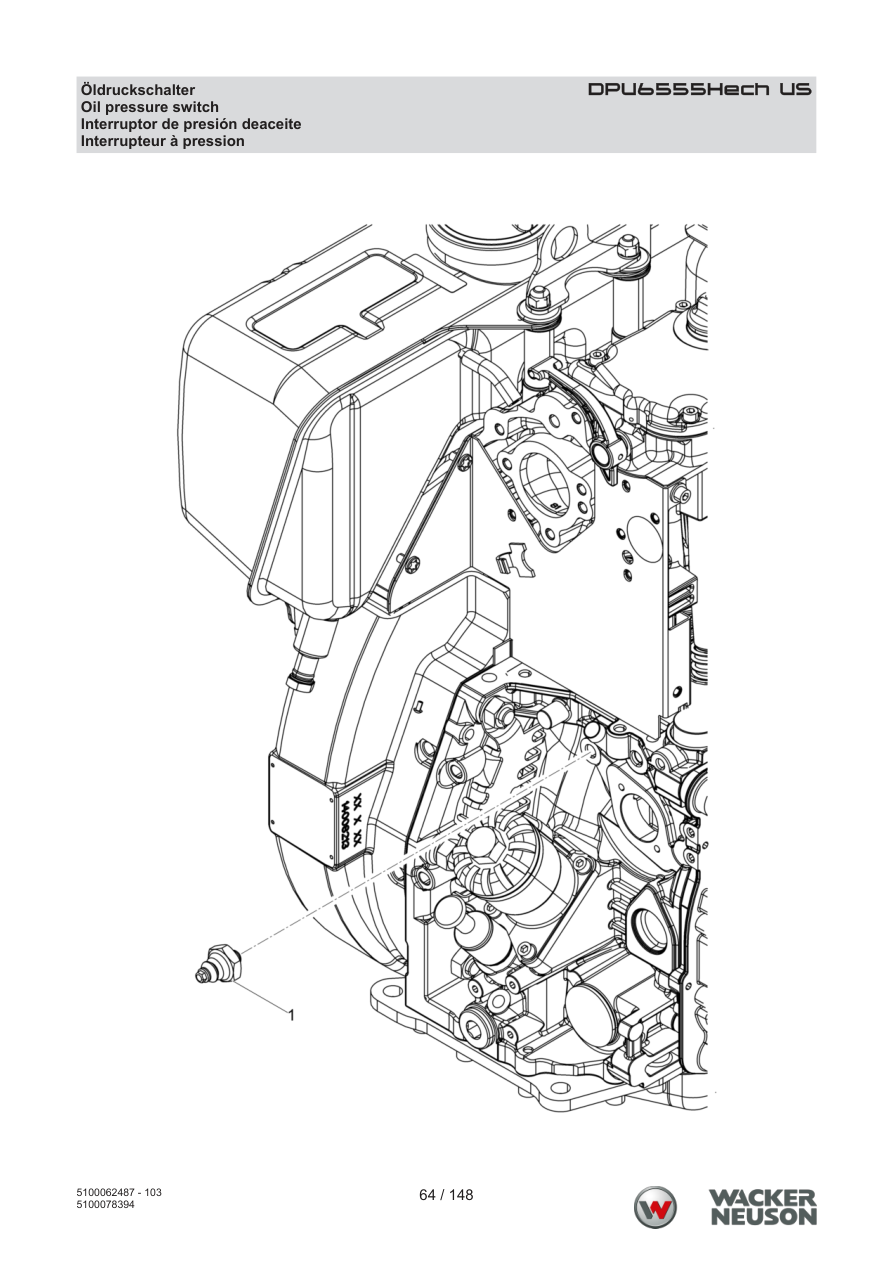

Page 64 — Oil pressure switch
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100062251 | Oil pressure switch | 1 | ADD TO CART | |

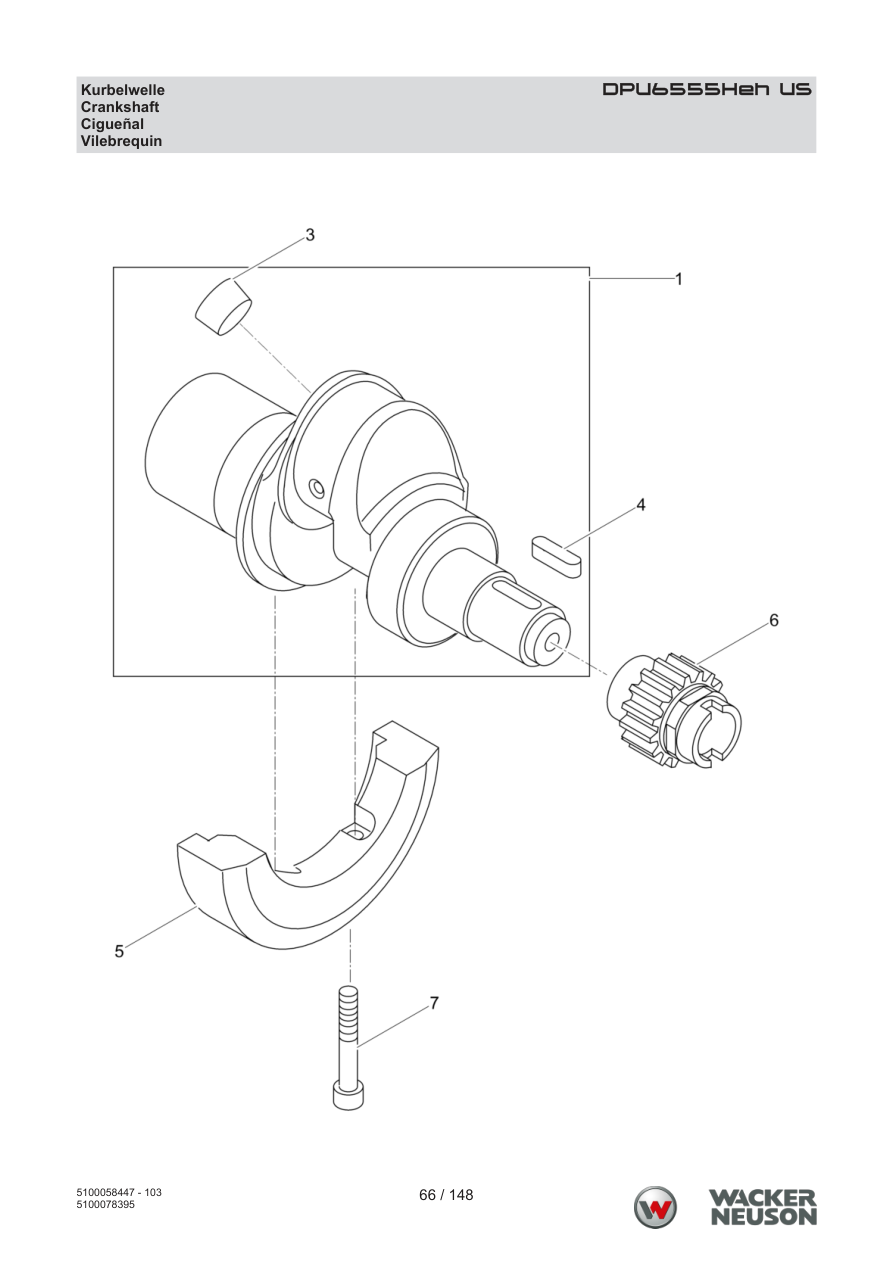

Page 66 — DPU6555Hech US Crankshaft
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100030358 | Crankshaft | 1 | ADD TO CART | |
| 3 | 5000207600 | Cover | 1 | ADD TO CART | |
| 4 | 5000094868 | Fitting key | 1 | A6 x 4 x 32 | DIN6885 | ADD TO CART |
| 5 | 5000094870 | Counterweight | 1 | ADD TO CART | |
| 6 | 5100062252 | Gear wheel | 1 | ADD TO CART | |
| 7 | 5000217110 | Cheese head screw | 2 | M10 x 50 | ADD TO CART |

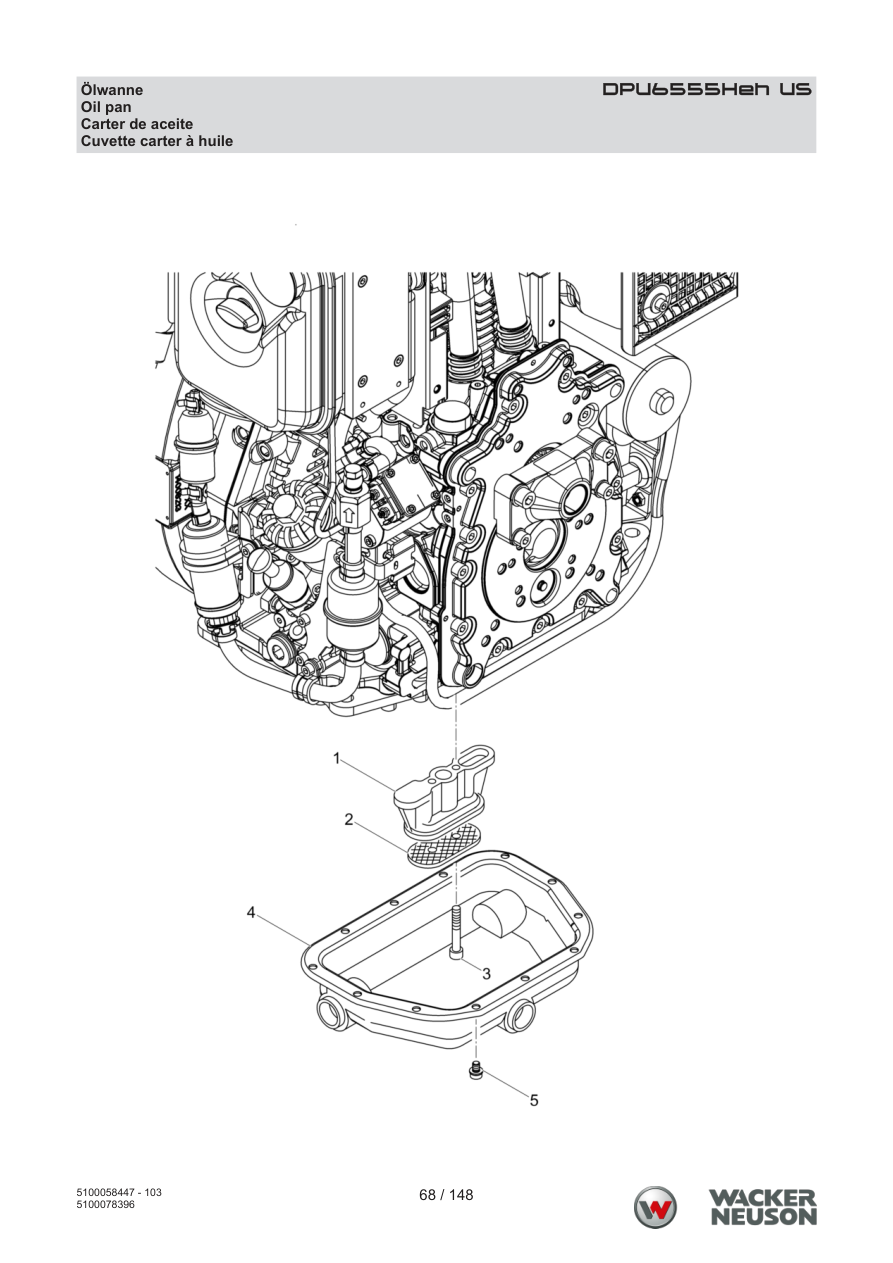

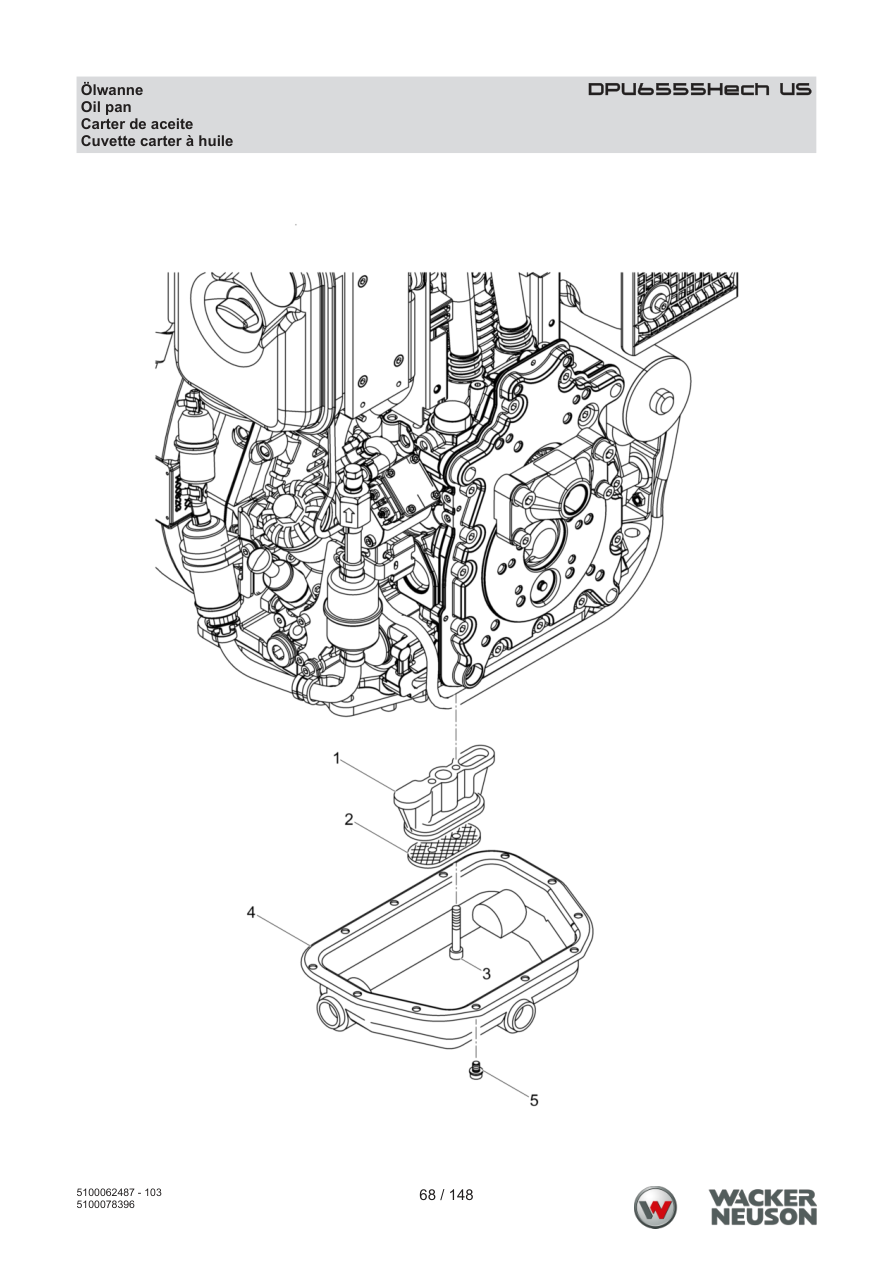

Page 68 — Oil pan
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000094954 | Housing | 1 | ADD TO CART | |
| 2 | 5000094955 | Strainer | 1 | ADD TO CART | |
| 3 | 5000094956 | Cheese head screw | 2 | M6 x 50 10Nm/7ft.lbs | DIN6912 | ADD TO CART |
| 4 | 5100062253 | Oil pan | 1 | ADD TO CART | |
| 5 | 5100051919 | Threaded pin | 12 | ADD TO CART | |

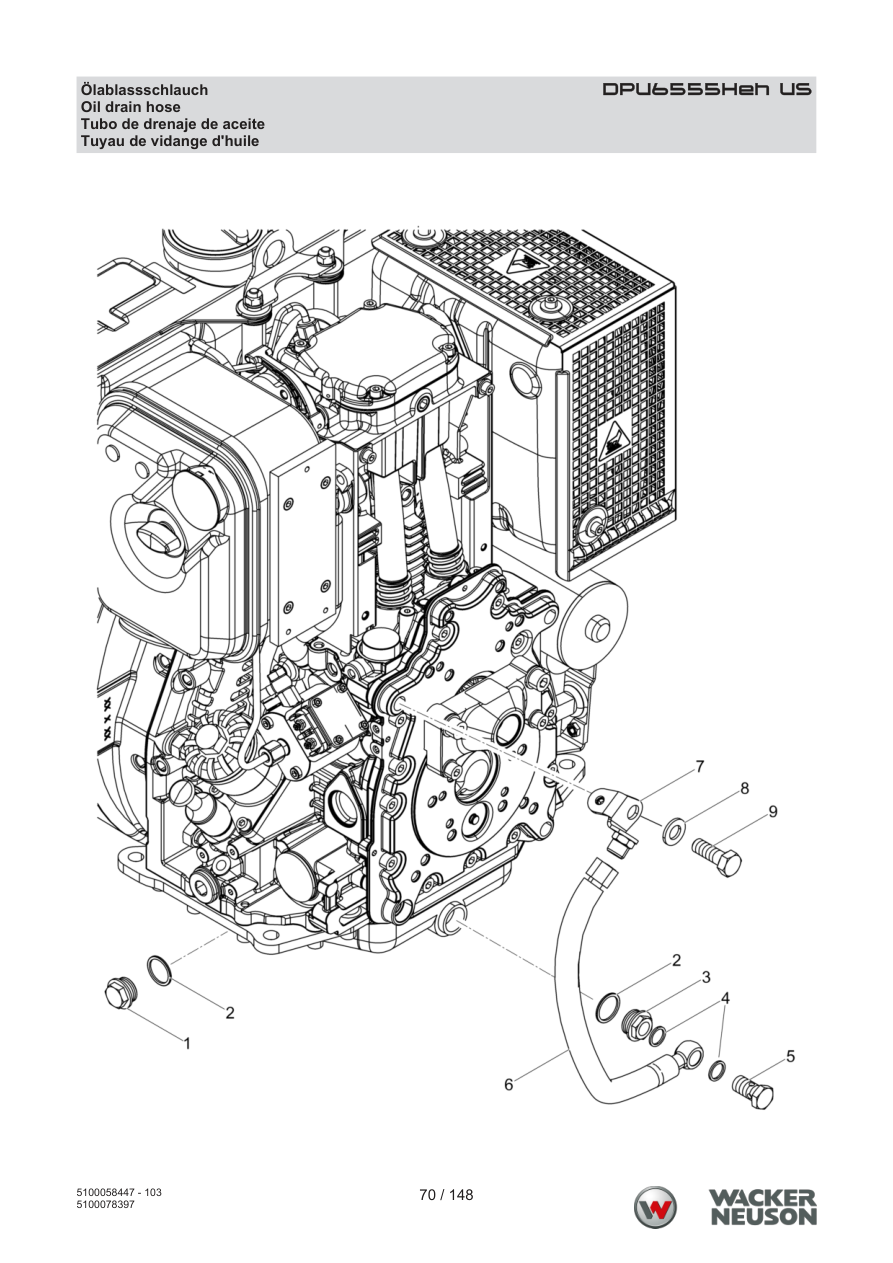

Page 70 — Oil drain hose
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000094958 | Plug (threaded) | 1 | AM22 x 1,5 | DIN7604 | ADD TO CART |
| 2 | 5000202416 | Oil seal | 2 | 52 x 80 x 10 | ADD TO CART |
| 3 | 5000104406 | Screw plug | 1 | ADD TO CART | |
| 4 | 5000012624 | Gasket | 1 | A14 x 18 | DIN7603 | ADD TO CART |
| 5 | 5000203656 | Banjo bolt | 2 | ADD TO CART | |
| 6 | 5000217092 | Hose pipe oil drain | 1 | ADD TO CART | |
| 7 | 5000126074 | Retainer | 1 | ADD TO CART | |
| 8 | 5100030645 | Washer | 1 | PARTS REQUEST | |
|
COMING Washer
5100030645 · qty on machine: 1 | |||||
| 9 | 5100062254 | Hexagonal head cap screw | 1 | ADD TO CART | |

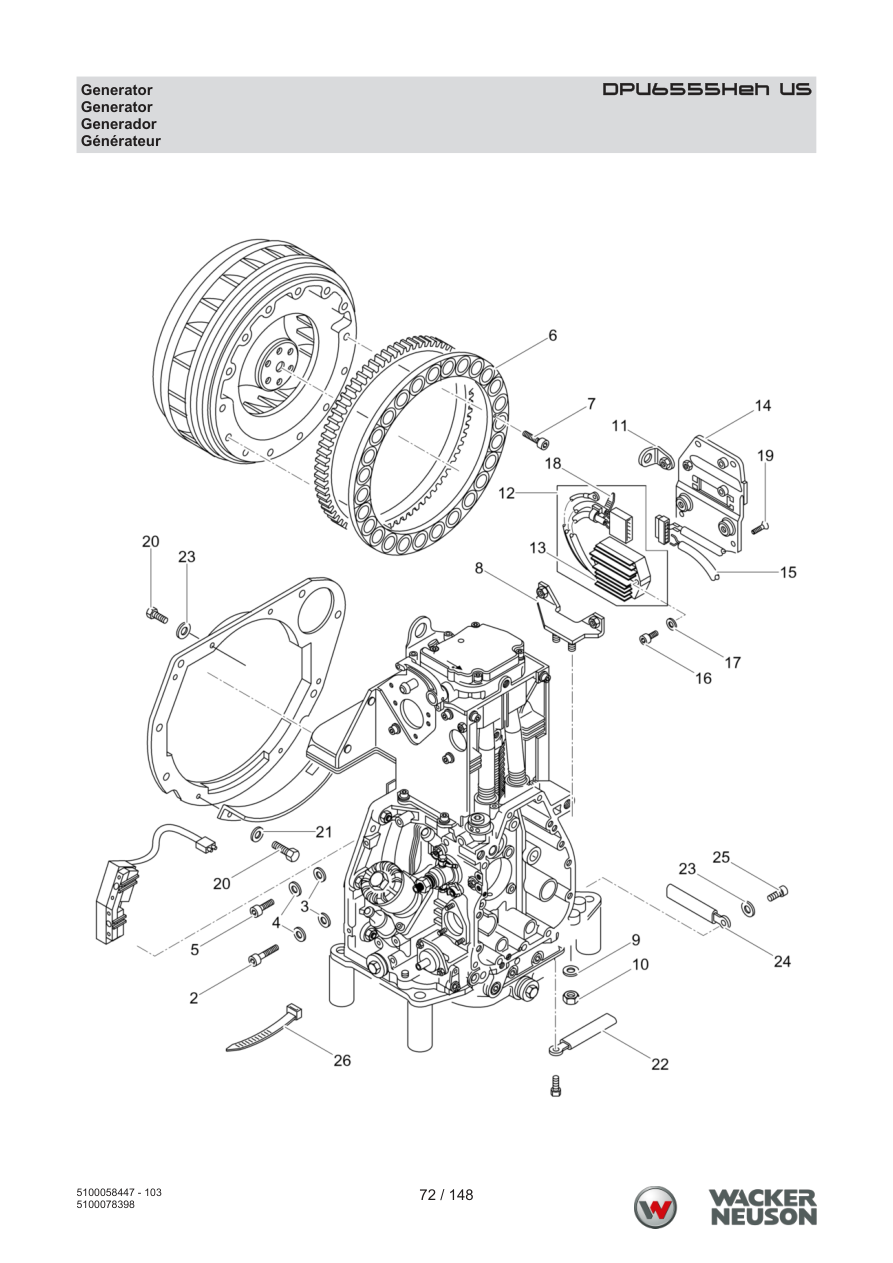

Page 72 — DPU6555Hech US Generator
Parts list — exactly as printed25 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000207612 | Cheese head screw | 1 | M6 x 40 | PARTS REQUEST |
|
COMING Cheese head screw
5000207612 · qty on machine: 1 M6 x 40 | |||||
| 3 | 5000151324 | Washer | 7 | ADD TO CART | |
| 4 | 5000207593 | Spring washer | 2 | ADD TO CART | |
| 5 | 5000203134 | Cheese head screw | 1 | M6 x 30 | ADD TO CART |
| 6 | 5100062256 | Magnetic ring | 1 | PARTS REQUEST | |
|
COMING Magnetic ring
5100062256 · qty on machine: 1 | |||||
| 7 | 5100062257 | Cheese head screw m4x16 | 14 | ADD TO CART | |
| 8 | 5000097591 | Holder | 1 | ADD TO CART | |
| 9 | 5000151218 | Lock washer | 2 | ADD TO CART | |
| 10 | 5000151379 | Locknut | 2 | M8 | ISO4032 | ADD TO CART |
| 11 | 5000097593 | Angle | 1 | ADD TO CART | |
| 12 | 5100062259 | Regulator 12v | 1 | ADD TO CART | |
| 13 | 5100062260 | Regulator 12v | 1 | PARTS REQUEST | |
|
COMING Regulator 12v
5100062260 · qty on machine: 1 | |||||
| 14 | 5000097592 | Plate | 1 | ADD TO CART | |
| 15 | 5000207562 | Electric wire | 1 | ADD TO CART | |
| 16 | 5000202440 | Hexagon socket head screw | 2 | ADD TO CART | |
| 17 | 5000151218 | Lock washer | 2 | ADD TO CART | |
| 18 | 5000109710 | Tie cable | 3 | PARTS REQUEST | |
|
COMING Tie cable
5000109710 · qty on machine: 3 | |||||
| 19 | 5000151387 | Countersunk screw | 2 | M6 x 12 14Nm/10ft.lbs | ISO10642 | ADD TO CART |
| 20 | 5000202436 | Screw | 4 | M6 x 12 | ADD TO CART |
| 21 | 5000151324 | Washer | 4 | ADD TO CART | |
| 22 | 5000102472 | Clamp | 2 | ADD TO CART | |
| 23 | 5000151456 | Lock washer | 2 | 6 | DIN128 | ADD TO CART |
| 24 | 5000097590 | Clamp | 1 | ADD TO CART | |
| 25 | 5000129016 | Cheese head screw | 1 | M6 x 12 | ISO4762 | ADD TO CART |
| 26 | 5000109710 | Tie cable | 4 | PARTS REQUEST | |
|
COMING Tie cable
5000109710 · qty on machine: 4 | |||||

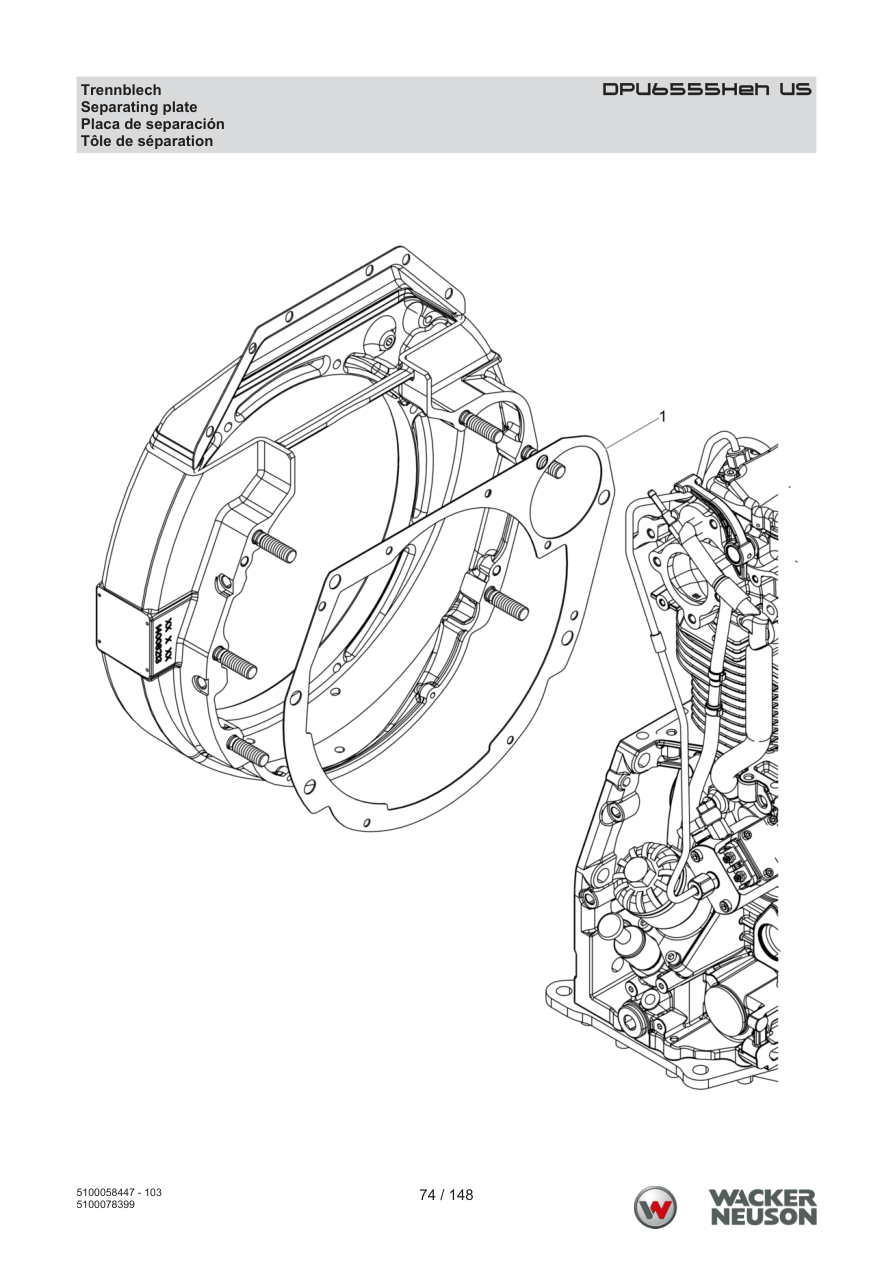

Page 74 — DPU6555Hech US Separator plate
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000095067 | Baffle plate | 1 | ADD TO CART | |

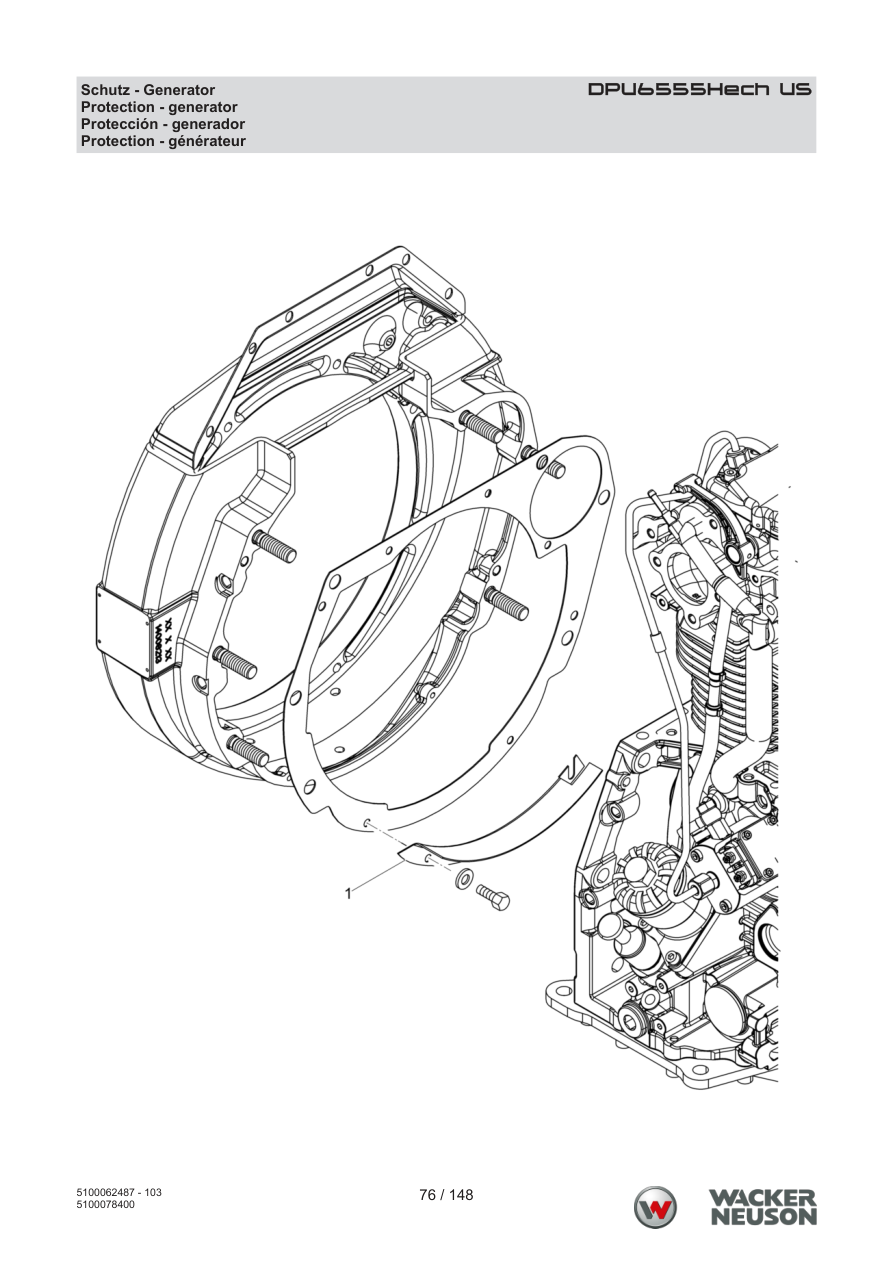

Page 76 — Protection - generator
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000095068 | Guard plate | 1 | ADD TO CART | |

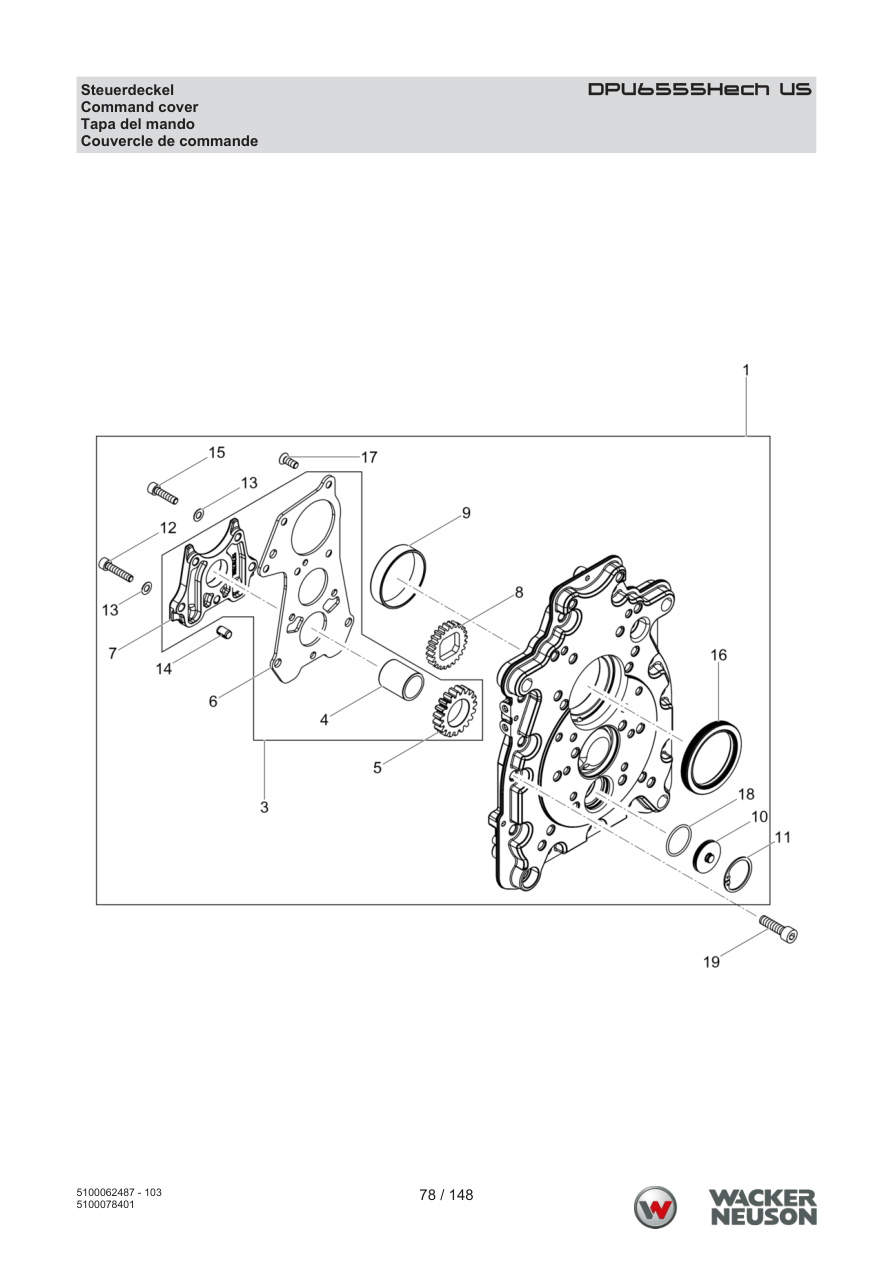

Page 78 — DPU6555Hech US Timing cover
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100062261 | Command cover | 1 | ADD TO CART | |
| 3 | 5100062263 | Oil pump | 1 | ADD TO CART | |
| 4 | 5000095002 | Bushing | 1 | ADD TO CART | |
| 5 | 5000106532 | Gear wheel | 1 | ADD TO CART | |
| 6 | 5000094999 | Cover | 1 | ADD TO CART | |
| 7 | 5000217097 | Housing | 1 | ADD TO CART | |
| 8 | 5000106531 | Gear wheel | 1 | ADD TO CART | |
| 9 | 5100062264 | Bearing bush | 1 | ADD TO CART | |
| 10 | 5000095017 | Cover | 1 | ADD TO CART | |
| 11 | 5000202455 | Retaining ring | 1 | 32 x 1,2 | ADD TO CART |
| 12 | 5000202422 | Hexagon socket head screw | 2 | M6 x 30 | ADD TO CART |
| 13 | 5000151290 | Spring washer | 5 | A6 | DIN137 | ADD TO CART |
| 14 | 5000107546 | Roll pin | 2 | 8 x 12 | ADD TO CART |
| 15 | 5000129010 | Cheese head screw | 3 | M6 x 25 | DIN912 | ADD TO CART |
| 16 | 5000095013 | Shaft seal | 1 | ADD TO CART | |
| 17 | 5000095000 | Screw | 5 | ADD TO CART | |
| 18 | 5000095016 | O-ring | 1 | ADD TO CART | |
| 19 | 5000202462 | Hexagon socket head screw | 13 | M8 x 30 | ADD TO CART |

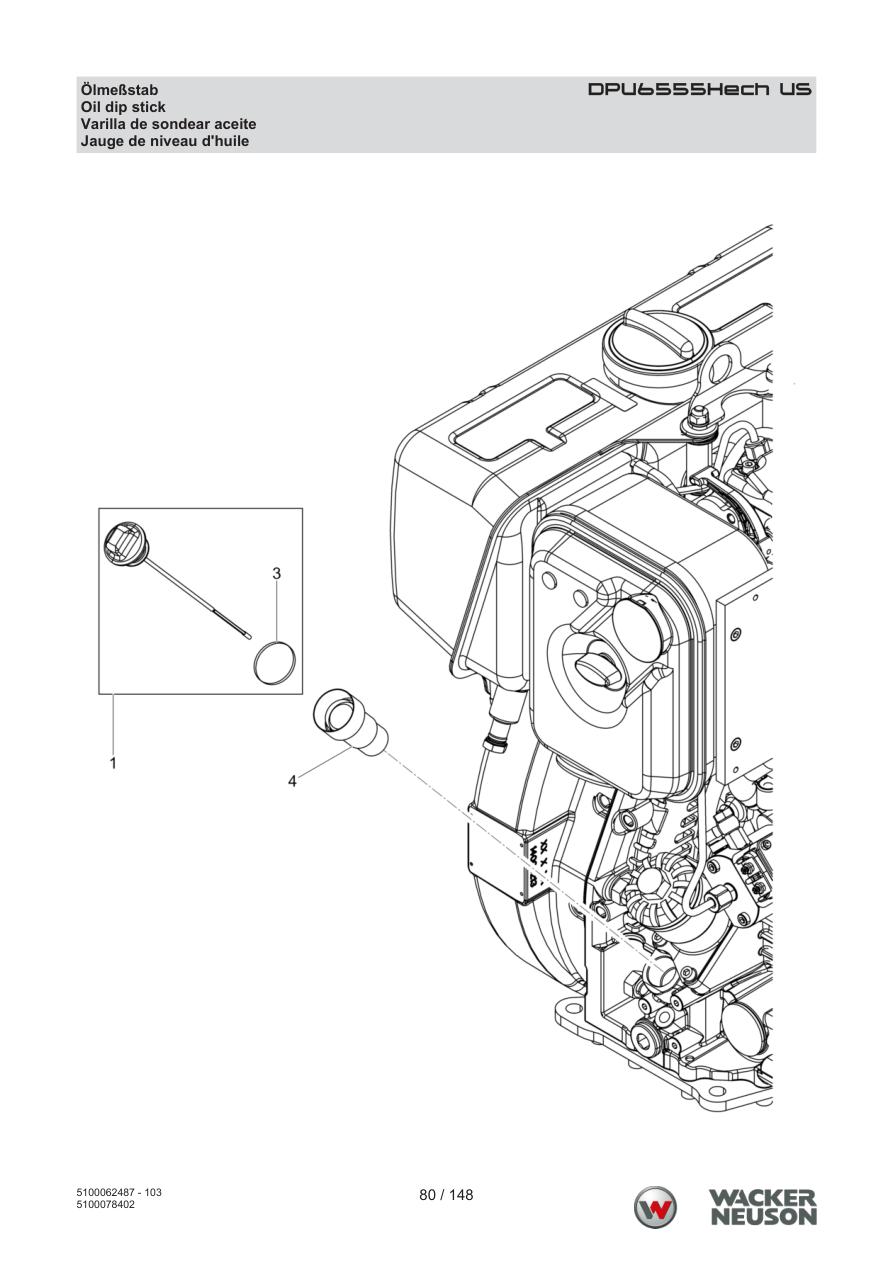

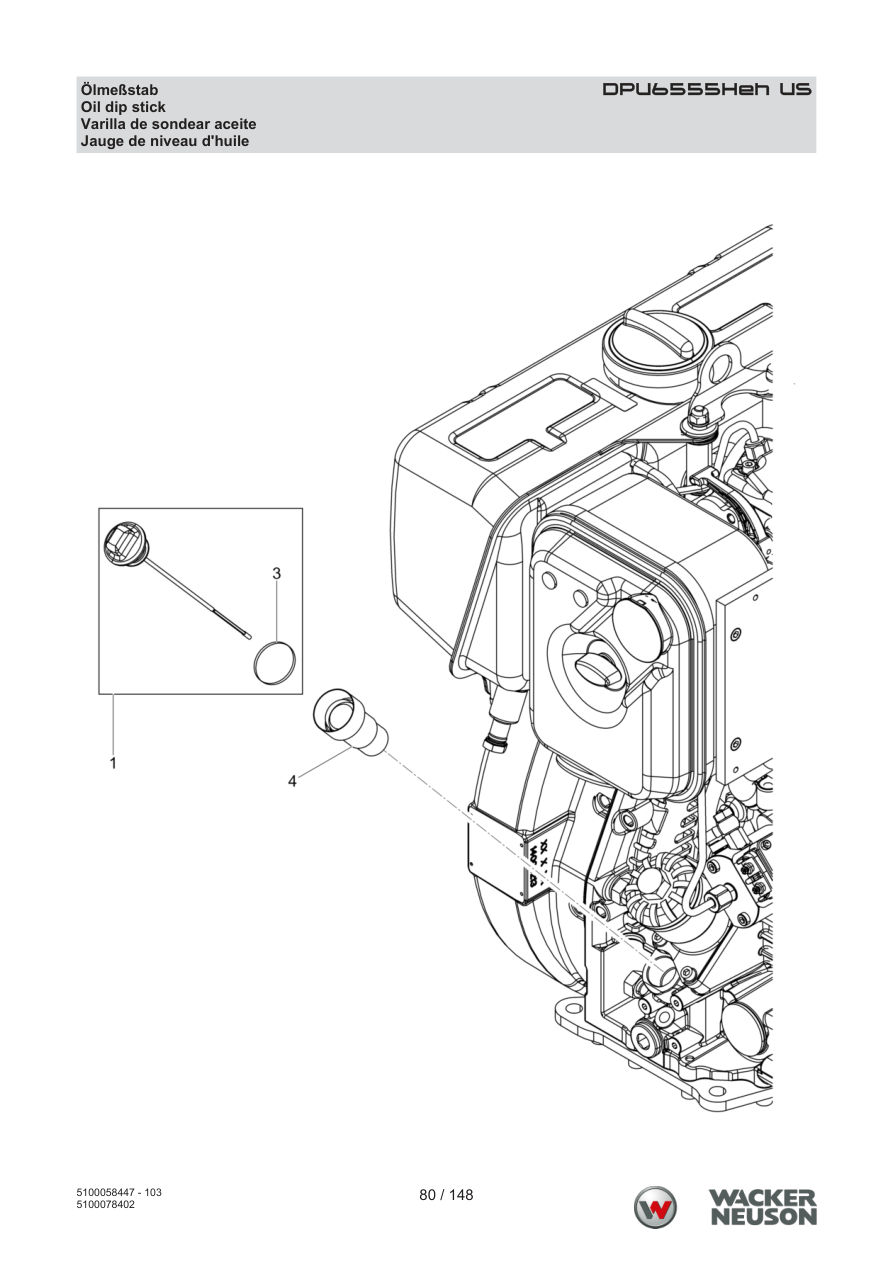

Page 80 — Oil dip stick
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100046077 | Oil dip stick | 1 | ADD TO CART | |
| 3 | 5000151217 | Gasket | 1 | ADD TO CART | |
| 4 | 5100062265 | Adaptor | 1 | ADD TO CART | |

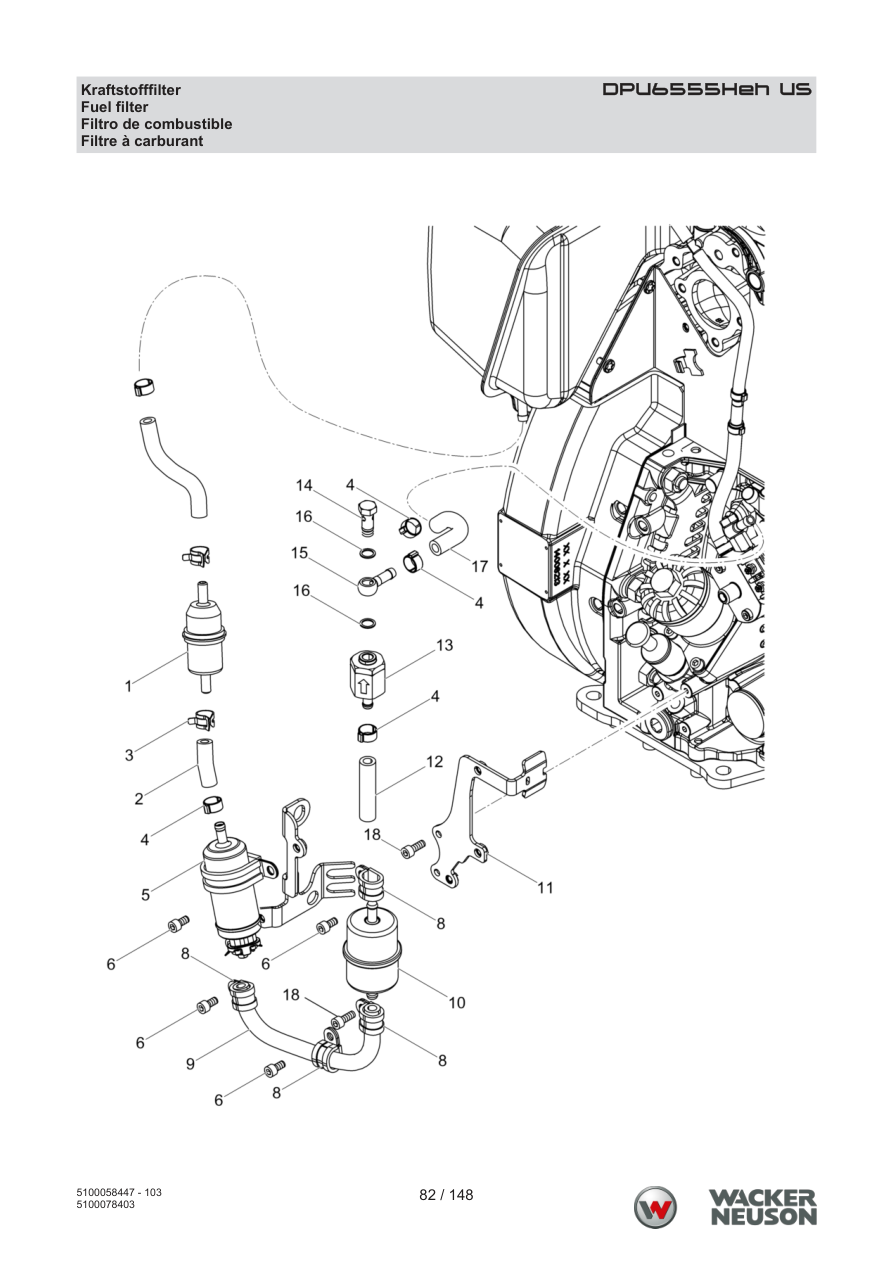

Page 82 — DPU6555Hech US Fuel filter
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000112497 | Fuel filter | 1 | ADD TO CART | |
| 2 | 5100062266 | Fuel pipes | 1 | ADD TO CART | |
| 3 | 5100062267 | Clamp | 1 | ADD TO CART | |
| 4 | 5000203655 | Clamp | 1 | ADD TO CART | |
| 5 | 5100077988 | Fuel pump | 1 | ADD TO CART | |
| 6 | 5000129016 | Cheese head screw | 4 | M6 x 12 | ISO4762 | ADD TO CART |
| 8 | 5000107451 | Clamp | 4 | ADD TO CART | |
| 9 | 5100062271 | Fuel pipes | 1 | ADD TO CART | |
| 10 | 5100046186 | Diesel filter insert | 1 | ADD TO CART | |
| 11 | 5100062272 | Bracket | 1 | ADD TO CART | |
| 12 | 5100062273 | Fuel pipes | 1 | ADD TO CART | |
| 13 | 5100062275 | Back pressure valve | 1 | ADD TO CART | |
| 14 | 5000207566 | Banjo bolt | 1 | ADD TO CART | |
| 15 | 5000107422 | Banjo fitting | 1 | ADD TO CART | |
| 16 | 5000071121 | Sealing ring | 2 | A10 x 13,5 | ADD TO CART |
| 17 | 5100062276 | Fuel pipes | 1 | ADD TO CART | |
| 18 | 5000151231 | Cheese head screw | 2 | M6 x 16 | ISO4762 | ADD TO CART |

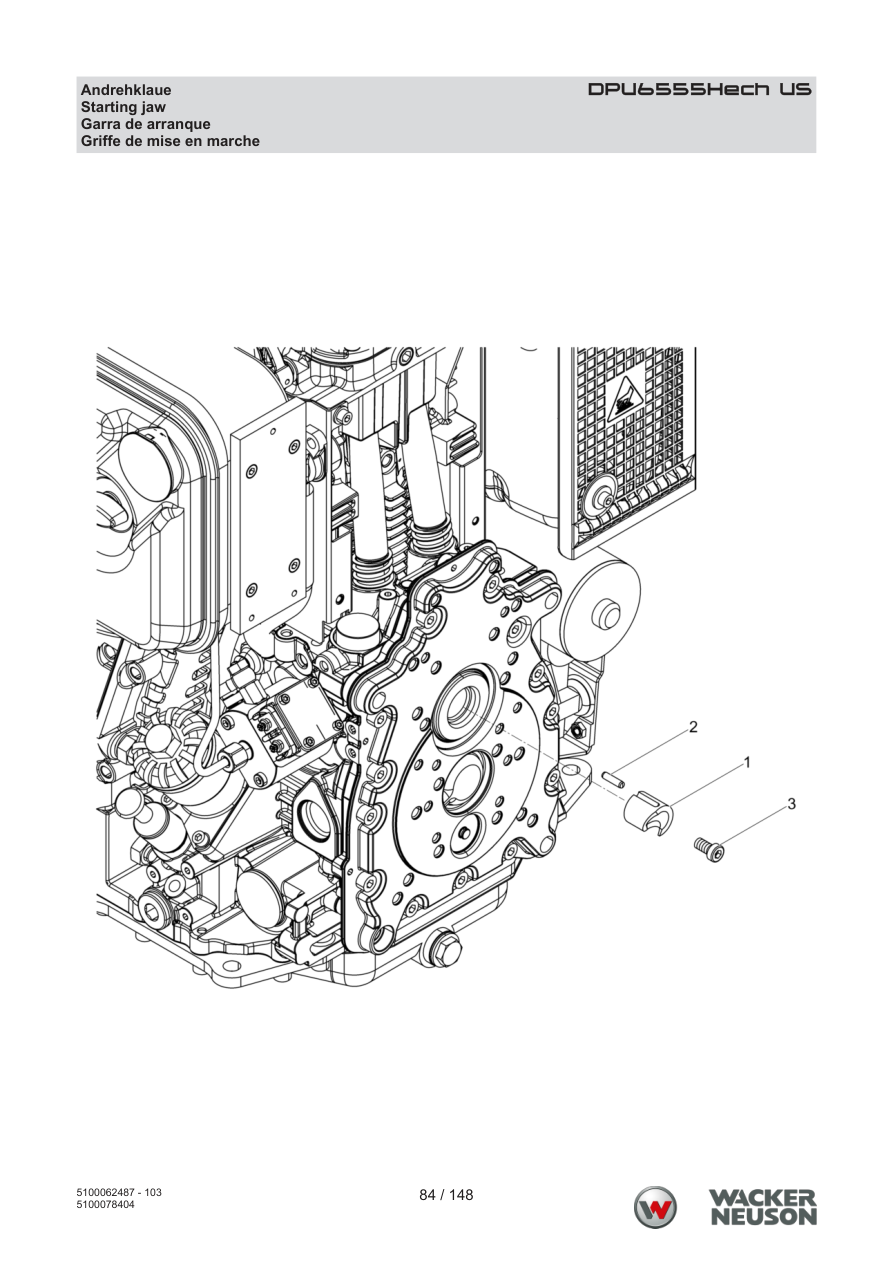

Page 84 — DPU6555Hech US Starting claw
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000097419 | Starting jaw | 1 | ADD TO CART | |
| 2 | 5000202453 | Straight pin | 1 | ADD TO CART | |
| 3 | 5000201372 | Hexagon socket head screw | 1 | ADD TO CART | |

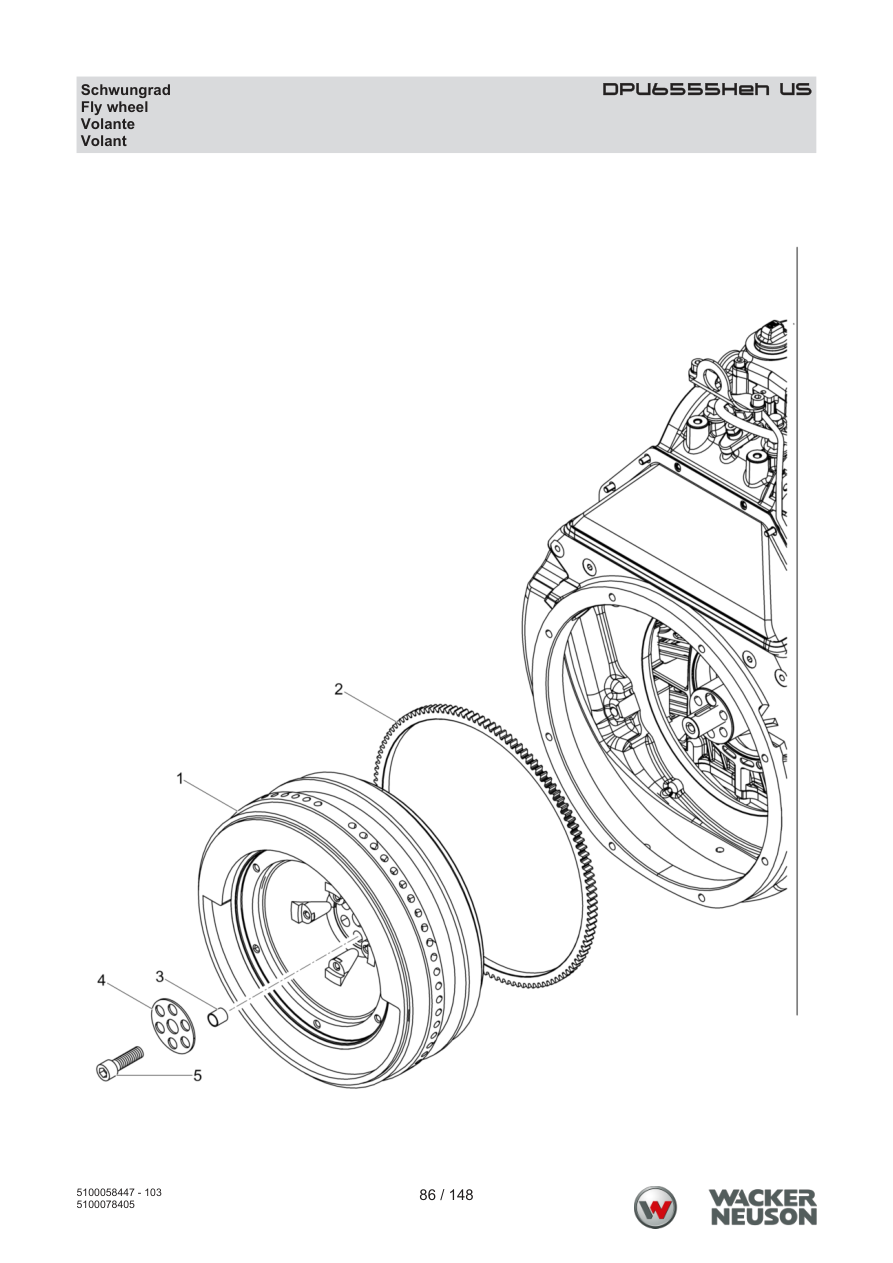

Page 86 — DPU6555Hech US Flywheel
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100078486 | Fly wheel | 1 | PARTS REQUEST | |
|
COMING Fly wheel
5100078486 · qty on machine: 1 | |||||
| 2 | 5000096597 | Ring gear | 1 | ADD TO CART | |
| 3 | 5000095044 | Sleeve | 1 | ADD TO CART | |
| 4 | 5000095045 | Disc holder | 1 | ADD TO CART | |
| 5 | 5000095046 | Cheese head screw | 6 | M12 x 1,5 x 40 120Nm/89ft.lbs | ISO4762 | ADD TO CART |

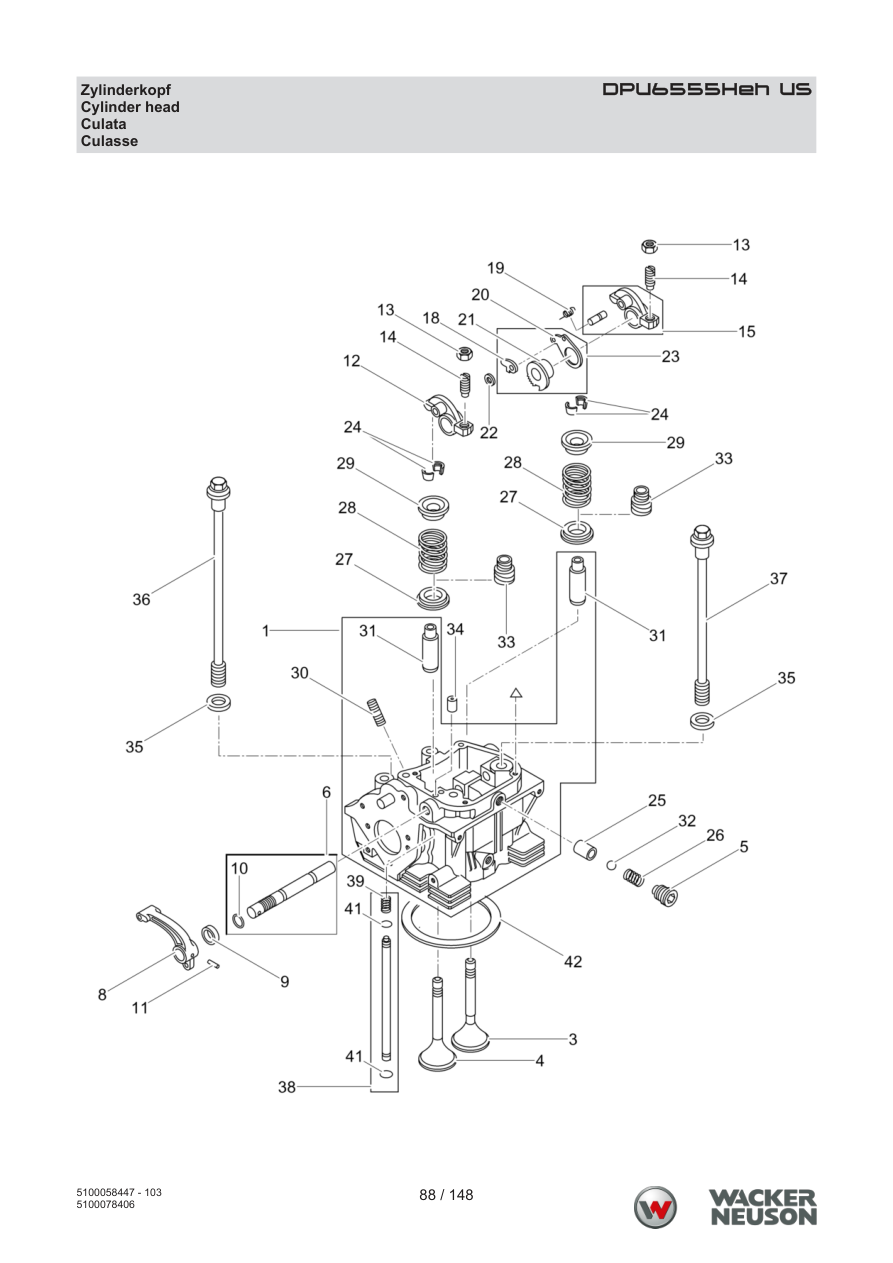

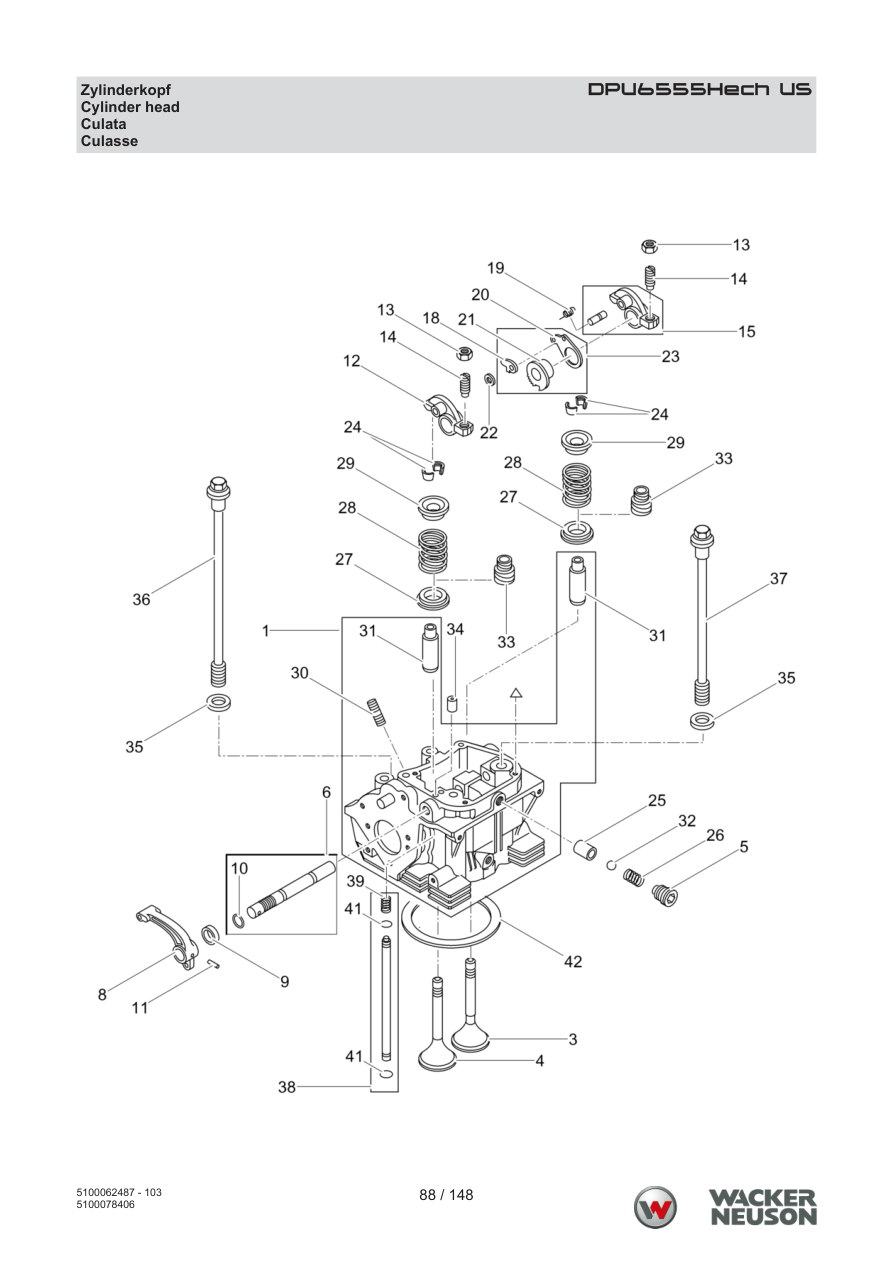

Page 88 — DPU6555Hech US Cylinder head
Parts list — exactly as printed55 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100065040 | Cylinder head | 1 | ADD TO CART | |
| 3 | 5000105044 | Exhaust valve | 1 | ADD TO CART | |
| 4 | 5000105043 | Intake valve | 1 | ADD TO CART | |
| 5 | 5000094888 | Screw | 1 | ADD TO CART | |
| 6 | 5000105928 | Rocker shaft | 1 | ADD TO CART | |
| 8 | 5000094909 | Decompression lever | 1 | ADD TO CART | |
| 9 | 5000097401 | Seal | 1 | ADD TO CART | |
| 10 | 5000108801 | O-ring | 1 | 8 x 2 | ADD TO CART |
| 11 | 5000020183 | Spring pin | 1 | 4 x 22 | DIN1481 | ADD TO CART |
| 12 | 5000098449 | Inlet rocker arm | 1 | ADD TO CART | |
| 13 | 5004101500 | Locknut | 2 | 5/16 x 24in | ADD TO CART |
| 14 | 5000094891 | Adjustment screw | 2 | ADD TO CART | |
| 15 | 5000098448 | Exhaust rocker arm | 1 | ADD TO CART | |
| 18 | 5000094897 | Ratchet (pawl) | 1 | ADD TO CART | |
| 19 | 5000094894 | Spring | 1 | ADD TO CART | |
| 20 | 5000094895 | Holder | 1 | ADD TO CART | |
| 22 | 5000202427 | Lock washer | 1 | ADD TO CART | |
| 23 | 5000126917 | Toothed segment cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 24 | 5000094899 | Set-taper cone valve | 2 | ADD TO CART | |
| 25 | 5100032122 | Bush | 1 | PARTS REQUEST | |
|
COMING Bush
5100032122 · qty on machine: 1 | |||||
| 26 | 5000094887 | Spring | 1 | ADD TO CART | |
| 27 | 5000094902 | Washer | 2 | PARTS REQUEST | |
|
COMING Washer
5000094902 · qty on machine: 2 | |||||
| 28 | 5100062279 | Valve spring | 2 | ADD TO CART | |
| 29 | 5100051933 | Spring holder | 2 | ADD TO CART | |
| 30 | 5000207595 | Stud | 1 | M8 x 35 | ADD TO CART |
| 31 | 5000094890 | Valve guide | 2 | ADD TO CART | |
| 32 | 5000066801 | Ball | 1 | ADD TO CART | |
| 33 | 5100010410 | Seal | 2 | ADD TO CART | |
| 34 | 5000207538 | Jet | 1 | ADD TO CART | |
| 35 | 5000104388 | Washer | 4 | PARTS REQUEST | |
|
COMING Washer
5000104388 · qty on machine: 4 | |||||
| 36 | 5100030359 | Hexagonal head cap screw | 2 | ADD TO CART | |
| 37 | 5000094882 | Screw | 2 | ADD TO CART | |
| 38 | 5000094906 | Grease tube | 1 | ADD TO CART | |
| 39 | 5000094903 | Spring | 1 | ADD TO CART | |
| 41 | 5000094905 | O-ring | 2 | ADD TO CART | |
| 42 | 5100062304 | Cylinder head gasket 1,3 | 1 | ADD TO CART | |
| 42 | 5100062303 | Cylinder head gasket 1,25 | 1 | ADD TO CART | |
| 42 | 5100062301 | Cylinder head gasket 1,2 | 1 | ADD TO CART | |
| 42 | 5100062300 | Cylinder head gasket 1,15 | 1 | ADD TO CART | |
| 42 | 5100062299 | Cylinder head gasket 1,1 | 1 | ADD TO CART | |
| 42 | 5100062297 | Cylinder head gasket 1,05 | 1 | ADD TO CART | |
| 42 | 5100062296 | Cylinder head gasket 1,0 | 1 | ADD TO CART | |
| 42 | 5100062295 | Cylinder head gasket 0,95 | 1 | ADD TO CART | |
| 42 | 5100062294 | Cylinder head gasket 0,85 | 1 | ADD TO CART | |
| 42 | 5100062293 | Cylinder head gasket 0,8 | 1 | ADD TO CART | |
| 42 | 5100062292 | Cylinder head gasket 0,75 | 1 | ADD TO CART | |
| 42 | 5100062290 | Cylinder head gasket 0,7 | 1 | ADD TO CART | |
| 42 | 5100062289 | Cylinder head gasket 0,65 | 1 | ADD TO CART | |
| 42 | 5100062288 | Cylinder head gasket 0,6 | 1 | ADD TO CART | |
| 42 | 5100062287 | Cylinder head gasket 0,55 | 1 | ADD TO CART | |
| 42 | 5100062285 | Cylinder head gasket 0,5 | 1 | ADD TO CART | |
| 42 | 5100062284 | Cylinder head gasket 0,45 | 1 | ADD TO CART | |
| 42 | 5100062283 | Cylinder head gasket 0,4 | 1 | ADD TO CART | |
| 42 | 5100062282 | Cylinder head gasket 0,35 | 1 | ADD TO CART | |
| 42 | 5100062281 | Cylinder head gasket 0,3 | 1 | ADD TO CART | |

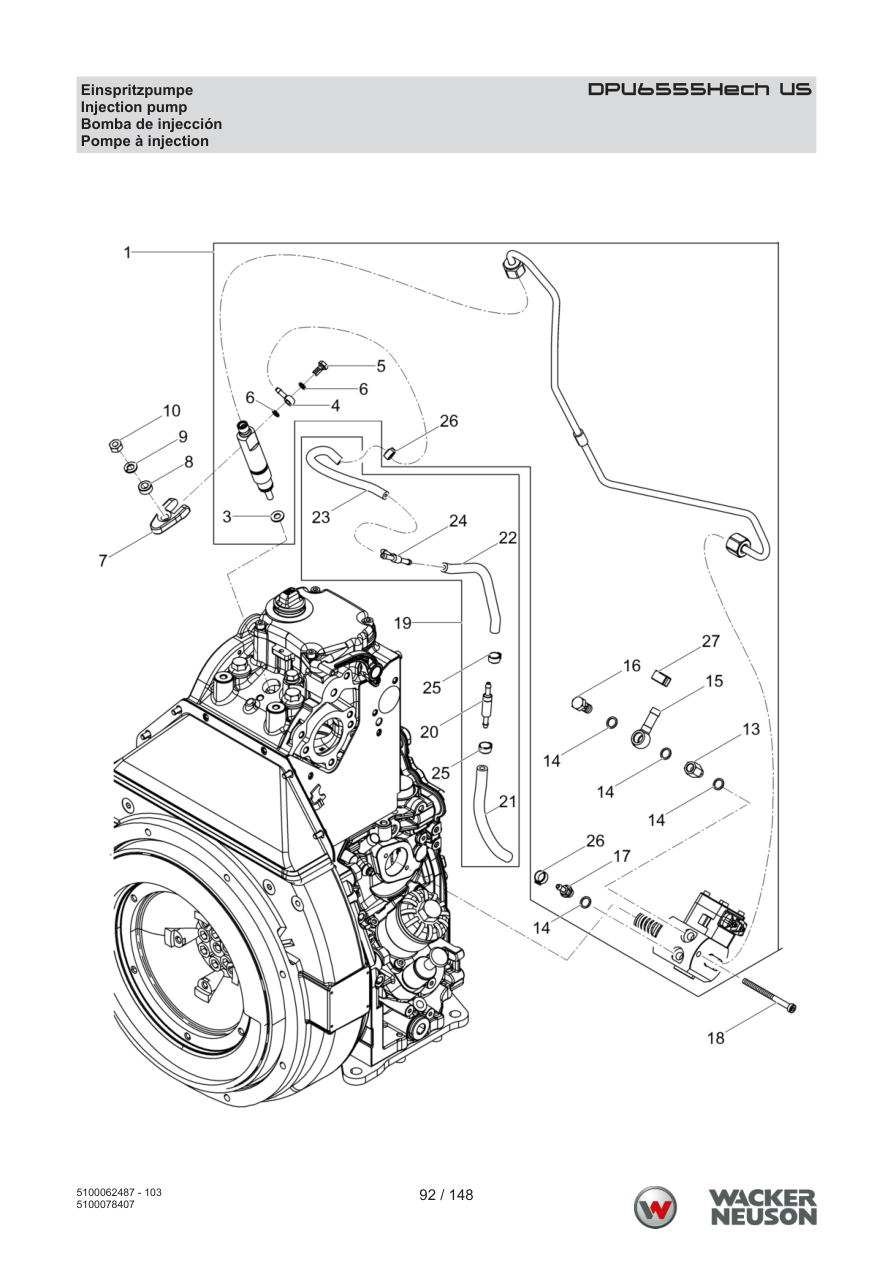

Page 92 — DPU6555Hech US Injection pump
Parts list — exactly as printed24 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 16 | 5000207566 | Banjo bolt | 1 | ADD TO CART | |
| 1 | 5100078489 | Injection pump | 1 | ADD TO CART | |
| 3 | 5000217099 | Seal ring | 1 | ADD TO CART | |
| 4 | 5000095020 | Fitting | 1 | ADD TO CART | |
| 5 | 5000095019 | Banjo bolt | 1 | ADD TO CART | |
| 6 | 5000128957 | Gasket | 2 | ADD TO CART | |
| 7 | 5000095022 | Holder | 1 | ADD TO CART | |
| 8 | 5000095021 | Disc | 1 | ADD TO CART | |
| 9 | 5000151218 | Lock washer | 1 | ADD TO CART | |
| 10 | 5000151379 | Locknut | 1 | M8 | ISO4032 | ADD TO CART |
| 13 | 5100062307 | Adaptor | 1 | ADD TO CART | |
| 14 | 5000071121 | Sealing ring | 4 | A10 x 13,5 | ADD TO CART |
| 15 | 5000107422 | Banjo fitting | 1 | ADD TO CART | |
| 17 | 5100062308 | Screw nipple | 1 | ADD TO CART | |
| 18 | 5100062309 | Cheese head screw m6x75 | 2 | ADD TO CART | |
| 19 | 5000226603 | Fuel hose | 1 | ADD TO CART | |
| 20 | 5000047977 | Hose fitting | 1 | ADD TO CART | |
| 21 | 5100018092 | Fuel hose | 1 | ADD TO CART | |
| 22 | 5000216520 | Fuel hose | 1 | ADD TO CART | |
| 23 | 5000209727 | Fuel hose | 1 | ADD TO CART | |
| 24 | 5000099417 | Tee-fitting | 1 | PARTS REQUEST | |
|
COMING Tee-fitting
5000099417 · qty on machine: 1 | |||||
| 25 | 5000207586 | Clamp | 2 | ADD TO CART | |
| 26 | 5000207586 | Clamp | 2 | ADD TO CART | |
| 27 | 5000203655 | Clamp | 1 | ADD TO CART | |

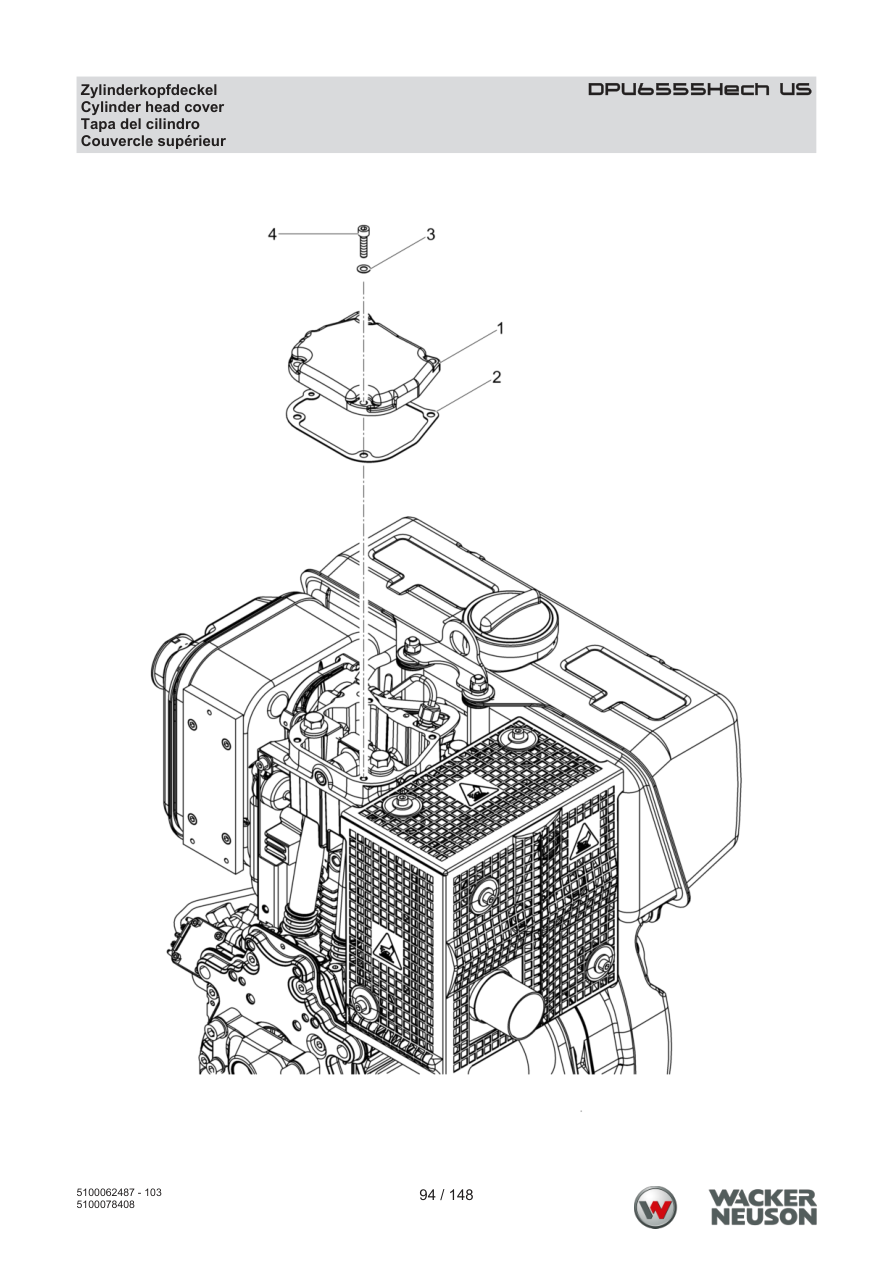

Page 94 — DPU6555Hech US Cylinder head cover
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000098444 | Cover | 1 | ADD TO CART | |
| 2 | 5000098445 | Gasket | 1 | ADD TO CART | |
| 3 | 5000151290 | Spring washer | 4 | A6 | DIN137 | ADD TO CART |
| 4 | 5000129010 | Cheese head screw | 4 | M6 x 25 | DIN912 | ADD TO CART |

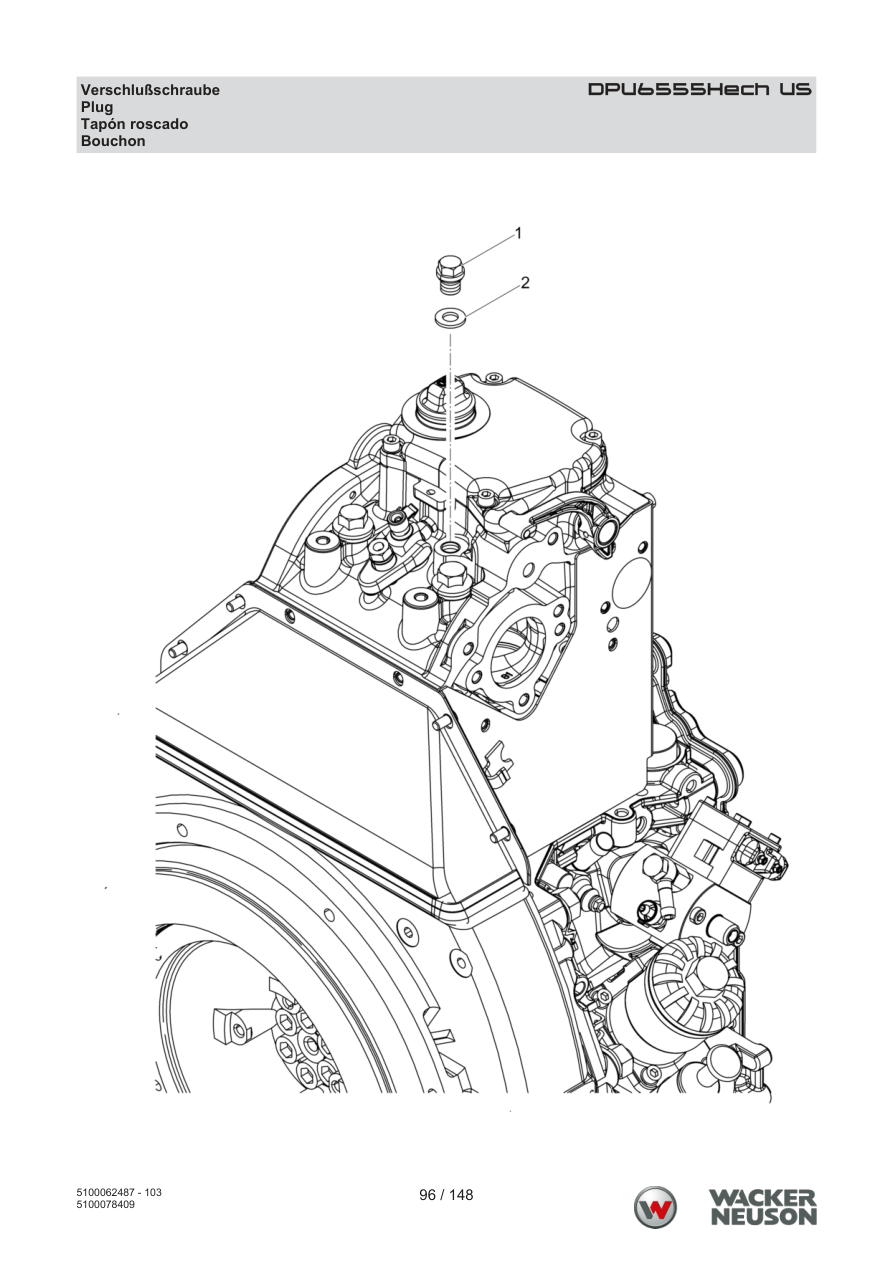

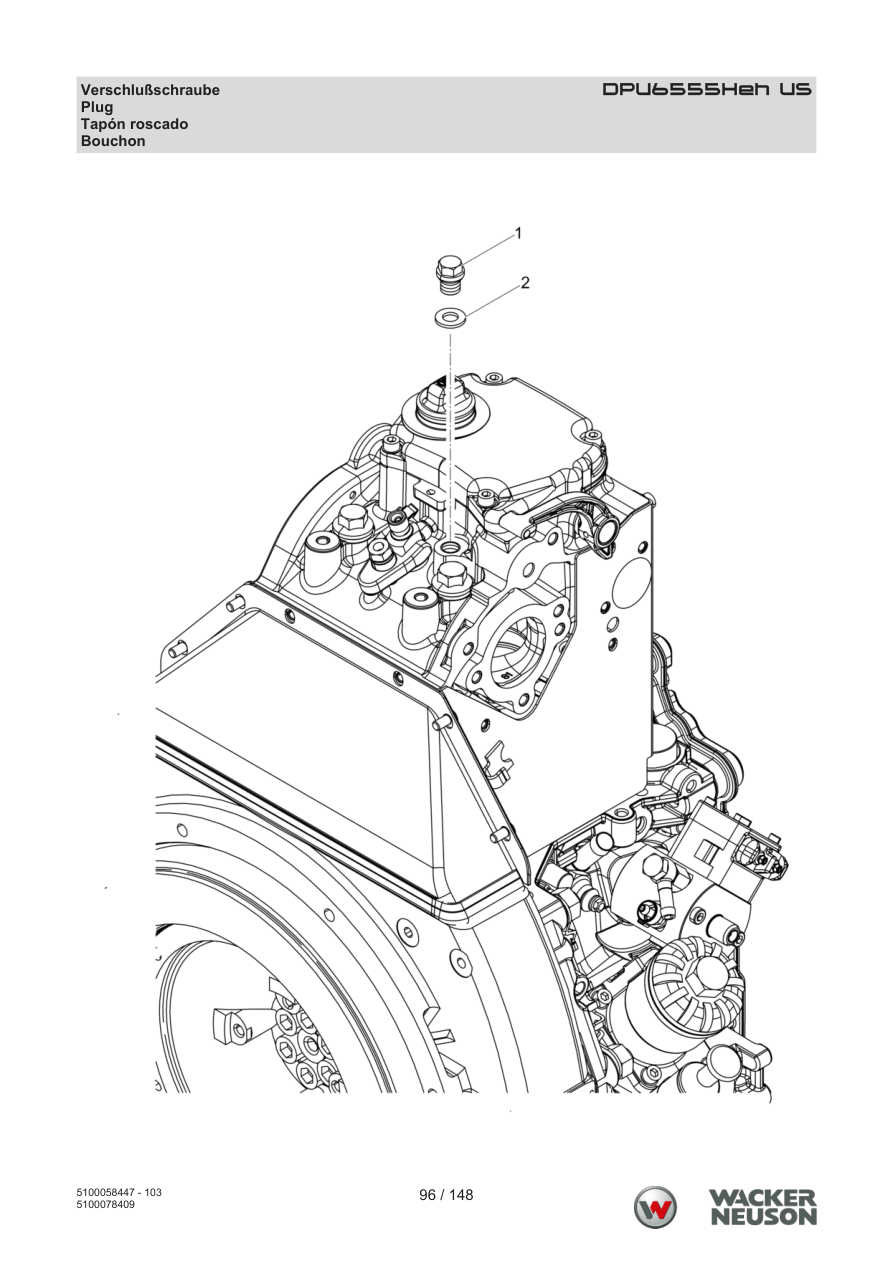

Page 96 — DPU6555Hech US Sealing screw
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100062311 | Plug (threaded) m12x1,5 | 1 | ADD TO CART | |
| 2 | 5000013186 | Gasket | 1 | A12 x 15,5 | DIN7603 | ADD TO CART |

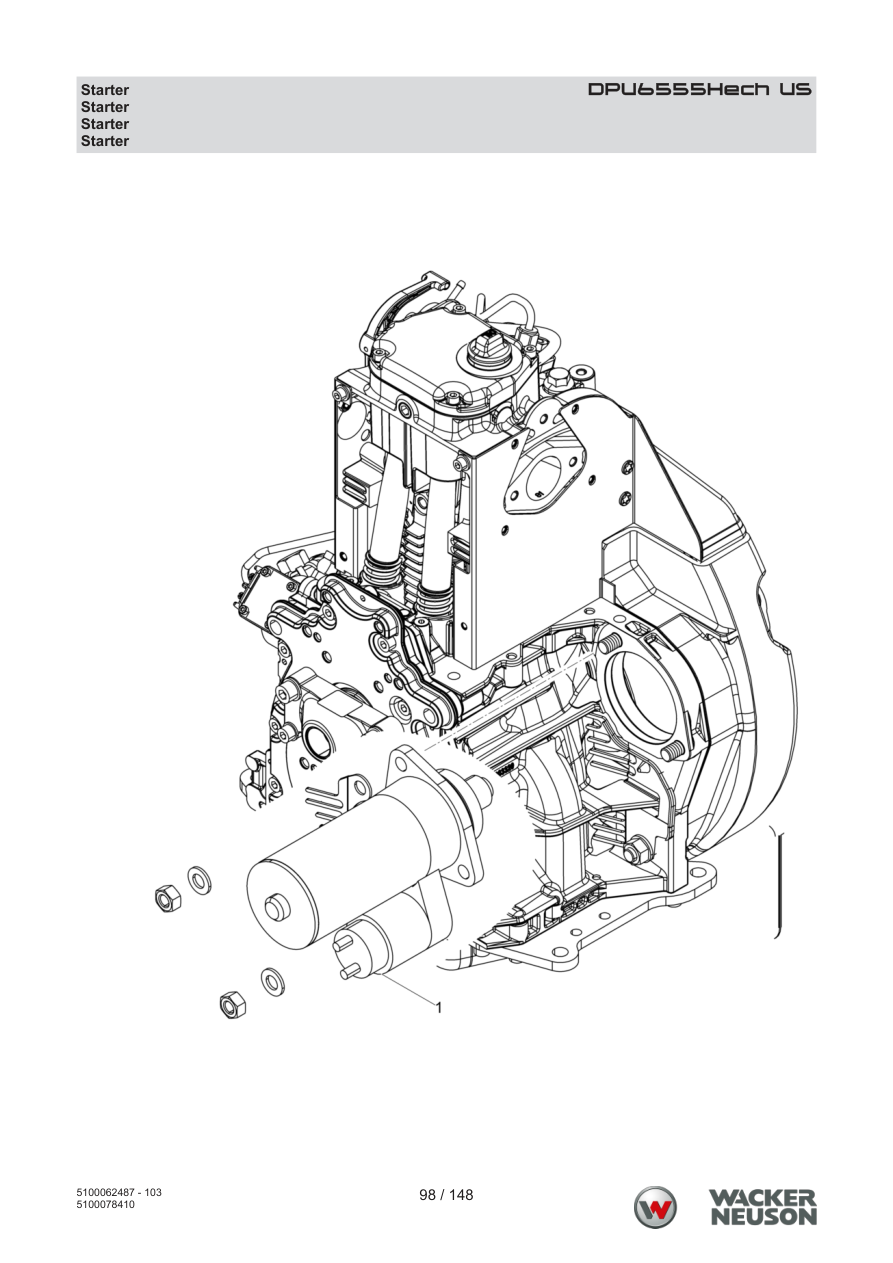

Page 98 — DPU6555Hech US Starter
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000129769 | Starter | 1 | ADD TO CART | |

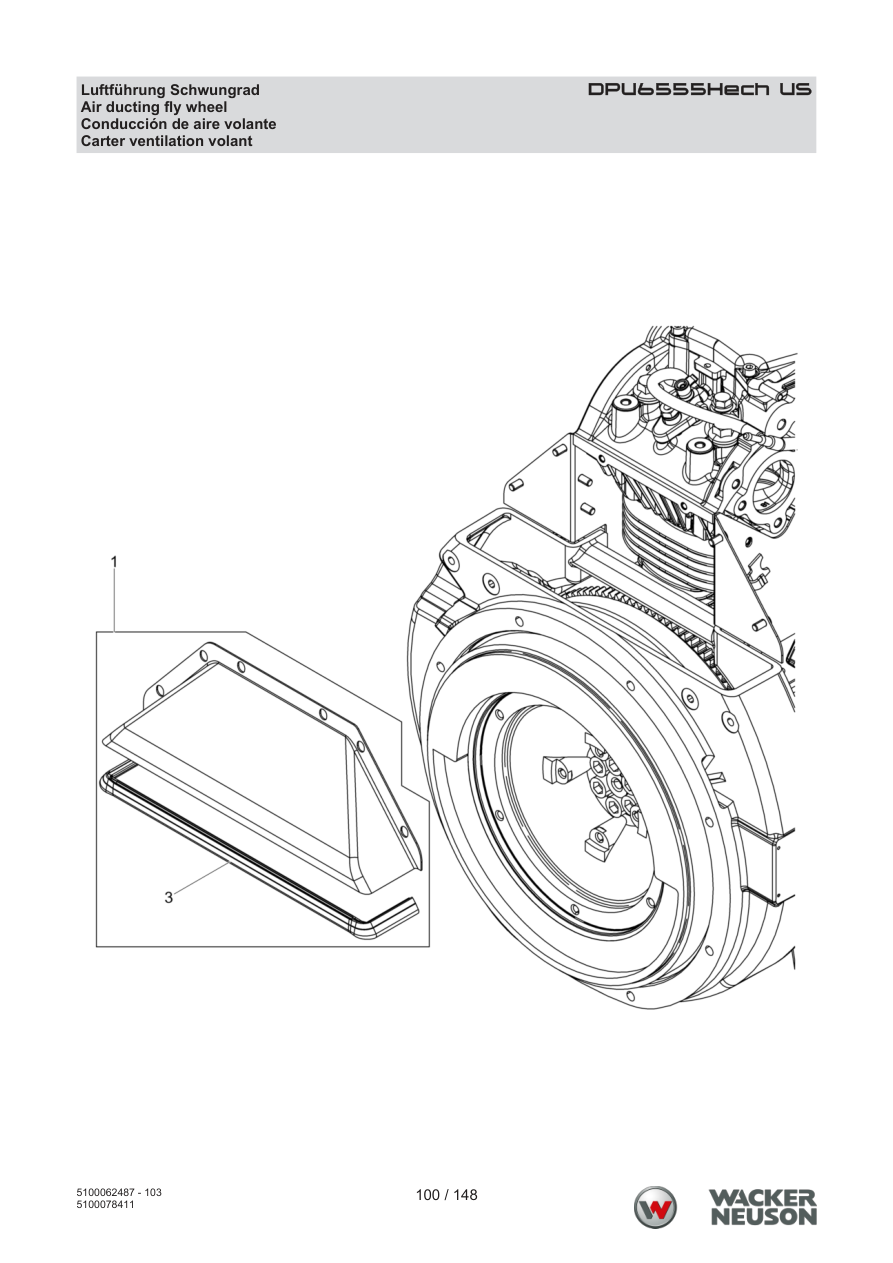

Page 100 — Air ducting fly wheel
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000095035 | Cover | 1 | ADD TO CART | |
| 3 | 5100065056 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5100065056 · qty on machine: 1 | |||||

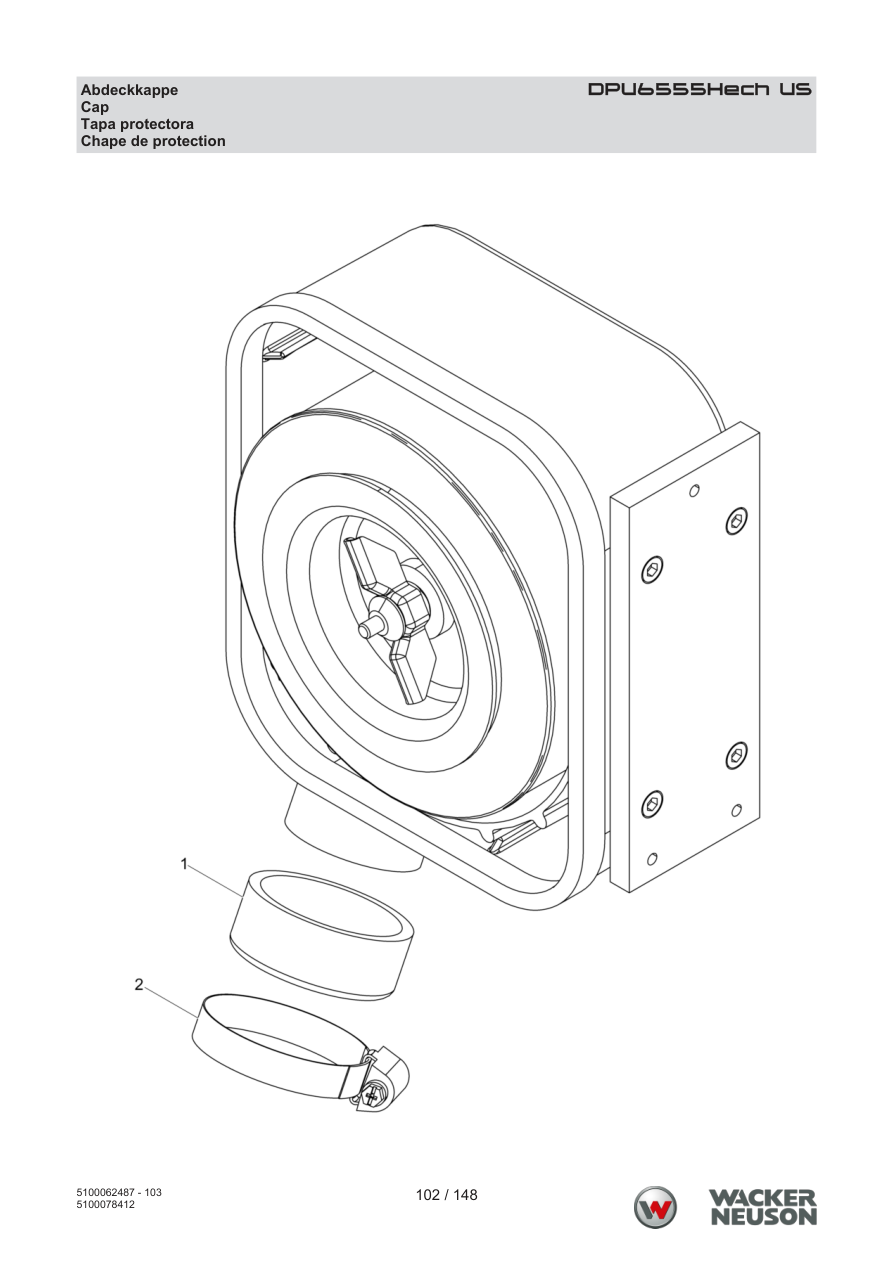

Page 102 — DPU6555Hech US Cover cap
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000099803 | Cap | 1 | ADD TO CART | |
| 2 | 5000099804 | Clamp | 1 | ADD TO CART | |

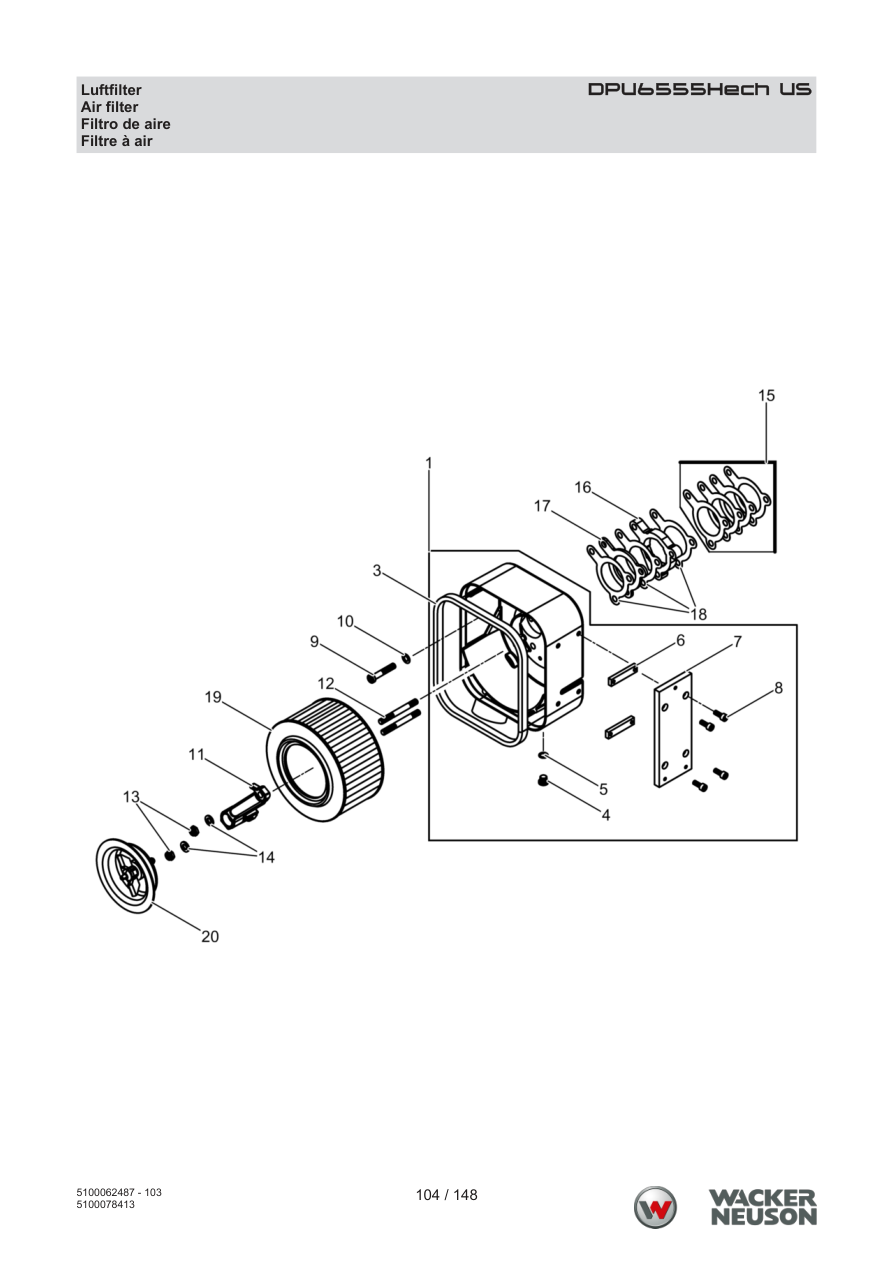

Page 104 — DPU6555Hech US Air filter
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100062312 | Air filter housing | 1 | ADD TO CART | |
| 3 | 5000097831 | Seal | 1 | ADD TO CART | |
| 4 | 5000151213 | Screw plug | 1 | M10 X 1 | DIN908 | ADD TO CART |
| 5 | 5000071121 | Sealing ring | 1 | A10 x 13,5 | ADD TO CART |
| 6 | 5100062314 | Bar | 2 | ADD TO CART | |
| 7 | 5100062315 | Console / bracket | 1 | ADD TO CART | |
| 8 | 5000151231 | Cheese head screw | 4 | M6 x 16 | ISO4762 | ADD TO CART |
| 9 | 5000207614 | Cheese head screw | 1 | M8 x 45 | ADD TO CART |
| 10 | 5200022048 | Spring washer | 1 | PARTS REQUEST | |
|
COMING Spring washer
5200022048 · qty on machine: 1 | |||||
| 11 | 5000099793 | Holder | 1 | ADD TO CART | |
| 12 | 5000207815 | Stud | 2 | M8 x 60 | ADD TO CART |
| 13 | 5000129516 | Nut | 2 | ADD TO CART | |
| 14 | 5000151553 | Washer | 2 | B8,4 | ISO7089 | ADD TO CART |
| 15 | 5000097840 | Set-gaskets | 1 | ADD TO CART | |
| 16 | 5000097833 | Intermediate flange | 1 | ADD TO CART | |
| 17 | 5000095089 | Flange | 1 | ADD TO CART | |
| 18 | 5000095088 | Seal | 1 | ADD TO CART | |
| 19 | 5000095091 | Air cleaner element | 1 | ADD TO CART | |
| 20 | 5100002774 | Filter cover cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |

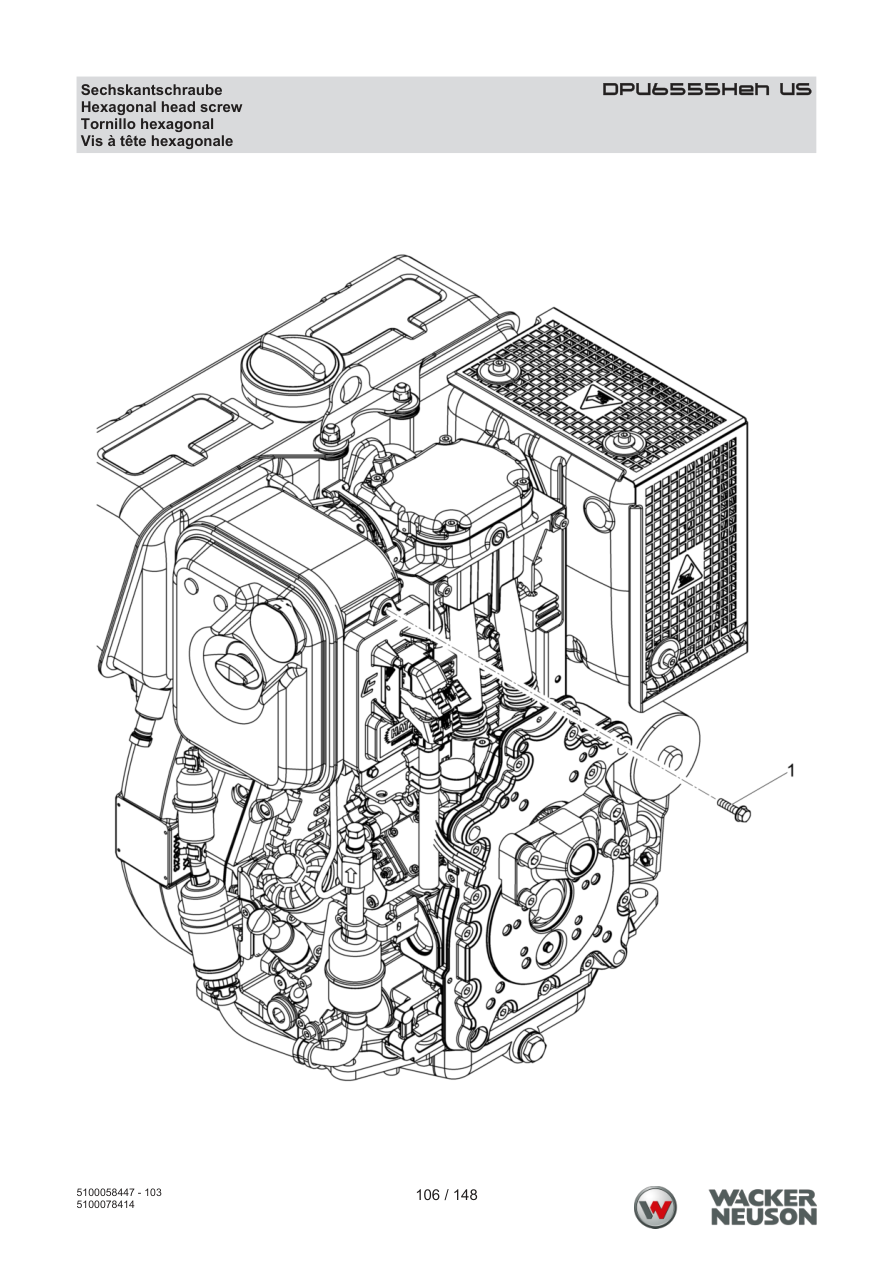

Page 106 — DPU6555Hech US Hex bolt
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100062249 | Hexagonal head cap screw m6x25 | 3 | ADD TO CART | |

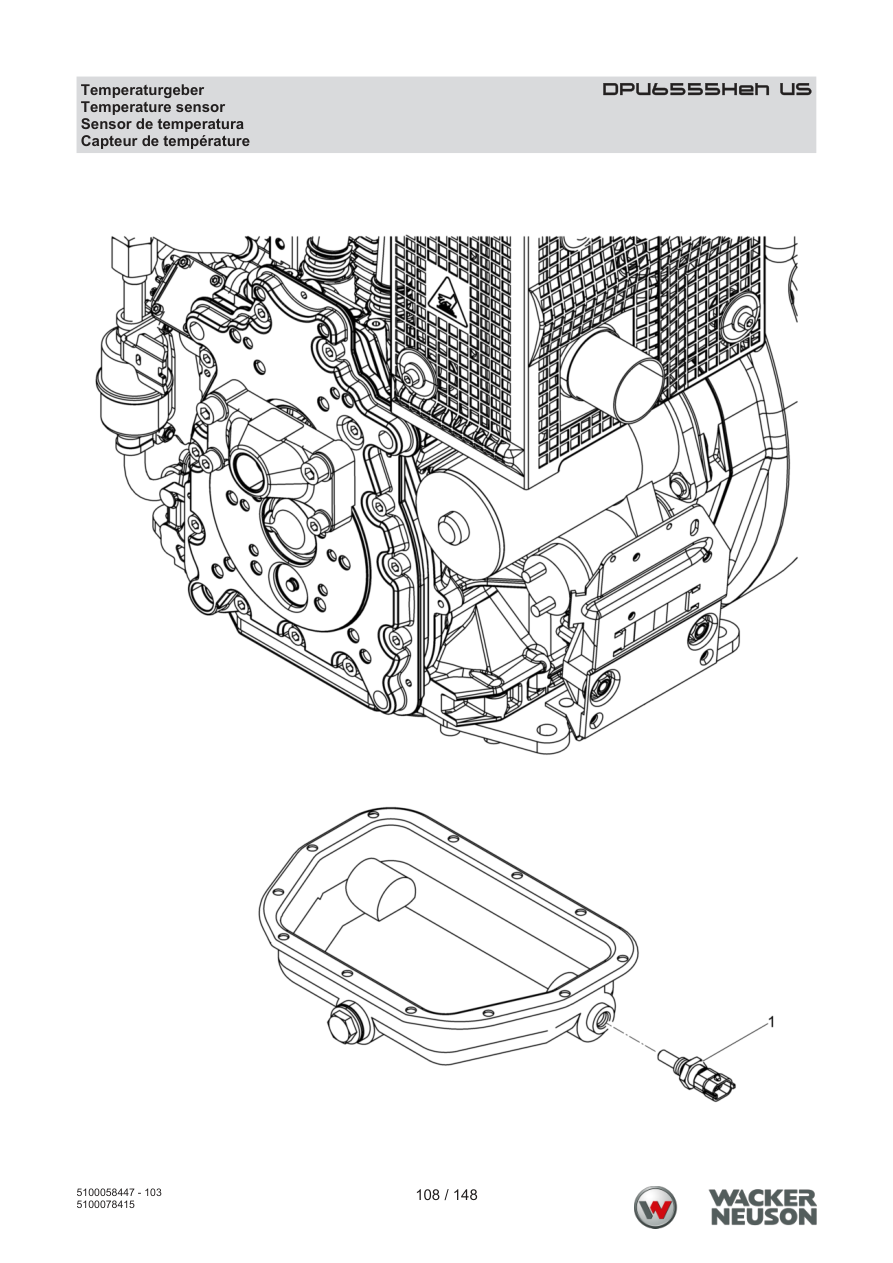

Page 108 — DPU6555Hech US Temperature sender
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100062316 | Temperature sensor | 1 | ADD TO CART | |

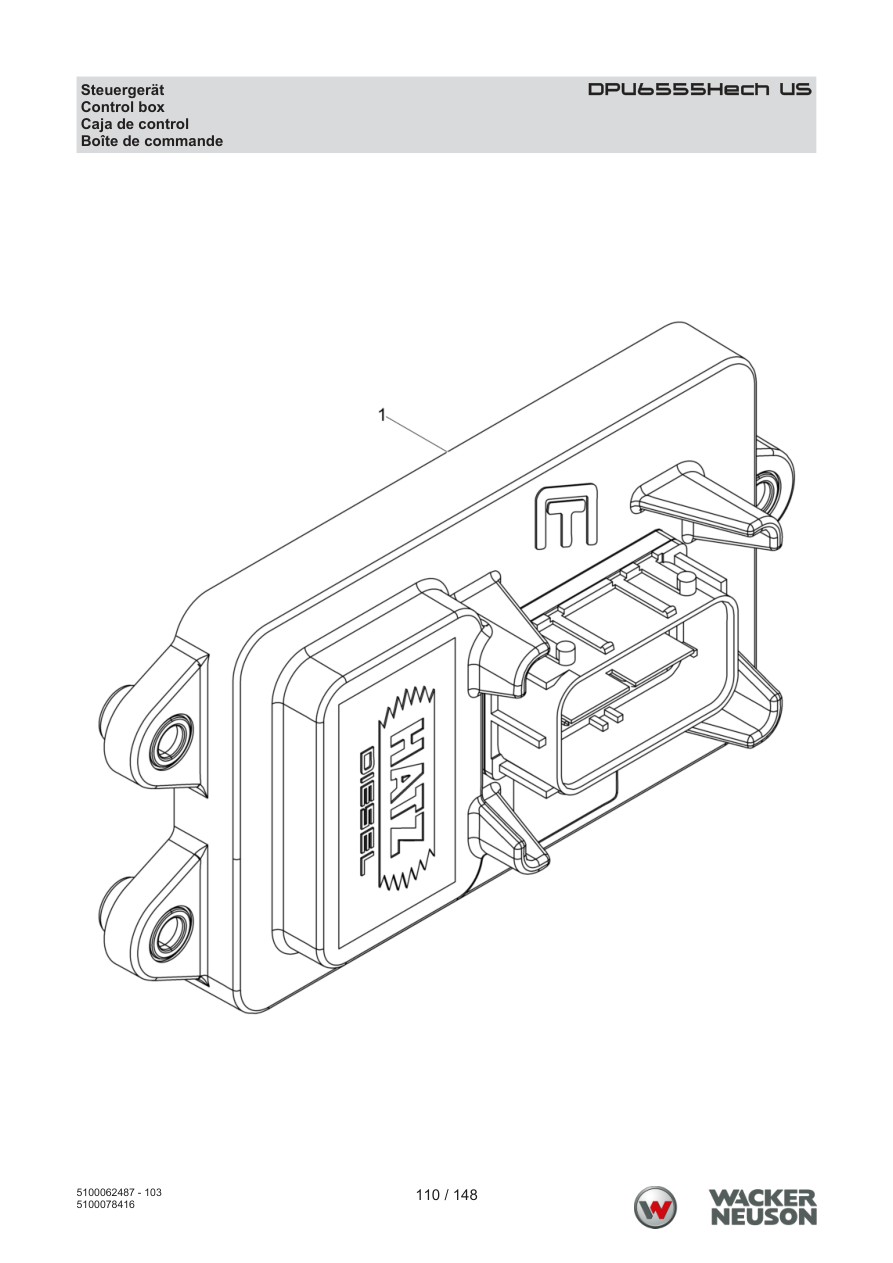

Page 110 — Control box
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100062317 | Control box | 1 | PARTS REQUEST | |
|
COMING Control box
5100062317 · qty on machine: 1 | |||||

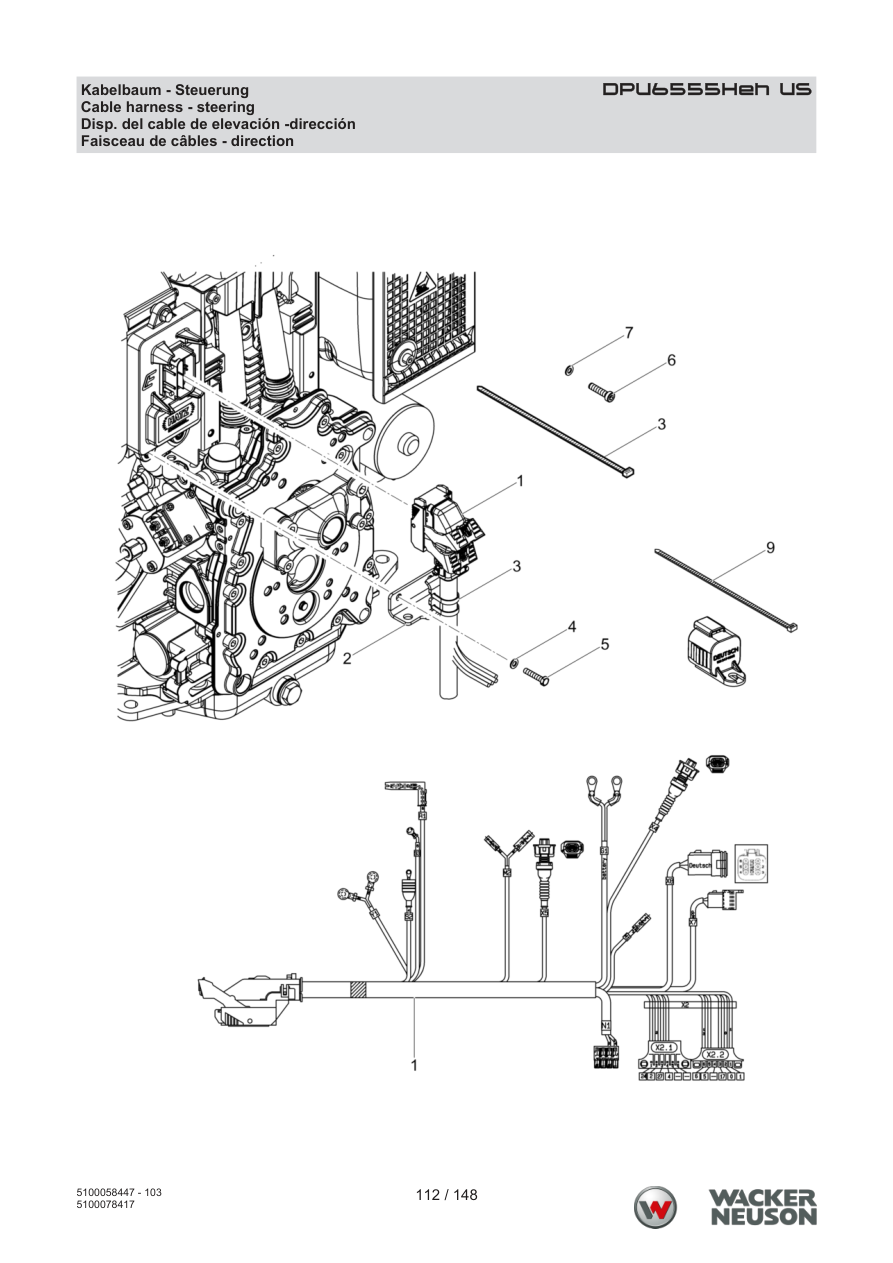

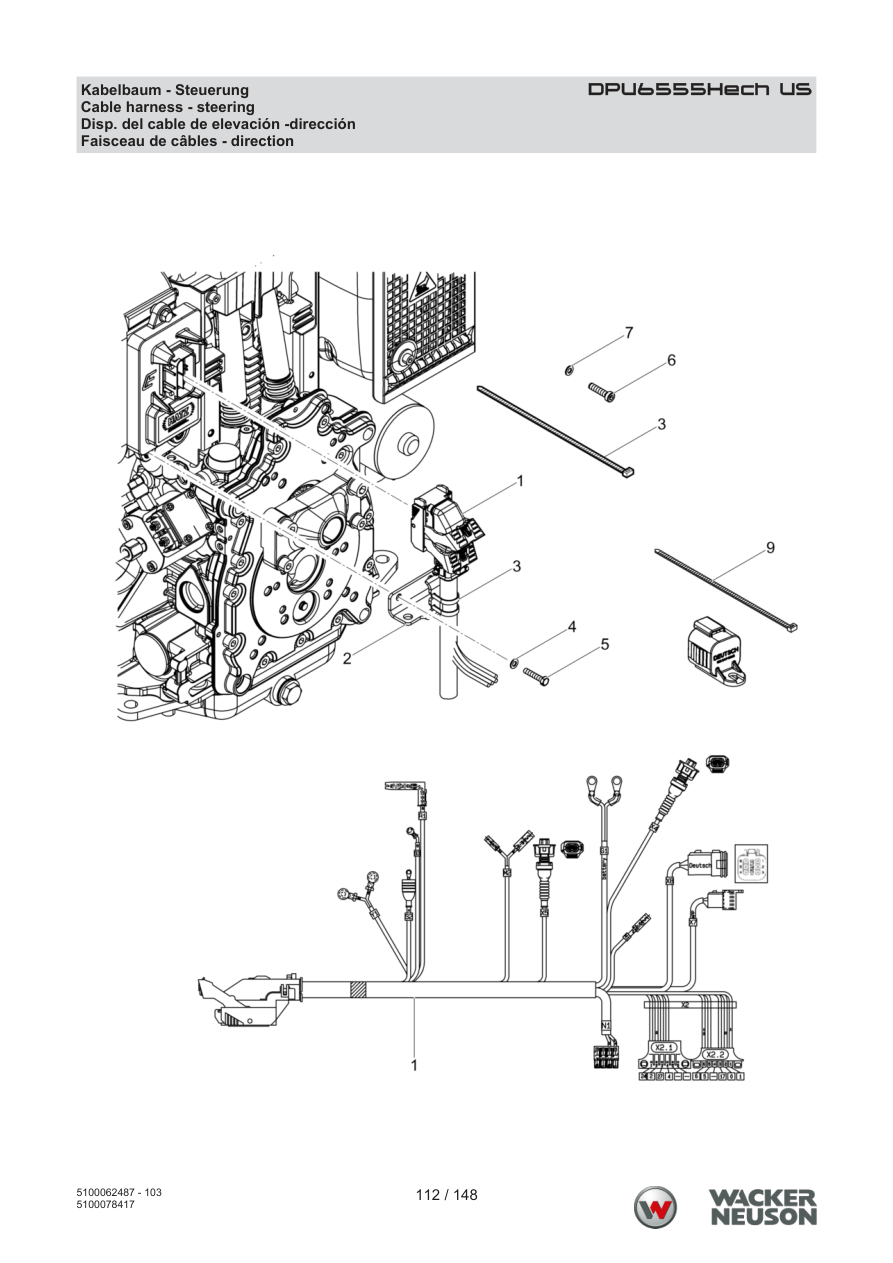

Page 112 — Cable harness - steering
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100078493 | Wire harness | 1 | ADD TO CART | |
| 2 | 5100062319 | Bracket | 1 | ADD TO CART | |
| 3 | 5000109710 | Tie cable | 5 | PARTS REQUEST | |
|
COMING Tie cable
5000109710 · qty on machine: 5 | |||||
| 4 | 5000129517 | Washer | 2 | A5,3 | ISO7089 | ADD TO CART |
| 5 | 5000203135 | Screw | 2 | M5 x 25 | ADD TO CART |
| 6 | 5000203133 | Hexagon socket head screw | 4 | M6 x 25 | ADD TO CART |
| 7 | 5000151324 | Washer | 2 | ADD TO CART | |
| 9 | 5100068944 | Tie cable | 1 | ADD TO CART | |

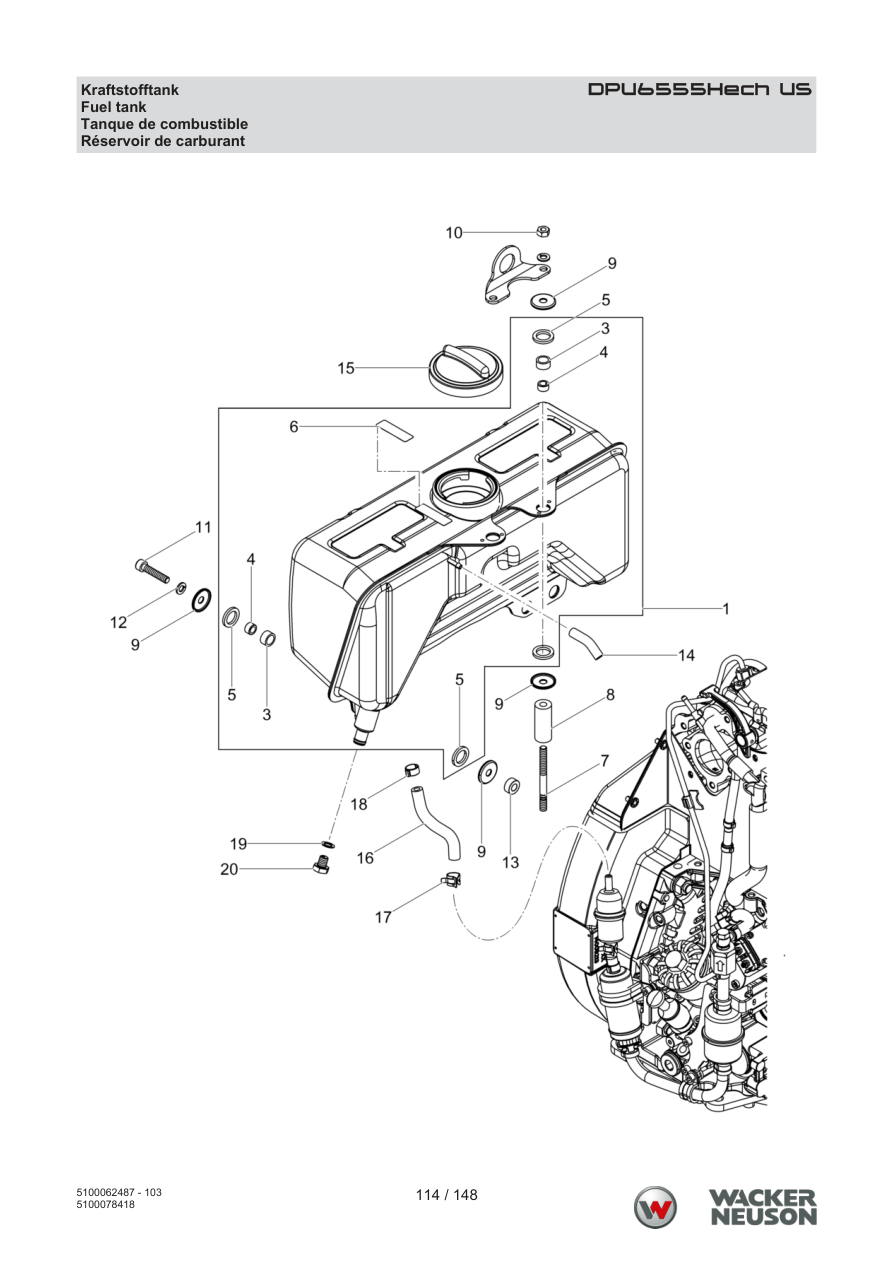

Page 114 — DPU6555Hech US Fuel tank
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100062320 | Fuel tank | 1 | ADD TO CART | |
| 3 | 5000095357 | Sleeve | 6 | ADD TO CART | |
| 4 | 5000095356 | Bushing | 6 | ADD TO CART | |
| 5 | 5000095355 | Washer | 12 | ADD TO CART | |
| 6 | 5100078013 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100078013 · qty on machine: 1 | |||||
| 7 | 5000031063 | Stud bolt | 2 | M8 x 75 | DIN835 | ADD TO CART |
| 8 | 5000095082 | Bushing | 2 | ADD TO CART | |
| 9 | 5100062321 | Washer | 12 | ADD TO CART | |
| 10 | 5000151379 | Locknut | 2 | M8 | ISO4032 | ADD TO CART |
| 11 | 5000207613 | Cheese head screw | 4 | M8 x 40 | ADD TO CART |
| 12 | 5000151218 | Lock washer | 4 | ADD TO CART | |
| 13 | 5000099786 | Bushing | 4 | ADD TO CART | |
| 14 | 5000207574 | Fuel pipe | 1 | 5 x 50in | ADD TO CART |
| 15 | 5000099523 | Cap | 1 | ADD TO CART | |
| 16 | 5100062323 | Fuel pipes | 1 | ADD TO CART | |
| 17 | 5100062267 | Clamp | 1 | ADD TO CART | |
| 18 | 5000203655 | Clamp | 1 | ADD TO CART | |
| 19 | 5000104763 | Washer | 1 | PARTS REQUEST | |
|
COMING Washer
5000104763 · qty on machine: 1 | |||||
| 20 | 5000202413 | Screw locking | 1 | ADD TO CART | |

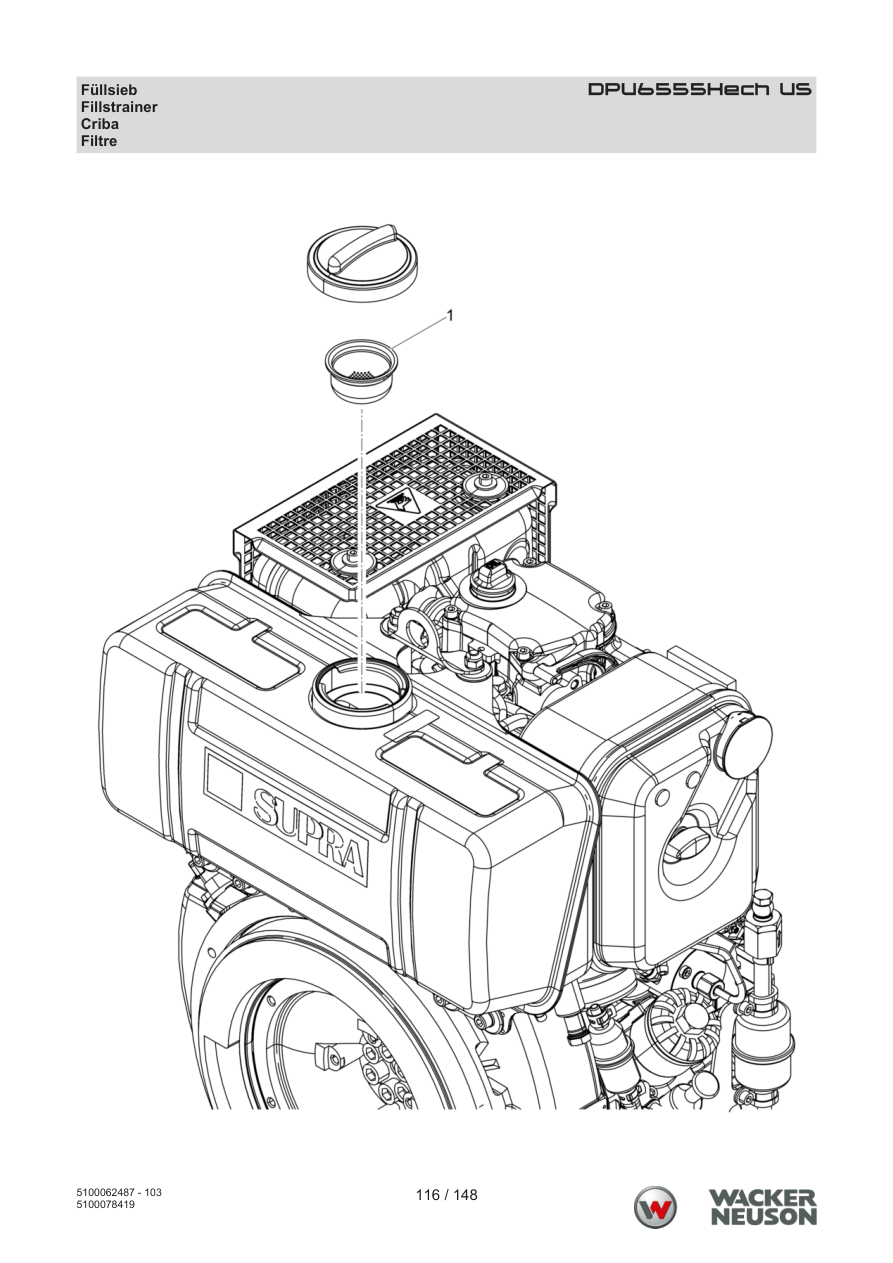

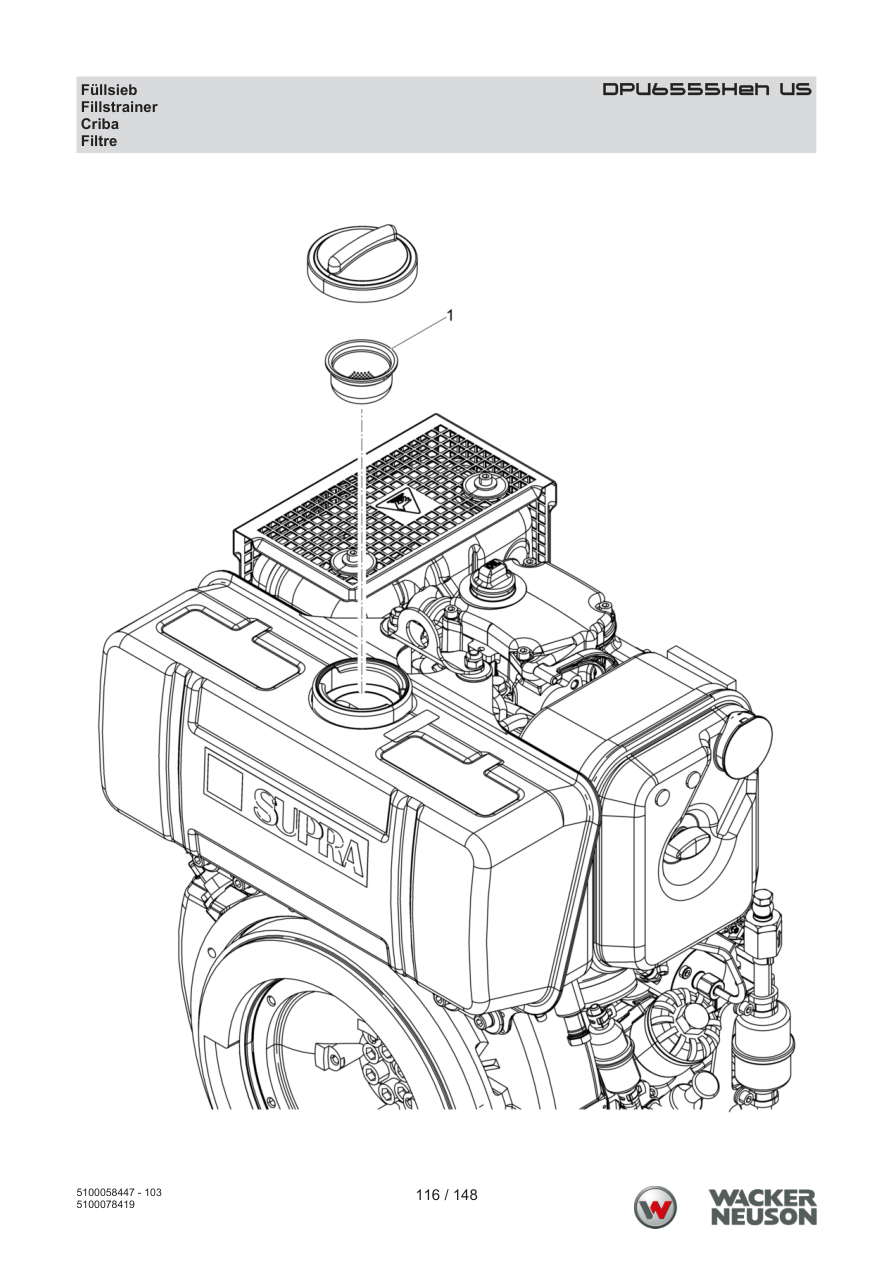

Page 116 — Fillstrainer
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000095358 | Fuel strainer | 1 | ADD TO CART | |

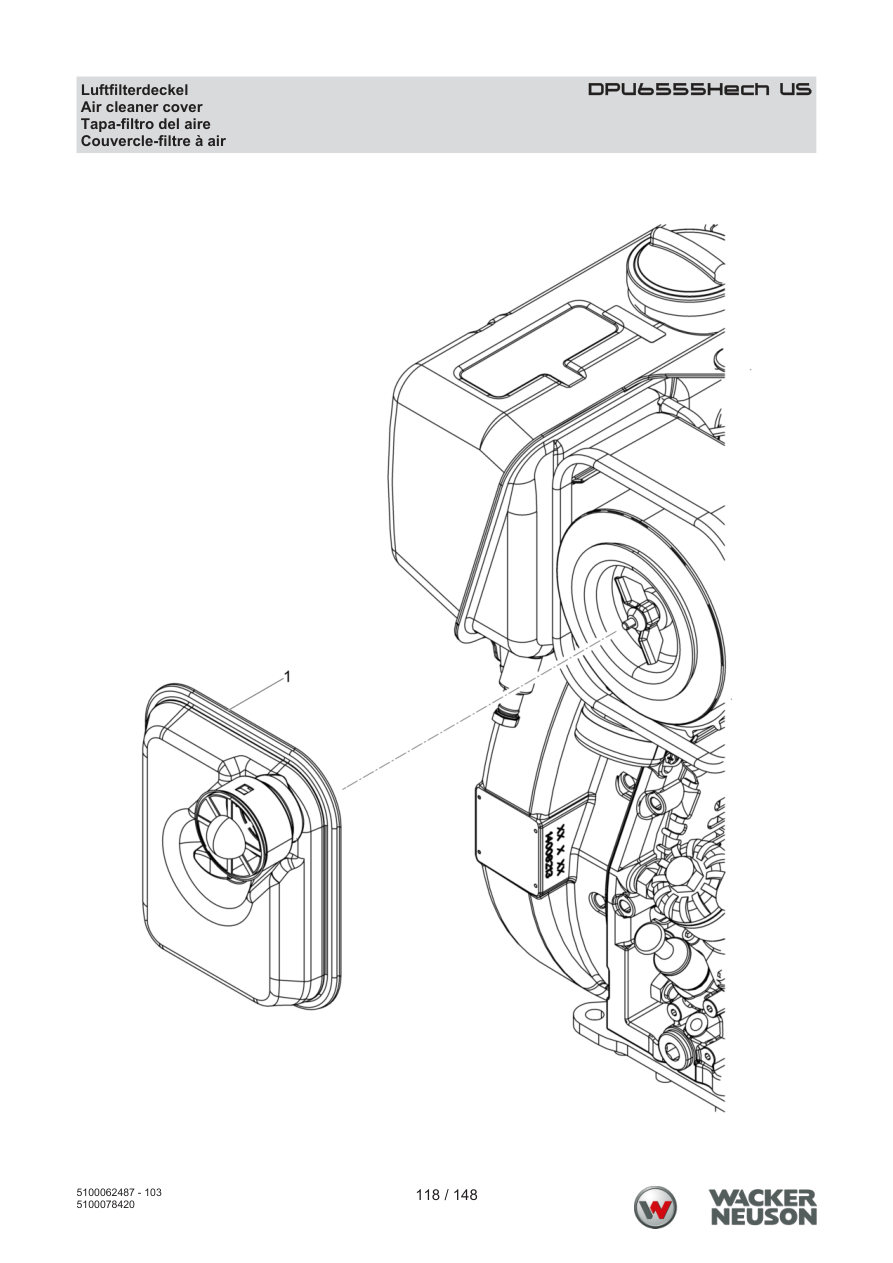

Page 118 — DPU6555Hech US Air filter cover
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100062325 | Air cleaner cover | 1 | ADD TO CART | |

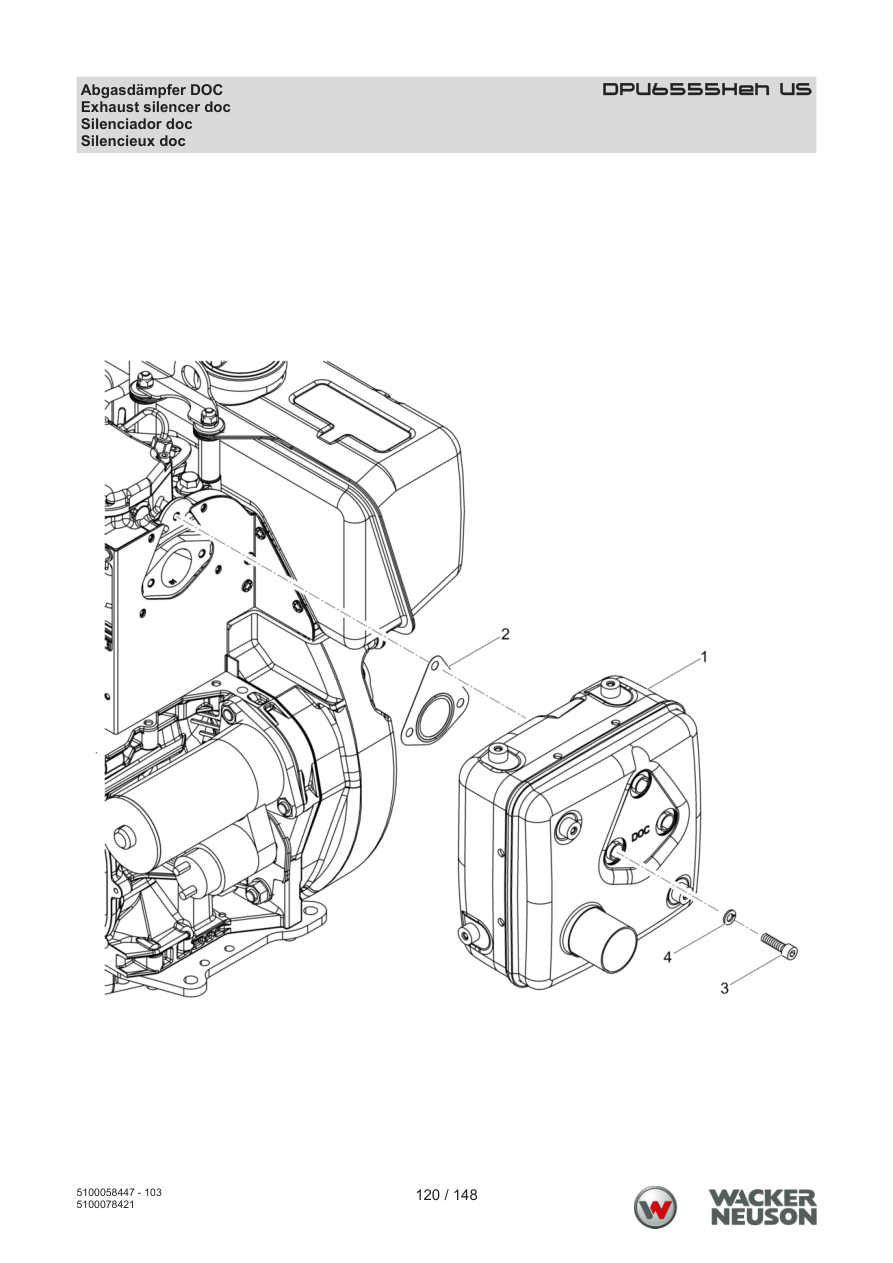

Page 120 — Exhaust silencer doc
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100062326 | Muffler | 1 | PARTS REQUEST | |
|
COMING Muffler
5100062326 · qty on machine: 1 | |||||
| 2 | 5100001033 | Gasket | 1 | ADD TO CART | |
| 3 | 5000151578 | Cheese head screw | 3 | M8 x 30 | ISO4762 | ADD TO CART |
| 4 | 5000151218 | Lock washer | 3 | ADD TO CART | |

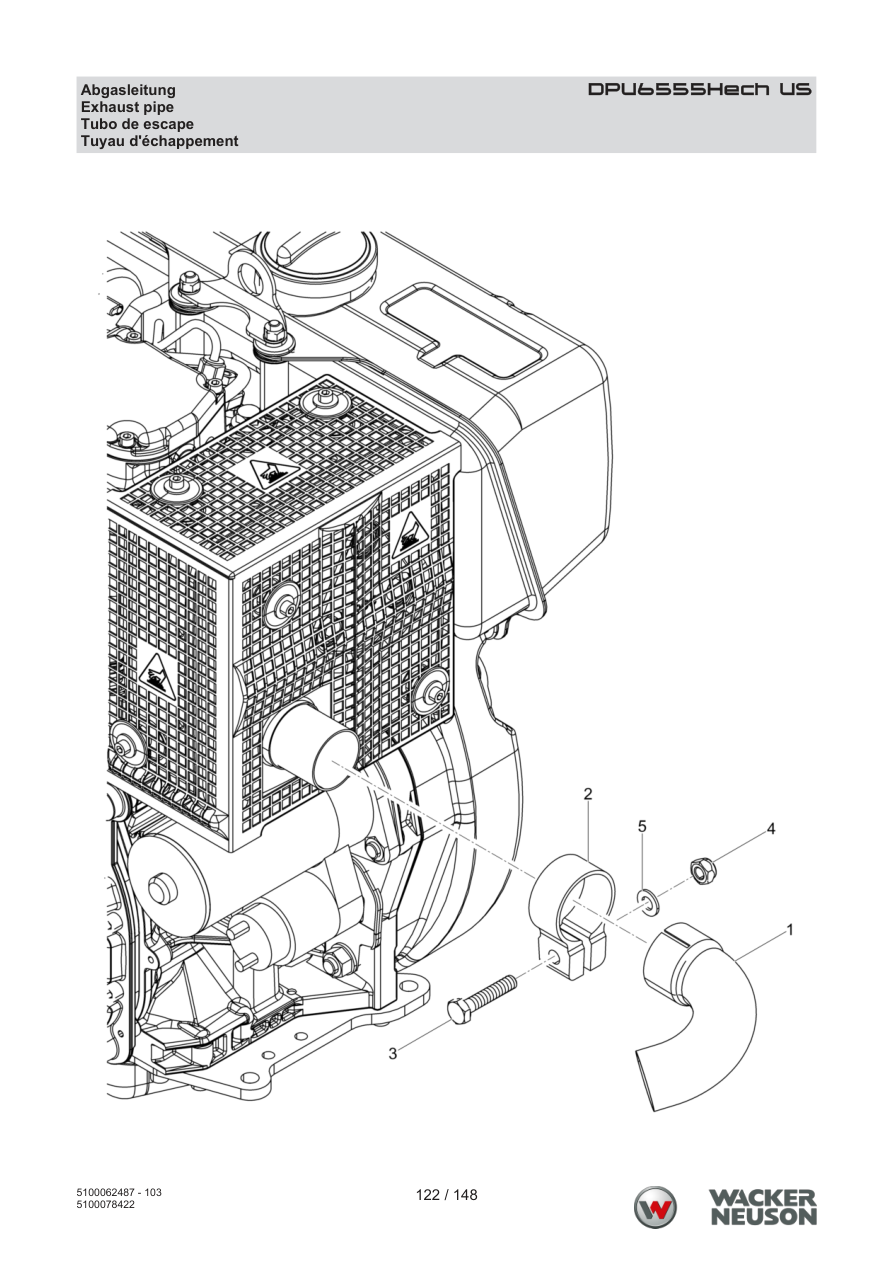

Page 122 — DPU6555Hech US Exhaust pipe
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000126956 | Exhaust pipe | 1 | ADD TO CART | |
| 2 | 5000095100 | Clamp | 2 | ADD TO CART | |
| 3 | 5000207591 | Hexagonal head cap screw | 3 | M10 x 50 | ADD TO CART |
| 4 | 5000207589 | Locknut | 4 | ADD TO CART | |
| 5 | 5000202434 | Washer | 5 | ADD TO CART | |

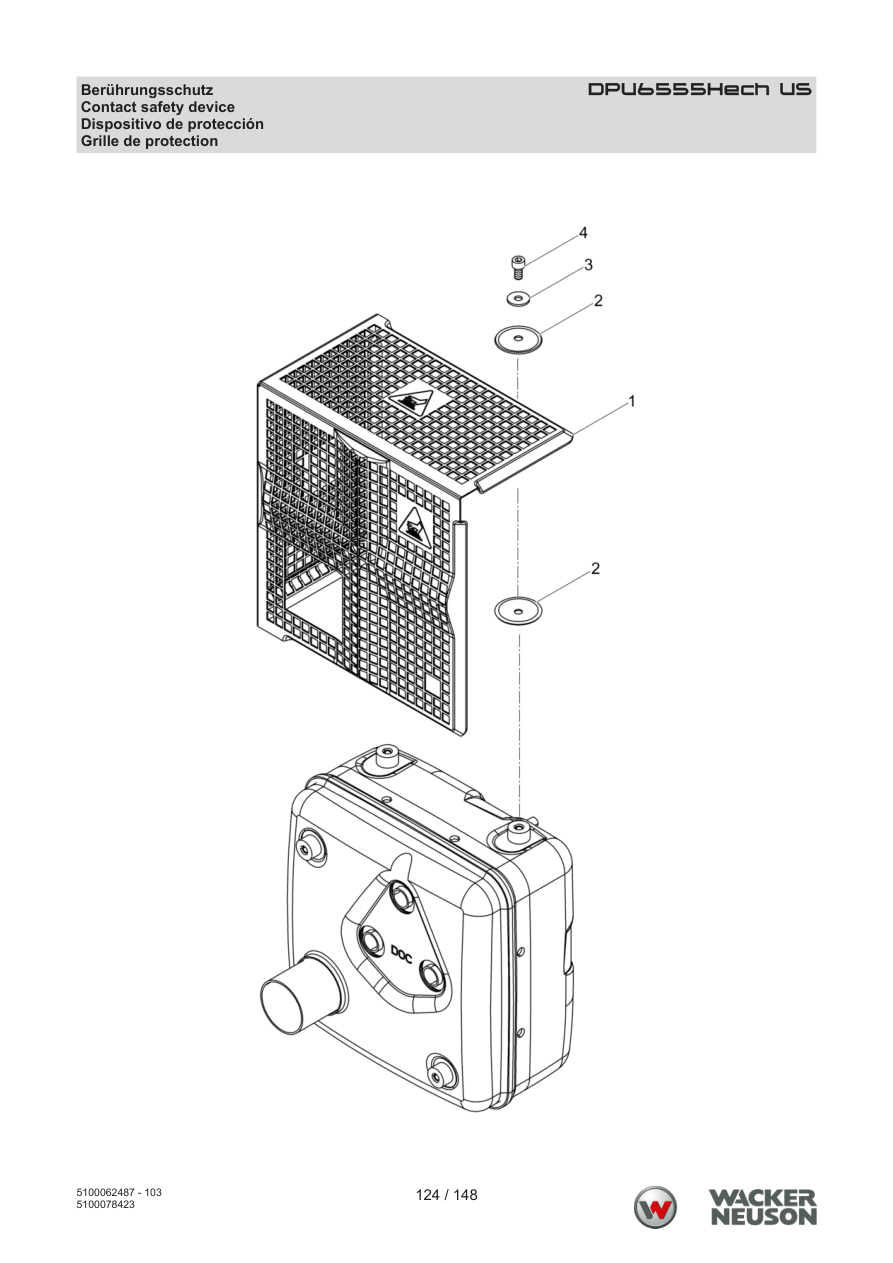

Page 124 — Contact safety device
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000095098 | Guard | 1 | ADD TO CART | |
| 2 | 5000099525 | Washer | 10 | PARTS REQUEST | |
|
COMING Washer
5000099525 · qty on machine: 10 | |||||
| 3 | 5000151540 | Washer | 5 | A6,4 | DIN9021 | ADD TO CART |
| 4 | 5000202443 | Cheese head screw | 5 | M6 x 20 | ADD TO CART |

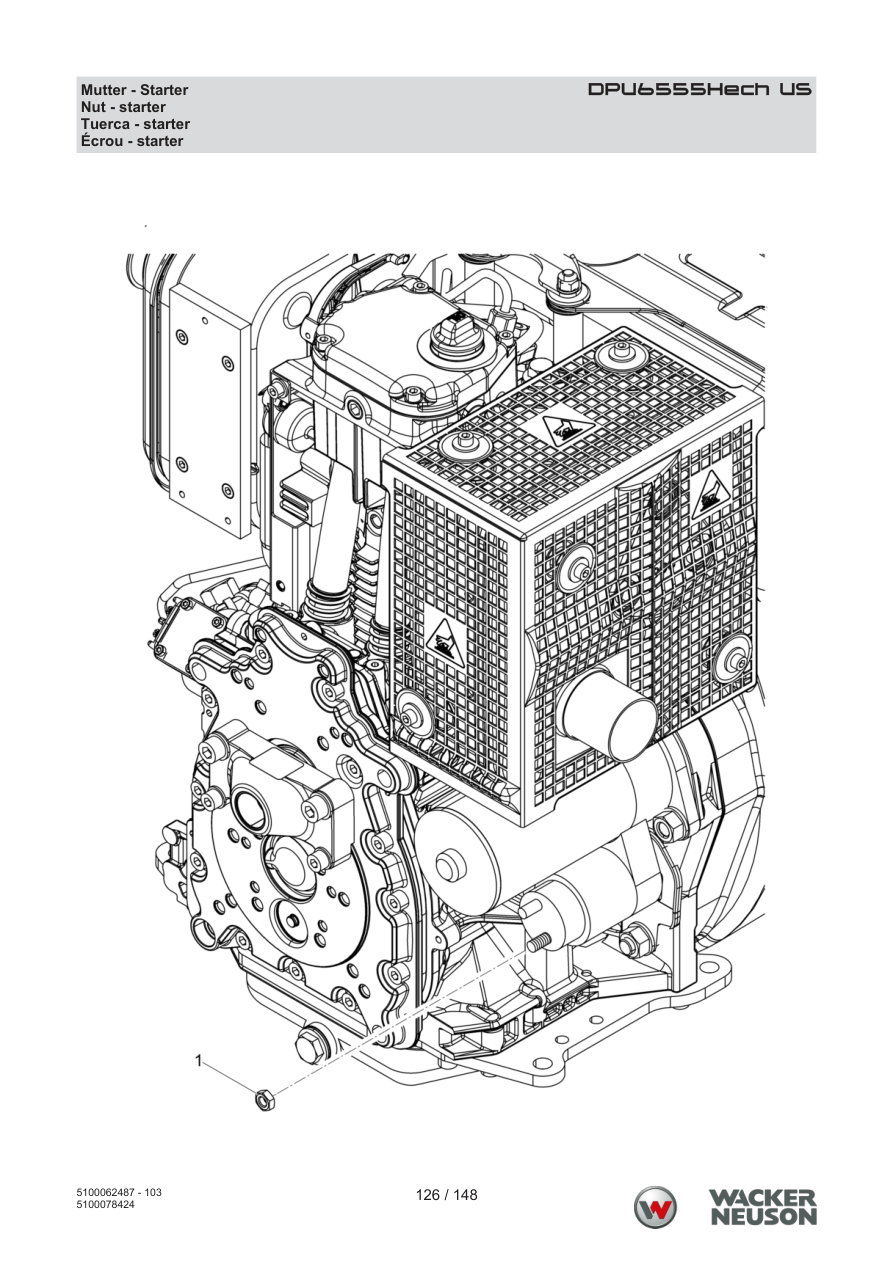

Page 126 — Nut - starter
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000108848 | Nut | 1 | ADD TO CART | |

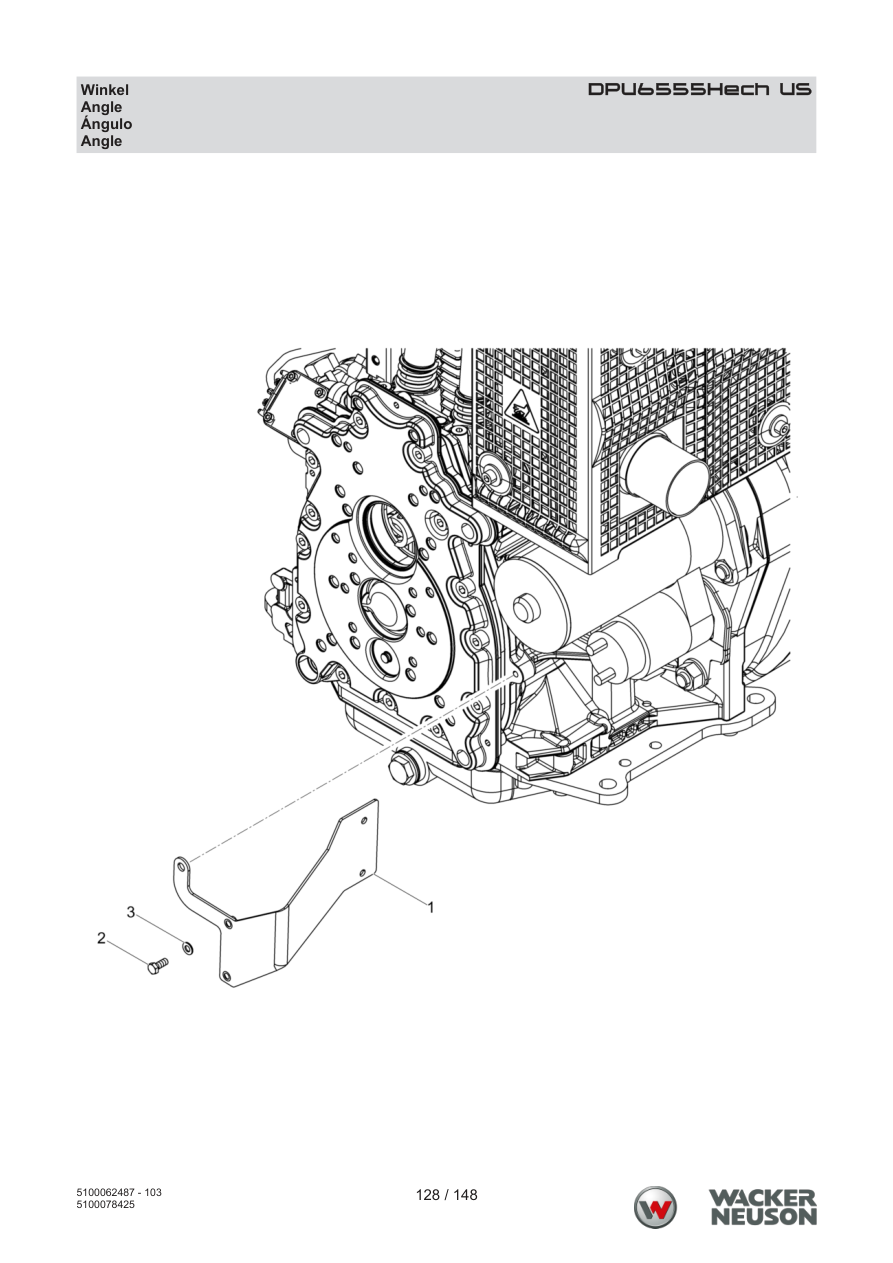

Page 128 — DPU6555Hech US Angle bracket
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000097595 | Angle | 1 | ADD TO CART | |
| 2 | 5000207590 | Hexagonal head cap screw | 2 | M5 x 25 | ADD TO CART |
| 3 | 5000129517 | Washer | 2 | A5,3 | ISO7089 | ADD TO CART |

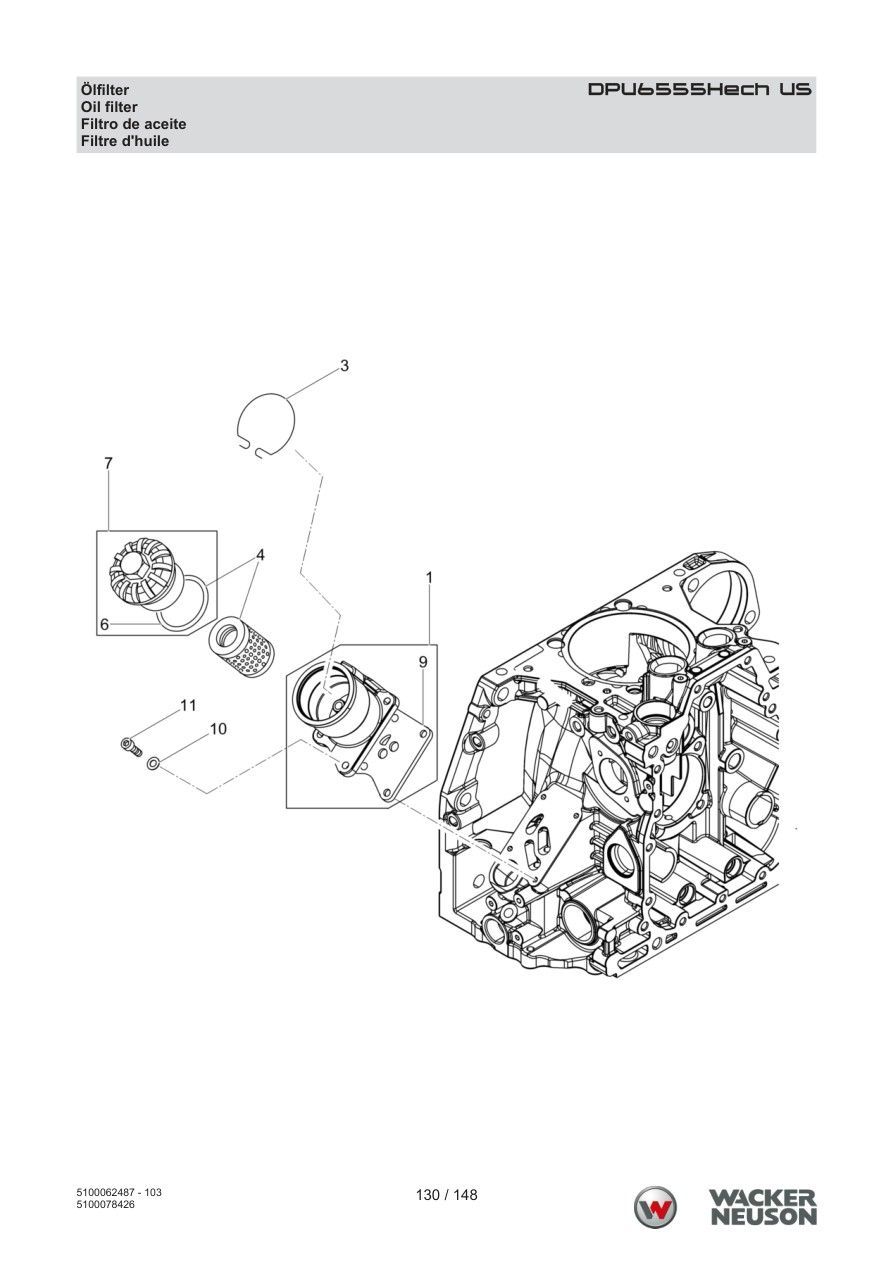

Page 130 — Oil filter
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100065039 | Flange | 1 | ADD TO CART | |
| 3 | 5000104402 | Spring | 1 | ADD TO CART | |
| 4 | 5100051956 | Oil filter | 1 | PARTS REQUEST | |
|
COMING Oil filter
5100051956 · qty on machine: 1 | |||||
| 6 | 5000094928 | Gasket | 1 | ADD TO CART | |
| 7 | 5000094931 | Cover | 1 | ADD TO CART | |
| 9 | 5000106559 | Seal | 1 | ADD TO CART | |
| 10 | 5000151290 | Spring washer | 5 | A6 | DIN137 | ADD TO CART |
| 11 | 5000202437 | Cheese head screw | 5 | M6 x 20 | ADD TO CART |

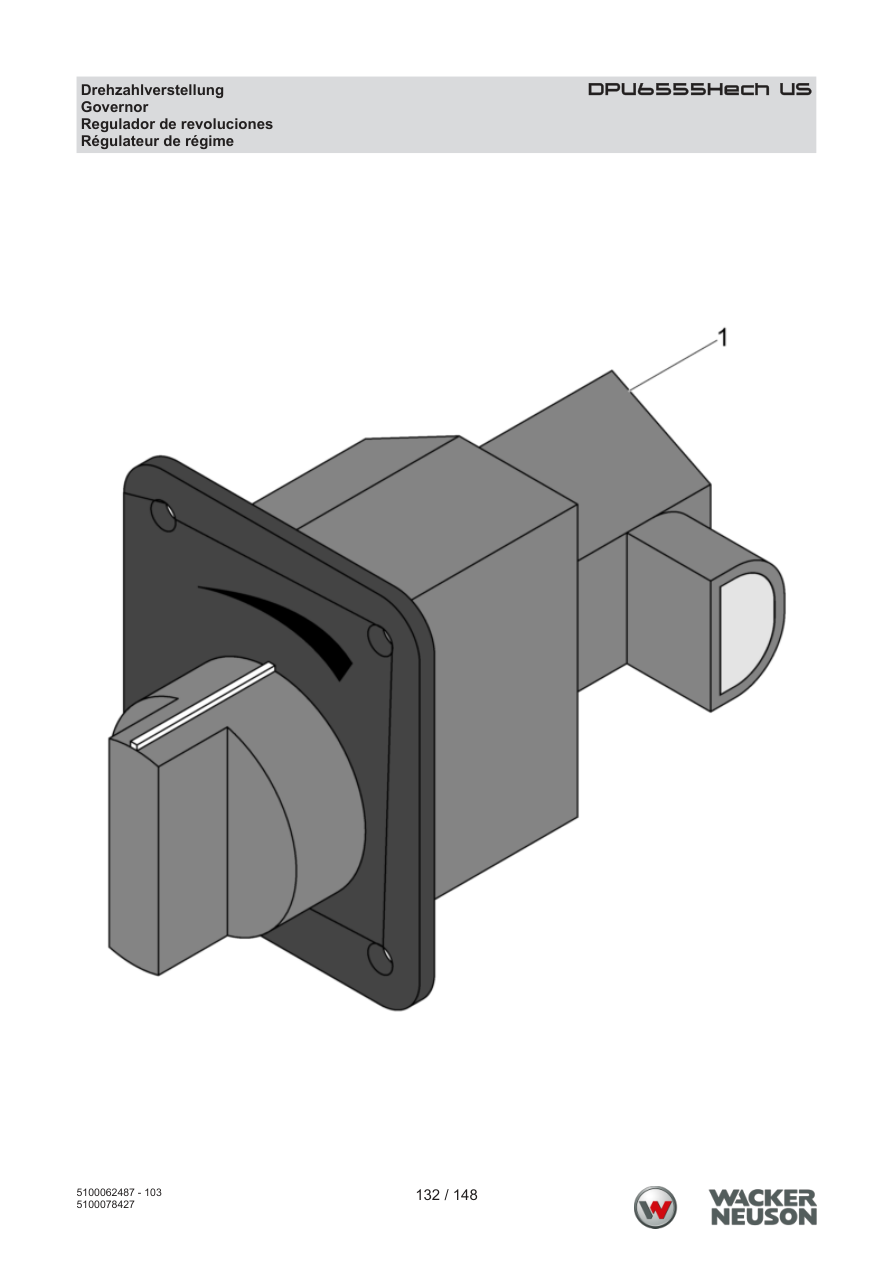

Page 132 — DPU6555Hech US Speed adjustment
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100078257 | Gas lever | 1 | ADD TO CART | |
Page 136 — Extension plate kit
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000126290 | Extension plate kit | 1 | PARTS REQUEST | |
|
COMING Extension plate kit
5000126290 · qty on machine: 1 | |||||
| 2 | 5000125662 | Extension plate 3 cm | 2 | PARTS REQUEST | |
|
COMING Extension plate 3 cm
5000125662 · qty on machine: 2 | |||||
| 1 | 5000045201 | Extension plate kit | 1 | PARTS REQUEST | |
|
COMING Extension plate kit
5000045201 · qty on machine: 1 | |||||
| 2 | 5000044442 | Extension plate 8 cm | 2 | PARTS REQUEST | |
|
COMING Extension plate 8 cm
5000044442 · qty on machine: 2 | |||||
| 1 | 5000043246 | Extension plate kit | 1 | PARTS REQUEST | |
|
COMING Extension plate kit
5000043246 · qty on machine: 1 | |||||
| 2 | 5000043245 | Extension plate 15 cm | 1 | PARTS REQUEST | |
|
COMING Extension plate 15 cm
5000043245 · qty on machine: 1 | |||||

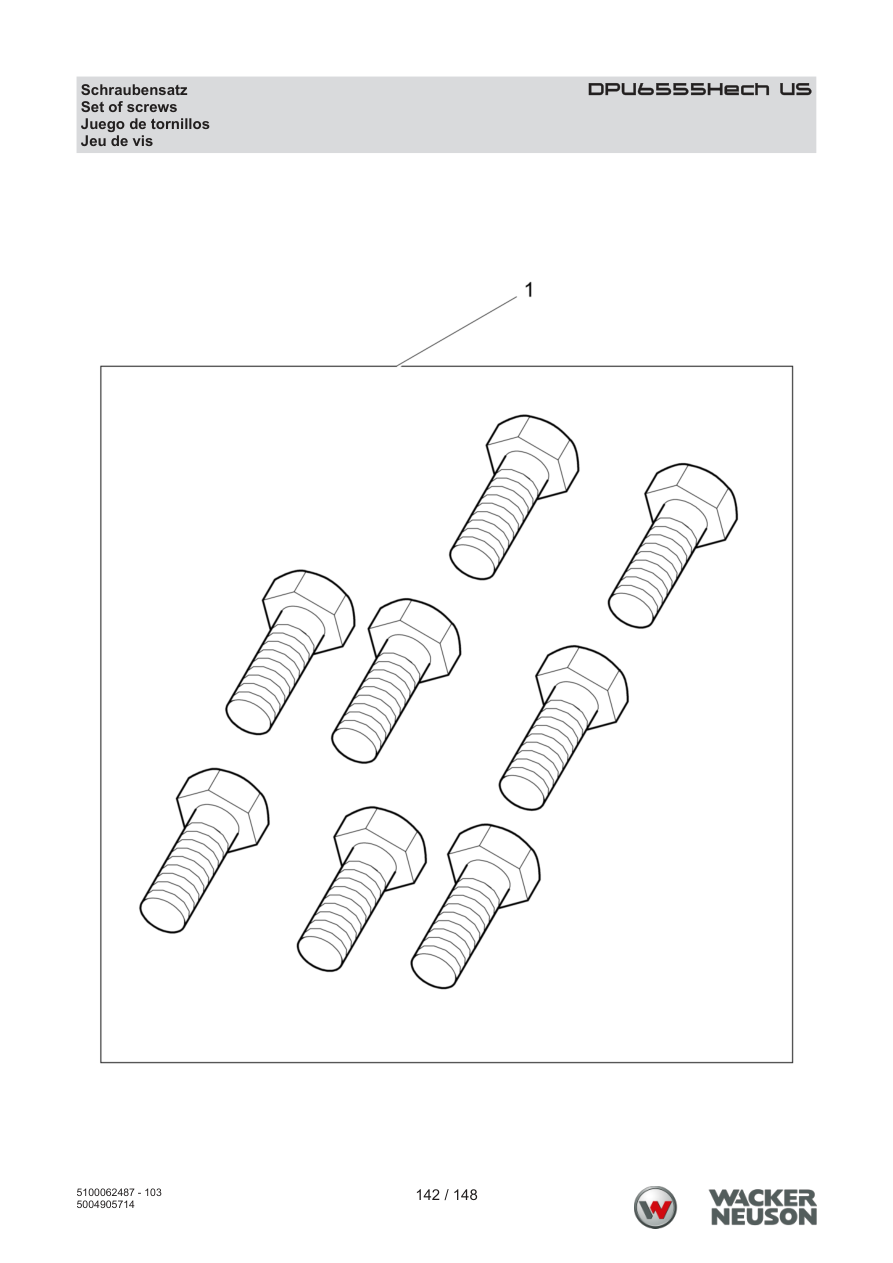

Page 142 — DPU6555Hech US Bolt kit
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000067519 | Set of screws | 1 | PARTS REQUEST | |
|
COMING Set of screws
5000067519 · qty on machine: 1 | |||||

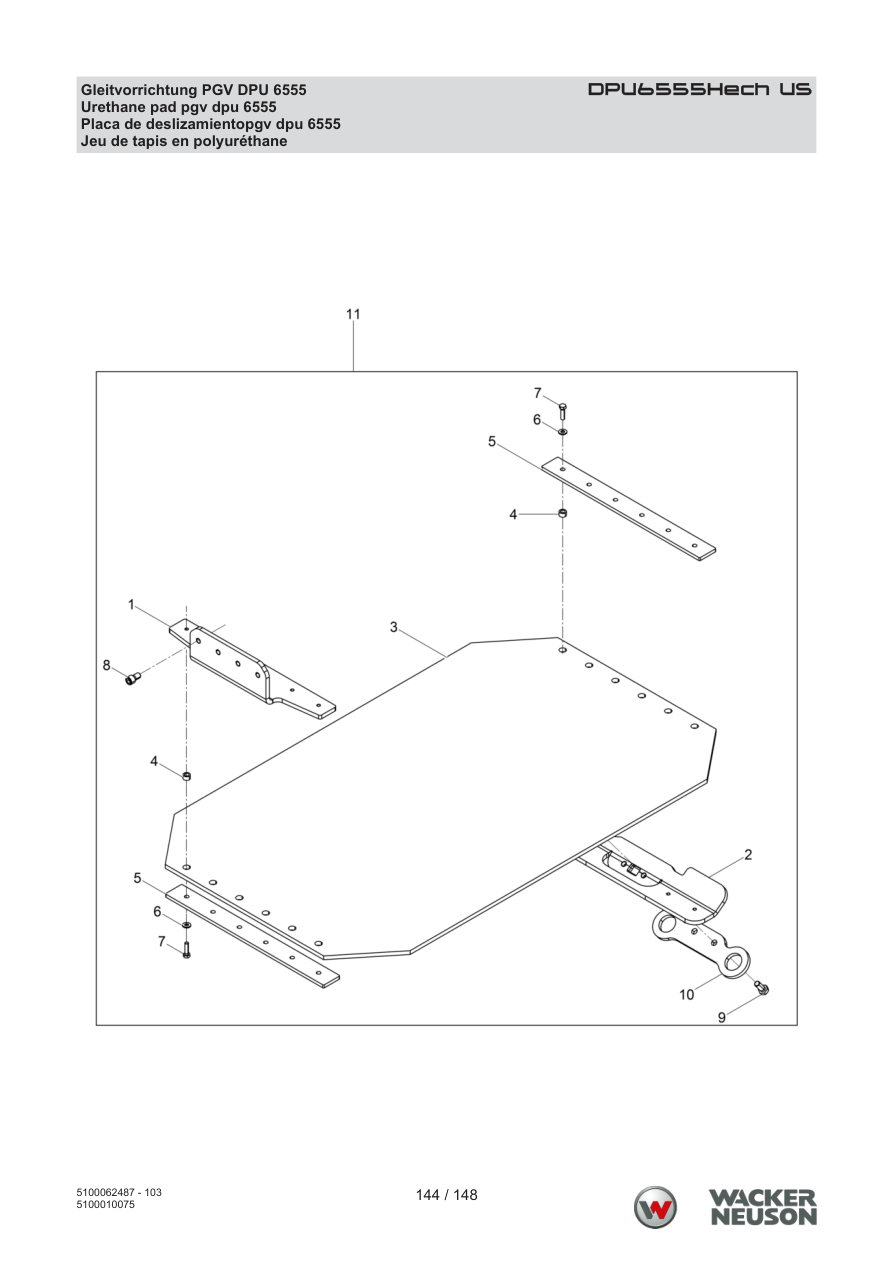

Page 144 — DPU6555Hech US Sliding device PGV DPU 6555
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000205208 | Front angle | 1 | PARTS REQUEST | |
|
COMING Front angle
5000205208 · qty on machine: 1 | |||||
| 2 | 5100010936 | Angle rear | 1 | ADD TO CART | |
| 3 | 5000205209 | Urethane plate | 1 | PARTS REQUEST | |
|
COMING Urethane plate
5000205209 · qty on machine: 1 | |||||
| 4 | 5000047577 | Bushing | 10 | PARTS REQUEST | |
|
COMING Bushing
5000047577 · qty on machine: 10 | |||||
| 5 | 5000058358 | Bar | 2 | ADD TO CART | |
| 6 | 5000033198 | Lockwasher | 10 | ADD TO CART | |
| 7 | 5000011456 | Hexagonal head cap screw | 10 | ADD TO CART | |
| 8 | 5000011531 | Cheese head screw | 4 | M12 x 20 86Nm/63ft.lbs | ISO4762 | ADD TO CART |
| 9 | 5000011423 | Hexagonal head cap screw | 2 | M12 x 30 210Nm/155ft.lbs | DIN933 | ADD TO CART |
| 10 | 5100010935 | Plate | 1 | ADD TO CART | |
| 11 | 5100009998 | Urethane pad kit pgv dpu 6555 | 1 | PARTS REQUEST | |
|
COMING Urethane pad kit pgv dpu 6555
5100009998 · qty on machine: 1 | |||||
Page 12 — DPU6555Heh US Vibration plate
Parts list — exactly as printed37 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 7 | 5100010938 | Support cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 8 | 5000011523 | Hexagonal head cap screw | 4 | M16 x 30 210Nm/155ft.lbs | ISO4017 | ADD TO CART |
| 13 | 5100009632 | Axle | 1 | PARTS REQUEST | |
|
COMING Axle
5100009632 · qty on machine: 1 | |||||
| 14 | 5000010376 | Flat washer | 1 | ADD TO CART | |
| 15 | 5000014316 | Hexagonal head cap screw | 1 | M12 x 16 86Nm/63ft.lbs | DIN933 | ADD TO CART |
| 16 | 5100057759 | Cover plate cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 18 | 5000011553 | Cheese head screw | 6 | ADD TO CART | |
| 19 | 5100057762 | Housing | 1 | ADD TO CART | |
| 20 | 5100066501 | Blind rivet | 4 | ADD TO CART | |
| 22 | 5100011341 | Tie cable | 3 | 25Nm/18ft.lbs | ADD TO CART |
| 55 | 5000204408 | Screw | 4 | DE M 6x 16 | DIN7500 | ADD TO CART |
| 65 | 5100003725 | Support | 1 | ADD TO CART | |
| 66 | 5100051256 | Bush | 2 | ADD TO CART | |
| 67 | 5100005558 | Shockmount | 1 | 50 x 18 M10 x 20 | ADD TO CART |
| 68 | 5000010883 | Hexagon nut | 1 | ADD TO CART | |
| 69 | 5000010624 | Flat washer | 2 | ADD TO CART | |
| 70 | 5100010504 | Gasket | 1 | ADD TO CART | |
| 71 | 5100010505 | Plate | 1 | ADD TO CART | |
| 72 | 5000204408 | Screw | 2 | DE M 6x 16 | DIN7500 | ADD TO CART |
| 73 | 5100010503 | Profiled joint | 1 | ADD TO CART | |
| 3 | 5000011528 | Cheese head screw | 8 | M12 x 35 86Nm/63ft.lbs | ISO4762 | ADD TO CART |
| 4 | 5000021465 | Lock washer | 8 | ADD TO CART | |
| 21 | 5000095074 | Connector | 1 | ADD TO CART | |
| 24 | 5000012624 | Gasket | 2 | A14 x 18 | DIN7603 | ADD TO CART |
| 25 | 5000043201 | Banjo bolt | 1 | 10-3 | DIN7643 | ADD TO CART |
| 27 | 5000094072 | V-belt | 1 | 17 x 1080 | ADD TO CART |
| 28 | 5100009633 | Apron | 1 | ADD TO CART | |
| 29 | 5000097110 | Bar | 2 | ADD TO CART | |
| 30 | 5100009635 | Bar | 1 | ADD TO CART | |
| 31 | 5000103962 | Cheese head screw | 6 | M8 x 18 25Nm/18ft.lbs | DINENISO4762 | ADD TO CART |
| 32 | 5000011550 | Cheese head screw | 2 | M6 x 25 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 33 | 5100002778 | Belt guard | 1 | ADD TO CART | |
| 34 | 5000220202 | Screw | 3 | ADD TO CART | |
| 35 | 5000220365 | Protective hood | 1 | ADD TO CART | |
| 36 | 5000220325 | Screw | 3 | M 12x 35 | ADD TO CART |
| 37 | 5100057763 | Guard plate | 1 | ADD TO CART | |
| 38 | 5000129420 | Socket head cap screw | 4 | ADD TO CART | |
Page 16 — DPU6555Heh US Oversize
Parts list — exactly as printed36 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100003737 | Upper mass | 1 | ADD TO CART | |
| 2 | 5100077337 | Diesel engine | 1 | PARTS REQUEST | |
|
COMING Diesel engine
5100077337 · qty on machine: 1 | |||||
| 3 | 5000011528 | Cheese head screw | 4 | M12 x 35 86Nm/63ft.lbs | ISO4762 | ADD TO CART |
| 4 | 5000021465 | Lock washer | 12 | ADD TO CART | |
| 8 | 5000069900 | Flange | 1 | ADD TO CART | |
| 9 | 5000012629 | Cheese head screw | 8 | ADD TO CART | |
| 10 | 5000102208 | Coupling cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Coupling cpl.
5000102208 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 11 | 5000058546 | Disc | 1 | ADD TO CART | |
| 12 | 5000021147 | Retaining ring | 1 | 60 x 2 | DIN472 | ADD TO CART |
| 13 | 5000048273 | Seal | 1 | ADD TO CART | |
| 14 | 5000048374 | Cup spring | 2 | ADD TO CART | |
| 15 | 5000058547 | Button | 1 | ADD TO CART | |
| 16 | 5000011534 | Cheese head screw | 1 | 49Nm/36ft.lbs | ISO4762 | ADD TO CART |
| 17 | 5000048539 | Seal | 1 | PARTS REQUEST | |
|
COMING Seal
5000048539 · qty on machine: 1 | |||||
| 18 | 5000220183 | Gasket | 1 | ADD TO CART | |
| 20 | 5000010742 | Washer | 4 | PARTS REQUEST | |
|
COMING Washer
5000010742 · qty on machine: 4 | |||||
| 21 | 5100021329 | Battery | 1 | ADD TO CART | |
| 22 | 5100011287 | Battery protection cpl. | 2 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 25 | 5000013574 | Cheese head screw | 1 | ADD TO CART | |
| 27 | 5100010091 | Cheese head screw | 1 | ADD TO CART | |
| 28 | 5100009867 | Battery cover cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Battery cover cpl.
5100009867 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 30 | 5000220379 | Protective frame | 1 | ADD TO CART | |
| 31 | 5000099055 | Hook | 1 | ADD TO CART | |
| 32 | 5000011422 | Hexagonal head cap screw | 4 | M12 x 35 86Nm/63ft.lbs | DIN933 | ADD TO CART |
| 33 | 5000010366 | Hexagon nut | 4 | ADD TO CART | |
| 34 | 5000099535 | Plate | 1 | ADD TO CART | |
| 35 | 5000099047 | Bar | 1 | ADD TO CART | |
| 36 | 5000105944 | Screw | 4 | DE M8 x 20 | DIN7500 | ADD TO CART |
| 37 | 5000201094 | Cheese head screw | 4 | M12 x 50 120Nm/89ft.lbs | ISO4762 | ADD TO CART |
| 38 | 5000220334 | Angle | 2 | ADD TO CART | |
| 39 | 5000129420 | Socket head cap screw | 4 | ADD TO CART | |
| 41 | 5100011307 | Positive pol cover | 1 | ADD TO CART | |
| 42 | 5100015202 | Pole terminal positive | 1 | ADD TO CART | |
| 43 | 5100015203 | Pole terminal negative | 1 | ADD TO CART | |
| 44 | 5100061473 | Cable passage | 1 | ADD TO CART | |
| 45 | 5100076070 | Cable harness | 1 | ADD TO CART | |
Page 20 — Battery cover cpl.
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100079561 | Battery cover | 1 | PARTS REQUEST | |
|
COMING Battery cover
5100079561 · qty on machine: 1 | |||||
| 2 | 5100010085 | Housing | 1 | ADD TO CART | |
| 3 | 5100009620 | Helix cable | 1 | ADD TO CART | |
| 4 | 5100009911 | Gasket | 1 | ADD TO CART | |
| 5 | 5100020556 | Insulating cushion | 1 | ADD TO CART | |
| 6 | 5000210194 | Corrugated-head screw | 8 | ADD TO CART | |
| 7 | 5100020618 | Filter mat | 2 | ADD TO CART | |
| 8 | 5100011296 | Ignition starter switch | 1 | ADD TO CART | |
| 9 | 5000129797 | Led | 1 | ADD TO CART | |
| 10 | 5000220234 | Acoustic signal | 1 | ADD TO CART | |
| 11 | 5100011309 | Working hour meter | 1 | ADD TO CART | |
| 12 | 5100021209 | Blind rivet | 2 | PARTS REQUEST | |
|
COMING Blind rivet
5100021209 · qty on machine: 2 | |||||
| 13 | 5100011296 | Ignition starter switch | 1 | ADD TO CART | |
Page 22 — Battery protection cpl.
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011288 | Battery protection | 1 | ADD TO CART | |
| 2 | 5100010149 | Pad | 1 | ADD TO CART | |
| 3 | 5000216678 | Gasket | 1 | ADD TO CART | |
| 4 | 5100011304 | Starting device cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 5 | 5000220173 | Gasket | 1 | ADD TO CART | |
| 6 | 5000220432 | Insert | 1 | PARTS REQUEST | |
|
COMING Insert
5000220432 · qty on machine: 1 | |||||
| 7 | 5000210194 | Corrugated-head screw | 4 | ADD TO CART | |
| 8 | 5100011341 | Tie cable | 9 | ADD TO CART | |
| 9 | 5100009683 | Cable harness | 1 | ADD TO CART | |
| 10 | 5100010865 | Battery boost cable | 1 | ADD TO CART | |
| 11 | 5100015100 | Positive pole strap | 1 | ADD TO CART | |
| 12 | 5100010866 | Negative pole strap | 1 | ADD TO CART | |
| 13 | 5000047388 | Cable tie | 1 | ADD TO CART | |
| 14 | 5100009601 | Bush | 1 | ADD TO CART | |
| 15 | 5100011308 | Compression spring | 1 | ADD TO CART | |
| 16 | 5000013574 | Cheese head screw | 1 | 25Nm/18ft.lbs | ADD TO CART |
| 17 | 5000058696 | Nose cap | 1 | ADD TO CART | |
Page 24 — DPU6555Heh US Undersize
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000102083 | Baseplate | 1 | ADD TO CART | |
| 2 | 5000220084 | Exciter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Exciter cpl.
5000220084 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5000044442 | Extension plate 8 cm | 2 | PARTS REQUEST | |
|
COMING Extension plate 8 cm
5000044442 · qty on machine: 2 | |||||
| 4 | 5002004814 | Shockmount | 4 | ADD TO CART | |
| 5 | 5000102105 | Support | 4 | ADD TO CART | |
| 6 | 5000034442 | Bushing | 3 | ADD TO CART | |
| 7 | 5000017123 | Pipe clamp | 1 | ADD TO CART | |
| 8 | 5000094518 | Cheese head screw | 12 | M12 x 120 120Nm/89ft.lbs | ISO4762 | ADD TO CART |
| 9 | 5000039191 | Hexagonal head cap screw | 8 | M16 x 1,5 x 55 210Nm/155ft.lbs | DIN961 | ADD TO CART |
| 10 | 5000021988 | Lock washer | 8 | ADD TO CART | |
| 11 | 5000011421 | Hexagonal head cap screw | 4 | M12 x 40 86Nm/63ft.lbs | DIN933 | PARTS REQUEST |
|
COMING Hexagonal head cap screw
5000011421 · qty on machine: 4 M12 x 40
86Nm/63ft.lbs | DIN933 | |||||
| 12 | 5000031565 | Lockwasher | 8 | ADD TO CART | |
| 13 | 5000011529 | Cheese head screw | 4 | 86Nm/63ft.lbs | ISO4762 | ADD TO CART |
| 14 | 5100072823 | Screw m 6x 25 | 1 | 10Nm/7ft.lbs | ADD TO CART |
| 16 | 5000068222 | Plug (threaded) | 1 | ADD TO CART | |
| 17 | 5000019156 | Gasket | 1 | ADD TO CART | |
| 19 | 5000219702 | Flange | 1 | ADD TO CART | |
Page 26 — DPU6555Heh US Exciter
Parts list — exactly as printed41 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000099059 | Exciter housing | 1 | ADD TO CART | |
| 2 | 5000220059 | Shaft | 1 | ADD TO CART | |
| 3 | 5000220082 | Eccentric weight | 2 | ADD TO CART | |
| 4 | 5000220110 | Eccentric weight | 1 | ADD TO CART | |
| 5 | 5100077127 | Gear wheel | 1 | ADD TO CART | |
| 6 | 5000039110 | Cover | 1 | ADD TO CART | |
| 7 | 5000102144 | Vent cover | 1 | ADD TO CART | |
| 8 | 5000103469 | Cylindrical roller bearing | 4 | ADD TO CART | |
| 9 | 5001103030 | Vent screw | 1 | ADD TO CART | |
| 10 | 5000220077 | Shaft | 1 | ADD TO CART | |
| 11 | 5100077130 | Adjusting sleeve | 1 | ADD TO CART | |
| 12 | 5000220083 | Eccentric weight | 2 | ADD TO CART | |
| 13 | 5000129859 | V-belt pulley | 1 | ADD TO CART | |
| 14 | 5000220079 | Bolt | 1 | ADD TO CART | |
| 15 | 5000220106 | Indexing bolt | 1 | ADD TO CART | |
| 16 | 5000043382 | Tripping pin | 1 | PARTS REQUEST | |
|
COMING Tripping pin
5000043382 · qty on machine: 1 | |||||
| 17 | 5000201522 | Protective box | 1 | PARTS REQUEST | |
|
COMING Protective box
5000201522 · qty on machine: 1 | |||||
| 19 | 5000104124 | Plate | 1 | ADD TO CART | |
| 20 | 5000048854 | Rotary shaft seal | 1 | 48 x 72 x 7,4 | ADD TO CART |
| 21 | 5000044634 | Cheese head screw | 2 | M16 x 30 295Nm/218ft.lbs | ISO4762 | ADD TO CART |
| 22 | 5000021988 | Lock washer | 5 | ADD TO CART | |
| 23 | 5000043812 | Cheese head screw | 1 | M16 x 50 295Nm/218ft.lbs | ISO4762 | ADD TO CART |
| 24 | 5000126300 | Cheese head screw | 2 | M16 x 45 295Nm/218ft.lbs | ISO4762 | ADD TO CART |
| 25 | 5000011552 | Cheese head screw | 14 | M6 x 18 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 27 | 5100009501 | Screw | 6 | M6 x 16 10Nm/7ft.lbs | ADD TO CART |
| 28 | 5100072822 | Screw m 6x 30 | 9 | 10Nm/7ft.lbs | ADD TO CART |
| 29 | 5002006113 | Retaining ring | 2 | ADD TO CART | |
| 30 | 5002007057 | Retaining ring | 1 | 90 x 3 | DIN472 | ADD TO CART |
| 31 | 5002004822 | Retaining ring | 2 | 55 x 2 | DIN471 | ADD TO CART |
| 32 | 5000220133 | Grooved ball bearing | 1 | ADD TO CART | |
| 33 | 5002001399 | Fitting key | 1 | A10 x 8 x 28 | DIN6885 | ADD TO CART |
| 35 | 5000048604 | Cylinder cover | 1 | ADD TO CART | |
| 36 | 5000124717 | Washer | 1 | ADD TO CART | |
| 37 | 5000014663 | Hexagonal head cap screw | 1 | 10Nm/7ft.lbs | ISO4017 | ADD TO CART |
| 38 | 5000220384 | Retaining ring | 1 | 26x 1,20 | DIN472 | ADD TO CART |
| 39 | 5000043203 | Lip seal ring | 1 | 30 x 20 x 6 | ADD TO CART |
| 40 | 5000220383 | Grooved ball bearing | 2 | ADD TO CART | |
| 41 | 5002006991 | O-ring | 1 | 24 x 3 | ADD TO CART |
| 42 | 5000220081 | Bolt cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 43 | 5100003656 | Belt guide | 1 | ADD TO CART | |
| 44 | 5100013871 | Oval head screw | 2 | 6 x 20 | ADD TO CART |
Page 30 — Center pole cpl.
Parts list — exactly as printed29 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5000010622 | Flat washer | 2 | ADD TO CART | |
| 1 | 5100009952 | Center pole tube | 1 | ADD TO CART | |
| 2 | 5100005543 | Lock | 1 | ADD TO CART | |
| 4 | 5000013574 | Cheese head screw | 2 | ADD TO CART | |
| 5 | 5100002007 | Retaining handle | 2 | ADD TO CART | |
| 6 | 5000037090 | Cheese head screw | 1 | M10 x 100 49Nm/36ft.lbs | ISO4762 | ADD TO CART |
| 7 | 5000010883 | Hexagon nut | 1 | ADD TO CART | |
| 8 | 5100005106 | Square tube cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 9 | 5000211795 | Corrugated-head screw | 8 | ADD TO CART | |
| 10 | 5100005538 | Bellows | 1 | ADD TO CART | |
| 11 | 5000043928 | Threaded spindle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Threaded spindle cpl.
5000043928 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 12 | 5000202866 | Locknut | 1 | M16 | EN1661 | ADD TO CART |
| 13 | 5000043233 | Shockmount | 1 | 60 x 40 | ADD TO CART |
| 14 | 5100051255 | Bush | 2 | ADD TO CART | |
| 15 | 5100005541 | Lock | 1 | ADD TO CART | |
| 16 | 5000129818 | Shockmount | 2 | ADD TO CART | |
| 17 | 5000010742 | Washer | 2 | PARTS REQUEST | |
|
COMING Washer
5000010742 · qty on machine: 2 | |||||
| 18 | 5000011543 | Socket head screw | 2 | 24Nm/18ft.lbs | ISO4762 | ADD TO CART |
| 19 | 5100010497 | Shockmount | 4 | ADD TO CART | |
| 20 | 5000010882 | Hexagon nut | 4 | ADD TO CART | |
| 21 | 5100005526 | Flange | 1 | ADD TO CART | |
| 22 | 5000069225 | Screwed socket | 1 | ADD TO CART | |
| 23 | 5100005553 | Hose pipe | 1 | PARTS REQUEST | |
|
COMING Hose pipe
5100005553 · qty on machine: 1 | |||||
| 24 | 5100027083 | Center pole head cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 25 | 5000011539 | Cheese head screw | 4 | M8 x 40 25Nm/18ft.lbs | ISO4762 | ADD TO CART |
| 26 | 5000215035 | Shockmount | 2 | ADD TO CART | |
| 27 | 5000011527 | Cheese head screw | 2 | ADD TO CART | |
| 28 | 5100005124 | Clamp | 1 | ADD TO CART | |
| 29 | 5000011554 | Cheese head screw | 4 | ADD TO CART | |
Page 34 — Center pole head cpl.
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005537 | Center pole head | 1 | ADD TO CART | |
| 2 | 5000126164 | Slide bush | 1 | ADD TO CART | |
| 3 | 5000069726 | Long face pinion | 1 | ADD TO CART | |
| 4 | 5000125926 | Spacer | 2 | ADD TO CART | |
| 5 | 5000018194 | O-ring | 2 | ADD TO CART | |
| 6 | 5000068752 | O-ring | 2 | ADD TO CART | |
| 7 | 5100005559 | Compression spring | 1 | ADD TO CART | |
| 8 | 5100005138 | Control piston | 1 | ADD TO CART | |
| 9 | 5100005532 | Guide ring | 1 | KB 55x50x5,5 HG517 | ADD TO CART |
| 10 | 5100005533 | Gasket | 1 | ADD TO CART | |
| 11 | 5000012082 | Seal ring | 1 | A16 x 20 | DIN7603 | ADD TO CART |
| 12 | 5000011050 | Plug (threaded) | 1 | M16 x 1,5 | DIN908 | ADD TO CART |
| 13 | 5000039235 | O-ring | 1 | 58 x 3 | ADD TO CART |
Page 36 — Coupling cpl.
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000058541 | Clutch drum | 1 | 49Nm/36ft.lbs | ADD TO CART |
| 2 | 5000058539 | Pin | 4 | ADD TO CART | |
| 3 | 5000039999 | Grooved ball bearing | 2 | ADD TO CART | |
| 4 | 5002003826 | Retaining ring | 2 | 55 x 2 | DIN472 | ADD TO CART |
| 5 | 5000201992 | Centrifugal clutch | 1 | ADD TO CART | |
| 6 | 5002001815 | Retaining ring | 1 | 30 x 1,5 | DIN471 | ADD TO CART |
| 7 | 5000058540 | V-belt pulley | 1 | ADD TO CART | |
| 8 | 5000058536 | Bushing | 1 | ADD TO CART | |
| 9 | 5000058551 | Bush | 8 | ADD TO CART | |
| 10 | 5000013591 | Spring pin | 2 | 5 x 12 | DIN1481 | PARTS REQUEST |
|
COMING Spring pin
5000013591 · qty on machine: 2 5 x 12 | DIN1481 | |||||
Page 38 — Centrifugal clutch cpl.
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000201994 | Fixing disc | 2 | ADD TO CART | |
| 2 | 5000024338 | Countersunk screw | 8 | M6 x 10 | DIN963 | ADD TO CART |
| 3 | 5000045979 | Tension spring | 4 | ADD TO CART | |
| 4 | 5002006075 | Lining | 2 | ADD TO CART | |
| 5 | 5000049506 | Centrifugal weight | 2 | ADD TO CART | |
| 6 | 5000201993 | Hub | 1 | ADD TO CART | |
| 7 | 5000203003 | Hub kit | 1 | ADD TO CART | |
Page 40 — DPU6555Heh US Decal
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 42 | 5000220386 | Type label | 2 | ADD TO CART | |
| 43 | 5000219175 | Labels | 1 | ADD TO CART | |
| 44 | 5000216633 | Instruction label | 1 | ADD TO CART | |
| 45 | 5000064925 | Decal-sound power level | 1 | ADD TO CART | |
| 46 | 5000220000 | Instruction label | 1 | ADD TO CART | |
| 47 | 5000222085 | Label symbol | 1 | ADD TO CART | |
| 53 | 5000219176 | Labels | 2 | ADD TO CART | |
| 56 | 5000219259 | Labels | 1 | ADD TO CART | |
| 58 | 5100026807 | Labels (start stop) | 1 | ADD TO CART | |
| 59 | 1000184310 | Label | 3 | PARTS REQUEST | |
|
COMING Label
1000184310 · qty on machine: 3 | |||||
| 61 | 5100031713 | Label hot surface us | 1 | ADD TO CART | |
| 62 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||
Page 42 — DPU6555Heh US Maintenance kit
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000129629 | Maintenance kit | 1 | PARTS REQUEST | |
|
COMING Maintenance kit
5000129629 · qty on machine: 1 | |||||
| 3 | 5000095091 | Air cleaner element | 1 | ADD TO CART | |
| 4 | 5000094930 | Element | 1 | ADD TO CART | |
| 6 | 5000098445 | Gasket | 1 | ADD TO CART | |
| 7 | 5000094072 | V-belt | 1 | 17 x 1080 | ADD TO CART |
| 8 | 5000022832 | Fuel filter | 1 | ADD TO CART | |
| 9 | 5100051255 | Bush | 2 | ADD TO CART | |
| 10 | 5100051256 | Bush | 2 | ADD TO CART | |
Page 44 — Crankcase
Parts list — exactly as printed41 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 24 | 5000094936 | Cam follower spindle shaft | 2 | ADD TO CART | |
| 1 | 5100065038 | Crankcase | 1 | ADD TO CART | |
| 3 | 5000226589 | Bearing bush | 1 | ADD TO CART | |
| 4 | 5000094922 | Lubrication jet | 1 | PARTS REQUEST | |
|
COMING Lubrication jet
5000094922 · qty on machine: 1 | |||||
| 17 | 5000207561 | Bleeder valve | 1 | ADD TO CART | |
| 19 | 5100032125 | Diaphragm | 1 | PARTS REQUEST | |
|
COMING Diaphragm
5100032125 · qty on machine: 1 | |||||
| 20 | 5000098462 | Breather tube | 1 | ADD TO CART | |
| 21 | 5000098461 | Cap | 1 | ADD TO CART | |
| 22 | 5000098463 | Hose | 1 | ADD TO CART | |
| 23 | 5000102470 | Clip | 1 | ADD TO CART | |
| 25 | 5000104365 | Washer | 2 | 10.1 x 22 x 3 | ADD TO CART |
| 26 | 5000094937 | Sliding lever | 2 | ADD TO CART | |
| 27 | 5100062247 | Main bearing | 1 | ADD TO CART | |
| 28 | 5000094952 | Gasket | 1 | ADD TO CART | |
| 29 | 5100078487 | Engine support | 1 | PARTS REQUEST | |
|
COMING Engine support
5100078487 · qty on machine: 1 | |||||
| 30 | 5000094935 | Washer | 2 | ADD TO CART | |
| 31 | 5100030356 | Check disc cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 34 | 5000217112 | Cheese head screw | 2 | M6 x 30 | ADD TO CART |
| 35 | 5000098456 | Hexagonal head cap screw | 4 | ADD TO CART | |
| 36 | 5100032121 | Shim | 4 | ADD TO CART | |
| 36 | 5000098455 | Washer | 4 | ADD TO CART | |
| 37 | 5100062250 | Bush | 2 | PARTS REQUEST | |
|
COMING Bush
5100062250 · qty on machine: 2 | |||||
| 38 | 5000097403 | Grommet | 2 | ADD TO CART | |
| 39 | 5100051909 | Gasket | 2 | ADD TO CART | |
| 40 | 5000151213 | Screw plug | 1 | M10 X 1 | DIN908 | ADD TO CART |
| 41 | 5000071121 | Sealing ring | 1 | A10 x 13,5 | ADD TO CART |
| 42 | 5000151290 | Spring washer | 2 | A6 | DIN137 | ADD TO CART |
| 43 | 5000151231 | Cheese head screw | 2 | M6 x 16 | ISO4762 | ADD TO CART |
| 44 | 5000108694 | Straight pin | 4 | 8m6 x 20 | DIN6325 | ADD TO CART |
| 45 | 5000094934 | O-ring | 2 | 9,5 x 2,5 | ADD TO CART |
| 46 | 5000202463 | Hexagon socket head screw | 22 | M8 x 25 | ADD TO CART |
| 47 | 5100062262 | Cylinder | 1 | ADD TO CART | |
| 48 | 5000095008 | O-ring | 1 | 22,0 x 1,6 | ADD TO CART |
| 49 | 5000020348 | Threaded pin | 1 | M8 x 16 | DIN916 | ADD TO CART |
| 50 | 5100051905 | Tappet | 1 | ADD TO CART | |
| 51 | 5000126526 | Guide | 1 | ADD TO CART | |
| 52 | 5000207610 | Cheese head screw | 1 | M6 x 16 | ADD TO CART |
| 53 | 5000207596 | Push-in plug | 1 | ADD TO CART | |
| 54 | 5000207597 | Push-in plug | 1 | ADD TO CART | |
| 55 | 5000202406 | Bush | 1 | ADD TO CART | |
| 56 | 5100013800 | Stud | 8 | ADD TO CART | |
Page 48 — DPU6555Heh US Bearing flange
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013800 | Stud | 8 | ADD TO CART | |
| 2 | 5100062274 | Bearing flange cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 3 | 5000128939 | Bearing flange | 1 | ADD TO CART | |
| 4 | 5100062286 | Main bearing | 1 | ADD TO CART | |
| 4 | 5100062298 | Main bearing 0,5 | 1 | ADD TO CART | |
| 6 | 5000094871 | Plate | 1 | ADD TO CART | |
| 7 | 5000094875 | Shaft seal | 1 | ADD TO CART | |
| 8 | 5000094872 | O-ring | 1 | ADD TO CART | |
| 9 | 5000202460 | Washer | 8 | ADD TO CART | |
| 10 | 5000094876 | Hexagon nut | 8 | M8 | ISO4032 | PARTS REQUEST |
|
COMING Hexagon nut
5000094876 · qty on machine: 8 M8 | ISO4032 | |||||
Page 50 — DPU6555Heh US Camshaft
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 4 | 5100078494 | Camshaft | 1 | PARTS REQUEST | |
|
COMING Camshaft
5100078494 · qty on machine: 1 | |||||
Page 52 — DPU6555Heh US Piston, Connecting Rod
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000094866 | Bearing | 1 | ADD TO CART | |
| 1 | 5000107222 | Connecting rod bearing | 1 | ADD TO CART | |
| 3 | 5100051962 | Connecting rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 5 | 5100078485 | Slide bearing | 1 | PARTS REQUEST | |
|
COMING Slide bearing
5100078485 · qty on machine: 1 | |||||
| 6 | 5000105927 | Connecting rod screw | 2 | ADD TO CART | |
| 7 | 5100062328 | Piston | 1 | ADD TO CART | |
| 8 | 5100062258 | Set of piston rings | 1 | ADD TO CART | |
| 9 | 5100062269 | Piston pin | 1 | ADD TO CART | |
| 10 | 5100051908 | Retaining ring | 2 | ADD TO CART | |
| 12 | 5100062280 | Piston +0,5 | 1 | ADD TO CART | |
| 13 | 5100062291 | Set of piston rings | 1 | ADD TO CART | |
| 14 | 5000210276 | Cylinder with piston epa2 | 1 | ADD TO CART | |
Page 54 — DPU6555Heh US Bumper
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000098457 | Push rod (valve lifter) | 2 | ADD TO CART | |
| 2 | 5100062302 | Protective pipe cpl. | 2 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 3 | 5100051913 | O-ring | 2 | ADD TO CART | |
| 4 | 5000094943 | Pipe | 2 | ADD TO CART | |
| 5 | 5000094942 | Retaining ring | 2 | 24 x 1,75 | DIN471 | ADD TO CART |
| 6 | 5000094941 | Spring | 2 | ADD TO CART | |
| 7 | 5000094940 | Washer | 2 | ADD TO CART | |
| 8 | 5000094939 | O-ring | 2 | ADD TO CART | |
Page 56 — Pressure relief valve
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000106530 | Valve | 1 | ADD TO CART | |
| 3 | 5000126922 | O-ring | 1 | 18 x 2 | ADD TO CART |
| 4 | 5000094948 | Gasket | 1 | A24 x 29 | DIN7603 | PARTS REQUEST |
|
COMING Gasket
5000094948 · qty on machine: 1 A24 x 29 | DIN7603 | |||||
| 5 | 5100062313 | Plug (threaded) m24x1,5 | 1 | ADD TO CART | |
Page 58 — DPU6555Heh US Fuel line
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100062324 | Fuel pressure pipe cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
Page 60 — Air ducting
Parts list — exactly as printed27 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100062329 | Coupling housing | 1 | ADD TO CART | |
| 2 | 5000203131 | Threaded bolt | 2 | M12 x 50 | ADD TO CART |
| 3 | 5000097428 | Hexagon nut | 2 | ADD TO CART | |
| 4 | 5000010937 | Stud bolt | 4 | M12 x 40 | PARTS REQUEST |
|
COMING Stud bolt
5000010937 · qty on machine: 4 M12 x 40 | |||||
| 5 | 5000207530 | Locknut | 4 | ADD TO CART | |
| 6 | 5100030645 | Washer | 6 | PARTS REQUEST | |
|
COMING Washer
5100030645 · qty on machine: 6 | |||||
| 7 | 5000207579 | Baffle | 1 | ADD TO CART | |
| 9 | 5000105050 | Profiled joint | 2 | ADD TO CART | |
| 10 | 5000105051 | Profiled joint | 2 | ADD TO CART | |
| 11 | 5000217098 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000217098 · qty on machine: 1 | |||||
| 12 | 5000207593 | Spring washer | 4 | ADD TO CART | |
| 13 | 5000098460 | Left cover | 1 | ADD TO CART | |
| 15 | 5000107379 | Grommet | 1 | ADD TO CART | |
| 16 | 5000207554 | Gasket | 1 | ADD TO CART | |
| 17 | 5000207581 | Baffle | 1 | ADD TO CART | |
| 19 | 5000207540 | Seal | 1 | ADD TO CART | |
| 20 | 5000151540 | Washer | 2 | A6,4 | DIN9021 | ADD TO CART |
| 21 | 5000129021 | Locknut | 2 | ADD TO CART | |
| 22 | 5000202338 | Hexagonal head cap screw | 2 | M6 x 16 | DIN933 | ADD TO CART |
| 23 | 5000151456 | Lock washer | 2 | 6 | DIN128 | ADD TO CART |
| 24 | 5100062248 | Contact safety device | 1 | ADD TO CART | |
| 25 | 5100038983 | Countersunk screw | 10 | ADD TO CART | |
| 27 | 5000151323 | Locknut | 4 | M6 | ISO4032 | ADD TO CART |
| 28 | 5000207605 | Push-in plug | 2 | ADD TO CART | |
| 30 | 5000203628 | Rivet | 4 | ADD TO CART | |
| 31 | 5100062448 | Speed sensor | 1 | PARTS REQUEST | |
|
COMING Speed sensor
5100062448 · qty on machine: 1 | |||||
| 32 | 5100062249 | Hexagonal head cap screw m6x25 | 1 | ADD TO CART | |
Page 62 — DPU6555Heh US Plug
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000207596 | Push-in plug | 1 | ADD TO CART | |
| 2 | 5000207597 | Push-in plug | 1 | ADD TO CART | |
| 3 | 5000202406 | Bush | 1 | ADD TO CART | |
Page 64 — Oil pressure switch
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100062251 | Oil pressure switch | 1 | ADD TO CART | |
Page 66 — DPU6555Heh US Crankshaft
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100030358 | Crankshaft | 1 | ADD TO CART | |
| 3 | 5000207600 | Cover | 1 | ADD TO CART | |
| 4 | 5000094868 | Fitting key | 1 | A6 x 4 x 32 | DIN6885 | ADD TO CART |
| 5 | 5000094870 | Counterweight | 1 | ADD TO CART | |
| 6 | 5100062252 | Gear wheel | 1 | ADD TO CART | |
| 7 | 5000217110 | Cheese head screw | 2 | M10 x 50 | ADD TO CART |
Page 68 — Oil pan
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000094954 | Housing | 1 | ADD TO CART | |
| 2 | 5000094955 | Strainer | 1 | ADD TO CART | |
| 3 | 5000094956 | Cheese head screw | 2 | M6 x 50 10Nm/7ft.lbs | DIN6912 | ADD TO CART |
| 4 | 5100062253 | Oil pan | 1 | ADD TO CART | |
| 5 | 5100051919 | Threaded pin | 12 | ADD TO CART | |
Page 70 — Oil drain hose
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000094958 | Plug (threaded) | 1 | AM22 x 1,5 | DIN7604 | ADD TO CART |
| 2 | 5000202416 | Oil seal | 2 | 52 x 80 x 10 | ADD TO CART |
| 3 | 5000104406 | Screw plug | 1 | ADD TO CART | |
| 4 | 5000012624 | Gasket | 1 | A14 x 18 | DIN7603 | ADD TO CART |
| 5 | 5000203656 | Banjo bolt | 2 | ADD TO CART | |
| 6 | 5000217092 | Hose pipe oil drain | 1 | ADD TO CART | |
| 7 | 5000126074 | Retainer | 1 | ADD TO CART | |
| 8 | 5100030645 | Washer | 1 | PARTS REQUEST | |
|
COMING Washer
5100030645 · qty on machine: 1 | |||||
| 9 | 5100062254 | Hexagonal head cap screw | 1 | ADD TO CART | |
Page 72 — DPU6555Heh US Generator
Parts list — exactly as printed25 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000207612 | Cheese head screw | 1 | M6 x 40 | PARTS REQUEST |
|
COMING Cheese head screw
5000207612 · qty on machine: 1 M6 x 40 | |||||
| 3 | 5000151324 | Washer | 7 | ADD TO CART | |
| 4 | 5000207593 | Spring washer | 2 | ADD TO CART | |
| 5 | 5000203134 | Cheese head screw | 1 | M6 x 30 | ADD TO CART |
| 6 | 5100062256 | Magnetic ring | 1 | PARTS REQUEST | |
|
COMING Magnetic ring
5100062256 · qty on machine: 1 | |||||
| 7 | 5100062257 | Cheese head screw m4x16 | 14 | ADD TO CART | |
| 8 | 5000097591 | Holder | 1 | ADD TO CART | |
| 9 | 5000151218 | Lock washer | 2 | ADD TO CART | |
| 10 | 5000151379 | Locknut | 2 | M8 | ISO4032 | ADD TO CART |
| 11 | 5000097593 | Angle | 1 | ADD TO CART | |
| 12 | 5100062259 | Regulator 12v | 1 | ADD TO CART | |
| 13 | 5100062260 | Regulator 12v | 1 | PARTS REQUEST | |
|
COMING Regulator 12v
5100062260 · qty on machine: 1 | |||||
| 14 | 5000097592 | Plate | 1 | ADD TO CART | |
| 15 | 5000207562 | Electric wire | 1 | ADD TO CART | |
| 16 | 5000202440 | Hexagon socket head screw | 2 | ADD TO CART | |
| 17 | 5000151218 | Lock washer | 2 | ADD TO CART | |
| 18 | 5000109710 | Tie cable | 3 | PARTS REQUEST | |
|
COMING Tie cable
5000109710 · qty on machine: 3 | |||||
| 19 | 5000151387 | Countersunk screw | 2 | M6 x 12 14Nm/10ft.lbs | ISO10642 | ADD TO CART |
| 20 | 5000202436 | Screw | 4 | M6 x 12 | ADD TO CART |
| 21 | 5000151324 | Washer | 4 | ADD TO CART | |
| 22 | 5000102472 | Clamp | 2 | ADD TO CART | |
| 23 | 5000151456 | Lock washer | 2 | 6 | DIN128 | ADD TO CART |
| 24 | 5000097590 | Clamp | 1 | ADD TO CART | |
| 25 | 5000129016 | Cheese head screw | 1 | M6 x 12 | ISO4762 | ADD TO CART |
| 26 | 5000109710 | Tie cable | 4 | PARTS REQUEST | |
|
COMING Tie cable
5000109710 · qty on machine: 4 | |||||
Page 74 — DPU6555Heh US Separator plate
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000095067 | Baffle plate | 1 | ADD TO CART | |
Page 76 — Protection - generator
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000095068 | Guard plate | 1 | ADD TO CART | |
Page 78 — DPU6555Heh US Timing cover
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100062261 | Command cover | 1 | ADD TO CART | |
| 3 | 5100062263 | Oil pump | 1 | ADD TO CART | |
| 4 | 5000095002 | Bushing | 1 | ADD TO CART | |
| 5 | 5000106532 | Gear wheel | 1 | ADD TO CART | |
| 6 | 5000094999 | Cover | 1 | ADD TO CART | |
| 7 | 5000217097 | Housing | 1 | ADD TO CART | |
| 8 | 5000106531 | Gear wheel | 1 | ADD TO CART | |
| 9 | 5100062264 | Bearing bush | 1 | ADD TO CART | |
| 10 | 5000095017 | Cover | 1 | ADD TO CART | |
| 11 | 5000202455 | Retaining ring | 1 | 32 x 1,2 | ADD TO CART |
| 12 | 5000202422 | Hexagon socket head screw | 2 | M6 x 30 | ADD TO CART |
| 13 | 5000151290 | Spring washer | 5 | A6 | DIN137 | ADD TO CART |
| 14 | 5000107546 | Roll pin | 2 | 8 x 12 | ADD TO CART |
| 15 | 5000129010 | Cheese head screw | 3 | M6 x 25 | DIN912 | ADD TO CART |
| 16 | 5000095013 | Shaft seal | 1 | ADD TO CART | |
| 17 | 5000095000 | Screw | 5 | ADD TO CART | |
| 18 | 5000095016 | O-ring | 1 | ADD TO CART | |
| 19 | 5000202462 | Hexagon socket head screw | 13 | M8 x 30 | ADD TO CART |
Page 80 — Oil dip stick
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100046077 | Oil dip stick | 1 | ADD TO CART | |
| 3 | 5000151217 | Gasket | 1 | ADD TO CART | |
| 4 | 5100062265 | Adaptor | 1 | ADD TO CART | |
Page 82 — DPU6555Heh US Fuel filter
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000112497 | Fuel filter | 1 | ADD TO CART | |
| 2 | 5100062266 | Fuel pipes | 1 | ADD TO CART | |
| 3 | 5100062267 | Clamp | 1 | ADD TO CART | |
| 4 | 5000203655 | Clamp | 1 | ADD TO CART | |
| 5 | 5100077988 | Fuel pump | 1 | ADD TO CART | |
| 6 | 5000129016 | Cheese head screw | 4 | M6 x 12 | ISO4762 | ADD TO CART |
| 8 | 5000107451 | Clamp | 4 | ADD TO CART | |
| 9 | 5100062271 | Fuel pipes | 1 | ADD TO CART | |
| 10 | 5100046186 | Diesel filter insert | 1 | ADD TO CART | |
| 11 | 5100062272 | Bracket | 1 | ADD TO CART | |
| 12 | 5100062273 | Fuel pipes | 1 | ADD TO CART | |
| 13 | 5100062275 | Back pressure valve | 1 | ADD TO CART | |
| 14 | 5000207566 | Banjo bolt | 1 | ADD TO CART | |
| 15 | 5000107422 | Banjo fitting | 1 | ADD TO CART | |
| 16 | 5000071121 | Sealing ring | 2 | A10 x 13,5 | ADD TO CART |
| 17 | 5100062276 | Fuel pipes | 1 | ADD TO CART | |
| 18 | 5000151231 | Cheese head screw | 2 | M6 x 16 | ISO4762 | ADD TO CART |
Page 84 — DPU6555Heh US Starter claw
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000097419 | Starting jaw | 1 | ADD TO CART | |
| 2 | 5000202453 | Straight pin | 1 | ADD TO CART | |
| 3 | 5000201372 | Hexagon socket head screw | 1 | ADD TO CART | |
Page 86 — DPU6555Heh US Flywheel
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100078486 | Fly wheel | 1 | PARTS REQUEST | |
|
COMING Fly wheel
5100078486 · qty on machine: 1 | |||||
| 2 | 5000096597 | Ring gear | 1 | ADD TO CART | |
| 3 | 5000095044 | Sleeve | 1 | ADD TO CART | |
| 4 | 5000095045 | Disc holder | 1 | ADD TO CART | |
| 5 | 5000095046 | Cheese head screw | 6 | M12 x 1,5 x 40 120Nm/89ft.lbs | ISO4762 | ADD TO CART |
Page 88 — DPU6555Heh US Cylinder head
Parts list — exactly as printed55 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100065040 | Cylinder head | 1 | ADD TO CART | |
| 3 | 5000105044 | Exhaust valve | 1 | ADD TO CART | |
| 4 | 5000105043 | Intake valve | 1 | ADD TO CART | |
| 5 | 5000094888 | Screw | 1 | ADD TO CART | |
| 6 | 5000105928 | Rocker shaft | 1 | ADD TO CART | |
| 8 | 5000094909 | Decompression lever | 1 | ADD TO CART | |
| 9 | 5000097401 | Seal | 1 | ADD TO CART | |
| 10 | 5000108801 | O-ring | 1 | 8 x 2 | ADD TO CART |
| 11 | 5000020183 | Spring pin | 1 | 4 x 22 | DIN1481 | ADD TO CART |
| 12 | 5000098449 | Inlet rocker arm | 1 | ADD TO CART | |
| 13 | 5004101500 | Locknut | 2 | 5/16 x 24in | ADD TO CART |
| 14 | 5000094891 | Adjustment screw | 2 | ADD TO CART | |
| 15 | 5000098448 | Exhaust rocker arm | 1 | ADD TO CART | |
| 18 | 5000094897 | Ratchet (pawl) | 1 | ADD TO CART | |
| 19 | 5000094894 | Spring | 1 | ADD TO CART | |
| 20 | 5000094895 | Holder | 1 | ADD TO CART | |
| 22 | 5000202427 | Lock washer | 1 | ADD TO CART | |
| 23 | 5000126917 | Toothed segment cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 24 | 5000094899 | Set-taper cone valve | 2 | ADD TO CART | |
| 25 | 5100032122 | Bush | 1 | PARTS REQUEST | |
|
COMING Bush
5100032122 · qty on machine: 1 | |||||
| 26 | 5000094887 | Spring | 1 | ADD TO CART | |
| 27 | 5000094902 | Washer | 2 | PARTS REQUEST | |
|
COMING Washer
5000094902 · qty on machine: 2 | |||||
| 28 | 5100062279 | Valve spring | 2 | ADD TO CART | |
| 29 | 5100051933 | Spring holder | 2 | ADD TO CART | |
| 30 | 5000207595 | Stud | 1 | M8 x 35 | ADD TO CART |
| 31 | 5000094890 | Valve guide | 2 | ADD TO CART | |
| 32 | 5000066801 | Ball | 1 | ADD TO CART | |
| 33 | 5100010410 | Seal | 2 | ADD TO CART | |
| 34 | 5000207538 | Jet | 1 | ADD TO CART | |
| 35 | 5000104388 | Washer | 4 | PARTS REQUEST | |
|
COMING Washer
5000104388 · qty on machine: 4 | |||||
| 36 | 5100030359 | Hexagonal head cap screw | 2 | ADD TO CART | |
| 37 | 5000094882 | Screw | 2 | ADD TO CART | |
| 38 | 5000094906 | Grease tube | 1 | ADD TO CART | |
| 39 | 5000094903 | Spring | 1 | ADD TO CART | |
| 41 | 5000094905 | O-ring | 2 | ADD TO CART | |
| 42 | 5100062304 | Cylinder head gasket 1,3 | 1 | ADD TO CART | |
| 42 | 5100062303 | Cylinder head gasket 1,25 | 1 | ADD TO CART | |
| 42 | 5100062301 | Cylinder head gasket 1,2 | 1 | ADD TO CART | |
| 42 | 5100062300 | Cylinder head gasket 1,15 | 1 | ADD TO CART | |
| 42 | 5100062299 | Cylinder head gasket 1,1 | 1 | ADD TO CART | |
| 42 | 5100062297 | Cylinder head gasket 1,05 | 1 | ADD TO CART | |
| 42 | 5100062296 | Cylinder head gasket 1,0 | 1 | ADD TO CART | |
| 42 | 5100062295 | Cylinder head gasket 0,95 | 1 | ADD TO CART | |
| 42 | 5100062294 | Cylinder head gasket 0,85 | 1 | ADD TO CART | |
| 42 | 5100062293 | Cylinder head gasket 0,8 | 1 | ADD TO CART | |
| 42 | 5100062292 | Cylinder head gasket 0,75 | 1 | ADD TO CART | |
| 42 | 5100062290 | Cylinder head gasket 0,7 | 1 | ADD TO CART | |
| 42 | 5100062289 | Cylinder head gasket 0,65 | 1 | ADD TO CART | |
| 42 | 5100062288 | Cylinder head gasket 0,6 | 1 | ADD TO CART | |
| 42 | 5100062287 | Cylinder head gasket 0,55 | 1 | ADD TO CART | |
| 42 | 5100062285 | Cylinder head gasket 0,5 | 1 | ADD TO CART | |
| 42 | 5100062284 | Cylinder head gasket 0,45 | 1 | ADD TO CART | |
| 42 | 5100062283 | Cylinder head gasket 0,4 | 1 | ADD TO CART | |
| 42 | 5100062282 | Cylinder head gasket 0,35 | 1 | ADD TO CART | |
| 42 | 5100062281 | Cylinder head gasket 0,3 | 1 | ADD TO CART | |
Page 92 — DPU6555Heh US Injection pump
Parts list — exactly as printed24 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100078489 | Injection pump | 1 | ADD TO CART | |
| 3 | 5000217099 | Seal ring | 1 | ADD TO CART | |
| 4 | 5000095020 | Fitting | 1 | ADD TO CART | |
| 5 | 5000095019 | Banjo bolt | 1 | ADD TO CART | |
| 6 | 5000128957 | Gasket | 2 | ADD TO CART | |
| 7 | 5000095022 | Holder | 1 | ADD TO CART | |
| 8 | 5000095021 | Disc | 1 | ADD TO CART | |
| 9 | 5000151218 | Lock washer | 1 | ADD TO CART | |
| 10 | 5000151379 | Locknut | 1 | M8 | ISO4032 | ADD TO CART |
| 13 | 5100062307 | Adaptor | 1 | ADD TO CART | |
| 14 | 5000071121 | Sealing ring | 4 | A10 x 13,5 | ADD TO CART |
| 15 | 5000107422 | Banjo fitting | 1 | ADD TO CART | |
| 16 | 5000207566 | Banjo bolt | 1 | ADD TO CART | |
| 17 | 5100062308 | Screw nipple | 1 | ADD TO CART | |
| 18 | 5100062309 | Cheese head screw m6x75 | 2 | ADD TO CART | |
| 19 | 5000226603 | Fuel hose | 1 | ADD TO CART | |
| 20 | 5000047977 | Hose fitting | 1 | ADD TO CART | |
| 21 | 5100018092 | Fuel hose | 1 | ADD TO CART | |
| 22 | 5000216520 | Fuel hose | 1 | ADD TO CART | |
| 23 | 5000209727 | Fuel hose | 1 | ADD TO CART | |
| 24 | 5000099417 | Tee-fitting | 1 | PARTS REQUEST | |
|
COMING Tee-fitting
5000099417 · qty on machine: 1 | |||||
| 25 | 5000207586 | Clamp | 2 | ADD TO CART | |
| 26 | 5000207586 | Clamp | 2 | ADD TO CART | |
| 27 | 5000203655 | Clamp | 1 | ADD TO CART | |
Page 94 — DPU6555Heh US Cylinder head cover
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000098444 | Cover | 1 | ADD TO CART | |
| 2 | 5000098445 | Gasket | 1 | ADD TO CART | |
| 3 | 5000151290 | Spring washer | 4 | A6 | DIN137 | ADD TO CART |
| 4 | 5000129010 | Cheese head screw | 4 | M6 x 25 | DIN912 | ADD TO CART |
Page 96 — DPU6555Heh US Sealing screw
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100062311 | Plug (threaded) m12x1,5 | 1 | ADD TO CART | |
| 2 | 5000013186 | Gasket | 1 | A12 x 15,5 | DIN7603 | ADD TO CART |
Page 98 — DPU6555Heh US Starter
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000129769 | Starter | 1 | ADD TO CART | |
Page 100 — Air ducting fly wheel
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000095035 | Cover | 1 | ADD TO CART | |
| 3 | 5100065056 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5100065056 · qty on machine: 1 | |||||
Page 102 — DPU6555Heh US Cover cap
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000099803 | Cap | 1 | ADD TO CART | |
| 2 | 5000099804 | Clamp | 1 | ADD TO CART | |

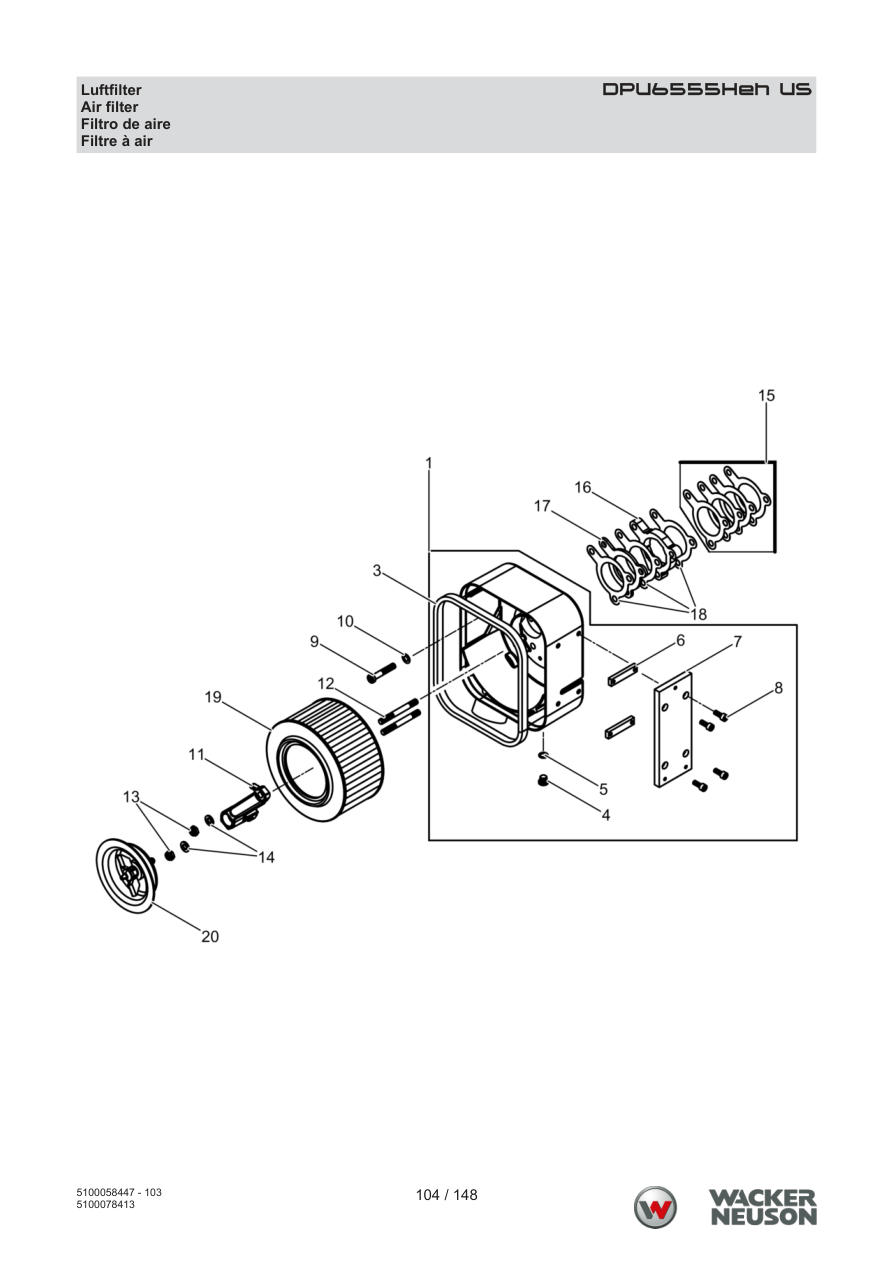

Page 104 — DPU6555Heh US Air filter
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100062312 | Air filter housing | 1 | ADD TO CART | |
| 3 | 5000097831 | Seal | 1 | ADD TO CART | |
| 4 | 5000151213 | Screw plug | 1 | M10 X 1 | DIN908 | ADD TO CART |
| 5 | 5000071121 | Sealing ring | 1 | A10 x 13,5 | ADD TO CART |
| 6 | 5100062314 | Bar | 2 | ADD TO CART | |
| 7 | 5100062315 | Console / bracket | 1 | ADD TO CART | |
| 8 | 5000151231 | Cheese head screw | 4 | M6 x 16 | ISO4762 | ADD TO CART |
| 9 | 5000207614 | Cheese head screw | 1 | M8 x 45 | ADD TO CART |
| 10 | 5200022048 | Spring washer | 1 | PARTS REQUEST | |
|
COMING Spring washer
5200022048 · qty on machine: 1 | |||||
| 11 | 5000099793 | Holder | 1 | ADD TO CART | |
| 12 | 5000207815 | Stud | 2 | M8 x 60 | ADD TO CART |
| 13 | 5000129516 | Nut | 2 | ADD TO CART | |
| 14 | 5000151553 | Washer | 2 | B8,4 | ISO7089 | ADD TO CART |
| 15 | 5000097840 | Set-gaskets | 1 | ADD TO CART | |
| 16 | 5000097833 | Intermediate flange | 1 | ADD TO CART | |
| 17 | 5000095089 | Flange | 1 | ADD TO CART | |
| 18 | 5000095088 | Seal | 1 | ADD TO CART | |
| 19 | 5000095091 | Air cleaner element | 1 | ADD TO CART | |
| 20 | 5100002774 | Filter cover cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
Page 106 — DPU6555Heh US Hex bolt
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100062249 | Hexagonal head cap screw m6x25 | 3 | ADD TO CART | |
Page 108 — DPU6555Heh US Temperature sender
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100062316 | Temperature sensor | 1 | ADD TO CART | |
Page 110 — Control box
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100062317 | Control box | 1 | PARTS REQUEST | |
|
COMING Control box
5100062317 · qty on machine: 1 | |||||
Page 112 — Cable harness - steering
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100078493 | Wire harness | 1 | ADD TO CART | |
| 2 | 5100062319 | Bracket | 1 | ADD TO CART | |
| 3 | 5000109710 | Tie cable | 5 | PARTS REQUEST | |
|
COMING Tie cable
5000109710 · qty on machine: 5 | |||||
| 4 | 5000129517 | Washer | 2 | A5,3 | ISO7089 | ADD TO CART |
| 5 | 5000203135 | Screw | 2 | M5 x 25 | ADD TO CART |
| 6 | 5000203133 | Hexagon socket head screw | 4 | M6 x 25 | ADD TO CART |
| 7 | 5000151324 | Washer | 2 | ADD TO CART | |
| 9 | 5100068944 | Tie cable | 1 | ADD TO CART | |
Page 114 — DPU6555Heh US Fuel tank
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100062320 | Fuel tank | 1 | ADD TO CART | |
| 3 | 5000095357 | Sleeve | 6 | ADD TO CART | |
| 4 | 5000095356 | Bushing | 6 | ADD TO CART | |
| 5 | 5000095355 | Washer | 12 | ADD TO CART | |
| 6 | 5100078013 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100078013 · qty on machine: 1 | |||||
| 7 | 5000031063 | Stud bolt | 2 | M8 x 75 | DIN835 | ADD TO CART |
| 8 | 5000095082 | Bushing | 2 | ADD TO CART | |
| 9 | 5100062321 | Washer | 12 | ADD TO CART | |
| 10 | 5000151379 | Locknut | 2 | M8 | ISO4032 | ADD TO CART |
| 11 | 5000207613 | Cheese head screw | 4 | M8 x 40 | ADD TO CART |
| 12 | 5000151218 | Lock washer | 4 | ADD TO CART | |
| 13 | 5000099786 | Bushing | 4 | ADD TO CART | |
| 14 | 5000207574 | Fuel pipe | 1 | 5 x 50in | ADD TO CART |
| 15 | 5000099523 | Cap | 1 | ADD TO CART | |
| 16 | 5100062323 | Fuel pipes | 1 | ADD TO CART | |
| 17 | 5100062267 | Clamp | 1 | ADD TO CART | |
| 18 | 5000203655 | Clamp | 1 | ADD TO CART | |
| 19 | 5000104763 | Washer | 1 | PARTS REQUEST | |
|
COMING Washer
5000104763 · qty on machine: 1 | |||||
| 20 | 5000202413 | Screw locking | 1 | ADD TO CART | |
Page 116 — Fillstrainer
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000095358 | Fuel strainer | 1 | ADD TO CART | |
Page 118 — DPU6555Heh US Air filter cover
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100062325 | Air cleaner cover | 1 | ADD TO CART | |
Page 120 — Exhaust silencer doc
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100062326 | Muffler | 1 | PARTS REQUEST | |
|
COMING Muffler
5100062326 · qty on machine: 1 | |||||
| 2 | 5100001033 | Gasket | 1 | ADD TO CART | |
| 3 | 5000151578 | Cheese head screw | 3 | M8 x 30 | ISO4762 | ADD TO CART |
| 4 | 5000151218 | Lock washer | 3 | ADD TO CART | |
Page 122 — DPU6555Heh US Exhaust pipe
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000126956 | Exhaust pipe | 1 | ADD TO CART | |
| 2 | 5000095100 | Clamp | 2 | ADD TO CART | |
| 3 | 5000207591 | Hexagonal head cap screw | 3 | M10 x 50 | ADD TO CART |
| 4 | 5000207589 | Locknut | 4 | ADD TO CART | |
| 5 | 5000202434 | Washer | 5 | ADD TO CART | |
Page 124 — Contact safety device
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000095098 | Guard | 1 | ADD TO CART | |
| 2 | 5000099525 | Washer | 10 | PARTS REQUEST | |
|
COMING Washer
5000099525 · qty on machine: 10 | |||||
| 3 | 5000151540 | Washer | 5 | A6,4 | DIN9021 | ADD TO CART |
| 4 | 5000202443 | Cheese head screw | 5 | M6 x 20 | ADD TO CART |
Page 126 — Nut - starter
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000108848 | Nut | 1 | ADD TO CART | |
Page 128 — DPU6555Heh US Angle bracket
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000097595 | Angle | 1 | ADD TO CART | |
| 2 | 5000207590 | Hexagonal head cap screw | 2 | M5 x 25 | ADD TO CART |
| 3 | 5000129517 | Washer | 2 | A5,3 | ISO7089 | ADD TO CART |
Page 130 — Oil filter
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100065039 | Flange | 1 | ADD TO CART | |
| 3 | 5000104402 | Spring | 1 | ADD TO CART | |
| 4 | 5100051956 | Oil filter | 1 | PARTS REQUEST | |
|
COMING Oil filter
5100051956 · qty on machine: 1 | |||||
| 6 | 5000094928 | Gasket | 1 | ADD TO CART | |
| 7 | 5000094931 | Cover | 1 | ADD TO CART | |
| 9 | 5000106559 | Seal | 1 | ADD TO CART | |
| 10 | 5000151290 | Spring washer | 5 | A6 | DIN137 | ADD TO CART |
| 11 | 5000202437 | Cheese head screw | 5 | M6 x 20 | ADD TO CART |
Page 132 — DPU6555Heh US Speed adjustment
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100078257 | Gas lever | 1 | ADD TO CART | |

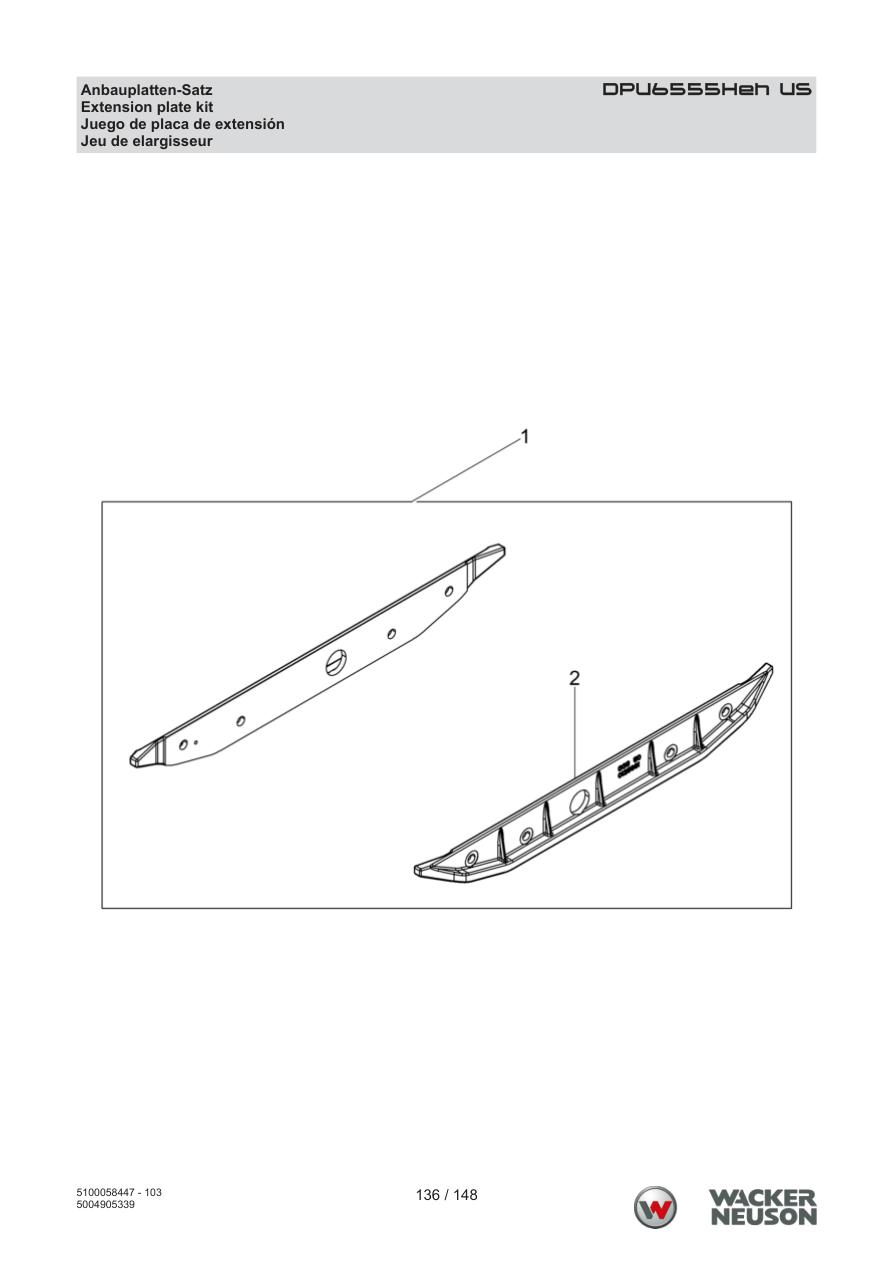

Page 136 — Extension plate kit
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000126290 | Extension plate kit | 1 | PARTS REQUEST | |
|
COMING Extension plate kit
5000126290 · qty on machine: 1 | |||||
| 2 | 5000125662 | Extension plate 3 cm | 2 | PARTS REQUEST | |
|
COMING Extension plate 3 cm
5000125662 · qty on machine: 2 | |||||
| 1 | 5000045201 | Extension plate kit | 1 | PARTS REQUEST | |
|
COMING Extension plate kit
5000045201 · qty on machine: 1 | |||||
| 2 | 5000044442 | Extension plate 8 cm | 2 | PARTS REQUEST | |
|
COMING Extension plate 8 cm
5000044442 · qty on machine: 2 | |||||
| 1 | 5000043246 | Extension plate kit | 1 | PARTS REQUEST | |
|
COMING Extension plate kit
5000043246 · qty on machine: 1 | |||||
| 2 | 5000043245 | Extension plate 15 cm | 1 | PARTS REQUEST | |
|
COMING Extension plate 15 cm
5000043245 · qty on machine: 1 | |||||

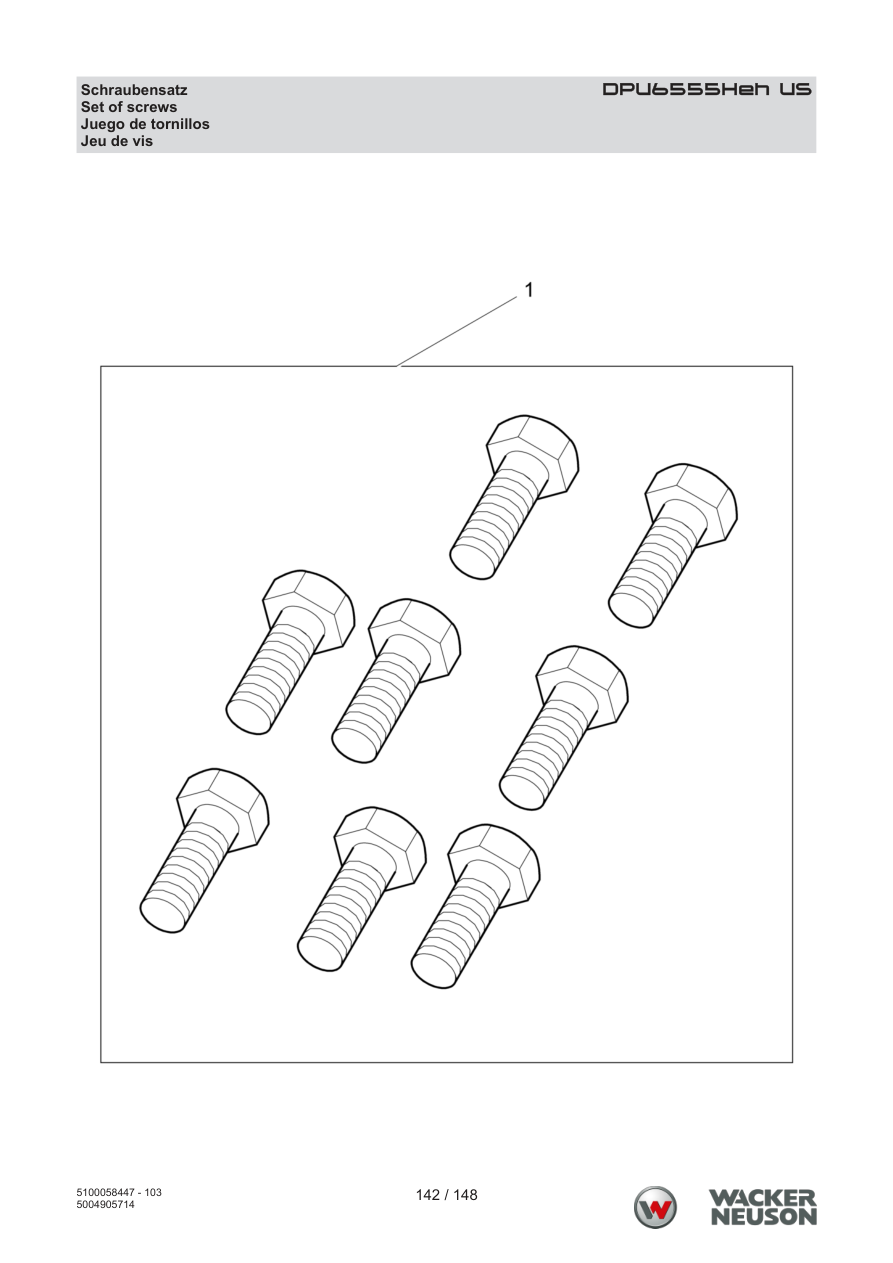

Page 142 — DPU6555Heh US Bolt kit
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000067519 | Set of screws | 1 | PARTS REQUEST | |
|
COMING Set of screws
5000067519 · qty on machine: 1 | |||||

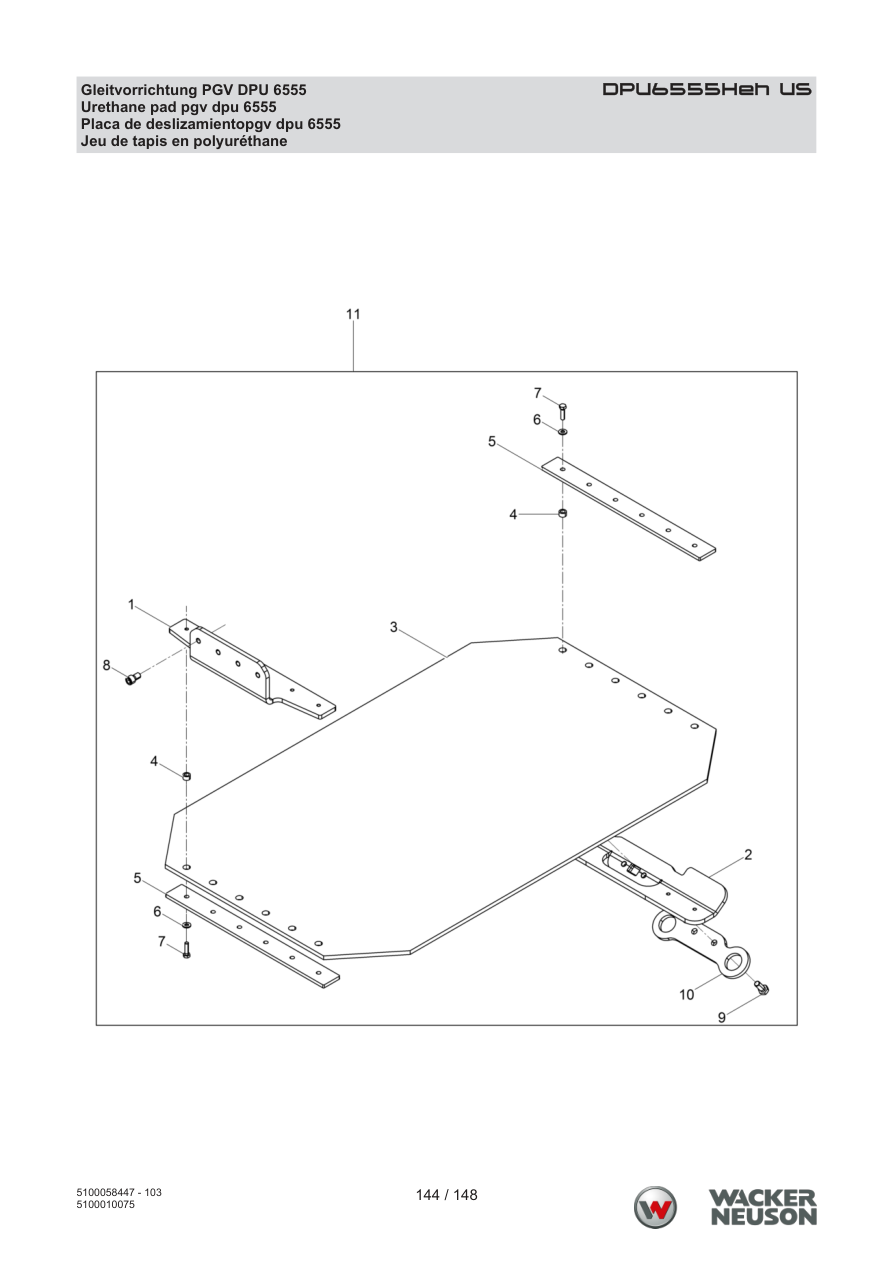

Page 144 — DPU6555Heh US Sliding device PGV DPU 6555
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000205208 | Front angle | 1 | PARTS REQUEST | |
|
COMING Front angle
5000205208 · qty on machine: 1 | |||||
| 2 | 5100010936 | Angle rear | 1 | ADD TO CART | |
| 3 | 5000205209 | Urethane plate | 1 | PARTS REQUEST | |
|
COMING Urethane plate
5000205209 · qty on machine: 1 | |||||
| 4 | 5000047577 | Bushing | 10 | PARTS REQUEST | |
|
COMING Bushing
5000047577 · qty on machine: 10 | |||||
| 5 | 5000058358 | Bar | 2 | ADD TO CART | |
| 6 | 5000033198 | Lockwasher | 10 | ADD TO CART | |
| 7 | 5000011456 | Hexagonal head cap screw | 10 | ADD TO CART | |
| 8 | 5000011531 | Cheese head screw | 4 | M12 x 20 86Nm/63ft.lbs | ISO4762 | ADD TO CART |
| 9 | 5000011423 | Hexagonal head cap screw | 2 | M12 x 30 210Nm/155ft.lbs | DIN933 | ADD TO CART |
| 10 | 5100010935 | Plate | 1 | ADD TO CART | |
| 11 | 5100009998 | Urethane pad kit pgv dpu 6555 | 1 | PARTS REQUEST | |
|
COMING Urethane pad kit pgv dpu 6555
5100009998 · qty on machine: 1 | |||||
The machine itself
Machine
Engine
Wacker Neuson DPU6555 vibratory plate.
H: Hatz Diesel Engine; e: Electric Start; h: Hour Meter.
Available in 2 configurations.
List price: $26,420.00 – $30,300.00
Keep-it-running spares
All listed parts →Every part that fits this machine
1000184310
Label
5000010366
Hexagon nut
$0.95
5000010376
Flat washer
$0.95
5000010622
Flat washer
$0.95
5000010624
Flat washer
$0.95
5000010742
Washer
5000010882
Hexagon nut
$0.95
5000010883
Hexagon nut
$0.95
5000010937
Stud bolt
5000011050
Plug (threaded)
$7.95
5000011421
Hexagonal head cap screw
5000011422
Hexagonal head cap screw
$0.95
5000011423
Hexagonal head cap screw
$0.95
5000011456
Hexagonal head cap screw
$0.95
5000011523
Hexagonal head cap screw
$1.95
5000011527
Cheese head screw
$1.95
5000011528
Cheese head screw
$0.95
5000011529
Cheese head screw
$0.95
5000011531
Cheese head screw
$1.95
5000011534
Cheese head screw
$0.95
5000011539
Cheese head screw
$0.95
5000011543
Socket head screw
$0.95
5000011550
Cheese head screw
$0.95
5000011552
Cheese head screw
$0.95
5000011553
Cheese head screw
$0.95
5000011554
Cheese head screw
$0.95
5000012082
Seal ring
$0.95
5000012624
Gasket
$7.95
5000012629
Cheese head screw
$0.95
5000013186
Gasket
$7.95
5000013574
Cheese head screw
$0.95
5000013591
Spring pin
5000014316
Hexagonal head cap screw
$0.95
5000014663
Hexagonal head cap screw
$0.95
5000017123
Pipe clamp
$1.95
5000018194
O-ring
$0.95
5000019156
Gasket
$0.95
5000020183
Spring pin
$7.95
5000020348
Threaded pin
$7.95
5000021147
Retaining ring
$1.95
5000021465
Lock washer
$1.95
5000021988
Lock washer
$2.95
5000022832
Fuel filter
$10.95
5000024338
Countersunk screw
$0.95
5000031063
Stud bolt
$10.95
5000031565
Lockwasher
$0.95
5000033198
Lockwasher
$0.95
5000034442
Bushing
$16.95
5000037071
Cheese head screw
$0.95
5000037090
Cheese head screw
$0.95
5000039110
Cover
$16.95
5000039116
Gear wheel
5000039191
Hexagonal head cap screw
$3.95
5000039235
O-ring
$0.95
5000039999
Grooved ball bearing
$18.95
5000043201
Banjo bolt
$4.95
5000043203
Lip seal ring
$13.95
5000043233
Shockmount
$26.95
5000043245
Extension plate 15 cm
5000043246
Extension plate kit
5000043382
Tripping pin
5000043812
Cheese head screw
$2.95
5000043928
Threaded spindle cpl.
5000044442
Extension plate 8 cm
5000044634
Cheese head screw
$1.95
5000045201
Extension plate kit
5000045979
Tension spring
$4.95
5000047388
Cable tie
$0.95
5000047577
Bushing
5000047977
Hose fitting
$30.95
5000048273
Seal
$9.95
5000048374
Cup spring
$15.95
5000048539
Seal
5000048604
Cylinder cover
$494.95
5000048854
Rotary shaft seal
$23.95
5000049506
Centrifugal weight
$43.95
5000058358
Bar
$140.95
5000058536
Bushing
$22.95
5000058539
Pin
$4.95
5000058540
V-belt pulley
$316.95
5000058541
Clutch drum
$551.95
5000058546
Disc
$61.95
5000058547
Button
$115.95
5000058551
Bush
$1.95
5000058696
Nose cap
$20.95
5000064925
Decal-sound power level
$4.95
5000066801
Ball
$9.95
5000067519
Set of screws
5000068222
Plug (threaded)
$5.95
5000068752
O-ring
$0.95
5000069225
Screwed socket
$10.95
5000069726
Long face pinion
$421.95
5000069900
Flange
$197.95
5000071121
Sealing ring
$5.95
5000094072
V-belt
$27.95
5000094518
Cheese head screw
$3.95
5000094866
Bearing
$122.95
5000094868
Fitting key
$7.95
5000094870
Counterweight
$113.95
5000094871
Plate
$116.95
5000094872
O-ring
$19.95
5000094875
Shaft seal
$67.95
5000094876
Hexagon nut
5000094882
Screw
$121.95
5000094883
Washer
5000094887
Spring
$11.95
5000094888
Screw
$64.95
5000094890
Valve guide
$99.95
5000094891
Adjustment screw
$28.95
5000094894
Spring
$11.95
5000094895
Holder
$11.95
5000094897
Ratchet (pawl)
$41.95
5000094899
Set-taper cone valve
$23.95
5000094902
Washer
5000094903
Spring
$11.95
5000094905
O-ring
$6.95
5000094906
Grease tube
$72.95
5000094909
Decompression lever
$23.95
5000094922
Lubrication jet
5000094928
Gasket
$9.95
5000094930
Element
$19.95
5000094931
Cover
$142.95
5000094934
O-ring
$6.95
5000094935
Washer
$9.95
5000094936
Cam follower spindle shaft
$62.95
5000094937
Sliding lever
$250.95
5000094939
O-ring
$6.95
5000094940
Washer
$16.95
5000094941
Spring
$23.95
5000094942
Retaining ring
$10.95
5000094943
Pipe
$40.95
5000094948
Gasket
5000094952
Gasket
$61.95
5000094953
Plate
$600.95
5000094954
Housing
$62.95
5000094955
Strainer
$23.95
5000094956
Cheese head screw
$7.95
5000094958
Plug (threaded)
$18.95
5000094999
Cover
$144.95
5000095000
Screw
$11.95
5000095002
Bushing
$254.95
5000095008
O-ring
$6.95
5000095013
Shaft seal
$36.95
5000095016
O-ring
$6.95
5000095017
Cover
$40.95
5000095019
Banjo bolt
$28.95
5000095020
Fitting
$46.95
5000095021
Disc
$16.95
5000095022
Holder
$49.95
5000095035
Cover
$144.95
5000095044
Sleeve
$23.95
5000095045
Disc holder
$35.95
5000095046
Cheese head screw
$10.95
5000095067
Baffle plate
$175.95
5000095068
Guard plate
$35.95
5000095074
Connector
$35.95
5000095082
Bushing
$35.95
5000095088
Seal
$6.95
5000095089
Flange
$24.95
5000095091
Air cleaner element
$29.95
5000095098
Guard
$330.95
5000095100
Clamp
$28.95
5000095355
Washer
$20.95
5000095356
Bushing
$11.95
5000095357
Sleeve
$9.95
5000095358
Fuel strainer
$65.95
5000096597
Ring gear
$434.95
5000097110
Bar
$88.95
5000097401
Seal
$8.95
5000097403
Grommet
$9.95
5000097419
Starting jaw
$142.95
5000097428
Hexagon nut
$11.95
5000097590
Clamp
$23.95
5000097591
Holder
$38.95
5000097592
Plate
$119.95
5000097593
Angle
$22.95
5000097595
Angle
$44.95
5000097831
Seal
$92.95
5000097833
Intermediate flange
$52.95
5000097840
Set-gaskets
$19.95
5000098444
Cover
$80.95
5000098445
Gasket
$19.95
5000098448
Exhaust rocker arm
$291.95
5000098449
Inlet rocker arm
$265.95
5000098455
Washer
$7.95
5000098456
Hexagonal head cap screw
$16.95
5000098457
Push rod (valve lifter)
$160.95
5000098460
Left cover
$176.95
5000098461
Cap
$23.95
5000098462
Breather tube
$29.95
5000098463
Hose
$39.95
5000099047
Bar
$70.95
5000099055
Hook
$107.95
5000099059
Exciter housing
$1,017.95
5000099417
Tee-fitting
5000099523
Cap
$40.95
5000099525
Washer
5000099535
Plate
$115.95
5000099786
Bushing
$16.95
5000099793
Holder
$56.95
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
