Wacker Neuson PT3 Trash Pump
The parts bench

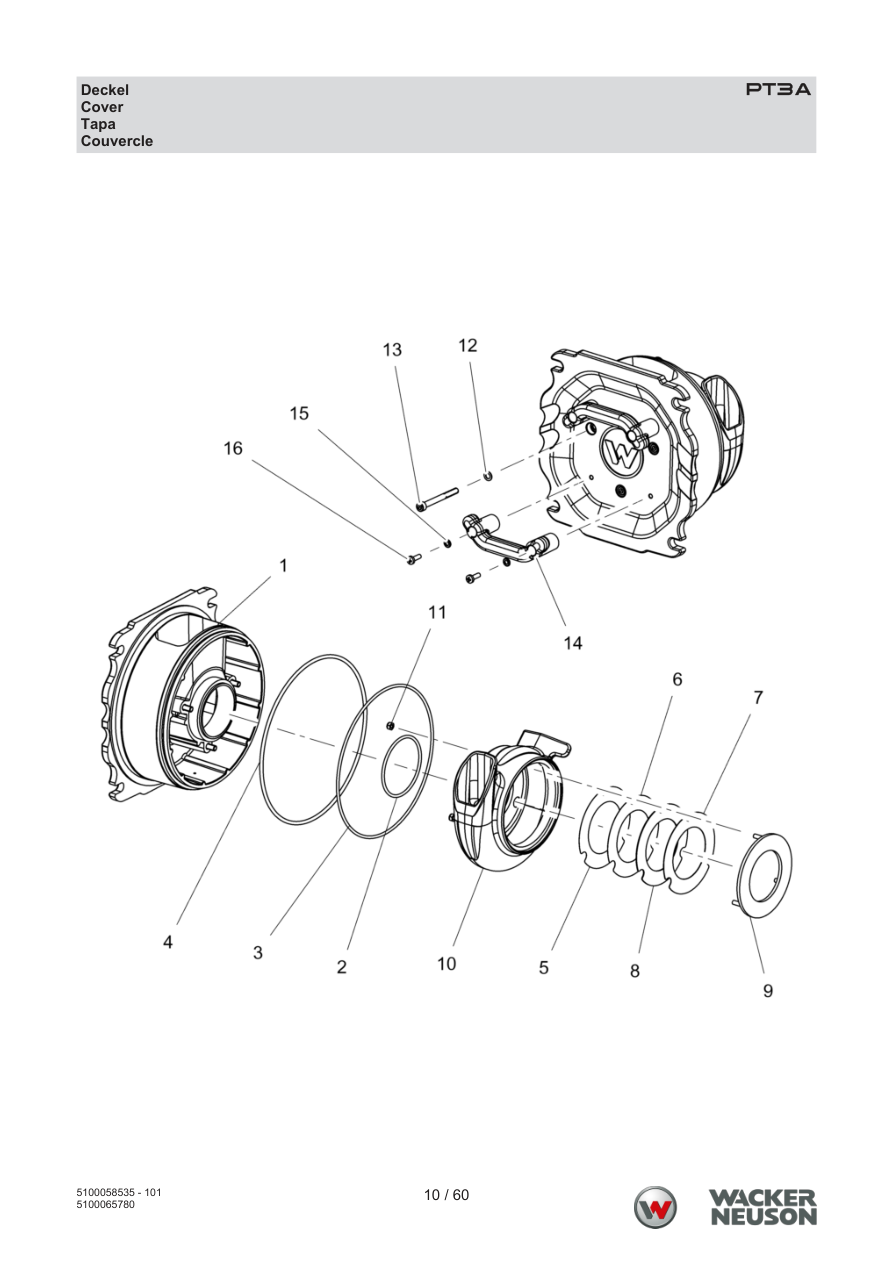

Need the PDF? ↓Page 10 — PT3A Deckel
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000154697 | pc | 1 | ADD TO CART | |
| 2 | 5000119411 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000119411 · qty on machine: 1 | |||||
| 3 | 5000119409 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000119409 · qty on machine: 1 | |||||
| 4 | 5000119408 | pc | 1 | ADD TO CART | |
| 5 | 5000119415 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000119415 · qty on machine: 1 | |||||
| 6 | 5000119416 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000119416 · qty on machine: 1 | |||||
| 7 | 5000119417 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000119417 · qty on machine: 1 | |||||
| 8 | 5000119418 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000119418 · qty on machine: 1 | |||||
| 9 | 5000119403 | pc | 1 | ADD TO CART | |
| 10 | 5000117808 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000117808 · qty on machine: 1 | |||||
| 11 | 5000119980 | pc | 3 | PARTS REQUEST | |
|
COMING pc
5000119980 · qty on machine: 3 | |||||
| 12 | 5000078884 | pc | 3 | PARTS REQUEST | |
|
COMING pc
5000078884 · qty on machine: 3 | |||||
| 13 | 5000119979 | pc | 3 | Socket head cap screw | ADD TO CART |
| 14 | 5000117815 | pc | 2 | ADD TO CART | |
| 15 | 5000010624 | pc | 4 | ADD TO CART | |
| 16 | 5000119977 | pc | 4 | PARTS REQUEST | |
|
COMING pc
5000119977 · qty on machine: 4 | |||||

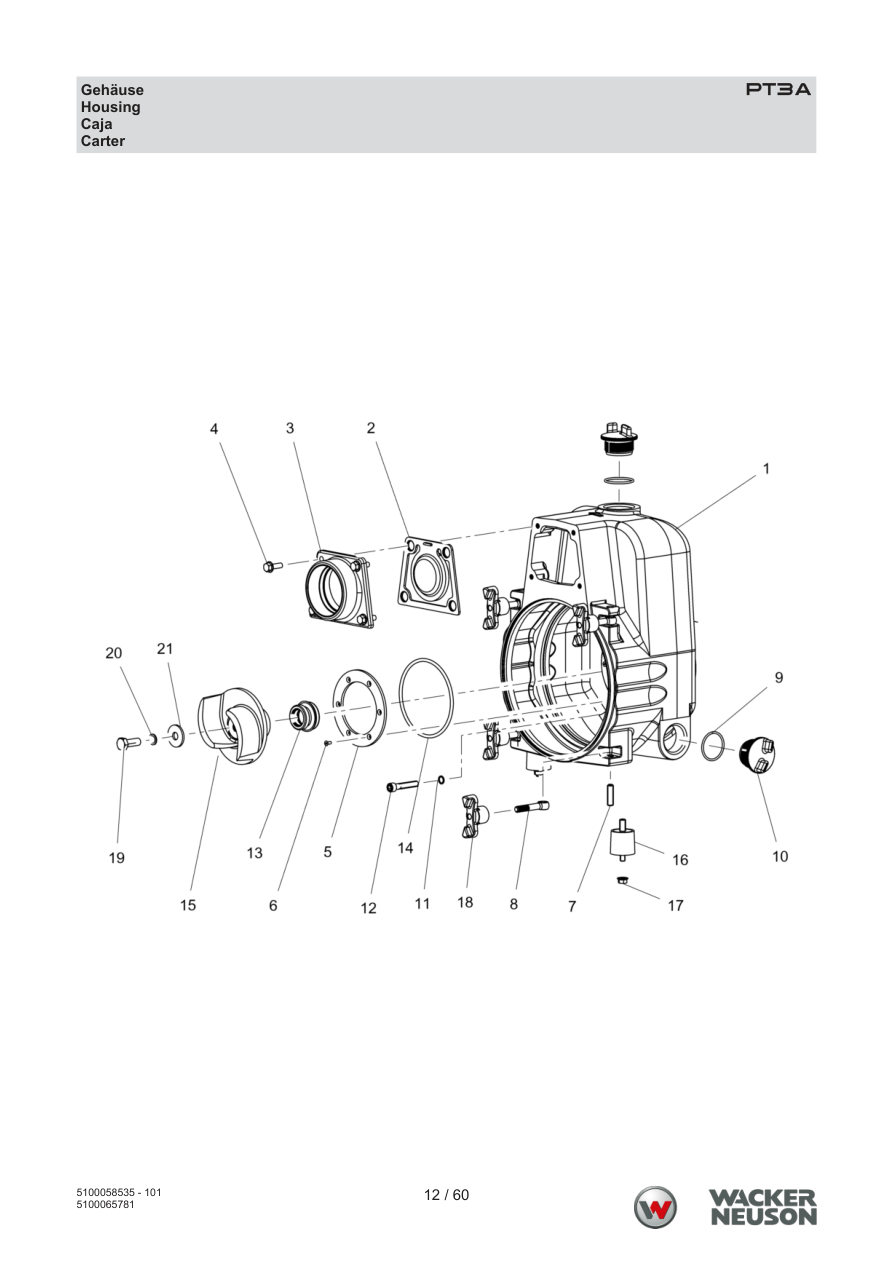

Page 12 — PT3A Gehäuse
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100069722 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100069722 · qty on machine: 1 | |||||
| 2 | 5000117814 | pc | 1 | ADD TO CART | |
| 3 | 5000117810 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000117810 · qty on machine: 1 | |||||
| 4 | 5100048614 | pc | 4 | Flange bolt m8x25 din6921 8.8a2k | PARTS REQUEST |
|
COMING pc
5100048614 · qty on machine: 4 Flange bolt m8x25 din6921 8.8a2k | |||||
| 5 | 5000152275 | pc | 1 | ADD TO CART | |
| 6 | 5100058886 | pc | 6 | PARTS REQUEST | |
|
COMING pc
5100058886 · qty on machine: 6 | |||||
| 7 | 5100071974 | pc | 4 | PARTS REQUEST | |
|
COMING pc
5100071974 · qty on machine: 4 | |||||
| 8 | 5100071973 | pc | 4 | PARTS REQUEST | |
|
COMING pc
5100071973 · qty on machine: 4 | |||||
| 9 | 5000119412 | pc | 2 | ADD TO CART | |
| 10 | 5000119626 | pc | 2 | ADD TO CART | |
| 11 | 5000012086 | pc | 4 | ADD TO CART | |
| 12 | 5100031625 | pc | 4 | PARTS REQUEST | |
|
COMING pc
5100031625 · qty on machine: 4 | |||||
| 13 | 5100064151 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100064151 · qty on machine: 1 | |||||
| 14 | 5000119410 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000119410 · qty on machine: 1 | |||||
| 15 | 5100064152 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100064152 · qty on machine: 1 | |||||
| 16 | 5100064434 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100064434 · qty on machine: 2 | |||||
| 17 | 5000030066 | pc | 2 | ADD TO CART | |
| 18 | 5000119406 | pc | 4 | PARTS REQUEST | |
|
COMING pc
5000119406 · qty on machine: 4 | |||||
| 19 | 5100064364 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100064364 · qty on machine: 1 | |||||
| 20 | 5000013444 | pc | 1 | ADD TO CART | |
| 21 | 5000114766 | pc | 1 | ADD TO CART | |

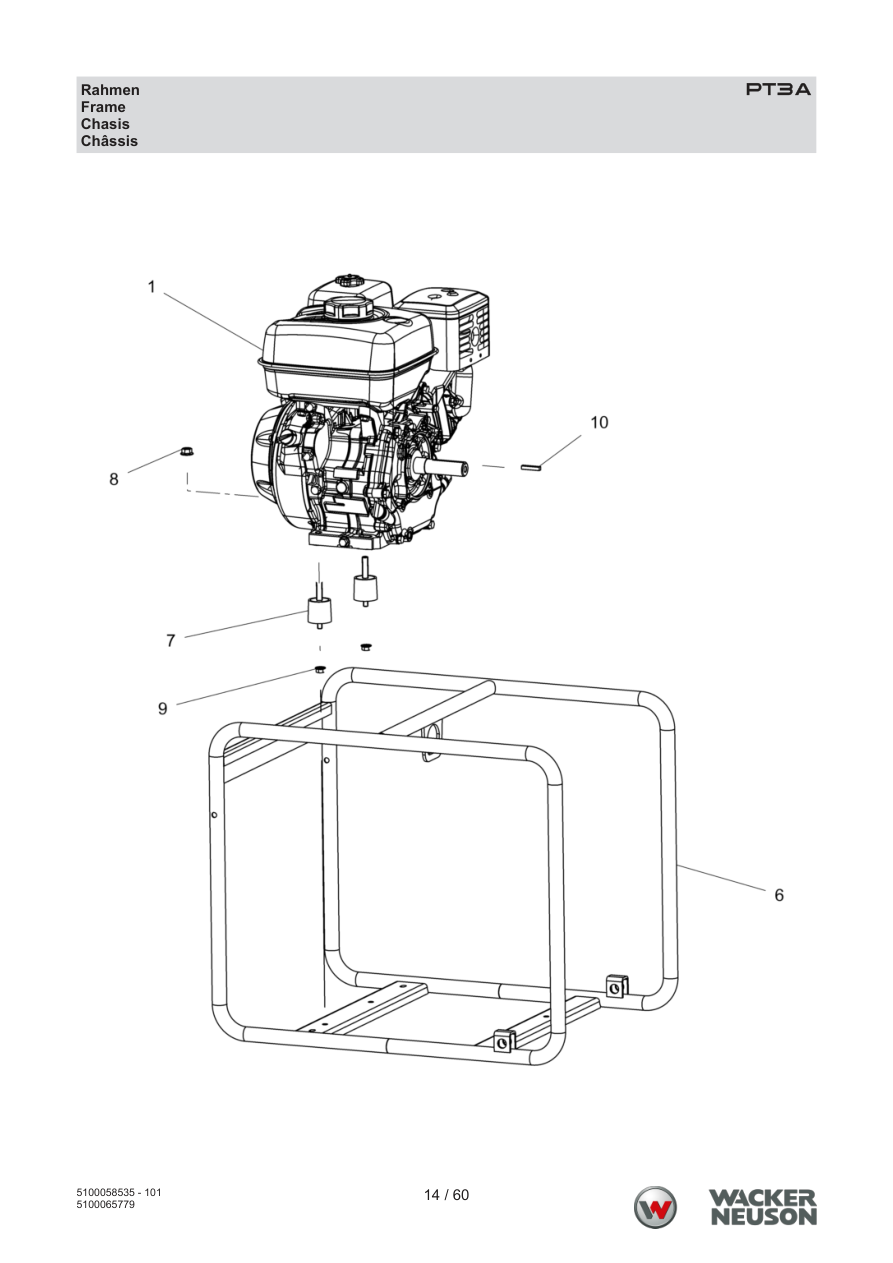

Page 14 — PT3A Rahmen
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000112134 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000112134 · qty on machine: 1 | |||||
| 6 | 5100064154 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100064154 · qty on machine: 1 | |||||
| 7 | 5100064435 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100064435 · qty on machine: 2 | |||||
| 8 | 5000089316 | pc | 2 | ADD TO CART | |
| 9 | 5000030066 | pc | 2 | ADD TO CART | |
| 10 | 5100064366 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100064366 · qty on machine: 1 | |||||

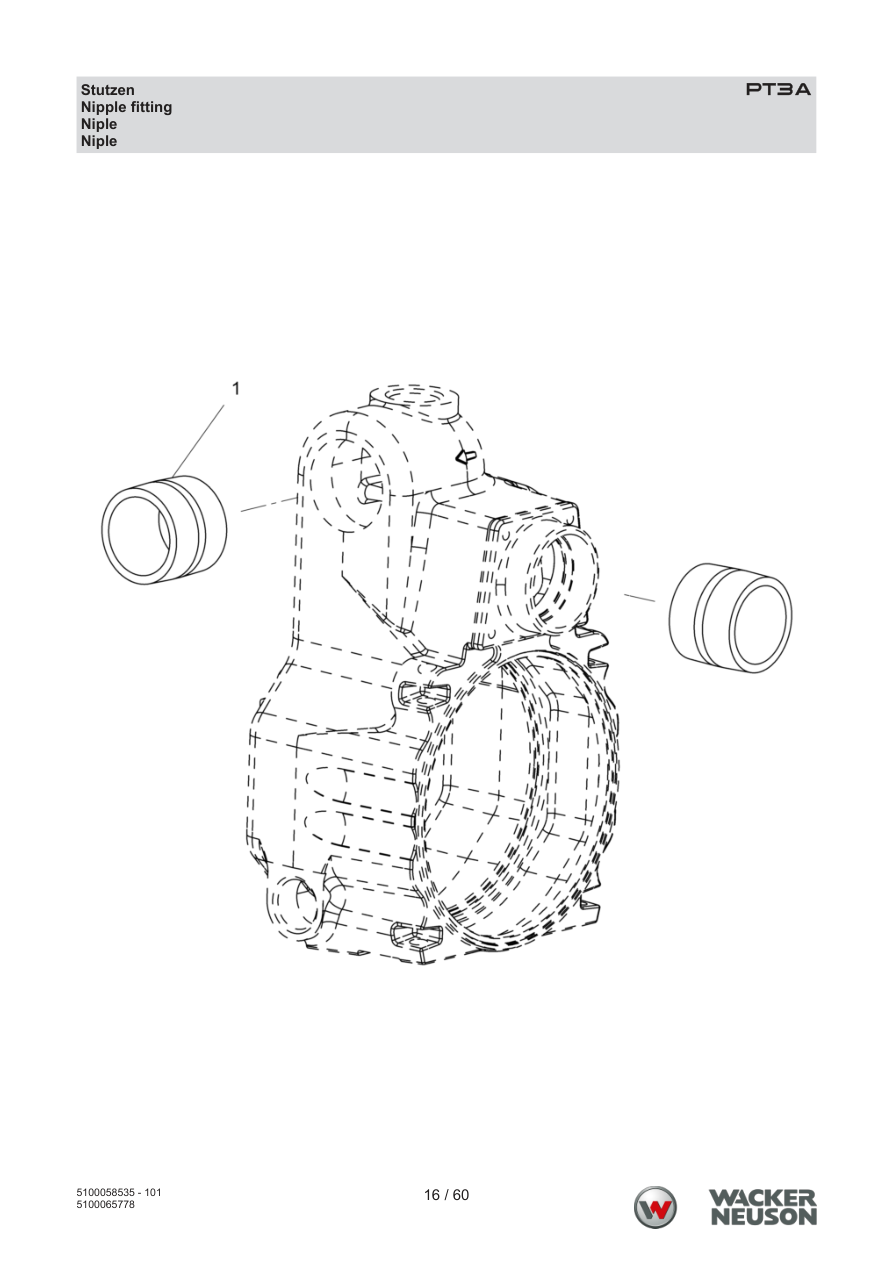

Page 16 — PT3A Stutzen
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100065757 | pc | 2 | Pipe nipple 3 npt/bspt | PARTS REQUEST |
|
COMING pc
5100065757 · qty on machine: 2 Pipe nipple 3 npt/bspt | |||||

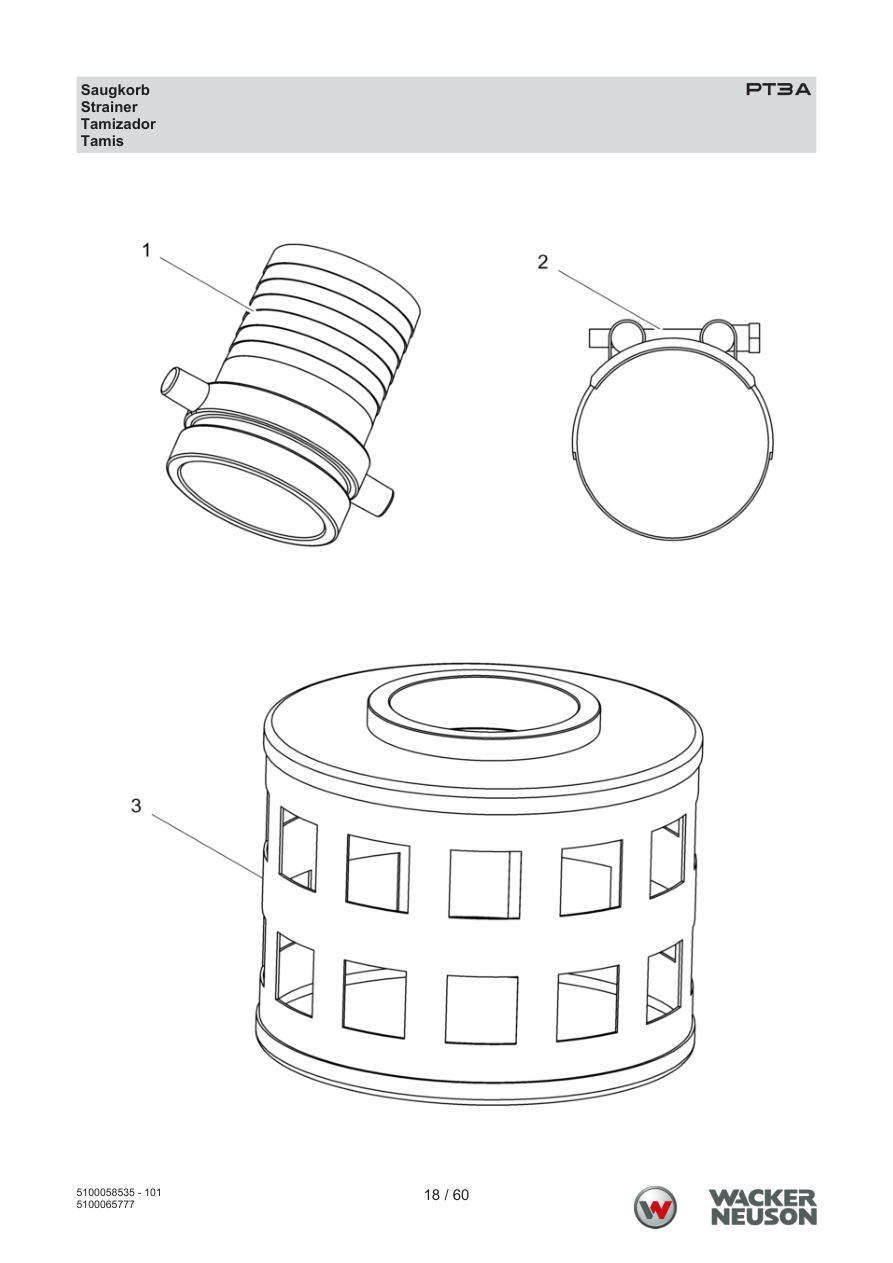

Page 18 — PT3A Saugkorb
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100061627 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100061627 · qty on machine: 1 | |||||
| 2 | 5100061624 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100061624 · qty on machine: 1 | |||||
| 3 | 5100061620 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100061620 · qty on machine: 1 | |||||

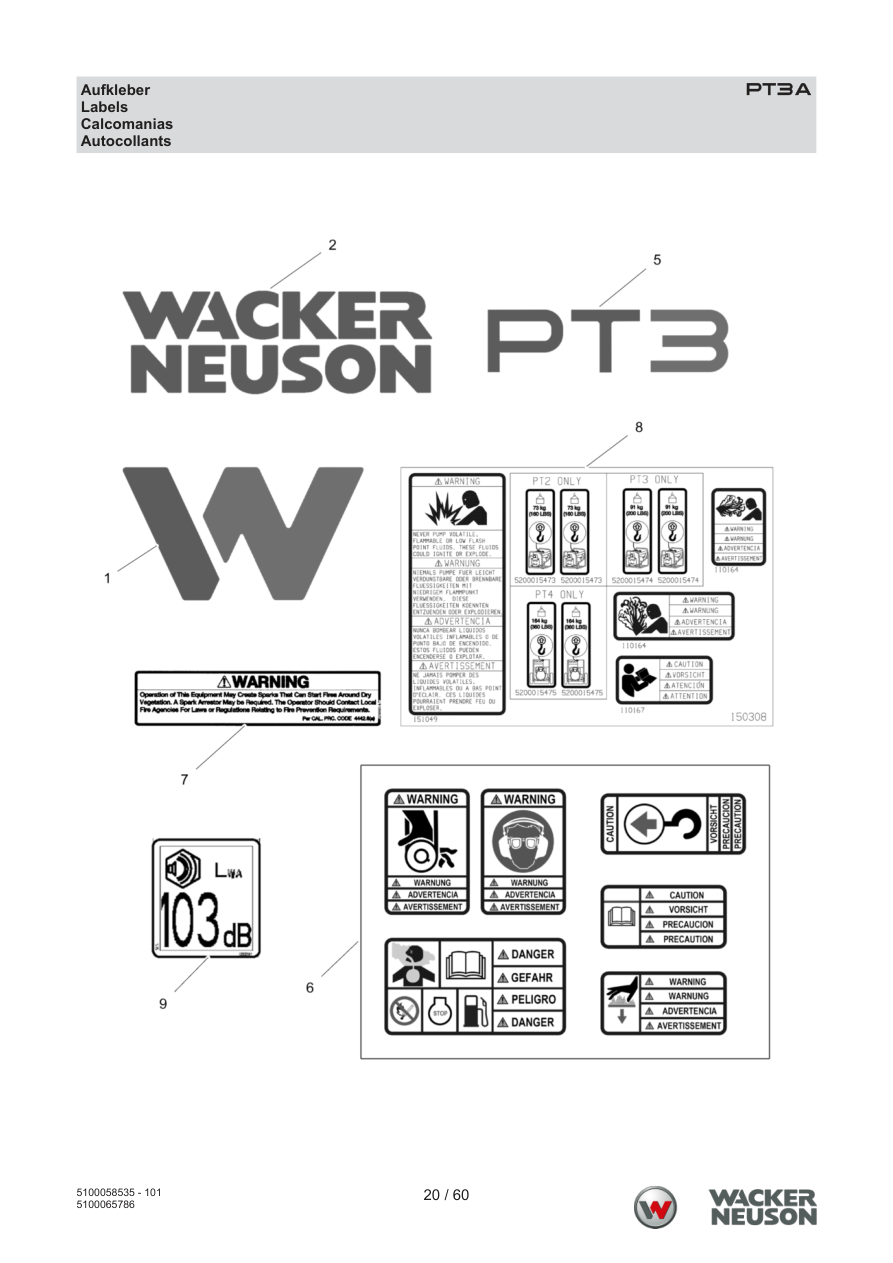

Page 20 — PT3A Aufkleber
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100064477 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100064477 · qty on machine: 1 | |||||
| 2 | 5000222100 | pc | 1 | Label-wacker neuson logo | ADD TO CART |
| 5 | 5000177636 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000177636 · qty on machine: 1 | |||||
| 6 | 5000116940 | pc | 1 | ADD TO CART | |
| 7 | 5200001673 | pc | 1 | ADD TO CART | |
| 8 | 5000150308 | pc | 1 | ADD TO CART | |
| 9 | 5000202761 | pc | 1 | Decal-sound power level | PARTS REQUEST |
|
COMING pc
5000202761 · qty on machine: 1 Decal-sound power level | |||||

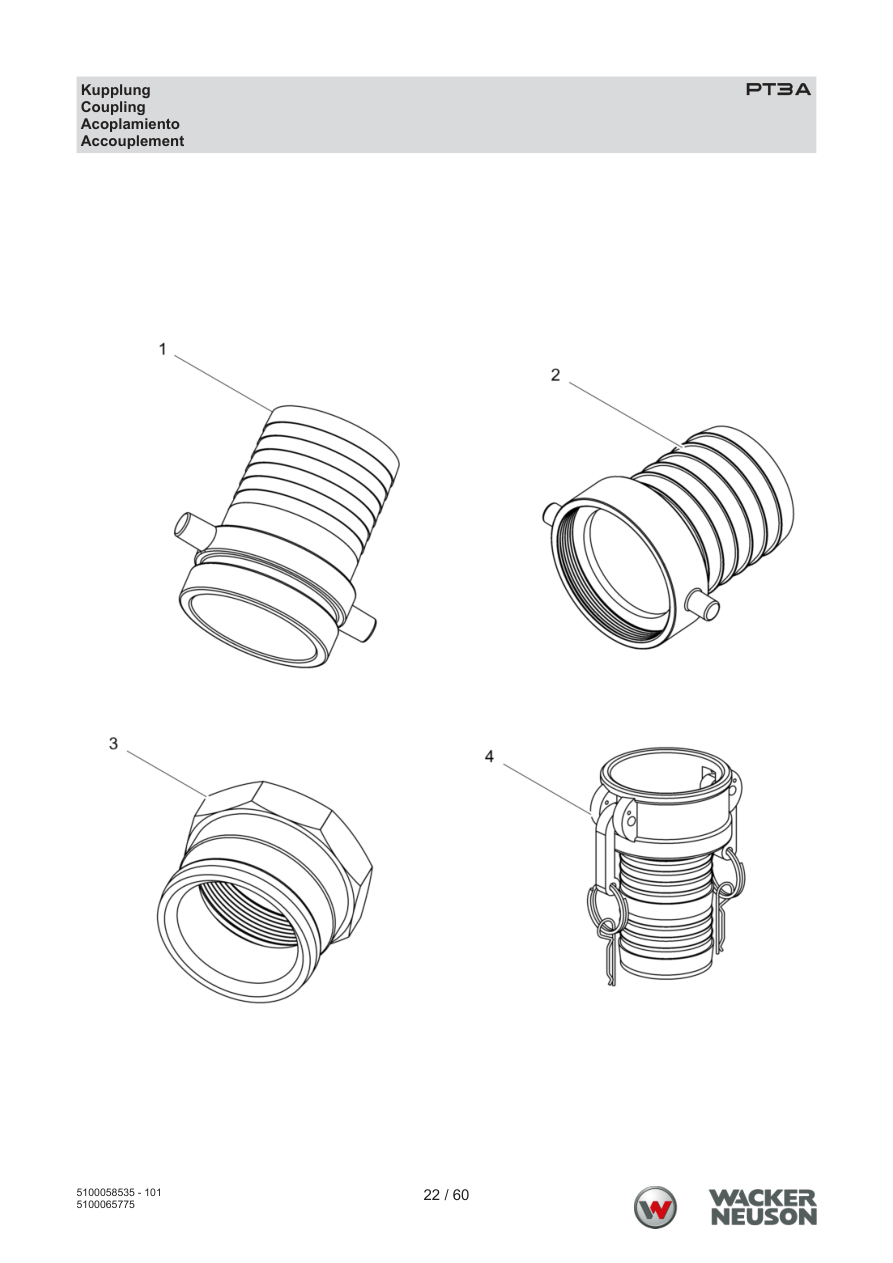

Page 22 — PT3A Kupplung
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100061627 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100061627 · qty on machine: 1 | |||||
| 2 | 5100062392 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100062392 · qty on machine: 1 | |||||
| 3 | 5100062395 | pc | 1 | Quick diconnect coupling | PARTS REQUEST |
|
COMING pc
5100062395 · qty on machine: 1 Quick diconnect coupling | |||||
| 4 | 5100062399 | pc | 1 | Quick diconnect coupling | PARTS REQUEST |
|
COMING pc
5100062399 · qty on machine: 1 Quick diconnect coupling | |||||

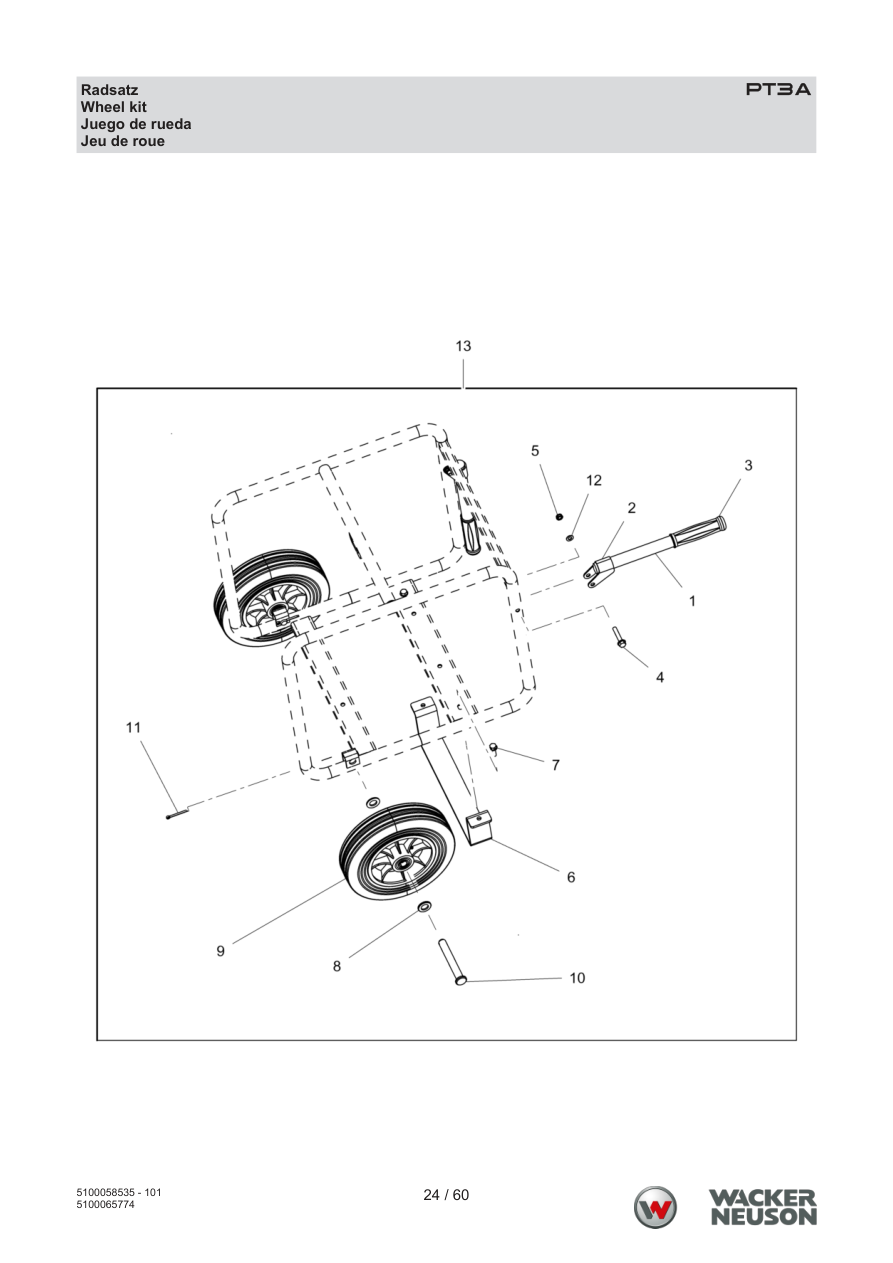

Page 24 — PT3A Radsatz
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100064470 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100064470 · qty on machine: 2 | |||||
| 2 | 5002900102 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5002900102 · qty on machine: 2 | |||||
| 3 | 5000184036 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5000184036 · qty on machine: 2 | |||||
| 4 | 5100064466 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100064466 · qty on machine: 2 | |||||
| 5 | 5000010367 | pc | 2 | ADD TO CART | |
| 6 | 5100064471 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100064471 · qty on machine: 1 | |||||
| 7 | 5100048614 | pc | 2 | Flange bolt m8x25 din6921 8.8a2k | PARTS REQUEST |
|
COMING pc
5100048614 · qty on machine: 2 Flange bolt m8x25 din6921 8.8a2k | |||||
| 8 | 5000010618 | pc | 4 | ADD TO CART | |
| 9 | 5100064468 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100064468 · qty on machine: 2 | |||||
| 10 | 5100064469 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100064469 · qty on machine: 2 | |||||
| 11 | 5000010492 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5000010492 · qty on machine: 2 | |||||
| 12 | 5000010622 | pc | 2 | ADD TO CART | |
| 13 | 5100062403 | pc | 1 | Transport wheel kit | PARTS REQUEST |
|
COMING pc
5100062403 · qty on machine: 1 Transport wheel kit | |||||

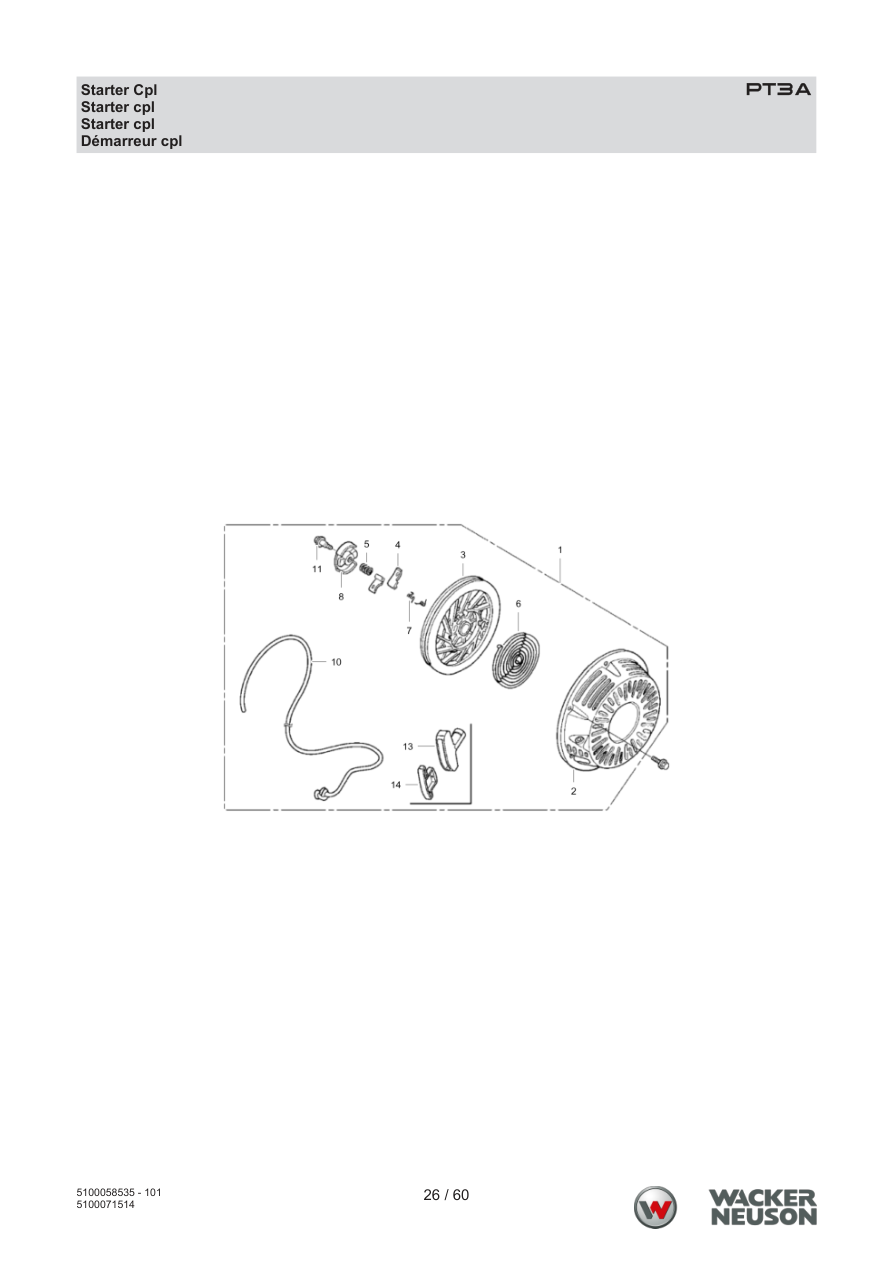

Page 26 — PT3A Starter Cpl
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100000424 | pc | 1 | ADD TO CART | |
| 2 | 5000089279 | pc | 1 | ADD TO CART | |
| 3 | 5000081644 | pc | 1 | ADD TO CART | |
| 4 | 5000081645 | pc | 2 | ADD TO CART | |
| 5 | 5000081646 | pc | 1 | ADD TO CART | |
| 6 | 5000081647 | pc | 1 | ADD TO CART | |
| 7 | 5000081648 | pc | 2 | ADD TO CART | |
| 8 | 5000081649 | pc | 1 | ADD TO CART | |
| 10 | 5000151037 | pc | 1 | ADD TO CART | |
| 11 | 5000081658 | pc | 1 | ADD TO CART | |
| 13 | 5100000428 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100000428 · qty on machine: 1 | |||||
| 14 | 5100000429 | pc | 1 | ADD TO CART | |

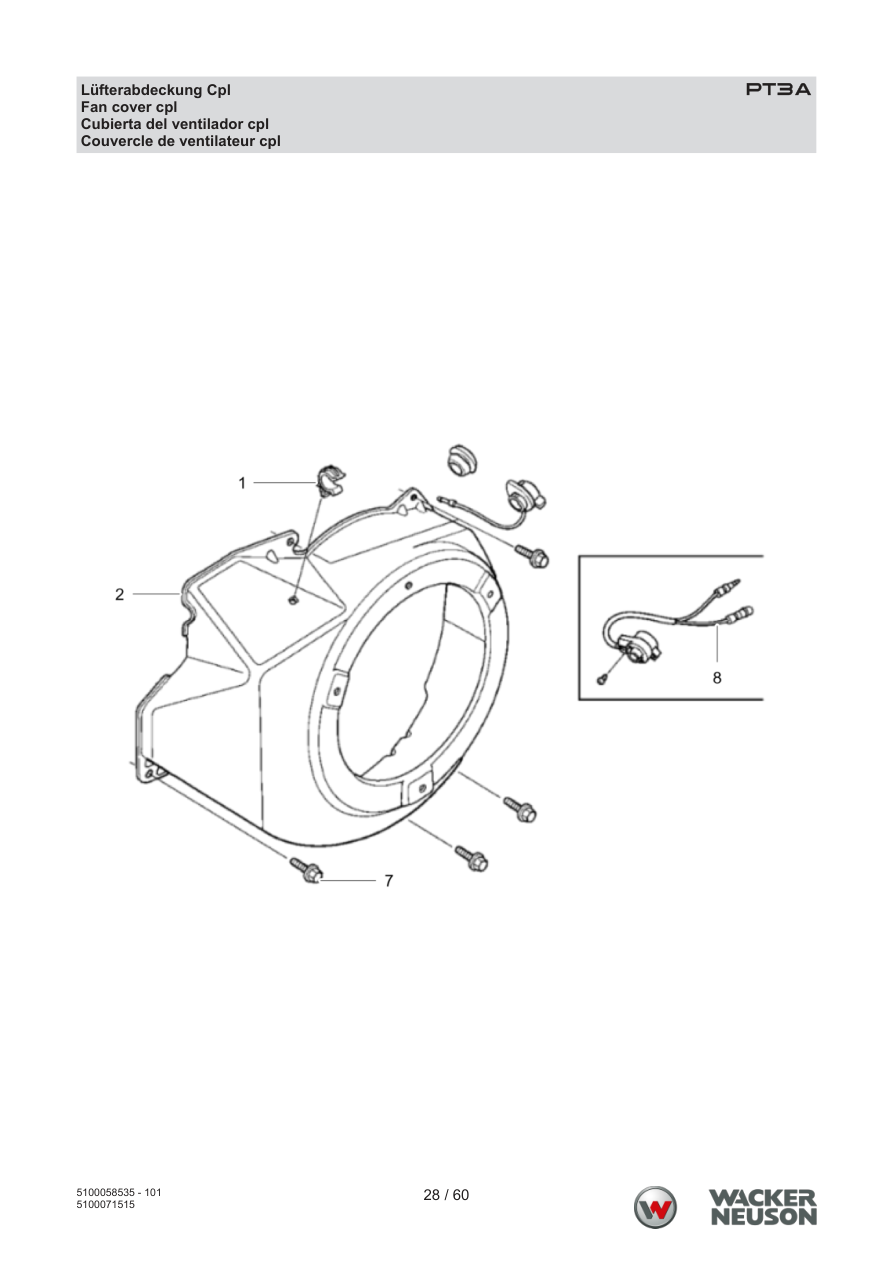

Page 28 — PT3A Lüfterabdeckung Cpl
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000074689 | pc | 1 | ADD TO CART | |
| 2 | 5100000416 | pc | 1 | ADD TO CART | |
| 7 | 5000053990 | pc | 6 | ADD TO CART | |
| 8 | 5100000436 | pc | 1 | Engine stop cpl. | ADD TO CART |

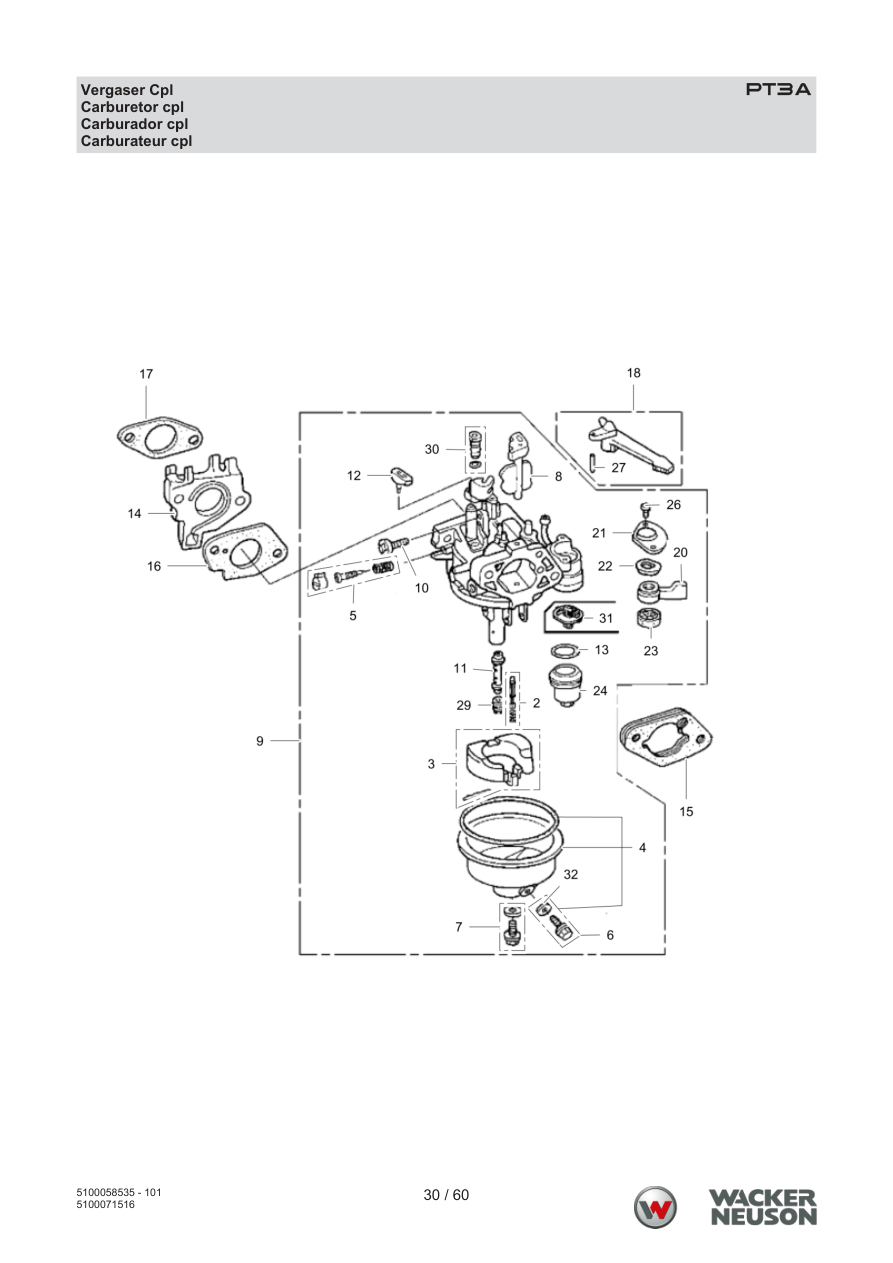

Page 30 — PT3A Vergaser Cpl
Parts list — exactly as printed31 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100039005 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100039005 · qty on machine: 1 | |||||
| 2 | 5000074759 | pc | 1 | ADD TO CART | |
| 3 | 5000217483 | pc | 1 | ADD TO CART | |
| 4 | 5200000429 | pc | 1 | Carburetor float set | ADD TO CART |
| 5 | 5100051883 | pc | 1 | ADD TO CART | |
| 6 | 5200000430 | pc | 1 | ADD TO CART | |
| 7 | 5100071588 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100071588 · qty on machine: 1 | |||||
| 8 | 5100071561 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100071561 · qty on machine: 1 | |||||
| 9 | 5100071562 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100071562 · qty on machine: 1 | |||||
| 10 | 5000071018 | pc | 1 | Throttle stop screw | ADD TO CART |
| 11 | 5100071563 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100071563 · qty on machine: 1 | |||||
| 12 | 5000089281 | pc | 1 | ADD TO CART | |
| 13 | 5100071564 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100071564 · qty on machine: 1 | |||||
| 14 | 5100000388 | pc | 1 | ADD TO CART | |
| 15 | 5000074761 | pc | 1 | Carburetor mount spacer | ADD TO CART |
| 16 | 5100000390 | pc | 1 | ADD TO CART | |
| 17 | 5100000389 | pc | 1 | ADD TO CART | |
| 18 | 5100051236 | pc | 1 | ADD TO CART | |
| 20 | 5000150266 | pc | 1 | Fuel valve lever | ADD TO CART |
| 21 | 5000073269 | pc | 1 | ADD TO CART | |
| 22 | 5000073270 | pc | 1 | ADD TO CART | |
| 23 | 5000073272 | pc | 1 | ADD TO CART | |
| 24 | 5000071023 | pc | 1 | ADD TO CART | |
| 26 | 5100071565 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100071565 · qty on machine: 2 | |||||
| 27 | 5000071014 | pc | 1 | ADD TO CART | |
| 29 | 5000110603 | pc | ADD TO CART | ||
| 29 | 5000125840 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000125840 · qty on machine: 1 | |||||
| 29 | 5000127767 | pc | ADD TO CART | ||
| 30 | 5000162092 | pc | 1 | ADD TO CART | |
| 31 | 5100000396 | pc | 1 | ADD TO CART | |
| 32 | 5100036241 | pc | 1 | ADD TO CART | |

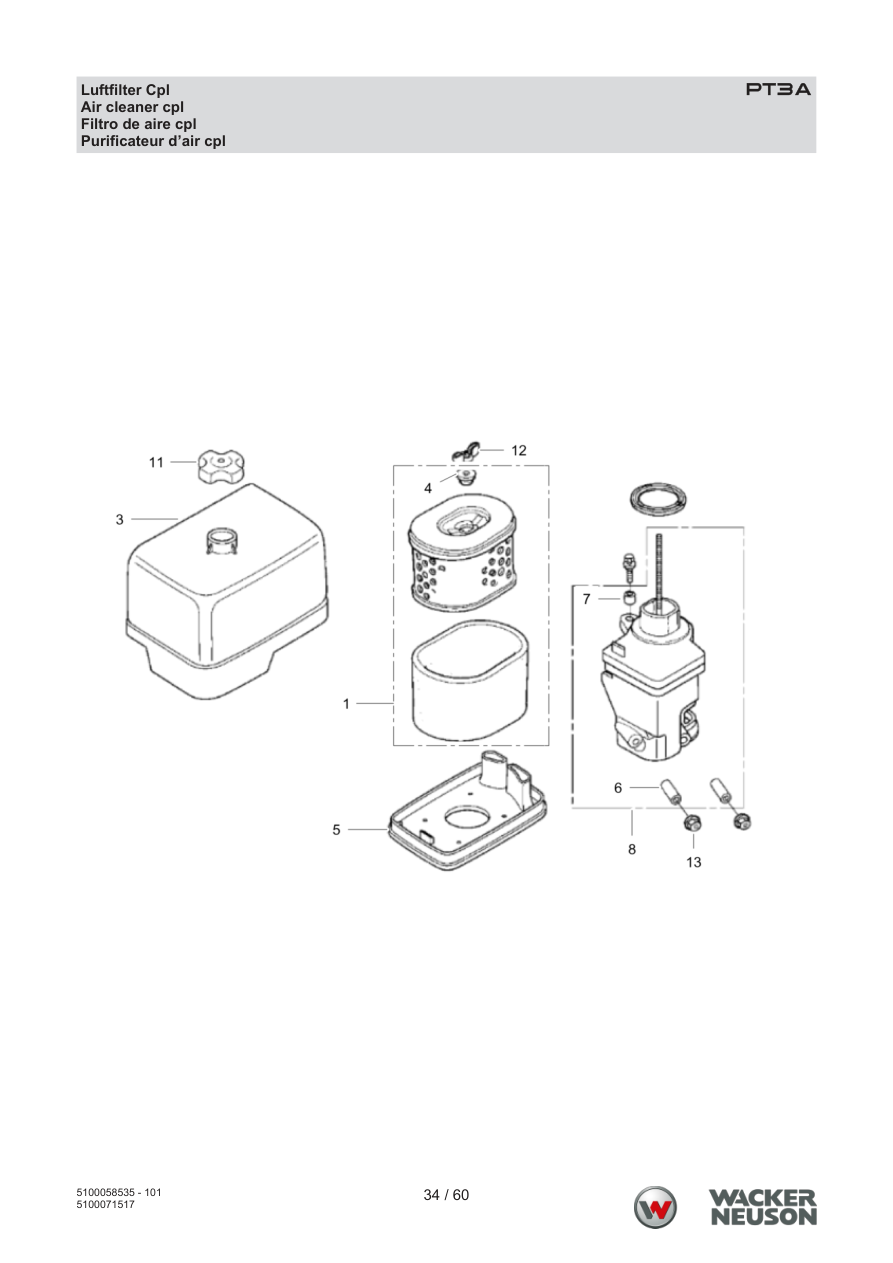

Page 34 — PT3A Luftfilter Cpl
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 13 | 5000071056 | pc | 2 | ADD TO CART | |
| 1 | 5100071566 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100071566 · qty on machine: 1 | |||||
| 2 | 5200008974 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5200008974 · qty on machine: 1 | |||||
| 3 | 5100000583 | pc | 1 | Air cleaner cover | ADD TO CART |
| 4 | 5000072343 | pc | 1 | ADD TO CART | |
| 5 | 5200001257 | pc | 1 | Air cleaner mount | PARTS REQUEST |
|
COMING pc
5200001257 · qty on machine: 1 Air cleaner mount | |||||
| 6 | 5000076372 | pc | 2 | ADD TO CART | |
| 7 | 5000071035 | pc | 1 | ADD TO CART | |
| 8 | 5100000585 | pc | 1 | ADD TO CART | |
| 9 | 5200000440 | pc | 1 | Air cleaner gasket | ADD TO CART |
| 11 | 5100000590 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100000590 · qty on machine: 1 | |||||
| 12 | 5000071621 | pc | 1 | ADD TO CART | |

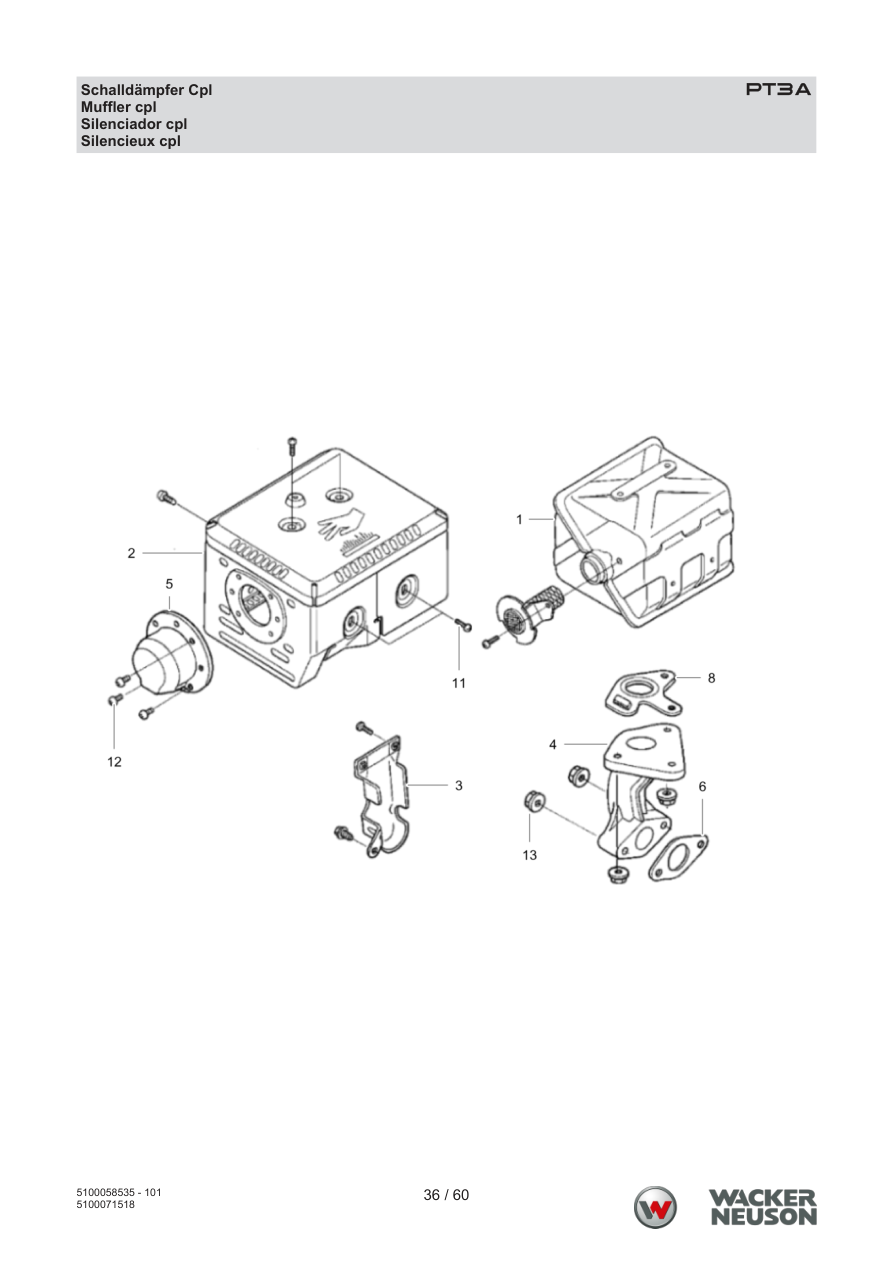

Page 36 — PT3A Schalldämpfer Cpl
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100039013 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100039013 · qty on machine: 1 | |||||
| 2 | 5100000405 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100000405 · qty on machine: 1 | |||||
| 3 | 5000081638 | pc | 1 | ADD TO CART | |
| 4 | 5200000448 | pc | 1 | ADD TO CART | |
| 5 | 5000217513 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000217513 · qty on machine: 1 | |||||
| 6 | 5000217489 | pc | 1 | ADD TO CART | |
| 7 | 5200000449 | pc | 1 | ADD TO CART | |
| 8 | 5000081640 | pc | 1 | ADD TO CART | |
| 11 | 5000071070 | pc | 8 | ADD TO CART | |
| 12 | 5000150916 | pc | 3 | ADD TO CART | |
| 13 | 5000074738 | pc | 5 | ADD TO CART | |

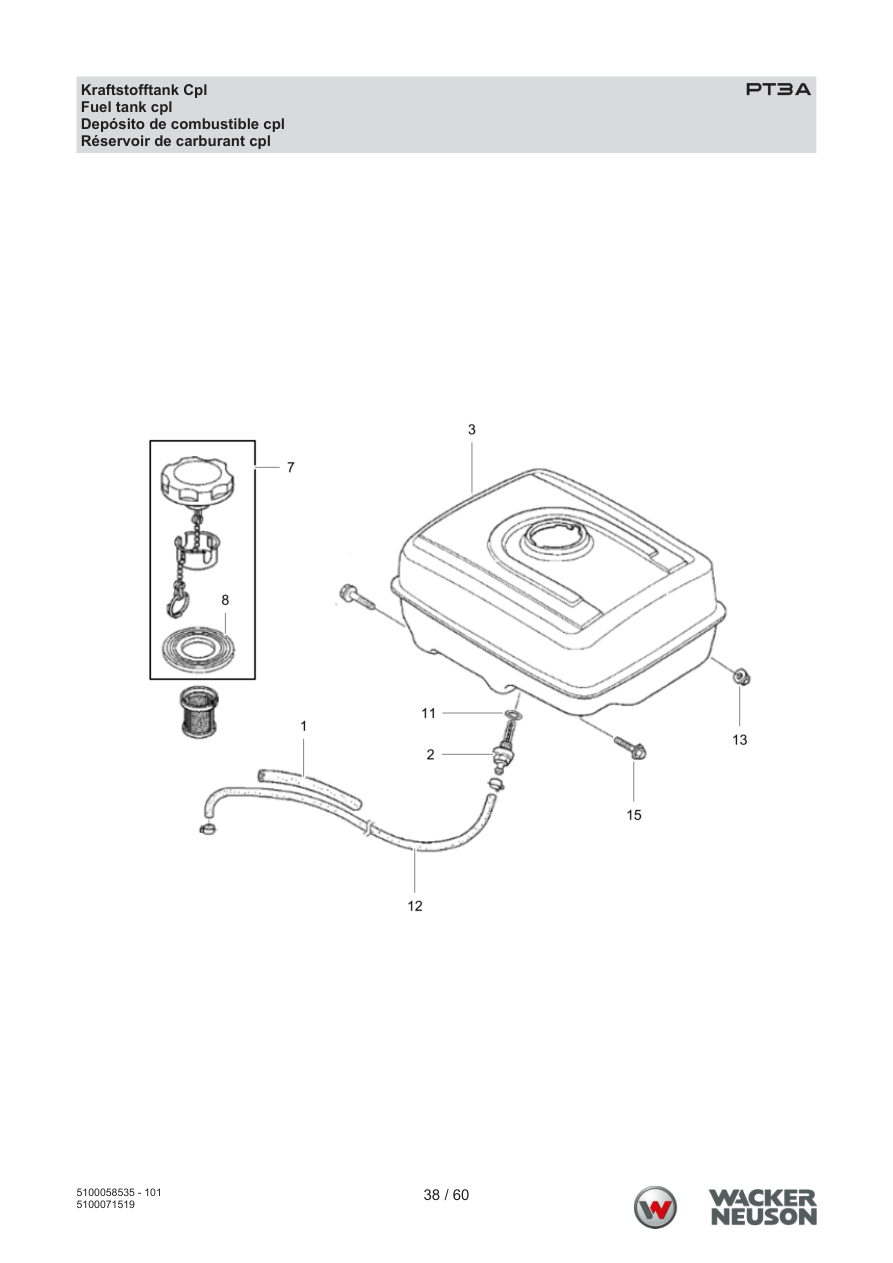

Page 38 — PT3A Kraftstofftank Cpl
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000081764 | pc | 1 | ADD TO CART | |
| 2 | 5000071083 | pc | 1 | ADD TO CART | |
| 3 | 5100000399 | pc | 1 | ADD TO CART | |
| 7 | 5100071567 | pc | 1 | Cap comp,fuel filler | PARTS REQUEST |
|
COMING pc
5100071567 · qty on machine: 1 Cap comp,fuel filler | |||||
| 8 | 5000209770 | pc | 1 | ADD TO CART | |
| 11 | 5100071568 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100071568 · qty on machine: 1 | |||||
| 12 | 5100000454 | pc | 1 | ADD TO CART | |
| 13 | 5000074738 | pc | 2 | ADD TO CART | |
| 15 | 5000074751 | pc | 2 | ADD TO CART | |

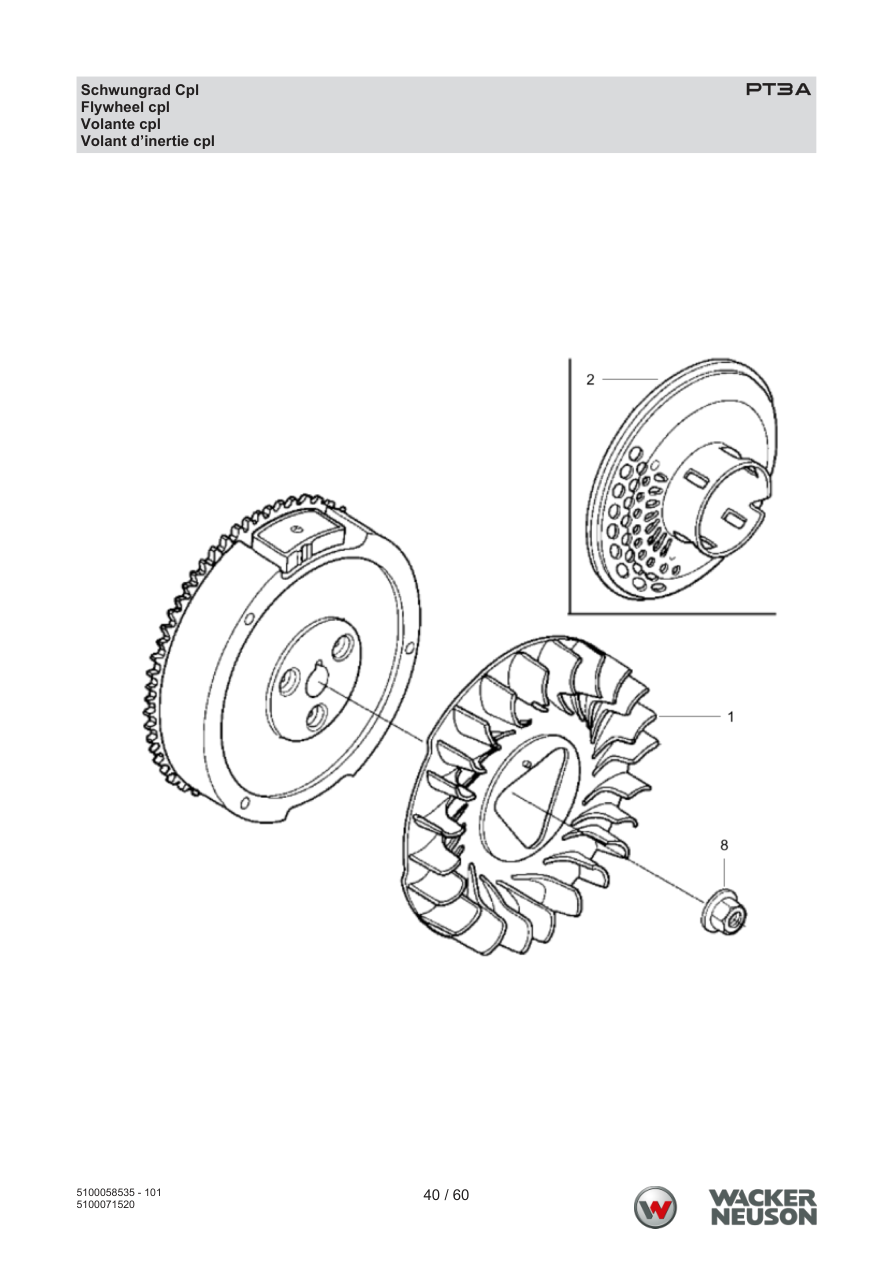

Page 40 — PT3A Schwungrad Cpl
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000074673 | pc | 1 | ADD TO CART | |
| 2 | 5000081651 | pc | 1 | ADD TO CART | |
| 5 | 5100000432 | pc | 1 | Fly wheel cpl. | ADD TO CART |
| 8 | 5000116736 | pc | 1 | ADD TO CART | |

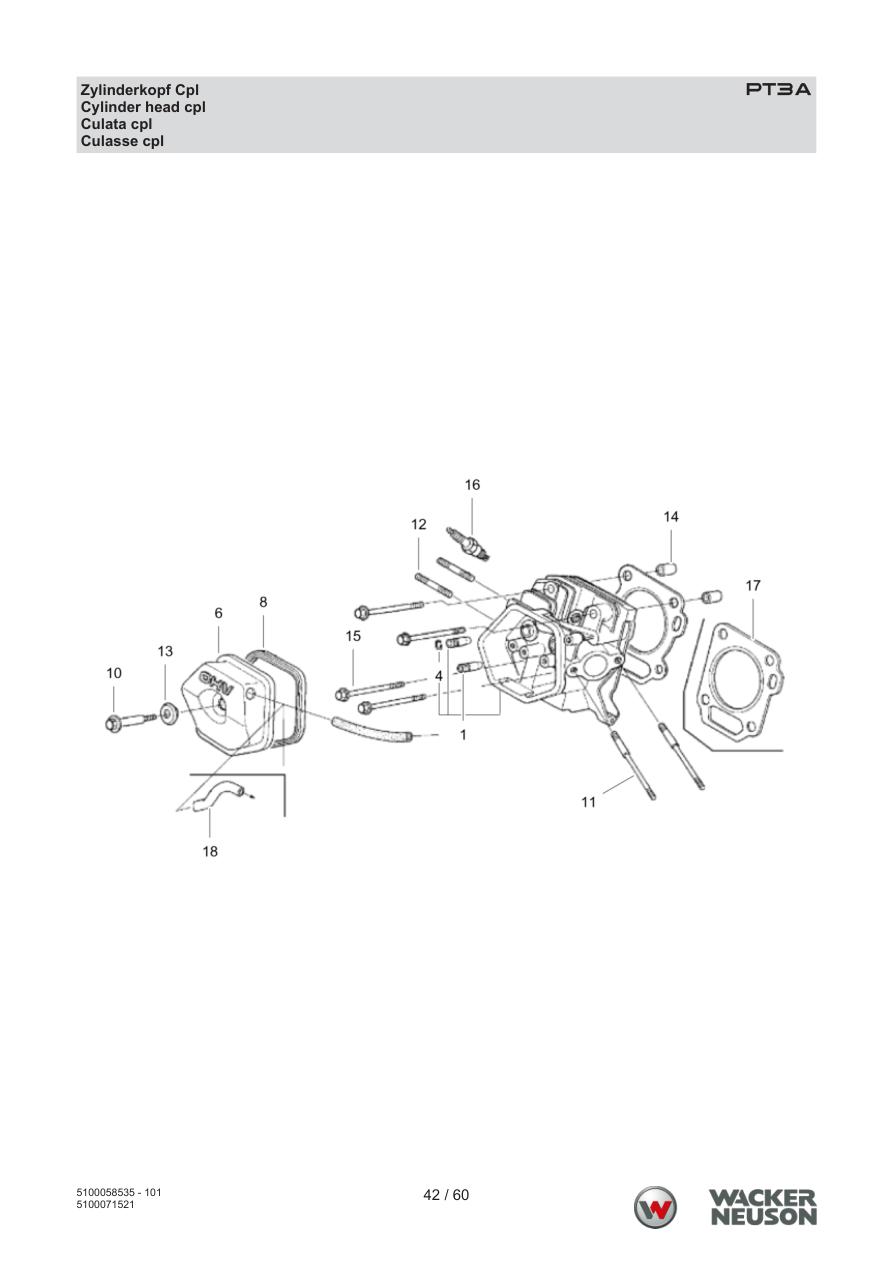

Page 42 — PT3A Zylinderkopf Cpl
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100071569 | pc | 1 | Head comp , cylinder | PARTS REQUEST |
|
COMING pc
5100071569 · qty on machine: 1 Head comp , cylinder | |||||
| 4 | 5000074660 | pc | 1 | ADD TO CART | |
| 6 | 5000089273 | pc | 1 | ADD TO CART | |
| 8 | 5000074645 | pc | 1 | Cylinder head gasket | ADD TO CART |
| 10 | 5100000450 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100000450 · qty on machine: 1 | |||||
| 11 | 5000074651 | pc | 2 | ADD TO CART | |
| 12 | 5000125833 | pc | 2 | ADD TO CART | |
| 13 | 5000074657 | pc | 1 | ADD TO CART | |
| 14 | 5000074652 | pc | 2 | ADD TO CART | |
| 15 | 5000074647 | pc | 4 | ADD TO CART | |
| 16 | 5100071571 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100071571 · qty on machine: 1 | |||||
| 17 | 5100000355 | pc | 1 | Cylinder head gasket | ADD TO CART |
| 18 | 5200000467 | pc | 1 | ADD TO CART | |

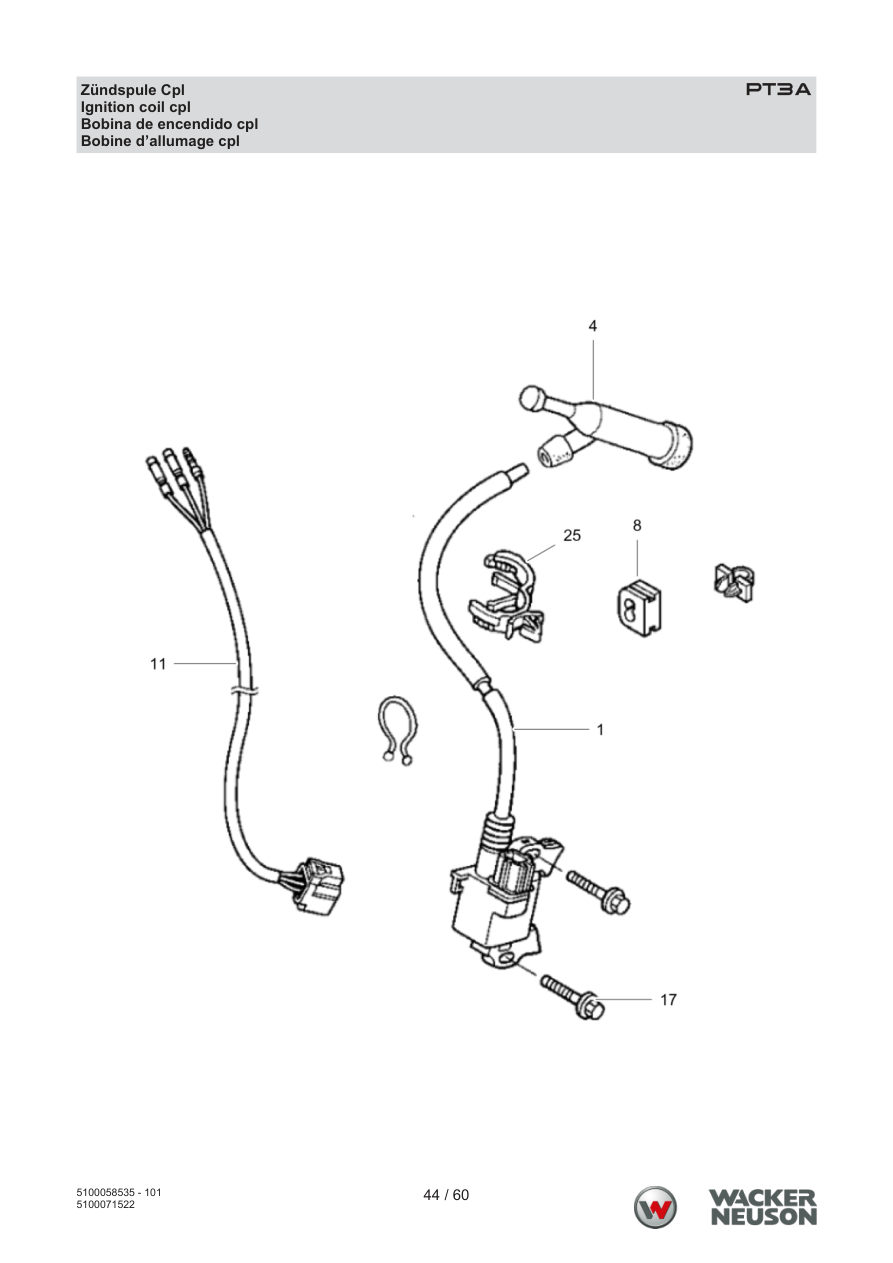

Page 44 — PT3A Zündspule Cpl
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 17 | 5000070966 | pc | 2 | ADD TO CART | |
| 1 | 5100000588 | pc | 1 | ADD TO CART | |
| 4 | 5100049522 | pc | 1 | Spark plug terminal cap | ADD TO CART |
| 8 | 5000081611 | pc | 1 | ADD TO CART | |
| 11 | 5100000434 | pc | 1 | Wire harnes cpl. | ADD TO CART |
| 25 | 5000076375 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000076375 · qty on machine: 1 | |||||

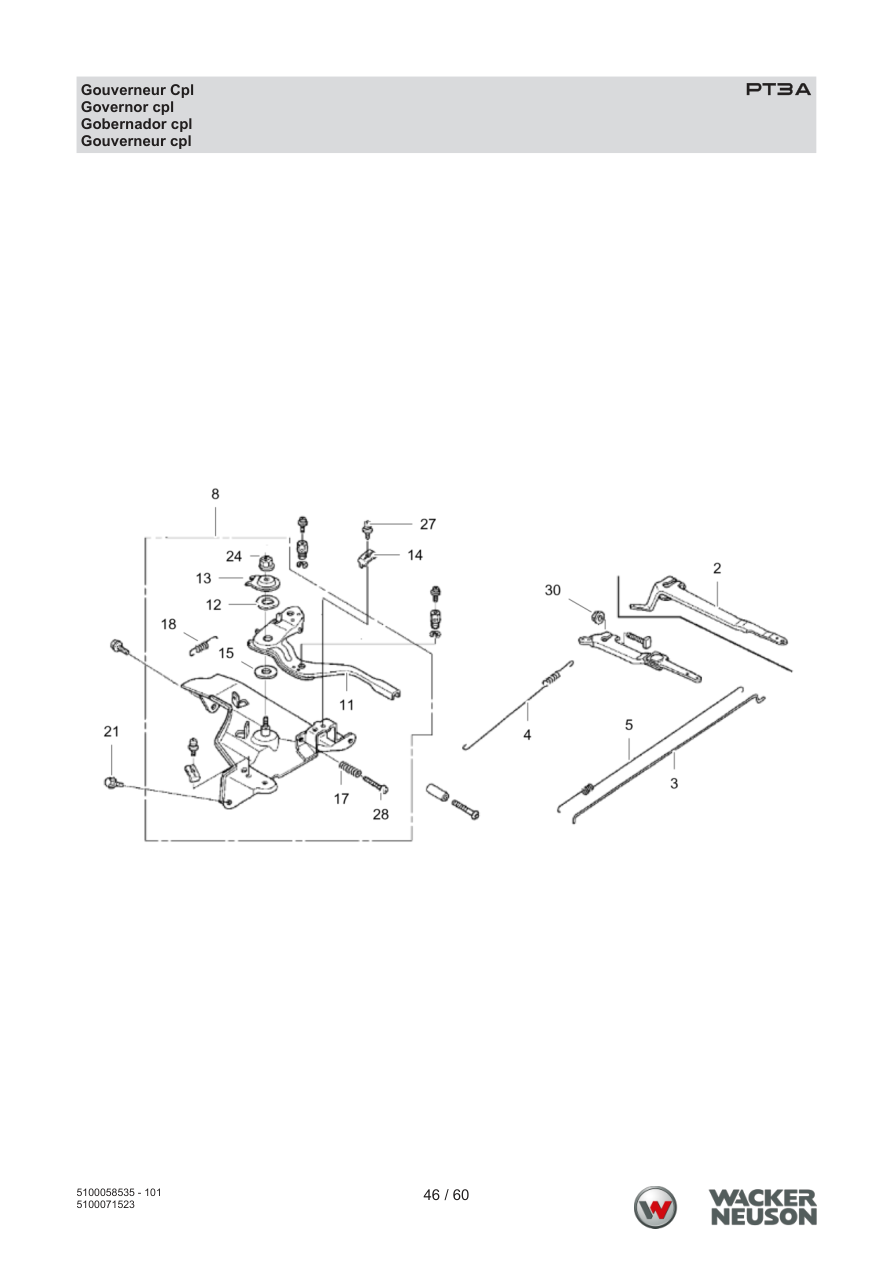

Page 46 — PT3A Gouverneur Cpl
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000074735 | pc | 1 | ADD TO CART | |
| 3 | 5000074733 | pc | 1 | ADD TO CART | |
| 4 | 5000074731 | pc | 1 | ADD TO CART | |
| 5 | 5000074732 | pc | 1 | ADD TO CART | |
| 8 | 5100000391 | pc | 1 | ADD TO CART | |
| 11 | 5000074729 | pc | 1 | ADD TO CART | |
| 12 | 5000071058 | pc | 1 | ADD TO CART | |
| 13 | 5000081633 | pc | 1 | ADD TO CART | |
| 14 | 5000071062 | pc | 1 | ADD TO CART | |
| 15 | 5000071064 | pc | 1 | ADD TO CART | |
| 17 | 5000054088 | pc | 1 | ADD TO CART | |
| 18 | 5000074730 | pc | 1 | ADD TO CART | |
| 21 | 5000053990 | pc | 2 | ADD TO CART | |
| 24 | 5000072782 | pc | 1 | ADD TO CART | |
| 27 | 5000110112 | pc | 1 | ADD TO CART | |
| 28 | 5000074728 | pc | 1 | ADD TO CART | |
| 30 | 5000071056 | pc | 1 | ADD TO CART | |

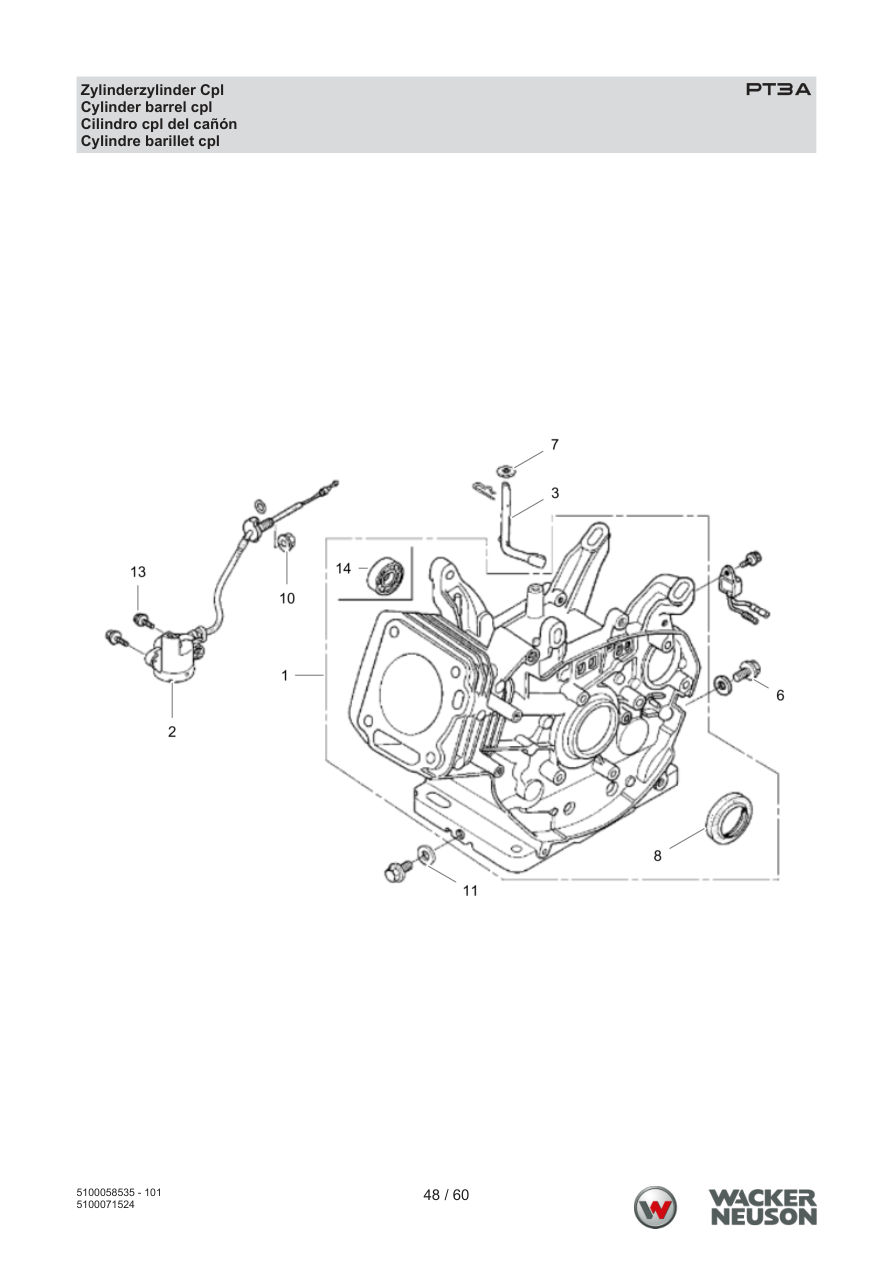

Page 48 — PT3A Zylinderzylinder Cpl
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100000581 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100000581 · qty on machine: 1 | |||||
| 2 | 5000217492 | pc | 1 | ADD TO CART | |
| 3 | 5000074641 | pc | 1 | ADD TO CART | |
| 6 | 5100071570 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100071570 · qty on machine: 2 | |||||
| 7 | 5000074656 | pc | 1 | ADD TO CART | |
| 8 | 5000217495 | pc | 1 | ADD TO CART | |
| 9 | 5100071568 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100071568 · qty on machine: 1 | |||||
| 10 | 5000072332 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000072332 · qty on machine: 1 | |||||
| 11 | 5000053994 | pc | 2 | ADD TO CART | |
| 12 | 5000110110 | pc | 1 | ADD TO CART | |
| 13 | 5000072333 | pc | 2 | ADD TO CART | |
| 14 | 5000074640 | pc | 1 | Grooved ball bearing | ADD TO CART |

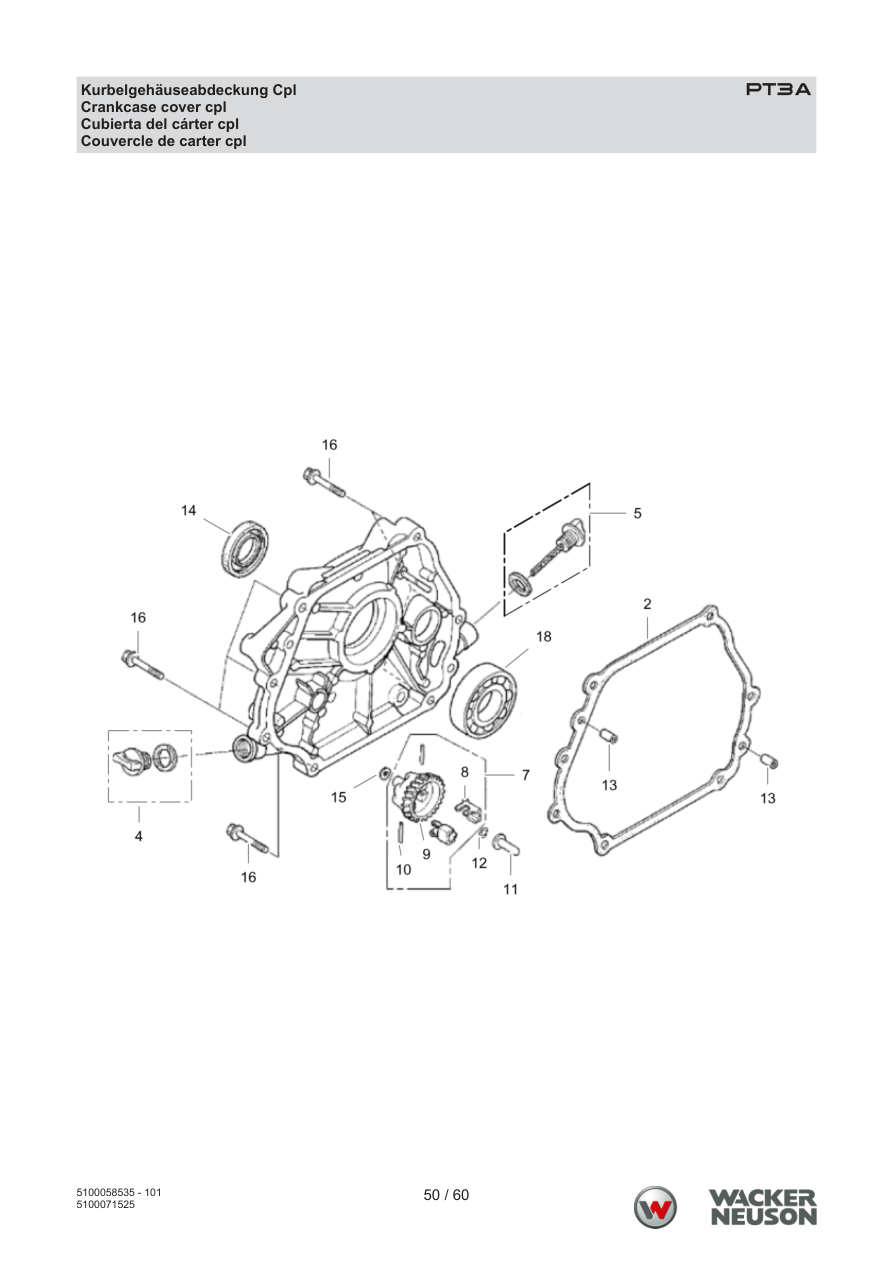

Page 50 — PT3A Kurbelgehäuseabdeckung Cpl
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100000349 | pc | 1 | ADD TO CART | |
| 4 | 5100031607 | pc | 1 | Oil filler cap | ADD TO CART |
| 5 | 5000217482 | pc | 1 | Oil dip stick cpl. | ADD TO CART |
| 6 | 5100051314 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100051314 · qty on machine: 2 | |||||
| 7 | 5000081669 | pc | 1 | ADD TO CART | |
| 8 | 5000151030 | pc | 2 | ADD TO CART | |
| 9 | 5000081661 | pc | 1 | ADD TO CART | |
| 10 | 5000074634 | pc | 2 | ADD TO CART | |
| 11 | 5000074632 | pc | 1 | ADD TO CART | |
| 12 | 5000081615 | pc | 1 | ADD TO CART | |
| 13 | 5000081617 | pc | 2 | ADD TO CART | |
| 14 | 5000217495 | pc | 1 | ADD TO CART | |
| 15 | 5000071639 | pc | 1 | ADD TO CART | |
| 16 | 5000074629 | pc | 7 | ADD TO CART | |
| 18 | 5000071700 | pc | 1 | Grooved ball bearing | ADD TO CART |

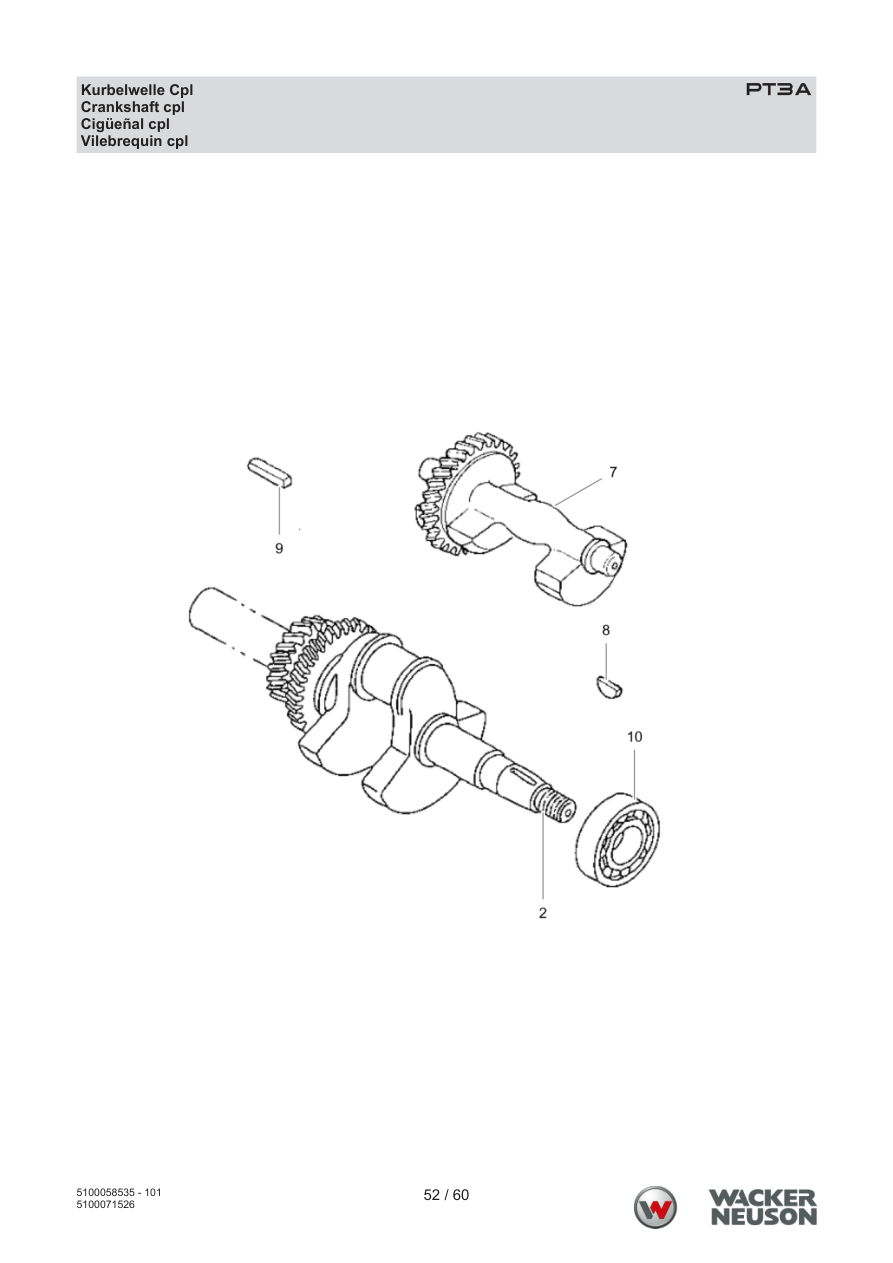

Page 52 — PT3A Kurbelwelle Cpl
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000217479 | pc | 1 | ADD TO CART | |
| 7 | 5000081667 | pc | 1 | ADD TO CART | |
| 8 | 5000074672 | pc | 1 | ADD TO CART | |
| 9 | 5000074686 | pc | 1 | ADD TO CART | |
| 10 | 5000084646 | pc | 1 | ADD TO CART | |

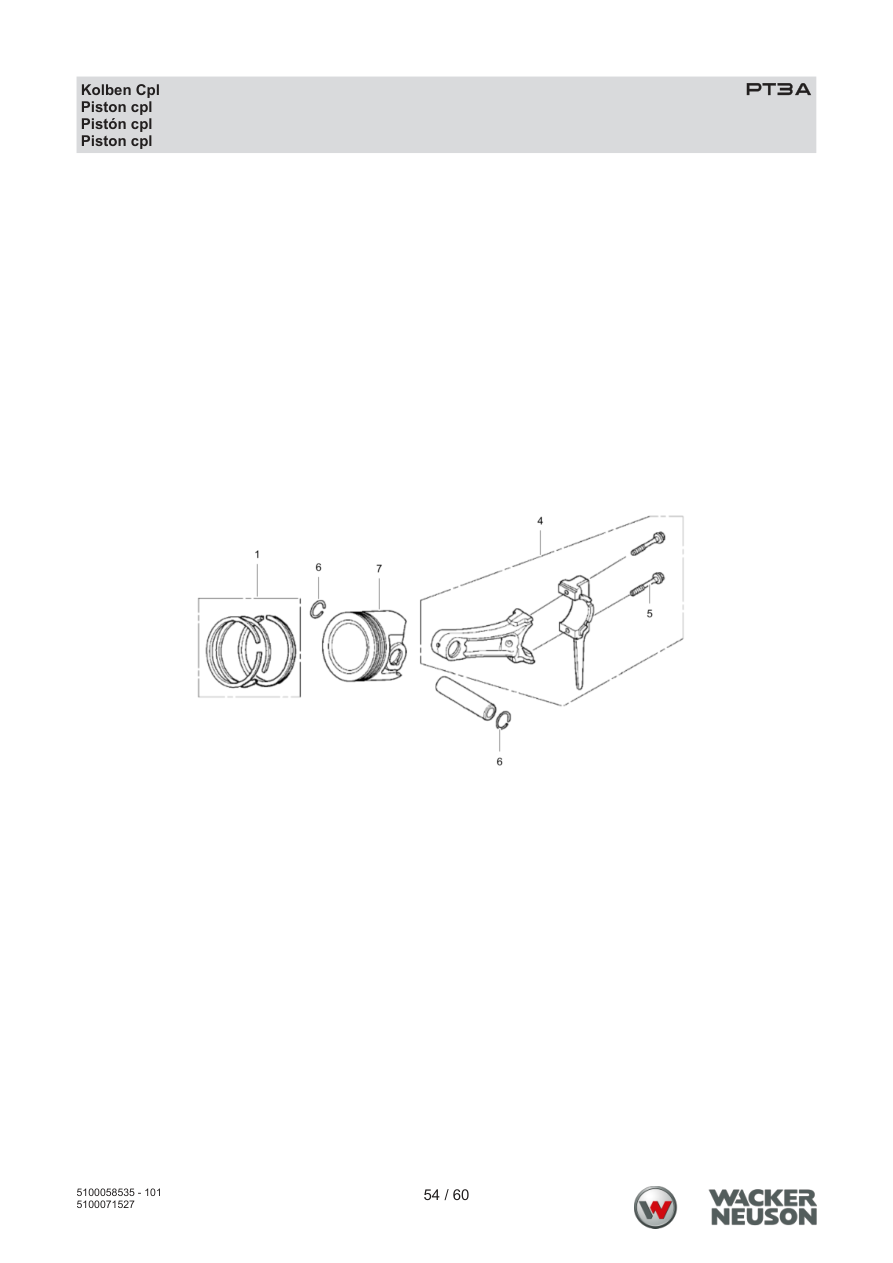

Page 54 — PT3A Kolben Cpl
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100000357 | pc | 1 | Piston ring set (std) | ADD TO CART |
| 3 | 5200001253 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5200001253 · qty on machine: 1 | |||||
| 4 | 5000158500 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000158500 · qty on machine: 1 | |||||
| 5 | 5000075807 | pc | 2 | ADD TO CART | |
| 6 | 5000081994 | pc | 2 | ADD TO CART | |
| 7 | 5100000365 | pc | 1 | ADD TO CART | |

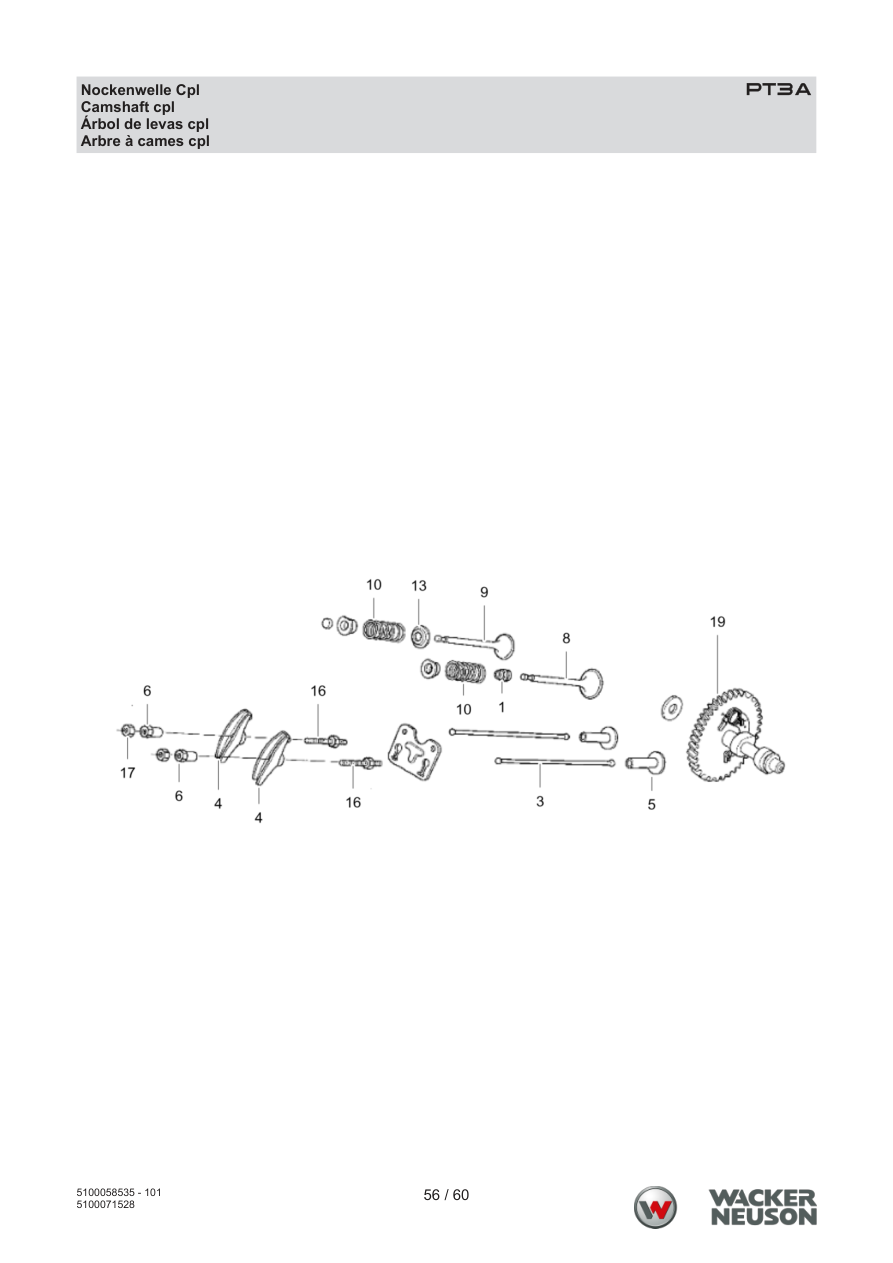

Page 56 — PT3A Nockenwelle Cpl
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000151750 | pc | 1 | ADD TO CART | |
| 3 | 5000217480 | pc | 2 | ADD TO CART | |
| 4 | 5000074675 | pc | 2 | ADD TO CART | |
| 5 | 5000074678 | pc | 2 | ADD TO CART | |
| 6 | 5100031338 | pc | 2 | ADD TO CART | |
| 8 | 5100000381 | pc | 1 | ADD TO CART | |
| 9 | 5100000383 | pc | 1 | ADD TO CART | |
| 10 | 5000217481 | pc | 2 | ADD TO CART | |
| 13 | 5000074659 | pc | 1 | ADD TO CART | |
| 15 | 5200000543 | pc | 1 | ADD TO CART | |
| 16 | 5000072778 | pc | 2 | ADD TO CART | |
| 17 | 5000070984 | pc | 2 | ADD TO CART | |
| 19 | 5100000378 | pc | 1 | ADD TO CART | |
The machine itself
Machine
Engine
Wacker Neuson PT3 trash pump.
List price: $2,640.00
Keep-it-running spares
All listed parts →Every part that fits this machine
5000010367
pc
$0.95
5000010492
pc
5000010618
pc
$0.95
5000010622
pc
$0.95
5000010624
pc
$0.95
5000012086
pc
$0.95
5000013444
pc
$2.95
5000030066
pc
$0.95
5000053990
pc
$2.95
5000053994
pc
$1.95
5000054088
pc
$8.95
5000070966
pc
$6.95
5000070984
pc
$7.95
5000071014
pc
$2.95
5000071018
pc
$20.95
5000071023
pc
$24.95
5000071035
pc
$7.95
5000071056
pc
$0.95
5000071058
pc
$4.95
5000071062
pc
$8.95
5000071064
pc
$9.95
5000071070
pc
$2.95
5000071083
pc
$13.95
5000071621
pc
$9.95
5000071639
pc
$0.95
5000071700
pc
$53.95
5000072332
pc
5000072333
pc
$2.95
5000072343
pc
$9.95
5000072778
pc
$14.95
5000072782
pc
$6.95
5000073269
pc
$7.95
5000073270
pc
$4.95
5000073272
pc
$4.95
5000074629
pc
$3.95
5000074632
pc
$6.95
5000074634
pc
$2.95
5000074640
pc
$20.95
5000074641
pc
$21.95
5000074645
pc
$13.95
5000074647
pc
$7.95
5000074651
pc
$15.95
5000074652
pc
$5.95
5000074656
pc
$2.95
5000074657
pc
$10.95
5000074659
pc
$6.95
5000074660
pc
$4.95
5000074672
pc
$6.95
5000074673
pc
$58.95
5000074675
pc
$15.95
5000074678
pc
$28.95
5000074686
pc
$19.95
5000074689
pc
$5.95
5000074728
pc
$1.95
5000074729
pc
$23.95
5000074730
pc
$5.95
5000074731
pc
$9.95
5000074732
pc
$8.95
5000074733
pc
$9.95
5000074735
pc
$31.95
5000074738
pc
$1.95
5000074751
pc
$2.95
5000074759
pc
$75.95
5000074761
pc
$13.95
5000075807
pc
$7.95
5000076372
pc
$7.95
5000076375
pc
5000078884
pc
5000081611
pc
$6.95
5000081615
pc
$1.95
5000081617
pc
$4.95
5000081633
pc
$9.95
5000081638
pc
$42.95
5000081640
pc
$13.95
5000081644
pc
$71.95
5000081645
pc
$12.95
5000081646
pc
$10.95
5000081647
pc
$31.95
5000081648
pc
$8.95
5000081649
pc
$24.95
5000081651
pc
$68.95
5000081658
pc
$6.95
5000081661
pc
$32.95
5000081667
pc
$367.95
5000081669
pc
$45.95
5000081764
pc
$8.95
5000081994
pc
$1.95
5000084646
pc
$55.95
5000089273
pc
$109.95
5000089279
pc
$267.95
5000089281
pc
$11.95
5000089316
pc
$0.95
5000110110
pc
$1.95
5000110112
pc
$1.95
5000110603
pc
$13.95
5000112134
pc
5000114766
pc
$5.95
5000116736
pc
$16.95
5000116940
pc
$21.95
5000117808
pc
5000117810
pc
5000117814
pc
$15.95
5000117815
pc
$10.95
5000119403
pc
$46.95
5000119406
pc
5000119408
pc
$4.95
5000119409
pc
5000119410
pc
5000119411
pc
5000119412
pc
$0.95
5000119415
pc
5000119416
pc
5000119417
pc
5000119418
pc
5000119626
pc
$10.95
5000119977
pc
5000119979
pc
$1.95
5000119980
pc
5000125833
pc
$4.95
5000125840
pc
5000127767
pc
$13.95
5000150266
pc
$17.95
5000150308
pc
$36.95
5000150916
pc
$1.95
5000151030
pc
$6.95
5000151037
pc
$18.95
5000151750
pc
$9.95
5000152275
pc
$93.95
5000154697
pc
$718.95
5000158500
pc
5000162092
pc
$24.95
5000177636
pc
5000184036
pc
5000202761
pc
5000209770
pc
$0.95
5000217479
pc
$206.95
5000217480
pc
$14.95
5000217481
pc
$6.95
5000217482
pc
$12.95
5000217483
pc
$89.95
5000217489
pc
$4.95
5000217492
pc
$115.95
5000217495
pc
$14.95
5000217513
pc
5000222100
pc
$26.95
5002900102
pc
5100000349
pc
$7.95
5100000355
pc
$4.95
5100000357
pc
$16.95
5100000365
pc
$120.95
5100000378
pc
$137.95
5100000381
pc
$14.95
5100000383
pc
$19.95
5100000388
pc
$16.95
5100000389
pc
$1.95
5100000390
pc
$1.95
5100000391
pc
$24.95
5100000396
pc
$8.95
5100000399
pc
$111.95
5100000405
pc
5100000416
pc
$30.95
5100000424
pc
$90.95
5100000428
pc
5100000429
pc
$25.95
5100000432
pc
$436.95
5100000434
pc
$33.95
5100000436
pc
$105.95
5100000450
pc
5100000454
pc
$20.95
5100000581
pc
5100000583
pc
$9.95
5100000585
pc
$20.95
5100000588
pc
$155.95
5100000590
pc
5100031338
pc
$13.95
5100031607
pc
$11.95
5100031625
pc
5100036241
pc
$0.95
5100039005
pc
5100039013
pc
5100048614
pc
5100049522
pc
$55.95
5100051236
pc
$35.95
5100051314
pc
5100051883
pc
$37.95
5100058886
pc
5100061620
pc
5100061624
pc
5100061627
pc
5100062392
pc
5100062395
pc
5100062399
pc
5100062403
pc
5100064151
pc
5100064152
pc
5100064154
pc
5100064364
pc
5100064366
pc
5100064434
pc
5100064435
pc
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
