Wacker Neuson RD40-130 Roller
Pick your options below. We build the exact machine and start your quote.
The parts bench

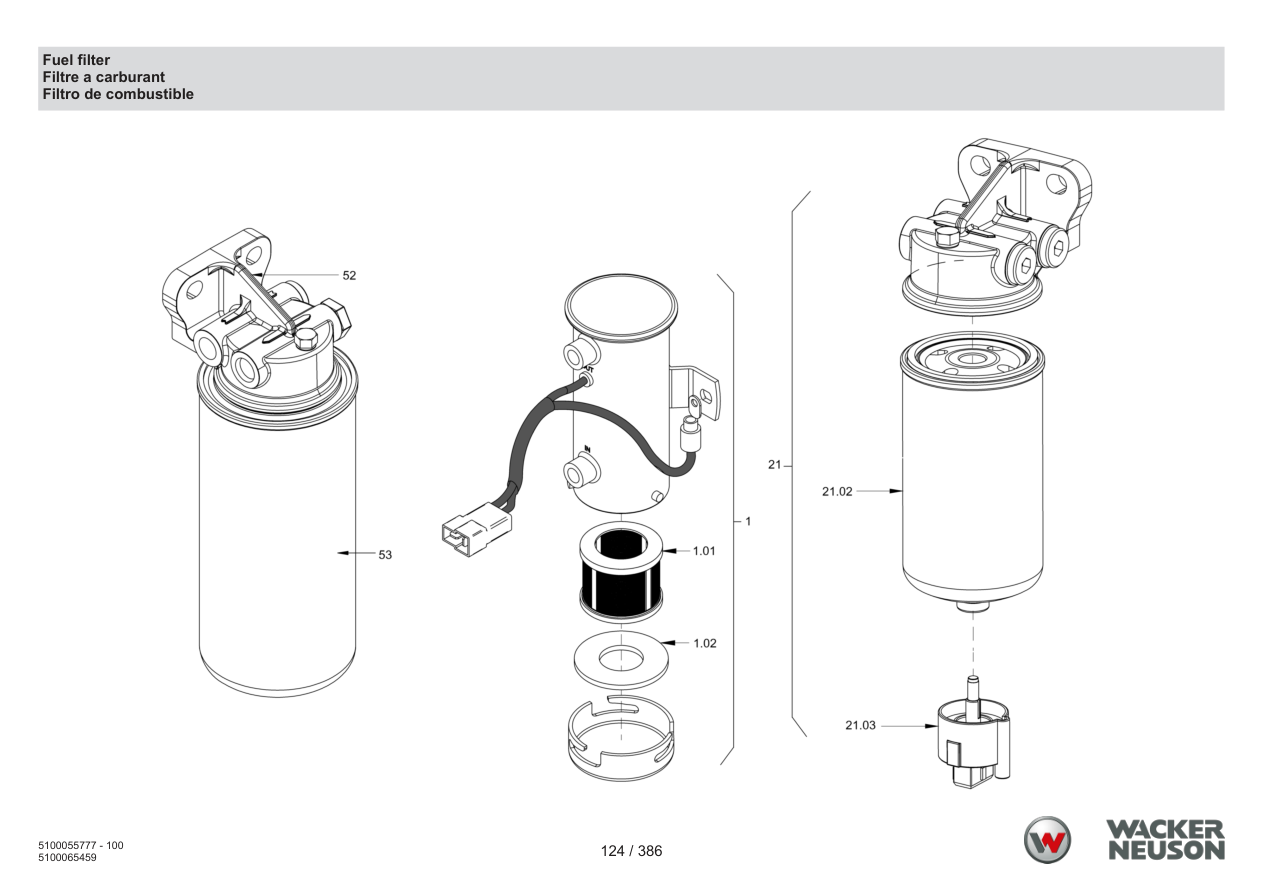

Need the PDF? ↓Page 3 — Fuel filter (Option) SP
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 13 | 1000433952 | Arm | 1 | PARTS REQUEST | |
|
COMING Arm
1000433952 · qty on machine: 1 | |||||
| 1 | 1000386655 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000386655 · qty on machine: 1 | |||||
| 2 | 1000389249 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
1000389249 · qty on machine: 1 | |||||
| 3 | 1000389229 | Screw joint | 2 | PARTS REQUEST | |
|
COMING Screw joint
1000389229 · qty on machine: 2 | |||||
| 4 | 1000386656 | Filter insert | 1 | PARTS REQUEST | |
|
COMING Filter insert
1000386656 · qty on machine: 1 | |||||
| 5 | 1000433955 | Filter housing | 1 | PARTS REQUEST | |
|
COMING Filter housing
1000433955 · qty on machine: 1 | |||||
| 6 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 7 | 1000389241 | Hose clamp | 4 | PARTS REQUEST | |
|
COMING Hose clamp
1000389241 · qty on machine: 4 | |||||
| 8 | 1000389247 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389247 · qty on machine: 1 | |||||
| 9 | 1000434006 | Pressure limit reliefvalve | 1 | PARTS REQUEST | |
|
COMING Pressure limit reliefvalve
1000434006 · qty on machine: 1 | |||||
| 10 | 1000389230 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389230 · qty on machine: 1 | |||||
| 11 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 12 | 1000088388 | Screw | 3 | PARTS REQUEST | |
|
COMING Screw
1000088388 · qty on machine: 3 | |||||
| 14 | 1000328508 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
1000328508 · qty on machine: 1 | |||||
| 15 | 1000433949 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433949 · qty on machine: 1 | |||||
| 16 | 1000433950 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433950 · qty on machine: 1 | |||||
| 17 | 1000389262 | Fuel pump | 1 | PARTS REQUEST | |
|
COMING Fuel pump
1000389262 · qty on machine: 1 | |||||

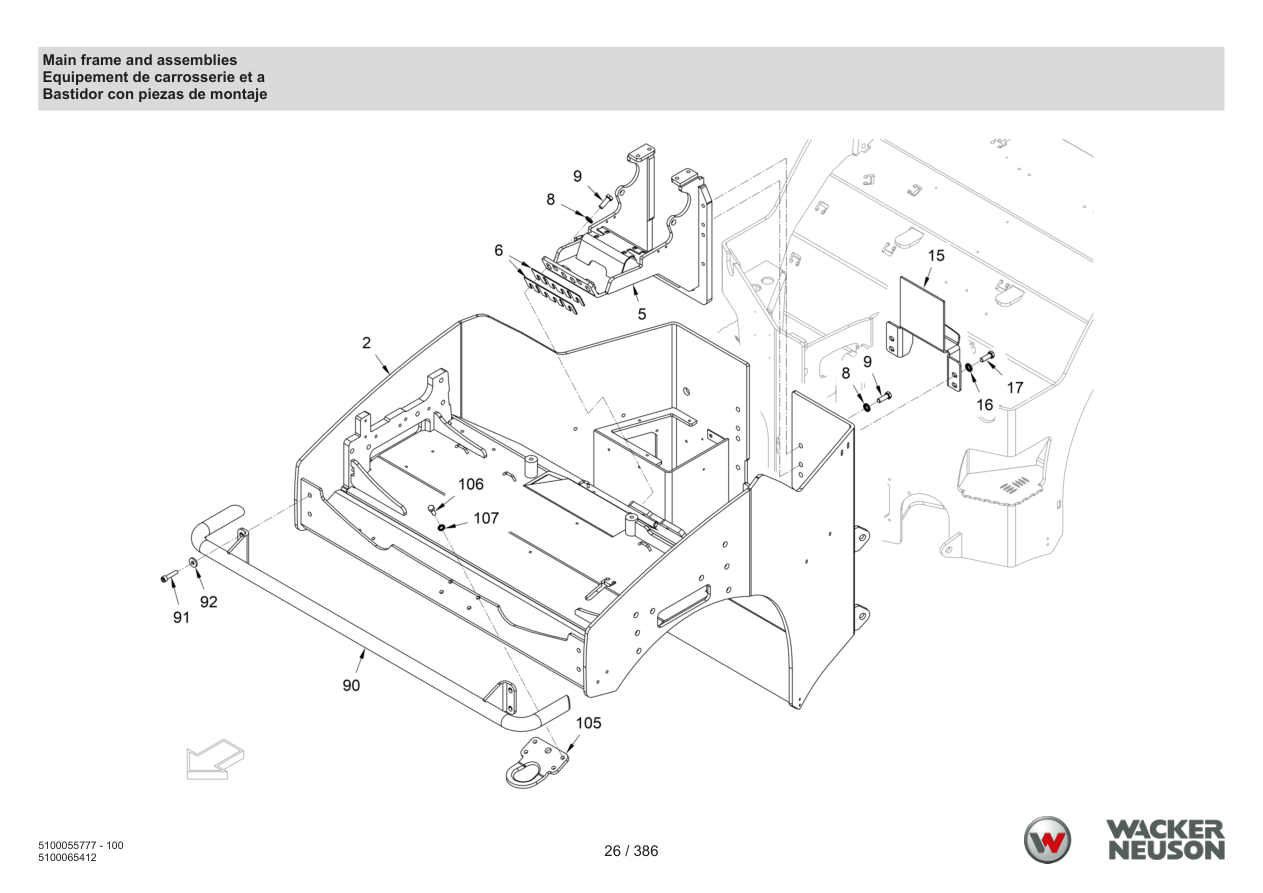

Page 26 — Main frame and assemblies
Parts list — exactly as printed65 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 34 | 5100012599 | Box | 1 | ADD TO CART | |
| 2 | 5100065313 | Front frame part | 1 | PARTS REQUEST | |
|
COMING Front frame part
5100065313 · qty on machine: 1 | |||||
| 5 | 5100024883 | Console | 1 | PARTS REQUEST | |
|
COMING Console
5100024883 · qty on machine: 1 | |||||
| 6 | 5100011847 | Metal plate | 2 | ADD TO CART | |
| 8 | 5100012968 | Locking washer | 10 | ADD TO CART | |
| 9 | 5100012621 | Hexagon screw | 10 | ADD TO CART | |
| 15 | 5100024972 | Cover | 1 | PARTS REQUEST | |
|
COMING Cover
5100024972 · qty on machine: 1 | |||||
| 16 | 5100012968 | Locking washer | 4 | ADD TO CART | |
| 17 | 5100012621 | Hexagon screw | 4 | ADD TO CART | |
| 90 | 5100065324 | Ramming protection | 1 | PARTS REQUEST | |
|
COMING Ramming protection
5100065324 · qty on machine: 1 | |||||
| 91 | 5100022994 | Cheese-head screw | 4 | ADD TO CART | |
| 92 | 5100013128 | Washer | 4 | ADD TO CART | |
| 105 | 5100013076 | Towing loop | 1 | ADD TO CART | |
| 106 | 5100011479 | Hexagon screw | 4 | ADD TO CART | |
| 107 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 20 | 5100065349 | Grab handle | 1 | PARTS REQUEST | |
|
COMING Grab handle
5100065349 · qty on machine: 1 | |||||
| 21 | 5100012727 | Cheese-head screw | 6 | ADD TO CART | |
| 22 | 5100012966 | Locking washer | 6 | ADD TO CART | |
| 23 | 5100012597 | Rear frame part | 1 | PARTS REQUEST | |
|
COMING Rear frame part
5100012597 · qty on machine: 1 | |||||
| 24 | 5100012730 | Rear frame part | 1 | PARTS REQUEST | |
|
COMING Rear frame part
5100012730 · qty on machine: 1 | |||||
| 30 | 5100011814 | Rubber buffer | 6 | ADD TO CART | |
| 31 | 5100013463 | Cheese-head screw | 6 | ADD TO CART | |
| 35 | 5100012357 | Silentbloc | 2 | ADD TO CART | |
| 36 | 5100012723 | Cheese-head screw | 2 | ADD TO CART | |
| 37 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 38 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 39 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 40 | 5100033190 | Hexagon screw | 2 | ADD TO CART | |
| 41 | 5100013128 | Washer | 2 | ADD TO CART | |
| 42 | 5100012202 | Bushing | 2 | ADD TO CART | |
| 43 | 5100011734 | Rubber metal buffer | 2 | ADD TO CART | |
| 44 | 5100035014 | Hexagon screw | 2 | ADD TO CART | |
| 45 | 5100013128 | Washer | 2 | ADD TO CART | |
| 50 | 5100012146 | Handle | 2 | PARTS REQUEST | |
|
COMING Handle
5100012146 · qty on machine: 2 | |||||
| 51 | 5100012529 | Filler cap | 4 | ADD TO CART | |
| 52 | 5100016503 | Bushing | 8 | ADD TO CART | |
| 55 | 5100011498 | Silentbloc | 8 | ADD TO CART | |
| 56 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 57 | 5100012946 | Stud bolt | 4 | ADD TO CART | |
| 58 | 5100012977 | Stud bolt | 4 | ADD TO CART | |
| 59 | 5100012546 | Hexagon nut | 8 | ADD TO CART | |
| 60 | 5100012660 | Bottom plate | 1 | ADD TO CART | |
| 61 | 5100012617 | Hexagon screw | 6 | ADD TO CART | |
| 62 | 5100013128 | Washer | 6 | ADD TO CART | |
| 65 | 5100012712 | Rubber metal buffer | 2 | ADD TO CART | |
| 66 | 5100035014 | Hexagon screw | 2 | ADD TO CART | |
| 67 | 5100013128 | Washer | 2 | ADD TO CART | |
| 69 | 5100016289 | Steering console | 1 | PARTS REQUEST | |
|
COMING Steering console
5100016289 · qty on machine: 1 | |||||
| 69 | 5100012640 | Steering console | 1 | ADD TO CART | |
| 71 | 5100012517 | Hexagon screw | 2 | ADD TO CART | |
| 72 | 5100013094 | Washer | 2 | ADD TO CART | |
| 73 | 5100013644 | Rubber profile | 0.25 | ADD TO CART | |
| 74 | 5100052877 | Protective cap | 2 | ADD TO CART | |
| 75 | 5100012652 | Spacer plate | 1 | ADD TO CART | |
| 77 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 78 | 5100013094 | Washer | 2 | ADD TO CART | |
| 80 | 5100012653 | Retaining plate | 1 | ADD TO CART | |
| 81 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 82 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 5 | 5100011506 | Chock | 1 | ADD TO CART | |
| 9 | 5100059505 | Foot mat | 1 | PARTS REQUEST | |
|
COMING Foot mat
5100059505 · qty on machine: 1 | |||||
| 10 | 5100013309 | Bracket | 2 | ADD TO CART | |
| 11 | 5100052883 | Countersunk screw | 4 | ADD TO CART | |
| 12 | 5100065357 | Blind rivet nut | 4 | PARTS REQUEST | |
|
COMING Blind rivet nut
5100065357 · qty on machine: 4 | |||||
| 14 | 5100052884 | Lashing strap | 1 | PARTS REQUEST | |
|
COMING Lashing strap
5100052884 · qty on machine: 1 | |||||

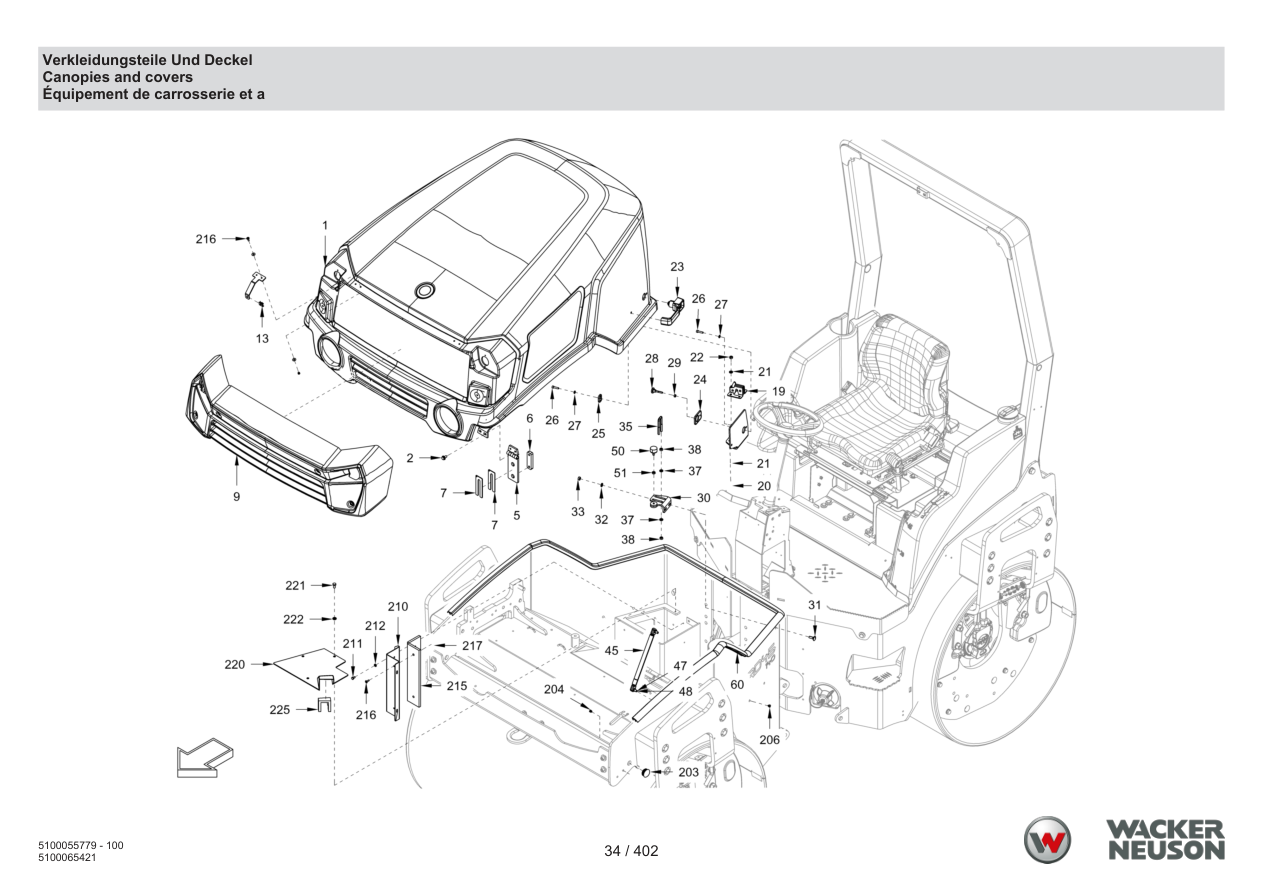

Page 34 — Canopies and covers
Parts list — exactly as printed88 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100065350 | Engine cover | 1 | PARTS REQUEST | |
|
COMING Engine cover
5100065350 · qty on machine: 1 | |||||
| 2 | 5100012498 | Safety screw | 4 | ADD TO CART | |
| 5 | 5100012193 | Hinge | 2 | ADD TO CART | |
| 6 | 5100012214 | Metal plate | 2 | ADD TO CART | |
| 7 | 5100013085 | Spacer plate | 4 | ADD TO CART | |
| 9 | 5100065352 | Covering part | 1 | PARTS REQUEST | |
|
COMING Covering part
5100065352 · qty on machine: 1 | |||||
| 13 | 5100011544 | Clip nut | 2 | ADD TO CART | |
| 19 | 5100012696 | Lock | 1 | ADD TO CART | |
| 20 | 5100012517 | Hexagon screw | 4 | ADD TO CART | |
| 21 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 22 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 23 | 5100013588 | Lock outside handle | 1 | ADD TO CART | |
| 24 | 5100013590 | Supporting plate | 1 | ADD TO CART | |
| 25 | 5100013589 | Supporting plate | 1 | ADD TO CART | |
| 26 | 5100013404 | Cheese-head screw | 2 | PARTS REQUEST | |
|
COMING Cheese-head screw
5100013404 · qty on machine: 2 | |||||
| 27 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 28 | 5100050643 | Knurled head screw | 1 | PARTS REQUEST | |
|
COMING Knurled head screw
5100050643 · qty on machine: 1 | |||||
| 29 | 5100012545 | Hexagon nut | 1 | ADD TO CART | |
| 30 | 5100065346 | Holder | 1 | ADD TO CART | |
| 31 | 5100012780 | Mushroom head screw | 2 | ADD TO CART | |
| 32 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 33 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 35 | 5100050644 | Wire clip | 1 | ADD TO CART | |
| 37 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 38 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 45 | 5100017981 | Gas spring | 2 | ADD TO CART | |
| 47 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 48 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 50 | 5100013525 | Rubber buffer | 1 | ADD TO CART | |
| 51 | 5100013537 | Hexagon nut | 1 | ADD TO CART | |
| 60 | 5100012029 | Sealing profile | 3.3 | ADD TO CART | |
| 203 | 5100017982 | Cap | 2 | ADD TO CART | |
| 204 | 5100058746 | Filler cap | 2 | ADD TO CART | |
| 206 | 5100050647 | Filler cap | 4 | ADD TO CART | |
| 210 | 5100024985 | Kit cover | 1 | PARTS REQUEST | |
|
COMING Kit cover
5100024985 · qty on machine: 1 | |||||
| 211 | 5100012572 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 4 | |||||
| 212 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 215 | 5100024995 | Insulation plate | 1 | PARTS REQUEST | |
|
COMING Insulation plate
5100024995 · qty on machine: 1 | |||||
| 216 | 5100011581 | Fillister head screw | 4 | ADD TO CART | |
| 217 | 5100011922 | Locking washer | 4 | ADD TO CART | |
| 220 | 5100025002 | Lid | 1 | PARTS REQUEST | |
|
COMING Lid
5100025002 · qty on machine: 1 | |||||
| 221 | 5100012515 | Hexagon screw | 3 | ADD TO CART | |
| 222 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 225 | 5100024901 | Sealing tape | 0.2 | ADD TO CART | |
| 78 | 5100011595 | Frame | 2 | ADD TO CART | |
| 79 | 5100011580 | Blind cover | 2 | ADD TO CART | |
| 80 | 5100024934 | Covering part | 1 | PARTS REQUEST | |
|
COMING Covering part
5100024934 · qty on machine: 1 | |||||
| 81 | 5100011854 | Bracket | 1 | ADD TO CART | |
| 82 | 5100012607 | Hexagon screw | 1 | ADD TO CART | |
| 85 | 5100024933 | Covering part | 1 | PARTS REQUEST | |
|
COMING Covering part
5100024933 · qty on machine: 1 | |||||
| 86 | 5100011581 | Fillister head screw | 14 | ADD TO CART | |

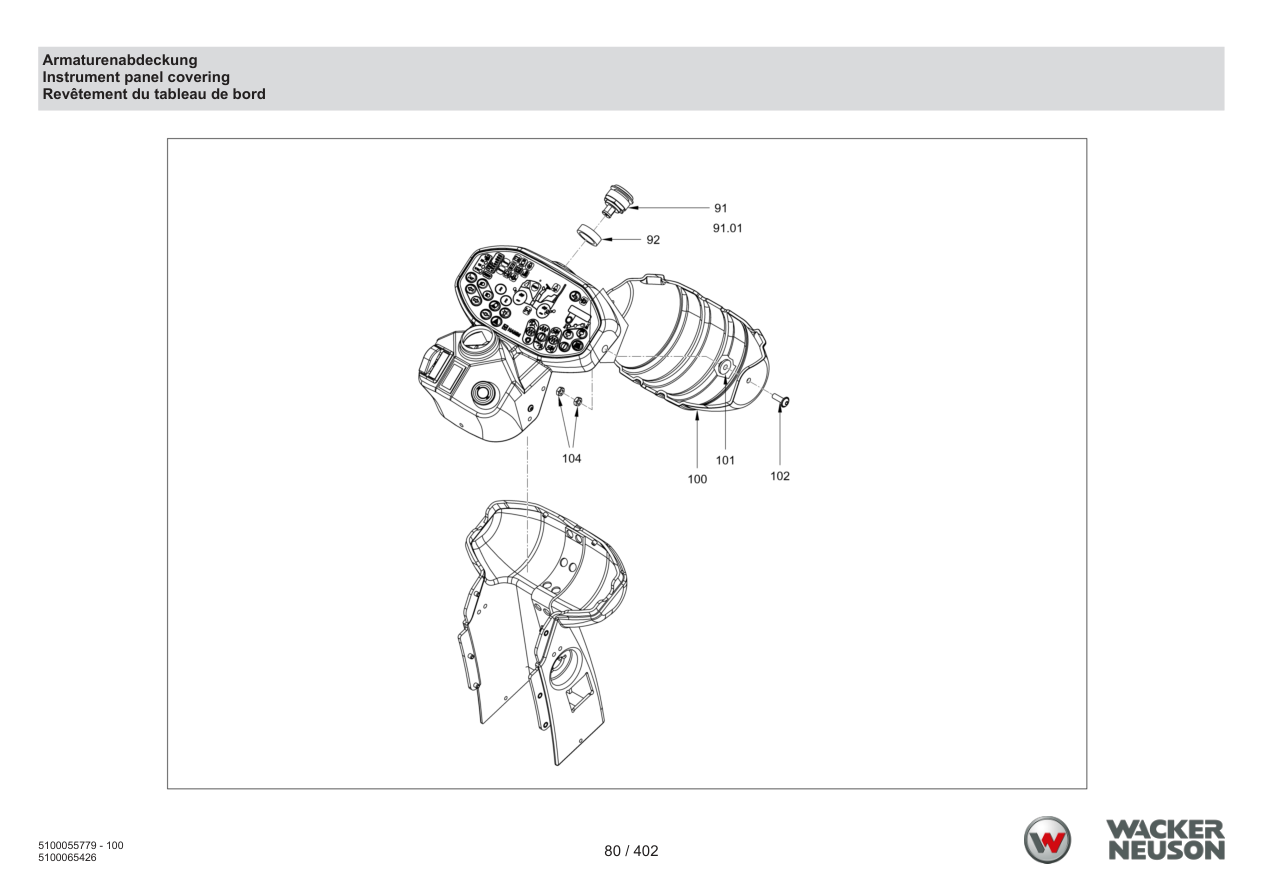

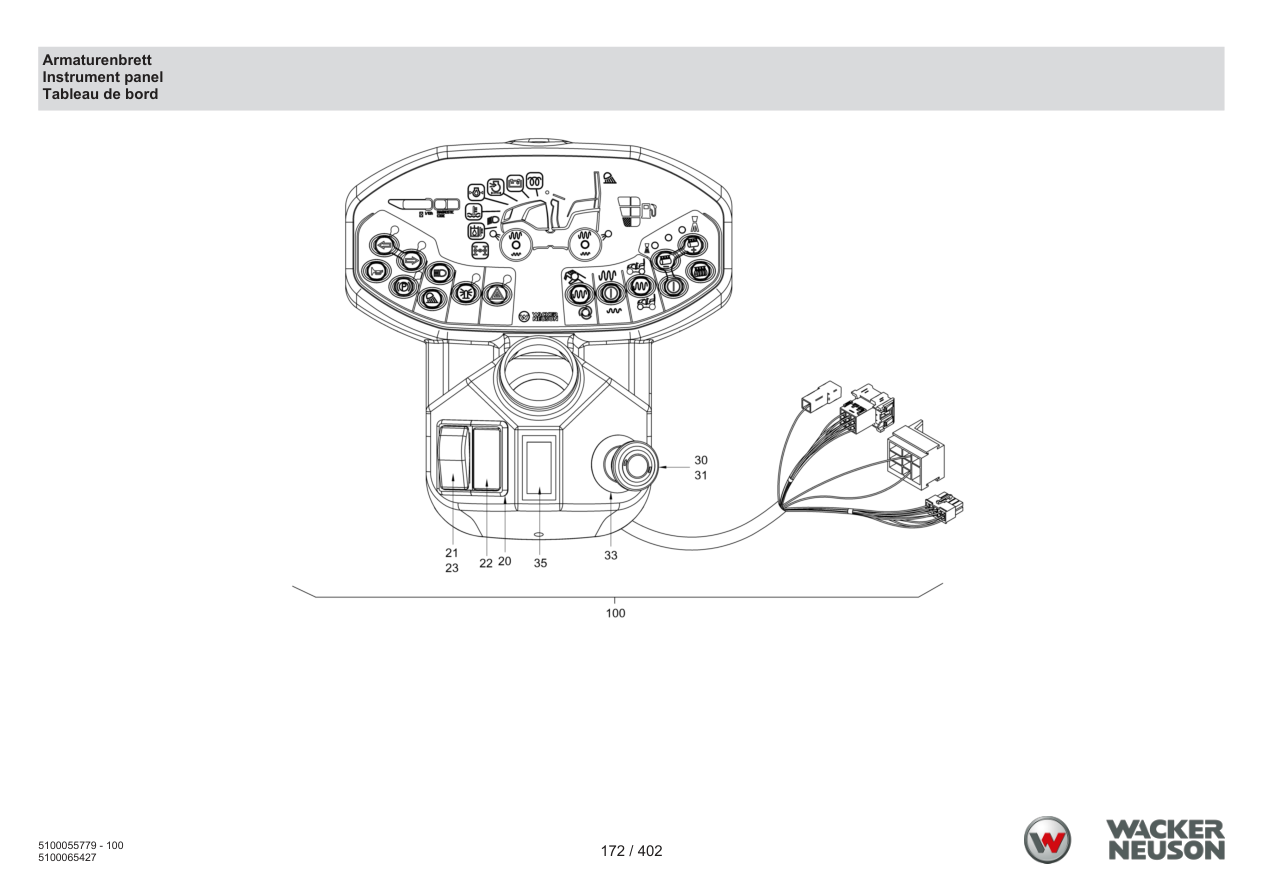

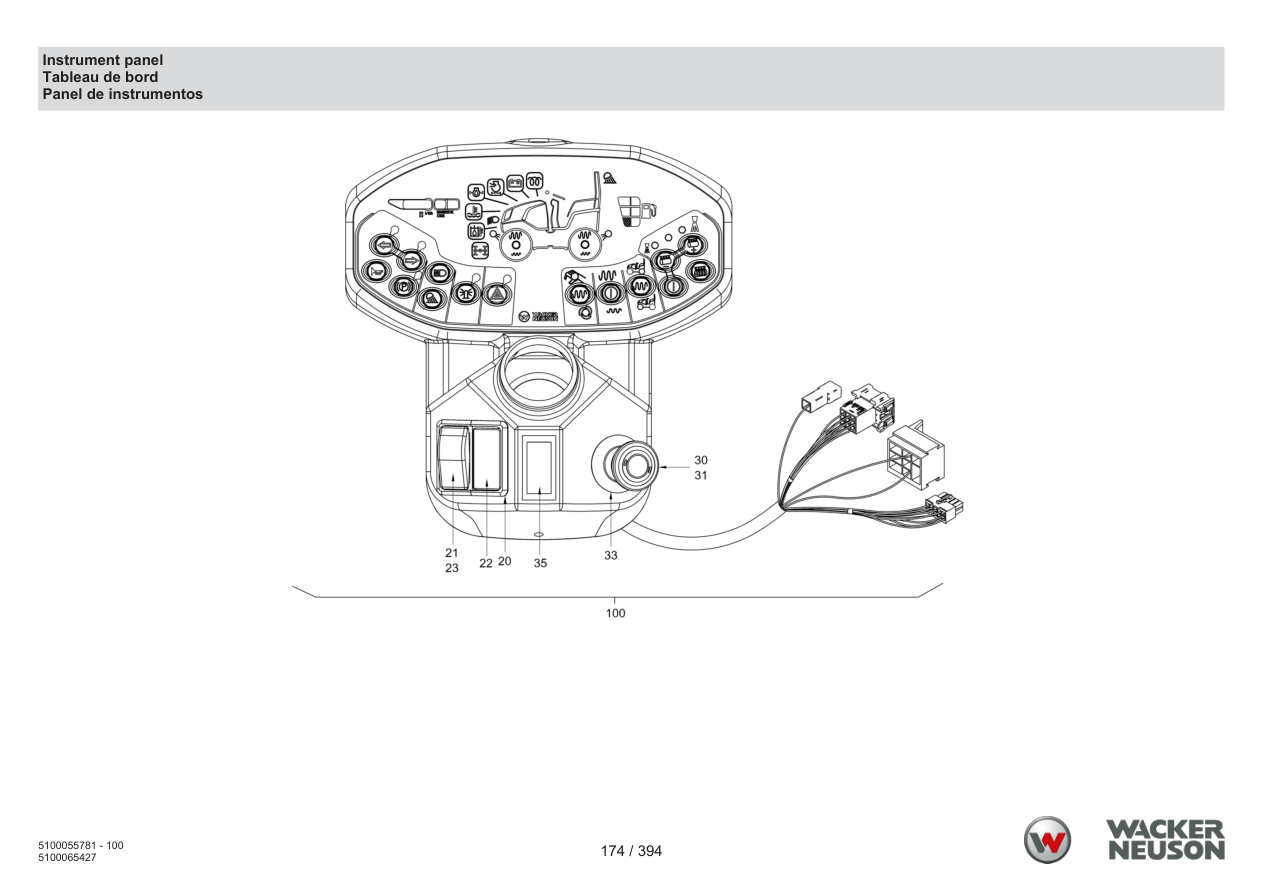

| 90 | 5100025103 | Instrument panel | 1 | ADD TO CART | |
| 93 | 5100011860 | Rubber sleeve | 1 | ADD TO CART | |
| 94 | 5100011581 | Fillister head screw | 7 | ADD TO CART | |
| 130 | 5100024905 | Lid | 2 | PARTS REQUEST | |
|
COMING Lid
5100024905 · qty on machine: 2 | |||||
| 132 | 5100012651 | Sealing profile | 2 | ADD TO CART | |
| 133 | 5100012592 | Hexagon screw | 8 | ADD TO CART | |
| 134 | 5100012936 | Washer | 8 | ADD TO CART | |
| 140 | 5100012822 | Cover plate | 1 | ADD TO CART | |
| 141 | 5100012572 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 2 | |||||
| 142 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 150 | 5100012879 | Cover plate | 2 | ADD TO CART | |
| 151 | 5100011634 | Sheet metal screw | 4 | ADD TO CART | |
| 185 | 5100024964 | Lid | 1 | PARTS REQUEST | |
|
COMING Lid
5100024964 · qty on machine: 1 | |||||
| 186 | 5100012515 | Hexagon screw | 4 | ADD TO CART | |
| 187 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 190 | 5100012659 | Cover | 1 | ADD TO CART | |
| 191 | 5100012572 | Hexagon screw | 3 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 3 | |||||
| 192 | 5100012965 | Locking washer | 3 | ADD TO CART | |
| 197 | 5100050647 | Filler cap | 4 | ADD TO CART | |
| 199 | 5100011550 | Plug | 4 | ADD TO CART | |
| 200 | 5100050647 | Filler cap | 2 | ADD TO CART | |
| 205 | 5100017982 | Cap | 2 | ADD TO CART | |
| 70 | 5100012033 | Cover | 1 | ADD TO CART | |
| 71 | 5100013557 | Key | 1 | ADD TO CART | |
| 71 | 5100013591 | Built-in lock | 1 | ADD TO CART | |
| 72 | 5100013647 | Sealing profile | 0.8 | ADD TO CART | |
| 120 | 5100012464 | Cover | 4 | ADD TO CART | |
| 121 | 5100012515 | Hexagon screw | 16 | ADD TO CART | |
| 122 | 5100012966 | Locking washer | 16 | ADD TO CART | |
| 195 | 5100011537 | Filler cap | 32 | ADD TO CART | |
| 201 | 5100017982 | Cap | 2 | ADD TO CART | |
| 10 | 5100065351 | Covering part | 1 | PARTS REQUEST | |
|
COMING Covering part
5100065351 · qty on machine: 1 | |||||
| 11 | 5100016199 | Cheese-head screw | 2 | PARTS REQUEST | |
|
COMING Cheese-head screw
5100016199 · qty on machine: 2 | |||||
| 12 | 5100013523 | Washer | 2 | ADD TO CART | |
| 14 | 5100016820 | Cheese-head screw | 2 | ADD TO CART | |
| 15 | 5100013523 | Washer | 2 | ADD TO CART | |
| 17 | 5100013644 | Rubber profile | 0.6 | ADD TO CART | |
Page 44 — Sticker arrangement
Parts list — exactly as printed25 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013224 | Type plate rd 40-130 | 2 | PARTS REQUEST | |
|
COMING Type plate rd 40-130
5100013224 · qty on machine: 2 | |||||
| 1 | 5100013225 | Type plate rd 40-130c | 2 | PARTS REQUEST | |
|
COMING Type plate rd 40-130c
5100013225 · qty on machine: 2 | |||||
| 1 | 5100013226 | Type plate rd 40-130o | 2 | PARTS REQUEST | |
|
COMING Type plate rd 40-130o
5100013226 · qty on machine: 2 | |||||
| 1 | 5100017985 | Type plate rd 45-140 | 2 | PARTS REQUEST | |
|
COMING Type plate rd 45-140
5100017985 · qty on machine: 2 | |||||
| 1 | 5100017986 | Type plate rd 45-140c | 2 | PARTS REQUEST | |
|
COMING Type plate rd 45-140c
5100017986 · qty on machine: 2 | |||||
| 1 | 5100017987 | Type plate rd 45-140o | 2 | PARTS REQUEST | |
|
COMING Type plate rd 45-140o
5100017987 · qty on machine: 2 | |||||
| 2 | 5100016821 | Type plate | 2 | ADD TO CART | |
| 3 | 5100025945 | Type plate | 2 | ADD TO CART | |
| 4 | 5100016256 | Sticker | 1 | ADD TO CART | |
| 5 | 5100016257 | Adhesive tape | 1 | ADD TO CART | |
| 9 | 5100013209 | Decal kit | 1 | ADD TO CART | |
| 10 | 5100013207 | Decal kit | 1 | ADD TO CART | |
| 10 | 5100013208 | Decal kit | 1 | ADD TO CART | |
| 50 | 5100013420 | Sticker | 3 | ADD TO CART | |
| 51 | 5100023527 | Label | 1 | ADD TO CART | |
| 90 | 5100012698 | Sticker | 1 | ADD TO CART | |
| 90 | 5100016500 | Sticker | 1 | ADD TO CART | |
| 91 | 5100012699 | Sticker | 1 | ADD TO CART | |
| 106 | 5100016258 | Decal kit | 1 | ADD TO CART | |
| 51 | 5100011684 | Metal plate | 1 | ADD TO CART | |
| 52 | 5100013409 | Countersunk screw | 2 | ADD TO CART | |
| 100 | 5100012465 | Sticker | 1 | ADD TO CART | |
| 105 | 5100011703 | Sticker | 1 | ADD TO CART | |
| 115 | 5100027780 | Label | 1 | ADD TO CART | |
| 1 | 5100013208 | Decal kit | 1 | ADD TO CART | |
Page 62 — Sound insulation
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100065339 | Sound insulation | 1 | PARTS REQUEST | |
|
COMING Sound insulation
5100065339 · qty on machine: 1 | |||||
| 2 | 5100065340 | Sound insulation | 1 | PARTS REQUEST | |
|
COMING Sound insulation
5100065340 · qty on machine: 1 | |||||
| 3 | 5100065342 | Sound insulation | 1 | PARTS REQUEST | |
|
COMING Sound insulation
5100065342 · qty on machine: 1 | |||||
| 4 | 5100011922 | Locking washer | 20 | ADD TO CART | |

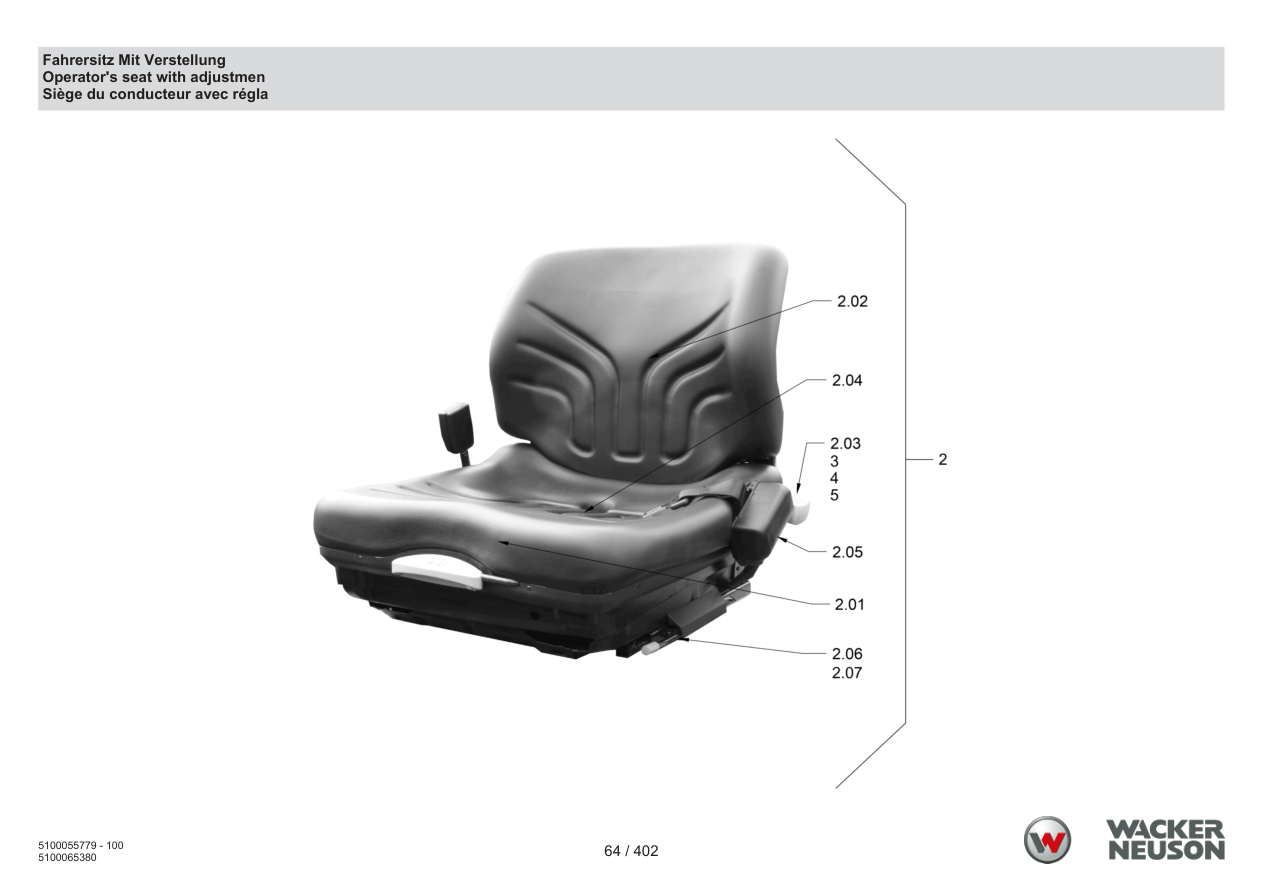

Page 64 — Operator's seat with adjustmen
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100011518 | Seat cushion | 1 | ADD TO CART | |
| 2 | 5100011519 | Backrest cushion | 1 | ADD TO CART | |
| 2 | 5100011615 | Handle | 1 | ADD TO CART | |
| 2 | 5100012964 | Seat contact switch | 1 | ADD TO CART | |
| 2 | 5100013067 | Adjustment bar | 1 | ADD TO CART | |
| 2 | 5100013083 | Adjustment bar | 1 | ADD TO CART | |
| 2 | 5100029584 | Driver's seat | 1 | ADD TO CART | |
| 2 | 5100033202 | Lap belt | 1 | ADD TO CART | |
| 3 | 5100025888 | Lap belt | 1 | Serialno. 160-222 | ADD TO CART |
| 3 | 5100083270 | Lap belt | 1 | Serialno. >223 | PARTS REQUEST |
|
COMING Lap belt
5100083270 · qty on machine: 1 Serialno. >223 | |||||

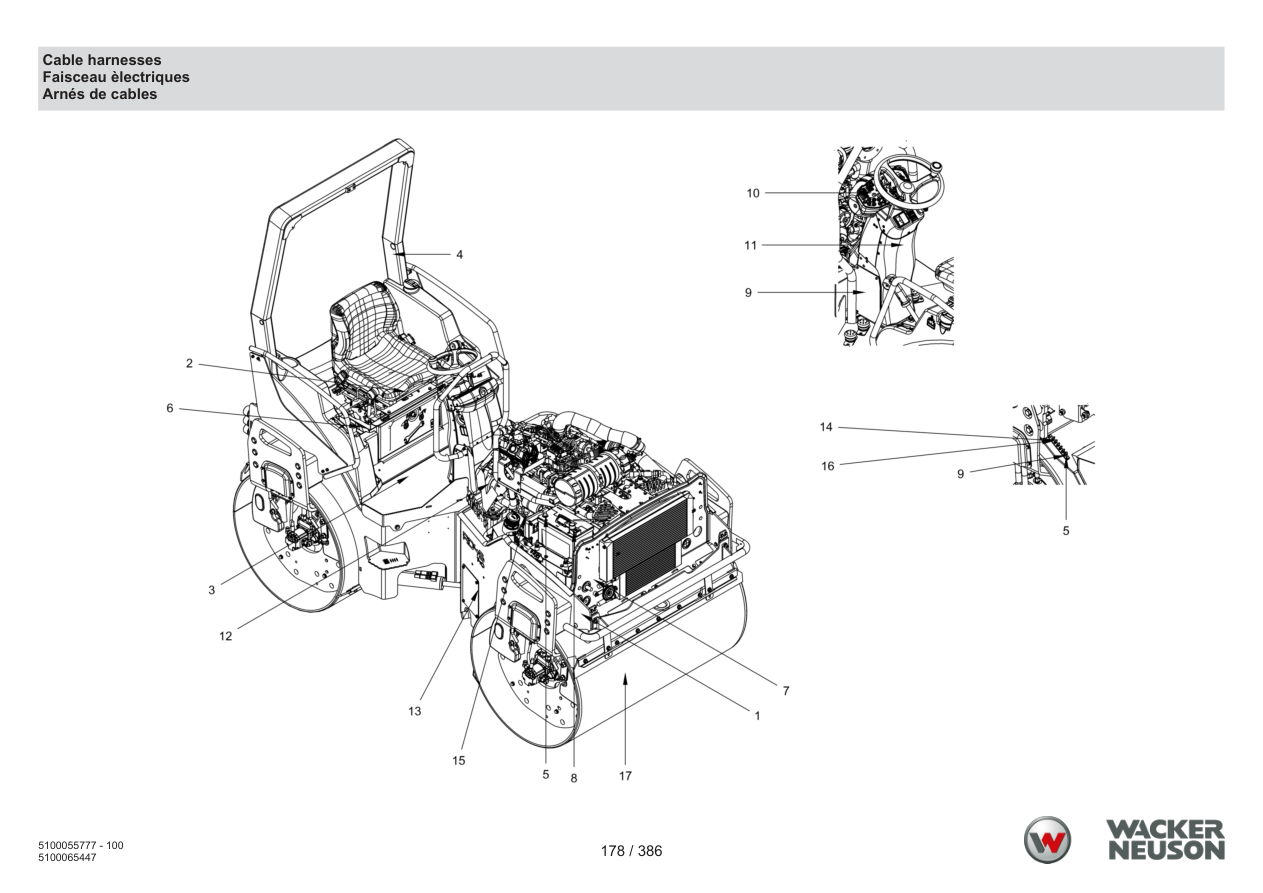

| 4 | 5100052890 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100052890 · qty on machine: 1 | |||||
| 5 | 5100083271 | Cable harness | 1 | Serialno. >223 | PARTS REQUEST |
|
COMING Cable harness
5100083271 · qty on machine: 1 Serialno. >223 | |||||
| 3 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 4 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 6 | 5100012015 | Metal plate | 2 | ADD TO CART | |
| 7 | 5100013510 | Hexagon screw | 4 | ADD TO CART | |
| 8 | 5100012966 | Locking washer | 5 | ADD TO CART | |
| 9 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 10 | 5100013441 | Locking washer | 1 | ADD TO CART | |
| 20 | 5100039064 | Stop | 1 | ADD TO CART | |
| 110 | 5100012306 | Protecting plate | 1 | ADD TO CART | |
| 111 | 5100011634 | Sheet metal screw | 2 | ADD TO CART | |

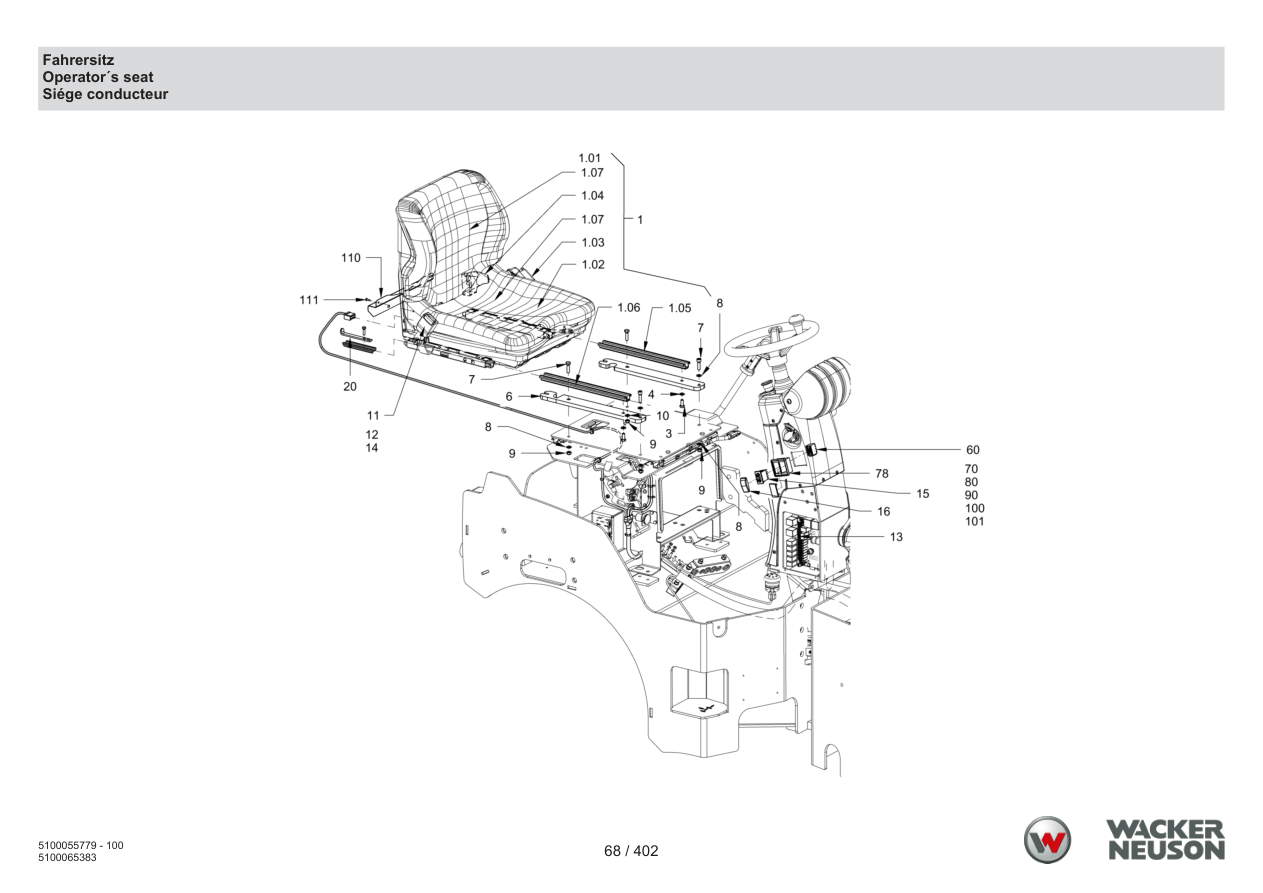

Page 68 — Operator´s seat
Parts list — exactly as printed32 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011615 | Handle | 1 | ADD TO CART | |
| 1 | 5100013067 | Adjustment bar | 1 | ADD TO CART | |
| 1 | 5100013083 | Adjustment bar | 1 | ADD TO CART | |
| 1 | 5100024343 | Cushion set | 1 | ADD TO CART | |
| 1 | 5100024920 | Seat contact switch | 1 | ADD TO CART | |
| 1 | 5100029585 | Backrest cushion, imi. leather | 1 | ADD TO CART | |
| 1 | 5100029596 | Driver's seat | 1 | ADD TO CART | |
| 1 | 5100033202 | Lap belt | 1 | ADD TO CART | |
| 3 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 4 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 6 | 5100012015 | Metal plate | 2 | ADD TO CART | |
| 7 | 5100013510 | Hexagon screw | 4 | ADD TO CART | |
| 8 | 5100012966 | Locking washer | 5 | ADD TO CART | |
| 9 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 10 | 5100013441 | Locking washer | 1 | ADD TO CART | |
| 11 | 5100083270 | Lap belt | 1 | Serialno. >223 | PARTS REQUEST |
|
COMING Lap belt
5100083270 · qty on machine: 1 Serialno. >223 | |||||
| 11 | 5100025888 | Lap belt | 1 | Serialno. 160-222 | ADD TO CART |
| 12 | 5100052890 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100052890 · qty on machine: 1 | |||||
| 13 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 14 | 5100083271 | Cable harness | 1 | Serialno. >223 | PARTS REQUEST |
|
COMING Cable harness
5100083271 · qty on machine: 1 Serialno. >223 | |||||
| 15 | 5100011947 | Switch | 1 | PARTS REQUEST | |
|
COMING Switch
5100011947 · qty on machine: 1 | |||||
| 16 | 5100011938 | Bogie, seat heating | 1 | ADD TO CART | |
| 20 | 5100039064 | Stop | 1 | ADD TO CART | |
| 60 | 5100024344 | Central plug | 1 | ADD TO CART | |
| 70 | 5100029597 | Flat plug sleeve | 2 | ADD TO CART | |
| 78 | 5100011595 | Frame | 2 | ADD TO CART | |
| 80 | 5100059486 | Connector housing | 1 | PARTS REQUEST | |
|
COMING Connector housing
5100059486 · qty on machine: 1 | |||||
| 90 | 5100029597 | Flat plug sleeve | 1 | ADD TO CART | |
| 100 | 5100033203 | Connector housing | 1 | ADD TO CART | |
| 101 | 5100025825 | Flat-pin plug | 1 | ADD TO CART | |
| 110 | 5100012306 | Protecting plate | 1 | ADD TO CART | |
| 111 | 5100011634 | Sheet metal screw | 2 | ADD TO CART | |

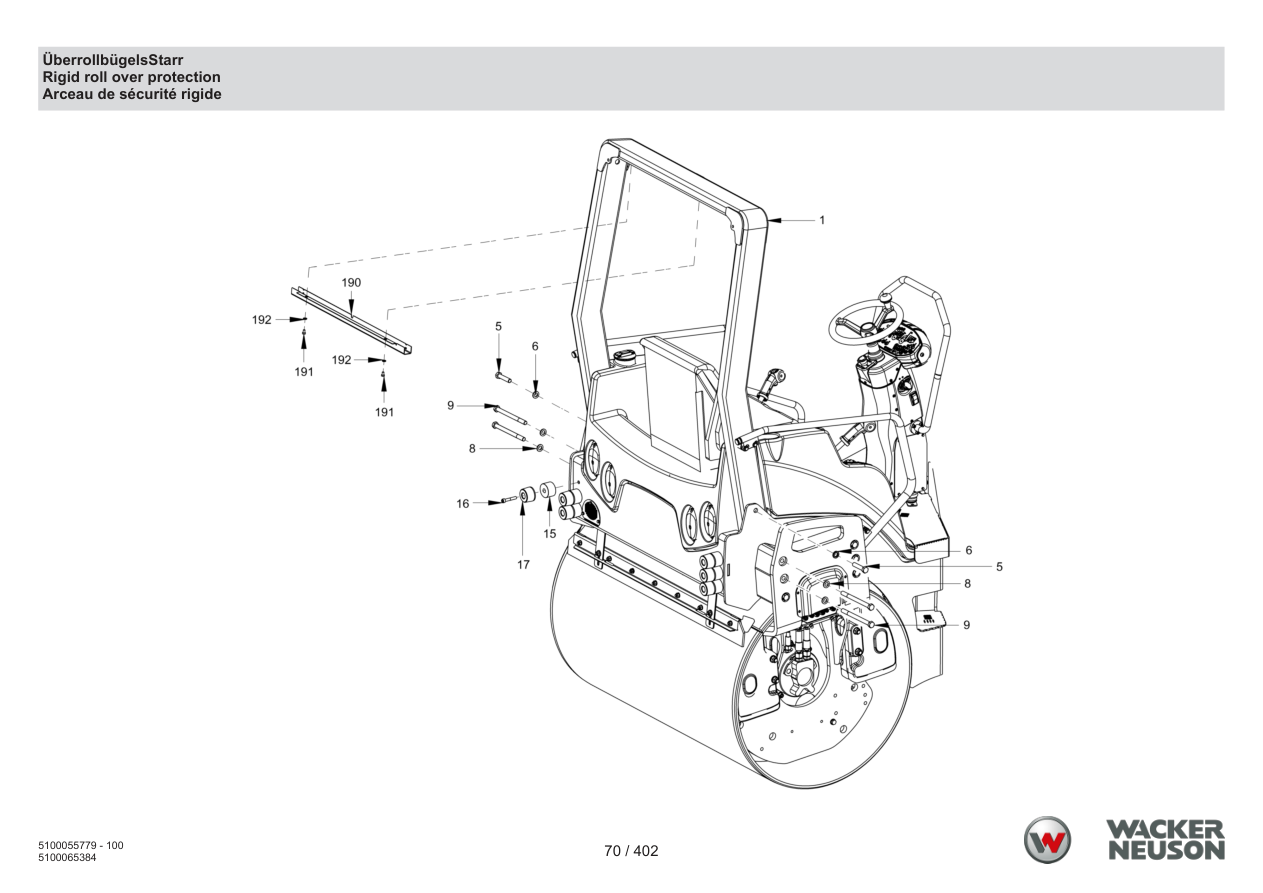

Page 70 — Rigid roll over protection
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100050649 | Roll over protection | 1 | PARTS REQUEST | |
|
COMING Roll over protection
5100050649 · qty on machine: 1 | |||||
| 5 | 5100012526 | Hexagon screw | 2 | ADD TO CART | |
| 6 | 5100012969 | Locking washer | 2 | ADD TO CART | |
| 8 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 9 | 5100011504 | Hexagon screw | 4 | ADD TO CART | |
| 9 | 5100013233 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100013233 · qty on machine: 4 | |||||
| 9 | 5100013235 | Hexagon screw | 4 | ADD TO CART | |
| 15 | 5100012350 | Spacer block | 6 | ADD TO CART | |
| 16 | 5100011485 | Cheese-head screw | 6 | ADD TO CART | |
| 17 | 5100011814 | Rubber buffer | 6 | ADD TO CART | |
| 190 | 5100017989 | Rail | 1 | ADD TO CART | |
| 191 | 5100012571 | Hexagon screw | 2 | ADD TO CART | |
| 192 | 5100012965 | Locking washer | 2 | ADD TO CART | |

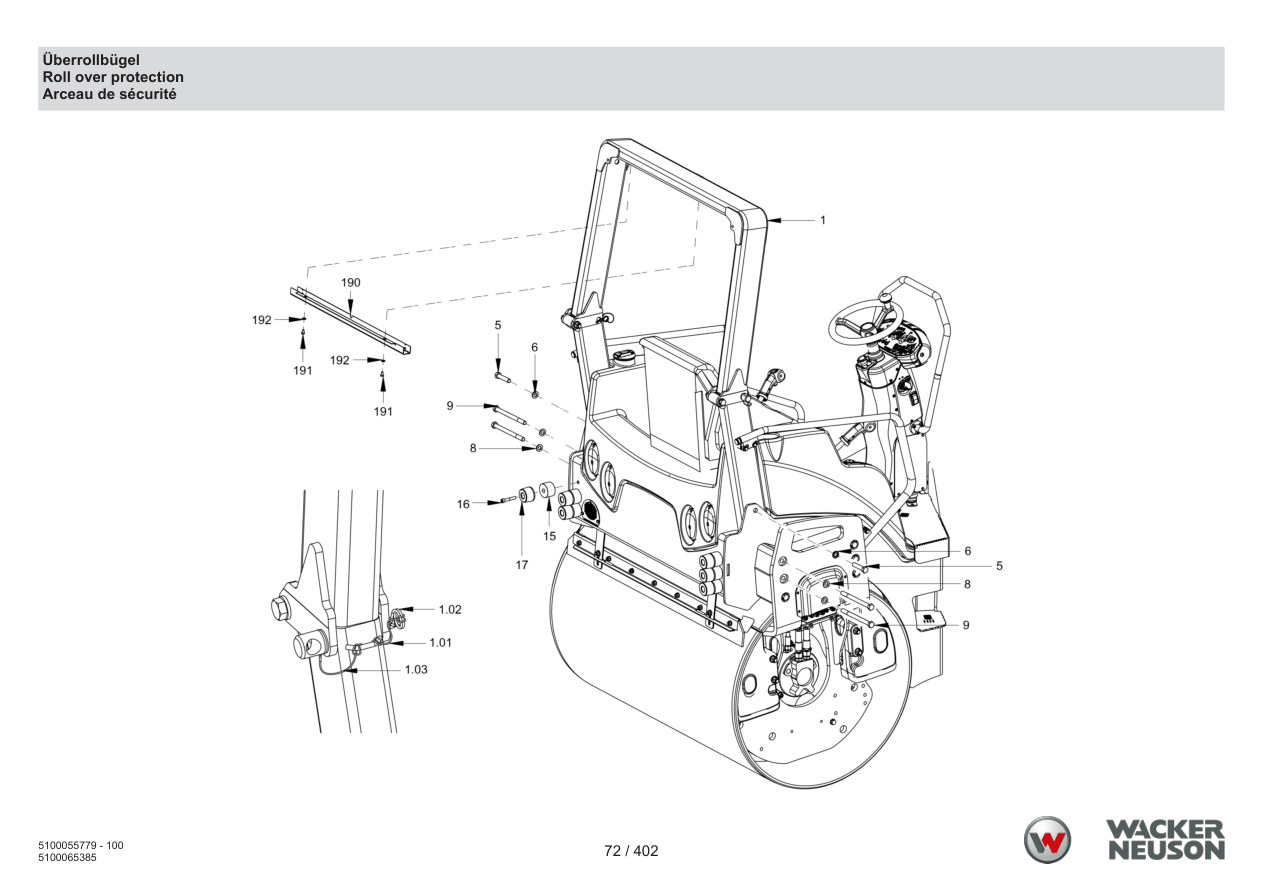

Page 72 — Roll over protection
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012666 | Rops foldable | 1 | ADD TO CART | |
| 1 | 5100012921 | Safety cord | 2 | PARTS REQUEST | |
|
COMING Safety cord
5100012921 · qty on machine: 2 | |||||
| 1 | 5100012987 | W-clip | 2 | ADD TO CART | |
| 5 | 5100012526 | Hexagon screw | 2 | ADD TO CART | |
| 6 | 5100012969 | Locking washer | 2 | ADD TO CART | |
| 8 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 9 | 5100011504 | Hexagon screw | 4 | ADD TO CART | |
| 9 | 5100013233 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100013233 · qty on machine: 4 | |||||
| 9 | 5100013235 | Hexagon screw | 4 | ADD TO CART | |
| 15 | 5100012350 | Spacer block | 6 | ADD TO CART | |
| 16 | 5100011485 | Cheese-head screw | 6 | ADD TO CART | |
| 17 | 5100011814 | Rubber buffer | 6 | ADD TO CART | |
| 190 | 5100017989 | Rail | 1 | ADD TO CART | |
| 191 | 5100012571 | Hexagon screw | 2 | ADD TO CART | |
| 192 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 15 | 5100012502 | Hexagon screw | 2 | ADD TO CART | |
| 16 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 17 | 5100012194 | Washer | 2 | ADD TO CART | |
| 18 | 5100012603 | Safety nut | 2 | ADD TO CART | |
| 19 | 5100024289 | Washer | 2 | PARTS REQUEST | |
|
COMING Washer
5100024289 · qty on machine: 2 | |||||
| 20 | 5100012986 | Threaded bolt | 2 | PARTS REQUEST | |
|
COMING Threaded bolt
5100012986 · qty on machine: 2 | |||||
| 100 | 5100012666 | Rops foldable | 1 | ADD TO CART | |

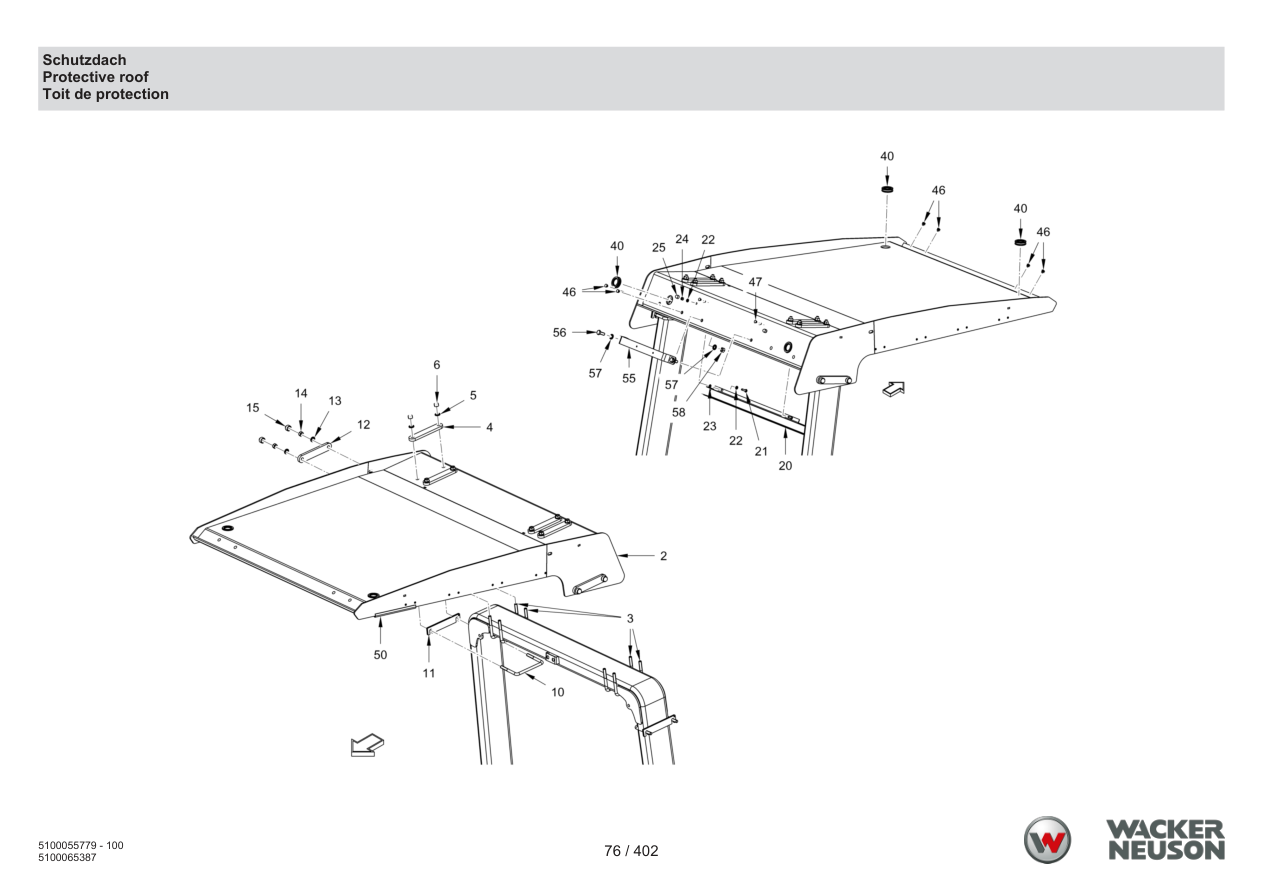

Page 76 — Protective roof
Parts list — exactly as printed25 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100059499 | Roof | 1 | PARTS REQUEST | |
|
COMING Roof
5100059499 · qty on machine: 1 | |||||
| 3 | 5100059503 | Strap bolt | 4 | PARTS REQUEST | |
|
COMING Strap bolt
5100059503 · qty on machine: 4 | |||||
| 4 | 5100059502 | Plate | 4 | PARTS REQUEST | |
|
COMING Plate
5100059502 · qty on machine: 4 | |||||
| 5 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 6 | 5100012547 | Hexagon nut | 8 | ADD TO CART | |
| 10 | 5100059503 | Strap bolt | 2 | PARTS REQUEST | |
|
COMING Strap bolt
5100059503 · qty on machine: 2 | |||||
| 11 | 5100059500 | Distance sheet | 6 | PARTS REQUEST | |
|
COMING Distance sheet
5100059500 · qty on machine: 6 | |||||
| 12 | 5100059502 | Plate | 2 | PARTS REQUEST | |
|
COMING Plate
5100059502 · qty on machine: 2 | |||||
| 13 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 14 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 15 | 5100035325 | Protective cap | 4 | ADD TO CART | |
| 20 | 5100016261 | Rail | 1 | ADD TO CART | |
| 21 | 5100012608 | Hexagon screw | 2 | ADD TO CART | |
| 22 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 23 | 5100016825 | Locking washer | 2 | ADD TO CART | |
| 24 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 25 | 5100011577 | Protecting cap | 2 | ADD TO CART | |
| 40 | 5100034805 | Cable support sleeve | 4 | ADD TO CART | |
| 46 | 5100050646 | Filler cap | 8 | ADD TO CART | |
| 47 | 5100013530 | Filler cap | 4 | ADD TO CART | |
| 50 | 5100013412 | Edge protection | 1.85 | ADD TO CART | |
| 55 | 5100068809 | Metal plate | 1 | ADD TO CART | |
| 56 | 5100011479 | Hexagon screw | 2 | ADD TO CART | |
| 57 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 58 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
Page 78 — Sun canopy
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 35 | 5100039070 | Metal plate | 1 | PARTS REQUEST | |
|
COMING Metal plate
5100039070 · qty on machine: 1 | |||||
| 36 | 5100039069 | Metal plate | 1 | PARTS REQUEST | |
|
COMING Metal plate
5100039069 · qty on machine: 1 | |||||
| 1 | 5100033204 | Holder system | 1 | PARTS REQUEST | |
|
COMING Holder system
5100033204 · qty on machine: 1 | |||||
| 3 | 5100013128 | Washer | 4 | ADD TO CART | |
| 4 | 5100013416 | Hexagon screw | 2 | ADD TO CART | |
| 5 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 10 | 5100033205 | Angle bracket | 1 | ADD TO CART | |
| 11 | 5100033206 | Angle bracket | 1 | ADD TO CART | |
| 12 | 5100013128 | Washer | 6 | ADD TO CART | |
| 13 | 5100012617 | Hexagon screw | 6 | ADD TO CART | |
| 20 | 5100033207 | Frame | 1 | ADD TO CART | |
| 21 | 5100033208 | Metal plate | 2 | ADD TO CART | |
| 22 | 5100013416 | Hexagon screw | 4 | ADD TO CART | |
| 23 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 24 | 5100024352 | Ring nut | 4 | ADD TO CART | |
| 25 | 5100024341 | Roof tarpaulin | 1 | ADD TO CART | |
| 37 | 5100013128 | Washer | 4 | ADD TO CART | |
| 38 | 5100013416 | Hexagon screw | 2 | ADD TO CART | |
| 39 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 40 | 5100013128 | Washer | 2 | ADD TO CART | |
| 41 | 5100011479 | Hexagon screw | 2 | ADD TO CART | |
Page 80 — Instrument panel covering
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 91 | 5100013557 | Key | 1 | ADD TO CART | |
| 91 | 5100013596 | Built-in lock | 1 | PARTS REQUEST | |
|
COMING Built-in lock
5100013596 · qty on machine: 1 | |||||
| 92 | 5100011698 | Spacer block | 1 | ADD TO CART | |
| 100 | 5100025100 | Covering part | 1 | ADD TO CART | |
| 101 | 5100012456 | Bushing | 2 | ADD TO CART | |
| 102 | 5100011853 | Fillister head screw | 2 | ADD TO CART | |
| 104 | 5100013537 | Hexagon nut | 4 | ADD TO CART | |
Page 82 — Driver's cabin
Parts list — exactly as printed215 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013136 | Driver's cabin | 1 | PARTS REQUEST | |
|
COMING Driver's cabin
5100013136 · qty on machine: 1 | |||||
| 5 | 5100012526 | Hexagon screw | 2 | ADD TO CART | |
| 6 | 5100012969 | Locking washer | 2 | ADD TO CART | |
| 7 | 5100013350 | Spacer block | 2 | PARTS REQUEST | |
|
COMING Spacer block
5100013350 · qty on machine: 2 | |||||
| 8 | 5100013174 | Stud bolt | 2 | ADD TO CART | |
| 9 | 5100013128 | Washer | 2 | ADD TO CART | |
| 10 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 11 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 12 | 5100035325 | Protective cap | 2 | ADD TO CART | |
| 95 | 5100039071 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100039071 · qty on machine: 4 | |||||
| 97 | 5100065360 | Distance sheet | 1 | ADD TO CART | |
| 98 | 5100013198 | Spacer plate | 1 | ADD TO CART | |
| 99 | 5100065361 | Stud screw | 6 | PARTS REQUEST | |
|
COMING Stud screw
5100065361 · qty on machine: 6 | |||||
| 101 | 5100012493 | Filler cap | 2 | ADD TO CART | |
| 102 | 5100013530 | Filler cap | 4 | ADD TO CART | |
| 103 | 5100012501 | Filler cap | 1 | ADD TO CART | |
| 104 | 5100011656 | Filler cap | 6 | ADD TO CART | |
| 305 | 5100011859 | Relay | 1 | ADD TO CART | |
| 306 | 5100013594 | Safety screw | 2 | ADD TO CART | |
| 315 | 5100059508 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100059508 · qty on machine: 1 | |||||
| 316 | 5100013579 | Blade fuse | 1 | ADD TO CART | |
| 317 | 5100011640 | Blade fuse | 1 | ADD TO CART | |
| 318 | 5100013586 | Blade fuse | 1 | PARTS REQUEST | |
|
COMING Blade fuse
5100013586 · qty on machine: 1 | |||||
| 2 | 5100013278 | Roof | 1 | PARTS REQUEST | |
|
COMING Roof
5100013278 · qty on machine: 1 | |||||
| 3 | 5100013317 | Lifting screw | 4 | ADD TO CART | |
| 4 | 5100011459 | Washer | 4 | ADD TO CART | |
| 5 | 5100013315 | Washer | 4 | ADD TO CART | |
| 6 | 5100013287 | Bracket | 1 | ADD TO CART | |
| 7 | 5100012517 | Hexagon screw | 2 | ADD TO CART | |
| 8 | 5100012938 | Washer | 2 | ADD TO CART | |
| 9 | 5100013421 | Washer | 2 | ADD TO CART | |
| 10 | 5100011476 | Safety nut | 2 | ADD TO CART | |
| 15 | 5100011606 | Working light | 2 | ADD TO CART | |
| 16 | 5100013554 | Lamp | 2 | ADD TO CART | |
| 18 | 5100012343 | Working light | 4 | ADD TO CART | |
| 18 | 5100012620 | Lamp | 4 | ADD TO CART | |
| 19 | 5100011739 | Fillister head screw | 12 | ADD TO CART | |
| 20 | 5100012594 | Flange | 4 | ADD TO CART | |
| 21 | 5100013366 | Sheet metal screw | 12 | ADD TO CART | |
| 22 | 5100013269 | Sealing profile | 0.6 | ADD TO CART | |
| 2 | 5100013279 | Cabin door | 1 | PARTS REQUEST | |
|
COMING Cabin door
5100013279 · qty on machine: 1 | |||||
| 3 | 5100013280 | Hinge pin | 2 | ADD TO CART | |
| 4 | 5100013321 | Sealing ring | 4 | ADD TO CART | |
| 5 | 5100012939 | Washer | 2 | ADD TO CART | |
| 6 | 5100013417 | Split pin | 2 | ADD TO CART | |
| 8 | 5100013284 | Hinge | 2 | ADD TO CART | |
| 9 | 5100013285 | Hinge | 2 | ADD TO CART | |
| 10 | 5100013291 | Rubber seal | 4 | ADD TO CART | |
| 11 | 5100013316 | Distance bush | 4 | ADD TO CART | |
| 12 | 5100013572 | Protecting cap | 8 | ADD TO CART | |
| 13 | 5100013510 | Hexagon screw | 4 | ADD TO CART | |
| 14 | 5100012938 | Washer | 4 | ADD TO CART | |
| 15 | 5100011476 | Safety nut | 4 | ADD TO CART | |
| 16 | 5100013027 | Greasing nipple | 4 | ADD TO CART | |
| 17 | 5100013299 | Mounting | 4 | PARTS REQUEST | |
|
COMING Mounting
5100013299 · qty on machine: 4 | |||||
| 18 | 5100013222 | Side pane | 1 | ADD TO CART | |
| 19 | 5100013304 | Window lock | 1 | ADD TO CART | |
| 20 | 5100012866 | Fillister head screw | 2 | ADD TO CART | |
| 21 | 5100012936 | Washer | 2 | ADD TO CART | |
| 22 | 5100011603 | Mounting | 1 | ADD TO CART | |
| 25 | 5100011503 | Closing bolt | 1 | ADD TO CART | |
| 26 | 5100011557 | Bow | 1 | ADD TO CART | |
| 27 | 5100013303 | Plate | 1 | PARTS REQUEST | |
|
COMING Plate
5100013303 · qty on machine: 1 | |||||
| 28 | 5100013308 | Rebound strap | 1 | ADD TO CART | |
| 29 | 5100013309 | Bracket | 2 | ADD TO CART | |
| 30 | 5100012595 | Countersunk screw | 4 | ADD TO CART | |
| 32 | 5100024989 | Gas spring | 1 | ADD TO CART | |
| 34 | 5100013443 | Sealing profile | 5 | ADD TO CART | |
| 35 | 5100013419 | Edge protection | 9.5 | ADD TO CART | |
| 40 | 5100013307 | Tools | 1 | ADD TO CART | |
| 2 | 5100013281 | Cabin door | 1 | PARTS REQUEST | |
|
COMING Cabin door
5100013281 · qty on machine: 1 | |||||
| 18 | 5100013221 | Side pane | 1 | ADD TO CART | |
| 19 | 5100013305 | Window lock | 1 | PARTS REQUEST | |
|
COMING Window lock
5100013305 · qty on machine: 1 | |||||
| 2 | 5100013259 | Door frame | 1 | PARTS REQUEST | |
|
COMING Door frame
5100013259 · qty on machine: 1 | |||||
| 3 | 5100013260 | Door pane | 1 | ADD TO CART | |
| 4 | 5100013263 | Door pane | 1 | ADD TO CART | |
| 8 | 5100013271 | Seal | 4 | ADD TO CART | |
| 8 | 5100013273 | Mounting | 4 | ADD TO CART | |
| 9 | 5100013306 | Tools | 1 | ADD TO CART | |
| 10 | 5100013510 | Hexagon screw | 4 | ADD TO CART | |
| 11 | 5100012938 | Washer | 4 | ADD TO CART | |
| 12 | 5100012491 | Hexagon nut | 4 | PARTS REQUEST | |
|
COMING Hexagon nut
5100012491 · qty on machine: 4 | |||||
| 13 | 5100013572 | Protecting cap | 4 | ADD TO CART | |
| 22 | 5100013272 | Washer | 9 | PARTS REQUEST | |
|
COMING Washer
5100013272 · qty on machine: 9 | |||||
| 25 | 5100013266 | Cover | 1 | ADD TO CART | |
| 25 | 5100013267 | Lock | 1 | ADD TO CART | |
| 26 | 5100012613 | Hexagon screw | 3 | ADD TO CART | |
| 27 | 5100012937 | Washer | 2 | ADD TO CART | |
| 30 | 5100013275 | Protecting cap | 2 | ADD TO CART | |
| 31 | 5100013276 | Ring | 2 | ADD TO CART | |
| 32 | 5100012865 | Countersunk screw | 2 | ADD TO CART | |
| 33 | 5100012938 | Washer | 2 | ADD TO CART | |
| 34 | 5100012923 | Hexagon nut | 2 | PARTS REQUEST | |
|
COMING Hexagon nut
5100012923 · qty on machine: 2 | |||||
| 35 | 5100013264 | Mounting device | 1 | PARTS REQUEST | |
|
COMING Mounting device
5100013264 · qty on machine: 1 | |||||
| 37 | 5100011602 | Mounting | 1 | ADD TO CART | |
| 40 | 5100013274 | Lock outside handle | 1 | ADD TO CART | |
| 41 | 5100013590 | Supporting plate | 1 | ADD TO CART | |
| 42 | 5100013589 | Supporting plate | 1 | ADD TO CART | |
| 43 | 5100013270 | Sealing ring | 2 | ADD TO CART | |
| 44 | 5100013322 | Fillister head screw | 1 | PARTS REQUEST | |
|
COMING Fillister head screw
5100013322 · qty on machine: 1 | |||||
| 45 | 5100013275 | Protecting cap | 1 | ADD TO CART | |
| 46 | 5100013276 | Ring | 1 | ADD TO CART | |
| 50 | 5100013557 | Key | 1 | ADD TO CART | |
| 98 | 5100013269 | Sealing profile | 4.2 | ADD TO CART | |
| 99 | 5100011598 | Adhesive set | 1 | ADD TO CART | |
| 100 | 5100013279 | Cabin door | 1 | PARTS REQUEST | |
|
COMING Cabin door
5100013279 · qty on machine: 1 | |||||
| 2 | 5100013258 | Door frame | 1 | PARTS REQUEST | |
|
COMING Door frame
5100013258 · qty on machine: 1 | |||||
| 3 | 5100013261 | Door pane | 1 | ADD TO CART | |
| 4 | 5100013262 | Door pane | 1 | ADD TO CART | |
| 25 | 5100013265 | Cover | 1 | ADD TO CART | |
| 25 | 5100013268 | Lock | 1 | ADD TO CART | |
| 100 | 5100013281 | Cabin door | 1 | PARTS REQUEST | |
|
COMING Cabin door
5100013281 · qty on machine: 1 | |||||
| 2 | 5100013220 | Front window | 1 | ADD TO CART | |
| 3 | 5100013318 | Sealing profile | 3 | ADD TO CART | |
| 5 | 5100013271 | Seal | 4 | ADD TO CART | |
| 5 | 5100013273 | Mounting | 4 | ADD TO CART | |
| 6 | 5100011477 | Hexagon screw | 4 | ADD TO CART | |
| 7 | 5100013306 | Tools | 1 | ADD TO CART | |
| 9 | 5100013292 | Spacer block | 4 | PARTS REQUEST | |
|
COMING Spacer block
5100013292 · qty on machine: 4 | |||||
| 10 | 5100012938 | Washer | 4 | ADD TO CART | |
| 11 | 5100012491 | Hexagon nut | 4 | PARTS REQUEST | |
|
COMING Hexagon nut
5100012491 · qty on machine: 4 | |||||
| 15 | 5100013283 | Covering part | 1 | ADD TO CART | |
| 16 | 5100012608 | Hexagon screw | 2 | ADD TO CART | |
| 17 | 5100012937 | Washer | 4 | ADD TO CART | |
| 18 | 5100012601 | Safety nut | 2 | ADD TO CART | |
| 20 | 5100013275 | Protecting cap | 6 | ADD TO CART | |
| 21 | 5100013495 | Fillister head screw | 6 | ADD TO CART | |
| 22 | 5100013276 | Ring | 6 | ADD TO CART | |
| 23 | 5100012420 | Blind rivet nut | 6 | ADD TO CART | |
| 25 | 5100013644 | Rubber profile | 1 | ADD TO CART | |
| 30 | 5100011539 | Stay bar | 1 | ADD TO CART | |
| 31 | 5100011540 | Stay bar | 1 | ADD TO CART | |
| 32 | 5100013572 | Protecting cap | 8 | ADD TO CART | |
| 33 | 5100013510 | Hexagon screw | 4 | ADD TO CART | |
| 34 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 35 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 36 | 5100011541 | Mirror | 2 | ADD TO CART | |
| 37 | 5100013193 | Air filter | 1 | PARTS REQUEST | |
|
COMING Air filter
5100013193 · qty on machine: 1 | |||||
| 38 | 5100012913 | Countersunk screw | 4 | ADD TO CART | |
| 42 | 5100013301 | Elbow | 1 | ADD TO CART | |
| 43 | 5100012324 | Flexible tubing | 1 | ADD TO CART | |
| 46 | 5100013296 | Sprinkler nozzle | 1 | ADD TO CART | |
| 50 | 5100013152 | Wiper motor | 1 | ADD TO CART | |
| 51 | 5100013328 | Wiper arm | 1 | ADD TO CART | |
| 52 | 5100011558 | Windshield rubber | 1 | ADD TO CART | |
| 55 | 5100013642 | Sealing profile | 1.8 | ADD TO CART | |
| 56 | 5100011768 | Sealing tape | 2 | ADD TO CART | |
| 60 | 5100013154 | Inside lamp | 1 | ADD TO CART | |
| 61 | 5100012467 | Lamp | 1 | ADD TO CART | |
| 65 | 5100011605 | Inside mirror | 1 | PARTS REQUEST | |
|
COMING Inside mirror
5100011605 · qty on machine: 1 | |||||
| 2 | 5100013219 | Rear pane | 1 | ADD TO CART | |
| 3 | 5100013443 | Sealing profile | 4 | ADD TO CART | |
| 6 | 5100012491 | Hexagon nut | 4 | PARTS REQUEST | |
|
COMING Hexagon nut
5100012491 · qty on machine: 4 | |||||
| 8 | 5100013272 | Washer | 4 | PARTS REQUEST | |
|
COMING Washer
5100013272 · qty on machine: 4 | |||||
| 9 | 5100013298 | Rubber buffer | 4 | ADD TO CART | |
| 13 | 5100013297 | Rubber buffer | 6 | ADD TO CART | |
| 14 | 5100012939 | Washer | 6 | ADD TO CART | |
| 15 | 5100012520 | Hexagon screw | 6 | ADD TO CART | |
| 16 | 5100012939 | Washer | 2 | ADD TO CART | |
| 17 | 5100013598 | Safety nut | 2 | ADD TO CART | |
| 18 | 5100013642 | Sealing profile | 1 | ADD TO CART | |
| 19 | 5100013277 | Covering part | 1 | ADD TO CART | |
| 20 | 5100013289 | Covering part | 1 | ADD TO CART | |
| 21 | 5100013276 | Ring | 8 | ADD TO CART | |
| 22 | 5100013495 | Fillister head screw | 8 | ADD TO CART | |
| 23 | 5100013275 | Protecting cap | 8 | ADD TO CART | |
| 26 | 5100013290 | Covering part | 1 | ADD TO CART | |
| 27 | 5100013495 | Fillister head screw | 4 | ADD TO CART | |
| 28 | 5100012937 | Washer | 4 | ADD TO CART | |
| 29 | 5100013642 | Sealing profile | 1.25 | ADD TO CART | |
| 30 | 5100013644 | Rubber profile | 1 | ADD TO CART | |
| 35 | 5100013153 | Pump | 2 | ADD TO CART | |
| 35 | 5100013158 | Tank with pump | 1 | ADD TO CART | |
| 36 | 5100013275 | Protecting cap | 2 | ADD TO CART | |
| 37 | 5100013495 | Fillister head screw | 2 | ADD TO CART | |
| 38 | 5100013276 | Ring | 2 | ADD TO CART | |
| 39 | 5100012937 | Washer | 2 | ADD TO CART | |
| 40 | 5100012601 | Safety nut | 2 | ADD TO CART | |
| 41 | 5100011577 | Protecting cap | 2 | ADD TO CART | |
| 44 | 5100013458 | Flexible tubing | 4 | ADD TO CART | |
| 45 | 5100013320 | Nonreturn valve | 1 | ADD TO CART | |
| 47 | 5100013302 | Clip | 2 | ADD TO CART | |
| 51 | 5100013319 | Wiper arm | 1 | ADD TO CART | |
| 52 | 5100013300 | Windshield rubber | 1 | ADD TO CART | |
| 2 | 5100013324 | Console | 1 | PARTS REQUEST | |
|
COMING Console
5100013324 · qty on machine: 1 | |||||
| 3 | 5100013325 | Console | 1 | PARTS REQUEST | |
|
COMING Console
5100013325 · qty on machine: 1 | |||||
| 4 | 5100013295 | Hinge | 1 | PARTS REQUEST | |
|
COMING Hinge
5100013295 · qty on machine: 1 | |||||
| 5 | 5100013424 | Rivet | 14 | ADD TO CART | |
| 6 | 5100013227 | Fillister head screw | 2 | ADD TO CART | |
| 7 | 5100013286 | Base plate | 1 | PARTS REQUEST | |
|
COMING Base plate
5100013286 · qty on machine: 1 | |||||
| 8 | 5100011859 | Relay | 1 | ADD TO CART | |
| 9 | 5100013326 | Nameplate | 1 | PARTS REQUEST | |
|
COMING Nameplate
5100013326 · qty on machine: 1 | |||||
| 10 | 5100013294 | Blind cover | 1 | PARTS REQUEST | |
|
COMING Blind cover
5100013294 · qty on machine: 1 | |||||
| 11 | 5100013293 | Grommet | 2 | PARTS REQUEST | |
|
COMING Grommet
5100013293 · qty on machine: 2 | |||||
| 12 | 5100013313 | Distributor | 1 | PARTS REQUEST | |
|
COMING Distributor
5100013313 · qty on machine: 1 | |||||
| 13 | 5100013312 | Distributor | 1 | PARTS REQUEST | |
|
COMING Distributor
5100013312 · qty on machine: 1 | |||||
| 15 | 5100011595 | Frame | 4 | ADD TO CART | |
| 16 | 5100011596 | Frame | 5 | ADD TO CART | |
| 17 | 5100011580 | Blind cover | 4 | ADD TO CART | |
| 18 | 5100011579 | Switch | 1 | ADD TO CART | |
| 19 | 5100011639 | Rocker, rotating-beam light | 1 | ADD TO CART | |
| 20 | 5100011579 | Switch | 1 | ADD TO CART | |
| 21 | 5100012449 | Rocker, windshield wiper | 1 | ADD TO CART | |
| 22 | 5100011597 | Push-button | 1 | ADD TO CART | |
| 23 | 5100012448 | Rocker, windshield wiper | 1 | PARTS REQUEST | |
|
COMING Rocker, windshield wiper
5100012448 · qty on machine: 1 | |||||
| 24 | 5100011579 | Switch | 1 | ADD TO CART | |
| 25 | 5100012450 | Rocker, windshield wiper | 1 | ADD TO CART | |
| 26 | 5100011579 | Switch | 1 | ADD TO CART | |
| 27 | 5100011638 | Rocker, working spotlights | 1 | ADD TO CART | |
| 30 | 5100013586 | Blade fuse | 4 | PARTS REQUEST | |
|
COMING Blade fuse
5100013586 · qty on machine: 4 | |||||
| 31 | 5100013579 | Blade fuse | 4 | ADD TO CART | |
| 32 | 5100013580 | Blade fuse | 2 | ADD TO CART | |
| 33 | 5100013587 | Blade fuse | 2 | ADD TO CART | |
| 40 | 5100013156 | Switch | 1 | ADD TO CART | |
| 45 | 5100013151 | Wire harness (operat. cabin) | 1 | PARTS REQUEST | |
|
COMING Wire harness (operat. cabin)
5100013151 · qty on machine: 1 | |||||

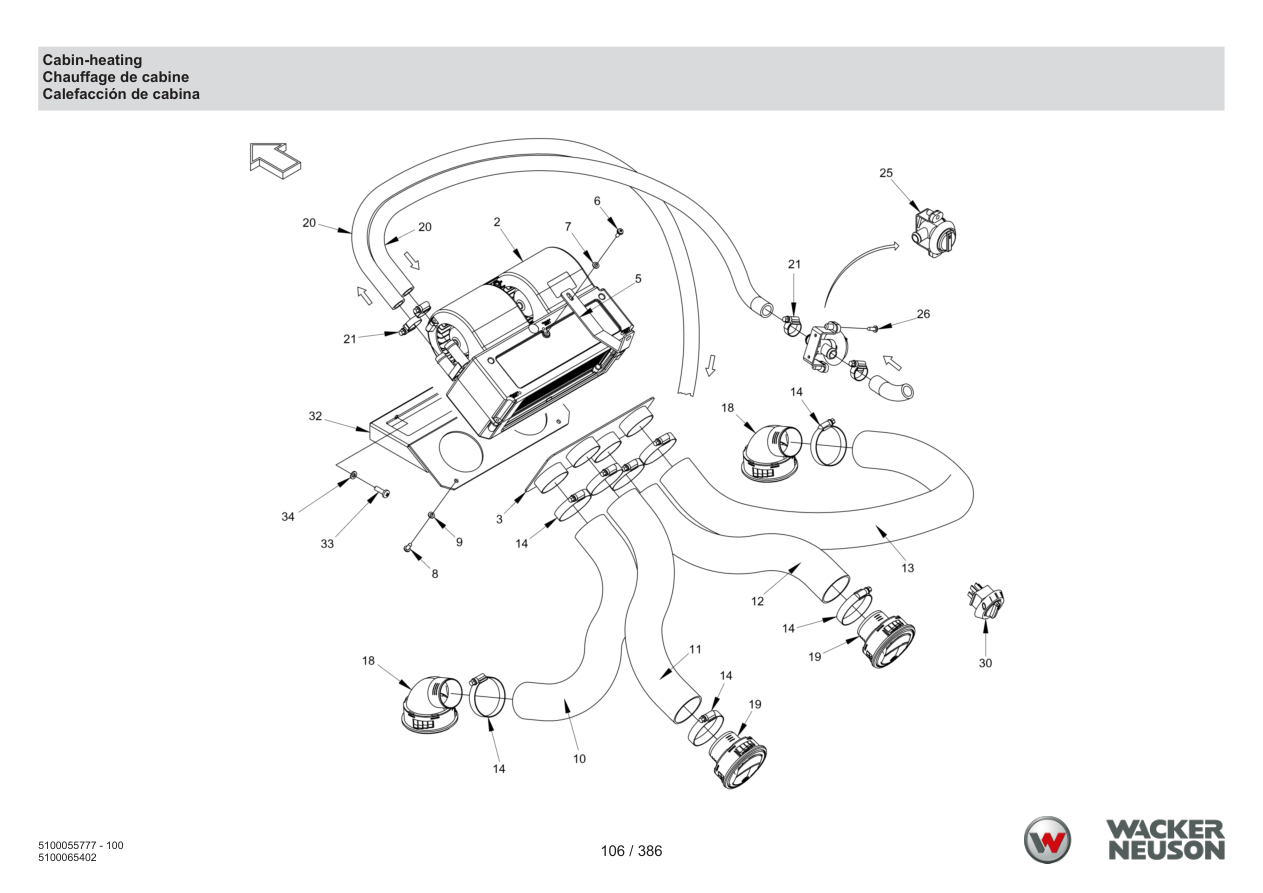

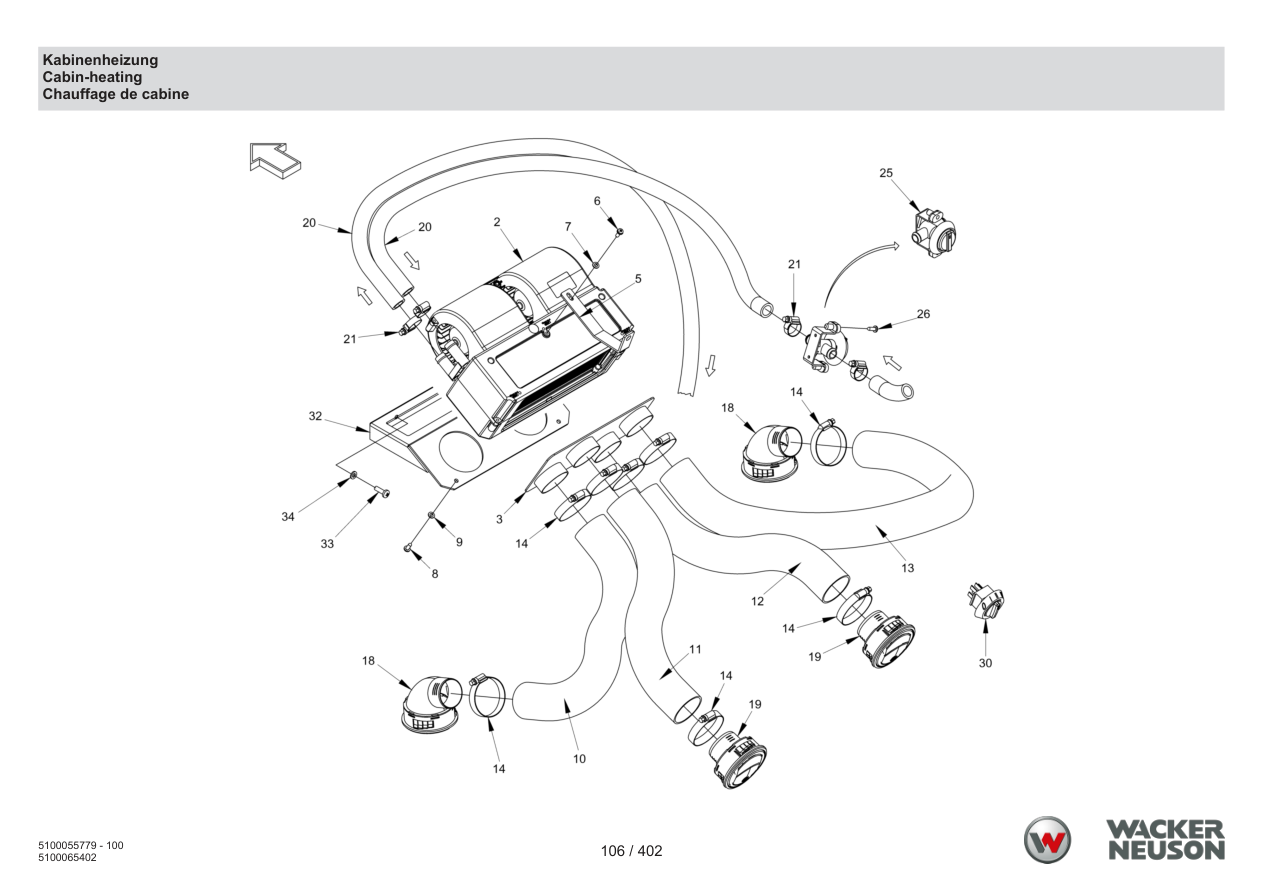

Page 106 — Cabin-heating
Parts list — exactly as printed41 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100013155 | Heating | 1 | ADD TO CART | |
| 3 | 5100013327 | Connector | 1 | PARTS REQUEST | |
|
COMING Connector
5100013327 · qty on machine: 1 | |||||
| 5 | 5100013288 | Bow | 1 | PARTS REQUEST | |
|
COMING Bow
5100013288 · qty on machine: 1 | |||||
| 6 | 5100013620 | Sheet metal screw | 1 | ADD TO CART | |
| 7 | 5100012936 | Washer | 1 | ADD TO CART | |
| 8 | 5100013620 | Sheet metal screw | 3 | ADD TO CART | |
| 9 | 5100012936 | Washer | 3 | ADD TO CART | |
| 10 | 5100013500 | Hot air hose | 1 | ADD TO CART | |
| 11 | 5100013500 | Hot air hose | 1 | ADD TO CART | |
| 12 | 5100013500 | Hot air hose | 1 | ADD TO CART | |
| 13 | 5100013500 | Hot air hose | 1 | ADD TO CART | |
| 14 | 5100012907 | Hose clip | 8 | ADD TO CART | |
| 18 | 5100013310 | Air outlet | 2 | ADD TO CART | |
| 19 | 5100013311 | Air outlet | 2 | ADD TO CART | |
| 20 | 5100012040 | Cooling-water hose | 10 | ADD TO CART | |
| 21 | 5100013367 | Hose clip | 4 | ADD TO CART | |
| 25 | 5100013314 | Valve | 1 | ADD TO CART | |
| 26 | 5100013620 | Sheet metal screw | 2 | ADD TO CART | |
| 30 | 5100013156 | Switch | 1 | ADD TO CART | |
| 32 | 5100013282 | Mounting device | 1 | PARTS REQUEST | |
|
COMING Mounting device
5100013282 · qty on machine: 1 | |||||
| 33 | 5100012608 | Hexagon screw | 2 | ADD TO CART | |
| 34 | 5100012937 | Washer | 2 | ADD TO CART | |
| 22 | 5100023483 | Hose nozzle | 1 | ADD TO CART | |
| 23 | 5100013001 | Sealing ring | 1 | ADD TO CART | |
| 24 | 5100012040 | Cooling-water hose | 0.5 | ADD TO CART | |
| 25 | 5100050671 | Wire protecting sleeve | 0.5 | PARTS REQUEST | |
|
COMING Wire protecting sleeve
5100050671 · qty on machine: 0.5 | |||||
| 28 | 5100023483 | Hose nozzle | 2 | ADD TO CART | |
| 29 | 5100013001 | Sealing ring | 2 | ADD TO CART | |
| 30 | 5100011559 | Ball-closure cock | 1 | ADD TO CART | |
| 32 | 5100013367 | Hose clip | 2 | ADD TO CART | |
| 40 | 5100013140 | T-piece | 1 | PARTS REQUEST | |
|
COMING T-piece
5100013140 · qty on machine: 1 | |||||
| 41 | 5100011637 | Hose clip | 2 | ADD TO CART | |
| 45 | 5100012040 | Cooling-water hose | 0.2 | ADD TO CART | |
| 48 | 5100023483 | Hose nozzle | 2 | ADD TO CART | |
| 49 | 5100013001 | Sealing ring | 2 | ADD TO CART | |
| 50 | 5100011559 | Ball-closure cock | 1 | ADD TO CART | |
| 52 | 5100013367 | Hose clip | 2 | ADD TO CART | |
| 53 | 5100050670 | Hose clamp | 2 | ADD TO CART | |
| 60 | 5100035056 | Hexagon screw | 1 | ADD TO CART | |
| 61 | 5100012998 | Sealing ring | 1 | ADD TO CART | |
| 65 | 5100050671 | Wire protecting sleeve | 2.3 | PARTS REQUEST | |
|
COMING Wire protecting sleeve
5100050671 · qty on machine: 2.3 | |||||
Page 110 — Pump drive and engine assembly
Parts list — exactly as printed116 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 9 | 5100065318 | Washer | 2 | PARTS REQUEST | |
|
COMING Washer
5100065318 · qty on machine: 2 | |||||
| 10 | 5100012912 | Stud bolt | 2 | ADD TO CART | |
| 11 | 5100012212 | Washer | 2 | ADD TO CART | |
| 12 | 5100012548 | Hexagon nut | 2 | ADD TO CART | |
| 20 | 5100012626 | Hexagon screw | 4 | ADD TO CART | |
| 21 | 5100012968 | Locking washer | 4 | ADD TO CART | |
| 35 | 5100012235 | Cap nut | 1 | ADD TO CART | |
| 36 | 5100013555 | Filler cap | 1 | ADD TO CART | |
| 37 | 5100013486 | Bulkhead elbow | 1 | ADD TO CART | |
| 38 | 5100013191 | Washer | 1 | ADD TO CART | |
| 39 | 5100013488 | Hexagon nut | 1 | ADD TO CART | |
| 51 | 5100024931 | Engine suspension | 1 | PARTS REQUEST | |
|
COMING Engine suspension
5100024931 · qty on machine: 1 | |||||
| 52 | 5100012503 | Safety screw | 2 | ADD TO CART | |
| 54 | 5100012555 | Hexagon screw | 4 | ADD TO CART | |
| 55 | 5100012972 | Locking washer | 4 | ADD TO CART | |
| 59 | 5100012209 | Silentbloc | 2 | ADD TO CART | |
| 60 | 5100024303 | Rubber buffer | 2 | ADD TO CART | |
| 61 | 5100012617 | Hexagon screw | 8 | ADD TO CART | |
| 62 | 5100012967 | Locking washer | 16 | ADD TO CART | |
| 63 | 5100012547 | Hexagon nut | 8 | ADD TO CART | |
| 71 | 5100024955 | Engine mounting | 1 | ADD TO CART | |
| 72 | 5100024954 | Engine mounting | 1 | ADD TO CART | |
| 73 | 5100012554 | Hexagon screw | 4 | ADD TO CART | |
| 74 | 5100012968 | Locking washer | 4 | ADD TO CART | |
| 76 | 5100012780 | Mushroom head screw | 1 | ADD TO CART | |
| 77 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 78 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 80 | 5100057809 | Mounting | 1 | PARTS REQUEST | |
|
COMING Mounting
5100057809 · qty on machine: 1 | |||||
| 84 | 5100013180 | Hexagon screw | 2 | ADD TO CART | |
| 85 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 86 | 5100012212 | Washer | 2 | ADD TO CART | |
| 87 | 5100012548 | Hexagon nut | 2 | ADD TO CART | |
| 101 | 5100012539 | Elbow adjustable | 1 | PARTS REQUEST | |
|
COMING Elbow adjustable
5100012539 · qty on machine: 1 | |||||
| 103 | 5100024982 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100024982 · qty on machine: 1 | |||||
| 3 | 5100057808 | Diesel engine | 1 | PARTS REQUEST | |
|
COMING Diesel engine
5100057808 · qty on machine: 1 | |||||
| 3 | 5100059553 | Sleeve | 1 | PARTS REQUEST | |
|
COMING Sleeve
5100059553 · qty on machine: 1 | |||||
| 3 | 5100059554 | Plate | 1 | PARTS REQUEST | |
|
COMING Plate
5100059554 · qty on machine: 1 | |||||
| 3 | 5100059555 | Retaining ring | 1 | PARTS REQUEST | |
|
COMING Retaining ring
5100059555 · qty on machine: 1 | |||||
| 5 | 5100024936 | Coupling | 1 | ADD TO CART | |
| 6 | 5100012553 | Hexagon screw | 3 | ADD TO CART | |
| 10 | 5100024935 | Flange | 1 | PARTS REQUEST | |
|
COMING Flange
5100024935 · qty on machine: 1 | |||||
| 11 | 5100011479 | Hexagon screw | 8 | ADD TO CART | |
| 12 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 21 | 5100011786 | Variable displac. pump (drive) | 1 | PARTS REQUEST | |
|
COMING Variable displac. pump (drive)
5100011786 · qty on machine: 1 | |||||
| 22 | 5100012621 | Hexagon screw | 2 | ADD TO CART | |
| 23 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 24 | 5100011743 | Screw plug | 1 | ADD TO CART | |
| 31 | 5100025077 | Gear pump | 1 | ADD TO CART | |
| 32 | 5100013450 | Cheese-head screw | 2 | ADD TO CART | |
| 33 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 41 | 5100025078 | Gear pump | 1 | ADD TO CART | |
| 42 | 5100012727 | Cheese-head screw | 4 | ADD TO CART | |
| 43 | 5100013441 | Locking washer | 4 | ADD TO CART | |
| 45 | 5100013418 | Screw plug | 1 | ADD TO CART | |
| 46 | 5100013005 | Sealing ring | 1 | ADD TO CART | |
| 120 | 5100016262 | V-belt protection | 1 | ADD TO CART | |
| 121 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 122 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 123 | 5100013230 | Locking washer | 3 | ADD TO CART | |
| 1 | 5100024307 | Locking screw | 2 | PARTS REQUEST | |
|
COMING Locking screw
5100024307 · qty on machine: 2 | |||||
| 2 | 5100024308 | Sealing | 2 | PARTS REQUEST | |
|
COMING Sealing
5100024308 · qty on machine: 2 | |||||
| 3 | 5100024304 | Oil dipstick | 1 | ADD TO CART | |
| 4 | 5100025073 | Seal, valve cover | 1 | PARTS REQUEST | |
|
COMING Seal, valve cover
5100025073 · qty on machine: 1 | |||||
| 5 | 5100012809 | Cover, oil filler, above | 1 | ADD TO CART | |
| 6 | 5100023507 | O-ring seal | 1 | ADD TO CART | |
| 7 | 5100012809 | Cover, oil filler, above | 1 | ADD TO CART | |
| 8 | 5100023507 | O-ring seal | 1 | ADD TO CART | |
| 9 | 5100025106 | Filter cartridge, lubric. oil | 1 | PARTS REQUEST | |
|
COMING Filter cartridge, lubric. oil
5100025106 · qty on machine: 1 | |||||
| 10 | 5100025003 | Fuel pump | 1 | PARTS REQUEST | |
|
COMING Fuel pump
5100025003 · qty on machine: 1 | |||||
| 11 | 5100025008 | O-ring seal | 1 | PARTS REQUEST | |
|
COMING O-ring seal
5100025008 · qty on machine: 1 | |||||
| 12 | 5100025004 | Pump | 1 | PARTS REQUEST | |
|
COMING Pump
5100025004 · qty on machine: 1 | |||||
| 13 | 5100025006 | Sealing | 1 | PARTS REQUEST | |
|
COMING Sealing
5100025006 · qty on machine: 1 | |||||
| 14 | 5100025005 | Valve | 1 | PARTS REQUEST | |
|
COMING Valve
5100025005 · qty on machine: 1 | |||||
| 17 | 5100011672 | Alternator | 1 | PARTS REQUEST | |
|
COMING Alternator
5100011672 · qty on machine: 1 | |||||
| 17 | 5100012685 | Alternator | 1 | ADD TO CART | |
| 18 | 5100059558 | Toothed v-belt | 1 | PARTS REQUEST | |
|
COMING Toothed v-belt
5100059558 · qty on machine: 1 | |||||
| 18 | 5100025028 | V-belt | 1 | ADD TO CART | |
| 19 | 5100012684 | Starter | 1 | ADD TO CART | |
| 20 | 5100025011 | Sensor | 1 | PARTS REQUEST | |
|
COMING Sensor
5100025011 · qty on machine: 1 | |||||
| 21 | 5100025012 | Sensor | 1 | PARTS REQUEST | |
|
COMING Sensor
5100025012 · qty on machine: 1 | |||||
| 22 | 5100023324 | Sensor | 1 | ADD TO CART | |
| 23 | 5100023676 | Engine oil pressure switch | 1 | ADD TO CART | |
| 24 | 5100059551 | Thermostat | 1 | PARTS REQUEST | |
|
COMING Thermostat
5100059551 · qty on machine: 1 | |||||
| 25 | 5100012863 | Seal | 1 | ADD TO CART | |
| 26 | 5100059550 | Water pump | 1 | PARTS REQUEST | |
|
COMING Water pump
5100059550 · qty on machine: 1 | |||||
| 27 | 5100012873 | Seal | 1 | ADD TO CART | |
| 28 | 5100059548 | Sealing | 1 | PARTS REQUEST | |
|
COMING Sealing
5100059548 · qty on machine: 1 | |||||
| 29 | 5100025015 | Sealing | 2 | ADD TO CART | |
| 30 | 5100025016 | Sealing | 2 | PARTS REQUEST | |
|
COMING Sealing
5100025016 · qty on machine: 2 | |||||
| 31 | 5100025016 | Sealing | 1 | PARTS REQUEST | |
|
COMING Sealing
5100025016 · qty on machine: 1 | |||||
| 32 | 5100024983 | Filter insert | 1 | ADD TO CART | |
| 100 | 5100057808 | Diesel engine | 1 | PARTS REQUEST | |
|
COMING Diesel engine
5100057808 · qty on machine: 1 | |||||
| 202 | 5100050672 | Holder | 1 | ADD TO CART | |
| 203 | 5100059529 | Hexagon screw | 1 | ADD TO CART | |
| 204 | 5100013094 | Washer | 1 | ADD TO CART | |
| 210 | 5100050673 | Hexagon screw | 1 | ADD TO CART | |
| 211 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 212 | 5100012893 | Safety nut | 1 | ADD TO CART | |
| 220 | 5100011672 | Alternator | 1 | PARTS REQUEST | |
|
COMING Alternator
5100011672 · qty on machine: 1 | |||||
| 221 | 5100050674 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100050674 · qty on machine: 1 | |||||
| 233 | 5100050675 | Hexagon screw | 1 | ADD TO CART | |
| 234 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 235 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 236 | 5100011701 | Distance bush | 1 | ADD TO CART | |
| 240 | 5100046800 | Hexagon screw | 1 | ADD TO CART | |
| 241 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 242 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 243 | 5100052961 | Washer | 1 | ADD TO CART | |
| 244 | 5100011578 | Mushroom head screw | 1 | ADD TO CART | |
| 245 | 5100050676 | Extension | 1 | PARTS REQUEST | |
|
COMING Extension
5100050676 · qty on machine: 1 | |||||
| 250 | 5100059558 | Toothed v-belt | 1 | PARTS REQUEST | |
|
COMING Toothed v-belt
5100059558 · qty on machine: 1 | |||||
| 314 | 5100050677 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100050677 · qty on machine: 1 | |||||
| 401 | 5100013141 | V-belt protection | 1 | ADD TO CART | |
| 402 | 5100012515 | Hexagon screw | 3 | ADD TO CART | |
| 403 | 5100013094 | Washer | 3 | ADD TO CART | |
| 404 | 5100013230 | Locking washer | 3 | ADD TO CART | |
Page 118 — Fuel system
Parts list — exactly as printed55 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100065353 | Fuel tank | 1 | PARTS REQUEST | |
|
COMING Fuel tank
5100065353 · qty on machine: 1 | |||||
| 2 | 5100011731 | Rubber washer | 8 | ADD TO CART | |
| 3 | 5100011824 | Washer | 4 | ADD TO CART | |
| 4 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 29 | 5100065332 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100065332 · qty on machine: 1 | |||||
| 46 | 5100024923 | Hose | 0.55 | ADD TO CART | |
| 47 | 5100013179 | Hose clip | 1 | ADD TO CART | |
| 61 | 5100065325 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100065325 · qty on machine: 1 | |||||
| 73 | 5100013216 | Flexible tubing | 1.25 | ADD TO CART | |
| 74 | 5100013179 | Hose clip | 2 | ADD TO CART | |
| 76 | 5100065312 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100065312 · qty on machine: 1 | |||||
| 77 | 5100013416 | Hexagon screw | 2 | ADD TO CART | |
| 78 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 79 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 5 | 5100012177 | Fuel tank | 1 | ADD TO CART | |
| 6 | 5100011730 | Spacer pin | 4 | ADD TO CART | |
| 7 | 5100011861 | Spacer shim | 8 | ADD TO CART | |
| 10 | 5100012476 | Fuel gauge | 1 | ADD TO CART | |
| 11 | 5100013216 | Flexible tubing | 0.15 | ADD TO CART | |
| 12 | 5100013179 | Hose clip | 1 | ADD TO CART | |
| 13 | 5100011990 | Strainer | 1 | ADD TO CART | |
| 14 | 5100011829 | Tank cap, with lock | 1 | ADD TO CART | |
| 14 | 5100013557 | Key | 1 | ADD TO CART | |
| 15 | 5100011665 | Screw plug | 1 | ADD TO CART | |
| 17 | 5100011443 | Cheese-head screw | 6 | ADD TO CART | |
| 18 | 5100013502 | Sealing ring | 6 | ADD TO CART | |
| 30 | 5100013472 | Straight screwed socket | 1 | ADD TO CART | |
| 32 | 5100023444 | Fuel filter cartridge | 1 | ADD TO CART | |
| 33 | 5100013416 | Hexagon screw | 2 | ADD TO CART | |
| 34 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 35 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 36 | 5100013472 | Straight screwed socket | 1 | ADD TO CART | |
| 37 | 5100052913 | Locking screw | 1 | PARTS REQUEST | |
|
COMING Locking screw
5100052913 · qty on machine: 1 | |||||
| 38 | 5100023629 | Spring ring | 1 | ADD TO CART | |
| 39 | 5100011914 | Hexagon nut | 1 | ADD TO CART | |
| 40 | 5100013179 | Hose clip | 2 | ADD TO CART | |
| 41 | 5100025030 | Fuel pump | 1 | ADD TO CART | |
| 41 | 5100025034 | Fuel filter | 1 | ADD TO CART | |
| 41 | 5100052916 | Sealing | 1 | ADD TO CART | |
| 42 | 5100024340 | Rubber metal buffer | 2 | ADD TO CART | |
| 43 | 5100012965 | Locking washer | 3 | ADD TO CART | |
| 44 | 5100012545 | Hexagon nut | 3 | ADD TO CART | |
| 45 | 5100025029 | Angle screwed socket | 2 | PARTS REQUEST | |
|
COMING Angle screwed socket
5100025029 · qty on machine: 2 | |||||
| 48 | 5100065321 | Connection pipe | 1 | PARTS REQUEST | |
|
COMING Connection pipe
5100065321 · qty on machine: 1 | |||||
| 50 | 5100013472 | Straight screwed socket | 1 | ADD TO CART | |
| 52 | 5100023253 | Filter cover | 1 | ADD TO CART | |
| 53 | 5100065329 | Filter cartridge, fuel | 1 | PARTS REQUEST | |
|
COMING Filter cartridge, fuel
5100065329 · qty on machine: 1 | |||||
| 54 | 5100013416 | Hexagon screw | 2 | ADD TO CART | |
| 55 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 56 | 5100052913 | Locking screw | 1 | PARTS REQUEST | |
|
COMING Locking screw
5100052913 · qty on machine: 1 | |||||
| 59 | 5100024988 | Locking screw | 1 | PARTS REQUEST | |
|
COMING Locking screw
5100024988 · qty on machine: 1 | |||||
| 60 | 5100025887 | Straight screwed socket | 1 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100025887 · qty on machine: 1 | |||||
| 75 | 5100065303 | Holder system | 1 | PARTS REQUEST | |
|
COMING Holder system
5100065303 · qty on machine: 1 | |||||
| 90 | 5100024946 | Temperature switch | 1 | ADD TO CART | |
| 91 | 5100024335 | Sealing ring | 1 | ADD TO CART | |
Page 124 — Fuel filter
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100025030 | Fuel pump | 1 | ADD TO CART | |
| 1 | 5100025034 | Fuel filter | 1 | ADD TO CART | |
| 1 | 5100052916 | Sealing | 1 | ADD TO CART | |
| 21 | 5100023444 | Fuel filter cartridge | 1 | ADD TO CART | |
| 21 | 5100023445 | Filter cartridge, fuel | 1 | PARTS REQUEST | |
|
COMING Filter cartridge, fuel
5100023445 · qty on machine: 1 | |||||
| 21 | 5100023465 | Sensor | 1 | ADD TO CART | |
| 52 | 5100023253 | Filter cover | 1 | ADD TO CART | |
| 53 | 5100065329 | Filter cartridge, fuel | 1 | PARTS REQUEST | |
|
COMING Filter cartridge, fuel
5100065329 · qty on machine: 1 | |||||
Page 126 — Air filter system
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 5 | 5100065304 | Air hose | 1 | PARTS REQUEST | |
|
COMING Air hose
5100065304 · qty on machine: 1 | |||||
| 6 | 5100024338 | Hose clamp | 1 | ADD TO CART | |
| 7 | 5100024336 | Hose clamp | 1 | ADD TO CART | |
| 8 | 5100065306 | Intake hose | 1 | PARTS REQUEST | |
|
COMING Intake hose
5100065306 · qty on machine: 1 | |||||
| 9 | 5100024336 | Hose clamp | 1 | ADD TO CART | |
| 10 | 5100013403 | Hose clip | 1 | ADD TO CART | |
| 14 | 5100023746 | Sensor | 1 | PARTS REQUEST | |
|
COMING Sensor
5100023746 · qty on machine: 1 | |||||
| 14 | 5100024986 | Air filter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 14 | 5100024992 | Filter cartridge | 1 | ADD TO CART | |
| 14 | 5100025017 | Dust discharge valve | 1 | ADD TO CART | |
| 14 | 5100050678 | Safety filter cartridge | 1 | ADD TO CART | |
| 15 | 5100024991 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100024991 · qty on machine: 1 | |||||
| 16 | 5100012613 | Hexagon screw | 1 | ADD TO CART | |
| 17 | 5100013094 | Washer | 1 | ADD TO CART | |
| 18 | 5100024890 | Cheese-head screw | 2 | ADD TO CART | |
| 20 | 5100012249 | Mushroom head screw | 1 | ADD TO CART | |
| 21 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 22 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 30 | 5100013370 | Pressure switch, air filter | 1 | PARTS REQUEST | |
|
COMING Pressure switch, air filter
5100013370 · qty on machine: 1 | |||||
Page 128 — Exhaust system
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100025015 | Sealing | 1 | ADD TO CART | |
| 4 | 5100057810 | Flue gas pipe | 1 | PARTS REQUEST | |
|
COMING Flue gas pipe
5100057810 · qty on machine: 1 | |||||
| 5 | 5100011471 | Stud bolt | 4 | ADD TO CART | |
| 6 | 5100024980 | Hexagonal nut | 4 | ADD TO CART | |
| 13 | 5100024979 | Connection pipe | 1 | PARTS REQUEST | |
|
COMING Connection pipe
5100024979 · qty on machine: 1 | |||||
| 14 | 5100057811 | Flue gas pipe | 1 | PARTS REQUEST | |
|
COMING Flue gas pipe
5100057811 · qty on machine: 1 | |||||
| 15 | 5100024978 | Strap clip | 2 | PARTS REQUEST | |
|
COMING Strap clip
5100024978 · qty on machine: 2 | |||||
| 16 | 5100012966 | Locking washer | 2 | ADD TO CART | |
Page 130 — Exhaust aftertreatment
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 8 | 5100025015 | Sealing | 1 | ADD TO CART | |
| 1 | 5100059532 | Particulate filter | 1 | PARTS REQUEST | |
|
COMING Particulate filter
5100059532 · qty on machine: 1 | |||||
| 2 | 5100059535 | Sealing | 1 | PARTS REQUEST | |
|
COMING Sealing
5100059535 · qty on machine: 1 | |||||
| 3 | 5100059533 | Particulate filter | 1 | PARTS REQUEST | |
|
COMING Particulate filter
5100059533 · qty on machine: 1 | |||||
| 4 | 5100059534 | Particulate filter | 1 | PARTS REQUEST | |
|
COMING Particulate filter
5100059534 · qty on machine: 1 | |||||
| 5 | 5100059535 | Sealing | 1 | PARTS REQUEST | |
|
COMING Sealing
5100059535 · qty on machine: 1 | |||||
| 6 | 5100059536 | Pipe clip | 2 | PARTS REQUEST | |
|
COMING Pipe clip
5100059536 · qty on machine: 2 | |||||
| 7 | 5100059538 | Pipe clip | 1 | PARTS REQUEST | |
|
COMING Pipe clip
5100059538 · qty on machine: 1 | |||||
| 1 | 5100025023 | Temperature probe | 1 | PARTS REQUEST | |
|
COMING Temperature probe
5100025023 · qty on machine: 1 | |||||
| 2 | 5100025024 | Temperature probe | 1 | PARTS REQUEST | |
|
COMING Temperature probe
5100025024 · qty on machine: 1 | |||||
| 3 | 5100023693 | Temperature probe | 1 | ADD TO CART | |
| 4 | 5100023694 | Temperature probe | 1 | ADD TO CART | |
| 10 | 5100059539 | Pipe | 1 | PARTS REQUEST | |
|
COMING Pipe
5100059539 · qty on machine: 1 | |||||
| 20 | 5100059540 | Pipe | 1 | PARTS REQUEST | |
|
COMING Pipe
5100059540 · qty on machine: 1 | |||||
Page 134 — Cooling (engine/hydraulic oil)
Parts list — exactly as printed108 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100024948 | Cooling-water pipe | 1 | PARTS REQUEST | |
|
COMING Cooling-water pipe
5100024948 · qty on machine: 1 | |||||
| 2 | 5100023378 | Cheese-head screw | 1 | PARTS REQUEST | |
|
COMING Cheese-head screw
5100023378 · qty on machine: 1 | |||||
| 3 | 5100012967 | Locking washer | 1 | ADD TO CART | |
| 5 | 5100012627 | Hexagon screw | 1 | ADD TO CART | |
| 6 | 5100012968 | Locking washer | 1 | ADD TO CART | |
| 7 | 5100012158 | Flexible tubing | 1 | ADD TO CART | |
| 8 | 5100012159 | Flexible tubing | 1 | ADD TO CART | |
| 9 | 5100011637 | Hose clip | 4 | ADD TO CART | |
| 10 | 5100065359 | Fan | 1 | PARTS REQUEST | |
|
COMING Fan
5100065359 · qty on machine: 1 | |||||
| 11 | 5100011920 | Fan free-wheeling | 1 | ADD TO CART | |
| 12 | 5100012614 | Hexagon screw | 4 | ADD TO CART | |
| 13 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 14 | 5100016826 | Supporting ring | 1 | ADD TO CART | |
| 15 | 5100012169 | Spacer ring | 1 | ADD TO CART | |
| 33 | 5100065309 | Cover | 1 | PARTS REQUEST | |
|
COMING Cover
5100065309 · qty on machine: 1 | |||||
| 34 | 5100012780 | Mushroom head screw | 2 | ADD TO CART | |
| 35 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 36 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 37 | 5100013642 | Sealing profile | 2.1 | ADD TO CART | |
| 39 | 5100059517 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100059517 · qty on machine: 1 | |||||
| 40 | 5100012600 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 2 | |||||
| 41 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 42 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 44 | 5100059556 | Threaded insert | 2 | ADD TO CART | |
| 45 | 5100012919 | Silentbloc | 4 | ADD TO CART | |
| 46 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 47 | 5100012545 | Hexagon nut | 4 | ADD TO CART | |
| 54 | 5100059518 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100059518 · qty on machine: 1 | |||||
| 55 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 56 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 60 | 5100023482 | Tank cap | 1 | ADD TO CART | |
| 60 | 5100052930 | Compensator tank | 1 | PARTS REQUEST | |
|
COMING Compensator tank
5100052930 · qty on machine: 1 | |||||
| 61 | 5100059520 | Cooling-water hose | 1 | PARTS REQUEST | |
|
COMING Cooling-water hose
5100059520 · qty on machine: 1 | |||||
| 62 | 5100013452 | Hose clip | 1 | ADD TO CART | |
| 66 | 5100024977 | Hose nozzle | 1 | ADD TO CART | |
| 67 | 5100052945 | Hose | 0.4 | ADD TO CART | |
| 69 | 5100013179 | Hose clip | 3 | ADD TO CART | |
| 146 | 5100065375 | Metal plate | 1 | PARTS REQUEST | |
|
COMING Metal plate
5100065375 · qty on machine: 1 | |||||
| 147 | 5100012515 | Hexagon screw | 3 | ADD TO CART | |
| 148 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 170 | 5100052932 | Level indicator | 1 | PARTS REQUEST | |
|
COMING Level indicator
5100052932 · qty on machine: 1 | |||||
| 171 | 5100012515 | Hexagon screw | 1 | ADD TO CART | |
| 172 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 20 | 5100024958 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100024958 · qty on machine: 1 | |||||
| 21 | 5100024957 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100024957 · qty on machine: 1 | |||||
| 23 | 5100012553 | Hexagon screw | 3 | ADD TO CART | |
| 24 | 5100012967 | Locking washer | 3 | ADD TO CART | |
| 25 | 5100013550 | Rubber buffer | 2 | ADD TO CART | |
| 26 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 27 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 28 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 30 | 5100024956 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100024956 · qty on machine: 1 | |||||
| 31 | 5100012517 | Hexagon screw | 3 | ADD TO CART | |
| 32 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 64 | 5100012231 | Cooling-water hose | 1 | ADD TO CART | |
| 65 | 5100011637 | Hose clip | 2 | ADD TO CART | |
| 70 | 5100052945 | Hose | 0.95 | ADD TO CART | |
| 72 | 5100013179 | Hose clip | 2 | ADD TO CART | |
| 76 | 5100012496 | Flexible tubing | 1 | Serialno. 160- 179 | ADD TO CART |
| 76 | 5100080578 | Hose | 1 | Serialno. >180 | PARTS REQUEST |
|
COMING Hose
5100080578 · qty on machine: 1 Serialno. >180 | |||||
| 77 | 5100012063 | Flexible tubing | 1 | ADD TO CART | |
| 90 | 5100065354 | Cooler | 1 | PARTS REQUEST | |
|
COMING Cooler
5100065354 · qty on machine: 1 | |||||
| 98 | 5100012520 | Hexagon screw | 3 | ADD TO CART | |
| 99 | 5100012967 | Locking washer | 3 | ADD TO CART | |
| 100 | 5100065368 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100065368 · qty on machine: 1 | |||||
| 101 | 5100065376 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100065376 · qty on machine: 1 | |||||
| 105 | 5100012780 | Mushroom head screw | 4 | ADD TO CART | |
| 106 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 107 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 110 | 5100012517 | Hexagon screw | 4 | ADD TO CART | |
| 111 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 121 | 5100065314 | Protecting sheet | 1 | PARTS REQUEST | |
|
COMING Protecting sheet
5100065314 · qty on machine: 1 | |||||
| 122 | 5100065315 | Protecting sheet | 1 | PARTS REQUEST | |
|
COMING Protecting sheet
5100065315 · qty on machine: 1 | |||||
| 123 | 5100012515 | Hexagon screw | 4 | ADD TO CART | |
| 124 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 126 | 5100065377 | Pipe | 1 | PARTS REQUEST | |
|
COMING Pipe
5100065377 · qty on machine: 1 | |||||
| 130 | 5100012303 | Cooling-water hose | 1 | ADD TO CART | |
| 135 | 5100012909 | Hose clip | 2 | ADD TO CART | |
| 136 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 137 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 138 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 142 | 5100012302 | Cooling-water hose | 1 | ADD TO CART | |
| 145 | 5100011637 | Hose clip | 4 | ADD TO CART | |
| 150 | 5100058748 | Cheese-head screw | 1 | ADD TO CART | |
| 151 | 5100012967 | Locking washer | 1 | ADD TO CART | |
| 180 | 5100022888 | Reducing insert | 1 | Serialno. >180 | ADD TO CART |
| 181 | 5100023276 | Hose | 1 | Serialno. >180 | ADD TO CART |
| 184 | 5100050710 | Holder | 1 | Serialno. >180 | ADD TO CART |
| 58 | 5100012492 | Sealing ring | 1 | ADD TO CART | |
| 59 | 5100013516 | Screw plug | 1 | ADD TO CART | |
| 74 | 5100013614 | Straight screwed socket | 1 | ADD TO CART | |
| 75 | 5100013615 | Straight screwed socket | 1 | ADD TO CART | |
| 86 | 5100065374 | Water cooler | 1 | PARTS REQUEST | |
|
COMING Water cooler
5100065374 · qty on machine: 1 | |||||
| 87 | 5100011636 | Washer | 6 | ADD TO CART | |
| 88 | 5100012600 | Hexagon screw | 6 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 6 | |||||
| 89 | 5100011866 | Sealing tape | 0.6 | ADD TO CART | |
| 91 | 5100011913 | Oil cooler | 1 | ADD TO CART | |
| 92 | 5100011636 | Washer | 4 | ADD TO CART | |
| 93 | 5100012600 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 4 | |||||
| 94 | 5100011866 | Sealing tape | 0.5 | ADD TO CART | |
| 95 | 5100065355 | Console | 1 | PARTS REQUEST | |
|
COMING Console
5100065355 · qty on machine: 1 | |||||
| 96 | 5100013642 | Sealing profile | 2.1 | ADD TO CART | |
| 97 | 5100065338 | Hose nozzle | 1 | ADD TO CART | |
| 102 | 5100023402 | Temperature switch | 1 | ADD TO CART | |
| 114 | 5100011592 | Grommet | 3 | ADD TO CART | |
| 116 | 5100065364 | Cable support sleeve | 1 | PARTS REQUEST | |
|
COMING Cable support sleeve
5100065364 · qty on machine: 1 | |||||
| 118 | 5100012444 | Screw plug | 2 | PARTS REQUEST | |
|
COMING Screw plug
5100012444 · qty on machine: 2 | |||||
| 119 | 5100013000 | Sealing ring | 2 | ADD TO CART | |
Page 144 — Driving gear
Parts list — exactly as printed41 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012262 | Driving gear | 1 | PARTS REQUEST | |
|
COMING Driving gear
5100012262 · qty on machine: 1 | |||||
| 1 | 5100011618 | Locking ring | 2 | ADD TO CART | |
| 1 | 5100012180 | Set of seals | 1 | ADD TO CART | |
| 1 | 5100013503 | Shaft seal | 1 | ADD TO CART | |
| 2 | 5100012263 | Hydraulic regulation | 1 | PARTS REQUEST | |
|
COMING Hydraulic regulation
5100012263 · qty on machine: 1 | |||||
| 2 | 5100011511 | Seal nut | 2 | ADD TO CART | |
| 2 | 5100011517 | O-ring seal | 1 | ADD TO CART | |
| 2 | 5100012267 | Set of seals | 1 | ADD TO CART | |
| 2 | 5100013545 | O-ring seal | 1 | ADD TO CART | |
| 3 | 5100012264 | Connection plate | 1 | PARTS REQUEST | |
|
COMING Connection plate
5100012264 · qty on machine: 1 | |||||
| 3 | 5100011446 | O-ring seal | 1 | ADD TO CART | |
| 3 | 5100011453 | Screw plug | 1 | ADD TO CART | |
| 3 | 5100011571 | Pressure-relief valve | 2 | PARTS REQUEST | |
|
COMING Pressure-relief valve
5100011571 · qty on machine: 2 | |||||
| 3 | 5100011614 | Feeding pressure valve | 1 | PARTS REQUEST | |
|
COMING Feeding pressure valve
5100011614 · qty on machine: 1 | |||||
| 3 | 5100012188 | Set of seals | 1 | ADD TO CART | |
| 3 | 5100013406 | O-ring seal | 1 | ADD TO CART | |
| 3 | 5100013543 | Screw plug | 2 | ADD TO CART | |
| 3 | 5100013545 | O-ring seal | 1 | ADD TO CART | |
| 3 | 5100013546 | O-ring seal | 1 | ADD TO CART | |
| 4 | 5100012265 | Connection flange | 1 | ADD TO CART | |
| 4 | 5100012268 | Set of seals | 1 | ADD TO CART | |
| 4 | 5100012098 | O-ring seal | 1 | ADD TO CART | |
| 4 | 5100011831 | Sealing washer | 2 | ADD TO CART | |
| 4 | 5100011745 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100012266 | Control device | 1 | PARTS REQUEST | |
|
COMING Control device
5100012266 · qty on machine: 1 | |||||
| 5 | 5100011448 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100011449 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100011450 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100011622 | Seal | 1 | ADD TO CART | |
| 5 | 5100013544 | O-ring seal | 2 | ADD TO CART | |
| 5 | 5100013547 | Seal nut | 1 | ADD TO CART | |
| 20 | 5100011452 | Screw plug | 1 | ADD TO CART | |
| 21 | 5100011453 | Screw plug | 1 | ADD TO CART | |
| 22 | 5100013543 | Screw plug | 3 | ADD TO CART | |
| 23 | 5100011658 | Screw plug | 1 | PARTS REQUEST | |
|
COMING Screw plug
5100011658 · qty on machine: 1 | |||||
| 24 | 5100011454 | Screw plug | 1 | ADD TO CART | |
| 28 | 5100033215 | Valve | 2 | ADD TO CART | |
| 41 | 5100011486 | O-ring seal | 1 | ADD TO CART | |
| 49 | 5100011510 | Nozzle | 1 | ADD TO CART | |
| 100 | 5100011786 | Variable displac. pump (drive) | 1 | PARTS REQUEST | |
|
COMING Variable displac. pump (drive)
5100011786 · qty on machine: 1 | |||||
| 100 | 5100012251 | Set of seals | 1 | ADD TO CART | |
Page 148 — Pump (vibration drive)
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100025077 | Gear pump | 1 | ADD TO CART | |
| 1 | 5100013445 | Hexagon nut | 1 | ADD TO CART | |
| 1 | 5100013446 | Disk spring | 1 | PARTS REQUEST | |
|
COMING Disk spring
5100013446 · qty on machine: 1 | |||||
| 1 | 5100017991 | Spring ring | 1 | PARTS REQUEST | |
|
COMING Spring ring
5100017991 · qty on machine: 1 | |||||
Page 150 — Constant motor (vibration drive)
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013009 | Spring ring | 1 | 1.04 Serialno. >310 | ADD TO CART |
| 1 | 5100013445 | Hexagon nut | 1 | 1.02 Serialno. >310 | ADD TO CART |
| 1 | 5100013446 | Disk spring | 1 | 1.03 Serialno. >310 | PARTS REQUEST |
|
COMING Disk spring
5100013446 · qty on machine: 1 1.03 Serialno. >310 | |||||
| 1 | 5100058557 | Gear motor | 1 | Serialno. >310 | ADD TO CART |
| 1 | 5100065348 | Set of seals | 1 | 1.01 Serialno. >310 | ADD TO CART |
Page 152 — Control block
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011986 | Directional valve | 1 | ADD TO CART | |
| 1 | 5100012055 | Pressure-relief valve | 1 | ADD TO CART | |
| 1 | 5100012092 | Pressure-relief valve | 1 | ADD TO CART | |
| 1 | 5100012409 | Magnet | 1 | ADD TO CART | |
| 1 | 5100012970 | Valve block | 1 | ADD TO CART | |
| 1 | 5100013006 | Pressure-relief valve | 1 | ADD TO CART | |
Page 154 — Gear hub motor
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100080579 | Set of seals | 1 | PARTS REQUEST | |
|
COMING Set of seals
5100080579 · qty on machine: 1 | |||||
| 3 | 5100016263 | Set of seals | 1 | ADD TO CART | |
| 4 | 5100065365 | Set of seals | 1 | ADD TO CART | |
| 5 | 5100016264 | Seal | 1 | ADD TO CART | |
| 6 | 5100016265 | Cap | 1 | ADD TO CART | |
| 7 | 5100016266 | Plug | 1 | ADD TO CART | |
| 10 | 5100016269 | Set of seals | 1 | ADD TO CART | |
| 11 | 5100012799 | Spring | 1 | ADD TO CART | |
| 12 | 5100065373 | Set of seals | 1 | ADD TO CART | |
| 13 | 5100065372 | Piston | 5 | ADD TO CART | |
| 14 | 5100065370 | Repair set | 1 | ADD TO CART | |
| 100 | 5100065326 | Gear hub motor | 1 | PARTS REQUEST | |
|
COMING Gear hub motor
5100065326 · qty on machine: 1 | |||||
| 4 | 5100065371 | Repair set | 1 | ADD TO CART | |
| 100 | 5100065327 | Gear hub motor | 1 | ADD TO CART | |
Page 158 — Gear hub motor - full shaft (tires)
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100013351 | Cylinder block | 1 | PARTS REQUEST | |
|
COMING Cylinder block
5100013351 · qty on machine: 1 | |||||
| 15 | 5100013352 | Set of seals | 1 | ADD TO CART | |
| 27 | 5100013338 | Set of seals | 1 | ADD TO CART | |
| 40 | 5100013334 | Distributor | 1 | PARTS REQUEST | |
|
COMING Distributor
5100013334 · qty on machine: 1 | |||||
| 40 | 5100024322 | Repair set | 1 | ADD TO CART | |
| 42 | 5100011485 | Cheese-head screw | 12 | ADD TO CART | |
| 43 | 5100013339 | Straight pin | 1 | PARTS REQUEST | |
|
COMING Straight pin
5100013339 · qty on machine: 1 | |||||
| 44 | 5100012125 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
5100012125 · qty on machine: 1 | |||||
| 48 | 5100012124 | Set of seals | 1 | ADD TO CART | |
| 60 | 5100012505 | Wheel mounting bolt | 1 | ADD TO CART | |
| 70 | 5100013331 | Set of seals | 1 | ADD TO CART | |
| 70 | 5100013353 | Bearing piece | 1 | PARTS REQUEST | |
|
COMING Bearing piece
5100013353 · qty on machine: 1 | |||||
| 71 | 5100024323 | Repair set | 1 | ADD TO CART | |
| 100 | 5100013335 | Brake | 1 | ADD TO CART | |
| 100 | 5100013343 | Set of seals | 1 | ADD TO CART | |
| 108 | 5100013341 | Brake piston | 1 | PARTS REQUEST | |
|
COMING Brake piston
5100013341 · qty on machine: 1 | |||||
| 110 | 5100013340 | Cover plate | 1 | PARTS REQUEST | |
|
COMING Cover plate
5100013340 · qty on machine: 1 | |||||
| 111 | 5100013342 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
5100013342 · qty on machine: 1 | |||||
| 135 | 5100013336 | Set of seals | 1 | PARTS REQUEST | |
|
COMING Set of seals
5100013336 · qty on machine: 1 | |||||
| 200 | 5100012956 | Gear hub motor | 1 | PARTS REQUEST | |
|
COMING Gear hub motor
5100012956 · qty on machine: 1 | |||||
| 200 | 5100013337 | Set of seals | 1 | ADD TO CART | |
Page 160 — Valve block
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100066935 | Piston valve | 1 | PARTS REQUEST | |
|
COMING Piston valve
5100066935 · qty on machine: 1 | |||||
| 3 | 5100066873 | Directional control valve | 1 | PARTS REQUEST | |
|
COMING Directional control valve
5100066873 · qty on machine: 1 | |||||
| 4 | 5100066884 | Solenoid coil | 1 | PARTS REQUEST | |
|
COMING Solenoid coil
5100066884 · qty on machine: 1 | |||||
| 5 | 5100012114 | Pressure-relief valve | 2 | ADD TO CART | |
| 6 | 5100066895 | Flow divider | 1 | ADD TO CART | |
| 7 | 5100012113 | Nozzle | 1 | PARTS REQUEST | |
|
COMING Nozzle
5100012113 · qty on machine: 1 | |||||
| 8 | 5100066906 | Compression spring | 1 | PARTS REQUEST | |
|
COMING Compression spring
5100066906 · qty on machine: 1 | |||||
| 9 | 5100011564 | Screw plug | 2 | ADD TO CART | |
| 10 | 5100011538 | Screw plug | 1 | ADD TO CART | |
| 11 | 5100011743 | Screw plug | 2 | ADD TO CART | |
| 12 | 5100012113 | Nozzle | 1 | PARTS REQUEST | |
|
COMING Nozzle
5100012113 · qty on machine: 1 | |||||
| 13 | 5100011742 | O-ring seal | 1 | ADD TO CART | |
| 14 | 5100011741 | O-ring seal | 2 | PARTS REQUEST | |
|
COMING O-ring seal
5100011741 · qty on machine: 2 | |||||
| 15 | 5100013544 | O-ring seal | 2 | ADD TO CART | |
| 100 | 5100066917 | Flow divider | 1 | ADD TO CART | |
Page 162 — Filter (hydraulic oil)
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013361 | Filter | 1 | ADD TO CART | |
| 1 | 5100013387 | O-ring seal | 1 | ADD TO CART | |
| 1 | 5100024324 | Filter insert | 1 | PARTS REQUEST | |
|
COMING Filter insert
5100024324 · qty on machine: 1 | |||||
| 1 | 5100029595 | Set of seals | 1 | ADD TO CART | |
| 1 | 5100012020 | Pressure filter | 1 | ADD TO CART | |
| 1 | 5100039074 | Set of seals | 1 | ADD TO CART | |
Page 166 — Pump (hydraulic steering system)
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100025078 | Gear pump | 1 | Serialno. <232 | ADD TO CART |
| 1 | 5100013445 | Hexagon nut | 1 | 1.02 Serialno. <232 | ADD TO CART |
| 1 | 5100016271 | Disk spring | 1 | 1.01 Serialno. <232 | PARTS REQUEST |
|
COMING Disk spring
5100016271 · qty on machine: 1 1.01 Serialno. <232 | |||||
| 1 | 5100017991 | Spring ring | 1 | 1.03 Serialno. <232 | PARTS REQUEST |
|
COMING Spring ring
5100017991 · qty on machine: 1 1.03 Serialno. <232 | |||||
Page 168 — Hydraulic oil tank
Parts list — exactly as printed35 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012970 | Valve block | 1 | ADD TO CART | |
| 2 | 5100013256 | Cheese-head screw | 4 | ADD TO CART | |
| 3 | 5100011608 | Screw plug | 2 | ADD TO CART | |
| 5 | 5100011874 | Pipe | 1 | ADD TO CART | |
| 15 | 5100013474 | Straight screwed socket | 4 | ADD TO CART | |
| 18 | 5100082393 | Locking screw | 1 | PARTS REQUEST | |
|
COMING Locking screw
5100082393 · qty on machine: 1 | |||||
| 31 | 5100011548 | Straight screwed socket | 1 | ADD TO CART | |
| 33 | 5100013433 | Straight screwed socket | 1 | ADD TO CART | |
| 49 | 5100012178 | Hydraulic oil tank | 1 | ADD TO CART | |
| 50 | 5100013553 | Straight screwed socket | 1 | ADD TO CART | |
| 51 | 5100011730 | Spacer pin | 4 | ADD TO CART | |
| 52 | 5100011861 | Spacer shim | 4 | ADD TO CART | |
| 53 | 5100013435 | Oil level indicator | 1 | ADD TO CART | |
| 63 | 5100013477 | Straight screwed socket | 1 | ADD TO CART | |
| 82 | 5100071896 | Check valve | 1 | Serialno. 180 – 9999 | ADD TO CART |
| 93 | 5100013493 | Banjo | 1 | ADD TO CART | |
| 94 | 5100013476 | Straight screwed socket | 1 | ADD TO CART | |
| 120 | 5100013477 | Straight screwed socket | 1 | ADD TO CART | |
| 2 | 5100011731 | Rubber washer | 4 | ADD TO CART | |
| 3 | 5100011824 | Washer | 2 | ADD TO CART | |
| 4 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 10 | 5100011730 | Spacer pin | 2 | ADD TO CART | |
| 11 | 5100011731 | Rubber washer | 4 | ADD TO CART | |
| 12 | 5100011824 | Washer | 2 | ADD TO CART | |
| 13 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 49 | 5100011665 | Screw plug | 1 | ADD TO CART | |
| 49 | 5100011857 | Suction filter | 1 | ADD TO CART | |
| 49 | 5100012419 | Filter | 1 | ADD TO CART | |
| 49 | 5100012866 | Fillister head screw | 6 | ADD TO CART | |
| 49 | 5100013415 | O-ring seal | 1 | ADD TO CART | |
| 49 | 5100013558 | Sealing ring | 6 | ADD TO CART | |
| 49 | 5100039052 | Vent filter | 1 | ADD TO CART | |
| 49 | 5100083350 | Filler cap | 1 | PARTS REQUEST | |
|
COMING Filler cap
5100083350 · qty on machine: 1 | |||||
| 100 | 5100016828 | Vent filter | 1 | ADD TO CART | |
| 100 | 5100024927 | Special wrench | 1 | ADD TO CART | |
Page 176 — Instrument panel
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5100011595 | Frame | 2 | ADD TO CART | |
| 21 | 5100011597 | Push-button | 1 | ADD TO CART | |
| 22 | 5100011580 | Blind cover | 1 | ADD TO CART | |
| 23 | 5100023546 | Rocker, preselection | 1 | ADD TO CART | |
| 30 | 5100023242 | Fixation | 1 | ADD TO CART | |
| 31 | 5100023241 | Push button | 1 | ADD TO CART | |
| 33 | 5100023527 | Label | 1 | ADD TO CART | |
| 35 | 5100023008 | Lid | 1 | ADD TO CART | |
| 100 | 5100025103 | Instrument panel | 1 | ADD TO CART | |
Page 178 — Cable harnesses
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100059542 | Wire harness front frame | 1 | PARTS REQUEST | |
|
COMING Wire harness front frame
5100059542 · qty on machine: 1 | |||||
| 2 | 5100012638 | Wire harness | 1 | ADD TO CART | |
| 3 | 5100012632 | Wire harness (rear frame) | 1 | ADD TO CART | |
| 4 | 5100012675 | Wire harness | 1 | ADD TO CART | |
| 5 | 5100052973 | Wire harness negative battery terminal | 1 | PARTS REQUEST | |
|
COMING Wire harness negative battery terminal
5100052973 · qty on machine: 1 | |||||
| 6 | 5100059507 | Proximity switch | 1 | ADD TO CART | |
| 7 | 5100057814 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100057814 · qty on machine: 1 | |||||
| 8 | 5100024941 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100024941 · qty on machine: 1 | |||||
| 9 | 5100052976 | Ground cable operator's platform | 1 | PARTS REQUEST | |
|
COMING Ground cable operator's platform
5100052976 · qty on machine: 1 | |||||
| 10 | 5100052977 | Wire harness instrument panel addition | 1 | PARTS REQUEST | |
|
COMING Wire harness instrument panel addition
5100052977 · qty on machine: 1 | |||||
| 11 | 5100052978 | Wire harness instrument panel | 1 | ADD TO CART | |
| 12 | 5100024942 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100024942 · qty on machine: 1 | |||||
| 13 | 5100057812 | Wire harness engine control unit | 1 | PARTS REQUEST | |
|
COMING Wire harness engine control unit
5100057812 · qty on machine: 1 | |||||
| 14 | 5100012637 | Wire harness | 1 | ADD TO CART | |
| 15 | 5100024944 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100024944 · qty on machine: 1 | |||||
| 16 | 5100052981 | Ground cable steering column | 1 | PARTS REQUEST | |
|
COMING Ground cable steering column
5100052981 · qty on machine: 1 | |||||
| 17 | 5100080582 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100080582 · qty on machine: 1 | |||||
Page 180 — Electrical system
Parts list — exactly as printed175 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 42 | 5100011583 | Relay | 7 | ADD TO CART | |
| 1 | 5100013557 | Key | 1 | ADD TO CART | |
| 1 | 5100013570 | Ignition switch | 1 | ADD TO CART | |
| 2 | 5100013506 | Lid | 1 | ADD TO CART | |
| 10 | 5100011784 | Signal transmitter | 1 | ADD TO CART | |
| 12 | 5100013594 | Safety screw | 1 | ADD TO CART | |
| 13 | 5100011599 | Hexagon nut | 1 | ADD TO CART | |
| 14 | 5100011586 | Hexagon nut | 1 | ADD TO CART | |
| 41 | 5100052978 | Wire harness instrument panel | 1 | ADD TO CART | |
| 57 | 5100024880 | Protecting cap | 1 | ADD TO CART | |
| 57 | 5100024942 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100024942 · qty on machine: 1 | |||||
| 58 | 5100024880 | Protecting cap | 1 | ADD TO CART | |
| 58 | 5100024941 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100024941 · qty on machine: 1 | |||||
| 61 | 5100024944 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100024944 · qty on machine: 1 | |||||
| 65 | 5100024975 | Hexagon screw | 1 | ADD TO CART | |
| 66 | 5100013384 | Serrated lock washer | 2 | ADD TO CART | |
| 67 | 5100011914 | Hexagon nut | 5 | ADD TO CART | |
| 68 | 5100023629 | Spring ring | 10 | ADD TO CART | |
| 69 | 5100011915 | Hexagon nut | 1 | ADD TO CART | |
| 70 | 5100011917 | Serrated lock washer | 2 | ADD TO CART | |
| 110 | 5100011974 | Ground terminal | 2 | ADD TO CART | |
| 111 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 112 | 5100012572 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 4 | |||||
| 150 | 5100012579 | Circuit board | 1 | ADD TO CART | |
| 151 | 5100013594 | Safety screw | 3 | ADD TO CART | |
| 152 | 5100013536 | Serrated lock washer | 3 | ADD TO CART | |
| 153 | 5100011669 | Rubber metal buffer | 3 | ADD TO CART | |
| 154 | 5100011753 | Washer | 3 | ADD TO CART | |
| 155 | 5100012898 | Hexagon nut | 3 | ADD TO CART | |
| 160 | 5100012326 | Cover plate | 1 | ADD TO CART | |
| 161 | 5100012586 | Stud bolt | 2 | ADD TO CART | |
| 162 | 5100024969 | Half-clip | 2 | PARTS REQUEST | |
|
COMING Half-clip
5100024969 · qty on machine: 2 | |||||
| 163 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 164 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 165 | 5100011537 | Filler cap | 1 | ADD TO CART | |
| 240 | 5100011914 | Hexagon nut | 1 | ADD TO CART | |
| 241 | 5100023629 | Spring ring | 1 | ADD TO CART | |
| 242 | 5100011915 | Hexagon nut | 1 | ADD TO CART | |
| 243 | 5100013441 | Locking washer | 1 | ADD TO CART | |
| 298 | 5100011748 | Rear reflector | 2 | ADD TO CART | |
| 30 | 5100059542 | Wire harness front frame | 1 | PARTS REQUEST | |
|
COMING Wire harness front frame
5100059542 · qty on machine: 1 | |||||
| 31 | 5100012632 | Wire harness (rear frame) | 1 | ADD TO CART | |
| 32 | 5100012675 | Wire harness | 1 | ADD TO CART | |
| 34 | 5100052973 | Wire harness negative battery terminal | 1 | PARTS REQUEST | |
|
COMING Wire harness negative battery terminal
5100052973 · qty on machine: 1 | |||||
| 35 | 5100059507 | Proximity switch | 1 | ADD TO CART | |
| 37 | 5100024943 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100024943 · qty on machine: 1 | |||||
| 59 | 5100057812 | Wire harness engine control unit | 1 | PARTS REQUEST | |
|
COMING Wire harness engine control unit
5100057812 · qty on machine: 1 | |||||
| 60 | 5100012637 | Wire harness | 1 | ADD TO CART | |
| 71 | 5100011914 | Hexagon nut | 6 | ADD TO CART | |
| 72 | 5100023629 | Spring ring | 11 | ADD TO CART | |
| 73 | 5100011915 | Hexagon nut | 1 | ADD TO CART | |
| 74 | 5100011917 | Serrated lock washer | 2 | ADD TO CART | |
| 95 | 5100012321 | Signal horn | 1 | ADD TO CART | |
| 96 | 5100011701 | Distance bush | 1 | ADD TO CART | |
| 97 | 5100035308 | Hexagon screw | 1 | ADD TO CART | |
| 98 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 104 | 5100012804 | Circuit board | 1 | ADD TO CART | |
| 105 | 5100013606 | Cheese-head screw | 2 | ADD TO CART | |
| 157 | 5100011653 | Mounting | 1 | ADD TO CART | |
| 158 | 5100011590 | Safety cord | 1 | ADD TO CART | |
| 159 | 5100011632 | Extractor for blade fuses | 1 | ADD TO CART | |
| 170 | 5100011849 | Built-in socket | 1 | ADD TO CART | |
| 171 | 5100012093 | Metal plate | 1 | ADD TO CART | |
| 172 | 5100012600 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 2 | |||||
| 173 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 174 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 260 | 5100013650 | Foot switch | 1 | ADD TO CART | |
| 261 | 5100012890 | Countersunk screw | 2 | ADD TO CART | |
| 299 | 5100013573 | Wire fastener | 50 | ADD TO CART | |
| 23 | 5100023676 | Engine oil pressure switch | 1 | ADD TO CART | |
| 37 | 5100022880 | Battery terminal positive | 1 | ADD TO CART | |
| 37 | 5100023208 | Protecting cap | 1 | ADD TO CART | |
| 78 | 5100023097 | Fuse socket | 1 | PARTS REQUEST | |
|
COMING Fuse socket
5100023097 · qty on machine: 1 | |||||
| 79 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 80 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 81 | 5100023053 | Fuse | 1 | ADD TO CART | |
| 81 | 5100046043 | Fuse | 1 | ADD TO CART | |
| 82 | 5100024919 | Fuse | 1 | ADD TO CART | |
| 83 | 5100024919 | Fuse | 1 | ADD TO CART | |
| 92 | 5100012587 | Safety screw | 2 | ADD TO CART | |
| 93 | 5100052959 | Relay | 1 | ADD TO CART | |
| 94 | 5100011859 | Relay | 1 | ADD TO CART | |
| 119 | 5100024870 | Battery (acid) | 1 | ADD TO CART | |
| 120 | 5100057813 | Battery support | 1 | PARTS REQUEST | |
|
COMING Battery support
5100057813 · qty on machine: 1 | |||||
| 121 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 122 | 5100012515 | Hexagon screw | 1 | ADD TO CART | |
| 123 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 126 | 5100013216 | Flexible tubing | 0.06 | ADD TO CART | |
| 134 | 5100024996 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100024996 · qty on machine: 1 | |||||
| 136 | 5100025009 | Cheese-head screw | 2 | PARTS REQUEST | |
|
COMING Cheese-head screw
5100025009 · qty on machine: 2 | |||||
| 137 | 5100013094 | Washer | 2 | ADD TO CART | |
| 182 | 5100050703 | Angle | 1 | PARTS REQUEST | |
|
COMING Angle
5100050703 · qty on machine: 1 | |||||
| 186 | 5100024966 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100024966 · qty on machine: 1 | |||||
| 187 | 5100012610 | Hexagon screw | 2 | ADD TO CART | |
| 188 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 189 | 5100011544 | Clip nut | 2 | ADD TO CART | |
| 191 | 5100013579 | Blade fuse | 1 | ADD TO CART | |
| 191 | 5100013581 | Blade fuse | 1 | ADD TO CART | |
| 191 | 5100013586 | Blade fuse | 6 | PARTS REQUEST | |
|
COMING Blade fuse
5100013586 · qty on machine: 6 | |||||
| 191 | 5100059543 | Central electric | 1 | PARTS REQUEST | |
|
COMING Central electric
5100059543 · qty on machine: 1 | |||||
| 192 | 5100013594 | Safety screw | 4 | ADD TO CART | |
| 193 | 5100013536 | Serrated lock washer | 4 | ADD TO CART | |
| 194 | 5100011669 | Rubber metal buffer | 4 | ADD TO CART | |
| 195 | 5100011753 | Washer | 4 | ADD TO CART | |
| 196 | 5100012898 | Hexagon nut | 4 | ADD TO CART | |
| 199 | 5100011653 | Mounting | 1 | ADD TO CART | |
| 200 | 5100011590 | Safety cord | 1 | ADD TO CART | |
| 201 | 5100011632 | Extractor for blade fuses | 1 | ADD TO CART | |
| 205 | 5100059547 | Control device | 1 | PARTS REQUEST | |
|
COMING Control device
5100059547 · qty on machine: 1 | |||||
| 206 | 5100059557 | Stud screw | 4 | PARTS REQUEST | |
|
COMING Stud screw
5100059557 · qty on machine: 4 | |||||
| 207 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 208 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 40 | 5100012575 | Wire harness | 1 | ADD TO CART | |
| 42 | 5100052958 | Cheese-head screw | 1 | ADD TO CART | |
| 43 | 5100012965 | Locking washer | 1 | ADD TO CART | |
| 50 | 5100013594 | Safety screw | 2 | ADD TO CART | |
| 84 | 5100011616 | Relay | 1 | ADD TO CART | |
| 85 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 250 | 5100013650 | Foot switch | 1 | ADD TO CART | |
| 251 | 5100012890 | Countersunk screw | 2 | ADD TO CART | |
| 270 | 5100057814 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100057814 · qty on machine: 1 | |||||
| 271 | 5100012587 | Safety screw | 2 | ADD TO CART | |
| 272 | 5100052986 | Hexagonal nut | 2 | PARTS REQUEST | |
|
COMING Hexagonal nut
5100052986 · qty on machine: 2 | |||||
| 275 | 5100023158 | Attachement plate | 1 | ADD TO CART | |
| 276 | 5100012587 | Safety screw | 1 | ADD TO CART | |
| 277 | 5100052986 | Hexagonal nut | 1 | PARTS REQUEST | |
|
COMING Hexagonal nut
5100052986 · qty on machine: 1 | |||||
| 280 | 5100011583 | Relay | 3 | ADD TO CART | |
| 102 | 5100023402 | Temperature switch | 1 | ADD TO CART | |
| 1 | 5100013370 | Pressure switch, air filter | 1 | PARTS REQUEST | |
|
COMING Pressure switch, air filter
5100013370 · qty on machine: 1 | |||||
| 2 | 5100023746 | Sensor | 1 | PARTS REQUEST | |
|
COMING Sensor
5100023746 · qty on machine: 1 | |||||
| 1 | 5100011903 | Drive lever | 1 | ADD TO CART | |
| 2 | 5100011705 | Handle | 2 | ADD TO CART | |
| 3 | 5100011706 | Handle | 2 | ADD TO CART | |
| 5 | 5100011711 | Cover | 2 | PARTS REQUEST | |
|
COMING Cover
5100011711 · qty on machine: 2 | |||||
| 6 | 5100011707 | Operating lever | 2 | ADD TO CART | |
| 7 | 5100012024 | Clamping sleeve | 2 | ADD TO CART | |
| 8 | 5100011708 | Cover | 2 | ADD TO CART | |
| 9 | 5100011792 | Slide block | 2 | ADD TO CART | |
| 11 | 5100013607 | Raised countersunk head screw | 8 | ADD TO CART | |
| 12 | 5100011738 | Raised countersunk head screw | 2 | ADD TO CART | |
| 14 | 5100011710 | Cover | 2 | PARTS REQUEST | |
|
COMING Cover
5100011710 · qty on machine: 2 | |||||
| 30 | 5100012638 | Wire harness | 1 | ADD TO CART | |
| 31 | 5100011709 | Circuit board | 2 | ADD TO CART | |
| 32 | 5100013600 | Sensor | 2 | ADD TO CART | |
| 34 | 5100011524 | Shrinkdown plastic tubing | 0.03 | ADD TO CART | |
| 35 | 5100011458 | Shrinkdown plastic tubing | 0.07 | ADD TO CART | |
| 36 | 5100013520 | Wire fastener | 2 | ADD TO CART | |
| 40 | 5100013641 | Round cable | 0.8 | PARTS REQUEST | |
|
COMING Round cable
5100013641 · qty on machine: 0.8 | |||||
| 1 | 5100011582 | Blade fuse | 1 | ADD TO CART | |
| 5 | 5100013586 | Blade fuse | 2 | PARTS REQUEST | |
|
COMING Blade fuse
5100013586 · qty on machine: 2 | |||||
| 10 | 5100013579 | Blade fuse | 2 | ADD TO CART | |
| 15 | 5100013580 | Blade fuse | 11 | ADD TO CART | |
| 25 | 5100013581 | Blade fuse | 1 | ADD TO CART | |
| 40 | 5100011859 | Relay | 2 | ADD TO CART | |
| 41 | 5100011616 | Relay | 2 | ADD TO CART | |
| 49 | 5100011632 | Extractor for blade fuses | 1 | ADD TO CART | |
| 50 | 5100012579 | Circuit board | 1 | ADD TO CART | |
| 1 | 5100013654 | Flange | 1 | ADD TO CART | |
| 2 | 5100013571 | Push-button | 1 | ADD TO CART | |
| 3 | 5100013636 | Protecting cap | 1 | ADD TO CART | |
| 4 | 5100013191 | Washer | 1 | ADD TO CART | |
| 5 | 5100013573 | Wire fastener | 1 | ADD TO CART | |
| 10 | 5100013650 | Foot switch | 1 | ADD TO CART | |
| 220 | 5100080584 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100080584 · qty on machine: 1 | |||||
| 221 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 222 | 5100012515 | Hexagon screw | 1 | ADD TO CART | |
| 227 | 5100080585 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100080585 · qty on machine: 1 | |||||
| 228 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 229 | 5100012515 | Hexagon screw | 1 | ADD TO CART | |
| 301 | 5100080586 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100080586 · qty on machine: 1 | |||||
| 302 | 5100012627 | Hexagon screw | 2 | ADD TO CART | |
| 303 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 318 | 5100052963 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100052963 · qty on machine: 1 | |||||
| 319 | 5100012515 | Hexagon screw | 1 | ADD TO CART | |
| 320 | 5100012966 | Locking washer | 1 | ADD TO CART | |
Page 206 — Battery isolating switch
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100023231 | Relay | 1 | ADD TO CART | |
| 3 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 4 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 5 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 10 | 5100023237 | Switch | 1 | ADD TO CART | |
| 12 | 5100052982 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100052982 · qty on machine: 1 | |||||
| 13 | 5100080587 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100080587 · qty on machine: 1 | |||||
| 15 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 16 | 5100013184 | Protecting cap | 1 | PARTS REQUEST | |
|
COMING Protecting cap
5100013184 · qty on machine: 1 | |||||
Page 208 — Electrical system lighting
Parts list — exactly as printed25 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013522 | Lamp | 2 | ADD TO CART | |
| 1 | 5100065328 | Headlight | 2 | ADD TO CART | |
| 1 | 5100065330 | Lamp | 2 | ADD TO CART | |
| 2 | 5100011991 | O-ring seal | 4 | ADD TO CART | |
| 5 | 5100011800 | Direction indicator | 2 | ADD TO CART | |
| 5 | 5100012074 | Lamp | 2 | ADD TO CART | |
| 6 | 5100011739 | Fillister head screw | 4 | ADD TO CART | |
| 7 | 5100013453 | Washer | 4 | ADD TO CART | |
| 10 | 5100017997 | Wire harness (lighting) | 1 | ADD TO CART | |
| 21 | 5100011802 | Tail light | 2 | ADD TO CART | |
| 21 | 5100012213 | Lamp | 2 | ADD TO CART | |
| 21 | 5100013448 | Lamp | 2 | ADD TO CART | |
| 22 | 5100011607 | Sheet metal screw | 8 | ADD TO CART | |
| 25 | 5100011801 | Reversing light | 2 | ADD TO CART | |
| 25 | 5100013448 | Lamp | 2 | ADD TO CART | |
| 30 | 5100012032 | Wire harness (lighting) | 1 | ADD TO CART | |
| 31 | 5100011728 | Metal plate | 4 | ADD TO CART | |
| 32 | 5100011902 | Sheet metal screw | 4 | ADD TO CART | |
| 40 | 5100011583 | Relay | 1 | ADD TO CART | |
| 41 | 5100011583 | Relay | 1 | ADD TO CART | |
| 50 | 5100013579 | Blade fuse | 1 | ADD TO CART | |
| 51 | 5100013579 | Blade fuse | 1 | ADD TO CART | |
| 52 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 101 | 5100059542 | Wire harness front frame | 1 | PARTS REQUEST | |
|
COMING Wire harness front frame
5100059542 · qty on machine: 1 | |||||
| 102 | 5100012632 | Wire harness (rear frame) | 1 | ADD TO CART | |
Page 210 — Additional lighting
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011606 | Working light | 4 | ADD TO CART | |
| 1 | 5100012939 | Washer | 1 | ADD TO CART | |
| 1 | 5100013554 | Lamp | 1 | ADD TO CART | |
| 1 | 5100013598 | Safety nut | 1 | ADD TO CART | |
| 2 | 5100024915 | Working light | 4 | PARTS REQUEST | |
|
COMING Working light
5100024915 · qty on machine: 4 | |||||
| 3 | 5100024918 | Cable harness | 4 | ADD TO CART | |
| 4 | 5100013128 | Washer | 4 | ADD TO CART | |
| 5 | 5100023419 | Hexagon screw | 4 | ADD TO CART | |
| 15 | 5100011583 | Relay | 1 | ADD TO CART | |
| 16 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 21 | 5100016277 | Stop | 2 | ADD TO CART | |
| 22 | 5100011504 | Hexagon screw | 2 | ADD TO CART | |
| 23 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 24 | 5100012603 | Safety nut | 2 | ADD TO CART | |
| 25 | 5100011482 | Washer | 4 | ADD TO CART | |
| 28 | 5100013377 | Rubber buffer | 4 | ADD TO CART | |
| 29 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 30 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 32 | 5100012675 | Wire harness | 1 | ADD TO CART | |
| 102 | 5100012632 | Wire harness (rear frame) | 1 | ADD TO CART | |
| 1 | 5100024915 | Working light | 4 | PARTS REQUEST | |
|
COMING Working light
5100024915 · qty on machine: 4 | |||||
| 2 | 5100052987 | Wire harness working light | 2 | ADD TO CART | |
| 3 | 5100059506 | Wire harness working light | 2 | PARTS REQUEST | |
|
COMING Wire harness working light
5100059506 · qty on machine: 2 | |||||
Page 214 — Roller drum lighting
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 30 | 5100011583 | Relay | 1 | ADD TO CART | |
| 31 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 35 | 5100067826 | Holder | 4 | ADD TO CART | |
| 40 | 5100066908 | Working light | 4 | ADD TO CART | |
| 41 | 5100011578 | Mushroom head screw | 4 | ADD TO CART | |
| 42 | 5100053004 | Safety nut | 4 | ADD TO CART | |
| 45 | 5100013029 | Bushing | 4 | ADD TO CART | |
Page 216 — Radio
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100067831 | Radio | 1 | ADD TO CART | |
| 3 | 5100023807 | Antenna | 1 | ADD TO CART | |
| 4 | 5100011499 | Set of loudspeakers | 1 | ADD TO CART | |
| 5 | 5100024337 | Fillister head screw | 8 | PARTS REQUEST | |
|
COMING Fillister head screw
5100024337 · qty on machine: 8 | |||||
| 6 | 5100024349 | Lid | 2 | ADD TO CART | |
| 8 | 5100067832 | Connecting cable | 1 | ADD TO CART | |
| 9 | 5100067833 | Connecting cable | 1 | ADD TO CART | |
| 10 | 5100067835 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100067835 · qty on machine: 1 | |||||
Page 218 — Rotary beacon
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 15 | 5100011583 | Relay | 1 | ADD TO CART | |
| 1 | 5100011941 | Rotary beacon | 1 | ADD TO CART | |
| 1 | 5100013538 | Lamp | 1 | ADD TO CART | |
| 1 | 5100029569 | Rotary beacon | 1 | ADD TO CART | |
| 2 | 5100013517 | Pipe | 1 | ADD TO CART | |
| 5 | 5100050711 | Half-clip | 3 | PARTS REQUEST | |
|
COMING Half-clip
5100050711 · qty on machine: 3 | |||||
| 6 | 5100013465 | Cover plate | 1 | ADD TO CART | |
| 7 | 5100013467 | Hexagon screw | 2 | ADD TO CART | |
| 8 | 5100011868 | Weld-on plate | 1 | ADD TO CART | |
| 16 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 2 | 5100023984 | Holder | 1 | ADD TO CART | |
| 4 | 5100013397 | Hexagon screw | 2 | ADD TO CART | |
| 5 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 7 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 10 | 5100052988 | Wire harness rotating beacon | 1 | ADD TO CART | |
| 3 | 5100050711 | Half-clip | 2 | PARTS REQUEST | |
|
COMING Half-clip
5100050711 · qty on machine: 2 | |||||
| 4 | 5100013465 | Cover plate | 1 | ADD TO CART | |
| 5 | 5100013467 | Hexagon screw | 2 | ADD TO CART | |
| 6 | 5100024896 | Holder | 1 | ADD TO CART | |
| 7 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 8 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 9 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 10 | 5100012675 | Wire harness | 1 | ADD TO CART | |
| 11 | 5100013429 | Wire fastener | 4 | ADD TO CART | |
| 12 | 5100024897 | Cable harness | 1 | ADD TO CART | |
| 21 | 5100029569 | Rotary beacon | 1 | ADD TO CART | |
Page 224 — Back-up alarm
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012887 | Reversing alarm 12v-24v dc | 1 | ADD TO CART | |
| 2 | 5100012931 | Mushroom head screw | 2 | ADD TO CART | |
| 3 | 5100011636 | Washer | 2 | ADD TO CART | |
| 4 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 5 | 5100059504 | Proximity switch | 1 | ADD TO CART | |
| 102 | 5100012632 | Wire harness (rear frame) | 1 | ADD TO CART | |
Page 226 — Back-up alarm self adjusting
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100029555 | Back-up alarm | 1 | ADD TO CART | |
| 3 | 5100012608 | Hexagon screw | 2 | ADD TO CART | |
| 4 | 5100011636 | Washer | 2 | ADD TO CART | |
| 5 | 5100013585 | Clip nut | 2 | ADD TO CART | |
| 10 | 5100029553 | Holder | 1 | ADD TO CART | |
| 11 | 5100012600 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 2 | |||||
| 12 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 25 | 5100059504 | Proximity switch | 1 | ADD TO CART | |
| 26 | 5100029559 | Cable harness | 1 | ADD TO CART | |
| 27 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 29 | 5100052959 | Relay | 1 | ADD TO CART | |
Page 228 — Advance drive
Parts list — exactly as printed90 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 11 | 5100012463 | Valve block | 1 | ADD TO CART | |
| 62 | 5100013477 | Straight screwed socket | 1 | ADD TO CART | |
| 63 | 5100013477 | Straight screwed socket | 1 | ADD TO CART | |
| 64 | 5100012064 | Flexible tubing | 1 | ADD TO CART | |
| 81 | 5100024970 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100024970 · qty on machine: 1 | |||||
| 93 | 5100013493 | Banjo | 1 | ADD TO CART | |
| 94 | 5100013476 | Straight screwed socket | 1 | ADD TO CART | |
| 131 | 5100011532 | Pipe clip | 1 | ADD TO CART | |
| 132 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 133 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 171 | 5100012429 | Valve block | 1 | ADD TO CART | |
| 183 | 5100013476 | Straight screwed socket | 1 | ADD TO CART | |
| 184 | 5100013361 | Filter | 1 | ADD TO CART | |
| 185 | 5100012517 | Hexagon screw | 3 | ADD TO CART | |
| 186 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 187 | 5100013476 | Straight screwed socket | 1 | ADD TO CART | |
| 188 | 5100011589 | Flexible tubing | 1 | ADD TO CART | |
| 189 | 5100012091 | Reducing piece | 1 | ADD TO CART | |
| 190 | 5100012190 | Straight screwed socket | 1 | ADD TO CART | |
| 191 | 5100012391 | Elbow adjustable | 1 | ADD TO CART | |
| 192 | 5100012585 | Flexible tubing | 1 | ADD TO CART | |
| 193 | 5100013210 | Hollow-core screw | 1 | ADD TO CART | |
| 194 | 5100013004 | Sealing ring | 1 | ADD TO CART | |
| 195 | 5100011468 | Sealing ring | 1 | ADD TO CART | |
| 1 | 5100013430 | Sae-flange half | 4 | ADD TO CART | |
| 2 | 5100013431 | O-ring seal | 2 | ADD TO CART | |
| 3 | 5100011587 | Safety screw | 8 | ADD TO CART | |
| 4 | 5100012628 | Elbow adjustable | 1 | ADD TO CART | |
| 5 | 5100065319 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100065319 · qty on machine: 1 | |||||
| 6 | 5100012643 | Flexible tubing | 1 | ADD TO CART | |
| 7 | 5100013478 | Straight screwed socket | 1 | ADD TO CART | |
| 8 | 5100012641 | Intermediate piece | 1 | ADD TO CART | |
| 9 | 5100065320 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100065320 · qty on machine: 1 | |||||
| 12 | 5100011479 | Hexagon screw | 2 | ADD TO CART | |
| 13 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 14 | 5100013564 | Stud bolt | 2 | ADD TO CART | |
| 15 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 16 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 21 | 5100013539 | Straight screwed socket | 8 | ADD TO CART | |
| 22 | 5100012078 | Flexible tubing | 1 | ADD TO CART | |
| 22 | 5100013559 | Flexible tubing | 1 | ADD TO CART | |
| 23 | 5100012104 | Flexible tubing | 1 | ADD TO CART | |
| 23 | 5100013593 | Flexible tubing | 1 | ADD TO CART | |
| 24 | 5100012058 | Flexible tubing | 1 | ADD TO CART | |
| 24 | 5100012077 | Flexible tubing | 1 | ADD TO CART | |
| 25 | 5100012103 | Flexible tubing | 1 | ADD TO CART | |
| 25 | 5100012104 | Flexible tubing | 1 | ADD TO CART | |
| 26 | 5100013489 | Straight screwed socket | 4 | ADD TO CART | |
| 41 | 5100013472 | Straight screwed socket | 2 | ADD TO CART | |
| 42 | 5100013613 | Elbow adjustable | 1 | ADD TO CART | |
| 43 | 5100011491 | Flexible tubing | 1 | ADD TO CART | |
| 43 | 5100012067 | Flexible tubing | 1 | ADD TO CART | |
| 44 | 5100011823 | Flexible tubing | 1 | ADD TO CART | |
| 44 | 5100011466 | Flexible tubing | 1 | ADD TO CART | |
| 61 | 5100013475 | Straight screwed socket | 4 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013475 · qty on machine: 4 | |||||
| 101 | 5100011879 | Half-clip | 4 | ADD TO CART | |
| 102 | 5100012977 | Stud bolt | 4 | ADD TO CART | |
| 103 | 5100011880 | Metal plate | 2 | ADD TO CART | |
| 105 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 106 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 120 | 5100011948 | Metal plate | 2 | ADD TO CART | |
| 121 | 5100013510 | Hexagon screw | 4 | ADD TO CART | |
| 122 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 124 | 5100011879 | Half-clip | 4 | ADD TO CART | |
| 125 | 5100039073 | Stud screw | 4 | ADD TO CART | |
| 126 | 5100011880 | Metal plate | 2 | ADD TO CART | |
| 127 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 128 | 5100011525 | Cap nut | 4 | ADD TO CART | |
| 28 | 5100012060 | Flexible tubing | 1 | ADD TO CART | |
| 28 | 5100012061 | Flexible tubing | 1 | ADD TO CART | |
| 29 | 5100012060 | Flexible tubing | 1 | ADD TO CART | |
| 29 | 5100012080 | Flexible tubing | 1 | ADD TO CART | |
| 30 | 5100012060 | Flexible tubing | 1 | ADD TO CART | |
| 30 | 5100012080 | Flexible tubing | 1 | ADD TO CART | |
| 31 | 5100012059 | Flexible tubing | 1 | ADD TO CART | |
| 31 | 5100012079 | Flexible tubing | 1 | ADD TO CART | |
| 32 | 5100013489 | Straight screwed socket | 4 | ADD TO CART | |
| 51 | 5100013472 | Straight screwed socket | 2 | ADD TO CART | |
| 52 | 5100013613 | Elbow adjustable | 1 | ADD TO CART | |
| 53 | 5100011547 | Flexible tubing | 1 | PARTS REQUEST | |
|
COMING Flexible tubing
5100011547 · qty on machine: 1 | |||||
| 53 | 5100012081 | Flexible tubing | 1 | ADD TO CART | |
| 54 | 5100011547 | Flexible tubing | 1 | PARTS REQUEST | |
|
COMING Flexible tubing
5100011547 · qty on machine: 1 | |||||
| 54 | 5100012646 | Flexible tubing | 1 | PARTS REQUEST | |
|
COMING Flexible tubing
5100012646 · qty on machine: 1 | |||||
| 104 | 5100012051 | Metal plate | 1 | ADD TO CART | |
| 111 | 5100011555 | Pipe clip | 1 | ADD TO CART | |
| 112 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 113 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 10 | 5100012424 | Valve block | 1 | Serialno. 160 | ADD TO CART |
| 10 | 5100067834 | Control block | 1 | Serialno. > 161 | ADD TO CART |
| 100 | 5100012463 | Valve block | 1 | ADD TO CART | |
Page 238 — Drive shifting
Parts list — exactly as printed68 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011900 | Metal plate | 2 | ADD TO CART | |
| 2 | 5100012613 | Hexagon screw | 4 | ADD TO CART | |
| 3 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 4 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 5 | 5100048707 | Countersunk screw | 6 | ADD TO CART | |
| 6 | 5100012836 | Drive lever | 1 | ADD TO CART | |
| 7 | 5100011904 | Shift claw | 1 | ADD TO CART | |
| 8 | 5100013466 | Hexagon screw | 2 | ADD TO CART | |
| 9 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 10 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 11 | 5100013573 | Wire fastener | 10 | ADD TO CART | |
| 12 | 5100013537 | Hexagon nut | 1 | ADD TO CART | |
| 13 | 5100011791 | Distance bush | 2 | ADD TO CART | |
| 14 | 5100011819 | Compression spring | 1 | ADD TO CART | |
| 15 | 5100040596 | Hexagon screw | 1 | ADD TO CART | |
| 16 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 17 | 5100053004 | Safety nut | 1 | ADD TO CART | |
| 18 | 5100013189 | Cheese-head screw | 2 | ADD TO CART | |
| 19 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 20 | 5100013166 | Spring-thrust piece | 1 | ADD TO CART | |
| 54 | 5100013400 | Hexagon nut | 1 | ADD TO CART | |
| 56 | 5100011901 | Seat pedestal | 1 | ADD TO CART | |
| 57 | 5100012515 | Hexagon screw | 4 | ADD TO CART | |
| 58 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 59 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 60 | 5100013421 | Washer | 4 | ADD TO CART | |
| 61 | 5100011962 | Adjustment bar | 1 | ADD TO CART | |
| 62 | 5100013401 | Cheese-head screw | 2 | ADD TO CART | |
| 63 | 5100013441 | Locking washer | 2 | ADD TO CART | |
| 66 | 5100012041 | Adjustment bar | 1 | ADD TO CART | |
| 67 | 5100011869 | Fillister head screw | 2 | ADD TO CART | |
| 68 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 70 | 5100012073 | Rod steel | 1 | ADD TO CART | |
| 80 | 5100011997 | Seat pedestal | 1 | ADD TO CART | |
| 200 | 5100012638 | Wire harness | 1 | ADD TO CART | |
| 1 | 5100011899 | Seat pedestal | 1 | ADD TO CART | |
| 2 | 5100012517 | Hexagon screw | 4 | ADD TO CART | |
| 74 | 5100013412 | Edge protection | 0.24 | ADD TO CART | |
| 75 | 5100012639 | Cover | 1 | ADD TO CART | |
| 76 | 5100012572 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 2 | |||||
| 77 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 79 | 5100013412 | Edge protection | 0.14 | ADD TO CART | |
| 81 | 5100012517 | Hexagon screw | 2 | ADD TO CART | |
| 82 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 83 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 86 | 5100012517 | Hexagon screw | 2 | ADD TO CART | |
| 87 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 88 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 89 | 5100012453 | Spacer | 2 | ADD TO CART | |
| 90 | 5100012154 | Bracket | 1 | ADD TO CART | |
| 91 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 92 | 5100022925 | Hexagon screw | 2 | ADD TO CART | |
| 93 | 5100011951 | Joint-head | 1 | ADD TO CART | |
| 93 | 5100012333 | Angle joint | 1 | ADD TO CART | |
| 93 | 5100012581 | Actuating cable | 1 | ADD TO CART | |
| 93 | 5100080592 | Bellows | 1 | PARTS REQUEST | |
|
COMING Bellows
5100080592 · qty on machine: 1 | |||||
| 94 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 95 | 5100035308 | Hexagon screw | 1 | ADD TO CART | |
| 96 | 5100053004 | Safety nut | 1 | ADD TO CART | |
| 6 | 5100011900 | Metal plate | 2 | ADD TO CART | |
| 7 | 5100012613 | Hexagon screw | 4 | ADD TO CART | |
| 8 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 9 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 10 | 5100011792 | Slide block | 2 | ADD TO CART | |
| 11 | 5100048707 | Countersunk screw | 6 | ADD TO CART | |
| 15 | 5100011905 | Lever | 1 | ADD TO CART | |
| 19 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 20 | 5100012966 | Locking washer | 1 | ADD TO CART | |
Page 244 — Brake hydraulics
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011419 | O-ring seal | 1 | ADD TO CART | |
| 1 | 5100012970 | Valve block | 1 | ADD TO CART | |
| 2 | 5100013256 | Cheese-head screw | 4 | ADD TO CART | |
| 3 | 5100011608 | Screw plug | 2 | ADD TO CART | |
| 5 | 5100011874 | Pipe | 1 | ADD TO CART | |
| 15 | 5100013474 | Straight screwed socket | 4 | ADD TO CART | |
| 16 | 5100012221 | Flexible tubing | 1 | ADD TO CART | |
| 16 | 5100012224 | Flexible tubing | 1 | ADD TO CART | |
| 17 | 5100011562 | Flexible tubing | 1 | ADD TO CART | |
| 17 | 5100011567 | Flexible tubing | 1 | ADD TO CART | |
| 18 | 5100013492 | Straight screwed socket | 4 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013492 · qty on machine: 4 | |||||
| 20 | 5100012065 | Flexible tubing | 1 | ADD TO CART | |
| 20 | 5100012082 | Flexible tubing | 1 | ADD TO CART | |
| 21 | 5100012222 | Flexible tubing | 1 | ADD TO CART | |
| 21 | 5100012223 | Flexible tubing | 1 | ADD TO CART | |
Page 246 — All-wheel lock
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100066917 | Flow divider | 2 | ADD TO CART | |
| 2 | 5100011497 | Cheese-head screw | 8 | ADD TO CART | |
| 10 | 5100013650 | Foot switch | 1 | ADD TO CART | |
| 11 | 5100012890 | Countersunk screw | 2 | ADD TO CART | |
| 22 | 5100013586 | Blade fuse | 1 | PARTS REQUEST | |
|
COMING Blade fuse
5100013586 · qty on machine: 1 | |||||
| 23 | 5100011583 | Relay | 1 | ADD TO CART | |
| 27 | 5100012499 | Sticker | 1 | PARTS REQUEST | |
|
COMING Sticker
5100012499 · qty on machine: 1 | |||||
| 40 | 5100013474 | Straight screwed socket | 1 | ADD TO CART | |
| 41 | 5100013611 | Flexible tubing | 1 | ADD TO CART | |
| 42 | 5100013474 | Straight screwed socket | 1 | ADD TO CART | |
Page 248 — Centre pivot assembly
Parts list — exactly as printed33 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100011481 | Cheese-head screw | 2 | ADD TO CART | |
| 2 | 5100011777 | Radial rod end bearing | 1 | ADD TO CART | |
| 2 | 5100011834 | Radial rod end bearing | 1 | ADD TO CART | |
| 2 | 5100011839 | Centre pivot assembly | 1 | ADD TO CART | |
| 2 | 5100011848 | Clamping piece | 1 | ADD TO CART | |
| 2 | 5100012481 | Greasing nipple | 1 | ADD TO CART | |
| 2 | 5100065341 | Centre pivot assembly | 1 | PARTS REQUEST | |
|
COMING Centre pivot assembly
5100065341 · qty on machine: 1 | |||||
| 3 | 5100012624 | Stud bolt | 6 | ADD TO CART | |
| 4 | 5100013129 | Washer | 6 | ADD TO CART | |
| 5 | 5100012550 | Hexagon nut | 6 | ADD TO CART | |
| 10 | 5100011858 | Sealing ring | 1 | ADD TO CART | |
| 15 | 5100011844 | Clamping piece | 1 | ADD TO CART | |
| 16 | 5100012725 | Cheese-head screw | 3 | ADD TO CART | |
| 17 | 5100011840 | Cover | 1 | ADD TO CART | |
| 18 | 5100035087 | Hexagon screw | 6 | ADD TO CART | |
| 19 | 5100012966 | Locking washer | 6 | ADD TO CART | |
| 20 | 5100065337 | Greasing nipple | 2 | PARTS REQUEST | |
|
COMING Greasing nipple
5100065337 · qty on machine: 2 | |||||
| 20 | 5100013534 | Radial rod end bearing | 1 | ADD TO CART | |
| 20 | 5100011842 | Pendulum joint | 1 | PARTS REQUEST | |
|
COMING Pendulum joint
5100011842 · qty on machine: 1 | |||||
| 21 | 5100011782 | Sealing ring | 4 | ADD TO CART | |
| 22 | 5100011837 | Clamping piece | 2 | ADD TO CART | |
| 23 | 5100012724 | Cheese-head screw | 4 | ADD TO CART | |
| 30 | 5100012245 | Safety strut | 1 | ADD TO CART | |
| 31 | 5100013432 | Rubber buffer | 1 | ADD TO CART | |
| 32 | 5100013607 | Raised countersunk head screw | 1 | ADD TO CART | |
| 33 | 5100012965 | Locking washer | 1 | ADD TO CART | |
| 34 | 5100011731 | Rubber washer | 2 | ADD TO CART | |
| 35 | 5100011493 | Hexagon screw | 1 | ADD TO CART | |
| 36 | 5100012969 | Locking washer | 2 | ADD TO CART | |
| 37 | 5100035686 | Safety nut | 1 | ADD TO CART | |
| 40 | 5100012009 | Bolt | 1 | ADD TO CART | |
| 41 | 5100011803 | W-clip | 1 | ADD TO CART | |
| 42 | 5100011590 | Safety cord | 1 | ADD TO CART | |
Page 250 — Steering
Parts list — exactly as printed59 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011736 | O-ring seal | 4 | ADD TO CART | |
| 1 | 5100011989 | Steering unit | 1 | ADD TO CART | |
| 1 | 5100012655 | Connection plate | 1 | ADD TO CART | |
| 1 | 5100012658 | Steering unit + connect. plate | 1 | ADD TO CART | |
| 1 | 5100013528 | Cheese-head screw | 2 | ADD TO CART | |
| 2 | 5100012391 | Elbow adjustable | 1 | ADD TO CART | |
| 3 | 5100012216 | Angle flange screwing | 1 | ADD TO CART | |
| 3 | 5100012723 | Cheese-head screw | 2 | ADD TO CART | |
| 3 | 5100012942 | Spring ring | 4 | PARTS REQUEST | |
|
COMING Spring ring
5100012942 · qty on machine: 4 | |||||
| 3 | 5100013189 | Cheese-head screw | 2 | ADD TO CART | |
| 3 | 5100013612 | O-ring seal | 1 | ADD TO CART | |
| 4 | 5100013447 | Straight screwed socket | 1 | ADD TO CART | |
| 5 | 5100067829 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100067829 · qty on machine: 1 | |||||
| 6 | 5100063874 | Hose fitting | 1 | ADD TO CART | |
| 7 | 5100012053 | Flexible tubing | 1 | ADD TO CART | |
| 8 | 5100013524 | Elbow adjustable | 1 | Serialno. < 180 | ADD TO CART |
| 8 | 5100071895 | Cross fitting | 1 | Serialno. > 179 | ADD TO CART |
| 9 | 5100065343 | Metal plate | 1 | PARTS REQUEST | |
|
COMING Metal plate
5100065343 · qty on machine: 1 | |||||
| 10 | 5100013553 | Straight screwed socket | 1 | ADD TO CART | |
| 11 | 5100012220 | Straight flange joint | 1 | ADD TO CART | |
| 11 | 5100012723 | Cheese-head screw | 4 | ADD TO CART | |
| 11 | 5100012942 | Spring ring | 4 | PARTS REQUEST | |
|
COMING Spring ring
5100012942 · qty on machine: 4 | |||||
| 11 | 5100013612 | O-ring seal | 1 | ADD TO CART | |
| 12 | 5100012391 | Elbow adjustable | 1 | ADD TO CART | |
| 15 | 5100083351 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100083351 · qty on machine: 1 | |||||
| 18 | 5100012391 | Elbow adjustable | 1 | Serialno. > 179 | ADD TO CART |
| 25 | 5100013433 | Straight screwed socket | 2 | ADD TO CART | |
| 26 | 5100013499 | Straight screwed socket | 2 | ADD TO CART | |
| 32 | 5100012679 | Flexible tubing | 1 | PARTS REQUEST | |
|
COMING Flexible tubing
5100012679 · qty on machine: 1 | |||||
| 42 | 5100012680 | Flexible tubing | 1 | ADD TO CART | |
| 43 | 5100013492 | Straight screwed socket | 2 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013492 · qty on machine: 2 | |||||
| 45 | 5100065305 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100065305 · qty on machine: 1 | |||||
| 46 | 5100065331 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100065331 · qty on machine: 1 | |||||
| 47 | 5100053007 | Connecting block | 1 | ADD TO CART | |
| 48 | 5100013454 | Straight screwed socket | 1 | ADD TO CART | |
| 49 | 5100013474 | Straight screwed socket | 1 | ADD TO CART | |
| 50 | 5100053008 | Straight screwed socket | 1 | ADD TO CART | |
| 51 | 5100011563 | Radial rod end bearing | 1 | PARTS REQUEST | |
|
COMING Radial rod end bearing
5100011563 · qty on machine: 1 | |||||
| 51 | 5100011685 | Set of seals | 1 | ADD TO CART | |
| 51 | 5100011875 | Steering cylinder | 1 | ADD TO CART | |
| 51 | 5100012481 | Greasing nipple | 1 | ADD TO CART | |
| 51 | 5100057815 | Retaining ring | 4 | PARTS REQUEST | |
|
COMING Retaining ring
5100057815 · qty on machine: 4 | |||||
| 53 | 5100011776 | Bolt | 1 | ADD TO CART | |
| 54 | 5100011680 | Spacer ring | 2 | ADD TO CART | |
| 55 | 5100013560 | Seal | 2 | ADD TO CART | |
| 56 | 5100012550 | Hexagon nut | 1 | ADD TO CART | |
| 57 | 5100012955 | Locking washer | 1 | ADD TO CART | |
| 60 | 5100012479 | Greasing nipple | 1 | ADD TO CART | |
| 61 | 5100011820 | Spacer ring | 1 | ADD TO CART | |
| 62 | 5100011695 | U-washer | 1 | ADD TO CART | |
| 63 | 5100013463 | Cheese-head screw | 1 | ADD TO CART | |
| 65 | 5100012644 | Steering column | 1 | ADD TO CART | |
| 66 | 5100013450 | Cheese-head screw | 2 | ADD TO CART | |
| 67 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 68 | 5100012783 | Cheese-head screw | 2 | ADD TO CART | |
| 70 | 5100011912 | Steering wheel | 1 | ADD TO CART | |
| 70 | 5100012392 | Turning handle | 1 | ADD TO CART | |
| 70 | 5100065336 | Lid | 1 | ADD TO CART | |
| 71 | 5100013413 | Washer | 1 | ADD TO CART | |
Page 254 — Sprinkling
Parts list — exactly as printed103 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 6 | 5100011851 | Rubber sleeve | 4 | ADD TO CART | |
| 8 | 5100011850 | Rubber sleeve | 3 | ADD TO CART | |
| 9 | 5100011815 | Tank cap | 1 | ADD TO CART | |
| 11 | 5100011990 | Strainer | 1 | ADD TO CART | |
| 14 | 5100011931 | O-ring seal | 1 | ADD TO CART | |
| 54 | 5100011718 | Metal plate | 2 | ADD TO CART | |
| 55 | 5100013195 | Supporting plate | 2 | ADD TO CART | |
| 56 | 5100011902 | Sheet metal screw | 4 | ADD TO CART | |
| 57 | 5100012978 | Stud bolt | 4 | ADD TO CART | |
| 58 | 5100012945 | Stud bolt | 4 | ADD TO CART | |
| 65 | 5100011812 | Drain plug | 1 | ADD TO CART | |
| 66 | 5100011865 | O-ring seal | 1 | ADD TO CART | |
| 67 | 5100011864 | O-ring seal | 1 | ADD TO CART | |
| 68 | 5100011862 | Compression spring | 1 | ADD TO CART | |
| 69 | 5100011830 | Strainer | 1 | ADD TO CART | |
| 78 | 5100012013 | Float | 1 | PARTS REQUEST | |
|
COMING Float
5100012013 · qty on machine: 1 | |||||
| 79 | 5100012012 | Inspection glass | 1 | ADD TO CART | |
| 80 | 5100011656 | Filler cap | 1 | ADD TO CART | |
| 81 | 5100011873 | Pipe clip | 1 | ADD TO CART | |
| 82 | 5100012000 | Sheet metal screw | 1 | ADD TO CART | |
| 100 | 5100050708 | Water tank | 1 | ADD TO CART | |
| 103 | 5100012713 | Rubber metal buffer | 4 | ADD TO CART | |
| 104 | 5100013523 | Washer | 2 | ADD TO CART | |
| 105 | 5100011526 | Elbow | 3 | ADD TO CART | |
| 107 | 5100011444 | Elbow | 3 | ADD TO CART | |
| 109 | 5100013557 | Key | 1 | ADD TO CART | |
| 109 | 5100059525 | Tank cap, with lock | 1 | ADD TO CART | |
| 150 | 5100012140 | Key | 1 | ADD TO CART | |
| 151 | 5100011906 | Metal plate | 1 | ADD TO CART | |
| 152 | 5100011902 | Sheet metal screw | 1 | ADD TO CART | |
| 153 | 5100013646 | Flexible tubing | 0.49 | ADD TO CART | |
| 175 | 5100011590 | Safety cord | 1 | ADD TO CART | |
| 60 | 5100011719 | Metal plate | 4 | ADD TO CART | |
| 61 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 62 | 5100012547 | Hexagon nut | 8 | ADD TO CART | |
| 75 | 5100011590 | Safety cord | 1 | ADD TO CART | |
| 85 | 5100013374 | Water pump | 1 | ADD TO CART | |
| 86 | 5100012919 | Silentbloc | 4 | ADD TO CART | |
| 87 | 5100013523 | Washer | 4 | ADD TO CART | |
| 88 | 5100012545 | Hexagon nut | 8 | ADD TO CART | |
| 91 | 5100012498 | Safety screw | 3 | ADD TO CART | |
| 92 | 5100011527 | Angle screwed socket | 1 | ADD TO CART | |
| 93 | 5100013646 | Flexible tubing | 0.5 | ADD TO CART | |
| 94 | 5100011666 | Angle screwed socket | 1 | ADD TO CART | |
| 95 | 5100011670 | Flexible tubing | 0.8 | ADD TO CART | |
| 96 | 5100011845 | Mounting device | 1 | ADD TO CART | |
| 97 | 5100023166 | Filler cap | 1 | ADD TO CART | |
| 101 | 5100011670 | Flexible tubing | 2 | ADD TO CART | |
| 102 | 5100011670 | Flexible tubing | 3 | ADD TO CART | |
| 105 | 5100012299 | Sprinkler pipe | 1 | ADD TO CART | |
| 106 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 107 | 5100012520 | Hexagon screw | 4 | ADD TO CART | |
| 108 | 5100013179 | Hose clip | 1 | ADD TO CART | |
| 119 | 5100013573 | Wire fastener | 5 | ADD TO CART | |
| 200 | 5100011863 | T-reducing socket | 1 | ADD TO CART | |
| 203 | 5100013213 | Bracket | 1 | ADD TO CART | |
| 204 | 5100013639 | Flexible tubing | 0.27 | ADD TO CART | |
| 205 | 5100013214 | Sprinkler pipe | 1 | ADD TO CART | |
| 206 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 207 | 5100012705 | Cheese-head screw | 4 | ADD TO CART | |
| 208 | 5100013367 | Hose clip | 9 | ADD TO CART | |
| 209 | 5100013639 | Flexible tubing | 0.27 | ADD TO CART | |
| 210 | 5100011898 | Nozzle holder | 2 | ADD TO CART | |
| 213 | 5100011867 | Nozzle holder | 2 | ADD TO CART | |
| 215 | 5100011529 | Sprinkler nozzle | 4 | ADD TO CART | |
| 216 | 5100011488 | Nut | 4 | ADD TO CART | |
| 217 | 5100011489 | Filtering screen | 4 | ADD TO CART | |
| 221 | 5100013639 | Flexible tubing | 0.11 | ADD TO CART | |
| 222 | 5100013639 | Flexible tubing | 0.14 | ADD TO CART | |
| 230 | 5100011756 | Cheese-head screw | 8 | ADD TO CART | |
| 210 | 5100011535 | Cap nut | 1 | ADD TO CART | |
| 210 | 5100011651 | Membrane holder | 1 | ADD TO CART | |
| 210 | 5100011752 | Sealing ring | 1 | ADD TO CART | |
| 210 | 5100011978 | Membrane | 1 | ADD TO CART | |
| 213 | 5100011978 | Membrane | 1 | ADD TO CART | |
| 213 | 5100011752 | Sealing ring | 1 | ADD TO CART | |
| 213 | 5100011651 | Membrane holder | 1 | ADD TO CART | |
| 213 | 5100011535 | Cap nut | 1 | ADD TO CART | |
| 300 | 5100013214 | Sprinkler pipe | 1 | ADD TO CART | |
| 100 | 5100011863 | T-reducing socket | 1 | ADD TO CART | |
| 103 | 5100012135 | Angle | 1 | ADD TO CART | |
| 104 | 5100013639 | Flexible tubing | 0.27 | ADD TO CART | |
| 108 | 5100013367 | Hose clip | 9 | ADD TO CART | |
| 109 | 5100013639 | Flexible tubing | 0.27 | ADD TO CART | |
| 110 | 5100011535 | Cap nut | 1 | ADD TO CART | |
| 110 | 5100011651 | Membrane holder | 1 | ADD TO CART | |
| 110 | 5100011752 | Sealing ring | 1 | ADD TO CART | |
| 110 | 5100011898 | Nozzle holder | 2 | ADD TO CART | |
| 110 | 5100011978 | Membrane | 1 | ADD TO CART | |
| 113 | 5100011978 | Membrane | 1 | ADD TO CART | |
| 113 | 5100011867 | Nozzle holder | 2 | ADD TO CART | |
| 113 | 5100011752 | Sealing ring | 1 | ADD TO CART | |
| 113 | 5100011651 | Membrane holder | 1 | ADD TO CART | |
| 113 | 5100011535 | Cap nut | 1 | ADD TO CART | |
| 115 | 5100011529 | Sprinkler nozzle | 4 | ADD TO CART | |
| 116 | 5100011488 | Nut | 4 | ADD TO CART | |
| 117 | 5100011489 | Filtering screen | 4 | ADD TO CART | |
| 121 | 5100013639 | Flexible tubing | 0.11 | ADD TO CART | |
| 122 | 5100013639 | Flexible tubing | 0.14 | ADD TO CART | |
| 130 | 5100012090 | Cheese-head screw | 8 | ADD TO CART | |
| 131 | 5100013536 | Serrated lock washer | 8 | ADD TO CART | |
| 132 | 5100012898 | Hexagon nut | 8 | ADD TO CART | |
| 200 | 5100012299 | Sprinkler pipe | 1 | ADD TO CART | |
Page 266 — Water pump
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 4 | 5100013389 | Pump housing | 1 | ADD TO CART | |
| 5 | 5100013391 | Valve insert | 1 | ADD TO CART | |
| 10 | 5100013390 | Pump housing | 1 | ADD TO CART | |
| 100 | 5100013374 | Water pump | 1 | ADD TO CART | |
Page 268 — Antifreezing device
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100011943 | Ball-closure cock | 1 | ADD TO CART | |
| 11 | 5100011942 | Adapter | 1 | ADD TO CART | |
| 12 | 5100012598 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012598 · qty on machine: 2 | |||||
| 13 | 5100012936 | Washer | 4 | ADD TO CART | |
| 14 | 5100011599 | Hexagon nut | 2 | ADD TO CART | |
| 21 | 5100011527 | Angle screwed socket | 3 | ADD TO CART | |
| 22 | 5100013413 | Washer | 2 | ADD TO CART | |
| 25 | 5100080594 | Hose | 0.59 | PARTS REQUEST | |
|
COMING Hose
5100080594 · qty on machine: 0.59 | |||||
| 26 | 5100080594 | Hose | 0.86 | PARTS REQUEST | |
|
COMING Hose
5100080594 · qty on machine: 0.86 | |||||
| 27 | 5100080594 | Hose | 0.59 | PARTS REQUEST | |
|
COMING Hose
5100080594 · qty on machine: 0.59 | |||||
| 60 | 5100013573 | Wire fastener | 10 | ADD TO CART | |
| 95 | 5100011670 | Flexible tubing | 0.8 | ADD TO CART | |
| 10 | 5100029536 | Union | 1 | ADD TO CART | |
| 11 | 5100080594 | Hose | 0.06 | PARTS REQUEST | |
|
COMING Hose
5100080594 · qty on machine: 0.06 | |||||
| 12 | 5100080594 | Hose | 0.65 | PARTS REQUEST | |
|
COMING Hose
5100080594 · qty on machine: 0.65 | |||||
| 13 | 5100029535 | Straight screwed socket | 1 | ADD TO CART | |
| 16 | 5100011472 | Ball-closure cock | 1 | ADD TO CART | |
| 17 | 5100029535 | Straight screwed socket | 1 | ADD TO CART | |
| 25 | 5100029568 | Holder | 1 | ADD TO CART | |
| 26 | 5100012598 | Hexagon screw | 1 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012598 · qty on machine: 1 | |||||
| 27 | 5100012936 | Washer | 2 | ADD TO CART | |
| 28 | 5100011599 | Hexagon nut | 1 | ADD TO CART | |
| 61 | 5100013429 | Wire fastener | 1 | ADD TO CART | |
Page 274 — Bypass oil filter
Parts list — exactly as printed24 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100065307 | Filter | 1 | ADD TO CART | |
| 4 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 5 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 6 | 5100065316 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100065316 · qty on machine: 1 | |||||
| 7 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 8 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 10 | 5100029551 | Straight screwed socket | 2 | ADD TO CART | |
| 11 | 5100065322 | Pipe bend | 1 | PARTS REQUEST | |
|
COMING Pipe bend
5100065322 · qty on machine: 1 | |||||
| 12 | 5100065308 | Pressure reducing valve | 1 | ADD TO CART | |
| 13 | 5100034772 | Hexagon screw | 2 | ADD TO CART | |
| 14 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 15 | 5100048634 | Straight screwed socket | 2 | ADD TO CART | |
| 20 | 5100065317 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100065317 · qty on machine: 1 | |||||
| 21 | 5100065302 | Elbow adjustable | 1 | PARTS REQUEST | |
|
COMING Elbow adjustable
5100065302 · qty on machine: 1 | |||||
| 22 | 5100013454 | Straight screwed socket | 1 | ADD TO CART | |
| 30 | 5100065323 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100065323 · qty on machine: 1 | |||||
| 31 | 5100029538 | Elbow adjustable | 1 | ADD TO CART | |
| 32 | 5100013454 | Straight screwed socket | 1 | ADD TO CART | |
| 35 | 5100065310 | Sealing | 1 | Serialno. 160 – 179 | ADD TO CART |
| 36 | 5100065311 | Distance ring | 1 | Serialno. 160 – 179 | PARTS REQUEST |
|
COMING Distance ring
5100065311 · qty on machine: 1 Serialno. 160 – 179 | |||||
| 37 | 5100012090 | Cheese-head screw | 6 | Serialno. 160 – 179 | ADD TO CART |
| 38 | 5100013558 | Sealing ring | 6 | ADD TO CART | |
| 40 | 5100013573 | Wire fastener | 5 | ADD TO CART | |
| 50 | 5100046875 | Sealing tape | 0.09 | ADD TO CART | |
Page 276 — Cylinder spreader
Parts list — exactly as printed211 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5100059510 | Pipe | 1 | PARTS REQUEST | |
|
COMING Pipe
5100059510 · qty on machine: 1 | |||||
| 1 | 5100013095 | Hydraulic motor | 1 | PARTS REQUEST | |
|
COMING Hydraulic motor
5100013095 · qty on machine: 1 | |||||
| 18 | 5100013110 | Flanged bearing | 2 | ADD TO CART | |
| 20 | 5100033225 | Roller chain | 1 | PARTS REQUEST | |
|
COMING Roller chain
5100033225 · qty on machine: 1 | |||||
| 21 | 5100033226 | Chain wheel | 1 | PARTS REQUEST | |
|
COMING Chain wheel
5100033226 · qty on machine: 1 | |||||
| 22 | 5100033227 | Threaded pin | 1 | PARTS REQUEST | |
|
COMING Threaded pin
5100033227 · qty on machine: 1 | |||||
| 23 | 5100080596 | Feather key | 1 | PARTS REQUEST | |
|
COMING Feather key
5100080596 · qty on machine: 1 | |||||
| 24 | 5100033229 | Chain wheel | 1 | PARTS REQUEST | |
|
COMING Chain wheel
5100033229 · qty on machine: 1 | |||||
| 25 | 5100033230 | Feather key | 1 | PARTS REQUEST | |
|
COMING Feather key
5100033230 · qty on machine: 1 | |||||
| 26 | 5100033227 | Threaded pin | 1 | PARTS REQUEST | |
|
COMING Threaded pin
5100033227 · qty on machine: 1 | |||||
| 27 | 5100013104 | Tension pulley | 1 | ADD TO CART | |
| 28 | 5100013598 | Safety nut | 1 | ADD TO CART | |
| 29 | 5100011476 | Safety nut | 1 | ADD TO CART | |
| 30 | 5100039067 | Spreading shaft | 1 | PARTS REQUEST | |
|
COMING Spreading shaft
5100039067 · qty on machine: 1 | |||||
| 31 | 5100039075 | Conversion kit spreading shaft | 1 | PARTS REQUEST | |
|
COMING Conversion kit spreading shaft
5100039075 · qty on machine: 1 | |||||
| 100 | 5100039051 | Chip spreader | 1 | PARTS REQUEST | |
|
COMING Chip spreader
5100039051 · qty on machine: 1 | |||||
| 7 | 5100013108 | Grid | 1 | ADD TO CART | |
| 8 | 5100012723 | Cheese-head screw | 6 | ADD TO CART | |
| 9 | 5100011546 | Pipe clip | 6 | ADD TO CART | |
| 10 | 5100012937 | Washer | 6 | ADD TO CART | |
| 11 | 5100012942 | Spring ring | 6 | PARTS REQUEST | |
|
COMING Spring ring
5100012942 · qty on machine: 6 | |||||
| 12 | 5100012601 | Safety nut | 6 | ADD TO CART | |
| 13 | 5100013105 | Lever | 1 | PARTS REQUEST | |
|
COMING Lever
5100013105 · qty on machine: 1 | |||||
| 14 | 5100013106 | Lever | 1 | PARTS REQUEST | |
|
COMING Lever
5100013106 · qty on machine: 1 | |||||
| 15 | 5100013111 | Handle | 1 | ADD TO CART | |
| 16 | 5100013107 | Scale | 1 | PARTS REQUEST | |
|
COMING Scale
5100013107 · qty on machine: 1 | |||||
| 17 | 5100013113 | Guard | 1 | ADD TO CART | |
| 22 | 5100013598 | Safety nut | 4 | ADD TO CART | |
| 23 | 5100012939 | Washer | 4 | ADD TO CART | |
| 24 | 5100013122 | Eye bolt | 4 | ADD TO CART | |
| 25 | 5100013118 | Compression spring | 4 | PARTS REQUEST | |
|
COMING Compression spring
5100013118 · qty on machine: 4 | |||||
| 26 | 5100011533 | Hexagon nut | 4 | ADD TO CART | |
| 27 | 5100013450 | Cheese-head screw | 4 | ADD TO CART | |
| 28 | 5100013119 | Handle screw | 4 | ADD TO CART | |
| 29 | 5100013509 | Washer | 4 | ADD TO CART | |
| 30 | 5100013112 | Steel floor | 1 | PARTS REQUEST | |
|
COMING Steel floor
5100013112 · qty on machine: 1 | |||||
| 31 | 5100013020 | Bolt | 2 | ADD TO CART | |
| 32 | 5100013019 | Split pin | 2 | ADD TO CART | |
| 33 | 5100013114 | W-clip | 1 | PARTS REQUEST | |
|
COMING W-clip
5100013114 · qty on machine: 1 | |||||
| 34 | 5100013115 | Bolt | 1 | PARTS REQUEST | |
|
COMING Bolt
5100013115 · qty on machine: 1 | |||||
| 240 | 5100013053 | Bracket | 4 | ADD TO CART | |
| 242 | 5100013537 | Hexagon nut | 16 | ADD TO CART | |
| 245 | 5100013028 | Perforated plate | 1 | ADD TO CART | |
| 246 | 5100012931 | Mushroom head screw | 8 | ADD TO CART | |
| 247 | 5100013523 | Washer | 8 | ADD TO CART | |
| 248 | 5100012545 | Hexagon nut | 8 | ADD TO CART | |
| 255 | 5100013076 | Towing loop | 2 | ADD TO CART | |
| 256 | 5100012617 | Hexagon screw | 8 | ADD TO CART | |
| 257 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 320 | 5100012991 | Wire harness | 1 | ADD TO CART | |
| 332 | 5100013023 | Lamp support | 2 | ADD TO CART | |
| 333 | 5100012515 | Hexagon screw | 4 | ADD TO CART | |
| 334 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 341 | 5100013448 | Lamp | 2 | ADD TO CART | |
| 341 | 5100012213 | Lamp | 2 | ADD TO CART | |
| 341 | 5100011802 | Tail light | 2 | ADD TO CART | |
| 342 | 5100012591 | Fillister head screw | 4 | ADD TO CART | |
| 343 | 5100012936 | Washer | 4 | ADD TO CART | |
| 344 | 5100011599 | Hexagon nut | 4 | ADD TO CART | |
| 350 | 5100011801 | Reversing light | 2 | ADD TO CART | |
| 350 | 5100013448 | Lamp | 2 | ADD TO CART | |
| 351 | 5100012591 | Fillister head screw | 4 | ADD TO CART | |
| 352 | 5100012936 | Washer | 4 | ADD TO CART | |
| 353 | 5100011599 | Hexagon nut | 4 | ADD TO CART | |
| 360 | 5100013070 | Silentbloc | 1 | PARTS REQUEST | |
|
COMING Silentbloc
5100013070 · qty on machine: 1 | |||||
| 361 | 5100012600 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 2 | |||||
| 362 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 363 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 399 | 5100013573 | Wire fastener | 20 | ADD TO CART | |
| 214 | 5100013476 | Straight screwed socket | 2 | ADD TO CART | |
| 215 | 5100011445 | Flexible tubing | 1 | ADD TO CART | |
| 216 | 5100013018 | Flexible tubing | 1 | ADD TO CART | |
| 218 | 5100011771 | Coupling plug | 1 | ADD TO CART | |
| 219 | 5100011773 | Coupling sleeve | 1 | ADD TO CART | |
| 220 | 5100011774 | Protecting cap | 1 | ADD TO CART | |
| 221 | 5100011775 | Protecting cap | 1 | ADD TO CART | |
| 250 | 5100013072 | Bracket | 1 | PARTS REQUEST | |
|
COMING Bracket
5100013072 · qty on machine: 1 | |||||
| 251 | 5100013510 | Hexagon screw | 2 | ADD TO CART | |
| 252 | 5100013094 | Washer | 4 | ADD TO CART | |
| 253 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 256 | 5100035014 | Hexagon screw | 8 | ADD TO CART | |
| 321 | 5100011546 | Pipe clip | 2 | ADD TO CART | |
| 322 | 5100013397 | Hexagon screw | 2 | ADD TO CART | |
| 323 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 324 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 325 | 5100013021 | Silentbloc | 1 | PARTS REQUEST | |
|
COMING Silentbloc
5100013021 · qty on machine: 1 | |||||
| 326 | 5100012600 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 2 | |||||
| 327 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 328 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 398 | 5100013429 | Wire fastener | 10 | ADD TO CART | |
| 1 | 5100013123 | Belt cover | 1 | ADD TO CART | |
| 2 | 5100017999 | Bracket | 1 | ADD TO CART | |
| 3 | 5100013354 | Bracket | 2 | ADD TO CART | |
| 4 | 5100012780 | Mushroom head screw | 4 | ADD TO CART | |
| 5 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 6 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 7 | 5100013357 | Bracket | 2 | ADD TO CART | |
| 8 | 5100013510 | Hexagon screw | 2 | ADD TO CART | |
| 9 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 10 | 5100013359 | Washer | 2 | ADD TO CART | |
| 11 | 5100053004 | Safety nut | 2 | ADD TO CART | |
| 12 | 5100012780 | Mushroom head screw | 2 | ADD TO CART | |
| 13 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 14 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 15 | 5100013358 | Button | 3 | ADD TO CART | |
| 16 | 5100013397 | Hexagon screw | 3 | ADD TO CART | |
| 17 | 5100012965 | Locking washer | 3 | ADD TO CART | |
| 18 | 5100013566 | Washer | 3 | ADD TO CART | |
| 19 | 5100013523 | Washer | 3 | ADD TO CART | |
| 20 | 5100012545 | Hexagon nut | 3 | ADD TO CART | |
| 21 | 5100012600 | Hexagon screw | 6 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 6 | |||||
| 22 | 5100013523 | Washer | 12 | ADD TO CART | |
| 23 | 5100013566 | Washer | 12 | ADD TO CART | |
| 24 | 5100012545 | Hexagon nut | 6 | ADD TO CART | |
| 261 | 5100013071 | Stop | 2 | Serialno. 160-225 | ADD TO CART |
| 261 | 5100083352 | Stop | 2 | Serialno. >225 | PARTS REQUEST |
|
COMING Stop
5100083352 · qty on machine: 2 Serialno. >225 | |||||
| 268 | 5100013377 | Rubber buffer | 4 | ADD TO CART | |
| 269 | 5100013128 | Washer | 8 | ADD TO CART | |
| 270 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 110 | 5100013016 | Mounting frame | 1 | ADD TO CART | |
| 111 | 5100012617 | Hexagon screw | 6 | ADD TO CART | |
| 112 | 5100013128 | Washer | 6 | ADD TO CART | |
| 115 | 5100011479 | Hexagon screw | 4 | ADD TO CART | |
| 116 | 5100013128 | Washer | 4 | ADD TO CART | |
| 120 | 5100013017 | Console | 1 | ADD TO CART | |
| 121 | 5100013019 | Split pin | 1 | ADD TO CART | |
| 122 | 5100013020 | Bolt | 1 | ADD TO CART | |
| 130 | 5100013360 | Bracket | 1 | ADD TO CART | |
| 131 | 5100011418 | Cap | 1 | ADD TO CART | |
| 3 | 5100080597 | T-piece adjustable | 1 | PARTS REQUEST | |
|
COMING T-piece adjustable
5100080597 · qty on machine: 1 | |||||
| 4 | 5100012391 | Elbow adjustable | 1 | ADD TO CART | |
| 5 | 5100011576 | Flexible tubing | 1 | ADD TO CART | |
| 7 | 5100013476 | Straight screwed socket | 3 | ADD TO CART | |
| 9 | 5100011531 | Flexible tubing | 1 | ADD TO CART | |
| 11 | 5100012094 | Flexible tubing | 1 | ADD TO CART | |
| 12 | 5100013479 | Straight coupling | 1 | ADD TO CART | |
| 13 | 5100012220 | Straight flange joint | 1 | ADD TO CART | |
| 13 | 5100012723 | Cheese-head screw | 4 | ADD TO CART | |
| 13 | 5100012942 | Spring ring | 4 | PARTS REQUEST | |
|
COMING Spring ring
5100012942 · qty on machine: 4 | |||||
| 13 | 5100013612 | O-ring seal | 1 | ADD TO CART | |
| 16 | 5100013092 | Protective covering of cables | 1 | PARTS REQUEST | |
|
COMING Protective covering of cables
5100013092 · qty on machine: 1 | |||||
| 28 | 5100013024 | Bracket | 1 | ADD TO CART | |
| 29 | 5100012517 | Hexagon screw | 2 | ADD TO CART | |
| 30 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 33 | 5100013025 | Holder-up | 1 | ADD TO CART | |
| 34 | 5100035087 | Hexagon screw | 2 | ADD TO CART | |
| 35 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 40 | 5100011735 | Hand lever | 1 | ADD TO CART | |
| 40 | 5100012993 | Valve block | 1 | ADD TO CART | |
| 41 | 5100011480 | Cheese-head screw | 2 | ADD TO CART | |
| 45 | 5100011468 | Sealing ring | 2 | ADD TO CART | |
| 46 | 5100011771 | Coupling plug | 1 | ADD TO CART | |
| 47 | 5100011773 | Coupling sleeve | 1 | ADD TO CART | |
| 48 | 5100011774 | Protecting cap | 1 | ADD TO CART | |
| 49 | 5100011775 | Protecting cap | 1 | ADD TO CART | |
| 52 | 5100016502 | Sticker | 1 | ADD TO CART | |
| 60 | 5100012968 | Locking washer | 4 | ADD TO CART | |
| 61 | 5100011612 | Hexagon screw | 4 | ADD TO CART | |
| 65 | 5100011699 | Silentbloc | 2 | ADD TO CART | |
| 66 | 5100012621 | Hexagon screw | 4 | ADD TO CART | |
| 67 | 5100012968 | Locking washer | 8 | ADD TO CART | |
| 68 | 5100012548 | Hexagon nut | 4 | ADD TO CART | |
| 80 | 5100013015 | Wire harness | 1 | PARTS REQUEST | |
|
COMING Wire harness
5100013015 · qty on machine: 1 | |||||
| 81 | 5100012977 | Stud bolt | 2 | ADD TO CART | |
| 6 | 5100065333 | Control block rd40/45 | 1 | PARTS REQUEST | |
|
COMING Control block rd40/45
5100065333 · qty on machine: 1 | |||||
| 10 | 5100013098 | Flexible tubing | 1 | ADD TO CART | |
| 11 | 5100013099 | Flexible tubing | 1 | ADD TO CART | |
| 15 | 5100080574 | Bulkhead elbow | 2 | PARTS REQUEST | |
|
COMING Bulkhead elbow
5100080574 · qty on machine: 2 | |||||
| 16 | 5100013488 | Hexagon nut | 2 | ADD TO CART | |
| 17 | 5100013191 | Washer | 4 | ADD TO CART | |
| 21 | 5100059509 | Pipe | 1 | PARTS REQUEST | |
|
COMING Pipe
5100059509 · qty on machine: 1 | |||||
| 23 | 5100013476 | Straight screwed socket | 2 | ADD TO CART | |
| 28 | 5100011469 | Pipe clip | 1 | ADD TO CART | |
| 29 | 5100012515 | Hexagon screw | 1 | ADD TO CART | |
| 42 | 5100013100 | Bushing | 1 | PARTS REQUEST | |
|
COMING Bushing
5100013100 · qty on machine: 1 | |||||
| 51 | 5100011665 | Screw plug | 1 | ADD TO CART | |
| 55 | 5100013429 | Wire fastener | 30 | ADD TO CART | |
| 83 | 5100013093 | Clip | 10 | ADD TO CART | |
| 84 | 5100013573 | Wire fastener | 15 | ADD TO CART | |
| 89 | 5100013121 | Cover | 1 | PARTS REQUEST | |
|
COMING Cover
5100013121 · qty on machine: 1 | |||||
| 90 | 5100012822 | Cover plate | 1 | ADD TO CART | |
| 91 | 5100012572 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 2 | |||||
| 92 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 40 | 5100011910 | Nonreturn valve | 1 | ADD TO CART | |
| 40 | 5100012500 | Pressure-relief valve | 1 | ADD TO CART | |
| 40 | 5100013125 | Flow divider | 1 | ADD TO CART | |
| 1 | 5100011583 | Relay | 6 | ADD TO CART | |
| 1 | 5100039076 | Circuit board | 1 | PARTS REQUEST | |
|
COMING Circuit board
5100039076 · qty on machine: 1 | |||||
| 12 | 5100080598 | Housing | 1 | PARTS REQUEST | |
|
COMING Housing
5100080598 · qty on machine: 1 | |||||
| 13 | 5100012990 | Wire harness | 1 | PARTS REQUEST | |
|
COMING Wire harness
5100012990 · qty on machine: 1 | |||||
| 19 | 5100018000 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100018000 · qty on machine: 1 | |||||
| 20 | 5100013013 | Bracket | 1 | PARTS REQUEST | |
|
COMING Bracket
5100013013 · qty on machine: 1 | |||||
| 21 | 5100034739 | Fillister head screw | 3 | ADD TO CART | |
| 22 | 5100033235 | Fillister head screw | 4 | ADD TO CART | |
| 23 | 5100013059 | Sticker | 1 | PARTS REQUEST | |
|
COMING Sticker
5100013059 · qty on machine: 1 | |||||
| 100 | 5100013015 | Wire harness | 1 | PARTS REQUEST | |
|
COMING Wire harness
5100013015 · qty on machine: 1 | |||||
| 2 | 5100059494 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100059494 · qty on machine: 1 | |||||
| 2 | 5100059537 | Cylinder | 1 | PARTS REQUEST | |
|
COMING Cylinder
5100059537 · qty on machine: 1 | |||||
| 2 | 5100059549 | Operating lever | 1 | PARTS REQUEST | |
|
COMING Operating lever
5100059549 · qty on machine: 1 | |||||
| 3 | 5100011607 | Sheet metal screw | 4 | ADD TO CART | |
| 5 | 5100033263 | Pipe clip | 3 | ADD TO CART | |
| 6 | 5100023198 | Fillister head screw | 2 | PARTS REQUEST | |
|
COMING Fillister head screw
5100023198 · qty on machine: 2 | |||||
| 7 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 8 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 15 | 5100059503 | Strap bolt | 1 | PARTS REQUEST | |
|
COMING Strap bolt
5100059503 · qty on machine: 1 | |||||
| 16 | 5100059502 | Plate | 1 | PARTS REQUEST | |
|
COMING Plate
5100059502 · qty on machine: 1 | |||||
| 17 | 5100059516 | Metal plate | 1 | PARTS REQUEST | |
|
COMING Metal plate
5100059516 · qty on machine: 1 | |||||
| 18 | 5100050710 | Holder | 1 | ADD TO CART | |
| 19 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 20 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 25 | 5100080599 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100080599 · qty on machine: 1 | |||||
Page 300 — Mounting
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100065356 | Distance piece | 2 | PARTS REQUEST | |
|
COMING Distance piece
5100065356 · qty on machine: 2 | |||||
| 2 | 5100013379 | Hexagon screw | 4 | ADD TO CART | |
| 3 | 5100012185 | Bow plate | 2 | ADD TO CART | |
| 5 | 5100011835 | Spacer plate | 8 | ADD TO CART | |
| 6 | 5100012415 | Hexagon screw | 10 | ADD TO CART | |
| 7 | 5100013233 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100013233 · qty on machine: 2 | |||||
| 8 | 5100012969 | Locking washer | 12 | ADD TO CART | |
| 25 | 5100012968 | Locking washer | 12 | ADD TO CART | |
| 26 | 5100011612 | Hexagon screw | 12 | ADD TO CART | |
| 4 | 5100012186 | Bow plate | 2 | ADD TO CART | |
Page 304 — Rigid scraper
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 9 | 5100013530 | Filler cap | 8 | ADD TO CART | |
| 51 | 5100018001 | Scraper | 2 | ADD TO CART | |
| 52 | 5100018002 | Scraper | 2 | ADD TO CART | |
| 55 | 5100012967 | Locking washer | 16 | ADD TO CART | |
| 56 | 5100012520 | Hexagon screw | 16 | ADD TO CART | |
| 1 | 5100011969 | Scraper | 1 | ADD TO CART | |
| 2 | 5100012042 | Metal plate | 1 | ADD TO CART | |
| 3 | 5100018003 | Spring | 4 | ADD TO CART | |
| 4 | 5100011939 | Metal plate | 1 | ADD TO CART | |
| 5 | 5100011940 | Metal plate | 1 | ADD TO CART | |
| 6 | 5100012085 | Mushroom head screw | 7 | ADD TO CART | |
| 7 | 5100011584 | Mushroom head screw | 2 | ADD TO CART | |
| 8 | 5100012547 | Hexagon nut | 9 | ADD TO CART | |
| 9 | 5100013521 | Washer | 2 | ADD TO CART | |
| 10 | 5100013521 | Washer | 7 | ADD TO CART | |
| 100 | 5100018001 | Scraper | 1 | ADD TO CART | |
| 3 | 5100018004 | Spring | 4 | ADD TO CART | |
| 100 | 5100018002 | Scraper | 1 | ADD TO CART | |
Page 310 — Foldable scraper
Parts list — exactly as printed55 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013048 | Scraper | 1 | ADD TO CART | |
| 2 | 5100012520 | Hexagon screw | 4 | ADD TO CART | |
| 3 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 51 | 5100013049 | Scraper | 1 | ADD TO CART | |
| 52 | 5100011479 | Hexagon screw | 4 | ADD TO CART | |
| 53 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 55 | 5100013047 | Holder-up | 1 | PARTS REQUEST | |
|
COMING Holder-up
5100013047 · qty on machine: 1 | |||||
| 56 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 57 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 101 | 5100013050 | Scraper | 1 | ADD TO CART | |
| 102 | 5100012520 | Hexagon screw | 4 | ADD TO CART | |
| 103 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 151 | 5100013051 | Scraper | 1 | ADD TO CART | |
| 152 | 5100011479 | Hexagon screw | 4 | ADD TO CART | |
| 153 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 155 | 5100013042 | Holder-up | 1 | ADD TO CART | |
| 156 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 157 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 11 | 5100011969 | Scraper | 1 | ADD TO CART | |
| 12 | 5100012042 | Metal plate | 1 | ADD TO CART | |
| 13 | 5100011939 | Metal plate | 1 | ADD TO CART | |
| 14 | 5100011940 | Metal plate | 1 | ADD TO CART | |
| 15 | 5100012085 | Mushroom head screw | 5 | ADD TO CART | |
| 16 | 5100011584 | Mushroom head screw | 4 | ADD TO CART | |
| 17 | 5100013521 | Washer | 9 | ADD TO CART | |
| 19 | 5100012547 | Hexagon nut | 9 | ADD TO CART | |
| 20 | 5100013040 | Bracket | 1 | ADD TO CART | |
| 21 | 5100012932 | Handle | 1 | ADD TO CART | |
| 22 | 5100012665 | Countersunk screw | 2 | ADD TO CART | |
| 23 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 25 | 5100029558 | Hexagon screw | 1 | ADD TO CART | |
| 26 | 5100013577 | Washer | 2 | ADD TO CART | |
| 27 | 5100013045 | Bracket | 1 | ADD TO CART | |
| 28 | 5100011682 | Bushing | 1 | ADD TO CART | |
| 29 | 5100013629 | Yoke spring | 1 | ADD TO CART | |
| 30 | 5100013033 | Bracket | 1 | ADD TO CART | |
| 31 | 5100035091 | Safety nut | 1 | ADD TO CART | |
| 35 | 5100013574 | Toggle with bolt | 1 | ADD TO CART | |
| 36 | 5100013575 | Compression spring | 1 | ADD TO CART | |
| 37 | 5100013576 | Grooved pin | 1 | ADD TO CART | |
| 40 | 5100029558 | Hexagon screw | 1 | ADD TO CART | |
| 41 | 5100013577 | Washer | 2 | ADD TO CART | |
| 42 | 5100013046 | Bracket | 1 | ADD TO CART | |
| 43 | 5100011682 | Bushing | 1 | ADD TO CART | |
| 44 | 5100013630 | Yoke spring | 1 | ADD TO CART | |
| 45 | 5100013037 | Bracket | 1 | ADD TO CART | |
| 46 | 5100035091 | Safety nut | 1 | ADD TO CART | |
| 27 | 5100013039 | Foot lever | 1 | ADD TO CART | |
| 30 | 5100013041 | Bracket | 1 | ADD TO CART | |
| 42 | 5100013034 | Bracket | 1 | ADD TO CART | |
| 44 | 5100013629 | Yoke spring | 1 | ADD TO CART | |
| 45 | 5100013041 | Bracket | 1 | ADD TO CART | |
| 27 | 5100013035 | Bracket | 1 | ADD TO CART | |
| 42 | 5100013036 | Bracket | 1 | ADD TO CART | |
| 27 | 5100013038 | Lever | 1 | ADD TO CART | |
Page 320 — Roller drum
Parts list — exactly as printed40 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011928 | Roller drum | 1 | PARTS REQUEST | |
|
COMING Roller drum
5100011928 · qty on machine: 1 | |||||
| 2 | 5100011809 | Flange | 2 | ADD TO CART | |
| 3 | 5100012725 | Cheese-head screw | 4 | ADD TO CART | |
| 5 | 5100011663 | Cap | 1 | ADD TO CART | |
| 6 | 5100065326 | Gear hub motor | 1 | PARTS REQUEST | |
|
COMING Gear hub motor
5100065326 · qty on machine: 1 | |||||
| 7 | 5100065327 | Gear hub motor | 1 | ADD TO CART | |
| 8 | 5100012789 | Cheese-head screw | 16 | ADD TO CART | |
| 9 | 5100012968 | Locking washer | 16 | ADD TO CART | |
| 10 | 5100013423 | O-ring seal | 2 | ADD TO CART | |
| 12 | 5100011810 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 15 | 5100011808 | Ring | 2 | ADD TO CART | |
| 16 | 5100011811 | Disc ring | 4 | ADD TO CART | |
| 20 | 5100059530 | Unbalance shaft | 1 | PARTS REQUEST | |
|
COMING Unbalance shaft
5100059530 · qty on machine: 1 | |||||
| 23 | 5100011647 | Disc ring | 2 | ADD TO CART | |
| 24 | 5100012149 | Unbalance | 1 | ADD TO CART | |
| 25 | 5100012148 | Unbalance | 1 | ADD TO CART | |
| 26 | 5100012514 | Hexagon screw | 2 | ADD TO CART | |
| 27 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 28 | 5100012405 | Hexagon nut | 2 | ADD TO CART | |
| 29 | 5100011655 | Bushing | 2 | ADD TO CART | |
| 30 | 5100012147 | Threaded bolt | 2 | ADD TO CART | |
| 31 | 5100012548 | Hexagon nut | 2 | ADD TO CART | |
| 32 | 5100011806 | Unbalance loose | 2 | ADD TO CART | |
| 33 | 5100012534 | Hexagon nut | 2 | ADD TO CART | |
| 35 | 5100059541 | Coupling shaft | 1 | ADD TO CART | |
| 36 | 5100018007 | Hub | 2 | ADD TO CART | |
| 37 | 5100013535 | Disk spring | 1 | ADD TO CART | |
| 38 | 5100011646 | Hexagon nut | 2 | ADD TO CART | |
| 40 | 5100058557 | Gear motor | 1 | ADD TO CART | |
| 41 | 5100012754 | Cheese-head screw | 4 | ADD TO CART | |
| 42 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 50 | 5100012868 | Threaded pin | 4 | ADD TO CART | |
| 59 | 5100013181 | Driver | 1 | ADD TO CART | |
| 60 | 5100013182 | Driver | 1 | ADD TO CART | |
| 61 | 5100048107 | Cheese-head screw | 14 | ADD TO CART | |
| 62 | 5100012968 | Locking washer | 14 | ADD TO CART | |
| 65 | 5100011699 | Silentbloc | 6 | ADD TO CART | |
| 66 | 5100023184 | Hexagon screw | 12 | ADD TO CART | |
| 67 | 5100012968 | Locking washer | 24 | ADD TO CART | |
| 68 | 5100012548 | Hexagon nut | 12 | ADD TO CART | |
Page 324 — Vibration drive
Parts list — exactly as printed52 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011500 | O-ring seal | 1 | ADD TO CART | |
| 1 | 5100012723 | Cheese-head screw | 2 | ADD TO CART | |
| 1 | 5100012942 | Spring ring | 4 | PARTS REQUEST | |
|
COMING Spring ring
5100012942 · qty on machine: 4 | |||||
| 1 | 5100013218 | Angle flange screwing | 1 | ADD TO CART | |
| 1 | 5100013497 | Cheese-head screw | 2 | ADD TO CART | |
| 5 | 5100012883 | Flexible tubing | 1 | ADD TO CART | |
| 6 | 5100011896 | Hose clip | 1 | ADD TO CART | |
| 10 | 5100012216 | Angle flange screwing | 1 | ADD TO CART | |
| 10 | 5100012723 | Cheese-head screw | 2 | ADD TO CART | |
| 10 | 5100012942 | Spring ring | 4 | PARTS REQUEST | |
|
COMING Spring ring
5100012942 · qty on machine: 4 | |||||
| 10 | 5100013189 | Cheese-head screw | 2 | ADD TO CART | |
| 10 | 5100013612 | O-ring seal | 1 | ADD TO CART | |
| 11 | 5100011746 | Flexible tubing | 1 | ADD TO CART | |
| 12 | 5100013483 | Elbow adjustable | 1 | ADD TO CART | |
| 13 | 5100013614 | Straight screwed socket | 2 | ADD TO CART | |
| 14 | 5100012020 | Pressure filter | 1 | ADD TO CART | |
| 15 | 5100012517 | Hexagon screw | 4 | ADD TO CART | |
| 16 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 17 | 5100012336 | Bracket | 1 | ADD TO CART | |
| 19 | 5100013476 | Straight screwed socket | 2 | ADD TO CART | |
| 20 | 5100013592 | Flexible tubing | 1 | ADD TO CART | |
| 21 | 5100065333 | Control block rd40/45 | 1 | PARTS REQUEST | |
|
COMING Control block rd40/45
5100065333 · qty on machine: 1 | |||||
| 22 | 5100011479 | Hexagon screw | 2 | ADD TO CART | |
| 23 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 25 | 5100039072 | Stud screw | 2 | ADD TO CART | |
| 26 | 5100011717 | Spacer block | 2 | ADD TO CART | |
| 27 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 28 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 29 | 5100013476 | Straight screwed socket | 2 | ADD TO CART | |
| 31 | 5100011463 | Flexible tubing | 1 | ADD TO CART | |
| 31 | 5100013460 | Flexible tubing | 1 | ADD TO CART | |
| 32 | 5100013476 | Straight screwed socket | 2 | ADD TO CART | |
| 34 | 5100011463 | Flexible tubing | 1 | ADD TO CART | |
| 34 | 5100013460 | Flexible tubing | 1 | ADD TO CART | |
| 41 | 5100012056 | Flexible tubing | 1 | ADD TO CART | |
| 41 | 5100012076 | Flexible tubing | 1 | ADD TO CART | |
| 42 | 5100013612 | O-ring seal | 1 | ADD TO CART | |
| 42 | 5100012942 | Spring ring | 4 | PARTS REQUEST | |
|
COMING Spring ring
5100012942 · qty on machine: 4 | |||||
| 42 | 5100012723 | Cheese-head screw | 4 | ADD TO CART | |
| 42 | 5100012220 | Straight flange joint | 4 | ADD TO CART | |
| 43 | 5100013483 | Elbow adjustable | 4 | ADD TO CART | |
| 44 | 5100012057 | Flexible tubing | 1 | ADD TO CART | |
| 44 | 5100012075 | Flexible tubing | 1 | ADD TO CART | |
| 61 | 5100018008 | Hose | 2 | ADD TO CART | |
| 62 | 5100013434 | Straight screwed socket | 1 | ADD TO CART | |
| 65 | 5100012216 | Angle flange screwing | 2 | ADD TO CART | |
| 65 | 5100012723 | Cheese-head screw | 2 | ADD TO CART | |
| 65 | 5100012942 | Spring ring | 4 | PARTS REQUEST | |
|
COMING Spring ring
5100012942 · qty on machine: 4 | |||||
| 65 | 5100013189 | Cheese-head screw | 2 | ADD TO CART | |
| 65 | 5100013612 | O-ring seal | 1 | ADD TO CART | |
| 68 | 5100013434 | Straight screwed socket | 1 | ADD TO CART | |
| 69 | 5100018008 | Hose | 1 | ADD TO CART | |
Page 328 — Edge pressing and cuttingdevice
Parts list — exactly as printed44 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100012398 | Console | 1 | ADD TO CART | |
| 3 | 5100012396 | Lever | 1 | ADD TO CART | |
| 4 | 5100011474 | Taper roller bearing | 4 | ADD TO CART | |
| 5 | 5100011475 | Nilos ring | 2 | ADD TO CART | |
| 6 | 5100012399 | Axle | 1 | ADD TO CART | |
| 7 | 5100013518 | Spacer shim | 1 | ADD TO CART | |
| 8 | 5100013519 | Spacer shim | 1 | ADD TO CART | |
| 9 | 5100012979 | Spacer shim | 1 | ADD TO CART | |
| 10 | 5100011683 | Cover | 2 | ADD TO CART | |
| 11 | 5100012724 | Cheese-head screw | 6 | ADD TO CART | |
| 12 | 5100011716 | Cover | 2 | ADD TO CART | |
| 13 | 5100012965 | Locking washer | 8 | ADD TO CART | |
| 14 | 5100012572 | Hexagon screw | 8 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 8 | |||||
| 15 | 5100011767 | Flange | 1 | ADD TO CART | |
| 16 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 17 | 5100013450 | Cheese-head screw | 8 | ADD TO CART | |
| 20 | 5100011563 | Radial rod end bearing | 1 | PARTS REQUEST | |
|
COMING Radial rod end bearing
5100011563 · qty on machine: 1 | |||||
| 20 | 5100011686 | Set of seals | 1 | ADD TO CART | |
| 20 | 5100012400 | Cylinder | 1 | ADD TO CART | |
| 20 | 5100012479 | Greasing nipple | 1 | ADD TO CART | |
| 21 | 5100012397 | Bracket | 1 | ADD TO CART | |
| 22 | 5100011482 | Washer | 1 | ADD TO CART | |
| 23 | 5100012415 | Hexagon screw | 1 | ADD TO CART | |
| 24 | 5100011681 | Bolt | 1 | ADD TO CART | |
| 25 | 5100013609 | Radial rod end bearing | 1 | ADD TO CART | |
| 26 | 5100013560 | Seal | 2 | ADD TO CART | |
| 27 | 5100011680 | Spacer ring | 2 | ADD TO CART | |
| 28 | 5100012955 | Locking washer | 1 | ADD TO CART | |
| 29 | 5100012550 | Hexagon nut | 1 | ADD TO CART | |
| 30 | 5100012479 | Greasing nipple | 2 | ADD TO CART | |
| 31 | 5100012482 | Greasing nipple | 1 | ADD TO CART | |
| 35 | 5100012405 | Hexagon nut | 1 | ADD TO CART | |
| 51 | 5100012969 | Locking washer | 5 | ADD TO CART | |
| 52 | 5100011495 | Cheese-head screw | 5 | ADD TO CART | |
| 1 | 5100053017 | Holder system | 1 | ADD TO CART | |
| 2 | 5100035238 | Cheese-head screw | 2 | ADD TO CART | |
| 3 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 5 | 5100013628 | Pipe | 1 | ADD TO CART | |
| 6 | 5100013128 | Washer | 1 | ADD TO CART | |
| 7 | 5100013455 | Cheese-head screw | 1 | ADD TO CART | |
| 11 | 5100011767 | Flange | 1 | ADD TO CART | |
| 12 | 5100013450 | Cheese-head screw | 2 | ADD TO CART | |
| 13 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 14 | 5100012617 | Hexagon screw | 8 | ADD TO CART | |
Page 336 — Ancillary parts
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013627 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100013627 · qty on machine: 1 | |||||
| 1 | 5100027277 | Prssure roller | 1 | PARTS REQUEST | |
|
COMING Prssure roller
5100027277 · qty on machine: 1 | |||||
| 2 | 5100013626 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100013626 · qty on machine: 1 | |||||
| 2 | 5100015230 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100015230 · qty on machine: 1 | |||||
| 3 | 5100013625 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100013625 · qty on machine: 1 | |||||
| 3 | 5100015231 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100015231 · qty on machine: 1 | |||||
| 5 | 5100013634 | Cutting disc | 1 | PARTS REQUEST | |
|
COMING Cutting disc
5100013634 · qty on machine: 1 | |||||
| 5 | 5100015199 | Cutting disc | 1 | PARTS REQUEST | |
|
COMING Cutting disc
5100015199 · qty on machine: 1 | |||||
| 6 | 5100011700 | Pressing roll | 1 | PARTS REQUEST | |
|
COMING Pressing roll
5100011700 · qty on machine: 1 | |||||
| 6 | 5100027279 | Prssure roller | 1 | PARTS REQUEST | |
|
COMING Prssure roller
5100027279 · qty on machine: 1 | |||||
| 7 | 5100013623 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100013623 · qty on machine: 1 | |||||
| 7 | 5100015233 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100015233 · qty on machine: 1 | |||||
| 8 | 5100015232 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100015232 · qty on machine: 1 | |||||
| 8 | 5100013635 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100013635 · qty on machine: 1 | |||||
| 9 | 5100013624 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100013624 · qty on machine: 1 | |||||
| 9 | 5100027278 | Prssure roller | 1 | PARTS REQUEST | |
|
COMING Prssure roller
5100027278 · qty on machine: 1 | |||||
| 10 | 5100033238 | Holder | 1 | ADD TO CART | |
| 20 | 5100012520 | Hexagon screw | 2 | ADD TO CART | |
| 30 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 40 | 5100011789 | Pipe | 1 | ADD TO CART | |
| 50 | 5100011788 | Bracket | 1 | ADD TO CART | |
| 60 | 5100011790 | Bolt | 1 | ADD TO CART | |
| 70 | 5100013638 | Indicator | 1 | ADD TO CART | |
| 70 | 5100020851 | Indicator | 1 | ADD TO CART | |
| 80 | 5100013509 | Washer | 1 | ADD TO CART | |
| 90 | 5100011783 | Hand lever | 3 | ADD TO CART | |
Page 364 — Additional storage
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 150 | 5100029563 | Bag | 1 | ADD TO CART | |
| 151 | 5100023198 | Fillister head screw | 4 | PARTS REQUEST | |
|
COMING Fillister head screw
5100023198 · qty on machine: 4 | |||||
| 152 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 153 | 5100012545 | Hexagon nut | 4 | ADD TO CART | |
| 154 | 5100013523 | Washer | 4 | ADD TO CART | |
| 160 | 5100011866 | Sealing tape | 0.06 | ADD TO CART | |
Page 366 — Trailer coupling
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100033249 | Trailer coupling | 1 | ADD TO CART | |
| 3 | 5100013416 | Hexagon screw | 4 | ADD TO CART | |
| 4 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 20 | 5100012790 | Metal plate | 1 | ADD TO CART | |
| 21 | 5100012613 | Hexagon screw | 1 | ADD TO CART | |
| 22 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 23 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 30 | 5100013377 | Rubber buffer | 1 | ADD TO CART | |
| 31 | 5100012967 | Locking washer | 1 | ADD TO CART | |
| 32 | 5100012547 | Hexagon nut | 1 | ADD TO CART | |
| 92 | 5100033250 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100033250 · qty on machine: 1 | |||||
Page 368 — Additional mirror
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5100012897 | Metal plate | 1 | ADD TO CART | |
| 21 | 5100053249 | Hexagon screw | 2 | ADD TO CART | |
| 22 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 23 | 5100059489 | Distance piece | 2 | PARTS REQUEST | |
|
COMING Distance piece
5100059489 · qty on machine: 2 | |||||
| 24 | 5100013257 | Washer | 2 | ADD TO CART | |
| 25 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 30 | 5100067838 | Stay bar | 1 | ADD TO CART | |
| 31 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 32 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 35 | 5100067837 | Stay bar | 1 | PARTS REQUEST | |
|
COMING Stay bar
5100067837 · qty on machine: 1 | |||||
| 36 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 37 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 40 | 5100067839 | Mirror | 2 | ADD TO CART | |
Page 370 — Asphalt thermometer
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 30 | 5100033262 | Housing | 1 | ADD TO CART | |
| 31 | 5100012572 | Hexagon screw | 1 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 1 | |||||
| 32 | 5100012965 | Locking washer | 3 | ADD TO CART | |
| 33 | 5100023046 | Hexagon screw | 1 | ADD TO CART | |
| 34 | 5100033263 | Pipe clip | 1 | ADD TO CART | |
| 35 | 5100012545 | Hexagon nut | 1 | ADD TO CART | |
| 36 | 5100033264 | Half-clip | 2 | ADD TO CART | |
| 37 | 5100033265 | Weld-on plate | 1 | ADD TO CART | |
| 38 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 39 | 5100013466 | Hexagon screw | 2 | ADD TO CART | |
| 40 | 5100033266 | Temperature probe | 1 | ADD TO CART | |
| 41 | 5100053037 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100053037 · qty on machine: 1 | |||||
| 42 | 5100033267 | Lid | 1 | ADD TO CART | |
| 43 | 5100033235 | Fillister head screw | 2 | ADD TO CART | |
| 44 | 5100012350 | Spacer block | 4 | ADD TO CART | |
| 45 | 5100011485 | Cheese-head screw | 4 | ADD TO CART | |
Page 372 — Compactometer
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100033251 | Holder system | 1 | PARTS REQUEST | |
|
COMING Holder system
5100033251 · qty on machine: 1 | |||||
| 4 | 5100012718 | Cheese-head screw | 2 | ADD TO CART | |
| 5 | 5100012936 | Washer | 2 | ADD TO CART | |
| 6 | 5100033252 | Bushing | 2 | ADD TO CART | |
| 10 | 5100033253 | Calculator | 1 | PARTS REQUEST | |
|
COMING Calculator
5100033253 · qty on machine: 1 | |||||
| 11 | 5100033254 | Cheese-head screw | 2 | ADD TO CART | |
| 12 | 5100013453 | Washer | 2 | ADD TO CART | |
| 13 | 5100012936 | Washer | 2 | ADD TO CART | |
| 14 | 5100012898 | Hexagon nut | 2 | ADD TO CART | |
| 16 | 5100052978 | Wire harness instrument panel | 1 | ADD TO CART | |
| 20 | 5100033258 | Acceleration sensor | 1 | ADD TO CART | |
| 29 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 21 | 5100033260 | Cheese-head screw | 2 | ADD TO CART | |
| 25 | 5100059519 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100059519 · qty on machine: 1 | |||||
| 26 | 5100012782 | Cheese-head screw | 2 | ADD TO CART | |
| 27 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 99 | 5100013573 | Wire fastener | 30 | ADD TO CART | |
Page 376 — Fire extinguisher
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100033269 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100033269 · qty on machine: 1 | |||||
| 3 | 5100012572 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 2 | |||||
| 4 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 5 | 5100012420 | Blind rivet nut | 2 | ADD TO CART | |
| 10 | 5100022903 | Fire extinguisher | 1 | ADD TO CART | |
| 11 | 5100033270 | Countersunk screw | 2 | ADD TO CART | |
| 12 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 13 | 5100013599 | Clip nut | 2 | ADD TO CART | |
Page 378 — Homologation brazil
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100025909 | Holder | 1 | ADD TO CART | |
| 4 | 5100025910 | Cable harness | 1 | ADD TO CART | |
| 5 | 5100011549 | License plate light | 2 | ADD TO CART | |
| 6 | 5100012467 | Lamp | 2 | ADD TO CART | |
| 7 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 8 | 5100012545 | Hexagon nut | 4 | ADD TO CART | |
| 10 | 5100025881 | Fillister head screw | 4 | ADD TO CART | |
| 11 | 5100013599 | Clip nut | 4 | ADD TO CART | |
| 18 | 5100035014 | Hexagon screw | 4 | ADD TO CART | |
| 19 | 5100012967 | Locking washer | 4 | ADD TO CART | |
Page 380 — Homologation italy
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012007 | Metal plate | 1 | ADD TO CART | |
| 4 | 5100012001 | Wire harness | 1 | ADD TO CART | |
| 5 | 5100011549 | License plate light | 1 | ADD TO CART | |
| 6 | 5100012467 | Lamp | 1 | ADD TO CART | |
| 8 | 5100017998 | Hexagonal nut | 2 | ADD TO CART | |
| 10 | 5100012607 | Hexagon screw | 4 | ADD TO CART | |
| 11 | 5100013536 | Serrated lock washer | 12 | ADD TO CART | |
| 12 | 5100012898 | Hexagon nut | 8 | ADD TO CART | |
| 13 | 5100013453 | Washer | 8 | ADD TO CART | |
| 40 | 5100013573 | Wire fastener | 2 | ADD TO CART | |
| 100 | 5100012143 | Bracket | 1 | ADD TO CART | |
| 102 | 5100012572 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 4 | |||||
| 103 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 120 | 5100013573 | Wire fastener | 5 | ADD TO CART | |
Page 382 — Maintenance kits and repair kits
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100086334 | Maintenance kit rd40/45-1000h wncr1410 | 1 | PARTS REQUEST | |
|
COMING Maintenance kit rd40/45-1000h wncr1410
5100086334 · qty on machine: 1 | |||||
| 10 | 5100086363 | Maintenance kit rd40/45-2000h wncr1410 | 1 | PARTS REQUEST | |
|
COMING Maintenance kit rd40/45-2000h wncr1410
5100086363 · qty on machine: 1 | |||||
| 10 | 5100086364 | Maintenance kit rd40/45-500h wncr1410 | 1 | PARTS REQUEST | |
|
COMING Maintenance kit rd40/45-500h wncr1410
5100086364 · qty on machine: 1 | |||||
| 10 | 5100086365 | Maintenance kit rd40/45-50h wncr1410 | 1 | PARTS REQUEST | |
|
COMING Maintenance kit rd40/45-50h wncr1410
5100086365 · qty on machine: 1 | |||||
Page 3 — Fuel filter (Option) SP
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 1000386655 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000386655 · qty on machine: 1 | |||||
| 2 | 1000389249 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
1000389249 · qty on machine: 1 | |||||
| 3 | 1000389229 | Screw joint | 2 | PARTS REQUEST | |
|
COMING Screw joint
1000389229 · qty on machine: 2 | |||||
| 4 | 1000386656 | Filter insert | 1 | PARTS REQUEST | |
|
COMING Filter insert
1000386656 · qty on machine: 1 | |||||
| 5 | 1000433955 | Filter housing | 1 | PARTS REQUEST | |
|
COMING Filter housing
1000433955 · qty on machine: 1 | |||||
| 6 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 7 | 1000389241 | Hose clamp | 4 | PARTS REQUEST | |
|
COMING Hose clamp
1000389241 · qty on machine: 4 | |||||
| 8 | 1000389247 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389247 · qty on machine: 1 | |||||
| 9 | 1000434006 | Pressure limit reliefvalve | 1 | PARTS REQUEST | |
|
COMING Pressure limit reliefvalve
1000434006 · qty on machine: 1 | |||||
| 10 | 1000389230 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389230 · qty on machine: 1 | |||||
| 11 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 12 | 1000088388 | Screw | 3 | PARTS REQUEST | |
|
COMING Screw
1000088388 · qty on machine: 3 | |||||
| 13 | 1000433952 | Arm | 1 | PARTS REQUEST | |
|
COMING Arm
1000433952 · qty on machine: 1 | |||||
| 14 | 1000328508 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
1000328508 · qty on machine: 1 | |||||
| 15 | 1000433949 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433949 · qty on machine: 1 | |||||
| 16 | 1000433950 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433950 · qty on machine: 1 | |||||
| 17 | 1000389262 | Fuel pump | 1 | PARTS REQUEST | |
|
COMING Fuel pump
1000389262 · qty on machine: 1 | |||||
Page 26 — Main frame and assemblies
Parts list — exactly as printed65 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100065313 | Front frame part | 1 | PARTS REQUEST | |
|
COMING Front frame part
5100065313 · qty on machine: 1 | |||||
| 5 | 5100024883 | Console | 1 | PARTS REQUEST | |
|
COMING Console
5100024883 · qty on machine: 1 | |||||
| 6 | 5100011847 | Metal plate | 2 | ADD TO CART | |
| 8 | 5100012968 | Locking washer | 10 | ADD TO CART | |
| 9 | 5100012621 | Hexagon screw | 10 | ADD TO CART | |
| 15 | 5100024972 | Cover | 1 | PARTS REQUEST | |
|
COMING Cover
5100024972 · qty on machine: 1 | |||||
| 16 | 5100012968 | Locking washer | 4 | ADD TO CART | |
| 17 | 5100012621 | Hexagon screw | 4 | ADD TO CART | |
| 90 | 5100065324 | Ramming protection | 1 | PARTS REQUEST | |
|
COMING Ramming protection
5100065324 · qty on machine: 1 | |||||
| 91 | 5100022994 | Cheese-head screw | 4 | ADD TO CART | |
| 92 | 5100013128 | Washer | 4 | ADD TO CART | |
| 105 | 5100013076 | Towing loop | 1 | ADD TO CART | |
| 106 | 5100011479 | Hexagon screw | 4 | ADD TO CART | |
| 107 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 20 | 5100065349 | Grab handle | 1 | PARTS REQUEST | |
|
COMING Grab handle
5100065349 · qty on machine: 1 | |||||
| 21 | 5100012727 | Cheese-head screw | 6 | ADD TO CART | |
| 22 | 5100012966 | Locking washer | 6 | ADD TO CART | |
| 23 | 5100012597 | Rear frame part | 1 | PARTS REQUEST | |
|
COMING Rear frame part
5100012597 · qty on machine: 1 | |||||
| 24 | 5100012730 | Rear frame part | 1 | PARTS REQUEST | |
|
COMING Rear frame part
5100012730 · qty on machine: 1 | |||||
| 30 | 5100011814 | Rubber buffer | 6 | ADD TO CART | |
| 31 | 5100013463 | Cheese-head screw | 6 | ADD TO CART | |
| 34 | 5100012599 | Box | 1 | ADD TO CART | |
| 35 | 5100012357 | Silentbloc | 2 | ADD TO CART | |
| 36 | 5100012723 | Cheese-head screw | 2 | ADD TO CART | |
| 37 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 38 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 39 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 40 | 5100033190 | Hexagon screw | 2 | ADD TO CART | |
| 41 | 5100013128 | Washer | 2 | ADD TO CART | |
| 42 | 5100012202 | Bushing | 2 | ADD TO CART | |
| 43 | 5100011734 | Rubber metal buffer | 2 | ADD TO CART | |
| 44 | 5100035014 | Hexagon screw | 2 | ADD TO CART | |
| 45 | 5100013128 | Washer | 2 | ADD TO CART | |
| 50 | 5100012146 | Handle | 2 | PARTS REQUEST | |
|
COMING Handle
5100012146 · qty on machine: 2 | |||||
| 51 | 5100012529 | Filler cap | 4 | ADD TO CART | |
| 52 | 5100016503 | Bushing | 8 | ADD TO CART | |
| 55 | 5100011498 | Silentbloc | 8 | ADD TO CART | |
| 56 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 57 | 5100012946 | Stud bolt | 4 | ADD TO CART | |
| 58 | 5100012977 | Stud bolt | 4 | ADD TO CART | |
| 59 | 5100012546 | Hexagon nut | 8 | ADD TO CART | |
| 60 | 5100012660 | Bottom plate | 1 | ADD TO CART | |
| 61 | 5100012617 | Hexagon screw | 6 | ADD TO CART | |
| 62 | 5100013128 | Washer | 6 | ADD TO CART | |
| 65 | 5100012712 | Rubber metal buffer | 2 | ADD TO CART | |
| 66 | 5100035014 | Hexagon screw | 2 | ADD TO CART | |
| 67 | 5100013128 | Washer | 2 | ADD TO CART | |
| 69 | 5100016289 | Steering console | 1 | PARTS REQUEST | |
|
COMING Steering console
5100016289 · qty on machine: 1 | |||||
| 69 | 5100012640 | Steering console | 1 | ADD TO CART | |
| 71 | 5100012517 | Hexagon screw | 2 | ADD TO CART | |
| 72 | 5100013094 | Washer | 2 | ADD TO CART | |
| 73 | 5100013644 | Rubber profile | 0.25 | ADD TO CART | |
| 74 | 5100052877 | Protective cap | 2 | ADD TO CART | |
| 75 | 5100012652 | Spacer plate | 1 | ADD TO CART | |
| 77 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 78 | 5100013094 | Washer | 2 | ADD TO CART | |
| 80 | 5100012653 | Retaining plate | 1 | ADD TO CART | |
| 81 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 82 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 5 | 5100011506 | Chock | 1 | ADD TO CART | |
| 9 | 5100059505 | Foot mat | 1 | PARTS REQUEST | |
|
COMING Foot mat
5100059505 · qty on machine: 1 | |||||
| 10 | 5100013309 | Bracket | 2 | ADD TO CART | |
| 11 | 5100052883 | Countersunk screw | 4 | ADD TO CART | |
| 12 | 5100065357 | Blind rivet nut | 4 | PARTS REQUEST | |
|
COMING Blind rivet nut
5100065357 · qty on machine: 4 | |||||
| 14 | 5100052884 | Lashing strap | 1 | PARTS REQUEST | |
|
COMING Lashing strap
5100052884 · qty on machine: 1 | |||||
Page 34 — Canopies and covers
Parts list — exactly as printed88 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100065350 | Engine cover | 1 | PARTS REQUEST | |
|
COMING Engine cover
5100065350 · qty on machine: 1 | |||||
| 2 | 5100012498 | Safety screw | 4 | ADD TO CART | |
| 5 | 5100012193 | Hinge | 2 | ADD TO CART | |
| 6 | 5100012214 | Metal plate | 2 | ADD TO CART | |
| 7 | 5100013085 | Spacer plate | 4 | ADD TO CART | |
| 9 | 5100065352 | Covering part | 1 | PARTS REQUEST | |
|
COMING Covering part
5100065352 · qty on machine: 1 | |||||
| 13 | 5100011544 | Clip nut | 2 | ADD TO CART | |
| 19 | 5100012696 | Lock | 1 | ADD TO CART | |
| 20 | 5100012517 | Hexagon screw | 4 | ADD TO CART | |
| 21 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 22 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 23 | 5100013588 | Lock outside handle | 1 | ADD TO CART | |
| 24 | 5100013590 | Supporting plate | 1 | ADD TO CART | |
| 25 | 5100013589 | Supporting plate | 1 | ADD TO CART | |
| 26 | 5100013404 | Cheese-head screw | 2 | PARTS REQUEST | |
|
COMING Cheese-head screw
5100013404 · qty on machine: 2 | |||||
| 27 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 28 | 5100050643 | Knurled head screw | 1 | PARTS REQUEST | |
|
COMING Knurled head screw
5100050643 · qty on machine: 1 | |||||
| 29 | 5100012545 | Hexagon nut | 1 | ADD TO CART | |
| 30 | 5100065346 | Holder | 1 | ADD TO CART | |
| 31 | 5100012780 | Mushroom head screw | 2 | ADD TO CART | |
| 32 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 33 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 35 | 5100050644 | Wire clip | 1 | ADD TO CART | |
| 37 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 38 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 45 | 5100017981 | Gas spring | 2 | ADD TO CART | |
| 47 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 48 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 50 | 5100013525 | Rubber buffer | 1 | ADD TO CART | |
| 51 | 5100013537 | Hexagon nut | 1 | ADD TO CART | |
| 60 | 5100012029 | Sealing profile | 3.3 | ADD TO CART | |
| 203 | 5100017982 | Cap | 2 | ADD TO CART | |
| 204 | 5100058746 | Filler cap | 2 | ADD TO CART | |
| 206 | 5100050647 | Filler cap | 4 | ADD TO CART | |
| 210 | 5100024985 | Kit cover | 1 | PARTS REQUEST | |
|
COMING Kit cover
5100024985 · qty on machine: 1 | |||||
| 211 | 5100012572 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 4 | |||||
| 212 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 215 | 5100024995 | Insulation plate | 1 | PARTS REQUEST | |
|
COMING Insulation plate
5100024995 · qty on machine: 1 | |||||
| 216 | 5100011581 | Fillister head screw | 4 | ADD TO CART | |
| 217 | 5100011922 | Locking washer | 4 | ADD TO CART | |
| 220 | 5100025002 | Lid | 1 | PARTS REQUEST | |
|
COMING Lid
5100025002 · qty on machine: 1 | |||||
| 221 | 5100012515 | Hexagon screw | 3 | ADD TO CART | |
| 222 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 225 | 5100024901 | Sealing tape | 0.2 | ADD TO CART | |
| 78 | 5100011595 | Frame | 2 | ADD TO CART | |
| 79 | 5100011580 | Blind cover | 2 | ADD TO CART | |
| 80 | 5100024934 | Covering part | 1 | PARTS REQUEST | |
|
COMING Covering part
5100024934 · qty on machine: 1 | |||||
| 81 | 5100011854 | Bracket | 1 | ADD TO CART | |
| 82 | 5100012607 | Hexagon screw | 1 | ADD TO CART | |
| 85 | 5100024933 | Covering part | 1 | PARTS REQUEST | |
|
COMING Covering part
5100024933 · qty on machine: 1 | |||||
| 86 | 5100011581 | Fillister head screw | 14 | ADD TO CART | |
| 90 | 5100025103 | Instrument panel | 1 | ADD TO CART | |
| 93 | 5100011860 | Rubber sleeve | 1 | ADD TO CART | |
| 94 | 5100011581 | Fillister head screw | 7 | ADD TO CART | |
| 130 | 5100024905 | Lid | 2 | PARTS REQUEST | |
|
COMING Lid
5100024905 · qty on machine: 2 | |||||
| 132 | 5100012651 | Sealing profile | 2 | ADD TO CART | |
| 133 | 5100012592 | Hexagon screw | 8 | ADD TO CART | |
| 134 | 5100012936 | Washer | 8 | ADD TO CART | |
| 140 | 5100012822 | Cover plate | 1 | ADD TO CART | |
| 141 | 5100012572 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 2 | |||||
| 142 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 150 | 5100012879 | Cover plate | 2 | ADD TO CART | |
| 151 | 5100011634 | Sheet metal screw | 4 | ADD TO CART | |
| 185 | 5100024964 | Lid | 1 | PARTS REQUEST | |
|
COMING Lid
5100024964 · qty on machine: 1 | |||||
| 186 | 5100012515 | Hexagon screw | 4 | ADD TO CART | |
| 187 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 190 | 5100012659 | Cover | 1 | ADD TO CART | |
| 191 | 5100012572 | Hexagon screw | 3 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 3 | |||||
| 192 | 5100012965 | Locking washer | 3 | ADD TO CART | |
| 197 | 5100050647 | Filler cap | 4 | ADD TO CART | |
| 199 | 5100011550 | Plug | 4 | ADD TO CART | |
| 200 | 5100050647 | Filler cap | 2 | ADD TO CART | |
| 205 | 5100017982 | Cap | 2 | ADD TO CART | |
| 70 | 5100012033 | Cover | 1 | ADD TO CART | |
| 71 | 5100013557 | Key | 1 | ADD TO CART | |
| 71 | 5100013591 | Built-in lock | 1 | ADD TO CART | |
| 72 | 5100013647 | Sealing profile | 0.8 | ADD TO CART | |
| 120 | 5100012464 | Cover | 4 | ADD TO CART | |
| 121 | 5100012515 | Hexagon screw | 16 | ADD TO CART | |
| 122 | 5100012966 | Locking washer | 16 | ADD TO CART | |
| 195 | 5100011537 | Filler cap | 32 | ADD TO CART | |
| 201 | 5100017982 | Cap | 2 | ADD TO CART | |
| 10 | 5100065351 | Covering part | 1 | PARTS REQUEST | |
|
COMING Covering part
5100065351 · qty on machine: 1 | |||||
| 11 | 5100016199 | Cheese-head screw | 2 | PARTS REQUEST | |
|
COMING Cheese-head screw
5100016199 · qty on machine: 2 | |||||
| 12 | 5100013523 | Washer | 2 | ADD TO CART | |
| 14 | 5100016820 | Cheese-head screw | 2 | ADD TO CART | |
| 15 | 5100013523 | Washer | 2 | ADD TO CART | |
| 17 | 5100013644 | Rubber profile | 0.6 | ADD TO CART | |
Page 44 — Label arrangement
Parts list — exactly as printed25 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013224 | Type plate rd 40-130 | 2 | PARTS REQUEST | |
|
COMING Type plate rd 40-130
5100013224 · qty on machine: 2 | |||||
| 1 | 5100013225 | Type plate rd 40-130c | 2 | PARTS REQUEST | |
|
COMING Type plate rd 40-130c
5100013225 · qty on machine: 2 | |||||
| 1 | 5100013226 | Type plate rd 40-130o | 2 | PARTS REQUEST | |
|
COMING Type plate rd 40-130o
5100013226 · qty on machine: 2 | |||||
| 1 | 5100017985 | Type plate rd 45-140 | 2 | PARTS REQUEST | |
|
COMING Type plate rd 45-140
5100017985 · qty on machine: 2 | |||||
| 1 | 5100017986 | Type plate rd 45-140c | 2 | PARTS REQUEST | |
|
COMING Type plate rd 45-140c
5100017986 · qty on machine: 2 | |||||
| 1 | 5100017987 | Type plate rd 45-140o | 2 | PARTS REQUEST | |
|
COMING Type plate rd 45-140o
5100017987 · qty on machine: 2 | |||||
| 2 | 5100016821 | Type plate | 2 | ADD TO CART | |
| 3 | 5100025945 | Type plate | 2 | ADD TO CART | |
| 4 | 5100016256 | Sticker | 1 | ADD TO CART | |
| 5 | 5100016257 | Adhesive tape | 1 | ADD TO CART | |
| 9 | 5100013209 | Decal kit | 1 | ADD TO CART | |
| 10 | 5100013207 | Decal kit | 1 | ADD TO CART | |
| 10 | 5100013208 | Decal kit | 1 | ADD TO CART | |
| 50 | 5100013420 | Sticker | 3 | ADD TO CART | |
| 51 | 5100023527 | Label | 1 | ADD TO CART | |
| 90 | 5100012698 | Sticker | 1 | ADD TO CART | |
| 90 | 5100016500 | Sticker | 1 | ADD TO CART | |
| 91 | 5100012699 | Sticker | 1 | ADD TO CART | |
| 106 | 5100016258 | Decal kit | 1 | ADD TO CART | |
| 51 | 5100011684 | Metal plate | 1 | ADD TO CART | |
| 52 | 5100013409 | Countersunk screw | 2 | ADD TO CART | |
| 100 | 5100012465 | Sticker | 1 | ADD TO CART | |
| 105 | 5100011703 | Sticker | 1 | ADD TO CART | |
| 115 | 5100027780 | Label | 1 | ADD TO CART | |
| 1 | 5100013208 | Decal kit | 1 | ADD TO CART | |
Page 62 — Sound insulation
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100065339 | Sound insulation | 1 | PARTS REQUEST | |
|
COMING Sound insulation
5100065339 · qty on machine: 1 | |||||
| 2 | 5100065340 | Sound insulation | 1 | PARTS REQUEST | |
|
COMING Sound insulation
5100065340 · qty on machine: 1 | |||||
| 3 | 5100065342 | Sound insulation | 1 | PARTS REQUEST | |
|
COMING Sound insulation
5100065342 · qty on machine: 1 | |||||
| 4 | 5100011922 | Locking washer | 20 | ADD TO CART | |
Page 64 — Driver seat with adjustment
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100011518 | Seat cushion | 1 | ADD TO CART | |
| 2 | 5100011519 | Backrest cushion | 1 | ADD TO CART | |
| 2 | 5100011615 | Handle | 1 | ADD TO CART | |
| 2 | 5100012964 | Seat contact switch | 1 | ADD TO CART | |
| 2 | 5100013067 | Adjustment bar | 1 | ADD TO CART | |
| 2 | 5100013083 | Adjustment bar | 1 | ADD TO CART | |
| 2 | 5100029584 | Driver's seat | 1 | ADD TO CART | |
| 2 | 5100033202 | Lap belt | 1 | ADD TO CART | |
| 3 | 5100025888 | Lap belt | 1 | Serialno. 160-222 | ADD TO CART |
| 3 | 5100083270 | Lap belt | 1 | Serialno. >223 | PARTS REQUEST |
|
COMING Lap belt
5100083270 · qty on machine: 1 Serialno. >223 | |||||
| 4 | 5100052890 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100052890 · qty on machine: 1 | |||||
| 5 | 5100083271 | Cable harness | 1 | Serialno. >223 | PARTS REQUEST |
|
COMING Cable harness
5100083271 · qty on machine: 1 Serialno. >223 | |||||
| 3 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 4 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 6 | 5100012015 | Metal plate | 2 | ADD TO CART | |
| 7 | 5100013510 | Hexagon screw | 4 | ADD TO CART | |
| 8 | 5100012966 | Locking washer | 5 | ADD TO CART | |
| 9 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 10 | 5100013441 | Locking washer | 1 | ADD TO CART | |
| 20 | 5100039064 | Stop | 1 | ADD TO CART | |
| 110 | 5100012306 | Protecting plate | 1 | ADD TO CART | |
| 111 | 5100011634 | Sheet metal screw | 2 | ADD TO CART | |
Page 68 — Driver seat
Parts list — exactly as printed32 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011615 | Handle | 1 | ADD TO CART | |
| 1 | 5100013067 | Adjustment bar | 1 | ADD TO CART | |
| 1 | 5100013083 | Adjustment bar | 1 | ADD TO CART | |
| 1 | 5100024343 | Cushion set | 1 | ADD TO CART | |
| 1 | 5100024920 | Seat contact switch | 1 | ADD TO CART | |
| 1 | 5100029585 | Backrest cushion, imi. leather | 1 | ADD TO CART | |
| 1 | 5100029596 | Driver's seat | 1 | ADD TO CART | |
| 1 | 5100033202 | Lap belt | 1 | ADD TO CART | |
| 3 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 4 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 6 | 5100012015 | Metal plate | 2 | ADD TO CART | |
| 7 | 5100013510 | Hexagon screw | 4 | ADD TO CART | |
| 8 | 5100012966 | Locking washer | 5 | ADD TO CART | |
| 9 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 10 | 5100013441 | Locking washer | 1 | ADD TO CART | |
| 11 | 5100083270 | Lap belt | 1 | Serialno. >223 | PARTS REQUEST |
|
COMING Lap belt
5100083270 · qty on machine: 1 Serialno. >223 | |||||
| 11 | 5100025888 | Lap belt | 1 | Serialno. 160-222 | ADD TO CART |
| 12 | 5100052890 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100052890 · qty on machine: 1 | |||||
| 13 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 14 | 5100083271 | Cable harness | 1 | Serialno. >223 | PARTS REQUEST |
|
COMING Cable harness
5100083271 · qty on machine: 1 Serialno. >223 | |||||
| 15 | 5100011947 | Switch | 1 | PARTS REQUEST | |
|
COMING Switch
5100011947 · qty on machine: 1 | |||||
| 16 | 5100011938 | Bogie, seat heating | 1 | ADD TO CART | |
| 20 | 5100039064 | Stop | 1 | ADD TO CART | |
| 60 | 5100024344 | Central plug | 1 | ADD TO CART | |
| 70 | 5100029597 | Flat plug sleeve | 2 | ADD TO CART | |
| 78 | 5100011595 | Frame | 2 | ADD TO CART | |
| 80 | 5100059486 | Connector housing | 1 | PARTS REQUEST | |
|
COMING Connector housing
5100059486 · qty on machine: 1 | |||||
| 90 | 5100029597 | Flat plug sleeve | 1 | ADD TO CART | |
| 100 | 5100033203 | Connector housing | 1 | ADD TO CART | |
| 101 | 5100025825 | Flat-pin plug | 1 | ADD TO CART | |
| 110 | 5100012306 | Protecting plate | 1 | ADD TO CART | |
| 111 | 5100011634 | Sheet metal screw | 2 | ADD TO CART | |
Page 70 — Rigid roll over protection
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100050649 | Roll over protection | 1 | PARTS REQUEST | |
|
COMING Roll over protection
5100050649 · qty on machine: 1 | |||||
| 5 | 5100012526 | Hexagon screw | 2 | ADD TO CART | |
| 6 | 5100012969 | Locking washer | 2 | ADD TO CART | |
| 8 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 9 | 5100011504 | Hexagon screw | 4 | ADD TO CART | |
| 9 | 5100013233 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100013233 · qty on machine: 4 | |||||
| 9 | 5100013235 | Hexagon screw | 4 | ADD TO CART | |
| 15 | 5100012350 | Spacer block | 6 | ADD TO CART | |
| 16 | 5100011485 | Cheese-head screw | 6 | ADD TO CART | |
| 17 | 5100011814 | Rubber buffer | 6 | ADD TO CART | |
| 190 | 5100017989 | Rail | 1 | ADD TO CART | |
| 191 | 5100012571 | Hexagon screw | 2 | ADD TO CART | |
| 192 | 5100012965 | Locking washer | 2 | ADD TO CART | |
Page 72 — Roll over protection
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012666 | Rops foldable | 1 | ADD TO CART | |
| 1 | 5100012921 | Safety cord | 2 | PARTS REQUEST | |
|
COMING Safety cord
5100012921 · qty on machine: 2 | |||||
| 1 | 5100012987 | W-clip | 2 | ADD TO CART | |
| 5 | 5100012526 | Hexagon screw | 2 | ADD TO CART | |
| 6 | 5100012969 | Locking washer | 2 | ADD TO CART | |
| 8 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 9 | 5100011504 | Hexagon screw | 4 | ADD TO CART | |
| 9 | 5100013233 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100013233 · qty on machine: 4 | |||||
| 9 | 5100013235 | Hexagon screw | 4 | ADD TO CART | |
| 15 | 5100012350 | Spacer block | 6 | ADD TO CART | |
| 16 | 5100011485 | Cheese-head screw | 6 | ADD TO CART | |
| 17 | 5100011814 | Rubber buffer | 6 | ADD TO CART | |
| 190 | 5100017989 | Rail | 1 | ADD TO CART | |
| 191 | 5100012571 | Hexagon screw | 2 | ADD TO CART | |
| 192 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 15 | 5100012502 | Hexagon screw | 2 | ADD TO CART | |
| 16 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 17 | 5100012194 | Washer | 2 | ADD TO CART | |
| 18 | 5100012603 | Safety nut | 2 | ADD TO CART | |
| 19 | 5100024289 | Washer | 2 | PARTS REQUEST | |
|
COMING Washer
5100024289 · qty on machine: 2 | |||||
| 20 | 5100012986 | Threaded bolt | 2 | PARTS REQUEST | |
|
COMING Threaded bolt
5100012986 · qty on machine: 2 | |||||
| 100 | 5100012666 | Rops foldable | 1 | ADD TO CART | |
Page 76 — Protective roof
Parts list — exactly as printed25 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100059499 | Roof | 1 | PARTS REQUEST | |
|
COMING Roof
5100059499 · qty on machine: 1 | |||||
| 3 | 5100059503 | Strap bolt | 4 | PARTS REQUEST | |
|
COMING Strap bolt
5100059503 · qty on machine: 4 | |||||
| 4 | 5100059502 | Plate | 4 | PARTS REQUEST | |
|
COMING Plate
5100059502 · qty on machine: 4 | |||||
| 5 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 6 | 5100012547 | Hexagon nut | 8 | ADD TO CART | |
| 10 | 5100059503 | Strap bolt | 2 | PARTS REQUEST | |
|
COMING Strap bolt
5100059503 · qty on machine: 2 | |||||
| 11 | 5100059500 | Distance sheet | 6 | PARTS REQUEST | |
|
COMING Distance sheet
5100059500 · qty on machine: 6 | |||||
| 12 | 5100059502 | Plate | 2 | PARTS REQUEST | |
|
COMING Plate
5100059502 · qty on machine: 2 | |||||
| 13 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 14 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 15 | 5100035325 | Protective cap | 4 | ADD TO CART | |
| 20 | 5100016261 | Rail | 1 | ADD TO CART | |
| 21 | 5100012608 | Hexagon screw | 2 | ADD TO CART | |
| 22 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 23 | 5100016825 | Locking washer | 2 | ADD TO CART | |
| 24 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 25 | 5100011577 | Protecting cap | 2 | ADD TO CART | |
| 40 | 5100034805 | Cable support sleeve | 4 | ADD TO CART | |
| 46 | 5100050646 | Filler cap | 8 | ADD TO CART | |
| 47 | 5100013530 | Filler cap | 4 | ADD TO CART | |
| 50 | 5100013412 | Edge protection | 1.85 | ADD TO CART | |
| 55 | 5100068809 | Metal plate | 1 | ADD TO CART | |
| 56 | 5100011479 | Hexagon screw | 2 | ADD TO CART | |
| 57 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 58 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
Page 78 — Sun roof
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100033204 | Holder system | 1 | PARTS REQUEST | |
|
COMING Holder system
5100033204 · qty on machine: 1 | |||||
| 3 | 5100013128 | Washer | 4 | ADD TO CART | |
| 4 | 5100013416 | Hexagon screw | 2 | ADD TO CART | |
| 5 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 10 | 5100033205 | Angle bracket | 1 | ADD TO CART | |
| 11 | 5100033206 | Angle bracket | 1 | ADD TO CART | |
| 12 | 5100013128 | Washer | 6 | ADD TO CART | |
| 13 | 5100012617 | Hexagon screw | 6 | ADD TO CART | |
| 20 | 5100033207 | Frame | 1 | ADD TO CART | |
| 21 | 5100033208 | Metal plate | 2 | ADD TO CART | |
| 22 | 5100013416 | Hexagon screw | 4 | ADD TO CART | |
| 23 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 24 | 5100024352 | Ring nut | 4 | ADD TO CART | |
| 25 | 5100024341 | Roof tarpaulin | 1 | ADD TO CART | |
| 35 | 5100039070 | Metal plate | 1 | PARTS REQUEST | |
|
COMING Metal plate
5100039070 · qty on machine: 1 | |||||
| 36 | 5100039069 | Metal plate | 1 | PARTS REQUEST | |
|
COMING Metal plate
5100039069 · qty on machine: 1 | |||||
| 37 | 5100013128 | Washer | 4 | ADD TO CART | |
| 38 | 5100013416 | Hexagon screw | 2 | ADD TO CART | |
| 39 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 40 | 5100013128 | Washer | 2 | ADD TO CART | |
| 41 | 5100011479 | Hexagon screw | 2 | ADD TO CART | |
Page 80 — Instrument panel covering
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 91 | 5100013557 | Key | 1 | ADD TO CART | |
| 91 | 5100013596 | Built-in lock | 1 | PARTS REQUEST | |
|
COMING Built-in lock
5100013596 · qty on machine: 1 | |||||
| 92 | 5100011698 | Spacer block | 1 | ADD TO CART | |
| 100 | 5100025100 | Covering part | 1 | ADD TO CART | |
| 101 | 5100012456 | Bushing | 2 | ADD TO CART | |
| 102 | 5100011853 | Fillister head screw | 2 | ADD TO CART | |
| 104 | 5100013537 | Hexagon nut | 4 | ADD TO CART | |
Page 82 — Driver cab
Parts list — exactly as printed215 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013136 | Driver's cabin | 1 | PARTS REQUEST | |
|
COMING Driver's cabin
5100013136 · qty on machine: 1 | |||||
| 5 | 5100012526 | Hexagon screw | 2 | ADD TO CART | |
| 6 | 5100012969 | Locking washer | 2 | ADD TO CART | |
| 7 | 5100013350 | Spacer block | 2 | PARTS REQUEST | |
|
COMING Spacer block
5100013350 · qty on machine: 2 | |||||
| 8 | 5100013174 | Stud bolt | 2 | ADD TO CART | |
| 9 | 5100013128 | Washer | 2 | ADD TO CART | |
| 10 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 11 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 12 | 5100035325 | Protective cap | 2 | ADD TO CART | |
| 95 | 5100039071 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100039071 · qty on machine: 4 | |||||
| 97 | 5100065360 | Distance sheet | 1 | ADD TO CART | |
| 98 | 5100013198 | Spacer plate | 1 | ADD TO CART | |
| 99 | 5100065361 | Stud screw | 6 | PARTS REQUEST | |
|
COMING Stud screw
5100065361 · qty on machine: 6 | |||||
| 101 | 5100012493 | Filler cap | 2 | ADD TO CART | |
| 102 | 5100013530 | Filler cap | 4 | ADD TO CART | |
| 103 | 5100012501 | Filler cap | 1 | ADD TO CART | |
| 104 | 5100011656 | Filler cap | 6 | ADD TO CART | |
| 305 | 5100011859 | Relay | 1 | ADD TO CART | |
| 306 | 5100013594 | Safety screw | 2 | ADD TO CART | |
| 315 | 5100059508 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100059508 · qty on machine: 1 | |||||
| 316 | 5100013579 | Blade fuse | 1 | ADD TO CART | |
| 317 | 5100011640 | Blade fuse | 1 | ADD TO CART | |
| 318 | 5100013586 | Blade fuse | 1 | PARTS REQUEST | |
|
COMING Blade fuse
5100013586 · qty on machine: 1 | |||||
| 2 | 5100013278 | Roof | 1 | PARTS REQUEST | |
|
COMING Roof
5100013278 · qty on machine: 1 | |||||
| 3 | 5100013317 | Lifting screw | 4 | ADD TO CART | |
| 4 | 5100011459 | Washer | 4 | ADD TO CART | |
| 5 | 5100013315 | Washer | 4 | ADD TO CART | |
| 6 | 5100013287 | Bracket | 1 | ADD TO CART | |
| 7 | 5100012517 | Hexagon screw | 2 | ADD TO CART | |
| 8 | 5100012938 | Washer | 2 | ADD TO CART | |
| 9 | 5100013421 | Washer | 2 | ADD TO CART | |
| 10 | 5100011476 | Safety nut | 2 | ADD TO CART | |
| 15 | 5100011606 | Working light | 2 | ADD TO CART | |
| 16 | 5100013554 | Lamp | 2 | ADD TO CART | |
| 18 | 5100012343 | Working light | 4 | ADD TO CART | |
| 18 | 5100012620 | Lamp | 4 | ADD TO CART | |
| 19 | 5100011739 | Fillister head screw | 12 | ADD TO CART | |
| 20 | 5100012594 | Flange | 4 | ADD TO CART | |
| 21 | 5100013366 | Sheet metal screw | 12 | ADD TO CART | |
| 22 | 5100013269 | Sealing profile | 0.6 | ADD TO CART | |
| 2 | 5100013279 | Cabin door | 1 | PARTS REQUEST | |
|
COMING Cabin door
5100013279 · qty on machine: 1 | |||||
| 3 | 5100013280 | Hinge pin | 2 | ADD TO CART | |
| 4 | 5100013321 | Sealing ring | 4 | ADD TO CART | |
| 5 | 5100012939 | Washer | 2 | ADD TO CART | |
| 6 | 5100013417 | Split pin | 2 | ADD TO CART | |
| 8 | 5100013284 | Hinge | 2 | ADD TO CART | |
| 9 | 5100013285 | Hinge | 2 | ADD TO CART | |
| 10 | 5100013291 | Rubber seal | 4 | ADD TO CART | |
| 11 | 5100013316 | Distance bush | 4 | ADD TO CART | |
| 12 | 5100013572 | Protecting cap | 8 | ADD TO CART | |
| 13 | 5100013510 | Hexagon screw | 4 | ADD TO CART | |
| 14 | 5100012938 | Washer | 4 | ADD TO CART | |
| 15 | 5100011476 | Safety nut | 4 | ADD TO CART | |
| 16 | 5100013027 | Greasing nipple | 4 | ADD TO CART | |
| 17 | 5100013299 | Mounting | 4 | PARTS REQUEST | |
|
COMING Mounting
5100013299 · qty on machine: 4 | |||||
| 18 | 5100013222 | Side pane | 1 | ADD TO CART | |
| 19 | 5100013304 | Window lock | 1 | ADD TO CART | |
| 20 | 5100012866 | Fillister head screw | 2 | ADD TO CART | |
| 21 | 5100012936 | Washer | 2 | ADD TO CART | |
| 22 | 5100011603 | Mounting | 1 | ADD TO CART | |
| 25 | 5100011503 | Closing bolt | 1 | ADD TO CART | |
| 26 | 5100011557 | Bow | 1 | ADD TO CART | |
| 27 | 5100013303 | Plate | 1 | PARTS REQUEST | |
|
COMING Plate
5100013303 · qty on machine: 1 | |||||
| 28 | 5100013308 | Rebound strap | 1 | ADD TO CART | |
| 29 | 5100013309 | Bracket | 2 | ADD TO CART | |
| 30 | 5100012595 | Countersunk screw | 4 | ADD TO CART | |
| 32 | 5100024989 | Gas spring | 1 | ADD TO CART | |
| 34 | 5100013443 | Sealing profile | 5 | ADD TO CART | |
| 35 | 5100013419 | Edge protection | 9.5 | ADD TO CART | |
| 40 | 5100013307 | Tools | 1 | ADD TO CART | |
| 2 | 5100013281 | Cabin door | 1 | PARTS REQUEST | |
|
COMING Cabin door
5100013281 · qty on machine: 1 | |||||
| 18 | 5100013221 | Side pane | 1 | ADD TO CART | |
| 19 | 5100013305 | Window lock | 1 | PARTS REQUEST | |
|
COMING Window lock
5100013305 · qty on machine: 1 | |||||
| 2 | 5100013259 | Door frame | 1 | PARTS REQUEST | |
|
COMING Door frame
5100013259 · qty on machine: 1 | |||||
| 3 | 5100013260 | Door pane | 1 | ADD TO CART | |
| 4 | 5100013263 | Door pane | 1 | ADD TO CART | |
| 8 | 5100013271 | Seal | 4 | ADD TO CART | |
| 8 | 5100013273 | Mounting | 4 | ADD TO CART | |
| 9 | 5100013306 | Tools | 1 | ADD TO CART | |
| 10 | 5100013510 | Hexagon screw | 4 | ADD TO CART | |
| 11 | 5100012938 | Washer | 4 | ADD TO CART | |
| 12 | 5100012491 | Hexagon nut | 4 | PARTS REQUEST | |
|
COMING Hexagon nut
5100012491 · qty on machine: 4 | |||||
| 13 | 5100013572 | Protecting cap | 4 | ADD TO CART | |
| 22 | 5100013272 | Washer | 9 | PARTS REQUEST | |
|
COMING Washer
5100013272 · qty on machine: 9 | |||||
| 25 | 5100013266 | Cover | 1 | ADD TO CART | |
| 25 | 5100013267 | Lock | 1 | ADD TO CART | |
| 26 | 5100012613 | Hexagon screw | 3 | ADD TO CART | |
| 27 | 5100012937 | Washer | 2 | ADD TO CART | |
| 30 | 5100013275 | Protecting cap | 2 | ADD TO CART | |
| 31 | 5100013276 | Ring | 2 | ADD TO CART | |
| 32 | 5100012865 | Countersunk screw | 2 | ADD TO CART | |
| 33 | 5100012938 | Washer | 2 | ADD TO CART | |
| 34 | 5100012923 | Hexagon nut | 2 | PARTS REQUEST | |
|
COMING Hexagon nut
5100012923 · qty on machine: 2 | |||||
| 35 | 5100013264 | Mounting device | 1 | PARTS REQUEST | |
|
COMING Mounting device
5100013264 · qty on machine: 1 | |||||
| 37 | 5100011602 | Mounting | 1 | ADD TO CART | |
| 40 | 5100013274 | Lock outside handle | 1 | ADD TO CART | |
| 41 | 5100013590 | Supporting plate | 1 | ADD TO CART | |
| 42 | 5100013589 | Supporting plate | 1 | ADD TO CART | |
| 43 | 5100013270 | Sealing ring | 2 | ADD TO CART | |
| 44 | 5100013322 | Fillister head screw | 1 | PARTS REQUEST | |
|
COMING Fillister head screw
5100013322 · qty on machine: 1 | |||||
| 45 | 5100013275 | Protecting cap | 1 | ADD TO CART | |
| 46 | 5100013276 | Ring | 1 | ADD TO CART | |
| 50 | 5100013557 | Key | 1 | ADD TO CART | |
| 98 | 5100013269 | Sealing profile | 4.2 | ADD TO CART | |
| 99 | 5100011598 | Adhesive set | 1 | ADD TO CART | |
| 100 | 5100013279 | Cabin door | 1 | PARTS REQUEST | |
|
COMING Cabin door
5100013279 · qty on machine: 1 | |||||
| 2 | 5100013258 | Door frame | 1 | PARTS REQUEST | |
|
COMING Door frame
5100013258 · qty on machine: 1 | |||||
| 3 | 5100013261 | Door pane | 1 | ADD TO CART | |
| 4 | 5100013262 | Door pane | 1 | ADD TO CART | |
| 25 | 5100013265 | Cover | 1 | ADD TO CART | |
| 25 | 5100013268 | Lock | 1 | ADD TO CART | |
| 100 | 5100013281 | Cabin door | 1 | PARTS REQUEST | |
|
COMING Cabin door
5100013281 · qty on machine: 1 | |||||
| 2 | 5100013220 | Front window | 1 | ADD TO CART | |
| 3 | 5100013318 | Sealing profile | 3 | ADD TO CART | |
| 5 | 5100013271 | Seal | 4 | ADD TO CART | |
| 5 | 5100013273 | Mounting | 4 | ADD TO CART | |
| 6 | 5100011477 | Hexagon screw | 4 | ADD TO CART | |
| 7 | 5100013306 | Tools | 1 | ADD TO CART | |
| 9 | 5100013292 | Spacer block | 4 | PARTS REQUEST | |
|
COMING Spacer block
5100013292 · qty on machine: 4 | |||||
| 10 | 5100012938 | Washer | 4 | ADD TO CART | |
| 11 | 5100012491 | Hexagon nut | 4 | PARTS REQUEST | |
|
COMING Hexagon nut
5100012491 · qty on machine: 4 | |||||
| 15 | 5100013283 | Covering part | 1 | ADD TO CART | |
| 16 | 5100012608 | Hexagon screw | 2 | ADD TO CART | |
| 17 | 5100012937 | Washer | 4 | ADD TO CART | |
| 18 | 5100012601 | Safety nut | 2 | ADD TO CART | |
| 20 | 5100013275 | Protecting cap | 6 | ADD TO CART | |
| 21 | 5100013495 | Fillister head screw | 6 | ADD TO CART | |
| 22 | 5100013276 | Ring | 6 | ADD TO CART | |
| 23 | 5100012420 | Blind rivet nut | 6 | ADD TO CART | |
| 25 | 5100013644 | Rubber profile | 1 | ADD TO CART | |
| 30 | 5100011539 | Stay bar | 1 | ADD TO CART | |
| 31 | 5100011540 | Stay bar | 1 | ADD TO CART | |
| 32 | 5100013572 | Protecting cap | 8 | ADD TO CART | |
| 33 | 5100013510 | Hexagon screw | 4 | ADD TO CART | |
| 34 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 35 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 36 | 5100011541 | Mirror | 2 | ADD TO CART | |
| 37 | 5100013193 | Air filter | 1 | PARTS REQUEST | |
|
COMING Air filter
5100013193 · qty on machine: 1 | |||||
| 38 | 5100012913 | Countersunk screw | 4 | ADD TO CART | |
| 42 | 5100013301 | Elbow | 1 | ADD TO CART | |
| 43 | 5100012324 | Flexible tubing | 1 | ADD TO CART | |
| 46 | 5100013296 | Sprinkler nozzle | 1 | ADD TO CART | |
| 50 | 5100013152 | Wiper motor | 1 | ADD TO CART | |
| 51 | 5100013328 | Wiper arm | 1 | ADD TO CART | |
| 52 | 5100011558 | Windshield rubber | 1 | ADD TO CART | |
| 55 | 5100013642 | Sealing profile | 1.8 | ADD TO CART | |
| 56 | 5100011768 | Sealing tape | 2 | ADD TO CART | |
| 60 | 5100013154 | Inside lamp | 1 | ADD TO CART | |
| 61 | 5100012467 | Lamp | 1 | ADD TO CART | |
| 65 | 5100011605 | Inside mirror | 1 | PARTS REQUEST | |
|
COMING Inside mirror
5100011605 · qty on machine: 1 | |||||
| 2 | 5100013219 | Rear pane | 1 | ADD TO CART | |
| 3 | 5100013443 | Sealing profile | 4 | ADD TO CART | |
| 6 | 5100012491 | Hexagon nut | 4 | PARTS REQUEST | |
|
COMING Hexagon nut
5100012491 · qty on machine: 4 | |||||
| 8 | 5100013272 | Washer | 4 | PARTS REQUEST | |
|
COMING Washer
5100013272 · qty on machine: 4 | |||||
| 9 | 5100013298 | Rubber buffer | 4 | ADD TO CART | |
| 13 | 5100013297 | Rubber buffer | 6 | ADD TO CART | |
| 14 | 5100012939 | Washer | 6 | ADD TO CART | |
| 15 | 5100012520 | Hexagon screw | 6 | ADD TO CART | |
| 16 | 5100012939 | Washer | 2 | ADD TO CART | |
| 17 | 5100013598 | Safety nut | 2 | ADD TO CART | |
| 18 | 5100013642 | Sealing profile | 1 | ADD TO CART | |
| 19 | 5100013277 | Covering part | 1 | ADD TO CART | |
| 20 | 5100013289 | Covering part | 1 | ADD TO CART | |
| 21 | 5100013276 | Ring | 8 | ADD TO CART | |
| 22 | 5100013495 | Fillister head screw | 8 | ADD TO CART | |
| 23 | 5100013275 | Protecting cap | 8 | ADD TO CART | |
| 26 | 5100013290 | Covering part | 1 | ADD TO CART | |
| 27 | 5100013495 | Fillister head screw | 4 | ADD TO CART | |
| 28 | 5100012937 | Washer | 4 | ADD TO CART | |
| 29 | 5100013642 | Sealing profile | 1.25 | ADD TO CART | |
| 30 | 5100013644 | Rubber profile | 1 | ADD TO CART | |
| 35 | 5100013153 | Pump | 2 | ADD TO CART | |
| 35 | 5100013158 | Tank with pump | 1 | ADD TO CART | |
| 36 | 5100013275 | Protecting cap | 2 | ADD TO CART | |
| 37 | 5100013495 | Fillister head screw | 2 | ADD TO CART | |
| 38 | 5100013276 | Ring | 2 | ADD TO CART | |
| 39 | 5100012937 | Washer | 2 | ADD TO CART | |
| 40 | 5100012601 | Safety nut | 2 | ADD TO CART | |
| 41 | 5100011577 | Protecting cap | 2 | ADD TO CART | |
| 44 | 5100013458 | Flexible tubing | 4 | ADD TO CART | |
| 45 | 5100013320 | Nonreturn valve | 1 | ADD TO CART | |
| 47 | 5100013302 | Clip | 2 | ADD TO CART | |
| 51 | 5100013319 | Wiper arm | 1 | ADD TO CART | |
| 52 | 5100013300 | Windshield rubber | 1 | ADD TO CART | |
| 2 | 5100013324 | Console | 1 | PARTS REQUEST | |
|
COMING Console
5100013324 · qty on machine: 1 | |||||
| 3 | 5100013325 | Console | 1 | PARTS REQUEST | |
|
COMING Console
5100013325 · qty on machine: 1 | |||||
| 4 | 5100013295 | Hinge | 1 | PARTS REQUEST | |
|
COMING Hinge
5100013295 · qty on machine: 1 | |||||
| 5 | 5100013424 | Rivet | 14 | ADD TO CART | |
| 6 | 5100013227 | Fillister head screw | 2 | ADD TO CART | |
| 7 | 5100013286 | Base plate | 1 | PARTS REQUEST | |
|
COMING Base plate
5100013286 · qty on machine: 1 | |||||
| 8 | 5100011859 | Relay | 1 | ADD TO CART | |
| 9 | 5100013326 | Nameplate | 1 | PARTS REQUEST | |
|
COMING Nameplate
5100013326 · qty on machine: 1 | |||||
| 10 | 5100013294 | Blind cover | 1 | PARTS REQUEST | |
|
COMING Blind cover
5100013294 · qty on machine: 1 | |||||
| 11 | 5100013293 | Grommet | 2 | PARTS REQUEST | |
|
COMING Grommet
5100013293 · qty on machine: 2 | |||||
| 12 | 5100013313 | Distributor | 1 | PARTS REQUEST | |
|
COMING Distributor
5100013313 · qty on machine: 1 | |||||
| 13 | 5100013312 | Distributor | 1 | PARTS REQUEST | |
|
COMING Distributor
5100013312 · qty on machine: 1 | |||||
| 15 | 5100011595 | Frame | 4 | ADD TO CART | |
| 16 | 5100011596 | Frame | 5 | ADD TO CART | |
| 17 | 5100011580 | Blind cover | 4 | ADD TO CART | |
| 18 | 5100011579 | Switch | 1 | ADD TO CART | |
| 19 | 5100011639 | Rocker, rotating-beam light | 1 | ADD TO CART | |
| 20 | 5100011579 | Switch | 1 | ADD TO CART | |
| 21 | 5100012449 | Rocker, windshield wiper | 1 | ADD TO CART | |
| 22 | 5100011597 | Push-button | 1 | ADD TO CART | |
| 23 | 5100012448 | Rocker, windshield wiper | 1 | PARTS REQUEST | |
|
COMING Rocker, windshield wiper
5100012448 · qty on machine: 1 | |||||
| 24 | 5100011579 | Switch | 1 | ADD TO CART | |
| 25 | 5100012450 | Rocker, windshield wiper | 1 | ADD TO CART | |
| 26 | 5100011579 | Switch | 1 | ADD TO CART | |
| 27 | 5100011638 | Rocker, working spotlights | 1 | ADD TO CART | |
| 30 | 5100013586 | Blade fuse | 4 | PARTS REQUEST | |
|
COMING Blade fuse
5100013586 · qty on machine: 4 | |||||
| 31 | 5100013579 | Blade fuse | 4 | ADD TO CART | |
| 32 | 5100013580 | Blade fuse | 2 | ADD TO CART | |
| 33 | 5100013587 | Blade fuse | 2 | ADD TO CART | |
| 40 | 5100013156 | Switch | 1 | ADD TO CART | |
| 45 | 5100013151 | Wire harness (operat. cabin) | 1 | PARTS REQUEST | |
|
COMING Wire harness (operat. cabin)
5100013151 · qty on machine: 1 | |||||
Page 106 — Cabin heating
Parts list — exactly as printed41 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100013155 | Heating | 1 | ADD TO CART | |
| 3 | 5100013327 | Connector | 1 | PARTS REQUEST | |
|
COMING Connector
5100013327 · qty on machine: 1 | |||||
| 5 | 5100013288 | Bow | 1 | PARTS REQUEST | |
|
COMING Bow
5100013288 · qty on machine: 1 | |||||
| 6 | 5100013620 | Sheet metal screw | 1 | ADD TO CART | |
| 7 | 5100012936 | Washer | 1 | ADD TO CART | |
| 8 | 5100013620 | Sheet metal screw | 3 | ADD TO CART | |
| 9 | 5100012936 | Washer | 3 | ADD TO CART | |
| 10 | 5100013500 | Hot air hose | 1 | ADD TO CART | |
| 11 | 5100013500 | Hot air hose | 1 | ADD TO CART | |
| 12 | 5100013500 | Hot air hose | 1 | ADD TO CART | |
| 13 | 5100013500 | Hot air hose | 1 | ADD TO CART | |
| 14 | 5100012907 | Hose clip | 8 | ADD TO CART | |
| 18 | 5100013310 | Air outlet | 2 | ADD TO CART | |
| 19 | 5100013311 | Air outlet | 2 | ADD TO CART | |
| 20 | 5100012040 | Cooling-water hose | 10 | ADD TO CART | |
| 21 | 5100013367 | Hose clip | 4 | ADD TO CART | |
| 25 | 5100013314 | Valve | 1 | ADD TO CART | |
| 26 | 5100013620 | Sheet metal screw | 2 | ADD TO CART | |
| 30 | 5100013156 | Switch | 1 | ADD TO CART | |
| 32 | 5100013282 | Mounting device | 1 | PARTS REQUEST | |
|
COMING Mounting device
5100013282 · qty on machine: 1 | |||||
| 33 | 5100012608 | Hexagon screw | 2 | ADD TO CART | |
| 34 | 5100012937 | Washer | 2 | ADD TO CART | |
| 22 | 5100023483 | Hose nozzle | 1 | ADD TO CART | |
| 23 | 5100013001 | Sealing ring | 1 | ADD TO CART | |
| 24 | 5100012040 | Cooling-water hose | 0.5 | ADD TO CART | |
| 25 | 5100050671 | Wire protecting sleeve | 0.5 | PARTS REQUEST | |
|
COMING Wire protecting sleeve
5100050671 · qty on machine: 0.5 | |||||
| 28 | 5100023483 | Hose nozzle | 2 | ADD TO CART | |
| 29 | 5100013001 | Sealing ring | 2 | ADD TO CART | |
| 30 | 5100011559 | Ball-closure cock | 1 | ADD TO CART | |
| 32 | 5100013367 | Hose clip | 2 | ADD TO CART | |
| 40 | 5100013140 | T-piece | 1 | PARTS REQUEST | |
|
COMING T-piece
5100013140 · qty on machine: 1 | |||||
| 41 | 5100011637 | Hose clip | 2 | ADD TO CART | |
| 45 | 5100012040 | Cooling-water hose | 0.2 | ADD TO CART | |
| 48 | 5100023483 | Hose nozzle | 2 | ADD TO CART | |
| 49 | 5100013001 | Sealing ring | 2 | ADD TO CART | |
| 50 | 5100011559 | Ball-closure cock | 1 | ADD TO CART | |
| 52 | 5100013367 | Hose clip | 2 | ADD TO CART | |
| 53 | 5100050670 | Hose clamp | 2 | ADD TO CART | |
| 60 | 5100035056 | Hexagon screw | 1 | ADD TO CART | |
| 61 | 5100012998 | Sealing ring | 1 | ADD TO CART | |
| 65 | 5100050671 | Wire protecting sleeve | 2.3 | PARTS REQUEST | |
|
COMING Wire protecting sleeve
5100050671 · qty on machine: 2.3 | |||||
Page 110 — Engine and pump assembly
Parts list — exactly as printed116 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 9 | 5100065318 | Washer | 2 | PARTS REQUEST | |
|
COMING Washer
5100065318 · qty on machine: 2 | |||||
| 10 | 5100012912 | Stud bolt | 2 | ADD TO CART | |
| 11 | 5100012212 | Washer | 2 | ADD TO CART | |
| 12 | 5100012548 | Hexagon nut | 2 | ADD TO CART | |
| 20 | 5100012626 | Hexagon screw | 4 | ADD TO CART | |
| 21 | 5100012968 | Locking washer | 4 | ADD TO CART | |
| 35 | 5100012235 | Cap nut | 1 | ADD TO CART | |
| 36 | 5100013555 | Filler cap | 1 | ADD TO CART | |
| 37 | 5100013486 | Bulkhead elbow | 1 | ADD TO CART | |
| 38 | 5100013191 | Washer | 1 | ADD TO CART | |
| 39 | 5100013488 | Hexagon nut | 1 | ADD TO CART | |
| 51 | 5100024931 | Engine suspension | 1 | PARTS REQUEST | |
|
COMING Engine suspension
5100024931 · qty on machine: 1 | |||||
| 52 | 5100012503 | Safety screw | 2 | ADD TO CART | |
| 54 | 5100012555 | Hexagon screw | 4 | ADD TO CART | |
| 55 | 5100012972 | Locking washer | 4 | ADD TO CART | |
| 59 | 5100012209 | Silentbloc | 2 | ADD TO CART | |
| 60 | 5100024303 | Rubber buffer | 2 | ADD TO CART | |
| 61 | 5100012617 | Hexagon screw | 8 | ADD TO CART | |
| 62 | 5100012967 | Locking washer | 16 | ADD TO CART | |
| 63 | 5100012547 | Hexagon nut | 8 | ADD TO CART | |
| 71 | 5100024955 | Engine mounting | 1 | ADD TO CART | |
| 72 | 5100024954 | Engine mounting | 1 | ADD TO CART | |
| 73 | 5100012554 | Hexagon screw | 4 | ADD TO CART | |
| 74 | 5100012968 | Locking washer | 4 | ADD TO CART | |
| 76 | 5100012780 | Mushroom head screw | 1 | ADD TO CART | |
| 77 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 78 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 80 | 5100057809 | Mounting | 1 | PARTS REQUEST | |
|
COMING Mounting
5100057809 · qty on machine: 1 | |||||
| 84 | 5100013180 | Hexagon screw | 2 | ADD TO CART | |
| 85 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 86 | 5100012212 | Washer | 2 | ADD TO CART | |
| 87 | 5100012548 | Hexagon nut | 2 | ADD TO CART | |
| 101 | 5100012539 | Elbow adjustable | 1 | PARTS REQUEST | |
|
COMING Elbow adjustable
5100012539 · qty on machine: 1 | |||||
| 103 | 5100024982 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100024982 · qty on machine: 1 | |||||
| 3 | 5100057808 | Diesel engine | 1 | PARTS REQUEST | |
|
COMING Diesel engine
5100057808 · qty on machine: 1 | |||||
| 3 | 5100059553 | Sleeve | 1 | PARTS REQUEST | |
|
COMING Sleeve
5100059553 · qty on machine: 1 | |||||
| 3 | 5100059554 | Plate | 1 | PARTS REQUEST | |
|
COMING Plate
5100059554 · qty on machine: 1 | |||||
| 3 | 5100059555 | Retaining ring | 1 | PARTS REQUEST | |
|
COMING Retaining ring
5100059555 · qty on machine: 1 | |||||
| 5 | 5100024936 | Coupling | 1 | ADD TO CART | |
| 6 | 5100012553 | Hexagon screw | 3 | ADD TO CART | |
| 10 | 5100024935 | Flange | 1 | PARTS REQUEST | |
|
COMING Flange
5100024935 · qty on machine: 1 | |||||
| 11 | 5100011479 | Hexagon screw | 8 | ADD TO CART | |
| 12 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 21 | 5100011786 | Variable displac. pump (drive) | 1 | PARTS REQUEST | |
|
COMING Variable displac. pump (drive)
5100011786 · qty on machine: 1 | |||||
| 22 | 5100012621 | Hexagon screw | 2 | ADD TO CART | |
| 23 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 24 | 5100011743 | Screw plug | 1 | ADD TO CART | |
| 31 | 5100025077 | Gear pump | 1 | ADD TO CART | |
| 32 | 5100013450 | Cheese-head screw | 2 | ADD TO CART | |
| 33 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 41 | 5100025078 | Gear pump | 1 | ADD TO CART | |
| 42 | 5100012727 | Cheese-head screw | 4 | ADD TO CART | |
| 43 | 5100013441 | Locking washer | 4 | ADD TO CART | |
| 45 | 5100013418 | Screw plug | 1 | ADD TO CART | |
| 46 | 5100013005 | Sealing ring | 1 | ADD TO CART | |
| 120 | 5100016262 | V-belt protection | 1 | ADD TO CART | |
| 121 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 122 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 123 | 5100013230 | Locking washer | 3 | ADD TO CART | |
| 1 | 5100024307 | Locking screw | 2 | PARTS REQUEST | |
|
COMING Locking screw
5100024307 · qty on machine: 2 | |||||
| 2 | 5100024308 | Sealing | 2 | PARTS REQUEST | |
|
COMING Sealing
5100024308 · qty on machine: 2 | |||||
| 3 | 5100024304 | Oil dipstick | 1 | ADD TO CART | |
| 4 | 5100025073 | Seal, valve cover | 1 | PARTS REQUEST | |
|
COMING Seal, valve cover
5100025073 · qty on machine: 1 | |||||
| 5 | 5100012809 | Cover, oil filler, above | 1 | ADD TO CART | |
| 6 | 5100023507 | O-ring seal | 1 | ADD TO CART | |
| 7 | 5100012809 | Cover, oil filler, above | 1 | ADD TO CART | |
| 8 | 5100023507 | O-ring seal | 1 | ADD TO CART | |
| 9 | 5100025106 | Filter cartridge, lubric. oil | 1 | PARTS REQUEST | |
|
COMING Filter cartridge, lubric. oil
5100025106 · qty on machine: 1 | |||||
| 10 | 5100025003 | Fuel pump | 1 | PARTS REQUEST | |
|
COMING Fuel pump
5100025003 · qty on machine: 1 | |||||
| 11 | 5100025008 | O-ring seal | 1 | PARTS REQUEST | |
|
COMING O-ring seal
5100025008 · qty on machine: 1 | |||||
| 12 | 5100025004 | Pump | 1 | PARTS REQUEST | |
|
COMING Pump
5100025004 · qty on machine: 1 | |||||
| 13 | 5100025006 | Sealing | 1 | PARTS REQUEST | |
|
COMING Sealing
5100025006 · qty on machine: 1 | |||||
| 14 | 5100025005 | Valve | 1 | PARTS REQUEST | |
|
COMING Valve
5100025005 · qty on machine: 1 | |||||
| 17 | 5100011672 | Alternator | 1 | PARTS REQUEST | |
|
COMING Alternator
5100011672 · qty on machine: 1 | |||||
| 17 | 5100012685 | Alternator | 1 | ADD TO CART | |
| 18 | 5100059558 | Toothed v-belt | 1 | PARTS REQUEST | |
|
COMING Toothed v-belt
5100059558 · qty on machine: 1 | |||||
| 18 | 5100025028 | V-belt | 1 | ADD TO CART | |
| 19 | 5100012684 | Starter | 1 | ADD TO CART | |
| 20 | 5100025011 | Sensor | 1 | PARTS REQUEST | |
|
COMING Sensor
5100025011 · qty on machine: 1 | |||||
| 21 | 5100025012 | Sensor | 1 | PARTS REQUEST | |
|
COMING Sensor
5100025012 · qty on machine: 1 | |||||
| 22 | 5100023324 | Sensor | 1 | ADD TO CART | |
| 23 | 5100023676 | Engine oil pressure switch | 1 | ADD TO CART | |
| 24 | 5100059551 | Thermostat | 1 | PARTS REQUEST | |
|
COMING Thermostat
5100059551 · qty on machine: 1 | |||||
| 25 | 5100012863 | Seal | 1 | ADD TO CART | |
| 26 | 5100059550 | Water pump | 1 | PARTS REQUEST | |
|
COMING Water pump
5100059550 · qty on machine: 1 | |||||
| 27 | 5100012873 | Seal | 1 | ADD TO CART | |
| 28 | 5100059548 | Sealing | 1 | PARTS REQUEST | |
|
COMING Sealing
5100059548 · qty on machine: 1 | |||||
| 29 | 5100025015 | Sealing | 2 | ADD TO CART | |
| 30 | 5100025016 | Sealing | 2 | PARTS REQUEST | |
|
COMING Sealing
5100025016 · qty on machine: 2 | |||||
| 31 | 5100025016 | Sealing | 1 | PARTS REQUEST | |
|
COMING Sealing
5100025016 · qty on machine: 1 | |||||
| 32 | 5100024983 | Filter insert | 1 | ADD TO CART | |
| 100 | 5100057808 | Diesel engine | 1 | PARTS REQUEST | |
|
COMING Diesel engine
5100057808 · qty on machine: 1 | |||||
| 202 | 5100050672 | Holder | 1 | ADD TO CART | |
| 203 | 5100059529 | Hexagon screw | 1 | ADD TO CART | |
| 204 | 5100013094 | Washer | 1 | ADD TO CART | |
| 210 | 5100050673 | Hexagon screw | 1 | ADD TO CART | |
| 211 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 212 | 5100012893 | Safety nut | 1 | ADD TO CART | |
| 220 | 5100011672 | Alternator | 1 | PARTS REQUEST | |
|
COMING Alternator
5100011672 · qty on machine: 1 | |||||
| 221 | 5100050674 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100050674 · qty on machine: 1 | |||||
| 233 | 5100050675 | Hexagon screw | 1 | ADD TO CART | |
| 234 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 235 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 236 | 5100011701 | Distance bush | 1 | ADD TO CART | |
| 240 | 5100046800 | Hexagon screw | 1 | ADD TO CART | |
| 241 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 242 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 243 | 5100052961 | Washer | 1 | ADD TO CART | |
| 244 | 5100011578 | Mushroom head screw | 1 | ADD TO CART | |
| 245 | 5100050676 | Extension | 1 | PARTS REQUEST | |
|
COMING Extension
5100050676 · qty on machine: 1 | |||||
| 250 | 5100059558 | Toothed v-belt | 1 | PARTS REQUEST | |
|
COMING Toothed v-belt
5100059558 · qty on machine: 1 | |||||
| 314 | 5100050677 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100050677 · qty on machine: 1 | |||||
| 401 | 5100013141 | V-belt protection | 1 | ADD TO CART | |
| 402 | 5100012515 | Hexagon screw | 3 | ADD TO CART | |
| 403 | 5100013094 | Washer | 3 | ADD TO CART | |
| 404 | 5100013230 | Locking washer | 3 | ADD TO CART | |
Page 118 — Fuel system
Parts list — exactly as printed55 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 76 | 5100065312 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100065312 · qty on machine: 1 | |||||
| 1 | 5100065353 | Fuel tank | 1 | PARTS REQUEST | |
|
COMING Fuel tank
5100065353 · qty on machine: 1 | |||||
| 2 | 5100011731 | Rubber washer | 8 | ADD TO CART | |
| 3 | 5100011824 | Washer | 4 | ADD TO CART | |
| 4 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 29 | 5100065332 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100065332 · qty on machine: 1 | |||||
| 46 | 5100024923 | Hose | 0.55 | ADD TO CART | |
| 47 | 5100013179 | Hose clip | 1 | ADD TO CART | |
| 61 | 5100065325 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100065325 · qty on machine: 1 | |||||
| 73 | 5100013216 | Flexible tubing | 1.25 | ADD TO CART | |
| 74 | 5100013179 | Hose clip | 2 | ADD TO CART | |
| 77 | 5100013416 | Hexagon screw | 2 | ADD TO CART | |
| 78 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 79 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 5 | 5100012177 | Fuel tank | 1 | ADD TO CART | |
| 6 | 5100011730 | Spacer pin | 4 | ADD TO CART | |
| 7 | 5100011861 | Spacer shim | 8 | ADD TO CART | |
| 10 | 5100012476 | Fuel gauge | 1 | ADD TO CART | |
| 11 | 5100013216 | Flexible tubing | 0.15 | ADD TO CART | |
| 12 | 5100013179 | Hose clip | 1 | ADD TO CART | |
| 13 | 5100011990 | Strainer | 1 | ADD TO CART | |
| 14 | 5100011829 | Tank cap, with lock | 1 | ADD TO CART | |
| 14 | 5100013557 | Key | 1 | ADD TO CART | |
| 15 | 5100011665 | Screw plug | 1 | ADD TO CART | |
| 17 | 5100011443 | Cheese-head screw | 6 | ADD TO CART | |
| 18 | 5100013502 | Sealing ring | 6 | ADD TO CART | |
| 30 | 5100013472 | Straight screwed socket | 1 | ADD TO CART | |
| 32 | 5100023444 | Fuel filter cartridge | 1 | ADD TO CART | |
| 33 | 5100013416 | Hexagon screw | 2 | ADD TO CART | |
| 34 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 35 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 36 | 5100013472 | Straight screwed socket | 1 | ADD TO CART | |
| 37 | 5100052913 | Locking screw | 1 | PARTS REQUEST | |
|
COMING Locking screw
5100052913 · qty on machine: 1 | |||||
| 38 | 5100023629 | Spring ring | 1 | ADD TO CART | |
| 39 | 5100011914 | Hexagon nut | 1 | ADD TO CART | |
| 40 | 5100013179 | Hose clip | 2 | ADD TO CART | |
| 41 | 5100025030 | Fuel pump | 1 | ADD TO CART | |
| 41 | 5100025034 | Fuel filter | 1 | ADD TO CART | |
| 41 | 5100052916 | Sealing | 1 | ADD TO CART | |
| 42 | 5100024340 | Rubber metal buffer | 2 | ADD TO CART | |
| 43 | 5100012965 | Locking washer | 3 | ADD TO CART | |
| 44 | 5100012545 | Hexagon nut | 3 | ADD TO CART | |
| 45 | 5100025029 | Angle screwed socket | 2 | PARTS REQUEST | |
|
COMING Angle screwed socket
5100025029 · qty on machine: 2 | |||||
| 48 | 5100065321 | Connection pipe | 1 | PARTS REQUEST | |
|
COMING Connection pipe
5100065321 · qty on machine: 1 | |||||
| 50 | 5100013472 | Straight screwed socket | 1 | ADD TO CART | |
| 52 | 5100023253 | Filter cover | 1 | ADD TO CART | |
| 53 | 5100065329 | Filter cartridge, fuel | 1 | PARTS REQUEST | |
|
COMING Filter cartridge, fuel
5100065329 · qty on machine: 1 | |||||
| 54 | 5100013416 | Hexagon screw | 2 | ADD TO CART | |
| 55 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 56 | 5100052913 | Locking screw | 1 | PARTS REQUEST | |
|
COMING Locking screw
5100052913 · qty on machine: 1 | |||||
| 59 | 5100024988 | Locking screw | 1 | PARTS REQUEST | |
|
COMING Locking screw
5100024988 · qty on machine: 1 | |||||
| 60 | 5100025887 | Straight screwed socket | 1 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100025887 · qty on machine: 1 | |||||
| 75 | 5100065303 | Holder system | 1 | PARTS REQUEST | |
|
COMING Holder system
5100065303 · qty on machine: 1 | |||||
| 90 | 5100024946 | Temperature switch | 1 | ADD TO CART | |
| 91 | 5100024335 | Sealing ring | 1 | ADD TO CART | |
Page 124 — Fuel Filter
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100025030 | Fuel pump | 1 | ADD TO CART | |
| 1 | 5100025034 | Fuel filter | 1 | ADD TO CART | |
| 1 | 5100052916 | Sealing | 1 | ADD TO CART | |
| 21 | 5100023444 | Fuel filter cartridge | 1 | ADD TO CART | |
| 21 | 5100023445 | Filter cartridge, fuel | 1 | PARTS REQUEST | |
|
COMING Filter cartridge, fuel
5100023445 · qty on machine: 1 | |||||
| 21 | 5100023465 | Sensor | 1 | ADD TO CART | |
| 52 | 5100023253 | Filter cover | 1 | ADD TO CART | |
| 53 | 5100065329 | Filter cartridge, fuel | 1 | PARTS REQUEST | |
|
COMING Filter cartridge, fuel
5100065329 · qty on machine: 1 | |||||
Page 126 — Air filter system
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 5 | 5100065304 | Air hose | 1 | PARTS REQUEST | |
|
COMING Air hose
5100065304 · qty on machine: 1 | |||||
| 6 | 5100024338 | Hose clamp | 1 | ADD TO CART | |
| 7 | 5100024336 | Hose clamp | 1 | ADD TO CART | |
| 8 | 5100065306 | Intake hose | 1 | PARTS REQUEST | |
|
COMING Intake hose
5100065306 · qty on machine: 1 | |||||
| 9 | 5100024336 | Hose clamp | 1 | ADD TO CART | |
| 10 | 5100013403 | Hose clip | 1 | ADD TO CART | |
| 14 | 5100023746 | Sensor | 1 | PARTS REQUEST | |
|
COMING Sensor
5100023746 · qty on machine: 1 | |||||
| 14 | 5100024986 | Air filter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 14 | 5100024992 | Filter cartridge | 1 | ADD TO CART | |
| 14 | 5100025017 | Dust discharge valve | 1 | ADD TO CART | |
| 14 | 5100050678 | Safety filter cartridge | 1 | ADD TO CART | |
| 15 | 5100024991 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100024991 · qty on machine: 1 | |||||
| 16 | 5100012613 | Hexagon screw | 1 | ADD TO CART | |
| 17 | 5100013094 | Washer | 1 | ADD TO CART | |
| 18 | 5100024890 | Cheese-head screw | 2 | ADD TO CART | |
| 20 | 5100012249 | Mushroom head screw | 1 | ADD TO CART | |
| 21 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 22 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 30 | 5100013370 | Pressure switch, air filter | 1 | PARTS REQUEST | |
|
COMING Pressure switch, air filter
5100013370 · qty on machine: 1 | |||||
Page 128 — Exhaust system
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100025015 | Sealing | 1 | ADD TO CART | |
| 4 | 5100057810 | Flue gas pipe | 1 | PARTS REQUEST | |
|
COMING Flue gas pipe
5100057810 · qty on machine: 1 | |||||
| 5 | 5100011471 | Stud bolt | 4 | ADD TO CART | |
| 6 | 5100024980 | Hexagonal nut | 4 | ADD TO CART | |
| 13 | 5100024979 | Connection pipe | 1 | PARTS REQUEST | |
|
COMING Connection pipe
5100024979 · qty on machine: 1 | |||||
| 14 | 5100057811 | Flue gas pipe | 1 | PARTS REQUEST | |
|
COMING Flue gas pipe
5100057811 · qty on machine: 1 | |||||
| 15 | 5100024978 | Strap clip | 2 | PARTS REQUEST | |
|
COMING Strap clip
5100024978 · qty on machine: 2 | |||||
| 16 | 5100012966 | Locking washer | 2 | ADD TO CART | |
Page 130 — Exhaust aftertreatment
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100059532 | Particulate filter | 1 | PARTS REQUEST | |
|
COMING Particulate filter
5100059532 · qty on machine: 1 | |||||
| 2 | 5100059535 | Sealing | 1 | PARTS REQUEST | |
|
COMING Sealing
5100059535 · qty on machine: 1 | |||||
| 3 | 5100059533 | Particulate filter | 1 | PARTS REQUEST | |
|
COMING Particulate filter
5100059533 · qty on machine: 1 | |||||
| 4 | 5100059534 | Particulate filter | 1 | PARTS REQUEST | |
|
COMING Particulate filter
5100059534 · qty on machine: 1 | |||||
| 5 | 5100059535 | Sealing | 1 | PARTS REQUEST | |
|
COMING Sealing
5100059535 · qty on machine: 1 | |||||
| 6 | 5100059536 | Pipe clip | 2 | PARTS REQUEST | |
|
COMING Pipe clip
5100059536 · qty on machine: 2 | |||||
| 7 | 5100059538 | Pipe clip | 1 | PARTS REQUEST | |
|
COMING Pipe clip
5100059538 · qty on machine: 1 | |||||
| 8 | 5100025015 | Sealing | 1 | ADD TO CART | |
| 1 | 5100025023 | Temperature probe | 1 | PARTS REQUEST | |
|
COMING Temperature probe
5100025023 · qty on machine: 1 | |||||
| 2 | 5100025024 | Temperature probe | 1 | PARTS REQUEST | |
|
COMING Temperature probe
5100025024 · qty on machine: 1 | |||||
| 3 | 5100023693 | Temperature probe | 1 | ADD TO CART | |
| 4 | 5100023694 | Temperature probe | 1 | ADD TO CART | |
| 10 | 5100059539 | Pipe | 1 | PARTS REQUEST | |
|
COMING Pipe
5100059539 · qty on machine: 1 | |||||
| 20 | 5100059540 | Pipe | 1 | PARTS REQUEST | |
|
COMING Pipe
5100059540 · qty on machine: 1 | |||||
Page 134 — Cooling (engine/hydraulic oil)
Parts list — exactly as printed108 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100024948 | Cooling-water pipe | 1 | PARTS REQUEST | |
|
COMING Cooling-water pipe
5100024948 · qty on machine: 1 | |||||
| 2 | 5100023378 | Cheese-head screw | 1 | PARTS REQUEST | |
|
COMING Cheese-head screw
5100023378 · qty on machine: 1 | |||||
| 3 | 5100012967 | Locking washer | 1 | ADD TO CART | |
| 5 | 5100012627 | Hexagon screw | 1 | ADD TO CART | |
| 6 | 5100012968 | Locking washer | 1 | ADD TO CART | |
| 7 | 5100012158 | Flexible tubing | 1 | ADD TO CART | |
| 8 | 5100012159 | Flexible tubing | 1 | ADD TO CART | |
| 9 | 5100011637 | Hose clip | 4 | ADD TO CART | |
| 10 | 5100065359 | Fan | 1 | PARTS REQUEST | |
|
COMING Fan
5100065359 · qty on machine: 1 | |||||
| 11 | 5100011920 | Fan free-wheeling | 1 | ADD TO CART | |
| 12 | 5100012614 | Hexagon screw | 4 | ADD TO CART | |
| 13 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 14 | 5100016826 | Supporting ring | 1 | ADD TO CART | |
| 15 | 5100012169 | Spacer ring | 1 | ADD TO CART | |
| 33 | 5100065309 | Cover | 1 | PARTS REQUEST | |
|
COMING Cover
5100065309 · qty on machine: 1 | |||||
| 34 | 5100012780 | Mushroom head screw | 2 | ADD TO CART | |
| 35 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 36 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 37 | 5100013642 | Sealing profile | 2.1 | ADD TO CART | |
| 39 | 5100059517 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100059517 · qty on machine: 1 | |||||
| 40 | 5100012600 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 2 | |||||
| 41 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 42 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 44 | 5100059556 | Threaded insert | 2 | ADD TO CART | |
| 45 | 5100012919 | Silentbloc | 4 | ADD TO CART | |
| 46 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 47 | 5100012545 | Hexagon nut | 4 | ADD TO CART | |
| 54 | 5100059518 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100059518 · qty on machine: 1 | |||||
| 55 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 56 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 60 | 5100023482 | Tank cap | 1 | ADD TO CART | |
| 60 | 5100052930 | Compensator tank | 1 | PARTS REQUEST | |
|
COMING Compensator tank
5100052930 · qty on machine: 1 | |||||
| 61 | 5100059520 | Cooling-water hose | 1 | PARTS REQUEST | |
|
COMING Cooling-water hose
5100059520 · qty on machine: 1 | |||||
| 62 | 5100013452 | Hose clip | 1 | ADD TO CART | |
| 66 | 5100024977 | Hose nozzle | 1 | ADD TO CART | |
| 67 | 5100052945 | Hose | 0.4 | ADD TO CART | |
| 69 | 5100013179 | Hose clip | 3 | ADD TO CART | |
| 146 | 5100065375 | Metal plate | 1 | PARTS REQUEST | |
|
COMING Metal plate
5100065375 · qty on machine: 1 | |||||
| 147 | 5100012515 | Hexagon screw | 3 | ADD TO CART | |
| 148 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 170 | 5100052932 | Level indicator | 1 | PARTS REQUEST | |
|
COMING Level indicator
5100052932 · qty on machine: 1 | |||||
| 171 | 5100012515 | Hexagon screw | 1 | ADD TO CART | |
| 172 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 20 | 5100024958 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100024958 · qty on machine: 1 | |||||
| 21 | 5100024957 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100024957 · qty on machine: 1 | |||||
| 23 | 5100012553 | Hexagon screw | 3 | ADD TO CART | |
| 24 | 5100012967 | Locking washer | 3 | ADD TO CART | |
| 25 | 5100013550 | Rubber buffer | 2 | ADD TO CART | |
| 26 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 27 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 28 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 30 | 5100024956 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100024956 · qty on machine: 1 | |||||
| 31 | 5100012517 | Hexagon screw | 3 | ADD TO CART | |
| 32 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 64 | 5100012231 | Cooling-water hose | 1 | ADD TO CART | |
| 65 | 5100011637 | Hose clip | 2 | ADD TO CART | |
| 70 | 5100052945 | Hose | 0.95 | ADD TO CART | |
| 72 | 5100013179 | Hose clip | 2 | ADD TO CART | |
| 76 | 5100012496 | Flexible tubing | 1 | Serialno. 160- 179 | ADD TO CART |
| 76 | 5100080578 | Hose | 1 | Serialno. >180 | PARTS REQUEST |
|
COMING Hose
5100080578 · qty on machine: 1 Serialno. >180 | |||||
| 77 | 5100012063 | Flexible tubing | 1 | ADD TO CART | |
| 90 | 5100065354 | Cooler | 1 | PARTS REQUEST | |
|
COMING Cooler
5100065354 · qty on machine: 1 | |||||
| 98 | 5100012520 | Hexagon screw | 3 | ADD TO CART | |
| 99 | 5100012967 | Locking washer | 3 | ADD TO CART | |
| 100 | 5100065368 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100065368 · qty on machine: 1 | |||||
| 101 | 5100065376 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100065376 · qty on machine: 1 | |||||
| 105 | 5100012780 | Mushroom head screw | 4 | ADD TO CART | |
| 106 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 107 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 110 | 5100012517 | Hexagon screw | 4 | ADD TO CART | |
| 111 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 121 | 5100065314 | Protecting sheet | 1 | PARTS REQUEST | |
|
COMING Protecting sheet
5100065314 · qty on machine: 1 | |||||
| 122 | 5100065315 | Protecting sheet | 1 | PARTS REQUEST | |
|
COMING Protecting sheet
5100065315 · qty on machine: 1 | |||||
| 123 | 5100012515 | Hexagon screw | 4 | ADD TO CART | |
| 124 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 126 | 5100065377 | Pipe | 1 | PARTS REQUEST | |
|
COMING Pipe
5100065377 · qty on machine: 1 | |||||
| 130 | 5100012303 | Cooling-water hose | 1 | ADD TO CART | |
| 135 | 5100012909 | Hose clip | 2 | ADD TO CART | |
| 136 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 137 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 138 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 142 | 5100012302 | Cooling-water hose | 1 | ADD TO CART | |
| 145 | 5100011637 | Hose clip | 4 | ADD TO CART | |
| 150 | 5100058748 | Cheese-head screw | 1 | ADD TO CART | |
| 151 | 5100012967 | Locking washer | 1 | ADD TO CART | |
| 180 | 5100022888 | Reducing insert | 1 | Serialno. >180 | ADD TO CART |
| 181 | 5100023276 | Hose | 1 | Serialno. >180 | ADD TO CART |
| 184 | 5100050710 | Holder | 1 | Serialno. >180 | ADD TO CART |
| 58 | 5100012492 | Sealing ring | 1 | ADD TO CART | |
| 59 | 5100013516 | Screw plug | 1 | ADD TO CART | |
| 74 | 5100013614 | Straight screwed socket | 1 | ADD TO CART | |
| 75 | 5100013615 | Straight screwed socket | 1 | ADD TO CART | |
| 86 | 5100065374 | Water cooler | 1 | PARTS REQUEST | |
|
COMING Water cooler
5100065374 · qty on machine: 1 | |||||
| 87 | 5100011636 | Washer | 6 | ADD TO CART | |
| 88 | 5100012600 | Hexagon screw | 6 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 6 | |||||
| 89 | 5100011866 | Sealing tape | 0.6 | ADD TO CART | |
| 91 | 5100011913 | Oil cooler | 1 | ADD TO CART | |
| 92 | 5100011636 | Washer | 4 | ADD TO CART | |
| 93 | 5100012600 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 4 | |||||
| 94 | 5100011866 | Sealing tape | 0.5 | ADD TO CART | |
| 95 | 5100065355 | Console | 1 | PARTS REQUEST | |
|
COMING Console
5100065355 · qty on machine: 1 | |||||
| 96 | 5100013642 | Sealing profile | 2.1 | ADD TO CART | |
| 97 | 5100065338 | Hose nozzle | 1 | ADD TO CART | |
| 102 | 5100023402 | Temperature switch | 1 | ADD TO CART | |
| 114 | 5100011592 | Grommet | 3 | ADD TO CART | |
| 116 | 5100065364 | Cable support sleeve | 1 | PARTS REQUEST | |
|
COMING Cable support sleeve
5100065364 · qty on machine: 1 | |||||
| 118 | 5100012444 | Screw plug | 2 | PARTS REQUEST | |
|
COMING Screw plug
5100012444 · qty on machine: 2 | |||||
| 119 | 5100013000 | Sealing ring | 2 | ADD TO CART | |
Page 144 — Driving gear
Parts list — exactly as printed41 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012262 | Driving gear | 1 | PARTS REQUEST | |
|
COMING Driving gear
5100012262 · qty on machine: 1 | |||||
| 1 | 5100011618 | Locking ring | 2 | ADD TO CART | |
| 1 | 5100012180 | Set of seals | 1 | ADD TO CART | |
| 1 | 5100013503 | Shaft seal | 1 | ADD TO CART | |
| 2 | 5100012263 | Hydraulic regulation | 1 | PARTS REQUEST | |
|
COMING Hydraulic regulation
5100012263 · qty on machine: 1 | |||||
| 2 | 5100011511 | Seal nut | 2 | ADD TO CART | |
| 2 | 5100011517 | O-ring seal | 1 | ADD TO CART | |
| 2 | 5100012267 | Set of seals | 1 | ADD TO CART | |
| 2 | 5100013545 | O-ring seal | 1 | ADD TO CART | |
| 3 | 5100012264 | Connection plate | 1 | PARTS REQUEST | |
|
COMING Connection plate
5100012264 · qty on machine: 1 | |||||
| 3 | 5100011446 | O-ring seal | 1 | ADD TO CART | |
| 3 | 5100011453 | Screw plug | 1 | ADD TO CART | |
| 3 | 5100011571 | Pressure-relief valve | 2 | PARTS REQUEST | |
|
COMING Pressure-relief valve
5100011571 · qty on machine: 2 | |||||
| 3 | 5100011614 | Feeding pressure valve | 1 | PARTS REQUEST | |
|
COMING Feeding pressure valve
5100011614 · qty on machine: 1 | |||||
| 3 | 5100012188 | Set of seals | 1 | ADD TO CART | |
| 3 | 5100013406 | O-ring seal | 1 | ADD TO CART | |
| 3 | 5100013543 | Screw plug | 2 | ADD TO CART | |
| 3 | 5100013545 | O-ring seal | 1 | ADD TO CART | |
| 3 | 5100013546 | O-ring seal | 1 | ADD TO CART | |
| 4 | 5100012265 | Connection flange | 1 | ADD TO CART | |
| 4 | 5100012268 | Set of seals | 1 | ADD TO CART | |
| 4 | 5100012098 | O-ring seal | 1 | ADD TO CART | |
| 4 | 5100011831 | Sealing washer | 2 | ADD TO CART | |
| 4 | 5100011745 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100012266 | Control device | 1 | PARTS REQUEST | |
|
COMING Control device
5100012266 · qty on machine: 1 | |||||
| 5 | 5100011448 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100011449 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100011450 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100011622 | Seal | 1 | ADD TO CART | |
| 5 | 5100013544 | O-ring seal | 2 | ADD TO CART | |
| 5 | 5100013547 | Seal nut | 1 | ADD TO CART | |
| 20 | 5100011452 | Screw plug | 1 | ADD TO CART | |
| 21 | 5100011453 | Screw plug | 1 | ADD TO CART | |
| 22 | 5100013543 | Screw plug | 3 | ADD TO CART | |
| 23 | 5100011658 | Screw plug | 1 | PARTS REQUEST | |
|
COMING Screw plug
5100011658 · qty on machine: 1 | |||||
| 24 | 5100011454 | Screw plug | 1 | ADD TO CART | |
| 28 | 5100033215 | Valve | 2 | ADD TO CART | |
| 41 | 5100011486 | O-ring seal | 1 | ADD TO CART | |
| 49 | 5100011510 | Nozzle | 1 | ADD TO CART | |
| 100 | 5100011786 | Variable displac. pump (drive) | 1 | PARTS REQUEST | |
|
COMING Variable displac. pump (drive)
5100011786 · qty on machine: 1 | |||||
| 100 | 5100012251 | Set of seals | 1 | ADD TO CART | |
Page 148 — Pump (Vibration Drive)
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100025077 | Gear pump | 1 | ADD TO CART | |
| 1 | 5100013445 | Hexagon nut | 1 | ADD TO CART | |
| 1 | 5100013446 | Disk spring | 1 | PARTS REQUEST | |
|
COMING Disk spring
5100013446 · qty on machine: 1 | |||||
| 1 | 5100017991 | Spring ring | 1 | PARTS REQUEST | |
|
COMING Spring ring
5100017991 · qty on machine: 1 | |||||
Page 150 — Constant motor (vibration drive)
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013009 | Spring ring | 1 | 1.04 Serialno. >310 | ADD TO CART |
| 1 | 5100013445 | Hexagon nut | 1 | 1.02 Serialno. >310 | ADD TO CART |
| 1 | 5100013446 | Disk spring | 1 | 1.03 Serialno. >310 | PARTS REQUEST |
|
COMING Disk spring
5100013446 · qty on machine: 1 1.03 Serialno. >310 | |||||
| 1 | 5100058557 | Gear motor | 1 | Serialno. >310 | ADD TO CART |
| 1 | 5100065348 | Set of seals | 1 | 1.01 Serialno. >310 | ADD TO CART |
Page 152 — Control block (brake)
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011986 | Directional valve | 1 | ADD TO CART | |
| 1 | 5100012055 | Pressure-relief valve | 1 | ADD TO CART | |
| 1 | 5100012092 | Pressure-relief valve | 1 | ADD TO CART | |
| 1 | 5100012409 | Magnet | 1 | ADD TO CART | |
| 1 | 5100012970 | Valve block | 1 | ADD TO CART | |
| 1 | 5100013006 | Pressure-relief valve | 1 | ADD TO CART | |
Page 154 — Wheel hub motor
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100080579 | Set of seals | 1 | PARTS REQUEST | |
|
COMING Set of seals
5100080579 · qty on machine: 1 | |||||
| 3 | 5100016263 | Set of seals | 1 | ADD TO CART | |
| 4 | 5100065365 | Set of seals | 1 | ADD TO CART | |
| 5 | 5100016264 | Seal | 1 | ADD TO CART | |
| 6 | 5100016265 | Cap | 1 | ADD TO CART | |
| 7 | 5100016266 | Plug | 1 | ADD TO CART | |
| 10 | 5100016269 | Set of seals | 1 | ADD TO CART | |
| 11 | 5100012799 | Spring | 1 | ADD TO CART | |
| 12 | 5100065373 | Set of seals | 1 | ADD TO CART | |
| 13 | 5100065372 | Piston | 5 | ADD TO CART | |
| 14 | 5100065370 | Repair set | 1 | ADD TO CART | |
| 100 | 5100065326 | Gear hub motor | 1 | PARTS REQUEST | |
|
COMING Gear hub motor
5100065326 · qty on machine: 1 | |||||
| 4 | 5100065371 | Repair set | 1 | ADD TO CART | |
| 100 | 5100065327 | Gear hub motor | 1 | ADD TO CART | |
Page 158 — Wheel hub motor solid shaft (tires)
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100013351 | Cylinder block | 1 | PARTS REQUEST | |
|
COMING Cylinder block
5100013351 · qty on machine: 1 | |||||
| 15 | 5100013352 | Set of seals | 1 | ADD TO CART | |
| 27 | 5100013338 | Set of seals | 1 | ADD TO CART | |
| 40 | 5100013334 | Distributor | 1 | PARTS REQUEST | |
|
COMING Distributor
5100013334 · qty on machine: 1 | |||||
| 40 | 5100024322 | Repair set | 1 | ADD TO CART | |
| 42 | 5100011485 | Cheese-head screw | 12 | ADD TO CART | |
| 43 | 5100013339 | Straight pin | 1 | PARTS REQUEST | |
|
COMING Straight pin
5100013339 · qty on machine: 1 | |||||
| 44 | 5100012125 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
5100012125 · qty on machine: 1 | |||||
| 48 | 5100012124 | Set of seals | 1 | ADD TO CART | |
| 60 | 5100012505 | Wheel mounting bolt | 1 | ADD TO CART | |
| 70 | 5100013331 | Set of seals | 1 | ADD TO CART | |
| 70 | 5100013353 | Bearing piece | 1 | PARTS REQUEST | |
|
COMING Bearing piece
5100013353 · qty on machine: 1 | |||||
| 71 | 5100024323 | Repair set | 1 | ADD TO CART | |
| 100 | 5100013335 | Brake | 1 | ADD TO CART | |
| 100 | 5100013343 | Set of seals | 1 | ADD TO CART | |
| 108 | 5100013341 | Brake piston | 1 | PARTS REQUEST | |
|
COMING Brake piston
5100013341 · qty on machine: 1 | |||||
| 110 | 5100013340 | Cover plate | 1 | PARTS REQUEST | |
|
COMING Cover plate
5100013340 · qty on machine: 1 | |||||
| 111 | 5100013342 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
5100013342 · qty on machine: 1 | |||||
| 135 | 5100013336 | Set of seals | 1 | PARTS REQUEST | |
|
COMING Set of seals
5100013336 · qty on machine: 1 | |||||
| 200 | 5100012956 | Gear hub motor | 1 | PARTS REQUEST | |
|
COMING Gear hub motor
5100012956 · qty on machine: 1 | |||||
| 200 | 5100013337 | Set of seals | 1 | ADD TO CART | |
Page 160 — Valve block
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100066935 | Piston valve | 1 | PARTS REQUEST | |
|
COMING Piston valve
5100066935 · qty on machine: 1 | |||||
| 3 | 5100066873 | Directional control valve | 1 | PARTS REQUEST | |
|
COMING Directional control valve
5100066873 · qty on machine: 1 | |||||
| 4 | 5100066884 | Solenoid coil | 1 | PARTS REQUEST | |
|
COMING Solenoid coil
5100066884 · qty on machine: 1 | |||||
| 5 | 5100012114 | Pressure-relief valve | 2 | ADD TO CART | |
| 6 | 5100066895 | Flow divider | 1 | ADD TO CART | |
| 7 | 5100012113 | Nozzle | 1 | PARTS REQUEST | |
|
COMING Nozzle
5100012113 · qty on machine: 1 | |||||
| 8 | 5100066906 | Compression spring | 1 | PARTS REQUEST | |
|
COMING Compression spring
5100066906 · qty on machine: 1 | |||||
| 9 | 5100011564 | Screw plug | 2 | ADD TO CART | |
| 10 | 5100011538 | Screw plug | 1 | ADD TO CART | |
| 11 | 5100011743 | Screw plug | 2 | ADD TO CART | |
| 12 | 5100012113 | Nozzle | 1 | PARTS REQUEST | |
|
COMING Nozzle
5100012113 · qty on machine: 1 | |||||
| 13 | 5100011742 | O-ring seal | 1 | ADD TO CART | |
| 14 | 5100011741 | O-ring seal | 2 | PARTS REQUEST | |
|
COMING O-ring seal
5100011741 · qty on machine: 2 | |||||
| 15 | 5100013544 | O-ring seal | 2 | ADD TO CART | |
| 100 | 5100066917 | Flow divider | 1 | ADD TO CART | |
Page 162 — Filter (hydraulic oil)
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013361 | Filter | 1 | ADD TO CART | |
| 1 | 5100013387 | O-ring seal | 1 | ADD TO CART | |
| 1 | 5100024324 | Filter insert | 1 | PARTS REQUEST | |
|
COMING Filter insert
5100024324 · qty on machine: 1 | |||||
| 1 | 5100029595 | Set of seals | 1 | ADD TO CART | |
| 1 | 5100012020 | Pressure filter | 1 | ADD TO CART | |
| 1 | 5100039074 | Set of seals | 1 | ADD TO CART | |
Page 166 — Pump (Steering Hydraulics)
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100025078 | Gear pump | 1 | Serialno. <232 | ADD TO CART |
| 1 | 5100013445 | Hexagon nut | 1 | 1.02 Serialno. <232 | ADD TO CART |
| 1 | 5100016271 | Disk spring | 1 | 1.01 Serialno. <232 | PARTS REQUEST |
|
COMING Disk spring
5100016271 · qty on machine: 1 1.01 Serialno. <232 | |||||
| 1 | 5100017991 | Spring ring | 1 | 1.03 Serialno. <232 | PARTS REQUEST |
|
COMING Spring ring
5100017991 · qty on machine: 1 1.03 Serialno. <232 | |||||
Page 168 — Hydraulic oil tank
Parts list — exactly as printed35 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012970 | Valve block | 1 | ADD TO CART | |
| 2 | 5100013256 | Cheese-head screw | 4 | ADD TO CART | |
| 3 | 5100011608 | Screw plug | 2 | ADD TO CART | |
| 5 | 5100011874 | Pipe | 1 | ADD TO CART | |
| 15 | 5100013474 | Straight screwed socket | 4 | ADD TO CART | |
| 18 | 5100082393 | Locking screw | 1 | PARTS REQUEST | |
|
COMING Locking screw
5100082393 · qty on machine: 1 | |||||
| 31 | 5100011548 | Straight screwed socket | 1 | ADD TO CART | |
| 33 | 5100013433 | Straight screwed socket | 1 | ADD TO CART | |
| 49 | 5100012178 | Hydraulic oil tank | 1 | ADD TO CART | |
| 50 | 5100013553 | Straight screwed socket | 1 | ADD TO CART | |
| 51 | 5100011730 | Spacer pin | 4 | ADD TO CART | |
| 52 | 5100011861 | Spacer shim | 4 | ADD TO CART | |
| 53 | 5100013435 | Oil level indicator | 1 | ADD TO CART | |
| 63 | 5100013477 | Straight screwed socket | 1 | ADD TO CART | |
| 82 | 5100071896 | Check valve | 1 | Serialno. 180 – 9999 | ADD TO CART |
| 93 | 5100013493 | Banjo | 1 | ADD TO CART | |
| 94 | 5100013476 | Straight screwed socket | 1 | ADD TO CART | |
| 120 | 5100013477 | Straight screwed socket | 1 | ADD TO CART | |
| 2 | 5100011731 | Rubber washer | 4 | ADD TO CART | |
| 3 | 5100011824 | Washer | 2 | ADD TO CART | |
| 4 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 10 | 5100011730 | Spacer pin | 2 | ADD TO CART | |
| 11 | 5100011731 | Rubber washer | 4 | ADD TO CART | |
| 12 | 5100011824 | Washer | 2 | ADD TO CART | |
| 13 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 49 | 5100011665 | Screw plug | 1 | ADD TO CART | |
| 49 | 5100011857 | Suction filter | 1 | ADD TO CART | |
| 49 | 5100012419 | Filter | 1 | ADD TO CART | |
| 49 | 5100012866 | Fillister head screw | 6 | ADD TO CART | |
| 49 | 5100013415 | O-ring seal | 1 | ADD TO CART | |
| 49 | 5100013558 | Sealing ring | 6 | ADD TO CART | |
| 49 | 5100039052 | Vent filter | 1 | ADD TO CART | |
| 49 | 5100083350 | Filler cap | 1 | PARTS REQUEST | |
|
COMING Filler cap
5100083350 · qty on machine: 1 | |||||
| 100 | 5100016828 | Vent filter | 1 | ADD TO CART | |
| 100 | 5100024927 | Special wrench | 1 | ADD TO CART | |
Page 172 — Dashboard
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5100011595 | Frame | 2 | ADD TO CART | |
| 21 | 5100011597 | Push-button | 1 | ADD TO CART | |
| 22 | 5100011580 | Blind cover | 1 | ADD TO CART | |
| 23 | 5100023546 | Rocker, preselection | 1 | ADD TO CART | |
| 30 | 5100023242 | Fixation | 1 | ADD TO CART | |
| 31 | 5100023241 | Push button | 1 | ADD TO CART | |
| 33 | 5100023527 | Label | 1 | ADD TO CART | |
| 35 | 5100023008 | Lid | 1 | ADD TO CART | |
| 100 | 5100025103 | Instrument panel | 1 | ADD TO CART | |
Page 174 — Cable harnesses
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100059542 | Wire harness front frame | 1 | PARTS REQUEST | |
|
COMING Wire harness front frame
5100059542 · qty on machine: 1 | |||||
| 2 | 5100012638 | Wire harness | 1 | ADD TO CART | |
| 3 | 5100012632 | Wire harness (rear frame) | 1 | ADD TO CART | |
| 4 | 5100012675 | Wire harness | 1 | ADD TO CART | |
| 5 | 5100052973 | Wire harness negative battery terminal | 1 | PARTS REQUEST | |
|
COMING Wire harness negative battery terminal
5100052973 · qty on machine: 1 | |||||
| 6 | 5100059507 | Proximity switch | 1 | ADD TO CART | |
| 7 | 5100057814 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100057814 · qty on machine: 1 | |||||
| 8 | 5100024941 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100024941 · qty on machine: 1 | |||||
| 9 | 5100052976 | Ground cable operator's platform | 1 | PARTS REQUEST | |
|
COMING Ground cable operator's platform
5100052976 · qty on machine: 1 | |||||
| 10 | 5100052977 | Wire harness instrument panel addition | 1 | PARTS REQUEST | |
|
COMING Wire harness instrument panel addition
5100052977 · qty on machine: 1 | |||||
| 11 | 5100052978 | Wire harness instrument panel | 1 | ADD TO CART | |
| 12 | 5100024942 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100024942 · qty on machine: 1 | |||||
| 13 | 5100057812 | Wire harness engine control unit | 1 | PARTS REQUEST | |
|
COMING Wire harness engine control unit
5100057812 · qty on machine: 1 | |||||
| 14 | 5100012637 | Wire harness | 1 | ADD TO CART | |
| 15 | 5100024944 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100024944 · qty on machine: 1 | |||||
| 16 | 5100052981 | Ground cable steering column | 1 | PARTS REQUEST | |
|
COMING Ground cable steering column
5100052981 · qty on machine: 1 | |||||
| 17 | 5100080582 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100080582 · qty on machine: 1 | |||||
Page 176 — Electrical system
Parts list — exactly as printed175 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013557 | Key | 1 | ADD TO CART | |
| 1 | 5100013570 | Ignition switch | 1 | ADD TO CART | |
| 2 | 5100013506 | Lid | 1 | ADD TO CART | |
| 10 | 5100011784 | Signal transmitter | 1 | ADD TO CART | |
| 12 | 5100013594 | Safety screw | 1 | ADD TO CART | |
| 13 | 5100011599 | Hexagon nut | 1 | ADD TO CART | |
| 14 | 5100011586 | Hexagon nut | 1 | ADD TO CART | |
| 41 | 5100052978 | Wire harness instrument panel | 1 | ADD TO CART | |
| 57 | 5100024880 | Protecting cap | 1 | ADD TO CART | |
| 57 | 5100024942 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100024942 · qty on machine: 1 | |||||
| 58 | 5100024880 | Protecting cap | 1 | ADD TO CART | |
| 58 | 5100024941 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100024941 · qty on machine: 1 | |||||
| 61 | 5100024944 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100024944 · qty on machine: 1 | |||||
| 65 | 5100024975 | Hexagon screw | 1 | ADD TO CART | |
| 66 | 5100013384 | Serrated lock washer | 2 | ADD TO CART | |
| 67 | 5100011914 | Hexagon nut | 5 | ADD TO CART | |
| 68 | 5100023629 | Spring ring | 10 | ADD TO CART | |
| 69 | 5100011915 | Hexagon nut | 1 | ADD TO CART | |
| 70 | 5100011917 | Serrated lock washer | 2 | ADD TO CART | |
| 110 | 5100011974 | Ground terminal | 2 | ADD TO CART | |
| 111 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 112 | 5100012572 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 4 | |||||
| 150 | 5100012579 | Circuit board | 1 | ADD TO CART | |
| 151 | 5100013594 | Safety screw | 3 | ADD TO CART | |
| 152 | 5100013536 | Serrated lock washer | 3 | ADD TO CART | |
| 153 | 5100011669 | Rubber metal buffer | 3 | ADD TO CART | |
| 154 | 5100011753 | Washer | 3 | ADD TO CART | |
| 155 | 5100012898 | Hexagon nut | 3 | ADD TO CART | |
| 160 | 5100012326 | Cover plate | 1 | ADD TO CART | |
| 161 | 5100012586 | Stud bolt | 2 | ADD TO CART | |
| 162 | 5100024969 | Half-clip | 2 | PARTS REQUEST | |
|
COMING Half-clip
5100024969 · qty on machine: 2 | |||||
| 163 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 164 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 165 | 5100011537 | Filler cap | 1 | ADD TO CART | |
| 240 | 5100011914 | Hexagon nut | 1 | ADD TO CART | |
| 241 | 5100023629 | Spring ring | 1 | ADD TO CART | |
| 242 | 5100011915 | Hexagon nut | 1 | ADD TO CART | |
| 243 | 5100013441 | Locking washer | 1 | ADD TO CART | |
| 298 | 5100011748 | Rear reflector | 2 | ADD TO CART | |
| 30 | 5100059542 | Wire harness front frame | 1 | PARTS REQUEST | |
|
COMING Wire harness front frame
5100059542 · qty on machine: 1 | |||||
| 31 | 5100012632 | Wire harness (rear frame) | 1 | ADD TO CART | |
| 32 | 5100012675 | Wire harness | 1 | ADD TO CART | |
| 34 | 5100052973 | Wire harness negative battery terminal | 1 | PARTS REQUEST | |
|
COMING Wire harness negative battery terminal
5100052973 · qty on machine: 1 | |||||
| 35 | 5100059507 | Proximity switch | 1 | ADD TO CART | |
| 37 | 5100024943 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100024943 · qty on machine: 1 | |||||
| 59 | 5100057812 | Wire harness engine control unit | 1 | PARTS REQUEST | |
|
COMING Wire harness engine control unit
5100057812 · qty on machine: 1 | |||||
| 60 | 5100012637 | Wire harness | 1 | ADD TO CART | |
| 71 | 5100011914 | Hexagon nut | 6 | ADD TO CART | |
| 72 | 5100023629 | Spring ring | 11 | ADD TO CART | |
| 73 | 5100011915 | Hexagon nut | 1 | ADD TO CART | |
| 74 | 5100011917 | Serrated lock washer | 2 | ADD TO CART | |
| 95 | 5100012321 | Signal horn | 1 | ADD TO CART | |
| 96 | 5100011701 | Distance bush | 1 | ADD TO CART | |
| 97 | 5100035308 | Hexagon screw | 1 | ADD TO CART | |
| 98 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 104 | 5100012804 | Circuit board | 1 | ADD TO CART | |
| 105 | 5100013606 | Cheese-head screw | 2 | ADD TO CART | |
| 157 | 5100011653 | Mounting | 1 | ADD TO CART | |
| 158 | 5100011590 | Safety cord | 1 | ADD TO CART | |
| 159 | 5100011632 | Extractor for blade fuses | 1 | ADD TO CART | |
| 170 | 5100011849 | Built-in socket | 1 | ADD TO CART | |
| 171 | 5100012093 | Metal plate | 1 | ADD TO CART | |
| 172 | 5100012600 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 2 | |||||
| 173 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 174 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 260 | 5100013650 | Foot switch | 1 | ADD TO CART | |
| 261 | 5100012890 | Countersunk screw | 2 | ADD TO CART | |
| 299 | 5100013573 | Wire fastener | 50 | ADD TO CART | |
| 23 | 5100023676 | Engine oil pressure switch | 1 | ADD TO CART | |
| 37 | 5100022880 | Battery terminal positive | 1 | ADD TO CART | |
| 37 | 5100023208 | Protecting cap | 1 | ADD TO CART | |
| 78 | 5100023097 | Fuse socket | 1 | PARTS REQUEST | |
|
COMING Fuse socket
5100023097 · qty on machine: 1 | |||||
| 79 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 80 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 81 | 5100023053 | Fuse | 1 | ADD TO CART | |
| 81 | 5100046043 | Fuse | 1 | ADD TO CART | |
| 82 | 5100024919 | Fuse | 1 | ADD TO CART | |
| 83 | 5100024919 | Fuse | 1 | ADD TO CART | |
| 92 | 5100012587 | Safety screw | 2 | ADD TO CART | |
| 93 | 5100052959 | Relay | 1 | ADD TO CART | |
| 94 | 5100011859 | Relay | 1 | ADD TO CART | |
| 119 | 5100024870 | Battery (acid) | 1 | ADD TO CART | |
| 120 | 5100057813 | Battery support | 1 | PARTS REQUEST | |
|
COMING Battery support
5100057813 · qty on machine: 1 | |||||
| 121 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 122 | 5100012515 | Hexagon screw | 1 | ADD TO CART | |
| 123 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 126 | 5100013216 | Flexible tubing | 0.06 | ADD TO CART | |
| 134 | 5100024996 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100024996 · qty on machine: 1 | |||||
| 136 | 5100025009 | Cheese-head screw | 2 | PARTS REQUEST | |
|
COMING Cheese-head screw
5100025009 · qty on machine: 2 | |||||
| 137 | 5100013094 | Washer | 2 | ADD TO CART | |
| 182 | 5100050703 | Angle | 1 | PARTS REQUEST | |
|
COMING Angle
5100050703 · qty on machine: 1 | |||||
| 186 | 5100024966 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100024966 · qty on machine: 1 | |||||
| 187 | 5100012610 | Hexagon screw | 2 | ADD TO CART | |
| 188 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 189 | 5100011544 | Clip nut | 2 | ADD TO CART | |
| 191 | 5100013579 | Blade fuse | 1 | ADD TO CART | |
| 191 | 5100013581 | Blade fuse | 1 | ADD TO CART | |
| 191 | 5100013586 | Blade fuse | 6 | PARTS REQUEST | |
|
COMING Blade fuse
5100013586 · qty on machine: 6 | |||||
| 191 | 5100059543 | Central electric | 1 | PARTS REQUEST | |
|
COMING Central electric
5100059543 · qty on machine: 1 | |||||
| 192 | 5100013594 | Safety screw | 4 | ADD TO CART | |
| 193 | 5100013536 | Serrated lock washer | 4 | ADD TO CART | |
| 194 | 5100011669 | Rubber metal buffer | 4 | ADD TO CART | |
| 195 | 5100011753 | Washer | 4 | ADD TO CART | |
| 196 | 5100012898 | Hexagon nut | 4 | ADD TO CART | |
| 199 | 5100011653 | Mounting | 1 | ADD TO CART | |
| 200 | 5100011590 | Safety cord | 1 | ADD TO CART | |
| 201 | 5100011632 | Extractor for blade fuses | 1 | ADD TO CART | |
| 205 | 5100059547 | Control device | 1 | PARTS REQUEST | |
|
COMING Control device
5100059547 · qty on machine: 1 | |||||
| 206 | 5100059557 | Stud screw | 4 | PARTS REQUEST | |
|
COMING Stud screw
5100059557 · qty on machine: 4 | |||||
| 207 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 208 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 40 | 5100012575 | Wire harness | 1 | ADD TO CART | |
| 42 | 5100052958 | Cheese-head screw | 1 | ADD TO CART | |
| 43 | 5100012965 | Locking washer | 1 | ADD TO CART | |
| 50 | 5100013594 | Safety screw | 2 | ADD TO CART | |
| 84 | 5100011616 | Relay | 1 | ADD TO CART | |
| 85 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 250 | 5100013650 | Foot switch | 1 | ADD TO CART | |
| 251 | 5100012890 | Countersunk screw | 2 | ADD TO CART | |
| 270 | 5100057814 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100057814 · qty on machine: 1 | |||||
| 271 | 5100012587 | Safety screw | 2 | ADD TO CART | |
| 272 | 5100052986 | Hexagonal nut | 2 | PARTS REQUEST | |
|
COMING Hexagonal nut
5100052986 · qty on machine: 2 | |||||
| 275 | 5100023158 | Attachement plate | 1 | ADD TO CART | |
| 276 | 5100012587 | Safety screw | 1 | ADD TO CART | |
| 277 | 5100052986 | Hexagonal nut | 1 | PARTS REQUEST | |
|
COMING Hexagonal nut
5100052986 · qty on machine: 1 | |||||
| 280 | 5100011583 | Relay | 3 | ADD TO CART | |
| 102 | 5100023402 | Temperature switch | 1 | ADD TO CART | |
| 1 | 5100013370 | Pressure switch, air filter | 1 | PARTS REQUEST | |
|
COMING Pressure switch, air filter
5100013370 · qty on machine: 1 | |||||
| 2 | 5100023746 | Sensor | 1 | PARTS REQUEST | |
|
COMING Sensor
5100023746 · qty on machine: 1 | |||||
| 1 | 5100011903 | Drive lever | 1 | ADD TO CART | |
| 2 | 5100011705 | Handle | 2 | ADD TO CART | |
| 3 | 5100011706 | Handle | 2 | ADD TO CART | |
| 5 | 5100011711 | Cover | 2 | PARTS REQUEST | |
|
COMING Cover
5100011711 · qty on machine: 2 | |||||
| 6 | 5100011707 | Operating lever | 2 | ADD TO CART | |
| 7 | 5100012024 | Clamping sleeve | 2 | ADD TO CART | |
| 8 | 5100011708 | Cover | 2 | ADD TO CART | |
| 9 | 5100011792 | Slide block | 2 | ADD TO CART | |
| 11 | 5100013607 | Raised countersunk head screw | 8 | ADD TO CART | |
| 12 | 5100011738 | Raised countersunk head screw | 2 | ADD TO CART | |
| 14 | 5100011710 | Cover | 2 | PARTS REQUEST | |
|
COMING Cover
5100011710 · qty on machine: 2 | |||||
| 30 | 5100012638 | Wire harness | 1 | ADD TO CART | |
| 31 | 5100011709 | Circuit board | 2 | ADD TO CART | |
| 32 | 5100013600 | Sensor | 2 | ADD TO CART | |
| 34 | 5100011524 | Shrinkdown plastic tubing | 0.03 | ADD TO CART | |
| 35 | 5100011458 | Shrinkdown plastic tubing | 0.07 | ADD TO CART | |
| 36 | 5100013520 | Wire fastener | 2 | ADD TO CART | |
| 40 | 5100013641 | Round cable | 0.8 | PARTS REQUEST | |
|
COMING Round cable
5100013641 · qty on machine: 0.8 | |||||
| 1 | 5100011582 | Blade fuse | 1 | ADD TO CART | |
| 5 | 5100013586 | Blade fuse | 2 | PARTS REQUEST | |
|
COMING Blade fuse
5100013586 · qty on machine: 2 | |||||
| 10 | 5100013579 | Blade fuse | 2 | ADD TO CART | |
| 15 | 5100013580 | Blade fuse | 11 | ADD TO CART | |
| 25 | 5100013581 | Blade fuse | 1 | ADD TO CART | |
| 40 | 5100011859 | Relay | 2 | ADD TO CART | |
| 41 | 5100011616 | Relay | 2 | ADD TO CART | |
| 42 | 5100011583 | Relay | 7 | ADD TO CART | |
| 49 | 5100011632 | Extractor for blade fuses | 1 | ADD TO CART | |
| 50 | 5100012579 | Circuit board | 1 | ADD TO CART | |
| 1 | 5100013654 | Flange | 1 | ADD TO CART | |
| 2 | 5100013571 | Push-button | 1 | ADD TO CART | |
| 3 | 5100013636 | Protecting cap | 1 | ADD TO CART | |
| 4 | 5100013191 | Washer | 1 | ADD TO CART | |
| 5 | 5100013573 | Wire fastener | 1 | ADD TO CART | |
| 10 | 5100013650 | Foot switch | 1 | ADD TO CART | |
| 220 | 5100080584 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100080584 · qty on machine: 1 | |||||
| 221 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 222 | 5100012515 | Hexagon screw | 1 | ADD TO CART | |
| 227 | 5100080585 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100080585 · qty on machine: 1 | |||||
| 228 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 229 | 5100012515 | Hexagon screw | 1 | ADD TO CART | |
| 301 | 5100080586 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100080586 · qty on machine: 1 | |||||
| 302 | 5100012627 | Hexagon screw | 2 | ADD TO CART | |
| 303 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 318 | 5100052963 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100052963 · qty on machine: 1 | |||||
| 319 | 5100012515 | Hexagon screw | 1 | ADD TO CART | |
| 320 | 5100012966 | Locking washer | 1 | ADD TO CART | |
Page 202 — Battery isolating switch
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100023231 | Relay | 1 | ADD TO CART | |
| 3 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 4 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 5 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 10 | 5100023237 | Switch | 1 | ADD TO CART | |
| 12 | 5100052982 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100052982 · qty on machine: 1 | |||||
| 13 | 5100080587 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100080587 · qty on machine: 1 | |||||
| 15 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 16 | 5100013184 | Protecting cap | 1 | PARTS REQUEST | |
|
COMING Protecting cap
5100013184 · qty on machine: 1 | |||||
Page 204 — Electrical system Lighting
Parts list — exactly as printed25 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013522 | Lamp | 2 | ADD TO CART | |
| 1 | 5100065328 | Headlight | 2 | ADD TO CART | |
| 1 | 5100065330 | Lamp | 2 | ADD TO CART | |
| 2 | 5100011991 | O-ring seal | 4 | ADD TO CART | |
| 5 | 5100011800 | Direction indicator | 2 | ADD TO CART | |
| 5 | 5100012074 | Lamp | 2 | ADD TO CART | |
| 6 | 5100011739 | Fillister head screw | 4 | ADD TO CART | |
| 7 | 5100013453 | Washer | 4 | ADD TO CART | |
| 10 | 5100017997 | Wire harness (lighting) | 1 | ADD TO CART | |
| 21 | 5100011802 | Tail light | 2 | ADD TO CART | |
| 21 | 5100012213 | Lamp | 2 | ADD TO CART | |
| 21 | 5100013448 | Lamp | 2 | ADD TO CART | |
| 22 | 5100011607 | Sheet metal screw | 8 | ADD TO CART | |
| 25 | 5100011801 | Reversing light | 2 | ADD TO CART | |
| 25 | 5100013448 | Lamp | 2 | ADD TO CART | |
| 30 | 5100012032 | Wire harness (lighting) | 1 | ADD TO CART | |
| 31 | 5100011728 | Metal plate | 4 | ADD TO CART | |
| 32 | 5100011902 | Sheet metal screw | 4 | ADD TO CART | |
| 40 | 5100011583 | Relay | 1 | ADD TO CART | |
| 41 | 5100011583 | Relay | 1 | ADD TO CART | |
| 50 | 5100013579 | Blade fuse | 1 | ADD TO CART | |
| 51 | 5100013579 | Blade fuse | 1 | ADD TO CART | |
| 52 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 101 | 5100059542 | Wire harness front frame | 1 | PARTS REQUEST | |
|
COMING Wire harness front frame
5100059542 · qty on machine: 1 | |||||
| 102 | 5100012632 | Wire harness (rear frame) | 1 | ADD TO CART | |
Page 206 — Additional lighting
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011606 | Working light | 4 | ADD TO CART | |
| 1 | 5100012939 | Washer | 1 | ADD TO CART | |
| 1 | 5100013554 | Lamp | 1 | ADD TO CART | |
| 1 | 5100013598 | Safety nut | 1 | ADD TO CART | |
| 2 | 5100024915 | Working light | 4 | PARTS REQUEST | |
|
COMING Working light
5100024915 · qty on machine: 4 | |||||
| 3 | 5100024918 | Cable harness | 4 | ADD TO CART | |
| 4 | 5100013128 | Washer | 4 | ADD TO CART | |
| 5 | 5100023419 | Hexagon screw | 4 | ADD TO CART | |
| 15 | 5100011583 | Relay | 1 | ADD TO CART | |
| 16 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 21 | 5100016277 | Stop | 2 | ADD TO CART | |
| 22 | 5100011504 | Hexagon screw | 2 | ADD TO CART | |
| 23 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 24 | 5100012603 | Safety nut | 2 | ADD TO CART | |
| 25 | 5100011482 | Washer | 4 | ADD TO CART | |
| 28 | 5100013377 | Rubber buffer | 4 | ADD TO CART | |
| 29 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 30 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 32 | 5100012675 | Wire harness | 1 | ADD TO CART | |
| 102 | 5100012632 | Wire harness (rear frame) | 1 | ADD TO CART | |
| 1 | 5100024915 | Working light | 4 | PARTS REQUEST | |
|
COMING Working light
5100024915 · qty on machine: 4 | |||||
| 2 | 5100052987 | Wire harness working light | 2 | ADD TO CART | |
| 3 | 5100059506 | Wire harness working light | 2 | PARTS REQUEST | |
|
COMING Wire harness working light
5100059506 · qty on machine: 2 | |||||
Page 210 — Drum lighting
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 30 | 5100011583 | Relay | 1 | ADD TO CART | |
| 31 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 35 | 5100067826 | Holder | 4 | ADD TO CART | |
| 40 | 5100066908 | Working light | 4 | ADD TO CART | |
| 41 | 5100011578 | Mushroom head screw | 4 | ADD TO CART | |
| 42 | 5100053004 | Safety nut | 4 | ADD TO CART | |
| 45 | 5100013029 | Bushing | 4 | ADD TO CART | |
Page 212 — Radio
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100067831 | Radio | 1 | ADD TO CART | |
| 3 | 5100023807 | Antenna | 1 | ADD TO CART | |
| 4 | 5100011499 | Set of loudspeakers | 1 | ADD TO CART | |
| 5 | 5100024337 | Fillister head screw | 8 | PARTS REQUEST | |
|
COMING Fillister head screw
5100024337 · qty on machine: 8 | |||||
| 6 | 5100024349 | Lid | 2 | ADD TO CART | |
| 8 | 5100067832 | Connecting cable | 1 | ADD TO CART | |
| 9 | 5100067833 | Connecting cable | 1 | ADD TO CART | |
| 10 | 5100067835 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100067835 · qty on machine: 1 | |||||
Page 214 — Rotating beacon light
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013538 | Lamp | 1 | ADD TO CART | |
| 2 | 5100013517 | Pipe | 1 | ADD TO CART | |
| 1 | 5100011941 | Rotary beacon | 1 | ADD TO CART | |
| 1 | 5100029569 | Rotary beacon | 1 | ADD TO CART | |
| 5 | 5100050711 | Half-clip | 3 | PARTS REQUEST | |
|
COMING Half-clip
5100050711 · qty on machine: 3 | |||||
| 6 | 5100013465 | Cover plate | 1 | ADD TO CART | |
| 7 | 5100013467 | Hexagon screw | 2 | ADD TO CART | |
| 8 | 5100011868 | Weld-on plate | 1 | ADD TO CART | |
| 15 | 5100011583 | Relay | 1 | ADD TO CART | |
| 16 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 2 | 5100023984 | Holder | 1 | ADD TO CART | |
| 4 | 5100013397 | Hexagon screw | 2 | ADD TO CART | |
| 5 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 7 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 10 | 5100052988 | Wire harness rotating beacon | 1 | ADD TO CART | |
| 3 | 5100050711 | Half-clip | 2 | PARTS REQUEST | |
|
COMING Half-clip
5100050711 · qty on machine: 2 | |||||
| 4 | 5100013465 | Cover plate | 1 | ADD TO CART | |
| 5 | 5100013467 | Hexagon screw | 2 | ADD TO CART | |
| 6 | 5100024896 | Holder | 1 | ADD TO CART | |
| 7 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 8 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 9 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 10 | 5100012675 | Wire harness | 1 | ADD TO CART | |
| 11 | 5100013429 | Wire fastener | 4 | ADD TO CART | |
| 12 | 5100024897 | Cable harness | 1 | ADD TO CART | |
| 21 | 5100029569 | Rotary beacon | 1 | ADD TO CART | |
Page 220 — Back-up alarm
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012887 | Reversing alarm 12v-24v dc | 1 | ADD TO CART | |
| 2 | 5100012931 | Mushroom head screw | 2 | ADD TO CART | |
| 3 | 5100011636 | Washer | 2 | ADD TO CART | |
| 4 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 5 | 5100059504 | Proximity switch | 1 | ADD TO CART | |
| 102 | 5100012632 | Wire harness (rear frame) | 1 | ADD TO CART | |
Page 222 — Back-up alarm self adjusting
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100029555 | Back-up alarm | 1 | ADD TO CART | |
| 3 | 5100012608 | Hexagon screw | 2 | ADD TO CART | |
| 4 | 5100011636 | Washer | 2 | ADD TO CART | |
| 5 | 5100013585 | Clip nut | 2 | ADD TO CART | |
| 10 | 5100029553 | Holder | 1 | ADD TO CART | |
| 11 | 5100012600 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 2 | |||||
| 12 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 25 | 5100059504 | Proximity switch | 1 | ADD TO CART | |
| 26 | 5100029559 | Cable harness | 1 | ADD TO CART | |
| 27 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 29 | 5100052959 | Relay | 1 | ADD TO CART | |
Page 224 — Tires
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100050704 | Rim | 1 | PARTS REQUEST | |
|
COMING Rim
5100050704 · qty on machine: 1 | |||||
| 2 | 5100050705 | Smooth tire | 1 | Serialno. >177 | ADD TO CART |
| 2 | 5100065366 | Smooth tire | 1 | Serialno. 160 - 176 | ADD TO CART |
| 3 | 5100013507 | Tyre valve rc50 | 1 | ADD TO CART | |
| 10 | 5100050706 | Tyre | 4 | Serialno. >177 | ADD TO CART |
| 10 | 5100065367 | Wheel | 4 | Serialno. 160 - 176 | PARTS REQUEST |
|
COMING Wheel
5100065367 · qty on machine: 4 Serialno. 160 - 176 | |||||
Page 226 — Advance drive
Parts list — exactly as printed86 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 11 | 5100012463 | Valve block | 1 | ADD TO CART | |
| 62 | 5100013477 | Straight screwed socket | 1 | ADD TO CART | |
| 63 | 5100013477 | Straight screwed socket | 1 | ADD TO CART | |
| 64 | 5100012064 | Flexible tubing | 1 | ADD TO CART | |
| 81 | 5100024970 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100024970 · qty on machine: 1 | |||||
| 93 | 5100013493 | Banjo | 1 | ADD TO CART | |
| 94 | 5100013476 | Straight screwed socket | 1 | ADD TO CART | |
| 131 | 5100011532 | Pipe clip | 1 | ADD TO CART | |
| 132 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 133 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 171 | 5100012429 | Valve block | 1 | ADD TO CART | |
| 183 | 5100013476 | Straight screwed socket | 1 | ADD TO CART | |
| 184 | 5100013361 | Filter | 1 | ADD TO CART | |
| 185 | 5100012517 | Hexagon screw | 3 | ADD TO CART | |
| 186 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 187 | 5100013476 | Straight screwed socket | 1 | ADD TO CART | |
| 188 | 5100011589 | Flexible tubing | 1 | ADD TO CART | |
| 189 | 5100012091 | Reducing piece | 1 | ADD TO CART | |
| 190 | 5100012190 | Straight screwed socket | 1 | ADD TO CART | |
| 191 | 5100012391 | Elbow adjustable | 1 | ADD TO CART | |
| 192 | 5100012585 | Flexible tubing | 1 | ADD TO CART | |
| 193 | 5100013210 | Hollow-core screw | 1 | ADD TO CART | |
| 194 | 5100013004 | Sealing ring | 1 | ADD TO CART | |
| 195 | 5100011468 | Sealing ring | 1 | ADD TO CART | |
| 1 | 5100013430 | Sae-flange half | 4 | ADD TO CART | |
| 2 | 5100013431 | O-ring seal | 2 | ADD TO CART | |
| 3 | 5100011587 | Safety screw | 8 | ADD TO CART | |
| 4 | 5100012628 | Elbow adjustable | 1 | ADD TO CART | |
| 5 | 5100065319 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100065319 · qty on machine: 1 | |||||
| 6 | 5100012643 | Flexible tubing | 1 | ADD TO CART | |
| 7 | 5100013478 | Straight screwed socket | 1 | ADD TO CART | |
| 8 | 5100012641 | Intermediate piece | 1 | ADD TO CART | |
| 9 | 5100065320 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100065320 · qty on machine: 1 | |||||
| 12 | 5100011479 | Hexagon screw | 2 | ADD TO CART | |
| 13 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 14 | 5100013564 | Stud bolt | 2 | ADD TO CART | |
| 15 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 16 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 21 | 5100013539 | Straight screwed socket | 8 | ADD TO CART | |
| 22 | 5100012078 | Flexible tubing | 1 | ADD TO CART | |
| 22 | 5100013559 | Flexible tubing | 1 | ADD TO CART | |
| 23 | 5100012104 | Flexible tubing | 1 | ADD TO CART | |
| 23 | 5100013593 | Flexible tubing | 1 | ADD TO CART | |
| 24 | 5100012058 | Flexible tubing | 1 | ADD TO CART | |
| 24 | 5100012077 | Flexible tubing | 1 | ADD TO CART | |
| 25 | 5100012103 | Flexible tubing | 1 | ADD TO CART | |
| 25 | 5100012104 | Flexible tubing | 1 | ADD TO CART | |
| 26 | 5100013489 | Straight screwed socket | 4 | ADD TO CART | |
| 41 | 5100013472 | Straight screwed socket | 2 | ADD TO CART | |
| 42 | 5100013613 | Elbow adjustable | 1 | ADD TO CART | |
| 43 | 5100011491 | Flexible tubing | 1 | ADD TO CART | |
| 43 | 5100012067 | Flexible tubing | 1 | ADD TO CART | |
| 44 | 5100011823 | Flexible tubing | 1 | ADD TO CART | |
| 44 | 5100011466 | Flexible tubing | 1 | ADD TO CART | |
| 61 | 5100013475 | Straight screwed socket | 4 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013475 · qty on machine: 4 | |||||
| 101 | 5100011879 | Half-clip | 4 | ADD TO CART | |
| 102 | 5100012977 | Stud bolt | 4 | ADD TO CART | |
| 103 | 5100011880 | Metal plate | 2 | ADD TO CART | |
| 105 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 106 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 120 | 5100011948 | Metal plate | 2 | ADD TO CART | |
| 121 | 5100013510 | Hexagon screw | 4 | ADD TO CART | |
| 122 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 124 | 5100011879 | Half-clip | 4 | ADD TO CART | |
| 125 | 5100039073 | Stud screw | 4 | ADD TO CART | |
| 126 | 5100011880 | Metal plate | 2 | ADD TO CART | |
| 127 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 128 | 5100011525 | Cap nut | 4 | ADD TO CART | |
| 27 | 5100011416 | Intermediate piece | 4 | ADD TO CART | |
| 28 | 5100012490 | Flexible tubing | 1 | ADD TO CART | |
| 29 | 5100012488 | Flexible tubing | 1 | ADD TO CART | |
| 30 | 5100012488 | Flexible tubing | 1 | ADD TO CART | |
| 31 | 5100012489 | Flexible tubing | 1 | ADD TO CART | |
| 33 | 5100012236 | Pipe bend | 4 | ADD TO CART | |
| 34 | 5100013539 | Straight screwed socket | 4 | ADD TO CART | |
| 49 | 5100013619 | Elbow adjustable | 2 | ADD TO CART | |
| 50 | 5100013475 | Straight screwed socket | 2 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013475 · qty on machine: 2 | |||||
| 53 | 5100011660 | Flexible tubing | 1 | ADD TO CART | |
| 54 | 5100011660 | Flexible tubing | 1 | ADD TO CART | |
| 111 | 5100011555 | Pipe clip | 1 | ADD TO CART | |
| 112 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 113 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 140 | 5100013429 | Wire fastener | 50 | ADD TO CART | |
| 10 | 5100012424 | Valve block | 1 | Serialno. 160 | ADD TO CART |
| 10 | 5100067834 | Control block | 1 | Serialno. > 161 | ADD TO CART |
| 100 | 5100012463 | Valve block | 1 | ADD TO CART | |
Page 236 — Drive shifting
Parts list — exactly as printed68 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011900 | Metal plate | 2 | ADD TO CART | |
| 2 | 5100012613 | Hexagon screw | 4 | ADD TO CART | |
| 3 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 4 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 5 | 5100048707 | Countersunk screw | 6 | ADD TO CART | |
| 6 | 5100012836 | Drive lever | 1 | ADD TO CART | |
| 7 | 5100011904 | Shift claw | 1 | ADD TO CART | |
| 8 | 5100013466 | Hexagon screw | 2 | ADD TO CART | |
| 9 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 10 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 11 | 5100013573 | Wire fastener | 10 | ADD TO CART | |
| 12 | 5100013537 | Hexagon nut | 1 | ADD TO CART | |
| 13 | 5100011791 | Distance bush | 2 | ADD TO CART | |
| 14 | 5100011819 | Compression spring | 1 | ADD TO CART | |
| 15 | 5100040596 | Hexagon screw | 1 | ADD TO CART | |
| 16 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 17 | 5100053004 | Safety nut | 1 | ADD TO CART | |
| 18 | 5100013189 | Cheese-head screw | 2 | ADD TO CART | |
| 19 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 20 | 5100013166 | Spring-thrust piece | 1 | ADD TO CART | |
| 54 | 5100013400 | Hexagon nut | 1 | ADD TO CART | |
| 56 | 5100011901 | Seat pedestal | 1 | ADD TO CART | |
| 57 | 5100012515 | Hexagon screw | 4 | ADD TO CART | |
| 58 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 59 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 60 | 5100013421 | Washer | 4 | ADD TO CART | |
| 61 | 5100011962 | Adjustment bar | 1 | ADD TO CART | |
| 62 | 5100013401 | Cheese-head screw | 2 | ADD TO CART | |
| 63 | 5100013441 | Locking washer | 2 | ADD TO CART | |
| 66 | 5100012041 | Adjustment bar | 1 | ADD TO CART | |
| 67 | 5100011869 | Fillister head screw | 2 | ADD TO CART | |
| 68 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 70 | 5100012073 | Rod steel | 1 | ADD TO CART | |
| 80 | 5100011997 | Seat pedestal | 1 | ADD TO CART | |
| 200 | 5100012638 | Wire harness | 1 | ADD TO CART | |
| 1 | 5100011899 | Seat pedestal | 1 | ADD TO CART | |
| 2 | 5100012517 | Hexagon screw | 4 | ADD TO CART | |
| 74 | 5100013412 | Edge protection | 0.24 | ADD TO CART | |
| 75 | 5100012639 | Cover | 1 | ADD TO CART | |
| 76 | 5100012572 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 2 | |||||
| 77 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 79 | 5100013412 | Edge protection | 0.14 | ADD TO CART | |
| 81 | 5100012517 | Hexagon screw | 2 | ADD TO CART | |
| 82 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 83 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 86 | 5100012517 | Hexagon screw | 2 | ADD TO CART | |
| 87 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 88 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 89 | 5100012453 | Spacer | 2 | ADD TO CART | |
| 90 | 5100012154 | Bracket | 1 | ADD TO CART | |
| 91 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 92 | 5100022925 | Hexagon screw | 2 | ADD TO CART | |
| 93 | 5100011951 | Joint-head | 1 | ADD TO CART | |
| 93 | 5100012333 | Angle joint | 1 | ADD TO CART | |
| 93 | 5100012581 | Actuating cable | 1 | ADD TO CART | |
| 93 | 5100080592 | Bellows | 1 | PARTS REQUEST | |
|
COMING Bellows
5100080592 · qty on machine: 1 | |||||
| 94 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 95 | 5100035308 | Hexagon screw | 1 | ADD TO CART | |
| 96 | 5100053004 | Safety nut | 1 | ADD TO CART | |
| 6 | 5100011900 | Metal plate | 2 | ADD TO CART | |
| 7 | 5100012613 | Hexagon screw | 4 | ADD TO CART | |
| 8 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 9 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 10 | 5100011792 | Slide block | 2 | ADD TO CART | |
| 11 | 5100048707 | Countersunk screw | 6 | ADD TO CART | |
| 15 | 5100011905 | Lever | 1 | ADD TO CART | |
| 19 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 20 | 5100012966 | Locking washer | 1 | ADD TO CART | |
Page 242 — Brake hydraulics
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011419 | O-ring seal | 1 | ADD TO CART | |
| 1 | 5100012970 | Valve block | 1 | ADD TO CART | |
| 2 | 5100013256 | Cheese-head screw | 4 | ADD TO CART | |
| 3 | 5100011608 | Screw plug | 2 | ADD TO CART | |
| 5 | 5100011874 | Pipe | 1 | ADD TO CART | |
| 15 | 5100013474 | Straight screwed socket | 4 | ADD TO CART | |
| 16 | 5100012221 | Flexible tubing | 1 | ADD TO CART | |
| 16 | 5100012224 | Flexible tubing | 1 | ADD TO CART | |
| 17 | 5100011562 | Flexible tubing | 1 | ADD TO CART | |
| 17 | 5100011567 | Flexible tubing | 1 | ADD TO CART | |
| 18 | 5100013492 | Straight screwed socket | 2 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013492 · qty on machine: 2 | |||||
| 20 | 5100012388 | Flexible tubing | 1 | PARTS REQUEST | |
|
COMING Flexible tubing
5100012388 · qty on machine: 1 | |||||
| 21 | 5100012388 | Flexible tubing | 1 | PARTS REQUEST | |
|
COMING Flexible tubing
5100012388 · qty on machine: 1 | |||||
| 22 | 5100013474 | Straight screwed socket | 2 | ADD TO CART | |
Page 244 — All-wheel lock
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100066917 | Flow divider | 2 | ADD TO CART | |
| 2 | 5100011497 | Cheese-head screw | 8 | ADD TO CART | |
| 10 | 5100013650 | Foot switch | 1 | ADD TO CART | |
| 11 | 5100012890 | Countersunk screw | 2 | ADD TO CART | |
| 22 | 5100013586 | Blade fuse | 1 | PARTS REQUEST | |
|
COMING Blade fuse
5100013586 · qty on machine: 1 | |||||
| 23 | 5100011583 | Relay | 1 | ADD TO CART | |
| 27 | 5100012499 | Sticker | 1 | PARTS REQUEST | |
|
COMING Sticker
5100012499 · qty on machine: 1 | |||||
| 40 | 5100013474 | Straight screwed socket | 1 | ADD TO CART | |
| 41 | 5100013611 | Flexible tubing | 1 | ADD TO CART | |
| 42 | 5100013474 | Straight screwed socket | 1 | ADD TO CART | |
Page 248 — Articulated pendulum joint
Parts list — exactly as printed33 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100011481 | Cheese-head screw | 2 | ADD TO CART | |
| 2 | 5100011777 | Radial rod end bearing | 1 | ADD TO CART | |
| 2 | 5100011834 | Radial rod end bearing | 1 | ADD TO CART | |
| 2 | 5100011839 | Centre pivot assembly | 1 | ADD TO CART | |
| 2 | 5100011848 | Clamping piece | 1 | ADD TO CART | |
| 2 | 5100012481 | Greasing nipple | 1 | ADD TO CART | |
| 2 | 5100065341 | Centre pivot assembly | 1 | PARTS REQUEST | |
|
COMING Centre pivot assembly
5100065341 · qty on machine: 1 | |||||
| 3 | 5100012624 | Stud bolt | 6 | ADD TO CART | |
| 4 | 5100013129 | Washer | 6 | ADD TO CART | |
| 5 | 5100012550 | Hexagon nut | 6 | ADD TO CART | |
| 10 | 5100011858 | Sealing ring | 1 | ADD TO CART | |
| 15 | 5100011844 | Clamping piece | 1 | ADD TO CART | |
| 16 | 5100012725 | Cheese-head screw | 3 | ADD TO CART | |
| 17 | 5100011840 | Cover | 1 | ADD TO CART | |
| 18 | 5100035087 | Hexagon screw | 6 | ADD TO CART | |
| 19 | 5100012966 | Locking washer | 6 | ADD TO CART | |
| 20 | 5100065337 | Greasing nipple | 2 | PARTS REQUEST | |
|
COMING Greasing nipple
5100065337 · qty on machine: 2 | |||||
| 20 | 5100013534 | Radial rod end bearing | 1 | ADD TO CART | |
| 20 | 5100011842 | Pendulum joint | 1 | PARTS REQUEST | |
|
COMING Pendulum joint
5100011842 · qty on machine: 1 | |||||
| 21 | 5100011782 | Sealing ring | 4 | ADD TO CART | |
| 22 | 5100011837 | Clamping piece | 2 | ADD TO CART | |
| 23 | 5100012724 | Cheese-head screw | 4 | ADD TO CART | |
| 30 | 5100012245 | Safety strut | 1 | ADD TO CART | |
| 31 | 5100013432 | Rubber buffer | 1 | ADD TO CART | |
| 32 | 5100013607 | Raised countersunk head screw | 1 | ADD TO CART | |
| 33 | 5100012965 | Locking washer | 1 | ADD TO CART | |
| 34 | 5100011731 | Rubber washer | 2 | ADD TO CART | |
| 35 | 5100011493 | Hexagon screw | 1 | ADD TO CART | |
| 36 | 5100012969 | Locking washer | 2 | ADD TO CART | |
| 37 | 5100035686 | Safety nut | 1 | ADD TO CART | |
| 40 | 5100012009 | Bolt | 1 | ADD TO CART | |
| 41 | 5100011803 | W-clip | 1 | ADD TO CART | |
| 42 | 5100011590 | Safety cord | 1 | ADD TO CART | |
Page 250 — Steering
Parts list — exactly as printed59 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011736 | O-ring seal | 4 | ADD TO CART | |
| 1 | 5100011989 | Steering unit | 1 | ADD TO CART | |
| 1 | 5100012655 | Connection plate | 1 | ADD TO CART | |
| 1 | 5100012658 | Steering unit + connect. plate | 1 | ADD TO CART | |
| 1 | 5100013528 | Cheese-head screw | 2 | ADD TO CART | |
| 2 | 5100012391 | Elbow adjustable | 1 | ADD TO CART | |
| 3 | 5100012216 | Angle flange screwing | 1 | ADD TO CART | |
| 3 | 5100012723 | Cheese-head screw | 2 | ADD TO CART | |
| 3 | 5100012942 | Spring ring | 4 | PARTS REQUEST | |
|
COMING Spring ring
5100012942 · qty on machine: 4 | |||||
| 3 | 5100013189 | Cheese-head screw | 2 | ADD TO CART | |
| 3 | 5100013612 | O-ring seal | 1 | ADD TO CART | |
| 4 | 5100013447 | Straight screwed socket | 1 | ADD TO CART | |
| 5 | 5100067829 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100067829 · qty on machine: 1 | |||||
| 6 | 5100063874 | Hose fitting | 1 | ADD TO CART | |
| 7 | 5100012053 | Flexible tubing | 1 | ADD TO CART | |
| 8 | 5100013524 | Elbow adjustable | 1 | Serialno. < 180 | ADD TO CART |
| 8 | 5100071895 | Cross fitting | 1 | Serialno. > 179 | ADD TO CART |
| 9 | 5100065343 | Metal plate | 1 | PARTS REQUEST | |
|
COMING Metal plate
5100065343 · qty on machine: 1 | |||||
| 10 | 5100013553 | Straight screwed socket | 1 | ADD TO CART | |
| 11 | 5100012220 | Straight flange joint | 1 | ADD TO CART | |
| 11 | 5100012723 | Cheese-head screw | 4 | ADD TO CART | |
| 11 | 5100012942 | Spring ring | 4 | PARTS REQUEST | |
|
COMING Spring ring
5100012942 · qty on machine: 4 | |||||
| 11 | 5100013612 | O-ring seal | 1 | ADD TO CART | |
| 12 | 5100012391 | Elbow adjustable | 1 | ADD TO CART | |
| 15 | 5100083351 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100083351 · qty on machine: 1 | |||||
| 18 | 5100012391 | Elbow adjustable | 1 | Serialno. > 179 | ADD TO CART |
| 25 | 5100013433 | Straight screwed socket | 2 | ADD TO CART | |
| 26 | 5100013499 | Straight screwed socket | 2 | ADD TO CART | |
| 32 | 5100012679 | Flexible tubing | 1 | PARTS REQUEST | |
|
COMING Flexible tubing
5100012679 · qty on machine: 1 | |||||
| 42 | 5100012680 | Flexible tubing | 1 | ADD TO CART | |
| 43 | 5100013492 | Straight screwed socket | 2 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013492 · qty on machine: 2 | |||||
| 45 | 5100065305 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100065305 · qty on machine: 1 | |||||
| 46 | 5100065331 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100065331 · qty on machine: 1 | |||||
| 47 | 5100053007 | Connecting block | 1 | ADD TO CART | |
| 48 | 5100013454 | Straight screwed socket | 1 | ADD TO CART | |
| 49 | 5100013474 | Straight screwed socket | 1 | ADD TO CART | |
| 50 | 5100053008 | Straight screwed socket | 1 | ADD TO CART | |
| 51 | 5100011563 | Radial rod end bearing | 1 | PARTS REQUEST | |
|
COMING Radial rod end bearing
5100011563 · qty on machine: 1 | |||||
| 51 | 5100011685 | Set of seals | 1 | ADD TO CART | |
| 51 | 5100011875 | Steering cylinder | 1 | ADD TO CART | |
| 51 | 5100012481 | Greasing nipple | 1 | ADD TO CART | |
| 51 | 5100057815 | Retaining ring | 4 | PARTS REQUEST | |
|
COMING Retaining ring
5100057815 · qty on machine: 4 | |||||
| 53 | 5100011776 | Bolt | 1 | ADD TO CART | |
| 54 | 5100011680 | Spacer ring | 2 | ADD TO CART | |
| 55 | 5100013560 | Seal | 2 | ADD TO CART | |
| 56 | 5100012550 | Hexagon nut | 1 | ADD TO CART | |
| 57 | 5100012955 | Locking washer | 1 | ADD TO CART | |
| 60 | 5100012479 | Greasing nipple | 1 | ADD TO CART | |
| 61 | 5100011820 | Spacer ring | 1 | ADD TO CART | |
| 62 | 5100011695 | U-washer | 1 | ADD TO CART | |
| 63 | 5100013463 | Cheese-head screw | 1 | ADD TO CART | |
| 65 | 5100012644 | Steering column | 1 | ADD TO CART | |
| 66 | 5100013450 | Cheese-head screw | 2 | ADD TO CART | |
| 67 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 68 | 5100012783 | Cheese-head screw | 2 | ADD TO CART | |
| 70 | 5100011912 | Steering wheel | 1 | ADD TO CART | |
| 70 | 5100012392 | Turning handle | 1 | ADD TO CART | |
| 70 | 5100065336 | Lid | 1 | ADD TO CART | |
| 71 | 5100013413 | Washer | 1 | ADD TO CART | |
Page 254 — Water sprinkler
Parts list — exactly as printed77 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 6 | 5100011851 | Rubber sleeve | 4 | ADD TO CART | |
| 8 | 5100011850 | Rubber sleeve | 3 | ADD TO CART | |
| 9 | 5100011815 | Tank cap | 1 | ADD TO CART | |
| 11 | 5100011990 | Strainer | 1 | ADD TO CART | |
| 14 | 5100011931 | O-ring seal | 1 | ADD TO CART | |
| 54 | 5100011718 | Metal plate | 2 | ADD TO CART | |
| 55 | 5100013195 | Supporting plate | 2 | ADD TO CART | |
| 56 | 5100011902 | Sheet metal screw | 4 | ADD TO CART | |
| 57 | 5100012978 | Stud bolt | 4 | ADD TO CART | |
| 58 | 5100012945 | Stud bolt | 4 | ADD TO CART | |
| 59 | 5100012410 | Blind rivet nut | 1 | ADD TO CART | |
| 65 | 5100011812 | Drain plug | 1 | ADD TO CART | |
| 66 | 5100011865 | O-ring seal | 1 | ADD TO CART | |
| 67 | 5100011864 | O-ring seal | 1 | ADD TO CART | |
| 68 | 5100011862 | Compression spring | 1 | ADD TO CART | |
| 69 | 5100011830 | Strainer | 1 | ADD TO CART | |
| 78 | 5100012013 | Float | 1 | PARTS REQUEST | |
|
COMING Float
5100012013 · qty on machine: 1 | |||||
| 79 | 5100012012 | Inspection glass | 1 | ADD TO CART | |
| 80 | 5100011656 | Filler cap | 1 | ADD TO CART | |
| 81 | 5100011873 | Pipe clip | 1 | ADD TO CART | |
| 82 | 5100012000 | Sheet metal screw | 1 | ADD TO CART | |
| 100 | 5100050708 | Water tank | 1 | ADD TO CART | |
| 103 | 5100012713 | Rubber metal buffer | 4 | ADD TO CART | |
| 104 | 5100013523 | Washer | 2 | ADD TO CART | |
| 105 | 5100011526 | Elbow | 3 | ADD TO CART | |
| 107 | 5100011444 | Elbow | 3 | ADD TO CART | |
| 109 | 5100013557 | Key | 1 | ADD TO CART | |
| 109 | 5100059525 | Tank cap, with lock | 1 | ADD TO CART | |
| 150 | 5100012140 | Key | 1 | ADD TO CART | |
| 151 | 5100011906 | Metal plate | 1 | ADD TO CART | |
| 152 | 5100011902 | Sheet metal screw | 1 | ADD TO CART | |
| 153 | 5100013646 | Flexible tubing | 0.65 | ADD TO CART | |
| 175 | 5100011590 | Safety cord | 1 | ADD TO CART | |
| 54 | 5100012410 | Blind rivet nut | 1 | ADD TO CART | |
| 60 | 5100011719 | Metal plate | 4 | ADD TO CART | |
| 61 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 62 | 5100012547 | Hexagon nut | 8 | ADD TO CART | |
| 75 | 5100011590 | Safety cord | 1 | ADD TO CART | |
| 85 | 5100013374 | Water pump | 1 | ADD TO CART | |
| 86 | 5100012919 | Silentbloc | 4 | ADD TO CART | |
| 87 | 5100013523 | Washer | 4 | ADD TO CART | |
| 88 | 5100012545 | Hexagon nut | 8 | ADD TO CART | |
| 91 | 5100012498 | Safety screw | 3 | ADD TO CART | |
| 92 | 5100011527 | Angle screwed socket | 1 | ADD TO CART | |
| 93 | 5100013646 | Flexible tubing | 0.5 | ADD TO CART | |
| 94 | 5100011666 | Angle screwed socket | 1 | ADD TO CART | |
| 95 | 5100011670 | Flexible tubing | 0.8 | ADD TO CART | |
| 96 | 5100011845 | Mounting device | 1 | ADD TO CART | |
| 97 | 5100023166 | Filler cap | 1 | ADD TO CART | |
| 102 | 5100011670 | Flexible tubing | 3 | ADD TO CART | |
| 119 | 5100013573 | Wire fastener | 5 | ADD TO CART | |
| 108 | 5100013179 | Hose clip | 1 | ADD TO CART | |
| 200 | 5100011863 | T-reducing socket | 1 | ADD TO CART | |
| 203 | 5100013213 | Bracket | 1 | ADD TO CART | |
| 204 | 5100013639 | Flexible tubing | 0.27 | ADD TO CART | |
| 205 | 5100013214 | Sprinkler pipe | 1 | ADD TO CART | |
| 206 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 207 | 5100012705 | Cheese-head screw | 4 | ADD TO CART | |
| 208 | 5100013367 | Hose clip | 9 | ADD TO CART | |
| 209 | 5100013639 | Flexible tubing | 0.27 | ADD TO CART | |
| 210 | 5100011898 | Nozzle holder | 2 | ADD TO CART | |
| 213 | 5100011867 | Nozzle holder | 2 | ADD TO CART | |
| 215 | 5100011529 | Sprinkler nozzle | 4 | ADD TO CART | |
| 216 | 5100011488 | Nut | 4 | ADD TO CART | |
| 217 | 5100011489 | Filtering screen | 4 | ADD TO CART | |
| 221 | 5100013639 | Flexible tubing | 0.11 | ADD TO CART | |
| 222 | 5100013639 | Flexible tubing | 0.14 | ADD TO CART | |
| 230 | 5100011756 | Cheese-head screw | 8 | ADD TO CART | |
| 210 | 5100011535 | Cap nut | 1 | ADD TO CART | |
| 210 | 5100011651 | Membrane holder | 1 | ADD TO CART | |
| 210 | 5100011752 | Sealing ring | 1 | ADD TO CART | |
| 210 | 5100011978 | Membrane | 1 | ADD TO CART | |
| 213 | 5100011978 | Membrane | 1 | ADD TO CART | |
| 213 | 5100011752 | Sealing ring | 1 | ADD TO CART | |
| 213 | 5100011651 | Membrane holder | 1 | ADD TO CART | |
| 213 | 5100011535 | Cap nut | 1 | ADD TO CART | |
| 300 | 5100013214 | Sprinkler pipe | 1 | ADD TO CART | |
Page 264 — Additive sprinkling
Parts list — exactly as printed62 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 33 | 5100059525 | Tank cap, with lock | 1 | ADD TO CART | |
| 33 | 5100059531 | Additive tank | 1 | ADD TO CART | |
| 33 | 5100065362 | O-ring seal | 2 | PARTS REQUEST | |
|
COMING O-ring seal
5100065362 · qty on machine: 2 | |||||
| 33 | 5100065363 | Straight screwed socket | 2 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100065363 · qty on machine: 2 | |||||
| 34 | 5100013374 | Water pump | 1 | ADD TO CART | |
| 35 | 5100012571 | Hexagon screw | 4 | ADD TO CART | |
| 36 | 5100011636 | Washer | 4 | ADD TO CART | |
| 40 | 5100013437 | Angle screwed socket | 2 | PARTS REQUEST | |
|
COMING Angle screwed socket
5100013437 · qty on machine: 2 | |||||
| 42 | 5100013223 | Flexible tubing | 0.23 | ADD TO CART | |
| 46 | 5100013367 | Hose clip | 4 | ADD TO CART | |
| 60 | 5100013223 | Flexible tubing | 0.7 | ADD TO CART | |
| 71 | 5100013223 | Flexible tubing | 0.55 | ADD TO CART | |
| 72 | 5100033219 | Straight screwed socket | 1 | ADD TO CART | |
| 73 | 5100011472 | Ball-closure cock | 1 | ADD TO CART | |
| 74 | 5100029535 | Straight screwed socket | 1 | ADD TO CART | |
| 75 | 5100013367 | Hose clip | 2 | ADD TO CART | |
| 100 | 5100059545 | Additive tank | 1 | PARTS REQUEST | |
|
COMING Additive tank
5100059545 · qty on machine: 1 | |||||
| 101 | 5100066878 | Strainer | 1 | ADD TO CART | |
| 131 | 5100035553 | Hexagon screw | 2 | ADD TO CART | |
| 132 | 5100013128 | Washer | 2 | ADD TO CART | |
| 133 | 5100011717 | Spacer block | 2 | ADD TO CART | |
| 149 | 5100013644 | Rubber profile | 0.2 | ADD TO CART | |
| 150 | 5100013367 | Hose clip | 1 | ADD TO CART | |
| 2 | 5100012139 | Bracket | 1 | ADD TO CART | |
| 3 | 5100012992 | Scraper | 4 | ADD TO CART | |
| 5 | 5100012374 | Flat steel | 3 | ADD TO CART | |
| 6 | 5100013510 | Hexagon screw | 8 | ADD TO CART | |
| 7 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 10 | 5100013206 | Metal plate | 1 | ADD TO CART | |
| 11 | 5100012932 | Handle | 1 | ADD TO CART | |
| 12 | 5100012665 | Countersunk screw | 2 | ADD TO CART | |
| 13 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 19 | 5100011535 | Cap nut | 1 | ADD TO CART | |
| 19 | 5100011651 | Membrane holder | 1 | ADD TO CART | |
| 19 | 5100011752 | Sealing ring | 1 | ADD TO CART | |
| 19 | 5100011898 | Nozzle holder | 2 | ADD TO CART | |
| 20 | 5100011535 | Cap nut | 1 | ADD TO CART | |
| 20 | 5100011651 | Membrane holder | 1 | ADD TO CART | |
| 20 | 5100011752 | Sealing ring | 1 | ADD TO CART | |
| 20 | 5100011867 | Nozzle holder | 2 | ADD TO CART | |
| 21 | 5100059528 | Sprinkler nozzle | 4 | ADD TO CART | |
| 22 | 5100011488 | Nut | 4 | ADD TO CART | |
| 23 | 5100011489 | Filtering screen | 4 | ADD TO CART | |
| 24 | 5100011978 | Membrane | 4 | ADD TO CART | |
| 28 | 5100011756 | Cheese-head screw | 8 | ADD TO CART | |
| 34 | 5100013223 | Flexible tubing | 0.15 | ADD TO CART | |
| 35 | 5100013223 | Flexible tubing | 0.15 | ADD TO CART | |
| 36 | 5100012097 | T-hose connector | 1 | ADD TO CART | |
| 37 | 5100013367 | Hose clip | 8 | ADD TO CART | |
| 38 | 5100013223 | Flexible tubing | 0.19 | ADD TO CART | |
| 39 | 5100013223 | Flexible tubing | 0.19 | ADD TO CART | |
| 45 | 5100013205 | Washer | 1 | ADD TO CART | |
| 46 | 5100012572 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 2 | |||||
| 47 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 50 | 5100012438 | Silentbloc | 2 | ADD TO CART | |
| 51 | 5100011744 | Fillister head screw | 2 | ADD TO CART | |
| 52 | 5100012937 | Washer | 2 | ADD TO CART | |
| 53 | 5100017998 | Hexagonal nut | 2 | ADD TO CART | |
| 60 | 5100033218 | Holder | 1 | ADD TO CART | |
| 61 | 5100039065 | Metal plate | 2 | ADD TO CART | |
| 62 | 5100023198 | Fillister head screw | 2 | PARTS REQUEST | |
|
COMING Fillister head screw
5100023198 · qty on machine: 2 | |||||
| 100 | 5100012138 | Scraper | 1 | ADD TO CART | |
Page 270 — Water pump
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 4 | 5100013389 | Pump housing | 1 | ADD TO CART | |
| 5 | 5100013391 | Valve insert | 1 | ADD TO CART | |
| 10 | 5100013390 | Pump housing | 1 | ADD TO CART | |
| 100 | 5100013374 | Water pump | 1 | ADD TO CART | |
Page 272 — Antifreezing device
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100011943 | Ball-closure cock | 1 | ADD TO CART | |
| 11 | 5100011942 | Adapter | 1 | ADD TO CART | |
| 12 | 5100012598 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012598 · qty on machine: 2 | |||||
| 13 | 5100012936 | Washer | 4 | ADD TO CART | |
| 14 | 5100011599 | Hexagon nut | 2 | ADD TO CART | |
| 21 | 5100011527 | Angle screwed socket | 3 | ADD TO CART | |
| 22 | 5100013413 | Washer | 2 | ADD TO CART | |
| 25 | 5100080594 | Hose | 0.59 | PARTS REQUEST | |
|
COMING Hose
5100080594 · qty on machine: 0.59 | |||||
| 26 | 5100080594 | Hose | 0.86 | PARTS REQUEST | |
|
COMING Hose
5100080594 · qty on machine: 0.86 | |||||
| 27 | 5100080594 | Hose | 0.59 | PARTS REQUEST | |
|
COMING Hose
5100080594 · qty on machine: 0.59 | |||||
| 60 | 5100013573 | Wire fastener | 10 | ADD TO CART | |
| 95 | 5100011670 | Flexible tubing | 0.8 | ADD TO CART | |
| 10 | 5100029536 | Union | 1 | ADD TO CART | |
| 11 | 5100080594 | Hose | 0.06 | PARTS REQUEST | |
|
COMING Hose
5100080594 · qty on machine: 0.06 | |||||
| 12 | 5100080594 | Hose | 0.65 | PARTS REQUEST | |
|
COMING Hose
5100080594 · qty on machine: 0.65 | |||||
| 13 | 5100029535 | Straight screwed socket | 1 | ADD TO CART | |
| 16 | 5100011472 | Ball-closure cock | 1 | ADD TO CART | |
| 17 | 5100029535 | Straight screwed socket | 1 | ADD TO CART | |
| 25 | 5100029568 | Holder | 1 | ADD TO CART | |
| 26 | 5100012598 | Hexagon screw | 1 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012598 · qty on machine: 1 | |||||
| 27 | 5100012936 | Washer | 2 | ADD TO CART | |
| 28 | 5100011599 | Hexagon nut | 1 | ADD TO CART | |
| 61 | 5100013429 | Wire fastener | 1 | ADD TO CART | |
Page 278 — Bypass oil filter
Parts list — exactly as printed24 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100065307 | Filter | 1 | ADD TO CART | |
| 4 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 5 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 6 | 5100065316 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100065316 · qty on machine: 1 | |||||
| 7 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 8 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 10 | 5100029551 | Straight screwed socket | 2 | ADD TO CART | |
| 11 | 5100065322 | Pipe bend | 1 | PARTS REQUEST | |
|
COMING Pipe bend
5100065322 · qty on machine: 1 | |||||
| 12 | 5100065308 | Pressure reducing valve | 1 | ADD TO CART | |
| 13 | 5100034772 | Hexagon screw | 2 | ADD TO CART | |
| 14 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 15 | 5100048634 | Straight screwed socket | 2 | ADD TO CART | |
| 20 | 5100065317 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100065317 · qty on machine: 1 | |||||
| 21 | 5100065302 | Elbow adjustable | 1 | PARTS REQUEST | |
|
COMING Elbow adjustable
5100065302 · qty on machine: 1 | |||||
| 22 | 5100013454 | Straight screwed socket | 1 | ADD TO CART | |
| 30 | 5100065323 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100065323 · qty on machine: 1 | |||||
| 31 | 5100029538 | Elbow adjustable | 1 | ADD TO CART | |
| 32 | 5100013454 | Straight screwed socket | 1 | ADD TO CART | |
| 35 | 5100065310 | Sealing | 1 | Serialno. 160 – 179 | ADD TO CART |
| 36 | 5100065311 | Distance ring | 1 | Serialno. 160 – 179 | PARTS REQUEST |
|
COMING Distance ring
5100065311 · qty on machine: 1 Serialno. 160 – 179 | |||||
| 37 | 5100012090 | Cheese-head screw | 6 | Serialno. 160 – 179 | ADD TO CART |
| 38 | 5100013558 | Sealing ring | 6 | ADD TO CART | |
| 40 | 5100013573 | Wire fastener | 5 | ADD TO CART | |
| 50 | 5100046875 | Sealing tape | 0.09 | ADD TO CART | |
Page 280 — Roller spreader
Parts list — exactly as printed211 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 31 | 5100013020 | Bolt | 2 | ADD TO CART | |
| 19 | 5100013523 | Washer | 3 | ADD TO CART | |
| 1 | 5100013095 | Hydraulic motor | 1 | PARTS REQUEST | |
|
COMING Hydraulic motor
5100013095 · qty on machine: 1 | |||||
| 18 | 5100013110 | Flanged bearing | 2 | ADD TO CART | |
| 20 | 5100033225 | Roller chain | 1 | PARTS REQUEST | |
|
COMING Roller chain
5100033225 · qty on machine: 1 | |||||
| 21 | 5100033226 | Chain wheel | 1 | PARTS REQUEST | |
|
COMING Chain wheel
5100033226 · qty on machine: 1 | |||||
| 22 | 5100033227 | Threaded pin | 1 | PARTS REQUEST | |
|
COMING Threaded pin
5100033227 · qty on machine: 1 | |||||
| 23 | 5100080596 | Feather key | 1 | PARTS REQUEST | |
|
COMING Feather key
5100080596 · qty on machine: 1 | |||||
| 24 | 5100033229 | Chain wheel | 1 | PARTS REQUEST | |
|
COMING Chain wheel
5100033229 · qty on machine: 1 | |||||
| 25 | 5100033230 | Feather key | 1 | PARTS REQUEST | |
|
COMING Feather key
5100033230 · qty on machine: 1 | |||||
| 26 | 5100033227 | Threaded pin | 1 | PARTS REQUEST | |
|
COMING Threaded pin
5100033227 · qty on machine: 1 | |||||
| 27 | 5100013104 | Tension pulley | 1 | ADD TO CART | |
| 28 | 5100013598 | Safety nut | 1 | ADD TO CART | |
| 29 | 5100011476 | Safety nut | 1 | ADD TO CART | |
| 30 | 5100039067 | Spreading shaft | 1 | PARTS REQUEST | |
|
COMING Spreading shaft
5100039067 · qty on machine: 1 | |||||
| 31 | 5100039075 | Conversion kit spreading shaft | 1 | PARTS REQUEST | |
|
COMING Conversion kit spreading shaft
5100039075 · qty on machine: 1 | |||||
| 100 | 5100039051 | Chip spreader | 1 | PARTS REQUEST | |
|
COMING Chip spreader
5100039051 · qty on machine: 1 | |||||
| 7 | 5100013108 | Grid | 1 | ADD TO CART | |
| 8 | 5100012723 | Cheese-head screw | 6 | ADD TO CART | |
| 9 | 5100011546 | Pipe clip | 6 | ADD TO CART | |
| 10 | 5100012937 | Washer | 6 | ADD TO CART | |
| 11 | 5100012942 | Spring ring | 6 | PARTS REQUEST | |
|
COMING Spring ring
5100012942 · qty on machine: 6 | |||||
| 12 | 5100012601 | Safety nut | 6 | ADD TO CART | |
| 13 | 5100013105 | Lever | 1 | PARTS REQUEST | |
|
COMING Lever
5100013105 · qty on machine: 1 | |||||
| 14 | 5100013106 | Lever | 1 | PARTS REQUEST | |
|
COMING Lever
5100013106 · qty on machine: 1 | |||||
| 15 | 5100013111 | Handle | 1 | ADD TO CART | |
| 16 | 5100013107 | Scale | 1 | PARTS REQUEST | |
|
COMING Scale
5100013107 · qty on machine: 1 | |||||
| 17 | 5100013113 | Guard | 1 | ADD TO CART | |
| 22 | 5100013598 | Safety nut | 4 | ADD TO CART | |
| 23 | 5100012939 | Washer | 4 | ADD TO CART | |
| 24 | 5100013122 | Eye bolt | 4 | ADD TO CART | |
| 25 | 5100013118 | Compression spring | 4 | PARTS REQUEST | |
|
COMING Compression spring
5100013118 · qty on machine: 4 | |||||
| 26 | 5100011533 | Hexagon nut | 4 | ADD TO CART | |
| 27 | 5100013450 | Cheese-head screw | 4 | ADD TO CART | |
| 28 | 5100013119 | Handle screw | 4 | ADD TO CART | |
| 29 | 5100013509 | Washer | 4 | ADD TO CART | |
| 30 | 5100013112 | Steel floor | 1 | PARTS REQUEST | |
|
COMING Steel floor
5100013112 · qty on machine: 1 | |||||
| 32 | 5100013019 | Split pin | 2 | ADD TO CART | |
| 33 | 5100013114 | W-clip | 1 | PARTS REQUEST | |
|
COMING W-clip
5100013114 · qty on machine: 1 | |||||
| 34 | 5100013115 | Bolt | 1 | PARTS REQUEST | |
|
COMING Bolt
5100013115 · qty on machine: 1 | |||||
| 240 | 5100013053 | Bracket | 4 | ADD TO CART | |
| 242 | 5100013537 | Hexagon nut | 16 | ADD TO CART | |
| 245 | 5100013028 | Perforated plate | 1 | ADD TO CART | |
| 246 | 5100012931 | Mushroom head screw | 8 | ADD TO CART | |
| 247 | 5100013523 | Washer | 8 | ADD TO CART | |
| 248 | 5100012545 | Hexagon nut | 8 | ADD TO CART | |
| 255 | 5100013076 | Towing loop | 2 | ADD TO CART | |
| 256 | 5100012617 | Hexagon screw | 8 | ADD TO CART | |
| 257 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 320 | 5100012991 | Wire harness | 1 | ADD TO CART | |
| 332 | 5100013023 | Lamp support | 2 | ADD TO CART | |
| 333 | 5100012515 | Hexagon screw | 4 | ADD TO CART | |
| 334 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 341 | 5100013448 | Lamp | 2 | ADD TO CART | |
| 341 | 5100012213 | Lamp | 2 | ADD TO CART | |
| 341 | 5100011802 | Tail light | 2 | ADD TO CART | |
| 342 | 5100012591 | Fillister head screw | 4 | ADD TO CART | |
| 343 | 5100012936 | Washer | 4 | ADD TO CART | |
| 344 | 5100011599 | Hexagon nut | 4 | ADD TO CART | |
| 350 | 5100011801 | Reversing light | 2 | ADD TO CART | |
| 350 | 5100013448 | Lamp | 2 | ADD TO CART | |
| 351 | 5100012591 | Fillister head screw | 4 | ADD TO CART | |
| 352 | 5100012936 | Washer | 4 | ADD TO CART | |
| 353 | 5100011599 | Hexagon nut | 4 | ADD TO CART | |
| 360 | 5100013070 | Silentbloc | 1 | PARTS REQUEST | |
|
COMING Silentbloc
5100013070 · qty on machine: 1 | |||||
| 361 | 5100012600 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 2 | |||||
| 362 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 363 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 399 | 5100013573 | Wire fastener | 20 | ADD TO CART | |
| 214 | 5100013476 | Straight screwed socket | 2 | ADD TO CART | |
| 215 | 5100011445 | Flexible tubing | 1 | ADD TO CART | |
| 216 | 5100013018 | Flexible tubing | 1 | ADD TO CART | |
| 218 | 5100011771 | Coupling plug | 1 | ADD TO CART | |
| 219 | 5100011773 | Coupling sleeve | 1 | ADD TO CART | |
| 220 | 5100011774 | Protecting cap | 1 | ADD TO CART | |
| 221 | 5100011775 | Protecting cap | 1 | ADD TO CART | |
| 250 | 5100013072 | Bracket | 1 | PARTS REQUEST | |
|
COMING Bracket
5100013072 · qty on machine: 1 | |||||
| 251 | 5100013510 | Hexagon screw | 2 | ADD TO CART | |
| 252 | 5100013094 | Washer | 4 | ADD TO CART | |
| 253 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 256 | 5100035014 | Hexagon screw | 8 | ADD TO CART | |
| 321 | 5100011546 | Pipe clip | 2 | ADD TO CART | |
| 322 | 5100013397 | Hexagon screw | 2 | ADD TO CART | |
| 323 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 324 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 325 | 5100013021 | Silentbloc | 1 | PARTS REQUEST | |
|
COMING Silentbloc
5100013021 · qty on machine: 1 | |||||
| 326 | 5100012600 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 2 | |||||
| 327 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 328 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 398 | 5100013429 | Wire fastener | 10 | ADD TO CART | |
| 1 | 5100013123 | Belt cover | 1 | ADD TO CART | |
| 2 | 5100017999 | Bracket | 1 | ADD TO CART | |
| 3 | 5100013354 | Bracket | 2 | ADD TO CART | |
| 4 | 5100012780 | Mushroom head screw | 4 | ADD TO CART | |
| 5 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 6 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 7 | 5100013357 | Bracket | 2 | ADD TO CART | |
| 8 | 5100013510 | Hexagon screw | 2 | ADD TO CART | |
| 9 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 10 | 5100013359 | Washer | 2 | ADD TO CART | |
| 11 | 5100053004 | Safety nut | 2 | ADD TO CART | |
| 12 | 5100012780 | Mushroom head screw | 2 | ADD TO CART | |
| 13 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 14 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 15 | 5100013358 | Button | 3 | ADD TO CART | |
| 16 | 5100013397 | Hexagon screw | 3 | ADD TO CART | |
| 17 | 5100012965 | Locking washer | 3 | ADD TO CART | |
| 18 | 5100013566 | Washer | 3 | ADD TO CART | |
| 17 | 5100059516 | Metal plate | 1 | PARTS REQUEST | |
|
COMING Metal plate
5100059516 · qty on machine: 1 | |||||
| 20 | 5100012545 | Hexagon nut | 3 | ADD TO CART | |
| 21 | 5100012600 | Hexagon screw | 6 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 6 | |||||
| 22 | 5100013523 | Washer | 12 | ADD TO CART | |
| 23 | 5100013566 | Washer | 12 | ADD TO CART | |
| 24 | 5100012545 | Hexagon nut | 6 | ADD TO CART | |
| 261 | 5100013071 | Stop | 2 | Serialno. 160-225 | ADD TO CART |
| 261 | 5100083352 | Stop | 2 | Serialno. >225 | PARTS REQUEST |
|
COMING Stop
5100083352 · qty on machine: 2 Serialno. >225 | |||||
| 268 | 5100013377 | Rubber buffer | 4 | ADD TO CART | |
| 269 | 5100013128 | Washer | 8 | ADD TO CART | |
| 270 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 110 | 5100013016 | Mounting frame | 1 | ADD TO CART | |
| 111 | 5100012617 | Hexagon screw | 6 | ADD TO CART | |
| 112 | 5100013128 | Washer | 6 | ADD TO CART | |
| 115 | 5100011479 | Hexagon screw | 4 | ADD TO CART | |
| 116 | 5100013128 | Washer | 4 | ADD TO CART | |
| 120 | 5100013017 | Console | 1 | ADD TO CART | |
| 121 | 5100013019 | Split pin | 1 | ADD TO CART | |
| 122 | 5100013020 | Bolt | 1 | ADD TO CART | |
| 130 | 5100013360 | Bracket | 1 | ADD TO CART | |
| 131 | 5100011418 | Cap | 1 | ADD TO CART | |
| 3 | 5100080597 | T-piece adjustable | 1 | PARTS REQUEST | |
|
COMING T-piece adjustable
5100080597 · qty on machine: 1 | |||||
| 4 | 5100012391 | Elbow adjustable | 1 | ADD TO CART | |
| 5 | 5100011576 | Flexible tubing | 1 | ADD TO CART | |
| 7 | 5100013476 | Straight screwed socket | 3 | ADD TO CART | |
| 9 | 5100011531 | Flexible tubing | 1 | ADD TO CART | |
| 11 | 5100012094 | Flexible tubing | 1 | ADD TO CART | |
| 12 | 5100013479 | Straight coupling | 1 | ADD TO CART | |
| 13 | 5100012220 | Straight flange joint | 1 | ADD TO CART | |
| 13 | 5100012723 | Cheese-head screw | 4 | ADD TO CART | |
| 13 | 5100012942 | Spring ring | 4 | PARTS REQUEST | |
|
COMING Spring ring
5100012942 · qty on machine: 4 | |||||
| 13 | 5100013612 | O-ring seal | 1 | ADD TO CART | |
| 16 | 5100013092 | Protective covering of cables | 1 | PARTS REQUEST | |
|
COMING Protective covering of cables
5100013092 · qty on machine: 1 | |||||
| 28 | 5100013024 | Bracket | 1 | ADD TO CART | |
| 29 | 5100012517 | Hexagon screw | 2 | ADD TO CART | |
| 30 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 33 | 5100013025 | Holder-up | 1 | ADD TO CART | |
| 34 | 5100035087 | Hexagon screw | 2 | ADD TO CART | |
| 35 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 40 | 5100011735 | Hand lever | 1 | ADD TO CART | |
| 40 | 5100012993 | Valve block | 1 | ADD TO CART | |
| 41 | 5100011480 | Cheese-head screw | 2 | ADD TO CART | |
| 45 | 5100011468 | Sealing ring | 2 | ADD TO CART | |
| 46 | 5100011771 | Coupling plug | 1 | ADD TO CART | |
| 47 | 5100011773 | Coupling sleeve | 1 | ADD TO CART | |
| 48 | 5100011774 | Protecting cap | 1 | ADD TO CART | |
| 49 | 5100011775 | Protecting cap | 1 | ADD TO CART | |
| 52 | 5100016502 | Sticker | 1 | ADD TO CART | |
| 60 | 5100012968 | Locking washer | 4 | ADD TO CART | |
| 61 | 5100011612 | Hexagon screw | 4 | ADD TO CART | |
| 65 | 5100011699 | Silentbloc | 2 | ADD TO CART | |
| 66 | 5100012621 | Hexagon screw | 4 | ADD TO CART | |
| 67 | 5100012968 | Locking washer | 8 | ADD TO CART | |
| 68 | 5100012548 | Hexagon nut | 4 | ADD TO CART | |
| 80 | 5100013015 | Wire harness | 1 | PARTS REQUEST | |
|
COMING Wire harness
5100013015 · qty on machine: 1 | |||||
| 81 | 5100012977 | Stud bolt | 2 | ADD TO CART | |
| 6 | 5100065333 | Control block rd40/45 | 1 | PARTS REQUEST | |
|
COMING Control block rd40/45
5100065333 · qty on machine: 1 | |||||
| 10 | 5100013098 | Flexible tubing | 1 | ADD TO CART | |
| 11 | 5100013099 | Flexible tubing | 1 | ADD TO CART | |
| 15 | 5100080574 | Bulkhead elbow | 2 | PARTS REQUEST | |
|
COMING Bulkhead elbow
5100080574 · qty on machine: 2 | |||||
| 16 | 5100013488 | Hexagon nut | 2 | ADD TO CART | |
| 17 | 5100013191 | Washer | 4 | ADD TO CART | |
| 20 | 5100059510 | Pipe | 1 | PARTS REQUEST | |
|
COMING Pipe
5100059510 · qty on machine: 1 | |||||
| 21 | 5100059509 | Pipe | 1 | PARTS REQUEST | |
|
COMING Pipe
5100059509 · qty on machine: 1 | |||||
| 23 | 5100013476 | Straight screwed socket | 2 | ADD TO CART | |
| 28 | 5100011469 | Pipe clip | 1 | ADD TO CART | |
| 29 | 5100012515 | Hexagon screw | 1 | ADD TO CART | |
| 42 | 5100013100 | Bushing | 1 | PARTS REQUEST | |
|
COMING Bushing
5100013100 · qty on machine: 1 | |||||
| 51 | 5100011665 | Screw plug | 1 | ADD TO CART | |
| 55 | 5100013429 | Wire fastener | 30 | ADD TO CART | |
| 83 | 5100013093 | Clip | 10 | ADD TO CART | |
| 84 | 5100013573 | Wire fastener | 15 | ADD TO CART | |
| 89 | 5100013121 | Cover | 1 | PARTS REQUEST | |
|
COMING Cover
5100013121 · qty on machine: 1 | |||||
| 90 | 5100012822 | Cover plate | 1 | ADD TO CART | |
| 91 | 5100012572 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 2 | |||||
| 92 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 40 | 5100011910 | Nonreturn valve | 1 | ADD TO CART | |
| 40 | 5100012500 | Pressure-relief valve | 1 | ADD TO CART | |
| 40 | 5100013125 | Flow divider | 1 | ADD TO CART | |
| 1 | 5100011583 | Relay | 6 | ADD TO CART | |
| 1 | 5100039076 | Circuit board | 1 | PARTS REQUEST | |
|
COMING Circuit board
5100039076 · qty on machine: 1 | |||||
| 12 | 5100080598 | Housing | 1 | PARTS REQUEST | |
|
COMING Housing
5100080598 · qty on machine: 1 | |||||
| 13 | 5100012990 | Wire harness | 1 | PARTS REQUEST | |
|
COMING Wire harness
5100012990 · qty on machine: 1 | |||||
| 19 | 5100018000 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100018000 · qty on machine: 1 | |||||
| 20 | 5100013013 | Bracket | 1 | PARTS REQUEST | |
|
COMING Bracket
5100013013 · qty on machine: 1 | |||||
| 21 | 5100034739 | Fillister head screw | 3 | ADD TO CART | |
| 22 | 5100033235 | Fillister head screw | 4 | ADD TO CART | |
| 23 | 5100013059 | Sticker | 1 | PARTS REQUEST | |
|
COMING Sticker
5100013059 · qty on machine: 1 | |||||
| 100 | 5100013015 | Wire harness | 1 | PARTS REQUEST | |
|
COMING Wire harness
5100013015 · qty on machine: 1 | |||||
| 2 | 5100059494 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100059494 · qty on machine: 1 | |||||
| 2 | 5100059537 | Cylinder | 1 | PARTS REQUEST | |
|
COMING Cylinder
5100059537 · qty on machine: 1 | |||||
| 2 | 5100059549 | Operating lever | 1 | PARTS REQUEST | |
|
COMING Operating lever
5100059549 · qty on machine: 1 | |||||
| 3 | 5100011607 | Sheet metal screw | 4 | ADD TO CART | |
| 5 | 5100033263 | Pipe clip | 3 | ADD TO CART | |
| 6 | 5100023198 | Fillister head screw | 2 | PARTS REQUEST | |
|
COMING Fillister head screw
5100023198 · qty on machine: 2 | |||||
| 7 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 8 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 15 | 5100059503 | Strap bolt | 1 | PARTS REQUEST | |
|
COMING Strap bolt
5100059503 · qty on machine: 1 | |||||
| 16 | 5100059502 | Plate | 1 | PARTS REQUEST | |
|
COMING Plate
5100059502 · qty on machine: 1 | |||||
| 18 | 5100050710 | Holder | 1 | ADD TO CART | |
| 19 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 20 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 25 | 5100080599 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100080599 · qty on machine: 1 | |||||
Page 304 — Mounting
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 21 | 5100011822 | Bracket | 2 | ADD TO CART | |
| 1 | 5100065356 | Distance piece | 1 | PARTS REQUEST | |
|
COMING Distance piece
5100065356 · qty on machine: 1 | |||||
| 2 | 5100013379 | Hexagon screw | 2 | ADD TO CART | |
| 3 | 5100012185 | Bow plate | 1 | ADD TO CART | |
| 5 | 5100011835 | Spacer plate | 4 | ADD TO CART | |
| 6 | 5100012415 | Hexagon screw | 6 | ADD TO CART | |
| 8 | 5100012969 | Locking washer | 6 | ADD TO CART | |
| 25 | 5100012968 | Locking washer | 6 | ADD TO CART | |
| 26 | 5100011612 | Hexagon screw | 6 | ADD TO CART | |
| 40 | 5100012350 | Spacer block | 2 | ADD TO CART | |
| 41 | 5100012447 | Towing loop | 1 | ADD TO CART | |
| 42 | 5100011504 | Hexagon screw | 2 | ADD TO CART | |
| 43 | 5100012969 | Locking washer | 2 | ADD TO CART | |
| 4 | 5100012186 | Bow plate | 1 | ADD TO CART | |
| 1 | 5100012956 | Gear hub motor | 2 | PARTS REQUEST | |
|
COMING Gear hub motor
5100012956 · qty on machine: 2 | |||||
| 2 | 5100012784 | Cheese-head screw | 20 | ADD TO CART | |
| 3 | 5100012968 | Locking washer | 20 | ADD TO CART | |
| 10 | 5100050706 | Tyre | 4 | Serialno. >177 | ADD TO CART |
| 10 | 5100065367 | Wheel | 4 | Serialno. 160 - 176 | PARTS REQUEST |
|
COMING Wheel
5100065367 · qty on machine: 4 Serialno. 160 - 176 | |||||
| 12 | 5100029586 | Centering ring | 10 | PARTS REQUEST | |
|
COMING Centering ring
5100029586 · qty on machine: 10 | |||||
| 15 | 5100012377 | Spring ring | 10 | ADD TO CART | |
| 16 | 5100012376 | Flat collar nut | 10 | ADD TO CART | |
| 20 | 5100012401 | Valve extension | 2 | ADD TO CART | |
| 21 | 5100012965 | Locking washer | 1 | ADD TO CART | |
| 22 | 5100011697 | Pipe | 2 | ADD TO CART | |
| 24 | 5100011490 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100011490 · qty on machine: 2 | |||||
Page 310 — Scraper rigid
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 9 | 5100013530 | Filler cap | 8 | ADD TO CART | |
| 51 | 5100018001 | Scraper | 2 | ADD TO CART | |
| 52 | 5100018002 | Scraper | 2 | ADD TO CART | |
| 55 | 5100012967 | Locking washer | 16 | ADD TO CART | |
| 56 | 5100012520 | Hexagon screw | 16 | ADD TO CART | |
| 1 | 5100011969 | Scraper | 1 | ADD TO CART | |
| 2 | 5100012042 | Metal plate | 1 | ADD TO CART | |
| 3 | 5100018003 | Spring | 4 | ADD TO CART | |
| 4 | 5100011939 | Metal plate | 1 | ADD TO CART | |
| 5 | 5100011940 | Metal plate | 1 | ADD TO CART | |
| 6 | 5100012085 | Mushroom head screw | 7 | ADD TO CART | |
| 7 | 5100011584 | Mushroom head screw | 2 | ADD TO CART | |
| 8 | 5100012547 | Hexagon nut | 9 | ADD TO CART | |
| 9 | 5100013521 | Washer | 2 | ADD TO CART | |
| 10 | 5100013521 | Washer | 7 | ADD TO CART | |
| 100 | 5100018001 | Scraper | 1 | ADD TO CART | |
| 3 | 5100018004 | Spring | 4 | ADD TO CART | |
| 100 | 5100018002 | Scraper | 1 | ADD TO CART | |
Page 316 — Scraper foldable
Parts list — exactly as printed55 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 45 | 5100013041 | Bracket | 1 | ADD TO CART | |
| 1 | 5100013048 | Scraper | 1 | ADD TO CART | |
| 2 | 5100012520 | Hexagon screw | 4 | ADD TO CART | |
| 3 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 51 | 5100013049 | Scraper | 1 | ADD TO CART | |
| 52 | 5100011479 | Hexagon screw | 4 | ADD TO CART | |
| 53 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 55 | 5100013047 | Holder-up | 1 | PARTS REQUEST | |
|
COMING Holder-up
5100013047 · qty on machine: 1 | |||||
| 56 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 57 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 101 | 5100013050 | Scraper | 1 | ADD TO CART | |
| 102 | 5100012520 | Hexagon screw | 4 | ADD TO CART | |
| 103 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 151 | 5100013051 | Scraper | 1 | ADD TO CART | |
| 152 | 5100011479 | Hexagon screw | 4 | ADD TO CART | |
| 153 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 155 | 5100013042 | Holder-up | 1 | ADD TO CART | |
| 156 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 157 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 11 | 5100011969 | Scraper | 1 | ADD TO CART | |
| 12 | 5100012042 | Metal plate | 1 | ADD TO CART | |
| 13 | 5100011939 | Metal plate | 1 | ADD TO CART | |
| 14 | 5100011940 | Metal plate | 1 | ADD TO CART | |
| 15 | 5100012085 | Mushroom head screw | 5 | ADD TO CART | |
| 16 | 5100011584 | Mushroom head screw | 4 | ADD TO CART | |
| 17 | 5100013521 | Washer | 9 | ADD TO CART | |
| 19 | 5100012547 | Hexagon nut | 9 | ADD TO CART | |
| 20 | 5100013040 | Bracket | 1 | ADD TO CART | |
| 21 | 5100012932 | Handle | 1 | ADD TO CART | |
| 22 | 5100012665 | Countersunk screw | 2 | ADD TO CART | |
| 23 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 25 | 5100029558 | Hexagon screw | 1 | ADD TO CART | |
| 26 | 5100013577 | Washer | 2 | ADD TO CART | |
| 27 | 5100013045 | Bracket | 1 | ADD TO CART | |
| 28 | 5100011682 | Bushing | 1 | ADD TO CART | |
| 29 | 5100013629 | Yoke spring | 1 | ADD TO CART | |
| 30 | 5100013033 | Bracket | 1 | ADD TO CART | |
| 31 | 5100035091 | Safety nut | 1 | ADD TO CART | |
| 35 | 5100013574 | Toggle with bolt | 1 | ADD TO CART | |
| 36 | 5100013575 | Compression spring | 1 | ADD TO CART | |
| 37 | 5100013576 | Grooved pin | 1 | ADD TO CART | |
| 40 | 5100029558 | Hexagon screw | 1 | ADD TO CART | |
| 41 | 5100013577 | Washer | 2 | ADD TO CART | |
| 42 | 5100013046 | Bracket | 1 | ADD TO CART | |
| 43 | 5100011682 | Bushing | 1 | ADD TO CART | |
| 44 | 5100013630 | Yoke spring | 1 | ADD TO CART | |
| 45 | 5100013037 | Bracket | 1 | ADD TO CART | |
| 46 | 5100035091 | Safety nut | 1 | ADD TO CART | |
| 27 | 5100013039 | Foot lever | 1 | ADD TO CART | |
| 30 | 5100013041 | Bracket | 1 | ADD TO CART | |
| 42 | 5100013034 | Bracket | 1 | ADD TO CART | |
| 44 | 5100013629 | Yoke spring | 1 | ADD TO CART | |
| 27 | 5100013035 | Bracket | 1 | ADD TO CART | |
| 42 | 5100013036 | Bracket | 1 | ADD TO CART | |
| 27 | 5100013038 | Lever | 1 | ADD TO CART | |
Page 326 — Scraper
Parts list — exactly as printed70 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012138 | Scraper | 1 | ADD TO CART | |
| 2 | 5100012142 | Cover | 1 | ADD TO CART | |
| 3 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 4 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 5 | 5100012456 | Bushing | 2 | ADD TO CART | |
| 6 | 5100053004 | Safety nut | 2 | ADD TO CART | |
| 10 | 5100012439 | Rubber piece | 2 | ADD TO CART | |
| 11 | 5100012610 | Hexagon screw | 2 | ADD TO CART | |
| 12 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 13 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 15 | 5100012932 | Handle | 2 | ADD TO CART | |
| 16 | 5100012600 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 4 | |||||
| 17 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 18 | 5100012545 | Hexagon nut | 4 | ADD TO CART | |
| 20 | 5100034760 | Hexagon screw | 3 | ADD TO CART | |
| 21 | 5100013577 | Washer | 3 | ADD TO CART | |
| 22 | 5100011682 | Bushing | 3 | ADD TO CART | |
| 23 | 5100013629 | Yoke spring | 1 | ADD TO CART | |
| 24 | 5100011657 | Washer | 6 | ADD TO CART | |
| 25 | 5100035091 | Safety nut | 3 | ADD TO CART | |
| 26 | 5100065369 | Bushing | 2 | ADD TO CART | |
| 40 | 5100013204 | Jack latch | 1 | ADD TO CART | |
| 41 | 5100057816 | Hexagonal nut | 2 | PARTS REQUEST | |
|
COMING Hexagonal nut
5100057816 · qty on machine: 2 | |||||
| 93 | 5100065335 | Splash protection | 1 | PARTS REQUEST | |
|
COMING Splash protection
5100065335 · qty on machine: 1 | |||||
| 94 | 5100065344 | Splash protection | 1 | PARTS REQUEST | |
|
COMING Splash protection
5100065344 · qty on machine: 1 | |||||
| 95 | 5100012572 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 2 | |||||
| 96 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 97 | 5100065345 | Splash protection | 1 | PARTS REQUEST | |
|
COMING Splash protection
5100065345 · qty on machine: 1 | |||||
| 98 | 5100065347 | Splash protection | 1 | PARTS REQUEST | |
|
COMING Splash protection
5100065347 · qty on machine: 1 | |||||
| 99 | 5100012572 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 2 | |||||
| 100 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 2 | 5100012139 | Bracket | 1 | ADD TO CART | |
| 3 | 5100012992 | Scraper | 4 | ADD TO CART | |
| 5 | 5100012374 | Flat steel | 3 | ADD TO CART | |
| 6 | 5100013510 | Hexagon screw | 8 | ADD TO CART | |
| 7 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 10 | 5100013206 | Metal plate | 1 | ADD TO CART | |
| 11 | 5100012932 | Handle | 1 | ADD TO CART | |
| 12 | 5100012665 | Countersunk screw | 2 | ADD TO CART | |
| 19 | 5100011535 | Cap nut | 1 | ADD TO CART | |
| 19 | 5100011651 | Membrane holder | 1 | ADD TO CART | |
| 19 | 5100011752 | Sealing ring | 1 | ADD TO CART | |
| 19 | 5100011898 | Nozzle holder | 2 | ADD TO CART | |
| 19 | 5100011978 | Membrane | 1 | ADD TO CART | |
| 20 | 5100011535 | Cap nut | 1 | ADD TO CART | |
| 20 | 5100011651 | Membrane holder | 1 | ADD TO CART | |
| 20 | 5100011752 | Sealing ring | 1 | ADD TO CART | |
| 20 | 5100011867 | Nozzle holder | 2 | ADD TO CART | |
| 20 | 5100011978 | Membrane | 1 | ADD TO CART | |
| 21 | 5100059528 | Sprinkler nozzle | 4 | ADD TO CART | |
| 22 | 5100011488 | Nut | 4 | ADD TO CART | |
| 23 | 5100011489 | Filtering screen | 4 | ADD TO CART | |
| 28 | 5100011756 | Cheese-head screw | 8 | ADD TO CART | |
| 34 | 5100013223 | Flexible tubing | 0.15 | ADD TO CART | |
| 35 | 5100013223 | Flexible tubing | 0.15 | ADD TO CART | |
| 36 | 5100012097 | T-hose connector | 1 | ADD TO CART | |
| 37 | 5100013367 | Hose clip | 8 | ADD TO CART | |
| 38 | 5100013223 | Flexible tubing | 0.19 | ADD TO CART | |
| 39 | 5100013223 | Flexible tubing | 0.19 | ADD TO CART | |
| 45 | 5100013205 | Washer | 1 | ADD TO CART | |
| 46 | 5100012572 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 2 | |||||
| 47 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 50 | 5100012438 | Silentbloc | 2 | ADD TO CART | |
| 51 | 5100011744 | Fillister head screw | 2 | ADD TO CART | |
| 52 | 5100012937 | Washer | 2 | ADD TO CART | |
| 53 | 5100017998 | Hexagonal nut | 2 | ADD TO CART | |
| 60 | 5100033218 | Holder | 1 | ADD TO CART | |
| 61 | 5100039065 | Metal plate | 2 | ADD TO CART | |
| 62 | 5100023198 | Fillister head screw | 2 | PARTS REQUEST | |
|
COMING Fillister head screw
5100023198 · qty on machine: 2 | |||||
| 100 | 5100012138 | Scraper | 1 | ADD TO CART | |
Page 332 — Bandage
Parts list — exactly as printed40 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 36 | 5100018007 | Hub | 2 | ADD TO CART | |
| 1 | 5100011928 | Roller drum | 1 | PARTS REQUEST | |
|
COMING Roller drum
5100011928 · qty on machine: 1 | |||||
| 2 | 5100011809 | Flange | 2 | ADD TO CART | |
| 3 | 5100012725 | Cheese-head screw | 4 | ADD TO CART | |
| 5 | 5100011663 | Cap | 1 | ADD TO CART | |
| 6 | 5100065326 | Gear hub motor | 1 | PARTS REQUEST | |
|
COMING Gear hub motor
5100065326 · qty on machine: 1 | |||||
| 7 | 5100065327 | Gear hub motor | 1 | ADD TO CART | |
| 8 | 5100012789 | Cheese-head screw | 16 | ADD TO CART | |
| 9 | 5100012968 | Locking washer | 16 | ADD TO CART | |
| 10 | 5100013423 | O-ring seal | 2 | ADD TO CART | |
| 12 | 5100011810 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 15 | 5100011808 | Ring | 2 | ADD TO CART | |
| 16 | 5100011811 | Disc ring | 4 | ADD TO CART | |
| 20 | 5100059530 | Unbalance shaft | 1 | PARTS REQUEST | |
|
COMING Unbalance shaft
5100059530 · qty on machine: 1 | |||||
| 23 | 5100011647 | Disc ring | 2 | ADD TO CART | |
| 24 | 5100012149 | Unbalance | 1 | ADD TO CART | |
| 25 | 5100012148 | Unbalance | 1 | ADD TO CART | |
| 26 | 5100012514 | Hexagon screw | 2 | ADD TO CART | |
| 27 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 28 | 5100012405 | Hexagon nut | 2 | ADD TO CART | |
| 29 | 5100011655 | Bushing | 2 | ADD TO CART | |
| 30 | 5100012147 | Threaded bolt | 2 | ADD TO CART | |
| 31 | 5100012548 | Hexagon nut | 2 | ADD TO CART | |
| 32 | 5100011806 | Unbalance loose | 2 | ADD TO CART | |
| 33 | 5100012534 | Hexagon nut | 2 | ADD TO CART | |
| 35 | 5100059541 | Coupling shaft | 1 | ADD TO CART | |
| 37 | 5100013535 | Disk spring | 1 | ADD TO CART | |
| 38 | 5100011646 | Hexagon nut | 2 | ADD TO CART | |
| 40 | 5100058557 | Gear motor | 1 | ADD TO CART | |
| 41 | 5100012754 | Cheese-head screw | 4 | ADD TO CART | |
| 42 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 50 | 5100012868 | Threaded pin | 4 | ADD TO CART | |
| 59 | 5100013181 | Driver | 1 | ADD TO CART | |
| 60 | 5100013182 | Driver | 1 | ADD TO CART | |
| 61 | 5100048107 | Cheese-head screw | 14 | ADD TO CART | |
| 62 | 5100012968 | Locking washer | 14 | ADD TO CART | |
| 65 | 5100011699 | Silentbloc | 6 | ADD TO CART | |
| 66 | 5100023184 | Hexagon screw | 12 | ADD TO CART | |
| 67 | 5100012968 | Locking washer | 24 | ADD TO CART | |
| 68 | 5100012548 | Hexagon nut | 12 | ADD TO CART | |
Page 336 — Vibration drive
Parts list — exactly as printed40 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011500 | O-ring seal | 1 | ADD TO CART | |
| 1 | 5100012723 | Cheese-head screw | 2 | ADD TO CART | |
| 1 | 5100012942 | Spring ring | 4 | PARTS REQUEST | |
|
COMING Spring ring
5100012942 · qty on machine: 4 | |||||
| 1 | 5100013218 | Angle flange screwing | 1 | ADD TO CART | |
| 1 | 5100013497 | Cheese-head screw | 2 | ADD TO CART | |
| 5 | 5100012883 | Flexible tubing | 1 | ADD TO CART | |
| 6 | 5100011896 | Hose clip | 1 | ADD TO CART | |
| 10 | 5100012216 | Angle flange screwing | 1 | ADD TO CART | |
| 10 | 5100012723 | Cheese-head screw | 2 | ADD TO CART | |
| 10 | 5100012942 | Spring ring | 4 | PARTS REQUEST | |
|
COMING Spring ring
5100012942 · qty on machine: 4 | |||||
| 10 | 5100013189 | Cheese-head screw | 2 | ADD TO CART | |
| 10 | 5100013612 | O-ring seal | 1 | ADD TO CART | |
| 11 | 5100011746 | Flexible tubing | 1 | ADD TO CART | |
| 12 | 5100013483 | Elbow adjustable | 1 | ADD TO CART | |
| 13 | 5100013614 | Straight screwed socket | 2 | ADD TO CART | |
| 14 | 5100012020 | Pressure filter | 1 | ADD TO CART | |
| 15 | 5100012517 | Hexagon screw | 4 | ADD TO CART | |
| 16 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 17 | 5100012336 | Bracket | 1 | ADD TO CART | |
| 19 | 5100013476 | Straight screwed socket | 2 | ADD TO CART | |
| 20 | 5100013592 | Flexible tubing | 1 | ADD TO CART | |
| 21 | 5100065334 | Control block rd40/45c | 1 | PARTS REQUEST | |
|
COMING Control block rd40/45c
5100065334 · qty on machine: 1 | |||||
| 22 | 5100011479 | Hexagon screw | 2 | ADD TO CART | |
| 23 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 25 | 5100039072 | Stud screw | 2 | ADD TO CART | |
| 26 | 5100011717 | Spacer block | 2 | ADD TO CART | |
| 27 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 28 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 31 | 5100011463 | Flexible tubing | 1 | ADD TO CART | |
| 31 | 5100013460 | Flexible tubing | 1 | ADD TO CART | |
| 32 | 5100013476 | Straight screwed socket | 2 | ADD TO CART | |
| 34 | 5100011463 | Flexible tubing | 1 | ADD TO CART | |
| 34 | 5100013460 | Flexible tubing | 1 | ADD TO CART | |
| 42 | 5100012220 | Straight flange joint | 2 | ADD TO CART | |
| 42 | 5100012723 | Cheese-head screw | 4 | ADD TO CART | |
| 42 | 5100012942 | Spring ring | 4 | PARTS REQUEST | |
|
COMING Spring ring
5100012942 · qty on machine: 4 | |||||
| 42 | 5100013612 | O-ring seal | 1 | ADD TO CART | |
| 43 | 5100013483 | Elbow adjustable | 2 | ADD TO CART | |
| 61 | 5100018008 | Hose | 1 | ADD TO CART | |
| 62 | 5100013434 | Straight screwed socket | 1 | ADD TO CART | |
Page 340 — Edge pressing and cuttingdevice
Parts list — exactly as printed44 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100012398 | Console | 1 | ADD TO CART | |
| 3 | 5100012396 | Lever | 1 | ADD TO CART | |
| 4 | 5100011474 | Taper roller bearing | 4 | ADD TO CART | |
| 5 | 5100011475 | Nilos ring | 2 | ADD TO CART | |
| 6 | 5100012399 | Axle | 1 | ADD TO CART | |
| 7 | 5100013518 | Spacer shim | 1 | ADD TO CART | |
| 8 | 5100013519 | Spacer shim | 1 | ADD TO CART | |
| 9 | 5100012979 | Spacer shim | 1 | ADD TO CART | |
| 10 | 5100011683 | Cover | 2 | ADD TO CART | |
| 11 | 5100012724 | Cheese-head screw | 6 | ADD TO CART | |
| 12 | 5100011716 | Cover | 2 | ADD TO CART | |
| 13 | 5100012965 | Locking washer | 8 | ADD TO CART | |
| 14 | 5100012572 | Hexagon screw | 8 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 8 | |||||
| 15 | 5100011767 | Flange | 1 | ADD TO CART | |
| 16 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 17 | 5100013450 | Cheese-head screw | 8 | ADD TO CART | |
| 20 | 5100011563 | Radial rod end bearing | 1 | PARTS REQUEST | |
|
COMING Radial rod end bearing
5100011563 · qty on machine: 1 | |||||
| 20 | 5100011686 | Set of seals | 1 | ADD TO CART | |
| 20 | 5100012400 | Cylinder | 1 | ADD TO CART | |
| 20 | 5100012479 | Greasing nipple | 1 | ADD TO CART | |
| 21 | 5100012397 | Bracket | 1 | ADD TO CART | |
| 22 | 5100011482 | Washer | 1 | ADD TO CART | |
| 23 | 5100012415 | Hexagon screw | 1 | ADD TO CART | |
| 24 | 5100011681 | Bolt | 1 | ADD TO CART | |
| 25 | 5100013609 | Radial rod end bearing | 1 | ADD TO CART | |
| 26 | 5100013560 | Seal | 2 | ADD TO CART | |
| 27 | 5100011680 | Spacer ring | 2 | ADD TO CART | |
| 28 | 5100012955 | Locking washer | 1 | ADD TO CART | |
| 29 | 5100012550 | Hexagon nut | 1 | ADD TO CART | |
| 30 | 5100012479 | Greasing nipple | 2 | ADD TO CART | |
| 31 | 5100012482 | Greasing nipple | 1 | ADD TO CART | |
| 35 | 5100012405 | Hexagon nut | 1 | ADD TO CART | |
| 51 | 5100012969 | Locking washer | 5 | ADD TO CART | |
| 52 | 5100011495 | Cheese-head screw | 5 | ADD TO CART | |
| 1 | 5100053017 | Holder system | 1 | ADD TO CART | |
| 2 | 5100035238 | Cheese-head screw | 2 | ADD TO CART | |
| 3 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 5 | 5100013628 | Pipe | 1 | ADD TO CART | |
| 6 | 5100013128 | Washer | 1 | ADD TO CART | |
| 7 | 5100013455 | Cheese-head screw | 1 | ADD TO CART | |
| 11 | 5100011767 | Flange | 1 | ADD TO CART | |
| 12 | 5100013450 | Cheese-head screw | 2 | ADD TO CART | |
| 13 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 14 | 5100012617 | Hexagon screw | 8 | ADD TO CART | |
Page 348 — Attachments
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013627 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100013627 · qty on machine: 1 | |||||
| 1 | 5100027277 | Prssure roller | 1 | PARTS REQUEST | |
|
COMING Prssure roller
5100027277 · qty on machine: 1 | |||||
| 2 | 5100013626 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100013626 · qty on machine: 1 | |||||
| 2 | 5100015230 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100015230 · qty on machine: 1 | |||||
| 3 | 5100013625 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100013625 · qty on machine: 1 | |||||
| 3 | 5100015231 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100015231 · qty on machine: 1 | |||||
| 5 | 5100013634 | Cutting disc | 1 | PARTS REQUEST | |
|
COMING Cutting disc
5100013634 · qty on machine: 1 | |||||
| 5 | 5100015199 | Cutting disc | 1 | PARTS REQUEST | |
|
COMING Cutting disc
5100015199 · qty on machine: 1 | |||||
| 6 | 5100011700 | Pressing roll | 1 | PARTS REQUEST | |
|
COMING Pressing roll
5100011700 · qty on machine: 1 | |||||
| 6 | 5100027279 | Prssure roller | 1 | PARTS REQUEST | |
|
COMING Prssure roller
5100027279 · qty on machine: 1 | |||||
| 7 | 5100013623 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100013623 · qty on machine: 1 | |||||
| 7 | 5100015233 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100015233 · qty on machine: 1 | |||||
| 8 | 5100015232 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100015232 · qty on machine: 1 | |||||
| 8 | 5100013635 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100013635 · qty on machine: 1 | |||||
| 9 | 5100013624 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100013624 · qty on machine: 1 | |||||
| 9 | 5100027278 | Prssure roller | 1 | PARTS REQUEST | |
|
COMING Prssure roller
5100027278 · qty on machine: 1 | |||||
| 10 | 5100033238 | Holder | 1 | ADD TO CART | |
| 20 | 5100012520 | Hexagon screw | 2 | ADD TO CART | |
| 30 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 40 | 5100011789 | Pipe | 1 | ADD TO CART | |
| 50 | 5100011788 | Bracket | 1 | ADD TO CART | |
| 60 | 5100011790 | Bolt | 1 | ADD TO CART | |
| 70 | 5100013638 | Indicator | 1 | ADD TO CART | |
| 70 | 5100020851 | Indicator | 1 | ADD TO CART | |
| 80 | 5100013509 | Washer | 1 | ADD TO CART | |
| 90 | 5100011783 | Hand lever | 3 | ADD TO CART | |
Page 376 — Thermal aprons
Parts list — exactly as printed28 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100059559 | Holder system | 1 | PARTS REQUEST | |
|
COMING Holder system
5100059559 · qty on machine: 1 | |||||
| 3 | 5100059552 | Holder system | 1 | PARTS REQUEST | |
|
COMING Holder system
5100059552 · qty on machine: 1 | |||||
| 4 | 5100012515 | Hexagon screw | 12 | ADD TO CART | |
| 5 | 5100013094 | Washer | 12 | ADD TO CART | |
| 15 | 5100059560 | Holder system | 1 | PARTS REQUEST | |
|
COMING Holder system
5100059560 · qty on machine: 1 | |||||
| 16 | 5100034968 | Hexagon screw | 2 | ADD TO CART | |
| 17 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 18 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 40 | 5100059501 | Hinge | 2 | ADD TO CART | |
| 41 | 5100013397 | Hexagon screw | 4 | ADD TO CART | |
| 42 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 43 | 5100059513 | Supporting plate | 2 | ADD TO CART | |
| 44 | 5100059487 | Metal plate | 1 | ADD TO CART | |
| 45 | 5100012600 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 4 | |||||
| 46 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 47 | 5100059513 | Supporting plate | 2 | ADD TO CART | |
| 51 | 5100053025 | Filler cap | 2 | ADD TO CART | |
| 52 | 5100050647 | Filler cap | 12 | ADD TO CART | |
| 20 | 5100059490 | Thermal aprons | 1 | PARTS REQUEST | |
|
COMING Thermal aprons
5100059490 · qty on machine: 1 | |||||
| 21 | 5100059488 | Thermal aprons | 1 | PARTS REQUEST | |
|
COMING Thermal aprons
5100059488 · qty on machine: 1 | |||||
| 22 | 5100059491 | Thermal aprons | 1 | PARTS REQUEST | |
|
COMING Thermal aprons
5100059491 · qty on machine: 1 | |||||
| 24 | 5100053030 | Bolt rivet | 36 | ADD TO CART | |
| 25 | 5100053031 | Rotary lock | 18 | ADD TO CART | |
| 30 | 5100059492 | Flat steel | 2 | PARTS REQUEST | |
|
COMING Flat steel
5100059492 · qty on machine: 2 | |||||
| 31 | 5100059493 | Flat steel | 1 | PARTS REQUEST | |
|
COMING Flat steel
5100059493 · qty on machine: 1 | |||||
| 32 | 5100053034 | Mushroom head screw | 6 | ADD TO CART | |
| 33 | 5100013094 | Washer | 6 | ADD TO CART | |
| 34 | 5100012546 | Hexagon nut | 6 | ADD TO CART | |
Page 380 — Additional storage tray
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 150 | 5100029563 | Bag | 1 | ADD TO CART | |
| 151 | 5100023198 | Fillister head screw | 4 | PARTS REQUEST | |
|
COMING Fillister head screw
5100023198 · qty on machine: 4 | |||||
| 152 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 153 | 5100012545 | Hexagon nut | 4 | ADD TO CART | |
| 154 | 5100013523 | Washer | 4 | ADD TO CART | |
| 160 | 5100011866 | Sealing tape | 0.06 | ADD TO CART | |
Page 382 — Trailer coupling
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100033249 | Trailer coupling | 1 | ADD TO CART | |
| 3 | 5100013416 | Hexagon screw | 4 | ADD TO CART | |
| 4 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 20 | 5100012790 | Metal plate | 1 | ADD TO CART | |
| 21 | 5100012613 | Hexagon screw | 1 | ADD TO CART | |
| 22 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 23 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 30 | 5100013377 | Rubber buffer | 1 | ADD TO CART | |
| 31 | 5100012967 | Locking washer | 1 | ADD TO CART | |
| 32 | 5100012547 | Hexagon nut | 1 | ADD TO CART | |
| 92 | 5100033250 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100033250 · qty on machine: 1 | |||||
Page 384 — Additional mirror
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5100012897 | Metal plate | 1 | ADD TO CART | |
| 21 | 5100053249 | Hexagon screw | 2 | ADD TO CART | |
| 22 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 23 | 5100059489 | Distance piece | 2 | PARTS REQUEST | |
|
COMING Distance piece
5100059489 · qty on machine: 2 | |||||
| 24 | 5100013257 | Washer | 2 | ADD TO CART | |
| 25 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 30 | 5100067838 | Stay bar | 1 | ADD TO CART | |
| 31 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 32 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 35 | 5100067837 | Stay bar | 1 | PARTS REQUEST | |
|
COMING Stay bar
5100067837 · qty on machine: 1 | |||||
| 36 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 37 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 40 | 5100067839 | Mirror | 2 | ADD TO CART | |
Page 386 — Asphalt temperature gauge
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 30 | 5100033262 | Housing | 1 | ADD TO CART | |
| 31 | 5100012572 | Hexagon screw | 1 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 1 | |||||
| 32 | 5100012965 | Locking washer | 3 | ADD TO CART | |
| 33 | 5100023046 | Hexagon screw | 1 | ADD TO CART | |
| 34 | 5100033263 | Pipe clip | 1 | ADD TO CART | |
| 35 | 5100012545 | Hexagon nut | 1 | ADD TO CART | |
| 36 | 5100033264 | Half-clip | 2 | ADD TO CART | |
| 37 | 5100033265 | Weld-on plate | 1 | ADD TO CART | |
| 38 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 39 | 5100013466 | Hexagon screw | 2 | ADD TO CART | |
| 40 | 5100033266 | Temperature probe | 1 | ADD TO CART | |
| 41 | 5100053037 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100053037 · qty on machine: 1 | |||||
| 42 | 5100033267 | Lid | 1 | ADD TO CART | |
| 43 | 5100033235 | Fillister head screw | 2 | ADD TO CART | |
| 44 | 5100012350 | Spacer block | 4 | ADD TO CART | |
| 45 | 5100011485 | Cheese-head screw | 4 | ADD TO CART | |
Page 388 — Compaction meter
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100033251 | Holder system | 1 | PARTS REQUEST | |
|
COMING Holder system
5100033251 · qty on machine: 1 | |||||
| 4 | 5100012718 | Cheese-head screw | 2 | ADD TO CART | |
| 5 | 5100012936 | Washer | 2 | ADD TO CART | |
| 6 | 5100033252 | Bushing | 2 | ADD TO CART | |
| 10 | 5100033253 | Calculator | 1 | PARTS REQUEST | |
|
COMING Calculator
5100033253 · qty on machine: 1 | |||||
| 11 | 5100033254 | Cheese-head screw | 2 | ADD TO CART | |
| 12 | 5100013453 | Washer | 2 | ADD TO CART | |
| 13 | 5100012936 | Washer | 2 | ADD TO CART | |
| 14 | 5100012898 | Hexagon nut | 2 | ADD TO CART | |
| 16 | 5100052978 | Wire harness instrument panel | 1 | ADD TO CART | |
| 20 | 5100033258 | Acceleration sensor | 1 | ADD TO CART | |
| 29 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 21 | 5100033260 | Cheese-head screw | 2 | ADD TO CART | |
| 25 | 5100059519 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100059519 · qty on machine: 1 | |||||
| 26 | 5100012782 | Cheese-head screw | 2 | ADD TO CART | |
| 27 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 99 | 5100013573 | Wire fastener | 30 | ADD TO CART | |
Page 392 — Fire extinguisher
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100033269 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100033269 · qty on machine: 1 | |||||
| 3 | 5100012572 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 2 | |||||
| 4 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 5 | 5100012420 | Blind rivet nut | 2 | ADD TO CART | |
| 10 | 5100022903 | Fire extinguisher | 1 | ADD TO CART | |
| 11 | 5100033270 | Countersunk screw | 2 | ADD TO CART | |
| 12 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 13 | 5100013599 | Clip nut | 2 | ADD TO CART | |
Page 394 — Homologation Brazil
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 11 | 5100013599 | Clip nut | 4 | ADD TO CART | |
| 1 | 5100025909 | Holder | 1 | ADD TO CART | |
| 4 | 5100025910 | Cable harness | 1 | ADD TO CART | |
| 5 | 5100011549 | License plate light | 2 | ADD TO CART | |
| 6 | 5100012467 | Lamp | 2 | ADD TO CART | |
| 7 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 8 | 5100012545 | Hexagon nut | 4 | ADD TO CART | |
| 10 | 5100025881 | Fillister head screw | 4 | ADD TO CART | |
| 18 | 5100035014 | Hexagon screw | 4 | ADD TO CART | |
| 19 | 5100012967 | Locking washer | 4 | ADD TO CART | |
Page 396 — Homologation Italy
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012007 | Metal plate | 1 | ADD TO CART | |
| 4 | 5100012001 | Wire harness | 1 | ADD TO CART | |
| 5 | 5100011549 | License plate light | 1 | ADD TO CART | |
| 6 | 5100012467 | Lamp | 1 | ADD TO CART | |
| 8 | 5100017998 | Hexagonal nut | 2 | ADD TO CART | |
| 10 | 5100012607 | Hexagon screw | 4 | ADD TO CART | |
| 11 | 5100013536 | Serrated lock washer | 12 | ADD TO CART | |
| 12 | 5100012898 | Hexagon nut | 8 | ADD TO CART | |
| 13 | 5100013453 | Washer | 8 | ADD TO CART | |
| 40 | 5100013573 | Wire fastener | 2 | ADD TO CART | |
| 100 | 5100012143 | Bracket | 1 | ADD TO CART | |
| 102 | 5100012572 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 4 | |||||
| 103 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 120 | 5100013573 | Wire fastener | 5 | ADD TO CART | |
Page 398 — Maintenance kits and repair kits
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100086334 | Maintenance kit rd40/45-1000h wncr1410 | 1 | PARTS REQUEST | |
|
COMING Maintenance kit rd40/45-1000h wncr1410
5100086334 · qty on machine: 1 | |||||
| 10 | 5100086363 | Maintenance kit rd40/45-2000h wncr1410 | 1 | PARTS REQUEST | |
|
COMING Maintenance kit rd40/45-2000h wncr1410
5100086363 · qty on machine: 1 | |||||
| 10 | 5100086364 | Maintenance kit rd40/45-500h wncr1410 | 1 | PARTS REQUEST | |
|
COMING Maintenance kit rd40/45-500h wncr1410
5100086364 · qty on machine: 1 | |||||
| 10 | 5100086365 | Maintenance kit rd40/45-50h wncr1410 | 1 | PARTS REQUEST | |
|
COMING Maintenance kit rd40/45-50h wncr1410
5100086365 · qty on machine: 1 | |||||
Page 3 — Fuel filter (Option) SP
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 1000386655 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000386655 · qty on machine: 1 | |||||
| 2 | 1000389249 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
1000389249 · qty on machine: 1 | |||||
| 3 | 1000389229 | Screw joint | 2 | PARTS REQUEST | |
|
COMING Screw joint
1000389229 · qty on machine: 2 | |||||
| 4 | 1000386656 | Filter insert | 1 | PARTS REQUEST | |
|
COMING Filter insert
1000386656 · qty on machine: 1 | |||||
| 5 | 1000433955 | Filter housing | 1 | PARTS REQUEST | |
|
COMING Filter housing
1000433955 · qty on machine: 1 | |||||
| 6 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 7 | 1000389241 | Hose clamp | 4 | PARTS REQUEST | |
|
COMING Hose clamp
1000389241 · qty on machine: 4 | |||||
| 8 | 1000389247 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389247 · qty on machine: 1 | |||||
| 9 | 1000434006 | Pressure limit reliefvalve | 1 | PARTS REQUEST | |
|
COMING Pressure limit reliefvalve
1000434006 · qty on machine: 1 | |||||
| 10 | 1000389230 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389230 · qty on machine: 1 | |||||
| 11 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 12 | 1000088388 | Screw | 3 | PARTS REQUEST | |
|
COMING Screw
1000088388 · qty on machine: 3 | |||||
| 13 | 1000433952 | Arm | 1 | PARTS REQUEST | |
|
COMING Arm
1000433952 · qty on machine: 1 | |||||
| 14 | 1000328508 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
1000328508 · qty on machine: 1 | |||||
| 15 | 1000433949 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433949 · qty on machine: 1 | |||||
| 16 | 1000433950 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433950 · qty on machine: 1 | |||||
| 17 | 1000389262 | Fuel pump | 1 | PARTS REQUEST | |
|
COMING Fuel pump
1000389262 · qty on machine: 1 | |||||
Page 26 — Main frame and assemblies
Parts list — exactly as printed65 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100065313 | Front frame part | 1 | PARTS REQUEST | |
|
COMING Front frame part
5100065313 · qty on machine: 1 | |||||
| 5 | 5100024883 | Console | 1 | PARTS REQUEST | |
|
COMING Console
5100024883 · qty on machine: 1 | |||||
| 6 | 5100011847 | Metal plate | 2 | ADD TO CART | |
| 8 | 5100012968 | Locking washer | 10 | ADD TO CART | |
| 9 | 5100012621 | Hexagon screw | 10 | ADD TO CART | |
| 15 | 5100024972 | Cover | 1 | PARTS REQUEST | |
|
COMING Cover
5100024972 · qty on machine: 1 | |||||
| 16 | 5100012968 | Locking washer | 4 | ADD TO CART | |
| 17 | 5100012621 | Hexagon screw | 4 | ADD TO CART | |
| 90 | 5100065324 | Ramming protection | 1 | PARTS REQUEST | |
|
COMING Ramming protection
5100065324 · qty on machine: 1 | |||||
| 91 | 5100022994 | Cheese-head screw | 4 | ADD TO CART | |
| 92 | 5100013128 | Washer | 4 | ADD TO CART | |
| 105 | 5100013076 | Towing loop | 1 | ADD TO CART | |
| 106 | 5100011479 | Hexagon screw | 4 | ADD TO CART | |
| 107 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 20 | 5100065349 | Grab handle | 1 | PARTS REQUEST | |
|
COMING Grab handle
5100065349 · qty on machine: 1 | |||||
| 21 | 5100012727 | Cheese-head screw | 6 | ADD TO CART | |
| 22 | 5100012966 | Locking washer | 6 | ADD TO CART | |
| 23 | 5100012597 | Rear frame part | 1 | PARTS REQUEST | |
|
COMING Rear frame part
5100012597 · qty on machine: 1 | |||||
| 24 | 5100012730 | Rear frame part | 1 | PARTS REQUEST | |
|
COMING Rear frame part
5100012730 · qty on machine: 1 | |||||
| 30 | 5100011814 | Rubber buffer | 6 | ADD TO CART | |
| 31 | 5100013463 | Cheese-head screw | 6 | ADD TO CART | |
| 34 | 5100012599 | Box | 1 | ADD TO CART | |
| 35 | 5100012357 | Silentbloc | 2 | ADD TO CART | |
| 36 | 5100012723 | Cheese-head screw | 2 | ADD TO CART | |
| 37 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 38 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 39 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 40 | 5100033190 | Hexagon screw | 2 | ADD TO CART | |
| 41 | 5100013128 | Washer | 2 | ADD TO CART | |
| 42 | 5100012202 | Bushing | 2 | ADD TO CART | |
| 43 | 5100011734 | Rubber metal buffer | 2 | ADD TO CART | |
| 44 | 5100035014 | Hexagon screw | 2 | ADD TO CART | |
| 45 | 5100013128 | Washer | 2 | ADD TO CART | |
| 50 | 5100012146 | Handle | 2 | PARTS REQUEST | |
|
COMING Handle
5100012146 · qty on machine: 2 | |||||
| 51 | 5100012529 | Filler cap | 4 | ADD TO CART | |
| 52 | 5100016503 | Bushing | 8 | ADD TO CART | |
| 55 | 5100011498 | Silentbloc | 8 | ADD TO CART | |
| 56 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 57 | 5100012946 | Stud bolt | 4 | ADD TO CART | |
| 58 | 5100012977 | Stud bolt | 4 | ADD TO CART | |
| 59 | 5100012546 | Hexagon nut | 8 | ADD TO CART | |
| 60 | 5100012660 | Bottom plate | 1 | ADD TO CART | |
| 61 | 5100012617 | Hexagon screw | 6 | ADD TO CART | |
| 62 | 5100013128 | Washer | 6 | ADD TO CART | |
| 65 | 5100012712 | Rubber metal buffer | 2 | ADD TO CART | |
| 66 | 5100035014 | Hexagon screw | 2 | ADD TO CART | |
| 67 | 5100013128 | Washer | 2 | ADD TO CART | |
| 69 | 5100016289 | Steering console | 1 | PARTS REQUEST | |
|
COMING Steering console
5100016289 · qty on machine: 1 | |||||
| 69 | 5100012640 | Steering console | 1 | ADD TO CART | |
| 71 | 5100012517 | Hexagon screw | 2 | ADD TO CART | |
| 72 | 5100013094 | Washer | 2 | ADD TO CART | |
| 73 | 5100013644 | Rubber profile | 0.25 | ADD TO CART | |
| 74 | 5100052877 | Protective cap | 2 | ADD TO CART | |
| 75 | 5100012652 | Spacer plate | 1 | ADD TO CART | |
| 77 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 78 | 5100013094 | Washer | 2 | ADD TO CART | |
| 80 | 5100012653 | Retaining plate | 1 | ADD TO CART | |
| 81 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 82 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 5 | 5100011506 | Chock | 1 | ADD TO CART | |
| 9 | 5100059505 | Foot mat | 1 | PARTS REQUEST | |
|
COMING Foot mat
5100059505 · qty on machine: 1 | |||||
| 10 | 5100013309 | Bracket | 2 | ADD TO CART | |
| 11 | 5100052883 | Countersunk screw | 4 | ADD TO CART | |
| 12 | 5100065357 | Blind rivet nut | 4 | PARTS REQUEST | |
|
COMING Blind rivet nut
5100065357 · qty on machine: 4 | |||||
| 14 | 5100052884 | Lashing strap | 1 | PARTS REQUEST | |
|
COMING Lashing strap
5100052884 · qty on machine: 1 | |||||
Page 34 — Canopies and covers
Parts list — exactly as printed88 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100065350 | Engine cover | 1 | PARTS REQUEST | |
|
COMING Engine cover
5100065350 · qty on machine: 1 | |||||
| 2 | 5100012498 | Safety screw | 4 | ADD TO CART | |
| 5 | 5100012193 | Hinge | 2 | ADD TO CART | |
| 6 | 5100012214 | Metal plate | 2 | ADD TO CART | |
| 7 | 5100013085 | Spacer plate | 4 | ADD TO CART | |
| 9 | 5100065352 | Covering part | 1 | PARTS REQUEST | |
|
COMING Covering part
5100065352 · qty on machine: 1 | |||||
| 13 | 5100011544 | Clip nut | 2 | ADD TO CART | |
| 19 | 5100012696 | Lock | 1 | ADD TO CART | |
| 20 | 5100012517 | Hexagon screw | 4 | ADD TO CART | |
| 21 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 22 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 23 | 5100013588 | Lock outside handle | 1 | ADD TO CART | |
| 24 | 5100013590 | Supporting plate | 1 | ADD TO CART | |
| 25 | 5100013589 | Supporting plate | 1 | ADD TO CART | |
| 26 | 5100013404 | Cheese-head screw | 2 | PARTS REQUEST | |
|
COMING Cheese-head screw
5100013404 · qty on machine: 2 | |||||
| 27 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 28 | 5100050643 | Knurled head screw | 1 | PARTS REQUEST | |
|
COMING Knurled head screw
5100050643 · qty on machine: 1 | |||||
| 29 | 5100012545 | Hexagon nut | 1 | ADD TO CART | |
| 30 | 5100065346 | Holder | 1 | ADD TO CART | |
| 31 | 5100012780 | Mushroom head screw | 2 | ADD TO CART | |
| 32 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 33 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 35 | 5100050644 | Wire clip | 1 | ADD TO CART | |
| 37 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 38 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 45 | 5100017981 | Gas spring | 2 | ADD TO CART | |
| 47 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 48 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 50 | 5100013525 | Rubber buffer | 1 | ADD TO CART | |
| 51 | 5100013537 | Hexagon nut | 1 | ADD TO CART | |
| 60 | 5100012029 | Sealing profile | 3.3 | ADD TO CART | |
| 203 | 5100017982 | Cap | 2 | ADD TO CART | |
| 204 | 5100058746 | Filler cap | 2 | ADD TO CART | |
| 206 | 5100050647 | Filler cap | 4 | ADD TO CART | |
| 210 | 5100024985 | Kit cover | 1 | PARTS REQUEST | |
|
COMING Kit cover
5100024985 · qty on machine: 1 | |||||
| 211 | 5100012572 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 4 | |||||
| 212 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 215 | 5100024995 | Insulation plate | 1 | PARTS REQUEST | |
|
COMING Insulation plate
5100024995 · qty on machine: 1 | |||||
| 216 | 5100011581 | Fillister head screw | 4 | ADD TO CART | |
| 217 | 5100011922 | Locking washer | 4 | ADD TO CART | |
| 220 | 5100025002 | Lid | 1 | PARTS REQUEST | |
|
COMING Lid
5100025002 · qty on machine: 1 | |||||
| 221 | 5100012515 | Hexagon screw | 3 | ADD TO CART | |
| 222 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 225 | 5100024901 | Sealing tape | 0.2 | ADD TO CART | |
| 78 | 5100011595 | Frame | 2 | ADD TO CART | |
| 79 | 5100011580 | Blind cover | 2 | ADD TO CART | |
| 80 | 5100024934 | Covering part | 1 | PARTS REQUEST | |
|
COMING Covering part
5100024934 · qty on machine: 1 | |||||
| 81 | 5100011854 | Bracket | 1 | ADD TO CART | |
| 82 | 5100012607 | Hexagon screw | 1 | ADD TO CART | |
| 85 | 5100024933 | Covering part | 1 | PARTS REQUEST | |
|
COMING Covering part
5100024933 · qty on machine: 1 | |||||
| 86 | 5100011581 | Fillister head screw | 14 | ADD TO CART | |
| 90 | 5100025103 | Instrument panel | 1 | ADD TO CART | |
| 93 | 5100011860 | Rubber sleeve | 1 | ADD TO CART | |
| 94 | 5100011581 | Fillister head screw | 7 | ADD TO CART | |
| 130 | 5100024905 | Lid | 2 | PARTS REQUEST | |
|
COMING Lid
5100024905 · qty on machine: 2 | |||||
| 132 | 5100012651 | Sealing profile | 2 | ADD TO CART | |
| 133 | 5100012592 | Hexagon screw | 8 | ADD TO CART | |
| 134 | 5100012936 | Washer | 8 | ADD TO CART | |
| 140 | 5100012822 | Cover plate | 1 | ADD TO CART | |
| 141 | 5100012572 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 2 | |||||
| 142 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 150 | 5100012879 | Cover plate | 2 | ADD TO CART | |
| 151 | 5100011634 | Sheet metal screw | 4 | ADD TO CART | |
| 185 | 5100024964 | Lid | 1 | PARTS REQUEST | |
|
COMING Lid
5100024964 · qty on machine: 1 | |||||
| 186 | 5100012515 | Hexagon screw | 4 | ADD TO CART | |
| 187 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 190 | 5100012659 | Cover | 1 | ADD TO CART | |
| 191 | 5100012572 | Hexagon screw | 3 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 3 | |||||
| 192 | 5100012965 | Locking washer | 3 | ADD TO CART | |
| 197 | 5100050647 | Filler cap | 4 | ADD TO CART | |
| 199 | 5100011550 | Plug | 4 | ADD TO CART | |
| 200 | 5100050647 | Filler cap | 2 | ADD TO CART | |
| 205 | 5100017982 | Cap | 2 | ADD TO CART | |
| 70 | 5100012033 | Cover | 1 | ADD TO CART | |
| 71 | 5100013557 | Key | 1 | ADD TO CART | |
| 71 | 5100013591 | Built-in lock | 1 | ADD TO CART | |
| 72 | 5100013647 | Sealing profile | 0.8 | ADD TO CART | |
| 120 | 5100012464 | Cover | 4 | ADD TO CART | |
| 121 | 5100012515 | Hexagon screw | 16 | ADD TO CART | |
| 122 | 5100012966 | Locking washer | 16 | ADD TO CART | |
| 195 | 5100011537 | Filler cap | 32 | ADD TO CART | |
| 201 | 5100017982 | Cap | 2 | ADD TO CART | |
| 10 | 5100065351 | Covering part | 1 | PARTS REQUEST | |
|
COMING Covering part
5100065351 · qty on machine: 1 | |||||
| 11 | 5100016199 | Cheese-head screw | 2 | PARTS REQUEST | |
|
COMING Cheese-head screw
5100016199 · qty on machine: 2 | |||||
| 12 | 5100013523 | Washer | 2 | ADD TO CART | |
| 14 | 5100016820 | Cheese-head screw | 2 | ADD TO CART | |
| 15 | 5100013523 | Washer | 2 | ADD TO CART | |
| 17 | 5100013644 | Rubber profile | 0.6 | ADD TO CART | |
Page 44 — Sticker arrangement
Parts list — exactly as printed25 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013224 | Type plate rd 40-130 | 2 | PARTS REQUEST | |
|
COMING Type plate rd 40-130
5100013224 · qty on machine: 2 | |||||
| 1 | 5100013225 | Type plate rd 40-130c | 2 | PARTS REQUEST | |
|
COMING Type plate rd 40-130c
5100013225 · qty on machine: 2 | |||||
| 1 | 5100013226 | Type plate rd 40-130o | 2 | PARTS REQUEST | |
|
COMING Type plate rd 40-130o
5100013226 · qty on machine: 2 | |||||
| 1 | 5100017985 | Type plate rd 45-140 | 2 | PARTS REQUEST | |
|
COMING Type plate rd 45-140
5100017985 · qty on machine: 2 | |||||
| 1 | 5100017986 | Type plate rd 45-140c | 2 | PARTS REQUEST | |
|
COMING Type plate rd 45-140c
5100017986 · qty on machine: 2 | |||||
| 1 | 5100017987 | Type plate rd 45-140o | 2 | PARTS REQUEST | |
|
COMING Type plate rd 45-140o
5100017987 · qty on machine: 2 | |||||
| 2 | 5100016821 | Type plate | 2 | ADD TO CART | |
| 3 | 5100025945 | Type plate | 2 | ADD TO CART | |
| 4 | 5100016256 | Sticker | 1 | ADD TO CART | |
| 5 | 5100016257 | Adhesive tape | 1 | ADD TO CART | |
| 9 | 5100013209 | Decal kit | 1 | ADD TO CART | |
| 10 | 5100013207 | Decal kit | 1 | ADD TO CART | |
| 10 | 5100013208 | Decal kit | 1 | ADD TO CART | |
| 50 | 5100013420 | Sticker | 3 | ADD TO CART | |
| 51 | 5100023527 | Label | 1 | ADD TO CART | |
| 90 | 5100012698 | Sticker | 1 | ADD TO CART | |
| 90 | 5100016500 | Sticker | 1 | ADD TO CART | |
| 91 | 5100012699 | Sticker | 1 | ADD TO CART | |
| 106 | 5100016258 | Decal kit | 1 | ADD TO CART | |
| 51 | 5100011684 | Metal plate | 1 | ADD TO CART | |
| 52 | 5100013409 | Countersunk screw | 2 | ADD TO CART | |
| 100 | 5100012465 | Sticker | 1 | ADD TO CART | |
| 105 | 5100011703 | Sticker | 1 | ADD TO CART | |
| 115 | 5100027780 | Label | 1 | ADD TO CART | |
| 1 | 5100013208 | Decal kit | 1 | ADD TO CART | |
Page 62 — Sound insulation
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100065339 | Sound insulation | 1 | PARTS REQUEST | |
|
COMING Sound insulation
5100065339 · qty on machine: 1 | |||||
| 2 | 5100065340 | Sound insulation | 1 | PARTS REQUEST | |
|
COMING Sound insulation
5100065340 · qty on machine: 1 | |||||
| 3 | 5100065342 | Sound insulation | 1 | PARTS REQUEST | |
|
COMING Sound insulation
5100065342 · qty on machine: 1 | |||||
| 4 | 5100011922 | Locking washer | 20 | ADD TO CART | |
Page 64 — Operator's seat with adjustmen
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100011518 | Seat cushion | 1 | ADD TO CART | |
| 2 | 5100011519 | Backrest cushion | 1 | ADD TO CART | |
| 2 | 5100011615 | Handle | 1 | ADD TO CART | |
| 2 | 5100012964 | Seat contact switch | 1 | ADD TO CART | |
| 2 | 5100013067 | Adjustment bar | 1 | ADD TO CART | |
| 2 | 5100013083 | Adjustment bar | 1 | ADD TO CART | |
| 2 | 5100029584 | Driver's seat | 1 | ADD TO CART | |
| 2 | 5100033202 | Lap belt | 1 | ADD TO CART | |
| 3 | 5100025888 | Lap belt | 1 | Serialno. 160-222 | ADD TO CART |
| 3 | 5100083270 | Lap belt | 1 | Serialno. >223 | PARTS REQUEST |
|
COMING Lap belt
5100083270 · qty on machine: 1 Serialno. >223 | |||||
| 4 | 5100052890 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100052890 · qty on machine: 1 | |||||
| 5 | 5100083271 | Cable harness | 1 | Serialno. >223 | PARTS REQUEST |
|
COMING Cable harness
5100083271 · qty on machine: 1 Serialno. >223 | |||||
| 3 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 4 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 6 | 5100012015 | Metal plate | 2 | ADD TO CART | |
| 7 | 5100013510 | Hexagon screw | 4 | ADD TO CART | |
| 8 | 5100012966 | Locking washer | 5 | ADD TO CART | |
| 9 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 10 | 5100013441 | Locking washer | 1 | ADD TO CART | |
| 20 | 5100039064 | Stop | 1 | ADD TO CART | |
| 110 | 5100012306 | Protecting plate | 1 | ADD TO CART | |
| 111 | 5100011634 | Sheet metal screw | 2 | ADD TO CART | |
Page 68 — Operator´s seat
Parts list — exactly as printed32 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011615 | Handle | 1 | ADD TO CART | |
| 1 | 5100013067 | Adjustment bar | 1 | ADD TO CART | |
| 1 | 5100013083 | Adjustment bar | 1 | ADD TO CART | |
| 1 | 5100024343 | Cushion set | 1 | ADD TO CART | |
| 1 | 5100024920 | Seat contact switch | 1 | ADD TO CART | |
| 1 | 5100029585 | Backrest cushion, imi. leather | 1 | ADD TO CART | |
| 1 | 5100029596 | Driver's seat | 1 | ADD TO CART | |
| 1 | 5100033202 | Lap belt | 1 | ADD TO CART | |
| 3 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 4 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 6 | 5100012015 | Metal plate | 2 | ADD TO CART | |
| 7 | 5100013510 | Hexagon screw | 4 | ADD TO CART | |
| 8 | 5100012966 | Locking washer | 5 | ADD TO CART | |
| 9 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 10 | 5100013441 | Locking washer | 1 | ADD TO CART | |
| 11 | 5100083270 | Lap belt | 1 | Serialno. >223 | PARTS REQUEST |
|
COMING Lap belt
5100083270 · qty on machine: 1 Serialno. >223 | |||||
| 11 | 5100025888 | Lap belt | 1 | Serialno. 160-222 | ADD TO CART |
| 12 | 5100052890 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100052890 · qty on machine: 1 | |||||
| 13 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 14 | 5100083271 | Cable harness | 1 | Serialno. >223 | PARTS REQUEST |
|
COMING Cable harness
5100083271 · qty on machine: 1 Serialno. >223 | |||||
| 15 | 5100011947 | Switch | 1 | PARTS REQUEST | |
|
COMING Switch
5100011947 · qty on machine: 1 | |||||
| 16 | 5100011938 | Bogie, seat heating | 1 | ADD TO CART | |
| 20 | 5100039064 | Stop | 1 | ADD TO CART | |
| 60 | 5100024344 | Central plug | 1 | ADD TO CART | |
| 70 | 5100029597 | Flat plug sleeve | 2 | ADD TO CART | |
| 78 | 5100011595 | Frame | 2 | ADD TO CART | |
| 80 | 5100059486 | Connector housing | 1 | PARTS REQUEST | |
|
COMING Connector housing
5100059486 · qty on machine: 1 | |||||
| 90 | 5100029597 | Flat plug sleeve | 1 | ADD TO CART | |
| 100 | 5100033203 | Connector housing | 1 | ADD TO CART | |
| 101 | 5100025825 | Flat-pin plug | 1 | ADD TO CART | |
| 110 | 5100012306 | Protecting plate | 1 | ADD TO CART | |
| 111 | 5100011634 | Sheet metal screw | 2 | ADD TO CART | |
Page 70 — Rigid roll over protection
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100050649 | Roll over protection | 1 | PARTS REQUEST | |
|
COMING Roll over protection
5100050649 · qty on machine: 1 | |||||
| 5 | 5100012526 | Hexagon screw | 2 | ADD TO CART | |
| 6 | 5100012969 | Locking washer | 2 | ADD TO CART | |
| 8 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 9 | 5100011504 | Hexagon screw | 4 | ADD TO CART | |
| 9 | 5100013233 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100013233 · qty on machine: 4 | |||||
| 9 | 5100013235 | Hexagon screw | 4 | ADD TO CART | |
| 15 | 5100012350 | Spacer block | 6 | ADD TO CART | |
| 16 | 5100011485 | Cheese-head screw | 6 | ADD TO CART | |
| 17 | 5100011814 | Rubber buffer | 6 | ADD TO CART | |
| 190 | 5100017989 | Rail | 1 | ADD TO CART | |
| 191 | 5100012571 | Hexagon screw | 2 | ADD TO CART | |
| 192 | 5100012965 | Locking washer | 2 | ADD TO CART | |
Page 72 — Roll over protection
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012666 | Rops foldable | 1 | ADD TO CART | |
| 1 | 5100012921 | Safety cord | 2 | PARTS REQUEST | |
|
COMING Safety cord
5100012921 · qty on machine: 2 | |||||
| 1 | 5100012987 | W-clip | 2 | ADD TO CART | |
| 5 | 5100012526 | Hexagon screw | 2 | ADD TO CART | |
| 6 | 5100012969 | Locking washer | 2 | ADD TO CART | |
| 8 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 9 | 5100011504 | Hexagon screw | 4 | ADD TO CART | |
| 9 | 5100013233 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100013233 · qty on machine: 4 | |||||
| 9 | 5100013235 | Hexagon screw | 4 | ADD TO CART | |
| 15 | 5100012350 | Spacer block | 6 | ADD TO CART | |
| 16 | 5100011485 | Cheese-head screw | 6 | ADD TO CART | |
| 17 | 5100011814 | Rubber buffer | 6 | ADD TO CART | |
| 190 | 5100017989 | Rail | 1 | ADD TO CART | |
| 191 | 5100012571 | Hexagon screw | 2 | ADD TO CART | |
| 192 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 15 | 5100012502 | Hexagon screw | 2 | ADD TO CART | |
| 16 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 17 | 5100012194 | Washer | 2 | ADD TO CART | |
| 18 | 5100012603 | Safety nut | 2 | ADD TO CART | |
| 19 | 5100024289 | Washer | 2 | PARTS REQUEST | |
|
COMING Washer
5100024289 · qty on machine: 2 | |||||
| 20 | 5100012986 | Threaded bolt | 2 | PARTS REQUEST | |
|
COMING Threaded bolt
5100012986 · qty on machine: 2 | |||||
| 100 | 5100012666 | Rops foldable | 1 | ADD TO CART | |
Page 76 — Protective roof
Parts list — exactly as printed25 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100059499 | Roof | 1 | PARTS REQUEST | |
|
COMING Roof
5100059499 · qty on machine: 1 | |||||
| 3 | 5100059503 | Strap bolt | 4 | PARTS REQUEST | |
|
COMING Strap bolt
5100059503 · qty on machine: 4 | |||||
| 4 | 5100059502 | Plate | 4 | PARTS REQUEST | |
|
COMING Plate
5100059502 · qty on machine: 4 | |||||
| 5 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 6 | 5100012547 | Hexagon nut | 8 | ADD TO CART | |
| 10 | 5100059503 | Strap bolt | 2 | PARTS REQUEST | |
|
COMING Strap bolt
5100059503 · qty on machine: 2 | |||||
| 11 | 5100059500 | Distance sheet | 6 | PARTS REQUEST | |
|
COMING Distance sheet
5100059500 · qty on machine: 6 | |||||
| 12 | 5100059502 | Plate | 2 | PARTS REQUEST | |
|
COMING Plate
5100059502 · qty on machine: 2 | |||||
| 13 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 14 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 15 | 5100035325 | Protective cap | 4 | ADD TO CART | |
| 20 | 5100016261 | Rail | 1 | ADD TO CART | |
| 21 | 5100012608 | Hexagon screw | 2 | ADD TO CART | |
| 22 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 23 | 5100016825 | Locking washer | 2 | ADD TO CART | |
| 24 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 25 | 5100011577 | Protecting cap | 2 | ADD TO CART | |
| 40 | 5100034805 | Cable support sleeve | 4 | ADD TO CART | |
| 46 | 5100050646 | Filler cap | 8 | ADD TO CART | |
| 47 | 5100013530 | Filler cap | 4 | ADD TO CART | |
| 50 | 5100013412 | Edge protection | 1.85 | ADD TO CART | |
| 55 | 5100068809 | Metal plate | 1 | ADD TO CART | |
| 56 | 5100011479 | Hexagon screw | 2 | ADD TO CART | |
| 57 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 58 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
Page 78 — Sun canopy
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100033204 | Holder system | 1 | PARTS REQUEST | |
|
COMING Holder system
5100033204 · qty on machine: 1 | |||||
| 3 | 5100013128 | Washer | 4 | ADD TO CART | |
| 4 | 5100013416 | Hexagon screw | 2 | ADD TO CART | |
| 5 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 10 | 5100033205 | Angle bracket | 1 | ADD TO CART | |
| 11 | 5100033206 | Angle bracket | 1 | ADD TO CART | |
| 12 | 5100013128 | Washer | 6 | ADD TO CART | |
| 13 | 5100012617 | Hexagon screw | 6 | ADD TO CART | |
| 20 | 5100033207 | Frame | 1 | ADD TO CART | |
| 21 | 5100033208 | Metal plate | 2 | ADD TO CART | |
| 22 | 5100013416 | Hexagon screw | 4 | ADD TO CART | |
| 23 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 24 | 5100024352 | Ring nut | 4 | ADD TO CART | |
| 25 | 5100024341 | Roof tarpaulin | 1 | ADD TO CART | |
| 35 | 5100039070 | Metal plate | 1 | PARTS REQUEST | |
|
COMING Metal plate
5100039070 · qty on machine: 1 | |||||
| 36 | 5100039069 | Metal plate | 1 | PARTS REQUEST | |
|
COMING Metal plate
5100039069 · qty on machine: 1 | |||||
| 37 | 5100013128 | Washer | 4 | ADD TO CART | |
| 38 | 5100013416 | Hexagon screw | 2 | ADD TO CART | |
| 39 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 40 | 5100013128 | Washer | 2 | ADD TO CART | |
| 41 | 5100011479 | Hexagon screw | 2 | ADD TO CART | |
Page 80 — Instrument panel covering
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 91 | 5100013557 | Key | 1 | ADD TO CART | |
| 91 | 5100013596 | Built-in lock | 1 | PARTS REQUEST | |
|
COMING Built-in lock
5100013596 · qty on machine: 1 | |||||
| 92 | 5100011698 | Spacer block | 1 | ADD TO CART | |
| 100 | 5100025100 | Covering part | 1 | ADD TO CART | |
| 101 | 5100012456 | Bushing | 2 | ADD TO CART | |
| 102 | 5100011853 | Fillister head screw | 2 | ADD TO CART | |
| 104 | 5100013537 | Hexagon nut | 4 | ADD TO CART | |
Page 82 — Driver's cabin
Parts list — exactly as printed215 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 9 | 5100013128 | Washer | 2 | ADD TO CART | |
| 5 | 5100012939 | Washer | 2 | ADD TO CART | |
| 1 | 5100013136 | Driver's cabin | 1 | PARTS REQUEST | |
|
COMING Driver's cabin
5100013136 · qty on machine: 1 | |||||
| 5 | 5100012526 | Hexagon screw | 2 | ADD TO CART | |
| 6 | 5100012969 | Locking washer | 2 | ADD TO CART | |
| 7 | 5100013350 | Spacer block | 2 | PARTS REQUEST | |
|
COMING Spacer block
5100013350 · qty on machine: 2 | |||||
| 8 | 5100013174 | Stud bolt | 2 | ADD TO CART | |
| 10 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 11 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 12 | 5100035325 | Protective cap | 2 | ADD TO CART | |
| 95 | 5100039071 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100039071 · qty on machine: 4 | |||||
| 97 | 5100065360 | Distance sheet | 1 | ADD TO CART | |
| 98 | 5100013198 | Spacer plate | 1 | ADD TO CART | |
| 99 | 5100065361 | Stud screw | 6 | PARTS REQUEST | |
|
COMING Stud screw
5100065361 · qty on machine: 6 | |||||
| 101 | 5100012493 | Filler cap | 2 | ADD TO CART | |
| 102 | 5100013530 | Filler cap | 4 | ADD TO CART | |
| 103 | 5100012501 | Filler cap | 1 | ADD TO CART | |
| 104 | 5100011656 | Filler cap | 6 | ADD TO CART | |
| 305 | 5100011859 | Relay | 1 | ADD TO CART | |
| 306 | 5100013594 | Safety screw | 2 | ADD TO CART | |
| 315 | 5100059508 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100059508 · qty on machine: 1 | |||||
| 316 | 5100013579 | Blade fuse | 1 | ADD TO CART | |
| 317 | 5100011640 | Blade fuse | 1 | ADD TO CART | |
| 318 | 5100013586 | Blade fuse | 1 | PARTS REQUEST | |
|
COMING Blade fuse
5100013586 · qty on machine: 1 | |||||
| 2 | 5100013278 | Roof | 1 | PARTS REQUEST | |
|
COMING Roof
5100013278 · qty on machine: 1 | |||||
| 3 | 5100013317 | Lifting screw | 4 | ADD TO CART | |
| 4 | 5100011459 | Washer | 4 | ADD TO CART | |
| 5 | 5100013315 | Washer | 4 | ADD TO CART | |
| 6 | 5100013287 | Bracket | 1 | ADD TO CART | |
| 7 | 5100012517 | Hexagon screw | 2 | ADD TO CART | |
| 8 | 5100012938 | Washer | 2 | ADD TO CART | |
| 9 | 5100013421 | Washer | 2 | ADD TO CART | |
| 10 | 5100011476 | Safety nut | 2 | ADD TO CART | |
| 15 | 5100011606 | Working light | 2 | ADD TO CART | |
| 16 | 5100013554 | Lamp | 2 | ADD TO CART | |
| 18 | 5100012343 | Working light | 4 | ADD TO CART | |
| 18 | 5100012620 | Lamp | 4 | ADD TO CART | |
| 19 | 5100011739 | Fillister head screw | 12 | ADD TO CART | |
| 20 | 5100012594 | Flange | 4 | ADD TO CART | |
| 21 | 5100013366 | Sheet metal screw | 12 | ADD TO CART | |
| 22 | 5100013269 | Sealing profile | 0.6 | ADD TO CART | |
| 2 | 5100013279 | Cabin door | 1 | PARTS REQUEST | |
|
COMING Cabin door
5100013279 · qty on machine: 1 | |||||
| 3 | 5100013280 | Hinge pin | 2 | ADD TO CART | |
| 4 | 5100013321 | Sealing ring | 4 | ADD TO CART | |
| 6 | 5100013417 | Split pin | 2 | ADD TO CART | |
| 8 | 5100013284 | Hinge | 2 | ADD TO CART | |
| 9 | 5100013285 | Hinge | 2 | ADD TO CART | |
| 10 | 5100013291 | Rubber seal | 4 | ADD TO CART | |
| 11 | 5100013316 | Distance bush | 4 | ADD TO CART | |
| 12 | 5100013572 | Protecting cap | 8 | ADD TO CART | |
| 13 | 5100013510 | Hexagon screw | 4 | ADD TO CART | |
| 14 | 5100012938 | Washer | 4 | ADD TO CART | |
| 15 | 5100011476 | Safety nut | 4 | ADD TO CART | |
| 16 | 5100013027 | Greasing nipple | 4 | ADD TO CART | |
| 17 | 5100013299 | Mounting | 4 | PARTS REQUEST | |
|
COMING Mounting
5100013299 · qty on machine: 4 | |||||
| 18 | 5100013222 | Side pane | 1 | ADD TO CART | |
| 19 | 5100013304 | Window lock | 1 | ADD TO CART | |
| 20 | 5100012866 | Fillister head screw | 2 | ADD TO CART | |
| 21 | 5100012936 | Washer | 2 | ADD TO CART | |
| 22 | 5100011603 | Mounting | 1 | ADD TO CART | |
| 25 | 5100011503 | Closing bolt | 1 | ADD TO CART | |
| 26 | 5100011557 | Bow | 1 | ADD TO CART | |
| 27 | 5100013303 | Plate | 1 | PARTS REQUEST | |
|
COMING Plate
5100013303 · qty on machine: 1 | |||||
| 28 | 5100013308 | Rebound strap | 1 | ADD TO CART | |
| 29 | 5100013309 | Bracket | 2 | ADD TO CART | |
| 30 | 5100012595 | Countersunk screw | 4 | ADD TO CART | |
| 32 | 5100024989 | Gas spring | 1 | ADD TO CART | |
| 34 | 5100013443 | Sealing profile | 5 | ADD TO CART | |
| 35 | 5100013419 | Edge protection | 9.5 | ADD TO CART | |
| 40 | 5100013307 | Tools | 1 | ADD TO CART | |
| 2 | 5100013281 | Cabin door | 1 | PARTS REQUEST | |
|
COMING Cabin door
5100013281 · qty on machine: 1 | |||||
| 18 | 5100013221 | Side pane | 1 | ADD TO CART | |
| 19 | 5100013305 | Window lock | 1 | PARTS REQUEST | |
|
COMING Window lock
5100013305 · qty on machine: 1 | |||||
| 2 | 5100013259 | Door frame | 1 | PARTS REQUEST | |
|
COMING Door frame
5100013259 · qty on machine: 1 | |||||
| 3 | 5100013260 | Door pane | 1 | ADD TO CART | |
| 4 | 5100013263 | Door pane | 1 | ADD TO CART | |
| 8 | 5100013271 | Seal | 4 | ADD TO CART | |
| 8 | 5100013273 | Mounting | 4 | ADD TO CART | |
| 9 | 5100013306 | Tools | 1 | ADD TO CART | |
| 10 | 5100013510 | Hexagon screw | 4 | ADD TO CART | |
| 11 | 5100012938 | Washer | 4 | ADD TO CART | |
| 12 | 5100012491 | Hexagon nut | 4 | PARTS REQUEST | |
|
COMING Hexagon nut
5100012491 · qty on machine: 4 | |||||
| 13 | 5100013572 | Protecting cap | 4 | ADD TO CART | |
| 22 | 5100013272 | Washer | 9 | PARTS REQUEST | |
|
COMING Washer
5100013272 · qty on machine: 9 | |||||
| 25 | 5100013266 | Cover | 1 | ADD TO CART | |
| 25 | 5100013267 | Lock | 1 | ADD TO CART | |
| 26 | 5100012613 | Hexagon screw | 3 | ADD TO CART | |
| 27 | 5100012937 | Washer | 2 | ADD TO CART | |
| 30 | 5100013275 | Protecting cap | 2 | ADD TO CART | |
| 31 | 5100013276 | Ring | 2 | ADD TO CART | |
| 32 | 5100012865 | Countersunk screw | 2 | ADD TO CART | |
| 33 | 5100012938 | Washer | 2 | ADD TO CART | |
| 34 | 5100012923 | Hexagon nut | 2 | PARTS REQUEST | |
|
COMING Hexagon nut
5100012923 · qty on machine: 2 | |||||
| 35 | 5100013264 | Mounting device | 1 | PARTS REQUEST | |
|
COMING Mounting device
5100013264 · qty on machine: 1 | |||||
| 37 | 5100011602 | Mounting | 1 | ADD TO CART | |
| 40 | 5100013274 | Lock outside handle | 1 | ADD TO CART | |
| 41 | 5100013590 | Supporting plate | 1 | ADD TO CART | |
| 42 | 5100013589 | Supporting plate | 1 | ADD TO CART | |
| 43 | 5100013270 | Sealing ring | 2 | ADD TO CART | |
| 44 | 5100013322 | Fillister head screw | 1 | PARTS REQUEST | |
|
COMING Fillister head screw
5100013322 · qty on machine: 1 | |||||
| 45 | 5100013275 | Protecting cap | 1 | ADD TO CART | |
| 46 | 5100013276 | Ring | 1 | ADD TO CART | |
| 50 | 5100013557 | Key | 1 | ADD TO CART | |
| 98 | 5100013269 | Sealing profile | 4.2 | ADD TO CART | |
| 99 | 5100011598 | Adhesive set | 1 | ADD TO CART | |
| 100 | 5100013279 | Cabin door | 1 | PARTS REQUEST | |
|
COMING Cabin door
5100013279 · qty on machine: 1 | |||||
| 2 | 5100013258 | Door frame | 1 | PARTS REQUEST | |
|
COMING Door frame
5100013258 · qty on machine: 1 | |||||
| 3 | 5100013261 | Door pane | 1 | ADD TO CART | |
| 4 | 5100013262 | Door pane | 1 | ADD TO CART | |
| 25 | 5100013265 | Cover | 1 | ADD TO CART | |
| 25 | 5100013268 | Lock | 1 | ADD TO CART | |
| 100 | 5100013281 | Cabin door | 1 | PARTS REQUEST | |
|
COMING Cabin door
5100013281 · qty on machine: 1 | |||||
| 2 | 5100013220 | Front window | 1 | ADD TO CART | |
| 3 | 5100013318 | Sealing profile | 3 | ADD TO CART | |
| 5 | 5100013271 | Seal | 4 | ADD TO CART | |
| 5 | 5100013273 | Mounting | 4 | ADD TO CART | |
| 6 | 5100011477 | Hexagon screw | 4 | ADD TO CART | |
| 7 | 5100013306 | Tools | 1 | ADD TO CART | |
| 9 | 5100013292 | Spacer block | 4 | PARTS REQUEST | |
|
COMING Spacer block
5100013292 · qty on machine: 4 | |||||
| 10 | 5100012938 | Washer | 4 | ADD TO CART | |
| 11 | 5100012491 | Hexagon nut | 4 | PARTS REQUEST | |
|
COMING Hexagon nut
5100012491 · qty on machine: 4 | |||||
| 15 | 5100013283 | Covering part | 1 | ADD TO CART | |
| 16 | 5100012608 | Hexagon screw | 2 | ADD TO CART | |
| 17 | 5100012937 | Washer | 4 | ADD TO CART | |
| 18 | 5100012601 | Safety nut | 2 | ADD TO CART | |
| 20 | 5100013275 | Protecting cap | 6 | ADD TO CART | |
| 21 | 5100013495 | Fillister head screw | 6 | ADD TO CART | |
| 22 | 5100013276 | Ring | 6 | ADD TO CART | |
| 23 | 5100012420 | Blind rivet nut | 6 | ADD TO CART | |
| 25 | 5100013644 | Rubber profile | 1 | ADD TO CART | |
| 30 | 5100011539 | Stay bar | 1 | ADD TO CART | |
| 31 | 5100011540 | Stay bar | 1 | ADD TO CART | |
| 32 | 5100013572 | Protecting cap | 8 | ADD TO CART | |
| 33 | 5100013510 | Hexagon screw | 4 | ADD TO CART | |
| 34 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 35 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 36 | 5100011541 | Mirror | 2 | ADD TO CART | |
| 37 | 5100013193 | Air filter | 1 | PARTS REQUEST | |
|
COMING Air filter
5100013193 · qty on machine: 1 | |||||
| 38 | 5100012913 | Countersunk screw | 4 | ADD TO CART | |
| 42 | 5100013301 | Elbow | 1 | ADD TO CART | |
| 43 | 5100012324 | Flexible tubing | 1 | ADD TO CART | |
| 46 | 5100013296 | Sprinkler nozzle | 1 | ADD TO CART | |
| 50 | 5100013152 | Wiper motor | 1 | ADD TO CART | |
| 51 | 5100013328 | Wiper arm | 1 | ADD TO CART | |
| 52 | 5100011558 | Windshield rubber | 1 | ADD TO CART | |
| 55 | 5100013642 | Sealing profile | 1.8 | ADD TO CART | |
| 56 | 5100011768 | Sealing tape | 2 | ADD TO CART | |
| 60 | 5100013154 | Inside lamp | 1 | ADD TO CART | |
| 61 | 5100012467 | Lamp | 1 | ADD TO CART | |
| 65 | 5100011605 | Inside mirror | 1 | PARTS REQUEST | |
|
COMING Inside mirror
5100011605 · qty on machine: 1 | |||||
| 2 | 5100013219 | Rear pane | 1 | ADD TO CART | |
| 3 | 5100013443 | Sealing profile | 4 | ADD TO CART | |
| 6 | 5100012491 | Hexagon nut | 4 | PARTS REQUEST | |
|
COMING Hexagon nut
5100012491 · qty on machine: 4 | |||||
| 8 | 5100013272 | Washer | 4 | PARTS REQUEST | |
|
COMING Washer
5100013272 · qty on machine: 4 | |||||
| 9 | 5100013298 | Rubber buffer | 4 | ADD TO CART | |
| 13 | 5100013297 | Rubber buffer | 6 | ADD TO CART | |
| 14 | 5100012939 | Washer | 6 | ADD TO CART | |
| 15 | 5100012520 | Hexagon screw | 6 | ADD TO CART | |
| 16 | 5100012939 | Washer | 2 | ADD TO CART | |
| 17 | 5100013598 | Safety nut | 2 | ADD TO CART | |
| 18 | 5100013642 | Sealing profile | 1 | ADD TO CART | |
| 19 | 5100013277 | Covering part | 1 | ADD TO CART | |
| 20 | 5100013289 | Covering part | 1 | ADD TO CART | |
| 21 | 5100013276 | Ring | 8 | ADD TO CART | |
| 22 | 5100013495 | Fillister head screw | 8 | ADD TO CART | |
| 23 | 5100013275 | Protecting cap | 8 | ADD TO CART | |
| 26 | 5100013290 | Covering part | 1 | ADD TO CART | |
| 27 | 5100013495 | Fillister head screw | 4 | ADD TO CART | |
| 28 | 5100012937 | Washer | 4 | ADD TO CART | |
| 29 | 5100013642 | Sealing profile | 1.25 | ADD TO CART | |
| 30 | 5100013644 | Rubber profile | 1 | ADD TO CART | |
| 35 | 5100013153 | Pump | 2 | ADD TO CART | |
| 35 | 5100013158 | Tank with pump | 1 | ADD TO CART | |
| 36 | 5100013275 | Protecting cap | 2 | ADD TO CART | |
| 37 | 5100013495 | Fillister head screw | 2 | ADD TO CART | |
| 38 | 5100013276 | Ring | 2 | ADD TO CART | |
| 39 | 5100012937 | Washer | 2 | ADD TO CART | |
| 40 | 5100012601 | Safety nut | 2 | ADD TO CART | |
| 41 | 5100011577 | Protecting cap | 2 | ADD TO CART | |
| 44 | 5100013458 | Flexible tubing | 4 | ADD TO CART | |
| 45 | 5100013320 | Nonreturn valve | 1 | ADD TO CART | |
| 47 | 5100013302 | Clip | 2 | ADD TO CART | |
| 51 | 5100013319 | Wiper arm | 1 | ADD TO CART | |
| 52 | 5100013300 | Windshield rubber | 1 | ADD TO CART | |
| 2 | 5100013324 | Console | 1 | PARTS REQUEST | |
|
COMING Console
5100013324 · qty on machine: 1 | |||||
| 3 | 5100013325 | Console | 1 | PARTS REQUEST | |
|
COMING Console
5100013325 · qty on machine: 1 | |||||
| 4 | 5100013295 | Hinge | 1 | PARTS REQUEST | |
|
COMING Hinge
5100013295 · qty on machine: 1 | |||||
| 5 | 5100013424 | Rivet | 14 | ADD TO CART | |
| 6 | 5100013227 | Fillister head screw | 2 | ADD TO CART | |
| 7 | 5100013286 | Base plate | 1 | PARTS REQUEST | |
|
COMING Base plate
5100013286 · qty on machine: 1 | |||||
| 8 | 5100011859 | Relay | 1 | ADD TO CART | |
| 9 | 5100013326 | Nameplate | 1 | PARTS REQUEST | |
|
COMING Nameplate
5100013326 · qty on machine: 1 | |||||
| 10 | 5100013294 | Blind cover | 1 | PARTS REQUEST | |
|
COMING Blind cover
5100013294 · qty on machine: 1 | |||||
| 11 | 5100013293 | Grommet | 2 | PARTS REQUEST | |
|
COMING Grommet
5100013293 · qty on machine: 2 | |||||
| 12 | 5100013313 | Distributor | 1 | PARTS REQUEST | |
|
COMING Distributor
5100013313 · qty on machine: 1 | |||||
| 13 | 5100013312 | Distributor | 1 | PARTS REQUEST | |
|
COMING Distributor
5100013312 · qty on machine: 1 | |||||
| 15 | 5100011595 | Frame | 4 | ADD TO CART | |
| 16 | 5100011596 | Frame | 5 | ADD TO CART | |
| 17 | 5100011580 | Blind cover | 4 | ADD TO CART | |
| 18 | 5100011579 | Switch | 1 | ADD TO CART | |
| 19 | 5100011639 | Rocker, rotating-beam light | 1 | ADD TO CART | |
| 20 | 5100011579 | Switch | 1 | ADD TO CART | |
| 21 | 5100012449 | Rocker, windshield wiper | 1 | ADD TO CART | |
| 22 | 5100011597 | Push-button | 1 | ADD TO CART | |
| 23 | 5100012448 | Rocker, windshield wiper | 1 | PARTS REQUEST | |
|
COMING Rocker, windshield wiper
5100012448 · qty on machine: 1 | |||||
| 24 | 5100011579 | Switch | 1 | ADD TO CART | |
| 25 | 5100012450 | Rocker, windshield wiper | 1 | ADD TO CART | |
| 26 | 5100011579 | Switch | 1 | ADD TO CART | |
| 27 | 5100011638 | Rocker, working spotlights | 1 | ADD TO CART | |
| 30 | 5100013586 | Blade fuse | 4 | PARTS REQUEST | |
|
COMING Blade fuse
5100013586 · qty on machine: 4 | |||||
| 31 | 5100013579 | Blade fuse | 4 | ADD TO CART | |
| 32 | 5100013580 | Blade fuse | 2 | ADD TO CART | |
| 33 | 5100013587 | Blade fuse | 2 | ADD TO CART | |
| 40 | 5100013156 | Switch | 1 | ADD TO CART | |
| 45 | 5100013151 | Wire harness (operat. cabin) | 1 | PARTS REQUEST | |
|
COMING Wire harness (operat. cabin)
5100013151 · qty on machine: 1 | |||||
Page 106 — Cabin-heating
Parts list — exactly as printed41 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100013155 | Heating | 1 | ADD TO CART | |
| 3 | 5100013327 | Connector | 1 | PARTS REQUEST | |
|
COMING Connector
5100013327 · qty on machine: 1 | |||||
| 5 | 5100013288 | Bow | 1 | PARTS REQUEST | |
|
COMING Bow
5100013288 · qty on machine: 1 | |||||
| 6 | 5100013620 | Sheet metal screw | 1 | ADD TO CART | |
| 7 | 5100012936 | Washer | 1 | ADD TO CART | |
| 8 | 5100013620 | Sheet metal screw | 3 | ADD TO CART | |
| 9 | 5100012936 | Washer | 3 | ADD TO CART | |
| 10 | 5100013500 | Hot air hose | 1 | ADD TO CART | |
| 11 | 5100013500 | Hot air hose | 1 | ADD TO CART | |
| 12 | 5100013500 | Hot air hose | 1 | ADD TO CART | |
| 13 | 5100013500 | Hot air hose | 1 | ADD TO CART | |
| 14 | 5100012907 | Hose clip | 8 | ADD TO CART | |
| 18 | 5100013310 | Air outlet | 2 | ADD TO CART | |
| 19 | 5100013311 | Air outlet | 2 | ADD TO CART | |
| 20 | 5100012040 | Cooling-water hose | 10 | ADD TO CART | |
| 21 | 5100013367 | Hose clip | 4 | ADD TO CART | |
| 25 | 5100013314 | Valve | 1 | ADD TO CART | |
| 26 | 5100013620 | Sheet metal screw | 2 | ADD TO CART | |
| 30 | 5100013156 | Switch | 1 | ADD TO CART | |
| 32 | 5100013282 | Mounting device | 1 | PARTS REQUEST | |
|
COMING Mounting device
5100013282 · qty on machine: 1 | |||||
| 33 | 5100012608 | Hexagon screw | 2 | ADD TO CART | |
| 34 | 5100012937 | Washer | 2 | ADD TO CART | |
| 22 | 5100023483 | Hose nozzle | 1 | ADD TO CART | |
| 23 | 5100013001 | Sealing ring | 1 | ADD TO CART | |
| 24 | 5100012040 | Cooling-water hose | 0.5 | ADD TO CART | |
| 25 | 5100050671 | Wire protecting sleeve | 0.5 | PARTS REQUEST | |
|
COMING Wire protecting sleeve
5100050671 · qty on machine: 0.5 | |||||
| 28 | 5100023483 | Hose nozzle | 2 | ADD TO CART | |
| 29 | 5100013001 | Sealing ring | 2 | ADD TO CART | |
| 30 | 5100011559 | Ball-closure cock | 1 | ADD TO CART | |
| 32 | 5100013367 | Hose clip | 2 | ADD TO CART | |
| 40 | 5100013140 | T-piece | 1 | PARTS REQUEST | |
|
COMING T-piece
5100013140 · qty on machine: 1 | |||||
| 41 | 5100011637 | Hose clip | 2 | ADD TO CART | |
| 45 | 5100012040 | Cooling-water hose | 0.2 | ADD TO CART | |
| 48 | 5100023483 | Hose nozzle | 2 | ADD TO CART | |
| 49 | 5100013001 | Sealing ring | 2 | ADD TO CART | |
| 50 | 5100011559 | Ball-closure cock | 1 | ADD TO CART | |
| 52 | 5100013367 | Hose clip | 2 | ADD TO CART | |
| 53 | 5100050670 | Hose clamp | 2 | ADD TO CART | |
| 60 | 5100035056 | Hexagon screw | 1 | ADD TO CART | |
| 61 | 5100012998 | Sealing ring | 1 | ADD TO CART | |
| 65 | 5100050671 | Wire protecting sleeve | 2.3 | PARTS REQUEST | |
|
COMING Wire protecting sleeve
5100050671 · qty on machine: 2.3 | |||||
Page 110 — Pump drive and engine assembly
Parts list — exactly as printed116 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 9 | 5100065318 | Washer | 2 | PARTS REQUEST | |
|
COMING Washer
5100065318 · qty on machine: 2 | |||||
| 10 | 5100012912 | Stud bolt | 2 | ADD TO CART | |
| 11 | 5100012212 | Washer | 2 | ADD TO CART | |
| 12 | 5100012548 | Hexagon nut | 2 | ADD TO CART | |
| 20 | 5100012626 | Hexagon screw | 4 | ADD TO CART | |
| 21 | 5100012968 | Locking washer | 4 | ADD TO CART | |
| 35 | 5100012235 | Cap nut | 1 | ADD TO CART | |
| 36 | 5100013555 | Filler cap | 1 | ADD TO CART | |
| 37 | 5100013486 | Bulkhead elbow | 1 | ADD TO CART | |
| 38 | 5100013191 | Washer | 1 | ADD TO CART | |
| 39 | 5100013488 | Hexagon nut | 1 | ADD TO CART | |
| 51 | 5100024931 | Engine suspension | 1 | PARTS REQUEST | |
|
COMING Engine suspension
5100024931 · qty on machine: 1 | |||||
| 52 | 5100012503 | Safety screw | 2 | ADD TO CART | |
| 54 | 5100012555 | Hexagon screw | 4 | ADD TO CART | |
| 55 | 5100012972 | Locking washer | 4 | ADD TO CART | |
| 59 | 5100012209 | Silentbloc | 2 | ADD TO CART | |
| 60 | 5100024303 | Rubber buffer | 2 | ADD TO CART | |
| 61 | 5100012617 | Hexagon screw | 8 | ADD TO CART | |
| 62 | 5100012967 | Locking washer | 16 | ADD TO CART | |
| 63 | 5100012547 | Hexagon nut | 8 | ADD TO CART | |
| 71 | 5100024955 | Engine mounting | 1 | ADD TO CART | |
| 72 | 5100024954 | Engine mounting | 1 | ADD TO CART | |
| 73 | 5100012554 | Hexagon screw | 4 | ADD TO CART | |
| 74 | 5100012968 | Locking washer | 4 | ADD TO CART | |
| 76 | 5100012780 | Mushroom head screw | 1 | ADD TO CART | |
| 77 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 78 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 80 | 5100057809 | Mounting | 1 | PARTS REQUEST | |
|
COMING Mounting
5100057809 · qty on machine: 1 | |||||
| 84 | 5100013180 | Hexagon screw | 2 | ADD TO CART | |
| 85 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 86 | 5100012212 | Washer | 2 | ADD TO CART | |
| 87 | 5100012548 | Hexagon nut | 2 | ADD TO CART | |
| 101 | 5100012539 | Elbow adjustable | 1 | PARTS REQUEST | |
|
COMING Elbow adjustable
5100012539 · qty on machine: 1 | |||||
| 103 | 5100024982 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100024982 · qty on machine: 1 | |||||
| 3 | 5100057808 | Diesel engine | 1 | PARTS REQUEST | |
|
COMING Diesel engine
5100057808 · qty on machine: 1 | |||||
| 3 | 5100059553 | Sleeve | 1 | PARTS REQUEST | |
|
COMING Sleeve
5100059553 · qty on machine: 1 | |||||
| 3 | 5100059554 | Plate | 1 | PARTS REQUEST | |
|
COMING Plate
5100059554 · qty on machine: 1 | |||||
| 3 | 5100059555 | Retaining ring | 1 | PARTS REQUEST | |
|
COMING Retaining ring
5100059555 · qty on machine: 1 | |||||
| 5 | 5100024936 | Coupling | 1 | ADD TO CART | |
| 6 | 5100012553 | Hexagon screw | 3 | ADD TO CART | |
| 10 | 5100024935 | Flange | 1 | PARTS REQUEST | |
|
COMING Flange
5100024935 · qty on machine: 1 | |||||
| 11 | 5100011479 | Hexagon screw | 8 | ADD TO CART | |
| 12 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 21 | 5100011786 | Variable displac. pump (drive) | 1 | PARTS REQUEST | |
|
COMING Variable displac. pump (drive)
5100011786 · qty on machine: 1 | |||||
| 22 | 5100012621 | Hexagon screw | 2 | ADD TO CART | |
| 23 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 24 | 5100011743 | Screw plug | 1 | ADD TO CART | |
| 31 | 5100025077 | Gear pump | 1 | ADD TO CART | |
| 32 | 5100013450 | Cheese-head screw | 2 | ADD TO CART | |
| 33 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 41 | 5100025078 | Gear pump | 1 | ADD TO CART | |
| 42 | 5100012727 | Cheese-head screw | 4 | ADD TO CART | |
| 43 | 5100013441 | Locking washer | 4 | ADD TO CART | |
| 45 | 5100013418 | Screw plug | 1 | ADD TO CART | |
| 46 | 5100013005 | Sealing ring | 1 | ADD TO CART | |
| 120 | 5100016262 | V-belt protection | 1 | ADD TO CART | |
| 121 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 122 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 123 | 5100013230 | Locking washer | 3 | ADD TO CART | |
| 1 | 5100024307 | Locking screw | 2 | PARTS REQUEST | |
|
COMING Locking screw
5100024307 · qty on machine: 2 | |||||
| 2 | 5100024308 | Sealing | 2 | PARTS REQUEST | |
|
COMING Sealing
5100024308 · qty on machine: 2 | |||||
| 3 | 5100024304 | Oil dipstick | 1 | ADD TO CART | |
| 4 | 5100025073 | Seal, valve cover | 1 | PARTS REQUEST | |
|
COMING Seal, valve cover
5100025073 · qty on machine: 1 | |||||
| 5 | 5100012809 | Cover, oil filler, above | 1 | ADD TO CART | |
| 6 | 5100023507 | O-ring seal | 1 | ADD TO CART | |
| 7 | 5100012809 | Cover, oil filler, above | 1 | ADD TO CART | |
| 8 | 5100023507 | O-ring seal | 1 | ADD TO CART | |
| 9 | 5100025106 | Filter cartridge, lubric. oil | 1 | PARTS REQUEST | |
|
COMING Filter cartridge, lubric. oil
5100025106 · qty on machine: 1 | |||||
| 10 | 5100025003 | Fuel pump | 1 | PARTS REQUEST | |
|
COMING Fuel pump
5100025003 · qty on machine: 1 | |||||
| 11 | 5100025008 | O-ring seal | 1 | PARTS REQUEST | |
|
COMING O-ring seal
5100025008 · qty on machine: 1 | |||||
| 12 | 5100025004 | Pump | 1 | PARTS REQUEST | |
|
COMING Pump
5100025004 · qty on machine: 1 | |||||
| 13 | 5100025006 | Sealing | 1 | PARTS REQUEST | |
|
COMING Sealing
5100025006 · qty on machine: 1 | |||||
| 14 | 5100025005 | Valve | 1 | PARTS REQUEST | |
|
COMING Valve
5100025005 · qty on machine: 1 | |||||
| 17 | 5100011672 | Alternator | 1 | PARTS REQUEST | |
|
COMING Alternator
5100011672 · qty on machine: 1 | |||||
| 17 | 5100012685 | Alternator | 1 | ADD TO CART | |
| 18 | 5100059558 | Toothed v-belt | 1 | PARTS REQUEST | |
|
COMING Toothed v-belt
5100059558 · qty on machine: 1 | |||||
| 18 | 5100025028 | V-belt | 1 | ADD TO CART | |
| 19 | 5100012684 | Starter | 1 | ADD TO CART | |
| 20 | 5100025011 | Sensor | 1 | PARTS REQUEST | |
|
COMING Sensor
5100025011 · qty on machine: 1 | |||||
| 21 | 5100025012 | Sensor | 1 | PARTS REQUEST | |
|
COMING Sensor
5100025012 · qty on machine: 1 | |||||
| 22 | 5100023324 | Sensor | 1 | ADD TO CART | |
| 23 | 5100023676 | Engine oil pressure switch | 1 | ADD TO CART | |
| 24 | 5100059551 | Thermostat | 1 | PARTS REQUEST | |
|
COMING Thermostat
5100059551 · qty on machine: 1 | |||||
| 25 | 5100012863 | Seal | 1 | ADD TO CART | |
| 26 | 5100059550 | Water pump | 1 | PARTS REQUEST | |
|
COMING Water pump
5100059550 · qty on machine: 1 | |||||
| 27 | 5100012873 | Seal | 1 | ADD TO CART | |
| 28 | 5100059548 | Sealing | 1 | PARTS REQUEST | |
|
COMING Sealing
5100059548 · qty on machine: 1 | |||||
| 29 | 5100025015 | Sealing | 2 | ADD TO CART | |
| 30 | 5100025016 | Sealing | 2 | PARTS REQUEST | |
|
COMING Sealing
5100025016 · qty on machine: 2 | |||||
| 31 | 5100025016 | Sealing | 1 | PARTS REQUEST | |
|
COMING Sealing
5100025016 · qty on machine: 1 | |||||
| 32 | 5100024983 | Filter insert | 1 | ADD TO CART | |
| 100 | 5100057808 | Diesel engine | 1 | PARTS REQUEST | |
|
COMING Diesel engine
5100057808 · qty on machine: 1 | |||||
| 202 | 5100050672 | Holder | 1 | ADD TO CART | |
| 203 | 5100059529 | Hexagon screw | 1 | ADD TO CART | |
| 204 | 5100013094 | Washer | 1 | ADD TO CART | |
| 210 | 5100050673 | Hexagon screw | 1 | ADD TO CART | |
| 211 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 212 | 5100012893 | Safety nut | 1 | ADD TO CART | |
| 220 | 5100011672 | Alternator | 1 | PARTS REQUEST | |
|
COMING Alternator
5100011672 · qty on machine: 1 | |||||
| 221 | 5100050674 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100050674 · qty on machine: 1 | |||||
| 233 | 5100050675 | Hexagon screw | 1 | ADD TO CART | |
| 234 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 235 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 236 | 5100011701 | Distance bush | 1 | ADD TO CART | |
| 240 | 5100046800 | Hexagon screw | 1 | ADD TO CART | |
| 241 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 242 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 243 | 5100052961 | Washer | 1 | ADD TO CART | |
| 244 | 5100011578 | Mushroom head screw | 1 | ADD TO CART | |
| 245 | 5100050676 | Extension | 1 | PARTS REQUEST | |
|
COMING Extension
5100050676 · qty on machine: 1 | |||||
| 250 | 5100059558 | Toothed v-belt | 1 | PARTS REQUEST | |
|
COMING Toothed v-belt
5100059558 · qty on machine: 1 | |||||
| 314 | 5100050677 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100050677 · qty on machine: 1 | |||||
| 401 | 5100013141 | V-belt protection | 1 | ADD TO CART | |
| 402 | 5100012515 | Hexagon screw | 3 | ADD TO CART | |
| 403 | 5100013094 | Washer | 3 | ADD TO CART | |
| 404 | 5100013230 | Locking washer | 3 | ADD TO CART | |
Page 118 — Fuel system
Parts list — exactly as printed55 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100065353 | Fuel tank | 1 | PARTS REQUEST | |
|
COMING Fuel tank
5100065353 · qty on machine: 1 | |||||
| 2 | 5100011731 | Rubber washer | 8 | ADD TO CART | |
| 3 | 5100011824 | Washer | 4 | ADD TO CART | |
| 4 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 29 | 5100065332 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100065332 · qty on machine: 1 | |||||
| 46 | 5100024923 | Hose | 0.55 | ADD TO CART | |
| 47 | 5100013179 | Hose clip | 1 | ADD TO CART | |
| 61 | 5100065325 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100065325 · qty on machine: 1 | |||||
| 73 | 5100013216 | Flexible tubing | 1.25 | ADD TO CART | |
| 74 | 5100013179 | Hose clip | 2 | ADD TO CART | |
| 76 | 5100065312 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100065312 · qty on machine: 1 | |||||
| 77 | 5100013416 | Hexagon screw | 2 | ADD TO CART | |
| 78 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 79 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 5 | 5100012177 | Fuel tank | 1 | ADD TO CART | |
| 6 | 5100011730 | Spacer pin | 4 | ADD TO CART | |
| 7 | 5100011861 | Spacer shim | 8 | ADD TO CART | |
| 10 | 5100012476 | Fuel gauge | 1 | ADD TO CART | |
| 11 | 5100013216 | Flexible tubing | 0.15 | ADD TO CART | |
| 12 | 5100013179 | Hose clip | 1 | ADD TO CART | |
| 13 | 5100011990 | Strainer | 1 | ADD TO CART | |
| 14 | 5100011829 | Tank cap, with lock | 1 | ADD TO CART | |
| 14 | 5100013557 | Key | 1 | ADD TO CART | |
| 15 | 5100011665 | Screw plug | 1 | ADD TO CART | |
| 17 | 5100011443 | Cheese-head screw | 6 | ADD TO CART | |
| 18 | 5100013502 | Sealing ring | 6 | ADD TO CART | |
| 30 | 5100013472 | Straight screwed socket | 1 | ADD TO CART | |
| 32 | 5100023444 | Fuel filter cartridge | 1 | ADD TO CART | |
| 33 | 5100013416 | Hexagon screw | 2 | ADD TO CART | |
| 34 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 35 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 36 | 5100013472 | Straight screwed socket | 1 | ADD TO CART | |
| 37 | 5100052913 | Locking screw | 1 | PARTS REQUEST | |
|
COMING Locking screw
5100052913 · qty on machine: 1 | |||||
| 38 | 5100023629 | Spring ring | 1 | ADD TO CART | |
| 39 | 5100011914 | Hexagon nut | 1 | ADD TO CART | |
| 40 | 5100013179 | Hose clip | 2 | ADD TO CART | |
| 41 | 5100025030 | Fuel pump | 1 | ADD TO CART | |
| 41 | 5100025034 | Fuel filter | 1 | ADD TO CART | |
| 41 | 5100052916 | Sealing | 1 | ADD TO CART | |
| 42 | 5100024340 | Rubber metal buffer | 2 | ADD TO CART | |
| 43 | 5100012965 | Locking washer | 3 | ADD TO CART | |
| 44 | 5100012545 | Hexagon nut | 3 | ADD TO CART | |
| 45 | 5100025029 | Angle screwed socket | 2 | PARTS REQUEST | |
|
COMING Angle screwed socket
5100025029 · qty on machine: 2 | |||||
| 48 | 5100065321 | Connection pipe | 1 | PARTS REQUEST | |
|
COMING Connection pipe
5100065321 · qty on machine: 1 | |||||
| 50 | 5100013472 | Straight screwed socket | 1 | ADD TO CART | |
| 52 | 5100023253 | Filter cover | 1 | ADD TO CART | |
| 53 | 5100065329 | Filter cartridge, fuel | 1 | PARTS REQUEST | |
|
COMING Filter cartridge, fuel
5100065329 · qty on machine: 1 | |||||
| 54 | 5100013416 | Hexagon screw | 2 | ADD TO CART | |
| 55 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 56 | 5100052913 | Locking screw | 1 | PARTS REQUEST | |
|
COMING Locking screw
5100052913 · qty on machine: 1 | |||||
| 59 | 5100024988 | Locking screw | 1 | PARTS REQUEST | |
|
COMING Locking screw
5100024988 · qty on machine: 1 | |||||
| 60 | 5100025887 | Straight screwed socket | 1 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100025887 · qty on machine: 1 | |||||
| 75 | 5100065303 | Holder system | 1 | PARTS REQUEST | |
|
COMING Holder system
5100065303 · qty on machine: 1 | |||||
| 90 | 5100024946 | Temperature switch | 1 | ADD TO CART | |
| 91 | 5100024335 | Sealing ring | 1 | ADD TO CART | |
Page 124 — Fuel filter
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100025030 | Fuel pump | 1 | ADD TO CART | |
| 1 | 5100025034 | Fuel filter | 1 | ADD TO CART | |
| 1 | 5100052916 | Sealing | 1 | ADD TO CART | |
| 21 | 5100023444 | Fuel filter cartridge | 1 | ADD TO CART | |
| 21 | 5100023445 | Filter cartridge, fuel | 1 | PARTS REQUEST | |
|
COMING Filter cartridge, fuel
5100023445 · qty on machine: 1 | |||||
| 21 | 5100023465 | Sensor | 1 | ADD TO CART | |
| 52 | 5100023253 | Filter cover | 1 | ADD TO CART | |
| 53 | 5100065329 | Filter cartridge, fuel | 1 | PARTS REQUEST | |
|
COMING Filter cartridge, fuel
5100065329 · qty on machine: 1 | |||||
Page 126 — Air filter system
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 5 | 5100065304 | Air hose | 1 | PARTS REQUEST | |
|
COMING Air hose
5100065304 · qty on machine: 1 | |||||
| 6 | 5100024338 | Hose clamp | 1 | ADD TO CART | |
| 7 | 5100024336 | Hose clamp | 1 | ADD TO CART | |
| 8 | 5100065306 | Intake hose | 1 | PARTS REQUEST | |
|
COMING Intake hose
5100065306 · qty on machine: 1 | |||||
| 9 | 5100024336 | Hose clamp | 1 | ADD TO CART | |
| 10 | 5100013403 | Hose clip | 1 | ADD TO CART | |
| 14 | 5100023746 | Sensor | 1 | PARTS REQUEST | |
|
COMING Sensor
5100023746 · qty on machine: 1 | |||||
| 14 | 5100024986 | Air filter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 14 | 5100024992 | Filter cartridge | 1 | ADD TO CART | |
| 14 | 5100025017 | Dust discharge valve | 1 | ADD TO CART | |
| 14 | 5100050678 | Safety filter cartridge | 1 | ADD TO CART | |
| 15 | 5100024991 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100024991 · qty on machine: 1 | |||||
| 16 | 5100012613 | Hexagon screw | 1 | ADD TO CART | |
| 17 | 5100013094 | Washer | 1 | ADD TO CART | |
| 18 | 5100024890 | Cheese-head screw | 2 | ADD TO CART | |
| 20 | 5100012249 | Mushroom head screw | 1 | ADD TO CART | |
| 21 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 22 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 30 | 5100013370 | Pressure switch, air filter | 1 | PARTS REQUEST | |
|
COMING Pressure switch, air filter
5100013370 · qty on machine: 1 | |||||
Page 128 — Exhaust system
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100025015 | Sealing | 1 | ADD TO CART | |
| 4 | 5100057810 | Flue gas pipe | 1 | PARTS REQUEST | |
|
COMING Flue gas pipe
5100057810 · qty on machine: 1 | |||||
| 5 | 5100011471 | Stud bolt | 4 | ADD TO CART | |
| 6 | 5100024980 | Hexagonal nut | 4 | ADD TO CART | |
| 13 | 5100024979 | Connection pipe | 1 | PARTS REQUEST | |
|
COMING Connection pipe
5100024979 · qty on machine: 1 | |||||
| 14 | 5100057811 | Flue gas pipe | 1 | PARTS REQUEST | |
|
COMING Flue gas pipe
5100057811 · qty on machine: 1 | |||||
| 15 | 5100024978 | Strap clip | 2 | PARTS REQUEST | |
|
COMING Strap clip
5100024978 · qty on machine: 2 | |||||
| 16 | 5100012966 | Locking washer | 2 | ADD TO CART | |
Page 130 — Exhaust aftertreatment
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100059532 | Particulate filter | 1 | PARTS REQUEST | |
|
COMING Particulate filter
5100059532 · qty on machine: 1 | |||||
| 2 | 5100059535 | Sealing | 1 | PARTS REQUEST | |
|
COMING Sealing
5100059535 · qty on machine: 1 | |||||
| 3 | 5100059533 | Particulate filter | 1 | PARTS REQUEST | |
|
COMING Particulate filter
5100059533 · qty on machine: 1 | |||||
| 4 | 5100059534 | Particulate filter | 1 | PARTS REQUEST | |
|
COMING Particulate filter
5100059534 · qty on machine: 1 | |||||
| 5 | 5100059535 | Sealing | 1 | PARTS REQUEST | |
|
COMING Sealing
5100059535 · qty on machine: 1 | |||||
| 6 | 5100059536 | Pipe clip | 2 | PARTS REQUEST | |
|
COMING Pipe clip
5100059536 · qty on machine: 2 | |||||
| 7 | 5100059538 | Pipe clip | 1 | PARTS REQUEST | |
|
COMING Pipe clip
5100059538 · qty on machine: 1 | |||||
| 8 | 5100025015 | Sealing | 1 | ADD TO CART | |
| 1 | 5100025023 | Temperature probe | 1 | PARTS REQUEST | |
|
COMING Temperature probe
5100025023 · qty on machine: 1 | |||||
| 2 | 5100025024 | Temperature probe | 1 | PARTS REQUEST | |
|
COMING Temperature probe
5100025024 · qty on machine: 1 | |||||
| 3 | 5100023693 | Temperature probe | 1 | ADD TO CART | |
| 4 | 5100023694 | Temperature probe | 1 | ADD TO CART | |
| 10 | 5100059539 | Pipe | 1 | PARTS REQUEST | |
|
COMING Pipe
5100059539 · qty on machine: 1 | |||||
| 20 | 5100059540 | Pipe | 1 | PARTS REQUEST | |
|
COMING Pipe
5100059540 · qty on machine: 1 | |||||
Page 134 — Cooling (engine/hydraulic oil)
Parts list — exactly as printed108 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100024948 | Cooling-water pipe | 1 | PARTS REQUEST | |
|
COMING Cooling-water pipe
5100024948 · qty on machine: 1 | |||||
| 2 | 5100023378 | Cheese-head screw | 1 | PARTS REQUEST | |
|
COMING Cheese-head screw
5100023378 · qty on machine: 1 | |||||
| 3 | 5100012967 | Locking washer | 1 | ADD TO CART | |
| 5 | 5100012627 | Hexagon screw | 1 | ADD TO CART | |
| 6 | 5100012968 | Locking washer | 1 | ADD TO CART | |
| 7 | 5100012158 | Flexible tubing | 1 | ADD TO CART | |
| 8 | 5100012159 | Flexible tubing | 1 | ADD TO CART | |
| 9 | 5100011637 | Hose clip | 4 | ADD TO CART | |
| 10 | 5100065359 | Fan | 1 | PARTS REQUEST | |
|
COMING Fan
5100065359 · qty on machine: 1 | |||||
| 11 | 5100011920 | Fan free-wheeling | 1 | ADD TO CART | |
| 12 | 5100012614 | Hexagon screw | 4 | ADD TO CART | |
| 13 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 14 | 5100016826 | Supporting ring | 1 | ADD TO CART | |
| 15 | 5100012169 | Spacer ring | 1 | ADD TO CART | |
| 33 | 5100065309 | Cover | 1 | PARTS REQUEST | |
|
COMING Cover
5100065309 · qty on machine: 1 | |||||
| 34 | 5100012780 | Mushroom head screw | 2 | ADD TO CART | |
| 35 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 36 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 37 | 5100013642 | Sealing profile | 2.1 | ADD TO CART | |
| 39 | 5100059517 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100059517 · qty on machine: 1 | |||||
| 40 | 5100012600 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 2 | |||||
| 41 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 42 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 44 | 5100059556 | Threaded insert | 2 | ADD TO CART | |
| 45 | 5100012919 | Silentbloc | 4 | ADD TO CART | |
| 46 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 47 | 5100012545 | Hexagon nut | 4 | ADD TO CART | |
| 54 | 5100059518 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100059518 · qty on machine: 1 | |||||
| 55 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 56 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 60 | 5100023482 | Tank cap | 1 | ADD TO CART | |
| 60 | 5100052930 | Compensator tank | 1 | PARTS REQUEST | |
|
COMING Compensator tank
5100052930 · qty on machine: 1 | |||||
| 61 | 5100059520 | Cooling-water hose | 1 | PARTS REQUEST | |
|
COMING Cooling-water hose
5100059520 · qty on machine: 1 | |||||
| 62 | 5100013452 | Hose clip | 1 | ADD TO CART | |
| 66 | 5100024977 | Hose nozzle | 1 | ADD TO CART | |
| 67 | 5100052945 | Hose | 0.4 | ADD TO CART | |
| 69 | 5100013179 | Hose clip | 3 | ADD TO CART | |
| 146 | 5100065375 | Metal plate | 1 | PARTS REQUEST | |
|
COMING Metal plate
5100065375 · qty on machine: 1 | |||||
| 147 | 5100012515 | Hexagon screw | 3 | ADD TO CART | |
| 148 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 170 | 5100052932 | Level indicator | 1 | PARTS REQUEST | |
|
COMING Level indicator
5100052932 · qty on machine: 1 | |||||
| 171 | 5100012515 | Hexagon screw | 1 | ADD TO CART | |
| 172 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 20 | 5100024958 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100024958 · qty on machine: 1 | |||||
| 21 | 5100024957 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100024957 · qty on machine: 1 | |||||
| 23 | 5100012553 | Hexagon screw | 3 | ADD TO CART | |
| 24 | 5100012967 | Locking washer | 3 | ADD TO CART | |
| 25 | 5100013550 | Rubber buffer | 2 | ADD TO CART | |
| 26 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 27 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 28 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 30 | 5100024956 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100024956 · qty on machine: 1 | |||||
| 31 | 5100012517 | Hexagon screw | 3 | ADD TO CART | |
| 32 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 64 | 5100012231 | Cooling-water hose | 1 | ADD TO CART | |
| 65 | 5100011637 | Hose clip | 2 | ADD TO CART | |
| 70 | 5100052945 | Hose | 0.95 | ADD TO CART | |
| 72 | 5100013179 | Hose clip | 2 | ADD TO CART | |
| 76 | 5100012496 | Flexible tubing | 1 | Serialno. 160- 179 | ADD TO CART |
| 76 | 5100080578 | Hose | 1 | Serialno. >180 | PARTS REQUEST |
|
COMING Hose
5100080578 · qty on machine: 1 Serialno. >180 | |||||
| 77 | 5100012063 | Flexible tubing | 1 | ADD TO CART | |
| 90 | 5100065354 | Cooler | 1 | PARTS REQUEST | |
|
COMING Cooler
5100065354 · qty on machine: 1 | |||||
| 98 | 5100012520 | Hexagon screw | 3 | ADD TO CART | |
| 99 | 5100012967 | Locking washer | 3 | ADD TO CART | |
| 100 | 5100065368 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100065368 · qty on machine: 1 | |||||
| 101 | 5100065376 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100065376 · qty on machine: 1 | |||||
| 105 | 5100012780 | Mushroom head screw | 4 | ADD TO CART | |
| 106 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 107 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 110 | 5100012517 | Hexagon screw | 4 | ADD TO CART | |
| 111 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 121 | 5100065314 | Protecting sheet | 1 | PARTS REQUEST | |
|
COMING Protecting sheet
5100065314 · qty on machine: 1 | |||||
| 122 | 5100065315 | Protecting sheet | 1 | PARTS REQUEST | |
|
COMING Protecting sheet
5100065315 · qty on machine: 1 | |||||
| 123 | 5100012515 | Hexagon screw | 4 | ADD TO CART | |
| 124 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 126 | 5100065377 | Pipe | 1 | PARTS REQUEST | |
|
COMING Pipe
5100065377 · qty on machine: 1 | |||||
| 130 | 5100012303 | Cooling-water hose | 1 | ADD TO CART | |
| 135 | 5100012909 | Hose clip | 2 | ADD TO CART | |
| 136 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 137 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 138 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 142 | 5100012302 | Cooling-water hose | 1 | ADD TO CART | |
| 145 | 5100011637 | Hose clip | 4 | ADD TO CART | |
| 150 | 5100058748 | Cheese-head screw | 1 | ADD TO CART | |
| 151 | 5100012967 | Locking washer | 1 | ADD TO CART | |
| 180 | 5100022888 | Reducing insert | 1 | Serialno. >180 | ADD TO CART |
| 181 | 5100023276 | Hose | 1 | Serialno. >180 | ADD TO CART |
| 184 | 5100050710 | Holder | 1 | Serialno. >180 | ADD TO CART |
| 58 | 5100012492 | Sealing ring | 1 | ADD TO CART | |
| 59 | 5100013516 | Screw plug | 1 | ADD TO CART | |
| 74 | 5100013614 | Straight screwed socket | 1 | ADD TO CART | |
| 75 | 5100013615 | Straight screwed socket | 1 | ADD TO CART | |
| 86 | 5100065374 | Water cooler | 1 | PARTS REQUEST | |
|
COMING Water cooler
5100065374 · qty on machine: 1 | |||||
| 87 | 5100011636 | Washer | 6 | ADD TO CART | |
| 88 | 5100012600 | Hexagon screw | 6 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 6 | |||||
| 89 | 5100011866 | Sealing tape | 0.6 | ADD TO CART | |
| 91 | 5100011913 | Oil cooler | 1 | ADD TO CART | |
| 92 | 5100011636 | Washer | 4 | ADD TO CART | |
| 93 | 5100012600 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 4 | |||||
| 94 | 5100011866 | Sealing tape | 0.5 | ADD TO CART | |
| 95 | 5100065355 | Console | 1 | PARTS REQUEST | |
|
COMING Console
5100065355 · qty on machine: 1 | |||||
| 96 | 5100013642 | Sealing profile | 2.1 | ADD TO CART | |
| 97 | 5100065338 | Hose nozzle | 1 | ADD TO CART | |
| 102 | 5100023402 | Temperature switch | 1 | ADD TO CART | |
| 114 | 5100011592 | Grommet | 3 | ADD TO CART | |
| 116 | 5100065364 | Cable support sleeve | 1 | PARTS REQUEST | |
|
COMING Cable support sleeve
5100065364 · qty on machine: 1 | |||||
| 118 | 5100012444 | Screw plug | 2 | PARTS REQUEST | |
|
COMING Screw plug
5100012444 · qty on machine: 2 | |||||
| 119 | 5100013000 | Sealing ring | 2 | ADD TO CART | |
Page 144 — Driving gear
Parts list — exactly as printed41 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 28 | 5100033215 | Valve | 2 | ADD TO CART | |
| 1 | 5100012262 | Driving gear | 1 | PARTS REQUEST | |
|
COMING Driving gear
5100012262 · qty on machine: 1 | |||||
| 1 | 5100011618 | Locking ring | 2 | ADD TO CART | |
| 1 | 5100012180 | Set of seals | 1 | ADD TO CART | |
| 1 | 5100013503 | Shaft seal | 1 | ADD TO CART | |
| 2 | 5100012263 | Hydraulic regulation | 1 | PARTS REQUEST | |
|
COMING Hydraulic regulation
5100012263 · qty on machine: 1 | |||||
| 2 | 5100011511 | Seal nut | 2 | ADD TO CART | |
| 2 | 5100011517 | O-ring seal | 1 | ADD TO CART | |
| 2 | 5100012267 | Set of seals | 1 | ADD TO CART | |
| 2 | 5100013545 | O-ring seal | 1 | ADD TO CART | |
| 3 | 5100012264 | Connection plate | 1 | PARTS REQUEST | |
|
COMING Connection plate
5100012264 · qty on machine: 1 | |||||
| 3 | 5100011446 | O-ring seal | 1 | ADD TO CART | |
| 3 | 5100011453 | Screw plug | 1 | ADD TO CART | |
| 3 | 5100011571 | Pressure-relief valve | 2 | PARTS REQUEST | |
|
COMING Pressure-relief valve
5100011571 · qty on machine: 2 | |||||
| 3 | 5100011614 | Feeding pressure valve | 1 | PARTS REQUEST | |
|
COMING Feeding pressure valve
5100011614 · qty on machine: 1 | |||||
| 3 | 5100012188 | Set of seals | 1 | ADD TO CART | |
| 3 | 5100013406 | O-ring seal | 1 | ADD TO CART | |
| 3 | 5100013543 | Screw plug | 2 | ADD TO CART | |
| 3 | 5100013545 | O-ring seal | 1 | ADD TO CART | |
| 3 | 5100013546 | O-ring seal | 1 | ADD TO CART | |
| 4 | 5100012265 | Connection flange | 1 | ADD TO CART | |
| 4 | 5100012268 | Set of seals | 1 | ADD TO CART | |
| 4 | 5100012098 | O-ring seal | 1 | ADD TO CART | |
| 4 | 5100011831 | Sealing washer | 2 | ADD TO CART | |
| 4 | 5100011745 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100012266 | Control device | 1 | PARTS REQUEST | |
|
COMING Control device
5100012266 · qty on machine: 1 | |||||
| 5 | 5100011448 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100011449 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100011450 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100011622 | Seal | 1 | ADD TO CART | |
| 5 | 5100013544 | O-ring seal | 2 | ADD TO CART | |
| 5 | 5100013547 | Seal nut | 1 | ADD TO CART | |
| 20 | 5100011452 | Screw plug | 1 | ADD TO CART | |
| 21 | 5100011453 | Screw plug | 1 | ADD TO CART | |
| 22 | 5100013543 | Screw plug | 3 | ADD TO CART | |
| 23 | 5100011658 | Screw plug | 1 | PARTS REQUEST | |
|
COMING Screw plug
5100011658 · qty on machine: 1 | |||||
| 24 | 5100011454 | Screw plug | 1 | ADD TO CART | |
| 41 | 5100011486 | O-ring seal | 1 | ADD TO CART | |
| 49 | 5100011510 | Nozzle | 1 | ADD TO CART | |
| 100 | 5100011786 | Variable displac. pump (drive) | 1 | PARTS REQUEST | |
|
COMING Variable displac. pump (drive)
5100011786 · qty on machine: 1 | |||||
| 100 | 5100012251 | Set of seals | 1 | ADD TO CART | |
Page 148 — Pump (vibration drive)
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100025077 | Gear pump | 1 | ADD TO CART | |
| 1 | 5100013445 | Hexagon nut | 1 | ADD TO CART | |
| 1 | 5100013446 | Disk spring | 1 | PARTS REQUEST | |
|
COMING Disk spring
5100013446 · qty on machine: 1 | |||||
| 1 | 5100017991 | Spring ring | 1 | PARTS REQUEST | |
|
COMING Spring ring
5100017991 · qty on machine: 1 | |||||
Page 150 — Constant motor (vibration drive)
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013009 | Spring ring | 1 | 1.04 Serialno. >310 | ADD TO CART |
| 1 | 5100013445 | Hexagon nut | 1 | 1.02 Serialno. >310 | ADD TO CART |
| 1 | 5100013446 | Disk spring | 1 | 1.03 Serialno. >310 | PARTS REQUEST |
|
COMING Disk spring
5100013446 · qty on machine: 1 1.03 Serialno. >310 | |||||
| 1 | 5100058557 | Gear motor | 1 | Serialno. >310 | ADD TO CART |
| 1 | 5100065348 | Set of seals | 1 | 1.01 Serialno. >310 | ADD TO CART |
Page 152 — Constant motor
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011646 | Hexagon nut | 1 | 1.02 Serialno. >310 | ADD TO CART |
| 1 | 5100013009 | Spring ring | 1 | 1.04 Serialno. >310 | ADD TO CART |
| 1 | 5100013446 | Disk spring | 1 | 1.03 Serialno. >310 | PARTS REQUEST |
|
COMING Disk spring
5100013446 · qty on machine: 1 1.03 Serialno. >310 | |||||
| 1 | 5100058556 | Gear motor | 1 | Serialno. >310 | ADD TO CART |
| 1 | 5100065348 | Set of seals | 1 | 1.01 Serialno. >310 | ADD TO CART |
Page 154 — Control block
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011986 | Directional valve | 1 | ADD TO CART | |
| 1 | 5100012055 | Pressure-relief valve | 1 | ADD TO CART | |
| 1 | 5100012092 | Pressure-relief valve | 1 | ADD TO CART | |
| 1 | 5100012409 | Magnet | 1 | ADD TO CART | |
| 1 | 5100012970 | Valve block | 1 | ADD TO CART | |
| 1 | 5100013006 | Pressure-relief valve | 1 | ADD TO CART | |
Page 156 — Gear hub motor
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100080579 | Set of seals | 1 | PARTS REQUEST | |
|
COMING Set of seals
5100080579 · qty on machine: 1 | |||||
| 3 | 5100016263 | Set of seals | 1 | ADD TO CART | |
| 4 | 5100065365 | Set of seals | 1 | ADD TO CART | |
| 5 | 5100016264 | Seal | 1 | ADD TO CART | |
| 6 | 5100016265 | Cap | 1 | ADD TO CART | |
| 7 | 5100016266 | Plug | 1 | ADD TO CART | |
| 10 | 5100016269 | Set of seals | 1 | ADD TO CART | |
| 11 | 5100012799 | Spring | 1 | ADD TO CART | |
| 12 | 5100065373 | Set of seals | 1 | ADD TO CART | |
| 13 | 5100065372 | Piston | 5 | ADD TO CART | |
| 14 | 5100065370 | Repair set | 1 | ADD TO CART | |
| 100 | 5100065326 | Gear hub motor | 1 | PARTS REQUEST | |
|
COMING Gear hub motor
5100065326 · qty on machine: 1 | |||||
| 4 | 5100065371 | Repair set | 1 | ADD TO CART | |
| 100 | 5100065327 | Gear hub motor | 1 | ADD TO CART | |
Page 160 — Gear hub motor - full shaft (tires)
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100013351 | Cylinder block | 1 | PARTS REQUEST | |
|
COMING Cylinder block
5100013351 · qty on machine: 1 | |||||
| 15 | 5100013352 | Set of seals | 1 | ADD TO CART | |
| 27 | 5100013338 | Set of seals | 1 | ADD TO CART | |
| 40 | 5100013334 | Distributor | 1 | PARTS REQUEST | |
|
COMING Distributor
5100013334 · qty on machine: 1 | |||||
| 40 | 5100024322 | Repair set | 1 | ADD TO CART | |
| 42 | 5100011485 | Cheese-head screw | 12 | ADD TO CART | |
| 43 | 5100013339 | Straight pin | 1 | PARTS REQUEST | |
|
COMING Straight pin
5100013339 · qty on machine: 1 | |||||
| 44 | 5100012125 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
5100012125 · qty on machine: 1 | |||||
| 48 | 5100012124 | Set of seals | 1 | ADD TO CART | |
| 60 | 5100012505 | Wheel mounting bolt | 1 | ADD TO CART | |
| 70 | 5100013331 | Set of seals | 1 | ADD TO CART | |
| 70 | 5100013353 | Bearing piece | 1 | PARTS REQUEST | |
|
COMING Bearing piece
5100013353 · qty on machine: 1 | |||||
| 71 | 5100024323 | Repair set | 1 | ADD TO CART | |
| 100 | 5100013335 | Brake | 1 | ADD TO CART | |
| 100 | 5100013343 | Set of seals | 1 | ADD TO CART | |
| 108 | 5100013341 | Brake piston | 1 | PARTS REQUEST | |
|
COMING Brake piston
5100013341 · qty on machine: 1 | |||||
| 110 | 5100013340 | Cover plate | 1 | PARTS REQUEST | |
|
COMING Cover plate
5100013340 · qty on machine: 1 | |||||
| 111 | 5100013342 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
5100013342 · qty on machine: 1 | |||||
| 135 | 5100013336 | Set of seals | 1 | PARTS REQUEST | |
|
COMING Set of seals
5100013336 · qty on machine: 1 | |||||
| 200 | 5100012956 | Gear hub motor | 1 | PARTS REQUEST | |
|
COMING Gear hub motor
5100012956 · qty on machine: 1 | |||||
| 200 | 5100013337 | Set of seals | 1 | ADD TO CART | |
Page 162 — Valve block
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100066935 | Piston valve | 1 | PARTS REQUEST | |
|
COMING Piston valve
5100066935 · qty on machine: 1 | |||||
| 3 | 5100066873 | Directional control valve | 1 | PARTS REQUEST | |
|
COMING Directional control valve
5100066873 · qty on machine: 1 | |||||
| 4 | 5100066884 | Solenoid coil | 1 | PARTS REQUEST | |
|
COMING Solenoid coil
5100066884 · qty on machine: 1 | |||||
| 5 | 5100012114 | Pressure-relief valve | 2 | ADD TO CART | |
| 6 | 5100066895 | Flow divider | 1 | ADD TO CART | |
| 7 | 5100012113 | Nozzle | 1 | PARTS REQUEST | |
|
COMING Nozzle
5100012113 · qty on machine: 1 | |||||
| 8 | 5100066906 | Compression spring | 1 | PARTS REQUEST | |
|
COMING Compression spring
5100066906 · qty on machine: 1 | |||||
| 9 | 5100011564 | Screw plug | 2 | ADD TO CART | |
| 10 | 5100011538 | Screw plug | 1 | ADD TO CART | |
| 11 | 5100011743 | Screw plug | 2 | ADD TO CART | |
| 12 | 5100012113 | Nozzle | 1 | PARTS REQUEST | |
|
COMING Nozzle
5100012113 · qty on machine: 1 | |||||
| 13 | 5100011742 | O-ring seal | 1 | ADD TO CART | |
| 14 | 5100011741 | O-ring seal | 2 | PARTS REQUEST | |
|
COMING O-ring seal
5100011741 · qty on machine: 2 | |||||
| 15 | 5100013544 | O-ring seal | 2 | ADD TO CART | |
| 100 | 5100066917 | Flow divider | 1 | ADD TO CART | |
Page 164 — Filter (hydraulic oil)
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013361 | Filter | 1 | ADD TO CART | |
| 1 | 5100013387 | O-ring seal | 1 | ADD TO CART | |
| 1 | 5100024324 | Filter insert | 1 | PARTS REQUEST | |
|
COMING Filter insert
5100024324 · qty on machine: 1 | |||||
| 1 | 5100029595 | Set of seals | 1 | ADD TO CART | |
| 1 | 5100012020 | Pressure filter | 1 | ADD TO CART | |
| 1 | 5100039074 | Set of seals | 1 | ADD TO CART | |
Page 168 — Pump (hydraulic steering system)
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100025078 | Gear pump | 1 | Serialno. <232 | ADD TO CART |
| 1 | 5100013445 | Hexagon nut | 1 | 1.02 Serialno. <232 | ADD TO CART |
| 1 | 5100016271 | Disk spring | 1 | 1.01 Serialno. <232 | PARTS REQUEST |
|
COMING Disk spring
5100016271 · qty on machine: 1 1.01 Serialno. <232 | |||||
| 1 | 5100017991 | Spring ring | 1 | 1.03 Serialno. <232 | PARTS REQUEST |
|
COMING Spring ring
5100017991 · qty on machine: 1 1.03 Serialno. <232 | |||||
Page 170 — Hydraulic oil tank
Parts list — exactly as printed35 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012970 | Valve block | 1 | ADD TO CART | |
| 2 | 5100013256 | Cheese-head screw | 4 | ADD TO CART | |
| 3 | 5100011608 | Screw plug | 2 | ADD TO CART | |
| 5 | 5100011874 | Pipe | 1 | ADD TO CART | |
| 15 | 5100013474 | Straight screwed socket | 4 | ADD TO CART | |
| 18 | 5100082393 | Locking screw | 1 | PARTS REQUEST | |
|
COMING Locking screw
5100082393 · qty on machine: 1 | |||||
| 31 | 5100011548 | Straight screwed socket | 1 | ADD TO CART | |
| 33 | 5100013433 | Straight screwed socket | 1 | ADD TO CART | |
| 49 | 5100012178 | Hydraulic oil tank | 1 | ADD TO CART | |
| 50 | 5100013553 | Straight screwed socket | 1 | ADD TO CART | |
| 51 | 5100011730 | Spacer pin | 4 | ADD TO CART | |
| 52 | 5100011861 | Spacer shim | 4 | ADD TO CART | |
| 53 | 5100013435 | Oil level indicator | 1 | ADD TO CART | |
| 63 | 5100013477 | Straight screwed socket | 1 | ADD TO CART | |
| 82 | 5100071896 | Check valve | 1 | Serialno. 180 – 9999 | ADD TO CART |
| 93 | 5100013493 | Banjo | 1 | ADD TO CART | |
| 94 | 5100013476 | Straight screwed socket | 1 | ADD TO CART | |
| 120 | 5100013477 | Straight screwed socket | 1 | ADD TO CART | |
| 2 | 5100011731 | Rubber washer | 4 | ADD TO CART | |
| 3 | 5100011824 | Washer | 2 | ADD TO CART | |
| 4 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 10 | 5100011730 | Spacer pin | 2 | ADD TO CART | |
| 11 | 5100011731 | Rubber washer | 4 | ADD TO CART | |
| 12 | 5100011824 | Washer | 2 | ADD TO CART | |
| 13 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 49 | 5100011665 | Screw plug | 1 | ADD TO CART | |
| 49 | 5100011857 | Suction filter | 1 | ADD TO CART | |
| 49 | 5100012419 | Filter | 1 | ADD TO CART | |
| 49 | 5100012866 | Fillister head screw | 6 | ADD TO CART | |
| 49 | 5100013415 | O-ring seal | 1 | ADD TO CART | |
| 49 | 5100013558 | Sealing ring | 6 | ADD TO CART | |
| 49 | 5100039052 | Vent filter | 1 | ADD TO CART | |
| 49 | 5100083350 | Filler cap | 1 | PARTS REQUEST | |
|
COMING Filler cap
5100083350 · qty on machine: 1 | |||||
| 100 | 5100016828 | Vent filter | 1 | ADD TO CART | |
| 100 | 5100024927 | Special wrench | 1 | ADD TO CART | |
Page 174 — Instrument panel
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5100011595 | Frame | 2 | ADD TO CART | |
| 21 | 5100011597 | Push-button | 1 | ADD TO CART | |
| 22 | 5100011580 | Blind cover | 1 | ADD TO CART | |
| 23 | 5100023546 | Rocker, preselection | 1 | ADD TO CART | |
| 30 | 5100023242 | Fixation | 1 | ADD TO CART | |
| 31 | 5100023241 | Push button | 1 | ADD TO CART | |
| 33 | 5100023527 | Label | 1 | ADD TO CART | |
| 35 | 5100023008 | Lid | 1 | ADD TO CART | |
| 100 | 5100025103 | Instrument panel | 1 | ADD TO CART | |
Page 176 — Cable harnesses
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100059542 | Wire harness front frame | 1 | PARTS REQUEST | |
|
COMING Wire harness front frame
5100059542 · qty on machine: 1 | |||||
| 2 | 5100012638 | Wire harness | 1 | ADD TO CART | |
| 3 | 5100012632 | Wire harness (rear frame) | 1 | ADD TO CART | |
| 4 | 5100012675 | Wire harness | 1 | ADD TO CART | |
| 5 | 5100052973 | Wire harness negative battery terminal | 1 | PARTS REQUEST | |
|
COMING Wire harness negative battery terminal
5100052973 · qty on machine: 1 | |||||
| 6 | 5100059507 | Proximity switch | 1 | ADD TO CART | |
| 7 | 5100057814 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100057814 · qty on machine: 1 | |||||
| 8 | 5100024941 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100024941 · qty on machine: 1 | |||||
| 9 | 5100052976 | Ground cable operator's platform | 1 | PARTS REQUEST | |
|
COMING Ground cable operator's platform
5100052976 · qty on machine: 1 | |||||
| 10 | 5100052977 | Wire harness instrument panel addition | 1 | PARTS REQUEST | |
|
COMING Wire harness instrument panel addition
5100052977 · qty on machine: 1 | |||||
| 11 | 5100052978 | Wire harness instrument panel | 1 | ADD TO CART | |
| 12 | 5100024942 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100024942 · qty on machine: 1 | |||||
| 13 | 5100057812 | Wire harness engine control unit | 1 | PARTS REQUEST | |
|
COMING Wire harness engine control unit
5100057812 · qty on machine: 1 | |||||
| 14 | 5100012637 | Wire harness | 1 | ADD TO CART | |
| 15 | 5100024944 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100024944 · qty on machine: 1 | |||||
| 16 | 5100052981 | Ground cable steering column | 1 | PARTS REQUEST | |
|
COMING Ground cable steering column
5100052981 · qty on machine: 1 | |||||
| 17 | 5100080582 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100080582 · qty on machine: 1 | |||||
Page 178 — Electrical system
Parts list — exactly as printed175 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 82 | 5100024919 | Fuse | 1 | ADD TO CART | |
| 83 | 5100024919 | Fuse | 1 | ADD TO CART | |
| 1 | 5100013557 | Key | 1 | ADD TO CART | |
| 1 | 5100013570 | Ignition switch | 1 | ADD TO CART | |
| 2 | 5100013506 | Lid | 1 | ADD TO CART | |
| 10 | 5100011784 | Signal transmitter | 1 | ADD TO CART | |
| 12 | 5100013594 | Safety screw | 1 | ADD TO CART | |
| 13 | 5100011599 | Hexagon nut | 1 | ADD TO CART | |
| 14 | 5100011586 | Hexagon nut | 1 | ADD TO CART | |
| 41 | 5100052978 | Wire harness instrument panel | 1 | ADD TO CART | |
| 57 | 5100024880 | Protecting cap | 1 | ADD TO CART | |
| 57 | 5100024942 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100024942 · qty on machine: 1 | |||||
| 58 | 5100024880 | Protecting cap | 1 | ADD TO CART | |
| 58 | 5100024941 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100024941 · qty on machine: 1 | |||||
| 61 | 5100024944 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100024944 · qty on machine: 1 | |||||
| 65 | 5100024975 | Hexagon screw | 1 | ADD TO CART | |
| 66 | 5100013384 | Serrated lock washer | 2 | ADD TO CART | |
| 67 | 5100011914 | Hexagon nut | 5 | ADD TO CART | |
| 68 | 5100023629 | Spring ring | 10 | ADD TO CART | |
| 69 | 5100011915 | Hexagon nut | 1 | ADD TO CART | |
| 70 | 5100011917 | Serrated lock washer | 2 | ADD TO CART | |
| 110 | 5100011974 | Ground terminal | 2 | ADD TO CART | |
| 111 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 112 | 5100012572 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 4 | |||||
| 150 | 5100012579 | Circuit board | 1 | ADD TO CART | |
| 151 | 5100013594 | Safety screw | 3 | ADD TO CART | |
| 152 | 5100013536 | Serrated lock washer | 3 | ADD TO CART | |
| 153 | 5100011669 | Rubber metal buffer | 3 | ADD TO CART | |
| 154 | 5100011753 | Washer | 3 | ADD TO CART | |
| 155 | 5100012898 | Hexagon nut | 3 | ADD TO CART | |
| 160 | 5100012326 | Cover plate | 1 | ADD TO CART | |
| 161 | 5100012586 | Stud bolt | 2 | ADD TO CART | |
| 162 | 5100024969 | Half-clip | 2 | PARTS REQUEST | |
|
COMING Half-clip
5100024969 · qty on machine: 2 | |||||
| 163 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 164 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 165 | 5100011537 | Filler cap | 1 | ADD TO CART | |
| 240 | 5100011914 | Hexagon nut | 1 | ADD TO CART | |
| 241 | 5100023629 | Spring ring | 1 | ADD TO CART | |
| 242 | 5100011915 | Hexagon nut | 1 | ADD TO CART | |
| 243 | 5100013441 | Locking washer | 1 | ADD TO CART | |
| 298 | 5100011748 | Rear reflector | 2 | ADD TO CART | |
| 30 | 5100059542 | Wire harness front frame | 1 | PARTS REQUEST | |
|
COMING Wire harness front frame
5100059542 · qty on machine: 1 | |||||
| 31 | 5100012632 | Wire harness (rear frame) | 1 | ADD TO CART | |
| 32 | 5100012675 | Wire harness | 1 | ADD TO CART | |
| 34 | 5100052973 | Wire harness negative battery terminal | 1 | PARTS REQUEST | |
|
COMING Wire harness negative battery terminal
5100052973 · qty on machine: 1 | |||||
| 35 | 5100059507 | Proximity switch | 1 | ADD TO CART | |
| 37 | 5100024943 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100024943 · qty on machine: 1 | |||||
| 59 | 5100057812 | Wire harness engine control unit | 1 | PARTS REQUEST | |
|
COMING Wire harness engine control unit
5100057812 · qty on machine: 1 | |||||
| 60 | 5100012637 | Wire harness | 1 | ADD TO CART | |
| 71 | 5100011914 | Hexagon nut | 6 | ADD TO CART | |
| 72 | 5100023629 | Spring ring | 11 | ADD TO CART | |
| 73 | 5100011915 | Hexagon nut | 1 | ADD TO CART | |
| 74 | 5100011917 | Serrated lock washer | 2 | ADD TO CART | |
| 95 | 5100012321 | Signal horn | 1 | ADD TO CART | |
| 96 | 5100011701 | Distance bush | 1 | ADD TO CART | |
| 97 | 5100035308 | Hexagon screw | 1 | ADD TO CART | |
| 98 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 104 | 5100012804 | Circuit board | 1 | ADD TO CART | |
| 105 | 5100013606 | Cheese-head screw | 2 | ADD TO CART | |
| 157 | 5100011653 | Mounting | 1 | ADD TO CART | |
| 158 | 5100011590 | Safety cord | 1 | ADD TO CART | |
| 159 | 5100011632 | Extractor for blade fuses | 1 | ADD TO CART | |
| 170 | 5100011849 | Built-in socket | 1 | ADD TO CART | |
| 171 | 5100012093 | Metal plate | 1 | ADD TO CART | |
| 172 | 5100012600 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 2 | |||||
| 173 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 174 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 260 | 5100013650 | Foot switch | 1 | ADD TO CART | |
| 261 | 5100012890 | Countersunk screw | 2 | ADD TO CART | |
| 299 | 5100013573 | Wire fastener | 50 | ADD TO CART | |
| 23 | 5100023676 | Engine oil pressure switch | 1 | ADD TO CART | |
| 37 | 5100022880 | Battery terminal positive | 1 | ADD TO CART | |
| 37 | 5100023208 | Protecting cap | 1 | ADD TO CART | |
| 78 | 5100023097 | Fuse socket | 1 | PARTS REQUEST | |
|
COMING Fuse socket
5100023097 · qty on machine: 1 | |||||
| 79 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 80 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 81 | 5100023053 | Fuse | 1 | ADD TO CART | |
| 81 | 5100046043 | Fuse | 1 | ADD TO CART | |
| 92 | 5100012587 | Safety screw | 2 | ADD TO CART | |
| 93 | 5100052959 | Relay | 1 | ADD TO CART | |
| 94 | 5100011859 | Relay | 1 | ADD TO CART | |
| 119 | 5100024870 | Battery (acid) | 1 | ADD TO CART | |
| 120 | 5100057813 | Battery support | 1 | PARTS REQUEST | |
|
COMING Battery support
5100057813 · qty on machine: 1 | |||||
| 121 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 122 | 5100012515 | Hexagon screw | 1 | ADD TO CART | |
| 123 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 126 | 5100013216 | Flexible tubing | 0.06 | ADD TO CART | |
| 134 | 5100024996 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100024996 · qty on machine: 1 | |||||
| 136 | 5100025009 | Cheese-head screw | 2 | PARTS REQUEST | |
|
COMING Cheese-head screw
5100025009 · qty on machine: 2 | |||||
| 137 | 5100013094 | Washer | 2 | ADD TO CART | |
| 182 | 5100050703 | Angle | 1 | PARTS REQUEST | |
|
COMING Angle
5100050703 · qty on machine: 1 | |||||
| 186 | 5100024966 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100024966 · qty on machine: 1 | |||||
| 187 | 5100012610 | Hexagon screw | 2 | ADD TO CART | |
| 188 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 189 | 5100011544 | Clip nut | 2 | ADD TO CART | |
| 191 | 5100013579 | Blade fuse | 1 | ADD TO CART | |
| 191 | 5100013581 | Blade fuse | 1 | ADD TO CART | |
| 191 | 5100013586 | Blade fuse | 6 | PARTS REQUEST | |
|
COMING Blade fuse
5100013586 · qty on machine: 6 | |||||
| 191 | 5100059543 | Central electric | 1 | PARTS REQUEST | |
|
COMING Central electric
5100059543 · qty on machine: 1 | |||||
| 192 | 5100013594 | Safety screw | 4 | ADD TO CART | |
| 193 | 5100013536 | Serrated lock washer | 4 | ADD TO CART | |
| 194 | 5100011669 | Rubber metal buffer | 4 | ADD TO CART | |
| 195 | 5100011753 | Washer | 4 | ADD TO CART | |
| 196 | 5100012898 | Hexagon nut | 4 | ADD TO CART | |
| 199 | 5100011653 | Mounting | 1 | ADD TO CART | |
| 200 | 5100011590 | Safety cord | 1 | ADD TO CART | |
| 201 | 5100011632 | Extractor for blade fuses | 1 | ADD TO CART | |
| 205 | 5100059547 | Control device | 1 | PARTS REQUEST | |
|
COMING Control device
5100059547 · qty on machine: 1 | |||||
| 206 | 5100059557 | Stud screw | 4 | PARTS REQUEST | |
|
COMING Stud screw
5100059557 · qty on machine: 4 | |||||
| 207 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 208 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 3 | 5100011706 | Handle | 2 | ADD TO CART | |
| 40 | 5100012575 | Wire harness | 1 | ADD TO CART | |
| 42 | 5100052958 | Cheese-head screw | 1 | ADD TO CART | |
| 43 | 5100012965 | Locking washer | 1 | ADD TO CART | |
| 50 | 5100013594 | Safety screw | 2 | ADD TO CART | |
| 84 | 5100011616 | Relay | 1 | ADD TO CART | |
| 85 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 250 | 5100013650 | Foot switch | 1 | ADD TO CART | |
| 251 | 5100012890 | Countersunk screw | 2 | ADD TO CART | |
| 270 | 5100057814 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100057814 · qty on machine: 1 | |||||
| 271 | 5100012587 | Safety screw | 2 | ADD TO CART | |
| 272 | 5100052986 | Hexagonal nut | 2 | PARTS REQUEST | |
|
COMING Hexagonal nut
5100052986 · qty on machine: 2 | |||||
| 275 | 5100023158 | Attachement plate | 1 | ADD TO CART | |
| 276 | 5100012587 | Safety screw | 1 | ADD TO CART | |
| 277 | 5100052986 | Hexagonal nut | 1 | PARTS REQUEST | |
|
COMING Hexagonal nut
5100052986 · qty on machine: 1 | |||||
| 280 | 5100011583 | Relay | 3 | ADD TO CART | |
| 102 | 5100023402 | Temperature switch | 1 | ADD TO CART | |
| 1 | 5100013370 | Pressure switch, air filter | 1 | PARTS REQUEST | |
|
COMING Pressure switch, air filter
5100013370 · qty on machine: 1 | |||||
| 2 | 5100023746 | Sensor | 1 | PARTS REQUEST | |
|
COMING Sensor
5100023746 · qty on machine: 1 | |||||
| 1 | 5100011903 | Drive lever | 1 | ADD TO CART | |
| 2 | 5100011705 | Handle | 2 | ADD TO CART | |
| 5 | 5100011711 | Cover | 2 | PARTS REQUEST | |
|
COMING Cover
5100011711 · qty on machine: 2 | |||||
| 6 | 5100011707 | Operating lever | 2 | ADD TO CART | |
| 7 | 5100012024 | Clamping sleeve | 2 | ADD TO CART | |
| 8 | 5100011708 | Cover | 2 | ADD TO CART | |
| 9 | 5100011792 | Slide block | 2 | ADD TO CART | |
| 11 | 5100013607 | Raised countersunk head screw | 8 | ADD TO CART | |
| 12 | 5100011738 | Raised countersunk head screw | 2 | ADD TO CART | |
| 14 | 5100011710 | Cover | 2 | PARTS REQUEST | |
|
COMING Cover
5100011710 · qty on machine: 2 | |||||
| 30 | 5100012638 | Wire harness | 1 | ADD TO CART | |
| 31 | 5100011709 | Circuit board | 2 | ADD TO CART | |
| 32 | 5100013600 | Sensor | 2 | ADD TO CART | |
| 34 | 5100011524 | Shrinkdown plastic tubing | 0.03 | ADD TO CART | |
| 35 | 5100011458 | Shrinkdown plastic tubing | 0.07 | ADD TO CART | |
| 36 | 5100013520 | Wire fastener | 2 | ADD TO CART | |
| 40 | 5100013641 | Round cable | 0.8 | PARTS REQUEST | |
|
COMING Round cable
5100013641 · qty on machine: 0.8 | |||||
| 1 | 5100011582 | Blade fuse | 1 | ADD TO CART | |
| 5 | 5100013586 | Blade fuse | 2 | PARTS REQUEST | |
|
COMING Blade fuse
5100013586 · qty on machine: 2 | |||||
| 10 | 5100013579 | Blade fuse | 2 | ADD TO CART | |
| 15 | 5100013580 | Blade fuse | 11 | ADD TO CART | |
| 25 | 5100013581 | Blade fuse | 1 | ADD TO CART | |
| 40 | 5100011859 | Relay | 2 | ADD TO CART | |
| 41 | 5100011616 | Relay | 2 | ADD TO CART | |
| 42 | 5100011583 | Relay | 7 | ADD TO CART | |
| 49 | 5100011632 | Extractor for blade fuses | 1 | ADD TO CART | |
| 50 | 5100012579 | Circuit board | 1 | ADD TO CART | |
| 1 | 5100013654 | Flange | 1 | ADD TO CART | |
| 2 | 5100013571 | Push-button | 1 | ADD TO CART | |
| 3 | 5100013636 | Protecting cap | 1 | ADD TO CART | |
| 4 | 5100013191 | Washer | 1 | ADD TO CART | |
| 5 | 5100013573 | Wire fastener | 1 | ADD TO CART | |
| 10 | 5100013650 | Foot switch | 1 | ADD TO CART | |
| 220 | 5100080584 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100080584 · qty on machine: 1 | |||||
| 221 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 222 | 5100012515 | Hexagon screw | 1 | ADD TO CART | |
| 227 | 5100080585 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100080585 · qty on machine: 1 | |||||
| 228 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 229 | 5100012515 | Hexagon screw | 1 | ADD TO CART | |
| 301 | 5100080586 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100080586 · qty on machine: 1 | |||||
| 302 | 5100012627 | Hexagon screw | 2 | ADD TO CART | |
| 303 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 318 | 5100052963 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100052963 · qty on machine: 1 | |||||
| 319 | 5100012515 | Hexagon screw | 1 | ADD TO CART | |
| 320 | 5100012966 | Locking washer | 1 | ADD TO CART | |
Page 204 — Battery isolating switch
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100023231 | Relay | 1 | ADD TO CART | |
| 3 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 4 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 5 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 10 | 5100023237 | Switch | 1 | ADD TO CART | |
| 12 | 5100052982 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100052982 · qty on machine: 1 | |||||
| 13 | 5100080587 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100080587 · qty on machine: 1 | |||||
| 15 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 16 | 5100013184 | Protecting cap | 1 | PARTS REQUEST | |
|
COMING Protecting cap
5100013184 · qty on machine: 1 | |||||
Page 206 — Electrical system lighting
Parts list — exactly as printed25 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013522 | Lamp | 2 | ADD TO CART | |
| 1 | 5100065328 | Headlight | 2 | ADD TO CART | |
| 1 | 5100065330 | Lamp | 2 | ADD TO CART | |
| 2 | 5100011991 | O-ring seal | 4 | ADD TO CART | |
| 5 | 5100011800 | Direction indicator | 2 | ADD TO CART | |
| 5 | 5100012074 | Lamp | 2 | ADD TO CART | |
| 6 | 5100011739 | Fillister head screw | 4 | ADD TO CART | |
| 7 | 5100013453 | Washer | 4 | ADD TO CART | |
| 10 | 5100017997 | Wire harness (lighting) | 1 | ADD TO CART | |
| 21 | 5100011802 | Tail light | 2 | ADD TO CART | |
| 21 | 5100012213 | Lamp | 2 | ADD TO CART | |
| 21 | 5100013448 | Lamp | 2 | ADD TO CART | |
| 22 | 5100011607 | Sheet metal screw | 8 | ADD TO CART | |
| 25 | 5100011801 | Reversing light | 2 | ADD TO CART | |
| 25 | 5100013448 | Lamp | 2 | ADD TO CART | |
| 30 | 5100012032 | Wire harness (lighting) | 1 | ADD TO CART | |
| 31 | 5100011728 | Metal plate | 4 | ADD TO CART | |
| 32 | 5100011902 | Sheet metal screw | 4 | ADD TO CART | |
| 40 | 5100011583 | Relay | 1 | ADD TO CART | |
| 41 | 5100011583 | Relay | 1 | ADD TO CART | |
| 50 | 5100013579 | Blade fuse | 1 | ADD TO CART | |
| 51 | 5100013579 | Blade fuse | 1 | ADD TO CART | |
| 52 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 101 | 5100059542 | Wire harness front frame | 1 | PARTS REQUEST | |
|
COMING Wire harness front frame
5100059542 · qty on machine: 1 | |||||
| 102 | 5100012632 | Wire harness (rear frame) | 1 | ADD TO CART | |
Page 208 — Additional lighting
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011606 | Working light | 4 | ADD TO CART | |
| 1 | 5100012939 | Washer | 1 | ADD TO CART | |
| 1 | 5100013554 | Lamp | 1 | ADD TO CART | |
| 1 | 5100013598 | Safety nut | 1 | ADD TO CART | |
| 2 | 5100024915 | Working light | 4 | PARTS REQUEST | |
|
COMING Working light
5100024915 · qty on machine: 4 | |||||
| 3 | 5100024918 | Cable harness | 4 | ADD TO CART | |
| 4 | 5100013128 | Washer | 4 | ADD TO CART | |
| 5 | 5100023419 | Hexagon screw | 4 | ADD TO CART | |
| 15 | 5100011583 | Relay | 1 | ADD TO CART | |
| 16 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 21 | 5100016277 | Stop | 2 | ADD TO CART | |
| 22 | 5100011504 | Hexagon screw | 2 | ADD TO CART | |
| 23 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 24 | 5100012603 | Safety nut | 2 | ADD TO CART | |
| 25 | 5100011482 | Washer | 4 | ADD TO CART | |
| 28 | 5100013377 | Rubber buffer | 4 | ADD TO CART | |
| 29 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 30 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 32 | 5100012675 | Wire harness | 1 | ADD TO CART | |
| 102 | 5100012632 | Wire harness (rear frame) | 1 | ADD TO CART | |
| 1 | 5100024915 | Working light | 4 | PARTS REQUEST | |
|
COMING Working light
5100024915 · qty on machine: 4 | |||||
| 2 | 5100052987 | Wire harness working light | 2 | ADD TO CART | |
| 3 | 5100059506 | Wire harness working light | 2 | PARTS REQUEST | |
|
COMING Wire harness working light
5100059506 · qty on machine: 2 | |||||
Page 212 — Roller drum lighting
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 30 | 5100011583 | Relay | 1 | ADD TO CART | |
| 31 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 35 | 5100067826 | Holder | 4 | ADD TO CART | |
| 40 | 5100066908 | Working light | 4 | ADD TO CART | |
| 41 | 5100011578 | Mushroom head screw | 4 | ADD TO CART | |
| 42 | 5100053004 | Safety nut | 4 | ADD TO CART | |
| 45 | 5100013029 | Bushing | 4 | ADD TO CART | |
Page 214 — Radio
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100067831 | Radio | 1 | ADD TO CART | |
| 3 | 5100023807 | Antenna | 1 | ADD TO CART | |
| 4 | 5100011499 | Set of loudspeakers | 1 | ADD TO CART | |
| 5 | 5100024337 | Fillister head screw | 8 | PARTS REQUEST | |
|
COMING Fillister head screw
5100024337 · qty on machine: 8 | |||||
| 6 | 5100024349 | Lid | 2 | ADD TO CART | |
| 8 | 5100067832 | Connecting cable | 1 | ADD TO CART | |
| 9 | 5100067833 | Connecting cable | 1 | ADD TO CART | |
| 10 | 5100067835 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100067835 · qty on machine: 1 | |||||
Page 216 — Rotary beacon
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011941 | Rotary beacon | 1 | ADD TO CART | |
| 1 | 5100013538 | Lamp | 1 | ADD TO CART | |
| 1 | 5100029569 | Rotary beacon | 1 | ADD TO CART | |
| 2 | 5100013517 | Pipe | 1 | ADD TO CART | |
| 5 | 5100050711 | Half-clip | 3 | PARTS REQUEST | |
|
COMING Half-clip
5100050711 · qty on machine: 3 | |||||
| 6 | 5100013465 | Cover plate | 1 | ADD TO CART | |
| 7 | 5100013467 | Hexagon screw | 2 | ADD TO CART | |
| 8 | 5100011868 | Weld-on plate | 1 | ADD TO CART | |
| 15 | 5100011583 | Relay | 1 | ADD TO CART | |
| 16 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 2 | 5100023984 | Holder | 1 | ADD TO CART | |
| 4 | 5100013397 | Hexagon screw | 2 | ADD TO CART | |
| 5 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 7 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 10 | 5100052988 | Wire harness rotating beacon | 1 | ADD TO CART | |
| 3 | 5100050711 | Half-clip | 2 | PARTS REQUEST | |
|
COMING Half-clip
5100050711 · qty on machine: 2 | |||||
| 4 | 5100013465 | Cover plate | 1 | ADD TO CART | |
| 5 | 5100013467 | Hexagon screw | 2 | ADD TO CART | |
| 6 | 5100024896 | Holder | 1 | ADD TO CART | |
| 7 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 8 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 9 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 10 | 5100012675 | Wire harness | 1 | ADD TO CART | |
| 11 | 5100013429 | Wire fastener | 4 | ADD TO CART | |
| 12 | 5100024897 | Cable harness | 1 | ADD TO CART | |
| 21 | 5100029569 | Rotary beacon | 1 | ADD TO CART | |
Page 222 — Back-up alarm
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012887 | Reversing alarm 12v-24v dc | 1 | ADD TO CART | |
| 2 | 5100012931 | Mushroom head screw | 2 | ADD TO CART | |
| 3 | 5100011636 | Washer | 2 | ADD TO CART | |
| 4 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 5 | 5100059504 | Proximity switch | 1 | ADD TO CART | |
| 102 | 5100012632 | Wire harness (rear frame) | 1 | ADD TO CART | |
Page 224 — Back-up alarm self adjusting
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100029555 | Back-up alarm | 1 | ADD TO CART | |
| 3 | 5100012608 | Hexagon screw | 2 | ADD TO CART | |
| 4 | 5100011636 | Washer | 2 | ADD TO CART | |
| 5 | 5100013585 | Clip nut | 2 | ADD TO CART | |
| 10 | 5100029553 | Holder | 1 | ADD TO CART | |
| 11 | 5100012600 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 2 | |||||
| 12 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 25 | 5100059504 | Proximity switch | 1 | ADD TO CART | |
| 26 | 5100029559 | Cable harness | 1 | ADD TO CART | |
| 27 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 29 | 5100052959 | Relay | 1 | ADD TO CART | |
Page 226 — Advance drive
Parts list — exactly as printed90 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 11 | 5100012463 | Valve block | 1 | ADD TO CART | |
| 62 | 5100013477 | Straight screwed socket | 1 | ADD TO CART | |
| 63 | 5100013477 | Straight screwed socket | 1 | ADD TO CART | |
| 64 | 5100012064 | Flexible tubing | 1 | ADD TO CART | |
| 81 | 5100024970 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100024970 · qty on machine: 1 | |||||
| 93 | 5100013493 | Banjo | 1 | ADD TO CART | |
| 94 | 5100013476 | Straight screwed socket | 1 | ADD TO CART | |
| 131 | 5100011532 | Pipe clip | 1 | ADD TO CART | |
| 132 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 133 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 171 | 5100012429 | Valve block | 1 | ADD TO CART | |
| 183 | 5100013476 | Straight screwed socket | 1 | ADD TO CART | |
| 184 | 5100013361 | Filter | 1 | ADD TO CART | |
| 185 | 5100012517 | Hexagon screw | 3 | ADD TO CART | |
| 186 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 187 | 5100013476 | Straight screwed socket | 1 | ADD TO CART | |
| 188 | 5100011589 | Flexible tubing | 1 | ADD TO CART | |
| 189 | 5100012091 | Reducing piece | 1 | ADD TO CART | |
| 190 | 5100012190 | Straight screwed socket | 1 | ADD TO CART | |
| 191 | 5100012391 | Elbow adjustable | 1 | ADD TO CART | |
| 192 | 5100012585 | Flexible tubing | 1 | ADD TO CART | |
| 193 | 5100013210 | Hollow-core screw | 1 | ADD TO CART | |
| 194 | 5100013004 | Sealing ring | 1 | ADD TO CART | |
| 195 | 5100011468 | Sealing ring | 1 | ADD TO CART | |
| 1 | 5100013430 | Sae-flange half | 4 | ADD TO CART | |
| 2 | 5100013431 | O-ring seal | 2 | ADD TO CART | |
| 3 | 5100011587 | Safety screw | 8 | ADD TO CART | |
| 4 | 5100012628 | Elbow adjustable | 1 | ADD TO CART | |
| 5 | 5100065319 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100065319 · qty on machine: 1 | |||||
| 6 | 5100012643 | Flexible tubing | 1 | ADD TO CART | |
| 7 | 5100013478 | Straight screwed socket | 1 | ADD TO CART | |
| 8 | 5100012641 | Intermediate piece | 1 | ADD TO CART | |
| 9 | 5100065320 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100065320 · qty on machine: 1 | |||||
| 12 | 5100011479 | Hexagon screw | 2 | ADD TO CART | |
| 13 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 14 | 5100013564 | Stud bolt | 2 | ADD TO CART | |
| 15 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 16 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 21 | 5100013539 | Straight screwed socket | 8 | ADD TO CART | |
| 22 | 5100012078 | Flexible tubing | 1 | ADD TO CART | |
| 22 | 5100013559 | Flexible tubing | 1 | ADD TO CART | |
| 23 | 5100012104 | Flexible tubing | 1 | ADD TO CART | |
| 23 | 5100013593 | Flexible tubing | 1 | ADD TO CART | |
| 24 | 5100012058 | Flexible tubing | 1 | ADD TO CART | |
| 24 | 5100012077 | Flexible tubing | 1 | ADD TO CART | |
| 25 | 5100012103 | Flexible tubing | 1 | ADD TO CART | |
| 25 | 5100012104 | Flexible tubing | 1 | ADD TO CART | |
| 54 | 5100012646 | Flexible tubing | 1 | PARTS REQUEST | |
|
COMING Flexible tubing
5100012646 · qty on machine: 1 | |||||
| 26 | 5100013489 | Straight screwed socket | 4 | ADD TO CART | |
| 41 | 5100013472 | Straight screwed socket | 2 | ADD TO CART | |
| 42 | 5100013613 | Elbow adjustable | 1 | ADD TO CART | |
| 43 | 5100011491 | Flexible tubing | 1 | ADD TO CART | |
| 43 | 5100012067 | Flexible tubing | 1 | ADD TO CART | |
| 44 | 5100011823 | Flexible tubing | 1 | ADD TO CART | |
| 44 | 5100011466 | Flexible tubing | 1 | ADD TO CART | |
| 61 | 5100013475 | Straight screwed socket | 4 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013475 · qty on machine: 4 | |||||
| 101 | 5100011879 | Half-clip | 4 | ADD TO CART | |
| 102 | 5100012977 | Stud bolt | 4 | ADD TO CART | |
| 103 | 5100011880 | Metal plate | 2 | ADD TO CART | |
| 105 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 106 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 120 | 5100011948 | Metal plate | 2 | ADD TO CART | |
| 121 | 5100013510 | Hexagon screw | 4 | ADD TO CART | |
| 122 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 124 | 5100011879 | Half-clip | 4 | ADD TO CART | |
| 125 | 5100039073 | Stud screw | 4 | ADD TO CART | |
| 126 | 5100011880 | Metal plate | 2 | ADD TO CART | |
| 127 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 128 | 5100011525 | Cap nut | 4 | ADD TO CART | |
| 28 | 5100012060 | Flexible tubing | 1 | ADD TO CART | |
| 28 | 5100012061 | Flexible tubing | 1 | ADD TO CART | |
| 29 | 5100012060 | Flexible tubing | 1 | ADD TO CART | |
| 29 | 5100012080 | Flexible tubing | 1 | ADD TO CART | |
| 30 | 5100012060 | Flexible tubing | 1 | ADD TO CART | |
| 30 | 5100012080 | Flexible tubing | 1 | ADD TO CART | |
| 31 | 5100012059 | Flexible tubing | 1 | ADD TO CART | |
| 31 | 5100012079 | Flexible tubing | 1 | ADD TO CART | |
| 32 | 5100013489 | Straight screwed socket | 4 | ADD TO CART | |
| 51 | 5100013472 | Straight screwed socket | 2 | ADD TO CART | |
| 52 | 5100013613 | Elbow adjustable | 1 | ADD TO CART | |
| 53 | 5100011547 | Flexible tubing | 1 | PARTS REQUEST | |
|
COMING Flexible tubing
5100011547 · qty on machine: 1 | |||||
| 53 | 5100012081 | Flexible tubing | 1 | ADD TO CART | |
| 54 | 5100011547 | Flexible tubing | 1 | PARTS REQUEST | |
|
COMING Flexible tubing
5100011547 · qty on machine: 1 | |||||
| 104 | 5100012051 | Metal plate | 1 | ADD TO CART | |
| 111 | 5100011555 | Pipe clip | 1 | ADD TO CART | |
| 112 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 113 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 10 | 5100012424 | Valve block | 1 | Serialno. 160 | ADD TO CART |
| 10 | 5100067834 | Control block | 1 | Serialno. > 161 | ADD TO CART |
| 100 | 5100012463 | Valve block | 1 | ADD TO CART | |
Page 236 — Drive shifting
Parts list — exactly as printed68 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011900 | Metal plate | 2 | ADD TO CART | |
| 2 | 5100012613 | Hexagon screw | 4 | ADD TO CART | |
| 3 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 4 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 5 | 5100048707 | Countersunk screw | 6 | ADD TO CART | |
| 6 | 5100012836 | Drive lever | 1 | ADD TO CART | |
| 7 | 5100011904 | Shift claw | 1 | ADD TO CART | |
| 8 | 5100013466 | Hexagon screw | 2 | ADD TO CART | |
| 9 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 10 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 11 | 5100013573 | Wire fastener | 10 | ADD TO CART | |
| 12 | 5100013537 | Hexagon nut | 1 | ADD TO CART | |
| 13 | 5100011791 | Distance bush | 2 | ADD TO CART | |
| 14 | 5100011819 | Compression spring | 1 | ADD TO CART | |
| 15 | 5100040596 | Hexagon screw | 1 | ADD TO CART | |
| 16 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 17 | 5100053004 | Safety nut | 1 | ADD TO CART | |
| 18 | 5100013189 | Cheese-head screw | 2 | ADD TO CART | |
| 19 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 20 | 5100013166 | Spring-thrust piece | 1 | ADD TO CART | |
| 54 | 5100013400 | Hexagon nut | 1 | ADD TO CART | |
| 56 | 5100011901 | Seat pedestal | 1 | ADD TO CART | |
| 57 | 5100012515 | Hexagon screw | 4 | ADD TO CART | |
| 58 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 59 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 60 | 5100013421 | Washer | 4 | ADD TO CART | |
| 61 | 5100011962 | Adjustment bar | 1 | ADD TO CART | |
| 62 | 5100013401 | Cheese-head screw | 2 | ADD TO CART | |
| 63 | 5100013441 | Locking washer | 2 | ADD TO CART | |
| 66 | 5100012041 | Adjustment bar | 1 | ADD TO CART | |
| 67 | 5100011869 | Fillister head screw | 2 | ADD TO CART | |
| 68 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 70 | 5100012073 | Rod steel | 1 | ADD TO CART | |
| 80 | 5100011997 | Seat pedestal | 1 | ADD TO CART | |
| 200 | 5100012638 | Wire harness | 1 | ADD TO CART | |
| 1 | 5100011899 | Seat pedestal | 1 | ADD TO CART | |
| 2 | 5100012517 | Hexagon screw | 4 | ADD TO CART | |
| 74 | 5100013412 | Edge protection | 0.24 | ADD TO CART | |
| 75 | 5100012639 | Cover | 1 | ADD TO CART | |
| 76 | 5100012572 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 2 | |||||
| 77 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 79 | 5100013412 | Edge protection | 0.14 | ADD TO CART | |
| 81 | 5100012517 | Hexagon screw | 2 | ADD TO CART | |
| 82 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 83 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 86 | 5100012517 | Hexagon screw | 2 | ADD TO CART | |
| 87 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 88 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 89 | 5100012453 | Spacer | 2 | ADD TO CART | |
| 90 | 5100012154 | Bracket | 1 | ADD TO CART | |
| 91 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 92 | 5100022925 | Hexagon screw | 2 | ADD TO CART | |
| 93 | 5100011951 | Joint-head | 1 | ADD TO CART | |
| 93 | 5100012333 | Angle joint | 1 | ADD TO CART | |
| 93 | 5100012581 | Actuating cable | 1 | ADD TO CART | |
| 93 | 5100080592 | Bellows | 1 | PARTS REQUEST | |
|
COMING Bellows
5100080592 · qty on machine: 1 | |||||
| 94 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 95 | 5100035308 | Hexagon screw | 1 | ADD TO CART | |
| 96 | 5100053004 | Safety nut | 1 | ADD TO CART | |
| 6 | 5100011900 | Metal plate | 2 | ADD TO CART | |
| 7 | 5100012613 | Hexagon screw | 4 | ADD TO CART | |
| 8 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 9 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 10 | 5100011792 | Slide block | 2 | ADD TO CART | |
| 11 | 5100048707 | Countersunk screw | 6 | ADD TO CART | |
| 15 | 5100011905 | Lever | 1 | ADD TO CART | |
| 19 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 20 | 5100012966 | Locking washer | 1 | ADD TO CART | |
Page 242 — Brake hydraulics
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011419 | O-ring seal | 1 | ADD TO CART | |
| 1 | 5100012970 | Valve block | 1 | ADD TO CART | |
| 2 | 5100013256 | Cheese-head screw | 4 | ADD TO CART | |
| 3 | 5100011608 | Screw plug | 2 | ADD TO CART | |
| 5 | 5100011874 | Pipe | 1 | ADD TO CART | |
| 15 | 5100013474 | Straight screwed socket | 4 | ADD TO CART | |
| 16 | 5100012221 | Flexible tubing | 1 | ADD TO CART | |
| 16 | 5100012224 | Flexible tubing | 1 | ADD TO CART | |
| 17 | 5100011562 | Flexible tubing | 1 | ADD TO CART | |
| 17 | 5100011567 | Flexible tubing | 1 | ADD TO CART | |
| 18 | 5100013492 | Straight screwed socket | 4 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013492 · qty on machine: 4 | |||||
| 20 | 5100012065 | Flexible tubing | 1 | ADD TO CART | |
| 20 | 5100012082 | Flexible tubing | 1 | ADD TO CART | |
| 21 | 5100012222 | Flexible tubing | 1 | ADD TO CART | |
| 21 | 5100012223 | Flexible tubing | 1 | ADD TO CART | |
Page 244 — All-wheel lock
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100066917 | Flow divider | 2 | ADD TO CART | |
| 2 | 5100011497 | Cheese-head screw | 8 | ADD TO CART | |
| 10 | 5100013650 | Foot switch | 1 | ADD TO CART | |
| 11 | 5100012890 | Countersunk screw | 2 | ADD TO CART | |
| 22 | 5100013586 | Blade fuse | 1 | PARTS REQUEST | |
|
COMING Blade fuse
5100013586 · qty on machine: 1 | |||||
| 23 | 5100011583 | Relay | 1 | ADD TO CART | |
| 27 | 5100012499 | Sticker | 1 | PARTS REQUEST | |
|
COMING Sticker
5100012499 · qty on machine: 1 | |||||
| 40 | 5100013474 | Straight screwed socket | 1 | ADD TO CART | |
| 41 | 5100013611 | Flexible tubing | 1 | ADD TO CART | |
| 42 | 5100013474 | Straight screwed socket | 1 | ADD TO CART | |
Page 246 — Centre pivot assembly
Parts list — exactly as printed33 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100011481 | Cheese-head screw | 2 | ADD TO CART | |
| 2 | 5100011777 | Radial rod end bearing | 1 | ADD TO CART | |
| 2 | 5100011834 | Radial rod end bearing | 1 | ADD TO CART | |
| 2 | 5100011839 | Centre pivot assembly | 1 | ADD TO CART | |
| 2 | 5100011848 | Clamping piece | 1 | ADD TO CART | |
| 2 | 5100012481 | Greasing nipple | 1 | ADD TO CART | |
| 2 | 5100065341 | Centre pivot assembly | 1 | PARTS REQUEST | |
|
COMING Centre pivot assembly
5100065341 · qty on machine: 1 | |||||
| 3 | 5100012624 | Stud bolt | 6 | ADD TO CART | |
| 4 | 5100013129 | Washer | 6 | ADD TO CART | |
| 5 | 5100012550 | Hexagon nut | 6 | ADD TO CART | |
| 10 | 5100011858 | Sealing ring | 1 | ADD TO CART | |
| 15 | 5100011844 | Clamping piece | 1 | ADD TO CART | |
| 16 | 5100012725 | Cheese-head screw | 3 | ADD TO CART | |
| 17 | 5100011840 | Cover | 1 | ADD TO CART | |
| 18 | 5100035087 | Hexagon screw | 6 | ADD TO CART | |
| 19 | 5100012966 | Locking washer | 6 | ADD TO CART | |
| 20 | 5100065337 | Greasing nipple | 2 | PARTS REQUEST | |
|
COMING Greasing nipple
5100065337 · qty on machine: 2 | |||||
| 20 | 5100013534 | Radial rod end bearing | 1 | ADD TO CART | |
| 20 | 5100011842 | Pendulum joint | 1 | PARTS REQUEST | |
|
COMING Pendulum joint
5100011842 · qty on machine: 1 | |||||
| 21 | 5100011782 | Sealing ring | 4 | ADD TO CART | |
| 22 | 5100011837 | Clamping piece | 2 | ADD TO CART | |
| 23 | 5100012724 | Cheese-head screw | 4 | ADD TO CART | |
| 30 | 5100012245 | Safety strut | 1 | ADD TO CART | |
| 31 | 5100013432 | Rubber buffer | 1 | ADD TO CART | |
| 32 | 5100013607 | Raised countersunk head screw | 1 | ADD TO CART | |
| 33 | 5100012965 | Locking washer | 1 | ADD TO CART | |
| 34 | 5100011731 | Rubber washer | 2 | ADD TO CART | |
| 35 | 5100011493 | Hexagon screw | 1 | ADD TO CART | |
| 36 | 5100012969 | Locking washer | 2 | ADD TO CART | |
| 37 | 5100035686 | Safety nut | 1 | ADD TO CART | |
| 40 | 5100012009 | Bolt | 1 | ADD TO CART | |
| 41 | 5100011803 | W-clip | 1 | ADD TO CART | |
| 42 | 5100011590 | Safety cord | 1 | ADD TO CART | |
Page 248 — Steering
Parts list — exactly as printed59 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011736 | O-ring seal | 4 | ADD TO CART | |
| 1 | 5100011989 | Steering unit | 1 | ADD TO CART | |
| 1 | 5100012655 | Connection plate | 1 | ADD TO CART | |
| 1 | 5100012658 | Steering unit + connect. plate | 1 | ADD TO CART | |
| 1 | 5100013528 | Cheese-head screw | 2 | ADD TO CART | |
| 2 | 5100012391 | Elbow adjustable | 1 | ADD TO CART | |
| 3 | 5100012216 | Angle flange screwing | 1 | ADD TO CART | |
| 3 | 5100012723 | Cheese-head screw | 2 | ADD TO CART | |
| 3 | 5100012942 | Spring ring | 4 | PARTS REQUEST | |
|
COMING Spring ring
5100012942 · qty on machine: 4 | |||||
| 3 | 5100013189 | Cheese-head screw | 2 | ADD TO CART | |
| 3 | 5100013612 | O-ring seal | 1 | ADD TO CART | |
| 4 | 5100013447 | Straight screwed socket | 1 | ADD TO CART | |
| 5 | 5100067829 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100067829 · qty on machine: 1 | |||||
| 6 | 5100063874 | Hose fitting | 1 | ADD TO CART | |
| 7 | 5100012053 | Flexible tubing | 1 | ADD TO CART | |
| 8 | 5100013524 | Elbow adjustable | 1 | Serialno. < 180 | ADD TO CART |
| 8 | 5100071895 | Cross fitting | 1 | Serialno. > 179 | ADD TO CART |
| 9 | 5100065343 | Metal plate | 1 | PARTS REQUEST | |
|
COMING Metal plate
5100065343 · qty on machine: 1 | |||||
| 10 | 5100013553 | Straight screwed socket | 1 | ADD TO CART | |
| 11 | 5100012220 | Straight flange joint | 1 | ADD TO CART | |
| 11 | 5100012723 | Cheese-head screw | 4 | ADD TO CART | |
| 11 | 5100012942 | Spring ring | 4 | PARTS REQUEST | |
|
COMING Spring ring
5100012942 · qty on machine: 4 | |||||
| 11 | 5100013612 | O-ring seal | 1 | ADD TO CART | |
| 12 | 5100012391 | Elbow adjustable | 1 | ADD TO CART | |
| 15 | 5100083351 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100083351 · qty on machine: 1 | |||||
| 18 | 5100012391 | Elbow adjustable | 1 | Serialno. > 179 | ADD TO CART |
| 25 | 5100013433 | Straight screwed socket | 2 | ADD TO CART | |
| 26 | 5100013499 | Straight screwed socket | 2 | ADD TO CART | |
| 32 | 5100012679 | Flexible tubing | 1 | PARTS REQUEST | |
|
COMING Flexible tubing
5100012679 · qty on machine: 1 | |||||
| 42 | 5100012680 | Flexible tubing | 1 | ADD TO CART | |
| 43 | 5100013492 | Straight screwed socket | 2 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013492 · qty on machine: 2 | |||||
| 45 | 5100065305 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100065305 · qty on machine: 1 | |||||
| 46 | 5100065331 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100065331 · qty on machine: 1 | |||||
| 47 | 5100053007 | Connecting block | 1 | ADD TO CART | |
| 48 | 5100013454 | Straight screwed socket | 1 | ADD TO CART | |
| 49 | 5100013474 | Straight screwed socket | 1 | ADD TO CART | |
| 50 | 5100053008 | Straight screwed socket | 1 | ADD TO CART | |
| 51 | 5100011563 | Radial rod end bearing | 1 | PARTS REQUEST | |
|
COMING Radial rod end bearing
5100011563 · qty on machine: 1 | |||||
| 51 | 5100011685 | Set of seals | 1 | ADD TO CART | |
| 51 | 5100011875 | Steering cylinder | 1 | ADD TO CART | |
| 51 | 5100012481 | Greasing nipple | 1 | ADD TO CART | |
| 51 | 5100057815 | Retaining ring | 4 | PARTS REQUEST | |
|
COMING Retaining ring
5100057815 · qty on machine: 4 | |||||
| 53 | 5100011776 | Bolt | 1 | ADD TO CART | |
| 54 | 5100011680 | Spacer ring | 2 | ADD TO CART | |
| 55 | 5100013560 | Seal | 2 | ADD TO CART | |
| 56 | 5100012550 | Hexagon nut | 1 | ADD TO CART | |
| 57 | 5100012955 | Locking washer | 1 | ADD TO CART | |
| 60 | 5100012479 | Greasing nipple | 1 | ADD TO CART | |
| 61 | 5100011820 | Spacer ring | 1 | ADD TO CART | |
| 62 | 5100011695 | U-washer | 1 | ADD TO CART | |
| 63 | 5100013463 | Cheese-head screw | 1 | ADD TO CART | |
| 65 | 5100012644 | Steering column | 1 | ADD TO CART | |
| 66 | 5100013450 | Cheese-head screw | 2 | ADD TO CART | |
| 67 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 68 | 5100012783 | Cheese-head screw | 2 | ADD TO CART | |
| 70 | 5100011912 | Steering wheel | 1 | ADD TO CART | |
| 70 | 5100012392 | Turning handle | 1 | ADD TO CART | |
| 70 | 5100065336 | Lid | 1 | ADD TO CART | |
| 71 | 5100013413 | Washer | 1 | ADD TO CART | |
Page 252 — Sprinkling
Parts list — exactly as printed103 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 6 | 5100011851 | Rubber sleeve | 4 | ADD TO CART | |
| 8 | 5100011850 | Rubber sleeve | 3 | ADD TO CART | |
| 9 | 5100011815 | Tank cap | 1 | ADD TO CART | |
| 11 | 5100011990 | Strainer | 1 | ADD TO CART | |
| 14 | 5100011931 | O-ring seal | 1 | ADD TO CART | |
| 54 | 5100011718 | Metal plate | 2 | ADD TO CART | |
| 55 | 5100013195 | Supporting plate | 2 | ADD TO CART | |
| 56 | 5100011902 | Sheet metal screw | 4 | ADD TO CART | |
| 57 | 5100012978 | Stud bolt | 4 | ADD TO CART | |
| 58 | 5100012945 | Stud bolt | 4 | ADD TO CART | |
| 65 | 5100011812 | Drain plug | 1 | ADD TO CART | |
| 66 | 5100011865 | O-ring seal | 1 | ADD TO CART | |
| 67 | 5100011864 | O-ring seal | 1 | ADD TO CART | |
| 68 | 5100011862 | Compression spring | 1 | ADD TO CART | |
| 69 | 5100011830 | Strainer | 1 | ADD TO CART | |
| 78 | 5100012013 | Float | 1 | PARTS REQUEST | |
|
COMING Float
5100012013 · qty on machine: 1 | |||||
| 79 | 5100012012 | Inspection glass | 1 | ADD TO CART | |
| 80 | 5100011656 | Filler cap | 1 | ADD TO CART | |
| 81 | 5100011873 | Pipe clip | 1 | ADD TO CART | |
| 82 | 5100012000 | Sheet metal screw | 1 | ADD TO CART | |
| 100 | 5100050708 | Water tank | 1 | ADD TO CART | |
| 103 | 5100012713 | Rubber metal buffer | 4 | ADD TO CART | |
| 104 | 5100013523 | Washer | 2 | ADD TO CART | |
| 105 | 5100011526 | Elbow | 3 | ADD TO CART | |
| 107 | 5100011444 | Elbow | 3 | ADD TO CART | |
| 109 | 5100013557 | Key | 1 | ADD TO CART | |
| 109 | 5100059525 | Tank cap, with lock | 1 | ADD TO CART | |
| 150 | 5100012140 | Key | 1 | ADD TO CART | |
| 151 | 5100011906 | Metal plate | 1 | ADD TO CART | |
| 152 | 5100011902 | Sheet metal screw | 1 | ADD TO CART | |
| 153 | 5100013646 | Flexible tubing | 0.49 | ADD TO CART | |
| 175 | 5100011590 | Safety cord | 1 | ADD TO CART | |
| 60 | 5100011719 | Metal plate | 4 | ADD TO CART | |
| 61 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 62 | 5100012547 | Hexagon nut | 8 | ADD TO CART | |
| 75 | 5100011590 | Safety cord | 1 | ADD TO CART | |
| 85 | 5100013374 | Water pump | 1 | ADD TO CART | |
| 86 | 5100012919 | Silentbloc | 4 | ADD TO CART | |
| 87 | 5100013523 | Washer | 4 | ADD TO CART | |
| 88 | 5100012545 | Hexagon nut | 8 | ADD TO CART | |
| 91 | 5100012498 | Safety screw | 3 | ADD TO CART | |
| 92 | 5100011527 | Angle screwed socket | 1 | ADD TO CART | |
| 93 | 5100013646 | Flexible tubing | 0.5 | ADD TO CART | |
| 94 | 5100011666 | Angle screwed socket | 1 | ADD TO CART | |
| 95 | 5100011670 | Flexible tubing | 0.8 | ADD TO CART | |
| 96 | 5100011845 | Mounting device | 1 | ADD TO CART | |
| 97 | 5100023166 | Filler cap | 1 | ADD TO CART | |
| 101 | 5100011670 | Flexible tubing | 2 | ADD TO CART | |
| 102 | 5100011670 | Flexible tubing | 3 | ADD TO CART | |
| 105 | 5100012299 | Sprinkler pipe | 1 | ADD TO CART | |
| 106 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 107 | 5100012520 | Hexagon screw | 4 | ADD TO CART | |
| 108 | 5100013179 | Hose clip | 1 | ADD TO CART | |
| 119 | 5100013573 | Wire fastener | 5 | ADD TO CART | |
| 200 | 5100011863 | T-reducing socket | 1 | ADD TO CART | |
| 203 | 5100013213 | Bracket | 1 | ADD TO CART | |
| 204 | 5100013639 | Flexible tubing | 0.27 | ADD TO CART | |
| 205 | 5100013214 | Sprinkler pipe | 1 | ADD TO CART | |
| 206 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 207 | 5100012705 | Cheese-head screw | 4 | ADD TO CART | |
| 208 | 5100013367 | Hose clip | 9 | ADD TO CART | |
| 209 | 5100013639 | Flexible tubing | 0.27 | ADD TO CART | |
| 210 | 5100011898 | Nozzle holder | 2 | ADD TO CART | |
| 213 | 5100011867 | Nozzle holder | 2 | ADD TO CART | |
| 215 | 5100011529 | Sprinkler nozzle | 4 | ADD TO CART | |
| 216 | 5100011488 | Nut | 4 | ADD TO CART | |
| 217 | 5100011489 | Filtering screen | 4 | ADD TO CART | |
| 221 | 5100013639 | Flexible tubing | 0.11 | ADD TO CART | |
| 222 | 5100013639 | Flexible tubing | 0.14 | ADD TO CART | |
| 230 | 5100011756 | Cheese-head screw | 8 | ADD TO CART | |
| 210 | 5100011535 | Cap nut | 1 | ADD TO CART | |
| 210 | 5100011651 | Membrane holder | 1 | ADD TO CART | |
| 210 | 5100011752 | Sealing ring | 1 | ADD TO CART | |
| 210 | 5100011978 | Membrane | 1 | ADD TO CART | |
| 213 | 5100011978 | Membrane | 1 | ADD TO CART | |
| 213 | 5100011752 | Sealing ring | 1 | ADD TO CART | |
| 213 | 5100011651 | Membrane holder | 1 | ADD TO CART | |
| 213 | 5100011535 | Cap nut | 1 | ADD TO CART | |
| 300 | 5100013214 | Sprinkler pipe | 1 | ADD TO CART | |
| 100 | 5100011863 | T-reducing socket | 1 | ADD TO CART | |
| 103 | 5100012135 | Angle | 1 | ADD TO CART | |
| 104 | 5100013639 | Flexible tubing | 0.27 | ADD TO CART | |
| 108 | 5100013367 | Hose clip | 9 | ADD TO CART | |
| 109 | 5100013639 | Flexible tubing | 0.27 | ADD TO CART | |
| 110 | 5100011535 | Cap nut | 1 | ADD TO CART | |
| 110 | 5100011651 | Membrane holder | 1 | ADD TO CART | |
| 110 | 5100011752 | Sealing ring | 1 | ADD TO CART | |
| 110 | 5100011898 | Nozzle holder | 2 | ADD TO CART | |
| 110 | 5100011978 | Membrane | 1 | ADD TO CART | |
| 113 | 5100011978 | Membrane | 1 | ADD TO CART | |
| 113 | 5100011867 | Nozzle holder | 2 | ADD TO CART | |
| 113 | 5100011752 | Sealing ring | 1 | ADD TO CART | |
| 113 | 5100011651 | Membrane holder | 1 | ADD TO CART | |
| 113 | 5100011535 | Cap nut | 1 | ADD TO CART | |
| 115 | 5100011529 | Sprinkler nozzle | 4 | ADD TO CART | |
| 116 | 5100011488 | Nut | 4 | ADD TO CART | |
| 117 | 5100011489 | Filtering screen | 4 | ADD TO CART | |
| 121 | 5100013639 | Flexible tubing | 0.11 | ADD TO CART | |
| 122 | 5100013639 | Flexible tubing | 0.14 | ADD TO CART | |
| 130 | 5100012090 | Cheese-head screw | 8 | ADD TO CART | |
| 131 | 5100013536 | Serrated lock washer | 8 | ADD TO CART | |
| 132 | 5100012898 | Hexagon nut | 8 | ADD TO CART | |
| 200 | 5100012299 | Sprinkler pipe | 1 | ADD TO CART | |
Page 264 — Water pump
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 4 | 5100013389 | Pump housing | 1 | ADD TO CART | |
| 5 | 5100013391 | Valve insert | 1 | ADD TO CART | |
| 10 | 5100013390 | Pump housing | 1 | ADD TO CART | |
| 100 | 5100013374 | Water pump | 1 | ADD TO CART | |
Page 266 — Antifreezing device
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100011943 | Ball-closure cock | 1 | ADD TO CART | |
| 11 | 5100011942 | Adapter | 1 | ADD TO CART | |
| 12 | 5100012598 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012598 · qty on machine: 2 | |||||
| 13 | 5100012936 | Washer | 4 | ADD TO CART | |
| 14 | 5100011599 | Hexagon nut | 2 | ADD TO CART | |
| 21 | 5100011527 | Angle screwed socket | 3 | ADD TO CART | |
| 22 | 5100013413 | Washer | 2 | ADD TO CART | |
| 25 | 5100080594 | Hose | 0.59 | PARTS REQUEST | |
|
COMING Hose
5100080594 · qty on machine: 0.59 | |||||
| 26 | 5100080594 | Hose | 0.86 | PARTS REQUEST | |
|
COMING Hose
5100080594 · qty on machine: 0.86 | |||||
| 27 | 5100080594 | Hose | 0.59 | PARTS REQUEST | |
|
COMING Hose
5100080594 · qty on machine: 0.59 | |||||
| 60 | 5100013573 | Wire fastener | 10 | ADD TO CART | |
| 95 | 5100011670 | Flexible tubing | 0.8 | ADD TO CART | |
| 10 | 5100029536 | Union | 1 | ADD TO CART | |
| 11 | 5100080594 | Hose | 0.06 | PARTS REQUEST | |
|
COMING Hose
5100080594 · qty on machine: 0.06 | |||||
| 12 | 5100080594 | Hose | 0.65 | PARTS REQUEST | |
|
COMING Hose
5100080594 · qty on machine: 0.65 | |||||
| 13 | 5100029535 | Straight screwed socket | 1 | ADD TO CART | |
| 16 | 5100011472 | Ball-closure cock | 1 | ADD TO CART | |
| 17 | 5100029535 | Straight screwed socket | 1 | ADD TO CART | |
| 25 | 5100029568 | Holder | 1 | ADD TO CART | |
| 26 | 5100012598 | Hexagon screw | 1 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012598 · qty on machine: 1 | |||||
| 27 | 5100012936 | Washer | 2 | ADD TO CART | |
| 28 | 5100011599 | Hexagon nut | 1 | ADD TO CART | |
| 61 | 5100013429 | Wire fastener | 1 | ADD TO CART | |
Page 272 — Bypass oil filter
Parts list — exactly as printed24 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100065307 | Filter | 1 | ADD TO CART | |
| 4 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 5 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 6 | 5100065316 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100065316 · qty on machine: 1 | |||||
| 7 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 8 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 10 | 5100029551 | Straight screwed socket | 2 | ADD TO CART | |
| 11 | 5100065322 | Pipe bend | 1 | PARTS REQUEST | |
|
COMING Pipe bend
5100065322 · qty on machine: 1 | |||||
| 12 | 5100065308 | Pressure reducing valve | 1 | ADD TO CART | |
| 13 | 5100034772 | Hexagon screw | 2 | ADD TO CART | |
| 14 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 15 | 5100048634 | Straight screwed socket | 2 | ADD TO CART | |
| 20 | 5100065317 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100065317 · qty on machine: 1 | |||||
| 21 | 5100065302 | Elbow adjustable | 1 | PARTS REQUEST | |
|
COMING Elbow adjustable
5100065302 · qty on machine: 1 | |||||
| 22 | 5100013454 | Straight screwed socket | 1 | ADD TO CART | |
| 30 | 5100065323 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100065323 · qty on machine: 1 | |||||
| 31 | 5100029538 | Elbow adjustable | 1 | ADD TO CART | |
| 32 | 5100013454 | Straight screwed socket | 1 | ADD TO CART | |
| 35 | 5100065310 | Sealing | 1 | Serialno. 160 – 179 | ADD TO CART |
| 36 | 5100065311 | Distance ring | 1 | Serialno. 160 – 179 | PARTS REQUEST |
|
COMING Distance ring
5100065311 · qty on machine: 1 Serialno. 160 – 179 | |||||
| 37 | 5100012090 | Cheese-head screw | 6 | Serialno. 160 – 179 | ADD TO CART |
| 38 | 5100013558 | Sealing ring | 6 | ADD TO CART | |
| 40 | 5100013573 | Wire fastener | 5 | ADD TO CART | |
| 50 | 5100046875 | Sealing tape | 0.09 | ADD TO CART | |
Page 274 — Cylinder spreader
Parts list — exactly as printed211 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 15 | 5100013358 | Button | 3 | ADD TO CART | |
| 1 | 5100013095 | Hydraulic motor | 1 | PARTS REQUEST | |
|
COMING Hydraulic motor
5100013095 · qty on machine: 1 | |||||
| 18 | 5100013110 | Flanged bearing | 2 | ADD TO CART | |
| 20 | 5100033225 | Roller chain | 1 | PARTS REQUEST | |
|
COMING Roller chain
5100033225 · qty on machine: 1 | |||||
| 21 | 5100033226 | Chain wheel | 1 | PARTS REQUEST | |
|
COMING Chain wheel
5100033226 · qty on machine: 1 | |||||
| 22 | 5100033227 | Threaded pin | 1 | PARTS REQUEST | |
|
COMING Threaded pin
5100033227 · qty on machine: 1 | |||||
| 23 | 5100080596 | Feather key | 1 | PARTS REQUEST | |
|
COMING Feather key
5100080596 · qty on machine: 1 | |||||
| 24 | 5100033229 | Chain wheel | 1 | PARTS REQUEST | |
|
COMING Chain wheel
5100033229 · qty on machine: 1 | |||||
| 25 | 5100033230 | Feather key | 1 | PARTS REQUEST | |
|
COMING Feather key
5100033230 · qty on machine: 1 | |||||
| 26 | 5100033227 | Threaded pin | 1 | PARTS REQUEST | |
|
COMING Threaded pin
5100033227 · qty on machine: 1 | |||||
| 27 | 5100013104 | Tension pulley | 1 | ADD TO CART | |
| 28 | 5100013598 | Safety nut | 1 | ADD TO CART | |
| 29 | 5100011476 | Safety nut | 1 | ADD TO CART | |
| 30 | 5100039067 | Spreading shaft | 1 | PARTS REQUEST | |
|
COMING Spreading shaft
5100039067 · qty on machine: 1 | |||||
| 31 | 5100039075 | Conversion kit spreading shaft | 1 | PARTS REQUEST | |
|
COMING Conversion kit spreading shaft
5100039075 · qty on machine: 1 | |||||
| 100 | 5100039051 | Chip spreader | 1 | PARTS REQUEST | |
|
COMING Chip spreader
5100039051 · qty on machine: 1 | |||||
| 7 | 5100013108 | Grid | 1 | ADD TO CART | |
| 8 | 5100012723 | Cheese-head screw | 6 | ADD TO CART | |
| 9 | 5100011546 | Pipe clip | 6 | ADD TO CART | |
| 10 | 5100012937 | Washer | 6 | ADD TO CART | |
| 11 | 5100012942 | Spring ring | 6 | PARTS REQUEST | |
|
COMING Spring ring
5100012942 · qty on machine: 6 | |||||
| 12 | 5100012601 | Safety nut | 6 | ADD TO CART | |
| 13 | 5100013105 | Lever | 1 | PARTS REQUEST | |
|
COMING Lever
5100013105 · qty on machine: 1 | |||||
| 14 | 5100013106 | Lever | 1 | PARTS REQUEST | |
|
COMING Lever
5100013106 · qty on machine: 1 | |||||
| 15 | 5100013111 | Handle | 1 | ADD TO CART | |
| 16 | 5100013107 | Scale | 1 | PARTS REQUEST | |
|
COMING Scale
5100013107 · qty on machine: 1 | |||||
| 17 | 5100013113 | Guard | 1 | ADD TO CART | |
| 22 | 5100013598 | Safety nut | 4 | ADD TO CART | |
| 23 | 5100012939 | Washer | 4 | ADD TO CART | |
| 24 | 5100013122 | Eye bolt | 4 | ADD TO CART | |
| 25 | 5100013118 | Compression spring | 4 | PARTS REQUEST | |
|
COMING Compression spring
5100013118 · qty on machine: 4 | |||||
| 26 | 5100011533 | Hexagon nut | 4 | ADD TO CART | |
| 27 | 5100013450 | Cheese-head screw | 4 | ADD TO CART | |
| 28 | 5100013119 | Handle screw | 4 | ADD TO CART | |
| 29 | 5100013509 | Washer | 4 | ADD TO CART | |
| 30 | 5100013112 | Steel floor | 1 | PARTS REQUEST | |
|
COMING Steel floor
5100013112 · qty on machine: 1 | |||||
| 31 | 5100013020 | Bolt | 2 | ADD TO CART | |
| 32 | 5100013019 | Split pin | 2 | ADD TO CART | |
| 33 | 5100013114 | W-clip | 1 | PARTS REQUEST | |
|
COMING W-clip
5100013114 · qty on machine: 1 | |||||
| 34 | 5100013115 | Bolt | 1 | PARTS REQUEST | |
|
COMING Bolt
5100013115 · qty on machine: 1 | |||||
| 240 | 5100013053 | Bracket | 4 | ADD TO CART | |
| 242 | 5100013537 | Hexagon nut | 16 | ADD TO CART | |
| 245 | 5100013028 | Perforated plate | 1 | ADD TO CART | |
| 246 | 5100012931 | Mushroom head screw | 8 | ADD TO CART | |
| 247 | 5100013523 | Washer | 8 | ADD TO CART | |
| 248 | 5100012545 | Hexagon nut | 8 | ADD TO CART | |
| 255 | 5100013076 | Towing loop | 2 | ADD TO CART | |
| 256 | 5100012617 | Hexagon screw | 8 | ADD TO CART | |
| 257 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 320 | 5100012991 | Wire harness | 1 | ADD TO CART | |
| 332 | 5100013023 | Lamp support | 2 | ADD TO CART | |
| 333 | 5100012515 | Hexagon screw | 4 | ADD TO CART | |
| 334 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 341 | 5100013448 | Lamp | 2 | ADD TO CART | |
| 341 | 5100012213 | Lamp | 2 | ADD TO CART | |
| 341 | 5100011802 | Tail light | 2 | ADD TO CART | |
| 342 | 5100012591 | Fillister head screw | 4 | ADD TO CART | |
| 343 | 5100012936 | Washer | 4 | ADD TO CART | |
| 344 | 5100011599 | Hexagon nut | 4 | ADD TO CART | |
| 350 | 5100011801 | Reversing light | 2 | ADD TO CART | |
| 350 | 5100013448 | Lamp | 2 | ADD TO CART | |
| 351 | 5100012591 | Fillister head screw | 4 | ADD TO CART | |
| 352 | 5100012936 | Washer | 4 | ADD TO CART | |
| 353 | 5100011599 | Hexagon nut | 4 | ADD TO CART | |
| 360 | 5100013070 | Silentbloc | 1 | PARTS REQUEST | |
|
COMING Silentbloc
5100013070 · qty on machine: 1 | |||||
| 361 | 5100012600 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 2 | |||||
| 362 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 363 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 399 | 5100013573 | Wire fastener | 20 | ADD TO CART | |
| 214 | 5100013476 | Straight screwed socket | 2 | ADD TO CART | |
| 215 | 5100011445 | Flexible tubing | 1 | ADD TO CART | |
| 216 | 5100013018 | Flexible tubing | 1 | ADD TO CART | |
| 218 | 5100011771 | Coupling plug | 1 | ADD TO CART | |
| 219 | 5100011773 | Coupling sleeve | 1 | ADD TO CART | |
| 220 | 5100011774 | Protecting cap | 1 | ADD TO CART | |
| 221 | 5100011775 | Protecting cap | 1 | ADD TO CART | |
| 250 | 5100013072 | Bracket | 1 | PARTS REQUEST | |
|
COMING Bracket
5100013072 · qty on machine: 1 | |||||
| 251 | 5100013510 | Hexagon screw | 2 | ADD TO CART | |
| 252 | 5100013094 | Washer | 4 | ADD TO CART | |
| 253 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 256 | 5100035014 | Hexagon screw | 8 | ADD TO CART | |
| 321 | 5100011546 | Pipe clip | 2 | ADD TO CART | |
| 322 | 5100013397 | Hexagon screw | 2 | ADD TO CART | |
| 323 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 324 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 325 | 5100013021 | Silentbloc | 1 | PARTS REQUEST | |
|
COMING Silentbloc
5100013021 · qty on machine: 1 | |||||
| 326 | 5100012600 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 2 | |||||
| 327 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 328 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 398 | 5100013429 | Wire fastener | 10 | ADD TO CART | |
| 1 | 5100013123 | Belt cover | 1 | ADD TO CART | |
| 2 | 5100017999 | Bracket | 1 | ADD TO CART | |
| 3 | 5100013354 | Bracket | 2 | ADD TO CART | |
| 4 | 5100012780 | Mushroom head screw | 4 | ADD TO CART | |
| 5 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 6 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 7 | 5100013357 | Bracket | 2 | ADD TO CART | |
| 8 | 5100013510 | Hexagon screw | 2 | ADD TO CART | |
| 9 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 10 | 5100013359 | Washer | 2 | ADD TO CART | |
| 11 | 5100053004 | Safety nut | 2 | ADD TO CART | |
| 12 | 5100012780 | Mushroom head screw | 2 | ADD TO CART | |
| 13 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 14 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 16 | 5100013397 | Hexagon screw | 3 | ADD TO CART | |
| 17 | 5100012965 | Locking washer | 3 | ADD TO CART | |
| 18 | 5100013566 | Washer | 3 | ADD TO CART | |
| 19 | 5100013523 | Washer | 3 | ADD TO CART | |
| 20 | 5100012545 | Hexagon nut | 3 | ADD TO CART | |
| 21 | 5100012600 | Hexagon screw | 6 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 6 | |||||
| 22 | 5100013523 | Washer | 12 | ADD TO CART | |
| 23 | 5100013566 | Washer | 12 | ADD TO CART | |
| 24 | 5100012545 | Hexagon nut | 6 | ADD TO CART | |
| 261 | 5100013071 | Stop | 2 | Serialno. 160-225 | ADD TO CART |
| 261 | 5100083352 | Stop | 2 | Serialno. >225 | PARTS REQUEST |
|
COMING Stop
5100083352 · qty on machine: 2 Serialno. >225 | |||||
| 268 | 5100013377 | Rubber buffer | 4 | ADD TO CART | |
| 269 | 5100013128 | Washer | 8 | ADD TO CART | |
| 270 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 110 | 5100013016 | Mounting frame | 1 | ADD TO CART | |
| 111 | 5100012617 | Hexagon screw | 6 | ADD TO CART | |
| 112 | 5100013128 | Washer | 6 | ADD TO CART | |
| 115 | 5100011479 | Hexagon screw | 4 | ADD TO CART | |
| 116 | 5100013128 | Washer | 4 | ADD TO CART | |
| 120 | 5100013017 | Console | 1 | ADD TO CART | |
| 121 | 5100013019 | Split pin | 1 | ADD TO CART | |
| 122 | 5100013020 | Bolt | 1 | ADD TO CART | |
| 130 | 5100013360 | Bracket | 1 | ADD TO CART | |
| 131 | 5100011418 | Cap | 1 | ADD TO CART | |
| 3 | 5100080597 | T-piece adjustable | 1 | PARTS REQUEST | |
|
COMING T-piece adjustable
5100080597 · qty on machine: 1 | |||||
| 4 | 5100012391 | Elbow adjustable | 1 | ADD TO CART | |
| 5 | 5100011576 | Flexible tubing | 1 | ADD TO CART | |
| 7 | 5100013476 | Straight screwed socket | 3 | ADD TO CART | |
| 9 | 5100011531 | Flexible tubing | 1 | ADD TO CART | |
| 11 | 5100012094 | Flexible tubing | 1 | ADD TO CART | |
| 12 | 5100013479 | Straight coupling | 1 | ADD TO CART | |
| 13 | 5100012220 | Straight flange joint | 1 | ADD TO CART | |
| 13 | 5100012723 | Cheese-head screw | 4 | ADD TO CART | |
| 13 | 5100012942 | Spring ring | 4 | PARTS REQUEST | |
|
COMING Spring ring
5100012942 · qty on machine: 4 | |||||
| 13 | 5100013612 | O-ring seal | 1 | ADD TO CART | |
| 16 | 5100013092 | Protective covering of cables | 1 | PARTS REQUEST | |
|
COMING Protective covering of cables
5100013092 · qty on machine: 1 | |||||
| 28 | 5100013024 | Bracket | 1 | ADD TO CART | |
| 29 | 5100012517 | Hexagon screw | 2 | ADD TO CART | |
| 30 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 33 | 5100013025 | Holder-up | 1 | ADD TO CART | |
| 34 | 5100035087 | Hexagon screw | 2 | ADD TO CART | |
| 35 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 40 | 5100011735 | Hand lever | 1 | ADD TO CART | |
| 40 | 5100012993 | Valve block | 1 | ADD TO CART | |
| 41 | 5100011480 | Cheese-head screw | 2 | ADD TO CART | |
| 45 | 5100011468 | Sealing ring | 2 | ADD TO CART | |
| 46 | 5100011771 | Coupling plug | 1 | ADD TO CART | |
| 47 | 5100011773 | Coupling sleeve | 1 | ADD TO CART | |
| 48 | 5100011774 | Protecting cap | 1 | ADD TO CART | |
| 49 | 5100011775 | Protecting cap | 1 | ADD TO CART | |
| 52 | 5100016502 | Sticker | 1 | ADD TO CART | |
| 60 | 5100012968 | Locking washer | 4 | ADD TO CART | |
| 61 | 5100011612 | Hexagon screw | 4 | ADD TO CART | |
| 65 | 5100011699 | Silentbloc | 2 | ADD TO CART | |
| 66 | 5100012621 | Hexagon screw | 4 | ADD TO CART | |
| 67 | 5100012968 | Locking washer | 8 | ADD TO CART | |
| 68 | 5100012548 | Hexagon nut | 4 | ADD TO CART | |
| 80 | 5100013015 | Wire harness | 1 | PARTS REQUEST | |
|
COMING Wire harness
5100013015 · qty on machine: 1 | |||||
| 81 | 5100012977 | Stud bolt | 2 | ADD TO CART | |
| 6 | 5100065333 | Control block rd40/45 | 1 | PARTS REQUEST | |
|
COMING Control block rd40/45
5100065333 · qty on machine: 1 | |||||
| 10 | 5100013098 | Flexible tubing | 1 | ADD TO CART | |
| 11 | 5100013099 | Flexible tubing | 1 | ADD TO CART | |
| 15 | 5100080574 | Bulkhead elbow | 2 | PARTS REQUEST | |
|
COMING Bulkhead elbow
5100080574 · qty on machine: 2 | |||||
| 16 | 5100013488 | Hexagon nut | 2 | ADD TO CART | |
| 17 | 5100013191 | Washer | 4 | ADD TO CART | |
| 20 | 5100059510 | Pipe | 1 | PARTS REQUEST | |
|
COMING Pipe
5100059510 · qty on machine: 1 | |||||
| 21 | 5100059509 | Pipe | 1 | PARTS REQUEST | |
|
COMING Pipe
5100059509 · qty on machine: 1 | |||||
| 23 | 5100013476 | Straight screwed socket | 2 | ADD TO CART | |
| 28 | 5100011469 | Pipe clip | 1 | ADD TO CART | |
| 29 | 5100012515 | Hexagon screw | 1 | ADD TO CART | |
| 42 | 5100013100 | Bushing | 1 | PARTS REQUEST | |
|
COMING Bushing
5100013100 · qty on machine: 1 | |||||
| 51 | 5100011665 | Screw plug | 1 | ADD TO CART | |
| 55 | 5100013429 | Wire fastener | 30 | ADD TO CART | |
| 83 | 5100013093 | Clip | 10 | ADD TO CART | |
| 84 | 5100013573 | Wire fastener | 15 | ADD TO CART | |
| 89 | 5100013121 | Cover | 1 | PARTS REQUEST | |
|
COMING Cover
5100013121 · qty on machine: 1 | |||||
| 90 | 5100012822 | Cover plate | 1 | ADD TO CART | |
| 91 | 5100012572 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 2 | |||||
| 92 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 40 | 5100011910 | Nonreturn valve | 1 | ADD TO CART | |
| 40 | 5100012500 | Pressure-relief valve | 1 | ADD TO CART | |
| 40 | 5100013125 | Flow divider | 1 | ADD TO CART | |
| 1 | 5100011583 | Relay | 6 | ADD TO CART | |
| 1 | 5100039076 | Circuit board | 1 | PARTS REQUEST | |
|
COMING Circuit board
5100039076 · qty on machine: 1 | |||||
| 12 | 5100080598 | Housing | 1 | PARTS REQUEST | |
|
COMING Housing
5100080598 · qty on machine: 1 | |||||
| 13 | 5100012990 | Wire harness | 1 | PARTS REQUEST | |
|
COMING Wire harness
5100012990 · qty on machine: 1 | |||||
| 19 | 5100018000 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100018000 · qty on machine: 1 | |||||
| 20 | 5100013013 | Bracket | 1 | PARTS REQUEST | |
|
COMING Bracket
5100013013 · qty on machine: 1 | |||||
| 21 | 5100034739 | Fillister head screw | 3 | ADD TO CART | |
| 22 | 5100033235 | Fillister head screw | 4 | ADD TO CART | |
| 23 | 5100013059 | Sticker | 1 | PARTS REQUEST | |
|
COMING Sticker
5100013059 · qty on machine: 1 | |||||
| 100 | 5100013015 | Wire harness | 1 | PARTS REQUEST | |
|
COMING Wire harness
5100013015 · qty on machine: 1 | |||||
| 2 | 5100059494 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100059494 · qty on machine: 1 | |||||
| 2 | 5100059537 | Cylinder | 1 | PARTS REQUEST | |
|
COMING Cylinder
5100059537 · qty on machine: 1 | |||||
| 2 | 5100059549 | Operating lever | 1 | PARTS REQUEST | |
|
COMING Operating lever
5100059549 · qty on machine: 1 | |||||
| 3 | 5100011607 | Sheet metal screw | 4 | ADD TO CART | |
| 5 | 5100033263 | Pipe clip | 3 | ADD TO CART | |
| 6 | 5100023198 | Fillister head screw | 2 | PARTS REQUEST | |
|
COMING Fillister head screw
5100023198 · qty on machine: 2 | |||||
| 7 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 8 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 15 | 5100059503 | Strap bolt | 1 | PARTS REQUEST | |
|
COMING Strap bolt
5100059503 · qty on machine: 1 | |||||
| 16 | 5100059502 | Plate | 1 | PARTS REQUEST | |
|
COMING Plate
5100059502 · qty on machine: 1 | |||||
| 17 | 5100059516 | Metal plate | 1 | PARTS REQUEST | |
|
COMING Metal plate
5100059516 · qty on machine: 1 | |||||
| 18 | 5100050710 | Holder | 1 | ADD TO CART | |
| 19 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 20 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 25 | 5100080599 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100080599 · qty on machine: 1 | |||||
Page 298 — Mounting
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100065356 | Distance piece | 2 | PARTS REQUEST | |
|
COMING Distance piece
5100065356 · qty on machine: 2 | |||||
| 2 | 5100013379 | Hexagon screw | 4 | ADD TO CART | |
| 3 | 5100012185 | Bow plate | 2 | ADD TO CART | |
| 5 | 5100011835 | Spacer plate | 8 | ADD TO CART | |
| 6 | 5100012415 | Hexagon screw | 10 | ADD TO CART | |
| 7 | 5100013233 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100013233 · qty on machine: 2 | |||||
| 8 | 5100012969 | Locking washer | 12 | ADD TO CART | |
| 25 | 5100012968 | Locking washer | 12 | ADD TO CART | |
| 26 | 5100011612 | Hexagon screw | 12 | ADD TO CART | |
| 4 | 5100012186 | Bow plate | 2 | ADD TO CART | |
Page 302 — Rigid scraper
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 5 | 5100011940 | Metal plate | 1 | ADD TO CART | |
| 9 | 5100013530 | Filler cap | 8 | ADD TO CART | |
| 51 | 5100018001 | Scraper | 2 | ADD TO CART | |
| 52 | 5100018002 | Scraper | 2 | ADD TO CART | |
| 55 | 5100012967 | Locking washer | 16 | ADD TO CART | |
| 56 | 5100012520 | Hexagon screw | 16 | ADD TO CART | |
| 1 | 5100011969 | Scraper | 1 | ADD TO CART | |
| 2 | 5100012042 | Metal plate | 1 | ADD TO CART | |
| 3 | 5100018003 | Spring | 4 | ADD TO CART | |
| 4 | 5100011939 | Metal plate | 1 | ADD TO CART | |
| 6 | 5100012085 | Mushroom head screw | 7 | ADD TO CART | |
| 7 | 5100011584 | Mushroom head screw | 2 | ADD TO CART | |
| 8 | 5100012547 | Hexagon nut | 9 | ADD TO CART | |
| 9 | 5100013521 | Washer | 2 | ADD TO CART | |
| 10 | 5100013521 | Washer | 7 | ADD TO CART | |
| 100 | 5100018001 | Scraper | 1 | ADD TO CART | |
| 3 | 5100018004 | Spring | 4 | ADD TO CART | |
| 100 | 5100018002 | Scraper | 1 | ADD TO CART | |
Page 308 — Foldable scraper
Parts list — exactly as printed55 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013048 | Scraper | 1 | ADD TO CART | |
| 2 | 5100012520 | Hexagon screw | 4 | ADD TO CART | |
| 3 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 51 | 5100013049 | Scraper | 1 | ADD TO CART | |
| 52 | 5100011479 | Hexagon screw | 4 | ADD TO CART | |
| 53 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 55 | 5100013047 | Holder-up | 1 | PARTS REQUEST | |
|
COMING Holder-up
5100013047 · qty on machine: 1 | |||||
| 56 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 57 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 101 | 5100013050 | Scraper | 1 | ADD TO CART | |
| 102 | 5100012520 | Hexagon screw | 4 | ADD TO CART | |
| 103 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 151 | 5100013051 | Scraper | 1 | ADD TO CART | |
| 152 | 5100011479 | Hexagon screw | 4 | ADD TO CART | |
| 153 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 155 | 5100013042 | Holder-up | 1 | ADD TO CART | |
| 156 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 157 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 11 | 5100011969 | Scraper | 1 | ADD TO CART | |
| 12 | 5100012042 | Metal plate | 1 | ADD TO CART | |
| 13 | 5100011939 | Metal plate | 1 | ADD TO CART | |
| 14 | 5100011940 | Metal plate | 1 | ADD TO CART | |
| 15 | 5100012085 | Mushroom head screw | 5 | ADD TO CART | |
| 16 | 5100011584 | Mushroom head screw | 4 | ADD TO CART | |
| 17 | 5100013521 | Washer | 9 | ADD TO CART | |
| 19 | 5100012547 | Hexagon nut | 9 | ADD TO CART | |
| 20 | 5100013040 | Bracket | 1 | ADD TO CART | |
| 21 | 5100012932 | Handle | 1 | ADD TO CART | |
| 22 | 5100012665 | Countersunk screw | 2 | ADD TO CART | |
| 23 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 25 | 5100029558 | Hexagon screw | 1 | ADD TO CART | |
| 26 | 5100013577 | Washer | 2 | ADD TO CART | |
| 27 | 5100013045 | Bracket | 1 | ADD TO CART | |
| 28 | 5100011682 | Bushing | 1 | ADD TO CART | |
| 29 | 5100013629 | Yoke spring | 1 | ADD TO CART | |
| 30 | 5100013033 | Bracket | 1 | ADD TO CART | |
| 31 | 5100035091 | Safety nut | 1 | ADD TO CART | |
| 35 | 5100013574 | Toggle with bolt | 1 | ADD TO CART | |
| 36 | 5100013575 | Compression spring | 1 | ADD TO CART | |
| 37 | 5100013576 | Grooved pin | 1 | ADD TO CART | |
| 40 | 5100029558 | Hexagon screw | 1 | ADD TO CART | |
| 41 | 5100013577 | Washer | 2 | ADD TO CART | |
| 42 | 5100013046 | Bracket | 1 | ADD TO CART | |
| 43 | 5100011682 | Bushing | 1 | ADD TO CART | |
| 44 | 5100013630 | Yoke spring | 1 | ADD TO CART | |
| 45 | 5100013037 | Bracket | 1 | ADD TO CART | |
| 46 | 5100035091 | Safety nut | 1 | ADD TO CART | |
| 27 | 5100013039 | Foot lever | 1 | ADD TO CART | |
| 30 | 5100013041 | Bracket | 1 | ADD TO CART | |
| 42 | 5100013034 | Bracket | 1 | ADD TO CART | |
| 44 | 5100013629 | Yoke spring | 1 | ADD TO CART | |
| 45 | 5100013041 | Bracket | 1 | ADD TO CART | |
| 27 | 5100013035 | Bracket | 1 | ADD TO CART | |
| 42 | 5100013036 | Bracket | 1 | ADD TO CART | |
| 27 | 5100013038 | Lever | 1 | ADD TO CART | |
Page 318 — Roller drum
Parts list — exactly as printed40 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011928 | Roller drum | 1 | PARTS REQUEST | |
|
COMING Roller drum
5100011928 · qty on machine: 1 | |||||
| 2 | 5100011809 | Flange | 2 | ADD TO CART | |
| 3 | 5100012725 | Cheese-head screw | 4 | ADD TO CART | |
| 5 | 5100011663 | Cap | 1 | ADD TO CART | |
| 6 | 5100065326 | Gear hub motor | 1 | PARTS REQUEST | |
|
COMING Gear hub motor
5100065326 · qty on machine: 1 | |||||
| 7 | 5100065327 | Gear hub motor | 1 | ADD TO CART | |
| 8 | 5100012789 | Cheese-head screw | 16 | ADD TO CART | |
| 9 | 5100012968 | Locking washer | 16 | ADD TO CART | |
| 10 | 5100013423 | O-ring seal | 2 | ADD TO CART | |
| 12 | 5100011810 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 15 | 5100011808 | Ring | 2 | ADD TO CART | |
| 16 | 5100011811 | Disc ring | 4 | ADD TO CART | |
| 20 | 5100059530 | Unbalance shaft | 1 | PARTS REQUEST | |
|
COMING Unbalance shaft
5100059530 · qty on machine: 1 | |||||
| 23 | 5100011647 | Disc ring | 2 | ADD TO CART | |
| 24 | 5100012149 | Unbalance | 1 | ADD TO CART | |
| 25 | 5100012148 | Unbalance | 1 | ADD TO CART | |
| 26 | 5100012514 | Hexagon screw | 2 | ADD TO CART | |
| 27 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 28 | 5100012405 | Hexagon nut | 2 | ADD TO CART | |
| 29 | 5100011655 | Bushing | 2 | ADD TO CART | |
| 30 | 5100012147 | Threaded bolt | 2 | ADD TO CART | |
| 31 | 5100012548 | Hexagon nut | 2 | ADD TO CART | |
| 32 | 5100011806 | Unbalance loose | 2 | ADD TO CART | |
| 33 | 5100012534 | Hexagon nut | 2 | ADD TO CART | |
| 35 | 5100059541 | Coupling shaft | 1 | ADD TO CART | |
| 36 | 5100018007 | Hub | 2 | ADD TO CART | |
| 37 | 5100013535 | Disk spring | 1 | ADD TO CART | |
| 38 | 5100011646 | Hexagon nut | 2 | ADD TO CART | |
| 40 | 5100058557 | Gear motor | 1 | ADD TO CART | |
| 41 | 5100012754 | Cheese-head screw | 4 | ADD TO CART | |
| 42 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 50 | 5100012868 | Threaded pin | 4 | ADD TO CART | |
| 59 | 5100013181 | Driver | 1 | ADD TO CART | |
| 60 | 5100013182 | Driver | 1 | ADD TO CART | |
| 61 | 5100048107 | Cheese-head screw | 14 | ADD TO CART | |
| 62 | 5100012968 | Locking washer | 14 | ADD TO CART | |
| 65 | 5100011699 | Silentbloc | 6 | ADD TO CART | |
| 66 | 5100023184 | Hexagon screw | 12 | ADD TO CART | |
| 67 | 5100012968 | Locking washer | 24 | ADD TO CART | |
| 68 | 5100012548 | Hexagon nut | 12 | ADD TO CART | |
Page 322 — Roller drum with oscillator
Parts list — exactly as printed63 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013245 | Roller drum | 1 | Serialno. 160 – 171 | PARTS REQUEST |
|
COMING Roller drum
5100013245 · qty on machine: 1 Serialno. 160 – 171 | |||||
| 1 | 5100013344 | Roller drum | 1 | Serialno. 160 – 171 | PARTS REQUEST |
|
COMING Roller drum
5100013344 · qty on machine: 1 Serialno. 160 – 171 | |||||
| 2 | 5100013238 | Flange | 4 | Serialno. 160 – 171 | ADD TO CART |
| 3 | 5100012525 | Hexagon screw | 40 | Serialno. 160 – 171 | ADD TO CART |
| 4 | 5100012968 | Locking washer | 40 | Serialno. 160 – 171 | ADD TO CART |
| 5 | 5100012003 | Cover | 4 | Serialno. 160 – 171 | ADD TO CART |
| 6 | 5100012516 | Hexagon screw | 24 | Serialno. 160 – 171 | ADD TO CART |
| 7 | 5100012966 | Locking washer | 24 | Serialno. 160 – 171 | ADD TO CART |
| 8 | 5100012226 | Cylindrical roller bearing | 4 | Serialno. 160 – 171 | ADD TO CART |
| 9 | 5100011663 | Cap | 2 | Serialno. 160 – 171 | ADD TO CART |
| 20 | 5100059524 | Unbalance shaft | 2 | Serialno. 160 – 171 | PARTS REQUEST |
|
COMING Unbalance shaft
5100059524 · qty on machine: 2 Serialno. 160 – 171 | |||||
| 20 | 5100059526 | Unbalance shaft | 2 | Serialno. 160 – 171 | PARTS REQUEST |
|
COMING Unbalance shaft
5100059526 · qty on machine: 2 Serialno. 160 – 171 | |||||
| 23 | 5100059495 | Distance ring | 2 | Serialno. 160 – 171 | ADD TO CART |
| 24 | 5100048638 | Annular spring | 3 | Serialno. 160 – 171 | ADD TO CART |
| 25 | 5100059496 | Toothed lock washer | 2 | Serialno. 160 – 171 | PARTS REQUEST |
|
COMING Toothed lock washer
5100059496 · qty on machine: 2 Serialno. 160 – 171 | |||||
| 26 | 5100059498 | Toothed lock washer | 1 | Serialno. 160 – 171 | PARTS REQUEST |
|
COMING Toothed lock washer
5100059498 · qty on machine: 1 Serialno. 160 – 171 | |||||
| 30 | 5100059511 | Toothed belt | 2 | Serialno. 160 – 171 | ADD TO CART |
| 31 | 5100012975 | Flange | 1 | Serialno. 160 – 171 | ADD TO CART |
| 32 | 5100012522 | Hexagon screw | 2 | Serialno. 160 – 171 | ADD TO CART |
| 33 | 5100012967 | Locking washer | 2 | Serialno. 160 – 171 | ADD TO CART |
| 34 | 5100012949 | Locking ring | 1 | Serialno. 160 – 171 | ADD TO CART |
| 35 | 5100011631 | Grooved ball bearing | 2 | Serialno. 160 – 171 | ADD TO CART |
| 36 | 5100012974 | Ring | 1 | Serialno. 160 – 171 | ADD TO CART |
| 37 | 5100012971 | Locking ring | 1 | Serialno. 160 – 171 | ADD TO CART |
| 40 | 5100013253 | Flange | 1 | Serialno. 160 – 171 | ADD TO CART |
| 41 | 5100059514 | Unbalance shaft | 1 | Serialno. 160 – 171 | PARTS REQUEST |
|
COMING Unbalance shaft
5100059514 · qty on machine: 1 Serialno. 160 – 171 | |||||
| 41 | 5100059515 | Drive shaft | 1 | Serialno. 160 – 171 | PARTS REQUEST |
|
COMING Drive shaft
5100059515 · qty on machine: 1 Serialno. 160 – 171 | |||||
| 45 | 5100059512 | Retaining plate | 1 | Serialno. 160 – 171 | PARTS REQUEST |
|
COMING Retaining plate
5100059512 · qty on machine: 1 Serialno. 160 – 171 | |||||
| 46 | 5100034764 | Hexagon screw | 6 | Serialno. 160 – 171 | ADD TO CART |
| 47 | 5100012967 | Locking washer | 6 | Serialno. 160 – 171 | ADD TO CART |
| 50 | 5100012953 | Shaft | 2 | Serialno. 160 – 171 | ADD TO CART |
| 51 | 5100023212 | Ring | 2 | Serialno. 160 – 171 | ADD TO CART |
| 52 | 5100012952 | Grooved ball bearing | 4 | Serialno. 160 – 171 | ADD TO CART |
| 53 | 5100012823 | Cheese-head screw | 2 | Serialno. 160 – 171 | ADD TO CART |
| 55 | 5100012950 | Locking ring | 2 | Serialno. 160 – 171 | ADD TO CART |
| 73 | 5100011646 | Hexagon nut | 2 | Serialno. 160 – 171 | ADD TO CART |
| 74 | 5100013535 | Disk spring | 1 | Serialno. 160 – 171 | ADD TO CART |
| 75 | 5100059544 | Coupling shaft | 1 | Serialno. 160 – 171 | PARTS REQUEST |
|
COMING Coupling shaft
5100059544 · qty on machine: 1 Serialno. 160 – 171 | |||||
| 76 | 5100018007 | Hub | 2 | Serialno. 160 – 171 | ADD TO CART |
| 109 | 5100012725 | Cheese-head screw | 2 | Serialno. 160 – 171 | ADD TO CART |
| 70 | 5100058556 | Gear motor | 1 | Serialno. 160 – 171 | ADD TO CART |
| 71 | 5100012754 | Cheese-head screw | 4 | Serialno. 160 – 171 | ADD TO CART |
| 72 | 5100012966 | Locking washer | 4 | Serialno. 160 – 171 | ADD TO CART |
| 94 | 5100025074 | Lid | 2 | Serialno. 160 – 171 | ADD TO CART |
| 95 | 5100025075 | Lid | 2 | Serialno. 160 – 171 | ADD TO CART |
| 96 | 5100025076 | Lid | 2 | Serialno. 160 – 171 | ADD TO CART |
| 97 | 5100012521 | Hexagon screw | 40 | Serialno. 160 – 171 | ADD TO CART |
| 106 | 5100065326 | Gear hub motor | 1 | Serialno. 160 – 171 | PARTS REQUEST |
|
COMING Gear hub motor
5100065326 · qty on machine: 1 Serialno. 160 – 171 | |||||
| 107 | 5100012782 | Cheese-head screw | 8 | Serialno. 160 – 171 | ADD TO CART |
| 108 | 5100012968 | Locking washer | 8 | Serialno. 160 – 171 | ADD TO CART |
| 110 | 5100065327 | Gear hub motor | 1 | Serialno. 160 – 171 | ADD TO CART |
| 111 | 5100012789 | Cheese-head screw | 8 | Serialno. 160 – 171 | ADD TO CART |
| 112 | 5100012968 | Locking washer | 8 | Serialno. 160 – 171 | ADD TO CART |
| 120 | 5100013181 | Driver | 1 | Serialno. 160 – 171 | ADD TO CART |
| 121 | 5100013182 | Driver | 1 | Serialno. 160 – 171 | ADD TO CART |
| 122 | 5100048107 | Cheese-head screw | 14 | Serialno. 160 – 171 | ADD TO CART |
| 123 | 5100012968 | Locking washer | 14 | Serialno. 160 – 171 | ADD TO CART |
| 126 | 5100011699 | Silentbloc | 6 | Serialno. 160 – 171 | ADD TO CART |
| 127 | 5100023184 | Hexagon screw | 12 | Serialno. 160 – 171 | ADD TO CART |
| 128 | 5100012968 | Locking washer | 24 | Serialno. 160 – 171 | ADD TO CART |
| 129 | 5100012548 | Hexagon nut | 12 | Serialno. 160 – 171 | ADD TO CART |
| 1 | 5100080600 | Roller drum | 1 | Serialno. >172 | PARTS REQUEST |
|
COMING Roller drum
5100080600 · qty on machine: 1 Serialno. >172 | |||||
| 1 | 5100080601 | Roller drum | 1 | Serialno. >172 | PARTS REQUEST |
|
COMING Roller drum
5100080601 · qty on machine: 1 Serialno. >172 | |||||
Page 332 — Vibration drive
Parts list — exactly as printed52 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011500 | O-ring seal | 1 | ADD TO CART | |
| 1 | 5100012723 | Cheese-head screw | 2 | ADD TO CART | |
| 1 | 5100012942 | Spring ring | 4 | PARTS REQUEST | |
|
COMING Spring ring
5100012942 · qty on machine: 4 | |||||
| 1 | 5100013218 | Angle flange screwing | 1 | ADD TO CART | |
| 1 | 5100013497 | Cheese-head screw | 2 | ADD TO CART | |
| 5 | 5100012883 | Flexible tubing | 1 | ADD TO CART | |
| 6 | 5100011896 | Hose clip | 1 | ADD TO CART | |
| 10 | 5100012216 | Angle flange screwing | 1 | ADD TO CART | |
| 10 | 5100012723 | Cheese-head screw | 2 | ADD TO CART | |
| 10 | 5100012942 | Spring ring | 4 | PARTS REQUEST | |
|
COMING Spring ring
5100012942 · qty on machine: 4 | |||||
| 10 | 5100013189 | Cheese-head screw | 2 | ADD TO CART | |
| 10 | 5100013612 | O-ring seal | 1 | ADD TO CART | |
| 11 | 5100011746 | Flexible tubing | 1 | ADD TO CART | |
| 12 | 5100013483 | Elbow adjustable | 1 | ADD TO CART | |
| 13 | 5100013614 | Straight screwed socket | 2 | ADD TO CART | |
| 14 | 5100012020 | Pressure filter | 1 | ADD TO CART | |
| 15 | 5100012517 | Hexagon screw | 4 | ADD TO CART | |
| 16 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 17 | 5100012336 | Bracket | 1 | ADD TO CART | |
| 19 | 5100013476 | Straight screwed socket | 2 | ADD TO CART | |
| 20 | 5100013592 | Flexible tubing | 1 | ADD TO CART | |
| 21 | 5100065333 | Control block rd40/45 | 1 | PARTS REQUEST | |
|
COMING Control block rd40/45
5100065333 · qty on machine: 1 | |||||
| 22 | 5100011479 | Hexagon screw | 2 | ADD TO CART | |
| 23 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 25 | 5100039072 | Stud screw | 2 | ADD TO CART | |
| 26 | 5100011717 | Spacer block | 2 | ADD TO CART | |
| 27 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 28 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 29 | 5100013476 | Straight screwed socket | 2 | ADD TO CART | |
| 31 | 5100011463 | Flexible tubing | 1 | ADD TO CART | |
| 31 | 5100013460 | Flexible tubing | 1 | ADD TO CART | |
| 32 | 5100013476 | Straight screwed socket | 2 | ADD TO CART | |
| 34 | 5100011463 | Flexible tubing | 1 | ADD TO CART | |
| 34 | 5100013460 | Flexible tubing | 1 | ADD TO CART | |
| 41 | 5100012056 | Flexible tubing | 1 | ADD TO CART | |
| 41 | 5100012076 | Flexible tubing | 1 | ADD TO CART | |
| 42 | 5100013612 | O-ring seal | 1 | ADD TO CART | |
| 42 | 5100012942 | Spring ring | 4 | PARTS REQUEST | |
|
COMING Spring ring
5100012942 · qty on machine: 4 | |||||
| 42 | 5100012723 | Cheese-head screw | 4 | ADD TO CART | |
| 42 | 5100012220 | Straight flange joint | 4 | ADD TO CART | |
| 43 | 5100013483 | Elbow adjustable | 4 | ADD TO CART | |
| 44 | 5100012057 | Flexible tubing | 1 | ADD TO CART | |
| 44 | 5100012075 | Flexible tubing | 1 | ADD TO CART | |
| 61 | 5100018008 | Hose | 2 | ADD TO CART | |
| 62 | 5100013434 | Straight screwed socket | 1 | ADD TO CART | |
| 65 | 5100012216 | Angle flange screwing | 2 | ADD TO CART | |
| 65 | 5100012723 | Cheese-head screw | 2 | ADD TO CART | |
| 65 | 5100012942 | Spring ring | 4 | PARTS REQUEST | |
|
COMING Spring ring
5100012942 · qty on machine: 4 | |||||
| 65 | 5100013189 | Cheese-head screw | 2 | ADD TO CART | |
| 65 | 5100013612 | O-ring seal | 1 | ADD TO CART | |
| 68 | 5100013434 | Straight screwed socket | 1 | ADD TO CART | |
| 69 | 5100018008 | Hose | 1 | ADD TO CART | |
Page 336 — Edge pressing and cuttingdevice
Parts list — exactly as printed44 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100012398 | Console | 1 | ADD TO CART | |
| 3 | 5100012396 | Lever | 1 | ADD TO CART | |
| 4 | 5100011474 | Taper roller bearing | 4 | ADD TO CART | |
| 5 | 5100011475 | Nilos ring | 2 | ADD TO CART | |
| 6 | 5100012399 | Axle | 1 | ADD TO CART | |
| 7 | 5100013518 | Spacer shim | 1 | ADD TO CART | |
| 8 | 5100013519 | Spacer shim | 1 | ADD TO CART | |
| 9 | 5100012979 | Spacer shim | 1 | ADD TO CART | |
| 10 | 5100011683 | Cover | 2 | ADD TO CART | |
| 11 | 5100012724 | Cheese-head screw | 6 | ADD TO CART | |
| 12 | 5100011716 | Cover | 2 | ADD TO CART | |
| 13 | 5100012965 | Locking washer | 8 | ADD TO CART | |
| 14 | 5100012572 | Hexagon screw | 8 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 8 | |||||
| 15 | 5100011767 | Flange | 1 | ADD TO CART | |
| 16 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 17 | 5100013450 | Cheese-head screw | 8 | ADD TO CART | |
| 20 | 5100011563 | Radial rod end bearing | 1 | PARTS REQUEST | |
|
COMING Radial rod end bearing
5100011563 · qty on machine: 1 | |||||
| 20 | 5100011686 | Set of seals | 1 | ADD TO CART | |
| 20 | 5100012400 | Cylinder | 1 | ADD TO CART | |
| 20 | 5100012479 | Greasing nipple | 1 | ADD TO CART | |
| 21 | 5100012397 | Bracket | 1 | ADD TO CART | |
| 22 | 5100011482 | Washer | 1 | ADD TO CART | |
| 23 | 5100012415 | Hexagon screw | 1 | ADD TO CART | |
| 24 | 5100011681 | Bolt | 1 | ADD TO CART | |
| 25 | 5100013609 | Radial rod end bearing | 1 | ADD TO CART | |
| 26 | 5100013560 | Seal | 2 | ADD TO CART | |
| 27 | 5100011680 | Spacer ring | 2 | ADD TO CART | |
| 28 | 5100012955 | Locking washer | 1 | ADD TO CART | |
| 29 | 5100012550 | Hexagon nut | 1 | ADD TO CART | |
| 30 | 5100012479 | Greasing nipple | 2 | ADD TO CART | |
| 31 | 5100012482 | Greasing nipple | 1 | ADD TO CART | |
| 35 | 5100012405 | Hexagon nut | 1 | ADD TO CART | |
| 51 | 5100012969 | Locking washer | 5 | ADD TO CART | |
| 52 | 5100011495 | Cheese-head screw | 5 | ADD TO CART | |
| 1 | 5100053017 | Holder system | 1 | ADD TO CART | |
| 2 | 5100035238 | Cheese-head screw | 2 | ADD TO CART | |
| 3 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 5 | 5100013628 | Pipe | 1 | ADD TO CART | |
| 6 | 5100013128 | Washer | 1 | ADD TO CART | |
| 7 | 5100013455 | Cheese-head screw | 1 | ADD TO CART | |
| 11 | 5100011767 | Flange | 1 | ADD TO CART | |
| 12 | 5100013450 | Cheese-head screw | 2 | ADD TO CART | |
| 13 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 14 | 5100012617 | Hexagon screw | 8 | ADD TO CART | |
Page 344 — Ancillary parts
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 40 | 5100011789 | Pipe | 1 | ADD TO CART | |
| 50 | 5100011788 | Bracket | 1 | ADD TO CART | |
| 60 | 5100011790 | Bolt | 1 | ADD TO CART | |
| 70 | 5100013638 | Indicator | 1 | ADD TO CART | |
| 1 | 5100013627 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100013627 · qty on machine: 1 | |||||
| 1 | 5100027277 | Prssure roller | 1 | PARTS REQUEST | |
|
COMING Prssure roller
5100027277 · qty on machine: 1 | |||||
| 2 | 5100013626 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100013626 · qty on machine: 1 | |||||
| 2 | 5100015230 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100015230 · qty on machine: 1 | |||||
| 3 | 5100013625 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100013625 · qty on machine: 1 | |||||
| 3 | 5100015231 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100015231 · qty on machine: 1 | |||||
| 5 | 5100013634 | Cutting disc | 1 | PARTS REQUEST | |
|
COMING Cutting disc
5100013634 · qty on machine: 1 | |||||
| 5 | 5100015199 | Cutting disc | 1 | PARTS REQUEST | |
|
COMING Cutting disc
5100015199 · qty on machine: 1 | |||||
| 6 | 5100011700 | Pressing roll | 1 | PARTS REQUEST | |
|
COMING Pressing roll
5100011700 · qty on machine: 1 | |||||
| 6 | 5100027279 | Prssure roller | 1 | PARTS REQUEST | |
|
COMING Prssure roller
5100027279 · qty on machine: 1 | |||||
| 7 | 5100013623 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100013623 · qty on machine: 1 | |||||
| 7 | 5100015233 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100015233 · qty on machine: 1 | |||||
| 8 | 5100015232 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100015232 · qty on machine: 1 | |||||
| 8 | 5100013635 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100013635 · qty on machine: 1 | |||||
| 9 | 5100013624 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100013624 · qty on machine: 1 | |||||
| 9 | 5100027278 | Prssure roller | 1 | PARTS REQUEST | |
|
COMING Prssure roller
5100027278 · qty on machine: 1 | |||||
| 10 | 5100033238 | Holder | 1 | ADD TO CART | |
| 20 | 5100012520 | Hexagon screw | 2 | ADD TO CART | |
| 30 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 70 | 5100020851 | Indicator | 1 | ADD TO CART | |
| 80 | 5100013509 | Washer | 1 | ADD TO CART | |
| 90 | 5100011783 | Hand lever | 3 | ADD TO CART | |
Page 372 — Additional storage
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 150 | 5100029563 | Bag | 1 | ADD TO CART | |
| 151 | 5100023198 | Fillister head screw | 4 | PARTS REQUEST | |
|
COMING Fillister head screw
5100023198 · qty on machine: 4 | |||||
| 152 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 153 | 5100012545 | Hexagon nut | 4 | ADD TO CART | |
| 154 | 5100013523 | Washer | 4 | ADD TO CART | |
| 160 | 5100011866 | Sealing tape | 0.06 | ADD TO CART | |
Page 374 — Trailer coupling
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100033249 | Trailer coupling | 1 | ADD TO CART | |
| 3 | 5100013416 | Hexagon screw | 4 | ADD TO CART | |
| 4 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 20 | 5100012790 | Metal plate | 1 | ADD TO CART | |
| 21 | 5100012613 | Hexagon screw | 1 | ADD TO CART | |
| 22 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 23 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 30 | 5100013377 | Rubber buffer | 1 | ADD TO CART | |
| 31 | 5100012967 | Locking washer | 1 | ADD TO CART | |
| 32 | 5100012547 | Hexagon nut | 1 | ADD TO CART | |
| 92 | 5100033250 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100033250 · qty on machine: 1 | |||||
Page 376 — Additional mirror
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5100012897 | Metal plate | 1 | ADD TO CART | |
| 21 | 5100053249 | Hexagon screw | 2 | ADD TO CART | |
| 22 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 23 | 5100059489 | Distance piece | 2 | PARTS REQUEST | |
|
COMING Distance piece
5100059489 · qty on machine: 2 | |||||
| 24 | 5100013257 | Washer | 2 | ADD TO CART | |
| 25 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 30 | 5100067838 | Stay bar | 1 | ADD TO CART | |
| 31 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 32 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 35 | 5100067837 | Stay bar | 1 | PARTS REQUEST | |
|
COMING Stay bar
5100067837 · qty on machine: 1 | |||||
| 36 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 37 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 40 | 5100067839 | Mirror | 2 | ADD TO CART | |
Page 378 — Asphalt thermometer
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 30 | 5100033262 | Housing | 1 | ADD TO CART | |
| 31 | 5100012572 | Hexagon screw | 1 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 1 | |||||
| 32 | 5100012965 | Locking washer | 3 | ADD TO CART | |
| 33 | 5100023046 | Hexagon screw | 1 | ADD TO CART | |
| 34 | 5100033263 | Pipe clip | 1 | ADD TO CART | |
| 35 | 5100012545 | Hexagon nut | 1 | ADD TO CART | |
| 36 | 5100033264 | Half-clip | 2 | ADD TO CART | |
| 37 | 5100033265 | Weld-on plate | 1 | ADD TO CART | |
| 38 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 39 | 5100013466 | Hexagon screw | 2 | ADD TO CART | |
| 40 | 5100033266 | Temperature probe | 1 | ADD TO CART | |
| 41 | 5100053037 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100053037 · qty on machine: 1 | |||||
| 42 | 5100033267 | Lid | 1 | ADD TO CART | |
| 43 | 5100033235 | Fillister head screw | 2 | ADD TO CART | |
| 44 | 5100012350 | Spacer block | 4 | ADD TO CART | |
| 45 | 5100011485 | Cheese-head screw | 4 | ADD TO CART | |
Page 380 — Compactometer
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100033251 | Holder system | 1 | PARTS REQUEST | |
|
COMING Holder system
5100033251 · qty on machine: 1 | |||||
| 4 | 5100012718 | Cheese-head screw | 2 | ADD TO CART | |
| 5 | 5100012936 | Washer | 2 | ADD TO CART | |
| 6 | 5100033252 | Bushing | 2 | ADD TO CART | |
| 10 | 5100033253 | Calculator | 1 | PARTS REQUEST | |
|
COMING Calculator
5100033253 · qty on machine: 1 | |||||
| 11 | 5100033254 | Cheese-head screw | 2 | ADD TO CART | |
| 12 | 5100013453 | Washer | 2 | ADD TO CART | |
| 13 | 5100012936 | Washer | 2 | ADD TO CART | |
| 14 | 5100012898 | Hexagon nut | 2 | ADD TO CART | |
| 16 | 5100052978 | Wire harness instrument panel | 1 | ADD TO CART | |
| 20 | 5100033258 | Acceleration sensor | 1 | ADD TO CART | |
| 29 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 21 | 5100033260 | Cheese-head screw | 2 | ADD TO CART | |
| 25 | 5100059519 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100059519 · qty on machine: 1 | |||||
| 26 | 5100012782 | Cheese-head screw | 2 | ADD TO CART | |
| 27 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 99 | 5100013573 | Wire fastener | 30 | ADD TO CART | |
Page 384 — Fire extinguisher
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100033269 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100033269 · qty on machine: 1 | |||||
| 3 | 5100012572 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 2 | |||||
| 4 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 5 | 5100012420 | Blind rivet nut | 2 | ADD TO CART | |
| 10 | 5100022903 | Fire extinguisher | 1 | ADD TO CART | |
| 11 | 5100033270 | Countersunk screw | 2 | ADD TO CART | |
| 12 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 13 | 5100013599 | Clip nut | 2 | ADD TO CART | |
Page 386 — Homologation brazil
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100025909 | Holder | 1 | ADD TO CART | |
| 4 | 5100025910 | Cable harness | 1 | ADD TO CART | |
| 5 | 5100011549 | License plate light | 2 | ADD TO CART | |
| 6 | 5100012467 | Lamp | 2 | ADD TO CART | |
| 7 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 8 | 5100012545 | Hexagon nut | 4 | ADD TO CART | |
| 10 | 5100025881 | Fillister head screw | 4 | ADD TO CART | |
| 11 | 5100013599 | Clip nut | 4 | ADD TO CART | |
| 18 | 5100035014 | Hexagon screw | 4 | ADD TO CART | |
| 19 | 5100012967 | Locking washer | 4 | ADD TO CART | |
Page 388 — Homologation italy
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012007 | Metal plate | 1 | ADD TO CART | |
| 4 | 5100012001 | Wire harness | 1 | ADD TO CART | |
| 5 | 5100011549 | License plate light | 1 | ADD TO CART | |
| 6 | 5100012467 | Lamp | 1 | ADD TO CART | |
| 8 | 5100017998 | Hexagonal nut | 2 | ADD TO CART | |
| 10 | 5100012607 | Hexagon screw | 4 | ADD TO CART | |
| 11 | 5100013536 | Serrated lock washer | 12 | ADD TO CART | |
| 12 | 5100012898 | Hexagon nut | 8 | ADD TO CART | |
| 13 | 5100013453 | Washer | 8 | ADD TO CART | |
| 40 | 5100013573 | Wire fastener | 2 | ADD TO CART | |
| 100 | 5100012143 | Bracket | 1 | ADD TO CART | |
| 102 | 5100012572 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 4 | |||||
| 103 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 120 | 5100013573 | Wire fastener | 5 | ADD TO CART | |
Page 390 — Maintenance kits and repair kits
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100086334 | Maintenance kit rd40/45-1000h wncr1410 | 1 | PARTS REQUEST | |
|
COMING Maintenance kit rd40/45-1000h wncr1410
5100086334 · qty on machine: 1 | |||||
| 10 | 5100086363 | Maintenance kit rd40/45-2000h wncr1410 | 1 | PARTS REQUEST | |
|
COMING Maintenance kit rd40/45-2000h wncr1410
5100086363 · qty on machine: 1 | |||||
| 10 | 5100086364 | Maintenance kit rd40/45-500h wncr1410 | 1 | PARTS REQUEST | |
|
COMING Maintenance kit rd40/45-500h wncr1410
5100086364 · qty on machine: 1 | |||||
| 10 | 5100086365 | Maintenance kit rd40/45-50h wncr1410 | 1 | PARTS REQUEST | |
|
COMING Maintenance kit rd40/45-50h wncr1410
5100086365 · qty on machine: 1 | |||||
The machine itself
Machine
Engine
Wacker Neuson RD40-130 roller.
Available in 3 configurations.
List price: $107,000.00 – $124,500.00
Keep-it-running spares
All listed parts →Every part that fits this machine
1000088388
Screw
1000139973
Screw
1000328508
Clamp
1000386655
Fuel filter
1000386656
Filter insert
1000389229
Screw joint
1000389230
Fuel line
1000389241
Hose clamp
1000389247
Fuel line
1000389249
Plug
1000389262
Fuel pump
1000433949
Fuel filter
1000433950
Fuel filter
1000433952
Arm
1000433955
Filter housing
1000434006
Pressure limit reliefvalve
5100011418
Cap
$8.95
5100011419
O-ring seal
$1.95
5100011443
Cheese-head screw
$1.95
5100011444
Elbow
$5.95
5100011445
Flexible tubing
$90.95
5100011446
O-ring seal
$10.95
5100011448
O-ring seal
$7.95
5100011449
O-ring seal
$3.95
5100011450
O-ring seal
$6.95
5100011452
Screw plug
$20.95
5100011453
Screw plug
$115.95
5100011454
Screw plug
$21.95
5100011458
Shrinkdown plastic tubing
$6.95
5100011459
Washer
$48.95
5100011463
Flexible tubing
$140.95
5100011466
Flexible tubing
$100.95
5100011468
Sealing ring
$10.95
5100011469
Pipe clip
$33.95
5100011471
Stud bolt
$4.95
5100011472
Ball-closure cock
$102.95
5100011474
Taper roller bearing
$286.95
5100011475
Nilos ring
$76.95
5100011476
Safety nut
$1.95
5100011477
Hexagon screw
$1.95
5100011479
Hexagon screw
$1.95
5100011480
Cheese-head screw
$2.95
5100011481
Cheese-head screw
$1.95
5100011482
Washer
$2.95
5100011485
Cheese-head screw
$2.95
5100011486
O-ring seal
$8.95
5100011488
Nut
$3.95
5100011489
Filtering screen
$4.95
5100011490
Hexagon screw
5100011491
Flexible tubing
$129.95
5100011493
Hexagon screw
$10.95
5100011495
Cheese-head screw
$3.95
5100011497
Cheese-head screw
$4.95
5100011498
Silentbloc
$18.95
5100011499
Set of loudspeakers
$387.95
5100011500
O-ring seal
$3.95
5100011503
Closing bolt
$20.95
5100011504
Hexagon screw
$9.95
5100011506
Chock
$164.95
5100011510
Nozzle
$14.95
5100011511
Seal nut
$8.95
5100011517
O-ring seal
$18.95
5100011518
Seat cushion
$817.95
5100011519
Backrest cushion
$609.95
5100011524
Shrinkdown plastic tubing
$39.95
5100011525
Cap nut
$2.95
5100011526
Elbow
$7.95
5100011527
Angle screwed socket
$12.95
5100011529
Sprinkler nozzle
$11.95
5100011531
Flexible tubing
$158.95
5100011532
Pipe clip
$5.95
5100011533
Hexagon nut
$1.95
5100011535
Cap nut
$12.95
5100011537
Filler cap
$1.95
5100011538
Screw plug
$9.95
5100011539
Stay bar
$553.95
5100011540
Stay bar
$536.95
5100011541
Mirror
$241.95
5100011544
Clip nut
$6.95
5100011546
Pipe clip
$15.95
5100011547
Flexible tubing
5100011548
Straight screwed socket
$32.95
5100011549
License plate light
$107.95
5100011550
Plug
$1.95
5100011555
Pipe clip
$17.95
5100011557
Bow
$28.95
5100011558
Windshield rubber
$251.95
5100011559
Ball-closure cock
$60.95
5100011562
Flexible tubing
$97.95
5100011563
Radial rod end bearing
5100011564
Screw plug
$14.95
5100011567
Flexible tubing
$78.95
5100011571
Pressure-relief valve
5100011576
Flexible tubing
$174.95
5100011577
Protecting cap
$2.95
5100011578
Mushroom head screw
$1.95
5100011579
Switch
$93.95
5100011580
Blind cover
$10.95
5100011581
Fillister head screw
$1.95
5100011582
Blade fuse
$1.95
5100011583
Relay
$41.95
5100011584
Mushroom head screw
$2.95
5100011586
Hexagon nut
$1.95
5100011587
Safety screw
$3.95
5100011589
Flexible tubing
$105.95
5100011590
Safety cord
$9.95
5100011592
Grommet
$21.95
5100011595
Frame
$20.95
5100011596
Frame
$26.95
5100011597
Push-button
$182.95
5100011598
Adhesive set
$538.95
5100011599
Hexagon nut
$2.95
5100011602
Mounting
$475.95
5100011603
Mounting
$445.95
5100011605
Inside mirror
5100011606
Working light
$450.95
5100011607
Sheet metal screw
$1.95
5100011608
Screw plug
$5.95
5100011612
Hexagon screw
$2.95
5100011614
Feeding pressure valve
5100011615
Handle
$41.95
5100011616
Relay
$61.95
5100011618
Locking ring
$24.95
5100011622
Seal
$33.95
5100011631
Grooved ball bearing
$123.95
5100011632
Extractor for blade fuses
$136.95
5100011634
Sheet metal screw
$1.95
5100011636
Washer
$1.95
5100011637
Hose clip
$4.95
5100011638
Rocker, working spotlights
$23.95
5100011639
Rocker, rotating-beam light
$31.95
5100011640
Blade fuse
$16.95
5100011646
Hexagon nut
$4.95
5100011647
Disc ring
$10.95
5100011651
Membrane holder
$18.95
5100011653
Mounting
$2.95
5100011655
Bushing
$106.95
5100011656
Filler cap
$1.95
5100011657
Washer
$1.95
5100011658
Screw plug
5100011663
Cap
$42.95
5100011665
Screw plug
$7.95
5100011666
Angle screwed socket
$6.95
5100011669
Rubber metal buffer
$17.95
5100011670
Flexible tubing
$22.95
5100011672
Alternator
5100011680
Spacer ring
$17.95
5100011681
Bolt
$95.95
5100011682
Bushing
$6.95
5100011683
Cover
$90.95
5100011684
Metal plate
$48.95
5100011685
Set of seals
$604.95
5100011686
Set of seals
$541.95
5100011695
U-washer
$15.95
5100011697
Pipe
$22.95
5100011698
Spacer block
$16.95
5100011699
Silentbloc
$118.95
5100011700
Pressing roll
5100011701
Distance bush
$17.95
5100011703
Sticker
$15.95
5100011705
Handle
$49.95
5100011706
Handle
$49.95
5100011707
Operating lever
$42.95
5100011708
Cover
$10.95
5100011709
Circuit board
$21.95
5100011710
Cover
5100011711
Cover
5100011716
Cover
$36.95
5100011717
Spacer block
$24.95
5100011718
Metal plate
$23.95
5100011719
Metal plate
$30.95
5100011728
Metal plate
$9.95
5100011730
Spacer pin
$37.95
5100011731
Rubber washer
$2.95
5100011734
Rubber metal buffer
$41.95
5100011735
Hand lever
$80.95
5100011736
O-ring seal
$4.95
5100011738
Raised countersunk head screw
$1.95
5100011739
Fillister head screw
$1.95
5100011741
O-ring seal
5100011742
O-ring seal
$10.95
5100011743
Screw plug
$10.95
5100011744
Fillister head screw
$2.95
5100011745
O-ring seal
$26.95
5100011746
Flexible tubing
$110.95
5100011748
Rear reflector
$16.95
5100011752
Sealing ring
$1.95
5100011753
Washer
$1.95
5100011756
Cheese-head screw
$1.95
5100011765
Nozzle holder
$51.95
5100011766
Cap nut
$6.95
5100011767
Flange
$737.95
5100011768
Sealing tape
$15.95
5100011771
Coupling plug
$277.95
5100011772
Sprinkler nozzle
$17.95
5100011773
Coupling sleeve
$304.95
5100011774
Protecting cap
$18.95
5100011775
Protecting cap
$18.95
5100011776
Bolt
$69.95
5100011777
Radial rod end bearing
$131.95
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
