Wacker Neuson WP1550 Vibratory Plate
Pick your options below. We build the exact machine and start your quote.
The parts bench
Need the PDF? ↓Page 3 — Fuel filter (Option) SP
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 13 | 1000433952 | Arm | 1 | PARTS REQUEST | |
|
COMING Arm
1000433952 · qty on machine: 1 | |||||
| 1 | 1000386655 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000386655 · qty on machine: 1 | |||||
| 2 | 1000389249 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
1000389249 · qty on machine: 1 | |||||
| 3 | 1000389229 | Screw joint | 2 | PARTS REQUEST | |
|
COMING Screw joint
1000389229 · qty on machine: 2 | |||||
| 4 | 1000386656 | Filter insert | 1 | PARTS REQUEST | |
|
COMING Filter insert
1000386656 · qty on machine: 1 | |||||
| 5 | 1000433955 | Filter housing | 1 | PARTS REQUEST | |
|
COMING Filter housing
1000433955 · qty on machine: 1 | |||||
| 6 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 7 | 1000389241 | Hose clamp | 4 | PARTS REQUEST | |
|
COMING Hose clamp
1000389241 · qty on machine: 4 | |||||
| 8 | 1000389247 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389247 · qty on machine: 1 | |||||
| 9 | 1000434006 | Pressure limit reliefvalve | 1 | PARTS REQUEST | |
|
COMING Pressure limit reliefvalve
1000434006 · qty on machine: 1 | |||||
| 10 | 1000389230 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389230 · qty on machine: 1 | |||||
| 11 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 12 | 1000088388 | Screw | 3 | PARTS REQUEST | |
|
COMING Screw
1000088388 · qty on machine: 3 | |||||
| 14 | 1000328508 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
1000328508 · qty on machine: 1 | |||||
| 15 | 1000433949 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433949 · qty on machine: 1 | |||||
| 16 | 1000433950 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433950 · qty on machine: 1 | |||||
| 17 | 1000389262 | Fuel pump | 1 | PARTS REQUEST | |
|
COMING Fuel pump
1000389262 · qty on machine: 1 | |||||

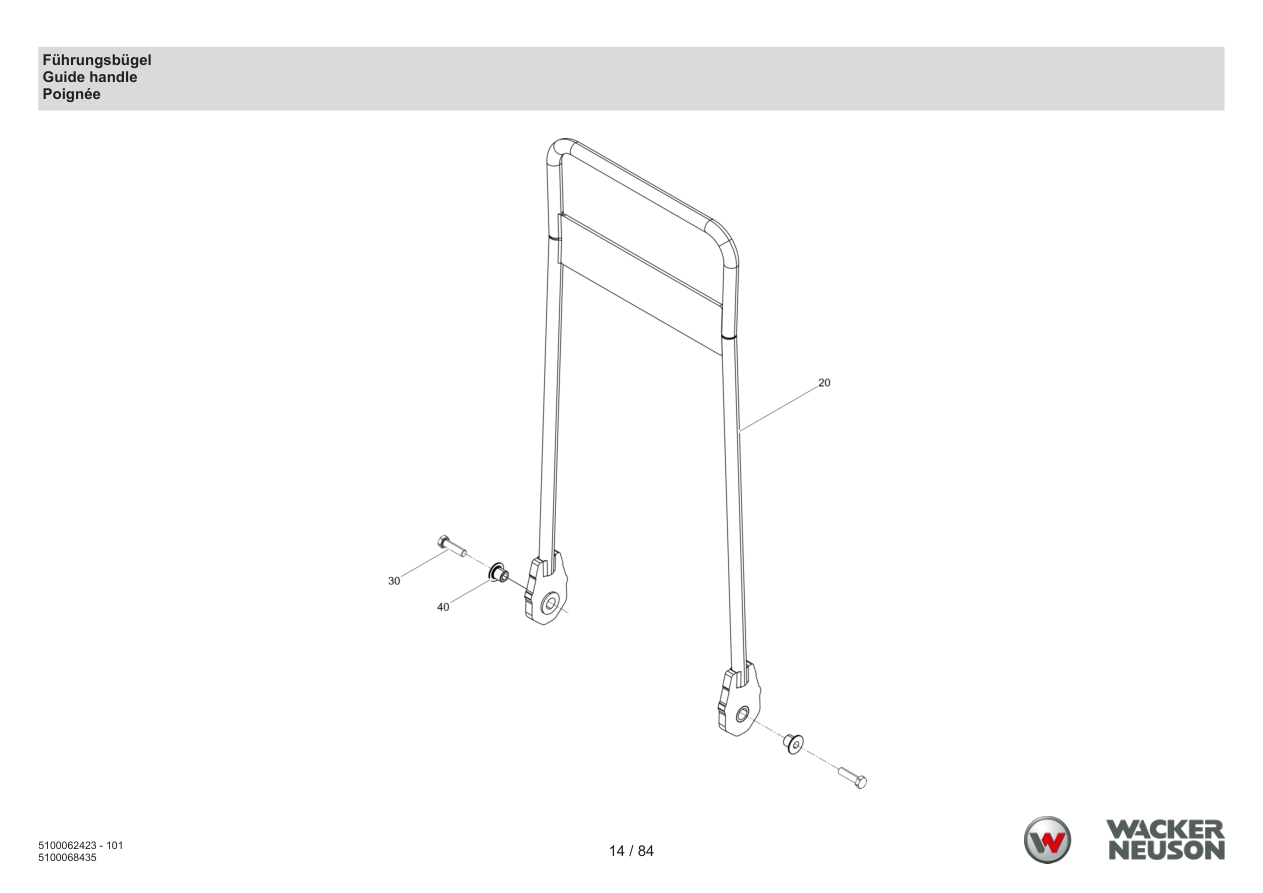

Page 14 — Guide handle
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5100065078 | Guiding frame cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 30 | 5000011420 | Hexagonal head cap screw | 2 | ADD TO CART | |
| 40 | 5100068166 | Bush | 2 | ADD TO CART | |

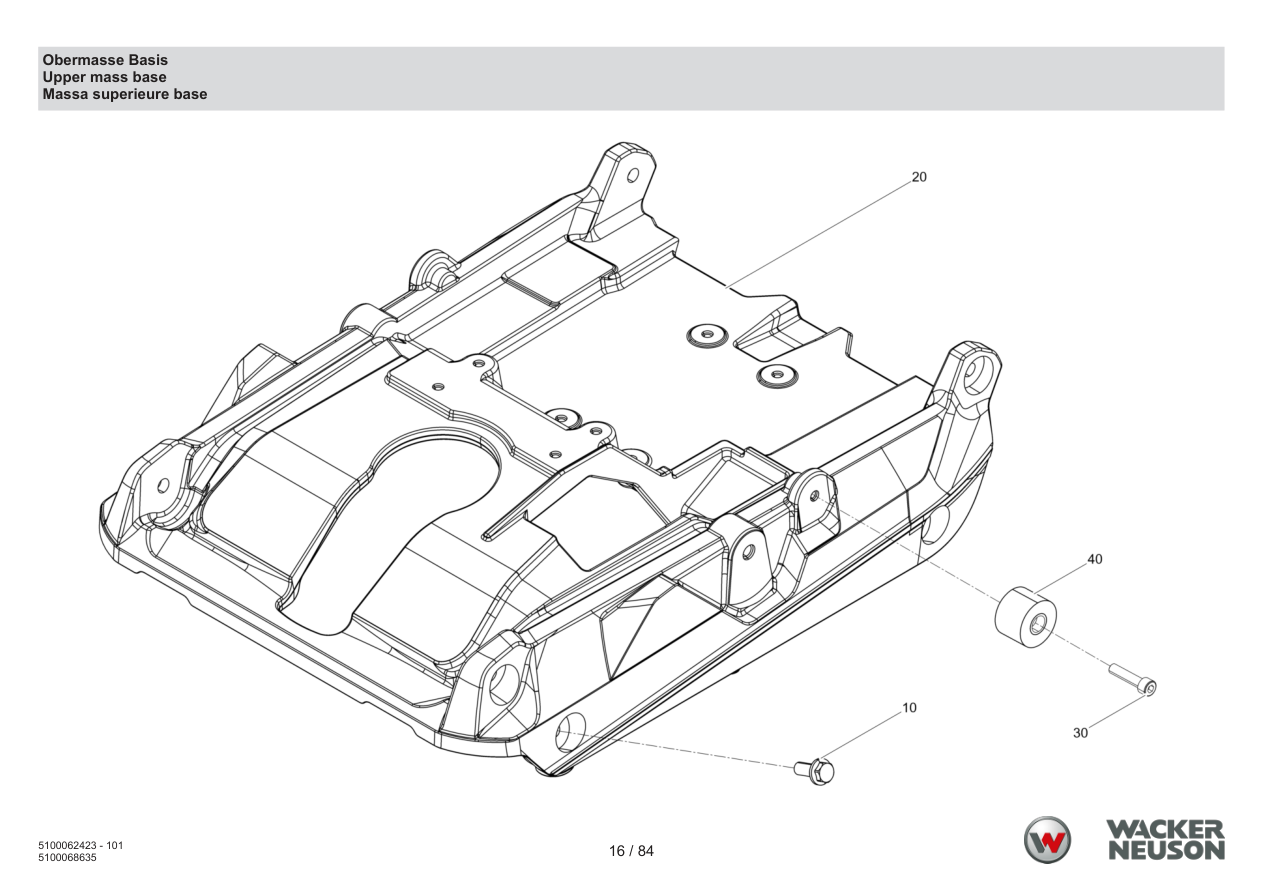

Page 16 — Upper mass base
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100068052 | Corrugated-head screw | 4 | ADD TO CART | |
| 20 | 5100065598 | Upper mass | 1 | PARTS REQUEST | |
|
COMING Upper mass
5100065598 · qty on machine: 1 | |||||
| 30 | 5000011540 | Cheese head screw | 2 | ADD TO CART | |
| 40 | 5100045331 | Shockmount | 2 | ADD TO CART | |

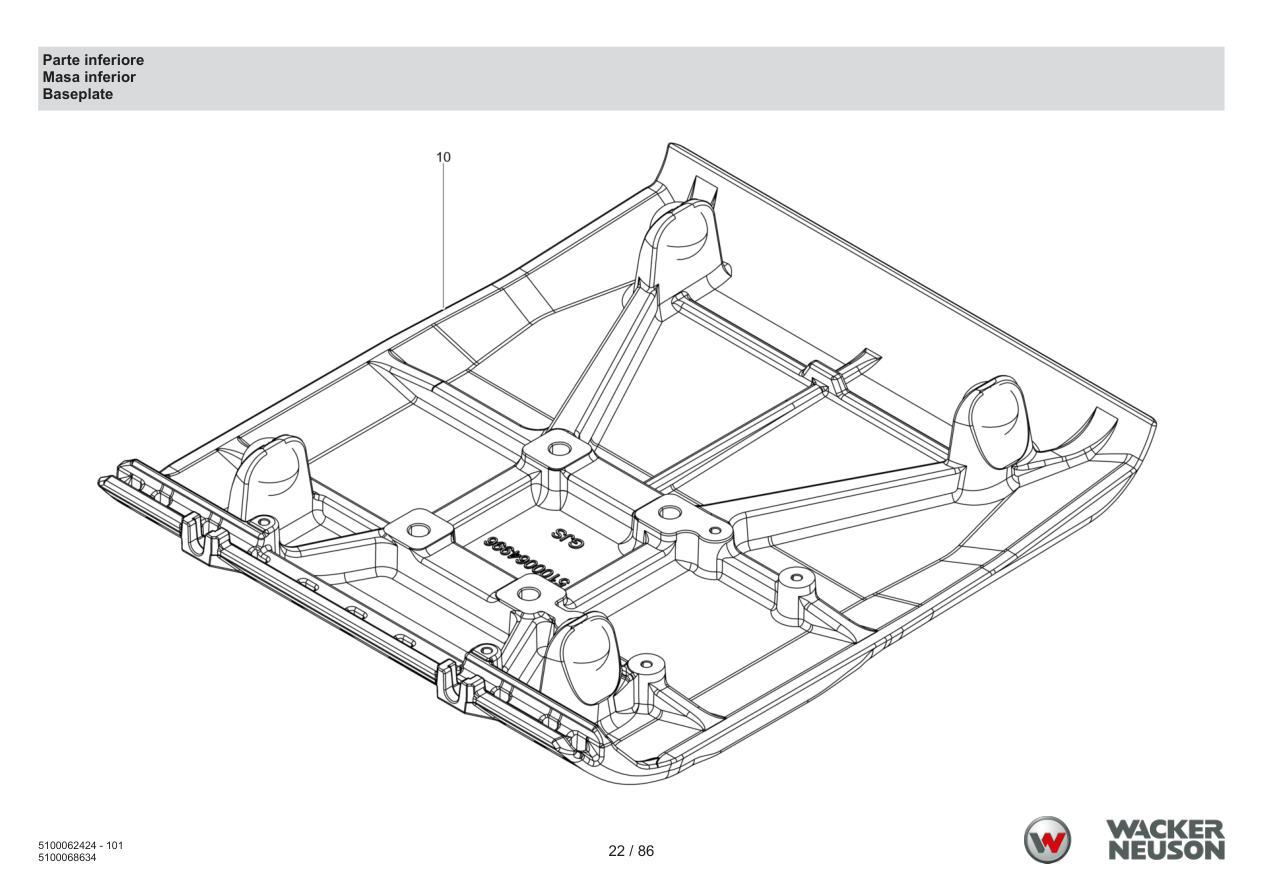

Page 18 — Lower mass
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100064995 | Baseplate | 1 | ADD TO CART | |

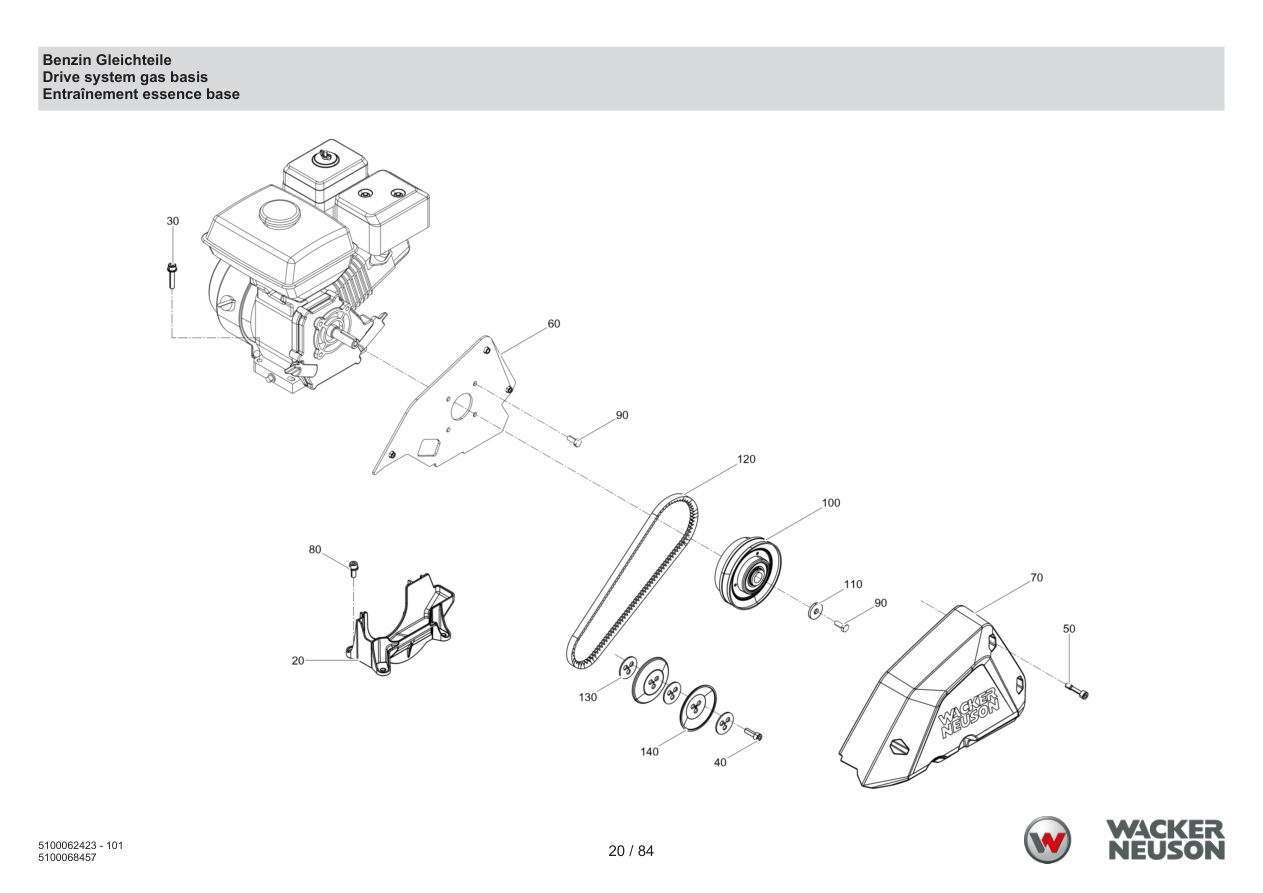

Page 20 — Gasoline common parts
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5100018341 | Belt guard below | 1 | ADD TO CART | |
| 30 | 5100042618 | Cheese head screw | 4 | ADD TO CART | |
| 40 | 5100029787 | Cheese head screw | 3 | ADD TO CART | |
| 50 | 5000216658 | Screw | 3 | ADD TO CART | |
| 60 | 5100065610 | Guard plate cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Guard plate cpl.
5100065610 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 70 | 5100065612 | Belt guard | 1 | ADD TO CART | |
| 80 | 5100036848 | Cheese head screw | 4 | ADD TO CART | |
| 90 | 5000026169 | Hexagonal head cap screw | 5 | ADD TO CART | |
| 100 | 5100054097 | Centrifugal clutch | 1 | ADD TO CART | |
| 110 | 5100016321 | Washer | 1 | ADD TO CART | |
| 120 | 5100065636 | V-belt | 1 | ADD TO CART | |
| 130 | 5100064172 | Plate | 3 | ADD TO CART | |
| 140 | 5100064173 | V-belt pulley half | 2 | ADD TO CART | |

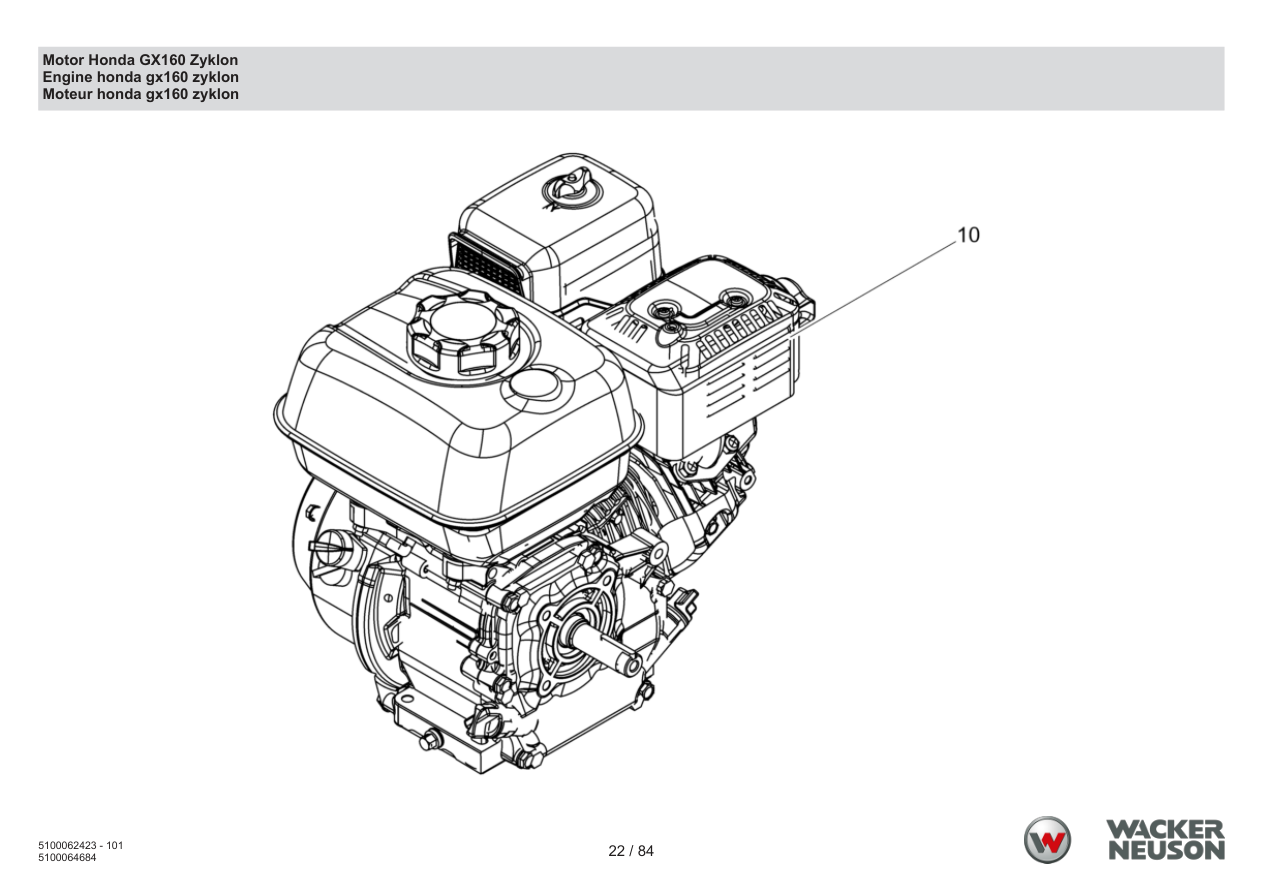

Page 22 — Engine Honda GX160 Cyclone
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100084500 | Gas engine gx160-ut2x | 1 | PARTS REQUEST | |
|
COMING Gas engine gx160-ut2x
5100084500 · qty on machine: 1 | |||||

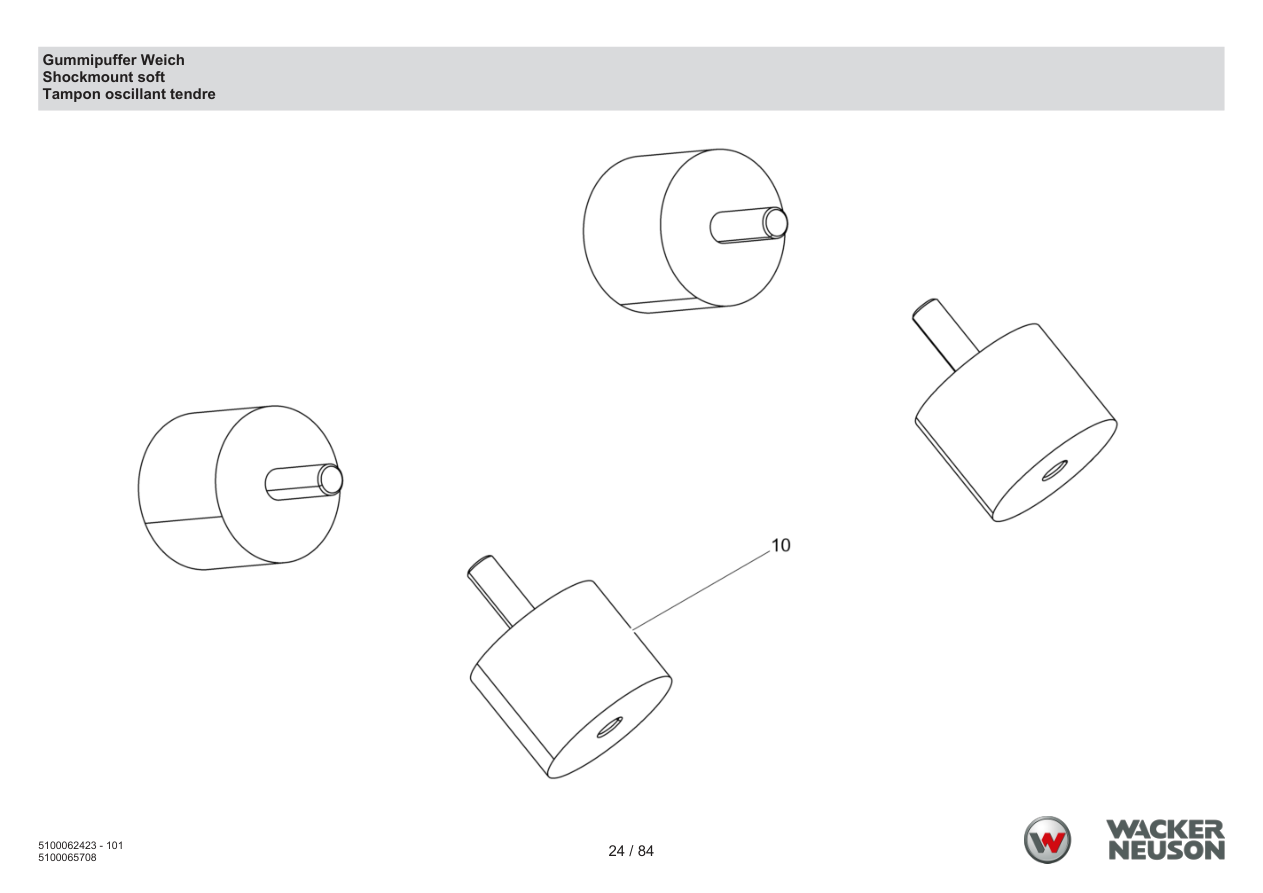

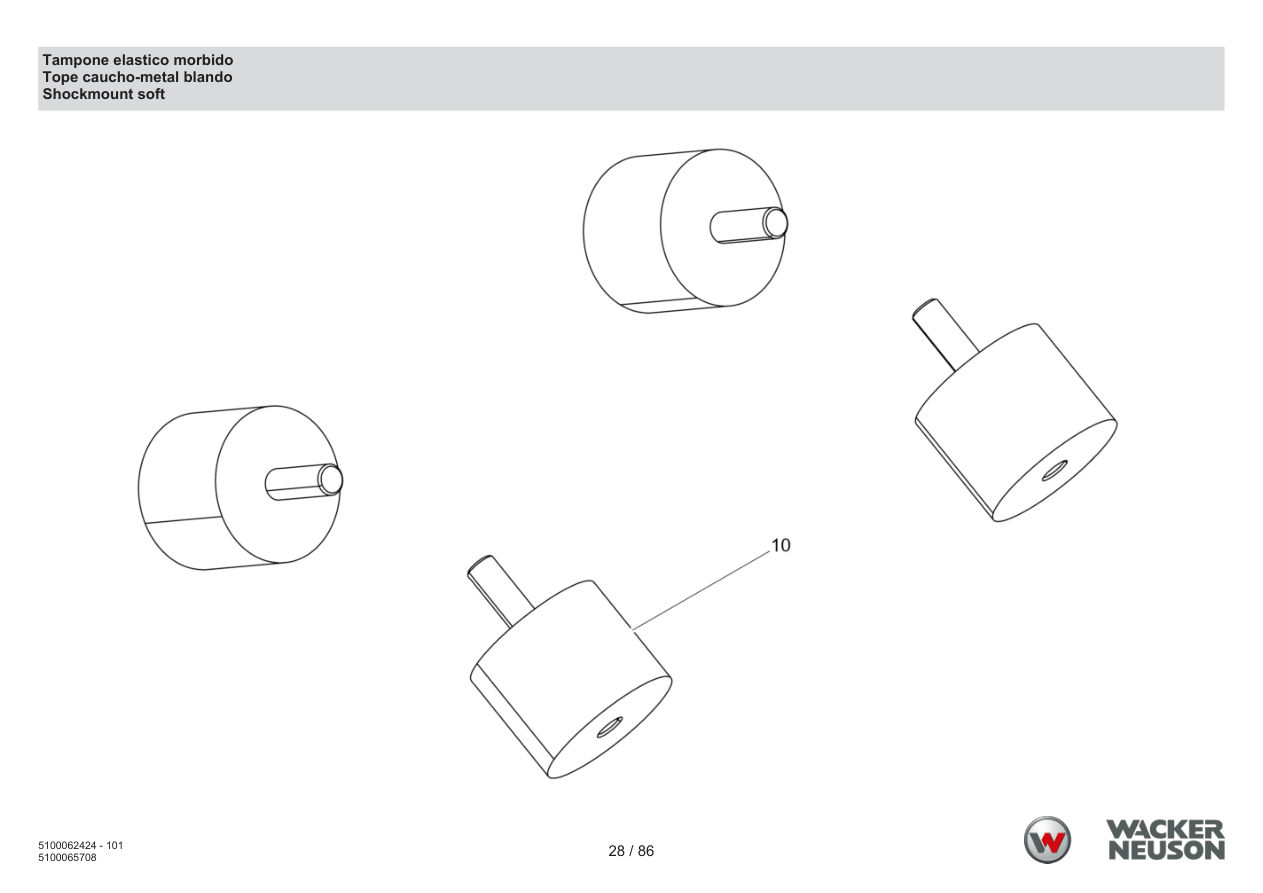

Page 24 — Rubber buffer soft
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100059959 | Shockmount | 4 | ADD TO CART | |

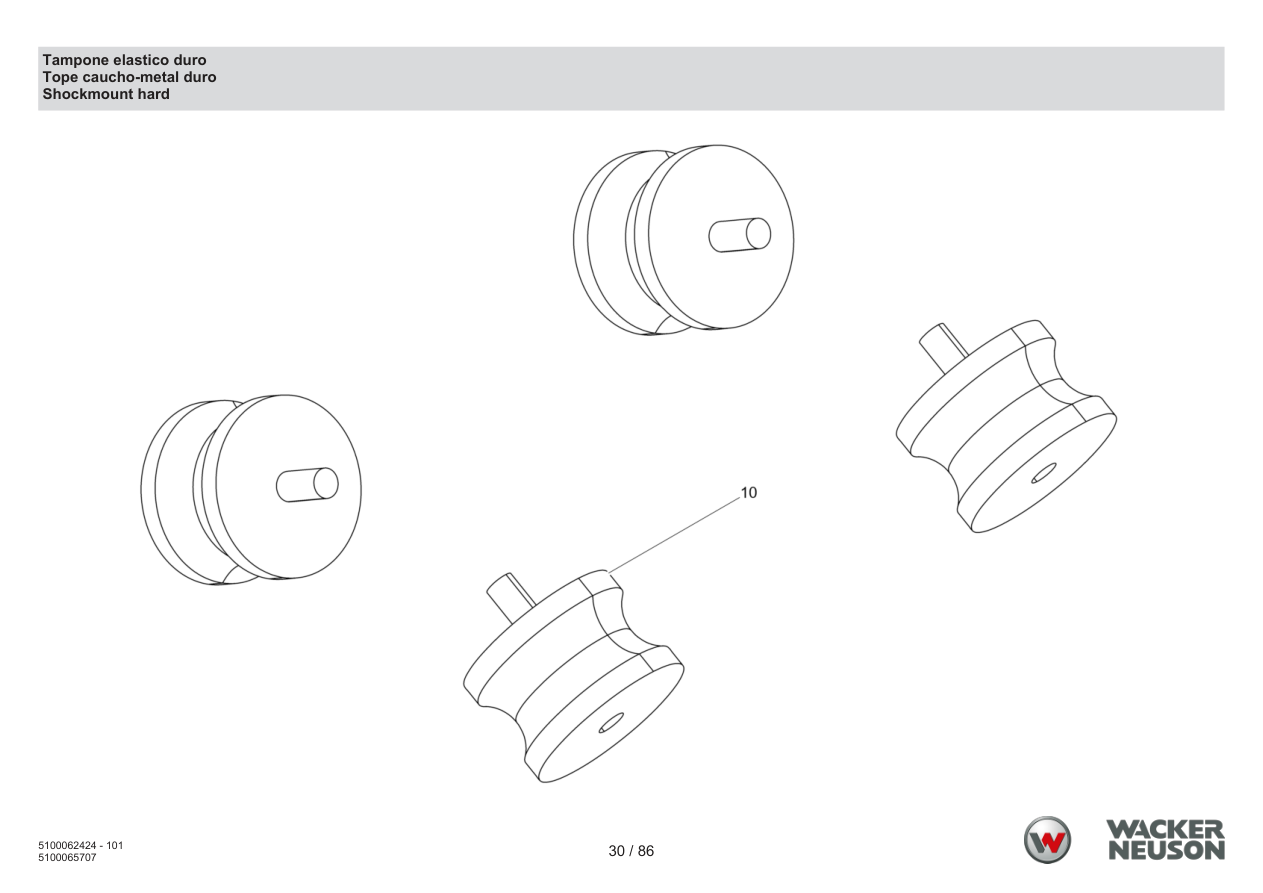

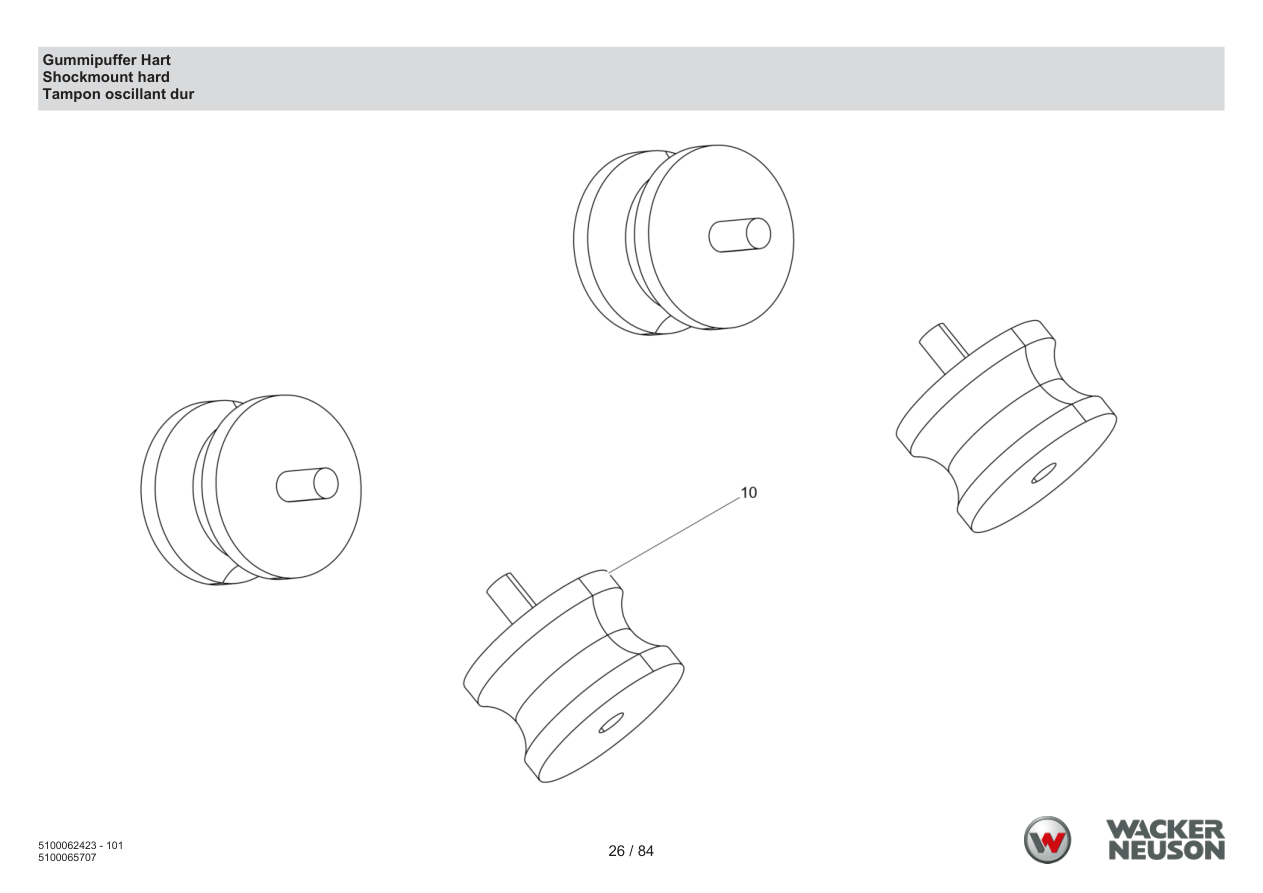

Page 26 — Rubber buffer hard
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000037378 | Shockmount | 4 | ADD TO CART | |

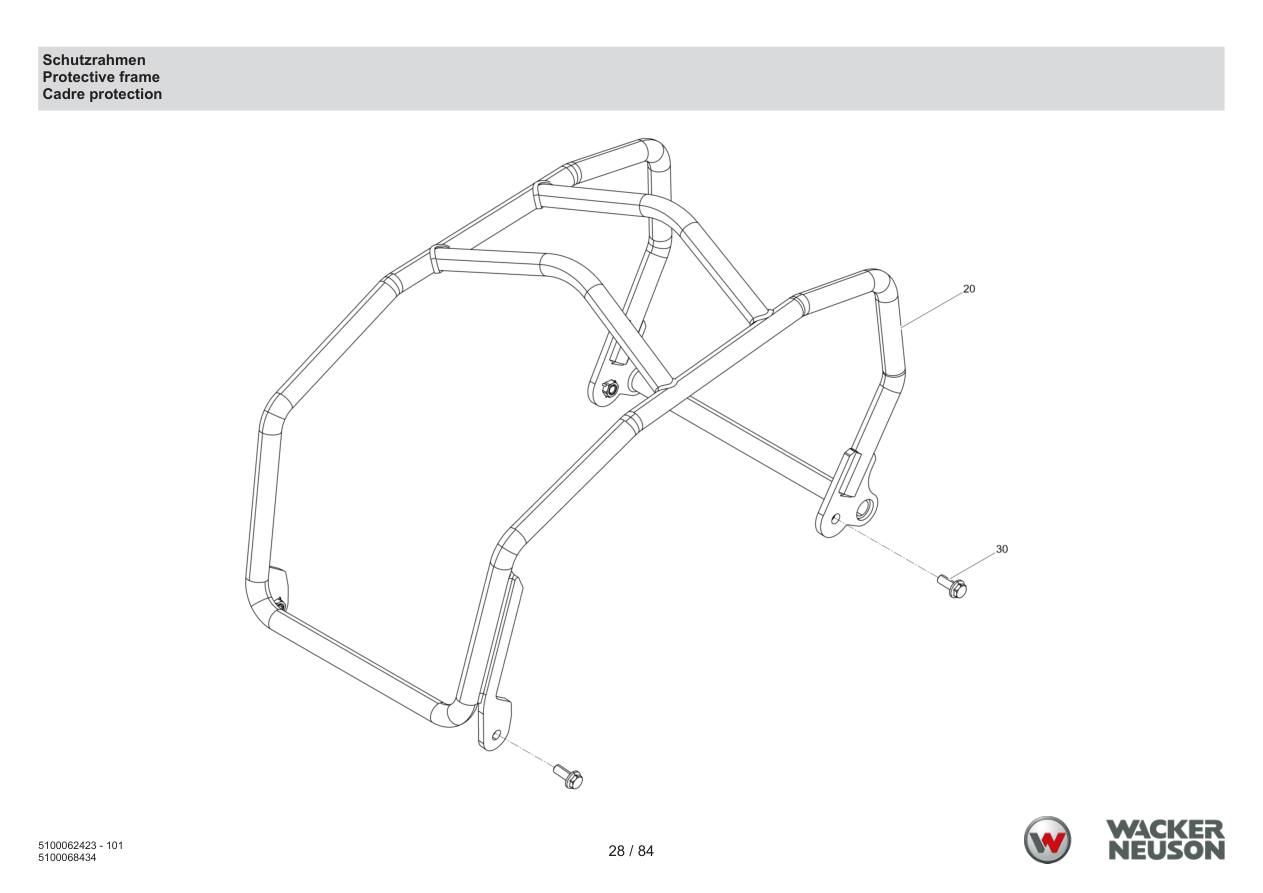

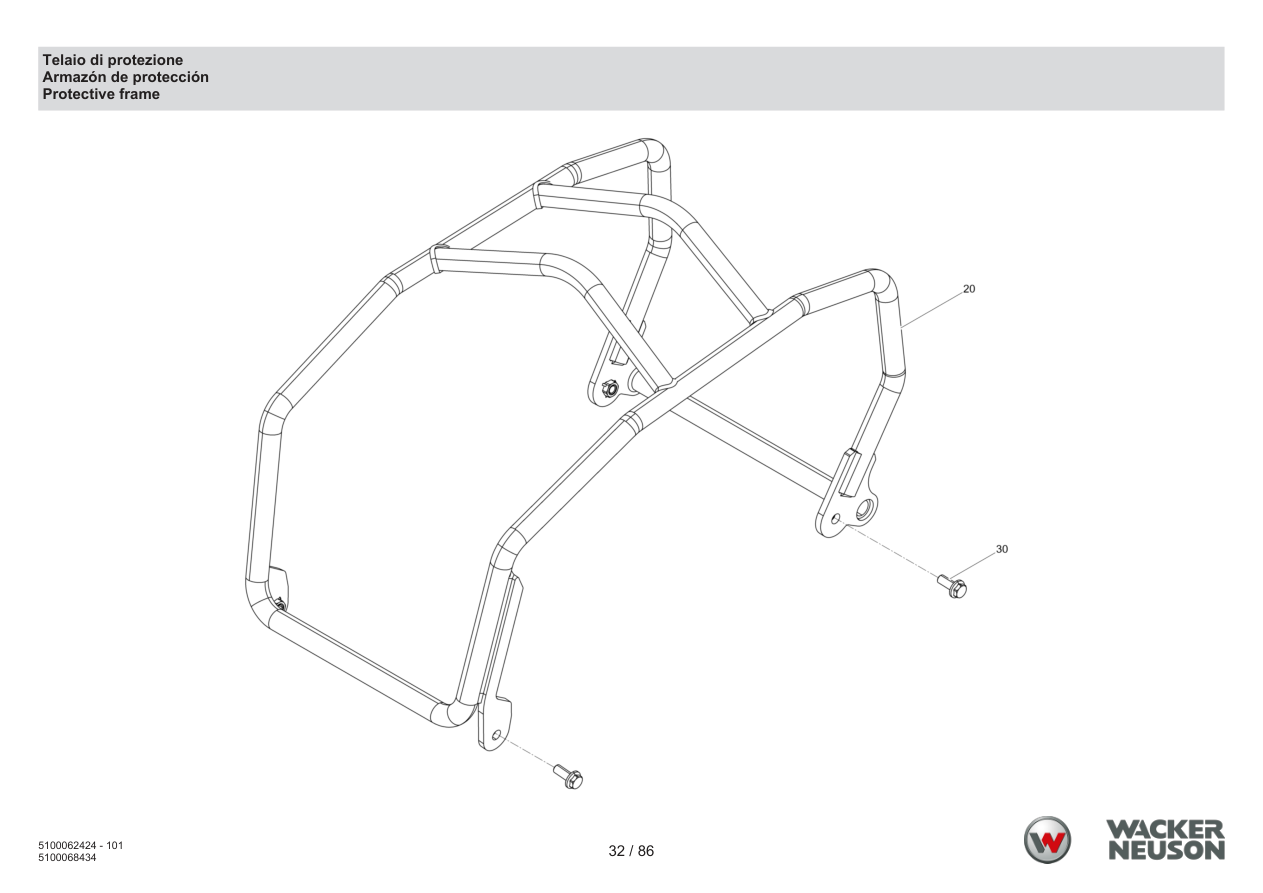

Page 28 — Protective frame
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5100064915 | Protective frame | 1 | ADD TO CART | |
| 30 | 5100068052 | Corrugated-head screw | 4 | ADD TO CART | |

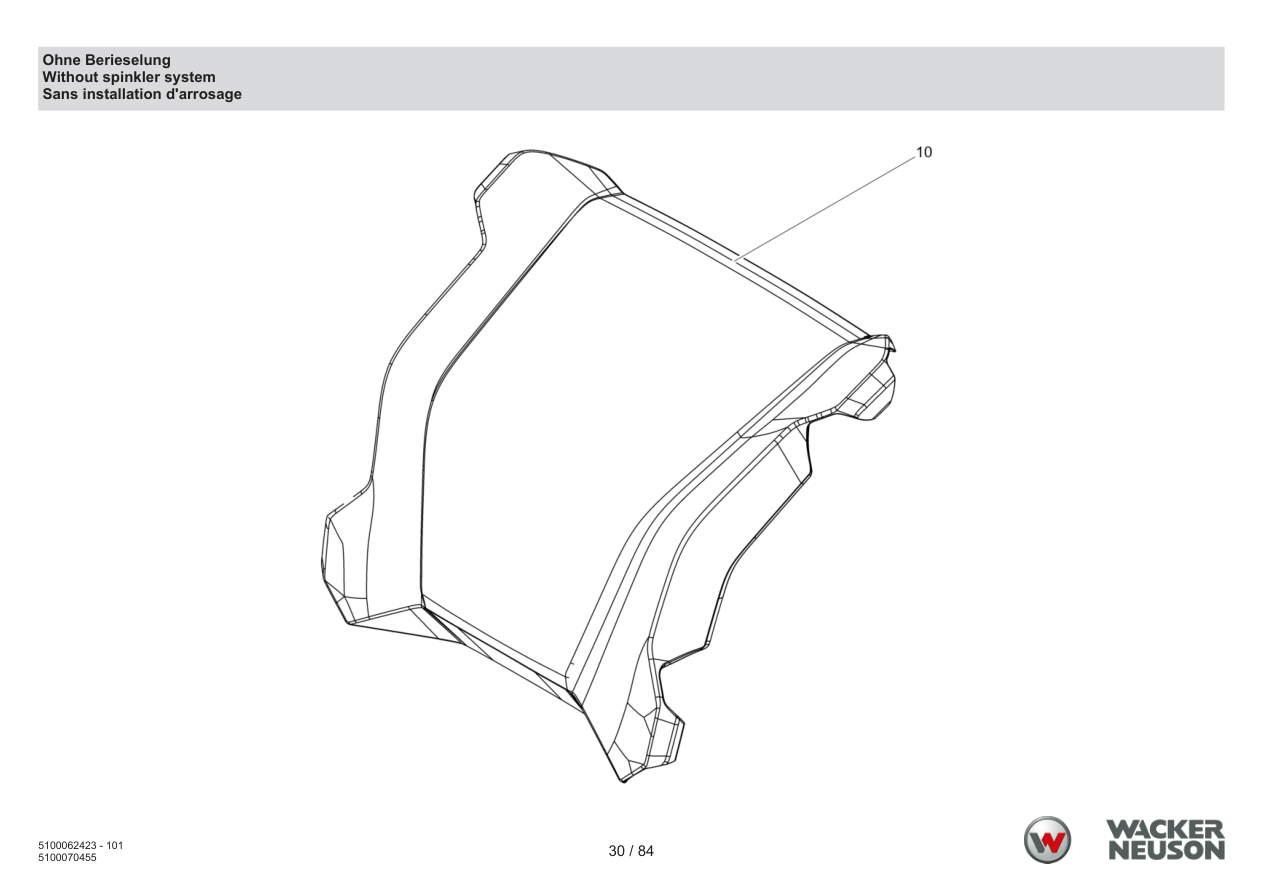

Page 30 — Without sprinkling
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100068651 | Cover | 1 | ADD TO CART | |

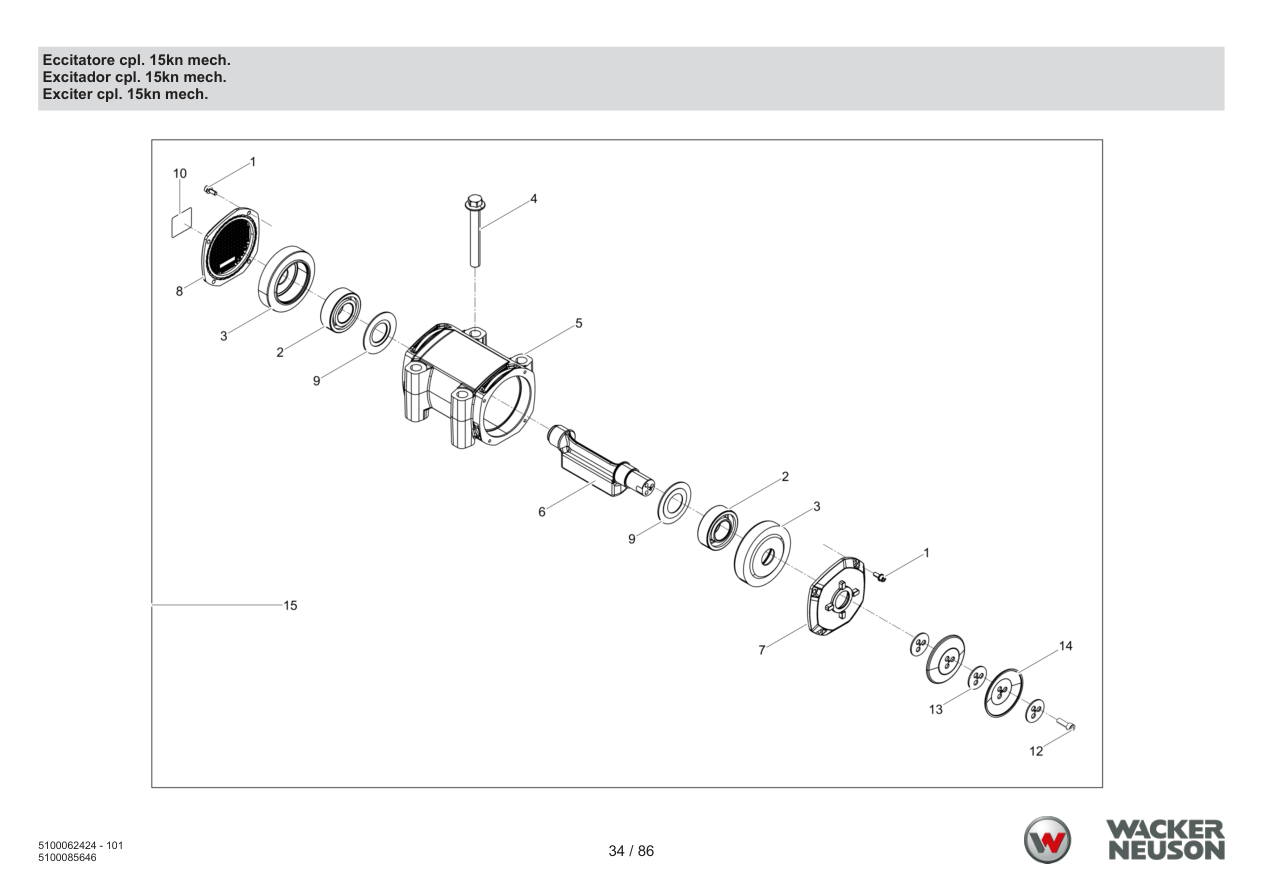

Page 32 — Exciter cpl. 15kn mech.
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100059593 | Cheese head screw | 8 | ADD TO CART | |
| 2 | 5000105139 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 3 | 5100062507 | Bearing seat | 2 | ADD TO CART | |
| 4 | 5100063187 | Hexagonal head cap screw | 4 | ADD TO CART | |
| 5 | 5100063189 | Exciter housing | 1 | ADD TO CART | |
| 6 | 5100062382 | Eccentric shaft | 1 | ADD TO CART | |
| 7 | 5100054628 | Bearing cover right | 1 | ADD TO CART | |
| 8 | 5100054629 | Bearing cover left | 1 | ADD TO CART | |
| 9 | 5100063663 | Seal washer | 2 | ADD TO CART | |
| 10 | 5100068062 | Label | 1 | ADD TO CART | |
| 12 | 5100029787 | Cheese head screw | 3 | ADD TO CART | |
| 13 | 5100064172 | Plate | 3 | ADD TO CART | |
| 14 | 5100064173 | V-belt pulley half | 2 | ADD TO CART | |
| 15 | 5100085624 | Exciter cpl. 15kn | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Exciter cpl. 15kn
5100085624 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||

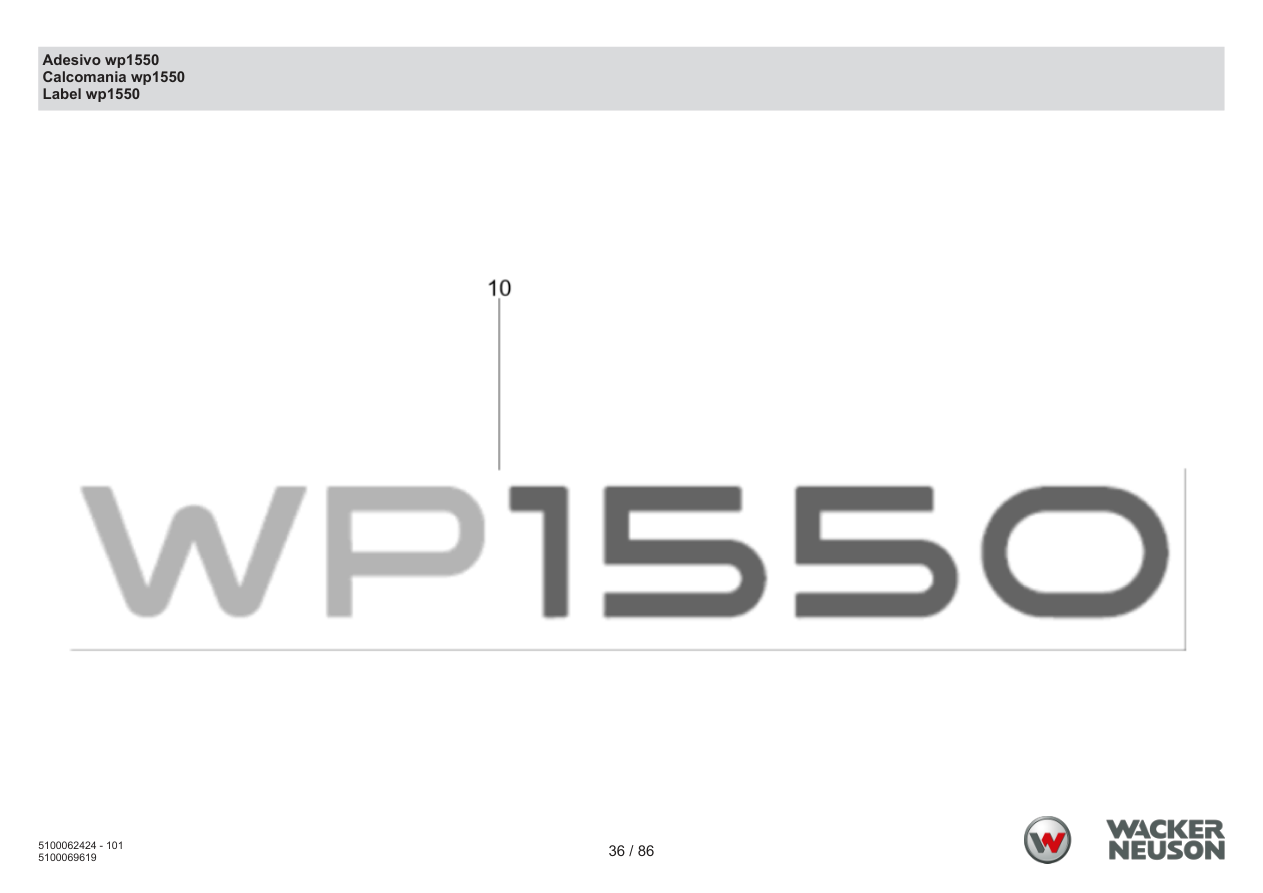

Page 34 — Decal WP1550
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100016454 | Type label | 1 | ADD TO CART | |

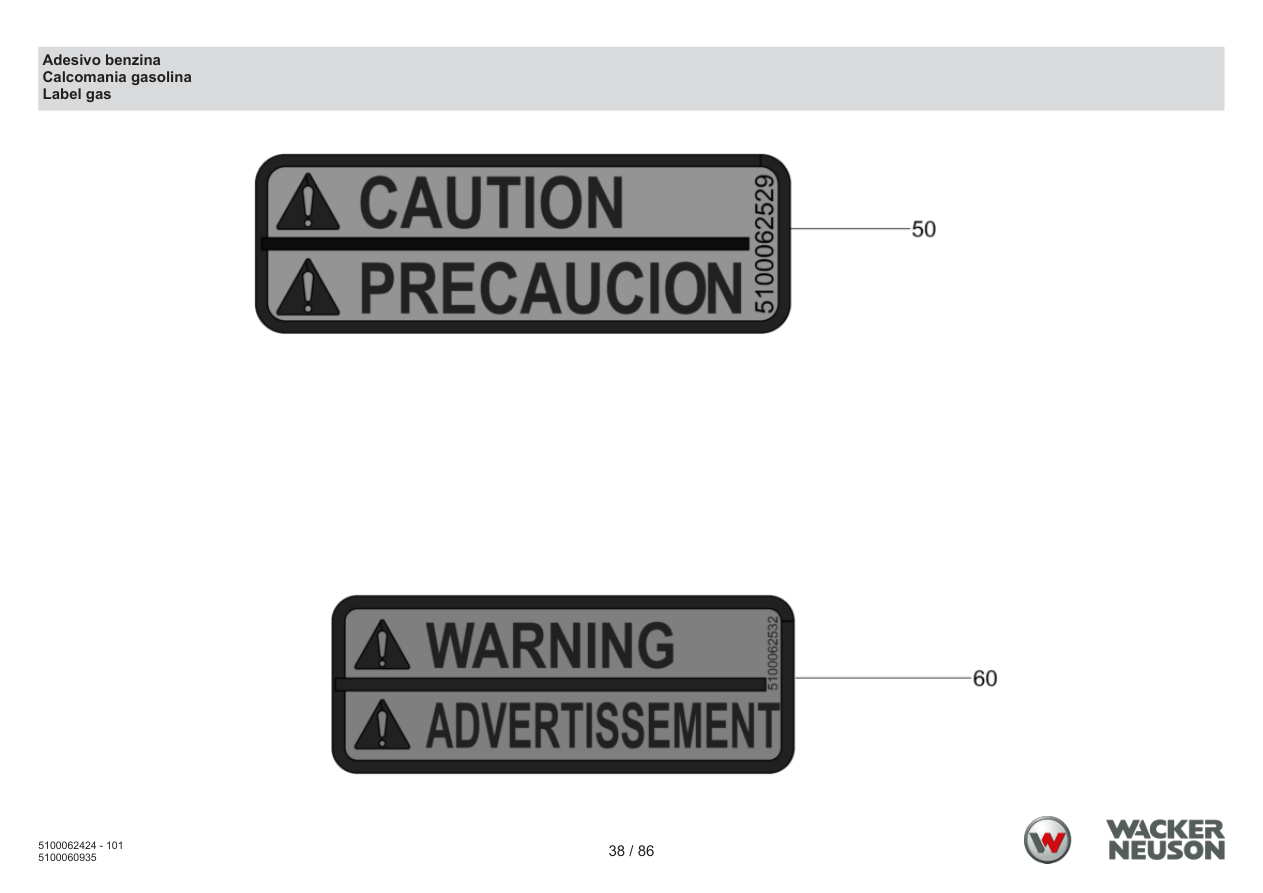

Page 36 — Decal gasoline
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 50 | 5100062529 | Label | 1 | ADD TO CART | |
| 60 | 5100062532 | Label | 1 | ADD TO CART | |

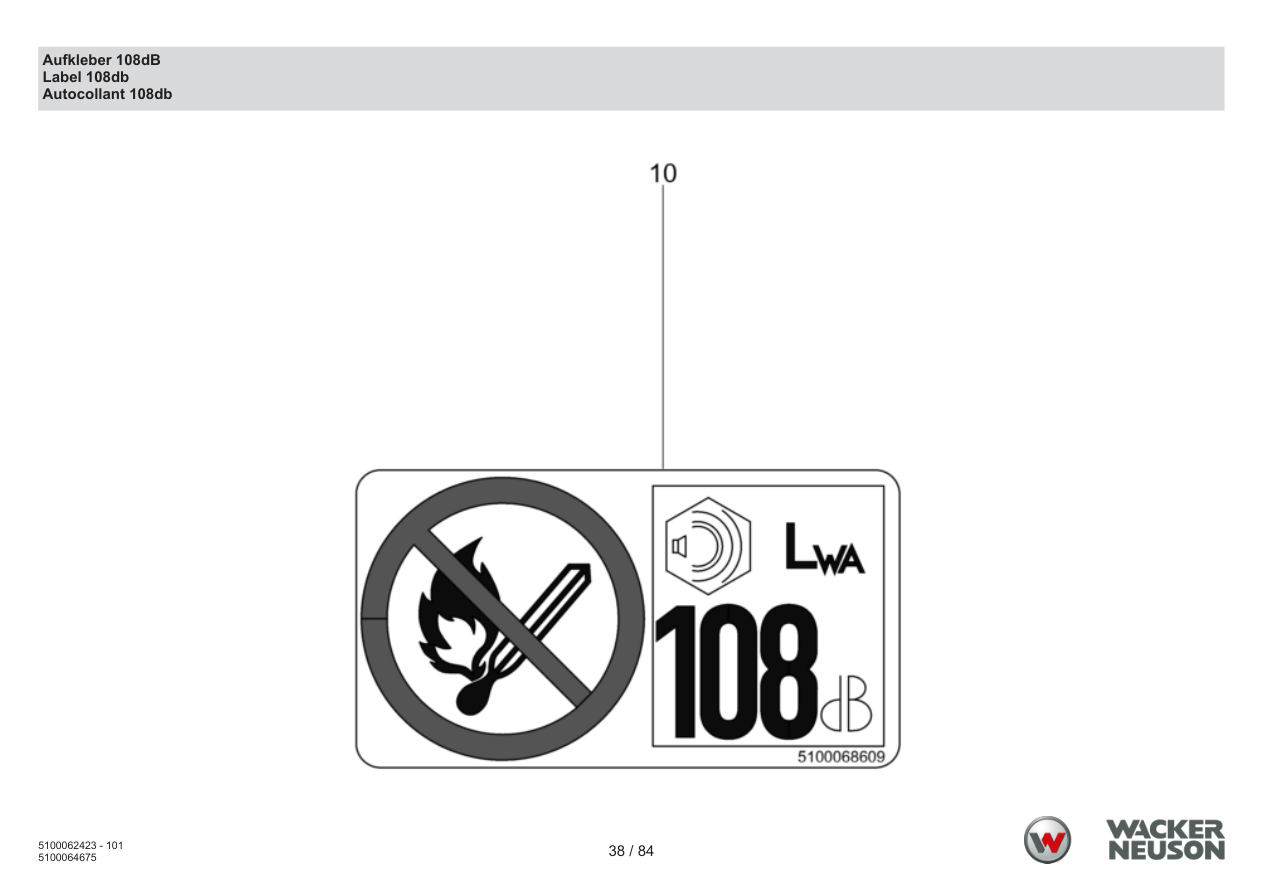

Page 38 — Decal 108dB
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100068609 | Label | 1 | ADD TO CART | |

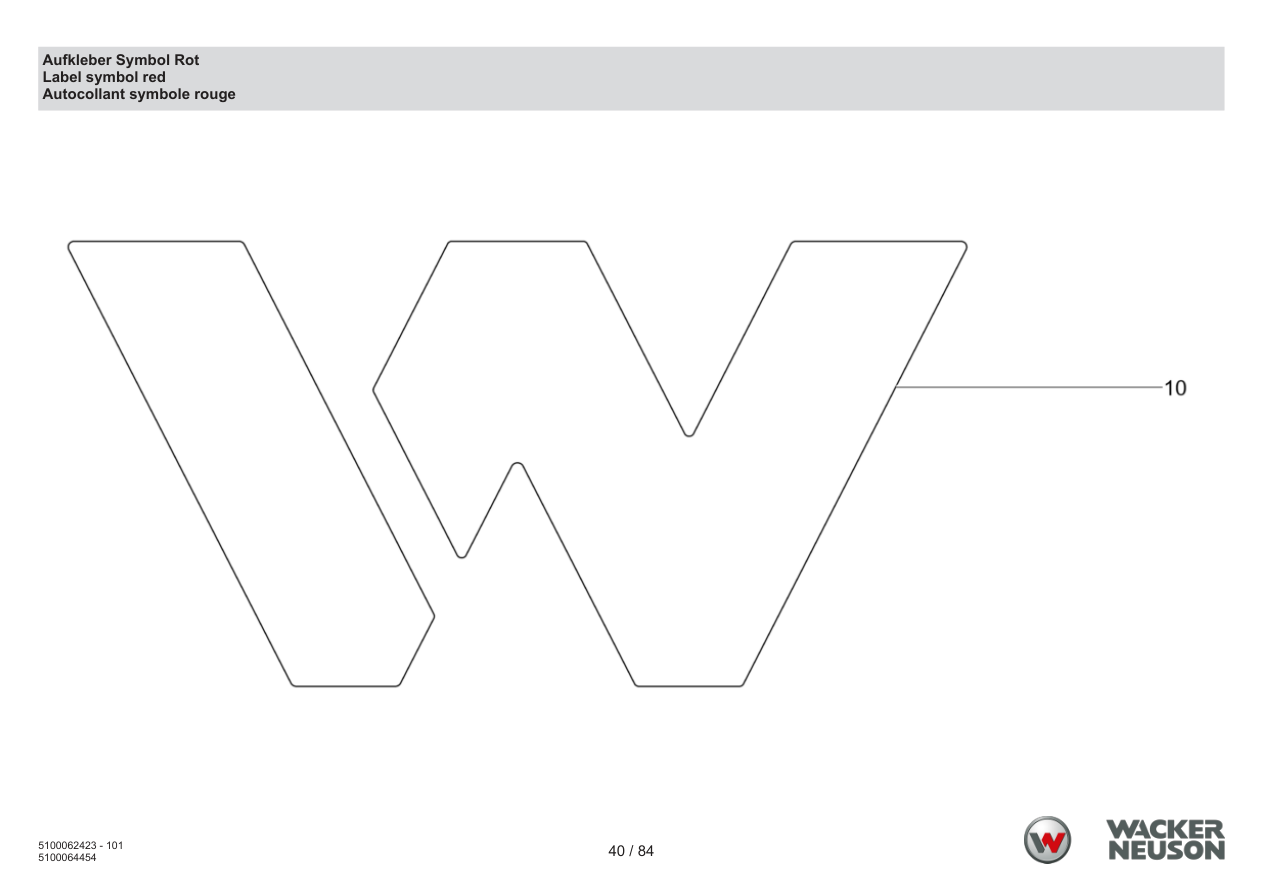

Page 40 — Decal symbol red
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100058733 | Label symbol | 1 | ADD TO CART | |

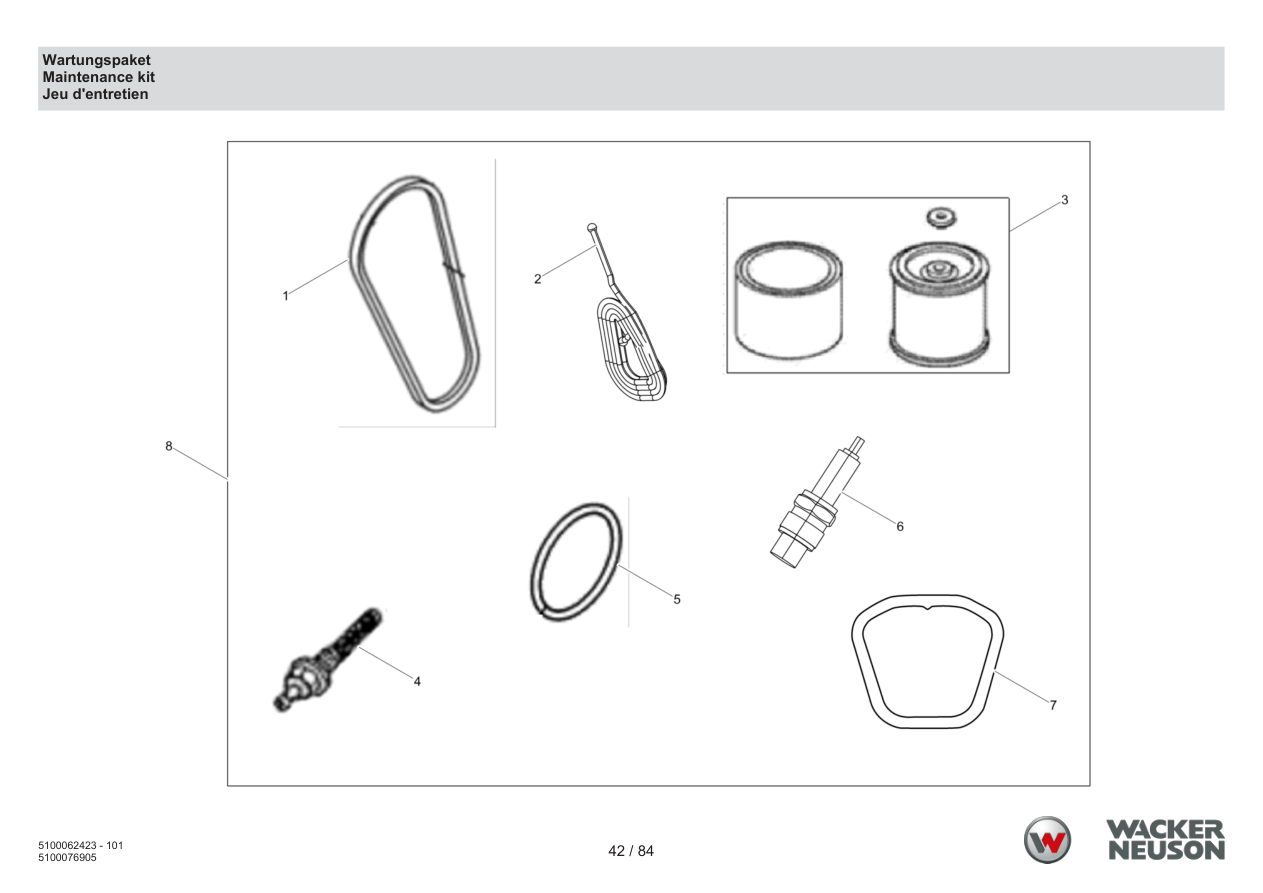

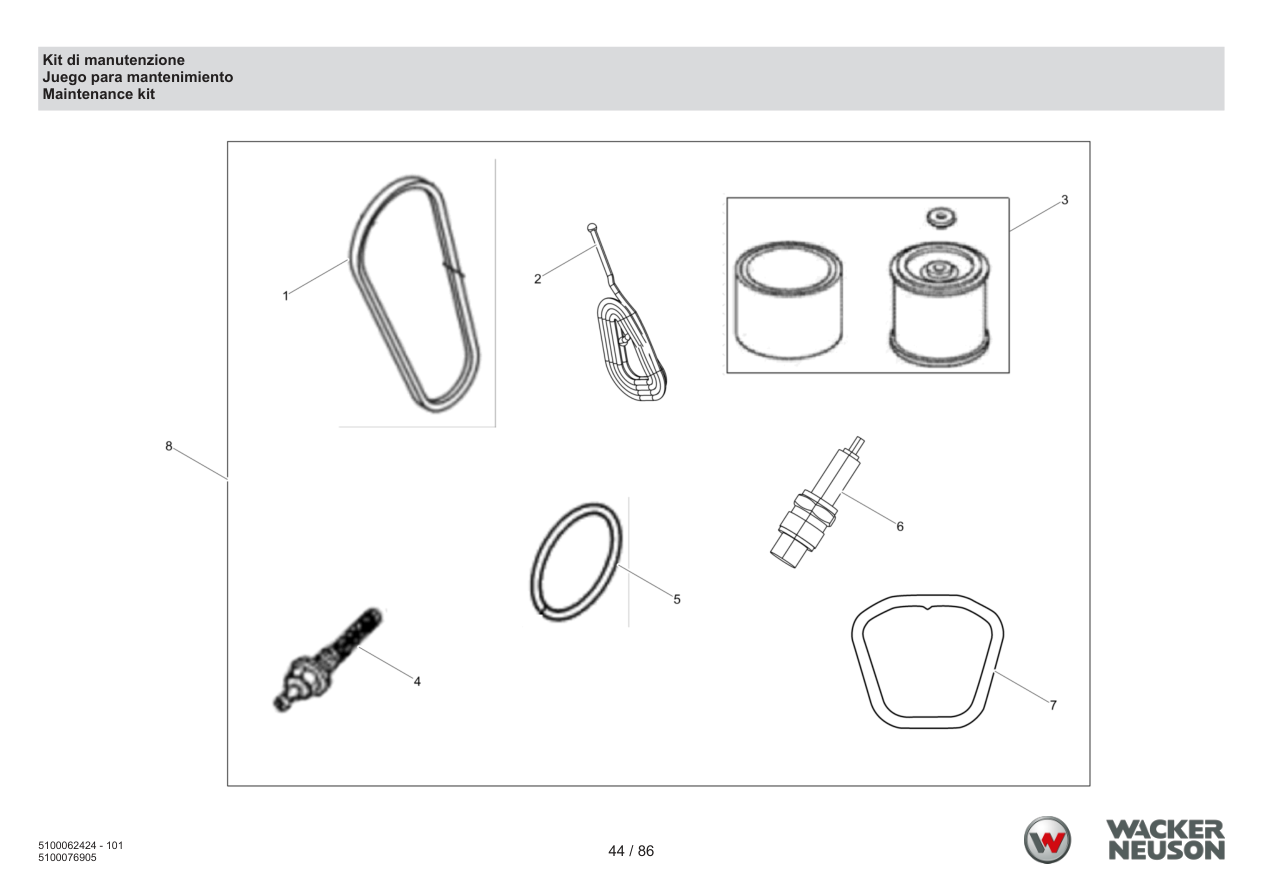

Page 42 — Maintenance kit
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100065636 | V-belt | 1 | ADD TO CART | |
| 2 | 5000081781 | Rope | 1 | ADD TO CART | |
| 3 | 5100039024 | Air filter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5100000395 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
5100000395 · qty on machine: 1 | |||||
| 5 | 5000071082 | O-ring | 1 | ADD TO CART | |
| 6 | 5000207671 | Spark plug | 1 | ADD TO CART | |
| 7 | 5000070942 | Gasket | 1 | ADD TO CART | |
| 8 | 5100071484 | Maintenance kit | 1 | ADD TO CART | |

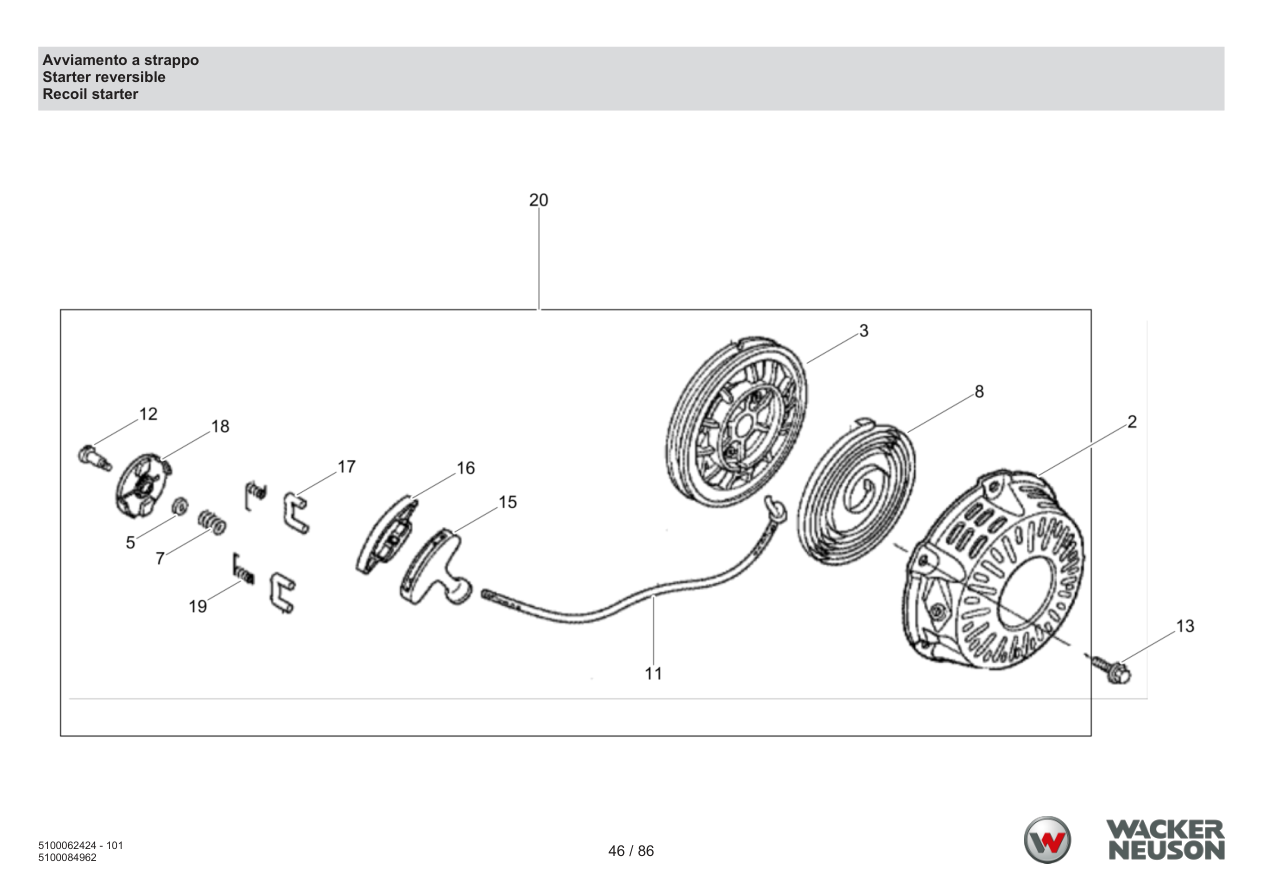

Page 44 — Recoil starter
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 11 | 5000081781 | Rope | 1 | ADD TO CART | |
| 12 | 5000207991 | Screw | 1 | ADD TO CART | |
| 8 | 5000081777 | Spring | 1 | ADD TO CART | |
| 2 | 5100005307 | Housing cpl. (black) | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Housing cpl. (black)
5100005307 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5100036077 | Starter pulley | 1 | PARTS REQUEST | |
|
COMING Starter pulley
5100036077 · qty on machine: 1 | |||||
| 5 | 5000160748 | Friction plate | 1 | ADD TO CART | |
| 7 | 5000160747 | Friction spring | 1 | ADD TO CART | |
| 13 | 5000081750 | Screw | 3 | ADD TO CART | |
| 15 | 5100005413 | Starter handle | 1 | PARTS REQUEST | |
|
COMING Starter handle
5100005413 · qty on machine: 1 | |||||
| 16 | 5100005310 | Covering | 1 | PARTS REQUEST | |
|
COMING Covering
5100005310 · qty on machine: 1 | |||||
| 17 | 5100036078 | Ratchet | 2 | ADD TO CART | |
| 18 | 5100036079 | Guide | 1 | ADD TO CART | |
| 19 | 5100036230 | Return spring | 2 | ADD TO CART | |
| 20 | 5100049536 | Rewind starter | 1 | PARTS REQUEST | |
|
COMING Rewind starter
5100049536 · qty on machine: 1 | |||||

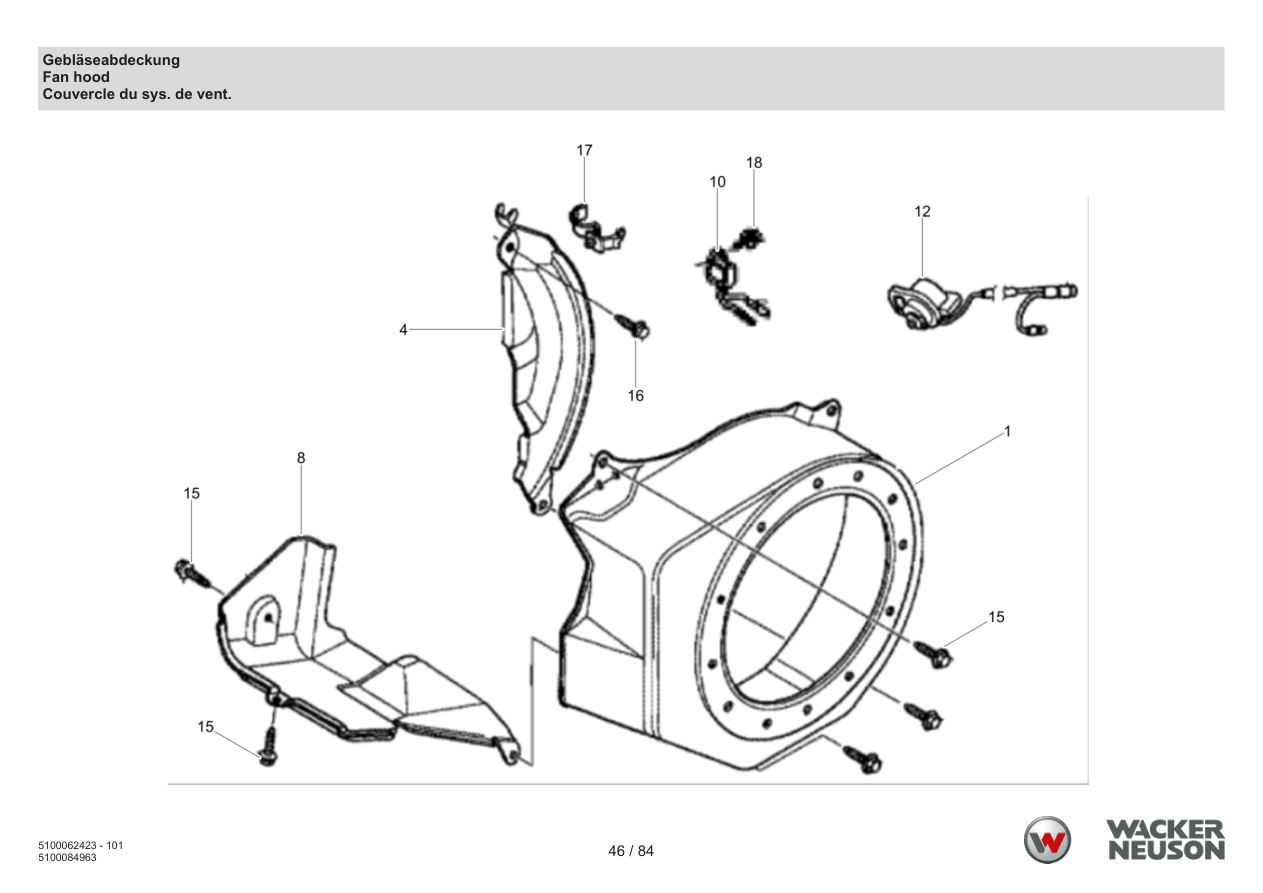

Page 46 — Fan hood
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005311 | Fan hood cpl. (black) | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5100005312 | Covering | 1 | PARTS REQUEST | |
|
COMING Covering
5100005312 · qty on machine: 1 | |||||
| 8 | 5100047598 | Air ducting | 1 | ADD TO CART | |
| 10 | 5100084953 | Oil level switch | 1 | PARTS REQUEST | |
|
COMING Oil level switch
5100084953 · qty on machine: 1 | |||||
| 12 | 5100047599 | Engine stop device cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 12 | 5100051235 | Actuator | 1 | PARTS REQUEST | |
|
COMING Actuator
5100051235 · qty on machine: 1 | |||||
| 15 | 5000053990 | Screw | 6 | ADD TO CART | |
| 16 | 5000071055 | Screw | 1 | ADD TO CART | |
| 17 | 5000153138 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
5000153138 · qty on machine: 1 | |||||
| 18 | 5000081750 | Screw | 1 | ADD TO CART | |

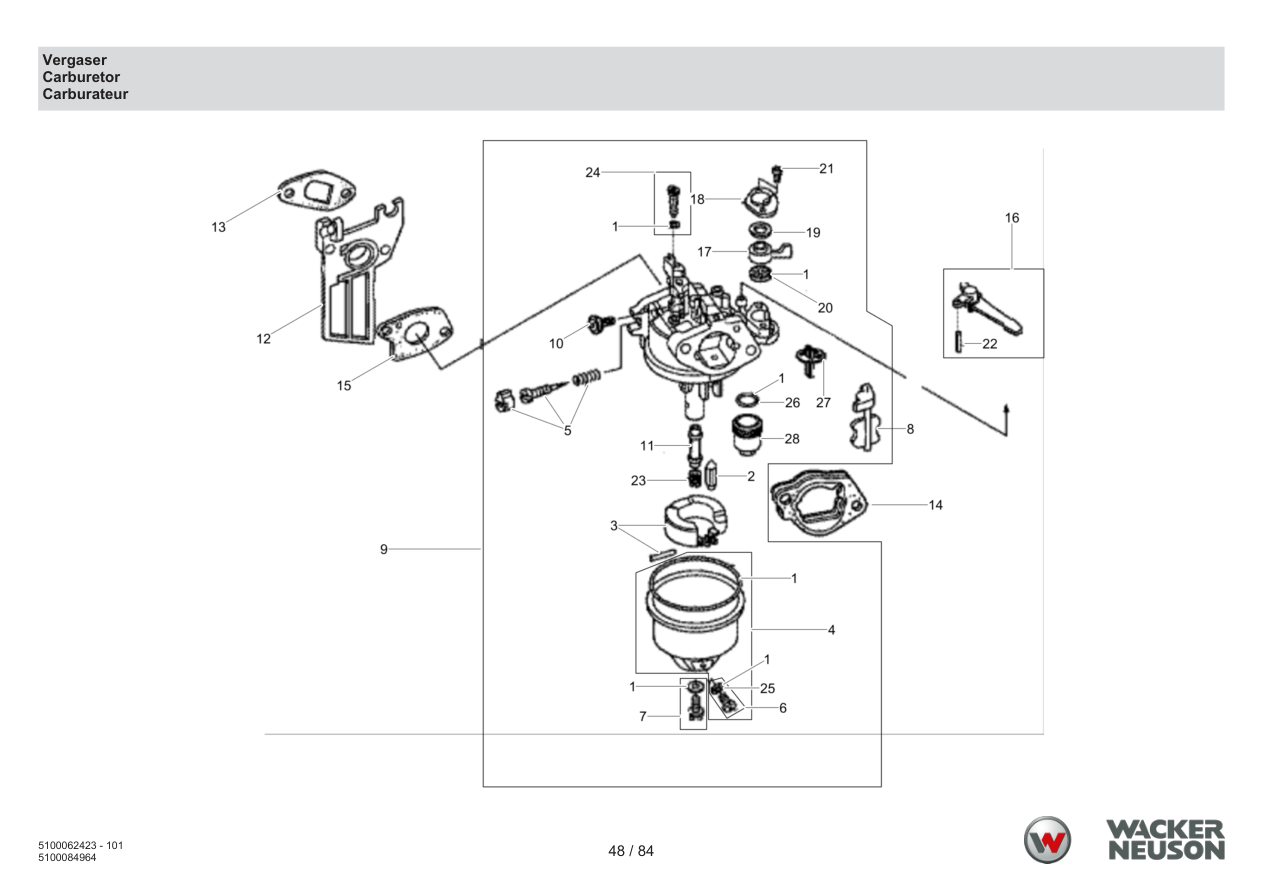

Page 48 — Carburetor
Parts list — exactly as printed30 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000072781 | Set-gaskets | 1 | ADD TO CART | |
| 2 | 5000071022 | Set-float valve | 1 | ADD TO CART | |
| 3 | 5000209764 | Set-carburetor float | 1 | ADD TO CART | |
| 4 | 5100005314 | Float housing | 1 | PARTS REQUEST | |
|
COMING Float housing
5100005314 · qty on machine: 1 | |||||
| 5 | 5000158522 | Threaded pin | 1 | ADD TO CART | |
| 6 | 5200000430 | Screw w/washer | 1 | ADD TO CART | |
| 7 | 5200000431 | Screw w/washer | 1 | ADD TO CART | |
| 8 | 5000071025 | Set-engine choke | 1 | ADD TO CART | |
| 9 | 5100081213 | Carburetor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Carburetor cpl.
5100081213 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 10 | 5000071018 | Throttle stop screw | 1 | ADD TO CART | |
| 11 | 5100081214 | Main jet | 1 | PARTS REQUEST | |
|
COMING Main jet
5100081214 · qty on machine: 1 | |||||
| 12 | 5100050459 | Insulator | 1 | ADD TO CART | |
| 13 | 5000082009 | Gasket | 1 | ADD TO CART | |
| 14 | 5000071015 | Spacer | 1 | ADD TO CART | |
| 15 | 5000081762 | Gasket | 1 | ADD TO CART | |
| 16 | 5100051236 | Lever cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 17 | 5000150266 | Fuel valve lever | 1 | ADD TO CART | |
| 18 | 5000073269 | Plate | 1 | ADD TO CART | |
| 19 | 5000073270 | Spring washer | 1 | ADD TO CART | |
| 20 | 5000073272 | Gasket | 1 | ADD TO CART | |
| 21 | 5100005317 | Screw | 2 | PARTS REQUEST | |
|
COMING Screw
5100005317 · qty on machine: 2 | |||||
| 22 | 5000071014 | Pin | 1 | ADD TO CART | |
| 23 | 5000151042 | Main jet | 1 | ADD TO CART | |
| 23 | 5000151698 | Main jet | 1 | ADD TO CART | |
| 23 | 5100005417 | Main jet | 1 | PARTS REQUEST | |
|
COMING Main jet
5100005417 · qty on machine: 1 | |||||
| 24 | 5000081997 | Set-pilot jet | 1 | ADD TO CART | |
| 25 | 5100036241 | Disc | 1 | ADD TO CART | |
| 26 | 5000071024 | Gasket | 1 | ADD TO CART | |
| 27 | 5100000396 | Filter | 1 | ADD TO CART | |
| 28 | 5000071023 | Fuel filter | 1 | ADD TO CART | |

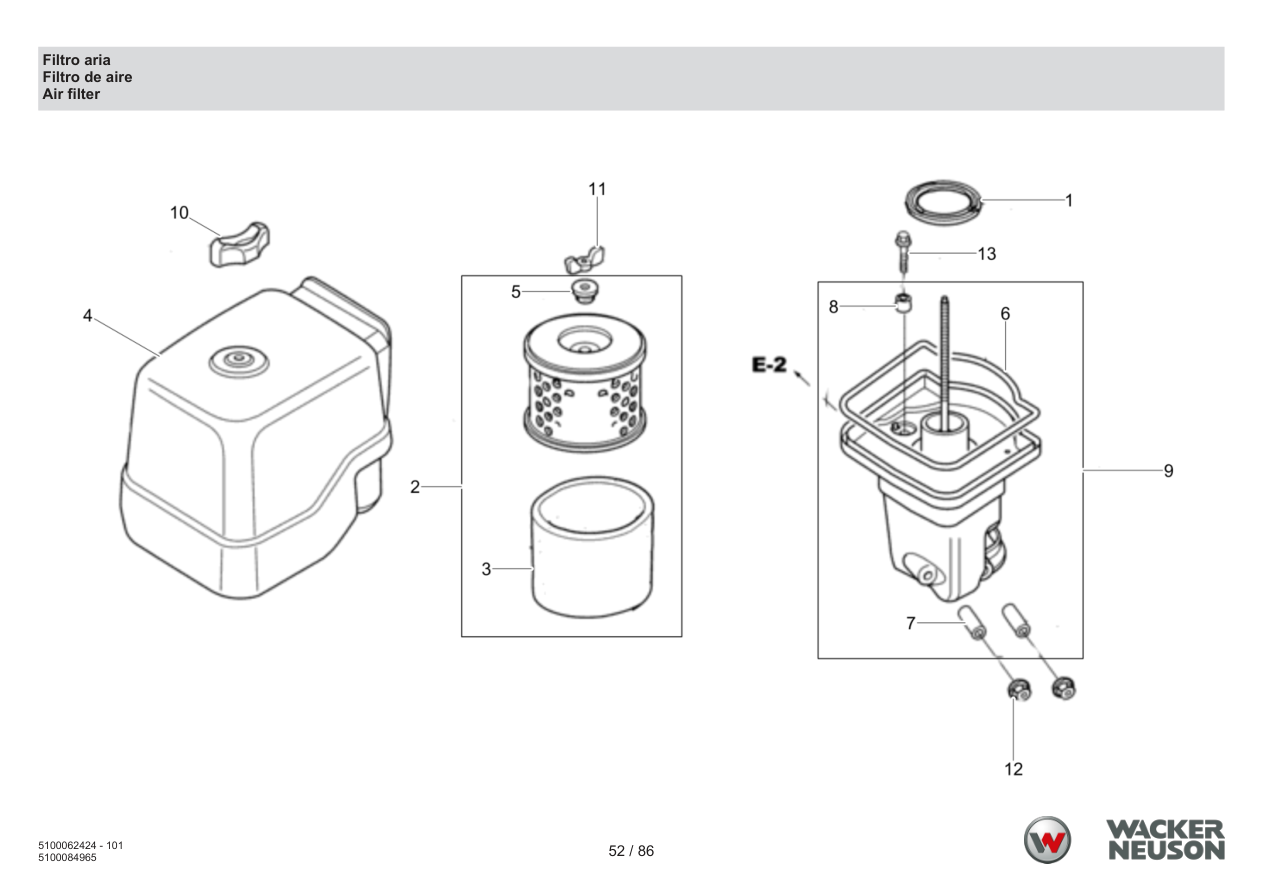

Page 50 — Air filter
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100051237 | Seal | 1 | PARTS REQUEST | |
|
COMING Seal
5100051237 · qty on machine: 1 | |||||
| 2 | 5100039024 | Air filter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 3 | 5100039025 | Air filter external | 1 | ADD TO CART | |
| 4 | 5100081215 | Cover cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Cover cpl.
5100081215 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 5 | 5000072343 | Grommet | 1 | ADD TO CART | |
| 6 | 5100039027 | Gasket | 1 | ADD TO CART | |
| 7 | 5000081746 | Sleeve | 2 | ADD TO CART | |
| 8 | 5000126941 | Sleeve | 1 | ADD TO CART | |
| 9 | 5100039028 | Filter bracket cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 10 | 5100031333 | Wing nut | 1 | ADD TO CART | |
| 11 | 5000071621 | Wing nut | 1 | ADD TO CART | |
| 12 | 5000071056 | Nut | 2 | ADD TO CART | |
| 13 | 5100003499 | Flange screw | 1 | PARTS REQUEST | |
|
COMING Flange screw
5100003499 · qty on machine: 1 | |||||

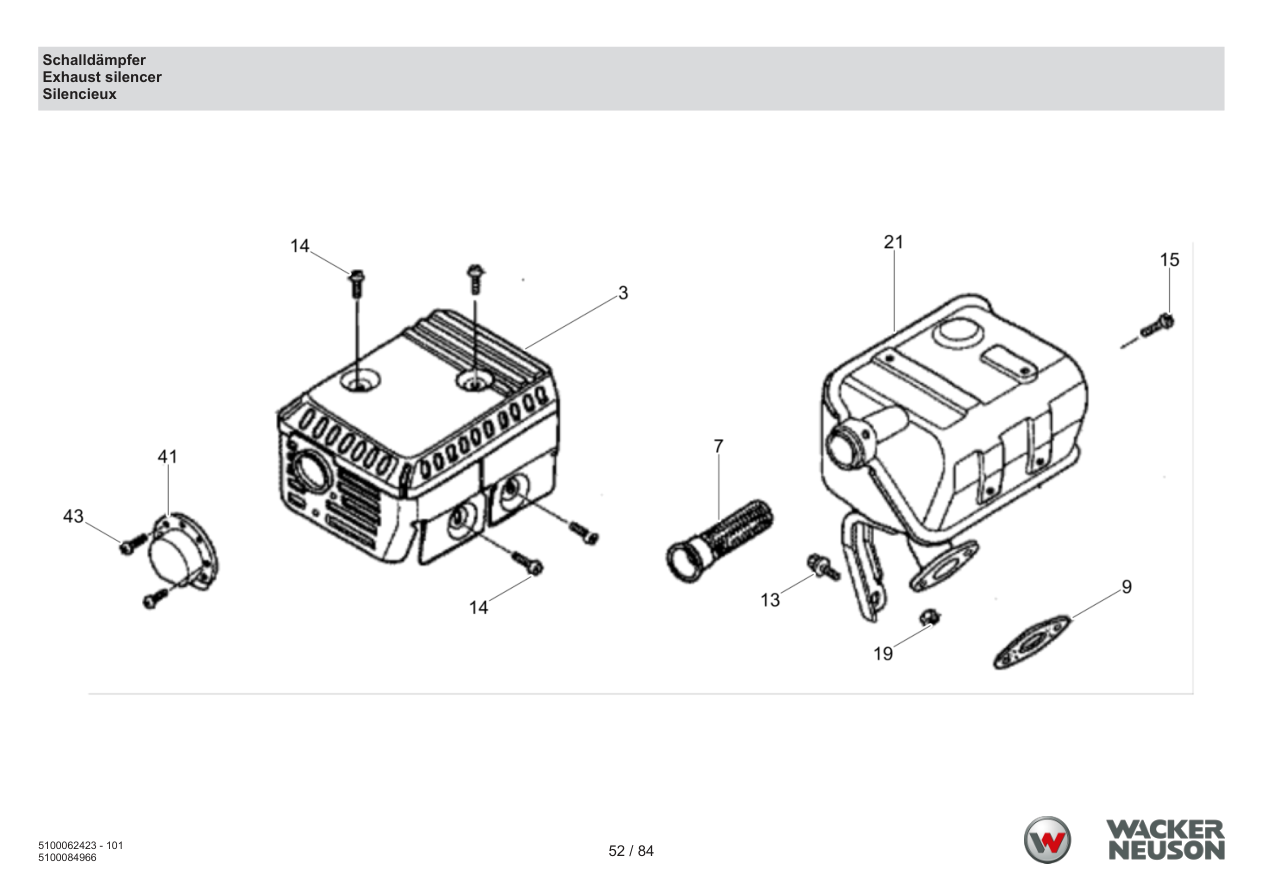

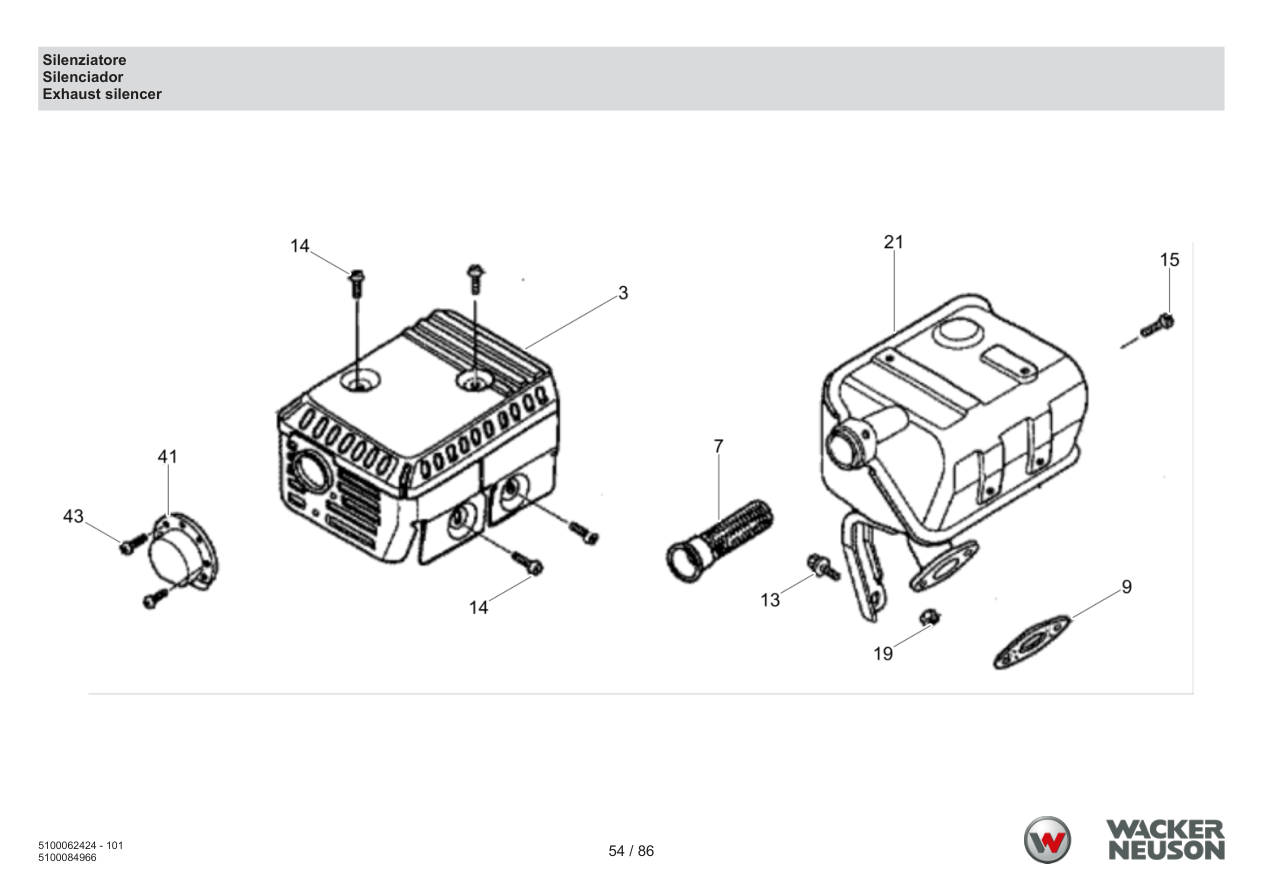

Page 52 — Exhaust silencer
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100005320 | Protection cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 7 | 5100005321 | Spark arrester | 1 | ADD TO CART | |
| 9 | 5000216516 | Gasket | 1 | ADD TO CART | |
| 13 | 5000072773 | Screw | 1 | ADD TO CART | |
| 14 | 5000071070 | Screw | 4 | ADD TO CART | |
| 15 | 5000217463 | Screw | 1 | ADD TO CART | |
| 19 | 5000071076 | Nut | 2 | ADD TO CART | |
| 21 | 5100005322 | Muffler cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 41 | 5000107072 | Exhaustdeflector | 1 | ADD TO CART | |
| 43 | 5000150916 | Screw | 2 | ADD TO CART | |

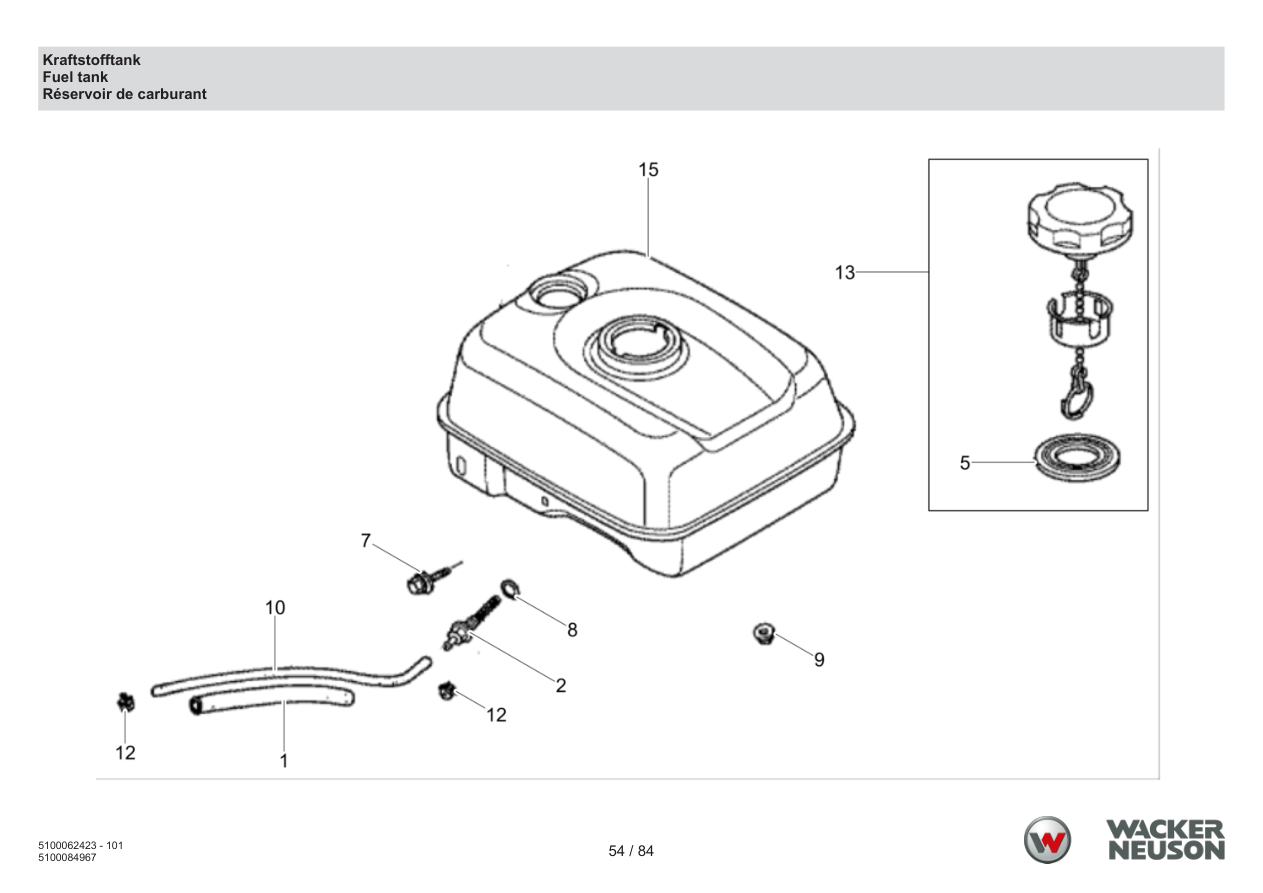

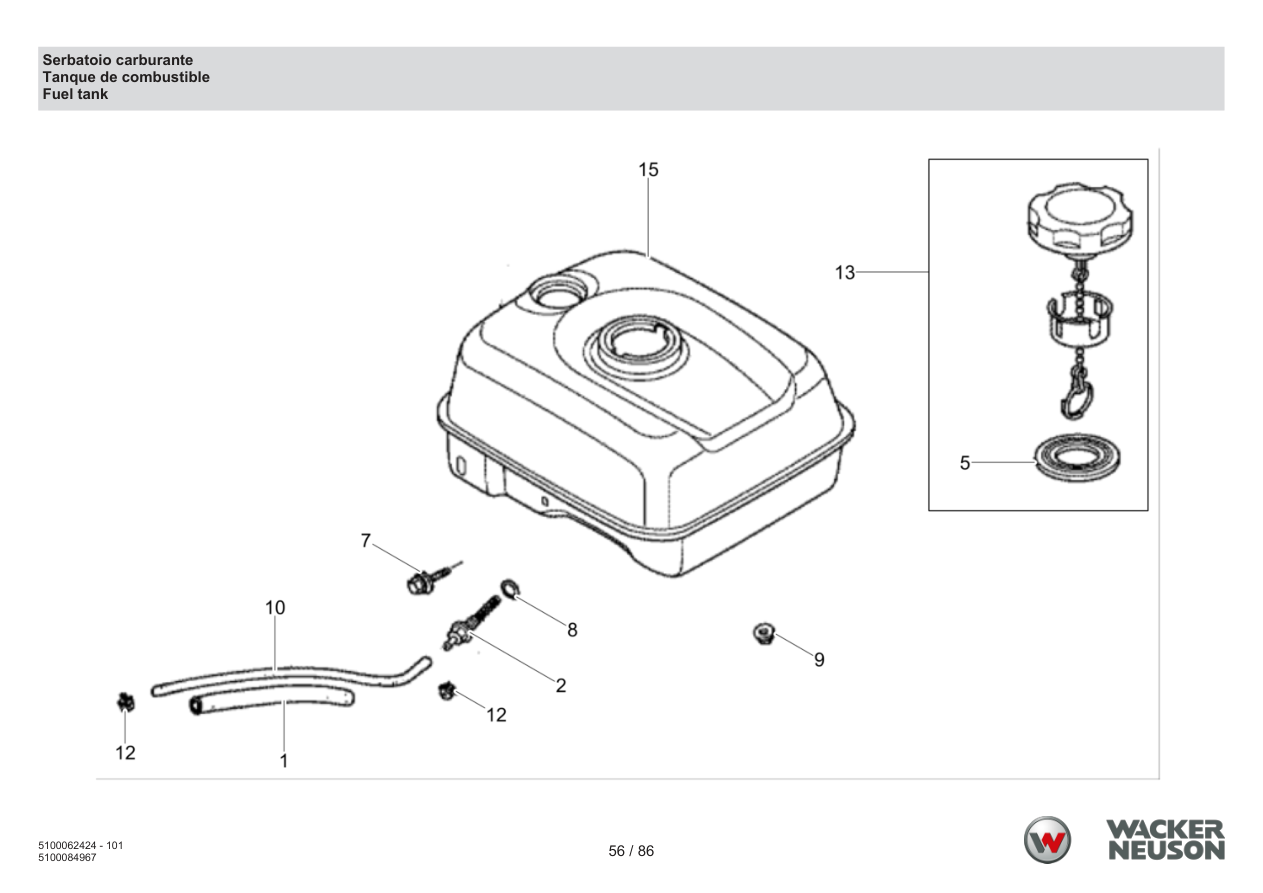

Page 54 — Fuel tank
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000081764 | Protective hose | 1 | ADD TO CART | |
| 2 | 5100000395 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
5100000395 · qty on machine: 1 | |||||
| 5 | 5000209770 | Gasket | 1 | ADD TO CART | |
| 7 | 5000209771 | Flange bolt | 1 | ADD TO CART | |
| 8 | 1000133535 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
1000133535 · qty on machine: 1 | |||||
| 9 | 5000071056 | Nut | 2 | ADD TO CART | |
| 10 | 5100084954 | Fuel hose | 1 | PARTS REQUEST | |
|
COMING Fuel hose
5100084954 · qty on machine: 1 | |||||
| 12 | 5000208617 | Clamp | 2 | ADD TO CART | |
| 13 | 5100081176 | Tank cover cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Tank cover cpl.
5100081176 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 15 | 5100005323 | Fuel tank cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Fuel tank cpl.
5100005323 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||

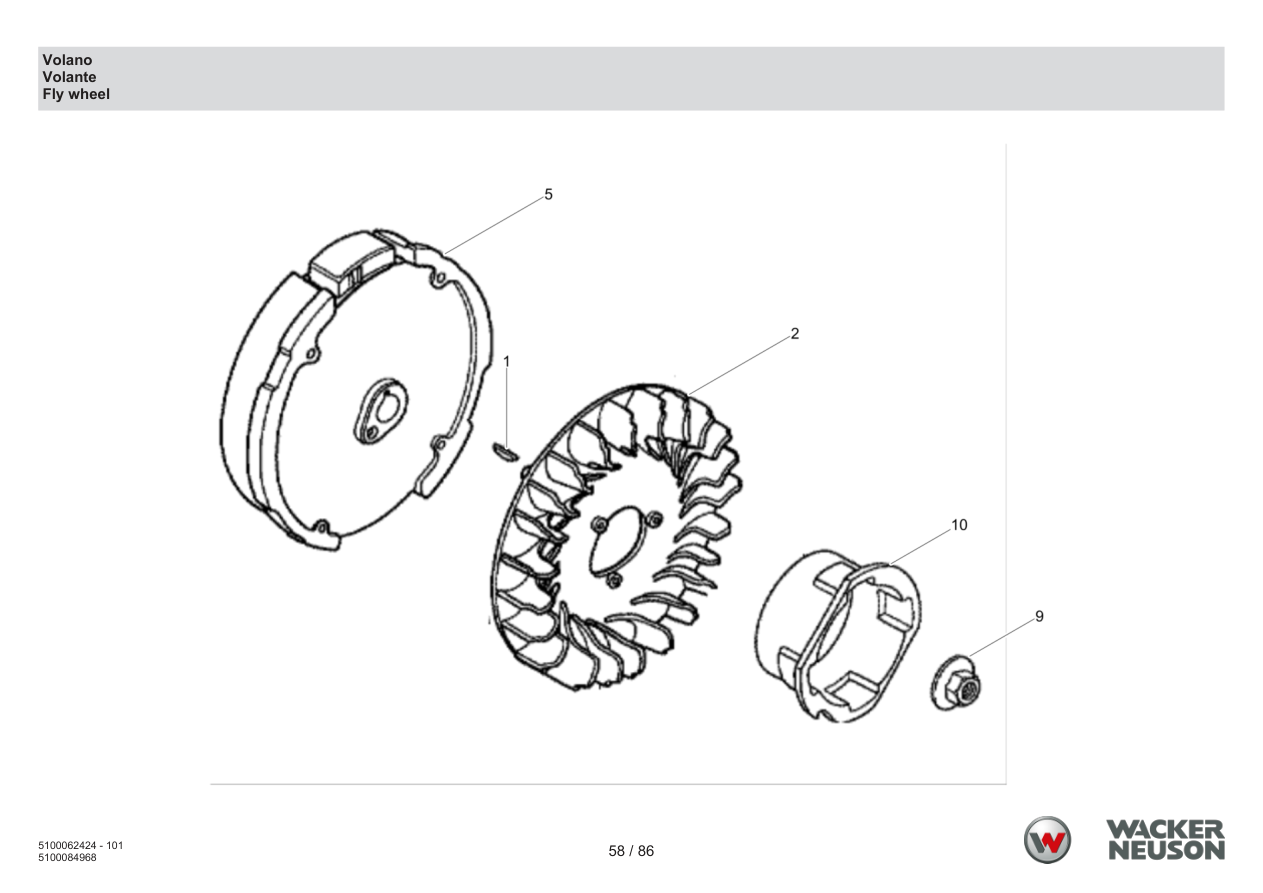

Page 56 — Flywheel
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100056809 | Woodruff key | 1 | ADD TO CART | |
| 2 | 5000071652 | Fan | 1 | ADD TO CART | |
| 5 | 5100084955 | Fly wheel cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Fly wheel cpl.
5100084955 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 9 | 5000162686 | Nut | 1 | ADD TO CART | |
| 10 | 5100048123 | Starter v-belt pulley | 1 | ADD TO CART | |

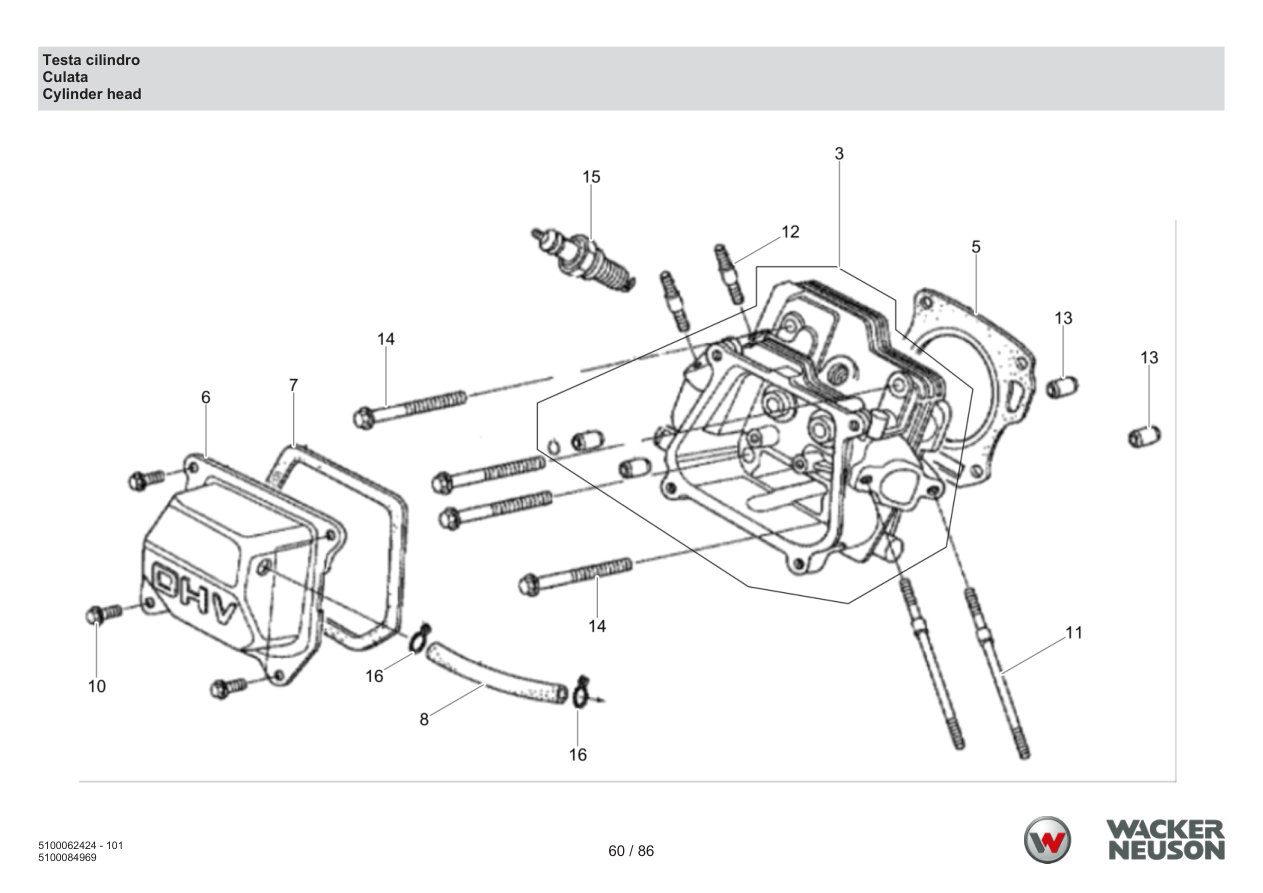

Page 58 — Cylinder head
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5200006480 | Cylinder head | 1 | ADD TO CART | |
| 5 | 5100005329 | Cylinder head gasket | 1 | PARTS REQUEST | |
|
COMING Cylinder head gasket
5100005329 · qty on machine: 1 | |||||
| 6 | 5100084956 | Cover cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Cover cpl.
5100084956 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 7 | 5100080975 | Cylinder head gasket | 1 | PARTS REQUEST | |
|
COMING Cylinder head gasket
5100080975 · qty on machine: 1 | |||||
| 8 | 5000217757 | Breather tube | 1 | ADD TO CART | |
| 10 | 5000053990 | Screw | 4 | ADD TO CART | |
| 11 | 5100051311 | Stud | 2 | PARTS REQUEST | |
|
COMING Stud
5100051311 · qty on machine: 2 | |||||
| 12 | 5100051312 | Threaded pin | 2 | PARTS REQUEST | |
|
COMING Threaded pin
5100051312 · qty on machine: 2 | |||||
| 13 | 5000070950 | Dowel pin | 2 | ADD TO CART | |
| 14 | 5000213398 | Flange screw | 4 | ADD TO CART | |
| 15 | 5000207671 | Spark plug | 1 | ADD TO CART | |
| 16 | 5000217758 | Clip | 2 | ADD TO CART | |

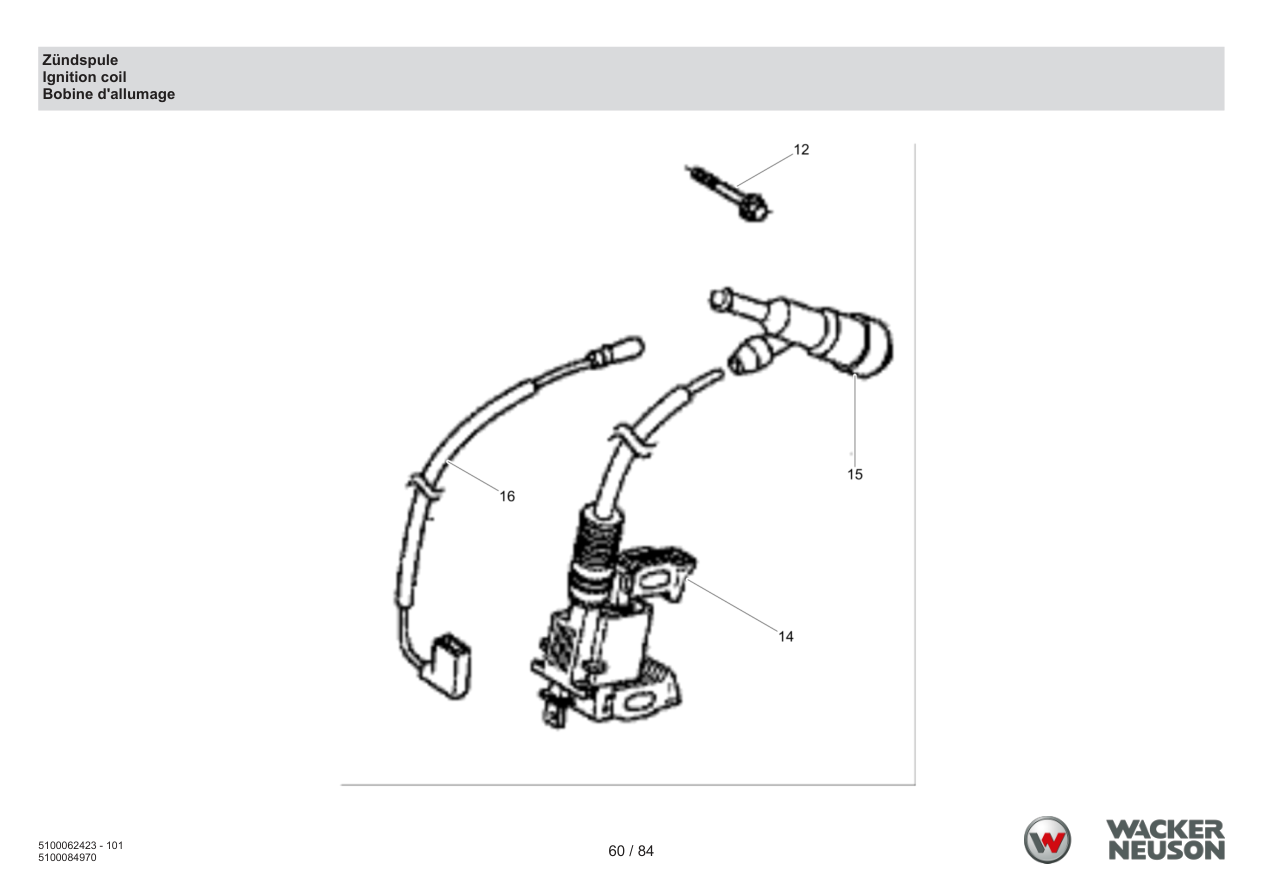

Page 60 — Ignition coil
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 12 | 5000081737 | Screw | 2 | ADD TO CART | |
| 14 | 5100003455 | Ignition coil cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Ignition coil cpl.
5100003455 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 15 | 5000162680 | Spark plug terminal cap | 1 | ADD TO CART | |
| 16 | 5100031335 | Cable | 1 | ADD TO CART | |

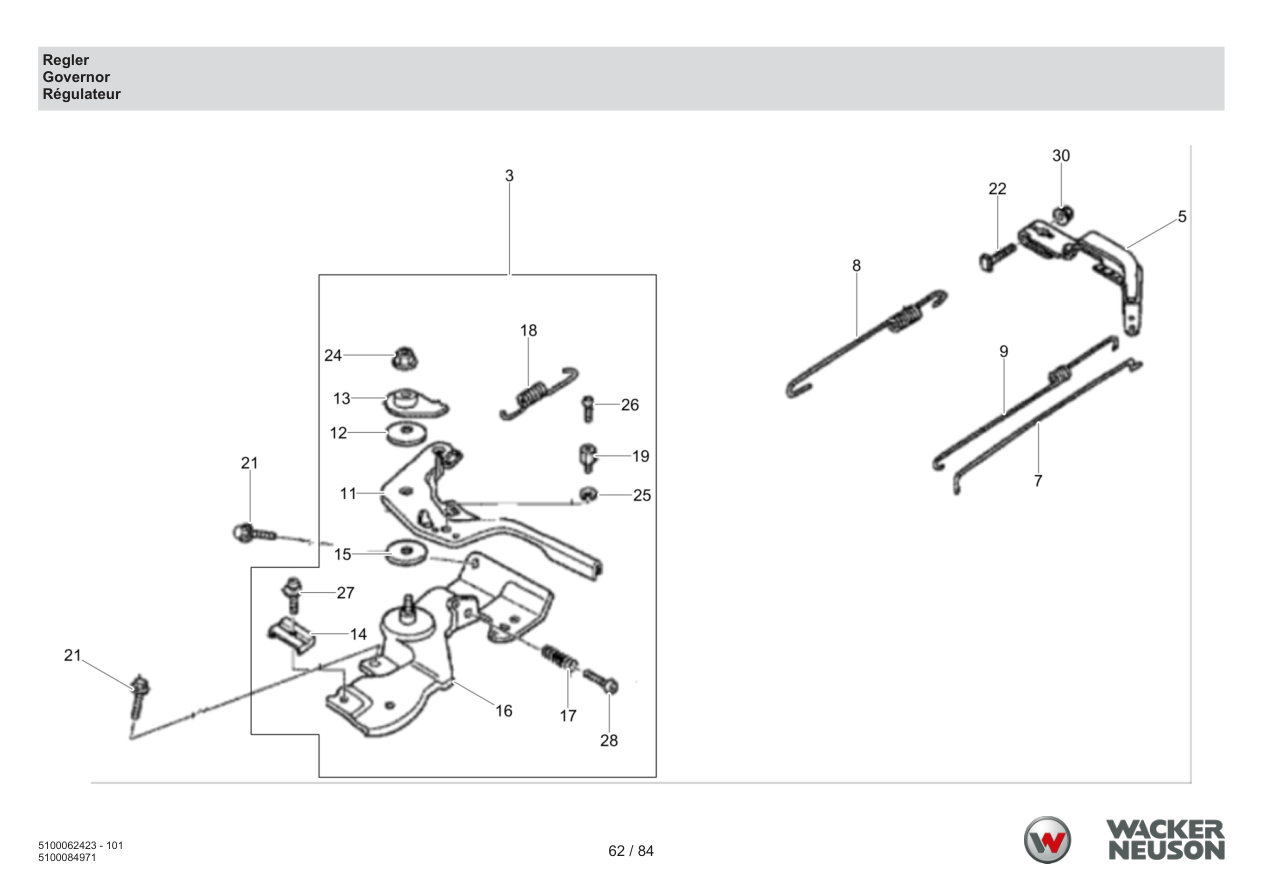

Page 62 — Regulator
Parts list — exactly as printed24 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100039031 | Governor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 5 | 5100005425 | Governor lever | 1 | PARTS REQUEST | |
|
COMING Governor lever
5100005425 · qty on machine: 1 | |||||
| 7 | 5100084957 | Governor rod | 1 | PARTS REQUEST | |
|
COMING Governor rod
5100084957 · qty on machine: 1 | |||||
| 8 | 5100005426 | Spring | 1 | ADD TO CART | |
| 9 | 5000071664 | Spring | 1 | ADD TO CART | |
| 11 | 5100005429 | Governor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Governor cpl.
5100005429 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 12 | 5000071058 | Spring | 1 | ADD TO CART | |
| 13 | 5000071057 | Washer | 1 | ADD TO CART | |
| 14 | 5000071062 | Cable holder | 1 | ADD TO CART | |
| 15 | 5000071064 | Spacer | 1 | ADD TO CART | |
| 16 | 5100051871 | Regulating plate | 1 | PARTS REQUEST | |
|
COMING Regulating plate
5100051871 · qty on machine: 1 | |||||
| 17 | 5000054088 | Adjusting spring | 1 | ADD TO CART | |
| 18 | 5000071667 | Spring | 1 | ADD TO CART | |
| 19 | 5000151819 | Clamping piece | 1 | ADD TO CART | |
| 21 | 5000053990 | Screw | 2 | ADD TO CART | |
| 22 | 5200000457 | Bolt | 1 | ADD TO CART | |
| 24 | 5000072782 | Locknut | 1 | ADD TO CART | |
| 24 | 5100084958 | Locknut | 1 | PARTS REQUEST | |
|
COMING Locknut
5100084958 · qty on machine: 1 | |||||
| 25 | 5000151823 | Lock washer | 1 | ADD TO CART | |
| 25 | 5100084959 | Retaining ring | 1 | PARTS REQUEST | |
|
COMING Retaining ring
5100084959 · qty on machine: 1 | |||||
| 26 | 5000151824 | Screw | 1 | ADD TO CART | |
| 27 | 5000110112 | Screw | 1 | ADD TO CART | |
| 28 | 5000081990 | Screw | 1 | ADD TO CART | |
| 30 | 5000071056 | Nut | 1 | ADD TO CART | |

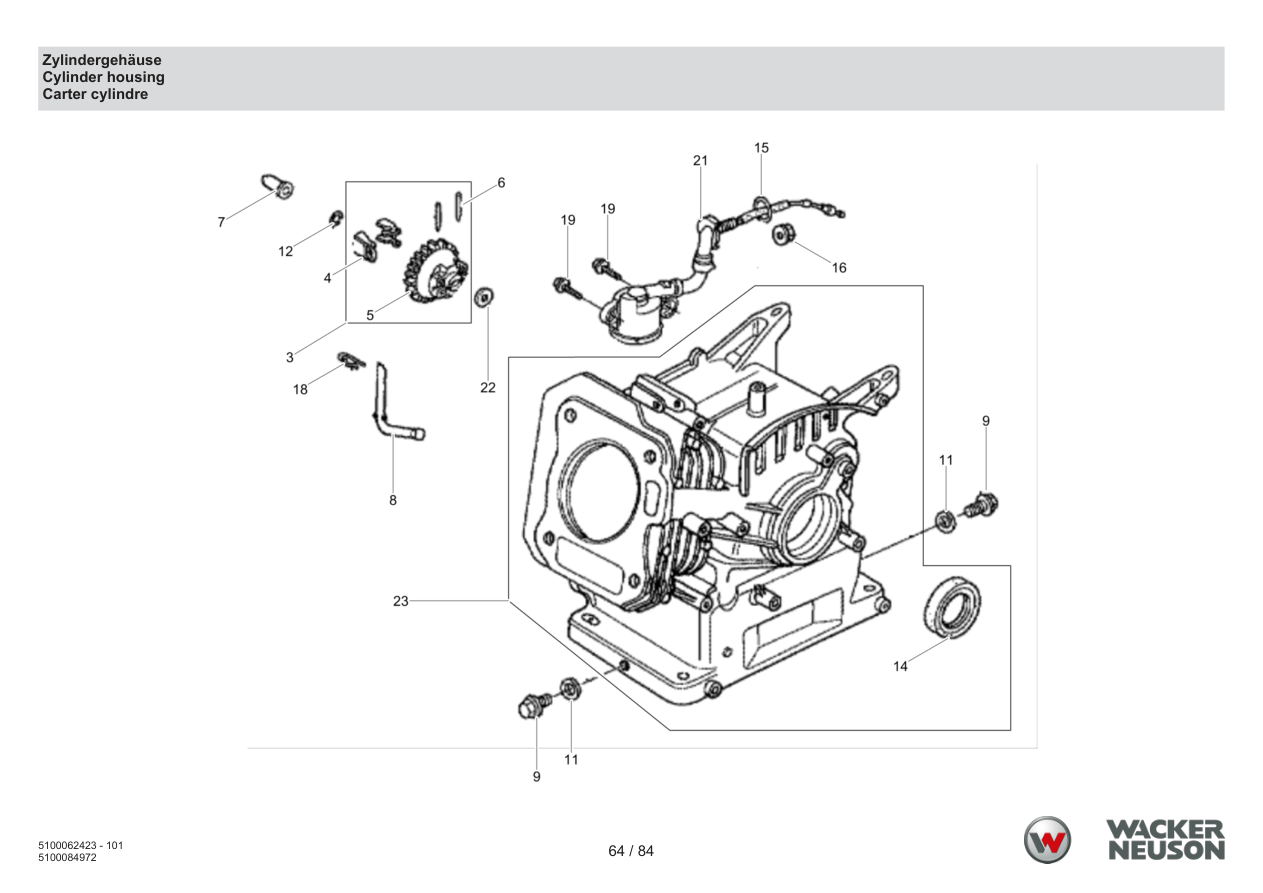

Page 64 — Cylinder housing
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100005429 | Governor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Governor cpl.
5100005429 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 4 | 5100005430 | Weight | 2 | PARTS REQUEST | |
|
COMING Weight
5100005430 · qty on machine: 2 | |||||
| 5 | 5100005431 | Bracket | 1 | PARTS REQUEST | |
|
COMING Bracket
5100005431 · qty on machine: 1 | |||||
| 6 | 5000156689 | Pin | 2 | ADD TO CART | |
| 7 | 5000406670 | Slider | 1 | PARTS REQUEST | |
|
COMING Slider
5000406670 · qty on machine: 1 | |||||
| 8 | 5100005433 | Governor | 1 | PARTS REQUEST | |
|
COMING Governor
5100005433 · qty on machine: 1 | |||||
| 9 | 5000070964 | Plug (threaded) | 2 | ADD TO CART | |
| 11 | 5000070963 | Washer | 2 | ADD TO CART | |
| 12 | 5000081615 | Retaining ring | 1 | ADD TO CART | |
| 14 | 5000053983 | Shaft seal | 1 | ADD TO CART | |
| 14 | 5100036262 | Ring | 1 | PARTS REQUEST | |
|
COMING Ring
5100036262 · qty on machine: 1 | |||||
| 14 | 5100039035 | Ring seal | 1 | ADD TO CART | |
| 15 | 1000133535 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
1000133535 · qty on machine: 1 | |||||
| 16 | 5000072332 | Flange nut | 1 | PARTS REQUEST | |
|
COMING Flange nut
5000072332 · qty on machine: 1 | |||||
| 18 | 5000054033 | Pin | 1 | ADD TO CART | |
| 19 | 5000072333 | Screw | 2 | ADD TO CART | |
| 21 | 5100056844 | Oil switch cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 22 | 5000071639 | Washer | 1 | ADD TO CART | |
| 23 | 5100050559 | Motor housing cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |

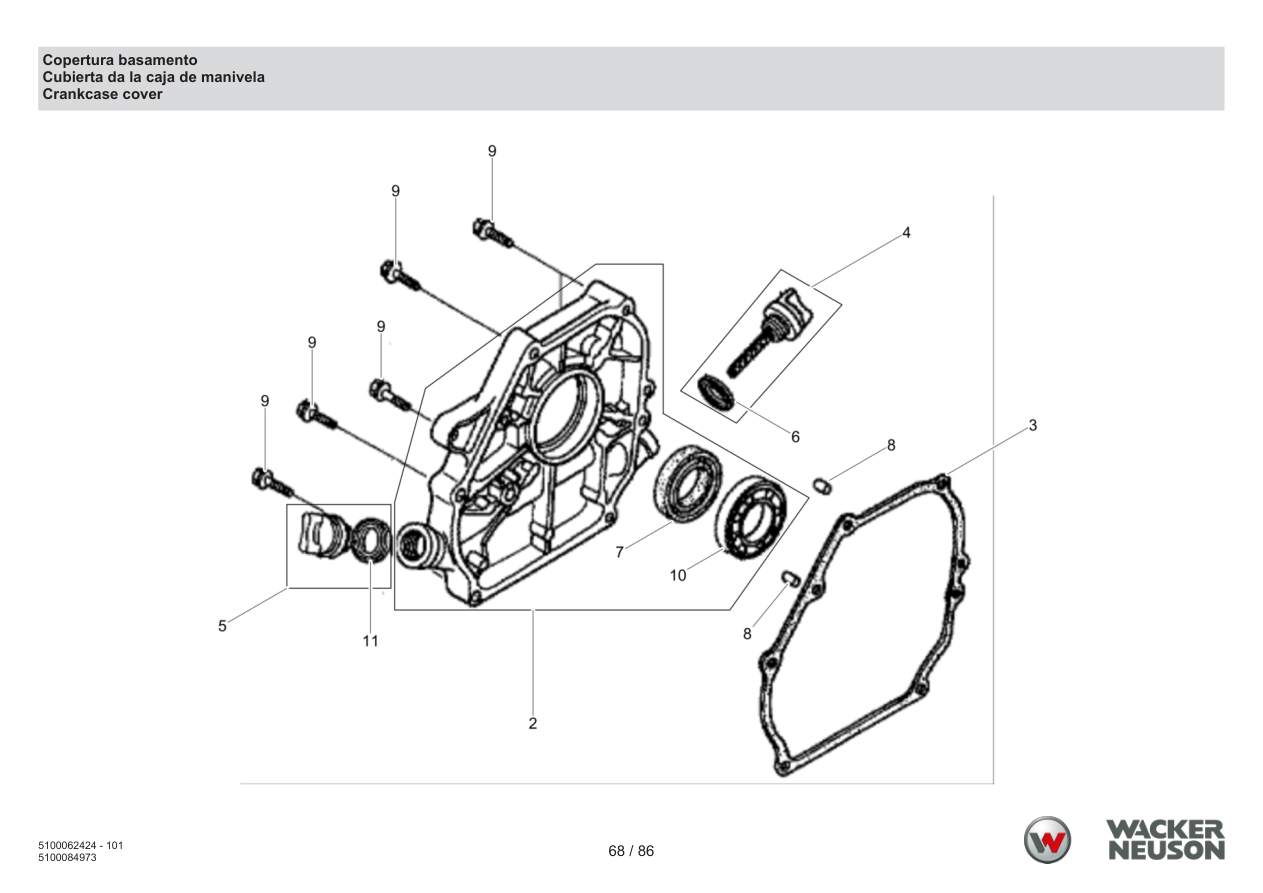

Page 66 — Crankcase cover
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100005434 | Crankcase cover cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Crankcase cover cpl.
5100005434 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5100003341 | Seal | 1 | PARTS REQUEST | |
|
COMING Seal
5100003341 · qty on machine: 1 | |||||
| 4 | 1000283320 | Filler pipe | 1 | PARTS REQUEST | |
|
COMING Filler pipe
1000283320 · qty on machine: 1 | |||||
| 5 | 5000162646 | Oil filler cap | 1 | ADD TO CART | |
| 7 | 5000053983 | Shaft seal | 1 | ADD TO CART | |
| 8 | 5000053995 | Dowel pin | 2 | ADD TO CART | |
| 9 | 5000071630 | Screw | 6 | ADD TO CART | |
| 10 | 5100003510 | Grooved ball bearing | 1 | PARTS REQUEST | |
|
COMING Grooved ball bearing
5100003510 · qty on machine: 1 | |||||
| 11 | 5000162647 | Gasket | 1 | ADD TO CART | |

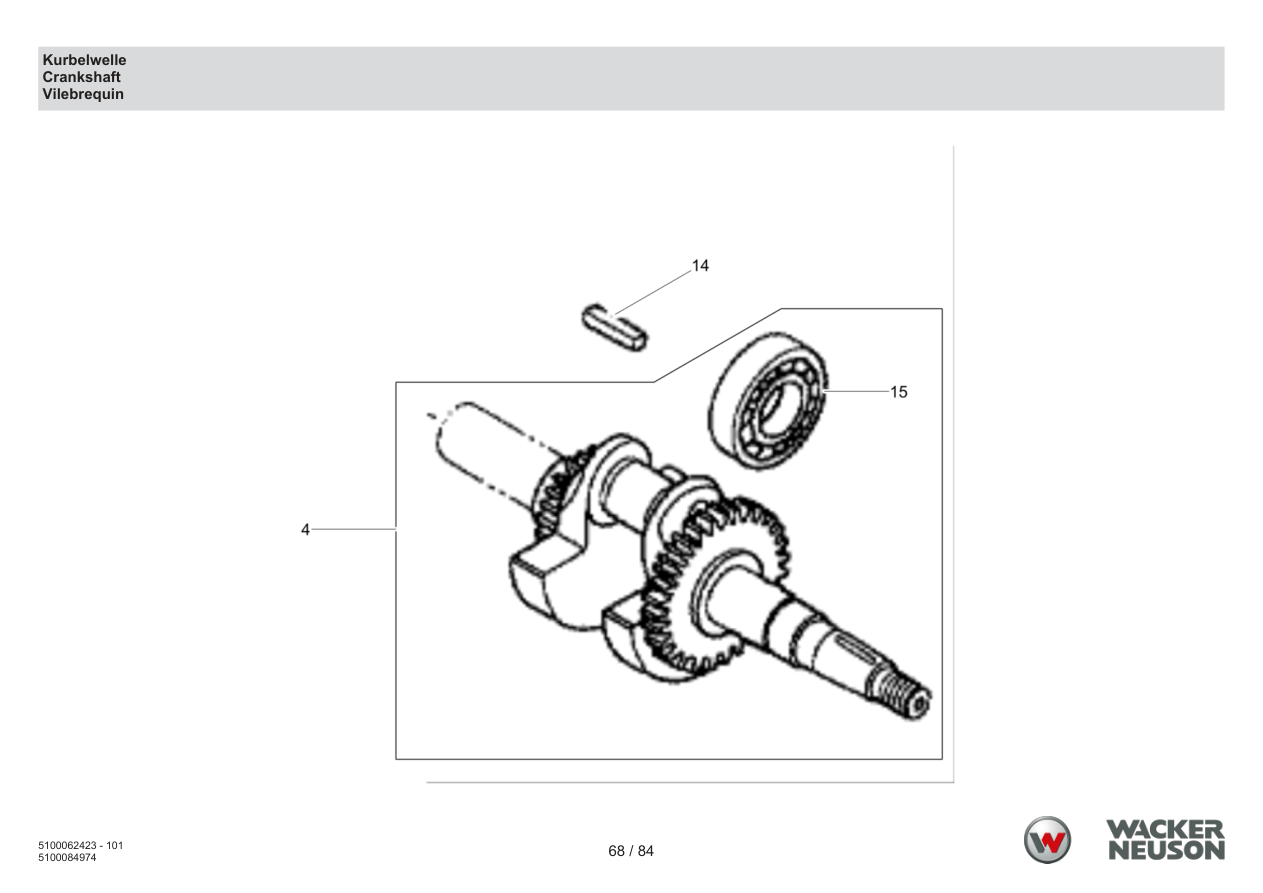

Page 68 — Crankshaft
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 4 | 5100051315 | Crankshaft cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Crankshaft cpl.
5100051315 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 14 | 5000070999 | Fitting key | 1 | ADD TO CART | |
| 15 | 5000217529 | Ball bearing | 1 | PARTS REQUEST | |
|
COMING Ball bearing
5000217529 · qty on machine: 1 | |||||
| 15 | 5100003485 | Grooved ball bearing | 1 | PARTS REQUEST | |
|
COMING Grooved ball bearing
5100003485 · qty on machine: 1 | |||||
| 15 | 5100051316 | Ball bearing | 1 | PARTS REQUEST | |
|
COMING Ball bearing
5100051316 · qty on machine: 1 | |||||

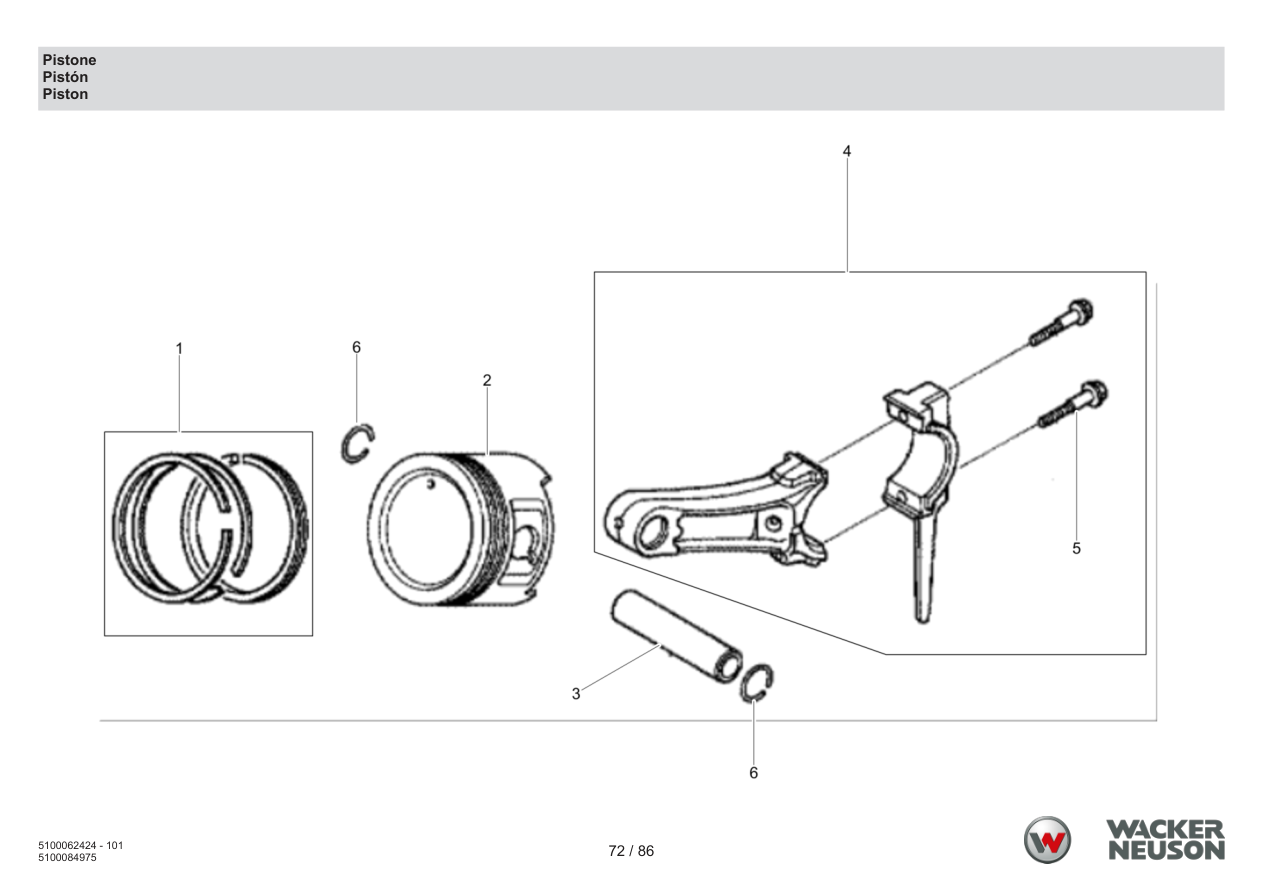

Page 70 — Piston
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005435 | Set of piston rings | 1 | PARTS REQUEST | |
|
COMING Set of piston rings
5100005435 · qty on machine: 1 | |||||
| 2 | 5100051317 | Piston | 1 | PARTS REQUEST | |
|
COMING Piston
5100051317 · qty on machine: 1 | |||||
| 3 | 5100084961 | Piston pin | 1 | PARTS REQUEST | |
|
COMING Piston pin
5100084961 · qty on machine: 1 | |||||
| 4 | 5200006505 | Connecting rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 5 | 5100005438 | Screw | 2 | PARTS REQUEST | |
|
COMING Screw
5100005438 · qty on machine: 2 | |||||
| 6 | 5000081994 | Retaining ring | 2 | ADD TO CART | |

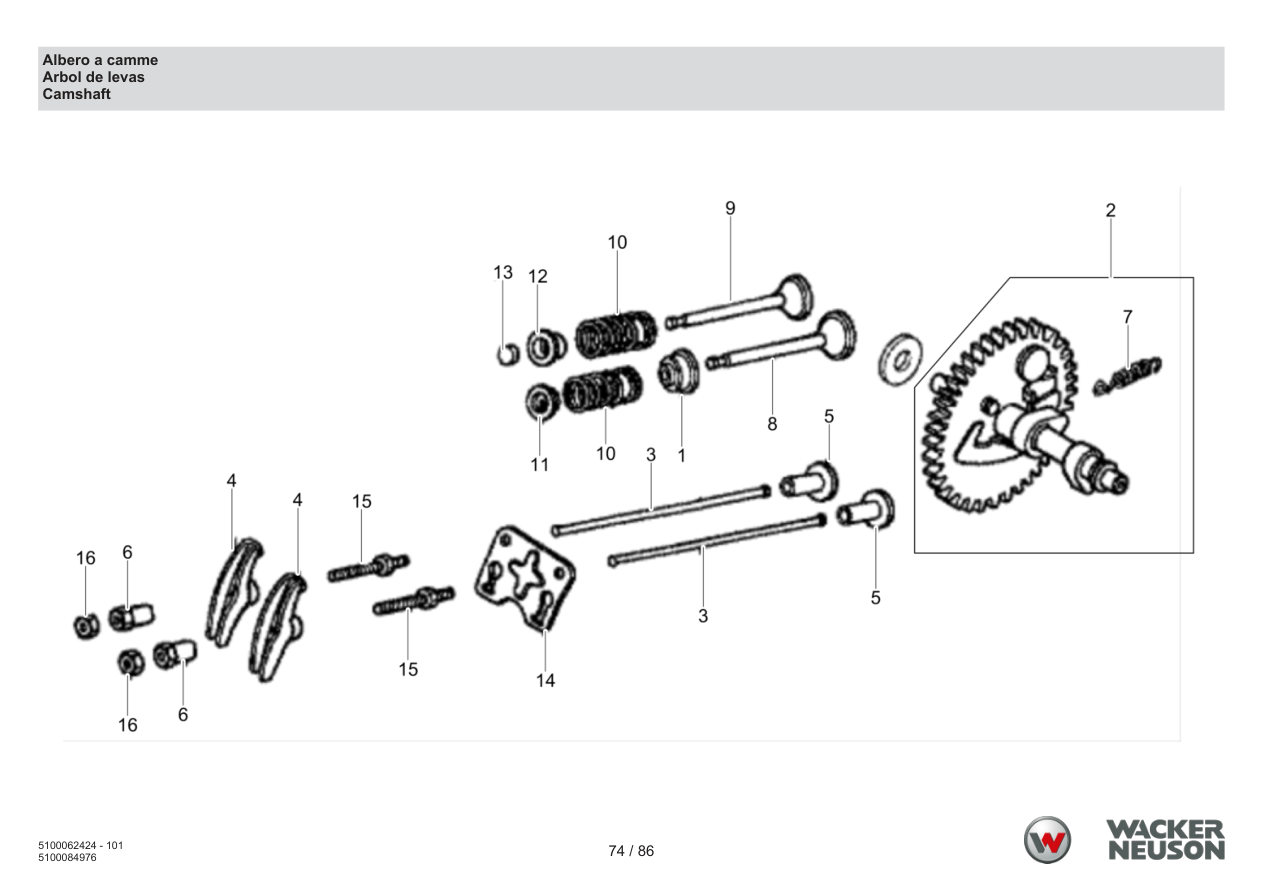

Page 72 — Camshaft
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005349 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5100005349 · qty on machine: 1 | |||||
| 3 | 5100005440 | Push rod | 2 | PARTS REQUEST | |
|
COMING Push rod
5100005440 · qty on machine: 2 | |||||
| 4 | 5100051320 | Rocker arm | 2 | PARTS REQUEST | |
|
COMING Rocker arm
5100051320 · qty on machine: 2 | |||||
| 5 | 5000070990 | Valve tappet | 2 | ADD TO CART | |
| 6 | 5000070985 | Rocker arm pivot | 2 | ADD TO CART | |
| 7 | 5000151028 | Spring | 1 | ADD TO CART | |
| 8 | 5100005441 | Intake valve | 1 | PARTS REQUEST | |
|
COMING Intake valve
5100005441 · qty on machine: 1 | |||||
| 9 | 5100005442 | Outlet valve | 1 | PARTS REQUEST | |
|
COMING Outlet valve
5100005442 · qty on machine: 1 | |||||
| 10 | 5000081760 | Spring | 2 | ADD TO CART | |
| 11 | 5100031339 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100031339 · qty on machine: 1 | |||||
| 12 | 5100031339 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100031339 · qty on machine: 1 | |||||
| 14 | 5200006517 | Plate | 1 | ADD TO CART | |
| 15 | 5000072778 | Stud | 2 | ADD TO CART | |
| 16 | 5000070984 | Locknut | 2 | ADD TO CART | |
| 2 | 5000406682 | Camshaft | 1 | PARTS REQUEST | |
|
COMING Camshaft
5000406682 · qty on machine: 1 | |||||

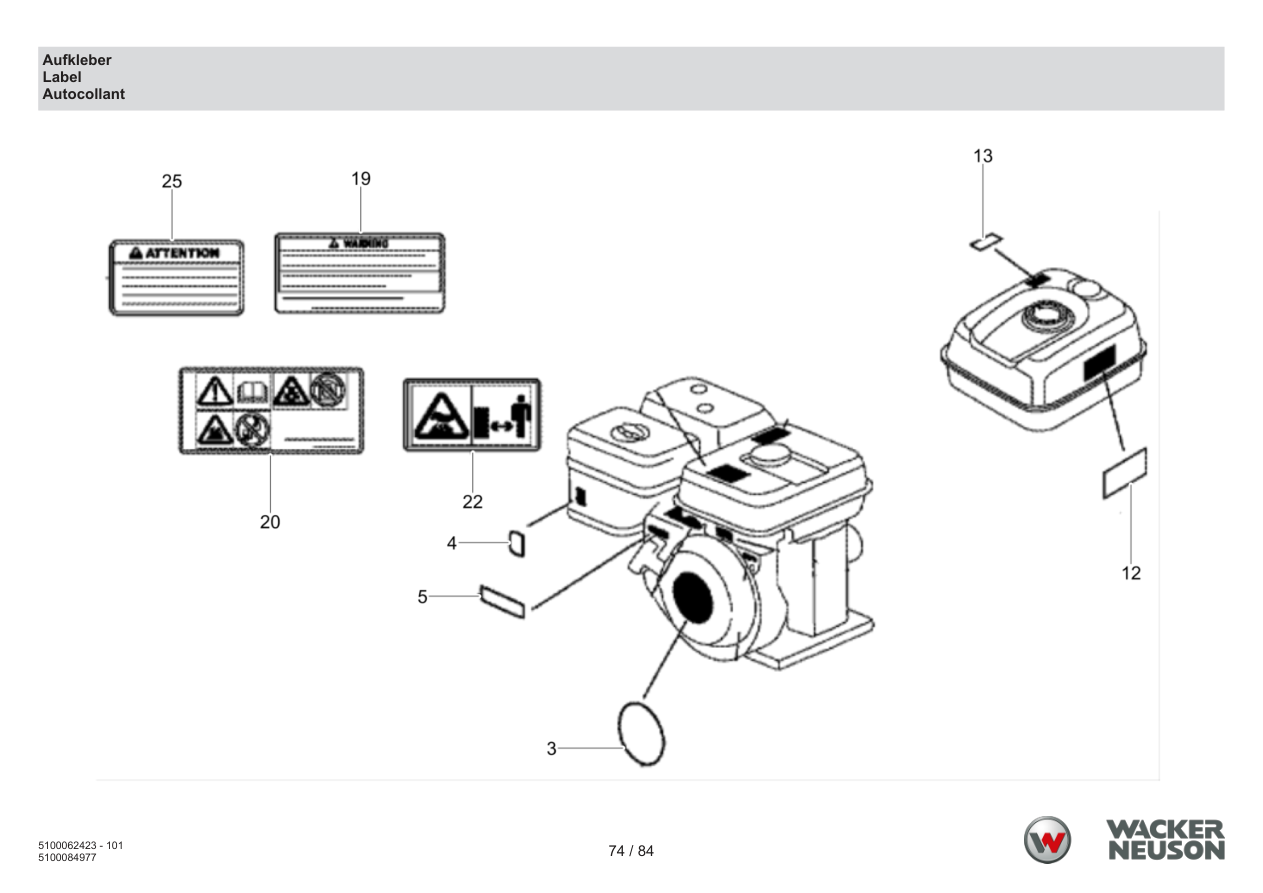

Page 74 — Decal
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100005352 | Label gx160 | 1 | PARTS REQUEST | |
|
COMING Label gx160
5100005352 · qty on machine: 1 | |||||
| 4 | 5100005336 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100005336 · qty on machine: 1 | |||||
| 5 | 5000208623 | Labels | 1 | ADD TO CART | |
| 12 | 5100080976 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100080976 · qty on machine: 1 | |||||
| 13 | 5100005337 | Label | 1 | ADD TO CART | |
| 14 | 5100039033 | Label | 1 | ADD TO CART | |
| 19 | 5100080978 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100080978 · qty on machine: 1 | |||||
| 20 | 5100084960 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100084960 · qty on machine: 1 | |||||
| 22 | 5100005340 | Label | 1 | ADD TO CART | |
| 25 | 5100005339 | Label | 1 | ADD TO CART | |

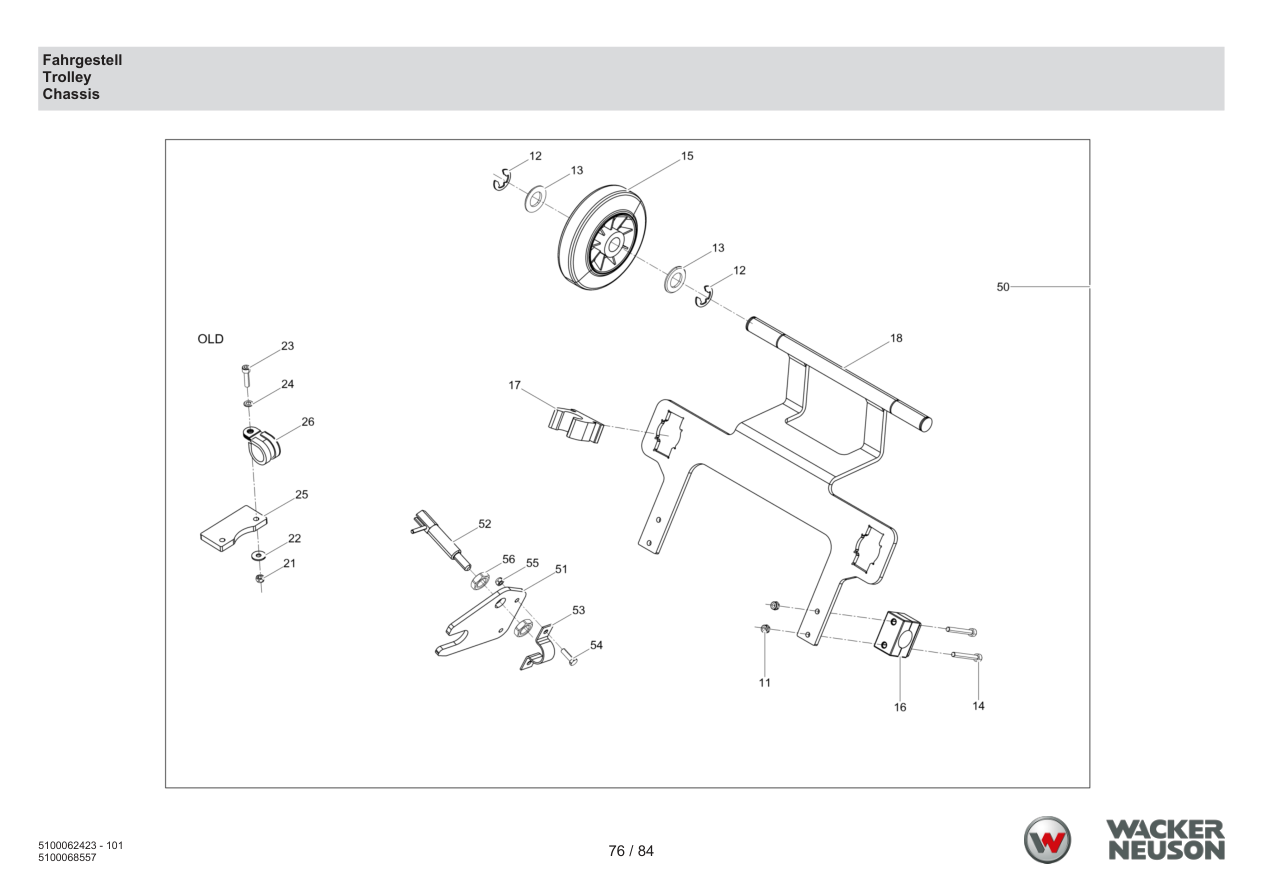

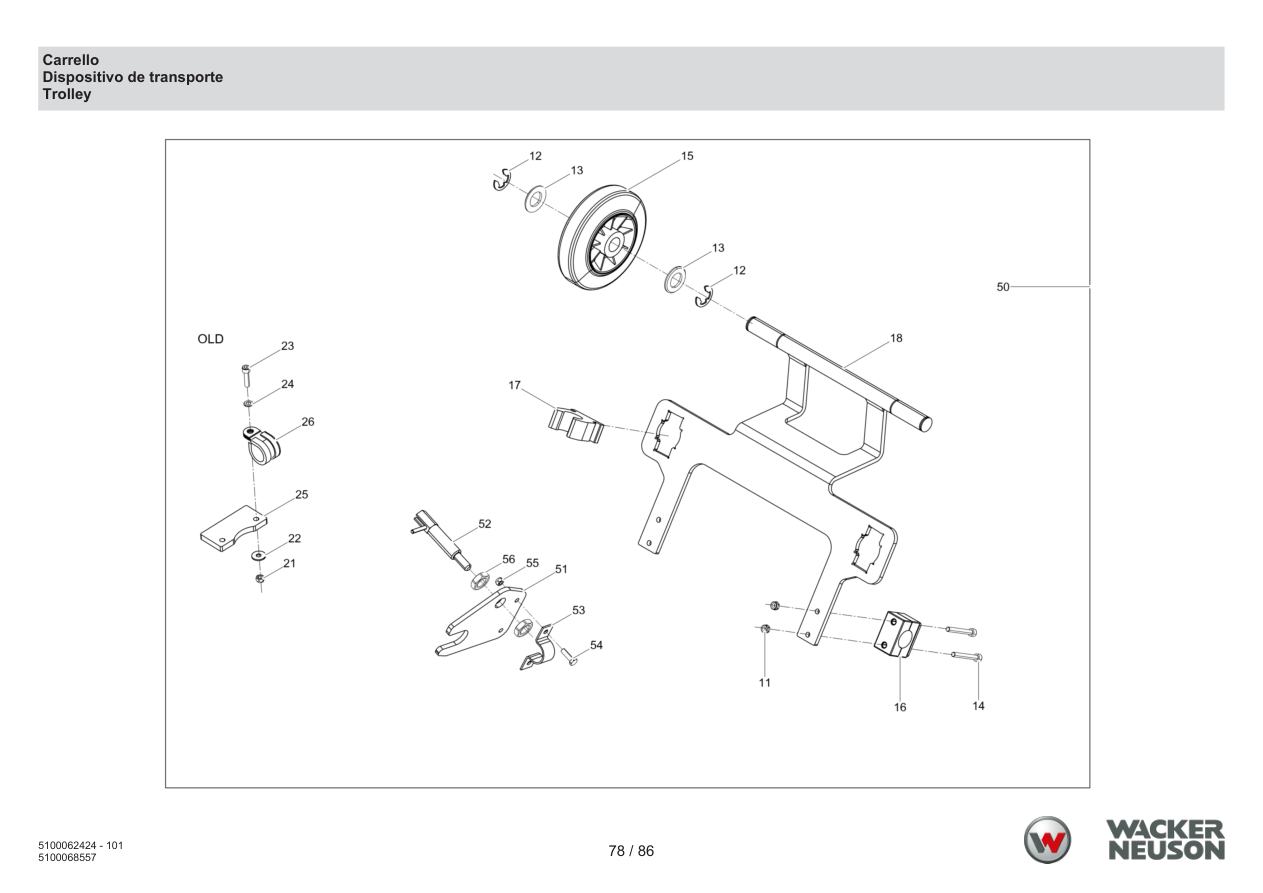

Page 76 — Trolley
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 17 | 5100068242 | Bracket | 2 | ADD TO CART | |
| 18 | 5100065603 | Trolley | 1 | PARTS REQUEST | |
|
COMING Trolley
5100065603 · qty on machine: 1 | |||||
| 11 | 5000010368 | Hexagon nut | 4 | PARTS REQUEST | |
|
COMING Hexagon nut
5000010368 · qty on machine: 4 | |||||
| 12 | 5000103834 | Lock washer | 4 | ADD TO CART | |
| 13 | 5000010616 | Flat washer | 4 | ADD TO CART | |
| 14 | 5000013000 | Cheese head screw | 4 | ADD TO CART | |
| 15 | 5000021466 | Tire | 2 | ADD TO CART | |
| 16 | 5100065646 | Clamp | 2 | ADD TO CART | |
| 21 | 5000021679 | Hexagon nut | 4 | ADD TO CART | |
| 22 | 5000010373 | Flat washer | 4 | ADD TO CART | |
| 23 | 5000011550 | Cheese head screw | 4 | ADD TO CART | |
| 24 | 5000010624 | Flat washer | 4 | ADD TO CART | |
| 25 | 5100068163 | Limit stop | 2 | PARTS REQUEST | |
|
COMING Limit stop
5100068163 · qty on machine: 2 | |||||
| 26 | 5100060177 | Clamp | 4 | ADD TO CART | |
| 50 | 5100068643 | Wheel kit cpl. wp | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Wheel kit cpl. wp
5100068643 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 51 | 5100077952 | Limit stop | 1 | ADD TO CART | |
| 52 | 5100025236 | Retention bolt | 1 | ADD TO CART | |
| 53 | 5100078359 | Pipe clamp | 1 | ADD TO CART | |
| 54 | 5000011470 | Hexagonal head cap screw | 2 | ADD TO CART | |
| 55 | 5000031167 | Hexagon nut | 2 | ADD TO CART | |
| 56 | 5000021679 | Hexagon nut | 2 | ADD TO CART | |

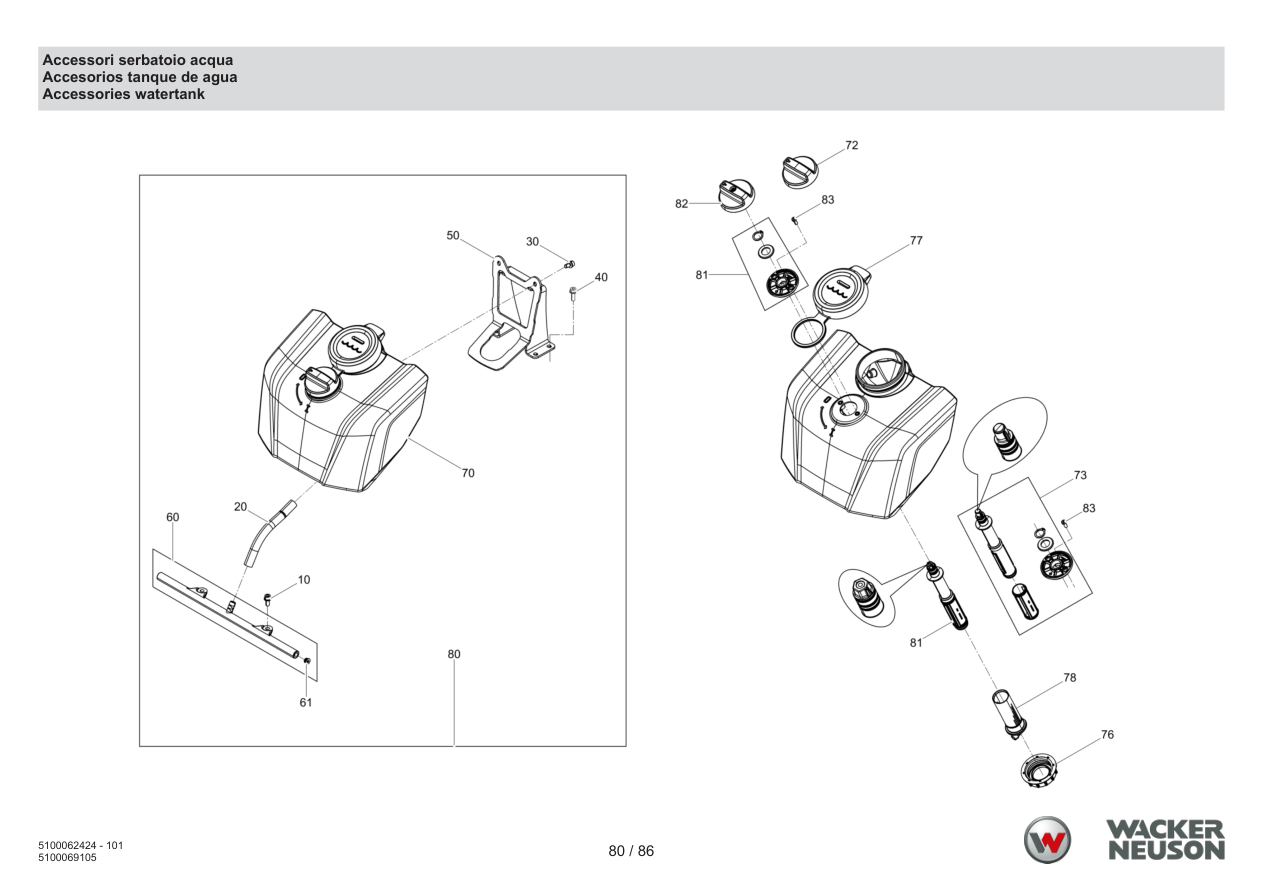

Page 78 — Accessories watertank
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100042618 | Cheese head screw | 2 | ADD TO CART | |
| 20 | 5100067458 | Hose 200 mm | 1 | ADD TO CART | |
| 30 | 5100059594 | Cheese head screw | 2 | ADD TO CART | |
| 40 | 5000129420 | Socket head cap screw | 4 | ADD TO CART | |
| 50 | 5100065607 | Tank holder | 1 | ADD TO CART | |
| 60 | 5100066534 | Sprinkling bar cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 61 | 5100041150 | Locking plug | 2 | ADD TO CART | |
| 70 | 5100064647 | Watertank cpl. big | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 72 | 5100057643 | Turning handle | 1 | PARTS REQUEST | |
|
COMING Turning handle
5100057643 · qty on machine: 1 | |||||
| 73 | 5100057675 | Control rod | 1 | PARTS REQUEST | |
|
COMING Control rod
5100057675 · qty on machine: 1 | |||||
| 76 | 5100053603 | Cap screw | 1 | ADD TO CART | |
| 77 | 5100051982 | Water tank cap | 1 | ADD TO CART | |
| 78 | 5100051963 | Filter | 1 | PARTS REQUEST | |
|
COMING Filter
5100051963 · qty on machine: 1 | |||||
| 80 | 5100068641 | Watertank wp | 1 | PARTS REQUEST | |
|
COMING Watertank wp
5100068641 · qty on machine: 1 | |||||
| 81 | 5100079293 | Control rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 82 | 5100079294 | Turning handle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 83 | 5000069425 | Cheese head screw | 2 | PARTS REQUEST | |
|
COMING Cheese head screw
5000069425 · qty on machine: 2 | |||||

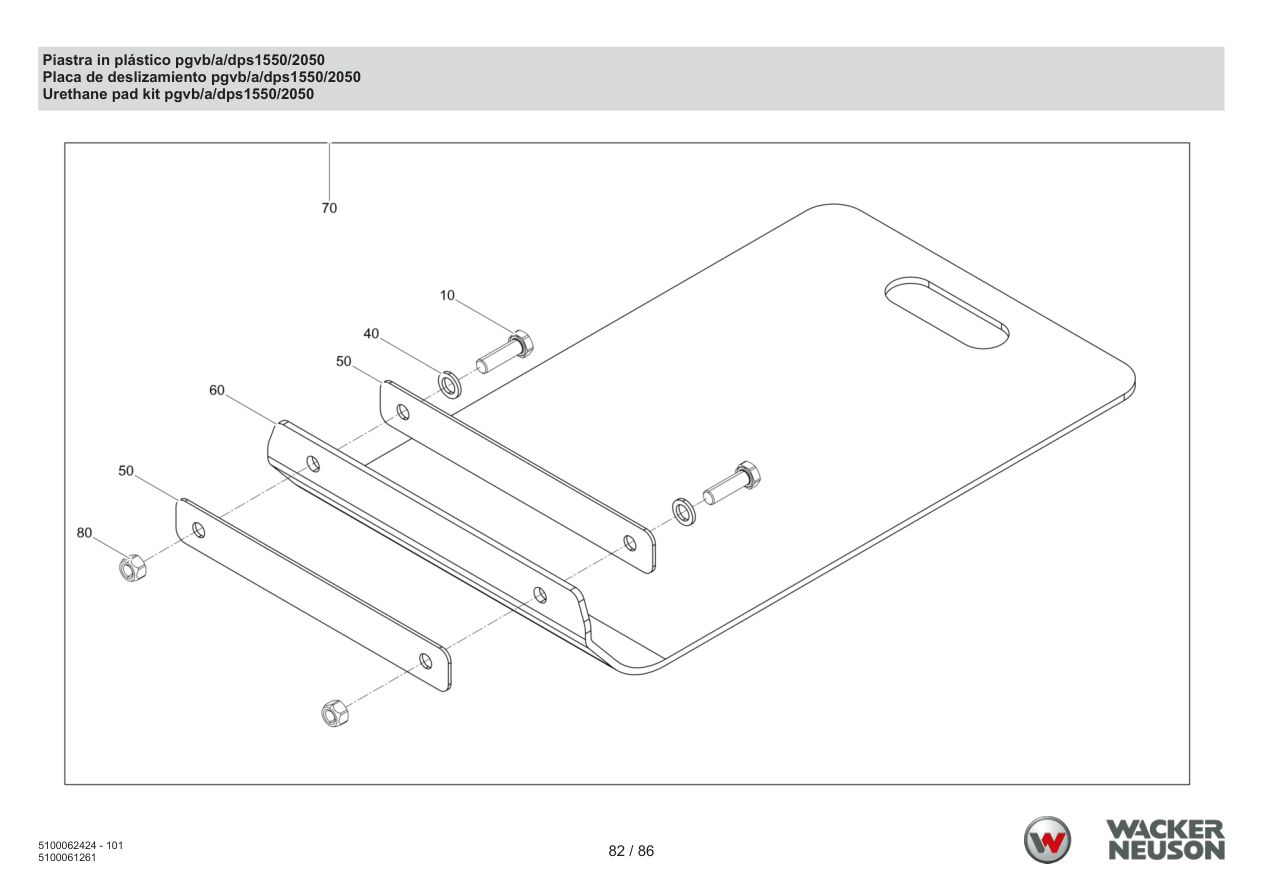

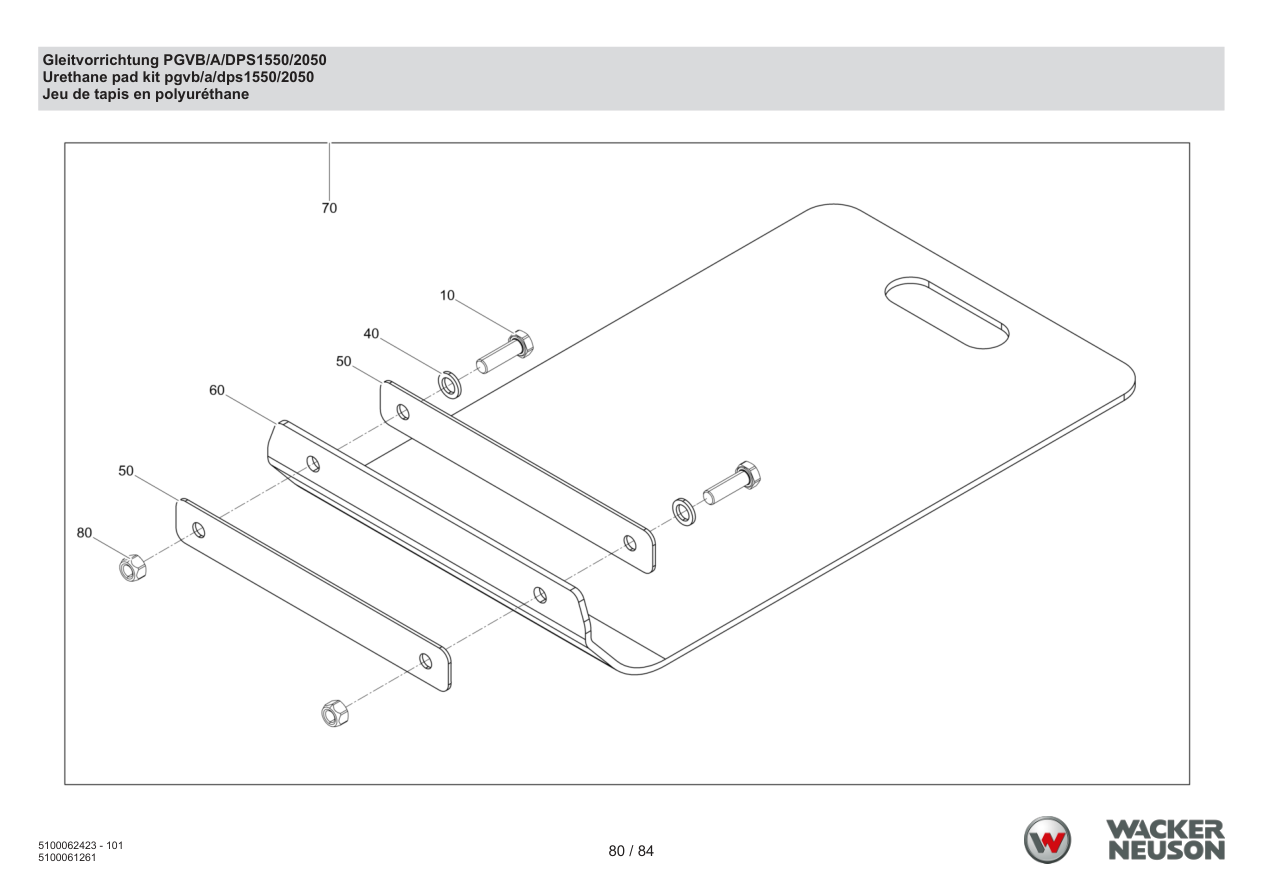

Page 80 — Slip-form device PGVB/A/DPS1550/2050
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000011421 | Hexagonal head cap screw | 2 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5000011421 · qty on machine: 2 | |||||
| 40 | 5000010665 | Washer | 2 | ADD TO CART | |
| 50 | 5100054241 | Bar | 2 | ADD TO CART | |
| 60 | 5100054247 | Urethane plate 50cm | 1 | ADD TO CART | |
| 70 | 5100060428 | Urethane pad kit pgv | 1 | PARTS REQUEST | |
|
COMING Urethane pad kit pgv
5100060428 · qty on machine: 1 | |||||
| 80 | 5000015061 | Hexagon nut | 2 | ADD TO CART | |
Page 3 — Fuel filter (Option) SP
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 1000386655 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000386655 · qty on machine: 1 | |||||
| 2 | 1000389249 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
1000389249 · qty on machine: 1 | |||||
| 3 | 1000389229 | Screw joint | 2 | PARTS REQUEST | |
|
COMING Screw joint
1000389229 · qty on machine: 2 | |||||
| 4 | 1000386656 | Filter insert | 1 | PARTS REQUEST | |
|
COMING Filter insert
1000386656 · qty on machine: 1 | |||||
| 5 | 1000433955 | Filter housing | 1 | PARTS REQUEST | |
|
COMING Filter housing
1000433955 · qty on machine: 1 | |||||
| 6 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 7 | 1000389241 | Hose clamp | 4 | PARTS REQUEST | |
|
COMING Hose clamp
1000389241 · qty on machine: 4 | |||||
| 8 | 1000389247 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389247 · qty on machine: 1 | |||||
| 9 | 1000434006 | Pressure limit reliefvalve | 1 | PARTS REQUEST | |
|
COMING Pressure limit reliefvalve
1000434006 · qty on machine: 1 | |||||
| 10 | 1000389230 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389230 · qty on machine: 1 | |||||
| 11 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 12 | 1000088388 | Screw | 3 | PARTS REQUEST | |
|
COMING Screw
1000088388 · qty on machine: 3 | |||||
| 13 | 1000433952 | Arm | 1 | PARTS REQUEST | |
|
COMING Arm
1000433952 · qty on machine: 1 | |||||
| 14 | 1000328508 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
1000328508 · qty on machine: 1 | |||||
| 15 | 1000433949 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433949 · qty on machine: 1 | |||||
| 16 | 1000433950 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433950 · qty on machine: 1 | |||||
| 17 | 1000389262 | Fuel pump | 1 | PARTS REQUEST | |
|
COMING Fuel pump
1000389262 · qty on machine: 1 | |||||
Page 14 — Handle guide
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5100065078 | Guiding frame cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 30 | 5000011420 | Hexagonal head cap screw | 2 | ADD TO CART | |
| 40 | 5100068166 | Bush | 2 | ADD TO CART | |
Page 16 — Upper part base
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100068052 | Corrugated-head screw | 4 | ADD TO CART | |
| 20 | 5100065598 | Upper mass | 1 | PARTS REQUEST | |
|
COMING Upper mass
5100065598 · qty on machine: 1 | |||||
| 30 | 5000011540 | Cheese head screw | 2 | ADD TO CART | |
| 40 | 5100045331 | Shockmount | 2 | ADD TO CART | |

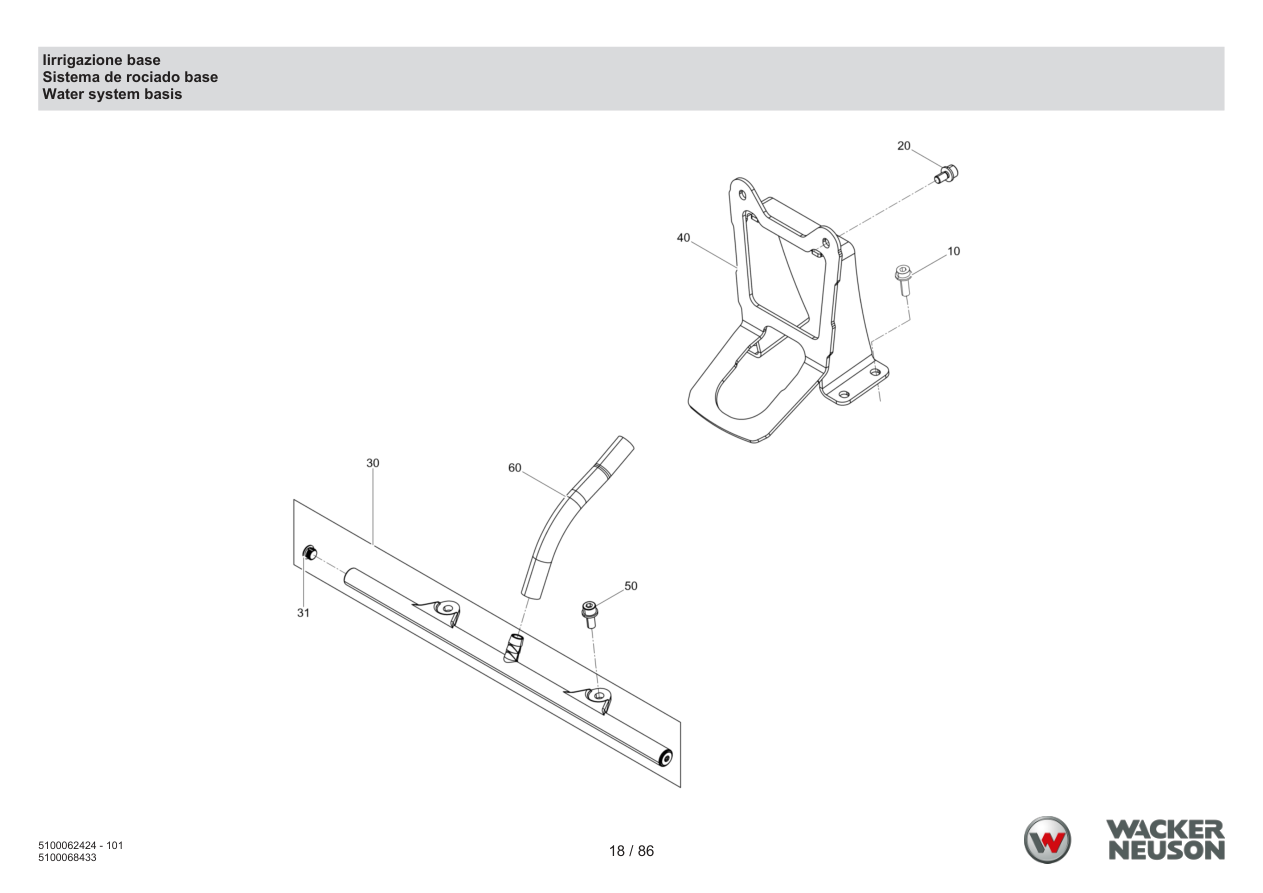

Page 18 — Irrigation base
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000129420 | Socket head cap screw | 4 | ADD TO CART | |
| 20 | 5100042618 | Cheese head screw | 2 | ADD TO CART | |
| 30 | 5100066534 | Sprinkling bar cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 31 | 5100041150 | Locking plug | 2 | ADD TO CART | |
| 40 | 5100065607 | Tank holder | 1 | ADD TO CART | |
| 50 | 5100059594 | Cheese head screw | 2 | ADD TO CART | |
| 60 | 5100067458 | Hose 200 mm | 1 | ADD TO CART | |

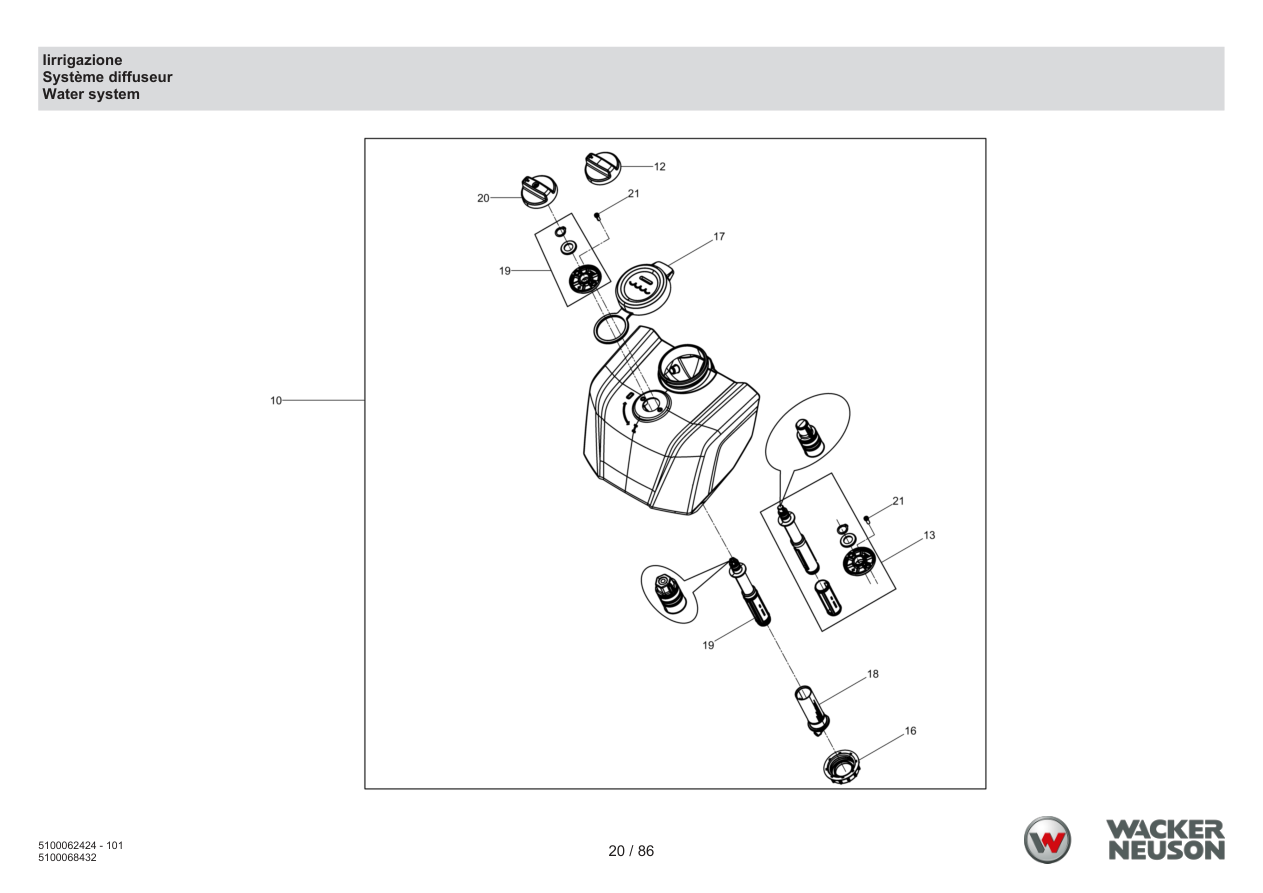

Page 20 — Irrigation
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100064647 | Watertank cpl. big | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 12 | 5100072172 | Turning handle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Turning handle cpl.
5100072172 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 13 | 5100072171 | Control rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Control rod cpl.
5100072171 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 16 | 5100053603 | Cap screw | 1 | ADD TO CART | |
| 17 | 5100051982 | Water tank cap | 1 | ADD TO CART | |
| 18 | 5100072173 | Filter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 19 | 5100079293 | Control rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 20 | 5100079294 | Turning handle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 21 | 5000069425 | Cheese head screw | 2 | PARTS REQUEST | |
|
COMING Cheese head screw
5000069425 · qty on machine: 2 | |||||
Page 22 — Lower part
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100064995 | Baseplate | 1 | ADD TO CART | |

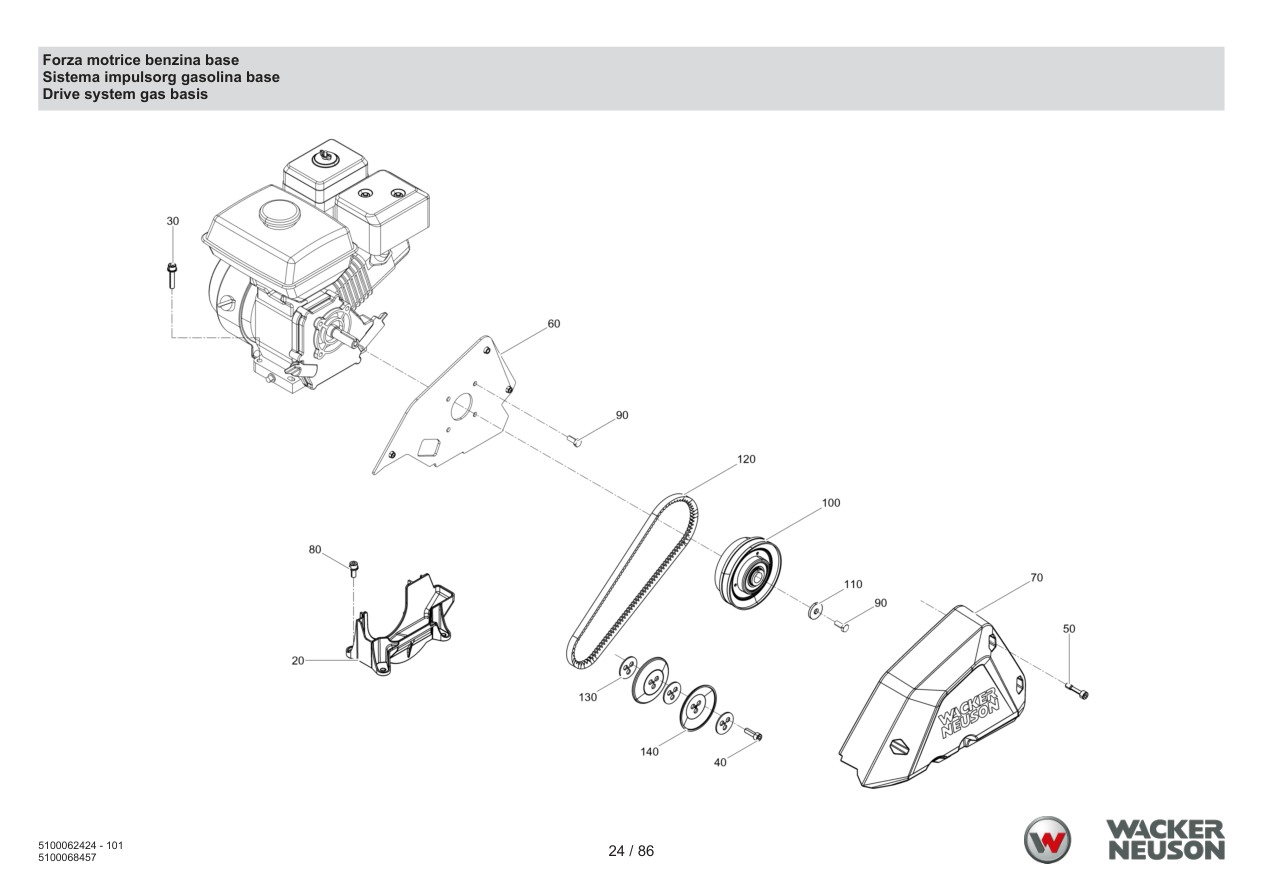

Page 24 — Gasoline drive unit base
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5100018341 | Belt guard below | 1 | ADD TO CART | |
| 30 | 5100042618 | Cheese head screw | 4 | ADD TO CART | |
| 40 | 5100029787 | Cheese head screw | 3 | ADD TO CART | |
| 50 | 5000216658 | Screw | 3 | ADD TO CART | |
| 60 | 5100065610 | Guard plate cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Guard plate cpl.
5100065610 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 70 | 5100065612 | Belt guard | 1 | ADD TO CART | |
| 80 | 5100036848 | Cheese head screw | 4 | ADD TO CART | |
| 90 | 5000026169 | Hexagonal head cap screw | 5 | ADD TO CART | |
| 100 | 5100054097 | Centrifugal clutch | 1 | ADD TO CART | |
| 110 | 5100016321 | Washer | 1 | ADD TO CART | |
| 120 | 5100065636 | V-belt | 1 | ADD TO CART | |
| 130 | 5100064172 | Plate | 3 | ADD TO CART | |
| 140 | 5100064173 | V-belt pulley half | 2 | ADD TO CART | |
Page 26 — Honda GX160 Cyclone Engine
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100084500 | Gas engine gx160-ut2x | 1 | PARTS REQUEST | |
|
COMING Gas engine gx160-ut2x
5100084500 · qty on machine: 1 | |||||
Page 28 — Soft rubber buffer
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100059959 | Shockmount | 4 | ADD TO CART | |
Page 30 — Hard rubber buffer
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000037378 | Shockmount | 4 | ADD TO CART | |
Page 32 — Protective Frame
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5100064915 | Protective frame | 1 | ADD TO CART | |
| 30 | 5100068052 | Corrugated-head screw | 4 | ADD TO CART | |
Page 34 — Exciter cpl. 15kn mech.
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100059593 | Cheese head screw | 8 | ADD TO CART | |
| 2 | 5000105139 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 3 | 5100062507 | Bearing seat | 2 | ADD TO CART | |
| 4 | 5100063187 | Hexagonal head cap screw | 4 | ADD TO CART | |
| 5 | 5100063189 | Exciter housing | 1 | ADD TO CART | |
| 6 | 5100062382 | Eccentric shaft | 1 | ADD TO CART | |
| 7 | 5100054628 | Bearing cover right | 1 | ADD TO CART | |
| 8 | 5100054629 | Bearing cover left | 1 | ADD TO CART | |
| 9 | 5100063663 | Seal washer | 2 | ADD TO CART | |
| 10 | 5100068062 | Label | 1 | ADD TO CART | |
| 12 | 5100029787 | Cheese head screw | 3 | ADD TO CART | |
| 13 | 5100064172 | Plate | 3 | ADD TO CART | |
| 14 | 5100064173 | V-belt pulley half | 2 | ADD TO CART | |
| 15 | 5100085624 | Exciter cpl. 15kn | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Exciter cpl. 15kn
5100085624 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
Page 36 — Sticker wp1550
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100016454 | Type label | 1 | ADD TO CART | |
Page 38 — Gasoline sticker
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 50 | 5100062529 | Label | 1 | ADD TO CART | |
| 60 | 5100062532 | Label | 1 | ADD TO CART | |
Page 40 — Adhesive label 108db
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100068609 | Label | 1 | ADD TO CART | |
Page 42 — Label symbol red
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100058733 | Label symbol | 1 | ADD TO CART | |
Page 44 — Maintenance kit
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 7 | 5000070942 | Gasket | 1 | ADD TO CART | |
| 1 | 5100065636 | V-belt | 1 | ADD TO CART | |
| 2 | 5000081781 | Rope | 1 | ADD TO CART | |
| 3 | 5100039024 | Air filter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5100000395 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
5100000395 · qty on machine: 1 | |||||
| 5 | 5000071082 | O-ring | 1 | ADD TO CART | |
| 6 | 5000207671 | Spark plug | 1 | ADD TO CART | |
| 8 | 5100071484 | Maintenance kit | 1 | ADD TO CART | |
Page 46 — Recoil start
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100005307 | Housing cpl. (black) | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Housing cpl. (black)
5100005307 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5100036077 | Starter pulley | 1 | PARTS REQUEST | |
|
COMING Starter pulley
5100036077 · qty on machine: 1 | |||||
| 5 | 5000160748 | Friction plate | 1 | ADD TO CART | |
| 7 | 5000160747 | Friction spring | 1 | ADD TO CART | |
| 8 | 5000081777 | Spring | 1 | ADD TO CART | |
| 11 | 5000081781 | Rope | 1 | ADD TO CART | |
| 12 | 5000207991 | Screw | 1 | ADD TO CART | |
| 13 | 5000081750 | Screw | 3 | ADD TO CART | |
| 15 | 5100005413 | Starter handle | 1 | PARTS REQUEST | |
|
COMING Starter handle
5100005413 · qty on machine: 1 | |||||
| 16 | 5100005310 | Covering | 1 | PARTS REQUEST | |
|
COMING Covering
5100005310 · qty on machine: 1 | |||||
| 17 | 5100036078 | Ratchet | 2 | ADD TO CART | |
| 18 | 5100036079 | Guide | 1 | ADD TO CART | |
| 19 | 5100036230 | Return spring | 2 | ADD TO CART | |
| 20 | 5100049536 | Rewind starter | 1 | PARTS REQUEST | |
|
COMING Rewind starter
5100049536 · qty on machine: 1 | |||||
Page 48 — Fan cover
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005311 | Fan hood cpl. (black) | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5100005312 | Covering | 1 | PARTS REQUEST | |
|
COMING Covering
5100005312 · qty on machine: 1 | |||||
| 8 | 5100047598 | Air ducting | 1 | ADD TO CART | |
| 10 | 5100084953 | Oil level switch | 1 | PARTS REQUEST | |
|
COMING Oil level switch
5100084953 · qty on machine: 1 | |||||
| 12 | 5100047599 | Engine stop device cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 12 | 5100051235 | Actuator | 1 | PARTS REQUEST | |
|
COMING Actuator
5100051235 · qty on machine: 1 | |||||
| 15 | 5000053990 | Screw | 6 | ADD TO CART | |
| 16 | 5000071055 | Screw | 1 | ADD TO CART | |
| 17 | 5000153138 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
5000153138 · qty on machine: 1 | |||||
| 18 | 5000081750 | Screw | 1 | ADD TO CART | |
Page 50 — Carburetor
Parts list — exactly as printed30 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 13 | 5000082009 | Gasket | 1 | ADD TO CART | |
| 1 | 5000072781 | Set-gaskets | 1 | ADD TO CART | |
| 2 | 5000071022 | Set-float valve | 1 | ADD TO CART | |
| 3 | 5000209764 | Set-carburetor float | 1 | ADD TO CART | |
| 4 | 5100005314 | Float housing | 1 | PARTS REQUEST | |
|
COMING Float housing
5100005314 · qty on machine: 1 | |||||
| 5 | 5000158522 | Threaded pin | 1 | ADD TO CART | |
| 6 | 5200000430 | Screw w/washer | 1 | ADD TO CART | |
| 7 | 5200000431 | Screw w/washer | 1 | ADD TO CART | |
| 8 | 5000071025 | Set-engine choke | 1 | ADD TO CART | |
| 9 | 5100081213 | Carburetor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Carburetor cpl.
5100081213 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 10 | 5000071018 | Throttle stop screw | 1 | ADD TO CART | |
| 11 | 5100081214 | Main jet | 1 | PARTS REQUEST | |
|
COMING Main jet
5100081214 · qty on machine: 1 | |||||
| 12 | 5100050459 | Insulator | 1 | ADD TO CART | |
| 14 | 5000071015 | Spacer | 1 | ADD TO CART | |
| 15 | 5000081762 | Gasket | 1 | ADD TO CART | |
| 16 | 5100051236 | Lever cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 17 | 5000150266 | Fuel valve lever | 1 | ADD TO CART | |
| 18 | 5000073269 | Plate | 1 | ADD TO CART | |
| 19 | 5000073270 | Spring washer | 1 | ADD TO CART | |
| 20 | 5000073272 | Gasket | 1 | ADD TO CART | |
| 21 | 5100005317 | Screw | 2 | PARTS REQUEST | |
|
COMING Screw
5100005317 · qty on machine: 2 | |||||
| 22 | 5000071014 | Pin | 1 | ADD TO CART | |
| 23 | 5000151042 | Main jet | 1 | ADD TO CART | |
| 23 | 5000151698 | Main jet | 1 | ADD TO CART | |
| 23 | 5100005417 | Main jet | 1 | PARTS REQUEST | |
|
COMING Main jet
5100005417 · qty on machine: 1 | |||||
| 24 | 5000081997 | Set-pilot jet | 1 | ADD TO CART | |
| 25 | 5100036241 | Disc | 1 | ADD TO CART | |
| 26 | 5000071024 | Gasket | 1 | ADD TO CART | |
| 27 | 5100000396 | Filter | 1 | ADD TO CART | |
| 28 | 5000071023 | Fuel filter | 1 | ADD TO CART | |
Page 52 — Air Filter
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 12 | 5000071056 | Nut | 2 | ADD TO CART | |
| 1 | 5100051237 | Seal | 1 | PARTS REQUEST | |
|
COMING Seal
5100051237 · qty on machine: 1 | |||||
| 2 | 5100039024 | Air filter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 3 | 5100039025 | Air filter external | 1 | ADD TO CART | |
| 4 | 5100081215 | Cover cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Cover cpl.
5100081215 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 5 | 5000072343 | Grommet | 1 | ADD TO CART | |
| 6 | 5100039027 | Gasket | 1 | ADD TO CART | |
| 7 | 5000081746 | Sleeve | 2 | ADD TO CART | |
| 8 | 5000126941 | Sleeve | 1 | ADD TO CART | |
| 9 | 5100039028 | Filter bracket cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 10 | 5100031333 | Wing nut | 1 | ADD TO CART | |
| 11 | 5000071621 | Wing nut | 1 | ADD TO CART | |
| 13 | 5100003499 | Flange screw | 1 | PARTS REQUEST | |
|
COMING Flange screw
5100003499 · qty on machine: 1 | |||||
Page 54 — Muffler
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 43 | 5000150916 | Screw | 2 | ADD TO CART | |
| 3 | 5100005320 | Protection cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 7 | 5100005321 | Spark arrester | 1 | ADD TO CART | |
| 9 | 5000216516 | Gasket | 1 | ADD TO CART | |
| 13 | 5000072773 | Screw | 1 | ADD TO CART | |
| 14 | 5000071070 | Screw | 4 | ADD TO CART | |
| 15 | 5000217463 | Screw | 1 | ADD TO CART | |
| 19 | 5000071076 | Nut | 2 | ADD TO CART | |
| 21 | 5100005322 | Muffler cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 41 | 5000107072 | Exhaustdeflector | 1 | ADD TO CART | |
Page 56 — Fuel tank
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000081764 | Protective hose | 1 | ADD TO CART | |
| 2 | 5100000395 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
5100000395 · qty on machine: 1 | |||||
| 5 | 5000209770 | Gasket | 1 | ADD TO CART | |
| 7 | 5000209771 | Flange bolt | 1 | ADD TO CART | |
| 8 | 1000133535 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
1000133535 · qty on machine: 1 | |||||
| 9 | 5000071056 | Nut | 2 | ADD TO CART | |
| 10 | 5100084954 | Fuel hose | 1 | PARTS REQUEST | |
|
COMING Fuel hose
5100084954 · qty on machine: 1 | |||||
| 12 | 5000208617 | Clamp | 2 | ADD TO CART | |
| 13 | 5100081176 | Tank cover cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Tank cover cpl.
5100081176 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 15 | 5100005323 | Fuel tank cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Fuel tank cpl.
5100005323 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
Page 58 — Flywheel
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100056809 | Woodruff key | 1 | ADD TO CART | |
| 2 | 5000071652 | Fan | 1 | ADD TO CART | |
| 5 | 5100084955 | Fly wheel cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Fly wheel cpl.
5100084955 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 9 | 5000162686 | Nut | 1 | ADD TO CART | |
| 10 | 5100048123 | Starter v-belt pulley | 1 | ADD TO CART | |
Page 60 — Cylinder Head
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5200006480 | Cylinder head | 1 | ADD TO CART | |
| 5 | 5100005329 | Cylinder head gasket | 1 | PARTS REQUEST | |
|
COMING Cylinder head gasket
5100005329 · qty on machine: 1 | |||||
| 6 | 5100084956 | Cover cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Cover cpl.
5100084956 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 7 | 5100080975 | Cylinder head gasket | 1 | PARTS REQUEST | |
|
COMING Cylinder head gasket
5100080975 · qty on machine: 1 | |||||
| 8 | 5000217757 | Breather tube | 1 | ADD TO CART | |
| 10 | 5000053990 | Screw | 4 | ADD TO CART | |
| 11 | 5100051311 | Stud | 2 | PARTS REQUEST | |
|
COMING Stud
5100051311 · qty on machine: 2 | |||||
| 12 | 5100051312 | Threaded pin | 2 | PARTS REQUEST | |
|
COMING Threaded pin
5100051312 · qty on machine: 2 | |||||
| 13 | 5000070950 | Dowel pin | 2 | ADD TO CART | |
| 14 | 5000213398 | Flange screw | 4 | ADD TO CART | |
| 15 | 5000207671 | Spark plug | 1 | ADD TO CART | |
| 16 | 5000217758 | Clip | 2 | ADD TO CART | |
Page 62 — Ignition coil
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 12 | 5000081737 | Screw | 2 | ADD TO CART | |
| 14 | 5100003455 | Ignition coil cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Ignition coil cpl.
5100003455 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 15 | 5000162680 | Spark plug terminal cap | 1 | ADD TO CART | |
| 16 | 5100031335 | Cable | 1 | ADD TO CART | |
Page 64 — Regulator
Parts list — exactly as printed24 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 12 | 5000071058 | Spring | 1 | ADD TO CART | |
| 13 | 5000071057 | Washer | 1 | ADD TO CART | |
| 3 | 5100039031 | Governor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 5 | 5100005425 | Governor lever | 1 | PARTS REQUEST | |
|
COMING Governor lever
5100005425 · qty on machine: 1 | |||||
| 7 | 5100084957 | Governor rod | 1 | PARTS REQUEST | |
|
COMING Governor rod
5100084957 · qty on machine: 1 | |||||
| 8 | 5100005426 | Spring | 1 | ADD TO CART | |
| 9 | 5000071664 | Spring | 1 | ADD TO CART | |
| 11 | 5100005429 | Governor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Governor cpl.
5100005429 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 14 | 5000071062 | Cable holder | 1 | ADD TO CART | |
| 15 | 5000071064 | Spacer | 1 | ADD TO CART | |
| 16 | 5100051871 | Regulating plate | 1 | PARTS REQUEST | |
|
COMING Regulating plate
5100051871 · qty on machine: 1 | |||||
| 17 | 5000054088 | Adjusting spring | 1 | ADD TO CART | |
| 18 | 5000071667 | Spring | 1 | ADD TO CART | |
| 19 | 5000151819 | Clamping piece | 1 | ADD TO CART | |
| 21 | 5000053990 | Screw | 2 | ADD TO CART | |
| 22 | 5200000457 | Bolt | 1 | ADD TO CART | |
| 24 | 5000072782 | Locknut | 1 | ADD TO CART | |
| 24 | 5100084958 | Locknut | 1 | PARTS REQUEST | |
|
COMING Locknut
5100084958 · qty on machine: 1 | |||||
| 25 | 5000151823 | Lock washer | 1 | ADD TO CART | |
| 25 | 5100084959 | Retaining ring | 1 | PARTS REQUEST | |
|
COMING Retaining ring
5100084959 · qty on machine: 1 | |||||
| 26 | 5000151824 | Screw | 1 | ADD TO CART | |
| 27 | 5000110112 | Screw | 1 | ADD TO CART | |
| 28 | 5000081990 | Screw | 1 | ADD TO CART | |
| 30 | 5000071056 | Nut | 1 | ADD TO CART | |
Page 66 — Cylinder crankcase
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100005429 | Governor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Governor cpl.
5100005429 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 4 | 5100005430 | Weight | 2 | PARTS REQUEST | |
|
COMING Weight
5100005430 · qty on machine: 2 | |||||
| 5 | 5100005431 | Bracket | 1 | PARTS REQUEST | |
|
COMING Bracket
5100005431 · qty on machine: 1 | |||||
| 6 | 5000156689 | Pin | 2 | ADD TO CART | |
| 7 | 5000406670 | Slider | 1 | PARTS REQUEST | |
|
COMING Slider
5000406670 · qty on machine: 1 | |||||
| 8 | 5100005433 | Governor | 1 | PARTS REQUEST | |
|
COMING Governor
5100005433 · qty on machine: 1 | |||||
| 9 | 5000070964 | Plug (threaded) | 2 | ADD TO CART | |
| 11 | 5000070963 | Washer | 2 | ADD TO CART | |
| 12 | 5000081615 | Retaining ring | 1 | ADD TO CART | |
| 14 | 5000053983 | Shaft seal | 1 | ADD TO CART | |
| 14 | 5100036262 | Ring | 1 | PARTS REQUEST | |
|
COMING Ring
5100036262 · qty on machine: 1 | |||||
| 14 | 5100039035 | Ring seal | 1 | ADD TO CART | |
| 15 | 1000133535 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
1000133535 · qty on machine: 1 | |||||
| 16 | 5000072332 | Flange nut | 1 | PARTS REQUEST | |
|
COMING Flange nut
5000072332 · qty on machine: 1 | |||||
| 18 | 5000054033 | Pin | 1 | ADD TO CART | |
| 19 | 5000072333 | Screw | 2 | ADD TO CART | |
| 21 | 5100056844 | Oil switch cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 22 | 5000071639 | Washer | 1 | ADD TO CART | |
| 23 | 5100050559 | Motor housing cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
Page 68 — Base cover
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100005434 | Crankcase cover cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Crankcase cover cpl.
5100005434 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5100003341 | Seal | 1 | PARTS REQUEST | |
|
COMING Seal
5100003341 · qty on machine: 1 | |||||
| 4 | 1000283320 | Filler pipe | 1 | PARTS REQUEST | |
|
COMING Filler pipe
1000283320 · qty on machine: 1 | |||||
| 5 | 5000162646 | Oil filler cap | 1 | ADD TO CART | |
| 7 | 5000053983 | Shaft seal | 1 | ADD TO CART | |
| 8 | 5000053995 | Dowel pin | 2 | ADD TO CART | |
| 9 | 5000071630 | Screw | 6 | ADD TO CART | |
| 10 | 5100003510 | Grooved ball bearing | 1 | PARTS REQUEST | |
|
COMING Grooved ball bearing
5100003510 · qty on machine: 1 | |||||
| 11 | 5000162647 | Gasket | 1 | ADD TO CART | |
Page 70 — Crankshaft
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 4 | 5100051315 | Crankshaft cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Crankshaft cpl.
5100051315 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 14 | 5000070999 | Fitting key | 1 | ADD TO CART | |
| 15 | 5000217529 | Ball bearing | 1 | PARTS REQUEST | |
|
COMING Ball bearing
5000217529 · qty on machine: 1 | |||||
| 15 | 5100003485 | Grooved ball bearing | 1 | PARTS REQUEST | |
|
COMING Grooved ball bearing
5100003485 · qty on machine: 1 | |||||
| 15 | 5100051316 | Ball bearing | 1 | PARTS REQUEST | |
|
COMING Ball bearing
5100051316 · qty on machine: 1 | |||||
Page 72 — Piston
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005435 | Set of piston rings | 1 | PARTS REQUEST | |
|
COMING Set of piston rings
5100005435 · qty on machine: 1 | |||||
| 2 | 5100051317 | Piston | 1 | PARTS REQUEST | |
|
COMING Piston
5100051317 · qty on machine: 1 | |||||
| 3 | 5100084961 | Piston pin | 1 | PARTS REQUEST | |
|
COMING Piston pin
5100084961 · qty on machine: 1 | |||||
| 4 | 5200006505 | Connecting rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 5 | 5100005438 | Screw | 2 | PARTS REQUEST | |
|
COMING Screw
5100005438 · qty on machine: 2 | |||||
| 6 | 5000081994 | Retaining ring | 2 | ADD TO CART | |
Page 74 — Camshaft
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005349 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5100005349 · qty on machine: 1 | |||||
| 2 | 5000406682 | Camshaft | 1 | PARTS REQUEST | |
|
COMING Camshaft
5000406682 · qty on machine: 1 | |||||
| 3 | 5100005440 | Push rod | 2 | PARTS REQUEST | |
|
COMING Push rod
5100005440 · qty on machine: 2 | |||||
| 4 | 5100051320 | Rocker arm | 2 | PARTS REQUEST | |
|
COMING Rocker arm
5100051320 · qty on machine: 2 | |||||
| 5 | 5000070990 | Valve tappet | 2 | ADD TO CART | |
| 6 | 5000070985 | Rocker arm pivot | 2 | ADD TO CART | |
| 7 | 5000151028 | Spring | 1 | ADD TO CART | |
| 8 | 5100005441 | Intake valve | 1 | PARTS REQUEST | |
|
COMING Intake valve
5100005441 · qty on machine: 1 | |||||
| 9 | 5100005442 | Outlet valve | 1 | PARTS REQUEST | |
|
COMING Outlet valve
5100005442 · qty on machine: 1 | |||||
| 10 | 5000081760 | Spring | 2 | ADD TO CART | |
| 11 | 5100031339 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100031339 · qty on machine: 1 | |||||
| 12 | 5100031339 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100031339 · qty on machine: 1 | |||||
| 14 | 5200006517 | Plate | 1 | ADD TO CART | |
| 15 | 5000072778 | Stud | 2 | ADD TO CART | |
| 16 | 5000070984 | Locknut | 2 | ADD TO CART | |
Page 76 — Adhesive label
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 14 | 5100039033 | Label | 1 | ADD TO CART | |
| 19 | 5100080978 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100080978 · qty on machine: 1 | |||||
| 20 | 5100084960 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100084960 · qty on machine: 1 | |||||
| 22 | 5100005340 | Label | 1 | ADD TO CART | |
| 25 | 5100005339 | Label | 1 | ADD TO CART | |
| 3 | 5100005352 | Label gx160 | 1 | PARTS REQUEST | |
|
COMING Label gx160
5100005352 · qty on machine: 1 | |||||
| 4 | 5100005336 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100005336 · qty on machine: 1 | |||||
| 5 | 5000208623 | Labels | 1 | ADD TO CART | |
| 12 | 5100080976 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100080976 · qty on machine: 1 | |||||
| 13 | 5100005337 | Label | 1 | ADD TO CART | |
Page 78 — Undercarriage
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 11 | 5000010368 | Hexagon nut | 4 | PARTS REQUEST | |
|
COMING Hexagon nut
5000010368 · qty on machine: 4 | |||||
| 12 | 5000103834 | Lock washer | 4 | ADD TO CART | |
| 13 | 5000010616 | Flat washer | 4 | ADD TO CART | |
| 14 | 5000013000 | Cheese head screw | 4 | ADD TO CART | |
| 15 | 5000021466 | Tire | 2 | ADD TO CART | |
| 16 | 5100065646 | Clamp | 2 | ADD TO CART | |
| 17 | 5100068242 | Bracket | 2 | ADD TO CART | |
| 18 | 5100065603 | Trolley | 1 | PARTS REQUEST | |
|
COMING Trolley
5100065603 · qty on machine: 1 | |||||
| 21 | 5000021679 | Hexagon nut | 4 | ADD TO CART | |
| 22 | 5000010373 | Flat washer | 4 | ADD TO CART | |
| 23 | 5000011550 | Cheese head screw | 4 | ADD TO CART | |
| 24 | 5000010624 | Flat washer | 4 | ADD TO CART | |
| 25 | 5100068163 | Limit stop | 2 | PARTS REQUEST | |
|
COMING Limit stop
5100068163 · qty on machine: 2 | |||||
| 26 | 5100060177 | Clamp | 4 | ADD TO CART | |
| 50 | 5100068643 | Wheel kit cpl. wp | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Wheel kit cpl. wp
5100068643 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 51 | 5100077952 | Limit stop | 1 | ADD TO CART | |
| 52 | 5100025236 | Retention bolt | 1 | ADD TO CART | |
| 53 | 5100078359 | Pipe clamp | 1 | ADD TO CART | |
| 54 | 5000011470 | Hexagonal head cap screw | 2 | ADD TO CART | |
| 55 | 5000031167 | Hexagon nut | 2 | ADD TO CART | |
| 56 | 5000021679 | Hexagon nut | 2 | ADD TO CART | |
Page 80 — Water tank accessories
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100042618 | Cheese head screw | 2 | ADD TO CART | |
| 20 | 5100067458 | Hose 200 mm | 1 | ADD TO CART | |
| 30 | 5100059594 | Cheese head screw | 2 | ADD TO CART | |
| 40 | 5000129420 | Socket head cap screw | 4 | ADD TO CART | |
| 50 | 5100065607 | Tank holder | 1 | ADD TO CART | |
| 60 | 5100066534 | Sprinkling bar cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 61 | 5100041150 | Locking plug | 2 | ADD TO CART | |
| 70 | 5100064647 | Watertank cpl. big | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 72 | 5100057643 | Turning handle | 1 | PARTS REQUEST | |
|
COMING Turning handle
5100057643 · qty on machine: 1 | |||||
| 73 | 5100057675 | Control rod | 1 | PARTS REQUEST | |
|
COMING Control rod
5100057675 · qty on machine: 1 | |||||
| 76 | 5100053603 | Cap screw | 1 | ADD TO CART | |
| 77 | 5100051982 | Water tank cap | 1 | ADD TO CART | |
| 78 | 5100051963 | Filter | 1 | PARTS REQUEST | |
|
COMING Filter
5100051963 · qty on machine: 1 | |||||
| 80 | 5100068641 | Watertank wp | 1 | PARTS REQUEST | |
|
COMING Watertank wp
5100068641 · qty on machine: 1 | |||||
| 81 | 5100079293 | Control rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 82 | 5100079294 | Turning handle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 83 | 5000069425 | Cheese head screw | 2 | PARTS REQUEST | |
|
COMING Cheese head screw
5000069425 · qty on machine: 2 | |||||
Page 82 — Sliding plate pgvb/a/dps1550/2050
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000011421 | Hexagonal head cap screw | 2 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5000011421 · qty on machine: 2 | |||||
| 40 | 5000010665 | Washer | 2 | ADD TO CART | |
| 50 | 5100054241 | Bar | 2 | ADD TO CART | |
| 60 | 5100054247 | Urethane plate 50cm | 1 | ADD TO CART | |
| 70 | 5100060428 | Urethane pad kit pgv | 1 | PARTS REQUEST | |
|
COMING Urethane pad kit pgv
5100060428 · qty on machine: 1 | |||||
| 80 | 5000015061 | Hexagon nut | 2 | ADD TO CART | |
The machine itself
Machine
Engine
Wacker Neuson WP1550 vibratory plate.
A: Honda Engine.
Available in 2 configurations.
List price: $3,355.00 – $3,565.00
Keep-it-running spares
All listed parts →Every part that fits this machine
1000088388
Screw
1000133535
O-ring
1000139973
Screw
1000283320
Filler pipe
1000328508
Clamp
1000386655
Fuel filter
1000386656
Filter insert
1000389229
Screw joint
1000389230
Fuel line
1000389241
Hose clamp
1000389247
Fuel line
1000389249
Plug
1000389262
Fuel pump
1000433949
Fuel filter
1000433950
Fuel filter
1000433952
Arm
1000433955
Filter housing
1000434006
Pressure limit reliefvalve
5000010368
Hexagon nut
5000010373
Flat washer
$0.95
5000010616
Flat washer
$0.95
5000010624
Flat washer
$0.95
5000010665
Washer
$0.95
5000011420
Hexagonal head cap screw
$1.95
5000011421
Hexagonal head cap screw
5000011470
Hexagonal head cap screw
$0.95
5000011540
Cheese head screw
$0.95
5000011550
Cheese head screw
$0.95
5000013000
Cheese head screw
$4.95
5000015061
Hexagon nut
$0.95
5000021466
Tire
$13.95
5000021679
Hexagon nut
$0.95
5000026169
Hexagonal head cap screw
$0.95
5000031167
Hexagon nut
$0.95
5000037378
Shockmount
$24.95
5000053983
Shaft seal
$10.95
5000053990
Screw
$2.95
5000053995
Dowel pin
$3.95
5000054033
Pin
$1.95
5000054088
Adjusting spring
$8.95
5000068967
Woodruff key
$8.95
5000069425
Cheese head screw
5000070942
Gasket
$5.95
5000070944
Valve guide
$15.95
5000070945
Valve guide
5000070948
Stud
$7.95
5000070950
Dowel pin
$5.95
5000070963
Washer
$1.95
5000070964
Plug (threaded)
$5.95
5000070984
Locknut
$7.95
5000070985
Rocker arm pivot
$10.95
5000070986
Rocker arm
$12.95
5000070990
Valve tappet
$24.95
5000070999
Fitting key
$25.95
5000071013
Choke control lever
$18.95
5000071014
Pin
$2.95
5000071015
Spacer
$9.95
5000071018
Throttle stop screw
$20.95
5000071022
Set-float valve
$49.95
5000071023
Fuel filter
$24.95
5000071024
Gasket
$7.95
5000071025
Set-engine choke
$62.95
5000071032
Gasket
$5.95
5000071055
Screw
$5.95
5000071056
Nut
$0.95
5000071057
Washer
$9.95
5000071058
Spring
$4.95
5000071062
Cable holder
$8.95
5000071064
Spacer
$9.95
5000071070
Screw
$2.95
5000071075
Spark arrester
$26.95
5000071076
Nut
$1.95
5000071082
O-ring
$3.95
5000071621
Wing nut
$9.95
5000071630
Screw
$1.95
5000071639
Washer
$0.95
5000071652
Fan
$50.95
5000071664
Spring
$4.95
5000071667
Spring
$3.95
5000072332
Flange nut
5000072333
Screw
$2.95
5000072343
Grommet
$9.95
5000072773
Screw
$6.95
5000072778
Stud
$14.95
5000072781
Set-gaskets
$21.95
5000072782
Locknut
$6.95
5000073263
Stud
$11.95
5000073269
Plate
$7.95
5000073270
Spring washer
$4.95
5000073272
Gasket
$4.95
5000081615
Retaining ring
$1.95
5000081737
Screw
$4.95
5000081744
Retaining ring
$1.95
5000081746
Sleeve
$7.95
5000081750
Screw
$7.95
5000081760
Spring
$7.95
5000081762
Gasket
$2.95
5000081764
Protective hose
$8.95
5000081777
Spring
$31.95
5000081781
Rope
$20.95
5000081990
Screw
$1.95
5000081994
Retaining ring
$1.95
5000081997
Set-pilot jet
$39.95
5000082009
Gasket
$3.95
5000084654
Set-pilot jet
$39.95
5000089286
Setscrew
$35.95
5000103834
Lock washer
$0.95
5000105139
Cylindrical roller bearing
$71.95
5000107072
Exhaustdeflector
$19.95
5000110112
Screw
$1.95
5000125839
O-ring
5000126941
Sleeve
$6.95
5000129420
Socket head cap screw
$1.95
5000150266
Fuel valve lever
$17.95
5000150916
Screw
$1.95
5000151028
Spring
$5.95
5000151042
Main jet
$13.95
5000151698
Main jet
$16.95
5000151700
Clamp
$4.95
5000151819
Clamping piece
$15.95
5000151823
Lock washer
$6.95
5000151824
Screw
$1.95
5000153138
Clamp
5000156689
Pin
$2.95
5000158522
Threaded pin
$21.95
5000160747
Friction spring
$6.95
5000160748
Friction plate
$8.95
5000162645
Dipstick assembly
$1.95
5000162646
Oil filler cap
$1.95
5000162647
Gasket
$5.95
5000162680
Spark plug terminal cap
$10.95
5000162686
Nut
$4.95
5000162703
Main jet
$13.95
5000207671
Spark plug
$17.95
5000207991
Screw
$7.95
5000208616
O-ring
5000208617
Clamp
$3.95
5000208623
Labels
$5.95
5000209764
Set-carburetor float
$44.95
5000209770
Gasket
$0.95
5000209771
Flange bolt
$1.95
5000213398
Flange screw
$2.95
5000216513
Oil alert switch cpl.
$129.95
5000216516
Gasket
$5.95
5000216658
Screw
$3.95
5000217462
Key
$7.95
5000217463
Screw
$1.95
5000217529
Ball bearing
5000217531
Set of piston rings
5000217532
Set of piston rings
$147.95
5000217757
Breather tube
$11.95
5000217758
Clip
$1.95
5000406670
Slider
5000406679
Connecting rod cpl.
5000406682
Camshaft
5100000395
Fuel filter
5100000396
Filter
$8.95
5100000437
Warning label
5100000438
Warning label
5100000439
Warning label
5100000451
Screw
5100003341
Seal
5100003455
Ignition coil cpl.
5100003485
Grooved ball bearing
5100003492
Hexagon nut
5100003498
Flange screw
5100003499
Flange screw
5100003504
Flange screw
5100003510
Grooved ball bearing
5100005307
Housing cpl. (black)
5100005309
Starter handle us
$15.95
5100005310
Covering
5100005311
Fan hood cpl. (black)
$55.95
5100005312
Covering
5100005313
Oil sensor
$88.95
5100005314
Float housing
5100005317
Screw
5100005320
Protection cpl.
$204.95
5100005321
Spark arrester
$67.95
5100005322
Muffler cpl.
$399.95
5100005323
Fuel tank cpl.
5100005325
Fuel hose
5100005329
Cylinder head gasket
5100005330
Cylinder head cover cpl.
$69.95
5100005332
Governor rod
5100005333
Governor lever
5100005336
Label
5100005337
Label
$7.95
5100005339
Label
$7.95
5100005340
Label
$7.95
5100005348
Piston pin
5100005349
Gasket
5100005352
Label gx160
5100005354
Fan hood cpl.
$55.95
5100005356
Tank cover cpl.
5100005359
Crankshaft cpl.
$658.95
5100005369
Housing cpl. (red)
$22.95
5100005413
Starter handle
5100005415
Starter flap
5100005416
Isolator
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
