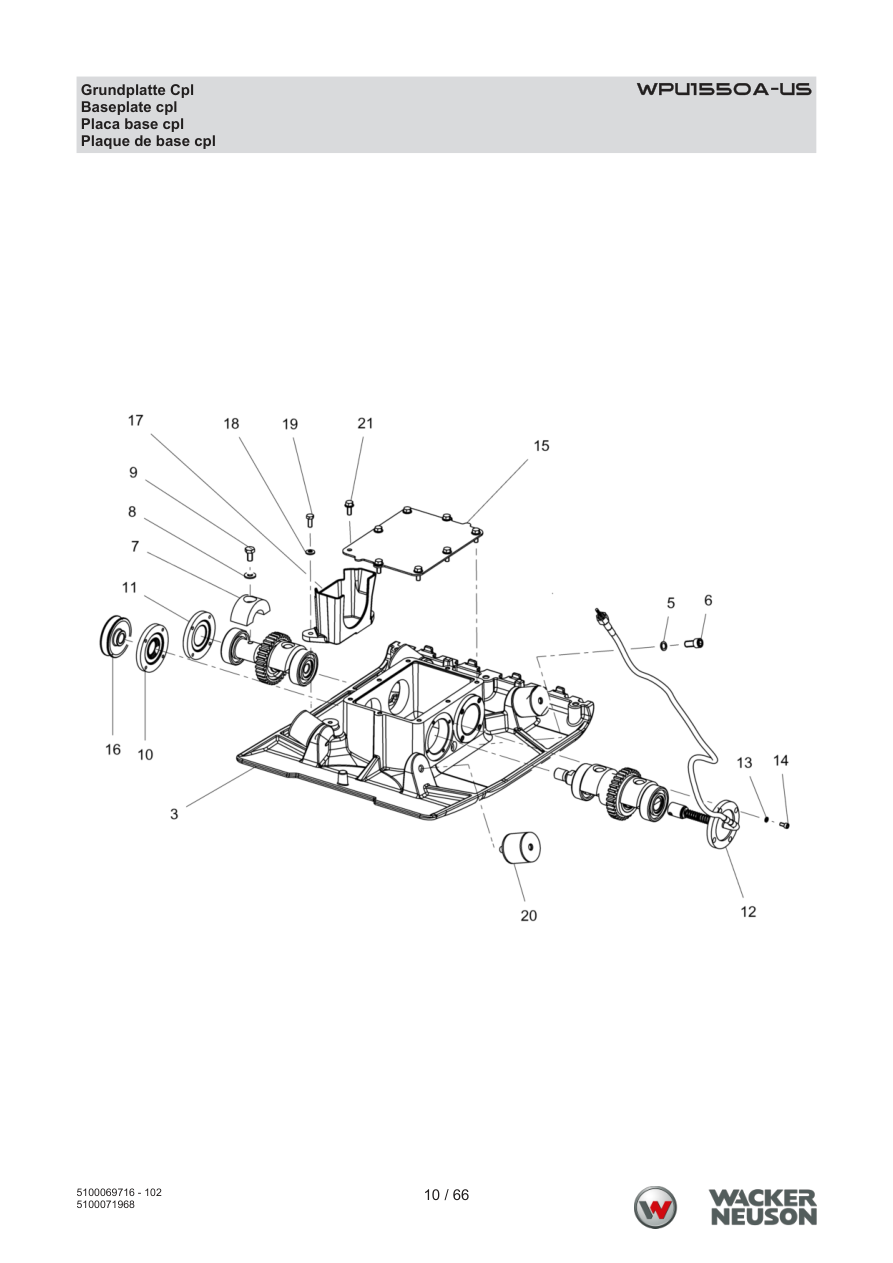

Need the PDF? ↓Page 10 — WPU1550A-US Grundplatte Cpl
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100069544 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100069544 · qty on machine: 1 | |||||
| 5 | 5000013444 | pc | 1 | ADD TO CART | |
| 6 | 5000011530 | pc | 1 | Cheese head screw | PARTS REQUEST |
|
COMING pc
5000011530 · qty on machine: 1 Cheese head screw | |||||
| 7 | 5000130924 | pc | 4 | PARTS REQUEST | |
|
COMING pc
5000130924 · qty on machine: 4 | |||||
| 8 | 5000407043 | pc | 4 | ADD TO CART | |
| 9 | 5000012364 | pc | 4 | Hexagonal head cap screw | ADD TO CART |
| 10 | 5000402363 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000402363 · qty on machine: 1 | |||||
| 11 | 5000130970 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5000130970 · qty on machine: 2 | |||||
| 12 | 5000408561 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000408561 · qty on machine: 1 | |||||
| 13 | 5000401000 | pc | 16 | PARTS REQUEST | |
|
COMING pc
5000401000 · qty on machine: 16 | |||||
| 14 | 5000011554 | pc | 16 | Cheese head screw | ADD TO CART |
| 15 | 5100069557 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100069557 · qty on machine: 1 | |||||
| 16 | 5000403567 | pc | 1 | ADD TO CART | |
| 17 | 5000401678 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000401678 · qty on machine: 1 | |||||
| 18 | 5000033198 | pc | 3 | ADD TO CART | |
| 19 | 5000012362 | pc | 3 | Hexagonal head cap screw | ADD TO CART |
| 20 | 5100058397 | pc | 4 | PARTS REQUEST | |
|
COMING pc
5100058397 · qty on machine: 4 | |||||
| 21 | 5000028404 | pc | 8 | Hexagonal flange head screw | ADD TO CART |

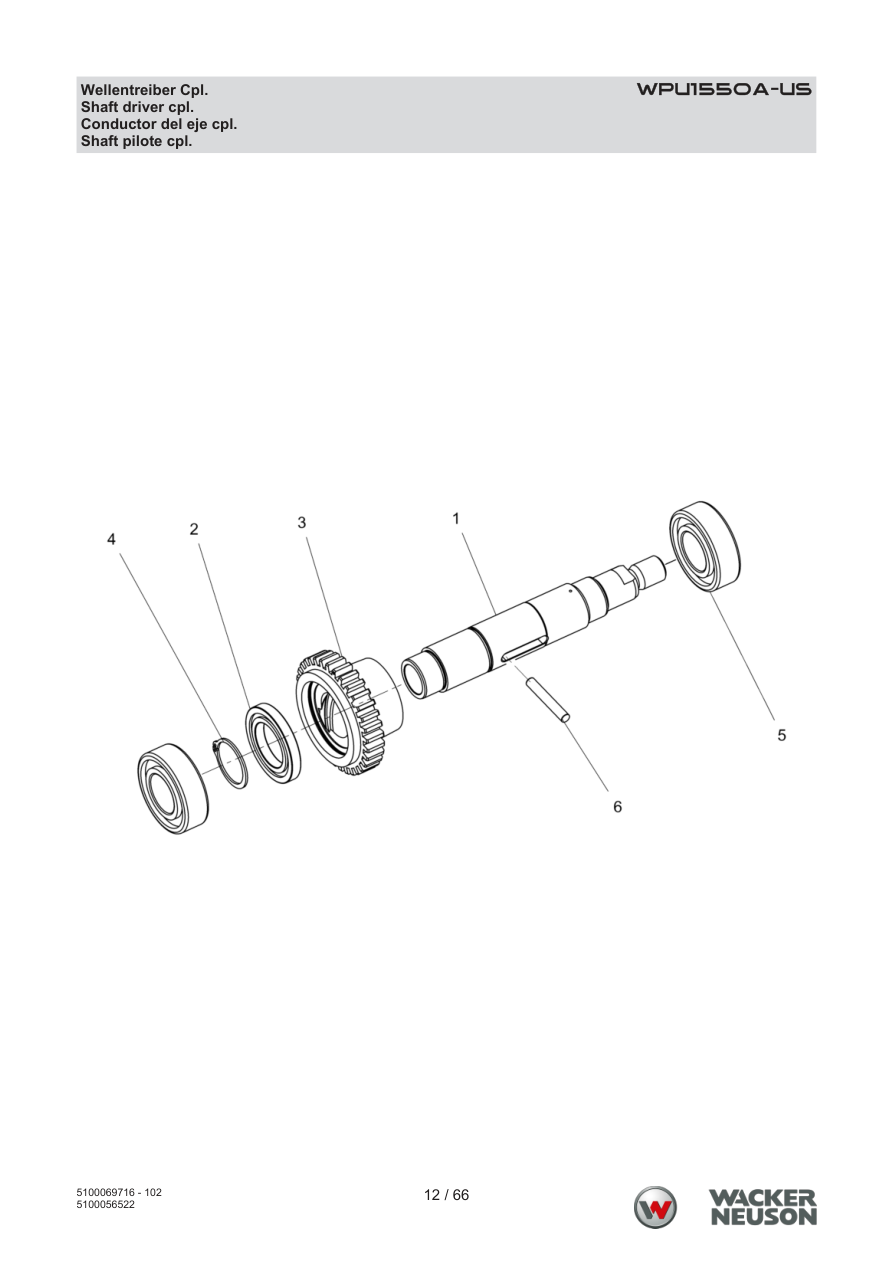

Page 12 — WPU1550A-US Wellentreiber Cpl.
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000400478 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000400478 · qty on machine: 1 | |||||
| 2 | 5100067427 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100067427 · qty on machine: 1 | |||||
| 3 | 5100054313 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100054313 · qty on machine: 1 | |||||
| 4 | 5000400352 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000400352 · qty on machine: 1 | |||||
| 5 | 5100067426 | pc | 2 | Bearing nj2207et n2 | PARTS REQUEST |
|
COMING pc
5100067426 · qty on machine: 2 Bearing nj2207et n2 | |||||
| 6 | 5000400358 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000400358 · qty on machine: 1 | |||||

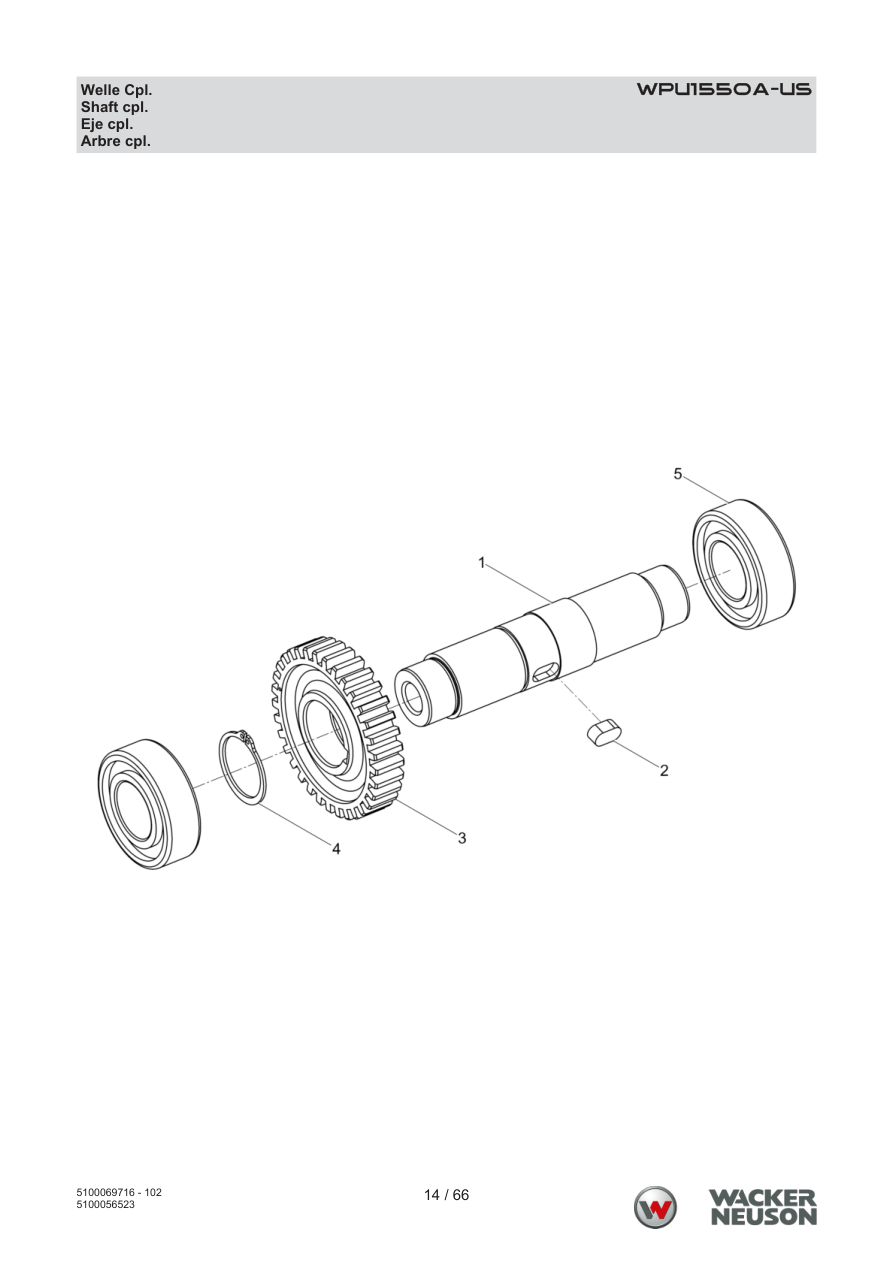

Page 14 — WPU1550A-US Welle Cpl.
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000400870 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000400870 · qty on machine: 1 | |||||
| 2 | 5000400318 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000400318 · qty on machine: 1 | |||||
| 3 | 5100054314 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100054314 · qty on machine: 1 | |||||
| 4 | 5000400352 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000400352 · qty on machine: 1 | |||||
| 5 | 5100067426 | pc | 2 | Bearing nj2207et n2 | PARTS REQUEST |
|
COMING pc
5100067426 · qty on machine: 2 Bearing nj2207et n2 | |||||
Page 16 — WPU1550A-US Konsole Cpl
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100064548 | pc | 1 | Console machined - wpu | PARTS REQUEST |
|
COMING pc
5100064548 · qty on machine: 1 Console machined - wpu | |||||
| 2 | 1000013014 | pc | 2 | Cheese head screw | PARTS REQUEST |
|
COMING pc
1000013014 · qty on machine: 2 Cheese head screw | |||||
| 3 | 5000010929 | pc | 4 | ADD TO CART | |
| 4 | 5000401656 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000401656 · qty on machine: 1 | |||||
| 5 | 5000033198 | pc | 5 | ADD TO CART | |
| 6 | 5000028404 | pc | 2 | Hexagonal flange head screw | ADD TO CART |
| 7 | 5000401890 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000401890 · qty on machine: 1 | |||||
| 8 | 5000011343 | pc | 1 | Hexagonal head cap screw | ADD TO CART |
| 9 | 5100058399 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100058399 · qty on machine: 2 | |||||
| 10 | 5100050606 | pc | 1 | Engine honda gx160uh2 qwx2 | PARTS REQUEST |
|
COMING pc
5100050606 · qty on machine: 1 Engine honda gx160uh2 qwx2 | |||||
| 11 | 5000010367 | pc | 4 | ADD TO CART | |
| 13 | 5000056041 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000056041 · qty on machine: 1 | |||||
| 14 | 5100070021 | pc | 1 | Loncin wire holder | PARTS REQUEST |
|
COMING pc
5100070021 · qty on machine: 1 Loncin wire holder | |||||
| 16 | 5000402178 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000402178 · qty on machine: 1 | |||||
| 17 | 5000110458 | pc | 1 | ADD TO CART | |
| 19 | 5000028949 | pc | 1 | Hexagonal flange head screw | ADD TO CART |
| 20 | 5000401625 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000401625 · qty on machine: 1 | |||||
| 21 | 5000011527 | pc | 4 | Cheese head screw | ADD TO CART |
| 22 | 5000400348 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000400348 · qty on machine: 1 | |||||
| 23 | 5000401855 | pc | 2 | Socket head cap screw | PARTS REQUEST |
|
COMING pc
5000401855 · qty on machine: 2 Socket head cap screw | |||||
| 24 | 5000021679 | pc | 2 | ADD TO CART | |
| 25 | 5000031565 | pc | 4 | ADD TO CART | |
| 26 | 5000013002 | pc | 4 | Hexagonal head cap screw | ADD TO CART |

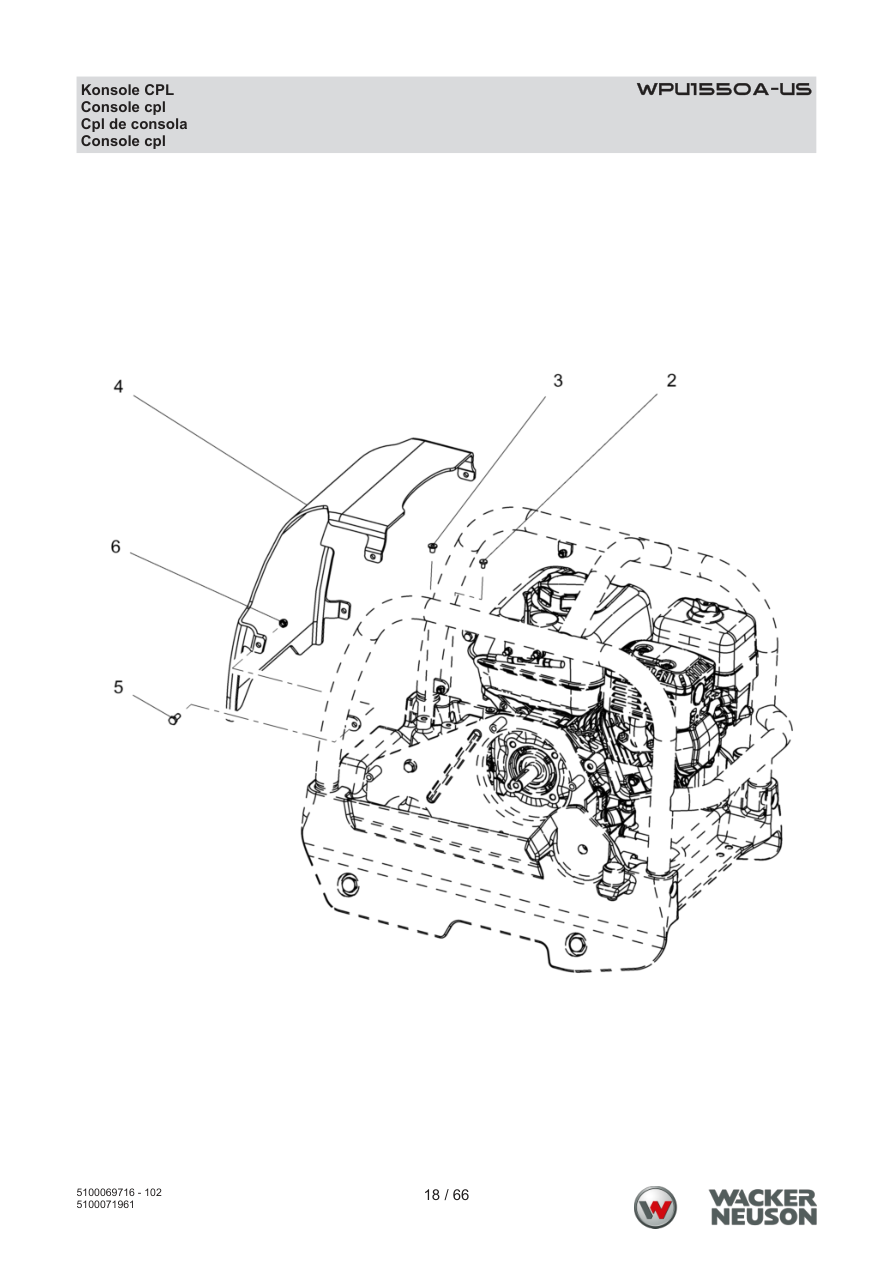

Page 18 — WPU1550A-US Konsole CPL
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000402362 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000402362 · qty on machine: 1 | |||||
| 3 | 5000074985 | pc | 3 | ADD TO CART | |
| 4 | 5100080540 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100080540 · qty on machine: 1 | |||||
| 5 | 5000014663 | pc | 4 | Hexagonal head cap screw | ADD TO CART |
| 6 | 5000021679 | pc | 4 | ADD TO CART | |
Page 20 — WPU1550A-US Laufwerk Cpl.
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100071914 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100071914 · qty on machine: 1 | |||||
| 4 | 5001005118 | pc | 1 | Flat steel washer | ADD TO CART |
| 5 | 5000119214 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000119214 · qty on machine: 1 | |||||
| 6 | 5100073647 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100073647 · qty on machine: 1 | |||||
| 7 | 5000401661 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000401661 · qty on machine: 1 | |||||
| 8 | 5000401838 | pc | 3 | PARTS REQUEST | |
|
COMING pc
5000401838 · qty on machine: 3 | |||||

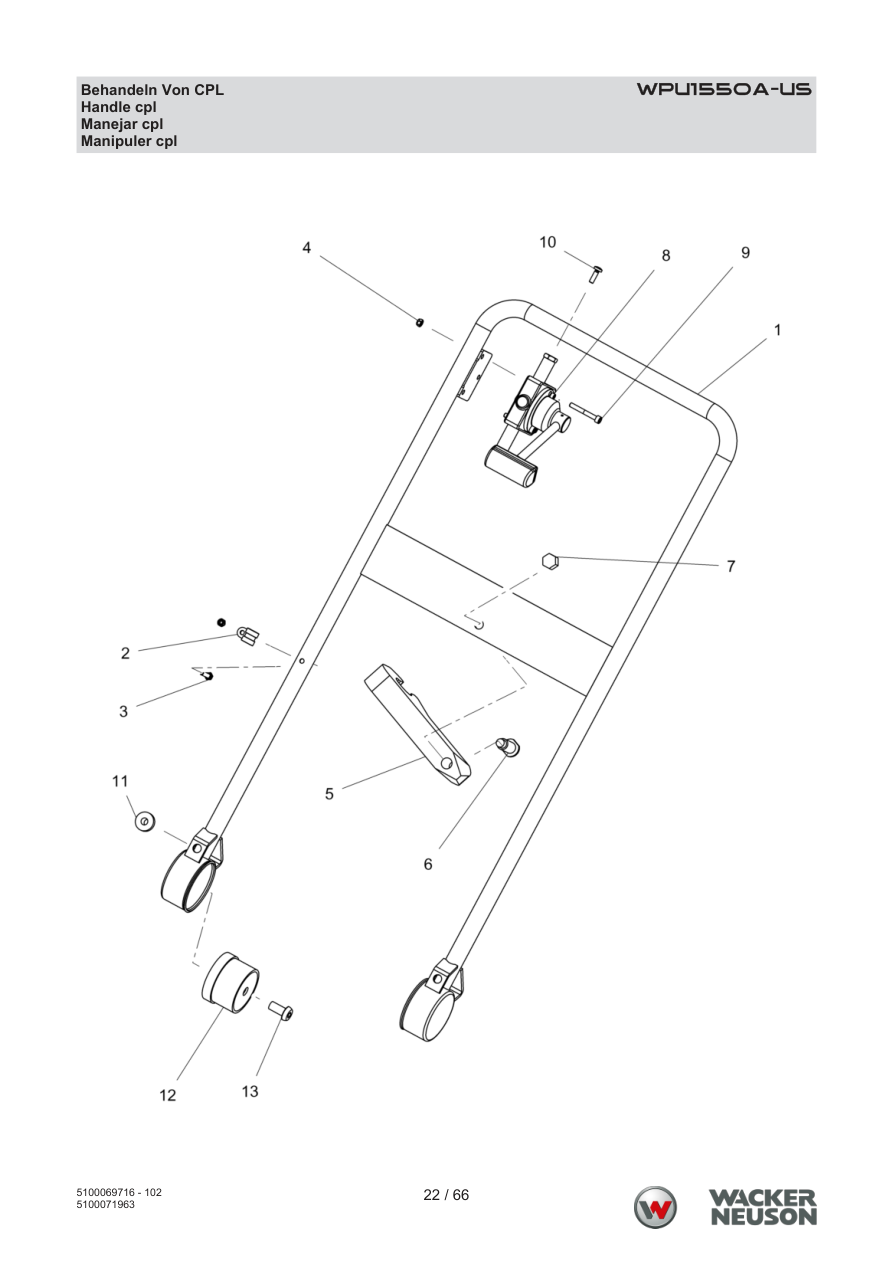

Page 22 — WPU1550A-US Behandeln Von CPL
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100069591 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100069591 · qty on machine: 1 | |||||
| 2 | 1000151200 | pc | 1 | PARTS REQUEST | |
|
COMING pc
1000151200 · qty on machine: 1 | |||||
| 3 | 1000015340 | pc | 1 | PARTS REQUEST | |
|
COMING pc
1000015340 · qty on machine: 1 | |||||
| 4 | 5000021679 | pc | 4 | ADD TO CART | |
| 5 | 5000402953 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000402953 · qty on machine: 1 | |||||
| 6 | 5000402482 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000402482 · qty on machine: 1 | |||||
| 7 | 5000402483 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000402483 · qty on machine: 1 | |||||
| 8 | 5000401891 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000401891 · qty on machine: 1 | |||||
| 9 | 5000401705 | pc | 3 | PARTS REQUEST | |
|
COMING pc
5000401705 · qty on machine: 3 | |||||
| 10 | 5000011551 | pc | 1 | Cheese head screw | ADD TO CART |
| 11 | 5000053577 | pc | 2 | Tank valve bushing | PARTS REQUEST |
|
COMING pc
5000053577 · qty on machine: 2 Tank valve bushing | |||||
| 12 | 5100058401 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100058401 · qty on machine: 2 | |||||
| 13 | 5000405718 | pc | 2 | Button head screw | PARTS REQUEST |
|
COMING pc
5000405718 · qty on machine: 2 Button head screw | |||||

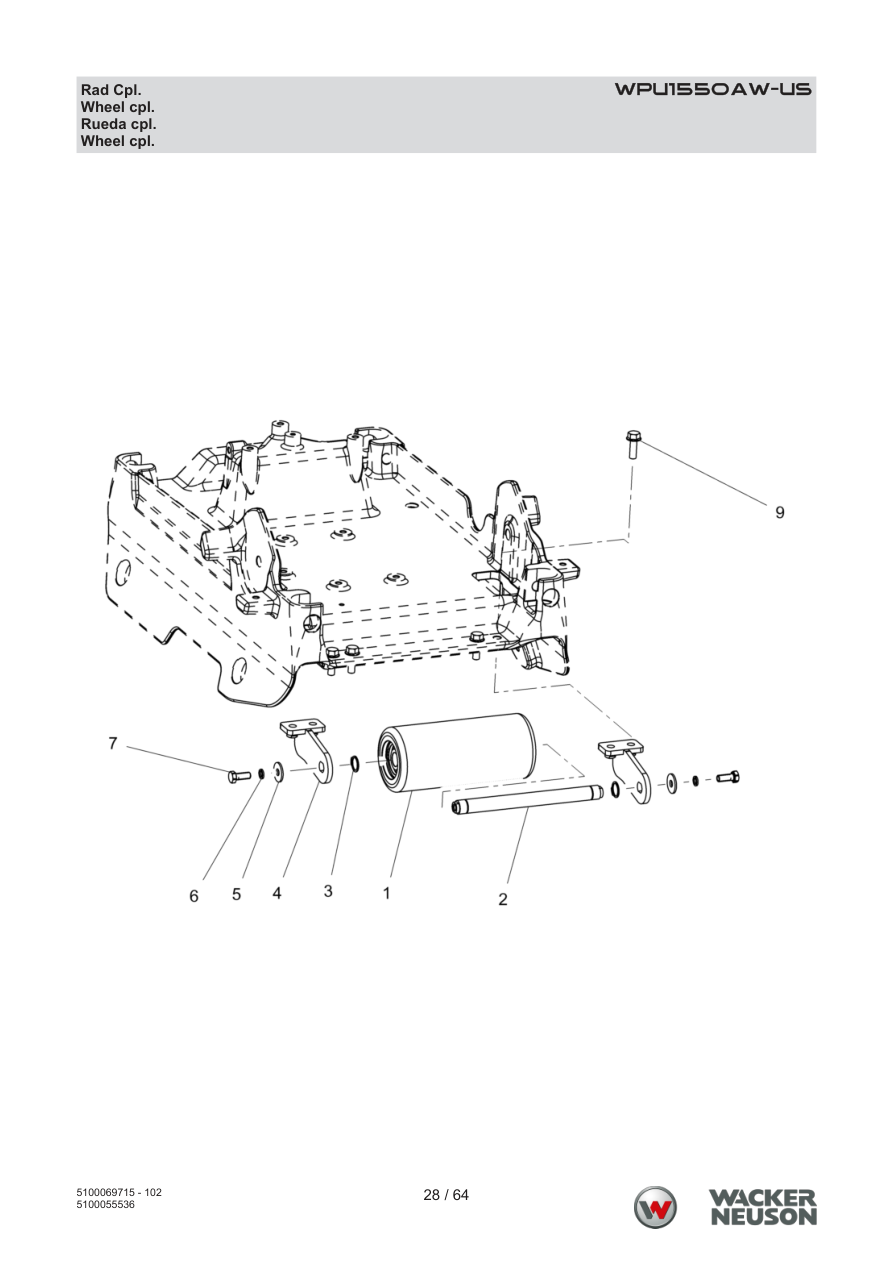

Page 24 — WPU1550A-US Rad Cpl.
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000401876 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000401876 · qty on machine: 1 | |||||
| 2 | 5000401667 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000401667 · qty on machine: 1 | |||||
| 3 | 5002001038 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5002001038 · qty on machine: 2 | |||||
| 4 | 5000401663 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5000401663 · qty on machine: 2 | |||||
| 5 | 5000010374 | pc | 2 | ADD TO CART | |
| 6 | 5000012397 | pc | 2 | ADD TO CART | |
| 7 | 5000012362 | pc | 2 | Hexagonal head cap screw | ADD TO CART |
| 9 | 5100048614 | pc | 4 | Flange bolt m8x25 din6921 8.8a2k | PARTS REQUEST |
|
COMING pc
5100048614 · qty on machine: 4 Flange bolt m8x25 din6921 8.8a2k | |||||

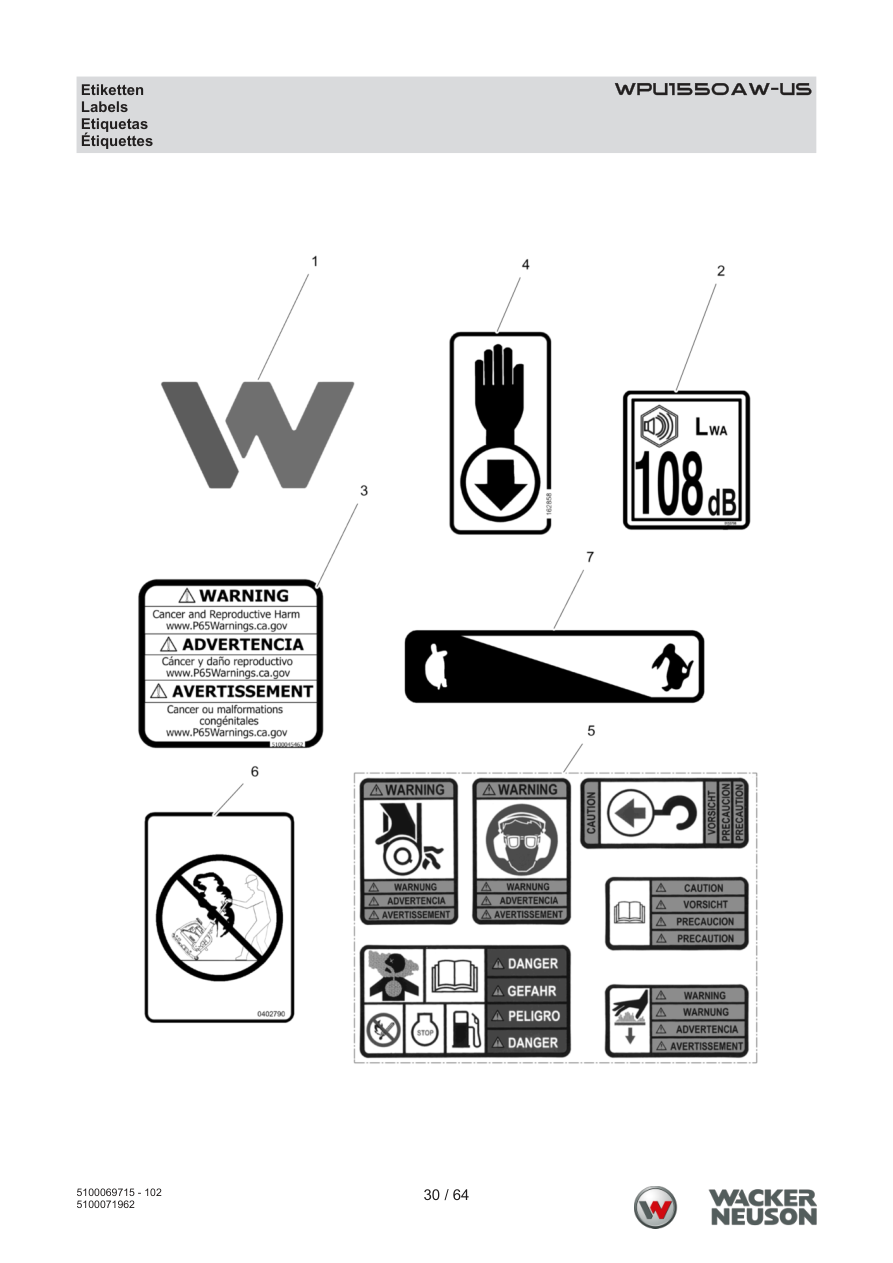

Page 26 — WPU1550A-US Etiketten
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000408274 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000408274 · qty on machine: 1 | |||||
| 2 | 5000153798 | pc | 1 | ADD TO CART | |
| 3 | 5100045462 | pc | 1 | Decal proposition 65 | PARTS REQUEST |
|
COMING pc
5100045462 · qty on machine: 1 Decal proposition 65 | |||||
| 4 | 5000162858 | pc | 2 | ADD TO CART | |
| 5 | 5000116940 | pc | 1 | ADD TO CART | |
| 6 | 5000402790 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000402790 · qty on machine: 1 | |||||
| 7 | 5000401907 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000401907 · qty on machine: 1 | |||||

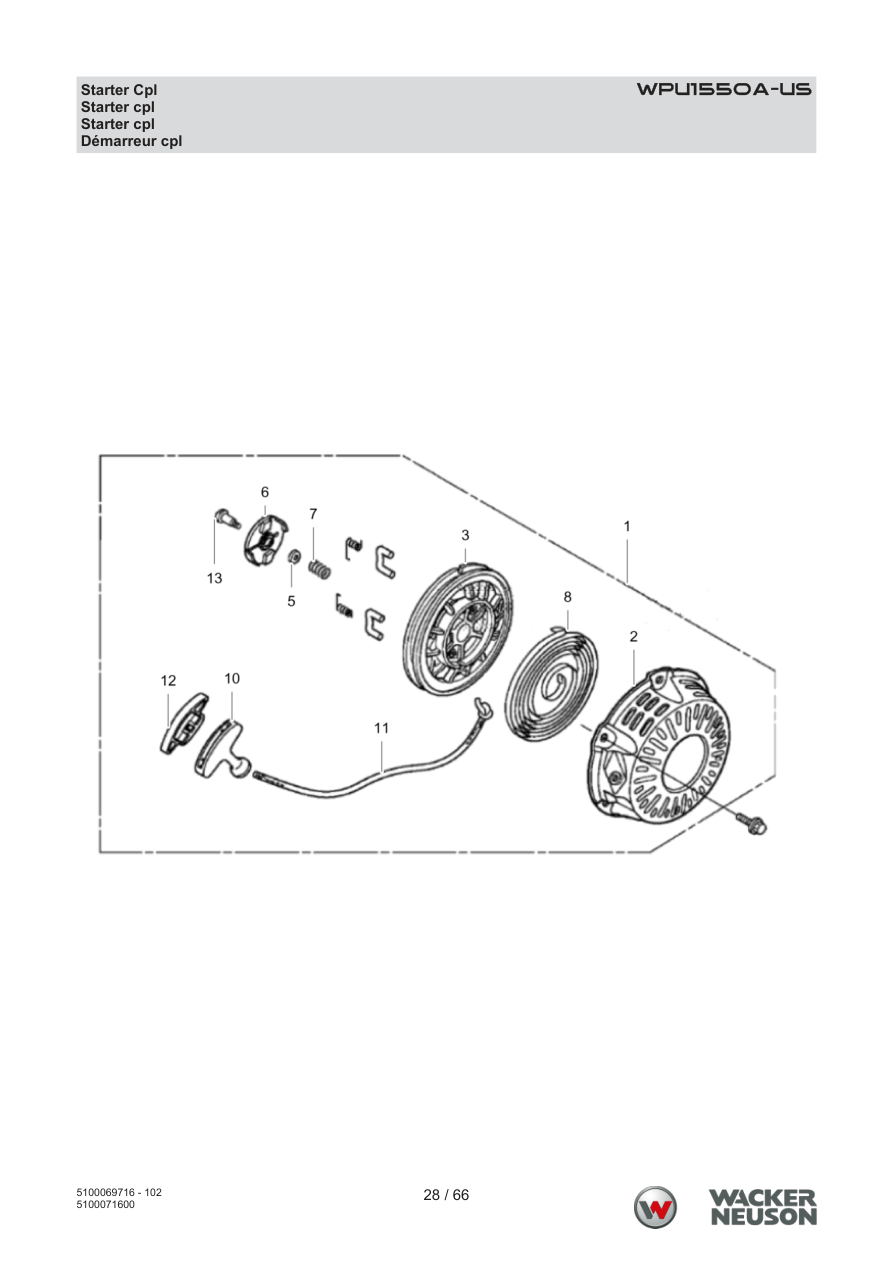

Page 28 — WPU1550A-US Starter Cpl
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100071615 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100071615 · qty on machine: 1 | |||||
| 2 | 5100071616 | pc | 1 | Case comp,recoil starter*nh1* | PARTS REQUEST |
|
COMING pc
5100071616 · qty on machine: 1 Case comp,recoil starter*nh1* | |||||
| 3 | 5100036077 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100036077 · qty on machine: 1 | |||||
| 5 | 5000160748 | pc | 1 | ADD TO CART | |
| 6 | 5100036079 | pc | 1 | ADD TO CART | |
| 7 | 5000160747 | pc | 1 | ADD TO CART | |
| 8 | 5000081777 | pc | 1 | ADD TO CART | |
| 10 | 5100071617 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100071617 · qty on machine: 1 | |||||
| 11 | 5000081781 | pc | 1 | ADD TO CART | |
| 12 | 5100071618 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100071618 · qty on machine: 1 | |||||
| 13 | 5000207991 | pc | 1 | ADD TO CART | |

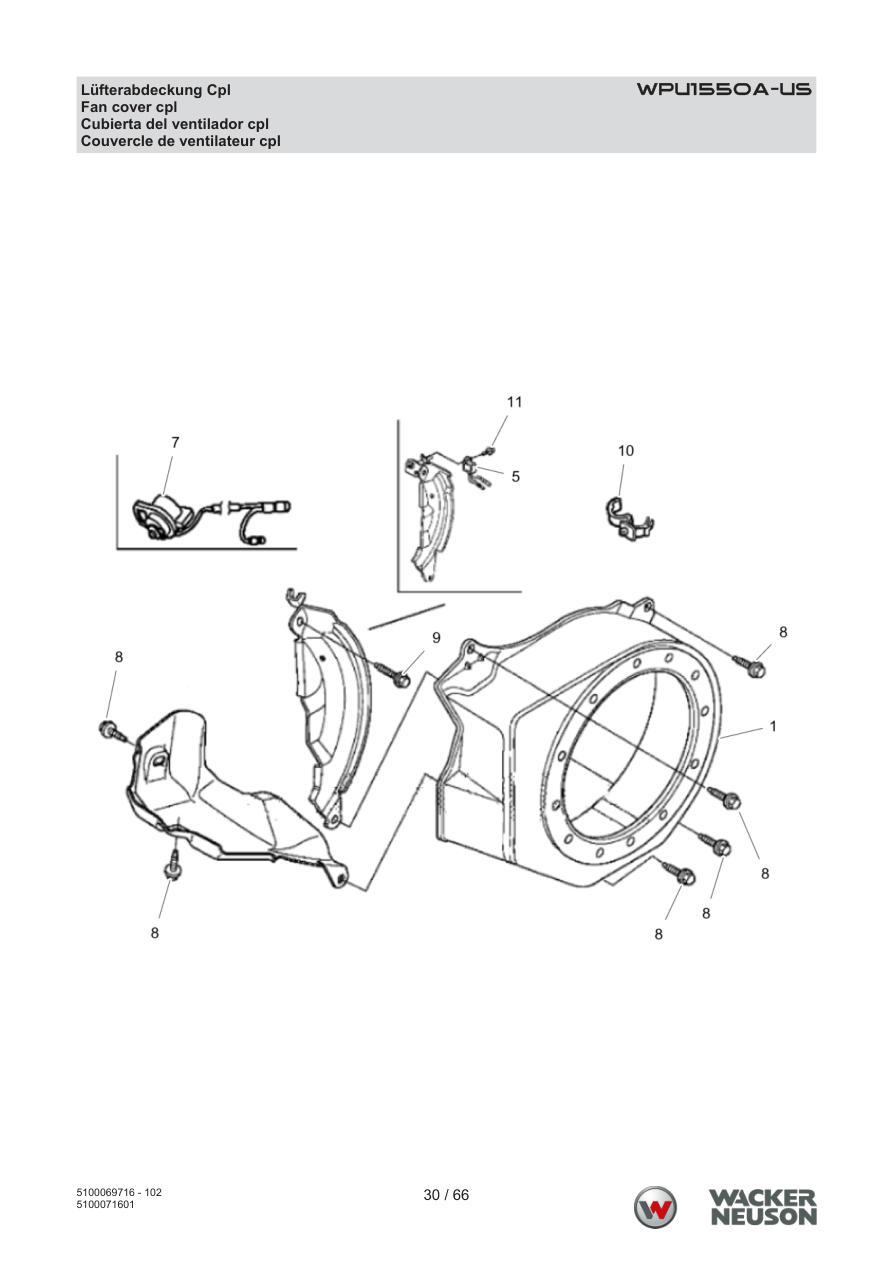

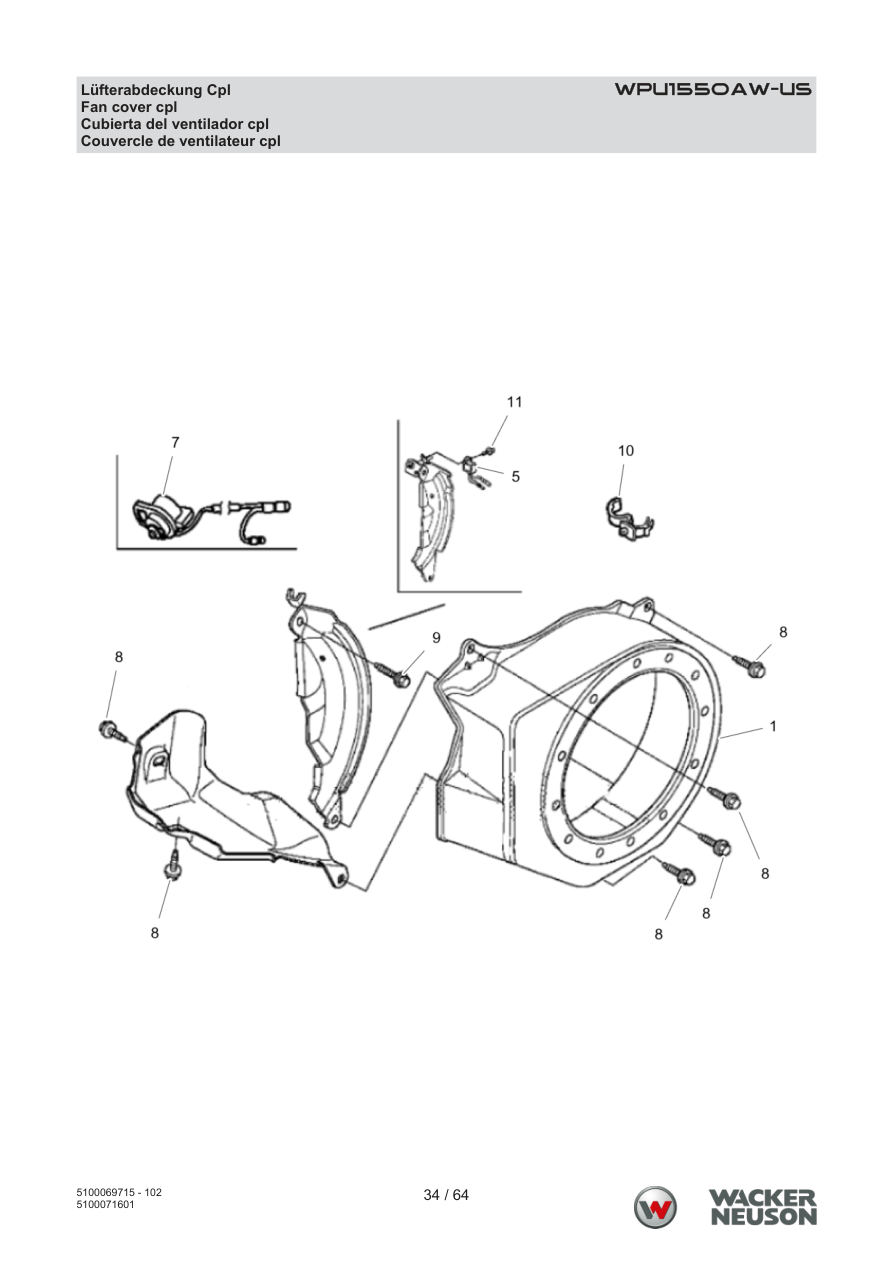

Page 30 — WPU1550A-US Lüfterabdeckung Cpl
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100071619 | pc | 1 | Cover comp ,fan*nh1* | PARTS REQUEST |
|
COMING pc
5100071619 · qty on machine: 1 Cover comp ,fan*nh1* | |||||
| 5 | 5100005313 | pc | 1 | ADD TO CART | |
| 7 | 5100047599 | pc | 1 | Engine stop device cpl. | ADD TO CART |
| 8 | 5000053990 | pc | 6 | ADD TO CART | |
| 9 | 5000071055 | pc | 1 | ADD TO CART | |
| 10 | 5000151700 | pc | 1 | ADD TO CART | |
| 11 | 5000081750 | pc | 1 | ADD TO CART | |

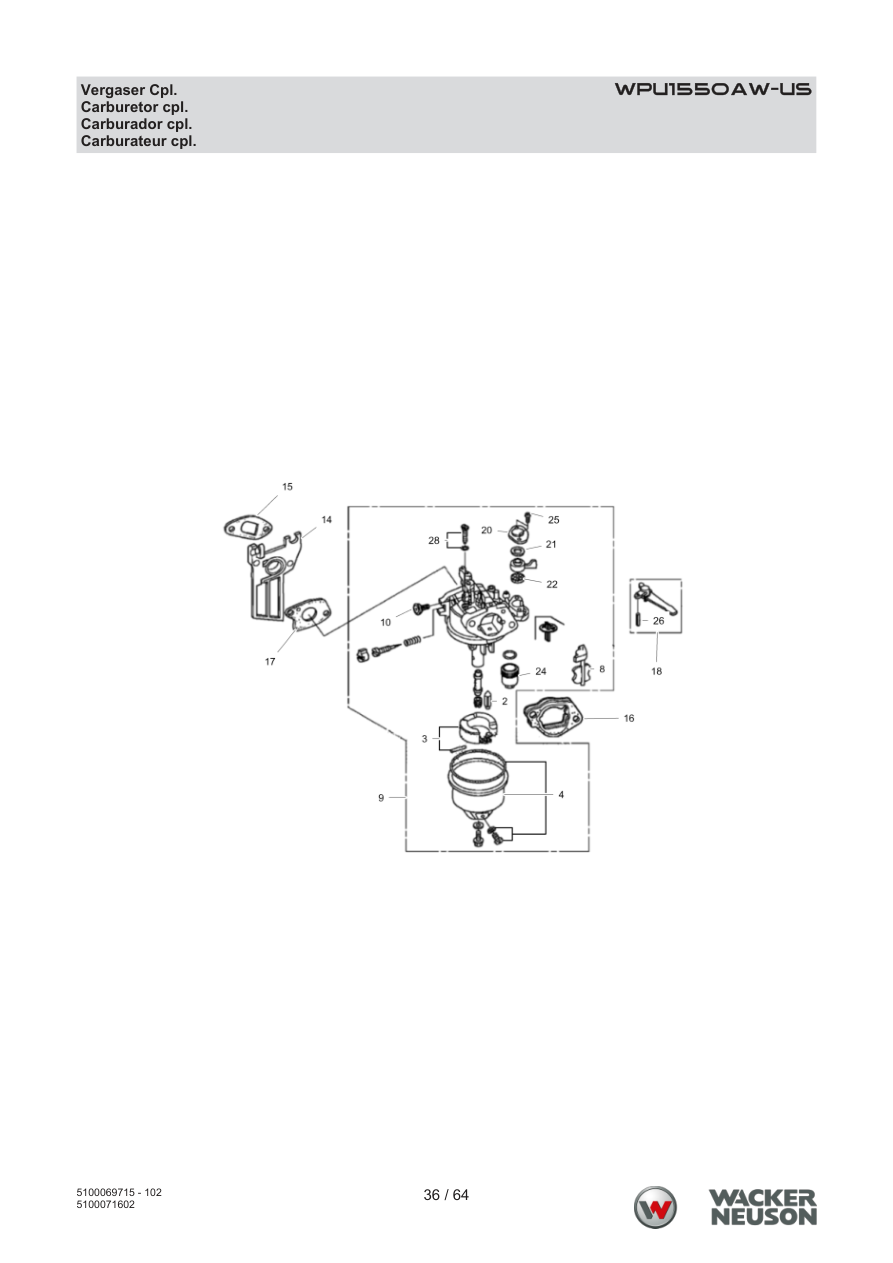

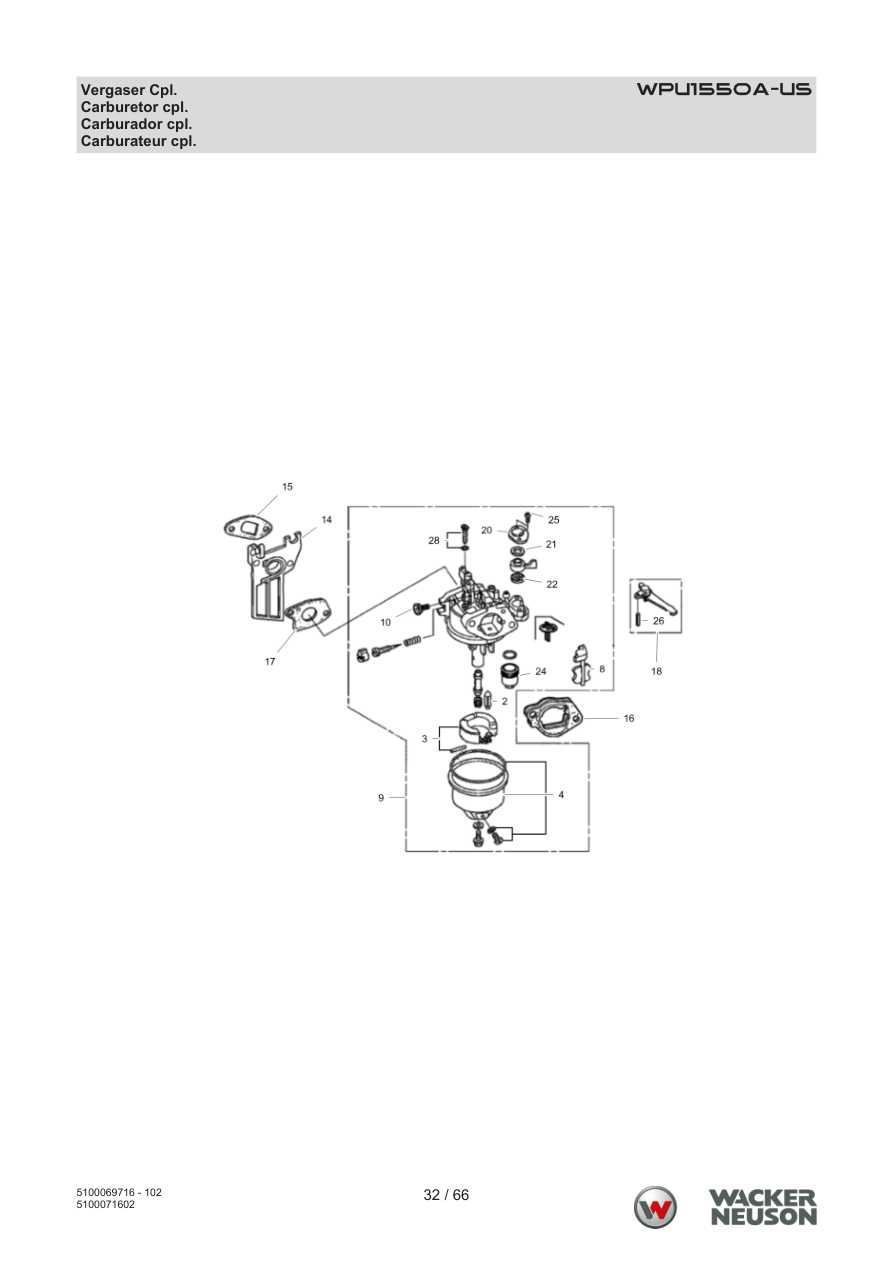

Page 32 — WPU1550A-US Vergaser Cpl.
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000071022 | pc | 1 | ADD TO CART | |
| 3 | 5000209764 | pc | 1 | ADD TO CART | |
| 4 | 5100050454 | pc | 1 | Float chamber cpl. | ADD TO CART |
| 8 | 5000071025 | pc | 1 | ADD TO CART | |
| 9 | 5100051853 | pc | 1 | ADD TO CART | |
| 10 | 5000071018 | pc | 1 | Throttle stop screw | ADD TO CART |
| 14 | 5100050459 | pc | 1 | ADD TO CART | |
| 15 | 5000082009 | pc | 1 | ADD TO CART | |
| 16 | 5000071015 | pc | 1 | ADD TO CART | |
| 17 | 5000081762 | pc | 1 | ADD TO CART | |
| 18 | 5000071013 | pc | 1 | Choke control lever | ADD TO CART |
| 20 | 5000073269 | pc | 1 | ADD TO CART | |
| 21 | 5000073270 | pc | 1 | ADD TO CART | |
| 22 | 5000073272 | pc | 1 | ADD TO CART | |
| 24 | 5000071023 | pc | 1 | ADD TO CART | |
| 25 | 5100071622 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100071622 · qty on machine: 2 | |||||
| 26 | 5000071014 | pc | 1 | ADD TO CART | |
| 28 | 5000071016 | pc | 1 | ADD TO CART | |

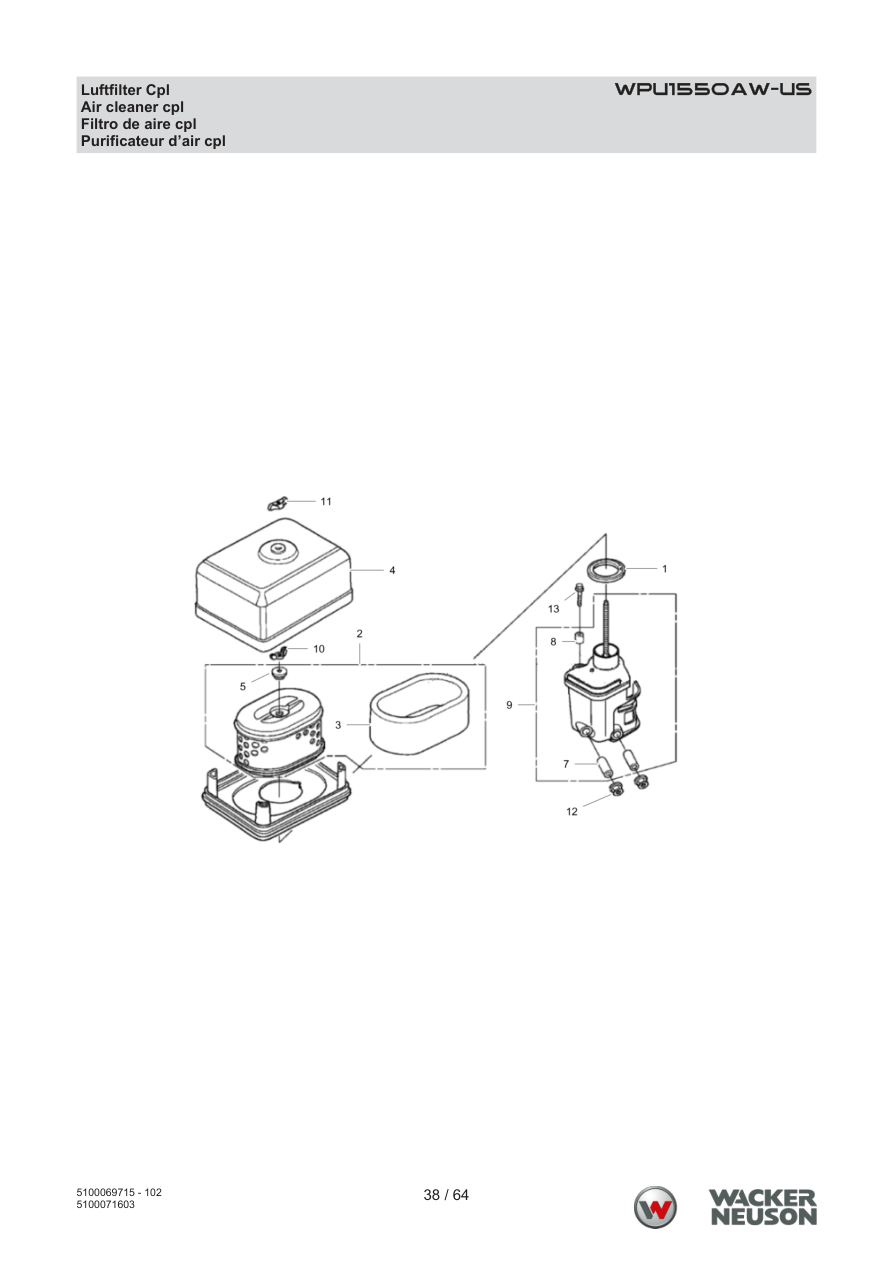

Page 34 — WPU1550A-US Luftfilter Cpl
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000071032 | pc | 1 | ADD TO CART | |
| 2 | 5100051862 | pc | 1 | Air filter compl. | ADD TO CART |
| 4 | 5100051864 | pc | 1 | ADD TO CART | |
| 7 | 5000081746 | pc | 2 | ADD TO CART | |
| 8 | 5000071035 | pc | 1 | ADD TO CART | |
| 9 | 5100051866 | pc | 1 | Elbow comp.,air cleaner | ADD TO CART |
| 10 | 5100051867 | pc | 1 | Nut, tool box setting | ADD TO CART |
| 11 | 5000406643 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000406643 · qty on machine: 1 | |||||
| 12 | 5000071056 | pc | 2 | ADD TO CART | |
| 13 | 5000107064 | pc | 1 | ADD TO CART | |

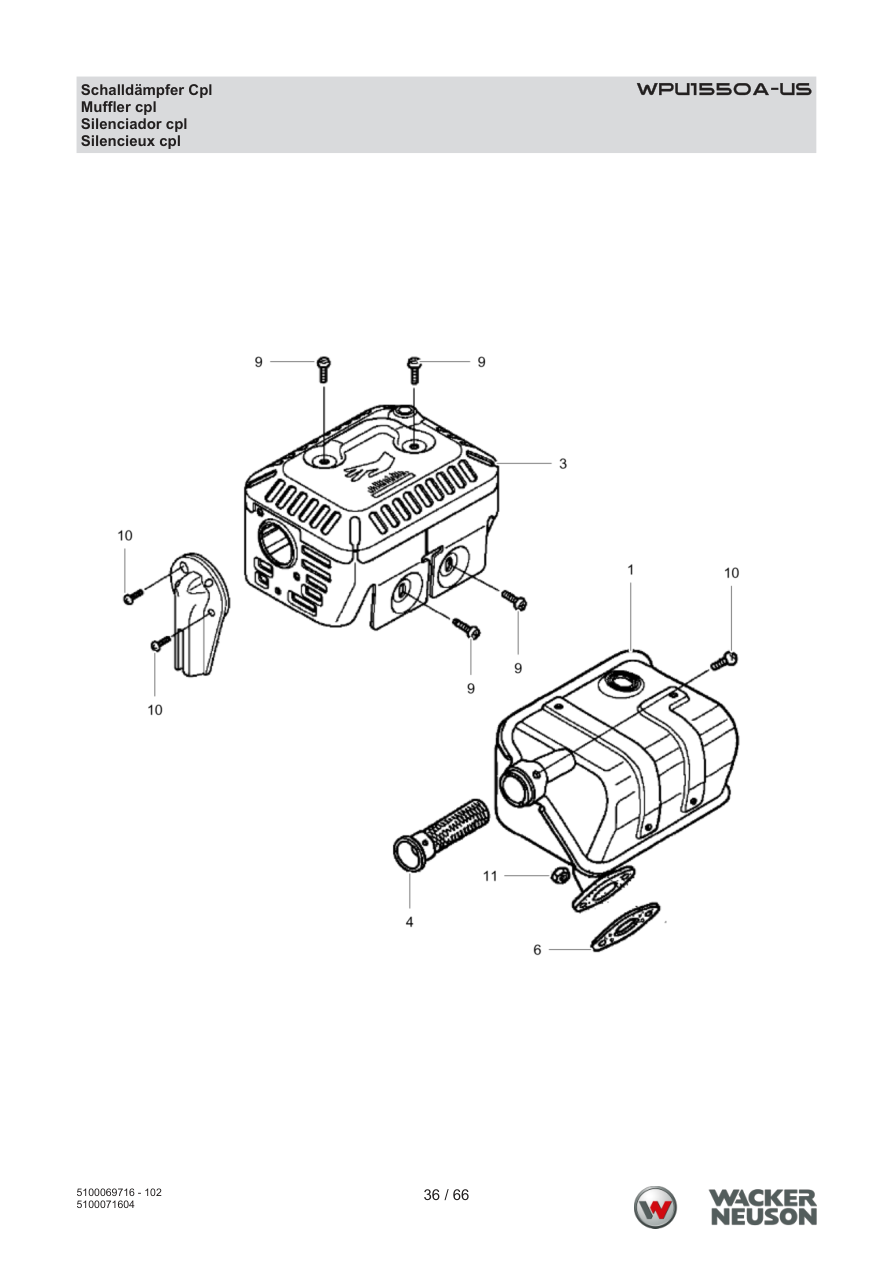

Page 36 — WPU1550A-US Schalldämpfer Cpl
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000406644 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000406644 · qty on machine: 1 | |||||
| 3 | 5000406646 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000406646 · qty on machine: 1 | |||||
| 4 | 5000071075 | pc | 1 | ADD TO CART | |
| 6 | 5000216516 | pc | 1 | ADD TO CART | |
| 9 | 5000071070 | pc | 4 | ADD TO CART | |
| 10 | 5000150916 | pc | 1 | ADD TO CART | |
| 11 | 5000071076 | pc | 2 | ADD TO CART | |

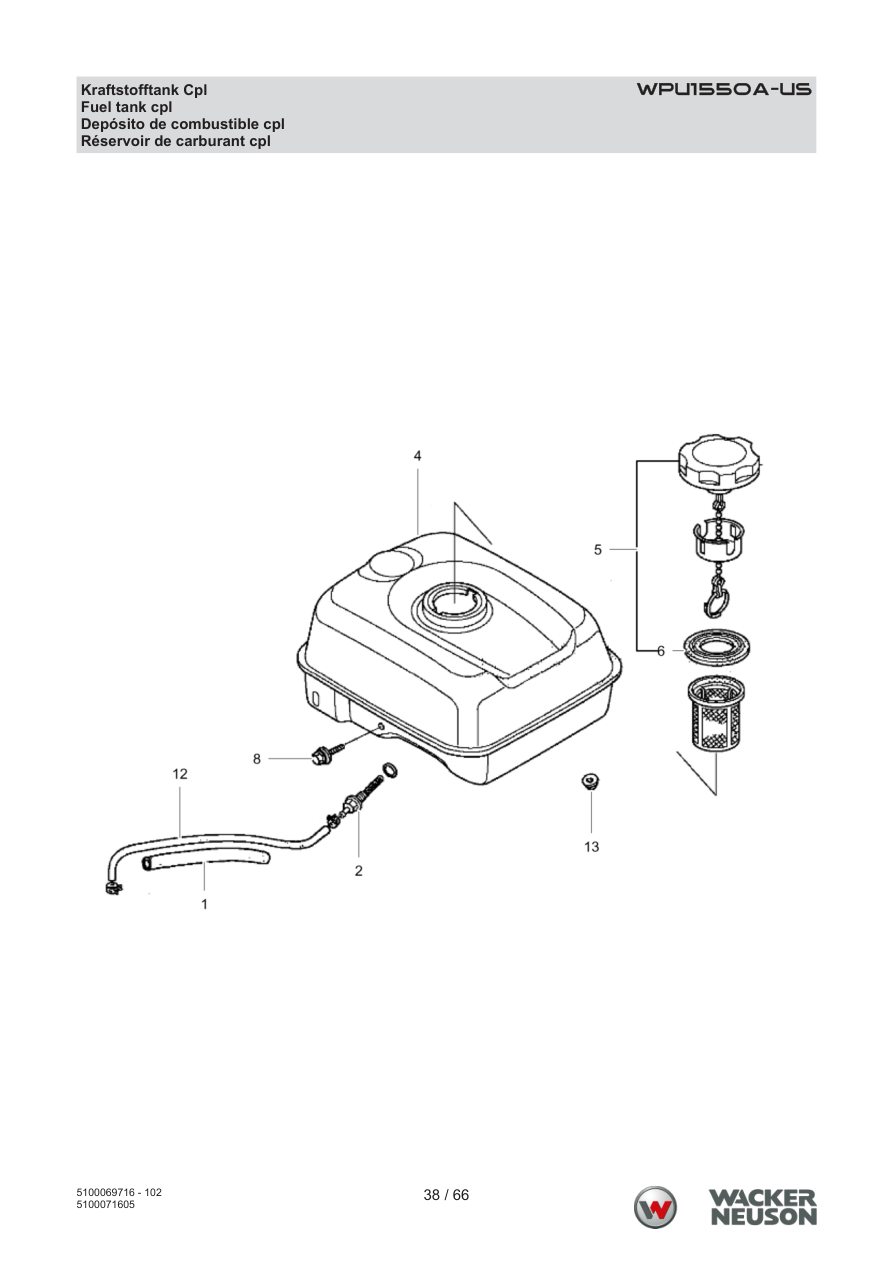

Page 38 — WPU1550A-US Kraftstofftank Cpl
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000081764 | pc | 1 | ADD TO CART | |
| 2 | 5000071083 | pc | 1 | ADD TO CART | |
| 4 | 5100051851 | pc | 1 | ADD TO CART | |
| 5 | 5100071620 | pc | 1 | Cap comp , fuel filler | PARTS REQUEST |
|
COMING pc
5100071620 · qty on machine: 1 Cap comp , fuel filler | |||||
| 6 | 5000209770 | pc | 1 | ADD TO CART | |
| 8 | 5000209771 | pc | 1 | ADD TO CART | |
| 12 | 5100005325 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100005325 · qty on machine: 1 | |||||
| 13 | 5000071056 | pc | 2 | ADD TO CART | |

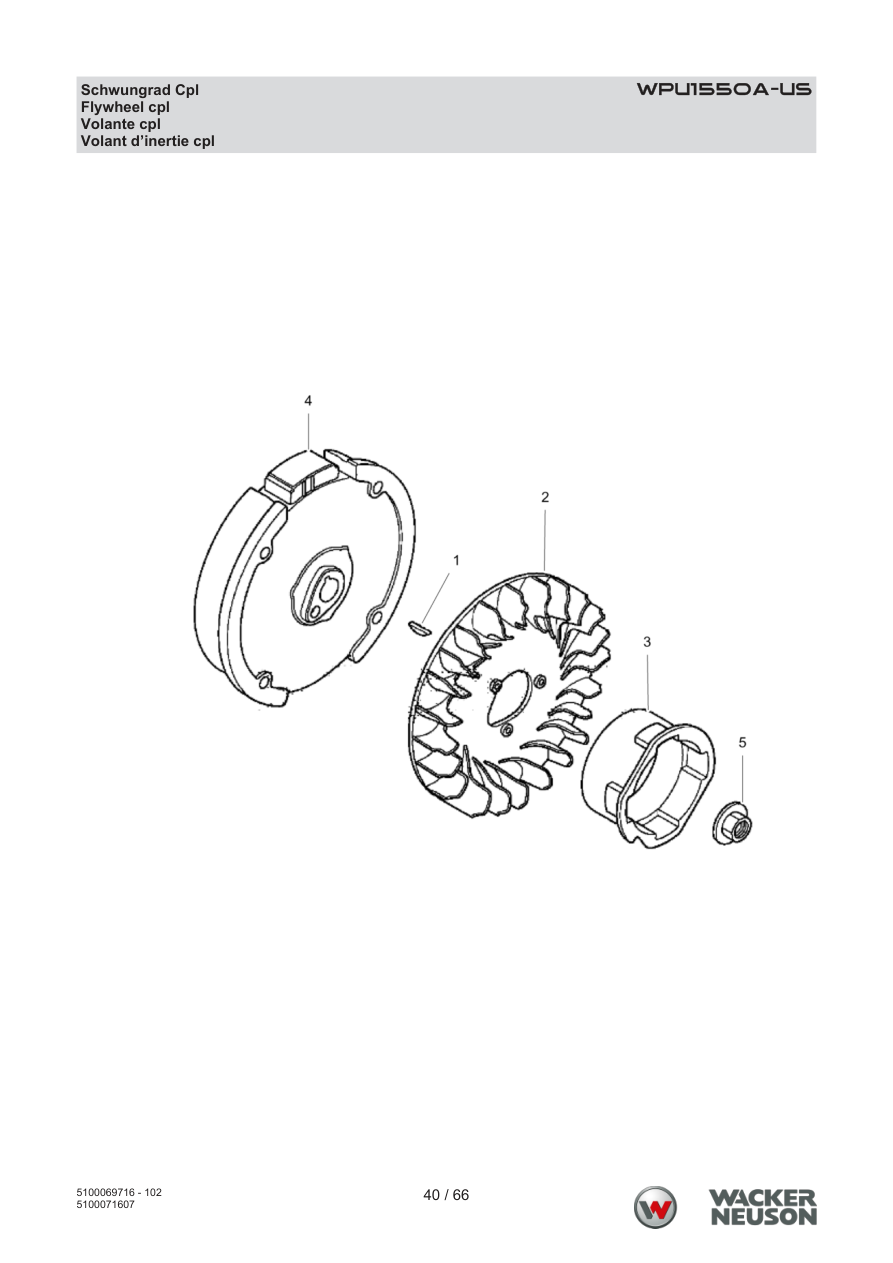

Page 40 — WPU1550A-US Schwungrad Cpl
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000068967 | pc | 1 | ADD TO CART | |
| 2 | 5000071652 | pc | 1 | ADD TO CART | |
| 3 | 5100036245 | pc | 1 | ADD TO CART | |
| 4 | 5100050547 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100050547 · qty on machine: 1 | |||||
| 5 | 5000162686 | pc | 1 | ADD TO CART | |

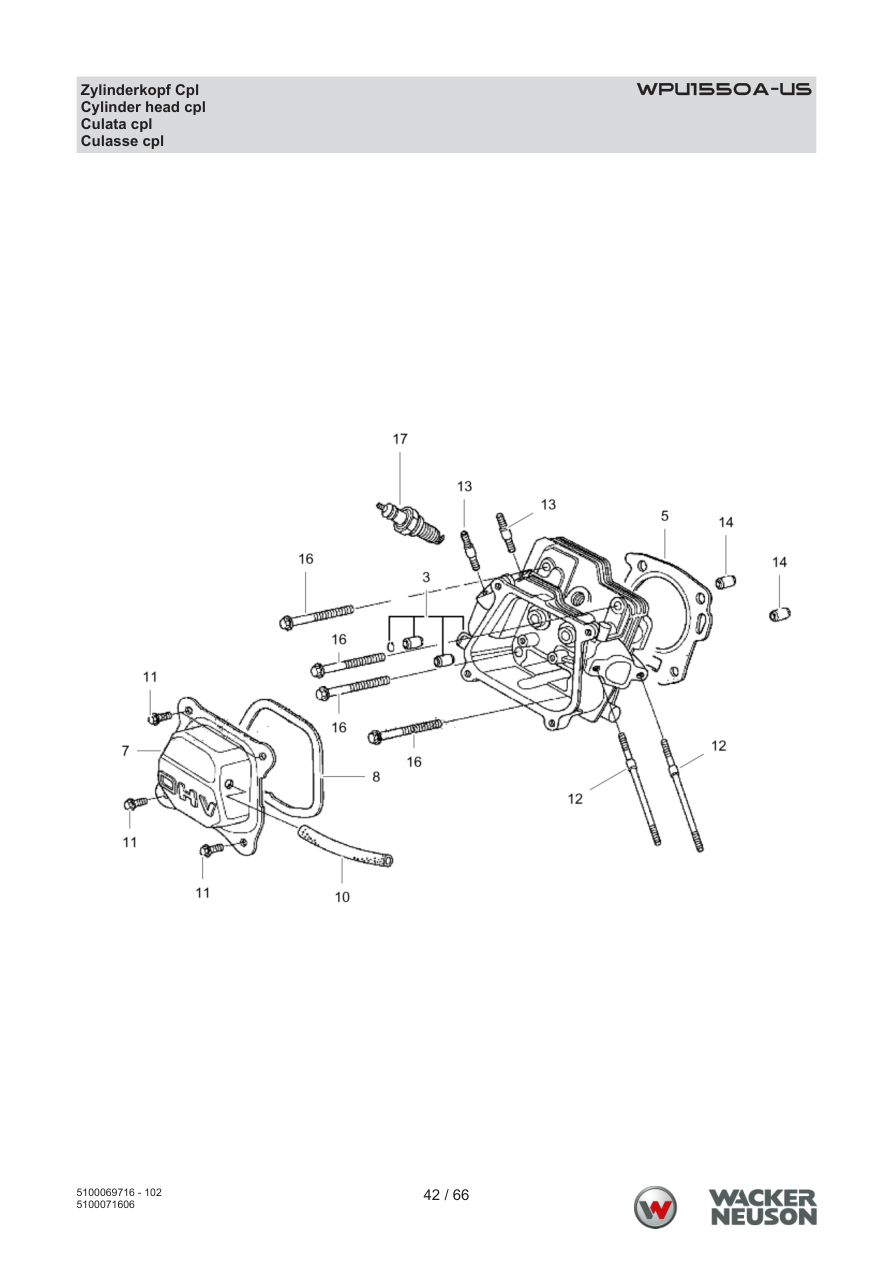

Page 42 — WPU1550A-US Zylinderkopf Cpl
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100050549 | pc | 1 | Cylinder head cpl. | ADD TO CART |
| 5 | 5100005329 | pc | 1 | Cylinder head gasket | PARTS REQUEST |
|
COMING pc
5100005329 · qty on machine: 1 Cylinder head gasket | |||||
| 7 | 5100050550 | pc | 1 | ADD TO CART | |
| 8 | 5000070942 | pc | 1 | ADD TO CART | |
| 10 | 5000081761 | pc | 1 | ADD TO CART | |
| 11 | 5000053990 | pc | 4 | ADD TO CART | |
| 12 | 5000073263 | pc | 2 | ADD TO CART | |
| 13 | 5000070948 | pc | 2 | ADD TO CART | |
| 14 | 5000070950 | pc | 2 | ADD TO CART | |
| 16 | 5000071626 | pc | 4 | ADD TO CART | |
| 17 | 5000150914 | pc | 1 | ADD TO CART | |

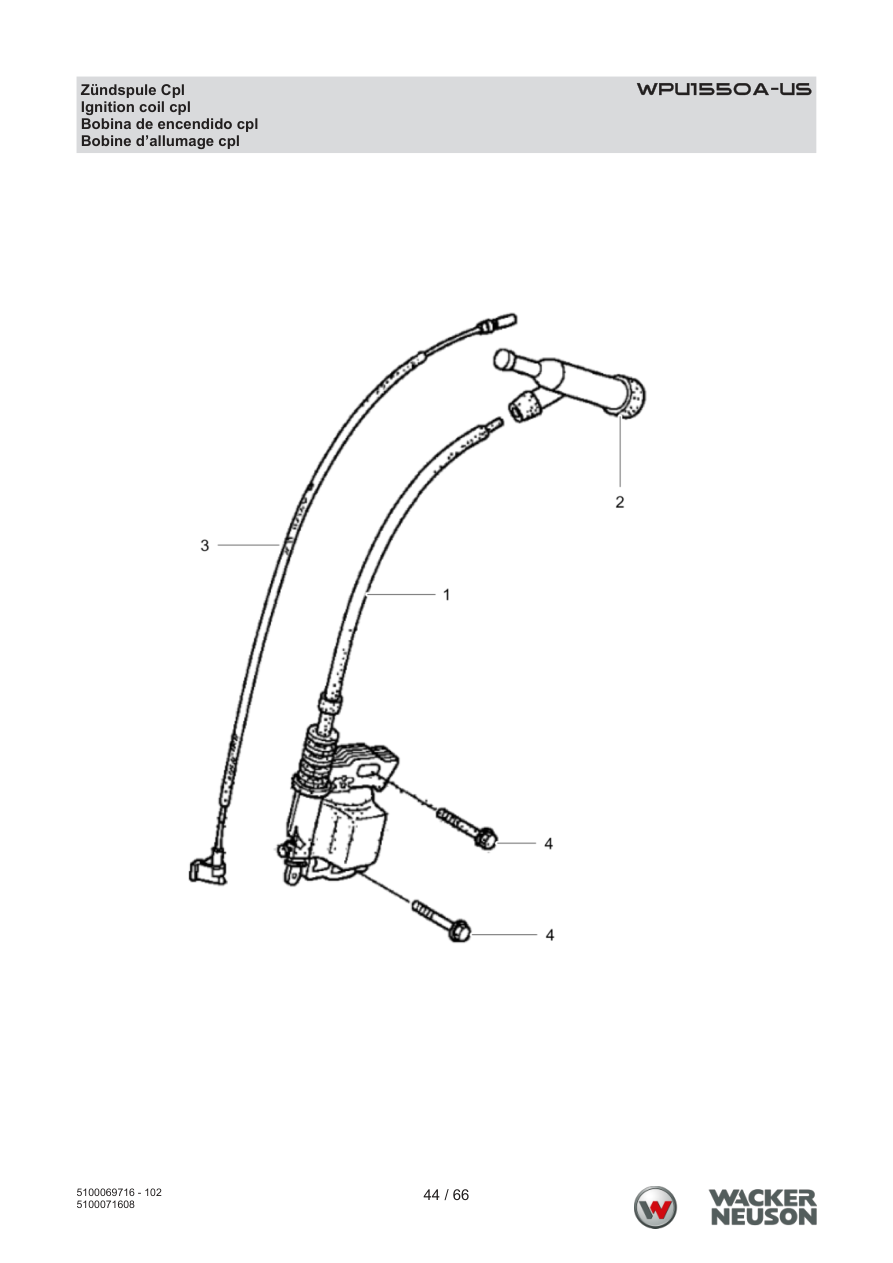

Page 44 — WPU1550A-US Zündspule Cpl
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100050553 | pc | 1 | ADD TO CART | |
| 2 | 5100051859 | pc | 1 | ADD TO CART | |
| 3 | 5000081663 | pc | 1 | Short circuit cable | ADD TO CART |
| 4 | 5000081737 | pc | 2 | ADD TO CART | |

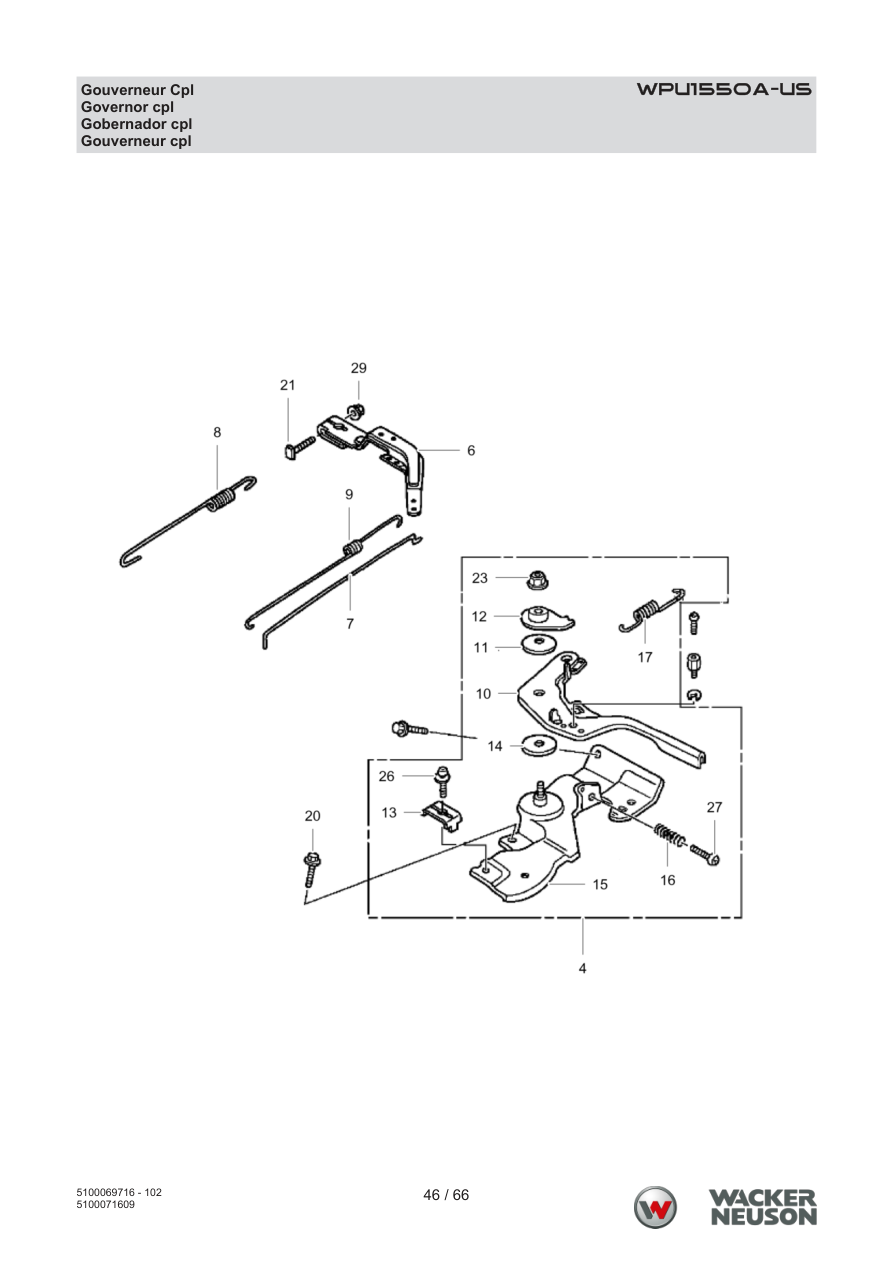

Page 46 — WPU1550A-US Gouverneur Cpl
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 4 | 5000406655 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000406655 · qty on machine: 1 | |||||
| 6 | 5000406656 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000406656 · qty on machine: 1 | |||||
| 7 | 5000406657 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000406657 · qty on machine: 1 | |||||
| 8 | 5000406658 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000406658 · qty on machine: 1 | |||||
| 9 | 5000071664 | pc | 1 | ADD TO CART | |
| 10 | 5000406660 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000406660 · qty on machine: 1 | |||||
| 11 | 5000071058 | pc | 1 | ADD TO CART | |
| 12 | 5000071057 | pc | 1 | ADD TO CART | |
| 13 | 5000071062 | pc | 1 | ADD TO CART | |
| 14 | 5000071064 | pc | 1 | ADD TO CART | |
| 15 | 5000406661 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000406661 · qty on machine: 1 | |||||
| 16 | 5000054088 | pc | 1 | ADD TO CART | |
| 17 | 5000071667 | pc | 1 | ADD TO CART | |
| 20 | 5000053990 | pc | 2 | ADD TO CART | |
| 21 | 5200000457 | pc | 1 | ADD TO CART | |
| 23 | 5000072782 | pc | 1 | ADD TO CART | |
| 26 | 5000110112 | pc | 1 | ADD TO CART | |
| 27 | 5000081990 | pc | 1 | ADD TO CART | |
| 29 | 5000071056 | pc | 1 | ADD TO CART | |
Page 48 — WPU1550A-US Zylinderzylinder Cpl
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100050559 | pc | 1 | Motor housing cpl. | ADD TO CART |
| 2 | 5000406667 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000406667 · qty on machine: 1 | |||||
| 3 | 5000406670 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000406670 · qty on machine: 1 | |||||
| 4 | 5100005433 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100005433 · qty on machine: 1 | |||||
| 5 | 5000072331 | pc | 1 | Oil alert switch assy. | ADD TO CART |
| 6 | 5000070964 | pc | 2 | ADD TO CART | |
| 8 | 5000070963 | pc | 2 | ADD TO CART | |
| 9 | 5000081615 | pc | 1 | ADD TO CART | |
| 10 | 5000053983 | pc | 1 | ADD TO CART | |
| 11 | 5100036263 | pc | 1 | ADD TO CART | |
| 12 | 5000072332 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000072332 · qty on machine: 1 | |||||
| 13 | 5000071639 | pc | 2 | ADD TO CART | |
| 14 | 5000054033 | pc | 1 | ADD TO CART | |
| 15 | 5000072333 | pc | 2 | ADD TO CART | |
| 18 | 5000156689 | pc | 2 | ADD TO CART | |

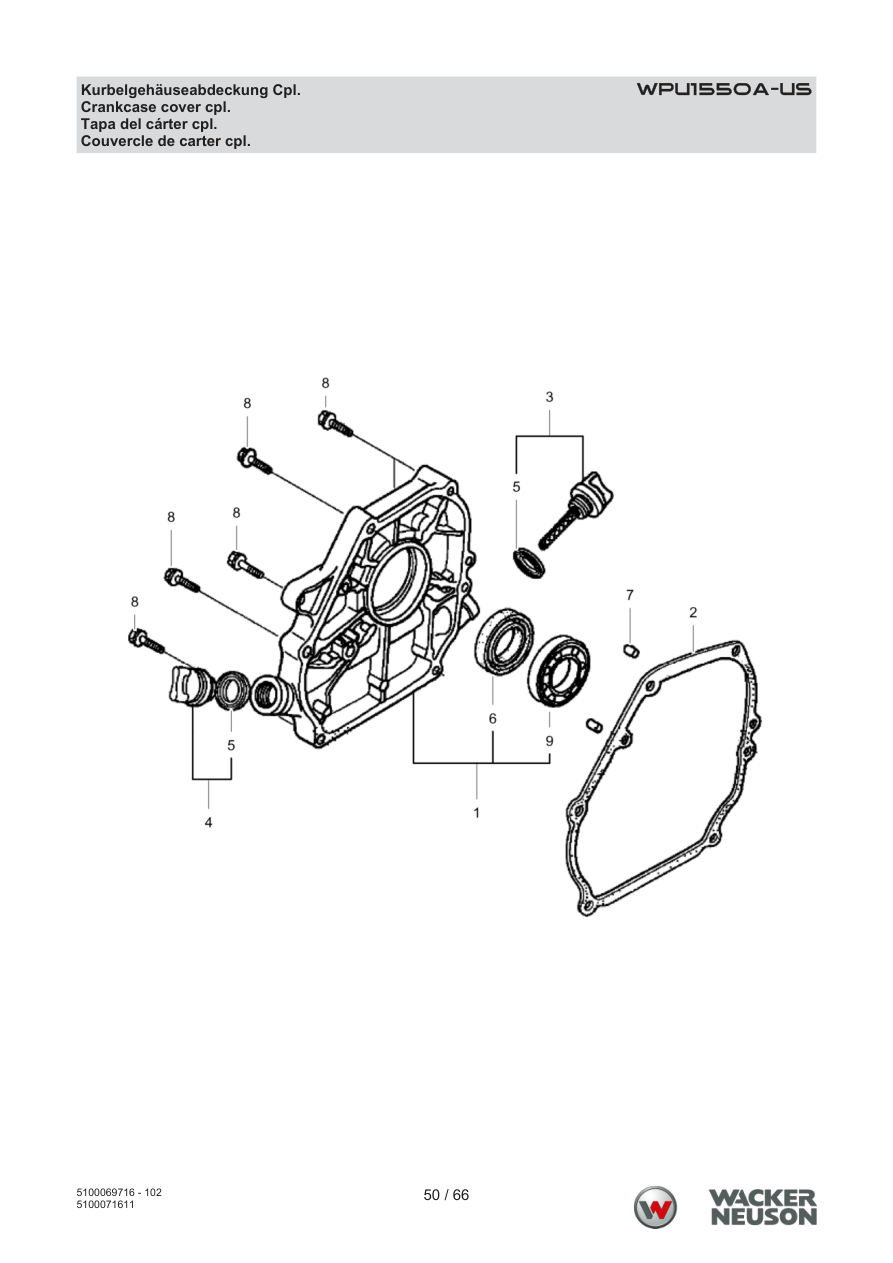

Page 50 — WPU1550A-US Kurbelgehäuseabdeckung Cpl.
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 5 | 5100051314 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100051314 · qty on machine: 2 | |||||
| 6 | 5000053983 | pc | 1 | ADD TO CART | |
| 7 | 5000053995 | pc | 2 | ADD TO CART | |
| 8 | 5000071630 | pc | 6 | ADD TO CART | |
| 9 | 5000217465 | pc | 1 | ADD TO CART | |
| 1 | 5100005434 | pc | 1 | Crankcase cover cpl. | PARTS REQUEST |
|
COMING pc
5100005434 · qty on machine: 1 Crankcase cover cpl. | |||||
| 2 | 5100036266 | pc | 1 | ADD TO CART | |
| 3 | 5100060757 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100060757 · qty on machine: 1 | |||||
| 4 | 5100031607 | pc | 1 | Oil filler cap | ADD TO CART |
Page 52 — WPU1550A-US Kurbelwelle Cpl.
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100071621 | pc | 1 | ADD TO CART | |
| 6 | 5100036261 | pc | 1 | ADD TO CART | |
Page 54 — WPU1550A-US Kolben Cpl.
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100050562 | pc | 1 | Set of piston rings | ADD TO CART |
| 2 | 5100050566 | pc | 1 | ADD TO CART | |
| 3 | 5000071648 | pc | 1 | ADD TO CART | |
| 4 | 5100050571 | pc | 1 | ADD TO CART | |
| 6 | 5000081994 | pc | 2 | ADD TO CART | |

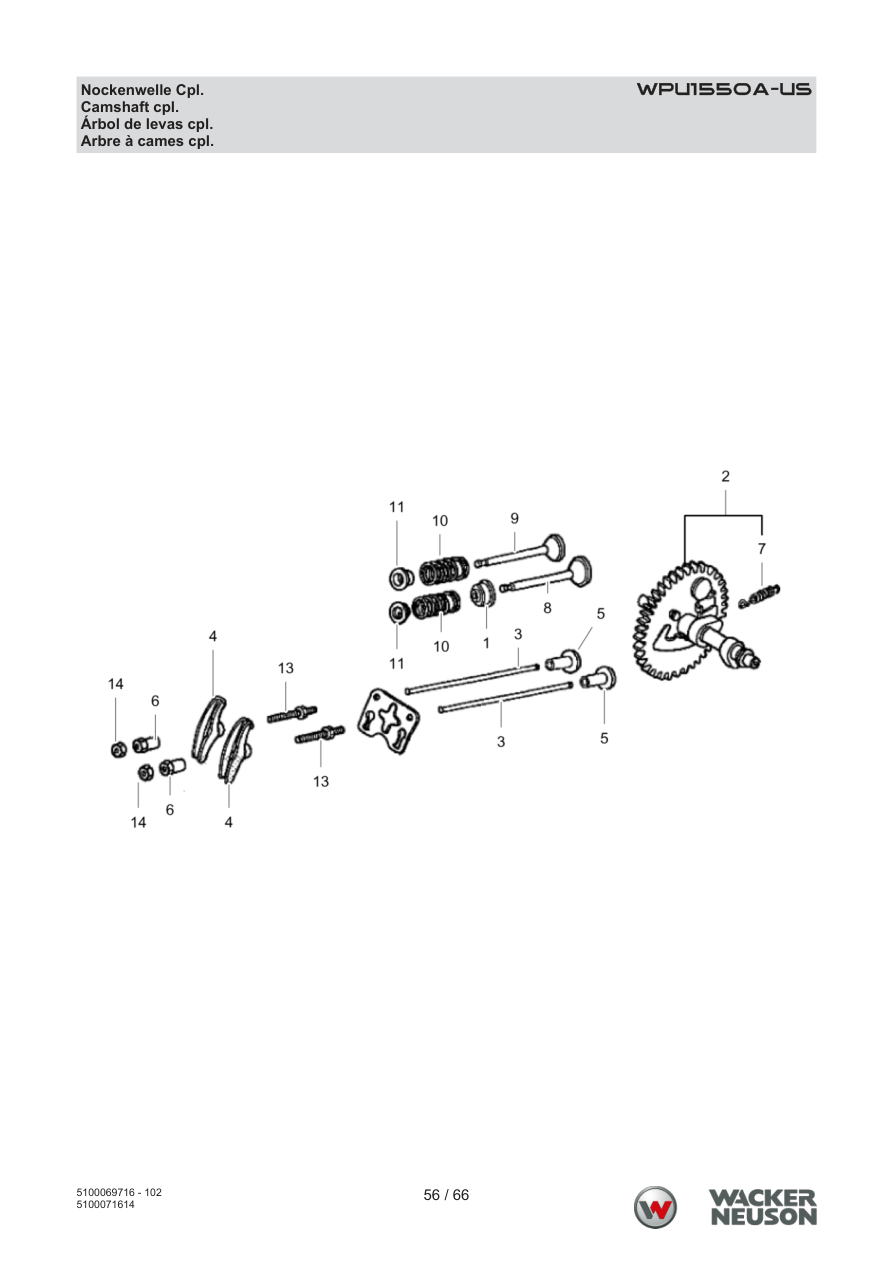

Page 56 — WPU1550A-US Nockenwelle Cpl.
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100066375 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100066375 · qty on machine: 1 | |||||
| 2 | 5100050572 | pc | 1 | ADD TO CART | |
| 3 | 5000406683 | pc | 2 | Push rod (valve lifter) | PARTS REQUEST |
|
COMING pc
5000406683 · qty on machine: 2 Push rod (valve lifter) | |||||
| 4 | 5000070986 | pc | 2 | ADD TO CART | |
| 5 | 5000070990 | pc | 2 | ADD TO CART | |
| 6 | 5100036280 | pc | 2 | ADD TO CART | |
| 7 | 5000151028 | pc | 1 | ADD TO CART | |
| 8 | 5100050573 | pc | 1 | ADD TO CART | |
| 9 | 5000406685 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000406685 · qty on machine: 1 | |||||
| 10 | 5000081760 | pc | 2 | ADD TO CART | |
| 11 | 5000070996 | pc | 2 | ADD TO CART | |
| 13 | 5000072778 | pc | 2 | ADD TO CART | |
| 14 | 5000070984 | pc | 2 | ADD TO CART | |
Page 58 — WPU1550A-US Wassersystem Cpl
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000402029 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000402029 · qty on machine: 1 | |||||
| 3 | 5100058399 | pc | 4 | PARTS REQUEST | |
|
COMING pc
5100058399 · qty on machine: 4 | |||||
| 4 | 5000033198 | pc | 4 | ADD TO CART | |
| 5 | 5000012361 | pc | 4 | Hexagonal head cap screw | PARTS REQUEST |
|
COMING pc
5000012361 · qty on machine: 4 Hexagonal head cap screw | |||||
| 6 | 5000028404 | pc | 3 | Hexagonal flange head screw | ADD TO CART |
| 7 | 5000028949 | pc | 1 | Hexagonal flange head screw | ADD TO CART |
| 8 | 5100069223 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100069223 · qty on machine: 1 | |||||
| 9 | 5100069730 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100069730 · qty on machine: 1 | |||||
| 10 | 5000027149 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000027149 · qty on machine: 1 | |||||
| 11 | 5100069433 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100069433 · qty on machine: 1 | |||||
| 12 | 5000401851 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000401851 · qty on machine: 1 | |||||
| 13 | 5100069731 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100069731 · qty on machine: 1 | |||||
| 15 | 1000422322 | pc | 1 | PARTS REQUEST | |
|
COMING pc
1000422322 · qty on machine: 1 | |||||
| 16 | 5100071152 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100071152 · qty on machine: 1 | |||||

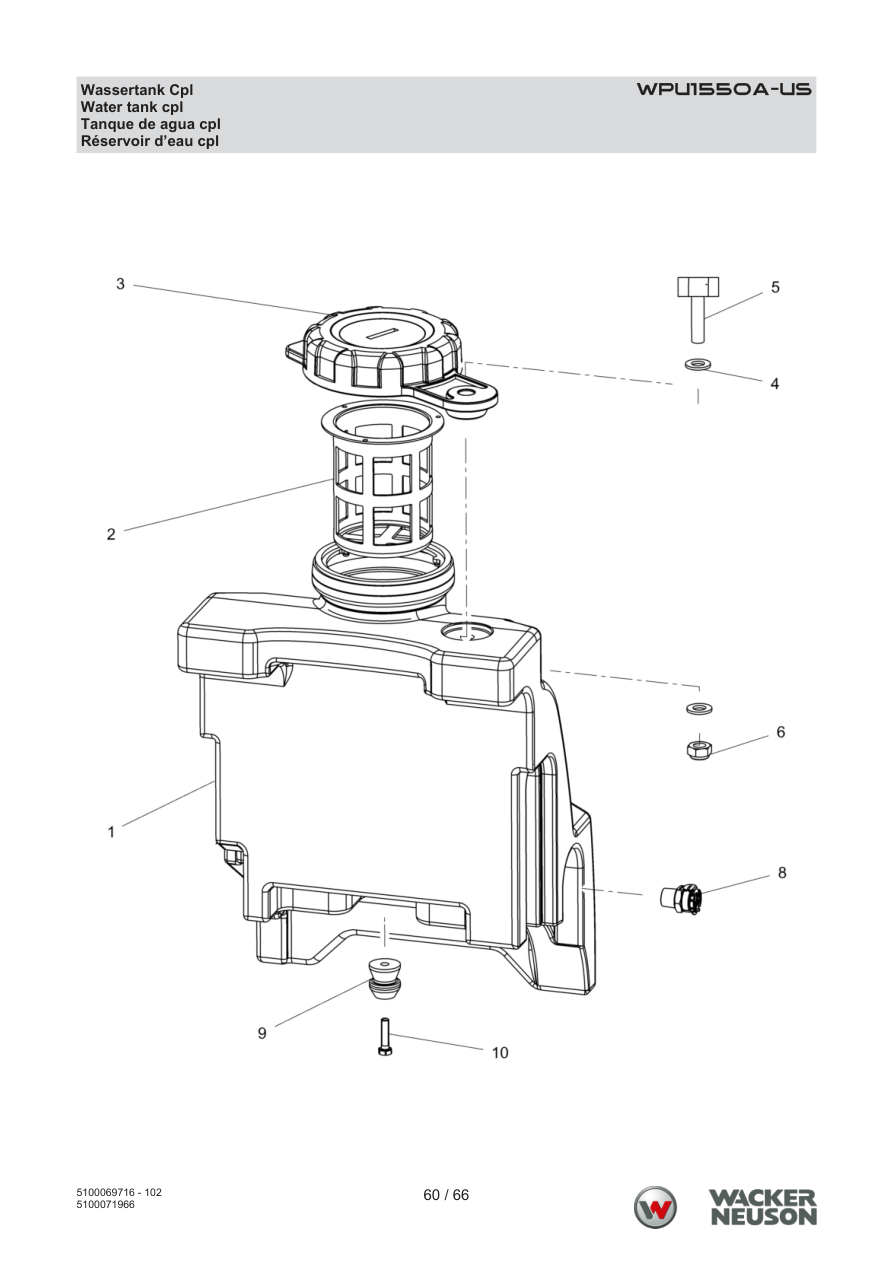

Page 60 — WPU1550A-US Wassertank Cpl
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100077425 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100077425 · qty on machine: 1 | |||||
| 2 | 5100077195 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100077195 · qty on machine: 1 | |||||
| 3 | 5000400786 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000400786 · qty on machine: 1 | |||||
| 4 | 5000401128 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5000401128 · qty on machine: 2 | |||||
| 5 | 5000401557 | pc | 1 | Hexagonal head cap screw | PARTS REQUEST |
|
COMING pc
5000401557 · qty on machine: 1 Hexagonal head cap screw | |||||
| 6 | 5000401129 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000401129 · qty on machine: 1 | |||||
| 8 | 5100069586 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100069586 · qty on machine: 1 | |||||
| 9 | 1000228596 | pc | 1 | PARTS REQUEST | |
|
COMING pc
1000228596 · qty on machine: 1 | |||||
| 10 | 5000011469 | pc | 1 | Hexagonal head cap screw | ADD TO CART |
Page 62 — WPU1550A-US Vielfältige Cpl
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000402003 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000402003 · qty on machine: 1 | |||||
| 2 | 5000402081 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5000402081 · qty on machine: 2 | |||||
| 3 | 5000403537 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000403537 · qty on machine: 1 | |||||
| 4 | 5000010621 | pc | 3 | ADD TO CART | |
| 5 | 5000012364 | pc | 3 | Hexagonal head cap screw | ADD TO CART |

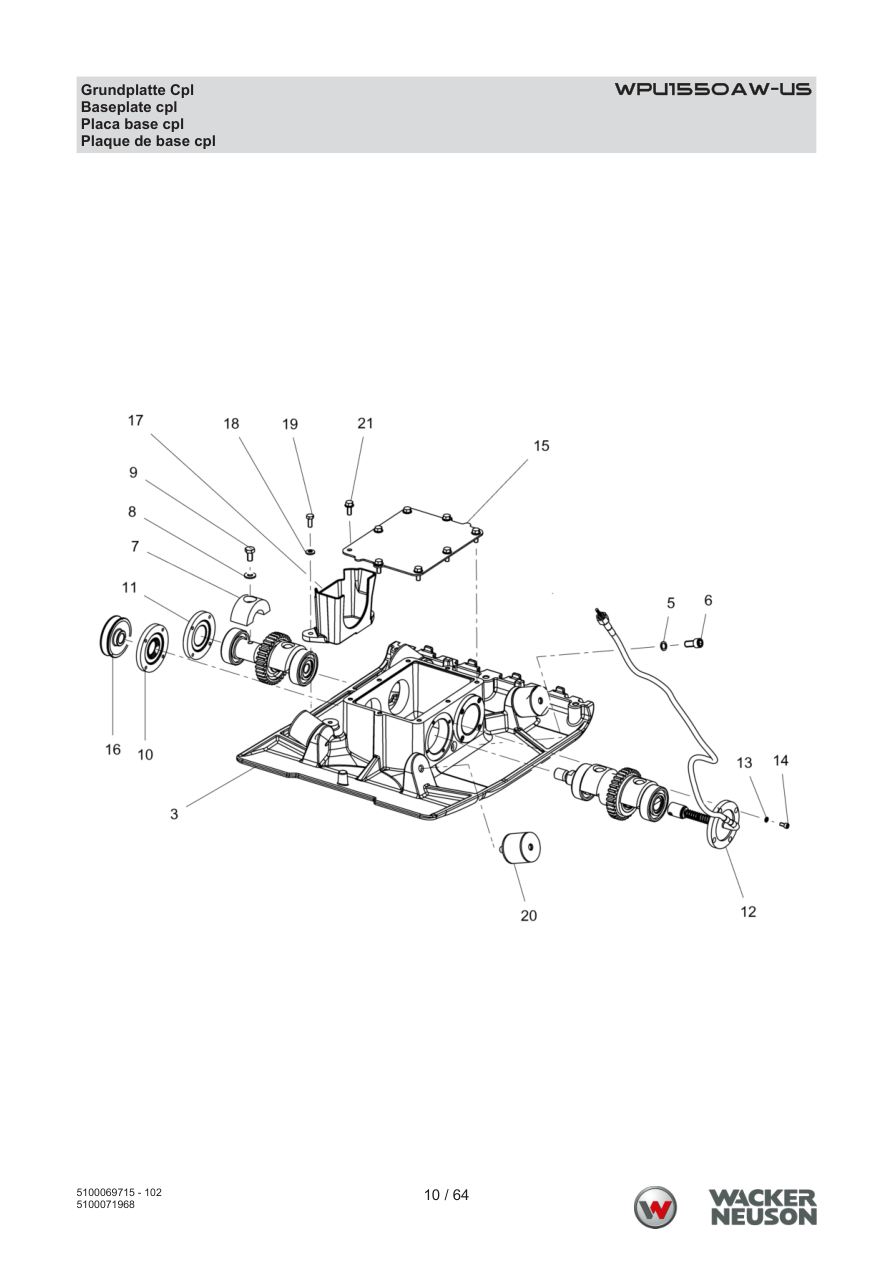

Page 10 — WPU1550AW-US Grundplatte Cpl
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100069544 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100069544 · qty on machine: 1 | |||||
| 5 | 5000013444 | pc | 1 | ADD TO CART | |
| 6 | 5000011530 | pc | 1 | Cheese head screw | PARTS REQUEST |
|
COMING pc
5000011530 · qty on machine: 1 Cheese head screw | |||||
| 7 | 5000130924 | pc | 4 | PARTS REQUEST | |
|
COMING pc
5000130924 · qty on machine: 4 | |||||
| 8 | 5000407043 | pc | 4 | ADD TO CART | |
| 9 | 5000012364 | pc | 4 | Hexagonal head cap screw | ADD TO CART |
| 10 | 5000402363 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000402363 · qty on machine: 1 | |||||
| 11 | 5000130970 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5000130970 · qty on machine: 2 | |||||
| 12 | 5000408561 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000408561 · qty on machine: 1 | |||||
| 13 | 5000401000 | pc | 16 | PARTS REQUEST | |
|
COMING pc
5000401000 · qty on machine: 16 | |||||
| 14 | 5000011554 | pc | 16 | Cheese head screw | ADD TO CART |
| 15 | 5100069557 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100069557 · qty on machine: 1 | |||||
| 16 | 5000403567 | pc | 1 | ADD TO CART | |
| 17 | 5000401678 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000401678 · qty on machine: 1 | |||||
| 18 | 5000033198 | pc | 3 | ADD TO CART | |
| 19 | 5000012362 | pc | 3 | Hexagonal head cap screw | ADD TO CART |
| 20 | 5100058397 | pc | 4 | PARTS REQUEST | |
|
COMING pc
5100058397 · qty on machine: 4 | |||||
| 21 | 5000028404 | pc | 8 | Hexagonal flange head screw | ADD TO CART |
Page 12 — WPU1550AW-US Wellentreiber Cpl.
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000400478 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000400478 · qty on machine: 1 | |||||
| 2 | 5100067427 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100067427 · qty on machine: 1 | |||||
| 3 | 5100054313 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100054313 · qty on machine: 1 | |||||
| 4 | 5000400352 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000400352 · qty on machine: 1 | |||||
| 5 | 5100067426 | pc | 2 | Bearing nj2207et n2 | PARTS REQUEST |
|
COMING pc
5100067426 · qty on machine: 2 Bearing nj2207et n2 | |||||
| 6 | 5000400358 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000400358 · qty on machine: 1 | |||||
Page 14 — WPU1550AW-US Welle Cpl.
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000400870 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000400870 · qty on machine: 1 | |||||
| 2 | 5000400318 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000400318 · qty on machine: 1 | |||||
| 3 | 5100054314 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100054314 · qty on machine: 1 | |||||
| 4 | 5000400352 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000400352 · qty on machine: 1 | |||||
| 5 | 5100067426 | pc | 2 | Bearing nj2207et n2 | PARTS REQUEST |
|
COMING pc
5100067426 · qty on machine: 2 Bearing nj2207et n2 | |||||
Page 16 — WPU1550AW-US Konsole Cpl
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100064548 | pc | 1 | Console machined - wpu | PARTS REQUEST |
|
COMING pc
5100064548 · qty on machine: 1 Console machined - wpu | |||||
| 2 | 1000013014 | pc | 2 | Cheese head screw | PARTS REQUEST |
|
COMING pc
1000013014 · qty on machine: 2 Cheese head screw | |||||
| 3 | 5000010929 | pc | 4 | ADD TO CART | |
| 4 | 5000401656 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000401656 · qty on machine: 1 | |||||
| 5 | 5000033198 | pc | 5 | ADD TO CART | |
| 6 | 5000028404 | pc | 2 | Hexagonal flange head screw | ADD TO CART |
| 7 | 5000401890 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000401890 · qty on machine: 1 | |||||
| 8 | 5000011343 | pc | 1 | Hexagonal head cap screw | ADD TO CART |
| 9 | 5100058399 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100058399 · qty on machine: 2 | |||||
| 10 | 5100050606 | pc | 1 | Engine honda gx160uh2 qwx2 | PARTS REQUEST |
|
COMING pc
5100050606 · qty on machine: 1 Engine honda gx160uh2 qwx2 | |||||
| 11 | 5000010367 | pc | 4 | ADD TO CART | |
| 13 | 5000056041 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000056041 · qty on machine: 1 | |||||
| 14 | 5100070021 | pc | 1 | Loncin wire holder | PARTS REQUEST |
|
COMING pc
5100070021 · qty on machine: 1 Loncin wire holder | |||||
| 16 | 5000402178 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000402178 · qty on machine: 1 | |||||
| 17 | 5000110458 | pc | 1 | ADD TO CART | |
| 19 | 5000028949 | pc | 1 | Hexagonal flange head screw | ADD TO CART |
| 20 | 5000401625 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000401625 · qty on machine: 1 | |||||
| 21 | 5000011527 | pc | 4 | Cheese head screw | ADD TO CART |
| 22 | 5000400348 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000400348 · qty on machine: 1 | |||||
| 23 | 5000401855 | pc | 2 | Socket head cap screw | PARTS REQUEST |
|
COMING pc
5000401855 · qty on machine: 2 Socket head cap screw | |||||
| 24 | 5000021679 | pc | 2 | ADD TO CART | |
| 25 | 5000031565 | pc | 4 | ADD TO CART | |
| 26 | 5000013002 | pc | 4 | Hexagonal head cap screw | ADD TO CART |
Page 18 — WPU1550AW-US Laufwerk Cpl.
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100071914 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100071914 · qty on machine: 1 | |||||
| 4 | 5001005118 | pc | 1 | Flat steel washer | ADD TO CART |
| 5 | 5000119214 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000119214 · qty on machine: 1 | |||||
| 6 | 5100073647 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100073647 · qty on machine: 1 | |||||
| 7 | 5000401661 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000401661 · qty on machine: 1 | |||||
| 8 | 5000401838 | pc | 3 | PARTS REQUEST | |
|
COMING pc
5000401838 · qty on machine: 3 | |||||
Page 20 — WPU1550AW-US Wassersystem Cpl
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000402029 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000402029 · qty on machine: 1 | |||||
| 3 | 5100058399 | pc | 4 | PARTS REQUEST | |
|
COMING pc
5100058399 · qty on machine: 4 | |||||
| 4 | 5000033198 | pc | 4 | ADD TO CART | |
| 5 | 5000012361 | pc | 4 | Hexagonal head cap screw | PARTS REQUEST |
|
COMING pc
5000012361 · qty on machine: 4 Hexagonal head cap screw | |||||
| 6 | 5000028404 | pc | 3 | Hexagonal flange head screw | ADD TO CART |
| 7 | 5000028949 | pc | 1 | Hexagonal flange head screw | ADD TO CART |
| 8 | 5100069223 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100069223 · qty on machine: 1 | |||||
| 9 | 5100069730 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100069730 · qty on machine: 1 | |||||
| 10 | 5000027149 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000027149 · qty on machine: 1 | |||||
| 11 | 5100069433 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100069433 · qty on machine: 1 | |||||
| 12 | 5000401851 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000401851 · qty on machine: 1 | |||||
| 13 | 5100069731 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100069731 · qty on machine: 1 | |||||
| 15 | 1000422322 | pc | 1 | PARTS REQUEST | |
|
COMING pc
1000422322 · qty on machine: 1 | |||||
| 16 | 5100071152 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100071152 · qty on machine: 1 | |||||
Page 22 — WPU1550AW-US Wassertank Cpl
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100077425 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100077425 · qty on machine: 1 | |||||
| 2 | 5100077195 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100077195 · qty on machine: 1 | |||||
| 3 | 5000400786 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000400786 · qty on machine: 1 | |||||
| 4 | 5000401128 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5000401128 · qty on machine: 2 | |||||
| 5 | 5000401557 | pc | 1 | Hexagonal head cap screw | PARTS REQUEST |
|
COMING pc
5000401557 · qty on machine: 1 Hexagonal head cap screw | |||||
| 6 | 5000401129 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000401129 · qty on machine: 1 | |||||
| 8 | 5100069586 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100069586 · qty on machine: 1 | |||||
| 9 | 1000228596 | pc | 1 | PARTS REQUEST | |
|
COMING pc
1000228596 · qty on machine: 1 | |||||
| 10 | 5000011469 | pc | 1 | Hexagonal head cap screw | ADD TO CART |

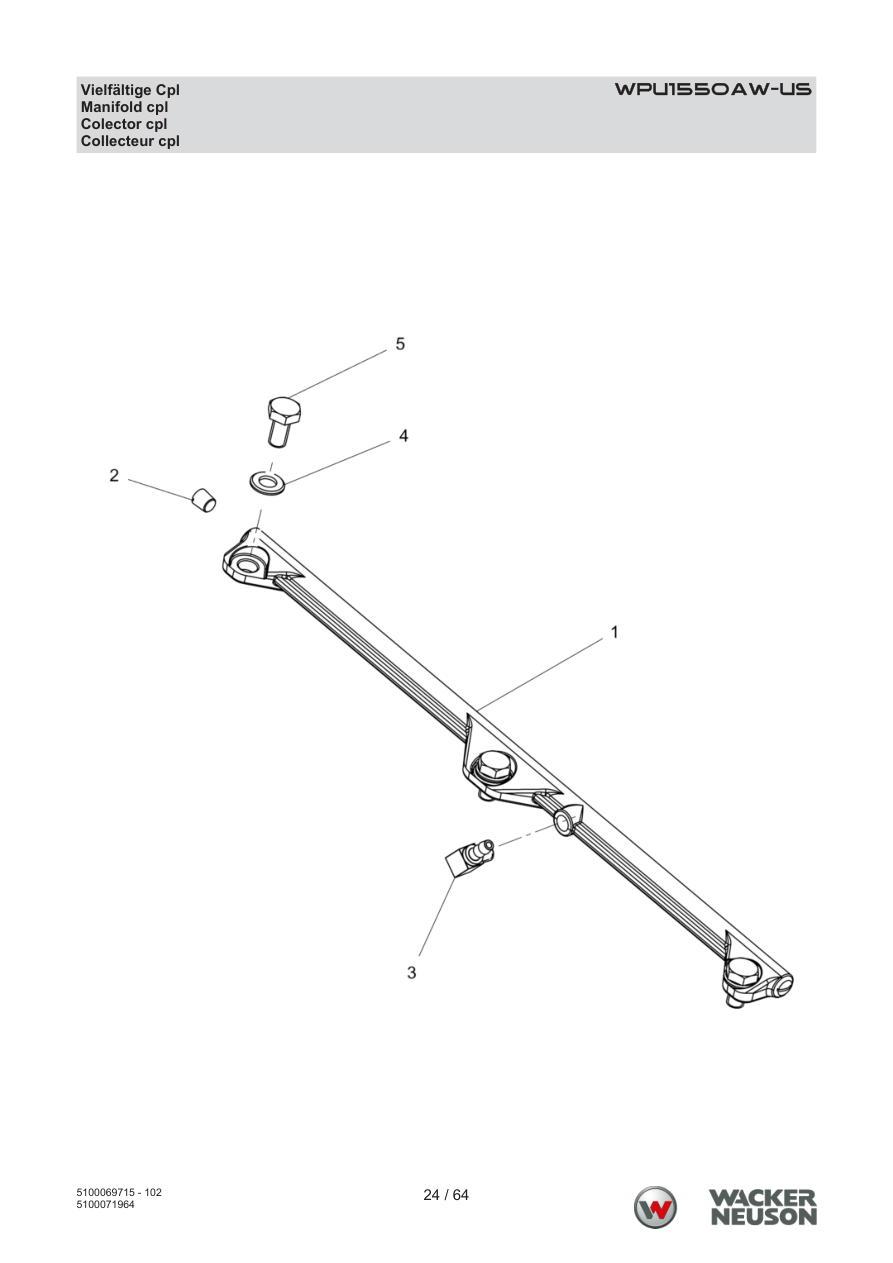

Page 24 — WPU1550AW-US Vielfältige Cpl
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000402003 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000402003 · qty on machine: 1 | |||||
| 2 | 5000402081 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5000402081 · qty on machine: 2 | |||||
| 3 | 5000403537 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000403537 · qty on machine: 1 | |||||
| 4 | 5000010621 | pc | 3 | ADD TO CART | |
| 5 | 5000012364 | pc | 3 | Hexagonal head cap screw | ADD TO CART |
Page 26 — WPU1550AW-US Behandeln Von CPL
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100069591 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100069591 · qty on machine: 1 | |||||
| 2 | 1000151200 | pc | 1 | PARTS REQUEST | |
|
COMING pc
1000151200 · qty on machine: 1 | |||||
| 3 | 1000015340 | pc | 1 | PARTS REQUEST | |
|
COMING pc
1000015340 · qty on machine: 1 | |||||
| 4 | 5000021679 | pc | 4 | ADD TO CART | |
| 5 | 5000402953 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000402953 · qty on machine: 1 | |||||
| 6 | 5000402482 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000402482 · qty on machine: 1 | |||||
| 7 | 5000402483 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000402483 · qty on machine: 1 | |||||
| 8 | 5000401891 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000401891 · qty on machine: 1 | |||||
| 9 | 5000401705 | pc | 3 | PARTS REQUEST | |
|
COMING pc
5000401705 · qty on machine: 3 | |||||
| 10 | 5000011551 | pc | 1 | Cheese head screw | ADD TO CART |
| 11 | 5000053577 | pc | 2 | Tank valve bushing | PARTS REQUEST |
|
COMING pc
5000053577 · qty on machine: 2 Tank valve bushing | |||||
| 12 | 5100058401 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100058401 · qty on machine: 2 | |||||
| 13 | 5000405718 | pc | 2 | Button head screw | PARTS REQUEST |
|
COMING pc
5000405718 · qty on machine: 2 Button head screw | |||||
Page 28 — WPU1550AW-US Rad Cpl.
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000401876 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000401876 · qty on machine: 1 | |||||
| 2 | 5000401667 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000401667 · qty on machine: 1 | |||||
| 3 | 5002001038 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5002001038 · qty on machine: 2 | |||||
| 4 | 5000401663 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5000401663 · qty on machine: 2 | |||||
| 5 | 5000010374 | pc | 2 | ADD TO CART | |
| 6 | 5000012397 | pc | 2 | ADD TO CART | |
| 7 | 5000012362 | pc | 2 | Hexagonal head cap screw | ADD TO CART |
| 9 | 5100048614 | pc | 4 | Flange bolt m8x25 din6921 8.8a2k | PARTS REQUEST |
|
COMING pc
5100048614 · qty on machine: 4 Flange bolt m8x25 din6921 8.8a2k | |||||
Page 30 — WPU1550AW-US Etiketten
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000408274 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000408274 · qty on machine: 1 | |||||
| 2 | 5000153798 | pc | 1 | ADD TO CART | |
| 3 | 5100045462 | pc | 1 | Decal proposition 65 | PARTS REQUEST |
|
COMING pc
5100045462 · qty on machine: 1 Decal proposition 65 | |||||
| 4 | 5000162858 | pc | 2 | ADD TO CART | |
| 5 | 5000116940 | pc | 1 | ADD TO CART | |
| 6 | 5000402790 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000402790 · qty on machine: 1 | |||||
| 7 | 5000401907 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000401907 · qty on machine: 1 | |||||
Page 32 — WPU1550AW-US Starter Cpl
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100071615 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100071615 · qty on machine: 1 | |||||
| 2 | 5100071616 | pc | 1 | Case comp,recoil starter*nh1* | PARTS REQUEST |
|
COMING pc
5100071616 · qty on machine: 1 Case comp,recoil starter*nh1* | |||||
| 3 | 5100036077 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100036077 · qty on machine: 1 | |||||
| 5 | 5000160748 | pc | 1 | ADD TO CART | |
| 6 | 5100036079 | pc | 1 | ADD TO CART | |
| 7 | 5000160747 | pc | 1 | ADD TO CART | |
| 8 | 5000081777 | pc | 1 | ADD TO CART | |
| 10 | 5100071617 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100071617 · qty on machine: 1 | |||||
| 11 | 5000081781 | pc | 1 | ADD TO CART | |
| 12 | 5100071618 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100071618 · qty on machine: 1 | |||||
| 13 | 5000207991 | pc | 1 | ADD TO CART | |
Page 34 — WPU1550AW-US Lüfterabdeckung Cpl
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100071619 | pc | 1 | Cover comp ,fan*nh1* | PARTS REQUEST |
|
COMING pc
5100071619 · qty on machine: 1 Cover comp ,fan*nh1* | |||||
| 5 | 5100005313 | pc | 1 | ADD TO CART | |
| 7 | 5100047599 | pc | 1 | Engine stop device cpl. | ADD TO CART |
| 8 | 5000053990 | pc | 6 | ADD TO CART | |
| 9 | 5000071055 | pc | 1 | ADD TO CART | |
| 10 | 5000151700 | pc | 1 | ADD TO CART | |
| 11 | 5000081750 | pc | 1 | ADD TO CART | |
Page 36 — WPU1550AW-US Vergaser Cpl.
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000071022 | pc | 1 | ADD TO CART | |
| 3 | 5000209764 | pc | 1 | ADD TO CART | |
| 4 | 5100050454 | pc | 1 | Float chamber cpl. | ADD TO CART |
| 8 | 5000071025 | pc | 1 | ADD TO CART | |
| 9 | 5100051853 | pc | 1 | ADD TO CART | |
| 10 | 5000071018 | pc | 1 | Throttle stop screw | ADD TO CART |
| 14 | 5100050459 | pc | 1 | ADD TO CART | |
| 15 | 5000082009 | pc | 1 | ADD TO CART | |
| 16 | 5000071015 | pc | 1 | ADD TO CART | |
| 17 | 5000081762 | pc | 1 | ADD TO CART | |
| 18 | 5000071013 | pc | 1 | Choke control lever | ADD TO CART |
| 20 | 5000073269 | pc | 1 | ADD TO CART | |
| 21 | 5000073270 | pc | 1 | ADD TO CART | |
| 22 | 5000073272 | pc | 1 | ADD TO CART | |
| 24 | 5000071023 | pc | 1 | ADD TO CART | |
| 25 | 5100071622 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100071622 · qty on machine: 2 | |||||
| 26 | 5000071014 | pc | 1 | ADD TO CART | |
| 28 | 5000071016 | pc | 1 | ADD TO CART | |
Page 38 — WPU1550AW-US Luftfilter Cpl
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000071032 | pc | 1 | ADD TO CART | |
| 2 | 5100051862 | pc | 1 | Air filter compl. | ADD TO CART |
| 4 | 5100051864 | pc | 1 | ADD TO CART | |
| 7 | 5000081746 | pc | 2 | ADD TO CART | |
| 8 | 5000071035 | pc | 1 | ADD TO CART | |
| 9 | 5100051866 | pc | 1 | Elbow comp.,air cleaner | ADD TO CART |
| 10 | 5100051867 | pc | 1 | Nut, tool box setting | ADD TO CART |
| 11 | 5000406643 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000406643 · qty on machine: 1 | |||||
| 12 | 5000071056 | pc | 2 | ADD TO CART | |
| 13 | 5000107064 | pc | 1 | ADD TO CART | |
Page 40 — WPU1550AW-US Schalldämpfer Cpl
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000406644 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000406644 · qty on machine: 1 | |||||
| 3 | 5000406646 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000406646 · qty on machine: 1 | |||||
| 4 | 5000071075 | pc | 1 | ADD TO CART | |
| 6 | 5000216516 | pc | 1 | ADD TO CART | |
| 9 | 5000071070 | pc | 4 | ADD TO CART | |
| 10 | 5000150916 | pc | 1 | ADD TO CART | |
| 11 | 5000071076 | pc | 2 | ADD TO CART | |
Page 42 — WPU1550AW-US Kraftstofftank Cpl
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000081764 | pc | 1 | ADD TO CART | |
| 2 | 5000071083 | pc | 1 | ADD TO CART | |
| 4 | 5100051851 | pc | 1 | ADD TO CART | |
| 5 | 5100071620 | pc | 1 | Cap comp , fuel filler | PARTS REQUEST |
|
COMING pc
5100071620 · qty on machine: 1 Cap comp , fuel filler | |||||
| 6 | 5000209770 | pc | 1 | ADD TO CART | |
| 8 | 5000209771 | pc | 1 | ADD TO CART | |
| 12 | 5100005325 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100005325 · qty on machine: 1 | |||||
| 13 | 5000071056 | pc | 2 | ADD TO CART | |
Page 44 — WPU1550AW-US Schwungrad Cpl
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000068967 | pc | 1 | ADD TO CART | |
| 2 | 5000071652 | pc | 1 | ADD TO CART | |
| 3 | 5100036245 | pc | 1 | ADD TO CART | |
| 4 | 5100050547 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100050547 · qty on machine: 1 | |||||
| 5 | 5000162686 | pc | 1 | ADD TO CART | |
Page 46 — WPU1550AW-US Zylinderkopf Cpl
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100050549 | pc | 1 | Cylinder head cpl. | ADD TO CART |
| 5 | 5100005329 | pc | 1 | Cylinder head gasket | PARTS REQUEST |
|
COMING pc
5100005329 · qty on machine: 1 Cylinder head gasket | |||||
| 7 | 5100050550 | pc | 1 | ADD TO CART | |
| 8 | 5000070942 | pc | 1 | ADD TO CART | |
| 10 | 5000081761 | pc | 1 | ADD TO CART | |
| 11 | 5000053990 | pc | 4 | ADD TO CART | |
| 12 | 5000073263 | pc | 2 | ADD TO CART | |
| 13 | 5000070948 | pc | 2 | ADD TO CART | |
| 14 | 5000070950 | pc | 2 | ADD TO CART | |
| 16 | 5000071626 | pc | 4 | ADD TO CART | |
| 17 | 5000150914 | pc | 1 | ADD TO CART | |
Page 48 — WPU1550AW-US Zündspule Cpl
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100050553 | pc | 1 | ADD TO CART | |
| 2 | 5100051859 | pc | 1 | ADD TO CART | |
| 3 | 5000081663 | pc | 1 | Short circuit cable | ADD TO CART |
| 4 | 5000081737 | pc | 2 | ADD TO CART | |
Page 50 — WPU1550AW-US Gouverneur Cpl
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 4 | 5000406655 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000406655 · qty on machine: 1 | |||||
| 6 | 5000406656 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000406656 · qty on machine: 1 | |||||
| 7 | 5000406657 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000406657 · qty on machine: 1 | |||||
| 8 | 5000406658 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000406658 · qty on machine: 1 | |||||
| 9 | 5000071664 | pc | 1 | ADD TO CART | |
| 10 | 5000406660 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000406660 · qty on machine: 1 | |||||
| 11 | 5000071058 | pc | 1 | ADD TO CART | |
| 12 | 5000071057 | pc | 1 | ADD TO CART | |
| 13 | 5000071062 | pc | 1 | ADD TO CART | |
| 14 | 5000071064 | pc | 1 | ADD TO CART | |
| 15 | 5000406661 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000406661 · qty on machine: 1 | |||||
| 16 | 5000054088 | pc | 1 | ADD TO CART | |
| 17 | 5000071667 | pc | 1 | ADD TO CART | |
| 20 | 5000053990 | pc | 2 | ADD TO CART | |
| 21 | 5200000457 | pc | 1 | ADD TO CART | |
| 23 | 5000072782 | pc | 1 | ADD TO CART | |
| 26 | 5000110112 | pc | 1 | ADD TO CART | |
| 27 | 5000081990 | pc | 1 | ADD TO CART | |
| 29 | 5000071056 | pc | 1 | ADD TO CART | |
Page 52 — WPU1550AW-US Zylinderzylinder Cpl
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100050559 | pc | 1 | Motor housing cpl. | ADD TO CART |
| 2 | 5000406667 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000406667 · qty on machine: 1 | |||||
| 3 | 5000406670 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000406670 · qty on machine: 1 | |||||
| 4 | 5100005433 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100005433 · qty on machine: 1 | |||||
| 5 | 5000072331 | pc | 1 | Oil alert switch assy. | ADD TO CART |
| 6 | 5000070964 | pc | 2 | ADD TO CART | |
| 8 | 5000070963 | pc | 2 | ADD TO CART | |
| 9 | 5000081615 | pc | 1 | ADD TO CART | |
| 10 | 5000053983 | pc | 1 | ADD TO CART | |
| 11 | 5100036263 | pc | 1 | ADD TO CART | |
| 12 | 5000072332 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000072332 · qty on machine: 1 | |||||
| 13 | 5000071639 | pc | 2 | ADD TO CART | |
| 14 | 5000054033 | pc | 1 | ADD TO CART | |
| 15 | 5000072333 | pc | 2 | ADD TO CART | |
| 18 | 5000156689 | pc | 2 | ADD TO CART | |
Page 54 — WPU1550AW-US Kurbelgehäuseabdeckung Cpl.
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005434 | pc | 1 | Crankcase cover cpl. | PARTS REQUEST |
|
COMING pc
5100005434 · qty on machine: 1 Crankcase cover cpl. | |||||
| 2 | 5100036266 | pc | 1 | ADD TO CART | |
| 3 | 5100060757 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100060757 · qty on machine: 1 | |||||
| 4 | 5100031607 | pc | 1 | Oil filler cap | ADD TO CART |
| 5 | 5100051314 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100051314 · qty on machine: 2 | |||||
| 6 | 5000053983 | pc | 1 | ADD TO CART | |
| 7 | 5000053995 | pc | 2 | ADD TO CART | |
| 8 | 5000071630 | pc | 6 | ADD TO CART | |
| 9 | 5000217465 | pc | 1 | ADD TO CART | |
Page 56 — WPU1550AW-US Kurbelwelle Cpl.
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100071621 | pc | 1 | ADD TO CART | |
| 6 | 5100036261 | pc | 1 | ADD TO CART | |
Page 58 — WPU1550AW-US Kolben Cpl.
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100050562 | pc | 1 | Set of piston rings | ADD TO CART |
| 2 | 5100050566 | pc | 1 | ADD TO CART | |
| 3 | 5000071648 | pc | 1 | ADD TO CART | |
| 4 | 5100050571 | pc | 1 | ADD TO CART | |
| 6 | 5000081994 | pc | 2 | ADD TO CART | |
Page 60 — WPU1550AW-US Nockenwelle Cpl.
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100066375 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100066375 · qty on machine: 1 | |||||
| 2 | 5100050572 | pc | 1 | ADD TO CART | |
| 3 | 5000406683 | pc | 2 | Push rod (valve lifter) | PARTS REQUEST |
|
COMING pc
5000406683 · qty on machine: 2 Push rod (valve lifter) | |||||
| 4 | 5000070986 | pc | 2 | ADD TO CART | |
| 5 | 5000070990 | pc | 2 | ADD TO CART | |
| 6 | 5100036280 | pc | 2 | ADD TO CART | |
| 7 | 5000151028 | pc | 1 | ADD TO CART | |
| 8 | 5100050573 | pc | 1 | ADD TO CART | |
| 9 | 5000406685 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000406685 · qty on machine: 1 | |||||
| 10 | 5000081760 | pc | 2 | ADD TO CART | |
| 11 | 5000070996 | pc | 2 | ADD TO CART | |
| 13 | 5000072778 | pc | 2 | ADD TO CART | |
| 14 | 5000070984 | pc | 2 | ADD TO CART | |
The machine itself
Machine
Engine
Wacker Neuson WPU1550 vibratory plate.
A: Honda Gasoline Engine.
Available in 2 configurations.
List price: $5,385.00 – $5,605.00
Keep-it-running spares
All listed parts →Every part that fits this machine
1000013014
pc
1000015340
pc
1000151200
pc
1000228596
pc
1000422322
pc
5000010367
pc
$0.95
5000010374
pc
$0.95
5000010621
pc
$0.95
5000010929
pc
$3.95
5000011343
pc
$0.95
5000011469
pc
$0.95
5000011527
pc
$1.95
5000011530
pc
5000011551
pc
$0.95
5000011554
pc
$0.95
5000012361
pc
5000012362
pc
$0.95
5000012364
pc
$0.95
5000012397
pc
$0.95
5000013002
pc
$0.95
5000013444
pc
$2.95
5000014663
pc
$0.95
5000021679
pc
$0.95
5000027149
pc
5000028404
pc
$0.95
5000028949
pc
$0.95
5000031565
pc
$0.95
5000033198
pc
$0.95
5000053577
pc
5000053983
pc
$10.95
5000053990
pc
$2.95
5000053995
pc
$3.95
5000054033
pc
$1.95
5000054088
pc
$8.95
5000056041
pc
5000068967
pc
$8.95
5000070942
pc
$5.95
5000070948
pc
$7.95
5000070950
pc
$5.95
5000070963
pc
$1.95
5000070964
pc
$5.95
5000070984
pc
$7.95
5000070986
pc
$12.95
5000070990
pc
$24.95
5000070996
pc
$1.95
5000071013
pc
$18.95
5000071014
pc
$2.95
5000071015
pc
$9.95
5000071016
pc
$39.95
5000071018
pc
$20.95
5000071022
pc
$49.95
5000071023
pc
$24.95
5000071025
pc
$62.95
5000071032
pc
$5.95
5000071035
pc
$7.95
5000071055
pc
$5.95
5000071056
pc
$0.95
5000071057
pc
$9.95
5000071058
pc
$4.95
5000071062
pc
$8.95
5000071064
pc
$9.95
5000071070
pc
$2.95
5000071075
pc
$26.95
5000071076
pc
$1.95
5000071083
pc
$13.95
5000071626
pc
$2.95
5000071630
pc
$1.95
5000071639
pc
$0.95
5000071648
pc
$21.95
5000071652
pc
$50.95
5000071664
pc
$4.95
5000071667
pc
$3.95
5000072331
pc
$112.95
5000072332
pc
5000072333
pc
$2.95
5000072778
pc
$14.95
5000072782
pc
$6.95
5000073263
pc
$11.95
5000073269
pc
$7.95
5000073270
pc
$4.95
5000073272
pc
$4.95
5000074985
pc
$0.95
5000081615
pc
$1.95
5000081663
pc
$19.95
5000081737
pc
$4.95
5000081746
pc
$7.95
5000081750
pc
$7.95
5000081760
pc
$7.95
5000081761
pc
$7.95
5000081762
pc
$2.95
5000081764
pc
$8.95
5000081777
pc
$31.95
5000081781
pc
$20.95
5000081990
pc
$1.95
5000081994
pc
$1.95
5000082009
pc
$3.95
5000107064
pc
$2.95
5000110112
pc
$1.95
5000110458
pc
$0.95
5000116940
pc
$21.95
5000119214
pc
5000130924
pc
5000130970
pc
5000150914
pc
$5.95
5000150916
pc
$1.95
5000151028
pc
$5.95
5000151700
pc
$4.95
5000153798
pc
$3.95
5000156689
pc
$2.95
5000160747
pc
$6.95
5000160748
pc
$8.95
5000162686
pc
$4.95
5000162858
pc
$2.95
5000207991
pc
$7.95
5000209764
pc
$44.95
5000209770
pc
$0.95
5000209771
pc
$1.95
5000216516
pc
$5.95
5000217465
pc
$42.95
5000400318
pc
5000400348
pc
5000400352
pc
5000400358
pc
5000400478
pc
5000400786
pc
5000400870
pc
5000401000
pc
5000401128
pc
5000401129
pc
5000401557
pc
5000401625
pc
5000401656
pc
5000401661
pc
5000401663
pc
5000401667
pc
5000401678
pc
5000401705
pc
5000401838
pc
5000401851
pc
5000401855
pc
5000401876
pc
5000401890
pc
5000401891
pc
5000401907
pc
5000402003
pc
5000402029
pc
5000402081
pc
5000402178
pc
5000402362
pc
5000402363
pc
5000402482
pc
5000402483
pc
5000402790
pc
5000402953
pc
5000403537
pc
5000403567
pc
$35.95
5000405718
pc
5000406643
pc
5000406644
pc
5000406646
pc
5000406655
pc
5000406656
pc
5000406657
pc
5000406658
pc
5000406660
pc
5000406661
pc
5000406667
pc
5000406670
pc
5000406683
pc
5000406685
pc
5000407043
pc
$0.95
5000408274
pc
5000408561
pc
5001005118
pc
$1.95
5002001038
pc
5100005313
pc
$88.95
5100005325
pc
5100005329
pc
5100005433
pc
5100005434
pc
5100031607
pc
$11.95
5100036077
pc
5100036079
pc
$13.95
5100036245
pc
$111.95
5100036261
pc
$31.95
5100036263
pc
$0.95
5100036266
pc
$24.95
5100036280
pc
$7.95
5100045462
pc
5100047599
pc
$114.95
5100048614
pc
5100050454
pc
$119.95
5100050459
pc
$48.95
5100050547
pc
5100050549
pc
$536.95
5100050550
pc
$19.95
5100050553
pc
$479.95
5100050559
pc
$1,500.95
5100050562
pc
$168.95
5100050566
pc
$185.95
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
