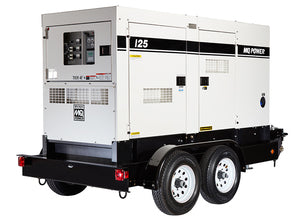

Multiquip DCA125SSIU4F Generator

Name: Multiquip DCA125SSIU4F Generator
Brand: Multiquip

The parts bench

Need the PDF? ↓

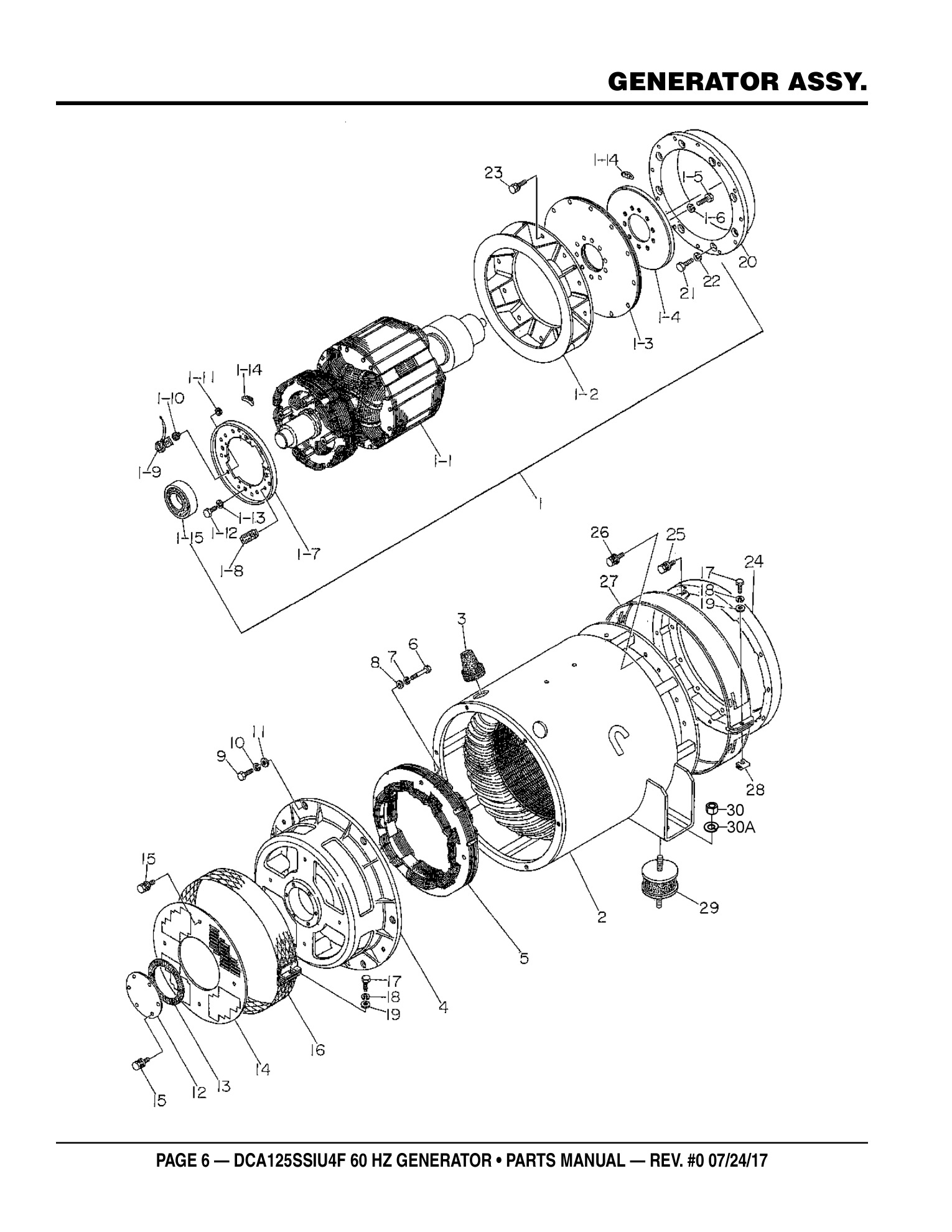

Page 6 — GENERATOR ASSY.

Multiquip DCA125SSIU4F Generator GENERATOR ASSY. parts diagram

Parts list — exactly as printed46 rows

No.	Part No.	Part Name	Qty	Remarks
1	C0110001002	ROTOR ASSEMBLY	1	INCLUDES ITEMS W/$	ADD TO CART
ROTOR ASSEMBLY C0110001002 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 1-1$, 1-2$, 1-3$, 1-4$, 1-5$, 1-6$, 1-7$, 1-8$, 1-9$, 1-10$, 1-11$, 1-12$, 1-13$, 1-14$, 1-15$, 20$, 21$, 22$, 23$ view full part page → $10373.95 IN A KIT + SOLD SOLO
1-1$		FIELD ASSEMBLY	1		INCLUDED IN KIT
PHOTO COMING FIELD ASSEMBLY · qty on machine: 1 Included in kit 1 - ROTOR ASSEMBLY (C0110001002) INCLUDED IN KIT
1-2$	8131070013	FAN	1		ADD TO CART
FAN 8131070013 · qty on machine: 1 Also included in kit 1 - ROTOR ASSEMBLY (C0110001002) view full part page → $766.95 IN A KIT + SOLD SOLO
1-3$	8131611014	COUPLING DISK	8		PARTS REQUEST
PHOTO COMING COUPLING DISK 8131611014 · qty on machine: 8 Also included in kit 1 - ROTOR ASSEMBLY (C0110001002) PARTS REQUEST
1-4$	8131015003	BALANCING PLATE	1	PURCHASE ITEM 1-14 AS A SET	ADD TO CART
BALANCING PLATE 8131015003 · qty on machine: 1 PURCHASE ITEM 1-14 AS A SET Also included in kit 1 - ROTOR ASSEMBLY (C0110001002) view full part page → $99.95 IN A KIT + SOLD SOLO
1-5$	0012112035	HEX. HEAD BOLT	10		ADD TO CART
HEX. HEAD BOLT 0012112035 · qty on machine: 10 Also included in kit 1 - ROTOR ASSEMBLY (C0110001002) view full part page → $3.95 IN A KIT + SOLD SOLO
1-6$	0042612000	WASHER, LOCK	10		ADD TO CART
WASHER, LOCK 0042612000 · qty on machine: 10 Also included in kit 1 - ROTOR ASSEMBLY (C0110001002) view full part page → $0.77 IN A KIT + SOLD SOLO
1-7$	8101026013	SET PLATE, RECTIFIER	1	PURCHASE ITEM 1-14 AS A SET	ADD TO CART
SET PLATE, RECTIFIER 8101026013 · qty on machine: 1 PURCHASE ITEM 1-14 AS A SET Also included in kit 1 - ROTOR ASSEMBLY (C0110001002) view full part page → $113.95 IN A KIT + SOLD SOLO
1-8$	0601821349	RECTIFIER	2		ADD TO CART
RECTIFIER 0601821349 · qty on machine: 2 Also included in kit 1 - ROTOR ASSEMBLY (C0110001002) view full part page → $247.95 IN A KIT + SOLD SOLO
1-9$	0601822601	SURGE ABSORBER	1		ADD TO CART
SURGE ABSORBER 0601822601 · qty on machine: 1 Also included in kit 1 - ROTOR ASSEMBLY (C0110001002) view full part page → $60.95 IN A KIT + SOLD SOLO
1-10$	8001020004	INSULATOR WASHER	1		ADD TO CART
INSULATOR WASHER 8001020004 · qty on machine: 1 Also included in kit 1 - ROTOR ASSEMBLY (C0110001002) view full part page → $8.95 IN A KIT + SOLD SOLO
1-11$	8001020504	INSULATOR WASHER	1		ADD TO CART
INSULATOR WASHER 8001020504 · qty on machine: 1 Also included in kit 1 - ROTOR ASSEMBLY (C0110001002) view full part page → $4.95 IN A KIT + SOLD SOLO
1-12$	012210020	HEX. HEAD BOLT	4	REPLACES P/N 0010110020	ADD TO CART
HEX. HEAD BOLT 012210020 · qty on machine: 4 REPLACES P/N 0010110020 Also included in kit 1 - ROTOR ASSEMBLY (C0110001002) view full part page → $0.95 IN A KIT + SOLD SOLO
1-13$	0040010000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0040010000 · qty on machine: 4 Also included in kit 1 - ROTOR ASSEMBLY (C0110001002) view full part page → $0.39 IN A KIT + SOLD SOLO
1-14$	0601000209	BALANCING WEIGHT KIT	1		ADD TO CART
BALANCING WEIGHT KIT 0601000209 · qty on machine: 1 Also included in kit 1 - ROTOR ASSEMBLY (C0110001002) view full part page → $9.95 IN A KIT + SOLD SOLO
1-15$	0071906312	BEARING	1		ADD TO CART
BEARING 0071906312 · qty on machine: 1 Also included in kit 1 - ROTOR ASSEMBLY (C0110001002) view full part page → $201.95 IN A KIT + SOLD SOLO
2	C0130000503	STARTOR ASSY.	1		PARTS REQUEST
PHOTO COMING STARTOR ASSY. C0130000503 · qty on machine: 1 PARTS REQUEST
3	0845041804	GROMMET	2		ADD TO CART
GROMMET 0845041804 · qty on machine: 2 view full part page → $16.95
4	8131315202	END BRACKET	1		ADD TO CART
END BRACKET 8131315202 · qty on machine: 1 view full part page → $1283.95
5	8101350013	FIELD ASSY., EXCITER	1		ADD TO CART
FIELD ASSY., EXCITER 8101350013 · qty on machine: 1 view full part page → $2986.95
6	0012110060	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0012110060 · qty on machine: 4 view full part page → $4.95
7	0042610000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0042610000 · qty on machine: 4 view full part page → $0.53
8	031110160	WASHER, FLAT	4	REPLACES P/N 0041210000	ADD TO CART
WASHER, FLAT 031110160 · qty on machine: 4 REPLACES P/N 0041210000 view full part page → $0.4
9	0010112035	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0010112035 · qty on machine: 6 view full part page → $1.95
10	0040012000	WASHER, LOCK	6		ADD TO CART
WASHER, LOCK 0040012000 · qty on machine: 6 view full part page → $0.95
11	031112230	WASHER, FLAT	6	REPLACES P/N 0041212000	ADD TO CART
WASHER, FLAT 031112230 · qty on machine: 6 REPLACES P/N 0041212000 view full part page → $0.95
12	8131310104	COVER, BEARING	1		ADD TO CART
COVER, BEARING 8131310104 · qty on machine: 1 view full part page → $192.95
13	8131312204	GASKET, BEARING	1		ADD TO CART
GASKET, BEARING 8131312204 · qty on machine: 1 view full part page → $30.95
14	8131331003	COVER, END BRACKET	1		ADD TO CART
COVER, END BRACKET 8131331003 · qty on machine: 1 view full part page → $147.95
15	0105050616	HEX. HEAD BOLT	10	REPLACES P/N 0017106012	ADD TO CART
HEX. HEAD BOLT 0105050616 · qty on machine: 10 REPLACES P/N 0017106012 view full part page → $0.45
16	8101333003	COVER, END BRACKET	1		ADD TO CART
COVER, END BRACKET 8101333003 · qty on machine: 1 view full part page → $86.95
17	0010006030	HEX. HEAD BOLT	2	REPLACES P/N 0010106030	ADD TO CART
HEX. HEAD BOLT 0010006030 · qty on machine: 2 REPLACES P/N 0010106030 view full part page → $0.25
18	0040006000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040006000 · qty on machine: 2 view full part page → $0.17
19	952404470	WASHER, FLAT	2	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 2 REPLACES P/N 0041206000 view full part page → $0.19
20$	M3163400503	COUPLING RING	1		ADD TO CART
COUPLING RING M3163400503 · qty on machine: 1 Also included in kit 1 - ROTOR ASSEMBLY (C0110001002) view full part page → $2217.95 IN A KIT + SOLD SOLO
21$	0010310075	HEX. HEAD BOLT	8		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT 0010310075 · qty on machine: 8 Also included in kit 1 - ROTOR ASSEMBLY (C0110001002) PARTS REQUEST
22$	030210250	WASHER, LOCK	8	REPLACES P/N 0042510000	ADD TO CART
WASHER, LOCK 030210250 · qty on machine: 8 REPLACES P/N 0042510000 Also included in kit 1 - ROTOR ASSEMBLY (C0110001002) view full part page → $0.28 IN A KIT + SOLD SOLO
23$	012010030	HEX. HEAD BOLT	12	REPLACES P/N 0012810030	ADD TO CART
HEX. HEAD BOLT 012010030 · qty on machine: 12 REPLACES P/N 0012810030 Also included in kit 1 - ROTOR ASSEMBLY (C0110001002) view full part page → $0.95 IN A KIT + SOLD SOLO
24	M3163600003	COUPLING ADAPTER	1		ADD TO CART
COUPLING ADAPTER M3163600003 · qty on machine: 1 view full part page → $1697.95
25	012010030	HEX. HEAD BOLT	12	REPLACES P/N 0012810030	ADD TO CART
HEX. HEAD BOLT 012010030 · qty on machine: 12 REPLACES P/N 0012810030 view full part page → $0.95
26	012010030	HEX. HEAD BOLT	12	REPLACES P/N 0012810030	ADD TO CART
HEX. HEAD BOLT 012010030 · qty on machine: 12 REPLACES P/N 0012810030 view full part page → $0.95
27	8131332014	COVER, FAN	1		ADD TO CART
COVER, FAN 8131332014 · qty on machine: 1 view full part page → $147.95
28	020106050	NUT	1	REPLACES P/N 0600815000	ADD TO CART
NUT 020106050 · qty on machine: 1 REPLACES P/N 0600815000 view full part page → $0.12
29	0605000063	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION 0605000063 · qty on machine: 2 view full part page → $213.95
30	0030016000	HEX. NUT	2		ADD TO CART
HEX. NUT 0030016000 · qty on machine: 2 view full part page → $1.9
30A	0040016000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 2 view full part page → $4.95

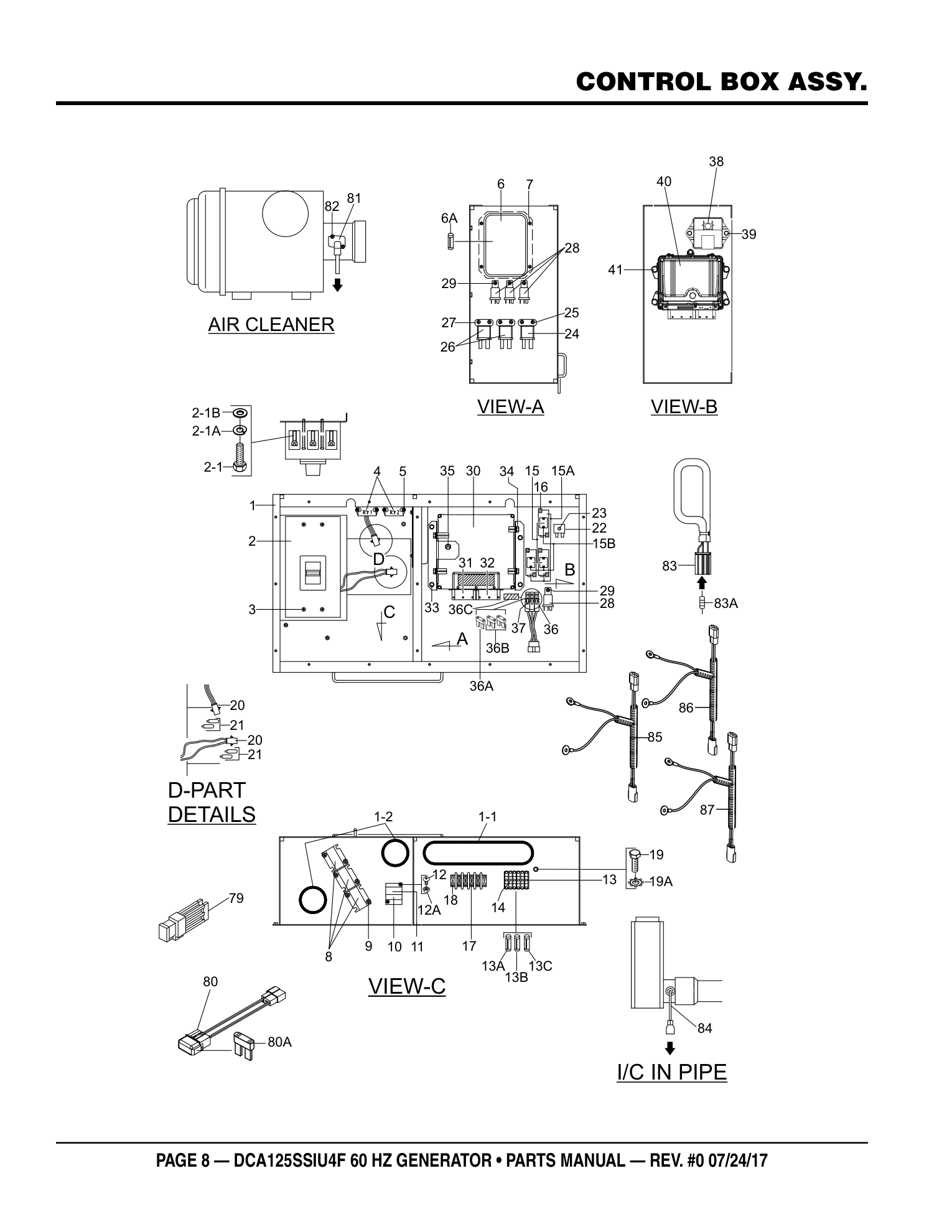

Page 8 — CONTROL BOX ASSY.

Multiquip DCA125SSIU4F Generator CONTROL BOX ASSY. parts diagram

Parts list — exactly as printed39 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3214000602	CONTROL BOX	1		PARTS REQUEST
PHOTO COMING CONTROL BOX M3214000602 · qty on machine: 1 PARTS REQUEST
1-1	Y0411100670	EDGING	1		PARTS REQUEST
PHOTO COMING EDGING Y0411100670 · qty on machine: 1 PARTS REQUEST
1-2	Y0411100220	EDGING	2		PARTS REQUEST
PHOTO COMING EDGING Y0411100220 · qty on machine: 2 PARTS REQUEST
2	0601808823	CIRCUIT BREAKER, 3P 300A, 12VDC	1		ADD TO CART
CIRCUIT BREAKER, 3P 300A, 12VDC 0601808823 · qty on machine: 1 view full part page → $2246.95
2-1	0342604120	HEX. SOCKET HEAD CAP SCREW	6		ADD TO CART
HEX. SOCKET HEAD CAP SCREW 0342604120 · qty on machine: 6 view full part page → $1.63
2-1A	EM923344	WASHER, LOCK	6	REPLACES P/N 0043604000	ADD TO CART
WASHER, LOCK EM923344 · qty on machine: 6 REPLACES P/N 0043604000 Factory replaced this part - current number 0166A view full part page → $0.17 IN A KIT + SOLD SOLO
2-1B	031110160	WASHER, FLAT	6	REPLACES P/N 0041210000	ADD TO CART
WASHER, FLAT 031110160 · qty on machine: 6 REPLACES P/N 0041210000 view full part page → $0.4
3	0021006080	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021006080 · qty on machine: 4 view full part page → $0.95
4	0601823863	RELAY UNIT	2		ADD TO CART
RELAY UNIT 0601823863 · qty on machine: 2 view full part page → $159.95
5	0027104015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 4 view full part page → $0.53
6	Y0601820638	AUTOMATIC VOLTAGE REGULATOR	1	INCLUDES ITEMS W/#	ADD TO CART
AUTOMATIC VOLTAGE REGULATOR Y0601820638 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 6A# view full part page → $1205.95 IN A KIT + SOLD SOLO
6A#	Y0601806683	FUSE, 250V 8A	1		NO LONGER AVAILABLE
PHOTO COMING FUSE, 250V 8A Y0601806683 · qty on machine: 1 Also included in kit 6 - AUTOMATIC VOLTAGE REGULATO (Y0601820638) NO LONGER AVAILABLE
7	0027105015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 4 view full part page → $0.2
8	Y0601809694	CURRENT TRANSFORMER, 200/5A	3		ADD TO CART
CURRENT TRANSFORMER, 200/5A Y0601809694 · qty on machine: 3 view full part page → $60.95
9	011808015	MACHINE SCREW	6	REPLACES P/N 0027106015	ADD TO CART
MACHINE SCREW 011808015 · qty on machine: 6 REPLACES P/N 0027106015 view full part page → $6.95
10	Y0601820843	OVER CURRENT RELAY	1		ADD TO CART
OVER CURRENT RELAY Y0601820843 · qty on machine: 1 view full part page → $114.95
11	Y0601820844	OVER CURRENT RELAY	1		ADD TO CART
OVER CURRENT RELAY Y0601820844 · qty on machine: 1 view full part page → $24.95
12	0027104015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 2 view full part page → $0.53
12A	OEMAA8	SELF-LOCKING NUT	2	REPLACES P/N 0207004000	ADD TO CART
SELF-LOCKING NUT OEMAA8 · qty on machine: 2 REPLACES P/N 0207004000 view full part page → $0.4
13	0601802218	HOLDER, FUSE 3P	2	S/N 7513816 AND BELOW S/N 7514365 AND ABOVE	ADD TO CART
HOLDER, FUSE 3P 0601802218 · qty on machine: 2 S/N 7513816 AND BELOW S/N 7514365 AND ABOVE view full part page → $47.95
13	Y0601818020	HOLDER, FUSE 1P	2	S/N 7513817 ~ 7514364	ADD TO CART
HOLDER, FUSE 1P Y0601818020 · qty on machine: 2 S/N 7513817 ~ 7514364 view full part page → $10.95
13	Y0601818021	HOLDER, FUSE 2P	2	S/N 7513817 ~ 7514364	ADD TO CART
HOLDER, FUSE 2P Y0601818021 · qty on machine: 2 S/N 7513817 ~ 7514364 view full part page → $27.95
13A	0601806671	FUSE, 15A	3	S/N 7511240 AND BELOW	ADD TO CART
FUSE, 15A 0601806671 · qty on machine: 3 S/N 7511240 AND BELOW view full part page → $3.95
13A	0601806671	FUSE, 15A	2	S/N 7511241 AND ABOVE	ADD TO CART
FUSE, 15A 0601806671 · qty on machine: 2 S/N 7511241 AND ABOVE view full part page → $3.95
13B	0601806653	FUSE, 20A	1	S/N 7511241 AND ABOVE	ADD TO CART
FUSE, 20A 0601806653 · qty on machine: 1 S/N 7511241 AND ABOVE view full part page → $2.67
13C	0601802133	FUSE, 5A	1		ADD TO CART
FUSE, 5A 0601802133 · qty on machine: 1 view full part page → $1.95
14	0027103015	MACHINE SCREW	2	S/N 7513816 AND BELOW S/N 7514365 AND ABOVE	ADD TO CART
MACHINE SCREW 0027103015 · qty on machine: 2 S/N 7513816 AND BELOW S/N 7514365 AND ABOVE view full part page → $0.64
14	0027103010	MACHINE SCREW	4	S/N 7513817 ~ 7514364	ADD TO CART
MACHINE SCREW 0027103010 · qty on machine: 4 S/N 7513817 ~ 7514364 view full part page → $0.44
15	LY2DUS12VDC	RELAY	3	REPLACES P/N 0601827656	ADD TO CART
RELAY LY2DUS12VDC · qty on machine: 3 REPLACES P/N 0601827656 view full part page → $46.95
15A	PTF08A	BASE	3	REPLACES P/N 0601823109	ADD TO CART
BASE PTF08A · qty on machine: 3 REPLACES P/N 0601823109 view full part page → $47.95
15B	PYCA1	CLIP	6	REPLACES P/N 0601824400	ADD TO CART
CLIP PYCA1 · qty on machine: 6 REPLACES P/N 0601824400 view full part page → $1.71
16	0027104020	MACHINE SCREW	6		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 6 view full part page → $0.4
17	Y0601815153	TERMINAL BLOCK, 603-GP-04	1	S/N 7513560 AND BELOW	PARTS REQUEST
PHOTO COMING TERMINAL BLOCK, 603-GP-04 Y0601815153 · qty on machine: 1 S/N 7513560 AND BELOW PARTS REQUEST
17	Y0601816538	TERMINAL BLOCK, TB400-04	1	S/N 7513561 AND ABOVE	ADD TO CART
TERMINAL BLOCK, TB400-04 Y0601816538 · qty on machine: 1 S/N 7513561 AND ABOVE view full part page → $51.95
18	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
19	011008020	HEX. HEAD BOLT	1	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 1 REPLACES P/N 0016908020 view full part page → $2.68
19A	Y0040501000	TOOTHED WASHER	1		PARTS REQUEST
PHOTO COMING TOOTHED WASHER Y0040501000 · qty on machine: 1 PARTS REQUEST
20	0601812626	PLUG	2		ADD TO CART
PLUG 0601812626 · qty on machine: 2 view full part page → $1.88
21	0601812711	PINS	4		ADD TO CART
PINS 0601812711 · qty on machine: 4 view full part page → $0.56

Page 10 — CONTROL BOX ASSY. (CONT'D.)

Multiquip DCA125SSIU4F Generator CONTROL BOX ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed35 rows

No.	Part No.	Part Name	Qty	Remarks
22	0601821370	RECTIFIER	1	REPLACES P/N 0601823240 S/N 7514239 AND BELOW	ADD TO CART
RECTIFIER 0601821370 · qty on machine: 1 REPLACES P/N 0601823240 S/N 7514239 AND BELOW view full part page → $28.95
22	0601821370	RECTIFIER	2	REPLACES P/N 0601823240 S/N 7514240 AND ABOVE	ADD TO CART
RECTIFIER 0601821370 · qty on machine: 2 REPLACES P/N 0601823240 S/N 7514240 AND ABOVE view full part page → $28.95
23	0027104020	MACHINE SCREW	1	S/N 7514239 AND BELOW	ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 1 S/N 7514239 AND BELOW view full part page → $0.4
23	0027104030	MACHINE SCREW	1	S/N 7514240 AND ABOVE	ADD TO CART
MACHINE SCREW 0027104030 · qty on machine: 1 S/N 7514240 AND ABOVE view full part page → $0.59
24	8944001061	RELAY, STARTER	1	REPLACES P/N 0602202502	ADD TO CART
RELAY, STARTER 8944001061 · qty on machine: 1 REPLACES P/N 0602202502 view full part page → $214.95
25	011808015	MACHINE SCREW	2	REPLACES P/N 0027106015	ADD TO CART
MACHINE SCREW 011808015 · qty on machine: 2 REPLACES P/N 0027106015 view full part page → $6.95
26	8970119490	RELAY	2	REPLACES P/N 0602202685	ADD TO CART
RELAY 8970119490 · qty on machine: 2 REPLACES P/N 0602202685 view full part page → $301.95
27	011808015	MACHINE SCREW	4	REPLACES P/N 0027106015	ADD TO CART
MACHINE SCREW 011808015 · qty on machine: 4 REPLACES P/N 0027106015 view full part page → $6.95
28	5825500290	RELAY	4	REPLACES P/N 0602201400	ADD TO CART
RELAY 5825500290 · qty on machine: 4 REPLACES P/N 0602201400 view full part page → $65.95
29	0027105010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105010 · qty on machine: 4 view full part page → $0.56
30	8982995490	CONTROLLER	1	REPLACES P/N Y0602203011 S/N 7511240 AND BELOW	PARTS REQUEST
PHOTO COMING CONTROLLER 8982995490 · qty on machine: 1 REPLACES P/N Y0602203011 S/N 7511240 AND BELOW PARTS REQUEST
30	8983274120	CONTROLLER	1	REPLACES P/N Y0602203012 S/N 7511241 AND ABOVE	ADD TO CART
CONTROLLER 8983274120 · qty on machine: 1 REPLACES P/N Y0602203012 S/N 7511241 AND ABOVE view full part page → $3701.95
31	M3352600104	SET PANEL, CONTROLLER	1		PARTS REQUEST
PHOTO COMING SET PANEL, CONTROLLER M3352600104 · qty on machine: 1 PARTS REQUEST
32	M3352600004	SET PANEL, CONTROLLER	1		PARTS REQUEST
PHOTO COMING SET PANEL, CONTROLLER M3352600004 · qty on machine: 1 PARTS REQUEST
33	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95
34	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
35	0601830762	TOGGLE SWITCH	1		ADD TO CART
TOGGLE SWITCH 0601830762 · qty on machine: 1 view full part page → $36.95
36	M3214600904	FUSE BOX ASSY	1	INCLUDES ITEMS W/$	PARTS REQUEST
PHOTO COMING FUSE BOX ASSY M3214600904 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 36A$, 36B$, 36C$ PARTS REQUEST
36A$	Y0601806046	FUSE, 20A	1		PARTS REQUEST
PHOTO COMING FUSE, 20A Y0601806046 · qty on machine: 1 Also included in kit 36 - FUSE BOX ASSY (M3214600904) PARTS REQUEST
36B$	0601806644	FUSE, 30A	2		ADD TO CART
FUSE, 30A 0601806644 · qty on machine: 2 Also included in kit 36 - FUSE BOX ASSY (M3214600904) view full part page → $1.43 IN A KIT + SOLD SOLO
36C$	M9501400404	DECAL; FUSE HOLDER	1	M90140040	PARTS REQUEST
PHOTO COMING DECAL; FUSE HOLDER M9501400404 · qty on machine: 1 M90140040 Also included in kit 36 - FUSE BOX ASSY (M3214600904) PARTS REQUEST
37	Y0027203035	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW Y0027203035 · qty on machine: 2 view full part page → $0.37
38	8981331242	TURBO CONTROLLER	1	REPLACES P/N Y0602203030	PARTS REQUEST
PHOTO COMING TURBO CONTROLLER 8981331242 · qty on machine: 1 REPLACES P/N Y0602203030 PARTS REQUEST
39	011206020	HEX. HEAD BOLT	2	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 2 REPLACES P/N 0016906020 view full part page → $0.95
40	8982454051	DOSING CONTROL UNIT	1	REPLACES P/N Y0602203021 S/N 7511240 AND BELOW	PARTS REQUEST
PHOTO COMING DOSING CONTROL UNIT 8982454051 · qty on machine: 1 REPLACES P/N Y0602203021 S/N 7511240 AND BELOW PARTS REQUEST
40	8975109770	DOSING CONTROL UNIT	1	REPLACES P/N Y0602203022 S/N 7511241 AND ABOVE	ADD TO CART
DOSING CONTROL UNIT 8975109770 · qty on machine: 1 REPLACES P/N Y0602203022 S/N 7511241 AND ABOVE view full part page → $2139.95
41	011208030	HEX. HEAD BOLT	4	REPLACES P/N 0017108030	ADD TO CART
HEX. HEAD BOLT 011208030 · qty on machine: 4 REPLACES P/N 0017108030 view full part page → $1.3
79	0601806640	FUSE, 65A	1		ADD TO CART
FUSE, 65A 0601806640 · qty on machine: 1 view full part page → $11.95
80	C3558201704	UNIT, FUSE HOLDER	1	REPLACES P/N M2357202104 INCLUDES ITEMS W/%	ADD TO CART
UNIT, FUSE HOLDER C3558201704 · qty on machine: 1 REPLACES P/N M2357202104 INCLUDES ITEMS W/% Kit includes: 80A% view full part page → $37.95 IN A KIT + SOLD SOLO
80A%	Y0601806045	FUSE, 10A	1		PARTS REQUEST
PHOTO COMING FUSE, 10A Y0601806045 · qty on machine: 1 Also included in kit 80 - UNIT, FUSE HOLDER (C3558201704) PARTS REQUEST
81	8976019670	MAF SENSOR	1	REPLACES P/N Y0602047050	ADD TO CART
MAF SENSOR 8976019670 · qty on machine: 1 REPLACES P/N Y0602047050 view full part page → $814.95
82	0027104015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 2 view full part page → $0.53
83	M2267600004	RESISTOR ASSY	1	INCLUDES ITEMS W/@	PARTS REQUEST
PHOTO COMING RESISTOR ASSY M2267600004 · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 83A@ PARTS REQUEST
83A@	Y0601842146	RESISTOR	1		PARTS REQUEST
PHOTO COMING RESISTOR Y0601842146 · qty on machine: 1 Also included in kit 83 - RESISTOR ASSY (M2267600004) PARTS REQUEST
84	8973811820	I/C IN TEMP. SENSOR	1	REPLACES P/N Y0602015800	ADD TO CART
I/C IN TEMP. SENSOR 8973811820 · qty on machine: 1 REPLACES P/N Y0602015800 view full part page → $103.95

Page 12 — CONTROL BOX ASSY. (CONT'D.)

Parts list — exactly as printed12 rows

No.	Part No.	Part Name	Qty	Remarks
85	Y0601872914	CURRENT TRANSFORMER	2	S/N 7512056 AND ABOVE	PARTS REQUEST
PHOTO COMING CURRENT TRANSFORMER Y0601872914 · qty on machine: 2 S/N 7512056 AND ABOVE PARTS REQUEST
85A	M9521001604	DECAL; CT4	1	S/N 7512056 AND ABOVE	ADD TO CART
DECAL; CT4 M9521001604 · qty on machine: 1 S/N 7512056 AND ABOVE view full part page → $0.95
85B	M9521001704	DECAL: CT5	1	S/N 7512056 AND ABOVE	ADD TO CART
DECAL: CT5 M9521001704 · qty on machine: 1 S/N 7512056 AND ABOVE view full part page → $0.95
86	Y0601813924	PLUG	1	S/N 7512056 AND ABOVE	PARTS REQUEST
PHOTO COMING PLUG Y0601813924 · qty on machine: 1 S/N 7512056 AND ABOVE PARTS REQUEST
87	0601812711	PINS	3	S/N 7512056 AND ABOVE	ADD TO CART
PINS 0601812711 · qty on machine: 3 S/N 7512056 AND ABOVE view full part page → $0.56
88	Y0601815586	ROUND TERMINAL	3	S/N 7512056 AND ABOVE	PARTS REQUEST
PHOTO COMING ROUND TERMINAL Y0601815586 · qty on machine: 3 S/N 7512056 AND ABOVE PARTS REQUEST
89	M3247701404	WIRE HARNESS, GENERATOR	1	S/N 7512055 AND BELOW	ADD TO CART
WIRE HARNESS, GENERATOR M3247701404 · qty on machine: 1 S/N 7512055 AND BELOW view full part page → $1265.95
89	M3247703404	WIRE HARNESS, GENERATOR	1	S/N 7512056 AND ABOVE	ADD TO CART
WIRE HARNESS, GENERATOR M3247703404 · qty on machine: 1 S/N 7512056 AND ABOVE view full part page → $1989.94
90	M3358201102	WIRE HARNESS, ENGINE	1	S/N 7514239 AND BELOW	ADD TO CART
WIRE HARNESS, ENGINE M3358201102 · qty on machine: 1 S/N 7514239 AND BELOW view full part page → $1184.95
90	M3358201112	WIRE HARNESS, ENGINE	1	S/N 7514240 AND ABOVE	ADD TO CART
WIRE HARNESS, ENGINE M3358201112 · qty on machine: 1 S/N 7514240 AND ABOVE view full part page → $1262.95
91	M3358200804	WIRE HARNESS, CONTROLLER	1	S/N 7511240 AND BELOW	ADD TO CART
WIRE HARNESS, CONTROLLER M3358200804 · qty on machine: 1 S/N 7511240 AND BELOW Factory replaced this part - current number M3358200814 view full part page → $7736.95 IN A KIT + SOLD SOLO
91	M3358200814	WIRE HARNESS, CONTROLLER	1	S/N 7511241 AND ABOVE	ADD TO CART
WIRE HARNESS, CONTROLLER M3358200814 · qty on machine: 1 S/N 7511241 AND ABOVE view full part page → $7736.95

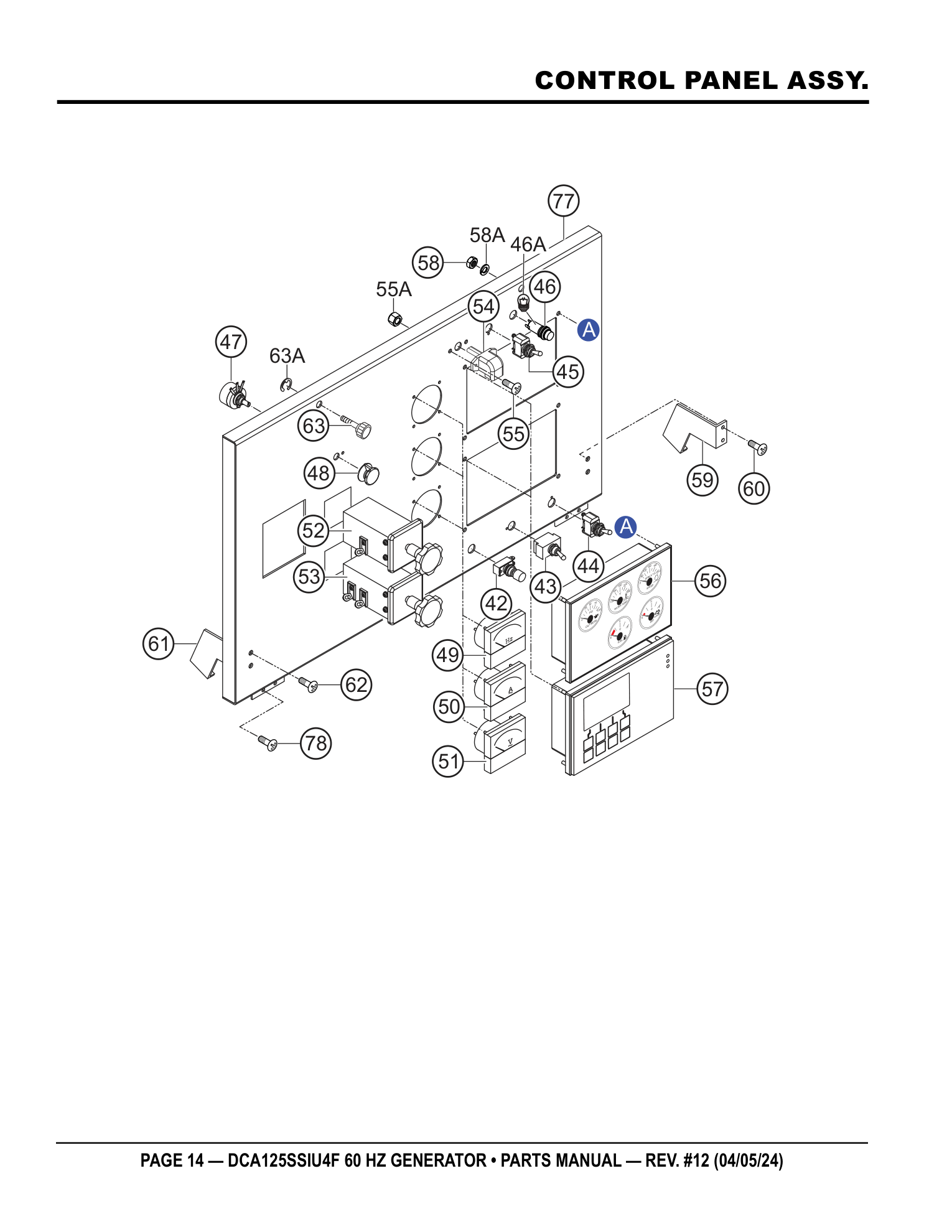

Page 14 — CONTROL PANEL ASSY.

Multiquip DCA125SSIU4F Generator CONTROL PANEL ASSY. parts diagram

Parts list — exactly as printed36 rows

No.	Part No.	Part Name	Qty	Remarks
42	0601831205	PUSH BUTTON SWITCH	1		ADD TO CART
PUSH BUTTON SWITCH 0601831205 · qty on machine: 1 view full part page → $25.95
43	82608	TOGGLE SWITCH	1	REPLACES P/N 0601831340	ADD TO CART
TOGGLE SWITCH 82608 · qty on machine: 1 REPLACES P/N 0601831340 view full part page → $34.95
44	0601830710	ENGINE SPEED SWITCH	1		ADD TO CART
ENGINE SPEED SWITCH 0601830710 · qty on machine: 1 view full part page → $29.95
45	0601830710	PANEL LIGHT SWITCH	1		ADD TO CART
PANEL LIGHT SWITCH 0601830710 · qty on machine: 1 view full part page → $29.95
46	0602103092	LAMP, ALARM RED	1	INCLUDES ITEMS W/# S/N 7512742 AND BELOW	ADD TO CART
LAMP, ALARM RED 0602103092 · qty on machine: 1 INCLUDES ITEMS W/# S/N 7512742 AND BELOW Kit includes: 46A# view full part page → $36.95 IN A KIT + SOLD SOLO
46	0601814453	LED LAMP	1	S/N 7512743 AND ABOVE	ADD TO CART
LED LAMP 0601814453 · qty on machine: 1 S/N 7512743 AND ABOVE Kit includes: 46A# view full part page → $33.95 IN A KIT + SOLD SOLO
46A#	0601810277	BULB	1	S/N 7512742 AND BELOW	ADD TO CART
BULB 0601810277 · qty on machine: 1 S/N 7512742 AND BELOW Also included in kit 46 - LAMP, ALARM RED (0602103092) view full part page → $36.95 IN A KIT + SOLD SOLO
47	0601840073	RHEOSTAT, VOLTAGE REGULATOR	1		ADD TO CART
RHEOSTAT, VOLTAGE REGULATOR 0601840073 · qty on machine: 1 view full part page → $90.95
48	0601840100	KNOB	1	REPLACES P/N 0601840121	ADD TO CART
KNOB 0601840100 · qty on machine: 1 REPLACES P/N 0601840121 view full part page → $30.95
49	Y0601807631	FREQUENCY METER, 240V 45~65HZ	1	S/N 7511575 AND BELOW	ADD TO CART
FREQUENCY METER, 240V 45~65HZ Y0601807631 · qty on machine: 1 S/N 7511575 AND BELOW view full part page → $139.95
49	0601807641	FREQUENCY METER, 240V 45~65HZ	1	S/N 7511576 AND ABOVE	ADD TO CART
FREQUENCY METER, 240V 45~65HZ 0601807641 · qty on machine: 1 S/N 7511576 AND ABOVE view full part page → $591.95
50	Y0601817035	AC AMMETER, 0~200A/400A:5A	1	S/N 7511575 AND BELOW	ADD TO CART
AC AMMETER, 0~200A/400A:5A Y0601817035 · qty on machine: 1 S/N 7511575 AND BELOW view full part page → $62.95
50	0601808988	AC AMMETER, 0~200A/400A:5A	1	S/N 7511576 AND ABOVE	ADD TO CART
AC AMMETER, 0~200A/400A:5A 0601808988 · qty on machine: 1 S/N 7511576 AND ABOVE view full part page → $219.95
51	0601806947	AC VOLTMETER, AC 600V	1	S/N 7511575 AND BELOW	NO LONGER AVAILABLE
PHOTO COMING AC VOLTMETER, AC 600V 0601806947 · qty on machine: 1 S/N 7511575 AND BELOW NO LONGER AVAILABLE
51	0601806859	AC VOLTMETER, AC 600V	1	S/N 7511576 AND ABOVE	ADD TO CART
AC VOLTMETER, AC 600V 0601806859 · qty on machine: 1 S/N 7511576 AND ABOVE view full part page → $368.95
52	0601801040	CHANGE-OVER SWITCH, AMMETER	1		ADD TO CART
CHANGE-OVER SWITCH, AMMETER 0601801040 · qty on machine: 1 view full part page → $95.95
53	0601801041	CHANGE-OVER SWITCH, VOLTMETER	1		ADD TO CART
CHANGE-OVER SWITCH, VOLTMETER 0601801041 · qty on machine: 1 view full part page → $157.95
54	Y0601810170	PANEL LIGHT, 12V	1		ADD TO CART
PANEL LIGHT, 12V Y0601810170 · qty on machine: 1 view full part page → $142.95
55	0027104015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 2 view full part page → $0.53
55A	OEMAA8	SELF-LOCKING NUT	2	REPLACES P/N 0207004000	ADD TO CART
SELF-LOCKING NUT OEMAA8 · qty on machine: 2 REPLACES P/N 0207004000 view full part page → $0.4
56	Y0602120569	GAUGE UNIT ASSY	1	S/N 7512055 AND BELOW	ADD TO CART
GAUGE UNIT ASSY Y0602120569 · qty on machine: 1 S/N 7512055 AND BELOW view full part page → $756.95
56	Y0602120901	GAUGE UNIT ASSY. ECU-670	1	S/N 7512056 ~ 7513605	ADD TO CART
GAUGE UNIT ASSY. ECU-670 Y0602120901 · qty on machine: 1 S/N 7512056 ~ 7513605 view full part page → $930.95
56	Y0602120902	GAUGE UNIT ASSY. ECU-670 UL	1	S/N 7513606 AND ABOVE	ADD TO CART
GAUGE UNIT ASSY. ECU-670 UL Y0602120902 · qty on machine: 1 S/N 7513606 AND ABOVE view full part page → $757.95
57	ECU835	CONTROLLER, ECU-835	1	REPLACES P/N Y0602203040 S/N 7512055 AND BELOW	ADD TO CART
CONTROLLER, ECU-835 ECU835 · qty on machine: 1 REPLACES P/N Y0602203040 S/N 7512055 AND BELOW view full part page → $1778.95
57	Y0602203071	CONTROLLER, ECU-845	1	S/N 7512056 ~ 7513610	NO LONGER AVAILABLE
PHOTO COMING CONTROLLER, ECU-845 Y0602203071 · qty on machine: 1 S/N 7512056 ~ 7513610 NO LONGER AVAILABLE
57	Y0602203076	CONTROLLER, ECU-845 UL	1	S/N 7513611 AND ABOVE	ADD TO CART
CONTROLLER, ECU-845 UL Y0602203076 · qty on machine: 1 S/N 7513611 AND ABOVE view full part page → $1862.95
58	Y0206707000	HEX. NUT	8		ADD TO CART
HEX. NUT Y0206707000 · qty on machine: 8 view full part page → $0.45
58A	Y0044807000	WASHER, LOCK	8		ADD TO CART
WASHER, LOCK Y0044807000 · qty on machine: 8 view full part page → $0.45
59	M1223100004	STOPPER	1		ADD TO CART
STOPPER M1223100004 · qty on machine: 1 view full part page → $17.95
60	0027105015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 2 view full part page → $0.2
61	M3223100004	STOPPER	1		ADD TO CART
STOPPER M3223100004 · qty on machine: 1 view full part page → $16.95
62	0027105015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 2 view full part page → $0.2
63	M9220100004	SET SCREW	2		ADD TO CART
SET SCREW M9220100004 · qty on machine: 2 view full part page → $12.95
63A	0080200007	E-SNAP RING	2		ADD TO CART
E-SNAP RING 0080200007 · qty on machine: 2 view full part page → $1.39
77	M3224000203	CONTROL PANEL	1		ADD TO CART
CONTROL PANEL M3224000203 · qty on machine: 1 view full part page → $201.95
78	0027105015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 4 view full part page → $0.2

Page 16 — SELECTOR SWITCH ASSY.

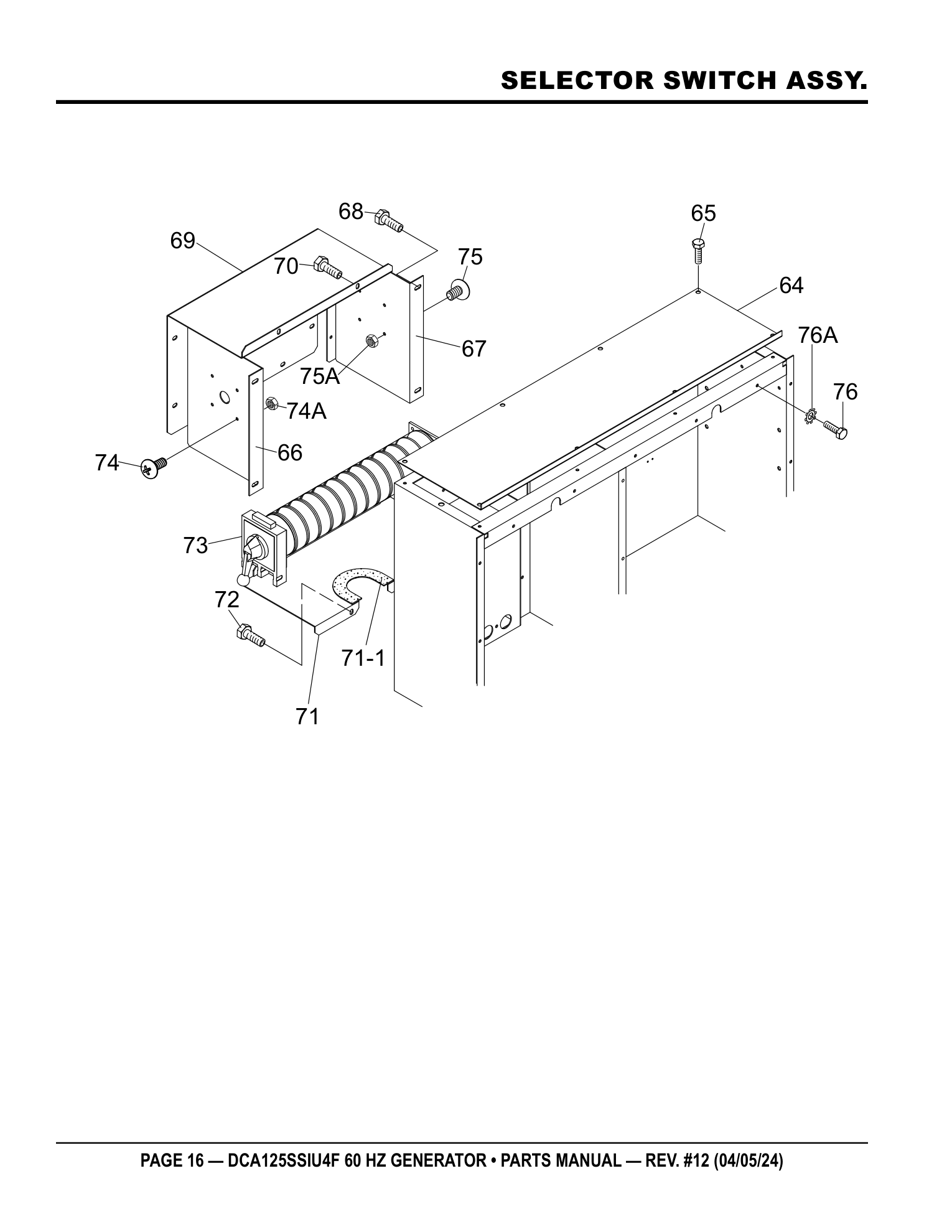

Multiquip DCA125SSIU4F Generator SELECTOR SWITCH ASSY. parts diagram

Parts list — exactly as printed17 rows

No.	Part No.	Part Name	Qty	Remarks
64	M3213500904	CONTROL BOX COVER	1		PARTS REQUEST
PHOTO COMING CONTROL BOX COVER M3213500904 · qty on machine: 1 Factory replaced this part - current number 23911-10 PARTS REQUEST
65	0016906015	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 8 view full part page → $0.95
66	M3213602704	SWITCH BRACKET	1		ADD TO CART
SWITCH BRACKET M3213602704 · qty on machine: 1 view full part page → $71.95
67	M3213602804	SWITCH BRACKET	1		ADD TO CART
SWITCH BRACKET M3213602804 · qty on machine: 1 view full part page → $71.95
68	0016906015	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 6 view full part page → $0.95
69	M3214600604	SWITCH COVER	1		PARTS REQUEST
PHOTO COMING SWITCH COVER M3214600604 · qty on machine: 1 PARTS REQUEST
70	0016906015	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 6 view full part page → $0.95
71	M3214600704	SWITCH COVER	1		PARTS REQUEST
PHOTO COMING SWITCH COVER M3214600704 · qty on machine: 1 PARTS REQUEST
71-1	Y0411100210	WEATHER STRIP	1		PARTS REQUEST
PHOTO COMING WEATHER STRIP Y0411100210 · qty on machine: 1 PARTS REQUEST
72	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95
73	M3270100404	SELECTOR SWITCH	1		ADD TO CART
SELECTOR SWITCH M3270100404 · qty on machine: 1 view full part page → $2091.95
74	0027104035	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027104035 · qty on machine: 4 view full part page → $1.34
74A	OEMAA8	HEX. NUT	4	REPLACES P/N 0207004000	ADD TO CART
HEX. NUT OEMAA8 · qty on machine: 4 REPLACES P/N 0207004000 view full part page → $0.4
75	0027104015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 4 view full part page → $0.53
75A	OEMAA8	HEX. NUT	4	REPLACES P/N 0207004000	ADD TO CART
HEX. NUT OEMAA8 · qty on machine: 4 REPLACES P/N 0207004000 view full part page → $0.4
76	0016906015	HEX. HEAD BOLT	19		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 19 view full part page → $0.95
76A	0040506000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040506000 · qty on machine: 1 view full part page → $0.77

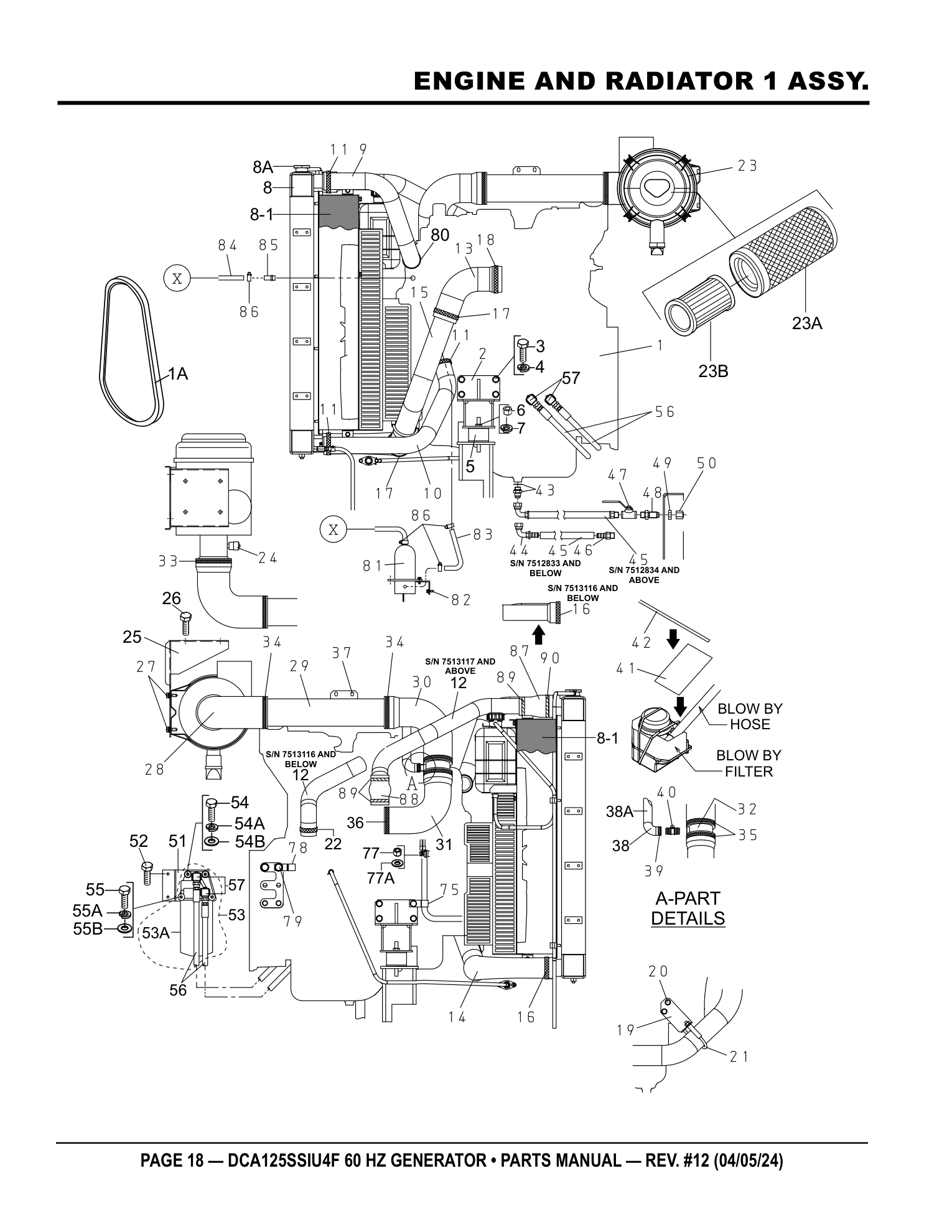

Page 18 — ENGINE AND RADIATOR 1 ASSY.

Multiquip DCA125SSIU4F Generator ENGINE AND RADIATOR 1 ASSY. parts diagram

Parts list — exactly as printed48 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3924200104	ENGINE, ISUZU BR-4HK1X	1	INCLUDES ITEMS W/# S/N 7511240 AND BELOW	ADD TO CART
ENGINE, ISUZU BR-4HK1X M3924200104 · qty on machine: 1 INCLUDES ITEMS W/# S/N 7511240 AND BELOW Kit includes: 1A#$ view full part page → $31497.95 IN A KIT + SOLD SOLO
1	M3924200134	ENGINE, ISUZU BR-4HK1X	1	INCLUDES ITEMS W/$ S/N 7511241 AND ABOVE	PARTS REQUEST
PHOTO COMING ENGINE, ISUZU BR-4HK1X M3924200134 · qty on machine: 1 INCLUDES ITEMS W/$ S/N 7511241 AND ABOVE Kit includes: 1A#$ PARTS REQUEST
1A#$	8980627130	FAN BELT	1	REPLACES P/N 0602015253	ADD TO CART
FAN BELT 8980627130 · qty on machine: 1 REPLACES P/N 0602015253 Also included in kit 1 - ENGINE, ISUZU BR-4HK1X (M3924200104); kit 1 - ENGINE, ISUZU BR-4HK1X (M3924200134) view full part page → $52.95 IN A KIT + SOLD SOLO
2	M3303200603	ENGINE FOOT	2		ADD TO CART
ENGINE FOOT M3303200603 · qty on machine: 2 view full part page → $168.95
3	0105091025	HEX. HEAD BOLT	8	REPLACES P/N 0010310025	ADD TO CART
HEX. HEAD BOLT 0105091025 · qty on machine: 8 REPLACES P/N 0010310025 view full part page → $0.68
4	030210250	WASHER, LOCK	8	REPLACES P/N 0042510000	ADD TO CART
WASHER, LOCK 030210250 · qty on machine: 8 REPLACES P/N 0042510000 view full part page → $0.28
5	Y0605000402	RUBBER SUSPENSION	2		PARTS REQUEST
PHOTO COMING RUBBER SUSPENSION Y0605000402 · qty on machine: 2 PARTS REQUEST
6	0030012000	HEX. NUT	2		ADD TO CART
HEX. NUT 0030012000 · qty on machine: 2 view full part page → $0.5
7	0040012000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040012000 · qty on machine: 2 view full part page → $0.95
8	Y0602012920	RADIATOR AND INTER-COOLER	1		ADD TO CART
RADIATOR AND INTER-COOLER Y0602012920 · qty on machine: 1 view full part page → $2192.95
8A	Y0602015731	CAP, RADIATOR	1		ADD TO CART
CAP, RADIATOR Y0602015731 · qty on machine: 1 view full part page → $146.95
8-1	M3494105904	ACOUSTIC SHEET	2		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M3494105904 · qty on machine: 2 PARTS REQUEST
9	M3311500803	RADIATOR HOSE, UPPER	1		ADD TO CART
RADIATOR HOSE, UPPER M3311500803 · qty on machine: 1 view full part page → $63.95
10	M3311500903	RADIATOR HOSE, LOWER	1		ADD TO CART
RADIATOR HOSE, LOWER M3311500903 · qty on machine: 1 view full part page → $63.95
11	0605515148	HOSE BAND	3		ADD TO CART
HOSE BAND 0605515148 · qty on machine: 3 view full part page → $4.95
12	M3311501003	COOLER HOSE	1	S/N 7513116 AND BELOW	PARTS REQUEST
PHOTO COMING COOLER HOSE M3311501003 · qty on machine: 1 S/N 7513116 AND BELOW Factory replaced this part - current number RK-009 PARTS REQUEST
12	M3311400503	COOLER PIPE	1	S/N 7513117 AND ABOVE	ADD TO CART
COOLER PIPE M3311400503 · qty on machine: 1 S/N 7513117 AND ABOVE view full part page → $181.85
13	M3311501104	COOLER HOSE	1		ADD TO CART
COOLER HOSE M3311501104 · qty on machine: 1 view full part page → $263.95
14	M3311501204	INTER COOLER HOSE	1		ADD TO CART
INTER COOLER HOSE M3311501204 · qty on machine: 1 view full part page → $287.95
15	M3311400304	INTER COOLER PIPE	1		ADD TO CART
INTER COOLER PIPE M3311400304 · qty on machine: 1 view full part page → $273.95
16	0605515236	HOSE BAND	2	S/N 7513116 AND BELOW	ADD TO CART
HOSE BAND 0605515236 · qty on machine: 2 S/N 7513116 AND BELOW view full part page → $46.95
16	0605515236	HOSE BAND	1	S/N 7513117 AND ABOVE	ADD TO CART
HOSE BAND 0605515236 · qty on machine: 1 S/N 7513117 AND ABOVE view full part page → $46.95
17	0605515214	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515214 · qty on machine: 2 view full part page → $49.95
18	0605515238	HOSE BAND	1		ADD TO CART
HOSE BAND 0605515238 · qty on machine: 1 view full part page → $60.95
19	M3314300204	BRACKET, INTER COOLER	1		ADD TO CART
BRACKET, INTER COOLER M3314300204 · qty on machine: 1 view full part page → $51.95
20	0016910025	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0016910025 · qty on machine: 2 view full part page → $1.56
21	0602326060	U-BOLT	1		ADD TO CART
U-BOLT 0602326060 · qty on machine: 1 view full part page → $16.95
22	0605515207	HOSE BAND	1	S/N 7513116 AND BELOW	ADD TO CART
HOSE BAND 0605515207 · qty on machine: 1 S/N 7513116 AND BELOW view full part page → $31.95
23	Y0602046579	AIR CLEANER	1	INCLUDES ITEMS W/%	ADD TO CART
AIR CLEANER Y0602046579 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 23A%, 23B% view full part page → $1097.95 IN A KIT + SOLD SOLO
23A%	Y0602046645	ELEMENT, AIR CLEANER, PRIMARY	1		ADD TO CART
ELEMENT, AIR CLEANER, PRIMARY Y0602046645 · qty on machine: 1 Also included in kit 23 - AIR CLEANER (Y0602046579) view full part page → $243.95 IN A KIT + SOLD SOLO
23B%	P821963	ELEMENT, AIR CLEANER, SECONDARY	1	REPLACES P/N Y0602046646	ADD TO CART
ELEMENT, AIR CLEANER, SECONDARY P821963 · qty on machine: 1 REPLACES P/N Y0602046646 Also included in kit 23 - AIR CLEANER (Y0602046579) view full part page → $193.95 IN A KIT + SOLD SOLO
24	0602040650	AIR CLEANER INDICATOR	1		ADD TO CART
AIR CLEANER INDICATOR 0602040650 · qty on machine: 1 view full part page → $34.95
25	M3374200204	BRACKET, AIR CLEANER	1		PARTS REQUEST
PHOTO COMING BRACKET, AIR CLEANER M3374200204 · qty on machine: 1 PARTS REQUEST
26	0016910025	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016910025 · qty on machine: 4 view full part page → $1.56
27	0016910025	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016910025 · qty on machine: 4 view full part page → $1.56
28	M3374100203	HOSE, AIR CLEANER	1		ADD TO CART
HOSE, AIR CLEANER M3374100203 · qty on machine: 1 view full part page → $132.95
29	M3374000404	PIPE, AIR CLEANER	1		ADD TO CART
PIPE, AIR CLEANER M3374000404 · qty on machine: 1 view full part page → $268.95
30	M3374100303	HOSE, AIR CLEANER	1		ADD TO CART
HOSE, AIR CLEANER M3374100303 · qty on machine: 1 view full part page → $134.95
31	M3374100403	HOSE, AIR CLEANER	1		ADD TO CART
HOSE, AIR CLEANER M3374100403 · qty on machine: 1 view full part page → $266.95
32	M3327100004	BLOWBY PIPE	1		ADD TO CART
BLOWBY PIPE M3327100004 · qty on machine: 1 view full part page → $163.95
33	Y0605515231	HOSE BAND	1		ADD TO CART
HOSE BAND Y0605515231 · qty on machine: 1 view full part page → $5.95
34	0605515197	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515197 · qty on machine: 2 view full part page → $35.95
35	0605515225	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515225 · qty on machine: 2 view full part page → $14.95
36	0605515141	HOSE BAND	1		ADD TO CART
HOSE BAND 0605515141 · qty on machine: 1 view full part page → $16.95
37	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
38	M3327200203	BLOWBY PIPE	1		ADD TO CART
BLOWBY PIPE M3327200203 · qty on machine: 1 view full part page → $3426.95
38A	Y0377800800	AEROFLEX TUBE	1		PARTS REQUEST
PHOTO COMING AEROFLEX TUBE Y0377800800 · qty on machine: 1 PARTS REQUEST
39	0605515134	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515134 · qty on machine: 2 view full part page → $4.95

Page 20 — ENGINE AND RADIATOR 1 ASSY. (CONT'D.)

Multiquip DCA125SSIU4F Generator ENGINE AND RADIATOR 1 ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed42 rows

No.	Part No.	Part Name	Qty	Remarks
40	8981924670	PCV HEATER	1	REPLACES P/N Y0602044300	ADD TO CART
PCV HEATER 8981924670 · qty on machine: 1 REPLACES P/N Y0602044300 view full part page → $196.95
41	8983093870	BREATHER HOSE INSULATOR	1	REPLACES P/N Y0602044400	PARTS REQUEST
PHOTO COMING BREATHER HOSE INSULATOR 8983093870 · qty on machine: 1 REPLACES P/N Y0602044400 PARTS REQUEST
42	5097070301	BREATHER HOSE CLIP	1	REPLACES P/N Y0602044401	PARTS REQUEST
PHOTO COMING BREATHER HOSE CLIP 5097070301 · qty on machine: 1 REPLACES P/N Y0602044401 PARTS REQUEST
43	0602022581	ADAPTER	1		ADD TO CART
ADAPTER 0602022581 · qty on machine: 1 view full part page → $147.95
44	0602022561	90° ELBOW	1	S/N 7512833 AND BELOW	ADD TO CART
90° ELBOW 0602022561 · qty on machine: 1 S/N 7512833 AND BELOW view full part page → $76.95
45	Y0269200650	DRAIN HOSE	1	S/N 7512833 AND BELOW	ADD TO CART
DRAIN HOSE Y0269200650 · qty on machine: 1 S/N 7512833 AND BELOW view full part page → $38.95
45	M3321100004	DRAIN HOSE	1	S/N 7512834 AND ABOVE	PARTS REQUEST
PHOTO COMING DRAIN HOSE M3321100004 · qty on machine: 1 S/N 7512834 AND ABOVE PARTS REQUEST
46	0603306395	HOSE JOINT	1	S/N 7512833 AND BELOW	ADD TO CART
HOSE JOINT 0603306395 · qty on machine: 1 S/N 7512833 AND BELOW view full part page → $16.95
47	0605511395	VALVE	1		ADD TO CART
VALVE 0605511395 · qty on machine: 1 view full part page → $46.95
48	0603306590	CONNECTOR	1		ADD TO CART
CONNECTOR 0603306590 · qty on machine: 1 view full part page → $86.95
49	0603300285	LOCKNUT	1		ADD TO CART
LOCKNUT 0603300285 · qty on machine: 1 view full part page → $4.95
50	0602021070	CAP	1		ADD TO CART
CAP 0602021070 · qty on machine: 1 view full part page → $11.95
51	M3323500004	BRACKET, OIL FILTER	1		ADD TO CART
BRACKET, OIL FILTER M3323500004 · qty on machine: 1 view full part page → $53.95
52	0016910025	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0016910025 · qty on machine: 2 view full part page → $1.56
53	8973243861	OIL FILTER ASSY	1	REPLACES P/N 0602041007 INCLUDES ITEMS W/@	ADD TO CART
OIL FILTER ASSY 8973243861 · qty on machine: 1 REPLACES P/N 0602041007 INCLUDES ITEMS W/@ Kit includes: 53A@ view full part page → $507.95 IN A KIT + SOLD SOLO
53A@	1132402322	CARTRIDGE, OIL FILTER	1	REPLACES P/N 0602041221	PARTS REQUEST
PHOTO COMING CARTRIDGE, OIL FILTER 1132402322 · qty on machine: 1 REPLACES P/N 0602041221 Also included in kit 53 - OIL FILTER ASSY (8973243861) PARTS REQUEST
54	Y0010110110	HEX. HEAD BOLT	2		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0010110110 · qty on machine: 2 PARTS REQUEST
54A	0040010000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040010000 · qty on machine: 2 view full part page → $0.39
54B	031110160	WASHER, FLAT	2	REPLACES P/N 0041210000	ADD TO CART
WASHER, FLAT 031110160 · qty on machine: 2 REPLACES P/N 0041210000 view full part page → $0.4
55	0010110150	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0010110150 · qty on machine: 2 view full part page → $7.2
55A	0040010000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040010000 · qty on machine: 2 view full part page → $0.39
55B	031110160	WASHER, FLAT	2	REPLACES P/N 0041210000	ADD TO CART
WASHER, FLAT 031110160 · qty on machine: 2 REPLACES P/N 0041210000 view full part page → $0.4
56	M3323300004	HOSE, OIL FILTER	2		ADD TO CART
HOSE, OIL FILTER M3323300004 · qty on machine: 2 view full part page → $127.95
57	0602022535	ADAPTER	4		ADD TO CART
ADAPTER 0602022535 · qty on machine: 4 view full part page → $142.95
75	0602220911	CLAMP	1		ADD TO CART
CLAMP 0602220911 · qty on machine: 1 view full part page → $1.85
77	Y0207008000	SELF LOCK NUT	1		ADD TO CART
SELF LOCK NUT Y0207008000 · qty on machine: 1 view full part page → $0.4
77A	0401450080	WASHER, FLAT	1	REPLACES P/N 0041208000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 1 REPLACES P/N 0041208000 view full part page → $0.56
78	M3483600204	CLAMP	4		PARTS REQUEST
PHOTO COMING CLAMP M3483600204 · qty on machine: 4 PARTS REQUEST
79	Y0010116030	HEX. HEAD BOLT	1		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0010116030 · qty on machine: 1 PARTS REQUEST
79A	0040016000	WASHER, LOCK	1		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 1 view full part page → $4.95
79B	0041216000	WASHER, FLAT	1		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 1 view full part page → $1.95
80	Y0605515304	HOSE BAND	1		ADD TO CART
HOSE BAND Y0605515304 · qty on machine: 1 view full part page → $19.95
81	EE10814	WATER HEATER	1	REPLACES P/N TPS101GT10000 S/N 7512056 AND ABOVE	ADD TO CART
WATER HEATER EE10814 · qty on machine: 1 REPLACES P/N TPS101GT10000 S/N 7512056 AND ABOVE view full part page → $191.95
82	011606025	HEX. HEAD BOLT	2	REPLACES P/N 0016906025 S/N 7512056 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 011606025 · qty on machine: 2 REPLACES P/N 0016906025 S/N 7512056 AND ABOVE view full part page → $1.95
83	Y0269300660	HEATER HOSE	1	S/N 7512056 AND ABOVE	ADD TO CART
HEATER HOSE Y0269300660 · qty on machine: 1 S/N 7512056 AND ABOVE view full part page → $11.95
84	Y0269300850	HEATER HOSE	1	S/N 7512056 AND ABOVE	ADD TO CART
HEATER HOSE Y0269300850 · qty on machine: 1 S/N 7512056 AND ABOVE view full part page → $11.95
85	Y0602222292	HOSE JOINT	1	S/N 7512056 AND ABOVE	PARTS REQUEST
PHOTO COMING HOSE JOINT Y0602222292 · qty on machine: 1 S/N 7512056 AND ABOVE PARTS REQUEST
86	0605515198	HOSE BAND	4	S/N 7512056 AND ABOVE	ADD TO CART
HOSE BAND 0605515198 · qty on machine: 4 S/N 7512056 AND ABOVE view full part page → $1.71
87	Y0602015621	CAC REDUCER	1	S/N 7513117 AND ABOVE	ADD TO CART
CAC REDUCER Y0602015621 · qty on machine: 1 S/N 7513117 AND ABOVE view full part page → $133.95
88	Y0602015620	CAC HUMP HOSE	1	S/N 7513117 AND ABOVE	ADD TO CART
CAC HUMP HOSE Y0602015620 · qty on machine: 1 S/N 7513117 AND ABOVE view full part page → $111.95
89	0605515237	HOSE BAND	3	S/N 7513117 AND ABOVE	ADD TO CART
HOSE BAND 0605515237 · qty on machine: 3 S/N 7513117 AND ABOVE view full part page → $12.95
90	Y0605515205	HOSE BAND	1	S/N 7513117 AND ABOVE	ADD TO CART
HOSE BAND Y0605515205 · qty on machine: 1 S/N 7513117 AND ABOVE view full part page → $23.95

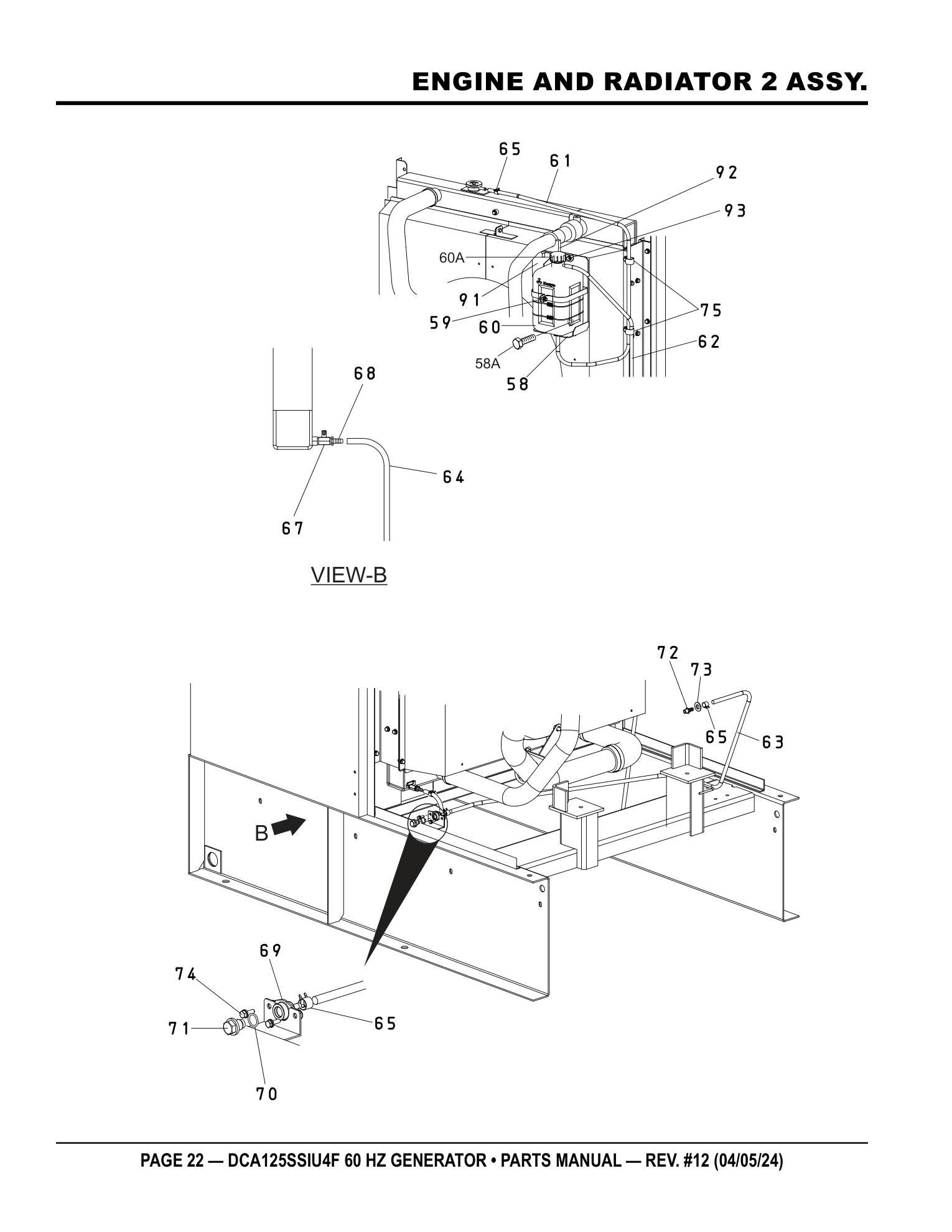

Page 22 — ENGINE AND RADIATOR 2 ASSY.

Multiquip DCA125SSIU4F Generator ENGINE AND RADIATOR 2 ASSY. parts diagram

Parts list — exactly as printed22 rows

No.	Part No.	Part Name	Qty	Remarks
58	M3317100103	BRACKET, RESERVE TANK	1		PARTS REQUEST
PHOTO COMING BRACKET, RESERVE TANK M3317100103 · qty on machine: 1 PARTS REQUEST
58A	Y0016906020	HEX HEAD BOLT	1		ADD TO CART
HEX HEAD BOLT Y0016906020 · qty on machine: 1 view full part page → $1.45
59	011008020	HEX. HEAD BOLT	3	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 3 REPLACES P/N 0016908020 view full part page → $2.68
60	0802081003C	RESERVE TANK	1	REPLACES P/N M9300000203 INCLUDES ITEMS W/#	ADD TO CART
RESERVE TANK 0802081003C · qty on machine: 1 REPLACES P/N M9300000203 INCLUDES ITEMS W/# Kit includes: 60A# view full part page → $47.95 IN A KIT + SOLD SOLO
60A#	0802010900	CAP, RESERVE TANK	1	REPLACES P/N 0602010900	ADD TO CART
CAP, RESERVE TANK 0802010900 · qty on machine: 1 REPLACES P/N 0602010900 Also included in kit 60 - RESERVE TANK (0802081003C) view full part page → $2.95 IN A KIT + SOLD SOLO
61	0199901500	OVER FLOW HOSE	1		ADD TO CART
OVER FLOW HOSE 0199901500 · qty on machine: 1 view full part page → $44.95
62	0193601550	HOSE	1		ADD TO CART
HOSE 0193601550 · qty on machine: 1 view full part page → $9.95
63	Y0199902000	HOSE	1		PARTS REQUEST
PHOTO COMING HOSE Y0199902000 · qty on machine: 1 PARTS REQUEST
64	0193600400	HOSE	1		ADD TO CART
HOSE 0193600400 · qty on machine: 1 view full part page → $2.95
65	0605515189	HOSE BAND	4		ADD TO CART
HOSE BAND 0605515189 · qty on machine: 4 view full part page → $1.85
67	Y0605511394	MINI BALL VALVE	1		ADD TO CART
MINI BALL VALVE Y0605511394 · qty on machine: 1 view full part page → $70.95
68	Y0605512192	HOSE JOINT	1		PARTS REQUEST
PHOTO COMING HOSE JOINT Y0605512192 · qty on machine: 1 PARTS REQUEST
69	7812014003B	DRAIN JOINT	1	REPLACES P/N M2320300103	ADD TO CART
DRAIN JOINT 7812014003B · qty on machine: 1 REPLACES P/N M2320300103 view full part page → $25.95
70	0150000018	O-RING	1		ADD TO CART
O-RING 0150000018 · qty on machine: 1 view full part page → $1.87
71	0802011104	DRAIN BOLT	1	REPLACES P/N M9200200004	ADD TO CART
DRAIN BOLT 0802011104 · qty on machine: 1 REPLACES P/N M9200200004 view full part page → $10.95
72	M9100000204	HOSE JOINT	1		ADD TO CART
HOSE JOINT M9100000204 · qty on machine: 1 view full part page → $36.95
73	Y0602021731	SEAL WASHER	1		ADD TO CART
SEAL WASHER Y0602021731 · qty on machine: 1 view full part page → $2.85
74	011206020	HEX. HEAD BOLT	2	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 2 REPLACES P/N 0016906020 view full part page → $0.95
75	0602220911	CLAMP	2		ADD TO CART
CLAMP 0602220911 · qty on machine: 2 view full part page → $1.85
91	M3314300404A	I/C PIPE BRACKET	1	S/N 7513117 AND ABOVE	ADD TO CART
I/C PIPE BRACKET M3314300404A · qty on machine: 1 S/N 7513117 AND ABOVE view full part page → $37.75
92	Y0602326066	U-BOLT	1	S/N 7513117 AND ABOVE	ADD TO CART
U-BOLT Y0602326066 · qty on machine: 1 S/N 7513117 AND ABOVE view full part page → $9.95
93	011606025	HEX HEAD BOLT	1	REPLACES P/N 0016906025 S/N 7513117 AND ABOVE	ADD TO CART
HEX HEAD BOLT 011606025 · qty on machine: 1 REPLACES P/N 0016906025 S/N 7513117 AND ABOVE view full part page → $1.95

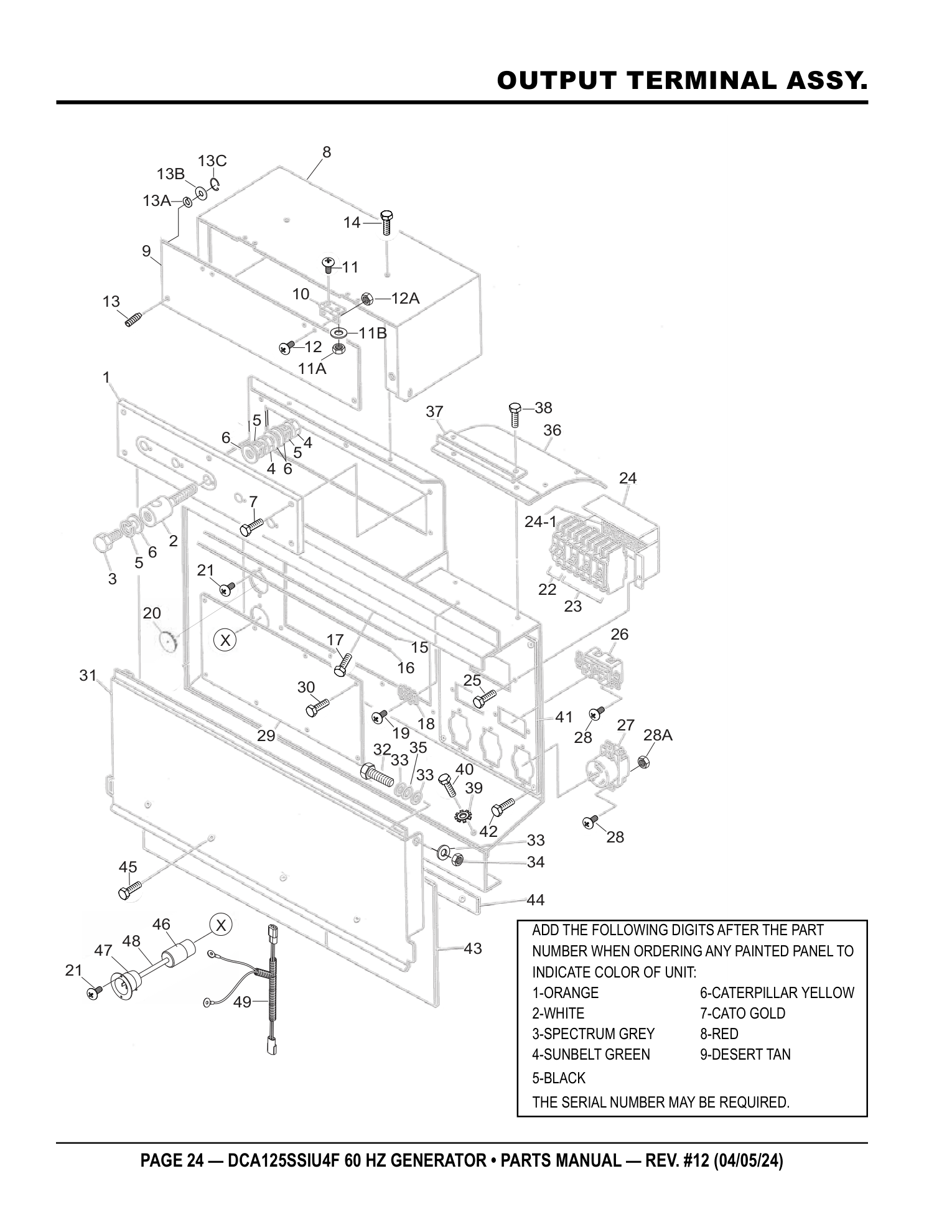

Page 24 — OUTPUT TERMINAL ASSY.

Multiquip DCA125SSIU4F Generator OUTPUT TERMINAL ASSY. parts diagram

Parts list — exactly as printed48 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3230700003	TERMINAL PANEL	1		ADD TO CART
TERMINAL PANEL M3230700003 · qty on machine: 1 view full part page → $258.95
2	M9220100304	OUTPUT TERMINAL BOLT	5		ADD TO CART
OUTPUT TERMINAL BOLT M9220100304 · qty on machine: 5 view full part page → $118.95
3	0801830804	TIE BOLT	5	REPLACES P/N M9220100404	ADD TO CART
TIE BOLT 0801830804 · qty on machine: 5 REPLACES P/N M9220100404 view full part page → $19.95
4	0039316000	HEX. NUT	10		ADD TO CART
HEX. NUT 0039316000 · qty on machine: 10 view full part page → $5.95
5	0040016000	WASHER, LOCK	15		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 15 view full part page → $4.95
6	0401450160	WASHER, FLAT	20	REPLACES P/N 0041416000	ADD TO CART
WASHER, FLAT 0401450160 · qty on machine: 20 REPLACES P/N 0041416000 view full part page → $0.53
7	0012108035	HEX. HEAD BOLT	5	REPLACES P/N 0016908035	ADD TO CART
HEX. HEAD BOLT 0012108035 · qty on machine: 5 REPLACES P/N 0016908035 view full part page → $1.95
8	M3236100703	3-PHASE OUTPUT TERMINAL COVER	1	S/N 7513394 AND BELOW	ADD TO CART
3-PHASE OUTPUT TERMINAL COVER M3236100703 · qty on machine: 1 S/N 7513394 AND BELOW view full part page → $419.95
8	M2237100103	3-PHASE OUTPUT TERMINAL COVER	1	S/N 7513395 AND ABOVE	ADD TO CART
3-PHASE OUTPUT TERMINAL COVER M2237100103 · qty on machine: 1 S/N 7513395 AND ABOVE view full part page → $111.95
9	M3236100104	OUTPUT WINDOW	1		ADD TO CART
OUTPUT WINDOW M3236100104 · qty on machine: 1 view full part page → $72.95
10	0605010040	HINGE	2		ADD TO CART
HINGE 0605010040 · qty on machine: 2 view full part page → $4.95
11	0027103010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027103010 · qty on machine: 4 view full part page → $0.44
11A	0207003000	HEX. NUT	4	REPLACES P/N 0030003000	ADD TO CART
HEX. NUT 0207003000 · qty on machine: 4 REPLACES P/N 0030003000 view full part page → $0.21
11B	0041203000	WASHER, FLAT	4		ADD TO CART
WASHER, FLAT 0041203000 · qty on machine: 4 view full part page → $0.12
12	0027103010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027103010 · qty on machine: 4 view full part page → $0.44
12A	0207003000	HEX. NUT	4	REPLACES P/N 0030003000	ADD TO CART
HEX. NUT 0207003000 · qty on machine: 4 REPLACES P/N 0030003000 view full part page → $0.21
13	M9220100804	SET SCREW	2		ADD TO CART
SET SCREW M9220100804 · qty on machine: 2 view full part page → $20.95
13A	0040006000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040006000 · qty on machine: 2 view full part page → $0.17
13B	952404470	WASHER, FLAT	2	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 2 REPLACES P/N 0041206000 view full part page → $0.19
13C	0080200005	E-SNAP RING	2		ADD TO CART
E-SNAP RING 0080200005 · qty on machine: 2 view full part page → $0.25
14	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95
15	M3236400004	RUBBER, CABLE OUTLET COVER	1		ADD TO CART
RUBBER, CABLE OUTLET COVER M3236400004 · qty on machine: 1 view full part page → $14.95
16	M3236300004	SUPPORTER, CABLE OUTLET COVER	1		ADD TO CART
SUPPORTER, CABLE OUTLET COVER M3236300004 · qty on machine: 1 view full part page → $24.95
17	011206020	HEX. HEAD BOLT	6	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 6 REPLACES P/N 0016906020 view full part page → $0.95
18	0601815194	TERMINAL BLOCK, 601-GP-02	1	S/N 7513560 AND BELOW	NO LONGER AVAILABLE
PHOTO COMING TERMINAL BLOCK, 601-GP-02 0601815194 · qty on machine: 1 S/N 7513560 AND BELOW NO LONGER AVAILABLE
18	Y0601816539	TERMINAL BLOCK, TB200-02	1	S/N 7513561 ~ 7513977	ADD TO CART
TERMINAL BLOCK, TB200-02 Y0601816539 · qty on machine: 1 S/N 7513561 ~ 7513977 view full part page → $15.95
18	0601815870	TERMINAL BLOCK, KT-20-2P	1	S/N 7513978 AND ABOVE	ADD TO CART
TERMINAL BLOCK, KT-20-2P 0601815870 · qty on machine: 1 S/N 7513978 AND ABOVE view full part page → $56.95
19	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
20	0603306775	BLIND PLUG	2	S/N 7512055 AND BELOW	ADD TO CART
BLIND PLUG 0603306775 · qty on machine: 2 S/N 7512055 AND BELOW view full part page → $3.95
20	0603306775	BLIND PLUG	1	S/N 7512056 AND ABOVE	ADD TO CART
BLIND PLUG 0603306775 · qty on machine: 1 S/N 7512056 AND ABOVE view full part page → $3.95
21	0027104015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 4 view full part page → $0.53
22	0601808803	CIRCUIT BREAKER, 1P 20A	2		ADD TO CART
CIRCUIT BREAKER, 1P 20A 0601808803 · qty on machine: 2 view full part page → $46.95
23	0601808804	CIRCUIT BREAKER, 2P 50A	3		ADD TO CART
CIRCUIT BREAKER, 2P 50A 0601808804 · qty on machine: 3 view full part page → $98.95
24	M1260700304	BREAKER FITTING COVER	1		ADD TO CART
BREAKER FITTING COVER M1260700304 · qty on machine: 1 view full part page → $75.95
24-1	0222100150	CUSHION RUBBER	2		ADD TO CART
CUSHION RUBBER 0222100150 · qty on machine: 2 view full part page → $6.95
25	011206020	HEX. HEAD BOLT	2	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 2 REPLACES P/N 0016906020 view full part page → $0.95
26	Y0601814034	RECEPTACLE, 125V 20AX2	2		ADD TO CART
RECEPTACLE, 125V 20AX2 Y0601814034 · qty on machine: 2 view full part page → $91.95
27	0601814014	RECEPTACLE, 250V 50A	3		ADD TO CART
RECEPTACLE, 250V 50A 0601814014 · qty on machine: 3 view full part page → $90.95
28	0027104015	MACHINE SCREW	10		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 10 view full part page → $0.53
28A	OEMAA8	HEX. NUT	10	REPLACES P/N 0207004000	ADD TO CART
HEX. NUT OEMAA8 · qty on machine: 10 REPLACES P/N 0207004000 view full part page → $0.4
29	M3236400204	COVER	1		ADD TO CART
COVER M3236400204 · qty on machine: 1 view full part page → $81.95
30	0016906015	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 6 view full part page → $0.95
31	M3454400003	TERMINAL COVER	1	S/N 7511755 AND BELOW	ADD TO CART
TERMINAL COVER M3454400003 · qty on machine: 1 S/N 7511755 AND BELOW view full part page → $66.95
31	M3454400503	TERMINAL COVER	1	S/N 7511756 AND ABOVE	ADD TO CART
TERMINAL COVER M3454400503 · qty on machine: 1 S/N 7511756 AND ABOVE view full part page → $100.95
32	012212045	HEX. HEAD BOLT	2	REPLACES P/N 0010112045	ADD TO CART
HEX. HEAD BOLT 012212045 · qty on machine: 2 REPLACES P/N 0010112045 view full part page → $2.95
33	031112230	WASHER, FLAT	6	REPLACES P/N 0041212000	ADD TO CART
WASHER, FLAT 031112230 · qty on machine: 6 REPLACES P/N 0041212000 view full part page → $0.95
34	0030012000	HEX. NUT, DOUBLE NUT	2		ADD TO CART
HEX. NUT, DOUBLE NUT 0030012000 · qty on machine: 2 view full part page → $0.5
35	0605050060	CONICAL LOCK WASHER	2		ADD TO CART
CONICAL LOCK WASHER 0605050060 · qty on machine: 2 view full part page → $5.95

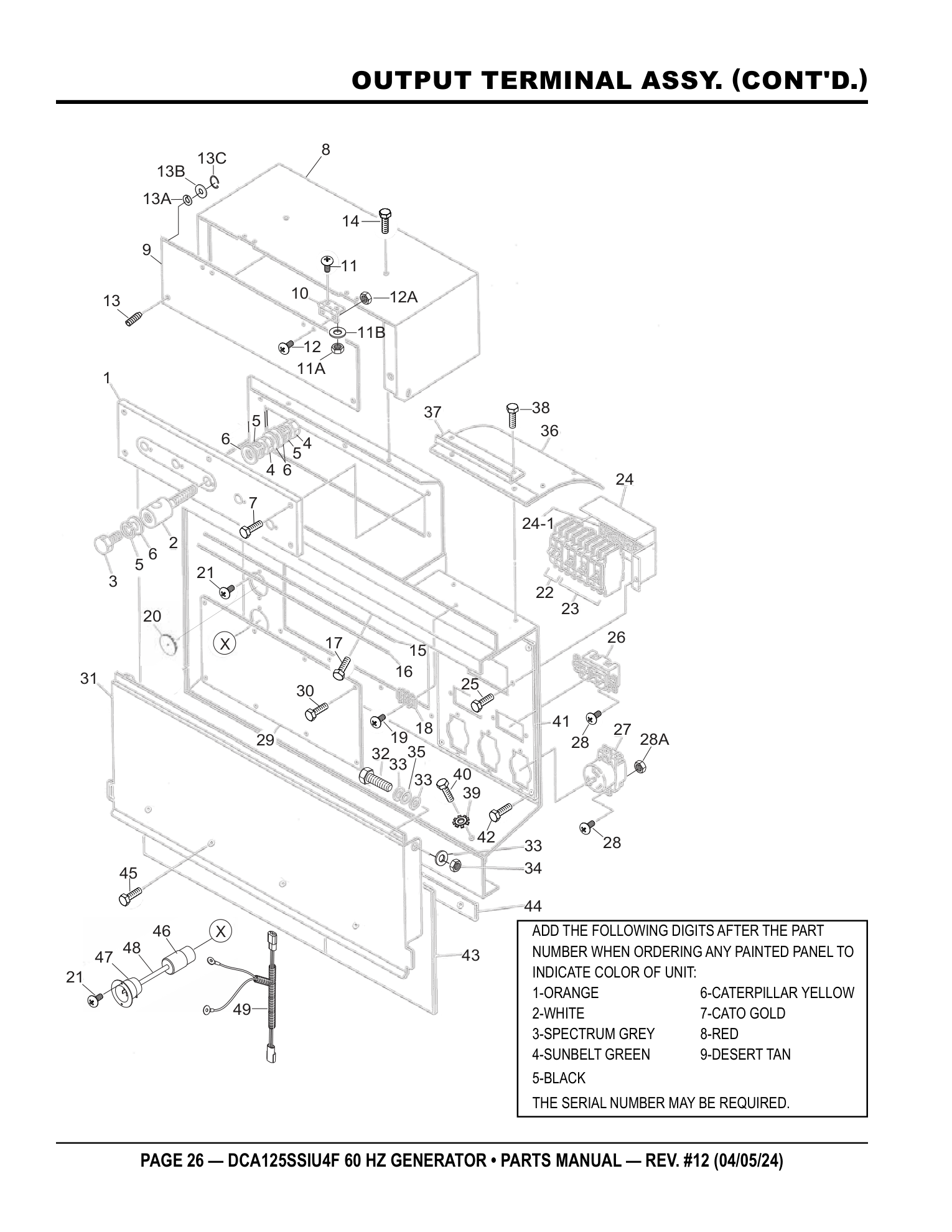

Page 26 — OUTPUT TERMINAL ASSY. (CONT'D.)

Multiquip DCA125SSIU4F Generator OUTPUT TERMINAL ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed15 rows

No.	Part No.	Part Name	Qty	Remarks
36	M3237100204	INSULATING COVER	1	S/N 7513418 AND BELOW	ADD TO CART
INSULATING COVER M3237100204 · qty on machine: 1 S/N 7513418 AND BELOW view full part page → $176.95
36	M1237101204	INSULATING COVER	1	S/N 7513419 AND ABOVE	ADD TO CART
INSULATING COVER M1237101204 · qty on machine: 1 S/N 7513419 AND ABOVE view full part page → $181.6
37	M4236400304	SUPPORTER, INSULATING COVER	1		ADD TO CART
SUPPORTER, INSULATING COVER M4236400304 · qty on machine: 1 view full part page → $19.95
38	0016906015	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 2 view full part page → $0.95
39	0040508000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040508000 · qty on machine: 1 view full part page → $0.35
40	0019208020	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 1 view full part page → $3.95
41	M3454200904	RECEPTACLE BOARD	1	S/N 7511756 AND ABOVE	ADD TO CART
RECEPTACLE BOARD M3454200904 · qty on machine: 1 S/N 7511756 AND ABOVE view full part page → $30.95
42	0016906015	HEX. HEAD BOLT	4	S/N 7511756 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 S/N 7511756 AND ABOVE view full part page → $0.95
43	M3454700904	RUBBER SHEET	1	S/N 7511756 AND ABOVE	ADD TO CART
RUBBER SHEET M3454700904 · qty on machine: 1 S/N 7511756 AND ABOVE view full part page → $459.95
44	M3454700804	RUBBER SHEET HOLDER	1	S/N 7511756 AND ABOVE	PARTS REQUEST
PHOTO COMING RUBBER SHEET HOLDER M3454700804 · qty on machine: 1 S/N 7511756 AND ABOVE PARTS REQUEST
45	011206020	HEX. HEAD BOLT	4	REPLACES P/N 0019206020 S/N 7511756 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 4 REPLACES P/N 0019206020 S/N 7511756 AND ABOVE view full part page → $0.95
46	0601812527	CONNECTOR	1	S/N 7512056 ~ 7512966	ADD TO CART
CONNECTOR 0601812527 · qty on machine: 1 S/N 7512056 ~ 7512966 view full part page → $64.95
47	Y0601811177	RECEPTACLE	1	S/N 7512056 ~ 7512966	PARTS REQUEST
PHOTO COMING RECEPTACLE Y0601811177 · qty on machine: 1 S/N 7512056 ~ 7512966 PARTS REQUEST
48	M1358200804	WIRE HARNESS, WATER HEATER	1	S/N 7512056 ~ 7512966	PARTS REQUEST
PHOTO COMING WIRE HARNESS, WATER HEATER M1358200804 · qty on machine: 1 S/N 7512056 ~ 7512966 PARTS REQUEST
49	Y0601813078	WATER HEATER CABLE	1	S/N 7512967 AND ABOVE	ADD TO CART
WATER HEATER CABLE Y0601813078 · qty on machine: 1 S/N 7512967 AND ABOVE view full part page → $105.95

Page 28 — BATTERY ASSY.

Multiquip DCA125SSIU4F Generator BATTERY ASSY. parts diagram

Parts list — exactly as printed11 rows

No.	Part No.	Part Name	Qty	Remarks
1	0602220198	BATTERY	1		ADD TO CART
BATTERY 0602220198 · qty on machine: 1 view full part page → $500.95
2	M9310500404	BATTERY SHEET	1		PARTS REQUEST
PHOTO COMING BATTERY SHEET M9310500404 · qty on machine: 1 PARTS REQUEST
3	M9103000504	BATTERY BAND	1		ADD TO CART
BATTERY BAND M9103000504 · qty on machine: 1 view full part page → $107.95
4	0602220921	BATTERY BOLT SET	2		ADD TO CART
BATTERY BOLT SET 0602220921 · qty on machine: 2 view full part page → $5.95
5	M3347900204	BATTERY CABLE	1		ADD TO CART
BATTERY CABLE M3347900204 · qty on machine: 1 view full part page → $406.95
6	M3347900304	BATTERY CABLE	1		ADD TO CART
BATTERY CABLE M3347900304 · qty on machine: 1 view full part page → $105.95
7		CABLE	1	MAKE LOCALLY	SEE REMARKS
PHOTO COMING CABLE · qty on machine: 1 MAKE LOCALLY SEE REMARKS
8	0016910025	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0016910025 · qty on machine: 2 view full part page → $1.56
8A	0040510000	TOOTHED WASHER	2		ADD TO CART
TOOTHED WASHER 0040510000 · qty on machine: 2 view full part page → $0.77
9	0012410025	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0012410025 · qty on machine: 1 view full part page → $1.95
9A	0040510000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040510000 · qty on machine: 1 view full part page → $0.77

Page 30 — CATALYTIC EXHAUST FILTER ASSY.

Multiquip DCA125SSIU4F Generator CATALYTIC EXHAUST FILTER ASSY. parts diagram

Parts list — exactly as printed41 rows

No.	Part No.	Part Name	Qty	Remarks
1	8982376941	SCR ASSEMBLY	1	REPLACES P/N Y0602330321 S/N 7511240 AND BELOW	ADD TO CART
SCR ASSEMBLY 8982376941 · qty on machine: 1 REPLACES P/N Y0602330321 S/N 7511240 AND BELOW view full part page → $24880.95
1	8983244980	SCR ASSEMBLY	1	REPLACES P/N Y0602330323 S/N 7511241 AND ABOVE	ADD TO CART
SCR ASSEMBLY 8983244980 · qty on machine: 1 REPLACES P/N Y0602330323 S/N 7511241 AND ABOVE view full part page → $24624.95
2	M3331401303	SCR BRACKET	1		ADD TO CART
SCR BRACKET M3331401303 · qty on machine: 1 view full part page → $56.95
3	0016910025	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016910025 · qty on machine: 4 view full part page → $1.56
4	0019112040	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0019112040 · qty on machine: 8 view full part page → $6.95
4A	0042312000	WASHER, LOCK	8		ADD TO CART
WASHER, LOCK 0042312000 · qty on machine: 8 view full part page → $0.94
4B	0042412000	WASHER, FLAT	8		ADD TO CART
WASHER, FLAT 0042412000 · qty on machine: 8 view full part page → $1.63
5	8982984470	DEF TANK	1	REPLACES P/N Y0602330447	ADD TO CART
DEF TANK 8982984470 · qty on machine: 1 REPLACES P/N Y0602330447 view full part page → $2395.95
6	8981567470	RETAINER	1	REPLACES P/N Y0602330441	ADD TO CART
RETAINER 8981567470 · qty on machine: 1 REPLACES P/N Y0602330441 view full part page → $63.95
6A	8981579360	BOLT SCREW	2	REPLACES P/N Y0602330442	ADD TO CART
BOLT SCREW 8981579360 · qty on machine: 2 REPLACES P/N Y0602330442 view full part page → $54.95
6B	0911801100	HEX. NUT	2	REPLACES P/N Y0602330443	ADD TO CART
HEX. NUT 0911801100 · qty on machine: 2 REPLACES P/N Y0602330443 view full part page → $0.62
7	8981562981	DEF TANK COVER ASSEMBLY	1	REPLACES P/N Y0602330448	ADD TO CART
DEF TANK COVER ASSEMBLY 8981562981 · qty on machine: 1 REPLACES P/N Y0602330448 view full part page → $60.95
8	1097071830	DEF TANK COVER CLIP	1	REPLACES P/N Y0602330449	ADD TO CART
DEF TANK COVER CLIP 1097071830 · qty on machine: 1 REPLACES P/N Y0602330449 view full part page → $11.95
9	M2334300203	DEF TANK BRACKET	1		ADD TO CART
DEF TANK BRACKET M2334300203 · qty on machine: 1 view full part page → $152.95
10	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
11	011208025	HEX. HEAD BOLT	2	REPLACES P/N 0016908025	ADD TO CART
HEX. HEAD BOLT 011208025 · qty on machine: 2 REPLACES P/N 0016908025 view full part page → $0.41
12	8981213061	COOLANT CONTROL VALVE	1	REPLACES P/N Y0602330484	ADD TO CART
COOLANT CONTROL VALVE 8981213061 · qty on machine: 1 REPLACES P/N Y0602330484 view full part page → $467.95
13	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
14	8982688110	DEF SUPPLY MODULE	1	REPLACES P/N Y0602330483	NO LONGER AVAILABLE
PHOTO COMING DEF SUPPLY MODULE 8982688110 · qty on machine: 1 REPLACES P/N Y0602330483 NO LONGER AVAILABLE
14A	8981694030	DEF FILTER ELEMENT	1		NO LONGER AVAILABLE
PHOTO COMING DEF FILTER ELEMENT 8981694030 · qty on machine: 1 NO LONGER AVAILABLE
15	Y0013608090	HEX. HEAD BOLT	3		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0013608090 · qty on machine: 3 PARTS REQUEST
15A	0040008000	WASHER, LOCK	3		ADD TO CART
WASHER, LOCK 0040008000 · qty on machine: 3 view full part page → $0.63
15B	0401450080	WASHER, FLAT	3	REPLACES P/N 0041208000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 3 REPLACES P/N 0041208000 view full part page → $0.56
16	8982318982	DEF DOSING MODULE	1	REPLACES P/N Y0602330474	NO LONGER AVAILABLE
PHOTO COMING DEF DOSING MODULE 8982318982 · qty on machine: 1 REPLACES P/N Y0602330474 NO LONGER AVAILABLE
17	0911801060	HEX. NUT	3	REPLACES P/N Y0602330475	ADD TO CART
HEX. NUT 0911801060 · qty on machine: 3 REPLACES P/N Y0602330475 view full part page → $0.31
18	M3331401604	NOX SENSOR BRACKET	1	S/N 7511240 AND BELOW	ADD TO CART
NOX SENSOR BRACKET M3331401604 · qty on machine: 1 S/N 7511240 AND BELOW view full part page → $42.95
18	M3331401614	NOX SENSOR BRACKET	1	S/N 7511241 AND ABOVE	ADD TO CART
NOX SENSOR BRACKET M3331401614 · qty on machine: 1 S/N 7511241 AND ABOVE view full part page → $46.95
19	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020 S/N 7511240 AND BELOW	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 S/N 7511240 AND BELOW view full part page → $2.68
19	001008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020 S/N 7511241 AND ABOVE	PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT 001008020 · qty on machine: 4 REPLACES P/N 0016908020 S/N 7511241 AND ABOVE PARTS REQUEST
20	8982465060	NOX SENSOR	1	REPLACES P/N Y0602330482 S/N 7511240 AND BELOW	NO LONGER AVAILABLE
PHOTO COMING NOX SENSOR 8982465060 · qty on machine: 1 REPLACES P/N Y0602330482 S/N 7511240 AND BELOW NO LONGER AVAILABLE
20	8982465060	NOX SENSOR	2	REPLACES P/N Y0602330482 S/N 7511241 AND ABOVE	NO LONGER AVAILABLE
PHOTO COMING NOX SENSOR 8982465060 · qty on machine: 2 REPLACES P/N Y0602330482 S/N 7511241 AND ABOVE NO LONGER AVAILABLE
21	011206020	HEX. HEAD BOLT	2	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 2 REPLACES P/N 0016906020 view full part page → $0.95
22	8981783581	DOC TEMP SENSOR (FRONT)	1	REPLACES P/N Y0602330481	ADD TO CART
DOC TEMP SENSOR (FRONT) 8981783581 · qty on machine: 1 REPLACES P/N Y0602330481 view full part page → $332.95
23	8981867621	DOC TEMP SENSOR (REAR)	1	REPLACES P/N Y0602330471	ADD TO CART
DOC TEMP SENSOR (REAR) 8981867621 · qty on machine: 1 REPLACES P/N Y0602330471 view full part page → $284.95
24	8980863290	SCR TEMP SENSOR	1	REPLACES P/N Y0602330470	ADD TO CART
SCR TEMP SENSOR 8980863290 · qty on machine: 1 REPLACES P/N Y0602330470 view full part page → $317.95
25	8976028701	TEMP SENSOR BRACKET	2	REPLACES P/N Y0602330472	PARTS REQUEST
PHOTO COMING TEMP SENSOR BRACKET 8976028701 · qty on machine: 2 REPLACES P/N Y0602330472 PARTS REQUEST
26	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
27	M3331401704	CONNECTOR BRACKET	1		ADD TO CART
CONNECTOR BRACKET M3331401704 · qty on machine: 1 view full part page → $45.95
28	011208025	HEX. HEAD BOLT	2	REPLACES P/N 0016908025	ADD TO CART
HEX. HEAD BOLT 011208025 · qty on machine: 2 REPLACES P/N 0016908025 view full part page → $0.41
29	8982999640	EXHAUST THROTTLE	1	REPLACES P/N Y0602315000	PARTS REQUEST
PHOTO COMING EXHAUST THROTTLE 8982999640 · qty on machine: 1 REPLACES P/N Y0602315000 PARTS REQUEST
30	0083087300	VACUUM HOSE	1	REPLACES P/N Y0602315005	PARTS REQUEST
PHOTO COMING VACUUM HOSE 0083087300 · qty on machine: 1 REPLACES P/N Y0602315005 PARTS REQUEST

Page 32 — CATALYTIC EXHAUST FILTER ASSY. (CONT'D.)

Multiquip DCA125SSIU4F Generator CATALYTIC EXHAUST FILTER ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed31 rows

No.	Part No.	Part Name	Qty	Remarks
31	8980080980	VACUUM HOSE CLIP	4	REPLACES P/N Y0602315013	PARTS REQUEST
PHOTO COMING VACUUM HOSE CLIP 8980080980 · qty on machine: 4 REPLACES P/N Y0602315013 PARTS REQUEST
32	8973285770	MAGNETIC VALVE	1	REPLACES P/N Y0602315001	ADD TO CART
MAGNETIC VALVE 8973285770 · qty on machine: 1 REPLACES P/N Y0602315001 view full part page → $562.95
33	011008020	HEX. HEAD BOLT	1	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 1 REPLACES P/N 0016908020 view full part page → $2.68
34	8982999680	VACUUM PUMP	1	REPLACES P/N Y0602315002	PARTS REQUEST
PHOTO COMING VACUUM PUMP 8982999680 · qty on machine: 1 REPLACES P/N Y0602315002 Factory replaced this part - current number 8982999681 PARTS REQUEST
35	Y0016908015	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT Y0016908015 · qty on machine: 2 view full part page → $1.95
36	0083085000	VACUUM HOSE	1	REPLACES P/N Y0602315004	PARTS REQUEST
PHOTO COMING VACUUM HOSE 0083085000 · qty on machine: 1 REPLACES P/N Y0602315004 PARTS REQUEST
37	M3331402304	VACUUM PUMP BRACKET	1	S/N 7511635 AND BELOW	PARTS REQUEST
PHOTO COMING VACUUM PUMP BRACKET M3331402304 · qty on machine: 1 S/N 7511635 AND BELOW PARTS REQUEST
38	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020 S/N 7511635 AND BELOW	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 S/N 7511635 AND BELOW view full part page → $2.68
39	M3424700404	SCR HOSE CLAMPER	1		PARTS REQUEST
PHOTO COMING SCR HOSE CLAMPER M3424700404 · qty on machine: 1 PARTS REQUEST
40	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
41	M3334001003	EXHAUST PIPE	1		ADD TO CART
EXHAUST PIPE M3334001003 · qty on machine: 1 view full part page → $1774.95
41A	Y0602311163	EXHAUST PIPE HEAT SHIELD	1		ADD TO CART
EXHAUST PIPE HEAT SHIELD Y0602311163 · qty on machine: 1 view full part page → $488.95
42	M3334000904	EXHAUST PIPE	1		ADD TO CART
EXHAUST PIPE M3334000904 · qty on machine: 1 view full part page → $477.95
42A	Y0602311164	EXHAUST PIPE HEAT SHIELD	1		ADD TO CART
EXHAUST PIPE HEAT SHIELD Y0602311164 · qty on machine: 1 view full part page → $232.95
43	M3334001104	EXHAUST PIPE	1		ADD TO CART
EXHAUST PIPE M3334001104 · qty on machine: 1 view full part page → $1065.95
43A	Y0602311165	EXHAUST PIPE HEAT SHIELD	1		ADD TO CART
EXHAUST PIPE HEAT SHIELD Y0602311165 · qty on machine: 1 view full part page → $424.95
44	8943925532	GASKET	2	REPLACES P/N Y0602320213	ADD TO CART
GASKET 8943925532 · qty on machine: 2 REPLACES P/N Y0602320213 view full part page → $71.95
45	Y0019208035	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT Y0019208035 · qty on machine: 8 view full part page → $5.95
45A	020108060	SELF-LOCKING NUT	8	REPLACES P/N 0207008000	ADD TO CART
SELF-LOCKING NUT 020108060 · qty on machine: 8 REPLACES P/N 0207008000 view full part page → $0.28
46	8973731080	GASKET	2	REPLACES P/N Y0602320212	ADD TO CART
GASKET 8973731080 · qty on machine: 2 REPLACES P/N Y0602320212 view full part page → $24.95
47	0019108065	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0019108065 · qty on machine: 4 view full part page → $1.95
47A	0042308000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0042308000 · qty on machine: 4 view full part page → $0.83
47B	0401450080	WASHER, FLAT	4	REPLACES P/N 0042408000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 4 REPLACES P/N 0042408000 view full part page → $0.56
48	020108060	SELF-LOCKING NUT	4	REPLACES P/N 0207008000	ADD TO CART
SELF-LOCKING NUT 020108060 · qty on machine: 4 REPLACES P/N 0207008000 view full part page → $0.28
49	M3334200004	GASKET	1		ADD TO CART
GASKET M3334200004 · qty on machine: 1 view full part page → $8.95
50	0207108000	SELF-LOCKING NUT	3		ADD TO CART
SELF-LOCKING NUT 0207108000 · qty on machine: 3 view full part page → $3.95
51	M3331401404	EXHAUST PIPE COVER	1		PARTS REQUEST
PHOTO COMING EXHAUST PIPE COVER M3331401404 · qty on machine: 1 PARTS REQUEST
52	M3331401504	EXHAUST PIPE BRACKET	1		PARTS REQUEST
PHOTO COMING EXHAUST PIPE BRACKET M3331401504 · qty on machine: 1 PARTS REQUEST
53	M3331402204	EXHAUST PIPE BRACKET	1		PARTS REQUEST
PHOTO COMING EXHAUST PIPE BRACKET M3331402204 · qty on machine: 1 PARTS REQUEST
54	0602326090	U-BOLT	2		ADD TO CART
U-BOLT 0602326090 · qty on machine: 2 view full part page → $10.95
55	011008020	HEX. HEAD BOLT	8	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 8 REPLACES P/N 0016908020 view full part page → $2.68

Page 34 — CATALYTIC EXHAUST FILTER ASSY. (CONT'D.)

Parts list — exactly as printed33 rows

No.	Part No.	Part Name	Qty	Remarks
56	Y0602330457	DEF LINE	1		ADD TO CART
DEF LINE Y0602330457 · qty on machine: 1 view full part page → $457.95
57	Y0602330458	DEF LINE	1		PARTS REQUEST
PHOTO COMING DEF LINE Y0602330458 · qty on machine: 1 Factory replaced this part - current number 4B1024 PARTS REQUEST
58	Y0602330459	DEF LINE	1		PARTS REQUEST
PHOTO COMING DEF LINE Y0602330459 · qty on machine: 1 Factory replaced this part - current number 4B1025 PARTS REQUEST
59	Y0378900200	AEROFLEX TUBE	1		ADD TO CART
AEROFLEX TUBE Y0378900200 · qty on machine: 1 view full part page → $3.95
60	Y0602330453	90° ELBOW JOINT	4		ADD TO CART
90° ELBOW JOINT Y0602330453 · qty on machine: 4 view full part page → $618.95
61	Y0602330454	TEE CONNECTOR	2		ADD TO CART
TEE CONNECTOR Y0602330454 · qty on machine: 2 view full part page → $422.95
62	Y0377102270	SCR COOLANT LINE	1		ADD TO CART
SCR COOLANT LINE Y0377102270 · qty on machine: 1 view full part page → $47.95
63	Y0378501830	AEROFLEX TUBE	1	S/N 7514157 AND BELOW	ADD TO CART
AEROFLEX TUBE Y0378501830 · qty on machine: 1 S/N 7514157 AND BELOW view full part page → $15.95
63	Y0378101830	AEROFLEX TUBE	1	S/N 7514158 AND ABOVE	ADD TO CART
AEROFLEX TUBE Y0378101830 · qty on machine: 1 S/N 7514158 AND ABOVE view full part page → $24.95
64	Y0378500390	AEROFLEX TUBE	1		ADD TO CART
AEROFLEX TUBE Y0378500390 · qty on machine: 1 view full part page → $5.95
65	Y0377100250	SCR COOLANT LINE	1		ADD TO CART
SCR COOLANT LINE Y0377100250 · qty on machine: 1 view full part page → $6.95
66	Y0378500200	AEROFLEX TUBE	1		ADD TO CART
AEROFLEX TUBE Y0378500200 · qty on machine: 1 view full part page → $24.95
67	Y0377102100	SCR COOLANT LINE	1		ADD TO CART
SCR COOLANT LINE Y0377102100 · qty on machine: 1 view full part page → $23.95
68	Y0378501830	AEROFLEX TUBE	1	S/N 7514157 AND BELOW	ADD TO CART
AEROFLEX TUBE Y0378501830 · qty on machine: 1 S/N 7514157 AND BELOW view full part page → $15.95
68	Y0378101830	AEROFLEX TUBE	1	S/N 7514158 AND ABOVE	ADD TO CART
AEROFLEX TUBE Y0378101830 · qty on machine: 1 S/N 7514158 AND ABOVE view full part page → $24.95
69	Y0378500220	AEROFLEX TUBE	1		PARTS REQUEST
PHOTO COMING AEROFLEX TUBE Y0378500220 · qty on machine: 1 PARTS REQUEST
70	Y0377100200	SCR COOLANT LINE	1		ADD TO CART
SCR COOLANT LINE Y0377100200 · qty on machine: 1 view full part page → $3.95
71	Y0378500150	AEROFLEX TUBE	1		ADD TO CART
AEROFLEX TUBE Y0378500150 · qty on machine: 1 view full part page → $2.95
72	Y0377100740	SCR COOLANT LINE	1		ADD TO CART
SCR COOLANT LINE Y0377100740 · qty on machine: 1 view full part page → $16.95
73	Y0378700750	AEROFLEX TUBE	1		ADD TO CART
AEROFLEX TUBE Y0378700750 · qty on machine: 1 view full part page → $14.95
74	Y0377102160	SCR COOLANT LINE	1		ADD TO CART
SCR COOLANT LINE Y0377102160 · qty on machine: 1 view full part page → $23.95
75	Y0377701900	AEROFLEX TUBE	1		PARTS REQUEST
PHOTO COMING AEROFLEX TUBE Y0377701900 · qty on machine: 1 PARTS REQUEST
76	Y0377700340	AEROFLEX TUBE	1		PARTS REQUEST
PHOTO COMING AEROFLEX TUBE Y0377700340 · qty on machine: 1 PARTS REQUEST
76-1	Y0378500150	AEROFLEX TUBE	1		ADD TO CART
AEROFLEX TUBE Y0378500150 · qty on machine: 1 view full part page → $2.95
77	Y0377100400	SCR COOLANT LINE	1		ADD TO CART
SCR COOLANT LINE Y0377100400 · qty on machine: 1 view full part page → $4.95
78	Y0378500350	AEROFLEX TUBE	1		ADD TO CART
AEROFLEX TUBE Y0378500350 · qty on machine: 1 view full part page → $5.95
79	Y0377103660	SCR COOLANT LINE	1		ADD TO CART
SCR COOLANT LINE Y0377103660 · qty on machine: 1 view full part page → $73.95
80	Y0378501830	AEROFLEX TUBE	1	S/N 7514157 AND BELOW	ADD TO CART
AEROFLEX TUBE Y0378501830 · qty on machine: 1 S/N 7514157 AND BELOW view full part page → $15.95
80	Y0378101830	AEROFLEX TUBE	1	S/N 7514158 AND ABOVE	ADD TO CART
AEROFLEX TUBE Y0378101830 · qty on machine: 1 S/N 7514158 AND ABOVE view full part page → $24.95
81	Y0378501760	AEROFLEX TUBE	1	S/N 7514157 AND BELOW	ADD TO CART
AEROFLEX TUBE Y0378501760 · qty on machine: 1 S/N 7514157 AND BELOW view full part page → $20.95
81	Y0378101760	AEROFLEX TUBE	1	S/N 7514158 AND ABOVE	PARTS REQUEST
PHOTO COMING AEROFLEX TUBE Y0378101760 · qty on machine: 1 S/N 7514158 AND ABOVE PARTS REQUEST
82	Y0605515340	HOSE BAND	14		ADD TO CART
HOSE BAND Y0605515340 · qty on machine: 14 view full part page → $2.95
83	0605515198	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515198 · qty on machine: 2 view full part page → $1.71

Page 36 — FUEL TANK ASSY.

Multiquip DCA125SSIU4F Generator FUEL TANK ASSY. parts diagram

Parts list — exactly as printed35 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3364000702	FUEL TANK (1-PIECE)	1	INCLUDES ITEMS W/# S/N 7512210 ~ 7513424 S/N 7513561 ~ 7513624 S/N 7514340 AND ABOVE	ADD TO CART
FUEL TANK (1-PIECE) M3364000702 · qty on machine: 1 INCLUDES ITEMS W/# S/N 7512210 ~ 7513424 S/N 7513561 ~ 7513624 S/N 7514340 AND ABOVE Kit includes: 1-1#$, 1-2$, 1-2#, 1-2A$, 1-2A#, 1-2B$, 1-2B#, 2-1$ view full part page → $2659.95 IN A KIT + SOLD SOLO
1	M3363001402	FUEL TANK WITH SENDER	1	INCLUDES ITEMS W/$ S/N 7512209 AND BELOW S/N 7513425 ~ 7513560 S/N 7513625 ~ 7514339	ADD TO CART
FUEL TANK WITH SENDER M3363001402 · qty on machine: 1 INCLUDES ITEMS W/$ S/N 7512209 AND BELOW S/N 7513425 ~ 7513560 S/N 7513625 ~ 7514339 Kit includes: 1-1#$, 1-2$, 1-2#, 1-2A$, 1-2A#, 1-2B$, 1-2B#, 2-1$ view full part page → $1337.95 IN A KIT + SOLD SOLO
1-1#$	0605505070	FUEL TANK CAP	1		ADD TO CART
FUEL TANK CAP 0605505070 · qty on machine: 1 Also included in kit 1 - FUEL TANK (1-PIECE) (M3364000702); kit 1 - FUEL TANK WITH SENDER (M3363001402) view full part page → $50.95 IN A KIT + SOLD SOLO
1-2$	Y0605501058	FUEL SENDER UNIT	1	REPLACES P/N 0605501074 S/N 7514092 AND BELOW	ADD TO CART
FUEL SENDER UNIT Y0605501058 · qty on machine: 1 REPLACES P/N 0605501074 S/N 7514092 AND BELOW Also included in kit 1 - FUEL TANK WITH SENDER (M3363001402) view full part page → $165.95 IN A KIT + SOLD SOLO
1-2#	Y0605501036	FUEL SENDER UNIT	1	S/N 7514093 AND ABOVE	ADD TO CART
FUEL SENDER UNIT Y0605501036 · qty on machine: 1 S/N 7514093 AND ABOVE Also included in kit 1 - FUEL TANK (1-PIECE) (M3364000702) view full part page → $227.95 IN A KIT + SOLD SOLO
1-2A$	0605516090	GASKET	1	S/N 7514092 AND BELOW	NO LONGER AVAILABLE
PHOTO COMING GASKET 0605516090 · qty on machine: 1 S/N 7514092 AND BELOW Also included in kit 1 - FUEL TANK WITH SENDER (M3363001402) NO LONGER AVAILABLE
1-2A#	Y0605516092	GASKET	1	S/N 7514093 AND ABOVE	ADD TO CART
GASKET Y0605516092 · qty on machine: 1 S/N 7514093 AND ABOVE Also included in kit 1 - FUEL TANK (1-PIECE) (M3364000702) view full part page → $52.95 IN A KIT + SOLD SOLO
1-2B$	Y0605553030	FUEL SENDER SCREWS	5	S/N 7514092 AND BELOW	PARTS REQUEST
PHOTO COMING FUEL SENDER SCREWS Y0605553030 · qty on machine: 5 S/N 7514092 AND BELOW Also included in kit 1 - FUEL TANK WITH SENDER (M3363001402) PARTS REQUEST
1-2B#	Y0605553040	FUEL SENDER SCREWS	5	S/N 7514093 AND ABOVE	ADD TO CART
FUEL SENDER SCREWS Y0605553040 · qty on machine: 5 S/N 7514093 AND ABOVE Also included in kit 1 - FUEL TANK (1-PIECE) (M3364000702) view full part page → $1.95 IN A KIT + SOLD SOLO
2	M3363001504	FUEL TANK WITHOUT SENDER	1	S/N 7512209 AND BELOW S/N 7513425 ~ 7513560 S/N 7513625 ~ 7514339	ADD TO CART
FUEL TANK WITHOUT SENDER M3363001504 · qty on machine: 1 S/N 7512209 AND BELOW S/N 7513425 ~ 7513560 S/N 7513625 ~ 7514339 view full part page → $1066.95
2-1$	0605505070	FUEL TANK CAP	1	S/N 7512209 AND BELOW S/N 7513425 ~ 7513560 S/N 7513625 ~ 7514339	ADD TO CART
FUEL TANK CAP 0605505070 · qty on machine: 1 S/N 7512209 AND BELOW S/N 7513425 ~ 7513560 S/N 7513625 ~ 7514339 Also included in kit 1 - FUEL TANK WITH SENDER (M3363001402) view full part page → $50.95 IN A KIT + SOLD SOLO
3	0191700280	CONNECT HOSE	2	S/N 7512209 AND BELOW S/N 7513425 ~ 7513560 S/N 7513625 ~ 7514339	PARTS REQUEST
PHOTO COMING CONNECT HOSE 0191700280 · qty on machine: 2 S/N 7512209 AND BELOW S/N 7513425 ~ 7513560 S/N 7513625 ~ 7514339 PARTS REQUEST
4	0605515134	HOSE BAND	4	S/N 7512209 AND BELOW S/N 7513425 ~ 7513560 S/N 7513625 ~ 7514339	ADD TO CART
HOSE BAND 0605515134 · qty on machine: 4 S/N 7512209 AND BELOW S/N 7513425 ~ 7513560 S/N 7513625 ~ 7514339 view full part page → $4.95
5	M3363200404	TANK BAND	4		ADD TO CART
TANK BAND M3363200404 · qty on machine: 4 view full part page → $33.95
6	M3363200904	TANK BAND	4		ADD TO CART
TANK BAND M3363200904 · qty on machine: 4 view full part page → $40.95
7	M9310500104	SUPPORTER SHEET	8		ADD TO CART
SUPPORTER SHEET M9310500104 · qty on machine: 8 view full part page → $5.95
8	011008020	HEX. HEAD BOLT	8	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 8 REPLACES P/N 0016908020 view full part page → $2.68
9	020108060	HEX. NUT	8	REPLACES P/N 0207008000	ADD TO CART
HEX. NUT 020108060 · qty on machine: 8 REPLACES P/N 0207008000 view full part page → $0.28
10	0222101000	TANK SHEET	6		ADD TO CART
TANK SHEET 0222101000 · qty on machine: 6 view full part page → $39.95
11	0191302500	VENT HOSE	1		ADD TO CART
VENT HOSE 0191302500 · qty on machine: 1 view full part page → $97.95
12	Y0605515340	HOSE BAND	2		ADD TO CART
HOSE BAND Y0605515340 · qty on machine: 2 view full part page → $2.95
13	Y0191300490	SUCTION HOSE	1		PARTS REQUEST
PHOTO COMING SUCTION HOSE Y0191300490 · qty on machine: 1 PARTS REQUEST
14	Y0605515340	HOSE BAND	10		ADD TO CART
HOSE BAND Y0605515340 · qty on machine: 10 view full part page → $2.95
15	0191300750	RETURN HOSE	1		ADD TO CART
RETURN HOSE 0191300750 · qty on machine: 1 view full part page → $6.95
16	Y0191301700	SUCTION HOSE	1		PARTS REQUEST
PHOTO COMING SUCTION HOSE Y0191301700 · qty on machine: 1 PARTS REQUEST
17	8983129150	FUEL FILTER (MAIN)	1	REPLACES P/N Y0602042416	NO LONGER AVAILABLE
PHOTO COMING FUEL FILTER (MAIN) 8983129150 · qty on machine: 1 REPLACES P/N Y0602042416 NO LONGER AVAILABLE
17A	8983129180	FUEL FILTER ELEMENT, MAIN	1		ADD TO CART
FUEL FILTER ELEMENT, MAIN 8983129180 · qty on machine: 1 view full part page → $161.95
18	8980758553	FUEL FILTER (PRE.)	1	REPLACES P/N Y0602042405	NO LONGER AVAILABLE
PHOTO COMING FUEL FILTER (PRE.) 8980758553 · qty on machine: 1 REPLACES P/N Y0602042405 NO LONGER AVAILABLE
18A	8980742881	FUEL FILTER ELEMENT, PRE	1		ADD TO CART
FUEL FILTER ELEMENT, PRE 8980742881 · qty on machine: 1 view full part page → $123.95
19	M3364400404	BRACKET, FUEL FILTER	1		ADD TO CART
BRACKET, FUEL FILTER M3364400404 · qty on machine: 1 view full part page → $292.95
20	0016910030	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0016910030 · qty on machine: 6 view full part page → $2.95
21	1096750951	EYE BOLT	4	REPLACES P/N Y0602042621	ADD TO CART
EYE BOLT 1096750951 · qty on machine: 4 REPLACES P/N Y0602042621 view full part page → $28.95
22	8973834270	JOINT PIPE	4	REPLACES P/N Y0602042661	ADD TO CART
JOINT PIPE 8973834270 · qty on machine: 4 REPLACES P/N Y0602042661 view full part page → $53.95
23	1096300860	PACKING	8	REPLACES P/N Y0602042641	ADD TO CART
PACKING 1096300860 · qty on machine: 8 REPLACES P/N Y0602042641 view full part page → $8.95
24	0191300950	SUCTION HOSE	1		ADD TO CART
SUCTION HOSE 0191300950 · qty on machine: 1 view full part page → $9.95

Page 38 — FUEL TANK ASSY. (CONT'D.)

Multiquip DCA125SSIU4F Generator FUEL TANK ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed10 rows

No.	Part No.	Part Name	Qty	Remarks
25	Y0191300260	SUCTION HOSE	1		PARTS REQUEST
PHOTO COMING SUCTION HOSE Y0191300260 · qty on machine: 1 PARTS REQUEST
26	8980682750	FUEL FEED PUMP	1	REPLACES P/N Y0602023240	NO LONGER AVAILABLE
PHOTO COMING FUEL FEED PUMP 8980682750 · qty on machine: 1 REPLACES P/N Y0602023240 NO LONGER AVAILABLE
26A	8980714010	FUEL FEED PUMP FILTER	1		ADD TO CART
FUEL FEED PUMP FILTER 8980714010 · qty on machine: 1 view full part page → $26.95
27	011606025	HEX. HEAD BOLT	2	REPLACES P/N 0016906025	ADD TO CART
HEX. HEAD BOLT 011606025 · qty on machine: 2 REPLACES P/N 0016906025 view full part page → $1.95
28	0015310045	HEX. SOCKET HEAD CAP SCREW	4		ADD TO CART
HEX. SOCKET HEAD CAP SCREW 0015310045 · qty on machine: 4 view full part page → $1.95
28A	0040010000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0040010000 · qty on machine: 4 view full part page → $0.39
28B	Y0041210000	WASHER, FLAT	4		ADD TO CART
WASHER, FLAT Y0041210000 · qty on machine: 4 view full part page → $0.19
29	0015310080	HEX. HEAD BOLT	2		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT 0015310080 · qty on machine: 2 PARTS REQUEST
29A	0040010000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040010000 · qty on machine: 2 view full part page → $0.39
29B	031110160	WASHER, FLAT	2	REPLACES P/N 0041210000	ADD TO CART
WASHER, FLAT 031110160 · qty on machine: 2 REPLACES P/N 0041210000 view full part page → $0.4

Page 40 — ENCLOSURE ASSY.

Multiquip DCA125SSIU4F Generator ENCLOSURE ASSY. parts diagram

Parts list — exactly as printed46 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3414000602	BASE	1		ADD TO CART
BASE M3414000602 · qty on machine: 1 view full part page → $3235.95
1A	0229201090	SEAL RUBBER	1		ADD TO CART
SEAL RUBBER 0229201090 · qty on machine: 1 view full part page → $25.95
2	M3364300203	ENVIRONMENTAL TANK	1		ADD TO CART
ENVIRONMENTAL TANK M3364300203 · qty on machine: 1 view full part page → $4138.95
3	0016910030	HEX. HEAD BOLT	12		ADD TO CART
HEX. HEAD BOLT 0016910030 · qty on machine: 12 view full part page → $2.95
4	0603306797	SQUARE HEAD PIPE PLUG, 1-1/2"	1		ADD TO CART
SQUARE HEAD PIPE PLUG, 1-1/2" 0603306797 · qty on machine: 1 view full part page → $12.95
5	Y0603306793	SQUARE HEAD PIPE PLUG, 1/2"	1	S/N 7512209 AND BELOW	ADD TO CART
SQUARE HEAD PIPE PLUG, 1/2" Y0603306793 · qty on machine: 1 S/N 7512209 AND BELOW view full part page → $2.95
6	M3424000402	FRONT FRAME	1		ADD TO CART
FRONT FRAME M3424000402 · qty on machine: 1 view full part page → $3282.95
6A	M3494105703	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494105703 · qty on machine: 1 view full part page → $282.95
7	0016910025	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0016910025 · qty on machine: 6 view full part page → $1.56
8	M3424200804	COVER, FRONT FRAME	1		ADD TO CART
COVER, FRONT FRAME M3424200804 · qty on machine: 1 view full part page → $264.95
8A	M3494105804	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494105804 · qty on machine: 1 view full part page → $90.95
9	0019208020	HEX. HEAD BOLT	19		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 19 view full part page → $3.95
10	0601851736	GROMMET	1		ADD TO CART
GROMMET 0601851736 · qty on machine: 1 view full part page → $12.95
11	Y0601851765	GROMMET	1		ADD TO CART
GROMMET Y0601851765 · qty on machine: 1 view full part page → $43.95
12	M3311200704	RADIATOR BRACKET	1		ADD TO CART
RADIATOR BRACKET M3311200704 · qty on machine: 1 view full part page → $90.95
12A	M3494106004	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494106004 · qty on machine: 1 view full part page → $12.95
13	M3311200804	RADIATOR BRACKET	1		ADD TO CART
RADIATOR BRACKET M3311200804 · qty on machine: 1 view full part page → $90.95
13A	M3494106004	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494106004 · qty on machine: 1 view full part page → $12.95
14	Y0016908015	HEX. HEAD BOLT	16		ADD TO CART
HEX. HEAD BOLT Y0016908015 · qty on machine: 16 view full part page → $1.95
15	011008020	HEX. HEAD BOLT	8	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 8 REPLACES P/N 0016908020 view full part page → $2.68
16	M3311301203	FAN SHROUD	1		ADD TO CART
FAN SHROUD M3311301203 · qty on machine: 1 view full part page → $288.95
17	M3311301303	FAN SHROUD	1		ADD TO CART
FAN SHROUD M3311301303 · qty on machine: 1 view full part page → $274.95
18	011008020	HEX. HEAD BOLT	10	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 10 REPLACES P/N 0016908020 view full part page → $2.68
19	M3311301403	FAN GUARD	1		ADD TO CART
FAN GUARD M3311301403 · qty on machine: 1 view full part page → $154.95
20	M3311301503	FAN GUARD	1		ADD TO CART
FAN GUARD M3311301503 · qty on machine: 1 view full part page → $146.95
21	0016906015	HEX. HEAD BOLT	11		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 11 view full part page → $0.95
22	M3434000502	CENTER FRAME	1	S/N 7511635 AND BELOW	PARTS REQUEST
PHOTO COMING CENTER FRAME M3434000502 · qty on machine: 1 S/N 7511635 AND BELOW Factory replaced this part - current number M3434000512 PARTS REQUEST
22	M3434000512	CENTER FRAME	1	S/N 7511636 AND ABOVE	PARTS REQUEST
PHOTO COMING CENTER FRAME M3434000512 · qty on machine: 1 S/N 7511636 AND ABOVE PARTS REQUEST
22A	M3494200004	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494200004 · qty on machine: 1 view full part page → $69.95
23	0010120050	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0010120050 · qty on machine: 4 view full part page → $6.95
23A	0040020000	WASHER, LOCK	4	REPLACES P/N 030220510	ADD TO CART
WASHER, LOCK 0040020000 · qty on machine: 4 REPLACES P/N 030220510 Factory replaced this part - current number 030220510 view full part page → $1.95 IN A KIT + SOLD SOLO
23B	0041220000	WASHER, FLAT	8		ADD TO CART
WASHER, FLAT 0041220000 · qty on machine: 8 view full part page → $0.95
23C	0030020000	HEX. NUT	4		ADD TO CART
HEX. NUT 0030020000 · qty on machine: 4 view full part page → $1.82
24	0010114040	HEX. HEAD BOLT	4		NO LONGER AVAILABLE
PHOTO COMING HEX. HEAD BOLT 0010114040 · qty on machine: 4 NO LONGER AVAILABLE
24A	0040014000	WASHER, LOCK	4	REPLACES P/N 030214350	ADD TO CART
WASHER, LOCK 0040014000 · qty on machine: 4 REPLACES P/N 030214350 Factory replaced this part - current number 030214350 view full part page → $0.46 IN A KIT + SOLD SOLO
24B	0041214000	WASHER, FLAT	8	REPLACES P/N 031114260	ADD TO CART
WASHER, FLAT 0041214000 · qty on machine: 8 REPLACES P/N 031114260 Factory replaced this part - current number 031114260 view full part page → $0.69 IN A KIT + SOLD SOLO
24C	0030014000	HEX. NUT	4	REPLACES P/N 515455840	ADD TO CART
HEX. NUT 0030014000 · qty on machine: 4 REPLACES P/N 515455840 Factory replaced this part - current number 515455840 view full part page → $35.95 IN A KIT + SOLD SOLO
ADDTHE	FOLLOWINGDIGITS	AFTER THE PART			PARTS REQUEST
PHOTO COMING AFTER THE PART FOLLOWINGDIGITS PARTS REQUEST
NUMBER	WHENORDERING	ANY PAINTED PANEL TO			PARTS REQUEST
PHOTO COMING ANY PAINTED PANEL TO WHENORDERING PARTS REQUEST
INDICATE	COLOROFUNIT:				PARTS REQUEST
PHOTO COMING COLOROFUNIT: PARTS REQUEST
1-ORANGE		6-CATERPILLAR YELLOW			SEE REMARKS
PHOTO COMING 6-CATERPILLAR YELLOW SEE REMARKS
2-WHITE		7-CATO GOLD			SEE REMARKS
PHOTO COMING 7-CATO GOLD SEE REMARKS
3-SPECTRUM	GREY	8-RED			PARTS REQUEST
PHOTO COMING 8-RED GREY PARTS REQUEST
4-SUNBELT	GREEN	9-DESERT TAN			PARTS REQUEST
PHOTO COMING 9-DESERT TAN GREEN PARTS REQUEST
5-BLACK					SEE REMARKS
PHOTO COMING SEE REMARKS
THESERIAL	NUMBERMAY	BE REQUIRED.			PARTS REQUEST
PHOTO COMING BE REQUIRED. NUMBERMAY PARTS REQUEST

Page 42 — ENCLOSURE ASSY. (CONT'D.)

Multiquip DCA125SSIU4F Generator ENCLOSURE ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed45 rows

No.	Part No.	Part Name	Qty	Remarks
25	M3414800304	FUEL LEAK SWITCH BRACKET	1		ADD TO CART
FUEL LEAK SWITCH BRACKET M3414800304 · qty on machine: 1 view full part page → $105.95
26	0016908020	HEX. HEAD BOLT	2	REPLACES P/N 011008020	ADD TO CART
HEX. HEAD BOLT 0016908020 · qty on machine: 2 REPLACES P/N 011008020 Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO
27	0605503062	FUEL LEAK DETECTED SWITCH	1		ADD TO CART
FUEL LEAK DETECTED SWITCH 0605503062 · qty on machine: 1 view full part page → $213.95
28	M3444000402	REAR FRAME	1	S/N 7512966 AND BELOW	ADD TO CART
REAR FRAME M3444000402 · qty on machine: 1 S/N 7512966 AND BELOW view full part page → $800.95
28	M3444000412	REAR FRAME	1	S/N 7512967 AND ABOVE	ADD TO CART
REAR FRAME M3444000412 · qty on machine: 1 S/N 7512967 AND ABOVE view full part page → $926.95
28A	M3494300104	ACOUSTIC SHEET	2	S/N 7512966 AND BELOW	ADD TO CART
ACOUSTIC SHEET M3494300104 · qty on machine: 2 S/N 7512966 AND BELOW view full part page → $55.95
28A	M3494303804	ACOUSTIC SHEET	2	S/N 7512967 AND ABOVE	ADD TO CART
ACOUSTIC SHEET M3494303804 · qty on machine: 2 S/N 7512967 AND ABOVE view full part page → $412.95
29	0016910025	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016910025 · qty on machine: 4 view full part page → $1.56
29A	0040510000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040510000 · qty on machine: 1 view full part page → $0.77
30	M3444300403	REAR COVER	1		ADD TO CART
REAR COVER M3444300403 · qty on machine: 1 view full part page → $242.95
30A	M3494301504	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494301504 · qty on machine: 1 view full part page → $66.95
31	M3444300503	DUCT, REAR COVER	1		ADD TO CART
DUCT, REAR COVER M3444300503 · qty on machine: 1 view full part page → $489.95
31A	M3494301403	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494301403 · qty on machine: 1 view full part page → $189.95
32	M3444800004	RAIN GUTTER	1		ADD TO CART
RAIN GUTTER M3444800004 · qty on machine: 1 view full part page → $44.95
33	0207008000	SELF-LOCKING NUT	9	REPLACES P/N 020108060	ADD TO CART
SELF-LOCKING NUT 0207008000 · qty on machine: 9 REPLACES P/N 020108060 Factory replaced this part - current number 020108060 view full part page → $0.28 IN A KIT + SOLD SOLO
34	0019208020	HEX. HEAD BOLT	10		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 10 view full part page → $3.95
35	M3444200013	REAR DOOR	1		ADD TO CART
REAR DOOR M3444200013 · qty on machine: 1 view full part page → $174.95
36	M4443600004	WINDOW PLATE	1		ADD TO CART
WINDOW PLATE M4443600004 · qty on machine: 1 view full part page → $155.95
37	0037906000	LOCK NUT	8	REPLACES P/N 020106050	ADD TO CART
LOCK NUT 0037906000 · qty on machine: 8 REPLACES P/N 020106050 Factory replaced this part - current number 020106050 view full part page → $0.12 IN A KIT + SOLD SOLO
37A	0041206000	WASHER, FLAT	8	REPLACES P/N 952404470	ADD TO CART
WASHER, FLAT 0041206000 · qty on machine: 8 REPLACES P/N 952404470 Factory replaced this part - current number 952404470 view full part page → $0.19 IN A KIT + SOLD SOLO
38	Y0605012309	DOOR HANDLE ASSY.	1		ADD TO CART
DOOR HANDLE ASSY. Y0605012309 · qty on machine: 1 view full part page → $49.95
38A	C9312500004	SEAL RUBBER	1		ADD TO CART
SEAL RUBBER C9312500004 · qty on machine: 1 view full part page → $10.95
39	0207006000	LOCK NUT	4	REPLACES P/N 0176060030	ADD TO CART
LOCK NUT 0207006000 · qty on machine: 4 REPLACES P/N 0176060030 Factory replaced this part - current number 0176060030 view full part page → $2.95 IN A KIT + SOLD SOLO
40	M9110100204	HINGE	2		ADD TO CART
HINGE M9110100204 · qty on machine: 2 view full part page → $23.95
41	M9116100004	WASHER	2		ADD TO CART
WASHER M9116100004 · qty on machine: 2 view full part page → $1.93
42	0019208020	HEX. HEAD BOLT	3		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 3 view full part page → $3.95
43	M9310000004	BLIND PLUG	2	REPLACES P/N 0845031504	PARTS REQUEST
PHOTO COMING BLIND PLUG M9310000004 · qty on machine: 2 REPLACES P/N 0845031504 PARTS REQUEST
44	M3464100403	ROOF PANEL	1		ADD TO CART
ROOF PANEL M3464100403 · qty on machine: 1 view full part page → $1597.95
44A	M3494503204	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494503204 · qty on machine: 1 view full part page → $98.95
45	M3464200303	ROOF PANEL	1		ADD TO CART
ROOF PANEL M3464200303 · qty on machine: 1 view full part page → $918.95
45A	M3494503304	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494503304 · qty on machine: 1 view full part page → $122.95
46	0019210025	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0019210025 · qty on machine: 8 view full part page → $7.95
47	M3424200703	OVER COVER, FRONT FRAME	1		ADD TO CART
OVER COVER, FRONT FRAME M3424200703 · qty on machine: 1 view full part page → $433.95
48	0019208020	HEX. HEAD BOLT	37		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 37 view full part page → $3.95
49	M3310600004	COVER	1		ADD TO CART
COVER M3310600004 · qty on machine: 1 view full part page → $17.95
50	0019208020	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 4 view full part page → $3.95
ADDTHE	FOLLOWINGDIGITS	AFTER THE PART			PARTS REQUEST
PHOTO COMING AFTER THE PART FOLLOWINGDIGITS PARTS REQUEST
NUMBER	WHENORDERING	ANY PAINTED PANEL TO			PARTS REQUEST
PHOTO COMING ANY PAINTED PANEL TO WHENORDERING PARTS REQUEST
INDICATE	COLOROFUNIT:				PARTS REQUEST
PHOTO COMING COLOROFUNIT: PARTS REQUEST
1-ORANGE		6-CATERPILLAR YELLOW			SEE REMARKS
PHOTO COMING 6-CATERPILLAR YELLOW SEE REMARKS
2-WHITE		7-CATO GOLD			SEE REMARKS
PHOTO COMING 7-CATO GOLD SEE REMARKS
3-SPECTRUM	GREY	8-RED			PARTS REQUEST
PHOTO COMING 8-RED GREY PARTS REQUEST
4-SUNBELT	GREEN	9-DESERT TAN			PARTS REQUEST
PHOTO COMING 9-DESERT TAN GREEN PARTS REQUEST
5-BLACK					SEE REMARKS
PHOTO COMING SEE REMARKS
THESERIAL	NUMBERMAY	BE REQUIRED.			PARTS REQUEST
PHOTO COMING BE REQUIRED. NUMBERMAY PARTS REQUEST

Page 44 — ENCLOSURE ASSY. (CONT'D.)

Parts list — exactly as printed46 rows

No.	Part No.	Part Name	Qty	Remarks
51	M3454200502	SPLASHER PANEL	1	S/N 7511755 AND BELOW	ADD TO CART
SPLASHER PANEL M3454200502 · qty on machine: 1 S/N 7511755 AND BELOW view full part page → $626.95
51	M2454201102	SPLASHER PANEL	1	S/N 7511756 ~ 7511977	PARTS REQUEST
PHOTO COMING SPLASHER PANEL M2454201102 · qty on machine: 1 S/N 7511756 ~ 7511977 PARTS REQUEST
51	M3454201702	SPLASHER PANEL	1	S/N 7511978 AND ABOVE	PARTS REQUEST
PHOTO COMING SPLASHER PANEL M3454201702 · qty on machine: 1 S/N 7511978 AND ABOVE PARTS REQUEST
51A	M3494416504	ACOUSTIC SHEET	1	S/N 7511755 AND BELOW	ADD TO CART
ACOUSTIC SHEET M3494416504 · qty on machine: 1 S/N 7511755 AND BELOW view full part page → $491.95
51A	M3494430904	ACOUSTIC SHEET	1	S/N 7511756 AND ABOVE	ADD TO CART
ACOUSTIC SHEET M3494430904 · qty on machine: 1 S/N 7511756 AND ABOVE view full part page → $358.95
52	0016910025	HEX. HEAD BOLT	3		ADD TO CART
HEX. HEAD BOLT 0016910025 · qty on machine: 3 view full part page → $1.56
53	0019108055	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0019108055 · qty on machine: 4 view full part page → $3.95
53A	0042308000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0042308000 · qty on machine: 4 view full part page → $0.83
53B	0042408000	WASHER, FLAT	4	REPLACES P/N 0401450080	ADD TO CART
WASHER, FLAT 0042408000 · qty on machine: 4 REPLACES P/N 0401450080 Factory replaced this part - current number 0401450080 view full part page → $0.56 IN A KIT + SOLD SOLO
54	M3454002003	SIDE DOOR	1		ADD TO CART
SIDE DOOR M3454002003 · qty on machine: 1 view full part page → $484.95
54A	M3494415904	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494415904 · qty on machine: 1 view full part page → $284.95
55	M3454002103	SIDE DOOR	1		ADD TO CART
SIDE DOOR M3454002103 · qty on machine: 1 view full part page → $420.95
55A	M3494415804	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494415804 · qty on machine: 1 view full part page → $147.95
56	M3454002203	SIDE DOOR	1		ADD TO CART
SIDE DOOR M3454002203 · qty on machine: 1 view full part page → $506.95
56A	M3494416004	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494416004 · qty on machine: 1 view full part page → $146.95
57	M3454002303	SIDE DOOR	1		ADD TO CART
SIDE DOOR M3454002303 · qty on machine: 1 view full part page → $507.95
57A	M3494416104	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494416104 · qty on machine: 1 view full part page → $284.95
58	M3454301103	DUCT	1		PARTS REQUEST
PHOTO COMING DUCT M3454301103 · qty on machine: 1 PARTS REQUEST
58A	M3494416204	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494416204 · qty on machine: 1 view full part page → $110.81
59	M3454301203	DUCT	1		PARTS REQUEST
PHOTO COMING DUCT M3454301203 · qty on machine: 1 PARTS REQUEST
59A	M3494416404	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494416404 · qty on machine: 1 view full part page → $104.14
60	M3454301303	DUCT	1		PARTS REQUEST
PHOTO COMING DUCT M3454301303 · qty on machine: 1 PARTS REQUEST
60A	M3494416304	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494416304 · qty on machine: 1 view full part page → $125.8
61	M3454301903	DUCT	1		PARTS REQUEST
PHOTO COMING DUCT M3454301903 · qty on machine: 1 PARTS REQUEST
61A	M3494425904	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494425904 · qty on machine: 1 view full part page → $523.95
62	0176060030	SELF-LOCKING NUT	33	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 33 REPLACES P/N 0207006000 view full part page → $2.95
63	Y0605012309	DOOR HANDLE ASSY.	4		ADD TO CART
DOOR HANDLE ASSY. Y0605012309 · qty on machine: 4 view full part page → $49.95
63A	C9312500004	SEAL RUBBER	4		ADD TO CART
SEAL RUBBER C9312500004 · qty on machine: 4 view full part page → $10.95
64	0176060030	LOCK NUT	16	REPLACES P/N 0207006000	ADD TO CART
LOCK NUT 0176060030 · qty on machine: 16 REPLACES P/N 0207006000 view full part page → $2.95
65	M9110100204	HINGE	4		ADD TO CART
HINGE M9110100204 · qty on machine: 4 view full part page → $23.95
66	M9110100304	HINGE	4		ADD TO CART
HINGE M9110100304 · qty on machine: 4 view full part page → $19.95
67	M9116100004	WASHER	8		ADD TO CART
WASHER M9116100004 · qty on machine: 8 view full part page → $1.93
68	0019208020	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 8 view full part page → $3.95
69	0601850097	DOOR STOPPER	8		ADD TO CART
DOOR STOPPER 0601850097 · qty on machine: 8 view full part page → $2.95
70	0027208025	MACHINE SCREW	8		ADD TO CART
MACHINE SCREW 0027208025 · qty on machine: 8 view full part page → $0.76
71	0845031504	BLIND PLUG	8	REPLACES P/N M9310000004	ADD TO CART
BLIND PLUG 0845031504 · qty on machine: 8 REPLACES P/N M9310000004 view full part page → $2.95
72	0600800320	MANUAL PACK	1		ADD TO CART
MANUAL PACK 0600800320 · qty on machine: 1 view full part page → $43.95
ADDTHE	FOLLOWINGDIGITS	AFTER THE PART			PARTS REQUEST
PHOTO COMING AFTER THE PART FOLLOWINGDIGITS PARTS REQUEST
NUMBER	WHENORDERING	ANY PAINTED PANEL TO			PARTS REQUEST
PHOTO COMING ANY PAINTED PANEL TO WHENORDERING PARTS REQUEST
INDICATE	COLOROFUNIT:				PARTS REQUEST
PHOTO COMING COLOROFUNIT: PARTS REQUEST
1-ORANGE		6-CATERPILLAR YELLOW			SEE REMARKS
PHOTO COMING 6-CATERPILLAR YELLOW SEE REMARKS
2-WHITE		7-CATO GOLD			SEE REMARKS
PHOTO COMING 7-CATO GOLD SEE REMARKS
3-SPECTRUM	GREY	8-RED			PARTS REQUEST
PHOTO COMING 8-RED GREY PARTS REQUEST
4-SUNBELT	GREEN	9-DESERT TAN			PARTS REQUEST
PHOTO COMING 9-DESERT TAN GREEN PARTS REQUEST
5-BLACK					SEE REMARKS
PHOTO COMING SEE REMARKS
THESERIAL	NUMBERMAY	BE REQUIRED.			PARTS REQUEST
PHOTO COMING BE REQUIRED. NUMBERMAY PARTS REQUEST

Page 46 — ENCLOSURE ASSY. (CONT'D.)

Parts list — exactly as printed19 rows

No.	Part No.	Part Name	Qty	Remarks
73	0021806015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021806015 · qty on machine: 4 view full part page → $0.87
74	M2414800304	HOLE COVER	1	S/N 7511666 AND ABOVE	ADD TO CART
HOLE COVER M2414800304 · qty on machine: 1 S/N 7511666 AND ABOVE view full part page → $74.95
75	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020 S/N 7511666 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 S/N 7511666 AND ABOVE view full part page → $2.68
76	0019112030	HEX. HEAD BOLT	1	S/N 7512863 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 0019112030 · qty on machine: 1 S/N 7512863 AND ABOVE view full part page → $5.95
77	0605050040	SEALING WASHER	1	S/N 7512863 AND ABOVE	PARTS REQUEST
PHOTO COMING SEALING WASHER 0605050040 · qty on machine: 1 S/N 7512863 AND ABOVE PARTS REQUEST
78	0042312000	WASHER, LOCK	1	S/N 7512863 AND ABOVE	ADD TO CART
WASHER, LOCK 0042312000 · qty on machine: 1 S/N 7512863 AND ABOVE view full part page → $0.94
79	0042412000	WASHER, FLAT	1	S/N 7512863 AND ABOVE	ADD TO CART
WASHER, FLAT 0042412000 · qty on machine: 1 S/N 7512863 AND ABOVE view full part page → $1.63
80	0030012000	HEX. NUT	1	S/N 7512863 AND ABOVE	ADD TO CART
HEX. NUT 0030012000 · qty on machine: 1 S/N 7512863 AND ABOVE view full part page → $0.5
81	Y0601831953	EMERGENCY STOP BUTTON	1	S/N 7512967 AND ABOVE	ADD TO CART
EMERGENCY STOP BUTTON Y0601831953 · qty on machine: 1 S/N 7512967 AND ABOVE view full part page → $152.95
81A	M3358202204	E-STOP WIRE HARNESS	1	S/N 7512967 AND ABOVE	ADD TO CART
E-STOP WIRE HARNESS M3358202204 · qty on machine: 1 S/N 7512967 AND ABOVE view full part page → $131.95
ADDTHE	FOLLOWINGDIGITS	AFTER THE PART			PARTS REQUEST
PHOTO COMING AFTER THE PART FOLLOWINGDIGITS PARTS REQUEST
NUMBER	WHENORDERING	ANY PAINTED PANEL TO			PARTS REQUEST
PHOTO COMING ANY PAINTED PANEL TO WHENORDERING PARTS REQUEST
INDICATE	COLOROFUNIT:				PARTS REQUEST
PHOTO COMING COLOROFUNIT: PARTS REQUEST
1-ORANGE		6-CATERPILLAR YELLOW			SEE REMARKS
PHOTO COMING 6-CATERPILLAR YELLOW SEE REMARKS
2-WHITE		7-CATO GOLD			SEE REMARKS
PHOTO COMING 7-CATO GOLD SEE REMARKS
3-SPECTRUM	GREY	8-RED			PARTS REQUEST
PHOTO COMING 8-RED GREY PARTS REQUEST
4-SUNBELT	GREEN	9-DESERT TAN			PARTS REQUEST
PHOTO COMING 9-DESERT TAN GREEN PARTS REQUEST
5-BLACK					SEE REMARKS
PHOTO COMING SEE REMARKS
THESERIAL	NUMBERMAY	BE REQUIRED.			PARTS REQUEST
PHOTO COMING BE REQUIRED. NUMBERMAY PARTS REQUEST

Page 48 — RUBBER SEALS ASSY.

Multiquip DCA125SSIU4F Generator RUBBER SEALS ASSY. parts diagram

Parts list — exactly as printed15 rows

No.	Part No.	Part Name	Qty
1	0229201240	SEAL, RUBBER	5	ADD TO CART
SEAL, RUBBER 0229201240 · qty on machine: 5 view full part page → $22.95
2	0228900780	SEAL, RUBBER	4	ADD TO CART
SEAL, RUBBER 0228900780 · qty on machine: 4 view full part page → $12.95
3	0228901260	SEAL, RUBBER	3	ADD TO CART
SEAL, RUBBER 0228901260 · qty on machine: 3 view full part page → $38.95
4	0228901200	SEAL, RUBBER	3	ADD TO CART
SEAL, RUBBER 0228901200 · qty on machine: 3 view full part page → $18.95
5	0228900680	SEAL, RUBBER	1	ADD TO CART
SEAL, RUBBER 0228900680 · qty on machine: 1 view full part page → $19.95
6	Y0228900965	SEAL, RUBBER	4	PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0228900965 · qty on machine: 4 PARTS REQUEST
7	0228900740	SEAL, RUBBER	1	ADD TO CART
SEAL, RUBBER 0228900740 · qty on machine: 1 view full part page → $29.95
8	Y0229400645	SEAL, RUBBER	1	PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0229400645 · qty on machine: 1 PARTS REQUEST
9	0228801080	SEAL, RUBBER	2	ADD TO CART
SEAL, RUBBER 0228801080 · qty on machine: 2 view full part page → $27.95
10	0228800605	SEAL, RUBBER	1	ADD TO CART
SEAL, RUBBER 0228800605 · qty on machine: 1 view full part page → $13.95
11	Y0229201180	SEAL, RUBBER	1	ADD TO CART
SEAL, RUBBER Y0229201180 · qty on machine: 1 view full part page → $10.46
12	Y0229200100	SEAL, RUBBER	2	ADD TO CART
SEAL, RUBBER Y0229200100 · qty on machine: 2 view full part page → $0.67
13	Y0229200145	SEAL, RUBBER	2	ADD TO CART
SEAL, RUBBER Y0229200145 · qty on machine: 2 view full part page → $0.65
14	0228100560	SEAL, RUBBER	2	ADD TO CART
SEAL, RUBBER 0228100560 · qty on machine: 2 view full part page → $5.95
15	0228100370	SEAL, RUBBER	2	ADD TO CART
SEAL, RUBBER 0228100370 · qty on machine: 2 view full part page → $2.95

Page 50 — NAMEPLATE AND DECALS ASSY.

Multiquip DCA125SSIU4F Generator NAMEPLATE AND DECALS ASSY. parts diagram

Parts list — exactly as printed33 rows

No.	Part No.	Part Name	Qty	Remarks
1-1	M2551000303	DECAL; OPERATING PRECAUTIONS	1	M25100030 S/N 7512966 AND BELOW	ADD TO CART
DECAL; OPERATING PRECAUTIONS M2551000303 · qty on machine: 1 M25100030 S/N 7512966 AND BELOW view full part page → $29.95
1-1	M2551000803	DECAL; OPERATING PRECAUTIONS	1	M25100080 S/N 7512967 AND ABOVE	ADD TO CART
DECAL; OPERATING PRECAUTIONS M2551000803 · qty on machine: 1 M25100080 S/N 7512967 AND ABOVE view full part page → $18.95
1-2	M9501200003	DECAL; SCR PURGA PROCEDURES	1	M90120000	ADD TO CART
DECAL; SCR PURGA PROCEDURES M9501200003 · qty on machine: 1 M90120000 view full part page → $21.95
1-3	M9520100304	DECAL; GENERAL CAUTIONS CONTROL BOX GROUP	1	M92010030	ADD TO CART
DECAL; GENERAL CAUTIONS CONTROL BOX GROUP M9520100304 · qty on machine: 1 M92010030 view full part page → $3.95
2-1	M3551001203	DECAL; GENERATOR CONTROL	1	M35100120	ADD TO CART
DECAL; GENERATOR CONTROL M3551001203 · qty on machine: 1 M35100120 view full part page → $42.95
2-2	M3551001303	DECAL; ENGINE OPERATION	1	M35100130	ADD TO CART
DECAL; ENGINE OPERATION M3551001303 · qty on machine: 1 M35100130 view full part page → $42.95
2-3	M9520000104	PLATE; AMMETER CHANGE-OVER SW	1	M92000010	ADD TO CART
PLATE; AMMETER CHANGE-OVER SW M9520000104 · qty on machine: 1 M92000010 view full part page → $11.95
2-4	M9520000204	PLATE; VOLTMETER CHANGE-OVER SW	1	M92000020	ADD TO CART
PLATE; VOLTMETER CHANGE-OVER SW M9520000204 · qty on machine: 1 M92000020 view full part page → $11.95
2-5	M9520100004	DECAL; WARNING ELECTRICAL SHOCK	1	M92010000	ADD TO CART
DECAL; WARNING ELECTRICAL SHOCK M9520100004 · qty on machine: 1 M92010000 view full part page → $5.95
2-6	M9520100204	DECAL; CAUTION CHANGE-OVER SW	1	M92010020A	ADD TO CART
DECAL; CAUTION CHANGE-OVER SW M9520100204 · qty on machine: 1 M92010020A view full part page → $3.95
2-7	M9520200404	DECAL; O.C.R RESET	1	M92020040	ADD TO CART
DECAL; O.C.R RESET M9520200404 · qty on machine: 1 M92020040 view full part page → $3.95
2-8	M3550002304	DECAL; SELECTOR SWITCH NUMBER (A)	1	M35000230	ADD TO CART
DECAL; SELECTOR SWITCH NUMBER (A) M3550002304 · qty on machine: 1 M35000230 view full part page → $17.95
2-9	M3550002404	DECAL; SELECTOR SWITCH NUMBER (B) ENGINE & RADIATOR GROUP	1	M35000240	ADD TO CART
DECAL; SELECTOR SWITCH NUMBER (B) ENGINE & RADIATOR GROUP M3550002404 · qty on machine: 1 M35000240 view full part page → $17.95
3-1	M9500100004	DECAL; WATER	1	M90010000	ADD TO CART
DECAL; WATER M9500100004 · qty on machine: 1 M90010000 view full part page → $1.95
3-2	M9503000004	DECAL; WARNING ROTATING PART	2	M90300000	ADD TO CART
DECAL; WARNING ROTATING PART M9503000004 · qty on machine: 2 M90300000 view full part page → $1.95
3-3	M9503000103	DECAL; DAILY CHECK WATER AND OIL	1	M90300010	ADD TO CART
DECAL; DAILY CHECK WATER AND OIL M9503000103 · qty on machine: 1 M90300010 view full part page → $7.95
3-4	M9503100004	DECAL; WARNING RADIATOR CAP	1	M90310000	ADD TO CART
DECAL; WARNING RADIATOR CAP M9503100004 · qty on machine: 1 M90310000 view full part page → $4.95
3-5	M9510100004	DECAL; CAUTION HIGH TEMP	1	M91010000	ADD TO CART
DECAL; CAUTION HIGH TEMP M9510100004 · qty on machine: 1 M91010000 view full part page → $68.95
3-6	M9500000004	DECAL; OIL DRAIN	1	M90000000	ADD TO CART
DECAL; OIL DRAIN M9500000004 · qty on machine: 1 M90000000 view full part page → $2.95
3-7	M9500100304	DECAL; INTER-COOLER DRAIN OUTPUT TERMINAL GROUP	1	M90010030	ADD TO CART
DECAL; INTER-COOLER DRAIN OUTPUT TERMINAL GROUP M9500100304 · qty on machine: 1 M90010030 view full part page → $1.95
4-1	M9511100104	DECAL; NOTE RECEPTACLE	1	M91110010	ADD TO CART
DECAL; NOTE RECEPTACLE M9511100104 · qty on machine: 1 M91110010 view full part page → $3.95
4-2	M1550000703	DECAL; AUXILIARY OUTPUTS	1	M15000070 S/N 7511755 AND BELOW	ADD TO CART
DECAL; AUXILIARY OUTPUTS M1550000703 · qty on machine: 1 M15000070 S/N 7511755 AND BELOW view full part page → $36.95
4-2	M3551002003	DECAL; AUXILIARY OUTPUTS	1	M35000200 S/N 7511756 AND ABOVE	PARTS REQUEST
PHOTO COMING DECAL; AUXILIARY OUTPUTS M3551002003 · qty on machine: 1 M35000200 S/N 7511756 AND ABOVE PARTS REQUEST
4-3	M3550000004	DECAL; NOTE LOAD SHARING	1	M35000000A	ADD TO CART
DECAL; NOTE LOAD SHARING M3550000004 · qty on machine: 1 M35000000A view full part page → $18.95
4-4	M9520000004	DECAL; GROUNDING	2	M92000000	ADD TO CART
DECAL; GROUNDING M9520000004 · qty on machine: 2 M92000000 view full part page → $1.95
4-5	M9520100004	DECAL; WARNING ELECTRICAL SHOCK	1	M92010000	ADD TO CART
DECAL; WARNING ELECTRICAL SHOCK M9520100004 · qty on machine: 1 M92010000 view full part page → $5.95
4-6	M9520100404	DECAL; DANGER HIGH VOLTAGE	1	M92010040	ADD TO CART
DECAL; DANGER HIGH VOLTAGE M9520100404 · qty on machine: 1 M92010040 view full part page → $37.95
4-7	M9520100503	DECAL; WARNING	1	M92010050	ADD TO CART
DECAL; WARNING M9520100503 · qty on machine: 1 M92010050 view full part page → $1.95
4-8	M9520200003	DECAL; CONNECTION OF OUTPUT CABLE	1	M92020000	ADD TO CART
DECAL; CONNECTION OF OUTPUT CABLE M9520200003 · qty on machine: 1 M92020000 view full part page → $7.95
4-9	M9520000504	DECAL; START CONTACT	1	M92000050	ADD TO CART
DECAL; START CONTACT M9520000504 · qty on machine: 1 M92000050 view full part page → $67.95
4-10	M9521200604	DECAL; BONDED NEUTRAL	1	M92120060 S/N 7511221 AND ABOVE	ADD TO CART
DECAL; BONDED NEUTRAL M9521200604 · qty on machine: 1 M92120060 S/N 7511221 AND ABOVE view full part page → $11.95
4-11	M9522000004	DECAL; WATER HEATER	1	S/N 7512056 AND ABOVE	ADD TO CART
DECAL; WATER HEATER M9522000004 · qty on machine: 1 S/N 7512056 AND ABOVE view full part page → $7.95
4-12	M2551001004	DECAL; OUTPUT TERMINAL BOLT TORQUE.1		M25100100 S/N 7514113 AND ABOVE	ADD TO CART
DECAL; OUTPUT TERMINAL BOLT TORQUE.1 M2551001004 M25100100 S/N 7514113 AND ABOVE view full part page → $4.95

Page 52 — NAMEPLATE AND DECALS ASSY. (CONT'D.)

Multiquip DCA125SSIU4F Generator NAMEPLATE AND DECALS ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed34 rows

No.	Part No.	Part Name	Qty	Remarks
		BATTERY GROUP			SEE REMARKS
PHOTO COMING BATTERY GROUP SEE REMARKS
5-1	M9500300004	DECAL; -	1	M90030000	ADD TO CART
DECAL; - M9500300004 · qty on machine: 1 M90030000 view full part page → $1.95
5-2	M9500300104	DECAL; +	1	M90030010	ADD TO CART
DECAL; + M9500300104 · qty on machine: 1 M90030010 view full part page → $1.95
5-3	M9510100403	DECAL; CAUTION	1	M91010040	ADD TO CART
DECAL; CAUTION M9510100403 · qty on machine: 1 M91010040 view full part page → $16.95
5-4	M9501300104	DECAL; CAUTION BATTERY CABLES MUFFLER GROUP	1	M90130010	ADD TO CART
DECAL; CAUTION BATTERY CABLES MUFFLER GROUP M9501300104 · qty on machine: 1 M90130010 view full part page → $1.85
6-1	M9503200004	DECAL; WARNING EXHAUST GAS FUEL TANK GROUP	1	M90320000	ADD TO CART
DECAL; WARNING EXHAUST GAS FUEL TANK GROUP M9503200004 · qty on machine: 1 M90320000 view full part page → $14.95
7-1	M9501500004	DECAL; DIESEL FUEL	2	M90150000 S/N 7512209 AND BELOW	ADD TO CART
DECAL; DIESEL FUEL M9501500004 · qty on machine: 2 M90150000 S/N 7512209 AND BELOW view full part page → $3.95
7-1	M9501500004	DECAL; DIESEL FUEL	1	M90150000 S/N 7512210 AND ABOVE	ADD TO CART
DECAL; DIESEL FUEL M9501500004 · qty on machine: 1 M90150000 S/N 7512210 AND ABOVE view full part page → $3.95
7-2	M9510000004	DECAL; FLUID DRAIN	1	M91000000	ADD TO CART
DECAL; FLUID DRAIN M9510000004 · qty on machine: 1 M91000000 view full part page → $26.95
7-3	M9504500004	DECAL; REFILL DEF AS WELL	2	M90150010 S/N 7512209 AND BELOW	ADD TO CART
DECAL; REFILL DEF AS WELL M9504500004 · qty on machine: 2 M90150010 S/N 7512209 AND BELOW view full part page → $9.95
7-3	M9504500004	DECAL; REFILL DEF AS WELL	1	M90150010 S/N 7512210 AND ABOVE	ADD TO CART
DECAL; REFILL DEF AS WELL M9504500004 · qty on machine: 1 M90150010 S/N 7512210 AND ABOVE view full part page → $9.95
7-4	M9501500104	DECAL; DIESEL EXHAUST FLUID	1	M90150010	ADD TO CART
DECAL; DIESEL EXHAUST FLUID M9501500104 · qty on machine: 1 M90150010 view full part page → $14.95
7-5	M9520002104	DECAL; FUEL PUMP SWITCH	1	M92000210	ADD TO CART
DECAL; FUEL PUMP SWITCH M9520002104 · qty on machine: 1 M92000210 view full part page → $1.31
7-6	M9541100004	DECAL; CAUTION: EXHAUST FLUID ONLY ENCLOSURE GROUP	1	M94110000 S/N 7511616 AND ABOVE	ADD TO CART
DECAL; CAUTION: EXHAUST FLUID ONLY ENCLOSURE GROUP M9541100004 · qty on machine: 1 M94110000 S/N 7511616 AND ABOVE view full part page → $3.95
8-1	M9511200204	DECAL; MQ	1	M91120020	ADD TO CART
DECAL; MQ M9511200204 · qty on machine: 1 M91120020 view full part page → $5.95
8-2	0600500092	EMBLEM	1		ADD TO CART
EMBLEM 0600500092 · qty on machine: 1 view full part page → $21.95
8-2A	0021106015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021106015 · qty on machine: 4 view full part page → $0.17
8-3	M3561000303	STRIPE	1		ADD TO CART
STRIPE M3561000303 · qty on machine: 1 view full part page → $61.95
8-4	M3561000403	STRIPE	2		ADD TO CART
STRIPE M3561000403 · qty on machine: 2 view full part page → $11.95
8-5	M3560101904	STRIPE	2		ADD TO CART
STRIPE M3560101904 · qty on machine: 2 view full part page → $35.95
8-6	M3561100703	STRIPE	1		ADD TO CART
STRIPE M3561100703 · qty on machine: 1 view full part page → $33.95
8-7	M3560100404	STRIPE	2		ADD TO CART
STRIPE M3560100404 · qty on machine: 2 view full part page → $58.95
8-8	M3561100803	STRIPE	1		ADD TO CART
STRIPE M3561100803 · qty on machine: 1 view full part page → $33.95
8-9	M3560100604	STRIPE	2		ADD TO CART
STRIPE M3560100604 · qty on machine: 2 view full part page → $12.95
8-10	M9520100704	DECAL; WARNING ARC FLASH	1	M92010070	ADD TO CART
DECAL; WARNING ARC FLASH M9520100704 · qty on machine: 1 M92010070 view full part page → $4.95
8-11	M9511100004	DECAL; WARNING ENVIRONMENTAL TANK	1	M91110000	ADD TO CART
DECAL; WARNING ENVIRONMENTAL TANK M9511100004 · qty on machine: 1 M91110000 view full part page → $6.95
8-12	M3550002204	DECAL; CAUTION	1	M35000220	ADD TO CART
DECAL; CAUTION M3550002204 · qty on machine: 1 M35000220 view full part page → $15.95
8-13	M9510000104	DECAL; DOCUMENT BOX LOCATED	1	M91000010	ADD TO CART
DECAL; DOCUMENT BOX LOCATED M9510000104 · qty on machine: 1 M91000010 view full part page → $4.95
8-14	M9503200104	DECAL; DANGER EXHAUST GAS (INDOOR)	1	M90320010	ADD TO CART
DECAL; DANGER EXHAUST GAS (INDOOR) M9503200104 · qty on machine: 1 M90320010 view full part page → $4.95
8-15	920214100	DECAL; WARNING START FIRES	1	M90420000 REPLACES P/N M9504200004	ADD TO CART
DECAL; WARNING START FIRES 920214100 · qty on machine: 1 M90420000 REPLACES P/N M9504200004 view full part page → $12.95
8-16	M9520100603	DECAL; WARNING AUTO START	2	M92010060	ADD TO CART
DECAL; WARNING AUTO START M9520100603 · qty on machine: 2 M92010060 view full part page → $8.95
8-17	M9511200103	DECAL; TIER 4F	1	M91120010	ADD TO CART
DECAL; TIER 4F M9511200103 · qty on machine: 1 M91120010 view full part page → $17.95
8-18	M9504200104	DECAL; WARNING PROPOSITION	65	1 M90420010 S/N 7511866 AND ABOVE	ADD TO CART
DECAL; WARNING PROPOSITION M9504200104 · qty on machine: 65 1 M90420010 S/N 7511866 AND ABOVE view full part page → $4.95
8-19	M9521002804	DECAL; EMERGENCY STOP BUTTON	1	M92100280 S/N 7512967 AND ABOVE	ADD TO CART
DECAL; EMERGENCY STOP BUTTON M9521002804 · qty on machine: 1 M92100280 S/N 7512967 AND ABOVE view full part page → $3.95

The machine itself

Price by quote Get a quote

Tell us where the machine is headed and we'll quote it with freight. One call, no games.

The Multiquip DCA125SSIU4F is a generator built for portable jobsite power for tools, lighting, and equipment. It runs a Isuzu BR-4HK1X Final Tier 4 engine. Factory-documented specs and parts support; priced by quote.

Keep-it-running spares

All listed parts →

Every part that fits this machine

0071906312 Multiquip 0071906312 Bearing Denyo - OEM Replacement Part for Super Silent Generators $201.95

0191302500 Multiquip 0191302500 Hose Suction Denyo - OEM Replacement Part for Super Silent Generators $97.95

0222101000 Multiquip 0222101000 Sheet Tank Denyo - OEM Replacement Part for Super Silent Generators $39.95

0228901260 Multiquip 0228901260 Seal Rubber Denyo - OEM Replacement Part for Super Silent Generators $38.95

0601801041 Multiquip 0601801041 Change-Over Switch Voltmeter Denyo - OEM Replacement Part $157.95

0601806859 Multiquip 0601806859 Voltmeter AC DENYO - OEM Replacement Part for Generator Control Panels $368.95

0601807641 Multiquip 0601807641 Frequency Meter Denyo - OEM Replacement Part $591.95

0601808803 Multiquip 0601808803 Circuit Breaker 1P 20A - OEM Replacement Part for Super Silent Generators $46.95

0601808804 Multiquip 0601808804 Circuit Breaker 2P 50A - OEM Replacement Part for Super Silent Generators $98.95

0601808823 Multiquip 0601808823 Circuit Breaker Denyo - OEM Replacement Part $2,246.95

0601808988 Multiquip 0601808988 AC Ammeter Denyo - OEM Replacement Part for Generator $219.95

0601812527 Multiquip 0601812527 Connector Denyo - OEM Replacement Part for Generator Control Systems $64.95

0601814014 Multiquip 0601814014 GFCI Receptacle - OEM Replacement Part $90.95

0601814453 Multiquip 0601814453 Coolant Level Alarm Lamp - OEM Replacement Part $33.95

0601823863 Multiquip 0601823863 Relay Unit 12V DENYO - OEM Replacement Part $159.95

0601840073 Multiquip 0601840073 Rheostat Voltage Regulator for 150SSK and DCA Series Generators - OEM Replacement Part $90.95

0602022535 Multiquip 0602022535 Adapter Denyo - OEM Replacement Part for Super Silent Generators $142.95

0602103092 Multiquip 0602103092 Lamp Alarm Charge Red - OEM Replacement Part $36.95

0602220198 Multiquip 0602220198 Battery Denyo - OEM Replacement Part for Super Silent Generators $500.95

0605505070 Multiquip 0605505070 Fuel Tank Cap DENYO - OEM Replacement Part $50.95

0605515197 Multiquip 0605515197 Band Hose Denyo - OEM Replacement Part $35.95

0605515214 Multiquip 0605515214 Hose Band Clamp - OEM Replacement Part for Denyo Generators $49.95

0605515236 Multiquip 0605515236 Band Hose Denyo - OEM Replacement Part $46.95

0605515238 Multiquip 0605515238 Band Hose Denyo - OEM Replacement Part $60.95

5825500290 Multiquip 5825500290 Relay Assembly Blower - OEM Replacement Part $65.95

8101026013 Multiquip 8101026013 Set Plate Rectifier 85,125 - OEM Replacement Part for Super Silent Generators $113.95

8101350013 Multiquip 8101350013 Field Assembly Exciter - OEM Replacement Part for Super Silent Generators $2,986.95

8131015003 Multiquip 8131015003 Balancing Plate - OEM Replacement Part for Super Silent Generators $99.95

8131070013 Multiquip 8131070013 Fan DCA-125,150SSM - OEM Replacement Part $766.95

8131315202 Multiquip 8131315202 End Bracket - OEM Replacement Part for Super Silent Generators $1,283.95

8131331003 Multiquip 8131331003 Cover End Bracket - OEM Replacement Part for Super Silent Generators $147.95

8131332014 Multiquip 8131332014 Cover Fan DCA-125SSJU - OEM Replacement Part $147.95

82608 Multiquip 82608 Toggle Switch Denyo Mods - OEM Replacement Part for Super Silent Generators $34.95

8943925532 Multiquip 8943925532 Gasket Adapter to Exhaust Pipe ISUZU - OEM Replacement Part $71.95

8944001061 Multiquip 8944001061 Relay Glow TLG-12SPX - OEM Replacement Part $214.95

8970119490 Multiquip 8970119490 Relay Glow Plug DCA-125SSIU - OEM Replacement Part $301.95

8973243861 Multiquip 8973243861 Oil Filter - OEM Replacement Part for Super Silent Generators $507.95

8973811820 Multiquip 8973811820 Temperature Sensor - OEM Replacement Part $103.95

8975109770 Multiquip 8975109770 Dosing Control - OEM Replacement Part for Super Silent Generators $2,139.95

8976019670 Multiquip 8976019670 Mass Air Flow Sensor - OEM Replacement Part $814.95

8980627130 Multiquip 8980627130 Fan Belt - OEM Replacement Part for Super Silent Generators $52.95

8981213061 Multiquip 8981213061 Coolant Control Valve - OEM Replacement Part $467.95

8981562981 Multiquip 8981562981 DEF Tank Cover Assembly - OEM Replacement Part $60.95

8981579360 Multiquip 8981579360 DEF Tank Bolt - OEM Replacement Part $54.95

8981867621 Multiquip 8981867621 DOC Temp Sensor Front and Rear - OEM Replacement Part $284.95

8981924670 Multiquip 8981924670 HEATER PCV - OEM Replacement Part $196.95

8982376941 Multiquip 8982376941 SCR Assembly - OEM Replacement Part $24,880.95

8982984470 Multiquip 8982984470 DEF Tank - OEM Replacement Part $2,395.95

8983244980 Multiquip 8983244980 SCR Assembly - OEM Replacement Part $24,624.95

8983274120 Multiquip 8983274120 Engine Control Unit - OEM Replacement Part $3,701.95

C0110001002 Multiquip C0110001002 Rotor Assy - OEM Replacement Part for Super Silent Generators $10,373.95

C3558201704 Multiquip C3558201704 Fuse Holder Unit - OEM Replacement Part for Super Silent Generators $37.95

ECU835 Multiquip ECU835 ECU Power Balance Application - OEM Replacement Part for Super Silent Generators $1,778.95

EE10814 Multiquip EE10814 Tank Heater Kim Hotstart 120V 1000W - OEM Replacement Part $191.95

M1260700304 Multiquip M1260700304 Cover Breaker Fitting - OEM Replacement Part $75.95

M2334300203 Multiquip M2334300203 DEF Tank Bracket (E-Coat) - OEM Replacement Part for DENYO Generators $152.95

M2414800304 Multiquip M2414800304 Hole Cover Base (E-Coat) - OEM Replacement Part $74.95

M3163600003 Multiquip M3163600003 Adapter Coupling Denyo (JP) - OEM Replacement Part $1,697.95

M3213602704 Multiquip M3213602704 Bracket Switch Denyo - OEM Replacement Part $71.95

M3213602804 Multiquip M3213602804 Bracket Switch Denyo - OEM Replacement Part $71.95

M3224000203 Multiquip M3224000203 Control Panel DENYO - OEM Replacement Part for Super Silent Generators $201.95

M3230700003 Multiquip M3230700003 Output Panel Denyo - OEM Replacement Part for Generator $258.95

M3236100104 Multiquip M3236100104 Window Output - OEM Replacement Part for Super Silent Generators $72.95

M3236100703 Multiquip M3236100703 Terminal Cover (White) Denyo - OEM Replacement Part $419.95

M3237100204 Multiquip M3237100204 Insulating Cover (JP) - OEM Replacement Part $176.95

M3247701404 Multiquip M3247701404 Wire Harness Generator Denyo - OEM Replacement Part $1,265.95

M3270100404 Multiquip M3270100404 Voltage Selector Switch 100SSVU - OEM Replacement Part $2,091.95

M3311200704 Multiquip M3311200704 Radiator Bracket - OEM Replacement Part for DENYO Generators $90.95

M3311200804 Multiquip M3311200804 Radiator Bracket Denyo - OEM Replacement Part $90.95

M3311301303 Multiquip M3311301303 Fan Shroud White Denyo - OEM Replacement Part $274.95

M3311301503 Multiquip M3311301503 Fan Guard E-Coat DENYO - OEM Replacement Part $146.95

M3311400304 Multiquip M3311400304 Intercooler Pipe - OEM Replacement Part for Super Silent Generators $273.95

M3311500803 Multiquip M3311500803 Radiator Hose Upper - OEM Replacement Part $63.95

M3311500903 Multiquip M3311500903 Radiator Hose Lower Denyo - OEM Replacement Part $63.95

M3311501104 Multiquip M3311501104 Cooler Hose - OEM Replacement Part for Super Silent Generators $263.95

M3311501204 Multiquip M3311501204 Intercooler Pipe Denyo - OEM Replacement Part for Super Silent Generators $287.95

M3314300204 Multiquip M3314300204 Intercooler Bracket - OEM Replacement Part for DCA125SSIU4F Generator $51.95

M3323500004 Multiquip M3323500004 Bracket Oil Filter Denyo - OEM Replacement Part $53.95

M3327100004 Multiquip M3327100004 Blowby Pipe Denyo - OEM Replacement Part for Super Silent Generators $163.95

M3331401303 Multiquip M3331401303 SCR Bracket - OEM Replacement Part for Super Silent Generators $56.95

M3331401614 Multiquip M3331401614 NOX Sensor Bracket - OEM Replacement Part for Super Silent Generators $46.95

M3331401704 Multiquip M3331401704 Connector Bracket Denyo - OEM Replacement Part $45.95

M3334000904 Multiquip M3334000904 Exhaust Pipe (B) (JP) - OEM Replacement Part $477.95

M3334001104 Multiquip M3334001104 Exhaust Pipe (JP) - OEM Replacement Part $1,065.95

M3347900204 Multiquip M3347900204 Battery Cable Positive 68.9" - OEM Replacement Part $406.95

M3347900304 Multiquip M3347900304 Battery Cable, Neg. (33.5") - OEM Replacement Part $105.95

M3358201102 Multiquip M3358201102 Wire Harness Engine Denyo - OEM Replacement Part $1,184.95

M3358202204 Multiquip M3358202204 Wire Harness DMC - OEM Replacement Part for Super Silent Generators $131.95

M3363001402 Multiquip M3363001402 Fuel Tank Denyo - OEM Replacement Part $1,337.95

M3363200404 Multiquip M3363200404 Tank Band Denyo - OEM Replacement Part for Super Silent Generators $33.95

M3363200904 Multiquip M3363200904 Tank Band E-Coat Only - OEM Replacement Part for Denyo Generators $40.95

M3364000702 Multiquip M3364000702 Fuel Tank 125SSIU4F - OEM Replacement Part for Super Silent Generators $2,659.95

M3364300203 Multiquip M3364300203 Environmental Tank Textured Black - OEM Replacement Part $4,138.95

M3364400404 Multiquip M3364400404 Fuel Filter Bracket (E-Coat) - OEM Replacement Part $292.95

M3374000404 Multiquip M3374000404 Air Cleaner Pipe - OEM Replacement Part for DCA125SSIU4F Generator $268.95

M3374100203 Multiquip M3374100203 Air Cleaner Hose - OEM Replacement Part $132.95

M3374100303 Multiquip M3374100303 Air Cleaner Hose - OEM Replacement Part $134.95

M3374100403 Multiquip M3374100403 Air Cleaner Hose - OEM Replacement Part $266.95

M3414000602 Multiquip M3414000602 Base Denyo - OEM Replacement Part for Super Silent Generators $3,235.95

M3414800304 Multiquip M3414800304 Fuel Leak Switch Bracket (E-Coat) - OEM Replacement Part $105.95

M3424200703 Multiquip M3424200703 Over Cover Front Frame - OEM Replacement Part for Denyo Generators $433.95

M3424200804 Multiquip M3424200804 Cover Front Frame - OEM Replacement Part $264.95

M3444000402 Multiquip M3444000402 Rear Frame (Green) Denyo - OEM Replacement Part $800.95

M3444200013 Multiquip M3444200013 Rear Door (White) Denyo - OEM Replacement Part $174.95

M3444300403 Multiquip M3444300403 Rear Cover White Denyo - OEM Replacement Part $242.95

M3444300503 Multiquip M3444300503 Rear Cover White DENYO - OEM Replacement Part for Super Silent Generators $489.95

M3444800004 Multiquip M3444800004 Rain Gutter - OEM Replacement Part for Super Silent Generators $44.95

M3454002103 Multiquip M3454002103 Side Door Denyo - OEM Replacement Part for Super Silent Generators $420.95

M3454002203 Multiquip M3454002203 DENYO (KY) - OEM Replacement Part for Super Silent Generators $506.95

M3454002303 Multiquip M3454002303 Side Door White Denyo - OEM Replacement Part $507.95

M3454200502 Multiquip M3454200502 Splasher Panel Denyo - OEM Replacement Part for Super Silent Generators $626.95

M3454400003 Multiquip M3454400003 Terminal Cover (White) - OEM Replacement Part $66.95

M3454700904 Multiquip M3454700904 Rubber Sheet Denyo - OEM Replacement Part for Super Silent Generators $459.95

M3464200303 Multiquip M3464200303 Roof Panel Denyo (KY) - OEM Replacement Part $918.95

M3494105703 Multiquip M3494105703 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $282.95

M3494105804 Multiquip M3494105804 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $90.95

M3494200004 Multiquip M3494200004 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $69.95

M3494300104 Multiquip M3494300104 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $55.95

M3494301403 Multiquip M3494301403 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $189.95

M3494301504 Multiquip M3494301504 Acoustic Sheet Rear Cover - OEM Replacement Part for Super Silent Generators $66.95

M3494415804 Multiquip M3494415804 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $147.95

M3494415904 Multiquip M3494415904 Acoustic Sheet - OEM Replacement Part for Super Silent Generators $284.95

M3494416004 Multiquip M3494416004 Acoustic Sheet (KY) - OEM Replacement Part for Super Silent Generators $146.95

M3494416104 Multiquip M3494416104 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $284.95

M3494425904 Multiquip M3494425904 Rear Side Door Duct Assembly R - OEM Replacement Part $523.95

M3494430904 Multiquip M3494430904 Rear Splasher Panel Assembly - OEM Replacement Part $358.95

M3494503204 Multiquip M3494503204 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $98.95

M3494503304 Multiquip M3494503304 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $122.95

M3551001203 Multiquip M3551001203 Generator Control Decal - OEM Replacement Part $42.95

M3560100404 Multiquip M3560100404 Type E 100/125SSJU OEM Replacement Part - Super Silent Generator $58.95

M3560101904 Multiquip M3560101904 MQ Type (C) Denyo Generator Component - OEM Replacement Part $35.95

M3561000303 Multiquip M3561000303 DENYO Component - OEM Replacement Part for Super Silent Generators $61.95

M3561100703 Multiquip M3561100703 DENYO - OEM Replacement Part for Super Silent Generators $33.95

M3561100803 Multiquip M3561100803 DENYO Component - OEM Replacement Part for Super Silent Generators $33.95

M3924200104 Multiquip M3924200104 Engine Assembly - OEM Replacement Part for Super Silent Generators $31,497.95

M4443600004 Multiquip M4443600004 Plate Window Denyo - OEM Replacement Part $155.95

M9100000204 Multiquip M9100000204 Hose Joint (JP) - OEM Replacement Part $36.95

M9103000504 Multiquip M9103000504 Battery Band - OEM Replacement Part for Super Silent Generators $107.95

M9220100304 Multiquip M9220100304 Bolt Output Term - OEM Replacement Part for Generators $118.95

M9510100004 Multiquip M9510100004 Hot Parts Caution Safety Decal - OEM Replacement Part $68.95

M9520000504 Multiquip M9520000504 Denyo Contact Information Decal - OEM Replacement Part $67.95

P821963 Multiquip P821963 Element (Inner) - OEM Replacement Part for Super Silent Generators $193.95

PTF08A Multiquip PTF08A Relay Base - OEM Replacement Part $47.95

Y0269200650 Multiquip Y0269200650 Push-Lock Hose (KY) - OEM Replacement Part $38.95

Y0377102270 Multiquip Y0377102270 DEF Hose - OEM Replacement Part for Super Silent Generators $47.95

Y0377103660 Multiquip Y0377103660 DEF Hose - OEM Replacement Part for Super Silent Generators $73.95

Y0601809694 Multiquip Y0601809694 Current Transformer - OEM Replacement Part for Denyo Generators $60.95

Y0601810170 Multiquip Y0601810170 Panel Light Denyo - OEM Replacement Part $142.95

Y0601820638 Multiquip Y0601820638 AVR Model Denyo - OEM Replacement Part for Super Silent Generators $1,205.95

Y0601851765 Multiquip Y0601851765 Grommet - OEM Replacement Part for Super Silent Generators $43.95

Y0602012920 Multiquip Y0602012920 Radiator and Intercooler Assembly - OEM Replacement Part $2,192.95

Y0602015621 Multiquip Y0602015621 CAC Reducer - OEM Replacement Part for Super Silent Generators $133.95

Y0602015731 Multiquip Y0602015731 Radiator Cap (KY) - OEM Replacement Part $146.95

Y0602046645 Multiquip Y0602046645 Air Cleaner Element - OEM Replacement Part $243.95

Y0602120901 Multiquip Y0602120901 Gauge Unit Assembly - OEM Replacement Part $930.95

Y0602311163 Multiquip Y0602311163 Exhaust Pipe Heat Shield - OEM Replacement Part $488.95

Y0602311164 Multiquip Y0602311164 Exhaust Pipe Heat Shield - OEM Replacement Part $232.95

Y0602311165 Multiquip Y0602311165 Exhaust Pipe Heat Shield (KY) - OEM Replacement Part $424.95

Y0602330453 Multiquip Y0602330453 Elbow Joint Denyo - OEM Replacement Part for Super Silent Generators $618.95

Y0602330454 Multiquip Y0602330454 Tee Fitting Denyo - OEM Replacement Part for Super Silent Generators $422.95

Y0602330457 Multiquip Y0602330457 DEF Line (JP) - OEM Replacement Part $457.95

Y0605012309 Multiquip Y0605012309 Door Handle with Bolts - OEM Replacement Part $49.95

Y0605501036 Multiquip Y0605501036 Fuel Sender (KY) - OEM Replacement Part $227.95

Y0605501058 Multiquip Y0605501058 Fuel Sender Unit - OEM Replacement Part for Super Silent Generators $165.95

Y0605511394 Multiquip Y0605511394 Mini Ball Valve Denyo - OEM Replacement Part $70.95

Y0605516092 Multiquip Y0605516092 Gasket - OEM Replacement Part $52.95

0010006030 HEX. HEAD BOLT $0.25

001008020 HEX. HEAD BOLT

0010114040 HEX. HEAD BOLT

0010120050 HEX. HEAD BOLT $6.95

0010310075 HEX. HEAD BOLT

0012110060 HEX. HEAD BOLT $4.95

0012410025 HEX. HEAD BOLT $1.95

0015310080 HEX. HEAD BOLT

0016906015 HEX. HEAD BOLT $0.95

0016908020 HEX. HEAD BOLT

0016910025 HEX. HEAD BOLT $1.56

0016910030 HEX. HEAD BOLT $2.95

0019108055 HEX. HEAD BOLT $3.95

0019108065 HEX. HEAD BOLT $1.95

0019112030 HEX. HEAD BOLT $5.95

0019112040 HEX. HEAD BOLT $6.95

0019208020 HEX. HEAD BOLT $3.95

0019210025 HEX. HEAD BOLT $7.95

0021106015 MACHINE SCREW $0.17

0021806015 MACHINE SCREW $0.87

0027103010 MACHINE SCREW $0.44

0027103015 MACHINE SCREW $0.64

0027104015 MACHINE SCREW $0.53

0027104020 MACHINE SCREW $0.40

0027104035 MACHINE SCREW $1.34

0027105015 MACHINE SCREW $0.20

0027208025 MACHINE SCREW $0.76

0030012000 HEX. NUT $0.50

0030014000 HEX. NUT

0030016000 HEX. NUT $1.90

0030020000 HEX. NUT $1.82

0037906000 LOCK NUT

0040006000 WASHER, LOCK $0.17

0040008000 WASHER, LOCK $0.63

From the guides desk

Guide · 2026-08-04

Ask ARIA about your machine.

Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.

Chat with ARIA

Multiquip DCA125SSIU4F Generator

The parts bench

The machine itself

Machine

Engine

Keep-it-running spares

Every part that fits this machine

Service notices & part changes

Take the factory book with you

Get the download pack

From the guides desk

Multiquip DCA Generator Fault Shutdown and Controller Reset Guide

Multiquip Generator No-Start and No-Power Fixes

Multiquip DCA Generator Fault Codes and Diagnostics Guide

Ask ARIA about your machine.

Your cart is empty

Your cart is empty
