Multiquip DCA150SSJU4F Generator

Name: Multiquip DCA150SSJU4F Generator
Brand: Multiquip

The parts bench

Need the PDF? ↓

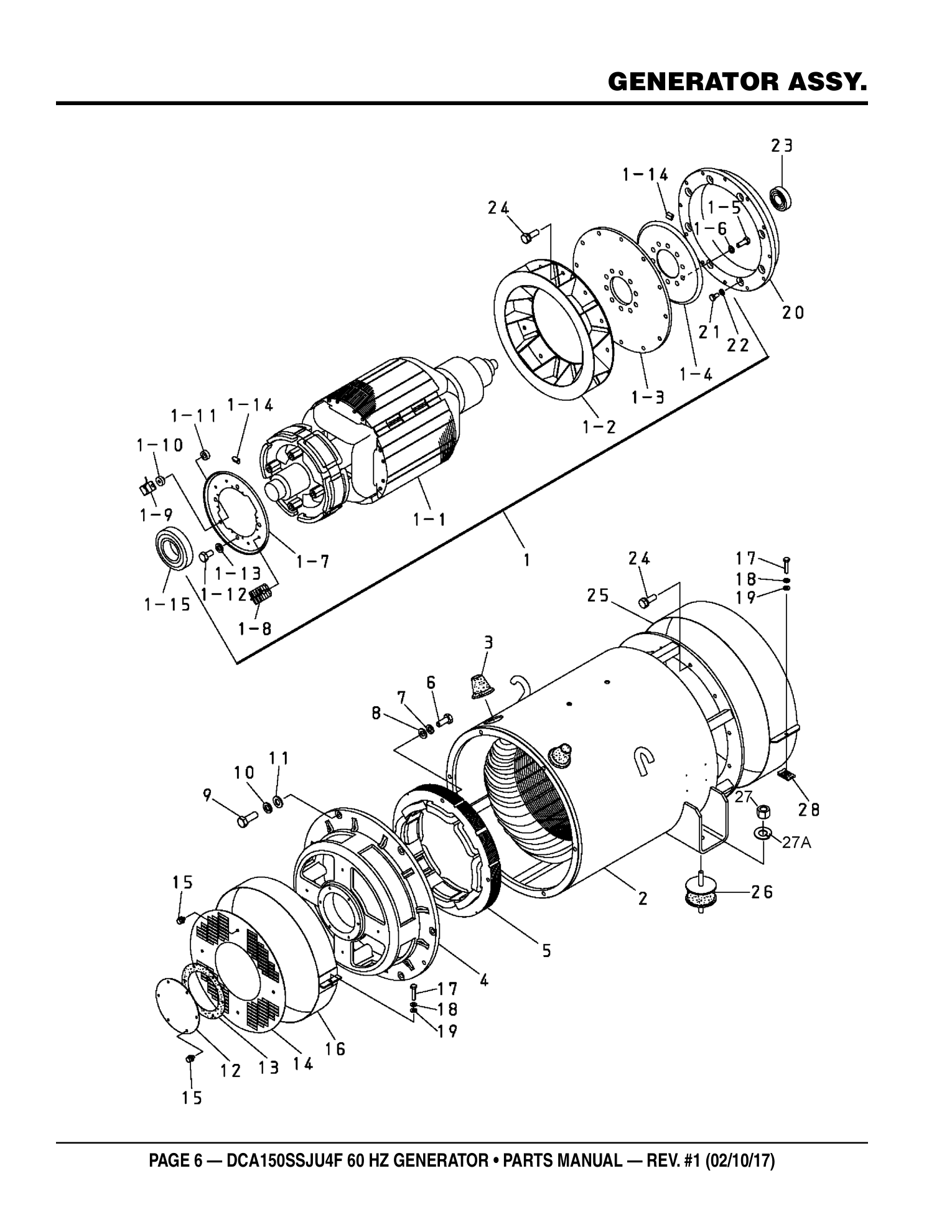

Page 6 — GENERATOR ASSY.

Multiquip DCA150SSJU4F Generator GENERATOR ASSY. parts diagram

Parts list — exactly as printed44 rows

No.	Part No.	Part Name	Qty	Remarks
1	C1110000122	ROTOR ASSY	1	INCLUDES ITEMS W/#	PARTS REQUEST
PHOTO COMING ROTOR ASSY C1110000122 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 1-1#, 1-2#, 1-3#, 1-4#, 1-5#, 1-6#, 1-7#, 1-8#, 1-9#, 1-10#, 1-11#, 1-12#, 1-13#, 1-14#, 1-15# PARTS REQUEST
1-1#		FIELD ASSY.	1		INCLUDED IN KIT
PHOTO COMING FIELD ASSY. · qty on machine: 1 Included in kit 1 - ROTOR ASSY (C1110000122) INCLUDED IN KIT
1-2#	8131070013	FAN	1		ADD TO CART
FAN 8131070013 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (C1110000122) view full part page → $766.95 IN A KIT + SOLD SOLO
1-3#	8131611014	COUPLING DISK	8		PARTS REQUEST
PHOTO COMING COUPLING DISK 8131611014 · qty on machine: 8 Also included in kit 1 - ROTOR ASSY (C1110000122) PARTS REQUEST
1-4#	8131015003	BALANCING PLATE	1	PURCHASE ITEM 1-14 AS A SET	ADD TO CART
BALANCING PLATE 8131015003 · qty on machine: 1 PURCHASE ITEM 1-14 AS A SET Also included in kit 1 - ROTOR ASSY (C1110000122) view full part page → $99.95 IN A KIT + SOLD SOLO
1-5#	0012112035	HEX. HEAD BOLT	10		ADD TO CART
HEX. HEAD BOLT 0012112035 · qty on machine: 10 Also included in kit 1 - ROTOR ASSY (C1110000122) view full part page → $3.95 IN A KIT + SOLD SOLO
1-6#	0042612000	WASHER, LOCK	10		ADD TO CART
WASHER, LOCK 0042612000 · qty on machine: 10 Also included in kit 1 - ROTOR ASSY (C1110000122) view full part page → $0.77 IN A KIT + SOLD SOLO
1-7#	8101026013	SET PLATE RECTIFIER	1	PURCHASE 1-14 AS A SET	ADD TO CART
SET PLATE RECTIFIER 8101026013 · qty on machine: 1 PURCHASE 1-14 AS A SET Also included in kit 1 - ROTOR ASSY (C1110000122) view full part page → $113.95 IN A KIT + SOLD SOLO
1-8#	0601821349	RECTIFIER	2		ADD TO CART
RECTIFIER 0601821349 · qty on machine: 2 Also included in kit 1 - ROTOR ASSY (C1110000122) view full part page → $247.95 IN A KIT + SOLD SOLO
1-9#	Y0601822624	SURGE ABSORBER	1		ADD TO CART
SURGE ABSORBER Y0601822624 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (C1110000122) view full part page → $63.95 IN A KIT + SOLD SOLO
1-10#	8001020004	INSULATOR WASHER	1		ADD TO CART
INSULATOR WASHER 8001020004 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (C1110000122) view full part page → $8.95 IN A KIT + SOLD SOLO
1-11#	8001020504	INSULATOR WASHER	1		ADD TO CART
INSULATOR WASHER 8001020504 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (C1110000122) view full part page → $4.95 IN A KIT + SOLD SOLO
1-12#	012210020	HEX. HEAD BOLT	4	REPLACES P/N 0010110020	ADD TO CART
HEX. HEAD BOLT 012210020 · qty on machine: 4 REPLACES P/N 0010110020 Also included in kit 1 - ROTOR ASSY (C1110000122) view full part page → $0.95 IN A KIT + SOLD SOLO
1-13#	0040010000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0040010000 · qty on machine: 4 Also included in kit 1 - ROTOR ASSY (C1110000122) view full part page → $0.39 IN A KIT + SOLD SOLO
1-14#	0601000209	BALANCING WEIGHT KIT	1		ADD TO CART
BALANCING WEIGHT KIT 0601000209 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (C1110000122) view full part page → $9.95 IN A KIT + SOLD SOLO
1-15#	0071906312	BEARING	1		ADD TO CART
BEARING 0071906312 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (C1110000122) view full part page → $201.95 IN A KIT + SOLD SOLO
2	C0130000603	STATOR ASSY.	1		ADD TO CART
STATOR ASSY. C0130000603 · qty on machine: 1 view full part page → $19083.95
3	0845041804	GROMMET	2		ADD TO CART
GROMMET 0845041804 · qty on machine: 2 view full part page → $16.95
4	8131315202	END BRACKET	1		ADD TO CART
END BRACKET 8131315202 · qty on machine: 1 view full part page → $1283.95
5	8101350013	FIELD ASSY., EXCITER	1		ADD TO CART
FIELD ASSY., EXCITER 8101350013 · qty on machine: 1 view full part page → $2986.95
6	0012110060	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0012110060 · qty on machine: 4 view full part page → $4.95
7	0042610000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0042610000 · qty on machine: 4 view full part page → $0.53
8	031110160	WASHER, FLAT	4	REPLACES P/N 0041210000	ADD TO CART
WASHER, FLAT 031110160 · qty on machine: 4 REPLACES P/N 0041210000 view full part page → $0.4
9	0010112035	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0010112035 · qty on machine: 6 view full part page → $1.95
10	0040012000	WASHER, LOCK	6		ADD TO CART
WASHER, LOCK 0040012000 · qty on machine: 6 view full part page → $0.95
11	031112230	WASHER, FLAT	6	REPLACES P/N 0041212000	ADD TO CART
WASHER, FLAT 031112230 · qty on machine: 6 REPLACES P/N 0041212000 view full part page → $0.95
12	8131310104	COVER, BEARING	1		ADD TO CART
COVER, BEARING 8131310104 · qty on machine: 1 view full part page → $192.95
13	8131312204	GASKET, BEARING	1		ADD TO CART
GASKET, BEARING 8131312204 · qty on machine: 1 view full part page → $30.95
14	8131331003	COVER, END BRACKET	1		ADD TO CART
COVER, END BRACKET 8131331003 · qty on machine: 1 view full part page → $147.95
15	0105050616	HEX. HEAD BOLT	10	REPLACES P/N 0017106012	ADD TO CART
HEX. HEAD BOLT 0105050616 · qty on machine: 10 REPLACES P/N 0017106012 view full part page → $0.45
16	8101333003	COVER, END BRACKET	1		ADD TO CART
COVER, END BRACKET 8101333003 · qty on machine: 1 view full part page → $86.95
17	0010006030	HEX. HEAD BOLT	2	REPLACES P/N 0010106030	ADD TO CART
HEX. HEAD BOLT 0010006030 · qty on machine: 2 REPLACES P/N 0010106030 view full part page → $0.25
18	0040006000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040006000 · qty on machine: 2 view full part page → $0.17
19	952404470	WASHER, FLAT	2	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 2 REPLACES P/N 0041206000 view full part page → $0.19
20	M3163400303	COUPLING RING	1		ADD TO CART
COUPLING RING M3163400303 · qty on machine: 1 view full part page → $2545.95
21	0343204220	HEX. HEAD BOLT	8		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT 0343204220 · qty on machine: 8 PARTS REQUEST
22	EM923344	WASHER, LOCK	8	REPLACES P/N 0043604000	ADD TO CART
WASHER, LOCK EM923344 · qty on machine: 8 REPLACES P/N 0043604000 Factory replaced this part - current number 0166A view full part page → $0.17 IN A KIT + SOLD SOLO
23	0070506306	BEARING	1		ADD TO CART
BEARING 0070506306 · qty on machine: 1 view full part page → $25.95
24	012010030	HEX. HEAD BOLT	24	REPLACES P/N 0012810030	ADD TO CART
HEX. HEAD BOLT 012010030 · qty on machine: 24 REPLACES P/N 0012810030 view full part page → $0.95
25	C0131300004	COVER, FAN	1		ADD TO CART
COVER, FAN C0131300004 · qty on machine: 1 view full part page → $259.95
26	Y0605000463	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION Y0605000463 · qty on machine: 2 view full part page → $187.95
27	0030016000	HEX. NUT	4		ADD TO CART
HEX. NUT 0030016000 · qty on machine: 4 view full part page → $1.9
27A	0040016000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 4 view full part page → $4.95
28	020106050	NUT	1	REPLACES P/N 0600815000	ADD TO CART
NUT 020106050 · qty on machine: 1 REPLACES P/N 0600815000 view full part page → $0.12

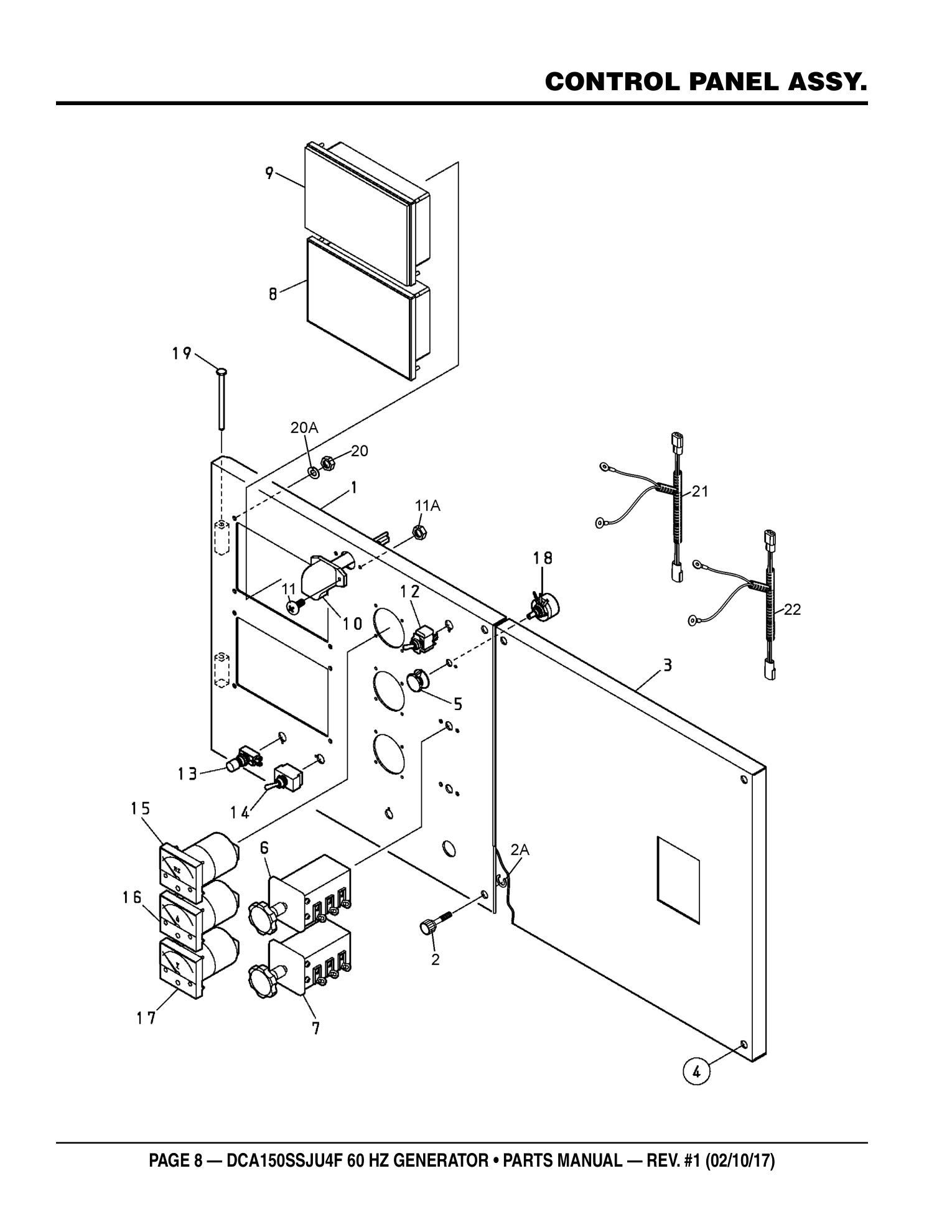

Page 8 — CONTROL PANEL ASSY.

Multiquip DCA150SSJU4F Generator CONTROL PANEL ASSY. parts diagram

Parts list — exactly as printed23 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3223001503	CONTROL PANEL	1		PARTS REQUEST
PHOTO COMING CONTROL PANEL M3223001503 · qty on machine: 1 PARTS REQUEST
2	M9220100004	SET SCREW	2		ADD TO CART
SET SCREW M9220100004 · qty on machine: 2 view full part page → $12.95
2A	0080200007	E-RING	2		ADD TO CART
E-RING 0080200007 · qty on machine: 2 view full part page → $1.39
3	M3223001604	CONTROL PANEL	1		PARTS REQUEST
PHOTO COMING CONTROL PANEL M3223001604 · qty on machine: 1 PARTS REQUEST
4	0017108040	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0017108040 · qty on machine: 4 view full part page → $1.58
5	0601840100	KNOB	1	REPLACES P/N 0601840121	ADD TO CART
KNOB 0601840100 · qty on machine: 1 REPLACES P/N 0601840121 view full part page → $30.95
6	0601801040	CHANGE-OVER SWITCH, AMMETER	1		ADD TO CART
CHANGE-OVER SWITCH, AMMETER 0601801040 · qty on machine: 1 view full part page → $95.95
7	0601801041	CHANGE-OVER SWITCH, VOLTMETER	1		ADD TO CART
CHANGE-OVER SWITCH, VOLTMETER 0601801041 · qty on machine: 1 view full part page → $157.95
8	Y0602202651	ECU CONTROLLER	1		ADD TO CART
ECU CONTROLLER Y0602202651 · qty on machine: 1 view full part page → $1815.95
9	Y0602120569	GAUGE UNIT ASSY.	1		ADD TO CART
GAUGE UNIT ASSY. Y0602120569 · qty on machine: 1 view full part page → $756.95
10	Y0601810170	PANEL LIGHT, 12V	1		ADD TO CART
PANEL LIGHT, 12V Y0601810170 · qty on machine: 1 view full part page → $142.95
11	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
11A	OEMAA8	HEX. NUT	2	REPLACES P/N 0207004000	ADD TO CART
HEX. NUT OEMAA8 · qty on machine: 2 REPLACES P/N 0207004000 view full part page → $0.4
12	0601830710	PANEL LIGHT SWITCH	1		ADD TO CART
PANEL LIGHT SWITCH 0601830710 · qty on machine: 1 view full part page → $29.95
13	0601831205	PUSH BUTTON SWITCH, RED	1		ADD TO CART
PUSH BUTTON SWITCH, RED 0601831205 · qty on machine: 1 view full part page → $25.95
14	82608	TOGGLE SWITCH	1	REPLACES P/N 0601831340	ADD TO CART
TOGGLE SWITCH 82608 · qty on machine: 1 REPLACES P/N 0601831340 view full part page → $34.95
15	0601807641	FREQUENCY METER, 45~65 HZ 240V	1		ADD TO CART
FREQUENCY METER, 45~65 HZ 240V 0601807641 · qty on machine: 1 view full part page → $591.95
16	0601808989	AC AMMETER, 0~300A/600A: 5A	1		ADD TO CART
AC AMMETER, 0~300A/600A: 5A 0601808989 · qty on machine: 1 view full part page → $243.95
17	0601806859	AC VOLTMETER	1		ADD TO CART
AC VOLTMETER 0601806859 · qty on machine: 1 view full part page → $368.95
18	0601840073	VOLTAGE REGULATOR, 1K	1		ADD TO CART
VOLTAGE REGULATOR, 1K 0601840073 · qty on machine: 1 view full part page → $90.95
19	0605011211	PIN	2		ADD TO CART
PIN 0605011211 · qty on machine: 2 view full part page → $1.55
20	Y0206707000	HEX. NUT	8		ADD TO CART
HEX. NUT Y0206707000 · qty on machine: 8 view full part page → $0.45
20A	Y0044807000	WASHER, LOCK	8		ADD TO CART
WASHER, LOCK Y0044807000 · qty on machine: 8 view full part page → $0.45

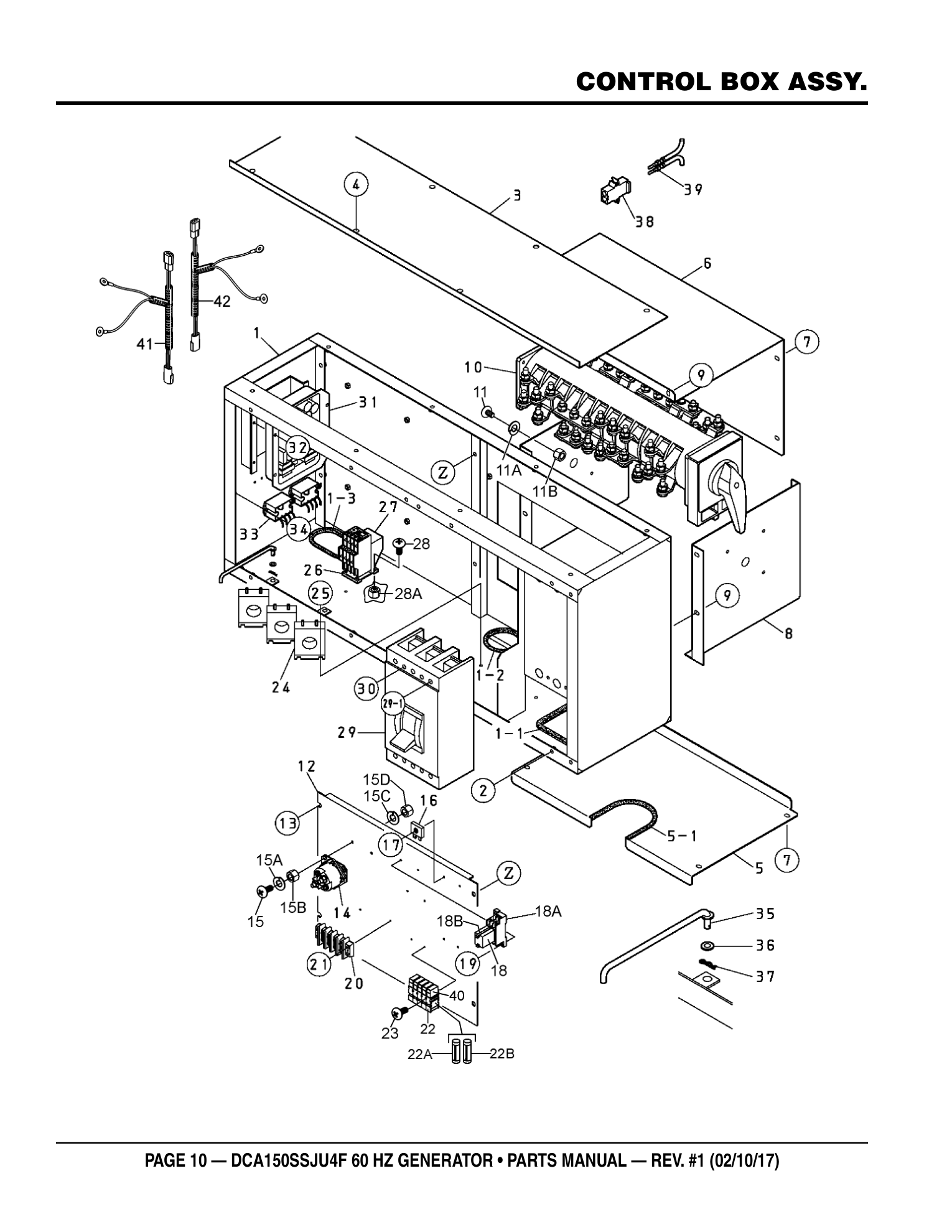

Page 10 — CONTROL BOX ASSY.

Multiquip DCA150SSJU4F Generator CONTROL BOX ASSY. parts diagram

Parts list — exactly as printed44 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3214000402	CONTROL BOX	1	S/N 7601140 AND BELOW	PARTS REQUEST
PHOTO COMING CONTROL BOX M3214000402 · qty on machine: 1 S/N 7601140 AND BELOW PARTS REQUEST
1	M3214000412	CONTROL BOX	1	S/N 7601141 AND ABOVE	PARTS REQUEST
PHOTO COMING CONTROL BOX M3214000412 · qty on machine: 1 S/N 7601141 AND ABOVE PARTS REQUEST
1-1	Y0411100500	EDGING	1		PARTS REQUEST
PHOTO COMING EDGING Y0411100500 · qty on machine: 1 PARTS REQUEST
1-2	Y0411100215	EDGING	1		PARTS REQUEST
PHOTO COMING EDGING Y0411100215 · qty on machine: 1 PARTS REQUEST
1-3	Y0411100285	EDGING	1		PARTS REQUEST
PHOTO COMING EDGING Y0411100285 · qty on machine: 1 PARTS REQUEST
2	011008020	HEX. HEAD BOLT	13	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 13 REPLACES P/N 0016908020 view full part page → $2.68
3	M4213500104	CONTROL UP PANEL	1		ADD TO CART
CONTROL UP PANEL M4213500104 · qty on machine: 1 view full part page → $204.95
4	011008020	HEX. HEAD BOLT	8	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 8 REPLACES P/N 0016908020 view full part page → $2.68
5	M3214600504	SWITCH COVER	1		PARTS REQUEST
PHOTO COMING SWITCH COVER M3214600504 · qty on machine: 1 PARTS REQUEST
5-1	Y0317700265	WEATHER STRIP	1		ADD TO CART
WEATHER STRIP Y0317700265 · qty on machine: 1 view full part page → $9.95
6	M3214600404	SWITCH COVER	1		PARTS REQUEST
PHOTO COMING SWITCH COVER M3214600404 · qty on machine: 1 PARTS REQUEST
7	011106015	HEX. HEAD BOLT	8	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 8 REPLACES P/N 0016906015 view full part page → $0.69
8	M3213602904	SWITCH BRACKET	2		ADD TO CART
SWITCH BRACKET M3213602904 · qty on machine: 2 view full part page → $74.95
9	011106015	HEX. HEAD BOLT	6	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 6 REPLACES P/N 0016906015 view full part page → $0.69
10	M3270100304	SELECTOR SWITCH	1		ADD TO CART
SELECTOR SWITCH M3270100304 · qty on machine: 1 view full part page → $4543.95
11	0021005020	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021005020 · qty on machine: 4 view full part page → $0.32
11A	0032005000	WASHER, LOCK	4	REPLACES P/N 0040005000	ADD TO CART
WASHER, LOCK 0032005000 · qty on machine: 4 REPLACES P/N 0040005000 view full part page → $0.41
11B	0030005000	HEX. NUT	4	REPLACES P/N 0207005000	ADD TO CART
HEX. NUT 0030005000 · qty on machine: 4 REPLACES P/N 0207005000 view full part page → $0.29
12	M3261500003	SET PANEL	1		ADD TO CART
SET PANEL M3261500003 · qty on machine: 1 view full part page → $123.95
13	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
14	Y0602201458	STARTER RELAY	1		ADD TO CART
STARTER RELAY Y0602201458 · qty on machine: 1 view full part page → $116.95
15	011808015	MACHINE SCREW	2	REPLACES P/N 0027106015	ADD TO CART
MACHINE SCREW 011808015 · qty on machine: 2 REPLACES P/N 0027106015 view full part page → $6.95
15A	0044808000	WASHER, LOCK	2		PARTS REQUEST
PHOTO COMING WASHER, LOCK 0044808000 · qty on machine: 2 PARTS REQUEST
15B	Y0206508000	HEX. NUT	2		ADD TO CART
HEX. NUT Y0206508000 · qty on machine: 2 view full part page → $0.19
15C	0043003000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0043003000 · qty on machine: 2 view full part page → $0.39
15D	Y0206803000	HEX. NUT	2		ADD TO CART
HEX. NUT Y0206803000 · qty on machine: 2 view full part page → $0.26
16	0601821370	RECTIFIER	1	REPLACES P/N 0601823240	ADD TO CART
RECTIFIER 0601821370 · qty on machine: 1 REPLACES P/N 0601823240 view full part page → $28.95
17	0027104020	MACHINE SCREW	1		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 1 view full part page → $0.4
18	LY2DUS12VDC	RELAY, DC12V	1	REPLACES P/N 0601827656	ADD TO CART
RELAY, DC12V LY2DUS12VDC · qty on machine: 1 REPLACES P/N 0601827656 view full part page → $46.95
18A	PTF08A	RELAY BASE	1	REPLACES P/N 0601823109	ADD TO CART
RELAY BASE PTF08A · qty on machine: 1 REPLACES P/N 0601823109 view full part page → $47.95
18B	PYCA1	RELAY CLIP	2	REPLACES P/N 0601824400	ADD TO CART
RELAY CLIP PYCA1 · qty on machine: 2 REPLACES P/N 0601824400 view full part page → $1.71
19	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
20	0601815153	TERMINAL BLOCK	1		NO LONGER AVAILABLE
PHOTO COMING TERMINAL BLOCK 0601815153 · qty on machine: 1 NO LONGER AVAILABLE
21	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
22	M5214600004	HOLDER, FUSE	1		ADD TO CART
HOLDER, FUSE M5214600004 · qty on machine: 1 view full part page → $0.95
22A	0601806643	FUSE, 15A	2		ADD TO CART
FUSE, 15A 0601806643 · qty on machine: 2 view full part page → $5.95
22B	Y0601806647	FUSE, 25A	3		ADD TO CART
FUSE, 25A Y0601806647 · qty on machine: 3 view full part page → $1.95
23	Y0027203035	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW Y0027203035 · qty on machine: 2 view full part page → $0.37
24	Y0601809692	CURRENT TRANSFORMER	3		ADD TO CART
CURRENT TRANSFORMER Y0601809692 · qty on machine: 3 view full part page → $62.95
25	011808015	MACHINE SCREW	6	REPLACES P/N 0027106015	ADD TO CART
MACHINE SCREW 011808015 · qty on machine: 6 REPLACES P/N 0027106015 view full part page → $6.95
26	0601820847	OVER CURRENT RELAY	1	S/N 7601140 AND BELOW	NO LONGER AVAILABLE
PHOTO COMING OVER CURRENT RELAY 0601820847 · qty on machine: 1 S/N 7601140 AND BELOW NO LONGER AVAILABLE
26	Y0601820839	OVER CURRENT RELAY	1	S/N 7601141 AND ABOVE	ADD TO CART
OVER CURRENT RELAY Y0601820839 · qty on machine: 1 S/N 7601141 AND ABOVE view full part page → $120.95
27	0601820848	OVER CURRENT RELAY BASE	1	S/N 7601140 AND BELOW	ADD TO CART
OVER CURRENT RELAY BASE 0601820848 · qty on machine: 1 S/N 7601140 AND BELOW view full part page → $83.95
27	Y0601820844	OVER CURRENT RELAY BASE	1	S/N 7601141 AND ABOVE	ADD TO CART
OVER CURRENT RELAY BASE Y0601820844 · qty on machine: 1 S/N 7601141 AND ABOVE view full part page → $24.95

Page 12 — CONTROL BOX ASSY. (CONT'D.)

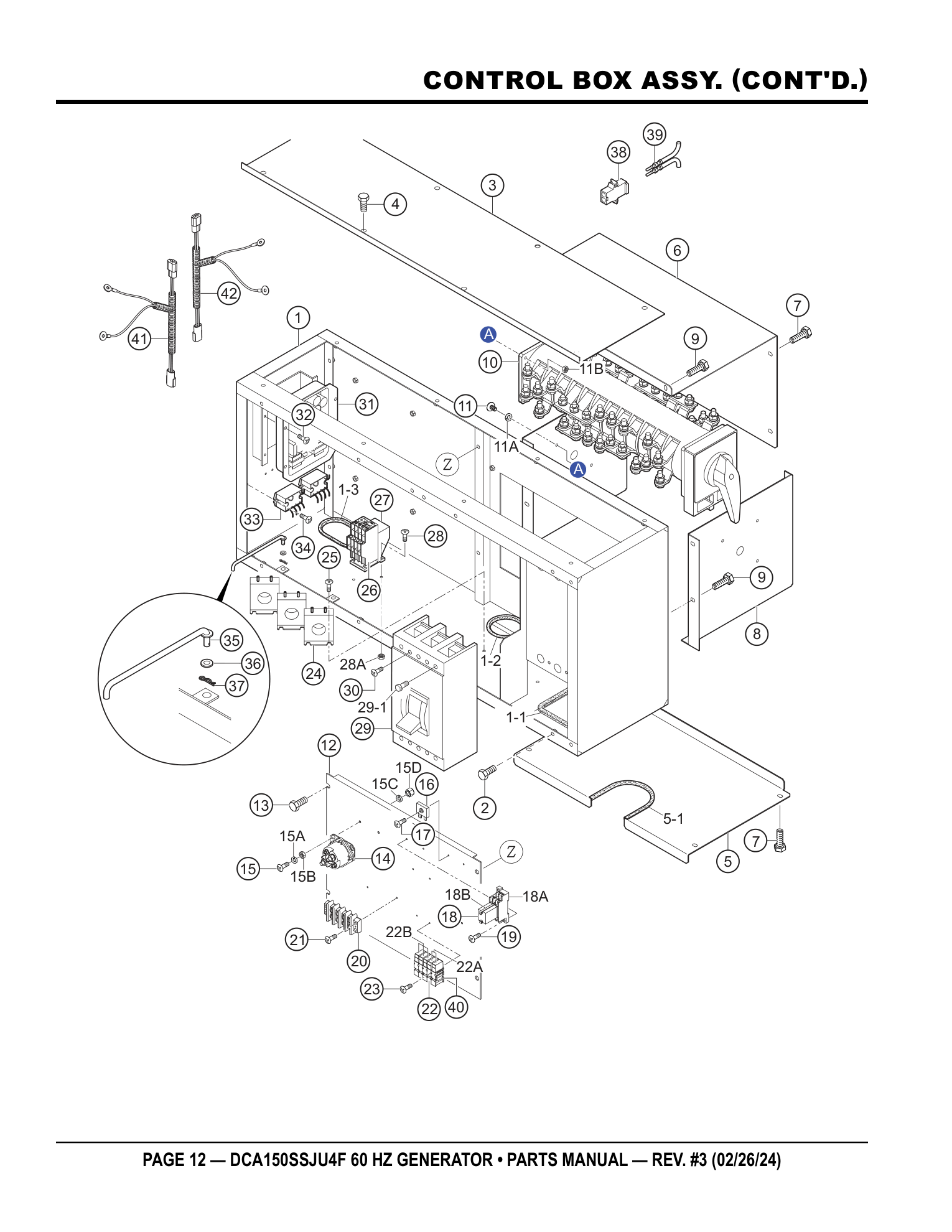

Multiquip DCA150SSJU4F Generator CONTROL BOX ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed19 rows

No.	Part No.	Part Name	Qty	Remarks
28	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
28A	OEMAA8	HEX. NUT	2	REPLACES P/N 0207004000	ADD TO CART
HEX. NUT OEMAA8 · qty on machine: 2 REPLACES P/N 0207004000 view full part page → $0.4
29	0601808821	CIRCUIT BREAKER, 3P 400A	1		ADD TO CART
CIRCUIT BREAKER, 3P 400A 0601808821 · qty on machine: 1 view full part page → $2158.95
29-1	Y0017904032	HEX. SOCKET HEAD CAP SCREW	6		PARTS REQUEST
PHOTO COMING HEX. SOCKET HEAD CAP SCREW Y0017904032 · qty on machine: 6 PARTS REQUEST
30	0021006080	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021006080 · qty on machine: 4 view full part page → $0.95
31	0601820608	AUTOMATIC VOLTAGE REGULATOR	1		ADD TO CART
AUTOMATIC VOLTAGE REGULATOR 0601820608 · qty on machine: 1 view full part page → $1591.95
32	0027105015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 4 view full part page → $0.2
33	0601823863	RELAY UNIT, 12V	2		ADD TO CART
RELAY UNIT, 12V 0601823863 · qty on machine: 2 view full part page → $159.95
34	7538070	MACHINE SCREW	4	REPLACES P/N 0027104015	ADD TO CART
MACHINE SCREW 7538070 · qty on machine: 4 REPLACES P/N 0027104015 view full part page → $0.52
35	M4213600104	STOPPER, CONTROL PANEL	1		ADD TO CART
STOPPER, CONTROL PANEL M4213600104 · qty on machine: 1 view full part page → $63.95
36	952404470	WASHER, FLAT	1	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 1 REPLACES P/N 0041206000 view full part page → $0.19
37	505015300	SNAP PIN	1	REPLACES P/N 0605010502	ADD TO CART
SNAP PIN 505015300 · qty on machine: 1 REPLACES P/N 0605010502 view full part page → $0.95
38	0601812626	PLUG	1		ADD TO CART
PLUG 0601812626 · qty on machine: 1 view full part page → $1.88
39	0601812711	PINS	2		ADD TO CART
PINS 0601812711 · qty on machine: 2 view full part page → $0.56
40	M9501400304	DECAL, FUSE HOLDER	1		ADD TO CART
DECAL, FUSE HOLDER M9501400304 · qty on machine: 1 view full part page → $8.95
41	M3246703704	WIRE HARNESS, GENERATOR	1	S/N 7601140 AND BELOW	ADD TO CART
WIRE HARNESS, GENERATOR M3246703704 · qty on machine: 1 S/N 7601140 AND BELOW view full part page → $1266.95
41	M3246703714	WIRE HARNESS, GNERATOR	1	S/N 7601141 AND ABOVE	NO LONGER AVAILABLE
PHOTO COMING WIRE HARNESS, GNERATOR M3246703714 · qty on machine: 1 S/N 7601141 AND ABOVE NO LONGER AVAILABLE
42	M3358200402	WIRE HARNESS, ENGINE	1	S/N 7601140 AND BELOW	ADD TO CART
WIRE HARNESS, ENGINE M3358200402 · qty on machine: 1 S/N 7601140 AND BELOW view full part page → $1360.95
42	M3358200412	WIRE HARNESS, ENGINE	1	S/N 7601141 AND ABOVE	ADD TO CART
WIRE HARNESS, ENGINE M3358200412 · qty on machine: 1 S/N 7601141 AND ABOVE view full part page → $1727.95

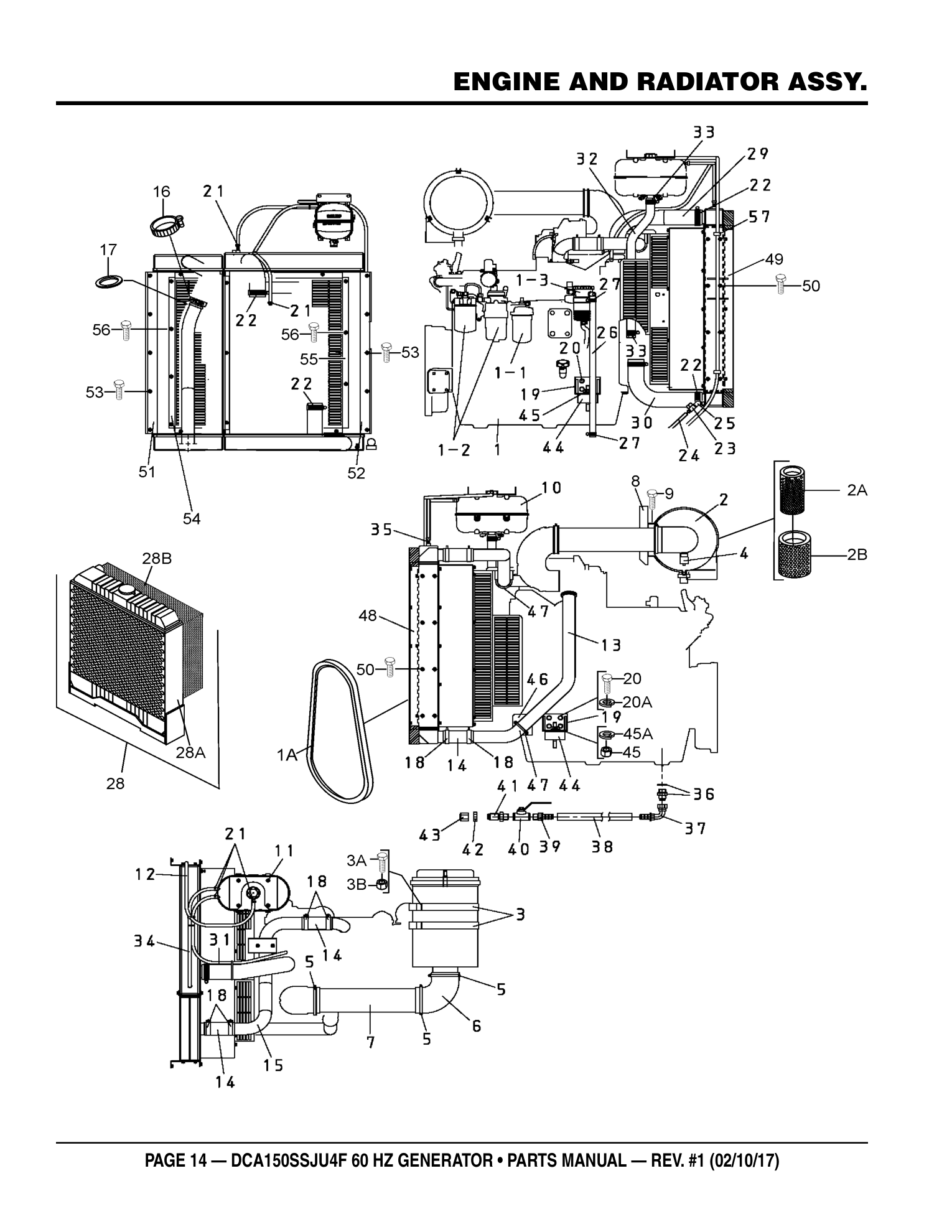

Page 14 — ENGINE AND RADIATOR ASSY.

Multiquip DCA150SSJU4F Generator ENGINE AND RADIATOR ASSY. parts diagram

Parts list — exactly as printed42 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3924200074	ENGINE, JOHN DEERE 6068HFG08	1	S/N 7601140 AND BELOW	PARTS REQUEST
PHOTO COMING ENGINE, JOHN DEERE 6068HFG08 M3924200074 · qty on machine: 1 S/N 7601140 AND BELOW PARTS REQUEST
1	M3924200154	ENGINE, JOHN DEERE 6068HFG08	1	S/N 7601141 AND ABOVE	PARTS REQUEST
PHOTO COMING ENGINE, JOHN DEERE 6068HFG08 M3924200154 · qty on machine: 1 S/N 7601141 AND ABOVE PARTS REQUEST
1A	R529382	FAN BELT	1	REPLACES P/N Y0602015209	ADD TO CART
FAN BELT R529382 · qty on machine: 1 REPLACES P/N Y0602015209 view full part page → $209.95
1-1	RE539279	CARTRIDGE, OIL FILTER	1	REPLACES P/N Y0602041293	ADD TO CART
CARTRIDGE, OIL FILTER RE539279 · qty on machine: 1 REPLACES P/N Y0602041293 view full part page → $93.95
1-2	RE556406	FUEL FILTER KIT, PRIMARY, SECONDARY	1	REPLACES P/N Y0602042599 S/N 7601140 AND BELOW	ADD TO CART
FUEL FILTER KIT, PRIMARY, SECONDARY RE556406 · qty on machine: 1 REPLACES P/N Y0602042599 S/N 7601140 AND BELOW view full part page → $334.95
1-2	RE551507	FUEL FILTER ELEMENT, PRIMARY	1	REPLACES P/N Y0602042800 S/N 7601141 AND ABOVE	ADD TO CART
FUEL FILTER ELEMENT, PRIMARY RE551507 · qty on machine: 1 REPLACES P/N Y0602042800 S/N 7601141 AND ABOVE view full part page → $168.95
1-2	RE560681	FUEL FILTER ELEMENT, SECONDAY	1	REPLACES P/N Y0602042801 S/N 7601141 AND ABOVE	ADD TO CART
FUEL FILTER ELEMENT, SECONDAY RE560681 · qty on machine: 1 REPLACES P/N Y0602042801 S/N 7601141 AND ABOVE view full part page → $146.95
1-2A	RE562696	SEAL KIT, FUEL FILTER	1	REPLACES P/N Y0602042603 S/N 7601141 AND ABOVE	ADD TO CART
SEAL KIT, FUEL FILTER RE562696 · qty on machine: 1 REPLACES P/N Y0602042603 S/N 7601141 AND ABOVE view full part page → $72.95
1-3	RE540710	BLOWBY FILTER	1	REPLACES P/N 0602044230	NO LONGER AVAILABLE
PHOTO COMING BLOWBY FILTER RE540710 · qty on machine: 1 REPLACES P/N 0602044230 NO LONGER AVAILABLE
2	FRG130097	AIR CLEANER	1	REPLACES P/N 0602046586 INCLUDES ITEMS W/#	PARTS REQUEST
PHOTO COMING AIR CLEANER FRG130097 · qty on machine: 1 REPLACES P/N 0602046586 INCLUDES ITEMS W/# Kit includes: 2A#, 2B# PARTS REQUEST
2A#	P537877	ELEMENT, SAFETY	1	REPLACES P/N 0602046683	ADD TO CART
ELEMENT, SAFETY P537877 · qty on machine: 1 REPLACES P/N 0602046683 Also included in kit 2 - AIR CLEANER (FRG130097) view full part page → $99.95 IN A KIT + SOLD SOLO
2B#	P537876	ELEMENT, PRIMARY	1	REPLACES P/N 0602046682	ADD TO CART
ELEMENT, PRIMARY P537876 · qty on machine: 1 REPLACES P/N 0602046682 Also included in kit 2 - AIR CLEANER (FRG130097) view full part page → $161.95 IN A KIT + SOLD SOLO
3	P013722	AIR CLEANER BAND	2	REPLACES P/N 0602040558	PARTS REQUEST
PHOTO COMING AIR CLEANER BAND P013722 · qty on machine: 2 REPLACES P/N 0602040558 PARTS REQUEST
3A	011208025	HEX. HEAD BOLT	4	REPLACES P/N 0016908025	ADD TO CART
HEX. HEAD BOLT 011208025 · qty on machine: 4 REPLACES P/N 0016908025 view full part page → $0.41
3B	020108060	SELF LOCK NUT	4	REPLACES P/N 0207008000	ADD TO CART
SELF LOCK NUT 020108060 · qty on machine: 4 REPLACES P/N 0207008000 view full part page → $0.28
4	0602040650	AIR CLEANER INDICATOR	1		ADD TO CART
AIR CLEANER INDICATOR 0602040650 · qty on machine: 1 view full part page → $34.95
5	0605515202	HOSE BAND	3		ADD TO CART
HOSE BAND 0605515202 · qty on machine: 3 view full part page → $9.95
6	0602040365	90° ELBOW	1		ADD TO CART
90° ELBOW 0602040365 · qty on machine: 1 view full part page → $79.95
7	M3374000104	AIR CLEANER PIPE	1		ADD TO CART
AIR CLEANER PIPE M3374000104 · qty on machine: 1 view full part page → $443.95
8	M3374200004	AIR CLEANER BRACKET	1		PARTS REQUEST
PHOTO COMING AIR CLEANER BRACKET M3374200004 · qty on machine: 1 PARTS REQUEST
9	0016910025	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0016910025 · qty on machine: 2 view full part page → $1.56
10	RE549081	SURGE TANK	1	REPLACES P/N Y0602010222	NO LONGER AVAILABLE
PHOTO COMING SURGE TANK RE549081 · qty on machine: 1 REPLACES P/N Y0602010222 NO LONGER AVAILABLE
11	Y0016908016	HEX. HEAD BOLT	4		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0016908016 · qty on machine: 4 PARTS REQUEST
12	Y0193602200	OVER FLOW HOSE	1		PARTS REQUEST
PHOTO COMING OVER FLOW HOSE Y0193602200 · qty on machine: 1 PARTS REQUEST
13	M3311400103	CAC PIPE, HOT SIDE	1		PARTS REQUEST
PHOTO COMING CAC PIPE, HOT SIDE M3311400103 · qty on machine: 1 PARTS REQUEST
14	Y0602015610	CAC HOSE	3		ADD TO CART
CAC HOSE Y0602015610 · qty on machine: 3 view full part page → $124.95
15	M3311400203	CAC PIPE COLD SIDE	1		PARTS REQUEST
PHOTO COMING CAC PIPE COLD SIDE M3311400203 · qty on machine: 1 PARTS REQUEST
16	RE292067	V-BAND CLAMP	1	REPLACES P/N Y0602325033	ADD TO CART
V-BAND CLAMP RE292067 · qty on machine: 1 REPLACES P/N Y0602325033 view full part page → $139.95
17	R529509	GASKET	1	REPLACES P/N Y0602320206	ADD TO CART
GASKET R529509 · qty on machine: 1 REPLACES P/N Y0602320206 view full part page → $49.95
18	0605515215	T-BOLT CLAMP	6		ADD TO CART
T-BOLT CLAMP 0605515215 · qty on machine: 6 view full part page → $28.95
19	M3303200404	ENGINE FOOT	2		ADD TO CART
ENGINE FOOT M3303200404 · qty on machine: 2 view full part page → $39.95
20	0012312030	HEX. HEAD BOLT	6	REPLACES P/N 0013612030	ADD TO CART
HEX. HEAD BOLT 0012312030 · qty on machine: 6 REPLACES P/N 0013612030 view full part page → $6.95
20A	0040012000	WASHER, LOCK	6		ADD TO CART
WASHER, LOCK 0040012000 · qty on machine: 6 view full part page → $0.95
21	0605515189	HOSE BAND	5		ADD TO CART
HOSE BAND 0605515189 · qty on machine: 5 view full part page → $1.85
22	0605515236	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515236 · qty on machine: 2 view full part page → $46.95
23	Y0605511394	MINI BALL VALVE	1		ADD TO CART
MINI BALL VALVE Y0605511394 · qty on machine: 1 view full part page → $70.95
24	0193600300	DRAIN HOSE	1		ADD TO CART
DRAIN HOSE 0193600300 · qty on machine: 1 view full part page → $2.95
25	Y0603307520	45° ELBOW	1		PARTS REQUEST
PHOTO COMING 45° ELBOW Y0603307520 · qty on machine: 1 PARTS REQUEST
26	Y0191600800	BLOWBY HOSE	1		PARTS REQUEST
PHOTO COMING BLOWBY HOSE Y0191600800 · qty on machine: 1 PARTS REQUEST
27	0605515073	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515073 · qty on machine: 2 view full part page → $6.95
28	Y0602012905	RADIATOR AND INTER-COOLER, ASSY	1	S/N 7601119 AND BELOW	PARTS REQUEST
PHOTO COMING RADIATOR AND INTER-COOLER, ASSY Y0602012905 · qty on machine: 1 S/N 7601119 AND BELOW PARTS REQUEST
28	Y0602012951	RADIATOR AND INTER-COOLER, ASSY	1	S/N 7601120 AND ABOVE	ADD TO CART
RADIATOR AND INTER-COOLER, ASSY Y0602012951 · qty on machine: 1 S/N 7601120 AND ABOVE view full part page → $2973.95

Page 16 — ENGINE AND RADIATOR ASSY. (CONT'D.)

Multiquip DCA150SSJU4F Generator ENGINE AND RADIATOR ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed44 rows

No.	Part No.	Part Name	Qty	Remarks
28A	Y0602012905-R	RADIATOR	1	S/N 7601119 AND BELOW	ADD TO CART
RADIATOR Y0602012905-R · qty on machine: 1 S/N 7601119 AND BELOW view full part page → $2591.95
28B	Y0602012905-I	INTER-COOLER	1	S/N 7601119 AND BELOW	PARTS REQUEST
PHOTO COMING INTER-COOLER Y0602012905-I · qty on machine: 1 S/N 7601119 AND BELOW PARTS REQUEST
29	M3311500503	RADIATOR HOSE, UPPER	1		ADD TO CART
RADIATOR HOSE, UPPER M3311500503 · qty on machine: 1 view full part page → $194.95
30	M3311500603	RADIATOR HOSE, LOWER	1		ADD TO CART
RADIATOR HOSE, LOWER M3311500603 · qty on machine: 1 view full part page → $197.95
31	0199901150	VENT HOSE	1		ADD TO CART
VENT HOSE 0199901150 · qty on machine: 1 view full part page → $28.95
32	M3311500703	SURGE TANK HOSE	1		ADD TO CART
SURGE TANK HOSE M3311500703 · qty on machine: 1 view full part page → $99.95
33	0605515147	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515147 · qty on machine: 2 view full part page → $3.95
34	Y0199900680	VENT HOSE	1		ADD TO CART
VENT HOSE Y0199900680 · qty on machine: 1 view full part page → $7.95
35	Y0605512192	HOSE JOINT	1		PARTS REQUEST
PHOTO COMING HOSE JOINT Y0605512192 · qty on machine: 1 PARTS REQUEST
36	0602022580	ADAPTER	1		ADD TO CART
ADAPTER 0602022580 · qty on machine: 1 view full part page → $37.95
37	0602022561	90° ELBOW	1		ADD TO CART
90° ELBOW 0602022561 · qty on machine: 1 view full part page → $76.95
38	Y0269201300	PUSH-LOCK HOSE	1		PARTS REQUEST
PHOTO COMING PUSH-LOCK HOSE Y0269201300 · qty on machine: 1 PARTS REQUEST
39	0603306395	MALE PIPE	1		ADD TO CART
MALE PIPE 0603306395 · qty on machine: 1 view full part page → $16.95
40	0605511395	BALL VALVE	1		ADD TO CART
BALL VALVE 0605511395 · qty on machine: 1 view full part page → $46.95
41	0603306590	MALE BULKHEAD CONNECTOR	1		ADD TO CART
MALE BULKHEAD CONNECTOR 0603306590 · qty on machine: 1 view full part page → $86.95
42	0603300285	BULKHEAD ROCKNUT	1		ADD TO CART
BULKHEAD ROCKNUT 0603300285 · qty on machine: 1 view full part page → $4.95
43	0602021070	CAP	1		ADD TO CART
CAP 0602021070 · qty on machine: 1 view full part page → $11.95
44	Y0605000462	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION Y0605000462 · qty on machine: 2 view full part page → $110.95
45	0030016000	HEX. NUT	4		ADD TO CART
HEX. NUT 0030016000 · qty on machine: 4 view full part page → $1.9
45A	0040016000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 4 view full part page → $4.95
46	M3314300104	CAC PIPE BRACKET	1		PARTS REQUEST
PHOTO COMING CAC PIPE BRACKET M3314300104 · qty on machine: 1 PARTS REQUEST
46A	Y0010116030	HEX. HEAD BOLT	1		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0010116030 · qty on machine: 1 PARTS REQUEST
46B	0010116060	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0010116060 · qty on machine: 1 view full part page → $3.95
46C	0040016000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 2 view full part page → $4.95
46D	0041216000	WASHER, FLAT	3		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 3 view full part page → $1.95
46E	0030016000	HEX. NUT	1		ADD TO CART
HEX. NUT 0030016000 · qty on machine: 1 view full part page → $1.9
47	0602326063	U-BOLT	2		ADD TO CART
U-BOLT 0602326063 · qty on machine: 2 view full part page → $11.95
48	M3311200204	RADIATOR BRACKET	1	S/N 7601119 AND BELOW	PARTS REQUEST
PHOTO COMING RADIATOR BRACKET M3311200204 · qty on machine: 1 S/N 7601119 AND BELOW PARTS REQUEST
48	M3311200214	RADIATOR BRACKET	1	S/N 7601120 AND ABOVE	PARTS REQUEST
PHOTO COMING RADIATOR BRACKET M3311200214 · qty on machine: 1 S/N 7601120 AND ABOVE PARTS REQUEST
49	M3311200304	RADIATOR BRACKET	1	S/N 7601119 AND BELOW	PARTS REQUEST
PHOTO COMING RADIATOR BRACKET M3311200304 · qty on machine: 1 S/N 7601119 AND BELOW PARTS REQUEST
49	M3311200314	RADIATOR BRACKET	1	S/N 7601120 AND ABOVE	PARTS REQUEST
PHOTO COMING RADIATOR BRACKET M3311200314 · qty on machine: 1 S/N 7601120 AND ABOVE PARTS REQUEST
50	Y0016908015	HEX. HEAD BOLT	26		ADD TO CART
HEX. HEAD BOLT Y0016908015 · qty on machine: 26 view full part page → $1.95
51	M3311301023	FAN SHROUD	1		PARTS REQUEST
PHOTO COMING FAN SHROUD M3311301023 · qty on machine: 1 PARTS REQUEST
51A	M3494420304	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M3494420304 · qty on machine: 1 PARTS REQUEST
52	M3311301113	FAN SHROUD	1		ADD TO CART
FAN SHROUD M3311301113 · qty on machine: 1 view full part page → $242.95
52A	M3494420304	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M3494420304 · qty on machine: 1 PARTS REQUEST
53	011008020	HEX. HEAD BOLT	12	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 12 REPLACES P/N 0016908020 view full part page → $2.68
54	M3311300803	FAN GUARD	1	S/N 7601130 AND BELOW	ADD TO CART
FAN GUARD M3311300803 · qty on machine: 1 S/N 7601130 AND BELOW view full part page → $129.95
54	M3311300813	FAN GUARD	1	S/N 7601131 AND ABOVE	ADD TO CART
FAN GUARD M3311300813 · qty on machine: 1 S/N 7601131 AND ABOVE view full part page → $158.95
55	M3311300903	FAN GUARD	1	S/N 7601130 AND BELOW	PARTS REQUEST
PHOTO COMING FAN GUARD M3311300903 · qty on machine: 1 S/N 7601130 AND BELOW PARTS REQUEST
55	M3311300913	FAN GUARD	1	S/N 7601131 AND ABOVE	PARTS REQUEST
PHOTO COMING FAN GUARD M3311300913 · qty on machine: 1 S/N 7601131 AND ABOVE PARTS REQUEST
56	011008020	HEX. HEAD BOLT	18	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 18 REPLACES P/N 0016908020 view full part page → $2.68
57	0602220911	CLAMP	2	REPLACES P/N 0602220910	ADD TO CART
CLAMP 0602220911 · qty on machine: 2 REPLACES P/N 0602220910 view full part page → $1.85
58	0605515208	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515208 · qty on machine: 2 view full part page → $61.95

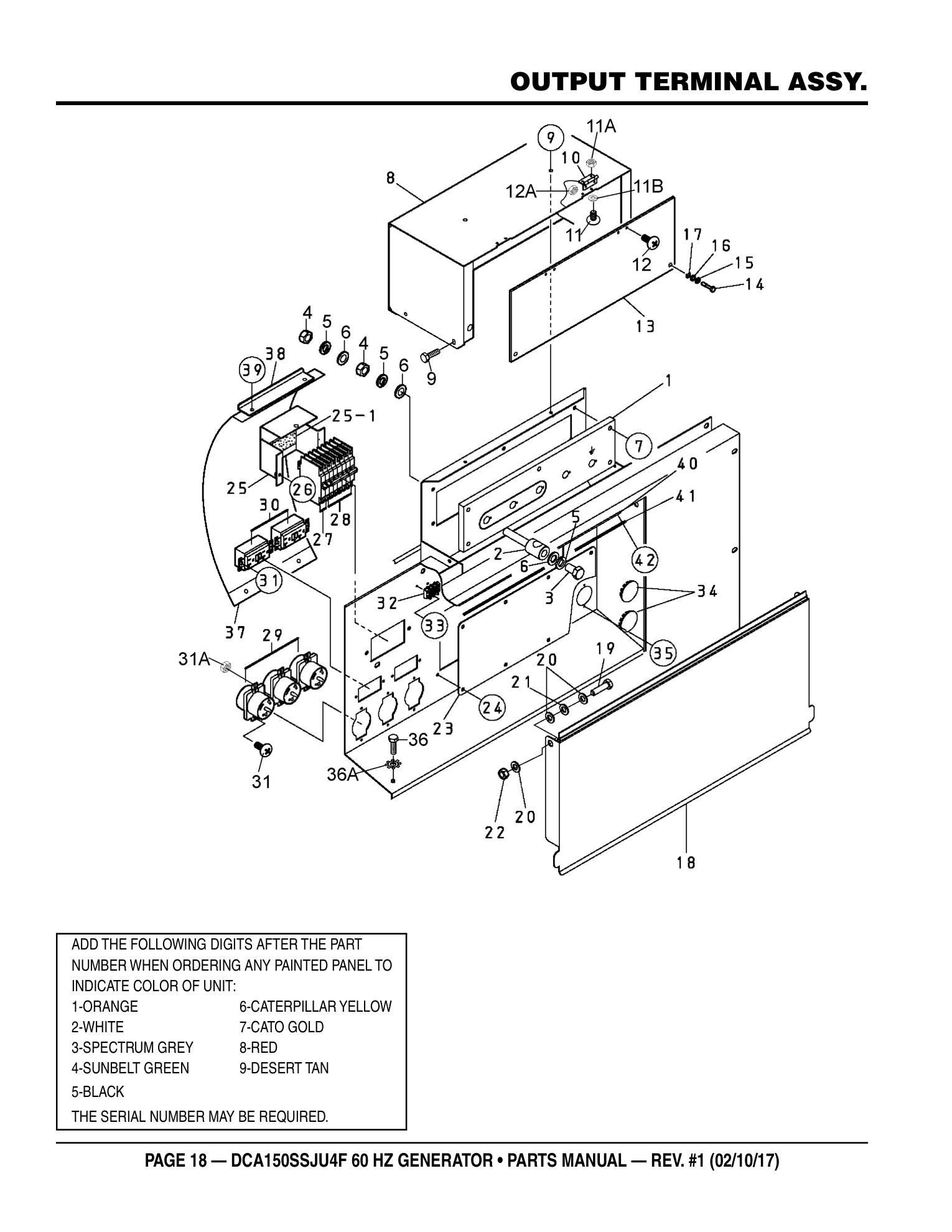

Page 18 — OUTPUT TERMINAL ASSY.

Multiquip DCA150SSJU4F Generator OUTPUT TERMINAL ASSY. parts diagram

Parts list — exactly as printed38 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3230700003	TERMINAL PANEL	1		ADD TO CART
TERMINAL PANEL M3230700003 · qty on machine: 1 view full part page → $258.95
2	M9220100304	OUTPUT TERMINAL BOLT	5		ADD TO CART
OUTPUT TERMINAL BOLT M9220100304 · qty on machine: 5 view full part page → $118.95
3	0801830804	TIE BOLT	5	REPLACES P/N M9220100404	ADD TO CART
TIE BOLT 0801830804 · qty on machine: 5 REPLACES P/N M9220100404 view full part page → $19.95
4	0039316000	HEX. NUT	10		ADD TO CART
HEX. NUT 0039316000 · qty on machine: 10 view full part page → $5.95
5	0040016000	WASHER, LOCK	15		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 15 view full part page → $4.95
6	0401450160	WASHER, FLAT	20	REPLACES P/N 0041416000	ADD TO CART
WASHER, FLAT 0401450160 · qty on machine: 20 REPLACES P/N 0041416000 view full part page → $0.53
7	0012108035	HEX. HEAD BOLT	5	REPLACES P/N 0016908035	ADD TO CART
HEX. HEAD BOLT 0012108035 · qty on machine: 5 REPLACES P/N 0016908035 view full part page → $1.95
8	M2237100103	TERMINAL COVER	1		ADD TO CART
TERMINAL COVER M2237100103 · qty on machine: 1 view full part page → $111.95
9	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0016906015 view full part page → $0.69
10	0605010040	HINGE	2		ADD TO CART
HINGE 0605010040 · qty on machine: 2 view full part page → $4.95
11	0027103010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027103010 · qty on machine: 4 view full part page → $0.44
11A	0207003000	HEX. NUT	4	REPLACES P/N 0030003000	ADD TO CART
HEX. NUT 0207003000 · qty on machine: 4 REPLACES P/N 0030003000 view full part page → $0.21
11B	0041203000	WASHER, FLAT	4		ADD TO CART
WASHER, FLAT 0041203000 · qty on machine: 4 view full part page → $0.12
12	0027103015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027103015 · qty on machine: 4 view full part page → $0.64
12A	0207003000	HEX. NUT	4	REPLACES P/N 0030003000	ADD TO CART
HEX. NUT 0207003000 · qty on machine: 4 REPLACES P/N 0030003000 view full part page → $0.21
13	M3236100104	OUTPUT WINDOW	1		ADD TO CART
OUTPUT WINDOW M3236100104 · qty on machine: 1 view full part page → $72.95
14	M9220100804	SET SCREW	2		ADD TO CART
SET SCREW M9220100804 · qty on machine: 2 view full part page → $20.95
15	0040006000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040006000 · qty on machine: 2 view full part page → $0.17
16	952404470	WASHER, FLAT	2	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 2 REPLACES P/N 0041206000 view full part page → $0.19
17	0080200005	E-RING	2		ADD TO CART
E-RING 0080200005 · qty on machine: 2 view full part page → $0.25
18	M3454400003	TERMINAL COVER	1		ADD TO CART
TERMINAL COVER M3454400003 · qty on machine: 1 view full part page → $66.95
19	012212045	HEX. HEAD BOLT	2	REPLACES P/N 0010112045	ADD TO CART
HEX. HEAD BOLT 012212045 · qty on machine: 2 REPLACES P/N 0010112045 view full part page → $2.95
20	031112230	WASHER, FLAT	6	REPLACES P/N 0041212000	ADD TO CART
WASHER, FLAT 031112230 · qty on machine: 6 REPLACES P/N 0041212000 view full part page → $0.95
21	0605050060	CONICAL WASHER, LOCK	2		ADD TO CART
CONICAL WASHER, LOCK 0605050060 · qty on machine: 2 view full part page → $5.95
22	0030012000	HEX. NUT	2		ADD TO CART
HEX. NUT 0030012000 · qty on machine: 2 view full part page → $0.5
23	M3236400204	COVER	1		ADD TO CART
COVER M3236400204 · qty on machine: 1 view full part page → $81.95
24	011106015	HEX. HEAD BOLT	8	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 8 REPLACES P/N 0016906015 view full part page → $0.69
25	M1260700504	BRACKET, CIRCUIT BREAKER	1	S/N 7601039 AND BELOW	ADD TO CART
BRACKET, CIRCUIT BREAKER M1260700504 · qty on machine: 1 S/N 7601039 AND BELOW view full part page → $11.95
25	M1260700304	BRACKET, CIRCUIT BREAKER	1	S/N 7601040 AND ABOVE	ADD TO CART
BRACKET, CIRCUIT BREAKER M1260700304 · qty on machine: 1 S/N 7601040 AND ABOVE view full part page → $75.95
25-1	0222100100	RUBBER CUSHION	1	S/N 7601039 AND BELOW	ADD TO CART
RUBBER CUSHION 0222100100 · qty on machine: 1 S/N 7601039 AND BELOW view full part page → $6.95
25-1	0222100150	RUBBER CUSHION	1	S/N 7601040 AND ABOVE	ADD TO CART
RUBBER CUSHION 0222100150 · qty on machine: 1 S/N 7601040 AND ABOVE view full part page → $6.95
26	011206020	HEX. HEAD BOLT	2	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 2 REPLACES P/N 0016906020 view full part page → $0.95
27	0601870440	CIRCUIT BREAKER, 1P 20A	2	S/N 7601039 AND BELOW	ADD TO CART
CIRCUIT BREAKER, 1P 20A 0601870440 · qty on machine: 2 S/N 7601039 AND BELOW view full part page → $34.95
27	0601808803	CIRCUIT BREAKER, 1P 20A	2	S/N 7601040 AND ABOVE	ADD TO CART
CIRCUIT BREAKER, 1P 20A 0601808803 · qty on machine: 2 S/N 7601040 AND ABOVE view full part page → $46.95
28	0601870441	CIRCUIT BREAKER, 2P 50A	3	S/N 7601039 AND BELOW	ADD TO CART
CIRCUIT BREAKER, 2P 50A 0601870441 · qty on machine: 3 S/N 7601039 AND BELOW view full part page → $77.95
28	0601808804	CIRCUIT BREAKER, 2P 50A	3	S/N 7601040 AND ABOVE	ADD TO CART
CIRCUIT BREAKER, 2P 50A 0601808804 · qty on machine: 3 S/N 7601040 AND ABOVE view full part page → $98.95
29	Y0601814014	RECEPTACLE, 50A	3		ADD TO CART
RECEPTACLE, 50A Y0601814014 · qty on machine: 3 view full part page → $76.95
30	0601814013	RECEPTACLE, 20A	2		ADD TO CART
RECEPTACLE, 20A 0601814013 · qty on machine: 2 view full part page → $118.95

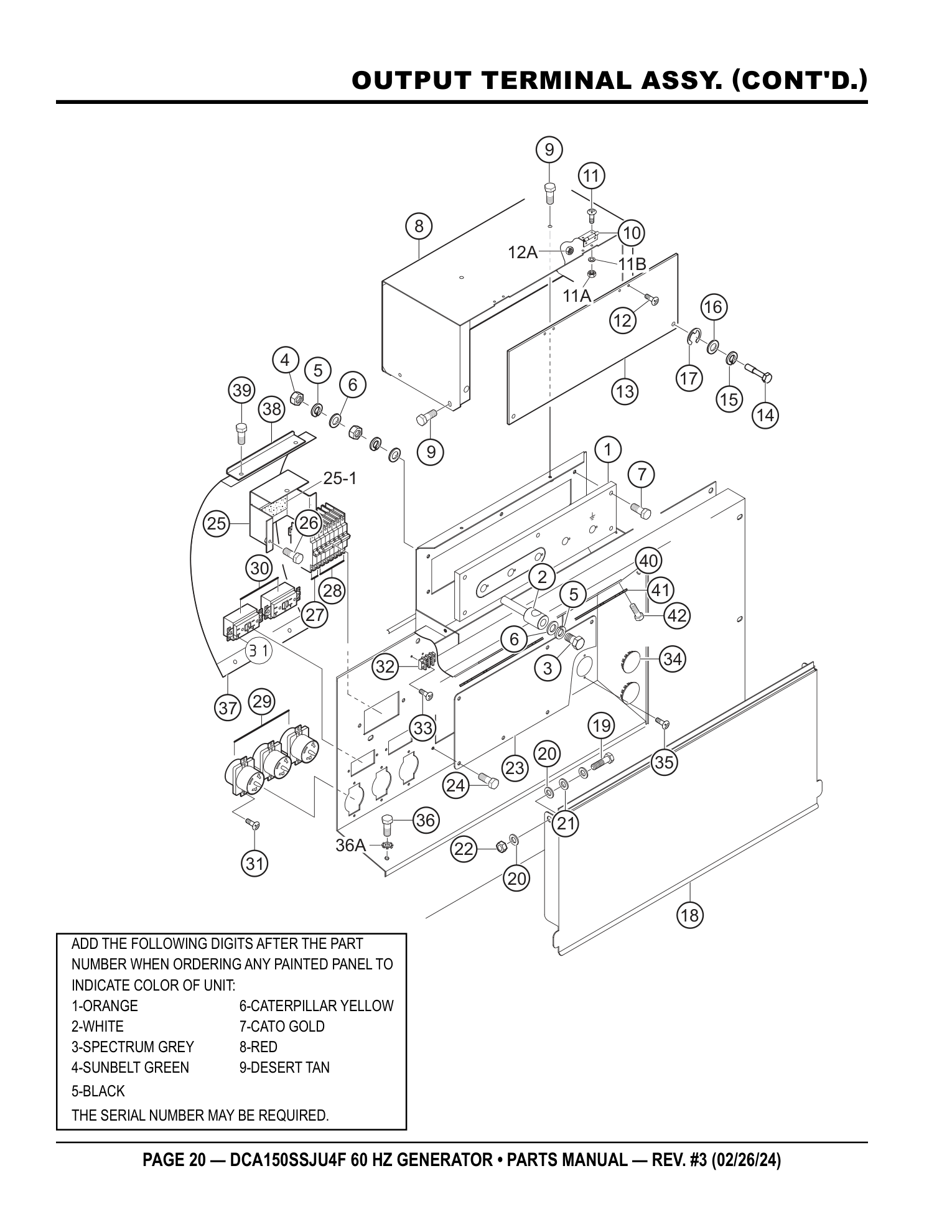

Page 20 — OUTPUT TERMINAL ASSY. (CONT'D.)

Multiquip DCA150SSJU4F Generator OUTPUT TERMINAL ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed14 rows

No.	Part No.	Part Name	Qty	Remarks
31	7538070	MACHINE SCREW	10	REPLACES P/N 0027104015	ADD TO CART
MACHINE SCREW 7538070 · qty on machine: 10 REPLACES P/N 0027104015 view full part page → $0.52
31A	OEMAA8	HEX. NUT	10	REPLACES P/N 0207004000	ADD TO CART
HEX. NUT OEMAA8 · qty on machine: 10 REPLACES P/N 0207004000 view full part page → $0.4
32	0601815194	TERMINAL	1		NO LONGER AVAILABLE
PHOTO COMING TERMINAL 0601815194 · qty on machine: 1 NO LONGER AVAILABLE
33	7538070	MACHINE SCREW	2	REPLACES P/N 0027104015	ADD TO CART
MACHINE SCREW 7538070 · qty on machine: 2 REPLACES P/N 0027104015 view full part page → $0.52
34	0603306775	BLIND PLUG	2		ADD TO CART
BLIND PLUG 0603306775 · qty on machine: 2 view full part page → $3.95
35	7538070	MACHINE SCREW	4	REPLACES P/N 0027104015	ADD TO CART
MACHINE SCREW 7538070 · qty on machine: 4 REPLACES P/N 0027104015 view full part page → $0.52
36	0019208020	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 1 view full part page → $3.95
36A	0040508000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040508000 · qty on machine: 1 view full part page → $0.35
37	M3237100204	INSULATING COVER	1		ADD TO CART
INSULATING COVER M3237100204 · qty on machine: 1 view full part page → $176.95
38	M4236400304	BRACKET	1		ADD TO CART
BRACKET M4236400304 · qty on machine: 1 view full part page → $19.95
39	011106015	HEX. HEAD BOLT	2	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 2 REPLACES P/N 0016906015 view full part page → $0.69
40	M3236400004	CABLE OUTLET COVER	1		ADD TO CART
CABLE OUTLET COVER M3236400004 · qty on machine: 1 view full part page → $14.95
41	M3236300004	SUPPORTER, CABLE OUTLET COVER	1		ADD TO CART
SUPPORTER, CABLE OUTLET COVER M3236300004 · qty on machine: 1 view full part page → $24.95
42	011206020	HEX. HEAD BOLT	6	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 6 REPLACES P/N 0016906020 view full part page → $0.95

Page 22 — BATTERY ASSY.

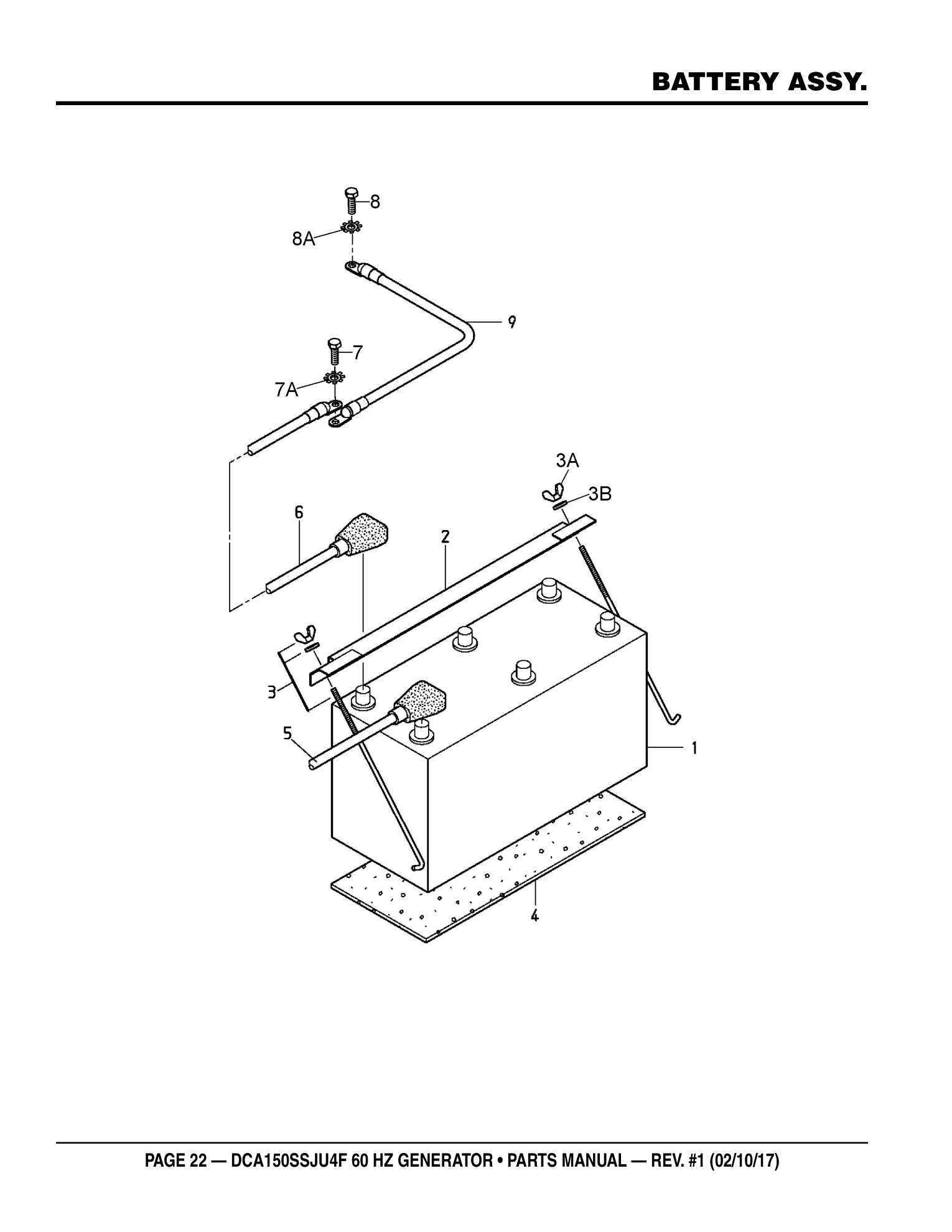

Multiquip DCA150SSJU4F Generator BATTERY ASSY. parts diagram

Parts list — exactly as printed13 rows

No.	Part No.	Part Name	Qty	Remarks
1	0602220198	BATTERY	1		ADD TO CART
BATTERY 0602220198 · qty on machine: 1 view full part page → $500.95
2	M9103000504	BATTERY BAND	1		ADD TO CART
BATTERY BAND M9103000504 · qty on machine: 1 view full part page → $107.95
3	0602220921	BATTERY BOLT SET	2	INCLUDES ITEMS W/#	ADD TO CART
BATTERY BOLT SET 0602220921 · qty on machine: 2 INCLUDES ITEMS W/# Kit includes: 3A#, 3B# view full part page → $5.95 IN A KIT + SOLD SOLO
3A#		WING NUT	2		INCLUDED IN KIT
PHOTO COMING WING NUT · qty on machine: 2 Included in kit 3 - BATTERY BOLT SET (0602220921) INCLUDED IN KIT
3B#		PLASTIC WASHER	2		INCLUDED IN KIT
PHOTO COMING PLASTIC WASHER · qty on machine: 2 Included in kit 3 - BATTERY BOLT SET (0602220921) INCLUDED IN KIT
4	M9310500404	BATTERY SHEET	1		PARTS REQUEST
PHOTO COMING BATTERY SHEET M9310500404 · qty on machine: 1 PARTS REQUEST
5	M2346900704	BATTERY CABLE	1		ADD TO CART
BATTERY CABLE M2346900704 · qty on machine: 1 view full part page → $100.95
6	M3346901114	BATTERY CABLE	1		PARTS REQUEST
PHOTO COMING BATTERY CABLE M3346901114 · qty on machine: 1 PARTS REQUEST
7	0017112025	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0017112025 · qty on machine: 1 view full part page → $2.93
7A	0040512000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040512000 · qty on machine: 1 view full part page → $0.77
8	0016910025	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0016910025 · qty on machine: 1 view full part page → $1.56
8A	0040510000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040510000 · qty on machine: 1 view full part page → $0.77
9		EARTH CABLE	1	MAKE LOCALLY	SEE REMARKS
PHOTO COMING EARTH CABLE · qty on machine: 1 MAKE LOCALLY SEE REMARKS

Page 24 — MUFFLER ASSY.

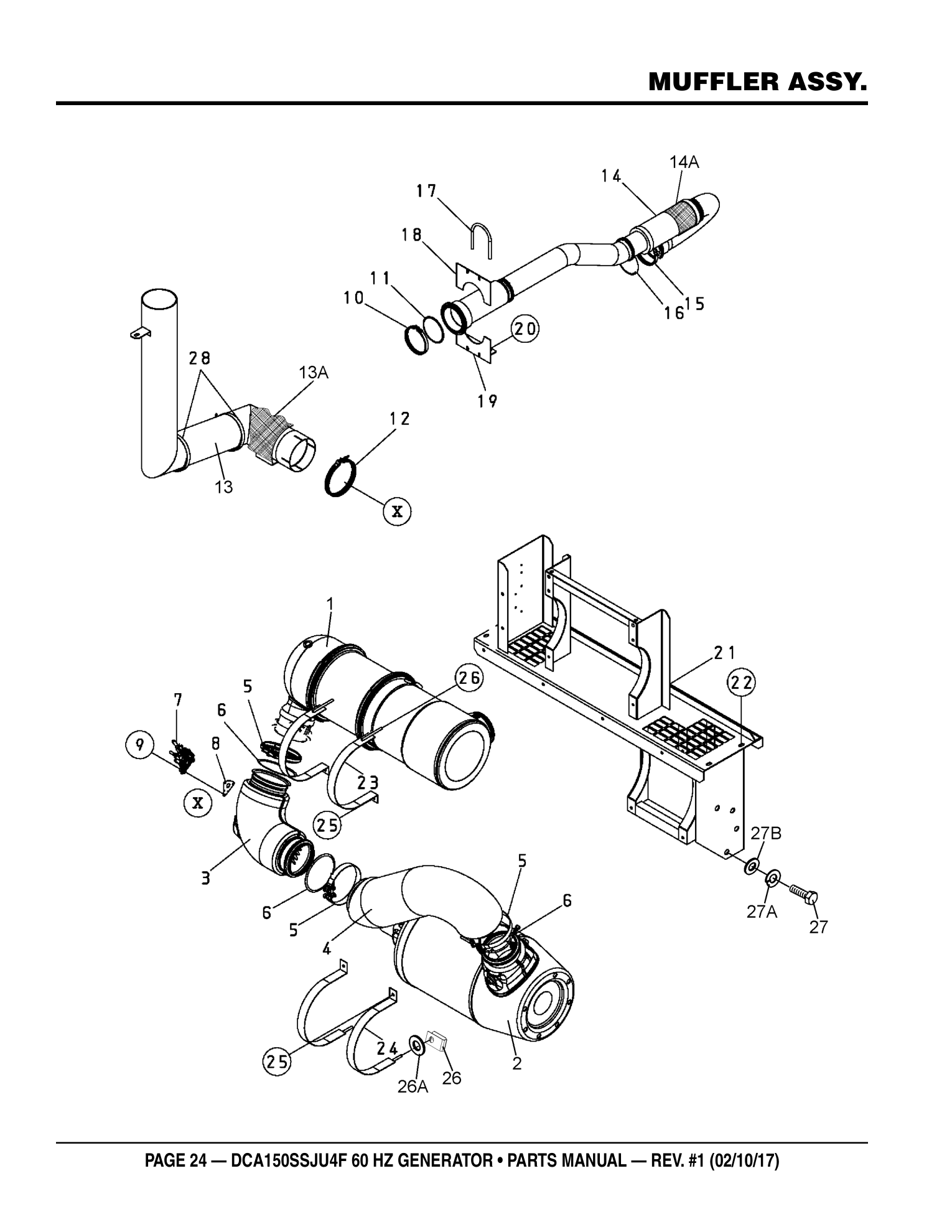

Multiquip DCA150SSJU4F Generator MUFFLER ASSY. parts diagram

Parts list — exactly as printed35 rows

No.	Part No.	Part Name	Qty	Remarks
1	RE559542	DIESEL PARTICULATE FILTER	1	REPLACES P/N Y0602330102 S/N 7601140 AND BELOW	PARTS REQUEST
PHOTO COMING DIESEL PARTICULATE FILTER RE559542 · qty on machine: 1 REPLACES P/N Y0602330102 S/N 7601140 AND BELOW PARTS REQUEST
1	Y0602330107	DIESEL PARTICULATE FILTER	1	S/N 7601141 AND ABOVE	PARTS REQUEST
PHOTO COMING DIESEL PARTICULATE FILTER Y0602330107 · qty on machine: 1 S/N 7601141 AND ABOVE PARTS REQUEST
2	RE554146	SCR CATALYST	1	REPLACES P/N Y0602330300 S/N 7601140 AND BELOW	PARTS REQUEST
PHOTO COMING SCR CATALYST RE554146 · qty on machine: 1 REPLACES P/N Y0602330300 S/N 7601140 AND BELOW PARTS REQUEST
2	Y0602330304	SCR CATALYST	1	S/N 7601141 AND ABOVE	PARTS REQUEST
PHOTO COMING SCR CATALYST Y0602330304 · qty on machine: 1 S/N 7601141 AND ABOVE PARTS REQUEST
3	RE565074	DECOMPOSITION TUBE	1	REPLACES P/N Y0602330403	ADD TO CART
DECOMPOSITION TUBE RE565074 · qty on machine: 1 REPLACES P/N Y0602330403 view full part page → $2420.95
4	RE559456	DECOMPOSITION EXTENSION TUBE	1	REPLACES P/N Y0602330404	PARTS REQUEST
PHOTO COMING DECOMPOSITION EXTENSION TUBE RE559456 · qty on machine: 1 REPLACES P/N Y0602330404 PARTS REQUEST
5	RE540348	V-BAND CLAMP	3	REPLACES P/N Y0602325034	ADD TO CART
V-BAND CLAMP RE540348 · qty on machine: 3 REPLACES P/N Y0602325034 view full part page → $163.95
6	R529640	GASKET	3	REPLACES P/N Y0602320205	ADD TO CART
GASKET R529640 · qty on machine: 3 REPLACES P/N Y0602320205 view full part page → $97.95
7	RE560468	DEF INJECTOR	1	REPLACES P/N Y0602330405	ADD TO CART
DEF INJECTOR RE560468 · qty on machine: 1 REPLACES P/N Y0602330405 view full part page → $1355.95
8	RE556879	GASKET	1	REPLACES P/N Y0602330406	ADD TO CART
GASKET RE556879 · qty on machine: 1 REPLACES P/N Y0602330406 view full part page → $25.95
9	R537624	HEX. HEAD BOLT	3	REPLACES P/N Y0602330407	ADD TO CART
HEX. HEAD BOLT R537624 · qty on machine: 3 REPLACES P/N Y0602330407 view full part page → $4.95
10	RE298757	V-BAND CLAMP	1	REPLACES P/N Y0602325036	ADD TO CART
V-BAND CLAMP RE298757 · qty on machine: 1 REPLACES P/N Y0602325036 view full part page → $162.95
11	R300529	SEALING RING	1	REPLACES P/N Y0602320203	ADD TO CART
SEALING RING R300529 · qty on machine: 1 REPLACES P/N Y0602320203 view full part page → $140.95
12	Y0602325026	PIPE BAND	1		ADD TO CART
PIPE BAND Y0602325026 · qty on machine: 1 view full part page → $37.95
13	M3334100103	TAIL PIPE	1		ADD TO CART
TAIL PIPE M3334100103 · qty on machine: 1 view full part page → $1146.95
13A	Y0400005000	TAIL PIPE INSULATING WRAP	1		ADD TO CART
TAIL PIPE INSULATING WRAP Y0400005000 · qty on machine: 1 view full part page → $124.95
14	M3334000103	EXHAUST PIPE	1		PARTS REQUEST
PHOTO COMING EXHAUST PIPE M3334000103 · qty on machine: 1 PARTS REQUEST
14A	Y0602311143	EXHAUST INSULATING MAT	1		PARTS REQUEST
PHOTO COMING EXHAUST INSULATING MAT Y0602311143 · qty on machine: 1 PARTS REQUEST
15	RE289839	V-BAND CLAMP	1	REPLACES P/N Y0602325037	ADD TO CART
V-BAND CLAMP RE289839 · qty on machine: 1 REPLACES P/N Y0602325037 view full part page → $107.95
16	R528112	SEALING RING	1	REPLACES P/N Y0602320201	ADD TO CART
SEALING RING R528112 · qty on machine: 1 REPLACES P/N Y0602320201 view full part page → $116.95
17	0602326060	U-BOLT	1		ADD TO CART
U-BOLT 0602326060 · qty on machine: 1 view full part page → $16.95
18	M3334300604	COVER, EXHAUST PIPE	1		PARTS REQUEST
PHOTO COMING COVER, EXHAUST PIPE M3334300604 · qty on machine: 1 PARTS REQUEST
19	M3334300503	BRACKET, EXHAUST PIPE	1		PARTS REQUEST
PHOTO COMING BRACKET, EXHAUST PIPE M3334300503 · qty on machine: 1 PARTS REQUEST
20	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
21	M3331200103	BRACKET, DPF AND SCR	1		PARTS REQUEST
PHOTO COMING BRACKET, DPF AND SCR M3331200103 · qty on machine: 1 PARTS REQUEST
22	0016910025	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016910025 · qty on machine: 4 view full part page → $1.56
23	M3331400604	DPF BAND	2		ADD TO CART
DPF BAND M3331400604 · qty on machine: 2 view full part page → $77.95
24	M3331400704	SCR BAND	2		ADD TO CART
SCR BAND M3331400704 · qty on machine: 2 view full part page → $17.95
25	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
26	020108060	U-NUT	4	REPLACES P/N 0037908000	ADD TO CART
U-NUT 020108060 · qty on machine: 4 REPLACES P/N 0037908000 view full part page → $0.28
26A	0401450080	WASHER, FLAT	4	REPLACES P/N 0041208000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 4 REPLACES P/N 0041208000 view full part page → $0.56
27	Y0010116030	HEX. HEAD BOLT	4		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0010116030 · qty on machine: 4 PARTS REQUEST
27A	0040016000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 4 view full part page → $4.95
27B	0041216000	WASHER, FLAT	4		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 4 view full part page → $1.95
28	0605515202	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515202 · qty on machine: 2 view full part page → $9.95

Page 26 — FUEL LINE ROUTING (PLUMBING) ASSY.

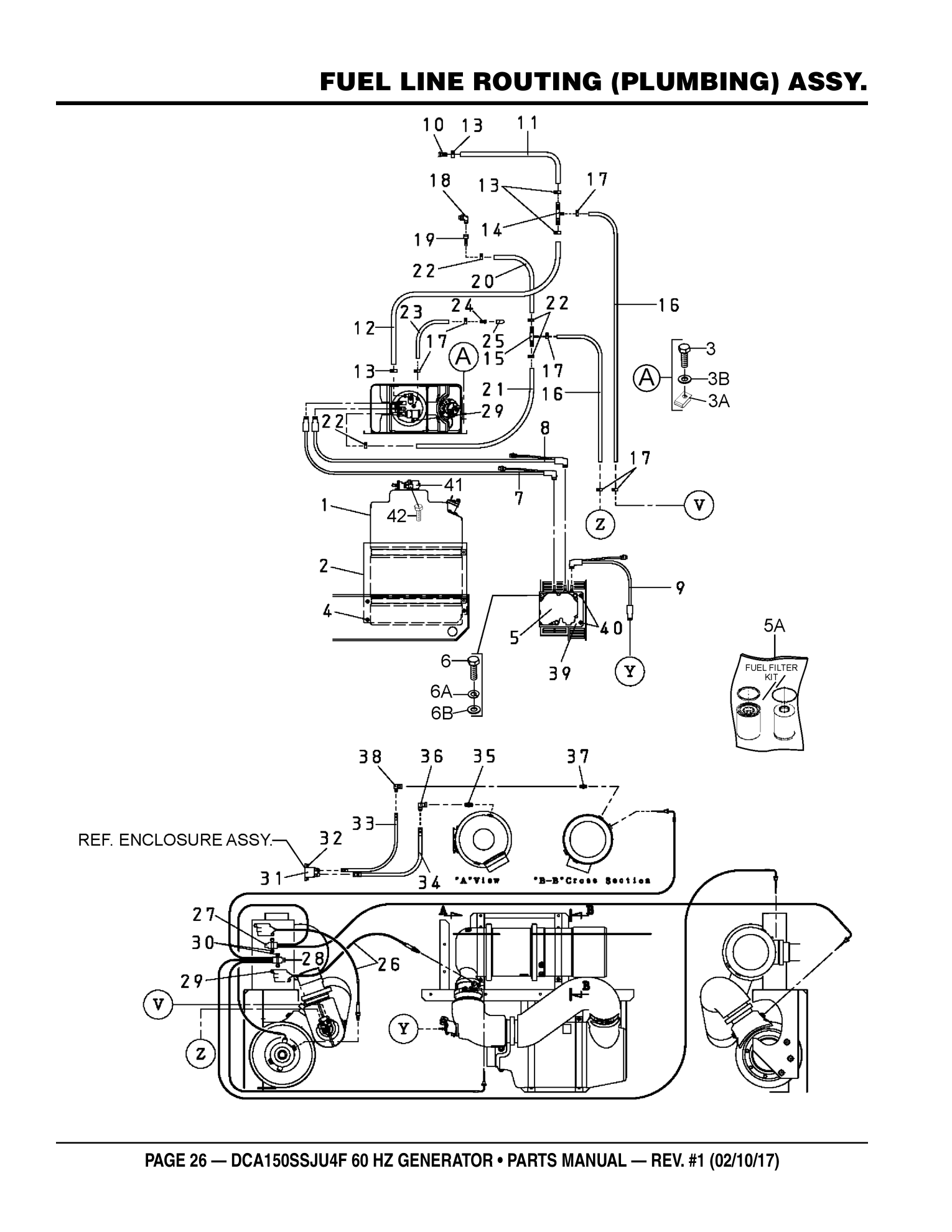

Multiquip DCA150SSJU4F Generator FUEL LINE ROUTING (PLUMBING) ASSY. parts diagram

Parts list — exactly as printed40 rows

No.	Part No.	Part Name	Qty	Remarks
1	RE558330	DEF TANK	1	REPLACES P/N Y0605500070 S/N 7601130 AND BELOW	PARTS REQUEST
PHOTO COMING DEF TANK RE558330 · qty on machine: 1 REPLACES P/N Y0605500070 S/N 7601130 AND BELOW PARTS REQUEST
1	Y0605500072	DEF TANK	1	S/N 7601131 AND ABOVE	NO LONGER AVAILABLE
PHOTO COMING DEF TANK Y0605500072 · qty on machine: 1 S/N 7601131 AND ABOVE NO LONGER AVAILABLE
2	M3331400503	BRACKET, DEF TANK	1		PARTS REQUEST
PHOTO COMING BRACKET, DEF TANK M3331400503 · qty on machine: 1 PARTS REQUEST
3	011208060	HEX. HEAD BOLT	2	REPLACES P/N 0016908055	PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT 011208060 · qty on machine: 2 REPLACES P/N 0016908055 PARTS REQUEST
3A	020108060	U-NUT	2	REPLACES P/N 0037908000	ADD TO CART
U-NUT 020108060 · qty on machine: 2 REPLACES P/N 0037908000 view full part page → $0.28
3B	0401450080	WASHER, FLAT	2	REPLACES P/N 0041208000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 2 REPLACES P/N 0041208000 view full part page → $0.56
4	011008020	HEX. HEAD BOLT	3	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 3 REPLACES P/N 0016908020 view full part page → $2.68
5	RE552175	DEF SUPPLY MODULE	1	REPLACES P/N Y0602330400	ADD TO CART
DEF SUPPLY MODULE RE552175 · qty on machine: 1 REPLACES P/N Y0602330400 view full part page → $2050.95
5A	RE554498	FILTER KIT, DEF SUPPLY MODULE	1	REPLACES P/N Y0602330414	ADD TO CART
FILTER KIT, DEF SUPPLY MODULE RE554498 · qty on machine: 1 REPLACES P/N Y0602330414 view full part page → $309.95
5B	RE555351	COVER KIT, DEF SUPPLY MODULE	1		ADD TO CART
COVER KIT, DEF SUPPLY MODULE RE555351 · qty on machine: 1 view full part page → $34.95
6	Y0010108090	HEX. HEAD BOLT	3		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0010108090 · qty on machine: 3 PARTS REQUEST
6A	0040008000	WASHER, LOCK	3		ADD TO CART
WASHER, LOCK 0040008000 · qty on machine: 3 view full part page → $0.63
6B	0401450080	WASHER, FLAT	3	REPLACES P/N 0041208000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 3 REPLACES P/N 0041208000 view full part page → $0.56
7	RE560902	DEF SUCTION LINE	1	REPLACES P/N Y0602330411	ADD TO CART
DEF SUCTION LINE RE560902 · qty on machine: 1 REPLACES P/N Y0602330411 view full part page → $733.95
8	RE560900	DEF BACKFLOW LINE	1	REPLACES P/N Y0602330412	ADD TO CART
DEF BACKFLOW LINE RE560900 · qty on machine: 1 REPLACES P/N Y0602330412 view full part page → $591.95
9	RE560894	DEF PRESSURE LINE	1	REPLACES P/N Y0602330413	ADD TO CART
DEF PRESSURE LINE RE560894 · qty on machine: 1 REPLACES P/N Y0602330413 view full part page → $570.95
10	AT377287	HOSE BARB	1	REPLACES P/N Y0602022975	ADD TO CART
HOSE BARB AT377287 · qty on machine: 1 REPLACES P/N Y0602022975 view full part page → $49.95
11	Y0269300730	COOLANT HOSE	1		ADD TO CART
COOLANT HOSE Y0269300730 · qty on machine: 1 view full part page → $12.95
12	Y0269300250	COOLANT HOSE	1	S/N 7601140 AND BELOW	ADD TO CART
COOLANT HOSE Y0269300250 · qty on machine: 1 S/N 7601140 AND BELOW view full part page → $5.95
12	Y0269301200	COOLANT HOSE	1	S/N 7601141 AND ABOVE	PARTS REQUEST
PHOTO COMING COOLANT HOSE Y0269301200 · qty on machine: 1 S/N 7601141 AND ABOVE PARTS REQUEST
13	Y0605515341	HOSE BAND	6	S/N 7601140 AND BELOW	ADD TO CART
HOSE BAND Y0605515341 · qty on machine: 6 S/N 7601140 AND BELOW view full part page → $2.95
13	Y0605515341	HOSE BAND	4	S/N 7601141 AND ABOVE	ADD TO CART
HOSE BAND Y0605515341 · qty on machine: 4 S/N 7601141 AND ABOVE view full part page → $2.95
14	T317541	BLACK TEE-FITTING WITH ORIFICE	1	REPLACES P/N Y0602022976	ADD TO CART
BLACK TEE-FITTING WITH ORIFICE T317541 · qty on machine: 1 REPLACES P/N Y0602022976 view full part page → $17.95
15	T296925	WHITE TEE-FITTING	1	REPLACES P/N Y0602022977	ADD TO CART
WHITE TEE-FITTING T296925 · qty on machine: 1 REPLACES P/N Y0602022977 view full part page → $12.95
16	Y0379601300	COOLANT HOSE	2		PARTS REQUEST
PHOTO COMING COOLANT HOSE Y0379601300 · qty on machine: 2 PARTS REQUEST
17	Y0605515340	HOSE BAND	6		ADD TO CART
HOSE BAND Y0605515340 · qty on machine: 6 view full part page → $2.95
18	Y0602022585	90° ELBOW	1		PARTS REQUEST
PHOTO COMING 90° ELBOW Y0602022585 · qty on machine: 1 PARTS REQUEST
19	0602022980	HOSE JOINT	1		ADD TO CART
HOSE JOINT 0602022980 · qty on machine: 1 view full part page → $11.95
20	Y0379700680	COOLANT HOSE	1		PARTS REQUEST
PHOTO COMING COOLANT HOSE Y0379700680 · qty on machine: 1 PARTS REQUEST
21	Y0379701250	COOLANT HOSE	1		PARTS REQUEST
PHOTO COMING COOLANT HOSE Y0379701250 · qty on machine: 1 PARTS REQUEST
22	0605515198	HOSE BAND	4		ADD TO CART
HOSE BAND 0605515198 · qty on machine: 4 view full part page → $1.71
23	0191301150	VENT HOSE	1		ADD TO CART
VENT HOSE 0191301150 · qty on machine: 1 view full part page → $47.95
24	H216170	DEF TANK VENT FITTING	1	REPLACES P/N Y0602330402	ADD TO CART
DEF TANK VENT FITTING H216170 · qty on machine: 1 REPLACES P/N Y0602330402 view full part page → $32.95
25	H216169	DEF TANK VENT FILTER	1	REPLACES P/N Y0602330401	ADD TO CART
DEF TANK VENT FILTER H216169 · qty on machine: 1 REPLACES P/N Y0602330401 view full part page → $54.95
26	RE552182	NOX SENSOR	2	REPLACES P/N Y0602330410	ADD TO CART
NOX SENSOR RE552182 · qty on machine: 2 REPLACES P/N Y0602330410 view full part page → $1348.95
27	RE552186	SCR TEMP. SENSOR	1	REPLACES P/N Y0602330409 S/N 7601140 AND BELOW	ADD TO CART
SCR TEMP. SENSOR RE552186 · qty on machine: 1 REPLACES P/N Y0602330409 S/N 7601140 AND BELOW view full part page → $917.95
28	RE552185	DPF TEMP. SENSOR	1	REPLACES P/N Y0602330204 S/N 7601140 AND BELOW	ADD TO CART
DPF TEMP. SENSOR RE552185 · qty on machine: 1 REPLACES P/N Y0602330204 S/N 7601140 AND BELOW view full part page → $991.95
28	Y0602330426	DPF TEMP. SENSOR	1	S/N 7601141 AND ABOVE	PARTS REQUEST
PHOTO COMING DPF TEMP. SENSOR Y0602330426 · qty on machine: 1 S/N 7601141 AND ABOVE PARTS REQUEST
29	011106015	HEX. HEAD BOLT	8	REPLACES P/N 0016906015 S/N 7601140 AND BELOW	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 8 REPLACES P/N 0016906015 S/N 7601140 AND BELOW view full part page → $0.69
29	011106015	HEX HEAD BOLT	6	REPLACES P/N 0016906015 S/N 7601141 AND ABOVE	ADD TO CART
HEX HEAD BOLT 011106015 · qty on machine: 6 REPLACES P/N 0016906015 S/N 7601141 AND ABOVE view full part page → $0.69

Page 28 — FUEL LINE ROUTING (PLUMBING) ASSY. (CONT'D.)

Multiquip DCA150SSJU4F Generator FUEL LINE ROUTING (PLUMBING) ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed19 rows

No.	Part No.	Part Name	Qty	Remarks
30	RE542006	STRAP, TEMP. SENSOR	2	REPLACES P/N Y0602330205 S/N 7601140 AND BELOW	ADD TO CART
STRAP, TEMP. SENSOR RE542006 · qty on machine: 2 REPLACES P/N Y0602330205 S/N 7601140 AND BELOW view full part page → $23.95
30	RE542006	STRAP, TEMP. SENSOR	1	REPLACES P/N Y0602330205 S/N 7601141 AND ABOVE	ADD TO CART
STRAP, TEMP. SENSOR RE542006 · qty on machine: 1 REPLACES P/N Y0602330205 S/N 7601141 AND ABOVE view full part page → $23.95
31	RE538131	PRESSURE SENSOR	1	REPLACES P/N Y0602330203	ADD TO CART
PRESSURE SENSOR RE538131 · qty on machine: 1 REPLACES P/N Y0602330203 view full part page → $292.95
32	011208030	HEX. HEAD BOLT	2	REPLACES P/N 0016908030	ADD TO CART
HEX. HEAD BOLT 011208030 · qty on machine: 2 REPLACES P/N 0016908030 view full part page → $1.3
33	RE544013	FLEXIBLE LINE	1	REPLACES P/N Y0602330002	PARTS REQUEST
PHOTO COMING FLEXIBLE LINE RE544013 · qty on machine: 1 REPLACES P/N Y0602330002 PARTS REQUEST
34	RE544012	FLEXIBLE LINE	1	REPLACES P/N Y0602330001	ADD TO CART
FLEXIBLE LINE RE544012 · qty on machine: 1 REPLACES P/N Y0602330001 view full part page → $351.95
35	RE543081	JOINT	1	REPLACES P/N Y0602330201	ADD TO CART
JOINT RE543081 · qty on machine: 1 REPLACES P/N Y0602330201 view full part page → $18.95
36	Y0603306489	SWIVEL JOINT	1		ADD TO CART
SWIVEL JOINT Y0603306489 · qty on machine: 1 view full part page → $30.95
37	RE542003	JOINT	1	REPLACES P/N Y0602330200	ADD TO CART
JOINT RE542003 · qty on machine: 1 REPLACES P/N Y0602330200 view full part page → $18.95
38	Y0603306488	SWIVEL JOINT	1		ADD TO CART
SWIVEL JOINT Y0603306488 · qty on machine: 1 view full part page → $21.95
39	M3331400804	SUPPLY MODULE BRACKET	1	S/N 7601130 AND BELOW	PARTS REQUEST
PHOTO COMING SUPPLY MODULE BRACKET M3331400804 · qty on machine: 1 S/N 7601130 AND BELOW PARTS REQUEST
39	M3331400814	SUPPLY MODULE BRACKET	1	S/N 7601131 AND ABOVE	PARTS REQUEST
PHOTO COMING SUPPLY MODULE BRACKET M3331400814 · qty on machine: 1 S/N 7601131 AND ABOVE PARTS REQUEST
40	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
41	RE560048	DEF HEADER	1	REPLACES P/N Y0602330408 S/N 7601140 AND BELOW	ADD TO CART
DEF HEADER RE560048 · qty on machine: 1 REPLACES P/N Y0602330408 S/N 7601140 AND BELOW view full part page → $4276.95
41	Y0602330422	DEF HEADER	1	S/N 7601141 AND ABOVE	NO LONGER AVAILABLE
PHOTO COMING DEF HEADER Y0602330422 · qty on machine: 1 S/N 7601141 AND ABOVE NO LONGER AVAILABLE
42	011106015	HEX. HEAD BOLT	3	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 3 REPLACES P/N 0016906015 view full part page → $0.69
43	Y0269300950	COOLANT HOSE	1	S/N 7601140 AND BELOW	ADD TO CART
COOLANT HOSE Y0269300950 · qty on machine: 1 S/N 7601140 AND BELOW view full part page → $16.95
44	Y0602330416	COOLANT FILTER	1	S/N 7601140 AND BELOW	PARTS REQUEST
PHOTO COMING COOLANT FILTER Y0602330416 · qty on machine: 1 S/N 7601140 AND BELOW PARTS REQUEST
45	0602220911	CLAMP	1		ADD TO CART
CLAMP 0602220911 · qty on machine: 1 view full part page → $1.85

Page 30 — FUEL TANK ASSY.

Multiquip DCA150SSJU4F Generator FUEL TANK ASSY. parts diagram

Parts list — exactly as printed22 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3364000402	FUEL TANK	1	INCLUDES ITEMS W/#	ADD TO CART
FUEL TANK M3364000402 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 1A#, 1B#, 1C#, 1-1# view full part page → $997.95 IN A KIT + SOLD SOLO
1A#	Y0605501065	FUEL SENDER UNIT	1		ADD TO CART
FUEL SENDER UNIT Y0605501065 · qty on machine: 1 Also included in kit 1 - FUEL TANK (M3364000402) view full part page → $190.95 IN A KIT + SOLD SOLO
1B#	Y0605516090	GASKET	1		ADD TO CART
GASKET Y0605516090 · qty on machine: 1 Also included in kit 1 - FUEL TANK (M3364000402) view full part page → $27.95 IN A KIT + SOLD SOLO
1C#	Y0605053020	HEX. HEAD BOLT W/ SEAL WASHER	5		ADD TO CART
HEX. HEAD BOLT W/ SEAL WASHER Y0605053020 · qty on machine: 5 Also included in kit 1 - FUEL TANK (M3364000402) view full part page → $1.87 IN A KIT + SOLD SOLO
1-1#	0605505070	FUEL TANK CAP	1		ADD TO CART
FUEL TANK CAP 0605505070 · qty on machine: 1 Also included in kit 1 - FUEL TANK (M3364000402) view full part page → $50.95 IN A KIT + SOLD SOLO
2	M4363200004	TANK BAND	2		ADD TO CART
TANK BAND M4363200004 · qty on machine: 2 view full part page → $22.95
3	M9310500104	SUPPORTER SHEET	4		ADD TO CART
SUPPORTER SHEET M9310500104 · qty on machine: 4 view full part page → $5.95
4	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
5	020108060	U-NUT	2	REPLACES P/N 0037908000	ADD TO CART
U-NUT 020108060 · qty on machine: 2 REPLACES P/N 0037908000 view full part page → $0.28
5A	0401450080	WASHER, FLAT	2	REPLACES P/N 0041208000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 2 REPLACES P/N 0041208000 view full part page → $0.56
6	0191302300	SUCTION HOSE	1		ADD TO CART
SUCTION HOSE 0191302300 · qty on machine: 1 view full part page → $113.95
7	0191302900	RETURN HOSE	1		ADD TO CART
RETURN HOSE 0191302900 · qty on machine: 1 view full part page → $139.44
8	Y0605515340	HOSE BAND	4		ADD TO CART
HOSE BAND Y0605515340 · qty on machine: 4 view full part page → $2.95
9	Y0602022577	90° ELBOW	1		ADD TO CART
90° ELBOW Y0602022577 · qty on machine: 1 view full part page → $39.95
10	Y0602022985	HOSE JOINT	2		ADD TO CART
HOSE JOINT Y0602022985 · qty on machine: 2 view full part page → $6.95
11	M1363400104	DRAIN HOSE	1		NO LONGER AVAILABLE
PHOTO COMING DRAIN HOSE M1363400104 · qty on machine: 1 Factory replaced this part - current number Y0191500220 NO LONGER AVAILABLE
12	0605515198	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515198 · qty on machine: 2 view full part page → $1.71
13	1502025103C	DRAIN JOINT	1	REPLACES P/N M9200000003	ADD TO CART
DRAIN JOINT 1502025103C · qty on machine: 1 REPLACES P/N M9200000003 view full part page → $29.95
14	011206020	HEX. HEAD BOLT	2	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 2 REPLACES P/N 0016906020 view full part page → $0.95
15	0802011104	DRAIN BOLT	1	REPLACES P/N M9200200004	ADD TO CART
DRAIN BOLT 0802011104 · qty on machine: 1 REPLACES P/N M9200200004 view full part page → $10.95
15A	0150000018	O-RING	1		ADD TO CART
O-RING 0150000018 · qty on machine: 1 view full part page → $1.87
16	Y0602022578	90° ELBOW	1		ADD TO CART
90° ELBOW Y0602022578 · qty on machine: 1 view full part page → $67.95

Page 32 — ENCLOSURE ASSY.

Multiquip DCA150SSJU4F Generator ENCLOSURE ASSY. parts diagram

Parts list — exactly as printed43 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3414000402	BASE	1		PARTS REQUEST
PHOTO COMING BASE M3414000402 · qty on machine: 1 PARTS REQUEST
1A	011008020	HEX. HEAD BOLT	1	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 1 REPLACES P/N 0016908020 view full part page → $2.68
1B	0040508000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040508000 · qty on machine: 1 view full part page → $0.35
2	M1413400004	COVER	1		ADD TO CART
COVER M1413400004 · qty on machine: 1 view full part page → $35.95
3	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
4	M3424000202	FRONT FRAME	1		PARTS REQUEST
PHOTO COMING FRONT FRAME M3424000202 · qty on machine: 1 PARTS REQUEST
4A	M3491200003	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3491200003 · qty on machine: 1 view full part page → $541.95
5	0016910025	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0016910025 · qty on machine: 8 view full part page → $1.56
6	M3424200304	COVER, FRONT FRAME	1		ADD TO CART
COVER, FRONT FRAME M3424200304 · qty on machine: 1 view full part page → $771.95
6A	M3491200104	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3491200104 · qty on machine: 1 view full part page → $51.95
7	0019208020	HEX. HEAD BOLT	22		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 22 view full part page → $3.95
8	M3424200203	OVER COVER, FRONT FRAME	1		ADD TO CART
OVER COVER, FRONT FRAME M3424200203 · qty on machine: 1 view full part page → $378.95
9	0019208020	HEX. HEAD BOLT	15		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 15 view full part page → $3.95
10	M3434000302	CENTER FRAME	1		ADD TO CART
CENTER FRAME M3434000302 · qty on machine: 1 view full part page → $2411.95
11	0010114040	HEX. HEAD BOLT	4		NO LONGER AVAILABLE
PHOTO COMING HEX. HEAD BOLT 0010114040 · qty on machine: 4 NO LONGER AVAILABLE
11A	030214350	WASHER, LOCK	4	REPLACES P/N 0040014000	ADD TO CART
WASHER, LOCK 030214350 · qty on machine: 4 REPLACES P/N 0040014000 view full part page → $0.46
11B	031114260	WASHER, FLAT	8	REPLACES P/N 0041214000	ADD TO CART
WASHER, FLAT 031114260 · qty on machine: 8 REPLACES P/N 0041214000 view full part page → $0.69
11C	515455840	HEX. NUT	4	REPLACES P/N 0030014000	ADD TO CART
HEX. NUT 515455840 · qty on machine: 4 REPLACES P/N 0030014000 view full part page → $35.95
12	0010120050	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0010120050 · qty on machine: 4 view full part page → $6.95
12A	030220510	WASHER, LOCK	4	REPLACES P/N 0040020000	ADD TO CART
WASHER, LOCK 030220510 · qty on machine: 4 REPLACES P/N 0040020000 view full part page → $1.95
12B	0041220000	WASHER, FLAT	8		ADD TO CART
WASHER, FLAT 0041220000 · qty on machine: 8 view full part page → $0.95
12C	0030020000	HEX. NUT	4		ADD TO CART
HEX. NUT 0030020000 · qty on machine: 4 view full part page → $1.82
13	M3444000302	REAR FRAME	1		PARTS REQUEST
PHOTO COMING REAR FRAME M3444000302 · qty on machine: 1 PARTS REQUEST
13A	M4493302804	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M4493302804 · qty on machine: 1 view full part page → $43.95
14	0016910025	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016910025 · qty on machine: 4 view full part page → $1.56
15	M4443300404	COVER, REAR FRAME	1		PARTS REQUEST
PHOTO COMING COVER, REAR FRAME M4443300404 · qty on machine: 1 PARTS REQUEST
15A	M4493302904	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M4493302904 · qty on machine: 1 view full part page → $131.95
16	0019208020	HEX. HEAD BOLT	14		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 14 view full part page → $3.95
17	M4443300503	DUCT, REAR FRAME	1		ADD TO CART
DUCT, REAR FRAME M4443300503 · qty on machine: 1 view full part page → $469.95
17A	M4493303004	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M4493303004 · qty on machine: 1 view full part page → $58.95
18	020108060	HEX. NUT	9	REPLACES P/N 0207008000	ADD TO CART
HEX. NUT 020108060 · qty on machine: 9 REPLACES P/N 0207008000 view full part page → $0.28
19	M3444200303	DOOR, REAR FRAME	1		ADD TO CART
DOOR, REAR FRAME M3444200303 · qty on machine: 1 view full part page → $495.95
20	M9110100204	HINGE	2		ADD TO CART
HINGE M9110100204 · qty on machine: 2 view full part page → $23.95
20A	M9116100004	WASHER	2		ADD TO CART
WASHER M9116100004 · qty on machine: 2 view full part page → $1.93
ADDTHE	FOLLOWINGDIGITS	AFTER THE PART			PARTS REQUEST
PHOTO COMING AFTER THE PART FOLLOWINGDIGITS PARTS REQUEST
NUMBER	WHENORDERING	ANY PAINTED PANEL TO			PARTS REQUEST
PHOTO COMING ANY PAINTED PANEL TO WHENORDERING PARTS REQUEST
INDICATE	COLOROFUNIT:				PARTS REQUEST
PHOTO COMING COLOROFUNIT: PARTS REQUEST
1-ORANGE		6-CATERPILLAR YELLOW			SEE REMARKS
PHOTO COMING 6-CATERPILLAR YELLOW SEE REMARKS
2-WHITE		7-CATO GOLD			SEE REMARKS
PHOTO COMING 7-CATO GOLD SEE REMARKS
3-SPECTRUM	GREY	8-RED			PARTS REQUEST
PHOTO COMING 8-RED GREY PARTS REQUEST
4-SUNBELT	GREEN	9-DESERT TAN			PARTS REQUEST
PHOTO COMING 9-DESERT TAN GREEN PARTS REQUEST
5-BLACK					SEE REMARKS
PHOTO COMING SEE REMARKS
THESERIAL	NUMBERMAY	BE REQUIRED.			PARTS REQUEST
PHOTO COMING BE REQUIRED. NUMBERMAY PARTS REQUEST

Page 34 — ENCLOSURE ASSY. (CONT'D.)

Multiquip DCA150SSJU4F Generator ENCLOSURE ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed47 rows

No.	Part No.	Part Name	Qty	Remarks
21	0845031504	BLIND PLUG	2	REPLACES P/N M9310000004	ADD TO CART
BLIND PLUG 0845031504 · qty on machine: 2 REPLACES P/N M9310000004 view full part page → $2.95
22	0019208020	HEX. HEAD BOLT	3		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 3 view full part page → $3.95
23	0601850097	STOPPER	1		ADD TO CART
STOPPER 0601850097 · qty on machine: 1 view full part page → $2.95
24	0027208025	MACHINE SCREW	1		ADD TO CART
MACHINE SCREW 0027208025 · qty on machine: 1 view full part page → $0.76
25	M4443600004	WINDOW PLATE	1		ADD TO CART
WINDOW PLATE M4443600004 · qty on machine: 1 view full part page → $155.95
26	020106050	SELF-LOCKING U NUT	8	REPLACES P/N 0037906000	ADD TO CART
SELF-LOCKING U NUT 020106050 · qty on machine: 8 REPLACES P/N 0037906000 view full part page → $0.12
26A	952404470	WASHER, FLAT	8	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 8 REPLACES P/N 0041206000 view full part page → $0.19
27	0600800320	MANUAL PAK	1		ADD TO CART
MANUAL PAK 0600800320 · qty on machine: 1 view full part page → $43.95
28	0027106016	MACHINE SCREW	4	REPLACES P/N 0021806015	ADD TO CART
MACHINE SCREW 0027106016 · qty on machine: 4 REPLACES P/N 0021806015 view full part page → $0.55
29	Y0605012309	DOOR HANDLE	1		ADD TO CART
DOOR HANDLE Y0605012309 · qty on machine: 1 view full part page → $49.95
30	0176060030	SELF-LOCKING NUT	4	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 4 REPLACES P/N 0207006000 view full part page → $2.95
31	M3464100102	ROOF PANEL	1		PARTS REQUEST
PHOTO COMING ROOF PANEL M3464100102 · qty on machine: 1 PARTS REQUEST
31A	M3491600004	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3491600004 · qty on machine: 1 view full part page → $602.95
32	0019208020	HEX. HEAD BOLT	10		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 10 view full part page → $3.95
33	M3310600004	COVER	1		ADD TO CART
COVER M3310600004 · qty on machine: 1 view full part page → $17.95
34	0019208020	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 4 view full part page → $3.95
35	M3464200102	ROOF PANEL	1		PARTS REQUEST
PHOTO COMING ROOF PANEL M3464200102 · qty on machine: 1 PARTS REQUEST
35A	M3491600104	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3491600104 · qty on machine: 1 view full part page → $238.95
36	0019208020	HEX. HEAD BOLT	16		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 16 view full part page → $3.95
37	0017110025	HEX. HEAD BOLT	4	REPLACES P/N 0019210025	ADD TO CART
HEX. HEAD BOLT 0017110025 · qty on machine: 4 REPLACES P/N 0019210025 view full part page → $1.95
38	M3317100004	BRACKET, SURGE TANK	1		ADD TO CART
BRACKET, SURGE TANK M3317100004 · qty on machine: 1 view full part page → $263.95
39	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
40	M3454200102	SPLASHER PANEL	1	S/N 7601039 AND BELOW	PARTS REQUEST
PHOTO COMING SPLASHER PANEL M3454200102 · qty on machine: 1 S/N 7601039 AND BELOW PARTS REQUEST
40	M3454200112	SPLASHER PANEL	1	S/N 7601040 AND ABOVE	PARTS REQUEST
PHOTO COMING SPLASHER PANEL M3454200112 · qty on machine: 1 S/N 7601040 AND ABOVE PARTS REQUEST
40A	M3494407404	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494407404 · qty on machine: 1 view full part page → $97.95
41	0019108065	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0019108065 · qty on machine: 6 view full part page → $1.95
41A	0042308000	WASHER, LOCK	6		ADD TO CART
WASHER, LOCK 0042308000 · qty on machine: 6 view full part page → $0.83
41B	031108160	WASHER, FLAT	6	REPLACES P/N 0042408000	ADD TO CART
WASHER, FLAT 031108160 · qty on machine: 6 REPLACES P/N 0042408000 Factory replaced this part - current number 0401450080 view full part page → $0.56 IN A KIT + SOLD SOLO
42	M3454001203	SIDE DOOR	1		ADD TO CART
SIDE DOOR M3454001203 · qty on machine: 1 view full part page → $890.95
42A	M3494406804	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494406804 · qty on machine: 1 view full part page → $686.95
43	M3454001303	SIDE DOOR	1		ADD TO CART
SIDE DOOR M3454001303 · qty on machine: 1 view full part page → $890.95
43A	M3494406904	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494406904 · qty on machine: 1 view full part page → $686.95
44	M3454001403	SIDE DOOR	1		ADD TO CART
SIDE DOOR M3454001403 · qty on machine: 1 view full part page → $969.95
44A	M3494407004	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494407004 · qty on machine: 1 view full part page → $648.95
45	M3454001503	SIDE DOOR	1		ADD TO CART
SIDE DOOR M3454001503 · qty on machine: 1 view full part page → $600.95
45A	M3494407104	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494407104 · qty on machine: 1 view full part page → $621.95
46	M3454300604	DUCT	4		ADD TO CART
DUCT M3454300604 · qty on machine: 4 view full part page → $387.95
46A	M3494407204	ACOUSTIC SHEET	4		ADD TO CART
ACOUSTIC SHEET M3494407204 · qty on machine: 4 view full part page → $395.95
ADDTHE	FOLLOWINGDIGITS	AFTER THE PART			PARTS REQUEST
PHOTO COMING AFTER THE PART FOLLOWINGDIGITS PARTS REQUEST
NUMBER	WHENORDERING	ANY PAINTED PANEL TO			PARTS REQUEST
PHOTO COMING ANY PAINTED PANEL TO WHENORDERING PARTS REQUEST
INDICATE	COLOROFUNIT:				PARTS REQUEST
PHOTO COMING COLOROFUNIT: PARTS REQUEST
1-ORANGE		6-CATERPILLAR YELLOW			SEE REMARKS
PHOTO COMING 6-CATERPILLAR YELLOW SEE REMARKS
2-WHITE		7-CATO GOLD			SEE REMARKS
PHOTO COMING 7-CATO GOLD SEE REMARKS
3-SPECTRUM	GREY	8-RED			PARTS REQUEST
PHOTO COMING 8-RED GREY PARTS REQUEST
4-SUNBELT	GREEN	9-DESERT TAN			PARTS REQUEST
PHOTO COMING 9-DESERT TAN GREEN PARTS REQUEST
5-BLACK					SEE REMARKS
PHOTO COMING SEE REMARKS
THESERIAL	NUMBERMAY	BE REQUIRED.			PARTS REQUEST
PHOTO COMING BE REQUIRED. NUMBERMAY PARTS REQUEST

Page 36 — ENCLOSURE ASSY. (CONT'D.)

Parts list — exactly as printed35 rows

No.	Part No.	Part Name	Qty	Remarks
47	M3454300704	DUCT	2		PARTS REQUEST
PHOTO COMING DUCT M3454300704 · qty on machine: 2 PARTS REQUEST
47A	M3494407304	ACOUSTIC SHEET	2		ADD TO CART
ACOUSTIC SHEET M3494407304 · qty on machine: 2 view full part page → $108.95
48	M3454300804	DUCT	1		PARTS REQUEST
PHOTO COMING DUCT M3454300804 · qty on machine: 1 PARTS REQUEST
48A	M3494411104	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494411104 · qty on machine: 1 view full part page → $81.95
49	020108060	HEX. NUT	39	REPLACES P/N 0207008000	ADD TO CART
HEX. NUT 020108060 · qty on machine: 39 REPLACES P/N 0207008000 view full part page → $0.28
50	Y0605012309	DOOR HANDLE	7		ADD TO CART
DOOR HANDLE Y0605012309 · qty on machine: 7 view full part page → $49.95
51	0176060030	SELF-LOCKING NUT	28	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 28 REPLACES P/N 0207006000 view full part page → $2.95
52	0845046904	HINGE	5	REPLACES P/N M9110100804	ADD TO CART
HINGE 0845046904 · qty on machine: 5 REPLACES P/N M9110100804 view full part page → $16.95
52A	M9116100004	WASHER	5		ADD TO CART
WASHER M9116100004 · qty on machine: 5 view full part page → $1.93
53	0845047004	HINGE	6	REPLACES P/N M9110100904	ADD TO CART
HINGE 0845047004 · qty on machine: 6 REPLACES P/N M9110100904 view full part page → $36.95
53A	M9116100004	WASHER	6		ADD TO CART
WASHER M9116100004 · qty on machine: 6 view full part page → $1.93
54	0019208020	HEX. HEAD BOLT	25		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 25 view full part page → $3.95
55	0601850097	STOPPER	8		ADD TO CART
STOPPER 0601850097 · qty on machine: 8 view full part page → $2.95
56	0027208025	MACHINE SCREW	8		ADD TO CART
MACHINE SCREW 0027208025 · qty on machine: 8 view full part page → $0.76
57	0845031504	BLIND PLUG	11	REPLACES P/N M9310000004	ADD TO CART
BLIND PLUG 0845031504 · qty on machine: 11 REPLACES P/N M9310000004 view full part page → $2.95
58	0017110025	HEX. HEAD BOLT	4	REPLACES P/N 0019210025	ADD TO CART
HEX. HEAD BOLT 0017110025 · qty on machine: 4 REPLACES P/N 0019210025 view full part page → $1.95
59	M3424700003	DEF TANK COVER A	1	S/N 7601130 AND BELOW	ADD TO CART
DEF TANK COVER A M3424700003 · qty on machine: 1 S/N 7601130 AND BELOW view full part page → $153.95
59	M3424700013	DEF TANK COVER A	1	S/N 7601131 AND ABOVE	PARTS REQUEST
PHOTO COMING DEF TANK COVER A M3424700013 · qty on machine: 1 S/N 7601131 AND ABOVE PARTS REQUEST
59A	Y0229200280	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL Y0229200280 · qty on machine: 1 view full part page → $1.95
60	0019208020	HEX. HEAD BOLT	7		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 7 view full part page → $3.95
61	M3424701004	DEF TANK COVER B	1		ADD TO CART
DEF TANK COVER B M3424701004 · qty on machine: 1 view full part page → $57.95
61A	M3424701104	DEF TANK COVER C	1		ADD TO CART
DEF TANK COVER C M3424701104 · qty on machine: 1 view full part page → $13.95
61B	Y0016906020	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT Y0016906020 · qty on machine: 2 view full part page → $1.45
61C	Y0041210000	WASHER, FLAT	2		ADD TO CART
WASHER, FLAT Y0041210000 · qty on machine: 2 view full part page → $0.19
62	0019206015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0019206015 · qty on machine: 4 view full part page → $3.95
63	0601851736	GROMMET	2		ADD TO CART
GROMMET 0601851736 · qty on machine: 2 view full part page → $12.95
ADDTHE	FOLLOWINGDIGITS	AFTER THE PART			PARTS REQUEST
PHOTO COMING AFTER THE PART FOLLOWINGDIGITS PARTS REQUEST
NUMBER	WHENORDERING	ANY PAINTED PANEL TO			PARTS REQUEST
PHOTO COMING ANY PAINTED PANEL TO WHENORDERING PARTS REQUEST
INDICATE	COLOROFUNIT:				PARTS REQUEST
PHOTO COMING COLOROFUNIT: PARTS REQUEST
1-ORANGE		6-CATERPILLAR YELLOW			SEE REMARKS
PHOTO COMING 6-CATERPILLAR YELLOW SEE REMARKS
2-WHITE		7-CATO GOLD			SEE REMARKS
PHOTO COMING 7-CATO GOLD SEE REMARKS
3-SPECTRUM	GREY	8-RED			PARTS REQUEST
PHOTO COMING 8-RED GREY PARTS REQUEST
4-SUNBELT	GREEN	9-DESERT TAN			PARTS REQUEST
PHOTO COMING 9-DESERT TAN GREEN PARTS REQUEST
5-BLACK					SEE REMARKS
PHOTO COMING SEE REMARKS
THESERIAL	NUMBERMAY	BE REQUIRED.			PARTS REQUEST
PHOTO COMING BE REQUIRED. NUMBERMAY PARTS REQUEST

Page 38 — RUBBER SEALS ASSY.

Multiquip DCA150SSJU4F Generator RUBBER SEALS ASSY. parts diagram

Parts list — exactly as printed15 rows

No.	Part No.	Part Name	Qty
1	Y0229201300	SEAL, RUBBER	4	PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0229201300 · qty on machine: 4 PARTS REQUEST
2	Y0229201200	SEAL, RUBBER	1	PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0229201200 · qty on machine: 1 PARTS REQUEST
3	Y0228901260	SEAL, RUBBER	3	PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0228901260 · qty on machine: 3 PARTS REQUEST
4	Y0228900690	SEAL, RUBBER	1	PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0228900690 · qty on machine: 1 PARTS REQUEST
5	Y0228900915	SEAL, RUBBER	4	PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0228900915 · qty on machine: 4 PARTS REQUEST
6	Y0228901115	SEAL, RUBBER	4	PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0228901115 · qty on machine: 4 PARTS REQUEST
7	Y0228901200	SEAL, RUBBER	3	PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0228901200 · qty on machine: 3 PARTS REQUEST
8	Y0228900630	SEAL, RUBBER	1	PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0228900630 · qty on machine: 1 PARTS REQUEST
9	Y0229400630	SEAL, RUBBER	1	PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0229400630 · qty on machine: 1 PARTS REQUEST
10	Y0228801050	SEAL, RUBBER	2	PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0228801050 · qty on machine: 2 PARTS REQUEST
11	Y0228800590	SEAL, RUBBER	1	PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0228800590 · qty on machine: 1 PARTS REQUEST
12	Y0228100560	SEAL, RUBBER	2	PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0228100560 · qty on machine: 2 PARTS REQUEST
13	Y0228100370	SEAL, RUBBER	2	PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0228100370 · qty on machine: 2 PARTS REQUEST
14	Y0222100165	RUBBER SHEET	2	PARTS REQUEST
PHOTO COMING RUBBER SHEET Y0222100165 · qty on machine: 2 PARTS REQUEST
15	Y0222100200	RUBBER SHEET	2	PARTS REQUEST
PHOTO COMING RUBBER SHEET Y0222100200 · qty on machine: 2 PARTS REQUEST

Page 40 — NAMEPLATE AND DECALS ASSY.

Multiquip DCA150SSJU4F Generator NAMEPLATE AND DECALS ASSY. parts diagram

Parts list — exactly as printed29 rows

No.	Part No.	Part Name	Qty	Remarks
1-1	M3551000103	DECAL: OPERATING PROCEDURES	1	M35100010	ADD TO CART
DECAL: OPERATING PROCEDURES M3551000103 · qty on machine: 1 M35100010 view full part page → $8.95
1-2	M3551000303	DECAL: DPF REGENERATION PROC.	1	M35100030	ADD TO CART
DECAL: DPF REGENERATION PROC. M3551000303 · qty on machine: 1 M35100030 view full part page → $5.95
1-3	M9520100304	DECAL: SAFETY INSTRUCTIONS	1	M92010030	ADD TO CART
DECAL: SAFETY INSTRUCTIONS M9520100304 · qty on machine: 1 M92010030 view full part page → $3.95
1-4	M9520100603	DECAL: CAUTION	2	M92010060	ADD TO CART
DECAL: CAUTION M9520100603 · qty on machine: 2 M92010060 view full part page → $8.95
1-5	M3551000603	DECAL: SCR INDICATOR CONTROL PANEL AND BOX GROUP	1	M35100060	ADD TO CART
DECAL: SCR INDICATOR CONTROL PANEL AND BOX GROUP M3551000603 · qty on machine: 1 M35100060 view full part page → $14.95
2-1	M3551000502	DECAL: CONTROL PANEL	1	M35100050	ADD TO CART
DECAL: CONTROL PANEL M3551000502 · qty on machine: 1 M35100050 view full part page → $52.95
2-2	M9520000104	PLATE: AMMETER CHANGE-OVER SW.	1	M92000010	ADD TO CART
PLATE: AMMETER CHANGE-OVER SW. M9520000104 · qty on machine: 1 M92000010 view full part page → $11.95
2-3	M9520000204	PLATE: VOLTMETER CHANGE-OVER SW.	1	M92000020	ADD TO CART
PLATE: VOLTMETER CHANGE-OVER SW. M9520000204 · qty on machine: 1 M92000020 view full part page → $11.95
2-4	M9520100004	DECAL: WARNING: ELECTRICAL SHK. HAZ. .2		M92010000	ADD TO CART
DECAL: WARNING: ELECTRICAL SHK. HAZ. .2 M9520100004 M92010000 view full part page → $5.95
2-5	M9520100704	DECAL: WARNING: ARC FLASH	1	M92010070	ADD TO CART
DECAL: WARNING: ARC FLASH M9520100704 · qty on machine: 1 M92010070 view full part page → $4.95
2-6	M9520200404	DECAL: OVER CURRENT RELAY	1	M92020040	ADD TO CART
DECAL: OVER CURRENT RELAY M9520200404 · qty on machine: 1 M92020040 view full part page → $3.95
2-7	M9522000504	DECAL: CIRCUIT BREAKER	1	M92200050	ADD TO CART
DECAL: CIRCUIT BREAKER M9522000504 · qty on machine: 1 M92200050 view full part page → $25.95
2-8	M9520100204	DECAL: CAUTION ENGINE AND RADIATOR GROUP	1	M92010020A	ADD TO CART
DECAL: CAUTION ENGINE AND RADIATOR GROUP M9520100204 · qty on machine: 1 M92010020A view full part page → $3.95
3-1	M9500000004	DECAL: OIL DRAIN PLUG	1	M90000000	ADD TO CART
DECAL: OIL DRAIN PLUG M9500000004 · qty on machine: 1 M90000000 view full part page → $2.95
3-2	M9500100004	DECAL: WATER	1	M90010000	ADD TO CART
DECAL: WATER M9500100004 · qty on machine: 1 M90010000 view full part page → $1.95
3-3	M9503000004	DECAL: WARNING: ROTATING PART	2	M90300000	ADD TO CART
DECAL: WARNING: ROTATING PART M9503000004 · qty on machine: 2 M90300000 view full part page → $1.95
3-4	M9503000103	DECAL: WATER-OIL CHECK	1	M90300010	ADD TO CART
DECAL: WATER-OIL CHECK M9503000103 · qty on machine: 1 M90300010 view full part page → $7.95
3-5	M9503100004	DECAL: WARNING: HOT COOLANT	1	M90310000	ADD TO CART
DECAL: WARNING: HOT COOLANT M9503100004 · qty on machine: 1 M90310000 view full part page → $4.95
3-6	M9510100004	DECAL: CAUTION: HOT PARTS OUTPUT TERMINAL GROUP	1	M91010000	ADD TO CART
DECAL: CAUTION: HOT PARTS OUTPUT TERMINAL GROUP M9510100004 · qty on machine: 1 M91010000 view full part page → $68.95
4-1	M1550002203	DECAL: RECEPTACLE AND CIRC. BREAKER .1		M15000220 S/N 7601039 AND BELOW	ADD TO CART
DECAL: RECEPTACLE AND CIRC. BREAKER .1 M1550002203 M15000220 S/N 7601039 AND BELOW view full part page → $33.95
4-1	M1550000703	DECAL: RECEPTACLE AND CIRC. BREAKER.1		M15000070 S/N 7601040 AND ABOVE	ADD TO CART
DECAL: RECEPTACLE AND CIRC. BREAKER.1 M1550000703 M15000070 S/N 7601040 AND ABOVE view full part page → $36.95
4-2	M9520000004	DECAL: GROUND	2	M92000000	ADD TO CART
DECAL: GROUND M9520000004 · qty on machine: 2 M92000000 view full part page → $1.95
4-3	M9520000504	DECAL: START CONTACT	1	M92000050	ADD TO CART
DECAL: START CONTACT M9520000504 · qty on machine: 1 M92000050 view full part page → $67.95
4-4	M9520200003	DECAL: CONNECTION OF OUTPUT CABLE	1	M92020000	ADD TO CART
DECAL: CONNECTION OF OUTPUT CABLE M9520200003 · qty on machine: 1 M92020000 view full part page → $7.95
4-5	M9520100404	DECAL: DANGER: HIGH VOLTAGE	1	M92010040	ADD TO CART
DECAL: DANGER: HIGH VOLTAGE M9520100404 · qty on machine: 1 M92010040 view full part page → $37.95
4-6	M9520100503	DECAL: WARNING	1	M92010050	ADD TO CART
DECAL: WARNING M9520100503 · qty on machine: 1 M92010050 view full part page → $1.95
4-7	M9511100104	DECAL: NOTICE	1	M91110010	ADD TO CART
DECAL: NOTICE M9511100104 · qty on machine: 1 M91110010 view full part page → $3.95
4-8	M3550000804	DECAL: NOTICE	1	M35000080A	ADD TO CART
DECAL: NOTICE M3550000804 · qty on machine: 1 M35000080A view full part page → $13.95
4-9	M9521200604	DECAL: BONDED NEUTRAL	1	M92120060 S/N 7601120 AND ABOVE	ADD TO CART
DECAL: BONDED NEUTRAL M9521200604 · qty on machine: 1 M92120060 S/N 7601120 AND ABOVE view full part page → $11.95

Page 42 — NAMEPLATE AND DECALS ASSY. (CONT'D.)

Multiquip DCA150SSJU4F Generator NAMEPLATE AND DECALS ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed26 rows

No.	Part No.	Part Name	Qty	Remarks
		BATTERY GROUP			SEE REMARKS
PHOTO COMING BATTERY GROUP SEE REMARKS
5-1	M9500300004	DECAL: -	1	M90030000	ADD TO CART
DECAL: - M9500300004 · qty on machine: 1 M90030000 view full part page → $1.95
5-2	M9500300104	DECAL: +	1	M90030010	ADD TO CART
DECAL: + M9500300104 · qty on machine: 1 M90030010 view full part page → $1.95
5-3	M9510100403	DECAL: CAUTION	1	M91010040	ADD TO CART
DECAL: CAUTION M9510100403 · qty on machine: 1 M91010040 view full part page → $16.95
5-4	M9501300004	DECAL: CAUTION MUFFLER GROUP	1	M90130000	ADD TO CART
DECAL: CAUTION MUFFLER GROUP M9501300004 · qty on machine: 1 M90130000 view full part page → $27.95
6-1	M9503200004	DECAL: WARNING: ENGINE EXHAUST	1	M90320000	ADD TO CART
DECAL: WARNING: ENGINE EXHAUST M9503200004 · qty on machine: 1 M90320000 view full part page → $14.95
6-2	M9503200104	DECAL: DANGER: EXHAUST	1	M90320010	ADD TO CART
DECAL: DANGER: EXHAUST M9503200104 · qty on machine: 1 M90320010 view full part page → $4.95
6-3	920214100	DECAL: WARNING: START FIRES REPLACES FUEL TANK GROUP	1	M90420000 P/N M9504200004	ADD TO CART
DECAL: WARNING: START FIRES REPLACES FUEL TANK GROUP 920214100 · qty on machine: 1 M90420000 P/N M9504200004 view full part page → $12.95
7-1	M9501500004	DECAL: DIESEL FUEL	2	M90150000	ADD TO CART
DECAL: DIESEL FUEL M9501500004 · qty on machine: 2 M90150000 view full part page → $3.95
7-2	M9500500104	DECAL: FUEL DRAIN PLUG	1	M90050010	ADD TO CART
DECAL: FUEL DRAIN PLUG M9500500104 · qty on machine: 1 M90050010 view full part page → $4.95
7-3	M9501500104	DECAL: DIESEL EXHAUST FLUID	1	M90150010	ADD TO CART
DECAL: DIESEL EXHAUST FLUID M9501500104 · qty on machine: 1 M90150010 view full part page → $14.95
7-4	M9504500004	DECAL: REFILL DEF AS WELL	1	M90450000	ADD TO CART
DECAL: REFILL DEF AS WELL M9504500004 · qty on machine: 1 M90450000 view full part page → $9.95
7-5	M9541100004	DECAL: CAUTION: EXHAUST FLUID ONLY ENCLOSURE GROUP	1	M94110000 S/N 7601141 AND ABOVE	ADD TO CART
DECAL: CAUTION: EXHAUST FLUID ONLY ENCLOSURE GROUP M9541100004 · qty on machine: 1 M94110000 S/N 7601141 AND ABOVE view full part page → $3.95
8-1	M9511200204	DECAL: MQ	1	M91120020	ADD TO CART
DECAL: MQ M9511200204 · qty on machine: 1 M91120020 view full part page → $5.95
8-2	0600500092	EMBLEM	1		ADD TO CART
EMBLEM 0600500092 · qty on machine: 1 view full part page → $21.95
8-2	0021106015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021106015 · qty on machine: 4 view full part page → $0.17
8-3	M3561100004	STRIPE	2	M3110000	PARTS REQUEST
PHOTO COMING STRIPE M3561100004 · qty on machine: 2 M3110000 PARTS REQUEST
8-4	M5560101604	STRIPE	2	M56010160	ADD TO CART
STRIPE M5560101604 · qty on machine: 2 M56010160 view full part page → $20.95
8-5	M4560100904	STRIPE	1	M46010090	ADD TO CART
STRIPE M4560100904 · qty on machine: 1 M46010090 view full part page → $7.95
8-6	M3561100203	STRIPE	2	M36110020	ADD TO CART
STRIPE M3561100203 · qty on machine: 2 M36110020 view full part page → $22.95
8-7	M4560100003	STRIPE	1	M46010000	ADD TO CART
STRIPE M4560100003 · qty on machine: 1 M46010000 view full part page → $51.95
8-8	M3561100104	STRIPE	1	M36110010	ADD TO CART
STRIPE M3561100104 · qty on machine: 1 M36110010 view full part page → $29.95
8-9	M3550002204	DECAL: CAUTION	1	M35000220	ADD TO CART
DECAL: CAUTION M3550002204 · qty on machine: 1 M35000220 view full part page → $15.95
8-10	M9512000004	DECAL: SUPPORT HOOK	2	M91200000	ADD TO CART
DECAL: SUPPORT HOOK M9512000004 · qty on machine: 2 M91200000 view full part page → $5.95
8-11	M9510000104	DECAL: DOCUMENT BOX LOCATED	1	M91000010	ADD TO CART
DECAL: DOCUMENT BOX LOCATED M9510000104 · qty on machine: 1 M91000010 view full part page → $4.95
8-12	M9511200103	DECAL: TIER4F	1	M91120010	ADD TO CART
DECAL: TIER4F M9511200103 · qty on machine: 1 M91120010 view full part page → $17.95

The machine itself

Price by quote Get a quote

Tell us where the machine is headed and we'll quote it with freight. One call, no games.

The Multiquip DCA150SSJU4F is a generator built for portable jobsite power for tools, lighting, and equipment. Factory-documented specs and parts support; priced by quote.

Keep-it-running spares

All listed parts →

Every part that fits this machine

0071906312 Multiquip 0071906312 Bearing Denyo - OEM Replacement Part for Super Silent Generators $201.95

0191301150 Multiquip 0191301150 Hose Suction 85SSK - OEM Replacement Part for Super Silent Generators $47.95

0600800320 Multiquip 0600800320 Manual Pak Denyo - OEM Replacement Part $43.95

0601801041 Multiquip 0601801041 Change-Over Switch Voltmeter Denyo - OEM Replacement Part $157.95

0601806859 Multiquip 0601806859 Voltmeter AC DENYO - OEM Replacement Part for Generator Control Panels $368.95

0601808989 Multiquip 0601808989 AC Ammeter Denyo - OEM Replacement Part $243.95

0601814013 Multiquip 0601814013 Receptacle - OEM Replacement Part (Use Y0601814034) $118.95

0601820608 Multiquip 0601820608 Autovoltage Regulator Denyo - OEM Replacement Part $1,591.95

0601823863 Multiquip 0601823863 Relay Unit 12V DENYO - OEM Replacement Part $159.95

0601840073 Multiquip 0601840073 Rheostat Voltage Regulator for 150SSK and DCA Series Generators - OEM Replacement Part $90.95

0601870440 Multiquip 0601870440 Circuit Breaker DENYO - OEM Replacement Part $34.95

0601870441 Multiquip 0601870441 Circuit Breaker DENYO - OEM Replacement Part $77.95

0602022561 Multiquip 0602022561 90 Degree Elbow DENYO - OEM Replacement Part for Generator Systems $76.95

0602022580 Multiquip 0602022580 Adapter with Seal - OEM Replacement Part for DCA Super Silent Generators $37.95

0602040365 Multiquip 0602040365 90 Degree Elbow Denyo - OEM Replacement Part $79.95

0602220198 Multiquip 0602220198 Battery Denyo - OEM Replacement Part for Super Silent Generators $500.95

0603306590 Multiquip 0603306590 Male Bulkhead Connector - OEM Replacement Part for Denyo Generators $86.95

0605505070 Multiquip 0605505070 Fuel Tank Cap DENYO - OEM Replacement Part $50.95

0605511395 Multiquip 0605511395 Ball Valve DENYO - OEM Replacement Part $46.95

0605515236 Multiquip 0605515236 Band Hose Denyo - OEM Replacement Part $46.95

0845047004 Multiquip 0845047004 Hinge Orange Denyo - OEM Replacement Part $36.95

515455840 Multiquip 515455840 Mount Nut (M14) Scraper - OEM Replacement Part $35.95

8101026013 Multiquip 8101026013 Set Plate Rectifier 85,125 - OEM Replacement Part for Super Silent Generators $113.95

8101350013 Multiquip 8101350013 Field Assembly Exciter - OEM Replacement Part for Super Silent Generators $2,986.95

8131015003 Multiquip 8131015003 Balancing Plate - OEM Replacement Part for Super Silent Generators $99.95

8131070013 Multiquip 8131070013 Fan DCA-125,150SSM - OEM Replacement Part $766.95

8131315202 Multiquip 8131315202 End Bracket - OEM Replacement Part for Super Silent Generators $1,283.95

8131331003 Multiquip 8131331003 Cover End Bracket - OEM Replacement Part for Super Silent Generators $147.95

82608 Multiquip 82608 Toggle Switch Denyo Mods - OEM Replacement Part for Super Silent Generators $34.95

AT377287 Multiquip AT377287 Fitting Hose Barb Brass 5/8" - OEM Replacement Part $49.95

C0130000603 Multiquip C0130000603 DCA-150USJ/150SSJU3 Assembly - OEM Replacement Part $19,083.95

C0131300004 Multiquip C0131300004 Cover Fan - OEM Replacement Part for Super Silent Generators $259.95

LY2DUS12VDC Multiquip LY2DUS12VDC Relay with Diode - OEM Replacement Part for DCA Generators $46.95

M1260700304 Multiquip M1260700304 Cover Breaker Fitting - OEM Replacement Part $75.95

M1413400004 Multiquip M1413400004 Under Cover DENYO - OEM Replacement Part for Super Silent Generators $35.95

M1550000703 Multiquip M1550000703 Decal Aux Output - OEM Replacement Part $36.95

M1550002203 Multiquip M1550002203 Decal Auxiliary Output Denyo - OEM Replacement Part $33.95

M2237100103 Multiquip M2237100103 3-Phase Output Terminal Cover - OEM Replacement Part $111.95

M2346900704 Multiquip M2346900704 Battery Cable - OEM Replacement Part $100.95

M3230700003 Multiquip M3230700003 Output Panel Denyo - OEM Replacement Part for Generator $258.95

M3236400204 Multiquip M3236400204 Cover - OEM Replacement Part for Super Silent Generators $81.95

M3237100204 Multiquip M3237100204 Insulating Cover (JP) - OEM Replacement Part $176.95

M3246703704 Multiquip M3246703704 Generator Harness - OEM Replacement Part $1,266.95

M3261500003 Multiquip M3261500003 Set Panel Denyo - OEM Replacement Part for Super Silent Generators $123.95

M3303200404 Multiquip M3303200404 Engine Foot - OEM Replacement Part for Denyo Super Silent Generators $39.95

M3311300813 Multiquip M3311300813 Radiator Fan Guard - OEM Replacement Part $158.95

M3311301113 Multiquip M3311301113 Fan Shroud (R) DENYO - OEM Replacement Part $242.95

M3311500503 Multiquip M3311500503 Upper Radiator Hose DENYO - OEM Replacement Part $194.95

M3311500603 Multiquip M3311500603 Lower Radiator Hose DENYO - OEM Replacement Part $197.95

M3311500703 Multiquip M3311500703 Surge Tank Hose Denyo - OEM Replacement Part $99.95

M3331400604 Multiquip M3331400604 DPF Band Denyo - OEM Replacement Part $77.95

M3334100103 Multiquip M3334100103 Tail Pipe (KY) - OEM Replacement Part for Super Silent Generators $1,146.95

M3358200402 Multiquip M3358200402 Engine Harness - OEM Replacement Part for Super Silent Generators $1,360.95

M3364000402 Multiquip M3364000402 Fuel Tank Denyo - OEM Replacement Part $997.95

M3374000104 Multiquip M3374000104 Air Cleaner Pipe - OEM Replacement Part for Denyo Super Silent Generators $443.95

M3424200203 Multiquip M3424200203 Over Cover Front Frame (White) - OEM Replacement Part $378.95

M3424200304 Multiquip M3424200304 Front Cover for Super Silent Generators - OEM Replacement Part $771.95

M3424700003 Multiquip M3424700003 DEF Tank Cover Denyo - OEM Replacement Part $153.95

M3424701004 Multiquip M3424701004 DEF Tank Cover (KY) - OEM Replacement Part $57.95

M3434000302 Multiquip M3434000302 Center Frame (White) - OEM Replacement Part for Denyo Super Silent Generators $2,411.95

M3454001303 Multiquip M3454001303 Side Door Panel for Super Silent Generator - OEM Replacement Part $890.95

M3454001403 Multiquip M3454001403 Side Door Denyo - OEM Replacement Part $969.95

M3454001503 Multiquip M3454001503 Side Door DENYO - OEM Replacement Part for Super Silent Generators $600.95

M3454300604 Multiquip M3454300604 Duct (White) Denyo - OEM Replacement Part $387.95

M3491200003 Multiquip M3491200003 Acoustic Sheet Denyo - OEM Replacement Part $541.95

M3491200104 Multiquip M3491200104 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $51.95

M3491600004 Multiquip M3491600004 Acoustic Sheet Denyo - OEM Replacement Part $602.95

M3491600104 Multiquip M3491600104 Acoustic Sheet Rear Roof Panel - OEM Replacement Part $238.95

M3494406804 Multiquip M3494406804 Acoustic Sheet Denyo - OEM Replacement Part $686.95

M3494406904 Multiquip M3494406904 Acoustic Sheet Denyo - OEM Replacement Part $686.95

M3494407004 Multiquip M3494407004 Acoustic Sheet Denyo - OEM Replacement Part $648.95

M3494407104 Multiquip M3494407104 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $621.95

M3494407204 Multiquip M3494407204 Acoustic Sheet Denyo - OEM Replacement Part $395.95

M3494407304 Multiquip M3494407304 Acoustic Sheet - OEM Replacement Part for Super Silent Generators $108.95

M3494411104 Multiquip M3494411104 Acoustic Sheet Rear Duct Right Denyo - OEM Replacement Part $81.95

M3551000502 Multiquip M3551000502 Decal Control Panel (KY) - OEM Replacement Part $52.95

M4443300503 Multiquip M4443300503 Duct Rear Frame Denyo - OEM Replacement Part $469.95

M4443600004 Multiquip M4443600004 Plate Window Denyo - OEM Replacement Part $155.95

M4493302804 Multiquip M4493302804 Acoustic Sheet Denyo - OEM Replacement Part $43.95

M4493302904 Multiquip M4493302904 Acoustic Sheet Denyo - OEM Replacement Part $131.95

M4493303004 Multiquip M4493303004 Acoustic Sheet Denyo - OEM Replacement Part $58.95

M4560100003 Multiquip M4560100003 DENYO Component - OEM Replacement Part for Super Silent Generators $51.95

M9103000504 Multiquip M9103000504 Battery Band - OEM Replacement Part for Super Silent Generators $107.95

M9220100304 Multiquip M9220100304 Bolt Output Term - OEM Replacement Part for Generators $118.95

P537877 Multiquip P537877 Air Cleaner Element - OEM Replacement Part $99.95

R529382 Multiquip R529382 Fan Belt - OEM Replacement Part for Super Silent Generators $209.95

R529640 Multiquip R529640 Gasket - OEM Replacement Part for Super Silent Generators $97.95

RE289839 Multiquip RE289839 V-Band Clamp - OEM Replacement Part $107.95

RE292067 Multiquip RE292067 V-Band Clamp - OEM Replacement Part $139.95

RE298757 Multiquip RE298757 V-Band Clamp - OEM Replacement Part $162.95

RE538131 Multiquip RE538131 Pressure Sensor John Deere - OEM Replacement Part $292.95

RE551507 Multiquip RE551507 Fuel Filter Element (Primary) - OEM Replacement Part $168.95

RE552175 Multiquip RE552175 DEF Dosing Unit Pump - OEM Replacement Part $2,050.95

RE552182 Multiquip RE552182 NOx Sensor - OEM Replacement Part for Super Silent Generators $1,348.95

RE552185 Multiquip RE552185 DPF Temperature Sensor (DCA) - OEM Replacement Part $991.95

RE556406 Multiquip RE556406 Fuel Filter Kit (Primary, Secondary) DCA-150/220 - OEM Replacement Part $334.95

RE560681 Multiquip RE560681 Fuel Filter Element (Secondary) - OEM Replacement Part $146.95

RE560900 Multiquip RE560900 DEF Line Backflow Line - OEM Replacement Part $591.95

RE562696 Multiquip RE562696 Seal Kit for Fuel Filter - OEM Replacement Part $72.95

Y0400005000 Multiquip Y0400005000 Exhaust Insulating Wrap (KY) - OEM Replacement Part $124.95

Y0601809692 Multiquip Y0601809692 Current Transformer - OEM Replacement Part for Super Silent Generators $62.95

Y0601810170 Multiquip Y0601810170 Panel Light Denyo - OEM Replacement Part $142.95

Y0601814014 Multiquip Y0601814014 Receptacle - OEM Replacement Part for Super Silent Generators $76.95

Y0601820839 Multiquip Y0601820839 Over Current Relay DENYO - OEM Replacement Part $120.95

Y0602012905-R Multiquip Y0602012905-R Radiator - OEM Replacement Part $2,591.95

Y0602015610 Multiquip Y0602015610 CAC Hose Denyo - OEM Replacement Part $124.95

Y0602022577 Multiquip Y0602022577 90° Elbow KY - OEM Replacement Part for Super Silent Generators $39.95

Y0602120569 Multiquip Y0602120569 Gauge Unit Assembly Denyo - OEM Replacement Part $756.95

Y0602202651 Multiquip Y0602202651 Controller Denyo - OEM Replacement Part for Super Silent Generators $1,815.95

Y0602325026 Multiquip Y0602325026 Pipe Band - OEM Replacement Part for Denyo Super Silent Generators $37.95

Y0605000462 Multiquip Y0605000462 Rubber Suspension - OEM Replacement Part $110.95

Y0605000463 Multiquip Y0605000463 Rubber Suspension - OEM Replacement Part for Super Silent Generators $187.95

Y0605511394 Multiquip Y0605511394 Mini Ball Valve Denyo - OEM Replacement Part $70.95

0010006030 HEX. HEAD BOLT $0.25

0010114040 HEX. HEAD BOLT

0010116060 HEX. HEAD BOLT $3.95

0012110060 HEX. HEAD BOLT $4.95

0012312030 HEX. HEAD BOLT $6.95

0016910025 HEX. HEAD BOLT $1.56

0017108040 HEX. HEAD BOLT $1.58

0017110025 HEX. HEAD BOLT $1.95

0017112025 HEX. HEAD BOLT $2.93

0019108065 HEX. HEAD BOLT $1.95

0019206015 HEX. HEAD BOLT $3.95

0019208020 HEX. HEAD BOLT $3.95

0021005020 MACHINE SCREW $0.32

0021006080 MACHINE SCREW $0.95

0027103015 MACHINE SCREW $0.64

0027104020 MACHINE SCREW $0.40

0027105015 MACHINE SCREW $0.20

0027106016 MACHINE SCREW $0.55

0027208025 MACHINE SCREW $0.76

0030012000 HEX. NUT $0.50

0030016000 HEX. NUT $1.90

0030020000 HEX. NUT $1.82

0032005000 WASHER, LOCK $0.41

0040006000 WASHER, LOCK $0.17

0040008000 WASHER, LOCK $0.63

0040012000 WASHER, LOCK $0.95

0040016000 WASHER, LOCK $4.95

0040508000 TOOTHED WASHER $0.35

0040510000 TOOTHED WASHER $0.77

0040512000 TOOTHED WASHER $0.77

0041216000 WASHER, FLAT $1.95

0042308000 WASHER, LOCK $0.83

0042610000 WASHER, LOCK $0.53

0042612000 WASHER, LOCK $0.77

0043003000 WASHER, LOCK $0.39

0080200007 E-RING $1.39

0105050616 HEX. HEAD BOLT $0.45

011008020 HEX. HEAD BOLT $2.68

011106015 HEX. HEAD BOLT $0.69

011206020 HEX. HEAD BOLT $0.95

011208060 HEX. HEAD BOLT

011808015 MACHINE SCREW $6.95

012210020 HEX. HEAD BOLT $0.95

012212045 HEX. HEAD BOLT $2.95

0176060030 SELF-LOCKING NUT $2.95

0191302900 RETURN HOSE $139.44

0193600300 DRAIN HOSE $2.95

0199901150 VENT HOSE $28.95

020106050 NUT $0.12

020108060 SELF LOCK NUT $0.28

0207003000 HEX. NUT $0.21

0222100100 RUBBER CUSHION $6.95

0222100150 RUBBER CUSHION $6.95

030214350 WASHER, LOCK $0.46

030220510 WASHER, LOCK $1.95

031108160 WASHER, FLAT

031110160 WASHER, FLAT $0.40

031112230 WASHER, FLAT $0.95

0343204220 HEX. HEAD BOLT

0401450080 WASHER, FLAT $0.56

0401450160 WASHER, FLAT $0.53

0601000209 BALANCING WEIGHT KIT $9.95

0601806643 FUSE, 15A $5.95

0601812626 PLUG $1.88

0601812711 PINS $0.56

0601815153 TERMINAL BLOCK

0601815194 TERMINAL

0601821370 RECTIFIER $28.95

0601831205 PUSH BUTTON SWITCH, RED $25.95

0601840100 KNOB $30.95

0601850097 STOPPER $2.95

0601851736 GROMMET $12.95

0602021070 CAP $11.95

0602022980 HOSE JOINT $11.95

0602220911 CLAMP $1.85

0602220921 BATTERY BOLT SET $5.95

0602326060 U-BOLT $16.95

0602326063 U-BOLT $11.95

0603300285 BULKHEAD ROCKNUT $4.95

0603306395 MALE PIPE $16.95

0605011211 PIN $1.55

0605050060 CONICAL WASHER, LOCK $5.95

0605515073 HOSE BAND $6.95

0605515147 HOSE BAND $3.95

0605515189 HOSE BAND $1.85

0605515198 HOSE BAND $1.71

0605515202 HOSE BAND $9.95

From the guides desk

Guide · 2026-08-04

Ask ARIA about your machine.

Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.

Chat with ARIA

Multiquip DCA150SSJU4F Generator

The parts bench

The machine itself

Machine

Engine

Keep-it-running spares

Every part that fits this machine

Service notices & part changes

Take the factory book with you

Get the download pack

From the guides desk

Multiquip DCA Generator Fault Shutdown and Controller Reset Guide

Multiquip Generator No-Start and No-Power Fixes

Multiquip DCA Generator Fault Codes and Diagnostics Guide

Ask ARIA about your machine.

Your cart is empty

Your cart is empty
