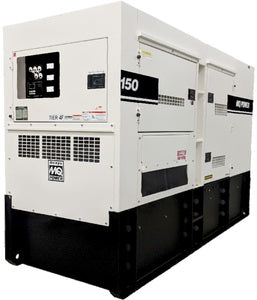

Multiquip DCA150SSJU4F3 Generator

Name: Multiquip DCA150SSJU4F3 Generator
Brand: Multiquip

The parts bench

Need the PDF? ↓

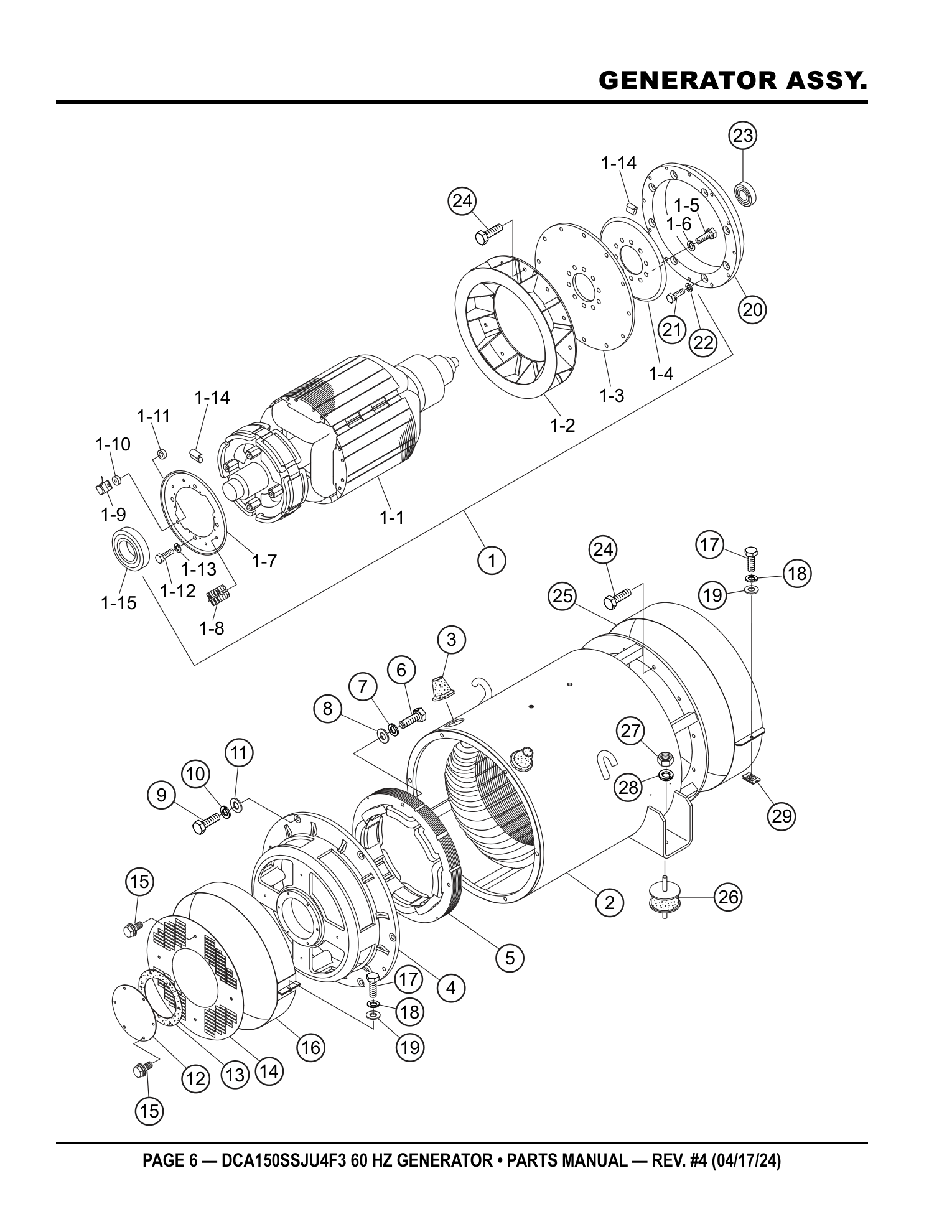

Page 6 — GENERATOR ASSY.

Multiquip DCA150SSJU4F3 Generator GENERATOR ASSY. parts diagram

Parts list — exactly as printed44 rows

No.	Part No.	Part Name	Qty	Remarks
1	C0110000122	ROTOR ASSY	1	INCLUDES ITEMS W/$	ADD TO CART
ROTOR ASSY C0110000122 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 1-1$, 1-2$, 1-3$, 1-4$, 1-5$, 1-6$, 1-7$, 1-8$, 1-9$, 1-10$, 1-11$, 1-12$, 1-13$, 1-14$, 1-15$ view full part page → $13160.95 IN A KIT + SOLD SOLO
1-1$		FIELD ASSY.	1		INCLUDED IN KIT
PHOTO COMING FIELD ASSY. · qty on machine: 1 Included in kit 1 - ROTOR ASSY (C0110000122) INCLUDED IN KIT
1-2$	W8131070013	FAN	1		PARTS REQUEST
PHOTO COMING FAN W8131070013 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (C0110000122) PARTS REQUEST
1-3$	W8131611014	COUPLING DISK	8		PARTS REQUEST
PHOTO COMING COUPLING DISK W8131611014 · qty on machine: 8 Also included in kit 1 - ROTOR ASSY (C0110000122) PARTS REQUEST
1-4$	W8131015003	BALANCING PLATE	1	PURCHASE SET OF ITEM 1-14$	PARTS REQUEST
PHOTO COMING BALANCING PLATE W8131015003 · qty on machine: 1 PURCHASE SET OF ITEM 1-14$ Also included in kit 1 - ROTOR ASSY (C0110000122) PARTS REQUEST
1-5$	0012112035	HEX. HEAD BOLT	10		ADD TO CART
HEX. HEAD BOLT 0012112035 · qty on machine: 10 Also included in kit 1 - ROTOR ASSY (C0110000122) view full part page → $3.95 IN A KIT + SOLD SOLO
1-6$	0042612000	WASHER, LOCK	10		ADD TO CART
WASHER, LOCK 0042612000 · qty on machine: 10 Also included in kit 1 - ROTOR ASSY (C0110000122) view full part page → $0.77 IN A KIT + SOLD SOLO
1-7$	W8101026013	SET PLATE RECTIFIER	1	PURCHASE SET OF ITEM 1-14$	PARTS REQUEST
PHOTO COMING SET PLATE RECTIFIER W8101026013 · qty on machine: 1 PURCHASE SET OF ITEM 1-14$ Also included in kit 1 - ROTOR ASSY (C0110000122) PARTS REQUEST
1-8$	0601821349	RECTIFIER	2		ADD TO CART
RECTIFIER 0601821349 · qty on machine: 2 Also included in kit 1 - ROTOR ASSY (C0110000122) view full part page → $247.95 IN A KIT + SOLD SOLO
1-9$	Y0601822624	SURGE ABSORBER	1		ADD TO CART
SURGE ABSORBER Y0601822624 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (C0110000122) view full part page → $63.95 IN A KIT + SOLD SOLO
1-10$	W8001020004	INSULATOR WASHER	1		PARTS REQUEST
PHOTO COMING INSULATOR WASHER W8001020004 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (C0110000122) PARTS REQUEST
1-11$	W8001020504	INSULATOR WASHER	1		PARTS REQUEST
PHOTO COMING INSULATOR WASHER W8001020504 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (C0110000122) PARTS REQUEST
1-12$	012210020	HEX. HEAD BOLT	4	REPLACES P/N 0010110020	ADD TO CART
HEX. HEAD BOLT 012210020 · qty on machine: 4 REPLACES P/N 0010110020 Also included in kit 1 - ROTOR ASSY (C0110000122) view full part page → $0.95 IN A KIT + SOLD SOLO
1-13$	0040010000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0040010000 · qty on machine: 4 Also included in kit 1 - ROTOR ASSY (C0110000122) view full part page → $0.39 IN A KIT + SOLD SOLO
1-14$	0601000209	BALANCING WEIGHT KIT	1		ADD TO CART
BALANCING WEIGHT KIT 0601000209 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (C0110000122) view full part page → $9.95 IN A KIT + SOLD SOLO
1-15$	0071906312	BEARING	1		ADD TO CART
BEARING 0071906312 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (C0110000122) view full part page → $201.95 IN A KIT + SOLD SOLO
2	C0130000603	STATOR ASSY.	1		ADD TO CART
STATOR ASSY. C0130000603 · qty on machine: 1 view full part page → $19083.95
3	W0845041804	GROMMET	2		PARTS REQUEST
PHOTO COMING GROMMET W0845041804 · qty on machine: 2 PARTS REQUEST
4	W8131315202	END BRACKET	1		PARTS REQUEST
PHOTO COMING END BRACKET W8131315202 · qty on machine: 1 PARTS REQUEST
5	W8101350013	FIELD ASSY., EXCITER	1		PARTS REQUEST
PHOTO COMING FIELD ASSY., EXCITER W8101350013 · qty on machine: 1 PARTS REQUEST
6	0012110060	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0012110060 · qty on machine: 4 view full part page → $4.95
7	0042610000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0042610000 · qty on machine: 4 view full part page → $0.53
8	031110160	WASHER, FLAT	4	REPLACES P/N 0041210000	ADD TO CART
WASHER, FLAT 031110160 · qty on machine: 4 REPLACES P/N 0041210000 view full part page → $0.4
9	0010112035	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0010112035 · qty on machine: 6 view full part page → $1.95
10	0040012000	WASHER, LOCK	6		ADD TO CART
WASHER, LOCK 0040012000 · qty on machine: 6 view full part page → $0.95
11	031112230	WASHER, FLAT	6	REPLACES P/N 0041212000	ADD TO CART
WASHER, FLAT 031112230 · qty on machine: 6 REPLACES P/N 0041212000 view full part page → $0.95
12	W8131310104	COVER, BEARING	1		PARTS REQUEST
PHOTO COMING COVER, BEARING W8131310104 · qty on machine: 1 PARTS REQUEST
13	W8131312204	GASKET, BEARING	1		PARTS REQUEST
PHOTO COMING GASKET, BEARING W8131312204 · qty on machine: 1 PARTS REQUEST
14	W8131331003	COVER, END BRACKET	1		PARTS REQUEST
PHOTO COMING COVER, END BRACKET W8131331003 · qty on machine: 1 PARTS REQUEST
15	0105050616	HEX. HEAD BOLT	10	REPLACES P/N 0017106012	ADD TO CART
HEX. HEAD BOLT 0105050616 · qty on machine: 10 REPLACES P/N 0017106012 view full part page → $0.45
16	W8101333003	COVER, END BRACKET	1		PARTS REQUEST
PHOTO COMING COVER, END BRACKET W8101333003 · qty on machine: 1 PARTS REQUEST
17	0010006030	HEX. HEAD BOLT	2	REPLACES P/N 0010106030	ADD TO CART
HEX. HEAD BOLT 0010006030 · qty on machine: 2 REPLACES P/N 0010106030 view full part page → $0.25
18	0040006000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040006000 · qty on machine: 2 view full part page → $0.17
19	952404470	WASHER, FLAT	2	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 2 REPLACES P/N 0041206000 view full part page → $0.19
20	M3163400303	COUPLING RING	1		ADD TO CART
COUPLING RING M3163400303 · qty on machine: 1 view full part page → $2545.95
21	0343204220	HEX. HEAD BOLT	8		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT 0343204220 · qty on machine: 8 PARTS REQUEST
22	0166A	WASHER, LOCK	8	REPLACES P/N 0043604000	ADD TO CART
WASHER, LOCK 0166A · qty on machine: 8 REPLACES P/N 0043604000 view full part page → $0.17
23	0070506306	BEARING	1		ADD TO CART
BEARING 0070506306 · qty on machine: 1 view full part page → $25.95
24	012010030	HEX. HEAD BOLT	24	REPLACES P/N 0012810030	ADD TO CART
HEX. HEAD BOLT 012010030 · qty on machine: 24 REPLACES P/N 0012810030 view full part page → $0.95
25	C0131300004	COVER, FAN	1		ADD TO CART
COVER, FAN C0131300004 · qty on machine: 1 view full part page → $259.95
26	Y0605000463	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION Y0605000463 · qty on machine: 2 view full part page → $187.95
27	0030016000	HEX. NUT	2		ADD TO CART
HEX. NUT 0030016000 · qty on machine: 2 view full part page → $1.9
28	0040016000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 2 view full part page → $4.95
29	020106050	HEX. NUT	1	REPLACES P/N 0600815000	ADD TO CART
HEX. NUT 020106050 · qty on machine: 1 REPLACES P/N 0600815000 view full part page → $0.12

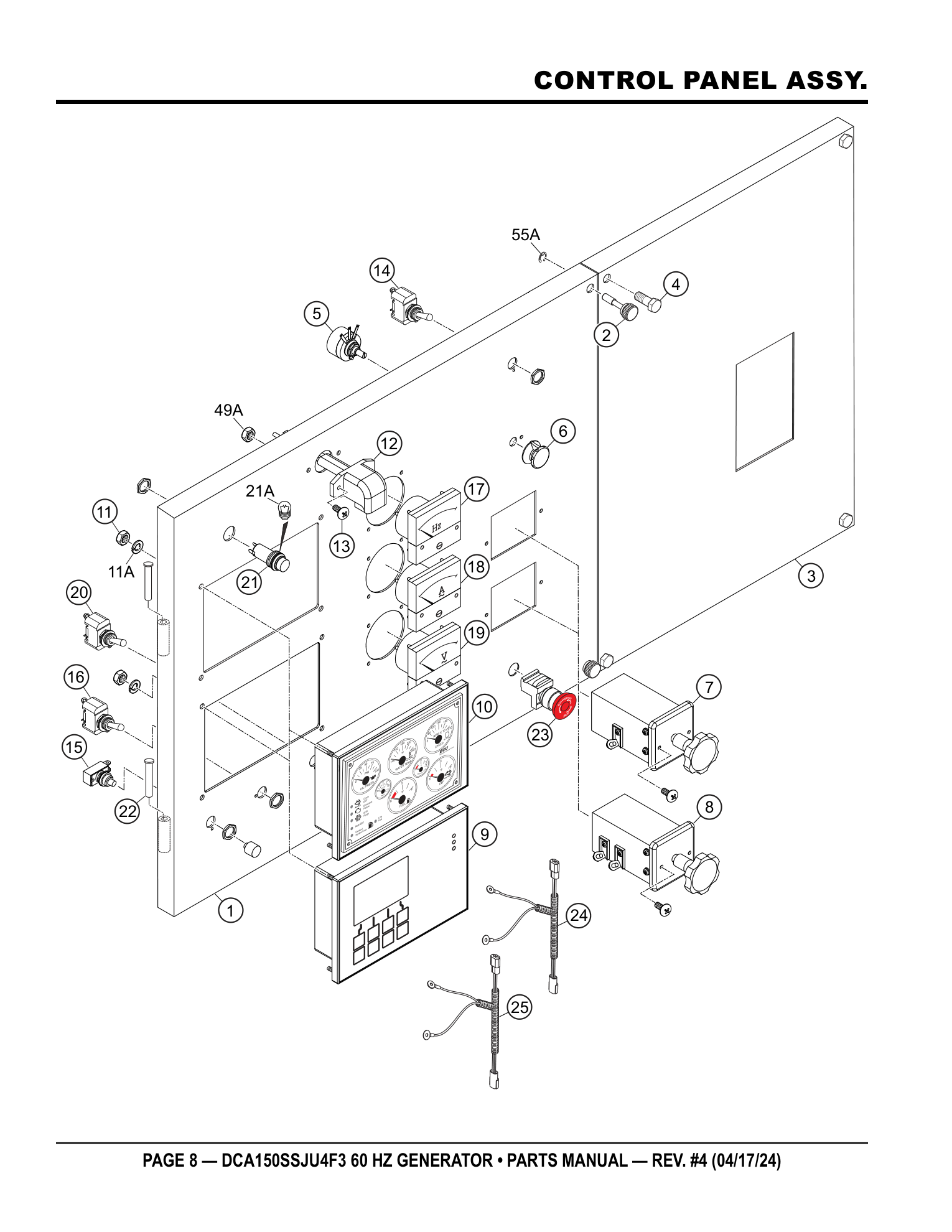

Page 8 — CONTROL PANEL ASSY.

Multiquip DCA150SSJU4F3 Generator CONTROL PANEL ASSY. parts diagram

Parts list — exactly as printed34 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3224001103	CONTROL PANEL	1		ADD TO CART
CONTROL PANEL M3224001103 · qty on machine: 1 view full part page → $390.95
2	M9220100004	SET SCREW	2		ADD TO CART
SET SCREW M9220100004 · qty on machine: 2 view full part page → $12.95
2A	Y0080200007	E RING	2		ADD TO CART
E RING Y0080200007 · qty on machine: 2 view full part page → $4.95
3	M4223001604	CONTROL PANEL, RIGHT	1	S/N 7601393 AND BELOW	PARTS REQUEST
PHOTO COMING CONTROL PANEL, RIGHT M4223001604 · qty on machine: 1 S/N 7601393 AND BELOW PARTS REQUEST
3	M3223001904	CONTROL PANEL, RIGHT	1	S/N 7601394 AND ABOVE	PARTS REQUEST
PHOTO COMING CONTROL PANEL, RIGHT M3223001904 · qty on machine: 1 S/N 7601394 AND ABOVE PARTS REQUEST
4	0016908040	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016908040 · qty on machine: 4 view full part page → $1.52
5	0601840073	VOLTAGE REGULATOR, 1K Ω	1		ADD TO CART
VOLTAGE REGULATOR, 1K Ω 0601840073 · qty on machine: 1 view full part page → $90.95
6	0601840100	KNOB, 25 N	1	REPLACES P/N 0601840121	ADD TO CART
KNOB, 25 N 0601840100 · qty on machine: 1 REPLACES P/N 0601840121 view full part page → $30.95
7	0601801040	CHANGE-OVER SWITCH, AMMETER	1		ADD TO CART
CHANGE-OVER SWITCH, AMMETER 0601801040 · qty on machine: 1 view full part page → $95.95
8	0601801041	CHANGE-OVER SWITCH, VOLTMETER	1		ADD TO CART
CHANGE-OVER SWITCH, VOLTMETER 0601801041 · qty on machine: 1 view full part page → $157.95
9	Y0602203073A	ECU CONTROLLER, (NON UL)	1	S/N 7601357 AND BELOW	PARTS REQUEST
PHOTO COMING ECU CONTROLLER, (NON UL) Y0602203073A · qty on machine: 1 S/N 7601357 AND BELOW PARTS REQUEST
9	Y0602203078	ECU CONTROLLER, (UL)	1	S/N 7601358 AND ABOVE	ADD TO CART
ECU CONTROLLER, (UL) Y0602203078 · qty on machine: 1 S/N 7601358 AND ABOVE view full part page → $1862.95
10	Y0602120568	GAUGE UNIT ASSY. (NON UL)	1	S/N 7601357 AND BELOW	ADD TO CART
GAUGE UNIT ASSY. (NON UL) Y0602120568 · qty on machine: 1 S/N 7601357 AND BELOW view full part page → $947.95
10	Y0602120903	GAUGE UNIT ASSY. (UL)	1	S/N 7601358 AND ABOVE	ADD TO CART
GAUGE UNIT ASSY. (UL) Y0602120903 · qty on machine: 1 S/N 7601358 AND ABOVE view full part page → $757.95
11	Y0206707000	HEX. NUT	8		ADD TO CART
HEX. NUT Y0206707000 · qty on machine: 8 view full part page → $0.45
11A	Y0044807000	WASHER, LOCK	8		ADD TO CART
WASHER, LOCK Y0044807000 · qty on machine: 8 view full part page → $0.45
12	Y0601810170	PANEL LIGHT, 12V	1		ADD TO CART
PANEL LIGHT, 12V Y0601810170 · qty on machine: 1 view full part page → $142.95
13	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
13A	OEMAA8	HEX. NUT	2	REPLACES P/N 0207004000	ADD TO CART
HEX. NUT OEMAA8 · qty on machine: 2 REPLACES P/N 0207004000 view full part page → $0.4
14	0601830710	SWITCH, PANEL LIGHT	1		ADD TO CART
SWITCH, PANEL LIGHT 0601830710 · qty on machine: 1 view full part page → $29.95
15	0601831205	PUSH BUTTON, RED	1		ADD TO CART
PUSH BUTTON, RED 0601831205 · qty on machine: 1 view full part page → $25.95
16	82608	SWITCH, TOGGLE	1	REPLACES P/N 0601831340 S/N 7601463 AND BELOW	ADD TO CART
SWITCH, TOGGLE 82608 · qty on machine: 1 REPLACES P/N 0601831340 S/N 7601463 AND BELOW view full part page → $34.95
16	Y0601831345	3-POLE SWITCH	1	S/N 7601464 AND ABOVE	ADD TO CART
3-POLE SWITCH Y0601831345 · qty on machine: 1 S/N 7601464 AND ABOVE view full part page → $49.95
17	0601807641	FREQUENCY METER, 45~65HZ 240V	1		ADD TO CART
FREQUENCY METER, 45~65HZ 240V 0601807641 · qty on machine: 1 view full part page → $591.95
18	0601808989	AC AMMETER, 0~300A/600A:5A	1		ADD TO CART
AC AMMETER, 0~300A/600A:5A 0601808989 · qty on machine: 1 view full part page → $243.95
19	0601806859	AC VOLTMETER, 0~600V	1		ADD TO CART
AC VOLTMETER, 0~600V 0601806859 · qty on machine: 1 view full part page → $368.95
20	0601830710	ENGINE SPEED SWITCH	1		ADD TO CART
ENGINE SPEED SWITCH 0601830710 · qty on machine: 1 view full part page → $29.95
21	0602103092	LAMP ALARM, 18V RED	1	INCLUDES ITEMS W/$ S/N 7601281 AND BELOW	ADD TO CART
LAMP ALARM, 18V RED 0602103092 · qty on machine: 1 INCLUDES ITEMS W/$ S/N 7601281 AND BELOW Kit includes: 21A$ view full part page → $36.95 IN A KIT + SOLD SOLO
21	0601814453	LED LAMP	1	S/N 7601282 AND ABOVE	ADD TO CART
LED LAMP 0601814453 · qty on machine: 1 S/N 7601282 AND ABOVE Kit includes: 21A$ view full part page → $33.95 IN A KIT + SOLD SOLO
21A$	0601810277	BULB, 18V	1	S/N 7601281 AND BELOW	ADD TO CART
BULB, 18V 0601810277 · qty on machine: 1 S/N 7601281 AND BELOW Also included in kit 21 - LAMP ALARM, 18V RED (0602103092) view full part page → $36.95 IN A KIT + SOLD SOLO
22	0605011211	PIN	2		ADD TO CART
PIN 0605011211 · qty on machine: 2 view full part page → $1.55
23	0601831557	EMERGENCY STOP BUTTON	1	S/N 7601332 AND BELOW	ADD TO CART
EMERGENCY STOP BUTTON 0601831557 · qty on machine: 1 S/N 7601332 AND BELOW view full part page → $95.95
24	M3247702604	WIRE HARNESS, GENERATOR	1		PARTS REQUEST
PHOTO COMING WIRE HARNESS, GENERATOR M3247702604 · qty on machine: 1 PARTS REQUEST
25	M3358201602	WIRE HARNESS, ENGINE	1		ADD TO CART
WIRE HARNESS, ENGINE M3358201602 · qty on machine: 1 view full part page → $1729.95

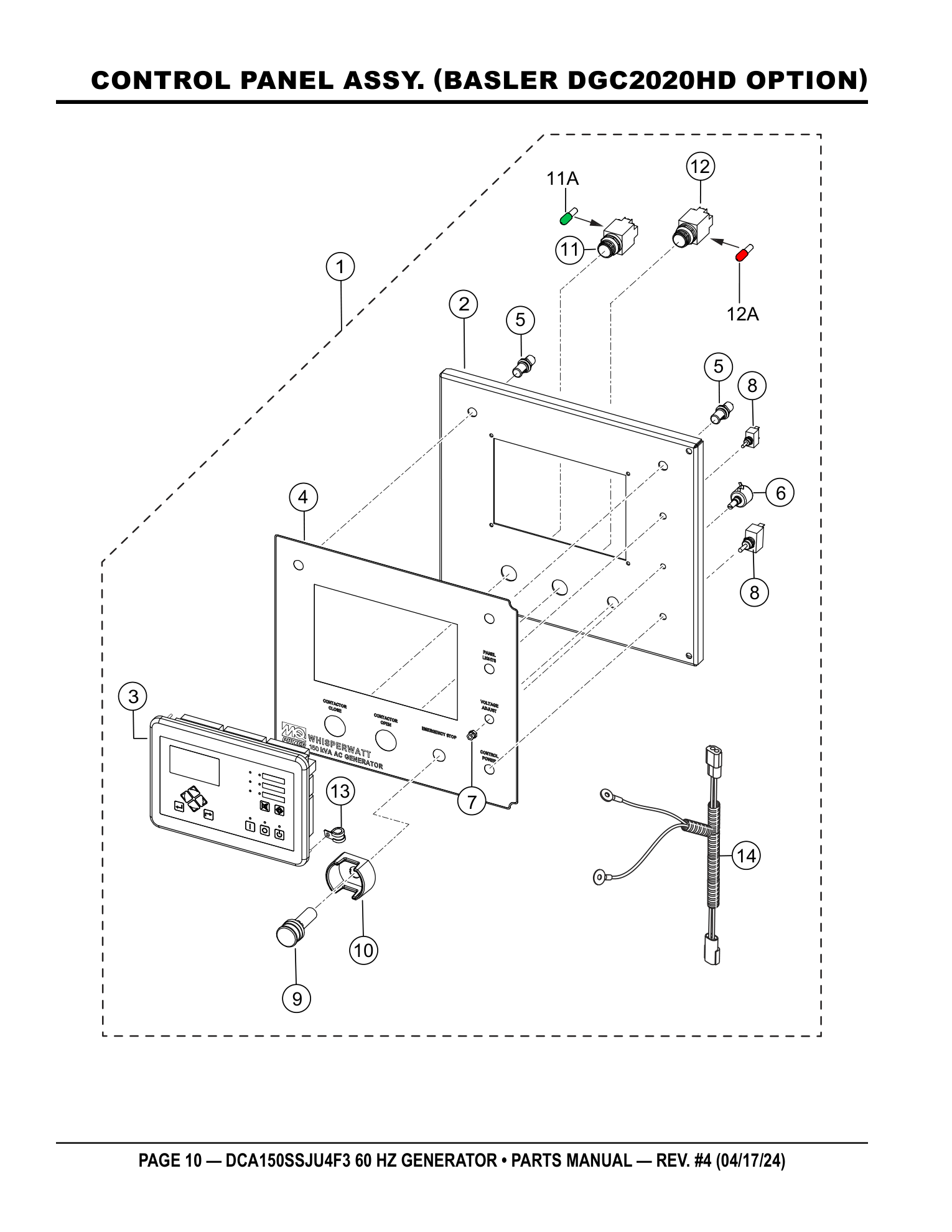

Page 10 — CONTROL PANEL ASSY. (BASLER DGC2020HD OPTION)

Multiquip DCA150SSJU4F3 Generator CONTROL PANEL ASSY. (BASLER DGC2020HD OPTION) parts diagram

Parts list — exactly as printed16 rows

No.	Part No.	Part Name	Qty	Remarks
1	EE59330	PANEL ASSY., PARALLELING	1	INCLUDES ITEMS W/#	PARTS REQUEST
PHOTO COMING PANEL ASSY., PARALLELING EE59330 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 2#, 3#, 4#, 5#, 6#, 7#, 8#, 9#, 10#, 11#, 11A#, 12#, 12A#, 13#, 14# PARTS REQUEST
2#	EE59122	PANEL, PARALLELING, BASLER HD	1		PARTS REQUEST
PHOTO COMING PANEL, PARALLELING, BASLER HD EE59122 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE59330) PARTS REQUEST
3#	EE59259	COLOR DISPLAY, CONTROLLER	1		ADD TO CART
COLOR DISPLAY, CONTROLLER EE59259 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE59330) view full part page → $5217.95 IN A KIT + SOLD SOLO
4#	EE59331	DECAL, PARALLELING, BASLER	1		PARTS REQUEST
PHOTO COMING DECAL, PARALLELING, BASLER EE59331 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE59330) PARTS REQUEST
5#	EE55761	LIGHT, PANEL, 12-36 VDC	2		ADD TO CART
LIGHT, PANEL, 12-36 VDC EE55761 · qty on machine: 2 Also included in kit 1 - PANEL ASSY., PARALLELING (EE59330) view full part page → $43.95 IN A KIT + SOLD SOLO
6#	EE2115	POTENTIOMETER, 5KOHM +/-5% TURN	1		ADD TO CART
POTENTIOMETER, 5KOHM +/-5% TURN EE2115 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE59330) view full part page → $70.95 IN A KIT + SOLD SOLO
7#	EE9949	NUT, SHAFT LOCK, POTENTIOMENTER	1		ADD TO CART
NUT, SHAFT LOCK, POTENTIOMENTER EE9949 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE59330) view full part page → $33.95 IN A KIT + SOLD SOLO
8#	EE2591	SWITCH, TOGGLE SINGLE POLE	2		ADD TO CART
SWITCH, TOGGLE SINGLE POLE EE2591 · qty on machine: 2 Also included in kit 1 - PANEL ASSY., PARALLELING (EE59330) view full part page → $11.95 IN A KIT + SOLD SOLO
9#	EE57855	SWITCH, E-STOP, RED, 24V LED	1		ADD TO CART
SWITCH, E-STOP, RED, 24V LED EE57855 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE59330) view full part page → $164.95 IN A KIT + SOLD SOLO
10#	EE52893	BEZEL, YELLOW PLASTIC	1		ADD TO CART
BEZEL, YELLOW PLASTIC EE52893 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE59330) view full part page → $34.95 IN A KIT + SOLD SOLO
11#	EE23374	PUSHBUTTON, 24V GREEN	1		ADD TO CART
PUSHBUTTON, 24V GREEN EE23374 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE59330) view full part page → $82.95 IN A KIT + SOLD SOLO
11A#	EE39554	LED LAMP, 12 VAC/VDC, GREEN	1		ADD TO CART
LED LAMP, 12 VAC/VDC, GREEN EE39554 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE59330) view full part page → $6.95 IN A KIT + SOLD SOLO
12#	EE23375	PUSHBUTTON, 24V RED	1		ADD TO CART
PUSHBUTTON, 24V RED EE23375 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE59330) view full part page → $82.95 IN A KIT + SOLD SOLO
12A#	EE5895	LED LAMP, 12 VAC/VDC, RED	1		ADD TO CART
LED LAMP, 12 VAC/VDC, RED EE5895 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE59330) view full part page → $6.95 IN A KIT + SOLD SOLO
13#	21574	CLAMP, LOOP CUSHIONED #16 0.25 HOLE	1		ADD TO CART
CLAMP, LOOP CUSHIONED #16 0.25 HOLE 21574 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE59330) view full part page → $0.95 IN A KIT + SOLD SOLO
14#	EE59200	HARNESS, UNIVERSAL DGC2020HD	1		PARTS REQUEST
PHOTO COMING HARNESS, UNIVERSAL DGC2020HD EE59200 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE59330) PARTS REQUEST

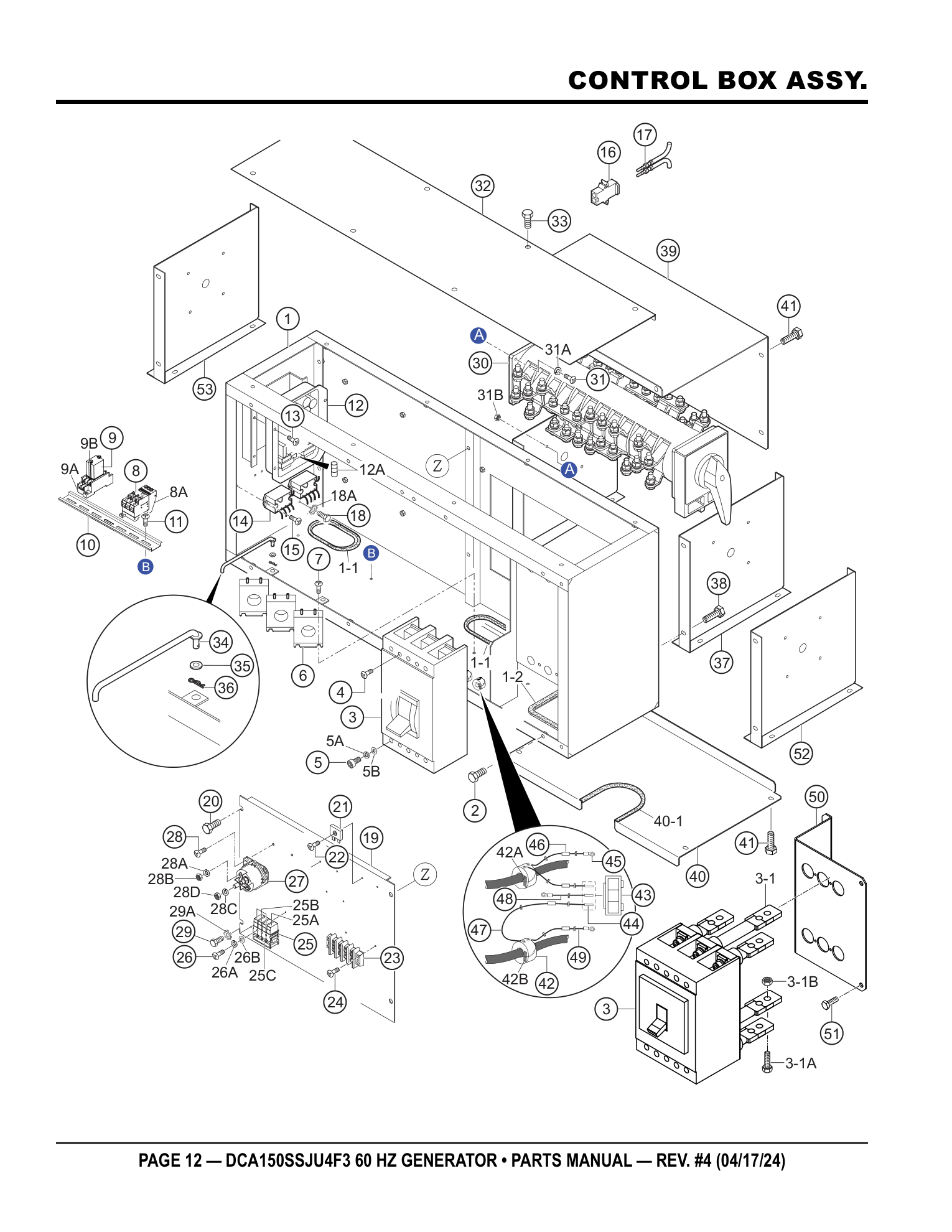

Page 12 — CONTROL BOX ASSY.

Multiquip DCA150SSJU4F3 Generator CONTROL BOX ASSY. parts diagram

Parts list — exactly as printed39 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3214001102A	CONTROL BOX	1	S/N 7601393 AND BELOW	PARTS REQUEST
PHOTO COMING CONTROL BOX M3214001102A · qty on machine: 1 S/N 7601393 AND BELOW PARTS REQUEST
1	M3214001602	CONTROL BOX	1	S/N 7601394 AND ABOVE	PARTS REQUEST
PHOTO COMING CONTROL BOX M3214001602 · qty on machine: 1 S/N 7601394 AND ABOVE PARTS REQUEST
1-1	Y0411100305	EDGE TRIM	2		PARTS REQUEST
PHOTO COMING EDGE TRIM Y0411100305 · qty on machine: 2 PARTS REQUEST
1-2	Y0411100500	EDGE TRIM	1		PARTS REQUEST
PHOTO COMING EDGE TRIM Y0411100500 · qty on machine: 1 PARTS REQUEST
2	011008020	HEX. HEAD BOLT 8X20	14	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 8X20 011008020 · qty on machine: 14 REPLACES P/N 0016908020 view full part page → $2.68
3	0601808821	CIRCUIT BREAKER	1	S/N 7601393 AND BELOW	ADD TO CART
CIRCUIT BREAKER 0601808821 · qty on machine: 1 S/N 7601393 AND BELOW view full part page → $2158.95
3	Y0601807566	CIRCUIT BREAKER	1	S/N 7601394 AND ABOVE	PARTS REQUEST
PHOTO COMING CIRCUIT BREAKER Y0601807566 · qty on machine: 1 S/N 7601394 AND ABOVE PARTS REQUEST
3-1	Y0601827415	REAR TERMINAL BUSBAR	2	S/N 7601394 AND ABOVE	ADD TO CART
REAR TERMINAL BUSBAR Y0601827415 · qty on machine: 2 S/N 7601394 AND ABOVE view full part page → $218.95
3-1A	014210040	HEX. HEAD BOLT	6	REPLACES P/N 0017110040 S/N 7601394 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 014210040 · qty on machine: 6 REPLACES P/N 0017110040 S/N 7601394 AND ABOVE view full part page → $1.95
3-1B	021112140	SELF-LOCKING NUT	6	REPLACES P/N 0207010000 S/N 7601394 AND ABOVE	ADD TO CART
SELF-LOCKING NUT 021112140 · qty on machine: 6 REPLACES P/N 0207010000 S/N 7601394 AND ABOVE view full part page → $0.46
4	0021006080	MACHINE SCREW	4	S/N 7601393 AND BELOW	ADD TO CART
MACHINE SCREW 0021006080 · qty on machine: 4 S/N 7601393 AND BELOW view full part page → $0.95
5	0342604120	HEX. SOCKET HEAD CAP SCREW	6	S/N 7601393 AND BELOW	ADD TO CART
HEX. SOCKET HEAD CAP SCREW 0342604120 · qty on machine: 6 S/N 7601393 AND BELOW view full part page → $1.63
5A	0166A	WASHER, LOCK	6	REPLACES P/N 0043604000 S/N 7601393 AND BELOW	ADD TO CART
WASHER, LOCK 0166A · qty on machine: 6 REPLACES P/N 0043604000 S/N 7601393 AND BELOW view full part page → $0.17
5B	Y0041210000	WASHER, FLAT	6	S/N 7601393 AND BELOW	ADD TO CART
WASHER, FLAT Y0041210000 · qty on machine: 6 S/N 7601393 AND BELOW view full part page → $0.19
6	Y0601809692	CURRENT TRANSFORMER	3		ADD TO CART
CURRENT TRANSFORMER Y0601809692 · qty on machine: 3 view full part page → $62.95
7	011206020	MACHINE SCREW 6MMX20MM	6	REPLACES P/N 0027106020	ADD TO CART
MACHINE SCREW 6MMX20MM 011206020 · qty on machine: 6 REPLACES P/N 0027106020 view full part page → $0.95
8	Y0601820839	OVER-CURRENT RELAY, T16-3.1	1		ADD TO CART
OVER-CURRENT RELAY, T16-3.1 Y0601820839 · qty on machine: 1 view full part page → $120.95
8A	Y0601820844	OVER-CURRENT RELAY BASE, DB16	1		ADD TO CART
OVER-CURRENT RELAY BASE, DB16 Y0601820844 · qty on machine: 1 view full part page → $24.95
9	LY2DUS12VDC	RELAY, LY-2D DC12V	1	REPLACES P/N 0601827656	ADD TO CART
RELAY, LY-2D DC12V LY2DUS12VDC · qty on machine: 1 REPLACES P/N 0601827656 view full part page → $46.95
9A	PTF08A	RELAY BASE, PTF08A-E	1	REPLACES P/N 0601823109	ADD TO CART
RELAY BASE, PTF08A-E PTF08A · qty on machine: 1 REPLACES P/N 0601823109 view full part page → $47.95
9B	PYCA1	RELAY CLIP, PYC-A1	2	REPLACES P/N 0601824400	ADD TO CART
RELAY CLIP, PYC-A1 PYCA1 · qty on machine: 2 REPLACES P/N 0601824400 view full part page → $1.71
10	Y0290000245	MOUNTING RAIL	1		PARTS REQUEST
PHOTO COMING MOUNTING RAIL Y0290000245 · qty on machine: 1 PARTS REQUEST
11	0027104015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 2 view full part page → $0.53
12	0601820608	AUTOMATIC VOLTAGE REGULATOR	1	INCLUDES ITEMS W/#	ADD TO CART
AUTOMATIC VOLTAGE REGULATOR 0601820608 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 12A# view full part page → $1591.95 IN A KIT + SOLD SOLO
12A#	0601806683	FUSE	1		ADD TO CART
FUSE 0601806683 · qty on machine: 1 Also included in kit 12 - AUTOMATIC VOLTAGE REGULATO (0601820608) view full part page → $14.95 IN A KIT + SOLD SOLO
13	0027105015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 4 view full part page → $0.2
14	0601823863	RELAY UNIT	2		ADD TO CART
RELAY UNIT 0601823863 · qty on machine: 2 view full part page → $159.95
15	0027104015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 4 view full part page → $0.53
16	0601812626	PLUG	2		ADD TO CART
PLUG 0601812626 · qty on machine: 2 view full part page → $1.88
17	0601812711	PINS	4		ADD TO CART
PINS 0601812711 · qty on machine: 4 view full part page → $0.56
18	Y0016908015	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT Y0016908015 · qty on machine: 1 view full part page → $1.95
18A	0040508000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040508000 · qty on machine: 1 view full part page → $0.35
19	M3261500304	SET PANEL	1		PARTS REQUEST
PHOTO COMING SET PANEL M3261500304 · qty on machine: 1 PARTS REQUEST
20	011008020	HEX. HEAD BOLT 8X20	14	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 8X20 011008020 · qty on machine: 14 REPLACES P/N 0016908020 view full part page → $2.68
21	0601821370	RECTIFIER	1	REPLACES P/N 0601823240	ADD TO CART
RECTIFIER 0601821370 · qty on machine: 1 REPLACES P/N 0601823240 view full part page → $28.95
22	0027104020	MACHINE SCREW	1		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 1 view full part page → $0.4
23	Y0601816539	TERMINAL BLOCK, 601-GP-02	1	S/N 7601357 AND BELOW REPLACES P/N 0601815194	ADD TO CART
TERMINAL BLOCK, 601-GP-02 Y0601816539 · qty on machine: 1 S/N 7601357 AND BELOW REPLACES P/N 0601815194 view full part page → $15.95
23	0601815870	TERMINAL BLOCK, KT-20-2P	1	S/N 7601358 AND ABOVE	ADD TO CART
TERMINAL BLOCK, KT-20-2P 0601815870 · qty on machine: 1 S/N 7601358 AND ABOVE view full part page → $56.95
24	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4

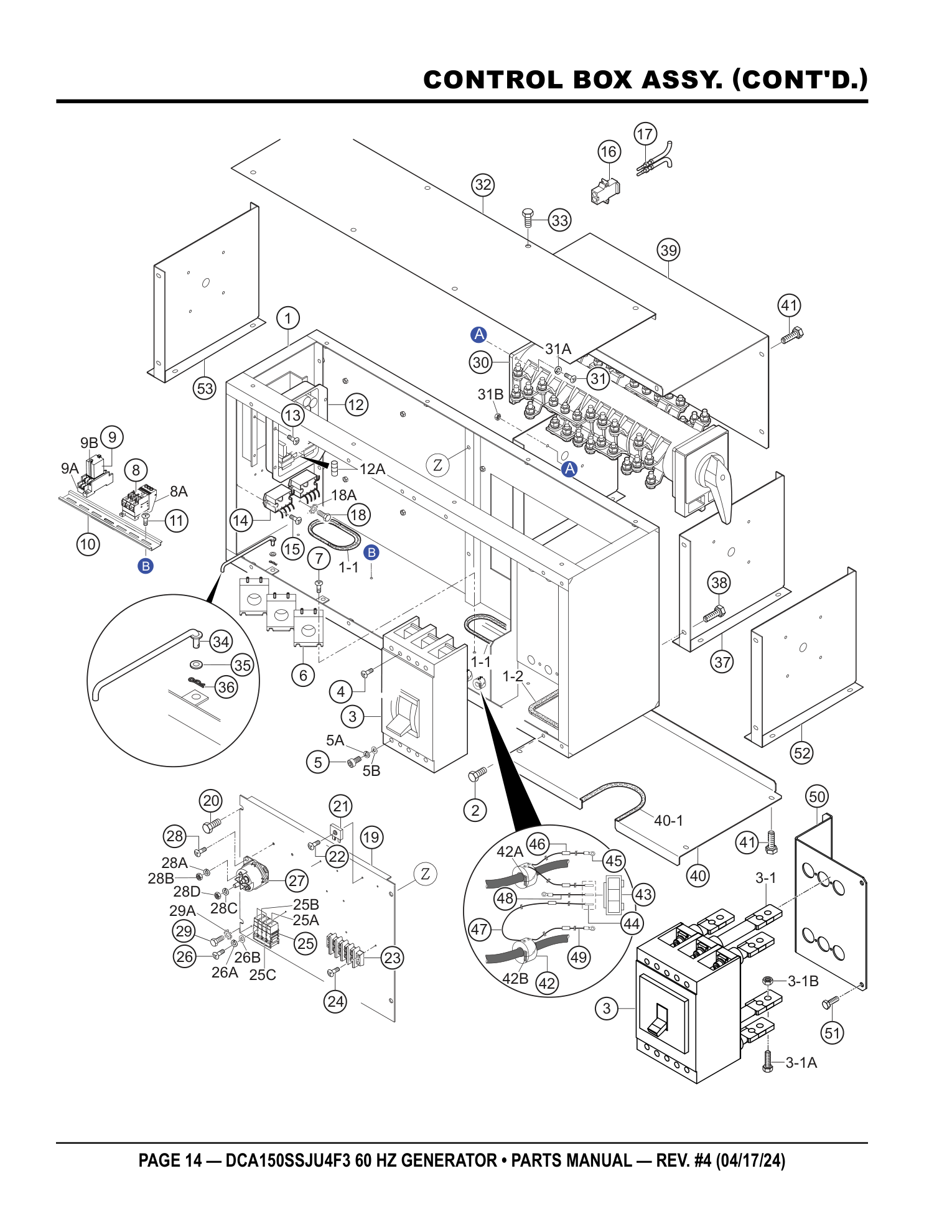

Page 14 — CONTROL BOX ASSY. (CONT'D.)

Multiquip DCA150SSJU4F3 Generator CONTROL BOX ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed46 rows

No.	Part No.	Part Name	Qty	Remarks
25	M3214601504	FUSE BOX ASSY.	1		PARTS REQUEST
PHOTO COMING FUSE BOX ASSY. M3214601504 · qty on machine: 1 PARTS REQUEST
25A	0601806643	FUSE, 15A	1		ADD TO CART
FUSE, 15A 0601806643 · qty on machine: 1 view full part page → $5.95
25B	0601806647	FUSE, 25A	3		ADD TO CART
FUSE, 25A 0601806647 · qty on machine: 3 view full part page → $1.82
25C	M9501400904	DECAL: FUSE HOLDER	1		PARTS REQUEST
PHOTO COMING DECAL: FUSE HOLDER M9501400904 · qty on machine: 1 PARTS REQUEST
26	Y0021003035	MACHINE SCREW	2		PARTS REQUEST
PHOTO COMING MACHINE SCREW Y0021003035 · qty on machine: 2 PARTS REQUEST
26A	0040003000	WASHER, LOCK	2		PARTS REQUEST
PHOTO COMING WASHER, LOCK 0040003000 · qty on machine: 2 PARTS REQUEST
26B	Y0042103000	WASHER, FLAT	2		PARTS REQUEST
PHOTO COMING WASHER, FLAT Y0042103000 · qty on machine: 2 PARTS REQUEST
27	Y0602201458	STARTER RELAY, RE164448	1		ADD TO CART
STARTER RELAY, RE164448 Y0602201458 · qty on machine: 1 view full part page → $116.95
28	011808015	BOLT, 8X15 H, SW, PW	2		ADD TO CART
BOLT, 8X15 H, SW, PW 011808015 · qty on machine: 2 view full part page → $6.95
28A	0044808000	WASHER, LOCK	2		PARTS REQUEST
PHOTO COMING WASHER, LOCK 0044808000 · qty on machine: 2 PARTS REQUEST
28B	Y0206508000	HEX. NUT	2		ADD TO CART
HEX. NUT Y0206508000 · qty on machine: 2 view full part page → $0.19
28C	0043003000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0043003000 · qty on machine: 2 view full part page → $0.39
28D	Y0206803000	HEX. NUT	2		ADD TO CART
HEX. NUT Y0206803000 · qty on machine: 2 view full part page → $0.26
29	0016906015	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 1 view full part page → $0.95
29A	0040506000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040506000 · qty on machine: 1 view full part page → $0.77
30	M3270100304	SELECTOR SWITCH	1		ADD TO CART
SELECTOR SWITCH M3270100304 · qty on machine: 1 view full part page → $4543.95
31	0021005020	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021005020 · qty on machine: 4 view full part page → $0.32
31A	0032005000	WASHER, LOCK	4	REPLACES P/N 0040005000	ADD TO CART
WASHER, LOCK 0032005000 · qty on machine: 4 REPLACES P/N 0040005000 view full part page → $0.41
31B	0030005000	HEX. NUT	4	REPLACES P/N 0207005000	ADD TO CART
HEX. NUT 0030005000 · qty on machine: 4 REPLACES P/N 0207005000 view full part page → $0.29
32	M4213500104	COVER, CONTROL BOX	1		ADD TO CART
COVER, CONTROL BOX M4213500104 · qty on machine: 1 view full part page → $204.95
33	011008020	HEX. HEAD BOLT 8X20	8	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 8X20 011008020 · qty on machine: 8 REPLACES P/N 0016908020 view full part page → $2.68
34	M4213600104	STOPPER	1		ADD TO CART
STOPPER M4213600104 · qty on machine: 1 view full part page → $63.95
35	952404470	WASHER, FLAT	1	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 1 REPLACES P/N 0041206000 view full part page → $0.19
36	505015300	SNAP PIN	1	REPLACES P/N 0605010502	ADD TO CART
SNAP PIN 505015300 · qty on machine: 1 REPLACES P/N 0605010502 view full part page → $0.95
37	M3213602904A	CHANGE-OVER SWITCH BRACKET	2	S/N 7601393 AND BELOW	PARTS REQUEST
PHOTO COMING CHANGE-OVER SWITCH BRACKET M3213602904A · qty on machine: 2 S/N 7601393 AND BELOW PARTS REQUEST
38	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95
39	M3214600404	CHANGE-OVER SWITCH COVER A	1	S/N 7601393 AND BELOW	PARTS REQUEST
PHOTO COMING CHANGE-OVER SWITCH COVER A M3214600404 · qty on machine: 1 S/N 7601393 AND BELOW PARTS REQUEST
39	M3214602704	CHANGE-OVER SWITCH COVER A	1	S/N 7601394 AND ABOVE	PARTS REQUEST
PHOTO COMING CHANGE-OVER SWITCH COVER A M3214602704 · qty on machine: 1 S/N 7601394 AND ABOVE PARTS REQUEST
40	M3214600504	CHANGE-OVER SWITCH COVER B	1	S/N 7601393 AND BELOW	PARTS REQUEST
PHOTO COMING CHANGE-OVER SWITCH COVER B M3214600504 · qty on machine: 1 S/N 7601393 AND BELOW PARTS REQUEST
40	M3214602504	CHANGE-OVER SWITCH COVER B	1	S/N 7601394 AND ABOVE	PARTS REQUEST
PHOTO COMING CHANGE-OVER SWITCH COVER B M3214602504 · qty on machine: 1 S/N 7601394 AND ABOVE PARTS REQUEST
40-1	Y0317700265	WEATHER STRIP	1		ADD TO CART
WEATHER STRIP Y0317700265 · qty on machine: 1 view full part page → $9.95
41	0016906015	HEX. HEAD BOLT	10		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 10 view full part page → $0.95
42	Y0601872911	CURRENT TRANSFORMER	2		PARTS REQUEST
PHOTO COMING CURRENT TRANSFORMER Y0601872911 · qty on machine: 2 PARTS REQUEST
42A	M9521001604	DECAL: CT4	1		ADD TO CART
DECAL: CT4 M9521001604 · qty on machine: 1 view full part page → $0.95
42B	M9521001704	DECAL: CT5	1		ADD TO CART
DECAL: CT5 M9521001704 · qty on machine: 1 view full part page → $0.95
43	Y0601813924	PLUG	1		PARTS REQUEST
PHOTO COMING PLUG Y0601813924 · qty on machine: 1 PARTS REQUEST
44	0601812711	PINS	3		ADD TO CART
PINS 0601812711 · qty on machine: 3 view full part page → $0.56
45	Y0601815587	ROUND TERMINAL	3		PARTS REQUEST
PHOTO COMING ROUND TERMINAL Y0601815587 · qty on machine: 3 PARTS REQUEST
46	Y0601815585	BUTT TERMINAL	4		PARTS REQUEST
PHOTO COMING BUTT TERMINAL Y0601815585 · qty on machine: 4 PARTS REQUEST
47	Y0450000150	HOOK UP WIRE	2		PARTS REQUEST
PHOTO COMING HOOK UP WIRE Y0450000150 · qty on machine: 2 PARTS REQUEST
48	Y0450300350	HOOK UP WIRE	1		PARTS REQUEST
PHOTO COMING HOOK UP WIRE Y0450300350 · qty on machine: 1 PARTS REQUEST
49	Y0450400300	HOOK UP WIRE	2		PARTS REQUEST
PHOTO COMING HOOK UP WIRE Y0450400300 · qty on machine: 2 PARTS REQUEST
50	M3214602604	BRACKET, CIRCUIT BREAKER	1	S/N 7601394 AND ABOVE	PARTS REQUEST
PHOTO COMING BRACKET, CIRCUIT BREAKER M3214602604 · qty on machine: 1 S/N 7601394 AND ABOVE PARTS REQUEST
51	011008020	HEX. HEAD BOLT	4	S/N 7601394 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 S/N 7601394 AND ABOVE view full part page → $2.68
52	M3213603804	CHANGE-OVER SWITCH BRACKET A	1	S/N 7601394 AND ABOVE	PARTS REQUEST
PHOTO COMING CHANGE-OVER SWITCH BRACKET A M3213603804 · qty on machine: 1 S/N 7601394 AND ABOVE PARTS REQUEST
53	M3213603904	CHANGE-OVER SWITCH BRACKET B	1	S/N 7601394 AND ABOVE	PARTS REQUEST
PHOTO COMING CHANGE-OVER SWITCH BRACKET B M3213603904 · qty on machine: 1 S/N 7601394 AND ABOVE PARTS REQUEST

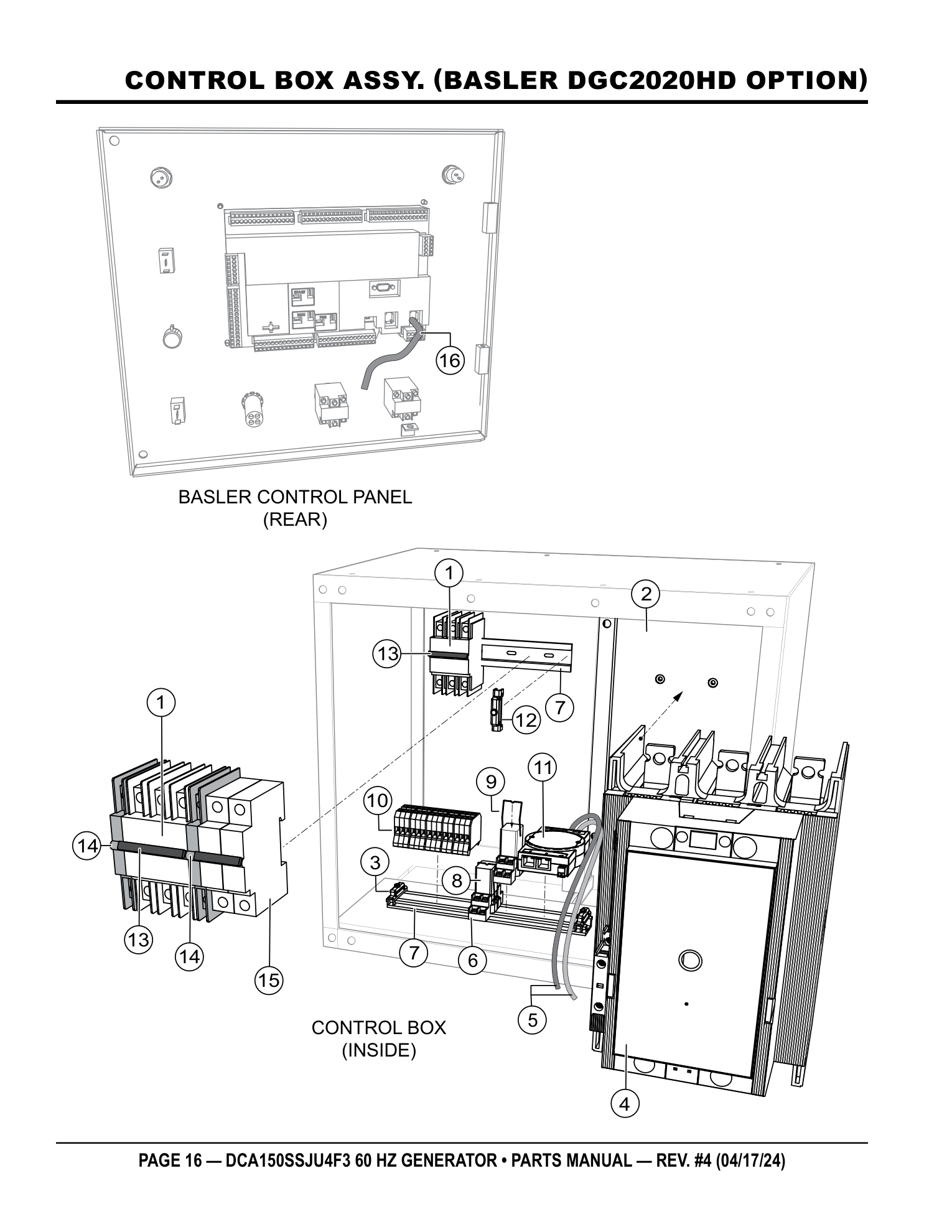

Page 16 — CONTROL BOX ASSY. (BASLER DGC2020HD OPTION)

Multiquip DCA150SSJU4F3 Generator CONTROL BOX ASSY. (BASLER DGC2020HD OPTION) parts diagram

Parts list — exactly as printed16 rows

No.	Part No.	Part Name	Qty
1	EE55784	CIRCUIT BREAKER (ABB), 3P, 10A, 480V	2	ADD TO CART
CIRCUIT BREAKER (ABB), 3P, 10A, 480V EE55784 · qty on machine: 2 view full part page → $349.95
2	EE58226	BRACKET, CONTACTOR	1	PARTS REQUEST
PHOTO COMING BRACKET, CONTACTOR EE58226 · qty on machine: 1 PARTS REQUEST
3	EE26107	END PLATE, TERMINAL	1	ADD TO CART
END PLATE, TERMINAL EE26107 · qty on machine: 1 view full part page → $1.44
4	EE58063	CONTACTOR (ABB), 650A, 100-250V	1	PARTS REQUEST
PHOTO COMING CONTACTOR (ABB), 650A, 100-250V EE58063 · qty on machine: 1 PARTS REQUEST
5	EE50312	CABLE, ETHERNET, 10FT	2	ADD TO CART
CABLE, ETHERNET, 10FT EE50312 · qty on machine: 2 view full part page → $10.95
6	EE26385	RELAY BASE	2	ADD TO CART
RELAY BASE EE26385 · qty on machine: 2 view full part page → $7.95
7	EE10071	RAIL, DIN, ALUM,.413" X 1.37" X 36"	1	ADD TO CART
RAIL, DIN, ALUM,.413" X 1.37" X 36" EE10071 · qty on machine: 1 view full part page → $12.95
8	EE58130	RELAY, DC12V	2	ADD TO CART
RELAY, DC12V EE58130 · qty on machine: 2 view full part page → $31.95
9	EE26135	RELAY CLIP	2	ADD TO CART
RELAY CLIP EE26135 · qty on machine: 2 view full part page → $0.37
10	EE26112	BLOCK, TERMINAL	14	ADD TO CART
BLOCK, TERMINAL EE26112 · qty on machine: 14 view full part page → $2.95
11	EE58065	ETHERNET SWITCH, 5 PORT 10-30VDC	1	ADD TO CART
ETHERNET SWITCH, 5 PORT 10-30VDC EE58065 · qty on machine: 1 view full part page → $453.95
12	EE2940	END STOP, DIN RAIL	4	ADD TO CART
END STOP, DIN RAIL EE2940 · qty on machine: 4 view full part page → $1.85
13	EE32611	JUMPER, 3-POLE	2	ADD TO CART
JUMPER, 3-POLE EE32611 · qty on machine: 2 view full part page → $12.95
14	EE55785	SWITCH (ABB), AUX	2	ADD TO CART
SWITCH (ABB), AUX EE55785 · qty on machine: 2 view full part page → $54.95
15	EE38585	CIRCUIT BREAKER (ABB), 2-POLE, 10A	1	ADD TO CART
CIRCUIT BREAKER (ABB), 2-POLE, 10A EE38585 · qty on machine: 1 view full part page → $60.95
16	EE56188	CABLE, ETHERNET, ORANGE, 3 FT	1	PARTS REQUEST
PHOTO COMING CABLE, ETHERNET, ORANGE, 3 FT EE56188 · qty on machine: 1 PARTS REQUEST

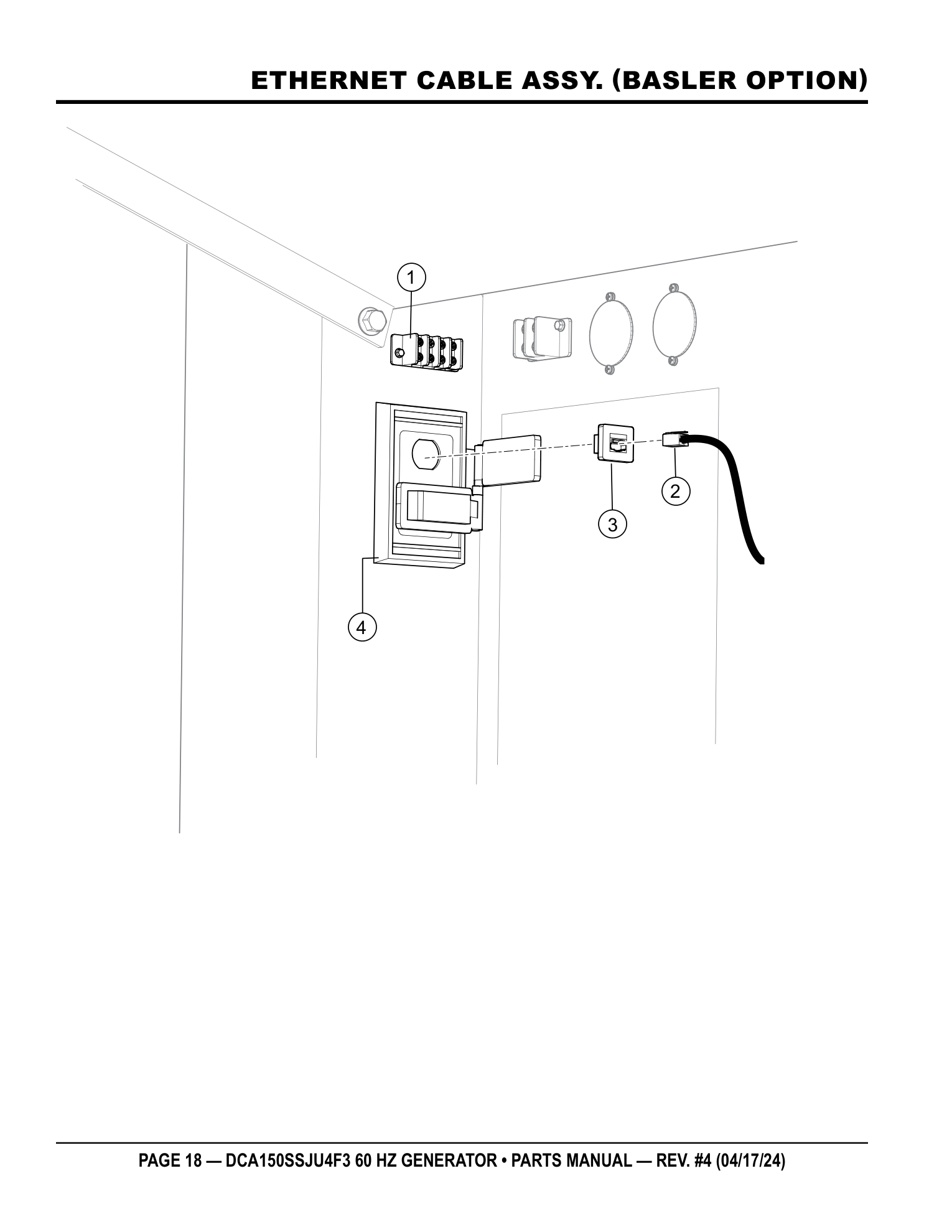

Page 18 — ETHERNET CABLE ASSY. (BASLER OPTION)

Multiquip DCA150SSJU4F3 Generator ETHERNET CABLE ASSY. (BASLER OPTION) parts diagram

Parts list — exactly as printed4 rows

No.	Part No.	Part Name	Qty	Remarks
1	EE59027	TERMINAL BLOCK, 4-POS.	1		PARTS REQUEST
PHOTO COMING TERMINAL BLOCK, 4-POS. EE59027 · qty on machine: 1 PARTS REQUEST
2	EE55780	CABLE, ETHERNET CAT5E SHIELDED	1	50 FT	ADD TO CART
CABLE, ETHERNET CAT5E SHIELDED EE55780 · qty on machine: 1 50 FT view full part page → $81.95
3	EE61219	JACK, ETHERNET RECEPTACLE, RJ45	2		ADD TO CART
JACK, ETHERNET RECEPTACLE, RJ45 EE61219 · qty on machine: 2 view full part page → $125.95
4	EE58796	COVER, NONMETALLIC, WEATHERPROOF	1		PARTS REQUEST
PHOTO COMING COVER, NONMETALLIC, WEATHERPROOF EE58796 · qty on machine: 1 PARTS REQUEST

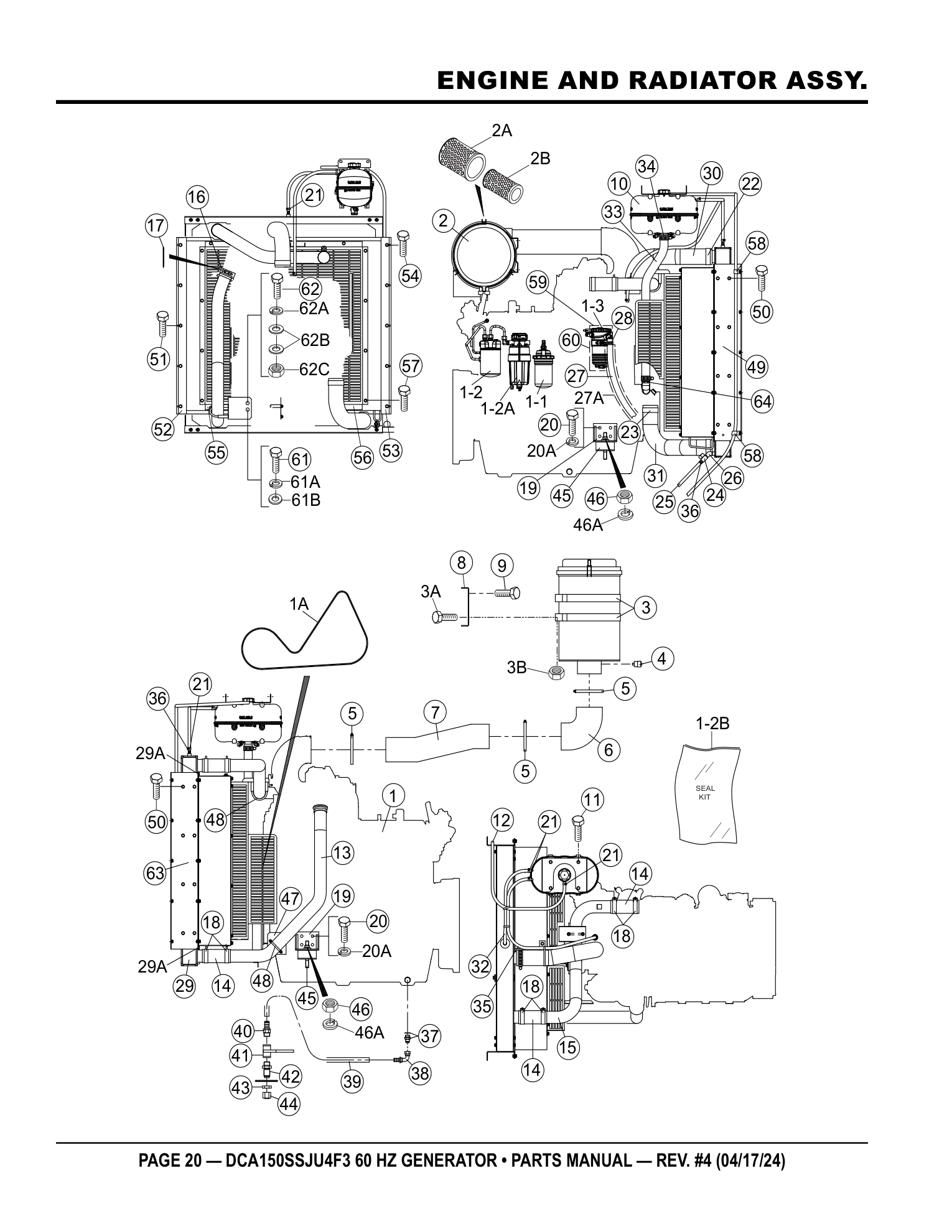

Page 20 — ENGINE AND RADIATOR ASSY.

Multiquip DCA150SSJU4F3 Generator ENGINE AND RADIATOR ASSY. parts diagram

Parts list — exactly as printed44 rows

No.	Part No.	Part Name	Qty	Remarks
1	6068HFG05	ENGINE, JOHN DEERE	1	REPLACES P/N M3924200174	ADD TO CART
ENGINE, JOHN DEERE 6068HFG05 · qty on machine: 1 REPLACES P/N M3924200174 view full part page → $63227.95
1A	R529382	FAN BELT	1	REPLACES P/N Y0602015209	ADD TO CART
FAN BELT R529382 · qty on machine: 1 REPLACES P/N Y0602015209 view full part page → $209.95
1-1	RE539279	CARTRIDGE, OIL FILTER	1	REPLACES P/N Y0602041293	ADD TO CART
CARTRIDGE, OIL FILTER RE539279 · qty on machine: 1 REPLACES P/N Y0602041293 view full part page → $93.95
1-2	RE551507	FUEL FILTER, PRIMARY	1	REPLACES P/N Y0602042800	ADD TO CART
FUEL FILTER, PRIMARY RE551507 · qty on machine: 1 REPLACES P/N Y0602042800 view full part page → $168.95
1-2A	RE560681	FUEL FILTER, SECONDARY	1	REPLACES P/N Y0602042801	ADD TO CART
FUEL FILTER, SECONDARY RE560681 · qty on machine: 1 REPLACES P/N Y0602042801 view full part page → $146.95
1-2B	RE562696	SEAL KIT, FUEL FILTER	2	REPLACES P/N Y0602042603	ADD TO CART
SEAL KIT, FUEL FILTER RE562696 · qty on machine: 2 REPLACES P/N Y0602042603 view full part page → $72.95
1-3	RE540710	BLOWBY FILTER	1	REPLACES P/N 0602044230	NO LONGER AVAILABLE
PHOTO COMING BLOWBY FILTER RE540710 · qty on machine: 1 REPLACES P/N 0602044230 NO LONGER AVAILABLE
2	0602046586	AIR CLEANER ASSEMBLY	1	INCLUDES ITEMS W/#	ADD TO CART
AIR CLEANER ASSEMBLY 0602046586 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 2A#, 2B# view full part page → $751.95 IN A KIT + SOLD SOLO
2A#	0602046682	ELEMENT, AIR CLEANER OUTER	1		ADD TO CART
ELEMENT, AIR CLEANER OUTER 0602046682 · qty on machine: 1 Also included in kit 2 - AIR CLEANER ASSEMBLY (0602046586) view full part page → $216.95 IN A KIT + SOLD SOLO
2B#	0602046683	ELEMENT, AIR CLEANER INNER	1		ADD TO CART
ELEMENT, AIR CLEANER INNER 0602046683 · qty on machine: 1 Also included in kit 2 - AIR CLEANER ASSEMBLY (0602046586) view full part page → $141.95 IN A KIT + SOLD SOLO
3	0602040558	AIR CLEANER BAND	2		ADD TO CART
AIR CLEANER BAND 0602040558 · qty on machine: 2 view full part page → $75.95
3A	011208025	HEX. HEAD BOLT, 8X25	4	REPLACES P/N 0016908025	ADD TO CART
HEX. HEAD BOLT, 8X25 011208025 · qty on machine: 4 REPLACES P/N 0016908025 view full part page → $0.41
3B	Y0207008000	SELF-LOCKING NUT	4		ADD TO CART
SELF-LOCKING NUT Y0207008000 · qty on machine: 4 view full part page → $0.4
4	0602040650	INDICATOR, AIR CLEANER	1	REPLACES P/N RBX002252	ADD TO CART
INDICATOR, AIR CLEANER 0602040650 · qty on machine: 1 REPLACES P/N RBX002252 view full part page → $34.95
5	0605515202	HOSE BAND	3		ADD TO CART
HOSE BAND 0605515202 · qty on machine: 3 view full part page → $9.95
6	0602040365	90° ELBOW	1		ADD TO CART
90° ELBOW 0602040365 · qty on machine: 1 view full part page → $79.95
7	M3374000604	AIR CLEANER PIPE	1		PARTS REQUEST
PHOTO COMING AIR CLEANER PIPE M3374000604 · qty on machine: 1 PARTS REQUEST
8	M3374200004	AIR CLEANER BRACKET	1		PARTS REQUEST
PHOTO COMING AIR CLEANER BRACKET M3374200004 · qty on machine: 1 PARTS REQUEST
9	0016910025	HEX. HEAD BOLT 10X25	2		ADD TO CART
HEX. HEAD BOLT 10X25 0016910025 · qty on machine: 2 view full part page → $1.56
10	RE549081	SURGE TANK	1	REPLACES P/N Y0602010222	NO LONGER AVAILABLE
PHOTO COMING SURGE TANK RE549081 · qty on machine: 1 REPLACES P/N Y0602010222 NO LONGER AVAILABLE
11	Y0016908015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT Y0016908015 · qty on machine: 4 view full part page → $1.95
12	Y0193602250	OVER FLOW HOSE	1		ADD TO CART
OVER FLOW HOSE Y0193602250 · qty on machine: 1 view full part page → $10.95
13	M3311400103	CAC PIPE, HOT SIDE	1		PARTS REQUEST
PHOTO COMING CAC PIPE, HOT SIDE M3311400103 · qty on machine: 1 PARTS REQUEST
14	Y0602015610	CAC HOSE	3		ADD TO CART
CAC HOSE Y0602015610 · qty on machine: 3 view full part page → $124.95
15	M3311400203	CAC PIPE, COLD SIDE	1		PARTS REQUEST
PHOTO COMING CAC PIPE, COLD SIDE M3311400203 · qty on machine: 1 PARTS REQUEST
16	RE292067	V-BAND CLAMP	1	REPLACES P/N Y0602325033	ADD TO CART
V-BAND CLAMP RE292067 · qty on machine: 1 REPLACES P/N Y0602325033 view full part page → $139.95
17	R529509	GASKET	1	REPLACES P/N Y0602320206	ADD TO CART
GASKET R529509 · qty on machine: 1 REPLACES P/N Y0602320206 view full part page → $49.95
18	0605515215	BAND, HOSE	6		ADD TO CART
BAND, HOSE 0605515215 · qty on machine: 6 view full part page → $28.95
19	M3303200404	ENGINE FOOT	2		ADD TO CART
ENGINE FOOT M3303200404 · qty on machine: 2 view full part page → $39.95
20	0012312030	HEX. HEAD BOLT	6	REPLACES P/N 0013612030	ADD TO CART
HEX. HEAD BOLT 0012312030 · qty on machine: 6 REPLACES P/N 0013612030 view full part page → $6.95
20A	0040012000	WASHER, LOCK	6		ADD TO CART
WASHER, LOCK 0040012000 · qty on machine: 6 view full part page → $0.95
21	0605515189	HOSE BAND	5		ADD TO CART
HOSE BAND 0605515189 · qty on machine: 5 view full part page → $1.85
22	0605515236	BAND, HOSE	2		ADD TO CART
BAND, HOSE 0605515236 · qty on machine: 2 view full part page → $46.95
23	0605515208	BAND, HOSE	2		ADD TO CART
BAND, HOSE 0605515208 · qty on machine: 2 view full part page → $61.95
24	Y0605511394	MINI BALL VALVE	1		ADD TO CART
MINI BALL VALVE Y0605511394 · qty on machine: 1 view full part page → $70.95
25	0193600400	HOSE, DRAIN	1		ADD TO CART
HOSE, DRAIN 0193600400 · qty on machine: 1 view full part page → $2.95
26	Y0603307520	45° ELBOW	1		PARTS REQUEST
PHOTO COMING 45° ELBOW Y0603307520 · qty on machine: 1 PARTS REQUEST
27	Y0191601135	BLOWBY HOSE	1		PARTS REQUEST
PHOTO COMING BLOWBY HOSE Y0191601135 · qty on machine: 1 PARTS REQUEST
27A	Y0377701060	AEROFLEX TUBE	1		PARTS REQUEST
PHOTO COMING AEROFLEX TUBE Y0377701060 · qty on machine: 1 PARTS REQUEST
28	0605515073	BAND, HOSE	1		ADD TO CART
BAND, HOSE 0605515073 · qty on machine: 1 view full part page → $6.95
29	Y0602012954	RADIATOR AND INTER-COOLER	1		ADD TO CART
RADIATOR AND INTER-COOLER Y0602012954 · qty on machine: 1 view full part page → $2898.95
29A	M3494117604	ACOUSTIC SHEET	2		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M3494117604 · qty on machine: 2 PARTS REQUEST
30	M3311500503	RADIATOR HOSE, UPPER	1		ADD TO CART
RADIATOR HOSE, UPPER M3311500503 · qty on machine: 1 view full part page → $194.95
31	M3311500603	RADIATOR HOSE, LOWER	1		ADD TO CART
RADIATOR HOSE, LOWER M3311500603 · qty on machine: 1 view full part page → $197.95

Page 22 — ENGINE AND RADIATOR ASSY. (CONT'D.)

Multiquip DCA150SSJU4F3 Generator ENGINE AND RADIATOR ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed39 rows

No.	Part No.	Part Name	Qty	Remarks
32	Y0199900630	VENT HOSE	1		PARTS REQUEST
PHOTO COMING VENT HOSE Y0199900630 · qty on machine: 1 PARTS REQUEST
33	M3311501503	SURGE TANK HOSE	1		ADD TO CART
SURGE TANK HOSE M3311501503 · qty on machine: 1 view full part page → $62.95
34	0605515149	BAND, HOSE	2		ADD TO CART
BAND, HOSE 0605515149 · qty on machine: 2 view full part page → $1.95
35	0199901200	DRAIN, HOSE	1		ADD TO CART
DRAIN, HOSE 0199901200 · qty on machine: 1 view full part page → $39.95
36	Y0605512192	HOSE JOINT	2		PARTS REQUEST
PHOTO COMING HOSE JOINT Y0605512192 · qty on machine: 2 PARTS REQUEST
37	0602022580	ADAPTER W/SEAL	1		ADD TO CART
ADAPTER W/SEAL 0602022580 · qty on machine: 1 view full part page → $37.95
38	0602022561	90° ELBOW	1		ADD TO CART
90° ELBOW 0602022561 · qty on machine: 1 view full part page → $76.95
39	Y0269201300	PUSH-LOCK HOSE	1		PARTS REQUEST
PHOTO COMING PUSH-LOCK HOSE Y0269201300 · qty on machine: 1 PARTS REQUEST
40	0603306395	MALE PIPE	1		ADD TO CART
MALE PIPE 0603306395 · qty on machine: 1 view full part page → $16.95
41	0605511395	BALL VALVE	1		ADD TO CART
BALL VALVE 0605511395 · qty on machine: 1 view full part page → $46.95
42	0603306590	MALE BULKHEAD CONNECTOR	1		ADD TO CART
MALE BULKHEAD CONNECTOR 0603306590 · qty on machine: 1 view full part page → $86.95
43	0603300285	BULKHEAD LOCKNUT	1		ADD TO CART
BULKHEAD LOCKNUT 0603300285 · qty on machine: 1 view full part page → $4.95
44	Y0602021070	CAP	1		ADD TO CART
CAP Y0602021070 · qty on machine: 1 Factory replaced this part - current number 0602021070 view full part page → $11.95 IN A KIT + SOLD SOLO
45	Y0605000462	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION Y0605000462 · qty on machine: 2 view full part page → $110.95
46	0030016000	HEX. NUT	2		ADD TO CART
HEX. NUT 0030016000 · qty on machine: 2 view full part page → $1.9
46A	0040016000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 2 view full part page → $4.95
47	M3314300104	CAC PIPE BRACKET	1		PARTS REQUEST
PHOTO COMING CAC PIPE BRACKET M3314300104 · qty on machine: 1 PARTS REQUEST
48	0602326063	U-BOLT	2		ADD TO CART
U-BOLT 0602326063 · qty on machine: 2 view full part page → $11.95
49	M3311201204	RADIATOR BRACKET	1		PARTS REQUEST
PHOTO COMING RADIATOR BRACKET M3311201204 · qty on machine: 1 PARTS REQUEST
50	Y0016908015	HEX. HEAD BOLT	16		ADD TO CART
HEX. HEAD BOLT Y0016908015 · qty on machine: 16 view full part page → $1.95
51	011008020	HEX. HEAD BOLT	10	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 10 REPLACES P/N 0016908020 view full part page → $2.68
52	M3311302203	FAN SHROUD	1		PARTS REQUEST
PHOTO COMING FAN SHROUD M3311302203 · qty on machine: 1 PARTS REQUEST
53	M3311302303	FAN SHROUD	1		PARTS REQUEST
PHOTO COMING FAN SHROUD M3311302303 · qty on machine: 1 PARTS REQUEST
54	011008020	HEX. HEAD BOLT	12	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 12 REPLACES P/N 0016908020 view full part page → $2.68
55	M3311300813	FAN GUARD, RADIATOR	1		ADD TO CART
FAN GUARD, RADIATOR M3311300813 · qty on machine: 1 view full part page → $158.95
56	M3311302103	FAN GUARD	1		PARTS REQUEST
PHOTO COMING FAN GUARD M3311302103 · qty on machine: 1 PARTS REQUEST
57	011008020	HEX. HEAD BOLT	17	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 17 REPLACES P/N 0016908020 view full part page → $2.68
58	0602220911	CLAMP (L)	2		ADD TO CART
CLAMP (L) 0602220911 · qty on machine: 2 view full part page → $1.85
59	Y0602044509	BLOW-BY FILTER COVER, UPPER	1		ADD TO CART
BLOW-BY FILTER COVER, UPPER Y0602044509 · qty on machine: 1 view full part page → $608.95
60	Y0602044503	BLOW-BY FILTER COVER, LOWER	1		ADD TO CART
BLOW-BY FILTER COVER, LOWER Y0602044503 · qty on machine: 1 view full part page → $306.95
61	Y0013616030	HEX. HEAD BOLT	1		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0013616030 · qty on machine: 1 PARTS REQUEST
61A	0040016000	WASHER, LOCK	1		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 1 view full part page → $4.95
61B	0041216000	WASHER, FLAT	1		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 1 view full part page → $1.95
62	0012116060	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0012116060 · qty on machine: 1 view full part page → $6.95
62A	0040016000	WASHER, LOCK	1		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 1 view full part page → $4.95
62B	0041216000	WASHER, FLAT	2		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 2 view full part page → $1.95
62C	0030016000	HEX. NUT	1		ADD TO CART
HEX. NUT 0030016000 · qty on machine: 1 view full part page → $1.9
63	M3311201304	RADIATOR BRACKET	1		PARTS REQUEST
PHOTO COMING RADIATOR BRACKET M3311201304 · qty on machine: 1 PARTS REQUEST
64	Y0602010226	WATER PUMP JOINT	1		NO LONGER AVAILABLE
PHOTO COMING WATER PUMP JOINT Y0602010226 · qty on machine: 1 NO LONGER AVAILABLE

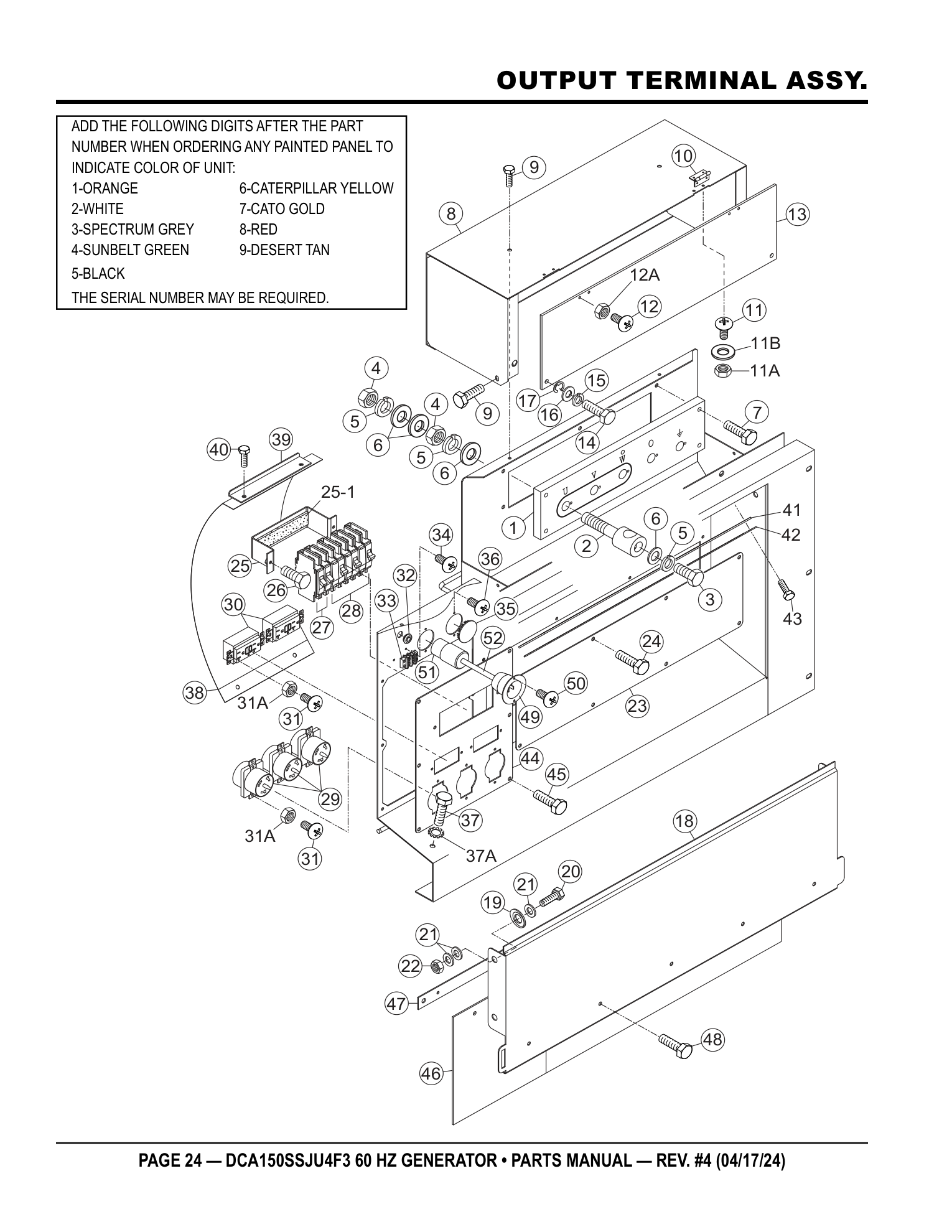

Page 24 — OUTPUT TERMINAL ASSY.

Multiquip DCA150SSJU4F3 Generator OUTPUT TERMINAL ASSY. parts diagram

Parts list — exactly as printed44 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3230700003	TERMINAL BOARD	1		ADD TO CART
TERMINAL BOARD M3230700003 · qty on machine: 1 view full part page → $258.95
2	M9220100304	OUTPUT TERMINAL BOLT	5		ADD TO CART
OUTPUT TERMINAL BOLT M9220100304 · qty on machine: 5 view full part page → $118.95
3	0801830804	TIE BOLT	5	REPLACES P/N M9220100404	ADD TO CART
TIE BOLT 0801830804 · qty on machine: 5 REPLACES P/N M9220100404 view full part page → $19.95
4	0039316000	HEX. NUT	10		ADD TO CART
HEX. NUT 0039316000 · qty on machine: 10 view full part page → $5.95
5	0040016000	WASHER, LOCK	15		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 15 view full part page → $4.95
6	0401450160	WASHER, FLAT	20	REPLACES P/N 0041416000	ADD TO CART
WASHER, FLAT 0401450160 · qty on machine: 20 REPLACES P/N 0041416000 view full part page → $0.53
7	0012108035	HEX. HEAD BOLT	5	REPLACES P/N 0016908035	ADD TO CART
HEX. HEAD BOLT 0012108035 · qty on machine: 5 REPLACES P/N 0016908035 view full part page → $1.95
8	M4236100403	TERMINAL COVER	1		ADD TO CART
TERMINAL COVER M4236100403 · qty on machine: 1 view full part page → $231.95
9	0016906015	HEX. HEAD BOLT 6X16	4		ADD TO CART
HEX. HEAD BOLT 6X16 0016906015 · qty on machine: 4 view full part page → $0.95
10	0605010040	HINGE	2		ADD TO CART
HINGE 0605010040 · qty on machine: 2 view full part page → $4.95
11	0027103010	MACHINE SCREW M3X10	4		ADD TO CART
MACHINE SCREW M3X10 0027103010 · qty on machine: 4 view full part page → $0.44
11A	0207003000	HEX. NUT	4	REPLACES P/N 0030003000	ADD TO CART
HEX. NUT 0207003000 · qty on machine: 4 REPLACES P/N 0030003000 view full part page → $0.21
11B	0041203000	WASHER, FLAT	4		ADD TO CART
WASHER, FLAT 0041203000 · qty on machine: 4 view full part page → $0.12
12	0027103015	MACHINE SCREW 3MM X 15MM	4		ADD TO CART
MACHINE SCREW 3MM X 15MM 0027103015 · qty on machine: 4 view full part page → $0.64
12A	0207003000	HEX. NUT	4	REPLACES P/N 0030003000	ADD TO CART
HEX. NUT 0207003000 · qty on machine: 4 REPLACES P/N 0030003000 view full part page → $0.21
13	M4236100504	OUTPUT WINDOW	1		ADD TO CART
OUTPUT WINDOW M4236100504 · qty on machine: 1 view full part page → $102.95
14	M9220100804	SET SCREW	2		ADD TO CART
SET SCREW M9220100804 · qty on machine: 2 view full part page → $20.95
15	0040006000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040006000 · qty on machine: 2 view full part page → $0.17
16	952404470	WASHER, FLAT	2	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 2 REPLACES P/N 0041206000 view full part page → $0.19
17	0080200005	E-RING	2		ADD TO CART
E-RING 0080200005 · qty on machine: 2 view full part page → $0.25
18	M3237100503	TERMINAL COVER	1		ADD TO CART
TERMINAL COVER M3237100503 · qty on machine: 1 view full part page → $126.95
19	0605050060	CONICAL SPRING WASHER	2		ADD TO CART
CONICAL SPRING WASHER 0605050060 · qty on machine: 2 view full part page → $5.95
20	Y0013612045	HEX. HEAD BOLT	2		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0013612045 · qty on machine: 2 PARTS REQUEST
21	031112230	WASHER, FLAT	6	REPLACES P/N 0041212000	ADD TO CART
WASHER, FLAT 031112230 · qty on machine: 6 REPLACES P/N 0041212000 view full part page → $0.95
22	0030012000	HEX NUT	2		ADD TO CART
HEX NUT 0030012000 · qty on machine: 2 view full part page → $0.5
23	M4236400204	COVER	1		PARTS REQUEST
PHOTO COMING COVER M4236400204 · qty on machine: 1 PARTS REQUEST
24	0016906015	HEX HEAD BOLT 6X16	8		ADD TO CART
HEX HEAD BOLT 6X16 0016906015 · qty on machine: 8 view full part page → $0.95
25	M4260600104	BRACKET, CIRCUIT BREAKER	1		ADD TO CART
BRACKET, CIRCUIT BREAKER M4260600104 · qty on machine: 1 view full part page → $57.95
25-1	0222100150	RUBBER CUSHION	1		ADD TO CART
RUBBER CUSHION 0222100150 · qty on machine: 1 view full part page → $6.95
26	Y0016906020	HEX HEAD BOLT	2		ADD TO CART
HEX HEAD BOLT Y0016906020 · qty on machine: 2 view full part page → $1.45
27	0601808803	CIRCUIT BREAKER, 1P 20A	2		ADD TO CART
CIRCUIT BREAKER, 1P 20A 0601808803 · qty on machine: 2 view full part page → $46.95
28	0601808804	CIRCUIT BREAKER, 2P 50A	3		ADD TO CART
CIRCUIT BREAKER, 2P 50A 0601808804 · qty on machine: 3 view full part page → $98.95
29	Y0601814034	RECEPTACLE, 50A	3	REPLACES P/N Y0601814014	ADD TO CART
RECEPTACLE, 50A Y0601814034 · qty on machine: 3 REPLACES P/N Y0601814014 view full part page → $91.95
30	Y0601814034	RECEPTACLE, 20A	2		ADD TO CART
RECEPTACLE, 20A Y0601814034 · qty on machine: 2 view full part page → $91.95
31	0027104015	MACHINE SCREW	10		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 10 view full part page → $0.53
31A	OEMAA8	SELF-LOCKING NUT	10	REPLACES P/N 0207004000	ADD TO CART
SELF-LOCKING NUT OEMAA8 · qty on machine: 10 REPLACES P/N 0207004000 view full part page → $0.4
32	0601850275	GROMMET	1		ADD TO CART
GROMMET 0601850275 · qty on machine: 1 view full part page → $2.68
33	0601815194	TERMINAL BLOCK	1		NO LONGER AVAILABLE
PHOTO COMING TERMINAL BLOCK 0601815194 · qty on machine: 1 NO LONGER AVAILABLE
34	0027104015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 2 view full part page → $0.53
35	0603306775	BLIND PLUG	1		ADD TO CART
BLIND PLUG 0603306775 · qty on machine: 1 view full part page → $3.95
36	0027104015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 2 view full part page → $0.53
37	0019208020	HEX HEAD BOLT	1		ADD TO CART
HEX HEAD BOLT 0019208020 · qty on machine: 1 view full part page → $3.95
37A	0040508000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040508000 · qty on machine: 1 view full part page → $0.35
38	M3237100404	INSULATING COVER	1		ADD TO CART
INSULATING COVER M3237100404 · qty on machine: 1 view full part page → $160.95

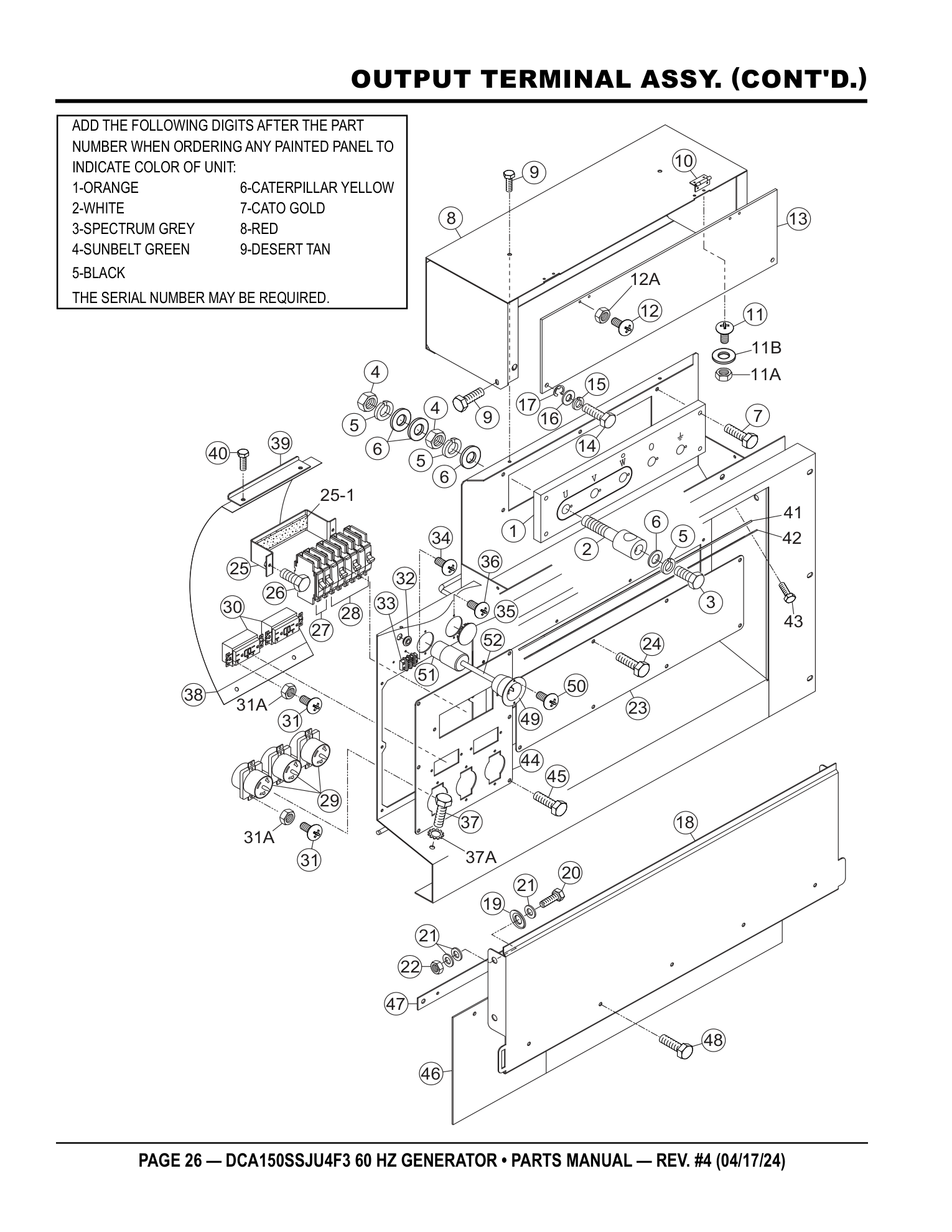

Page 26 — OUTPUT TERMINAL ASSY. (CONT'D.)

Multiquip DCA150SSJU4F3 Generator OUTPUT TERMINAL ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed15 rows

No.	Part No.	Part Name	Qty	Remarks
39	M4236400304	BRACKET	1		ADD TO CART
BRACKET M4236400304 · qty on machine: 1 view full part page → $19.95
40	0016906015	HEX HEAD BOLT 6X16	2		ADD TO CART
HEX HEAD BOLT 6X16 0016906015 · qty on machine: 2 view full part page → $0.95
41	M4236400004	CABLE OUTLET COVER	1		ADD TO CART
CABLE OUTLET COVER M4236400004 · qty on machine: 1 view full part page → $9.95
42	M4236400104	SUPPORTER, CABLE OUTLET COVER	1		ADD TO CART
SUPPORTER, CABLE OUTLET COVER M4236400104 · qty on machine: 1 view full part page → $88.95
43	Y0016906020	HEX HEAD BOLT	8		ADD TO CART
HEX HEAD BOLT Y0016906020 · qty on machine: 8 view full part page → $1.45
44	M3454200904	RECEPTACLE BOARD	1		ADD TO CART
RECEPTACLE BOARD M3454200904 · qty on machine: 1 view full part page → $30.95
45	0016906015	HEX HEAD BOLT 6X16	6		ADD TO CART
HEX HEAD BOLT 6X16 0016906015 · qty on machine: 6 view full part page → $0.95
46	M3454700404	RUBBER SHEET	1		ADD TO CART
RUBBER SHEET M3454700404 · qty on machine: 1 view full part page → $62.95
47	M3454700504	RUBBER SHEET HOLDER	1		PARTS REQUEST
PHOTO COMING RUBBER SHEET HOLDER M3454700504 · qty on machine: 1 PARTS REQUEST
48	011206020	HEX HEAD BOLT 6X20	5	REPLACES P/N 0019206020	ADD TO CART
HEX HEAD BOLT 6X20 011206020 · qty on machine: 5 REPLACES P/N 0019206020 view full part page → $0.95
49	Y0601811177	RECEPTACLE	1	S/N 7601332 AND BELOW	PARTS REQUEST
PHOTO COMING RECEPTACLE Y0601811177 · qty on machine: 1 S/N 7601332 AND BELOW PARTS REQUEST
50	Y0027104015	MACHINE SCREW	2		PARTS REQUEST
PHOTO COMING MACHINE SCREW Y0027104015 · qty on machine: 2 PARTS REQUEST
51	0601812527	CONNECTOR	1	S/N 7601332 AND BELOW	ADD TO CART
CONNECTOR 0601812527 · qty on machine: 1 S/N 7601332 AND BELOW view full part page → $64.95
52	M1358200804	WATER HEATER WIRE HARNESS	1	S/N 7601332 AND BELOW	PARTS REQUEST
PHOTO COMING WATER HEATER WIRE HARNESS M1358200804 · qty on machine: 1 S/N 7601332 AND BELOW PARTS REQUEST
52	Y0601813078	WATER HEATER CABLE	1	S/N 7601333 AND ABOVE	ADD TO CART
WATER HEATER CABLE Y0601813078 · qty on machine: 1 S/N 7601333 AND ABOVE view full part page → $105.95

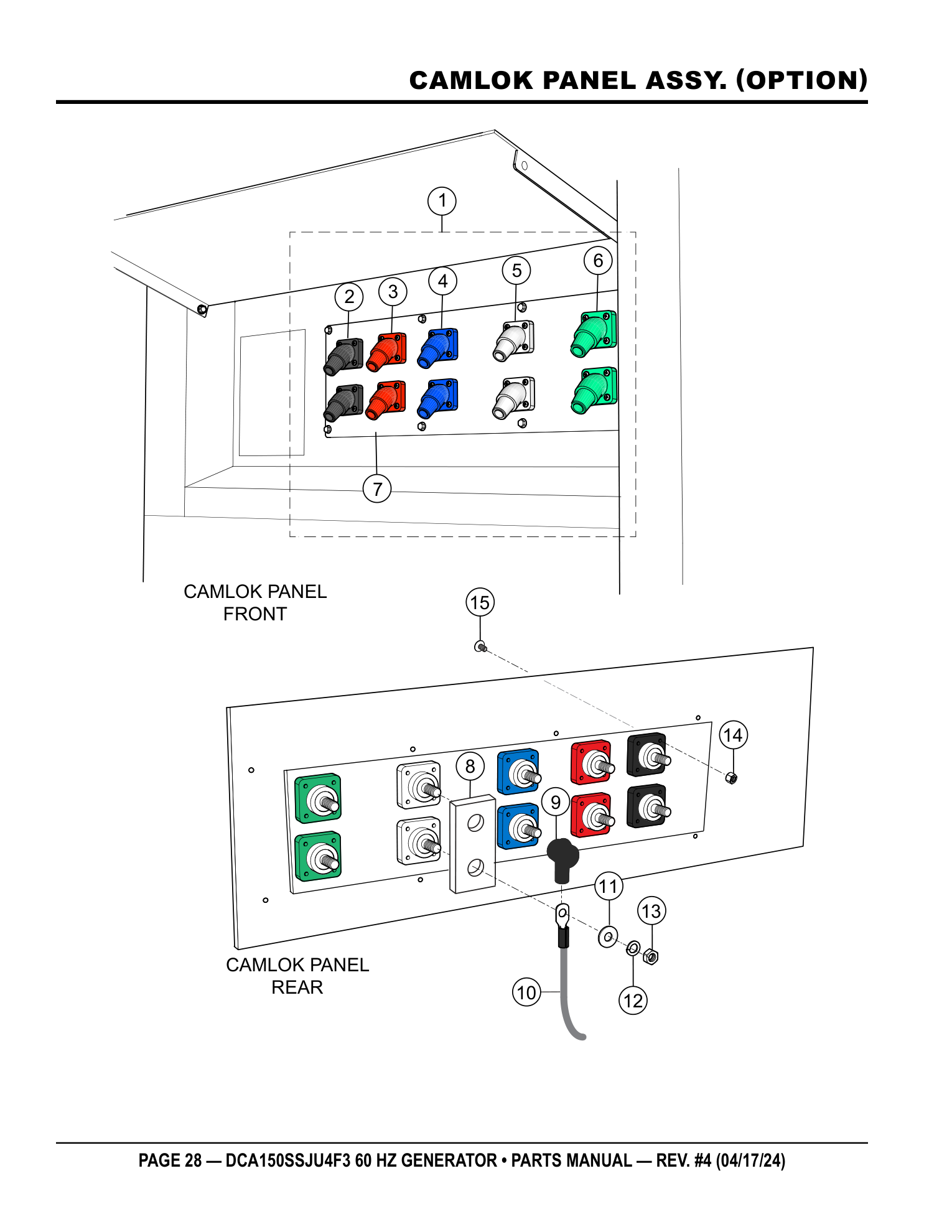

Page 28 — CAMLOK PANEL ASSY. (OPTION)

Multiquip DCA150SSJU4F3 Generator CAMLOK PANEL ASSY. (OPTION) parts diagram

Parts list — exactly as printed15 rows

No.	Part No.	Part Name	Qty	Remarks
1	CAMLOK2KIT45G	CAMLOK 2 SET, 45°	1	INCLUDES ITEMS W/%	ADD TO CART
CAMLOK 2 SET, 45° CAMLOK2KIT45G · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 2%, 3%, 4%, 5%, 6%, 7%, 8%, 9%, 10%, 11%, 12%, 13%, 14%, 15% view full part page → $2098.41 IN A KIT + SOLD SOLO
2%	EE60030	CAMLOK, FEMALE, 45°, BLACK	2		ADD TO CART
CAMLOK, FEMALE, 45°, BLACK EE60030 · qty on machine: 2 Also included in kit 1 - CAMLOK 2 SET, 45° (CAMLOK2KIT45G) view full part page → $85.95 IN A KIT + SOLD SOLO
3%	EE60032	CAMLOK, FEMALE, 45°, RED	2		ADD TO CART
CAMLOK, FEMALE, 45°, RED EE60032 · qty on machine: 2 Also included in kit 1 - CAMLOK 2 SET, 45° (CAMLOK2KIT45G) view full part page → $85.95 IN A KIT + SOLD SOLO
4%	EE60033	CAMLOK, FEMALE, 45°, BLUE	2		ADD TO CART
CAMLOK, FEMALE, 45°, BLUE EE60033 · qty on machine: 2 Also included in kit 1 - CAMLOK 2 SET, 45° (CAMLOK2KIT45G) view full part page → $85.95 IN A KIT + SOLD SOLO
5%	EE60031	CAMLOK, FEMALE, 45°, WHITE	2		ADD TO CART
CAMLOK, FEMALE, 45°, WHITE EE60031 · qty on machine: 2 Also included in kit 1 - CAMLOK 2 SET, 45° (CAMLOK2KIT45G) view full part page → $85.95 IN A KIT + SOLD SOLO
6%	EE60034	CAMLOK, FEMALE, 45°, GREEN	2		ADD TO CART
CAMLOK, FEMALE, 45°, GREEN EE60034 · qty on machine: 2 Also included in kit 1 - CAMLOK 2 SET, 45° (CAMLOK2KIT45G) view full part page → $85.95 IN A KIT + SOLD SOLO
7%	EE60561	PANEL, 2 ROW CAMLOK, 45°	1		PARTS REQUEST
PHOTO COMING PANEL, 2 ROW CAMLOK, 45° EE60561 · qty on machine: 1 Also included in kit 1 - CAMLOK 2 SET, 45° (CAMLOK2KIT45G) PARTS REQUEST
8%	EE60055	BUS BAR, 2 SETS 45° CAMLOK, COP.	2		PARTS REQUEST
PHOTO COMING BUS BAR, 2 SETS 45° CAMLOK, COP. EE60055 · qty on machine: 2 Also included in kit 1 - CAMLOK 2 SET, 45° (CAMLOK2KIT45G) PARTS REQUEST
9%	EE59031	CAP, TERM. INSUL., 2/0-4/0 AWG	8		ADD TO CART
CAP, TERM. INSUL., 2/0-4/0 AWG EE59031 · qty on machine: 8 Also included in kit 1 - CAMLOK 2 SET, 45° (CAMLOK2KIT45G) view full part page → $8.95 IN A KIT + SOLD SOLO
10%	EE61287	CAMLOK CABLE KIT	1		PARTS REQUEST
PHOTO COMING CAMLOK CABLE KIT EE61287 · qty on machine: 1 Also included in kit 1 - CAMLOK 2 SET, 45° (CAMLOK2KIT45G) PARTS REQUEST
11%		WASHER, FLAT 1/2"	10		INCLUDED IN KIT
PHOTO COMING WASHER, FLAT 1/2" · qty on machine: 10 Included in kit 1 - CAMLOK 2 SET, 45° (CAMLOK2KIT45G) INCLUDED IN KIT
12%		WASHER, LOCK 1/2"	10		INCLUDED IN KIT
PHOTO COMING WASHER, LOCK 1/2" · qty on machine: 10 Included in kit 1 - CAMLOK 2 SET, 45° (CAMLOK2KIT45G) INCLUDED IN KIT
13%		HEX. NUT 1/2"-13	10		INCLUDED IN KIT
PHOTO COMING HEX. NUT 1/2"-13 · qty on machine: 10 Included in kit 1 - CAMLOK 2 SET, 45° (CAMLOK2KIT45G) INCLUDED IN KIT
14%		NUT, TOOTH LOCK 10-32	40		INCLUDED IN KIT
PHOTO COMING NUT, TOOTH LOCK 10-32 · qty on machine: 40 Included in kit 1 - CAMLOK 2 SET, 45° (CAMLOK2KIT45G) INCLUDED IN KIT
15%		SCREW, PAN HEAD 10-32 X 3/4"	40		INCLUDED IN KIT
PHOTO COMING SCREW, PAN HEAD 10-32 X 3/4" · qty on machine: 40 Included in kit 1 - CAMLOK 2 SET, 45° (CAMLOK2KIT45G) INCLUDED IN KIT

Page 30 — BATTERY ASSY.

Multiquip DCA150SSJU4F3 Generator BATTERY ASSY. parts diagram

Parts list — exactly as printed15 rows

No.	Part No.	Part Name	Qty	Remarks
1	0602220198	BATTERY 904D	1		ADD TO CART
BATTERY 904D 0602220198 · qty on machine: 1 view full part page → $500.95
2	M9103000504	BATTERY BAND	1		ADD TO CART
BATTERY BAND M9103000504 · qty on machine: 1 view full part page → $107.95
3	0602220921	BATTERY BOLT SET BHB-12J 1/4-L12"	2	INCLUDES ITEMS W/#	ADD TO CART
BATTERY BOLT SET BHB-12J 1/4-L12" 0602220921 · qty on machine: 2 INCLUDES ITEMS W/# Kit includes: 3A#, 3B# view full part page → $5.95 IN A KIT + SOLD SOLO
3A#		WING NUT	2		INCLUDED IN KIT
PHOTO COMING WING NUT · qty on machine: 2 Included in kit 3 - BATTERY BOLT SET BHB-12J 1 (0602220921) INCLUDED IN KIT
3B#		WASHER, PLASTIC	2		INCLUDED IN KIT
PHOTO COMING WASHER, PLASTIC · qty on machine: 2 Included in kit 3 - BATTERY BOLT SET BHB-12J 1 (0602220921) INCLUDED IN KIT
4	M9310500404	BATTERY SHEET	1	NO LONGER AVAILABLE	PARTS REQUEST
PHOTO COMING BATTERY SHEET M9310500404 · qty on machine: 1 NO LONGER AVAILABLE PARTS REQUEST
5	M5347900504	BATTERY CABLE	1		ADD TO CART
BATTERY CABLE M5347900504 · qty on machine: 1 view full part page → $365.95
6	M5347900604	BATTERY CABLE	1		PARTS REQUEST
PHOTO COMING BATTERY CABLE M5347900604 · qty on machine: 1 PARTS REQUEST
7	Y0013616030	HEX. HEAD BOLT	1		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0013616030 · qty on machine: 1 PARTS REQUEST
7A	0040016000	WASHER, LOCK	1		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 1 view full part page → $4.95
7B	0041216000	WASHER, FLAT	1		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 1 view full part page → $1.95
7C	0040516000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040516000 · qty on machine: 1 view full part page → $1.39
8	0016910025	HEX. HEAD BOLT 10X25	1		ADD TO CART
HEX. HEAD BOLT 10X25 0016910025 · qty on machine: 1 view full part page → $1.56
8A	0040510000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040510000 · qty on machine: 1 view full part page → $0.77
9		EARTH CABLE	1	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING EARTH CABLE · qty on machine: 1 OBTAIN LOCALLY SEE REMARKS

Page 32 — MUFFLER ASSY.

Multiquip DCA150SSJU4F3 Generator MUFFLER ASSY. parts diagram

Parts list — exactly as printed37 rows

No.	Part No.	Part Name	Qty	Remarks
1	DZ100501	DIESEL OXIDATION CATALYST	1	REPLACES P/N 0602330106	NO LONGER AVAILABLE
PHOTO COMING DIESEL OXIDATION CATALYST DZ100501 · qty on machine: 1 REPLACES P/N 0602330106 NO LONGER AVAILABLE
2	DZ100467	SCR CATALYST	1	REPLACES P/N 0602330304	ADD TO CART
SCR CATALYST DZ100467 · qty on machine: 1 REPLACES P/N 0602330304 view full part page → $16507.95
3	RE565074	DECOMPOSITION TUBE	1	REPLACES P/N 0602330403	ADD TO CART
DECOMPOSITION TUBE RE565074 · qty on machine: 1 REPLACES P/N 0602330403 view full part page → $2420.95
4	RE559456	DECOMPOSITION EXTENTION TUBE	1	REPLACES P/N 0602330404	PARTS REQUEST
PHOTO COMING DECOMPOSITION EXTENTION TUBE RE559456 · qty on machine: 1 REPLACES P/N 0602330404 PARTS REQUEST
5	RE540348	CLAMP, V-BAND	3	REPLACES P/N 0602325034	ADD TO CART
CLAMP, V-BAND RE540348 · qty on machine: 3 REPLACES P/N 0602325034 view full part page → $163.95
6	R529640	GASKET	3	REPLACES P/N 0602320205	ADD TO CART
GASKET R529640 · qty on machine: 3 REPLACES P/N 0602320205 view full part page → $97.95
7	RE560468	DEF DOSING INJECTOR	1	REPLACES P/N 0602330405	ADD TO CART
DEF DOSING INJECTOR RE560468 · qty on machine: 1 REPLACES P/N 0602330405 view full part page → $1355.95
8	RE556879	GASKET	1	REPLACES P/N 0602330406	ADD TO CART
GASKET RE556879 · qty on machine: 1 REPLACES P/N 0602330406 view full part page → $25.95
9	R537624	HEX HEAD BOLT	3	REPLACES P/N 0602330407	ADD TO CART
HEX HEAD BOLT R537624 · qty on machine: 3 REPLACES P/N 0602330407 view full part page → $4.95
10	RE289839	CLAMP, V-BAND	1		ADD TO CART
CLAMP, V-BAND RE289839 · qty on machine: 1 view full part page → $107.95
11	R528112	SEALING RING	1		ADD TO CART
SEALING RING R528112 · qty on machine: 1 view full part page → $116.95
12	Y0602325026	PIPE BAND	1		ADD TO CART
PIPE BAND Y0602325026 · qty on machine: 1 view full part page → $37.95
13	M3334100103	TAIL PIPE	1		ADD TO CART
TAIL PIPE M3334100103 · qty on machine: 1 view full part page → $1146.95
13A	Y0602311172	INSULATING MAT, EXHAUST	1		ADD TO CART
INSULATING MAT, EXHAUST Y0602311172 · qty on machine: 1 view full part page → $157.95
14	0400005080	INSULATING WRAP, EXHAUST	1		ADD TO CART
INSULATING WRAP, EXHAUST 0400005080 · qty on machine: 1 view full part page → $140.95
15	M3334001203	PIPE, EXHAUST	1		ADD TO CART
PIPE, EXHAUST M3334001203 · qty on machine: 1 view full part page → $414.95
15A	0602311170	INSULATING MAT, EXHAUST	1		PARTS REQUEST
PHOTO COMING INSULATING MAT, EXHAUST 0602311170 · qty on machine: 1 PARTS REQUEST
15B	0602311171	INSULATING MAT, EXHAUST	1		PARTS REQUEST
PHOTO COMING INSULATING MAT, EXHAUST 0602311171 · qty on machine: 1 PARTS REQUEST
16	RE298757	V-BAND CLAMP	1		ADD TO CART
V-BAND CLAMP RE298757 · qty on machine: 1 view full part page → $162.95
17	R300529	SEALING RING	1		ADD TO CART
SEALING RING R300529 · qty on machine: 1 view full part page → $140.95
18	0602326060	U-BOLT	1		ADD TO CART
U-BOLT 0602326060 · qty on machine: 1 view full part page → $16.95
19	M3334300604	COVER, EXHAUST PIPE	1		PARTS REQUEST
PHOTO COMING COVER, EXHAUST PIPE M3334300604 · qty on machine: 1 PARTS REQUEST
20	M3334300503	BRACKET, EXHAUST PIPE	1		PARTS REQUEST
PHOTO COMING BRACKET, EXHAUST PIPE M3334300503 · qty on machine: 1 PARTS REQUEST
21	011008020	HEX. HEAD BOLT 8X20	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 8X20 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
22	M3331200302	BRACKET, DOC AND SCR	1		PARTS REQUEST
PHOTO COMING BRACKET, DOC AND SCR M3331200302 · qty on machine: 1 PARTS REQUEST
23	0016910025	HEX. HEAD BOLT 10X25	4		ADD TO CART
HEX. HEAD BOLT 10X25 0016910025 · qty on machine: 4 view full part page → $1.56
24	M3331400604	DPF BAND	2		ADD TO CART
DPF BAND M3331400604 · qty on machine: 2 view full part page → $77.95
25	M3331400704	SCR BAND	2		ADD TO CART
SCR BAND M3331400704 · qty on machine: 2 view full part page → $17.95
26	011008020	HEX. HEAD BOLT 8X20	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 8X20 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
27	020108060	U-NUT	4	REPLACES P/N 0037908000	ADD TO CART
U-NUT 020108060 · qty on machine: 4 REPLACES P/N 0037908000 view full part page → $0.28
27A	0401450080	WASHER, FLAT	4	REPLACES P/N 0041208000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 4 REPLACES P/N 0041208000 view full part page → $0.56
28	Y0013616030	HEX. HEAD BOLT	4		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0013616030 · qty on machine: 4 PARTS REQUEST
28A	0040016000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 4 view full part page → $4.95
28B	0041216000	WASHER, FLAT	4		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 4 view full part page → $1.95
29	0605515202	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515202 · qty on machine: 2 view full part page → $9.95
30	011008020	HEX. HEAD BOLT 8X20	1	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 8X20 011008020 · qty on machine: 1 REPLACES P/N 0016908020 view full part page → $2.68
31	0601851736	GROMMET	2		ADD TO CART
GROMMET 0601851736 · qty on machine: 2 view full part page → $12.95

Page 34 — DEF TANK ASSY.

Multiquip DCA150SSJU4F3 Generator DEF TANK ASSY. parts diagram

Parts list — exactly as printed42 rows

No.	Part No.	Part Name	Qty	Remarks
1	DZ113662	DEF TANK	1	REPLACES P/N 0605500074	ADD TO CART
DEF TANK DZ113662 · qty on machine: 1 REPLACES P/N 0605500074 view full part page → $2550.95
2	M5331402103	BRACKET, DEF TANK	1		PARTS REQUEST
PHOTO COMING BRACKET, DEF TANK M5331402103 · qty on machine: 1 PARTS REQUEST
2A	0222100480	SEAL, RUBBER	2		PARTS REQUEST
PHOTO COMING SEAL, RUBBER 0222100480 · qty on machine: 2 PARTS REQUEST
3	011208025	HEX HEAD BOLT 8X25	2	REPLACES P/N 0016908025	ADD TO CART
HEX HEAD BOLT 8X25 011208025 · qty on machine: 2 REPLACES P/N 0016908025 view full part page → $0.41
4	011008020	HEX HEAD BOLT 8X20	2	REPLACES P/N 0016908020	ADD TO CART
HEX HEAD BOLT 8X20 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
5	M3331402804	DEF TANK BAND	2		ADD TO CART
DEF TANK BAND M3331402804 · qty on machine: 2 view full part page → $233.95
6	M5331402004	DEF TANK BAND	2		PARTS REQUEST
PHOTO COMING DEF TANK BAND M5331402004 · qty on machine: 2 PARTS REQUEST
7	Y0207008000	SELF-LOCKING NUT	4		ADD TO CART
SELF-LOCKING NUT Y0207008000 · qty on machine: 4 view full part page → $0.4
8	011008020	HEX HEAD BOLT 8X25	4	REPLACES P/N 0016908020	ADD TO CART
HEX HEAD BOLT 8X25 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
9	RE552175	DEF SUPPLY MODULE	1	INCLUDES ITEMS W/# REPLACES P/N 0602330400	ADD TO CART
DEF SUPPLY MODULE RE552175 · qty on machine: 1 INCLUDES ITEMS W/# REPLACES P/N 0602330400 Kit includes: 9A#, 9B# view full part page → $2050.95 IN A KIT + SOLD SOLO
9A#	RE554498	FILTER KIT, DEF SUPPLY MODULE	1		ADD TO CART
FILTER KIT, DEF SUPPLY MODULE RE554498 · qty on machine: 1 Also included in kit 9 - DEF SUPPLY MODULE (RE552175) view full part page → $309.95 IN A KIT + SOLD SOLO
9B#	RE555351	COVER KIT, DEF SUPPLY MODULE	1		ADD TO CART
COVER KIT, DEF SUPPLY MODULE RE555351 · qty on machine: 1 Also included in kit 9 - DEF SUPPLY MODULE (RE552175) view full part page → $34.95 IN A KIT + SOLD SOLO
10	0013608090	HEX HEAD BOLT	3		PARTS REQUEST
PHOTO COMING HEX HEAD BOLT 0013608090 · qty on machine: 3 PARTS REQUEST
10A	0040008000	WASHER, LOCK	3		ADD TO CART
WASHER, LOCK 0040008000 · qty on machine: 3 view full part page → $0.63
10B	0401450080	WASHER, FLAT	3	REPLACES P/N 0041208000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 3 REPLACES P/N 0041208000 view full part page → $0.56
11	RE560893	DEF SUCTION LINE	1	REPLACES P/N 0602330428 S/N 7601328 AND BELOW	ADD TO CART
DEF SUCTION LINE RE560893 · qty on machine: 1 REPLACES P/N 0602330428 S/N 7601328 AND BELOW view full part page → $441.95
11	Y0602330512	DEF SUCTION LINE	1	S/N 7601329 AND ABOVE	PARTS REQUEST
PHOTO COMING DEF SUCTION LINE Y0602330512 · qty on machine: 1 S/N 7601329 AND ABOVE PARTS REQUEST
12	RE560877	DEF BACKFLOW LINE	1	REPLACES P/N 0602330429	ADD TO CART
DEF BACKFLOW LINE RE560877 · qty on machine: 1 REPLACES P/N 0602330429 view full part page → $460.95
13	RE560897	DEF PRESSURE LINE	1	REPLACES P/N 0602330423	ADD TO CART
DEF PRESSURE LINE RE560897 · qty on machine: 1 REPLACES P/N 0602330423 view full part page → $700.95
14	AT377287	HOSE BARB	1	REPLACES P/N 0602022975	ADD TO CART
HOSE BARB AT377287 · qty on machine: 1 REPLACES P/N 0602022975 view full part page → $49.95
15	Y0269300520	COOLANT HOSE	1		PARTS REQUEST
PHOTO COMING COOLANT HOSE Y0269300520 · qty on machine: 1 PARTS REQUEST
16	0269303200	COOLANT HOSE	1		ADD TO CART
COOLANT HOSE 0269303200 · qty on machine: 1 view full part page → $4.95
17	Y0605515341	HOSE BAND	4		ADD TO CART
HOSE BAND Y0605515341 · qty on machine: 4 view full part page → $2.95
18	T317541	BLACK T-FITTING W/ORIFICE	1	REPLACES P/N 0602022976	ADD TO CART
BLACK T-FITTING W/ORIFICE T317541 · qty on machine: 1 REPLACES P/N 0602022976 view full part page → $17.95
19	T296925	WHITE T-FITTING	1	REPLACES P/N 0602022977	ADD TO CART
WHITE T-FITTING T296925 · qty on machine: 1 REPLACES P/N 0602022977 view full part page → $12.95
20	0379602130	COOLANT HOSE	2		PARTS REQUEST
PHOTO COMING COOLANT HOSE 0379602130 · qty on machine: 2 PARTS REQUEST
21	0605515340	HOSE BAND	2		PARTS REQUEST
PHOTO COMING HOSE BAND 0605515340 · qty on machine: 2 PARTS REQUEST
22	0602022559	90° ELBOW	1		PARTS REQUEST
PHOTO COMING 90° ELBOW 0602022559 · qty on machine: 1 PARTS REQUEST
23	0602022980	HOSE JOINT	1		ADD TO CART
HOSE JOINT 0602022980 · qty on machine: 1 view full part page → $11.95
24	0379703250	COOLANT HOSE	1	S/N 7601328 AND BELOW	ADD TO CART
COOLANT HOSE 0379703250 · qty on machine: 1 S/N 7601328 AND BELOW view full part page → $52.95
24	Y0379702680	COOLANT HOSE	1	S/N 7601329 AND ABOVE	PARTS REQUEST
PHOTO COMING COOLANT HOSE Y0379702680 · qty on machine: 1 S/N 7601329 AND ABOVE PARTS REQUEST
25	0379700340	COOLANT HOSE	1	S/N 7601328 AND BELOW	PARTS REQUEST
PHOTO COMING COOLANT HOSE 0379700340 · qty on machine: 1 S/N 7601328 AND BELOW PARTS REQUEST
25	0379700220	COOLANT HOSE	1	S/N 7601329 AND ABOVE	PARTS REQUEST
PHOTO COMING COOLANT HOSE 0379700220 · qty on machine: 1 S/N 7601329 AND ABOVE PARTS REQUEST
26	Y0605515341	HOSE BAND	6	S/N 7601328 AND BELOW	ADD TO CART
HOSE BAND Y0605515341 · qty on machine: 6 S/N 7601328 AND BELOW view full part page → $2.95
26	Y0605515341	HOSE BAND	8	S/N 7601329 AND ABOVE	ADD TO CART
HOSE BAND Y0605515341 · qty on machine: 8 S/N 7601329 AND ABOVE view full part page → $2.95
27	0191301150	VENT HOSE	1		ADD TO CART
VENT HOSE 0191301150 · qty on machine: 1 view full part page → $47.95
28	0605515340	HOSE BAND	2		PARTS REQUEST
PHOTO COMING HOSE BAND 0605515340 · qty on machine: 2 PARTS REQUEST
29	0601851756	GROMMET	1		ADD TO CART
GROMMET 0601851756 · qty on machine: 1 view full part page → $15.95
30	H216170	FITTING, DEF TANK VENT	1	REPLACES P/N 0602330402	ADD TO CART
FITTING, DEF TANK VENT H216170 · qty on machine: 1 REPLACES P/N 0602330402 view full part page → $32.95
31	H216169	FILTER, DEF TANK VENT	1	REPLACES P/N 0602330401	ADD TO CART
FILTER, DEF TANK VENT H216169 · qty on machine: 1 REPLACES P/N 0602330401 view full part page → $54.95
32	RE575061	NOX SENSOR	2	REPLACES P/N 0602330427	PARTS REQUEST
PHOTO COMING NOX SENSOR RE575061 · qty on machine: 2 REPLACES P/N 0602330427 PARTS REQUEST
33	RE566739	SCR TEMP. SENSOR	1	REPLACES P/N 0602330426	ADD TO CART
SCR TEMP. SENSOR RE566739 · qty on machine: 1 REPLACES P/N 0602330426 view full part page → $1236.95

Page 36 — DEF TANK ASSY. (CONT'D.)

Multiquip DCA150SSJU4F3 Generator DEF TANK ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed13 rows

No.	Part No.	Part Name	Qty	Remarks
34	0016906015	HEX HEAD BOLT	6		ADD TO CART
HEX HEAD BOLT 0016906015 · qty on machine: 6 view full part page → $0.95
35	RE542006	STRAP TEMP. SENSOR	1	REPLACES P/N 0602330205	ADD TO CART
STRAP TEMP. SENSOR RE542006 · qty on machine: 1 REPLACES P/N 0602330205 view full part page → $23.95
36	DZ103804	DEF HEADER	1	REPLACES P/N 0602330422	NO LONGER AVAILABLE
PHOTO COMING DEF HEADER DZ103804 · qty on machine: 1 REPLACES P/N 0602330422 NO LONGER AVAILABLE
37	19M10399	HEX HEAD BOLT	3	REPLACES P/N 0602330420	PARTS REQUEST
PHOTO COMING HEX HEAD BOLT 19M10399 · qty on machine: 3 REPLACES P/N 0602330420 PARTS REQUEST
38	0602311190	SLEEVE, INSULATING, HARNESS	2		PARTS REQUEST
PHOTO COMING SLEEVE, INSULATING, HARNESS 0602311190 · qty on machine: 2 PARTS REQUEST
39	0602330513	DEF SUCTION JUMPER LINE	1	S/N 7601329 AND ABOVE	PARTS REQUEST
PHOTO COMING DEF SUCTION JUMPER LINE 0602330513 · qty on machine: 1 S/N 7601329 AND ABOVE PARTS REQUEST
40	0602330510	DEF IN-LINE FILTER	1	S/N 7601329 AND ABOVE	PARTS REQUEST
PHOTO COMING DEF IN-LINE FILTER 0602330510 · qty on machine: 1 S/N 7601329 AND ABOVE PARTS REQUEST
40A	0602330511	DEF FILTER KIT	1	S/N 7601329 AND ABOVE	ADD TO CART
DEF FILTER KIT 0602330511 · qty on machine: 1 S/N 7601329 AND ABOVE view full part page → $199.95
41	M5331402204	DEF FILTER BRACKET	1	S/N 7601329 AND ABOVE	PARTS REQUEST
PHOTO COMING DEF FILTER BRACKET M5331402204 · qty on machine: 1 S/N 7601329 AND ABOVE PARTS REQUEST
42	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020 S/N 7601329 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 S/N 7601329 AND ABOVE view full part page → $2.68
43	011208030	HEX. HEAD BOLT	2	REPLACES P/N 0016908030 S/N 7601329 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 011208030 · qty on machine: 2 REPLACES P/N 0016908030 S/N 7601329 AND ABOVE view full part page → $1.3
44	0379700485	COOLANT HOSE	1	S/N 7601329 AND ABOVE	PARTS REQUEST
PHOTO COMING COOLANT HOSE 0379700485 · qty on machine: 1 S/N 7601329 AND ABOVE PARTS REQUEST
45	Y0605515341	HOSE BAND	2	S/N 7601329 AND ABOVE	ADD TO CART
HOSE BAND Y0605515341 · qty on machine: 2 S/N 7601329 AND ABOVE view full part page → $2.95

Page 38 — FUEL TANK ASSY.

Multiquip DCA150SSJU4F3 Generator FUEL TANK ASSY. parts diagram

Parts list — exactly as printed19 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3364000513	FUEL TANK	1		ADD TO CART
FUEL TANK M3364000513 · qty on machine: 1 view full part page → $3695.95
1-1	0605505072	CAP, FUEL TANK	1		ADD TO CART
CAP, FUEL TANK 0605505072 · qty on machine: 1 view full part page → $231.95
2	M3364300704	BRACKET, FUEL TANK	2		PARTS REQUEST
PHOTO COMING BRACKET, FUEL TANK M3364300704 · qty on machine: 2 PARTS REQUEST
3	0016910025	HEX. HEAD BOLT 10X25	4		ADD TO CART
HEX. HEAD BOLT 10X25 0016910025 · qty on machine: 4 view full part page → $1.56
4	011208025	HEX. HEAD BOLT 8X25	8	REPLACES P/N 0016908025	ADD TO CART
HEX. HEAD BOLT 8X25 011208025 · qty on machine: 8 REPLACES P/N 0016908025 view full part page → $0.41
5	Y0191300980	HOSE, SUCTION	1		ADD TO CART
HOSE, SUCTION Y0191300980 · qty on machine: 1 view full part page → $12.95
6	Y0191300980	HOSE, RETURN	1		ADD TO CART
HOSE, RETURN Y0191300980 · qty on machine: 1 view full part page → $12.95
7	0191302700	HOSE, VENT	1		ADD TO CART
HOSE, VENT 0191302700 · qty on machine: 1 view full part page → $30.95
8	Y0605515340	BAND, HOSE	6		ADD TO CART
BAND, HOSE Y0605515340 · qty on machine: 6 view full part page → $2.95
9	Y0602022577	90° ELBOW	1		ADD TO CART
90° ELBOW Y0602022577 · qty on machine: 1 view full part page → $39.95
10	Y0602022578	90° ELBOW	1		ADD TO CART
90° ELBOW Y0602022578 · qty on machine: 1 view full part page → $67.95
11	Y0602022985	JOINT, HOSE	2		ADD TO CART
JOINT, HOSE Y0602022985 · qty on machine: 2 view full part page → $6.95
12	Y0605501049	FUEL SENDER UNIT	1		ADD TO CART
FUEL SENDER UNIT Y0605501049 · qty on machine: 1 view full part page → $342.95
12A	Y0605516090	GASKET	1		ADD TO CART
GASKET Y0605516090 · qty on machine: 1 view full part page → $27.95
13	Y0605053021	HEX. HEAD BOLT	5		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0605053021 · qty on machine: 5 PARTS REQUEST
14	0602022791	JOINT, 1/2" HOSE	2		ADD TO CART
JOINT, 1/2" HOSE 0602022791 · qty on machine: 2 view full part page → $35.95
15	0602022778	JOINT, 3/8" HOSE	2		ADD TO CART
JOINT, 3/8" HOSE 0602022778 · qty on machine: 2 view full part page → $3.95
16	M3364400504	TUBE, PICKUP	2		ADD TO CART
TUBE, PICKUP M3364400504 · qty on machine: 2 view full part page → $141.95
17	Y0603306729	PLUG, SQUARE HEAD PIPE	1		ADD TO CART
PLUG, SQUARE HEAD PIPE Y0603306729 · qty on machine: 1 view full part page → $28.95

Page 40 — ENCLOSURE 1 ASSY.

Multiquip DCA150SSJU4F3 Generator ENCLOSURE 1 ASSY. parts diagram

Parts list — exactly as printed46 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3414001802	BASE	1		PARTS REQUEST
PHOTO COMING BASE M3414001802 · qty on machine: 1 PARTS REQUEST
1A	Y0229200830	SEAL, RUBBER	1		ADD TO CART
SEAL, RUBBER Y0229200830 · qty on machine: 1 view full part page → $8.95
1B	0229200210	SEAL, RUBBER	1		ADD TO CART
SEAL, RUBBER 0229200210 · qty on machine: 1 view full part page → $2.95
2	M3364301003	ENVIRONMENTAL TANK	1		ADD TO CART
ENVIRONMENTAL TANK M3364301003 · qty on machine: 1 view full part page → $4287.95
3	0016910030	HEX. HEAD BOLT	12		ADD TO CART
HEX. HEAD BOLT 0016910030 · qty on machine: 12 view full part page → $2.95
4	0603306797	PLUG, 1-1/2" SQUARE HEAD PIPE	1		ADD TO CART
PLUG, 1-1/2" SQUARE HEAD PIPE 0603306797 · qty on machine: 1 view full part page → $12.95
5	Y0603306793	PLUG, 1/2" SQUARE HEAD PIPE	1		ADD TO CART
PLUG, 1/2" SQUARE HEAD PIPE Y0603306793 · qty on machine: 1 view full part page → $2.95
6	M3414400303	BASE COVER	1		ADD TO CART
BASE COVER M3414400303 · qty on machine: 1 view full part page → $228.95
7	0019108055	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0019108055 · qty on machine: 6 view full part page → $3.95
7A	0042308000	WASHER, LOCK	6		ADD TO CART
WASHER, LOCK 0042308000 · qty on machine: 6 view full part page → $0.83
7B	0401450080	WASHER, FLAT	6	REPLACES P/N 0042408000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 6 REPLACES P/N 0042408000 view full part page → $0.56
8	M2414800304	HOLE COVER	1		ADD TO CART
HOLE COVER M2414800304 · qty on machine: 1 view full part page → $74.95
9	011008020	HEX. HEAD BOLT 8X20	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 8X20 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
10	M3424001102	FRONT FRAME	1	S/N 7601278 AND BELOW	ADD TO CART
FRONT FRAME M3424001102 · qty on machine: 1 S/N 7601278 AND BELOW view full part page → $3705.95
10	M3424001102A	FRONT FRAME	1	S/N 7601279 - 7601328	PARTS REQUEST
PHOTO COMING FRONT FRAME M3424001102A · qty on machine: 1 S/N 7601279 - 7601328 PARTS REQUEST
10	M3424001102B	FRONT FRAME	1	S/N 7601329 AND ABOVE	ADD TO CART
FRONT FRAME M3424001102B · qty on machine: 1 S/N 7601329 AND ABOVE view full part page → $3145.95
10A	M3494112003	ACOUSTIC SHEET	1	S/N 7601328 AND BELOW	ADD TO CART
ACOUSTIC SHEET M3494112003 · qty on machine: 1 S/N 7601328 AND BELOW view full part page → $714.95
10A	M3494112013	ACOUSTIC SHEET	1	S/N 7601329 AND ABOVE	ADD TO CART
ACOUSTIC SHEET M3494112013 · qty on machine: 1 S/N 7601329 AND ABOVE view full part page → $636.95
11	0016910025	HEX. HEAD BOLT 10X25	8		ADD TO CART
HEX. HEAD BOLT 10X25 0016910025 · qty on machine: 8 view full part page → $1.56
12	M3424100003	PANEL, FRONT FRAME	1		ADD TO CART
PANEL, FRONT FRAME M3424100003 · qty on machine: 1 view full part page → $779.95
12A	M3494113204	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494113204 · qty on machine: 1 view full part page → $160.95
13	M3424100203	PANEL, FRONT FRAME	1		ADD TO CART
PANEL, FRONT FRAME M3424100203 · qty on machine: 1 view full part page → $1377.95
13A	M3494118804	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494118804 · qty on machine: 1 view full part page → $172.95
14	0019108055	HEX. HEAD BOLT	16		ADD TO CART
HEX. HEAD BOLT 0019108055 · qty on machine: 16 view full part page → $3.95
14A	0042308000	WASHER, LOCK	16		ADD TO CART
WASHER, LOCK 0042308000 · qty on machine: 16 view full part page → $0.83
14B	0401450080	WASHER, FLAT	16	REPLACES P/N 0042408000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 16 REPLACES P/N 0042408000 view full part page → $0.56
15	M5424600004	DOOR, DEF SUPPLY	1		ADD TO CART
DOOR, DEF SUPPLY M5424600004 · qty on machine: 1 view full part page → $678.95
15A	M5494108204	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M5494108204 · qty on machine: 1 view full part page → $64.95
16	M9112100004	HINGE	2		ADD TO CART
HINGE M9112100004 · qty on machine: 2 view full part page → $12.95
16A	M9118000004	WASHER	2		ADD TO CART
WASHER M9118000004 · qty on machine: 2 view full part page → $0.88
17	011206020	HEX. HEAD BOLT	4	REPLACES P/N 0019206020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 4 REPLACES P/N 0019206020 view full part page → $0.95
18	0605010230	HANDLE, DOOR	1		ADD TO CART
HANDLE, DOOR 0605010230 · qty on machine: 1 view full part page → $121.95
19	0021805015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021805015 · qty on machine: 4 view full part page → $0.58
20	0601851613	STOPPER	1		ADD TO CART
STOPPER 0601851613 · qty on machine: 1 view full part page → $2.95
21	M3424201803	OVER COVER, FRONT FRAME	1		ADD TO CART
OVER COVER, FRONT FRAME M3424201803 · qty on machine: 1 view full part page → $544.95
22	0019208020	HEX. HEAD BOLT	17		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 17 view full part page → $3.95
23	M3434000602	CENTER FRAME	1		ADD TO CART
CENTER FRAME M3434000602 · qty on machine: 1 view full part page → $3479.95
ADDTHE	FOLLOWINGDIGITS	AFTER THE PART			PARTS REQUEST
PHOTO COMING AFTER THE PART FOLLOWINGDIGITS PARTS REQUEST
NUMBER	WHENORDERING	ANY PAINTED PANEL TO			PARTS REQUEST
PHOTO COMING ANY PAINTED PANEL TO WHENORDERING PARTS REQUEST
INDICATE	COLOROFUNIT:				PARTS REQUEST
PHOTO COMING COLOROFUNIT: PARTS REQUEST
1-ORANGE		6-CATERPILLAR YELLOW			SEE REMARKS
PHOTO COMING 6-CATERPILLAR YELLOW SEE REMARKS
2-WHITE		7-CATO GOLD			SEE REMARKS
PHOTO COMING 7-CATO GOLD SEE REMARKS
3-SPECTRUM	GREY	8-RED			PARTS REQUEST
PHOTO COMING 8-RED GREY PARTS REQUEST
4-SUNBELT	GREEN	9-DESERT TAN			PARTS REQUEST
PHOTO COMING 9-DESERT TAN GREEN PARTS REQUEST
5-BLACK					SEE REMARKS
PHOTO COMING SEE REMARKS
THESERIAL	NUMBERMAY	BE REQUIRED.			PARTS REQUEST
PHOTO COMING BE REQUIRED. NUMBERMAY PARTS REQUEST

Page 42 — ENCLOSURE 1 ASSY. (CONT'D.)

Multiquip DCA150SSJU4F3 Generator ENCLOSURE 1 ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed45 rows

No.	Part No.	Part Name	Qty	Remarks
24	Y0013614040	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT Y0013614040 · qty on machine: 4 view full part page → $2.95
24A	030214350	WASHER, LOCK	4	REPLACES P/N 0040014000	ADD TO CART
WASHER, LOCK 030214350 · qty on machine: 4 REPLACES P/N 0040014000 view full part page → $0.46
24B	031114260	WASHER, FLAT	8	REPLACES P/N 0041214000	ADD TO CART
WASHER, FLAT 031114260 · qty on machine: 8 REPLACES P/N 0041214000 view full part page → $0.69
24C	515455840	HEX. NUT	4	REPLACES P/N 0030014000	ADD TO CART
HEX. NUT 515455840 · qty on machine: 4 REPLACES P/N 0030014000 view full part page → $35.95
25	Y0013620050	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT Y0013620050 · qty on machine: 4 view full part page → $6.95
25A	030220510	WASHER, LOCK	4	REPLACES P/N 0040020000	ADD TO CART
WASHER, LOCK 030220510 · qty on machine: 4 REPLACES P/N 0040020000 view full part page → $1.95
25B	0041220000	WASHER, FLAT	8		ADD TO CART
WASHER, FLAT 0041220000 · qty on machine: 8 view full part page → $0.95
25C	0030020000	HEX. NUT	4		ADD TO CART
HEX. NUT 0030020000 · qty on machine: 4 view full part page → $1.82
26	M3444000702	REAR FRAME	1	S/N 7601332 AND BELOW	ADD TO CART
REAR FRAME M3444000702 · qty on machine: 1 S/N 7601332 AND BELOW view full part page → $2450.95
26	M3444000712	REAR FRAME	1	S/N 7601333 AND ABOVE	ADD TO CART
REAR FRAME M3444000712 · qty on machine: 1 S/N 7601333 AND ABOVE view full part page → $2809.95
26A	M3494302304	ACOUSTIC SHEET	1	S/N 7601332 AND BELOW	ADD TO CART
ACOUSTIC SHEET M3494302304 · qty on machine: 1 S/N 7601332 AND BELOW view full part page → $118.95
26A	M3494302314	ACOUSTIC SHEET	1	S/N 7601333 AND ABOVE	PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M3494302314 · qty on machine: 1 S/N 7601333 AND ABOVE PARTS REQUEST
27	0016910025	HEX. HEAD BOLT 10X25	4		ADD TO CART
HEX. HEAD BOLT 10X25 0016910025 · qty on machine: 4 view full part page → $1.56
28	M3444300904	COVER, REAR FRAME	1		ADD TO CART
COVER, REAR FRAME M3444300904 · qty on machine: 1 view full part page → $372.95
28A	M3494302404	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494302404 · qty on machine: 1 view full part page → $70.95
29	0019208020	HEX. HEAD BOLT	14		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 14 view full part page → $3.95
30	M4444300003	DUCT, REAR FRAME	1		ADD TO CART
DUCT, REAR FRAME M4444300003 · qty on machine: 1 view full part page → $998.95
30A	M4493303004	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M4493303004 · qty on machine: 1 view full part page → $58.95
31	Y0207008000	SELF-LOCKING NUT	9		ADD TO CART
SELF-LOCKING NUT Y0207008000 · qty on machine: 9 view full part page → $0.4
32	M3444200303	DOOR, REAR FRAME	1	S/N 7601342 AND BELOW	ADD TO CART
DOOR, REAR FRAME M3444200303 · qty on machine: 1 S/N 7601342 AND BELOW view full part page → $495.95
32	M3444200903	DOOR, REAR FRAME	1	S/N 7601343 AND ABOVE	ADD TO CART
DOOR, REAR FRAME M3444200903 · qty on machine: 1 S/N 7601343 AND ABOVE view full part page → $592.95
33	M9110100204	HINGE	2		ADD TO CART
HINGE M9110100204 · qty on machine: 2 view full part page → $23.95
33A	M9116100004	WASHER	2		ADD TO CART
WASHER M9116100004 · qty on machine: 2 view full part page → $1.93
34	0845031504	BLIND PLUG	2	REPLACES P/N M9310000004	ADD TO CART
BLIND PLUG 0845031504 · qty on machine: 2 REPLACES P/N M9310000004 view full part page → $2.95
35	0019208020	HEX. HEAD BOLT	3		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 3 view full part page → $3.95
36	0601850097	RUBBER CUSHION	1		ADD TO CART
RUBBER CUSHION 0601850097 · qty on machine: 1 view full part page → $2.95
37	0027208025	MACHINE SCREW	1		ADD TO CART
MACHINE SCREW 0027208025 · qty on machine: 1 view full part page → $0.76
38	M4443600004	PLATE, WINDOW	1		ADD TO CART
PLATE, WINDOW M4443600004 · qty on machine: 1 view full part page → $155.95
39	020106050	SELF-LOCKING U-NUT	8	REPLACES P/N 0037906000	ADD TO CART
SELF-LOCKING U-NUT 020106050 · qty on machine: 8 REPLACES P/N 0037906000 view full part page → $0.12
39A	952404470	WASHER, FLAT	8	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 8 REPLACES P/N 0041206000 view full part page → $0.19
40	0600800320	MANUAL PAK	1		ADD TO CART
MANUAL PAK 0600800320 · qty on machine: 1 view full part page → $43.95
41	0021806015	MACHINE SCREW	4	S/N 7601342 AND BELOW	ADD TO CART
MACHINE SCREW 0021806015 · qty on machine: 4 S/N 7601342 AND BELOW view full part page → $0.87
41A	0176060030	SELF-LOCKING NUT	4	S/N 7601343 AND ABOVE	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 4 S/N 7601343 AND ABOVE view full part page → $2.95
42	Y0605012318	DOOR HANDLE	1		ADD TO CART
DOOR HANDLE Y0605012318 · qty on machine: 1 view full part page → $75.95
42A	C9312500004	SEAL, RUBBER	1		ADD TO CART
SEAL, RUBBER C9312500004 · qty on machine: 1 view full part page → $10.95
43	Y0207006000	SELF-LOCKING NUT	4		ADD TO CART
SELF-LOCKING NUT Y0207006000 · qty on machine: 4 view full part page → $0.23
ADDTHE	FOLLOWINGDIGITS	AFTER THE PART			PARTS REQUEST
PHOTO COMING AFTER THE PART FOLLOWINGDIGITS PARTS REQUEST
NUMBER	WHENORDERING	ANY PAINTED PANEL TO			PARTS REQUEST
PHOTO COMING ANY PAINTED PANEL TO WHENORDERING PARTS REQUEST
INDICATE	COLOROFUNIT:				PARTS REQUEST
PHOTO COMING COLOROFUNIT: PARTS REQUEST
1-ORANGE		6-CATERPILLAR YELLOW			SEE REMARKS
PHOTO COMING 6-CATERPILLAR YELLOW SEE REMARKS
2-WHITE		7-CATO GOLD			SEE REMARKS
PHOTO COMING 7-CATO GOLD SEE REMARKS
3-SPECTRUM	GREY	8-RED			PARTS REQUEST
PHOTO COMING 8-RED GREY PARTS REQUEST
4-SUNBELT	GREEN	9-DESERT TAN			PARTS REQUEST
PHOTO COMING 9-DESERT TAN GREEN PARTS REQUEST
5-BLACK					SEE REMARKS
PHOTO COMING SEE REMARKS
THESERIAL	NUMBERMAY	BE REQUIRED.			PARTS REQUEST
PHOTO COMING BE REQUIRED. NUMBERMAY PARTS REQUEST

Page 44 — ENCLOSURE 1 ASSY. (CONT'D.)

Parts list — exactly as printed42 rows

No.	Part No.	Part Name	Qty	Remarks
44	M3464100502	ROOF PANEL	1		ADD TO CART
ROOF PANEL M3464100502 · qty on machine: 1 view full part page → $552.95
44A	M3494504204	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494504204 · qty on machine: 1 view full part page → $196.95
45	Y0019208035	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT Y0019208035 · qty on machine: 6 view full part page → $5.95
46	M3310600004	COVER, RADIATOR CAP	1		ADD TO CART
COVER, RADIATOR CAP M3310600004 · qty on machine: 1 view full part page → $17.95
47	0019208020	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 4 view full part page → $3.95
48	0019210025	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0019210025 · qty on machine: 4 view full part page → $7.95
49	M3464200502	ROOF PANEL	1		ADD TO CART
ROOF PANEL M3464200502 · qty on machine: 1 view full part page → $632.95
49A	M3494504304	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494504304 · qty on machine: 1 view full part page → $282.95
50	Y0019208035	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT Y0019208035 · qty on machine: 6 view full part page → $5.95
51	0019208020	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 6 view full part page → $3.95
52	0019210025	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0019210025 · qty on machine: 4 view full part page → $7.95
53	M3464500104	GUTTER	2		ADD TO CART
GUTTER M3464500104 · qty on machine: 2 view full part page → $57.95
53A	Y0229200980	SEAL, RUBBER	2		ADD TO CART
SEAL, RUBBER Y0229200980 · qty on machine: 2 view full part page → $6.95
54	M3464500204	GUTTER	2		ADD TO CART
GUTTER M3464500204 · qty on machine: 2 view full part page → $41.95
54A	Y0229201210	SEAL, RUBBER	2		ADD TO CART
SEAL, RUBBER Y0229201210 · qty on machine: 2 view full part page → $8.95
55	0019208020	HEX. HEAD BOLT	12		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 12 view full part page → $3.95
56	M3444800204	GUTTER	1		PARTS REQUEST
PHOTO COMING GUTTER M3444800204 · qty on machine: 1 PARTS REQUEST
57	M3317100004	BRACKET, SURGE TANK	1		ADD TO CART
BRACKET, SURGE TANK M3317100004 · qty on machine: 1 view full part page → $263.95
58	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
59	M3424700904	DEF TANK COVER	1		PARTS REQUEST
PHOTO COMING DEF TANK COVER M3424700904 · qty on machine: 1 PARTS REQUEST
59A	M3494114004	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494114004 · qty on machine: 1 view full part page → $85.95
59B	Y0229200665	SEAL, RUBBER	2		ADD TO CART
SEAL, RUBBER Y0229200665 · qty on machine: 2 view full part page → $5.95
59C	Y0229200215	SEAL, RUBBER	2		ADD TO CART
SEAL, RUBBER Y0229200215 · qty on machine: 2 view full part page → $1.95
60	011008020	HEX. HEAD BOLT	8	REPLACRES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 8 REPLACRES P/N 0016908020 view full part page → $2.68
61	0605503062	FLOAT SWITCH	1		ADD TO CART
FLOAT SWITCH 0605503062 · qty on machine: 1 view full part page → $213.95
62	M3414800504	BRACKET, FLOAT SWITCH	1		PARTS REQUEST
PHOTO COMING BRACKET, FLOAT SWITCH M3414800504 · qty on machine: 1 PARTS REQUEST
63	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
64	011008020	HEX. HEAD BOLT	1	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 1 REPLACES P/N 0016908020 view full part page → $2.68
64A	0040508000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040508000 · qty on machine: 1 view full part page → $0.35
65	M5414800204	COVER	1		PARTS REQUEST
PHOTO COMING COVER M5414800204 · qty on machine: 1 PARTS REQUEST
66	Y0016906020	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT Y0016906020 · qty on machine: 2 view full part page → $1.45
67	0019112030	HEX. HEAD BOLT	1	S/N 7601317 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 0019112030 · qty on machine: 1 S/N 7601317 AND ABOVE view full part page → $5.95
68	0605050040	SEALING WASHER	1	S/N 7601317 AND ABOVE	PARTS REQUEST
PHOTO COMING SEALING WASHER 0605050040 · qty on machine: 1 S/N 7601317 AND ABOVE PARTS REQUEST
ADDTHE	FOLLOWINGDIGITS	AFTER THE PART			PARTS REQUEST
PHOTO COMING AFTER THE PART FOLLOWINGDIGITS PARTS REQUEST
NUMBER	WHENORDERING	ANY PAINTED PANEL TO			PARTS REQUEST
PHOTO COMING ANY PAINTED PANEL TO WHENORDERING PARTS REQUEST
INDICATE	COLOROFUNIT:				PARTS REQUEST
PHOTO COMING COLOROFUNIT: PARTS REQUEST
1-ORANGE		6-CATERPILLAR YELLOW			SEE REMARKS
PHOTO COMING 6-CATERPILLAR YELLOW SEE REMARKS
2-WHITE		7-CATO GOLD			SEE REMARKS
PHOTO COMING 7-CATO GOLD SEE REMARKS
3-SPECTRUM	GREY	8-RED			PARTS REQUEST
PHOTO COMING 8-RED GREY PARTS REQUEST
4-SUNBELT	GREEN	9-DESERT TAN			PARTS REQUEST
PHOTO COMING 9-DESERT TAN GREEN PARTS REQUEST
5-BLACK					SEE REMARKS
PHOTO COMING SEE REMARKS
THESERIAL	NUMBERMAY	BE REQUIRED.			PARTS REQUEST
PHOTO COMING BE REQUIRED. NUMBERMAY PARTS REQUEST

Page 46 — ENCLOSURE 1 ASSY. (CONT'D.)

Parts list — exactly as printed16 rows

No.	Part No.	Part Name	Qty	Remarks
69	0042312000	WASHER, LOCK	1	S/N 7601317 AND ABOVE	ADD TO CART
WASHER, LOCK 0042312000 · qty on machine: 1 S/N 7601317 AND ABOVE view full part page → $0.94
70	0042412000	WASHER, FLAT	1	S/N 7601317 AND ABOVE	ADD TO CART
WASHER, FLAT 0042412000 · qty on machine: 1 S/N 7601317 AND ABOVE view full part page → $1.63
71	0030012000	HEX. HEAD NUT	1	S/N 7601317 AND ABOVE	ADD TO CART
HEX. HEAD NUT 0030012000 · qty on machine: 1 S/N 7601317 AND ABOVE view full part page → $0.5
72	M5444800104	BLIND BOARD (REAR FRAME)	1	S/N 7601333 AND ABOVE	ADD TO CART
BLIND BOARD (REAR FRAME) M5444800104 · qty on machine: 1 S/N 7601333 AND ABOVE view full part page → $21.95
73	011206020	HEX. HEAD BOLT	1	REPLACES P/N 0016906020 S/N 7601333 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 1 REPLACES P/N 0016906020 S/N 7601333 AND ABOVE view full part page → $0.95
74	0601831927	EMERGENCY STOP BUTTON	1	S/N 7601333 AND ABOVE	ADD TO CART
EMERGENCY STOP BUTTON 0601831927 · qty on machine: 1 S/N 7601333 AND ABOVE view full part page → $178.95
74A	M3358202104	WIRE HARNESS, E-STOP	1	S/N 7601333 AND ABOVE	ADD TO CART
WIRE HARNESS, E-STOP M3358202104 · qty on machine: 1 S/N 7601333 AND ABOVE view full part page → $251.79
ADDTHE	FOLLOWINGDIGITS	AFTER THE PART			PARTS REQUEST
PHOTO COMING AFTER THE PART FOLLOWINGDIGITS PARTS REQUEST
NUMBER	WHENORDERING	ANY PAINTED PANEL TO			PARTS REQUEST
PHOTO COMING ANY PAINTED PANEL TO WHENORDERING PARTS REQUEST
INDICATE	COLOROFUNIT:				PARTS REQUEST
PHOTO COMING COLOROFUNIT: PARTS REQUEST
1-ORANGE		6-CATERPILLAR YELLOW			SEE REMARKS
PHOTO COMING 6-CATERPILLAR YELLOW SEE REMARKS
2-WHITE		7-CATO GOLD			SEE REMARKS
PHOTO COMING 7-CATO GOLD SEE REMARKS
3-SPECTRUM	GREY	8-RED			PARTS REQUEST
PHOTO COMING 8-RED GREY PARTS REQUEST
4-SUNBELT	GREEN	9-DESERT TAN			PARTS REQUEST
PHOTO COMING 9-DESERT TAN GREEN PARTS REQUEST
5-BLACK					SEE REMARKS
PHOTO COMING SEE REMARKS
THESERIAL	NUMBERMAY	BE REQUIRED.			PARTS REQUEST
PHOTO COMING BE REQUIRED. NUMBERMAY PARTS REQUEST

Page 48 — ENCLOSURE 2 ASSY.

Multiquip DCA150SSJU4F3 Generator ENCLOSURE 2 ASSY. parts diagram

Parts list — exactly as printed35 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3454200802	SPLASHER PANEL	1		PARTS REQUEST
PHOTO COMING SPLASHER PANEL M3454200802 · qty on machine: 1 PARTS REQUEST
1A	M3494421504	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494421504 · qty on machine: 1 view full part page → $348.95
2	0019108065	HEX. HEAD BOLT M8X65	6		ADD TO CART
HEX. HEAD BOLT M8X65 0019108065 · qty on machine: 6 view full part page → $1.95
2A	0042308000	WASHER, LOCK	6		ADD TO CART
WASHER, LOCK 0042308000 · qty on machine: 6 view full part page → $0.83
2B	0401450080	WASHER, FLAT	6	REPLACES P/N 0042408000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 6 REPLACES P/N 0042408000 view full part page → $0.56
3	M3454003303	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M3454003303 · qty on machine: 1 PARTS REQUEST
3A	M3494430304	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M3494430304 · qty on machine: 1 PARTS REQUEST
4	M3454003403	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M3454003403 · qty on machine: 1 PARTS REQUEST
4A	M3494430404	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M3494430404 · qty on machine: 1 PARTS REQUEST
5	M3454003503	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M3454003503 · qty on machine: 1 PARTS REQUEST
5A	M3494430504	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M3494430504 · qty on machine: 1 PARTS REQUEST
6	M3454002803	SIDE DOOR	1		ADD TO CART
SIDE DOOR M3454002803 · qty on machine: 1 view full part page → $454.95
6A	M3494420904	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494420904 · qty on machine: 1 view full part page → $278.95
7	M3454301504	DUCT	2		PARTS REQUEST
PHOTO COMING DUCT M3454301504 · qty on machine: 2 PARTS REQUEST
7A	M3494421004	ACOUSTIC SHEET	2		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M3494421004 · qty on machine: 2 PARTS REQUEST
8	M3454301604	DUCT	2		PARTS REQUEST
PHOTO COMING DUCT M3454301604 · qty on machine: 2 PARTS REQUEST
8A	M3494421104	ACOUSTIC SHEET	2		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M3494421104 · qty on machine: 2 PARTS REQUEST
9	M3454301704	DUCT	1		PARTS REQUEST
PHOTO COMING DUCT M3454301704 · qty on machine: 1 PARTS REQUEST
9A	M3494421204	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M3494421204 · qty on machine: 1 PARTS REQUEST
10	M5454301004	DUCT	1		PARTS REQUEST
PHOTO COMING DUCT M5454301004 · qty on machine: 1 PARTS REQUEST
10A	M3494421304	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494421304 · qty on machine: 1 view full part page → $139.95
11	M3454302304	DUCT	1		PARTS REQUEST
PHOTO COMING DUCT M3454302304 · qty on machine: 1 PARTS REQUEST
11A	M3494431304	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M3494431304 · qty on machine: 1 PARTS REQUEST
12	Y0207008000	SELF-LOCKING NUT	49		ADD TO CART
SELF-LOCKING NUT Y0207008000 · qty on machine: 49 view full part page → $0.4
13	Y0605012318	HANDLE, DOOR	7		ADD TO CART
HANDLE, DOOR Y0605012318 · qty on machine: 7 view full part page → $75.95
13A	C9312500004	SEAL RUBBER	7		ADD TO CART
SEAL RUBBER C9312500004 · qty on machine: 7 view full part page → $10.95
14	Y0207006000	SELF-LOCKING NUT	28		ADD TO CART
SELF-LOCKING NUT Y0207006000 · qty on machine: 28 view full part page → $0.23
15	M9110100804	HINGE	5		ADD TO CART
HINGE M9110100804 · qty on machine: 5 view full part page → $16.95
15A	M9116100004	WASHER	5		ADD TO CART
WASHER M9116100004 · qty on machine: 5 view full part page → $1.93
16	M9110100904	HINGE	6		ADD TO CART
HINGE M9110100904 · qty on machine: 6 view full part page → $19.95
16A	M9116100004	WASHER	6		ADD TO CART
WASHER M9116100004 · qty on machine: 6 view full part page → $1.93
17	0019208020	HEX. HEAD BOLT	25		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 25 view full part page → $3.95
18	0601850097	RUBBER CUSHION	8		ADD TO CART
RUBBER CUSHION 0601850097 · qty on machine: 8 view full part page → $2.95
19	0027208025	MACHINE SCREW	8		ADD TO CART
MACHINE SCREW 0027208025 · qty on machine: 8 view full part page → $0.76
20	0845031504	BLIND PLUG	11	REPLACES P/N M9310000004	ADD TO CART
BLIND PLUG 0845031504 · qty on machine: 11 REPLACES P/N M9310000004 view full part page → $2.95

Page 50 — RUBBER SEALS ASSY.

Multiquip DCA150SSJU4F3 Generator RUBBER SEALS ASSY. parts diagram

Parts list — exactly as printed23 rows

No.	Part No.	Part Name	Qty
1	0229201300	SEAL, RUBBER	4	ADD TO CART
SEAL, RUBBER 0229201300 · qty on machine: 4 view full part page → $31.95
2	0229201200	SEAL, RUBBER	1	ADD TO CART
SEAL, RUBBER 0229201200 · qty on machine: 1 view full part page → $26.95
3	0228901310	SEAL, RUBBER	3	ADD TO CART
SEAL, RUBBER 0228901310 · qty on machine: 3 view full part page → $44.95
4	0228900710	SEAL, RUBBER	1	ADD TO CART
SEAL, RUBBER 0228900710 · qty on machine: 1 view full part page → $18.95
5	0228900900	SEAL, RUBBER	4	ADD TO CART
SEAL, RUBBER 0228900900 · qty on machine: 4 view full part page → $25.95
6	0228901130	SEAL, RUBBER	4	ADD TO CART
SEAL, RUBBER 0228901130 · qty on machine: 4 view full part page → $56.95
7	0228901250	SEAL, RUBBER	3	ADD TO CART
SEAL, RUBBER 0228901250 · qty on machine: 3 view full part page → $38.95
8	0228900650	SEAL, RUBBER	1	ADD TO CART
SEAL, RUBBER 0228900650 · qty on machine: 1 view full part page → $17.95
9	0229400630	SEAL, RUBBER	1	ADD TO CART
SEAL, RUBBER 0229400630 · qty on machine: 1 view full part page → $13.95
10	0228801050	SEAL, RUBBER	2	ADD TO CART
SEAL, RUBBER 0228801050 · qty on machine: 2 view full part page → $27.95
11	0228800590	SEAL, RUBBER	1	ADD TO CART
SEAL, RUBBER 0228800590 · qty on machine: 1 view full part page → $15.95
12	Y0228100560	SEAL, RUBBER	2	PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0228100560 · qty on machine: 2 PARTS REQUEST
13	Y0228100370	SEAL, RUBBER	2	PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0228100370 · qty on machine: 2 PARTS REQUEST
14	Y0229200145	SEAL, RUBBER	2	ADD TO CART
SEAL, RUBBER Y0229200145 · qty on machine: 2 view full part page → $0.65
15	Y0229200100	SEAL, RUBBER	2	ADD TO CART
SEAL, RUBBER Y0229200100 · qty on machine: 2 view full part page → $0.67
16	Y0222101100	SEAL, RUBBER	6	PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0222101100 · qty on machine: 6 PARTS REQUEST
17	Y0228801120	SEAL, RUBBER	2	ADD TO CART
SEAL, RUBBER Y0228801120 · qty on machine: 2 view full part page → $14.95
18	Y0228800700	SEAL, RUBBER	2	ADD TO CART
SEAL, RUBBER Y0228800700 · qty on machine: 2 view full part page → $9.95
19	Y0229400350	SEAL, RUBBER	1	ADD TO CART
SEAL, RUBBER Y0229400350 · qty on machine: 1 view full part page → $5.95
20	Y0229400300	SEAL, RUBBER	2	PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0229400300 · qty on machine: 2 PARTS REQUEST
21	Y0229400310	SEAL, RUBBER	1	PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0229400310 · qty on machine: 1 PARTS REQUEST
22	Y0229200175	SEAL, RUBBER	2	ADD TO CART
SEAL, RUBBER Y0229200175 · qty on machine: 2 view full part page → $2.95
23	Y0229200105	SEAL, RUBBER	2	ADD TO CART
SEAL, RUBBER Y0229200105 · qty on machine: 2 view full part page → $2.65

Page 52 — BATTERY CHARGER ASSY. (OPTION)

Multiquip DCA150SSJU4F3 Generator BATTERY CHARGER ASSY. (OPTION) parts diagram

Parts list — exactly as printed12 rows

No.	Part No.	Part Name	Qty	Remarks
1	MQPBCKIT-H	BATTERY CHARGER KIT	1	INCLUDES ITEMS W/#	ADD TO CART
BATTERY CHARGER KIT MQPBCKIT-H · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 2#, 3#, 7#, 8#, 11#, 12# view full part page → $2360.57 IN A KIT + SOLD SOLO
2#	EE57370	CHARGER, 10A 12/24V NRG BATTERY	1		ADD TO CART
CHARGER, 10A 12/24V NRG BATTERY EE57370 · qty on machine: 1 Also included in kit 1 - BATTERY CHARGER KIT (MQPBCKIT-H) view full part page → $2020.95 IN A KIT + SOLD SOLO
3#		GROMMET, 7/8" HOLE SIZE	1	OBTAIN LOCALLY	INCLUDED IN KIT
PHOTO COMING GROMMET, 7/8" HOLE SIZE · qty on machine: 1 OBTAIN LOCALLY Included in kit 1 - BATTERY CHARGER KIT (MQPBCKIT-H) INCLUDED IN KIT
4		WASHER, FLAT M4	4	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WASHER, FLAT M4 · qty on machine: 4 OBTAIN LOCALLY SEE REMARKS
5		WASHER, LOCK M4	4	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WASHER, LOCK M4 · qty on machine: 4 OBTAIN LOCALLY SEE REMARKS
6		SCREW, M4X10	4	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING SCREW, M4X10 · qty on machine: 4 OBTAIN LOCALLY SEE REMARKS
7#	HBL5369C	CONNECTOR, 20A, 125V	1		ADD TO CART
CONNECTOR, 20A, 125V HBL5369C · qty on machine: 1 Also included in kit 1 - BATTERY CHARGER KIT (MQPBCKIT-H) view full part page → $103.95 IN A KIT + SOLD SOLO
8#	EE56557	CORD, 3-CONDUCTOR, 14 AWG (10 FT.)	10	1PC = 1FT	ADD TO CART
CORD, 3-CONDUCTOR, 14 AWG (10 FT.) EE56557 · qty on machine: 10 1PC = 1FT Also included in kit 1 - BATTERY CHARGER KIT (MQPBCKIT-H) view full part page → $1.95 IN A KIT + SOLD SOLO
9		WIRE, 16 AWG GREEN		AR OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WIRE, 16 AWG GREEN AR OBTAIN LOCALLY SEE REMARKS
10		WIRE, 16 AWG RED		AR OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WIRE, 16 AWG RED AR OBTAIN LOCALLY SEE REMARKS
11#	HBL5278C	INLET FLANGE 15AMP NEMA, 125V	1		ADD TO CART
INLET FLANGE 15AMP NEMA, 125V HBL5278C · qty on machine: 1 Also included in kit 1 - BATTERY CHARGER KIT (MQPBCKIT-H) view full part page → $53.95 IN A KIT + SOLD SOLO
12#	M1940011014Q	DECAL, BATTERY CHARGER	1		ADD TO CART
DECAL, BATTERY CHARGER M1940011014Q · qty on machine: 1 Also included in kit 1 - BATTERY CHARGER KIT (MQPBCKIT-H) view full part page → $1.36 IN A KIT + SOLD SOLO

Page 54 — WATER HEATING ELEMENT ASSY. (OPTION)

Multiquip DCA150SSJU4F3 Generator WATER HEATING ELEMENT ASSY. (OPTION) parts diagram

Parts list — exactly as printed9 rows

No.	Part No.	Part Name	Qty	Remarks
1	AR50411	POWER CORD, 90°	1		ADD TO CART
POWER CORD, 90° AR50411 · qty on machine: 1 view full part page → $38.95
2	RE42139	HEATER, COOLANT 1000W	1	INCLUDES ITEMS W/#	ADD TO CART
HEATER, COOLANT 1000W RE42139 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 5#, 6#, 7#, 8#, 9# view full part page → $227.95 IN A KIT + SOLD SOLO
3	HBL5369C	CONNECTOR, 20A, 125V	1		ADD TO CART
CONNECTOR, 20A, 125V HBL5369C · qty on machine: 1 view full part page → $103.95
4	EE56557	CORD, CAROL 3/C 14AWG	10	1PC = 1FT	ADD TO CART
CORD, CAROL 3/C 14AWG EE56557 · qty on machine: 10 1PC = 1FT view full part page → $1.95
5#		NUT, CLAMPING	1		INCLUDED IN KIT
PHOTO COMING NUT, CLAMPING · qty on machine: 1 Included in kit 2 - HEATER, COOLANT 1000W (RE42139) INCLUDED IN KIT
6#		ADAPTER	1		INCLUDED IN KIT
PHOTO COMING ADAPTER · qty on machine: 1 Included in kit 2 - HEATER, COOLANT 1000W (RE42139) INCLUDED IN KIT
7#		O-RING	1		INCLUDED IN KIT
PHOTO COMING O-RING · qty on machine: 1 Included in kit 2 - HEATER, COOLANT 1000W (RE42139) INCLUDED IN KIT
8#		HEATER ELEMENT	1		INCLUDED IN KIT
PHOTO COMING HEATER ELEMENT · qty on machine: 1 Included in kit 2 - HEATER, COOLANT 1000W (RE42139) INCLUDED IN KIT
9#		GASKET	1		INCLUDED IN KIT
PHOTO COMING GASKET · qty on machine: 1 Included in kit 2 - HEATER, COOLANT 1000W (RE42139) INCLUDED IN KIT

Page 56 — POWER BALANCE ASSY.

Multiquip DCA150SSJU4F3 Generator POWER BALANCE ASSY. parts diagram

Parts list — exactly as printed34 rows

No.	Part No.	Part Name	Qty	Remarks
1	MQPPB180J4F	KIT, POWER BALANCE	1	INCLUDES ITEMS W/#	PARTS REQUEST
PHOTO COMING KIT, POWER BALANCE MQPPB180J4F · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 2#, 3#, 3A%#, 3B%#, 3C%#, 3D%#, 3E%#, 3F%#, 3G%#, 4#, 4A$#, 4B$#, 4C$#, 4D$#, 4E$#, 5#, 6#, 7#, 8#, 9#, 10#, 11#, 12@#, 13#, 14#, 15#, 16#, 17#, 18#, 19#, 20#, 21#, 22*# PARTS REQUEST
2#	EE60796	WORK INST, POWER BALANCE	1		PARTS REQUEST
PHOTO COMING WORK INST, POWER BALANCE EE60796 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) PARTS REQUEST
3#	EE60546	RESISTOR ASSY., 50 KW	1	INCLUDES ITEMS W/%	ADD TO CART
RESISTOR ASSY., 50 KW EE60546 · qty on machine: 1 INCLUDES ITEMS W/% Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $2745.95 IN A KIT + SOLD SOLO
3A%#	LBV-RE68	RESISTOR ELEMENT	12		PARTS REQUEST
PHOTO COMING RESISTOR ELEMENT LBV-RE68 · qty on machine: 12 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 3 - RESISTOR ASSY., 50 KW (EE60546) PARTS REQUEST
3B%#	LBD538/L1134-RA	ELEMENT ROD	12		ADD TO CART
ELEMENT ROD LBD538/L1134-RA · qty on machine: 12 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 3 - RESISTOR ASSY., 50 KW (EE60546) view full part page → $106.12 IN A KIT + SOLD SOLO
3C%#	P0267	CERAMIC INSULATOR THROUGH ROD	24		ADD TO CART
CERAMIC INSULATOR THROUGH ROD P0267 · qty on machine: 24 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 3 - RESISTOR ASSY., 50 KW (EE60546) view full part page → $2.57 IN A KIT + SOLD SOLO
3D%#	C0010-8	CERAMIC SPACER	48		ADD TO CART
CERAMIC SPACER C0010-8 · qty on machine: 48 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 3 - RESISTOR ASSY., 50 KW (EE60546) view full part page → $4.61 IN A KIT + SOLD SOLO
3E%#	P0273-4	INSULATOR, TERMINAL, 1/4	24		ADD TO CART
INSULATOR, TERMINAL, 1/4 P0273-4 · qty on machine: 24 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 3 - RESISTOR ASSY., 50 KW (EE60546) view full part page → $4.61 IN A KIT + SOLD SOLO
3F%#	P0073-516R	INSULATOR, L3 STEATITE EXTRUDED	96		ADD TO CART
INSULATOR, L3 STEATITE EXTRUDED P0073-516R · qty on machine: 96 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 3 - RESISTOR ASSY., 50 KW (EE60546) view full part page → $5.95 IN A KIT + SOLD SOLO
3G%#	LBD163	HARDWARE, PR END SPRING	24		ADD TO CART
HARDWARE, PR END SPRING LBD163 · qty on machine: 24 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 3 - RESISTOR ASSY., 50 KW (EE60546) view full part page → $0.72 IN A KIT + SOLD SOLO
4#	EE60569	CONTACTOR ASSY., 50 KW, 12V	1	INCLUDES ITEMS W/$	ADD TO CART
CONTACTOR ASSY., 50 KW, 12V EE60569 · qty on machine: 1 INCLUDES ITEMS W/$ Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $3569.95 IN A KIT + SOLD SOLO
4A$#	LBD1132	CONTACTOR, 3 POLE, 75A, 12VDC	2		PARTS REQUEST
PHOTO COMING CONTACTOR, 3 POLE, 75A, 12VDC LBD1132 · qty on machine: 2 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 4 - CONTACTOR ASSY., 50 KW, 12 (EE60569) PARTS REQUEST
4B$#	LBD1056	RELAY, VOLTAGE CONTROL, 460V	1		ADD TO CART
RELAY, VOLTAGE CONTROL, 460V LBD1056 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 4 - CONTACTOR ASSY., 50 KW, 12 (EE60569) view full part page → $525.95 IN A KIT + SOLD SOLO
4C$#	LBD707	RELAY, DPDT, 12VDC	1		ADD TO CART
RELAY, DPDT, 12VDC LBD707 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 4 - CONTACTOR ASSY., 50 KW, 12 (EE60569) view full part page → $51.95 IN A KIT + SOLD SOLO
4D$#	LBD560	FUSE HOLDER, 400A, 1000V	3		PARTS REQUEST
PHOTO COMING FUSE HOLDER, 400A, 1000V LBD560 · qty on machine: 3 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 4 - CONTACTOR ASSY., 50 KW, 12 (EE60569) PARTS REQUEST
4E$#	LBD132	FUSE, 150A, 600V	3		ADD TO CART
FUSE, 150A, 600V LBD132 · qty on machine: 3 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 4 - CONTACTOR ASSY., 50 KW, 12 (EE60569) view full part page → $71.08 IN A KIT + SOLD SOLO
5#	EE60789	HARNESS ASSY.	1		ADD TO CART
HARNESS ASSY. EE60789 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $1061.95 IN A KIT + SOLD SOLO
6#	EE60545	W/A RESISTOR COVER	1		ADD TO CART
W/A RESISTOR COVER EE60545 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $606.81 IN A KIT + SOLD SOLO
7#	EE58650	SIDE PLATE, RESISTOR COVER	2		ADD TO CART
SIDE PLATE, RESISTOR COVER EE58650 · qty on machine: 2 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $56.95 IN A KIT + SOLD SOLO
8#	EE58032	BRACKET CONTACTOR BOX	1		ADD TO CART
BRACKET CONTACTOR BOX EE58032 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $122.95 IN A KIT + SOLD SOLO
9#	EE60563	TAILPIPE EXT., 5"X13.5" LONG, SS	1		ADD TO CART
TAILPIPE EXT., 5"X13.5" LONG, SS EE60563 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $278.95 IN A KIT + SOLD SOLO
10#	EE16728	U-CLAMP, 5"X3/8", ZINC PLTD.	1		ADD TO CART
U-CLAMP, 5"X3/8", ZINC PLTD. EE16728 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $7.95 IN A KIT + SOLD SOLO
11#	303110	IN-LINE, FUSE HOLDER	1	INCLUDES ITEMS W/@	ADD TO CART
IN-LINE, FUSE HOLDER 303110 · qty on machine: 1 INCLUDES ITEMS W/@ Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $4.95 IN A KIT + SOLD SOLO
12@#		FUSE,10A (AGC10)	1		INCLUDED IN KIT
PHOTO COMING FUSE,10A (AGC10) · qty on machine: 1 Included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 11 - IN-LINE, FUSE HOLDER (303110) INCLUDED IN KIT
13#	EE61332	DECAL, POWERBALANCE	1		ADD TO CART
DECAL, POWERBALANCE EE61332 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $2.95 IN A KIT + SOLD SOLO
14#	EE58893	WIRE HARNESS, DC	1		ADD TO CART
WIRE HARNESS, DC EE58893 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $114.95 IN A KIT + SOLD SOLO
15#	EE58338	BUSHING, INSULATED W/ NUT	1		ADD TO CART
BUSHING, INSULATED W/ NUT EE58338 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $55.95 IN A KIT + SOLD SOLO
16#	EE60790	POWER WIRES, 50 KW	1		PARTS REQUEST
PHOTO COMING POWER WIRES, 50 KW EE60790 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) PARTS REQUEST
17#	EE60176	SENSING KIT HARNESS	1	INCLUDES ITEMS W/*	ADD TO CART
SENSING KIT HARNESS EE60176 · qty on machine: 1 INCLUDES ITEMS W/* Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $132.94 IN A KIT + SOLD SOLO
18*#	EE5759	FUSE BLOCK, 3 POLE	1		ADD TO CART
FUSE BLOCK, 3 POLE EE5759 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $8.95 IN A KIT + SOLD SOLO
19*#	EE5804	FUSE, GOULD SHAWMUT, 10A	2		ADD TO CART
FUSE, GOULD SHAWMUT, 10A EE5804 · qty on machine: 2 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $9.95 IN A KIT + SOLD SOLO
20*#	EE60164	HARNESS, AC SENSING 6' LONG	1		ADD TO CART
HARNESS, AC SENSING 6' LONG EE60164 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $28.95 IN A KIT + SOLD SOLO
21*#	EE60165	HARNESS, AC SENSING 2' LONG	1		PARTS REQUEST
PHOTO COMING HARNESS, AC SENSING 2' LONG EE60165 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) PARTS REQUEST
22*#		SCREW, 8-1/2" SELF TAPPING	2		INCLUDED IN KIT
PHOTO COMING SCREW, 8-1/2" SELF TAPPING · qty on machine: 2 Included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) INCLUDED IN KIT

Page 58 — POWER BALANCE ASSY. (CONT'D.)

Multiquip DCA150SSJU4F3 Generator POWER BALANCE ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed14 rows

No.	Part No.	Part Name	Qty
23#		BUTT SPLICE,14-16 GA	1	SEE REMARKS
PHOTO COMING BUTT SPLICE,14-16 GA · qty on machine: 1 SEE REMARKS
24#		RING TERMINAL,14-16 GA X #10	1	SEE REMARKS
PHOTO COMING RING TERMINAL,14-16 GA X #10 · qty on machine: 1 SEE REMARKS
25#		TIE WRAP, #4	10	SEE REMARKS
PHOTO COMING TIE WRAP, #4 · qty on machine: 10 SEE REMARKS
26#		TIE WRAP, #6	10	SEE REMARKS
PHOTO COMING TIE WRAP, #6 · qty on machine: 10 SEE REMARKS
27#		TIE WRAP, #8	10	SEE REMARKS
PHOTO COMING TIE WRAP, #8 · qty on machine: 10 SEE REMARKS
28#		SCREW, M6X15MM, SS	22	SEE REMARKS
PHOTO COMING SCREW, M6X15MM, SS · qty on machine: 22 SEE REMARKS
29#		WASHER, FLAT, M6, SS	24	SEE REMARKS
PHOTO COMING WASHER, FLAT, M6, SS · qty on machine: 24 SEE REMARKS
30#		WASHER, LOCK, M6, SS	22	SEE REMARKS
PHOTO COMING WASHER, LOCK, M6, SS · qty on machine: 22 SEE REMARKS
31#		SCREW, M8X15MM, SS	4	SEE REMARKS
PHOTO COMING SCREW, M8X15MM, SS · qty on machine: 4 SEE REMARKS
32#		WASHER, FLAT, M8, SS	4	SEE REMARKS
PHOTO COMING WASHER, FLAT, M8, SS · qty on machine: 4 SEE REMARKS
33#		WASHER, LOCK, M8, SS	4	SEE REMARKS
PHOTO COMING WASHER, LOCK, M8, SS · qty on machine: 4 SEE REMARKS
34#		G-CLAMP, #20 (1-1/4")X1/4" HOLE	2	SEE REMARKS
PHOTO COMING G-CLAMP, #20 (1-1/4")X1/4" HOLE · qty on machine: 2 SEE REMARKS
35#	EE62004	BAFFLE, POWER BALANCE RESISTOR	2	PARTS REQUEST
PHOTO COMING BAFFLE, POWER BALANCE RESISTOR EE62004 · qty on machine: 2 PARTS REQUEST
36#		RIVET, 3/16", ALUM.	4	SEE REMARKS
PHOTO COMING RIVET, 3/16", ALUM. · qty on machine: 4 SEE REMARKS

Page 60 — NAMEPLATE AND DECALS ASSY.

Multiquip DCA150SSJU4F3 Generator NAMEPLATE AND DECALS ASSY. parts diagram

Parts list — exactly as printed33 rows

No.	Part No.	Part Name	Qty	Remarks
1-1	M3551000103	DECAL; OPERATING PRECAUTIONS	1	M35100010	ADD TO CART
DECAL; OPERATING PRECAUTIONS M3551000103 · qty on machine: 1 M35100010 view full part page → $8.95
1-2	M9520100304	DECAL; GENERAL CAUTIONS	1	M92010030	ADD TO CART
DECAL; GENERAL CAUTIONS M9520100304 · qty on machine: 1 M92010030 view full part page → $3.95
1-3	M9520100603	DECAL; WARNING: AUTO START CONTROL PANEL AND BOX GROUP	2	M92010060	ADD TO CART
DECAL; WARNING: AUTO START CONTROL PANEL AND BOX GROUP M9520100603 · qty on machine: 2 M92010060 view full part page → $8.95
2-1	M3551002402	DECAL; CONTROL PANEL	1	M35100240 S/N 7601332 AND BELOW	PARTS REQUEST
PHOTO COMING DECAL; CONTROL PANEL M3551002402 · qty on machine: 1 M35100240 S/N 7601332 AND BELOW PARTS REQUEST
2-1	M3551002412	DECAL; CONTROL PANEL	1	S/N 7601333 AND ABOVE	PARTS REQUEST
PHOTO COMING DECAL; CONTROL PANEL M3551002412 · qty on machine: 1 S/N 7601333 AND ABOVE PARTS REQUEST
2-2	M9520000104	PLATE; AMMETER CHANGE-OVER SW	1	M92000010	ADD TO CART
PLATE; AMMETER CHANGE-OVER SW M9520000104 · qty on machine: 1 M92000010 view full part page → $11.95
2-3	M9520000204	PLATE; VOLTMETER CHANGE-OVER SW	1	M92000020	ADD TO CART
PLATE; VOLTMETER CHANGE-OVER SW M9520000204 · qty on machine: 1 M92000020 view full part page → $11.95
2-4	M9520100004	DECAL; WARNING: ELEC. SHOCK HAZARD	2	M92010000	ADD TO CART
DECAL; WARNING: ELEC. SHOCK HAZARD M9520100004 · qty on machine: 2 M92010000 view full part page → $5.95
2-5	M9520100704	DECAL; WARNING: ARC FLASH	1	M92010070	ADD TO CART
DECAL; WARNING: ARC FLASH M9520100704 · qty on machine: 1 M92010070 view full part page → $4.95
2-6	M9520200404	DECAL; O.C.R. RESET	1	M92020040A	ADD TO CART
DECAL; O.C.R. RESET M9520200404 · qty on machine: 1 M92020040A view full part page → $3.95
2-7	M9522000504	DECAL; CIRCUIT BREAKER	1	M92200050	ADD TO CART
DECAL; CIRCUIT BREAKER M9522000504 · qty on machine: 1 M92200050 view full part page → $25.95
2-8	M9520100204	DECAL; CAUTION: CHANGE-OVER SW ENGINE AND RADIATOR GROUP	1	M92010020A	ADD TO CART
DECAL; CAUTION: CHANGE-OVER SW ENGINE AND RADIATOR GROUP M9520100204 · qty on machine: 1 M92010020A view full part page → $3.95
3-1	M9500000004	DECAL; OIL DRAIN PLUG	1	M90000000	ADD TO CART
DECAL; OIL DRAIN PLUG M9500000004 · qty on machine: 1 M90000000 view full part page → $2.95
3-2	M9500100004	DECAL; WATER	1	M90010000	ADD TO CART
DECAL; WATER M9500100004 · qty on machine: 1 M90010000 view full part page → $1.95
3-3	M9503000004	DECAL; WARNING: ROTATING PART	2	M90300000	ADD TO CART
DECAL; WARNING: ROTATING PART M9503000004 · qty on machine: 2 M90300000 view full part page → $1.95
3-4	M9503000103	DECAL; WATER - OIL CHECK	1	M90300010	ADD TO CART
DECAL; WATER - OIL CHECK M9503000103 · qty on machine: 1 M90300010 view full part page → $7.95
3-5	M9503100004	DECAL; WARNING: HOT COOLANT	1	M90310000	ADD TO CART
DECAL; WARNING: HOT COOLANT M9503100004 · qty on machine: 1 M90310000 view full part page → $4.95
3-6	M9510100004	DECAL; CAUTION: HOT PARTS OUTPUT TERMINAL GROUP	1	M91010000	ADD TO CART
DECAL; CAUTION: HOT PARTS OUTPUT TERMINAL GROUP M9510100004 · qty on machine: 1 M91010000 view full part page → $68.95
4-1	M35510020031	DECAL; AUXILIARY OUTPUT	1	REPLACES P/N M3551002003 M35100200	ADD TO CART
DECAL; AUXILIARY OUTPUT M35510020031 · qty on machine: 1 REPLACES P/N M3551002003 M35100200 view full part page → $18.95
4-2	M9520000004	DECAL; GROUND	2	M92000000	ADD TO CART
DECAL; GROUND M9520000004 · qty on machine: 2 M92000000 view full part page → $1.95
4-3	M9520000504	DECAL; START CONTACT	1	M92000050	ADD TO CART
DECAL; START CONTACT M9520000504 · qty on machine: 1 M92000050 view full part page → $67.95
4-4	M9520000704	DECAL; 3-PHASE OUTPUT TERMINAL	1	M92000070	ADD TO CART
DECAL; 3-PHASE OUTPUT TERMINAL M9520000704 · qty on machine: 1 M92000070 view full part page → $59.95
4-5	M9520100404	DECAL; DANGER: HIGH VOLTAGE	1	M92010040	ADD TO CART
DECAL; DANGER: HIGH VOLTAGE M9520100404 · qty on machine: 1 M92010040 view full part page → $37.95
4-6	M9520100503	DECAL; WARNING	1	M92010050	ADD TO CART
DECAL; WARNING M9520100503 · qty on machine: 1 M92010050 view full part page → $1.95
4-7	M9521200604	DECAL; BONDED NEUTRAL	1	M92120060	ADD TO CART
DECAL; BONDED NEUTRAL M9521200604 · qty on machine: 1 M92120060 view full part page → $11.95
4-8	M9511100104	DECAL; NOTICE: RECEPTACLE	1	M91110010	ADD TO CART
DECAL; NOTICE: RECEPTACLE M9511100104 · qty on machine: 1 M91110010 view full part page → $3.95
4-9	M3550000804	DECAL; NOTE: LOAD SHARING	1	M35000080A	ADD TO CART
DECAL; NOTE: LOAD SHARING M3550000804 · qty on machine: 1 M35000080A view full part page → $13.95
4-10	M9522000004	DECAL; WATER HEATER	1		ADD TO CART
DECAL; WATER HEATER M9522000004 · qty on machine: 1 view full part page → $7.95
4-11	M3551002904	DECAL; OUTPUT TERM. BOLT TORQUE BATTERY GROUP	1	S/N 7601400 AND ABOVE	PARTS REQUEST
PHOTO COMING DECAL; OUTPUT TERM. BOLT TORQUE BATTERY GROUP M3551002904 · qty on machine: 1 S/N 7601400 AND ABOVE PARTS REQUEST
5-1	M9500300004	DECAL; −	1	M90030000	ADD TO CART
DECAL; − M9500300004 · qty on machine: 1 M90030000 view full part page → $1.95
5-2	M9500300104	DECAL; +	1	M90030010	ADD TO CART
DECAL; + M9500300104 · qty on machine: 1 M90030010 view full part page → $1.95
5-3	M9510100403	DECAL; WARNING: BATTERY CONNECT	1	M91010040	ADD TO CART
DECAL; WARNING: BATTERY CONNECT M9510100403 · qty on machine: 1 M91010040 view full part page → $16.95
5-4	M9501300004	DECAL; CAUTION: BATTERY CABLES	1	M90130000	ADD TO CART
DECAL; CAUTION: BATTERY CABLES M9501300004 · qty on machine: 1 M90130000 view full part page → $27.95

Page 62 — NAMEPLATE AND DECALS ASSY. (CONT'D.)

Multiquip DCA150SSJU4F3 Generator NAMEPLATE AND DECALS ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed27 rows

No.	Part No.	Part Name	Qty	Remarks
		MUFFLER GROUP			SEE REMARKS
PHOTO COMING MUFFLER GROUP SEE REMARKS
6-1	M9503200004	DECAL; WARNING: ENGINE EXHAUST	1	M90320000	ADD TO CART
DECAL; WARNING: ENGINE EXHAUST M9503200004 · qty on machine: 1 M90320000 view full part page → $14.95
6-2	M9503200104	DECAL; DANGER: EXHAUST GAS (INDOOR).1		M90320010	ADD TO CART
DECAL; DANGER: EXHAUST GAS (INDOOR).1 M9503200104 M90320010 view full part page → $4.95
6-3	920214100	DECAL; WARNING: START FIRES	1	REPLACES P/N M9504200004 M90420000	ADD TO CART
DECAL; WARNING: START FIRES 920214100 · qty on machine: 1 REPLACES P/N M9504200004 M90420000 view full part page → $12.95
6-4	M9504500004	DECAL; REFILL DEF AS WELL	1	M90450000	ADD TO CART
DECAL; REFILL DEF AS WELL M9504500004 · qty on machine: 1 M90450000 view full part page → $9.95
6-5	M2551000703	DECAL; EX. FILTER CLEAN PROCEDURES	1	M25100070	ADD TO CART
DECAL; EX. FILTER CLEAN PROCEDURES M2551000703 · qty on machine: 1 M25100070 view full part page → $4.95
6-6	M9504200104	DECAL; WARNING: PROPOSITION 65 FUEL TANK GROUP	1		ADD TO CART
DECAL; WARNING: PROPOSITION 65 FUEL TANK GROUP M9504200104 · qty on machine: 1 view full part page → $4.95
7-1	M9501500004	DECAL; DIESEL FUEL	2	M90150000	ADD TO CART
DECAL; DIESEL FUEL M9501500004 · qty on machine: 2 M90150000 view full part page → $3.95
7-2	M9541100004	DECAL; CAUTION: EXHAUST FLUID ONLY	1	M94110000	ADD TO CART
DECAL; CAUTION: EXHAUST FLUID ONLY M9541100004 · qty on machine: 1 M94110000 view full part page → $3.95
7-3	M9501500104	DECAL; DIESEL EXHAUST FLUID ENCLOSURE GROUP	1	M90150010	ADD TO CART
DECAL; DIESEL EXHAUST FLUID ENCLOSURE GROUP M9501500104 · qty on machine: 1 M90150010 view full part page → $14.95
8-1	M9511200204	DECAL; MQ	1	M91120020	ADD TO CART
DECAL; MQ M9511200204 · qty on machine: 1 M91120020 view full part page → $5.95
8-2	0600500092	EMBLEM	1	REPLACES P/N Y0600500092	ADD TO CART
EMBLEM 0600500092 · qty on machine: 1 REPLACES P/N Y0600500092 view full part page → $21.95
8-2A	0021106015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021106015 · qty on machine: 4 view full part page → $0.17
8-3	M3561100004	STRIPE	2		PARTS REQUEST
PHOTO COMING STRIPE M3561100004 · qty on machine: 2 PARTS REQUEST
8-4	M5560101604	STRIPE	2		ADD TO CART
STRIPE M5560101604 · qty on machine: 2 view full part page → $20.95
8-5	M3561101004	STRIPE	1		ADD TO CART
STRIPE M3561101004 · qty on machine: 1 view full part page → $17.95
8-6	M3561101103	STRIPE	2		ADD TO CART
STRIPE M3561101103 · qty on machine: 2 view full part page → $33.95
8-7	M3561101303	STRIPE	1		ADD TO CART
STRIPE M3561101303 · qty on machine: 1 view full part page → $42.95
8-8	M3561101204	STRIPE	1		ADD TO CART
STRIPE M3561101204 · qty on machine: 1 view full part page → $21.95
8-9	M5550000004	DECAL; CAUTION: LIFTING CAPACITY	1	M55000000	ADD TO CART
DECAL; CAUTION: LIFTING CAPACITY M5550000004 · qty on machine: 1 M55000000 view full part page → $34.95
8-10	Y0600500094	DECAL; E-COAT MARK STICKER	1		ADD TO CART
DECAL; E-COAT MARK STICKER Y0600500094 · qty on machine: 1 view full part page → $1.36
8-11	M9510000104	DECAL; DOCUMENT BOX LOCATED	1	M91000010	ADD TO CART
DECAL; DOCUMENT BOX LOCATED M9510000104 · qty on machine: 1 M91000010 view full part page → $4.95
8-12	M9511200103	DECAL; TIER 4F	1	M91120010	ADD TO CART
DECAL; TIER 4F M9511200103 · qty on machine: 1 M91120010 view full part page → $17.95
8-13	M9511100004	DECAL; WARNING ENVIRONMENTAL	1	M91110000	ADD TO CART
DECAL; WARNING ENVIRONMENTAL M9511100004 · qty on machine: 1 M91110000 view full part page → $6.95
8-14	M9510000004	DECAL; FLUID DRAIN	1	M91000000	ADD TO CART
DECAL; FLUID DRAIN M9510000004 · qty on machine: 1 M91000000 view full part page → $26.95
8-15	M9507200104	DECAL; DEF DRAIN	1	M90720010	ADD TO CART
DECAL; DEF DRAIN M9507200104 · qty on machine: 1 M90720010 view full part page → $4.95
8-16	M9521002804	DECAL; EMERGENCY STOP BUTTON	1	M92100280 S/N 7601333 AND ABOVE	ADD TO CART
DECAL; EMERGENCY STOP BUTTON M9521002804 · qty on machine: 1 M92100280 S/N 7601333 AND ABOVE view full part page → $3.95

The machine itself

Price by quote Get a quote

Tell us where the machine is headed and we'll quote it with freight. One call, no games.

The Multiquip DCA150SSJU4F3 is a generator built for portable jobsite power for tools, lighting, and equipment. Factory-documented specs and parts support; priced by quote.

Keep-it-running spares

All listed parts →

Every part that fits this machine

0071906312 Multiquip 0071906312 Bearing Denyo - OEM Replacement Part for Super Silent Generators $201.95

0191301150 Multiquip 0191301150 Hose Suction 85SSK - OEM Replacement Part for Super Silent Generators $47.95

0199901200 Multiquip 0199901200 Hose Drain Denyo - OEM Replacement Part $39.95

0228901130 Multiquip 0228901130 Seal Rubber Denyo - OEM Replacement Part for Super Silent Generators $56.95

0228901250 Multiquip 0228901250 Seal Rubber Denyo - OEM Replacement Part for Super Silent Generators $38.95

0228901310 Multiquip 0228901310 Seal Rubber Denyo - OEM Replacement Part for Super Silent Generators $44.95

0379703250 Multiquip 0379703250 Coolant Hose - OEM Replacement Part for Super Silent Generators $52.95

0400005080 Multiquip 0400005080 Insulation Wrap (KY) - OEM Replacement Part $140.95

0600800320 Multiquip 0600800320 Manual Pak Denyo - OEM Replacement Part $43.95

0601801041 Multiquip 0601801041 Change-Over Switch Voltmeter Denyo - OEM Replacement Part $157.95

0601806859 Multiquip 0601806859 Voltmeter AC DENYO - OEM Replacement Part for Generator Control Panels $368.95

0601808803 Multiquip 0601808803 Circuit Breaker 1P 20A - OEM Replacement Part for Super Silent Generators $46.95

0601808804 Multiquip 0601808804 Circuit Breaker 2P 50A - OEM Replacement Part for Super Silent Generators $98.95

0601808989 Multiquip 0601808989 AC Ammeter Denyo - OEM Replacement Part $243.95

0601812527 Multiquip 0601812527 Connector Denyo - OEM Replacement Part for Generator Control Systems $64.95

0601814453 Multiquip 0601814453 Coolant Level Alarm Lamp - OEM Replacement Part $33.95

0601815870 Multiquip 0601815870 Board Terminal SGW-225SS - OEM Replacement Part $56.95

0601820608 Multiquip 0601820608 Autovoltage Regulator Denyo - OEM Replacement Part $1,591.95

0601823863 Multiquip 0601823863 Relay Unit 12V DENYO - OEM Replacement Part $159.95

0601831557 Multiquip 0601831557 Button Emergency Denyo - OEM Replacement Part $95.95

0601831927 Multiquip 0601831927 Emergency Button Denyo - OEM Replacement Part $178.95

0601840073 Multiquip 0601840073 Rheostat Voltage Regulator for 150SSK and DCA Series Generators - OEM Replacement Part $90.95

0602022561 Multiquip 0602022561 90 Degree Elbow DENYO - OEM Replacement Part for Generator Systems $76.95

0602022580 Multiquip 0602022580 Adapter with Seal - OEM Replacement Part for DCA Super Silent Generators $37.95

0602022791 Multiquip 0602022791 Joint Hose Denyo - OEM Replacement Part for Super Silent Generators $35.95

0602040365 Multiquip 0602040365 90 Degree Elbow Denyo - OEM Replacement Part $79.95

0602040558 Multiquip 0602040558 Air Cleaner Band - OEM Replacement Part for DENYO Super Silent Generators $75.95

0602040650 Multiquip 0602040650 Indicator A/C 2545SSIU/2 DENYO - OEM Replacement Part $34.95

0602046586 Multiquip 0602046586 Air Cleaner Denyo - OEM Replacement Part for Super Silent Generators $751.95

0602046683 Multiquip 0602046683 Inner Air Cleaner Element - OEM Replacement Part $141.95

0602103092 Multiquip 0602103092 Lamp Alarm Charge Red - OEM Replacement Part $36.95

0602220198 Multiquip 0602220198 Battery Denyo - OEM Replacement Part for Super Silent Generators $500.95

0602330511 Multiquip 0602330511 DEF Filter Kit - OEM Replacement Part for Super Silent Generators $199.95

0603306590 Multiquip 0603306590 Male Bulkhead Connector - OEM Replacement Part for Denyo Generators $86.95

0605505072 Multiquip 0605505072 Fuel Tank Cap - OEM Replacement Part for DCA Generator Series $231.95

0605511395 Multiquip 0605511395 Ball Valve DENYO - OEM Replacement Part $46.95

0605515208 Multiquip 0605515208 Hose Band Clamp (Denyo) - OEM Replacement Part $61.95

0605515236 Multiquip 0605515236 Band Hose Denyo - OEM Replacement Part $46.95

515455840 Multiquip 515455840 Mount Nut (M14) Scraper - OEM Replacement Part $35.95

6068HFG05 Multiquip 6068HFG05 Engine - OEM Replacement Part $63,227.95

82608 Multiquip 82608 Toggle Switch Denyo Mods - OEM Replacement Part for Super Silent Generators $34.95

AR50411 Multiquip AR50411 Power Cord 90 Degree John Deere - OEM Replacement Part $38.95

C0110000122 Multiquip C0110000122 Rotor Assembly (JP) - OEM Replacement Part $13,160.95

C0130000603 Multiquip C0130000603 DCA-150USJ/150SSJU3 Assembly - OEM Replacement Part $19,083.95

DZ113662 Multiquip DZ113662 DEF Tank - OEM Replacement Part for WhisperWatt Super Silent Generators $2,550.95

EE2115 Multiquip EE2115 Potentiometer 5Kohm 10 Turn 2 Watt - OEM Replacement Part $70.95

EE23374 Multiquip EE23374 Pushbutton 1 NO 1 NC Contact 24V Green - OEM Replacement Part $82.95

EE23375 Multiquip EE23375 Pushbutton 1 NO 1 NC Contact 24V Red - OEM Replacement Part $82.95

EE38585 Multiquip EE38585 ABB 2 Pole 10A Circuit Breaker - OEM Replacement Part $60.95

EE52893 Multiquip EE52893 Emergency Stop Bezel 22mm Yellow Plastic - OEM Replacement Part $34.95

EE55761 Multiquip EE55761 LED Light Panel 12-36VDC - OEM Replacement Part $43.95

EE55780 Multiquip EE55780 Ethernet Cat5E Shielded Cable 50ft Grey - OEM Replacement Part $81.95

EE55784 Multiquip EE55784 ABB 3-Pole 10A Circuit Breaker UL@480V - OEM Replacement Part $349.95

EE55785 Multiquip EE55785 Contact Aux ABB S2C-H6RU Series - OEM Replacement Part $54.95

EE57855 Multiquip EE57855 Emergency Stop Switch XW1E - OEM Replacement Part $164.95

EE58032 Multiquip EE58032 Contactor Box Bracket Assembly White - OEM Replacement Part $122.95

EE58065 Multiquip EE58065 Ethernet Switch 5 Port 10-30VDC - OEM Replacement Part $453.95

EE58338 Multiquip EE58338 Insulated Bushing with Nut 2" UL CSA - OEM Replacement Part $55.95

EE58650 Multiquip EE58650 Resistor Cover Plate - OEM Replacement Part for Super Silent Generators $56.95

EE58893 Multiquip EE58893 Wire Harness DC Power Balance 16 AWG - OEM Replacement Part $114.95

EE59259 Multiquip EE59259 Controller w.Connector Kit - OEM Replacement Part $5,217.95

EE60031 Multiquip EE60031 Camlock Female 45° White Santoprene - OEM Replacement Part $85.95

EE60032 Multiquip EE60032 Camlock Female 45° Red Santoprene - OEM Replacement Part $85.95

EE60033 Multiquip EE60033 Camlock Female 45° Blue Santoprene - OEM Replacement Part $85.95

EE60034 Multiquip EE60034 Camlock Female 45° Green Santoprene - OEM Replacement Part $85.95

EE60546 Multiquip EE60546 Resistor - OEM Replacement Part for Super Silent Generators $2,745.95

EE60563 Multiquip EE60563 Tailpipe Extension 5" x 13.5" Stainless Steel - OEM Replacement Part $278.95

EE60569 Multiquip EE60569 Contactor - OEM Replacement Part for Super Silent Generators $3,569.95

EE60789 Multiquip EE60789 Harness Assembly 50kW 6 AWG - OEM Replacement Part $1,061.95

EE9949 Multiquip EE9949 Nut Shaft Lock Potentiometer - OEM Replacement Part $33.95

HBL5278C Multiquip HBL5278C Receptacle Inlet Flange 15Amp NEMA 125V - OEM Replacement Part $53.95

HBL5369C Multiquip HBL5369C Connector 20amp 125V - OEM Replacement Part $103.95

LY2DUS12VDC Multiquip LY2DUS12VDC Relay with Diode - OEM Replacement Part for DCA Generators $46.95

M3224001103 Multiquip M3224001103 Control Panel Black Gloss - OEM Replacement Part $390.95

M3230700003 Multiquip M3230700003 Output Panel Denyo - OEM Replacement Part for Generator $258.95

M3237100404 Multiquip M3237100404 Insulating Cover - OEM Replacement Part for Denyo Super Silent Generators $160.95

M3270100304 Multiquip M3270100304 Switch Selector - OEM Replacement Part for Super Silent Generators $4,543.95

M3303200404 Multiquip M3303200404 Engine Foot - OEM Replacement Part for Denyo Super Silent Generators $39.95

M3311500503 Multiquip M3311500503 Upper Radiator Hose DENYO - OEM Replacement Part $194.95

M3311500603 Multiquip M3311500603 Lower Radiator Hose DENYO - OEM Replacement Part $197.95

M3311501503 Multiquip M3311501503 Surge Tank Hose - OEM Replacement Part for Super Silent Generators $62.95

M3317100004 Multiquip M3317100004 Surge Tank Bracket - OEM Replacement Part for Super Silent Generators $263.95

M3331400604 Multiquip M3331400604 DPF Band Denyo - OEM Replacement Part $77.95

M3331402804 Multiquip M3331402804 DEF Tank Band - OEM Replacement Part $233.95

M3334001203 Multiquip M3334001203 Exhaust Pipe - OEM Replacement Part for Super Silent Generators $414.95

M3334100103 Multiquip M3334100103 Tail Pipe (KY) - OEM Replacement Part for Super Silent Generators $1,146.95

M3358201602 Multiquip M3358201602 Wire Harness Engine Denyo - OEM Replacement Part $1,729.95

M3364000513 Multiquip M3364000513 Fuel Tank Denyo - OEM Replacement Part for Super Silent Generators $3,695.95

M3364301003 Multiquip M3364301003 Environmental Tank Denyo - OEM Replacement Part $4,287.95

M3364400504 Multiquip M3364400504 Tube Pick Up KY - OEM Replacement Part for Super Silent Generators $141.95

M3414400303 Multiquip M3414400303 Base Cover DENYO - OEM Replacement Part for Super Silent Generators $228.95

M3424100003 Multiquip M3424100003 Front Frame Panel - OEM Replacement Part for Denyo Super Silent Generators $779.95

M3424100203 Multiquip M3424100203 Panel Front Frame Denyo - OEM Replacement Part $1,377.95

M3424201803 Multiquip M3424201803 Over Cover Front Frame Denyo - OEM Replacement Part $544.95

M3434000602 Multiquip M3434000602 Center Frame - OEM Replacement Part for Denyo Super Silent Generators $3,479.95

M3444000702 Multiquip M3444000702 Rear Frame - OEM Replacement Part $2,450.95

M3444200303 Multiquip M3444200303 Door (OP) DENYO - OEM Replacement Part for Super Silent Generators $495.95

M3444300904 Multiquip M3444300904 Cover Rear Frame Denyo - OEM Replacement Part for Super Silent Generators $372.95

M3454002803 Multiquip M3454002803 Side Door Denyo - OEM Replacement Part for Super Silent Generators $454.95

M3454700404 Multiquip M3454700404 Rubber Sheet - OEM Replacement Part for DENYO Super Silent Generators $62.95

M3464100502 Multiquip M3464100502 Roof Panel White Denyo - OEM Replacement Part $552.95

M3464200502 Multiquip M3464200502 Roof Panel White Denyo - OEM Replacement Part $632.95

M3464500104 Multiquip M3464500104 Gutter (White) Denyo - OEM Replacement Part $57.95

M3464500204 Multiquip M3464500204 Gutter (White) - OEM Replacement Part for Denyo Super Silent Generators $41.95

M3494112003 Multiquip M3494112003 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $714.95

M3494113204 Multiquip M3494113204 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $160.95

M3494114004 Multiquip M3494114004 DEF Tank Cover Assembly (2 Pieces) - OEM Replacement Part $85.95

M3494118804 Multiquip M3494118804 Acoustic Sheet Denyo - OEM Replacement Part $172.95

M3494302304 Multiquip M3494302304 Acoustic Sheet Denyo (KY) - OEM Replacement Part $118.95

M3494302404 Multiquip M3494302404 Acoustic Sheet Denyo - OEM Replacement Part $70.95

M3494420904 Multiquip M3494420904 Rear Side Door Right Assembly - OEM Replacement Part $278.95

M3494421304 Multiquip M3494421304 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $139.95

M3494421504 Multiquip M3494421504 Rear Splasher Panel Assembly - OEM Replacement Part $348.95

M3494504204 Multiquip M3494504204 Acoustic Sheet Denyo - OEM Replacement Part $196.95

M3494504304 Multiquip M3494504304 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $282.95

M3561101303 Multiquip M3561101303 DENYO Component - OEM Replacement Part for Super Silent Generators $42.95

M4213500104 Multiquip M4213500104 Control Box Cover DENYO - OEM Replacement Part $204.95

M4236100403 Multiquip M4236100403 Terminal Cover Denyo - OEM Replacement Part $231.95

M4236400104 Multiquip M4236400104 Supporter Cable Outlet Cover - OEM Replacement Part for Denyo Super Silent Generators $88.95

M4260600104 Multiquip M4260600104 Circuit Breaker Bracket - OEM Replacement Part for Denyo Super Silent Generators $57.95

M4443600004 Multiquip M4443600004 Plate Window Denyo - OEM Replacement Part $155.95

M4444300003 Multiquip M4444300003 Duct Rear Frame Denyo - OEM Replacement Part $998.95

M4493303004 Multiquip M4493303004 Acoustic Sheet Denyo - OEM Replacement Part $58.95

M5494108204 Multiquip M5494108204 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $64.95

M9103000504 Multiquip M9103000504 Battery Band - OEM Replacement Part for Super Silent Generators $107.95

M9220100304 Multiquip M9220100304 Bolt Output Term - OEM Replacement Part for Generators $118.95

M9520000704 Multiquip M9520000704 3-Phase Output Terminal Decal - OEM Replacement Part $59.95

R300529 Multiquip R300529 Sealing Ring John Deere - OEM Replacement Part $140.95

R528112 Multiquip R528112 Seal 70SSJU4i Muffler Assembly - OEM Replacement Part $116.95

R529640 Multiquip R529640 Gasket - OEM Replacement Part for Super Silent Generators $97.95

RE289839 Multiquip RE289839 V-Band Clamp - OEM Replacement Part $107.95

RE292067 Multiquip RE292067 V-Band Clamp - OEM Replacement Part $139.95

RE298757 Multiquip RE298757 V-Band Clamp - OEM Replacement Part $162.95

RE42139 Multiquip RE42139 Coolant Heater 1000W - OEM Replacement Part $227.95

RE539279 Multiquip RE539279 Oil Filter Cartridge - OEM Replacement Part for Super Silent Generators $93.95

RE540348 Multiquip RE540348 Clamp V Band - OEM Replacement Part for Super Silent Generators $163.95

RE554498 Multiquip RE554498 Filter Kit - OEM Replacement Part for Super Silent Generators $309.95

RE560681 Multiquip RE560681 Fuel Filter Element (Secondary) - OEM Replacement Part $146.95

RE560897 Multiquip RE560897 DEF Pressure Line - OEM Replacement Part for Super Silent Generators $700.95

RE562696 Multiquip RE562696 Seal Kit for Fuel Filter - OEM Replacement Part $72.95

RE565074 Multiquip RE565074 Decomposition Tube - OEM Replacement Part for Super Silent Generators $2,420.95

Y0601810170 Multiquip Y0601810170 Panel Light Denyo - OEM Replacement Part $142.95

Y0601813078 Multiquip Y0601813078 Receptacles Harness (DENYO) - OEM Replacement Part for Super Silent Generators $105.95

Y0601814034 Multiquip Y0601814034 GFCI Receptacle 5-20R (KY) - OEM Replacement Part $91.95

Y0601831345 Multiquip Y0601831345 3-Pole Switch - OEM Replacement Part $49.95

Y0602012954 Multiquip Y0602012954 Radiator & Intercooler DENYO - OEM Replacement Part $2,898.95

Y0602015610 Multiquip Y0602015610 CAC Hose Denyo - OEM Replacement Part $124.95

Y0602022577 Multiquip Y0602022577 90° Elbow KY - OEM Replacement Part for Super Silent Generators $39.95

Y0602022578 Multiquip Y0602022578 Elbow 90 Deg Denyo - OEM Replacement Part for Super Silent Generators $67.95

Y0602044503 Multiquip Y0602044503 Blowby Filter Cover Lower (KY) - OEM Replacement Part $306.95

Y0602044509 Multiquip Y0602044509 Blow-By Filter Cover Upper (KY) - OEM Replacement Part $608.95

Y0602120568 Multiquip Y0602120568 Gauge Unit Assembly - OEM Replacement Part $947.95

Y0602201458 Multiquip Y0602201458 Relay Denyo - OEM Replacement Part for Super Silent Generators $116.95

Y0602311172 Multiquip Y0602311172 Heat Shield Pipe - OEM Replacement Part $157.95

Y0602325026 Multiquip Y0602325026 Pipe Band - OEM Replacement Part for Denyo Super Silent Generators $37.95

Y0605000462 Multiquip Y0605000462 Rubber Suspension - OEM Replacement Part $110.95

Y0605000463 Multiquip Y0605000463 Rubber Suspension - OEM Replacement Part for Super Silent Generators $187.95

Y0605012318 Multiquip Y0605012318 Door Handle (KY) - OEM Replacement Part $75.95

Y0605501049 Multiquip Y0605501049 Fuel Sender Unit KY - OEM Replacement Part for Super Silent Generators $342.95

Y0605511394 Multiquip Y0605511394 Mini Ball Valve Denyo - OEM Replacement Part $70.95

0010006030 HEX. HEAD BOLT $0.25

0012110060 HEX. HEAD BOLT $4.95

0012116060 HEX. HEAD BOLT $6.95

0012312030 HEX. HEAD BOLT $6.95

0013608090 HEX HEAD BOLT

0016906015 HEX. HEAD BOLT $0.95

0016908040 HEX. HEAD BOLT $1.52

0016910025 HEX. HEAD BOLT 10X25 $1.56

0016910030 HEX. HEAD BOLT $2.95

0019108055 HEX. HEAD BOLT $3.95

0019108065 HEX. HEAD BOLT M8X65 $1.95

0019112030 HEX. HEAD BOLT $5.95

0019208020 HEX HEAD BOLT $3.95

0019210025 HEX. HEAD BOLT $7.95

0021005020 MACHINE SCREW $0.32

0021006080 MACHINE SCREW $0.95

0021106015 MACHINE SCREW $0.17

0021805015 MACHINE SCREW $0.58

0021806015 MACHINE SCREW $0.87

0027103010 MACHINE SCREW M3X10 $0.44

0027103015 MACHINE SCREW 3MM X 15MM $0.64

0027104015 MACHINE SCREW $0.53

0027104020 MACHINE SCREW $0.40

0027208025 MACHINE SCREW $0.76

0030012000 HEX. HEAD NUT $0.50

0030016000 HEX. NUT $1.90

0030020000 HEX. NUT $1.82

0032005000 WASHER, LOCK $0.41

0040003000 WASHER, LOCK

0040006000 WASHER, LOCK $0.17

0040008000 WASHER, LOCK $0.63

0040012000 WASHER, LOCK $0.95

0040016000 WASHER, LOCK $4.95

0040506000 TOOTHED WASHER $0.77

0040508000 TOOTHED WASHER $0.35

0040510000 TOOTHED WASHER $0.77

0040516000 TOOTHED WASHER $1.39

0041216000 WASHER, FLAT $1.95

0042308000 WASHER, LOCK $0.83

0042312000 WASHER, LOCK $0.94

From the guides desk

Guide · 2026-08-04

Ask ARIA about your machine.

Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.

Chat with ARIA

Multiquip DCA150SSJU4F3 Generator

The parts bench

The machine itself

Machine

Engine

Keep-it-running spares

Every part that fits this machine

Service notices & part changes

Take the factory book with you

Get the download pack

From the guides desk

Multiquip DCA Generator Fault Shutdown and Controller Reset Guide

Multiquip Generator No-Start and No-Power Fixes

Multiquip DCA Generator Fault Codes and Diagnostics Guide

Ask ARIA about your machine.

Your cart is empty

Your cart is empty
