Multiquip DCA40SSKU4F Generator

Name: Multiquip DCA40SSKU4F Generator
Brand: Multiquip

The parts bench

Need the PDF? ↓

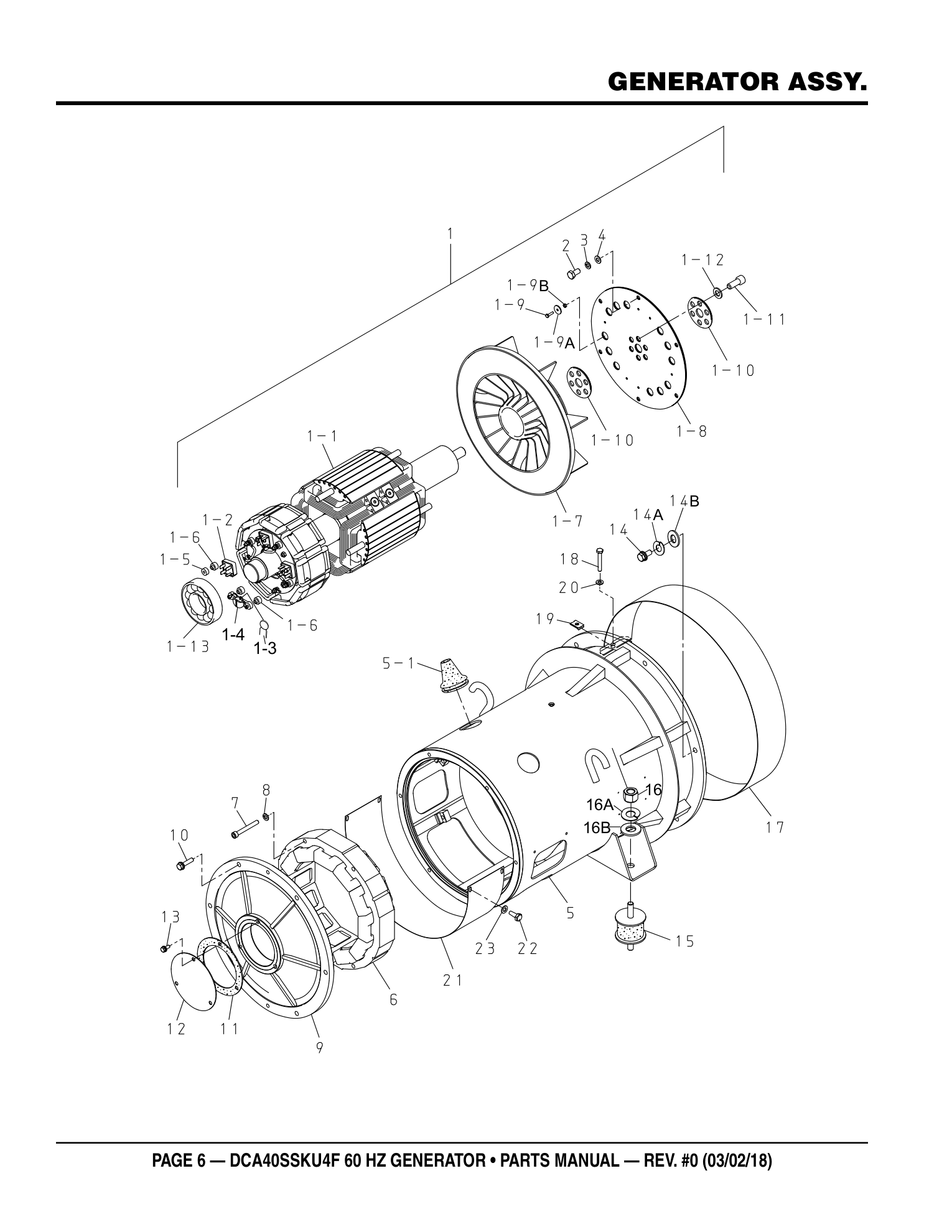

Page 6 — GENERATOR ASSY.

Multiquip DCA40SSKU4F Generator GENERATOR ASSY. parts diagram

Parts list — exactly as printed43 rows

No.	Part No.	Part Name	Qty	Remarks
1	B3110100802	ROTOR ASSEMBLY	1	INCLUDES ITEMS W/#	PARTS REQUEST
PHOTO COMING ROTOR ASSEMBLY B3110100802 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 1-1#, 1-2#, 1-3#, 1-4#, 1-5#, 1-6#, 1-7#, 1-8#, 1-9#, 1-9A#, 1-9B#, 1-10#, 1-11#, 1-12#, 1-13#, 2#, 3#, 4# PARTS REQUEST
1-1#		FIELD ASSEMBLY	1		INCLUDED IN KIT
PHOTO COMING FIELD ASSEMBLY · qty on machine: 1 Included in kit 1 - ROTOR ASSEMBLY (B3110100802) INCLUDED IN KIT
1-2#	0601820083	RECTIFIER	3		ADD TO CART
RECTIFIER 0601820083 · qty on machine: 3 Also included in kit 1 - ROTOR ASSEMBLY (B3110100802) view full part page → $33.95 IN A KIT + SOLD SOLO
1-3#	0601822664	ZNR , SURGE ABSORBER	1		ADD TO CART
ZNR , SURGE ABSORBER 0601822664 · qty on machine: 1 Also included in kit 1 - ROTOR ASSEMBLY (B3110100802) view full part page → $18.95 IN A KIT + SOLD SOLO
1-4#	B3120100804	HOLDER, ZNR	1		ADD TO CART
HOLDER, ZNR B3120100804 · qty on machine: 1 Also included in kit 1 - ROTOR ASSEMBLY (B3110100802) view full part page → $140.95 IN A KIT + SOLD SOLO
1-5#	B3120100604	INSULATOR WASHER	3		ADD TO CART
INSULATOR WASHER B3120100604 · qty on machine: 3 Also included in kit 1 - ROTOR ASSEMBLY (B3110100802) view full part page → $1.95 IN A KIT + SOLD SOLO
1-6#	B3120100704	INSULATOR WASHER	5		ADD TO CART
INSULATOR WASHER B3120100704 · qty on machine: 5 Also included in kit 1 - ROTOR ASSEMBLY (B3110100802) view full part page → $1.95 IN A KIT + SOLD SOLO
1-7#	B3111100603	FAN	1		ADD TO CART
FAN B3111100603 · qty on machine: 1 Also included in kit 1 - ROTOR ASSEMBLY (B3110100802) view full part page → $232.95 IN A KIT + SOLD SOLO
1-8#	B3163100204	COUPLING DISK	3	PURCHASE 1-9 AT SAME TIME	ADD TO CART
COUPLING DISK B3163100204 · qty on machine: 3 PURCHASE 1-9 AT SAME TIME Also included in kit 1 - ROTOR ASSEMBLY (B3110100802) view full part page → $89.95 IN A KIT + SOLD SOLO
1-9#	Y0019104016	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT Y0019104016 · qty on machine: 1 Also included in kit 1 - ROTOR ASSEMBLY (B3110100802) view full part page → $0.62 IN A KIT + SOLD SOLO
1-9A#	B4163700004	BALANCING WEIGHT	1		ADD TO CART
BALANCING WEIGHT B4163700004 · qty on machine: 1 Also included in kit 1 - ROTOR ASSEMBLY (B3110100802) view full part page → $3.99 IN A KIT + SOLD SOLO
1-9B#	Y0204104000	U-NUT	1		ADD TO CART
U-NUT Y0204104000 · qty on machine: 1 Also included in kit 1 - ROTOR ASSEMBLY (B3110100802) view full part page → $2.59 IN A KIT + SOLD SOLO
1-10#	B3163200104	COUPLING WASHER	2		ADD TO CART
COUPLING WASHER B3163200104 · qty on machine: 2 Also included in kit 1 - ROTOR ASSEMBLY (B3110100802) view full part page → $112.95 IN A KIT + SOLD SOLO
1-11#	0342612030	HEX. SOCKET HEAD CAP SCREW	6		ADD TO CART
HEX. SOCKET HEAD CAP SCREW 0342612030 · qty on machine: 6 Also included in kit 1 - ROTOR ASSEMBLY (B3110100802) view full part page → $2.82 IN A KIT + SOLD SOLO
1-12#	0046512000	WASHER, FLAT	6		ADD TO CART
WASHER, FLAT 0046512000 · qty on machine: 6 Also included in kit 1 - ROTOR ASSEMBLY (B3110100802) view full part page → $3.95 IN A KIT + SOLD SOLO
1-13#	0071906309	BEARING	1		ADD TO CART
BEARING 0071906309 · qty on machine: 1 Also included in kit 1 - ROTOR ASSEMBLY (B3110100802) view full part page → $160.95 IN A KIT + SOLD SOLO
2#	014208020	HEX. HEAD BOLT	6	REPLACES P/N 0010308020	ADD TO CART
HEX. HEAD BOLT 014208020 · qty on machine: 6 REPLACES P/N 0010308020 Also included in kit 1 - ROTOR ASSEMBLY (B3110100802) view full part page → $0.77 IN A KIT + SOLD SOLO
3#	0040008000	WASHER, LOCK	6		ADD TO CART
WASHER, LOCK 0040008000 · qty on machine: 6 Also included in kit 1 - ROTOR ASSEMBLY (B3110100802) view full part page → $0.63 IN A KIT + SOLD SOLO
4#	0401450080	WASHER, FLAT	6	REPLACES P/N 0041208000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 6 REPLACES P/N 0041208000 Also included in kit 1 - ROTOR ASSEMBLY (B3110100802) view full part page → $0.56 IN A KIT + SOLD SOLO
5	B3130101003	STATOR ASSEMBLY	1		ADD TO CART
STATOR ASSEMBLY B3130101003 · qty on machine: 1 view full part page → $8554.95
5-1	0845041904	GROMMET	2		ADD TO CART
GROMMET 0845041904 · qty on machine: 2 view full part page → $11.95
6	B3137000803	FIELD ASSEMBLY, EXCITER	1		ADD TO CART
FIELD ASSEMBLY, EXCITER B3137000803 · qty on machine: 1 view full part page → $1882.95
7	0016008060	HEX. SOCKET HEAD CAP SCREW	4		ADD TO CART
HEX. SOCKET HEAD CAP SCREW 0016008060 · qty on machine: 4 view full part page → $2.95
8	0042508000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0042508000 · qty on machine: 4 view full part page → $0.62
9	B3153000513	END BRACKET	1		ADD TO CART
END BRACKET B3153000513 · qty on machine: 1 view full part page → $636.95
10	0017108035	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0017108035 · qty on machine: 6 view full part page → $1.95
11	B3153400504	PACKING	1		ADD TO CART
PACKING B3153400504 · qty on machine: 1 view full part page → $25.95
12	B3153400404	COVER, BEARING	1		ADD TO CART
COVER, BEARING B3153400404 · qty on machine: 1 view full part page → $40.95
13	0017106016	HEX. HEAD BOLT	3		ADD TO CART
HEX. HEAD BOLT 0017106016 · qty on machine: 3 view full part page → $1.51
14	0012410025	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0012410025 · qty on machine: 6 view full part page → $1.95
14A	0040010000	SPRING WASHER	6		ADD TO CART
SPRING WASHER 0040010000 · qty on machine: 6 view full part page → $0.39
14B	0041210000	PLAIN WASHER	6		ADD TO CART
PLAIN WASHER 0041210000 · qty on machine: 6 Factory replaced this part - current number 031110160 view full part page → $0.4 IN A KIT + SOLD SOLO
15	Y0605000461	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION Y0605000461 · qty on machine: 2 view full part page → $55.95
16	0030012000	HEX. NUT	2		ADD TO CART
HEX. NUT 0030012000 · qty on machine: 2 view full part page → $0.5
16A	0040012000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040012000 · qty on machine: 2 view full part page → $0.95
16B	031112230	WASHER, FLAT	2	REPLACES P/N 0041212000	ADD TO CART
WASHER, FLAT 031112230 · qty on machine: 2 REPLACES P/N 0041212000 view full part page → $0.95
17	B5131300004	COVER. END BRACKET	1		ADD TO CART
COVER. END BRACKET B5131300004 · qty on machine: 1 view full part page → $63.95
18	0340406040	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0340406040 · qty on machine: 1 view full part page → $2.68
19	020106050	U-NUT	1	REPLACES P/N 0600815000	ADD TO CART
U-NUT 020106050 · qty on machine: 1 REPLACES P/N 0600815000 view full part page → $0.12
20	952404470	WASHER, FLAT	1	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 1 REPLACES P/N 0041206000 view full part page → $0.19
21	B3131300804	COVER, END BRACKET	1		ADD TO CART
COVER, END BRACKET B3131300804 · qty on machine: 1 view full part page → $60.95
22	0029205012	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0029205012 · qty on machine: 4 view full part page → $1.45
23	0401450050	WASHER, FLAT	4	REPLACES P/N 0041205000	ADD TO CART
WASHER, FLAT 0401450050 · qty on machine: 4 REPLACES P/N 0041205000 Factory replaced this part - current number 58151 view full part page → $0.41 IN A KIT + SOLD SOLO

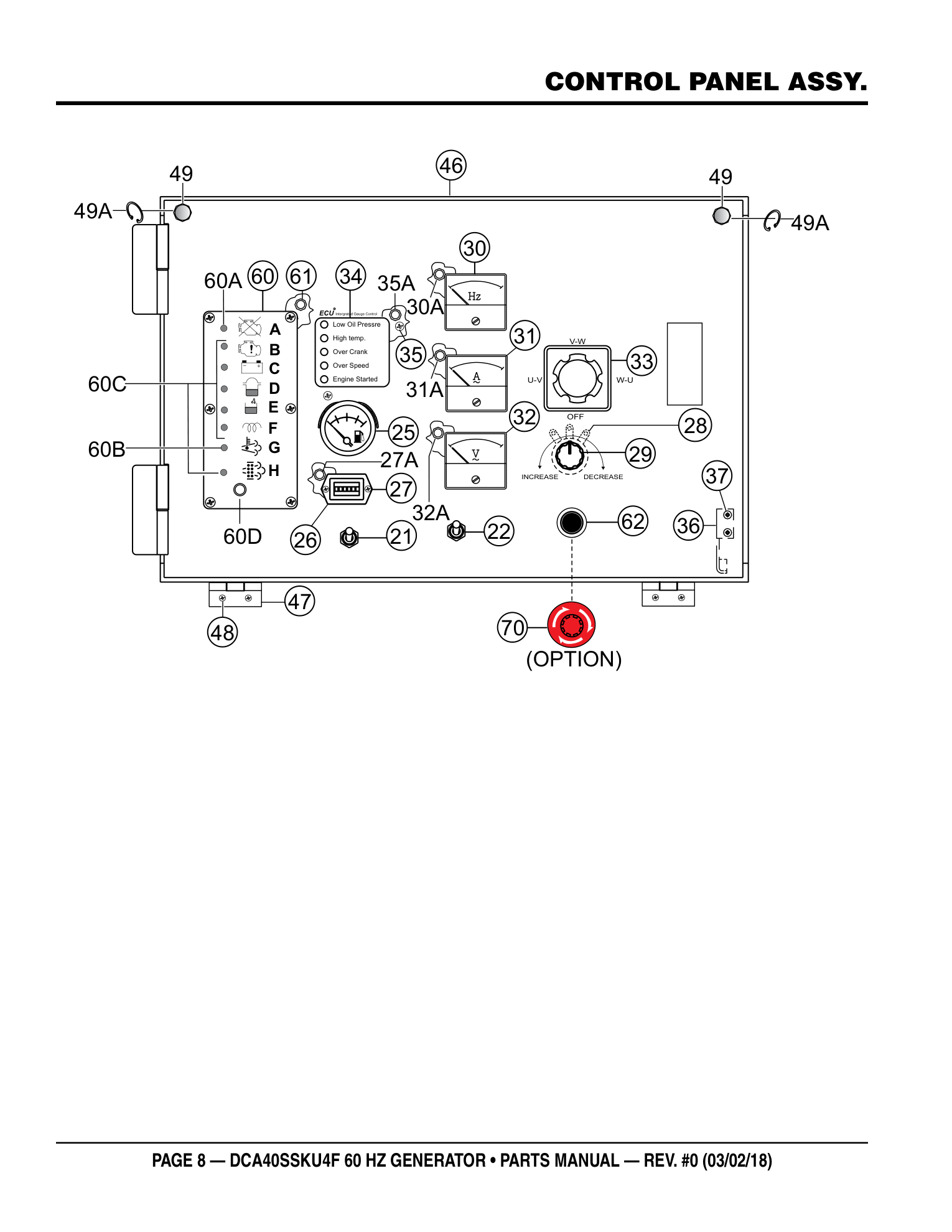

Page 8 — CONTROL PANEL ASSY.

Multiquip DCA40SSKU4F Generator CONTROL PANEL ASSY. parts diagram

Parts list — exactly as printed33 rows

No.	Part No.	Part Name	Qty	Remarks
21	82608	AUTO START/STOP SWITCH	1	REPLACES P/N 0601831340	ADD TO CART
AUTO START/STOP SWITCH 82608 · qty on machine: 1 REPLACES P/N 0601831340 view full part page → $34.95
22	0601831395	ENGINE SPEED SWITCH	1		ADD TO CART
ENGINE SPEED SWITCH 0601831395 · qty on machine: 1 view full part page → $53.95
25	0602125090	FUEL GAUGE	1		ADD TO CART
FUEL GAUGE 0602125090 · qty on machine: 1 view full part page → $77.95
26	0601800682	HOUR METER	1		ADD TO CART
HOUR METER 0601800682 · qty on machine: 1 view full part page → $116.95
27	0027103015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027103015 · qty on machine: 2 view full part page → $0.64
27A	0207003000	SELF-LOCKING NUT	2		ADD TO CART
SELF-LOCKING NUT 0207003000 · qty on machine: 2 view full part page → $0.21
28	0601840073	RHEOSTAT VOLT. REGULATOR 2W 1K Ω	1		ADD TO CART
RHEOSTAT VOLT. REGULATOR 2W 1K Ω 0601840073 · qty on machine: 1 view full part page → $90.95
29	0601840100	KNOB	1	REPLACES P/N 0601840121	ADD TO CART
KNOB 0601840100 · qty on machine: 1 REPLACES P/N 0601840121 view full part page → $30.95
30	0601807641	FREQUENCY METER, 45~65HZ 240V	1	REPLACES P/N Y0601807631	ADD TO CART
FREQUENCY METER, 45~65HZ 240V 0601807641 · qty on machine: 1 REPLACES P/N Y0601807631 view full part page → $591.95
30A	0207003000	SELF-LOCKING NUT	2		ADD TO CART
SELF-LOCKING NUT 0207003000 · qty on machine: 2 view full part page → $0.21
31	0601808986	AC AMMETER, 0~75A. 0~150A/5A	1	REPLACES P/N Y0601817033	ADD TO CART
AC AMMETER, 0~75A. 0~150A/5A 0601808986 · qty on machine: 1 REPLACES P/N Y0601817033 view full part page → $262.95
31A	0207003000	SELF-LOCKING NUT	2		ADD TO CART
SELF-LOCKING NUT 0207003000 · qty on machine: 2 view full part page → $0.21
32	0601806947	AC VOLTMETER, 0~600V	1		NO LONGER AVAILABLE
PHOTO COMING AC VOLTMETER, 0~600V 0601806947 · qty on machine: 1 NO LONGER AVAILABLE
32A	0207003000	SELF-LOCKING NUT	2		ADD TO CART
SELF-LOCKING NUT 0207003000 · qty on machine: 2 view full part page → $0.21
33	0601801040	CHANGE-OVER SWITCH, AMMETER	1		ADD TO CART
CHANGE-OVER SWITCH, AMMETER 0601801040 · qty on machine: 1 view full part page → $95.95
34	Y0602203000	CONTROLLER	1		ADD TO CART
CONTROLLER Y0602203000 · qty on machine: 1 view full part page → $882.95
35	0021004040	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0021004040 · qty on machine: 2 view full part page → $0.64
35A	OEMAA8	SELF-LOCKING NUT	2	REPLACES P/N 0207004000	ADD TO CART
SELF-LOCKING NUT OEMAA8 · qty on machine: 2 REPLACES P/N 0207004000 view full part page → $0.4
36	M1224100104	STOPPER	1		ADD TO CART
STOPPER M1224100104 · qty on machine: 1 view full part page → $13.95
37	0027105010	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027105010 · qty on machine: 2 view full part page → $0.56
46	M1224000403	CONTROL PANEL	1		PARTS REQUEST
PHOTO COMING CONTROL PANEL M1224000403 · qty on machine: 1 PARTS REQUEST
47	M9110100404	HINGE	2		ADD TO CART
HINGE M9110100404 · qty on machine: 2 view full part page → $18.95
48	0027105010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105010 · qty on machine: 4 view full part page → $0.56
49	M9220100004	SET SCREW	2		ADD TO CART
SET SCREW M9220100004 · qty on machine: 2 view full part page → $12.95
49A	0080200007	E-SNAP RING	2		ADD TO CART
E-SNAP RING 0080200007 · qty on machine: 2 view full part page → $1.39
60	M1224200004	MOUNTING PLATE INDICATOR	1		PARTS REQUEST
PHOTO COMING MOUNTING PLATE INDICATOR M1224200004 · qty on machine: 1 PARTS REQUEST
60A	Y0601814114	LED	1		PARTS REQUEST
PHOTO COMING LED Y0601814114 · qty on machine: 1 PARTS REQUEST
60B	Y0601814117	LED	1		PARTS REQUEST
PHOTO COMING LED Y0601814117 · qty on machine: 1 PARTS REQUEST
60C	Y0601814116	LED	6		PARTS REQUEST
PHOTO COMING LED Y0601814116 · qty on machine: 6 PARTS REQUEST
60D	0601831205	SWITCH, PUSHBUTTON	1		ADD TO CART
SWITCH, PUSHBUTTON 0601831205 · qty on machine: 1 view full part page → $25.95
61	0176060030	SELF-LOCKING NUT	4	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 4 REPLACES P/N 0207006000 view full part page → $2.95
62	Y0601851754	GROMMET	1		PARTS REQUEST
PHOTO COMING GROMMET Y0601851754 · qty on machine: 1 PARTS REQUEST
70	EE55989	E-STOP SWITCH	1	OPTION	ADD TO CART
E-STOP SWITCH EE55989 · qty on machine: 1 OPTION view full part page → $82.95

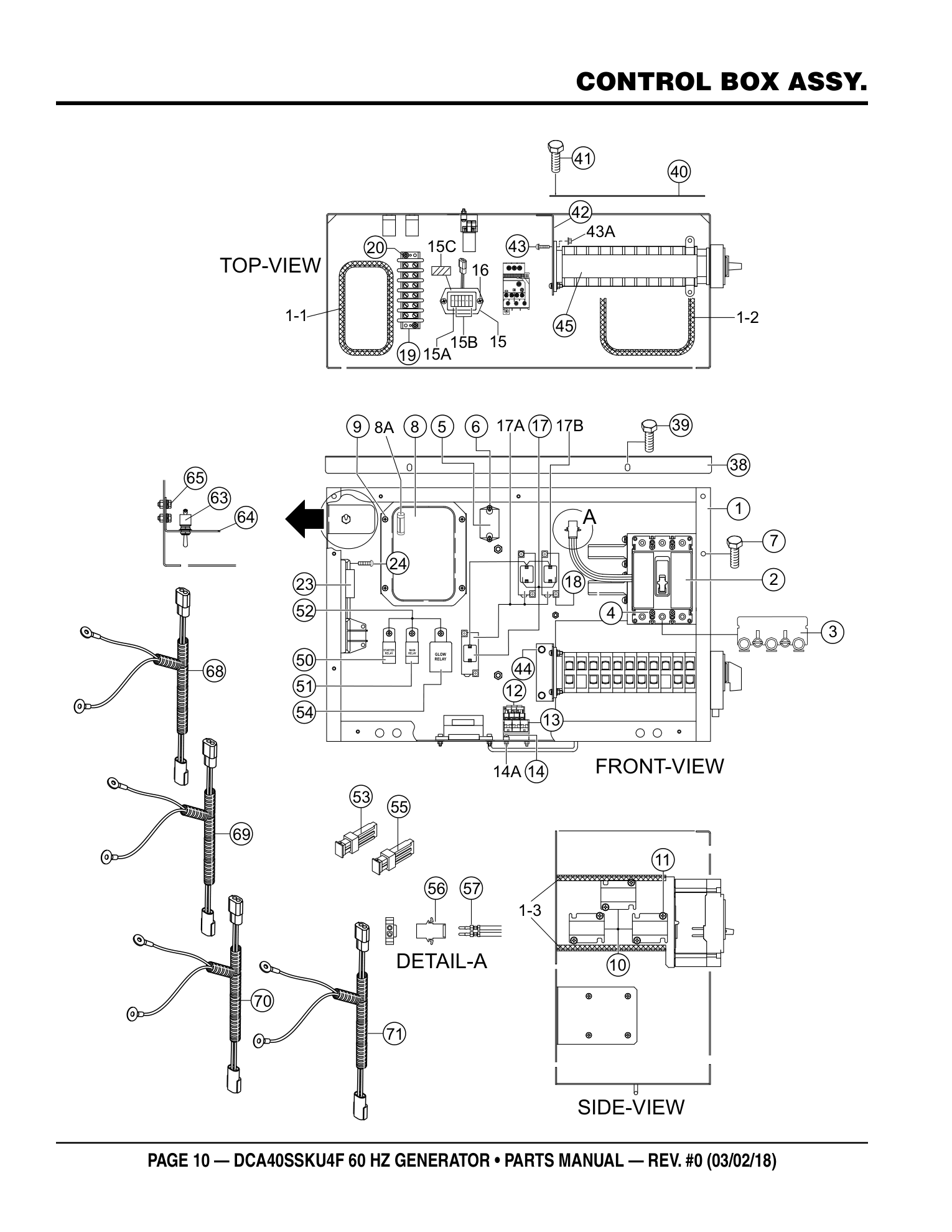

Page 10 — CONTROL BOX ASSY.

Multiquip DCA40SSKU4F Generator CONTROL BOX ASSY. parts diagram

Parts list — exactly as printed33 rows

No.	Part No.	Part Name	Qty	Remarks
1	M1214000902	CONTROL BOX	1		PARTS REQUEST
PHOTO COMING CONTROL BOX M1214000902 · qty on machine: 1 PARTS REQUEST
1-1	Y0330000400	EDGE TRIM	1		PARTS REQUEST
PHOTO COMING EDGE TRIM Y0330000400 · qty on machine: 1 PARTS REQUEST
1-2	Y0330000555	EDGE TRIM	1		PARTS REQUEST
PHOTO COMING EDGE TRIM Y0330000555 · qty on machine: 1 PARTS REQUEST
1-3	Y0330000190	EDGE TRIM	2		PARTS REQUEST
PHOTO COMING EDGE TRIM Y0330000190 · qty on machine: 2 PARTS REQUEST
2	0601870431	CIRCUIT BREAKER, 3P 110A 12VDC	1		ADD TO CART
CIRCUIT BREAKER, 3P 110A 12VDC 0601870431 · qty on machine: 1 view full part page → $898.95
3	0601870490	END CAP KIT	2		ADD TO CART
END CAP KIT 0601870490 · qty on machine: 2 view full part page → $26.95
4	0021004040	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021004040 · qty on machine: 4 view full part page → $0.64
5	0601823863	RELAY UNIT	1		ADD TO CART
RELAY UNIT 0601823863 · qty on machine: 1 view full part page → $159.95
6	0027104015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 2 view full part page → $0.53
7	0016906015	HEX. HEAD BOLT	10		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 10 view full part page → $0.95
8	0601820608	AUTOMATIC VOLTAGE REGULATOR	1		ADD TO CART
AUTOMATIC VOLTAGE REGULATOR 0601820608 · qty on machine: 1 view full part page → $1591.95
8A	Y0601806683	FUSE, 250V 8A	1		NO LONGER AVAILABLE
PHOTO COMING FUSE, 250V 8A Y0601806683 · qty on machine: 1 NO LONGER AVAILABLE
9	0027105015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 4 view full part page → $0.2
10	Y0601809693	CURRENT TRANSFORMER, 150:5A	3		ADD TO CART
CURRENT TRANSFORMER, 150:5A Y0601809693 · qty on machine: 3 view full part page → $63.95
11	011808015	MACHINE SCREW	6	REPLACES P/N 0027106015	ADD TO CART
MACHINE SCREW 011808015 · qty on machine: 6 REPLACES P/N 0027106015 view full part page → $6.95
12	0601820847	OVER CURRENT RELAY	1		NO LONGER AVAILABLE
PHOTO COMING OVER CURRENT RELAY 0601820847 · qty on machine: 1 NO LONGER AVAILABLE
13	0601820848	OVER CURRENT RELAY BASE	1		ADD TO CART
OVER CURRENT RELAY BASE 0601820848 · qty on machine: 1 view full part page → $83.95
14	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
14A	0207004000	SELF-LOCKING NUT	2		ADD TO CART
SELF-LOCKING NUT 0207004000 · qty on machine: 2 Factory replaced this part - current number OEMAA8 view full part page → $0.4 IN A KIT + SOLD SOLO
15	M1261200004	FUSE BOX	1		ADD TO CART
FUSE BOX M1261200004 · qty on machine: 1 view full part page → $135.95
15A	Y0601806647	FUSE, 25A	1		ADD TO CART
FUSE, 25A Y0601806647 · qty on machine: 1 view full part page → $1.95
15B	0601806642	FUSE, 5A	5		ADD TO CART
FUSE, 5A 0601806642 · qty on machine: 5 view full part page → $2.77
15C	M9521000904	DECAL; FUSE HOLDER	1		PARTS REQUEST
PHOTO COMING DECAL; FUSE HOLDER M9521000904 · qty on machine: 1 PARTS REQUEST
16	0027105015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 2 view full part page → $0.2
17	LY2DUS12VDC	RELAY, LY-2D DC12V	3	REPLACES P/N 0601827656	ADD TO CART
RELAY, LY-2D DC12V LY2DUS12VDC · qty on machine: 3 REPLACES P/N 0601827656 view full part page → $46.95
17A	PTF08A	BASE, PTF08A-E	3	REPLACES P/N 0601823109	ADD TO CART
BASE, PTF08A-E PTF08A · qty on machine: 3 REPLACES P/N 0601823109 view full part page → $47.95
17B	PYCA1	CLIP, PYC-A1	6	REPLACES P/N 0601824400	ADD TO CART
CLIP, PYC-A1 PYCA1 · qty on machine: 6 REPLACES P/N 0601824400 view full part page → $1.71
18	0027104020	MACHINE SCREW	6		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 6 view full part page → $0.4
19	Y0601816411	TERMINAL BLOCK	1		PARTS REQUEST
PHOTO COMING TERMINAL BLOCK Y0601816411 · qty on machine: 1 PARTS REQUEST
20	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
23	1H72960203	ECU	1		PARTS REQUEST
PHOTO COMING ECU 1H72960203 · qty on machine: 1 PARTS REQUEST
24	0027208025	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027208025 · qty on machine: 4 view full part page → $0.76
24A	0401450080	WASHER, FLAT	4	REPLACES P/N 0041208000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 4 REPLACES P/N 0041208000 view full part page → $0.56

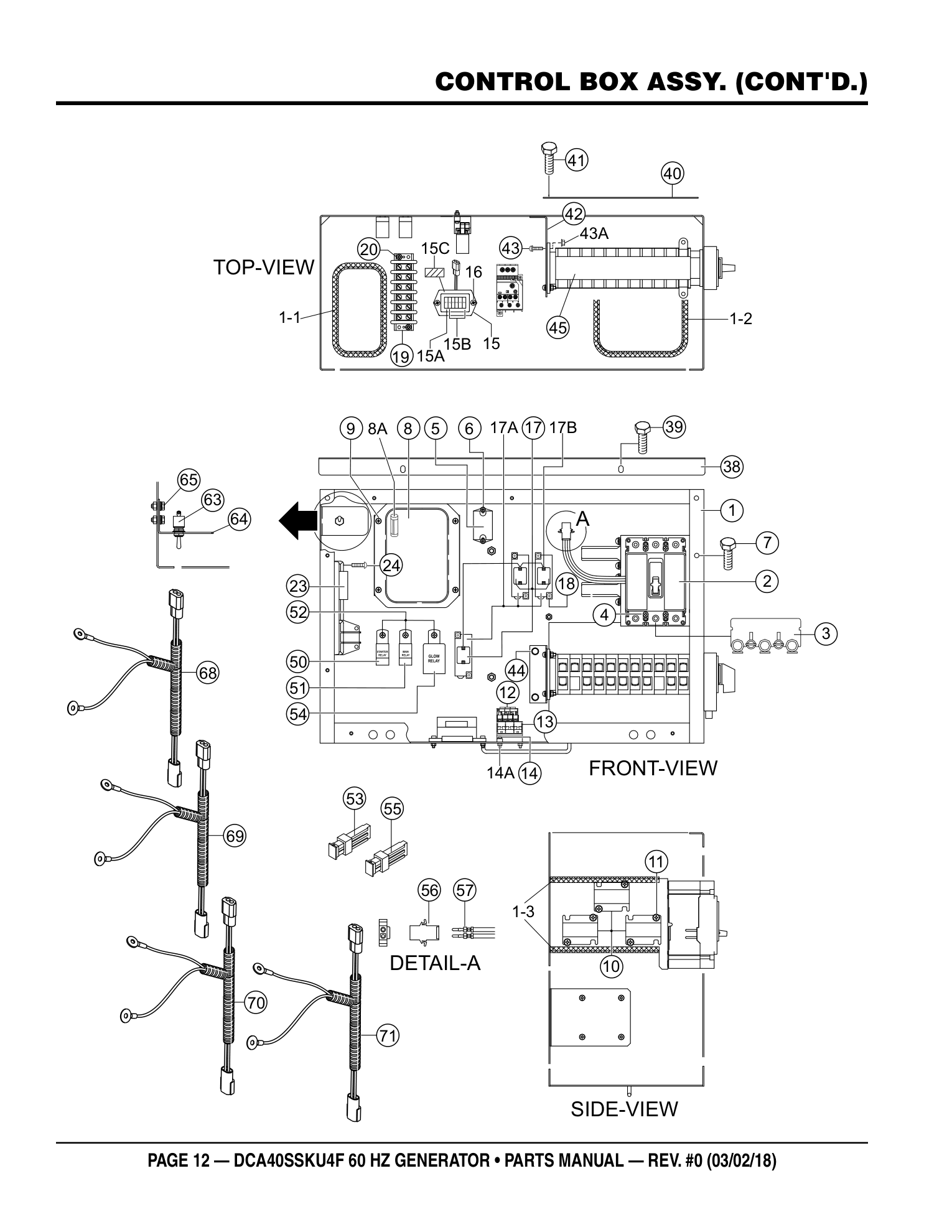

Page 12 — CONTROL BOX ASSY. (CONT'D.)

Multiquip DCA40SSKU4F Generator CONTROL BOX ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed24 rows

No.	Part No.	Part Name	Qty	Remarks
38	M1213501004	CONTROL BOX COVER	1		PARTS REQUEST
PHOTO COMING CONTROL BOX COVER M1213501004 · qty on machine: 1 PARTS REQUEST
39	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95
40	M1213400014	CONTROL BOX COVER	1		PARTS REQUEST
PHOTO COMING CONTROL BOX COVER M1213400014 · qty on machine: 1 PARTS REQUEST
41	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95
42	M1214601104	SWITCH BRACKET	1		PARTS REQUEST
PHOTO COMING SWITCH BRACKET M1214601104 · qty on machine: 1 PARTS REQUEST
43	0027105020	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105020 · qty on machine: 4 view full part page → $0.62
43A	0030005000	SELF-LOCKING NUT	4	REPLACES P/N 0207005000	ADD TO CART
SELF-LOCKING NUT 0030005000 · qty on machine: 4 REPLACES P/N 0207005000 view full part page → $0.29
44	0016906015	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 2 view full part page → $0.95
45	M1270100604	SELECTOR SWITCH	1		ADD TO CART
SELECTOR SWITCH M1270100604 · qty on machine: 1 view full part page → $717.95
50	1J42360231	STARTER RELAY	1		NO LONGER AVAILABLE
PHOTO COMING STARTER RELAY 1J42360231 · qty on machine: 1 NO LONGER AVAILABLE
51	1J42360231	MAIN RELAY	1		NO LONGER AVAILABLE
PHOTO COMING MAIN RELAY 1J42360231 · qty on machine: 1 NO LONGER AVAILABLE
52	0027104015	MACHINE SCREW	3		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 3 view full part page → $0.53
53	Y0601872530	FUSE, 45A	1		ADD TO CART
FUSE, 45A Y0601872530 · qty on machine: 1 view full part page → $18.95
54	RP42153730	GLOW RELAY	1	REPLACES P/N RP42153731	ADD TO CART
GLOW RELAY RP42153730 · qty on machine: 1 REPLACES P/N RP42153731 view full part page → $281.95
55	0601806640	FUSE, 65A	1		ADD TO CART
FUSE, 65A 0601806640 · qty on machine: 1 view full part page → $11.95
56	0601812626	PLUG	1		ADD TO CART
PLUG 0601812626 · qty on machine: 1 view full part page → $1.88
57	0601812711	PINS (MALE)	2		ADD TO CART
PINS (MALE) 0601812711 · qty on machine: 2 view full part page → $0.56
63	0601830710	DIAGNOSTIC SWITCH	1		ADD TO CART
DIAGNOSTIC SWITCH 0601830710 · qty on machine: 1 view full part page → $29.95
64	M1261600004	SWITCH BRACKET	1		PARTS REQUEST
PHOTO COMING SWITCH BRACKET M1261600004 · qty on machine: 1 PARTS REQUEST
65	0016906015	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 2 view full part page → $0.95
68	M1247702214	WIRE HARNESS, GENERATOR	1		ADD TO CART
WIRE HARNESS, GENERATOR M1247702214 · qty on machine: 1 view full part page → $1396.95
69	M1358200502	WIRE HARNESS, ENGINE	1		ADD TO CART
WIRE HARNESS, ENGINE M1358200502 · qty on machine: 1 view full part page → $2500.95
70	M1358201403	WIRE HARNESS, POWER BALANCE	1		PARTS REQUEST
PHOTO COMING WIRE HARNESS, POWER BALANCE M1358201403 · qty on machine: 1 PARTS REQUEST
71	M1358201503	WIRE HARNESS, POWER BALANCE	1		PARTS REQUEST
PHOTO COMING WIRE HARNESS, POWER BALANCE M1358201503 · qty on machine: 1 PARTS REQUEST

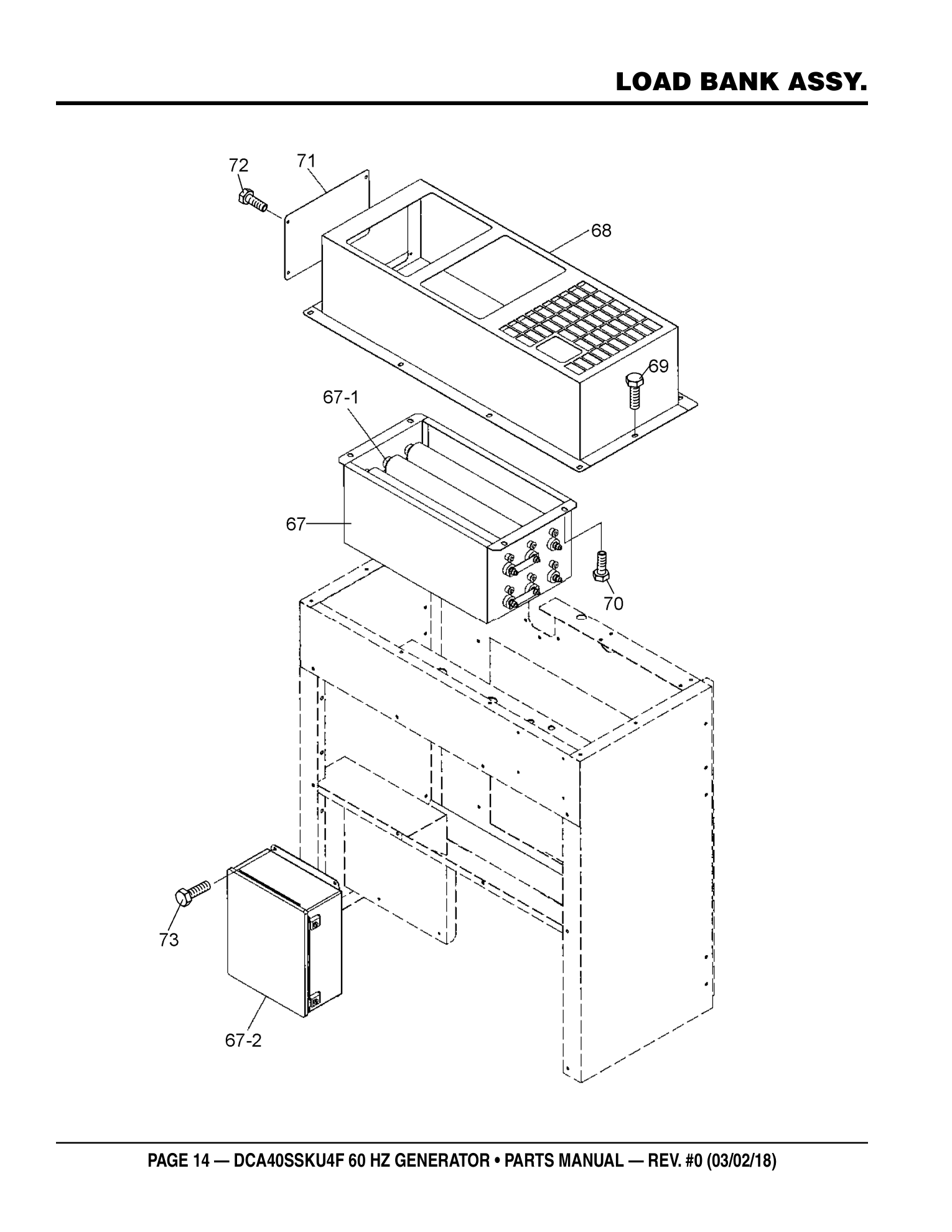

Page 14 — LOAD BANK ASSY.

Multiquip DCA40SSKU4F Generator LOAD BANK ASSY. parts diagram

Parts list — exactly as printed9 rows

No.	Part No.	Part Name	Qty
67	Y0601803967	LOAD BANK UNIT ASSY.	1	ADD TO CART
LOAD BANK UNIT ASSY. Y0601803967 · qty on machine: 1 view full part page → $5984.95
67-1	Y0601842562	RESISTOR	1	ADD TO CART
RESISTOR Y0601842562 · qty on machine: 1 view full part page → $2123.95
67-2	Y0601852062	LOAD BANK CONTROL BOX	1	ADD TO CART
LOAD BANK CONTROL BOX Y0601852062 · qty on machine: 1 view full part page → $3508.95
68	M1331401103	ROOF COVER	1	ADD TO CART
ROOF COVER M1331401103 · qty on machine: 1 view full part page → $376.95
69	0019208020	HEX HEAD BOLT	10	ADD TO CART
HEX HEAD BOLT 0019208020 · qty on machine: 10 view full part page → $3.95
70	Y0019208015	HEX HEAD BOLT	4	PARTS REQUEST
PHOTO COMING HEX HEAD BOLT Y0019208015 · qty on machine: 4 PARTS REQUEST
71	M1331401304	COVER PLATE	1	ADD TO CART
COVER PLATE M1331401304 · qty on machine: 1 view full part page → $89.95
72	0019206015	HEX HEAD BOLT	4	ADD TO CART
HEX HEAD BOLT 0019206015 · qty on machine: 4 view full part page → $3.95
73	0016906015	HEX HEAD BOLT	4	ADD TO CART
HEX HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95

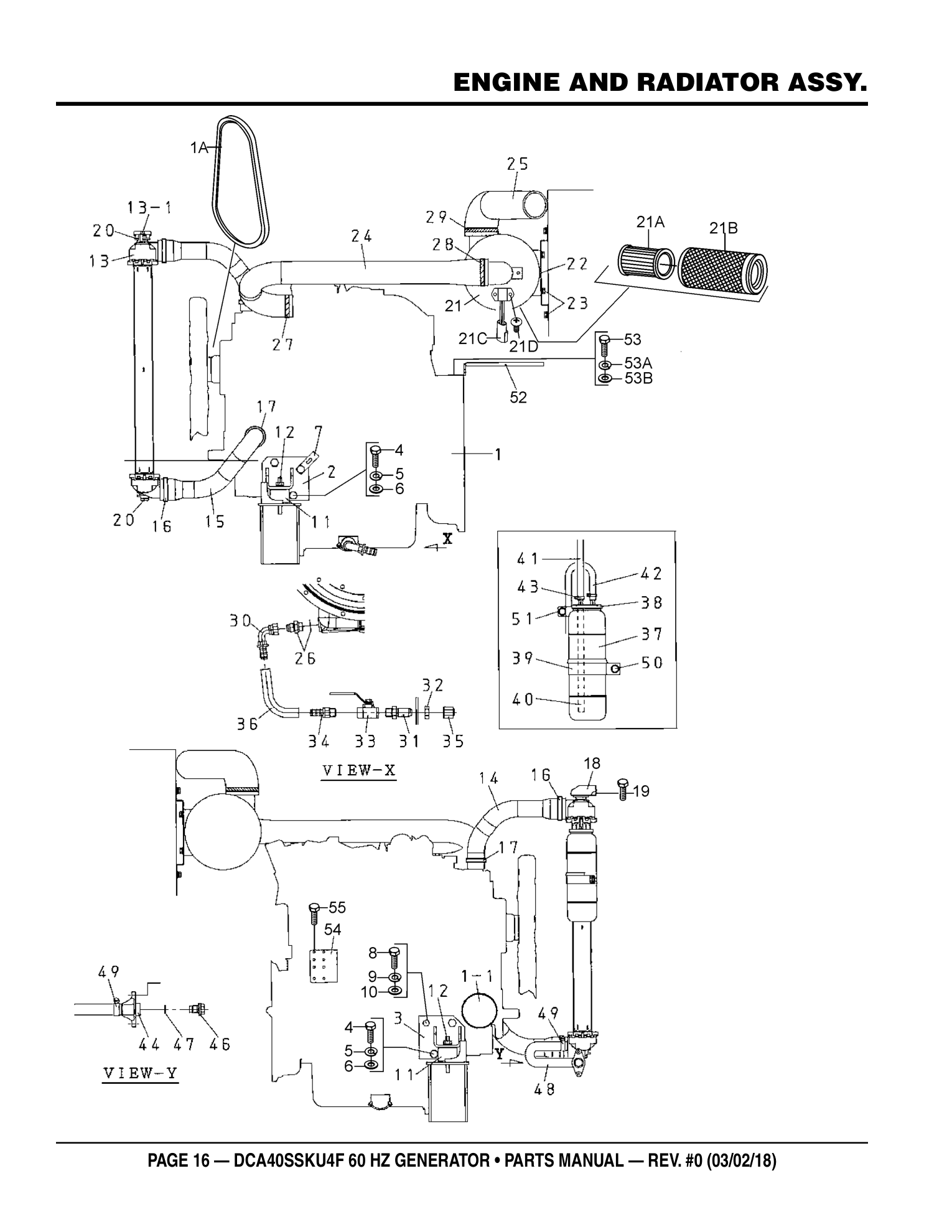

Page 16 — ENGINE AND RADIATOR ASSY.

Multiquip DCA40SSKU4F Generator ENGINE AND RADIATOR ASSY. parts diagram

Parts list — exactly as printed46 rows

No.	Part No.	Part Name	Qty	Remarks
1	M1924200134	ENGINE, KUBOTA V2403-CR-T	1		ADD TO CART
ENGINE, KUBOTA V2403-CR-T M1924200134 · qty on machine: 1 view full part page → $12169.95
1A	1G35497010	FAN BELT	1		ADD TO CART
FAN BELT 1G35497010 · qty on machine: 1 view full part page → $49.95
1-1	7000032091	CARTRIDGE, OIL FILTER	1	REPLACES P/N 0602041173	ADD TO CART
CARTRIDGE, OIL FILTER 7000032091 · qty on machine: 1 REPLACES P/N 0602041173 view full part page → $37.95
2	M1304200204	ENGINE FOOT	1		PARTS REQUEST
PHOTO COMING ENGINE FOOT M1304200204 · qty on machine: 1 PARTS REQUEST
3	M1304200304	ENGINE FOOT	1		PARTS REQUEST
PHOTO COMING ENGINE FOOT M1304200304 · qty on machine: 1 PARTS REQUEST
4	Y0349312025	HEX. HEAD BOLT	7		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0349312025 · qty on machine: 7 PARTS REQUEST
5	0040012000	LOCK WASHER	7		ADD TO CART
LOCK WASHER 0040012000 · qty on machine: 7 view full part page → $0.95
6	031112230	FLAT WASHER	7	REPLACES P/N 0041212000	ADD TO CART
FLAT WASHER 031112230 · qty on machine: 7 REPLACES P/N 0041212000 view full part page → $0.95
7	M3483600104	COATING CLAMPER	1		ADD TO CART
COATING CLAMPER M3483600104 · qty on machine: 1 view full part page → $4.95
8	Y0349410020	HEX. HEAD BOLT	1		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0349410020 · qty on machine: 1 PARTS REQUEST
9	0040010000	LOCK WASHER	1		ADD TO CART
LOCK WASHER 0040010000 · qty on machine: 1 view full part page → $0.39
10	Y0041210000	FLAT WASHER	1		ADD TO CART
FLAT WASHER Y0041210000 · qty on machine: 1 view full part page → $0.19
11	Y0605000409	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION Y0605000409 · qty on machine: 2 view full part page → $19.95
12	020310080	SELF-LOCKING NUT	2	REPLACES P/N 0030010000	ADD TO CART
SELF-LOCKING NUT 020310080 · qty on machine: 2 REPLACES P/N 0030010000 view full part page → $1.67
13	M1924200144	RADIATOR	1		NO LONGER AVAILABLE
PHOTO COMING RADIATOR M1924200144 · qty on machine: 1 NO LONGER AVAILABLE
13-1	Y0602015700	CAP, RADIATOR	1		ADD TO CART
CAP, RADIATOR Y0602015700 · qty on machine: 1 view full part page → $27.95
14	M1311501203	RADIATOR HOSE (UPPER)	1		ADD TO CART
RADIATOR HOSE (UPPER) M1311501203 · qty on machine: 1 view full part page → $86.95
15	M1311501303	RADIATOR HOSE (LOWER)	1		ADD TO CART
RADIATOR HOSE (LOWER) M1311501303 · qty on machine: 1 view full part page → $86.95
16	0605515147	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515147 · qty on machine: 2 view full part page → $3.95
17	0605515149	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515149 · qty on machine: 2 view full part page → $1.95
18	M1311200804	BRACKET, RADIATOR	1		PARTS REQUEST
PHOTO COMING BRACKET, RADIATOR M1311200804 · qty on machine: 1 PARTS REQUEST
19	011008020	HEX HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
20	M9312200104	MOUNT, RUBBER	4		ADD TO CART
MOUNT, RUBBER M9312200104 · qty on machine: 4 view full part page → $16.95
21	Y0602046570	AIR CLEANER	1		ADD TO CART
AIR CLEANER Y0602046570 · qty on machine: 1 view full part page → $710.95
21A	5980026110	ELEMENT, AIR CLEANER (INNER)	1	REPLACES P/N 5980026111	ADD TO CART
ELEMENT, AIR CLEANER (INNER) 5980026110 · qty on machine: 1 REPLACES P/N 5980026111 view full part page → $50.95
21B	3A11119130	ELEMENT, AIR CLEANER (OUTER)	1	REPLACES P/N 3A11119131	ADD TO CART
ELEMENT, AIR CLEANER (OUTER) 3A11119130 · qty on machine: 1 REPLACES P/N 3A11119131 view full part page → $77.95
21C	Y0602047040	AIR FLOW SENSOR	1		PARTS REQUEST
PHOTO COMING AIR FLOW SENSOR Y0602047040 · qty on machine: 1 PARTS REQUEST
21D	0305450412	MACHINE SCREW	2		PARTS REQUEST
PHOTO COMING MACHINE SCREW 0305450412 · qty on machine: 2 PARTS REQUEST
22	M1374200304	BRACKET, AIR CLEANER	1		PARTS REQUEST
PHOTO COMING BRACKET, AIR CLEANER M1374200304 · qty on machine: 1 PARTS REQUEST
23	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
24	M1374101003	AIR CLEANER HOSE	1		PARTS REQUEST
PHOTO COMING AIR CLEANER HOSE M1374101003 · qty on machine: 1 PARTS REQUEST
25	M1374101103	AIR CLEANER HOSE	1		PARTS REQUEST
PHOTO COMING AIR CLEANER HOSE M1374101103 · qty on machine: 1 PARTS REQUEST
26	0602022568	ADAPTER 10M 22X1.5	1		PARTS REQUEST
PHOTO COMING ADAPTER 10M 22X1.5 0602022568 · qty on machine: 1 PARTS REQUEST
27	0605515147	HOSE BAND	1		ADD TO CART
HOSE BAND 0605515147 · qty on machine: 1 view full part page → $3.95
28	9500202080	HOSE BAND	1	REPLACES P/N 0605515178	ADD TO CART
HOSE BAND 9500202080 · qty on machine: 1 REPLACES P/N 0605515178 view full part page → $3.95
29	0605515146	HOSE BAND	1		ADD TO CART
HOSE BAND 0605515146 · qty on machine: 1 view full part page → $10.95
30	0602022561	90 DEG. ELBOW	1		ADD TO CART
90 DEG. ELBOW 0602022561 · qty on machine: 1 view full part page → $76.95
31	0603306590	CONNECTOR	1		ADD TO CART
CONNECTOR 0603306590 · qty on machine: 1 view full part page → $86.95
32	0603300285	LOCKNUT	1		ADD TO CART
LOCKNUT 0603300285 · qty on machine: 1 view full part page → $4.95
33	0605511395	VALVE	1		ADD TO CART
VALVE 0605511395 · qty on machine: 1 view full part page → $46.95
34	0603306395	HOSE JOINT	1		ADD TO CART
HOSE JOINT 0603306395 · qty on machine: 1 view full part page → $16.95
35	0602021070	CAP	1		ADD TO CART
CAP 0602021070 · qty on machine: 1 view full part page → $11.95
36	0269200700	DRAIN HOSE	1		ADD TO CART
DRAIN HOSE 0269200700 · qty on machine: 1 view full part page → $16.95
37	0802081403D	RESERVE TANK	1	REPLACES P/N M9300000003	ADD TO CART
RESERVE TANK 0802081403D · qty on machine: 1 REPLACES P/N M9300000003 Factory replaced this part - current number 0802081403 view full part page → $29.95 IN A KIT + SOLD SOLO
38	0802081104	CAP, RESERVE TANK	1	REPLACES P/N M9300100003	ADD TO CART
CAP, RESERVE TANK 0802081104 · qty on machine: 1 REPLACES P/N M9300100003 view full part page → $5.95
39	M1317100004	BRACKET, RESERVE TANK	1		ADD TO CART
BRACKET, RESERVE TANK M1317100004 · qty on machine: 1 view full part page → $13.95

Page 18 — ENGINE AND RADIATOR ASSY. (CONT'D.)

Multiquip DCA40SSKU4F Generator ENGINE AND RADIATOR ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed18 rows

No.	Part No.	Part Name	Qty	Remarks
40	0199100215	HOSE	1		ADD TO CART
HOSE 0199100215 · qty on machine: 1 view full part page → $3.95
41	0199900400	OVER FLOW HOSE	1		ADD TO CART
OVER FLOW HOSE 0199900400 · qty on machine: 1 view full part page → $7.95
42	0193601200	OVER FLOW HOSE	1		ADD TO CART
OVER FLOW HOSE 0193601200 · qty on machine: 1 view full part page → $49.95
43	0605515189	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515189 · qty on machine: 2 view full part page → $1.85
44	1502025103C	DRAIN JOINT	1	REPLACES P/N M9200000003	ADD TO CART
DRAIN JOINT 1502025103C · qty on machine: 1 REPLACES P/N M9200000003 view full part page → $29.95
45	Y0016906020	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT Y0016906020 · qty on machine: 2 view full part page → $1.45
46	0802011104	DRAIN BOLT	1	REPLACES P/N M9200200004	ADD TO CART
DRAIN BOLT 0802011104 · qty on machine: 1 REPLACES P/N M9200200004 view full part page → $10.95
47	0150000018	O-RING, P-18	1		ADD TO CART
O-RING, P-18 0150000018 · qty on machine: 1 view full part page → $1.87
48	Y0269200650	PUSH-LOCK HOSE	1		ADD TO CART
PUSH-LOCK HOSE Y0269200650 · qty on machine: 1 view full part page → $38.95
49	0605515198	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515198 · qty on machine: 2 view full part page → $1.71
50	011008020	HEX. HEAD BOLT	1	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 1 REPLACES P/N 0016908020 view full part page → $2.68
51	0602220911	CLAMP	2		ADD TO CART
CLAMP 0602220911 · qty on machine: 2 view full part page → $1.85
52	M1484600204	CLAMP	1		PARTS REQUEST
PHOTO COMING CLAMP M1484600204 · qty on machine: 1 PARTS REQUEST
53	Y0349410020	HEX. HEAD BOLT	2		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0349410020 · qty on machine: 2 PARTS REQUEST
53A	0040010000	LOCK WASHER	2		ADD TO CART
LOCK WASHER 0040010000 · qty on machine: 2 view full part page → $0.39
53B	Y0041210000	FLAT WASHER	2		ADD TO CART
FLAT WASHER Y0041210000 · qty on machine: 2 view full part page → $0.19
54	M1484500404	BRACKET, CONNECTOR	1		PARTS REQUEST
PHOTO COMING BRACKET, CONNECTOR M1484500404 · qty on machine: 1 PARTS REQUEST
55	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68

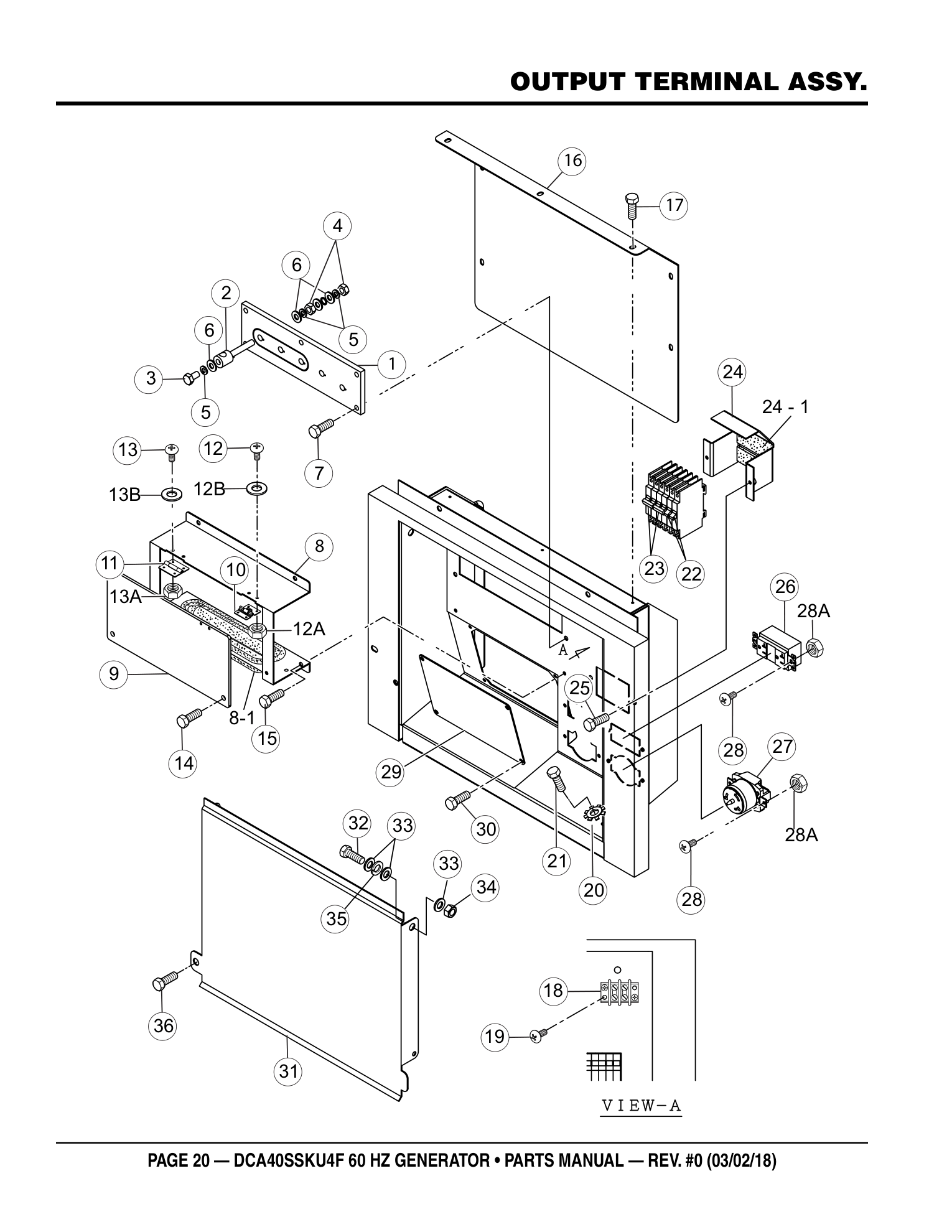

Page 20 — OUTPUT TERMINAL ASSY.

Multiquip DCA40SSKU4F Generator OUTPUT TERMINAL ASSY. parts diagram

Parts list — exactly as printed43 rows

No.	Part No.	Part Name	Qty	Remarks
1	8111860303	TERMINAL PANEL	1	REPLACES P/N M1230700103	ADD TO CART
TERMINAL PANEL 8111860303 · qty on machine: 1 REPLACES P/N M1230700103 view full part page → $157.95
2	0801831704A	OUTPUT TERMINAL BOLT	5	REPLACES P/N M9220100204	ADD TO CART
OUTPUT TERMINAL BOLT 0801831704A · qty on machine: 5 REPLACES P/N M9220100204 view full part page → $183.95
3	012210020	TIE BOLT	5	REPLACES P/N M9220100104	ADD TO CART
TIE BOLT 012210020 · qty on machine: 5 REPLACES P/N M9220100104 view full part page → $0.95
4	0039310000	HEX. NUT	10		ADD TO CART
HEX. NUT 0039310000 · qty on machine: 10 view full part page → $3.95
5	0040010000	WASHER, LOCK	15		ADD TO CART
WASHER, LOCK 0040010000 · qty on machine: 15 view full part page → $0.39
6	0041410000	WASHER, FLAT	20		ADD TO CART
WASHER, FLAT 0041410000 · qty on machine: 20 view full part page → $0.89
7	011208025	HEX. HEAD BOLT	5	REPLACES P/N 0016908025	ADD TO CART
HEX. HEAD BOLT 011208025 · qty on machine: 5 REPLACES P/N 0016908025 view full part page → $0.41
8	M1236102023	3-PHASE OUTPUT TERMINAL COVER	1		PARTS REQUEST
PHOTO COMING 3-PHASE OUTPUT TERMINAL COVER M1236102023 · qty on machine: 1 PARTS REQUEST
8-1	Y0317700480	CUSHION RUBBER	1		PARTS REQUEST
PHOTO COMING CUSHION RUBBER Y0317700480 · qty on machine: 1 PARTS REQUEST
9	M1236102124	OUTPUT WINDOW	1		ADD TO CART
OUTPUT WINDOW M1236102124 · qty on machine: 1 view full part page → $43.95
10	Y0605012028	HINGE	1		ADD TO CART
HINGE Y0605012028 · qty on machine: 1 view full part page → $62.95
11	0605010040	HINGE	1		ADD TO CART
HINGE 0605010040 · qty on machine: 1 view full part page → $4.95
12	0027103010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027103010 · qty on machine: 4 view full part page → $0.44
12A	0207003000	HEX. NUT	4	REPLACES P/N 0030003000	ADD TO CART
HEX. NUT 0207003000 · qty on machine: 4 REPLACES P/N 0030003000 view full part page → $0.21
12B	0041203000	WASHER, FLAT	2		ADD TO CART
WASHER, FLAT 0041203000 · qty on machine: 2 view full part page → $0.12
13	0027103010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027103010 · qty on machine: 4 view full part page → $0.44
13A	0207003000	HEX. NUT	4	REPLACES P/N 0030003000	ADD TO CART
HEX. NUT 0207003000 · qty on machine: 4 REPLACES P/N 0030003000 view full part page → $0.21
13B	0041203000	WASHER, FLAT	2		ADD TO CART
WASHER, FLAT 0041203000 · qty on machine: 2 view full part page → $0.12
14	011206020	HEX. HEAD BOLT	2	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 2 REPLACES P/N 0016906020 view full part page → $0.95
15	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95
16	M1236101814	TERMINAL COVER	1		PARTS REQUEST
PHOTO COMING TERMINAL COVER M1236101814 · qty on machine: 1 PARTS REQUEST
17	0016906015	HEX. HEAD BOLT	7		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 7 view full part page → $0.95
18	0601815194	TERMINAL BLOCK	1		NO LONGER AVAILABLE
PHOTO COMING TERMINAL BLOCK 0601815194 · qty on machine: 1 NO LONGER AVAILABLE
19	0027204015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027204015 · qty on machine: 2 view full part page → $0.24
20	0040508000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040508000 · qty on machine: 1 view full part page → $0.35
21	0019208020	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 1 view full part page → $3.95
22	0601870440	CIRCUIT BREAKER, 1P 20A	2		ADD TO CART
CIRCUIT BREAKER, 1P 20A 0601870440 · qty on machine: 2 view full part page → $34.95
23	0601870441	CIRCUIT BREAKER, 2P 50A	2		ADD TO CART
CIRCUIT BREAKER, 2P 50A 0601870441 · qty on machine: 2 view full part page → $77.95
24	M1260700404	BREAKER FITTING COVER	1		ADD TO CART
BREAKER FITTING COVER M1260700404 · qty on machine: 1 view full part page → $58.95
24-1	0222100080	CUSHION RUBBER	2		ADD TO CART
CUSHION RUBBER 0222100080 · qty on machine: 2 view full part page → $2.78
25	011206020	HEX. HEAD BOLT	2	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 2 REPLACES P/N 0016906020 view full part page → $0.95
26	0601814024	RECEPTACLE, 125V 20A X2	2	REPLACES P/N 0601814013	ADD TO CART
RECEPTACLE, 125V 20A X2 0601814024 · qty on machine: 2 REPLACES P/N 0601814013 view full part page → $78.95
27	0601814014	RECEPTACLE, 250V 50A	2		ADD TO CART
RECEPTACLE, 250V 50A 0601814014 · qty on machine: 2 view full part page → $90.95
28	0027104015	MACHINE SCREW	8		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 8 view full part page → $0.53
28A	OEMAA8	HEX. NUT	8	REPLACES P/N 0207004000	ADD TO CART
HEX. NUT OEMAA8 · qty on machine: 8 REPLACES P/N 0207004000 view full part page → $0.4
29	M1236400104	COVER	1		ADD TO CART
COVER M1236400104 · qty on machine: 1 view full part page → $16.95
30	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95
31	M1236101904	TERMINAL COVER	1		ADD TO CART
TERMINAL COVER M1236101904 · qty on machine: 1 view full part page → $94.95
32	012212045	HEX. HEAD BOLT	2	REPLACES P/N 0010112045	ADD TO CART
HEX. HEAD BOLT 012212045 · qty on machine: 2 REPLACES P/N 0010112045 view full part page → $2.95
33	031112230	WASHER, FLAT	6	REPLACES P/N 0041212000	ADD TO CART
WASHER, FLAT 031112230 · qty on machine: 6 REPLACES P/N 0041212000 view full part page → $0.95
34	0030012000	HEX. NUT, DOUBLE NUT	2		ADD TO CART
HEX. NUT, DOUBLE NUT 0030012000 · qty on machine: 2 view full part page → $0.5
35	0605050060	CONICAL WASHER, LOCK	2		ADD TO CART
CONICAL WASHER, LOCK 0605050060 · qty on machine: 2 view full part page → $5.95
36	0019208020	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 1 view full part page → $3.95

Page 22 — BATTERY ASSY.

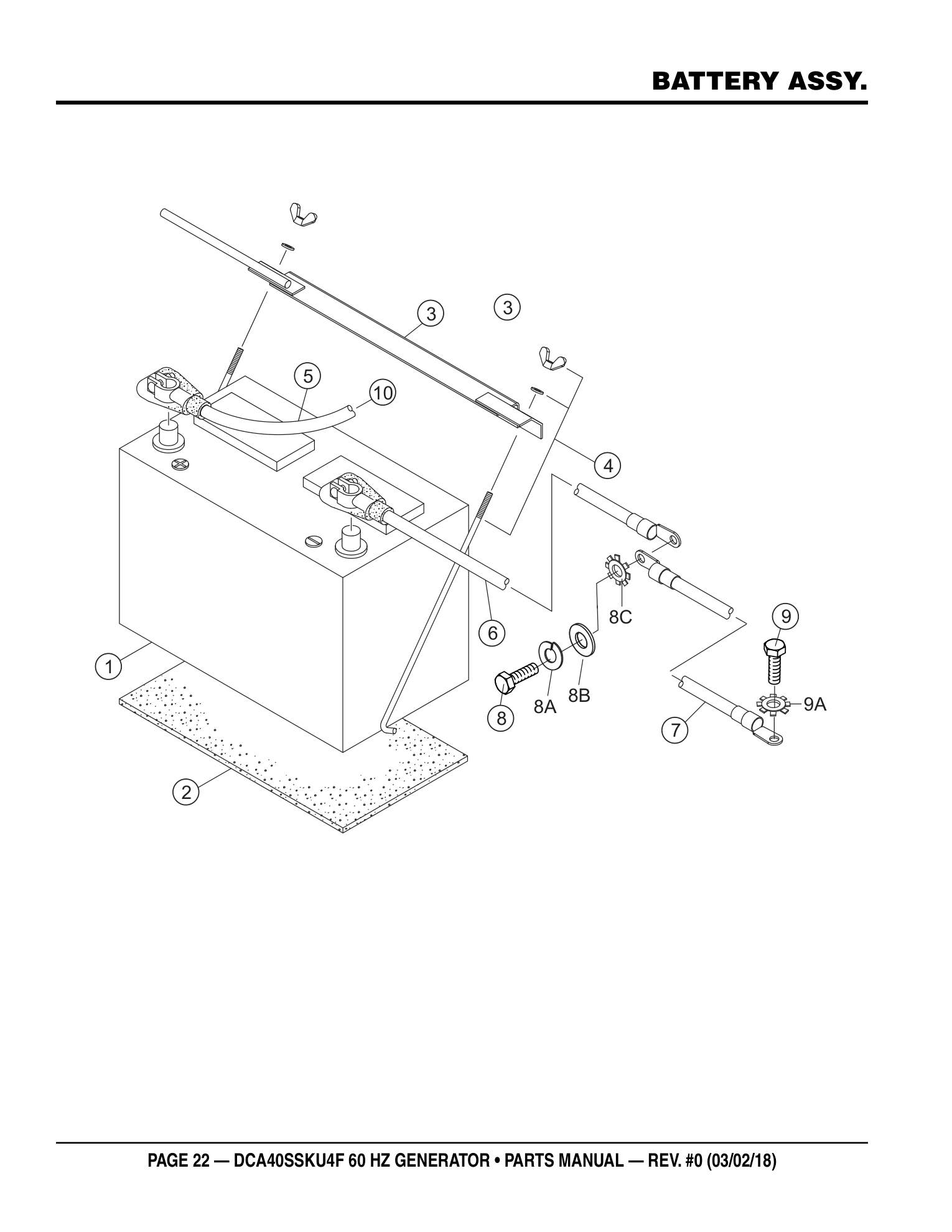

Multiquip DCA40SSKU4F Generator BATTERY ASSY. parts diagram

Parts list — exactly as printed14 rows

No.	Part No.	Part Name	Qty	Remarks
1	0602220199	BATTERY	1		ADD TO CART
BATTERY 0602220199 · qty on machine: 1 view full part page → $288.95
2	M9310500014	BATTERY, SHEET	1		ADD TO CART
BATTERY, SHEET M9310500014 · qty on machine: 1 view full part page → $5.95
3	M9104000104	BATTERY, BAND	1		PARTS REQUEST
PHOTO COMING BATTERY, BAND M9104000104 · qty on machine: 1 PARTS REQUEST
4	0602220920	BATTERY, BOLT SET 1/4-L10"	2		ADD TO CART
BATTERY, BOLT SET 1/4-L10" 0602220920 · qty on machine: 2 view full part page → $5.95
5	M1347200304	BATTERY, CABLE	1		PARTS REQUEST
PHOTO COMING BATTERY, CABLE M1347200304 · qty on machine: 1 PARTS REQUEST
6	M1347200404	BATTERY, CABLE	1		PARTS REQUEST
PHOTO COMING BATTERY, CABLE M1347200404 · qty on machine: 1 PARTS REQUEST
7		CABLE	1	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING CABLE · qty on machine: 1 OBTAIN LOCALLY SEE REMARKS
8	012212025	HEX. HEAD BOLT	1	REPLACES P/N 0012412025	ADD TO CART
HEX. HEAD BOLT 012212025 · qty on machine: 1 REPLACES P/N 0012412025 view full part page → $1.95
8A	0040012000	LOCK WASHER	1		ADD TO CART
LOCK WASHER 0040012000 · qty on machine: 1 view full part page → $0.95
8B	0041212000	PLAIN WASHER	1		ADD TO CART
PLAIN WASHER 0041212000 · qty on machine: 1 Factory replaced this part - current number 031112230 view full part page → $0.95 IN A KIT + SOLD SOLO
8C	0040512000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040512000 · qty on machine: 1 view full part page → $0.77
9	011008020	HEX. HEAD BOLT	1	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 1 REPLACES P/N 0016908020 view full part page → $2.68
9A	0040508000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040508000 · qty on machine: 1 view full part page → $0.35
10	0207008000	SELF-LOCKING NUT	1		ADD TO CART
SELF-LOCKING NUT 0207008000 · qty on machine: 1 Factory replaced this part - current number 020108060 view full part page → $0.28 IN A KIT + SOLD SOLO

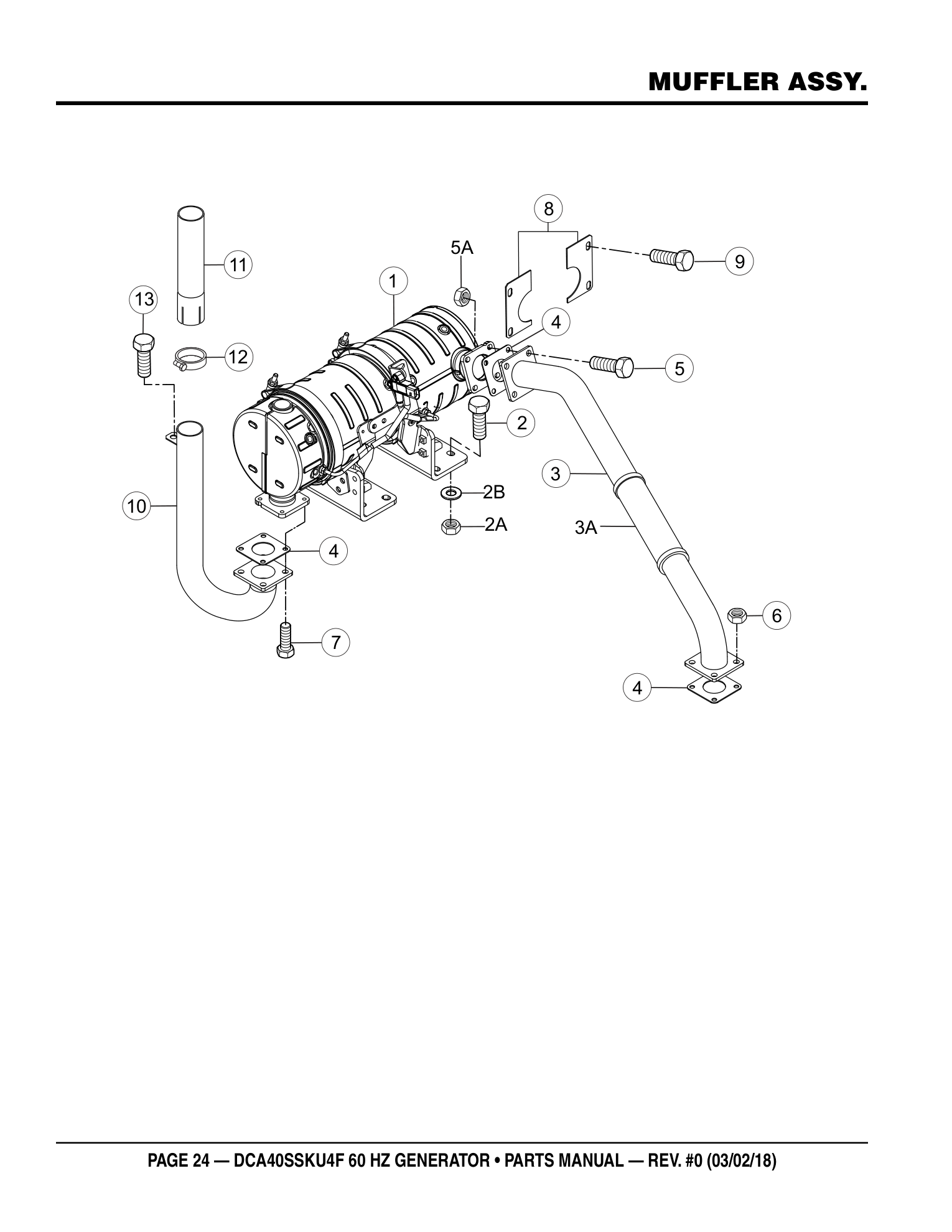

Page 24 — MUFFLER ASSY.

Multiquip DCA40SSKU4F Generator MUFFLER ASSY. parts diagram

Parts list — exactly as printed17 rows

No.	Part No.	Part Name	Qty	Remarks
1	1K81818131	DOC	1		PARTS REQUEST
PHOTO COMING DOC 1K81818131 · qty on machine: 1 PARTS REQUEST
2	012212030	HEX. HEAD BOLT	4	REPLACES P/N 0017112030	ADD TO CART
HEX. HEAD BOLT 012212030 · qty on machine: 4 REPLACES P/N 0017112030 view full part page → $2.95
2A	0030012000	HEX. NUT	4		ADD TO CART
HEX. NUT 0030012000 · qty on machine: 4 view full part page → $0.5
2B	031112230	WASHER, FLAT	4	REPLACES P/N 0041212000	ADD TO CART
WASHER, FLAT 031112230 · qty on machine: 4 REPLACES P/N 0041212000 view full part page → $0.95
3	M1334000903	EXHAUST PIPE	1		ADD TO CART
EXHAUST PIPE M1334000903 · qty on machine: 1 view full part page → $649.95
3A	Y0602311142	EXHAUST INSULATING MAT	1		PARTS REQUEST
PHOTO COMING EXHAUST INSULATING MAT Y0602311142 · qty on machine: 1 PARTS REQUEST
4	1732612231	GASKET	3		ADD TO CART
GASKET 1732612231 · qty on machine: 3 view full part page → $6.95
5	011208030	HEX. HEAD BOLT	4	REPLACES P/N 0016908030	ADD TO CART
HEX. HEAD BOLT 011208030 · qty on machine: 4 REPLACES P/N 0016908030 view full part page → $1.3
5A	020108060	SELF-LOCKING NUT	4	REPLACES P/N 0207008000	ADD TO CART
SELF-LOCKING NUT 020108060 · qty on machine: 4 REPLACES P/N 0207008000 view full part page → $0.28
6	0207108000	SELF-LOCKING NUT	4		ADD TO CART
SELF-LOCKING NUT 0207108000 · qty on machine: 4 view full part page → $3.95
7	011208030	HEX. HEAD BOLT	4	REPLACES P/N 0016908030	ADD TO CART
HEX. HEAD BOLT 011208030 · qty on machine: 4 REPLACES P/N 0016908030 view full part page → $1.3
8	M1484300004	PIPE COVER	2		PARTS REQUEST
PHOTO COMING PIPE COVER M1484300004 · qty on machine: 2 PARTS REQUEST
9	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
10	M1334100003	TAIL PIPE	1		PARTS REQUEST
PHOTO COMING TAIL PIPE M1334100003 · qty on machine: 1 PARTS REQUEST
11	M1334100104	TAIL PIPE	1	REPLACES P/N 0016908020	PARTS REQUEST
PHOTO COMING TAIL PIPE M1334100104 · qty on machine: 1 REPLACES P/N 0016908020 PARTS REQUEST
12	0602325020	PIPE BAND	1		ADD TO CART
PIPE BAND 0602325020 · qty on machine: 1 view full part page → $17.95
13	011008020	HEX HEAD BOLT	1	REPLACES P/N 0016908020	ADD TO CART
HEX HEAD BOLT 011008020 · qty on machine: 1 REPLACES P/N 0016908020 view full part page → $2.68

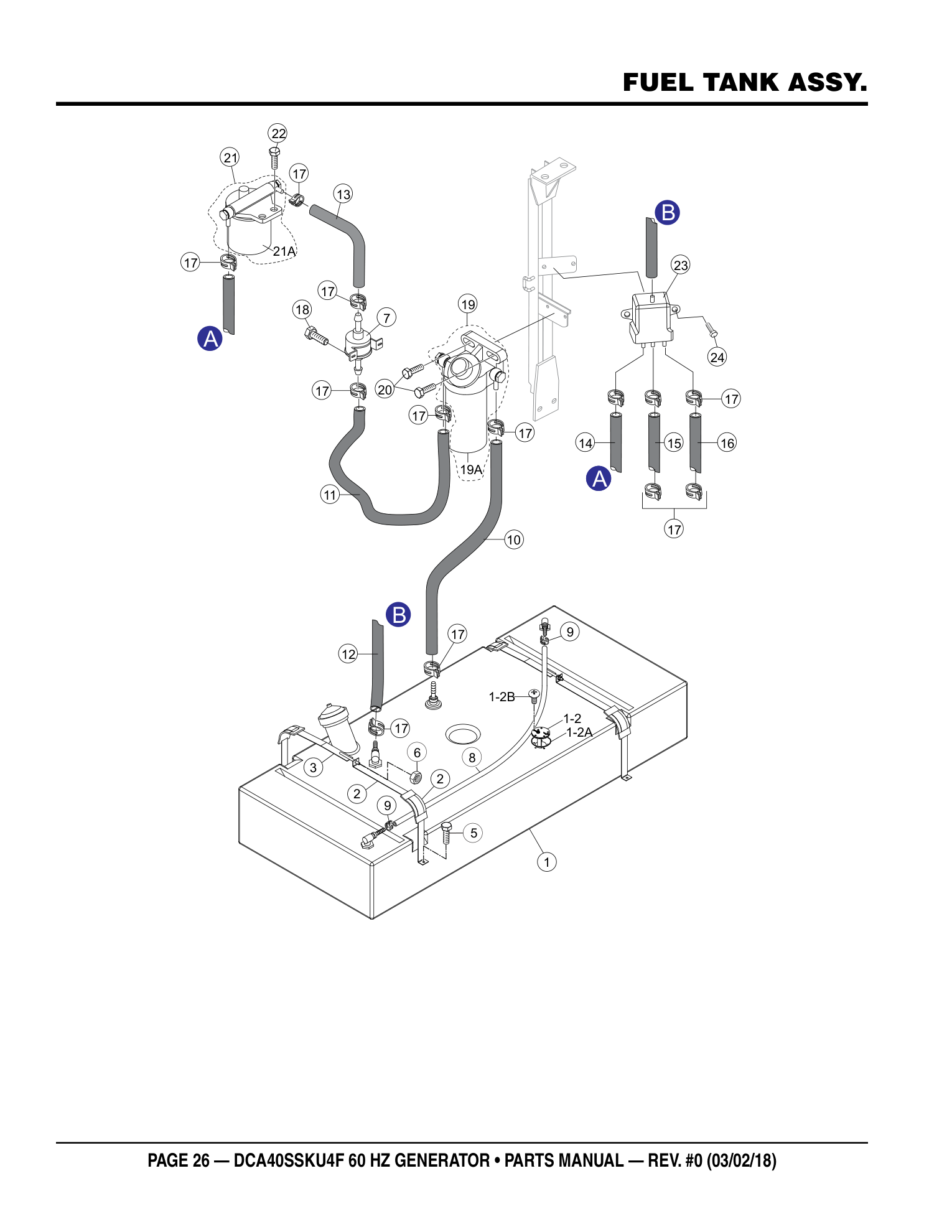

Page 26 — FUEL TANK ASSY.

Multiquip DCA40SSKU4F Generator FUEL TANK ASSY. parts diagram

Parts list — exactly as printed30 rows

No.	Part No.	Part Name	Qty	Remarks
1	M1364000402	FUEL TANK	1		ADD TO CART
FUEL TANK M1364000402 · qty on machine: 1 view full part page → $1048.95
1-1	0605505070	FUEL TANK CAP	1		ADD TO CART
FUEL TANK CAP 0605505070 · qty on machine: 1 view full part page → $50.95
1-2	Y0605501056	FUEL SENDER UNIT	1	REPLACES P/N 0605501072	ADD TO CART
FUEL SENDER UNIT Y0605501056 · qty on machine: 1 REPLACES P/N 0605501072 view full part page → $165.95
1-2A	0605516090	GASKET	1		NO LONGER AVAILABLE
PHOTO COMING GASKET 0605516090 · qty on machine: 1 NO LONGER AVAILABLE
1-2B	0027104015	MACHINE SCREW	5		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 5 view full part page → $0.53
2	M1364200004	TANK BAND	2		ADD TO CART
TANK BAND M1364200004 · qty on machine: 2 view full part page → $38.95
3	M1363200404	TANK BAND	2		ADD TO CART
TANK BAND M1363200404 · qty on machine: 2 view full part page → $108.95
4	M9310500104	SUPPORTER SHEET	4		ADD TO CART
SUPPORTER SHEET M9310500104 · qty on machine: 4 view full part page → $5.95
5	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
6	020108060	SELF-LOCKING NUT	4	REPLACES P/N 0207008000	ADD TO CART
SELF-LOCKING NUT 020108060 · qty on machine: 4 REPLACES P/N 0207008000 view full part page → $0.28
7	R140151352	FUEL PUMP	1		ADD TO CART
FUEL PUMP R140151352 · qty on machine: 1 view full part page → $214.95
8	Y0191301500	HOSE	1		ADD TO CART
HOSE Y0191301500 · qty on machine: 1 view full part page → $17.95
9	Y0605515340	HOSE BAND	2		ADD TO CART
HOSE BAND Y0605515340 · qty on machine: 2 view full part page → $2.95
10	Y0191200370	SUCTION HOSE	1		ADD TO CART
SUCTION HOSE Y0191200370 · qty on machine: 1 view full part page → $6.95
11	Y0191200470	SUCTION HOSE	1		PARTS REQUEST
PHOTO COMING SUCTION HOSE Y0191200470 · qty on machine: 1 PARTS REQUEST
12	Y0191001230	RETURN HOSE	1		PARTS REQUEST
PHOTO COMING RETURN HOSE Y0191001230 · qty on machine: 1 PARTS REQUEST
13	Y0191200170	SUCTION HOSE	1		PARTS REQUEST
PHOTO COMING SUCTION HOSE Y0191200170 · qty on machine: 1 PARTS REQUEST
14	Y0191200940	SUCTION HOSE	1		PARTS REQUEST
PHOTO COMING SUCTION HOSE Y0191200940 · qty on machine: 1 PARTS REQUEST
15	0191201100	RETURN HOSE	1		ADD TO CART
RETURN HOSE 0191201100 · qty on machine: 1 view full part page → $9.95
16	Y0191200560	RETURN HOSE	1		PARTS REQUEST
PHOTO COMING RETURN HOSE Y0191200560 · qty on machine: 1 PARTS REQUEST
17	0605515189	HOSE BAND	14		ADD TO CART
HOSE BAND 0605515189 · qty on machine: 14 view full part page → $1.85
18	0016906015	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 2 view full part page → $0.95
19	1J43043351	WATER SEPARATOR	1		ADD TO CART
WATER SEPARATOR 1J43043351 · qty on machine: 1 Factory replaced this part - current number 1J43043350 view full part page → $744.95 IN A KIT + SOLD SOLO
19A	1J43043061	CARTRIDGE, WATER SEPARATOR	1		ADD TO CART
CARTRIDGE, WATER SEPARATOR 1J43043061 · qty on machine: 1 Factory replaced this part - current number 1J43043060 view full part page → $71.95 IN A KIT + SOLD SOLO
20	011208030	HEX. HEAD BOLT	2	REPLACES P/N 0016908030	ADD TO CART
HEX. HEAD BOLT 011208030 · qty on machine: 2 REPLACES P/N 0016908030 view full part page → $1.3
21	1J80043021	FUEL FILTER	1		ADD TO CART
FUEL FILTER 1J80043021 · qty on machine: 1 view full part page → $377.95
21A	1J80043171	CARTRIDGE, FUEL FILTER	1		ADD TO CART
CARTRIDGE, FUEL FILTER 1J80043171 · qty on machine: 1 view full part page → $75.95
22	0012108035	HEX. HEAD BOLT	2	REPLACES P/N 0016908035	ADD TO CART
HEX. HEAD BOLT 0012108035 · qty on machine: 2 REPLACES P/N 0016908035 view full part page → $1.95
23	Y0602042635	AIR BLEEDING TANK	1		PARTS REQUEST
PHOTO COMING AIR BLEEDING TANK Y0602042635 · qty on machine: 1 PARTS REQUEST
24	0016906015	HEX HEAD BOLT	1		ADD TO CART
HEX HEAD BOLT 0016906015 · qty on machine: 1 view full part page → $0.95

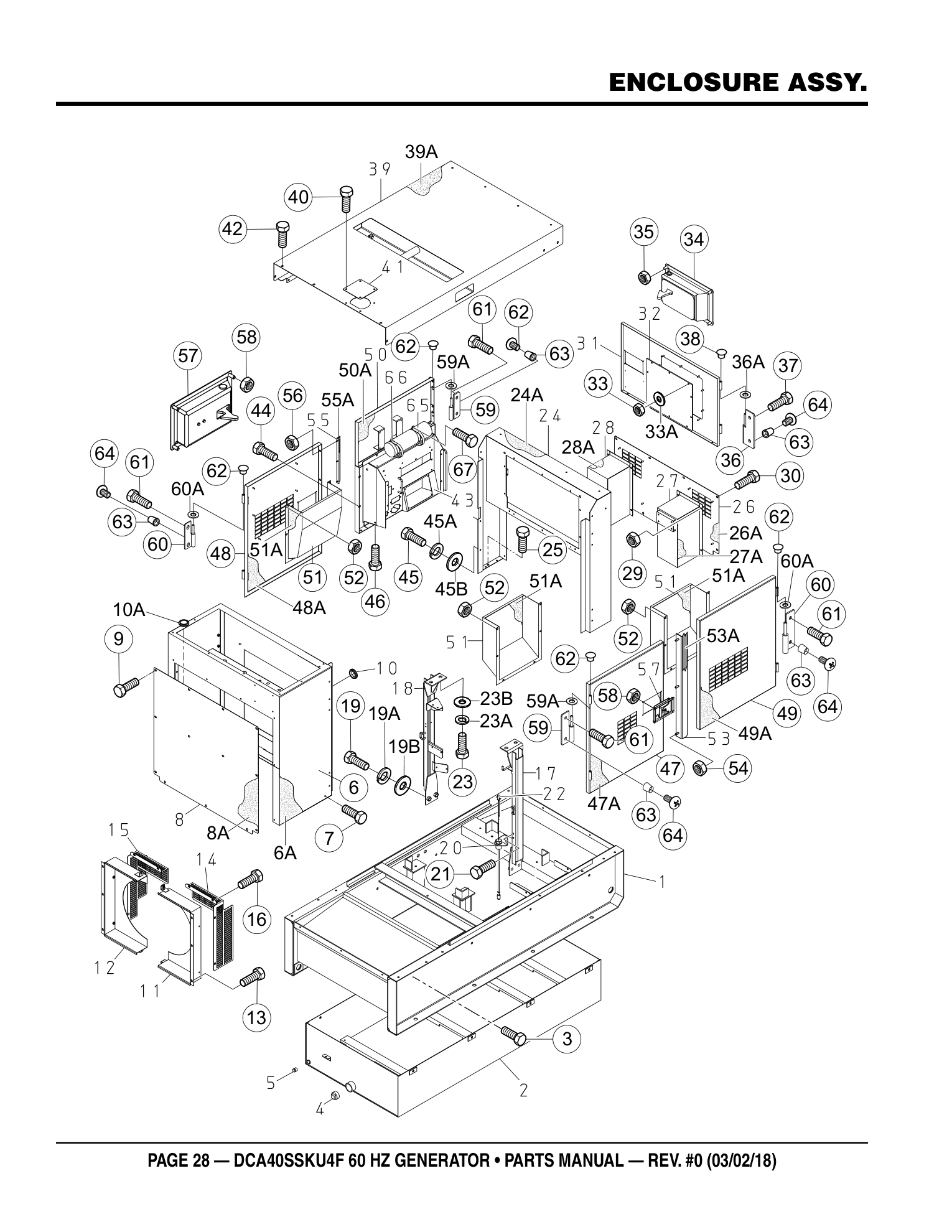

Page 28 — ENCLOSURE ASSY.

Multiquip DCA40SSKU4F Generator ENCLOSURE ASSY. parts diagram

Parts list — exactly as printed47 rows

No.	Part No.	Part Name	Qty	Remarks
1	M1414000902	BASE	1		PARTS REQUEST
PHOTO COMING BASE M1414000902 · qty on machine: 1 PARTS REQUEST
2	M1364300003	ENVIRONMENTAL TANK	1		PARTS REQUEST
PHOTO COMING ENVIRONMENTAL TANK M1364300003 · qty on machine: 1 PARTS REQUEST
3	0016910030	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0016910030 · qty on machine: 8 view full part page → $2.95
4	0603306797	SQUARE HEAD PIPE PLUG, 1-1/2"	1		ADD TO CART
SQUARE HEAD PIPE PLUG, 1-1/2" 0603306797 · qty on machine: 1 view full part page → $12.95
5	Y0603306793	SQUARE HEAD PIPE PLUG, 1/2"	1		ADD TO CART
SQUARE HEAD PIPE PLUG, 1/2" Y0603306793 · qty on machine: 1 view full part page → $2.95
6	M1424001302	FRONT FRAME	1		ADD TO CART
FRONT FRAME M1424001302 · qty on machine: 1 view full part page → $1347.95
6A	M1494105803	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494105803 · qty on machine: 1 view full part page → $651.95
7	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
8	M1424201104	COVER, FRONT FRAME	1		PARTS REQUEST
PHOTO COMING COVER, FRONT FRAME M1424201104 · qty on machine: 1 PARTS REQUEST
8A	M1494105904	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494105904 · qty on machine: 1 view full part page → $221.95
9	0019208020	HEX. HEAD BOLT	13		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 13 view full part page → $3.95
10	0601851736	GROMMET	1		ADD TO CART
GROMMET 0601851736 · qty on machine: 1 view full part page → $12.95
10A	0601851733	GROMMET	1		ADD TO CART
GROMMET 0601851733 · qty on machine: 1 view full part page → $15.95
11	M1311301303	FAN SHROUD	1		PARTS REQUEST
PHOTO COMING FAN SHROUD M1311301303 · qty on machine: 1 PARTS REQUEST
12	M1311301403	FAN SHROUD	1		PARTS REQUEST
PHOTO COMING FAN SHROUD M1311301403 · qty on machine: 1 PARTS REQUEST
13	011008020	HEX. HEAD BOLT	8	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 8 REPLACES P/N 0016908020 view full part page → $2.68
14	M1311301503	FAN GUARD	1		PARTS REQUEST
PHOTO COMING FAN GUARD M1311301503 · qty on machine: 1 PARTS REQUEST
15	M1311301603	FAN GUARD	1		PARTS REQUEST
PHOTO COMING FAN GUARD M1311301603 · qty on machine: 1 PARTS REQUEST
16	011008020	HEX. HEAD BOLT	8	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 8 REPLACES P/N 0016908020 view full part page → $2.68
17	M1434300503	CENTER FRAME	1		PARTS REQUEST
PHOTO COMING CENTER FRAME M1434300503 · qty on machine: 1 PARTS REQUEST
18	M1434300603	CENTER FRAME	1		PARTS REQUEST
PHOTO COMING CENTER FRAME M1434300603 · qty on machine: 1 PARTS REQUEST
19	0013616040	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0013616040 · qty on machine: 4 view full part page → $5.95
19A	0040016000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 4 view full part page → $4.95
19B	0041216000	WASHER, FLAT	4		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 4 view full part page → $1.95
20	M1484500104	FUEL LEAK SWITCH BRACKET	1		ADD TO CART
FUEL LEAK SWITCH BRACKET M1484500104 · qty on machine: 1 view full part page → $59.95
21	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016906020 view full part page → $2.68
22	0605503062	FUEL LEAK DETECTED SWITCH	1		ADD TO CART
FUEL LEAK DETECTED SWITCH 0605503062 · qty on machine: 1 view full part page → $213.95
23	0013616035	HEX. HEAD BOLT	4		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT 0013616035 · qty on machine: 4 PARTS REQUEST
23A	0040016000	WASHER. LOCK	4		ADD TO CART
WASHER. LOCK 0040016000 · qty on machine: 4 view full part page → $4.95
23B	0041216000	WASHER, FLAT	4		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 4 view full part page → $1.95
24	M1444000402	REAR FRAME	1		PARTS REQUEST
PHOTO COMING REAR FRAME M1444000402 · qty on machine: 1 PARTS REQUEST
24A	M1494303404	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M1494303404 · qty on machine: 1 PARTS REQUEST
25	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
26	M1444300703	REAR COVER	1		PARTS REQUEST
PHOTO COMING REAR COVER M1444300703 · qty on machine: 1 PARTS REQUEST
26A	M1494303604	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M1494303604 · qty on machine: 1 PARTS REQUEST
27	M1444300803	DUCT, REAR COVER	1		PARTS REQUEST
PHOTO COMING DUCT, REAR COVER M1444300803 · qty on machine: 1 PARTS REQUEST
27A	M1494303504	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M1494303504 · qty on machine: 1 PARTS REQUEST
28	M1444300903	DUCT, REAR COVER	1		PARTS REQUEST
PHOTO COMING DUCT, REAR COVER M1444300903 · qty on machine: 1 PARTS REQUEST
28A	M1494303504	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M1494303504 · qty on machine: 1 PARTS REQUEST
29	0176060030	SELF-LOCKING NUT	8	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 8 REPLACES P/N 0207006000 view full part page → $2.95
30	0019208020	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 8 view full part page → $3.95
31	M1444200503	REAR DOOR	1		PARTS REQUEST
PHOTO COMING REAR DOOR M1444200503 · qty on machine: 1 PARTS REQUEST
32	M1445600204	WINDOW PLATE	1		ADD TO CART
WINDOW PLATE M1445600204 · qty on machine: 1 view full part page → $57.95
33	020106050	LOCK NUT	10	REPLACES P/N 0037906000	ADD TO CART
LOCK NUT 020106050 · qty on machine: 10 REPLACES P/N 0037906000 view full part page → $0.12
33A	952404470	WASHER, FLAT	10	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 10 REPLACES P/N 0041206000 view full part page → $0.19
34	Y0605012309	DOOR HANDLE ASSEMBLY	1		ADD TO CART
DOOR HANDLE ASSEMBLY Y0605012309 · qty on machine: 1 view full part page → $49.95
35	0176060030	SELF-LOCKING NUT	4	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 4 REPLACES P/N 0207006000 view full part page → $2.95

Page 30 — ENCLOSURE ASSY. (CONT'D.)

Multiquip DCA40SSKU4F Generator ENCLOSURE ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed38 rows

No.	Part No.	Part Name	Qty	Remarks
36	M9110100204	HINGE	2		ADD TO CART
HINGE M9110100204 · qty on machine: 2 view full part page → $23.95
36A	M9116100004	WASHER	2		ADD TO CART
WASHER M9116100004 · qty on machine: 2 view full part page → $1.93
37	0019208020	HEX. HEAD BOLT	3		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 3 view full part page → $3.95
38	0845031504	BLIND PLUG	2	REPLACES P/N M9310000004	ADD TO CART
BLIND PLUG 0845031504 · qty on machine: 2 REPLACES P/N M9310000004 view full part page → $2.95
39	M1464000402	ROOF PANEL	1		ADD TO CART
ROOF PANEL M1464000402 · qty on machine: 1 view full part page → $911.95
39A	M1494502503	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494502503 · qty on machine: 1 view full part page → $520.95
40	0019208020	HEX. HEAD BOLT	14		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 14 view full part page → $3.95
41	M3310600004	COVER	1		ADD TO CART
COVER M3310600004 · qty on machine: 1 view full part page → $17.95
42	0019208020	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 4 view full part page → $3.95
43	M1454200802	SPLASHER PANEL	1		PARTS REQUEST
PHOTO COMING SPLASHER PANEL M1454200802 · qty on machine: 1 PARTS REQUEST
44	0019208020	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 2 view full part page → $3.95
45	0019108055	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0019108055 · qty on machine: 2 view full part page → $3.95
45A	0042308000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0042308000 · qty on machine: 2 view full part page → $0.83
45B	0401450080	WASHER, FLAT	2	REPLACES P/N 0042408000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 2 REPLACES P/N 0042408000 view full part page → $0.56
46	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
47	M1454001803	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M1454001803 · qty on machine: 1 PARTS REQUEST
47A	M1494405504	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M1494405504 · qty on machine: 1 PARTS REQUEST
48	M1454001903	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M1454001903 · qty on machine: 1 PARTS REQUEST
48A	M1494405604	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M1494405604 · qty on machine: 1 PARTS REQUEST
49	M1454002003	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M1454002003 · qty on machine: 1 PARTS REQUEST
49A	M1494405704	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M1494405704 · qty on machine: 1 PARTS REQUEST
50	M1454002103	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M1454002103 · qty on machine: 1 PARTS REQUEST
50A	M1494405804	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M1494405804 · qty on machine: 1 PARTS REQUEST
51	M1454300804	DUCT	3		PARTS REQUEST
PHOTO COMING DUCT M1454300804 · qty on machine: 3 PARTS REQUEST
51A	M1494405904	ACOUSTIC SHEET	3		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M1494405904 · qty on machine: 3 PARTS REQUEST
52	0176060030	SELF-LOCKING NUT	18	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 18 REPLACES P/N 0207006000 view full part page → $2.95
53	M1454700204	DOOR SUPPORTER	1		PARTS REQUEST
PHOTO COMING DOOR SUPPORTER M1454700204 · qty on machine: 1 PARTS REQUEST
53A	0229200775	RUBBER SEAL	1		PARTS REQUEST
PHOTO COMING RUBBER SEAL 0229200775 · qty on machine: 1 PARTS REQUEST
54	0176060030	SELF-LOCKING NUT	4	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 4 REPLACES P/N 0207006000 view full part page → $2.95
55	M1454700404	DOOR SUPPORTER	1		PARTS REQUEST
PHOTO COMING DOOR SUPPORTER M1454700404 · qty on machine: 1 PARTS REQUEST
55A	0229200295	RUBBER SEAL	1		PARTS REQUEST
PHOTO COMING RUBBER SEAL 0229200295 · qty on machine: 1 PARTS REQUEST
56	0176060030	SELF-LOCKING NUT	2	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 2 REPLACES P/N 0207006000 view full part page → $2.95
57	Y0605012309	DOOR HANDLE ASSEMBLY	2		ADD TO CART
DOOR HANDLE ASSEMBLY Y0605012309 · qty on machine: 2 view full part page → $49.95
58	0176060030	SELF-LOCKING NUT	8	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 8 REPLACES P/N 0207006000 view full part page → $2.95
59	M9110100204	HINGE	4		ADD TO CART
HINGE M9110100204 · qty on machine: 4 view full part page → $23.95
59A	M9116100004	WASHER	4		ADD TO CART
WASHER M9116100004 · qty on machine: 4 view full part page → $1.93
60	M9110100304	HINGE	4		ADD TO CART
HINGE M9110100304 · qty on machine: 4 view full part page → $19.95
60A	M9116100004	WASHER	4		ADD TO CART
WASHER M9116100004 · qty on machine: 4 view full part page → $1.93

Page 32 — ENCLOSURE ASSY. (CONT'D.)

Parts list — exactly as printed7 rows

No.	Part No.	Part Name	Qty	Remarks
61	0019208020	HEX. HEAD BOLT	9		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 9 view full part page → $3.95
62	0845031504	BLIND PLUG	8	REPLACES P/N M9310000004	ADD TO CART
BLIND PLUG 0845031504 · qty on machine: 8 REPLACES P/N M9310000004 view full part page → $2.95
63	0601850097	DOOR STOPPER	8		ADD TO CART
DOOR STOPPER 0601850097 · qty on machine: 8 view full part page → $2.95
64	0027208025	MACHINE SCREW	8		ADD TO CART
MACHINE SCREW 0027208025 · qty on machine: 8 view full part page → $0.76
65	0600800321	MANUAL PAK	1		ADD TO CART
MANUAL PAK 0600800321 · qty on machine: 1 view full part page → $33.95
66	M1483600804	CLAMPER	2		ADD TO CART
CLAMPER M1483600804 · qty on machine: 2 view full part page → $15.95
67	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95

Page 34 — RUBBER SEALS ASSY.

Multiquip DCA40SSKU4F Generator RUBBER SEALS ASSY. parts diagram

Parts list — exactly as printed20 rows

No.	Part No.	Part Name	Qty	Remarks
1	0229200950	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL 0229200950 · qty on machine: 1 view full part page → $9.95
2	Y0228901285	RUBBER SEAL	3		ADD TO CART
RUBBER SEAL Y0228901285 · qty on machine: 3 view full part page → $20.95
3	Y0229400820	RUBBER SEAL	3		PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0229400820 · qty on machine: 3 PARTS REQUEST
4	0228900620	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL 0228900620 · qty on machine: 1 view full part page → $14.95
5	Y0228900305	RUBBER SEAL	1		PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0228900305 · qty on machine: 1 PARTS REQUEST
6	0228800490	RUBBER SEAL	1		PARTS REQUEST
PHOTO COMING RUBBER SEAL 0228800490 · qty on machine: 1 PARTS REQUEST
7	Y0229400335	RUBBER SEAL	1		PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0229400335 · qty on machine: 1 PARTS REQUEST
8	Y0228900635	RUBBER SEAL	1		PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0228900635 · qty on machine: 1 PARTS REQUEST
9	0228900760	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL 0228900760 · qty on machine: 1 view full part page → $22.95
10	Y0228800820	RUBBER SEAL	2		ADD TO CART
RUBBER SEAL Y0228800820 · qty on machine: 2 view full part page → $22.95
11	0228800470	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL 0228800470 · qty on machine: 1 view full part page → $8.95
12	0228800510	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL 0228800510 · qty on machine: 1 view full part page → $8.95
13	0229200880	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL 0229200880 · qty on machine: 1 view full part page → $5.95
14	0228100340	RUBBER SEAL	2		ADD TO CART
RUBBER SEAL 0228100340 · qty on machine: 2 view full part page → $1.95
15	70NS2016	RUBBER SEAL	2	REPLACES P/N 0228100350	ADD TO CART
RUBBER SEAL 70NS2016 · qty on machine: 2 REPLACES P/N 0228100350 view full part page → $2.95
16	0222100700	RUBBER SEAL	5		ADD TO CART
RUBBER SEAL 0222100700 · qty on machine: 5 view full part page → $22.95
17	Y0229200145	RUBBER SEAL	2		ADD TO CART
RUBBER SEAL Y0229200145 · qty on machine: 2 view full part page → $0.65
18	Y0229200100	RUBBER SEAL	2		ADD TO CART
RUBBER SEAL Y0229200100 · qty on machine: 2 view full part page → $0.67
19	Y0229200420	RUBBER SEAL	1		PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0229200420 · qty on machine: 1 PARTS REQUEST
20	Y0229200400	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL Y0229200400 · qty on machine: 1 view full part page → $2.95

Page 36 — BATTERY CHARGER ASSY. (OPTION)

Multiquip DCA40SSKU4F Generator BATTERY CHARGER ASSY. (OPTION) parts diagram

Parts list — exactly as printed9 rows

No.	Part No.	Part Name	Qty	Remarks
1	LC125002	CHARGER BATTERY, 3 AMP 12V	1		NO LONGER AVAILABLE
PHOTO COMING CHARGER BATTERY, 3 AMP 12V LC125002 · qty on machine: 1 NO LONGER AVAILABLE
2		GROMMET, 7/8" HOLE SIZE	1	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING GROMMET, 7/8" HOLE SIZE · qty on machine: 1 OBTAIN LOCALLY SEE REMARKS
3		WASHER, FLAT M4	4	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WASHER, FLAT M4 · qty on machine: 4 OBTAIN LOCALLY SEE REMARKS
4		WASHER, LOCK M4	4	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WASHER, LOCK M4 · qty on machine: 4 OBTAIN LOCALLY SEE REMARKS
5		SCREW, M4X10	4	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING SCREW, M4X10 · qty on machine: 4 OBTAIN LOCALLY SEE REMARKS
6	HBL5369C	CONNECTOR, 20 AMP, 125V	1		ADD TO CART
CONNECTOR, 20 AMP, 125V HBL5369C · qty on machine: 1 view full part page → $103.95
7	EE56557	CORD, 3-CONDUCTOR, 14 AWG FT	6	1PC=1FT	ADD TO CART
CORD, 3-CONDUCTOR, 14 AWG FT EE56557 · qty on machine: 6 1PC=1FT view full part page → $1.95
8		WIRE, 16GA, GREEN FT	9	1PC=1FT, OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WIRE, 16GA, GREEN FT · qty on machine: 9 1PC=1FT, OBTAIN LOCALLY SEE REMARKS
9		WIRE, 16GA, RED FT	9	1PC=1FT, OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WIRE, 16GA, RED FT · qty on machine: 9 1PC=1FT, OBTAIN LOCALLY SEE REMARKS

Page 38 — ENGINE BLOCK HEATING ELEMENT ASSY. (OPTION)

Multiquip DCA40SSKU4F Generator ENGINE BLOCK HEATING ELEMENT ASSY. (OPTION) parts diagram

Parts list — exactly as printed3 rows

No.	Part No.	Part Name	Qty	Remarks
1	EE55724	KIT, 110 VOLT, COOLANT HEATER	1		ADD TO CART
KIT, 110 VOLT, COOLANT HEATER EE55724 · qty on machine: 1 view full part page → $181.95
2	EE56557	CORD, CAROL 3/C 14AWG 90C	10	1PC=1FT	ADD TO CART
CORD, CAROL 3/C 14AWG 90C EE56557 · qty on machine: 10 1PC=1FT view full part page → $1.95
3	HBL5369C	CONNECTOR, 20AMP, 125V	1		ADD TO CART
CONNECTOR, 20AMP, 125V HBL5369C · qty on machine: 1 view full part page → $103.95

Page 40 — NAMEPLATE AND DECALS ASSY.

Multiquip DCA40SSKU4F Generator NAMEPLATE AND DECALS ASSY. parts diagram

Parts list — exactly as printed42 rows

No.	Part No.	Part Name	Qty	Remarks
1	M9520000104	DECAL; AMMETER CHANGE-OVER SW	1	M92000010	ADD TO CART
DECAL; AMMETER CHANGE-OVER SW M9520000104 · qty on machine: 1 M92000010 view full part page → $11.95
2	M9522000604	DECAL; VOLTAGE REGULATOR	1	M92200060	ADD TO CART
DECAL; VOLTAGE REGULATOR M9522000604 · qty on machine: 1 M92200060 view full part page → $18.95
3	M9520100704	DECAL; WARNING ARC FLASH	1	M92010070	ADD TO CART
DECAL; WARNING ARC FLASH M9520100704 · qty on machine: 1 M92010070 view full part page → $4.95
4	M9520100304	DECAL; GENERAL CAUTIONS	1	M92010030	ADD TO CART
DECAL; GENERAL CAUTIONS M9520100304 · qty on machine: 1 M92010030 view full part page → $3.95
5	M9520100004	DECAL; WARNING ELECTRICAL SHOCK	1	M92010000	ADD TO CART
DECAL; WARNING ELECTRICAL SHOCK M9520100004 · qty on machine: 1 M92010000 view full part page → $5.95
6	M9520200003	DECAL; CONNECTION OF OUTPUT CABLE	1	M92020000	ADD TO CART
DECAL; CONNECTION OF OUTPUT CABLE M9520200003 · qty on machine: 1 M92020000 view full part page → $7.95
7	M9520000004	DECAL; GROUNDING	2	M92000000	ADD TO CART
DECAL; GROUNDING M9520000004 · qty on machine: 2 M92000000 view full part page → $1.95
8	M9520100404	DECAL: DANGER HIGH VOLTAGE	1	M92010040	ADD TO CART
DECAL: DANGER HIGH VOLTAGE M9520100404 · qty on machine: 1 M92010040 view full part page → $37.95
9	M9520100204	DECAL; CAUTION CHANGE-OVER SW	1	M92010020A	ADD TO CART
DECAL; CAUTION CHANGE-OVER SW M9520100204 · qty on machine: 1 M92010020A view full part page → $3.95
10	M9500300104	DECAL; +	1	M90030010	ADD TO CART
DECAL; + M9500300104 · qty on machine: 1 M90030010 view full part page → $1.95
11	M9500300004	DECAL; -	1	M90030000	ADD TO CART
DECAL; - M9500300004 · qty on machine: 1 M90030000 view full part page → $1.95
12	M9503100004	DECAL; WARNING RADIATOR CAP	1	M90310000	ADD TO CART
DECAL; WARNING RADIATOR CAP M9503100004 · qty on machine: 1 M90310000 view full part page → $4.95
13	M9500100004	DECAL; WATER	1	M90010000	ADD TO CART
DECAL; WATER M9500100004 · qty on machine: 1 M90010000 view full part page → $1.95
14	M9510100004	DECAL; CAUTION HIGH TEMP	1	M91010000	ADD TO CART
DECAL; CAUTION HIGH TEMP M9510100004 · qty on machine: 1 M91010000 view full part page → $68.95
15	M9503200004	DECAL; WARNING EXHAUST GAS	1	M90320000	ADD TO CART
DECAL; WARNING EXHAUST GAS M9503200004 · qty on machine: 1 M90320000 view full part page → $14.95
16	M9503000004	DECAL; WARNING ROTATING PART	2	M90300000	ADD TO CART
DECAL; WARNING ROTATING PART M9503000004 · qty on machine: 2 M90300000 view full part page → $1.95
17	M1560100603	STRIPE	1		ADD TO CART
STRIPE M1560100603 · qty on machine: 1 view full part page → $25.95
18	M1561102404	STRIPE	2		ADD TO CART
STRIPE M1561102404 · qty on machine: 2 view full part page → $20.95
19	M1561102503	STRIPE	2		ADD TO CART
STRIPE M1561102503 · qty on machine: 2 view full part page → $20.95
20	M1561102603	STRIPE	1		ADD TO CART
STRIPE M1561102603 · qty on machine: 1 view full part page → $25.95
21	M1561101504	STRIPE	2		ADD TO CART
STRIPE M1561101504 · qty on machine: 2 view full part page → $3.95
22	M1561102703	STRIPE	1		ADD TO CART
STRIPE M1561102703 · qty on machine: 1 view full part page → $25.95
23	M9520100603	DECAL; WARNING AUTO START	2	M92010060	ADD TO CART
DECAL; WARNING AUTO START M9520100603 · qty on machine: 2 M92010060 view full part page → $8.95
24	M1551001204	DECAL; NOTICE LOAD SHARING	1	M15100120	PARTS REQUEST
PHOTO COMING DECAL; NOTICE LOAD SHARING M1551001204 · qty on machine: 1 M15100120 PARTS REQUEST
25	M9503000103	DECAL; DAILY CHECK WATER AND OIL	1	M90300010	ADD TO CART
DECAL; DAILY CHECK WATER AND OIL M9503000103 · qty on machine: 1 M90300010 view full part page → $7.95
26	M9520000504	DECAL; START CONTACT	1	M92000050	ADD TO CART
DECAL; START CONTACT M9520000504 · qty on machine: 1 M92000050 view full part page → $67.95
27	M9520100503	DECAL; WARNING	1	M92010050	ADD TO CART
DECAL; WARNING M9520100503 · qty on machine: 1 M92010050 view full part page → $1.95
28	M9511100104	DECAL; NOTICE RECEPTACLE	1	M91110010	ADD TO CART
DECAL; NOTICE RECEPTACLE M9511100104 · qty on machine: 1 M91110010 view full part page → $3.95
29	M1550001803	DECAL; AUXILIARY OUTPUTS	1	M15000180	ADD TO CART
DECAL; AUXILIARY OUTPUTS M1550001803 · qty on machine: 1 M15000180 view full part page → $25.95
30	M9510100403	DECAL; WARNING BATTERY CONNECT	1	M91010040A	ADD TO CART
DECAL; WARNING BATTERY CONNECT M9510100403 · qty on machine: 1 M91010040A view full part page → $16.95
31	M9501500004	DECAL; DIESEL FUEL	1	M90150000	ADD TO CART
DECAL; DIESEL FUEL M9501500004 · qty on machine: 1 M90150000 view full part page → $3.95
32	M9500000004	DECAL; OIL DRAIN	1	M90000000	ADD TO CART
DECAL; OIL DRAIN M9500000004 · qty on machine: 1 M90000000 view full part page → $2.95
33	M9510000104	DECAL; DOCUMENT BOX LOCATED	1	M91000010	ADD TO CART
DECAL; DOCUMENT BOX LOCATED M9510000104 · qty on machine: 1 M91000010 view full part page → $4.95
34	M9511100004	DECAL; WARNING ENVIRONMENTAL	1	M91110000	ADD TO CART
DECAL; WARNING ENVIRONMENTAL M9511100004 · qty on machine: 1 M91110000 view full part page → $6.95
35	M9503200104	DECAL; DANGER EX. GAS (INDOOR)	1	M90320010	ADD TO CART
DECAL; DANGER EX. GAS (INDOOR) M9503200104 · qty on machine: 1 M90320010 view full part page → $4.95
36	M9504200004	DECAL; WARNING START FIRES	1	M90420000	ADD TO CART
DECAL; WARNING START FIRES M9504200004 · qty on machine: 1 M90420000 view full part page → $3.95
37	M2550002303	DECAL; OPERATING PROCEDURES	1	M25000230	ADD TO CART
DECAL; OPERATING PROCEDURES M2550002303 · qty on machine: 1 M25000230 view full part page → $11.95
38	M9510000004	DECAL; FLUID DRAIN	1	M91000000	ADD TO CART
DECAL; FLUID DRAIN M9510000004 · qty on machine: 1 M91000000 view full part page → $26.95
39	M1550001504	DECAL; CAUTION LIFTING CAPACITY	1	M15000150	ADD TO CART
DECAL; CAUTION LIFTING CAPACITY M1550001504 · qty on machine: 1 M15000150 view full part page → $35.95
40	M9511200204	STICKER, MQ	1	M91120020	ADD TO CART
STICKER, MQ M9511200204 · qty on machine: 1 M91120020 view full part page → $5.95
41	0600500092	EMBLEM	1		ADD TO CART
EMBLEM 0600500092 · qty on machine: 1 view full part page → $21.95
42	0021106015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021106015 · qty on machine: 4 view full part page → $0.17

Page 42 — NAMEPLATE AND DECALS ASSY. (CONT.)

Multiquip DCA40SSKU4F Generator NAMEPLATE AND DECALS ASSY. (CONT.) parts diagram

Parts list — exactly as printed9 rows

No.	Part No.	Part Name	Qty	Remarks
43	M9511200103	TIER 4F	1	M91120010	ADD TO CART
TIER 4F M9511200103 · qty on machine: 1 M91120010 view full part page → $17.95
44	M9522000504	DECAL; CIRCUIT BREAKER	1	M92200050	ADD TO CART
DECAL; CIRCUIT BREAKER M9522000504 · qty on machine: 1 M92200050 view full part page → $25.95
45	M9521000704	DECAL; CAN7X	1	M92100070	PARTS REQUEST
PHOTO COMING DECAL; CAN7X M9521000704 · qty on machine: 1 M92100070 PARTS REQUEST
46	M9521001404	DECAL; WARNING LAMP PANEL	1	M92100140	PARTS REQUEST
PHOTO COMING DECAL; WARNING LAMP PANEL M9521001404 · qty on machine: 1 M92100140 PARTS REQUEST
47	M9520000904	DECAL; DIAGNOSTIC SWITCH	1	M92000090	ADD TO CART
DECAL; DIAGNOSTIC SWITCH M9520000904 · qty on machine: 1 M92000090 view full part page → $4.95
48	M9504400104	DECAL; AUTO-MANUAL SWITCH	1	M90440010	PARTS REQUEST
PHOTO COMING DECAL; AUTO-MANUAL SWITCH M9504400104 · qty on machine: 1 M90440010 PARTS REQUEST
49	M9521000804	DECAL; ENGINE SPEED SWITCH	1	M92100080	PARTS REQUEST
PHOTO COMING DECAL; ENGINE SPEED SWITCH M9521000804 · qty on machine: 1 M92100080 PARTS REQUEST
50	M9521100004	DECAL; ECU TERMINAL HIGH VOLTAGE	1	M92110000	PARTS REQUEST
PHOTO COMING DECAL; ECU TERMINAL HIGH VOLTAGE M9521100004 · qty on machine: 1 M92110000 PARTS REQUEST
51	M1561000104	STICKER; 36KVA	1	M16100010	PARTS REQUEST
PHOTO COMING STICKER; 36KVA M1561000104 · qty on machine: 1 M16100010 PARTS REQUEST

The machine itself

Price by quote Get a quote

Tell us where the machine is headed and we'll quote it with freight. One call, no games.

The Multiquip DCA40SSKU4F is a generator built for portable jobsite power for tools, lighting, and equipment. It runs a Kubota V2403-CR-T engine. Factory-documented specs and parts support; priced by quote.

Keep-it-running spares

All listed parts →

Every part that fits this machine

0071906309 Multiquip 0071906309 Bearing DENYO - OEM Replacement Part for Super Silent Generators $160.95

0193601200 Multiquip 0193601200 48" Hose DENYO - OEM Replacement Part for Super Silent Generators $49.95

0600800321 Multiquip 0600800321 PAK DENYO Manual - OEM Replacement Part $33.95

0601800682 Multiquip 0601800682 Hour Meter Denyo - OEM Replacement Part $116.95

0601801040 Multiquip 0601801040 Switch C/Over Ammeter 25,40,85,125,150 - OEM Replacement Part $95.95

0601808986 Multiquip 0601808986 Ammeter AC Denyo - OEM Replacement Part for WhisperWatt Generators $262.95

0601814014 Multiquip 0601814014 GFCI Receptacle - OEM Replacement Part $90.95

0601820083 Multiquip 0601820083 Rectifier with Instruction 8.8 - OEM Replacement Part for Super Silent Generators $33.95

0601820608 Multiquip 0601820608 Autovoltage Regulator Denyo - OEM Replacement Part $1,591.95

0601820848 Multiquip 0601820848 Relay Over Current DENYO - OEM Replacement Part $83.95

0601823863 Multiquip 0601823863 Relay Unit 12V DENYO - OEM Replacement Part $159.95

0601840073 Multiquip 0601840073 Rheostat Voltage Regulator for 150SSK and DCA Series Generators - OEM Replacement Part $90.95

0601870431 Multiquip 0601870431 Circuit Breaker DENYO - OEM Replacement Part $898.95

0601870440 Multiquip 0601870440 Circuit Breaker DENYO - OEM Replacement Part $34.95

0601870441 Multiquip 0601870441 Circuit Breaker DENYO - OEM Replacement Part $77.95

0602022561 Multiquip 0602022561 90 Degree Elbow DENYO - OEM Replacement Part for Generator Systems $76.95

0602125090 Multiquip 0602125090 Fuel Gauge 100176 Denyo - OEM Replacement Part $77.95

0602220199 Multiquip 0602220199 Battery (Wet) DENYO - OEM Replacement Part $288.95

0603306590 Multiquip 0603306590 Male Bulkhead Connector - OEM Replacement Part for Denyo Generators $86.95

0605505070 Multiquip 0605505070 Fuel Tank Cap DENYO - OEM Replacement Part $50.95

0605511395 Multiquip 0605511395 Ball Valve DENYO - OEM Replacement Part $46.95

1G35497010 Multiquip 1G35497010 Fan V-Belt - OEM Replacement Part $49.95

1J80043171 Multiquip 1J80043171 Cartridge Filter - OEM Replacement Part $75.95

5980026110 Multiquip 5980026110 Air Filter Primary - OEM Replacement Part for WhisperWatt Generators $50.95

7000032091 Multiquip 7000032091 Oil Filter Assembly - OEM Replacement Part for Super Silent Generators $37.95

8111860303 Multiquip 8111860303 Panel Output Terminal - OEM Replacement Part $157.95

82608 Multiquip 82608 Toggle Switch Denyo Mods - OEM Replacement Part for Super Silent Generators $34.95

B3111100603 Multiquip B3111100603 Fan DCA-45USI2 - OEM Replacement Part for Super Silent Generators $232.95

B3120100804 Multiquip B3120100804 Holder ZNR - OEM Replacement Part for Super Silent Generators $140.95

B3131300804 Multiquip B3131300804 End Bracket Cover for DCA Generator - OEM Replacement Part $60.95

B3137000803 Multiquip B3137000803 Exciter Field Assembly - OEM Generator Replacement Part $1,882.95

B3153000513 Multiquip B3153000513 End Bracket for DCA Series Generators - OEM Replacement Part $636.95

B3153400404 Multiquip B3153400404 Bearing Cover for DCA Series Generators - OEM Replacement Part $40.95

B3163100204 Multiquip B3163100204 Coupling Disc (JP) - OEM Replacement Part for Super Silent Generators $89.95

B3163200104 Multiquip B3163200104 Washer Coupler - OEM Replacement Part for Super Silent Generators $112.95

EE55724 Multiquip EE55724 Kit Block Heater 400W - OEM Replacement Part $181.95

EE55989 Multiquip EE55989 Emergency Stop Switch 22mm 1NO 1NC - OEM Replacement Part $82.95

HBL5369C Multiquip HBL5369C Connector 20amp 125V - OEM Replacement Part $103.95

LY2DUS12VDC Multiquip LY2DUS12VDC Relay with Diode - OEM Replacement Part for DCA Generators $46.95

M1236101904 Multiquip M1236101904 Terminal Cover (White) - OEM Replacement Part for Denyo Generators $94.95

M1236102124 Multiquip M1236102124 Output Window - OEM Replacement Part for WhisperWatt Generators $43.95

M1247702214 Multiquip M1247702214 Wire Harness Generator (KY) - OEM Replacement Part $1,396.95

M1260700404 Multiquip M1260700404 Cover Breaker Fitting (E-Coat) - OEM Replacement Part for Denyo Generators $58.95

M1261200004 Multiquip M1261200004 Fuse Box (JP) - OEM Replacement Part $135.95

M1270100604 Multiquip M1270100604 Switch Selector Denyo - OEM Replacement Part for WhisperWatt Generators $717.95

M1311501203 Multiquip M1311501203 Radiator Hose (Upper) DENYO - OEM Replacement Part $86.95

M1311501303 Multiquip M1311501303 Radiator Hose (Lower) DENYO - OEM Replacement Part $86.95

M1331401103 Multiquip M1331401103 PBS Bracket Roof Cover White - OEM Replacement Part $376.95

M1331401304 Multiquip M1331401304 Cover Plate Denyo - OEM Replacement Part for Super Silent Generators $89.95

M1358200502 Multiquip M1358200502 Wire Harness Engine (KY) - OEM Replacement Part $2,500.95

M1363200404 Multiquip M1363200404 Bank Tank E-Coat DENYO - OEM Replacement Part $108.95

M1364000402 Multiquip M1364000402 Fuel Tank Denyo - OEM Replacement Part $1,048.95

M1364200004 Multiquip M1364200004 Tank Band E-Coat - OEM Replacement Part for Super Silent Generators $38.95

M1424001302 Multiquip M1424001302 Front Frame Denyo - OEM Replacement Part for Super Silent Generators $1,347.95

M1445600204 Multiquip M1445600204 Window Plate Denyo - OEM Replacement Part for Super Silent Generators $57.95

M1484500104 Multiquip M1484500104 Fuel Leak Switch Bracket - OEM Replacement Part $59.95

M1494105803 Multiquip M1494105803 Acoustic Sheet - OEM Replacement Part for WhisperWatt Generators $651.95

M1494105904 Multiquip M1494105904 Front Cover Assembly - OEM Replacement Part $221.95

M1494502503 Multiquip M1494502503 Acoustic Sheet Denyo - OEM Replacement Part $520.95

M1550001504 Multiquip M1550001504 Decal Caution Denyo - OEM Replacement Part $35.95

M1924200134 Multiquip M1924200134 Kubota Denyo Engine - OEM Replacement Part $12,169.95

R140151352 Multiquip R140151352 Fuel Pump Assembly - OEM Replacement Part $214.95

RP42153730 Multiquip RP42153730 Relay Assembly (JP) - OEM Replacement Part $281.95

Y0269200650 Multiquip Y0269200650 Push-Lock Hose (KY) - OEM Replacement Part $38.95

Y0601803967 Multiquip Y0601803967 Load Bank Unit Assembly DENYO - OEM Replacement Part $5,984.95

Y0601809693 Multiquip Y0601809693 Current Transformer Denyo - OEM Replacement Part $63.95

Y0601842562 Multiquip Y0601842562 RESISTOR DENYO - OEM Replacement Part for Super Silent Generators $2,123.95

Y0601852062 Multiquip Y0601852062 PBS Control Box Metal Enclosure (KY) - OEM Replacement Part $3,508.95

Y0602046570 Multiquip Y0602046570 Air Cleaner Assembly - OEM Replacement Part for Super Silent Generators $710.95

Y0602203000 Multiquip Y0602203000 Controller Denyo - OEM Replacement Part for Super Silent Generators $882.95

Y0605000461 Multiquip Y0605000461 Rubber Suspension - OEM Replacement Part $55.95

Y0605012028 Multiquip Y0605012028 Hinge (JP) - OEM Replacement Part for Super Silent Generators $62.95

Y0605012309 Multiquip Y0605012309 Door Handle with Bolts - OEM Replacement Part $49.95

Y0605501056 Multiquip Y0605501056 Fuel Sender - OEM Replacement Part for Super Silent Generators $165.95

0012108035 HEX. HEAD BOLT $1.95

0012410025 HEX. HEAD BOLT $1.95

0013616035 HEX. HEAD BOLT

0013616040 HEX. HEAD BOLT $5.95

0016008060 HEX. SOCKET HEAD CAP SCREW $2.95

0016906015 HEX. HEAD BOLT $0.95

0016910030 HEX. HEAD BOLT $2.95

0017106016 HEX. HEAD BOLT $1.51

0017108035 HEX. HEAD BOLT $1.95

0019108055 HEX. HEAD BOLT $3.95

0019206015 HEX HEAD BOLT $3.95

0019208020 HEX HEAD BOLT $3.95

0021004040 MACHINE SCREW $0.64

0021106015 MACHINE SCREW $0.17

0027103010 MACHINE SCREW $0.44

0027103015 MACHINE SCREW $0.64

0027104015 MACHINE SCREW $0.53

0027104020 MACHINE SCREW $0.40

0027105010 MACHINE SCREW $0.56

0027105015 MACHINE SCREW $0.20

0027105020 MACHINE SCREW $0.62

0027204015 MACHINE SCREW $0.24

0027208025 MACHINE SCREW $0.76

0029205012 MACHINE SCREW $1.45

0030005000 SELF-LOCKING NUT $0.29

0030012000 HEX. NUT $0.50

0040010000 SPRING WASHER $0.39

0040012000 WASHER, LOCK $0.95

0040016000 WASHER, LOCK $4.95

0040508000 TOOTHED WASHER $0.35

0040512000 TOOTHED WASHER $0.77

0041210000 PLAIN WASHER

0041212000 PLAIN WASHER

0041216000 WASHER, FLAT $1.95

0041410000 WASHER, FLAT $0.89

0042308000 WASHER, LOCK $0.83

0042508000 WASHER, LOCK $0.62

0046512000 WASHER, FLAT $3.95

0080200007 E-SNAP RING $1.39

011008020 HEX HEAD BOLT $2.68

011206020 HEX. HEAD BOLT $0.95

011208025 HEX. HEAD BOLT $0.41

011208030 HEX. HEAD BOLT $1.30

011808015 MACHINE SCREW $6.95

012210020 TIE BOLT $0.95

012212025 HEX. HEAD BOLT $1.95

012212030 HEX. HEAD BOLT $2.95

012212045 HEX. HEAD BOLT $2.95

014208020 HEX. HEAD BOLT $0.77

0176060030 SELF-LOCKING NUT $2.95

0191201100 RETURN HOSE $9.95

0199100215 HOSE $3.95

0199900400 OVER FLOW HOSE $7.95

020106050 U-NUT $0.12

020310080 SELF-LOCKING NUT $1.67

0207003000 SELF-LOCKING NUT $0.21

0207004000 SELF-LOCKING NUT

0207008000 SELF-LOCKING NUT

0207108000 SELF-LOCKING NUT $3.95

0222100080 CUSHION RUBBER $2.78

0228100340 RUBBER SEAL $1.95

0228800470 RUBBER SEAL $8.95

0228800490 RUBBER SEAL

0228800510 RUBBER SEAL $8.95

0228900620 RUBBER SEAL $14.95

0228900760 RUBBER SEAL $22.95

0229200295 RUBBER SEAL

0229200775 RUBBER SEAL

0229200880 RUBBER SEAL $5.95

0229200950 RUBBER SEAL $9.95

0269200700 DRAIN HOSE $16.95

0305450412 MACHINE SCREW

031112230 WASHER, FLAT $0.95

0340406040 HEX. HEAD BOLT $2.68

0342612030 HEX. SOCKET HEAD CAP SCREW $2.82

0401450050 WASHER, FLAT

0401450080 WASHER, FLAT $0.56

0600500092 EMBLEM $21.95

0601806642 FUSE, 5A $2.77

0601806947 AC VOLTMETER, 0~600V

0601812626 PLUG $1.88

0601812711 PINS (MALE) $0.56

0601815194 TERMINAL BLOCK

0601822664 ZNR , SURGE ABSORBER $18.95

0601830710 DIAGNOSTIC SWITCH $29.95

0601831205 SWITCH, PUSHBUTTON $25.95

0601840100 KNOB $30.95

0601851733 GROMMET $15.95

0601851736 GROMMET $12.95

0601870490 END CAP KIT $26.95

0602021070 CAP $11.95

0602022568 ADAPTER 10M 22X1.5

0602220920 BATTERY, BOLT SET 1/4-L10" $5.95

0603300285 LOCKNUT $4.95

0603306395 HOSE JOINT $16.95

0603306797 SQUARE HEAD PIPE PLUG, 1-1/2" $12.95

0605010040 HINGE $4.95

0605050060 CONICAL WASHER, LOCK $5.95

0605515147 HOSE BAND $3.95

0605515149 HOSE BAND $1.95

0605515189 HOSE BAND $1.85

0605515198 HOSE BAND $1.71

0605516090 GASKET

0802011104 DRAIN BOLT $10.95

0802081403D RESERVE TANK

0845031504 BLIND PLUG $2.95

0845041904 GROMMET $11.95

13-1 Y0602015700

1502025103C DRAIN JOINT $29.95

1732612231 GASKET $6.95

1H72960203 ECU

1J42360231 STARTER RELAY

1J43043061 CARTRIDGE, WATER SEPARATOR

1J43043351 WATER SEPARATOR

1K81818131 DOC

70NS2016 RUBBER SEAL $2.95

9500202080 HOSE BAND $3.95

B3110100802 ROTOR ASSEMBLY

B3120100604 INSULATOR WASHER $1.95

B3120100704 INSULATOR WASHER $1.95

B3153400504 PACKING $25.95

B4163700004 BALANCING WEIGHT $3.99

CLAMP 2

EE56557 CORD, 3-CONDUCTOR, 14 AWG $1.95

LC125002 CHARGER BATTERY, 3 AMP 12V

M1213400014 CONTROL BOX COVER

From the guides desk

Guide · 2026-08-04

Ask ARIA about your machine.

Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.

Chat with ARIA

Multiquip DCA40SSKU4F Generator

The parts bench

The machine itself

Machine

Engine

Keep-it-running spares

Every part that fits this machine

Service notices & part changes

Take the factory book with you

Get the download pack

From the guides desk

Multiquip DCA Generator Fault Shutdown and Controller Reset Guide

Multiquip Generator No-Start and No-Power Fixes

Multiquip DCA Generator Fault Codes and Diagnostics Guide

Ask ARIA about your machine.

Your cart is empty

Your cart is empty
