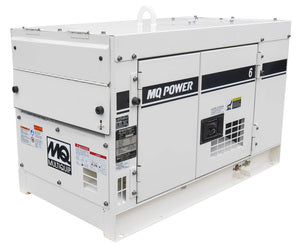

Multiquip DCA6SPX4F Generator
Factory parts book · interactive
Multiquip DCA6SPX4F Generator
The parts bench

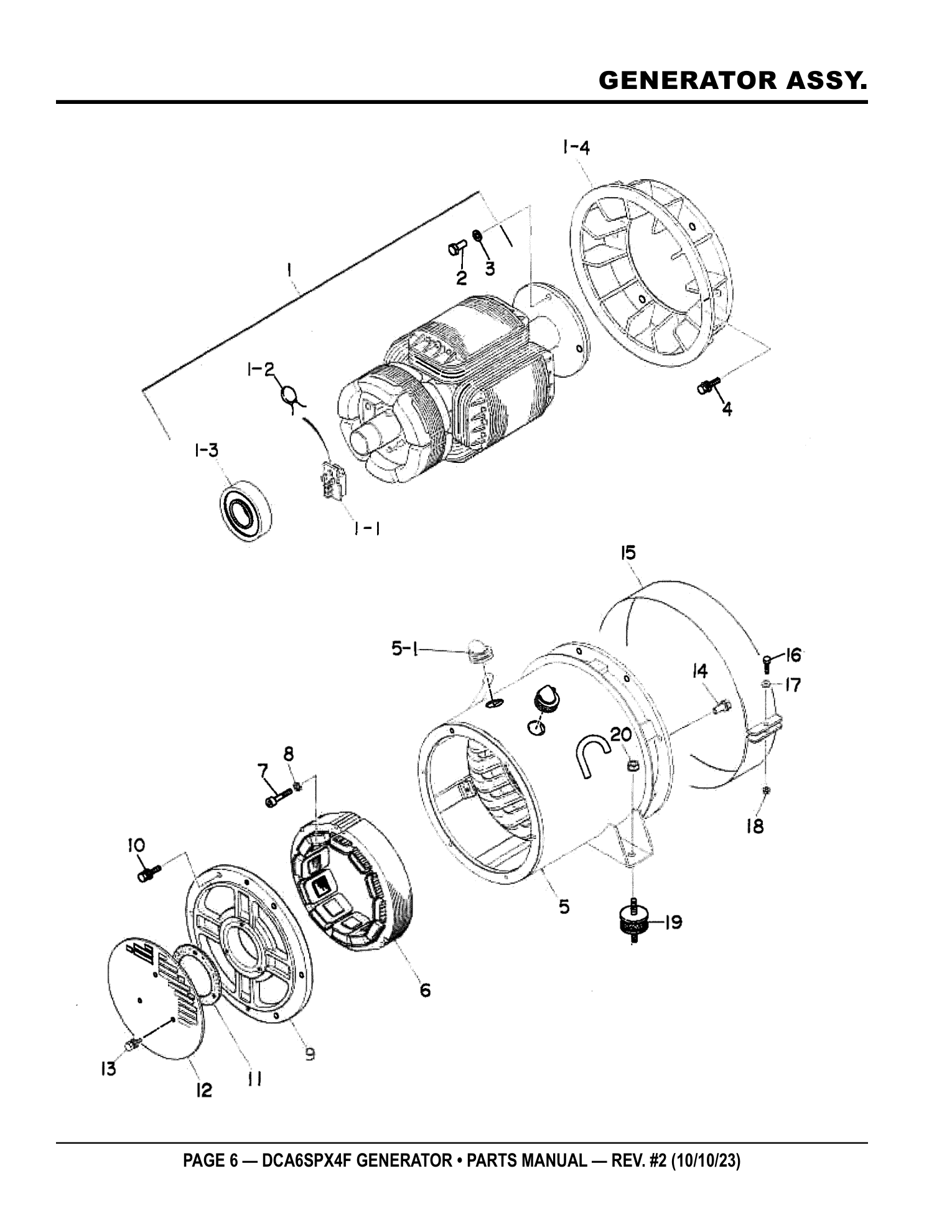

Need the PDF? ↓Page 6 — GENERATOR ASSY.
Parts list — exactly as printed28 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | A5110100703 | ROTOR ASSY | 1 | INCLUDES ITEMS W/# S/N 5919139 AND BELOW | ADD TO CART |
| 1 | A5110100713 | ROTOR ASSY | 1 | INCLUDES ITEMS W/$ S/N 5919140 AND ABOVE | ADD TO CART |
| 1-1# | 7961025004 | RECTIFIER | 1 | S/N 5919139 AND BELOW | ADD TO CART |
| 1-1$ | B1121000003 | RECTIFIER | 1 | S/N 5919140 AND ABOVE | PARTS REQUEST |
|
COMING RECTIFIER
B1121000003 · qty on machine: 1 S/N 5919140 AND ABOVE Also included in kit 1 - ROTOR ASSY (A5110100713) | |||||
| 1-2#$ | Y0601822630 | SURGE ABSORBER | 1 | S/N 5855504 AND BELOW | PARTS REQUEST |
|
COMING SURGE ABSORBER
Y0601822630 · qty on machine: 1 S/N 5855504 AND BELOW Also included in kit 1 - ROTOR ASSY (A5110100703); kit 1 - ROTOR ASSY (A5110100713) | |||||
| 1-2#$ | Y0601822696 | SURGE ABSORBER | 1 | S/N 5855505 AND ABOVE | ADD TO CART |
| 1-3#$ | Y0071906308 | BEARING | 1 | PARTS REQUEST | |
|
COMING BEARING
Y0071906308 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (A5110100703); kit 1 - ROTOR ASSY (A5110100713) | |||||
| 1-4#$ | W1711027003 | FAN | 1 | PARTS REQUEST | |
|
COMING FAN
W1711027003 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (A5110100703); kit 1 - ROTOR ASSY (A5110100713) | |||||
| 2#$ | Y0010710025 | HEX. HEAD BOLT | 4 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0010710025 · qty on machine: 4 Also included in kit 1 - ROTOR ASSY (A5110100703); kit 1 - ROTOR ASSY (A5110100713) | |||||
| 3#$ | Y0042510000 | LOCK WASHER | 4 | PARTS REQUEST | |
|
COMING LOCK WASHER
Y0042510000 · qty on machine: 4 Also included in kit 1 - ROTOR ASSY (A5110100703); kit 1 - ROTOR ASSY (A5110100713) | |||||
| 4 | Y0017108025 | HEX. HEAD BOLT | 6 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0017108025 · qty on machine: 6 | |||||
| 5 | A5135002303 | STATOR ASSY. | 1 | ADD TO CART | |
| 5-1 | W4091328504 | GROMMET | 2 | PARTS REQUEST | |
|
COMING GROMMET
W4091328504 · qty on machine: 2 | |||||
| 6 | A5138000203 | FIELD ASSY., EXCITER | 1 | ADD TO CART | |
| 7 | Y0016008045 | HEX. SOCKET HEAD CAP SCREW | 3 | ADD TO CART | |
| 8 | Y0042508000 | LOCK WASHER | 3 | ADD TO CART | |
| 9 | W8351315003 | END BRACKET | 1 | ADD TO CART | |
| 10 | Y0017108035 | HEX. HEAD BOLT | 6 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0017108035 · qty on machine: 6 | |||||
| 11 | W8351312004 | PACKING | 1 | ADD TO CART | |
| 12 | W8351331004 | COVER, SUCTION | 1 | ADD TO CART | |
| 13 | Y0017106016 | HEX, HEAD BOLT | 3 | PARTS REQUEST | |
|
COMING HEX, HEAD BOLT
Y0017106016 · qty on machine: 3 | |||||
| 14 | Y0012810025 | HEX. HEAD BOLT | 6 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0012810025 · qty on machine: 6 | |||||
| 15 | A5133300004 | COVER, FAN | 1 | PARTS REQUEST | |
|
COMING COVER, FAN
A5133300004 · qty on machine: 1 | |||||
| 16 | Y0010106030 | HEX. HEAD BOLT | 1 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0010106030 · qty on machine: 1 | |||||
| 17 | Y0041206000 | FLAT WASHER | 1 | PARTS REQUEST | |
|
COMING FLAT WASHER
Y0041206000 · qty on machine: 1 | |||||
| 18 | Y0207306000 | HEX. NUT | 1 | PARTS REQUEST | |
|
COMING HEX. NUT
Y0207306000 · qty on machine: 1 | |||||
| 19 | W7605419004 | RUBBER SUSPENSION | 2 | PARTS REQUEST | |
|
COMING RUBBER SUSPENSION
W7605419004 · qty on machine: 2 | |||||
| 20 | Y0207010000 | HEX. NUT | 2 | PARTS REQUEST | |
|
COMING HEX. NUT
Y0207010000 · qty on machine: 2 | |||||

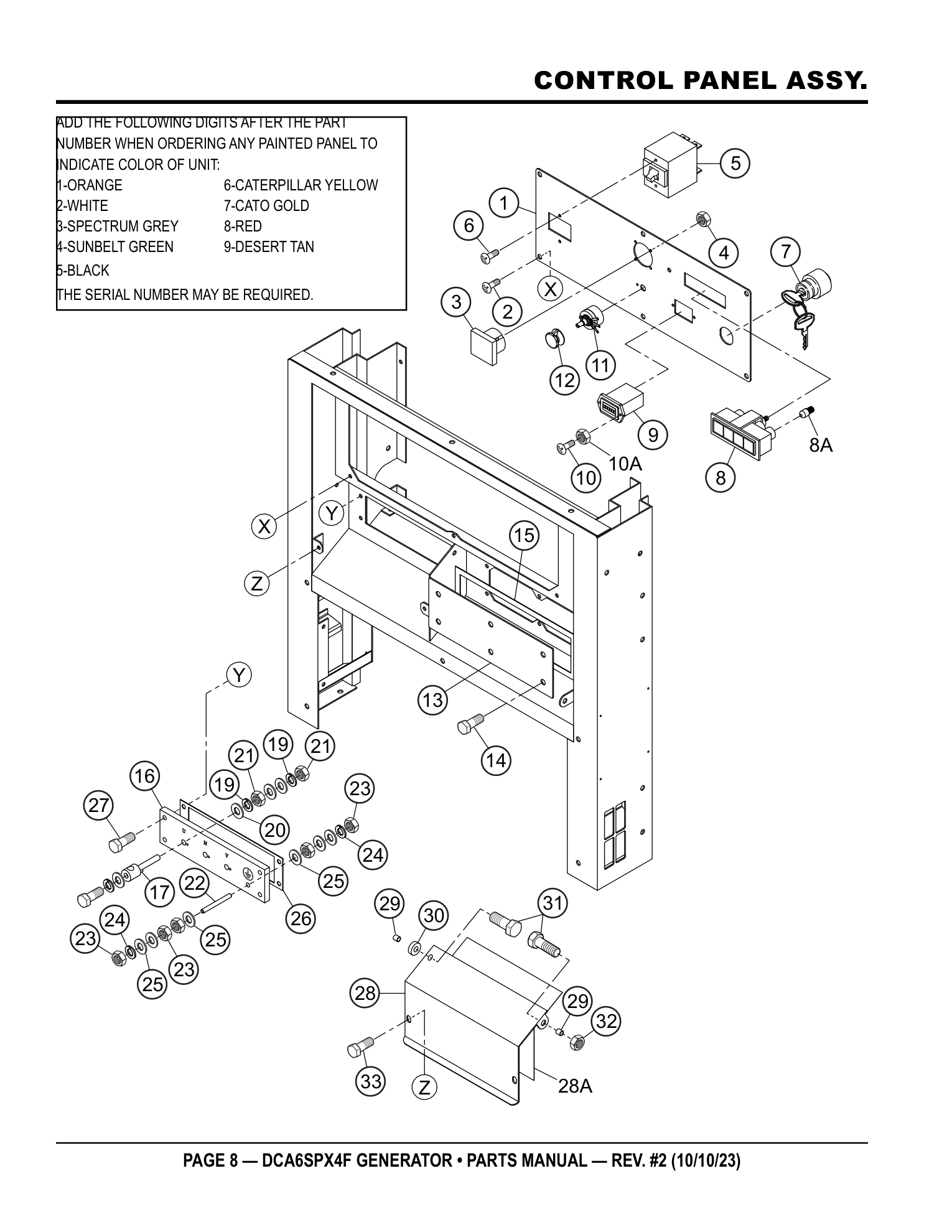

Page 8 — CONTROL PANEL ASSY.
Parts list — exactly as printed38 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | A5511307902 | CONTROL PANEL | 1 | ADD TO CART | |
| 2 | Y0021806015 | MACHINE SCREW | 6 | PARTS REQUEST | |
|
COMING MACHINE SCREW
Y0021806015 · qty on machine: 6 | |||||
| 3 | Y0601806819 | AC VOLTMETER | 1 | PARTS REQUEST | |
|
COMING AC VOLTMETER
Y0601806819 · qty on machine: 1 | |||||
| 4 | Y0207003000 | HEX. NUT | 2 | PARTS REQUEST | |
|
COMING HEX. NUT
Y0207003000 · qty on machine: 2 | |||||
| 5 | Y0601807465 | CIRCUIT BREAKER | 1 | PARTS REQUEST | |
|
COMING CIRCUIT BREAKER
Y0601807465 · qty on machine: 1 | |||||
| 6 | Y0021004016 | MACHINE SCREW | 2 | PARTS REQUEST | |
|
COMING MACHINE SCREW
Y0021004016 · qty on machine: 2 | |||||
| 7 | Y0602100025 | STARTER SWITCH | 1 | INCLUDES ITEMS W/# | PARTS REQUEST |
|
COMING STARTER SWITCH
Y0602100025 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 7A# | |||||
| 7A# | Y0602100221 | KEY | 2 | PARTS REQUEST | |
|
COMING KEY
Y0602100221 · qty on machine: 2 Also included in kit 7 - STARTER SWITCH (Y0602100025) | |||||
| 8 | Y0601810523 | WARNING LAMP UNIT | 1 | INCLUDES ITEMS W/$ | PARTS REQUEST |
|
COMING WARNING LAMP UNIT
Y0601810523 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 8A$ | |||||
| 8A$ | Y0601810830 | BULB | 4 | PARTS REQUEST | |
|
COMING BULB
Y0601810830 · qty on machine: 4 Also included in kit 8 - WARNING LAMP UNIT (Y0601810523) | |||||
| 9 | Y0601800682 | HOUR METER | 1 | S/N 5890024 AND BELOW | PARTS REQUEST |
|
COMING HOUR METER
Y0601800682 · qty on machine: 1 S/N 5890024 AND BELOW | |||||
| 9 | Y0601800671 | HOUR METER | 1 | S/N 5890025 AND ABOVE | PARTS REQUEST |
|
COMING HOUR METER
Y0601800671 · qty on machine: 1 S/N 5890025 AND ABOVE | |||||
| 10 | Y0027403512 | MACHINE SCREW | 2 | PARTS REQUEST | |
|
COMING MACHINE SCREW
Y0027403512 · qty on machine: 2 | |||||
| 10A | Y0030003500 | HEX. NUT | 2 | PARTS REQUEST | |
|
COMING HEX. NUT
Y0030003500 · qty on machine: 2 | |||||
| 11 | Y0601840073 | RHEOSTAT (VOLTAGE REGULATOR) | 1 | PARTS REQUEST | |
|
COMING RHEOSTAT (VOLTAGE REGULATOR)
Y0601840073 · qty on machine: 1 | |||||
| 12 | Y0601840121 | KNOB | 1 | PARTS REQUEST | |
|
COMING KNOB
Y0601840121 · qty on machine: 1 | |||||
| 13 | A5224200604 | COVER | 1 | ADD TO CART | |
| 14 | Y0016906015 | HEX. HEAD BOLT | 6 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0016906015 · qty on machine: 6 | |||||
| 15 | A5234500404 | RUBBER SEAL | 1 | ADD TO CART | |
| 16 | A5231700003 | SET BOARD, OUTPUT TERMINAL | 1 | PARTS REQUEST | |
|
COMING SET BOARD, OUTPUT TERMINAL
A5231700003 · qty on machine: 1 | |||||
| 17 | W0840312704 | OUTPUT TERMINAL | 3 | PARTS REQUEST | |
|
COMING OUTPUT TERMINAL
W0840312704 · qty on machine: 3 | |||||
| 18 | W0801830604 | HEX. HEAD BOLT | 3 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
W0801830604 · qty on machine: 3 | |||||
| 19 | Y0040008000 | LOCK WASHER | 9 | PARTS REQUEST | |
|
COMING LOCK WASHER
Y0040008000 · qty on machine: 9 | |||||
| 20 | Y0041408000 | FLAT WASHER | 12 | PARTS REQUEST | |
|
COMING FLAT WASHER
Y0041408000 · qty on machine: 12 | |||||
| 21 | Y0039308000 | HEX NUT | 6 | PARTS REQUEST | |
|
COMING HEX NUT
Y0039308000 · qty on machine: 6 | |||||
| 22 | W0801832304 | TERMINAL SCREW | 1 | PARTS REQUEST | |
|
COMING TERMINAL SCREW
W0801832304 · qty on machine: 1 | |||||
| 23 | Y0039306000 | HEX. NUT | 5 | PARTS REQUEST | |
|
COMING HEX. NUT
Y0039306000 · qty on machine: 5 | |||||
| 24 | Y0040006000 | LOCK WASHER | 2 | PARTS REQUEST | |
|
COMING LOCK WASHER
Y0040006000 · qty on machine: 2 | |||||
| 25 | Y0041406000 | FLAT WASHER | 6 | PARTS REQUEST | |
|
COMING FLAT WASHER
Y0041406000 · qty on machine: 6 | |||||
| 26 | A5234500304 | RUBBER SEAL | 1 | PARTS REQUEST | |
|
COMING RUBBER SEAL
A5234500304 · qty on machine: 1 | |||||
| 27 | Y0016906025 | HEX. HEAD BOLT | 4 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0016906025 · qty on machine: 4 | |||||
| 28 | A5237100804 | COVER, OUTPUT TERMINAL | 1 | PARTS REQUEST | |
|
COMING COVER, OUTPUT TERMINAL
A5237100804 · qty on machine: 1 | |||||
| 28A | A5237400204 | RUBBER SHEET | 1 | PARTS REQUEST | |
|
COMING RUBBER SHEET
A5237400204 · qty on machine: 1 | |||||
| 29 | W0805088304 | COLLAR | 2 | PARTS REQUEST | |
|
COMING COLLAR
W0805088304 · qty on machine: 2 | |||||
| 30 | W0805088004 | STAY RUBBER | 1 | ADD TO CART | |
| 31 | Y0016906020 | HEX. HEAD BBOLT | 2 | ADD TO CART | |
| 32 | Y0207006000 | HEX. NUT | 1 | ADD TO CART | |
| 33 | Y0016906015 | HEX. HEAD BOLT | 2 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0016906015 · qty on machine: 2 | |||||

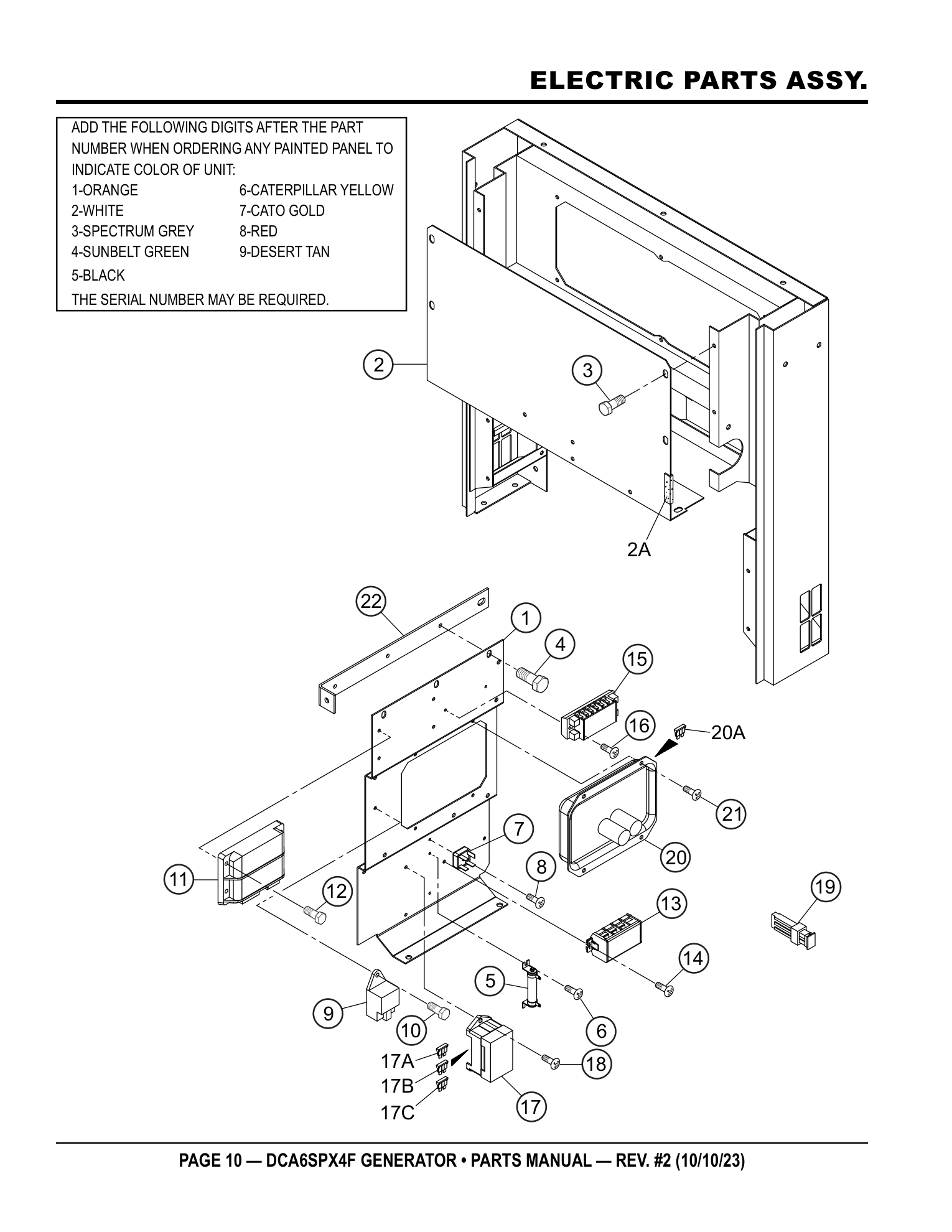

Page 10 — ELECTRIC PARTS ASSY.
Parts list — exactly as printed27 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | A5261501703 | BRACKET ELECTRIC PARTS | 1 | PARTS REQUEST | |
|
COMING BRACKET ELECTRIC PARTS
A5261501703 · qty on machine: 1 | |||||
| 2 | A5214400004 | COVER | 1 | PARTS REQUEST | |
|
COMING COVER
A5214400004 · qty on machine: 1 | |||||
| 2A | Y0226900050 | RUBBER SEAL | 1 | PARTS REQUEST | |
|
COMING RUBBER SEAL
Y0226900050 · qty on machine: 1 | |||||
| 3 | Y0016906016 | HEX. HEAD BOLT | 6 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0016906016 · qty on machine: 6 | |||||
| 4 | Y0016906016 | HEX. HEAD BOLT | 3 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0016906016 · qty on machine: 3 | |||||
| 5 | Y0601842267 | RESISTOR | 1 | PARTS REQUEST | |
|
COMING RESISTOR
Y0601842267 · qty on machine: 1 | |||||
| 6 | Y0027104012 | MACHINE SCREW | 2 | PARTS REQUEST | |
|
COMING MACHINE SCREW
Y0027104012 · qty on machine: 2 | |||||
| 7 | Y0601820038 | RECTIFIER | 1 | PARTS REQUEST | |
|
COMING RECTIFIER
Y0601820038 · qty on machine: 1 | |||||
| 8 | Y0027104020 | MACHINE SCREW | 2 | PARTS REQUEST | |
|
COMING MACHINE SCREW
Y0027104020 · qty on machine: 2 | |||||
| 9 | Y0602201273 | LAMP TIMER | 1 | PARTS REQUEST | |
|
COMING LAMP TIMER
Y0602201273 · qty on machine: 1 | |||||
| 10 | Y0017105016 | HEX. HEAD BOLT | 1 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0017105016 · qty on machine: 1 | |||||
| 11 | Y0602200475 | EMERGENCY UNIT | 1 | ADD TO CART | |
| 12 | Y0017105025 | HEX. HEAD BOLT | 4 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0017105025 · qty on machine: 4 | |||||
| 13 | Y0601816126 | TERMINAL BOARD | 1 | PARTS REQUEST | |
|
COMING TERMINAL BOARD
Y0601816126 · qty on machine: 1 | |||||
| 14 | Y0027105020 | MACHINE SCREW | 2 | PARTS REQUEST | |
|
COMING MACHINE SCREW
Y0027105020 · qty on machine: 2 | |||||
| 15 | Y0601815759 | TERMINAL BOARD | 1 | PARTS REQUEST | |
|
COMING TERMINAL BOARD
Y0601815759 · qty on machine: 1 | |||||
| 16 | Y0027104020 | MACHINE SCREW | 2 | PARTS REQUEST | |
|
COMING MACHINE SCREW
Y0027104020 · qty on machine: 2 | |||||
| 17 | A5352500304 | FUSE BOX | 1 | INCLUDES ITEMS W/# | PARTS REQUEST |
|
COMING FUSE BOX
A5352500304 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 17A#, 17B#, 17C# | |||||
| 17A# | Y0601806642 | FUSE, 5A | 4 | PARTS REQUEST | |
|
COMING FUSE, 5A
Y0601806642 · qty on machine: 4 Also included in kit 17 - FUSE BOX (A5352500304) | |||||
| 17B# | Y0601806643 | FUSE, 15A | 2 | PARTS REQUEST | |
|
COMING FUSE, 15A
Y0601806643 · qty on machine: 2 Also included in kit 17 - FUSE BOX (A5352500304) | |||||
| 17C# | Y0601806644 | FUSE, 30A | 2 | PARTS REQUEST | |
|
COMING FUSE, 30A
Y0601806644 · qty on machine: 2 Also included in kit 17 - FUSE BOX (A5352500304) | |||||
| 18 | Y0027105020 | MACHINE SCREW | 2 | PARTS REQUEST | |
|
COMING MACHINE SCREW
Y0027105020 · qty on machine: 2 | |||||
| 19 | Y0601806640 | FUSE, 65A | 1 | ADD TO CART | |
| 20 | Y0601820663 | AUTOMATIC VOLTAGE REGULATOR | 1 | INCLUDES ITEMS W/$ | PARTS REQUEST |
|
COMING AUTOMATIC VOLTAGE REGULATOR
Y0601820663 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 20A$ | |||||
| 20A$ | Y0601872529 | FUSE, 5A | 1 | PARTS REQUEST | |
|
COMING FUSE, 5A
Y0601872529 · qty on machine: 1 Also included in kit 20 - AUTOMATIC VOLTAGE REGULATO (Y0601820663) | |||||
| 21 | Y0027105015 | MACHINE SCREW | 4 | PARTS REQUEST | |
|
COMING MACHINE SCREW
Y0027105015 · qty on machine: 4 | |||||
| 22 | A5261501804 | STAY | 1 | PARTS REQUEST | |
|
COMING STAY
A5261501804 · qty on machine: 1 | |||||

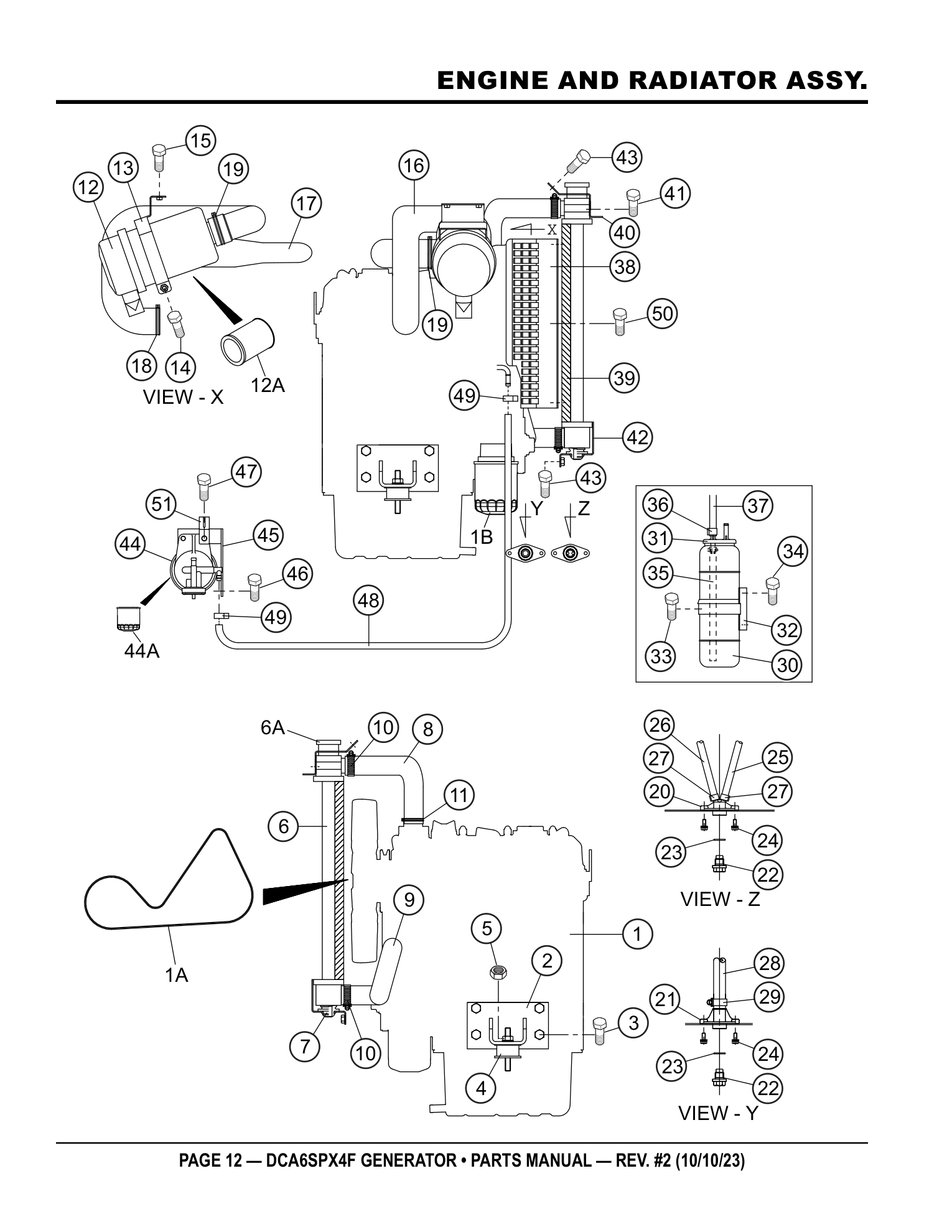

Page 12 — ENGINE AND RADIATOR ASSY.
Parts list — exactly as printed47 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | A5924200234 | ENGINE, KUBOTA D1105-E4B | 1 | INCLUDES ITEMS W/# | PARTS REQUEST |
|
COMING ENGINE, KUBOTA D1105-E4B
A5924200234 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 1A#, 1B# | |||||
| 1A# | Y0602015283 | FAN BELT | 1 | PARTS REQUEST | |
|
COMING FAN BELT
Y0602015283 · qty on machine: 1 Also included in kit 1 - ENGINE, KUBOTA D1105-E4B (A5924200234) | |||||
| 1B# | Y0602041174 | CARTRIDGE, OIL FILTER | 1 | PARTS REQUEST | |
|
COMING CARTRIDGE, OIL FILTER
Y0602041174 · qty on machine: 1 Also included in kit 1 - ENGINE, KUBOTA D1105-E4B (A5924200234) | |||||
| 2 | A5304200004 | ENGINE FOOT | 2 | PARTS REQUEST | |
|
COMING ENGINE FOOT
A5304200004 · qty on machine: 2 | |||||
| 3 | Y0341110025 | HEX. HEAD BOLT | 8 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0341110025 · qty on machine: 8 | |||||
| 4 | W0805083204 | RUBBER SUSPENSION | 2 | PARTS REQUEST | |
|
COMING RUBBER SUSPENSION
W0805083204 · qty on machine: 2 | |||||
| 5 | Y0207010000 | HEX. NUT | 2 | PARTS REQUEST | |
|
COMING HEX. NUT
Y0207010000 · qty on machine: 2 | |||||
| 6 | Y0602012784 | RADIATOR | 1 | INCLUDES ITEMS W/$ | ADD TO CART |
 RADIATOR
Y0602012784 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 6A$ view full part page → $517.95 IN A KIT + SOLD SOLO | |||||
| 6A$ | Y0602011079 | CAP, RADIATOR | 1 | ADD TO CART | |
| 7 | B1312600004 | RUBBER MOUNT | 2 | ADD TO CART | |
| 8 | A5311500013 | UPPER RADIATOR HOSE | 1 | PARTS REQUEST | |
|
COMING UPPER RADIATOR HOSE
A5311500013 · qty on machine: 1 | |||||
| 9 | A5311500103 | LOWER RADIATOR HOSE | 1 | PARTS REQUEST | |
|
COMING LOWER RADIATOR HOSE
A5311500103 · qty on machine: 1 | |||||
| 10 | Y0605515134 | HOSE BAND | 2 | PARTS REQUEST | |
|
COMING HOSE BAND
Y0605515134 · qty on machine: 2 | |||||
| 11 | Y0605515030 | HOSE BAND | 2 | PARTS REQUEST | |
|
COMING HOSE BAND
Y0605515030 · qty on machine: 2 | |||||
| 12 | Y0602046204 | AIR CLEANER | 1 | INCLUDES ITEMS W/% | ADD TO CART |
 AIR CLEANER
Y0602046204 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 12A% view full part page → $132.95 IN A KIT + SOLD SOLO | |||||
| 12A% | Y0602046337 | ELEMENT, AIR CLEANER | 1 | ADD TO CART | |
| 13 | A5374200003 | BAND, AIR CLEANER | 1 | PARTS REQUEST | |
|
COMING BAND, AIR CLEANER
A5374200003 · qty on machine: 1 | |||||
| 14 | Y0017108030 | HEX. HEAD BOLT | 1 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0017108030 · qty on machine: 1 | |||||
| 15 | Y0016906015 | HEX. HEAD BOLT | 2 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0016906015 · qty on machine: 2 | |||||
| 16 | W7552032003 | HOSE, AIR CLEANER | 1 | PARTS REQUEST | |
|
COMING HOSE, AIR CLEANER
W7552032003 · qty on machine: 1 | |||||
| 17 | W7812036404 | HOSE, AIR CLEANER | 1 | PARTS REQUEST | |
|
COMING HOSE, AIR CLEANER
W7812036404 · qty on machine: 1 | |||||
| 18 | Y0605515298 | HOSE BAND | 1 | PARTS REQUEST | |
|
COMING HOSE BAND
Y0605515298 · qty on machine: 1 | |||||
| 19 | Y0605515021 | HOSE BAND | 2 | PARTS REQUEST | |
|
COMING HOSE BAND
Y0605515021 · qty on machine: 2 | |||||
| 20 | W1622014103 | DRAIN JOINT, WATER | 1 | PARTS REQUEST | |
|
COMING DRAIN JOINT, WATER
W1622014103 · qty on machine: 1 | |||||
| 21 | W1502025103 | DRAIN JOINT, OIL | 1 | PARTS REQUEST | |
|
COMING DRAIN JOINT, OIL
W1502025103 · qty on machine: 1 | |||||
| 22 | W0802011104 | PLUG | 2 | PARTS REQUEST | |
|
COMING PLUG
W0802011104 · qty on machine: 2 | |||||
| 23 | Y0150000018 | O-RING | 2 | PARTS REQUEST | |
|
COMING O-RING
Y0150000018 · qty on machine: 2 | |||||
| 24 | Y0016906015 | HEX. HEAD BOLT | 4 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0016906015 · qty on machine: 4 | |||||
| 25 | Y0199900800 | DRAIN HOSE | 1 | PARTS REQUEST | |
|
COMING DRAIN HOSE
Y0199900800 · qty on machine: 1 | |||||
| 26 | Y0199900420 | DRAIN HOSE | 1 | PARTS REQUEST | |
|
COMING DRAIN HOSE
Y0199900420 · qty on machine: 1 | |||||
| 27 | Y0605515094 | HOSE BAND | 4 | PARTS REQUEST | |
|
COMING HOSE BAND
Y0605515094 · qty on machine: 4 | |||||
| 28 | Y0192200400 | DRAIN HOSE | 1 | PARTS REQUEST | |
|
COMING DRAIN HOSE
Y0192200400 · qty on machine: 1 | |||||
| 29 | Y0605515064 | HOSE BAND | 2 | PARTS REQUEST | |
|
COMING HOSE BAND
Y0605515064 · qty on machine: 2 | |||||
| 30 | W0802081403 | RESERVE TANK | 1 | PARTS REQUEST | |
|
COMING RESERVE TANK
W0802081403 · qty on machine: 1 | |||||
| 31 | W0802081104 | CAP, RESERVE TANK | 1 | PARTS REQUEST | |
|
COMING CAP, RESERVE TANK
W0802081104 · qty on machine: 1 | |||||
| 32 | W8702082004 | BRACKET, RESERVE TANK | 1 | PARTS REQUEST | |
|
COMING BRACKET, RESERVE TANK
W8702082004 · qty on machine: 1 | |||||
| 33 | Y0017106020 | HEX. HEAD BOLT | 1 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0017106020 · qty on machine: 1 | |||||
| 34 | Y0017106015 | HEX. HEAD BOLT | 2 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0017106015 · qty on machine: 2 | |||||
| 35 | Y0199100215 | HOSE | 1 | PARTS REQUEST | |
|
COMING HOSE
Y0199100215 · qty on machine: 1 | |||||
| 36 | Y0605515094 | HOSE BAND | 2 | PARTS REQUEST | |
|
COMING HOSE BAND
Y0605515094 · qty on machine: 2 | |||||
| 37 | Y0199900600 | HOSE | 1 | PARTS REQUEST | |
|
COMING HOSE
Y0199900600 · qty on machine: 1 | |||||
| 38 | A5311200003 | FAN GUARD | 1 | PARTS REQUEST | |
|
COMING FAN GUARD
A5311200003 · qty on machine: 1 | |||||
| 39 | Y0220300375 | RUBBER SEAL | 2 | PARTS REQUEST | |
|
COMING RUBBER SEAL
Y0220300375 · qty on machine: 2 | |||||
| 40 | A5311100004 | BRACKET, RADIATOR | 1 | PARTS REQUEST | |
|
COMING BRACKET, RADIATOR
A5311100004 · qty on machine: 1 | |||||
| 41 | Y0016906010 | HEX. HEAD BOLT | 2 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0016906010 · qty on machine: 2 | |||||
| 42 | B0312100304 | BRACKET, RADIATOR | 1 | PARTS REQUEST | |
|
COMING BRACKET, RADIATOR
B0312100304 · qty on machine: 1 | |||||
| 43 | Y0016908020 | HEX. HEAD BOLT | 5 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0016908020 · qty on machine: 5 | |||||

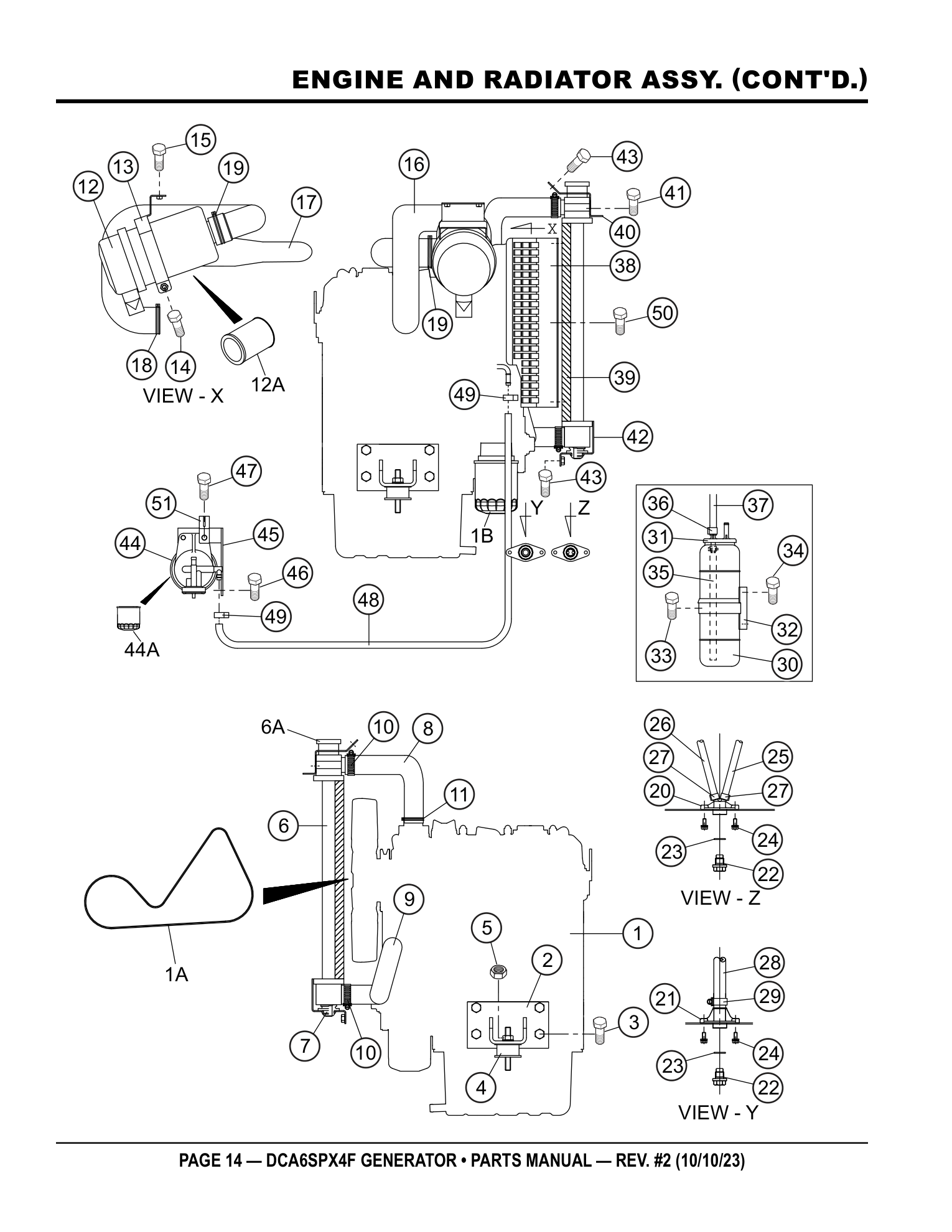

Page 14 — ENGINE AND RADIATOR ASSY. (CONT'D.)
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 44 | Y0602042453 | FUEL FILTER | 1 | INCLUDES ITEMS W/@ | PARTS REQUEST |
|
COMING FUEL FILTER
Y0602042453 · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 44A@ | |||||
| 44A@ | Y0602042557 | ELEMENT, FUEL FILTER | 1 | ADD TO CART | |
| 45 | W7555527004 | BRACKET, FUEL FILTER | 1 | PARTS REQUEST | |
|
COMING BRACKET, FUEL FILTER
W7555527004 · qty on machine: 1 | |||||
| 46 | Y0017108020 | HEX. HEAD BOLT | 2 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0017108020 · qty on machine: 2 | |||||
| 47 | Y0017108025 | HEX. HEAD BOLT | 2 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0017108025 · qty on machine: 2 | |||||
| 48 | Y0370600800 | HOSE | 1 | PARTS REQUEST | |
|
COMING HOSE
Y0370600800 · qty on machine: 1 | |||||
| 49 | Y0605515200 | HOSE BAND | 1 | PARTS REQUEST | |
|
COMING HOSE BAND
Y0605515200 · qty on machine: 1 | |||||
| 50 | Y0017106015 | HEX. HEAD BOLT | 3 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0017106015 · qty on machine: 3 | |||||
| 51 | Y0602220910 | CLAMPER | 1 | ADD TO CART | |

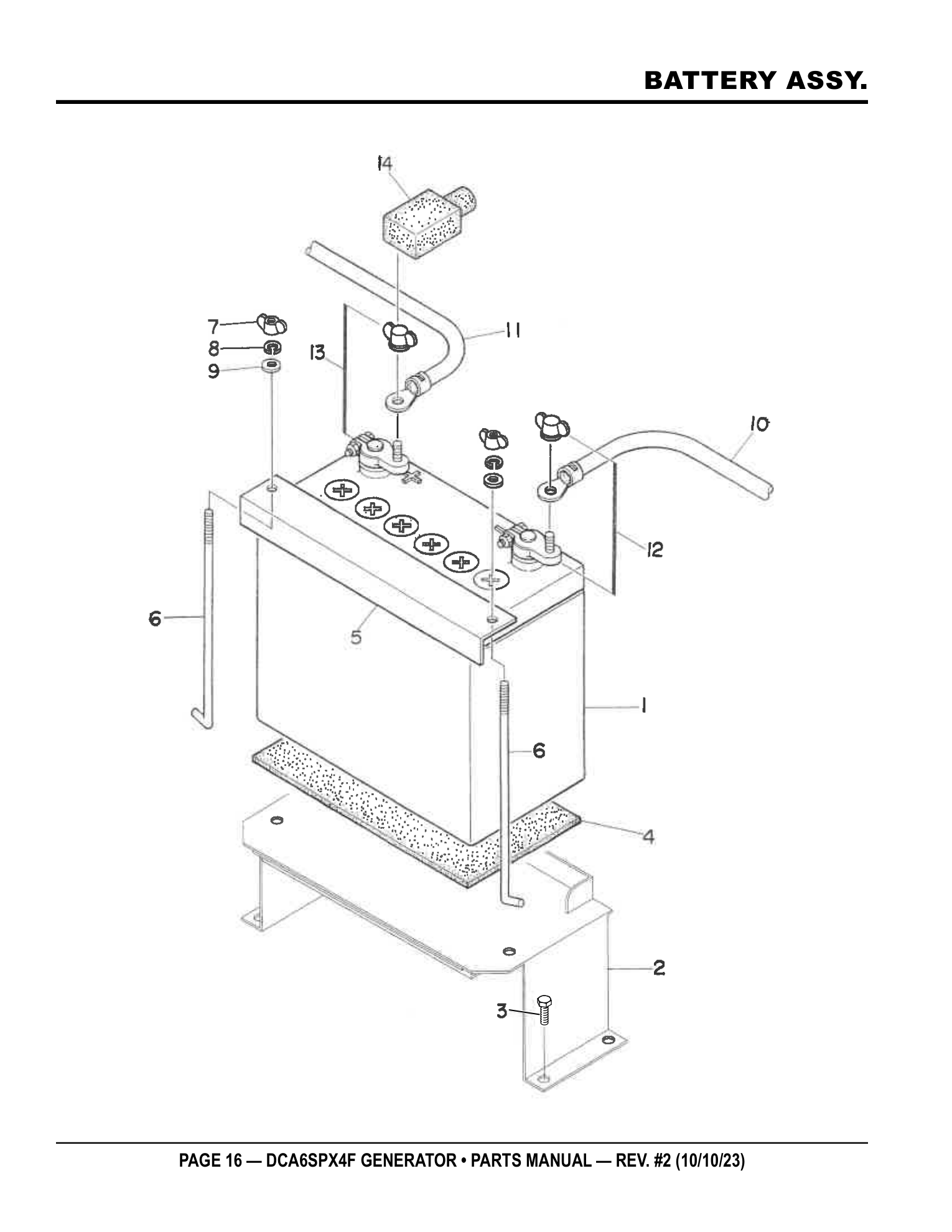

Page 16 — BATTERY ASSY.
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | Y0166105524 | BATTERY | 1 | PARTS REQUEST | |
|
COMING BATTERY
Y0166105524 · qty on machine: 1 | |||||
| 2 | A5414700003 | BRACKET | 1 | PARTS REQUEST | |
|
COMING BRACKET
A5414700003 · qty on machine: 1 | |||||
| 3 | Y0017106015 | HEX. HEAD BOLT | 4 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0017106015 · qty on machine: 4 | |||||
| 4 | W8722251004 | BATTERY SHEET | 1 | PARTS REQUEST | |
|
COMING BATTERY SHEET
W8722251004 · qty on machine: 1 | |||||
| 5 | W7552253004 | BATTERY BAND | 1 | PARTS REQUEST | |
|
COMING BATTERY BAND
W7552253004 · qty on machine: 1 | |||||
| 6 | W7872251004 | BATTERY BOLT | 2 | PARTS REQUEST | |
|
COMING BATTERY BOLT
W7872251004 · qty on machine: 2 | |||||
| 7 | Y0037806000 | WING NUT | 2 | PARTS REQUEST | |
|
COMING WING NUT
Y0037806000 · qty on machine: 2 | |||||
| 8 | Y0040006000 | LOCK WASHER | 2 | PARTS REQUEST | |
|
COMING LOCK WASHER
Y0040006000 · qty on machine: 2 | |||||
| 9 | Y0041206000 | FLAT WASHER | 2 | PARTS REQUEST | |
|
COMING FLAT WASHER
Y0041206000 · qty on machine: 2 | |||||
| 10 | BATTERY CABLE, - | 1 | SEE REMARKS | ||
|
COMING BATTERY CABLE, -
· qty on machine: 1 SEE REMARKS
| |||||
| 11 | BATTERY CABLE, + | 1 | SEE REMARKS | ||
|
COMING BATTERY CABLE, +
· qty on machine: 1 SEE REMARKS
| |||||
| 12 | Y0602220313 | TERMINAL ASSY. | 1 | PARTS REQUEST | |
|
COMING TERMINAL ASSY.
Y0602220313 · qty on machine: 1 | |||||
| 13 | Y0602220312 | TERMINAL ASSY. | 1 | PARTS REQUEST | |
|
COMING TERMINAL ASSY.
Y0602220312 · qty on machine: 1 | |||||
| 14 | Y0602220600 | TERMINAL CAP | 1 | PARTS REQUEST | |
|
COMING TERMINAL CAP
Y0602220600 · qty on machine: 1 | |||||

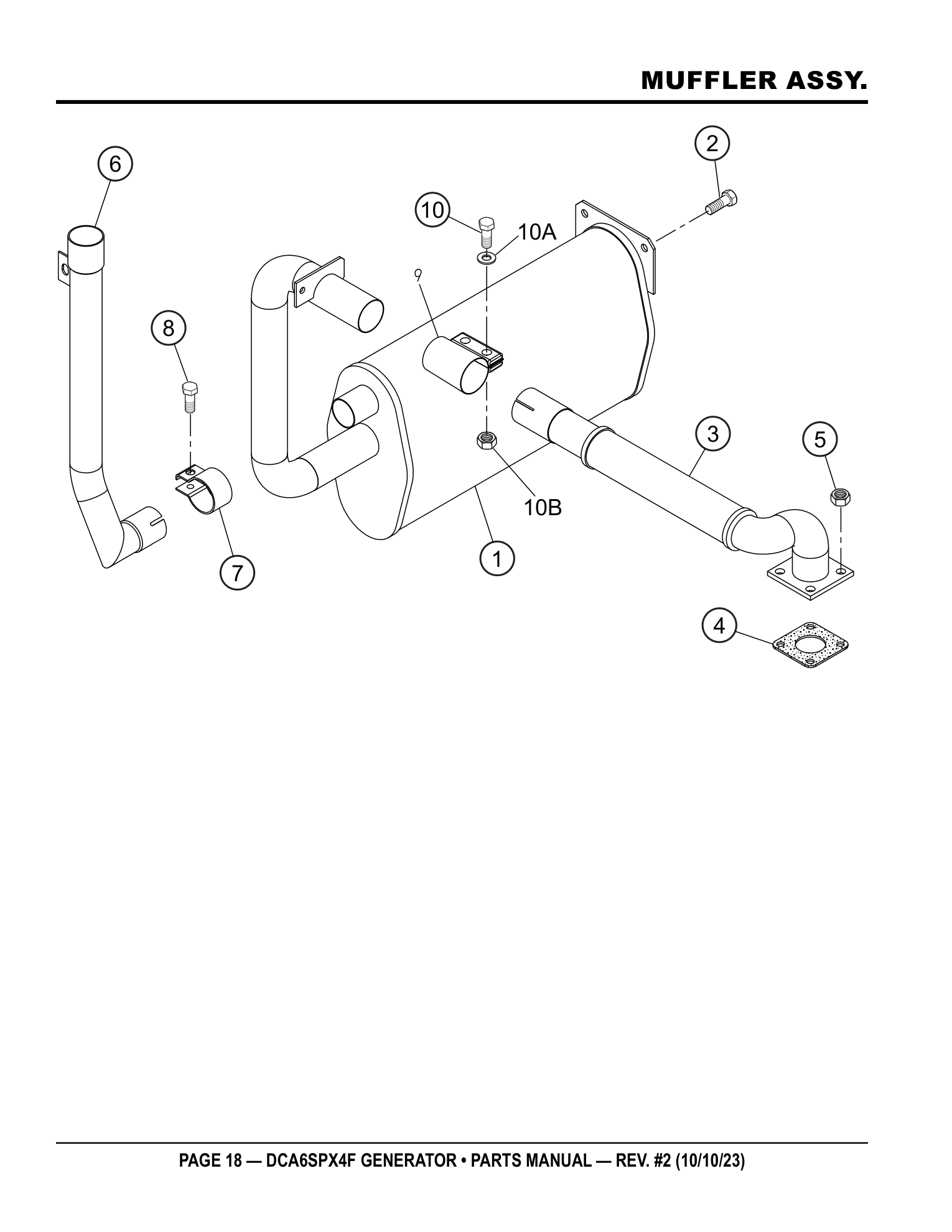

Page 18 — MUFFLER ASSY.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | A5331101003 | MUFFLER | 1 | PARTS REQUEST | |
|
COMING MUFFLER
A5331101003 · qty on machine: 1 | |||||
| 2 | Y0016908020 | HEX. HEAD BOLT | 3 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0016908020 · qty on machine: 3 | |||||
| 3 | A5334000003 | EXHAUST PIPE | 1 | ADD TO CART | |
| 4 | Y0602320153 | GASKET | 1 | PARTS REQUEST | |
|
COMING GASKET
Y0602320153 · qty on machine: 1 | |||||
| 5 | Y0207208000 | HEX. NUT | 4 | PARTS REQUEST | |
|
COMING HEX. NUT
Y0207208000 · qty on machine: 4 | |||||
| 6 | A5334101304 | TAIL PIPE | 1 | ADD TO CART | |
| 7 | D9101200004 | PIPE BAND | 1 | PARTS REQUEST | |
|
COMING PIPE BAND
D9101200004 · qty on machine: 1 | |||||
| 8 | Y0012308035 | HEX. HEAD BOLT | 1 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0012308035 · qty on machine: 1 | |||||
| 9 | Y0602325094 | PIPE BAND | 1 | PARTS REQUEST | |
|
COMING PIPE BAND
Y0602325094 · qty on machine: 1 | |||||
| 10 | Y0341510040 | HEX. HEAD BOLT | 2 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0341510040 · qty on machine: 2 | |||||
| 10A | Y0042410000 | PLAIN WASHER | 2 | PARTS REQUEST | |
|
COMING PLAIN WASHER
Y0042410000 · qty on machine: 2 | |||||
| 10B | Y0207110000 | NUT | 2 | PARTS REQUEST | |
|
COMING NUT
Y0207110000 · qty on machine: 2 | |||||

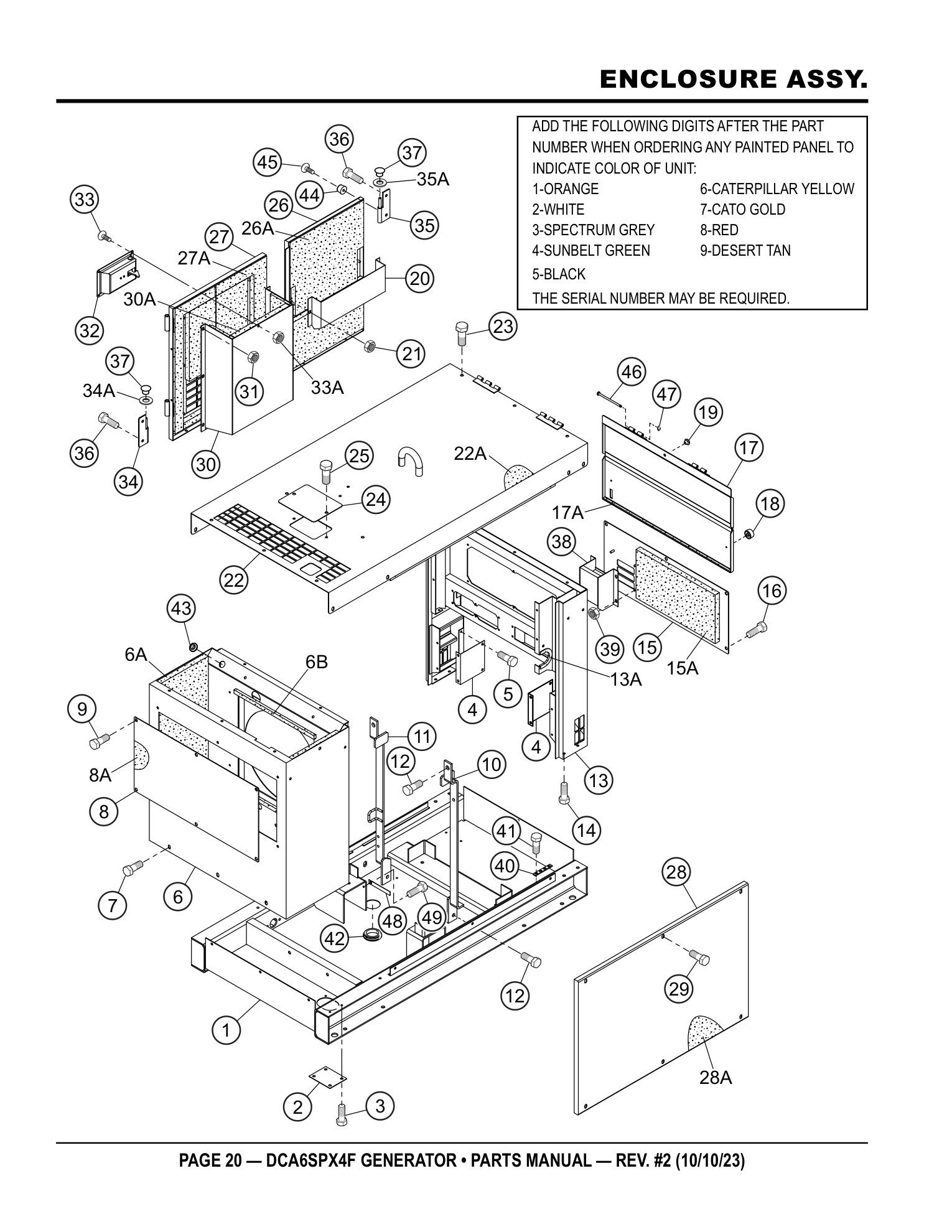

Page 20 — ENCLOSURE ASSY.
Parts list — exactly as printed46 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | A5414001602 | BASE | 1 | PARTS REQUEST | |
|
COMING BASE
A5414001602 · qty on machine: 1 | |||||
| 2 | A5414801404 | COVER | 1 | PARTS REQUEST | |
|
COMING COVER
A5414801404 · qty on machine: 1 | |||||
| 3 | Y0016906015 | HEX. HEAD BOLT | 4 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0016906015 · qty on machine: 4 | |||||
| 4 | A5444800104 | COVER, REAR DUCT | 2 | PARTS REQUEST | |
|
COMING COVER, REAR DUCT
A5444800104 · qty on machine: 2 | |||||
| 5 | Y0017106015 | HEX. HEAD BOLT | 8 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0017106015 · qty on machine: 8 | |||||
| 6 | A5424001202 | FRONT FRAME | 1 | ADD TO CART | |
| 6A | A5494100804 | LINING | 1 | PARTS REQUEST | |
|
COMING LINING
A5494100804 · qty on machine: 1 | |||||
| 6B | Y0315900380 | RUBBER SEAL | 2 | PARTS REQUEST | |
|
COMING RUBBER SEAL
Y0315900380 · qty on machine: 2 | |||||
| 7 | Y0016908020 | HEX. HEAD BOLT | 5 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0016908020 · qty on machine: 5 | |||||
| 8 | W8435125004 | COVER, FRONT FRAME | 1 | ADD TO CART | |
| 8A | B0495100804 | LINING | 1 | ADD TO CART | |
| 9 | Y0016908020 | HEX. HEAD BOLT | 6 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0016908020 · qty on machine: 6 | |||||
| 10 | A5434300904 | HANGER | 1 | PARTS REQUEST | |
|
COMING HANGER
A5434300904 · qty on machine: 1 | |||||
| 11 | A5434300804 | HANGER | 1 | ADD TO CART | |
| 12 | Y0012312030 | HEX. HEAD BOLT | 4 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0012312030 · qty on machine: 4 | |||||
| 13 | A5444002802 | REAR FRAME | 1 | ADD TO CART | |
| 13A | Y0226900130 | RUBBER SEAL | 1 | PARTS REQUEST | |
|
COMING RUBBER SEAL
Y0226900130 · qty on machine: 1 | |||||
| 14 | Y0016908020 | HEX. HEAD BOLT | 4 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0016908020 · qty on machine: 4 | |||||
| 15 | A5444300504 | COVER, REAR FRAME | 1 | PARTS REQUEST | |
|
COMING COVER, REAR FRAME
A5444300504 · qty on machine: 1 | |||||
| 15A | A5494300904 | LINING | 1 | PARTS REQUEST | |
|
COMING LINING
A5494300904 · qty on machine: 1 | |||||
| 16 | Y0016908020 | HEAX. HEAD BOLT | 6 | PARTS REQUEST | |
|
COMING HEAX. HEAD BOLT
Y0016908020 · qty on machine: 6 | |||||
| 17 | A5444201203 | DOOR, REAR FRAME | 1 | ADD TO CART | |
| 17A | Y0226900605 | RUBBER SEAL | 1 | PARTS REQUEST | |
|
COMING RUBBER SEAL
Y0226900605 · qty on machine: 1 | |||||
| 18 | Y0601851613 | STOPPER | 2 | PARTS REQUEST | |
|
COMING STOPPER
Y0601851613 · qty on machine: 2 | |||||
| 19 | Y0601851660 | STOPPER | 2 | S/N 5840066 AND BELOW | PARTS REQUEST |
|
COMING STOPPER
Y0601851660 · qty on machine: 2 S/N 5840066 AND BELOW | |||||
| 19 | Y0601851660 | STOPPER | 1 | S/N 5840067 AND ABOVE | PARTS REQUEST |
|
COMING STOPPER
Y0601851660 · qty on machine: 1 S/N 5840067 AND ABOVE | |||||
| 20 | A5454600103 | DOOR POCKET | 1 | ADD TO CART | |
| 21 | Y0207006000 | HEX. NUT | 2 | ADD TO CART | |
| 22 | A5464001302 | ROOF PANEL | 1 | ADD TO CART | |
| 22A | A5494500604 | LINING | 1 | ADD TO CART | |
| 23 | Y0016908020 | HEX. HEAD BOLT | 14 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0016908020 · qty on machine: 14 | |||||
| 24 | W8452023004 | COVER, RADIATOR CAP | 1 | PARTS REQUEST | |
|
COMING COVER, RADIATOR CAP
W8452023004 · qty on machine: 1 | |||||
| 25 | Y0016908020 | HEX. HEAD BOLT | 2 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0016908020 · qty on machine: 2 | |||||
| 26 | A5454000003 | SIDE DOOR | 1 | ADD TO CART | |
| 26A | A5494400204 | LINING | 1 | ADD TO CART | |
| 27 | A5454000703 | SIDE DOOR | 1 | ADD TO CART | |
| 27A | A5494401604 | LINING | 1 | ADD TO CART | |
| 28 | A54541000603 | SIDE PANEL | 1 | PARTS REQUEST | |
|
COMING SIDE PANEL
A54541000603 · qty on machine: 1 | |||||
| 28A | A5494401704 | LINGING | 1 | PARTS REQUEST | |
|
COMING LINGING
A5494401704 · qty on machine: 1 | |||||
| 29 | Y0016908035 | HEX. HEAD BOLT | 6 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0016908035 · qty on machine: 6 Factory replaced this part - current number 0440008035 | |||||
| 30 | A5454300003 | DUCT | 1 | ADD TO CART | |
| 30A | A5494400304 | LINING | 1 | ADD TO CART | |
| 31 | Y0207006000 | HEX. NUT | 6 | ADD TO CART | |
| 32 | B9114000002 | DOOR HANDLE | 1 | ADD TO CART | |
| 33 | Y0021806015 | MACHINE SCREW | 4 | PARTS REQUEST | |
|
COMING MACHINE SCREW
Y0021806015 · qty on machine: 4 | |||||
| 33A | Y0030006000 | HEX. NUT | 4 | PARTS REQUEST | |
|
COMING HEX. NUT
Y0030006000 · qty on machine: 4 | |||||

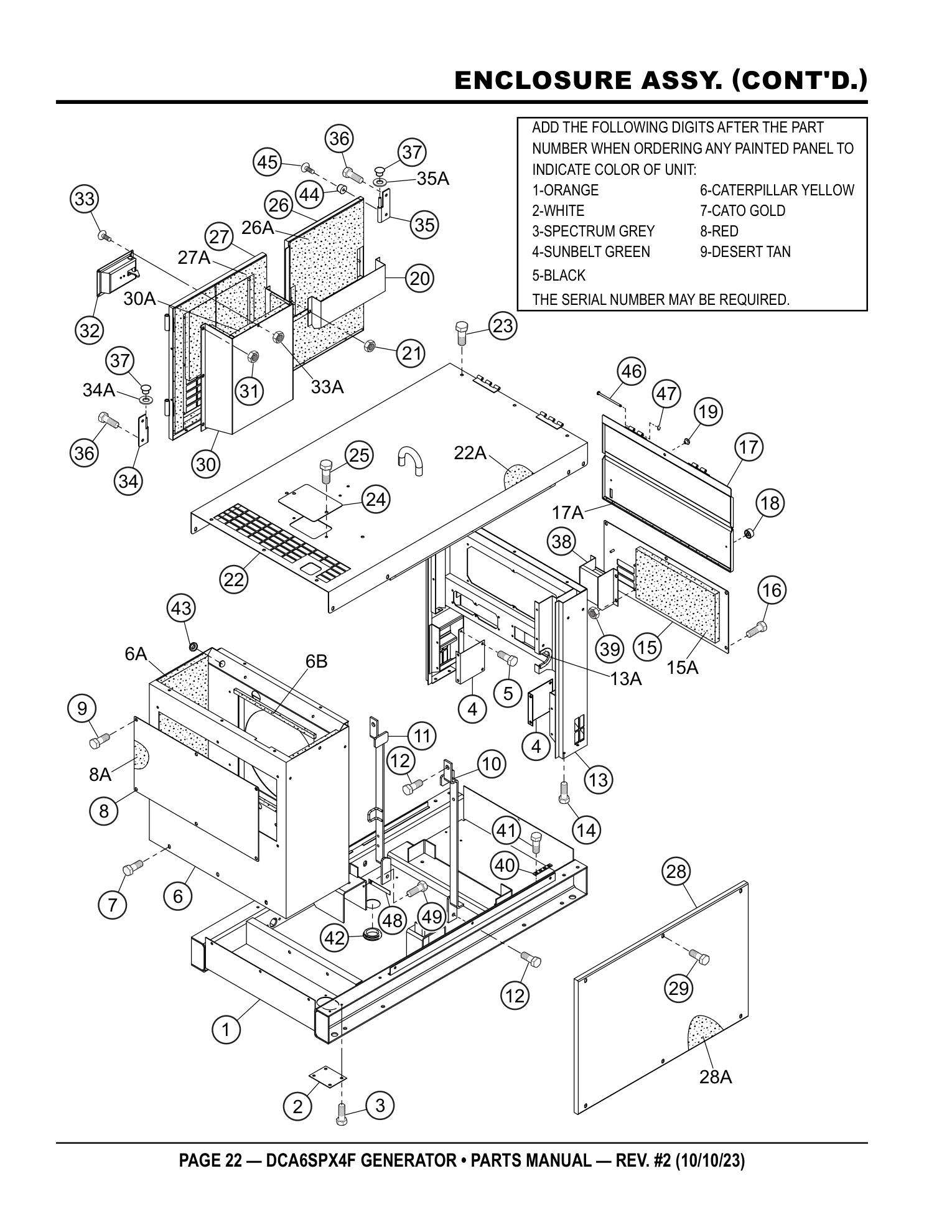

Page 22 — ENCLOSURE ASSY. (CONT'D.)
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 34 | W0845047204 | HINGE | 2 | PARTS REQUEST | |
|
COMING HINGE
W0845047204 · qty on machine: 2 | |||||
| 34A | W0845045004 | WASHER | 2 | PARTS REQUEST | |
|
COMING WASHER
W0845045004 · qty on machine: 2 | |||||
| 35 | W0845047104 | HINGE | 2 | PARTS REQUEST | |
|
COMING HINGE
W0845047104 · qty on machine: 2 | |||||
| 35A | W0845045004 | WASHER | 2 | PARTS REQUEST | |
|
COMING WASHER
W0845045004 · qty on machine: 2 | |||||
| 36 | Y0016908020 | HEX. HEAD BOLT | 6 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0016908020 · qty on machine: 6 | |||||
| 37 | W0845031504 | CAP | 4 | PARTS REQUEST | |
|
COMING CAP
W0845031504 · qty on machine: 4 | |||||
| 38 | A5454300104 | DUCT, REAR COVER | 1 | PARTS REQUEST | |
|
COMING DUCT, REAR COVER
A5454300104 · qty on machine: 1 | |||||
| 39 | Y0207006000 | HEX. NUT | 4 | ADD TO CART | |
| 40 | B1262800004 | TERMINAL PLATE | 2 | PARTS REQUEST | |
|
COMING TERMINAL PLATE
B1262800004 · qty on machine: 2 | |||||
| 41 | Y0016906015 | HEX. HEAD BOLT | 8 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0016906015 · qty on machine: 8 | |||||
| 42 | Y0601851774 | GROMMET | 1 | ADD TO CART | |
| 43 | Y0601850239 | GROMMET | 1 | PARTS REQUEST | |
|
COMING GROMMET
Y0601850239 · qty on machine: 1 | |||||
| 44 | Y0601850097 | STOPPER | 2 | ADD TO CART | |
| 45 | Y0027208025 | MACHINE SCREW | 2 | PARTS REQUEST | |
|
COMING MACHINE SCREW
Y0027208025 · qty on machine: 2 | |||||
| 46 | W0810014704 | PIN | 2 | PARTS REQUEST | |
|
COMING PIN
W0810014704 · qty on machine: 2 | |||||
| 47 | Y0080200004 | SNAP RING | 2 | PARTS REQUEST | |
|
COMING SNAP RING
Y0080200004 · qty on machine: 2 | |||||
| 48 | W0805082804 | CLAMPER | 1 | PARTS REQUEST | |
|
COMING CLAMPER
W0805082804 · qty on machine: 1 | |||||
| 49 | Y0016906015 | HEX. HEAD BOLT | 1 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0016906015 · qty on machine: 1 | |||||

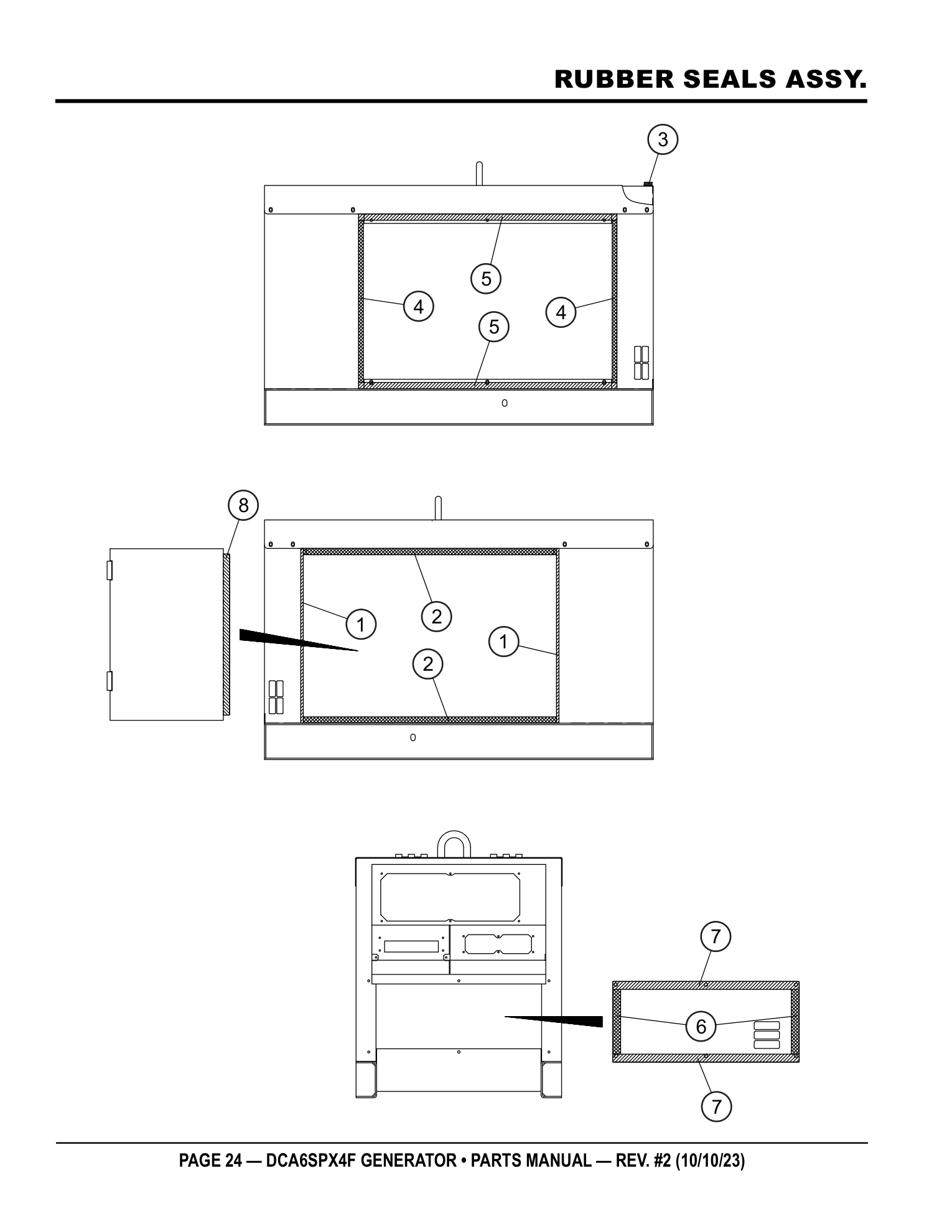

Page 24 — RUBBER SEALS ASSY.
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | Y0229400555 | RUBBER SEAL | 2 | ADD TO CART | |
| 2 | Y0029400810 | RUBBER SEAL | 2 | ADD TO CART | |
| 3 | Y0229200650 | RUBBER SEAL | 1 | ADD TO CART | |
| 4 | Y0221700515 | RUBBER SEAL | 2 | ADD TO CART | |
| 5 | Y0221700820 | RUBBER SEAL | 2 | ADD TO CART | |
| 6 | Y0229200205 | RUBBER SEAL | 2 | PARTS REQUEST | |
|
COMING RUBBER SEAL
Y0229200205 · qty on machine: 2 | |||||
| 7 | Y0229200590 | RUBBER SEAL | 2 | PARTS REQUEST | |
|
COMING RUBBER SEAL
Y0229200590 · qty on machine: 2 | |||||
| 8 | Y0229200515 | RUBBER SEAL | 1 | ADD TO CART | |

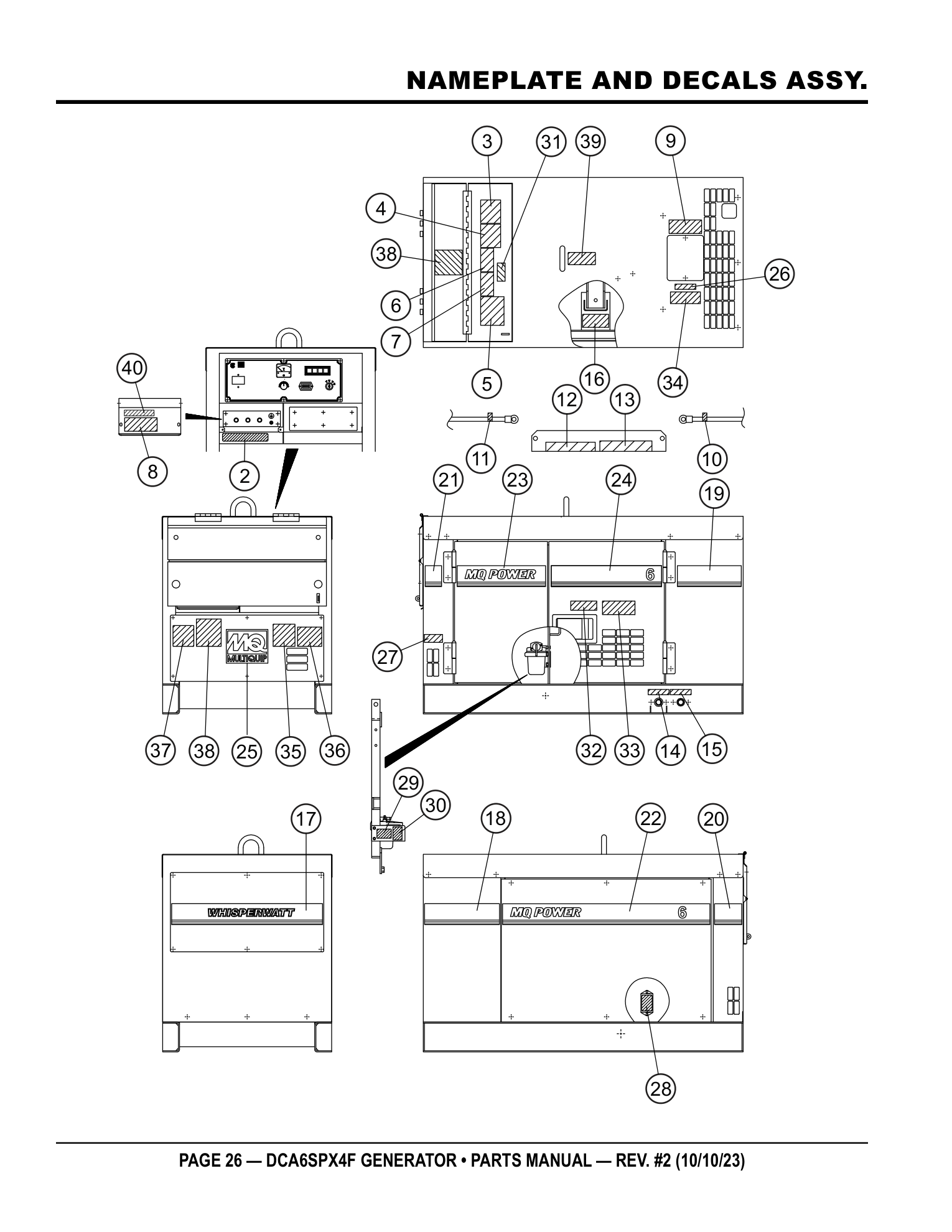

Page 26 — NAMEPLATE AND DECALS ASSY.
Parts list — exactly as printed39 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | A5551002403 | DECAL: AC POWER OUTPUT | 1 | A55100240 | ADD TO CART |
| 3 | A5552001904 | DECAL: OPERATING PROCEDURE | 1 | A55200190 | ADD TO CART |
| 4 | A5552002004 | DECAL: OPERATING PROCEDURE (FR) | 1 | A55200200 | ADD TO CART |
| 5 | A5552001304 | DECAL: IMPORTANT CHECK DAILY | 1 | A55200130 | ADD TO CART |
| 6 | A3552000304 | DECAL: WARNING | 1 | A35200030A | ADD TO CART |
| 7 | A3552000504 | DECAL: WARNING (FR) | 1 | A35200050 | ADD TO CART |
| 8 | A6532101004 | DECAL: DANGER ELECT. SHOCK HAZ | 1 | A63210100A | ADD TO CART |
| 9 | A6532100904 | DECAL: WARNING DANGEROUS GAS | 1 | A63210090A | ADD TO CART |
| 10 | W0800689404 | DECAL: + | 1 | S-2090 | ADD TO CART |
| 11 | W0800689504 | DECAL: - | 1 | S-2091 | ADD TO CART |
| 12 | A6532101104 | DECAL: CAUTION | 1 | A63210110A | ADD TO CART |
| 13 | A6532101404 | DECAL: CAUTION (FR) | 1 | A63210140 | ADD TO CART |
| 14 | A6552000704 | DECAL: OIL DRAIN | 1 | A65200070 | ADD TO CART |
| 15 | A5552001704 | DECAL: COOLANT DRAIN | 1 | A55200170 | ADD TO CART |
| 16 | A5551000414 | DECAL: DIESEL FUEL | 1 | A55100041 | PARTS REQUEST |
|
COMING DECAL: DIESEL FUEL
A5551000414 · qty on machine: 1 A55100041 | |||||
| 17 | A5561100703 | DECAL: STRIPE | 1 | ADD TO CART | |
| 18 | A5561100804 | DECAL: STRIPE | 1 | PARTS REQUEST | |
|
COMING DECAL: STRIPE
A5561100804 · qty on machine: 1 | |||||
| 19 | A5561101204 | DECAL: STRIPE | 1 | PARTS REQUEST | |
|
COMING DECAL: STRIPE
A5561101204 · qty on machine: 1 | |||||
| 20 | A5561100304 | DECAL: STRIPE | 1 | ADD TO CART | |
| 21 | A6561100504 | DECAL: STRIPE | 1 | ADD TO CART | |
| 22 | A5561100903 | DECAL: STRIPE MQ POWER | 1 | PARTS REQUEST | |
|
COMING DECAL: STRIPE MQ POWER
A5561100903 · qty on machine: 1 | |||||
| 23 | A5561101004 | DECAL: STRIPE MQ POWER | 1 | ADD TO CART | |
| 24 | A5561101104 | DECAL: STRIPE 6 | 1 | ADD TO CART | |
| 25 | A5562000004 | DECAL: MQ | 1 | A56200000A | ADD TO CART |
| 26 | A5552000904 | DECAL: COOLING WATER | 1 | A55200090 | ADD TO CART |
| 27 | A5531104504 | DECAL: SPECIFICATION | 1 | A53110450 | ADD TO CART |
| 28 | A5552001504 | DECAL: FUSE BOX | 1 | A55200150 | ADD TO CART |
| 29 | A9508200004 | DECAL: FUEL COCK | 1 | A90820000 | ADD TO CART |
| 30 | A5552001404 | DECAL: CAUTION FUEL FILTER | 1 | A55200140 | ADD TO CART |
| 31 | A3552000004 | DECAL: CAUTION | 1 | A35200000A | ADD TO CART |
| 32 | A5552001204 | DECAL: CAUTION DOOR | 1 | A55200120 | ADD TO CART |
| 33 | A6552000404 | DECAL: CAUTION HOT PARTS | 1 | A65200040A | ADD TO CART |
| 34 | A5552001804 | DECAL: WARNING HOT COOLANT | 1 | A55200180 | ADD TO CART |
| 35 | A9511100304 | DECAL: DANGER | 1 | A91110030 | ADD TO CART |
| 36 | A9504000104 | DECAL: DANGER | 1 | A90400010 | ADD TO CART |
| 37 | A9504000204 | DECAL: WARNING | 1 | A90400020 | ADD TO CART |
| 38 | A5551001004 | DECAL: WARNING | 2 | A55100100 | PARTS REQUEST |
|
COMING DECAL: WARNING
A5551001004 · qty on machine: 2 A55100100 | |||||
| 39 | A9504000304 | DECAL: LIFTING CAPACITY | 1 | A90400030 | ADD TO CART |
| 40 | A9511101804 | DECAL: TERMINAL BOLT TORQUE | 1 | A91110180 S/N 5919140 | PARTS REQUEST |
|
COMING DECAL: TERMINAL BOLT TORQUE
A9511101804 · qty on machine: 1 A91110180 S/N 5919140 | |||||
The machine itself
Price by quote
Get a quote
Tell us where the machine is headed and we'll quote it with freight. One call, no games.
Machine
Engine
The Multiquip DCA6SPX4F is a generator built for portable jobsite power for tools, lighting, and equipment. Factory-documented specs and parts support; priced by quote.
Keep-it-running spares
All listed parts →Every part that fits this machine
7961025004
Multiquip 7961025004 Rectifier - OEM Replacement Part for Super Silent Generators
$147.95
A5110100703
Multiquip A5110100703 Rotor Assembly (JP) - OEM Replacement Part for Super Silent Generators
$3,552.95
A5135002303
Multiquip A5135002303 ASSY (JP) - OEM Replacement Part for Super Silent Generator
$8,592.95
A5138000203
Multiquip A5138000203 Field Assembly Exciter (JP) - OEM Replacement Part
$1,050.95
A5224200604
Multiquip A5224200604 Cover (JP) - OEM Replacement Part for Super Silent Generators
$81.95
A5334000003
Multiquip A5334000003 Exhaust Pipe DENYO (JP) - OEM Replacement Part
$1,170.95
A5334101304
Multiquip A5334101304 Tail Pipe - OEM Replacement Part for Super Silent Generators
$399.95
A5424001202
Multiquip A5424001202 Front Frame (JP) - OEM Replacement Part
$1,461.95
A5434300804
Multiquip A5434300804 Hanger - OEM Replacement Part for Super Silent Generators
$259.95
A5444002802
Multiquip A5444002802 Rear Frame (JP) - OEM Replacement Part for Super Silent Generators
$1,397.95
A5444201203
Multiquip A5444201203 Door Rear Frame (JP) - OEM Replacement Part
$399.95
A5454000003
Multiquip A5454000003 Side Door - OEM Replacement Part for Super Silent Generators
$422.95
A5454000703
Multiquip A5454000703 Side Door (JP) - OEM Replacement Part for Super Silent Generators
$712.95
A5454300003
Multiquip A5454300003 Duct - OEM Replacement Part for Super Silent Generators
$380.95
A5454600103
Multiquip A5454600103 Door Pocket - OEM Replacement Part for Super Silent Generator
$176.95
A5464001302
Multiquip A5464001302 Roof Panel - OEM Replacement Part for Super Silent Generators
$997.95
A5494400204
Multiquip A5494400204 Lining - OEM Replacement Part for Super Silent Generators
$135.95
A5494401604
Multiquip A5494401604 Lining - OEM Replacement Part for Super Silent Generators
$67.95
A5494500604
Multiquip A5494500604 Acoustic Sheet Roof Panel - OEM Replacement Part
$360.95
A5511307902
Multiquip A5511307902 Control Panel - OEM Replacement Part for Super Silent Generators
$358.95
A5531104504
Multiquip A5531104504 Specification Decal (JP) - OEM Replacement Part
$52.95
A5551002403
Multiquip A5551002403 Rubber Seal Decal AC Power Output - OEM Replacement Part
$90.95
B0495100804
Multiquip B0495100804 Lining - OEM Replacement Part for Super Silent Generators
$35.95
B9114000002
Multiquip B9114000002 Door Handle Assembly Black - OEM Replacement Part for Super Silent Generators
$81.95
W8435125004
Multiquip W8435125004 Front Frame Cover - OEM Replacement Part
$44.95
Y0602012784
Multiquip Y0602012784 Radiator Denyo - OEM Replacement Part
$517.95
Y0602046204
Multiquip Y0602046204 Air Cleaner (JP) - OEM Replacement Part for Super Silent Generators
$132.95
Y0602200475
Multiquip Y0602200475 Emergency Unit Denyo (JP) - OEM Replacement Part
$525.95
A3552000004
DECAL: CAUTION
$19.95
A3552000304
DECAL: WARNING
$9.95
A5110100713
ROTOR ASSY
$4,014.44
A5133300004
COVER, FAN
A5214400004
COVER
A5231700003
SET BOARD, OUTPUT TERMINAL
A5234500304
RUBBER SEAL
A5234500404
RUBBER SEAL
$19.95
A5237100804
COVER, OUTPUT TERMINAL
A5237400204
RUBBER SHEET
A5261501703
BRACKET ELECTRIC PARTS
A5261501804
STAY
A5304200004
ENGINE FOOT
A5311100004
BRACKET, RADIATOR
A5311200003
FAN GUARD
A5311500013
UPPER RADIATOR HOSE
A5311500103
LOWER RADIATOR HOSE
A5331101003
MUFFLER
A5352500304
FUSE BOX
A5374200003
BAND, AIR CLEANER
A5414001602
BASE
A5414700003
BRACKET
A5414801404
COVER
A5434300904
HANGER
A5444300504
COVER, REAR FRAME
A5444800104
COVER, REAR DUCT
A54541000603
SIDE PANEL
A5454300104
DUCT, REAR COVER
A5494100804
LINING
A5494300904
LINING
A5494400304
LINING
$25.95
A5494401704
LINGING
A5551000414
DECAL: DIESEL FUEL
A5552002004
DECAL: OPERATING PROCEDURE (FR)
$14.95
A5561100304
DECAL: STRIPE
$5.95
A5561100804
DECAL: STRIPE
A5561100903
DECAL: STRIPE MQ POWER
A5561101004
DECAL: STRIPE MQ POWER
$19.95
A5561101104
DECAL: STRIPE 6
$19.95
A5561101204
DECAL: STRIPE
A5562000004
DECAL: MQ
$19.95
A5924200234
ENGINE, KUBOTA D1105-E4B
A6532101004
DECAL: DANGER ELECT. SHOCK HAZ
$12.95
A6532101104
DECAL: CAUTION
$19.95
A6552000404
DECAL: CAUTION HOT PARTS
$10.95
A6552000704
DECAL: OIL DRAIN
$6.95
A6561100504
DECAL: STRIPE
$9.95
A9504000204
DECAL: WARNING
$25.95
A9504000304
DECAL: LIFTING CAPACITY
$14.95
A9508200004
DECAL: FUEL COCK
$14.95
A9511100304
DECAL: DANGER
$25.95
B0312100304
BRACKET, RADIATOR
B1262800004
TERMINAL PLATE
B1312600004
RUBBER MOUNT
$15.95
D9101200004
PIPE BAND
W0800689404
DECAL: +
W0801830604
HEX. HEAD BOLT
W0801832304
TERMINAL SCREW
W0802011104
PLUG
W0802081104
CAP, RESERVE TANK
W0802081403
RESERVE TANK
W0805082804
CLAMPER
W0805083204
RUBBER SUSPENSION
W0805088004
STAY RUBBER
W0805088304
COLLAR
W0810014704
PIN
W0840312704
OUTPUT TERMINAL
W0845031504
CAP
W0845045004
WASHER
W0845047104
HINGE
W0845047204
HINGE
W1502025103
DRAIN JOINT, OIL
W1622014103
DRAIN JOINT, WATER
W1711027003
FAN
W4091328504
GROMMET
W7552032003
HOSE, AIR CLEANER
W7552253004
BATTERY BAND
W7555527004
BRACKET, FUEL FILTER
W7605419004
RUBBER SUSPENSION
W7812036404
HOSE, AIR CLEANER
W7872251004
BATTERY BOLT
W8351312004
PACKING
$21.22
W8351315003
END BRACKET
$251.13
W8351331004
COVER, SUCTION
$67.04
W8452023004
COVER, RADIATOR CAP
W8702082004
BRACKET, RESERVE TANK
W8722251004
BATTERY SHEET
Y0010106030
HEX. HEAD BOLT
Y0010710025
HEX. HEAD BOLT
Y0012308035
HEX. HEAD BOLT
Y0012312030
HEX. HEAD BOLT
Y0012810025
HEX. HEAD BOLT
Y0016008045
HEX. SOCKET HEAD CAP SCREW
$2.63
Y0016906010
HEX. HEAD BOLT
Y0016906015
HEX. HEAD BOLT
Y0016906016
HEX. HEAD BOLT
Y0016906020
HEX. HEAD BBOLT
$1.45
Y0016906025
HEX. HEAD BOLT
Y0016908020
HEX. HEAD BOLT
Y0016908035
HEX. HEAD BOLT
Y0017105016
HEX. HEAD BOLT
Y0017105025
HEX. HEAD BOLT
Y0017106015
HEX. HEAD BOLT
Y0017106016
HEX, HEAD BOLT
Y0017106020
HEX. HEAD BOLT
Y0017108020
HEX. HEAD BOLT
Y0017108025
HEX. HEAD BOLT
Y0017108030
HEX. HEAD BOLT
Y0017108035
HEX. HEAD BOLT
Y0021004016
MACHINE SCREW
Y0021806015
MACHINE SCREW
Y0027104012
MACHINE SCREW
Y0027104020
MACHINE SCREW
Y0027105015
MACHINE SCREW
Y0027105020
MACHINE SCREW
Y0027208025
MACHINE SCREW
Y0027403512
MACHINE SCREW
Y0029400810
RUBBER SEAL
$28.95
Y0030003500
HEX. NUT
Y0030006000
HEX. NUT
Y0037806000
WING NUT
Y0039306000
HEX. NUT
Y0039308000
HEX NUT
Y0040006000
LOCK WASHER
Y0040008000
LOCK WASHER
Y0041206000
FLAT WASHER
Y0041406000
FLAT WASHER
Y0041408000
FLAT WASHER
Y0042410000
PLAIN WASHER
Y0042508000
LOCK WASHER
$0.11
Y0042510000
LOCK WASHER
Y0071906308
BEARING
Y0080200004
SNAP RING
Y0150000018
O-RING
Y0166105524
BATTERY
Y0192200400
DRAIN HOSE
Y0199100215
HOSE
Y0199900420
DRAIN HOSE
Y0199900600
HOSE
Y0199900800
DRAIN HOSE
Y0207003000
HEX. NUT
Y0207006000
HEX. NUT
$0.23
Y0207010000
HEX. NUT
Y0207110000
NUT
Y0207208000
HEX. NUT
Y0207306000
HEX. NUT
Y0220300375
RUBBER SEAL
Y0221700515
RUBBER SEAL
$3.95
Y0221700820
RUBBER SEAL
$4.95
Y0226900050
RUBBER SEAL
Y0226900130
RUBBER SEAL
Y0226900605
RUBBER SEAL
Y0229200205
RUBBER SEAL
Y0229200515
RUBBER SEAL
$8.95
Y0229200590
RUBBER SEAL
Y0229200650
RUBBER SEAL
Y0229400555
RUBBER SEAL
$19.95
Y0315900380
RUBBER SEAL
Y0341110025
HEX. HEAD BOLT
Y0341510040
HEX. HEAD BOLT
Y0370600800
HOSE
Y0601800682
HOUR METER
Y0601806640
FUSE, 65A
$7.95
Y0601806643
FUSE, 15A
Y0601806644
FUSE, 30A
Y0601806819
AC VOLTMETER
Y0601807465
CIRCUIT BREAKER
Y0601810523
WARNING LAMP UNIT
Y0601815759
TERMINAL BOARD
Y0601816126
TERMINAL BOARD
Y0601820038
RECTIFIER
Y0601820663
AUTOMATIC VOLTAGE REGULATOR
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
Guide · 2026-08-04
Multiquip DCA Generator Fault Shutdown and Controller Reset Guide
Fix common Multiquip generator problems fast. This practical guide covers fault codes, restart procedures, and maintenance tips for contr...
Read it → Guide · 2026-08-04Multiquip Generator No-Start and No-Power Fixes
Fix common Multiquip generator problems fast. This practical guide covers no-start, low output, overheating, and more for contractors on ...
Read it → Guide · 2026-08-04Multiquip DCA Generator Fault Codes and Diagnostics Guide
Fix common Multiquip generator problems fast. This contractor-focused guide covers fault codes, restart procedures, and when to call a de...
Read it →
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
