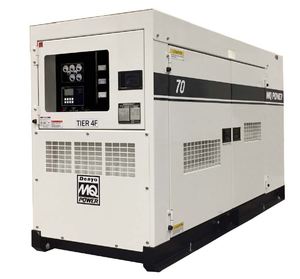

Multiquip DCA70SSJU4F Generator

Name: Multiquip DCA70SSJU4F Generator
Brand: Multiquip

The parts bench

Need the PDF? ↓

Page 6 — GENERATOR ASSY.

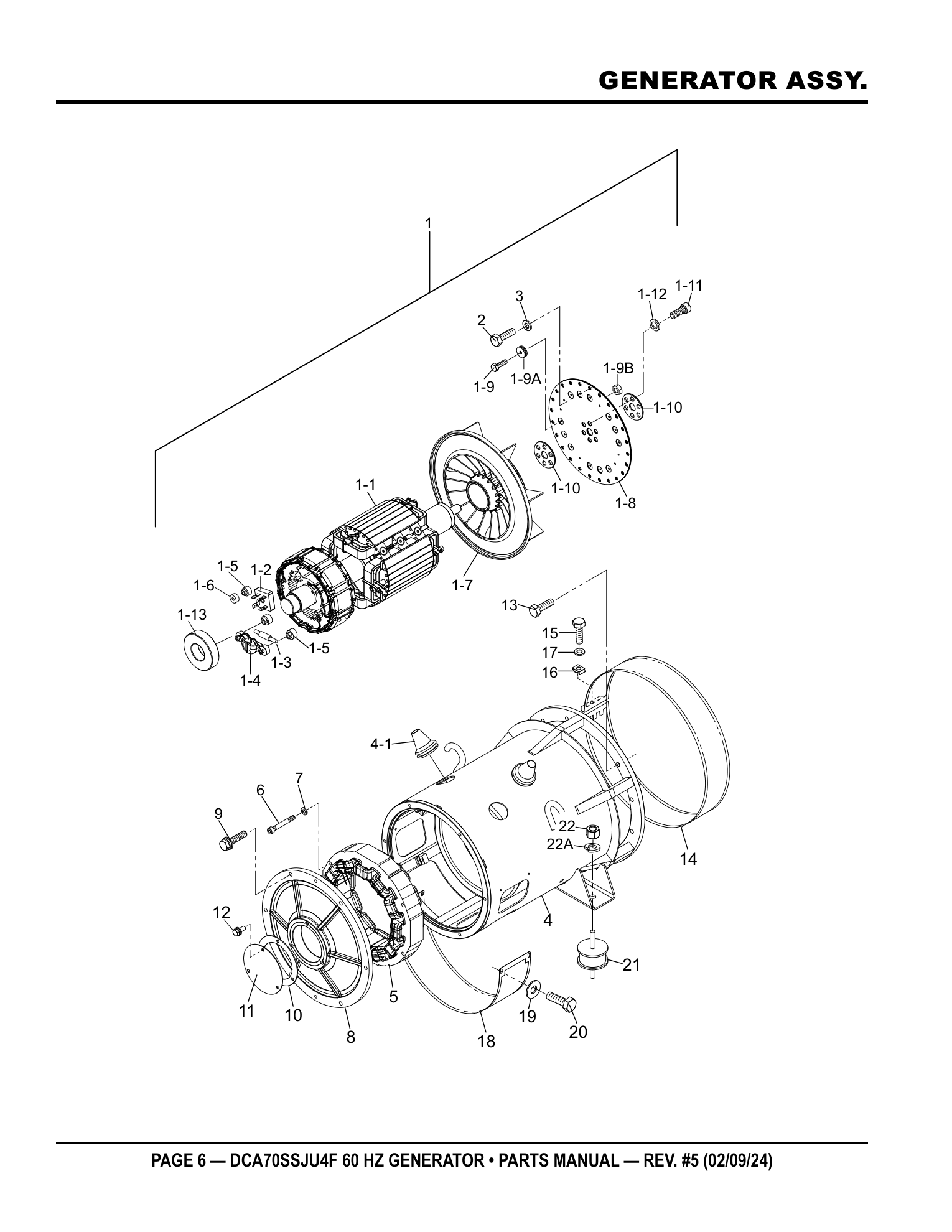

Multiquip DCA70SSJU4F Generator GENERATOR ASSY. parts diagram

Parts list — exactly as printed39 rows

No.	Part No.	Part Name	Qty	Remarks
1	B5110101002	ROTOR ASSY	1	INCLUDES ITEMS W/#	ADD TO CART
ROTOR ASSY B5110101002 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 1-1#, 1-2#, 1-3#, 1-4#, 1-5#, 1-6#, 1-7#, 1-8#, 1-10#, 1-11#, 1-12#, 1-13# view full part page → $12167.95 IN A KIT + SOLD SOLO
1-1#		FIELD ASSY.	1		INCLUDED IN KIT
PHOTO COMING FIELD ASSY. · qty on machine: 1 Included in kit 1 - ROTOR ASSY (B5110101002) INCLUDED IN KIT
1-2#	0601820083	RECTIFIER	3		ADD TO CART
RECTIFIER 0601820083 · qty on machine: 3 Also included in kit 1 - ROTOR ASSY (B5110101002) view full part page → $33.95 IN A KIT + SOLD SOLO
1-3#	0601822664	ZNR	1		ADD TO CART
ZNR 0601822664 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (B5110101002) view full part page → $18.95 IN A KIT + SOLD SOLO
1-4#	B3120100804	HOLDER	1		ADD TO CART
HOLDER B3120100804 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (B5110101002) view full part page → $140.95 IN A KIT + SOLD SOLO
1-5#	B3120100704	INSULATOR WASHER	5		ADD TO CART
INSULATOR WASHER B3120100704 · qty on machine: 5 Also included in kit 1 - ROTOR ASSY (B5110101002) view full part page → $1.95 IN A KIT + SOLD SOLO
1-6#	B3120100604	INSULATOR WASHER	3		ADD TO CART
INSULATOR WASHER B3120100604 · qty on machine: 3 Also included in kit 1 - ROTOR ASSY (B5110101002) view full part page → $1.95 IN A KIT + SOLD SOLO
1-7#	B3111100603	FAN	1		ADD TO CART
FAN B3111100603 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (B5110101002) view full part page → $232.95 IN A KIT + SOLD SOLO
1-8#	B2163100004	COUPLING DISK	3	PURCHASE IT. 1-9 AS A SET	ADD TO CART
COUPLING DISK B2163100004 · qty on machine: 3 PURCHASE IT. 1-9 AS A SET Also included in kit 1 - ROTOR ASSY (B5110101002) view full part page → $95.95 IN A KIT + SOLD SOLO
1-9	Y0019104016	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT Y0019104016 · qty on machine: 1 view full part page → $0.62
1-9A	B2163700004	BALANCING WEIGHT	1		ADD TO CART
BALANCING WEIGHT B2163700004 · qty on machine: 1 view full part page → $3.07
1-9B	Y0204104000	NUT	1		ADD TO CART
NUT Y0204104000 · qty on machine: 1 view full part page → $2.59
1-10#	B3163200104	COUPLING WASHER	2		ADD TO CART
COUPLING WASHER B3163200104 · qty on machine: 2 Also included in kit 1 - ROTOR ASSY (B5110101002) view full part page → $112.95 IN A KIT + SOLD SOLO
1-11#	0342612030	HEX. SOCKET HEAD CAP SCREW	6		ADD TO CART
HEX. SOCKET HEAD CAP SCREW 0342612030 · qty on machine: 6 Also included in kit 1 - ROTOR ASSY (B5110101002) view full part page → $2.82 IN A KIT + SOLD SOLO
1-12#	0046512000	WASHER, FLAT	6		ADD TO CART
WASHER, FLAT 0046512000 · qty on machine: 6 Also included in kit 1 - ROTOR ASSY (B5110101002) view full part page → $3.95 IN A KIT + SOLD SOLO
1-13#	0071906309	BEARING	1		ADD TO CART
BEARING 0071906309 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (B5110101002) view full part page → $160.95 IN A KIT + SOLD SOLO
2	0343204080	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0343204080 · qty on machine: 8 view full part page → $7.95
3	EM923344	WASHER, LOCK	8	REPLACES P/N 0043604000	ADD TO CART
WASHER, LOCK EM923344 · qty on machine: 8 REPLACES P/N 0043604000 Factory replaced this part - current number 0166A view full part page → $0.17 IN A KIT + SOLD SOLO
4	B5130000303	STATOR ASSY	1	INCLUDES ITEMS W/$	ADD TO CART
STATOR ASSY B5130000303 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 4-1$ view full part page → $17465.95 IN A KIT + SOLD SOLO
4-1$	0845041904	GROMMET	2		ADD TO CART
GROMMET 0845041904 · qty on machine: 2 Also included in kit 4 - STATOR ASSY (B5130000303) view full part page → $11.95 IN A KIT + SOLD SOLO
5	B3137000803	FIELD ASSY., EXCITER	1		ADD TO CART
FIELD ASSY., EXCITER B3137000803 · qty on machine: 1 view full part page → $1882.95
6	0016008060	HEX. SOCKET HEAD CAP SCREW	4		ADD TO CART
HEX. SOCKET HEAD CAP SCREW 0016008060 · qty on machine: 4 view full part page → $2.95
7	0042508000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0042508000 · qty on machine: 4 view full part page → $0.62
8	B3153000513	END BRACKET	1		ADD TO CART
END BRACKET B3153000513 · qty on machine: 1 view full part page → $636.95
9	0017108035	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0017108035 · qty on machine: 6 view full part page → $1.95
10	B3153400504	PACKING	1		ADD TO CART
PACKING B3153400504 · qty on machine: 1 view full part page → $25.95
11	B3153400404	COVER, BEARING	1		ADD TO CART
COVER, BEARING B3153400404 · qty on machine: 1 view full part page → $40.95
12	0017106016	HEX. HEAD BOLT	3		ADD TO CART
HEX. HEAD BOLT 0017106016 · qty on machine: 3 view full part page → $1.51
13	012010030	HEX. HEAD BOLT	12	REPLACES P/N 0012810030	ADD TO CART
HEX. HEAD BOLT 012010030 · qty on machine: 12 REPLACES P/N 0012810030 view full part page → $0.95
14	B5131300004	COVER, END BRACKET	1		ADD TO CART
COVER, END BRACKET B5131300004 · qty on machine: 1 view full part page → $63.95
15	0340406040	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0340406040 · qty on machine: 1 view full part page → $2.68
16	020106050	U-NUT	1	REPLACES P/N 0600815000	ADD TO CART
U-NUT 020106050 · qty on machine: 1 REPLACES P/N 0600815000 view full part page → $0.12
17	952404470	WASHER, FLAT	1	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 1 REPLACES P/N 0041206000 view full part page → $0.19
18	B3131300804	COVER, END BRACKET	1		ADD TO CART
COVER, END BRACKET B3131300804 · qty on machine: 1 view full part page → $60.95
19	0401450050	WASHER, FLAT	4	REPLACES P/N 0041205000	ADD TO CART
WASHER, FLAT 0401450050 · qty on machine: 4 REPLACES P/N 0041205000 Factory replaced this part - current number 58151 view full part page → $0.41 IN A KIT + SOLD SOLO
20	0029205012	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0029205012 · qty on machine: 4 view full part page → $1.45
21	Y0605000401	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION Y0605000401 · qty on machine: 2 view full part page → $50.95
22	0030012000	HEX. NUT	2		ADD TO CART
HEX. NUT 0030012000 · qty on machine: 2 view full part page → $0.5
22A	0040012000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040012000 · qty on machine: 2 view full part page → $0.95

Page 8 — CONTROL BOX ASSY.

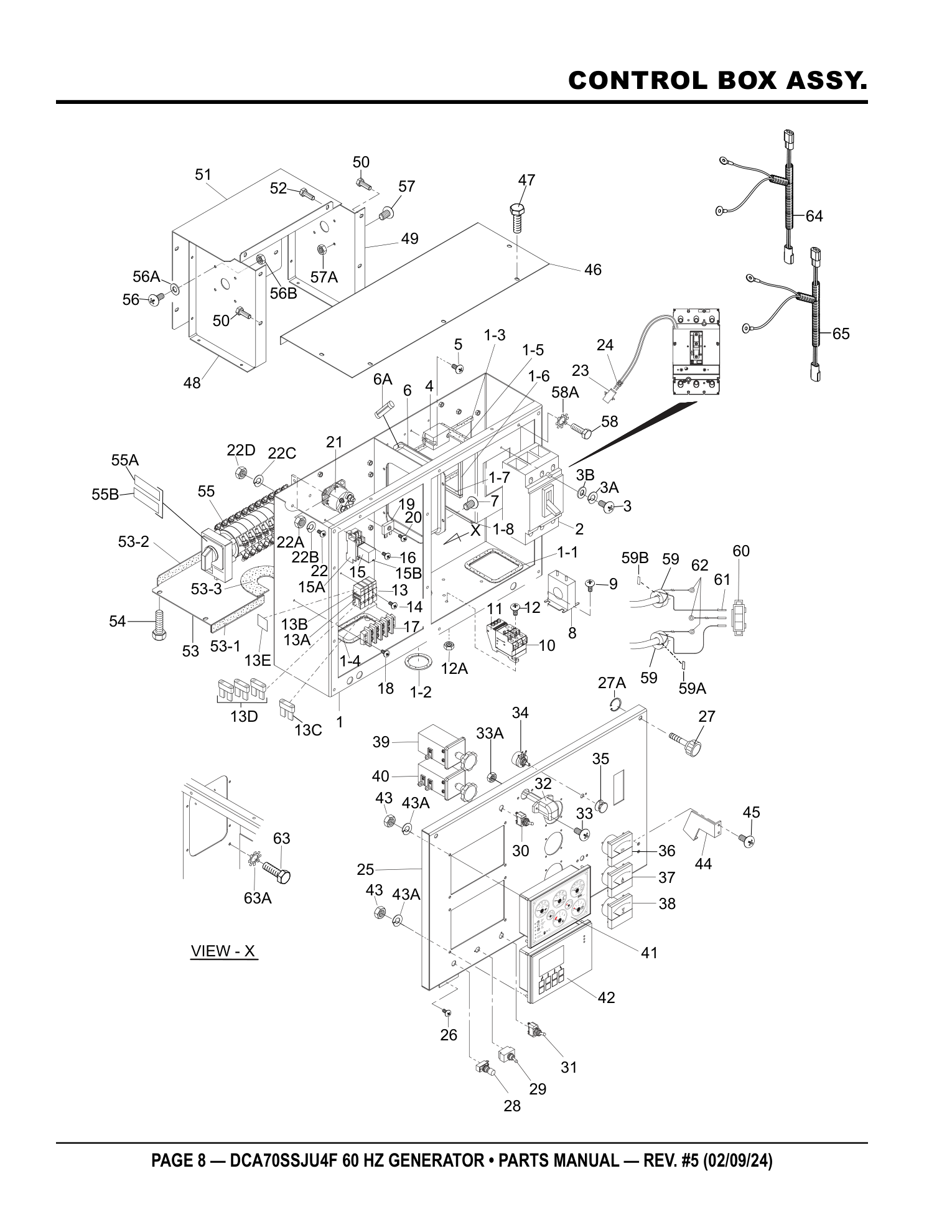

Multiquip DCA70SSJU4F Generator CONTROL BOX ASSY. parts diagram

Parts list — exactly as printed44 rows

No.	Part No.	Part Name	Qty	Remarks
1	M2214000502	CONTROL BOX	1	S/N 7307365 AND BELOW	PARTS REQUEST
PHOTO COMING CONTROL BOX M2214000502 · qty on machine: 1 S/N 7307365 AND BELOW PARTS REQUEST
1	M2214000512	CONTROL BOX	1	S/N 7307366 AND ABOVE	PARTS REQUEST
PHOTO COMING CONTROL BOX M2214000512 · qty on machine: 1 S/N 7307366 AND ABOVE PARTS REQUEST
1-1	Y0411100350	EDGE TRIM	1		PARTS REQUEST
PHOTO COMING EDGE TRIM Y0411100350 · qty on machine: 1 PARTS REQUEST
1-2	Y0411100210	EDGE TRIM	1		PARTS REQUEST
PHOTO COMING EDGE TRIM Y0411100210 · qty on machine: 1 PARTS REQUEST
1-3	Y0411100300	EDGE TRIM	2		PARTS REQUEST
PHOTO COMING EDGE TRIM Y0411100300 · qty on machine: 2 PARTS REQUEST
1-4	Y0411100320	EDGE TRIM	1		PARTS REQUEST
PHOTO COMING EDGE TRIM Y0411100320 · qty on machine: 1 PARTS REQUEST
1-5	Y0411100110	EDGE TRIM	1		PARTS REQUEST
PHOTO COMING EDGE TRIM Y0411100110 · qty on machine: 1 PARTS REQUEST
1-6	Y0411100155	EDGE TRIM	1	S/N 7307356 AND ABOVE	PARTS REQUEST
PHOTO COMING EDGE TRIM Y0411100155 · qty on machine: 1 S/N 7307356 AND ABOVE PARTS REQUEST
1-7	Y0411100060	EDGE TRIM	1	S/N 7307356 AND ABOVE	PARTS REQUEST
PHOTO COMING EDGE TRIM Y0411100060 · qty on machine: 1 S/N 7307356 AND ABOVE PARTS REQUEST
1-8	Y0411100100	EDGE TRIM	1	S/N 7307356 AND ABOVE	PARTS REQUEST
PHOTO COMING EDGE TRIM Y0411100100 · qty on machine: 1 S/N 7307356 AND ABOVE PARTS REQUEST
2	Y0601808833	CIRCUIT BREAKER, 3P 200A	1		ADD TO CART
CIRCUIT BREAKER, 3P 200A Y0601808833 · qty on machine: 1 view full part page → $770.95
3	0021004070	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0021004070 · qty on machine: 2 view full part page → $2.95
3A	0040004000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040004000 · qty on machine: 2 view full part page → $0.09
3B	58042	WASHER, FLAT	2	REPLACES P/N 0041204000	ADD TO CART
WASHER, FLAT 58042 · qty on machine: 2 REPLACES P/N 0041204000 view full part page → $0.17
4	0601823863	RELAY UNIT	2		ADD TO CART
RELAY UNIT 0601823863 · qty on machine: 2 view full part page → $159.95
5	0027104015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 4 view full part page → $0.53
6	Y0601820638	AUTOMATIC VOLTAGE REGULATOR	1	INCLUDES ITEMS W/#	ADD TO CART
AUTOMATIC VOLTAGE REGULATOR Y0601820638 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 6A# view full part page → $1205.95 IN A KIT + SOLD SOLO
6A#	Y0601806683	FUSE, 250V 8A	1		NO LONGER AVAILABLE
PHOTO COMING FUSE, 250V 8A Y0601806683 · qty on machine: 1 Also included in kit 6 - AUTOMATIC VOLTAGE REGULATO (Y0601820638) NO LONGER AVAILABLE
7	0027105015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 4 view full part page → $0.2
8	Y0601809693	CURRENT TRANSFORMER, 150/5A	3		ADD TO CART
CURRENT TRANSFORMER, 150/5A Y0601809693 · qty on machine: 3 view full part page → $63.95
9	011808015	MACHINE SCREW	6	REPLACES P/N 0027106015	ADD TO CART
MACHINE SCREW 011808015 · qty on machine: 6 REPLACES P/N 0027106015 view full part page → $6.95
10	Y0601820839	OVER CURRENT RELAY	1		ADD TO CART
OVER CURRENT RELAY Y0601820839 · qty on machine: 1 view full part page → $120.95
11	Y0601820844	OVER CURRENT RELAY BASE	1		ADD TO CART
OVER CURRENT RELAY BASE Y0601820844 · qty on machine: 1 view full part page → $24.95
12	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
12A	OEMAA8	HEX. NUT	2	REPLACES P/N 0207004000	ADD TO CART
HEX. NUT OEMAA8 · qty on machine: 2 REPLACES P/N 0207004000 view full part page → $0.4
13	M2214600004	FUSE BOX ASSY.	1		PARTS REQUEST
PHOTO COMING FUSE BOX ASSY. M2214600004 · qty on machine: 1 PARTS REQUEST
13A	Y0601818010	HOUSING	4		PARTS REQUEST
PHOTO COMING HOUSING Y0601818010 · qty on machine: 4 PARTS REQUEST
13B	Y0601818011	COVER	4		PARTS REQUEST
PHOTO COMING COVER Y0601818011 · qty on machine: 4 PARTS REQUEST
13C	0601806643	FUSE, 15A	1		ADD TO CART
FUSE, 15A 0601806643 · qty on machine: 1 view full part page → $5.95
13D	0601806647	FUSE, 25A	3		ADD TO CART
FUSE, 25A 0601806647 · qty on machine: 3 view full part page → $1.82
13E	M9501400804	DECAL: FUSE HOLDER	1		PARTS REQUEST
PHOTO COMING DECAL: FUSE HOLDER M9501400804 · qty on machine: 1 Factory replaced this part - current number HOLDER PARTS REQUEST
14	Y0027203035	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW Y0027203035 · qty on machine: 2 view full part page → $0.37
15	LY2DUS12VDC	RELAY	1	REPLACES P/N 0601827656	ADD TO CART
RELAY LY2DUS12VDC · qty on machine: 1 REPLACES P/N 0601827656 view full part page → $46.95
15A	PTF08A	BASE	1	REPLACES P/N 0601823109	ADD TO CART
BASE PTF08A · qty on machine: 1 REPLACES P/N 0601823109 view full part page → $47.95
15B	PYCA1	CLIP	2	REPLACES P/N 0601824400	ADD TO CART
CLIP PYCA1 · qty on machine: 2 REPLACES P/N 0601824400 view full part page → $1.71
16	0027104015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 2 view full part page → $0.53
17	0601815153	TERMINAL BLOCK	1	S/N 7307365 AND BELOW	NO LONGER AVAILABLE
PHOTO COMING TERMINAL BLOCK 0601815153 · qty on machine: 1 S/N 7307365 AND BELOW NO LONGER AVAILABLE
17	Y0601816538	TERMINAL BLOCK	1	S/N 7307366 AND ABOVE	ADD TO CART
TERMINAL BLOCK Y0601816538 · qty on machine: 1 S/N 7307366 AND ABOVE view full part page → $51.95
18	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
19	0601821370	RECTIFIER	1	REPLACES P/N 0601823240 S/N 7307391 AND BELOW	ADD TO CART
RECTIFIER 0601821370 · qty on machine: 1 REPLACES P/N 0601823240 S/N 7307391 AND BELOW view full part page → $28.95
19	0601821370	RECTIFIER	2	REPLACES P/N 0601823240 S/N 7307392 AND ABOVE	ADD TO CART
RECTIFIER 0601821370 · qty on machine: 2 REPLACES P/N 0601823240 S/N 7307392 AND ABOVE view full part page → $28.95
20	0027104020	MACHINE SCREW	1	S/N 7307391 AND BELOW	ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 1 S/N 7307391 AND BELOW view full part page → $0.4
20	0027104030	MACHINE SCREW	1	S/N 7307392 AND ABOVE	ADD TO CART
MACHINE SCREW 0027104030 · qty on machine: 1 S/N 7307392 AND ABOVE view full part page → $0.59
21	Y0602201458	RELAY, STARTER	1		ADD TO CART
RELAY, STARTER Y0602201458 · qty on machine: 1 view full part page → $116.95

Page 10 — CONTROL BOX ASSY. (CONT'D.)

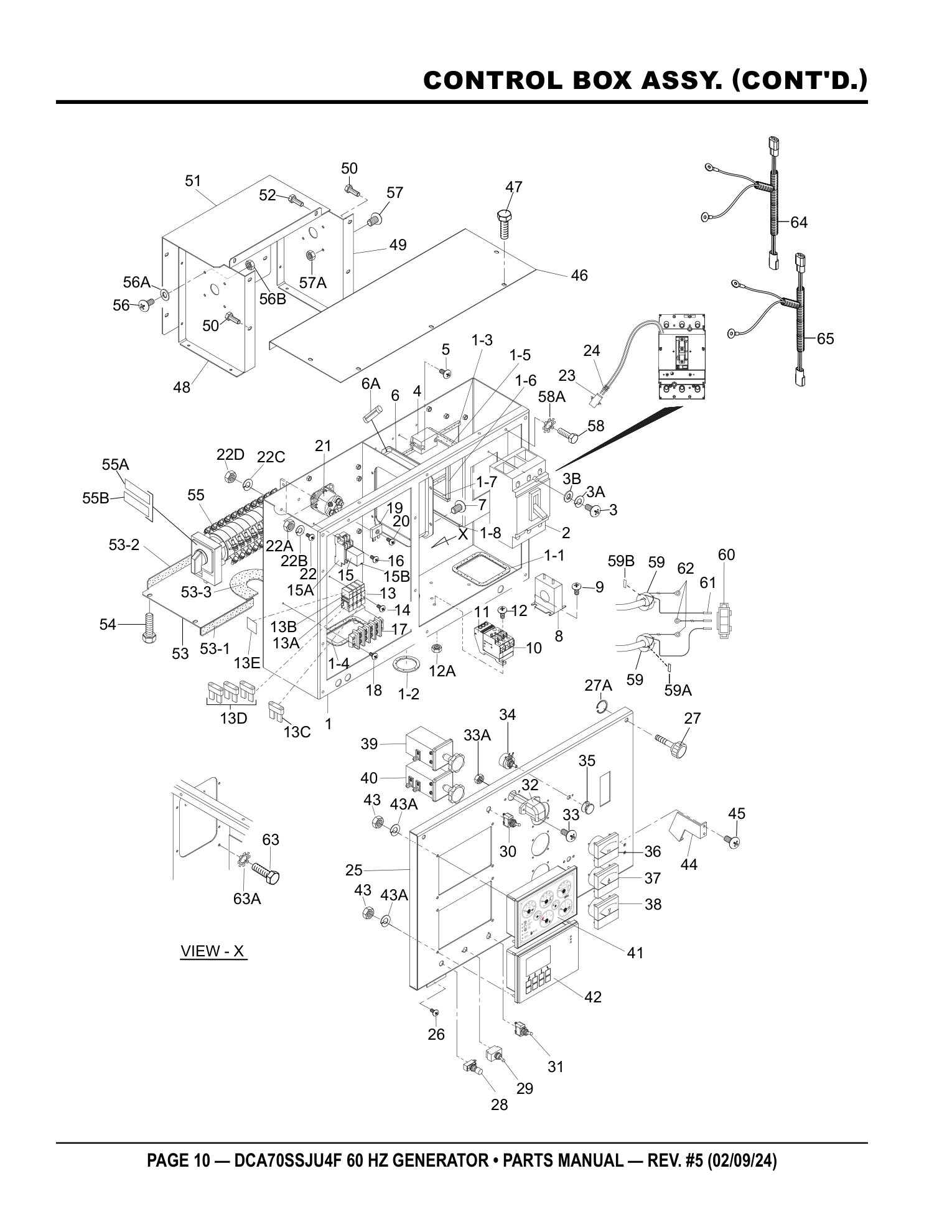

Multiquip DCA70SSJU4F Generator CONTROL BOX ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed43 rows

No.	Part No.	Part Name	Qty	Remarks
22	011808015	MACHINE SCREW	2	REPLACES P/N 0027106015	ADD TO CART
MACHINE SCREW 011808015 · qty on machine: 2 REPLACES P/N 0027106015 view full part page → $6.95
22A	Y0206508000	HEX NUT	2		ADD TO CART
HEX NUT Y0206508000 · qty on machine: 2 view full part page → $0.19
22B	0044808000	WASHER, LOCK	2		PARTS REQUEST
PHOTO COMING WASHER, LOCK 0044808000 · qty on machine: 2 PARTS REQUEST
22C	Y0206803000	HEX NUT	2		ADD TO CART
HEX NUT Y0206803000 · qty on machine: 2 view full part page → $0.26
22D	0043003000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0043003000 · qty on machine: 2 view full part page → $0.39
23	0601812626	PLUG	1		ADD TO CART
PLUG 0601812626 · qty on machine: 1 view full part page → $1.88
24	0601812711	PINS	2		ADD TO CART
PINS 0601812711 · qty on machine: 2 view full part page → $0.56
25	M2224000303	CONTROL PANEL	1		PARTS REQUEST
PHOTO COMING CONTROL PANEL M2224000303 · qty on machine: 1 PARTS REQUEST
26	0027105010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105010 · qty on machine: 4 view full part page → $0.56
27	M9220100004	SET SCREW	2		ADD TO CART
SET SCREW M9220100004 · qty on machine: 2 view full part page → $12.95
27A	Y0080200007	E-SNAP RING	2		ADD TO CART
E-SNAP RING Y0080200007 · qty on machine: 2 view full part page → $4.95
28	0601831205	PUSH BUTTON SWITCH	1		ADD TO CART
PUSH BUTTON SWITCH 0601831205 · qty on machine: 1 view full part page → $25.95
29	82608	TOGGLE SWITCH	1	REPLACES P/N 0601831340 S/N 7307433 AND BELOW	ADD TO CART
TOGGLE SWITCH 82608 · qty on machine: 1 REPLACES P/N 0601831340 S/N 7307433 AND BELOW view full part page → $34.95
29	Y0601831345	3 POLE SWITCH	1	S/N 7307434 AND ABOVE	ADD TO CART
3 POLE SWITCH Y0601831345 · qty on machine: 1 S/N 7307434 AND ABOVE view full part page → $49.95
30	0601830710	PANEL LIGHT SWITCH	1		ADD TO CART
PANEL LIGHT SWITCH 0601830710 · qty on machine: 1 view full part page → $29.95
31	0601830710	TOGGLE SWITCH	1		ADD TO CART
TOGGLE SWITCH 0601830710 · qty on machine: 1 view full part page → $29.95
32	Y0601810170	PANEL LIGHT, 12V	1		ADD TO CART
PANEL LIGHT, 12V Y0601810170 · qty on machine: 1 view full part page → $142.95
33	0027104015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 2 view full part page → $0.53
33A	OEMAA8	SELF-LOCKING NUT	2	REPLACES P/N 0207004000	ADD TO CART
SELF-LOCKING NUT OEMAA8 · qty on machine: 2 REPLACES P/N 0207004000 view full part page → $0.4
34	0601840073	RHEOSTAT (VR) 2W 1KΩ	1		ADD TO CART
RHEOSTAT (VR) 2W 1KΩ 0601840073 · qty on machine: 1 view full part page → $90.95
35	0601840100	KNOB	1	REPLACES P/N 0601840121	ADD TO CART
KNOB 0601840100 · qty on machine: 1 REPLACES P/N 0601840121 view full part page → $30.95
36	0601807641	FREQUENCY METER, 240V 45~65HZ	1		ADD TO CART
FREQUENCY METER, 240V 45~65HZ 0601807641 · qty on machine: 1 view full part page → $591.95
37	0601808987	AC AMMETER, 0~150A/300A:5A	1		ADD TO CART
AC AMMETER, 0~150A/300A:5A 0601808987 · qty on machine: 1 view full part page → $246.95
38	0601806859	AC VOLTMETER, 0~600V	1		ADD TO CART
AC VOLTMETER, 0~600V 0601806859 · qty on machine: 1 view full part page → $368.95
39	0601801040	CHANGE-OVER SWITCH, AMMETER	1		ADD TO CART
CHANGE-OVER SWITCH, AMMETER 0601801040 · qty on machine: 1 view full part page → $95.95
40	0601801041	CHANGE-OVER SWITCH, VOLTMETER	1		ADD TO CART
CHANGE-OVER SWITCH, VOLTMETER 0601801041 · qty on machine: 1 view full part page → $157.95
41	Y0602120568	GAUGE UNIT ASSY	1	S/N 7307365 AND BELOW	ADD TO CART
GAUGE UNIT ASSY Y0602120568 · qty on machine: 1 S/N 7307365 AND BELOW view full part page → $947.95
41	Y0602120903	GAUGE UNIT ASSY	1	S/N 7307366 AND ABOVE	ADD TO CART
GAUGE UNIT ASSY Y0602120903 · qty on machine: 1 S/N 7307366 AND ABOVE view full part page → $757.95
42	Y0602203043	CONTROLLER, ECU845	1	S/N 7307365 AND BELOW	NO LONGER AVAILABLE
PHOTO COMING CONTROLLER, ECU845 Y0602203043 · qty on machine: 1 S/N 7307365 AND BELOW NO LONGER AVAILABLE
42	Y0602203077	CONTROLLER, ECU845 UL	1	S/N 7307366 AND ABOVE	ADD TO CART
CONTROLLER, ECU845 UL Y0602203077 · qty on machine: 1 S/N 7307366 AND ABOVE view full part page → $1862.95
43	Y0206707000	HEX. NUT	8		ADD TO CART
HEX. NUT Y0206707000 · qty on machine: 8 view full part page → $0.45
43A	Y0044807000	WASHER, LOCK	8		ADD TO CART
WASHER, LOCK Y0044807000 · qty on machine: 8 view full part page → $0.45
44	M1224100104	STOPPER	1		ADD TO CART
STOPPER M1224100104 · qty on machine: 1 view full part page → $13.95
45	0027105015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 2 view full part page → $0.2
46	M2213500704	CONTROL BOX COVER	1		ADD TO CART
CONTROL BOX COVER M2213500704 · qty on machine: 1 view full part page → $46.95
47	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95
48	M2213602704	SWITCH BRACKET	1		ADD TO CART
SWITCH BRACKET M2213602704 · qty on machine: 1 view full part page → $89.95
49	M2214600104	SWITCH BRACKET	1	S/N 7307365 AND BELOW	PARTS REQUEST
PHOTO COMING SWITCH BRACKET M2214600104 · qty on machine: 1 S/N 7307365 AND BELOW PARTS REQUEST
49	M2214600114	SWITCH BRACKET	1	S/N 7307366 ~ 7307381	PARTS REQUEST
PHOTO COMING SWITCH BRACKET M2214600114 · qty on machine: 1 S/N 7307366 ~ 7307381 PARTS REQUEST
49	M2213602704	SWITCH BRACKET	1	S/N 7307382 AND ABOVE	ADD TO CART
SWITCH BRACKET M2213602704 · qty on machine: 1 S/N 7307382 AND ABOVE view full part page → $89.95
50	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95
51	M2213602804	SWITCH COVER	1		PARTS REQUEST
PHOTO COMING SWITCH COVER M2213602804 · qty on machine: 1 PARTS REQUEST
52	0016906015	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 6 view full part page → $0.95

Page 12 — CONTROL BOX ASSY. (CONT'D.)

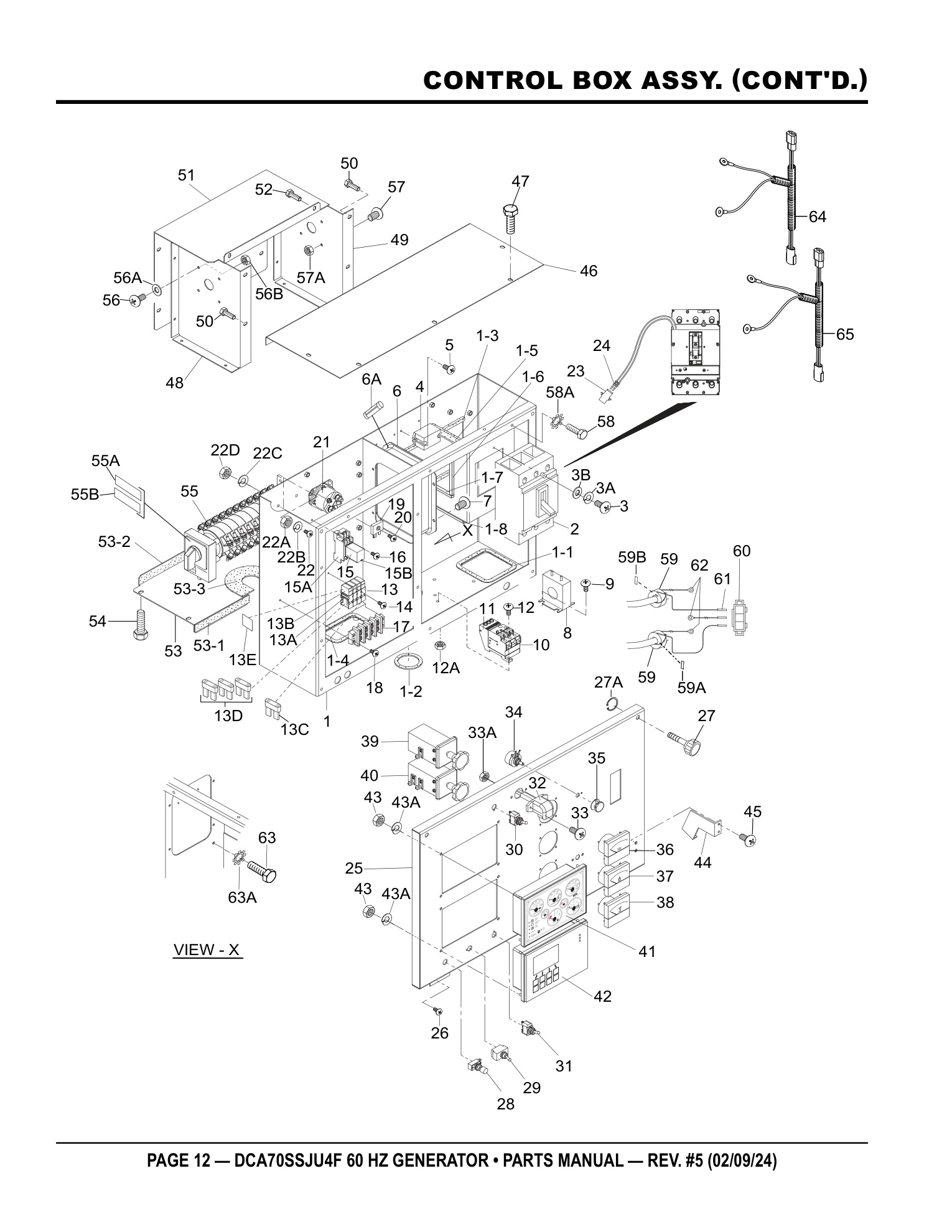

Parts list — exactly as printed26 rows

No.	Part No.	Part Name	Qty	Remarks
53	M2213602904	SWITCH COVER	1		ADD TO CART
SWITCH COVER M2213602904 · qty on machine: 1 view full part page → $59.95
53-1	0228800165	SEAL RUBBER	1		ADD TO CART
SEAL RUBBER 0228800165 · qty on machine: 1 view full part page → $3.95
53-2	0228800115	SEAL RUBBER	1		ADD TO CART
SEAL RUBBER 0228800115 · qty on machine: 1 view full part page → $4.95
53-3	0317700180	WEATHER STRIP	1		ADD TO CART
WEATHER STRIP 0317700180 · qty on machine: 1 view full part page → $13.95
54	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95
55	M2270100104	SELECTOR SWITCH	1		ADD TO CART
SELECTOR SWITCH M2270100104 · qty on machine: 1 view full part page → $2136.95
55A	M2550001604	DECAL: SELECTOR SWITCH NUMBER	1	M25000160	ADD TO CART
DECAL: SELECTOR SWITCH NUMBER M2550001604 · qty on machine: 1 M25000160 view full part page → $12.95
55B	M2550001704	DECAL: SELECTOR SWITCH NUMBER	1	M25000170	ADD TO CART
DECAL: SELECTOR SWITCH NUMBER M2550001704 · qty on machine: 1 M25000170 view full part page → $5.95
56	0021004035	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021004035 · qty on machine: 4 view full part page → $0.32
56A	58042	WASHER, FLAT	4	REPLACES P/N 0041204000	ADD TO CART
WASHER, FLAT 58042 · qty on machine: 4 REPLACES P/N 0041204000 view full part page → $0.17
56B	OEMAA8	HEX. NUT	4	REPLACES P/N 0207004000	ADD TO CART
HEX. NUT OEMAA8 · qty on machine: 4 REPLACES P/N 0207004000 view full part page → $0.4
57	0027104015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 4 view full part page → $0.53
57A	OEMAA8	HEX. NUT	4	REPLACES P/N 0207004000	ADD TO CART
HEX. NUT OEMAA8 · qty on machine: 4 REPLACES P/N 0207004000 view full part page → $0.4
58	0016906015	HEX. HEAD BOLT	12		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 12 view full part page → $0.95
58A	0040506000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040506000 · qty on machine: 1 view full part page → $0.77
59	Y0601872910	CURRENT TRANSFORMER	2		ADD TO CART
CURRENT TRANSFORMER Y0601872910 · qty on machine: 2 view full part page → $98.33
59A	M9521001604	DECAL: CT4	1		ADD TO CART
DECAL: CT4 M9521001604 · qty on machine: 1 view full part page → $0.95
59B	M9521001704	DECAL: CT5	1		ADD TO CART
DECAL: CT5 M9521001704 · qty on machine: 1 view full part page → $0.95
60	Y0601813924	PLUG	1		PARTS REQUEST
PHOTO COMING PLUG Y0601813924 · qty on machine: 1 PARTS REQUEST
61	0601812711	PINS	3		ADD TO CART
PINS 0601812711 · qty on machine: 3 view full part page → $0.56
62	Y0601815587	ROUND TERMINAL	3		PARTS REQUEST
PHOTO COMING ROUND TERMINAL Y0601815587 · qty on machine: 3 PARTS REQUEST
63	Y0016906020	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT Y0016906020 · qty on machine: 2 view full part page → $1.45
63A	0040506000	TOOTHED WASHER	2		ADD TO CART
TOOTHED WASHER 0040506000 · qty on machine: 2 view full part page → $0.77
64	M2247700624	WIRE HARNESS, GENERATOR	1		PARTS REQUEST
PHOTO COMING WIRE HARNESS, GENERATOR M2247700624 · qty on machine: 1 PARTS REQUEST
65	M2358200202	WIRE HARNESS, ENGINE	1	S/N 7307391 AND BELOW	PARTS REQUEST
PHOTO COMING WIRE HARNESS, ENGINE M2358200202 · qty on machine: 1 S/N 7307391 AND BELOW PARTS REQUEST
65	M2358200212	WIRE HARNESS, ENGINE	1	S/N 7307392 AND ABOVE	PARTS REQUEST
PHOTO COMING WIRE HARNESS, ENGINE M2358200212 · qty on machine: 1 S/N 7307392 AND ABOVE PARTS REQUEST

Page 14 — ENGINE AND RADIATOR ASSY.

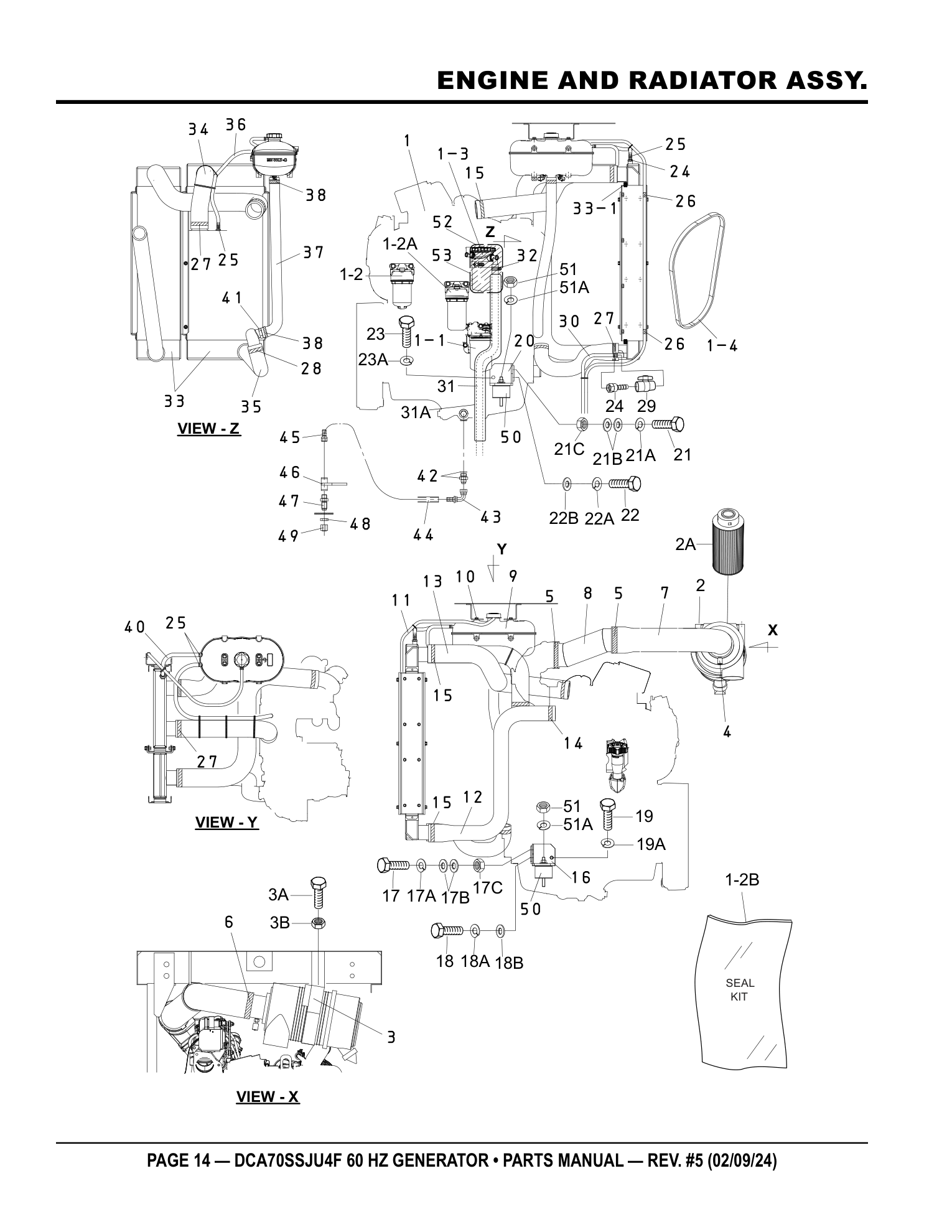

Multiquip DCA70SSJU4F Generator ENGINE AND RADIATOR ASSY. parts diagram

Parts list — exactly as printed42 rows

No.	Part No.	Part Name	Qty	Remarks
1	4045HFG04	ENGINE, JOHN DEERE	1		PARTS REQUEST
PHOTO COMING ENGINE, JOHN DEERE 4045HFG04 · qty on machine: 1 PARTS REQUEST
1-1	RE504836	CARTRIDGE, OIL FILTER	2	REPLACES P/N Y0602041298	ADD TO CART
CARTRIDGE, OIL FILTER RE504836 · qty on machine: 2 REPLACES P/N Y0602041298 view full part page → $67.95
1-2	RE551507	FUEL FILTER ELEMENT, (PRIMARY)	1	REPLACES P/N Y0602042800	ADD TO CART
FUEL FILTER ELEMENT, (PRIMARY) RE551507 · qty on machine: 1 REPLACES P/N Y0602042800 view full part page → $168.95
1-2A	RE551508	FUEL FILTER ELEMENT, (SECONDARY)	1	REPLACES P/N Y0602042802	ADD TO CART
FUEL FILTER ELEMENT, (SECONDARY) RE551508 · qty on machine: 1 REPLACES P/N Y0602042802 view full part page → $147.95
1-2B	RE562696	SEAL KIT (FUEL FILTER)	1	REPLACES P/N Y0602042603	ADD TO CART
SEAL KIT (FUEL FILTER) RE562696 · qty on machine: 1 REPLACES P/N Y0602042603 view full part page → $72.95
1-3	RE540710	BLOWBY FILTER ELEMENT	1	REPLACES P/N Y0602044230	NO LONGER AVAILABLE
PHOTO COMING BLOWBY FILTER ELEMENT RE540710 · qty on machine: 1 REPLACES P/N Y0602044230 NO LONGER AVAILABLE
1-4	R533597	FAN BELT	1	REPLACES P/N Y0602015205	ADD TO CART
FAN BELT R533597 · qty on machine: 1 REPLACES P/N Y0602015205 view full part page → $219.95
2	FPG082527	AIR CLEANER	1	REPLACES P/N Y0602046582 INCLUDES ITEMS W/#	PARTS REQUEST
PHOTO COMING AIR CLEANER FPG082527 · qty on machine: 1 REPLACES P/N Y0602046582 INCLUDES ITEMS W/# Kit includes: 2A# PARTS REQUEST
2A#	0602046365	ELEMENT	1	REPLACES P/N P828889	ADD TO CART
ELEMENT 0602046365 · qty on machine: 1 REPLACES P/N P828889 Also included in kit 2 - AIR CLEANER (FPG082527) view full part page → $116.95 IN A KIT + SOLD SOLO
3	P777732	AIR CLEANER BAND	1	REPLACES P/N 0602040554	PARTS REQUEST
PHOTO COMING AIR CLEANER BAND P777732 · qty on machine: 1 REPLACES P/N 0602040554 PARTS REQUEST
3A	011208030	HEX. HEAD BOLT	2	REPLACES P/N 0016908030	ADD TO CART
HEX. HEAD BOLT 011208030 · qty on machine: 2 REPLACES P/N 0016908030 view full part page → $1.3
3B	Y0207008000	SELF LOCK NUT	2		ADD TO CART
SELF LOCK NUT Y0207008000 · qty on machine: 2 view full part page → $0.4
4	0602040651	AIR CLEANER INDICATOR	1		ADD TO CART
AIR CLEANER INDICATOR 0602040651 · qty on machine: 1 view full part page → $52.95
5	0605515197	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515197 · qty on machine: 2 view full part page → $35.95
6	0605515225	HOSE BAND	1		ADD TO CART
HOSE BAND 0605515225 · qty on machine: 1 view full part page → $14.95
7	M2374100003	AIR CLEANER HOSE	1		ADD TO CART
AIR CLEANER HOSE M2374100003 · qty on machine: 1 view full part page → $579.95
8	M2374000004	AIR CLEANER PIPE	1		PARTS REQUEST
PHOTO COMING AIR CLEANER PIPE M2374000004 · qty on machine: 1 PARTS REQUEST
9	DZ102141	SURGE TANK	1	REPLACES P/N Y0602010221	ADD TO CART
SURGE TANK DZ102141 · qty on machine: 1 REPLACES P/N Y0602010221 view full part page → $275.95
10	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
11	Y0193602300	OVERFLOW HOSE	1		PARTS REQUEST
PHOTO COMING OVERFLOW HOSE Y0193602300 · qty on machine: 1 PARTS REQUEST
12	M2311500303	INTER COOLER HOSE, LOWER	1		ADD TO CART
INTER COOLER HOSE, LOWER M2311500303 · qty on machine: 1 view full part page → $1622.95
13	M2311500203	INTER COOLER HOSE, UPPER	1		ADD TO CART
INTER COOLER HOSE, UPPER M2311500203 · qty on machine: 1 view full part page → $2721.95
14	0605515215	HOSE BAND	1		ADD TO CART
HOSE BAND 0605515215 · qty on machine: 1 view full part page → $28.95
15	0605515236	HOSE BAND	3		ADD TO CART
HOSE BAND 0605515236 · qty on machine: 3 view full part page → $46.95
16	M3304200004	ENGINE FOOT	1		PARTS REQUEST
PHOTO COMING ENGINE FOOT M3304200004 · qty on machine: 1 PARTS REQUEST
17	Y0013616050	HEX HEAD BOLT	1		PARTS REQUEST
PHOTO COMING HEX HEAD BOLT Y0013616050 · qty on machine: 1 PARTS REQUEST
17A	0040016000	WASHER, LOCK	1		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 1 view full part page → $4.95
17B	0041216000	WASHER, FLAT	2		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 2 view full part page → $1.95
17C	0030316000	HEX. NUT	1		ADD TO CART
HEX. NUT 0030316000 · qty on machine: 1 view full part page → $3.95
18	0013616040	HEX HEAD BOLT	1		ADD TO CART
HEX HEAD BOLT 0013616040 · qty on machine: 1 view full part page → $5.95
18A	0040016000	WASHER, LOCK	1		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 1 view full part page → $4.95
18B	0041216000	WASHER, FLAT	1		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 1 view full part page → $1.95
19	Y0013612035	HEX HEAD BOLT	1		ADD TO CART
HEX HEAD BOLT Y0013612035 · qty on machine: 1 view full part page → $1.28
19A	0040012000	WASHER, LOCK	1		ADD TO CART
WASHER, LOCK 0040012000 · qty on machine: 1 view full part page → $0.95
20	M3304200104	ENGINE FOOT	1		PARTS REQUEST
PHOTO COMING ENGINE FOOT M3304200104 · qty on machine: 1 PARTS REQUEST
21	Y0013616065	HEX HEAD BOLT	1		PARTS REQUEST
PHOTO COMING HEX HEAD BOLT Y0013616065 · qty on machine: 1 PARTS REQUEST
21A	0040016000	WASHER, LOCK	1		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 1 view full part page → $4.95
21B	0041216000	WASHER, FLAT	2		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 2 view full part page → $1.95
21C	0030016000	HEX. NUT	1		ADD TO CART
HEX. NUT 0030016000 · qty on machine: 1 view full part page → $1.9
22	0013616040	HEX HEAD BOLT	1		ADD TO CART
HEX HEAD BOLT 0013616040 · qty on machine: 1 view full part page → $5.95
22A	0040016000	WASHER, LOCK	1		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 1 view full part page → $4.95
22B	0041216000	WASHER, FLAT	1		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 1 view full part page → $1.95

Page 16 — ENGINE AND RADIATOR ASSY. (CONT'D.)

Multiquip DCA70SSJU4F Generator ENGINE AND RADIATOR ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed38 rows

No.	Part No.	Part Name	Qty	Remarks
23	Y0013612035	HEX HEAD BOLT	1		ADD TO CART
HEX HEAD BOLT Y0013612035 · qty on machine: 1 view full part page → $1.28
23A	0040012000	WASHER, LOCK	1		ADD TO CART
WASHER, LOCK 0040012000 · qty on machine: 1 view full part page → $0.95
24	Y0605512192	HOSE JOINT	2		PARTS REQUEST
PHOTO COMING HOSE JOINT Y0605512192 · qty on machine: 2 PARTS REQUEST
25	0605515189	HOSE BAND	4		ADD TO CART
HOSE BAND 0605515189 · qty on machine: 4 view full part page → $1.85
26	0602220911	CLAMP	2		ADD TO CART
CLAMP 0602220911 · qty on machine: 2 view full part page → $1.85
27	9500202080	HOSE BAND	3	REPLACES P/N 0605515178	ADD TO CART
HOSE BAND 9500202080 · qty on machine: 3 REPLACES P/N 0605515178 view full part page → $3.95
28	0605515199	HOSE BAND	1		ADD TO CART
HOSE BAND 0605515199 · qty on machine: 1 view full part page → $2.95
29	Y0605511394	MINI BALL VALVE	1		ADD TO CART
MINI BALL VALVE Y0605511394 · qty on machine: 1 view full part page → $70.95
30	Y0193600900	DRAIN HOSE	1		PARTS REQUEST
PHOTO COMING DRAIN HOSE Y0193600900 · qty on machine: 1 PARTS REQUEST
31	Y0191600870	BLOWBY HOSE	1		PARTS REQUEST
PHOTO COMING BLOWBY HOSE Y0191600870 · qty on machine: 1 PARTS REQUEST
31A	Y0378700850	AEROFLEX TUBE	1		PARTS REQUEST
PHOTO COMING AEROFLEX TUBE Y0378700850 · qty on machine: 1 PARTS REQUEST
32	0605515134	HOSE BAND	1		ADD TO CART
HOSE BAND 0605515134 · qty on machine: 1 view full part page → $4.95
33	Y0602012909	RADIATOR AND INTER-COOLER	1		ADD TO CART
RADIATOR AND INTER-COOLER Y0602012909 · qty on machine: 1 view full part page → $2786.95
33-1	M2494102104	ACOUSTIC SHEET	2	S/N 7307116 AND BELOW	ADD TO CART
ACOUSTIC SHEET M2494102104 · qty on machine: 2 S/N 7307116 AND BELOW view full part page → $38.95
33-1	M2494105304	ACOUSTIC SHEET	2	S/N 7307117 AND ABOVE	PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M2494105304 · qty on machine: 2 S/N 7307117 AND ABOVE PARTS REQUEST
34	M2311500003	RADIATOR HOSE, UPPER	1		ADD TO CART
RADIATOR HOSE, UPPER M2311500003 · qty on machine: 1 view full part page → $187.95
35	M2311500103	RADIATOR HOSE, LOWER	1		ADD TO CART
RADIATOR HOSE, LOWER M2311500103 · qty on machine: 1 view full part page → $140.95
36	0199900750	VENT HOSE	1		ADD TO CART
VENT HOSE 0199900750 · qty on machine: 1 view full part page → $13.95
37	M2311500413	SURGE TANK HOSE	1		ADD TO CART
SURGE TANK HOSE M2311500413 · qty on machine: 1 view full part page → $131.95
38	0605515149	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515149 · qty on machine: 2 view full part page → $1.95
40	0199900300	VENT HOSE	1		ADD TO CART
VENT HOSE 0199900300 · qty on machine: 1 view full part page → $6.95
41	AT326597	WATER PUMP JOINT	1	REPLACES Y0602010226	ADD TO CART
WATER PUMP JOINT AT326597 · qty on machine: 1 REPLACES Y0602010226 view full part page → $77.95
42	0602022563	ADAPTER	1	S/N 7307147 AND BELOW	ADD TO CART
ADAPTER 0602022563 · qty on machine: 1 S/N 7307147 AND BELOW view full part page → $34.95
42	0602022580	ADAPTER	1	S/N 7307148 AND ABOVE	ADD TO CART
ADAPTER 0602022580 · qty on machine: 1 S/N 7307148 AND ABOVE view full part page → $37.95
43	0602022561	90 DEGREE ELBOW	1	S/N 7307339 AND BELOW	ADD TO CART
90 DEGREE ELBOW 0602022561 · qty on machine: 1 S/N 7307339 AND BELOW view full part page → $76.95
44	Y0269200370	PUSH-LOCK HOSE	1	S/N 7307339 AND BELOW	PARTS REQUEST
PHOTO COMING PUSH-LOCK HOSE Y0269200370 · qty on machine: 1 S/N 7307339 AND BELOW PARTS REQUEST
44	M2301000414	OIL DRAIN HOSE	1	S/N 7307340 AND ABOVE	PARTS REQUEST
PHOTO COMING OIL DRAIN HOSE M2301000414 · qty on machine: 1 S/N 7307340 AND ABOVE PARTS REQUEST
45	0603306395	MALE PIPE	1	S/N 7307339 AND BELOW	ADD TO CART
MALE PIPE 0603306395 · qty on machine: 1 S/N 7307339 AND BELOW view full part page → $16.95
46	0605511395	BALL VALVE	1		ADD TO CART
BALL VALVE 0605511395 · qty on machine: 1 view full part page → $46.95
47	0603306590	MALE BULKHEAD CONNECTOR	1		ADD TO CART
MALE BULKHEAD CONNECTOR 0603306590 · qty on machine: 1 view full part page → $86.95
48	0603300285	BULKHEAD ROCKNUT	1		ADD TO CART
BULKHEAD ROCKNUT 0603300285 · qty on machine: 1 view full part page → $4.95
49	0602021070	CAP	1		ADD TO CART
CAP 0602021070 · qty on machine: 1 view full part page → $11.95
50	Y0605000401	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION Y0605000401 · qty on machine: 2 view full part page → $50.95
51	0030012000	HEX NUT	2		ADD TO CART
HEX NUT 0030012000 · qty on machine: 2 view full part page → $0.5
51A	0040012000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040012000 · qty on machine: 2 view full part page → $0.95
52	Y0602044502	BLOWBY FILTER COVER, UPPER	1	S/N 7307138 ~ 7307247	ADD TO CART
BLOWBY FILTER COVER, UPPER Y0602044502 · qty on machine: 1 S/N 7307138 ~ 7307247 view full part page → $279.95
52	Y0602044508	BLOWBY FILTER COVER, UPPER	1	S/N 7307248 AND ABOVE	PARTS REQUEST
PHOTO COMING BLOWBY FILTER COVER, UPPER Y0602044508 · qty on machine: 1 S/N 7307248 AND ABOVE PARTS REQUEST
53	Y0602044504	BLOWBY FILTER COVER, LOWER	1	S/N 7307138 AND ABOVE	ADD TO CART
BLOWBY FILTER COVER, LOWER Y0602044504 · qty on machine: 1 S/N 7307138 AND ABOVE view full part page → $338.95

Page 18 — OUTPUT TERMINAL ASSY.

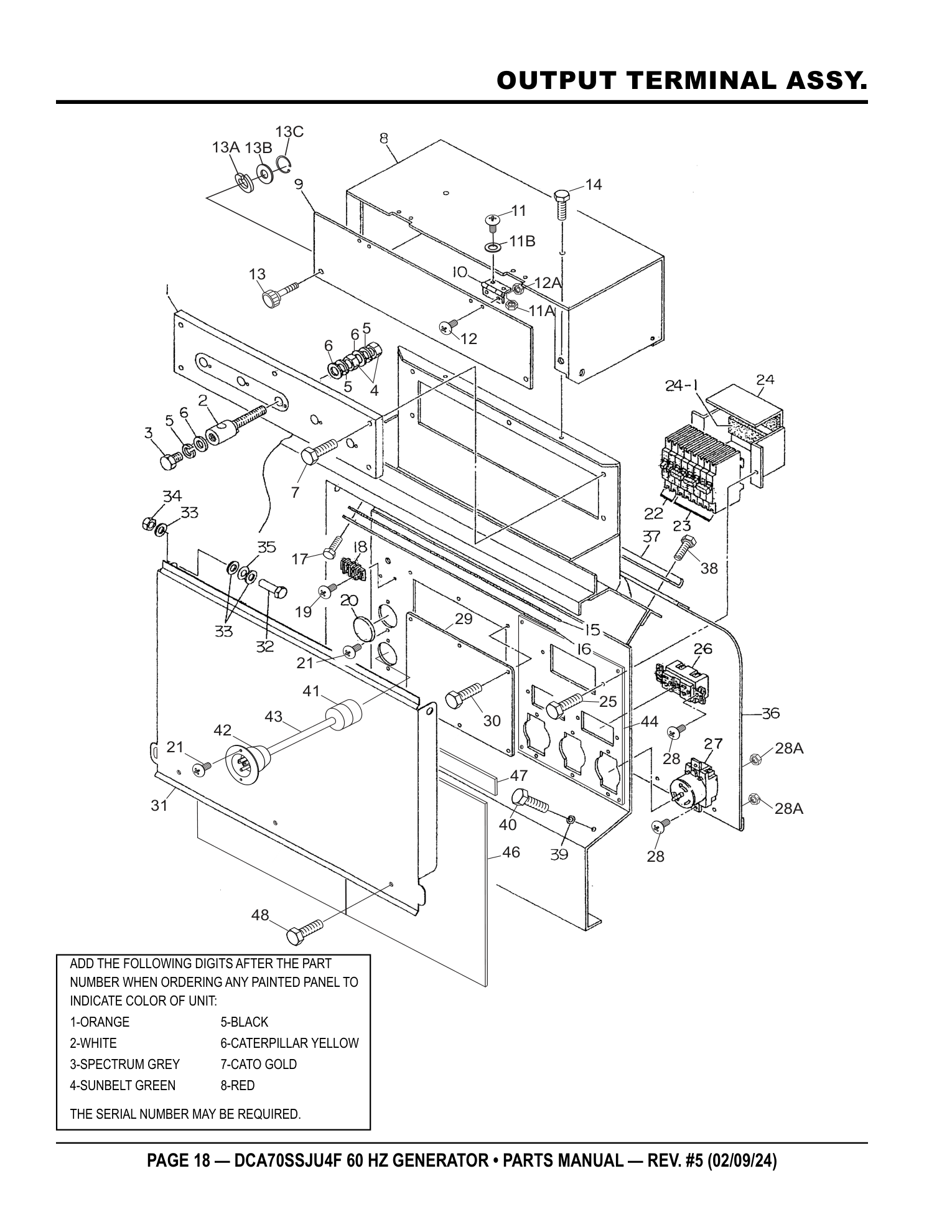

Multiquip DCA70SSJU4F Generator OUTPUT TERMINAL ASSY. parts diagram

Parts list — exactly as printed44 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3230700003	TERMINAL PANEL	1		ADD TO CART
TERMINAL PANEL M3230700003 · qty on machine: 1 view full part page → $258.95
2	M9220100304	OUTPUT TERMINAL BOLT	5		ADD TO CART
OUTPUT TERMINAL BOLT M9220100304 · qty on machine: 5 view full part page → $118.95
3	0801830804	TIE BOLT	5	REPLACES P/N M9220100404	ADD TO CART
TIE BOLT 0801830804 · qty on machine: 5 REPLACES P/N M9220100404 view full part page → $19.95
4	0039316000	HEX. NUT	10		ADD TO CART
HEX. NUT 0039316000 · qty on machine: 10 view full part page → $5.95
5	0040016000	WASHER, LOCK	15		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 15 view full part page → $4.95
6	0401450160	WASHER, FLAT	20	REPLACES P/N 0041416000	ADD TO CART
WASHER, FLAT 0401450160 · qty on machine: 20 REPLACES P/N 0041416000 view full part page → $0.53
7	0012108035	HEX. HEAD BOLT	5	REPLACES P/N 0016908035	ADD TO CART
HEX. HEAD BOLT 0012108035 · qty on machine: 5 REPLACES P/N 0016908035 view full part page → $1.95
8	M2237100103	3-PHASE OUTPUT TERMINAL COVER	1		ADD TO CART
3-PHASE OUTPUT TERMINAL COVER M2237100103 · qty on machine: 1 view full part page → $111.95
9	M3236100104	OUTPUT WINDOW	1		ADD TO CART
OUTPUT WINDOW M3236100104 · qty on machine: 1 view full part page → $72.95
10	0605010040	HINGE	2		ADD TO CART
HINGE 0605010040 · qty on machine: 2 view full part page → $4.95
11	0027103010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027103010 · qty on machine: 4 view full part page → $0.44
11A	0207003000	HEX. NUT	4	REPLACES P/N 0030003000	ADD TO CART
HEX. NUT 0207003000 · qty on machine: 4 REPLACES P/N 0030003000 view full part page → $0.21
11B	0041203000	WASHER, FLAT	4		ADD TO CART
WASHER, FLAT 0041203000 · qty on machine: 4 view full part page → $0.12
12	0027103010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027103010 · qty on machine: 4 view full part page → $0.44
12A	0207003000	HEX. NUT	4	REPLACES P/N 0030003000	ADD TO CART
HEX. NUT 0207003000 · qty on machine: 4 REPLACES P/N 0030003000 view full part page → $0.21
13	M9220100804	SET SCREW	2		ADD TO CART
SET SCREW M9220100804 · qty on machine: 2 view full part page → $20.95
13A	0040006000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040006000 · qty on machine: 2 view full part page → $0.17
13B	952404470	WASHER, FLAT	2	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 2 REPLACES P/N 0041206000 view full part page → $0.19
13C	0080200005	E-SNAP RING	2		ADD TO CART
E-SNAP RING 0080200005 · qty on machine: 2 view full part page → $0.25
14	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95
15	M3236400004	RUBBER, CABLE OUTLET COVER	1		ADD TO CART
RUBBER, CABLE OUTLET COVER M3236400004 · qty on machine: 1 view full part page → $14.95
16	M3236300004	SUPPORTER, CABLE OUTLET COVER	1		ADD TO CART
SUPPORTER, CABLE OUTLET COVER M3236300004 · qty on machine: 1 view full part page → $24.95
17	011206020	HEX. HEAD BOLT	6	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 6 REPLACES P/N 0016906020 view full part page → $0.95
18	Y0601816539	TERMINAL BLOCK, 601-GP-02	1	REPLACES 0601815194 S/N 7307365 AND BELOW	ADD TO CART
TERMINAL BLOCK, 601-GP-02 Y0601816539 · qty on machine: 1 REPLACES 0601815194 S/N 7307365 AND BELOW view full part page → $15.95
18	Y0601816539	TERMINAL BLOCK, TB200-02	1	S/N 7307366 ~ 7307375	ADD TO CART
TERMINAL BLOCK, TB200-02 Y0601816539 · qty on machine: 1 S/N 7307366 ~ 7307375 view full part page → $15.95
18	Y0601815870	TERMINAL BLOCK, KT-20-2P	1	S/N 7307376 AND ABOVE	ADD TO CART
TERMINAL BLOCK, KT-20-2P Y0601815870 · qty on machine: 1 S/N 7307376 AND ABOVE view full part page → $52.95
19	0027104015	MACHINE SCREW	2	S/N 7307365 AND BELOW	ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 2 S/N 7307365 AND BELOW view full part page → $0.53
19	0027104020	MACHINE SCREW	2	S/N 7307366 AND ABOVE	ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 S/N 7307366 AND ABOVE view full part page → $0.4
20	0603306775	BLIND PLUG	2		ADD TO CART
BLIND PLUG 0603306775 · qty on machine: 2 view full part page → $3.95
21	0027104015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 4 view full part page → $0.53
22	0601808803	CIRCUIT BREAKER, 1P 20A	2		ADD TO CART
CIRCUIT BREAKER, 1P 20A 0601808803 · qty on machine: 2 view full part page → $46.95
23	0601808804	CIRCUIT BREAKER, 2P 50A	3		ADD TO CART
CIRCUIT BREAKER, 2P 50A 0601808804 · qty on machine: 3 view full part page → $98.95
24	M1260700304	BREAKER FITTING COVER	1		ADD TO CART
BREAKER FITTING COVER M1260700304 · qty on machine: 1 view full part page → $75.95
24-1	0222100150	CUSHION RUBBER	1		ADD TO CART
CUSHION RUBBER 0222100150 · qty on machine: 1 view full part page → $6.95
25	011206020	HEX. HEAD BOLT	2	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 2 REPLACES P/N 0016906020 view full part page → $0.95
26	Y0601814034	RECEPTACLE, 125V 20A X 2	2		ADD TO CART
RECEPTACLE, 125V 20A X 2 Y0601814034 · qty on machine: 2 view full part page → $91.95
27	0601814014	RECEPTACLE, 250V 50A	3		ADD TO CART
RECEPTACLE, 250V 50A 0601814014 · qty on machine: 3 view full part page → $90.95
28	0027104015	MACHINE SCREW	10		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 10 view full part page → $0.53
28A	OEMAA8	HEX. NUT	10	REPLACES P/N 0207004000	ADD TO CART
HEX. NUT OEMAA8 · qty on machine: 10 REPLACES P/N 0207004000 view full part page → $0.4
29	M2453400004	COVER	1		ADD TO CART
COVER M2453400004 · qty on machine: 1 view full part page → $23.95
30	0016906015	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 6 view full part page → $0.95
31	M2237100003	TERMINAL COVER	1	S/N 7307167 AND BELOW	ADD TO CART
TERMINAL COVER M2237100003 · qty on machine: 1 S/N 7307167 AND BELOW view full part page → $97.95
31	M2237100403	TERMINAL COVER	1	S/N 7307168 AND ABOVE	ADD TO CART
TERMINAL COVER M2237100403 · qty on machine: 1 S/N 7307168 AND ABOVE view full part page → $122.95
32	012212045	HEX. HEAD BOLT	2	REPLACES P/N 0010112045	ADD TO CART
HEX. HEAD BOLT 012212045 · qty on machine: 2 REPLACES P/N 0010112045 view full part page → $2.95

Page 20 — OUTPUT TERMINAL ASSY. (CONT'D.)

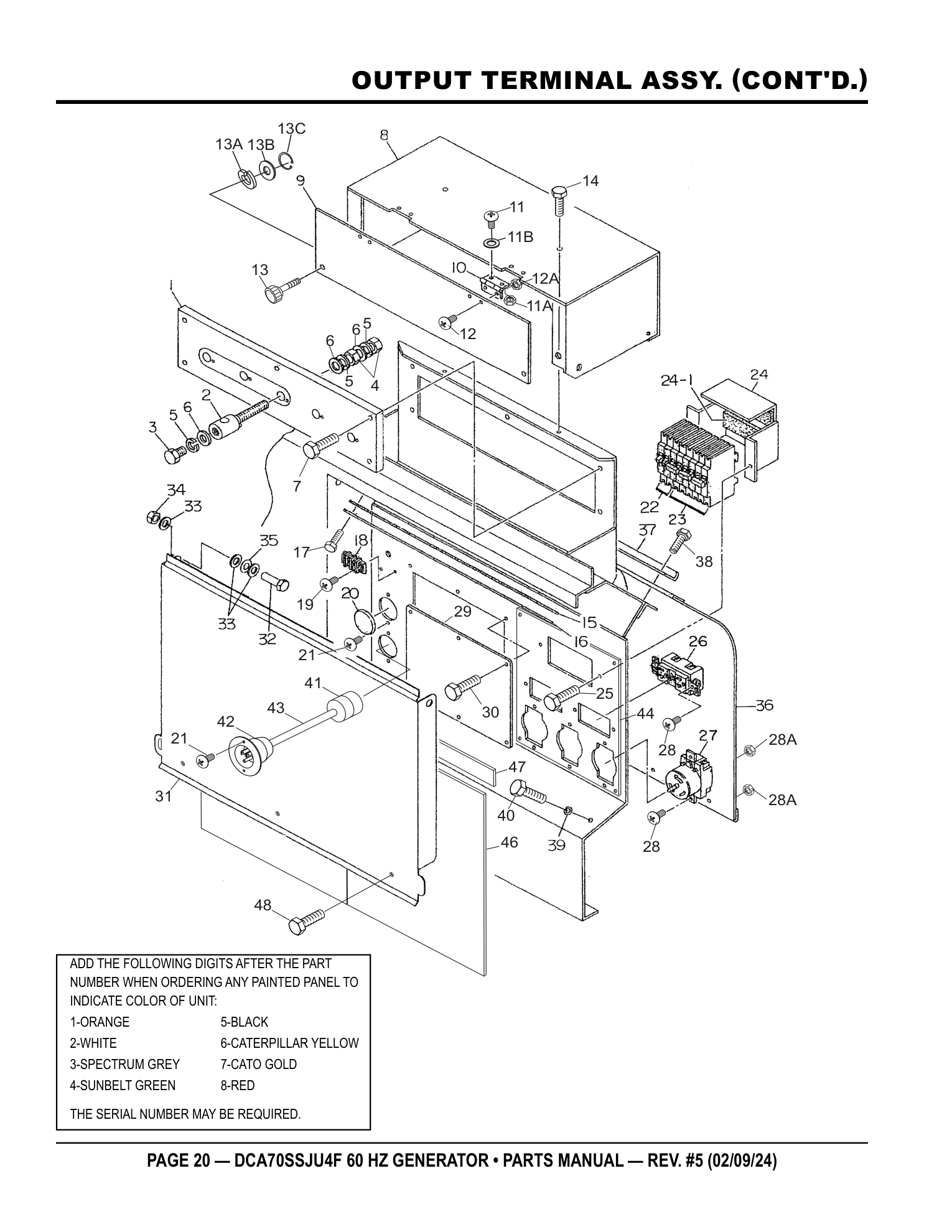

Multiquip DCA70SSJU4F Generator OUTPUT TERMINAL ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed17 rows

No.	Part No.	Part Name	Qty	Remarks
33	031112230	WASHER, FLAT	6	REPLACES P/N 0041212000	ADD TO CART
WASHER, FLAT 031112230 · qty on machine: 6 REPLACES P/N 0041212000 view full part page → $0.95
34	0030012000	HEX. NUT	2		ADD TO CART
HEX. NUT 0030012000 · qty on machine: 2 view full part page → $0.5
35	0605050060	CONICAL SPRING WASHER	2		ADD TO CART
CONICAL SPRING WASHER 0605050060 · qty on machine: 2 view full part page → $5.95
36	M4236100604	INSULATING COVER	1		ADD TO CART
INSULATING COVER M4236100604 · qty on machine: 1 view full part page → $95.95
37	M4236400304	SUPPORTER, INSULATING COVER	1		ADD TO CART
SUPPORTER, INSULATING COVER M4236400304 · qty on machine: 1 view full part page → $19.95
38	0016906015	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 2 view full part page → $0.95
39	0040508000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040508000 · qty on machine: 1 view full part page → $0.35
40	0019208025	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0019208025 · qty on machine: 1 view full part page → $3.95
41	0601812527	CONNECTOR	1	S/N 7307148 ~ 7307345	ADD TO CART
CONNECTOR 0601812527 · qty on machine: 1 S/N 7307148 ~ 7307345 view full part page → $64.95
42	HBL5278C	INLET FLANGE	1	REPLACES P/N 0601811177 S/N 7307148 ~ 7307345	ADD TO CART
INLET FLANGE HBL5278C · qty on machine: 1 REPLACES P/N 0601811177 S/N 7307148 ~ 7307345 view full part page → $53.95
43	M1358200804	WIRE HARNESS, WATER HEATER	1	S/N 7307148 ~ 7307345	PARTS REQUEST
PHOTO COMING WIRE HARNESS, WATER HEATER M1358200804 · qty on machine: 1 S/N 7307148 ~ 7307345 PARTS REQUEST
43	0601813079	WATER HEATER CABLE	1	S/N 7307346 AND ABOVE	PARTS REQUEST
PHOTO COMING WATER HEATER CABLE 0601813079 · qty on machine: 1 S/N 7307346 AND ABOVE PARTS REQUEST
44	M3454200904	RECEPTACLE BOARD	1	S/N 7307168 AND ABOVE	ADD TO CART
RECEPTACLE BOARD M3454200904 · qty on machine: 1 S/N 7307168 AND ABOVE view full part page → $30.95
45	0016906015	HEX. HEAD BOLT	6	S/N 7307168 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 6 S/N 7307168 AND ABOVE view full part page → $0.95
46	M2454700704	RUBBER SHEET	1	S/N 7307168 AND ABOVE	ADD TO CART
RUBBER SHEET M2454700704 · qty on machine: 1 S/N 7307168 AND ABOVE view full part page → $41.95
47	M2454700804	RUBBER SHEET HOLDER	1	S/N 7307168 AND ABOVE	PARTS REQUEST
PHOTO COMING RUBBER SHEET HOLDER M2454700804 · qty on machine: 1 S/N 7307168 AND ABOVE PARTS REQUEST
48	011206020	HEX. HEAD BOLT	3	REPLACES P/N 0019206020 S/N 7307168 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 3 REPLACES P/N 0019206020 S/N 7307168 AND ABOVE view full part page → $0.95

Page 22 — BATTERY ASSY.

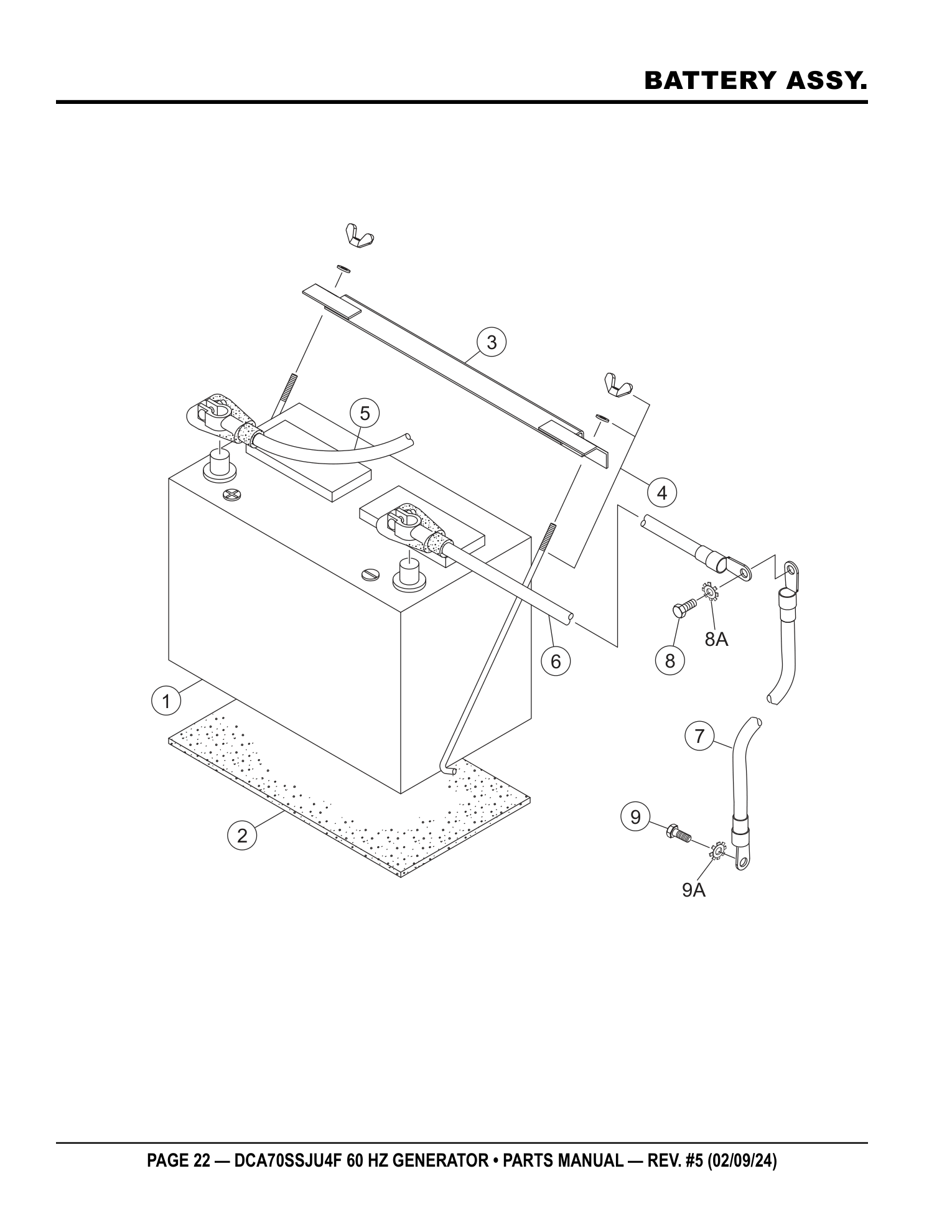

Multiquip DCA70SSJU4F Generator BATTERY ASSY. parts diagram

Parts list — exactly as printed11 rows

No.	Part No.	Part Name	Qty	Remarks
1	0602220199	BATTERY	1		ADD TO CART
BATTERY 0602220199 · qty on machine: 1 view full part page → $288.95
2	M9310500014	BATTERY SHEET	1		ADD TO CART
BATTERY SHEET M9310500014 · qty on machine: 1 view full part page → $5.95
3	M9103000304	BATTERY BAND	1		ADD TO CART
BATTERY BAND M9103000304 · qty on machine: 1 view full part page → $72.95
4	0602220920	BATTERY BOLT SET	2		ADD TO CART
BATTERY BOLT SET 0602220920 · qty on machine: 2 view full part page → $5.95
5	M2346900504	BATTERY CABLE	1		ADD TO CART
BATTERY CABLE M2346900504 · qty on machine: 1 view full part page → $91.95
6	M2346900304	BATTERY CABLE	1		ADD TO CART
BATTERY CABLE M2346900304 · qty on machine: 1 view full part page → $149.95
7		CABLE	1	MAKE LOCALLY	SEE REMARKS
PHOTO COMING CABLE · qty on machine: 1 MAKE LOCALLY SEE REMARKS
8	0017112025	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0017112025 · qty on machine: 1 view full part page → $2.93
8A	0040512000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040512000 · qty on machine: 1 view full part page → $0.77
9	011008020	HEX. HEAD BOLT	1	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 1 REPLACES P/N 0016908020 view full part page → $2.68
9A	0040508000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040508000 · qty on machine: 1 view full part page → $0.35

Page 24 — MUFFLER ASSY.

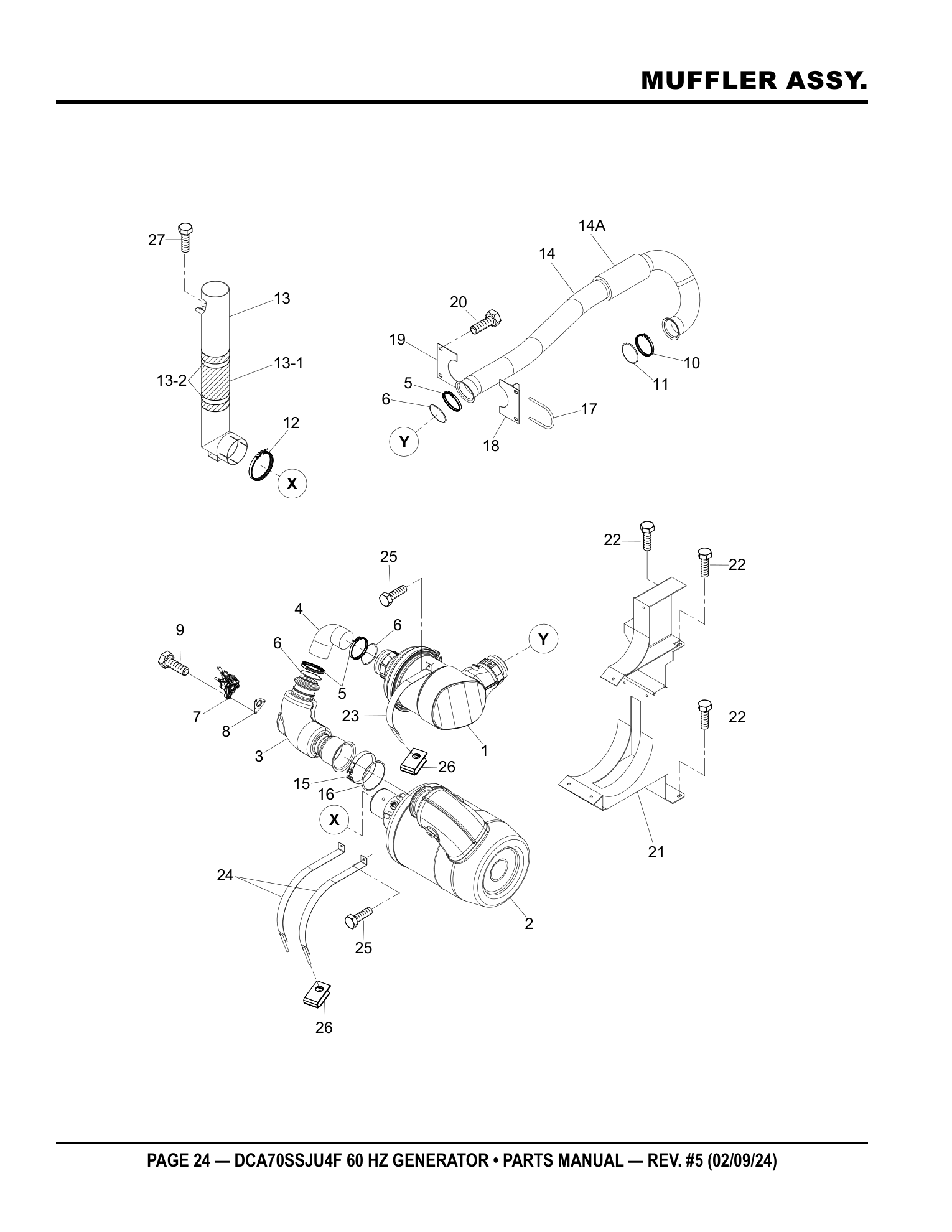

Multiquip DCA70SSJU4F Generator MUFFLER ASSY. parts diagram

Parts list — exactly as printed33 rows

No.	Part No.	Part Name	Qty	Remarks
1	Y0602330105	EXHAUST FILTER (DOC)	1	DZ102172	NO LONGER AVAILABLE
PHOTO COMING EXHAUST FILTER (DOC) Y0602330105 · qty on machine: 1 DZ102172 NO LONGER AVAILABLE
2	Y0602330303	SCR CATALYST	1	RE555854	PARTS REQUEST
PHOTO COMING SCR CATALYST Y0602330303 · qty on machine: 1 RE555854 PARTS REQUEST
3	Y0602330417	DECOMPOSITION TUBE	1	RE570714	PARTS REQUEST
PHOTO COMING DECOMPOSITION TUBE Y0602330417 · qty on machine: 1 RE570714 PARTS REQUEST
4	RE550428	DECOMPOSITION EXT. TUBE	1	REPLACES P/N Y0602330418	PARTS REQUEST
PHOTO COMING DECOMPOSITION EXT. TUBE RE550428 · qty on machine: 1 REPLACES P/N Y0602330418 PARTS REQUEST
5	RE289839	V-BAND CLAMP	3	REPLACES P/N Y0602325037	ADD TO CART
V-BAND CLAMP RE289839 · qty on machine: 3 REPLACES P/N Y0602325037 view full part page → $107.95
6	R534036	GASKET	3	REPLACES P/N Y0602320208	PARTS REQUEST
PHOTO COMING GASKET R534036 · qty on machine: 3 REPLACES P/N Y0602320208 PARTS REQUEST
7	RE560468	DEF INJECTOR	1	REPLACES P/N Y0602330405	ADD TO CART
DEF INJECTOR RE560468 · qty on machine: 1 REPLACES P/N Y0602330405 view full part page → $1355.95
8	RE556879	GASKET	1	REPLACES P/N Y0602330406	ADD TO CART
GASKET RE556879 · qty on machine: 1 REPLACES P/N Y0602330406 view full part page → $25.95
9	R537624	HEX. HEAD BOLT	3	REPLACES P/N Y0602330407	ADD TO CART
HEX. HEAD BOLT R537624 · qty on machine: 3 REPLACES P/N Y0602330407 view full part page → $4.95
10	RE555336	V-BAND CLAMP	1	REPLACES P/N Y0602325031	PARTS REQUEST
PHOTO COMING V-BAND CLAMP RE555336 · qty on machine: 1 REPLACES P/N Y0602325031 PARTS REQUEST
11	SU34912	GASKET	1	REPLACES P/N Y0602320219	PARTS REQUEST
PHOTO COMING GASKET SU34912 · qty on machine: 1 REPLACES P/N Y0602320219 PARTS REQUEST
12	Y0602325023	PIPE BAND	1		PARTS REQUEST
PHOTO COMING PIPE BAND Y0602325023 · qty on machine: 1 PARTS REQUEST
13	M2334100103	TAIL PIPE	1		PARTS REQUEST
PHOTO COMING TAIL PIPE M2334100103 · qty on machine: 1 PARTS REQUEST
13-1	Y0400002600	INSULATING WRAP	1		PARTS REQUEST
PHOTO COMING INSULATING WRAP Y0400002600 · qty on machine: 1 PARTS REQUEST
13-2	0605515225	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515225 · qty on machine: 2 view full part page → $14.95
14	M2334000803	EXHAUST PIPE	1		PARTS REQUEST
PHOTO COMING EXHAUST PIPE M2334000803 · qty on machine: 1 PARTS REQUEST
14A	Y0602311148	EXHAUST INSULATING MAT	1		ADD TO CART
EXHAUST INSULATING MAT Y0602311148 · qty on machine: 1 view full part page → $514.95
15	DZ10555	V-BAND CLAMP	1	REPLACES P/N Y0602325032	PARTS REQUEST
PHOTO COMING V-BAND CLAMP DZ10555 · qty on machine: 1 REPLACES P/N Y0602325032 PARTS REQUEST
16	R533962	GASKET	1	REPLACES P/N Y0602320209	PARTS REQUEST
PHOTO COMING GASKET R533962 · qty on machine: 1 REPLACES P/N Y0602320209 PARTS REQUEST
17	0602326060	U BOLT	1		ADD TO CART
U BOLT 0602326060 · qty on machine: 1 view full part page → $16.95
18	M2331400004	COVER, EXHAUST PIPE	1		PARTS REQUEST
PHOTO COMING COVER, EXHAUST PIPE M2331400004 · qty on machine: 1 PARTS REQUEST
19	M2331400104	COVER, EXHAUST PIPE	1		PARTS REQUEST
PHOTO COMING COVER, EXHAUST PIPE M2331400104 · qty on machine: 1 PARTS REQUEST
20	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
21	M2331400702	BRACKET, DOC AND SCR	1	S/N 7307127 AND BELOW	PARTS REQUEST
PHOTO COMING BRACKET, DOC AND SCR M2331400702 · qty on machine: 1 S/N 7307127 AND BELOW PARTS REQUEST
21	M2331400712	BRACKET, DOC AND SCR	1	S/N 7307128 AND ABOVE	PARTS REQUEST
PHOTO COMING BRACKET, DOC AND SCR M2331400712 · qty on machine: 1 S/N 7307128 AND ABOVE PARTS REQUEST
22	011008020	HEX. HEAD BOLT	5	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 5 REPLACES P/N 0016908020 view full part page → $2.68
23	M2331400804	DOC BAND	1	S/N 7307127 AND BELOW	PARTS REQUEST
PHOTO COMING DOC BAND M2331400804 · qty on machine: 1 S/N 7307127 AND BELOW PARTS REQUEST
23	M2331400814	DOC BAND	1	S/N 7307128 AND ABOVE	PARTS REQUEST
PHOTO COMING DOC BAND M2331400814 · qty on machine: 1 S/N 7307128 AND ABOVE PARTS REQUEST
24	M2331400904	SCR BAND	2	S/N 7307127 AND BELOW	PARTS REQUEST
PHOTO COMING SCR BAND M2331400904 · qty on machine: 2 S/N 7307127 AND BELOW PARTS REQUEST
24	M2331400914	SCR BAND	2	S/N 7307128 AND ABOVE	PARTS REQUEST
PHOTO COMING SCR BAND M2331400914 · qty on machine: 2 S/N 7307128 AND ABOVE PARTS REQUEST
25	011008020	HEX. HEAD BOLT	3	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 3 REPLACES P/N 0016908020 view full part page → $2.68
26	020108060	U NUT	3	REPLACES P/N 0037908000	ADD TO CART
U NUT 020108060 · qty on machine: 3 REPLACES P/N 0037908000 view full part page → $0.28
27	011008020	HEX. HEAD BOLT	1	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 1 REPLACES P/N 0016908020 view full part page → $2.68

Page 26 — PLUMBING ASSY.

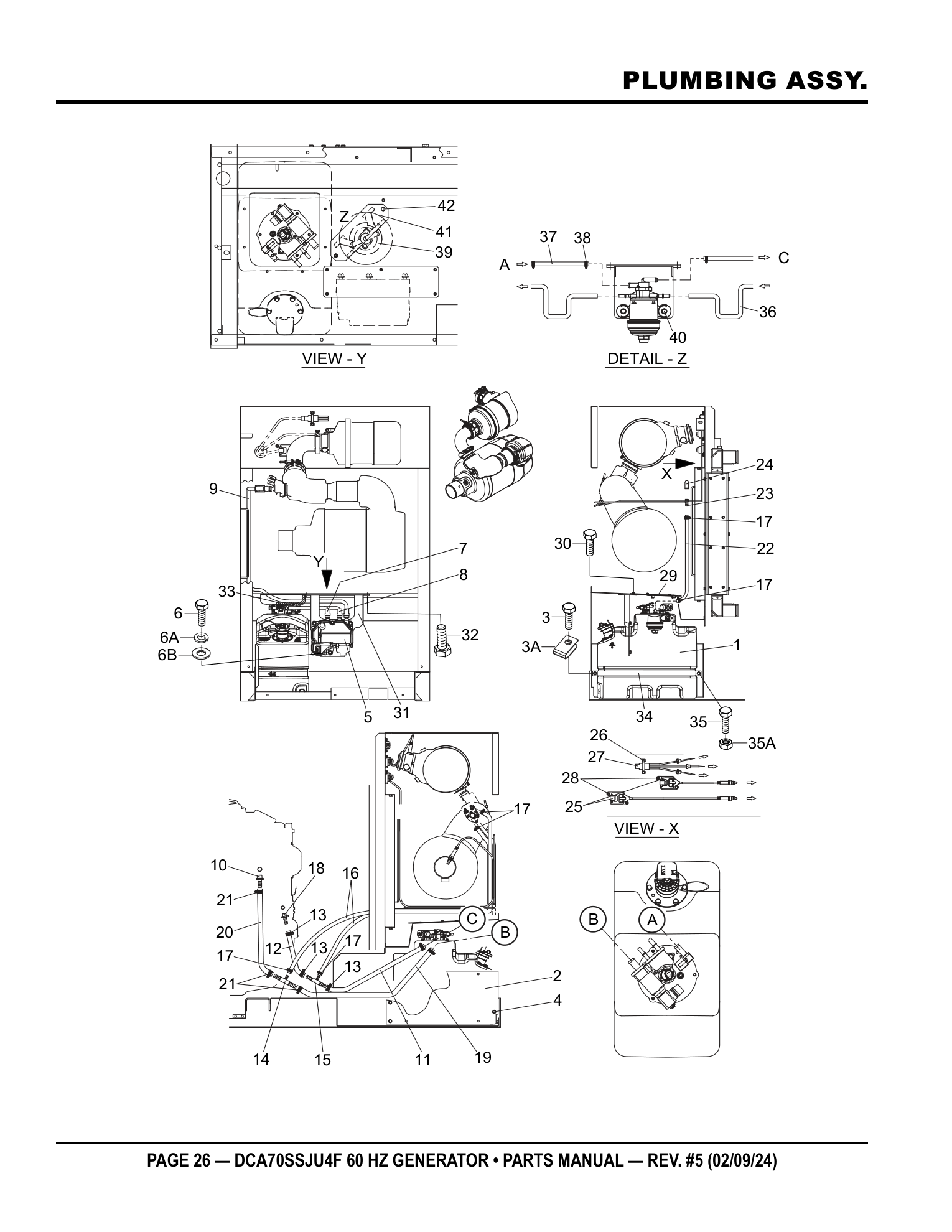

Multiquip DCA70SSJU4F Generator PLUMBING ASSY. parts diagram

Parts list — exactly as printed40 rows

No.	Part No.	Part Name	Qty	Remarks
1	DZ103065	DEF TANK	1	REPLACES P/N Y0605500073	ADD TO CART
DEF TANK DZ103065 · qty on machine: 1 REPLACES P/N Y0605500073 view full part page → $2209.95
2	M2331401003	BRACKET, DEF TANK	1	S/N 7307147 AND BELOW	PARTS REQUEST
PHOTO COMING BRACKET, DEF TANK M2331401003 · qty on machine: 1 S/N 7307147 AND BELOW PARTS REQUEST
2	M2331401013	BRACKET, DEF TANK	1	S/N 7307148 AND ABOVE	PARTS REQUEST
PHOTO COMING BRACKET, DEF TANK M2331401013 · qty on machine: 1 S/N 7307148 AND ABOVE PARTS REQUEST
3	011208025	HEX HEAD BOLT	1	REPLACES P/N 0016908025 S/N 7307147 AND BELOW	ADD TO CART
HEX HEAD BOLT 011208025 · qty on machine: 1 REPLACES P/N 0016908025 S/N 7307147 AND BELOW view full part page → $0.41
3A	Y0207008000	SELF LOCK NUT	1	S/N 7307147 AND BELOW	ADD TO CART
SELF LOCK NUT Y0207008000 · qty on machine: 1 S/N 7307147 AND BELOW view full part page → $0.4
3A	Y0207008000	SELF LOCK NUT	2	S/N 7307148 AND ABOVE	ADD TO CART
SELF LOCK NUT Y0207008000 · qty on machine: 2 S/N 7307148 AND ABOVE view full part page → $0.4
4	011208025	HEX HEAD BOLT	3	REPLACES P/N 0016908025	ADD TO CART
HEX HEAD BOLT 011208025 · qty on machine: 3 REPLACES P/N 0016908025 view full part page → $0.41
5	RE552175	DEF SUPPLY MODULE	1	REPLACES P/N Y0602330400 S/N 7307351 AND BELOW	ADD TO CART
DEF SUPPLY MODULE RE552175 · qty on machine: 1 REPLACES P/N Y0602330400 S/N 7307351 AND BELOW view full part page → $2050.95
5	0602330516	DEF SUPPLY MODULE	1	S/N 7307352 AND ABOVE	PARTS REQUEST
PHOTO COMING DEF SUPPLY MODULE 0602330516 · qty on machine: 1 S/N 7307352 AND ABOVE PARTS REQUEST
6	Y0010108090	HEX HEAD BOLT	3		PARTS REQUEST
PHOTO COMING HEX HEAD BOLT Y0010108090 · qty on machine: 3 PARTS REQUEST
6A	0040008000	WASHER, LOCK	3		ADD TO CART
WASHER, LOCK 0040008000 · qty on machine: 3 view full part page → $0.63
6B	0401450080	WASHER, FLAT	3	REPLACES P/N 0041208000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 3 REPLACES P/N 0041208000 view full part page → $0.56
7	RE560902	DEF SUCTION LINE	1	REPLACES P/N Y0602330411 S/N 7307351 AND BELOW	ADD TO CART
DEF SUCTION LINE RE560902 · qty on machine: 1 REPLACES P/N Y0602330411 S/N 7307351 AND BELOW view full part page → $733.95
7	0602330514	DEF SUCTION LINE	1	S/N 7307352 AND ABOVE	PARTS REQUEST
PHOTO COMING DEF SUCTION LINE 0602330514 · qty on machine: 1 S/N 7307352 AND ABOVE PARTS REQUEST
8	RE560900	DEF BACKFLOW LINE	1	REPLACES P/N Y0602330412	ADD TO CART
DEF BACKFLOW LINE RE560900 · qty on machine: 1 REPLACES P/N Y0602330412 view full part page → $591.95
9	RE560894	DEF PRESSURE LINE	1	REPLACES P/N Y0602330413	ADD TO CART
DEF PRESSURE LINE RE560894 · qty on machine: 1 REPLACES P/N Y0602330413 view full part page → $570.95
10	AT377287	HOSE BARB	1	REPLACES P/N Y0602022975	ADD TO CART
HOSE BARB AT377287 · qty on machine: 1 REPLACES P/N Y0602022975 view full part page → $49.95
11	Y0379701350	COOLANT HOSE	1	S/N 7307351 AND BELOW	PARTS REQUEST
PHOTO COMING COOLANT HOSE Y0379701350 · qty on machine: 1 S/N 7307351 AND BELOW PARTS REQUEST
11	0379700990	COOLANT HOSE	1	S/N 7307352 AND ABOVE	PARTS REQUEST
PHOTO COMING COOLANT HOSE 0379700990 · qty on machine: 1 S/N 7307352 AND ABOVE PARTS REQUEST
12	Y0379700680	COOLANT HOSE	1		PARTS REQUEST
PHOTO COMING COOLANT HOSE Y0379700680 · qty on machine: 1 PARTS REQUEST
13	Y0605515341	HOSE BAND, 62P08	4	S/N 7307375 AND BELOW	ADD TO CART
HOSE BAND, 62P08 Y0605515341 · qty on machine: 4 S/N 7307375 AND BELOW view full part page → $2.95
13	Y0605515198	HOSE BAND,	5008	4 S/N 7307376 AND ABOVE	ADD TO CART
HOSE BAND, Y0605515198 · qty on machine: 5008 4 S/N 7307376 AND ABOVE view full part page → $2.95
14	T317541	BLACK TEE-FITTING W/ORIFICE	1	REPLACES P/N Y0602022976	ADD TO CART
BLACK TEE-FITTING W/ORIFICE T317541 · qty on machine: 1 REPLACES P/N Y0602022976 view full part page → $17.95
15	T296925	WHITE TEE-FITTING	1	REPLACES P/N Y0602022977	ADD TO CART
WHITE TEE-FITTING T296925 · qty on machine: 1 REPLACES P/N Y0602022977 view full part page → $12.95
16	Y0379601870	COOLANT HOSE	2		PARTS REQUEST
PHOTO COMING COOLANT HOSE Y0379601870 · qty on machine: 2 PARTS REQUEST
17	Y0605515340	HOSE BAND	6		ADD TO CART
HOSE BAND Y0605515340 · qty on machine: 6 view full part page → $2.95
18	L102179	HOSE JOINT	1	REPLACES P/N Y0602022978	PARTS REQUEST
PHOTO COMING HOSE JOINT L102179 · qty on machine: 1 REPLACES P/N Y0602022978 PARTS REQUEST
19	Y0269301350	COOLANT HOSE	1		PARTS REQUEST
PHOTO COMING COOLANT HOSE Y0269301350 · qty on machine: 1 PARTS REQUEST
20	Y0269300730	COOLANT HOSE	1		ADD TO CART
COOLANT HOSE Y0269300730 · qty on machine: 1 view full part page → $12.95
21	Y0605515341	HOSE BAND, 62P08	4	S/N 7307375 AND BELOW	ADD TO CART
HOSE BAND, 62P08 Y0605515341 · qty on machine: 4 S/N 7307375 AND BELOW view full part page → $2.95
21	Y0605515198	HOSE BAND,	5008	4 S/N 7307376 AND ABOVE	ADD TO CART
HOSE BAND, Y0605515198 · qty on machine: 5008 4 S/N 7307376 AND ABOVE view full part page → $2.95
22	0191300700	VENT HOSE	1		ADD TO CART
VENT HOSE 0191300700 · qty on machine: 1 view full part page → $19.95
23	H216170	DEF TANK VENT FITTING	1	REPLACES P/N Y0602330402	ADD TO CART
DEF TANK VENT FITTING H216170 · qty on machine: 1 REPLACES P/N Y0602330402 view full part page → $32.95
24	H216169	DEF TANK VENT FILTER	1	REPLACES P/N Y0602330401	ADD TO CART
DEF TANK VENT FILTER H216169 · qty on machine: 1 REPLACES P/N Y0602330401 view full part page → $54.95
25	RE552182	NOX SENSOR	2	REPLACES P/N Y0602330410	ADD TO CART
NOX SENSOR RE552182 · qty on machine: 2 REPLACES P/N Y0602330410 view full part page → $1348.95
26	RE569030	TEMPERATURE SENSOR	1	REPLACES P/N Y0602330206	PARTS REQUEST
PHOTO COMING TEMPERATURE SENSOR RE569030 · qty on machine: 1 REPLACES P/N Y0602330206 PARTS REQUEST
27	RE542006	TEMPERATURE SENSOR CLAMP	1	REPLACES P/N Y0602330205	ADD TO CART
TEMPERATURE SENSOR CLAMP RE542006 · qty on machine: 1 REPLACES P/N Y0602330205 view full part page → $23.95
28	0016906015	HEX HEAD BOLT	6		ADD TO CART
HEX HEAD BOLT 0016906015 · qty on machine: 6 view full part page → $0.95
29	M2331401104	DEF TANK COVER	1		PARTS REQUEST
PHOTO COMING DEF TANK COVER M2331401104 · qty on machine: 1 PARTS REQUEST
30	Y0016906020	HEX HEAD BOLT	6		ADD TO CART
HEX HEAD BOLT Y0016906020 · qty on machine: 6 view full part page → $1.45

Page 28 — PLUMBING ASSY. (CONT'D.)

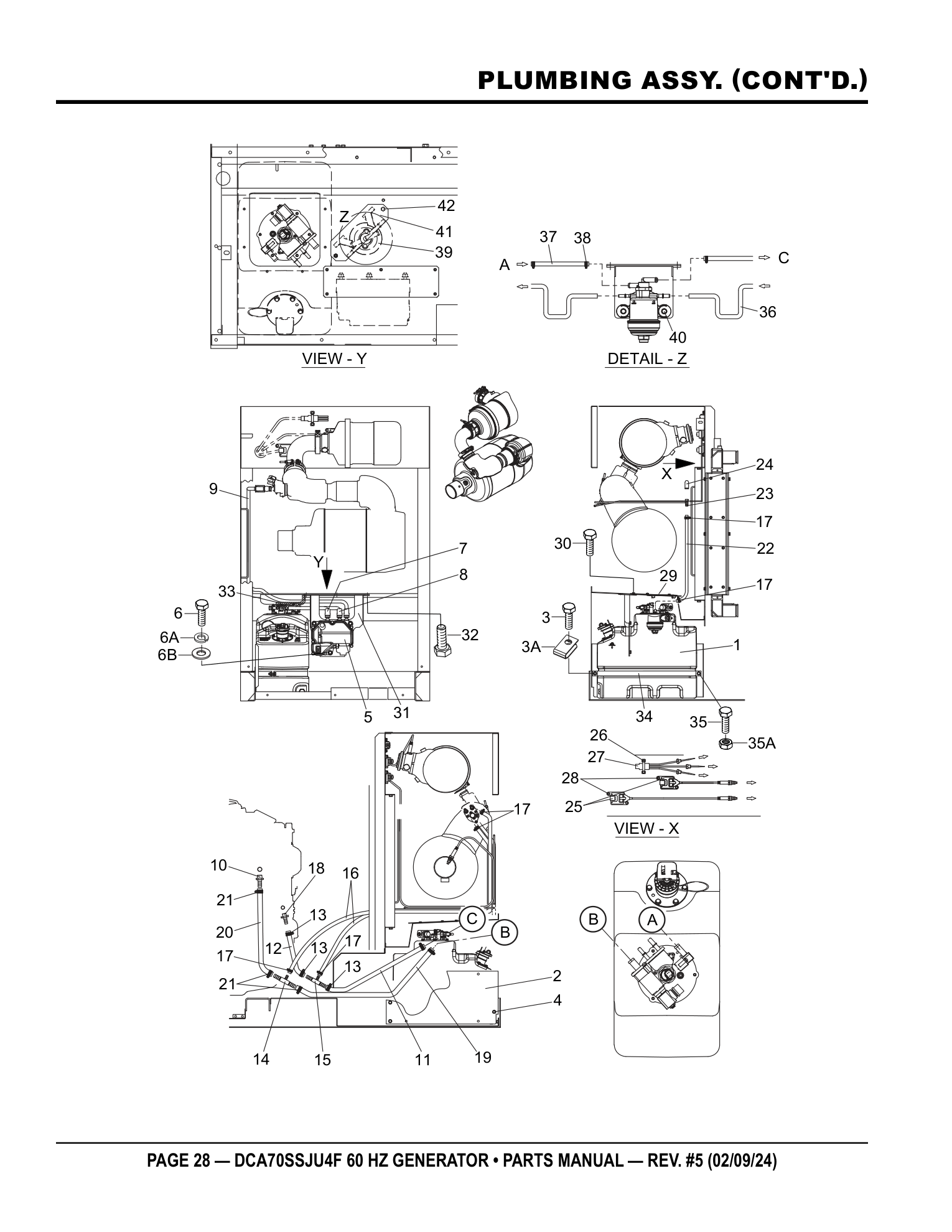

Multiquip DCA70SSJU4F Generator PLUMBING ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed13 rows

No.	Part No.	Part Name	Qty	Remarks
31	M2331401204	SUPPLY MODULE BRACKET	1		PARTS REQUEST
PHOTO COMING SUPPLY MODULE BRACKET M2331401204 · qty on machine: 1 PARTS REQUEST
32	Y0016906020	HEX HEAD BOLT	5		ADD TO CART
HEX HEAD BOLT Y0016906020 · qty on machine: 5 view full part page → $1.45
33	0317700180	WEATHER STRIP	1		ADD TO CART
WEATHER STRIP 0317700180 · qty on machine: 1 view full part page → $13.95
34	M2331401404	DEF TANK BAND	1	S/N 7307148 AND ABOVE	PARTS REQUEST
PHOTO COMING DEF TANK BAND M2331401404 · qty on machine: 1 S/N 7307148 AND ABOVE PARTS REQUEST
35	0016908020	HEX HEAD BOLT	1	S/N 7307148 AND ABOVE	ADD TO CART
HEX HEAD BOLT 0016908020 · qty on machine: 1 S/N 7307148 AND ABOVE Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO
35A	Y0207008000	SELF LOCK NUT	1	S/N 7307148 AND ABOVE	ADD TO CART
SELF LOCK NUT Y0207008000 · qty on machine: 1 S/N 7307148 AND ABOVE view full part page → $0.4
36	0602330514	DEF SUCTION JUMPER	1	S/N 7307352 AND ABOVE	PARTS REQUEST
PHOTO COMING DEF SUCTION JUMPER 0602330514 · qty on machine: 1 S/N 7307352 AND ABOVE PARTS REQUEST
37	0379700360	COOLANT HOSE	1	S/N 7307352 AND ABOVE	PARTS REQUEST
PHOTO COMING COOLANT HOSE 0379700360 · qty on machine: 1 S/N 7307352 AND ABOVE PARTS REQUEST
38	Y0605515341	HOSE BAND	2	S/N 7307352 AND ABOVE	ADD TO CART
HOSE BAND Y0605515341 · qty on machine: 2 S/N 7307352 AND ABOVE view full part page → $2.95
39	DZ118548	DEF FILTER	1	REPLACES P/N Y0602330510 S/N 7307352 AND ABOVE	ADD TO CART
DEF FILTER DZ118548 · qty on machine: 1 REPLACES P/N Y0602330510 S/N 7307352 AND ABOVE view full part page → $343.95
40	011208030	HEX. HEAD BOLT	2	REPLACES P/N 0016908030 S/N 7307352 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 011208030 · qty on machine: 2 REPLACES P/N 0016908030 S/N 7307352 AND ABOVE view full part page → $1.3
41	M2331401504	DEF FILTER BRACKET	1	S/N 7307352 AND ABOVE	PARTS REQUEST
PHOTO COMING DEF FILTER BRACKET M2331401504 · qty on machine: 1 S/N 7307352 AND ABOVE PARTS REQUEST
42	011206020	HEX. HEAD BOLT	2	REPLACES P/N 0016906020 S/N 7307352 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 2 REPLACES P/N 0016906020 S/N 7307352 AND ABOVE view full part page → $0.95

Page 30 — FUEL TANK ASSY.

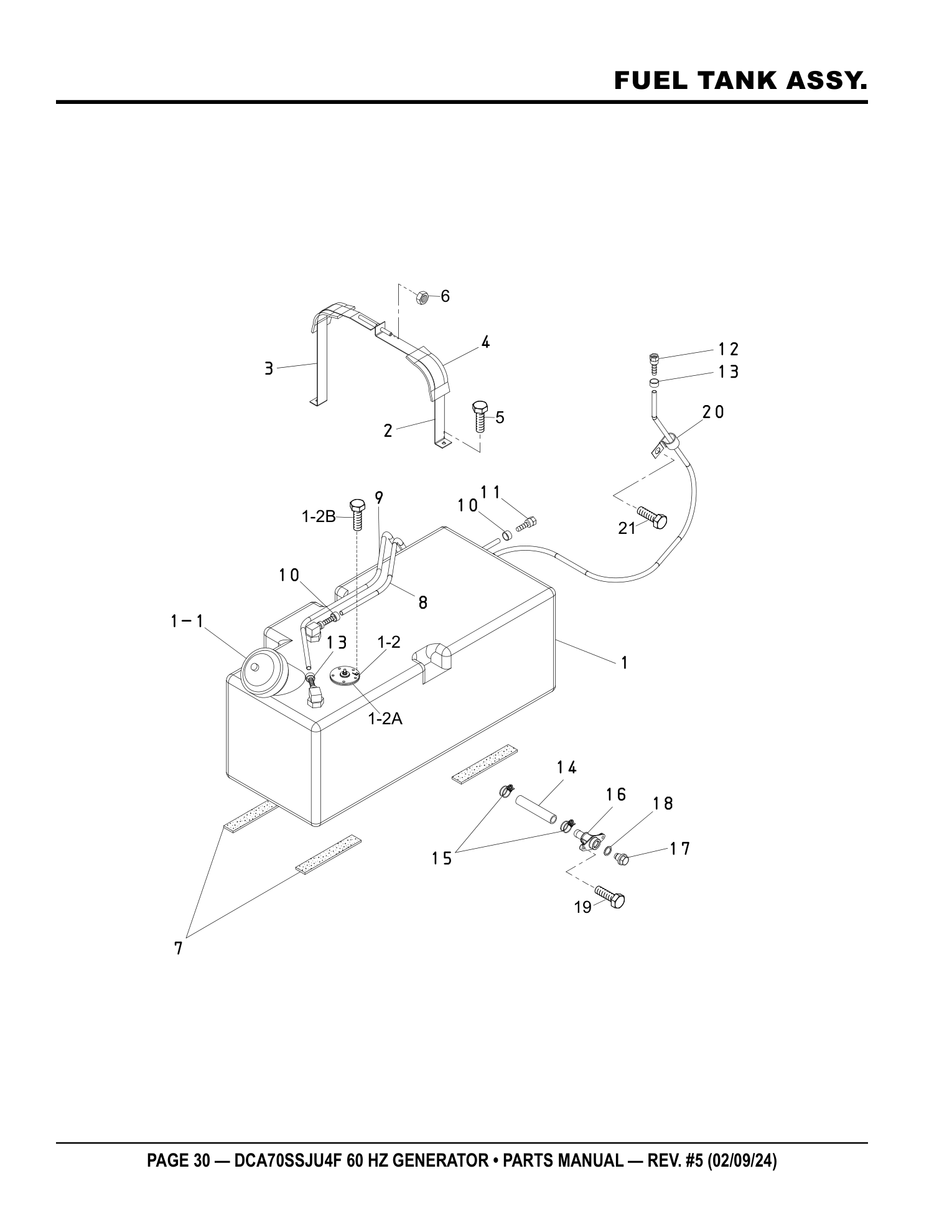

Multiquip DCA70SSJU4F Generator FUEL TANK ASSY. parts diagram

Parts list — exactly as printed25 rows

No.	Part No.	Part Name	Qty	Remarks
1	M2364000202	FUEL TANK	1	INCLUDES ITEMS W/#	ADD TO CART
FUEL TANK M2364000202 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 1-1#, 1-2#, 1-2A#, 1-2B# view full part page → $620.95 IN A KIT + SOLD SOLO
1-1#	0605505070	FUEL TANK CAP	1		ADD TO CART
FUEL TANK CAP 0605505070 · qty on machine: 1 Also included in kit 1 - FUEL TANK (M2364000202) view full part page → $50.95 IN A KIT + SOLD SOLO
1-2#	Y0605501058	FUEL SENDER UNIT	1		ADD TO CART
FUEL SENDER UNIT Y0605501058 · qty on machine: 1 Also included in kit 1 - FUEL TANK (M2364000202) view full part page → $165.95 IN A KIT + SOLD SOLO
1-2A#	Y0605516090	GASKET	1		ADD TO CART
GASKET Y0605516090 · qty on machine: 1 Also included in kit 1 - FUEL TANK (M2364000202) view full part page → $27.95 IN A KIT + SOLD SOLO
1-2B#	Y0605053020	HEX HEAD BOLT	5		ADD TO CART
HEX HEAD BOLT Y0605053020 · qty on machine: 5 Also included in kit 1 - FUEL TANK (M2364000202) view full part page → $1.87 IN A KIT + SOLD SOLO
2	M2364200004	TANK BAND	1		PARTS REQUEST
PHOTO COMING TANK BAND M2364200004 · qty on machine: 1 PARTS REQUEST
3	M2364200104	TANK BAND	1		PARTS REQUEST
PHOTO COMING TANK BAND M2364200104 · qty on machine: 1 PARTS REQUEST
4	M9310500104	SUPPORTER SHEET	2		ADD TO CART
SUPPORTER SHEET M9310500104 · qty on machine: 2 view full part page → $5.95
5	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
6	020108060	SELF-LOCKING NUT	2	REPLACES P/N 0207008000	ADD TO CART
SELF-LOCKING NUT 020108060 · qty on machine: 2 REPLACES P/N 0207008000 view full part page → $0.28
7	0222100180	TANK SHEET	4		ADD TO CART
TANK SHEET 0222100180 · qty on machine: 4 view full part page → $1.95
8	0191302000	SUCTION HOSE	1		ADD TO CART
SUCTION HOSE 0191302000 · qty on machine: 1 view full part page → $90.95
9	Y0191102400	RETURN HOSE	1		PARTS REQUEST
PHOTO COMING RETURN HOSE Y0191102400 · qty on machine: 1 PARTS REQUEST
10	Y0605515340	HOSE BAND	2		ADD TO CART
HOSE BAND Y0605515340 · qty on machine: 2 view full part page → $2.95
11	Y0602022558	HOSE JOINT	1		PARTS REQUEST
PHOTO COMING HOSE JOINT Y0602022558 · qty on machine: 1 PARTS REQUEST
12	Y0605512530	HOSE JOINT	1		PARTS REQUEST
PHOTO COMING HOSE JOINT Y0605512530 · qty on machine: 1 PARTS REQUEST
13	0605515189	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515189 · qty on machine: 2 view full part page → $1.85
14	Y0191500180	FUEL DRAIN HOSE	1		PARTS REQUEST
PHOTO COMING FUEL DRAIN HOSE Y0191500180 · qty on machine: 1 PARTS REQUEST
15	0605515198	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515198 · qty on machine: 2 view full part page → $1.71
16	1502025103C	OIL DRAIN JOINT	1	REPLACES P/N M9200000003	ADD TO CART
OIL DRAIN JOINT 1502025103C · qty on machine: 1 REPLACES P/N M9200000003 view full part page → $29.95
17	0802011104	DRAIN BOLT	1	REPLACES P/N M9200200004	ADD TO CART
DRAIN BOLT 0802011104 · qty on machine: 1 REPLACES P/N M9200200004 view full part page → $10.95
18	0150000018	O-RING	1		ADD TO CART
O-RING 0150000018 · qty on machine: 1 view full part page → $1.87
19	011206020	HEX. HEAD BOLT	2	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 2 REPLACES P/N 0016906020 view full part page → $0.95
20	M3483600104	COATING CLAMPER	1		ADD TO CART
COATING CLAMPER M3483600104 · qty on machine: 1 view full part page → $4.95
21	0017112025	HEX HEAD BOLT	1		ADD TO CART
HEX HEAD BOLT 0017112025 · qty on machine: 1 view full part page → $2.93

Page 32 — ENCLOSURE ASSY.

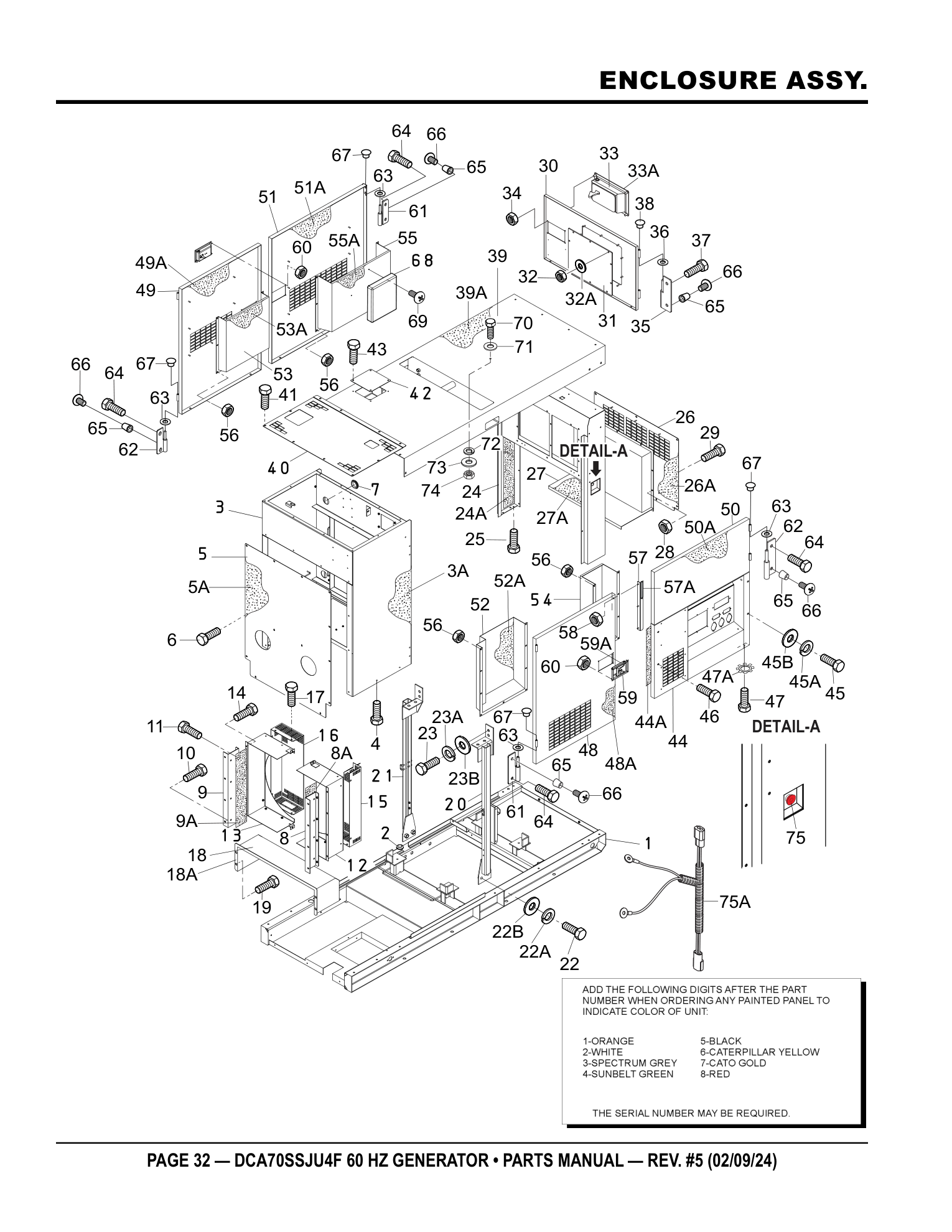

Multiquip DCA70SSJU4F Generator ENCLOSURE ASSY. parts diagram

Parts list — exactly as printed46 rows

No.	Part No.	Part Name	Qty	Remarks
1	M2414000402	BASE	1		PARTS REQUEST
PHOTO COMING BASE M2414000402 · qty on machine: 1 PARTS REQUEST
2	Y0601850276	GROMMET	1		PARTS REQUEST
PHOTO COMING GROMMET Y0601850276 · qty on machine: 1 PARTS REQUEST
3	M2424000302	FRONT FRAME	1	S/N 7307345 AND BELOW	ADD TO CART
FRONT FRAME M2424000302 · qty on machine: 1 S/N 7307345 AND BELOW view full part page → $1376.95
3	M2424000312	FRONT FRAME	1	S/N 7307346 AND ABOVE	PARTS REQUEST
PHOTO COMING FRONT FRAME M2424000312 · qty on machine: 1 S/N 7307346 AND ABOVE PARTS REQUEST
3A	M2494102303	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M2494102303 · qty on machine: 1 view full part page → $472.95
4	011008020	HEX. HEAD BOLT	6	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 6 REPLACES P/N 0016908020 view full part page → $2.68
5	M2424100504	COVER, FRONT FRAME	1		PARTS REQUEST
PHOTO COMING COVER, FRONT FRAME M2424100504 · qty on machine: 1 PARTS REQUEST
5A	M2494101704	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M2494101704 · qty on machine: 1 PARTS REQUEST
6	0019208020	HEX. HEAD BOLT	15		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 15 view full part page → $3.95
7	0601851736	GROMMET	2		ADD TO CART
GROMMET 0601851736 · qty on machine: 2 view full part page → $12.95
8	M2311200404	RADIATOR BRACKET	1		PARTS REQUEST
PHOTO COMING RADIATOR BRACKET M2311200404 · qty on machine: 1 PARTS REQUEST
8A	M2494409204	ACOUSTIC SHEET	2		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M2494409204 · qty on machine: 2 PARTS REQUEST
9	M2311200504	RADIATOR BRACKET	1		PARTS REQUEST
PHOTO COMING RADIATOR BRACKET M2311200504 · qty on machine: 1 PARTS REQUEST
9A	M2494409204	ACOUSTIC SHEET	2		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M2494409204 · qty on machine: 2 PARTS REQUEST
10	011008020	HEX. HEAD BOLT	8	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 8 REPLACES P/N 0016908020 view full part page → $2.68
11	011008020	HEX. HEAD BOLT	16	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 16 REPLACES P/N 0016908020 view full part page → $2.68
12	M2311301203	FAN SHROUD	1		PARTS REQUEST
PHOTO COMING FAN SHROUD M2311301203 · qty on machine: 1 PARTS REQUEST
13	M2311301303	FAN SHROUD	1		PARTS REQUEST
PHOTO COMING FAN SHROUD M2311301303 · qty on machine: 1 PARTS REQUEST
14	011008020	HEX. HEAD BOLT	10	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 10 REPLACES P/N 0016908020 view full part page → $2.68
15	M2311300603	FAN GUARD	1		ADD TO CART
FAN GUARD M2311300603 · qty on machine: 1 view full part page → $270.95
16	M2311300703	FAN GUARD	1		PARTS REQUEST
PHOTO COMING FAN GUARD M2311300703 · qty on machine: 1 PARTS REQUEST
17	011008020	HEX. HEAD BOLT	11	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 11 REPLACES P/N 0016908020 view full part page → $2.68
18	M2424200303	INNER COVER, FRONT FRAME	1		PARTS REQUEST
PHOTO COMING INNER COVER, FRONT FRAME M2424200303 · qty on machine: 1 PARTS REQUEST
18A	Y0411100220	EDGE TRIM	1		PARTS REQUEST
PHOTO COMING EDGE TRIM Y0411100220 · qty on machine: 1 PARTS REQUEST
19	011008020	HEX HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
20	M2434000003	HANGER	1	S/N 7307167 AND BELOW	PARTS REQUEST
PHOTO COMING HANGER M2434000003 · qty on machine: 1 S/N 7307167 AND BELOW PARTS REQUEST
20	M2434000503	HANGER	1	S/N 7307168 AND ABOVE	PARTS REQUEST
PHOTO COMING HANGER M2434000503 · qty on machine: 1 S/N 7307168 AND ABOVE PARTS REQUEST
21	M2434000103	HANGER	1		ADD TO CART
HANGER M2434000103 · qty on machine: 1 view full part page → $243.95
22	Y0013620040	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT Y0013620040 · qty on machine: 4 view full part page → $5.95
22A	030220510	WASHER, LOCK	4	REPLACES P/N 0040020000	ADD TO CART
WASHER, LOCK 030220510 · qty on machine: 4 REPLACES P/N 0040020000 view full part page → $1.95
22B	0041220000	WASHER, FLAT	4		ADD TO CART
WASHER, FLAT 0041220000 · qty on machine: 4 view full part page → $0.95
23	Y0012316035	HEX HEAD BOLT	8		PARTS REQUEST
PHOTO COMING HEX HEAD BOLT Y0012316035 · qty on machine: 8 PARTS REQUEST
23A	0040016000	WASHER, LOCK	8		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 8 view full part page → $4.95
23B	0041216000	WASHER, FLAT	8		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 8 view full part page → $1.95
24	M2444000302	REAR FRAME	1	S/N 7307345 AND BELOW	PARTS REQUEST
PHOTO COMING REAR FRAME M2444000302 · qty on machine: 1 S/N 7307345 AND BELOW PARTS REQUEST
24	M2444000312	REAR FRAME	1	S/N 7307346 AND ABOVE	PARTS REQUEST
PHOTO COMING REAR FRAME M2444000312 · qty on machine: 1 S/N 7307346 AND ABOVE PARTS REQUEST
24A	M2494301704	ACOUSTIC SHEET	1	S/N 7307345 AND BELOW	PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M2494301704 · qty on machine: 1 S/N 7307345 AND BELOW PARTS REQUEST
24A	M2494301714	ACOUSTIC SHEET	1	S/N 7307346 AND ABOVE	PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M2494301714 · qty on machine: 1 S/N 7307346 AND ABOVE PARTS REQUEST
25	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
26	M2444100004	REAR COVER	1		PARTS REQUEST
PHOTO COMING REAR COVER M2444100004 · qty on machine: 1 PARTS REQUEST
26A	M2494300104	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M2494300104 · qty on machine: 1 view full part page → $31.95
27	M2444300003	DUCT, REAR COVER	1		PARTS REQUEST
PHOTO COMING DUCT, REAR COVER M2444300003 · qty on machine: 1 PARTS REQUEST
27A	M2494300204	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M2494300204 · qty on machine: 1 view full part page → $186.95
28	0176060030	SELF LOCKING NUT	10	REPLACES P/N 0207006000	ADD TO CART
SELF LOCKING NUT 0176060030 · qty on machine: 10 REPLACES P/N 0207006000 view full part page → $2.95
29	0019208020	HEX. HEAD BOLT	9		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 9 view full part page → $3.95
30	M2444200013	REAR DOOR	1		ADD TO CART
REAR DOOR M2444200013 · qty on machine: 1 view full part page → $174.95

Page 34 — ENCLOSURE ASSY. (CONT'D.)

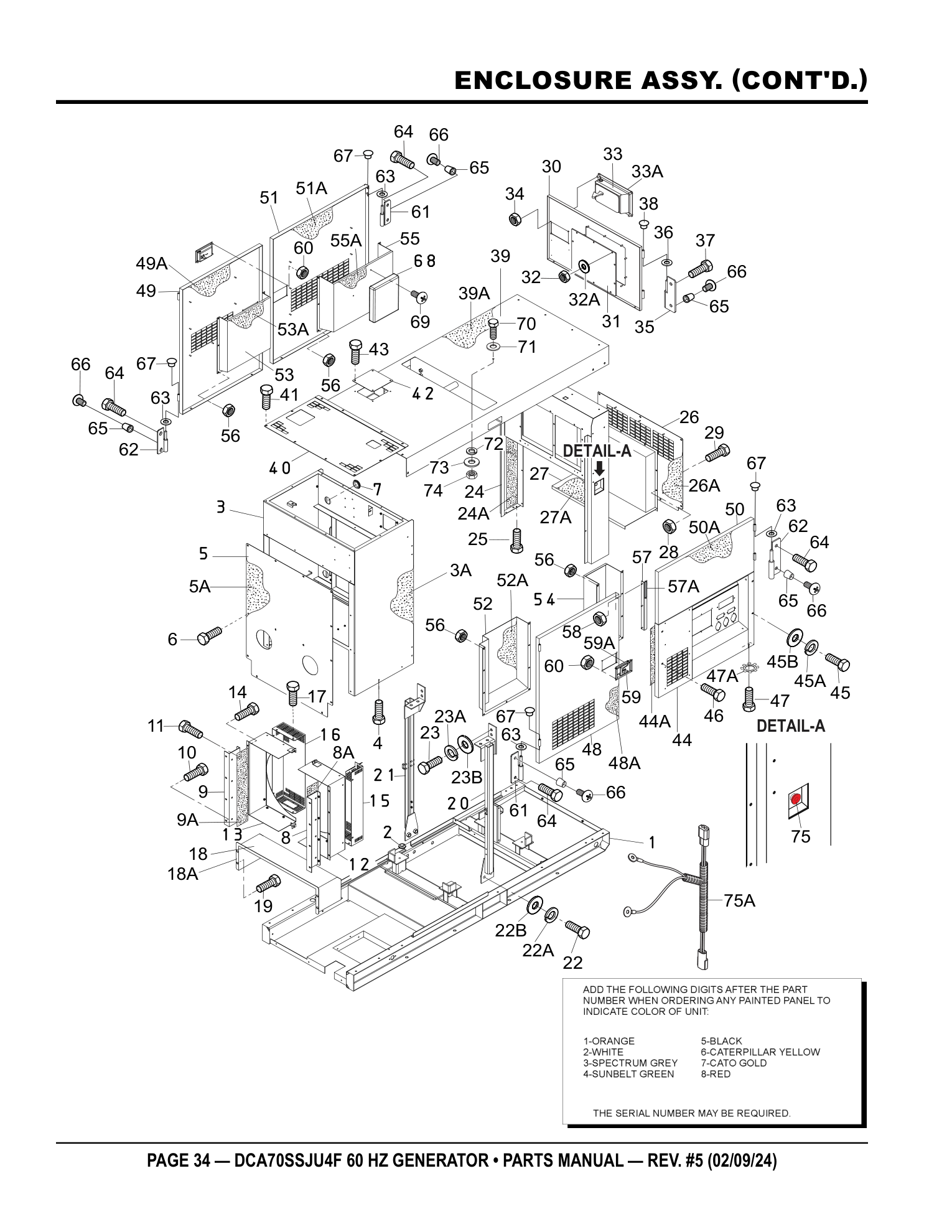

Multiquip DCA70SSJU4F Generator ENCLOSURE ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed45 rows

No.	Part No.	Part Name	Qty	Remarks
31	M4443600004	WINDOW PLATE	1		ADD TO CART
WINDOW PLATE M4443600004 · qty on machine: 1 view full part page → $155.95
32	020106050	LOCK NUT	8	REPLACES P/N 0037906000	ADD TO CART
LOCK NUT 020106050 · qty on machine: 8 REPLACES P/N 0037906000 view full part page → $0.12
32A	952404470	WASHER, FLAT	8	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 8 REPLACES P/N 0041206000 view full part page → $0.19
33	Y0605012309	DOOR HANDLE ASSY.	1		ADD TO CART
DOOR HANDLE ASSY. Y0605012309 · qty on machine: 1 view full part page → $49.95
33A	C9312500004	SEAL RUBBER	1		ADD TO CART
SEAL RUBBER C9312500004 · qty on machine: 1 view full part page → $10.95
34	0176060030	HEX. NUT	4	REPLACES P/N 0207006000	ADD TO CART
HEX. NUT 0176060030 · qty on machine: 4 REPLACES P/N 0207006000 view full part page → $2.95
35	M9110100204	HINGE	2		ADD TO CART
HINGE M9110100204 · qty on machine: 2 view full part page → $23.95
36	M9116100004	WASHER	2		ADD TO CART
WASHER M9116100004 · qty on machine: 2 view full part page → $1.93
37	0019208020	HEX. HEAD BOLT	3		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 3 view full part page → $3.95
38	0845031504	BLIND PLUG	2	REPLACES P/N M9310000004	ADD TO CART
BLIND PLUG 0845031504 · qty on machine: 2 REPLACES P/N M9310000004 view full part page → $2.95
39	M2464000202	ROOF PANEL	1		PARTS REQUEST
PHOTO COMING ROOF PANEL M2464000202 · qty on machine: 1 PARTS REQUEST
39A	M2494502203	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M2494502203 · qty on machine: 1 PARTS REQUEST
40	M2424200404	OVER COVER, FRONT FRAME	1		PARTS REQUEST
PHOTO COMING OVER COVER, FRONT FRAME M2424200404 · qty on machine: 1 PARTS REQUEST
41	0019208020	HEX. HEAD BOLT	24		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 24 view full part page → $3.95
42	M2464400004	COVER	1		PARTS REQUEST
PHOTO COMING COVER M2464400004 · qty on machine: 1 PARTS REQUEST
43	0019208020	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 4 view full part page → $3.95
44	M2454200302	SPLASHER PANEL	1	S/N 7307167 AND BELOW	PARTS REQUEST
PHOTO COMING SPLASHER PANEL M2454200302 · qty on machine: 1 S/N 7307167 AND BELOW PARTS REQUEST
44	M2454200602	SPLASHER PANEL	1	S/N 7307168 ~ 7307375	PARTS REQUEST
PHOTO COMING SPLASHER PANEL M2454200602 · qty on machine: 1 S/N 7307168 ~ 7307375 PARTS REQUEST
44	M2454201102	SPLASHER PANEL	1	S/N 7307376 AND ABOVE	PARTS REQUEST
PHOTO COMING SPLASHER PANEL M2454201102 · qty on machine: 1 S/N 7307376 AND ABOVE PARTS REQUEST
44A	M2494400204	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M2494400204 · qty on machine: 1 view full part page → $170.95
45	0019108055	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0019108055 · qty on machine: 2 view full part page → $3.95
45A	0042308000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0042308000 · qty on machine: 2 view full part page → $0.83
45B	0401450080	WASHER, FLAT	2	REPLACES P/N 0042408000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 2 REPLACES P/N 0042408000 view full part page → $0.56
46	0019208020	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 2 view full part page → $3.95
47	011008020	HEX. HEAD BOLT	3	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 3 REPLACES P/N 0016908020 view full part page → $2.68
47A	0040508000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040508000 · qty on machine: 1 view full part page → $0.35
48	M2454000013	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M2454000013 · qty on machine: 1 PARTS REQUEST
48A	M2494400004	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M2494400004 · qty on machine: 1 view full part page → $93.95
49	M2454000113	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M2454000113 · qty on machine: 1 PARTS REQUEST
49A	M2494400104	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M2494400104 · qty on machine: 1 view full part page → $86.95
50	M24540002032	SIDE DOOR	1	REPLACES P/N M2454000203	ADD TO CART
SIDE DOOR M24540002032 · qty on machine: 1 REPLACES P/N M2454000203 view full part page → $194.95
50A	M2494400304	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M2494400304 · qty on machine: 1 view full part page → $30.95
51	M2454001303	SIDE DOOR	1		ADD TO CART
SIDE DOOR M2454001303 · qty on machine: 1 view full part page → $593.95
51A	M2494400404	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M2494400404 · qty on machine: 1 view full part page → $93.95
52	M2454300404	DUCT	1		PARTS REQUEST
PHOTO COMING DUCT M2454300404 · qty on machine: 1 PARTS REQUEST
52A	M2494403304	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M2494403304 · qty on machine: 1 PARTS REQUEST
53	M2454300304	DUCT	1		ADD TO CART
DUCT M2454300304 · qty on machine: 1 view full part page → $186.95
53A	M2494408904	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M2494408904 · qty on machine: 1 PARTS REQUEST
54	M2454300104	DUCT	1		ADD TO CART
DUCT M2454300104 · qty on machine: 1 view full part page → $149.95
55	M2454301104	DUCT	1		PARTS REQUEST
PHOTO COMING DUCT M2454301104 · qty on machine: 1 PARTS REQUEST
55A	M2494409304	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M2494409304 · qty on machine: 1 PARTS REQUEST
56	0176060030	SELF-LOCKING NUT	31	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 31 REPLACES P/N 0207006000 view full part page → $2.95
57	M2454700004	DOOR SUPPORTER	1		ADD TO CART
DOOR SUPPORTER M2454700004 · qty on machine: 1 view full part page → $28.95
57A	0229200440	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL 0229200440 · qty on machine: 1 view full part page → $8.95
58	0176060030	SELF-LOCKING NUT	4	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 4 REPLACES P/N 0207006000 view full part page → $2.95

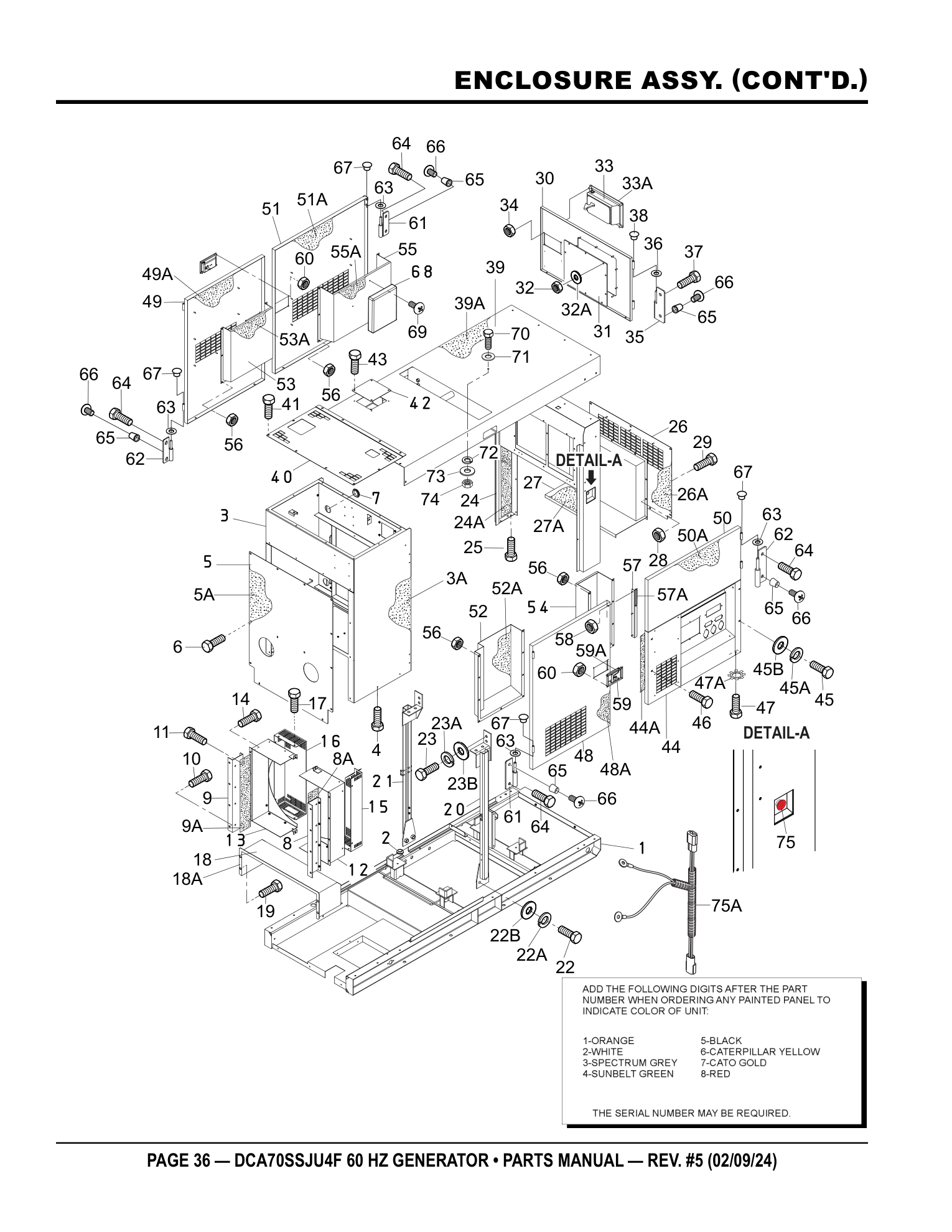

Page 36 — ENCLOSURE ASSY. (CONT'D.)

Parts list — exactly as printed19 rows

No.	Part No.	Part Name	Qty	Remarks
59	0605012309	DOOR HANDLE ASSY.	3		ADD TO CART
DOOR HANDLE ASSY. 0605012309 · qty on machine: 3 view full part page → $49.95
59A	C9312500004	SEAL RUBBER	3		ADD TO CART
SEAL RUBBER C9312500004 · qty on machine: 3 view full part page → $10.95
60	0176060030	HEX. NUT	12	REPLACES P/N 0207006000	ADD TO CART
HEX. NUT 0176060030 · qty on machine: 12 REPLACES P/N 0207006000 view full part page → $2.95
61	M9110100204	HINGE	4		ADD TO CART
HINGE M9110100204 · qty on machine: 4 view full part page → $23.95
62	M9110100304	HINGE	4		ADD TO CART
HINGE M9110100304 · qty on machine: 4 view full part page → $19.95
63	M9116100004	WASHER	8		ADD TO CART
WASHER M9116100004 · qty on machine: 8 view full part page → $1.93
64	0019208020	HEX. HEAD BOLT	9		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 9 view full part page → $3.95
65	0601850097	DOOR STOPPER	8		ADD TO CART
DOOR STOPPER 0601850097 · qty on machine: 8 view full part page → $2.95
66	0027208025	MACHINE SCREW	8		ADD TO CART
MACHINE SCREW 0027208025 · qty on machine: 8 view full part page → $0.76
67	0845031504	BLIND PLUG	8	REPLACES P/N M9310000004	ADD TO CART
BLIND PLUG 0845031504 · qty on machine: 8 REPLACES P/N M9310000004 view full part page → $2.95
68	0600800320	MANUAL PAK	1		ADD TO CART
MANUAL PAK 0600800320 · qty on machine: 1 view full part page → $43.95
69	0021806015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021806015 · qty on machine: 4 view full part page → $0.87
70	0019112030	HEX. HEAD BOLT	1	S/N 7307346 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 0019112030 · qty on machine: 1 S/N 7307346 AND ABOVE view full part page → $5.95
71	Y0605050040	SEALING WASHER	1	S/N 7307346 AND ABOVE	ADD TO CART
SEALING WASHER Y0605050040 · qty on machine: 1 S/N 7307346 AND ABOVE view full part page → $1.95
72	0042312000	WASHER, LOCK	1	S/N 7307346 AND ABOVE	ADD TO CART
WASHER, LOCK 0042312000 · qty on machine: 1 S/N 7307346 AND ABOVE view full part page → $0.94
73	0042412000	WASHER, FLAT	1	S/N 7307346 AND ABOVE	ADD TO CART
WASHER, FLAT 0042412000 · qty on machine: 1 S/N 7307346 AND ABOVE view full part page → $1.63
74	0030012000	HEX. NUT	1	S/N 7307346 AND ABOVE	ADD TO CART
HEX. NUT 0030012000 · qty on machine: 1 S/N 7307346 AND ABOVE view full part page → $0.5
75	0601831927	EMERGENCY STOP BUTTON	1	S/N 7307346 AND ABOVE	ADD TO CART
EMERGENCY STOP BUTTON 0601831927 · qty on machine: 1 S/N 7307346 AND ABOVE view full part page → $178.95
75A	M2358201304	E-STOP WIRE HARNESS	1	S/N 7307346 ~ 7307391	ADD TO CART
E-STOP WIRE HARNESS M2358201304 · qty on machine: 1 S/N 7307346 ~ 7307391 view full part page → $128.75

Page 38 — RUBBER SEALS ASSY.

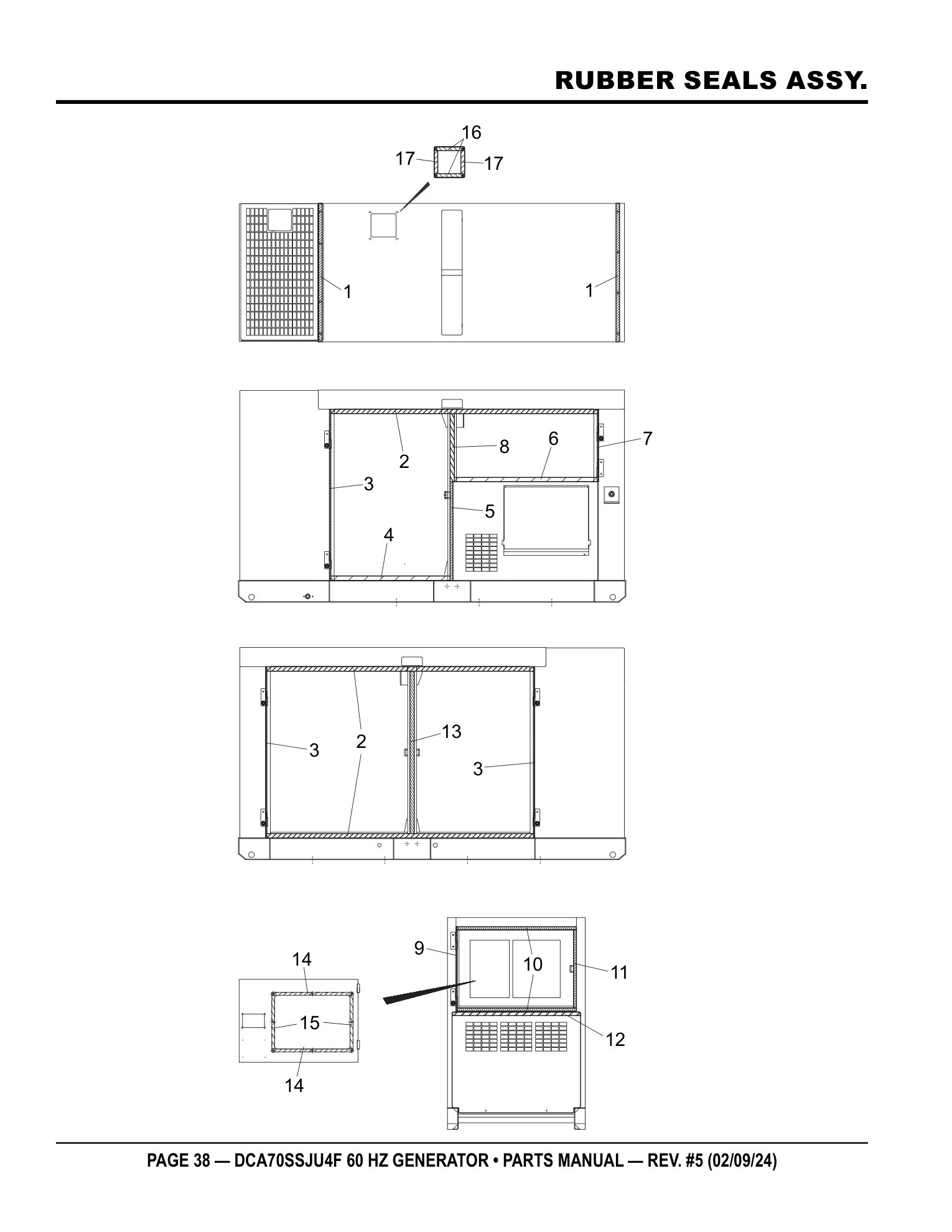

Multiquip DCA70SSJU4F Generator RUBBER SEALS ASSY. parts diagram

Parts list — exactly as printed17 rows

No.	Part No.	Part Name	Qty
1	0229200950	RUBBER SEAL	2	ADD TO CART
RUBBER SEAL 0229200950 · qty on machine: 2 view full part page → $9.95
2	Y0228901840	RUBBER SEAL	3	ADD TO CART
RUBBER SEAL Y0228901840 · qty on machine: 3 view full part page → $75.95
3	Y0229401180	RUBBER SEAL	3	ADD TO CART
RUBBER SEAL Y0229401180 · qty on machine: 3 view full part page → $40.95
4	0228900820	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL 0228900820 · qty on machine: 1 view full part page → $28.95
5	Y0228800680	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL Y0228800680 · qty on machine: 1 view full part page → $7.95
6	Y0228900985	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL Y0228900985 · qty on machine: 1 view full part page → $40.95
7	Y0229400500	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL Y0229400500 · qty on machine: 1 view full part page → $16.95
8	0228900470	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL 0228900470 · qty on machine: 1 view full part page → $13.95
9	0228800580	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL 0228800580 · qty on machine: 1 view full part page → $14.95
10	Y0228800820	RUBBER SEAL	2	ADD TO CART
RUBBER SEAL Y0228800820 · qty on machine: 2 view full part page → $22.95
11	0228800540	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL 0228800540 · qty on machine: 1 view full part page → $11.95
12	0229200880	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL 0229200880 · qty on machine: 1 view full part page → $5.95
13	0228901120	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL 0228901120 · qty on machine: 1 view full part page → $37.95
14	0228100560	RUBBER SEAL	2	ADD TO CART
RUBBER SEAL 0228100560 · qty on machine: 2 view full part page → $5.95
15	0228100370	RUBBER SEAL	2	ADD TO CART
RUBBER SEAL 0228100370 · qty on machine: 2 view full part page → $2.95
16	0229200210	RUBBER SEAL	2	ADD TO CART
RUBBER SEAL 0229200210 · qty on machine: 2 view full part page → $2.95
17	Y0229200160	RUBBER SEAL	2	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0229200160 · qty on machine: 2 PARTS REQUEST

Page 40 — BATTERY CHARGER ASSY.

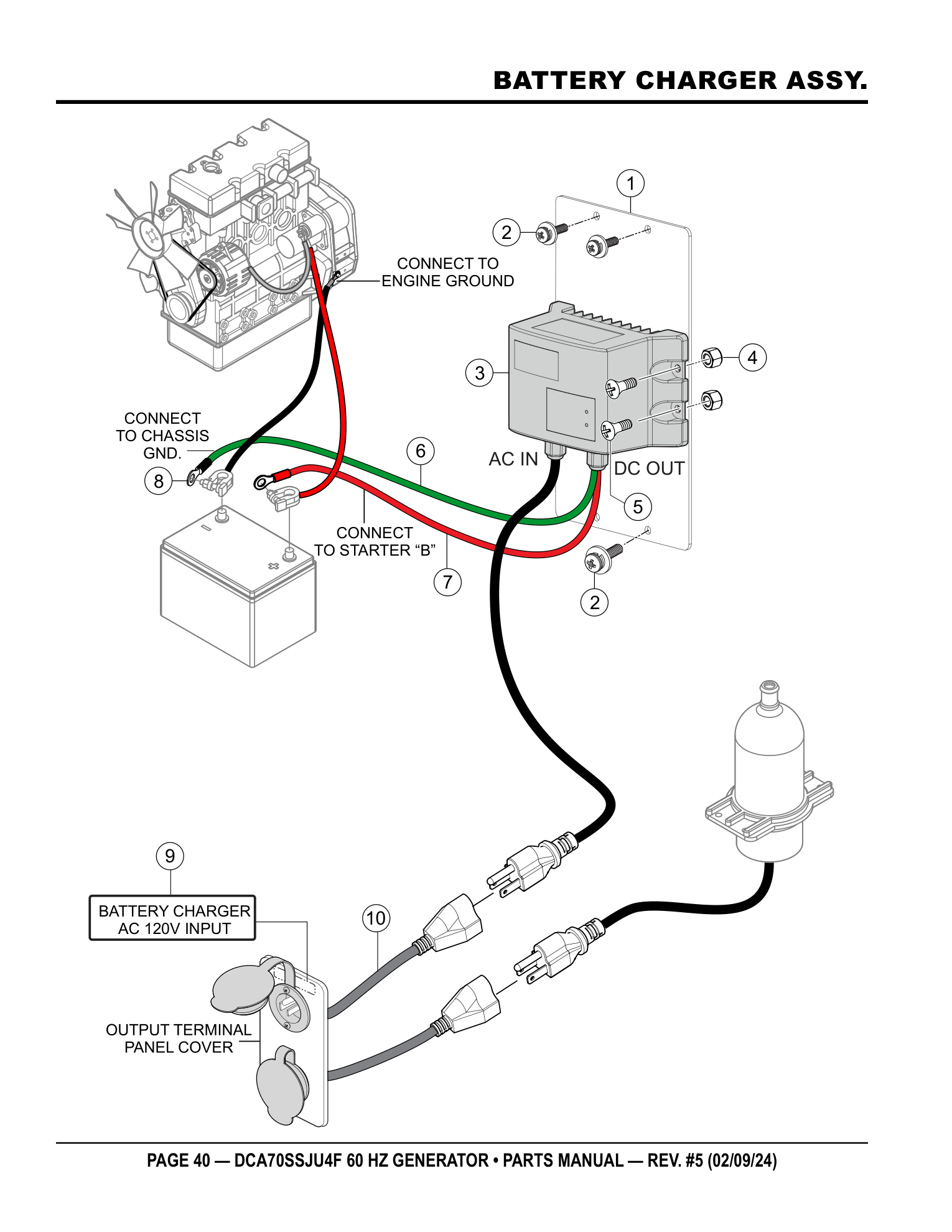

Multiquip DCA70SSJU4F Generator BATTERY CHARGER ASSY. parts diagram

Parts list — exactly as printed10 rows

No.	Part No.	Part Name	Qty	Remarks
1	EE62021	MOUNTING PLATE, BATTERY CHARGER	1		ADD TO CART
MOUNTING PLATE, BATTERY CHARGER EE62021 · qty on machine: 1 view full part page → $30.95
2		M4 X 12MM PAN HD. SCREW W/FLAT WASHER	4	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING M4 X 12MM PAN HD. SCREW W/FLAT WASHER · qty on machine: 4 OBTAIN LOCALLY SEE REMARKS
3	EE62075	BATT. CHARGER, MICROGENIUS LE 6A 12V	1		ADD TO CART
BATT. CHARGER, MICROGENIUS LE 6A 12V EE62075 · qty on machine: 1 view full part page → $361.95
4		NUT, HEX. 10-32	4	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING NUT, HEX. 10-32 · qty on machine: 4 OBTAIN LOCALLY SEE REMARKS
5		SCREW, FLAT HEAD, 1-32 X 1/2"	4	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING SCREW, FLAT HEAD, 1-32 X 1/2" · qty on machine: 4 OBTAIN LOCALLY SEE REMARKS
6		WIRE, 16 AWG, GREEN FT	9	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WIRE, 16 AWG, GREEN FT · qty on machine: 9 OBTAIN LOCALLY SEE REMARKS
7		WIRE, 16 AWG, RED FT	9	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WIRE, 16 AWG, RED FT · qty on machine: 9 OBTAIN LOCALLY SEE REMARKS
8		1/2" RING TERMINAL, 14-16 AWG	2	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING 1/2" RING TERMINAL, 14-16 AWG · qty on machine: 2 OBTAIN LOCALLY SEE REMARKS
9	M1940011014Q	DECAL, BATTERY CHARGER, 120V INPUT	1		ADD TO CART
DECAL, BATTERY CHARGER, 120V INPUT M1940011014Q · qty on machine: 1 view full part page → $1.36
10	EE62076	INLET RECPT. & CORD, NEMA 5-15P, 15A 125V	1		ADD TO CART
INLET RECPT. & CORD, NEMA 5-15P, 15A 125V EE62076 · qty on machine: 1 view full part page → $66.95

Page 42 — WATER HEATING ELEMENT ASSY. (OPTION)

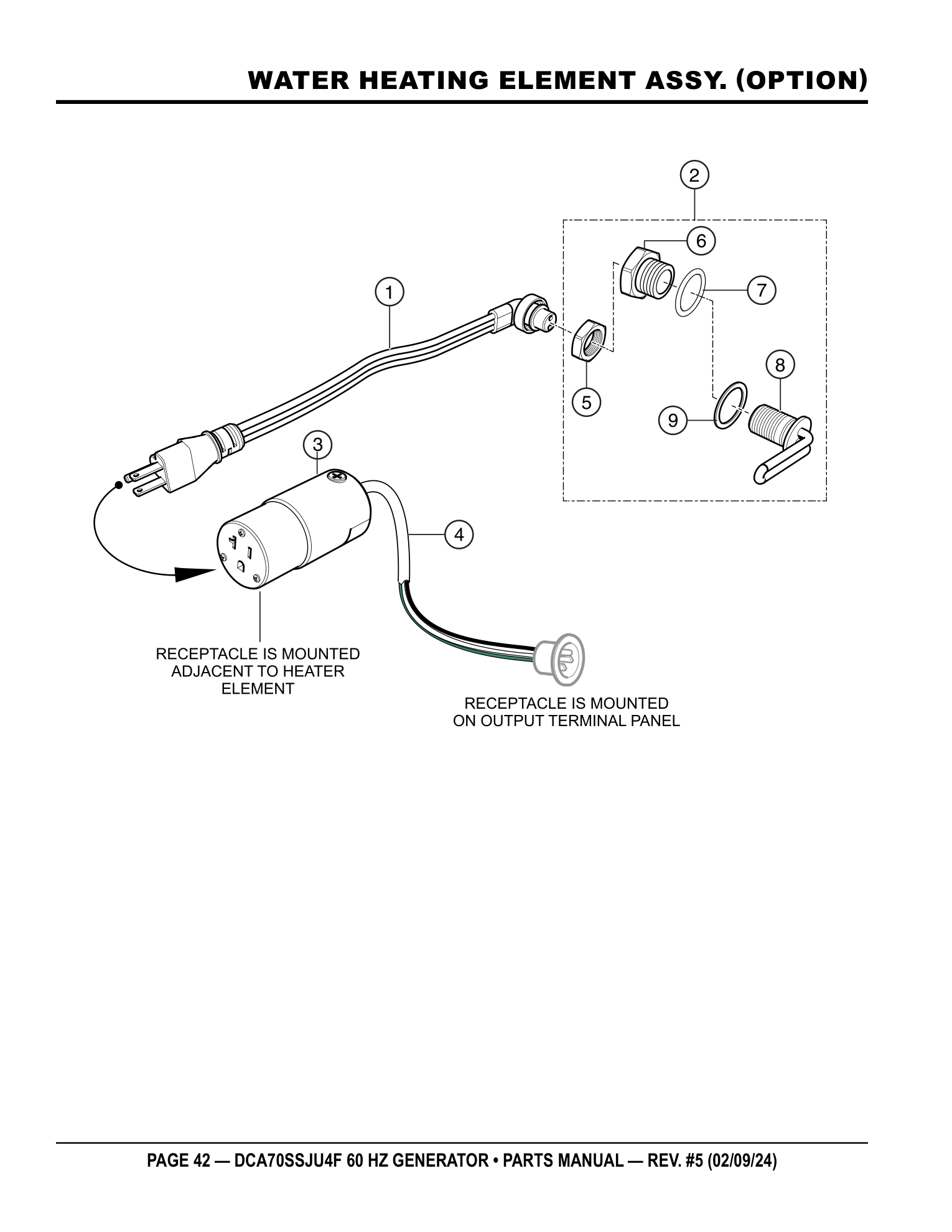

Multiquip DCA70SSJU4F Generator WATER HEATING ELEMENT ASSY. (OPTION) parts diagram

Parts list — exactly as printed9 rows

No.	Part No.	Part Name	Qty	Remarks
1	AR50411	CORD ASSY., 110 VOLTS	1		ADD TO CART
CORD ASSY., 110 VOLTS AR50411 · qty on machine: 1 view full part page → $38.95
2	EE54798	KIT, 110 VOLT, COOLANT HEATER	1	INCLUDES ITEMS W/@	ADD TO CART
KIT, 110 VOLT, COOLANT HEATER EE54798 · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 5@, 6@, 7@, 8@, 9@ view full part page → $181.95 IN A KIT + SOLD SOLO
3	HBL5369C	CONNECTOR, 20 AMP., 125V	1		ADD TO CART
CONNECTOR, 20 AMP., 125V HBL5369C · qty on machine: 1 view full part page → $103.95
4	EE56557	CORD, CAROL 3/C 14 AWG	10	1 PC - 1 FT	ADD TO CART
CORD, CAROL 3/C 14 AWG EE56557 · qty on machine: 10 1 PC - 1 FT view full part page → $1.95
5@		NUT CLAMPING	1		INCLUDED IN KIT
PHOTO COMING NUT CLAMPING · qty on machine: 1 Included in kit 2 - KIT, 110 VOLT, COOLANT HEA (EE54798) INCLUDED IN KIT
6@		ADAPTER	1		INCLUDED IN KIT
PHOTO COMING ADAPTER · qty on machine: 1 Included in kit 2 - KIT, 110 VOLT, COOLANT HEA (EE54798) INCLUDED IN KIT
7@		O-RING	1		INCLUDED IN KIT
PHOTO COMING O-RING · qty on machine: 1 Included in kit 2 - KIT, 110 VOLT, COOLANT HEA (EE54798) INCLUDED IN KIT
8@		HEATER ELEMENT, 1000 WATT	1		INCLUDED IN KIT
PHOTO COMING HEATER ELEMENT, 1000 WATT · qty on machine: 1 Included in kit 2 - KIT, 110 VOLT, COOLANT HEA (EE54798) INCLUDED IN KIT
9@		GASKET	1		INCLUDED IN KIT
PHOTO COMING GASKET · qty on machine: 1 Included in kit 2 - KIT, 110 VOLT, COOLANT HEA (EE54798) INCLUDED IN KIT

Page 44 — NAMEPLATE AND DECALS ASSY.

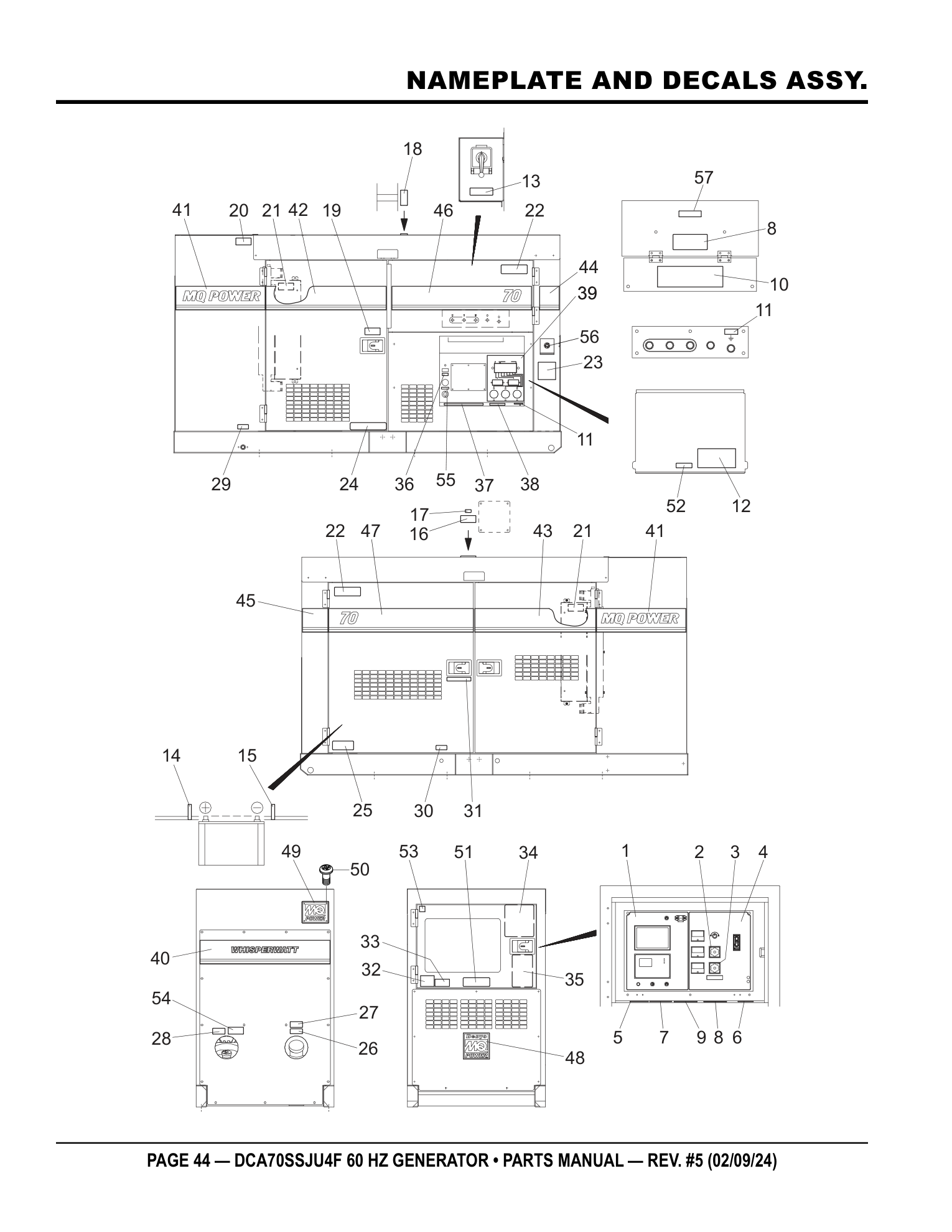

Multiquip DCA70SSJU4F Generator NAMEPLATE AND DECALS ASSY. parts diagram

Parts list — exactly as printed42 rows

No.	Part No.	Part Name	Qty	Remarks
1	M2551000603	DECAL: ENGINE OPERATION	1	M25100060	PARTS REQUEST
PHOTO COMING DECAL: ENGINE OPERATION M2551000603 · qty on machine: 1 M25100060 PARTS REQUEST
2	M9520000104	DECAL: AMMETER CHANGE-OVER SW	1	M92000010	ADD TO CART
DECAL: AMMETER CHANGE-OVER SW M9520000104 · qty on machine: 1 M92000010 view full part page → $11.95
3	M9520000204	DECAL: VOLTMETER CHANGE-OVER SW	1	M92000020	ADD TO CART
DECAL: VOLTMETER CHANGE-OVER SW M9520000204 · qty on machine: 1 M92000020 view full part page → $11.95
4	M2551000403	DECAL: GENERATOR CONTROL	1	M25100040	ADD TO CART
DECAL: GENERATOR CONTROL M2551000403 · qty on machine: 1 M25100040 view full part page → $45.95
5	M9501300004	DECAL: CAUTION BATTERY CABLES	1	M90130000	ADD TO CART
DECAL: CAUTION BATTERY CABLES M9501300004 · qty on machine: 1 M90130000 view full part page → $27.95
6	M9520100704	DECAL: WARNING ARC FLASH	1	M92010070	ADD TO CART
DECAL: WARNING ARC FLASH M9520100704 · qty on machine: 1 M92010070 view full part page → $4.95
7	M9520100304	DECAL: GENERAL CAUTIONS	1	M92010030	ADD TO CART
DECAL: GENERAL CAUTIONS M9520100304 · qty on machine: 1 M92010030 view full part page → $3.95
8	M9520100004	DECAL: WARNING ELECTRICAL SHOCK	2	M92010000	ADD TO CART
DECAL: WARNING ELECTRICAL SHOCK M9520100004 · qty on machine: 2 M92010000 view full part page → $5.95
9	M9520200404	DECAL: O. C. R. RESET	1	M92020040	ADD TO CART
DECAL: O. C. R. RESET M9520200404 · qty on machine: 1 M92020040 view full part page → $3.95
10	M9520200003	DECAL: CONNECTION OF OUTPUT CABLE	1	M92020000	ADD TO CART
DECAL: CONNECTION OF OUTPUT CABLE M9520200003 · qty on machine: 1 M92020000 view full part page → $7.95
11	M9520000004	DECAL: GROUNDING	2	M92000000	ADD TO CART
DECAL: GROUNDING M9520000004 · qty on machine: 2 M92000000 view full part page → $1.95
12	M9520100404	DECAL: DANGER HIGH VOLTAGE	1	M92010040	ADD TO CART
DECAL: DANGER HIGH VOLTAGE M9520100404 · qty on machine: 1 M92010040 view full part page → $37.95
13	M9520100204	DECAL: CAUTION CHANGE-OVER SW	1	M92010020A	ADD TO CART
DECAL: CAUTION CHANGE-OVER SW M9520100204 · qty on machine: 1 M92010020A view full part page → $3.95
14	M9500300104	DECAL: +	1	M90030010	ADD TO CART
DECAL: + M9500300104 · qty on machine: 1 M90030010 view full part page → $1.95
15	M9500300004	DECAL: -	1	M90030000	ADD TO CART
DECAL: - M9500300004 · qty on machine: 1 M90030000 view full part page → $1.95
16	M9503100004	DECAL: WARNING RADIATOR CAP	1	M90310000	ADD TO CART
DECAL: WARNING RADIATOR CAP M9503100004 · qty on machine: 1 M90310000 view full part page → $4.95
17	M9500100004	DECAL: WATER	1	M90010000	ADD TO CART
DECAL: WATER M9500100004 · qty on machine: 1 M90010000 view full part page → $1.95
18	M1550001504	DECAL: CAUTION LIFTING CAPACITY	1	M15000150	ADD TO CART
DECAL: CAUTION LIFTING CAPACITY M1550001504 · qty on machine: 1 M15000150 view full part page → $35.95
19	M9510100004	DECAL: CAUTION HIGH TEMP	1	M91010000	ADD TO CART
DECAL: CAUTION HIGH TEMP M9510100004 · qty on machine: 1 M91010000 view full part page → $68.95
20	M9503200004	DECAL: WARNING EXHAUST GAS	1	M90320000	ADD TO CART
DECAL: WARNING EXHAUST GAS M9503200004 · qty on machine: 1 M90320000 view full part page → $14.95
21	M9503000004	DECAL: WARNING ROTATING PART	2	M90300000	ADD TO CART
DECAL: WARNING ROTATING PART M9503000004 · qty on machine: 2 M90300000 view full part page → $1.95
22	M9520100603	DECAL: WARNING AUTO START	2	M92010060	ADD TO CART
DECAL: WARNING AUTO START M9520100603 · qty on machine: 2 M92010060 view full part page → $8.95
23	M2550000304	DECAL: NOTE LOAD SHARING	1	M25000030A	ADD TO CART
DECAL: NOTE LOAD SHARING M2550000304 · qty on machine: 1 M25000030A view full part page → $8.95
24	M9503000103	DECAL: DAILY CHECK WATER AND OIL	1	M90300010	ADD TO CART
DECAL: DAILY CHECK WATER AND OIL M9503000103 · qty on machine: 1 M90300010 view full part page → $7.95
25	M9510100403	DECAL: WARNING BATTERY CONNECT	1	M91010040A	ADD TO CART
DECAL: WARNING BATTERY CONNECT M9510100403 · qty on machine: 1 M91010040A view full part page → $16.95
26	M9501500004	DECAL: DIESEL FUEL	1	M90150000	ADD TO CART
DECAL: DIESEL FUEL M9501500004 · qty on machine: 1 M90150000 view full part page → $3.95
27	M9504500004	DECAL: REFILL DEF AS WELL	1	M90450000	ADD TO CART
DECAL: REFILL DEF AS WELL M9504500004 · qty on machine: 1 M90450000 view full part page → $9.95
28	M9501500104	DECAL: DIESEL EXHAUST FLUID	1	M90150010	ADD TO CART
DECAL: DIESEL EXHAUST FLUID M9501500104 · qty on machine: 1 M90150010 view full part page → $14.95
29	M9500500104	DECAL: FUEL DRAIN	1	M90050010	ADD TO CART
DECAL: FUEL DRAIN M9500500104 · qty on machine: 1 M90050010 view full part page → $4.95
30	M9500000004	DECAL: OIL DRAIN	1	M90000000	ADD TO CART
DECAL: OIL DRAIN M9500000004 · qty on machine: 1 M90000000 view full part page → $2.95
31	M9510000104	DECAL: DOCUMENT BOX LOCATED	1	M91000010	ADD TO CART
DECAL: DOCUMENT BOX LOCATED M9510000104 · qty on machine: 1 M91000010 view full part page → $4.95
32	M9503200104	DECAL: DANGER EX. GAS (INDOOR)	1	M90320010	ADD TO CART
DECAL: DANGER EX. GAS (INDOOR) M9503200104 · qty on machine: 1 M90320010 view full part page → $4.95
33	M9504200004	DECAL: WARNING START FIRES	1	M90420000	ADD TO CART
DECAL: WARNING START FIRES M9504200004 · qty on machine: 1 M90420000 view full part page → $3.95
34	M2551000703	DECAL: EX FILTER CLEAN PROCEDURES	1	M25100070	ADD TO CART
DECAL: EX FILTER CLEAN PROCEDURES M2551000703 · qty on machine: 1 M25100070 view full part page → $4.95
35	M2551000303	OPERATING PROCEDURES	1	M25100030 S/N 7307345 AND BELOW	ADD TO CART
OPERATING PROCEDURES M2551000303 · qty on machine: 1 M25100030 S/N 7307345 AND BELOW view full part page → $29.95
35	M2551000803	OPERATING PROCEDURES	1	M25100080 S/N 7307346 AND ABOVE	ADD TO CART
OPERATING PROCEDURES M2551000803 · qty on machine: 1 M25100080 S/N 7307346 AND ABOVE view full part page → $18.95
36	M9520000504	DECAL: START CONTACT	1	M92000050	ADD TO CART
DECAL: START CONTACT M9520000504 · qty on machine: 1 M92000050 view full part page → $67.95
37	M9520100503	DECAL: WARNING	1	M92010050	ADD TO CART
DECAL: WARNING M9520100503 · qty on machine: 1 M92010050 view full part page → $1.95
38	M1550000204	DECAL: NOTE RECEPTACLE	1	M15000020	ADD TO CART
DECAL: NOTE RECEPTACLE M1550000204 · qty on machine: 1 M15000020 view full part page → $43.95
39	M1550000703	DECAL: AUXILIARY OUTPUT	1	M15000070 S/N 7307167 AND BELOW	ADD TO CART
DECAL: AUXILIARY OUTPUT M1550000703 · qty on machine: 1 M15000070 S/N 7307167 AND BELOW view full part page → $36.95
39	M3551002003	DECAL: AUXILIARY OUTPUT	1	M35100200 S/N 7307168 ~ 7307345	PARTS REQUEST
PHOTO COMING DECAL: AUXILIARY OUTPUT M3551002003 · qty on machine: 1 M35100200 S/N 7307168 ~ 7307345 PARTS REQUEST
39	M3551002803	DECAL: AUXILIARY OUTPUT	1	M35100200 S/N 7307346 AND ABOVE	PARTS REQUEST
PHOTO COMING DECAL: AUXILIARY OUTPUT M3551002803 · qty on machine: 1 M35100200 S/N 7307346 AND ABOVE PARTS REQUEST

Page 46 — NAMEPLATE AND DECALS ASSY. (CONT'D.)

Multiquip DCA70SSJU4F Generator NAMEPLATE AND DECALS ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed18 rows

No.	Part No.	Part Name	Qty	Remarks
40	M2561100103	STRIPE	1		ADD TO CART
STRIPE M2561100103 · qty on machine: 1 view full part page → $12.95
41	M2561100203	STRIPE	2		ADD TO CART
STRIPE M2561100203 · qty on machine: 2 view full part page → $9.95
42	M2561101303	STRIPE	1		ADD TO CART
STRIPE M2561101303 · qty on machine: 1 view full part page → $26.95
43	M2561101403	STRIPE	1		ADD TO CART
STRIPE M2561101403 · qty on machine: 1 view full part page → $28.01
44	M2561101504	STRIPE	1		ADD TO CART
STRIPE M2561101504 · qty on machine: 1 view full part page → $11.2
45	M2561101604	STRIPE	1		ADD TO CART
STRIPE M2561101604 · qty on machine: 1 view full part page → $12.22
46	M2561101703	STRIPE	1		ADD TO CART
STRIPE M2561101703 · qty on machine: 1 view full part page → $28.95
47	M2561101803	STRIPE	1		ADD TO CART
STRIPE M2561101803 · qty on machine: 1 view full part page → $25.95
48	M9510200002	STICKER, MQ	1	M91020000	ADD TO CART
STICKER, MQ M9510200002 · qty on machine: 1 M91020000 view full part page → $3.95
49	0600500092	EMBLEM	1		ADD TO CART
EMBLEM 0600500092 · qty on machine: 1 view full part page → $21.95
50	0021106015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021106015 · qty on machine: 4 view full part page → $0.17
51	M9511200103	DECAL: TIER 4F	1	M91120010	ADD TO CART
DECAL: TIER 4F M9511200103 · qty on machine: 1 M91120010 view full part page → $17.95
52	M9521200604	DECAL: BONDED NEUTRAL	1	M92120060	ADD TO CART
DECAL: BONDED NEUTRAL M9521200604 · qty on machine: 1 M92120060 view full part page → $11.95
53	Y0600500094	DECAL: E-COAT STICKER	1		ADD TO CART
DECAL: E-COAT STICKER Y0600500094 · qty on machine: 1 view full part page → $1.36
54	M9541100004	DECAL: CAUTION EXHAUST FLUID ONLY	1	M94110000	ADD TO CART
DECAL: CAUTION EXHAUST FLUID ONLY M9541100004 · qty on machine: 1 M94110000 view full part page → $3.95
55	M9522000004	DECAL: WATER HEATER	1	S/N 7307148 AND ABOVE	ADD TO CART
DECAL: WATER HEATER M9522000004 · qty on machine: 1 S/N 7307148 AND ABOVE view full part page → $7.95
56	M9521002804	DECAL: EMERGENCY STOP BUTTON	1	M92100280 S/N 7307346 AND ABOVE	ADD TO CART
DECAL: EMERGENCY STOP BUTTON M9521002804 · qty on machine: 1 M92100280 S/N 7307346 AND ABOVE view full part page → $3.95
57	M2551001004	DECAL: OUTPUT TERMINAL BOLT TORQUE	1	M25100100 S/N 7307382 AND ABOVE	ADD TO CART
DECAL: OUTPUT TERMINAL BOLT TORQUE M2551001004 · qty on machine: 1 M25100100 S/N 7307382 AND ABOVE view full part page → $4.95

The machine itself

Price by quote Get a quote

Tell us where the machine is headed and we'll quote it with freight. One call, no games.

The Multiquip DCA70SSJU4F is a generator built for portable jobsite power for tools, lighting, and equipment. Factory-documented specs and parts support; priced by quote.

Keep-it-running spares

All listed parts →

Every part that fits this machine

0071906309 Multiquip 0071906309 Bearing DENYO - OEM Replacement Part for Super Silent Generators $160.95

0191302000 Multiquip 0191302000 Hose Return Denyo - OEM Replacement Part $90.95

0228901120 Multiquip 0228901120 Seal Rubber Denyo - OEM Replacement Part $37.95

0601801040 Multiquip 0601801040 Switch C/Over Ammeter 25,40,85,125,150 - OEM Replacement Part $95.95

0601801041 Multiquip 0601801041 Change-Over Switch Voltmeter Denyo - OEM Replacement Part $157.95

0601806859 Multiquip 0601806859 Voltmeter AC DENYO - OEM Replacement Part for Generator Control Panels $368.95

0601808803 Multiquip 0601808803 Circuit Breaker 1P 20A - OEM Replacement Part for Super Silent Generators $46.95

0601808804 Multiquip 0601808804 Circuit Breaker 2P 50A - OEM Replacement Part for Super Silent Generators $98.95

0601808987 Multiquip 0601808987 Ammeter AC AFC6 Denyo - OEM Replacement Part $246.95

0601812527 Multiquip 0601812527 Connector Denyo - OEM Replacement Part for Generator Control Systems $64.95

0601814014 Multiquip 0601814014 GFCI Receptacle - OEM Replacement Part $90.95

0601820083 Multiquip 0601820083 Rectifier with Instruction 8.8 - OEM Replacement Part for Super Silent Generators $33.95

0602022580 Multiquip 0602022580 Adapter with Seal - OEM Replacement Part for DCA Super Silent Generators $37.95

0602040651 Multiquip 0602040651 Indicator A/C Denyo - OEM Replacement Part $52.95

0602046365 Multiquip 0602046365 Air Cleaner Element - OEM Replacement Part $116.95

0602220199 Multiquip 0602220199 Battery (Wet) DENYO - OEM Replacement Part $288.95

0603306590 Multiquip 0603306590 Male Bulkhead Connector - OEM Replacement Part for Denyo Generators $86.95

0605012309 Multiquip 0605012309 Door Handle Black - OEM Replacement Part for Generator Enclosures $49.95

0605515197 Multiquip 0605515197 Band Hose Denyo - OEM Replacement Part $35.95

0605515236 Multiquip 0605515236 Band Hose Denyo - OEM Replacement Part $46.95

82608 Multiquip 82608 Toggle Switch Denyo Mods - OEM Replacement Part for Super Silent Generators $34.95

AR50411 Multiquip AR50411 Power Cord 90 Degree John Deere - OEM Replacement Part $38.95

AT326597 Multiquip AT326597 Adapter Fitting - OEM Replacement Part for Super Silent Generators $77.95

B2163100004 Multiquip B2163100004 Coupling Disk - OEM Replacement Part for Super Silent Generators $95.95

B3111100603 Multiquip B3111100603 Fan DCA-45USI2 - OEM Replacement Part for Super Silent Generators $232.95

B3120100804 Multiquip B3120100804 Holder ZNR - OEM Replacement Part for Super Silent Generators $140.95

B3131300804 Multiquip B3131300804 End Bracket Cover for DCA Generator - OEM Replacement Part $60.95

B3137000803 Multiquip B3137000803 Exciter Field Assembly - OEM Generator Replacement Part $1,882.95

B3153000513 Multiquip B3153000513 End Bracket for DCA Series Generators - OEM Replacement Part $636.95

B3153400404 Multiquip B3153400404 Bearing Cover for DCA Series Generators - OEM Replacement Part $40.95

B3163200104 Multiquip B3163200104 Washer Coupler - OEM Replacement Part for Super Silent Generators $112.95

B5110101002 Multiquip B5110101002 Rotor Assembly - OEM Replacement Part for Super Silent Generators $12,167.95

DZ102141 Multiquip DZ102141 Surge Tank John Deere - OEM Replacement Part $275.95

DZ103065 Multiquip DZ103065 DEF Tank - OEM Replacement Part for WhisperWatt Generators $2,209.95

DZ118548 Multiquip DZ118548 DEF Inline Filter John Deere - OEM Replacement Part $343.95

EE54798 Multiquip EE54798 110V Coolant Heater Kit - OEM Replacement Part $181.95

EE62075 Multiquip EE62075 Battery Charger MicroGenius LE 6 Amp 12V - OEM Replacement Part $361.95

EE62076 Multiquip EE62076 Inlet Receptacle & Cord NEMA 5-15P 15A 125V - OEM Replacement Part $66.95

LY2DUS12VDC Multiquip LY2DUS12VDC Relay with Diode - OEM Replacement Part for DCA Generators $46.95

M1260700304 Multiquip M1260700304 Cover Breaker Fitting - OEM Replacement Part $75.95

M1550000204 Multiquip M1550000204 Decal Note For Receptacle - OEM Replacement Part $43.95

M2213500704 Multiquip M2213500704 Control Box Cover - OEM Replacement Part for Denyo Super Silent Generators $46.95

M2213602704 Multiquip M2213602704 Switch Bracket Denyo - OEM Replacement Part $89.95

M2213602904 Multiquip M2213602904 Switch Cover Denyo - OEM Replacement Part $59.95

M2237100003 Multiquip M2237100003 Terminal Cover (White) Denyo - OEM Replacement Part $97.95

M2237100103 Multiquip M2237100103 3-Phase Output Terminal Cover - OEM Replacement Part $111.95

M2270100104 Multiquip M2270100104 Voltage Selector Switch 70SSJU - OEM Replacement Part $2,136.95

M2311500103 Multiquip M2311500103 Radiator Hose Lower Denyo - OEM Replacement Part $140.95

M2311500203 Multiquip M2311500203 Inner Cooler Hose Upper - OEM Replacement Part for Denyo Generators $2,721.95

M2311500303 Multiquip M2311500303 Inner Cooler Hose Lower - OEM Replacement Part for Denyo Generators $1,622.95

M2311500413 Multiquip M2311500413 Surge Tank Hose (JPN) - OEM Replacement Part $131.95

M2346900304 Multiquip M2346900304 Battery Cable Negative Denyo - OEM Replacement Part $149.95

M2346900504 Multiquip M2346900504 Battery Cable Denyo - OEM Replacement Part $91.95

M2364000202 Multiquip M2364000202 Fuel Tank Denyo - OEM Replacement Part for Super Silent Generators $620.95

M2374100003 Multiquip M2374100003 Air Cleaner Hose (JP) - OEM Replacement Part $579.95

M2424000302 Multiquip M2424000302 Front Frame (White) Denyo - OEM Replacement Part $1,376.95

M2444200013 Multiquip M2444200013 Rear Door Denyo - OEM Replacement Part for Super Silent Generators $174.95

M24540002032 Multiquip M24540002032 Side Door White Denyo - OEM Replacement Part $194.95

M2454001303 Multiquip M2454001303 Side Door White Denyo - OEM Replacement Part $593.95

M2454300104 Multiquip M2454300104 White Air Duct - OEM Replacement Part for Super Silent Generators $149.95

M2454300304 Multiquip M2454300304 Duct (White) Denyo - OEM Replacement Part for Super Silent Generators $186.95

M2454700704 Multiquip M2454700704 Rubber Sheet 70SSIU4F - OEM Replacement Part $41.95

M2494102104 Multiquip M2494102104 Acoustic Sheet Denyo - OEM Replacement Part $38.95

M2494102303 Multiquip M2494102303 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $472.95

M2494300204 Multiquip M2494300204 Acoustic Sheet - OEM Replacement Part $186.95

M2494400004 Multiquip M2494400004 Acoustic Denyo Panel - OEM Replacement Part for Super Silent Generators $93.95

M2494400104 Multiquip M2494400104 Acoustic Denyo Panel - OEM Generator Replacement Part $86.95

M2494400404 Multiquip M2494400404 Acoustic Denyo Panel - OEM Replacement Part for Super Silent Generators $93.95

M3230700003 Multiquip M3230700003 Output Panel Denyo - OEM Replacement Part for Generator $258.95

M3236100104 Multiquip M3236100104 Window Output - OEM Replacement Part for Super Silent Generators $72.95

M4236100604 Multiquip M4236100604 Insulating Cover - OEM Generator Replacement Part $95.95

M4443600004 Multiquip M4443600004 Plate Window Denyo - OEM Replacement Part $155.95

M9103000304 Multiquip M9103000304 Battery Band - OEM Replacement Part $72.95

M9220100304 Multiquip M9220100304 Bolt Output Term - OEM Replacement Part for Generators $118.95

M9510100004 Multiquip M9510100004 Hot Parts Caution Safety Decal - OEM Replacement Part $68.95

M9520000504 Multiquip M9520000504 Denyo Contact Information Decal - OEM Replacement Part $67.95

R533597 Multiquip R533597 Belt - OEM Replacement Part $219.95

RE289839 Multiquip RE289839 V-Band Clamp - OEM Replacement Part $107.95

RE504836 Multiquip RE504836 Oil Filter - OEM Replacement Part for DCA Generator Series $67.95

RE551508 Multiquip RE551508 Fuel Filter Element (Secondary) - OEM Replacement Part $147.95

RE552182 Multiquip RE552182 NOx Sensor - OEM Replacement Part for Super Silent Generators $1,348.95

RE560468 Multiquip RE560468 DEF Dosing Injector John Deere - OEM Replacement Part $1,355.95

RE560894 Multiquip RE560894 DEF Hose - OEM Replacement Part $570.95

RE562696 Multiquip RE562696 Seal Kit for Fuel Filter - OEM Replacement Part $72.95

Y0228900985 Multiquip Y0228900985 Rubber Seal Denyo - OEM Replacement Part for Super Silent Generators $40.95

Y0228901840 Multiquip Y0228901840 Rubber Seal Denyo - OEM Replacement Part for Super Silent Generators $75.95

Y0229401180 Multiquip Y0229401180 Rubber Seal Denyo - OEM Replacement Part for Super Silent Generators $40.95

Y0601809693 Multiquip Y0601809693 Current Transformer Denyo - OEM Replacement Part $63.95

Y0601810170 Multiquip Y0601810170 Panel Light Denyo - OEM Replacement Part $142.95

Y0601820638 Multiquip Y0601820638 AVR Model Denyo - OEM Replacement Part for Super Silent Generators $1,205.95

Y0601831345 Multiquip Y0601831345 3-Pole Switch - OEM Replacement Part $49.95

Y0602012909 Multiquip Y0602012909 Radiator & Inter Cooler (KY) - OEM Replacement Part $2,786.95

Y0602044502 Multiquip Y0602044502 Blowby Filter Cover Upper DENYO - OEM Replacement Part $279.95

Y0602044504 Multiquip Y0602044504 Blowby Filter Cover Lower DENYO - OEM Replacement Part $338.95

Y0602120568 Multiquip Y0602120568 Gauge Unit Assembly - OEM Replacement Part $947.95

Y0602201458 Multiquip Y0602201458 Relay Denyo - OEM Replacement Part for Super Silent Generators $116.95

Y0602311148 Multiquip Y0602311148 Exhaust Insulating Material - OEM Replacement Part $514.95

Y0605000401 Multiquip Y0605000401 Rubber Suspension Denyo - OEM Replacement Part $50.95

Y0605012309 Multiquip Y0605012309 Door Handle with Bolts - OEM Replacement Part $49.95

Y0605501058 Multiquip Y0605501058 Fuel Sender Unit - OEM Replacement Part for Super Silent Generators $165.95

Y0605511394 Multiquip Y0605511394 Mini Ball Valve Denyo - OEM Replacement Part $70.95

0013616040 HEX HEAD BOLT $5.95

0016008060 HEX. SOCKET HEAD CAP SCREW $2.95

0016906015 HEX. HEAD BOLT $0.95

0017106016 HEX. HEAD BOLT $1.51

0017108035 HEX. HEAD BOLT $1.95

0017112025 HEX. HEAD BOLT $2.93

0019108055 HEX. HEAD BOLT $3.95

0019112030 HEX. HEAD BOLT $5.95

0019208020 HEX. HEAD BOLT $3.95

0019208025 HEX. HEAD BOLT $3.95

0021004035 MACHINE SCREW $0.32

0021004070 MACHINE SCREW $2.95

0021806015 MACHINE SCREW $0.87

0027103010 MACHINE SCREW $0.44

0027104015 MACHINE SCREW $0.53

0027104020 MACHINE SCREW $0.40

0027105010 MACHINE SCREW $0.56

0027105015 MACHINE SCREW $0.20

0027208025 MACHINE SCREW $0.76

0030012000 HEX. NUT $0.50

0030016000 HEX. NUT $1.90

0030316000 HEX. NUT $3.95

0040004000 WASHER, LOCK $0.09

0040006000 WASHER, LOCK $0.17

0040008000 WASHER, LOCK $0.63

0040012000 WASHER, LOCK $0.95

0040016000 WASHER, LOCK $4.95

0040506000 TOOTHED WASHER $0.77

0040508000 TOOTHED WASHER $0.35

0040512000 TOOTHED WASHER $0.77

0041216000 WASHER, FLAT $1.95

0042308000 WASHER, LOCK $0.83

0042312000 WASHER, LOCK $0.94

0042508000 WASHER, LOCK $0.62

0043003000 WASHER, LOCK $0.39

0044808000 WASHER, LOCK

0046512000 WASHER, FLAT $3.95

011008020 HEX. HEAD BOLT $2.68

011206020 HEX. HEAD BOLT $0.95

011208025 HEX HEAD BOLT $0.41

011208030 HEX. HEAD BOLT $1.30

011808015 MACHINE SCREW $6.95

012010030 HEX. HEAD BOLT $0.95

012212045 HEX. HEAD BOLT $2.95

0150000018 O-RING $1.87

0176060030 SELF LOCKING NUT $2.95

0191300700 VENT HOSE $19.95

0199900300 VENT HOSE $6.95

0199900750 VENT HOSE $13.95

020106050 U-NUT $0.12

0207003000 HEX. NUT $0.21

0222100150 CUSHION RUBBER $6.95

0222100180 TANK SHEET $1.95

0228100370 RUBBER SEAL $2.95

0228100560 RUBBER SEAL $5.95

0228800115 SEAL RUBBER $4.95

0228800165 SEAL RUBBER $3.95

0228800540 RUBBER SEAL $11.95

0228800580 RUBBER SEAL $14.95

0228900470 RUBBER SEAL $13.95

0228900820 RUBBER SEAL $28.95

0229200210 RUBBER SEAL $2.95

0229200440 RUBBER SEAL $8.95

0229200880 RUBBER SEAL $5.95

0229200950 RUBBER SEAL $9.95

030220510 WASHER, LOCK $1.95

031112230 WASHER, FLAT $0.95

0317700180 WEATHER STRIP $13.95

0340406040 HEX. HEAD BOLT $2.68

0342612030 HEX. SOCKET HEAD CAP SCREW $2.82

0343204080 HEX. HEAD BOLT $7.95

0379700360 COOLANT HOSE

0401450050 WASHER, FLAT

0401450080 WASHER, FLAT $0.56

0401450160 WASHER, FLAT $0.53

0601806643 FUSE, 15A $5.95

0601806647 FUSE, 25A $1.82

0601812626 PLUG $1.88

0601812711 PINS $0.56

0601815153 TERMINAL BLOCK

0601821370 RECTIFIER $28.95

0601822664 ZNR $18.95

0601830710 TOGGLE SWITCH $29.95

0601831205 PUSH BUTTON SWITCH $25.95

0601840100 KNOB $30.95

0601850097 DOOR STOPPER $2.95

0601851736 GROMMET $12.95

0602021070 CAP $11.95

0602220911 CLAMP $1.85

0602220920 BATTERY BOLT SET $5.95

0602326060 U BOLT $16.95

0602330514 DEF SUCTION LINE

0602330516 DEF SUPPLY MODULE

0603300285 BULKHEAD ROCKNUT $4.95

0603306395 MALE PIPE $16.95

0603306775 BLIND PLUG $3.95

0605010040 HINGE $4.95

0605050060 CONICAL SPRING WASHER $5.95

0605515134 HOSE BAND $4.95

From the guides desk

Guide · 2026-08-04

Ask ARIA about your machine.

Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.

Chat with ARIA

Multiquip DCA70SSJU4F Generator

The parts bench

The machine itself

Machine

Engine

Keep-it-running spares

Every part that fits this machine

Service notices & part changes

Take the factory book with you

Get the download pack

From the guides desk

Multiquip DCA Generator Fault Shutdown and Controller Reset Guide

Multiquip Generator No-Start and No-Power Fixes

Multiquip DCA Generator Fault Codes and Diagnostics Guide

Ask ARIA about your machine.

Your cart is empty

Your cart is empty
