Multiquip DCA70USI Generator

Name: Multiquip DCA70USI Generator
Brand: Multiquip

The parts bench

Need the PDF? ↓

Page 6 — GENERATOR ASSY.

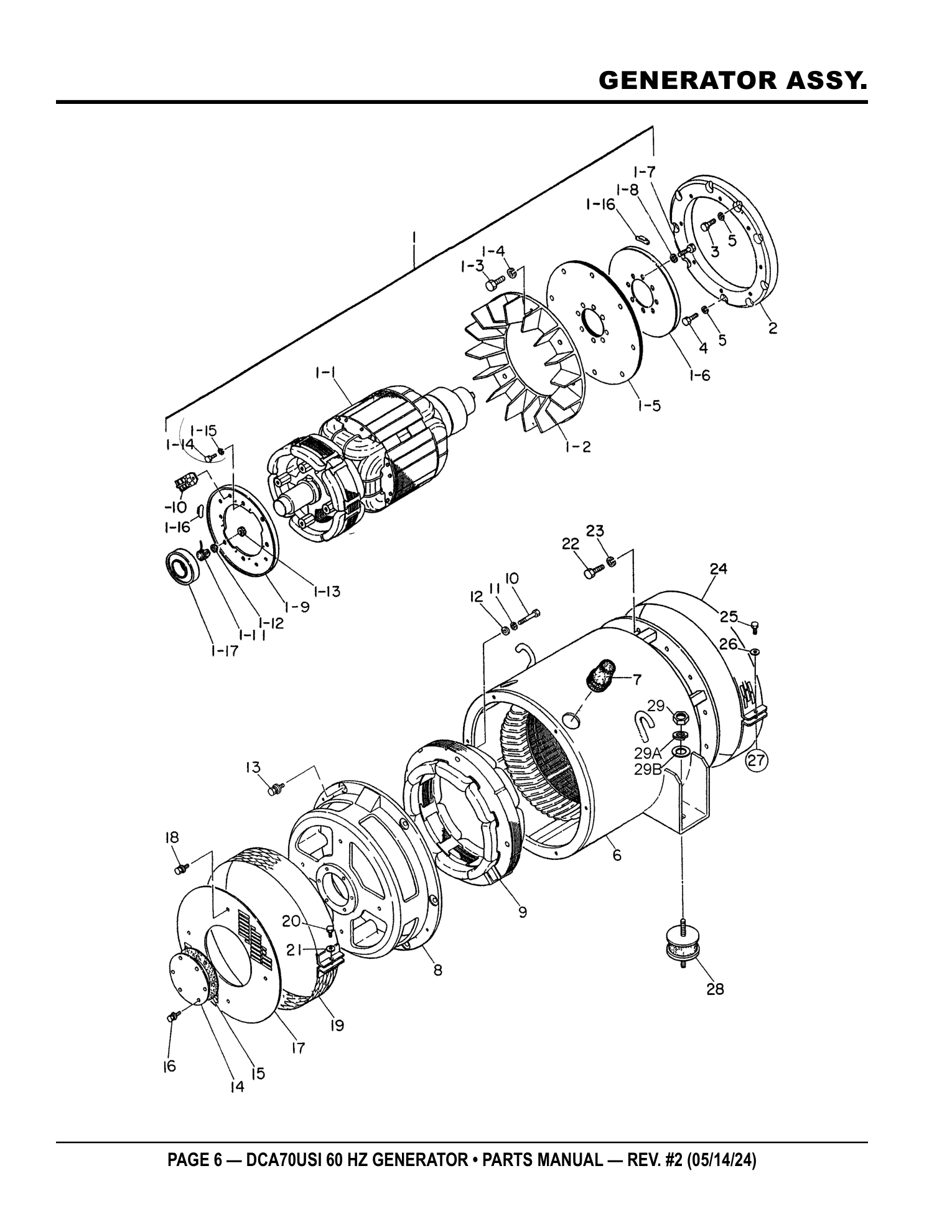

Multiquip DCA70USI Generator GENERATOR ASSY. parts diagram

Parts list — exactly as printed48 rows

No.	Part No.	Part Name	Qty	Remarks
1	B5110000102	ROTOR ASSY	1	INCLUDES ITEMS W/*	ADD TO CART
ROTOR ASSY B5110000102 · qty on machine: 1 INCLUDES ITEMS W/* view full part page → $11869.95
1-1*		FIELD ASSY.	1		SEE REMARKS
PHOTO COMING FIELD ASSY. · qty on machine: 1 SEE REMARKS
1-2*	8101070033	FAN	1		ADD TO CART
FAN 8101070033 · qty on machine: 1 view full part page → $329.95
1-3*	0010310035	HEX HEAD BOLT	8		ADD TO CART
HEX HEAD BOLT 0010310035 · qty on machine: 8 Factory replaced this part - current number 012210035 view full part page → $1.95 IN A KIT + SOLD SOLO
1-4*	0042510000	SPRING WASHER	8		PARTS REQUEST
PHOTO COMING SPRING WASHER 0042510000 · qty on machine: 8 PARTS REQUEST
1-5*	8101611004	COUPLING DISK	5		ADD TO CART
COUPLING DISK 8101611004 · qty on machine: 5 view full part page → $24.95
1-6*	8101015003	BALANCING PLATE	1	PURCHASE SET OF 1-16	ADD TO CART
BALANCING PLATE 8101015003 · qty on machine: 1 PURCHASE SET OF 1-16 view full part page → $164.95
1-7*	0012110030	HEX HEAD BOLT	8	S=26	ADD TO CART
HEX HEAD BOLT 0012110030 · qty on machine: 8 S=26 Factory replaced this part - current number 012010030 view full part page → $0.95 IN A KIT + SOLD SOLO
1-8*	0042510000	SPRING WASHER	8		PARTS REQUEST
PHOTO COMING SPRING WASHER 0042510000 · qty on machine: 8 PARTS REQUEST
1-9*	8101026013	SET PLATE, RECTIFIER	1	PURCHASE SET OF 1-16	ADD TO CART
SET PLATE, RECTIFIER 8101026013 · qty on machine: 1 PURCHASE SET OF 1-16 view full part page → $113.95
1-10*	0601821349	RECTIFIER	2	PT3610	ADD TO CART
RECTIFIER 0601821349 · qty on machine: 2 PT3610 view full part page → $247.95
1-11*	0601822601	SURGE ABSORBER	1	ERZ-M14JK621A	ADD TO CART
SURGE ABSORBER 0601822601 · qty on machine: 1 ERZ-M14JK621A view full part page → $60.95
1-12*	8001020004	INSULATOR WASHER	1		ADD TO CART
INSULATOR WASHER 8001020004 · qty on machine: 1 view full part page → $8.95
1-13*	8001020504	INSULATOR WASHER	1		ADD TO CART
INSULATOR WASHER 8001020504 · qty on machine: 1 view full part page → $4.95
1-14*	0010110020	HEX HEAD BOLT	4		ADD TO CART
HEX HEAD BOLT 0010110020 · qty on machine: 4 Factory replaced this part - current number 012210020 view full part page → $0.95 IN A KIT + SOLD SOLO
1-15*	0040010000	SPRING WASHER	4		ADD TO CART
SPRING WASHER 0040010000 · qty on machine: 4 view full part page → $0.39
1-16*	0601000209	BALANCING WEIGHT KIT	1		ADD TO CART
BALANCING WEIGHT KIT 0601000209 · qty on machine: 1 view full part page → $9.95
1-17*	0071906311	BEARING	1	6311DDU C3	ADD TO CART
BEARING 0071906311 · qty on machine: 1 6311DDU C3 view full part page → $155.95
2	M2163400103	COUPLING RING	1		PARTS REQUEST
PHOTO COMING COUPLING RING M2163400103 · qty on machine: 1 Factory replaced this part - current number 8391614003 PARTS REQUEST
3	M9200100204	REAMER BOLT	2		ADD TO CART
REAMER BOLT M9200100204 · qty on machine: 2 Factory replaced this part - current number 8051653004 view full part page → $47.95 IN A KIT + SOLD SOLO
4	0010310030	HEX HEAD BOLT	7		ADD TO CART
HEX HEAD BOLT 0010310030 · qty on machine: 7 Factory replaced this part - current number 012010030 view full part page → $0.95 IN A KIT + SOLD SOLO
5	0042510000	SPRING WASHER	9		PARTS REQUEST
PHOTO COMING SPRING WASHER 0042510000 · qty on machine: 9 PARTS REQUEST
6	B5130000103	STATOR ASSY	1	B5134000304	ADD TO CART
STATOR ASSY B5130000103 · qty on machine: 1 B5134000304 view full part page → $14259.95
7	0845041904	GROMMET	2		ADD TO CART
GROMMET 0845041904 · qty on machine: 2 view full part page → $11.95
8	8191315292	END BRACKET	1		PARTS REQUEST
PHOTO COMING END BRACKET 8191315292 · qty on machine: 1 PARTS REQUEST
9	8101350013	FIELD ASSY EXCITER	1	B5134000304	ADD TO CART
FIELD ASSY EXCITER 8101350013 · qty on machine: 1 B5134000304 view full part page → $2986.95
10	0012110070	HEX HEAD BOLT	4	S=26	ADD TO CART
HEX HEAD BOLT 0012110070 · qty on machine: 4 S=26 view full part page → $2.95
11	0042610000	SPRING WASHER	4		ADD TO CART
SPRING WASHER 0042610000 · qty on machine: 4 view full part page → $0.53
12	0041210000	PLAIN WASHER	4		ADD TO CART
PLAIN WASHER 0041210000 · qty on machine: 4 Factory replaced this part - current number 031110160 view full part page → $0.4 IN A KIT + SOLD SOLO
13	0017110035	HEX HEAD BOLT	6		ADD TO CART
HEX HEAD BOLT 0017110035 · qty on machine: 6 Factory replaced this part - current number 012210035 view full part page → $1.95 IN A KIT + SOLD SOLO
14	8101312014	COVER, BEARING	1		ADD TO CART
COVER, BEARING 8101312014 · qty on machine: 1 Factory replaced this part - current number 8101310014 view full part page → $25.95 IN A KIT + SOLD SOLO
15	8131312014	GASKET, BEARING	1		ADD TO CART
GASKET, BEARING 8131312014 · qty on machine: 1 view full part page → $14.95
16	0016906016	HEX HEAD BOLT	4		ADD TO CART
HEX HEAD BOLT 0016906016 · qty on machine: 4 view full part page → $0.81
17	8101331003	COVER, END BRACKET	1		ADD TO CART
COVER, END BRACKET 8101331003 · qty on machine: 1 view full part page → $127.95
18	0016906016	HEX HEAD BOLT	4		ADD TO CART
HEX HEAD BOLT 0016906016 · qty on machine: 4 view full part page → $0.81
19	8101333003	COVER, END BRACKET	1		ADD TO CART
COVER, END BRACKET 8101333003 · qty on machine: 1 view full part page → $86.95
20	0340406040	HEX HEAD BOLT	1		ADD TO CART
HEX HEAD BOLT 0340406040 · qty on machine: 1 view full part page → $2.68
21	0041606000	PLAIN WASHER	1		ADD TO CART
PLAIN WASHER 0041606000 · qty on machine: 1 Factory replaced this part - current number 952404470 view full part page → $0.19 IN A KIT + SOLD SOLO
22	0010110030	HEX HEAD BOLT	12		ADD TO CART
HEX HEAD BOLT 0010110030 · qty on machine: 12 Factory replaced this part - current number 012010030 view full part page → $0.95 IN A KIT + SOLD SOLO
23	0042510000	SPRING WASHER	12		PARTS REQUEST
PHOTO COMING SPRING WASHER 0042510000 · qty on machine: 12 PARTS REQUEST
24	8111332014	COVER, FAN	1		ADD TO CART
COVER, FAN 8111332014 · qty on machine: 1 view full part page → $156.95
25	0340406040	HEX HEAD BOLT	1		ADD TO CART
HEX HEAD BOLT 0340406040 · qty on machine: 1 view full part page → $2.68
26	0041606000	PLAIN WASHER	1		ADD TO CART
PLAIN WASHER 0041606000 · qty on machine: 1 Factory replaced this part - current number 952404470 view full part page → $0.19 IN A KIT + SOLD SOLO
27	0600815000	NUT	1		ADD TO CART
NUT 0600815000 · qty on machine: 1 Factory replaced this part - current number 020106050 view full part page → $0.12 IN A KIT + SOLD SOLO
28	0605000010	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION 0605000010 · qty on machine: 2 view full part page → $154.95
29	0030012000	HEX NUT	2		ADD TO CART
HEX NUT 0030012000 · qty on machine: 2 view full part page → $0.5
29A	0040012000	SPRING WASHER	2		ADD TO CART
SPRING WASHER 0040012000 · qty on machine: 2 view full part page → $0.95
29B	0041212000	PLAIN WASHER	2		ADD TO CART
PLAIN WASHER 0041212000 · qty on machine: 2 Factory replaced this part - current number 031112230 view full part page → $0.95 IN A KIT + SOLD SOLO

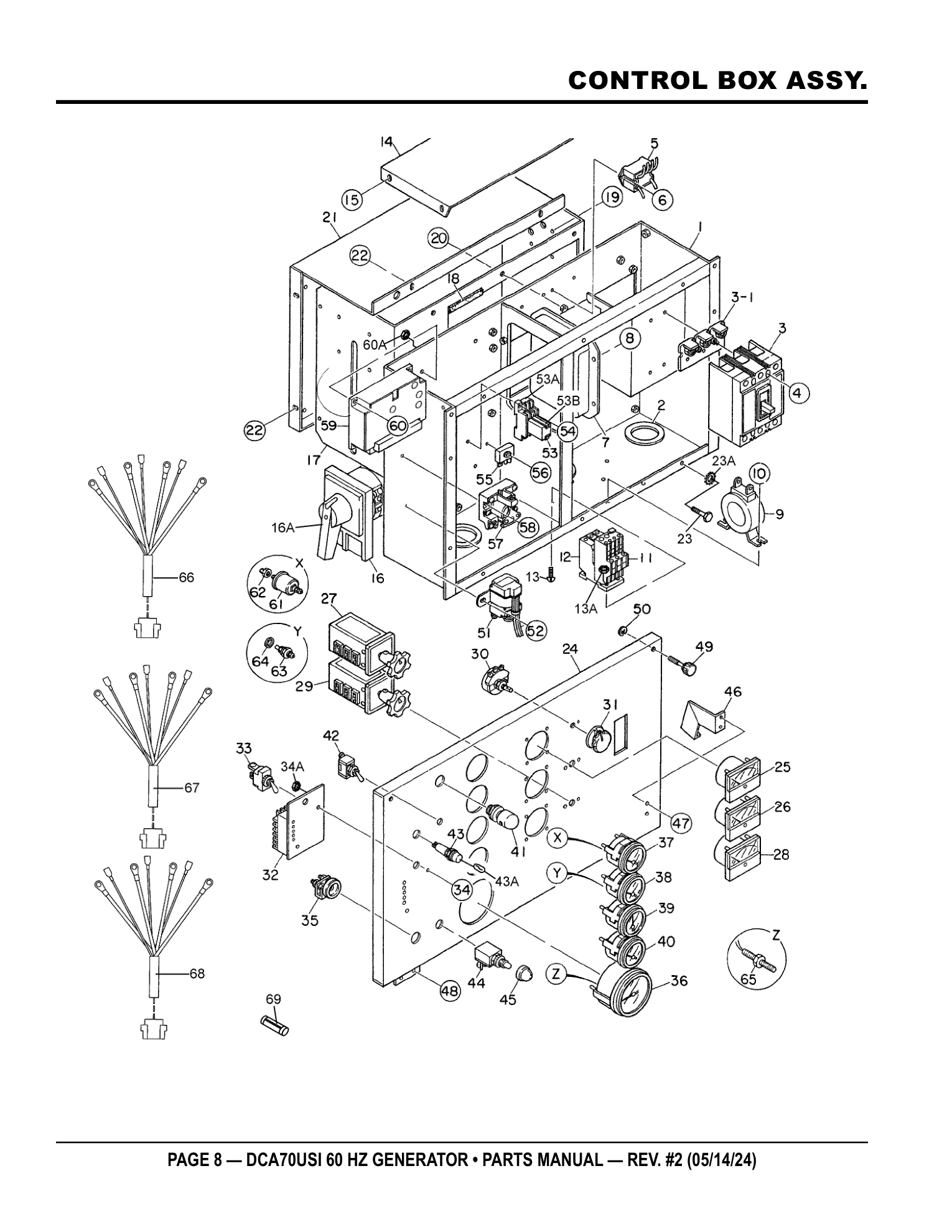

Page 8 — CONTROL BOX ASSY.

Multiquip DCA70USI Generator CONTROL BOX ASSY. parts diagram

Parts list — exactly as printed41 rows

No.	Part No.	Part Name	Qty	Remarks
1	M2213001102	CONTROL BOX	1		ADD TO CART
CONTROL BOX M2213001102 · qty on machine: 1 view full part page → $410.95
2	0330000180	EDGING	3		ADD TO CART
EDGING 0330000180 · qty on machine: 3 view full part page → $1.95
3	0601870432	CIRCUIT BREAKER, 175 A	1		ADD TO CART
CIRCUIT BREAKER, 175 A 0601870432 · qty on machine: 1 view full part page → $964.95
3-1	0601870490	COVER, CIRCUIT BREAKER	2		ADD TO CART
COVER, CIRCUIT BREAKER 0601870490 · qty on machine: 2 view full part page → $26.95
4	0021004040	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021004040 · qty on machine: 4 view full part page → $0.64
5	0601823863	RELAY UNIT	2		ADD TO CART
RELAY UNIT 0601823863 · qty on machine: 2 view full part page → $159.95
6	0027104016	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027104016 · qty on machine: 4 Factory replaced this part - current number 7538070 view full part page → $0.52 IN A KIT + SOLD SOLO
7	0601820671	AUTOMATIC VOLTAGE REGULATOR	1		ADD TO CART
AUTOMATIC VOLTAGE REGULATOR 0601820671 · qty on machine: 1 view full part page → $1939.95
8	0027105016	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105016 · qty on machine: 4 view full part page → $0.55
9	0601806139	CURRENT TRANSFORMER, 150/5A	3		ADD TO CART
CURRENT TRANSFORMER, 150/5A 0601806139 · qty on machine: 3 Factory replaced this part - current number 0601801123 view full part page → $221.95 IN A KIT + SOLD SOLO
10	0027106016	MACHINE SCREW	6		ADD TO CART
MACHINE SCREW 0027106016 · qty on machine: 6 view full part page → $0.55
11	0601820847	OVER CURRENT RELAY	1		NO LONGER AVAILABLE
PHOTO COMING OVER CURRENT RELAY 0601820847 · qty on machine: 1 NO LONGER AVAILABLE
12	0601820848	OVER CURRENT RELAY	1		ADD TO CART
OVER CURRENT RELAY 0601820848 · qty on machine: 1 view full part page → $83.95
13	0027104016	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104016 · qty on machine: 2 Factory replaced this part - current number 7538070 view full part page → $0.52 IN A KIT + SOLD SOLO
13A	0207004000	HEX NUT	2		ADD TO CART
HEX NUT 0207004000 · qty on machine: 2 Factory replaced this part - current number OEMAA8 view full part page → $0.4 IN A KIT + SOLD SOLO
14	M2213500203	CONTROL BOX COVER	1		ADD TO CART
CONTROL BOX COVER M2213500203 · qty on machine: 1 view full part page → $24.95
15	0016906016	HEX HEAD BOLT	4		ADD TO CART
HEX HEAD BOLT 0016906016 · qty on machine: 4 view full part page → $0.81
16	M2270100004	SELECTOR SWITCH	1		NO LONGER AVAILABLE
PHOTO COMING SELECTOR SWITCH M2270100004 · qty on machine: 1 NO LONGER AVAILABLE
16A	M1201000004	KNOB, SELECTOR SWITCH			NO LONGER AVAILABLE
PHOTO COMING KNOB, SELECTOR SWITCH M1201000004 NO LONGER AVAILABLE
17	M2213600803	SWITCH BRACKET	1		ADD TO CART
SWITCH BRACKET M2213600803 · qty on machine: 1 view full part page → $54.95
18	0330000320	EDGING	2		ADD TO CART
EDGING 0330000320 · qty on machine: 2 view full part page → $1.55
19	0027104010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027104010 · qty on machine: 4 view full part page → $0.33
20	0016906016	HEX HEAD BOLT	6		ADD TO CART
HEX HEAD BOLT 0016906016 · qty on machine: 6 view full part page → $0.81
21	M2213600904	SWITCH COVER	1		ADD TO CART
SWITCH COVER M2213600904 · qty on machine: 1 view full part page → $72.95
22	0016906016	HEX HEAD BOLT	4		ADD TO CART
HEX HEAD BOLT 0016906016 · qty on machine: 4 view full part page → $0.81
23	0015906016	HEX HEAD BOLT	8		PARTS REQUEST
PHOTO COMING HEX HEAD BOLT 0015906016 · qty on machine: 8 PARTS REQUEST
23A	0040506000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040506000 · qty on machine: 1 view full part page → $0.77
24	M2223000703	CONTROL PANEL	1		ADD TO CART
CONTROL PANEL M2223000703 · qty on machine: 1 view full part page → $81.95
25	0601807641	FREQUENCY METER, 45~65Hz 240V	1		ADD TO CART
FREQUENCY METER, 45~65Hz 240V 0601807641 · qty on machine: 1 view full part page → $591.95
26	0601808987	AC AMMETER, 0~150A/300A:5A	1		ADD TO CART
AC AMMETER, 0~150A/300A:5A 0601808987 · qty on machine: 1 view full part page → $246.95
27	0601801040	CHANGE-OVER SWITCH, AMMETER	1		ADD TO CART
CHANGE-OVER SWITCH, AMMETER 0601801040 · qty on machine: 1 view full part page → $95.95
28	0601806859	AC VOLTMETER, 0~600V	1		ADD TO CART
AC VOLTMETER, 0~600V 0601806859 · qty on machine: 1 view full part page → $368.95
29	0601801041	CHANGE-OVER SWITCH, VOLTMETER	1		ADD TO CART
CHANGE-OVER SWITCH, VOLTMETER 0601801041 · qty on machine: 1 view full part page → $157.95
30	0601840073	RHEOSTAT (VOLTAGE REGULATOR)	1	2W 1k OHM	ADD TO CART
RHEOSTAT (VOLTAGE REGULATOR) 0601840073 · qty on machine: 1 2W 1k OHM view full part page → $90.95
31	0601840121	KNOB	1		ADD TO CART
KNOB 0601840121 · qty on machine: 1 Factory replaced this part - current number 0601840100 view full part page → $30.95 IN A KIT + SOLD SOLO
32	0602202545	CONTROLLER, ECU-9988N	1		ADD TO CART
CONTROLLER, ECU-9988N 0602202545 · qty on machine: 1 view full part page → $987.95
33	0601831340	SWITCH	1		PARTS REQUEST
PHOTO COMING SWITCH 0601831340 · qty on machine: 1 PARTS REQUEST
34	0027104040	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104040 · qty on machine: 2 view full part page → $1.39
34A	0207004000	HEX NUT	2		ADD TO CART
HEX NUT 0207004000 · qty on machine: 2 Factory replaced this part - current number OEMAA8 view full part page → $0.4 IN A KIT + SOLD SOLO
35	8941739480	CONTROL RESISTANCE	1	REPLACES P/N 0602202506	ADD TO CART
CONTROL RESISTANCE 8941739480 · qty on machine: 1 REPLACES P/N 0602202506 view full part page → $91.95
36	0602120095	TACHOMETER	1		ADD TO CART
TACHOMETER 0602120095 · qty on machine: 1 Factory replaced this part - current number Y0602120099 view full part page → $307.02 IN A KIT + SOLD SOLO

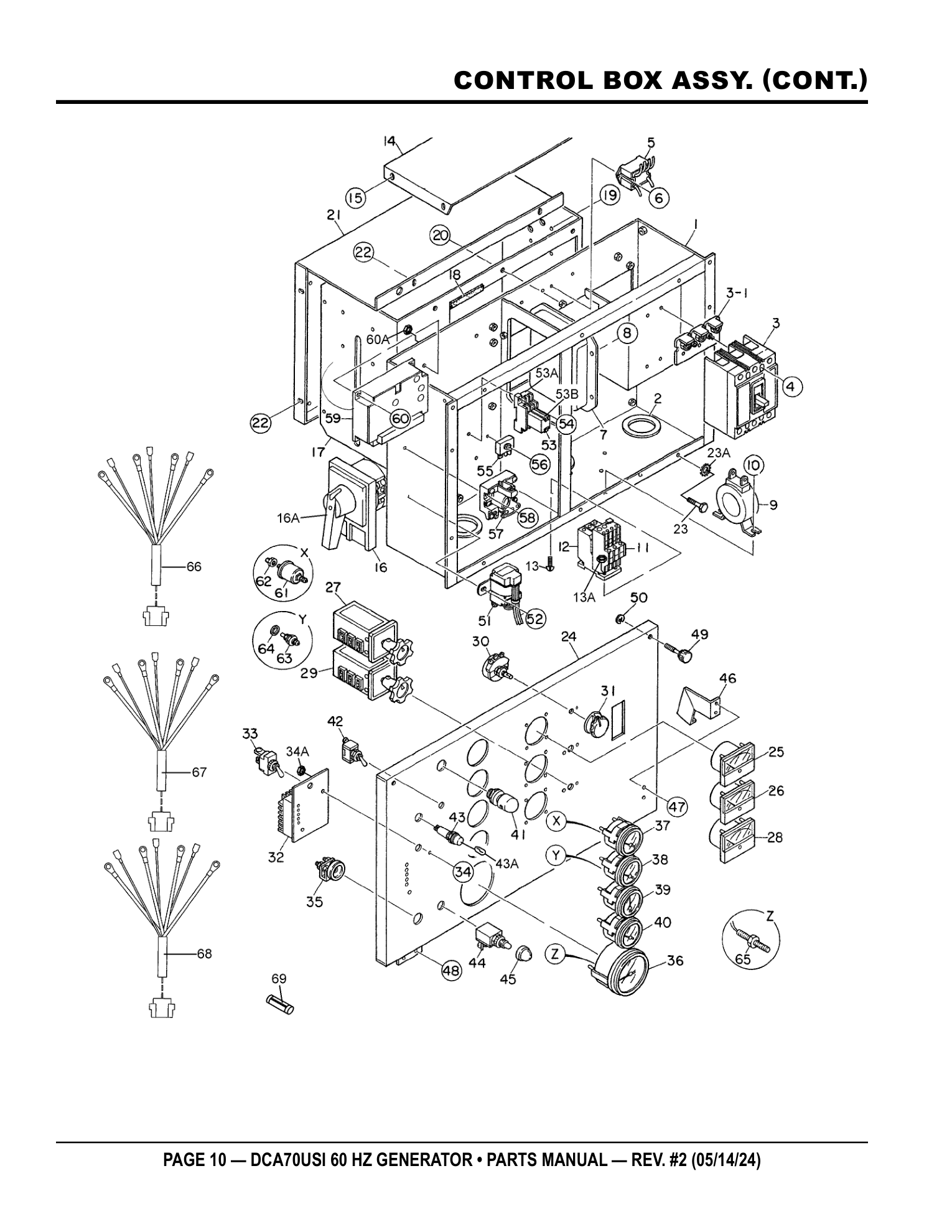

Page 10 — CONTROL BOX ASSY. (CONT.)

Multiquip DCA70USI Generator CONTROL BOX ASSY. (CONT.) parts diagram

Parts list — exactly as printed37 rows

No.	Part No.	Part Name	Qty	Remarks
37	0602122093	OIL PRESSURE GAUGE	1		ADD TO CART
OIL PRESSURE GAUGE 0602122093 · qty on machine: 1 view full part page → $81.95
38	0602123090	WATER TEMPERATURE GAUGE	1		ADD TO CART
WATER TEMPERATURE GAUGE 0602123090 · qty on machine: 1 view full part page → $75.95
39	0602121080	CHARGING AMMETER	1		ADD TO CART
CHARGING AMMETER 0602121080 · qty on machine: 1 view full part page → $75.95
40	0602125090	FUEL GAUGE	1		ADD TO CART
FUEL GAUGE 0602125090 · qty on machine: 1 view full part page → $77.95
41	0601810141	PANEL LIGHT	1		PARTS REQUEST
PHOTO COMING PANEL LIGHT 0601810141 · qty on machine: 1 PARTS REQUEST
42	0601831330	SWITCH, PANEL LIGHT	1		ADD TO CART
SWITCH, PANEL LIGHT 0601831330 · qty on machine: 1 view full part page → $11.95
43	0602103092	ALARM LAMP	1		ADD TO CART
ALARM LAMP 0602103092 · qty on machine: 1 view full part page → $36.95
43A	0601810245	BULB, DC18V	1		ADD TO CART
BULB, DC18V 0601810245 · qty on machine: 1 view full part page → $3.95
44	0601831585	PREHEAT BUTTON	1		ADD TO CART
PREHEAT BUTTON 0601831585 · qty on machine: 1 view full part page → $20.95
45	0601831586	CAP	1		ADD TO CART
CAP 0601831586 · qty on machine: 1 view full part page → $58.95
46	M1224100104	STOPPER	1		ADD TO CART
STOPPER M1224100104 · qty on machine: 1 view full part page → $13.95
47	0027105010	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027105010 · qty on machine: 2 view full part page → $0.56
48	0027105010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105010 · qty on machine: 4 view full part page → $0.56
49	M9220100004	SET SCREW	2		ADD TO CART
SET SCREW M9220100004 · qty on machine: 2 view full part page → $12.95
50	0080200007	SNAP RING	2		ADD TO CART
SNAP RING 0080200007 · qty on machine: 2 view full part page → $1.39
51	1825530401	STARTER RELAY	1	REPLACES P/N 0602200304	ADD TO CART
STARTER RELAY 1825530401 · qty on machine: 1 REPLACES P/N 0602200304 view full part page → $373.95
52	0016906016	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0016906016 · qty on machine: 2 view full part page → $0.81
53	LY2DDC12V	RELAY	1		ADD TO CART
RELAY LY2DDC12V · qty on machine: 1 Factory replaced this part - current number LY2DUS12VDC view full part page → $46.95 IN A KIT + SOLD SOLO
53A	PTF08AE	BASE	1		ADD TO CART
BASE PTF08AE · qty on machine: 1 Factory replaced this part - current number PTF08A view full part page → $47.95 IN A KIT + SOLD SOLO
53B	PYCA1	CAP	2		ADD TO CART
CAP PYCA1 · qty on machine: 2 view full part page → $1.71
54	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
55	0601823240	RECTIFIER, DE45	1		ADD TO CART
RECTIFIER, DE45 0601823240 · qty on machine: 1 Factory replaced this part - current number 0601821370 view full part page → $28.95 IN A KIT + SOLD SOLO
56	0027104020	MACHINE SCREW	1		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 1 view full part page → $0.4
57	0601827680	STARTER RELAY	1		ADD TO CART
STARTER RELAY 0601827680 · qty on machine: 1 view full part page → $325.95
58	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
59	0602202546	CONTROLLER (EGS) DYN1	1		PARTS REQUEST
PHOTO COMING CONTROLLER (EGS) DYN1 0602202546 · qty on machine: 1 PARTS REQUEST
60	0027105016	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105016 · qty on machine: 4 view full part page → $0.55
60A	0207005000	HEX NUT	4		ADD TO CART
HEX NUT 0207005000 · qty on machine: 4 Factory replaced this part - current number 0030005000 view full part page → $0.29 IN A KIT + SOLD SOLO
61	0602122272	UNIT, OIL PRESSURE	1		ADD TO CART
UNIT, OIL PRESSURE 0602122272 · qty on machine: 1 view full part page → $190.95
62	M9200100004	ADAPTER	1		ADD TO CART
ADAPTER M9200100004 · qty on machine: 1 view full part page → $25.95
63	8971256000	SENDER, WATER SWITCH	1		ADD TO CART
SENDER, WATER SWITCH 8971256000 · qty on machine: 1 Factory replaced this part - current number 8971256001 view full part page → $173.95 IN A KIT + SOLD SOLO
64	9095720140	PACKING	1	REPLACES P/N 0602121109	ADD TO CART
PACKING 9095720140 · qty on machine: 1 REPLACES P/N 0602121109 view full part page → $2.95
65	0602120480	PICK UP, TACHOMETER	1		ADD TO CART
PICK UP, TACHOMETER 0602120480 · qty on machine: 1 view full part page → $210.95
66	M2246701504	WIRE HARNESS, GENERATOR	1		ADD TO CART
WIRE HARNESS, GENERATOR M2246701504 · qty on machine: 1 view full part page → $1566.95
67	M2357201102	WIRE HARNESS, ENGINE	1		ADD TO CART
WIRE HARNESS, ENGINE M2357201102 · qty on machine: 1 view full part page → $1301.95
68	M3357200304	WIRE HARNESS, FUEL LEAK	1		ADD TO CART
WIRE HARNESS, FUEL LEAK M3357200304 · qty on machine: 1 view full part page → $85.95
69	0601802149	FUSE, 10A	3		ADD TO CART
FUSE, 10A 0601802149 · qty on machine: 3 view full part page → $3.95

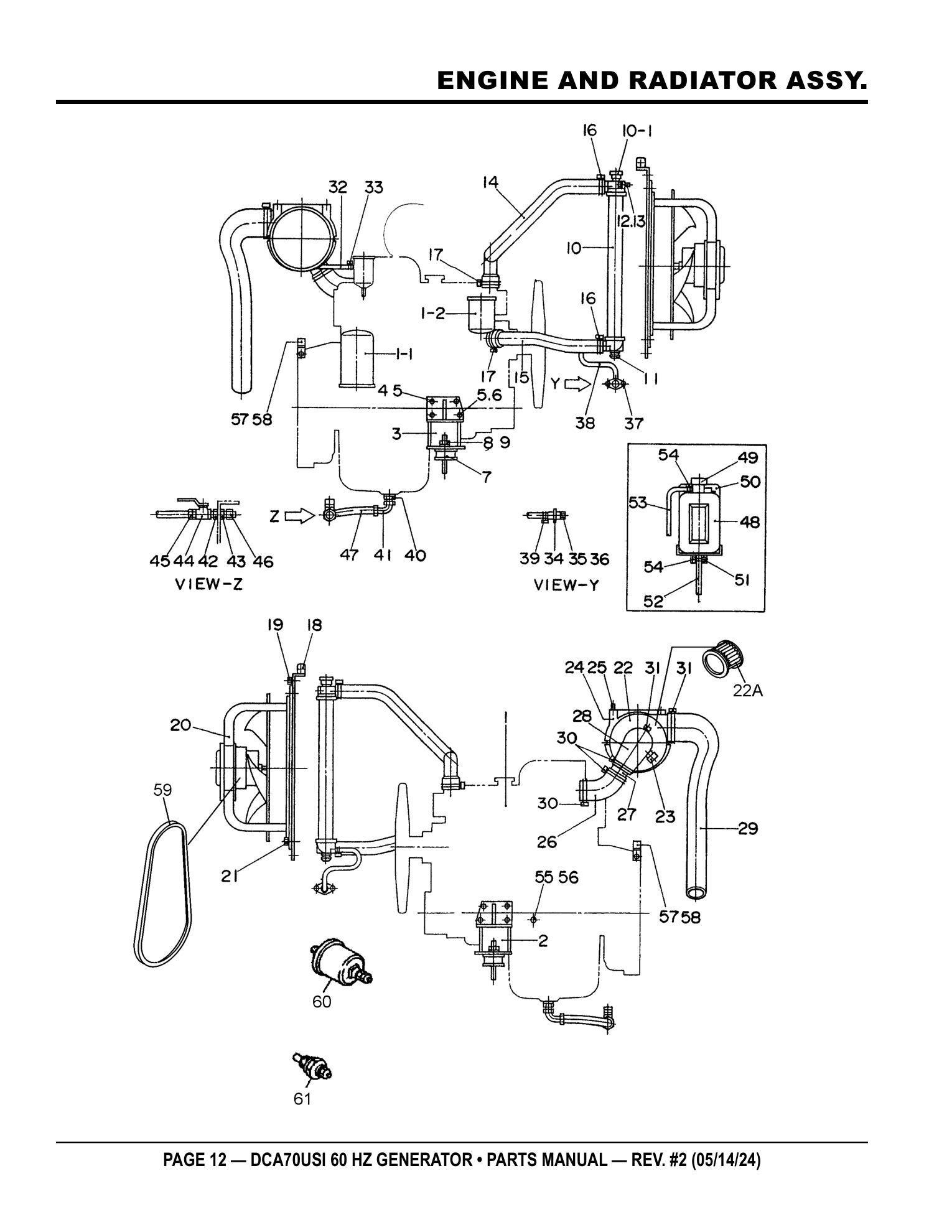

Page 12 — ENGINE AND RADIATOR ASSY.

Multiquip DCA70USI Generator ENGINE AND RADIATOR ASSY. parts diagram

Parts list — exactly as printed39 rows

No.	Part No.	Part Name	Qty	Remarks
1	M2923200024	ENGINE, ISUZU FF-4BG1T	1		ADD TO CART
ENGINE, ISUZU FF-4BG1T M2923200024 · qty on machine: 1 view full part page → $12788.95
1-1	1132402311	CARTRIDGE, OIL FILTER	1	REPLACES P/N 0602041216	PARTS REQUEST
PHOTO COMING CARTRIDGE, OIL FILTER 1132402311 · qty on machine: 1 REPLACES P/N 0602041216 Factory replaced this part - current number 1132402321 PARTS REQUEST
1-2	1132400791	CARTRIDGE, FUEL FILTER	1	REPLACES P/N 0602042407	PARTS REQUEST
PHOTO COMING CARTRIDGE, FUEL FILTER 1132400791 · qty on machine: 1 REPLACES P/N 0602042407 PARTS REQUEST
2	M1303200103	ENGINE FOOT	1		ADD TO CART
ENGINE FOOT M1303200103 · qty on machine: 1 view full part page → $199.95
3	M1303200203	ENGINE FOOT	1		ADD TO CART
ENGINE FOOT M1303200203 · qty on machine: 1 view full part page → $234.95
4	0010710025	HEX HEAD BOLT	7		ADD TO CART
HEX HEAD BOLT 0010710025 · qty on machine: 7 Factory replaced this part - current number 0105091025 view full part page → $0.68 IN A KIT + SOLD SOLO
5	0042510000	SPRING WASHER	8		PARTS REQUEST
PHOTO COMING SPRING WASHER 0042510000 · qty on machine: 8 PARTS REQUEST
6	0030410000	HEX, NUT	1		ADD TO CART
HEX, NUT 0030410000 · qty on machine: 1 view full part page → $0.28
7	0605000009	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION 0605000009 · qty on machine: 2 view full part page → $118.95
8	0030012000	HEX, NUT	2		ADD TO CART
HEX, NUT 0030012000 · qty on machine: 2 view full part page → $0.5
9	0040012000	SPRING WASHER	2		ADD TO CART
SPRING WASHER 0040012000 · qty on machine: 2 view full part page → $0.95
10	M2923200044	RADIATOR	1		ADD TO CART
RADIATOR M2923200044 · qty on machine: 1 view full part page → $898.95
10-1	0602011053	CAP, RADIATOR	1		ADD TO CART
CAP, RADIATOR 0602011053 · qty on machine: 1 view full part page → $54.95
11	M9312200104	MOUNT RUBBER	2		ADD TO CART
MOUNT RUBBER M9312200104 · qty on machine: 2 view full part page → $16.95
12	0016908040	HEX, HEAD BOLT	2		ADD TO CART
HEX, HEAD BOLT 0016908040 · qty on machine: 2 view full part page → $1.52
13	0207008000	HEX, NUT	2		ADD TO CART
HEX, NUT 0207008000 · qty on machine: 2 Factory replaced this part - current number 020108060 view full part page → $0.28 IN A KIT + SOLD SOLO
14	M2310500803	RADIATOR HOSE	1		ADD TO CART
RADIATOR HOSE M2310500803 · qty on machine: 1 view full part page → $231.95
15	M2310500903	RADIATOR HOSE	1		ADD TO CART
RADIATOR HOSE M2310500903 · qty on machine: 1 view full part page → $124.95
16	0605515147	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515147 · qty on machine: 2 view full part page → $3.95
17	0605515199	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515199 · qty on machine: 2 view full part page → $2.95
18	M2313300404	FAN BRACKET	1		ADD TO CART
FAN BRACKET M2313300404 · qty on machine: 1 view full part page → $367.95
19	0017110030	HEX, HEAD BOLT	4		ADD TO CART
HEX, HEAD BOLT 0017110030 · qty on machine: 4 Factory replaced this part - current number 012010030 view full part page → $0.95 IN A KIT + SOLD SOLO
20	0601822798	FAN MOTOR	1		ADD TO CART
FAN MOTOR 0601822798 · qty on machine: 1 view full part page → $2618.95
21	0017110030	HEX, HEAD BOLT	4		ADD TO CART
HEX, HEAD BOLT 0017110030 · qty on machine: 4 Factory replaced this part - current number 012010030 view full part page → $0.95 IN A KIT + SOLD SOLO
22	0602046582	AIR CLEANER	1		ADD TO CART
AIR CLEANER 0602046582 · qty on machine: 1 view full part page → $250.95
22A	0602046365	ELEMENT, AIR CLEANER	1		ADD TO CART
ELEMENT, AIR CLEANER 0602046365 · qty on machine: 1 view full part page → $116.95
23	0602040651	INDICATOR, AIR CLEANER	1		ADD TO CART
INDICATOR, AIR CLEANER 0602040651 · qty on machine: 1 view full part page → $52.95
24	0602040554	BAND, AIR CLEANER	1		ADD TO CART
BAND, AIR CLEANER 0602040554 · qty on machine: 1 view full part page → $44.95
25	0016908030	HEX, HEAD BOLT	2		ADD TO CART
HEX, HEAD BOLT 0016908030 · qty on machine: 2 Factory replaced this part - current number 011208030 view full part page → $1.3 IN A KIT + SOLD SOLO
26	M2373100404	HOSE, AIR CLEANER	1		ADD TO CART
HOSE, AIR CLEANER M2373100404 · qty on machine: 1 view full part page → $65.95
27	M2326100004	BLOWBY PIPE	1		ADD TO CART
BLOWBY PIPE M2326100004 · qty on machine: 1 view full part page → $133.95
28	M2373100304	HOSE, AIR CLEANER	1		ADD TO CART
HOSE, AIR CLEANER M2373100304 · qty on machine: 1 view full part page → $118.95
29	M1374100103	HOSE, AIR CLEANER	1		ADD TO CART
HOSE, AIR CLEANER M1374100103 · qty on machine: 1 view full part page → $376.95
30	0605515146	HOSE BAND	3		ADD TO CART
HOSE BAND 0605515146 · qty on machine: 3 view full part page → $10.95
31	0605515197	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515197 · qty on machine: 2 view full part page → $35.95
32	0191300450	BLOWBY HOSE	1		ADD TO CART
BLOWBY HOSE 0191300450 · qty on machine: 1 view full part page → $16.95
33	0605515198	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515198 · qty on machine: 2 view full part page → $1.71
34	M2320300103	DRAIN JOINT	1		PARTS REQUEST
PHOTO COMING DRAIN JOINT M2320300103 · qty on machine: 1 PARTS REQUEST
35	M9200200004	PLUG	1		ADD TO CART
PLUG M9200200004 · qty on machine: 1 Factory replaced this part - current number 0802011104 view full part page → $10.95 IN A KIT + SOLD SOLO

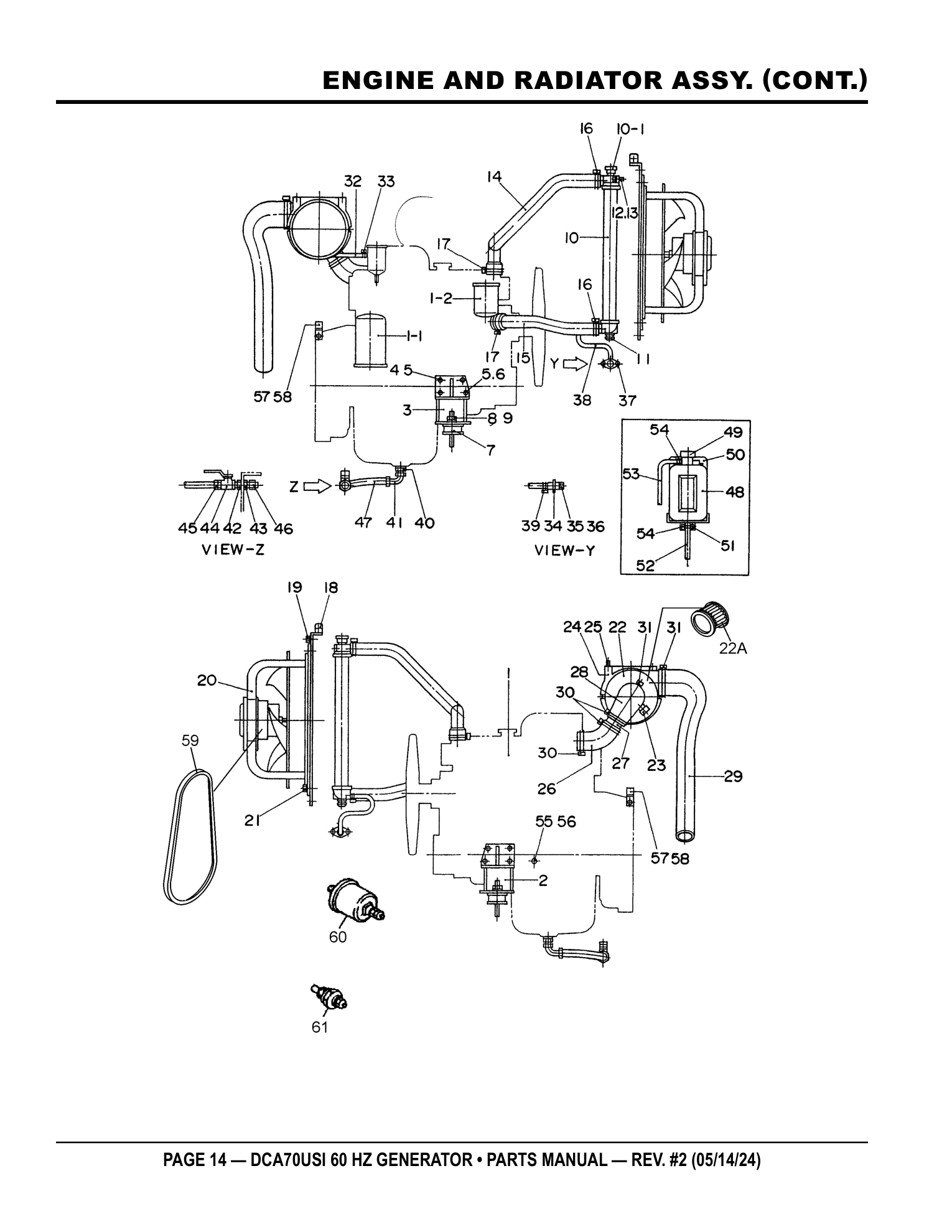

Page 14 — ENGINE AND RADIATOR ASSY. (CONT.)

Multiquip DCA70USI Generator ENGINE AND RADIATOR ASSY. (CONT.) parts diagram

Parts list — exactly as printed26 rows

No.	Part No.	Part Name	Qty	Remarks
36	0150000018	O RING	1		ADD TO CART
O RING 0150000018 · qty on machine: 1 view full part page → $1.87
37	0016906020	HEX, HEAD BOLT	2		ADD TO CART
HEX, HEAD BOLT 0016906020 · qty on machine: 2 Factory replaced this part - current number 011206020 view full part page → $0.95 IN A KIT + SOLD SOLO
38	0199900600	DRAIN HOSE	1		ADD TO CART
DRAIN HOSE 0199900600 · qty on machine: 1 view full part page → $15.95
39	0605515106	HOSE BAND	1		ADD TO CART
HOSE BAND 0605515106 · qty on machine: 1 Factory replaced this part - current number 0605515170 view full part page → $5.95 IN A KIT + SOLD SOLO
40	0602022560	ADAPTER	1		ADD TO CART
ADAPTER 0602022560 · qty on machine: 1 view full part page → $86.95
41	0602022561	90 DEG. ELBOW	1		ADD TO CART
90 DEG. ELBOW 0602022561 · qty on machine: 1 view full part page → $76.95
42	0602206590	CONNECTOR	1		PARTS REQUEST
PHOTO COMING CONNECTOR 0602206590 · qty on machine: 1 PARTS REQUEST
43	0603300285	ROCKNUT	1		ADD TO CART
ROCKNUT 0603300285 · qty on machine: 1 view full part page → $4.95
44	0605511395	VALVE	1		ADD TO CART
VALVE 0605511395 · qty on machine: 1 view full part page → $46.95
45	0603306395	HOSE JOINT	1		ADD TO CART
HOSE JOINT 0603306395 · qty on machine: 1 view full part page → $16.95
46	0602021070	CAP	1		ADD TO CART
CAP 0602021070 · qty on machine: 1 view full part page → $11.95
47	0269200420	DRAIN HOSE	1		ADD TO CART
DRAIN HOSE 0269200420 · qty on machine: 1 view full part page → $26.95
48	M9300000203	RESERVE TANK	1		PARTS REQUEST
PHOTO COMING RESERVE TANK M9300000203 · qty on machine: 1 PARTS REQUEST
49	0602010900	CAP, RESERVE TANK	1		PARTS REQUEST
PHOTO COMING CAP, RESERVE TANK 0602010900 · qty on machine: 1 PARTS REQUEST
50	M3316100303	BRACKET, RESERVE TANK	1		ADD TO CART
BRACKET, RESERVE TANK M3316100303 · qty on machine: 1 view full part page → $62.95
51	0016908020	HEX, HEAD BOLT	3		ADD TO CART
HEX, HEAD BOLT 0016908020 · qty on machine: 3 Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO
52	0199102000	HOSE	1		ADD TO CART
HOSE 0199102000 · qty on machine: 1 view full part page → $2.95
53	0193600700	HOSE	1		ADD TO CART
HOSE 0193600700 · qty on machine: 1 view full part page → $13.95
54	0605515106	HOSE BAND	3		ADD TO CART
HOSE BAND 0605515106 · qty on machine: 3 Factory replaced this part - current number 0605515170 view full part page → $5.95 IN A KIT + SOLD SOLO
55	0017112025	HEX, HEAD BOLT	1		ADD TO CART
HEX, HEAD BOLT 0017112025 · qty on machine: 1 view full part page → $2.93
56	0040512000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040512000 · qty on machine: 1 view full part page → $0.77
57	0602220911	CLAMP	2		ADD TO CART
CLAMP 0602220911 · qty on machine: 2 view full part page → $1.85
58	0017110020	HEX, HEAD BOLT	2		ADD TO CART
HEX, HEAD BOLT 0017110020 · qty on machine: 2 Factory replaced this part - current number 012210020 view full part page → $0.95 IN A KIT + SOLD SOLO
59	8972333820	FAN BELT	1	REPLACES P/N 0602011434	ADD TO CART
FAN BELT 8972333820 · qty on machine: 1 REPLACES P/N 0602011434 view full part page → $168.95
60	0602123260	UNIT, WATER TEMPERATURE	1		ADD TO CART
UNIT, WATER TEMPERATURE 0602123260 · qty on machine: 1 view full part page → $24.95
61	9827200690	SENDER, OIL SWITCH	1		PARTS REQUEST
PHOTO COMING SENDER, OIL SWITCH 9827200690 · qty on machine: 1 PARTS REQUEST

Page 16 — OUTPUT TERMINAL ASSY.

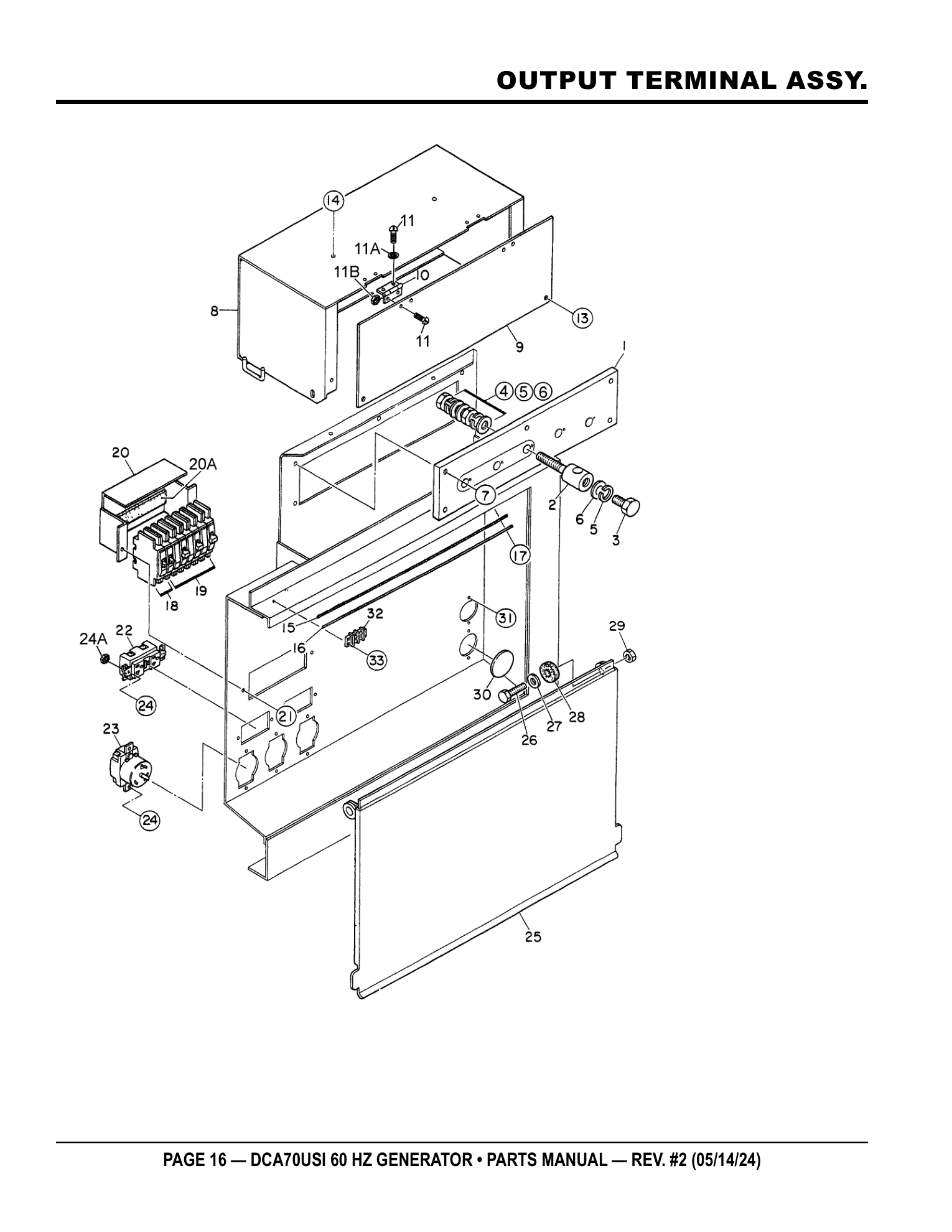

Multiquip DCA70USI Generator OUTPUT TERMINAL ASSY. parts diagram

Parts list — exactly as printed38 rows

No.	Part No.	Part Name	Qty	Remarks
1	M2230700113	TERMINAL PANEL	1		ADD TO CART
TERMINAL PANEL M2230700113 · qty on machine: 1 view full part page → $1461.95
2	M2233000004	OUTPUT TERMINAL BOLT	5		ADD TO CART
OUTPUT TERMINAL BOLT M2233000004 · qty on machine: 5 view full part page → $70.95
3	M2233100004	TIE BOLT	5		ADD TO CART
TIE BOLT M2233100004 · qty on machine: 5 view full part page → $14.95
4	0039312000	HEX, NUT	10		ADD TO CART
HEX, NUT 0039312000 · qty on machine: 10 view full part page → $0.46
5	0040012000	SPRING WASHER	15		ADD TO CART
SPRING WASHER 0040012000 · qty on machine: 15 view full part page → $0.95
6	0041412000	PLAIN WASHER	20		ADD TO CART
PLAIN WASHER 0041412000 · qty on machine: 20 view full part page → $2.95
7	0016908035	HEX, HEAD BOLT	5		ADD TO CART
HEX, HEAD BOLT 0016908035 · qty on machine: 5 Factory replaced this part - current number 0012108035 view full part page → $1.95 IN A KIT + SOLD SOLO
8	M3236100503	TERMINAL COVER	1		ADD TO CART
TERMINAL COVER M3236100503 · qty on machine: 1 view full part page → $133.95
9	M3236100404	OUTPUT WINDOW	1		ADD TO CART
OUTPUT WINDOW M3236100404 · qty on machine: 1 view full part page → $70.95
10	0605010040	HINGE	2		ADD TO CART
HINGE 0605010040 · qty on machine: 2 view full part page → $4.95
11	0027103010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027103010 · qty on machine: 4 view full part page → $0.44
11A	0030003000	HEX, NUT	4		ADD TO CART
HEX, NUT 0030003000 · qty on machine: 4 Factory replaced this part - current number 0207003000 view full part page → $0.21 IN A KIT + SOLD SOLO
11B	0041203000	PLAIN WASHER	4		ADD TO CART
PLAIN WASHER 0041203000 · qty on machine: 4 view full part page → $0.12
12	0027103010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027103010 · qty on machine: 4 view full part page → $0.44
12A	0030003000	HEX, NUT	4		ADD TO CART
HEX, NUT 0030003000 · qty on machine: 4 Factory replaced this part - current number 0207003000 view full part page → $0.21 IN A KIT + SOLD SOLO
13	0016906020	HEX, HEAD BOLT	2		ADD TO CART
HEX, HEAD BOLT 0016906020 · qty on machine: 2 Factory replaced this part - current number 011206020 view full part page → $0.95 IN A KIT + SOLD SOLO
14	0016906016	HEX, HEAD BOLT	4		ADD TO CART
HEX, HEAD BOLT 0016906016 · qty on machine: 4 view full part page → $0.81
15	M3236400004	CABLE OUTLET COVER	1		ADD TO CART
CABLE OUTLET COVER M3236400004 · qty on machine: 1 view full part page → $14.95
16	M3236300004	SUPPORTER, CABLE OUTLET COVER	1		ADD TO CART
SUPPORTER, CABLE OUTLET COVER M3236300004 · qty on machine: 1 view full part page → $24.95
17	0016906020	HEX, HEAD BOLT	6		ADD TO CART
HEX, HEAD BOLT 0016906020 · qty on machine: 6 Factory replaced this part - current number 011206020 view full part page → $0.95 IN A KIT + SOLD SOLO
18	0601870440	CIRCUIT BREAKER, 1-POLE, 20A	2		ADD TO CART
CIRCUIT BREAKER, 1-POLE, 20A 0601870440 · qty on machine: 2 view full part page → $34.95
19	0601870441	CIRCUIT BREAKER, 2-POLE 50A	3		ADD TO CART
CIRCUIT BREAKER, 2-POLE 50A 0601870441 · qty on machine: 3 view full part page → $77.95
20	M1260700504	BREAKER FITTING COVER	1		ADD TO CART
BREAKER FITTING COVER M1260700504 · qty on machine: 1 view full part page → $11.95
20A	0222100100	CUSHION RUBBER	2		ADD TO CART
CUSHION RUBBER 0222100100 · qty on machine: 2 view full part page → $6.95
21	0016906020	HEX, HEAD BOLT	2		ADD TO CART
HEX, HEAD BOLT 0016906020 · qty on machine: 2 Factory replaced this part - current number 011206020 view full part page → $0.95 IN A KIT + SOLD SOLO
22	0601812598	RECEPTACLE, 125V 20A	2		ADD TO CART
RECEPTACLE, 125V 20A 0601812598 · qty on machine: 2 Factory replaced this part - current number 0601812597 view full part page → $142.95 IN A KIT + SOLD SOLO
23	0601812538	RECEPTACLE, CS6369 250V 50A	3		ADD TO CART
RECEPTACLE, CS6369 250V 50A 0601812538 · qty on machine: 3 Factory replaced this part - current number 0601811034 view full part page → $195.95 IN A KIT + SOLD SOLO
24	0027104016	MACHINE SCREW	10		ADD TO CART
MACHINE SCREW 0027104016 · qty on machine: 10 Factory replaced this part - current number 7538070 view full part page → $0.52 IN A KIT + SOLD SOLO
24A	0207004000	HEX, NUT	10		ADD TO CART
HEX, NUT 0207004000 · qty on machine: 10 Factory replaced this part - current number OEMAA8 view full part page → $0.4 IN A KIT + SOLD SOLO
25	M2236100603	TERMINAL COVER	1		ADD TO CART
TERMINAL COVER M2236100603 · qty on machine: 1 view full part page → $87.95
26	0010112045	HEX, HEAD BOLT	2		ADD TO CART
HEX, HEAD BOLT 0010112045 · qty on machine: 2 Factory replaced this part - current number 012212045 view full part page → $2.95 IN A KIT + SOLD SOLO
27	0041212000	PLAIN WASHER	2		ADD TO CART
PLAIN WASHER 0041212000 · qty on machine: 2 Factory replaced this part - current number 031112230 view full part page → $0.95 IN A KIT + SOLD SOLO
28	M9310200004	STAY RUBBER	2		ADD TO CART
STAY RUBBER M9310200004 · qty on machine: 2 Factory replaced this part - current number 0805009804 view full part page → $2.95 IN A KIT + SOLD SOLO
29	0030012000	HEX, NUT	2		ADD TO CART
HEX, NUT 0030012000 · qty on machine: 2 view full part page → $0.5
30	0603306775	BLIND PLUG	2		ADD TO CART
BLIND PLUG 0603306775 · qty on machine: 2 view full part page → $3.95
31	0027104016	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027104016 · qty on machine: 4 Factory replaced this part - current number 7538070 view full part page → $0.52 IN A KIT + SOLD SOLO
32	0601815194	TERMINAL	1		NO LONGER AVAILABLE
PHOTO COMING TERMINAL 0601815194 · qty on machine: 1 NO LONGER AVAILABLE
33	0027104016	MACHINE SCREW ADD NUMBER INDICATE 1-ORANGE 2-WHITE 3-SPECTRUM 4-SUNBELT THE	2	THE FOLLOWING DIGITS AFTER THE PART WHEN ORDERING ANY PAINTED PANEL TO COLOR OF UNIT: 5-BLACK 6-CATERPILLAR YELLOW GREY 7-CATO GOLD GREEN 8-RED SERIAL NUMBER MAY BE REQUIRED.	ADD TO CART
MACHINE SCREW ADD NUMBER INDICATE 1-ORANGE 2-WHITE 3-SPECTRUM 4-SUNBELT THE 0027104016 · qty on machine: 2 THE FOLLOWING DIGITS AFTER THE PART WHEN ORDERING ANY PAINTED PANEL TO COLOR OF UNIT: 5-BLACK 6-CATERPILLAR YELLOW GREY 7-CATO GOLD GREEN 8-RED SERIAL NUMBER MAY BE REQUIRED. Factory replaced this part - current number 7538070 view full part page → $0.52 IN A KIT + SOLD SOLO

Page 18 — BATTERY ASSY.

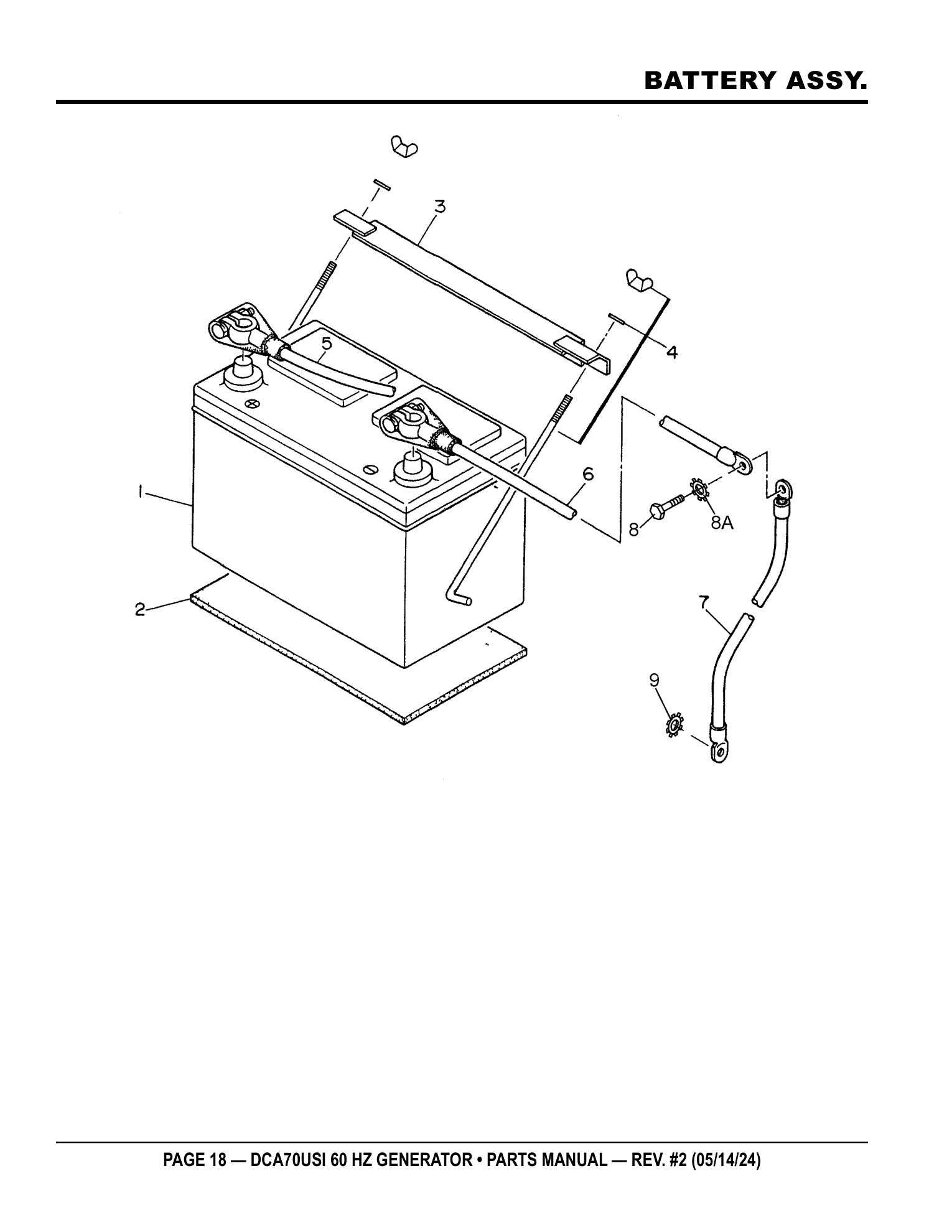

Multiquip DCA70USI Generator BATTERY ASSY. parts diagram

Parts list — exactly as printed10 rows

No.	Part No.	Part Name	Qty	Remarks
1	0602220187	BATTERY, 627MFD	1		ADD TO CART
BATTERY, 627MFD 0602220187 · qty on machine: 1 Factory replaced this part - current number 551010280 view full part page → $361.95 IN A KIT + SOLD SOLO
2	M9210500014	BATTERY SHEET	1		PARTS REQUEST
PHOTO COMING BATTERY SHEET M9210500014 · qty on machine: 1 PARTS REQUEST
3	M9103000304	BATTERY BAND	1		ADD TO CART
BATTERY BAND M9103000304 · qty on machine: 1 view full part page → $72.95
4	0602220920	BATTERY BOLT SET	2		ADD TO CART
BATTERY BOLT SET 0602220920 · qty on machine: 2 view full part page → $5.95
5	M2346900404	BATTERY CABLE	1		ADD TO CART
BATTERY CABLE M2346900404 · qty on machine: 1 view full part page → $84.95
6	M2346900104	BATTERY CABLE	1		ADD TO CART
BATTERY CABLE M2346900104 · qty on machine: 1 view full part page → $57.95
7		CABLE	1	MAKE LOCALLY	SEE REMARKS
PHOTO COMING CABLE · qty on machine: 1 MAKE LOCALLY SEE REMARKS
8	0017112025	HEX HEAD BOLT	1		ADD TO CART
HEX HEAD BOLT 0017112025 · qty on machine: 1 view full part page → $2.93
8A	0040512000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040512000 · qty on machine: 1 view full part page → $0.77
9	0040520000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040520000 · qty on machine: 1 view full part page → $6.95

Page 20 — MUFFLER ASSY.

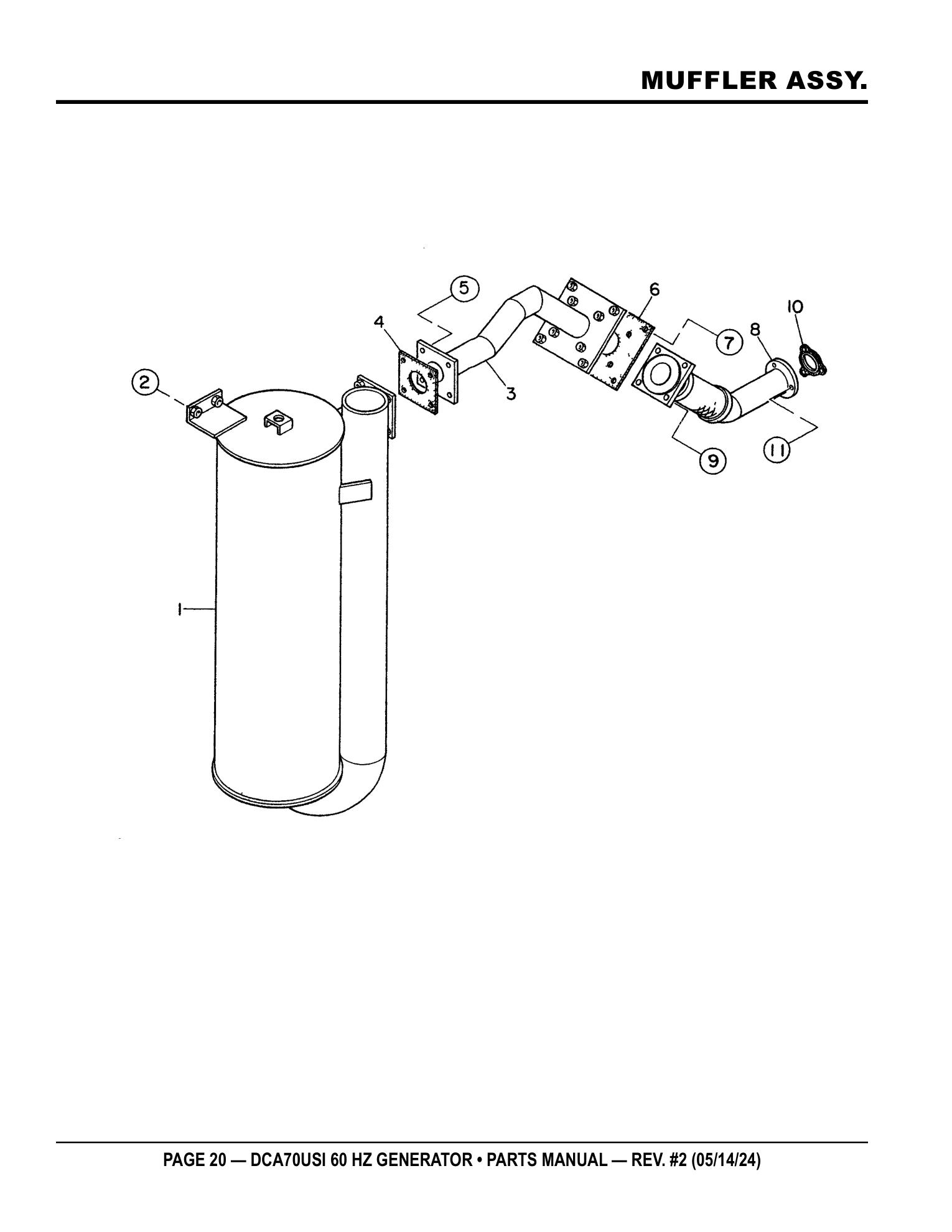

Multiquip DCA70USI Generator MUFFLER ASSY. parts diagram

Parts list — exactly as printed11 rows

No.	Part No.	Part Name	Qty	Remarks
1	M2330101003	MUFFLER	1		ADD TO CART
MUFFLER M2330101003 · qty on machine: 1 view full part page → $5631.95
2	0017112030	HEX HEAD BOLT	4		ADD TO CART
HEX HEAD BOLT 0017112030 · qty on machine: 4 Factory replaced this part - current number 012212030 view full part page → $2.95 IN A KIT + SOLD SOLO
3	M233000903	EXHAUST PIPE	1		PARTS REQUEST
PHOTO COMING EXHAUST PIPE M233000903 · qty on machine: 1 PARTS REQUEST
4	M2333200404	GASKET	1		ADD TO CART
GASKET M2333200404 · qty on machine: 1 view full part page → $22.95
5	0017110040	HEX, HEAD BOLT	4		ADD TO CART
HEX, HEAD BOLT 0017110040 · qty on machine: 4 Factory replaced this part - current number 014210040 view full part page → $1.95 IN A KIT + SOLD SOLO
6	M2333200304	GASKET	1		ADD TO CART
GASKET M2333200304 · qty on machine: 1 view full part page → $41.95
7	0017110035	HEX, HEAD BOLT	4		ADD TO CART
HEX, HEAD BOLT 0017110035 · qty on machine: 4 Factory replaced this part - current number 012210035 view full part page → $1.95 IN A KIT + SOLD SOLO
8	M2333000803	EXHAUST PIPE	1		ADD TO CART
EXHAUST PIPE M2333000803 · qty on machine: 1 view full part page → $942.95
9	0017110050	HEX, HEAD BOLT	4		ADD TO CART
HEX, HEAD BOLT 0017110050 · qty on machine: 4 view full part page → $7.95
10	3943690210	GASKET	1	REPLACES P/N 0602320101	PARTS REQUEST
PHOTO COMING GASKET 3943690210 · qty on machine: 1 REPLACES P/N 0602320101 PARTS REQUEST
11	0039308000	HEX, NUT	6		ADD TO CART
HEX, NUT 0039308000 · qty on machine: 6 view full part page → $1.28

Page 22 — FUEL TANK ASSY.

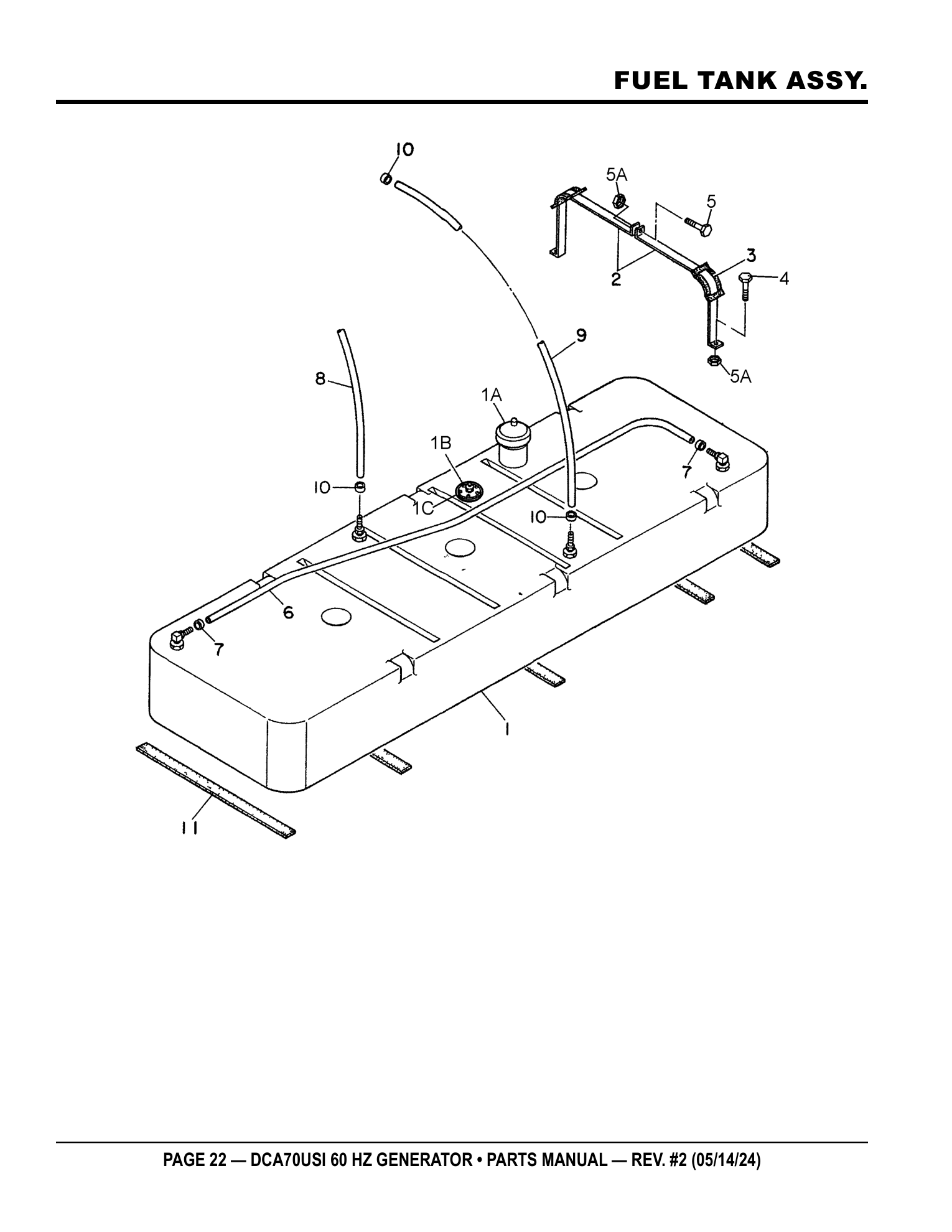

Multiquip DCA70USI Generator FUEL TANK ASSY. parts diagram

Parts list — exactly as printed15 rows

No.	Part No.	Part Name	Qty
1	M2363001202	FUEL TANK	1	ADD TO CART
FUEL TANK M2363001202 · qty on machine: 1 view full part page → $1750.95
1A	0605505070	FUEL TANK CAP	1	ADD TO CART
FUEL TANK CAP 0605505070 · qty on machine: 1 view full part page → $50.95
1B	0605501079	FUEL SENDER UNIT	1	ADD TO CART
FUEL SENDER UNIT 0605501079 · qty on machine: 1 view full part page → $188.95
1C	0605516090	GASKET	1	NO LONGER AVAILABLE
PHOTO COMING GASKET 0605516090 · qty on machine: 1 NO LONGER AVAILABLE
2	M2363200704	TANK BAND	6	ADD TO CART
TANK BAND M2363200704 · qty on machine: 6 view full part page → $16.95
3	M9310500104	SUPPORTER SHEET	6	ADD TO CART
SUPPORTER SHEET M9310500104 · qty on machine: 6 view full part page → $5.95
4	0016908020	HEX, HEAD BOLT	6	ADD TO CART
HEX, HEAD BOLT 0016908020 · qty on machine: 6 Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO
5	0016908055	HEX, HEAD BOLT	3	ADD TO CART
HEX, HEAD BOLT 0016908055 · qty on machine: 3 view full part page → $0.58
5A	0207008000	HEX, NUT	9	ADD TO CART
HEX, NUT 0207008000 · qty on machine: 9 Factory replaced this part - current number 020108060 view full part page → $0.28 IN A KIT + SOLD SOLO
6	0191302200	VENT HOSE	1	ADD TO CART
VENT HOSE 0191302200 · qty on machine: 1 view full part page → $90.95
7	0605515109	HOSE BAND	2	ADD TO CART
HOSE BAND 0605515109 · qty on machine: 2 view full part page → $0.95
8	0191300900	SUCTION HOSE	1	ADD TO CART
SUCTION HOSE 0191300900 · qty on machine: 1 view full part page → $40.95
9	0191301100	RETURN HOSE	1	ADD TO CART
RETURN HOSE 0191301100 · qty on machine: 1 view full part page → $46.95
10	0605515109	HOSE BAND	4	ADD TO CART
HOSE BAND 0605515109 · qty on machine: 4 view full part page → $0.95
11	0222100710	TANK SHEET	5	ADD TO CART
TANK SHEET 0222100710 · qty on machine: 5 view full part page → $20.95

Page 24 — ENCLOSURE 1 ASSY.

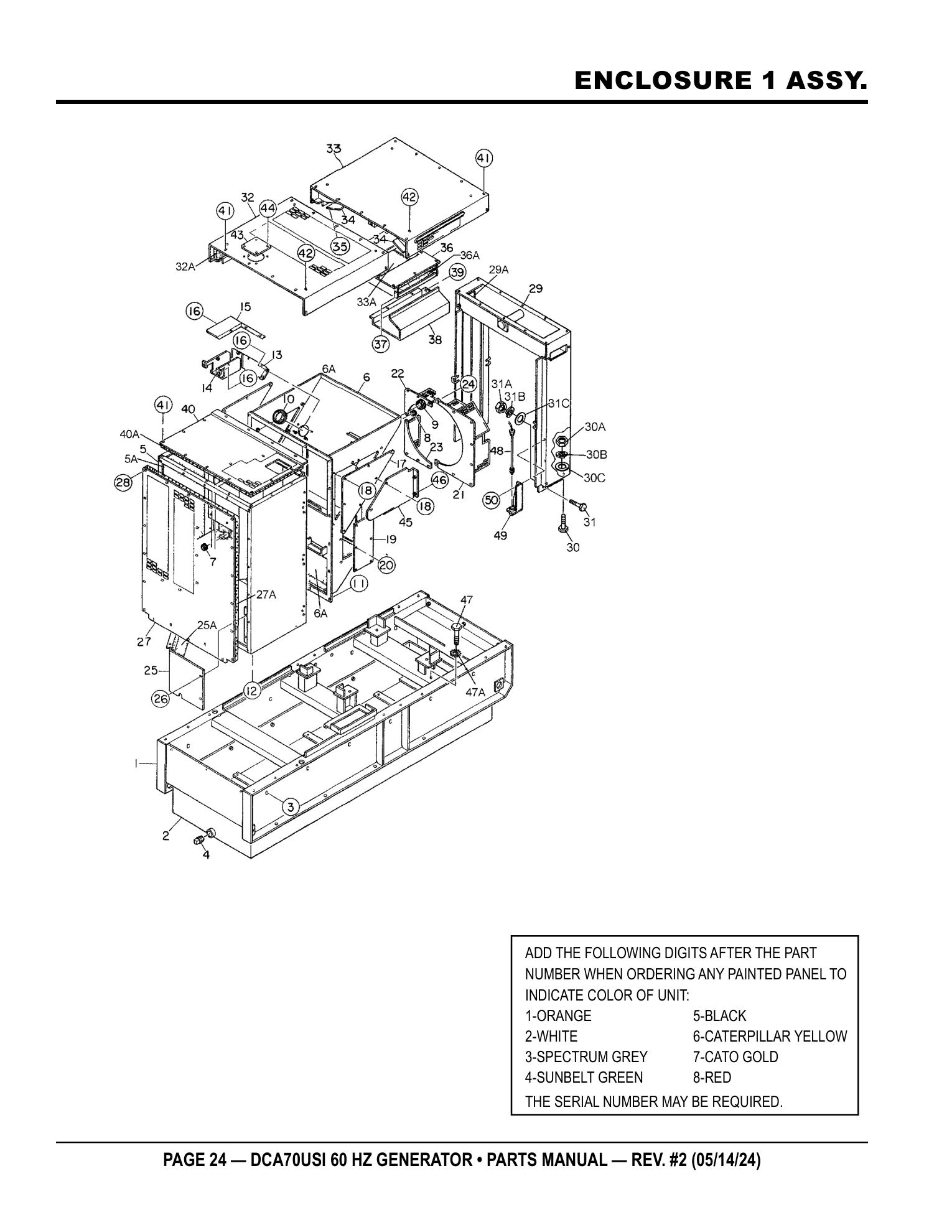

Multiquip DCA70USI Generator ENCLOSURE 1 ASSY. parts diagram

Parts list — exactly as printed38 rows

No.	Part No.	Part Name	Qty
1	M2413001702	BASE	1	ADD TO CART
BASE M2413001702 · qty on machine: 1 view full part page → $5163.95
2	M2363300603	ENVIRONMENTAL TANK	1	ADD TO CART
ENVIRONMENTAL TANK M2363300603 · qty on machine: 1 view full part page → $4463.95
3	0016910030	HEX, HEAD BOLT	12	ADD TO CART
HEX, HEAD BOLT 0016910030 · qty on machine: 12 view full part page → $2.95
4	0603306797	PLUG	1	ADD TO CART
PLUG 0603306797 · qty on machine: 1 view full part page → $12.95
5	M2423001302	FRONT FRAME	1	ADD TO CART
FRONT FRAME M2423001302 · qty on machine: 1 view full part page → $1227.95
5A	M2493104603	ACOUSTIC SHEET	1	ADD TO CART
ACOUSTIC SHEET M2493104603 · qty on machine: 1 view full part page → $609.95
6	M2423001402	FRONT FRAME	1	ADD TO CART
FRONT FRAME M2423001402 · qty on machine: 1 view full part page → $913.95
6A	M2493104603	ACOUSTIC SHEET	1	ADD TO CART
ACOUSTIC SHEET M2493104603 · qty on machine: 1 view full part page → $609.95
7	0601850265	GROMMET	1	ADD TO CART
GROMMET 0601850265 · qty on machine: 1 view full part page → $2.95
8	0601850263	GROMMET	1	ADD TO CART
GROMMET 0601850263 · qty on machine: 1 view full part page → $1.87
9	0601851736	GROMMET	1	ADD TO CART
GROMMET 0601851736 · qty on machine: 1 view full part page → $12.95
10	0601851739	GROMMET	1	ADD TO CART
GROMMET 0601851739 · qty on machine: 1 view full part page → $22.95
11	0016908020	HEX, HEAD BOLT	20	ADD TO CART
HEX, HEAD BOLT 0016908020 · qty on machine: 20 Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO
12	0016910025	HEX, HEAD BOLT	6	ADD TO CART
HEX, HEAD BOLT 0016910025 · qty on machine: 6 view full part page → $1.56
13	M2310600204	HOSE COVER	1	ADD TO CART
HOSE COVER M2310600204 · qty on machine: 1 view full part page → $119.95
14	M2310600304	HOSE COVER	1	ADD TO CART
HOSE COVER M2310600304 · qty on machine: 1 view full part page → $79.95
15	M2310600004	HOSE COVER	1	ADD TO CART
HOSE COVER M2310600004 · qty on machine: 1 view full part page → $104.95
16	0016906020	HEX, HEAD BOLT	12	ADD TO CART
HEX, HEAD BOLT 0016906020 · qty on machine: 12 Factory replaced this part - current number 011206020 view full part page → $0.95 IN A KIT + SOLD SOLO
17	M3423200704	DUCT COVER	2	ADD TO CART
DUCT COVER M3423200704 · qty on machine: 2 view full part page → $56.95
18	0016906020	HEX, HEAD BOLT	14	ADD TO CART
HEX, HEAD BOLT 0016906020 · qty on machine: 14 Factory replaced this part - current number 011206020 view full part page → $0.95 IN A KIT + SOLD SOLO
19	M3423200804	DUCT COVER	1	ADD TO CART
DUCT COVER M3423200804 · qty on machine: 1 view full part page → $35.95
20	0016906016	HEX, HEAD BOLT	6	ADD TO CART
HEX, HEAD BOLT 0016906016 · qty on machine: 6 view full part page → $0.81
21	M2310300704	FAN SHROUD	1	ADD TO CART
FAN SHROUD M2310300704 · qty on machine: 1 view full part page → $379.95
22	M2310300804	FAN SHROUD	1	PARTS REQUEST
PHOTO COMING FAN SHROUD M2310300804 · qty on machine: 1 PARTS REQUEST
23	M2310300904	FAN SHROUD	1	ADD TO CART
FAN SHROUD M2310300904 · qty on machine: 1 view full part page → $375.95
24	0016906020	HEX, HEAD BOLT	14	ADD TO CART
HEX, HEAD BOLT 0016906020 · qty on machine: 14 Factory replaced this part - current number 011206020 view full part page → $0.95 IN A KIT + SOLD SOLO
25	M2423300204	DISCHARGE GUIDE	1	ADD TO CART
DISCHARGE GUIDE M2423300204 · qty on machine: 1 view full part page → $245.95
25A	M2493104504	ACOUSTIC SHEET	1	ADD TO CART
ACOUSTIC SHEET M2493104504 · qty on machine: 1 view full part page → $45.95
26	0016908020	HEX, HEAD BOLT	6	ADD TO CART
HEX, HEAD BOLT 0016908020 · qty on machine: 6 Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO
27	M243202004	COVER, FRONT FRAME	1	PARTS REQUEST
PHOTO COMING COVER, FRONT FRAME M243202004 · qty on machine: 1 PARTS REQUEST
27A	M2493104304	ACOUSTIC SHEET	1	ADD TO CART
ACOUSTIC SHEET M2493104304 · qty on machine: 1 view full part page → $158.95
28	0019208020	HEX, HEAD BOLT	25	ADD TO CART
HEX, HEAD BOLT 0019208020 · qty on machine: 25 view full part page → $3.95
29	M2433000803	CENTER FRAME	1	ADD TO CART
CENTER FRAME M2433000803 · qty on machine: 1 view full part page → $1912.95
29A	M2493200004	ACOUSTIC SHEET	1	ADD TO CART
ACOUSTIC SHEET M2493200004 · qty on machine: 1 view full part page → $180.95
30	0010114040	HEX, HEAD BOLT	4	NO LONGER AVAILABLE
PHOTO COMING HEX, HEAD BOLT 0010114040 · qty on machine: 4 NO LONGER AVAILABLE
30A	0030014000	HEX, NUT	4	ADD TO CART
HEX, NUT 0030014000 · qty on machine: 4 Factory replaced this part - current number 515455840 view full part page → $35.95 IN A KIT + SOLD SOLO
30B	0040014000	SPRING WASHER	4	ADD TO CART
SPRING WASHER 0040014000 · qty on machine: 4 Factory replaced this part - current number 030214350 view full part page → $0.46 IN A KIT + SOLD SOLO
30C	0041214000	PLAIN WASHER	8	ADD TO CART
PLAIN WASHER 0041214000 · qty on machine: 8 Factory replaced this part - current number 031114260 view full part page → $0.69 IN A KIT + SOLD SOLO

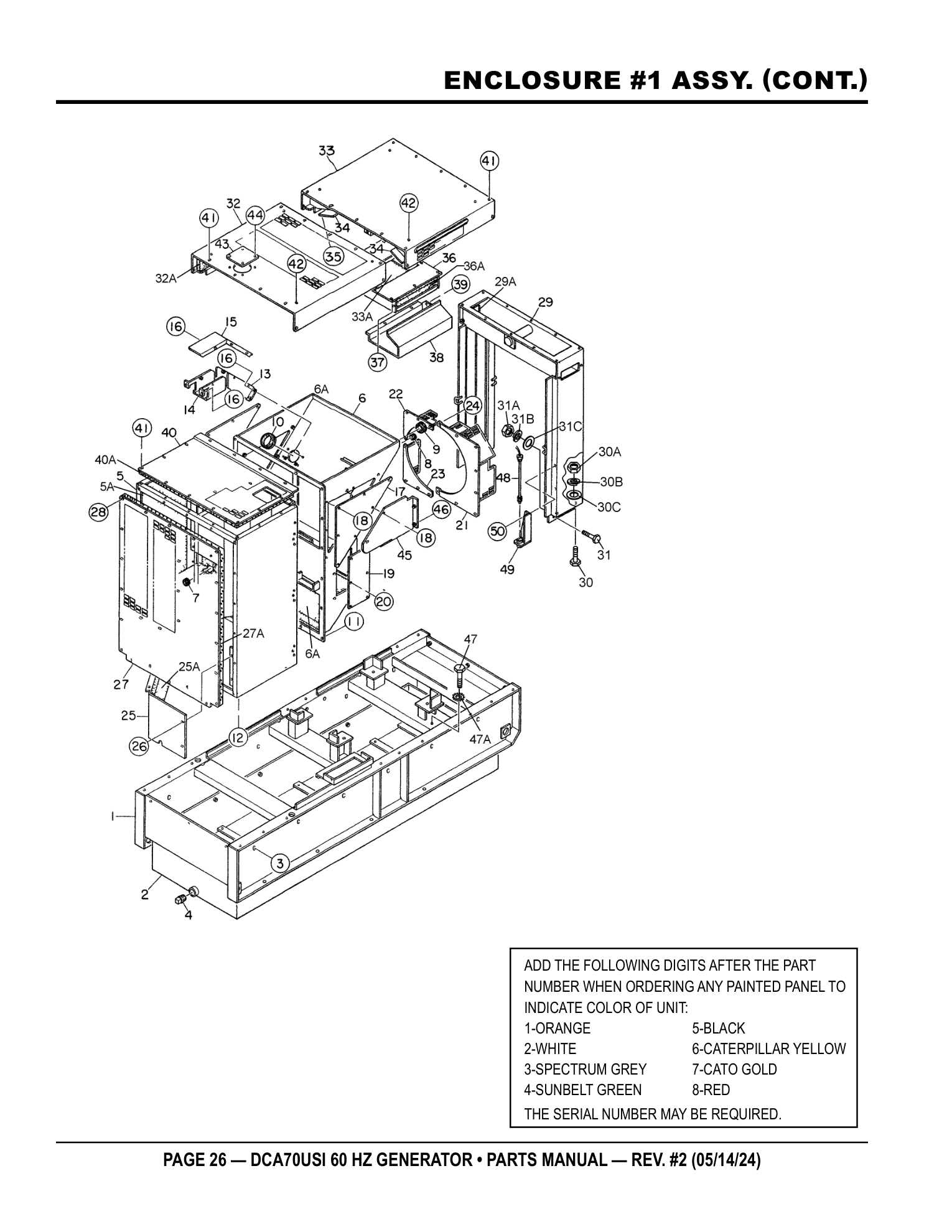

Page 26 — ENCLOSURE #1 ASSY. (CONT.)

Multiquip DCA70USI Generator ENCLOSURE #1 ASSY. (CONT.) parts diagram

Parts list — exactly as printed28 rows

No.	Part No.	Part Name	Qty
31	0010120050	HEX, HEAD BOLT	4	ADD TO CART
HEX, HEAD BOLT 0010120050 · qty on machine: 4 view full part page → $6.95
31A	0030020000	HEX, NUT	4	ADD TO CART
HEX, NUT 0030020000 · qty on machine: 4 view full part page → $1.82
31B	0040020000	SPRING WASHER	4	ADD TO CART
SPRING WASHER 0040020000 · qty on machine: 4 Factory replaced this part - current number 030220510 view full part page → $1.95 IN A KIT + SOLD SOLO
31C	0041220000	PLAIN WASHER	8	ADD TO CART
PLAIN WASHER 0041220000 · qty on machine: 8 view full part page → $0.95
32	M2463100302	ROOF PANEL	1	ADD TO CART
ROOF PANEL M2463100302 · qty on machine: 1 view full part page → $649.95
32A	M2493502604	ACOUSTIC SHEET	1	ADD TO CART
ACOUSTIC SHEET M2493502604 · qty on machine: 1 view full part page → $125.95
33	M2463200302	ROOF PANEL	1	ADD TO CART
ROOF PANEL M2463200302 · qty on machine: 1 view full part page → $672.95
33A	M2493502403	ACOUSTIC SHEET	1	ADD TO CART
ACOUSTIC SHEET M2493502403 · qty on machine: 1 view full part page → $373.95
34	M3463200704	BACK PLATE	2	ADD TO CART
BACK PLATE M3463200704 · qty on machine: 2 view full part page → $28.95
35	0016906016	HEX, HEAD BOLT	12	ADD TO CART
HEX, HEAD BOLT 0016906016 · qty on machine: 12 view full part page → $0.81
36	M2463200503	DUCT	1	ADD TO CART
DUCT M2463200503 · qty on machine: 1 view full part page → $517.95
36A	M2493502704	ACOUSTIC SHEET	1	ADD TO CART
ACOUSTIC SHEET M2493502704 · qty on machine: 1 view full part page → $462.95
37	0016908020	HEX, HEAD BOLT	10	ADD TO CART
HEX, HEAD BOLT 0016908020 · qty on machine: 10 Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO
38	M2463400103	DUCT COVER	1	ADD TO CART
DUCT COVER M2463400103 · qty on machine: 1 view full part page → $281.95
39	0016908020	HEX, HEAD BOLT	6	ADD TO CART
HEX, HEAD BOLT 0016908020 · qty on machine: 6 Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO
40	M2423201504	OVER COVER, FRONT FRAME	1	ADD TO CART
OVER COVER, FRONT FRAME M2423201504 · qty on machine: 1 view full part page → $158.95
40A	M2493104404	ACOUSTIC SHEET	1	ADD TO CART
ACOUSTIC SHEET M2493104404 · qty on machine: 1 view full part page → $49.95
41	0019208020	HEX, HEAD BOLT	42	ADD TO CART
HEX, HEAD BOLT 0019208020 · qty on machine: 42 view full part page → $3.95
42	0019210025	HEX, HEAD BOLT	8	ADD TO CART
HEX, HEAD BOLT 0019210025 · qty on machine: 8 view full part page → $7.95
43	M3310600004	COVER, RADIATOR CAP	1	ADD TO CART
COVER, RADIATOR CAP M3310600004 · qty on machine: 1 view full part page → $17.95
44	0019208020	HEX, HEAD BOLT	4	ADD TO CART
HEX, HEAD BOLT 0019208020 · qty on machine: 4 view full part page → $3.95
45	M2483100304	COVER, EXHAUST PIPE	1	PARTS REQUEST
PHOTO COMING COVER, EXHAUST PIPE M2483100304 · qty on machine: 1 PARTS REQUEST
46	0016908020	HEX, HEAD BOLT	2	ADD TO CART
HEX, HEAD BOLT 0016908020 · qty on machine: 2 Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO
47	0016908020	HEX, HEAD BOLT	1	ADD TO CART
HEX, HEAD BOLT 0016908020 · qty on machine: 1 Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO
47A	0040508000	TOOTHED WASHER	1	ADD TO CART
TOOTHED WASHER 0040508000 · qty on machine: 1 view full part page → $0.35
48	0605503062	FUEL LEAK DETECTED SWITCH	1	ADD TO CART
FUEL LEAK DETECTED SWITCH 0605503062 · qty on machine: 1 view full part page → $213.95
49	M1414800104	BRACKET	1	ADD TO CART
BRACKET M1414800104 · qty on machine: 1 view full part page → $39.95
50	0017108020	HEX, HEAD BOLT	2	ADD TO CART
HEX, HEAD BOLT 0017108020 · qty on machine: 2 Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO

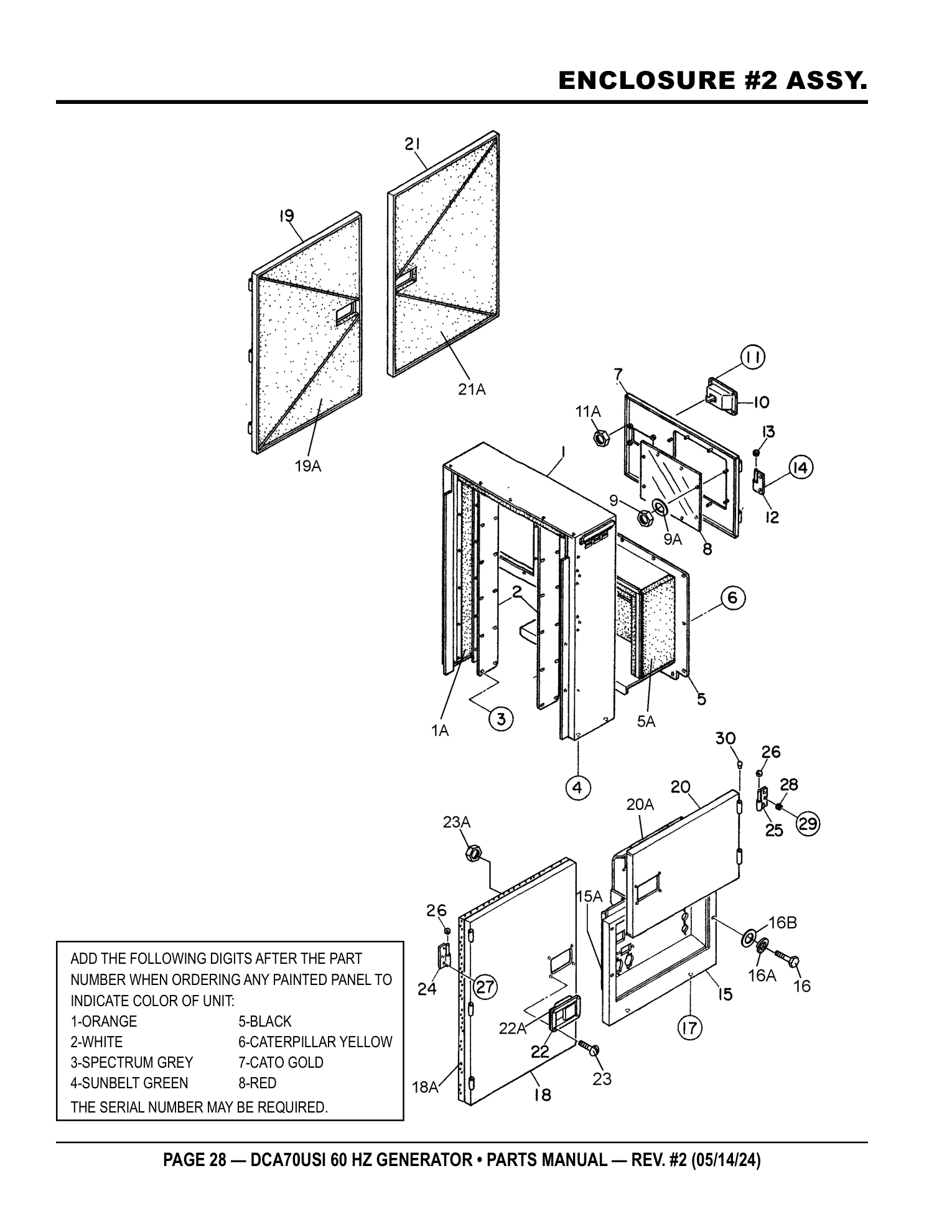

Page 28 — ENCLOSURE #2 ASSY.

Multiquip DCA70USI Generator ENCLOSURE #2 ASSY. parts diagram

Parts list — exactly as printed43 rows

No.	Part No.	Part Name	Qty
1	M2443000802	REAR FRAME	1	ADD TO CART
REAR FRAME M2443000802 · qty on machine: 1 view full part page → $1151.95
1A	M2493303103	ACOUSTIC SHEET	1	ADD TO CART
ACOUSTIC SHEET M2493303103 · qty on machine: 1 view full part page → $218.95
2	M2443000604	DUCT	2	ADD TO CART
DUCT M2443000604 · qty on machine: 2 view full part page → $72.95
3	0016908020	HEX, HEAD BOLT	24	ADD TO CART
HEX, HEAD BOLT 0016908020 · qty on machine: 24 Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO
4	0016910025	HEX, HEAD BOLT	4	ADD TO CART
HEX, HEAD BOLT 0016910025 · qty on machine: 4 view full part page → $1.56
5	M2443301103	COVER, REAR FRAME	1	ADD TO CART
COVER, REAR FRAME M2443301103 · qty on machine: 1 view full part page → $794.95
5A	M2493303004	ACOUSTIC SHEET	1	ADD TO CART
ACOUSTIC SHEET M2493303004 · qty on machine: 1 view full part page → $309.95
6	0019208020	HEX, HEAD BOLT	12	ADD TO CART
HEX, HEAD BOLT 0019208020 · qty on machine: 12 view full part page → $3.95
7	M2443200303	DOOR, REAR FRAME	1	ADD TO CART
DOOR, REAR FRAME M2443200303 · qty on machine: 1 view full part page → $223.95
8	M1444600004	WINDOW PLATE	1	ADD TO CART
WINDOW PLATE M1444600004 · qty on machine: 1 view full part page → $109.95
9	0207006000	HEX, NUT	8	ADD TO CART
HEX, NUT 0207006000 · qty on machine: 8 Factory replaced this part - current number 0176060030 view full part page → $2.95 IN A KIT + SOLD SOLO
9A	0041206000	PLAIN WASHER	8	ADD TO CART
PLAIN WASHER 0041206000 · qty on machine: 8 Factory replaced this part - current number 952404470 view full part page → $0.19 IN A KIT + SOLD SOLO
10	M9113000002	DOOR HANDLE ASSY	1	PARTS REQUEST
PHOTO COMING DOOR HANDLE ASSY M9113000002 · qty on machine: 1 PARTS REQUEST
11	0021806016	MACHINE SCREW	4	ADD TO CART
MACHINE SCREW 0021806016 · qty on machine: 4 view full part page → $0.95
11A	0030006000	HEX, NUT	4	ADD TO CART
HEX, NUT 0030006000 · qty on machine: 4 Factory replaced this part - current number 020106050 view full part page → $0.12 IN A KIT + SOLD SOLO
12	M9110100204	HINGE	2	ADD TO CART
HINGE M9110100204 · qty on machine: 2 view full part page → $23.95
13	M9116100004	WASHER	2	ADD TO CART
WASHER M9116100004 · qty on machine: 2 view full part page → $1.93
14	0019208020	HEX, HEAD BOLT	3	ADD TO CART
HEX, HEAD BOLT 0019208020 · qty on machine: 3 view full part page → $3.95
15	M2453201202	SPLASHER PANEL	1	ADD TO CART
SPLASHER PANEL M2453201202 · qty on machine: 1 view full part page → $649.95
15A	M2493405204	ACOUSTIC SHEET	1	ADD TO CART
ACOUSTIC SHEET M2493405204 · qty on machine: 1 view full part page → $88.95
16	0019108065	HEX, HEAD BOLT	4	ADD TO CART
HEX, HEAD BOLT 0019108065 · qty on machine: 4 view full part page → $1.95
16A	0042308000	SPRING WASHER	4	ADD TO CART
SPRING WASHER 0042308000 · qty on machine: 4 view full part page → $0.83
16B	0042408000	PLAIN WASHER	4	ADD TO CART
PLAIN WASHER 0042408000 · qty on machine: 4 Factory replaced this part - current number 0401450080 view full part page → $0.56 IN A KIT + SOLD SOLO
17	0016910025	HEX, HEAD BOLT	2	ADD TO CART
HEX, HEAD BOLT 0016910025 · qty on machine: 2 view full part page → $1.56
18	M2453001703	SIDE DOOR	1	ADD TO CART
SIDE DOOR M2453001703 · qty on machine: 1 view full part page → $531.95
18A	M2493404704	ACOUSTIC SHEET	1	ADD TO CART
ACOUSTIC SHEET M2493404704 · qty on machine: 1 view full part page → $259.95
19	M2453001803	SIDE DOOR	1	ADD TO CART
SIDE DOOR M2453001803 · qty on machine: 1 view full part page → $597.95
19A	M2493405104	ACOUSTIC SHEET	1	ADD TO CART
ACOUSTIC SHEET M2493405104 · qty on machine: 1 view full part page → $265.95
20	M2453001903	SIDE DOOR	1	ADD TO CART
SIDE DOOR M2453001903 · qty on machine: 1 view full part page → $242.95
20A	M2493405304	ACOUSTIC SHEET	1	ADD TO CART
ACOUSTIC SHEET M2493405304 · qty on machine: 1 view full part page → $88.95
21	M2453001703	SIDE DOOR	1	ADD TO CART
SIDE DOOR M2453001703 · qty on machine: 1 view full part page → $531.95
21A	M2493404704	ACOUSTIC SHEET	1	ADD TO CART
ACOUSTIC SHEET M2493404704 · qty on machine: 1 view full part page → $259.95
22	M9113000002	DOOR HANDLE ASSY	4	PARTS REQUEST
PHOTO COMING DOOR HANDLE ASSY M9113000002 · qty on machine: 4 PARTS REQUEST
22A	C9312500004	SEAL RUBBER	4	ADD TO CART
SEAL RUBBER C9312500004 · qty on machine: 4 view full part page → $10.95
23	0021806016	MACHINE SCREW	16	ADD TO CART
MACHINE SCREW 0021806016 · qty on machine: 16 view full part page → $0.95
23A	0030006000	HEX, NUT	16	ADD TO CART
HEX, NUT 0030006000 · qty on machine: 16 Factory replaced this part - current number 020106050 view full part page → $0.12 IN A KIT + SOLD SOLO
24	M9110100804	HINGE	6	ADD TO CART
HINGE M9110100804 · qty on machine: 6 view full part page → $16.95
25	M9110100904	HINGE	5	ADD TO CART
HINGE M9110100904 · qty on machine: 5 view full part page → $19.95
26	M9116100004	WASHER	11	ADD TO CART
WASHER M9116100004 · qty on machine: 11 view full part page → $1.93
27	0019208020	HEX, HEAD BOLT	26	ADD TO CART
HEX, HEAD BOLT 0019208020 · qty on machine: 26 view full part page → $3.95
28	0601850097	STOPPER	8	ADD TO CART
STOPPER 0601850097 · qty on machine: 8 view full part page → $2.95
29	0027208025	MACHINE SCREW	8	ADD TO CART
MACHINE SCREW 0027208025 · qty on machine: 8 view full part page → $0.76
30	M9310000004	CAP	13	PARTS REQUEST
PHOTO COMING CAP M9310000004 · qty on machine: 13 PARTS REQUEST

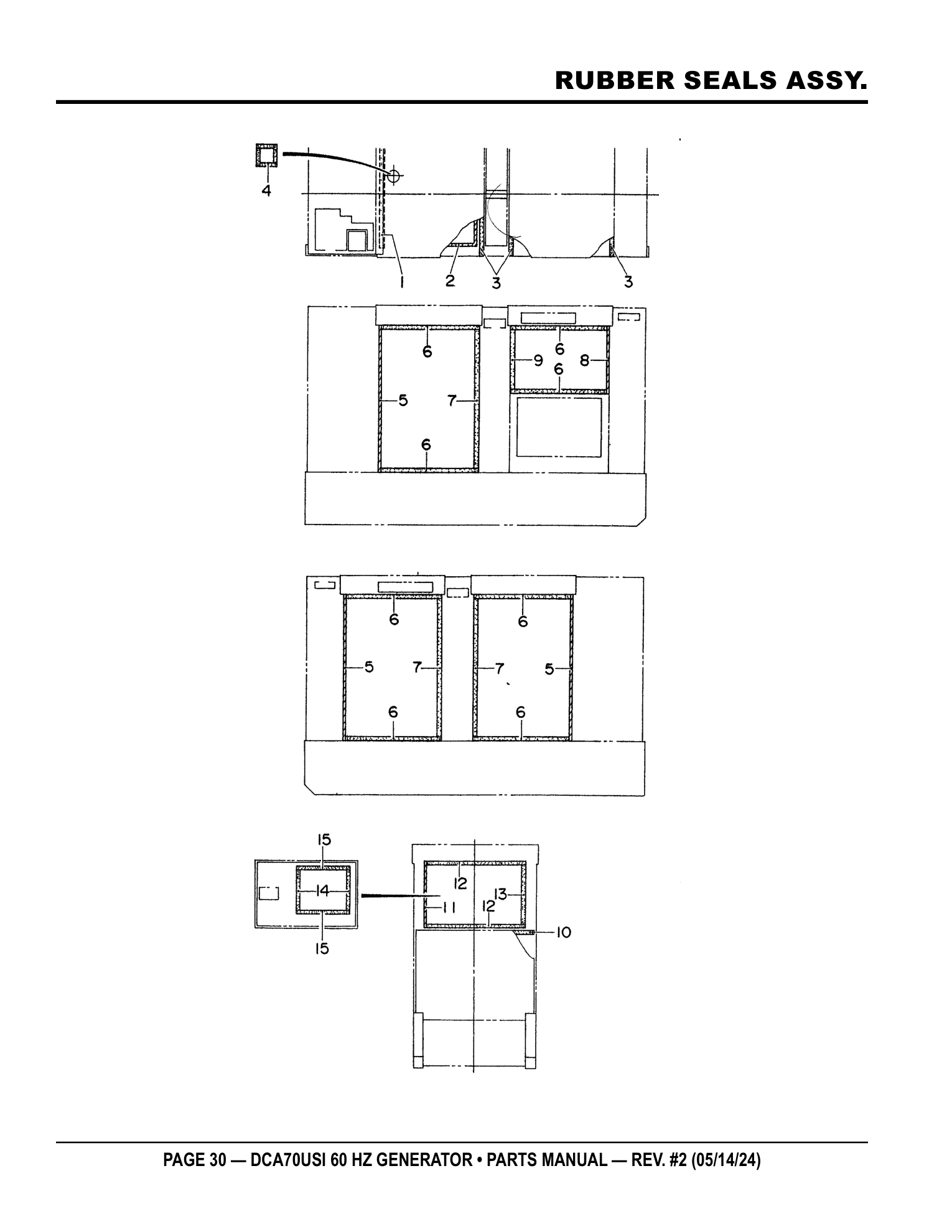

Page 30 — RUBBER SEALS ASSY.

Multiquip DCA70USI Generator RUBBER SEALS ASSY. parts diagram

Parts list — exactly as printed15 rows

No.	Part No.	Part Name	Qty
1	0229200840	RUBBER SEAL	1	PARTS REQUEST
PHOTO COMING RUBBER SEAL 0229200840 · qty on machine: 1 PARTS REQUEST
2	0314502250	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL 0314502250 · qty on machine: 1 view full part page → $93.95
3	0229200950	RUBBER SEAL	3	ADD TO CART
RUBBER SEAL 0229200950 · qty on machine: 3 view full part page → $9.95
4	0229200125	RUBBER SEAL	4	PARTS REQUEST
PHOTO COMING RUBBER SEAL 0229200125 · qty on machine: 4 PARTS REQUEST
5	0228901165	RUBBER SEAL	3	ADD TO CART
RUBBER SEAL 0228901165 · qty on machine: 3 view full part page → $25.95
6	0228900770	RUBBER SEAL	8	PARTS REQUEST
PHOTO COMING RUBBER SEAL 0228900770 · qty on machine: 8 PARTS REQUEST
7	0228901105	RUBBER SEAL	3	ADD TO CART
RUBBER SEAL 0228901105 · qty on machine: 3 view full part page → $33.95
8	0228900535	RUBBER SEAL	1	PARTS REQUEST
PHOTO COMING RUBBER SEAL 0228900535 · qty on machine: 1 PARTS REQUEST
9	0228900475	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL 0228900475 · qty on machine: 1 view full part page → $12.95
10	0229200910	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL 0229200910 · qty on machine: 1 view full part page → $11.95
11	0228800525	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL 0228800525 · qty on machine: 1 view full part page → $20.95
12	0228800790	RUBBER SEAL	2	ADD TO CART
RUBBER SEAL 0228800790 · qty on machine: 2 view full part page → $30.95
13	0228800475	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL 0228800475 · qty on machine: 1 view full part page → $3.95
14	0228100325	RUBBER SEAL	2	PARTS REQUEST
PHOTO COMING RUBBER SEAL 0228100325 · qty on machine: 2 PARTS REQUEST
15	0228100420	RUBBER SEAL	2	ADD TO CART
RUBBER SEAL 0228100420 · qty on machine: 2 view full part page → $2.81

Page 32 — NAMEPLATE AND DECALS ASSY.

Multiquip DCA70USI Generator NAMEPLATE AND DECALS ASSY. parts diagram

Parts list — exactly as printed43 rows

No.	Part No.	Part Name	Qty	Remarks
1	M1550000204	DECAL; NOTE	1	M15000020	ADD TO CART
DECAL; NOTE M1550000204 · qty on machine: 1 M15000020 view full part page → $43.95
2	M1550002203	DECAL; AUXILIARY OUTPUT	1	M15000220	ADD TO CART
DECAL; AUXILIARY OUTPUT M1550002203 · qty on machine: 1 M15000220 view full part page → $33.95
3	M2550000304	DECAL; NOTE	1	M25000030	ADD TO CART
DECAL; NOTE M2550000304 · qty on machine: 1 M25000030 view full part page → $8.95
4	M2550000703	DECAL; OPERATING PROCEDURES	1	M25000070	ADD TO CART
DECAL; OPERATING PROCEDURES M2550000703 · qty on machine: 1 M25000070 view full part page → $11.95
5	M2550000803	DECAL; GENERATOR CONTROL	1	M25000080	ADD TO CART
DECAL; GENERATOR CONTROL M2550000803 · qty on machine: 1 M25000080 view full part page → $65.95
6	M2550000903	DECAL; ENGINE OPERATING	1	M25000090	ADD TO CART
DECAL; ENGINE OPERATING M2550000903 · qty on machine: 1 M25000090 view full part page → $54.95
7	M3550002204	DECAL; CAUTION	1	M35000220	ADD TO CART
DECAL; CAUTION M3550002204 · qty on machine: 1 M35000220 view full part page → $15.95
8	M9500000004	DECAL; OIL DRAIN PLUG	1	M90000000	ADD TO CART
DECAL; OIL DRAIN PLUG M9500000004 · qty on machine: 1 M90000000 view full part page → $2.95
9	M9500100004	DECAL; WATER	1	M90010000	ADD TO CART
DECAL; WATER M9500100004 · qty on machine: 1 M90010000 view full part page → $1.95
10	M9500100104	DECAL; WATER DRAIN	1	M90010010	ADD TO CART
DECAL; WATER DRAIN M9500100104 · qty on machine: 1 M90010010 view full part page → $9.95
11	M9500300004	DECAL; -	1	M90030000	ADD TO CART
DECAL; - M9500300004 · qty on machine: 1 M90030000 view full part page → $1.95
12	M9500300104	DECAL; +	1	M90030010	ADD TO CART
DECAL; + M9500300104 · qty on machine: 1 M90030010 view full part page → $1.95
13	M9500500004	DECAL; DIESEL FUEL	1	M90050000	ADD TO CART
DECAL; DIESEL FUEL M9500500004 · qty on machine: 1 M90050000 view full part page → $1.95
14	M9503000004	DECAL; WARNING MOVING PARTS	2	M90300000	ADD TO CART
DECAL; WARNING MOVING PARTS M9503000004 · qty on machine: 2 M90300000 view full part page → $1.95
15	M9503000103	DECAL; WATER-OIL CHECK	1	M90300010	ADD TO CART
DECAL; WATER-OIL CHECK M9503000103 · qty on machine: 1 M90300010 view full part page → $7.95
16	M9503100004	DECAL; WARNING HOT COOLANT	1	M90310000	ADD TO CART
DECAL; WARNING HOT COOLANT M9503100004 · qty on machine: 1 M90310000 view full part page → $4.95
17	M9503200004	DECAL; WARNING ENGINE EXHAUST	1	M90320000	ADD TO CART
DECAL; WARNING ENGINE EXHAUST M9503200004 · qty on machine: 1 M90320000 view full part page → $14.95
18	M9510000004	DECAL; FLUID DRAIN	1	M91000000	ADD TO CART
DECAL; FLUID DRAIN M9510000004 · qty on machine: 1 M91000000 view full part page → $26.95
19	M9510100004	DECAL; CAUTION HOT PARTS	1	M91010000	ADD TO CART
DECAL; CAUTION HOT PARTS M9510100004 · qty on machine: 1 M91010000 view full part page → $68.95
20	M9510100304	DECAL; ENVIRONMENTAL WARNING	1	M91010030	ADD TO CART
DECAL; ENVIRONMENTAL WARNING M9510100304 · qty on machine: 1 M91010030 view full part page → $0.95
21	M9510100403	DECAL; CAUTION	1	M91010040	ADD TO CART
DECAL; CAUTION M9510100403 · qty on machine: 1 M91010040 view full part page → $16.95
22	M9520000004	DECAL; GROUND	1	M92000000	ADD TO CART
DECAL; GROUND M9520000004 · qty on machine: 1 M92000000 view full part page → $1.95
23	M9520000104	DECAL; AMMETER CHANGE-OVER SW	1	M92000010	ADD TO CART
DECAL; AMMETER CHANGE-OVER SW M9520000104 · qty on machine: 1 M92000010 view full part page → $11.95
24	M9520000204	DECAL; VOLTMETER CHANGE-OVER SW	1	M92000020	ADD TO CART
DECAL; VOLTMETER CHANGE-OVER SW M9520000204 · qty on machine: 1 M92000020 view full part page → $11.95
25	M9520000504	DECAL; START CONTACT	1	M92000050	ADD TO CART
DECAL; START CONTACT M9520000504 · qty on machine: 1 M92000050 view full part page → $67.95
26	M9520100004	DECAL; WARNING ELECT, SHOCK HAZ	1	M92010000	ADD TO CART
DECAL; WARNING ELECT, SHOCK HAZ M9520100004 · qty on machine: 1 M92010000 view full part page → $5.95
27	M9520100204	DECAL; CAUTION	1	M92010020A	ADD TO CART
DECAL; CAUTION M9520100204 · qty on machine: 1 M92010020A view full part page → $3.95
28	M9520100304	DECAL; SAFETY INSTRUCTIONS	1	M92010030	ADD TO CART
DECAL; SAFETY INSTRUCTIONS M9520100304 · qty on machine: 1 M92010030 view full part page → $3.95
29	M9520100404	DECAL; DANGER HIGH VOLTAGE	1	M92010040	ADD TO CART
DECAL; DANGER HIGH VOLTAGE M9520100404 · qty on machine: 1 M92010040 view full part page → $37.95
30	M9520100503	DECAL; WARNING	1	M92010050	ADD TO CART
DECAL; WARNING M9520100503 · qty on machine: 1 M92010050 view full part page → $1.95
31	M9520100603	DECAL; CAUTION	2	M92010060	ADD TO CART
DECAL; CAUTION M9520100603 · qty on machine: 2 M92010060 view full part page → $8.95
32	M9520200003	DECAL; CONNECTION OF OUTPUT CABLE	1	M92020000	ADD TO CART
DECAL; CONNECTION OF OUTPUT CABLE M9520200003 · qty on machine: 1 M92020000 view full part page → $7.95
33	M9520200404	DECAL; OVER-CURRENT RELAY	1	M92020040	ADD TO CART
DECAL; OVER-CURRENT RELAY M9520200404 · qty on machine: 1 M92020040 view full part page → $3.95
34	M9512200004	DECAL; MQ	1	M91220000	ADD TO CART
DECAL; MQ M9512200004 · qty on machine: 1 M91220000 view full part page → $7.95
35	M9510200304	DECAL; MQ POWER	2		ADD TO CART
DECAL; MQ POWER M9510200304 · qty on machine: 2 view full part page → $37.95
36	M2560101104	STRIPE	2		ADD TO CART
STRIPE M2560101104 · qty on machine: 2 view full part page → $57.95
37	M2560100603	STRIPE; WHISPERWATT	2		ADD TO CART
STRIPE; WHISPERWATT M2560100603 · qty on machine: 2 view full part page → $16.95
38	M3560102204	STRIPE	2		ADD TO CART
STRIPE M3560102204 · qty on machine: 2 view full part page → $14.95
39	M2560101303	STRIPE; 70	1		ADD TO CART
STRIPE; 70 M2560101303 · qty on machine: 1 view full part page → $19.95
40	M2561002504	STRIPE; 70	1		PARTS REQUEST
PHOTO COMING STRIPE; 70 M2561002504 · qty on machine: 1 Factory replaced this part - current number M2560102504 PARTS REQUEST
41	M3560102504	STRIPE	2		ADD TO CART
STRIPE M3560102504 · qty on machine: 2 view full part page → $11.95
42	0600500092	PLATE; MQ POWER	1		ADD TO CART
PLATE; MQ POWER 0600500092 · qty on machine: 1 view full part page → $21.95
43	0021106016	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021106016 · qty on machine: 4 view full part page → $0.37

The machine itself

Price by quote Get a quote

Tell us where the machine is headed and we'll quote it with freight. One call, no games.

The Multiquip DCA70USI is a generator built for portable jobsite power for tools, lighting, and equipment. Factory-documented specs and parts support; priced by quote.

Keep-it-running spares

All listed parts →

Every part that fits this machine

0191300900 Multiquip 0191300900 Hose Suction Denyo - OEM Replacement Part for Super Silent Generators $40.95

0191301100 Multiquip 0191301100 Hose Suction Denyo - OEM Replacement Part $46.95

0191302200 Multiquip 0191302200 Hose Return Denyo - OEM Replacement Part $90.95

0228901105 Multiquip 0228901105 Seal Rubber Denyo - OEM Replacement Part $33.95

0314502250 Multiquip 0314502250 Seal Rubber Denyo - OEM Replacement Part $93.95

0601801040 Multiquip 0601801040 Switch C/Over Ammeter 25,40,85,125,150 - OEM Replacement Part $95.95

0601801041 Multiquip 0601801041 Change-Over Switch Voltmeter Denyo - OEM Replacement Part $157.95

0601806859 Multiquip 0601806859 Voltmeter AC DENYO - OEM Replacement Part for Generator Control Panels $368.95

0601807641 Multiquip 0601807641 Frequency Meter Denyo - OEM Replacement Part $591.95

0601808987 Multiquip 0601808987 Ammeter AC AFC6 Denyo - OEM Replacement Part $246.95

0601820671 Multiquip 0601820671 Automatic Voltage Regulator NTA-5A-2DB - OEM Replacement Part $1,939.95

0601820848 Multiquip 0601820848 Relay Over Current DENYO - OEM Replacement Part $83.95

0601822798 Multiquip 0601822798 Motor & Fan Assembly DENYO - OEM Replacement Part for DCA70USI Generators $2,618.95

0601823863 Multiquip 0601823863 Relay Unit 12V DENYO - OEM Replacement Part $159.95

0601827680 Multiquip 0601827680 Relay Denyo - OEM Replacement Part $325.95

0601831586 Multiquip 0601831586 Intake Cap Denyo - OEM Replacement Part $58.95

0601840073 Multiquip 0601840073 Rheostat Voltage Regulator for 150SSK and DCA Series Generators - OEM Replacement Part $90.95

0601870432 Multiquip 0601870432 Circuit Breaker DENYO - OEM Replacement Part $964.95

0601870440 Multiquip 0601870440 Circuit Breaker DENYO - OEM Replacement Part $34.95

0601870441 Multiquip 0601870441 Circuit Breaker DENYO - OEM Replacement Part $77.95

0602011053 Multiquip 0602011053 Radiator Cap - OEM Replacement Part for Super Silent Generators $54.95

0602022560 Multiquip 0602022560 Adapter Denyo - OEM Replacement Part $86.95

0602022561 Multiquip 0602022561 90 Degree Elbow DENYO - OEM Replacement Part for Generator Systems $76.95

0602040554 Multiquip 0602040554 Air Cleaner Band - OEM Replacement Part for Denyo Generators $44.95

0602040651 Multiquip 0602040651 Indicator A/C Denyo - OEM Replacement Part $52.95

0602046365 Multiquip 0602046365 Air Cleaner Element - OEM Replacement Part $116.95

0602046582 Multiquip 0602046582 Air Cleaner Denyo - OEM Replacement Part $250.95

0602103092 Multiquip 0602103092 Lamp Alarm Charge Red - OEM Replacement Part $36.95

0602121080 Multiquip 0602121080 Ammeter Charging - OEM Replacement Part for Super Silent Generators $75.95

0602122093 Multiquip 0602122093 Oil Pressure Gauge - OEM Replacement Part $81.95

0602122272 Multiquip 0602122272 Oil Pressure Unit 105965 - OEM Replacement Part $190.95

0602123090 Multiquip 0602123090 Water Temperature Gauge - OEM Replacement Part $75.95

0602125090 Multiquip 0602125090 Fuel Gauge 100176 Denyo - OEM Replacement Part $77.95

0605000009 Multiquip 0605000009 Rubber Suspension 130SS/T - OEM Replacement Part $118.95

0605000010 Multiquip 0605000010 Rubber Suspension (G) Denyo - OEM Replacement Part for Ultra Silent Generators $154.95

0605501079 Multiquip 0605501079 Fuel Sender Unit - OEM Replacement Part $188.95

0605503062 Multiquip 0605503062 Fuel Leak Detected Switch - OEM Replacement Part $213.95

0605505070 Multiquip 0605505070 Fuel Tank Cap DENYO - OEM Replacement Part $50.95

0605511395 Multiquip 0605511395 Ball Valve DENYO - OEM Replacement Part $46.95

0605515197 Multiquip 0605515197 Band Hose Denyo - OEM Replacement Part $35.95

1825530401 Multiquip 1825530401 Safety Relay - OEM Replacement Part for Super Silent Generators $373.95

8101331003 Multiquip 8101331003 Cover End Bracket - OEM Replacement Part for Super Silent Generators $127.95

8101333003 Multiquip 8101333003 Cover Bracket End 85,125,150 - OEM Replacement Part $86.95

8101350013 Multiquip 8101350013 Field Assembly Exciter - OEM Replacement Part for Super Silent Generators $2,986.95

8111332014 Multiquip 8111332014 Cover Fan 70SSJU - OEM Replacement Part $156.95

8941739480 Multiquip 8941739480 Resistor Cont Glow Plug - OEM Replacement Part for Ultra Silent Generators $91.95

8972333820 Multiquip 8972333820 Cooling Fan Belt - OEM Replacement Part for Ultra Silent Generators $168.95

B5110000102 Multiquip B5110000102 Rotor Assembly DCA-70USI - OEM Replacement Part $11,869.95

B5130000103 Multiquip B5130000103 DCA-70USI Generator Assembly - OEM Replacement Part $14,259.95

M1303200103 Multiquip M1303200103 Foot Engine (L) - OEM Replacement Part for Ultra Silent Generators $199.95

M1303200203 Multiquip M1303200203 Foot Engine (R) - OEM Replacement Part $234.95

M1374100103 Multiquip M1374100103 Air Cleaner Hose - OEM Replacement Part for Ultra Silent Generators $376.95

M1414800104 Multiquip M1414800104 Bracket Denyo - OEM Replacement Part for Generators $39.95

M1444600004 Multiquip M1444600004 Plate Window Denyo - OEM Replacement Part for Generator Control Panel $109.95

M1550000204 Multiquip M1550000204 Decal Note For Receptacle - OEM Replacement Part $43.95

M2213001102 Multiquip M2213001102 Control Box Denyo - OEM Replacement Part for Ultra Silent Generators $410.95

M2213600904 Multiquip M2213600904 Switch Cover - OEM Replacement Part for Ultra Silent Generators $72.95

M2223000703 Multiquip M2223000703 Control Panel Denyo - OEM Replacement Part for Ultra Silent Generators $81.95

M2230700113 Multiquip M2230700113 Panel Output Terminal 70SSJU - OEM Replacement Part $1,461.95

M2233000004 Multiquip M2233000004 Output Terminal Bolt - OEM Replacement Part for Denyo Generators $70.95

M2236100603 Multiquip M2236100603 Terminal Cover for DCA70USI Generator - OEM Replacement Part $87.95

M2246701504 Multiquip M2246701504 Wire Harness Generator Denyo - OEM Replacement Part $1,566.95

M2310300704 Multiquip M2310300704 Fan Shroud - OEM Replacement Part for DENYO Generators $379.95

M2310300904 Multiquip M2310300904 Fan Shroud Denyo - OEM Replacement Part for Ultra Silent Generators $375.95

M2310500803 Multiquip M2310500803 Hose Radiator Denyo - OEM Replacement Part $231.95

M2310500903 Multiquip M2310500903 Radiator Hose - OEM Replacement Part $124.95

M2310600004 Multiquip M2310600004 Hose Cover Denyo - OEM Replacement Part for Ultra Silent Generators $104.95

M2310600204 Multiquip M2310600204 Hose Cover Denyo - OEM Replacement Part for Ultra Silent Generators $119.95

M2310600304 Multiquip M2310600304 Hose Cover Denyo - OEM Replacement Part for Ultra Silent Generators $79.95

M2313300404 Multiquip M2313300404 Fan Bracket E-Coat - OEM Replacement Part for DENYO Generators $367.95

M2326100004 Multiquip M2326100004 Blowby Pipe - OEM Replacement Part for Ultra Silent Generators $133.95

M2330101003 Multiquip M2330101003 Muffler Denyo - OEM Replacement Part for Ultra Silent Generators $5,631.95

M2333000803 Multiquip M2333000803 Exhaust Pipe Denyo - OEM Replacement Part for Ultra Silent Generators $942.95

M2333200304 Multiquip M2333200304 Gasket Denyo - OEM Replacement Part $41.95

M2346900104 Multiquip M2346900104 Battery Cable - OEM Replacement Part for Ultra Silent Generators $57.95

M2346900404 Multiquip M2346900404 Battery Cable DENYO - OEM Replacement Part for Ultra Silent Generators $84.95

M2357201102 Multiquip M2357201102 Wire Harness Engine Denyo - OEM Replacement Part $1,301.95

M2363001202 Multiquip M2363001202 Fuel Tank Denyo - OEM Replacement Part for DCA Generators $1,750.95

M2363300603 Multiquip M2363300603 Tank Environmental Denyo - OEM Replacement Part for Ultra Silent Generators $4,463.95

M2373100304 Multiquip M2373100304 Air Cleaner Hose - OEM Replacement Part $118.95

M2373100404 Multiquip M2373100404 Air Cleaner Hose - OEM Replacement Part $65.95

M2413001702 Multiquip M2413001702 Base Denyo - OEM Replacement Part for Ultra Silent Generators $5,163.95

M2423001302 Multiquip M2423001302 Frame Front - OEM Replacement Part for Ultra Silent Generators $1,227.95

M2423001402 Multiquip M2423001402 Front Frame Assembly - OEM Replacement Part for Ultra Silent Generators $913.95

M2423201504 Multiquip M2423201504 Over Cover Front Frame - OEM Replacement Part for Ultra Silent Generators $158.95

M2423300204 Multiquip M2423300204 Discharge Guide Denyo - OEM Replacement Part for Ultra Silent Generators $245.95

M2433000803 Multiquip M2433000803 Frame Center Denyo - OEM Replacement Part for Ultra Silent Generators $1,912.95

M2443000604 Multiquip M2443000604 Duct - OEM Replacement Part for Ultra Silent Generators $72.95

M2443000802 Multiquip M2443000802 Frame Rear - OEM Replacement Part for Ultra Silent Generators $1,151.95

M2443200303 Multiquip M2443200303 Door Rear Frame Denyo - OEM Replacement Part $223.95

M2443301103 Multiquip M2443301103 Cover Rear Frame Denyo - OEM Replacement Part $794.95

M2453001703 Multiquip M2453001703 Door Side DENYO - OEM Replacement Part $531.95

M2453001803 Multiquip M2453001803 Side Door Panel - OEM Replacement Part for Ultra Silent Generators $597.95

M2453001903 Multiquip M2453001903 Door Side DENYO - OEM Replacement Part $242.95

M2453201202 Multiquip M2453201202 Splasher Panel - OEM Replacement Part for Denyo Ultra Silent Generators $649.95

M2463100302 Multiquip M2463100302 Roof Panel (Parent #) Denyo - OEM Replacement Part $649.95

M2463200302 Multiquip M2463200302 Roof Panel Denyo - OEM Replacement Part $672.95

M2463200503 Multiquip M2463200503 Duct Denyo - OEM Replacement Part for Generator Air Management $517.95

M2463400103 Multiquip M2463400103 Cover Duct Denyo - OEM Replacement Part for UltraSilent Generators $281.95

M2493104304 Multiquip M2493104304 Acoustic Sheet Denyo - OEM Replacement Part for Ultra Silent Generators $158.95

M2493104404 Multiquip M2493104404 Acoustic Sheet Denyo - OEM Replacement Part $49.95

M2493104504 Multiquip M2493104504 Acoustic Sheet Denyo - OEM Replacement Part for Ultra Silent Generators $45.95

M2493104603 Multiquip M2493104603 Acoustic Sheet Denyo - OEM Replacement Part for Ultra Silent Generators $609.95

M2493200004 Multiquip M2493200004 Acoustic Sheet Denyo - OEM Replacement Part for Ultra Silent Generators $180.95

M2493303004 Multiquip M2493303004 Acoustic Sheet Denyo - OEM Replacement Part for Ultra Silent Generators $309.95

M2493303103 Multiquip M2493303103 Acoustic Sheet Denyo - OEM Replacement Part for Ultra Silent Generators $218.95

M2493404704 Multiquip M2493404704 Acoustic Sheet Denyo - OEM Replacement Part for Ultra Silent Generators $259.95

M2493405104 Multiquip M2493405104 Acoustic Sheet - OEM Replacement Part for Ultra Silent Generators $265.95

M2493405204 Multiquip M2493405204 Acoustic Sheet Denyo - OEM Replacement Part $88.95

M2493405304 Multiquip M2493405304 Acoustic Sheet Denyo - OEM Replacement Part $88.95

M2493502403 Multiquip M2493502403 Acoustic Sheet Denyo - OEM Replacement Part $373.95

M2493502604 Multiquip M2493502604 Acoustic Sheet Denyo - OEM Replacement Part for Ultra Silent Generators $125.95

M2493502704 Multiquip M2493502704 Acoustic Sheet Denyo - OEM Replacement Part $462.95

M2550000803 Multiquip M2550000803 Generator Control Panel Decal - OEM Replacement Part $65.95

M2560101104 Multiquip M2560101104 DENYO Generator Component - OEM Replacement Part $57.95

M2923200024 Multiquip M2923200024 Engine Denyo 4BG1T-RD04 - OEM Replacement Part $12,788.95

M2923200044 Multiquip M2923200044 Radiator Denyo (JP) - OEM Replacement Part for Ultra Silent Generators $898.95

M3236100404 Multiquip M3236100404 Window Output Denyo - OEM Replacement Part for Generator Control Panels $70.95

M3236100503 Multiquip M3236100503 Cover Terminal - OEM Replacement Part for Ultra Silent Generators $133.95

M3316100303 Multiquip M3316100303 Bracket Reserve Tank Denyo - OEM Replacement Part $62.95

M3357200304 Multiquip M3357200304 Wire Harness Fuel Leak Denyo - OEM Replacement Part $85.95

M3423200704 Multiquip M3423200704 Cover Duct - OEM Replacement Part for DCA70USI Generator $56.95

M3423200804 Multiquip M3423200804 Cover Duct Denyo - OEM Replacement Part for Ultra Silent Generators $35.95

M9103000304 Multiquip M9103000304 Battery Band - OEM Replacement Part $72.95

M9510100004 Multiquip M9510100004 Hot Parts Caution Safety Decal - OEM Replacement Part $68.95

M9510200304 Multiquip M9510200304 MQ Power Denyo Decal - OEM Replacement Part $37.95

M9520000504 Multiquip M9520000504 Denyo Contact Information Decal - OEM Replacement Part $67.95

M9520100404 Multiquip M9520100404 Danger High Voltage Decal - OEM Replacement Part $37.95

0010110030 HEX HEAD BOLT

0010112045 HEX, HEAD BOLT

0010114040 HEX, HEAD BOLT

0010120050 HEX, HEAD BOLT $6.95

0010310030 HEX HEAD BOLT

0010710025 HEX HEAD BOLT

0015906016 HEX HEAD BOLT

0016906016 HEX HEAD BOLT $0.81

0016906020 HEX, HEAD BOLT

0016908020 HEX, HEAD BOLT

0016908030 HEX, HEAD BOLT

0016908035 HEX, HEAD BOLT

0016908040 HEX, HEAD BOLT $1.52

0016908055 HEX, HEAD BOLT $0.58

0016910025 HEX, HEAD BOLT $1.56

0016910030 HEX, HEAD BOLT $2.95

0017108020 HEX, HEAD BOLT

0017110020 HEX, HEAD BOLT

0017110030 HEX, HEAD BOLT

0017110035 HEX HEAD BOLT

0017110040 HEX, HEAD BOLT

0017110050 HEX, HEAD BOLT $7.95

0017112025 HEX, HEAD BOLT $2.93

0017112030 HEX HEAD BOLT

0019108065 HEX, HEAD BOLT $1.95

0019208020 HEX, HEAD BOLT $3.95

0019210025 HEX, HEAD BOLT $7.95

0021004040 MACHINE SCREW $0.64

0021106016 MACHINE SCREW $0.37

0021806016 MACHINE SCREW $0.95

0027103010 MACHINE SCREW $0.44

0027104010 MACHINE SCREW $0.33

0027104016 MACHINE SCREW

0027104020 MACHINE SCREW $0.40

0027104040 MACHINE SCREW $1.39

0027105010 MACHINE SCREW $0.56

0027105016 MACHINE SCREW $0.55

0027106016 MACHINE SCREW $0.55

0027208025 MACHINE SCREW $0.76

0030003000 HEX, NUT

0030006000 HEX, NUT

0030012000 HEX NUT $0.50

0030014000 HEX, NUT

0030020000 HEX, NUT $1.82

0030410000 HEX, NUT $0.28

0039312000 HEX, NUT $0.46

0040012000 SPRING WASHER $0.95

0040014000 SPRING WASHER

0040020000 SPRING WASHER

0040506000 TOOTHED WASHER $0.77

0040508000 TOOTHED WASHER $0.35

0040512000 TOOTHED WASHER $0.77

0040520000 TOOTHED WASHER $6.95

0041203000 PLAIN WASHER $0.12

0041206000 PLAIN WASHER

0041210000 PLAIN WASHER

0041212000 PLAIN WASHER

0041214000 PLAIN WASHER

0041220000 PLAIN WASHER $0.95

0041412000 PLAIN WASHER $2.95

0041606000 PLAIN WASHER

0042308000 SPRING WASHER $0.83

0042408000 PLAIN WASHER

0042510000 SPRING WASHER

0042610000 SPRING WASHER $0.53

0080200007 SNAP RING $1.39

0150000018 O RING $1.87

0191300450 BLOWBY HOSE $16.95

0193600700 HOSE $13.95

0199102000 HOSE $2.95

0199900600 DRAIN HOSE $15.95

0207004000 HEX NUT

From the guides desk

Guide · 2026-08-04

Ask ARIA about your machine.

Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.

Chat with ARIA

Multiquip DCA70USI Generator

The parts bench

The machine itself

Machine

Engine

Keep-it-running spares

Every part that fits this machine

Service notices & part changes

Take the factory book with you

Get the download pack

From the guides desk

Multiquip DCA Generator Fault Shutdown and Controller Reset Guide

Multiquip Generator No-Start and No-Power Fixes

Multiquip DCA Generator Fault Codes and Diagnostics Guide

Ask ARIA about your machine.

Your cart is empty

Your cart is empty
