Multiquip DuoScreed - Power Unit DuoScreed Power Unit
Factory parts book · interactive
Multiquip DuoScreed - Power Unit DuoScreed Power Unit
The parts bench

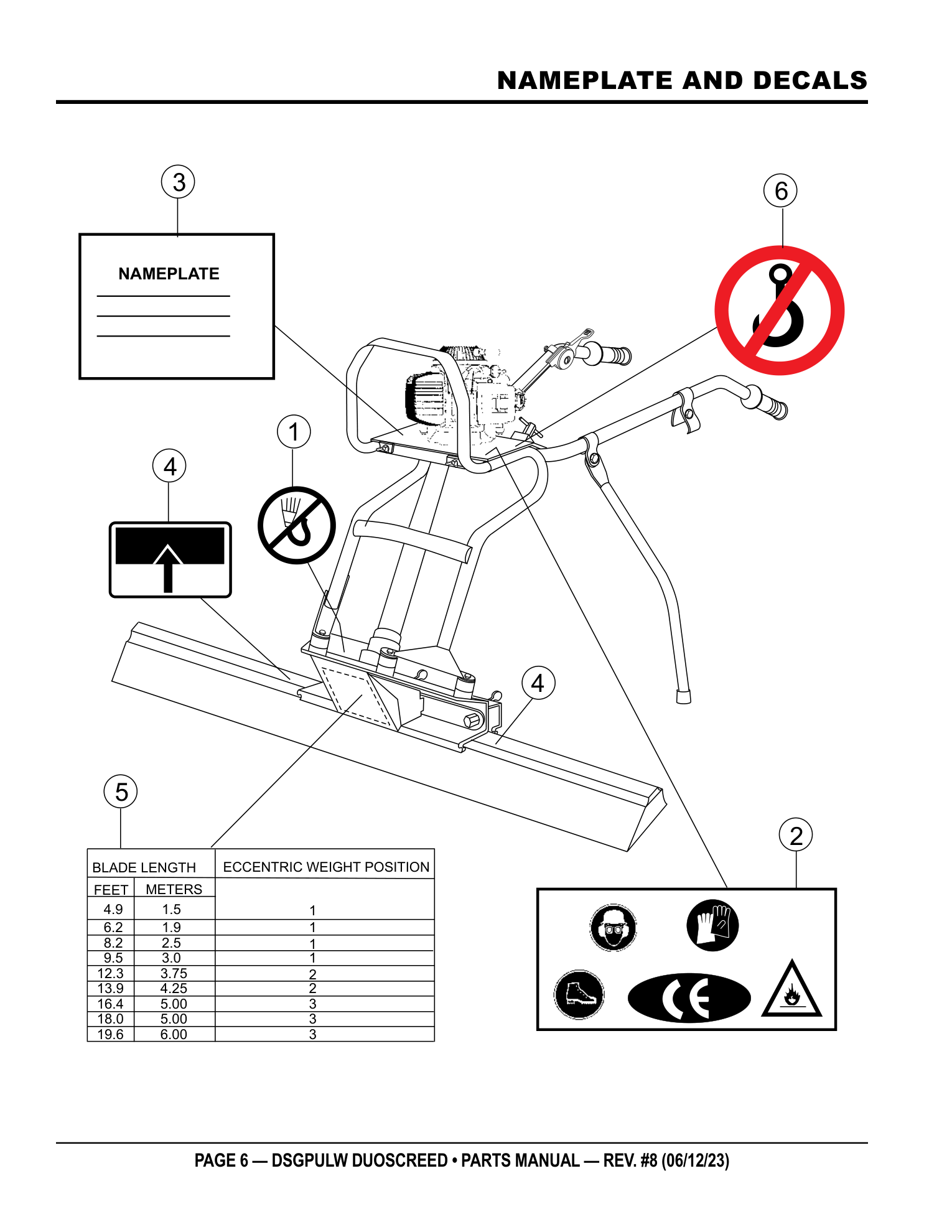

Need the PDF? ↓Page 6 — UNKNOWN
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1# | DCL121 | DECAL, PRESSURE HOSE | 1 | ADD TO CART | |
| 2# | DCL122 | DECAL, SAFETY | 1 | ADD TO CART | |
| 3 | PLATE, SERIAL NO | 1 | CONTACT MQ PARTS DEPT. W/MODEL AND S/N | SEE REMARKS | |
|
COMING PLATE, SERIAL NO
· qty on machine: 1 CONTACT MQ PARTS DEPT. W/MODEL AND S/N SEE REMARKS
| |||||
| 4# | DCL140 | DECAL, ALIGNMENT ARROWS | 2 | ADD TO CART | |
| 5# | DCL141 | DECAL, ECCENTRIC WT. CHART | 1 | PARTS REQUEST | |
|
COMING DECAL, ECCENTRIC WT. CHART
DCL141 · qty on machine: 1 Also included in kit 6 - DECAL, DO NOT LIFT (HOOK) (BF260002) | |||||
| 6 | BF260002 | DECAL, DO NOT LIFT (HOOK) KIT, DECAL | 1 | INCLUDES ITEMS W/# | PARTS REQUEST |
|
COMING DECAL, DO NOT LIFT (HOOK) KIT, DECAL
BF260002 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 1#, 2#, 4#, 5# | |||||

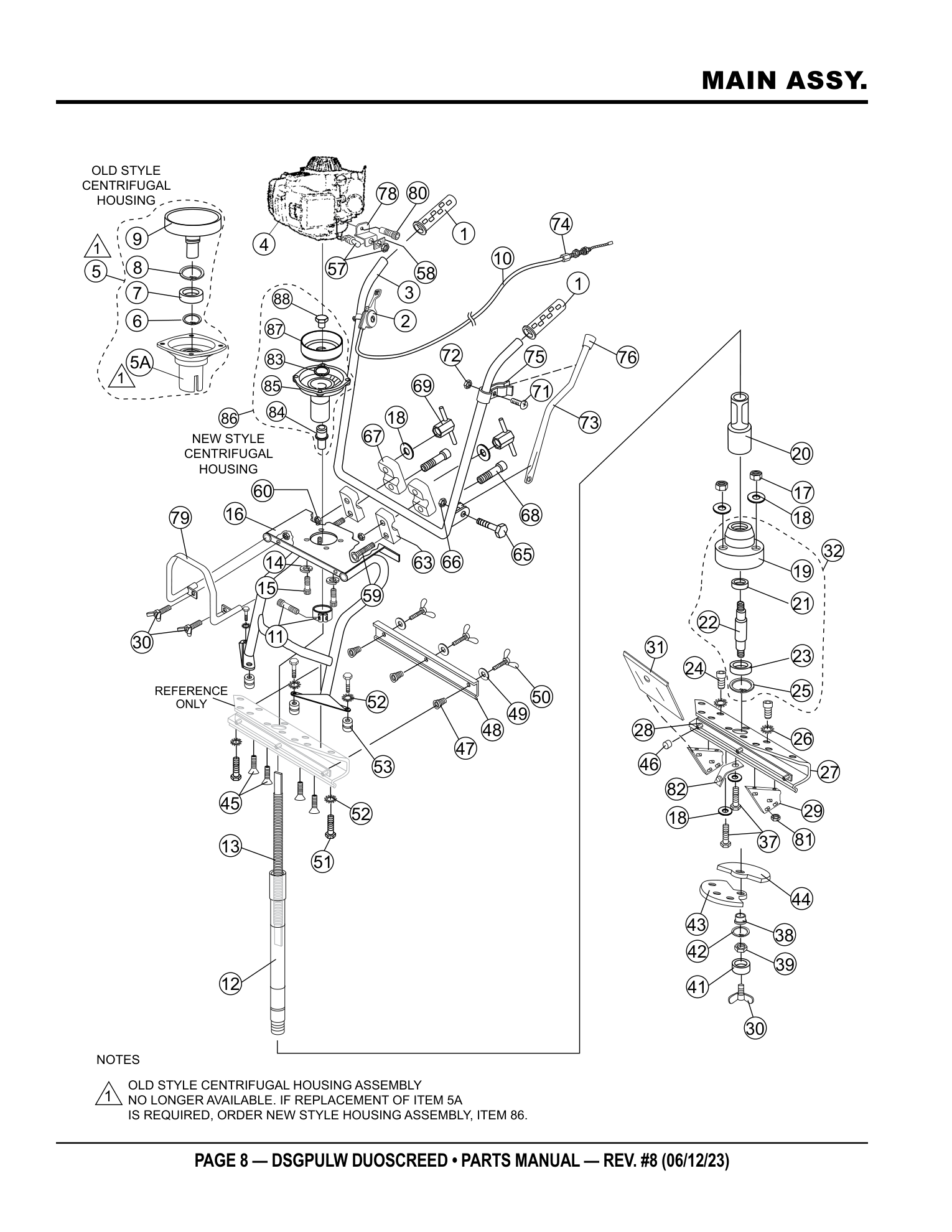

Page 8 — MAIN ASSY.
Parts list — exactly as printed37 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | BF2648 | HANDLE GRIP | 2 | ADD TO CART | |
| 2 | BF2647 | THROTTLE HANDLE | 1 | ADD TO CART | |
| 3 | BF2633LW | UPPER OPERATING HANDLE | 1 | ADD TO CART | |
| 4 | 2640A35 | ENGINE HONDA GX-35SAT | 1 | ADD TO CART | |
| 5 | CENTRIFUGAL CLUTCH HOUSING CP | 1 | NO LONGER AVAILABLE S/N 0185 AND BELOW SEE NOTE ON DRAWING INCLUDES ITEM W/$ | SEE REMARKS | |
|
COMING CENTRIFUGAL CLUTCH HOUSING CP
· qty on machine: 1 NO LONGER AVAILABLE S/N 0185 AND BELOW SEE NOTE ON DRAWING INCLUDES ITEM W/$ Kit includes: 5A$, 6$, 7$, 8$, 9$ SEE REMARKS
| |||||
| 5A$ | CENTRIFUGAL CLUTCH HOUSING | 1 | NO LONGER AVAILABLE S/N 0185 AND BELOW SEE NOTE ON DRAWING | INCLUDED IN KIT | |
|
COMING CENTRIFUGAL CLUTCH HOUSING
· qty on machine: 1 NO LONGER AVAILABLE S/N 0185 AND BELOW SEE NOTE ON DRAWING Included in kit 5 - CENTRIFUGAL CLUTCH HOUSING () INCLUDED IN KIT
| |||||
| 6$ | BF0201 | RETAINING RING 17 X 1 MM IN CENTRIFUGAL HOUSING | 1 | S/N 0185 AND BELOW | ADD TO CART |
| 7$ | BF2642C | BEARING IN CENTRIFUGAL HOUSING | 1 | S/N 0185 AND BELOW | ADD TO CART |
| 8$ | BF0205 | RETAINING RING (BIG) | 1 | S/N 0185 AND BELOW | NO LONGER AVAILABLE |
|
COMING RETAINING RING (BIG)
BF0205 · qty on machine: 1 S/N 0185 AND BELOW Also included in kit 5 - CENTRIFUGAL CLUTCH HOUSING () NO LONGER AVAILABLE
| |||||
| 9$ | BF2642 | CENTRIFUGAL DRUM | 1 | S/N 0185 AND BELOW | ADD TO CART |
| 10 | BF2645LW | INNER & OUTER CABLE, 87 CMS. | 1 | ADD TO CART | |
| 11 | BF2626 | CENTRIFUGAL HOUSING CLAMP | 1 | ADD TO CART | |
| 12 | BF2625LW | RUBBER HOSE WITH CONNECTORS | 1 | ADD TO CART | |
| 13 | BF2621LW | FLEXIBLE SHAFT | 1 | ADD TO CART | |
| 14 | BF0178 | SPRING WASHER M6 TYPE B | 4 | ADD TO CART | |
| 15 | BF0165 | SOCKET HEAD BOLT M6 X 25 | 4 | ADD TO CART | |
| 16 | BF2632LW | LOWER OPERATING HANDLE | 1 | ADD TO CART | |
| 17 | BF0101 | SELF LOCKING NUT M8 | 3 | ADD TO CART | |
| 18 | BF0155 | FLAT WASHER M8 | 8 | ADD TO CART | |
| 19% | BF2611 | ECCENTRIC HOUSING | 1 | ADD TO CART | |
| 20 | BF1100000008 | COUPLING DRIVE PIN | 1 | ADD TO CART | |
| 21% | BF2619 | BEARING (SMALL) | 1 | ADD TO CART | |
| 22% | BF2612 | ECCENTRIC SHAFT | 1 | ADD TO CART | |
| 23% | BF2314 | BEARING (BIG) | 1 | ADD TO CART | |
| 24 | BF0278 | TAP BOLT M8 X | 30 | 4 REPLACES P/N BF0125 | PARTS REQUEST |
|
COMING TAP BOLT M8 X
BF0278 · qty on machine: 30 4 REPLACES P/N BF0125 | |||||
| 25% | BF0201 | RETAINING RING 17 X 1MM | 1 | ADD TO CART | |
| 26 | BF0213 | TOOTH WASHER M8 | 4 | ADD TO CART | |
| 27 | BF2604LW | ECCENTRIC ASSEMBLY PLATE | 1 | ADD TO CART | |
| 28 | BF2610LW | STRIP & NUTS FOR ALUMINUM CLAMP | 1 | ADD TO CART | |
| 29 | BF2608N | SUPPORT BLOCK | 2 | ADD TO CART | |
| 30 | BF0325 | WING BOLT M6 X12 | 3 | ADD TO CART | |
| 31 | BF2609N | ECCENTRIC COVER | 1 | ADD TO CART | |
| 32 | BF2611KOMPL | ECCENTRIC HOUSING COMPLETE | 1 | INCLUDES ITEMS W/% | ADD TO CART |
| 37 | BF0129 | TAP BOLT M8 X 40 | 3 | ADD TO CART | |
| 38 | BF2614 | ECCENTRIC HINGE BUSHING | 1 | ADD TO CART | |
| 39 | BF0177 | NUT M12 (FINE) | 1 | ADD TO CART | |
| 41 | BF2613 | ECCENTRIC CLAMPING BUSH | 1 | ADD TO CART | |

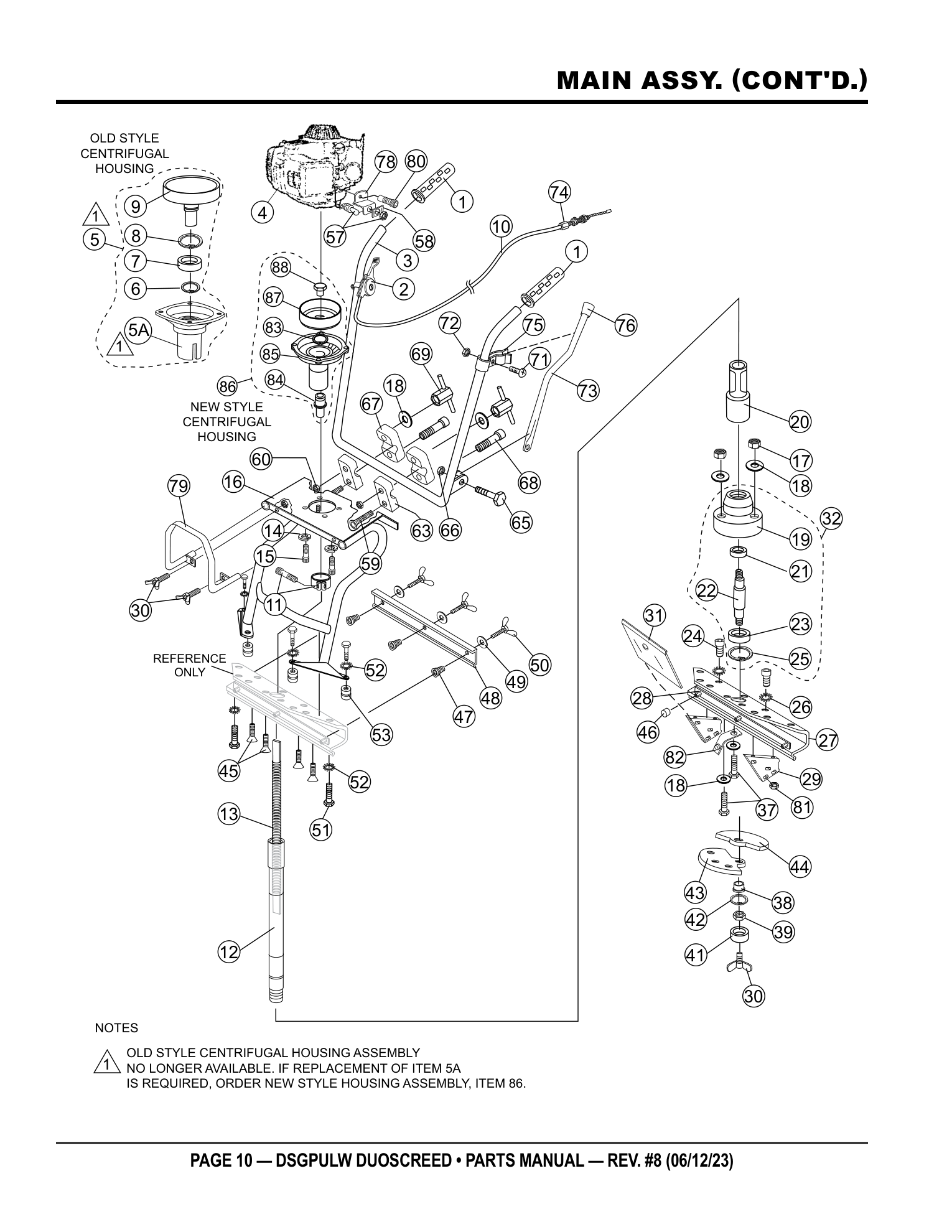

Page 10 — MAIN ASSY. (CONT'D.)
Parts list — exactly as printed41 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 42 | BF0175 | RETAINING RING M12 | 1 | ADD TO CART | |
| 43 | BF2615A | ECCENTRIC PLATE (SMALL) | 1 | ADD TO CART | |
| 44 | BF2615B | ECCENTRIC PLATE (BIG) | 1 | ADD TO CART | |
| 45 | BF0207 | COUNTERSUNK HEADSCREW 8.8 M8X25 | 4 | ADD TO CART | |
| 46 | BF2617 | PLASTIC PROTECTION CAP M12 | 3 | ADD TO CART | |
| 47 | BF2607 | COMP. SPRING FOR CLAMPING STRIP | 3 | ADD TO CART | |
| 48 | BF2605LW | ALUMINUM CLAMPING STRIP | 1 | ADD TO CART | |
| 49 | BF0176 | WASHER M12X6 | 3 | ADD TO CART | |
| 50 | BF2606 | WING BOLT | 3 | ADD TO CART | |
| 51 | BF0285 | TAP BOLT M8X12 | 3 | ADD TO CART | |
| 52 | BF0212 | INTERNAL TOOTHING RING M8 | 8 | ADD TO CART | |
| 53 | BF0056 | RUBBER BUFFER 30X30 M8 | 4 | ADD TO CART | |
| 54 | BF0124 | TAP BOLT M8X10 | 4 | PARTS REQUEST | |
|
COMING TAP BOLT M8X10
BF0124 · qty on machine: 4 Factory replaced this part - current number 011008010 | |||||
| 56 | BF2643A | GROUND WIRE FOR STOP SWITCH | 1 | NO LONGER AVAILABLE | |
|
COMING GROUND WIRE FOR STOP SWITCH
BF2643A · qty on machine: 1 NO LONGER AVAILABLE
| |||||
| 57 | BF2643 | STOP SWITCH | 1 | INCLUDES ITEMS W/# | ADD TO CART |
 STOP SWITCH
BF2643 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 58# view full part page → $40.95 IN A KIT + SOLD SOLO | |||||
| 58# | BF2658 | START-STOP DECAL | 1 | PARTS REQUEST | |
|
COMING START-STOP DECAL
BF2658 · qty on machine: 1 Also included in kit 57 - STOP SWITCH (BF2643) | |||||
| 59 | BF0283 | CARRIAGE BOLT M8X50 | 2 | ADD TO CART | |
| 60 | BF0089 | SELF LOCKING FLANGE NUT M6 | 2 | ADD TO CART | |
| 63 | BF2635 | LOWER ALUMINUM CLAMP | 2 | ADD TO CART | |
| 65 | BF0181 | TAP BOLT M6X30 | 1 | REPLACES P/N BF0258 | PARTS REQUEST |
|
COMING TAP BOLT M6X30
BF0181 · qty on machine: 1 REPLACES P/N BF0258 | |||||
| 66 | BF0100 | SELF LOCKING NUT | 1 | ADD TO CART | |
| 67 | BF2635A | UPPER ALUMINUM CLAMP | 2 | ADD TO CART | |
| 68 | BF0284 | SOCKET HEAD BOLT M6X40 | 2 | ADD TO CART | |
| 69 | BF2636 | CLAMP FOR HEIGHT ADJUSTMENT | 2 | ADD TO CART | |
| 71 | BF0167 | SCREW M5X16 | 1 | REPLACES P/N BF0261 | PARTS REQUEST |
|
COMING SCREW M5X16
BF0167 · qty on machine: 1 REPLACES P/N BF0261 | |||||
| 72 | BF0099 | SELF LOCKING NUT M5 | 1 | ADD TO CART | |
| 73 | BF2637LW | SUPPORTING LEG | 1 | ADD TO CART | |
| 74 | BF2644 | GAS THROTTLE ADJUSTMENT BOLT | 1 | ADD TO CART | |
| 75 | BF2639 | CLAMP FOR SUPPORTING LEG | 1 | ADD TO CART | |
| 76 | BF2634 | RUBBER PROTECT CAP FOR SUPPORT LEG | 1 | ADD TO CART | |
| 78 | BF2321H | SWITCH BRACKET | 1 | ADD TO CART | |
| 79 | 260075LW | LIFTING HANDLE STEEL | 1 | ADD TO CART | |
| 80 | BF0269 | SOCKET HEAD BOLT M5 X12 | 1 | ADD TO CART | |
| 81 | BF0206 | SQUARE NUTS M8 | 8 | ADD TO CART | |
| 82 | BF26061 | SPRING CLIP, COVER PLATE | 1 | ADD TO CART | |
| 83@ | BF0217 | RETAINING RING | 1 | S/N 0186 AND ABOVE | PARTS REQUEST |
|
COMING RETAINING RING
BF0217 · qty on machine: 1 S/N 0186 AND ABOVE Also included in kit 86 - CENTRIFUGAL HOUSING COMPLE (BF2641) | |||||
| 84@ | BF2653 | COUPLING DRIVE PIN | 1 | S/N 0186 AND ABOVE | PARTS REQUEST |
|
COMING COUPLING DRIVE PIN
BF2653 · qty on machine: 1 S/N 0186 AND ABOVE Also included in kit 86 - CENTRIFUGAL HOUSING COMPLE (BF2641) | |||||
| 85@ | BF2641LOS | CENTRIFUGAL HOUSING W/BEARING | 1 | S/N 0186 AND ABOVE | ADD TO CART |
| 86 | BF2641 | CENTRIFUGAL HOUSING COMPLETE | 1 | INCLUDES ITEMS W/@ S/N 0186 AND ABOVE | ADD TO CART |
| 87@ | BF2652 | CENTRIFUGAL DRUM | 1 | S/N 0186 AND ABOVE | ADD TO CART |
| 88@ | BF2627 | BOLT M12 X | 16 | 1 S/N 0186 AND ABOVE | PARTS REQUEST |
|
COMING BOLT M12 X
BF2627 · qty on machine: 16 1 S/N 0186 AND ABOVE Also included in kit 86 - CENTRIFUGAL HOUSING COMPLE (BF2641) | |||||

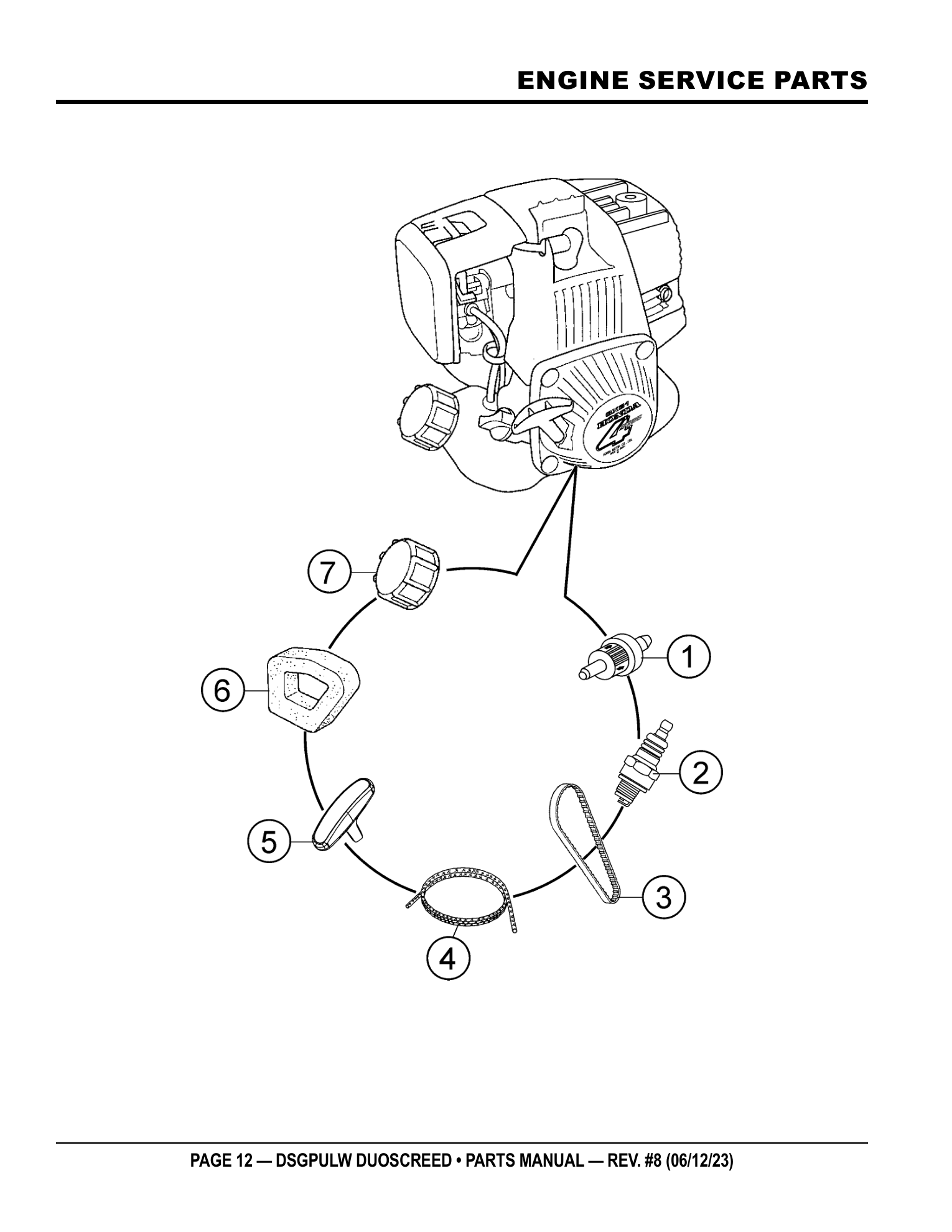

Page 12 — CAP ASSY., FUEL TANK
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 17672ZM3003 | FILTER, FUEL | 1 | PARTS REQUEST | |
|
COMING FILTER, FUEL
17672ZM3003 · qty on machine: 1 Factory replaced this part - current number 17672Z0H003 | |||||
| 2 | 31915Z0H003 | SPARK PLUG, NGK | 1 | ADD TO CART | |
| 3 | 14400Z0Z003 | BELT, TIMING 76ZU7 G-300 | 1 | PARTS REQUEST | |
|
COMING BELT, TIMING 76ZU7 G-300
14400Z0Z003 · qty on machine: 1 | |||||
| 4 | 28462ZM3003 | ROPE, RECOIL STARTER #3.5X40” | 1 | ADD TO CART | |
| 5 | 28461ZM3003 | KNOB, RECOIL STARTER | 1 | ADD TO CART | |
| 6 | 17211Z0Z000 | ELEMENT, AIR CLEANER | 1 | ADD TO CART | |
| 7 | 17620ZM3043 | CAP ASSY., FUEL TANK | 1 | PARTS REQUEST | |
|
COMING CAP ASSY., FUEL TANK
17620ZM3043 · qty on machine: 1 Factory replaced this part - current number 17620ZM3053 | |||||
