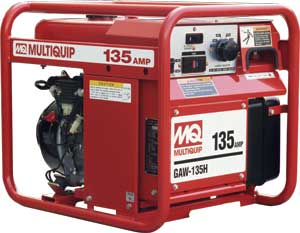

Multiquip GAW135 Gasoline Welder
The parts bench
Need the PDF? ↓Page 6 — NAMEPLATE AND DECALS ASSY. (S/N 5651616 AND BELOW)
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | D0521100103 | DECAL; CONTROL PANEL | 1 | S/N 5651616 AND BELOW | PARTS REQUEST |
|
COMING DECAL; CONTROL PANEL
D0521100103 · qty on machine: 1 S/N 5651616 AND BELOW | |||||
| 2 | D9504200004 | DECAL; CAUTION, NEVER ATTEMPT | 1 | D90420000 | ADD TO CART |
| 3 | W0800628504 | DECAL; GROUND TERMINAL | 1 | S-1123 | ADD TO CART |
| 4 | W0800690804 | DECAL; WELDING | 1 | S-1238A | PARTS REQUEST |
|
COMING DECAL; WELDING
W0800690804 · qty on machine: 1 S-1238A | |||||
| 5 | W1980680004 | DECAL; FUEL COCK | 1 | S-3704 | PARTS REQUEST |
|
COMING DECAL; FUEL COCK
W1980680004 · qty on machine: 1 S-3704 | |||||
| 6 | W0820610404 | DECAL; WARNING INDOOR WIRING | 1 | S-3627 | PARTS REQUEST |
|
COMING DECAL; WARNING INDOOR WIRING
W0820610404 · qty on machine: 1 S-3627 | |||||
| 7 | W8700611804 | DECAL; WARNING, DANGEROUS GASES | 1 | S-4984 S/N 5751344 AND BELOW | ADD TO CART |
| 8 | W8700611904 | DECAL; DANGER, ELECTRIC SHOCK HAZ | 1 | S-4985 | ADD TO CART |
| 9 | W7900636004 | DECAL; CAUTION, OP AT 3600 RPM ONLY | 1 | S-4461 | PARTS REQUEST |
|
COMING DECAL; CAUTION, OP AT 3600 RPM ONLY
W7900636004 · qty on machine: 1 S-4461 | |||||
| 10 | D9522100204 | DECAL; WARNING, PROPOSITION | 65 | 1 D92210020 S/N 5825168 AND BELOW | PARTS REQUEST |
|
COMING DECAL; WARNING, PROPOSITION
D9522100204 · qty on machine: 65 1 D92210020 S/N 5825168 AND BELOW | |||||
| 11 | D9512100203 | DECAL; CAUTION, WELDING OPERATION | 1 | D91210020 | ADD TO CART |
| 12 | A9511100004 | DECAL; WARNING READ MANUAL | 1 | A91110000 | PARTS REQUEST |
|
COMING DECAL; WARNING READ MANUAL
A9511100004 · qty on machine: 1 A91110000 | |||||
| 13 | A9521200004 | DECAL; OPERATING INSTRUCTION | 1 | A92120000 | ADD TO CART |
| 14 | D0561200004 | DECAL; MQ MULTIQUIP 135A GAW 135H | 1 | S/N 5651616 AND BELOW | ADD TO CART |
| 15 | DECAL; MQ_MULTIQUIP 135A | 1 | S/N 5651616 AND BELOW | SEE REMARKS | |
|
COMING DECAL; MQ_MULTIQUIP 135A
· qty on machine: 1 S/N 5651616 AND BELOW SEE REMARKS
| |||||
| 16 | D0561000104 | DECAL; MQ MULTIQUIP | 1 | S/N 5651616 AND BELOW | ADD TO CART |
| 17 | 87533ZC0630 | DECAL; AIR CLEANER | 1 | ADD TO CART | |
| 18 | 87528ZB2630 | DECAL; CHOKE | 1 | ADD TO CART | |
| 20 | B9531100104 | DECAL; DANGER ELECTROCUTION | 1 | D93110010 | PARTS REQUEST |
|
COMING DECAL; DANGER ELECTROCUTION
B9531100104 · qty on machine: 1 D93110010 | |||||
| 21 | A9504000014 | DECAL; WARNING, DANGEROUS GAS | 1 | A90400001 | ADD TO CART |
| 22 | M9504200004 | DECAL; WARNING, START FIRES | 1 | M90420000 S/N 5618610 ABOVE | ADD TO CART |
Page 8 — NAMEPLATE AND DECALS ASSY. (S/N 5651617 ~ 50003376)
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | D0521100203 | DECAL; CONTROL PANEL | 1 | S/N 5651617 AND ABOVE | PARTS REQUEST |
|
COMING DECAL; CONTROL PANEL
D0521100203 · qty on machine: 1 S/N 5651617 AND ABOVE | |||||
| 2 | D9504200004 | DECAL; CAUTION, NEVER ATTEMPT | 1 | D90420000 | ADD TO CART |
| 3 | W0800628504 | DECAL; GROUND TERMINAL | 1 | S-1123 | ADD TO CART |
| 4 | W0800690804 | DECAL; WELDING | 1 | S-1238A | PARTS REQUEST |
|
COMING DECAL; WELDING
W0800690804 · qty on machine: 1 S-1238A | |||||
| 5 | W1980680004 | DECAL; FUEL COCK | 1 | S-3704 | PARTS REQUEST |
|
COMING DECAL; FUEL COCK
W1980680004 · qty on machine: 1 S-3704 | |||||
| 6 | W0820610404 | DECAL; WARNING INDOOR WIRING | 1 | S-3627 | PARTS REQUEST |
|
COMING DECAL; WARNING INDOOR WIRING
W0820610404 · qty on machine: 1 S-3627 | |||||
| 7 | W8700611804 | DECAL; WARNING, DANGEROUS GAS | 1 | S-4984 S/N 5751344 AND BELOW | ADD TO CART |
| 7 | D9504200204 | DECAL; DANGER, DANGEROUS GAS | 1 | D90420020 S/N 5751345 AND ABOVE | PARTS REQUEST |
|
COMING DECAL; DANGER, DANGEROUS GAS
D9504200204 · qty on machine: 1 D90420020 S/N 5751345 AND ABOVE | |||||
| 8 | W8700611904 | DECAL; DANGER, ELECTRIC SHOCK HAZ | 1 | S-4985 | ADD TO CART |
| 9 | W7900636004 | DECAL; CAUTION, OP AT 3600 RPM ONLY | 1 | S-4461 | PARTS REQUEST |
|
COMING DECAL; CAUTION, OP AT 3600 RPM ONLY
W7900636004 · qty on machine: 1 S-4461 | |||||
| 10 | DCL160 | DECAL; WARNING, PROP. | 65 | 1 REPLACES P/N D9522100204 S/N 5825168 AND BELOW | ADD TO CART |
| 11 | D9512100203 | DECAL; CAUTION, WELDING OPERATION | 1 | D91210020 | ADD TO CART |
| 12 | A9511100004 | DECAL; WARNING READ MANUAL | 1 | A91110000 | PARTS REQUEST |
|
COMING DECAL; WARNING READ MANUAL
A9511100004 · qty on machine: 1 A91110000 | |||||
| 13 | A9521200004 | DECAL; OPERATING INSTRUCTION | 1 | A92120000 | ADD TO CART |
| 14 | D0561200104 | DECAL; MQ | 1 | S/N 5651617 AND ABOVE | PARTS REQUEST |
|
COMING DECAL; MQ
D0561200104 · qty on machine: 1 S/N 5651617 AND ABOVE | |||||
| 15 | D0561000303 | DECAL; MQ POWER | 1 | S/N 5651617 AND ABOVE | PARTS REQUEST |
|
COMING DECAL; MQ POWER
D0561000303 · qty on machine: 1 S/N 5651617 AND ABOVE | |||||
| 16 | 0561000204 | DECAL; MQ POWER | 1 | S/N 5651617 AND ABOVE | PARTS REQUEST |
|
COMING DECAL; MQ POWER
0561000204 · qty on machine: 1 S/N 5651617 AND ABOVE | |||||
| 17 | 87533ZC0630 | DECAL; AIR CLEANER | 1 | ADD TO CART | |
| 18 | 87528ZB2630 | DECAL; CHOKE | 1 | ADD TO CART | |
| 20 | B9531100104 | DECAL; DANGER ELECTROCUTION | 1 | D93110010 | PARTS REQUEST |
|
COMING DECAL; DANGER ELECTROCUTION
B9531100104 · qty on machine: 1 D93110010 | |||||
| 21 | A9504000014 | DECAL; WARNING, DANGEROUS GAS | 1 | A90400001 | ADD TO CART |
| 22 | M9504200004 | DECAL; WARNING, START FIRES | 1 | M90420000 S/N 5618610 ABOVE | ADD TO CART |
| 23 | A9511101304 | DECAL; WARNING, PROPOSITION | 65 | 1 A91110130 S/N 5825169 ABOVE | ADD TO CART |
Page 10 — NAMEPLATE AND DECALS ASSY. (S/N 50003377 AND ABOVE)
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | D0521100203 | DECAL; CONTROL PANEL | 1 | S/N 5651617 AND ABOVE | PARTS REQUEST |
|
COMING DECAL; CONTROL PANEL
D0521100203 · qty on machine: 1 S/N 5651617 AND ABOVE | |||||
| 2 | D9504200004 | DECAL; CAUTION, NEVER ATTEMPT | 1 | D90420000 | ADD TO CART |
| 3 | W0800628504 | DECAL; GROUND TERMINAL | 1 | S-1123 | ADD TO CART |
| 4 | W0800690804 | DECAL; WELDING | 1 | S-1238A | PARTS REQUEST |
|
COMING DECAL; WELDING
W0800690804 · qty on machine: 1 S-1238A | |||||
| 5 | W1980680004 | DECAL; FUEL COCK | 1 | S-3704 | PARTS REQUEST |
|
COMING DECAL; FUEL COCK
W1980680004 · qty on machine: 1 S-3704 | |||||
| 6 | W0820610404 | DECAL; WARNING INDOOR WIRING | 1 | S-3627 | PARTS REQUEST |
|
COMING DECAL; WARNING INDOOR WIRING
W0820610404 · qty on machine: 1 S-3627 | |||||
| 7 | D9504200204 | DECAL; DANGER, DANGEROUS GAS | 1 | D90420020 S/N 5751345 AND ABOVE | PARTS REQUEST |
|
COMING DECAL; DANGER, DANGEROUS GAS
D9504200204 · qty on machine: 1 D90420020 S/N 5751345 AND ABOVE | |||||
| 8 | W8700611904 | DECAL; DANGER, ELECTRIC SHOCK HAZ | 1 | S-4985 | ADD TO CART |
| 9 | W7900636004 | DECAL; CAUTION, OP AT 3600 RPM ONLY | 1 | S-4461 | PARTS REQUEST |
|
COMING DECAL; CAUTION, OP AT 3600 RPM ONLY
W7900636004 · qty on machine: 1 S-4461 | |||||
| 11 | D9512100203 | DECAL; CAUTION, WELDING OPERATION | 1 | D91210020 | ADD TO CART |
| 12 | A9511100004 | DECAL; WARNING READ MANUAL | 1 | A91110000 | PARTS REQUEST |
|
COMING DECAL; WARNING READ MANUAL
A9511100004 · qty on machine: 1 A91110000 | |||||
| 13 | A9521200004 | DECAL; OPERATING INSTRUCTION | 1 | A92120000 | ADD TO CART |
| 14 | D0561200104 | DECAL; MQ | 1 | S/N 5651617 AND ABOVE | PARTS REQUEST |
|
COMING DECAL; MQ
D0561200104 · qty on machine: 1 S/N 5651617 AND ABOVE | |||||
| 15 | D0561000303 | DECAL; MQ POWER | 1 | S/N 5651617 AND ABOVE | PARTS REQUEST |
|
COMING DECAL; MQ POWER
D0561000303 · qty on machine: 1 S/N 5651617 AND ABOVE | |||||
| 16 | 0561000204 | DECAL; MQ POWER | 1 | S/N 5651617 AND ABOVE | PARTS REQUEST |
|
COMING DECAL; MQ POWER
0561000204 · qty on machine: 1 S/N 5651617 AND ABOVE | |||||
| 17 | 87533ZC0630 | DECAL; AIR CLEANER | 1 | ADD TO CART | |
| 18 | 87528ZB2630 | DECAL; CHOKE | 1 | ADD TO CART | |
| 20 | B9531100104 | DECAL; DANGER ELECTROCUTION | 1 | D93110010 | PARTS REQUEST |
|
COMING DECAL; DANGER ELECTROCUTION
B9531100104 · qty on machine: 1 D93110010 | |||||
| 21 | A9504000014 | DECAL; WARNING, DANGEROUS GAS | 1 | A90400001 | ADD TO CART |
| 22 | M9504200004 | DECAL; WARNING, START FIRES | 1 | M90420000 S/N 5618610 ABOVE | ADD TO CART |
| 23 | A9511101304 | DECAL; WARNING, PROPOSITION | 65 | 1 A91110130 S/N 5825169 ABOVE | ADD TO CART |
| 24 | A5551003004 | DECAL; CO SENSOR | 1 | A55100300A S/N 50003377 AND ABOVE GAW135HNC2 | PARTS REQUEST |
|
COMING DECAL; CO SENSOR
A5551003004 · qty on machine: 1 A55100300A S/N 50003377 AND ABOVE GAW135HNC2 | |||||
| 25 | A9511101904 | DECAL; EQUIPPED WITH CO SENSOR | 1 | A91110190 S/N 50003377 AND ABOVE GAW135HNC2 | ADD TO CART |

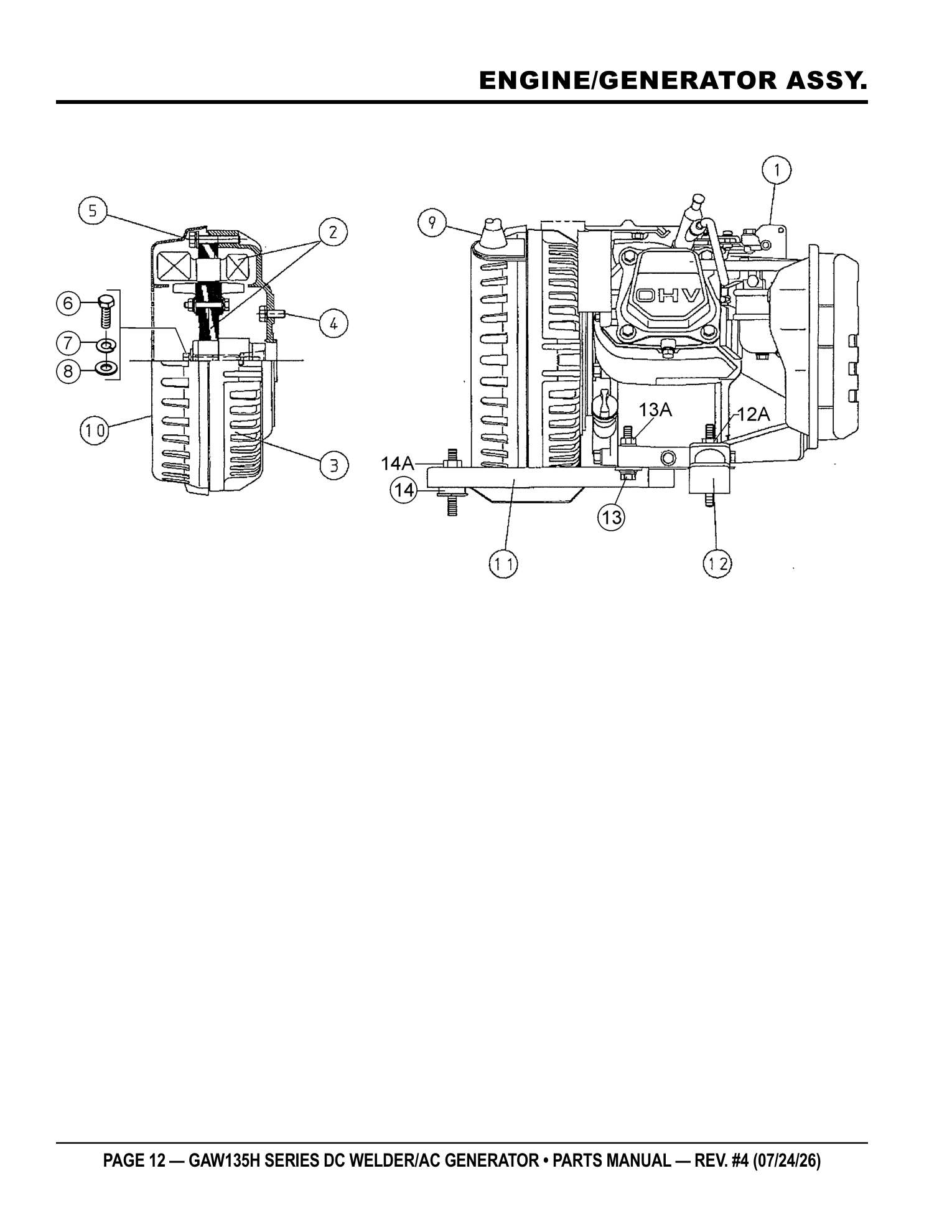

Page 12 — ENGINE/GENERATOR ASSY.
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | D0924200004 | ENGINE, HONDA GX200VEN2 | 1 | ADD TO CART | |
| 2 | D101000003 | GENERATOR ASSY. | 1 | ADD TO CART | |
| 3 | D0155100003 | END BRACKET | 1 | ADD TO CART | |
| 4 | 0012808020 | HEX. HEAD BOLT | 4 | ADD TO CART | |
| 5 | 0012308045 | HEX. HEAD BOLT | 4 | ADD TO CART | |
| 6 | 0012108070 | HEX. HEAD BOLT | 1 | ADD TO CART | |
| 7 | 0040008000 | WASHER, LOCK | 1 | ADD TO CART | |
| 8 | W0801086004 | WASHER, FLAT | 1 | PARTS REQUEST | |
|
COMING WASHER, FLAT
W0801086004 · qty on machine: 1 | |||||
| 9 | D1153300114 | GROMMET | 2 | PARTS REQUEST | |
|
COMING GROMMET
D1153300114 · qty on machine: 2 | |||||
| 10 | D1153400212 | COVER | 1 | PARTS REQUEST | |
|
COMING COVER
D1153400212 · qty on machine: 1 | |||||
| 11 | D041600033 | BASE | 1 | PARTS REQUEST | |
|
COMING BASE
D041600033 · qty on machine: 1 | |||||
| 12 | W7935416004 | RUBBER SUSPENSION | 2 | PARTS REQUEST | |
|
COMING RUBBER SUSPENSION
W7935416004 · qty on machine: 2 | |||||
| 12A | 0207208000 | HEX. NUT | 4 | ADD TO CART | |
| 13 | 0016908045 | HEX. HEAD BOLT | 2 | ADD TO CART | |
| 13A | 0207208000 | HEX. NUT | 2 | ADD TO CART | |
| 14 | W7935419204 | RUBBER SUSPENSION | 2 | PARTS REQUEST | |
|
COMING RUBBER SUSPENSION
W7935419204 · qty on machine: 2 | |||||
| 14A | 0207208000 | HEX. NUT | 4 | ADD TO CART | |

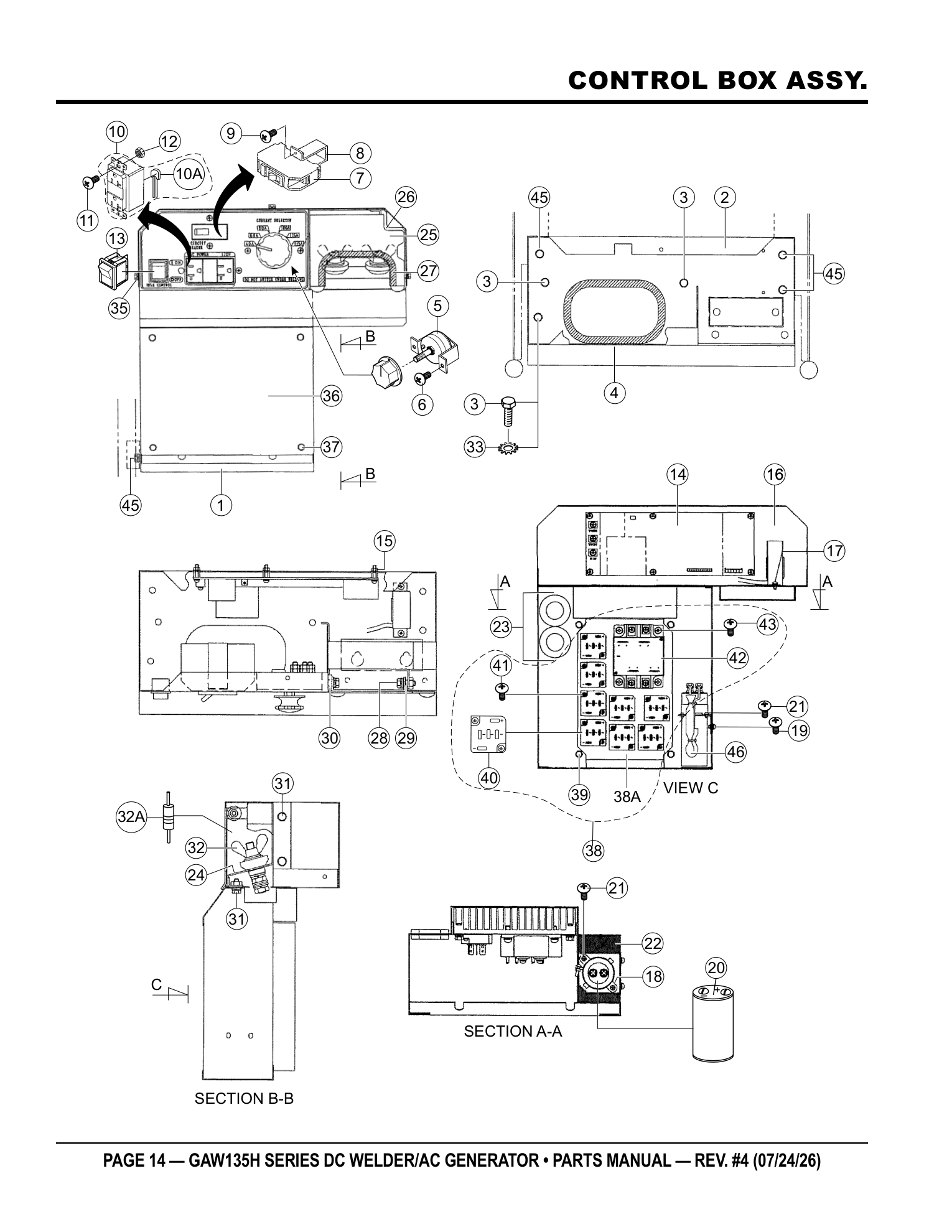

Page 14 — CONTROL BOX ASSY.
Parts list — exactly as printed40 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | D0214000303 | CONTROL BOX (FIN SIDE) | 1 | PARTS REQUEST | |
|
COMING CONTROL BOX (FIN SIDE)
D0214000303 · qty on machine: 1 | |||||
| 2 | D0214000203 | CONTROL BOX | 1 | PARTS REQUEST | |
|
COMING CONTROL BOX
D0214000203 · qty on machine: 1 | |||||
| 3 | 0016906015 | HEX. HEAD BOLT | 3 | ADD TO CART | |
| 4 | 0226900350 | TRIM SEAL | 1 | ADD TO CART | |
| 5 | 0601803051 | CURRENT SELECTOR | 1 | ADD TO CART | |
| 6 | 0027004030 | MACHINE SCREW | 2 | ADD TO CART | |
| 7 | 0601807489 | CIRCUIT BREAKER, 12.5A | 1 | S/N 5653859 AND BELOW | ADD TO CART |
| 7A | 0601809090 | CIRCUIT BREAKER, 15A 1P | 1 | 5653860 ~ 5685065 | PARTS REQUEST |
|
COMING CIRCUIT BREAKER, 15A 1P
0601809090 · qty on machine: 1 5653860 ~ 5685065 | |||||
| 78 | 0601807489 | CIRCUIT BREAKER, 12.5A | 1 | 5685066 AND ABOVE | ADD TO CART |
| 8 | W3011816004 | BRACKET, CIRCUIT BREAKER | 1 | PARTS REQUEST | |
|
COMING BRACKET, CIRCUIT BREAKER
W3011816004 · qty on machine: 1 | |||||
| 9 | 0021004010 | MACHINE SCREW | 2 | ADD TO CART | |
| 10 | 0601812598 | RECEPTACLE 5-20R GF53OEM (GFCI) | 1 | INCLUDES ITEMS W/$ 5608629 AND BELOW | ADD TO CART |
| 10 | 0601814013 | RECEPTACLE 5-20R GF20LA (GFCI) | 1 | INCLUDES ITEM W/$ 5608630 ~ 5792385 | ADD TO CART |
| 10 | 0601814024 | RECEPTACLE 5-20R GFRST20DEN (GFCI) | 1 | INCLUDES ITEM W/$ 5792386 ~ 5856953 | ADD TO CART |
| 10 | 0601814034 | RECEPTACLE 5-20R GFWR2-E (GFCI) | 1 | INCLUDES ITEM W/$ 5856954 AND ABOVE | ADD TO CART |
| 10A$ | 0601826150 | CAPACITOR 250 VAC, 0.1 µF (C2) | 1 | ADD TO CART | |
| 11 | 0021004010 | MACHINE SCREW | 2 | ADD TO CART | |
| 12 | 0207004000 | HEX. NUT | 2 | ADD TO CART | |
| 13 | 0601831620 | ROCKER SWITCH | 1 | ADD TO CART | |
| 14 | D0923100004 | INVERTER UNIT IN-10A | 1 | ADD TO CART | |
| 15 | 0207004000 | HEX. NUT | 6 | ADD TO CART | |
| 16 | 0601827350 | SLOWDOWN CONTROL UNIT | 1 | ADD TO CART | |
| 17 | 0028604010 | MACHINE SCREW | 2 | ADD TO CART | |
| 18 | D0260600014 | BRACKET, CAPACITOR | 1 | ADD TO CART | |
| 19 | 0028604010 | MACHINE SCREW | 2 | ADD TO CART | |
| 20 | 0601826178 | CAPACITOR, KMH250LGSN 250V 1500MB (C1) | 1 | ADD TO CART | |
| 21 | 0028603006 | MACHINE SCREW | 2 | ADD TO CART | |
| 22 | D0260600104 | RUBBER SEAT | 1 | ADD TO CART | |
| 23 | 0601850102 | GROMMET | 2 | NO LONGER AVAILABLE | |
|
COMING GROMMET
0601850102 · qty on machine: 2 NO LONGER AVAILABLE
| |||||
| 24 | D0237200003 | BRACKET, OUTPUT TERMINAL | 1 | ADD TO CART | |
| 25 | D0237100004 | COVER, OUTPUT TERMINAL | 1 | ADD TO CART | |
| 26 | D023700004 | RUBBER SEAT | 1 | PARTS REQUEST | |
|
COMING RUBBER SEAT
D023700004 · qty on machine: 1 | |||||
| 27 | 0316800160 | TRIM SEAL | 1 | ADD TO CART | |
| 28 | 0016906020 | HEX. HEAD BOLT | 2 | ADD TO CART | |
| 29 | W0805088304 | COLLAR | 2 | PARTS REQUEST | |
|
COMING COLLAR
W0805088304 · qty on machine: 2 | |||||
| 30 | W0805088004 | STAY RUBBER | 1 | ADD TO CART | |
| 31 | 0016906015 | HEX. HEAD BOLT | 4 | ADD TO CART | |
| 32 | D1230500004 | OUTPUT TERMINAL | 2 | ADD TO CART | |
| 32A | D0266600004 | RESISTOR, 15KW | 1 | ADD TO CART | |
| 33 | 0040506000 | TOOTHED WASHER | 1 | ADD TO CART | |

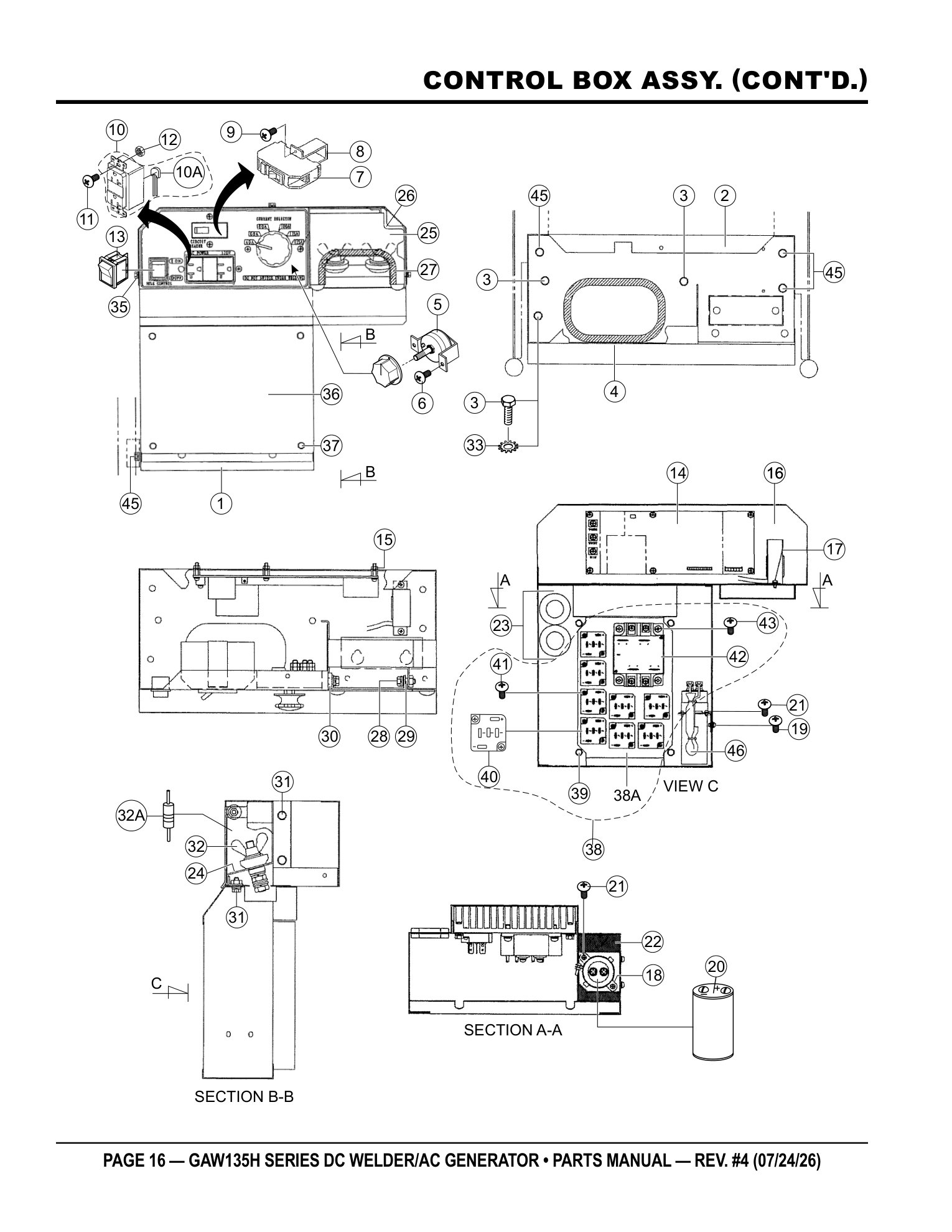

Page 16 — CONTROL BOX ASSY. (CONT'D.)
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | D0214000303 | CONTROL BOX (COOLING FIN SIDE) | 1 | PARTS REQUEST | |
|
COMING CONTROL BOX (COOLING FIN SIDE)
D0214000303 · qty on machine: 1 | |||||
| 34 | D0214500103 | ROOF, CONTROL BOX | 1 | PARTS REQUEST | |
|
COMING ROOF, CONTROL BOX
D0214500103 · qty on machine: 1 | |||||
| 35 | 0016905012 | HEX. HEAD BOLT | 6 | ADD TO CART | |
| 36 | D0214600004 | COVER, CONTROL BOX | 1 | ADD TO CART | |
| 37 | D0016905012 | HEX. HEAD BOLT | 4 | ADD TO CART | |
| 38 | D0266000123 | FIN ASSY | 1 | INCLUDES ITEMS W/# | PARTS REQUEST |
|
COMING FIN ASSY
D0266000123 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 38A#, 39#, 40#, 41#, 42#, 43# | |||||
| 38A# | D0266300214 | FIN | 1 | ADD TO CART | |
 FIN
D0266300214 · qty on machine: 1 Also included in kit 38 - FIN ASSY (D0266000123) view full part page → $23.95 IN A KIT + SOLD SOLO | |||||
| 39# | 0016905015 | HEX. HEAD BOLT | 4 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
0016905015 · qty on machine: 4 Also included in kit 38 - FIN ASSY (D0266000123) | |||||
| 40# | 0601823208 | RECTIFIER S30VT60 | 8 | ADD TO CART | |
| 41# | 0027103012 | MACHINE SCREW | 16 | ADD TO CART | |
| 42# | D0261000103 | TRANSISTOR ASSY. | 1 | ADD TO CART | |
| 43# | 0027105015 | MACHINE SCREW | 4 | ADD TO CART | |
| 45 | 0016906015 | HEX. HEAD BOLT | 4 | ADD TO CART | |
| 46 | D0267600004 | RESISTOR | 1 | S/N 5610470 AND ABOVE | ADD TO CART |

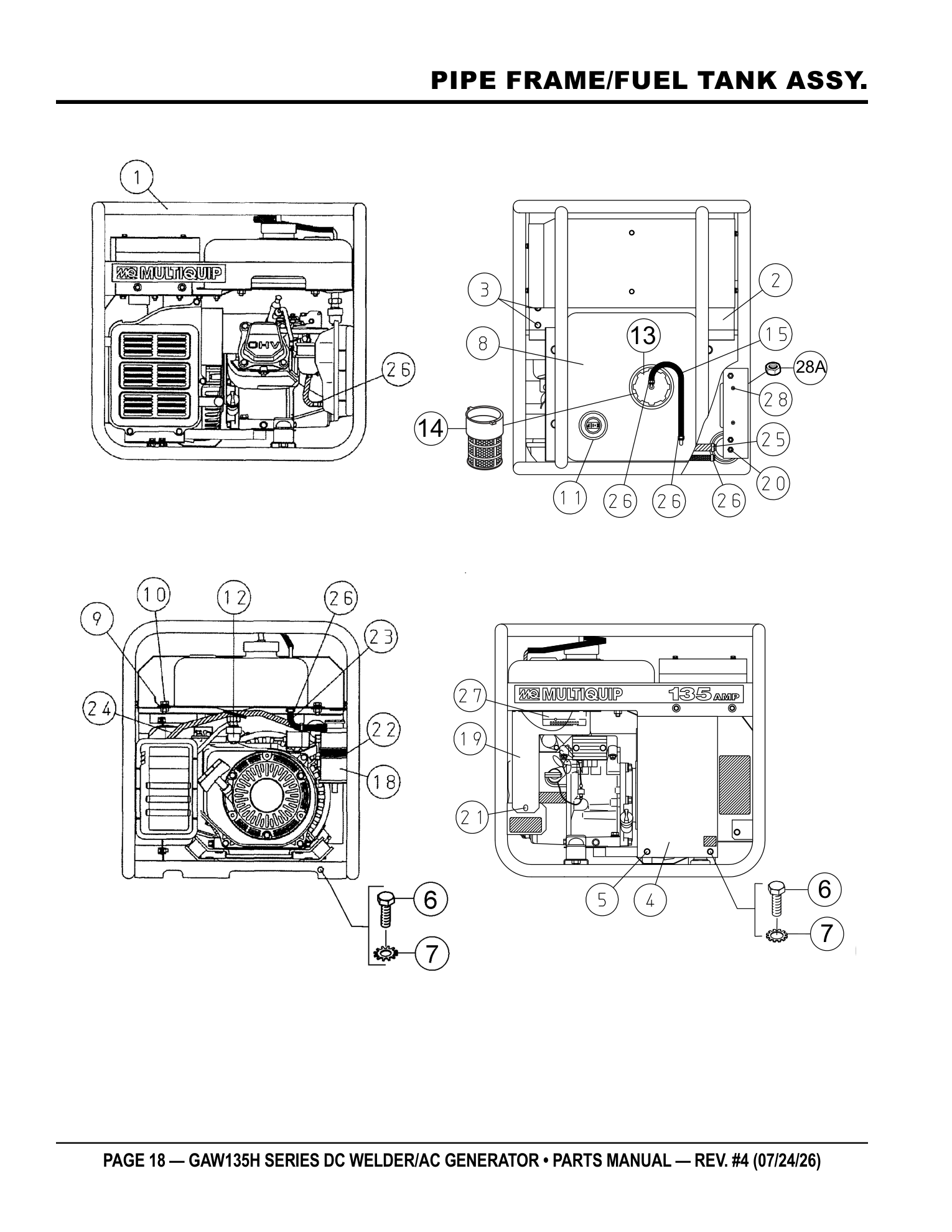

Page 18 — PIPE FRAME/FUEL TANK ASSY.
Parts list — exactly as printed41 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | D0417000102 | PIPE FRAME | 1 | S/N 5598074 AND BELOW | PARTS REQUEST |
|
COMING PIPE FRAME
D0417000102 · qty on machine: 1 S/N 5598074 AND BELOW | |||||
| 1 | D0417000112 | PIPE FRAME | 1 | S/N 5598075 ~ 50003376 | ADD TO CART |
| 1 | D0417000302 | PIPE FRAME | 1 | S/N 50003377 AND ABOVE | PARTS REQUEST |
|
COMING PIPE FRAME
D0417000302 · qty on machine: 1 S/N 50003377 AND ABOVE | |||||
| 2 | D0417400004 | GENERATOR GUARD | 1 | PARTS REQUEST | |
|
COMING GENERATOR GUARD
D0417400004 · qty on machine: 1 | |||||
| 3 | 0016906016 | HEX. HEAD BOLT | 3 | ADD TO CART | |
| 4 | D0454100003 | SIDE GUARD | 1 | S/N 5598074 AND BELOW | ADD TO CART |
| 4 | D0454100103 | SIDE GUARD | 1 | S/N 5598075 AND ABOVE | PARTS REQUEST |
|
COMING SIDE GUARD
D0454100103 · qty on machine: 1 S/N 5598075 AND ABOVE | |||||
| 5 | 0016906016 | HEX. HEAD BOLT | 1 | ADD TO CART | |
| 6 | 0019206016 | HEX. HEAD BOLT | 2 | ADD TO CART | |
| 7 | 0040506000 | TOOTHED WASHER | 2 | ADD TO CART | |
| 8 | D0364000002 | FUEL TANK | 1 | S/N 5629875 ~ AND BELOW | ADD TO CART |
| 8 | D0361000004 | FUEL TANK | 1 | S/N 5629876 ~ 5868886 | PARTS REQUEST |
|
COMING FUEL TANK
D0361000004 · qty on machine: 1 S/N 5629876 ~ 5868886 | |||||
| 8 | D0361000014 | FUEL TANK | 1 | S/N 5868887 AND ABOVE | ADD TO CART |
| 9 | D0416400204 | OVER FLOW GUARD | 1 | ADD TO CART | |
| 10 | 0016908020 | HEX. HEAD BOLT | 4 | ADD TO CART | |
| 11 | 0602125031 | FUEL GAUGE | 1 | ADD TO CART | |
| 12 | 16950898633 | FUEL COCK | 1 | REPLACES P/N 0602042450 | ADD TO CART |
| 13 | 0430430120 | CAP. FUEL TANK | 1 | REPLACES P/N 0605505068 S/N 5856953 AND BELOW | PARTS REQUEST |
|
COMING CAP. FUEL TANK
0430430120 · qty on machine: 1 REPLACES P/N 0605505068 S/N 5856953 AND BELOW | |||||
| 13 | A2361000304 | CAP. FUEL TANK | 1 | S/N 5856954 AND ABOVE | ADD TO CART |
| 14 | 0641360030 | FUEL FILTER | 1 | REPLACES P/N 0605505162 | ADD TO CART |
| 15 | 0605513189 | HOSE | 1 | S/N 5814940 AND BELOW | NO LONGER AVAILABLE |
|
COMING HOSE
0605513189 · qty on machine: 1 S/N 5814940 AND BELOW NO LONGER AVAILABLE
| |||||
| 15 | 0605513219 | HOSE | 1 | S/N 5814941 AND ABOVE | ADD TO CART |
| 16 | 0605515280 | HOSE BAND | 1 | S/N 5814940 AND BELOW | NO LONGER AVAILABLE |
|
COMING HOSE BAND
0605515280 · qty on machine: 1 S/N 5814940 AND BELOW NO LONGER AVAILABLE
| |||||
| 17 | 0605515281 | HOSE BAND | 1 | S/N 5814940 AND BELOW | ADD TO CART |
| 18 | 0605507000 | CANISTER | 1 | S/N 5856953 AND BELOW | ADD TO CART |
| 18 | 0605507007 | CANISTER | 1 | S/N 5856954 AND ABOVE | PARTS REQUEST |
|
COMING CANISTER
0605507007 · qty on machine: 1 S/N 5856954 AND ABOVE | |||||
| 19 | D0261600004 | BRACKET | 1 | S/N 50003376 AND BELOW | PARTS REQUEST |
|
COMING BRACKET
D0261600004 · qty on machine: 1 S/N 50003376 AND BELOW | |||||
| 19 | D0261600703 | BRACKET | 1 | S/N 50003377 AND ABOVE | PARTS REQUEST |
|
COMING BRACKET
D0261600703 · qty on machine: 1 S/N 50003377 AND ABOVE | |||||
| 20 | 0216906015 | HEX. HEAD BOLT | 2 | S/N 50003376 AND BELOW | PARTS REQUEST |
|
COMING HEX. HEAD BOLT
0216906015 · qty on machine: 2 S/N 50003376 AND BELOW | |||||
| 20 | 0216906015 | HEX. HEAD BOLT | 3 | S/N 50003377 AND ABOVE | PARTS REQUEST |
|
COMING HEX. HEAD BOLT
0216906015 · qty on machine: 3 S/N 50003377 AND ABOVE | |||||
| 21 | 0016906015 | HEX. HEAD BOLT | 1 | ADD TO CART | |
| 22 | 0605515139 | HOSE BAND HS32 | 1 | ADD TO CART | |
| 23 | 0605513200 | HOSE | 1 | PARTS REQUEST | |
|
COMING HOSE
0605513200 · qty on machine: 1 | |||||
| 24 | 0605513201 | HOSE | 1 | PARTS REQUEST | |
|
COMING HOSE
0605513201 · qty on machine: 1 | |||||
| 25 | 0605515226 | HOSE BAND TS-125 | 1 | S/N 5595267 AND BELOW | PARTS REQUEST |
|
COMING HOSE BAND TS-125
0605515226 · qty on machine: 1 S/N 5595267 AND BELOW | |||||
| 25 | 0605515224 | HOSE BAND TS-120 | 1 | S/N 5595268 AND ABOVE | ADD TO CART |
| 26 | 0605515223 | HOSE BAND TS-100 | 3 | S/N 5814940 AND BELOW | ADD TO CART |
| 26 | 0605515223 | HOSE BAND TS-100 | 5 | S/N 5814941 AND ABOVE | ADD TO CART |
| 27 | 0602211802 | CO SENSOR GSO-II02 | 1 | S/N 50003377 AND ABOVE GAW135HNC2 | ADD TO CART |
| 28 | 0027103035 | MACHINE SCREW | 2 | S/N 50003377 AND ABOVE GAW135HNC2 | PARTS REQUEST |
|
COMING MACHINE SCREW
0027103035 · qty on machine: 2 S/N 50003377 AND ABOVE GAW135HNC2 | |||||
| 28A | 0038403000 | HEX. NUT | 2 | S/N 50003377 AND ABOVE GAW135HNC2 | ADD TO CART |

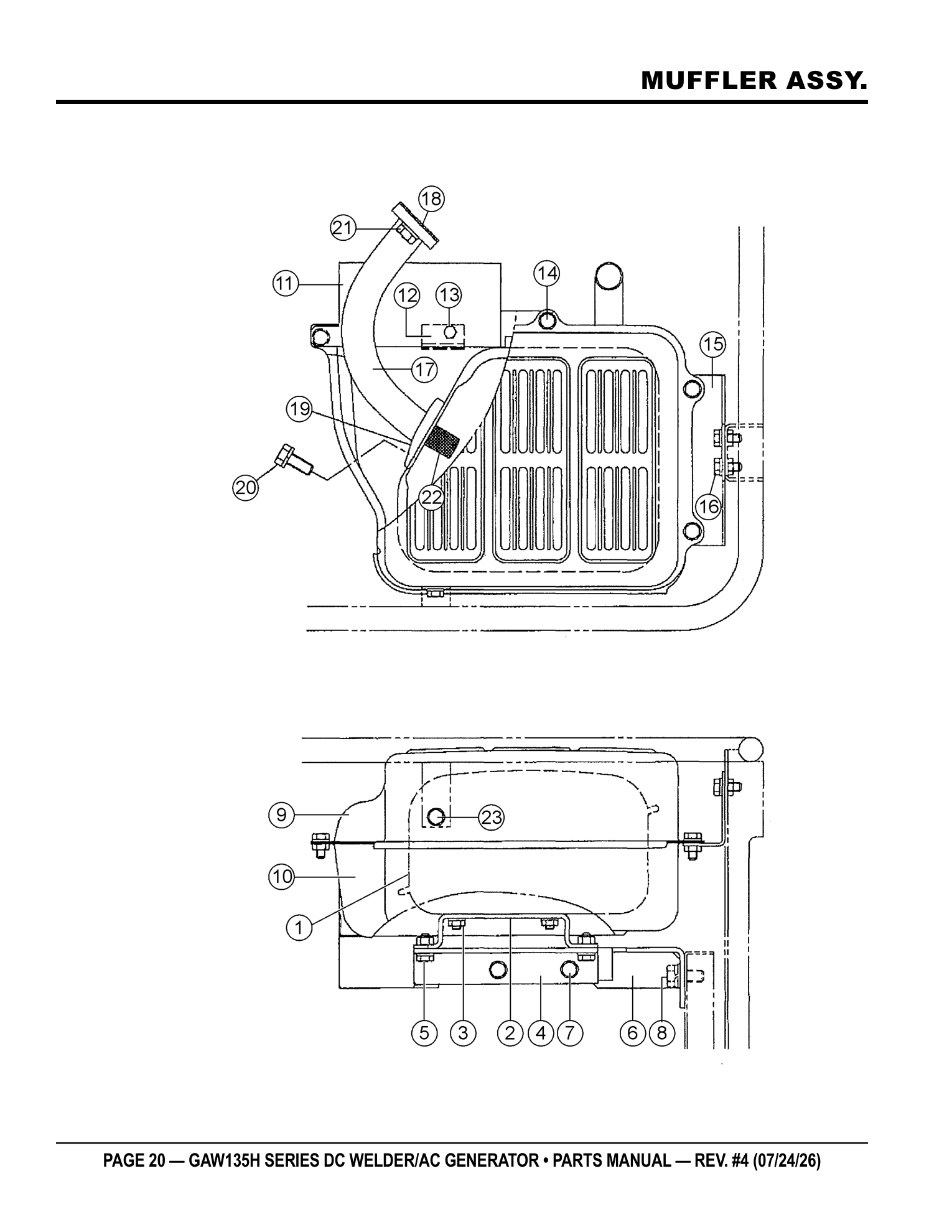

Page 20 — MUFFLER ASSY.
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 18310ZB3C001 | MUFFLER | 1 | PARTS REQUEST | |
|
COMING MUFFLER
18310ZB3C001 · qty on machine: 1 | |||||
| 2 | D0330400314 | MUFFLER BRACKET | 1 | ADD TO CART | |
| 3 | 0207006000 | HEX NUT | 2 | ADD TO CART | |
| 4 | D0330400404 | MUFFLER ADJUSTER | 1 | ADD TO CART | |
| 5 | 0016906016 | HEX HEAD BOLT | 2 | ADD TO CART | |
| 6 | D0330400033 | MUFFLER STAY | 1 | ADD TO CART | |
| 7 | 0016906016 | HEX HEAD BOLT | 2 | ADD TO CART | |
| 8 | 0016908025 | HEX HEAD BOLT | 1 | ADD TO CART | |
| 9 | 0602302006 | MUFFLER COVER, OUTER | 1 | ADD TO CART | |
| 10 | 0602302007 | MUFFLER COVER, OUTER | 1 | PARTS REQUEST | |
|
COMING MUFFLER COVER, OUTER
0602302007 · qty on machine: 1 | |||||
| 11 | D0330300022 | DUCT, MUFFLER COVER | 1 | ADD TO CART | |
| 12 | D0330300124 | DUCT, BRACKET | 1 | ADD TO CART | |
| 13 | 0016905010 | HEX HEAD BOLT | 1 | ADD TO CART | |
| 14 | 0017306010 | HEX HEAD BOLT | 5 | PARTS REQUEST | |
|
COMING HEX HEAD BOLT
0017306010 · qty on machine: 5 | |||||
| 15 | D0330400124 | BRACKET, MUFFLER COVER | 1 | ADD TO CART | |
| 16 | 0016906016 | HEX HEAD BOLT | 1 | ADD TO CART | |
| 17 | D0333000012 | EXHAUST PIPE | 1 | ADD TO CART | |
| 18 | 18381ZH8800 | GASKET | 1 | ADD TO CART | |
| 19 | 18381ZE1800 | GASKET | 1 | ADD TO CART | |
| 20 | 92101980200A | HEX HEAD BOLT | 2 | PARTS REQUEST | |
|
COMING HEX HEAD BOLT
92101980200A · qty on machine: 2 | |||||
| 21 | 94001080000S | HEX NUT | 2 | ADD TO CART | |
| 22 | 18355898630 | SPARK ARRESTER | 1 | ADD TO CART | |
| 23 | 016905010 | HEX HEAD BOLT | 1 | PARTS REQUEST | |
|
COMING HEX HEAD BOLT
016905010 · qty on machine: 1 | |||||

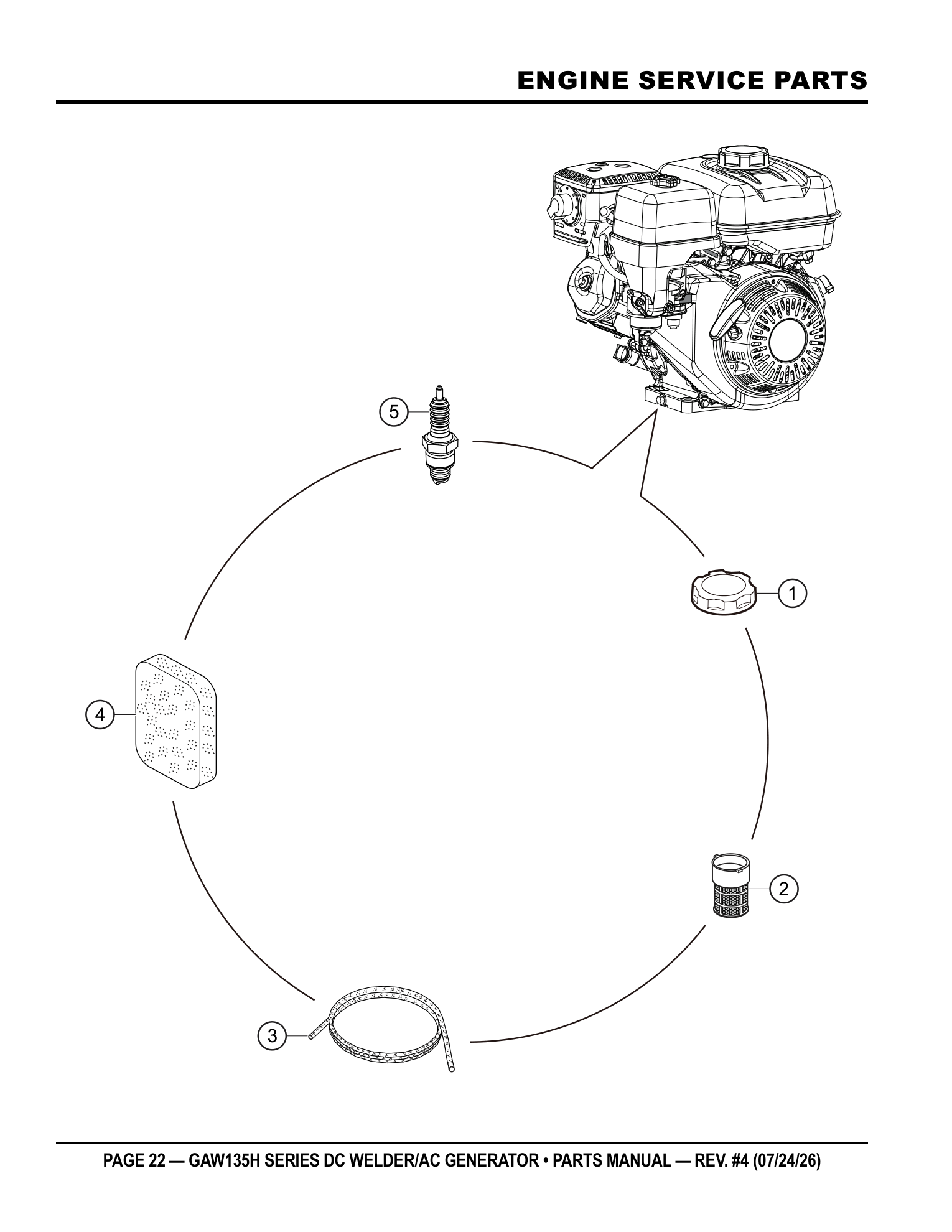

Page 22 — UNKNOWN
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 0430430120 | CAP, FUEL TANK | 1 | S/N 5856953 AND BELOW | PARTS REQUEST |
|
COMING CAP, FUEL TANK
0430430120 · qty on machine: 1 S/N 5856953 AND BELOW | |||||
| 1 | A2361000304 | CAP, FUEL TANK | 1 | S/N 5856954 AND ABOVE | ADD TO CART |
| 2 | 0641360030 | FILTER, FUEL TANK | 1 | ADD TO CART | |
| 3 | 28462ZH8003 | ROPE, RECOIL STARTER | 1 | ADD TO CART | |
| 4 | 17211ZB2000 | ELEMENT, AIR CLEANER | 1 | ADD TO CART | |
| 5 | 9807956846 | SPARK PLUG | 1 | ADD TO CART | |
The machine itself
Price by quote
Get a quote
Tell us where the machine is headed and we'll quote it with freight. One call, no games.
Machine
Engine
The Multiquip GAW-135H is a welder built for field welding on construction, pipeline, and fabrication work where shore power is not available. It runs a HONDAGX200VEN2 engine. Factory-documented specs and parts support; priced by quote.
Keep-it-running spares
All listed parts →Every part that fits this machine
0601803051
Multiquip 0601803051 Current Selector without Knob - OEM Replacement Part
$492.95
0601807489
Multiquip 0601807489 Circuit Breaker - OEM Replacement Part for Welder Generators
$73.95
0601814013
Multiquip 0601814013 Receptacle - OEM Replacement Part (Use Y0601814034)
$118.95
0601814024
Multiquip 0601814024 GFCI Receptacle - OEM Replacement Part
$78.95
0601814034
Multiquip 0601814034 GFCI Receptacle 5-20R GFWR2-E - OEM Replacement Part
$331.95
0601823208
Multiquip 0601823208 Rectifier - OEM Replacement Part for Welder Generator
$77.95
0601826178
Multiquip 0601826178 Condenser - OEM Replacement Part for GAW-135H Welder Generator
$95.95
0601827350
Multiquip 0601827350 Control Unit DA-7000SS - OEM Replacement Part
$244.95
0602211802
Multiquip 0602211802 CO Sensor Denyo (JP) - OEM Replacement Part for Gas Generators
$665.95
0605507000
Multiquip 0605507000 Canister - OEM Replacement Part for Welder Equipment
$77.95
16950898633
Multiquip 16950898633 Fuel Cock Assembly - OEM Replacement Part
$102.95
A2361000304
Multiquip A2361000304 Fuel Tank Cap - OEM Replacement Part
$176.95
A9511101904
Multiquip A9511101904 CO Sensor Equipped Safety Decal (Japanese) - OEM Replacement Part
$34.95
D0155100003
Multiquip D0155100003 Bracket End - OEM Replacement Part for Welder
$76.95
D0214600004
Multiquip D0214600004 Control Box Cover - OEM Replacement Part for Welder Generator
$142.95
D0237100004
Multiquip D0237100004 Cover Output Terminal - OEM Welder Replacement Part
$51.95
D0237200003
Multiquip D0237200003 Bracket Output Terminal - OEM Replacement Part for Welders
$91.95
D0330300022
Multiquip D0330300022 Duct Muffler Cover - OEM Replacement Part for Welder Generator
$147.95
D0330400033
Multiquip D0330400033 Muffler - OEM Replacement Part for GAW-135H Welder Generator
$35.95
D0333000012
Multiquip D0333000012 Pipe Exhaust - OEM Replacement Part for GAW-135H Welder
$47.95
D0361000014
Multiquip D0361000014 Fuel Tank (JP) - OEM Replacement Part for Welder/Generator
$712.95
D0364000002
Multiquip D0364000002 Fuel Tank - OEM Replacement Part for Welders
$748.95
D0923100004
Multiquip D0923100004 Inverter Unit GAW-135H - OEM Replacement Part
$2,216.95
D0924200004
Multiquip D0924200004 Engine GAW-135H - OEM Replacement Part
$3,546.95
D1230500004
Multiquip D1230500004 Terminal Output GAW-135H - OEM Replacement Part
$51.95
0012108070
HEX. HEAD BOLT
$2.95
0012308045
HEX. HEAD BOLT
$2.95
0012808020
HEX. HEAD BOLT
$1.95
0016905010
HEX HEAD BOLT
$0.63
0016905012
HEX. HEAD BOLT
$1.64
0016905015
HEX. HEAD BOLT
0016906015
HEX. HEAD BOLT
$0.95
0016906016
HEX. HEAD BOLT
$0.81
0016906020
HEX. HEAD BOLT
0016908020
HEX. HEAD BOLT
0016908025
HEX HEAD BOLT
0016908045
HEX. HEAD BOLT
$1.84
0017306010
HEX HEAD BOLT
0019206016
HEX. HEAD BOLT
$2.73
0021004010
MACHINE SCREW
$0.33
0027004030
MACHINE SCREW
$0.44
0027103012
MACHINE SCREW
$0.45
0027105015
MACHINE SCREW
$0.20
0028603006
MACHINE SCREW
$0.75
0028604010
MACHINE SCREW
$0.90
0038403000
HEX. NUT
$0.48
0040008000
WASHER, LOCK
$0.63
0040506000
TOOTHED WASHER
$0.77
016905010
HEX HEAD BOLT
0207004000
HEX. NUT
0207006000
HEX NUT
0207208000
HEX. NUT
0216906015
HEX. HEAD BOLT
0226900350
TRIM SEAL
$6.95
0316800160
TRIM SEAL
$4.95
0601812598
RECEPTACLE 5-20R GF53OEM (GFCI)
0601826150
CAPACITOR 250 VAC, 0.1 µF (C2)
$4.95
0601831620
Multiquip 0601831620 Switch Rocker - OEM Replacement Part
$64.95
0601850102
GROMMET
0602125031
FUEL GAUGE
$23.95
0602302006
MUFFLER COVER, OUTER
0602302007
MUFFLER COVER, OUTER
0605513189
HOSE
0605513200
HOSE
0605513201
HOSE
0605515139
HOSE BAND HS32
$6.95
0605515223
HOSE BAND TS-100
$1.51
0605515226
HOSE BAND TS-125
0605515280
HOSE BAND
18310ZB3C001
MUFFLER
18355898630
SPARK ARRESTER
$31.95
18381ZE1800
GASKET
$7.95
18381ZH8800
GASKET
$7.95
87528ZB2630
DECAL; CHOKE
$2.59
87533ZC0630
DECAL; AIR CLEANER
$7.95
92101980200A
HEX HEAD BOLT
94001080000S
HEX NUT
A5551003004
DECAL; CO SENSOR
A9511101304
DECAL; WARNING, PROPOSITION 65
$4.95
A9521200004
DECAL; OPERATING INSTRUCTION
$3.95
B9531100104
DECAL; DANGER ELECTROCUTION
D0016905012
HEX. HEAD BOLT
$1.45
D0214000203
CONTROL BOX
D0214000303
CONTROL BOX (FIN SIDE)
D0260600014
BRACKET, CAPACITOR
$23.95
D0260600104
RUBBER SEAT
$1.95
D0261600004
BRACKET
D0266300214
FIN
$23.95
D0266600004
RESISTOR, 15KW
$31.95
D0267600004
RESISTOR
$24.95
D0330300124
DUCT, BRACKET
$10.95
D0330400124
BRACKET, MUFFLER COVER
$21.95
D0330400314
MUFFLER BRACKET
$30.95
D0330400404
MUFFLER ADJUSTER
$22.95
D0417000102
PIPE FRAME
D0417000302
PIPE FRAME
D0454100003
SIDE GUARD
$31.95
D0521100103
DECAL; CONTROL PANEL
D0521100203
DECAL; CONTROL PANEL
D0561000104
DECAL; MQ MULTIQUIP
$6.95
D0561000303
DECAL; MQ POWER
D101000003
GENERATOR ASSY.
$3,252.07
D1153300114
GROMMET
D1153400212
COVER
D9504200204
DECAL; DANGER, DANGEROUS GAS
D9512100203
DECAL; CAUTION, WELDING OPERATION
$12.95
D9522100204
DECAL; WARNING, PROPOSITION 65
DCL160
DECAL; WARNING, PROP. 65
$2.68
M9504200004
DECAL; WARNING, START FIRES
$3.95
W0800628504
DECAL; GROUND TERMINAL
W0801086004
WASHER, FLAT
W0805088004
STAY RUBBER
W0805088304
COLLAR
W1980680004
DECAL; FUEL COCK
W3011816004
BRACKET, CIRCUIT BREAKER
W7935416004
RUBBER SUSPENSION
W7935419204
RUBBER SUSPENSION
W8700611804
DECAL; WARNING, DANGEROUS GASES
$5.95
W8700611904
DECAL; DANGER, ELECTRIC SHOCK HAZ
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
