Multiquip J3036 30" Walk Behind Trowel

Name: Multiquip J3036 30" Walk Behind Trowel
Brand: Multiquip
SKU: J3036H55
Price: 3869.0 USD
Availability: InStock

The parts bench

Need the PDF? ↓

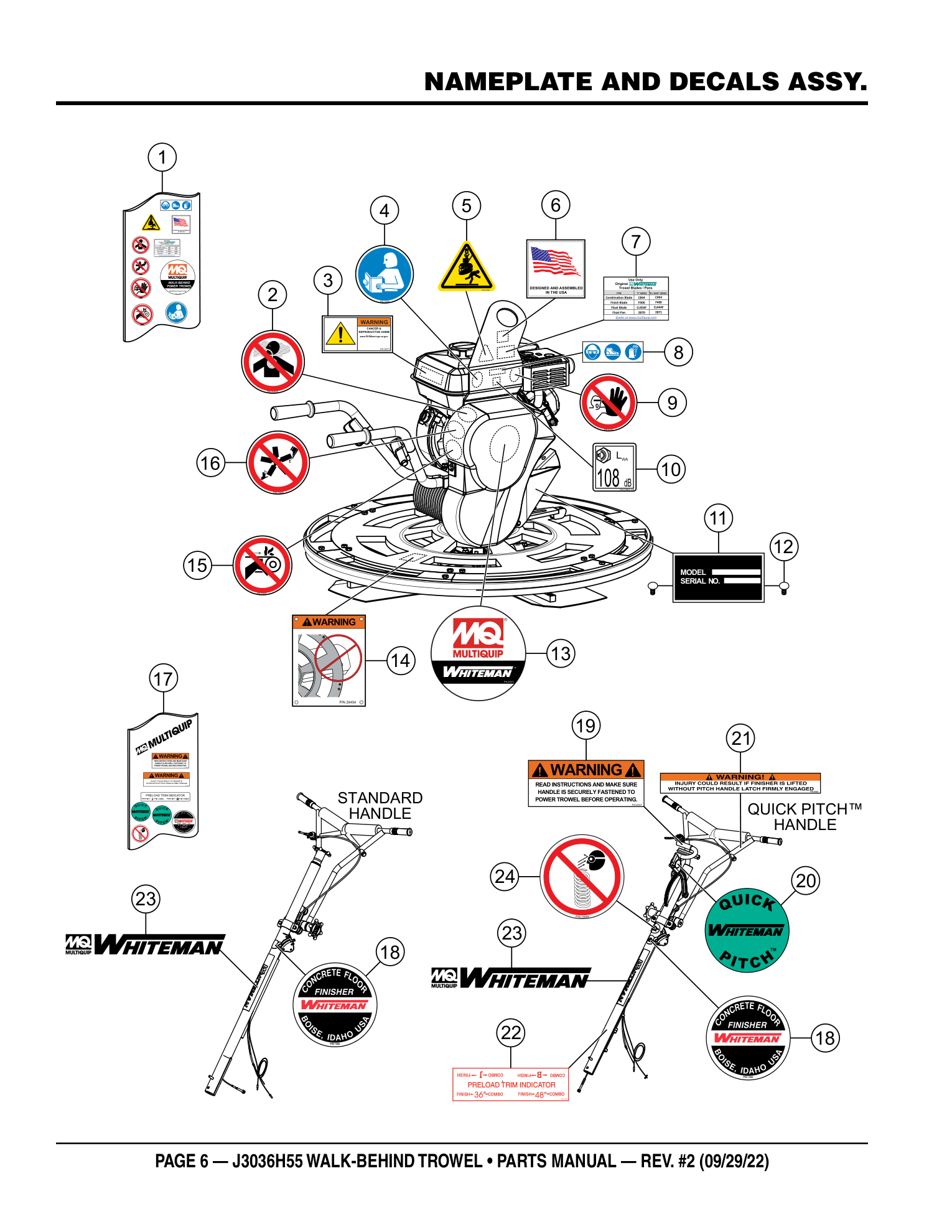

Page 6 — NAMEPLATE AND DECALS ASSY.

Parts list — exactly as printed24 rows

No.	Part No.	Part Name	Qty	Remarks
1	30651	DECAL KIT, J AND B FINISHERS	1	INCLUDES ITEMS W/#	PARTS REQUEST
PHOTO COMING DECAL KIT, J AND B FINISHERS 30651 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 2#, 3#, 4#, 5#, 6#, 7#, 8#, 9#, 13#, 15#, 16# PARTS REQUEST
2#	23810	ISO DECAL, INHALATION HAZARD, 2.00" DIA.	1		ADD TO CART
ISO DECAL, INHALATION HAZARD, 2.00" DIA. 23810 · qty on machine: 1 Also included in kit 1 - DECAL KIT, J AND B FINISHE (30651) view full part page → $1.69 IN A KIT + SOLD SOLO
3#	38707	DECAL, ISO PROP 65	1		ADD TO CART
DECAL, ISO PROP 65 38707 · qty on machine: 1 Also included in kit 1 - DECAL KIT, J AND B FINISHE (30651) view full part page → $1.32 IN A KIT + SOLD SOLO
4#	23699	ISO DECAL, READ MANUAL, 2.00" DIA.	1		ADD TO CART
ISO DECAL, READ MANUAL, 2.00" DIA. 23699 · qty on machine: 1 Also included in kit 1 - DECAL KIT, J AND B FINISHE (30651) view full part page → $0.95 IN A KIT + SOLD SOLO
5#	23700	ISO DECAL, LIFTING/CRUSH, 2.4" X 2.0"	1		ADD TO CART
ISO DECAL, LIFTING/CRUSH, 2.4" X 2.0" 23700 · qty on machine: 1 Also included in kit 1 - DECAL KIT, J AND B FINISHE (30651) view full part page → $1.79 IN A KIT + SOLD SOLO
6#	30538	DECAL, FLAG DESIGNED AND ASSEMBLED IN USA	1		ADD TO CART
DECAL, FLAG DESIGNED AND ASSEMBLED IN USA 30538 · qty on machine: 1 Also included in kit 1 - DECAL KIT, J AND B FINISHE (30651) view full part page → $1.31 IN A KIT + SOLD SOLO
7#	32210	DECAL, BLADES PANS OPTIONS	1		PARTS REQUEST
PHOTO COMING DECAL, BLADES PANS OPTIONS 32210 · qty on machine: 1 Also included in kit 1 - DECAL KIT, J AND B FINISHE (30651) PARTS REQUEST
8#	36099	ISO DECAL, PROTECTIVE CLOTHING, 3.50" X 1.13"	1		ADD TO CART
ISO DECAL, PROTECTIVE CLOTHING, 3.50" X 1.13" 36099 · qty on machine: 1 Also included in kit 1 - DECAL KIT, J AND B FINISHE (30651) view full part page → $1.55 IN A KIT + SOLD SOLO
9#	23701	ISO DECAL, ASK FOR TRAINING, 2.00" DIA.	1		ADD TO CART
ISO DECAL, ASK FOR TRAINING, 2.00" DIA. 23701 · qty on machine: 1 Also included in kit 1 - DECAL KIT, J AND B FINISHE (30651) view full part page → $3.95 IN A KIT + SOLD SOLO
10	23803-108	ISO DECAL, GUARANTEED SOUND 108 DB(A)	1		ADD TO CART
ISO DECAL, GUARANTEED SOUND 108 DB(A) 23803-108 · qty on machine: 1 view full part page → $1.06
11	13811	DECAL, SERIAL PLATE	1		PARTS REQUEST
PHOTO COMING DECAL, SERIAL PLATE 13811 · qty on machine: 1 PARTS REQUEST
12	4014	SCREW, 2-3/16 P-K TYPE U-DRIVE	2		ADD TO CART
SCREW, 2-3/16 P-K TYPE U-DRIVE 4014 · qty on machine: 2 view full part page → $0.23
13#	22070	DECAL, MQ WHITEMAN POWER TROWEL 3.78" DIA.	1		ADD TO CART
DECAL, MQ WHITEMAN POWER TROWEL 3.78" DIA. 22070 · qty on machine: 1 Also included in kit 1 - DECAL KIT, J AND B FINISHE (30651) view full part page → $2.75 IN A KIT + SOLD SOLO
14	24454	DECAL, NO EXPOSED BLADE	3		PARTS REQUEST
PHOTO COMING DECAL, NO EXPOSED BLADE 24454 · qty on machine: 3 PARTS REQUEST
15#	23704	ISO DECAL, GUARD WARNING 2.00" DIA.	1		ADD TO CART
ISO DECAL, GUARD WARNING 2.00" DIA. 23704 · qty on machine: 1 Also included in kit 1 - DECAL KIT, J AND B FINISHE (30651) view full part page → $2.95 IN A KIT + SOLD SOLO
16#	23698	ISO DECAL, ROTATING BLADE HAZARD, 2.00" DIA.	1		ADD TO CART
ISO DECAL, ROTATING BLADE HAZARD, 2.00" DIA. 23698 · qty on machine: 1 Also included in kit 1 - DECAL KIT, J AND B FINISHE (30651) view full part page → $1.32 IN A KIT + SOLD SOLO
17	32344	DECAL KIT, WBT HANDLES	1	INCLUDES ITEMS W/%	PARTS REQUEST
PHOTO COMING DECAL KIT, WBT HANDLES 32344 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 18%, 19%, 20%, 21%, 22%, 23%, 24% PARTS REQUEST
18%	1492	DECAL, CUSTOM, 2-1/2" CHROME, WHITEMAN	1		ADD TO CART
DECAL, CUSTOM, 2-1/2" CHROME, WHITEMAN 1492 · qty on machine: 1 Also included in kit 17 - DECAL KIT, WBT HANDLES (32344) view full part page → $1.84 IN A KIT + SOLD SOLO
19%	20527	DECAL, WARNING, QUICK-PITCH WARNING	1	QUICK PITCH ONLY	ADD TO CART
DECAL, WARNING, QUICK-PITCH WARNING 20527 · qty on machine: 1 QUICK PITCH ONLY Also included in kit 17 - DECAL KIT, WBT HANDLES (32344) view full part page → $0.95 IN A KIT + SOLD SOLO
20%	12405	DECAL, QUICK-PITCH HANDLE INSERT	2	QUICK PITCH ONLY	ADD TO CART
DECAL, QUICK-PITCH HANDLE INSERT 12405 · qty on machine: 2 QUICK PITCH ONLY Also included in kit 17 - DECAL KIT, WBT HANDLES (32344) view full part page → $3.95 IN A KIT + SOLD SOLO
21%	20526	DECAL, WARNING, QUICK-PITCH LATCH WARNING	1	QUICK PITCH ONLY	ADD TO CART
DECAL, WARNING, QUICK-PITCH LATCH WARNING 20526 · qty on machine: 1 QUICK PITCH ONLY Also included in kit 17 - DECAL KIT, WBT HANDLES (32344) view full part page → $0.94 IN A KIT + SOLD SOLO
22%	1735	DECAL, PRE-LOAD	1	QUICK PITCH ONLY	ADD TO CART
DECAL, PRE-LOAD 1735 · qty on machine: 1 QUICK PITCH ONLY Also included in kit 17 - DECAL KIT, WBT HANDLES (32344) view full part page → $1.83 IN A KIT + SOLD SOLO
23%	2942	DECAL, MQ WHITEMAN 13" WHITE	1		ADD TO CART
DECAL, MQ WHITEMAN 13" WHITE 2942 · qty on machine: 1 Also included in kit 17 - DECAL KIT, WBT HANDLES (32344) view full part page → $2.95 IN A KIT + SOLD SOLO
24%	23804	DECAL, ISO, DO NOT DISASSEMBLE, CYLINDER	1	QUICK PITCH ONLY	ADD TO CART
DECAL, ISO, DO NOT DISASSEMBLE, CYLINDER 23804 · qty on machine: 1 QUICK PITCH ONLY Also included in kit 17 - DECAL KIT, WBT HANDLES (32344) view full part page → $0.74 IN A KIT + SOLD SOLO

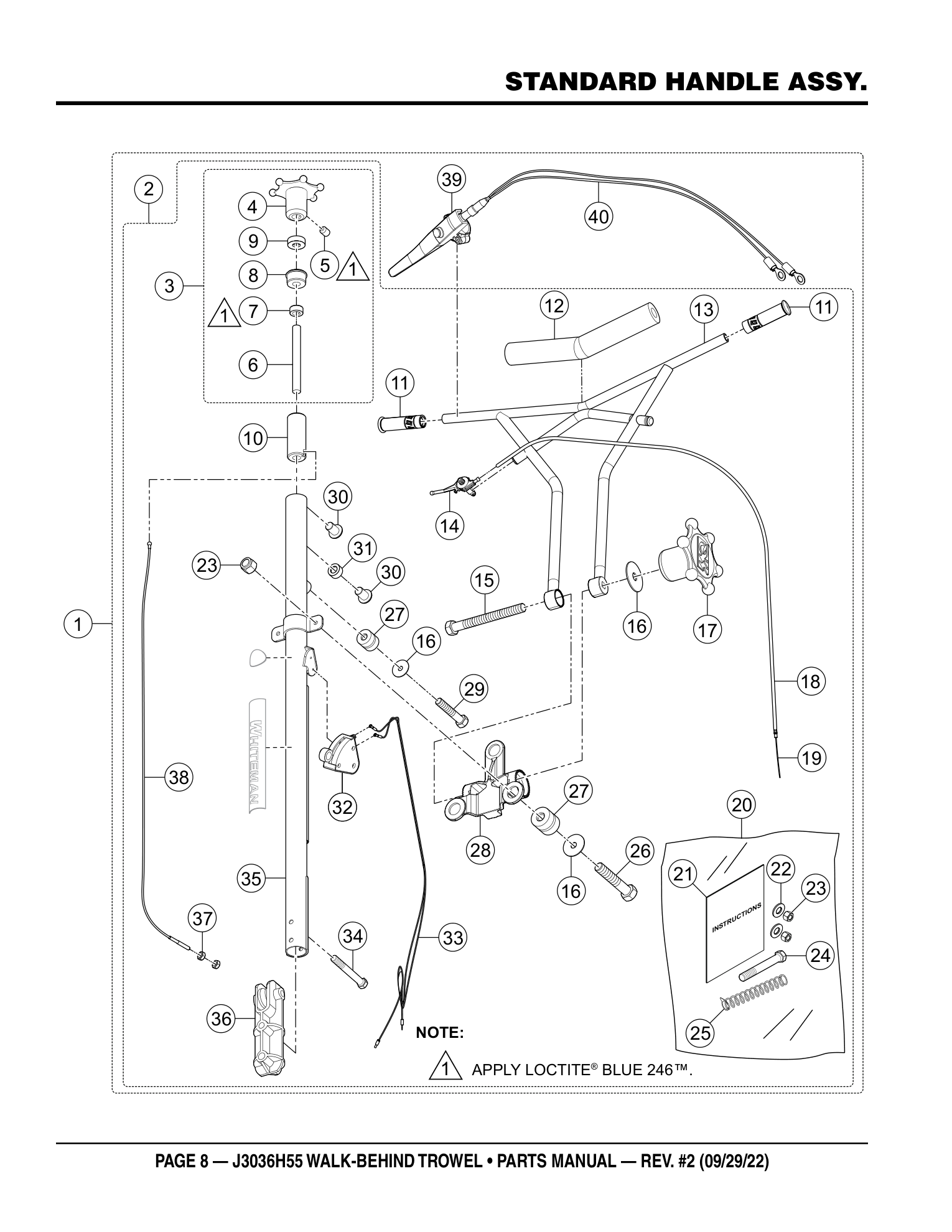

Page 8 — STANDARD HANDLE ASSY.

Parts list — exactly as printed40 rows

No.	Part No.	Part Name	Qty	Remarks
1	SXHP	HANDLE ASSY., STD. VIBE CONTROL OP PRESENCE	1	INCLUDES ITEMS W/%	PARTS REQUEST
PHOTO COMING HANDLE ASSY., STD. VIBE CONTROL OP PRESENCE SXHP · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 2%, 3%@, 4%@#, 5%@#, 6%@#, 7%@#, 8%@#, 9%@#, 10%@, 11%@, 12%@, 13%@, 14%@, 15%@, 16%@, 17%@, 18%@, 19%@, 20%@, 21%@, 22%@, 23%@, 24%@, 25%@, 26%@, 27%@, 28%@, 29%@, 30%@, 31%@, 32%@, 33%@, 34%@, 35%@, 36%@, 37%@, 38%@, 39%, 40% PARTS REQUEST
2%	SXH	HANDLE ASSY., STD. VIBE CONTROL	1	INCLUDES ITEMS W/@	PARTS REQUEST
PHOTO COMING HANDLE ASSY., STD. VIBE CONTROL SXH · qty on machine: 1 INCLUDES ITEMS W/@ Also included in kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) PARTS REQUEST
3%@	20819	HAND WHEEL ASSY., PITCH CONTROL	1	INCLUDES ITEMS W/#	ADD TO CART
HAND WHEEL ASSY., PITCH CONTROL 20819 · qty on machine: 1 INCLUDES ITEMS W/# Also included in kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $98.95 IN A KIT + SOLD SOLO
4%@#	20817	WHEEL, HAND J-B HANDLES	1		ADD TO CART
WHEEL, HAND J-B HANDLES 20817 · qty on machine: 1 Also included in kit 3 - HAND WHEEL ASSY., PITCH CO (20819); kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $24.95 IN A KIT + SOLD SOLO
5%@#	0122C	SCREW, SHS 3/8-16 X 1/2"	1		PARTS REQUEST
PHOTO COMING SCREW, SHS 3/8-16 X 1/2" 0122C · qty on machine: 1 Also included in kit 3 - HAND WHEEL ASSY., PITCH CO (20819); kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) PARTS REQUEST
6%@#	1478	SHAFT, TROWEL CONTROL	1		ADD TO CART
SHAFT, TROWEL CONTROL 1478 · qty on machine: 1 Also included in kit 3 - HAND WHEEL ASSY., PITCH CO (20819); kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $14.95 IN A KIT + SOLD SOLO
7%@#	3615	COLLAR, SET 3/4" ID	1		ADD TO CART
COLLAR, SET 3/4" ID 3615 · qty on machine: 1 Also included in kit 3 - HAND WHEEL ASSY., PITCH CO (20819); kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $1.95 IN A KIT + SOLD SOLO
8%@#	20282	BEARING, TROWEL CONTROL	1		ADD TO CART
BEARING, TROWEL CONTROL 20282 · qty on machine: 1 Also included in kit 3 - HAND WHEEL ASSY., PITCH CO (20819); kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $20.95 IN A KIT + SOLD SOLO
9%@#	0281	BEARING, THRUST, NICE 607	1		ADD TO CART
BEARING, THRUST, NICE 607 0281 · qty on machine: 1 Also included in kit 3 - HAND WHEEL ASSY., PITCH CO (20819); kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $8.95 IN A KIT + SOLD SOLO
10%@	20287	SLIDE BLOCK, TROWEL CONTROL	1		ADD TO CART
SLIDE BLOCK, TROWEL CONTROL 20287 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $28.95 IN A KIT + SOLD SOLO

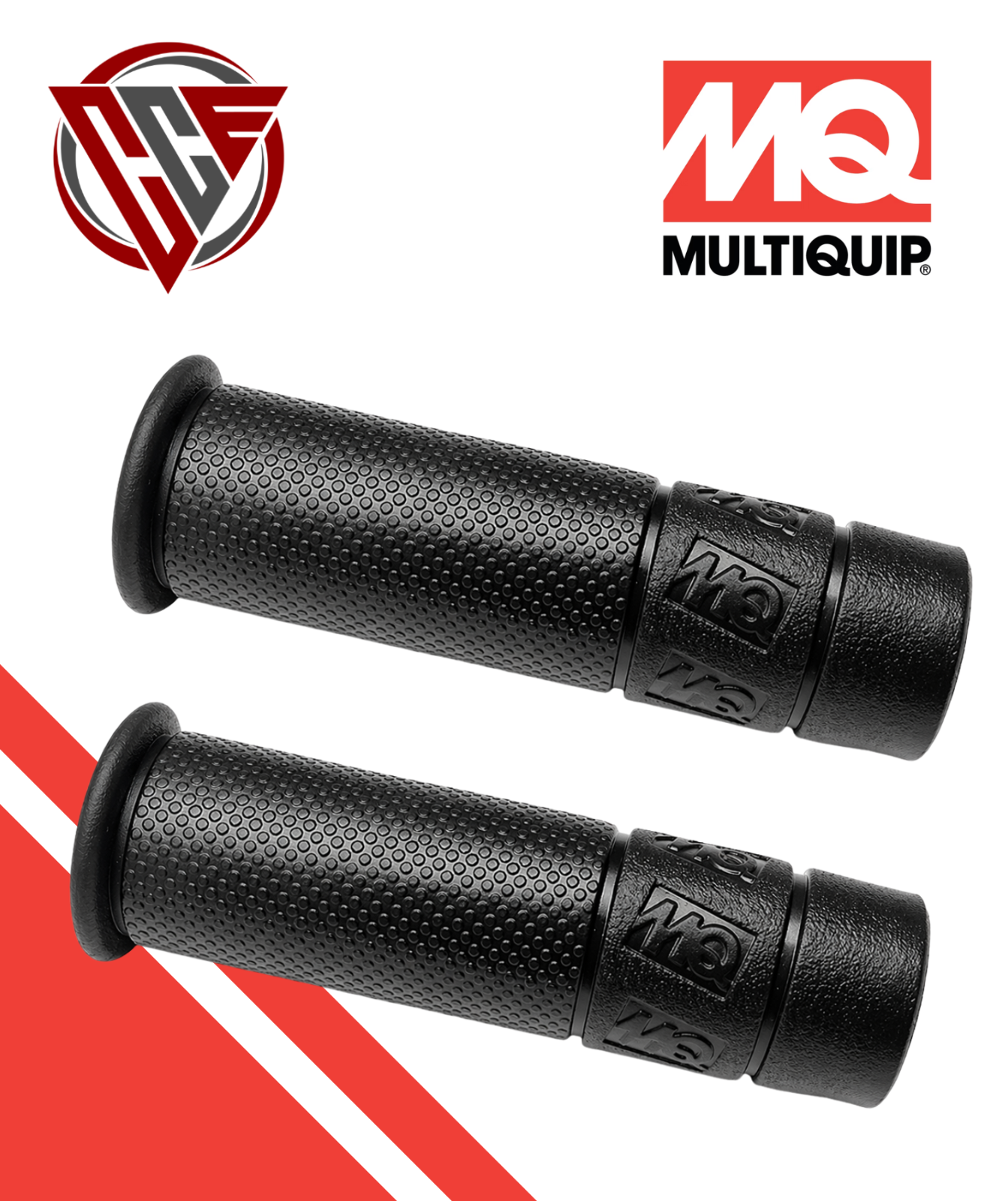

11%@	22762	GRIP, HANDLE, 0.875"	2		ADD TO CART
GRIP, HANDLE, 0.875" 22762 · qty on machine: 2 Also included in kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $3.95 IN A KIT + SOLD SOLO
12%@	22166	COVER, VIBE CONTROL HANDLE PAD	1		ADD TO CART
COVER, VIBE CONTROL HANDLE PAD 22166 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $16.95 IN A KIT + SOLD SOLO
13%@	22055	HANDLE W/A, VIBRATION CONTROL, PAINTED	1		ADD TO CART
HANDLE W/A, VIBRATION CONTROL, PAINTED 22055 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $117.95 IN A KIT + SOLD SOLO
14%@	21171	THROTTLE, BICYCLE FINISHER HANDLES	1		NO LONGER AVAILABLE
PHOTO COMING THROTTLE, BICYCLE FINISHER HANDLES 21171 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) NO LONGER AVAILABLE
15%@	22167	SCREW, HHC 3/8-16 X 6.5" GRADE 5	1		ADD TO CART
SCREW, HHC 3/8-16 X 6.5" GRADE 5 22167 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $1.91 IN A KIT + SOLD SOLO
16%@	3233	WASHER, FENDER 3/8 X 1-1/2"	4		ADD TO CART
WASHER, FENDER 3/8 X 1-1/2" 3233 · qty on machine: 4 Also included in kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $0.23 IN A KIT + SOLD SOLO
17%@	20439	WHEEL ASSY., HAND	1		ADD TO CART
WHEEL ASSY., HAND 20439 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $32.95 IN A KIT + SOLD SOLO
18%@	21173	HOUSING, MAGURA THROTTLE CABLES	1		ADD TO CART
HOUSING, MAGURA THROTTLE CABLES 21173 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $10.95 IN A KIT + SOLD SOLO
19%@	21172	CABLE, THROTTLE 68"	1		ADD TO CART
CABLE, THROTTLE 68" 21172 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $2.9 IN A KIT + SOLD SOLO
20%@	22100	KIT, VIBE CONTROL HANDLE INSTALLATION	1		ADD TO CART
KIT, VIBE CONTROL HANDLE INSTALLATION 22100 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $7.95 IN A KIT + SOLD SOLO
21%@	20485	INSTRUCTION, TH WBT CAB HKUP	1		ADD TO CART
INSTRUCTION, TH WBT CAB HKUP 20485 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $8.46 IN A KIT + SOLD SOLO
22%@	10136	WASHER, FLAT SAE 3/8"	2		PARTS REQUEST
PHOTO COMING WASHER, FLAT SAE 3/8" 10136 · qty on machine: 2 Also included in kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) PARTS REQUEST
23%@	10133	NUT, NYLOC 3/8-16	4		ADD TO CART
NUT, NYLOC 3/8-16 10133 · qty on machine: 4 Also included in kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $0.17 IN A KIT + SOLD SOLO
24%@	1493	SCREW, HHC 3/8-16 X 3.25"	1		ADD TO CART
SCREW, HHC 3/8-16 X 3.25" 1493 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $0.95 IN A KIT + SOLD SOLO
25%@	21746	SPRING, PRIMARY THROTTLE RETURN	1		ADD TO CART
SPRING, PRIMARY THROTTLE RETURN 21746 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $2.95 IN A KIT + SOLD SOLO
26%@	1665	SCREW, HHC 3/8-16 X 2"	2		ADD TO CART
SCREW, HHC 3/8-16 X 2" 1665 · qty on machine: 2 Also included in kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $0.53 IN A KIT + SOLD SOLO
27%@	22059	ISOLATOR, VIBRATION	3		ADD TO CART
ISOLATOR, VIBRATION 22059 · qty on machine: 3 Also included in kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $11.95 IN A KIT + SOLD SOLO
28%@	22206	CHASSIS, CAST VIBRATION ISOLATOR	1		ADD TO CART
CHASSIS, CAST VIBRATION ISOLATOR 22206 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $68.95 IN A KIT + SOLD SOLO
29%@	9154	SCREW, HHC 3/8-16 X 1-3/4"	1		ADD TO CART
SCREW, HHC 3/8-16 X 1-3/4" 9154 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $0.61 IN A KIT + SOLD SOLO
30%@	0786	SCREW, BHC 1/4-20 X 3/8" NYL PATCH, NP	2		ADD TO CART
SCREW, BHC 1/4-20 X 3/8" NYL PATCH, NP 0786 · qty on machine: 2 Also included in kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $0.54 IN A KIT + SOLD SOLO
31%@	0786A	SPACER, SLIDE BLOCK GUIDE, .360 X 17/64 X 1/8L	1		ADD TO CART
SPACER, SLIDE BLOCK GUIDE, .360 X 17/64 X 1/8L 0786A · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $3.95 IN A KIT + SOLD SOLO
32%@	20856	SWITCH ASSY., KILL	1		ADD TO CART
SWITCH ASSY., KILL 20856 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $33.95 IN A KIT + SOLD SOLO
33%@	21953	SWITCH HARNESS, CENTRIFUGAL	1		ADD TO CART
SWITCH HARNESS, CENTRIFUGAL 21953 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $5.95 IN A KIT + SOLD SOLO
34%@	21017	SCREW, HHC 3/8-16 X 3.25" FULL THRD GR5	1		ADD TO CART
SCREW, HHC 3/8-16 X 3.25" FULL THRD GR5 21017 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $2.95 IN A KIT + SOLD SOLO
35%@	22095	HANDLE, STOW FIN VIBE CONTROL	1		ADD TO CART
HANDLE, STOW FIN VIBE CONTROL 22095 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $160.95 IN A KIT + SOLD SOLO
36%@	20280	BLOCK, PITCH CONTROL	1		ADD TO CART
BLOCK, PITCH CONTROL 20280 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $25.95 IN A KIT + SOLD SOLO
37%@	1116	NUT, BRASS JAM 5/16-18	2		ADD TO CART
NUT, BRASS JAM 5/16-18 1116 · qty on machine: 2 Also included in kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $0.61 IN A KIT + SOLD SOLO
38%@	20285	CABLE, CONTROL	1		ADD TO CART
CABLE, CONTROL 20285 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., STD. VIBE CO (SXH); kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $22.95 IN A KIT + SOLD SOLO
39%	21912	OPERATOR PRESENCE HANDLE, MAGURA 90.633	1		ADD TO CART
OPERATOR PRESENCE HANDLE, MAGURA 90.633 21912 · qty on machine: 1 Also included in kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $46.95 IN A KIT + SOLD SOLO
40%	21957	HARNESS, PRESENCE SWITCH, 32.5" LONG	1		ADD TO CART
HARNESS, PRESENCE SWITCH, 32.5" LONG 21957 · qty on machine: 1 Also included in kit 1 - HANDLE ASSY., STD. VIBE CO (SXHP) view full part page → $9.95 IN A KIT + SOLD SOLO

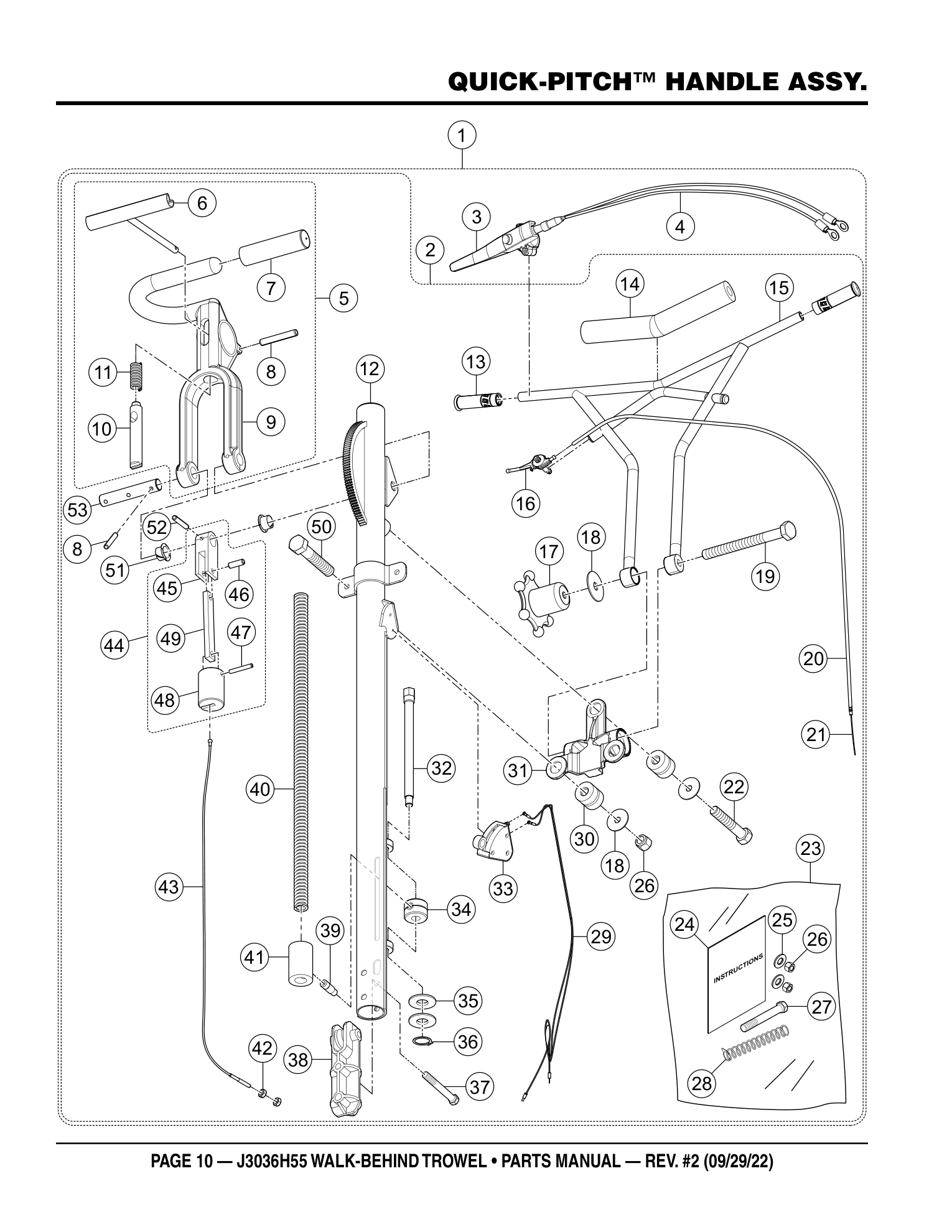

Page 10 — QUICK-PITCH™ HANDLE ASSY.

Parts list — exactly as printed39 rows

No.	Part No.	Part Name	Qty	Remarks
1	QXHP	HANDLE ASSY., QP VIBE CONTROL OP PRESENCE	1	INCLUDES ITEMS W/@	PARTS REQUEST
PHOTO COMING HANDLE ASSY., QP VIBE CONTROL OP PRESENCE QXHP · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 2@, 3@, 4@, 5@#, 6@#$, 7@#$, 8@#$, 9@#$, 10@#$, 11@#$, 12@#, 13@#, 14@#, 15@#, 16@#, 17@#, 18@#, 19@#, 20@#, 21@#, 22@#, 23@#, 24@#%, 25@#%, 26@#%, 27@#%, 28@#%, 29@#, 30@#, 31@#, 32@#, 33@#, 34@#, 35@#, 36@#, 37@#, 38@#, 39@# PARTS REQUEST
2@	QXH	HANDLE ASSY., HD QUICK PITCH VIBE CONTROL	1	INCLUDES ITEMS W/#	PARTS REQUEST
PHOTO COMING HANDLE ASSY., HD QUICK PITCH VIBE CONTROL QXH · qty on machine: 1 INCLUDES ITEMS W/# Also included in kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP) PARTS REQUEST
3@	21912	OPERATOR PRESENCE HANDLE KIT	1		ADD TO CART
OPERATOR PRESENCE HANDLE KIT 21912 · qty on machine: 1 Also included in kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP) view full part page → $46.95 IN A KIT + SOLD SOLO
4@	21957	HARNESS, PRESENCE SWITCH, 32.5" LONG	1		ADD TO CART
HARNESS, PRESENCE SWITCH, 32.5" LONG 21957 · qty on machine: 1 Also included in kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP) view full part page → $9.95 IN A KIT + SOLD SOLO
5@#	20390	TRIGGER, QP ASSEMBLY	1	INCLUDES ITEMS W/$	ADD TO CART
TRIGGER, QP ASSEMBLY 20390 · qty on machine: 1 INCLUDES ITEMS W/$ Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP) view full part page → $221.95 IN A KIT + SOLD SOLO
6@#$	1746	TRIGGER, QP	1		ADD TO CART
TRIGGER, QP 1746 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP); kit 5 - TRIGGER, QP ASSEMBLY (20390) view full part page → $7.95 IN A KIT + SOLD SOLO
7@#$	1724	GRIP, HANDLE	1		ADD TO CART
GRIP, HANDLE 1724 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP); kit 5 - TRIGGER, QP ASSEMBLY (20390) view full part page → $1.54 IN A KIT + SOLD SOLO
8@#$	1729	PIN, SLOTTED SPRING, 3/16 X 1-1/4"	3		ADD TO CART
PIN, SLOTTED SPRING, 3/16 X 1-1/4" 1729 · qty on machine: 3 Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP); kit 5 - TRIGGER, QP ASSEMBLY (20390) view full part page → $0.34 IN A KIT + SOLD SOLO
9@#$	20389	HANDLE, QP	1		ADD TO CART
HANDLE, QP 20389 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP); kit 5 - TRIGGER, QP ASSEMBLY (20390) view full part page → $131.95 IN A KIT + SOLD SOLO
10@#$	20437	PIN, QP LATCH	1		ADD TO CART
PIN, QP LATCH 20437 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP); kit 5 - TRIGGER, QP ASSEMBLY (20390) view full part page → $21.95 IN A KIT + SOLD SOLO
11@#$	1706	SPRING, COMPRESSION	1		ADD TO CART
SPRING, COMPRESSION 1706 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP); kit 5 - TRIGGER, QP ASSEMBLY (20390) view full part page → $8.95 IN A KIT + SOLD SOLO
12@#	22060	MAIN HANDLE, QUICK PITCH VIBE CONTROL	1		ADD TO CART
MAIN HANDLE, QUICK PITCH VIBE CONTROL 22060 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP) view full part page → $205.95 IN A KIT + SOLD SOLO
13@#	22762	GRIP, HANDLE, 0.875 W/ .63 HOLE	2		ADD TO CART
GRIP, HANDLE, 0.875 W/ .63 HOLE 22762 · qty on machine: 2 Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP) view full part page → $3.95 IN A KIT + SOLD SOLO
14@#	22166	COVER, VIBE CONTROL HANDLE PAD	1		ADD TO CART
COVER, VIBE CONTROL HANDLE PAD 22166 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP) view full part page → $16.95 IN A KIT + SOLD SOLO
15@#	22055	HANDLE, VIBRATION CONTROL	1		ADD TO CART
HANDLE, VIBRATION CONTROL 22055 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP) view full part page → $117.95 IN A KIT + SOLD SOLO
16@#	22732	THROTTLE LEVER ASSY.	1		ADD TO CART
THROTTLE LEVER ASSY. 22732 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP) view full part page → $26.95 IN A KIT + SOLD SOLO
17@#	20439	WHEEL ASSY., HAND	1		ADD TO CART
WHEEL ASSY., HAND 20439 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP) view full part page → $32.95 IN A KIT + SOLD SOLO
18@#	3233	WASHER, FENDER, 1.5" OD X 3/8" ID	4		ADD TO CART
WASHER, FENDER, 1.5" OD X 3/8" ID 3233 · qty on machine: 4 Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP) view full part page → $0.23 IN A KIT + SOLD SOLO
19@#	22167	SCREW, HHC 3/8-16 X 6.5" GRADE 5	1		ADD TO CART
SCREW, HHC 3/8-16 X 6.5" GRADE 5 22167 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP) view full part page → $1.91 IN A KIT + SOLD SOLO
20@#	21173	HOUSING, MAGURA THROTTLE CABLES	1		ADD TO CART
HOUSING, MAGURA THROTTLE CABLES 21173 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP) view full part page → $10.95 IN A KIT + SOLD SOLO
21@#	21172	CABLE, THROTTLE 68"	1		ADD TO CART
CABLE, THROTTLE 68" 21172 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP) view full part page → $2.9 IN A KIT + SOLD SOLO
22@#	9154	SCREW, HHC 3/8-16 X 1-3/4"	1		ADD TO CART
SCREW, HHC 3/8-16 X 1-3/4" 9154 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP) view full part page → $0.61 IN A KIT + SOLD SOLO
23@#	22100	KIT, VIBE CONTROL HANDLE INSTALLATION	1	INCLUDES ITEMS W/%	ADD TO CART
KIT, VIBE CONTROL HANDLE INSTALLATION 22100 · qty on machine: 1 INCLUDES ITEMS W/% Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP) view full part page → $7.95 IN A KIT + SOLD SOLO
24@#%	20485	INSTRUCTION, THROT CAB HKUP	1		ADD TO CART
INSTRUCTION, THROT CAB HKUP 20485 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP); kit 23 - KIT, VIBE CONTROL HANDLE I (22100) view full part page → $8.46 IN A KIT + SOLD SOLO
25@#%	10136	WASHER, FLAT SAE 3/8"	2		PARTS REQUEST
PHOTO COMING WASHER, FLAT SAE 3/8" 10136 · qty on machine: 2 Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP); kit 23 - KIT, VIBE CONTROL HANDLE I (22100) PARTS REQUEST
26@#%	10133	NUT, NYLOC 3/8-16	4		ADD TO CART
NUT, NYLOC 3/8-16 10133 · qty on machine: 4 Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP); kit 23 - KIT, VIBE CONTROL HANDLE I (22100) view full part page → $0.17 IN A KIT + SOLD SOLO
27@#%	1493	SCREW, HHC 3/8-16 X 3.25"	1		ADD TO CART
SCREW, HHC 3/8-16 X 3.25" 1493 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP); kit 23 - KIT, VIBE CONTROL HANDLE I (22100) view full part page → $0.95 IN A KIT + SOLD SOLO
28@#%	21746	SPRING, PRIMARY THROTTLE RETURN	1		ADD TO CART
SPRING, PRIMARY THROTTLE RETURN 21746 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP); kit 23 - KIT, VIBE CONTROL HANDLE I (22100) view full part page → $2.95 IN A KIT + SOLD SOLO
29@#	21953	HARNESS, PRESENCE SWITCH, 43.25" LONG	1		ADD TO CART
HARNESS, PRESENCE SWITCH, 43.25" LONG 21953 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP) view full part page → $5.95 IN A KIT + SOLD SOLO
30@#	22059	ISOLATOR, VIBRATION	3		ADD TO CART
ISOLATOR, VIBRATION 22059 · qty on machine: 3 Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP) view full part page → $11.95 IN A KIT + SOLD SOLO
31@#	22206	CHASSIS, CAST VIBRATION ISOLATOR	1		ADD TO CART
CHASSIS, CAST VIBRATION ISOLATOR 22206 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP) view full part page → $68.95 IN A KIT + SOLD SOLO
32@#	1717	SCREW, QP TRIM ADJUSTMENT	1		ADD TO CART
SCREW, QP TRIM ADJUSTMENT 1717 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP) view full part page → $59.95 IN A KIT + SOLD SOLO
33@#	0856	SWITCH ASSY., KILL	1		NO LONGER AVAILABLE
PHOTO COMING SWITCH ASSY., KILL 0856 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP) NO LONGER AVAILABLE
34@#	1718	NUT, QP TRIM CNTL ADJUSTMENT	1		ADD TO CART
NUT, QP TRIM CNTL ADJUSTMENT 1718 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP) view full part page → $27.95 IN A KIT + SOLD SOLO
35@#	1733	WASHER, 1/2" X 1/32"	2		ADD TO CART
WASHER, 1/2" X 1/32" 1733 · qty on machine: 2 Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP) view full part page → $0.23 IN A KIT + SOLD SOLO
36@#	1737	SNAP RING, EXTERNAL, 0.5" DIA.	1		ADD TO CART
SNAP RING, EXTERNAL, 0.5" DIA. 1737 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP) view full part page → $0.2 IN A KIT + SOLD SOLO
37@#	21017	SCREW, HHC 3/8-16 X 3.25" FULL THRD GR5	1		ADD TO CART
SCREW, HHC 3/8-16 X 3.25" FULL THRD GR5 21017 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP) view full part page → $2.95 IN A KIT + SOLD SOLO
38@#	20280	BLOCK, PITCH CONTROL	1		ADD TO CART
BLOCK, PITCH CONTROL 20280 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP) view full part page → $25.95 IN A KIT + SOLD SOLO
39@#	1732	PIN, ADJUSTMENT, QP	1		ADD TO CART
PIN, ADJUSTMENT, QP 1732 · qty on machine: 1 Also included in kit 2 - HANDLE ASSY., HD QUICK PIT (QXH); kit 1 - HANDLE ASSY., QP VIBE CONT (QXHP) view full part page → $9.95 IN A KIT + SOLD SOLO

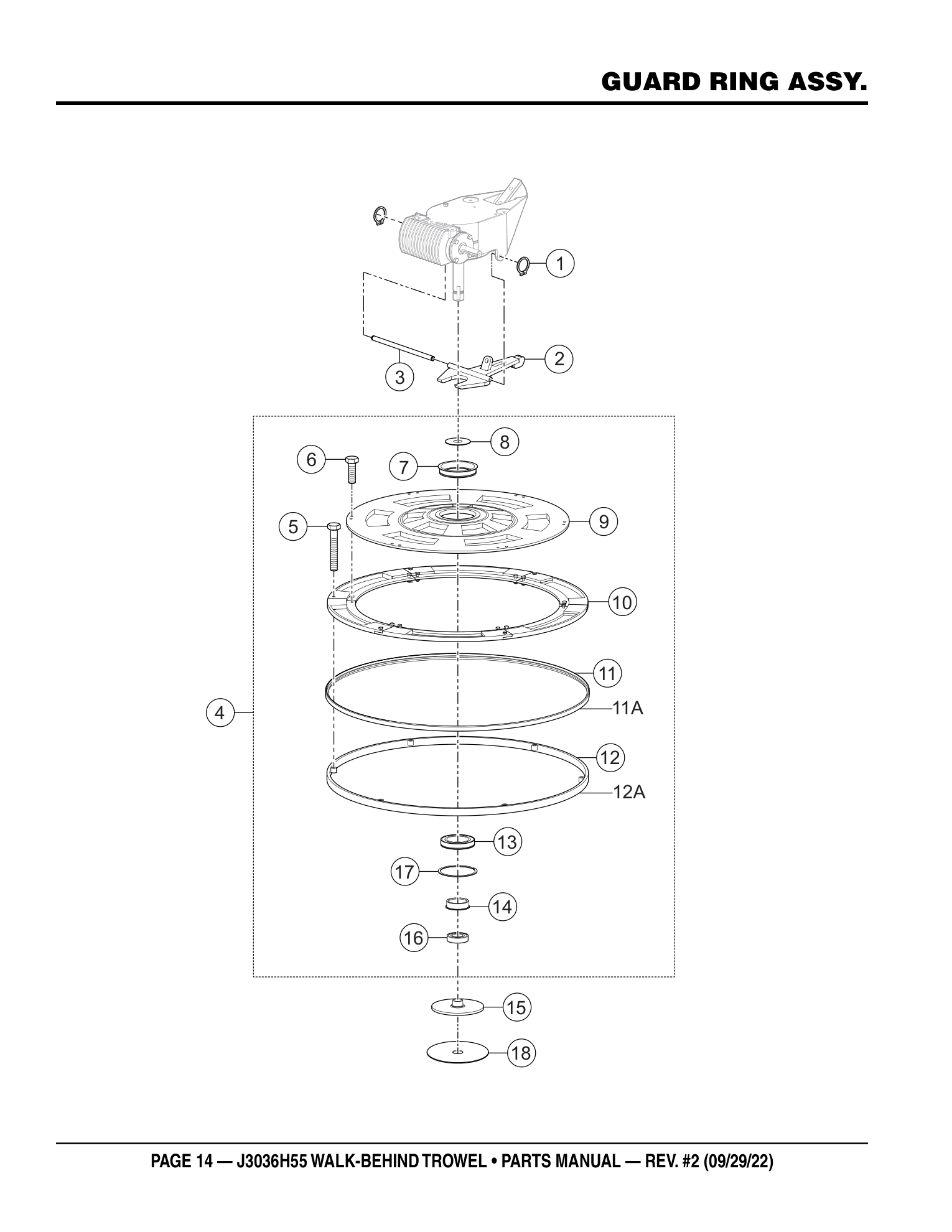

Page 14 — GUARD RING ASSY.

Parts list — exactly as printed20 rows

No.	Part No.	Part Name	Qty	Remarks
1	20802	RING, SNAP, TRUARC	2		ADD TO CART
RING, SNAP, TRUARC 20802 · qty on machine: 2 view full part page → $0.26
2	30624	YOKE ASSY.	1		ADD TO CART
YOKE ASSY. 30624 · qty on machine: 1 view full part page → $177.95
3	20801	PIN, YOKE	1		ADD TO CART
PIN, YOKE 20801 · qty on machine: 1 view full part page → $4.95
4	30640	KIT, GUARD RING	1	INCLUDES ITEMS W/@	ADD TO CART
KIT, GUARD RING 30640 · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 5@, 6@, 7@, 8@, 9@, 10@, 11@, 11A@, 12@, 12A@, 13@, 14@, 16@, 17@ view full part page → $841.95 IN A KIT + SOLD SOLO
5@	9182	SCREW, HHC M8-1.25 X 45MM	6		ADD TO CART
SCREW, HHC M8-1.25 X 45MM 9182 · qty on machine: 6 Also included in kit 4 - KIT, GUARD RING (30640) view full part page → $0.59 IN A KIT + SOLD SOLO
6@	1605	SCREW, HHC M8-1.25 X 25MM	12		ADD TO CART
SCREW, HHC M8-1.25 X 25MM 1605 · qty on machine: 12 Also included in kit 4 - KIT, GUARD RING (30640) view full part page → $0.23 IN A KIT + SOLD SOLO
7@	24532	BEARING HOLDER	1		ADD TO CART
BEARING HOLDER 24532 · qty on machine: 1 Also included in kit 4 - KIT, GUARD RING (30640) view full part page → $38.95 IN A KIT + SOLD SOLO
8@	24386	WEAR PLATE, UPPER	1		ADD TO CART
WEAR PLATE, UPPER 24386 · qty on machine: 1 Also included in kit 4 - KIT, GUARD RING (30640) view full part page → $15.95 IN A KIT + SOLD SOLO
9@	24389	GUARD RING, 30"	1		ADD TO CART
GUARD RING, 30" 24389 · qty on machine: 1 Also included in kit 4 - KIT, GUARD RING (30640) view full part page → $201.95 IN A KIT + SOLD SOLO
10@	24390	GUARD RING SEGMENT, 36"	6		ADD TO CART
GUARD RING SEGMENT, 36" 24390 · qty on machine: 6 Also included in kit 4 - KIT, GUARD RING (30640) view full part page → $9.95 IN A KIT + SOLD SOLO
11@	24394	BUMPER, 36"	1		ADD TO CART
BUMPER, 36" 24394 · qty on machine: 1 Also included in kit 4 - KIT, GUARD RING (30640) view full part page → $68.95 IN A KIT + SOLD SOLO
11A@	24393	BUMPER, 30"	1		ADD TO CART
BUMPER, 30" 24393 · qty on machine: 1 Also included in kit 4 - KIT, GUARD RING (30640) view full part page → $60.95 IN A KIT + SOLD SOLO
12@	24392	RING, BUMPER, 36"	1		NO LONGER AVAILABLE
PHOTO COMING RING, BUMPER, 36" 24392 · qty on machine: 1 Also included in kit 4 - KIT, GUARD RING (30640) NO LONGER AVAILABLE
12A@	24391	RING, BUMPER, 30"	1		NO LONGER AVAILABLE
PHOTO COMING RING, BUMPER, 30" 24391 · qty on machine: 1 Also included in kit 4 - KIT, GUARD RING (30640) NO LONGER AVAILABLE
13@	24064	BEARING, 2.9375" I.D. 4.527" O.D. W/O RING	1		ADD TO CART
BEARING, 2.9375" I.D. 4.527" O.D. W/O RING 24064 · qty on machine: 1 Also included in kit 4 - KIT, GUARD RING (30640) view full part page → $42.95 IN A KIT + SOLD SOLO
14@	21434	SLEEVE, PITCH	1		ADD TO CART
SLEEVE, PITCH 21434 · qty on machine: 1 Also included in kit 4 - KIT, GUARD RING (30640) view full part page → $47.95 IN A KIT + SOLD SOLO
15	10567	THRUST PLATE	1		ADD TO CART
THRUST PLATE 10567 · qty on machine: 1 view full part page → $48.95
16@	10607	BEARING, THRUST	1		ADD TO CART
BEARING, THRUST 10607 · qty on machine: 1 Also included in kit 4 - KIT, GUARD RING (30640) view full part page → $29.95 IN A KIT + SOLD SOLO
17@	24533	RING, BEARING RETAINER	1		ADD TO CART
RING, BEARING RETAINER 24533 · qty on machine: 1 Also included in kit 4 - KIT, GUARD RING (30640) view full part page → $5.95 IN A KIT + SOLD SOLO
18	10639	WEAR PLATE, THRUST COLLAR	1		ADD TO CART
WEAR PLATE, THRUST COLLAR 10639 · qty on machine: 1 view full part page → $12.95

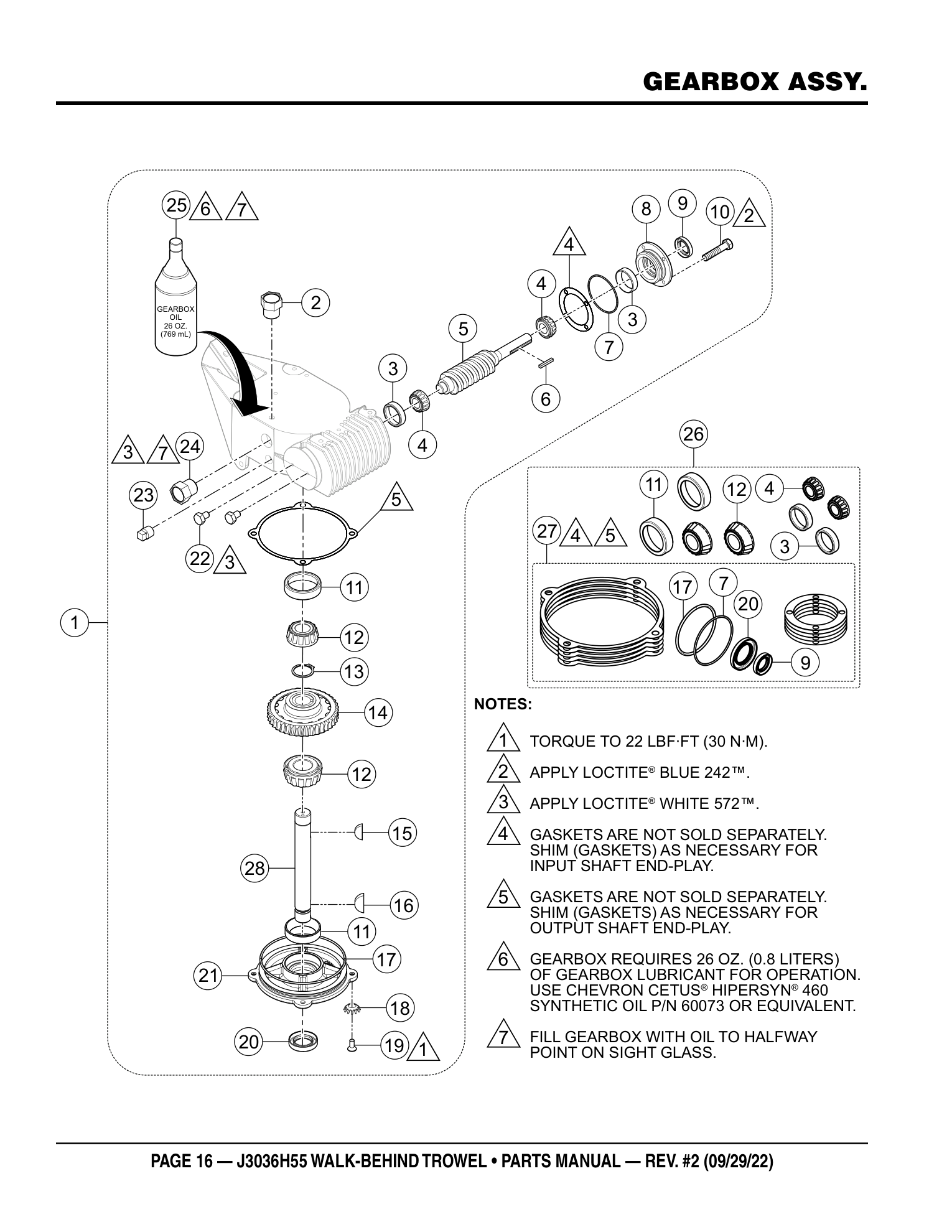

Page 16 — GEARBOX ASSY.

Parts list — exactly as printed28 rows

No.	Part No.	Part Name	Qty	Remarks
1	30634	GEARBOX ASSY	1	INCLUDES ITEMS W/@	ADD TO CART
GEARBOX ASSY 30634 · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 2@, 3@#, 4@#, 5@, 6@, 7@#%, 8@, 9@#%, 10@, 11@#, 12@#, 13@, 14@, 15@, 16@, 17@#%, 18@, 19@, 20@#%, 21@, 22@, 23@, 24@, 25@, 28@ view full part page → $739.95 IN A KIT + SOLD SOLO
2@	21218	VENT, AIR, GEARBOX	1		ADD TO CART
VENT, AIR, GEARBOX 21218 · qty on machine: 1 Also included in kit 1 - GEARBOX ASSY (30634) view full part page → $1.34 IN A KIT + SOLD SOLO
3@#	20466	BEARING, CUP TIMKEN LM11910	4		ADD TO CART
BEARING, CUP TIMKEN LM11910 20466 · qty on machine: 4 Also included in kit 26 - KIT, BEARING/SEAL (21047); kit 1 - GEARBOX ASSY (30634) view full part page → $6.61 IN A KIT + SOLD SOLO
4@#	20465	BEARING, CONE TIMKEN LM11949	4		ADD TO CART
BEARING, CONE TIMKEN LM11949 20465 · qty on machine: 4 Also included in kit 26 - KIT, BEARING/SEAL (21047); kit 1 - GEARBOX ASSY (30634) view full part page → $20.46 IN A KIT + SOLD SOLO
5@	1851	WORM “B” INPUT SHAFT	1		ADD TO CART
WORM “B” INPUT SHAFT 1851 · qty on machine: 1 Also included in kit 1 - GEARBOX ASSY (30634) view full part page → $92.95 IN A KIT + SOLD SOLO
6@	0627	KEY, 3/16 X 1-1/4"	1		ADD TO CART
KEY, 3/16 X 1-1/4" 0627 · qty on machine: 1 Also included in kit 1 - GEARBOX ASSY (30634) view full part page → $0.66 IN A KIT + SOLD SOLO
7@#%	20395	O-RING, 139 BUNA-N	1		ADD TO CART
O-RING, 139 BUNA-N 20395 · qty on machine: 1 Also included in kit 26 - KIT, BEARING/SEAL (21047); kit 1 - GEARBOX ASSY (30634); kit 27 - KIT, SEAL (21046) view full part page → $0.55 IN A KIT + SOLD SOLO
8@	12876	FLANGE, INPUT SHAFT	1		ADD TO CART
FLANGE, INPUT SHAFT 12876 · qty on machine: 1 Also included in kit 1 - GEARBOX ASSY (30634) view full part page → $14.95 IN A KIT + SOLD SOLO
9@#%	0753	SEAL, OIL, DUAL LIP, 1.250 X .750 X .250	1		ADD TO CART
SEAL, OIL, DUAL LIP, 1.250 X .750 X .250 0753 · qty on machine: 1 Also included in kit 26 - KIT, BEARING/SEAL (21047); kit 1 - GEARBOX ASSY (30634); kit 27 - KIT, SEAL (21046) view full part page → $11.95 IN A KIT + SOLD SOLO
10@	0131A	SCREW, HHC 1/4-20 X 3/4"	4		ADD TO CART
SCREW, HHC 1/4-20 X 3/4" 0131A · qty on machine: 4 Also included in kit 1 - GEARBOX ASSY (30634) view full part page → $0.13 IN A KIT + SOLD SOLO
11@#	20475	BEARING, CUP TIMKEN M86610	4		ADD TO CART
BEARING, CUP TIMKEN M86610 20475 · qty on machine: 4 Also included in kit 26 - KIT, BEARING/SEAL (21047); kit 1 - GEARBOX ASSY (30634) view full part page → $17.05 IN A KIT + SOLD SOLO
12@#	20474	BEARING, CONE TIMKEN M86647	4		ADD TO CART
BEARING, CONE TIMKEN M86647 20474 · qty on machine: 4 Also included in kit 26 - KIT, BEARING/SEAL (21047); kit 1 - GEARBOX ASSY (30634) view full part page → $51.22 IN A KIT + SOLD SOLO
13@	1138	RING, SNAP	1		ADD TO CART
RING, SNAP 1138 · qty on machine: 1 Also included in kit 1 - GEARBOX ASSY (30634) view full part page → $0.4 IN A KIT + SOLD SOLO
14@	1140	GEAR, WORM, COMPOSITE	1		ADD TO CART
GEAR, WORM, COMPOSITE 1140 · qty on machine: 1 Also included in kit 1 - GEARBOX ASSY (30634) view full part page → $217.95 IN A KIT + SOLD SOLO
15@	1139	KEY, WOODRUFF #810 1/4 X 1-1/4" (#21)	1		ADD TO CART
KEY, WOODRUFF #810 1/4 X 1-1/4" (#21) 1139 · qty on machine: 1 Also included in kit 1 - GEARBOX ASSY (30634) view full part page → $16.95 IN A KIT + SOLD SOLO
16@	1238	KEY, WOODRUFF #1012 5/16 X 1-1/2" (#25)	1		ADD TO CART
KEY, WOODRUFF #1012 5/16 X 1-1/2" (#25) 1238 · qty on machine: 1 Also included in kit 1 - GEARBOX ASSY (30634) view full part page → $2.95 IN A KIT + SOLD SOLO
17@#%	20396	O-RING, SIZE-257 BUNA-N	1		ADD TO CART
O-RING, SIZE-257 BUNA-N 20396 · qty on machine: 1 Also included in kit 26 - KIT, BEARING/SEAL (21047); kit 1 - GEARBOX ASSY (30634); kit 27 - KIT, SEAL (21046) view full part page → $1.55 IN A KIT + SOLD SOLO
18@	10235	WASHER, LOCK 5/16" EXT. TOOTH CSINK	4		ADD TO CART
WASHER, LOCK 5/16" EXT. TOOTH CSINK 10235 · qty on machine: 4 Also included in kit 1 - GEARBOX ASSY (30634) view full part page → $0.23 IN A KIT + SOLD SOLO
19@	20875	SCREW, FHSC 5/16-18 X 3/4"	4		ADD TO CART
SCREW, FHSC 5/16-18 X 3/4" 20875 · qty on machine: 4 Also included in kit 1 - GEARBOX ASSY (30634) view full part page → $0.45 IN A KIT + SOLD SOLO
20@#%	0254	SEAL, OIL DLIP 1.125 X 1.87 X .250	1		ADD TO CART
SEAL, OIL DLIP 1.125 X 1.87 X .250 0254 · qty on machine: 1 Also included in kit 26 - KIT, BEARING/SEAL (21047); kit 1 - GEARBOX ASSY (30634); kit 27 - KIT, SEAL (21046) view full part page → $20.95 IN A KIT + SOLD SOLO
21@	12875	COVER, GEARBOX	1		ADD TO CART
COVER, GEARBOX 12875 · qty on machine: 1 Also included in kit 1 - GEARBOX ASSY (30634) view full part page → $44.95 IN A KIT + SOLD SOLO
22@	20476	SCREW, HHC 1/4-28 X 3/8"	2		ADD TO CART
SCREW, HHC 1/4-28 X 3/8" 20476 · qty on machine: 2 Also included in kit 1 - GEARBOX ASSY (30634) view full part page → $0.37 IN A KIT + SOLD SOLO
23@	0121A	PIPE PLUG 3/8"	1		ADD TO CART
PIPE PLUG 3/8" 0121A · qty on machine: 1 Also included in kit 1 - GEARBOX ASSY (30634) view full part page → $0.66 IN A KIT + SOLD SOLO
24@	21033	SIGHT GLASS, 3/4" NPT, STEEL, NO BALL	1		ADD TO CART
SIGHT GLASS, 3/4" NPT, STEEL, NO BALL 21033 · qty on machine: 1 Also included in kit 1 - GEARBOX ASSY (30634) view full part page → $7.95 IN A KIT + SOLD SOLO
25@	60073	OIL, GEAR, ISO GRADE 460 26 OZ. (769	1	ML)	ADD TO CART
OIL, GEAR, ISO GRADE 460 26 OZ. (769 60073 · qty on machine: 1 ML) Also included in kit 1 - GEARBOX ASSY (30634) view full part page → $1.54 IN A KIT + SOLD SOLO
26	21047	KIT, BEARING/SEAL	1	INCLUDES ITEMS W/#	ADD TO CART
KIT, BEARING/SEAL 21047 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 3@#, 4@#, 7@#%, 9@#%, 11@#, 12@#, 17@#%, 20@#%, 27# view full part page → $211.95 IN A KIT + SOLD SOLO
27#	21046	KIT, SEAL	1	INCLUDES ITEMS W/%	ADD TO CART
KIT, SEAL 21046 · qty on machine: 1 INCLUDES ITEMS W/% Also included in kit 26 - KIT, BEARING/SEAL (21047) view full part page → $89.95 IN A KIT + SOLD SOLO
28@	30635	SHAFT, OUTPUT Ø1.126 X 9.3 WD KEYS	1		ADD TO CART
SHAFT, OUTPUT Ø1.126 X 9.3 WD KEYS 30635 · qty on machine: 1 Also included in kit 1 - GEARBOX ASSY (30634) view full part page → $93.95 IN A KIT + SOLD SOLO

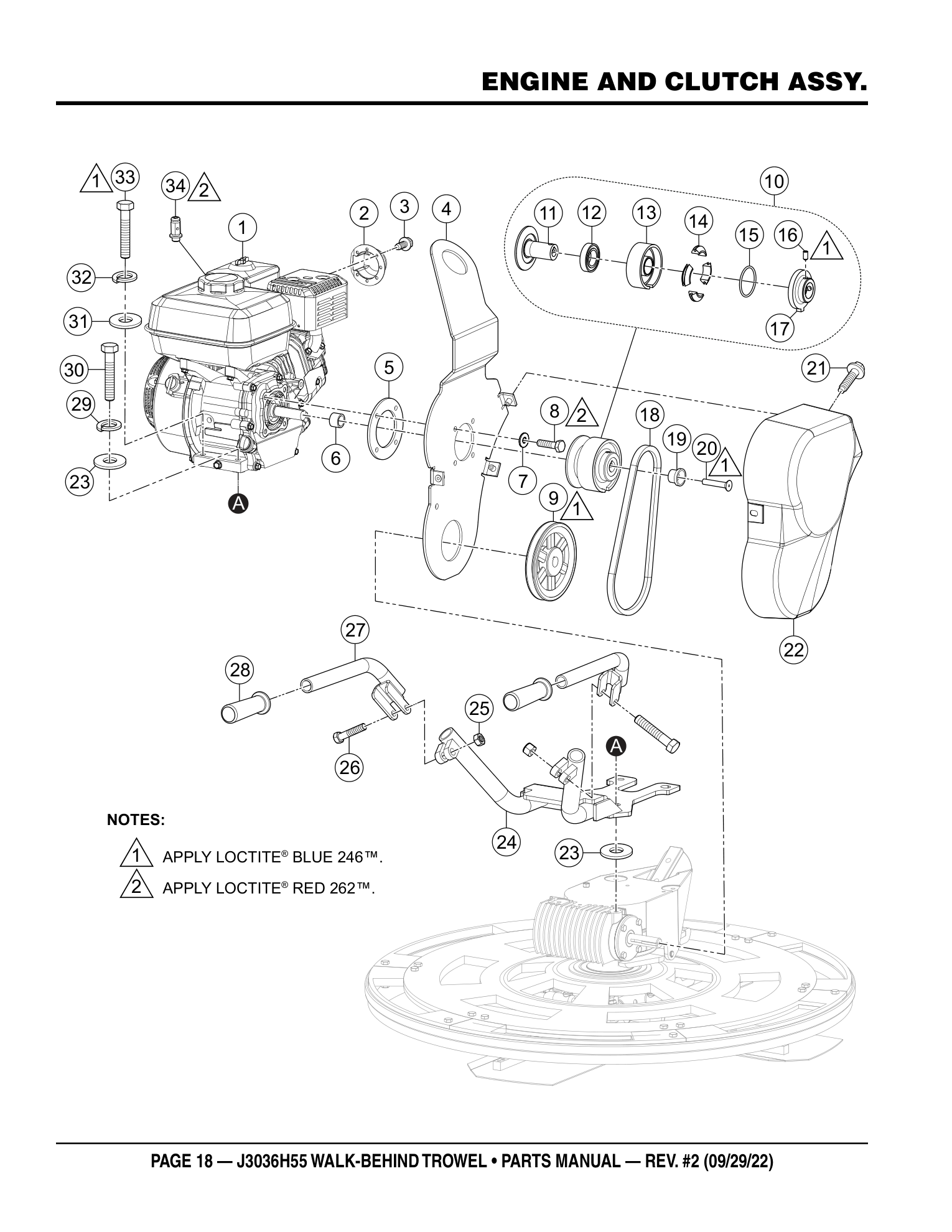

Page 18 — ENGINE AND CLUTCH ASSY.

Parts list — exactly as printed34 rows

No.	Part No.	Part Name	Qty	Remarks
1	22901	ENGINE, HONDA GX160 (4.8 HP)	1		ADD TO CART
ENGINE, HONDA GX160 (4.8 HP) 22901 · qty on machine: 1 view full part page → $647.95
2	1834	DEFLECTOR, HONDA 5 HP EXHAUST	1		ADD TO CART
DEFLECTOR, HONDA 5 HP EXHAUST 1834 · qty on machine: 1 view full part page → $17.95
3	1273	SCREW, HHF, #8-32 X 3/8", TYPE F, ZP	2		ADD TO CART
SCREW, HHF, #8-32 X 3/8", TYPE F, ZP 1273 · qty on machine: 2 view full part page → $0.26
4	30633	LIFTING BAIL	1		ADD TO CART
LIFTING BAIL 30633 · qty on machine: 1 view full part page → $52.95
5	21915	SPACER, LIFTING BAIL	1		ADD TO CART
SPACER, LIFTING BAIL 21915 · qty on machine: 1 view full part page → $10.95
6	21679	SPACER 1" X .78 X 69 L	1		ADD TO CART
SPACER 1" X .78 X 69 L 21679 · qty on machine: 1 view full part page → $9.95
7	933241	WASHER, FLAT SAE 5/16" GRD 9 YZ	4		ADD TO CART
WASHER, FLAT SAE 5/16" GRD 9 YZ 933241 · qty on machine: 4 view full part page → $0.33
8	10229	SCREW, HHC 5/16-24 X 1"	4		ADD TO CART
SCREW, HHC 5/16-24 X 1" 10229 · qty on machine: 4 view full part page → $0.29
9	21994	PULLEY, AK59 X 3/4" BORE	1		ADD TO CART
PULLEY, AK59 X 3/4" BORE 21994 · qty on machine: 1 view full part page → $36.95
10	0255	CLUTCH ASSEMBLY, 3/4" CENTRIFUGAL	1	INCLUDES ITEMS W/@	ADD TO CART
CLUTCH ASSEMBLY, 3/4" CENTRIFUGAL 0255 · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 11@, 12@, 13@, 14@, 15@, 16@, 17@ view full part page → $229.95 IN A KIT + SOLD SOLO
11@	21307	CLUTCH SPINDLE, 3/4" BORE	1		ADD TO CART
CLUTCH SPINDLE, 3/4" BORE 21307 · qty on machine: 1 Also included in kit 10 - CLUTCH ASSEMBLY, 3/4" CENT (0255) view full part page → $47.95 IN A KIT + SOLD SOLO
12@	0456	BEARING, SHIELDED 6007 ZZ E	1		ADD TO CART
BEARING, SHIELDED 6007 ZZ E 0456 · qty on machine: 1 Also included in kit 10 - CLUTCH ASSEMBLY, 3/4" CENT (0255) view full part page → $31.95 IN A KIT + SOLD SOLO
13@	0251	DRUM, CENTRIFUGAL CLUTCH	1		ADD TO CART
DRUM, CENTRIFUGAL CLUTCH 0251 · qty on machine: 1 Also included in kit 10 - CLUTCH ASSEMBLY, 3/4" CENT (0255) view full part page → $76.95 IN A KIT + SOLD SOLO
14@	B1766	WEIGHT-AUTOMATIC CLUTCH	4		ADD TO CART
WEIGHT-AUTOMATIC CLUTCH B1766 · qty on machine: 4 Also included in kit 10 - CLUTCH ASSEMBLY, 3/4" CENT (0255) view full part page → $3.95 IN A KIT + SOLD SOLO
15@	0855	SPRING, CLUTCH .156 X 5.375 X .025	1		ADD TO CART
SPRING, CLUTCH .156 X 5.375 X .025 0855 · qty on machine: 1 Also included in kit 10 - CLUTCH ASSEMBLY, 3/4" CENT (0255) view full part page → $1.95 IN A KIT + SOLD SOLO
16@	1868	SCREW, SHS 3/8-24 X 3/4", NP	1		ADD TO CART
SCREW, SHS 3/8-24 X 3/4", NP 1868 · qty on machine: 1 Also included in kit 10 - CLUTCH ASSEMBLY, 3/4" CENT (0255) view full part page → $0.5 IN A KIT + SOLD SOLO
17@	0253	CLUTCH PLATE	1		ADD TO CART
CLUTCH PLATE 0253 · qty on machine: 1 Also included in kit 10 - CLUTCH ASSEMBLY, 3/4" CENT (0255) view full part page → $27.95 IN A KIT + SOLD SOLO
18	30648	BELT, A26	1		ADD TO CART
BELT, A26 30648 · qty on machine: 1 view full part page → $14.95
19	1406	END PLUG, CLUTCH	1		ADD TO CART
END PLUG, CLUTCH 1406 · qty on machine: 1 view full part page → $14.95
20	21678	SCREW, FHSC 5/16-24 X 1-3/4"	1		ADD TO CART
SCREW, FHSC 5/16-24 X 1-3/4" 21678 · qty on machine: 1 view full part page → $2.95
21	30119	SCREW, 1/4-20 X 7/8" IND HEX, DOG PT	3		ADD TO CART
SCREW, 1/4-20 X 7/8" IND HEX, DOG PT 30119 · qty on machine: 3 view full part page → $0.48
22	30344	BELT GUARD, FRICTION CLUTCH	1		ADD TO CART
BELT GUARD, FRICTION CLUTCH 30344 · qty on machine: 1 view full part page → $12.95
23	10136	WASHER, FLAT SAE 3/8"	2		PARTS REQUEST
PHOTO COMING WASHER, FLAT SAE 3/8" 10136 · qty on machine: 2 PARTS REQUEST
24	30632	HANDLE, LIFT	1		ADD TO CART
HANDLE, LIFT 30632 · qty on machine: 1 view full part page → $101.95
25	10133	NUT, NYLOC 3/8-16	2		ADD TO CART
NUT, NYLOC 3/8-16 10133 · qty on machine: 2 view full part page → $0.17
26	1665	SCREW, HHC 3/8-16 X 2"	2		ADD TO CART
SCREW, HHC 3/8-16 X 2" 1665 · qty on machine: 2 view full part page → $0.53
27	30645	HANDLE, LIFT, UPPER	2		ADD TO CART
HANDLE, LIFT, UPPER 30645 · qty on machine: 2 view full part page → $52.95
28	15081	GRIP, 1" I.D. X 4.5	2		ADD TO CART
GRIP, 1" I.D. X 4.5 15081 · qty on machine: 2 view full part page → $7.95
29	0166A	WASHER, LOCK, 3/8" MED.	1		ADD TO CART
WASHER, LOCK, 3/8" MED. 0166A · qty on machine: 1 view full part page → $0.17
30	9154	SCREW, HHC 3/8-16 X 1-3/4"	1		ADD TO CART
SCREW, HHC 3/8-16 X 1-3/4" 9154 · qty on machine: 1 view full part page → $0.61
31	0300B	WASHER, FLAT SAE 5/16"	3		ADD TO CART
WASHER, FLAT SAE 5/16" 0300B · qty on machine: 3 view full part page → $0.08
32	0161C	WASHER, LOCK 5/16" MED.	3		ADD TO CART
WASHER, LOCK 5/16" MED. 0161C · qty on machine: 3 view full part page → $0.08
33	1207	SCREW, HHC 5/16-18 X 1-3/4"	3		ADD TO CART
SCREW, HHC 5/16-18 X 1-3/4" 1207 · qty on machine: 3 view full part page → $0.62
34	20845	SWIVEL, ASSY. THROTTLE CABLE	1		ADD TO CART
SWIVEL, ASSY. THROTTLE CABLE 20845 · qty on machine: 1 view full part page → $9.95

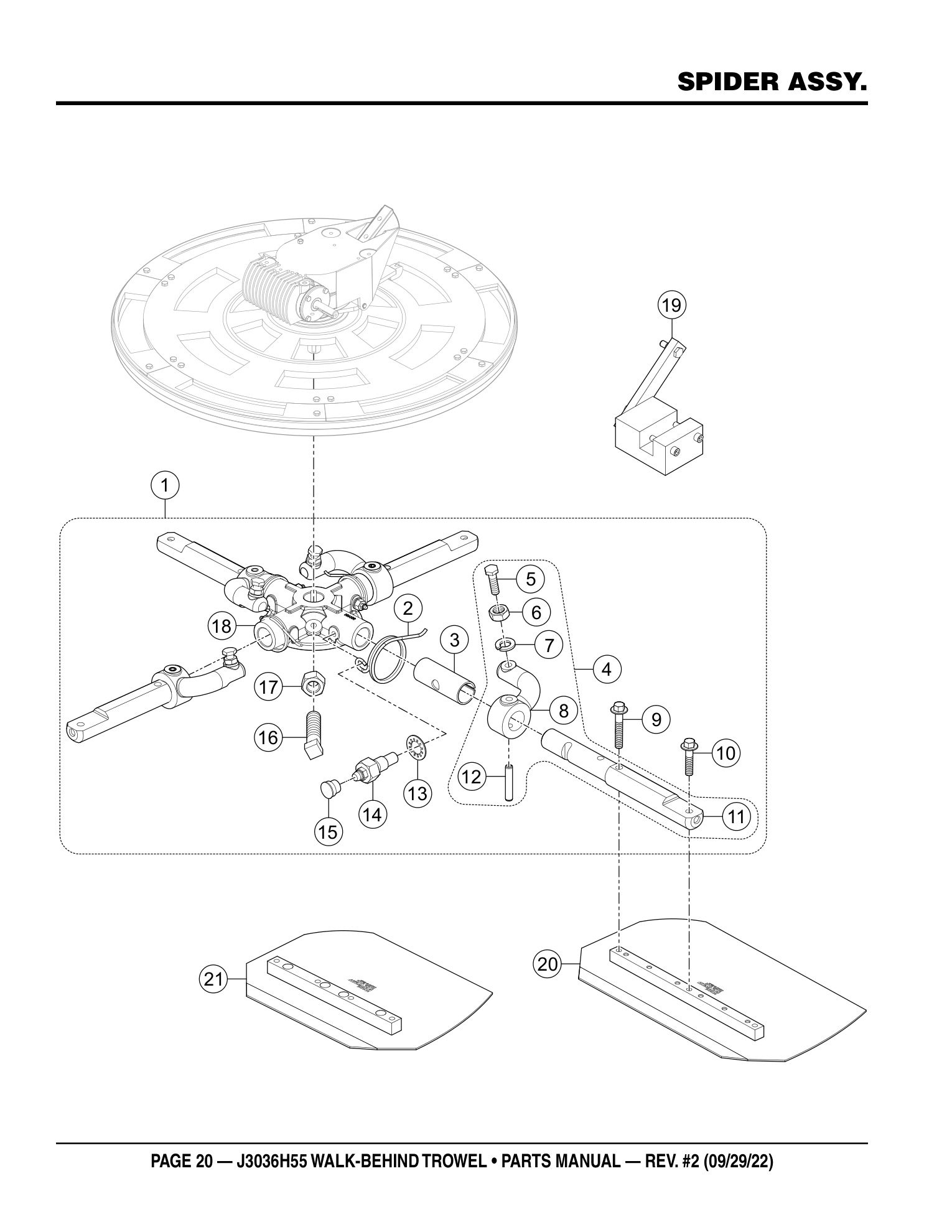

Page 20 — SPIDER ASSY.

Parts list — exactly as printed21 rows

No.	Part No.	Part Name	Qty	Remarks
1	30636	SPIDER W/ ARMS ASSY	1	INCLUDES ITEMS W/@	ADD TO CART
SPIDER W/ ARMS ASSY 30636 · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 2@, 3@, 4@, 5@#, 6@#, 7@#, 8@#, 9@, 10@, 11@#, 12@#, 13@, 14@, 15@, 16@, 17@, 18@ view full part page → $513.95 IN A KIT + SOLD SOLO
2@	1316	SPRING, LS ARM RETURN	4		ADD TO CART
SPRING, LS ARM RETURN 1316 · qty on machine: 4 Also included in kit 1 - SPIDER W/ ARMS ASSY (30636) view full part page → $2.95 IN A KIT + SOLD SOLO
3@	1157A	BUSHING, TROWEL ARM	4		ADD TO CART
BUSHING, TROWEL ARM 1157A · qty on machine: 4 Also included in kit 1 - SPIDER W/ ARMS ASSY (30636) view full part page → $15.95 IN A KIT + SOLD SOLO
4@	30638	TROWEL ARM ASSY	4	INCLUDES ITEMS W/#	PARTS REQUEST
PHOTO COMING TROWEL ARM ASSY 30638 · qty on machine: 4 INCLUDES ITEMS W/# Also included in kit 1 - SPIDER W/ ARMS ASSY (30636) PARTS REQUEST
5@#	0164B	SCREW, TROWEL ADJUSTMENT 3/8-16	4		ADD TO CART
SCREW, TROWEL ADJUSTMENT 3/8-16 0164B · qty on machine: 4 Also included in kit 4 - TROWEL ARM ASSY (30638); kit 1 - SPIDER W/ ARMS ASSY (30636) view full part page → $1.42 IN A KIT + SOLD SOLO
6@#	1876	NUT, HEX JAM 3/8-16 CLASS 2B	4		ADD TO CART
NUT, HEX JAM 3/8-16 CLASS 2B 1876 · qty on machine: 4 Also included in kit 4 - TROWEL ARM ASSY (30638); kit 1 - SPIDER W/ ARMS ASSY (30636) view full part page → $0.13 IN A KIT + SOLD SOLO
7@#	0166A	WASHER, LOCK, 3/8" MED.	4		ADD TO CART
WASHER, LOCK, 3/8" MED. 0166A · qty on machine: 4 Also included in kit 4 - TROWEL ARM ASSY (30638); kit 1 - SPIDER W/ ARMS ASSY (30636) view full part page → $0.17 IN A KIT + SOLD SOLO
8@#	1163	LEVER, TROWEL ARM, RIGHT HAND	4		PARTS REQUEST
PHOTO COMING LEVER, TROWEL ARM, RIGHT HAND 1163 · qty on machine: 4 Also included in kit 4 - TROWEL ARM ASSY (30638); kit 1 - SPIDER W/ ARMS ASSY (30636) PARTS REQUEST
9@	21906	SCREW, HHFS 5/16-18 X 1-1/2" GR 5	4		ADD TO CART
SCREW, HHFS 5/16-18 X 1-1/2" GR 5 21906 · qty on machine: 4 Also included in kit 1 - SPIDER W/ ARMS ASSY (30636) view full part page → $0.59 IN A KIT + SOLD SOLO
10@	42036	SCREW, HHFS 5/16-18 X 1-1/4" GR 5	4		ADD TO CART
SCREW, HHFS 5/16-18 X 1-1/4" GR 5 42036 · qty on machine: 4 Also included in kit 1 - SPIDER W/ ARMS ASSY (30636) view full part page → $1.95 IN A KIT + SOLD SOLO
11@#	30639	ARM, TROWEL, 2826 MODIFIED	4		PARTS REQUEST
PHOTO COMING ARM, TROWEL, 2826 MODIFIED 30639 · qty on machine: 4 Also included in kit 4 - TROWEL ARM ASSY (30638); kit 1 - SPIDER W/ ARMS ASSY (30636) PARTS REQUEST
12@#	4164	PIN, SLOTTED SPRING, 5/16" X 1-3/4" NP	4		ADD TO CART
PIN, SLOTTED SPRING, 5/16" X 1-3/4" NP 4164 · qty on machine: 4 Also included in kit 4 - TROWEL ARM ASSY (30638); kit 1 - SPIDER W/ ARMS ASSY (30636) view full part page → $0.83 IN A KIT + SOLD SOLO
13@	1875	WASHER, INT. SHKP, 3/8"	4		ADD TO CART
WASHER, INT. SHKP, 3/8" 1875 · qty on machine: 4 Also included in kit 1 - SPIDER W/ ARMS ASSY (30636) view full part page → $6.95 IN A KIT + SOLD SOLO
14@	1322	SCREW ASSY., TROWEL ARM RETAINING	4		ADD TO CART
SCREW ASSY., TROWEL ARM RETAINING 1322 · qty on machine: 4 Also included in kit 1 - SPIDER W/ ARMS ASSY (30636) view full part page → $3.95 IN A KIT + SOLD SOLO
15@	1162A	CAP, GREASE ZERK, #2 YELLOW	4		ADD TO CART
CAP, GREASE ZERK, #2 YELLOW 1162A · qty on machine: 4 Also included in kit 1 - SPIDER W/ ARMS ASSY (30636) view full part page → $0.48 IN A KIT + SOLD SOLO
16@	12097	SCREW, SQHS 3/8-16 X 1-3/4" CONE	1		ADD TO CART
SCREW, SQHS 3/8-16 X 1-3/4" CONE 12097 · qty on machine: 1 Also included in kit 1 - SPIDER W/ ARMS ASSY (30636) view full part page → $1.95 IN A KIT + SOLD SOLO
17@	1456	NUT, HEX FINISH 3/8-16	1		PARTS REQUEST
PHOTO COMING NUT, HEX FINISH 3/8-16 1456 · qty on machine: 1 Also included in kit 1 - SPIDER W/ ARMS ASSY (30636) PARTS REQUEST
18@	30642	SPIDER PLATE, 1-1/8" SHAFT 4 BLD	1		PARTS REQUEST
PHOTO COMING SPIDER PLATE, 1-1/8" SHAFT 4 BLD 30642 · qty on machine: 1 Also included in kit 1 - SPIDER W/ ARMS ASSY (30636) PARTS REQUEST
19	1817	TROWEL ARM ADJUSTMENT TOOL	1		ADD TO CART
TROWEL ARM ADJUSTMENT TOOL 1817 · qty on machine: 1 view full part page → $107.35
20	30699	BLADES, TROWEL COMBO 8" X 14"	4		ADD TO CART
BLADES, TROWEL COMBO 8" X 14" 30699 · qty on machine: 4 view full part page → $55.37
21	30698	COMBO EDGER BLADE, 30" WBT 8" X 10.5"	4		ADD TO CART
COMBO EDGER BLADE, 30" WBT 8" X 10.5" 30698 · qty on machine: 4 view full part page → $51.98

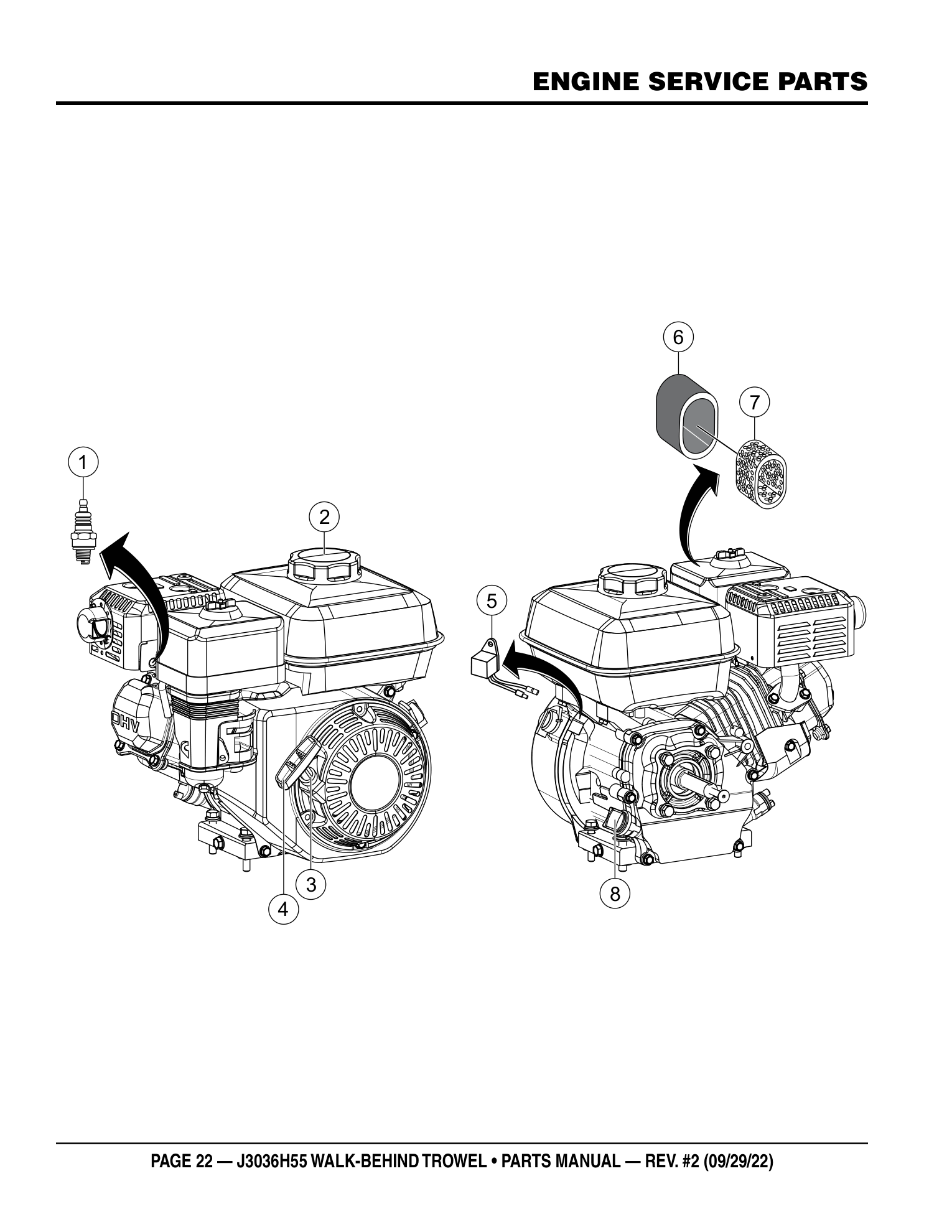

Page 22 — CAP ASSY., OIL FILLER

Parts list — exactly as printed8 rows

No.	Part No.	Part Name	Qty
1	9807956846	SPARK PLUG, BPR6ES	1	ADD TO CART
SPARK PLUG, BPR6ES 9807956846 · qty on machine: 1 view full part page → $4.95
2	17620Z4H900	CAP, FUEL TANK, CHROME PLATED	1	ADD TO CART
CAP, FUEL TANK, CHROME PLATED 17620Z4H900 · qty on machine: 1 view full part page → $187.95
3	28462ZH8003	ROPE, RECOIL STARTER	1	ADD TO CART
ROPE, RECOIL STARTER 28462ZH8003 · qty on machine: 1 view full part page → $22.95
4	28461Z4M305	KNOB, RECOIL STARTER	1	ADD TO CART
KNOB, RECOIL STARTER 28461Z4M305 · qty on machine: 1 view full part page → $16.95
5	34150ZH7023	ALERT UNIT, OIL	1	ADD TO CART
ALERT UNIT, OIL 34150ZH7023 · qty on machine: 1 view full part page → $94.95
6	17218ZE1507	FILTER, OUTER FOAM	1	ADD TO CART
FILTER, OUTER FOAM 17218ZE1507 · qty on machine: 1 view full part page → $20.95
7	17210ZE1517	ELEMENT, AIR CLEANER	1	ADD TO CART
ELEMENT, AIR CLEANER 17210ZE1517 · qty on machine: 1 view full part page → $16.95
8	15600Z0T810	CAP ASSY., OIL FILLER	1	ADD TO CART
CAP ASSY., OIL FILLER 15600Z0T810 · qty on machine: 1 view full part page → $1.95

The machine itself

$3,869.00 Get a quote

In stock and ready to order. Freight added at checkout.

The Multiquip J3036H55 is a power trowel built for finishing concrete slabs to a flat, dense, burnished surface. It weighs in at 180 lb. (81 kg). Factory-documented specs and parts support; priced by quote.

Keep-it-running spares

All listed parts →

Every part that fits this machine

0251 Multiquip 0251 Drum Centrifugal Clutch - OEM Replacement Part for Power Trowels $76.95

10567 Multiquip 10567 Thrust Plate C4 - OEM Replacement Part $48.95

12875 Multiquip 12875 Gear Box Cover JA - OEM Replacement Part for Walk-Behind Trowels $44.95

1717 Multiquip 1717 Screw Adjusting Assembly (QP) - OEM Replacement Part for Trowels $59.95

17620Z4H900 Multiquip 17620Z4H900 Fuel Tank Cap - OEM Replacement Part $187.95

20389 Multiquip 20389 Handle for Walk-Behind Trowels - OEM Replacement Part $131.95

20819 Multiquip 20819 Hand Wheel Assembly - OEM Replacement Part for Concrete Trowels $98.95

21434 Multiquip 21434 Pitch Sleeve - OEM Replacement Part for Walk-Behind Trowels $47.95

21912 Multiquip 21912 Operator Presence Handle Kit - OEM Replacement Part $46.95

22060 Multiquip 22060 Quick Pitch Main Handle Assembly (Painted) - OEM Replacement Part $205.95

22095 Multiquip 22095 Handle Assembly Painted - OEM Replacement Part for Walk-Behind Trowels $160.95

22901 Multiquip 22901 Honda GX160 Tier 3 4.8 HP Engine - OEM Replacement Part $647.95

24064 Multiquip 24064 Bearing 2.9375 Idx4.527*Obs - See 21441* - OEM Replacement Part $42.95

24389 Multiquip 24389 Guard Ring 30" - OEM Replacement Part for Walk-Behind Trowels $201.95

24393 Multiquip 24393 Bumper 30" - OEM Replacement Part for Walk-Behind Trowel $60.95

24394 Multiquip 24394 36" Bumper - OEM Replacement Part for Walk-Behind Trowels $68.95

24532 Multiquip 24532 Bearing Holder - OEM Replacement Part for Walk-Behind Trowels $38.95

30624 Multiquip 30624 Yoke Assembly - OEM Replacement Part for Power Trowels $177.95

30632 Multiquip 30632 Handle Lift Assembly - OEM Replacement Part for Walk-Behind Trowels $101.95

30633 Multiquip 30633 Lifting Bale Assembly - OEM Replacement Part $52.95

30634 Multiquip 30634 Gearbox Assembly J3036 2" - OEM Replacement Part $739.95

30635 Multiquip 30635 Output Shaft for 30/3 Trowel - OEM Replacement Part $93.95

30636 Multiquip 30636 Spider Assembly with Arms - OEM Replacement Part for Walk-Behind Trowels $513.95

30640 Multiquip 30640 Guard Ring Kit - OEM Replacement Part for Trowels $841.95

30645 Multiquip 30645 Handle Lift Upper Assembly - OEM Replacement Part $52.95

34150ZH7023 Multiquip 34150ZH7023 Oil Alert Unit - OEM Replacement Part for Concrete Vibrators $94.95

20856 Multiquip 20856 Kill Switch Assembly - OEM Replacement Part for Walk-Behind Trowels $33.95

0253 CLUTCH PLATE $27.95

0254 SEAL, OIL DLIP 1.125 X 1.87 X .250 $20.95

0255 Multiquip 0255 Clutch Assembly 0.75IN Bore - OEM Replacement Part $229.95

0281 BEARING, THRUST, NICE 607 $8.95

0456 BEARING, SHIELDED 6007 ZZ E $31.95

0627 KEY, 3/16 X 1-1/4" $0.66

0753 SEAL, OIL, DUAL LIP, 1.250 X .750 X .250 $11.95

0786 SCREW, BHC 1/4-20 X 3/8" NYL PATCH, NP $0.54

0855 SPRING, CLUTCH .156 X 5.375 X .025 $1.95

0856 SWITCH ASSY., KILL

10133 NUT, NYLOC 3/8-16 $0.17

10136 WASHER, FLAT SAE 3/8"

10229 SCREW, HHC 5/16-24 X 1" $0.29

10235 WASHER, LOCK 5/16" EXT. TOOTH CSINK $0.23

10607 BEARING, THRUST $29.95

10639 WEAR PLATE, THRUST COLLAR $12.95

1116 NUT, BRASS JAM 5/16-18 $0.61

1138 RING, SNAP $0.40

1139 KEY, WOODRUFF #810 1/4 X 1-1/4" (#21) $16.95

1140 Multiquip 1140 Worm Gear Composite Fin - OEM Replacement Part for Trowels $217.95

1163 LEVER, TROWEL ARM, RIGHT HAND

1207 SCREW, HHC 5/16-18 X 1-3/4" $0.62

12097 SCREW, SQHS 3/8-16 X 1-3/4" CONE $1.95

1238 KEY, WOODRUFF #1012 5/16 X 1-1/2" (#25) $2.95

1273 SCREW, HHF, #8-32 X 3/8", TYPE F, ZP $0.26

12876 FLANGE, INPUT SHAFT $14.95

1322 SCREW ASSY., TROWEL ARM RETAINING $3.95

13811 DECAL, SERIAL PLATE

1406 END PLUG, CLUTCH $14.95

1456 NUT, HEX FINISH 3/8-16

1478 SHAFT, TROWEL CONTROL $14.95

1493 SCREW, HHC 3/8-16 X 3.25" $0.95

15081 GRIP, 1" I.D. X 4.5 $7.95

15600Z0T810 CAP ASSY., OIL FILLER $1.95

1605 SCREW, HHC M8-1.25 X 25MM $0.23

1665 SCREW, HHC 3/8-16 X 2" $0.53

1706 SPRING, COMPRESSION $8.95

1718 NUT, QP TRIM CNTL ADJUSTMENT $27.95

17210ZE1517 ELEMENT, AIR CLEANER $16.95

17218ZE1507 FILTER, OUTER FOAM $20.95

1724 GRIP, HANDLE $1.54

1729 PIN, SLOTTED SPRING, 3/16 X 1-1/4" $0.34

1732 PIN, ADJUSTMENT, QP $9.95

1733 WASHER, 1/2" X 1/32" $0.23

1737 SNAP RING, EXTERNAL, 0.5" DIA. $0.20

1817 TROWEL ARM ADJUSTMENT TOOL $107.35

1834 DEFLECTOR, HONDA 5 HP EXHAUST $17.95

1851 Multiquip 1851 Worm "B" Input Shaft - OEM Replacement Part for Walk-Behind Trowels $92.95

1868 SCREW, SHS 3/8-24 X 3/4", NP $0.50

1875 WASHER, INT. SHKP, 3/8" $6.95

1876 NUT, HEX JAM 3/8-16 CLASS 2B $0.13

20280 BLOCK, PITCH CONTROL $25.95

20282 BEARING, TROWEL CONTROL $20.95

20285 CABLE, CONTROL $22.95

20287 SLIDE BLOCK, TROWEL CONTROL $28.95

20390 Multiquip 20390 Trigger QP Assembly - OEM Replacement Part for Power Trowels $221.95

20395 O-RING, 139 BUNA-N $0.55

20396 O-RING, SIZE-257 BUNA-N $1.55

20437 PIN, QP LATCH $21.95

20439 Multiquip 20439 Wheel Assembly Hand QPHA JB - OEM Replacement Part $32.95

20465 BEARING, CONE TIMKEN LM11949 $20.46

20466 BEARING, CUP TIMKEN LM11910 $6.61

20474 BEARING, CONE TIMKEN M86647 $51.22

20475 BEARING, CUP TIMKEN M86610 $17.05

20476 SCREW, HHC 1/4-28 X 3/8" $0.37

20485 INSTRUCTION, TH WBT CAB HKUP $8.46

20526 DECAL, WARNING, QUICK-PITCH LATCH WARNING $0.94

20527 DECAL, WARNING, QUICK-PITCH WARNING $0.95

20801 PIN, YOKE $4.95

20802 RING, SNAP, TRUARC $0.26

20845 SWIVEL, ASSY. THROTTLE CABLE $9.95

20875 SCREW, FHSC 5/16-18 X 3/4" $0.45

21017 SCREW, HHC 3/8-16 X 3.25" FULL THRD GR5 $2.95

21033 SIGHT GLASS, 3/4" NPT, STEEL, NO BALL $7.95

21047 Multiquip 21047 Bearing and Seal Kit - OEM Gearbox Replacement Part $211.95

21171 THROTTLE, BICYCLE FINISHER HANDLES

21172 CABLE, THROTTLE 68" $2.90

21173 HOUSING, MAGURA THROTTLE CABLES $10.95

21678 SCREW, FHSC 5/16-24 X 1-3/4" $2.95

21679 SPACER 1" X .78 X 69 L $9.95

21746 SPRING, PRIMARY THROTTLE RETURN $2.95

21906 SCREW, HHFS 5/16-18 X 1-1/2" GR 5 $0.59

21915 SPACER, LIFTING BAIL $10.95

21953 SWITCH HARNESS, CENTRIFUGAL $5.95

21957 HARNESS, PRESENCE SWITCH, 32.5" LONG $9.95

21994 Multiquip 21994 AK59 Pulley - OEM Replacement Part for Walk-Behind Trowels $36.95

22055 Multiquip 22055 Vibration Control Handle Assembly - OEM Replacement Part for Walk-Behind Trowels $117.95

22059 ISOLATOR, VIBRATION $11.95

22070 DECAL, MQ WHITEMAN POWER TROWEL 3.78" DIA. $2.75

22100 KIT, VIBE CONTROL HANDLE INSTALLATION $7.95

22166 COVER, VIBE CONTROL HANDLE PAD $16.95

22167 SCREW, HHC 3/8-16 X 6.5" GRADE 5 $1.91

22206 Multiquip 22206 Chassis Cast Vibration Isolator Black - OEM Replacement Part $68.95

22732 THROTTLE LEVER ASSY. $26.95

22762 GRIP, HANDLE, 0.875" $3.95

23698 ISO DECAL, ROTATING BLADE HAZARD, 2.00" DIA. $1.32

23699 ISO DECAL, READ MANUAL, 2.00" DIA. $0.95

23700 ISO DECAL, LIFTING/CRUSH, 2.4" X 2.0" $1.79

23701 ISO DECAL, ASK FOR TRAINING, 2.00" DIA. $3.95

23704 ISO DECAL, GUARD WARNING 2.00" DIA. $2.95

23803-108 ISO DECAL, GUARANTEED SOUND 108 DB(A) $1.06

23804 DECAL, ISO, DO NOT DISASSEMBLE, CYLINDER $0.74

24386 WEAR PLATE, UPPER $15.95

24390 GUARD RING SEGMENT, 36" $9.95

24391 RING, BUMPER, 30"

24392 RING, BUMPER, 36"

24454 DECAL, NO EXPOSED BLADE

24533 RING, BEARING RETAINER $5.95

28461Z4M305 KNOB, RECOIL STARTER $16.95

28462ZH8003 ROPE, RECOIL STARTER $22.95

2942 DECAL, MQ WHITEMAN 13" WHITE $2.95

30119 SCREW, 1/4-20 X 7/8" IND HEX, DOG PT $0.48

30344 BELT GUARD, FRICTION CLUTCH $12.95

30538 DECAL, FLAG DESIGNED AND ASSEMBLED IN USA $1.31

30638 TROWEL ARM ASSY

30639 ARM, TROWEL, 2826 MODIFIED

30642 SPIDER PLATE, 1-1/8" SHAFT 4 BLD

30648 BELT, A26 $14.95

30651 DECAL KIT, J AND B FINISHERS

30698 COMBO EDGER BLADE, 30" WBT 8" X 10.5" $51.98

30699 BLADES, TROWEL COMBO 8" X 14" $55.37

32210 DECAL, BLADES PANS OPTIONS

3233 WASHER, FENDER 3/8 X 1-1/2" $0.23

32344 DECAL KIT, WBT HANDLES

36099 ISO DECAL, PROTECTIVE CLOTHING, 3.50" X 1.13" $1.55

3615 COLLAR, SET 3/4" ID $1.95

38707 DECAL, ISO PROP 65 $1.32

4014 SCREW, 2-3/16 P-K TYPE U-DRIVE $0.23

4164 PIN, SLOTTED SPRING, 5/16" X 1-3/4" NP $0.83

42036 SCREW, HHFS 5/16-18 X 1-1/4" GR 5 $1.95

60073 OIL, GEAR, ISO GRADE 460 26 OZ. (769 ML) $1.54

9154 SCREW, HHC 3/8-16 X 1-3/4" $0.61

933241 WASHER, FLAT SAE 5/16" GRD 9 YZ $0.33

9807956846 SPARK PLUG, BPR6ES $4.95

B1766 WEIGHT-AUTOMATIC CLUTCH $3.95

QXHP HANDLE ASSY., QP VIBE CONTROL OP PRESENCE

SXHP HANDLE ASSY., STD. VIBE CONTROL OP PRESENCE

Ask ARIA about your machine.

Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.

Chat with ARIA

Multiquip J3036 30" Walk Behind Trowel

The parts bench

The machine itself

Machine

Engine

Keep-it-running spares

Every part that fits this machine

Service notices & part changes

Take the factory book with you

Get the download pack

From the guides desk

Ask ARIA about your machine.

Your cart is empty

Your cart is empty
