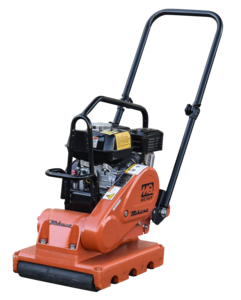

Multiquip MVB85 15" Paver Plate Compactor
Factory parts book · interactive
Multiquip MVB85 15" Paver Plate Compactor
The parts bench

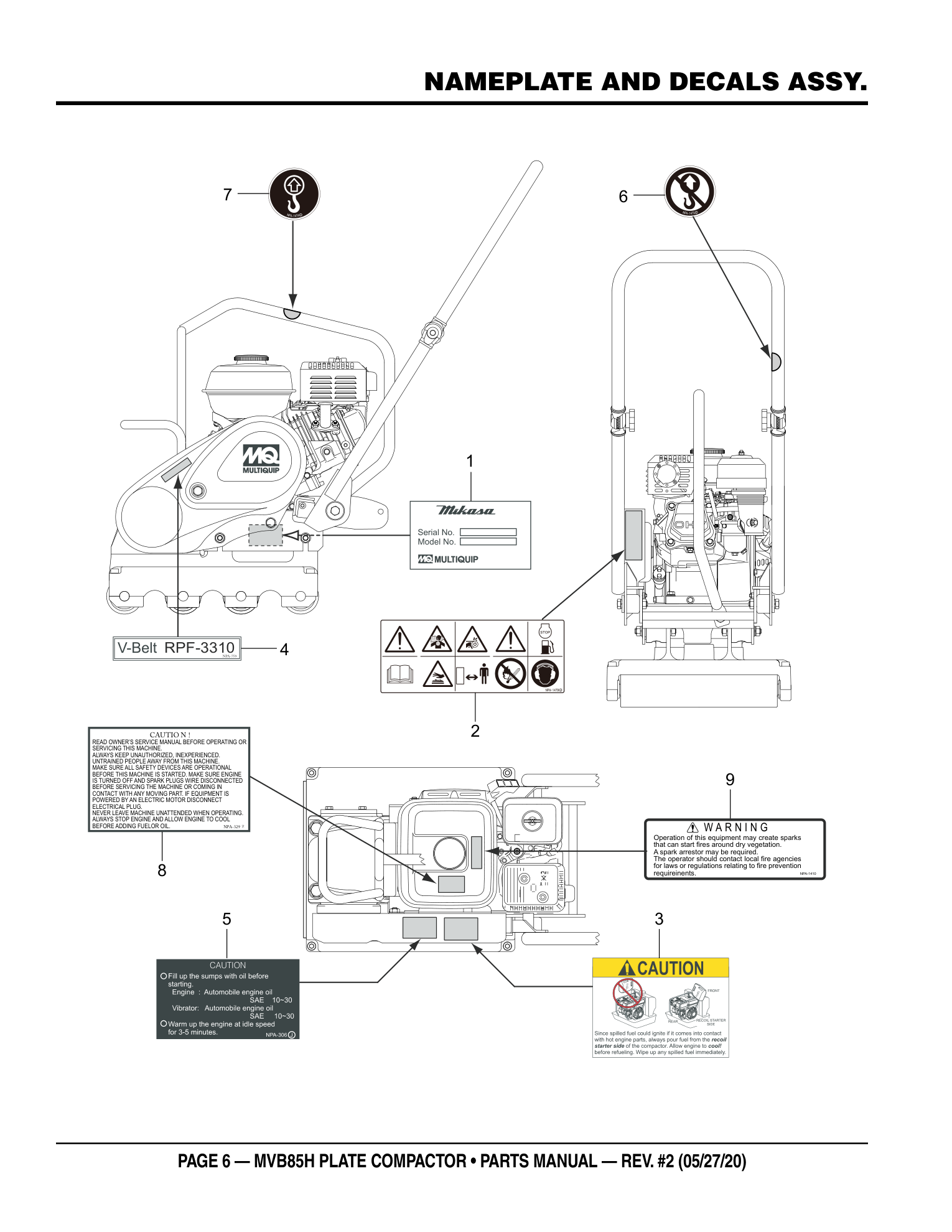

Need the PDF? ↓Page 6 — NAMEPLATE AND DECALS ASSY.
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | PLATE, SERIAL NO | 1 | CONTACT MQ PARTS DEPT. | SEE REMARKS | |
|
COMING PLATE, SERIAL NO
· qty on machine: 1 CONTACT MQ PARTS DEPT. SEE REMARKS
| |||||
| 2 | 920214790 | DECAL, CAUTION (ICON) | 1 | NPA-1479 | ADD TO CART |
| 3 | 920212320 | DECAL, FUEL CAUTION | 1 | NPA1232 | ADD TO CART |
| 4 | 920207590 | DECAL, V-BELT RPF3310 | 1 | NPA-759 | ADD TO CART |
| 5 | 920203060 | DECAL, CAUTION | 1 | NPA-306 | PARTS REQUEST |
|
COMING DECAL, CAUTION
920203060 · qty on machine: 1 NPA-306 | |||||
| 6 | 920214730 | DECAL, DO NOT LIFT | 1 | NPA-1473 | PARTS REQUEST |
|
COMING DECAL, DO NOT LIFT
920214730 · qty on machine: 1 NPA-1473 | |||||
| 7 | 920214740 | DECAL, LIFTING POSITION | 1 | NPA-1474 | PARTS REQUEST |
|
COMING DECAL, LIFTING POSITION
920214740 · qty on machine: 1 NPA-1474 | |||||
| 8 | 920203290 | DECAL, CAUTION | 1 | NPA-329 | ADD TO CART |
| 9 | 920214100 | DECAL, ENGINE FIRE WARNING | 1 | NPA-1410 | ADD TO CART |

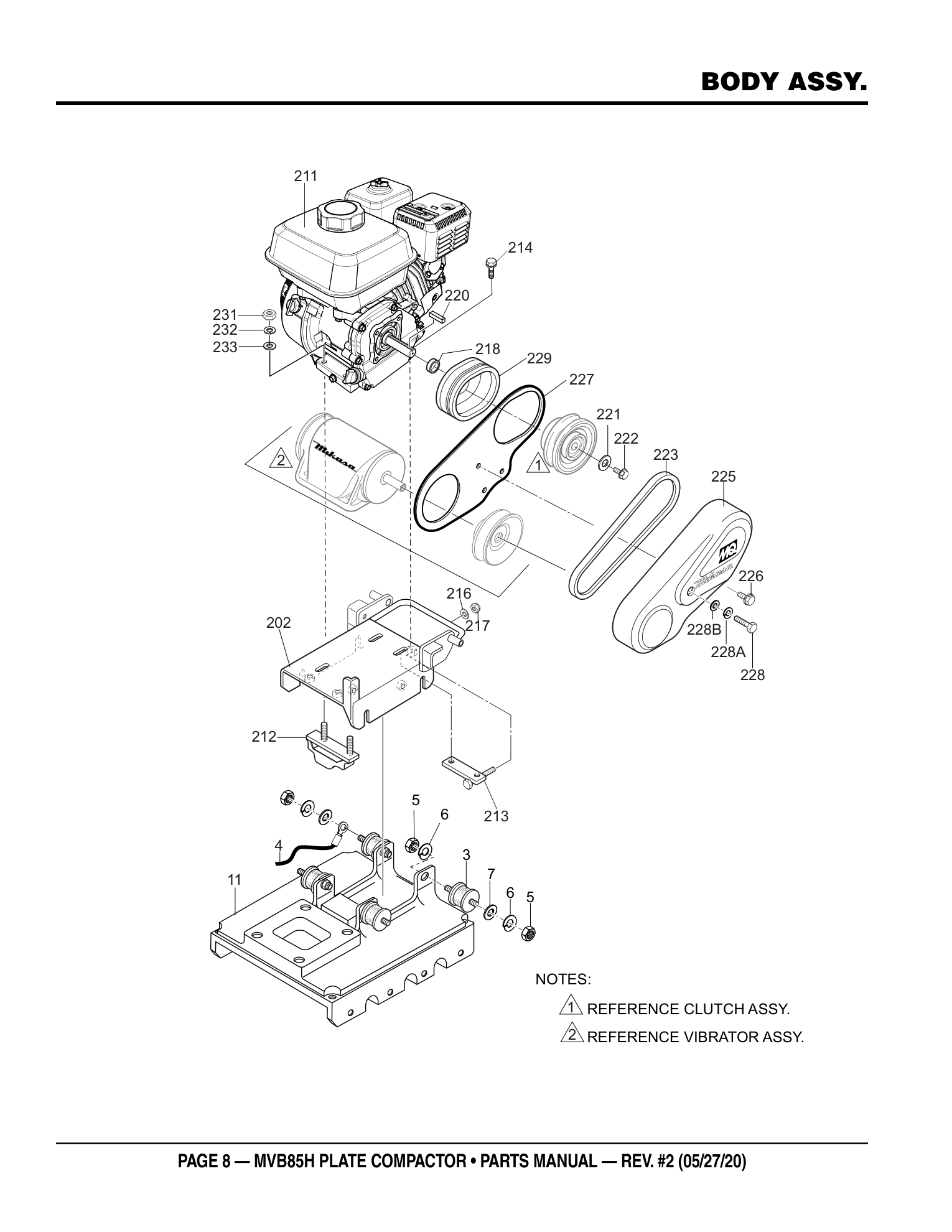

Page 8 — BODY ASSY.
Parts list — exactly as printed28 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 939010400 | SHOCK ABSORBER D45"XH41" | 4 | PARTS REQUEST | |
|
COMING SHOCK ABSORBER D45"XH41"
939010400 · qty on machine: 4 | |||||
| 4 | 959404350 | EARTH WIRE | 1 | ADD TO CART | |
| 5 | 020310080 | NUT M10 | 8 | ADD TO CART | |
| 6 | 030210250 | WASHER, LOCK M10 | 8 | ADD TO CART | |
| 7 | 031110160 | WASHER, FLAT M10 | 4 | ADD TO CART | |
| 11 | 418118110 | FRAME | 1 | PARTS REQUEST | |
|
COMING FRAME
418118110 · qty on machine: 1 | |||||
| 202 | 418219100 | BASE | 1 | ADD TO CART | |
| 211 | 912212011 | ENGINE, HONDA GX120UT2SM12 | 1 | NO LONGER AVAILABLE | |
|
COMING ENGINE, HONDA GX120UT2SM12
912212011 · qty on machine: 1 NO LONGER AVAILABLE
| |||||
| 212 | 418457690 | BOLT, ENGINE | 1 | ADD TO CART | |
| 213 | 413436870 | ENGINE NUT, REAR | 1 | ADD TO CART | |
| 214 | 011008040 | BOLT ASSY., 8X40 | 2 | REPLACES P/N 002410840 | ADD TO CART |
| 216 | 0401450080 | WASHER, FLAT M8 SS | 1 | REPLACES P/N 031108160 | ADD TO CART |
| 217 | 022710809 | NYLON NUT M8 | 1 | ADD TO CART | |
| 218 | 404418150 | SPACER 18X25X8 CLUTCH | 1 | ADD TO CART | |
| 220 | 0320050150 | KEY | 1 | ADD TO CART | |
| 221 | 952400130 | WASHER | 1 | ADD TO CART | |
| 222 | 011708025 | BOLT ASSY., 8X25 | 1 | REPLACES P/N 002210825 | ADD TO CART |
| 223 | 070100312 | V-BELT RPF3310 | 1 | ADD TO CART | |
| 225 | 418216470 | BELT COVER, OUTSIDE | 1 | REPLACES P/N 418216460 | ADD TO CART |
| 226 | 002411035 | BOLT ASSY., 10X35 | 1 | ADD TO CART | |
| 227 | 418216480 | BELT COVER, INSIDE | 1 | ADD TO CART | |
| 228 | 001221053 | BOLT, 10X65 | 1 | ADD TO CART | |
| 228A | 030210250 | WASHER, LOCK | 1 | ADD TO CART | |
| 228B | 031110160 | WASHER, FLAT | 1 | ADD TO CART | |
| 229 | 418343420 | COVER SEAL | 1 | ADD TO CART | |
| 231 | 020108060 | NUT M8 | 2 | REPLACES P/N 020308060 | ADD TO CART |
| 232 | 030208200 | WASHER, LOCK M8 | 2 | ADD TO CART | |
| 233 | 031108160 | WASHER, FLAT M8 | 2 | ADD TO CART | |

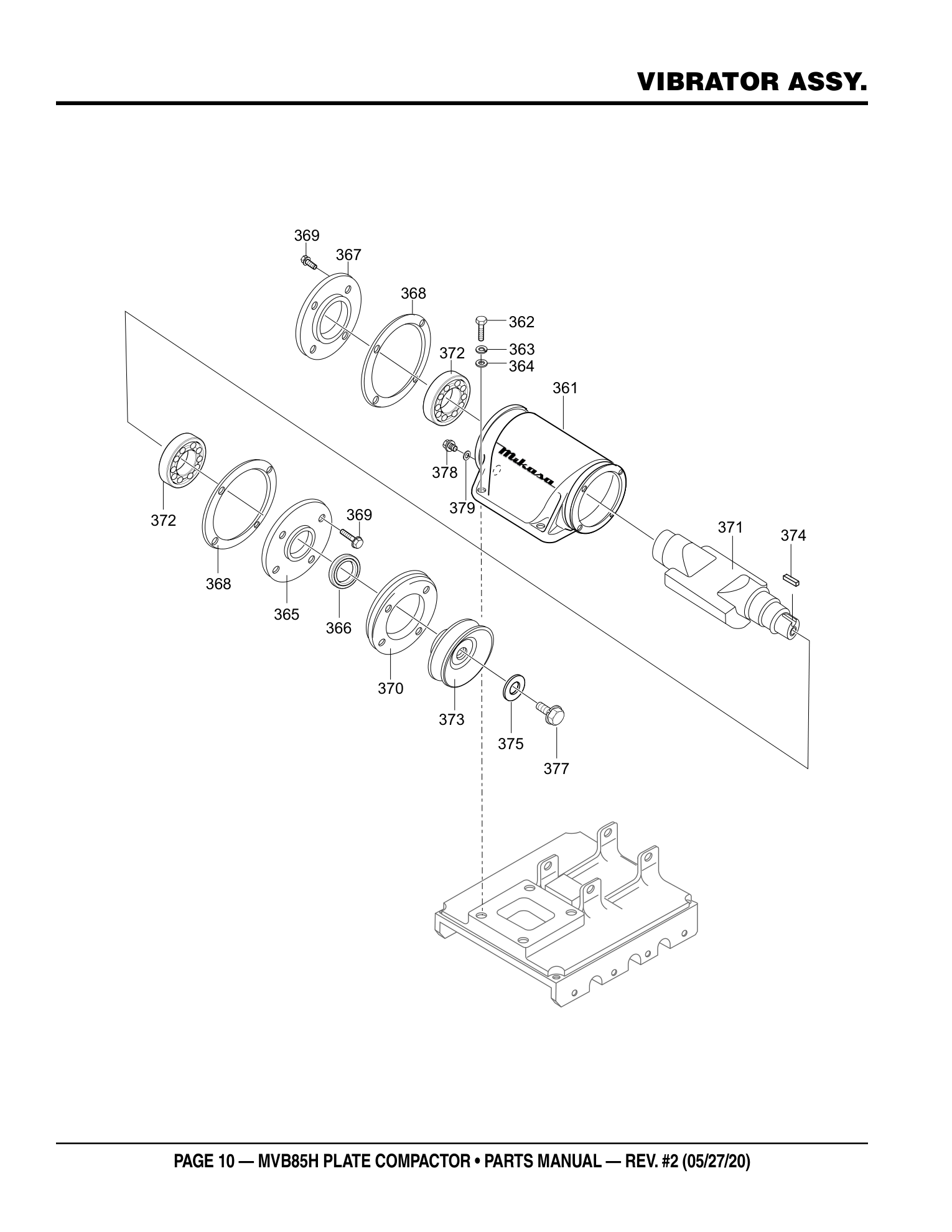

Page 10 — VIBRATOR ASSY.
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 361 | 418117730 | VIBRATING PLATE/CASE ASSY. | 1 | ADD TO CART | |
| 362 | 001221445 | BOLT 14X45 | 4 | ADD TO CART | |
| 363 | 030214350 | WASHER, LOCK M14 | 4 | ADD TO CART | |
| 364 | 031114260 | WASHER, FLAT | 4 | ADD TO CART | |
| 365 | 418464310 | CASE COVER, PULLEY | 1 | ADD TO CART | |
| 366 | 060403020 | OIL SEAL, TC30458 | 1 | ADD TO CART | |
| 367 | 418456960 | CASE COVER, SHUT-OFF | 1 | ADD TO CART | |
| 368 | 418456971 | PACKING | 2 | ADD TO CART | |
| 369 | 3013820 | BOLT ASSY. 8X20 | 8 | REPLACES P/N 002400820 | ADD TO CART |
| 370 | 418464510 | COVER, SEAL VIB | 1 | ADD TO CART | |
| 371 | 418343400 | ECCENTRIC ROTATOR SHAFT | 1 | ADD TO CART | |
| 372 | 040406307 | BEARING 6307C4 | 2 | ADD TO CART | |
| 373 | 418456981 | PULLEY, VIBRATOR ASSY. | 1 | ADD TO CART | |
| 374 | 951401920 | KEY 7X7X30 | 1 | ADD TO CART | |
| 375 | 952403450 | WASHER 11X35X4.5 | 1 | ADD TO CART | |
| 377 | 012010030 | BOLT ASSY. 10X30 | 1 | REPLACES P/N 002211030 | ADD TO CART |
| 378 | 953400270 | PLUG, 1/4X14X10L | 1 | ADD TO CART | |
| 379 | 953405260 | PACKING 1/4" | 1 | ADD TO CART | |

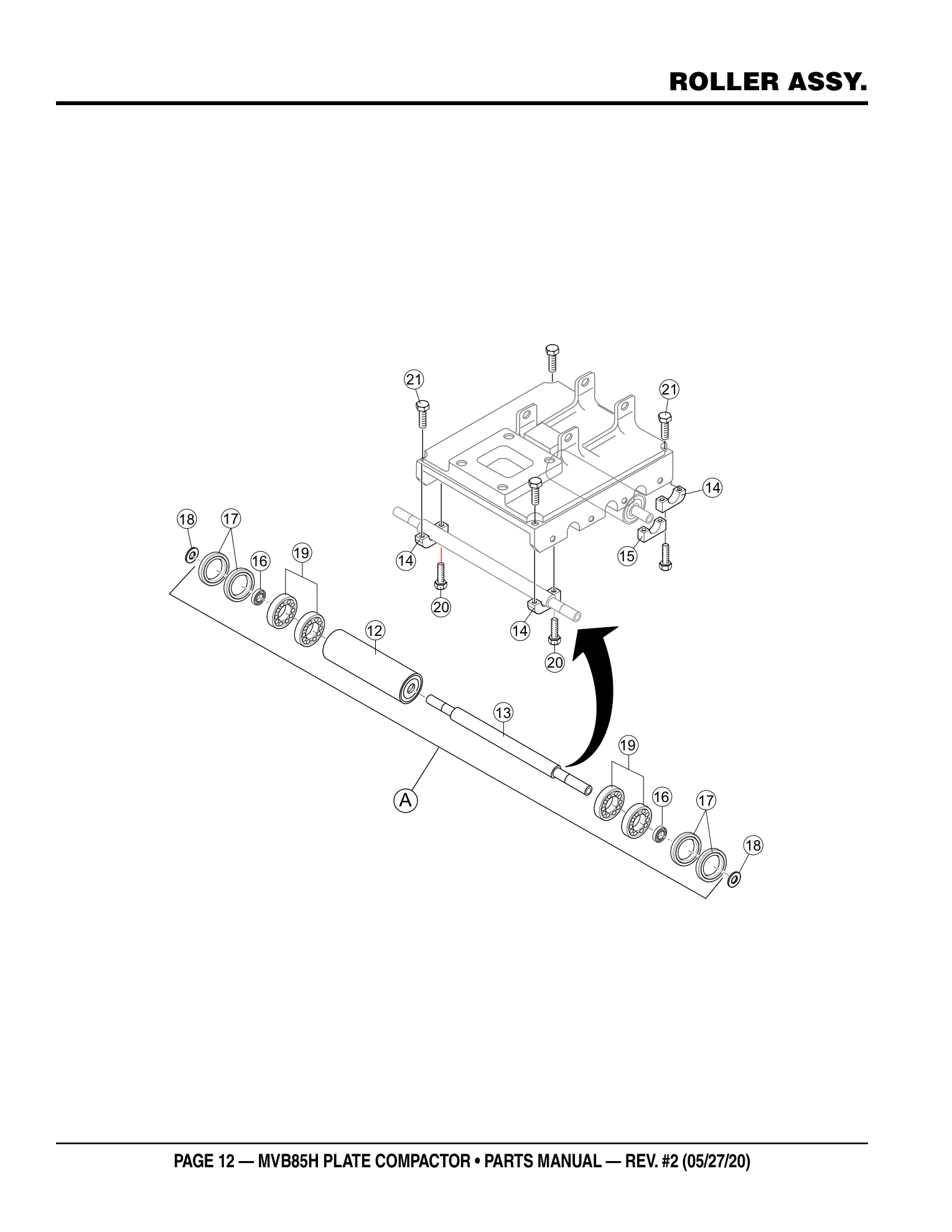

Page 12 — ROLLER ASSY.
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| A | 418910090 | ROLLER ASSY | 4 | INCLUDES ITEMS W/$ | ADD TO CART |
| 12$ | 418344260 | ROLL | 4 | ADD TO CART | |
 ROLL
418344260 · qty on machine: 4 Also included in kit A - ROLLER ASSY (418910090) view full part page → $336.71 IN A KIT + SOLD SOLO | |||||
| 13$ | 418344270 | ROLL SHAFT | 4 | ADD TO CART | |
| 14 | 418458130 | SHAFT HOLDER (END) | 4 | ADD TO CART | |
| 15 | 418458140 | SHAFT HOLDER (INSIDE) | 4 | ADD TO CART | |
| 16$ | 049920010 | NEEDLE BEARING (INNER RING) | 8 | ADD TO CART | |
| 17$ | 060602050 | OIL SEAL | 16 | ADD TO CART | |
| 18 | 952402281 | WASHER | 8 | ADD TO CART | |
| 19$ | 046006304 | BEARING 6304 | 16 | ADD TO CART | |
| 20 | 001521025 | BOLT, SOCKET HEAD 10X25 | 12 | ADD TO CART | |
| 21 | 001521052 | BOLT, SOCKET HEAD 10X60 | 4 | ADD TO CART | |

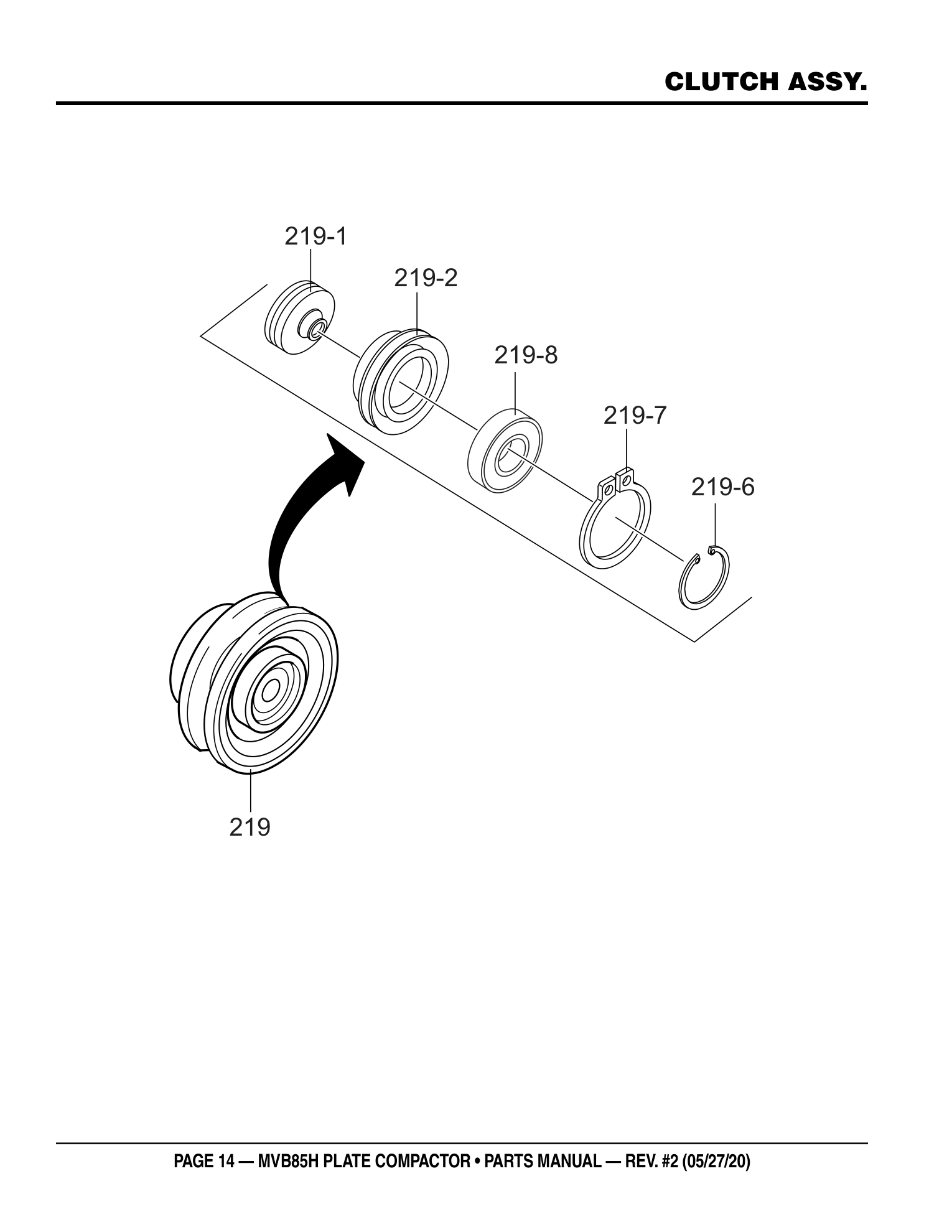

Page 14 — CLUTCH ASSY.
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 219 | 460446780 | CLUTCH ASSY | 1 | INCLUDES ITEMS W/# | ADD TO CART |
| 219-1# | 943920080 | CLUTCH SHAFT | 1 | PARTS REQUEST | |
|
COMING CLUTCH SHAFT
943920080 · qty on machine: 1 Also included in kit 219 - CLUTCH ASSY (460446780) | |||||
| 219-2# | 941010400 | CLUTCH PULLEY | 1 | PARTS REQUEST | |
|
COMING CLUTCH PULLEY
941010400 · qty on machine: 1 Also included in kit 219 - CLUTCH ASSY (460446780) | |||||
| 219-6# | 080200300 | SNAP RING | 1 | ADD TO CART | |
| 219-7# | 080600550 | SNAP RING | 1 | ADD TO CART | |
| 219-8# | 046006006 | BEARING 6006 | 1 | ADD TO CART | |

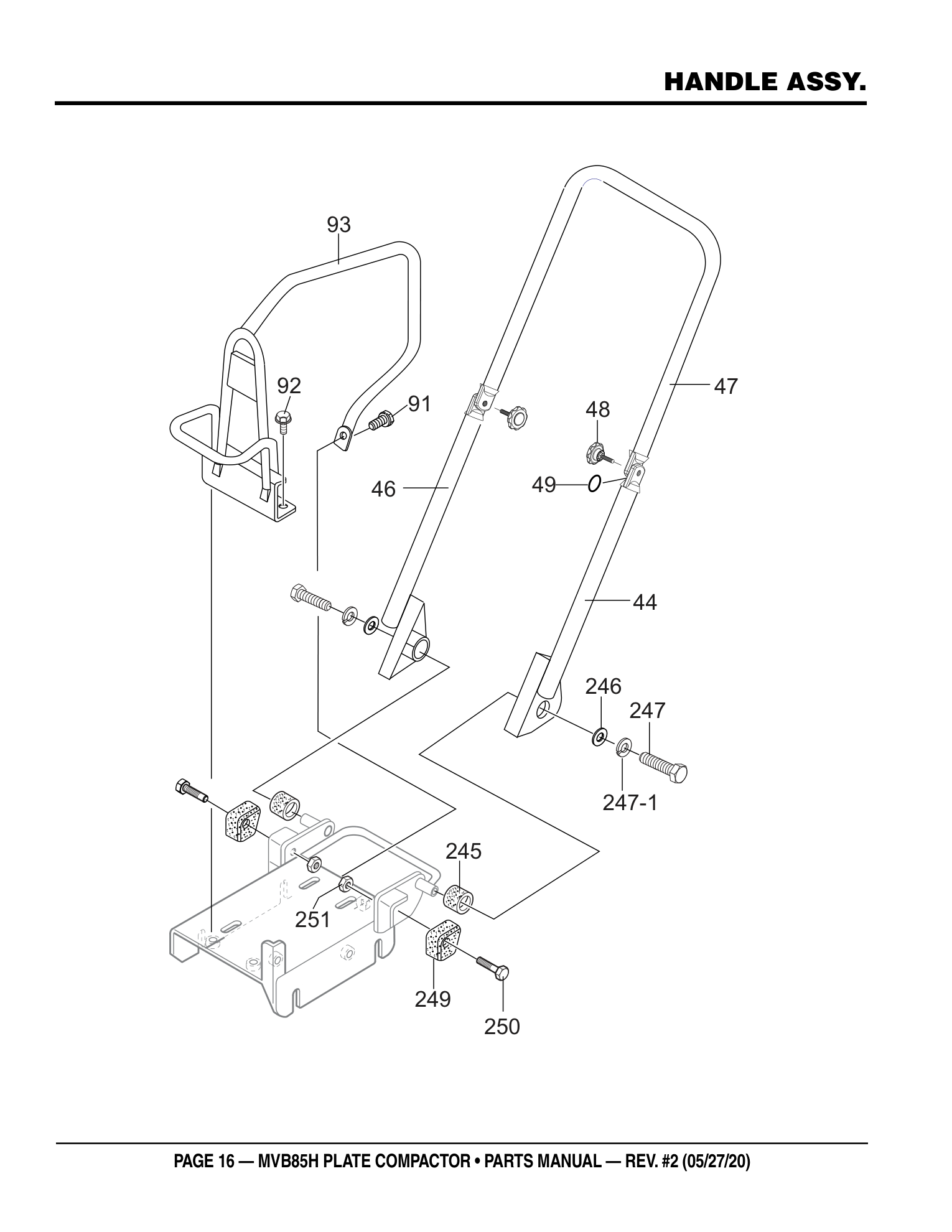

Page 16 — HANDLE ASSY.
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 44 | 418352730 | HANDLE, LOWER LEFT | 1 | ADD TO CART | |
| 46 | 418352740 | HANDLE, LOWER RIGHT | 1 | ADD TO CART | |
| 47 | 418346400 | HANDLE, UPPER | 1 | ADD TO CART | |
| 48 | 959406961 | GRIP BOLT 45X10X30 | 2 | ADD TO CART | |
| 49 | 050200080 | O-RING | 2 | ADD TO CART | |
| 91 | 012010030 | BOLT ASSY., 10X30 | 1 | REPLACES P/N 002211030 | ADD TO CART |
| 92 | 012210025 | BOLT ASSY., 10X25 | 2 | REPLACES P/N 002211025 | ADD TO CART |
| 93 | 418216870 | HOOK | 1 | ADD TO CART | |
| 245 | 404433430 | RUBBER 20X32X28.5 | 2 | ADD TO CART | |
| 246 | 952403450 | WASHER 11X35X4.5 | 2 | ADD TO CART | |
| 247 | 012210020 | BOLT 10X20 | 2 | REPLACES P/N 001221020 | ADD TO CART |
| 247-1 | 030210250 | WASHER, LOCK M10 | 2 | ADD TO CART | |
| 249 | 413436720 | RUBBER, HANDLE | 2 | ADD TO CART | |
| 250 | 001520845 | BOLT, SOCKET HEAD 8X45 | 2 | ADD TO CART | |
| 251 | 020308060 | NUT M8 | 2 | ADD TO CART | |

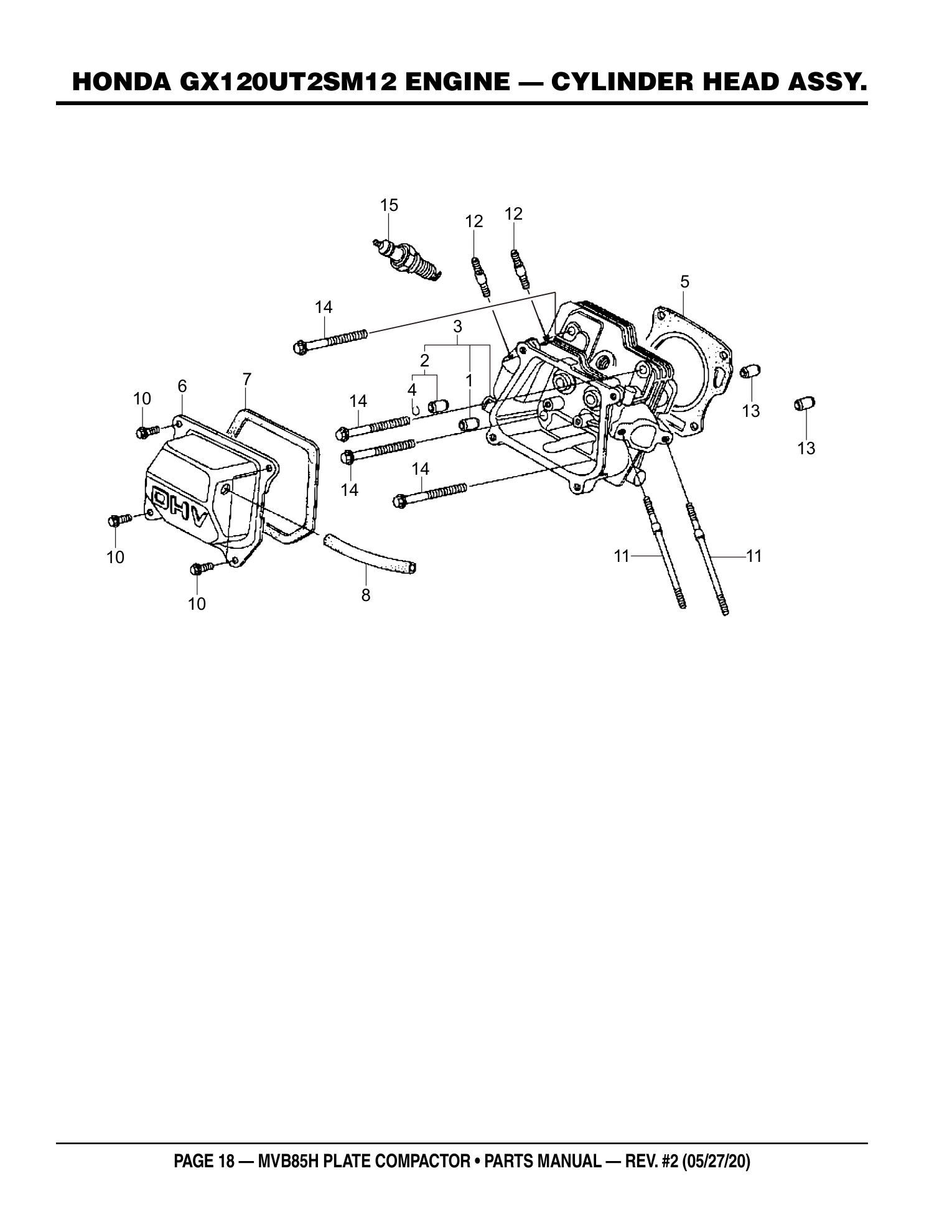

Page 18 — HONDA GX120UT2SM12 ENGINE - CYLINDER HEAD ASSY.
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1% | 12204ZE1306 | GUIDE, INLET VALVE (O.S.) | 1 | ADD TO CART | |
| 2% | 12205ZE1315 | GUIDE, EXHAUST VALVE (O.S.) | 1 | INCLUDES ITEM W/$ | NO LONGER AVAILABLE |
|
COMING GUIDE, EXHAUST VALVE (O.S.)
12205ZE1315 · qty on machine: 1 INCLUDES ITEM W/$ Also included in kit 3 - HEAD COMPLETE, CYLINDER (12210ZH7415) NO LONGER AVAILABLE
| |||||
| 3 | 12210ZH7415 | HEAD COMPLETE, CYLINDER | 1 | INCLUDES ITEMS W/% | ADD TO CART |
| 4$% | 12216ZE5300 | CLIP, VALVE GUIDE | 1 | ADD TO CART | |
| 5 | 12251Z0S801 | GASKET, CYLINDER HEAD | 1 | ADD TO CART | |
| 6 | 12310Z4M000 | COVER COMPLETE, HEAD | 1 | ADD TO CART | |
| 7 | 12391ZE1000 | PACKING, HEAD COVER | 1 | ADD TO CART | |
| 8 | 15721ZH8000 | TUBE, BREATHER | 1 | ADD TO CART | |
| 10 | 90013883000 | FLANGE BOLT 6X12 | 4 | ADD TO CART | |
| 11 | 90043Z4M000 | STUD BOLT 6X114 | 2 | ADD TO CART | |
| 12 | 90047ZE1000 | STUD BOLT 8X32 | 2 | ADD TO CART | |
| 13 | 9430110160 | KNOCK PIN 10X16 | 2 | ADD TO CART | |
| 14 | 957010805500 | BOLT, FLANGE 8X55 | 4 | ADD TO CART | |
| 15 | 0650140480 | SPARK PLUG, BPR6ES | 1 | ADD TO CART | |

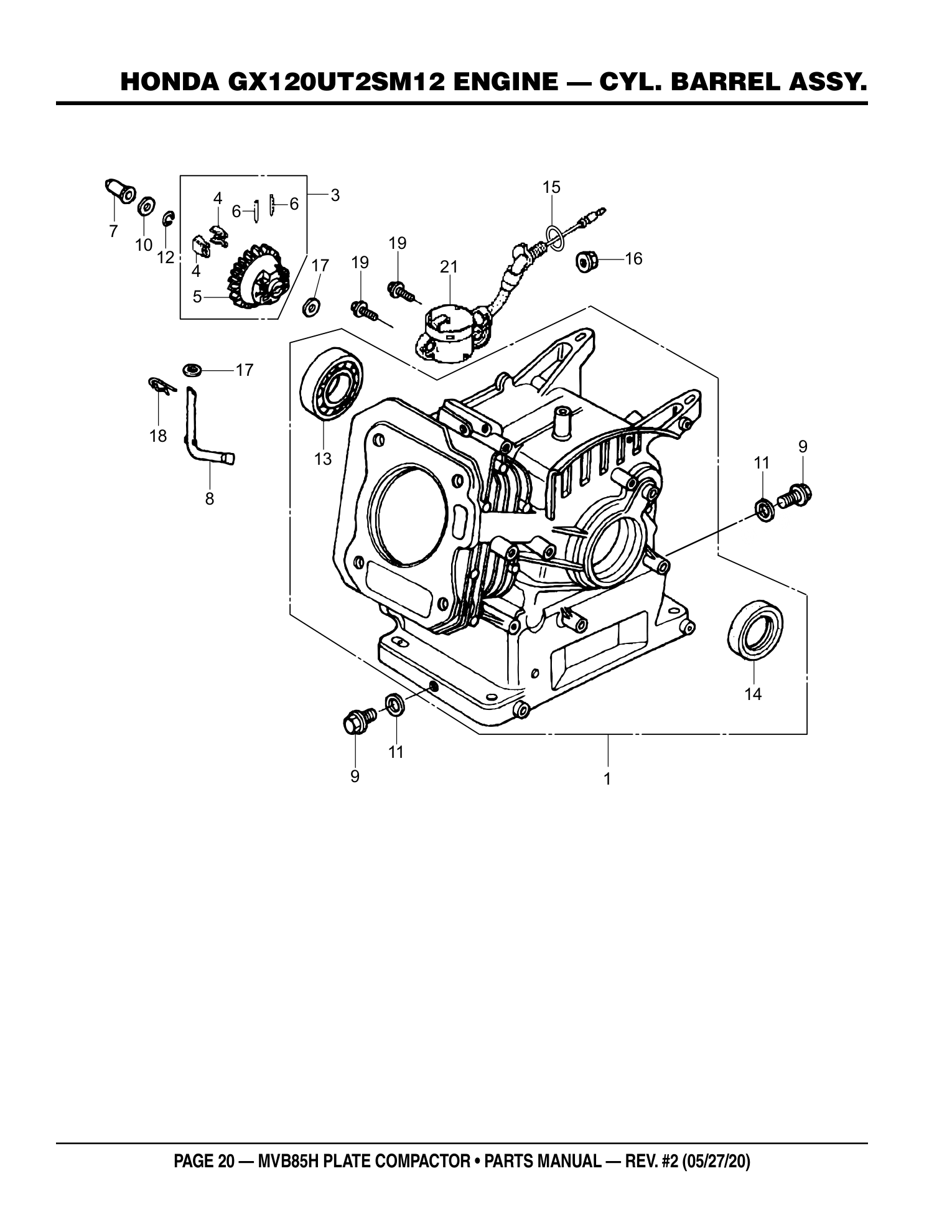

Page 20 — HONDA GX120UT2SM12 ENGINE - CYL. BARREL ASSY.
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 12000Z0S416 | BARREL, ASSY CYLINDER (OIL ALERT) | 1 | INCLUDES ITEMS W/$ | PARTS REQUEST |
|
COMING BARREL, ASSY CYLINDER (OIL ALERT)
12000Z0S416 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 13$, 14$, 15$ | |||||
| 3 | 16510ZE1000 | GOVERNOR ASSY | 1 | INCLUDES ITEMS W/% | ADD TO CART |
| 4% | 16511ZE1000 | WEIGHT, GOVERNOR | 2 | PARTS REQUEST | |
|
COMING WEIGHT, GOVERNOR
16511ZE1000 · qty on machine: 2 Also included in kit 3 - GOVERNOR ASSY (16510ZE1000) | |||||
| 5% | 16512ZE1000 | HOLDER, GOVERNOR WEIGHT | 1 | PARTS REQUEST | |
|
COMING HOLDER, GOVERNOR WEIGHT
16512ZE1000 · qty on machine: 1 Also included in kit 3 - GOVERNOR ASSY (16510ZE1000) | |||||
| 6% | 16513ZE1000 | PIN, GOVERNOR WEIGHT | 2 | ADD TO CART | |
| 7 | 16531ZE1000 | SLIDER, GOVERNOR | 1 | ADD TO CART | |
| 8 | 16541ZE1000 | SHAFT, GOVERNOR ARM | 1 | ADD TO CART | |
| 9 | 90131ZE1000 | BOLT, DRAIN PLUG | 2 | ADD TO CART | |
| 10 | 90451ZE1000 | THRUST WASHER 6MM | 1 | ADD TO CART | |
| 11 | 90601ZE1000 | WASHER, DRAIN PLUG | 2 | ADD TO CART | |
| 12 | 90602ZE1000 | CLIP, GOVERNOR HOLDER | 1 | ADD TO CART | |
| 13$ | 91001878003 | BALL BEARING 6222 | 1 | ADD TO CART | |
| 14$ | 91202ZE6013 | OIL SEAL 22X35X6 | 1 | ADD TO CART | |
| 15$ | 91353671003 | O-RING 14MM | 1 | REPLACES P/N 91353671004 | ADD TO CART |
| 16 | 9405010000 | FLANGE NUT M10 | 1 | ADD TO CART | |
| 17 | 58176 | WASHER, FLAT 6MM | 2 | REPLACES P/N 9410106800 | ADD TO CART |
| 18 | 9425108000 | PIN, LOCK 8MM | 1 | ADD TO CART | |
| 19 | 957010601200 | BOLT, FLANGE 6X12 | 2 | NO LONGER AVAILABLE | |
|
COMING BOLT, FLANGE 6X12
957010601200 · qty on machine: 2 NO LONGER AVAILABLE
| |||||
| 21 | 35480Z0T003 | SWITCH ASSY., OIL LEVEL | 1 | ADD TO CART | |

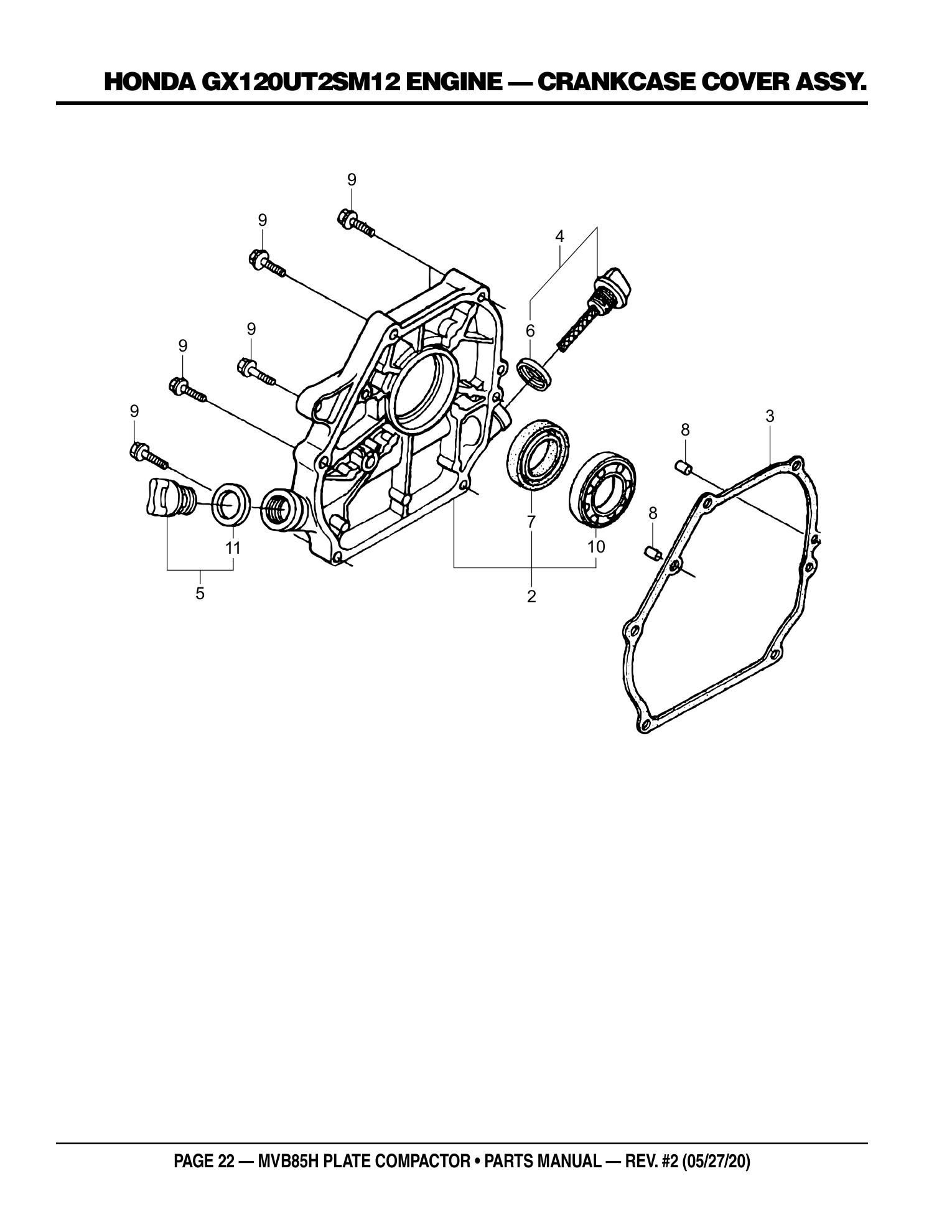

Page 22 — HONDA GX120UT2SM12 ENGINE - CRANKCASE COVER ASSY.
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 11300ZE0634 | COVER, ASSY., CRANKCASE | 1 | INCLUDES ITEMS W/# | PARTS REQUEST |
|
COMING COVER, ASSY., CRANKCASE
11300ZE0634 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 7#, 10# | |||||
| 3 | 11381ZH7800 | GASKET, CRANKCASE | 1 | ADD TO CART | |
| 4 | 15600Z0T810 | CAP ASSY., OIL FILLER | 1 | INCLUDES ITEMS W/$ | ADD TO CART |
| 5 | 15600Z0T820 | CAP ASSY., OIL FILLER | 1 | INCLUDES ITEMS W/% | ADD TO CART |
| 6$ | 15625Z0T800 | PACKING, OIL FILLER CAP | 1 | ADD TO CART | |
| 7# | 91203ZE0013 | OIL SEAL 22X41X6 | 1 | ADD TO CART | |
| 8 | 9430108140 | KNOCK PIN 8X14 | 2 | ADD TO CART | |
| 9 | 90015883000 | FLANGE BOLT 6X28 | 7 | ADD TO CART | |
| 10# | 91001878003 | BALL BEARING | 6222 | 1 REPLACES P/N 961006205000 | ADD TO CART |
| 11% | 15625Z0T800 | PACKING, OIL FILLER CAP | 1 | ADD TO CART | |

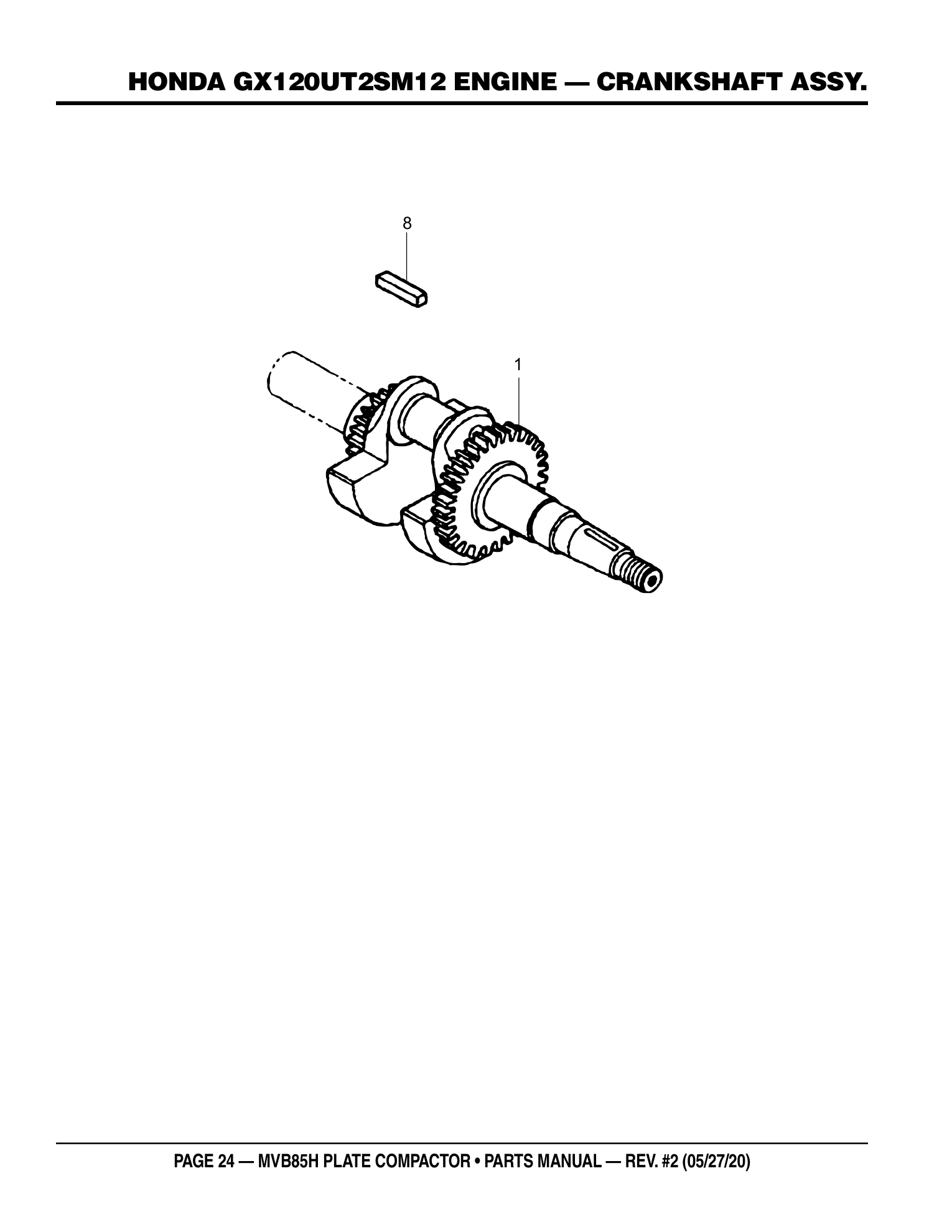

Page 24 — HONDA GX120UT2SM12 ENGINE - CRANKSHAFT ASSY.
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 13310Z0S880 | CRANKSHAFT COMPLETE | 1 | PARTS REQUEST | |
|
COMING CRANKSHAFT COMPLETE
13310Z0S880 · qty on machine: 1 | |||||
| 8 | 90741883810 | KEY 5X5X33 | 1 | ADD TO CART | |

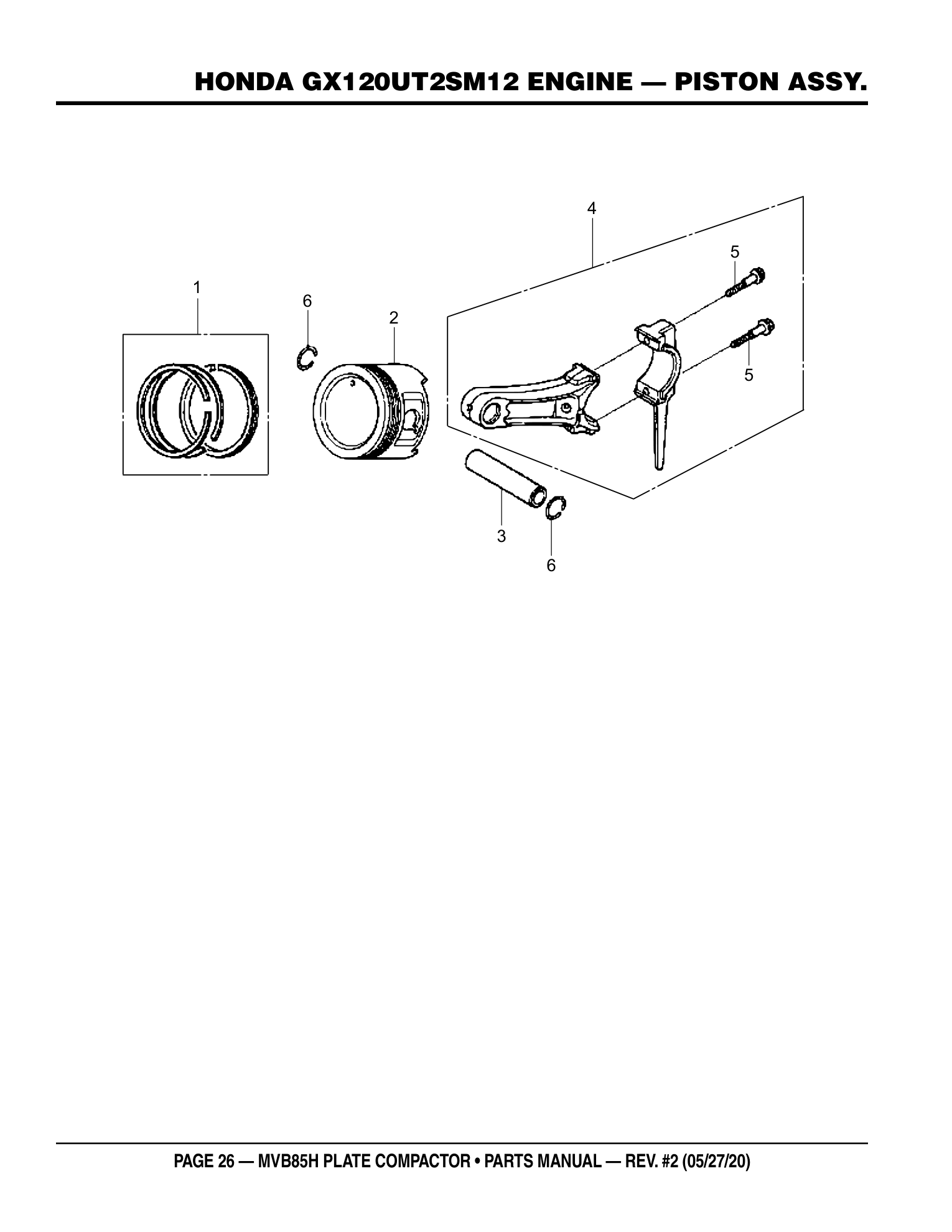

Page 26 — HONDA GX120UT2SM12 ENGINE - PISTON ASSY.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 13010Z4F004 | RING SET, PISTON (STD) | 1 | PARTS REQUEST | |
|
COMING RING SET, PISTON (STD)
13010Z4F004 · qty on machine: 1 | |||||
| 1 | 13011Z4F004 | RING SET, PISTON (0.25) | 1 | PARTS REQUEST | |
|
COMING RING SET, PISTON (0.25)
13011Z4F004 · qty on machine: 1 | |||||
| 1 | 13012Z4F004 | RING SET, PISTON (0.50) | 1 | PARTS REQUEST | |
|
COMING RING SET, PISTON (0.50)
13012Z4F004 · qty on machine: 1 | |||||
| 1 | 13013Z4F004 | RING SET, PISTON (0.75) | 1 | PARTS REQUEST | |
|
COMING RING SET, PISTON (0.75)
13013Z4F004 · qty on machine: 1 | |||||
| 2 | 13101ZH7020 | PISTON (STD) | 1 | PARTS REQUEST | |
|
COMING PISTON (STD)
13101ZH7020 · qty on machine: 1 | |||||
| 2 | 13102ZH7020 | PISTON (0.25) | 1 | PARTS REQUEST | |
|
COMING PISTON (0.25)
13102ZH7020 · qty on machine: 1 | |||||
| 2 | 13103ZH7020 | PISTON (0.50) | 1 | PARTS REQUEST | |
|
COMING PISTON (0.50)
13103ZH7020 · qty on machine: 1 | |||||
| 2 | 13104ZH7020 | PISTON (0.75) | 1 | PARTS REQUEST | |
|
COMING PISTON (0.75)
13104ZH7020 · qty on machine: 1 | |||||
| 3 | 13111ZE0000 | PIN, PISTON | 1 | ADD TO CART | |
| 4 | 13200Z0S800 | ROD ASSY., CONNECTING | 1 | INCLUDES ITEM W/$ | PARTS REQUEST |
|
COMING ROD ASSY., CONNECTING
13200Z0S800 · qty on machine: 1 INCLUDES ITEM W/$ Kit includes: 5$ | |||||
| 5$ | 90001ZE1000 | BOLT, CONNECTING ROD | 2 | ADD TO CART | |
| 6 | 90551ZE0000 | CLIP, PISTON PIN 13MM | 2 | ADD TO CART | |

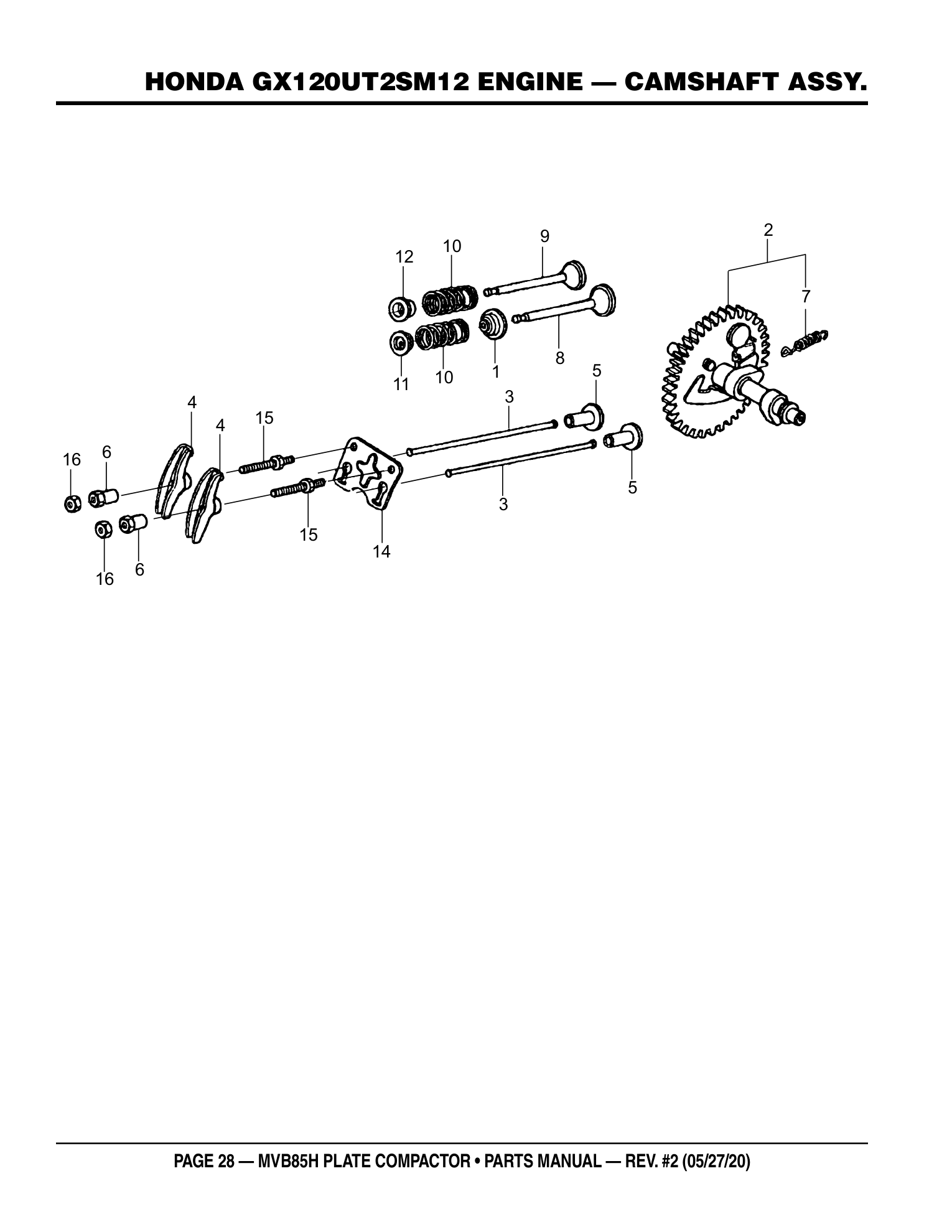

Page 28 — HONDA GX120UT2SM12 ENGINE - CAMSHAFT ASSY.
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 12209Z4M801 | SEAL, VALVE STEM | 1 | ADD TO CART | |
| 2 | 14100ZE0812 | CAMSHAFT ASSY | 1 | INCLUDES ITEM W/$ | ADD TO CART |
 CAMSHAFT ASSY
14100ZE0812 · qty on machine: 1 INCLUDES ITEM W/$ Kit includes: 7$ view full part page → $229.95 IN A KIT + SOLD SOLO | |||||
| 3 | 14410ZE0010 | ROD COMPLETE, PUSH | 2 | ADD TO CART | |
| 4 | 14431ZE1000 | ARM, VALVE ROCKER | 2 | ADD TO CART | |
| 5 | 14441ZE1010 | VALVE LIFTER | 2 | ADD TO CART | |
| 6 | 14451ZE1013 | PIVOT, ROCKER ARM | 2 | ADD TO CART | |
| 7$ | 14568ZE1000 | SPRING, WEIGHT RETURN | 1 | ADD TO CART | |
| 8 | 14711Z4H000 | VALVE, INTAKE | 1 | PARTS REQUEST | |
|
COMING VALVE, INTAKE
14711Z4H000 · qty on machine: 1 | |||||
| 9 | 14721Z4H000 | VALVE, EXHAUST | 1 | PARTS REQUEST | |
|
COMING VALVE, EXHAUST
14721Z4H000 · qty on machine: 1 | |||||
| 10 | 14751ZF1000 | SPRING, VALVE | 2 | ADD TO CART | |
| 11 | 14771ZE1000 | RETAINER, INTAKE VALVE | 1 | ADD TO CART | |
| 12 | 14771ZE1000 | RETAINER, EXHAUST VALVE | 1 | ADD TO CART | |
| 14 | 14791ZE0010 | PLATE, PUSH ROD GUIDE | 1 | ADD TO CART | |
| 15 | 90012ZE0010 | BOLT, PIVOT, 8MM | 2 | ADD TO CART | |
| 16 | 90206ZE1000 | NUT, PIVOT ADJUSTING | 2 | ADD TO CART | |

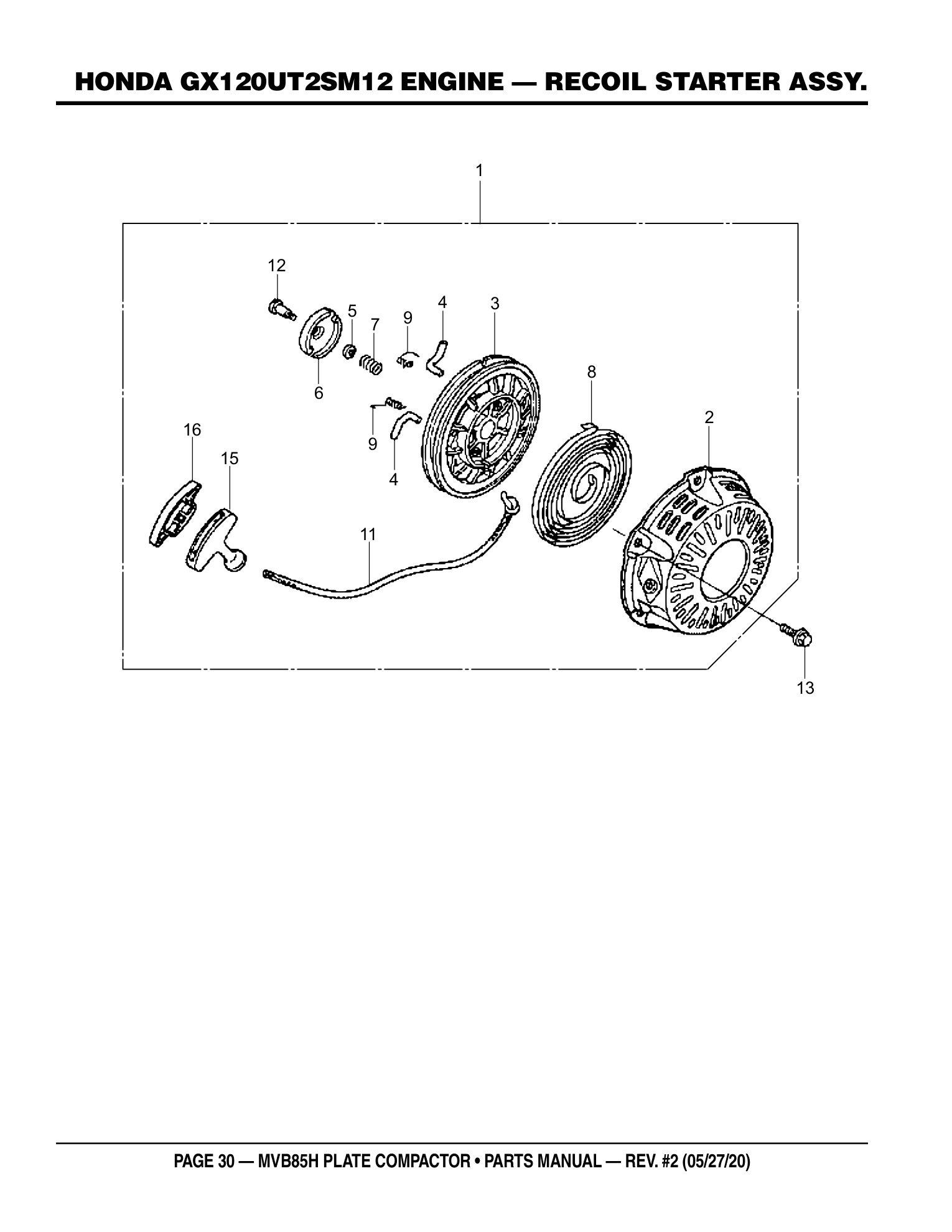

Page 30 — HONDA GX120UT2SM12 ENGINE - RECOIL STARTER ASSY.
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 28400Z4M305ZD | STARTER ASSY., RECOIL | 1 | INCLUDES ITEMS W/$ | ADD TO CART |
| 2$ | 28410Z4M003ZD | CASE COMPLETE, RECOIL STARTER | 1 | ADD TO CART | |
| 3$ | 28421Z0T003 | REEL, RECOIL STARTER | 1 | ADD TO CART | |
| 4$ | 28422ZH8801 | RATCHET, STARTER | 2 | ADD TO CART | |
| 5$ | 28431ZH8801 | PLATE, FRICTION | 1 | ADD TO CART | |
| 6$ | 28433ZH8801 | RATCHET GUIDE | 1 | ADD TO CART | |
| 7$ | 28441ZH8801 | FRICTION SPRING | 1 | ADD TO CART | |
| 8$ | 28442ZH8003 | SPRING, RECOIL STARTER | 1 | ADD TO CART | |
| 9$ | 28443ZH8801 | SPRING, RETURN | 2 | ADD TO CART | |
| 11$ | 28462ZH8003 | ROPE, RECOIL STARTER | 1 | ADD TO CART | |
| 12$ | 90003ZH8801 | SET SCREW | 1 | ADD TO CART | |
| 13 | 90008ZE2003 | BOLT, FLANGE 6X10 | 3 | ADD TO CART | |
| 15$ | 28461Z4M305 | KNOB, RECOIL STARTER | 1 | ADD TO CART | |
| 16$ | 28463Z4M003 | KNOB, REINFORCEMENT | 1 | ADD TO CART | |

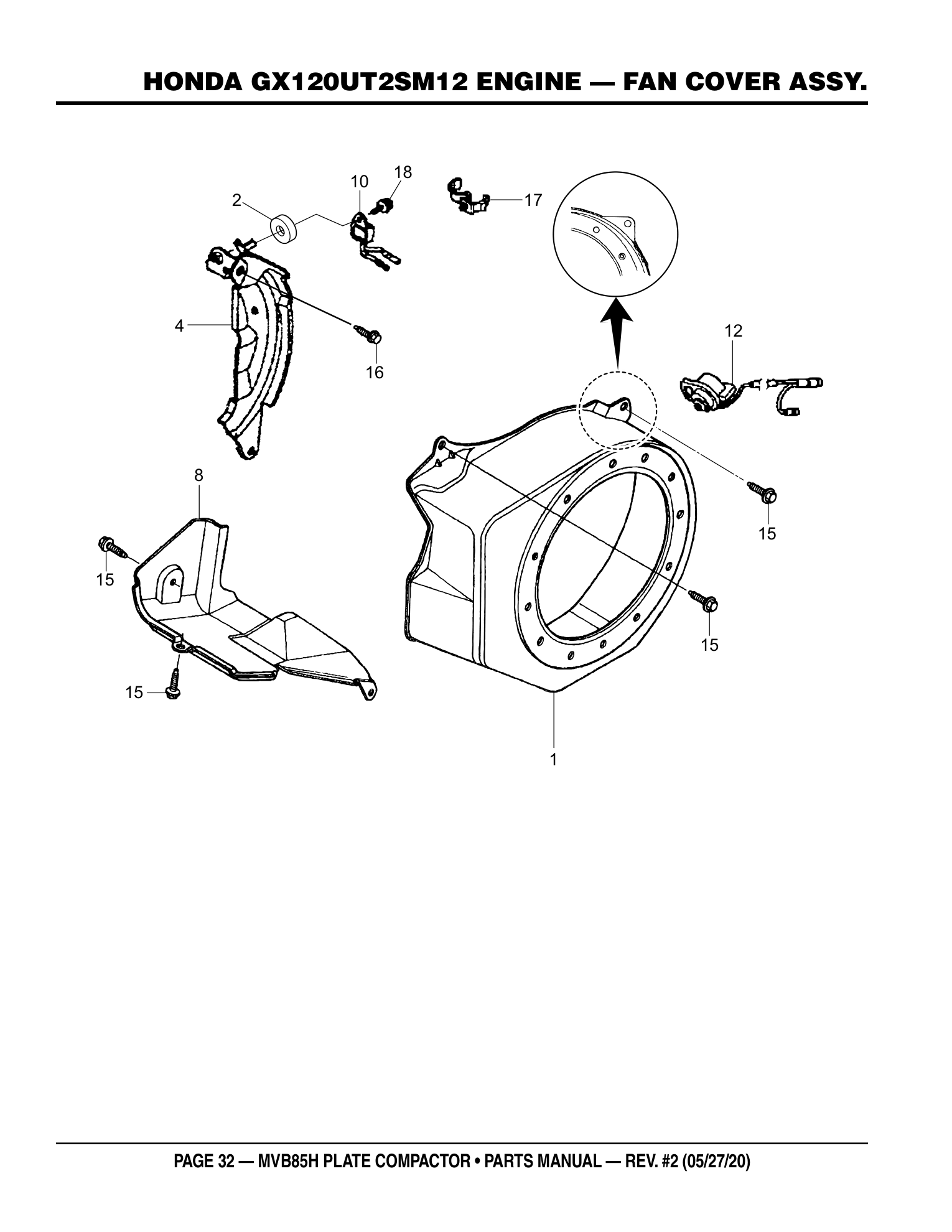

Page 32 — HONDA GX120UT2SM12 ENGINE - FAN COVER ASSY.
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 19610ZE0000ZE | COVER COMPLETE, FAN BLACK | 1 | ADD TO CART | |
| 2 | 11347371300 | GROMMET | 1 | ADD TO CART | |
| 4 | 19611ZH7810 | PLATE COMPLETE, SIDE (OIL ALERT) | 1 | ADD TO CART | |
| 8 | 19630ZH7000 | SHROUD COMPLETE | 1 | PARTS REQUEST | |
|
COMING SHROUD COMPLETE
19630ZH7000 · qty on machine: 1 | |||||
| 10 | 34150ZH7023 | ALERT UNIT, OIL | 1 | ADD TO CART | |
| 12 | 35120Z0T851 | SWITCH ASSY., E/G STOP | 1 | ADD TO CART | |
| 15 | 90013883000 | FLANGE BOLT 6X12 | 6 | ADD TO CART | |
| 16 | 90022888010 | FLANGE BOLT 6X20 | 1 | ADD TO CART | |
| 17 | 90601ZH7013 | CLIP, HARNESS | 1 | ADD TO CART | |
| 18 | 957010600800 | FLANGE BOLT 6X8 | 1 | ADD TO CART | |

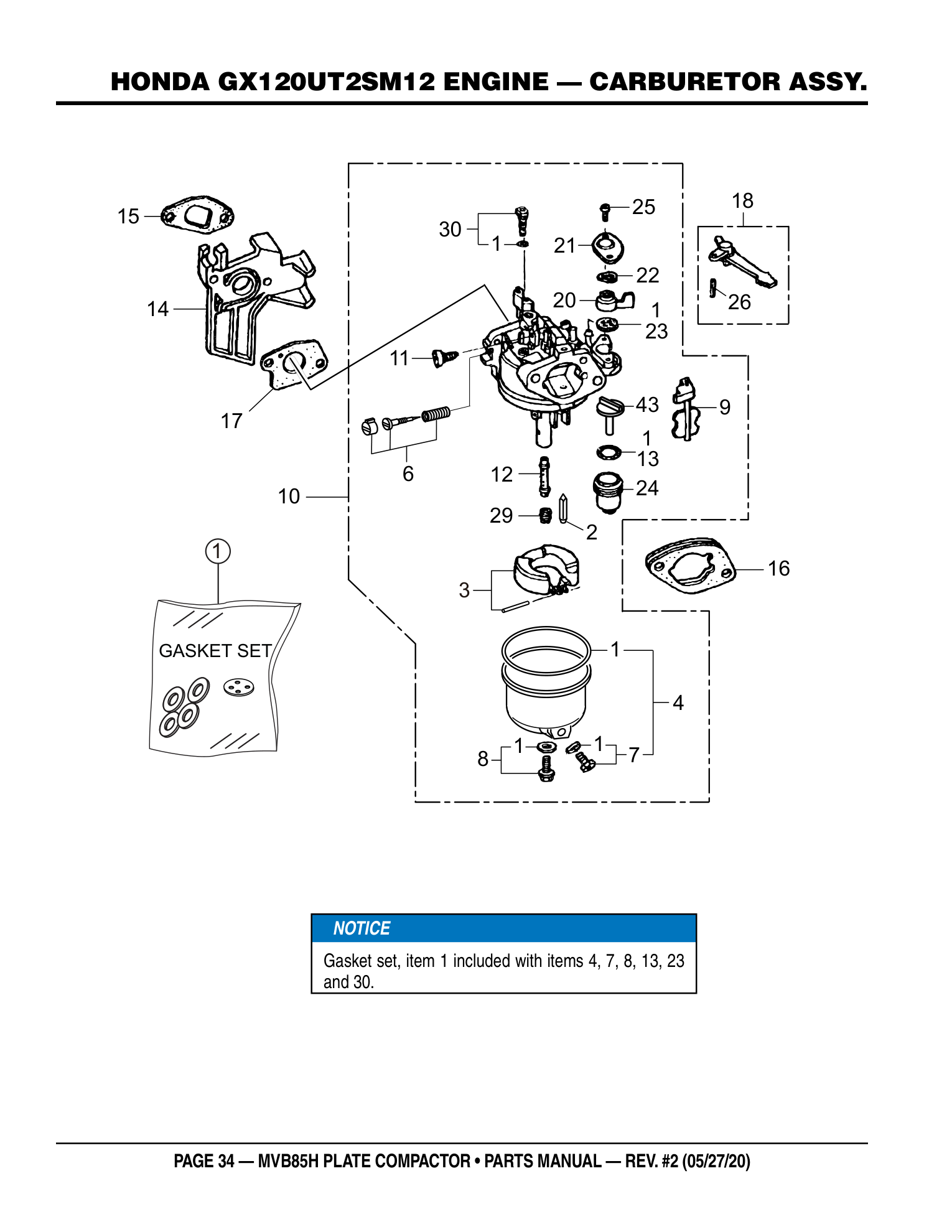

Page 34 — HONDA GX120UT2SM12 ENGINE - CARBURETOR ASSY.
Parts list — exactly as printed27 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1#% | 16010ZE1812 | GASKET SET | 1 | INCLUDES ITEMS W/@ | ADD TO CART |
| 2# | 16011ZE0005 | FLOAT VALVE SET | 1 | ADD TO CART | |
| 3# | 16013Z0SB01 | FLOAT SET | 1 | ADD TO CART | |
| 4@# | 16015Z4M911 | CHAMBER SET, FLOAT | 1 | INCLUDES ITEM W/%, & | ADD TO CART |
| 6# | 16016ZH7W01 | SCREW SET, PILOT | 1 | ADD TO CART | |
| 7@#& | 16024Z5T901 | SCREW SET, DRAIN | 1 | INCLUDES ITEM W/% | ADD TO CART |
| 8@# | 16028Z5T901 | SCREW SET | 1 | INCLUDES ITEM W/% | ADD TO CART |
| 9# | 16044ZE0005 | CHOKE SET | 1 | ADD TO CART | |
| 10 | 16100Z4H921 | CARBURETOR ASSY | 1 | INCLUDES ITEMS W/# | ADD TO CART |
| 11# | 16124ZE0005 | SCREW, THROTTLE STOP | 1 | ADD TO CART | |
| 12# | 16166ZK7S91 | NOZZLE, MAIN | 1 | PARTS REQUEST | |
|
COMING NOZZLE, MAIN
16166ZK7S91 · qty on machine: 1 Also included in kit 10 - CARBURETOR ASSY (16100Z4H921) | |||||
| 13@# | 16075GHBB00 | O-RING | 1 | INCLUDES ITEM W/% REPLACES P/N 16955283000 | ADD TO CART |
| 14 | 16211ZE0000 | INSULATOR, CARBURETOR | 1 | ADD TO CART | |
| 15 | 16212ZH7800 | PACKING, INSULATOR | 1 | ADD TO CART | |
| 16 | 16220ZE1020 | SPACER COMPLETE, CARBURETOR | 1 | ADD TO CART | |
| 17 | 16221ZH8801 | PACKING, CARBURETOR | 1 | ADD TO CART | |
| 18 | 16610ZE1000 | CHOKE LEVER COMPLETE | 1 | INCLUDES ITEM W/$ | ADD TO CART |
| 20# | 16953ZE1812 | LEVER, COCK | 1 | ADD TO CART | |
| 21# | 16954ZE1812 | PLATE, LEVER SETTING | 1 | ADD TO CART | |
| 22# | 16956ZE1811 | SPRING, COCK LEVER | 1 | ADD TO CART | |
| 23@# | 16957ZE1812 | PACKING, FUEL COCK | 1 | INCLUDES ITEM W/% | ADD TO CART |
| 24# | 16967ZE0811 | CUP, FUEL STRAINER | 1 | ADD TO CART | |
| 25# | 93500030060H | SCREW 3X6 | 2 | ADD TO CART | |
| 26$ | 9430520122 | SPRING PIN 2X12 | 1 | ADD TO CART | |
| 29# | 99101ZK70600 | MAIN JET #60 | 1 | PARTS REQUEST | |
|
COMING MAIN JET #60
99101ZK70600 · qty on machine: 1 Also included in kit 10 - CARBURETOR ASSY (16100Z4H921) | |||||
| 30@# | 99204ZE00350 | PILOT, JET SET #35 | 1 | INCLUDES ITEM W/% | ADD TO CART |
| 43# | 16959Z5T901 | FILTER, CUP | 1 | ADD TO CART | |

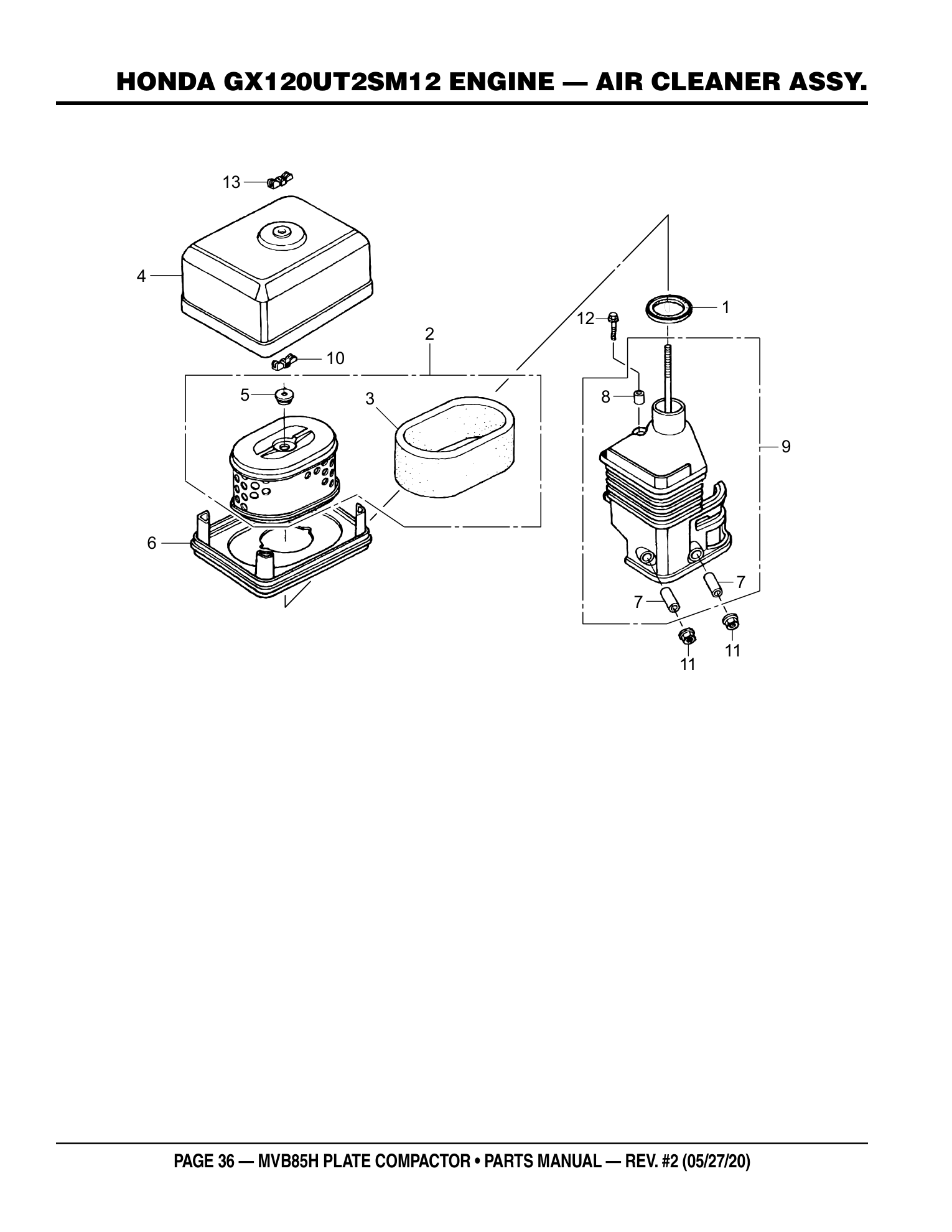

Page 36 — HONDA GX120UT2SM12 ENGINE - AIR CLEANER ASSY.
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 16271ZE1000 | PACKING, ELBOW | 1 | ADD TO CART | |

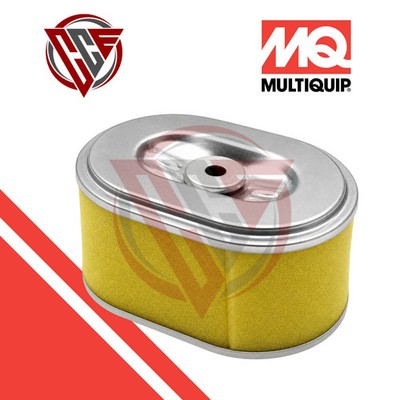

| 2 | 17210ZE0505 | ELEMENT, AIR CLEANER | 1 | INCLUDES ITEMS W/# | ADD TO CART |
| 3# | 17218ZE0505 | OUTER ELEMENT | 1 | ADD TO CART | |
| 4 | 17231Z4H820 | COVER, AIR CLEANER | 1 | ADD TO CART | |
| 5# | 17232891000 | GROMMET, AIR CLEANER | 1 | ADD TO CART | |
| 6 | 17235Z4M830 | NOSE, SILENCER | 1 | ADD TO CART | |
| 7% | 17238ZE7010 | COLLAR, AIR CLEANER | 2 | ADD TO CART | |
| 8% | 17239ZE1000 | COLLAR (B), AIR CLEANER | 1 | ADD TO CART | |
| 9 | 17410Z4H000 | ELBOW COMPLETE, AIR CLEANER | 1 | INCLUDES ITEMS W/% | ADD TO CART |
| 10 | 90325044000 | NUT, TOOL BOX SETTING | 1 | ADD TO CART | |
| 11 | 9405006000 | FLANGE NUT 6MM | 2 | ADD TO CART | |
| 12 | 957010602000 | FLANGE BOLT 6X20 | 1 | ADD TO CART | |
| 13 | 90300Z1V000 | NUT, AIR CLEANER | 1 | ADD TO CART | |

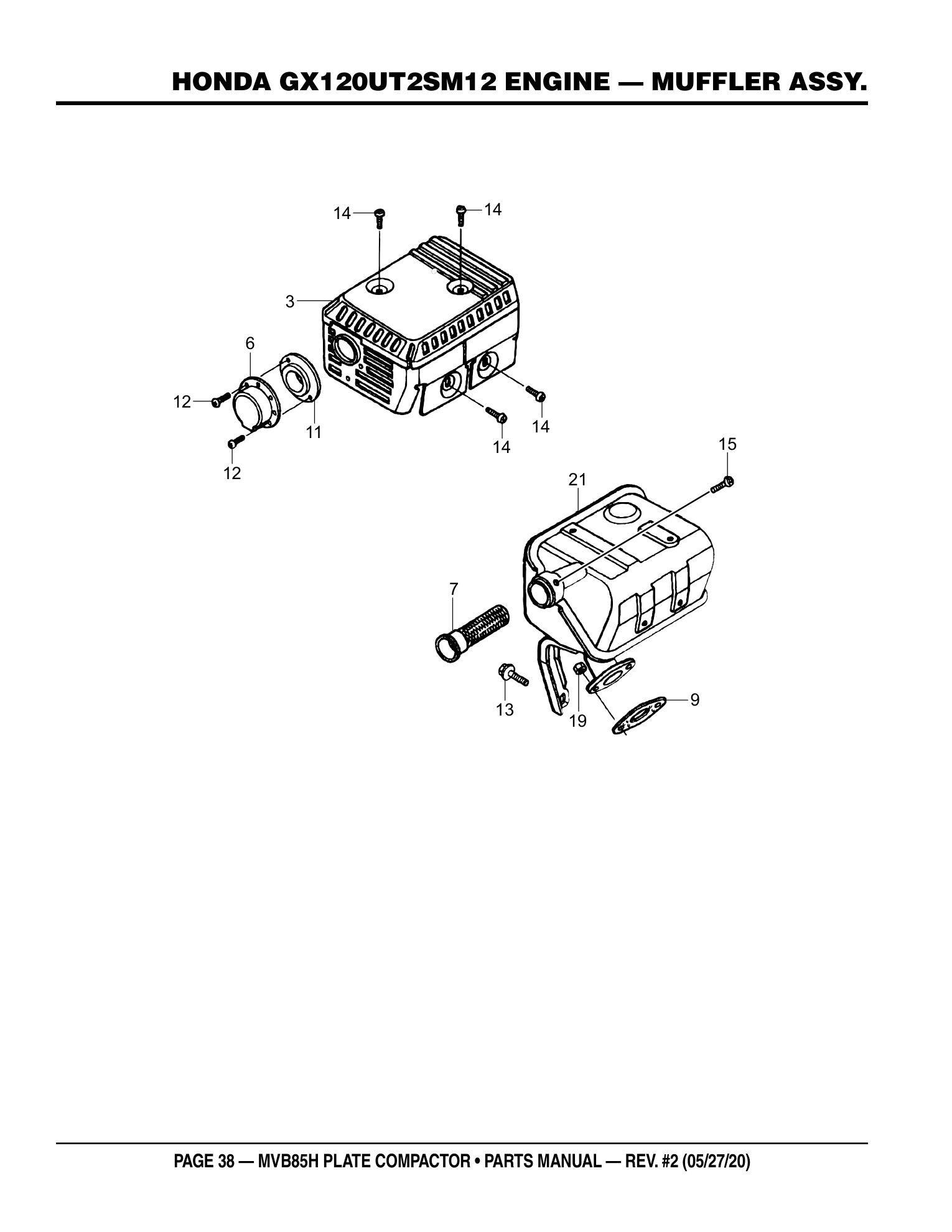

Page 38 — HONDA GX120UT2SM12 ENGINE - MUFFLER ASSY.
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 18320Z4M000 | PROTECTOR COMPL., MUFFLER (STD) | 1 | ADD TO CART | |
| 6 | 18340ZE1010 | DEFLECTOR COMPLETE | 1 | ADD TO CART | |
| 7 | 18355ZE1000 | ARRESTER, SPARK | 1 | ADD TO CART | |
| 9 | 18381Z0T801 | GASKET, MUFFLER | 1 | ADD TO CART | |
| 11 | 18522ZE1000 | GUIDE, MUFFLER | 1 | ADD TO CART | |
| 12 | 90002Z0T800 | SCREW, TAPPING, 4X8 | 2 | ADD TO CART | |
| 13 | 90016ZE1000 | FLANGE BOLT 6X13 | 1 | ADD TO CART | |
| 14 | 90050ZE1000 | SCREW, TAPPING, 5X8 | 4 | ADD TO CART | |
| 15 | 90055ZE1000 | SCREW, TAPPING, 4X6 | 1 | ADD TO CART | |
| 19 | 020108060 | NUT 8MM | 2 | REPLACES P/N 94001080000S | ADD TO CART |
| 21 | 18310Z4MV51 | MUFFLER COMPLETE | 1 | ADD TO CART | |

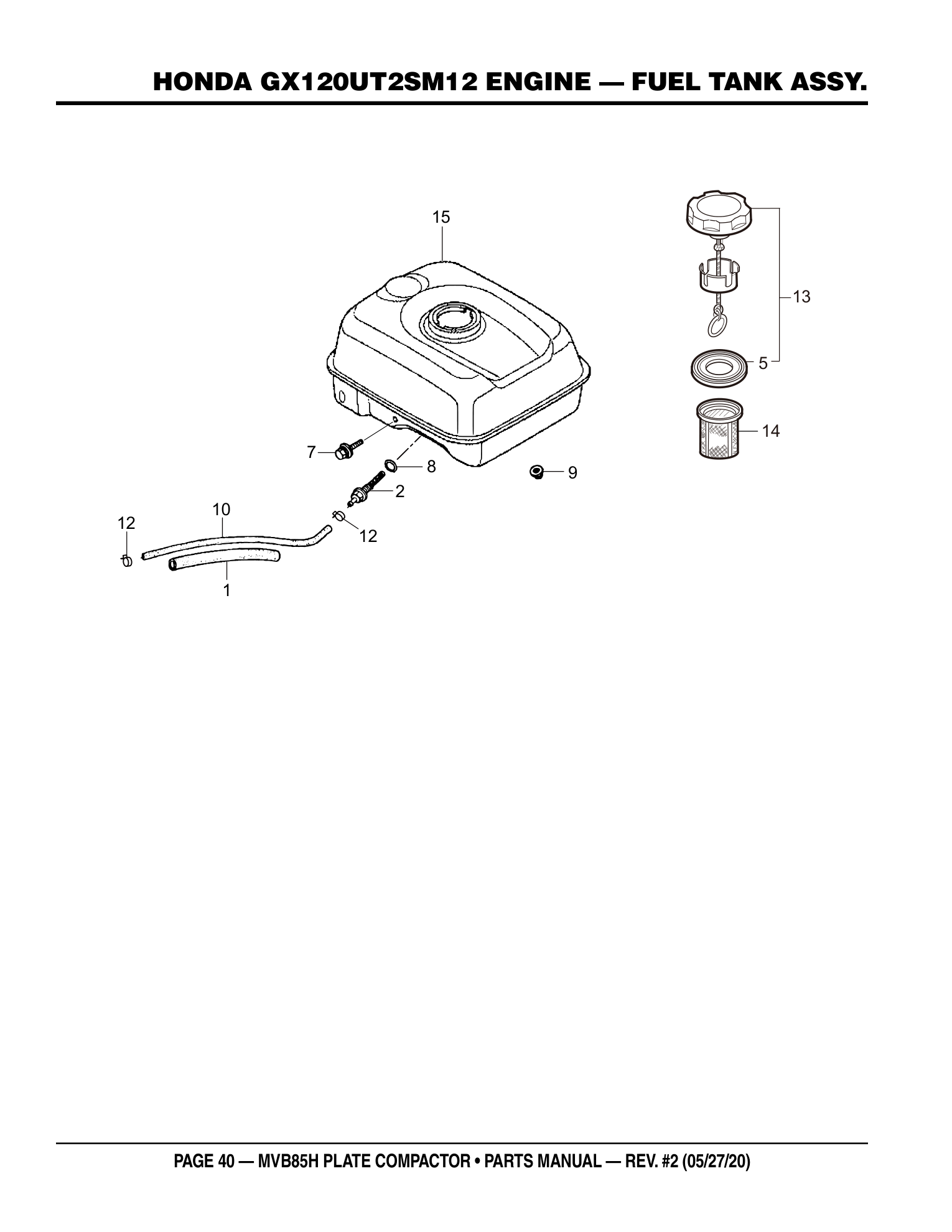

Page 40 — HONDA GX120UT2SM12 ENGINE - FUEL TANK ASSY.
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 16854ZH8000 | RUBBER, SUPPORT (107MM) | 1 | ADD TO CART | |
| 2 | 16955ZE1010 | JOINT, FUEL TANK | 1 | ADD TO CART | |
| 5% | 17631Z0T801 | PACKING, FUEL FILLER CAP | 1 | ADD TO CART | |
| 7 | 90004ZH7003 | FLANGE BOLT, 6X29 | 1 | ADD TO CART | |
| 8 | 91353671003 | O-RING, 14MM | 1 | REPLACES P/N 91353671004 | ADD TO CART |
| 9 | 9405006000 | FLANGE NUT, 6MM | 2 | ADD TO CART | |
| 10 | 91424Z4F802 | TUBE, FUEL 4.5X140 | 1 | ADD TO CART | |
| 12 | 950024080008 | CLAMP, TUBE (D8) | 2 | ADD TO CART | |
| 13 | 17620Z4H900 | CAP COMPLETE, FUEL TANK | 1 | INCLUDES ITEM W/% REPLACES P/N 17620Z4H030 | ADD TO CART |

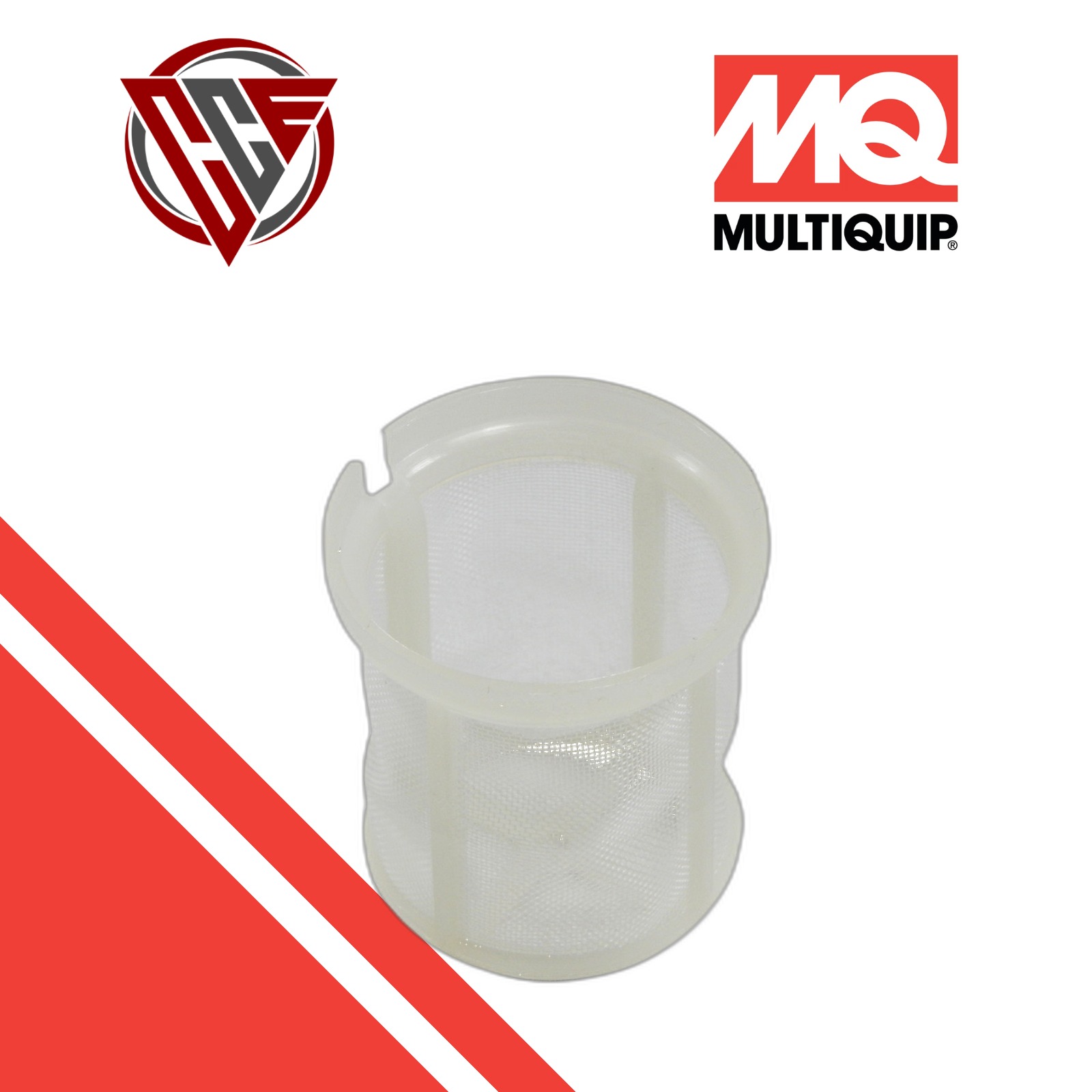

| 14 | 17672Z4H000 | FUEL FILTER, FUEL TANK | 1 | ADD TO CART | |
| 15 | 17510Z4H000ZB | FUEL TANK COMPLETE, NH1, BLK | 1 | ADD TO CART | |

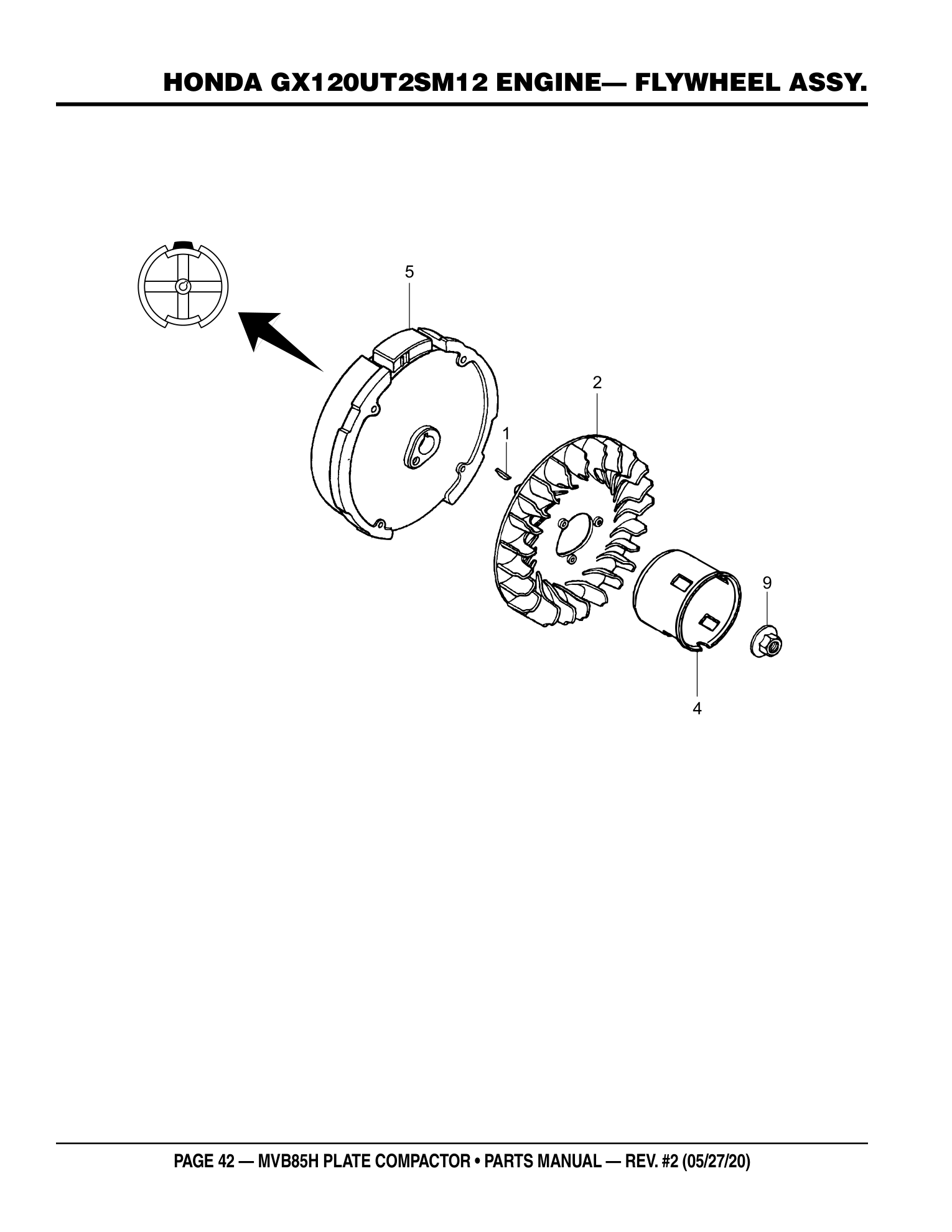

Page 42 — HONDA GX120UT2SM12 ENGINE- FLYWHEEL ASSY.
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 13331357000 | WOODRUFF KEY 25X18 | 1 | ADD TO CART | |
| 2 | 19511ZE0000 | COOLING FAN | 1 | ADD TO CART | |
| 4 | 28451ZH7801 | STARTER, PULLEY | 1 | ADD TO CART | |
| 5 | 31100ZE0020 | FLYWHEEL COMPLETE | 1 | ADD TO CART | |
| 9 | 90201Z0T800 | NUT, SPECIAL 14MM | 1 | ADD TO CART | |

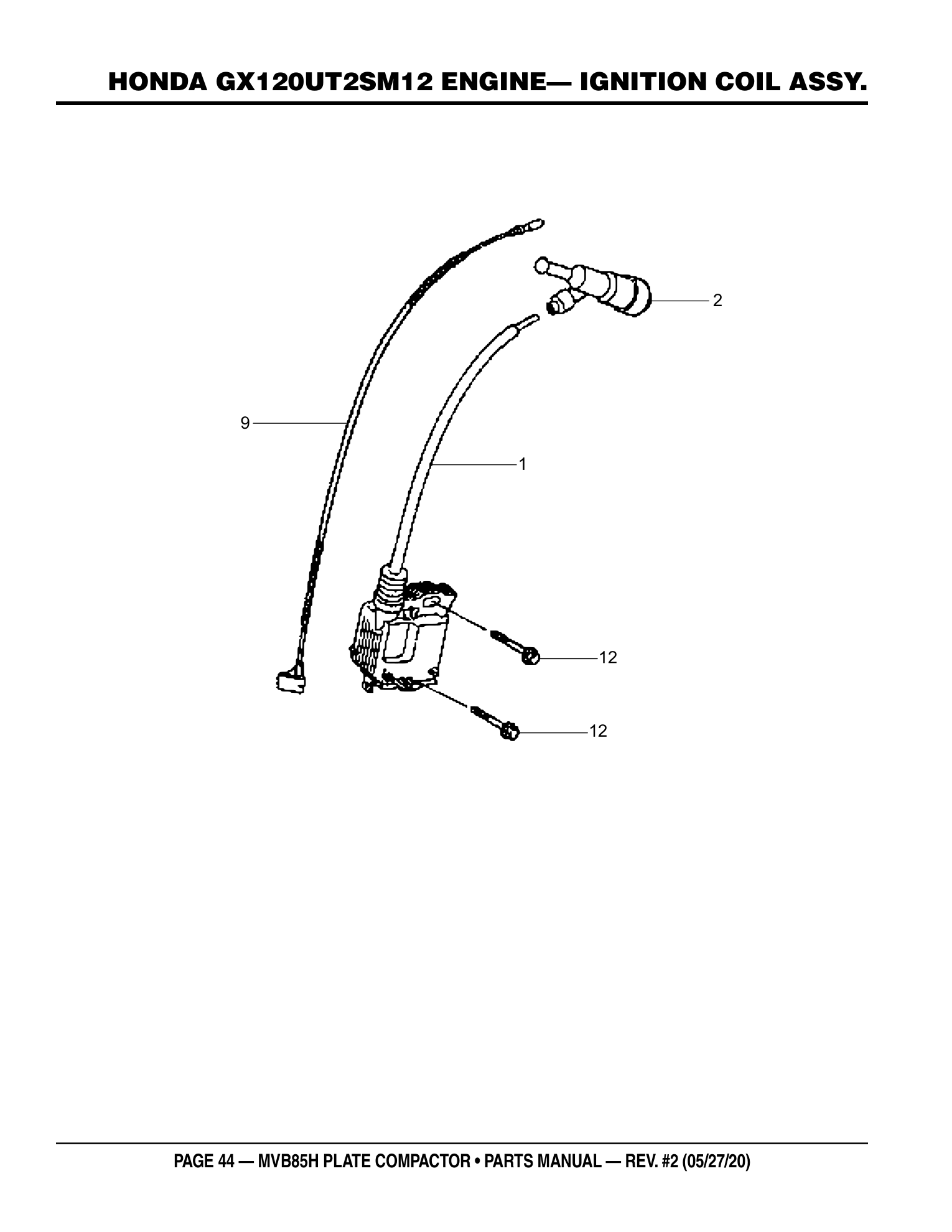

Page 44 — HONDA GX120UT2SM12 ENGINE- IGNITION COIL ASSY.
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 30500Z0T802 | COIL ASSY., IGNITION | 1 | ADD TO CART | |
| 2 | 30700Z0T811 | CAP ASSY., NOISE SUPPRESSOR | 1 | ADD TO CART | |
| 9 | 36101ZE1010 | CORD, STOP SWITCH 370MM | 1 | ADD TO CART | |
| 12 | 957010602500 | FLANGE BOLT 6X25 | 2 | REPLACES P/N 90121952000 | ADD TO CART |

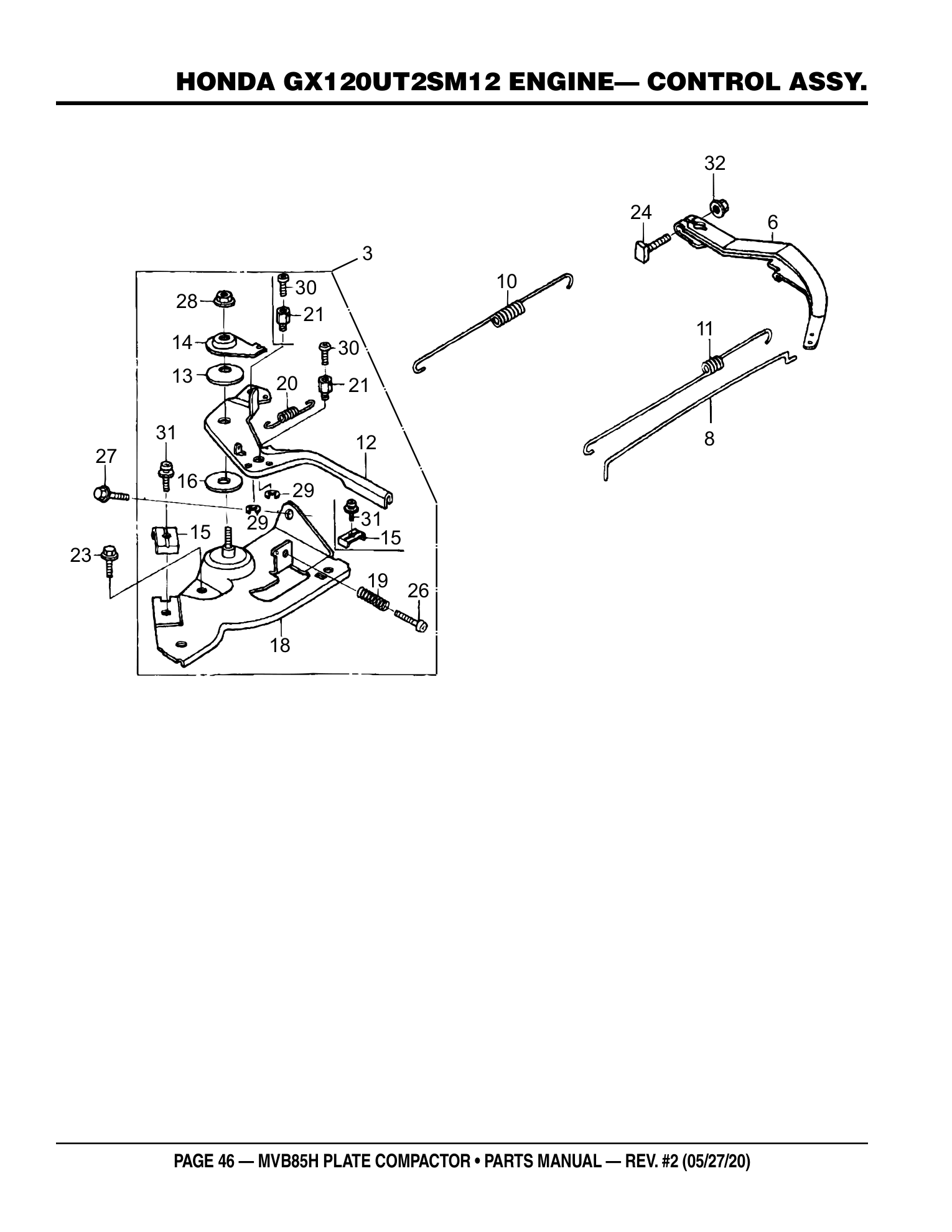

Page 46 — HONDA GX120UT2SM12 ENGINE- CONTROL ASSY.
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 16500Z4HU50 | CONTROL ASSY | 1 | INCLUDES ITEMS W/# | PARTS REQUEST |
|
COMING CONTROL ASSY
16500Z4HU50 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 12#, 13#, 14#, 15#, 16#, 18#, 19#, 20#, 21#, 26#, 28#, 29#, 30#, 31# | |||||
| 6 | 16551ZE0010 | ARM, GOVERNOR | 1 | ADD TO CART | |
| 8 | 16555ZE0000 | ROD, GOVERNOR | 1 | ADD TO CART | |
| 10 | 16561ZE0030 | SPRING, GOVERNOR | 1 | PARTS REQUEST | |
|
COMING SPRING, GOVERNOR
16561ZE0030 · qty on machine: 1 | |||||
| 11 | 16562ZE0020 | SPRING, THROTTLE RETURN | 1 | ADD TO CART | |
| 12# | 16571Z4H000 | LEVER, CONTROL | 1 | PARTS REQUEST | |
|
COMING LEVER, CONTROL
16571Z4H000 · qty on machine: 1 Also included in kit 3 - CONTROL ASSY (16500Z4HU50) | |||||
| 13# | 16574ZE1000 | SPRING, LEVER | 1 | ADD TO CART | |
| 14# | 16575ZH8000 | WASHER, CONTROL LEVER | 1 | ADD TO CART | |
| 15# | 16576891000 | HOLDER, CABLE | 2 | ADD TO CART | |
| 16# | 16578ZE1000 | SPACER, CONTROL LEVER | 1 | ADD TO CART | |
| 18# | 16580Z4H810 | BASE CONTROL | 1 | PARTS REQUEST | |
|
COMING BASE CONTROL
16580Z4H810 · qty on machine: 1 Also included in kit 3 - CONTROL ASSY (16500Z4HU50) | |||||
| 19# | 16584883300 | SPRING, CONTROL ADJUSTING | 1 | ADD TO CART | |
| 20# | 16592ZE1810 | SPRING, CABLE RETURN | 1 | ADD TO CART | |
| 21# | 16594883010 | HOLDER, WIRE | 2 | ADD TO CART | |
| 23 | 90013883000 | BOLT, FLANGE 6X12 | 1 | ADD TO CART | |
| 24 | 90015ZE5010 | BOLT, GOVERNOR ARM | 1 | ADD TO CART | |
| 26# | 93500050250H | SCREW, PAN 5X25 | 1 | ADD TO CART | |
| 27 | 90022888010 | BOLT, FLANGE 6X20 | 1 | ADD TO CART | |
| 28# | 90114SA0000 | NUT, SELF-LOCK 6MM | 1 | ADD TO CART | |
| 29# | 90605230000 | CIRCLIP, 5 MM | 2 | ADD TO CART | |
| 30# | 0043504060 | SCREW 4X6 | 2 | REPLACES P/N 93500040060H | ADD TO CART |
| 31# | 0202005T125 | SCREW, PAN 5X16 | 2 | REPLACES P/N 93500050160A | ADD TO CART |
| 32 | 9405006000 | NUT, FLANGE 6MM | 1 | ADD TO CART | |

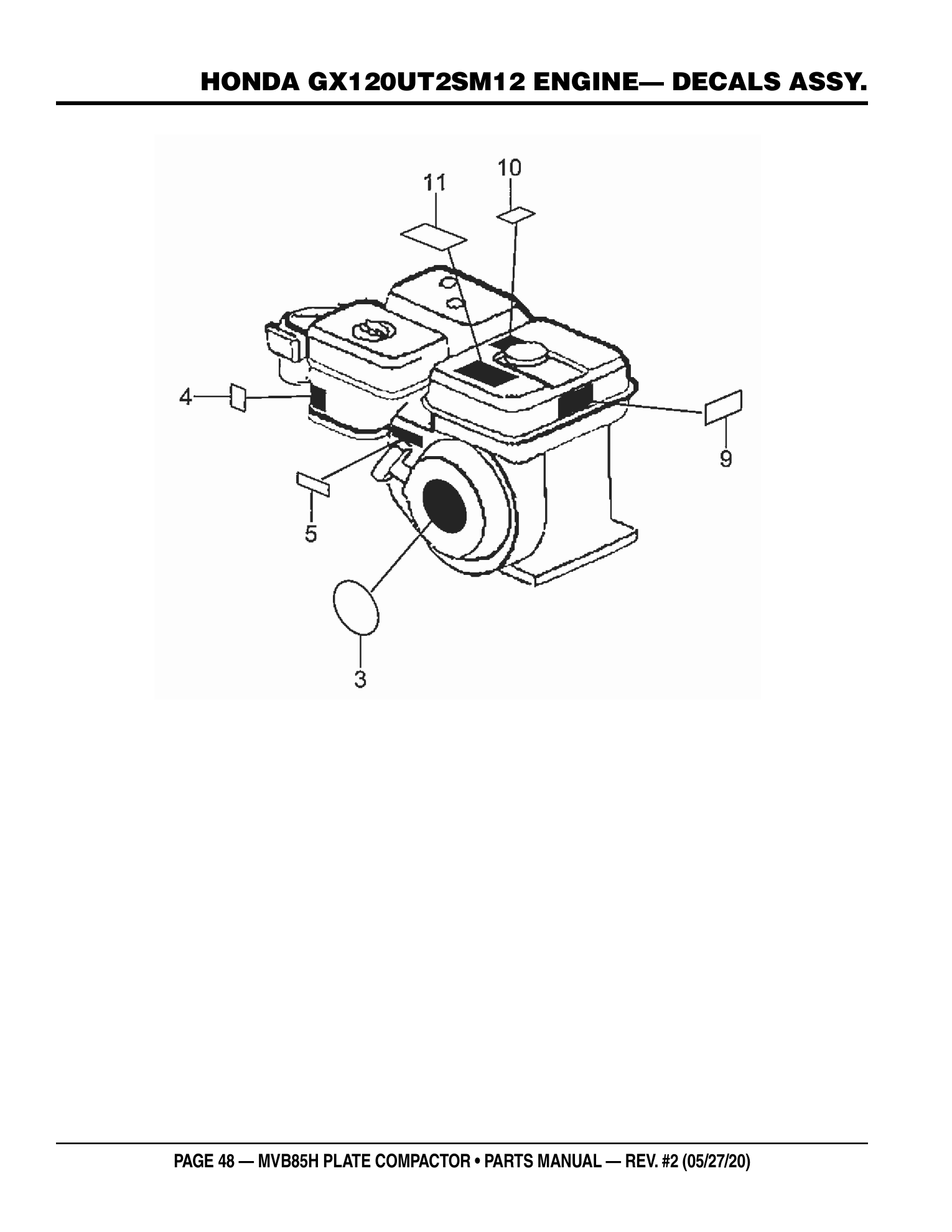

Page 48 — HONDA GX120UT2SM12 ENGINE- DECALS ASSY.
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 87521Z4H000 | EMBLEM (GX120UT) | 1 | PARTS REQUEST | |
|
COMING EMBLEM (GX120UT)
87521Z4H000 · qty on machine: 1 | |||||
| 4 | 87528Z4M000 | MARK, CHOKE | 1 | ADD TO CART | |
| 5 | 87532ZH7000 | MARK, THROTTLE INDICATION | 1 | ADD TO CART | |
| 9 | 87516Z4H010 | MARK, OP CAUTION (ENGLISH) | 1 | ADD TO CART | |
| 10 | 87539Z4M000 | MARK, EX. CAUTION (ENGLISH) | 1 | ADD TO CART | |
| 11 | 87539Z4M800 | MARK, EX. CAUTION (PICTOGRAPH) | 1 | PARTS REQUEST | |
|
COMING MARK, EX. CAUTION (PICTOGRAPH)
87539Z4M800 · qty on machine: 1 | |||||
The machine itself
Machine
Engine
The Multiquip MVB85H is a plate compactor built for compacting granular soils, gravel, and asphalt on grading, paving, and repair work. It weighs in at 198.42 lbs. (90 kg.). Factory-documented specs and parts support; priced by quote.
Keep-it-running spares
All listed parts →Every part that fits this machine
14100ZE0812
Multiquip 14100ZE0812 Camshaft Assembly - OEM Replacement Part
$229.95
16010ZE1812
Multiquip 16010ZE1812 Gasket Set GX144 - OEM Replacement Part
$37.95
16011ZE0005
Multiquip 16011ZE0005 Valve Float Set - OEM Replacement Part for Compactors
$53.95
16013Z0SB01
Multiquip 16013Z0SB01 Float Set - OEM Replacement Part for Plate Compactors
$50.95
16044ZE0005
Multiquip 16044ZE0005 Choke Set GX120/160K1 - OEM Replacement Part
$57.95
16100Z4H921
Multiquip 16100Z4H921 Carburetor Assembly - OEM Replacement Part
$136.95
16211ZE0000
Multiquip 16211ZE0000 Insulator Carburetor - OEM Replacement Part
$37.95
17410Z4H000
Multiquip 17410Z4H000 Elbow A/C - OEM Replacement Part
$91.95
17510Z4H000ZB
Multiquip 17510Z4H000ZB Tank - OEM Replacement Part
$146.95
17620Z4H900
Multiquip 17620Z4H900 Fuel Tank Cap - OEM Replacement Part
$187.95
19511ZE0000
Multiquip 19511ZE0000 Fan Cooling HC-1428044 - OEM Replacement Part
$71.95
19610ZE0000ZE
Multiquip 19610ZE0000ZE Cover Comp Fan BLACK - OEM Replacement Part
$128.95
28400Z4M305ZD
Multiquip 28400Z4M305ZD Recoil Starter Assembly - OEM Replacement Part
$55.95
28421Z0T003
Multiquip 28421Z0T003 Recoil Starter Reel - OEM Replacement Part for Concrete Saws
$67.95
28451ZH7801
Multiquip 28451ZH7801 Pulley HC-7668700 - OEM Replacement Part
$56.95
31100ZE0020
Multiquip 31100ZE0020 Flywheel Assembly WT5C - OEM Replacement Part
$300.95
34150ZH7023
Multiquip 34150ZH7023 Oil Alert Unit - OEM Replacement Part for Concrete Vibrators
$94.95
35480Z0T003
Multiquip 35480Z0T003 Switch Assembly Oil Level - OEM Replacement Part
$137.95
404418150
Multiquip 404418150 Clutch Spacer - OEM Replacement Part
$42.95
418117730
Multiquip 418117730 Vibrating Case - OEM Replacement Part for Plate Compactors
$626.95
418216470
Multiquip 418216470 Belt Cover MVC-64H/EW - OEM Replacement Part
$170.95
418216480
Multiquip 418216480 Belt Cover (Inner) - OEM Replacement Part for Plate Compactors
$170.95
418216870
Multiquip 418216870 Hook - OEM Replacement Part for Plate Compactors
$244.95
418219100
Multiquip 418219100 Base for MVC64VH Plate Compactor - OEM Replacement Part
$368.95
418343400
Multiquip 418343400 Eccentric Rotor Shaft - OEM Replacement Part
$284.95
418346400
Multiquip 418346400 Upper Handle Assembly - OEM Replacement Part for Plate Compactors
$172.95
418352730
Multiquip 418352730 Lower Left Handle - OEM Replacement Part for Plate Compactors
$154.95
418352740
Multiquip 418352740 Lower Right Handle - OEM Replacement Part for Plate Compactors
$154.95
418456981
Multiquip 418456981 Pulley Vib - OEM Replacement Part for Plate Compactors
$79.95
418457690
Multiquip 418457690 Bolt Engine MVC-F60/64H - OEM Replacement Part
$53.95
418458130
Multiquip 418458130 Shaft Holder (End) - OEM Replacement Part
$46.95
418458140
Multiquip 418458140 Shaft Holder (Inside) - OEM Replacement Part
$37.95
460446780
Multiquip 460446780 Clutch Assembly 18MM Bore - OEM Replacement Part
$213.95
91001878003
Multiquip 91001878003 Bearing Radial Ball (62/22) - OEM Replacement Part
$52.95
99204ZE00350
Multiquip 99204ZE00350 Jet Set Pilot #35 GX160/240 - OEM Replacement Part
$38.95
001221053
BOLT, 10X65
$2.95
001221445
BOLT 14X45
$2.95
001520845
BOLT, SOCKET HEAD 8X45
$1.95
001521025
BOLT, SOCKET HEAD 10X25
001521052
BOLT, SOCKET HEAD 10X60
$2.95
0043504060
SCREW 4X6
$0.56
011008040
BOLT ASSY., 8X40
$1.76
011708025
BOLT ASSY., 8X25
$1.95
012010030
BOLT ASSY. 10X30
$0.95
012210020
BOLT 10X20
$0.95
020108060
NUT M8
$0.28
020308060
NUT M8
020310080
NUT M10
$1.67
022710809
NYLON NUT M8
$1.55
030210250
WASHER, LOCK M10
$0.28
030214350
WASHER, LOCK M14
$0.46
031108160
WASHER, FLAT M8
031110160
WASHER, FLAT M10
$0.40
031114260
WASHER, FLAT
$0.69
0320050150
KEY
$6.95
040406307
BEARING 6307C4
046006006
BEARING 6006
046006304
BEARING 6304
$27.70
049920010
NEEDLE BEARING (INNER RING)
$22.42
050200080
O-RING
$0.95
060403020
OIL SEAL, TC30458
$25.95
060602050
OIL SEAL
$13.79
0650140480
SPARK PLUG, BPR6ES
$22.95
080200300
SNAP RING
$1.71
080600550
SNAP RING
$6.95
11300ZE0634
COVER, ASSY., CRANKCASE
11347371300
GROMMET
$4.95
12000Z0S416
BARREL, ASSY CYLINDER (OIL ALERT)
12204ZE1306
GUIDE, INLET VALVE (O.S.)
$14.95
12205ZE1315
GUIDE, EXHAUST VALVE (O.S.)
12209Z4M801
SEAL, VALVE STEM
$19.95
12251Z0S801
GASKET, CYLINDER HEAD
$20.95
12310Z4M000
COVER COMPLETE, HEAD
$9.95
12391ZE1000
PACKING, HEAD COVER
$9.95
13010Z4F004
RING SET, PISTON (STD)
13011Z4F004
RING SET, PISTON (0.25)
13012Z4F004
RING SET, PISTON (0.50)
13013Z4F004
RING SET, PISTON (0.75)
13101ZH7020
PISTON (STD)
13102ZH7020
PISTON (0.25)
13103ZH7020
PISTON (0.50)
13104ZH7020
PISTON (0.75)
13111ZE0000
PIN, PISTON
$13.95
13200Z0S800
ROD ASSY., CONNECTING
13310Z0S880
CRANKSHAFT COMPLETE
13331357000
WOODRUFF KEY 25X18
$9.95
14431ZE1000
ARM, VALVE ROCKER
$11.95
14441ZE1010
VALVE LIFTER
$25.95
14451ZE1013
PIVOT, ROCKER ARM
$10.95
14568ZE1000
SPRING, WEIGHT RETURN
$3.95
14711Z4H000
VALVE, INTAKE
14721Z4H000
VALVE, EXHAUST
14751ZF1000
SPRING, VALVE
$7.95
14771ZE1000
RETAINER, INTAKE VALVE
$2.52
14791ZE0010
PLATE, PUSH ROD GUIDE
$4.95
15600Z0T810
CAP ASSY., OIL FILLER
$1.95
15625Z0T800
PACKING, OIL FILLER CAP
$9.95
15721ZH8000
TUBE, BREATHER
$8.95
16015Z4M911
CHAMBER SET, FLOAT
$35.95
16024Z5T901
SCREW SET, DRAIN
$18.95
16075GHBB00
O-RING
$9.95
16166ZK7S91
NOZZLE, MAIN
16212ZH7800
PACKING, INSULATOR
$4.95
16220ZE1020
SPACER COMPLETE, CARBURETOR
$14.95
16221ZH8801
PACKING, CARBURETOR
$3.95
16271ZE1000
PACKING, ELBOW
$8.95
16500Z4HU50
CONTROL ASSY
16511ZE1000
WEIGHT, GOVERNOR
16512ZE1000
HOLDER, GOVERNOR WEIGHT
16513ZE1000
PIN, GOVERNOR WEIGHT
$2.95
16531ZE1000
SLIDER, GOVERNOR
$6.95
16541ZE1000
SHAFT, GOVERNOR ARM
$25.95
16555ZE0000
ROD, GOVERNOR
$11.95
16561ZE0030
SPRING, GOVERNOR
16562ZE0020
SPRING, THROTTLE RETURN
$8.95
16571Z4H000
LEVER, CONTROL
16574ZE1000
SPRING, LEVER
$5.95
16575ZH8000
WASHER, CONTROL LEVER
$8.95
16576891000
HOLDER, CABLE
$9.95
16578ZE1000
SPACER, CONTROL LEVER
$6.95
16580Z4H810
BASE CONTROL
16584883300
SPRING, CONTROL ADJUSTING
$7.95
16592ZE1810
SPRING, CABLE RETURN
$3.95
16594883010
HOLDER, WIRE
$16.95
16610ZE1000
CHOKE LEVER COMPLETE
$19.95
16854ZH8000
RUBBER, SUPPORT (107MM)
$9.95
16954ZE1812
PLATE, LEVER SETTING
$7.95
16955ZE1010
JOINT, FUEL TANK
$15.95
16956ZE1811
SPRING, COCK LEVER
$7.95
16957ZE1812
PACKING, FUEL COCK
$7.95
17210ZE0505
ELEMENT, AIR CLEANER
$23.95
17231Z4H820
COVER, AIR CLEANER
$5.95
17232891000
GROMMET, AIR CLEANER
$10.95
17235Z4M830
NOSE, SILENCER
$4.95
17238ZE7010
COLLAR, AIR CLEANER
$8.95
17239ZE1000
COLLAR (B), AIR CLEANER
$7.95
17631Z0T801
PACKING, FUEL FILLER CAP
$1.76
17672Z4H000
FUEL FILTER, FUEL TANK
$21.95
18320Z4M000
PROTECTOR COMPL., MUFFLER (STD)
$19.95
18340ZE1010
DEFLECTOR COMPLETE
$30.95
18355ZE1000
ARRESTER, SPARK
$28.95
18381Z0T801
GASKET, MUFFLER
$9.95
18522ZE1000
GUIDE, MUFFLER
$24.95
19611ZH7810
PLATE COMPLETE, SIDE (OIL ALERT)
$15.95
19630ZH7000
SHROUD COMPLETE
28422ZH8801
RATCHET, STARTER
$7.95
28431ZH8801
PLATE, FRICTION
$9.95
28433ZH8801
RATCHET GUIDE
$10.95
28441ZH8801
FRICTION SPRING
$7.95
28442ZH8003
SPRING, RECOIL STARTER
$33.95
28443ZH8801
SPRING, RETURN
$6.95
28461Z4M305
KNOB, RECOIL STARTER
$16.95
28462ZH8003
ROPE, RECOIL STARTER
$22.95
28463Z4M003
KNOB, REINFORCEMENT
$6.95
3013820
BOLT ASSY. 8X20
$0.83
30500Z0T802
COIL ASSY., IGNITION
30700Z0T811
CAP ASSY., NOISE SUPPRESSOR
35120Z0T851
SWITCH ASSY., E/G STOP
$11.95
36101ZE1010
CORD, STOP SWITCH 370MM
$20.95
404433430
RUBBER 20X32X28.5
$13.95
413436720
RUBBER, HANDLE
$8.95
413436870
ENGINE NUT, REAR
$30.95
418118110
FRAME
418343420
COVER SEAL
$19.95
418344260
ROLL
$336.71
418344270
ROLL SHAFT
$284.51
418456960
CASE COVER, SHUT-OFF
$28.95
418456971
PACKING
$7.95
418464310
CASE COVER, PULLEY
$28.95
58176
WASHER, FLAT 6MM
$0.13
87516Z4H010
MARK, OP CAUTION (ENGLISH)
$10.95
87521Z4H000
EMBLEM (GX120UT)
87528Z4M000
MARK, CHOKE
$2.95
87532ZH7000
MARK, THROTTLE INDICATION
$5.95
87539Z4M000
MARK, EX. CAUTION (ENGLISH)
$8.95
87539Z4M800
MARK, EX. CAUTION (PICTOGRAPH)
90002Z0T800
SCREW, TAPPING, 4X8
$1.47
90003ZH8801
SET SCREW
$7.95
90004ZH7003
FLANGE BOLT, 6X29
$2.86
90008ZE2003
BOLT, FLANGE 6X10
$2.95
90012ZE0010
BOLT, PIVOT, 8MM
$14.95
90013883000
FLANGE BOLT 6X12
$3.89
90015883000
FLANGE BOLT 6X28
$3.95
90015ZE5010
BOLT, GOVERNOR ARM
$5.95
90016ZE1000
FLANGE BOLT 6X13
$6.95
90022888010
FLANGE BOLT 6X20
$4.95
90043Z4M000
STUD BOLT 6X114
$6.95
90047ZE1000
STUD BOLT 8X32
$7.95
90050ZE1000
SCREW, TAPPING, 5X8
$3.95
90055ZE1000
SCREW, TAPPING, 4X6
$1.95
90114SA0000
NUT, SELF-LOCK 6MM
$5.95
90131ZE1000
BOLT, DRAIN PLUG
$5.95
90201Z0T800
NUT, SPECIAL 14MM
$4.95
90206ZE1000
NUT, PIVOT ADJUSTING
$7.95
90300Z1V000
NUT, AIR CLEANER
$10.95
90451ZE1000
THRUST WASHER 6MM
$2.95
90551ZE0000
CLIP, PISTON PIN 13MM
$2.95
90601ZE1000
WASHER, DRAIN PLUG
$2.70
90601ZH7013
CLIP, HARNESS
$2.95
90602ZE1000
CLIP, GOVERNOR HOLDER
$2.95
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
