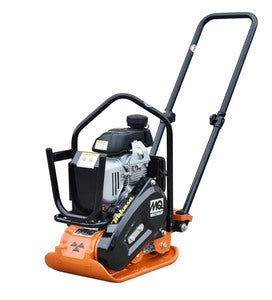

Multiquip MVC40H Plate Compactor

Name: Multiquip MVC40H Plate Compactor
Brand: Multiquip

The parts bench

Need the PDF? ↓

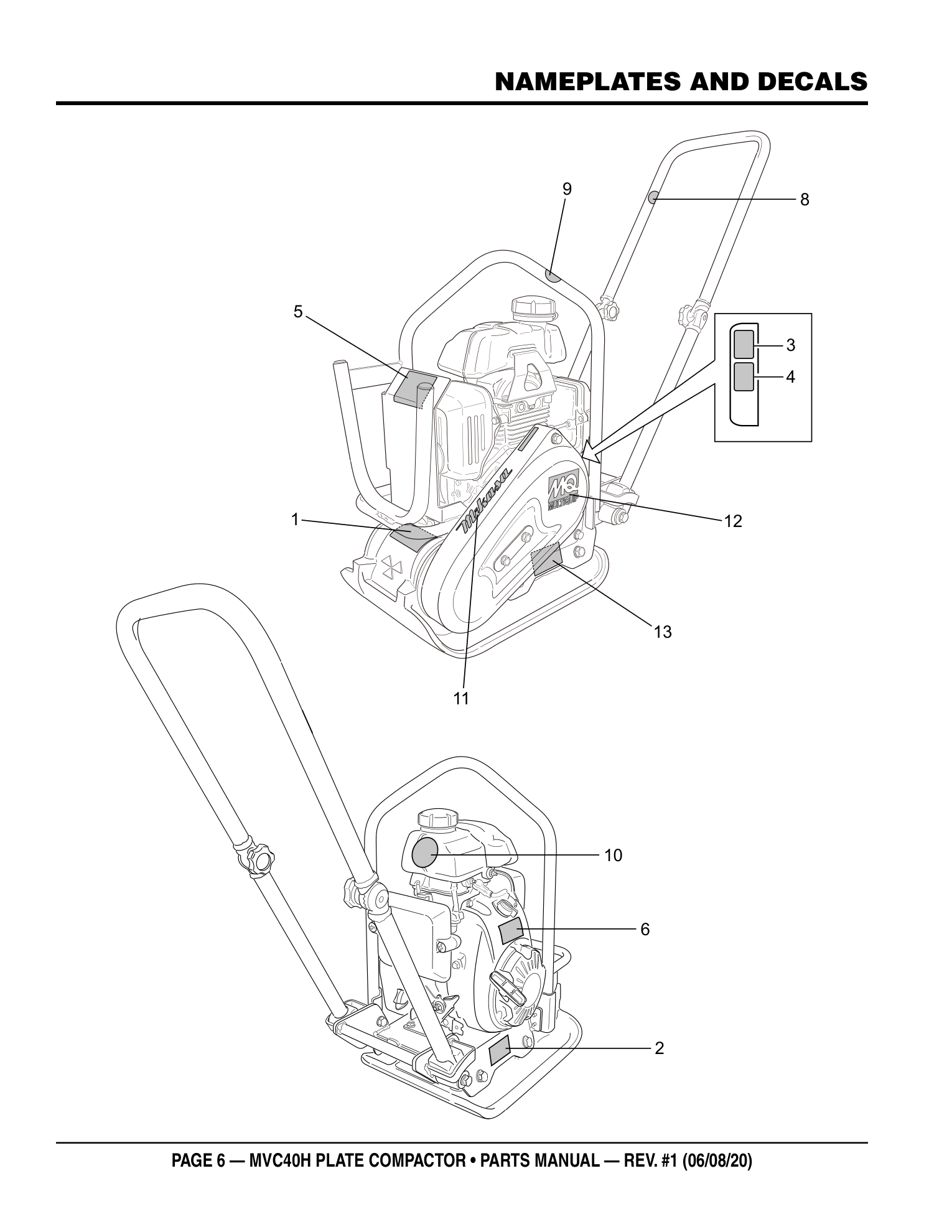

Page 6 — UNKNOWN

Multiquip MVC40H Plate Compactor UNKNOWN parts diagram

Parts list — exactly as printed13 rows

No.	Part No.	Part Name	Qty	Remarks
1	920218740T2	DECAL, CAUTION	1		PARTS REQUEST
PHOTO COMING DECAL, CAUTION 920218740T2 · qty on machine: 1 PARTS REQUEST
2	920218750T2	DECAL, CAUTION	1		PARTS REQUEST
PHOTO COMING DECAL, CAUTION 920218750T2 · qty on machine: 1 PARTS REQUEST
3	920218730T2	DECAL, CAUTION (MANUAL/EXP)	1		PARTS REQUEST
PHOTO COMING DECAL, CAUTION (MANUAL/EXP) 920218730T2 · qty on machine: 1 PARTS REQUEST
4	920219450T2	DECAL, DANGER	1		PARTS REQUEST
PHOTO COMING DECAL, DANGER 920219450T2 · qty on machine: 1 PARTS REQUEST
5	920218760T2	DECAL, FUEL CAUTION/MVC	1		PARTS REQUEST
PHOTO COMING DECAL, FUEL CAUTION/MVC 920218760T2 · qty on machine: 1 PARTS REQUEST
6	920218770	DECAL, E/G FIRE WARNING	1		PARTS REQUEST
PHOTO COMING DECAL, E/G FIRE WARNING 920218770 · qty on machine: 1 PARTS REQUEST
7	920221230	DECAL, V-BELT/RPF-3280	1		PARTS REQUEST
PHOTO COMING DECAL, V-BELT/RPF-3280 920221230 · qty on machine: 1 PARTS REQUEST
8	920900090	DECAL, DO NOT LIFT	1	REPLACES P/N 920214730	ADD TO CART
DECAL, DO NOT LIFT 920900090 · qty on machine: 1 REPLACES P/N 920214730 view full part page → $7.95
9	920900090	DECAL, LIFTING POSITION	1	REPLACES P/N 920214740	ADD TO CART
DECAL, LIFTING POSITION 920900090 · qty on machine: 1 REPLACES P/N 920214740 view full part page → $7.95
10	920203330	EAR PROTECTION LABEL	1		ADD TO CART
EAR PROTECTION LABEL 920203330 · qty on machine: 1 view full part page → $1.95
11	920109530	DECAL, MIKASA (125MM) YELLOW	1		ADD TO CART
DECAL, MIKASA (125MM) YELLOW 920109530 · qty on machine: 1 view full part page → $3.95
12	920220220	DECAL, MQ MARK 72X57	1		ADD TO CART
DECAL, MQ MARK 72X57 920220220 · qty on machine: 1 view full part page → $4.95
13	920221790	PLATE, MODEL/SERIAL NUMBER	1	CONTACT PARTS DEPT.	PARTS REQUEST
PHOTO COMING PLATE, MODEL/SERIAL NUMBER 920221790 · qty on machine: 1 CONTACT PARTS DEPT. PARTS REQUEST

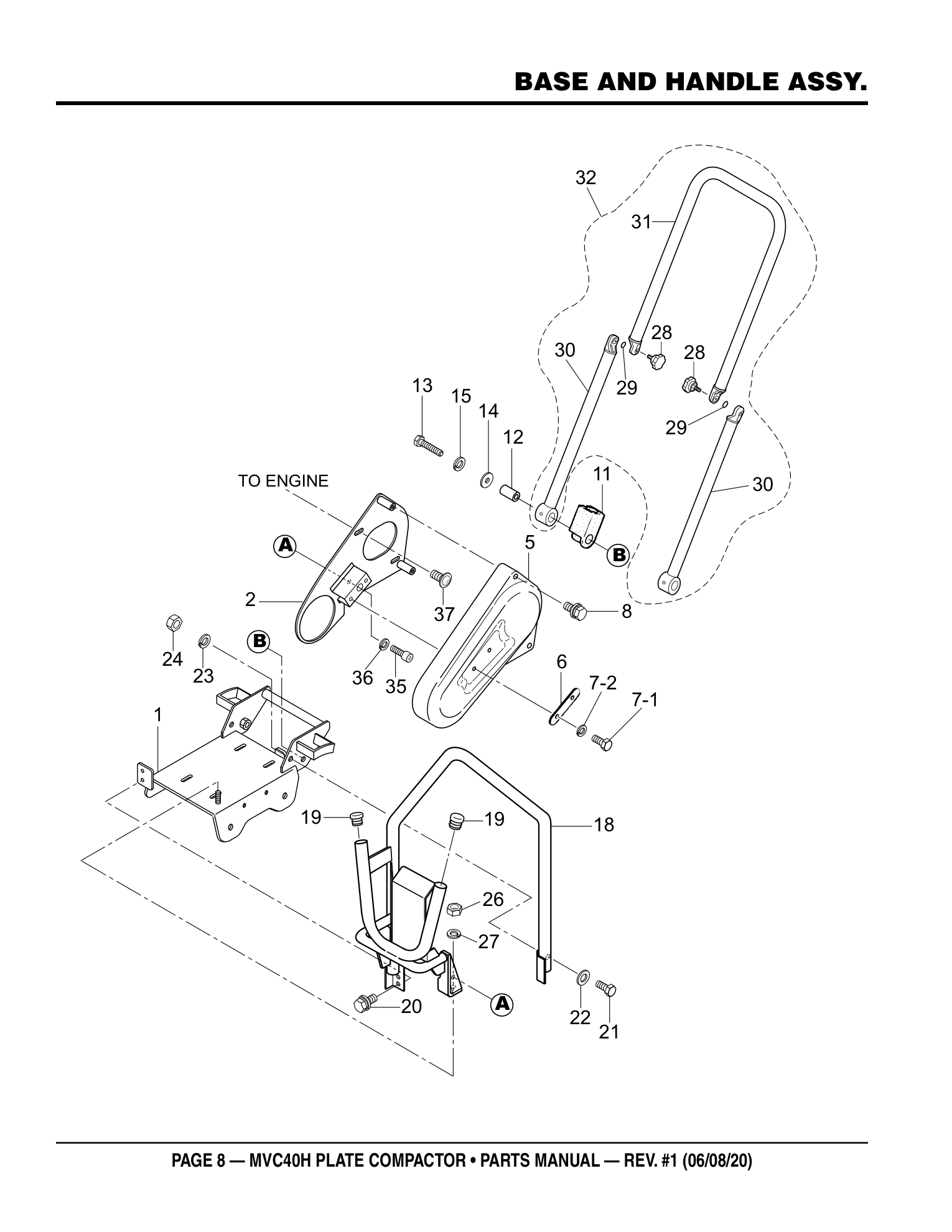

Page 8 — BASE AND HANDLE ASSY.

Multiquip MVC40H Plate Compactor BASE AND HANDLE ASSY. parts diagram

Parts list — exactly as printed29 rows

No.	Part No.	Part Name	Qty	Remarks
1	417122340	BASE	1		ADD TO CART
BASE 417122340 · qty on machine: 1 view full part page → $378.95
2	417122360	BELT COVER (INNER)	1		ADD TO CART
BELT COVER (INNER) 417122360 · qty on machine: 1 view full part page → $118.95
5	417122350	BELT COVER (OUTER)	1		ADD TO CART
BELT COVER (OUTER) 417122350 · qty on machine: 1 view full part page → $150.95
6	417466230	PLATE, BELT COVER	1		ADD TO CART
PLATE, BELT COVER 417466230 · qty on machine: 1 view full part page → $15.95
7-1	014208020	BOLT 8X20	2	REPLACES P/N 001220820	ADD TO CART
BOLT 8X20 014208020 · qty on machine: 2 REPLACES P/N 001220820 view full part page → $0.77
7-2	030208200	WASHER, LOCK M8	2		ADD TO CART
WASHER, LOCK M8 030208200 · qty on machine: 2 view full part page → $0.23
8	011808015	BOLT, 8X15 HEX HEAD ASSY	2	REPLACES P/N 002410815	ADD TO CART
BOLT, 8X15 HEX HEAD ASSY 011808015 · qty on machine: 2 REPLACES P/N 002410815 view full part page → $6.95
11	417454410	HANDLE STOPPER	2		ADD TO CART
HANDLE STOPPER 417454410 · qty on machine: 2 view full part page → $11.95
12	417454420	COLLAR	2		ADD TO CART
COLLAR 417454420 · qty on machine: 2 view full part page → $18.95
13	012210060	BOLT 10X60	2	REPLACES P/N 001221052	ADD TO CART
BOLT 10X60 012210060 · qty on machine: 2 REPLACES P/N 001221052 view full part page → $2.95
14	952401660	WASHER	2		ADD TO CART
WASHER 952401660 · qty on machine: 2 view full part page → $0.85
15	030210250	WASHER, LOCK M10	2		ADD TO CART
WASHER, LOCK M10 030210250 · qty on machine: 2 view full part page → $0.28
18	417122380	GUARD HOOK	1		ADD TO CART
GUARD HOOK 417122380 · qty on machine: 1 view full part page → $295.95
19	959408080	CAP, PIPE	2		PARTS REQUEST
PHOTO COMING CAP, PIPE 959408080 · qty on machine: 2 PARTS REQUEST
20	002410820	BOLT, 8X20 HEX HEAD ASSY.	2		NO LONGER AVAILABLE
PHOTO COMING BOLT, 8X20 HEX HEAD ASSY. 002410820 · qty on machine: 2 NO LONGER AVAILABLE
21	0105091025	BOLT 10X25	1	REPLACES P/N 001221025	ADD TO CART
BOLT 10X25 0105091025 · qty on machine: 1 REPLACES P/N 001221025 view full part page → $0.68
22	031110160	WASHER, FLAT M10	1		ADD TO CART
WASHER, FLAT M10 031110160 · qty on machine: 1 view full part page → $0.4
23	030210250	WASHER, LOCK M10	1		ADD TO CART
WASHER, LOCK M10 030210250 · qty on machine: 1 view full part page → $0.28
24	020310080	NUT M10	1		ADD TO CART
NUT M10 020310080 · qty on machine: 1 view full part page → $1.67
26	020108060	NUT M8	1	REPLACES P/N 020308060	ADD TO CART
NUT M8 020108060 · qty on machine: 1 REPLACES P/N 020308060 view full part page → $0.28
27	030208200	WASHER, LOCK M8	1		ADD TO CART
WASHER, LOCK M8 030208200 · qty on machine: 1 view full part page → $0.23
28#	959406961	GRIP BOLT 45X10X30	2		ADD TO CART
GRIP BOLT 45X10X30 959406961 · qty on machine: 2 Also included in kit 32 - FOLDING HANDLE COMPLETE (417910150) view full part page → $13.95 IN A KIT + SOLD SOLO
29#	050200080	O-RING	2		ADD TO CART
O-RING 050200080 · qty on machine: 2 Also included in kit 32 - FOLDING HANDLE COMPLETE (417910150) view full part page → $0.95 IN A KIT + SOLD SOLO
30#	417352430	HANDLE (LOWER)	2		ADD TO CART
HANDLE (LOWER) 417352430 · qty on machine: 2 Also included in kit 32 - FOLDING HANDLE COMPLETE (417910150) view full part page → $93.95 IN A KIT + SOLD SOLO
31#	417355580	HANDLE (UPPER)	1		ADD TO CART
HANDLE (UPPER) 417355580 · qty on machine: 1 Also included in kit 32 - FOLDING HANDLE COMPLETE (417910150) view full part page → $84.95 IN A KIT + SOLD SOLO
32	417910150	FOLDING HANDLE COMPLETE	1	INCLUDES ITEMS W/#	ADD TO CART
FOLDING HANDLE COMPLETE 417910150 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 28#, 29#, 30#, 31# view full part page → $327.95 IN A KIT + SOLD SOLO
35	096208010	SOCKET HEAD BOLT 8X12	1	REPLACES P/N 001520812	ADD TO CART
SOCKET HEAD BOLT 8X12 096208010 · qty on machine: 1 REPLACES P/N 001520812 view full part page → $0.95
36	030208200	WASHER, LOCK M8	1		ADD TO CART
WASHER, LOCK M8 030208200 · qty on machine: 1 view full part page → $0.23
37	009110102	SOCKET HEAD SCREW 8X16	2		PARTS REQUEST
PHOTO COMING SOCKET HEAD SCREW 8X16 009110102 · qty on machine: 2 PARTS REQUEST

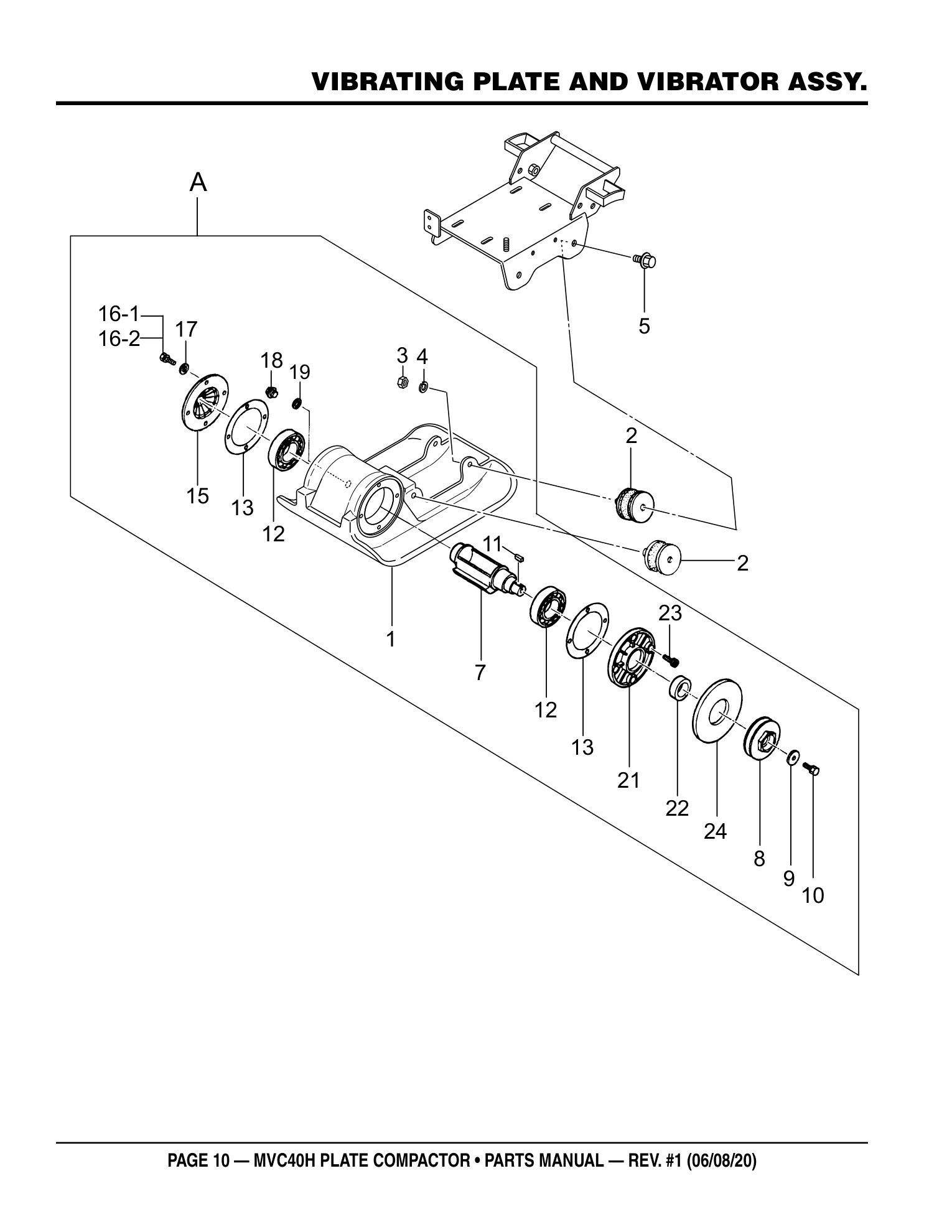

Page 10 — VIBRATING PLATE AND VIBRATOR ASSY.

Multiquip MVC40H Plate Compactor VIBRATING PLATE AND VIBRATOR ASSY. parts diagram

Parts list — exactly as printed23 rows

No.	Part No.	Part Name	Qty	Remarks
A	417910210	VIBRATING PLATE ASSY., COMPLETE	1	INCLUDES ITEMS W/#	ADD TO CART
VIBRATING PLATE ASSY., COMPLETE 417910210 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 1#, 3#, 4#, 7#, 8#, 9#, 10#, 11#, 12#, 13#, 15#, 16-1#, 16-2#, 17#, 18#, 19#, 21#, 22#, 23#, 24# view full part page → $884.37 IN A KIT + SOLD SOLO
1#	417122310	VIBRATING PLATE	1		ADD TO CART
VIBRATING PLATE 417122310 · qty on machine: 1 Also included in kit A - VIBRATING PLATE ASSY., COM (417910210) view full part page → $489.95 IN A KIT + SOLD SOLO
2	939010420	SHOCK ABSORBER D50X60X45H	4		ADD TO CART
SHOCK ABSORBER D50X60X45H 939010420 · qty on machine: 4 view full part page → $20.95
3#	020310080	NUT M10	4		ADD TO CART
NUT M10 020310080 · qty on machine: 4 Also included in kit A - VIBRATING PLATE ASSY., COM (417910210) view full part page → $1.67 IN A KIT + SOLD SOLO
4#	030210250	WASHER, LOCK M10	4		ADD TO CART
WASHER, LOCK M10 030210250 · qty on machine: 4 Also included in kit A - VIBRATING PLATE ASSY., COM (417910210) view full part page → $0.28 IN A KIT + SOLD SOLO
5	0105091025	BOLT 10X25 HEX HEAD ASSY	4	REPLACES P/N 002411025	ADD TO CART
BOLT 10X25 HEX HEAD ASSY 0105091025 · qty on machine: 4 REPLACES P/N 002411025 view full part page → $0.68
7#	417218560	ECCENTRIC ROTATOR	1		PARTS REQUEST
PHOTO COMING ECCENTRIC ROTATOR 417218560 · qty on machine: 1 Also included in kit A - VIBRATING PLATE ASSY., COM (417910210) PARTS REQUEST
8#	417350430	PULLEY	1		ADD TO CART
PULLEY 417350430 · qty on machine: 1 Also included in kit A - VIBRATING PLATE ASSY., COM (417910210) view full part page → $64.95 IN A KIT + SOLD SOLO
9#	952400130	WASHER 9304	1		ADD TO CART
WASHER 9304 952400130 · qty on machine: 1 Also included in kit A - VIBRATING PLATE ASSY., COM (417910210) view full part page → $13.95 IN A KIT + SOLD SOLO
10#	011708025	BOLT 8X25 HEX HEAD ASSY	1	REPLACES P/N 002210825	ADD TO CART
BOLT 8X25 HEX HEAD ASSY 011708025 · qty on machine: 1 REPLACES P/N 002210825 Also included in kit A - VIBRATING PLATE ASSY., COM (417910210) view full part page → $1.95 IN A KIT + SOLD SOLO
11#	951405240	KEY 7X7X19 R	1		ADD TO CART
KEY 7X7X19 R 951405240 · qty on machine: 1 Also included in kit A - VIBRATING PLATE ASSY., COM (417910210) view full part page → $11.95 IN A KIT + SOLD SOLO
12#	040406208	BEARING 6208C4	2		ADD TO CART
BEARING 6208C4 040406208 · qty on machine: 2 Also included in kit A - VIBRATING PLATE ASSY., COM (417910210) view full part page → $37.95 IN A KIT + SOLD SOLO
13#	417454390	PACKING (VIB.)	2		ADD TO CART
PACKING (VIB.) 417454390 · qty on machine: 2 Also included in kit A - VIBRATING PLATE ASSY., COM (417910210) view full part page → $3.95 IN A KIT + SOLD SOLO
15#	417339899	CASE COVER (R)	1		PARTS REQUEST
PHOTO COMING CASE COVER (R) 417339899 · qty on machine: 1 Also included in kit A - VIBRATING PLATE ASSY., COM (417910210) PARTS REQUEST
16-1#	014208020	BOLT 8X20	4	REPLACES P/N 001220820	ADD TO CART
BOLT 8X20 014208020 · qty on machine: 4 REPLACES P/N 001220820 Also included in kit A - VIBRATING PLATE ASSY., COM (417910210) view full part page → $0.77 IN A KIT + SOLD SOLO
16-2#	030208200	WASHER, LOCK M8	4		ADD TO CART
WASHER, LOCK M8 030208200 · qty on machine: 4 Also included in kit A - VIBRATING PLATE ASSY., COM (417910210) view full part page → $0.23 IN A KIT + SOLD SOLO
17#	0401450080	WASHER, FLAT M8	4	REPLACES P/N 031108160	ADD TO CART
WASHER, FLAT M8 0401450080 · qty on machine: 4 REPLACES P/N 031108160 Also included in kit A - VIBRATING PLATE ASSY., COM (417910210) view full part page → $0.56 IN A KIT + SOLD SOLO
18#	953405270	PLUG 1/4X14 13L	1		ADD TO CART
PLUG 1/4X14 13L 953405270 · qty on machine: 1 Also included in kit A - VIBRATING PLATE ASSY., COM (417910210) view full part page → $16.95 IN A KIT + SOLD SOLO
19#	953405260	PACKING 1/4	1		ADD TO CART
PACKING 1/4 953405260 · qty on machine: 1 Also included in kit A - VIBRATING PLATE ASSY., COM (417910210) view full part page → $7.95 IN A KIT + SOLD SOLO
21#	417339909	CASE COVER (L)	1		PARTS REQUEST
PHOTO COMING CASE COVER (L) 417339909 · qty on machine: 1 Also included in kit A - VIBRATING PLATE ASSY., COM (417910210) PARTS REQUEST
22#	060403020	OIL SEAL	1		ADD TO CART
OIL SEAL 060403020 · qty on machine: 1 Also included in kit A - VIBRATING PLATE ASSY., COM (417910210) view full part page → $25.95 IN A KIT + SOLD SOLO
23#	096208010	SOCKET HEAD BOLT 8X15	4	REPLACES P/N 001520815	ADD TO CART
SOCKET HEAD BOLT 8X15 096208010 · qty on machine: 4 REPLACES P/N 001520815 Also included in kit A - VIBRATING PLATE ASSY., COM (417910210) view full part page → $0.95 IN A KIT + SOLD SOLO
24#	417339910	COVER SEAL (VIB.)	1		ADD TO CART
COVER SEAL (VIB.) 417339910 · qty on machine: 1 Also included in kit A - VIBRATING PLATE ASSY., COM (417910210) view full part page → $10.95 IN A KIT + SOLD SOLO

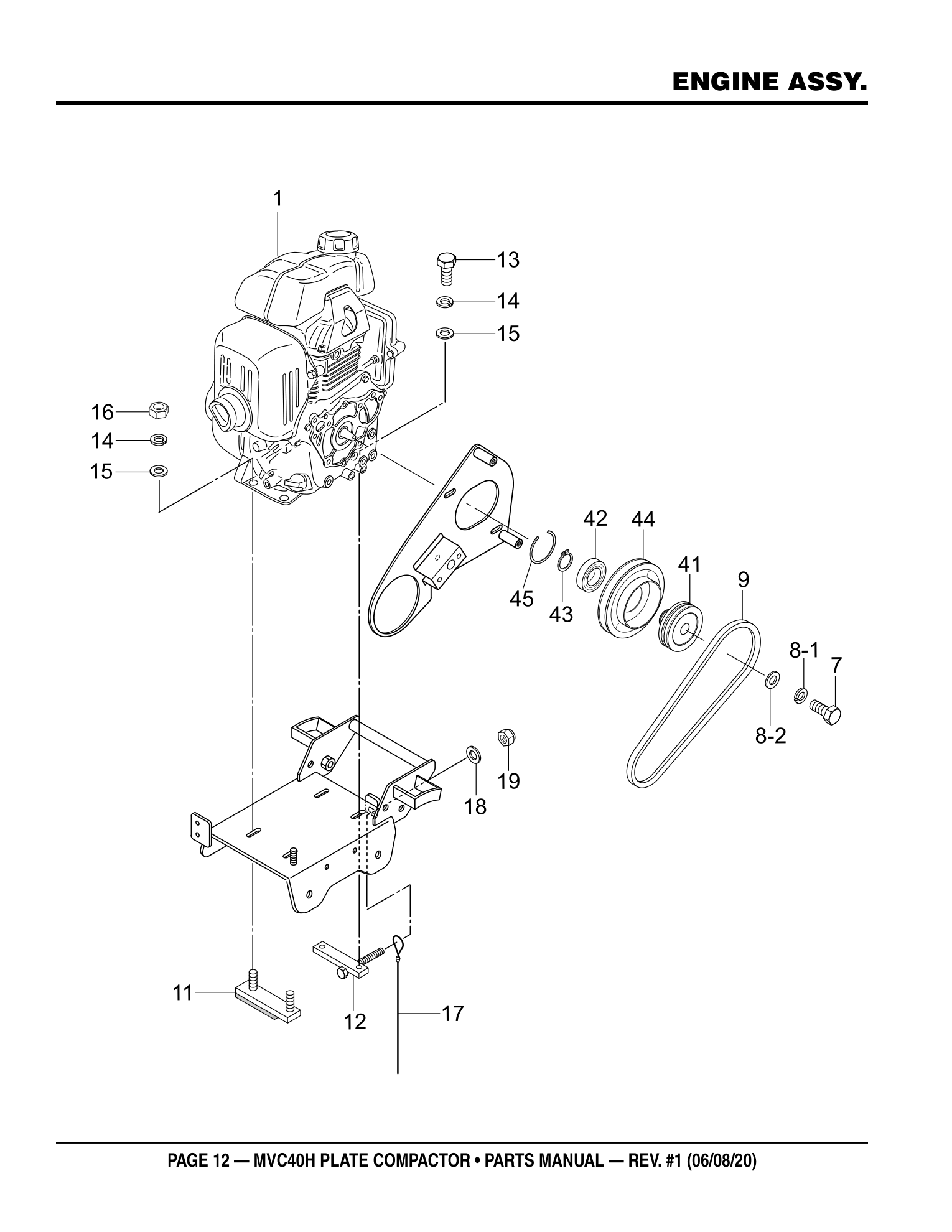

Page 12 — ENGINE ASSY.

Multiquip MVC40H Plate Compactor ENGINE ASSY. parts diagram

Parts list — exactly as printed19 rows

No.	Part No.	Part Name	Qty	Remarks
1	912210033	ENGINE ASSY. GX100UTVMA	1		PARTS REQUEST
PHOTO COMING ENGINE ASSY. GX100UTVMA 912210033 · qty on machine: 1 Factory replaced this part - current number 912210034 PARTS REQUEST
7	011208025	BOLT 8X25	1	REPLACES P/N 001220825	ADD TO CART
BOLT 8X25 011208025 · qty on machine: 1 REPLACES P/N 001220825 view full part page → $0.41
8-1	030208200	WASHER, LOCK M8	1		ADD TO CART
WASHER, LOCK M8 030208200 · qty on machine: 1 view full part page → $0.23
8-2	031108200	WASHER, FLAT M8	1		PARTS REQUEST
PHOTO COMING WASHER, FLAT M8 031108200 · qty on machine: 1 PARTS REQUEST
9	070100282	V-BELT, RPF-3280	1		ADD TO CART
V-BELT, RPF-3280 070100282 · qty on machine: 1 view full part page → $12.95
11	417470980	PLATE, BOLT WITH RUBBER	1		ADD TO CART
PLATE, BOLT WITH RUBBER 417470980 · qty on machine: 1 view full part page → $22.95
12	417471110	ENGINE NUT, REAR	1		ADD TO CART
ENGINE NUT, REAR 417471110 · qty on machine: 1 view full part page → $29.95
13	014208020	BOLT 8X20	2	REPLACES P/N 001220820	ADD TO CART
BOLT 8X20 014208020 · qty on machine: 2 REPLACES P/N 001220820 view full part page → $0.77
14	030208200	WASHER, LOCK M8	4		ADD TO CART
WASHER, LOCK M8 030208200 · qty on machine: 4 view full part page → $0.23
15	0401450080	WASHER, FLAT M8	4	REPLACES P/N 031108160	ADD TO CART
WASHER, FLAT M8 0401450080 · qty on machine: 4 REPLACES P/N 031108160 view full part page → $0.56
16	020108060	NUT M8	2	REPLACES P/N 020308060	ADD TO CART
NUT M8 020108060 · qty on machine: 2 REPLACES P/N 020308060 view full part page → $0.28
17	959404350	EARTH WIRE	1		ADD TO CART
EARTH WIRE 959404350 · qty on machine: 1 view full part page → $9.95
18	0401450080	WASHER, FLAT M8	1	REPLACES P/N 031108160	ADD TO CART
WASHER, FLAT M8 0401450080 · qty on machine: 1 REPLACES P/N 031108160 view full part page → $0.56
19	022710809	NYLON NUT M8	1		ADD TO CART
NYLON NUT M8 022710809 · qty on machine: 1 view full part page → $1.55
41	417355080	CLUTCH SHOE AND BOSS ASSY.	1		ADD TO CART
CLUTCH SHOE AND BOSS ASSY. 417355080 · qty on machine: 1 view full part page → $413.95
42	042006006	BEARING	1	REPLACES P/N 044006006	ADD TO CART
BEARING 042006006 · qty on machine: 1 REPLACES P/N 044006006 view full part page → $30.95
43	080200300	STOP RING			ADD TO CART
STOP RING 080200300 view full part page → $1.71
44	417470990	CLUTCH DRUM	1		ADD TO CART
CLUTCH DRUM 417470990 · qty on machine: 1 view full part page → $538.95
45	080600550	STOP RING	1		ADD TO CART
STOP RING 080600550 · qty on machine: 1 view full part page → $6.95

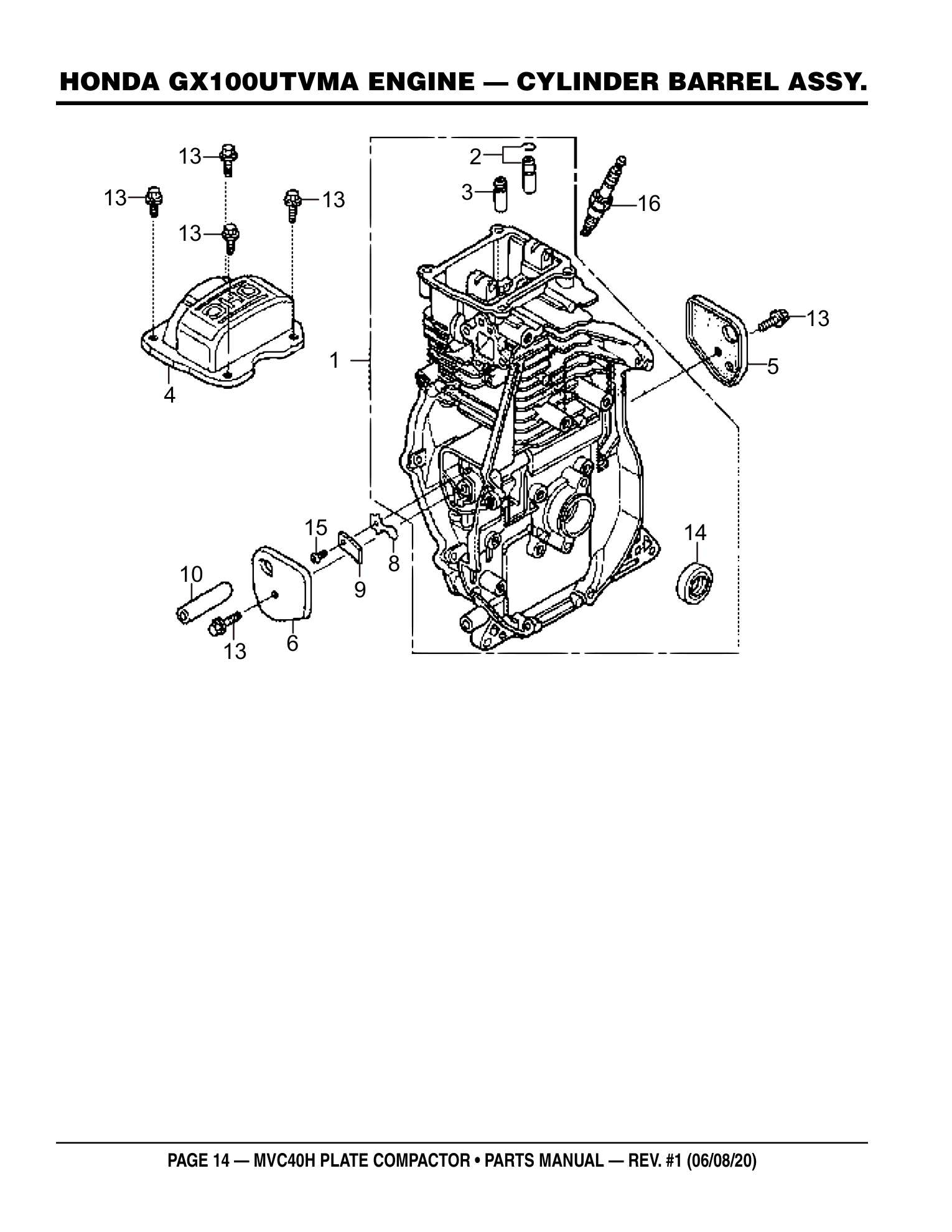

Page 14 — HONDA GX100UTVMA ENGINE - CYLINDER BARREL ASSY.

Multiquip MVC40H Plate Compactor HONDA GX100UTVMA ENGINE - CYLINDER BARREL ASSY. parts diagram

Parts list — exactly as printed13 rows

No.	Part No.	Part Name	Qty	Remarks
1	12000Z0D405	BARREL ASSY., CYLINDER	1	INCLUDES ITEMS W/$	ADD TO CART
BARREL ASSY., CYLINDER 12000Z0D405 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 2$, 3$, 14$ view full part page → $805.95 IN A KIT + SOLD SOLO
2$	12201Z0D305	GUIDE ASSY., EXHAUST VALVE (OS)	1		NO LONGER AVAILABLE
PHOTO COMING GUIDE ASSY., EXHAUST VALVE (OS) 12201Z0D305 · qty on machine: 1 Also included in kit 1 - BARREL ASSY., CYLINDER (12000Z0D405) NO LONGER AVAILABLE
3$	12204Z0D305	GUIDE, INLET VALVE (O.S.)	1		NO LONGER AVAILABLE
PHOTO COMING GUIDE, INLET VALVE (O.S.) 12204Z0D305 · qty on machine: 1 Also included in kit 1 - BARREL ASSY., CYLINDER (12000Z0D405) NO LONGER AVAILABLE
4	12311Z0D000	COVER, HEAD	1		ADD TO CART
COVER, HEAD 12311Z0D000 · qty on machine: 1 view full part page → $46.95
5	12355Z0D000	COVER COMPLETE A, BREATHER	1		ADD TO CART
COVER COMPLETE A, BREATHER 12355Z0D000 · qty on machine: 1 view full part page → $17.95
6	12365Z0D000	COVER COMPLETE B, BREATHER	1		ADD TO CART
COVER COMPLETE B, BREATHER 12365Z0D000 · qty on machine: 1 view full part page → $17.95
8	15571ZM7003	VALVE, OIL OUTLET	1		ADD TO CART
VALVE, OIL OUTLET 15571ZM7003 · qty on machine: 1 view full part page → $3.95
9	15572ZM7000	PLATE, STOPPER	1		ADD TO CART
PLATE, STOPPER 15572ZM7000 · qty on machine: 1 view full part page → $3.95
10	15721Z0D000	TUBE, BREATHER	1		ADD TO CART
TUBE, BREATHER 15721Z0D000 · qty on machine: 1 view full part page → $5.95
13	90014952000	BOLT, FLANGE 6X14	6		ADD TO CART
BOLT, FLANGE 6X14 90014952000 · qty on machine: 6 view full part page → $4.95
14$	91202KJ9003	OIL SEAL 20X32X6	1		ADD TO CART
OIL SEAL 20X32X6 91202KJ9003 · qty on machine: 1 Also included in kit 1 - BARREL ASSY., CYLINDER (12000Z0D405) view full part page → $12.95 IN A KIT + SOLD SOLO
15	93500030050A	SCREW, PAN 3X5	1		ADD TO CART
SCREW, PAN 3X5 93500030050A · qty on machine: 1 view full part page → $1.95
16	9805655777	SPARK PLUG	1		ADD TO CART
SPARK PLUG 9805655777 · qty on machine: 1 view full part page → $4.95

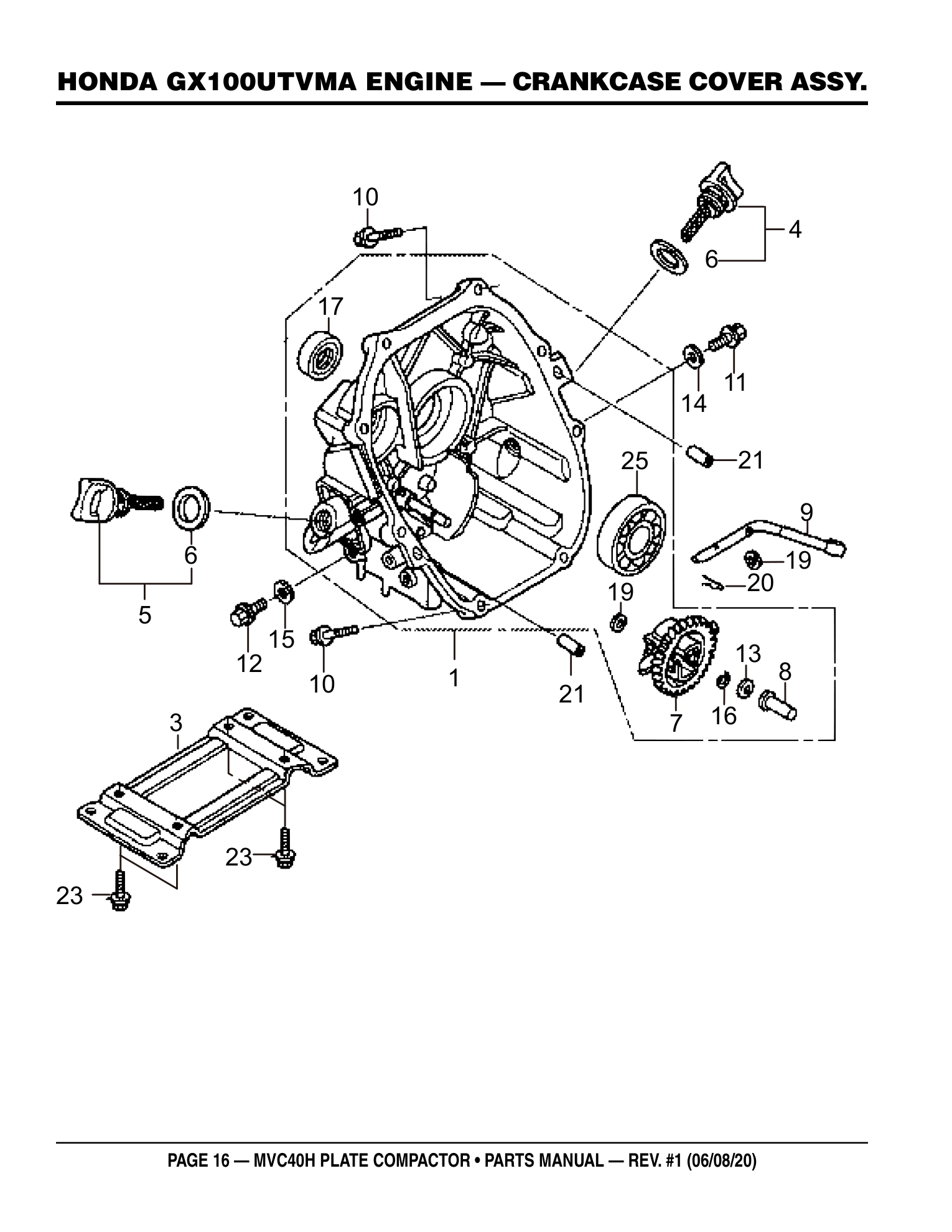

Page 16 — HONDA GX100UTVMA ENGINE - CRANKCASE COVER ASSY.

Multiquip MVC40H Plate Compactor HONDA GX100UTVMA ENGINE - CRANKCASE COVER ASSY. parts diagram

Parts list — exactly as printed21 rows

No.	Part No.	Part Name	Qty	Remarks
1	11300Z0D405	COVER ASSY., CRANK CASE	1	INCLUDES ITEMS W/#	PARTS REQUEST
PHOTO COMING COVER ASSY., CRANK CASE 11300Z0D405 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 7#, 8#, 13#, 16#, 17#, 25# PARTS REQUEST
3	12351Z0DT00	CRADLE, ENGINE	1		ADD TO CART
CRADLE, ENGINE 12351Z0DT00 · qty on machine: 1 view full part page → $52.95
4	15600ZDF000	CAP ASSY., OIL FILLER	1	INCLUDES ITEMS W/$	ADD TO CART
CAP ASSY., OIL FILLER 15600ZDF000 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 6$@ view full part page → $2.95 IN A KIT + SOLD SOLO
5	15600ZDF000	CAP ASSY., OIL FILLER	1	INCLUDES ITEMS W/@	ADD TO CART
CAP ASSY., OIL FILLER 15600ZDF000 · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 6$@ view full part page → $2.95 IN A KIT + SOLD SOLO
6$@	15625Z0T800	PACKING, OIL FILLER CAP	2		ADD TO CART
PACKING, OIL FILLER CAP 15625Z0T800 · qty on machine: 2 Also included in kit 5 - CAP ASSY., OIL FILLER (15600ZDF000); kit 4 - CAP ASSY., OIL FILLER (15600ZDF000) view full part page → $9.95 IN A KIT + SOLD SOLO
7#	16510ZL8000	GOVERNOR ASSY.	1		ADD TO CART
GOVERNOR ASSY. 16510ZL8000 · qty on machine: 1 Also included in kit 1 - COVER ASSY., CRANK CASE (11300Z0D405) view full part page → $23.95 IN A KIT + SOLD SOLO
8#	16531ZE1000	SLIDER, GOVERNOR	1		ADD TO CART
SLIDER, GOVERNOR 16531ZE1000 · qty on machine: 1 Also included in kit 1 - COVER ASSY., CRANK CASE (11300Z0D405) view full part page → $6.95 IN A KIT + SOLD SOLO
9	16541Z0D000	SHAFT, GOVERNOR ARM	1		ADD TO CART
SHAFT, GOVERNOR ARM 16541Z0D000 · qty on machine: 1 view full part page → $16.95
10	957010602500	FLANGE BOLT 6X25	8	REPLACES P/N 90121952000	ADD TO CART
FLANGE BOLT 6X25 957010602500 · qty on machine: 8 REPLACES P/N 90121952000 view full part page → $3.95
11	90131ZE1000	BOLT, DRAIN PLUG	1		ADD TO CART
BOLT, DRAIN PLUG 90131ZE1000 · qty on machine: 1 view full part page → $5.95
12	90131ZE1000	BOLT, DRAIN PLUG	1		ADD TO CART
BOLT, DRAIN PLUG 90131ZE1000 · qty on machine: 1 view full part page → $5.95
13#	90451ZE1000	THRUST WASHER 6MM	1		ADD TO CART
THRUST WASHER 6MM 90451ZE1000 · qty on machine: 1 Also included in kit 1 - COVER ASSY., CRANK CASE (11300Z0D405) view full part page → $2.95 IN A KIT + SOLD SOLO
14	90601ZE1000	WASHER, DRAIN PLUG	1		ADD TO CART
WASHER, DRAIN PLUG 90601ZE1000 · qty on machine: 1 view full part page → $2.7
15	90601ZE1000	WASHER, DRAIN PLUG	1		ADD TO CART
WASHER, DRAIN PLUG 90601ZE1000 · qty on machine: 1 view full part page → $2.7
16#	90602ZE1000	CLIP, GOVERNOR HOLDER	1		ADD TO CART
CLIP, GOVERNOR HOLDER 90602ZE1000 · qty on machine: 1 Also included in kit 1 - COVER ASSY., CRANK CASE (11300Z0D405) view full part page → $2.95 IN A KIT + SOLD SOLO
17#	91202KJ9003	OIL SEAL 20X32X6	1		ADD TO CART
OIL SEAL 20X32X6 91202KJ9003 · qty on machine: 1 Also included in kit 1 - COVER ASSY., CRANK CASE (11300Z0D405) view full part page → $12.95 IN A KIT + SOLD SOLO
19	58176	WASHER, FLAT 6MM	2	REPLACES P/N 9410106800	ADD TO CART
WASHER, FLAT 6MM 58176 · qty on machine: 2 REPLACES P/N 9410106800 view full part page → $0.13
20	9425108000	LOCK PIN 8MM	1		ADD TO CART
LOCK PIN 8MM 9425108000 · qty on machine: 1 view full part page → $2.95
21	9430108200	KNOCK PIN 8X20	2		ADD TO CART
KNOCK PIN 8X20 9430108200 · qty on machine: 2 view full part page → $4.95
23	957010801800	FLANGE, BOLT 8X18	4		ADD TO CART
FLANGE, BOLT 8X18 957010801800 · qty on machine: 4 view full part page → $2.59
25#	961006204000	BEARING, RADIAL BALL	1		ADD TO CART
BEARING, RADIAL BALL 961006204000 · qty on machine: 1 Also included in kit 1 - COVER ASSY., CRANK CASE (11300Z0D405) view full part page → $23.95 IN A KIT + SOLD SOLO

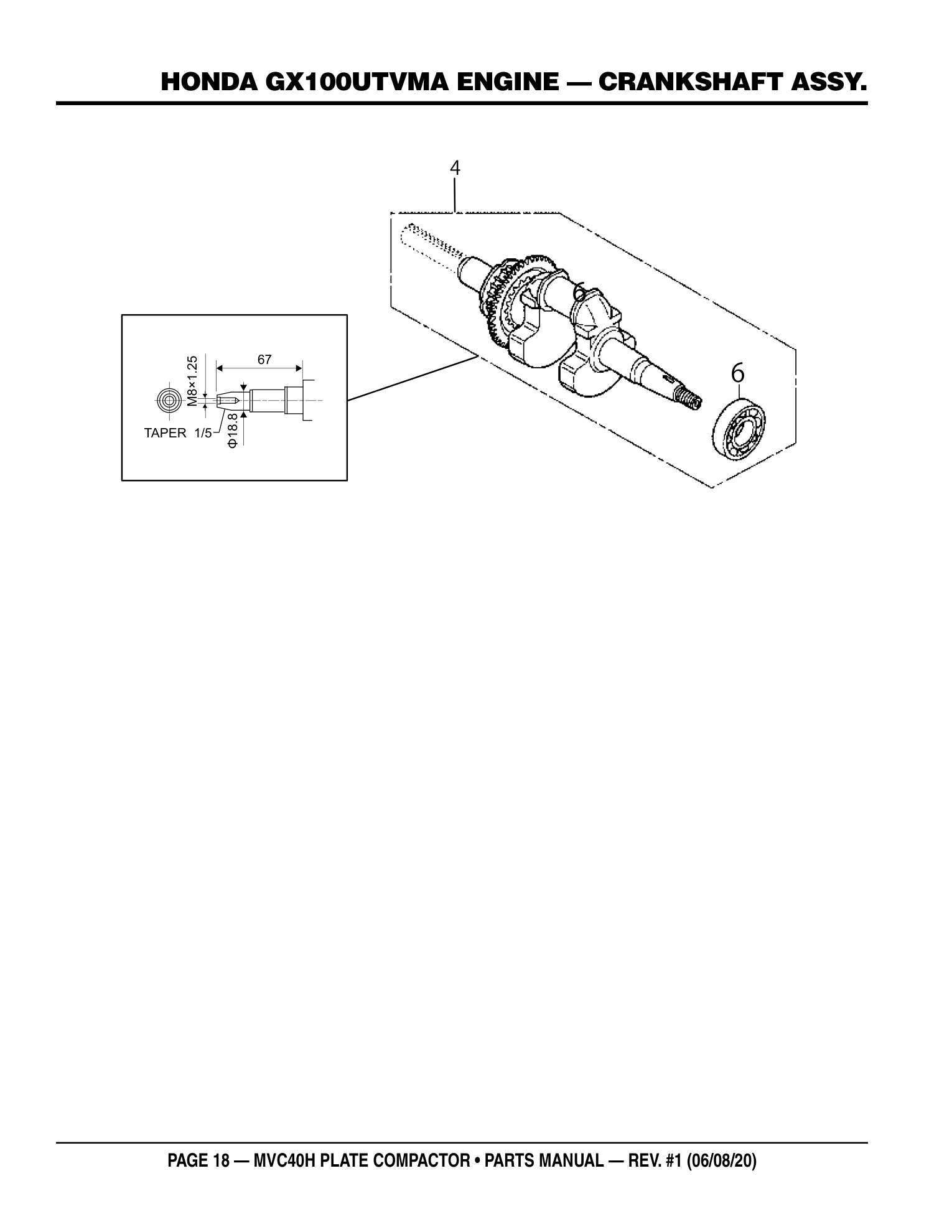

Page 18 — HONDA GX100UTVMA ENGINE - CRANKSHAFT ASSY.

Multiquip MVC40H Plate Compactor HONDA GX100UTVMA ENGINE - CRANKSHAFT ASSY. parts diagram

Parts list — exactly as printed2 rows

No.	Part No.	Part Name	Qty	Remarks
4	13310Z0DV70	CRANKSHAFT COMPLETE	1	INCLUDES ITEM W/$	ADD TO CART
CRANKSHAFT COMPLETE 13310Z0DV70 · qty on machine: 1 INCLUDES ITEM W/$ Kit includes: 6$ view full part page → $443.95 IN A KIT + SOLD SOLO
6$	91001Z0DV01	BEARING, RADIAL BALL	1		ADD TO CART
BEARING, RADIAL BALL 91001Z0DV01 · qty on machine: 1 Also included in kit 4 - CRANKSHAFT COMPLETE (13310Z0DV70) view full part page → $33.95 IN A KIT + SOLD SOLO

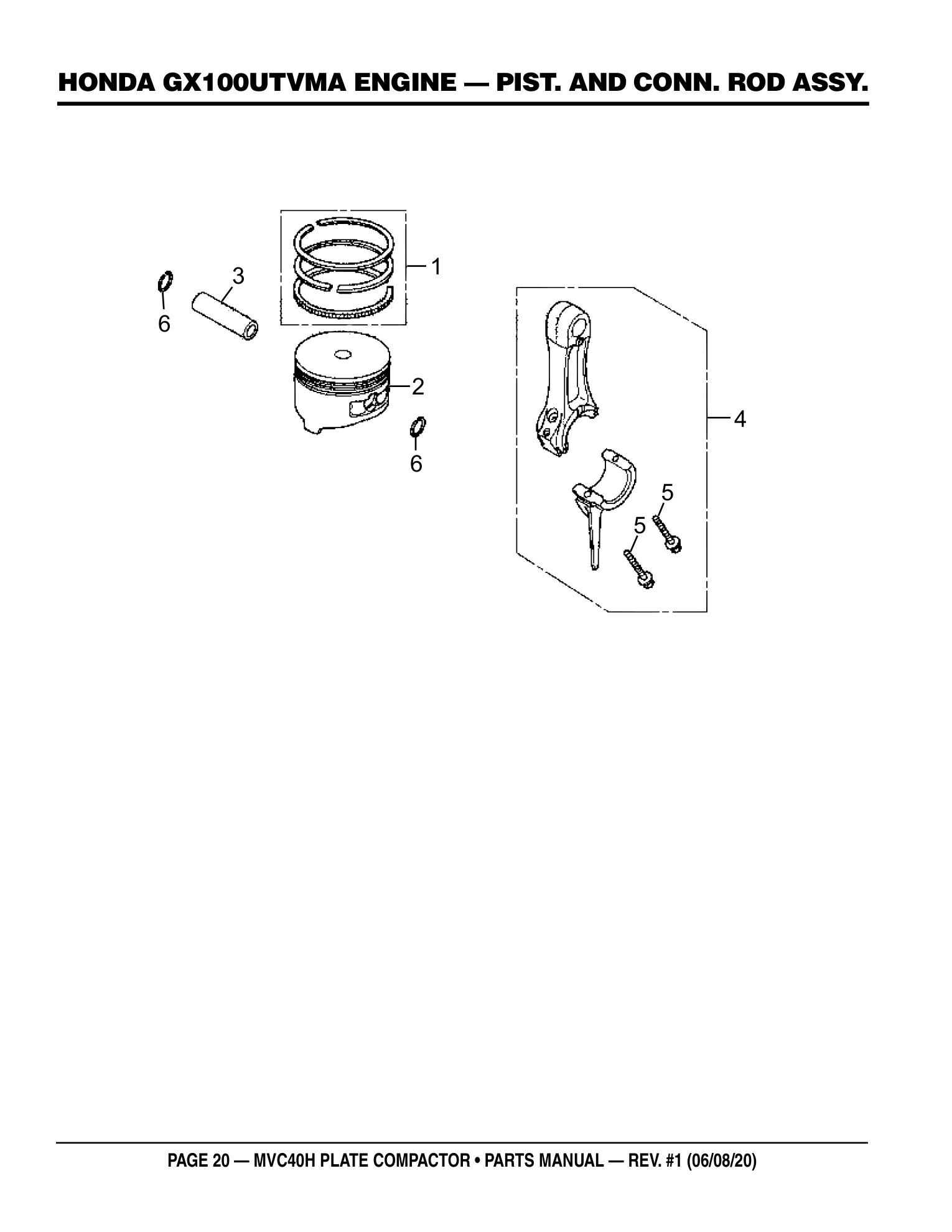

Page 20 — HONDA GX100UTVMA ENGINE - PIST. AND CONN. ROD ASSY.

Multiquip MVC40H Plate Compactor HONDA GX100UTVMA ENGINE - PIST. AND CONN. ROD ASSY. parts diagram

Parts list — exactly as printed7 rows

No.	Part No.	Part Name	Qty	Remarks
1	13010Z0D003	RING SET, PISTON	1		ADD TO CART
RING SET, PISTON 13010Z0D003 · qty on machine: 1 view full part page → $59.95
2	13101ZDD000	PISTON	1		PARTS REQUEST
PHOTO COMING PISTON 13101ZDD000 · qty on machine: 1 PARTS REQUEST
3	13111ZE0000	PISTON PIN	1		ADD TO CART
PISTON PIN 13111ZE0000 · qty on machine: 1 view full part page → $13.95
4	13200Z0D000	CONNECTING ROD ASSY	1	INCLUDES ITEM W/#	ADD TO CART
CONNECTING ROD ASSY 13200Z0D000 · qty on machine: 1 INCLUDES ITEM W/# Kit includes: 5#$ view full part page → $136.95 IN A KIT + SOLD SOLO
4	13200Z0D305	CONNECTING ROD ASSY (UNDER)	1	INCLUDES ITEM W/$	ADD TO CART
CONNECTING ROD ASSY (UNDER) 13200Z0D305 · qty on machine: 1 INCLUDES ITEM W/$ Kit includes: 5#$ view full part page → $76.95 IN A KIT + SOLD SOLO
5#$	90001ZM7000	CONNECTING ROD BOLT	2		ADD TO CART
CONNECTING ROD BOLT 90001ZM7000 · qty on machine: 2 Also included in kit 4 - CONNECTING ROD ASSY (13200Z0D000); kit 4 - CONNECTING ROD ASSY (UNDER (13200Z0D305) view full part page → $4.95 IN A KIT + SOLD SOLO
6	90551ZE0000	CLIP, PISTON PIN 13MM	2		ADD TO CART
CLIP, PISTON PIN 13MM 90551ZE0000 · qty on machine: 2 view full part page → $2.95

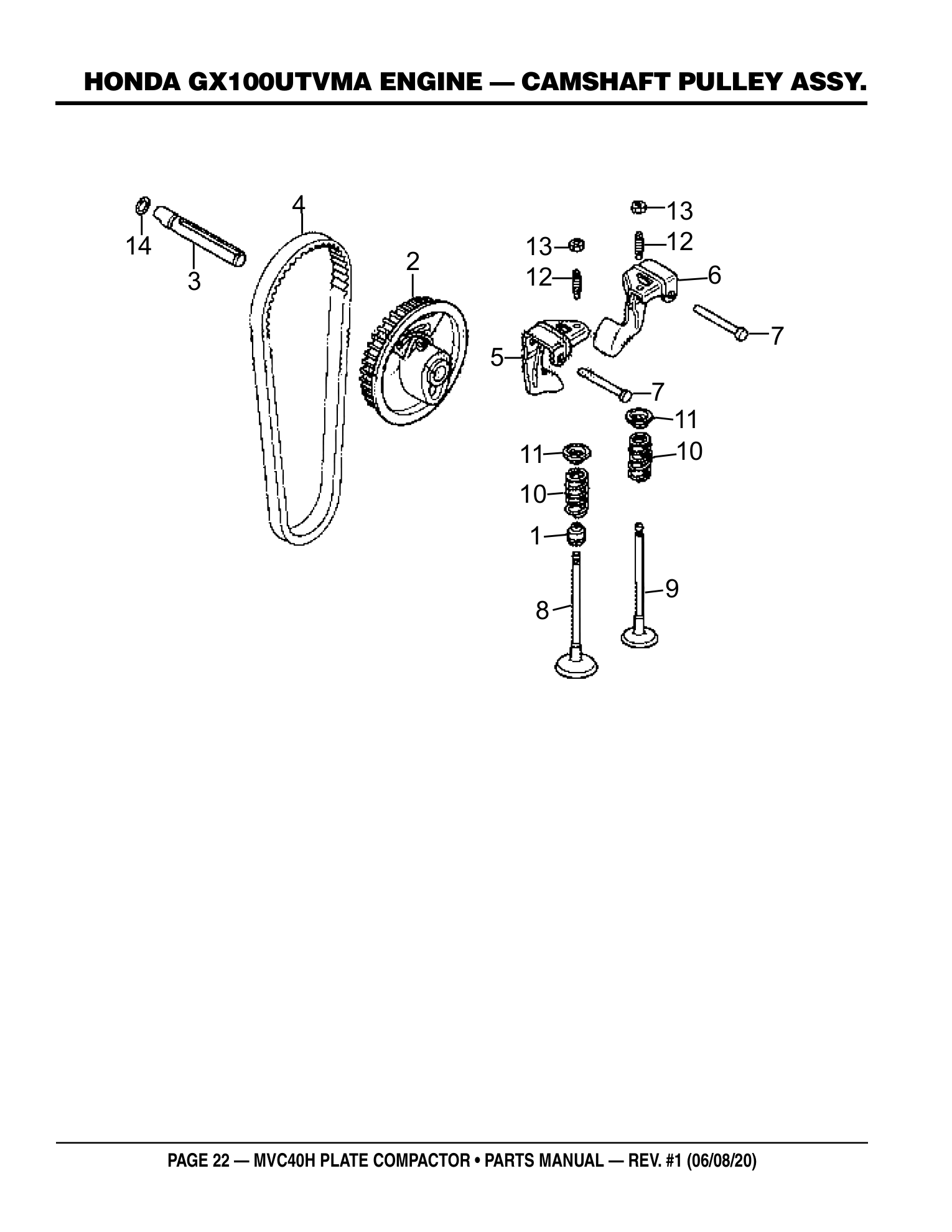

Page 22 — HONDA GX100UTVMA ENGINE - CAMSHAFT PULLEY ASSY.

Multiquip MVC40H Plate Compactor HONDA GX100UTVMA ENGINE - CAMSHAFT PULLEY ASSY. parts diagram

Parts list — exactly as printed14 rows

No.	Part No.	Part Name	Qty
1	12209KT7013	SEAL, VALVE STEM	1	ADD TO CART
SEAL, VALVE STEM 12209KT7013 · qty on machine: 1 view full part page → $19.95
2	14320ZDD000	PULLEY COMP., CAMSHAFT/RTE	1	ADD TO CART
PULLEY COMP., CAMSHAFT/RTE 14320ZDD000 · qty on machine: 1 view full part page → $65.95
3	14324Z0D000	SHAFT, CAM PULLEY	1	ADD TO CART
SHAFT, CAM PULLEY 14324Z0D000 · qty on machine: 1 view full part page → $7.95
4	14400Z0D003	TIMING BELT	1	ADD TO CART
TIMING BELT 14400Z0D003 · qty on machine: 1 view full part page → $52.95
5	14431ZDD000	ROCKER ARM, INTAKE VALVE	1	ADD TO CART
ROCKER ARM, INTAKE VALVE 14431ZDD000 · qty on machine: 1 view full part page → $16.95
6	14441ZDD000	ROCKER ARM, EXHAUST VALVE	1	ADD TO CART
ROCKER ARM, EXHAUST VALVE 14441ZDD000 · qty on machine: 1 view full part page → $17.95
7	14461ZL8000	SHAFT, ROCKER ARM	2	ADD TO CART
SHAFT, ROCKER ARM 14461ZL8000 · qty on machine: 2 view full part page → $3.95
8	14711Z0D000	INLET VALVE	1	ADD TO CART
INLET VALVE 14711Z0D000 · qty on machine: 1 view full part page → $45.95
9	14721Z0D000	EXHAUST VALVE	1	ADD TO CART
EXHAUST VALVE 14721Z0D000 · qty on machine: 1 view full part page → $80.95
10	14751Z0D000	SPRING, VALVE	2	ADD TO CART
SPRING, VALVE 14751Z0D000 · qty on machine: 2 view full part page → $4.95
11	14771ZM3010	RETAINER, VALVE SPRING	2	ADD TO CART
RETAINER, VALVE SPRING 14771ZM3010 · qty on machine: 2 view full part page → $2.56
12	90012333000	SCREW, TAPPET ADJUSTING	2	ADD TO CART
SCREW, TAPPET ADJUSTING 90012333000 · qty on machine: 2 view full part page → $5.95
13	90206001000	NUT, TAPPET ADJUSTING	2	ADD TO CART
NUT, TAPPET ADJUSTING 90206001000 · qty on machine: 2 view full part page → $3.95
14	91301ZM0V31	O-RING 6.8X1.9	1	ADD TO CART
O-RING 6.8X1.9 91301ZM0V31 · qty on machine: 1 view full part page → $5.95

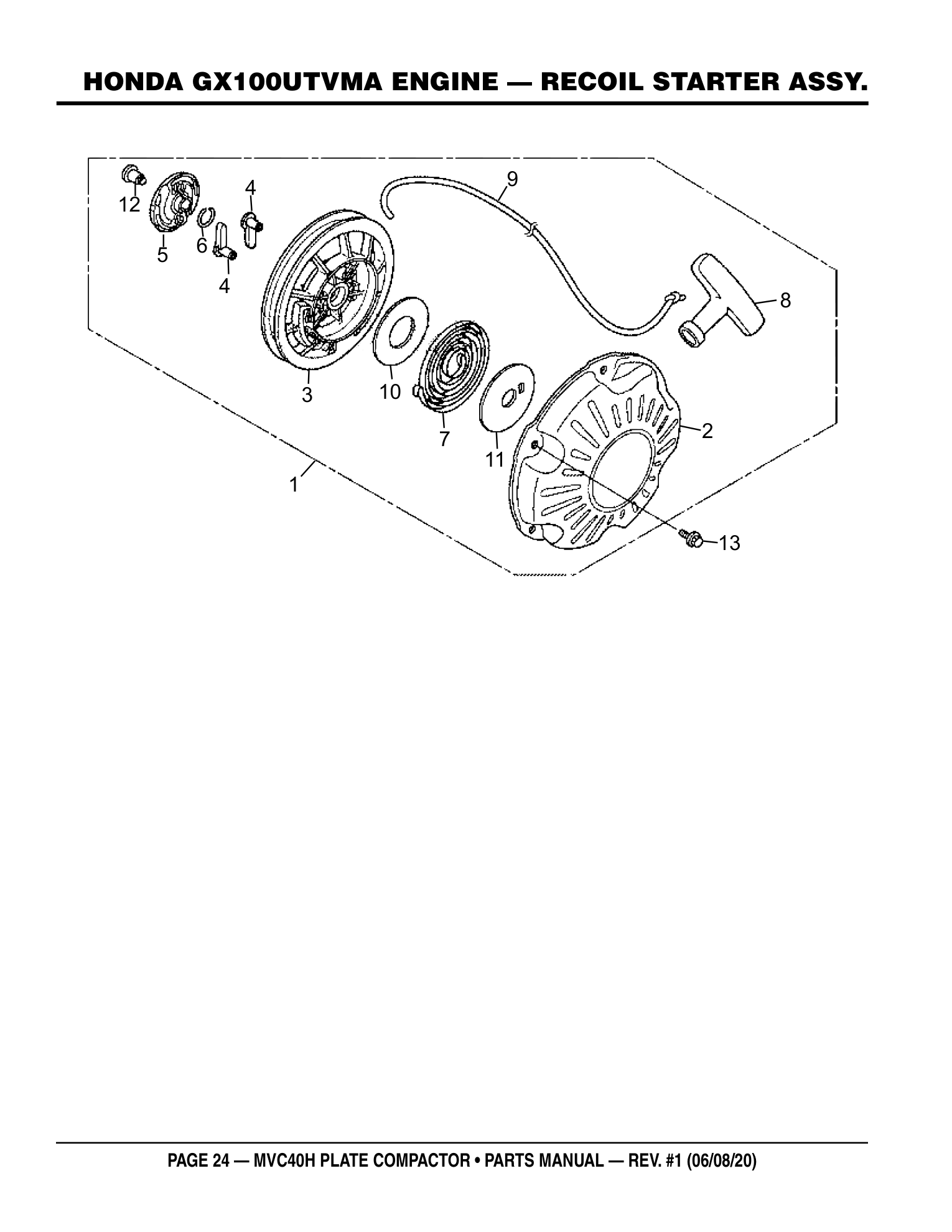

Page 24 — HONDA GX100UTVMA ENGINE - RECOIL STARTER ASSY.

Multiquip MVC40H Plate Compactor HONDA GX100UTVMA ENGINE - RECOIL STARTER ASSY. parts diagram

Parts list — exactly as printed13 rows

No.	Part No.	Part Name	Qty	Remarks
1	28400Z0DV04ZA	RECOIL STARTER ASSY	1	INCLUDES ITEMS W/$	ADD TO CART
RECOIL STARTER ASSY 28400Z0DV04ZA · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 2$, 3$, 4$, 5$, 6$, 7$, 8$, 9$, 10$, 11$, 12$ view full part page → $155.95 IN A KIT + SOLD SOLO
2$	28410Z0DV02ZA	CASE COMPLETE/RECOIL	1		ADD TO CART
CASE COMPLETE/RECOIL 28410Z0DV02ZA · qty on machine: 1 Also included in kit 1 - RECOIL STARTER ASSY (28400Z0DV04ZA) view full part page → $179.95 IN A KIT + SOLD SOLO
3$	28421ZDD003	REEL, RECOIL STARTER	1		ADD TO CART
REEL, RECOIL STARTER 28421ZDD003 · qty on machine: 1 Also included in kit 1 - RECOIL STARTER ASSY (28400Z0DV04ZA) view full part page → $20.95 IN A KIT + SOLD SOLO
4$	28422ZG0W02	RATCHET, STARTER	2		ADD TO CART
RATCHET, STARTER 28422ZG0W02 · qty on machine: 2 Also included in kit 1 - RECOIL STARTER ASSY (28400Z0DV04ZA) view full part page → $18.95 IN A KIT + SOLD SOLO
5$	28433ZG0W02	GUIDE, RATCHET	1		ADD TO CART
GUIDE, RATCHET 28433ZG0W02 · qty on machine: 1 Also included in kit 1 - RECOIL STARTER ASSY (28400Z0DV04ZA) view full part page → $13.95 IN A KIT + SOLD SOLO
6$	28441ZW9003	SPRING, FRICTION	1	REPLACES P/N 28441ZW6003	ADD TO CART
SPRING, FRICTION 28441ZW9003 · qty on machine: 1 REPLACES P/N 28441ZW6003 Also included in kit 1 - RECOIL STARTER ASSY (28400Z0DV04ZA) view full part page → $13.95 IN A KIT + SOLD SOLO
7$	28442ZH8003	SPRING, RECOIL STARTER	1		ADD TO CART
SPRING, RECOIL STARTER 28442ZH8003 · qty on machine: 1 Also included in kit 1 - RECOIL STARTER ASSY (28400Z0DV04ZA) view full part page → $33.95 IN A KIT + SOLD SOLO
8$	28461ZDD003	KNOB, RECOIL STARTER	1		ADD TO CART
KNOB, RECOIL STARTER 28461ZDD003 · qty on machine: 1 Also included in kit 1 - RECOIL STARTER ASSY (28400Z0DV04ZA) view full part page → $1.68 IN A KIT + SOLD SOLO
9$	28462Z0DV03	ROPE, RECOIL STARTER	1		ADD TO CART
ROPE, RECOIL STARTER 28462Z0DV03 · qty on machine: 1 Also included in kit 1 - RECOIL STARTER ASSY (28400Z0DV04ZA) view full part page → $13.95 IN A KIT + SOLD SOLO
10$	28467Z0DV02	PLATE, SIDE	1		ADD TO CART
PLATE, SIDE 28467Z0DV02 · qty on machine: 1 Also included in kit 1 - RECOIL STARTER ASSY (28400Z0DV04ZA) view full part page → $10.95 IN A KIT + SOLD SOLO
11$	28468Z0DV02	PLATE, SLIDE	1		ADD TO CART
PLATE, SLIDE 28468Z0DV02 · qty on machine: 1 Also included in kit 1 - RECOIL STARTER ASSY (28400Z0DV04ZA) view full part page → $12.95 IN A KIT + SOLD SOLO
12$	90003ZH8003	SET SCREW	1		ADD TO CART
SET SCREW 90003ZH8003 · qty on machine: 1 Also included in kit 1 - RECOIL STARTER ASSY (28400Z0DV04ZA) view full part page → $12.95 IN A KIT + SOLD SOLO
13	957010600800	FLANGE BOLT 6X8	3		ADD TO CART
FLANGE BOLT 6X8 957010600800 · qty on machine: 3 view full part page → $7.95

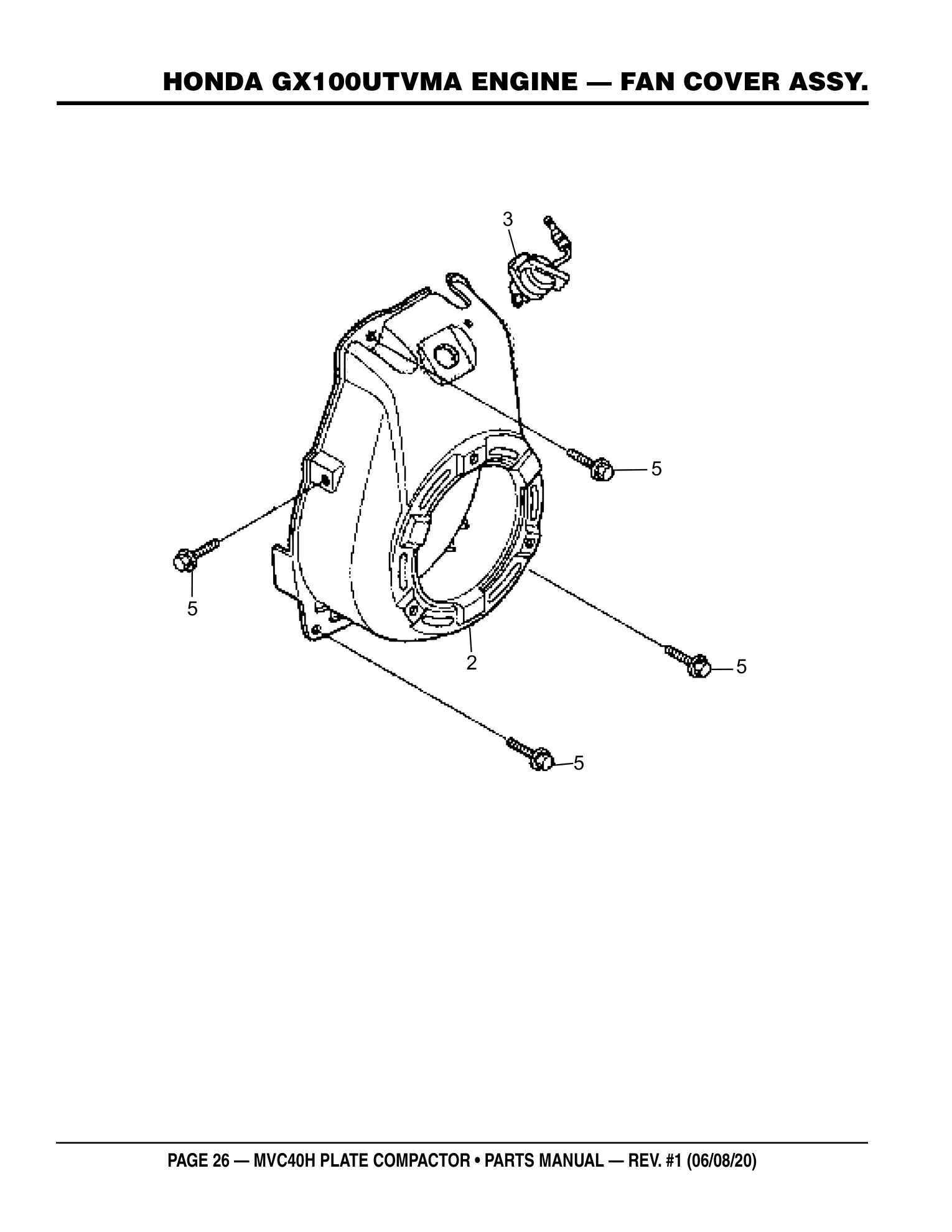

Page 26 — HONDA GX100UTVMA ENGINE - FAN COVER ASSY.

Multiquip MVC40H Plate Compactor HONDA GX100UTVMA ENGINE - FAN COVER ASSY. parts diagram

Parts list — exactly as printed3 rows

No.	Part No.	Part Name	Qty
2	19610Z0DV00ZB	FAN COVER COMPLETE, BLACK	1	ADD TO CART
FAN COVER COMPLETE, BLACK 19610Z0DV00ZB · qty on machine: 1 view full part page → $175.95
3	35120Z0DV81	SWITCH ASSY., ENGINE STOP	1	ADD TO CART
SWITCH ASSY., ENGINE STOP 35120Z0DV81 · qty on machine: 1 view full part page → $35.95
5	90014952000	BOLT, FLANGE 6X14	4	ADD TO CART
BOLT, FLANGE 6X14 90014952000 · qty on machine: 4 view full part page → $4.95

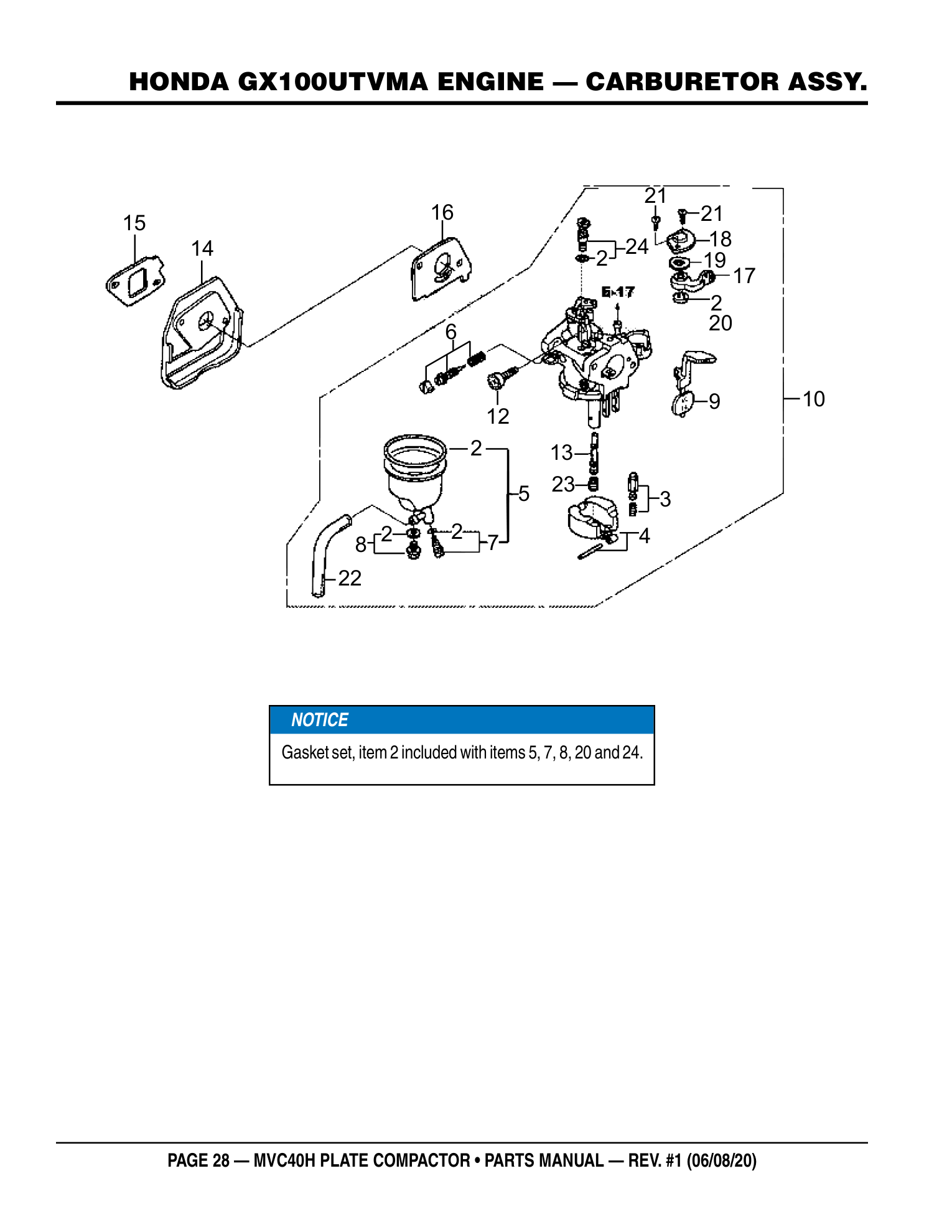

Page 28 — HONDA GX100UTVMA ENGINE - CARBURETOR ASSY.

Multiquip MVC40H Plate Compactor HONDA GX100UTVMA ENGINE - CARBURETOR ASSY. parts diagram

Parts list — exactly as printed22 rows

No.	Part No.	Part Name	Qty	Remarks
2$#	16010ZM7003	GASKET SET	1		PARTS REQUEST
PHOTO COMING GASKET SET 16010ZM7003 · qty on machine: 1 Also included in kit 5 - FLOAT CHAMBER SET (16015ZM7003); kit 10 - CARBURETOR ASSY (16100Z4E033) PARTS REQUEST
3$	16011ZE0005	FLOAT VALVE SET	1		ADD TO CART
FLOAT VALVE SET 16011ZE0005 · qty on machine: 1 Also included in kit 10 - CARBURETOR ASSY (16100Z4E033) view full part page → $53.95 IN A KIT + SOLD SOLO
4$	16013ZG0811	FLOAT SET	1		ADD TO CART
FLOAT SET 16013ZG0811 · qty on machine: 1 Also included in kit 10 - CARBURETOR ASSY (16100Z4E033) view full part page → $45.95 IN A KIT + SOLD SOLO
5$	16015ZM7003	FLOAT CHAMBER SET	1	INCLUDES ITEMS W/#	ADD TO CART
FLOAT CHAMBER SET 16015ZM7003 · qty on machine: 1 INCLUDES ITEMS W/# Also included in kit 10 - CARBURETOR ASSY (16100Z4E033) view full part page → $87.95 IN A KIT + SOLD SOLO
6$	16016ZH7W01	SCREW SET, PILOT	1		ADD TO CART
SCREW SET, PILOT 16016ZH7W01 · qty on machine: 1 Also included in kit 10 - CARBURETOR ASSY (16100Z4E033) view full part page → $39.95 IN A KIT + SOLD SOLO
7$	16024ZB9005	DRAIN SCREW SET	1	INCLUDES ITEMS W/#	ADD TO CART
DRAIN SCREW SET 16024ZB9005 · qty on machine: 1 INCLUDES ITEMS W/# Also included in kit 10 - CARBURETOR ASSY (16100Z4E033) view full part page → $12.95 IN A KIT + SOLD SOLO
8$	16028ZG0811	SCREW SET	1	INCLUDES ITEMS W/#	NO LONGER AVAILABLE
PHOTO COMING SCREW SET 16028ZG0811 · qty on machine: 1 INCLUDES ITEMS W/# Also included in kit 10 - CARBURETOR ASSY (16100Z4E033) NO LONGER AVAILABLE
9$	16044Z4E003	CHOKE SET	1		ADD TO CART
CHOKE SET 16044Z4E003 · qty on machine: 1 Also included in kit 10 - CARBURETOR ASSY (16100Z4E033) view full part page → $23.03 IN A KIT + SOLD SOLO
10	16100Z4E033	CARBURETOR ASSY	1	INCLUDES ITEMS W/$	ADD TO CART
CARBURETOR ASSY 16100Z4E033 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 2$#, 3$, 4$, 5$, 6$, 7$, 8$, 9$, 12$, 13$, 17$, 18$, 19$, 20$, 21$, 22$, 23$, 24$ view full part page → $170.95 IN A KIT + SOLD SOLO
12$	16124ZE0005	SCREW, THROTTLE STOP	1		ADD TO CART
SCREW, THROTTLE STOP 16124ZE0005 · qty on machine: 1 Also included in kit 10 - CARBURETOR ASSY (16100Z4E033) view full part page → $26.95 IN A KIT + SOLD SOLO
13$	16166Z4E003	MAIN NOZZLE	1		PARTS REQUEST
PHOTO COMING MAIN NOZZLE 16166Z4E003 · qty on machine: 1 Also included in kit 10 - CARBURETOR ASSY (16100Z4E033) PARTS REQUEST
14	16211Z0D010	INSULATOR, CARBURETOR	1		ADD TO CART
INSULATOR, CARBURETOR 16211Z0D010 · qty on machine: 1 view full part page → $17.95
15	16212Z0D000	PACKING, INSULATOR	1		PARTS REQUEST
PHOTO COMING PACKING, INSULATOR 16212Z0D000 · qty on machine: 1 PARTS REQUEST
16	16221ZG0801	PACKING, CARBURETOR	1		ADD TO CART
PACKING, CARBURETOR 16221ZG0801 · qty on machine: 1 view full part page → $4.95
17$	16953Z0D003	LEVER, COCK	1		PARTS REQUEST
PHOTO COMING LEVER, COCK 16953Z0D003 · qty on machine: 1 Also included in kit 10 - CARBURETOR ASSY (16100Z4E033) PARTS REQUEST
18$	16954ZE1812	PLATE, LEVER SETTING	1		ADD TO CART
PLATE, LEVER SETTING 16954ZE1812 · qty on machine: 1 Also included in kit 10 - CARBURETOR ASSY (16100Z4E033) view full part page → $7.95 IN A KIT + SOLD SOLO
19$	16956ZE1811	SPRING, COCK LEVER	1		ADD TO CART
SPRING, COCK LEVER 16956ZE1811 · qty on machine: 1 Also included in kit 10 - CARBURETOR ASSY (16100Z4E033) view full part page → $7.95 IN A KIT + SOLD SOLO
20$	16957ZE1812	PACKING, FUEL COCK	1	INCLUDES ITEMS W/#	ADD TO CART
PACKING, FUEL COCK 16957ZE1812 · qty on machine: 1 INCLUDES ITEMS W/# Also included in kit 10 - CARBURETOR ASSY (16100Z4E033) view full part page → $7.95 IN A KIT + SOLD SOLO
21$	93500030060H	SCREW 3X6	2		ADD TO CART
SCREW 3X6 93500030060H · qty on machine: 2 Also included in kit 10 - CARBURETOR ASSY (16100Z4E033) view full part page → $1.95 IN A KIT + SOLD SOLO
22$	950030500160M	TUBE, VINYL 3.5X6.5X1M	1		ADD TO CART
TUBE, VINYL 3.5X6.5X1M 950030500160M · qty on machine: 1 Also included in kit 10 - CARBURETOR ASSY (16100Z4E033) view full part page → $4.36 IN A KIT + SOLD SOLO
23$	99101ZG0062	JET, MAIN	1		PARTS REQUEST
PHOTO COMING JET, MAIN 99101ZG0062 · qty on machine: 1 Also included in kit 10 - CARBURETOR ASSY (16100Z4E033) PARTS REQUEST
24$	99204ZE2040	PILOT JET SET #35	1	INCLUDES ITEMS W/#	PARTS REQUEST
PHOTO COMING PILOT JET SET #35 99204ZE2040 · qty on machine: 1 INCLUDES ITEMS W/# Also included in kit 10 - CARBURETOR ASSY (16100Z4E033) PARTS REQUEST

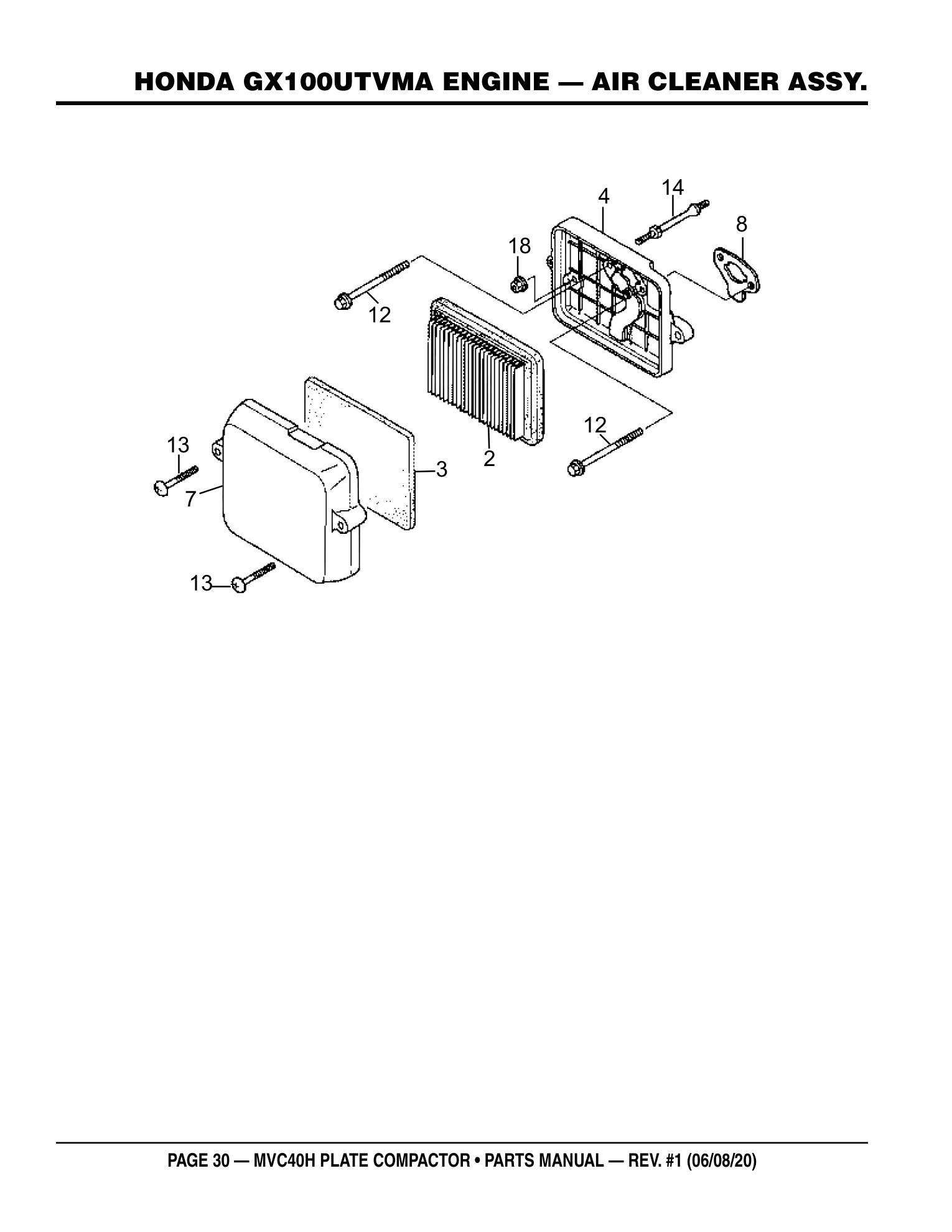

Page 30 — HONDA GX100UTVMA ENGINE - AIR CLEANER ASSY.

Multiquip MVC40H Plate Compactor HONDA GX100UTVMA ENGINE - AIR CLEANER ASSY. parts diagram

Parts list — exactly as printed9 rows

No.	Part No.	Part Name	Qty

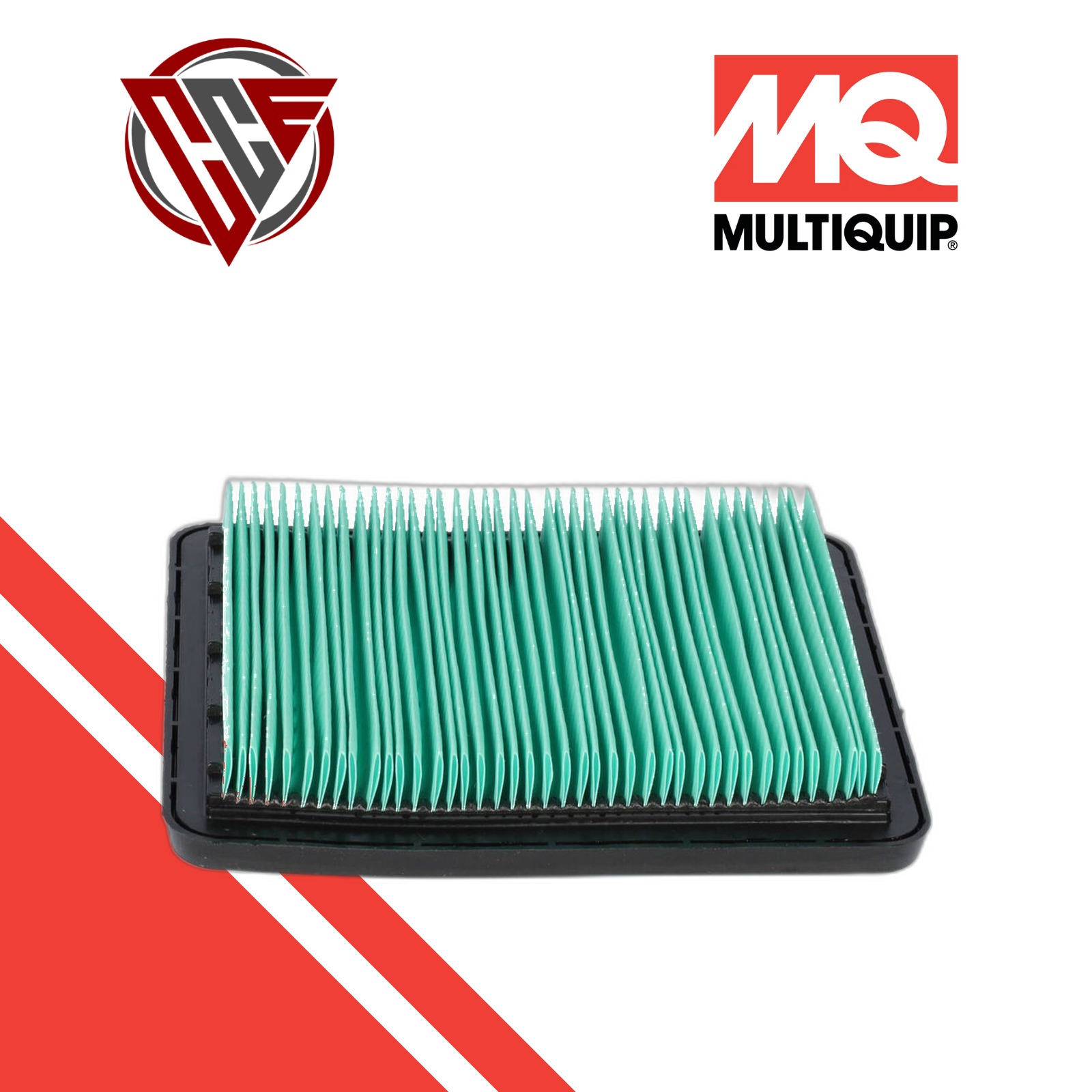

2	17211ZL8023	AIR CLEANER, ELEMENT, PAPER	1	ADD TO CART
AIR CLEANER, ELEMENT, PAPER 17211ZL8023 · qty on machine: 1 view full part page → $10.95
3	17218Z0D000	AIR CLEANER, ELEMENT, FOAM	1	ADD TO CART
AIR CLEANER, ELEMENT, FOAM 17218Z0D000 · qty on machine: 1 view full part page → $11.95
4	17220Z0DV22	CASE COMPLETE, AIR CLEANER	1	ADD TO CART
CASE COMPLETE, AIR CLEANER 17220Z0DV22 · qty on machine: 1 view full part page → $22.95
7	17231Z0DV62	COVER, AIR CLEANER	1	ADD TO CART
COVER, AIR CLEANER 17231Z0DV62 · qty on machine: 1 view full part page → $50.95
8	17274ZT3000	PACKING, AIR CLEANER	1	PARTS REQUEST
PHOTO COMING PACKING, AIR CLEANER 17274ZT3000 · qty on machine: 1 PARTS REQUEST
12	90004Z0D000	BOLT, FLANGE 5X77	2	PARTS REQUEST
PHOTO COMING BOLT, FLANGE 5X77 90004Z0D000 · qty on machine: 2 PARTS REQUEST
13	90011Z0D000	BOLT, AIR CLEANER COVER	2	ADD TO CART
BOLT, AIR CLEANER COVER 90011Z0D000 · qty on machine: 2 view full part page → $2.95
14	90041Z0DV20	STUD BOLT	1	ADD TO CART
STUD BOLT 90041Z0DV20 · qty on machine: 1 view full part page → $9.95

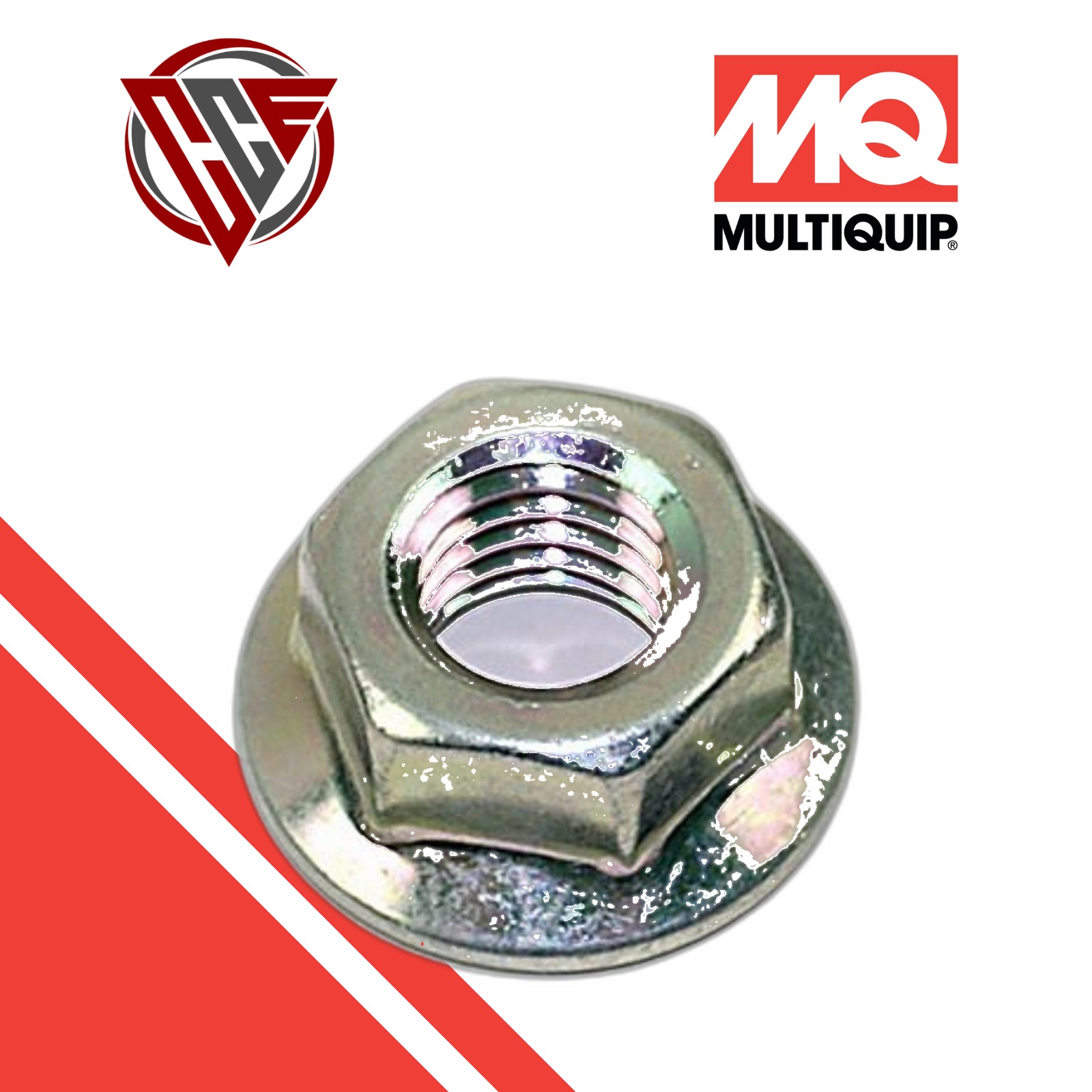

18	9405006000	FLANGE NUT 6MM	1	ADD TO CART
FLANGE NUT 6MM 9405006000 · qty on machine: 1 view full part page → $1.72

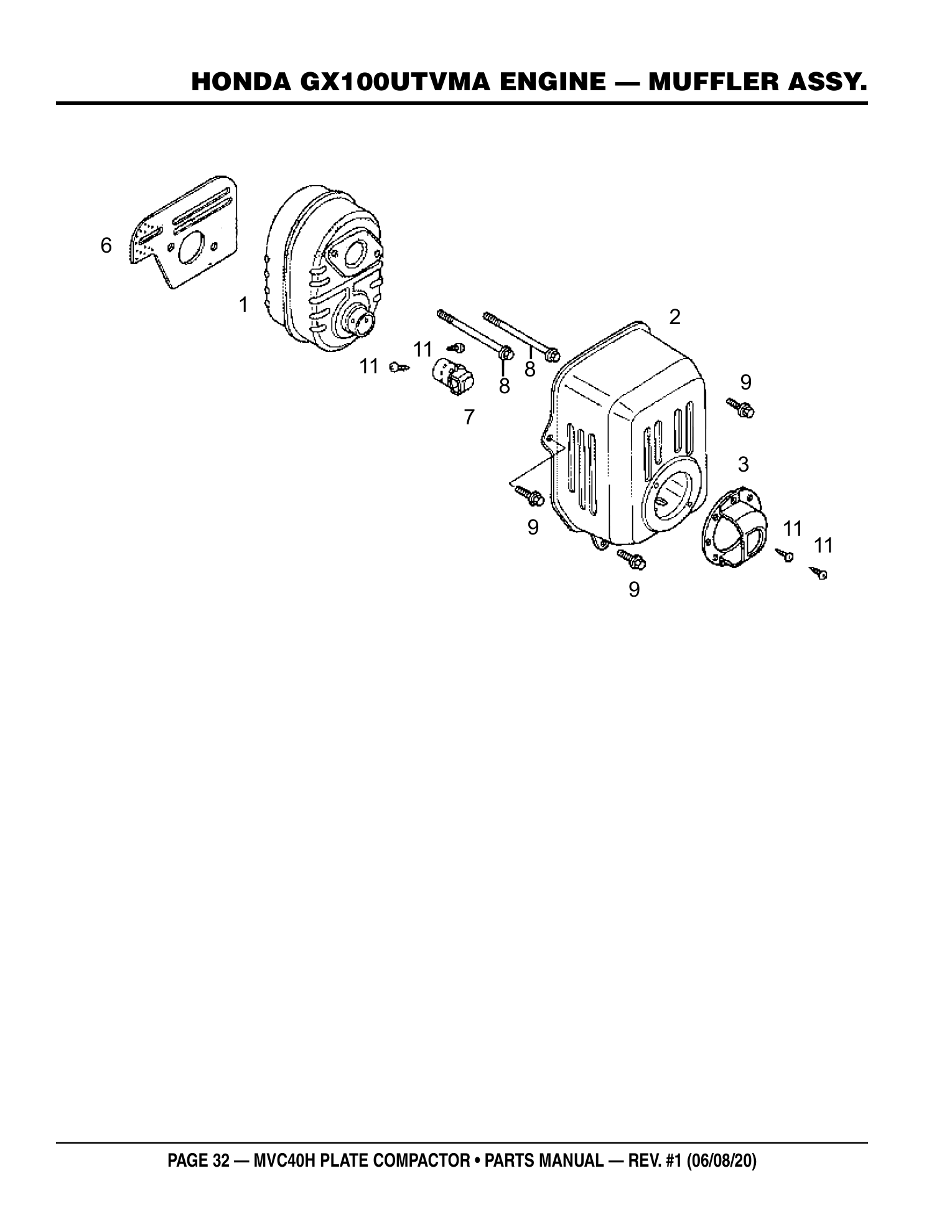

Page 32 — HONDA GX100UTVMA ENGINE - MUFFLER ASSY.

Multiquip MVC40H Plate Compactor HONDA GX100UTVMA ENGINE - MUFFLER ASSY. parts diagram

Parts list — exactly as printed8 rows

No.	Part No.	Part Name	Qty
1	18310ZM0010	MUFFLER COMPLETE	1	PARTS REQUEST
PHOTO COMING MUFFLER COMPLETE 18310ZM0010 · qty on machine: 1 PARTS REQUEST
2	18320Z0M781	MUFFLER PROTECTOR	1	PARTS REQUEST
PHOTO COMING MUFFLER PROTECTOR 18320Z0M781 · qty on machine: 1 PARTS REQUEST
3	18348ZL8000	CAP, MUFFLER	1	PARTS REQUEST
PHOTO COMING CAP, MUFFLER 18348ZL8000 · qty on machine: 1 PARTS REQUEST
6	18381Z0D000	GASKET, MUFFLER	1	ADD TO CART
GASKET, MUFFLER 18381Z0D000 · qty on machine: 1 view full part page → $18.95
7	18430ZL8000	DEFLECTOR COMP., MUFFLER	1	PARTS REQUEST
PHOTO COMING DEFLECTOR COMP., MUFFLER 18430ZL8000 · qty on machine: 1 PARTS REQUEST
8	90004ZL8000	BOLT, FLANGE 6X79	2	PARTS REQUEST
PHOTO COMING BOLT, FLANGE 6X79 90004ZL8000 · qty on machine: 2 PARTS REQUEST
9	90014952000	BOLT, FLANGE 6X14	3	ADD TO CART
BOLT, FLANGE 6X14 90014952000 · qty on machine: 3 view full part page → $4.95
11	90055ZE1000	TAPPING SCREW 4X6	4	ADD TO CART
TAPPING SCREW 4X6 90055ZE1000 · qty on machine: 4 view full part page → $1.95

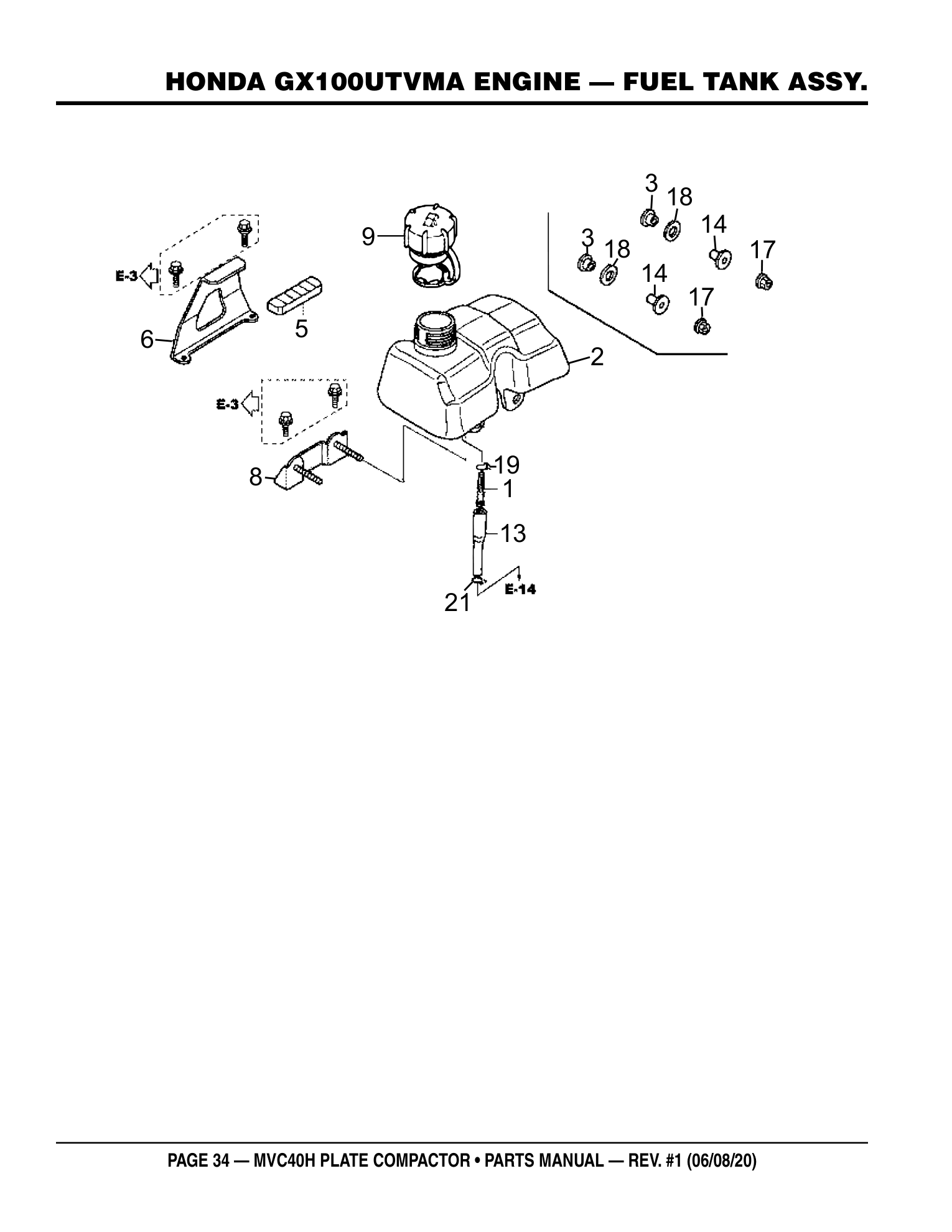

Page 34 — HONDA GX100UTVMA ENGINE - FUEL TANK ASSY.

Multiquip MVC40H Plate Compactor HONDA GX100UTVMA ENGINE - FUEL TANK ASSY. parts diagram

Parts list — exactly as printed13 rows

No.	Part No.	Part Name	Qty
1	16952ZE6000	STRAINER, FUEL	1	ADD TO CART
STRAINER, FUEL 16952ZE6000 · qty on machine: 1 view full part page → $16.95
2	17511Z4C810	TANK, FUEL	1	ADD TO CART
TANK, FUEL 17511Z4C810 · qty on machine: 1 view full part page → $155.95
3	17532Z0DT00	RUBBER A, TANK MOUNTING	2	PARTS REQUEST
PHOTO COMING RUBBER A, TANK MOUNTING 17532Z0DT00 · qty on machine: 2 PARTS REQUEST
5	17533Z0DT00	RUBBER B, TANK MOUNTING	1	PARTS REQUEST
PHOTO COMING RUBBER B, TANK MOUNTING 17533Z0DT00 · qty on machine: 1 PARTS REQUEST
6	17561Z0D000	STAY A, FUEL TANK	1	ADD TO CART
STAY A, FUEL TANK 17561Z0D000 · qty on machine: 1 view full part page → $11.95
8	17566Z0DT02	STAY B, FUEL TANK	1	ADD TO CART
STAY B, FUEL TANK 17566Z0DT02 · qty on machine: 1 view full part page → $17.95
9	17620Z0J800	FUEL TANK CAP COMPLETE	1	ADD TO CART
FUEL TANK CAP COMPLETE 17620Z0J800 · qty on machine: 1 view full part page → $41.95
13	17701Z4E023	TUBE, FUEL	1	NO LONGER AVAILABLE
PHOTO COMING TUBE, FUEL 17701Z4E023 · qty on machine: 1 NO LONGER AVAILABLE
14	19052MB4880	COLLAR, CANISTER MOUNTING	2	ADD TO CART
COLLAR, CANISTER MOUNTING 19052MB4880 · qty on machine: 2 view full part page → $8.95
17	90343ZE6000	NUT, SELF-LOCK 6MM	2	ADD TO CART
NUT, SELF-LOCK 6MM 90343ZE6000 · qty on machine: 2 view full part page → $3.95
18	90510KY1000	WASHER, FLAT 15MM	2	PARTS REQUEST
PHOTO COMING WASHER, FLAT 15MM 90510KY1000 · qty on machine: 2 PARTS REQUEST
19	950024105008	CLIP, TUBE	1	ADD TO CART
CLIP, TUBE 950024105008 · qty on machine: 1 view full part page → $5.95
21	950024080008	CLIP, TUBE	1	ADD TO CART
CLIP, TUBE 950024080008 · qty on machine: 1 view full part page → $4.95

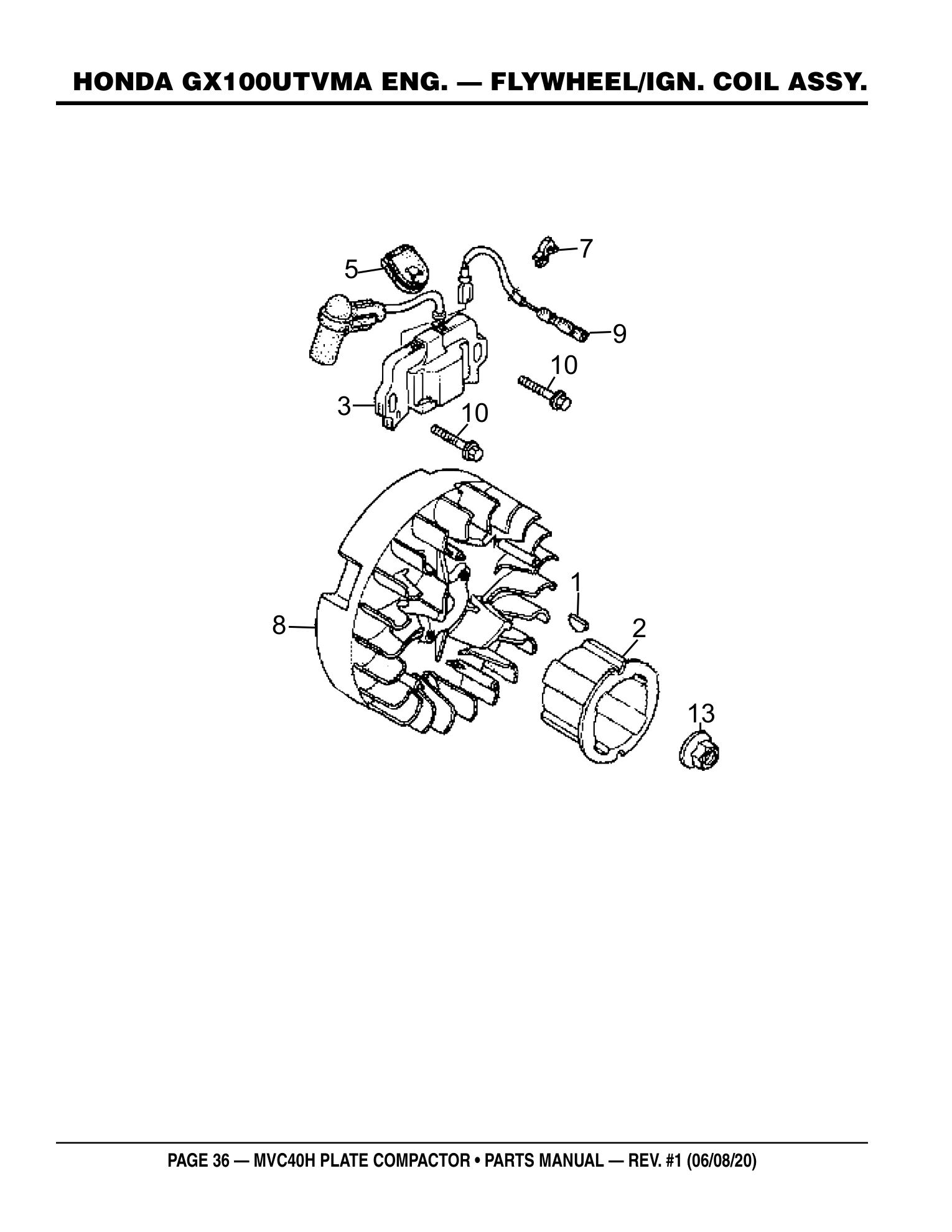

Page 36 — HONDA GX100UTVMA ENG. - FLYWHEEL/IGN. COIL ASSY.

Multiquip MVC40H Plate Compactor HONDA GX100UTVMA ENG. - FLYWHEEL/IGN. COIL ASSY. parts diagram

Parts list — exactly as printed9 rows

No.	Part No.	Part Name	Qty
1	13331ZM7000	WOODRUFF KEY 25X18	1	ADD TO CART
WOODRUFF KEY 25X18 13331ZM7000 · qty on machine: 1 view full part page → $7.95
2	28451Z0DV03	STARTER PULLEY	1	ADD TO CART
STARTER PULLEY 28451Z0DV03 · qty on machine: 1 view full part page → $22.95
3	30500Z0D023	IGNITION COIL ASSY.	1	PARTS REQUEST
PHOTO COMING IGNITION COIL ASSY. 30500Z0D023 · qty on machine: 1 PARTS REQUEST
5	30564ZA5000	GROMMET, CORD	1	ADD TO CART
GROMMET, CORD 30564ZA5000 · qty on machine: 1 view full part page → $11.95
7	30701883000	CLIP, HIGH TENSION CORD	1	ADD TO CART
CLIP, HIGH TENSION CORD 30701883000 · qty on machine: 1 view full part page → $6.95
8	31110Z0D003	FLYWHEEL COMPLETE	1	ADD TO CART
FLYWHEEL COMPLETE 31110Z0D003 · qty on machine: 1 view full part page → $1722.95
9	32195Z0D000	CORD, STOP SWITCH	1	ADD TO CART
CORD, STOP SWITCH 32195Z0D000 · qty on machine: 1 view full part page → $9.95
10	90022888010	FLANGE BOLT 6X20	2	ADD TO CART
FLANGE BOLT 6X20 90022888010 · qty on machine: 2 view full part page → $4.95
13	9405012000	FLANGE NUT M12	1	ADD TO CART
FLANGE NUT M12 9405012000 · qty on machine: 1 view full part page → $2.64

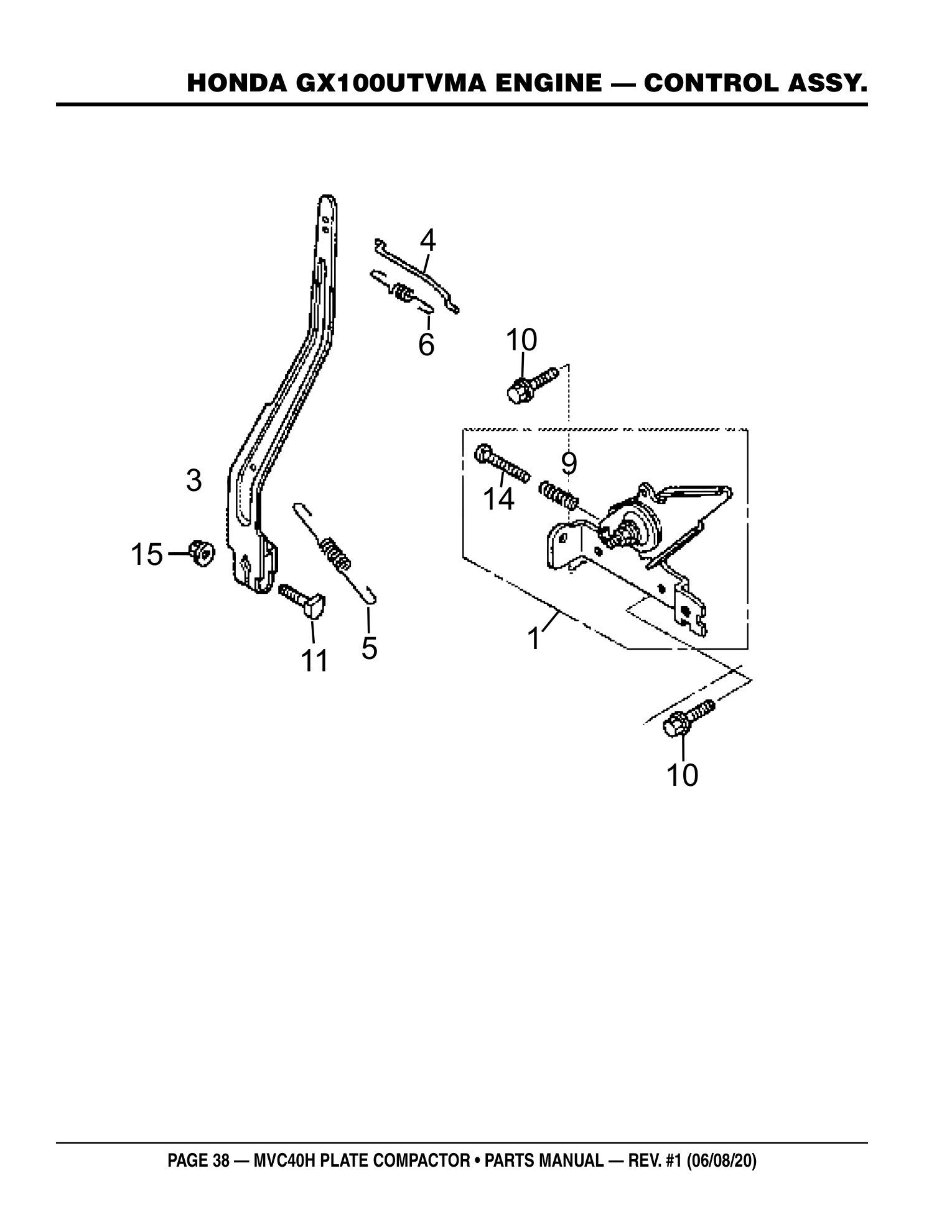

Page 38 — HONDA GX100UTVMA ENGINE - CONTROL ASSY.

Multiquip MVC40H Plate Compactor HONDA GX100UTVMA ENGINE - CONTROL ASSY. parts diagram

Parts list — exactly as printed10 rows

No.	Part No.	Part Name	Qty	Remarks
1	16500Z0DT00	CONTROL ASSY	1	INCLUDES ITEMS W/$	PARTS REQUEST
PHOTO COMING CONTROL ASSY 16500Z0DT00 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 9$, 14$ PARTS REQUEST
3	16551Z0D010	GOVERNOR ARM	1		PARTS REQUEST
PHOTO COMING GOVERNOR ARM 16551Z0D010 · qty on machine: 1 PARTS REQUEST
4	16555Z0D000	GOVERNOR ROD	1		PARTS REQUEST
PHOTO COMING GOVERNOR ROD 16555Z0D000 · qty on machine: 1 PARTS REQUEST
5	16561Z0D000	GOVERNOR SPRING	1		ADD TO CART
GOVERNOR SPRING 16561Z0D000 · qty on machine: 1 view full part page → $5.95
6	16562Z0D000	SPRING,THROTTLE	1		PARTS REQUEST
PHOTO COMING SPRING,THROTTLE 16562Z0D000 · qty on machine: 1 PARTS REQUEST
9$	16584883300	ADJUSTING SPRING	1		ADD TO CART
ADJUSTING SPRING 16584883300 · qty on machine: 1 Also included in kit 1 - CONTROL ASSY (16500Z0DT00) view full part page → $7.95 IN A KIT + SOLD SOLO
10	90014952000	BOLT, FLANGE 6X14	2		ADD TO CART
BOLT, FLANGE 6X14 90014952000 · qty on machine: 2 view full part page → $4.95
11	90015Z5T000	BOLT, GOVERNOR ARM	1		ADD TO CART
BOLT, GOVERNOR ARM 90015Z5T000 · qty on machine: 1 view full part page → $0.95
14$	93500050250A	SCREW, PAN HD 5X25	1		ADD TO CART
SCREW, PAN HD 5X25 93500050250A · qty on machine: 1 Also included in kit 1 - CONTROL ASSY (16500Z0DT00) view full part page → $1.4 IN A KIT + SOLD SOLO
15	9405006000	FLANGE NUT 6MM	1		ADD TO CART
FLANGE NUT 6MM 9405006000 · qty on machine: 1 view full part page → $1.72

The machine itself

Price by quote Get a quote

Tell us where the machine is headed and we'll quote it with freight. One call, no games.

The Multiquip MVC40H is a plate compactor built for compacting granular soils, gravel, and asphalt on grading, paving, and repair work. It runs a GX100UTVMA engine and weighs in at 110.23 lbs. (50 kg). Factory-documented specs and parts support; priced by quote.

Keep-it-running spares

All listed parts →

Every part that fits this machine

040406208 Multiquip 040406208 Bearing 6208C4 - OEM Replacement Part for Plate Compactors $37.95

12000Z0D405 Multiquip 12000Z0D405 Cylinder Barrel Assembly GX100 - OEM Replacement Part $805.95

12311Z0D000 Multiquip 12311Z0D000 Cover Head GX100 - OEM Replacement Part for Plate Compactors $46.95

13010Z0D003 Multiquip 13010Z0D003 Ring Set Piston GX100 - OEM Replacement Part $59.95

13200Z0D000 Multiquip 13200Z0D000 Connecting Rod Assembly GX100 - OEM Replacement Part $136.95

13310Z0DV70 Multiquip 13310Z0DV70 Crankshaft Complete Assembly - OEM Replacement Part $443.95

14320ZDD000 Multiquip 14320ZDD000 Pulley Complete Camshaft - OEM Replacement Part $65.95

14400Z0D003 Multiquip 14400Z0D003 Timing Belt GX100 HC-6727689 - OEM Replacement Part $52.95

14711Z0D000 Multiquip 14711Z0D000 Valve Inlet GX100 - OEM Replacement Part $45.95

14721Z0D000 Multiquip 14721Z0D000 Valve Exhaust GX100 - OEM Replacement Part $80.95

16011ZE0005 Multiquip 16011ZE0005 Valve Float Set - OEM Replacement Part for Compactors $53.95

16013ZG0811 Multiquip 16013ZG0811 Float Set G100K2QA2 - OEM Replacement Part for Rammers $45.95

16015ZM7003 Multiquip 16015ZM7003 Float Chamber Set GX100 - OEM Replacement Part $87.95

16100Z4E033 Multiquip 16100Z4E033 Carburetor Assembly - OEM Replacement Part for Plate Compactors $170.95

17231Z0DV62 Multiquip 17231Z0DV62 Air Cleaner Cover - OEM Replacement Part $50.95

17511Z4C810 Multiquip 17511Z4C810 Fuel Tank - OEM Replacement Part for Plate Compactor $155.95

17620Z0J800 Multiquip 17620Z0J800 Fuel Cap - OEM Replacement Part for Plate Compactors $41.95

19610Z0DV00ZB Multiquip 19610Z0DV00ZB Cover Fan NH1 (Black) GX100 - OEM Replacement Part $175.95

28400Z0DV04ZA Multiquip 28400Z0DV04ZA Recoil Assembly - OEM Replacement Part $155.95

31110Z0D003 Multiquip 31110Z0D003 Flywheel Comp GX100 - OEM Replacement Part $1,722.95

417122310 Multiquip 417122310 Vibrating Plate Assembly - OEM Replacement Part $489.95

417122340 Multiquip 417122340 Engine Base - OEM Replacement Part for Plate Compactors $378.95

417122350 Multiquip 417122350 Belt Cover (Outer) - OEM Replacement Part for Plate Compactors $150.95

417122360 Multiquip 417122360 Belt Cover Inner - OEM Replacement Part for Plate Compactors $118.95

417122380 Multiquip 417122380 Guard Hook - OEM Replacement Part for Plate Compactors $295.95

417350430 Multiquip 417350430 Pulley for MVC40H - OEM Replacement Part $64.95

417352430 Multiquip 417352430 Lower Handle - OEM Replacement Part for Plate Compactors $93.95

417355080 Multiquip 417355080 Clutch Shoe - OEM Replacement Part for Plate Compactors $413.95

417355580 Multiquip 417355580 Upper Handle (JP) - OEM Replacement Part for Plate Compactors $84.95

417470990 Multiquip 417470990 Clutch Drum - OEM Replacement Part for Plate Compactors $538.95

417910150 Multiquip 417910150 Folding Handle (860mm) - OEM Replacement Part for Plate Compactors $327.95

002410820 BOLT, 8X20 HEX HEAD ASSY.

009110102 SOCKET HEAD SCREW 8X16

0105091025 BOLT 10X25 $0.68

011208025 BOLT 8X25 $0.41

011708025 BOLT 8X25 HEX HEAD ASSY $1.95

011808015 BOLT, 8X15 HEX HEAD ASSY $6.95

012210060 BOLT 10X60 $2.95

014208020 BOLT 8X20 $0.77

020108060 NUT M8 $0.28

020310080 NUT M10 $1.67

030208200 WASHER, LOCK M8 $0.23

030210250 WASHER, LOCK M10 $0.28

031108200 WASHER, FLAT M8

0401450080 WASHER, FLAT M8 $0.56

042006006 BEARING $30.95

050200080 O-RING $0.95

060403020 OIL SEAL $25.95

070100282 V-BELT, RPF-3280 $12.95

080600550 STOP RING $6.95

096208010 SOCKET HEAD BOLT 8X15 $0.95

11300Z0D405 COVER ASSY., CRANK CASE

12204Z0D305 GUIDE, INLET VALVE (O.S.)

12209KT7013 SEAL, VALVE STEM $19.95

12355Z0D000 COVER COMPLETE A, BREATHER $17.95

12365Z0D000 COVER COMPLETE B, BREATHER $17.95

13101ZDD000 PISTON

13111ZE0000 PISTON PIN $13.95

13331ZM7000 WOODRUFF KEY 25X18 $7.95

14324Z0D000 SHAFT, CAM PULLEY $7.95

14431ZDD000 ROCKER ARM, INTAKE VALVE $16.95

14441ZDD000 ROCKER ARM, EXHAUST VALVE $17.95

14461ZL8000 SHAFT, ROCKER ARM $3.95

14751Z0D000 SPRING, VALVE $4.95

14771ZM3010 RETAINER, VALVE SPRING $2.56

15571ZM7003 VALVE, OIL OUTLET $3.95

15572ZM7000 PLATE, STOPPER $3.95

15600ZDF000 CAP ASSY., OIL FILLER $2.95

15721Z0D000 TUBE, BREATHER $5.95

16024ZB9005 DRAIN SCREW SET $12.95

16044Z4E003 CHOKE SET $23.03

16166Z4E003 MAIN NOZZLE

16211Z0D010 INSULATOR, CARBURETOR $17.95

16212Z0D000 PACKING, INSULATOR

16221ZG0801 PACKING, CARBURETOR $4.95

16500Z0DT00 CONTROL ASSY

16510ZL8000 GOVERNOR ASSY. $23.95

16531ZE1000 SLIDER, GOVERNOR $6.95

16541Z0D000 SHAFT, GOVERNOR ARM $16.95

16555Z0D000 GOVERNOR ROD

16561Z0D000 GOVERNOR SPRING $5.95

16562Z0D000 SPRING,THROTTLE

16584883300 ADJUSTING SPRING $7.95

16952ZE6000 STRAINER, FUEL $16.95

16953Z0D003 LEVER, COCK

16954ZE1812 PLATE, LEVER SETTING $7.95

16956ZE1811 SPRING, COCK LEVER $7.95

16957ZE1812 PACKING, FUEL COCK $7.95

17211ZL8023 AIR CLEANER, ELEMENT, PAPER $10.95

17218Z0D000 AIR CLEANER, ELEMENT, FOAM $11.95

17220Z0DV22 CASE COMPLETE, AIR CLEANER $22.95

17274ZT3000 PACKING, AIR CLEANER

17532Z0DT00 RUBBER A, TANK MOUNTING

17533Z0DT00 RUBBER B, TANK MOUNTING

17561Z0D000 STAY A, FUEL TANK $11.95

17566Z0DT02 STAY B, FUEL TANK $17.95

17701Z4E023 TUBE, FUEL

18310ZM0010 MUFFLER COMPLETE

18320Z0M781 MUFFLER PROTECTOR

18348ZL8000 CAP, MUFFLER

18381Z0D000 GASKET, MUFFLER $18.95

18430ZL8000 DEFLECTOR COMP., MUFFLER

19052MB4880 COLLAR, CANISTER MOUNTING $8.95

28421ZDD003 REEL, RECOIL STARTER $20.95

28422ZG0W02 RATCHET, STARTER $18.95

28433ZG0W02 GUIDE, RATCHET $13.95

28441ZW9003 SPRING, FRICTION $13.95

28451Z0DV03 STARTER PULLEY $22.95

28461ZDD003 KNOB, RECOIL STARTER $1.68

28462Z0DV03 ROPE, RECOIL STARTER $13.95

28467Z0DV02 PLATE, SIDE $10.95

28468Z0DV02 PLATE, SLIDE $12.95

30500Z0D023 IGNITION COIL ASSY.

30564ZA5000 GROMMET, CORD $11.95

30701883000 CLIP, HIGH TENSION CORD $6.95

32195Z0D000 CORD, STOP SWITCH $9.95

35120Z0DV81 SWITCH ASSY., ENGINE STOP $35.95

417339899 CASE COVER (R)

417339909 CASE COVER (L)

417454390 PACKING (VIB.) $3.95

417454420 COLLAR $18.95

417466230 PLATE, BELT COVER $15.95

417470980 PLATE, BOLT WITH RUBBER $22.95

417471110 ENGINE NUT, REAR $29.95

58176 WASHER, FLAT 6MM $0.13

90001ZM7000 CONNECTING ROD BOLT $4.95

90003ZH8003 SET SCREW $12.95

90004Z0D000 BOLT, FLANGE 5X77

90004ZL8000 BOLT, FLANGE 6X79

90011Z0D000 BOLT, AIR CLEANER COVER $2.95

90012333000 SCREW, TAPPET ADJUSTING $5.95

90014952000 BOLT, FLANGE 6X14 $4.95

90015Z5T000 BOLT, GOVERNOR ARM $0.95

90022888010 FLANGE BOLT 6X20 $4.95

90041Z0DV20 STUD BOLT $9.95

90055ZE1000 TAPPING SCREW 4X6 $1.95

90131ZE1000 BOLT, DRAIN PLUG $5.95

90206001000 NUT, TAPPET ADJUSTING $3.95

90343ZE6000 NUT, SELF-LOCK 6MM $3.95

90451ZE1000 THRUST WASHER 6MM $2.95

90510KY1000 WASHER, FLAT 15MM

90551ZE0000 CLIP, PISTON PIN 13MM $2.95

90601ZE1000 WASHER, DRAIN PLUG $2.70

90602ZE1000 CLIP, GOVERNOR HOLDER $2.95

91202KJ9003 OIL SEAL 20X32X6 $12.95

912210033 ENGINE ASSY. GX100UTVMA

91301ZM0V31 O-RING 6.8X1.9 $5.95

920109530 DECAL, MIKASA (125MM) YELLOW $3.95

920203330 EAR PROTECTION LABEL $1.95

920218730T2 DECAL, CAUTION (MANUAL/EXP)

920218740T2 DECAL, CAUTION

920218750T2 DECAL, CAUTION

920218760T2 DECAL, FUEL CAUTION/MVC

920218770 DECAL, E/G FIRE WARNING

920219450T2 DECAL, DANGER

920220220 DECAL, MQ MARK 72X57 $4.95

920221230 DECAL, V-BELT/RPF-3280

920221790 PLATE, MODEL/SERIAL NUMBER

920900090 DECAL, DO NOT LIFT $7.95

93500030050A SCREW, PAN 3X5 $1.95

93500050250A SCREW, PAN HD 5X25 $1.40

939010420 SHOCK ABSORBER D50X60X45H $20.95

9405006000 FLANGE NUT 6MM $1.72

9405012000 FLANGE NUT M12 $2.64

9430108200 KNOCK PIN 8X20 $4.95

950024080008 CLIP, TUBE $4.95

950024105008 CLIP, TUBE $5.95

950030500160M TUBE, VINYL 3.5X6.5X1M $4.36

952400130 WASHER 9304 $13.95

953405260 PACKING 1/4 $7.95

957010600800 FLANGE BOLT 6X8 $7.95

957010602500 FLANGE BOLT 6X25 $3.95

957010801800 FLANGE, BOLT 8X18 $2.59

959404350 EARTH WIRE $9.95

959406961 GRIP BOLT 45X10X30 $13.95

959408080 CAP, PIPE

961006204000 BEARING, RADIAL BALL $23.95

9805655777 SPARK PLUG $4.95

99101ZG0062 JET, MAIN

99204ZE2040 PILOT JET SET #35

WASHER 2

From the guides desk

Guide · 2026-08-04

Multiquip Plate Compactor Maintenance Guide

Keep your Multiquip plate compactor running at full strength. Practical maintenance intervals, service specs, and storage steps for contr...

Read it →

Ask ARIA about your machine.

Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.

Chat with ARIA

Multiquip MVC40H Plate Compactor

The parts bench

The machine itself

Machine

Engine

Keep-it-running spares

Every part that fits this machine

Service notices & part changes

Take the factory book with you

Get the download pack

From the guides desk

Multiquip Plate Compactor Maintenance Guide

Ask ARIA about your machine.

Your cart is empty

Your cart is empty
