Page 6 — NAMEPLATE AND DECALS ASSY.

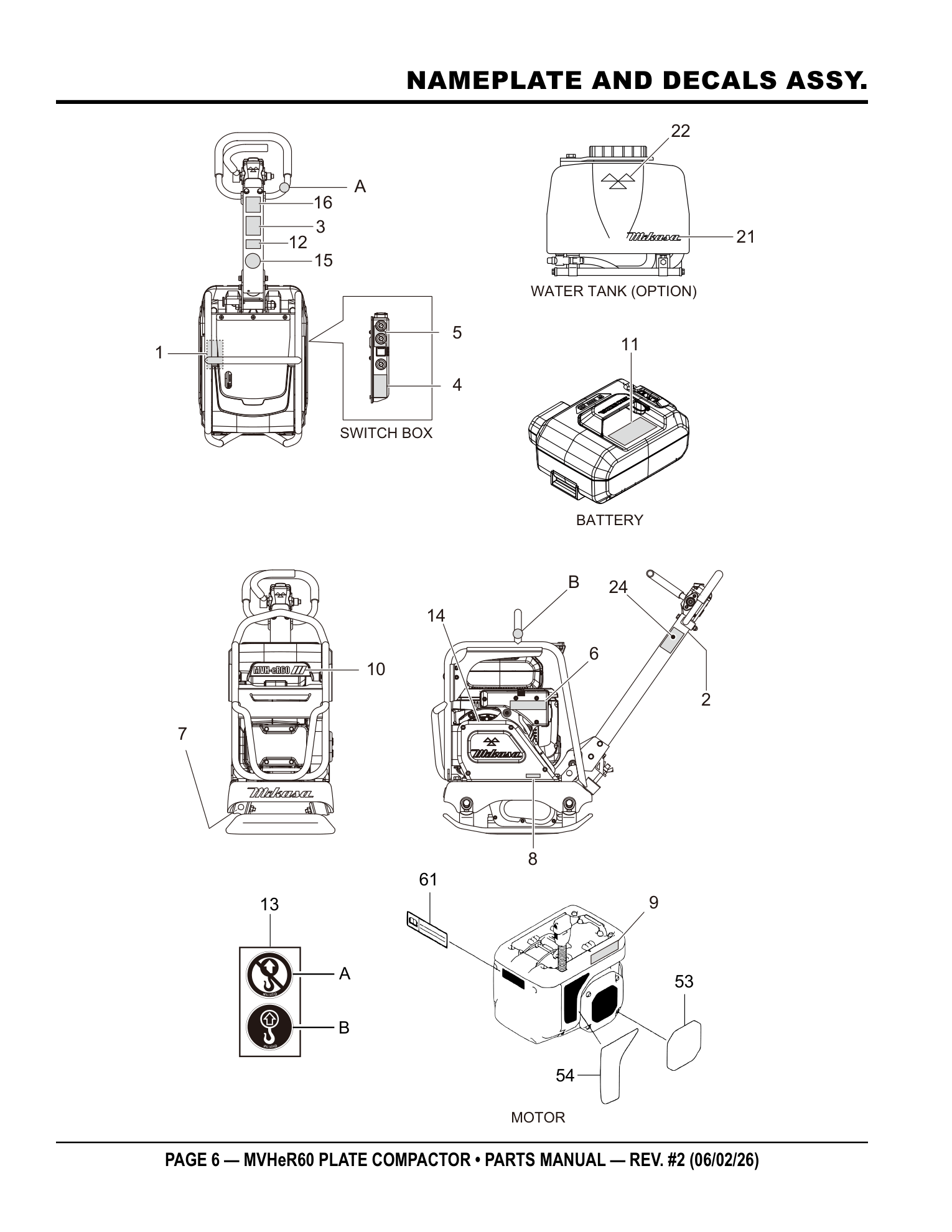

Multiquip MVHeR60 Plate Compactor NAMEPLATE AND DECALS ASSY. parts diagram

Parts list — exactly as printed22 rows

No.	Part No.	Part Name	Qty
1	920224370	DECAL; NAMEPLATE /eR60 /MQ	1	PARTS REQUEST
PHOTO COMING DECAL; NAMEPLATE /eR60 /MQ 920224370 · qty on machine: 1 PARTS REQUEST
2	920211090	DECAL; SHELL TELLUS OIL 32	1	ADD TO CART
DECAL; SHELL TELLUS OIL 32 920211090 · qty on machine: 1 view full part page → $1.95
3	920224720	DECAL; COMBI. CAUTION /eR60	1	PARTS REQUEST
PHOTO COMING DECAL; COMBI. CAUTION /eR60 920224720 · qty on machine: 1 PARTS REQUEST
4	920224360	DECAL; START-STOP/eGX	1	PARTS REQUEST
PHOTO COMING DECAL; START-STOP/eGX 920224360 · qty on machine: 1 PARTS REQUEST
5	920224390	DECAL; LED/e60	1	PARTS REQUEST
PHOTO COMING DECAL; LED/e60 920224390 · qty on machine: 1 PARTS REQUEST
6	920224690	DECAL; EARTH SMART	1	PARTS REQUEST
PHOTO COMING DECAL; EARTH SMART 920224690 · qty on machine: 1 PARTS REQUEST
7	920201950	DECAL; OIL SAE 10W-30	1	ADD TO CART
DECAL; OIL SAE 10W-30 920201950 · qty on machine: 1 view full part page → $0.95
8	920207590	DECAL; V-BELT (RPF-3310)	1	ADD TO CART
DECAL; V-BELT (RPF-3310) 920207590 · qty on machine: 1 view full part page → $2.95
9	920224760	DECAL; CAUTION RAINY AND WASH	1	PARTS REQUEST
PHOTO COMING DECAL; CAUTION RAINY AND WASH 920224760 · qty on machine: 1 PARTS REQUEST
10	920224430	DECAL; MVH-eR60 /ORANGE	1	PARTS REQUEST
PHOTO COMING DECAL; MVH-eR60 /ORANGE 920224430 · qty on machine: 1 PARTS REQUEST
11	1D1438B0A01	LABEL; CAUTION(A) EXP/eGX	1	PARTS REQUEST
PHOTO COMING LABEL; CAUTION(A) EXP/eGX 1D1438B0A01 · qty on machine: 1 PARTS REQUEST
12	920224780	DECAL; NEUTRAL OPERATION/EN	1	PARTS REQUEST
PHOTO COMING DECAL; NEUTRAL OPERATION/EN 920224780 · qty on machine: 1 PARTS REQUEST
13	920900180	DECAL; SET TWO KINDS	1	PARTS REQUEST
PHOTO COMING DECAL; SET TWO KINDS 920900180 · qty on machine: 1 PARTS REQUEST
14	920201580	DECAL; MQ MARK 71X55	1	ADD TO CART
DECAL; MQ MARK 71X55 920201580 · qty on machine: 1 view full part page → $3.95
15	920224750	DECAL; MQ 3 YEAR WARRANTY	1	ADD TO CART
DECAL; MQ 3 YEAR WARRANTY 920224750 · qty on machine: 1 view full part page → $5.95
16	920210330	DECAL; EC NOISE REQ. LWA105	1	ADD TO CART
DECAL; EC NOISE REQ. LWA105 920210330 · qty on machine: 1 view full part page → $1.71
21	920113430	DECAL; MIKASA MARK 125MM	1	PARTS REQUEST
PHOTO COMING DECAL; MIKASA MARK 125MM 920113430 · qty on machine: 1 PARTS REQUEST
22	920108850	DECAL; M-MARK Y-40X80	1	PARTS REQUEST
PHOTO COMING DECAL; M-MARK Y-40X80 920108850 · qty on machine: 1 PARTS REQUEST
24	920222240	DECAL; PROPOSITION 65	1	ADD TO CART
DECAL; PROPOSITION 65 920222240 · qty on machine: 1 view full part page → $3.95
53	875218A0600	MARK; EMBLEM	1	PARTS REQUEST
PHOTO COMING MARK; EMBLEM 875218A0600 · qty on machine: 1 PARTS REQUEST
54	875238A0600	MARK; ELECTRIC PW	1	PARTS REQUEST
PHOTO COMING MARK; ELECTRIC PW 875238A0600 · qty on machine: 1 PARTS REQUEST
61	875168A0620	MARK; OPER. CAUTION (E)	1	PARTS REQUEST
PHOTO COMING MARK; OPER. CAUTION (E) 875168A0620 · qty on machine: 1 PARTS REQUEST

Page 8 — CONTROL HANDLE ASSY.

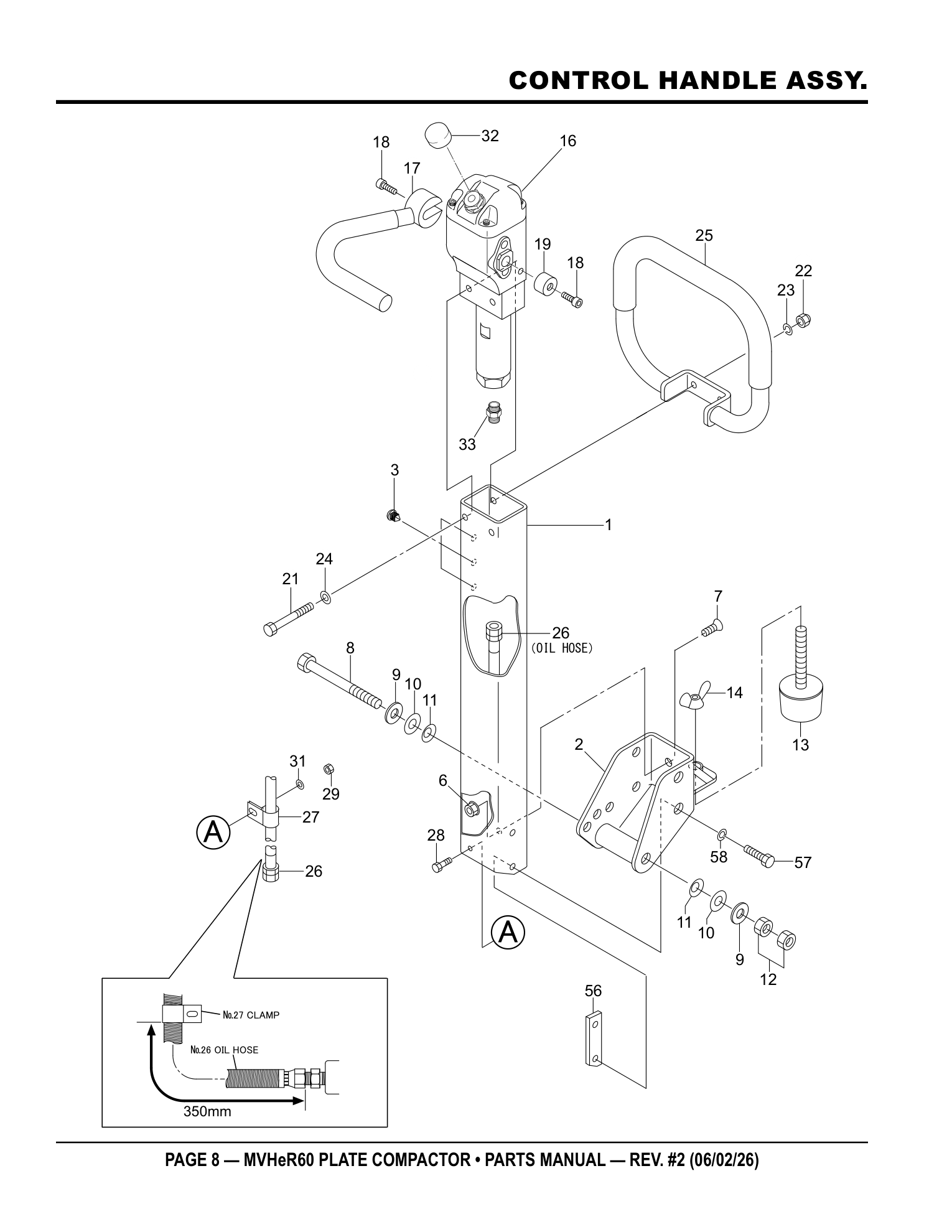

Multiquip MVHeR60 Plate Compactor CONTROL HANDLE ASSY. parts diagram

Parts list — exactly as printed31 rows

No.	Part No.	Part Name	Qty	Remarks
1	463342849OR	HANDLE (ORANGE)	1		PARTS REQUEST
PHOTO COMING HANDLE (ORANGE) 463342849OR · qty on machine: 1 PARTS REQUEST
2	473357350OR	BRACKET, HANDLE (ORANGE)	1		PARTS REQUEST
PHOTO COMING BRACKET, HANDLE (ORANGE) 473357350OR · qty on machine: 1 PARTS REQUEST
3	953409110	BRUSH CLIP	3		ADD TO CART
BRUSH CLIP 953409110 · qty on machine: 3 view full part page → $0.55
6	022610808	FLANGE NUT, M8	1		ADD TO CART
FLANGE NUT, M8 022610808 · qty on machine: 1 view full part page → $0.79
7	009120408	SUNK HEAD BOLT, 8X20	1		ADD TO CART
SUNK HEAD BOLT, 8X20 009120408 · qty on machine: 1 view full part page → $1.95
8	001221464	BOLT, 14X120	1		PARTS REQUEST
PHOTO COMING BOLT, 14X120 001221464 · qty on machine: 1 PARTS REQUEST
9	031114260	WASHER, FLAT M14	2		ADD TO CART
WASHER, FLAT M14 031114260 · qty on machine: 2 view full part page → $0.69
10	458450660	WASHER	2		ADD TO CART
WASHER 458450660 · qty on machine: 2 view full part page → $2.95
11	032114250	CONICAL SPRING WASHER, M14	2		PARTS REQUEST
PHOTO COMING CONICAL SPRING WASHER, M14 032114250 · qty on machine: 2 PARTS REQUEST
12	020314110	NUT, M14	2		ADD TO CART
NUT, M14 020314110 · qty on machine: 2 view full part page → $2.95
13	939010220	SHOCK ABSORBER, STOPPER	1		ADD TO CART
SHOCK ABSORBER, STOPPER 939010220 · qty on machine: 1 view full part page → $20.95
14	022910220	WING NUT, M12	1		ADD TO CART
WING NUT, M12 022910220 · qty on machine: 1 view full part page → $5.95
16	463219840	HAND PUMP ASSEMBLY	1		PARTS REQUEST
PHOTO COMING HAND PUMP ASSEMBLY 463219840 · qty on machine: 1 PARTS REQUEST
17	463342130OR	TRAVEL LEVER (ORANGE)	1		PARTS REQUEST
PHOTO COMING TRAVEL LEVER (ORANGE) 463342130OR · qty on machine: 1 PARTS REQUEST
18	014208020	SOCKET HEAD BOLT, 8X20	2	REPLACES P/N 001520820	ADD TO CART
SOCKET HEAD BOLT, 8X20 014208020 · qty on machine: 2 REPLACES P/N 001520820 view full part page → $0.77
19	458451420	COLLAR	1		ADD TO CART
COLLAR 458451420 · qty on machine: 1 view full part page → $10.95
21	001220854	BOLT, 8X70	2		ADD TO CART
BOLT, 8X70 001220854 · qty on machine: 2 view full part page → $2.95
22	022130806	CAP NUT, M8	2		ADD TO CART
CAP NUT, M8 022130806 · qty on machine: 2 view full part page → $1.51
23	030208200	WASHER, LOCK M8	2		ADD TO CART
WASHER, LOCK M8 030208200 · qty on machine: 2 view full part page → $0.23
24	0401450080	WASHER, FLAT M8	2	REPLACES P/N 031108160	ADD TO CART
WASHER, FLAT M8 0401450080 · qty on machine: 2 REPLACES P/N 031108160 view full part page → $0.56
25	463342159OR	HANDLE GRIP (ORANGE)	1		PARTS REQUEST
PHOTO COMING HANDLE GRIP (ORANGE) 463342159OR · qty on machine: 1 PARTS REQUEST
26	954002250	OIL HOSE	1		PARTS REQUEST
PHOTO COMING OIL HOSE 954002250 · qty on machine: 1 PARTS REQUEST
27	954404230	CLAMP	1		ADD TO CART
CLAMP 954404230 · qty on machine: 1 view full part page → $4.95
28	001220620	BOLT, 6X20	1		ADD TO CART
BOLT, 6X20 001220620 · qty on machine: 1 Factory replaced this part - current number 011206020 view full part page → $0.95 IN A KIT + SOLD SOLO
29	020106050	NUT, M6	1	REPLACES P/N 020306050	ADD TO CART
NUT, M6 020106050 · qty on machine: 1 REPLACES P/N 020306050 view full part page → $0.12
31	952404470	WASHER, FLAT M6	1	REPLACES P/N 031106100	ADD TO CART
WASHER, FLAT M6 952404470 · qty on machine: 1 REPLACES P/N 031106100 view full part page → $0.19
32	458451630	BREATHER CAP	1		ADD TO CART
BREATHER CAP 458451630 · qty on machine: 1 view full part page → $5.95
33	954003150	MALE CONNECTOR, O-RING 1/4	1		ADD TO CART
MALE CONNECTOR, O-RING 1/4 954003150 · qty on machine: 1 view full part page → $6.95
56	463462920	HANDLE MOUNT NUT	2		ADD TO CART
HANDLE MOUNT NUT 463462920 · qty on machine: 2 view full part page → $26.95
57	001220820	BOLT, 8X20	4		ADD TO CART
BOLT, 8X20 001220820 · qty on machine: 4 view full part page → $1.49
58	030208200	WASHER, LOCK M8	4		ADD TO CART
WASHER, LOCK M8 030208200 · qty on machine: 4 view full part page → $0.23

Page 10 — BODY ASSY.

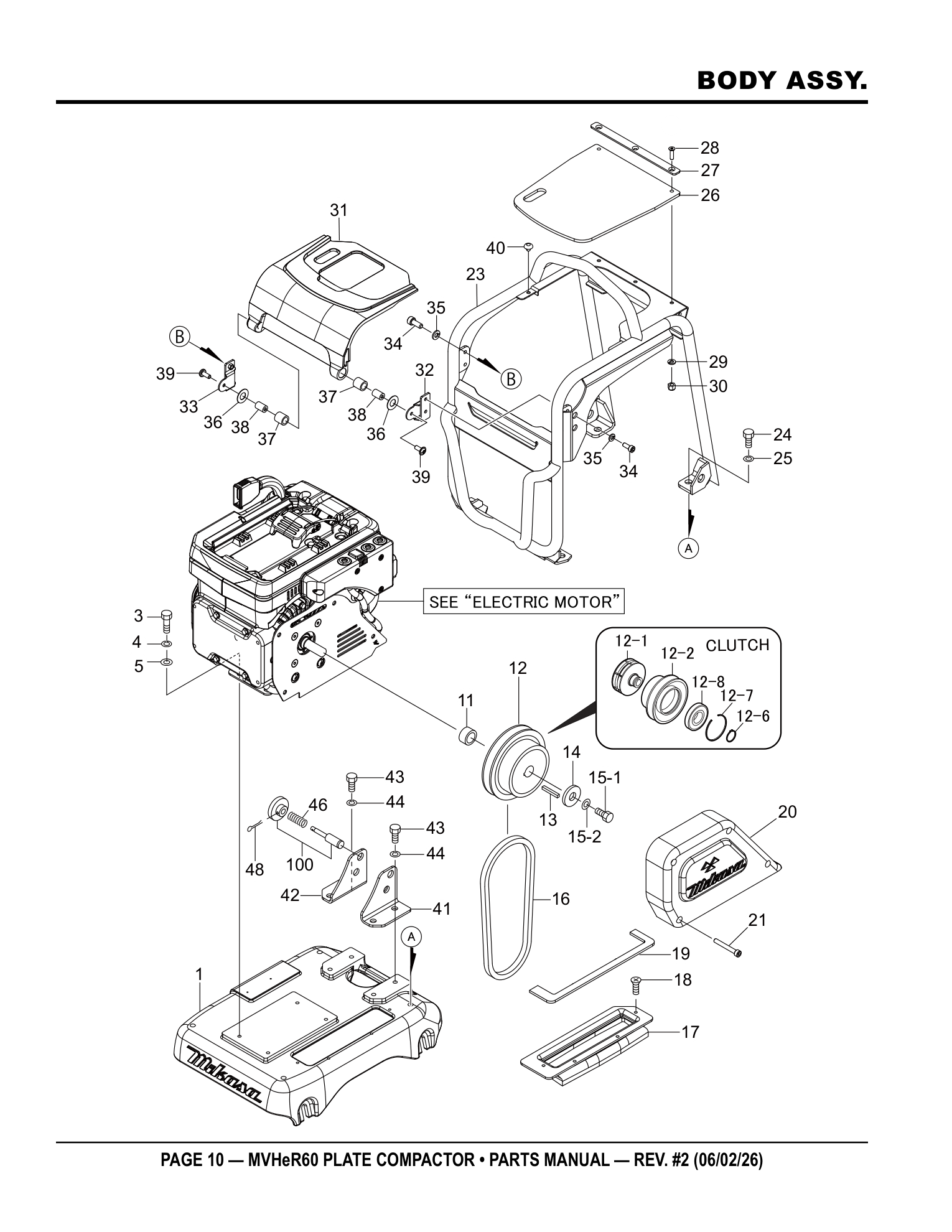

Multiquip MVHeR60 Plate Compactor BODY ASSY. parts diagram

Parts list — exactly as printed46 rows

No.	Part No.	Part Name	Qty	Remarks
1	473122960OR	BASE (ORANGE)	1		PARTS REQUEST
PHOTO COMING BASE (ORANGE) 473122960OR · qty on machine: 1 PARTS REQUEST
3	011208025	BOLT, 8X25	4	REPLACES P/N 001220825	ADD TO CART
BOLT, 8X25 011208025 · qty on machine: 4 REPLACES P/N 001220825 view full part page → $0.41
4	030208200	WASHER, LOCK M8	4		ADD TO CART
WASHER, LOCK M8 030208200 · qty on machine: 4 view full part page → $0.23
5	0401450080	WASHER, FLAT M8	4	REPLACES P/N 031108160	ADD TO CART
WASHER, FLAT M8 0401450080 · qty on machine: 4 REPLACES P/N 031108160 view full part page → $0.56
11	473473700	CLUTCH SPACER, 18X34X5	1		PARTS REQUEST
PHOTO COMING CLUTCH SPACER, 18X34X5 473473700 · qty on machine: 1 PARTS REQUEST
12	460446780	CLUTCH ASSEMBLY	1		ADD TO CART
CLUTCH ASSEMBLY 460446780 · qty on machine: 1 view full part page → $213.95
12-1	943920080	CLUTCH SHAFT	1		PARTS REQUEST
PHOTO COMING CLUTCH SHAFT 943920080 · qty on machine: 1 PARTS REQUEST
12-2	941010400	CLUTCH PULLEY	1		PARTS REQUEST
PHOTO COMING CLUTCH PULLEY 941010400 · qty on machine: 1 PARTS REQUEST
12-6	080200300	SNAP RING	1		ADD TO CART
SNAP RING 080200300 · qty on machine: 1 view full part page → $1.71
12-7	080600550	CLIP	1		ADD TO CART
CLIP 080600550 · qty on machine: 1 view full part page → $6.95
12-8	042006006	BEARING	1	REPLACES P/N 046006006	ADD TO CART
BEARING 042006006 · qty on machine: 1 REPLACES P/N 046006006 view full part page → $30.95
13	0320050150	KEY, 5X5X35	1	REPLACES P/N 951400100	ADD TO CART
KEY, 5X5X35 0320050150 · qty on machine: 1 REPLACES P/N 951400100 view full part page → $6.95
14	952400130	WASHER	1		ADD TO CART
WASHER 952400130 · qty on machine: 1 view full part page → $13.95
15-1	011208025	BOLT, 8X25	1	REPLACES P/N 001220825	ADD TO CART
BOLT, 8X25 011208025 · qty on machine: 1 REPLACES P/N 001220825 view full part page → $0.41
15-2	030208200	WASHER, LOCK M8	1		ADD TO CART
WASHER, LOCK M8 030208200 · qty on machine: 1 view full part page → $0.23
16	070100312	V-BELT	1		ADD TO CART
V-BELT 070100312 · qty on machine: 1 view full part page → $40.95
17	463216120	DUST COVER	1		ADD TO CART
DUST COVER 463216120 · qty on machine: 1 view full part page → $38.95
18	092006010	FLAT HEAD SCREW, 6X10	4		ADD TO CART
FLAT HEAD SCREW, 6X10 092006010 · qty on machine: 4 view full part page → $0.26
19	473357290	SPONGE, DUST COVER	1		PARTS REQUEST
PHOTO COMING SPONGE, DUST COVER 473357290 · qty on machine: 1 PARTS REQUEST
20	473122970	BELT COVER	1		PARTS REQUEST
PHOTO COMING BELT COVER 473122970 · qty on machine: 1 PARTS REQUEST
21	009110118	SOCKET HEAD BOLT, 8X60	4		PARTS REQUEST
PHOTO COMING SOCKET HEAD BOLT, 8X60 009110118 · qty on machine: 4 PARTS REQUEST
23	473122980	GUARD FRAME	1		PARTS REQUEST
PHOTO COMING GUARD FRAME 473122980 · qty on machine: 1 PARTS REQUEST
24	012012030	BOLT, 12X30	4	REPLACES P/N 001221230	ADD TO CART
BOLT, 12X30 012012030 · qty on machine: 4 REPLACES P/N 001221230 view full part page → $2.95
25	030212300	WASHER, LOCK M12	4		ADD TO CART
WASHER, LOCK M12 030212300 · qty on machine: 4 view full part page → $0.15
26	473473650	RUBBER COVER	1		PARTS REQUEST
PHOTO COMING RUBBER COVER 473473650 · qty on machine: 1 PARTS REQUEST
27	473473660	PLATE, RUBBER COVER	1		PARTS REQUEST
PHOTO COMING PLATE, RUBBER COVER 473473660 · qty on machine: 1 PARTS REQUEST
28	009120414	SUNK HEAD BOLT, 6X20	3		PARTS REQUEST
PHOTO COMING SUNK HEAD BOLT, 6X20 009120414 · qty on machine: 3 PARTS REQUEST
29	030206150	WASHER, LOCK M6	3		ADD TO CART
WASHER, LOCK M6 030206150 · qty on machine: 3 view full part page → $0.07
30	022710607	NYLON NUT, M6	3		ADD TO CART
NYLON NUT, M6 022710607 · qty on machine: 3 view full part page → $0.87
31	473122990	TOP COVER	1		PARTS REQUEST
PHOTO COMING TOP COVER 473122990 · qty on machine: 1 PARTS REQUEST
32	473357300	TOP COVER HINGE (L)	1		PARTS REQUEST
PHOTO COMING TOP COVER HINGE (L) 473357300 · qty on machine: 1 PARTS REQUEST
33	473357310	TOP COVER HINGE (R)	1		PARTS REQUEST
PHOTO COMING TOP COVER HINGE (R) 473357310 · qty on machine: 1 PARTS REQUEST
34	009110060	SOCKET HEAD BOLT, 6X15	4		PARTS REQUEST
PHOTO COMING SOCKET HEAD BOLT, 6X15 009110060 · qty on machine: 4 PARTS REQUEST
35	030206150	WASHER, LOCK M6	4		ADD TO CART
WASHER, LOCK M6 030206150 · qty on machine: 4 view full part page → $0.07
36	952410640	WASHER,15X30X1.0	2		PARTS REQUEST
PHOTO COMING WASHER,15X30X1.0 952410640 · qty on machine: 2 PARTS REQUEST
37	952410650	RUBBER BUSHING, 14X20X20	2		PARTS REQUEST
PHOTO COMING RUBBER BUSHING, 14X20X20 952410650 · qty on machine: 2 PARTS REQUEST
38	473473670	HINGE PIN, 14	2		PARTS REQUEST
PHOTO COMING HINGE PIN, 14 473473670 · qty on machine: 2 PARTS REQUEST
39	009110117	SOCKET HEAD SCREW, 6X15	2		PARTS REQUEST
PHOTO COMING SOCKET HEAD SCREW, 6X15 009110117 · qty on machine: 2 PARTS REQUEST
40	953410660	RUBBER CUSHION, 14	2		PARTS REQUEST
PHOTO COMING RUBBER CUSHION, 14 953410660 · qty on machine: 2 PARTS REQUEST
41	473357320	HANDLE STAY (L)	1		PARTS REQUEST
PHOTO COMING HANDLE STAY (L) 473357320 · qty on machine: 1 PARTS REQUEST
42	473357330	HANDLE STAY (R)	1		PARTS REQUEST
PHOTO COMING HANDLE STAY (R) 473357330 · qty on machine: 1 PARTS REQUEST
43	012010030	BOLT, 10X30	4	REPLACES P/N 001221030	ADD TO CART
BOLT, 10X30 012010030 · qty on machine: 4 REPLACES P/N 001221030 view full part page → $0.95
44	030210250	WASHER, LOCK M10	4		ADD TO CART
WASHER, LOCK M10 030210250 · qty on machine: 4 view full part page → $0.28
46	458450880	SPRING, 1.2-10-29	1		ADD TO CART
SPRING, 1.2-10-29 458450880 · qty on machine: 1 view full part page → $25.95
48	025402516	PIN, SPRING 2.5X16	1		ADD TO CART
PIN, SPRING 2.5X16 025402516 · qty on machine: 1 view full part page → $1.3
100	458910030	STOPPER AND GRIP SET	1		ADD TO CART
STOPPER AND GRIP SET 458910030 · qty on machine: 1 view full part page → $53.95

Page 12 — VIBRATOR ASSY.

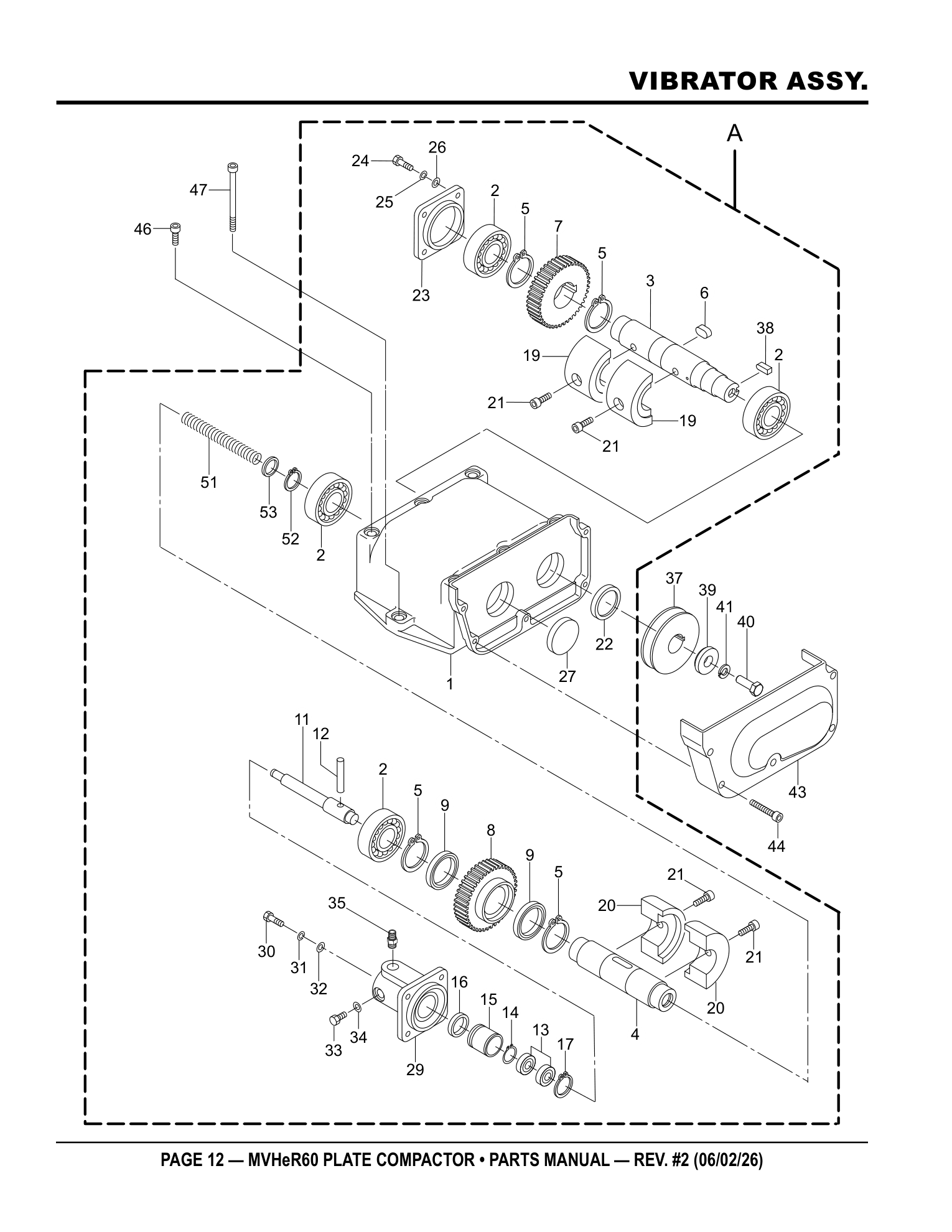

Multiquip MVHeR60 Plate Compactor VIBRATOR ASSY. parts diagram

Parts list — exactly as printed45 rows

No.	Part No.	Part Name	Qty	Remarks
A	473910010	VIBRATOR ASSEMBLY	1	INCLUDES ITEMS W/#	PARTS REQUEST
PHOTO COMING VIBRATOR ASSEMBLY 473910010 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 1#, 2#, 3#, 4#, 5#, 6#, 7#, 8#, 9#, 11#, 12#, 13#, 14#, 15#, 16#, 17#, 19#, 20#, 21#, 22#, 23#, 24#, 25#, 26#, 27#, 29#, 30#, 31#, 32#, 33#, 34#, 35#, 37#, 38#, 39#, 40#, 41#, 43#, 44#, 51#, 52#, 53# PARTS REQUEST
1#	463117150	VIBRATING CASE	1		ADD TO CART
VIBRATING CASE 463117150 · qty on machine: 1 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $781.95 IN A KIT + SOLD SOLO
2#	040406206	BEARING	4		ADD TO CART
BEARING 040406206 · qty on machine: 4 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $102.95 IN A KIT + SOLD SOLO
3#	463342040	ROTARY SHAFT, DRIVE	1		ADD TO CART
ROTARY SHAFT, DRIVE 463342040 · qty on machine: 1 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $232.95 IN A KIT + SOLD SOLO
4#	463342050	ROTARY SHAFT, DRIVEN	1		ADD TO CART
ROTARY SHAFT, DRIVEN 463342050 · qty on machine: 1 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $203.95 IN A KIT + SOLD SOLO
5#	080200350	STOP RING, S-35	4		ADD TO CART
STOP RING, S-35 080200350 · qty on machine: 4 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $2.95 IN A KIT + SOLD SOLO
6#	951405460	KEY, 10X8X19	1		ADD TO CART
KEY, 10X8X19 951405460 · qty on machine: 1 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $4.95 IN A KIT + SOLD SOLO
7#	463342060	GEAR, DRIVE	1		ADD TO CART
GEAR, DRIVE 463342060 · qty on machine: 1 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $117.95 IN A KIT + SOLD SOLO
8#	463342070	GEAR, DRIVEN	1		ADD TO CART
GEAR, DRIVEN 463342070 · qty on machine: 1 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $290.95 IN A KIT + SOLD SOLO
9#	040306807	BEARING	2		ADD TO CART
BEARING 040306807 · qty on machine: 2 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $41.95 IN A KIT + SOLD SOLO
11#	463342080	PISTON ROD	1		ADD TO CART
PISTON ROD 463342080 · qty on machine: 1 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $106.95 IN A KIT + SOLD SOLO
12#	025508045	PIN, 8X45	1		ADD TO CART
PIN, 8X45 025508045 · qty on machine: 1 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $4.95 IN A KIT + SOLD SOLO
13#	042006000	BEARING	2	REPLACES P/N 042506000	ADD TO CART
BEARING 042006000 · qty on machine: 2 REPLACES P/N 042506000 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $12.95 IN A KIT + SOLD SOLO
14#	0080000010	STOP RING, S-10	1	REPLACES P/N 080200100	ADD TO CART
STOP RING, S-10 0080000010 · qty on machine: 1 REPLACES P/N 080200100 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $0.65 IN A KIT + SOLD SOLO
15#	455435051	PISTON, 22.4D	1		ADD TO CART
PISTON, 22.4D 455435051 · qty on machine: 1 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $93.95 IN A KIT + SOLD SOLO
16#	455010070	PACKING	1		ADD TO CART
PACKING 455010070 · qty on machine: 1 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $17.95 IN A KIT + SOLD SOLO
17#	080100260	STOP RING, R-26	1		ADD TO CART
STOP RING, R-26 080100260 · qty on machine: 1 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $1.95 IN A KIT + SOLD SOLO
19#	473474570	ECCENT. ROTATOR, DRIVE	2		PARTS REQUEST
PHOTO COMING ECCENT. ROTATOR, DRIVE 473474570 · qty on machine: 2 Also included in kit A - VIBRATOR ASSEMBLY (473910010) PARTS REQUEST
20#	473474580	ECCENT. ROTATOR, DRIVEN	2		PARTS REQUEST
PHOTO COMING ECCENT. ROTATOR, DRIVEN 473474580 · qty on machine: 2 Also included in kit A - VIBRATOR ASSEMBLY (473910010) PARTS REQUEST
21#	009120304	SOCKET HEAD BOLT, 10X25	4		ADD TO CART
SOCKET HEAD BOLT, 10X25 009120304 · qty on machine: 4 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $2.62 IN A KIT + SOLD SOLO
22#	060202040	OIL SEAL	1		ADD TO CART
OIL SEAL 060202040 · qty on machine: 1 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $13.95 IN A KIT + SOLD SOLO
23#	463455930	BEARING COVER	1		ADD TO CART
BEARING COVER 463455930 · qty on machine: 1 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $85.95 IN A KIT + SOLD SOLO
24#	001220820	BOLT, 8X20	4		ADD TO CART
BOLT, 8X20 001220820 · qty on machine: 4 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $1.49 IN A KIT + SOLD SOLO
25#	030208200	WASHER, LOCK M8	4		ADD TO CART
WASHER, LOCK M8 030208200 · qty on machine: 4 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $0.23 IN A KIT + SOLD SOLO
26#	0401450080	WASHER, FLAT M8	4	REPLACES P/N 031108160	ADD TO CART
WASHER, FLAT M8 0401450080 · qty on machine: 4 REPLACES P/N 031108160 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $0.56 IN A KIT + SOLD SOLO
27#	953405580	SEAL CAP	1		ADD TO CART
SEAL CAP 953405580 · qty on machine: 1 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $12.95 IN A KIT + SOLD SOLO
29#	463349940	CYLINDER, SLIPPAGE TYPE	1		PARTS REQUEST
PHOTO COMING CYLINDER, SLIPPAGE TYPE 463349940 · qty on machine: 1 Also included in kit A - VIBRATOR ASSEMBLY (473910010) PARTS REQUEST
30#	001220820	BOLT, 8X20	4		ADD TO CART
BOLT, 8X20 001220820 · qty on machine: 4 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $1.49 IN A KIT + SOLD SOLO
31#	030208200	WASHER, LOCK M8	4		ADD TO CART
WASHER, LOCK M8 030208200 · qty on machine: 4 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $0.23 IN A KIT + SOLD SOLO
32#	0401450080	WASHER, FLAT M8	4	REPLACES P/N 031108160	ADD TO CART
WASHER, FLAT M8 0401450080 · qty on machine: 4 REPLACES P/N 031108160 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $0.56 IN A KIT + SOLD SOLO
33#	011008015	BOLT, 8X12	1	REPLACES P/N 001220812	ADD TO CART
BOLT, 8X12 011008015 · qty on machine: 1 REPLACES P/N 001220812 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $0.85 IN A KIT + SOLD SOLO
34#	953404600	COPPER PACKING, 8X16X2	1		ADD TO CART
COPPER PACKING, 8X16X2 953404600 · qty on machine: 1 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $4.95 IN A KIT + SOLD SOLO
35#	954010020	CONNECTOR	1		ADD TO CART
CONNECTOR 954010020 · qty on machine: 1 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $11.95 IN A KIT + SOLD SOLO
37#	473357340	PULLEY	1		PARTS REQUEST
PHOTO COMING PULLEY 473357340 · qty on machine: 1 Also included in kit A - VIBRATOR ASSEMBLY (473910010) PARTS REQUEST
38#	951405240	KEY, 7X7X19	1		ADD TO CART
KEY, 7X7X19 951405240 · qty on machine: 1 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $11.95 IN A KIT + SOLD SOLO
39#	473473690	WASHER	1		PARTS REQUEST
PHOTO COMING WASHER 473473690 · qty on machine: 1 Also included in kit A - VIBRATOR ASSEMBLY (473910010) PARTS REQUEST
40#	011208025	BOLT, 8X25	1	REPLACES P/N 001220825	ADD TO CART
BOLT, 8X25 011208025 · qty on machine: 1 REPLACES P/N 001220825 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $0.41 IN A KIT + SOLD SOLO
41#	030208200	WASHER, LOCK M8	1		ADD TO CART
WASHER, LOCK M8 030208200 · qty on machine: 1 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $0.23 IN A KIT + SOLD SOLO
43#	463216110	BELT COVER, LOWER	1		ADD TO CART
BELT COVER, LOWER 463216110 · qty on machine: 1 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $106.95 IN A KIT + SOLD SOLO
44#	001520640	SOCKET HEAD BOLT, 6X40	5		ADD TO CART
SOCKET HEAD BOLT, 6X40 001520640 · qty on machine: 5 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $1.38 IN A KIT + SOLD SOLO
46	001521030	SOCKET HEAD BOLT, 10X30	2		ADD TO CART
SOCKET HEAD BOLT, 10X30 001521030 · qty on machine: 2 view full part page → $1.95
47	001521060	SOCKET HEAD BOLT, 10X100	6		ADD TO CART
SOCKET HEAD BOLT, 10X100 001521060 · qty on machine: 6 view full part page → $6.95
51#	463471200	SPRING, 1.2D	1		PARTS REQUEST
PHOTO COMING SPRING, 1.2D 463471200 · qty on machine: 1 Also included in kit A - VIBRATOR ASSEMBLY (473910010) PARTS REQUEST
52#	080100190	STOP RING, R-19	1		ADD TO CART
STOP RING, R-19 080100190 · qty on machine: 1 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $1.51 IN A KIT + SOLD SOLO
53#	0401450080	WASHER, FLAT M8	1	REPLACES P/N 031108160	ADD TO CART
WASHER, FLAT M8 0401450080 · qty on machine: 1 REPLACES P/N 031108160 Also included in kit A - VIBRATOR ASSEMBLY (473910010) view full part page → $0.56 IN A KIT + SOLD SOLO

Page 14 — VIBRATING PLATE ASSY.

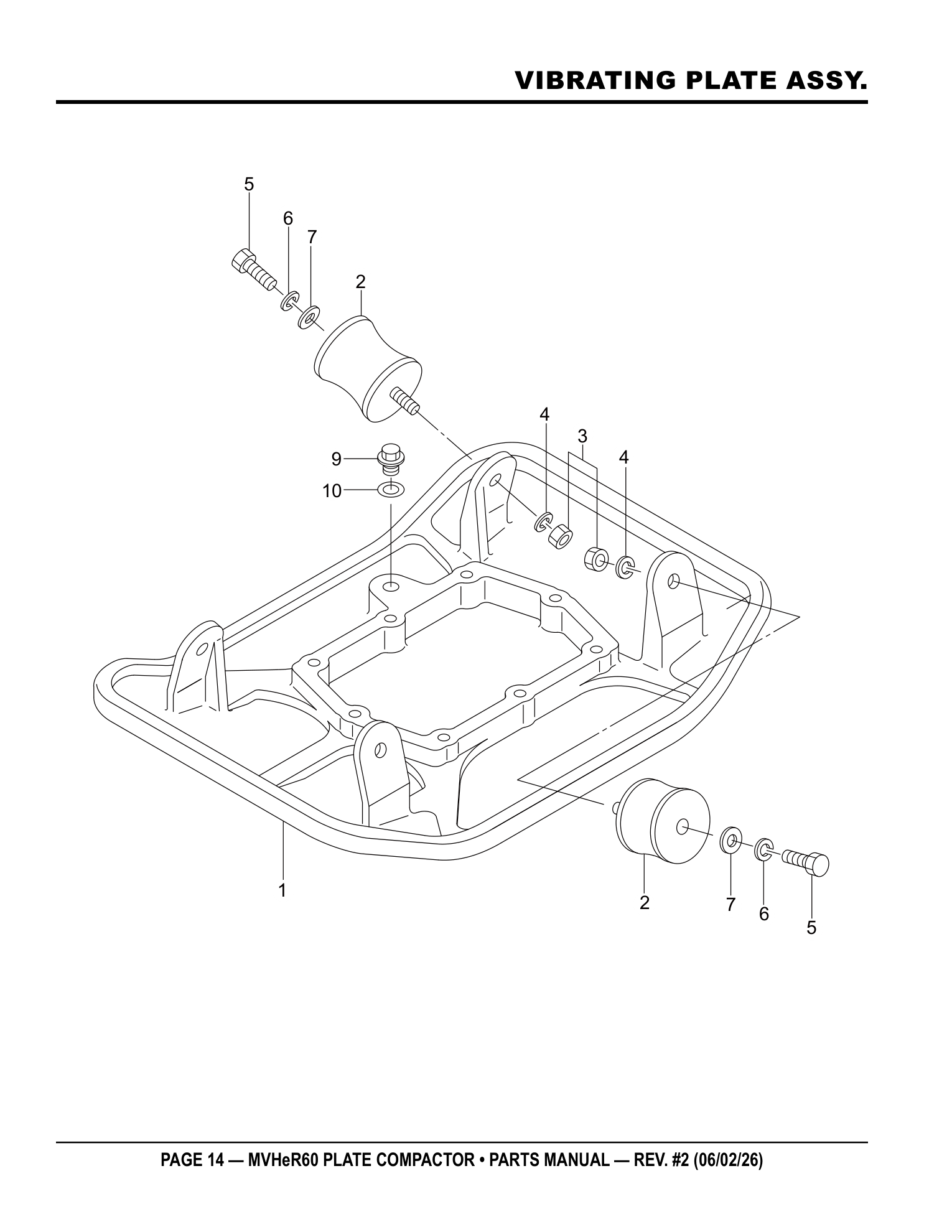

Multiquip MVHeR60 Plate Compactor VIBRATING PLATE ASSY. parts diagram

Parts list — exactly as printed9 rows

No.	Part No.	Part Name	Qty	Remarks
1	463117110	VIBRATING PLATE	1		ADD TO CART
VIBRATING PLATE 463117110 · qty on machine: 1 view full part page → $655.95
2	939010420	SHOCK ABSORBER	4		ADD TO CART
SHOCK ABSORBER 939010420 · qty on machine: 4 view full part page → $20.95
3	020310080	NUT, M10	4		ADD TO CART
NUT, M10 020310080 · qty on machine: 4 view full part page → $1.67
4	030210250	WASHER, LOCK M10	4		ADD TO CART
WASHER, LOCK M10 030210250 · qty on machine: 4 view full part page → $0.28
5	012010030	BOLT, 10X30	4	REPLACES P/N 001221030	ADD TO CART
BOLT, 10X30 012010030 · qty on machine: 4 REPLACES P/N 001221030 view full part page → $0.95
6	030210250	WASHER, LOCK M10	4		ADD TO CART
WASHER, LOCK M10 030210250 · qty on machine: 4 view full part page → $0.28
7	952401660	WASHER	4		ADD TO CART
WASHER 952401660 · qty on machine: 4 view full part page → $0.85
9	460449160	OIL GAUGE	1		ADD TO CART
OIL GAUGE 460449160 · qty on machine: 1 view full part page → $36.95
10	953405260	COPPER PACKING, 1/4	1		ADD TO CART
COPPER PACKING, 1/4 953405260 · qty on machine: 1 view full part page → $7.95

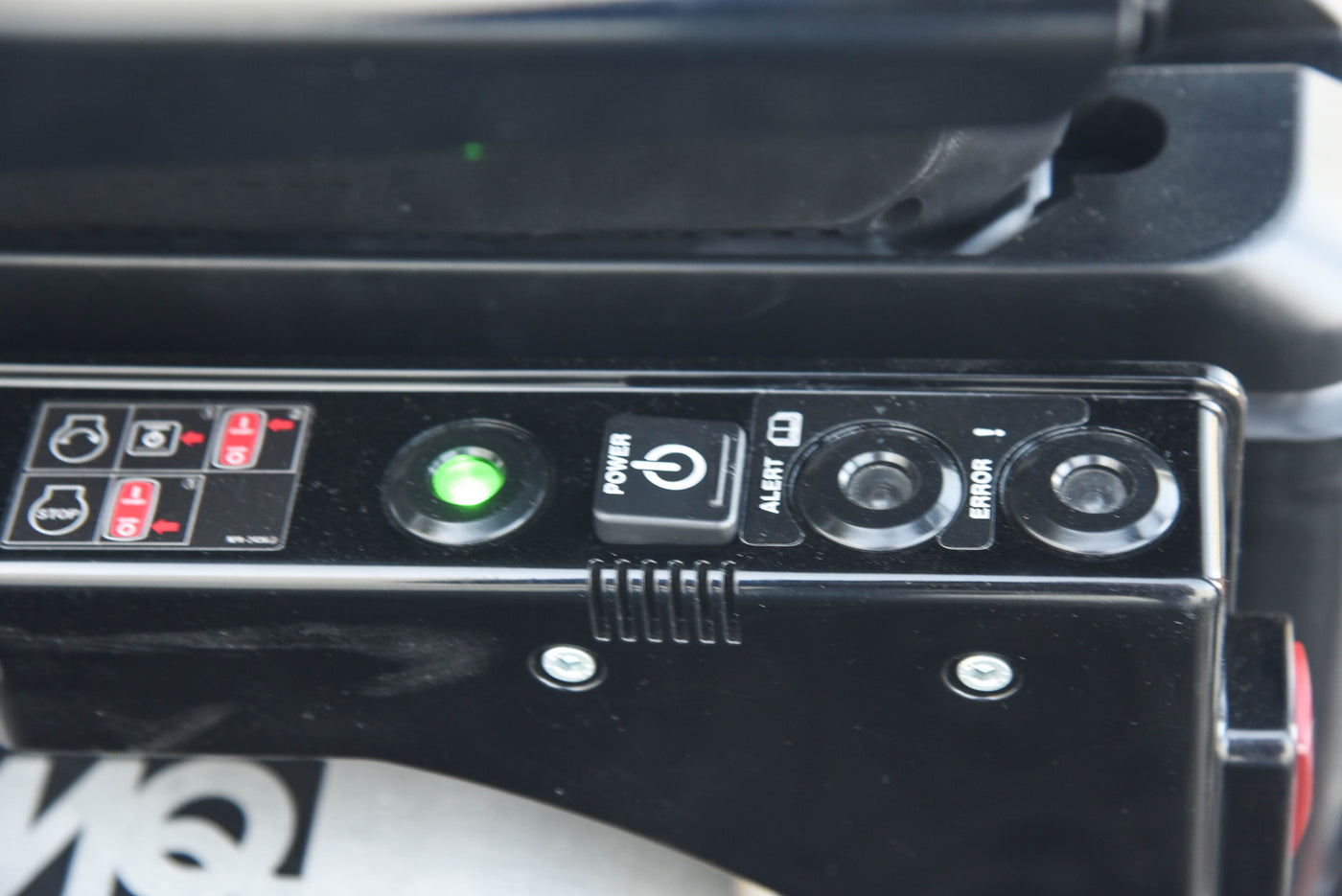

Page 16 — ELECTRIC MOTOR ASSY.

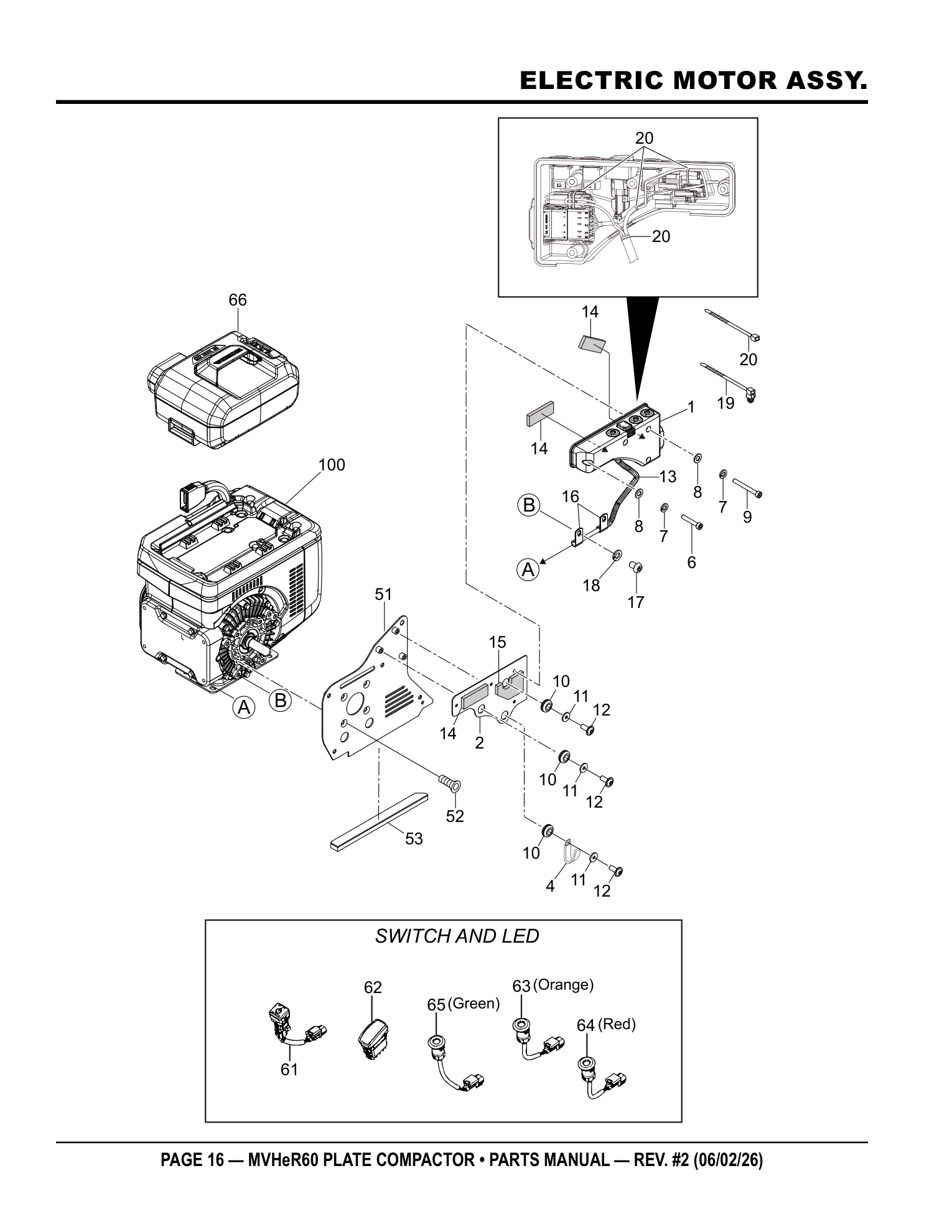

Multiquip MVHeR60 Plate Compactor ELECTRIC MOTOR ASSY. parts diagram

Parts list — exactly as printed28 rows

No.	Part No.	Part Name	Qty	Remarks
1	421220330	SWITCH BOX	1		PARTS REQUEST
PHOTO COMING SWITCH BOX 421220330 · qty on machine: 1 PARTS REQUEST
2	421357130	SWITCH BOX PANEL	1		PARTS REQUEST
PHOTO COMING SWITCH BOX PANEL 421357130 · qty on machine: 1 PARTS REQUEST
4	954410020	CLAMP, D6.5XL95XT0.8	1		PARTS REQUEST
PHOTO COMING CLAMP, D6.5XL95XT0.8 954410020 · qty on machine: 1 PARTS REQUEST
6	001520530	SOCKET HEAD BOLT, 5X30	1		ADD TO CART
SOCKET HEAD BOLT, 5X30 001520530 · qty on machine: 1 view full part page → $0.77
7	030205130	WASHER, LOCK M5	4		ADD TO CART
WASHER, LOCK M5 030205130 · qty on machine: 4 view full part page → $0.26
8	58151	WASHER, FLAT M5	4	REPLACES P/N 031105080	ADD TO CART
WASHER, FLAT M5 58151 · qty on machine: 4 REPLACES P/N 031105080 view full part page → $0.41
9	001520545	SOCKET HEAD BOLT, 5X45	3		PARTS REQUEST
PHOTO COMING SOCKET HEAD BOLT, 5X45 001520545 · qty on machine: 3 PARTS REQUEST
10	473473680	GROMMET	3		PARTS REQUEST
PHOTO COMING GROMMET 473473680 · qty on machine: 3 PARTS REQUEST
11	952410670	WASHER, 6.5X20X2.3	3		PARTS REQUEST
PHOTO COMING WASHER, 6.5X20X2.3 952410670 · qty on machine: 3 PARTS REQUEST
12	009110117	SOCKET HEAD SCREW, 6X15	3		PARTS REQUEST
PHOTO COMING SOCKET HEAD SCREW, 6X15 009110117 · qty on machine: 3 PARTS REQUEST
13	959029802	CORRUGATE TUBE, 10MM-250L	1		PARTS REQUEST
PHOTO COMING CORRUGATE TUBE, 10MM-250L 959029802 · qty on machine: 1 PARTS REQUEST
14	421473430	CUSHION, 30X80	3		PARTS REQUEST
PHOTO COMING CUSHION, 30X80 421473430 · qty on machine: 3 PARTS REQUEST
15	421473440	CUSHION, 55X85	1		PARTS REQUEST
PHOTO COMING CUSHION, 55X85 421473440 · qty on machine: 1 PARTS REQUEST
16	959410810	CLIP, 11 (M8)	2		PARTS REQUEST
PHOTO COMING CLIP, 11 (M8) 959410810 · qty on machine: 2 PARTS REQUEST
17	009110103	SOCKET HEAD SCREW, 8X12	2		PARTS REQUEST
PHOTO COMING SOCKET HEAD SCREW, 8X12 009110103 · qty on machine: 2 PARTS REQUEST
18	0401450080	WASHER, FLAT M8	2	REPLACES P/N 031108160	ADD TO CART
WASHER, FLAT M8 0401450080 · qty on machine: 2 REPLACES P/N 031108160 view full part page → $0.56
19	91541S0A003	CLIP, HARNESS BAND	1		PARTS REQUEST
PHOTO COMING CLIP, HARNESS BAND 91541S0A003 · qty on machine: 1 PARTS REQUEST
20	454010020	CLAMP	8		ADD TO CART
CLAMP 454010020 · qty on machine: 8 view full part page → $1.4
51	473357270	SWITCH BOX HOLDER	1		PARTS REQUEST
PHOTO COMING SWITCH BOX HOLDER 473357270 · qty on machine: 1 PARTS REQUEST
52	009120408	SUNK HEAD, BOLT 8X20	4		ADD TO CART
SUNK HEAD, BOLT 8X20 009120408 · qty on machine: 4 view full part page → $1.95
53	473357280	SPONGE, INNER, DUST COVER	1		PARTS REQUEST
PHOTO COMING SPONGE, INNER, DUST COVER 473357280 · qty on machine: 1 PARTS REQUEST
61	1N3118A0003	SWITCH ASSEMBLY, POWER	1		PARTS REQUEST
PHOTO COMING SWITCH ASSEMBLY, POWER 1N3118A0003 · qty on machine: 1 PARTS REQUEST
62	1N3308A0003	SWITCH ASSEMBLY, START	1		ADD TO CART
SWITCH ASSEMBLY, START 1N3308A0003 · qty on machine: 1 view full part page → $149.95
63	1N4218A0003	LAMP ASSEMBLY, IND (ORANGE)	1		PARTS REQUEST
PHOTO COMING LAMP ASSEMBLY, IND (ORANGE) 1N4218A0003 · qty on machine: 1 PARTS REQUEST
64	1N4228A0003	LAMP ASSEMBLY, IND (RED)	1		PARTS REQUEST
PHOTO COMING LAMP ASSEMBLY, IND (RED) 1N4228A0003 · qty on machine: 1 PARTS REQUEST
65	1N4238A0003	LAMP ASSEMBLY, IND (GREEN)	1		PARTS REQUEST
PHOTO COMING LAMP ASSEMBLY, IND (GREEN) 1N4238A0003 · qty on machine: 1 PARTS REQUEST
66	MCB7210	BATTERY PACK, LITHIUM-ION 72V 10AH	1		ADD TO CART
BATTERY PACK, LITHIUM-ION 72V 10AH MCB7210 · qty on machine: 1 view full part page → $2514.25
100	912721601	HONDA GXE2.0H ELEC. MOTOR (INTEGR.)	1		PARTS REQUEST
PHOTO COMING HONDA GXE2.0H ELEC. MOTOR (INTEGR.) 912721601 · qty on machine: 1 PARTS REQUEST

Page 18 — BATTERY TRAY ASSY.

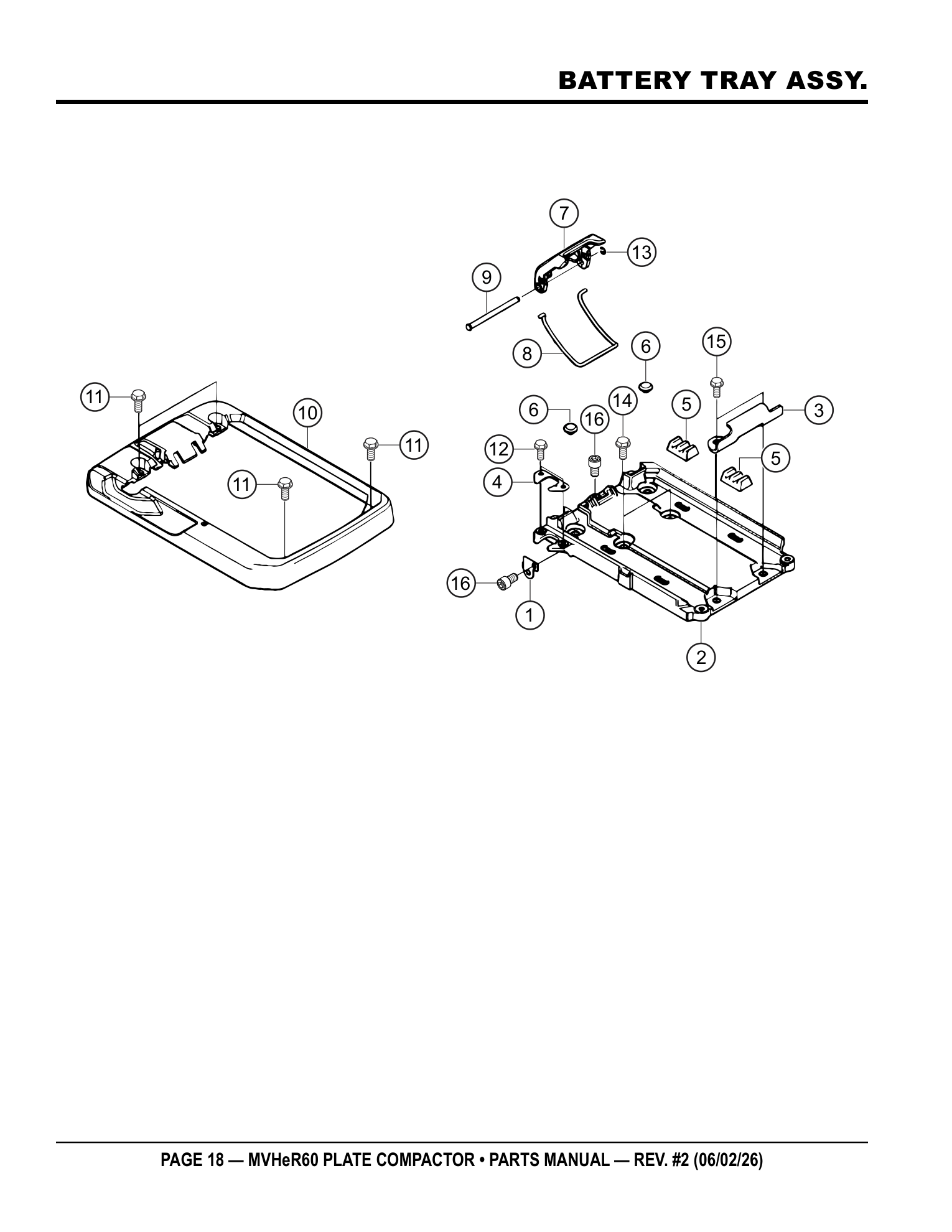

Multiquip MVHeR60 Plate Compactor BATTERY TRAY ASSY. parts diagram

Parts list — exactly as printed16 rows

No.	Part No.	Part Name	Qty
1	1F2228A0600	BRACKET, HARN CLIP A	1	PARTS REQUEST
PHOTO COMING BRACKET, HARN CLIP A 1F2228A0600 · qty on machine: 1 PARTS REQUEST
2	601058A0000	TRAY, BATTERY	1	PARTS REQUEST
PHOTO COMING TRAY, BATTERY 601058A0000 · qty on machine: 1 PARTS REQUEST
3	601078A0000	HOOK, BATTERY	1	PARTS REQUEST
PHOTO COMING HOOK, BATTERY 601078A0000 · qty on machine: 1 PARTS REQUEST
4	601238A0600	STAY, CONNECTOR	1	PARTS REQUEST
PHOTO COMING STAY, CONNECTOR 601238A0600 · qty on machine: 1 PARTS REQUEST
5	608018A0000	RUBBER, BATTERY MOUNT	4	PARTS REQUEST
PHOTO COMING RUBBER, BATTERY MOUNT 608018A0000 · qty on machine: 4 PARTS REQUEST
6	608068A0600	CAP, HOLE 8MM	2	PARTS REQUEST
PHOTO COMING CAP, HOLE 8MM 608068A0600 · qty on machine: 2 PARTS REQUEST
7	609028A0000ZA	LAVER, FASTENER	1	ADD TO CART
LAVER, FASTENER 609028A0000ZA · qty on machine: 1 view full part page → $46.3
8	609038A0000	WIRE, FASTENER	1	ADD TO CART
WIRE, FASTENER 609038A0000 · qty on machine: 1 view full part page → $29.73
9	609048A0000	PIN, LOCK LEVER	1	ADD TO CART
PIN, LOCK LEVER 609048A0000 · qty on machine: 1 view full part page → $23.46
10	611058A0600ZB	COVER, BATTERY TRAY NH1 (BLACK)	1	PARTS REQUEST
PHOTO COMING COVER, BATTERY TRAY NH1 (BLACK) 611058A0600ZB · qty on machine: 1 PARTS REQUEST
11	900028A0000	BOLT, SPECIAL 6X16	4	PARTS REQUEST
PHOTO COMING BOLT, SPECIAL 6X16 900028A0000 · qty on machine: 4 PARTS REQUEST
12	90007892000	BOLT, FLANGE 5X12	2	PARTS REQUEST
PHOTO COMING BOLT, FLANGE 5X12 90007892000 · qty on machine: 2 PARTS REQUEST
13	9454004018	E RING, 4	1	ADD TO CART
E RING, 4 9454004018 · qty on machine: 1 view full part page → $5.95
14	957010801608	BOLT, FLANGE 8X16	2	PARTS REQUEST
PHOTO COMING BOLT, FLANGE 8X16 957010801608 · qty on machine: 2 PARTS REQUEST
15	957010802008	BOLT, FLANGE 8X20	2	PARTS REQUEST
PHOTO COMING BOLT, FLANGE 8X20 957010802008 · qty on machine: 2 PARTS REQUEST
16	966000601208	BOLT, SOCKET 6X12	2	PARTS REQUEST
PHOTO COMING BOLT, SOCKET 6X12 966000601208 · qty on machine: 2 PARTS REQUEST

Page 20 — BATTERY CHARGER ASSY.

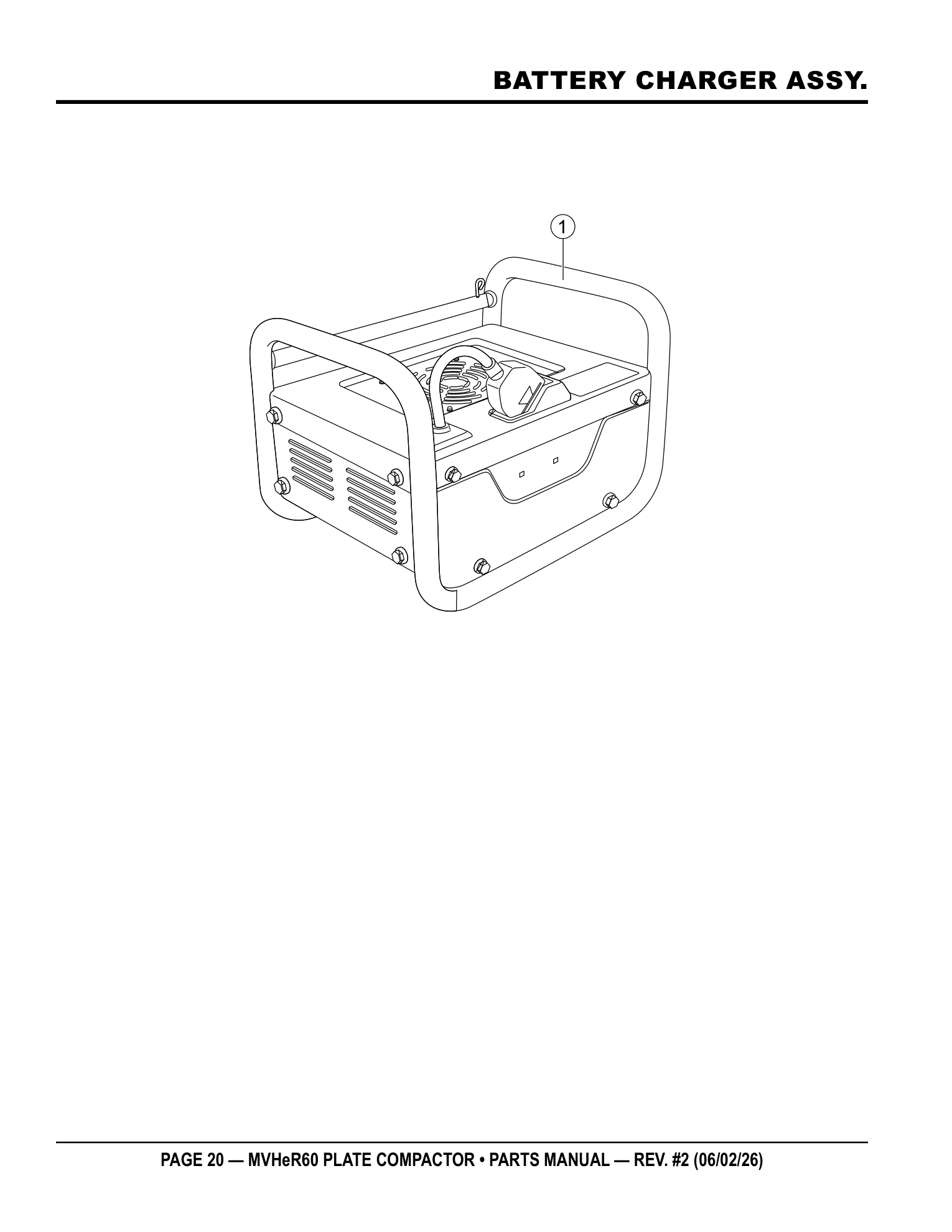

Multiquip MVHeR60 Plate Compactor BATTERY CHARGER ASSY. parts diagram

Parts list — exactly as printed1 rows

No.	Part No.	Part Name	Qty	Remarks
1	MCB0190	BATTERY CHARGER	1		ADD TO CART
BATTERY CHARGER MCB0190 · qty on machine: 1 view full part page → $1134.52

Page 22 — WATER TANK ASSY. (OPTION)

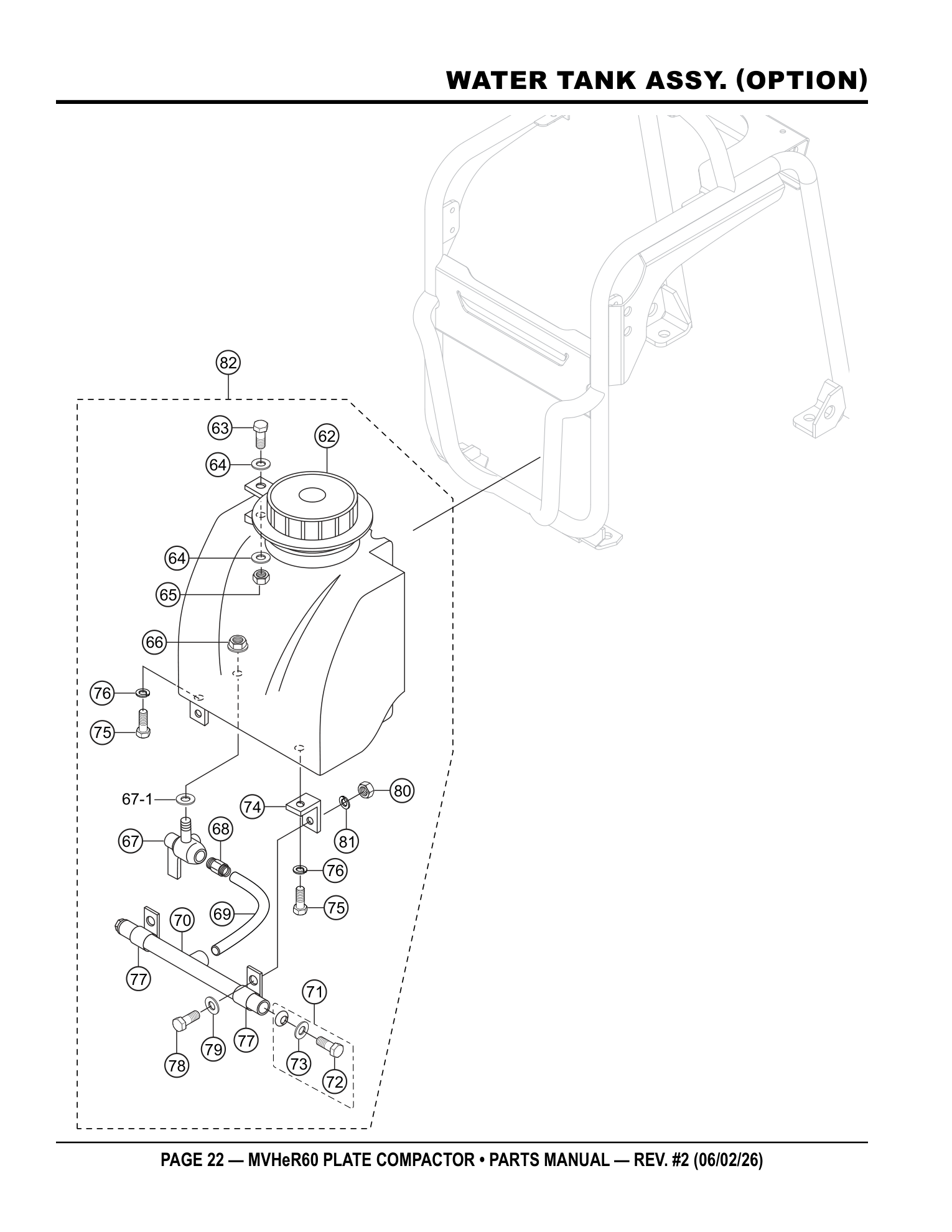

Multiquip MVHeR60 Plate Compactor WATER TANK ASSY. (OPTION) parts diagram

Parts list — exactly as printed22 rows

No.	Part No.	Part Name	Qty	Remarks
62#	954300343	CAP, WATER TANK	1		PARTS REQUEST
PHOTO COMING CAP, WATER TANK 954300343 · qty on machine: 1 Also included in kit 82 - WATER TANK KIT (WTANKR60) PARTS REQUEST
63#	001241030	BOLT, 10X30	1		ADD TO CART
BOLT, 10X30 001241030 · qty on machine: 1 Also included in kit 82 - WATER TANK KIT (WTANKR60) view full part page → $3.95 IN A KIT + SOLD SOLO
64#	033910160	WASHER, FLAT M10	2		ADD TO CART
WASHER, FLAT M10 033910160 · qty on machine: 2 Also included in kit 82 - WATER TANK KIT (WTANKR60) view full part page → $0.94 IN A KIT + SOLD SOLO
65#	022910270	NUT, M10	1		ADD TO CART
NUT, M10 022910270 · qty on machine: 1 Also included in kit 82 - WATER TANK KIT (WTANKR60) view full part page → $3.95 IN A KIT + SOLD SOLO
66#	022610808	FLANGE NUT, M8	1		ADD TO CART
FLANGE NUT, M8 022610808 · qty on machine: 1 Also included in kit 82 - WATER TANK KIT (WTANKR60) view full part page → $0.79 IN A KIT + SOLD SOLO
67#	954407090	WATER VALVE, ANGLE TYPE M8	1		ADD TO CART
WATER VALVE, ANGLE TYPE M8 954407090 · qty on machine: 1 Also included in kit 82 - WATER TANK KIT (WTANKR60) view full part page → $61.95 IN A KIT + SOLD SOLO
67-1#	953407410	PACKING, 8X15X2	1		ADD TO CART
PACKING, 8X15X2 953407410 · qty on machine: 1 Also included in kit 82 - WATER TANK KIT (WTANKR60) view full part page → $2.95 IN A KIT + SOLD SOLO
68#	954405680	CONNECTOR, 1/4X10	1		ADD TO CART
CONNECTOR, 1/4X10 954405680 · qty on machine: 1 Also included in kit 82 - WATER TANK KIT (WTANKR60) view full part page → $5.95 IN A KIT + SOLD SOLO
69#	463456580	WATER HOSE	1		NO LONGER AVAILABLE
PHOTO COMING WATER HOSE 463456580 · qty on machine: 1 Also included in kit 82 - WATER TANK KIT (WTANKR60) NO LONGER AVAILABLE
70#	463910050	SPRINKLING PIPE ASSEMBLY	1		PARTS REQUEST
PHOTO COMING SPRINKLING PIPE ASSEMBLY 463910050 · qty on machine: 1 Also included in kit 82 - WATER TANK KIT (WTANKR60) PARTS REQUEST
71#	515910050	CAP ASSEMBLY, WITH BOLT/WASHER	2	INCLUDES ITEMS W/$	ADD TO CART
CAP ASSEMBLY, WITH BOLT/WASHER 515910050 · qty on machine: 2 INCLUDES ITEMS W/$ Also included in kit 82 - WATER TANK KIT (WTANKR60) view full part page → $5.95 IN A KIT + SOLD SOLO
72$#	011206020	BOLT, 6X20	2	REPLACES P/N 001220620	ADD TO CART
BOLT, 6X20 011206020 · qty on machine: 2 REPLACES P/N 001220620 Also included in kit 82 - WATER TANK KIT (WTANKR60); kit 71 - CAP ASSEMBLY, WITH BOLT/WA (515910050) view full part page → $0.95 IN A KIT + SOLD SOLO
73$#	952404470	WASHER, FLAT M6	2	REPLACES P/N 031106100	ADD TO CART
WASHER, FLAT M6 952404470 · qty on machine: 2 REPLACES P/N 031106100 Also included in kit 82 - WATER TANK KIT (WTANKR60); kit 71 - CAP ASSEMBLY, WITH BOLT/WA (515910050) view full part page → $0.19 IN A KIT + SOLD SOLO
74#	463456570	STAY, L TYPE	2		NO LONGER AVAILABLE
PHOTO COMING STAY, L TYPE 463456570 · qty on machine: 2 Also included in kit 82 - WATER TANK KIT (WTANKR60) NO LONGER AVAILABLE
75#	011008015	BOLT, 8X15	2	REPLACES P/N 001220815	ADD TO CART
BOLT, 8X15 011008015 · qty on machine: 2 REPLACES P/N 001220815 Also included in kit 82 - WATER TANK KIT (WTANKR60) view full part page → $0.85 IN A KIT + SOLD SOLO
76#	030208200	WASHER, LOCK M8	2		ADD TO CART
WASHER, LOCK M8 030208200 · qty on machine: 2 Also included in kit 82 - WATER TANK KIT (WTANKR60) view full part page → $0.23 IN A KIT + SOLD SOLO
77#	954404230	CLAMP	2		ADD TO CART
CLAMP 954404230 · qty on machine: 2 Also included in kit 82 - WATER TANK KIT (WTANKR60) view full part page → $4.95 IN A KIT + SOLD SOLO
78#	0105050616	BOLT, 6X15	2	REPLACES P/N 001220615	ADD TO CART
BOLT, 6X15 0105050616 · qty on machine: 2 REPLACES P/N 001220615 Also included in kit 82 - WATER TANK KIT (WTANKR60) view full part page → $0.45 IN A KIT + SOLD SOLO
79#	952404470	WASHER, FLAT M6	2	REPLACES P/N 031106100	ADD TO CART
WASHER, FLAT M6 952404470 · qty on machine: 2 REPLACES P/N 031106100 Also included in kit 82 - WATER TANK KIT (WTANKR60) view full part page → $0.19 IN A KIT + SOLD SOLO
80#	020106050	NUT, M6	2	REPLACES P/N 020306050	ADD TO CART
NUT, M6 020106050 · qty on machine: 2 REPLACES P/N 020306050 Also included in kit 82 - WATER TANK KIT (WTANKR60) view full part page → $0.12 IN A KIT + SOLD SOLO
81#	030206150	WASHER, LOCK M6	2		ADD TO CART
WASHER, LOCK M6 030206150 · qty on machine: 2 Also included in kit 82 - WATER TANK KIT (WTANKR60) view full part page → $0.07 IN A KIT + SOLD SOLO
82	WTANKR60	WATER TANK KIT	1	INCLUDES ITEMS W/# CONTACT UNIT SALES DEPT.	ADD TO CART
WATER TANK KIT WTANKR60 · qty on machine: 1 INCLUDES ITEMS W/# CONTACT UNIT SALES DEPT. Kit includes: 62#, 63#, 64#, 65#, 66#, 67#, 67-1#, 68#, 69#, 70#, 71#, 72$#, 73$#, 74#, 75#, 76#, 77#, 78#, 79#, 80#, 81# view full part page → $321.95 IN A KIT + SOLD SOLO

Page 24 — TRANSPORT WHEEL ASSY. (OPTION)

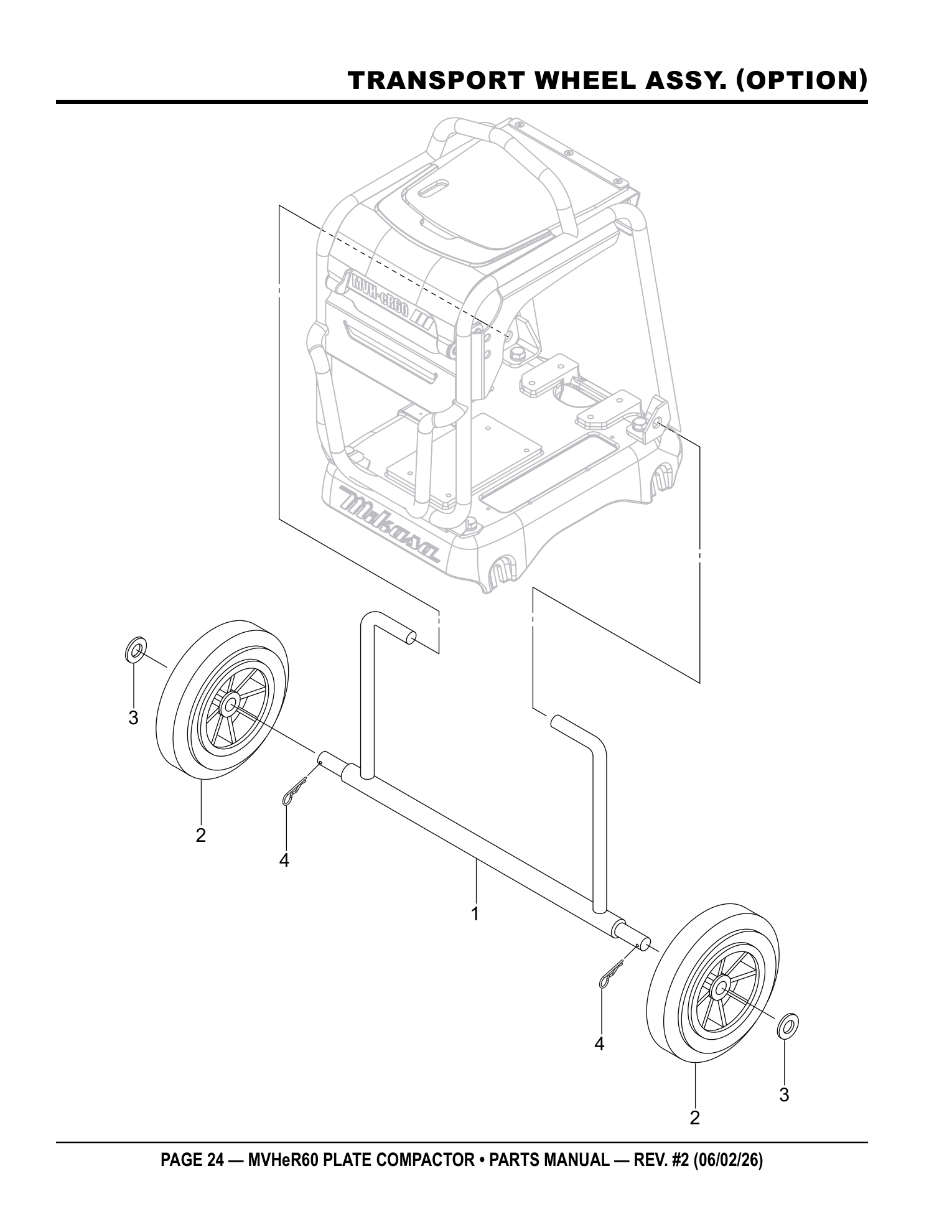

Multiquip MVHeR60 Plate Compactor TRANSPORT WHEEL ASSY. (OPTION) parts diagram

Parts list — exactly as printed4 rows

No.	Part No.	Part Name	Qty	Remarks
1	463342172	AXLE	1		PARTS REQUEST
PHOTO COMING AXLE 463342172 · qty on machine: 1 PARTS REQUEST
2	959404311	WHEEL, 150X42	2		PARTS REQUEST
PHOTO COMING WHEEL, 150X42 959404311 · qty on machine: 2 PARTS REQUEST
3	0401450200	WASHER, FLAT M20	2	REPLACES P/N 031120320	ADD TO CART
WASHER, FLAT M20 0401450200 · qty on machine: 2 REPLACES P/N 031120320 view full part page → $0.33
4	025203030	COTTER PIN, SPLIT 3X30	2		ADD TO CART
COTTER PIN, SPLIT 3X30 025203030 · qty on machine: 2 view full part page → $0.95

The machine itself

Price by quote Get a quote

Tell us where the machine is headed and we'll quote it with freight. One call, no games.

The Multiquip MVHeR60 is a plate compactor built for compacting granular soils, gravel, and asphalt on grading, paving, and repair work. It runs a Honda DP72104Z engine and weighs in at 179 lbs. (81 kg). Factory-documented specs and parts support; priced by quote.

Keep-it-running spares

All listed parts →

Every part that fits this machine

040306807 Multiquip 040306807 Bearing - OEM Replacement Part for Plate Compactors $41.95

040406206 Multiquip 040406206 Bearing MVHR-60H - OEM Replacement Part for Plate Compactors $102.95

070100312 Multiquip 070100312 V-Belt - OEM Replacement Part for Plate Compactors $40.95

1N3308A0003 Multiquip 1N3308A0003 Switch Assembly (JP) - OEM Replacement Part $149.95

455435051 Multiquip 455435051 Piston 22.4D - OEM Replacement Part for Plate Compactors $93.95

458910030 Multiquip 458910030 Grip Set - OEM Replacement Part for Plate Compactors $53.95

460446780 Multiquip 460446780 Clutch Assembly 18MM Bore - OEM Replacement Part $213.95

460449160 Multiquip 460449160 Gauge Oil - OEM Replacement Part $36.95

463117110 Multiquip 463117110 Plate Vibrating MVHR-60H - OEM Replacement Part $655.95

463117150 Multiquip 463117150 Case Vibrating MVHR-60H - OEM Replacement Part $781.95

463216110 Multiquip 463216110 Cover Belt MVHR-60H - OEM Replacement Part for Plate Compactors $106.95

463216120 Multiquip 463216120 Dust Cover - OEM Replacement Part for Plate Compactors $38.95

463342040 Multiquip 463342040 Rotary Shaft Drive MVHR-60H - OEM Replacement Part $232.95

463342050 Multiquip 463342050 Rotary Shaft Driven MVHR-60H - OEM Replacement Part for Plate Compactors $203.95

463342060 Multiquip 463342060 Gear Drive MVHR-60H - OEM Replacement Part for Plate Compactors $117.95

463342070 Multiquip 463342070 Gear Driven MVHR-60H - OEM Replacement Part $290.95

463342080 Multiquip 463342080 Rod Piston MVHR-60H - OEM Replacement Part for Plate Compactors $106.95

463455930 Multiquip 463455930 Bearing Cover MVHR-60H - OEM Replacement Part $85.95

954407090 Multiquip 954407090 Water Valve Hook Angle Type M8 MVHR-60H - OEM Replacement Part $61.95

WTANKR60 Multiquip WTANKR60 Water Tank 8.5L Black - OEM Replacement Part $321.95

001220620 BOLT, 6X20

001220820 BOLT, 8X20 $1.49

001221464 BOLT, 14X120

001241030 BOLT, 10X30 $3.95

001520530 SOCKET HEAD BOLT, 5X30 $0.77

001520640 SOCKET HEAD BOLT, 6X40 $1.38

001521030 SOCKET HEAD BOLT, 10X30 $1.95

001521060 SOCKET HEAD BOLT, 10X100 $6.95

009110060 SOCKET HEAD BOLT, 6X15

009110103 SOCKET HEAD SCREW, 8X12

009110117 SOCKET HEAD SCREW, 6X15

009110118 SOCKET HEAD BOLT, 8X60

009120304 SOCKET HEAD BOLT, 10X25 $2.62

009120408 SUNK HEAD BOLT, 8X20 $1.95

009120414 SUNK HEAD BOLT, 6X20

0105050616 BOLT, 6X15 $0.45

011008015 BOLT, 8X15 $0.85

011208025 BOLT, 8X25 $0.41

012010030 BOLT, 10X30 $0.95

012012030 BOLT, 12X30 $2.95

014208020 SOCKET HEAD BOLT, 8X20 $0.77

020106050 NUT, M6 $0.12

020310080 NUT, M10 $1.67

020314110 NUT, M14 $2.95

022130806 CAP NUT, M8 $1.51

022610808 FLANGE NUT, M8 $0.79

022710607 NYLON NUT, M6 $0.87

022910220 WING NUT, M12 $5.95

022910270 NUT, M10 $3.95

025402516 PIN, SPRING 2.5X16 $1.30

025508045 PIN, 8X45 $4.95

030205130 WASHER, LOCK M5 $0.26

030206150 WASHER, LOCK M6 $0.07

030208200 WASHER, LOCK M8 $0.23

030210250 WASHER, LOCK M10 $0.28

031114260 WASHER, FLAT M14 $0.69

032114250 CONICAL SPRING WASHER, M14

033910160 WASHER, FLAT M10 $0.94

0401450080 WASHER, FLAT M8 $0.56

0401450200 WASHER, FLAT M20 $0.33

042006000 BEARING $12.95

042006006 BEARING $30.95

060202040 OIL SEAL $13.95

080100190 STOP RING, R-19 $1.51

080100260 STOP RING, R-26 $1.95

080200300 SNAP RING $1.71

080200350 STOP RING, S-35 $2.95

080600550 CLIP $6.95

092006010 FLAT HEAD SCREW, 6X10 $0.26

1D1438B0A01 LABEL; CAUTION(A) EXP/eGX

1F2228A0600 BRACKET, HARN CLIP A

1N3118A0003 SWITCH ASSEMBLY, POWER

1N4218A0003 LAMP ASSEMBLY, IND (ORANGE)

1N4228A0003 LAMP ASSEMBLY, IND (RED)

1N4238A0003 LAMP ASSEMBLY, IND (GREEN)

421220330 SWITCH BOX

421357130 SWITCH BOX PANEL

421473430 CUSHION, 30X80

421473440 CUSHION, 55X85

454010020 CLAMP $1.40

455010070 PACKING $17.95

458450660 WASHER $2.95

458450880 SPRING, 1.2-10-29 $25.95

458451630 BREATHER CAP $5.95

463219840 HAND PUMP ASSEMBLY

463342130OR TRAVEL LEVER (ORANGE)

463342172 AXLE

463342849OR HANDLE (ORANGE)

463349940 CYLINDER, SLIPPAGE TYPE

463456570 STAY, L TYPE

463456580 WATER HOSE

463462920 HANDLE MOUNT NUT $26.95

463471200 SPRING, 1.2D

463910050 SPRINKLING PIPE ASSEMBLY

473122960OR BASE (ORANGE)

473122970 BELT COVER

473122980 GUARD FRAME

473122990 TOP COVER

473357270 SWITCH BOX HOLDER

473357280 SPONGE, INNER, DUST COVER

473357290 SPONGE, DUST COVER

473357300 TOP COVER HINGE (L)

473357310 TOP COVER HINGE (R)

473357320 HANDLE STAY (L)

473357330 HANDLE STAY (R)

473357340 PULLEY

473357350OR BRACKET, HANDLE (ORANGE)

473473650 RUBBER COVER

473473660 PLATE, RUBBER COVER

473473670 HINGE PIN, 14

473473680 GROMMET

473473690 WASHER

473474570 ECCENT. ROTATOR, DRIVE

473474580 ECCENT. ROTATOR, DRIVEN

515910050 CAP ASSEMBLY, WITH BOLT/WASHER $5.95

58151 WASHER, FLAT M5 $0.41

601058A0000 TRAY, BATTERY

601078A0000 HOOK, BATTERY

601238A0600 STAY, CONNECTOR

608018A0000 RUBBER, BATTERY MOUNT

608068A0600 CAP, HOLE 8MM

609028A0000ZA LAVER, FASTENER $46.30

609038A0000 WIRE, FASTENER $29.73

609048A0000 PIN, LOCK LEVER $23.46

611058A0600ZB COVER, BATTERY TRAY NH1 (BLACK)

875168A0620 MARK; OPER. CAUTION (E)

875218A0600 MARK; EMBLEM

875238A0600 MARK; ELECTRIC PW

900028A0000 BOLT, SPECIAL 6X16

90007892000 BOLT, FLANGE 5X12

912721601 HONDA GXE2.0H ELEC. MOTOR (INTEGR.)

920108850 DECAL; M-MARK Y-40X80

920113430 DECAL; MIKASA MARK 125MM

920201580 DECAL; MQ MARK 71X55 $3.95

920201950 DECAL; OIL SAE 10W-30 $0.95

920207590 DECAL; V-BELT (RPF-3310) $2.95

920210330 DECAL; EC NOISE REQ. LWA105 $1.71

920211090 DECAL; SHELL TELLUS OIL 32 $1.95

920222240 DECAL; PROPOSITION 65 $3.95

920224360 DECAL; START-STOP/eGX

920224370 DECAL; NAMEPLATE /eR60 /MQ

920224390 DECAL; LED/e60

920224430 DECAL; MVH-eR60 /ORANGE

920224690 DECAL; EARTH SMART

920224720 DECAL; COMBI. CAUTION /eR60

920224750 DECAL; MQ 3 YEAR WARRANTY $5.95

920224760 DECAL; CAUTION RAINY AND WASH

920224780 DECAL; NEUTRAL OPERATION/EN

920900180 DECAL; SET TWO KINDS

939010220 SHOCK ABSORBER, STOPPER $20.95

939010420 SHOCK ABSORBER $20.95

941010400 CLUTCH PULLEY

943920080 CLUTCH SHAFT

9454004018 E RING, 4 $5.95

951405240 KEY, 7X7X19 $11.95

951405460 KEY, 10X8X19 $4.95

952400130 WASHER $13.95

952401660 WASHER $0.85

952410640 WASHER,15X30X1.0

952410650 RUBBER BUSHING, 14X20X20

952410670 WASHER, 6.5X20X2.3

953404600 COPPER PACKING, 8X16X2 $4.95

953405260 COPPER PACKING, 1/4 $7.95

953407410 PACKING, 8X15X2 $2.95

953409110 BRUSH CLIP $0.55

953410660 RUBBER CUSHION, 14

954002250 OIL HOSE

954003150 MALE CONNECTOR, O-RING 1/4 $6.95

954010020 CONNECTOR $11.95

954300343 CAP, WATER TANK

954404230 CLAMP $4.95

954405680 CONNECTOR, 1/4X10 $5.95

954410020 CLAMP, D6.5XL95XT0.8

957010801608 BOLT, FLANGE 8X16

957010802008 BOLT, FLANGE 8X20

959029802 CORRUGATE TUBE, 10MM-250L

959404311 WHEEL, 150X42

959410810 CLIP, 11 (M8)

966000601208 BOLT, SOCKET 6X12

COLLAR 1

MCB0190 BATTERY CHARGER $1,134.52

MCB7210 BATTERY PACK, LITHIUM-ION 72V 10AH $2,514.25

From the guides desk

Guide · 2026-08-04

Multiquip Plate Compactor Maintenance Guide

Keep your Multiquip plate compactor running at full strength. Practical maintenance intervals, service specs, and storage steps for contr...

Read it →

Ask ARIA about your machine.

Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.

Chat with ARIA

Multiquip MVHeR60 Plate Compactor

The parts bench

The machine itself

Machine

Engine

Keep-it-running spares

Every part that fits this machine

Service notices & part changes

Take the factory book with you

Get the download pack

From the guides desk

Multiquip Plate Compactor Maintenance Guide

Ask ARIA about your machine.

Your cart is empty

Your cart is empty
