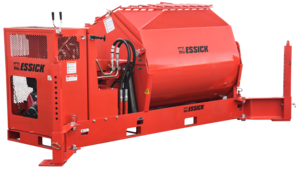

Multiquip PRO20 Stationary Plaster/Mortar Mixer

Name: Multiquip PRO20 Stationary Plaster/Mortar Mixer
Brand: Multiquip
SKU: PRO20
Price: 20394.0 USD
Availability: OutOfStock

The parts bench

Need the PDF? ↓

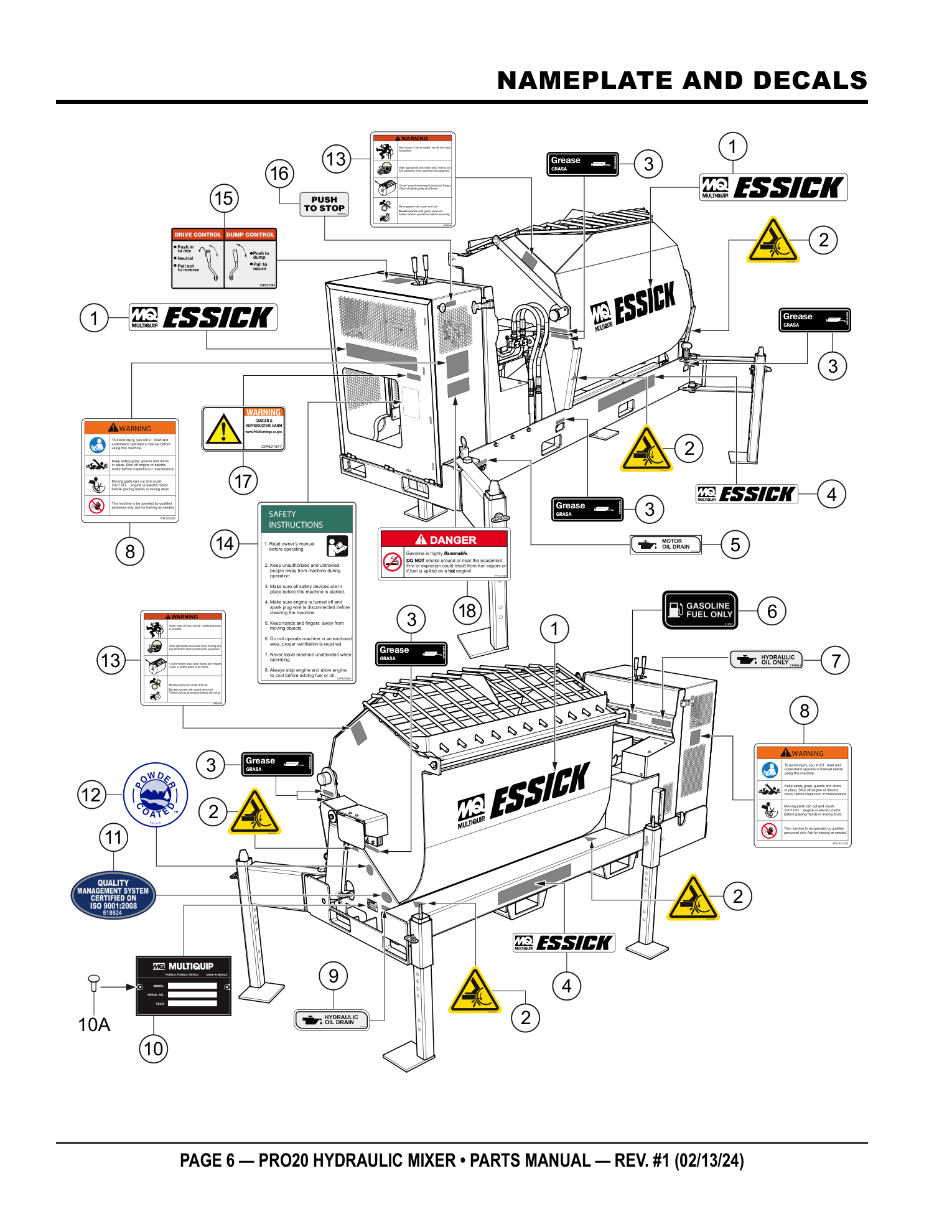

Page 6 — UNKNOWN

Multiquip PRO20 Stationary Plaster/Mortar Mixer UNKNOWN parts diagram

Parts list — exactly as printed19 rows

No.	Part No.	Part Name	Qty	Remarks
1	EM510883	DECAL: ESSICK LG	1		ADD TO CART
DECAL: ESSICK LG EM510883 · qty on machine: 1 view full part page → $4.95
2	521303	DECAL: PINCH POINT	5		PARTS REQUEST
PHOTO COMING DECAL: PINCH POINT 521303 · qty on machine: 5 PARTS REQUEST
3	491999	DECAL: GREASE	6		ADD TO CART
DECAL: GREASE 491999 · qty on machine: 6 view full part page → $0.47
4	EM510891	DECAL: MQ ESSICK MEDIUM	2		ADD TO CART
DECAL: MQ ESSICK MEDIUM EM510891 · qty on machine: 2 view full part page → $2.73
5	521292	DECAL: MOTOR OIL DRAIN	1		PARTS REQUEST
PHOTO COMING DECAL: MOTOR OIL DRAIN 521292 · qty on machine: 1 PARTS REQUEST
6	511727	DECAL: GASOLINE FUEL ONLY	1		PARTS REQUEST
PHOTO COMING DECAL: GASOLINE FUEL ONLY 511727 · qty on machine: 1 PARTS REQUEST
7	EM985	DECAL: HYDRAULIC OIL ONLY PLASTIFIED	1		ADD TO CART
DECAL: HYDRAULIC OIL ONLY PLASTIFIED EM985 · qty on machine: 1 view full part page → $1.84
8	521229	DECAL: WARNING	2		ADD TO CART
DECAL: WARNING 521229 · qty on machine: 2 view full part page → $6.95
9	521291	DECAL: HYDRAULIC OIL DRAIN	1		PARTS REQUEST
PHOTO COMING DECAL: HYDRAULIC OIL DRAIN 521291 · qty on machine: 1 PARTS REQUEST
10	948008	PLATE, SERIAL NUMBER	1	CONTACT MQ PARTS DEPT.	ADD TO CART
PLATE, SERIAL NUMBER 948008 · qty on machine: 1 CONTACT MQ PARTS DEPT. view full part page → $3.53
10A	491757	POP RIVET	2		ADD TO CART
POP RIVET 491757 · qty on machine: 2 view full part page → $0.14
11	518524	DECAL: ISO 9001:2000 EXPORT	1		ADD TO CART
DECAL: ISO 9001:2000 EXPORT 518524 · qty on machine: 1 view full part page → $0.59
12	513118	DECAL: POWDER COATED	1		PARTS REQUEST
PHOTO COMING DECAL: POWDER COATED 513118 · qty on machine: 1 PARTS REQUEST
13	521230	DECAL: PREVENT ACCIDENTS	2		ADD TO CART
DECAL: PREVENT ACCIDENTS 521230 · qty on machine: 2 view full part page → $9.95
14	520935	DECAL: SAFETY INSTRUCTIONS	1		ADD TO CART
DECAL: SAFETY INSTRUCTIONS 520935 · qty on machine: 1 view full part page → $6.95
15	521293	DECAL: DRIVE/DUMP CONTROL	1		ADD TO CART
DECAL: DRIVE/DUMP CONTROL 521293 · qty on machine: 1 view full part page → $4.95
16	EM948630	DECAL: PUSH TO STOP	1		ADD TO CART
DECAL: PUSH TO STOP EM948630 · qty on machine: 1 view full part page → $1.44
17	521817	DECAL: WARNING CANCER CA PROP. 65	1		PARTS REQUEST
PHOTO COMING DECAL: WARNING CANCER CA PROP. 65 521817 · qty on machine: 1 PARTS REQUEST
18	521228	DECAL: DANGER GAS IS HIGHLY FLAMABL.	1		ADD TO CART
DECAL: DANGER GAS IS HIGHLY FLAMABL. 521228 · qty on machine: 1 view full part page → $1.95

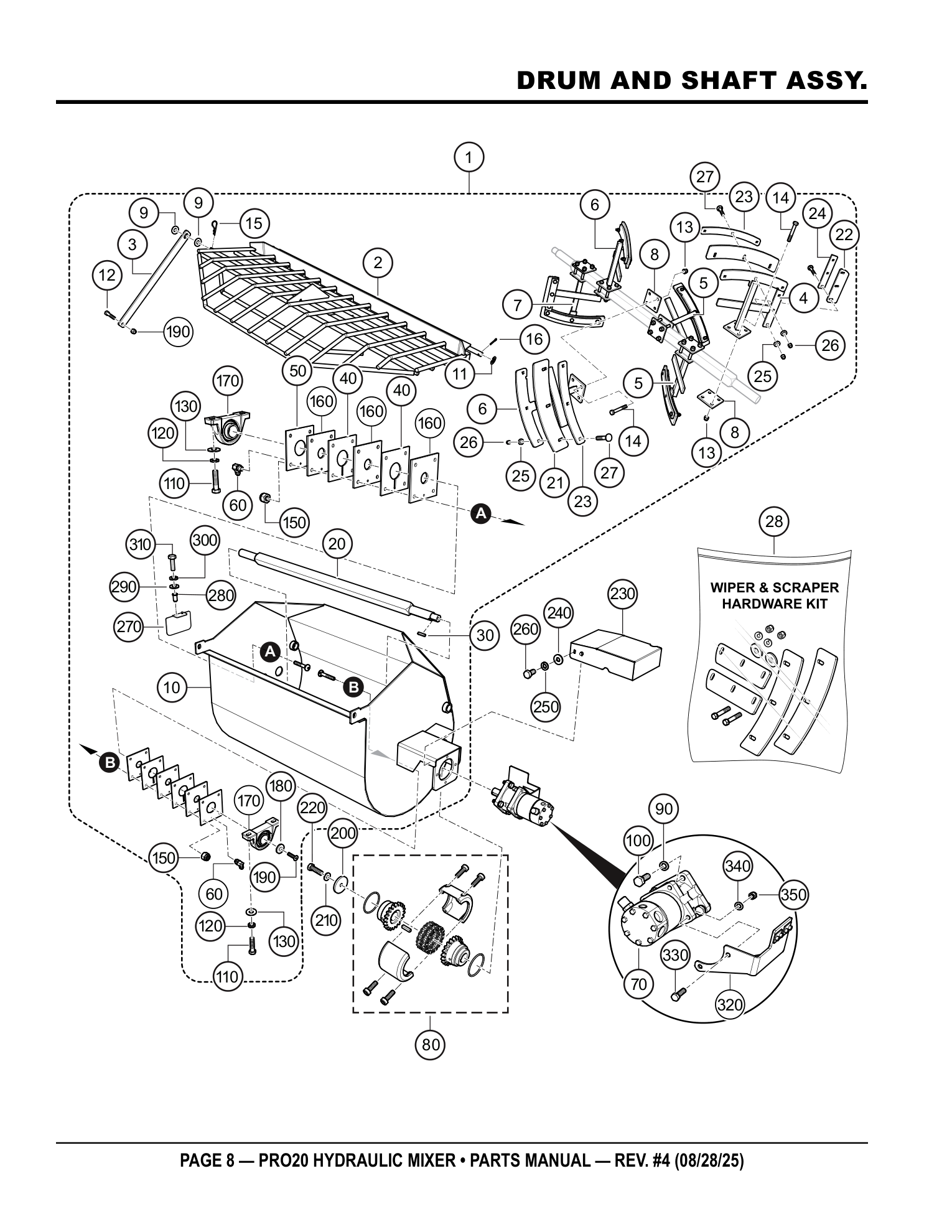

Page 8 — DRUM AND SHAFT ASSY.

Multiquip PRO20 Stationary Plaster/Mortar Mixer DRUM AND SHAFT ASSY. parts diagram

Parts list — exactly as printed43 rows

No.	Part No.	Part Name	Qty	Remarks
1	807690	DRUM AND SHAFT ASSY	1	INCLUDES ITEMS W/@	ADD TO CART
DRUM AND SHAFT ASSY 807690 · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 2@, 3@, 4@, 5@, 6@, 7@, 8@, 9@, 10@, 11@, 12@, 13@, 14@, 15@, 16@, 20@, 21@$, 22@$, 23@$, 24@$, 25@$, 26@$, 27@$, 30@, 40@, 50@, 60@, 110@, 120@, 130@, 140@, 150@, 160@, 170@, 180@, 190@ view full part page → $5553.95 IN A KIT + SOLD SOLO
2@	807388	GRATE	1		ADD TO CART
GRATE 807388 · qty on machine: 1 Also included in kit 1 - DRUM AND SHAFT ASSY (807690) view full part page → $578.95 IN A KIT + SOLD SOLO
3@	807499	BAR, GRATE LATCH	1		ADD TO CART
BAR, GRATE LATCH 807499 · qty on machine: 1 Also included in kit 1 - DRUM AND SHAFT ASSY (807690) view full part page → $30.95 IN A KIT + SOLD SOLO
4@	802452	PADDLE ARM, END	1		ADD TO CART
PADDLE ARM, END 802452 · qty on machine: 1 Also included in kit 1 - DRUM AND SHAFT ASSY (807690) view full part page → $118.95 IN A KIT + SOLD SOLO
5@	802453	PADDLE ARM, CENTER	2		ADD TO CART
PADDLE ARM, CENTER 802453 · qty on machine: 2 Also included in kit 1 - DRUM AND SHAFT ASSY (807690) view full part page → $92.95 IN A KIT + SOLD SOLO
6@	802454	PADDLE ARM, CENTER ENGINE END	2		ADD TO CART
PADDLE ARM, CENTER ENGINE END 802454 · qty on machine: 2 Also included in kit 1 - DRUM AND SHAFT ASSY (807690) view full part page → $92.95 IN A KIT + SOLD SOLO
7@	802455	PADDLE ARM, ENGINE END	1		ADD TO CART
PADDLE ARM, ENGINE END 802455 · qty on machine: 1 Also included in kit 1 - DRUM AND SHAFT ASSY (807690) view full part page → $118.95 IN A KIT + SOLD SOLO
8@	802443	RETAINER BASE, PADDLE ARM	6		ADD TO CART
RETAINER BASE, PADDLE ARM 802443 · qty on machine: 6 Also included in kit 1 - DRUM AND SHAFT ASSY (807690) view full part page → $8.95 IN A KIT + SOLD SOLO
9@	492602	WASHER, FLAT 5/8"	2		ADD TO CART
WASHER, FLAT 5/8" 492602 · qty on machine: 2 Also included in kit 1 - DRUM AND SHAFT ASSY (807690) view full part page → $0.53 IN A KIT + SOLD SOLO
10@	807372	DRUM, BARE 20 CU. FT.	1		PARTS REQUEST
PHOTO COMING DRUM, BARE 20 CU. FT. 807372 · qty on machine: 1 Also included in kit 1 - DRUM AND SHAFT ASSY (807690) PARTS REQUEST
11@	507444	WASHER, FLAT 3/4" (SPACER)	2		ADD TO CART
WASHER, FLAT 3/4" (SPACER) 507444 · qty on machine: 2 Also included in kit 1 - DRUM AND SHAFT ASSY (807690) view full part page → $1.71 IN A KIT + SOLD SOLO
12@	492378	HEX HD. BOLT 3/8" X 1-3/4" NC	1		ADD TO CART
HEX HD. BOLT 3/8" X 1-3/4" NC 492378 · qty on machine: 1 Also included in kit 1 - DRUM AND SHAFT ASSY (807690) view full part page → $0.69 IN A KIT + SOLD SOLO
13@	492584	NYLON INSERT NUT 1/2" NC GRD 5	24		ADD TO CART
NYLON INSERT NUT 1/2" NC GRD 5 492584 · qty on machine: 24 Also included in kit 1 - DRUM AND SHAFT ASSY (807690) view full part page → $0.45 IN A KIT + SOLD SOLO
14@	492400	HEX HD. BOLT 1/2" X 3-1/2" NC GRD 5	24		PARTS REQUEST
PHOTO COMING HEX HD. BOLT 1/2" X 3-1/2" NC GRD 5 492400 · qty on machine: 24 Also included in kit 1 - DRUM AND SHAFT ASSY (807690) PARTS REQUEST
15@	EM745	HAIR PIN 5/8-3/4"	1		ADD TO CART
HAIR PIN 5/8-3/4" EM745 · qty on machine: 1 Also included in kit 1 - DRUM AND SHAFT ASSY (807690) view full part page → $0.56 IN A KIT + SOLD SOLO
16@	491692	PIN COTTER 3/16" X 1.1/4" G. (CAD)	2		ADD TO CART
PIN COTTER 3/16" X 1.1/4" G. (CAD) 491692 · qty on machine: 2 Also included in kit 1 - DRUM AND SHAFT ASSY (807690) view full part page → $1.35 IN A KIT + SOLD SOLO
20@	807373	DRUM SHAFT	1		ADD TO CART
DRUM SHAFT 807373 · qty on machine: 1 Also included in kit 1 - DRUM AND SHAFT ASSY (807690) view full part page → $503.95 IN A KIT + SOLD SOLO
21@$	802447	RUBBER BLADE, SIDE	6		ADD TO CART
RUBBER BLADE, SIDE 802447 · qty on machine: 6 Also included in kit 1 - DRUM AND SHAFT ASSY (807690); kit 28 - KIT, RUBBER BLADES, SCRAPE (807692) view full part page → $32.37 IN A KIT + SOLD SOLO
22@$	802448	RUBBER BLADE, END	2		ADD TO CART
RUBBER BLADE, END 802448 · qty on machine: 2 Also included in kit 1 - DRUM AND SHAFT ASSY (807690); kit 28 - KIT, RUBBER BLADES, SCRAPE (807692) view full part page → $16.66 IN A KIT + SOLD SOLO
23@$	802451	STEEL BLADE, SIDE	6		ADD TO CART
STEEL BLADE, SIDE 802451 · qty on machine: 6 Also included in kit 1 - DRUM AND SHAFT ASSY (807690); kit 28 - KIT, RUBBER BLADES, SCRAPE (807692) view full part page → $33.14 IN A KIT + SOLD SOLO
24@$	802449	STEEL BLADE, END	2		ADD TO CART
STEEL BLADE, END 802449 · qty on machine: 2 Also included in kit 1 - DRUM AND SHAFT ASSY (807690); kit 28 - KIT, RUBBER BLADES, SCRAPE (807692) view full part page → $23.19 IN A KIT + SOLD SOLO
25@$	492598	FLAT WASHER 3/8"	24		PARTS REQUEST
PHOTO COMING FLAT WASHER 3/8" 492598 · qty on machine: 24 Also included in kit 1 - DRUM AND SHAFT ASSY (807690); kit 28 - KIT, RUBBER BLADES, SCRAPE (807692) PARTS REQUEST
26@$	492583	NYLON INSERT NUT 3/8" NC	25		PARTS REQUEST
PHOTO COMING NYLON INSERT NUT 3/8" NC 492583 · qty on machine: 25 Also included in kit 1 - DRUM AND SHAFT ASSY (807690); kit 28 - KIT, RUBBER BLADES, SCRAPE (807692) PARTS REQUEST
27@$	505883	SCREW, 3/8-NC X 2" GRD5	24		ADD TO CART
SCREW, 3/8-NC X 2" GRD5 505883 · qty on machine: 24 Also included in kit 1 - DRUM AND SHAFT ASSY (807690); kit 28 - KIT, RUBBER BLADES, SCRAPE (807692) view full part page → $0.66 IN A KIT + SOLD SOLO
28	807692	KIT, RUBBER BLADES, SCRAPERS, HWD	1	INCLUDES ITEMS W/$	ADD TO CART
KIT, RUBBER BLADES, SCRAPERS, HWD 807692 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 21@$, 22@$, 23@$, 24@$, 25@$, 26@$, 27@$ view full part page → $534.95 IN A KIT + SOLD SOLO
30@	500461	WEDGE 3/8" X 40 MM	1		NO LONGER AVAILABLE
PHOTO COMING WEDGE 3/8" X 40 MM 500461 · qty on machine: 1 Also included in kit 1 - DRUM AND SHAFT ASSY (807690) NO LONGER AVAILABLE
40@	802367	SEPARATOR SHAFT SEALS	4		ADD TO CART
SEPARATOR SHAFT SEALS 802367 · qty on machine: 4 Also included in kit 1 - DRUM AND SHAFT ASSY (807690) view full part page → $17.95 IN A KIT + SOLD SOLO
50@	802368	SHAFT SEALS COVER	2		ADD TO CART
SHAFT SEALS COVER 802368 · qty on machine: 2 Also included in kit 1 - DRUM AND SHAFT ASSY (807690) view full part page → $16.95 IN A KIT + SOLD SOLO
60@	491704	90° FITTING ZERK 1/4" NF	2		PARTS REQUEST
PHOTO COMING 90° FITTING ZERK 1/4" NF 491704 · qty on machine: 2 Also included in kit 1 - DRUM AND SHAFT ASSY (807690) PARTS REQUEST
70	807454	HYDRAULIC MOTOR	1		ADD TO CART
HYDRAULIC MOTOR 807454 · qty on machine: 1 view full part page → $2009.95
80	807443	ROLLER CHAIN COUPLING	1		ADD TO CART
ROLLER CHAIN COUPLING 807443 · qty on machine: 1 view full part page → $686.95
90	492627	WASHER, LOCK 5/8"	4		PARTS REQUEST
PHOTO COMING WASHER, LOCK 5/8" 492627 · qty on machine: 4 PARTS REQUEST
100	530298	HEX HD. BOLT 5/8" X 1-3/4" NC GRD 5	4		ADD TO CART
HEX HD. BOLT 5/8" X 1-3/4" NC GRD 5 530298 · qty on machine: 4 view full part page → $2.66
110@	492396	HEX HD. BOLT 1/2"X 2" NC GRD 5	4		PARTS REQUEST
PHOTO COMING HEX HD. BOLT 1/2"X 2" NC GRD 5 492396 · qty on machine: 4 Also included in kit 1 - DRUM AND SHAFT ASSY (807690) PARTS REQUEST
120@	492626	WASHER, LOCK 1/2"	4		PARTS REQUEST
PHOTO COMING WASHER, LOCK 1/2" 492626 · qty on machine: 4 Also included in kit 1 - DRUM AND SHAFT ASSY (807690) PARTS REQUEST
130@	492599	WASHER, FLAT 1/2"	4		PARTS REQUEST
PHOTO COMING WASHER, FLAT 1/2" 492599 · qty on machine: 4 Also included in kit 1 - DRUM AND SHAFT ASSY (807690) PARTS REQUEST
140@	521312	BOLT 3/8"X 2.1/4" NC GRD 5	8		PARTS REQUEST
PHOTO COMING BOLT 3/8"X 2.1/4" NC GRD 5 521312 · qty on machine: 8 Also included in kit 1 - DRUM AND SHAFT ASSY (807690) PARTS REQUEST
150@	492583	NYLON INSERT NUT 3/8" NC G8	8		PARTS REQUEST
PHOTO COMING NYLON INSERT NUT 3/8" NC G8 492583 · qty on machine: 8 Also included in kit 1 - DRUM AND SHAFT ASSY (807690) PARTS REQUEST
160@	802366	URETHANE SEAL	6		ADD TO CART
URETHANE SEAL 802366 · qty on machine: 6 Also included in kit 1 - DRUM AND SHAFT ASSY (807690) view full part page → $19.95 IN A KIT + SOLD SOLO
170@	802415	PILLOW BLOCK	2		ADD TO CART
PILLOW BLOCK 802415 · qty on machine: 2 Also included in kit 1 - DRUM AND SHAFT ASSY (807690) view full part page → $101.95 IN A KIT + SOLD SOLO
180@	802667	COUNTERSUNK WASHER 5/16"	1		ADD TO CART
COUNTERSUNK WASHER 5/16" 802667 · qty on machine: 1 Also included in kit 1 - DRUM AND SHAFT ASSY (807690) view full part page → $10.95 IN A KIT + SOLD SOLO
190@	506176	FLAT HD. BOLT 5/16" X 1" NC GRD 8.8	1		ADD TO CART
FLAT HD. BOLT 5/16" X 1" NC GRD 8.8 506176 · qty on machine: 1 Also included in kit 1 - DRUM AND SHAFT ASSY (807690) view full part page → $1.61 IN A KIT + SOLD SOLO
200	807403	WASHER, FLAT 3/8" LARGE	1		PARTS REQUEST
PHOTO COMING WASHER, FLAT 3/8" LARGE 807403 · qty on machine: 1 PARTS REQUEST

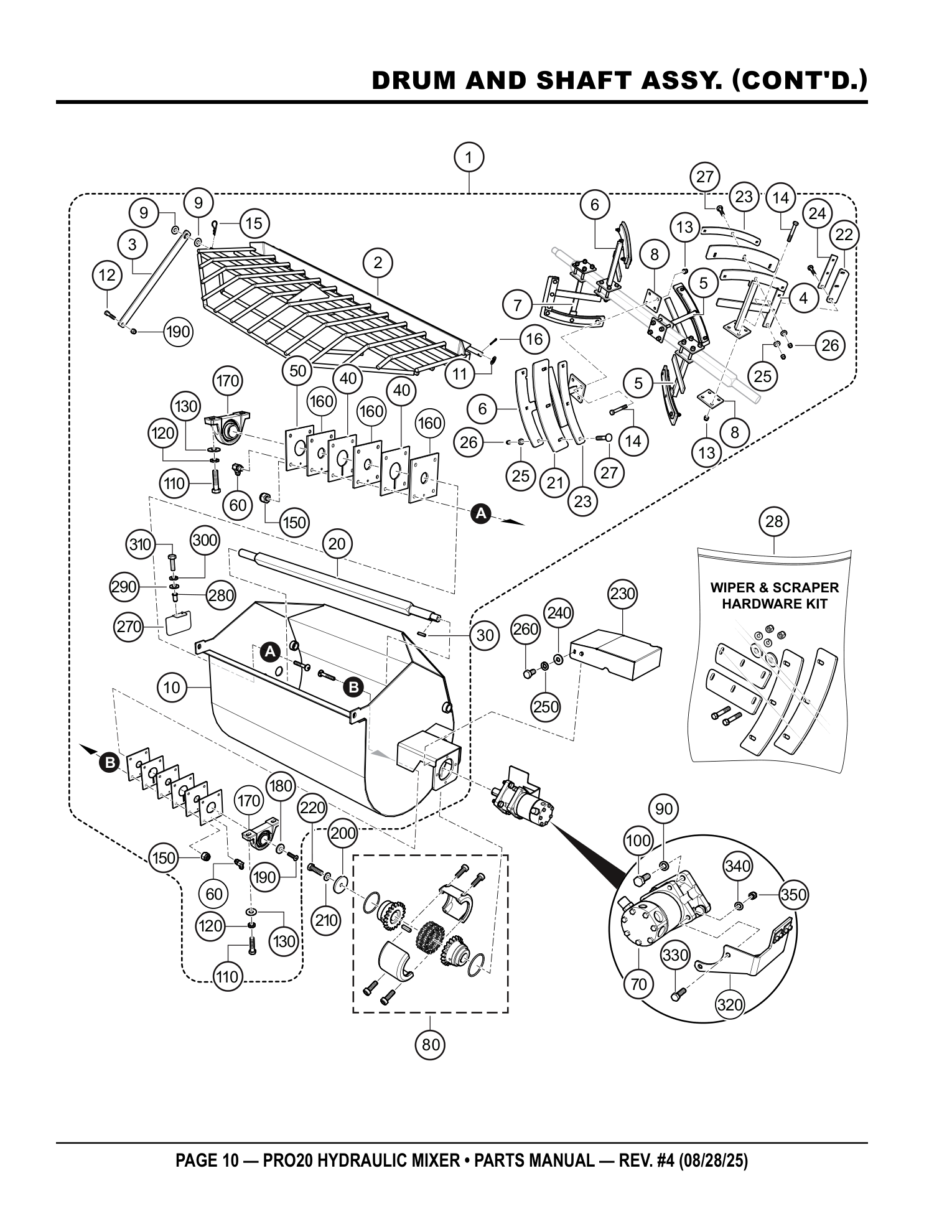

Page 10 — DRUM AND SHAFT ASSY. (CONT'D.)

Multiquip PRO20 Stationary Plaster/Mortar Mixer DRUM AND SHAFT ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed15 rows

No.	Part No.	Part Name	Qty
210	492598	WASHER, FLAT 3/8" SMALL	1	PARTS REQUEST
PHOTO COMING WASHER, FLAT 3/8" SMALL 492598 · qty on machine: 1 PARTS REQUEST
220	492376	HEX HD. BOLT 3/8" X 1-1/4" NC GRD5	1	PARTS REQUEST
PHOTO COMING HEX HD. BOLT 3/8" X 1-1/4" NC GRD5 492376 · qty on machine: 1 PARTS REQUEST
230	807400	HYDRAULIC MOTOR COVER	1	ADD TO CART
HYDRAULIC MOTOR COVER 807400 · qty on machine: 1 view full part page → $2523.37
240	509161	WASHER, FLAT 5/16"	4	NO LONGER AVAILABLE
PHOTO COMING WASHER, FLAT 5/16" 509161 · qty on machine: 4 NO LONGER AVAILABLE
250	492623	WASHER, LOCK 5/16"	4	PARTS REQUEST
PHOTO COMING WASHER, LOCK 5/16" 492623 · qty on machine: 4 PARTS REQUEST
260	492362	HEX HD. BOLT 5/16"X 5/8" NC GRD 5	4	ADD TO CART
HEX HD. BOLT 5/16"X 5/8" NC GRD 5 492362 · qty on machine: 4 Kit includes: 270@, 280@, 290@, 300@, 310@ view full part page → $0.45 IN A KIT + SOLD SOLO
270@	804004	COVER DRUM BEARING	1	PARTS REQUEST
PHOTO COMING COVER DRUM BEARING 804004 · qty on machine: 1 Also included in kit 260 - HEX HD. BOLT 5/16"X 5/8" N (492362) PARTS REQUEST
280@	DULT100602	BLIND RIVET NUT M6	2	PARTS REQUEST
PHOTO COMING BLIND RIVET NUT M6 DULT100602 · qty on machine: 2 Also included in kit 260 - HEX HD. BOLT 5/16"X 5/8" N (492362) PARTS REQUEST
290@	492595	FLAT WASHER 1/4"	2	ADD TO CART
FLAT WASHER 1/4" 492595 · qty on machine: 2 Also included in kit 260 - HEX HD. BOLT 5/16"X 5/8" N (492362) view full part page → $0.48 IN A KIT + SOLD SOLO
300@	492622	LOCK WASHER 1/4"	2	PARTS REQUEST
PHOTO COMING LOCK WASHER 1/4" 492622 · qty on machine: 2 Also included in kit 260 - HEX HD. BOLT 5/16"X 5/8" N (492362) PARTS REQUEST
310@	DULT100255	HEX HD. BOLT M6 X 20 GRD 8.8	2	PARTS REQUEST
PHOTO COMING HEX HD. BOLT M6 X 20 GRD 8.8 DULT100255 · qty on machine: 2 Also included in kit 260 - HEX HD. BOLT 5/16"X 5/8" N (492362) PARTS REQUEST
320	807562	WELDING SUPPORT HYDRAULIC HOSES	1	PARTS REQUEST
PHOTO COMING WELDING SUPPORT HYDRAULIC HOSES 807562 · qty on machine: 1 PARTS REQUEST
330	492396	HEX HD. BOLT 1/2" X 2" NC GRD 5	2	PARTS REQUEST
PHOTO COMING HEX HD. BOLT 1/2" X 2" NC GRD 5 492396 · qty on machine: 2 PARTS REQUEST
340	504322	WASHER, FLAT 1/2".	2	PARTS REQUEST
PHOTO COMING WASHER, FLAT 1/2". 504322 · qty on machine: 2 PARTS REQUEST
350	492584	NYLON INSERT NUT 1/2" NC GRD 5	2	ADD TO CART
NYLON INSERT NUT 1/2" NC GRD 5 492584 · qty on machine: 2 view full part page → $0.45

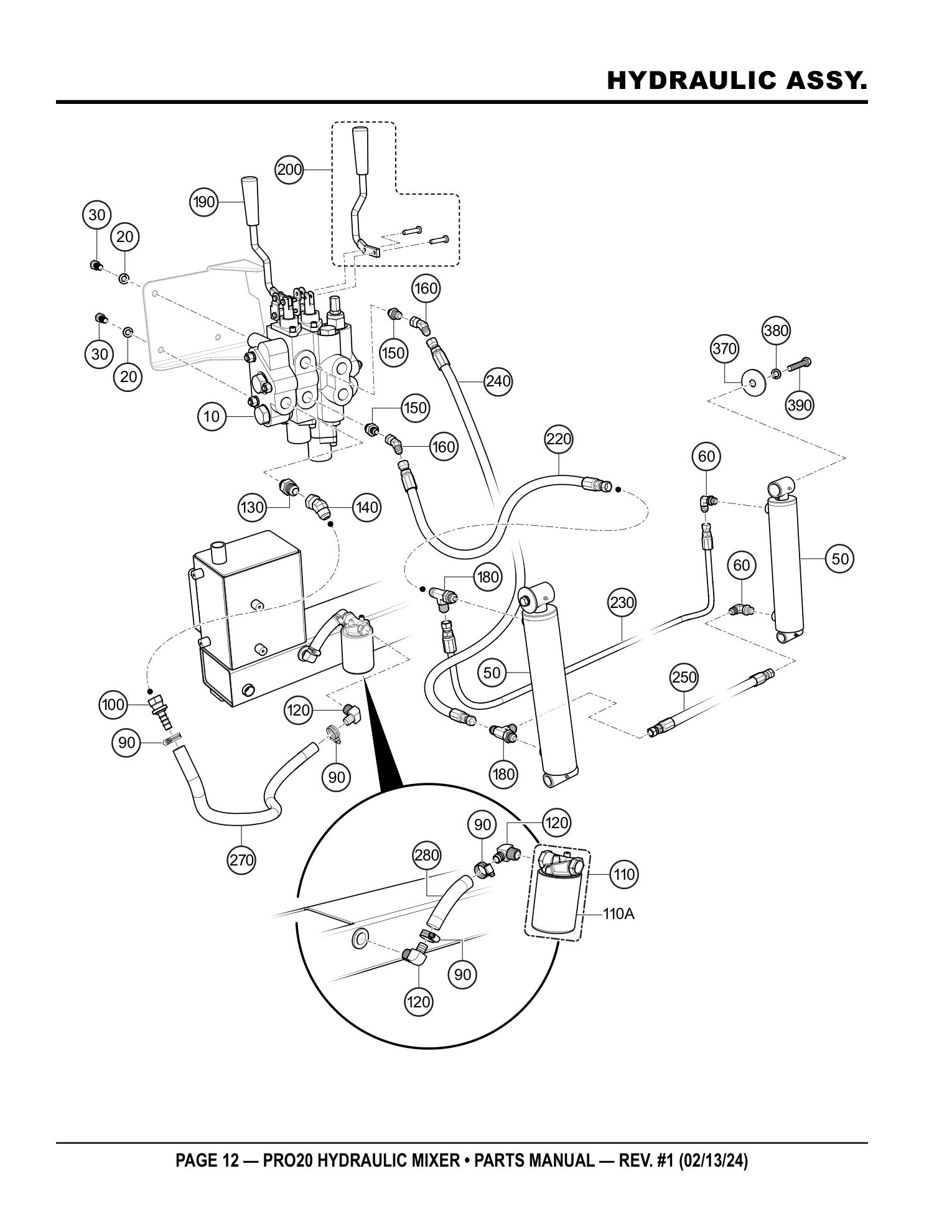

Page 12 — HYDRAULIC ASSY.

Multiquip PRO20 Stationary Plaster/Mortar Mixer HYDRAULIC ASSY. parts diagram

Parts list — exactly as printed26 rows

No.	Part No.	Part Name	Qty	Remarks
10	34585	VALVE, FOUR WAY	1		ADD TO CART
VALVE, FOUR WAY 34585 · qty on machine: 1 view full part page → $903.95
20	0166A	WASHER, LOCK 3/8"	3	REPLACES P/N 492624	ADD TO CART
WASHER, LOCK 3/8" 0166A · qty on machine: 3 REPLACES P/N 492624 view full part page → $0.17
30	EM963055	HEX HD. BOLT 3/8" X 3/4" NC GRD	5	3 REPLACES P/N 492373	ADD TO CART
HEX HD. BOLT 3/8" X 3/4" NC GRD EM963055 · qty on machine: 5 3 REPLACES P/N 492373 view full part page → $0.7
50	802280	HYDRAULIC CYLINDER	2		ADD TO CART
HYDRAULIC CYLINDER 802280 · qty on machine: 2 view full part page → $510.95
60	506196	FITTING, 90° 6 C5OX-S	2		ADD TO CART
FITTING, 90° 6 C5OX-S 506196 · qty on machine: 2 view full part page → $7.95
90	506207	WORM CLAMP	4		ADD TO CART
WORM CLAMP 506207 · qty on machine: 4 view full part page → $3.95
100	511847	BARB FITTING	1		ADD TO CART
BARB FITTING 511847 · qty on machine: 1 view full part page → $24.95
110	522617	FILTER HEAD	1		ADD TO CART
FILTER HEAD 522617 · qty on machine: 1 view full part page → $37.95
110A	508667	ELEMENT, HYD. OIL	1		ADD TO CART
ELEMENT, HYD. OIL 508667 · qty on machine: 1 view full part page → $28.95
120	3367	FITTING, 90° 129HB-12-12	3		ADD TO CART
FITTING, 90° 129HB-12-12 3367 · qty on machine: 3 view full part page → $22.95
130	803224	FITTING, STRAIGHT 12-8 F5OX-S	1		PARTS REQUEST
PHOTO COMING FITTING, STRAIGHT 12-8 F5OX-S 803224 · qty on machine: 1 PARTS REQUEST
140	518198	FITTING, 45° 12 V6X-S	1		PARTS REQUEST
PHOTO COMING FITTING, 45° 12 V6X-S 518198 · qty on machine: 1 PARTS REQUEST
150	512190	FITTING, STRAIGHT 6-8 F5OX-S	2		ADD TO CART
FITTING, STRAIGHT 6-8 F5OX-S 512190 · qty on machine: 2 view full part page → $7.95
160	512234	FITTING, 45° 6 V6X-S	2		ADD TO CART
FITTING, 45° 6 V6X-S 512234 · qty on machine: 2 view full part page → $50.95
180	802938	FITTING, TEE 6 R5OX-S	2		ADD TO CART
FITTING, TEE 6 R5OX-S 802938 · qty on machine: 2 view full part page → $16.95
190	803048	HANDLE, LEFT VALVE W/SCREWS	1		ADD TO CART
HANDLE, LEFT VALVE W/SCREWS 803048 · qty on machine: 1 view full part page → $40.95
200	803049	HANDLE, RIGHT VALVE W/SCREWS	1		ADD TO CART
HANDLE, RIGHT VALVE W/SCREWS 803049 · qty on machine: 1 view full part page → $40.95
220	803001	HOSE, VALVE	1		ADD TO CART
HOSE, VALVE 803001 · qty on machine: 1 view full part page → $58.95
230	807441	HOSE, HYDRAULIC CYLINDER	1		ADD TO CART
HOSE, HYDRAULIC CYLINDER 807441 · qty on machine: 1 view full part page → $74.95
240	803003	HOSE, VALVE	1		ADD TO CART
HOSE, VALVE 803003 · qty on machine: 1 view full part page → $54.95
250	807438	HOSE, CYLINDER	1		PARTS REQUEST
PHOTO COMING HOSE, CYLINDER 807438 · qty on machine: 1 PARTS REQUEST
270	803006	HOSE, FILTER IN	1		ADD TO CART
HOSE, FILTER IN 803006 · qty on machine: 1 view full part page → $96.95
280	803007	HOSE, FILTER OUT	1		ADD TO CART
HOSE, FILTER OUT 803007 · qty on machine: 1 view full part page → $13.95
370	530183	WASHER, FLAT 1/2"	2		PARTS REQUEST
PHOTO COMING WASHER, FLAT 1/2" 530183 · qty on machine: 2 PARTS REQUEST
380	492626	WASHER, LOCK 1/2"	2		PARTS REQUEST
PHOTO COMING WASHER, LOCK 1/2" 492626 · qty on machine: 2 PARTS REQUEST
390	492394	HEX HD. BOLT 1/2"NC X 1-1/2" G5	2		PARTS REQUEST
PHOTO COMING HEX HD. BOLT 1/2"NC X 1-1/2" G5 492394 · qty on machine: 2 PARTS REQUEST

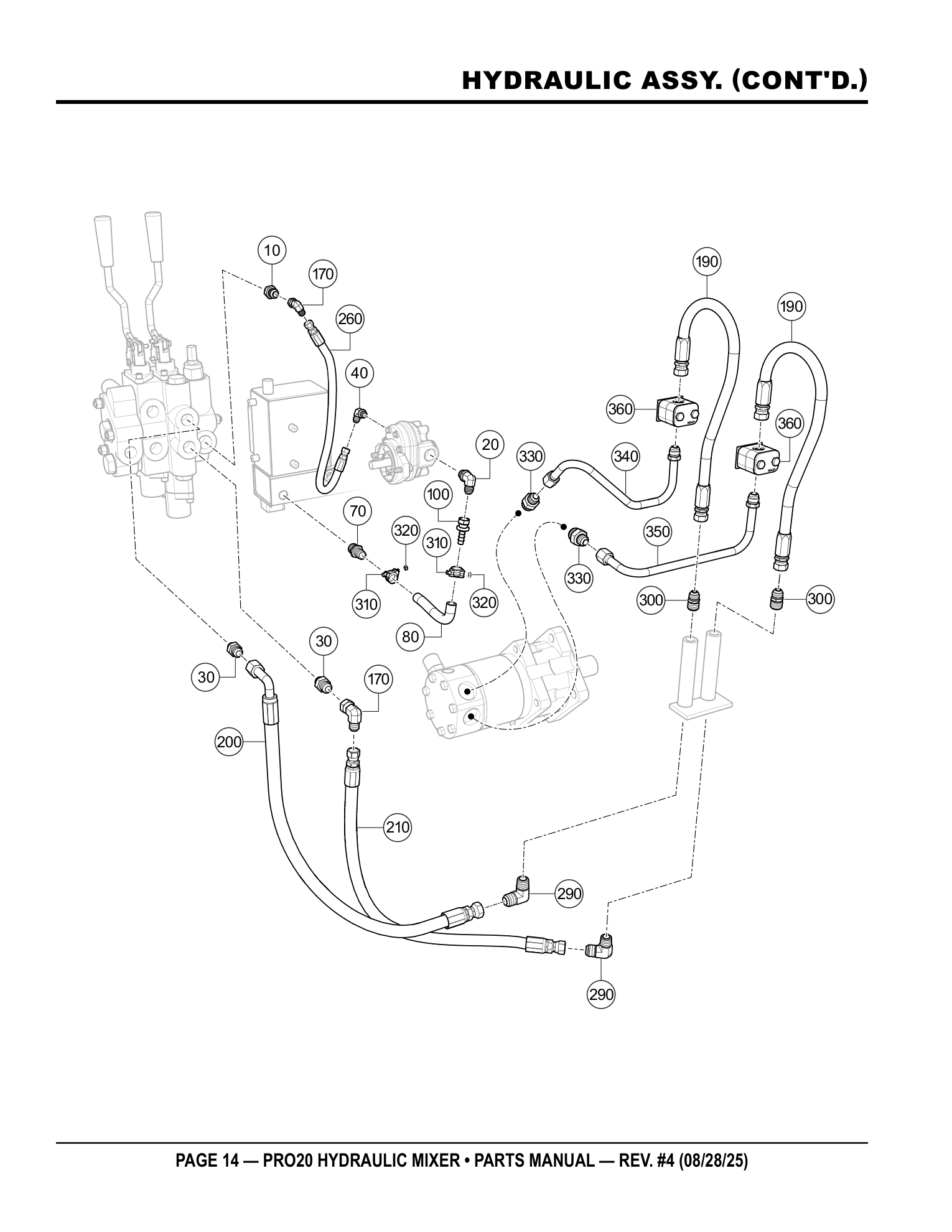

Page 14 — HYDRAULIC ASSY. (CONT'D.)

Multiquip PRO20 Stationary Plaster/Mortar Mixer HYDRAULIC ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed20 rows

No.	Part No.	Part Name	Qty
10	3365	FITTING, STRAIGHT 10 F5OX-S	1	ADD TO CART
FITTING, STRAIGHT 10 F5OX-S 3365 · qty on machine: 1 view full part page → $5.95
20	514488	FITTING, 90° 12 CC5OX-S	1	ADD TO CART
FITTING, 90° 12 CC5OX-S 514488 · qty on machine: 1 Factory replaced this part - current number EM514488 view full part page → $123.95 IN A KIT + SOLD SOLO
30	3314	FITTING, STRAIGHT 10-8 F5OX-S	2	ADD TO CART
FITTING, STRAIGHT 10-8 F5OX-S 3314 · qty on machine: 2 Factory replaced this part - current number 16587 view full part page → $5.95 IN A KIT + SOLD SOLO
40	3322	FITTING, 90° 10 C5OX-S	1	ADD TO CART
FITTING, 90° 10 C5OX-S 3322 · qty on machine: 1 view full part page → $18.95
70	13220	FITTING, STRAIGHT 125HBL-12-1	1	ADD TO CART
FITTING, STRAIGHT 125HBL-12-1 13220 · qty on machine: 1 view full part page → $8.95
80	807859	HOSE, SUCTION	1	PARTS REQUEST
PHOTO COMING HOSE, SUCTION 807859 · qty on machine: 1 PARTS REQUEST
100	511847	BARB FITTING	1	ADD TO CART
BARB FITTING 511847 · qty on machine: 1 view full part page → $24.95
170	512201	FITTING, 90° 10 C6X-S	2	ADD TO CART
FITTING, 90° 10 C6X-S 512201 · qty on machine: 2 view full part page → $9.95
190	803352	HOSE, HYDRAULIC MOTOR	2	ADD TO CART
HOSE, HYDRAULIC MOTOR 803352 · qty on machine: 2 view full part page → $82.95
200	807440	HOSE, VALVE	1	PARTS REQUEST
PHOTO COMING HOSE, VALVE 807440 · qty on machine: 1 PARTS REQUEST
210	803353	HOSE, VALVE	1	ADD TO CART
HOSE, VALVE 803353 · qty on machine: 1 view full part page → $88.95
260	807439	HOSE, VALVE/HYD. MOTOR	1	PARTS REQUEST
PHOTO COMING HOSE, VALVE/HYD. MOTOR 807439 · qty on machine: 1 PARTS REQUEST
290	509784	FITTING, 90° 12CTX-S	2	PARTS REQUEST
PHOTO COMING FITTING, 90° 12CTX-S 509784 · qty on machine: 2 PARTS REQUEST
300	516675	FITTING, STRAIGHT 12 FTX-S	2	PARTS REQUEST
PHOTO COMING FITTING, STRAIGHT 12 FTX-S 516675 · qty on machine: 2 PARTS REQUEST
310	804371	HIGH PRESSURE HOSE CLAMP 1-1/4"	2	PARTS REQUEST
PHOTO COMING HIGH PRESSURE HOSE CLAMP 1-1/4" 804371 · qty on machine: 2 PARTS REQUEST
320	DULT100078	NYLON INSERT NUT M6	2	PARTS REQUEST
PHOTO COMING NYLON INSERT NUT M6 DULT100078 · qty on machine: 2 PARTS REQUEST
330	513548	FITTING, STRAIGHT 10-12 F5OX-S	2	PARTS REQUEST
PHOTO COMING FITTING, STRAIGHT 10-12 F5OX-S 513548 · qty on machine: 2 PARTS REQUEST
340	807502	PIPE, HYDRAULIC MOTOR	1	ADD TO CART
PIPE, HYDRAULIC MOTOR 807502 · qty on machine: 1 view full part page → $310.95
350	807503	PIPE, HYDRAULIC MOTOR	1	ADD TO CART
PIPE, HYDRAULIC MOTOR 807503 · qty on machine: 1 view full part page → $305.95
360	807560	HOSE/PIPE CLAMP 5/8"	2	PARTS REQUEST
PHOTO COMING HOSE/PIPE CLAMP 5/8" 807560 · qty on machine: 2 PARTS REQUEST

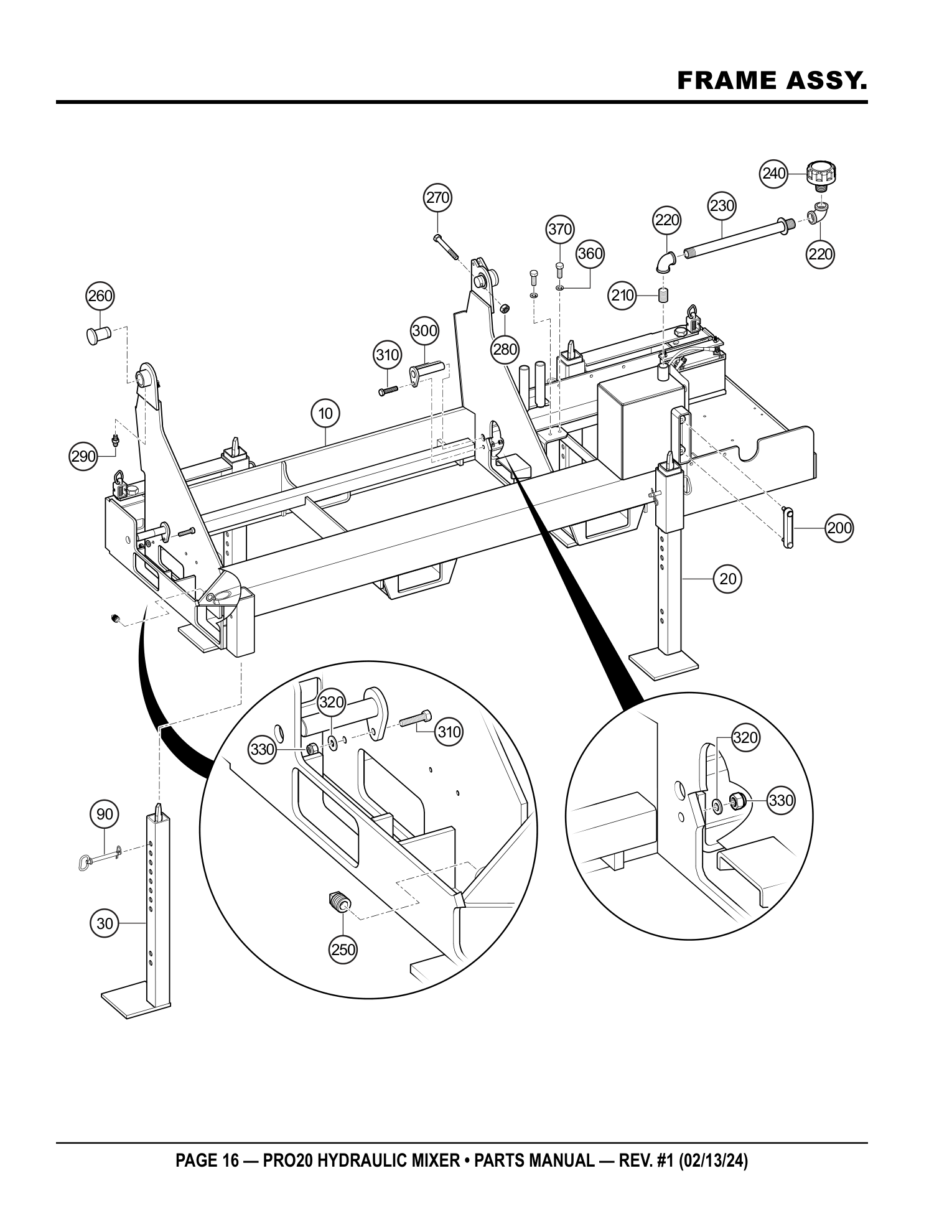

Page 16 — FRAME ASSY.

Multiquip PRO20 Stationary Plaster/Mortar Mixer FRAME ASSY. parts diagram

Parts list — exactly as printed20 rows

No.	Part No.	Part Name	Qty	Remarks
10	807361	FRAME	1		PARTS REQUEST
PHOTO COMING FRAME 807361 · qty on machine: 1 PARTS REQUEST
20	807433	LEG, SUPPORT RIGHT	2		ADD TO CART
LEG, SUPPORT RIGHT 807433 · qty on machine: 2 view full part page → $102.95
30	807434	LEG, SUPPORT LEFT	2		ADD TO CART
LEG, SUPPORT LEFT 807434 · qty on machine: 2 view full part page → $102.95
90	EM744	PIN, 1/2" X 4"	4		ADD TO CART
PIN, 1/2" X 4" EM744 · qty on machine: 4 view full part page → $13.95
200	18052	SIGHT GAUGE	1		ADD TO CART
SIGHT GAUGE 18052 · qty on machine: 1 view full part page → $55.95
210	491189	NIPPLE, PIPE 1" NPT	1		PARTS REQUEST
PHOTO COMING NIPPLE, PIPE 1" NPT 491189 · qty on machine: 1 PARTS REQUEST
220	491160	90° ELBOW	2		PARTS REQUEST
PHOTO COMING 90° ELBOW 491160 · qty on machine: 2 PARTS REQUEST
230	807578	PIPE, 1" NPT X 10" GALV.	1		PARTS REQUEST
PHOTO COMING PIPE, 1" NPT X 10" GALV. 807578 · qty on machine: 1 PARTS REQUEST
240	3353	CAP, FILLER/BREATHER	1		ADD TO CART
CAP, FILLER/BREATHER 3353 · qty on machine: 1 view full part page → $49.95
250	506094	PLUG 1/2" NPT GALV.	1		ADD TO CART
PLUG 1/2" NPT GALV. 506094 · qty on machine: 1 view full part page → $2.95
260	802362	CAP	2		ADD TO CART
CAP 802362 · qty on machine: 2 Factory replaced this part - current number 802362G view full part page → $26.01 IN A KIT + SOLD SOLO
270	520894	BOLT 3/8" X 3" NC GRD 8.8	2		ADD TO CART
BOLT 3/8" X 3" NC GRD 8.8 520894 · qty on machine: 2 view full part page → $0.95
280	492583	NUT, NYLOC 3/8" NC	2		PARTS REQUEST
PHOTO COMING NUT, NYLOC 3/8" NC 492583 · qty on machine: 2 PARTS REQUEST
290	491705	ZERK FITTING 1/4" NF	2		PARTS REQUEST
PHOTO COMING ZERK FITTING 1/4" NF 491705 · qty on machine: 2 PARTS REQUEST
300	802363	RETAINER, CYLINDER	2		ADD TO CART
RETAINER, CYLINDER 802363 · qty on machine: 2 view full part page → $74.95
310	492303	BOLT 5/16" X 1-1/4" NC GRD	5	2 REPLACES P/N 492365	ADD TO CART
BOLT 5/16" X 1-1/4" NC GRD 492303 · qty on machine: 5 2 REPLACES P/N 492365 view full part page → $1.95
320	492596	WASHER, FLAT 5/16"	2		PARTS REQUEST
PHOTO COMING WASHER, FLAT 5/16" 492596 · qty on machine: 2 PARTS REQUEST
330	492582	NUT, NYLOC 5/16" NC	2		PARTS REQUEST
PHOTO COMING NUT, NYLOC 5/16" NC 492582 · qty on machine: 2 PARTS REQUEST
360	492622	WASHER, LOCK 1/4"	2		PARTS REQUEST
PHOTO COMING WASHER, LOCK 1/4" 492622 · qty on machine: 2 PARTS REQUEST
370	492356	BOLT 1/4" X 3/4"	2		ADD TO CART
BOLT 1/4" X 3/4" 492356 · qty on machine: 2 view full part page → $0.5

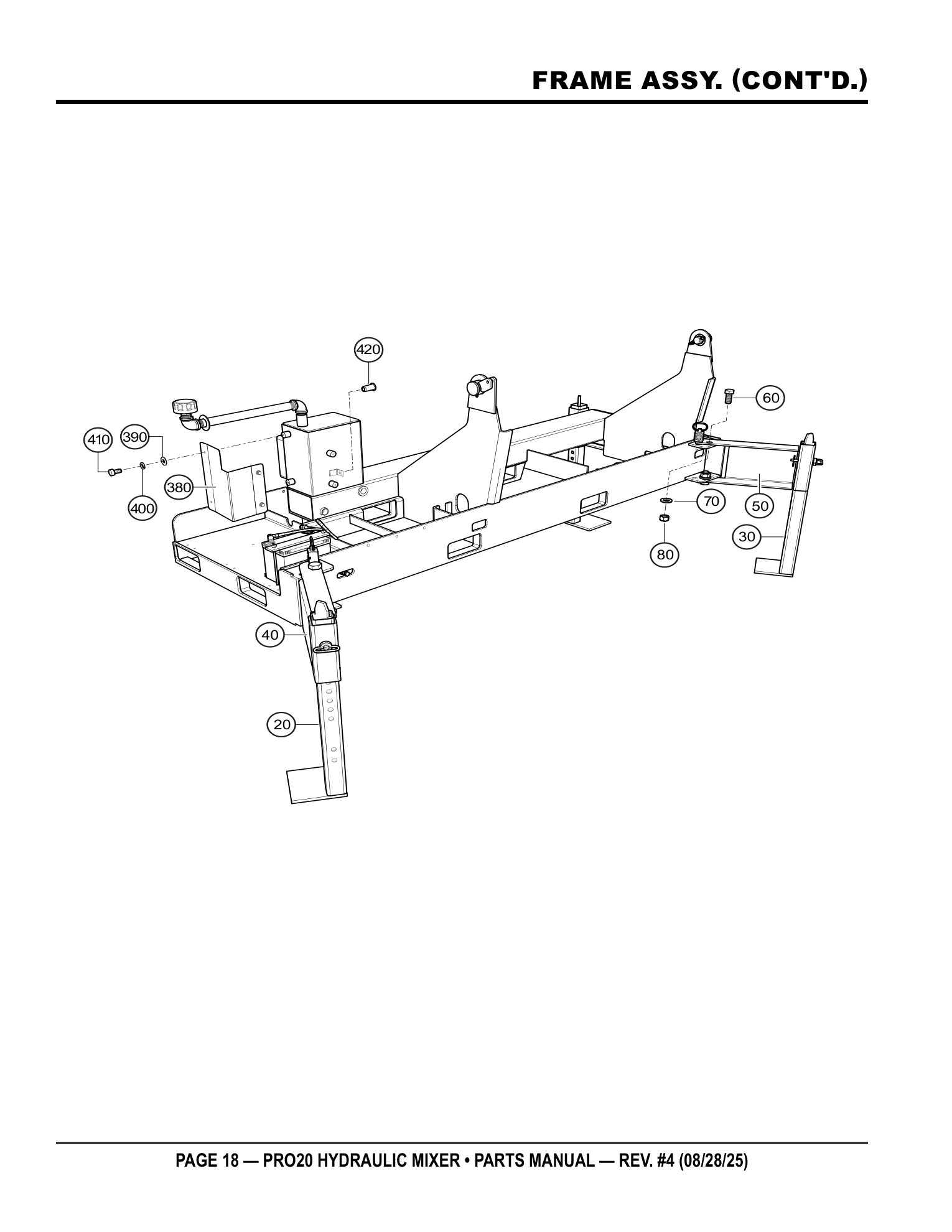

Page 18 — FRAME ASSY. (CONT'D.)

Multiquip PRO20 Stationary Plaster/Mortar Mixer FRAME ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed12 rows

No.	Part No.	Part Name	Qty
20	807433	LEG, SUPPORT RIGHT	2	ADD TO CART
LEG, SUPPORT RIGHT 807433 · qty on machine: 2 view full part page → $102.95
30	807434	LEG, SUPPORT LEFT	2	ADD TO CART
LEG, SUPPORT LEFT 807434 · qty on machine: 2 view full part page → $102.95
40	802331	ARM, STABILIZER LEFT	1	ADD TO CART
ARM, STABILIZER LEFT 802331 · qty on machine: 1 view full part page → $146.95
50	807393	ARM, STABILIZER RIGHT	1	ADD TO CART
ARM, STABILIZER RIGHT 807393 · qty on machine: 1 view full part page → $146.95
60	502125	BOLT, 1" X 2" NF GRD 5	4	ADD TO CART
BOLT, 1" X 2" NF GRD 5 502125 · qty on machine: 4 view full part page → $4.95
70	500089	WASHER, FLAT 1" GRD 5	4	ADD TO CART
WASHER, FLAT 1" GRD 5 500089 · qty on machine: 4 Factory replaced this part - current number 3047 view full part page → $5.95 IN A KIT + SOLD SOLO
80	TK86D16	NUT, 1" NF	4	ADD TO CART
NUT, 1" NF TK86D16 · qty on machine: 4 view full part page → $3.95
380	807512	SHIELD, HYDRAULIC OIL TANK	1	ADD TO CART
SHIELD, HYDRAULIC OIL TANK 807512 · qty on machine: 1 view full part page → $429.42
390	492596	WASHER, FLAT 5/16"	4	PARTS REQUEST
PHOTO COMING WASHER, FLAT 5/16" 492596 · qty on machine: 4 PARTS REQUEST
400	492623	WASHER, LOCK 5/16"	4	PARTS REQUEST
PHOTO COMING WASHER, LOCK 5/16" 492623 · qty on machine: 4 PARTS REQUEST
410	492362	BOLT 5/16" X 5/8" NC GRD 5	4	ADD TO CART
BOLT 5/16" X 5/8" NC GRD 5 492362 · qty on machine: 4 view full part page → $0.45
420	DULT100602	BLIND NUT M6	1	PARTS REQUEST
PHOTO COMING BLIND NUT M6 DULT100602 · qty on machine: 1 PARTS REQUEST

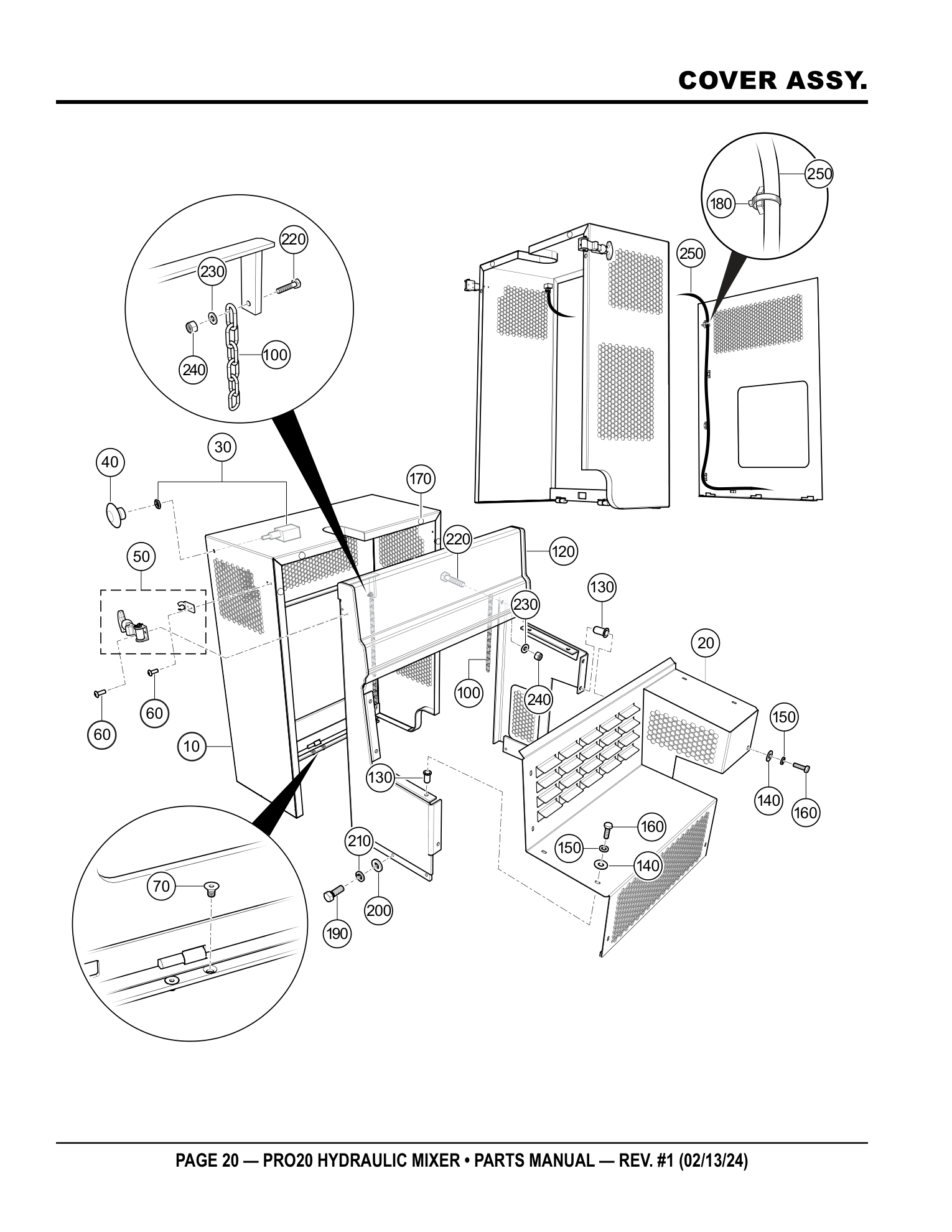

Page 20 — COVER ASSY.

Multiquip PRO20 Stationary Plaster/Mortar Mixer COVER ASSY. parts diagram

Parts list — exactly as printed22 rows

No.	Part No.	Part Name	Qty
10	807415	COVER MOVEABLE	1	PARTS REQUEST
PHOTO COMING COVER MOVEABLE 807415 · qty on machine: 1 PARTS REQUEST
20	807428	COVER, FIXED	1	ADD TO CART
COVER, FIXED 807428 · qty on machine: 1 Factory replaced this part - current number 8980742881 view full part page → $123.95 IN A KIT + SOLD SOLO

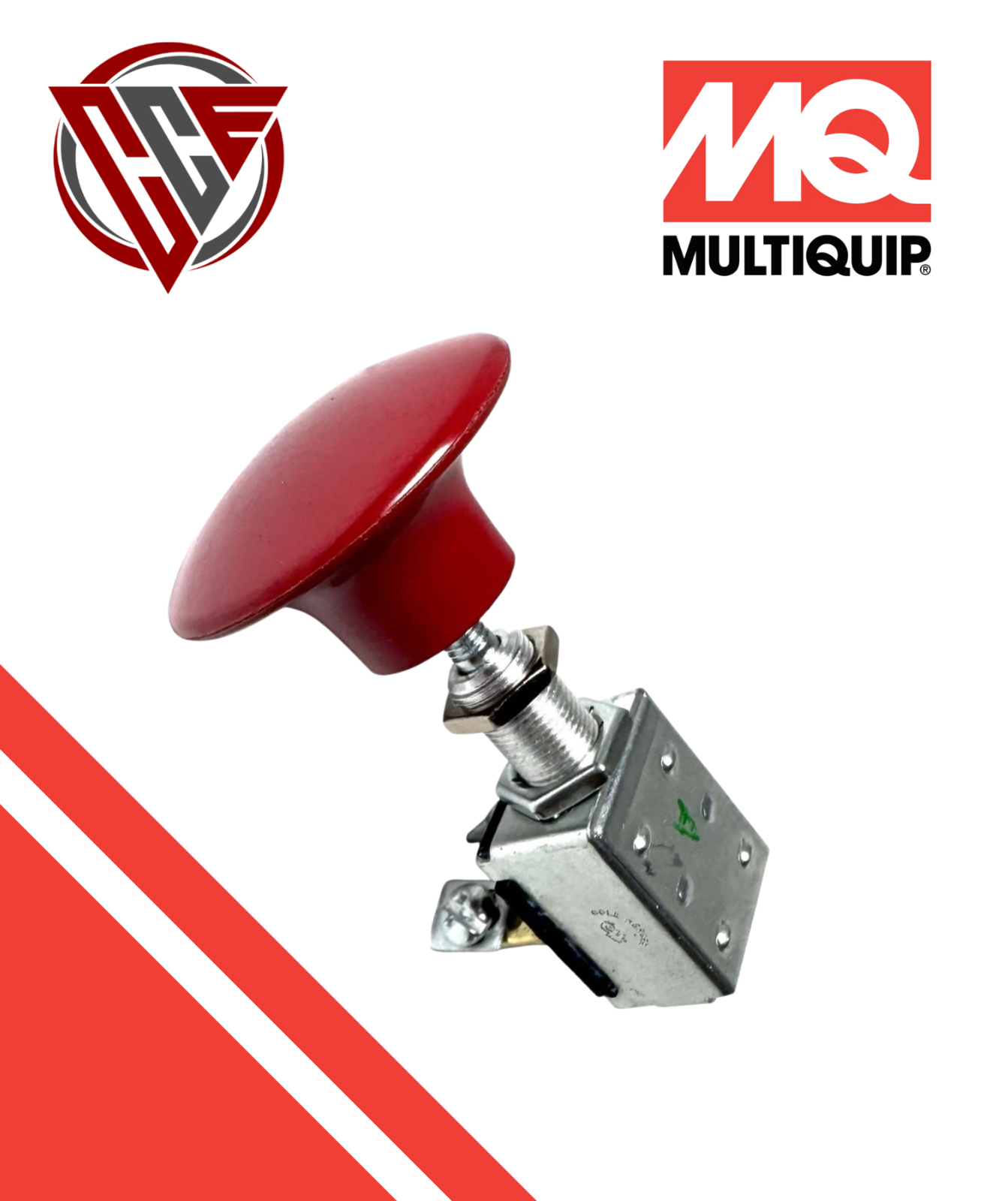

30	29173-001	SWITCH, PUSH-PULL W/O KNOB	1	ADD TO CART
SWITCH, PUSH-PULL W/O KNOB 29173-001 · qty on machine: 1 view full part page → $18.95
40	29174-001	KNOB, MUSHROOM	1	ADD TO CART
KNOB, MUSHROOM 29174-001 · qty on machine: 1 view full part page → $2.89

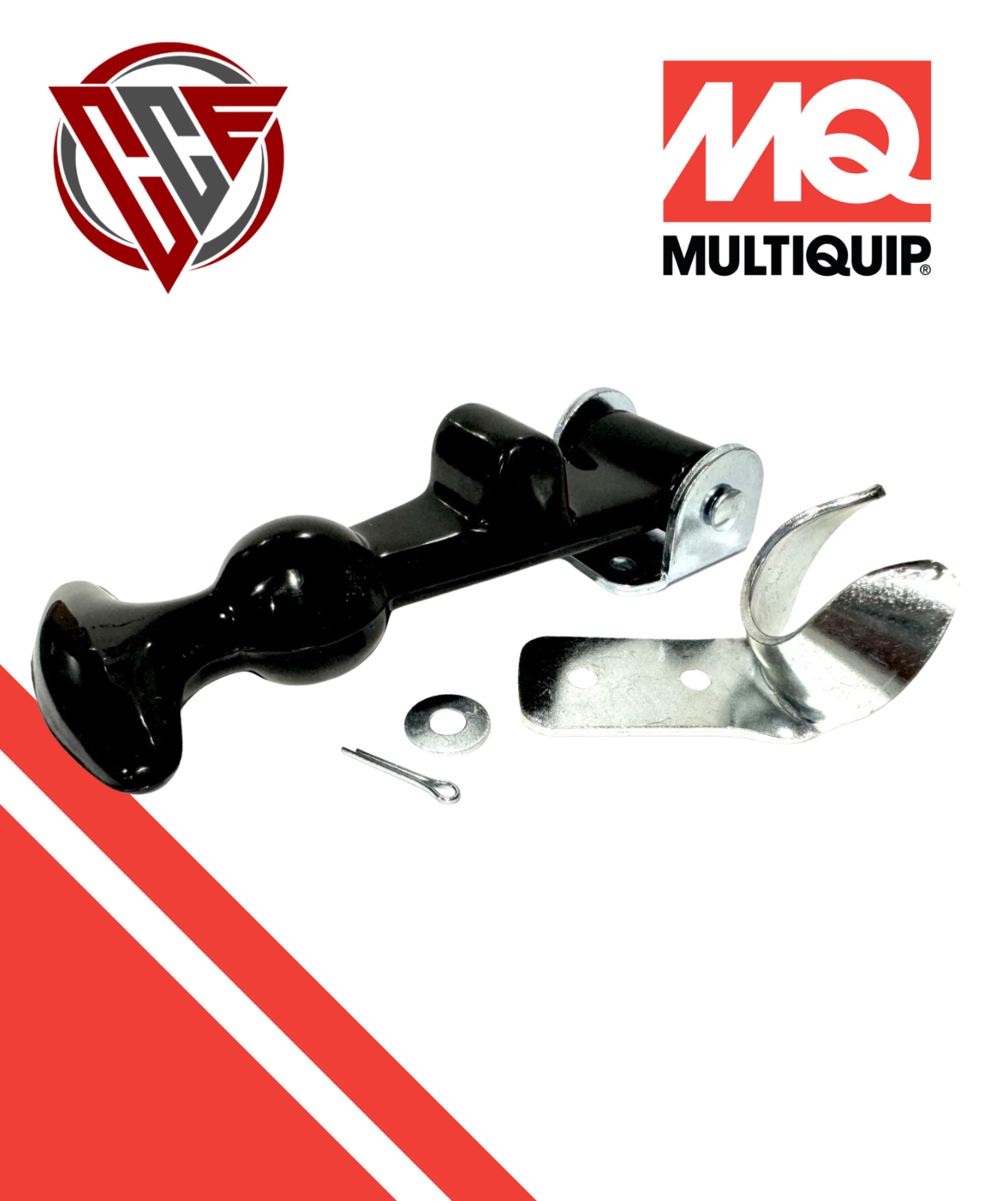

50	491010	RUBBER, HOOD FASTEN	2	ADD TO CART
RUBBER, HOOD FASTEN 491010 · qty on machine: 2 view full part page → $8.95
60	503723	POP RIVET	10	PARTS REQUEST
PHOTO COMING POP RIVET 503723 · qty on machine: 10 PARTS REQUEST
70	510476	FLAT HD. BOLT 5/16" X 1/2" NC	6	ADD TO CART
FLAT HD. BOLT 5/16" X 1/2" NC 510476 · qty on machine: 6 view full part page → $1.82
100	807573	CHAIN	1	PARTS REQUEST
PHOTO COMING CHAIN 807573 · qty on machine: 1 PARTS REQUEST
120	807425	FIXED COVER	1	PARTS REQUEST
PHOTO COMING FIXED COVER 807425 · qty on machine: 1 PARTS REQUEST
130	DULT100602	BLIND RIVET NUT M6	9	PARTS REQUEST
PHOTO COMING BLIND RIVET NUT M6 DULT100602 · qty on machine: 9 PARTS REQUEST
140	492596	WASHER, FLAT 5/16"	10	PARTS REQUEST
PHOTO COMING WASHER, FLAT 5/16" 492596 · qty on machine: 10 PARTS REQUEST
150	492622	WASHER, LOCK 1/4"	10	PARTS REQUEST
PHOTO COMING WASHER, LOCK 1/4" 492622 · qty on machine: 10 PARTS REQUEST
160	DULT100255	HEX HD BOLT M6 X 20 GRD 8.8	10	PARTS REQUEST
PHOTO COMING HEX HD BOLT M6 X 20 GRD 8.8 DULT100255 · qty on machine: 10 PARTS REQUEST
170	TK6597572	RUBBER BUMPER	4	ADD TO CART
RUBBER BUMPER TK6597572 · qty on machine: 4 view full part page → $1.84
180	509699	CABLE TIE, BLACK	9	PARTS REQUEST
PHOTO COMING CABLE TIE, BLACK 509699 · qty on machine: 9 PARTS REQUEST
190	492375	HEX HD. BOLT 3/8"X 1" NC G5	5	PARTS REQUEST
PHOTO COMING HEX HD. BOLT 3/8"X 1" NC G5 492375 · qty on machine: 5 PARTS REQUEST
200	506488	WASHER, FLAT 3/8"	5	PARTS REQUEST
PHOTO COMING WASHER, FLAT 3/8" 506488 · qty on machine: 5 PARTS REQUEST
210	492624	WASHER, LOCK 3/8"	5	ADD TO CART
WASHER, LOCK 3/8" 492624 · qty on machine: 5 Factory replaced this part - current number 0166A view full part page → $0.17 IN A KIT + SOLD SOLO
220	506176	BOLT 5/16" X 1" NC GRD 8.8	1	ADD TO CART
BOLT 5/16" X 1" NC GRD 8.8 506176 · qty on machine: 1 view full part page → $1.61
230	508344	WASHER, FLAT 5/16"	1	ADD TO CART
WASHER, FLAT 5/16" 508344 · qty on machine: 1 view full part page → $2.95
240	492582J	NYLON INSERT NUT 5/16" NC GRD 8	1	PARTS REQUEST
PHOTO COMING NYLON INSERT NUT 5/16" NC GRD 8 492582J · qty on machine: 1 PARTS REQUEST
250	807563	WIRE HARNESS	1	PARTS REQUEST
PHOTO COMING WIRE HARNESS 807563 · qty on machine: 1 PARTS REQUEST

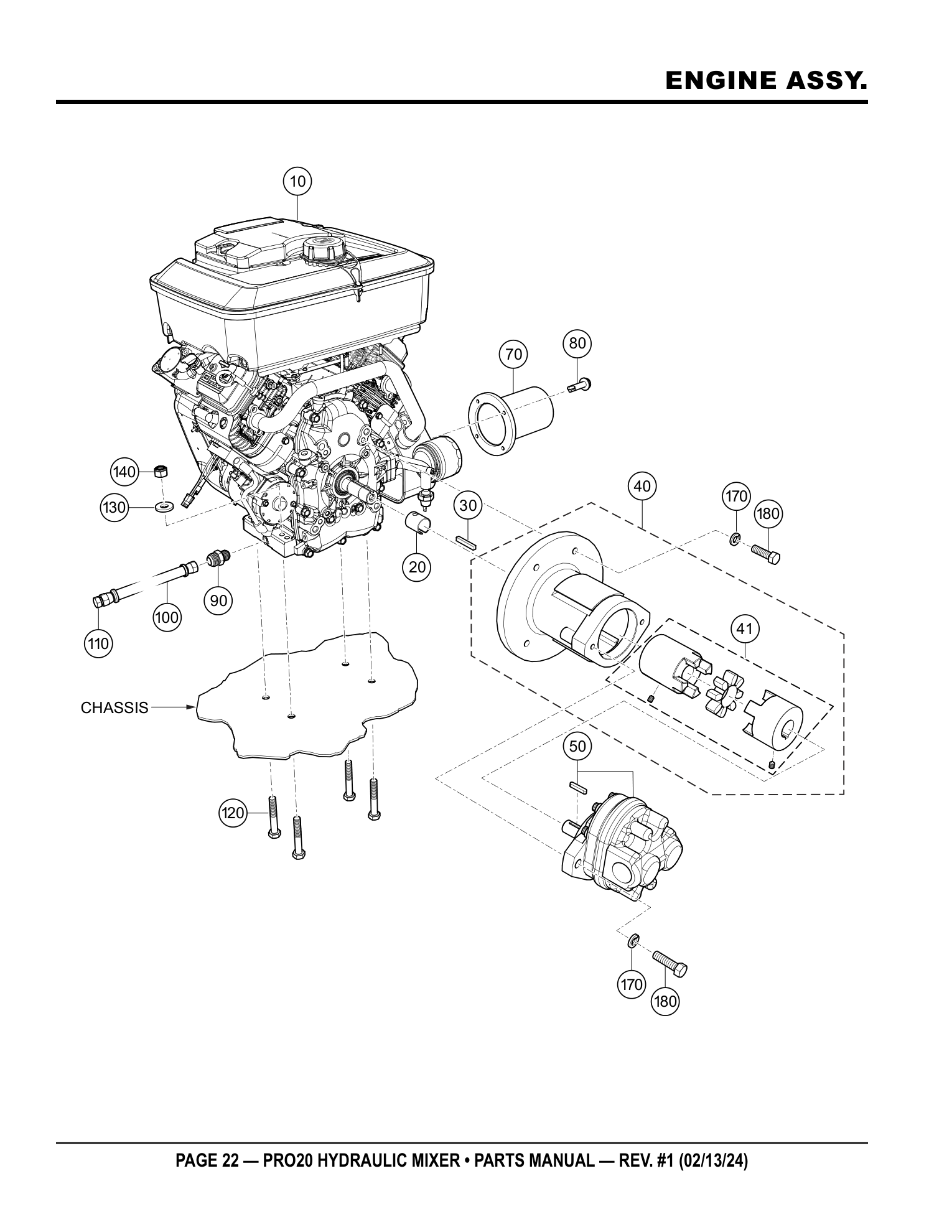

Page 22 — ENGINE ASSY.

Multiquip PRO20 Stationary Plaster/Mortar Mixer ENGINE ASSY. parts diagram

Parts list — exactly as printed16 rows

No.	Part No.	Part Name	Qty	Remarks
10	807370	VANGUARD ENGINE 18 HP	1		ADD TO CART
VANGUARD ENGINE 18 HP 807370 · qty on machine: 1 view full part page → $2660.95
20	807608	SLEEVE ENGINE SHAFT	1		PARTS REQUEST
PHOTO COMING SLEEVE ENGINE SHAFT 807608 · qty on machine: 1 PARTS REQUEST
30	500275	WEDGE 1/4" X 40 MM	1		ADD TO CART
WEDGE 1/4" X 40 MM 500275 · qty on machine: 1 Factory replaced this part - current number 500214 view full part page → $1.51 IN A KIT + SOLD SOLO
40	807579	COUPLING KIT	1	INCLUDES ITEMS W/#	PARTS REQUEST
PHOTO COMING COUPLING KIT 807579 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 41# PARTS REQUEST
41#	516282C	COUPLER ASSY.	1		ADD TO CART
COUPLER ASSY. 516282C · qty on machine: 1 Also included in kit 40 - COUPLING KIT (807579) view full part page → $181.95 IN A KIT + SOLD SOLO
50	13374	PUMP, EATON	1		ADD TO CART
PUMP, EATON 13374 · qty on machine: 1 view full part page → $521.95
70	807414	EXHAUST FLANGE	1		ADD TO CART
EXHAUST FLANGE 807414 · qty on machine: 1 view full part page → $28.95
80	801835	HEX BOLT W/WASHER 3/16" X 3/4"	4		ADD TO CART
HEX BOLT W/WASHER 3/16" X 3/4" 801835 · qty on machine: 4 view full part page → $0.15
90	801501	STRAIGHT FITTING, DRAIN HOSE	1		ADD TO CART
STRAIGHT FITTING, DRAIN HOSE 801501 · qty on machine: 1 view full part page → $886.3
100	800776	HOSE, DRAIN	1		ADD TO CART
HOSE, DRAIN 800776 · qty on machine: 1 view full part page → $23.95
110	513619	STRAIGHT FITTING, DRAIN HOSE	1		ADD TO CART
STRAIGHT FITTING, DRAIN HOSE 513619 · qty on machine: 1 view full part page → $3.95
120	492368	HEX HD. BOLT 5/16" X 2" NC GRD 5	4		PARTS REQUEST
PHOTO COMING HEX HD. BOLT 5/16" X 2" NC GRD 5 492368 · qty on machine: 4 PARTS REQUEST
130	509161	WASHER, FLAT 5/16"	4		NO LONGER AVAILABLE
PHOTO COMING WASHER, FLAT 5/16" 509161 · qty on machine: 4 NO LONGER AVAILABLE
140	492553	HEX NUT 5/16" NC GRD 5	4		PARTS REQUEST
PHOTO COMING HEX NUT 5/16" NC GRD 5 492553 · qty on machine: 4 PARTS REQUEST
170	492624	WASHER, LOCK 3/8"	6		ADD TO CART
WASHER, LOCK 3/8" 492624 · qty on machine: 6 Factory replaced this part - current number 0166A view full part page → $0.17 IN A KIT + SOLD SOLO
180	492376	HEX HD. BOLT 3/8" X 1-1/4" NC G5	6		PARTS REQUEST
PHOTO COMING HEX HD. BOLT 3/8" X 1-1/4" NC G5 492376 · qty on machine: 6 PARTS REQUEST

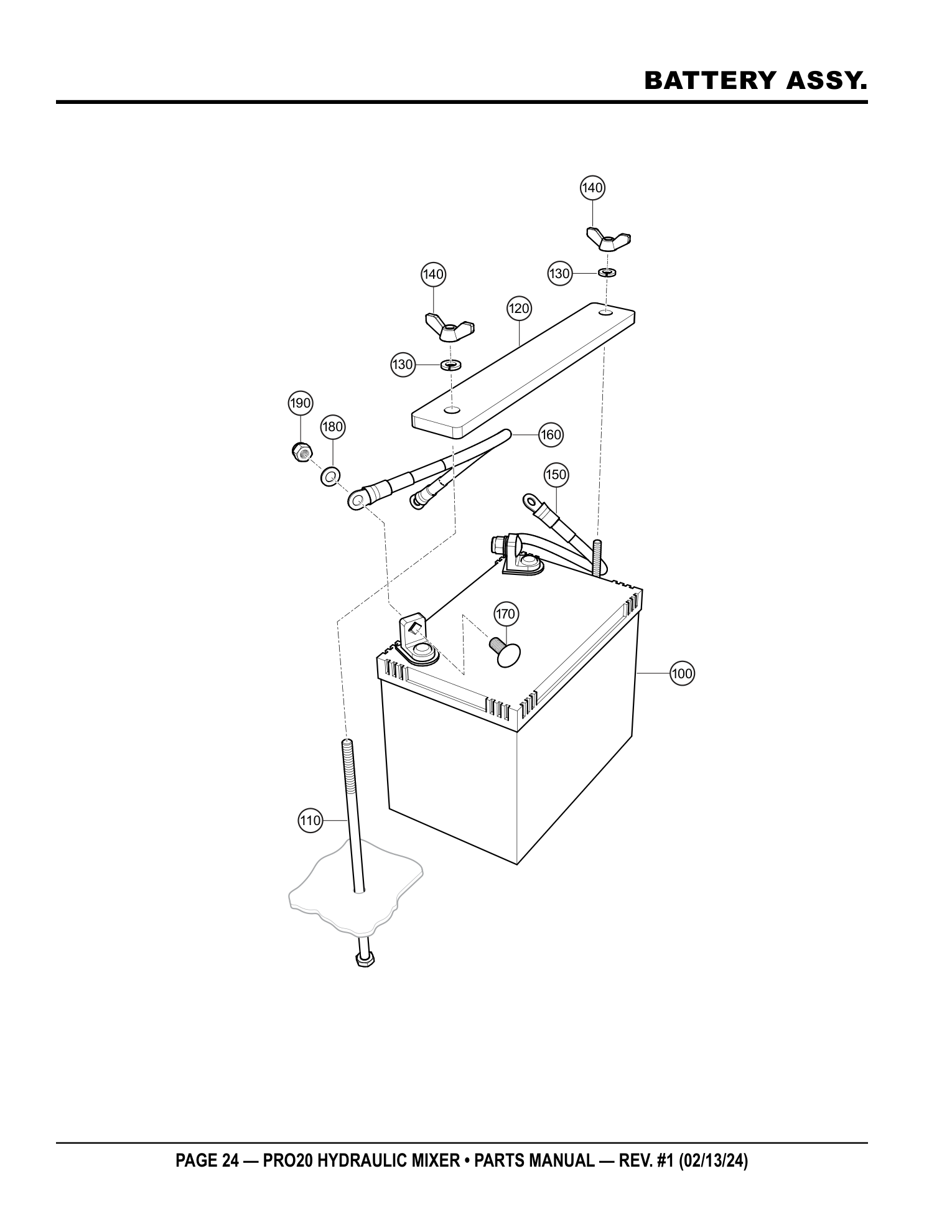

Page 24 — BATTERY ASSY.

Multiquip PRO20 Stationary Plaster/Mortar Mixer BATTERY ASSY. parts diagram

Parts list — exactly as printed10 rows

No.	Part No.	Part Name	Qty	Remarks
100	4671	BATTERY 12V GROUP U1 WET CELL	1		ADD TO CART
BATTERY 12V GROUP U1 WET CELL 4671 · qty on machine: 1 view full part page → $162.95
110	806921	BOLT 1/4" X 7-1/2" NC GRD 5	2		ADD TO CART
BOLT 1/4" X 7-1/2" NC GRD 5 806921 · qty on machine: 2 view full part page → $25.95
120	802314	BATTERY TIE DOWN BRACKET	1		PARTS REQUEST
PHOTO COMING BATTERY TIE DOWN BRACKET 802314 · qty on machine: 1 PARTS REQUEST
130	492622	WASHER, LOCK 1/4"	2		PARTS REQUEST
PHOTO COMING WASHER, LOCK 1/4" 492622 · qty on machine: 2 PARTS REQUEST
140	505500	WINGNUT 1/4" NC	2		NO LONGER AVAILABLE
PHOTO COMING WINGNUT 1/4" NC 505500 · qty on machine: 2 NO LONGER AVAILABLE
150	807426	CABLE, BATTERY POS (L= 1 FT/305 MM)	1	1PC = 1FT	ADD TO CART
CABLE, BATTERY POS (L= 1 FT/305 MM) 807426 · qty on machine: 1 1PC = 1FT view full part page → $17.95
160	807427	CABLE, BATTERY NEG (L= 1.5 FT/457 MM)	1	1PC = 1FT	ADD TO CART
CABLE, BATTERY NEG (L= 1.5 FT/457 MM) 807427 · qty on machine: 1 1PC = 1FT view full part page → $19.95
170	966279	BOLT 5/16" X 3/4" NC GRD 5	2		PARTS REQUEST
PHOTO COMING BOLT 5/16" X 3/4" NC GRD 5 966279 · qty on machine: 2 PARTS REQUEST
180	508344	WASHER, FLAT 5/16"	2		ADD TO CART
WASHER, FLAT 5/16" 508344 · qty on machine: 2 view full part page → $2.95
190	492582	NUT, NYLOC 5/16"	2		PARTS REQUEST
PHOTO COMING NUT, NYLOC 5/16" 492582 · qty on machine: 2 PARTS REQUEST

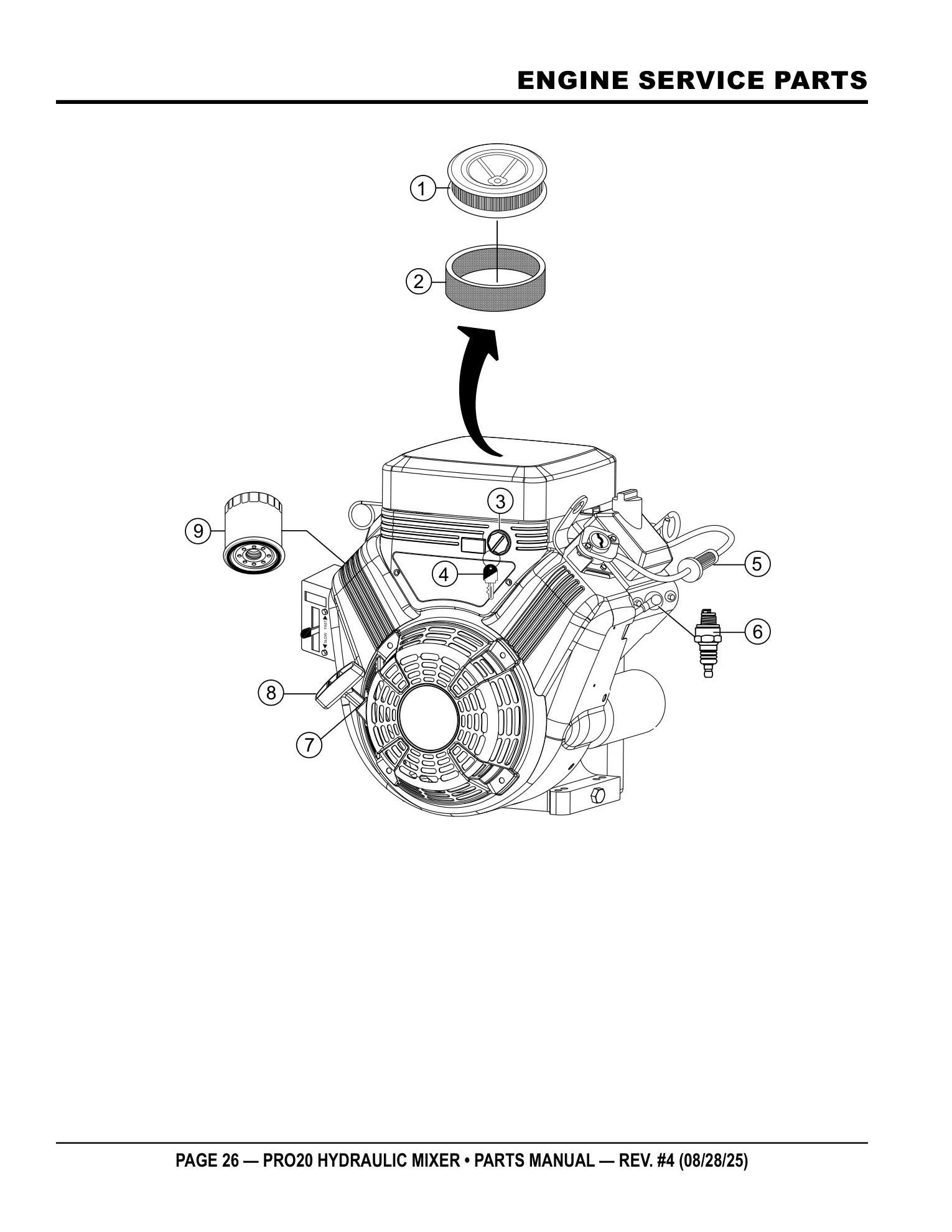

Page 26 — UNKNOWN

Parts list — exactly as printed9 rows

No.	Part No.	Part Name	Qty
1	394018S	AIR FILTER	1	ADD TO CART
AIR FILTER 394018S · qty on machine: 1 view full part page → $41.95
2	272490S	PRE-CLEANER	1	ADD TO CART
PRE-CLEANER 272490S · qty on machine: 1 view full part page → $8.95
3	692318	IGNITION SWITCH, W/KEY	1	ADD TO CART
IGNITION SWITCH, W/KEY 692318 · qty on machine: 1 view full part page → $53.95
4	691959	IGNITION KEY SET	2	ADD TO CART
IGNITION KEY SET 691959 · qty on machine: 2 view full part page → $16.95
5	845125	IN-LINE FUEL FILTER	1	ADD TO CART
IN-LINE FUEL FILTER 845125 · qty on machine: 1 view full part page → $12.95
6	496018S	SPARK PLUG, CHAMPION	2	ADD TO CART
SPARK PLUG, CHAMPION 496018S · qty on machine: 2 view full part page → $6.95
7	66574	ROPE, STARTER	1	ADD TO CART
ROPE, STARTER 66574 · qty on machine: 1 view full part page → $12.95
8	808167	GRIP, STARTER	1	NO LONGER AVAILABLE
PHOTO COMING GRIP, STARTER 808167 · qty on machine: 1 NO LONGER AVAILABLE
9	842921	OIL FILTER	1	ADD TO CART
OIL FILTER 842921 · qty on machine: 1 view full part page → $23.95

The machine itself

Multiquip PRO20 Stationary Plaster/Mortar Mixer

Price by quote Get a quote

Tell us where the machine is headed and we'll quote it with freight. One call, no games.

The Multiquip PRO20 is a mortar mixer built for mixing mortar, plaster, stucco, and grout in consistent batches for masonry and finishing crews. Factory-documented specs and parts support; priced by quote.

Keep-it-running spares

All listed parts →

Every part that fits this machine

13374 Multiquip 13374 Eaton Hydraulic Pump 26003-RAG - OEM Replacement Part $521.95

18052 Multiquip 18052 Sight Gauge SG05MTO WB16 - OEM Replacement Part $55.95

34585 Multiquip 34685 Four Way Valve - OEM Replacement Part for Hydraulic Mixers $903.95

394018S Multiquip 394018S Air Filter - OEM Replacement Part $41.95

4671 Multiquip 4671 12V Group U1 Wet Cell Battery - OEM Replacement Part $162.95

512234 Multiquip 512234 Adapter Elbow WPB-16 - OEM Replacement Part $50.95

522617 Multiquip 522617 Head Filter Hyd. Mixers - OEM Replacement Part $37.95

802280 Multiquip 802280 Hydraulic Dump Cylinder 3.00BX1.50RX12.50 - OEM Replacement Part $510.95

802331 Multiquip 802331 Left Arm - OEM Replacement Part for Hydraulic Plaster Mortar Mixers $146.95

802363 Multiquip 802363 Cylinder Retainer - OEM Replacement Part for Hydraulic Plaster Mortar Mixers $74.95

802415 Multiquip 802415 Seal Bearing - OEM Replacement Part for Stationary Mixers $101.95

802452 Multiquip 802452 Paddle Arm End - OEM Replacement Part for Stationary Mixers $118.95

802453 Multiquip 802453 Paddle Arm Center - OEM Replacement Part for Hydraulic Plaster Mortar Mixers $92.95

802454 Multiquip 802454 Paddle Arm Center - OEM Replacement Part for Hydraulic Plaster Mortar Mixers $92.95

802455 Multiquip 802455 Paddle Arm End - OEM Replacement Part for Stationary Mixers $118.95

803001 Multiquip 803001 Hydraulic Hose 1440mm - OEM Replacement Part $58.95

803003 Multiquip 803003 Hose 1270mm - OEM Replacement Part for Hydraulic Plaster Mortar Mixers $54.95

803006 Multiquip 803006 Hose 1100mm - OEM Replacement Part for Hydraulic Mixers $96.95

803048 Multiquip 803048 Handle Valve Left - OEM Replacement Part for Stationary Mixers $40.95

803049 Multiquip 803049 Handle Valve Right - OEM Replacement Part for Stationary Mixers $40.95

803352 Multiquip 803352 Hydraulic Hose - OEM Replacement Part for Stationary Mixers $82.95

803353 Multiquip 803353 Hydraulic Hose - OEM Replacement Part for Stationary Mixers $88.95

807370 Multiquip 807370 Engine 18HP - OEM Replacement Part $2,660.95

807373 Multiquip 807373 Paddle Shaft - OEM Replacement Part for Stationary Mixers $503.95

807393 Multiquip 807393 Arm Right - OEM Replacement Part for Stationary Mixers $146.95

807433 Multiquip 807433 Support Leg - OEM Replacement Part for Stationary Mixers $102.95

807434 Multiquip 807434 Leg Support - OEM Replacement Part for Stationary Mixers $102.95

807441 Multiquip 807441 Hydraulic Cylinder Hose - OEM Replacement Part $74.95

807443 Multiquip 807443 Chain Coupler - OEM Replacement Part for Stationary Mixers $686.95

807454 Multiquip 807454 Hydraulic Motor - OEM Replacement Part for Stationary Mixers $2,009.95

807502 Multiquip 807502 Hydraulic Hose - OEM Replacement Part for Stationary Mixers $310.95

807503 Multiquip 807503 Hydraulic Hose - OEM Replacement Part for Stationary Mixers $305.95

807690 Multiquip 807690 Drum & Shaft Assembly - OEM Replacement Part for Stationary Mixers $5,553.95

807692 Multiquip 807692 Kit Rubber Blades PRO20 - OEM Replacement Part $534.95

0166A WASHER, LOCK 3/8" $0.17

13220 FITTING, STRAIGHT 125HBL-12-1 $8.95

272490S PRE-CLEANER $8.95

29173-001 SWITCH, PUSH-PULL W/O KNOB $18.95

29174-001 KNOB, MUSHROOM $2.89

3314 FITTING, STRAIGHT 10-8 F5OX-S

3322 FITTING, 90° 10 C5OX-S $18.95

3353 Multiquip 3353 Filler Breather Cap - OEM Replacement Part $49.95

3365 FITTING, STRAIGHT 10 F5OX-S $5.95

3367 FITTING, 90° 129HB-12-12 $22.95

491010 RUBBER, HOOD FASTEN $8.95

491160 90° ELBOW

491189 NIPPLE, PIPE 1" NPT

491692 PIN COTTER 3/16" X 1.1/4" G. (CAD) $1.35

491704 90° FITTING ZERK 1/4" NF

491705 ZERK FITTING 1/4" NF

491999 DECAL: GREASE $0.47

492303 BOLT 5/16" X 1-1/4" NC GRD 5 $1.95

492356 BOLT 1/4" X 3/4" $0.50

492362 HEX HD. BOLT 5/16"X 5/8" NC GRD 5 $0.45

492368 HEX HD. BOLT 5/16" X 2" NC GRD 5

492375 HEX HD. BOLT 3/8"X 1" NC G5

492376 HEX HD. BOLT 3/8" X 1-1/4" NC GRD5

492378 HEX HD. BOLT 3/8" X 1-3/4" NC $0.69

492394 HEX HD. BOLT 1/2"NC X 1-1/2" G5

492396 HEX HD. BOLT 1/2"X 2" NC GRD 5

492400 HEX HD. BOLT 1/2" X 3-1/2" NC GRD 5

492553 HEX NUT 5/16" NC GRD 5

492582 NUT, NYLOC 5/16" NC

492582J NYLON INSERT NUT 5/16" NC GRD 8

492583 NYLON INSERT NUT 3/8" NC

492584 NYLON INSERT NUT 1/2" NC GRD 5 $0.45

492595 FLAT WASHER 1/4" $0.48

492596 WASHER, FLAT 5/16"

492598 FLAT WASHER 3/8"

492599 WASHER, FLAT 1/2"

492602 WASHER, FLAT 5/8"

492622 LOCK WASHER 1/4"

492623 WASHER, LOCK 5/16"

492624 WASHER, LOCK 3/8"

492626 WASHER, LOCK 1/2"

492627 WASHER, LOCK 5/8"

496018S SPARK PLUG, CHAMPION $6.95

500089 WASHER, FLAT 1" GRD 5

500275 WEDGE 1/4" X 40 MM

502125 BOLT, 1" X 2" NF GRD 5 $4.95

503723 POP RIVET

504322 WASHER, FLAT 1/2".

505500 WINGNUT 1/4" NC

505883 SCREW, 3/8-NC X 2" GRD5 $0.66

506094 PLUG 1/2" NPT GALV. $2.95

506176 FLAT HD. BOLT 5/16" X 1" NC GRD 8.8 $1.61

506196 FITTING, 90° 6 C5OX-S $7.95

506207 WORM CLAMP $3.95

506488 WASHER, FLAT 3/8"

507444 WASHER, FLAT 3/4" (SPACER) $1.71

508344 WASHER, FLAT 5/16" $2.95

508667 ELEMENT, HYD. OIL $28.95

509161 WASHER, FLAT 5/16"

509699 CABLE TIE, BLACK

509784 FITTING, 90° 12CTX-S

510476 FLAT HD. BOLT 5/16" X 1/2" NC $1.82

511727 DECAL: GASOLINE FUEL ONLY

511847 BARB FITTING $24.95

512190 FITTING, STRAIGHT 6-8 F5OX-S $7.95

512201 FITTING, 90° 10 C6X-S $9.95

513118 DECAL: POWDER COATED

513548 FITTING, STRAIGHT 10-12 F5OX-S

513619 STRAIGHT FITTING, DRAIN HOSE $3.95

514488 FITTING, 90° 12 CC5OX-S

516675 FITTING, STRAIGHT 12 FTX-S

518198 FITTING, 45° 12 V6X-S

518524 DECAL: ISO 9001:2000 EXPORT $0.59

520894 BOLT 3/8" X 3" NC GRD 8.8 $0.95

520935 DECAL: SAFETY INSTRUCTIONS $6.95

521228 DECAL: DANGER GAS IS HIGHLY FLAMABL. $1.95

521229 DECAL: WARNING $6.95

521230 DECAL: PREVENT ACCIDENTS $9.95

521291 DECAL: HYDRAULIC OIL DRAIN

521292 DECAL: MOTOR OIL DRAIN

521293 DECAL: DRIVE/DUMP CONTROL $4.95

521303 DECAL: PINCH POINT

521312 BOLT 3/8"X 2.1/4" NC GRD 5

521817 DECAL: WARNING CANCER CA PROP. 65

530183 WASHER, FLAT 1/2"

530298 HEX HD. BOLT 5/8" X 1-3/4" NC GRD 5 $2.66

66574 ROPE, STARTER $12.95

691959 IGNITION KEY SET $16.95

692318 Multiquip 692318 Ignition Switch JRT/BRT - OEM Replacement Part $53.95

800776 HOSE, DRAIN $23.95

801501 STRAIGHT FITTING, DRAIN HOSE $886.30

801835 HEX BOLT W/WASHER 3/16" X 3/4" $0.15

802314 BATTERY TIE DOWN BRACKET

802362 CAP

802366 URETHANE SEAL $19.95

802367 SEPARATOR SHAFT SEALS $17.95

802368 SHAFT SEALS COVER $16.95

802443 RETAINER BASE, PADDLE ARM $8.95

802447 RUBBER BLADE, SIDE $32.37

802448 RUBBER BLADE, END $16.66

802449 STEEL BLADE, END $23.19

802451 STEEL BLADE, SIDE $33.14

802667 COUNTERSUNK WASHER 5/16" $10.95

802938 FITTING, TEE 6 R5OX-S $16.95

803007 HOSE, FILTER OUT $13.95

803224 FITTING, STRAIGHT 12-8 F5OX-S

804004 COVER DRUM BEARING

804371 HIGH PRESSURE HOSE CLAMP 1-1/4"

806921 BOLT 1/4" X 7-1/2" NC GRD 5 $25.95

807361 FRAME

807372 DRUM, BARE 20 CU. FT.

807400 HYDRAULIC MOTOR COVER $2,523.37

807403 WASHER, FLAT 3/8" LARGE

807414 EXHAUST FLANGE $28.95

807415 COVER MOVEABLE

807425 FIXED COVER

807426 CABLE, BATTERY POS (L= 1 FT/305 MM) $17.95

807428 COVER, FIXED

807438 HOSE, CYLINDER

807439 HOSE, VALVE/HYD. MOTOR

807440 HOSE, VALVE

807512 SHIELD, HYDRAULIC OIL TANK $429.42

807560 HOSE/PIPE CLAMP 5/8"

807562 WELDING SUPPORT HYDRAULIC HOSES

807563 WIRE HARNESS

807573 CHAIN

807578 PIPE, 1" NPT X 10" GALV.

807579 COUPLING KIT

807608 SLEEVE ENGINE SHAFT

807859 HOSE, SUCTION

808167 GRIP, STARTER

842921 OIL FILTER $23.95

845125 IN-LINE FUEL FILTER $12.95

948008 PLATE, SERIAL NUMBER $3.53

966279 BOLT 5/16" X 3/4" NC GRD 5

DULT100078 NYLON INSERT NUT M6

DULT100255 HEX HD. BOLT M6 X 20 GRD 8.8

DULT100602 BLIND RIVET NUT M6

EM510883 DECAL: ESSICK LG $4.95

EM510891 DECAL: MQ ESSICK MEDIUM $2.73

EM744 PIN, 1/2" X 4" $13.95

EM745 HAIR PIN 5/8-3/4" $0.56

EM948630 DECAL: PUSH TO STOP $1.44

EM985 DECAL: HYDRAULIC OIL ONLY PLASTIFIED $1.84

GRATE 1

TK6597572 RUBBER BUMPER $1.84

TK86D16 NUT, 1" NF $3.95

From the guides desk

Guide · 2026-08-04

Multiquip Mortar & Plaster Mixer Safety Guide for Jobsites

Practical jobsite safety guide for Multiquip mortar and plaster mixer operators. Pre-op checks, PPE, hazards, shutdown, and parts from CC...

Read it →

Ask ARIA about your machine.

Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.

Chat with ARIA

Multiquip PRO20 Stationary Plaster/Mortar Mixer

The parts bench

The machine itself

Machine

Engine

Keep-it-running spares

Every part that fits this machine

Service notices & part changes

Take the factory book with you

Get the download pack

From the guides desk

Multiquip Mortar & Plaster Mixer Safety Guide for Jobsites

Ask ARIA about your machine.

Your cart is empty

Your cart is empty
