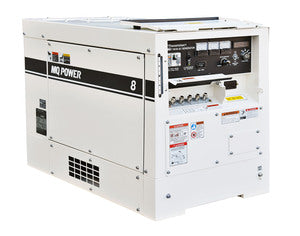

Multiquip TLG8SSK4F Generator

Name: Multiquip TLG8SSK4F Generator
Brand: Multiquip

The parts bench

Need the PDF? ↓

Page 6 — NAMEPLATE AND DECALS ASSY.

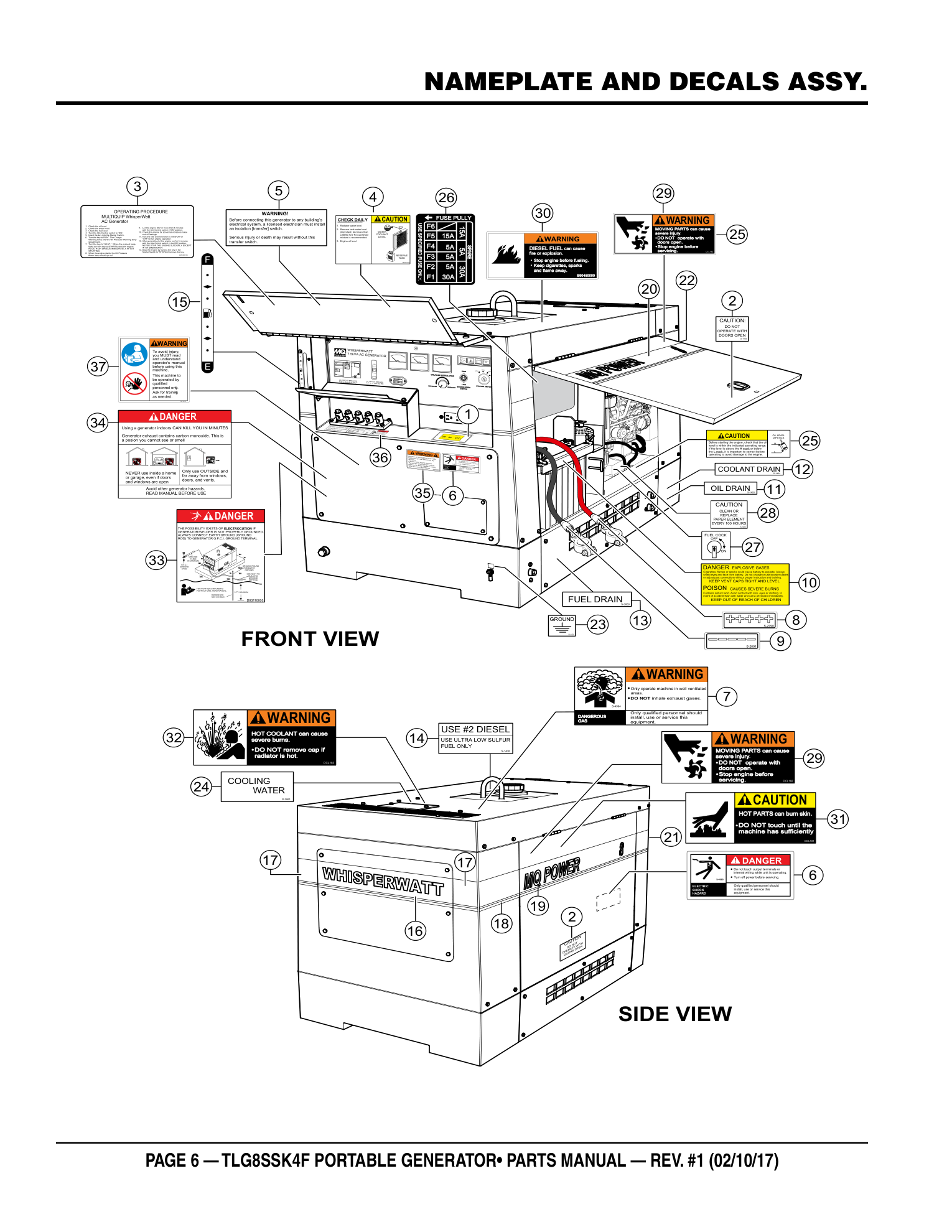

Multiquip TLG8SSK4F Generator NAMEPLATE AND DECALS ASSY. parts diagram

Parts list — exactly as printed37 rows

No.	Part No.	Part Name	Qty	Remarks
1	A6551001004	DECAL: AC POWER OUTPUT	1	A65100100	PARTS REQUEST
PHOTO COMING DECAL: AC POWER OUTPUT A6551001004 · qty on machine: 1 A65100100 PARTS REQUEST
2	1630610504	DECAL: CAUTION	2	S-1409	ADD TO CART
DECAL: CAUTION 1630610504 · qty on machine: 2 S-1409 view full part page → $1.95
3	A6551001103	DECAL: OPERATING PROCEDURE	1	A65100110	PARTS REQUEST
PHOTO COMING DECAL: OPERATING PROCEDURE A6551001103 · qty on machine: 1 A65100110 PARTS REQUEST
4	6390671104	DECAL: IMPORTANT "CHECK DAILY”	1	S-2377	ADD TO CART
DECAL: IMPORTANT "CHECK DAILY” 6390671104 · qty on machine: 1 S-2377 view full part page → $6.95
5	W0820610404	DECAL: WARNING	1	S-3637	PARTS REQUEST
PHOTO COMING DECAL: WARNING W0820610404 · qty on machine: 1 S-3637 PARTS REQUEST
6	8700611904	DECAL: DANGER ELECT. SHOCK HAZARD	2	S-4985	ADD TO CART
DECAL: DANGER ELECT. SHOCK HAZARD 8700611904 · qty on machine: 2 S-4985 view full part page → $5.95
7	D9504200204	DECAL: WARNING DANGEROUS GAS	1	D90420020	PARTS REQUEST
PHOTO COMING DECAL: WARNING DANGEROUS GAS D9504200204 · qty on machine: 1 D90420020 PARTS REQUEST
8	W0600689404	DECAL: +	1	S-2090	PARTS REQUEST
PHOTO COMING DECAL: + W0600689404 · qty on machine: 1 S-2090 PARTS REQUEST
9	W0600689504	DECAL: —	1	S-2091	PARTS REQUEST
PHOTO COMING DECAL: — W0600689504 · qty on machine: 1 S-2091 PARTS REQUEST
10	W0820650604	DECAL: DANGER EXPLOSIVE GASES	1		PARTS REQUEST
PHOTO COMING DECAL: DANGER EXPLOSIVE GASES W0820650604 · qty on machine: 1 PARTS REQUEST
11	1630645004	DECAL: OIL DRAIN	1	S-1403	ADD TO CART
DECAL: OIL DRAIN 1630645004 · qty on machine: 1 S-1403 view full part page → $1.43
12	1630647004	DECAL: COOLANT DRAIN	1	S-1404	ADD TO CART
DECAL: COOLANT DRAIN 1630647004 · qty on machine: 1 S-1404 view full part page → $1.43
13	7810680104	DECAL: FUEL DRAIN	1	S-3060	ADD TO CART
DECAL: FUEL DRAIN 7810680104 · qty on machine: 1 S-3060 view full part page → $2.73
14	B9504501214	DECAL: DIESEL FUEL	1	B90450121	ADD TO CART
DECAL: DIESEL FUEL B9504501214 · qty on machine: 1 B90450121 view full part page → $5.95
15	W8720615204	DECAL: FUEL GAUGE	1	S-4704A	PARTS REQUEST
PHOTO COMING DECAL: FUEL GAUGE W8720615204 · qty on machine: 1 S-4704A PARTS REQUEST
16	A6561100103	DECAL: STRIPE WHISPERWATT	1		PARTS REQUEST
PHOTO COMING DECAL: STRIPE WHISPERWATT A6561100103 · qty on machine: 1 PARTS REQUEST
17	A6S61100204	DECAL: STRIPE	2		PARTS REQUEST
PHOTO COMING DECAL: STRIPE A6S61100204 · qty on machine: 2 PARTS REQUEST
18	A6561100304	DECAL: STRIPE	1		PARTS REQUEST
PHOTO COMING DECAL: STRIPE A6561100304 · qty on machine: 1 PARTS REQUEST
19	A6561100403	DECAL: STRIPE MQ POWER 8	1		PARTS REQUEST
PHOTO COMING DECAL: STRIPE MQ POWER 8 A6561100403 · qty on machine: 1 PARTS REQUEST
20	A6561100603	DECAL: STRIPE MQ POWER 8	1		PARTS REQUEST
PHOTO COMING DECAL: STRIPE MQ POWER 8 A6561100603 · qty on machine: 1 PARTS REQUEST
21	A6561100504	DECAL: STRIPE	2		ADD TO CART
DECAL: STRIPE A6561100504 · qty on machine: 2 view full part page → $9.95
22	A6561100704	DECAL: STRIPE	1		PARTS REQUEST
PHOTO COMING DECAL: STRIPE A6561100704 · qty on machine: 1 PARTS REQUEST
23	W0600628504	DECAL: GROUND	1	S-1123	PARTS REQUEST
PHOTO COMING DECAL: GROUND W0600628504 · qty on machine: 1 S-1123 PARTS REQUEST
24	7810680204	DECAL: COOLING WATER	1	S-3061	ADD TO CART
DECAL: COOLING WATER 7810680204 · qty on machine: 1 S-3061 view full part page → $1.55
25	B9505000304	DECAL: CAUTION OIL LEVEL GAUGE	1	B90500030	ADD TO CART
DECAL: CAUTION OIL LEVEL GAUGE B9505000304 · qty on machine: 1 B90500030 view full part page → $4.95
26	8700625504	DECAL: FUSE BOX	1	S-4936	ADD TO CART
DECAL: FUSE BOX 8700625504 · qty on machine: 1 S-4936 view full part page → $1.95
27	1630680104	DECAL: FUEL COCK	1	S-1407	ADD TO CART
DECAL: FUEL COCK 1630680104 · qty on machine: 1 S-1407 view full part page → $1.95
28	1630610404	DECAL: CAUTION	1	S-1406	ADD TO CART
DECAL: CAUTION 1630610404 · qty on machine: 1 S-1406 view full part page → $1.43
29	B9504000404	DECAL: WARNING MOVING PARTS	2	B90400040	ADD TO CART
DECAL: WARNING MOVING PARTS B9504000404 · qty on machine: 2 B90400040 view full part page → $4.95
30	B9504500004	DECAL: WARNING DIESEL FUEL	1	B90450000	ADD TO CART
DECAL: WARNING DIESEL FUEL B9504500004 · qty on machine: 1 B90450000 view full part page → $4.95
31	B9504000304	DECAL: CAUTION HOT PARTS	1	B90400030	ADD TO CART
DECAL: CAUTION HOT PARTS B9504000304 · qty on machine: 1 B90400030 view full part page → $4.95
32	B9504100104	DECAL: WARNING HOT COOLANT	1	B90410010	ADD TO CART
DECAL: WARNING HOT COOLANT B9504100104 · qty on machine: 1 B90410010 view full part page → $4.95
33	D9531100004	DECAL: DANGER ELECTROCUTION	1	D93110000	ADD TO CART
DECAL: DANGER ELECTROCUTION D9531100004 · qty on machine: 1 D93110000 view full part page → $9.95
34	A9504000014	DECAL: DANGER	1	A90400001	ADD TO CART
DECAL: DANGER A9504000014 · qty on machine: 1 A90400001 view full part page → $12.95
35	920214100	DECAL: WARNING START FIRES	1	REPLACES P/N M9504200004 M90420000	ADD TO CART
DECAL: WARNING START FIRES 920214100 · qty on machine: 1 REPLACES P/N M9504200004 M90420000 view full part page → $12.95
36	A9521201003	DECAL: 3-PHASE AC OUTPUT TERMINAL	1	A92120100	PARTS REQUEST
PHOTO COMING DECAL: 3-PHASE AC OUTPUT TERMINAL A9521201003 · qty on machine: 1 A92120100 PARTS REQUEST
37	35137	DECAL: READ MANUAL	1	REPLACES P/N A9511100004 A91110000	ADD TO CART
DECAL: READ MANUAL 35137 · qty on machine: 1 REPLACES P/N A9511100004 A91110000 view full part page → $2.95

Page 8 — GENERATOR ASSY.

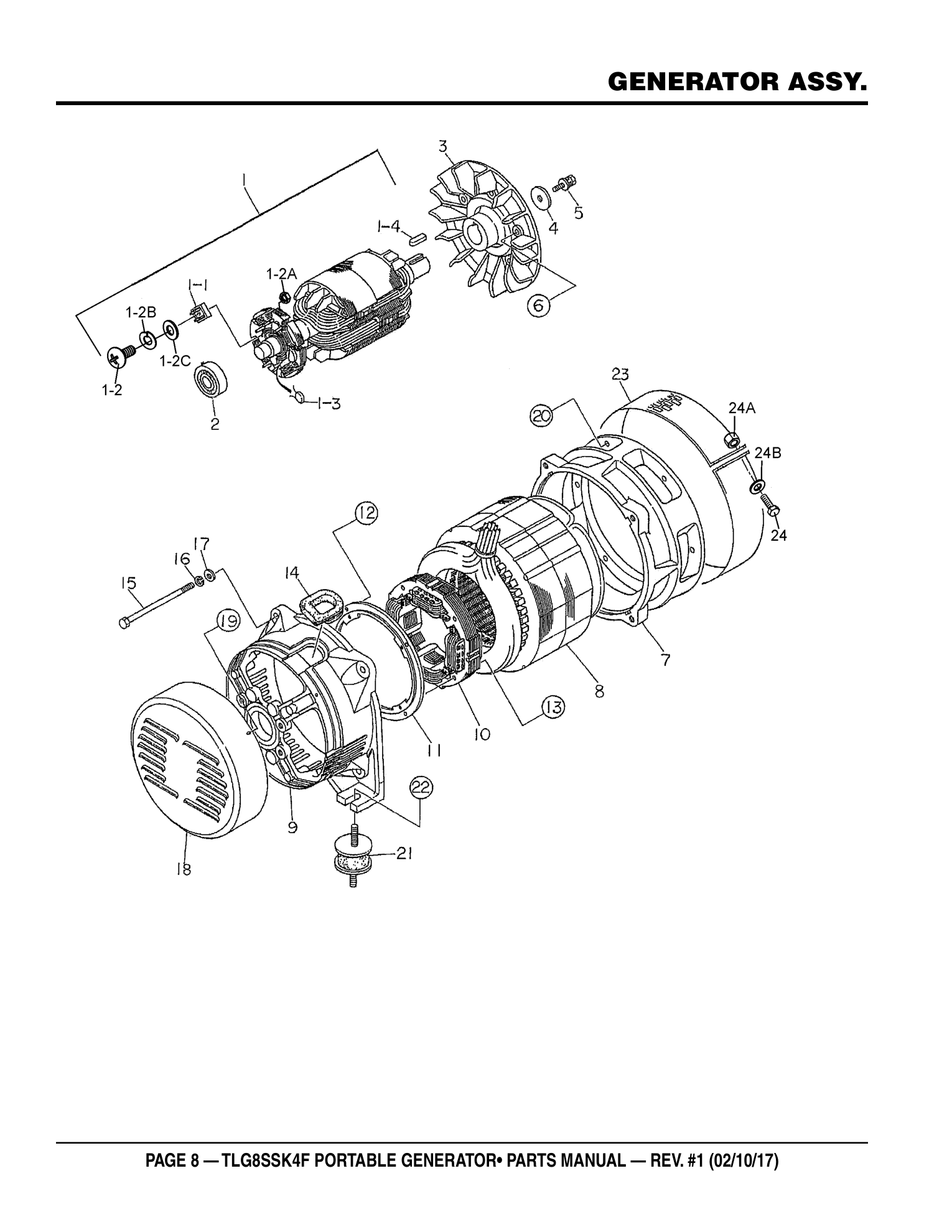

Multiquip TLG8SSK4F Generator GENERATOR ASSY. parts diagram

Parts list — exactly as printed33 rows

No.	Part No.	Part Name	Qty	Remarks
1	W8541000113	ROTOR ASSY	1	INCLUDES ITEMS W/#	PARTS REQUEST
PHOTO COMING ROTOR ASSY W8541000113 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 1-1#, 1-2#, 1-2A#, 1-2B#, 1-2C#, 1-3#, 1-4#, 2# PARTS REQUEST
1-1#	0601820037	RECTIFIER	1		ADD TO CART
RECTIFIER 0601820037 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (W8541000113) view full part page → $14.95 IN A KIT + SOLD SOLO
1-2#	D4117400104	MACHINE SCREW	1		PARTS REQUEST
PHOTO COMING MACHINE SCREW D4117400104 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (W8541000113) PARTS REQUEST
1-2A#	0207003000	HEX. NUT	1	REPLACES P/N 0030003000	ADD TO CART
HEX. NUT 0207003000 · qty on machine: 1 REPLACES P/N 0030003000 Also included in kit 1 - ROTOR ASSY (W8541000113) view full part page → $0.21 IN A KIT + SOLD SOLO
1-2B#	0040003000	WASHER, LOCK	1		PARTS REQUEST
PHOTO COMING WASHER, LOCK 0040003000 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (W8541000113) PARTS REQUEST
1-2C#	0041203000	WASHER, FLAT	1		ADD TO CART
WASHER, FLAT 0041203000 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (W8541000113) view full part page → $0.12 IN A KIT + SOLD SOLO
1-3#	0601822638	SURGE ABSORBER	1		ADD TO CART
SURGE ABSORBER 0601822638 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (W8541000113) view full part page → $5.95 IN A KIT + SOLD SOLO
1-4#	0171707033	KEY	1		ADD TO CART
KEY 0171707033 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (W8541000113) view full part page → $25.95 IN A KIT + SOLD SOLO
2#	0071206304	BEARING	1		ADD TO CART
BEARING 0071206304 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (W8541000113) view full part page → $53.95 IN A KIT + SOLD SOLO
3	W1991070022	FAN	1		PARTS REQUEST
PHOTO COMING FAN W1991070022 · qty on machine: 1 PARTS REQUEST
4	1991072004	SET WASHER, FAN	1		ADD TO CART
SET WASHER, FAN 1991072004 · qty on machine: 1 view full part page → $4.95
5	0012308020	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0012308020 · qty on machine: 1 view full part page → $1.88
6	011208025	HEX. HEAD BOLT	5	REPLACES P/N 0012308025	ADD TO CART
HEX. HEAD BOLT 011208025 · qty on machine: 5 REPLACES P/N 0012308025 view full part page → $0.41
7	W1991315122	END BRACKET	1		PARTS REQUEST
PHOTO COMING END BRACKET W1991315122 · qty on machine: 1 PARTS REQUEST
8	A6315000803	ARMATURE ASSY.	1		PARTS REQUEST
PHOTO COMING ARMATURE ASSY. A6315000803 · qty on machine: 1 PARTS REQUEST
9	W8541315412	END BRACKET	1		PARTS REQUEST
PHOTO COMING END BRACKET W8541315412 · qty on machine: 1 PARTS REQUEST
10	W8541350013	FIELD ASSY. EXCITER	1		PARTS REQUEST
PHOTO COMING FIELD ASSY. EXCITER W8541350013 · qty on machine: 1 PARTS REQUEST
11	D2155300003	SPACER	1		PARTS REQUEST
PHOTO COMING SPACER D2155300003 · qty on machine: 1 PARTS REQUEST
12	011606025	HEX. HEAD BOLT	4	REPLACES P/N 0017106025	ADD TO CART
HEX. HEAD BOLT 011606025 · qty on machine: 4 REPLACES P/N 0017106025 view full part page → $1.95
13	0017105035	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0017105035 · qty on machine: 4 view full part page → $1.9
14	1961324003	GROMMET	1		ADD TO CART
GROMMET 1961324003 · qty on machine: 1 view full part page → $9.95
15	D2131500204	SET BOLT	4		PARTS REQUEST
PHOTO COMING SET BOLT D2131500204 · qty on machine: 4 PARTS REQUEST
16	0040010000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0040010000 · qty on machine: 4 view full part page → $0.39
17	031110160	WASHER, FLAT	4	REPLACES P/N 0041210000	ADD TO CART
WASHER, FLAT 031110160 · qty on machine: 4 REPLACES P/N 0041210000 view full part page → $0.4
18	W8541331103	COVER	1		PARTS REQUEST
PHOTO COMING COVER W8541331103 · qty on machine: 1 PARTS REQUEST
19	0011305100	HEX. HEAD BOLT	4	REPLACES P/N 0017105012	ADD TO CART
HEX. HEAD BOLT 0011305100 · qty on machine: 4 REPLACES P/N 0017105012 view full part page → $1.53
20	0012308020	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0012308020 · qty on machine: 6 view full part page → $1.88
21	7085419004	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION 7085419004 · qty on machine: 2 view full part page → $34.95
22	021112140	HEX. NUT	2	REPLACES P/N 0207010000	ADD TO CART
HEX. NUT 021112140 · qty on machine: 2 REPLACES P/N 0207010000 view full part page → $0.46
23	A6132300004	COVER	1		PARTS REQUEST
PHOTO COMING COVER A6132300004 · qty on machine: 1 PARTS REQUEST
24	0340406040	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0340406040 · qty on machine: 1 view full part page → $2.68
24A	020106050	HEX. NUT	1	REPLACES P/N 0037906000	ADD TO CART
HEX. NUT 020106050 · qty on machine: 1 REPLACES P/N 0037906000 view full part page → $0.12
24B	952404470	WASHER, FLAT	1	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 1 REPLACES P/N 0041206000 view full part page → $0.19

Page 10 — CONTROL PANEL ASSY.

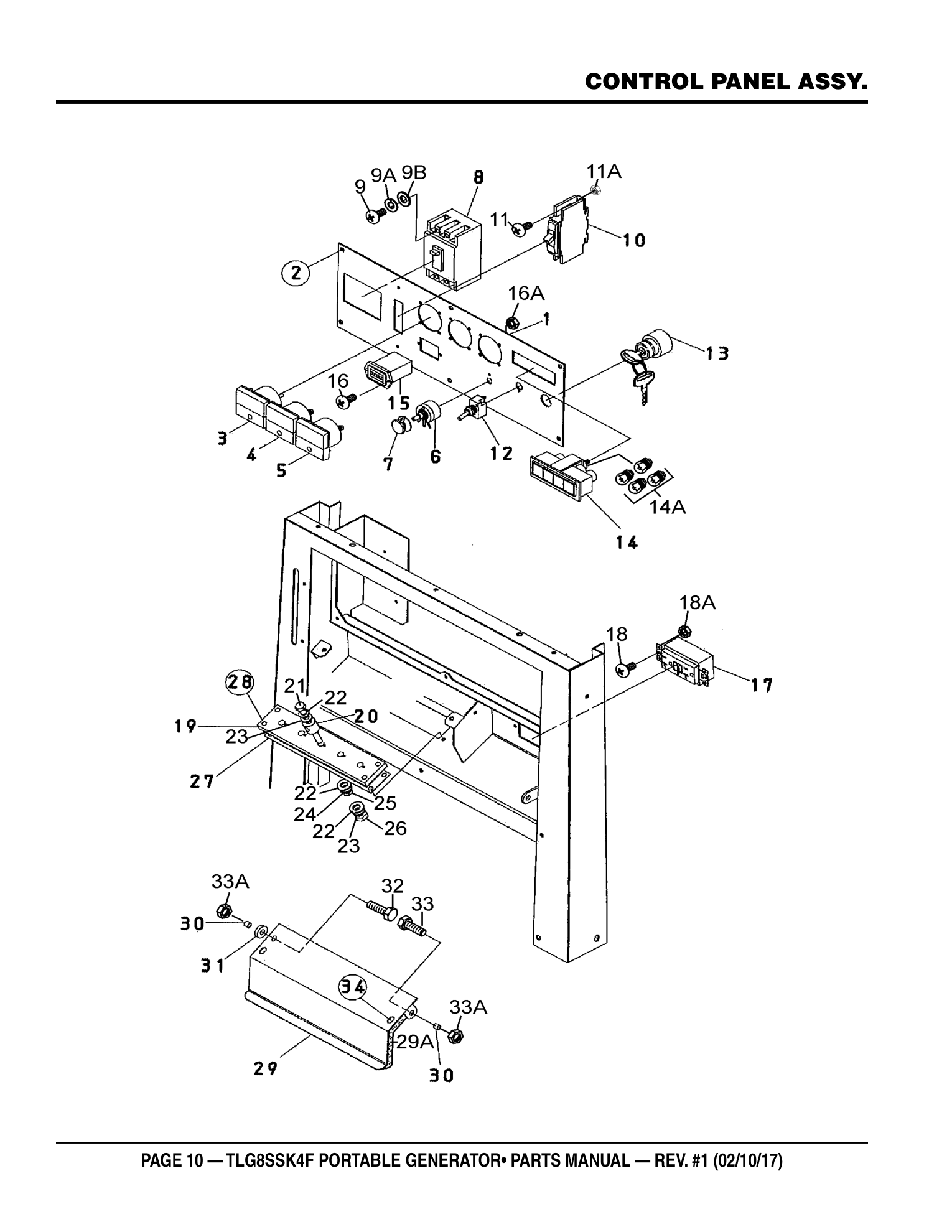

Multiquip TLG8SSK4F Generator CONTROL PANEL ASSY. parts diagram

Parts list — exactly as printed42 rows

No.	Part No.	Part Name	Qty	Remarks
1	A6511302602	CONTROL PANEL	1		ADD TO CART
CONTROL PANEL A6511302602 · qty on machine: 1 view full part page → $181.95
2	0021805012	MACHINE SCREW	6		ADD TO CART
MACHINE SCREW 0021805012 · qty on machine: 6 view full part page → $0.39
3	0601800455	FREQUENCY METER, 240V 45~65HZ	1		ADD TO CART
FREQUENCY METER, 240V 45~65HZ 0601800455 · qty on machine: 1 view full part page → $330.95
4	Y0601805749	AC AMMETER, 0-30A	1		PARTS REQUEST
PHOTO COMING AC AMMETER, 0-30A Y0601805749 · qty on machine: 1 PARTS REQUEST
5	0601800268	AC VOLTMETER, 0-300V	1		PARTS REQUEST
PHOTO COMING AC VOLTMETER, 0-300V 0601800268 · qty on machine: 1 PARTS REQUEST
6	0601840073	RHEOSTAT, VOLTAGE REG., 2W 1K OHM	1		ADD TO CART
RHEOSTAT, VOLTAGE REG., 2W 1K OHM 0601840073 · qty on machine: 1 view full part page → $90.95
7	0601840100	KNOB	1	REPLACES P/N 0601840121	ADD TO CART
KNOB 0601840100 · qty on machine: 1 REPLACES P/N 0601840121 view full part page → $30.95
8	Y0601872601	CIRCUIT BREAKER, 3P 20 AMP	1		ADD TO CART
CIRCUIT BREAKER, 3P 20 AMP Y0601872601 · qty on machine: 1 view full part page → $421.95
9	0021004060	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0021004060 · qty on machine: 2 view full part page → $0.62
9A	0040004000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040004000 · qty on machine: 2 view full part page → $0.09
9B	58042	WASHER, FLAT	2	REPLACES P/N 0041204000	ADD TO CART
WASHER, FLAT 58042 · qty on machine: 2 REPLACES P/N 0041204000 view full part page → $0.17
10	0601808803	CIRCUIT BREAKER, 1P 20 AMP	1		ADD TO CART
CIRCUIT BREAKER, 1P 20 AMP 0601808803 · qty on machine: 1 view full part page → $46.95
11	Y6027404010	MACHINE SCREW	2		PARTS REQUEST
PHOTO COMING MACHINE SCREW Y6027404010 · qty on machine: 2 PARTS REQUEST
11A	OEMAA8	HEX. NUT	2	REPLACES P/N 0207004000	ADD TO CART
HEX. NUT OEMAA8 · qty on machine: 2 REPLACES P/N 0207004000 view full part page → $0.4
12	0601830771	ENGINE SPEED SWITCH	1		ADD TO CART
ENGINE SPEED SWITCH 0601830771 · qty on machine: 1 view full part page → $21.95
13	1628663602	STARTER SWITCH	1	REPLACES P/N 0602100077	ADD TO CART
STARTER SWITCH 1628663602 · qty on machine: 1 REPLACES P/N 0602100077 view full part page → $148.95
14	0601810523	INDICATOR ASSY.	1		ADD TO CART
INDICATOR ASSY. 0601810523 · qty on machine: 1 view full part page → $154.95
14A	0601810830	BULB	4		ADD TO CART
BULB 0601810830 · qty on machine: 4 view full part page → $8.95
15	0601800682	HOUR METER	1		ADD TO CART
HOUR METER 0601800682 · qty on machine: 1 view full part page → $116.95
16	0027403010	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027403010 · qty on machine: 2 view full part page → $0.79
16A	0207003000	HEX. NUT	2		ADD TO CART
HEX. NUT 0207003000 · qty on machine: 2 view full part page → $0.21
17	0601814013	RECEPTACLE	1		ADD TO CART
RECEPTACLE 0601814013 · qty on machine: 1 view full part page → $118.95
18	0027104015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 2 view full part page → $0.53
18A	OEMAA8	HEX. NUT	2	REPLACES P/N 0207004000	ADD TO CART
HEX. NUT OEMAA8 · qty on machine: 2 REPLACES P/N 0207004000 view full part page → $0.4
19	A6231700004	SET BOARD, OUTPUT TERMINAL	1		PARTS REQUEST
PHOTO COMING SET BOARD, OUTPUT TERMINAL A6231700004 · qty on machine: 1 PARTS REQUEST
20	7811861004	OUTPUT TERMINAL	5		ADD TO CART
OUTPUT TERMINAL 7811861004 · qty on machine: 5 view full part page → $46.95
21	0801830604	HEX. HEAD BOLT	5		ADD TO CART
HEX. HEAD BOLT 0801830604 · qty on machine: 5 view full part page → $11.95
22	0040008000	WASHER, LOCK	15		ADD TO CART
WASHER, LOCK 0040008000 · qty on machine: 15 view full part page → $0.63
23	0041408000	WASHER, FLAT	10		ADD TO CART
WASHER, FLAT 0041408000 · qty on machine: 10 view full part page → $1.63
24	0401450080	WASHER, FLAT	5	REPLACES P/N 0041208000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 5 REPLACES P/N 0041208000 view full part page → $0.56
25	020108060	HEX. NUT	5	REPLACES P/N 0039508000	ADD TO CART
HEX. NUT 020108060 · qty on machine: 5 REPLACES P/N 0039508000 view full part page → $0.28
26	020108060	HEX. NUT	5	REPLACES P/N 0030008000	ADD TO CART
HEX. NUT 020108060 · qty on machine: 5 REPLACES P/N 0030008000 view full part page → $0.28
27	A6234500004	RUBBER SEAL	1		PARTS REQUEST
PHOTO COMING RUBBER SEAL A6234500004 · qty on machine: 1 PARTS REQUEST
28	011606025	HEX. HEAD BOLT	4	REPLACES P/N 0017106025	ADD TO CART
HEX. HEAD BOLT 011606025 · qty on machine: 4 REPLACES P/N 0017106025 view full part page → $1.95
29	A6237100604	COVER, OUTPUT TERMINAL	1		PARTS REQUEST
PHOTO COMING COVER, OUTPUT TERMINAL A6237100604 · qty on machine: 1 PARTS REQUEST
29A	A6237400304	RUBBER SHEET	1		PARTS REQUEST
PHOTO COMING RUBBER SHEET A6237400304 · qty on machine: 1 PARTS REQUEST
30	0821800014	COLLAR	2	REPLACES P/N W0821800014	ADD TO CART
COLLAR 0821800014 · qty on machine: 2 REPLACES P/N W0821800014 view full part page → $0.24
31	D9311200004	RUBBER WASHER	2		ADD TO CART
RUBBER WASHER D9311200004 · qty on machine: 2 view full part page → $2.82
32	011206020	HEX. HEAD BOLT	1	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 1 REPLACES P/N 0016906020 view full part page → $0.95
33	011206020	HEX. HEAD BOLT	1	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 1 REPLACES P/N 0016906020 view full part page → $0.95
33A	Y0207606000	HEX. NUT	1		PARTS REQUEST
PHOTO COMING HEX. NUT Y0207606000 · qty on machine: 1 PARTS REQUEST
34	011106015	HEX. HEAD BOLT	2	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 2 REPLACES P/N 0016906015 view full part page → $0.69

Page 12 — ELECTRIC PARTS ASSY.

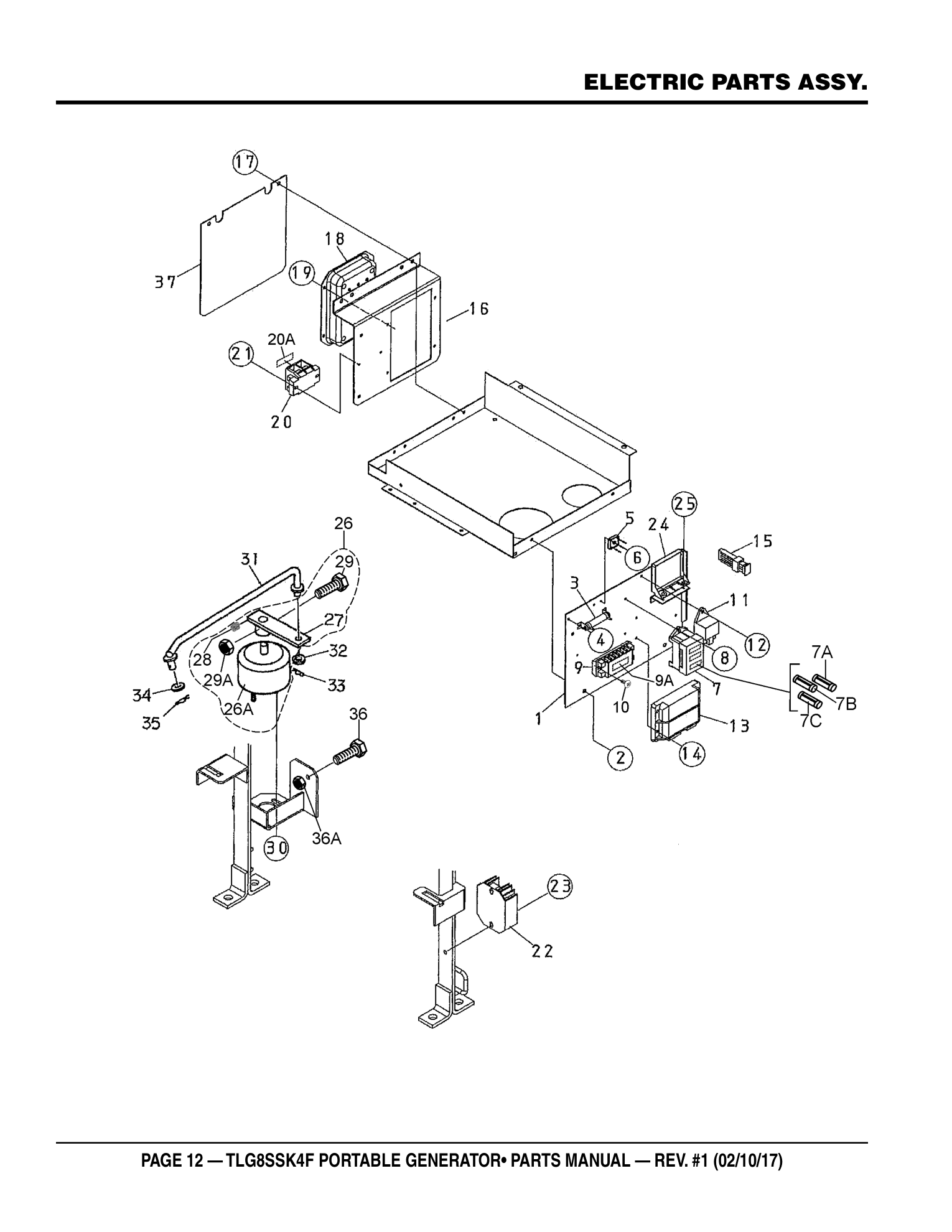

Multiquip TLG8SSK4F Generator ELECTRIC PARTS ASSY. parts diagram

Parts list — exactly as printed45 rows

No.	Part No.	Part Name	Qty	Remarks
1	A6261500803	BRACKET, ELECTRIC PARTS	1		PARTS REQUEST
PHOTO COMING BRACKET, ELECTRIC PARTS A6261500803 · qty on machine: 1 PARTS REQUEST
2	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0017106015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0017106015 view full part page → $0.69
3	0601842347	RESISTOR, 20W 30 OHM	1		ADD TO CART
RESISTOR, 20W 30 OHM 0601842347 · qty on machine: 1 view full part page → $19.95
4	0027104012	MACHINE SCREW	2		PARTS REQUEST
PHOTO COMING MACHINE SCREW 0027104012 · qty on machine: 2 PARTS REQUEST
5	0601823204	RECTIFIER	1		ADD TO CART
RECTIFIER 0601823204 · qty on machine: 1 view full part page → $16.95
6	0027103020	MACHINE SCREW	1		ADD TO CART
MACHINE SCREW 0027103020 · qty on machine: 1 view full part page → $0.37
7	B0352500104	FUSE BOX	1		ADD TO CART
FUSE BOX B0352500104 · qty on machine: 1 view full part page → $63.95
7A	0601806642	FUSE, 5A	4		ADD TO CART
FUSE, 5A 0601806642 · qty on machine: 4 view full part page → $2.77
7B	0601806643	FUSE, 15A	2		ADD TO CART
FUSE, 15A 0601806643 · qty on machine: 2 view full part page → $5.95
7C	0601806644	FUSE, 30A	2		ADD TO CART
FUSE, 30A 0601806644 · qty on machine: 2 view full part page → $1.43
8	0027105020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027105020 · qty on machine: 2 view full part page → $0.62
9	0601815759	TERMINAL BOARD	1		ADD TO CART
TERMINAL BOARD 0601815759 · qty on machine: 1 view full part page → $36.95
9A	W8540613504	DECAL	1		PARTS REQUEST
PHOTO COMING DECAL W8540613504 · qty on machine: 1 PARTS REQUEST
10	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
11	1569465990	TIMER	1	REPLACES P/N 0602201273	ADD TO CART
TIMER 1569465990 · qty on machine: 1 REPLACES P/N 0602201273 view full part page → $152.95
12	0027105015	MACHINE SCREW	1		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 1 view full part page → $0.2
13	1747260604	EMERGENCY UNIT	1	REPLACES P/N 0602200475	NO LONGER AVAILABLE
PHOTO COMING EMERGENCY UNIT 1747260604 · qty on machine: 1 REPLACES P/N 0602200475 NO LONGER AVAILABLE
14	0027105025	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105025 · qty on machine: 4 view full part page → $0.35
15	0601806640	FUSE, 65A	2		ADD TO CART
FUSE, 65A 0601806640 · qty on machine: 2 view full part page → $11.95
16	A6261500903	BRACKET, ELECTRIC PARTS	1		PARTS REQUEST
PHOTO COMING BRACKET, ELECTRIC PARTS A6261500903 · qty on machine: 1 PARTS REQUEST
17	011106015	HEX. HEAD BOLT	2	REPLACES P/N 0017106015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 2 REPLACES P/N 0017106015 view full part page → $0.69
18	0601820660	AUTOMATIC VOLTAGE REGULATOR	1		ADD TO CART
AUTOMATIC VOLTAGE REGULATOR 0601820660 · qty on machine: 1 view full part page → $800.95
19	0027105015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 4 view full part page → $0.2
20	0601815779	TERMINAL BOARD	1		ADD TO CART
TERMINAL BOARD 0601815779 · qty on machine: 1 view full part page → $18.95
20A	W8540613604	DECAL	1		PARTS REQUEST
PHOTO COMING DECAL W8540613604 · qty on machine: 1 PARTS REQUEST
21	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
22	1584464600	REGULATOR	1	REPLACES P/N 0602201378	PARTS REQUEST
PHOTO COMING REGULATOR 1584464600 · qty on machine: 1 REPLACES P/N 0602201378 PARTS REQUEST
23	0017106035	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0017106035 · qty on machine: 2 view full part page → $0.95
24	0601823857	SLOW DOWN	1		ADD TO CART
SLOW DOWN 0601823857 · qty on machine: 1 view full part page → $257.95
25	0027105015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 2 view full part page → $0.2
26	W1992639003	SOLENOID ASSY	1	INCLUDES ITEMS W/%	PARTS REQUEST
PHOTO COMING SOLENOID ASSY W1992639003 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 26A%, 27%, 28%, 29%, 29A% PARTS REQUEST
26A%	1622636103Z	ROTARY SOLENOID	1	REPLACES P/N 1620150404	ADD TO CART
ROTARY SOLENOID 1622636103Z · qty on machine: 1 REPLACES P/N 1620150404 Also included in kit 26 - SOLENOID ASSY (W1992639003) view full part page → $526.95 IN A KIT + SOLD SOLO
27%	1992636004	ARM, SOLENOID	1		ADD TO CART
ARM, SOLENOID 1992636004 · qty on machine: 1 Also included in kit 26 - SOLENOID ASSY (W1992639003) view full part page → $80.95 IN A KIT + SOLD SOLO
28%	0050403020	SPRING PIN	1		ADD TO CART
SPRING PIN 0050403020 · qty on machine: 1 Also included in kit 26 - SOLENOID ASSY (W1992639003) view full part page → $0.53 IN A KIT + SOLD SOLO
29%	011606025	HEX. HEAD BOLT	1	REPLACES P/N 0010106025	ADD TO CART
HEX. HEAD BOLT 011606025 · qty on machine: 1 REPLACES P/N 0010106025 Also included in kit 26 - SOLENOID ASSY (W1992639003) view full part page → $1.95 IN A KIT + SOLD SOLO
29A%	020106050	HEX. NUT	1	REPLACES P/N 0030006000	ADD TO CART
HEX. NUT 020106050 · qty on machine: 1 REPLACES P/N 0030006000 Also included in kit 26 - SOLENOID ASSY (W1992639003) view full part page → $0.12 IN A KIT + SOLD SOLO
30	0023706000	HEX. NUT	2	REPLACES P/N 0207206000	ADD TO CART
HEX. NUT 0023706000 · qty on machine: 2 REPLACES P/N 0207206000 view full part page → $0.95
31	A6355300304	GOVERNOR ROD	1		PARTS REQUEST
PHOTO COMING GOVERNOR ROD A6355300304 · qty on machine: 1 PARTS REQUEST
32	031108160	WASHER, FLAT	1	REPLACES P/N 0041608000	ADD TO CART
WASHER, FLAT 031108160 · qty on machine: 1 REPLACES P/N 0041608000 Factory replaced this part - current number 0401450080 view full part page → $0.56 IN A KIT + SOLD SOLO
33	0605010503	SNAP PIN	1		ADD TO CART
SNAP PIN 0605010503 · qty on machine: 1 view full part page → $0.35
34	0042806000	WASHER, FLAT	1		ADD TO CART
WASHER, FLAT 0042806000 · qty on machine: 1 view full part page → $0.39
35	505015300	SNAP PIN	1	REPLACES P/N 0605010502	ADD TO CART
SNAP PIN 505015300 · qty on machine: 1 REPLACES P/N 0605010502 view full part page → $0.95
36	0010108050	HEX HEAD BOLT	1		ADD TO CART
HEX HEAD BOLT 0010108050 · qty on machine: 1 view full part page → $0.78
36A	020108060	HEX. NUT	1	REPLACES P/N 0207008000	ADD TO CART
HEX. NUT 020108060 · qty on machine: 1 REPLACES P/N 0207008000 view full part page → $0.28
37	A6261700604	COVER	1		PARTS REQUEST
PHOTO COMING COVER A6261700604 · qty on machine: 1 PARTS REQUEST

Page 14 — ENGINE AND RADIATOR ASSY.

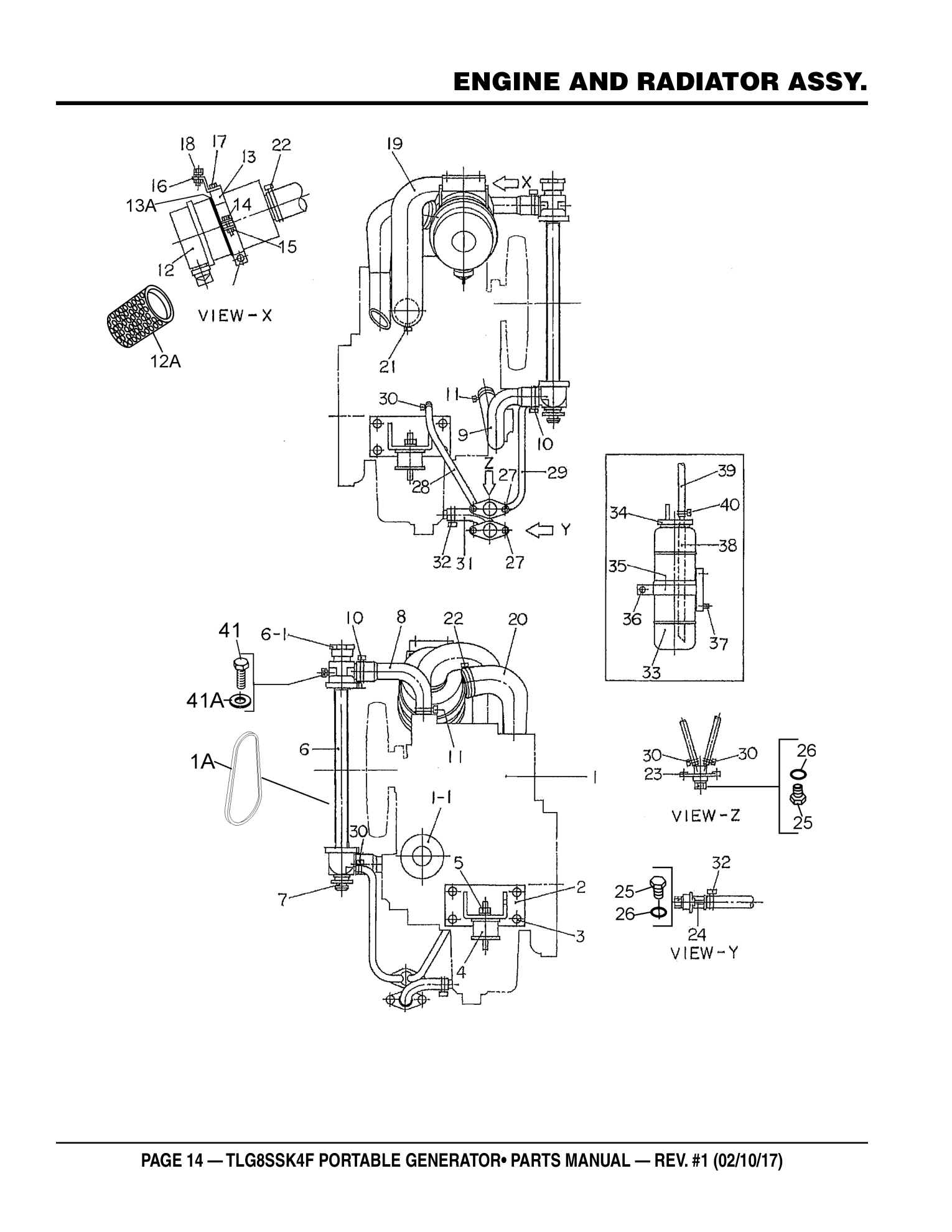

Multiquip TLG8SSK4F Generator ENGINE AND RADIATOR ASSY. parts diagram

Parts list — exactly as printed47 rows

No.	Part No.	Part Name	Qty	Remarks
1	A6924200084	ENGINE, KUBOTA Z482-E4B	1		PARTS REQUEST
PHOTO COMING ENGINE, KUBOTA Z482-E4B A6924200084 · qty on machine: 1 PARTS REQUEST
1-1	1585332435	CARTRIDGE, OIL FILTER	1	REPLACES P/N 0602041273	ADD TO CART
CARTRIDGE, OIL FILTER 1585332435 · qty on machine: 1 REPLACES P/N 0602041273 view full part page → $18.95
1A	1980572531	FAN BELT	1	REPLACES P/N 0602011477	ADD TO CART
FAN BELT 1980572531 · qty on machine: 1 REPLACES P/N 0602011477 Factory replaced this part - current number 1980572530 view full part page → $25.95 IN A KIT + SOLD SOLO
2	8745112003A	ENGINE FOOT	2	REPLACES P/N 8745112003	NO LONGER AVAILABLE
PHOTO COMING ENGINE FOOT 8745112003A · qty on machine: 2 REPLACES P/N 8745112003 NO LONGER AVAILABLE
3	Y0341110020	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT Y0341110020 · qty on machine: 8 view full part page → $3.95
4	7085419004	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION 7085419004 · qty on machine: 2 view full part page → $34.95
5	021112140	HEX. NUT	2	REPLACES P/N 0207010000	ADD TO CART
HEX. NUT 021112140 · qty on machine: 2 REPLACES P/N 0207010000 view full part page → $0.46
6	0602012795	RADIATOR	1		ADD TO CART
RADIATOR 0602012795 · qty on machine: 1 view full part page → $430.95
6-1	0602011079	CAP, RADIATOR	1		ADD TO CART
CAP, RADIATOR 0602011079 · qty on machine: 1 view full part page → $137.95
7	B1312600004	MOUNT RUBBER	2		ADD TO CART
MOUNT RUBBER B1312600004 · qty on machine: 2 view full part page → $15.95
8	A6311500004	RADIATOR HOSE	1		ADD TO CART
RADIATOR HOSE A6311500004 · qty on machine: 1 view full part page → $48.95
9	A6311500103	RADIATOR HOSE	1		ADD TO CART
RADIATOR HOSE A6311500103 · qty on machine: 1 view full part page → $112.95
10	0605515134	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515134 · qty on machine: 2 view full part page → $4.95
11	0605515159	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515159 · qty on machine: 2 view full part page → $1.32
12	1556211010	AIR CLEANER	1	REPLACES P/N 0602046265	ADD TO CART
AIR CLEANER 1556211010 · qty on machine: 1 REPLACES P/N 0602046265 view full part page → $247.95
12A	7000011221	ELEMENT, AIR CLEANER	1	REPLACES P/N 0602046374	ADD TO CART
ELEMENT, AIR CLEANER 7000011221 · qty on machine: 1 REPLACES P/N 0602046374 view full part page → $54.95
13	3415013960	BAND, AIR CLEANER	1	REPLACES P/N 0602040575	NO LONGER AVAILABLE
PHOTO COMING BAND, AIR CLEANER 3415013960 · qty on machine: 1 REPLACES P/N 0602040575 NO LONGER AVAILABLE
13A	0222600340	RUBBER CUSHION	1		ADD TO CART
RUBBER CUSHION 0222600340 · qty on machine: 1 view full part page → $4.95
14	011208030	HEX. HEAD BOLT	1	REPLACES P/N 0016908030	ADD TO CART
HEX. HEAD BOLT 011208030 · qty on machine: 1 REPLACES P/N 0016908030 view full part page → $1.3
15	020108060	HEX, NUT	1	REPLACES P/N 0207008000	ADD TO CART
HEX, NUT 020108060 · qty on machine: 1 REPLACES P/N 0207008000 view full part page → $0.28
16	A6374200204	BRACKET, AIR CLEANER	1		PARTS REQUEST
PHOTO COMING BRACKET, AIR CLEANER A6374200204 · qty on machine: 1 PARTS REQUEST
17	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
18	011106015	HEX. HEAD BOLT	2	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 2 REPLACES P/N 0016906015 view full part page → $0.69
19	8742032003A	HOSE, AIR CLEANER	1	REPLACES P/N 8742032003	ADD TO CART
HOSE, AIR CLEANER 8742032003A · qty on machine: 1 REPLACES P/N 8742032003 view full part page → $110.95
20	1612036203	HOSE, AIR CLEANER	1		ADD TO CART
HOSE, AIR CLEANER 1612036203 · qty on machine: 1 view full part page → $64.31
21	0605515006	HOSE BAND	1		NO LONGER AVAILABLE
PHOTO COMING HOSE BAND 0605515006 · qty on machine: 1 NO LONGER AVAILABLE
22	Y0605515115	HOSE BAND	2		PARTS REQUEST
PHOTO COMING HOSE BAND Y0605515115 · qty on machine: 2 PARTS REQUEST
23	1622014103	DRAIN JOINT, WATER	1		ADD TO CART
DRAIN JOINT, WATER 1622014103 · qty on machine: 1 view full part page → $23.95
24	1502025103C	DRAIN JOINT, OIL	1	REPLACES P/N 1502025103	ADD TO CART
DRAIN JOINT, OIL 1502025103C · qty on machine: 1 REPLACES P/N 1502025103 view full part page → $29.95
25	0802011104	PLUG	2		ADD TO CART
PLUG 0802011104 · qty on machine: 2 view full part page → $10.95
26	0150000018	O-RING	2		ADD TO CART
O-RING 0150000018 · qty on machine: 2 view full part page → $1.87
27	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0016906015 view full part page → $0.69
28	0199900500	DRAIN HOSE	1		ADD TO CART
DRAIN HOSE 0199900500 · qty on machine: 1 view full part page → $11.95
29	0199900500	DRAIN HOSE	1		ADD TO CART
DRAIN HOSE 0199900500 · qty on machine: 1 view full part page → $11.95
30	0605515094	HOSE BAND	4		ADD TO CART
HOSE BAND 0605515094 · qty on machine: 4 view full part page → $8.95
31	A5321100204	DRAIN HOSE	1		ADD TO CART
DRAIN HOSE A5321100204 · qty on machine: 1 view full part page → $41.21
32	0605515132	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515132 · qty on machine: 2 view full part page → $4.95
33	0802081403	RESERVE TANK	1		ADD TO CART
RESERVE TANK 0802081403 · qty on machine: 1 view full part page → $29.95
34	0802081104	CAP, RESERVE TANK	1		ADD TO CART
CAP, RESERVE TANK 0802081104 · qty on machine: 1 view full part page → $5.95
35	W1622082004	BRACKET, RESERVE TANK	1		PARTS REQUEST
PHOTO COMING BRACKET, RESERVE TANK W1622082004 · qty on machine: 1 PARTS REQUEST
36	011606025	HEX. HEAD BOLT	1	REPLACES P/N 0016906025	ADD TO CART
HEX. HEAD BOLT 011606025 · qty on machine: 1 REPLACES P/N 0016906025 view full part page → $1.95
37	011106015	HEX. HEAD BOLT	2	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 2 REPLACES P/N 0016906015 view full part page → $0.69
38	0199100215	HOSE	1		ADD TO CART
HOSE 0199100215 · qty on machine: 1 view full part page → $3.95
39	0199900420	HOSE	1		ADD TO CART
HOSE 0199900420 · qty on machine: 1 view full part page → $10.95
40	0605515094	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515094 · qty on machine: 2 view full part page → $8.95
41	Y0016906035	HEX. HEAD BOLT	2		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0016906035 · qty on machine: 2 PARTS REQUEST
41A	Y0047006020	WASHER	2		PARTS REQUEST
PHOTO COMING WASHER Y0047006020 · qty on machine: 2 PARTS REQUEST

Page 16 — BATTERY ASSY.

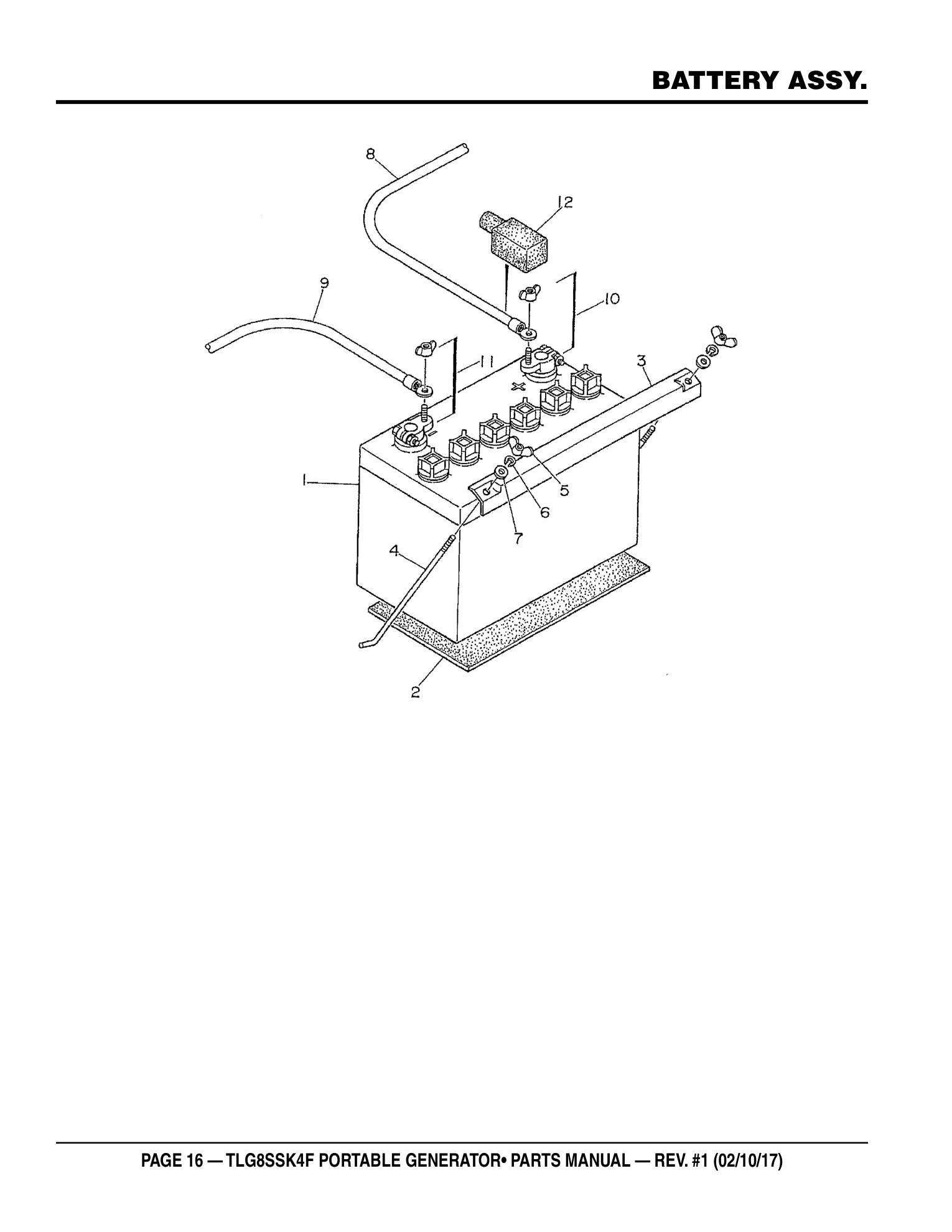

Multiquip TLG8SSK4F Generator BATTERY ASSY. parts diagram

Parts list — exactly as printed12 rows

No.	Part No.	Part Name	Qty	Remarks
1	Y0165103820	BATTERY	1		ADD TO CART
BATTERY Y0165103820 · qty on machine: 1 view full part page → $276.95
2	0805081004	BATTERY SHEET	1	REPLACES P/N 1702202104	ADD TO CART
BATTERY SHEET 0805081004 · qty on machine: 1 REPLACES P/N 1702202104 view full part page → $24.95
3	W1702204104	BATTERY BAND	1		PARTS REQUEST
PHOTO COMING BATTERY BAND W1702204104 · qty on machine: 1 PARTS REQUEST
4	0805082704	BATTERY BOLT	2		ADD TO CART
BATTERY BOLT 0805082704 · qty on machine: 2 view full part page → $3.95
5	0037806000	WING NUT	2		ADD TO CART
WING NUT 0037806000 · qty on machine: 2 view full part page → $1.95
6	0040006000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040006000 · qty on machine: 2 view full part page → $0.17
7	952404470	WASHER, FLAT	2	REPLACES P/N 0041606000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 2 REPLACES P/N 0041606000 view full part page → $0.19
8		BATTERY CABLE	1	PURCHASE LOCALLY	SEE REMARKS
PHOTO COMING BATTERY CABLE · qty on machine: 1 PURCHASE LOCALLY SEE REMARKS
9		BATTERY CABLE	1	PURCHASE LOCALLY	SEE REMARKS
PHOTO COMING BATTERY CABLE · qty on machine: 1 PURCHASE LOCALLY SEE REMARKS
10	0602220312	TERMINAL ASSY., POSITIVE	1		ADD TO CART
TERMINAL ASSY., POSITIVE 0602220312 · qty on machine: 1 view full part page → $10.95
11	0602220313	TERMINAL ASSY., NEGATIVE	1		ADD TO CART
TERMINAL ASSY., NEGATIVE 0602220313 · qty on machine: 1 view full part page → $22.95
12	0845040414	TERMINAL CAP	1	REPLACES P/N 0602220600	ADD TO CART
TERMINAL CAP 0845040414 · qty on machine: 1 REPLACES P/N 0602220600 view full part page → $13.95

Page 18 — MUFFLER ASSY.

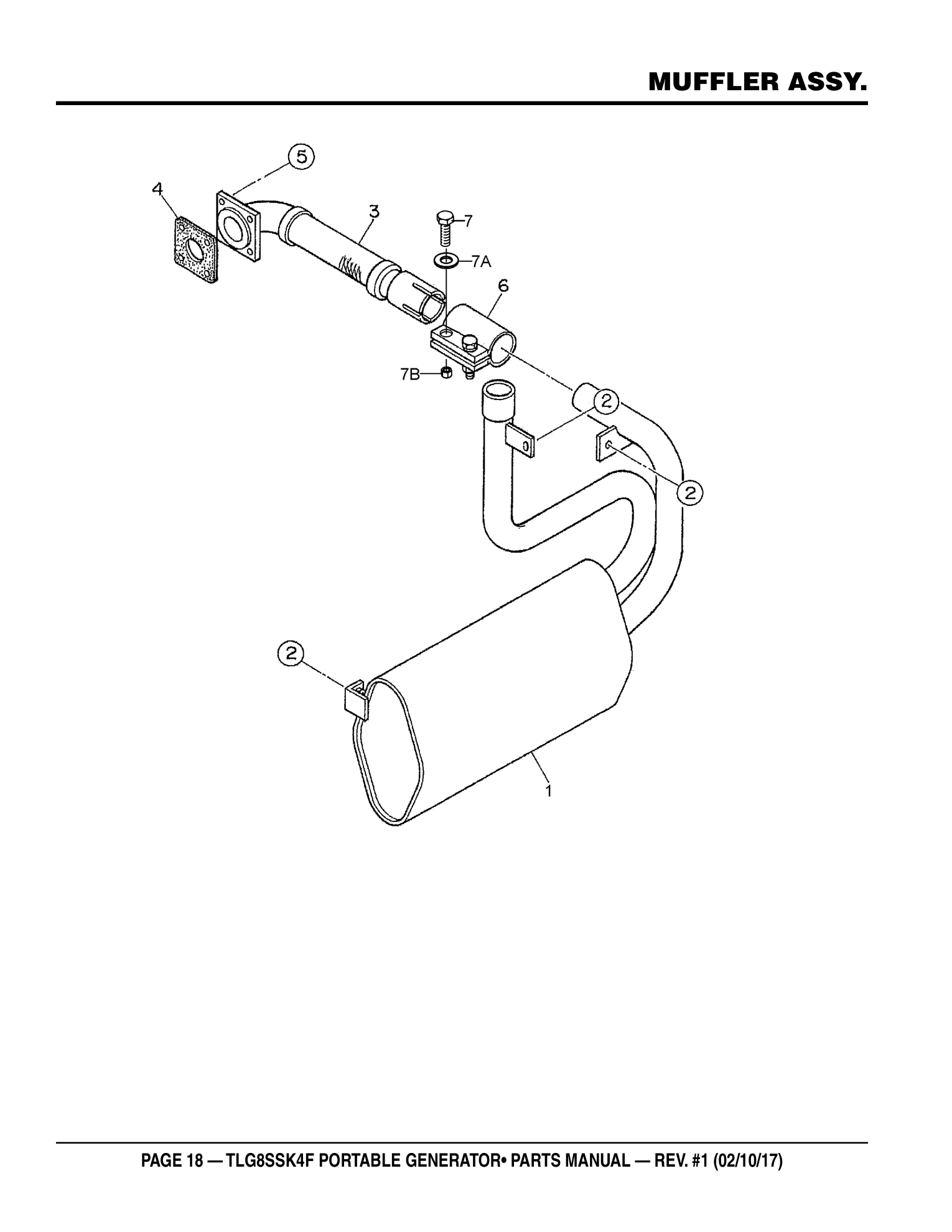

Multiquip TLG8SSK4F Generator MUFFLER ASSY. parts diagram

Parts list — exactly as printed9 rows

No.	Part No.	Part Name	Qty	Remarks
1	A6331000003	MUFFLER	1		PARTS REQUEST
PHOTO COMING MUFFLER A6331000003 · qty on machine: 1 PARTS REQUEST
2	011008020	HEX. HEAD BOLT	5	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 5 REPLACES P/N 0016908020 view full part page → $2.68
3	A6334000003	EXHAUST PIPE	1		PARTS REQUEST
PHOTO COMING EXHAUST PIPE A6334000003 · qty on machine: 1 PARTS REQUEST
4	1526312371	GASKET	1	REPLACES P/N 0602320153	PARTS REQUEST
PHOTO COMING GASKET 1526312371 · qty on machine: 1 REPLACES P/N 0602320153 PARTS REQUEST
5	Y0207008000	HEX. NUT	4		ADD TO CART
HEX. NUT Y0207008000 · qty on machine: 4 view full part page → $0.4
6	0602325094	PIPE BAND	1		ADD TO CART
PIPE BAND 0602325094 · qty on machine: 1 view full part page → $95.95
7	0341510040	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0341510040 · qty on machine: 2 view full part page → $8.95
7A	0042410000	WASHER, FLAT	2		ADD TO CART
WASHER, FLAT 0042410000 · qty on machine: 2 view full part page → $2.93
7B	0207110000	NUT	2		ADD TO CART
NUT 0207110000 · qty on machine: 2 view full part page → $7.95

Page 20 — FUEL TANK ASSY.

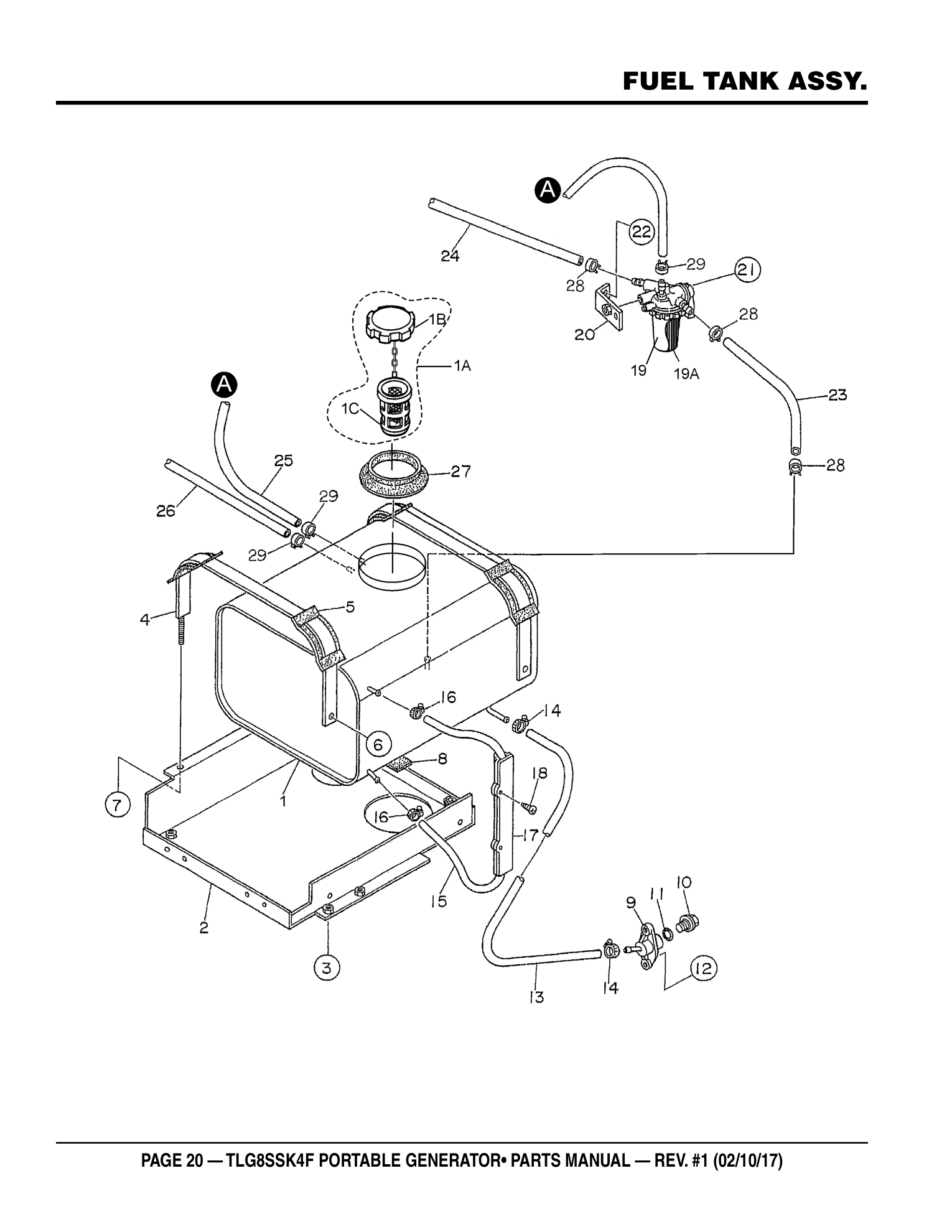

Multiquip TLG8SSK4F Generator FUEL TANK ASSY. parts diagram

Parts list — exactly as printed31 rows

No.	Part No.	Part Name	Qty	Remarks
1	A6364000303	FUEL TANK	1		PARTS REQUEST
PHOTO COMING FUEL TANK A6364000303 · qty on machine: 1 PARTS REQUEST
1A	A9924800024	CAP, FUEL TANK ASSY	1	INCLUDES ITEMS W/#	ADD TO CART
CAP, FUEL TANK ASSY A9924800024 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 1B#, 1C# view full part page → $50.95 IN A KIT + SOLD SOLO
1B#	0810105800	CAP, FUEL TANK	1		ADD TO CART
CAP, FUEL TANK 0810105800 · qty on machine: 1 Also included in kit 1A - CAP, FUEL TANK ASSY (A9924800024) view full part page → $50.95 IN A KIT + SOLD SOLO
1C#	0810105900	FUEL STRAINER	1		NO LONGER AVAILABLE
PHOTO COMING FUEL STRAINER 0810105900 · qty on machine: 1 Also included in kit 1A - CAP, FUEL TANK ASSY (A9924800024) NO LONGER AVAILABLE
2	A6364300003	BRACKET, FUEL TANK	1		PARTS REQUEST
PHOTO COMING BRACKET, FUEL TANK A6364300003 · qty on machine: 1 PARTS REQUEST
3	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
4	W8545512004	TANK BAND	2		PARTS REQUEST
PHOTO COMING TANK BAND W8545512004 · qty on machine: 2 PARTS REQUEST
5	D6365300504	PAD, TANK BAND	4		ADD TO CART
PAD, TANK BAND D6365300504 · qty on machine: 4 view full part page → $3.95
6	0016906012	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0016906012 · qty on machine: 2 view full part page → $0.52
7	0207308000	HEX. NUT	2		ADD TO CART
HEX. NUT 0207308000 · qty on machine: 2 view full part page → $0.89
8	Y0222100310	TANK SHEET	2		PARTS REQUEST
PHOTO COMING TANK SHEET Y0222100310 · qty on machine: 2 PARTS REQUEST
9	7812014003	DRAIN JOINT	1		ADD TO CART
DRAIN JOINT 7812014003 · qty on machine: 1 view full part page → $25.95
10	0802011104	PLUG	1		ADD TO CART
PLUG 0802011104 · qty on machine: 1 view full part page → $10.95
11	0150000018	O-RING	1		ADD TO CART
O-RING 0150000018 · qty on machine: 1 view full part page → $1.87
12	011106015	HEX. HEAD BOLT	2	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 2 REPLACES P/N 0016906015 view full part page → $0.69
13	Y0370600650	DRAIN HOSE	1		ADD TO CART
DRAIN HOSE Y0370600650 · qty on machine: 1 view full part page → $14.09
14	Y06D5515094	HOSE BAND	2		PARTS REQUEST
PHOTO COMING HOSE BAND Y06D5515094 · qty on machine: 2 PARTS REQUEST
15	Y0264200550	HOSE, FUEL GAUGE	1		ADD TO CART
HOSE, FUEL GAUGE Y0264200550 · qty on machine: 1 view full part page → $4.1
16	0605515200	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515200 · qty on machine: 2 view full part page → $4.95
17	7815511203	BRACKET, FUEL GAUGE	1		ADD TO CART
BRACKET, FUEL GAUGE 7815511203 · qty on machine: 1 view full part page → $16.95
18	Y0029804012	MACHINE SCREW	2		PARTS REQUEST
PHOTO COMING MACHINE SCREW Y0029804012 · qty on machine: 2 PARTS REQUEST
19	1575143010	FUEL FILTER	1	REPLACES P/N 0602042097	ADD TO CART
FUEL FILTER 1575143010 · qty on machine: 1 REPLACES P/N 0602042097 view full part page → $104.95
19A	1T02143560	ELEMENT, FUEL FILTER	1		ADD TO CART
ELEMENT, FUEL FILTER 1T02143560 · qty on machine: 1 view full part page → $14.95
20	W8745515004	BRACKET, FUEL FILTER	1		PARTS REQUEST
PHOTO COMING BRACKET, FUEL FILTER W8745515004 · qty on machine: 1 PARTS REQUEST
21	0017108065	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0017108065 · qty on machine: 1 view full part page → $0.95
22	011008020	HEX. HEAD BOLT	1	REPLACES P/N 0017108020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 1 REPLACES P/N 0017108020 view full part page → $2.68
23	096618018	SUCTION HOSE	1	REPLACES P/N 0605513116	PARTS REQUEST
PHOTO COMING SUCTION HOSE 096618018 · qty on machine: 1 REPLACES P/N 0605513116 PARTS REQUEST
24	0966180400	SUCTION HOSE	1	REPLACES P/N 0605513101	ADD TO CART
SUCTION HOSE 0966180400 · qty on machine: 1 REPLACES P/N 0605513101 view full part page → $14.95
25	Y0605514039	RETURN HOSE	1		PARTS REQUEST
PHOTO COMING RETURN HOSE Y0605514039 · qty on machine: 1 PARTS REQUEST
26	Y0605514100	RETURN HOSE	1		ADD TO CART
RETURN HOSE Y0605514100 · qty on machine: 1 view full part page → $19.98
27	B9312400004	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL B9312400004 · qty on machine: 1 view full part page → $12.95

Page 22 — ENCLOSURE ASSY.

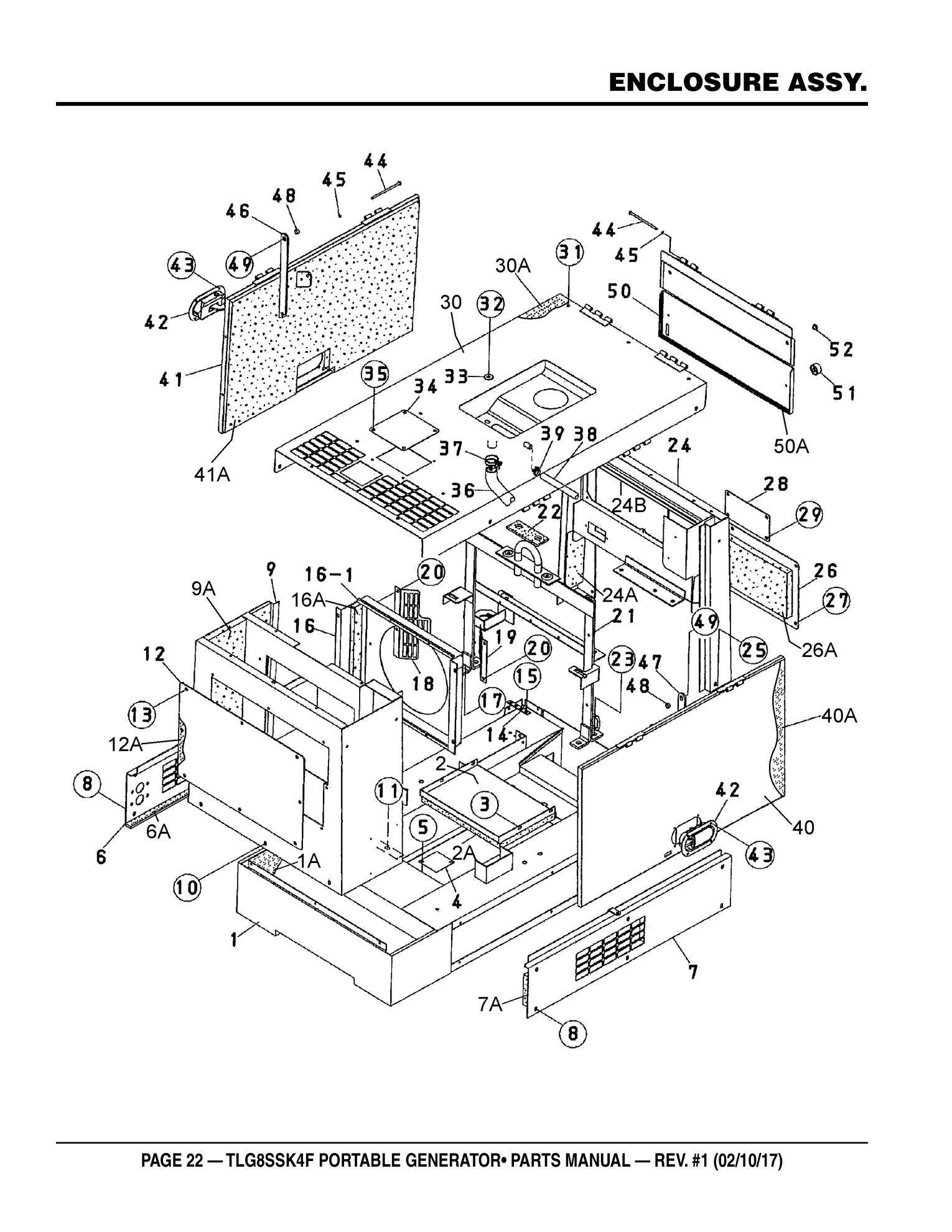

Multiquip TLG8SSK4F Generator ENCLOSURE ASSY. parts diagram

Parts list — exactly as printed47 rows

No.	Part No.	Part Name	Qty	Remarks
1	A6414000802	BASE	1		PARTS REQUEST
PHOTO COMING BASE A6414000802 · qty on machine: 1 PARTS REQUEST
1A	A6494000103	LINING	1		PARTS REQUEST
PHOTO COMING LINING A6494000103 · qty on machine: 1 PARTS REQUEST
2	A6414600004	DUCT	1		PARTS REQUEST
PHOTO COMING DUCT A6414600004 · qty on machine: 1 PARTS REQUEST
2A	A6494000304	LINING	1		PARTS REQUEST
PHOTO COMING LINING A6494000304 · qty on machine: 1 PARTS REQUEST
3	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0016906015 view full part page → $0.69
4	D3414800104	COVER	1		ADD TO CART
COVER D3414800104 · qty on machine: 1 view full part page → $29.95
5	011106015	HEX. HEAD BOLT	2	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 2 REPLACES P/N 0016906015 view full part page → $0.69
6	A6454200403	SPLASHER PANEL	1		PARTS REQUEST
PHOTO COMING SPLASHER PANEL A6454200403 · qty on machine: 1 PARTS REQUEST
6A	A6494000204	LINING	1		PARTS REQUEST
PHOTO COMING LINING A6494000204 · qty on machine: 1 PARTS REQUEST
7	A6454200503	SPLASHER PANEL	1		PARTS REQUEST
PHOTO COMING SPLASHER PANEL A6454200503 · qty on machine: 1 PARTS REQUEST
7A	A6494000204	LINING	1		PARTS REQUEST
PHOTO COMING LINING A6494000204 · qty on machine: 1 PARTS REQUEST
8	011106015	HEX. HEAD BOLT	12	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 12 REPLACES P/N 0016906015 view full part page → $0.69
9	A6424000702	FRONT FRAME	1		PARTS REQUEST
PHOTO COMING FRONT FRAME A6424000702 · qty on machine: 1 PARTS REQUEST
9A	A6494100603	LINING	1		PARTS REQUEST
PHOTO COMING LINING A6494100603 · qty on machine: 1 PARTS REQUEST
10	011106015	HEX. HEAD BOLT	3	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 3 REPLACES P/N 0016906015 view full part page → $0.69
11	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0017108020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0017108020 view full part page → $2.68
12	A6424200004	FRONT COVER	1		PARTS REQUEST
PHOTO COMING FRONT COVER A6424200004 · qty on machine: 1 PARTS REQUEST
12A	A6494100204	LINING	1		PARTS REQUEST
PHOTO COMING LINING A6494100204 · qty on machine: 1 PARTS REQUEST
13	011206020	HEX. HEAD BOLT	1	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 1 REPLACES P/N 0016906020 view full part page → $0.95
14	B1262800004A	PLATE	1	REPLACES P/N B1262800004	ADD TO CART
PLATE B1262800004A · qty on machine: 1 REPLACES P/N B1262800004 view full part page → $12.95
15	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0017106015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0017106015 view full part page → $0.69
16	A6311300303	FAN SHROUD	1		PARTS REQUEST
PHOTO COMING FAN SHROUD A6311300303 · qty on machine: 1 PARTS REQUEST
16A	A6494100304	LINING	1		PARTS REQUEST
PHOTO COMING LINING A6494100304 · qty on machine: 1 PARTS REQUEST
16-1	Y0315600375	RUBBER SEAL	2		PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0315600375 · qty on machine: 2 PARTS REQUEST
17	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0016906015 view full part page → $0.69
18	A6311200303	FAN GUARD	1		PARTS REQUEST
PHOTO COMING FAN GUARD A6311200303 · qty on machine: 1 PARTS REQUEST
19	A6311200403	FAN GUARD	1		PARTS REQUEST
PHOTO COMING FAN GUARD A6311200403 · qty on machine: 1 PARTS REQUEST
20	011106015	HEX. HEAD BOLT		REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 REPLACES P/N 0016906015 view full part page → $0.69
21	A6434300102	HANGER	1		PARTS REQUEST
PHOTO COMING HANGER A6434300102 · qty on machine: 1 PARTS REQUEST
22	7835132314A	RUBBER SEAL	1	REPLACES P/N 7835132314	ADD TO CART
RUBBER SEAL 7835132314A · qty on machine: 1 REPLACES P/N 7835132314 view full part page → $6.95
23	0012312030	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0012312030 · qty on machine: 4 view full part page → $6.95
24	A6444001402	REAR FRAME	1		PARTS REQUEST
PHOTO COMING REAR FRAME A6444001402 · qty on machine: 1 PARTS REQUEST
24A	A6494301204	LINING	1		PARTS REQUEST
PHOTO COMING LINING A6494301204 · qty on machine: 1 PARTS REQUEST
24B	Y0315600375	RUBBER SEAL	1		PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0315600375 · qty on machine: 1 PARTS REQUEST
25	011106015	HEX. HEAD BOLT	2	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 2 REPLACES P/N 0016906015 view full part page → $0.69
26	A6444301304	COVER, REAR FRAME	1		PARTS REQUEST
PHOTO COMING COVER, REAR FRAME A6444301304 · qty on machine: 1 PARTS REQUEST
26A	A6494301104	LINING	1		PARTS REQUEST
PHOTO COMING LINING A6494301104 · qty on machine: 1 PARTS REQUEST
27	011106015	HEX. HEAD BOLT	6	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 6 REPLACES P/N 0016906015 view full part page → $0.69
28	A6444800104	COVER	1		PARTS REQUEST
PHOTO COMING COVER A6444800104 · qty on machine: 1 PARTS REQUEST
29	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0016906015 view full part page → $0.69
30	A6464000602	ROOF PANEL	1		PARTS REQUEST
PHOTO COMING ROOF PANEL A6464000602 · qty on machine: 1 PARTS REQUEST
30A	A6494500304	LINING	1		PARTS REQUEST
PHOTO COMING LINING A6494500304 · qty on machine: 1 PARTS REQUEST
31	011106015	HEX. HEAD BOLT	12	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 12 REPLACES P/N 0016906015 view full part page → $0.69
32	Y0340608020	HEX. HEAD BOLT	2		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0340608020 · qty on machine: 2 PARTS REQUEST
33	0801086004	SET WASHER	2		ADD TO CART
SET WASHER 0801086004 · qty on machine: 2 view full part page → $1.95
34	D4425200804	FILLER COVER	1		ADD TO CART
FILLER COVER D4425200804 · qty on machine: 1 view full part page → $85.95
35	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0016906015 view full part page → $0.69

Page 24 — ENCLOSURE ASSY. CONTINUED

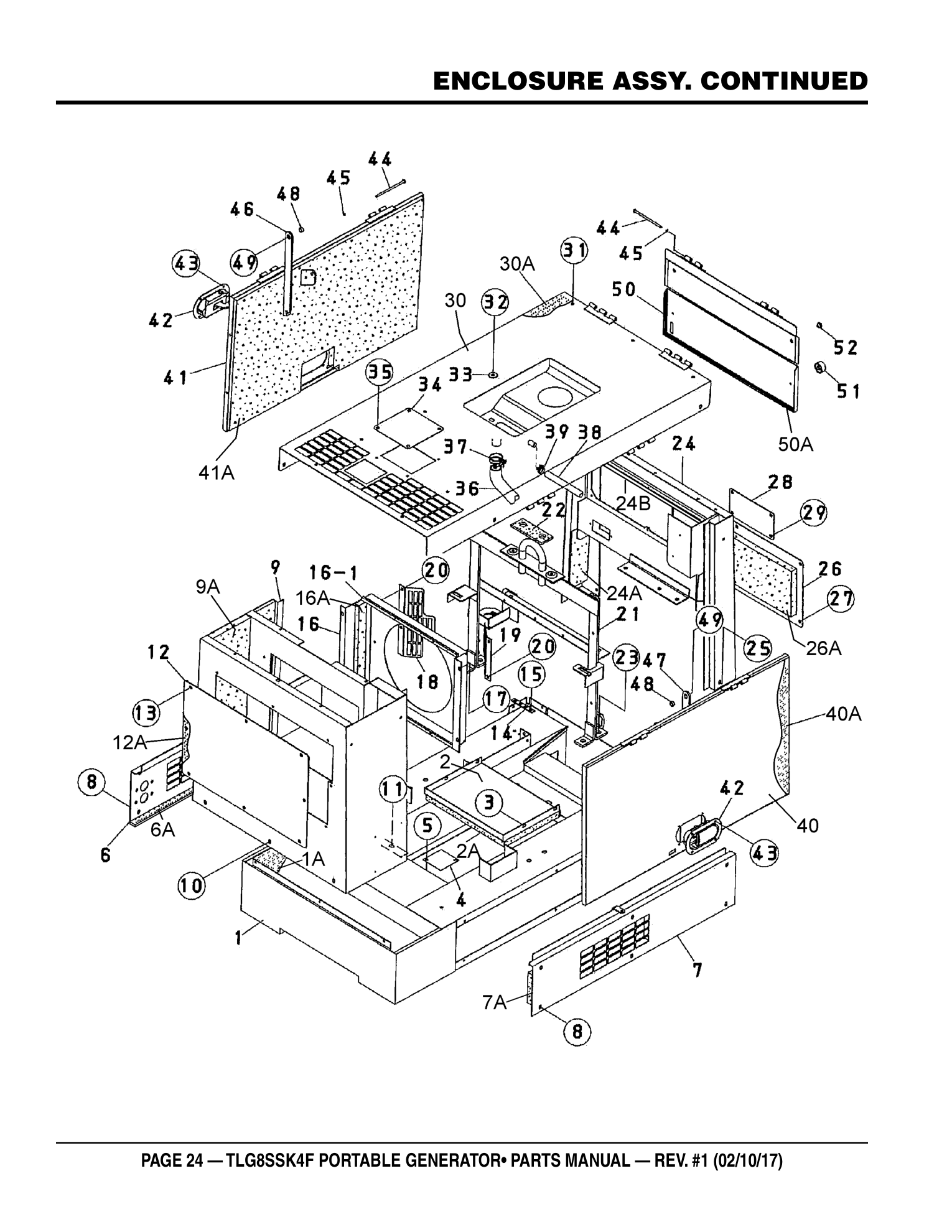

Multiquip TLG8SSK4F Generator ENCLOSURE ASSY. CONTINUED parts diagram

Parts list — exactly as printed20 rows

No.	Part No.	Part Name	Qty	Remarks
36	A6464500803	HOSE	1		ADD TO CART
HOSE A6464500803 · qty on machine: 1 view full part page → $71.44
37	0605515159	HOSE BAND	1		ADD TO CART
HOSE BAND 0605515159 · qty on machine: 1 view full part page → $1.32
38	Y0264500710	HOSE	1		ADD TO CART
HOSE Y0264500710 · qty on machine: 1 view full part page → $37.55
39	Y0605515169	HOSE BAND	1		ADD TO CART
HOSE BAND Y0605515169 · qty on machine: 1 view full part page → $1.59
40	A6454000203	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR A6454000203 · qty on machine: 1 PARTS REQUEST
40A	A6494400504	LINING	1		PARTS REQUEST
PHOTO COMING LINING A6494400504 · qty on machine: 1 PARTS REQUEST
41	A6454000303	SIDE DOOR	1		ADD TO CART
SIDE DOOR A6454000303 · qty on machine: 1 view full part page → $623.03
41A	A6494400504	LINING	1		PARTS REQUEST
PHOTO COMING LINING A6494400504 · qty on machine: 1 PARTS REQUEST
42	0605010215	DOOR HANDLE	2		ADD TO CART
DOOR HANDLE 0605010215 · qty on machine: 2 view full part page → $42.95
43	0021805012	MACHINE SCREW	8		ADD TO CART
MACHINE SCREW 0021805012 · qty on machine: 8 view full part page → $0.39
44	0810014704	PIN	6		ADD TO CART
PIN 0810014704 · qty on machine: 6 view full part page → $3.95
45	0080200004	SNAP RING	6		ADD TO CART
SNAP RING 0080200004 · qty on machine: 6 view full part page → $0.29
46	1995186004	DOOR STAY	1		ADD TO CART
DOOR STAY 1995186004 · qty on machine: 1 view full part page → $18.95
47	A9114300004	DOOR STAY	1		PARTS REQUEST
PHOTO COMING DOOR STAY A9114300004 · qty on machine: 1 PARTS REQUEST
48	7835088004	COLLAR	2		ADD TO CART
COLLAR 7835088004 · qty on machine: 2 view full part page → $2.95
49	011208025	HEX. HEAD BOLT	2	REPLACES P/N 0016908025	ADD TO CART
HEX. HEAD BOLT 011208025 · qty on machine: 2 REPLACES P/N 0016908025 view full part page → $0.41
50	A6444200103	REAR DOOR	1		PARTS REQUEST
PHOTO COMING REAR DOOR A6444200103 · qty on machine: 1 PARTS REQUEST
50A	Y0226900505	RUBBER SEAL	1		PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0226900505 · qty on machine: 1 PARTS REQUEST
51	0601851613	STOPPER	2		ADD TO CART
STOPPER 0601851613 · qty on machine: 2 view full part page → $2.95
52	0601851660	STOPPER	2		ADD TO CART
STOPPER 0601851660 · qty on machine: 2 view full part page → $1.95

Page 26 — RUBBER SEALS ASSY.

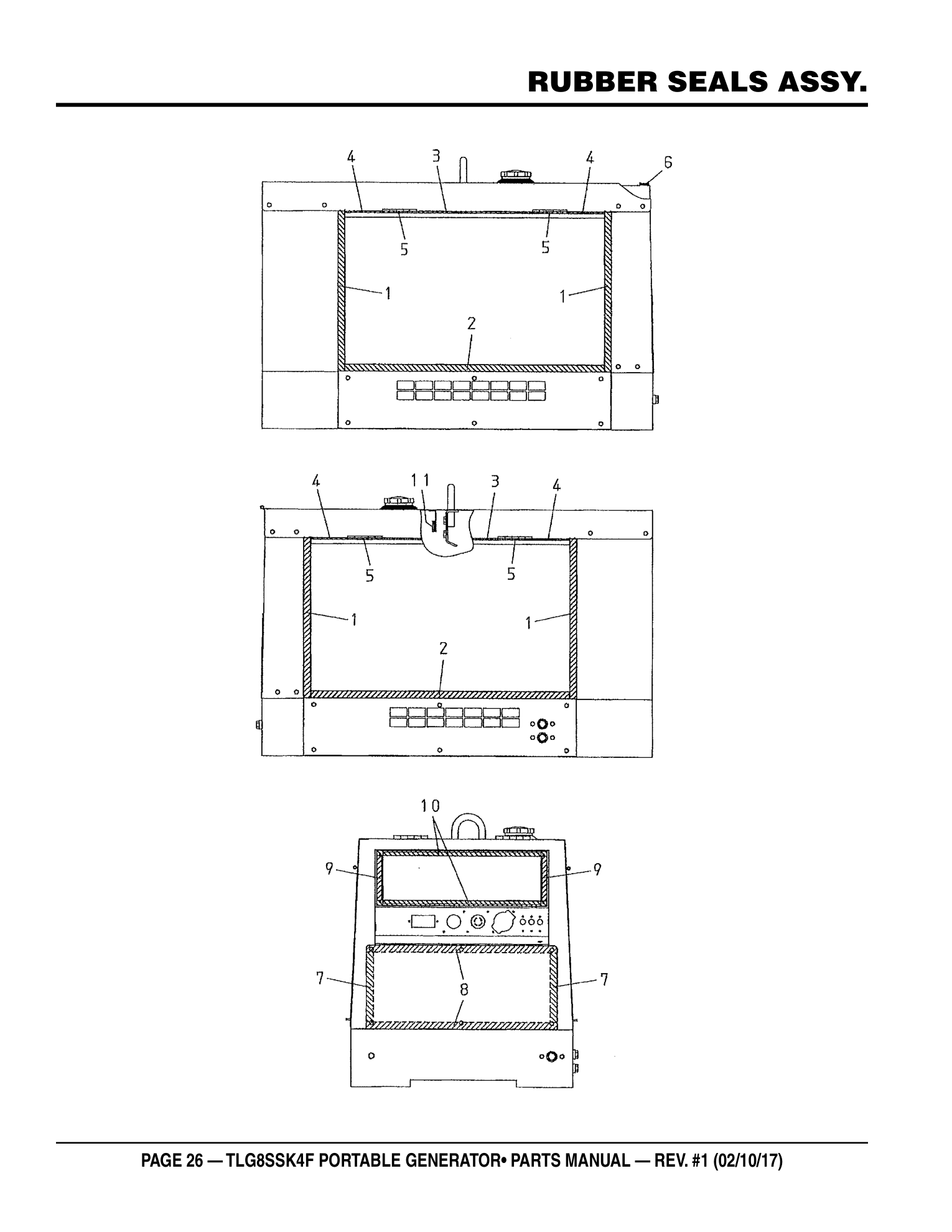

Multiquip TLG8SSK4F Generator RUBBER SEALS ASSY. parts diagram

Parts list — exactly as printed13 rows

No.	Part No.	Part Name	Qty
1	Y0221200320	RUBBER SEAL	1	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0221200320 · qty on machine: 1 PARTS REQUEST
2	0222600100	RUBBER SEAL	4	ADD TO CART
RUBBER SEAL 0222600100 · qty on machine: 4 view full part page → $15.95
3	0221200110	RUBBER SEAL	2	PARTS REQUEST
PHOTO COMING RUBBER SEAL 0221200110 · qty on machine: 2 PARTS REQUEST
4	0221200740	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL 0221200740 · qty on machine: 1 view full part page → $53.95
5	Y0221200445	RUBBER SEAL	4	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0221200445 · qty on machine: 4 PARTS REQUEST
6	Y0221200288	RUBBER SEAL	1	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0221200288 · qty on machine: 1 PARTS REQUEST
7	0221200150	RUBBER SEAL	2	ADD TO CART
RUBBER SEAL 0221200150 · qty on machine: 2 view full part page → $9.95
8	Y0221200788	RUBBER SEAL	1	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0221200788 · qty on machine: 1 PARTS REQUEST
9	Y0314900580	RUBBER SEAL	1	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0314900580 · qty on machine: 1 PARTS REQUEST
10	Y0314900495	RUBBER SEAL	2	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0314900495 · qty on machine: 2 PARTS REQUEST
11	Y0314900160	RUBBER SEAL	2	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0314900160 · qty on machine: 2 PARTS REQUEST
12	Y0314900035	RUBBER SEAL	2	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0314900035 · qty on machine: 2 PARTS REQUEST
13	Y0314900165	RUBBER SEAL	2	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0314900165 · qty on machine: 2 PARTS REQUEST

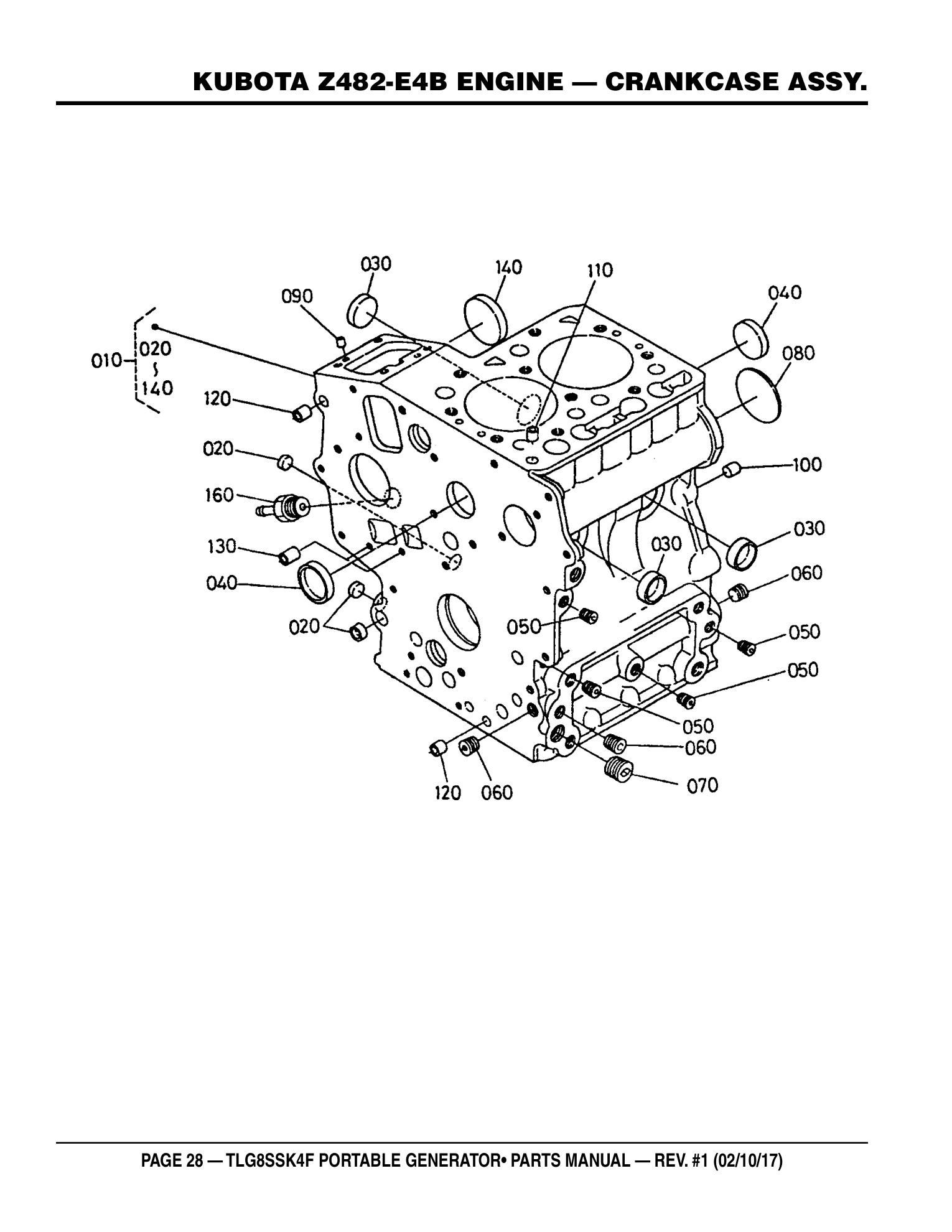

Page 28 — KUBOTA Z482-E4B ENGINE - CRANKCASE ASSY.

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - CRANKCASE ASSY. parts diagram

Parts list — exactly as printed15 rows

No.	Part No.	Part Name	Qty	Remarks
010	1J09001020	COMP. CRANKCASE	1	INCLUDES ITEMS W/$	PARTS REQUEST
PHOTO COMING COMP. CRANKCASE 1J09001020 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 020$, 030$, 040$, 050$, 060$, 070$, 080$, 090$, 100$, 110$, 120$, 130$, 140$ PARTS REQUEST
020$	1685196260	CAP, SEALING	3		ADD TO CART
CAP, SEALING 1685196260 · qty on machine: 3 Also included in kit 010 - COMP. CRANKCASE (1J09001020) view full part page → $3.91 IN A KIT + SOLD SOLO
030$	1685196270	CAP, SEALING	3		ADD TO CART
CAP, SEALING 1685196270 · qty on machine: 3 Also included in kit 010 - COMP. CRANKCASE (1J09001020) view full part page → $3.91 IN A KIT + SOLD SOLO
040$	1545196270	CAP, SEALING	2		ADD TO CART
CAP, SEALING 1545196270 · qty on machine: 2 Also included in kit 010 - COMP. CRANKCASE (1J09001020) view full part page → $5.95 IN A KIT + SOLD SOLO
050$	1526196010	PLUG	4		ADD TO CART
PLUG 1526196010 · qty on machine: 4 Also included in kit 010 - COMP. CRANKCASE (1J09001020) view full part page → $1.95 IN A KIT + SOLD SOLO
060$	1552196020	PLUG	3		ADD TO CART
PLUG 1552196020 · qty on machine: 3 Also included in kit 010 - COMP. CRANKCASE (1J09001020) view full part page → $1.95 IN A KIT + SOLD SOLO
070$	1552196030	PLUG	1		ADD TO CART
PLUG 1552196030 · qty on machine: 1 Also included in kit 010 - COMP. CRANKCASE (1J09001020) view full part page → $1.95 IN A KIT + SOLD SOLO
080$	1526196160	PLUG, CONCAVE	1		ADD TO CART
PLUG, CONCAVE 1526196160 · qty on machine: 1 Also included in kit 010 - COMP. CRANKCASE (1J09001020) view full part page → $0.91 IN A KIT + SOLD SOLO
090$	0501200508	PIN, STRAIGHT	2		ADD TO CART
PIN, STRAIGHT 0501200508 · qty on machine: 2 Also included in kit 010 - COMP. CRANKCASE (1J09001020) view full part page → $0.44 IN A KIT + SOLD SOLO
100$	0501200814	PIN, STRAIGHT	2		ADD TO CART
PIN, STRAIGHT 0501200814 · qty on machine: 2 Also included in kit 010 - COMP. CRANKCASE (1J09001020) view full part page → $0.72 IN A KIT + SOLD SOLO
110$	1522133650	PIN, PIPE	1		ADD TO CART
PIN, PIPE 1522133650 · qty on machine: 1 Also included in kit 010 - COMP. CRANKCASE (1J09001020) view full part page → $2.95 IN A KIT + SOLD SOLO
120$	1733159190	PIN, PIPE	2		ADD TO CART
PIN, PIPE 1733159190 · qty on machine: 2 Also included in kit 010 - COMP. CRANKCASE (1J09001020) view full part page → $3.91 IN A KIT + SOLD SOLO
130$	1733159190	PIN, PIPE	2		ADD TO CART
PIN, PIPE 1733159190 · qty on machine: 2 Also included in kit 010 - COMP. CRANKCASE (1J09001020) view full part page → $3.91 IN A KIT + SOLD SOLO
140$	1685116212	COVER, FUEL CAMSHAFT	1		PARTS REQUEST
PHOTO COMING COVER, FUEL CAMSHAFT 1685116212 · qty on machine: 1 Also included in kit 010 - COMP. CRANKCASE (1J09001020) PARTS REQUEST
160	1584773130	JOINT, DRAIN PIPE	1		ADD TO CART
JOINT, DRAIN PIPE 1584773130 · qty on machine: 1 view full part page → $21.95

Page 30 — KUBOTA Z482-E4B ENGINE - OIL PUMP ASSY.

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - OIL PUMP ASSY. parts diagram

Parts list — exactly as printed7 rows

No.	Part No.	Part Name	Qty	Remarks
010	1685135012	OIL PUMP ASSY.	1		ADD TO CART
OIL PUMP ASSY. 1685135012 · qty on machine: 1 view full part page → $152.95
020	1685135152	GASKET, OIL PUMP NA	1		ADD TO CART
GASKET, OIL PUMP NA 1685135152 · qty on machine: 1 view full part page → $1.64
030	1584191050	BOLT	3		ADD TO CART
BOLT 1584191050 · qty on machine: 3 view full part page → $3.95
040	1584135660	GEAR, OIL PUMP DRIVE	1	S/N 4DKZ999 AND BELOW	ADD TO CART
GEAR, OIL PUMP DRIVE 1584135660 · qty on machine: 1 S/N 4DKZ999 AND BELOW view full part page → $27.95
040	1G68735660	GEAR, OIL PUMP DRIVE	1	S/N 4DL0001 AND ABOVE	PARTS REQUEST
PHOTO COMING GEAR, OIL PUMP DRIVE 1G68735660 · qty on machine: 1 S/N 4DL0001 AND ABOVE PARTS REQUEST
050	0571200408	KEY, FEATHER	1		PARTS REQUEST
PHOTO COMING KEY, FEATHER 0571200408 · qty on machine: 1 PARTS REQUEST
060	0278350100	NUT, FLANGE	1		PARTS REQUEST
PHOTO COMING NUT, FLANGE 0278350100 · qty on machine: 1 PARTS REQUEST

Page 32 — KUBOTA Z482-E4B ENGINE - OIL PAN ASSY.

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - OIL PAN ASSY. parts diagram

Parts list — exactly as printed8 rows

No.	Part No.	Part Name	Qty	Remarks
005	1756101600	KIT, OIL PAN	1	INCLUDES ITEMS W/$	PARTS REQUEST
PHOTO COMING KIT, OIL PAN 1756101600 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 010$, 040$, 050$ PARTS REQUEST
010$	1756101505	COMP. OIL PAN	1		PARTS REQUEST
PHOTO COMING COMP. OIL PAN 1756101505 · qty on machine: 1 Also included in kit 005 - KIT, OIL PAN (1756101600) PARTS REQUEST
020	0112350814	BOLT, SEMS	1		ADD TO CART
BOLT, SEMS 0112350814 · qty on machine: 1 Factory replaced this part - current number 0112360814 view full part page → $0.67 IN A KIT + SOLD SOLO
030	0102350612	BOLT, SEMS	14		ADD TO CART
BOLT, SEMS 0102350612 · qty on machine: 14 view full part page → $0.84
040$	1570733750	PLUG, DRAIN	1		ADD TO CART
PLUG, DRAIN 1570733750 · qty on machine: 1 Also included in kit 005 - KIT, OIL PAN (1756101600) view full part page → $11.06 IN A KIT + SOLD SOLO
050$	1626596670	GASKET, PAN OIL	1		PARTS REQUEST
PHOTO COMING GASKET, PAN OIL 1626596670 · qty on machine: 1 Also included in kit 005 - KIT, OIL PAN (1756101600) PARTS REQUEST
060	1685132110	FILTER, OIL	1		ADD TO CART
FILTER, OIL 1685132110 · qty on machine: 1 view full part page → $22.95
070	0481400160	O-RING	1		ADD TO CART
O-RING 0481400160 · qty on machine: 1 view full part page → $3.95

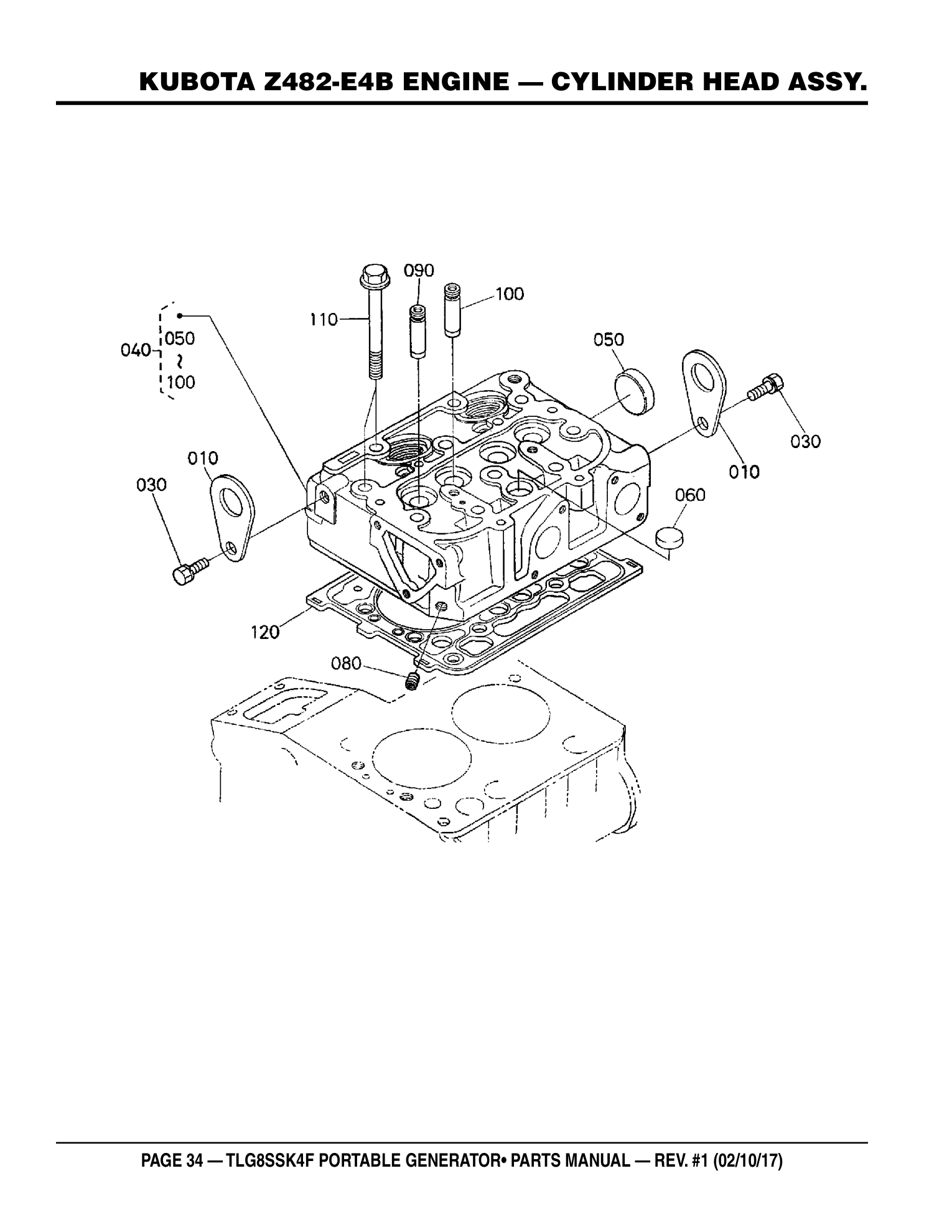

Page 34 — KUBOTA Z482-E4B ENGINE - CYLINDER HEAD ASSY.

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - CYLINDER HEAD ASSY. parts diagram

Parts list — exactly as printed10 rows

No.	Part No.	Part Name	Qty	Remarks
010	1522101750	HOOK, ENGINE	2		PARTS REQUEST
PHOTO COMING HOOK, ENGINE 1522101750 · qty on machine: 2 PARTS REQUEST
030	0112350816	BOLT, SEMS	2		ADD TO CART
BOLT, SEMS 0112350816 · qty on machine: 2 Factory replaced this part - current number 0112360816 view full part page → $0.95 IN A KIT + SOLD SOLO
040	1E39103040	COMP. CYLINDER HEAD	1	INCLUDES ITEMS W/$	ADD TO CART
COMP. CYLINDER HEAD 1E39103040 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 050$, 060$, 080$, 090$, 100$ view full part page → $1133.95 IN A KIT + SOLD SOLO
050$	1532196260	PLUG, CUP TYPE	1		ADD TO CART
PLUG, CUP TYPE 1532196260 · qty on machine: 1 Also included in kit 040 - COMP. CYLINDER HEAD (1E39103040) view full part page → $5.95 IN A KIT + SOLD SOLO
060$	1526103370	PLUG, CUP TYPE	1		ADD TO CART
PLUG, CUP TYPE 1526103370 · qty on machine: 1 Also included in kit 040 - COMP. CYLINDER HEAD (1E39103040) view full part page → $2.95 IN A KIT + SOLD SOLO
080$	1526196010	PLUG	1		ADD TO CART
PLUG 1526196010 · qty on machine: 1 Also included in kit 040 - COMP. CYLINDER HEAD (1E39103040) view full part page → $1.95 IN A KIT + SOLD SOLO
090$	1584113540	GUIDE, INLET VALVE	2		ADD TO CART
GUIDE, INLET VALVE 1584113540 · qty on machine: 2 Also included in kit 040 - COMP. CYLINDER HEAD (1E39103040) view full part page → $16.95 IN A KIT + SOLD SOLO
100$	1584113560	GUIDE, EXHAUST VALVE	2		ADD TO CART
GUIDE, EXHAUST VALVE 1584113560 · qty on machine: 2 Also included in kit 040 - COMP. CYLINDER HEAD (1E39103040) view full part page → $10.95 IN A KIT + SOLD SOLO
110	1460103450	BOLT, CYLINDER HEAD	10		ADD TO CART
BOLT, CYLINDER HEAD 1460103450 · qty on machine: 10 view full part page → $5.95
120	1J09003310	GASKET, CYLINDER HEAD	1		ADD TO CART
GASKET, CYLINDER HEAD 1J09003310 · qty on machine: 1 view full part page → $122.95

Page 36 — KUBOTA Z482-E4B ENGINE - GEAR CASE ASSY.

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - GEAR CASE ASSY. parts diagram

Parts list — exactly as printed23 rows

No.	Part No.	Part Name	Qty	Remarks
010	1E05104024	COMP. CASE, GEAR	1	INCLUDES ITEMS W/$	ADD TO CART
COMP. CASE, GEAR 1E05104024 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 020$, 030$ view full part page → $295.95 IN A KIT + SOLD SOLO
020$	1552196030	PLUG	2		ADD TO CART
PLUG 1552196030 · qty on machine: 2 Also included in kit 010 - COMP. CASE, GEAR (1E05104024) view full part page → $1.95 IN A KIT + SOLD SOLO
030$	1584156280	PIN, START SPRING	1		ADD TO CART
PIN, START SPRING 1584156280 · qty on machine: 1 Also included in kit 010 - COMP. CASE, GEAR (1E05104024) view full part page → $1.95 IN A KIT + SOLD SOLO
050	1687104130	GASKET, GEAR CASE	1		ADD TO CART
GASKET, GEAR CASE 1687104130 · qty on machine: 1 view full part page → $24.95
060	0175450616	BOLT, FLANGE	1		ADD TO CART
BOLT, FLANGE 0175450616 · qty on machine: 1 view full part page → $3.95
070	0102350650	BOLT, SEMS	8		PARTS REQUEST
PHOTO COMING BOLT, SEMS 0102350650 · qty on machine: 8 PARTS REQUEST
080	1584191010	BOLT	5		ADD TO CART
BOLT 1584191010 · qty on machine: 5 view full part page → $1.4
090	0102350670	BOLT, SEMS	1		ADD TO CART
BOLT, SEMS 0102350670 · qty on machine: 1 Factory replaced this part - current number 0102360670 view full part page → $1.49 IN A KIT + SOLD SOLO
100	0102350675	BOLT, SEMS	1		ADD TO CART
BOLT, SEMS 0102350675 · qty on machine: 1 view full part page → $1.49
110	1524132290	JOINT, PIPE	1		ADD TO CART
JOINT, PIPE 1524132290 · qty on machine: 1 view full part page → $30.95
120	1584194010	WASHER, FLAT	1		ADD TO CART
WASHER, FLAT 1584194010 · qty on machine: 1 view full part page → $0.91
130	1587704140	SEAL, OIL	1	S/N 4DPZ999 AND BELOW	ADD TO CART
SEAL, OIL 1587704140 · qty on machine: 1 S/N 4DPZ999 AND BELOW view full part page → $13.95
130	1J09404140	SEAL, OIL	1	S/N 4DQ0001 AND ABOVE	ADD TO CART
SEAL, OIL 1J09404140 · qty on machine: 1 S/N 4DQ0001 AND ABOVE view full part page → $19.95
150	1685136950	SPRING	1		ADD TO CART
SPRING 1685136950 · qty on machine: 1 view full part page → $1.64
160	1584136930	SEAT, VALVE	1		ADD TO CART
SEAT, VALVE 1584136930 · qty on machine: 1 view full part page → $6.95
170	0771503211	BALL	1		ADD TO CART
BALL 0771503211 · qty on machine: 1 view full part page → $0.67
180	1584633110	FLANGE, OIL FILLER	1		ADD TO CART
FLANGE, OIL FILLER 1584633110 · qty on machine: 1 view full part page → $66.95
190	1381133140	PLUG, OIL FILLER	1		PARTS REQUEST
PHOTO COMING PLUG, OIL FILLER 1381133140 · qty on machine: 1 Factory replaced this part - current number 1381133080 PARTS REQUEST
200	0481706230	O-RING	1		PARTS REQUEST
PHOTO COMING O-RING 0481706230 · qty on machine: 1 PARTS REQUEST
210	1946188132	GASKET, H/M GEAR CASE	1		ADD TO CART
GASKET, H/M GEAR CASE 1946188132 · qty on machine: 1 view full part page → $2.95
220	1522188210	STUD	3		ADD TO CART
STUD 1522188210 · qty on machine: 3 view full part page → $1.64
230	0205650060	HEX NUT	3		ADD TO CART
HEX NUT 0205650060 · qty on machine: 3 view full part page → $0.23
240	0451250060	WASHER, SPRING LOCK	3		ADD TO CART
WASHER, SPRING LOCK 0451250060 · qty on machine: 3 Factory replaced this part - current number 030206150 view full part page → $0.07 IN A KIT + SOLD SOLO

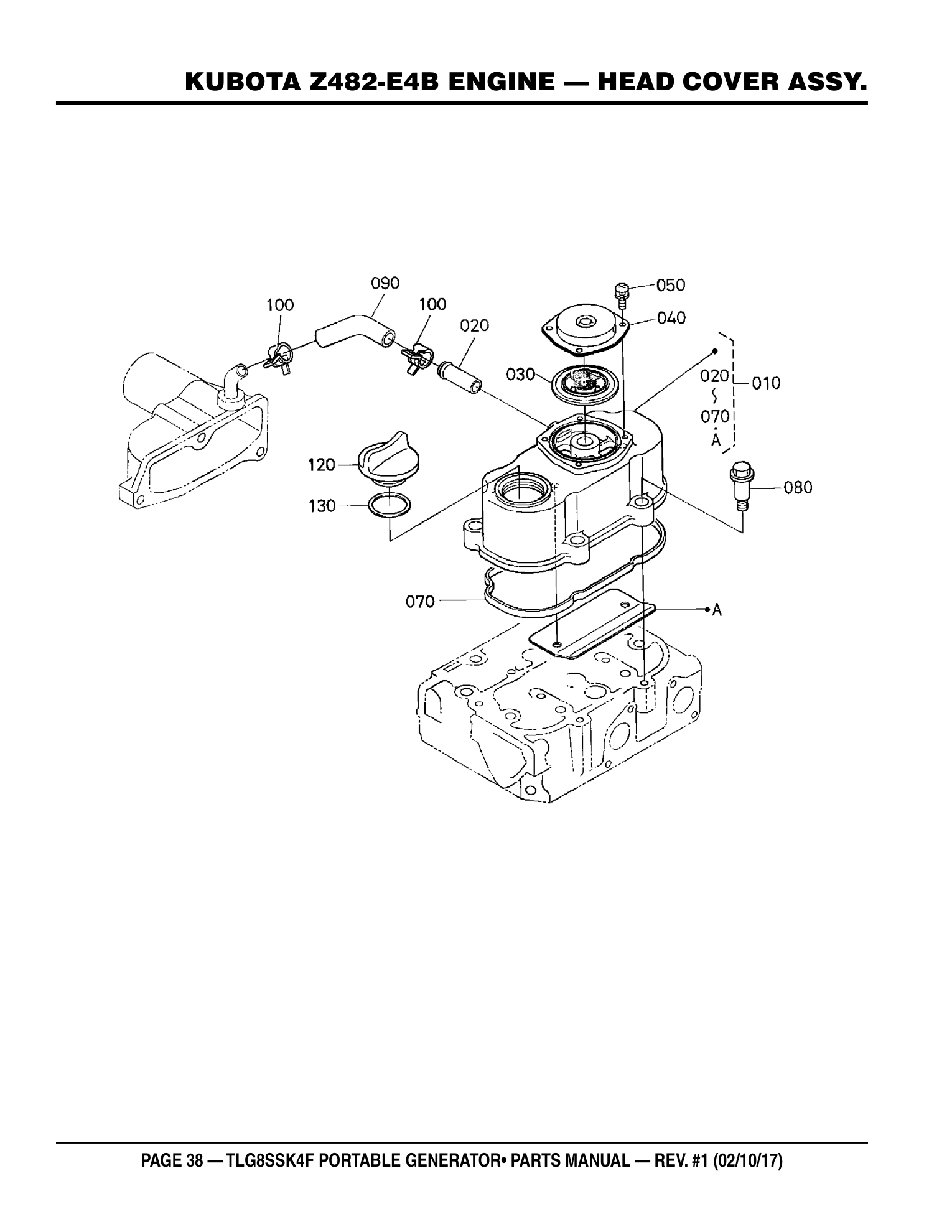

Page 38 — KUBOTA Z482-E4B ENGINE - HEAD COVER ASSY.

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - HEAD COVER ASSY. parts diagram

Parts list — exactly as printed12 rows

No.	Part No.	Part Name	Qty	Remarks
010	1G95714504	COVER, CYLINDER HEAD ASSY	1	INCLUDES ITEMS W/$	PARTS REQUEST
PHOTO COMING COVER, CYLINDER HEAD ASSY 1G95714504 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 020$, 030$, 040$, 050$, 070$, A$ PARTS REQUEST
020$	1624173370	PIPE, WATER RETURN	1		ADD TO CART
PIPE, WATER RETURN 1624173370 · qty on machine: 1 Also included in kit 010 - COVER, CYLINDER HEAD ASSY (1G95714504) view full part page → $8.95 IN A KIT + SOLD SOLO
030$	1G91105203	COMP. VALVE, BREATHER	1		ADD TO CART
COMP. VALVE, BREATHER 1G91105203 · qty on machine: 1 Also included in kit 010 - COVER, CYLINDER HEAD ASSY (1G95714504) view full part page → $92.95 IN A KIT + SOLD SOLO
040$	1G80105120	COVER, BREATHER	1		ADD TO CART
COVER, BREATHER 1G80105120 · qty on machine: 1 Also included in kit 010 - COVER, CYLINDER HEAD ASSY (1G95714504) view full part page → $16.95 IN A KIT + SOLD SOLO
050$	0302450510	SCREW, SEMS PAN HEAD	4		ADD TO CART
SCREW, SEMS PAN HEAD 0302450510 · qty on machine: 4 Also included in kit 010 - COVER, CYLINDER HEAD ASSY (1G95714504) view full part page → $0.48 IN A KIT + SOLD SOLO
070$	1G95714520	GASKET, HEAD COVER	1		ADD TO CART
GASKET, HEAD COVER 1G95714520 · qty on machine: 1 Also included in kit 010 - COVER, CYLINDER HEAD ASSY (1G95714504) view full part page → $33.95 IN A KIT + SOLD SOLO
080	1G91191022	BOLT	4		PARTS REQUEST
PHOTO COMING BOLT 1G91191022 · qty on machine: 4 PARTS REQUEST
090	1G96005513	TUBE, BREATHER	1		ADD TO CART
TUBE, BREATHER 1G96005513 · qty on machine: 1 view full part page → $48.95
100	0931888125	CLAMP, HOSE	2		PARTS REQUEST
PHOTO COMING CLAMP, HOSE 0931888125 · qty on machine: 2 PARTS REQUEST
120	E915133140	PLUG, OIL FILLER	1		ADD TO CART
PLUG, OIL FILLER E915133140 · qty on machine: 1 view full part page → $10.95
130	1J00196770	O-RING	1		ADD TO CART
O-RING 1J00196770 · qty on machine: 1 view full part page → $10.95
A$	1G95805370	SHIELD, BREATHER	1		PARTS REQUEST
PHOTO COMING SHIELD, BREATHER 1G95805370 · qty on machine: 1 Also included in kit 010 - COVER, CYLINDER HEAD ASSY (1G95714504) PARTS REQUEST

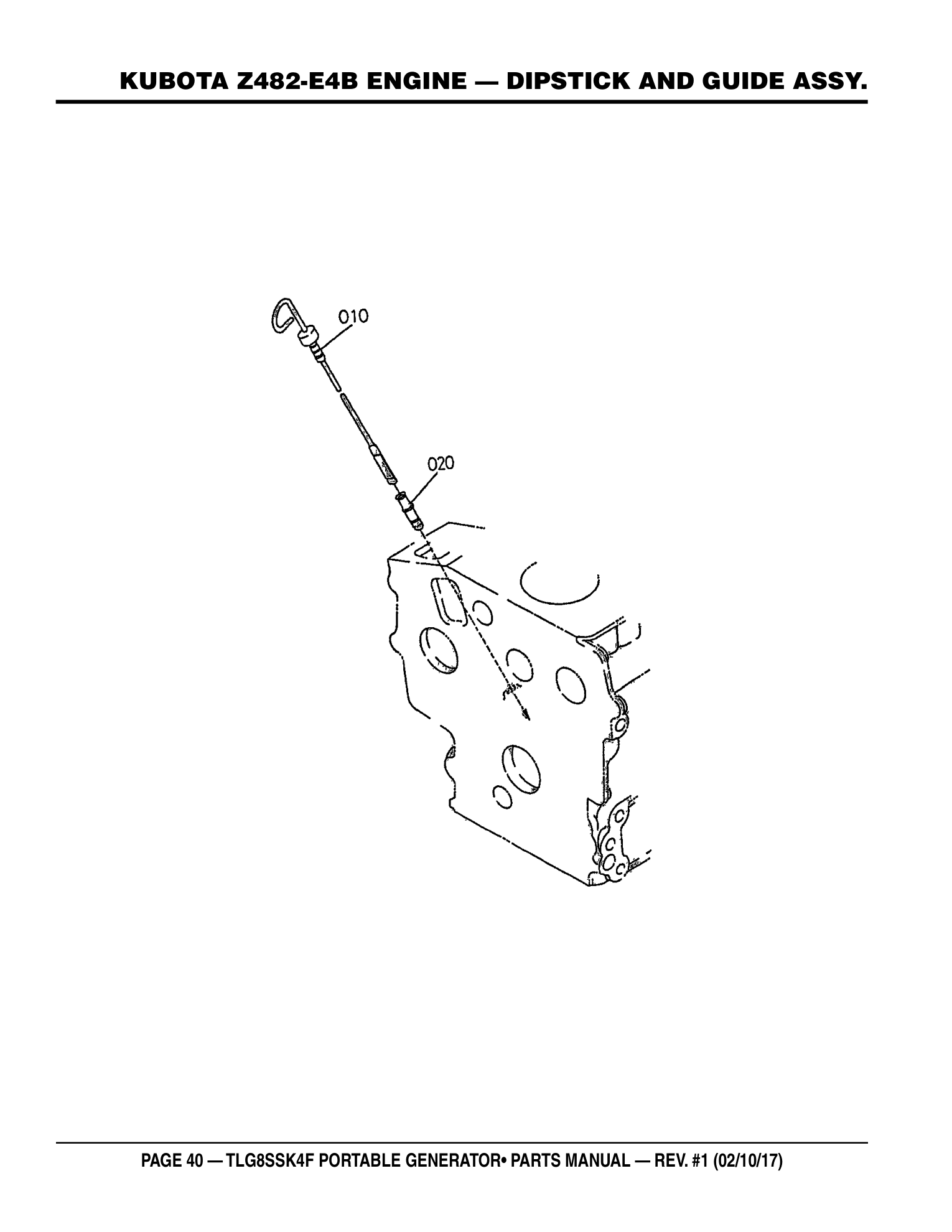

Page 40 — KUBOTA Z482-E4B ENGINE - DIPSTICK AND GUIDE ASSY.

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - DIPSTICK AND GUIDE ASSY. parts diagram

Parts list — exactly as printed2 rows

No.	Part No.	Part Name	Qty
010	1G30436410	GAUGE, OIL	1	ADD TO CART
GAUGE, OIL 1G30436410 · qty on machine: 1 view full part page → $63.95
020	1745636420	GUIDE, OIL GAUGE	1	ADD TO CART
GUIDE, OIL GAUGE 1745636420 · qty on machine: 1 view full part page → $7.95

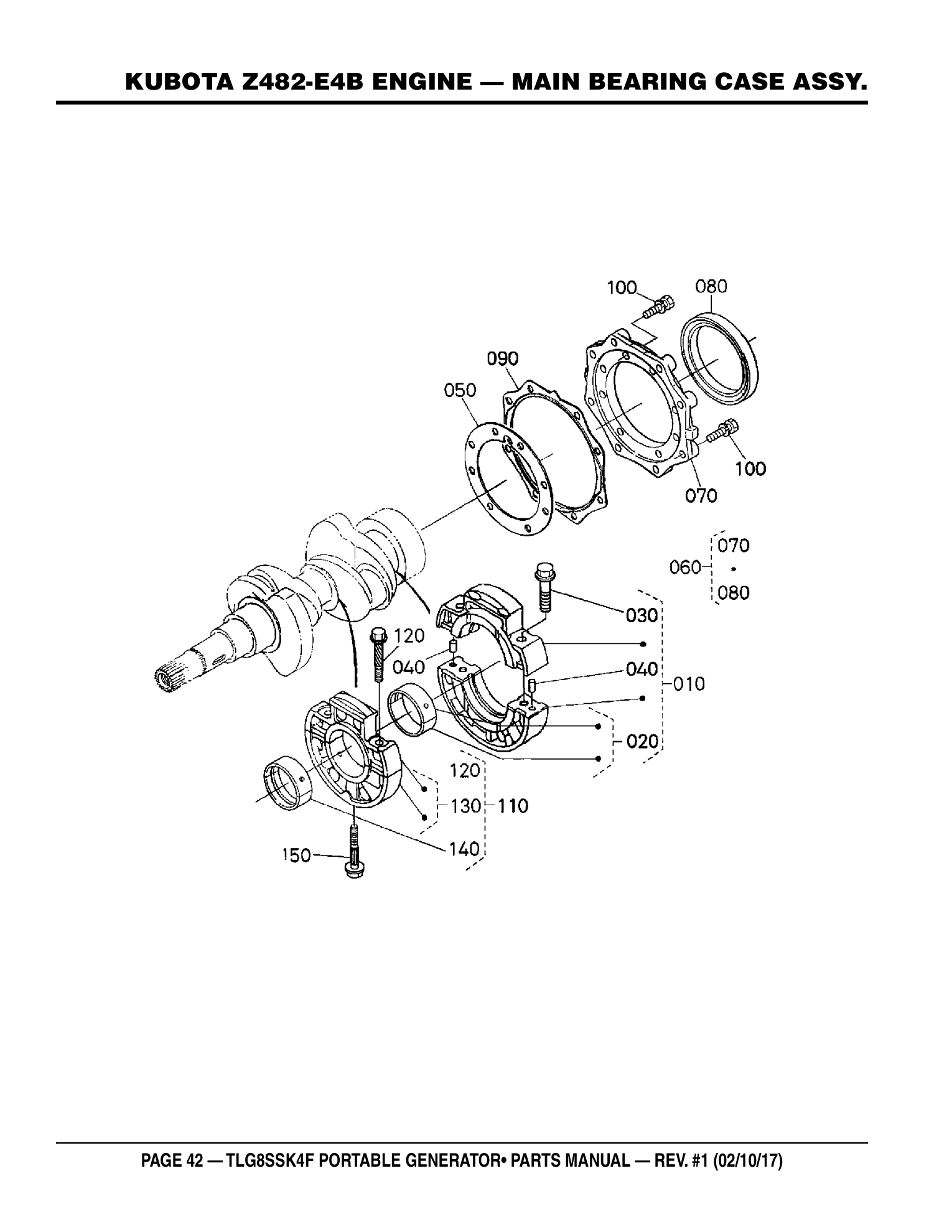

Page 42 — KUBOTA Z482-E4B ENGINE - MAIN BEARING CASE ASSY.

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - MAIN BEARING CASE ASSY. parts diagram

Parts list — exactly as printed19 rows

No.	Part No.	Part Name	Qty	Remarks
010	1J00207090	CASE, WHEEL BEARING ASSY	1	INCLUDES ITEMS W/$	PARTS REQUEST
PHOTO COMING CASE, WHEEL BEARING ASSY 1J00207090 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 020$, 020$, 020$, 030$, 040$ PARTS REQUEST
020$	1569423482	METAL, CRANKSHAFT STD/SET	1		PARTS REQUEST
PHOTO COMING METAL, CRANKSHAFT STD/SET 1569423482 · qty on machine: 1 Also included in kit 010 - CASE, WHEEL BEARING ASSY (1J00207090) PARTS REQUEST
020$	1569423932	METAL, CRANKSHAFT, -0.20MM/SET	1		PARTS REQUEST
PHOTO COMING METAL, CRANKSHAFT, -0.20MM/SET 1569423932 · qty on machine: 1 Also included in kit 010 - CASE, WHEEL BEARING ASSY (1J00207090) PARTS REQUEST
020$	1569423942	METAL, CRANKSHAFT, -0.40MM/SET	1		PARTS REQUEST
PHOTO COMING METAL, CRANKSHAFT, -0.40MM/SET 1569423942 · qty on machine: 1 Also included in kit 010 - CASE, WHEEL BEARING ASSY (1J00207090) PARTS REQUEST
030$	0175450840	BOLT, FLANGE	2		PARTS REQUEST
PHOTO COMING BOLT, FLANGE 0175450840 · qty on machine: 2 Also included in kit 010 - CASE, WHEEL BEARING ASSY (1J00207090) PARTS REQUEST
040$	0501200608	PIN, STRAIGHT	2		PARTS REQUEST
PHOTO COMING PIN, STRAIGHT 0501200608 · qty on machine: 2 Also included in kit 010 - CASE, WHEEL BEARING ASSY (1J00207090) PARTS REQUEST
050	1585204360	GASKET, BEARING CASE	1		ADD TO CART
GASKET, BEARING CASE 1585204360 · qty on machine: 1 view full part page → $3.95
060	1584104803	COVER, BEARING CASE ASSY.	1	INCLUDES ITEMS W/#	ADD TO CART
COVER, BEARING CASE ASSY. 1584104803 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 070#, 080# view full part page → $79.95 IN A KIT + SOLD SOLO
070#	1584104815	COVER, BEARING CASE	1		ADD TO CART
COVER, BEARING CASE 1584104815 · qty on machine: 1 Also included in kit 060 - COVER, BEARING CASE ASSY. (1584104803) view full part page → $76.95 IN A KIT + SOLD SOLO
080#	1921599160	SEAL, OIL	1		ADD TO CART
SEAL, OIL 1921599160 · qty on machine: 1 Also included in kit 060 - COVER, BEARING CASE ASSY. (1584104803) view full part page → $53.95 IN A KIT + SOLD SOLO
090	1584104823	GASKET, CASE COVER	1		ADD TO CART
GASKET, CASE COVER 1584104823 · qty on machine: 1 view full part page → $11.95
100	0102350622	BOLT, SEMS	8		ADD TO CART
BOLT, SEMS 0102350622 · qty on machine: 8 view full part page → $1.53
110	1269107044	BEARING CASE, ASSY	1	INCLUDES ITEMS W/%	PARTS REQUEST
PHOTO COMING BEARING CASE, ASSY 1269107044 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 120%, 130%, 140% PARTS REQUEST
120%	1584104540	BOLT, BEARING CASE	2		ADD TO CART
BOLT, BEARING CASE 1584104540 · qty on machine: 2 Also included in kit 110 - BEARING CASE, ASSY (1269107044) view full part page → $6.95 IN A KIT + SOLD SOLO
130%	1685104040	CASE, MAIN BEARING ASSY.	1		ADD TO CART
CASE, MAIN BEARING ASSY. 1685104040 · qty on machine: 1 Also included in kit 110 - BEARING CASE, ASSY (1269107044) view full part page → $106.95 IN A KIT + SOLD SOLO
140%	1586123484	METAL, CRANKSHAFT, STD/SET	1		PARTS REQUEST
PHOTO COMING METAL, CRANKSHAFT, STD/SET 1586123484 · qty on machine: 1 Also included in kit 110 - BEARING CASE, ASSY (1269107044) PARTS REQUEST
140	1586123863	METAL, CRANKSHAFT, -0.20MM/SET	1		PARTS REQUEST
PHOTO COMING METAL, CRANKSHAFT, -0.20MM/SET 1586123863 · qty on machine: 1 PARTS REQUEST
140	1586123873	METAL, CRANKSHAFT, -0.40MM/SET	1		PARTS REQUEST
PHOTO COMING METAL, CRANKSHAFT, -0.40MM/SET 1586123873 · qty on machine: 1 PARTS REQUEST
150	1584104562	BOLT, BEARING CASE	1		ADD TO CART
BOLT, BEARING CASE 1584104562 · qty on machine: 1 view full part page → $6.95

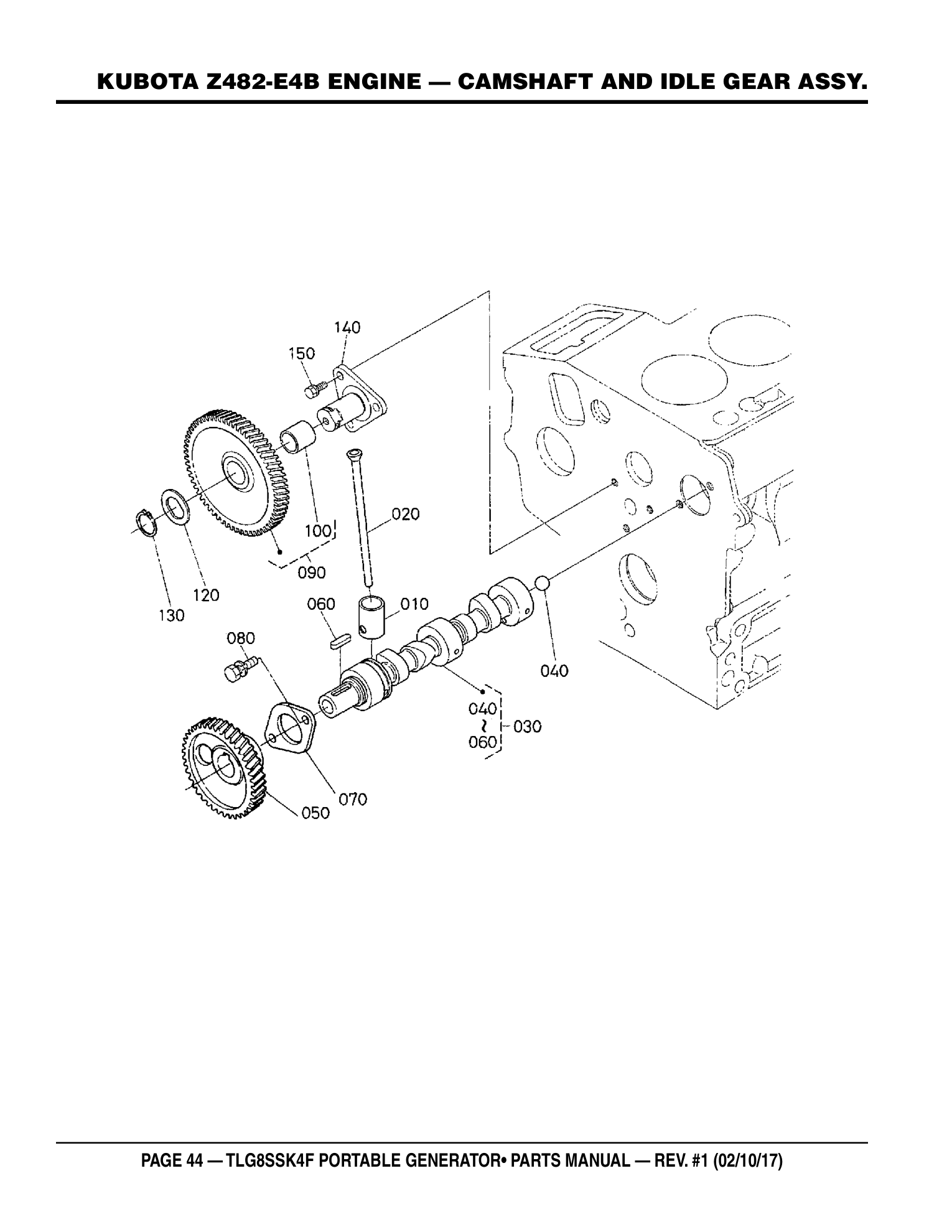

Page 44 — KUBOTA Z482-E4B ENGINE - CAMSHAFT AND IDLE GEAR ASSY.

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - CAMSHAFT AND IDLE GEAR ASSY. parts diagram

Parts list — exactly as printed16 rows

No.	Part No.	Part Name	Qty	Remarks
010	1685115552	TAPPET	4		ADD TO CART
TAPPET 1685115552 · qty on machine: 4 view full part page → $19.95
020	1685115110	PUSH ROD	4		ADD TO CART
PUSH ROD 1685115110 · qty on machine: 4 view full part page → $12.95
030	1582116015	CAMSHAFT ASSY	1	S/N 4DMZ999 AND BELOW INCLUDES ITEMS W/#	PARTS REQUEST
PHOTO COMING CAMSHAFT ASSY 1582116015 · qty on machine: 1 S/N 4DMZ999 AND BELOW INCLUDES ITEMS W/# Kit includes: 040#$, 050#, 050$, 060#$ PARTS REQUEST
030	1582116018	CAMSHAFT ASSY	1	S/N 4DN0001 AND ABOVE INCLUDES ITEMS W/$	PARTS REQUEST
PHOTO COMING CAMSHAFT ASSY 1582116018 · qty on machine: 1 S/N 4DN0001 AND ABOVE INCLUDES ITEMS W/$ Kit includes: 040#$, 050#, 050$, 060#$ PARTS REQUEST
040#$	0771500401	BALL 1/4	1		ADD TO CART
BALL 1/4 0771500401 · qty on machine: 1 Also included in kit 030 - CAMSHAFT ASSY (1582116015); kit 030 - CAMSHAFT ASSY (1582116018) view full part page → $0.67 IN A KIT + SOLD SOLO
050#	1686416510	GEAR, CAM	1	S/N 4DMZ999 AND BELOW	ADD TO CART
GEAR, CAM 1686416510 · qty on machine: 1 S/N 4DMZ999 AND BELOW Also included in kit 030 - CAMSHAFT ASSY (1582116015) view full part page → $165.95 IN A KIT + SOLD SOLO
050$	1J09416510	GEAR, CAM	1	S/N 4DN0001 AND ABOVE	PARTS REQUEST
PHOTO COMING GEAR, CAM 1J09416510 · qty on machine: 1 S/N 4DN0001 AND ABOVE Also included in kit 030 - CAMSHAFT ASSY (1582116018) PARTS REQUEST
060#$	0571200518	KEY, FEATHER	1		ADD TO CART
KEY, FEATHER 0571200518 · qty on machine: 1 Also included in kit 030 - CAMSHAFT ASSY (1582116015); kit 030 - CAMSHAFT ASSY (1582116018) view full part page → $1.4 IN A KIT + SOLD SOLO
070	1584116270	STOPPER, CAMSHAFT	1		ADD TO CART
STOPPER, CAMSHAFT 1584116270 · qty on machine: 1 view full part page → $6.95
080	0102350612	BOLT, SEMS	2		ADD TO CART
BOLT, SEMS 0102350612 · qty on machine: 2 view full part page → $0.84
090	1587524015	COMP. GEAR, IDLE	1	INCLUDES ITEMS W/%	PARTS REQUEST
PHOTO COMING COMP. GEAR, IDLE 1587524015 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 100% PARTS REQUEST
100%	1587524284	BUSH	1		PARTS REQUEST
PHOTO COMING BUSH 1587524284 · qty on machine: 1 Also included in kit 090 - COMP. GEAR, IDLE (1587524015) PARTS REQUEST
120	1587524370	COLLAR, IDLE GEAR	1		ADD TO CART
COLLAR, IDLE GEAR 1587524370 · qty on machine: 1 view full part page → $5.95
130	1587524320	CIRCLIP, SHAFT IDLE GEAR	1		ADD TO CART
CIRCLIP, SHAFT IDLE GEAR 1587524320 · qty on machine: 1 view full part page → $5.95
140	1587524250	SHAFT, IDLE GEAR	1		ADD TO CART
SHAFT, IDLE GEAR 1587524250 · qty on machine: 1 view full part page → $82.95
150	0175450612	BOLT, FLANGE	3		ADD TO CART
BOLT, FLANGE 0175450612 · qty on machine: 3 view full part page → $1.95

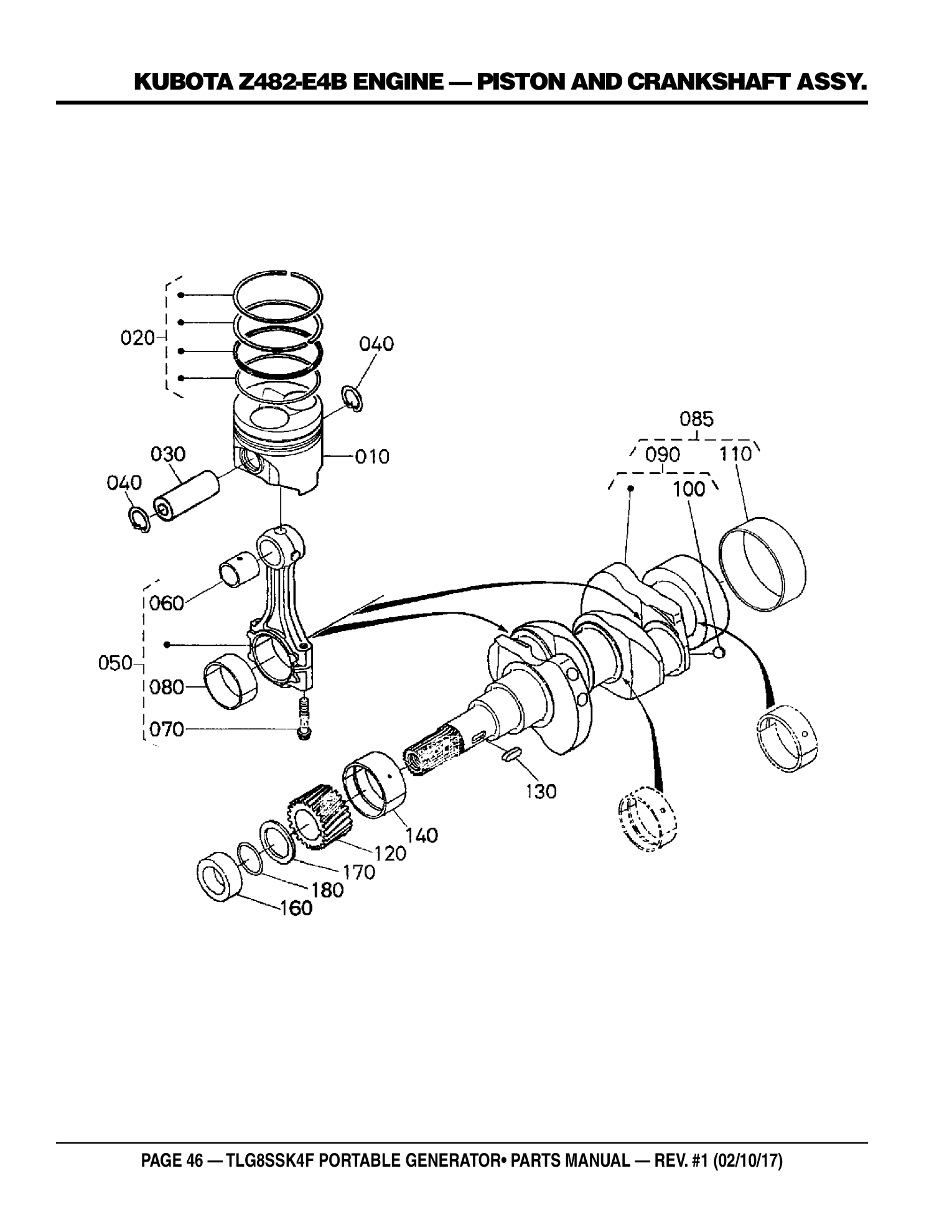

Page 46 — KUBOTA Z482-E4B ENGINE - PISTON AND CRANKSHAFT ASSY.

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - PISTON AND CRANKSHAFT ASSY. parts diagram

Parts list — exactly as printed24 rows

No.	Part No.	Part Name	Qty	Remarks
010	1J09221110	PISTON, STD	2		PARTS REQUEST
PHOTO COMING PISTON, STD 1J09221110 · qty on machine: 2 PARTS REQUEST
010	1J09221900	PISTON, +0.25MM	2		PARTS REQUEST
PHOTO COMING PISTON, +0.25MM 1J09221900 · qty on machine: 2 PARTS REQUEST
020	1J09221050	PISTON RING ASSY., STD	2		ADD TO CART
PISTON RING ASSY., STD 1J09221050 · qty on machine: 2 view full part page → $120.95
020	1J09221090	PISTON RING ASSY., +0.25MM	2		PARTS REQUEST
PHOTO COMING PISTON RING ASSY., +0.25MM 1J09221090 · qty on machine: 2 PARTS REQUEST
030	1687121310	PIN, PISTON	2		ADD TO CART
PIN, PISTON 1687121310 · qty on machine: 2 view full part page → $13.95
040	1526121330	CIRCLIP, INTERNAL	4		ADD TO CART
CIRCLIP, INTERNAL 1526121330 · qty on machine: 4 view full part page → $0.95
050	1G68722010	CONNECTING ROD ASSY	2	INCLUDES ITEMS W/#	ADD TO CART
CONNECTING ROD ASSY 1G68722010 · qty on machine: 2 INCLUDES ITEMS W/# Kit includes: 060#, 070#, 080# view full part page → $408.95 IN A KIT + SOLD SOLO
060#	1685121982	BUSH, PISTON PIN	2		PARTS REQUEST
PHOTO COMING BUSH, PISTON PIN 1685121982 · qty on machine: 2 Also included in kit 050 - CONNECTING ROD ASSY (1G68722010) PARTS REQUEST
070#	1685122140	BOLT, CONNECTING ROD	4		ADD TO CART
BOLT, CONNECTING ROD 1685122140 · qty on machine: 4 Also included in kit 050 - CONNECTING ROD ASSY (1G68722010) view full part page → $8.95 IN A KIT + SOLD SOLO
080#	1586122314	METAL, CRANKPIN, STD/SET	2		ADD TO CART
METAL, CRANKPIN, STD/SET 1586122314 · qty on machine: 2 Also included in kit 050 - CONNECTING ROD ASSY (1G68722010) view full part page → $18.95 IN A KIT + SOLD SOLO
080	1586122973	METAL, CRANKPIN, -0.20MM/SET	2		PARTS REQUEST
PHOTO COMING METAL, CRANKPIN, -0.20MM/SET 1586122973 · qty on machine: 2 PARTS REQUEST
080	1586122983	METAL, CRANKPIN, -0.40MM/SET	2		PARTS REQUEST
PHOTO COMING METAL, CRANKPIN, -0.40MM/SET 1586122983 · qty on machine: 2 PARTS REQUEST
085	1685323033	CRANKSHAFT ASSY	1	INCLUDES ITEMS W/$	PARTS REQUEST
PHOTO COMING CRANKSHAFT ASSY 1685323033 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 090$, 100$%, 110$ PARTS REQUEST
090$	1685123013	COMP. CRANKSHAFT	1	INCLUDES ITEMS W/%	ADD TO CART
COMP. CRANKSHAFT 1685123013 · qty on machine: 1 INCLUDES ITEMS W/% Also included in kit 085 - CRANKSHAFT ASSY (1685323033) view full part page → $1458.37 IN A KIT + SOLD SOLO
100$%	0771503207	BALL	2		ADD TO CART
BALL 0771503207 · qty on machine: 2 Also included in kit 090 - COMP. CRANKSHAFT (1685123013); kit 085 - CRANKSHAFT ASSY (1685323033) view full part page → $0.67 IN A KIT + SOLD SOLO
110$	1921523280	SLEEVE, CRANKSHAFT	1		ADD TO CART
SLEEVE, CRANKSHAFT 1921523280 · qty on machine: 1 Also included in kit 085 - CRANKSHAFT ASSY (1685323033) view full part page → $63.95 IN A KIT + SOLD SOLO
120	1584124110	GEAR, CRANK	1		ADD TO CART
GEAR, CRANK 1584124110 · qty on machine: 1 view full part page → $95.95
130	0571200515	KEY, FEATHER	1		ADD TO CART
KEY, FEATHER 0571200515 · qty on machine: 1 view full part page → $1.4
140	1586123474	METAL CRANKSHAFT, STD	1		PARTS REQUEST
PHOTO COMING METAL CRANKSHAFT, STD 1586123474 · qty on machine: 1 PARTS REQUEST
140	1586123913	METAL CRANKSHAFT, -0.20MM	1		PARTS REQUEST
PHOTO COMING METAL CRANKSHAFT, -0.20MM 1586123913 · qty on machine: 1 PARTS REQUEST
140	1586123923	METAL CRANKSHAFT, -0.40MM	1		PARTS REQUEST
PHOTO COMING METAL CRANKSHAFT, -0.40MM 1586123923 · qty on machine: 1 PARTS REQUEST
160	1584123250	COLLAR, CRANKSHAFT	1		ADD TO CART
COLLAR, CRANKSHAFT 1584123250 · qty on machine: 1 view full part page → $43.95
170	1588123310	SLINGER OIL, CRANKSHAFT	1		ADD TO CART
SLINGER OIL, CRANKSHAFT 1588123310 · qty on machine: 1 view full part page → $1.4
180	0481416220	O-RING	1		PARTS REQUEST
PHOTO COMING O-RING 0481416220 · qty on machine: 1 PARTS REQUEST

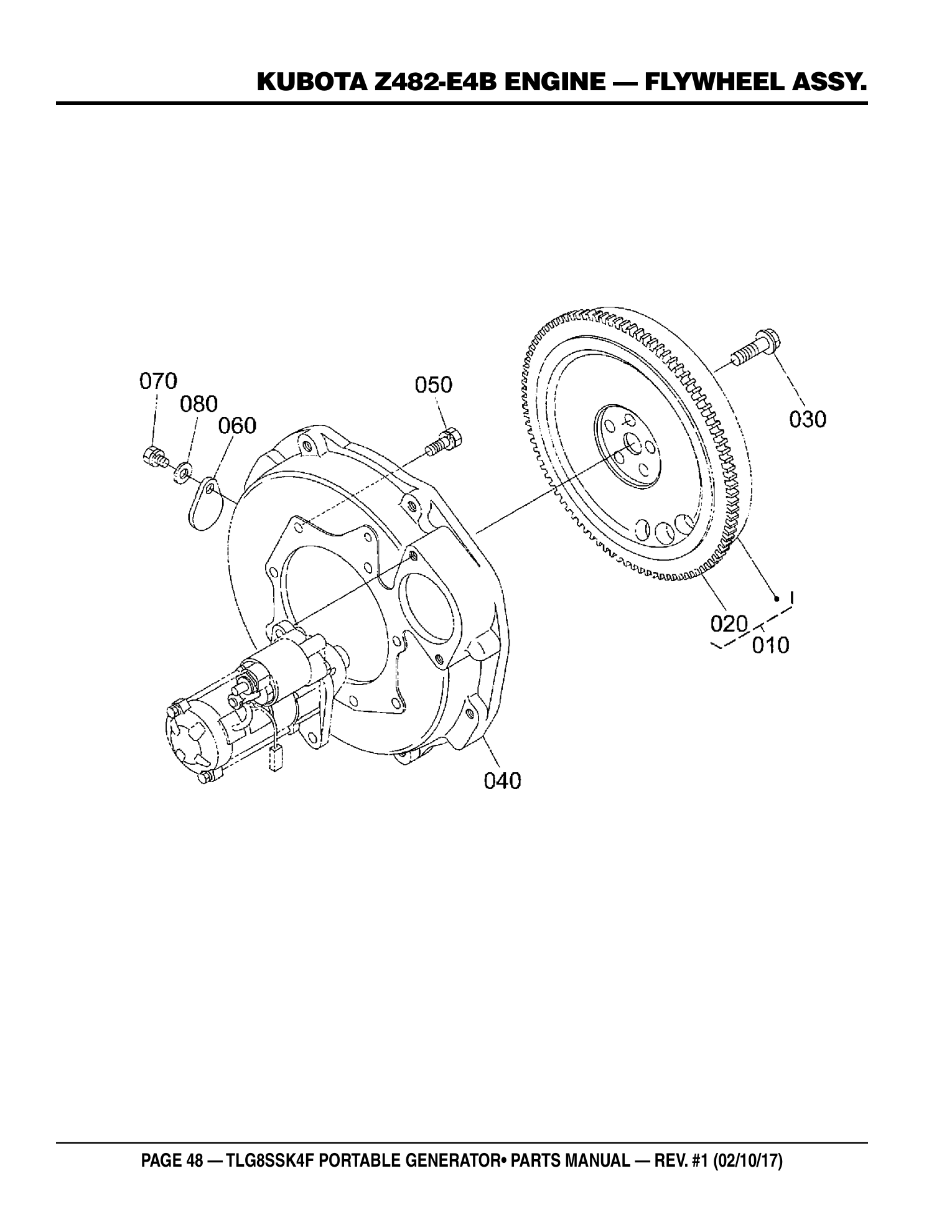

Page 48 — KUBOTA Z482-E4B ENGINE - FLYWHEEL ASSY.

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - FLYWHEEL ASSY. parts diagram

Parts list — exactly as printed8 rows

No.	Part No.	Part Name	Qty	Remarks
010	1685125022	COMP. FLYWHEEL	1	INCLUDES ITEMS W/#	PARTS REQUEST
PHOTO COMING COMP. FLYWHEEL 1685125022 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 020# PARTS REQUEST
020#	1687163822	GEAR, RING	1		PARTS REQUEST
PHOTO COMING GEAR, RING 1687163822 · qty on machine: 1 Also included in kit 010 - COMP. FLYWHEEL (1685125022) PARTS REQUEST
030	1585225160	BOLT, FLYWHEEL	5		ADD TO CART
BOLT, FLYWHEEL 1585225160 · qty on machine: 5 view full part page → $6.95
040	1584704612	HOUSING, FLYWHEEL	1		PARTS REQUEST
PHOTO COMING HOUSING, FLYWHEEL 1584704612 · qty on machine: 1 PARTS REQUEST
050	0112350820	BOLT, SEMS	8		ADD TO CART
BOLT, SEMS 0112350820 · qty on machine: 8 view full part page → $0.95
060	3122014170	COVER	1		ADD TO CART
COVER 3122014170 · qty on machine: 1 Factory replaced this part - current number 3122014172 view full part page → $3.95 IN A KIT + SOLD SOLO
070	0112350814	BOLT, SEMS	1		ADD TO CART
BOLT, SEMS 0112350814 · qty on machine: 1 Factory replaced this part - current number 0112360814 view full part page → $0.67 IN A KIT + SOLD SOLO
080	0401350080	WASHER, FLAT	1		ADD TO CART
WASHER, FLAT 0401350080 · qty on machine: 1 view full part page → $0.95

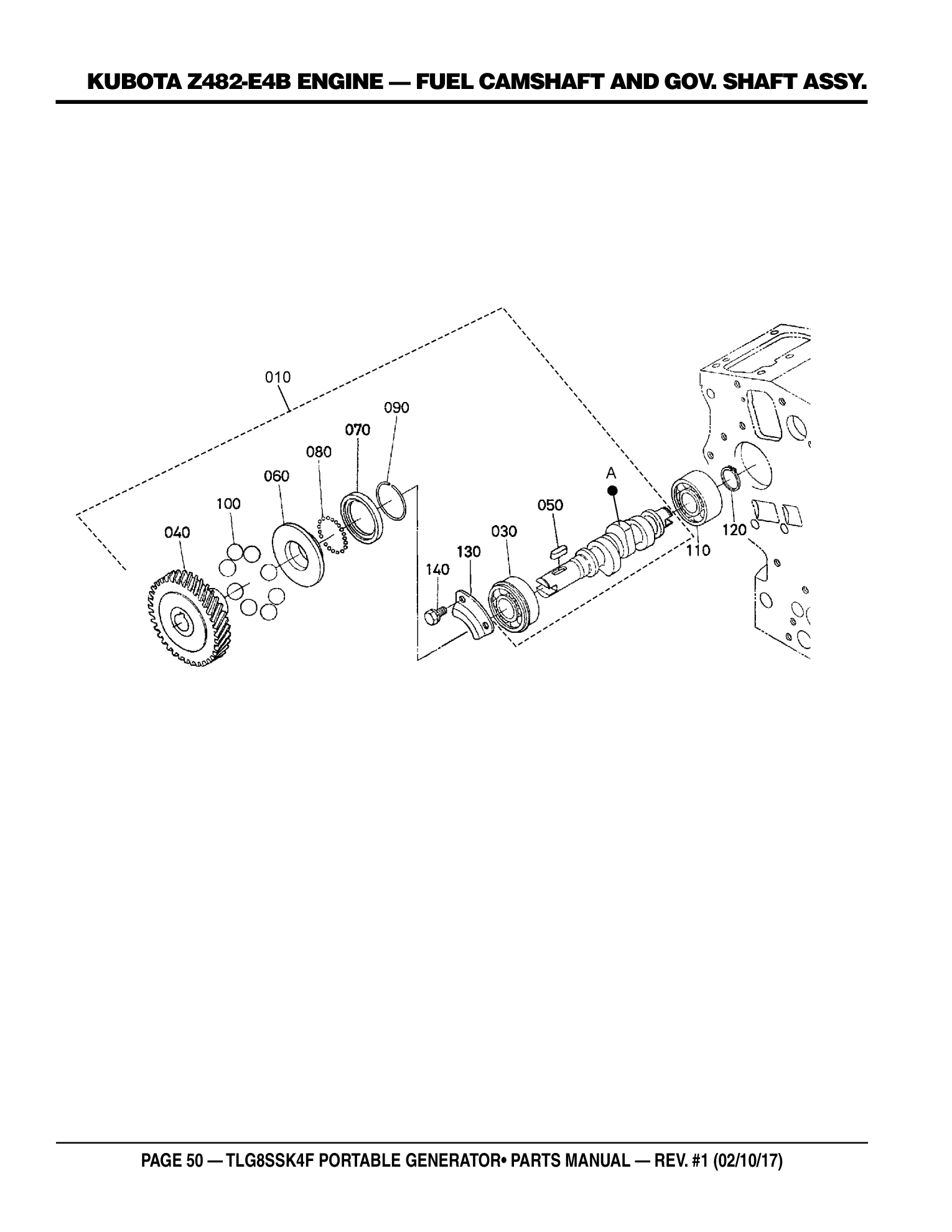

Page 50 — KUBOTA Z482-E4B ENGINE - FUEL CAMSHAFT AND GOV. SHAFT ASSY.

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - FUEL CAMSHAFT AND GOV. SHAFT ASSY. parts diagram

Parts list — exactly as printed13 rows

No.	Part No.	Part Name	Qty	Remarks
010	1G46016020	CAMSHAFT, FUEL ASSY	1	INCLUDES ITEMS W/$	PARTS REQUEST
PHOTO COMING CAMSHAFT, FUEL ASSY 1G46016020 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 030$, 040$, 050$, 060$, 070$, 080$, 090$, 100$ PARTS REQUEST
030$	0815306203	BEARING, BALL	1		ADD TO CART
BEARING, BALL 0815306203 · qty on machine: 1 Also included in kit 010 - CAMSHAFT, FUEL ASSY (1G46016020) view full part page → $22.95 IN A KIT + SOLD SOLO
040$	1685151150	GEAR, INJECTION PUMP	1		ADD TO CART
GEAR, INJECTION PUMP 1685151150 · qty on machine: 1 Also included in kit 010 - CAMSHAFT, FUEL ASSY (1G46016020) view full part page → $160.95 IN A KIT + SOLD SOLO
050$	0571200515	KEY, FEATHER	1		ADD TO CART
KEY, FEATHER 0571200515 · qty on machine: 1 Also included in kit 010 - CAMSHAFT, FUEL ASSY (1G46016020) view full part page → $1.4 IN A KIT + SOLD SOLO
060$	1584155452	SLEEVE, GOVERNOR	1		PARTS REQUEST
PHOTO COMING SLEEVE, GOVERNOR 1584155452 · qty on machine: 1 Also included in kit 010 - CAMSHAFT, FUEL ASSY (1G46016020) PARTS REQUEST
070$	1584155692	CASE, GOVERNOR BALL	1		PARTS REQUEST
PHOTO COMING CASE, GOVERNOR BALL 1584155692 · qty on machine: 1 Also included in kit 010 - CAMSHAFT, FUEL ASSY (1G46016020) PARTS REQUEST
080$	0771500801	BALL	32		ADD TO CART
BALL 0771500801 · qty on machine: 32 Also included in kit 010 - CAMSHAFT, FUEL ASSY (1G46016020) view full part page → $0.67 IN A KIT + SOLD SOLO
090$	1526155470	CIRCLIP, GOVERNOR SLEEVE	1		ADD TO CART
CIRCLIP, GOVERNOR SLEEVE 1526155470 · qty on machine: 1 Also included in kit 010 - CAMSHAFT, FUEL ASSY (1G46016020) view full part page → $0.5 IN A KIT + SOLD SOLO
100$	0771503217	BALL	8		ADD TO CART
BALL 0771503217 · qty on machine: 8 Also included in kit 010 - CAMSHAFT, FUEL ASSY (1G46016020) view full part page → $0.67 IN A KIT + SOLD SOLO
110	1687197300	BEARING, BALL	1		ADD TO CART
BEARING, BALL 1687197300 · qty on machine: 1 view full part page → $42.95
120	0461200170	CIR-CLIP, EXTERNAL	1		ADD TO CART
CIR-CLIP, EXTERNAL 0461200170 · qty on machine: 1 view full part page → $0.67
130	1584116320	STOPPER, FUEL CAMSHAFT	1		ADD TO CART
STOPPER, FUEL CAMSHAFT 1584116320 · qty on machine: 1 view full part page → $1.4
140	0102350612	BOLT, SEMS	2		ADD TO CART
BOLT, SEMS 0102350612 · qty on machine: 2 view full part page → $0.84

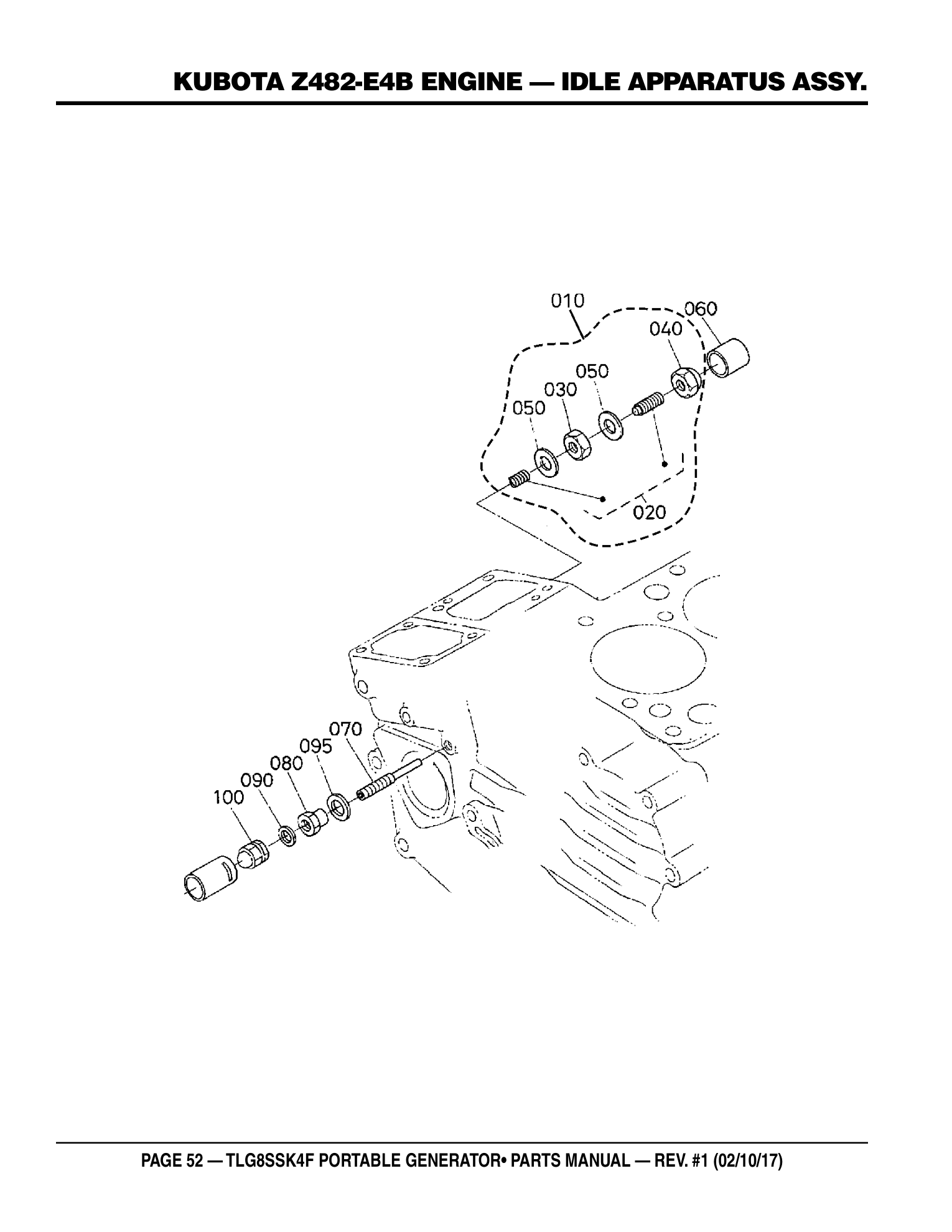

Page 52 — KUBOTA Z482-E4B ENGINE - IDLE APPARATUS ASSY.

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - IDLE APPARATUS ASSY. parts diagram

Parts list — exactly as printed11 rows

No.	Part No.	Part Name	Qty	Remarks
010	1584154092	IDLE APPARATUS ASSY	1	INCLUDES ITEMS W/#	ADD TO CART
IDLE APPARATUS ASSY 1584154092 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 020#, 030#$, 040#, 050#$ view full part page → $22.95 IN A KIT + SOLD SOLO
020#	1584154100	BOLT, ADJUSTMENT ASSY	1	INCLUDES ITEMS W/$	ADD TO CART
BOLT, ADJUSTMENT ASSY 1584154100 · qty on machine: 1 INCLUDES ITEMS W/$ Also included in kit 010 - IDLE APPARATUS ASSY (1584154092) view full part page → $5.95 IN A KIT + SOLD SOLO
030#$	1526192020	NUT	1		ADD TO CART
NUT 1526192020 · qty on machine: 1 Also included in kit 010 - IDLE APPARATUS ASSY (1584154092); kit 020 - BOLT, ADJUSTMENT ASSY (1584154100) view full part page → $1.85 IN A KIT + SOLD SOLO
040#	1584154220	NUT, CAP	1		ADD TO CART
NUT, CAP 1584154220 · qty on machine: 1 Also included in kit 010 - IDLE APPARATUS ASSY (1584154092) view full part page → $2.95 IN A KIT + SOLD SOLO
050#$	1502133660	GASKET	2		ADD TO CART
GASKET 1502133660 · qty on machine: 2 Also included in kit 010 - IDLE APPARATUS ASSY (1584154092); kit 020 - BOLT, ADJUSTMENT ASSY (1584154100) view full part page → $0.73 IN A KIT + SOLD SOLO
060	1584154270	CAP	1		ADD TO CART
CAP 1584154270 · qty on machine: 1 view full part page → $1.85
070	1584154123	BOLT, ADJUSTING	1		PARTS REQUEST
PHOTO COMING BOLT, ADJUSTING 1584154123 · qty on machine: 1 PARTS REQUEST
080	1G03154210	NUT, LOCK	1		ADD TO CART
NUT, LOCK 1G03154210 · qty on machine: 1 view full part page → $2.95
090	1560196650	GASKET	1		ADD TO CART
GASKET 1560196650 · qty on machine: 1 view full part page → $0.73
095	1G02196650	GASKET	1		ADD TO CART
GASKET 1G02196650 · qty on machine: 1 view full part page → $2.83
100	1584192330	NUT, CAP	1		ADD TO CART
NUT, CAP 1584192330 · qty on machine: 1 view full part page → $1.95

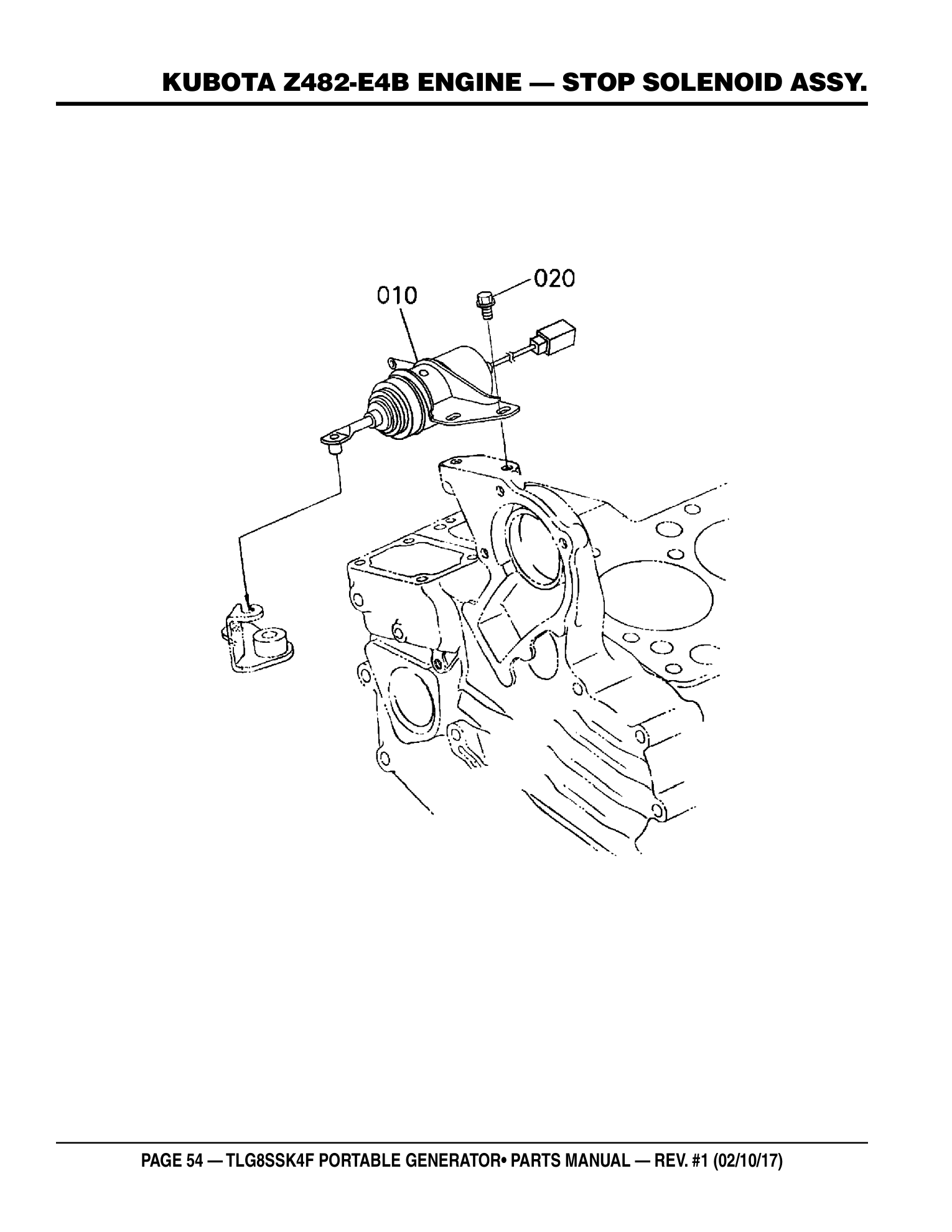

Page 54 — KUBOTA Z482-E4B ENGINE - STOP SOLENOID ASSY.

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - STOP SOLENOID ASSY. parts diagram

Parts list — exactly as printed2 rows

No.	Part No.	Part Name	Qty
010	1685160014	SOLENOID, STOP	1	ADD TO CART
SOLENOID, STOP 1685160014 · qty on machine: 1 view full part page → $223.95
020	0175450612	BOLT, FLANGE	2	ADD TO CART
BOLT, FLANGE 0175450612 · qty on machine: 2 view full part page → $1.95

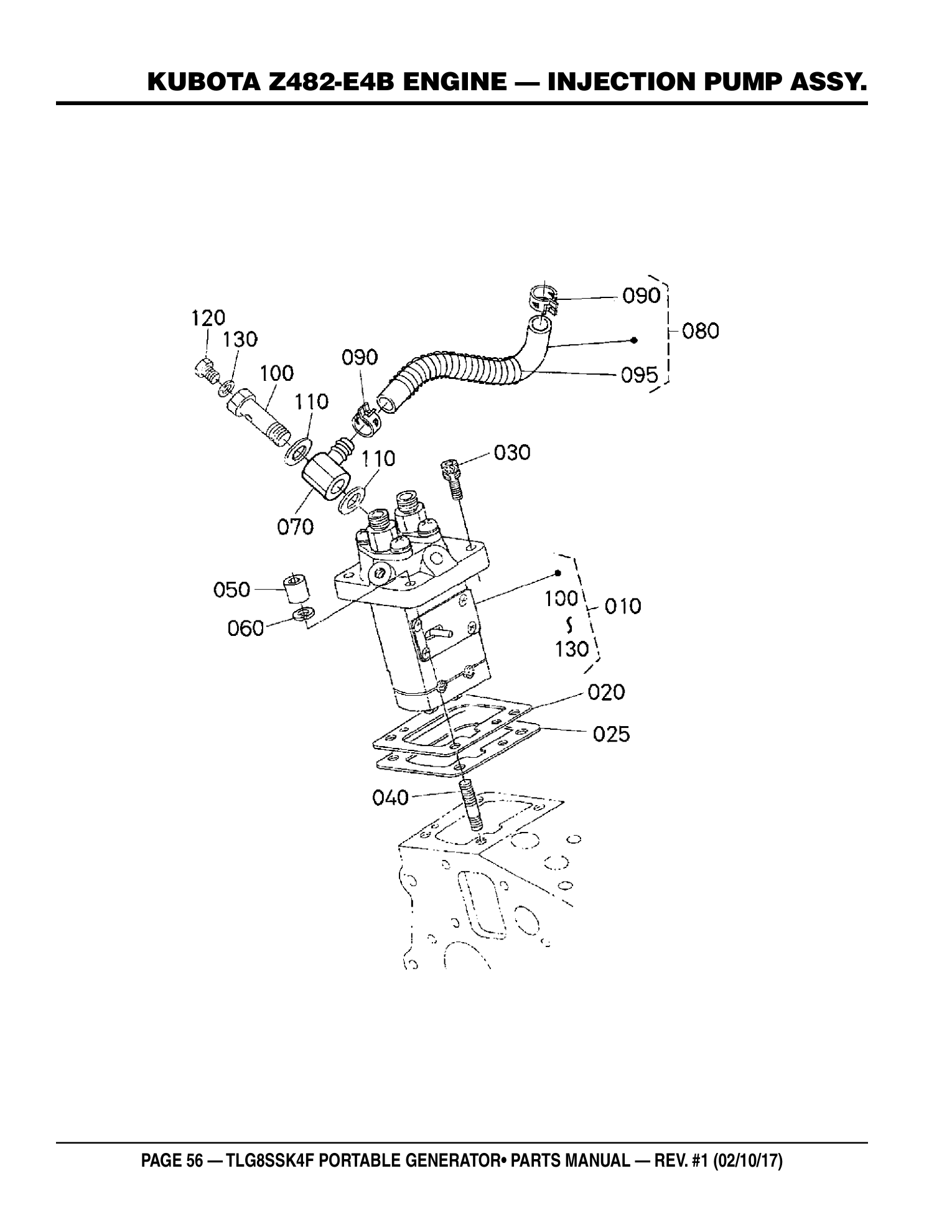

Page 56 — KUBOTA Z482-E4B ENGINE - INJECTION PUMP ASSY.

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - INJECTION PUMP ASSY. parts diagram

Parts list — exactly as printed18 rows

No.	Part No.	Part Name	Qty	Remarks
010	1754851014	PUMP ASSY., INJECTION	1	INCLUDES ITEMS W/#	ADD TO CART
PUMP ASSY., INJECTION 1754851014 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 100#, 110#, 120#, 130# view full part page → $1334.95 IN A KIT + SOLD SOLO
020	1G68952200	SHIM, INJECTION PUMP, 0.175MM	1		ADD TO CART
SHIM, INJECTION PUMP, 0.175MM 1G68952200 · qty on machine: 1 view full part page → $5.95
020	1600152090	SHIM, INJECTION PUMP, 0.200MM	1		ADD TO CART
SHIM, INJECTION PUMP, 0.200MM 1600152090 · qty on machine: 1 view full part page → $4.95
020	1600152110	SHIM, INJECTION PUMP, 0.250MM	1		ADD TO CART
SHIM, INJECTION PUMP, 0.250MM 1600152110 · qty on machine: 1 view full part page → $6.95
025	1600152120	SHIM, INJECTION PUMP, 0.300MM	1		PARTS REQUEST
PHOTO COMING SHIM, INJECTION PUMP, 0.300MM 1600152120 · qty on machine: 1 PARTS REQUEST
025	1G68952160	SHIM, INJECTION PUMP, 0.350MM	1		ADD TO CART
SHIM, INJECTION PUMP, 0.350MM 1G68952160 · qty on machine: 1 view full part page → $4.95
030	1687191060	SCREW, HEX SOCKET HEAD CAP	3		PARTS REQUEST
PHOTO COMING SCREW, HEX SOCKET HEAD CAP 1687191060 · qty on machine: 3 PARTS REQUEST
040	1584191500	STUD	1		ADD TO CART
STUD 1584191500 · qty on machine: 1 view full part page → $1.64
050	1584192320	NUT, CAP	1		ADD TO CART
NUT, CAP 1584192320 · qty on machine: 1 view full part page → $13.95
060	0451250060	WASHER, SPRING LOCK	1		ADD TO CART
WASHER, SPRING LOCK 0451250060 · qty on machine: 1 Factory replaced this part - current number 030206150 view full part page → $0.07 IN A KIT + SOLD SOLO
070	1584195680	JOINT	1		ADD TO CART
JOINT 1584195680 · qty on machine: 1 view full part page → $10.95
080	1526342010	PIPE, FUEL ASSY	1	INCLUDES ITEMS W/$	ADD TO CART
PIPE, FUEL ASSY 1526342010 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 090$, 095$ view full part page → $8.95 IN A KIT + SOLD SOLO
090$	1491142750	CLIP, PIPE	2		ADD TO CART
CLIP, PIPE 1491142750 · qty on machine: 2 Also included in kit 080 - PIPE, FUEL ASSY (1526342010) view full part page → $2.95 IN A KIT + SOLD SOLO
095$	6659154250	SPRING, PIPE PROTECT	1		ADD TO CART
SPRING, PIPE PROTECT 6659154250 · qty on machine: 1 Also included in kit 080 - PIPE, FUEL ASSY (1526342010) view full part page → $2.95 IN A KIT + SOLD SOLO
100#	1584151320	SCREW, ROOF CANOPY	1		ADD TO CART
SCREW, ROOF CANOPY 1584151320 · qty on machine: 1 Also included in kit 010 - PUMP ASSY., INJECTION (1754851014) view full part page → $42.95 IN A KIT + SOLD SOLO
110#	1584196650	GASKET	2		ADD TO CART
GASKET 1584196650 · qty on machine: 2 Also included in kit 010 - PUMP ASSY., INJECTION (1754851014) view full part page → $2.95 IN A KIT + SOLD SOLO
120#	1584151350	SCREW, AIR BLEEDER	1		ADD TO CART
SCREW, AIR BLEEDER 1584151350 · qty on machine: 1 Also included in kit 010 - PUMP ASSY., INJECTION (1754851014) view full part page → $26.95 IN A KIT + SOLD SOLO
130#	1584196660	GASKET	1		ADD TO CART
GASKET 1584196660 · qty on machine: 1 Also included in kit 010 - PUMP ASSY., INJECTION (1754851014) view full part page → $2.95 IN A KIT + SOLD SOLO

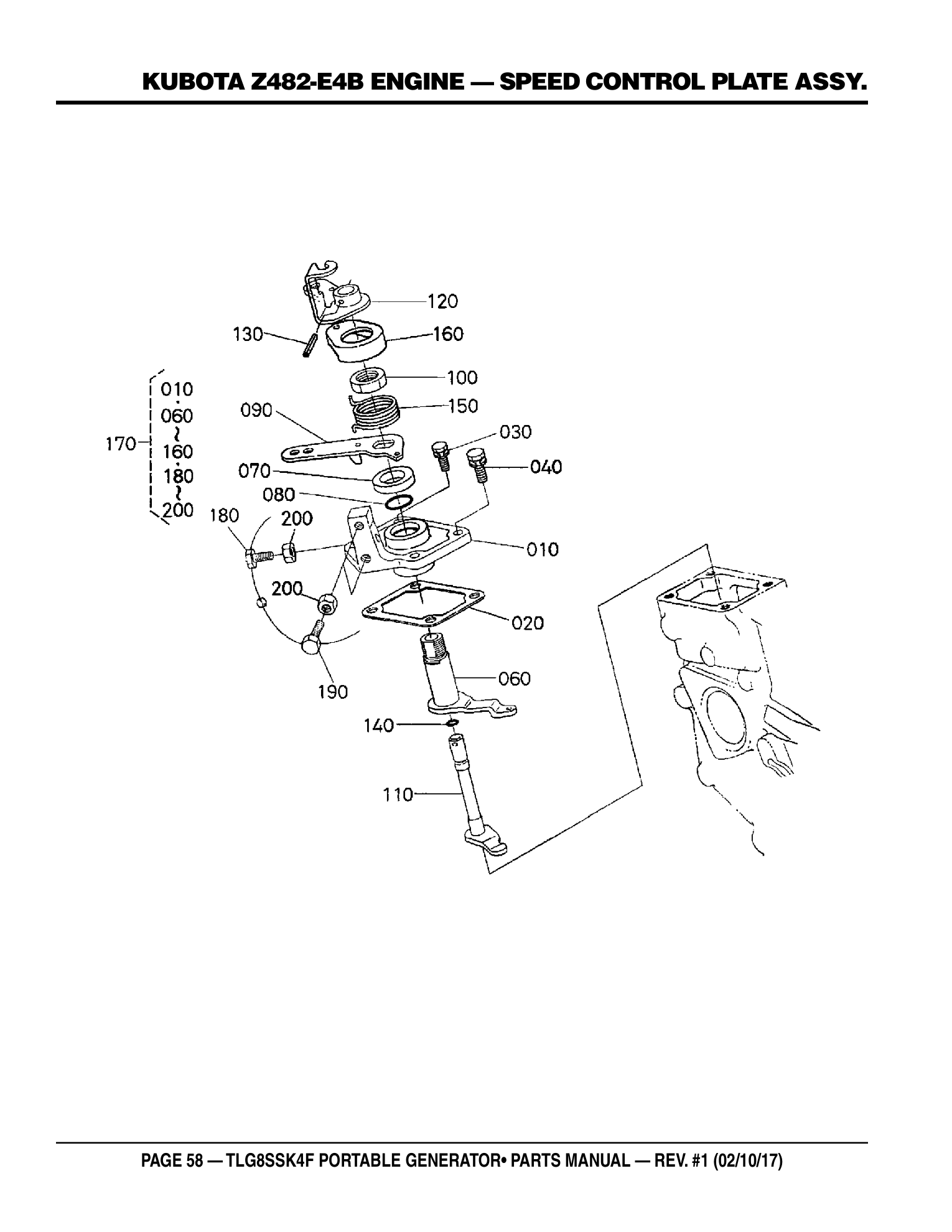

Page 58 — KUBOTA Z482-E4B ENGINE - SPEED CONTROL PLATE ASSY.

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - SPEED CONTROL PLATE ASSY. parts diagram

Parts list — exactly as printed19 rows

No.	Part No.	Part Name	Qty	Remarks
010$	1584157112	PLATE, SPEED CONTROL	1		PARTS REQUEST
PHOTO COMING PLATE, SPEED CONTROL 1584157112 · qty on machine: 1 Also included in kit 170 - COMP. PLATE, SPEED CONTROL (1756157013) PARTS REQUEST
020	1584157212	GASKET, CONTROL PLATE	1		ADD TO CART
GASKET, CONTROL PLATE 1584157212 · qty on machine: 1 view full part page → $1.95
030	0175450616	BOLT, FLANGE	2		ADD TO CART
BOLT, FLANGE 0175450616 · qty on machine: 2 view full part page → $3.95
040	1687191050	BOLT	2		PARTS REQUEST
PHOTO COMING BOLT 1687191050 · qty on machine: 2 PARTS REQUEST
060$	1584156112	LEVER, GOVERNOR	1		ADD TO CART
LEVER, GOVERNOR 1584156112 · qty on machine: 1 Also included in kit 170 - COMP. PLATE, SPEED CONTROL (1756157013) view full part page → $16.95 IN A KIT + SOLD SOLO
070$	1928057240	COLLAR	1		ADD TO CART
COLLAR 1928057240 · qty on machine: 1 Also included in kit 170 - COMP. PLATE, SPEED CONTROL (1756157013) view full part page → $3.95 IN A KIT + SOLD SOLO
080$	0481410160	O-RING	1		ADD TO CART
O-RING 0481410160 · qty on machine: 1 Also included in kit 170 - COMP. PLATE, SPEED CONTROL (1756157013) view full part page → $1.95 IN A KIT + SOLD SOLO
090$	1G63957150	LEVER, SPEED CONTROL	1		ADD TO CART
LEVER, SPEED CONTROL 1G63957150 · qty on machine: 1 Also included in kit 170 - COMP. PLATE, SPEED CONTROL (1756157013) view full part page → $92.0 IN A KIT + SOLD SOLO
100$	1686692010	NUT, SPEED CONTROL	2		ADD TO CART
NUT, SPEED CONTROL 1686692010 · qty on machine: 2 Also included in kit 170 - COMP. PLATE, SPEED CONTROL (1756157013) view full part page → $2.59 IN A KIT + SOLD SOLO
110$	1687857742	SHAFT, LEVER	1		ADD TO CART
SHAFT, LEVER 1687857742 · qty on machine: 1 Also included in kit 170 - COMP. PLATE, SPEED CONTROL (1756157013) view full part page → $16.95 IN A KIT + SOLD SOLO
120$	1685157724	LEVER, ENGINE STOP	1		ADD TO CART
LEVER, ENGINE STOP 1685157724 · qty on machine: 1 Also included in kit 170 - COMP. PLATE, SPEED CONTROL (1756157013) view full part page → $39.95 IN A KIT + SOLD SOLO
130$	0541100314	PIN, SPRING	1		PARTS REQUEST
PHOTO COMING PIN, SPRING 0541100314 · qty on machine: 1 Also included in kit 170 - COMP. PLATE, SPEED CONTROL (1756157013) PARTS REQUEST
140$	0481410070	O-RING	1		ADD TO CART
O-RING 0481410070 · qty on machine: 1 Also included in kit 170 - COMP. PLATE, SPEED CONTROL (1756157013) view full part page → $1.38 IN A KIT + SOLD SOLO
150$	1687857920	SPRING, RETURN	1		ADD TO CART
SPRING, RETURN 1687857920 · qty on machine: 1 Also included in kit 170 - COMP. PLATE, SPEED CONTROL (1756157013) view full part page → $2.95 IN A KIT + SOLD SOLO
160$	1686657302	CAP	1		ADD TO CART
CAP 1686657302 · qty on machine: 1 Also included in kit 170 - COMP. PLATE, SPEED CONTROL (1756157013) view full part page → $2.95 IN A KIT + SOLD SOLO
170	1756157013	COMP. PLATE, SPEED CONTROL	1	INCLUDES ITEMS W/$	ADD TO CART
COMP. PLATE, SPEED CONTROL 1756157013 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 010$, 060$, 070$, 080$, 090$, 100$, 110$, 120$, 130$, 140$, 150$, 160$, 180$, 190$, 200$ view full part page → $286.95 IN A KIT + SOLD SOLO
180$	1920291010	BOLT	1		PARTS REQUEST
PHOTO COMING BOLT 1920291010 · qty on machine: 1 Also included in kit 170 - COMP. PLATE, SPEED CONTROL (1756157013) PARTS REQUEST
190$	1920291010	BOLT	2		PARTS REQUEST
PHOTO COMING BOLT 1920291010 · qty on machine: 2 Also included in kit 170 - COMP. PLATE, SPEED CONTROL (1756157013) PARTS REQUEST
200$	0205650060	HEX, NUT	3		ADD TO CART
HEX, NUT 0205650060 · qty on machine: 3 Also included in kit 170 - COMP. PLATE, SPEED CONTROL (1756157013) view full part page → $0.23 IN A KIT + SOLD SOLO

Page 60 — KUBOTA Z482-E4B ENGINE - NOZZLE HOLDER AND GLOW PLUG ASSY.

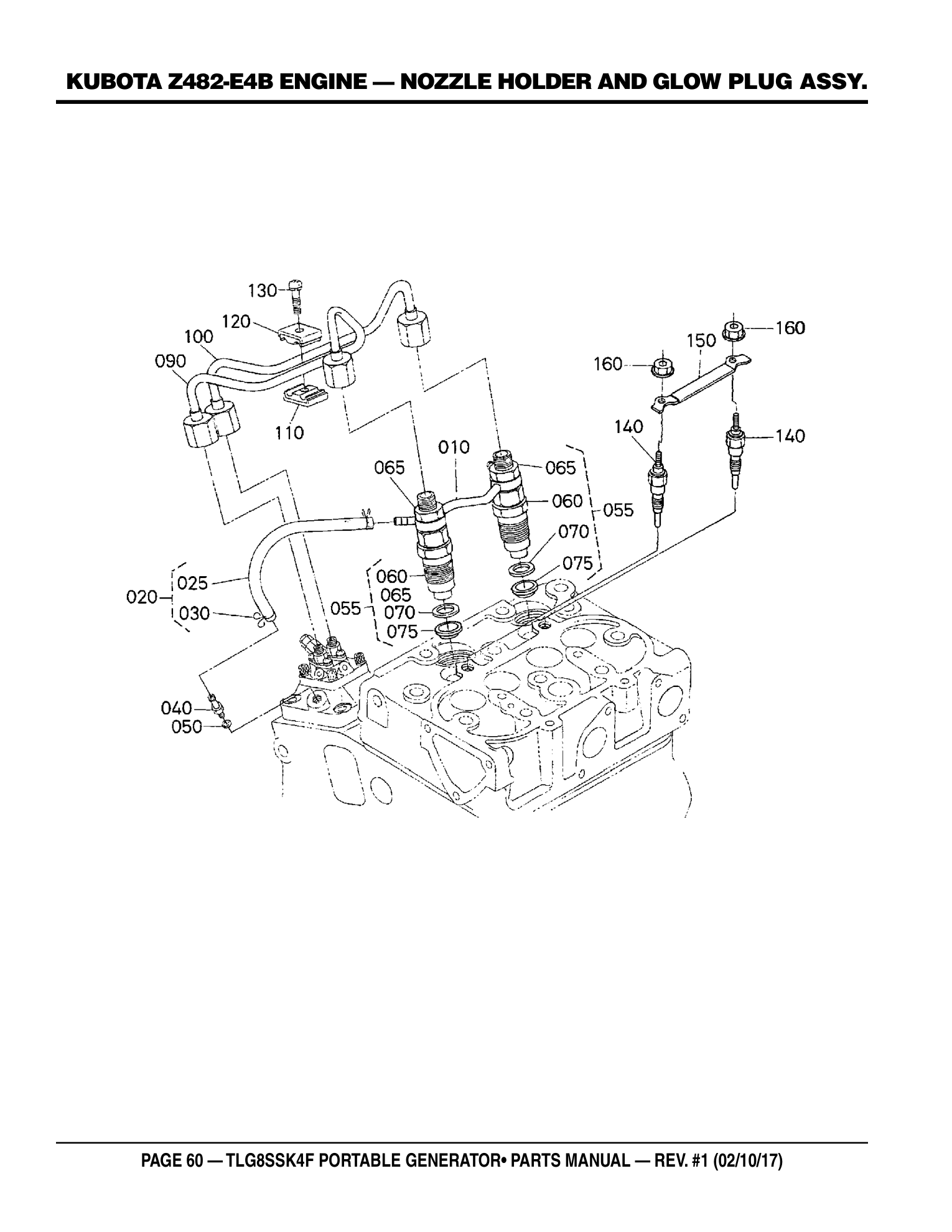

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - NOZZLE HOLDER AND GLOW PLUG ASSY. parts diagram

Parts list — exactly as printed19 rows

No.	Part No.	Part Name	Qty	Remarks
010	1585242502	PIPE ASSY., OVER FLOW	1		ADD TO CART
PIPE ASSY., OVER FLOW 1585242502 · qty on machine: 1 view full part page → $57.95
020	1584142500	PIPE ASSY., OVER FLOW	1	INCLUDES ITEMS W/#	ADD TO CART
PIPE ASSY., OVER FLOW 1584142500 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 025#, 030# view full part page → $2.95 IN A KIT + SOLD SOLO
025#	1584142520	PIPE, FUEL OVER FLOW	1		PARTS REQUEST
PHOTO COMING PIPE, FUEL OVER FLOW 1584142520 · qty on machine: 1 Also included in kit 020 - PIPE ASSY., OVER FLOW (1584142500) PARTS REQUEST
030#	1497142750	CLIP, PIPE	2		PARTS REQUEST
PHOTO COMING CLIP, PIPE 1497142750 · qty on machine: 2 Also included in kit 020 - PIPE ASSY., OVER FLOW (1584142500) PARTS REQUEST
040	1584151360	SCREW, AIR BLEEDER	1		ADD TO CART
SCREW, AIR BLEEDER 1584151360 · qty on machine: 1 view full part page → $9.95
050	1560196650	GASKET	1		ADD TO CART
GASKET 1560196650 · qty on machine: 1 view full part page → $0.73
055	1687153904	HOLDER, NOZZLE KIT	2	INCLUDES ITEMS W/$	PARTS REQUEST
PHOTO COMING HOLDER, NOZZLE KIT 1687153904 · qty on machine: 2 INCLUDES ITEMS W/$ Kit includes: 060$, 065$, 070$, 075$ PARTS REQUEST
060$	1687153002	HOLDER, NOZZLE ASSY.	2		ADD TO CART
HOLDER, NOZZLE ASSY. 1687153002 · qty on machine: 2 Also included in kit 055 - HOLDER, NOZZLE KIT (1687153904) view full part page → $248.95 IN A KIT + SOLD SOLO
065$	1G82692032	NUT	2		PARTS REQUEST
PHOTO COMING NUT 1G82692032 · qty on machine: 2 Also included in kit 055 - HOLDER, NOZZLE KIT (1687153904) PARTS REQUEST
070$	1584153622	GASKET	2		ADD TO CART
GASKET 1584153622 · qty on machine: 2 Also included in kit 055 - HOLDER, NOZZLE KIT (1687153904) view full part page → $2.93 IN A KIT + SOLD SOLO
075$	1907753650	SEAL, HEAT	2		ADD TO CART
SEAL, HEAT 1907753650 · qty on machine: 2 Also included in kit 055 - HOLDER, NOZZLE KIT (1687153904) view full part page → $11.95 IN A KIT + SOLD SOLO
090	1G68653710	PIPE, INJECTION	1		PARTS REQUEST
PHOTO COMING PIPE, INJECTION 1G68653710 · qty on machine: 1 PARTS REQUEST
100	1G68653720	PIPE, INJECTION	1		PARTS REQUEST
PHOTO COMING PIPE, INJECTION 1G68653720 · qty on machine: 1 PARTS REQUEST
110	1584153850	CLAMP, PIPE	1		ADD TO CART
CLAMP, PIPE 1584153850 · qty on machine: 1 view full part page → $3.91
120	1584153860	CLAMP, PIPE	1		ADD TO CART
CLAMP, PIPE 1584153860 · qty on machine: 1 view full part page → $2.7
130	0302450520	SCREW, SEMS PAN HEAD	1		ADD TO CART
SCREW, SEMS PAN HEAD 0302450520 · qty on machine: 1 view full part page → $0.48
140	1G67965512	PLUG, GLOW	2		ADD TO CART
PLUG, GLOW 1G67965512 · qty on machine: 2 view full part page → $47.95
150	1685165560	CORD, GLOW PLUG	1		ADD TO CART
CORD, GLOW PLUG 1685165560 · qty on machine: 1 view full part page → $11.95
160	0276150040	NUT, FLANGE	2		ADD TO CART
NUT, FLANGE 0276150040 · qty on machine: 2 view full part page → $1.85

Page 62 — KUBOTA Z482-E4B ENGINE - NOZZLE HOLDER COMP. ASSY.

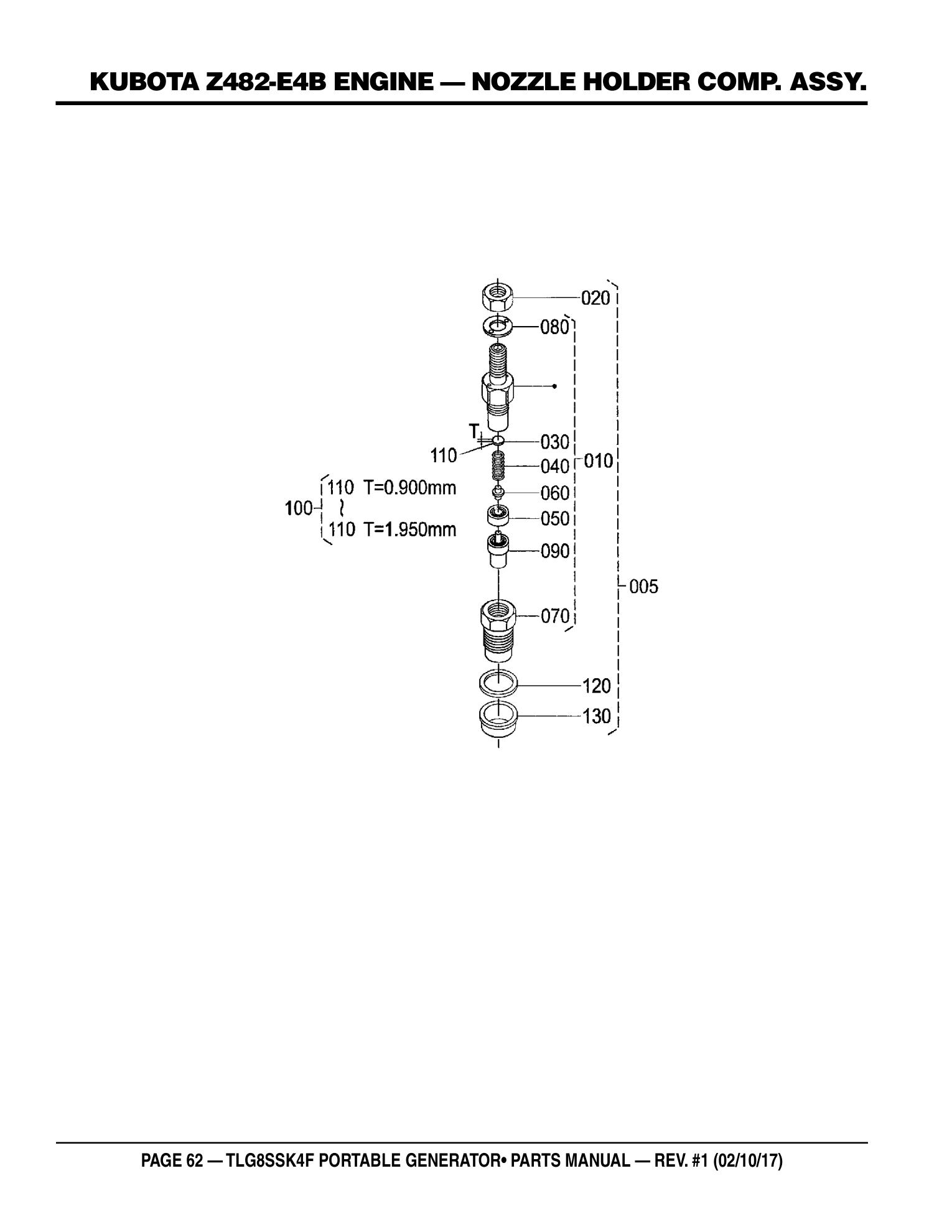

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - NOZZLE HOLDER COMP. ASSY. parts diagram

Parts list — exactly as printed37 rows

No.	Part No.	Part Name	Qty	Remarks
005	1687153904	HOLDER, NOZZLE KIT	2	INCLUDES ITEMS W/#	PARTS REQUEST
PHOTO COMING HOLDER, NOZZLE KIT 1687153904 · qty on machine: 2 INCLUDES ITEMS W/# Kit includes: 010#, 020#, 030#$, 040#$, 050#$, 060#$, 070#$, 080#$, 090#$ PARTS REQUEST
010#	1687153002	HOLDER, NOZZLE ASSY	2	INCLUDES ITEMS W/$	ADD TO CART
HOLDER, NOZZLE ASSY 1687153002 · qty on machine: 2 INCLUDES ITEMS W/$ Also included in kit 005 - HOLDER, NOZZLE KIT (1687153904) view full part page → $248.95 IN A KIT + SOLD SOLO
020#	1G82692032	NUT	2		PARTS REQUEST
PHOTO COMING NUT 1G82692032 · qty on machine: 2 Also included in kit 005 - HOLDER, NOZZLE KIT (1687153904) PARTS REQUEST
030#$	1603253230	WASHER, ADJUSTING	2		ADD TO CART
WASHER, ADJUSTING 1603253230 · qty on machine: 2 Also included in kit 005 - HOLDER, NOZZLE KIT (1687153904); kit 010 - HOLDER, NOZZLE ASSY (1687153002) view full part page → $3.86 IN A KIT + SOLD SOLO
040#$	1603253170	SPRING, NOZZLE	2		ADD TO CART
SPRING, NOZZLE 1603253170 · qty on machine: 2 Also included in kit 005 - HOLDER, NOZZLE KIT (1687153904); kit 010 - HOLDER, NOZZLE ASSY (1687153002) view full part page → $7.95 IN A KIT + SOLD SOLO
050#$	1603253350	SPACER, DISTANCE	2		ADD TO CART
SPACER, DISTANCE 1603253350 · qty on machine: 2 Also included in kit 005 - HOLDER, NOZZLE KIT (1687153904); kit 010 - HOLDER, NOZZLE ASSY (1687153002) view full part page → $22.95 IN A KIT + SOLD SOLO
060#$	1603253160	ROD, PUSH	2		ADD TO CART
ROD, PUSH 1603253160 · qty on machine: 2 Also included in kit 005 - HOLDER, NOZZLE KIT (1687153904); kit 010 - HOLDER, NOZZLE ASSY (1687153002) view full part page → $40.95 IN A KIT + SOLD SOLO
070#$	1687153280	NUT, NOZZLE	2		PARTS REQUEST
PHOTO COMING NUT, NOZZLE 1687153280 · qty on machine: 2 Also included in kit 005 - HOLDER, NOZZLE KIT (1687153904); kit 010 - HOLDER, NOZZLE ASSY (1687153002) PARTS REQUEST
080#$	1603294040	WASHER, FLAT	2		ADD TO CART
WASHER, FLAT 1603294040 · qty on machine: 2 Also included in kit 005 - HOLDER, NOZZLE KIT (1687153904); kit 010 - HOLDER, NOZZLE ASSY (1687153002) view full part page → $4.95 IN A KIT + SOLD SOLO
090#$	1G96253610	NOZZLE-PIECE	2		PARTS REQUEST
PHOTO COMING NOZZLE-PIECE 1G96253610 · qty on machine: 2 Also included in kit 005 - HOLDER, NOZZLE KIT (1687153904); kit 010 - HOLDER, NOZZLE ASSY (1687153002) PARTS REQUEST
100	1584198100	WASHER, ADJUSTING ASSY.	2	INCLUDES ITEMS W/%	ADD TO CART
WASHER, ADJUSTING ASSY. 1584198100 · qty on machine: 2 INCLUDES ITEMS W/% Kit includes: 110%, 110%, 110%, 110%, 110%, 110%, 110%, 110%, 110%, 110%, 110%, 110%, 110%, 110%, 110%, 110%, 110%, 110%, 110%, 110%, 110%, 110%, 110%, 110%, 110%, 110% view full part page → $42.95 IN A KIT + SOLD SOLO
110%	1584153230	WASHER, ADJUSTING	2	0.900MM	ADD TO CART
WASHER, ADJUSTING 1584153230 · qty on machine: 2 0.900MM Also included in kit 100 - WASHER, ADJUSTING ASSY. (1584198100) view full part page → $1.64 IN A KIT + SOLD SOLO
110%	1584198510	WASHER, ADJUSTING	2	0.925MM	ADD TO CART
WASHER, ADJUSTING 1584198510 · qty on machine: 2 0.925MM Also included in kit 100 - WASHER, ADJUSTING ASSY. (1584198100) view full part page → $1.64 IN A KIT + SOLD SOLO
110%	1584198520	WASHER, ADJUSTING	2	0.950MM	ADD TO CART
WASHER, ADJUSTING 1584198520 · qty on machine: 2 0.950MM Also included in kit 100 - WASHER, ADJUSTING ASSY. (1584198100) view full part page → $1.64 IN A KIT + SOLD SOLO
110%	1584198530	WASHER, ADJUSTING	2	0.975MM	ADD TO CART
WASHER, ADJUSTING 1584198530 · qty on machine: 2 0.975MM Also included in kit 100 - WASHER, ADJUSTING ASSY. (1584198100) view full part page → $1.64 IN A KIT + SOLD SOLO
110%	1584198540	WASHER, ADJUSTING	2	1.000MM	ADD TO CART
WASHER, ADJUSTING 1584198540 · qty on machine: 2 1.000MM Also included in kit 100 - WASHER, ADJUSTING ASSY. (1584198100) view full part page → $1.85 IN A KIT + SOLD SOLO
110%	1584198550	WASHER, ADJUSTING	2	1.025MM	ADD TO CART
WASHER, ADJUSTING 1584198550 · qty on machine: 2 1.025MM Also included in kit 100 - WASHER, ADJUSTING ASSY. (1584198100) view full part page → $1.85 IN A KIT + SOLD SOLO
110%	1584198560	WASHER, ADJUSTING	2	1.050MM	ADD TO CART
WASHER, ADJUSTING 1584198560 · qty on machine: 2 1.050MM Also included in kit 100 - WASHER, ADJUSTING ASSY. (1584198100) view full part page → $1.85 IN A KIT + SOLD SOLO
110%	1584198570	WASHER, ADJUSTING	2	1.075MM	ADD TO CART
WASHER, ADJUSTING 1584198570 · qty on machine: 2 1.075MM Also included in kit 100 - WASHER, ADJUSTING ASSY. (1584198100) view full part page → $1.85 IN A KIT + SOLD SOLO
110%	1584198580	WASHER, ADJUSTING	2	1.100MM	ADD TO CART
WASHER, ADJUSTING 1584198580 · qty on machine: 2 1.100MM Also included in kit 100 - WASHER, ADJUSTING ASSY. (1584198100) view full part page → $1.85 IN A KIT + SOLD SOLO
110%	1584198590	WASHER, ADJUSTING	2	1.125MM	ADD TO CART
WASHER, ADJUSTING 1584198590 · qty on machine: 2 1.125MM Also included in kit 100 - WASHER, ADJUSTING ASSY. (1584198100) view full part page → $1.95 IN A KIT + SOLD SOLO
110%	1584198600	WASHER, ADJUSTING	2	1.150MM	ADD TO CART
WASHER, ADJUSTING 1584198600 · qty on machine: 2 1.150MM Also included in kit 100 - WASHER, ADJUSTING ASSY. (1584198100) view full part page → $1.95 IN A KIT + SOLD SOLO
110%	1584198610	WASHER, ADJUSTING	2	1.175MM	ADD TO CART
WASHER, ADJUSTING 1584198610 · qty on machine: 2 1.175MM Also included in kit 100 - WASHER, ADJUSTING ASSY. (1584198100) view full part page → $1.95 IN A KIT + SOLD SOLO
110%	1584198620	WASHER, ADJUSTING	2	1.200MM	ADD TO CART
WASHER, ADJUSTING 1584198620 · qty on machine: 2 1.200MM Also included in kit 100 - WASHER, ADJUSTING ASSY. (1584198100) view full part page → $1.95 IN A KIT + SOLD SOLO
110%	1584198630	WASHER, ADJUSTING	2	1.225MM	ADD TO CART
WASHER, ADJUSTING 1584198630 · qty on machine: 2 1.225MM Also included in kit 100 - WASHER, ADJUSTING ASSY. (1584198100) view full part page → $1.95 IN A KIT + SOLD SOLO
110%	1584198640	WASHER, ADJUSTING	2	1.250MM	ADD TO CART
WASHER, ADJUSTING 1584198640 · qty on machine: 2 1.250MM Also included in kit 100 - WASHER, ADJUSTING ASSY. (1584198100) view full part page → $1.95 IN A KIT + SOLD SOLO
110%	1584198650	WASHER, ADJUSTING	2	1.275MM	ADD TO CART
WASHER, ADJUSTING 1584198650 · qty on machine: 2 1.275MM Also included in kit 100 - WASHER, ADJUSTING ASSY. (1584198100) view full part page → $1.95 IN A KIT + SOLD SOLO
110%	1584198660	WASHER, ADJUSTING	2	1.300MM	ADD TO CART
WASHER, ADJUSTING 1584198660 · qty on machine: 2 1.300MM Also included in kit 100 - WASHER, ADJUSTING ASSY. (1584198100) view full part page → $2.57 IN A KIT + SOLD SOLO
110%	1584198670	WASHER, ADJUSTING	2	1.325MM	ADD TO CART
WASHER, ADJUSTING 1584198670 · qty on machine: 2 1.325MM Also included in kit 100 - WASHER, ADJUSTING ASSY. (1584198100) view full part page → $2.57 IN A KIT + SOLD SOLO
110%	1584198680	WASHER, ADJUSTING	2	1.350MM	ADD TO CART
WASHER, ADJUSTING 1584198680 · qty on machine: 2 1.350MM Also included in kit 100 - WASHER, ADJUSTING ASSY. (1584198100) view full part page → $2.57 IN A KIT + SOLD SOLO
110%	1584198690	WASHER, ADJUSTING	2	1.375MM	ADD TO CART
WASHER, ADJUSTING 1584198690 · qty on machine: 2 1.375MM Also included in kit 100 - WASHER, ADJUSTING ASSY. (1584198100) view full part page → $2.57 IN A KIT + SOLD SOLO
110%	1584198700	WASHER, ADJUSTING	2	1.400MM	ADD TO CART
WASHER, ADJUSTING 1584198700 · qty on machine: 2 1.400MM Also included in kit 100 - WASHER, ADJUSTING ASSY. (1584198100) view full part page → $2.7 IN A KIT + SOLD SOLO
110%	1584198710	WASHER, ADJUSTING	2	1.425MM	ADD TO CART
WASHER, ADJUSTING 1584198710 · qty on machine: 2 1.425MM Also included in kit 100 - WASHER, ADJUSTING ASSY. (1584198100) view full part page → $2.7 IN A KIT + SOLD SOLO
110%	1584198720	WASHER, ADJUSTING	2	1.450MM	ADD TO CART
WASHER, ADJUSTING 1584198720 · qty on machine: 2 1.450MM Also included in kit 100 - WASHER, ADJUSTING ASSY. (1584198100) view full part page → $2.7 IN A KIT + SOLD SOLO
110%	1584198730	WASHER, ADJUSTING	2	1.475MM	ADD TO CART
WASHER, ADJUSTING 1584198730 · qty on machine: 2 1.475MM Also included in kit 100 - WASHER, ADJUSTING ASSY. (1584198100) view full part page → $2.7 IN A KIT + SOLD SOLO
110%	1584198740	WASHER, ADJUSTING	2	1.500MM	ADD TO CART
WASHER, ADJUSTING 1584198740 · qty on machine: 2 1.500MM Also included in kit 100 - WASHER, ADJUSTING ASSY. (1584198100) view full part page → $2.7 IN A KIT + SOLD SOLO
110%	1584198750	WASHER, ADJUSTING	2	1.525MM	ADD TO CART
WASHER, ADJUSTING 1584198750 · qty on machine: 2 1.525MM Also included in kit 100 - WASHER, ADJUSTING ASSY. (1584198100) view full part page → $2.7 IN A KIT + SOLD SOLO

Page 64 — KUBOTA Z482-E4B ENGINE - NOZ. HOLD. COM. ASSY. CONT'D.

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - NOZ. HOLD. COM. ASSY. CONT'D. parts diagram

Parts list — exactly as printed19 rows

No.	Part No.	Part Name	Qty	Remarks
110%	1584198760	WASHER, ADJUSTING	2	1.550MM	ADD TO CART
WASHER, ADJUSTING 1584198760 · qty on machine: 2 1.550MM Kit includes: 120#, 130# view full part page → $2.7 IN A KIT + SOLD SOLO
110%	1584198770	WASHER, ADJUSTING	2	1.575MM	ADD TO CART
WASHER, ADJUSTING 1584198770 · qty on machine: 2 1.575MM Kit includes: 120#, 130# view full part page → $2.7 IN A KIT + SOLD SOLO
110%	1584198780	WASHER, ADJUSTING	2	1.600MM	ADD TO CART
WASHER, ADJUSTING 1584198780 · qty on machine: 2 1.600MM Kit includes: 120#, 130# view full part page → $2.95 IN A KIT + SOLD SOLO
110%	1584198790	WASHER, ADJUSTING	2	1.625MM	ADD TO CART
WASHER, ADJUSTING 1584198790 · qty on machine: 2 1.625MM Kit includes: 120#, 130# view full part page → $2.95 IN A KIT + SOLD SOLO
110%	1584198800	WASHER, ADJUSTING	2	1.650MM	ADD TO CART
WASHER, ADJUSTING 1584198800 · qty on machine: 2 1.650MM Kit includes: 120#, 130# view full part page → $2.95 IN A KIT + SOLD SOLO
110%	1584198810	WASHER, ADJUSTING	2	1.675MM	ADD TO CART
WASHER, ADJUSTING 1584198810 · qty on machine: 2 1.675MM Kit includes: 120#, 130# view full part page → $2.95 IN A KIT + SOLD SOLO
110%	1584198820	WASHER, ADJUSTING	2	1.700MM	ADD TO CART
WASHER, ADJUSTING 1584198820 · qty on machine: 2 1.700MM Kit includes: 120#, 130# view full part page → $2.95 IN A KIT + SOLD SOLO
110%	1584198830	WASHER, ADJUSTING	2	1.725MM	ADD TO CART
WASHER, ADJUSTING 1584198830 · qty on machine: 2 1.725MM Kit includes: 120#, 130# view full part page → $2.95 IN A KIT + SOLD SOLO
110%	1584198840	WASHER, ADJUSTING	2	1.750MM	ADD TO CART
WASHER, ADJUSTING 1584198840 · qty on machine: 2 1.750MM Kit includes: 120#, 130# view full part page → $2.95 IN A KIT + SOLD SOLO
110%	1584198850	WASHER, ADJUSTING	2	1.775MM	ADD TO CART
WASHER, ADJUSTING 1584198850 · qty on machine: 2 1.775MM Kit includes: 120#, 130# view full part page → $2.95 IN A KIT + SOLD SOLO
110%	1584198860	WASHER, ADJUSTING	2	1.800MM	ADD TO CART
WASHER, ADJUSTING 1584198860 · qty on machine: 2 1.800MM Kit includes: 120#, 130# view full part page → $2.95 IN A KIT + SOLD SOLO
110%	1584198870	WASHER, ADJUSTING	2	1.825MM	ADD TO CART
WASHER, ADJUSTING 1584198870 · qty on machine: 2 1.825MM Kit includes: 120#, 130# view full part page → $2.95 IN A KIT + SOLD SOLO
110%	1584198880	WASHER, ADJUSTING	2	1.850MM	ADD TO CART
WASHER, ADJUSTING 1584198880 · qty on machine: 2 1.850MM Kit includes: 120#, 130# view full part page → $2.95 IN A KIT + SOLD SOLO
110%	1584198890	WASHER, ADJUSTING	2	1.875MM	ADD TO CART
WASHER, ADJUSTING 1584198890 · qty on machine: 2 1.875MM Kit includes: 120#, 130# view full part page → $2.95 IN A KIT + SOLD SOLO
110%	1584198900	WASHER, ADJUSTING	2	1.900MM	ADD TO CART
WASHER, ADJUSTING 1584198900 · qty on machine: 2 1.900MM Kit includes: 120#, 130# view full part page → $2.95 IN A KIT + SOLD SOLO
110%	1584198910	WASHER, ADJUSTING	2	1.925MM	ADD TO CART
WASHER, ADJUSTING 1584198910 · qty on machine: 2 1.925MM Kit includes: 120#, 130# view full part page → $2.95 IN A KIT + SOLD SOLO
110%	1584198920	WASHER, ADJUSTING	2	1.950MM	ADD TO CART
WASHER, ADJUSTING 1584198920 · qty on machine: 2 1.950MM Kit includes: 120#, 130# view full part page → $2.95 IN A KIT + SOLD SOLO
120#	1584153622	GASKET	2		ADD TO CART
GASKET 1584153622 · qty on machine: 2 Also included in kit 110 - WASHER, ADJUSTING (1584198920) view full part page → $2.93 IN A KIT + SOLD SOLO
130#	1907753650	SEAL, HEAT	2		ADD TO CART
SEAL, HEAT 1907753650 · qty on machine: 2 Also included in kit 110 - WASHER, ADJUSTING (1584198920) view full part page → $11.95 IN A KIT + SOLD SOLO

Page 66 — KUBOTA Z482-E4B ENGINE - FORK LEVER GOV. ASSY.

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - FORK LEVER GOV. ASSY. parts diagram

Parts list — exactly as printed13 rows

No.	Part No.	Part Name	Qty	Remarks
010	1584156480	SPRING, START	1		ADD TO CART
SPRING, START 1584156480 · qty on machine: 1 view full part page → $1.95
020	1754956410	SPRING, GOVERNOR	1		PARTS REQUEST
PHOTO COMING SPRING, GOVERNOR 1754956410 · qty on machine: 1 PARTS REQUEST
030	1754856055	LEVER, FORK ASSY	1	INCLUDES ITEMS W/#	PARTS REQUEST
PHOTO COMING LEVER, FORK ASSY 1754856055 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: A#, B#, 050#, 060#$, 070#$, 080#$, 090#, 100#, 110# PARTS REQUEST
A#		LEVER, FORK COMP	1	NOT SOLD SEPARATELY	INCLUDED IN KIT
PHOTO COMING LEVER, FORK COMP · qty on machine: 1 NOT SOLD SEPARATELY Included in kit 030 - LEVER, FORK ASSY (1754856055) INCLUDED IN KIT
B#		HOLDER, FORK LEVER	1	NOT SOLD SEPARATELY	INCLUDED IN KIT
PHOTO COMING HOLDER, FORK LEVER · qty on machine: 1 NOT SOLD SEPARATELY Included in kit 030 - LEVER, FORK ASSY (1754856055) INCLUDED IN KIT
050#	1584156060	LEVER, FORK ASSY	1	INCLUDES ITEMS W/$	ADD TO CART
LEVER, FORK ASSY 1584156060 · qty on machine: 1 INCLUDES ITEMS W/$ Also included in kit 030 - LEVER, FORK ASSY (1754856055) view full part page → $66.95 IN A KIT + SOLD SOLO
060#$	1584156130	LEVER, FORK	1		ADD TO CART
LEVER, FORK 1584156130 · qty on machine: 1 Also included in kit 030 - LEVER, FORK ASSY (1754856055); kit 050 - LEVER, FORK ASSY (1584156060) view full part page → $57.95 IN A KIT + SOLD SOLO
070#$	1584156150	SHAFT, FORK LEVER	1		ADD TO CART
SHAFT, FORK LEVER 1584156150 · qty on machine: 1 Also included in kit 030 - LEVER, FORK ASSY (1754856055); kit 050 - LEVER, FORK ASSY (1584156060) view full part page → $8.95 IN A KIT + SOLD SOLO
080#$	0541100318	PIN, SPRING	1		ADD TO CART
PIN, SPRING 0541100318 · qty on machine: 1 Also included in kit 030 - LEVER, FORK ASSY (1754856055); kit 050 - LEVER, FORK ASSY (1584156060) view full part page → $0.94 IN A KIT + SOLD SOLO
090#	1526166410	BOLT	1		ADD TO CART
BOLT 1526166410 · qty on machine: 1 Also included in kit 030 - LEVER, FORK ASSY (1754856055) view full part page → $4.95 IN A KIT + SOLD SOLO
100#	0451250050	WASHER, SPRING LOCK	1		PARTS REQUEST
PHOTO COMING WASHER, SPRING LOCK 0451250050 · qty on machine: 1 Also included in kit 030 - LEVER, FORK ASSY (1754856055) PARTS REQUEST
110#	1666255620	WASHER, FLAT	2		ADD TO CART
WASHER, FLAT 1666255620 · qty on machine: 2 Also included in kit 030 - LEVER, FORK ASSY (1754856055) view full part page → $2.95 IN A KIT + SOLD SOLO
120	0102350635	BOLT, SEMS	2		ADD TO CART
BOLT, SEMS 0102350635 · qty on machine: 2 view full part page → $0.67

Page 68 — KUBOTA Z482-E4B ENGINE - FORK LEVER GOV. ASSY.

Parts list — exactly as printed13 rows

No.	Part No.	Part Name	Qty	Remarks
010	1584156480	SPRING, START	1		ADD TO CART
SPRING, START 1584156480 · qty on machine: 1 view full part page → $1.95
020	1754956410	SPRING, GOVERNOR	1		PARTS REQUEST
PHOTO COMING SPRING, GOVERNOR 1754956410 · qty on machine: 1 PARTS REQUEST
030	1754856055	LEVER, FORK ASSY	1	INCLUDES ITEMS W/#	PARTS REQUEST
PHOTO COMING LEVER, FORK ASSY 1754856055 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: A#, B#, 050#, 060#$, 070#$, 080#$, 090#, 100#, 110# PARTS REQUEST
A#		LEVER, FORK COMP	1	NOT SOLD SEPARATELY	INCLUDED IN KIT
PHOTO COMING LEVER, FORK COMP · qty on machine: 1 NOT SOLD SEPARATELY Included in kit 030 - LEVER, FORK ASSY (1754856055) INCLUDED IN KIT
B#		HOLDER, FORK LEVER	1	NOT SOLD SEPARATELY	INCLUDED IN KIT
PHOTO COMING HOLDER, FORK LEVER · qty on machine: 1 NOT SOLD SEPARATELY Included in kit 030 - LEVER, FORK ASSY (1754856055) INCLUDED IN KIT
050#	1584156060	LEVER, FORK ASSY	1	INCLUDES ITEMS W/$	ADD TO CART
LEVER, FORK ASSY 1584156060 · qty on machine: 1 INCLUDES ITEMS W/$ Also included in kit 030 - LEVER, FORK ASSY (1754856055) view full part page → $66.95 IN A KIT + SOLD SOLO
060#$	1584156130	LEVER, FORK	1		ADD TO CART
LEVER, FORK 1584156130 · qty on machine: 1 Also included in kit 030 - LEVER, FORK ASSY (1754856055); kit 050 - LEVER, FORK ASSY (1584156060) view full part page → $57.95 IN A KIT + SOLD SOLO
070#$	1584156150	SHAFT, FORK LEVER	1		ADD TO CART
SHAFT, FORK LEVER 1584156150 · qty on machine: 1 Also included in kit 030 - LEVER, FORK ASSY (1754856055); kit 050 - LEVER, FORK ASSY (1584156060) view full part page → $8.95 IN A KIT + SOLD SOLO
080#$	0541100318	PIN, SPRING	1		ADD TO CART
PIN, SPRING 0541100318 · qty on machine: 1 Also included in kit 030 - LEVER, FORK ASSY (1754856055); kit 050 - LEVER, FORK ASSY (1584156060) view full part page → $0.94 IN A KIT + SOLD SOLO
090#	1526166410	BOLT	1		ADD TO CART
BOLT 1526166410 · qty on machine: 1 Also included in kit 030 - LEVER, FORK ASSY (1754856055) view full part page → $4.95 IN A KIT + SOLD SOLO
100#	0451250050	WASHER, SPRING LOCK	1		PARTS REQUEST
PHOTO COMING WASHER, SPRING LOCK 0451250050 · qty on machine: 1 Also included in kit 030 - LEVER, FORK ASSY (1754856055) PARTS REQUEST
110#	1666255620	WASHER, FLAT	2		ADD TO CART
WASHER, FLAT 1666255620 · qty on machine: 2 Also included in kit 030 - LEVER, FORK ASSY (1754856055) view full part page → $2.95 IN A KIT + SOLD SOLO
120	0102350635	BOLT, SEMS	2		ADD TO CART
BOLT, SEMS 0102350635 · qty on machine: 2 view full part page → $0.67

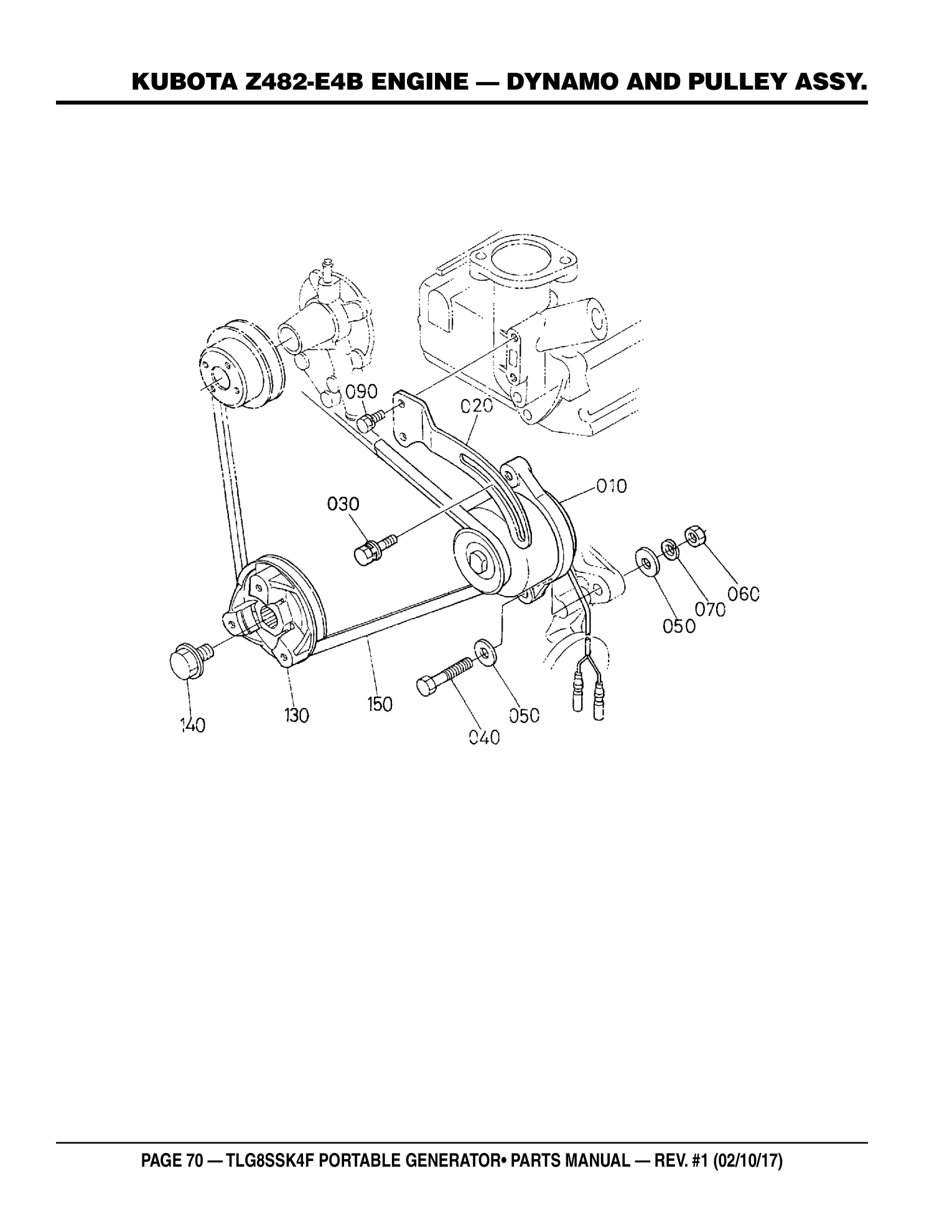

Page 70 — KUBOTA Z482-E4B ENGINE - DYNAMO AND PULLEY ASSY.

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - DYNAMO AND PULLEY ASSY. parts diagram

Parts list — exactly as printed11 rows

No.	Part No.	Part Name	Qty
010	1753164012	DYNAMO ASSY.	1	ADD TO CART
DYNAMO ASSY. 1753164012 · qty on machine: 1 view full part page → $290.95
020	1259964420	STAY, DYNAMO	1	ADD TO CART
STAY, DYNAMO 1259964420 · qty on machine: 1 view full part page → $15.95
030	1687191030	BOLT	1	ADD TO CART
BOLT 1687191030 · qty on machine: 1 view full part page → $4.95
040	0115350855	HEX, BOLT	1	ADD TO CART
HEX, BOLT 0115350855 · qty on machine: 1 view full part page → $2.75
050	0401350080	WASHER, FLAT	2	ADD TO CART
WASHER, FLAT 0401350080 · qty on machine: 2 view full part page → $0.95
060	0215650080	HEX, NUT	1	ADD TO CART
HEX, NUT 0215650080 · qty on machine: 1 view full part page → $0.55
070	0451250080	WASHER, SPRING LOCK	1	ADD TO CART
WASHER, SPRING LOCK 0451250080 · qty on machine: 1 Factory replaced this part - current number 0451290080 view full part page → $0.37 IN A KIT + SOLD SOLO
090	0102350616	BOLT, SEMS	2	ADD TO CART
BOLT, SEMS 0102350616 · qty on machine: 2 view full part page → $1.64
130	1685174280	PULLEY, FAN DRIVE	1	ADD TO CART
PULLEY, FAN DRIVE 1685174280 · qty on machine: 1 view full part page → $83.95
140	1588191030	BOLT	1	ADD TO CART
BOLT 1588191030 · qty on machine: 1 view full part page → $8.95
150	1980572530	BELT, FAN	1	ADD TO CART
BELT, FAN 1980572530 · qty on machine: 1 view full part page → $25.95

Page 72 — KUBOTA Z482-E4B ENGINE - DYNAMO COMPONENTS ASSY.

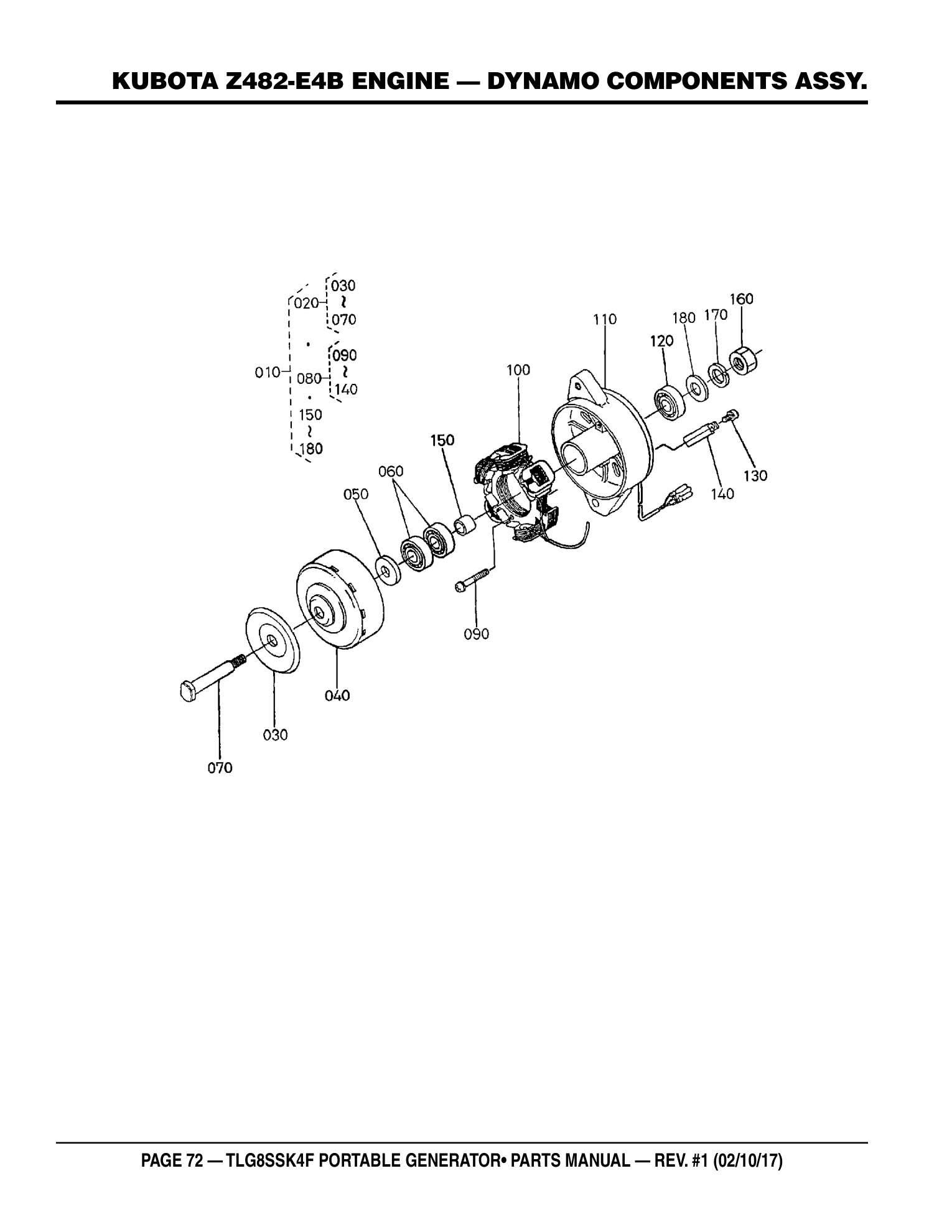

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - DYNAMO COMPONENTS ASSY. parts diagram

Parts list — exactly as printed18 rows

No.	Part No.	Part Name	Qty	Remarks
010	1753164012	DYNAMO ASSY.	1	INCLUDES ITEMS W/#	ADD TO CART
DYNAMO ASSY. 1753164012 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 020#, 030#$, 040#$, 050#$, 060#$, 070#$, 080#, 090#%, 100#%, 110#%, 120#%, 130#%, 140#%, 150#, 160#, 170#, 180# view full part page → $290.95 IN A KIT + SOLD SOLO
020#	1553264120	COMP. FLYWHEEL	1	INCLUDES ITEMS W/$	PARTS REQUEST
PHOTO COMING COMP. FLYWHEEL 1553264120 · qty on machine: 1 INCLUDES ITEMS W/$ Also included in kit 010 - DYNAMO ASSY. (1753164012) PARTS REQUEST
030#$	1553164110	PULLEY	1		ADD TO CART
PULLEY 1553164110 · qty on machine: 1 Also included in kit 010 - DYNAMO ASSY. (1753164012); kit 020 - COMP. FLYWHEEL (1553264120) view full part page → $16.98 IN A KIT + SOLD SOLO
040#$	1553264040	FLYWHEEL	1		PARTS REQUEST
PHOTO COMING FLYWHEEL 1553264040 · qty on machine: 1 Also included in kit 010 - DYNAMO ASSY. (1753164012); kit 020 - COMP. FLYWHEEL (1553264120) PARTS REQUEST
050#$	6C04082860	COLLAR	1		ADD TO CART
COLLAR 6C04082860 · qty on machine: 1 Also included in kit 010 - DYNAMO ASSY. (1753164012); kit 020 - COMP. FLYWHEEL (1553264120) view full part page → $3.5 IN A KIT + SOLD SOLO
060#$	1553174180	BEARING, BALL	2		ADD TO CART
BEARING, BALL 1553174180 · qty on machine: 2 Also included in kit 010 - DYNAMO ASSY. (1753164012); kit 020 - COMP. FLYWHEEL (1553264120) view full part page → $31.9 IN A KIT + SOLD SOLO
070#$	1553274140	SHAFT, FAN	1		PARTS REQUEST
PHOTO COMING SHAFT, FAN 1553274140 · qty on machine: 1 Also included in kit 010 - DYNAMO ASSY. (1753164012); kit 020 - COMP. FLYWHEEL (1553264120) PARTS REQUEST
080#	1553264360	COMP. STATOR	1	INCLUDES ITEMS W/%	PARTS REQUEST
PHOTO COMING COMP. STATOR 1553264360 · qty on machine: 1 INCLUDES ITEMS W/% Also included in kit 010 - DYNAMO ASSY. (1753164012) PARTS REQUEST
090#%	1526193010	SCREW, ROUND HEAD	2		ADD TO CART
SCREW, ROUND HEAD 1526193010 · qty on machine: 2 Also included in kit 010 - DYNAMO ASSY. (1753164012); kit 080 - COMP. STATOR (1553264360) view full part page → $0.75 IN A KIT + SOLD SOLO
100#%	1553164292	STATOR	1		ADD TO CART
STATOR 1553164292 · qty on machine: 1 Also included in kit 010 - DYNAMO ASSY. (1753164012); kit 080 - COMP. STATOR (1553264360) view full part page → $132.66 IN A KIT + SOLD SOLO
110#%	1553264070	PLATE	1		PARTS REQUEST
PHOTO COMING PLATE 1553264070 · qty on machine: 1 Also included in kit 010 - DYNAMO ASSY. (1753164012); kit 080 - COMP. STATOR (1553264360) PARTS REQUEST
120#%	1553174180	BEARING, BALL	1		ADD TO CART
BEARING, BALL 1553174180 · qty on machine: 1 Also included in kit 010 - DYNAMO ASSY. (1753164012); kit 080 - COMP. STATOR (1553264360) view full part page → $31.9 IN A KIT + SOLD SOLO
130#%	1553193010	SCREW, ROUND HEAD	1		ADD TO CART
SCREW, ROUND HEAD 1553193010 · qty on machine: 1 Also included in kit 010 - DYNAMO ASSY. (1753164012); kit 080 - COMP. STATOR (1553264360) view full part page → $1.23 IN A KIT + SOLD SOLO
140#%	1526164190	CLAMP, CORD	1		PARTS REQUEST
PHOTO COMING CLAMP, CORD 1526164190 · qty on machine: 1 Also included in kit 010 - DYNAMO ASSY. (1753164012); kit 080 - COMP. STATOR (1553264360) PARTS REQUEST
150#	1526164150	COLLAR	1		ADD TO CART
COLLAR 1526164150 · qty on machine: 1 Also included in kit 010 - DYNAMO ASSY. (1753164012) view full part page → $3.91 IN A KIT + SOLD SOLO
160#	1526192030	NUT	1		ADD TO CART
NUT 1526192030 · qty on machine: 1 Also included in kit 010 - DYNAMO ASSY. (1753164012) view full part page → $1.95 IN A KIT + SOLD SOLO
170#	1526194070	WASHER, LOCK	1		ADD TO CART
WASHER, LOCK 1526194070 · qty on machine: 1 Also included in kit 010 - DYNAMO ASSY. (1753164012) view full part page → $0.95 IN A KIT + SOLD SOLO
180#	1526194020	WASHER, FLAT	1		ADD TO CART
WASHER, FLAT 1526194020 · qty on machine: 1 Also included in kit 010 - DYNAMO ASSY. (1753164012) view full part page → $0.95 IN A KIT + SOLD SOLO

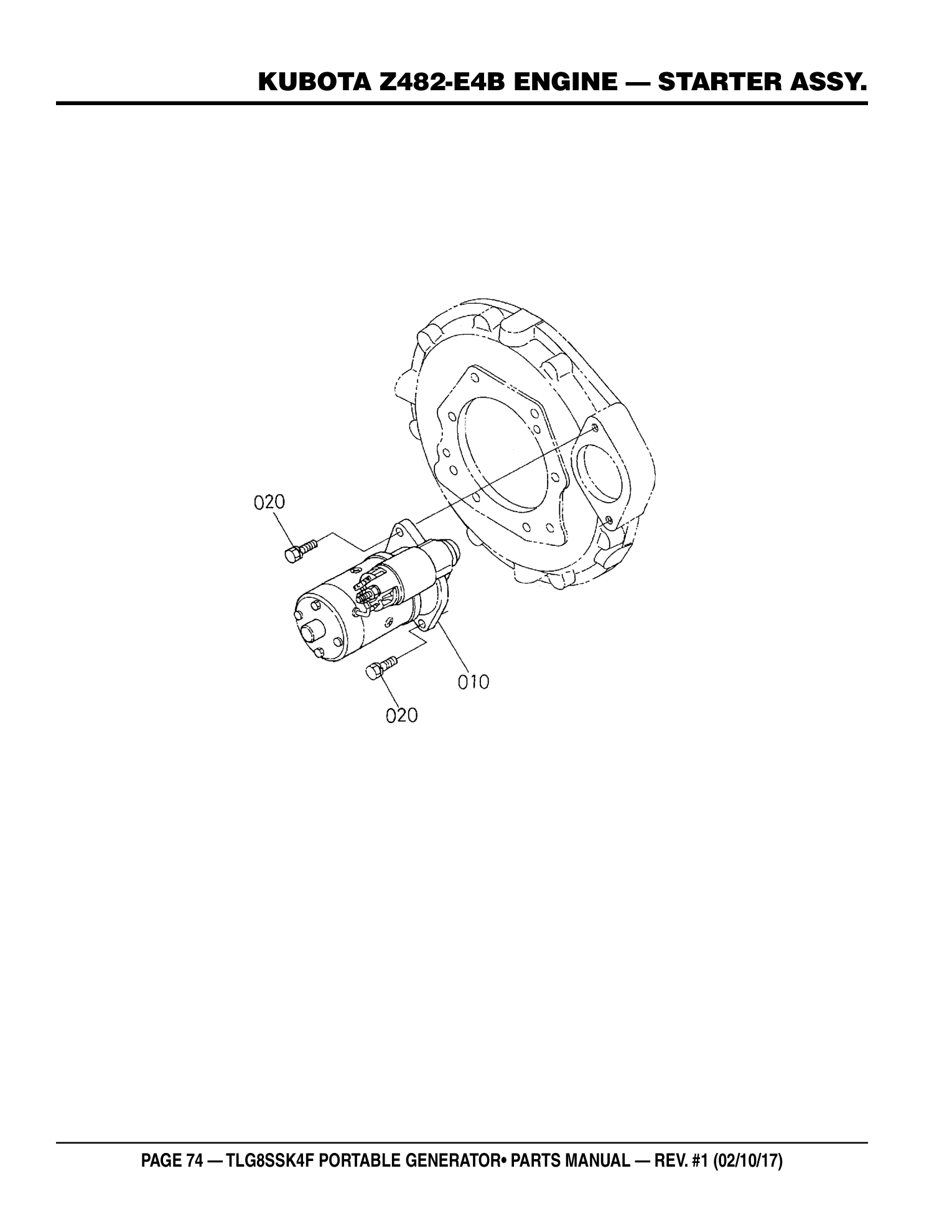

Page 74 — KUBOTA Z482-E4B ENGINE - STARTER ASSY.

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - STARTER ASSY. parts diagram

Parts list — exactly as printed2 rows

No.	Part No.	Part Name	Qty
010	1983763014	STARTER ASSY.	1	ADD TO CART
STARTER ASSY. 1983763014 · qty on machine: 1 view full part page → $515.95
020	0112350825	BOLT, SEMS	2	ADD TO CART
BOLT, SEMS 0112350825 · qty on machine: 2 view full part page → $1.95

Page 76 — KUBOTA Z482-E4B ENGINE - STARTER COMPONENTS ASSY.

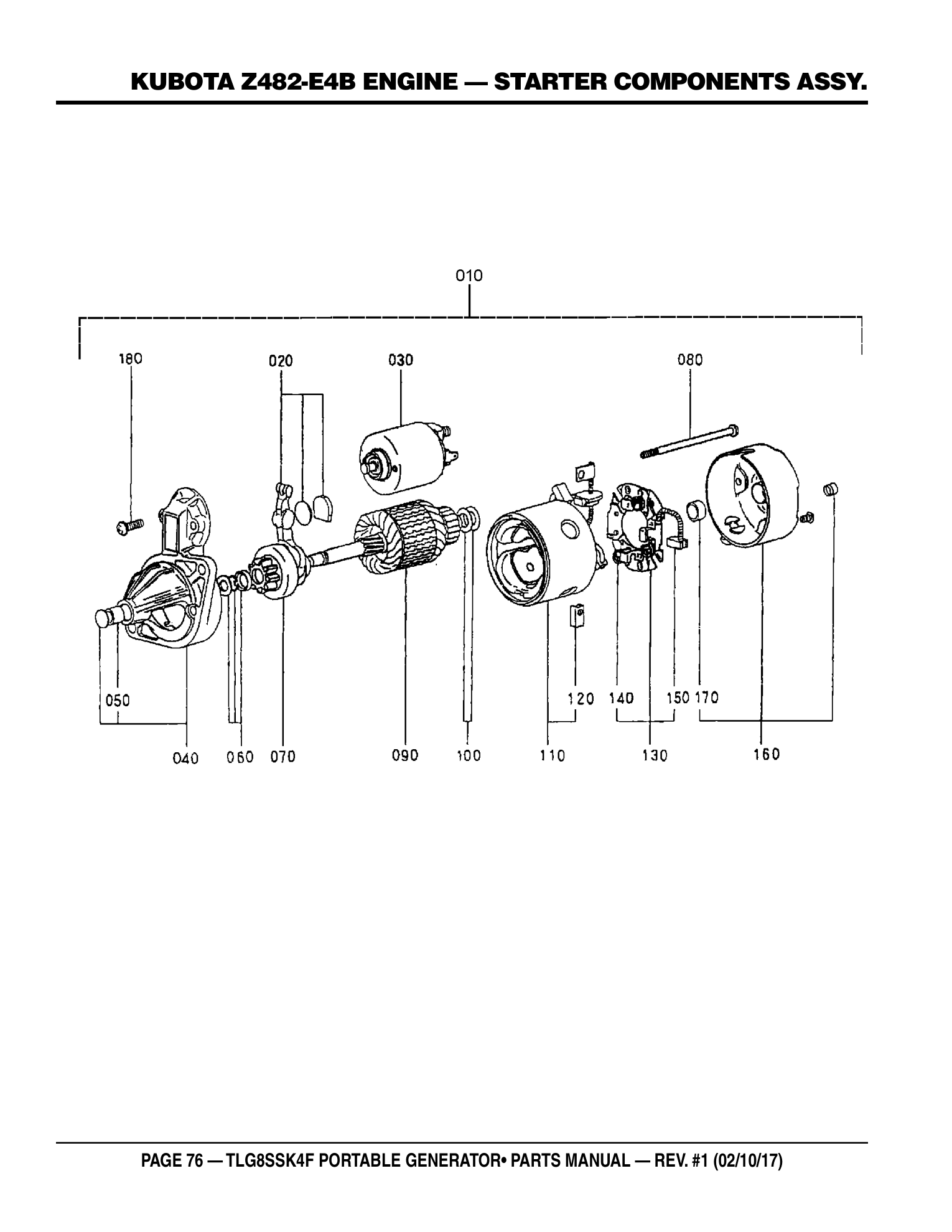

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - STARTER COMPONENTS ASSY. parts diagram

Parts list — exactly as printed18 rows

No.	Part No.	Part Name	Qty	Remarks
010	1983763014	STARTER ASSY	1	INCLUDES ITEMS W/#	ADD TO CART
STARTER ASSY 1983763014 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 020#, 030#, 040#, 050#$, 060#, 070#, 080#, 090#, 100#, 110#, 120#%, 130#, 140#@, 150#@, 160#, 170#, 180# view full part page → $515.95 IN A KIT + SOLD SOLO
020#	1983763050	LEVER, DRIVE	1		ADD TO CART
LEVER, DRIVE 1983763050 · qty on machine: 1 Also included in kit 010 - STARTER ASSY (1983763014) view full part page → $39.95 IN A KIT + SOLD SOLO
030#	1585263023	SWITCH, MAGNETIC	1		PARTS REQUEST
PHOTO COMING SWITCH, MAGNETIC 1585263023 · qty on machine: 1 Also included in kit 010 - STARTER ASSY (1983763014) PARTS REQUEST
040#	1983763030	FRAME, DRIVE END	1	INCLUDES ITEMS W/$	ADD TO CART
FRAME, DRIVE END 1983763030 · qty on machine: 1 INCLUDES ITEMS W/$ Also included in kit 010 - STARTER ASSY (1983763014) view full part page → $127.95 IN A KIT + SOLD SOLO
050#$	1585263240	BUSHING	1		ADD TO CART
BUSHING 1585263240 · qty on machine: 1 Also included in kit 010 - STARTER ASSY (1983763014); kit 040 - FRAME, DRIVE END (1983763030) view full part page → $7.89 IN A KIT + SOLD SOLO
060#	1983763150	STOPPER	1		ADD TO CART
STOPPER 1983763150 · qty on machine: 1 Also included in kit 010 - STARTER ASSY (1983763014) view full part page → $10.95 IN A KIT + SOLD SOLO
070#	1983763040	CLUTCH, OVER RUNNING	1		ADD TO CART
CLUTCH, OVER RUNNING 1983763040 · qty on machine: 1 Also included in kit 010 - STARTER ASSY (1983763014) view full part page → $236.95 IN A KIT + SOLD SOLO
080#	1983763320	BOLT	2		ADD TO CART
BOLT 1983763320 · qty on machine: 2 Also included in kit 010 - STARTER ASSY (1983763014) view full part page → $7.95 IN A KIT + SOLD SOLO
090#	1983763070	ARMATURE	1		ADD TO CART
ARMATURE 1983763070 · qty on machine: 1 Also included in kit 010 - STARTER ASSY (1983763014) view full part page → $397.95 IN A KIT + SOLD SOLO
100#	1585263410	WASHER, ADJUSTING	1		ADD TO CART
WASHER, ADJUSTING 1585263410 · qty on machine: 1 Also included in kit 010 - STARTER ASSY (1983763014) view full part page → $8.95 IN A KIT + SOLD SOLO
110#	1983763082	YOKE	1	INCLUDES ITEMS W/%	PARTS REQUEST
PHOTO COMING YOKE 1983763082 · qty on machine: 1 INCLUDES ITEMS W/% Also included in kit 010 - STARTER ASSY (1983763014) PARTS REQUEST
120#%	1585263360	BRUSH	2		ADD TO CART
BRUSH 1585263360 · qty on machine: 2 Also included in kit 010 - STARTER ASSY (1983763014); kit 110 - YOKE (1983763082) view full part page → $11.68 IN A KIT + SOLD SOLO
130#	1585263380	HOLDER, BRUSH	1	INCLUDES ITEMS W/@	ADD TO CART
HOLDER, BRUSH 1585263380 · qty on machine: 1 INCLUDES ITEMS W/@ Also included in kit 010 - STARTER ASSY (1983763014) view full part page → $63.95 IN A KIT + SOLD SOLO
140#@	1585263390	SPRING, BRUSH	3		ADD TO CART
SPRING, BRUSH 1585263390 · qty on machine: 3 Also included in kit 010 - STARTER ASSY (1983763014); kit 130 - HOLDER, BRUSH (1585263380) view full part page → $3.34 IN A KIT + SOLD SOLO
150#@	1585263370	BRUSH	1		ADD TO CART
BRUSH 1585263370 · qty on machine: 1 Also included in kit 010 - STARTER ASSY (1983763014); kit 130 - HOLDER, BRUSH (1585263380) view full part page → $11.68 IN A KIT + SOLD SOLO
160#	1983763200	FRAME, END	1	INCLUDES ITEMS W/	ADD TO CART
FRAME, END 1983763200 · qty on machine: 1 INCLUDES ITEMS W/ Also included in kit 010 - STARTER ASSY (1983763014) view full part page → $86.95 IN A KIT + SOLD SOLO
170#	1585263250	BUSH	1		ADD TO CART
BUSH 1585263250 · qty on machine: 1 Also included in kit 010 - STARTER ASSY (1983763014) view full part page → $7.89 IN A KIT + SOLD SOLO
180#	1585293310	SCREW, PAN HEAD	1		ADD TO CART
SCREW, PAN HEAD 1585293310 · qty on machine: 1 Also included in kit 010 - STARTER ASSY (1983763014) view full part page → $2.95 IN A KIT + SOLD SOLO

Page 78 — KUBOTA Z482-E4B ENGINE - OIL SWITCH PLUG ASSY.

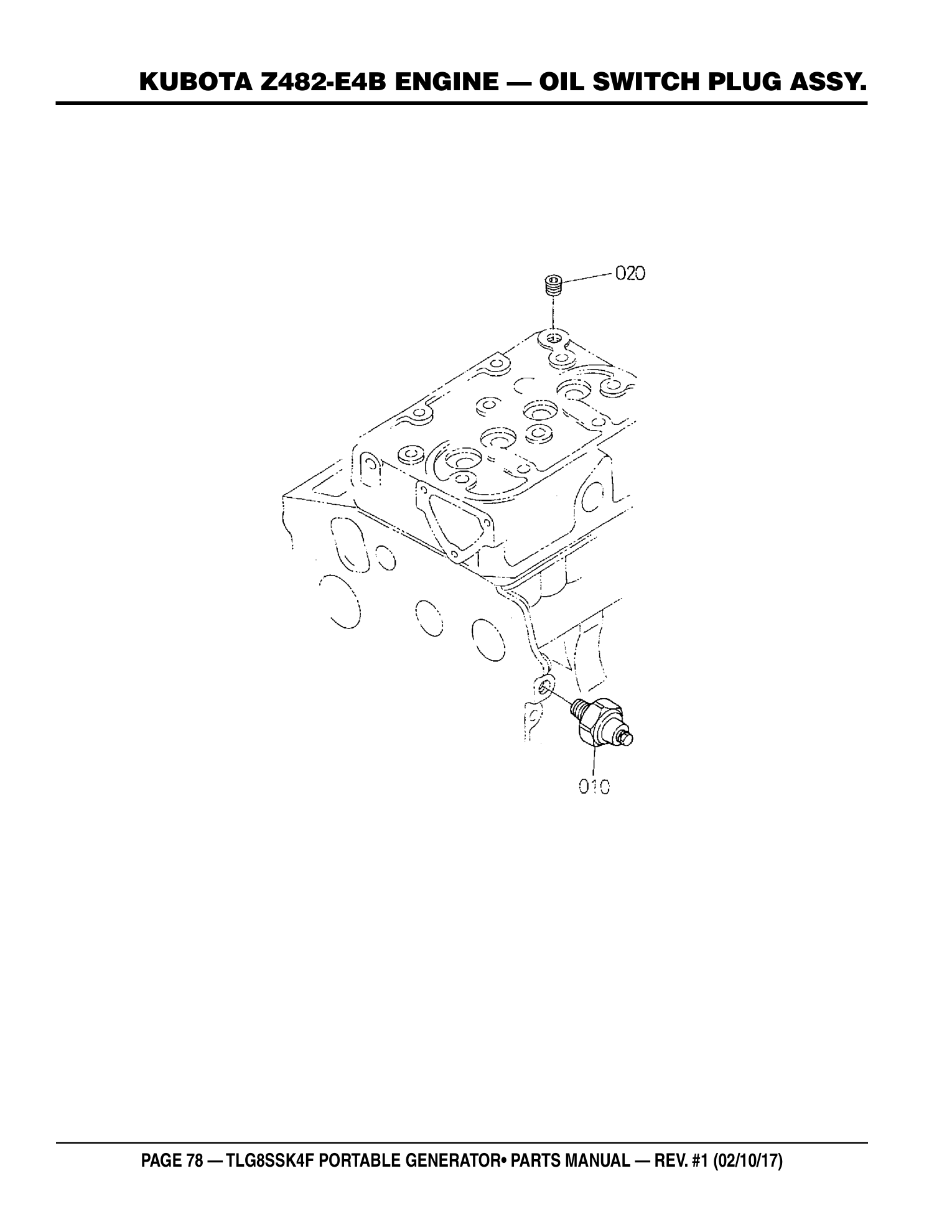

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - OIL SWITCH PLUG ASSY. parts diagram

Parts list — exactly as printed2 rows

No.	Part No.	Part Name	Qty
010	1522139013	SWITCH, OIL	1	ADD TO CART
SWITCH, OIL 1522139013 · qty on machine: 1 view full part page → $47.95
020	1584196020	PLUG	1	ADD TO CART
PLUG 1584196020 · qty on machine: 1 view full part page → $2.95

Page 80 — KUBOTA Z482-E4B ENGINE - WATER FLANGE AND THERMOSTAT ASSY.

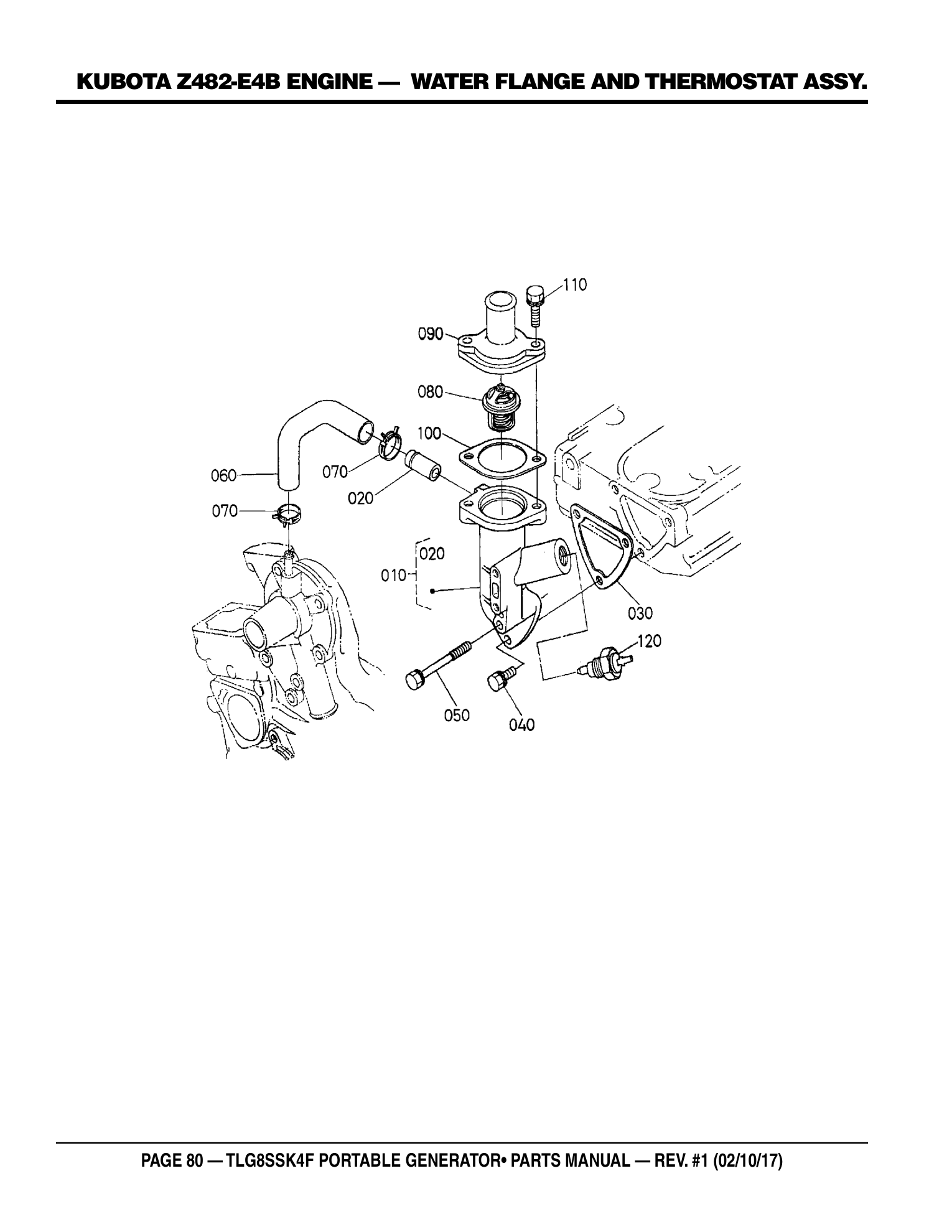

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - WATER FLANGE AND THERMOSTAT ASSY. parts diagram

Parts list — exactly as printed12 rows

No.	Part No.	Part Name	Qty	Remarks
010	1687572704	COMP. FLANGE, WATER	1	INCLUDES ITEMS W/$	PARTS REQUEST
PHOTO COMING COMP. FLANGE, WATER 1687572704 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 020$ PARTS REQUEST
020$	1624173370	PIPE, WATER RETURN	1		ADD TO CART
PIPE, WATER RETURN 1624173370 · qty on machine: 1 Also included in kit 010 - COMP. FLANGE, WATER (1687572704) view full part page → $8.95 IN A KIT + SOLD SOLO
030	1584172923	GASKET, WATER FLANGE	1		ADD TO CART
GASKET, WATER FLANGE 1584172923 · qty on machine: 1 view full part page → $1.44
040	0102350616	BOLT, SEMS	2		ADD TO CART
BOLT, SEMS 0102350616 · qty on machine: 2 view full part page → $1.64
050	0102350650	BOLT, SEMS	1		PARTS REQUEST
PHOTO COMING BOLT, SEMS 0102350650 · qty on machine: 1 PARTS REQUEST
060	1685173350	PIPE, WATER RETURN	1		ADD TO CART
PIPE, WATER RETURN 1685173350 · qty on machine: 1 view full part page → $9.95
070	1G68773362	CLAMP, HOSE	2		PARTS REQUEST
PHOTO COMING CLAMP, HOSE 1G68773362 · qty on machine: 2 PARTS REQUEST
080	1553173014	THERMOSTAT ASSY.	1		ADD TO CART
THERMOSTAT ASSY. 1553173014 · qty on machine: 1 view full part page → $58.95
090	1584173260	COVER, THERMOSTAT	1		ADD TO CART
COVER, THERMOSTAT 1584173260 · qty on machine: 1 view full part page → $15.95
100	1685173270	GASKET, THERMOSTAT	1		ADD TO CART
GASKET, THERMOSTAT 1685173270 · qty on machine: 1 view full part page → $3.95
110	0102350622	BOLT, SEMS	2		ADD TO CART
BOLT, SEMS 0102350622 · qty on machine: 2 view full part page → $1.53
120	1753883040	SWITCH, THERMOSTAT	1		ADD TO CART
SWITCH, THERMOSTAT 1753883040 · qty on machine: 1 view full part page → $110.95

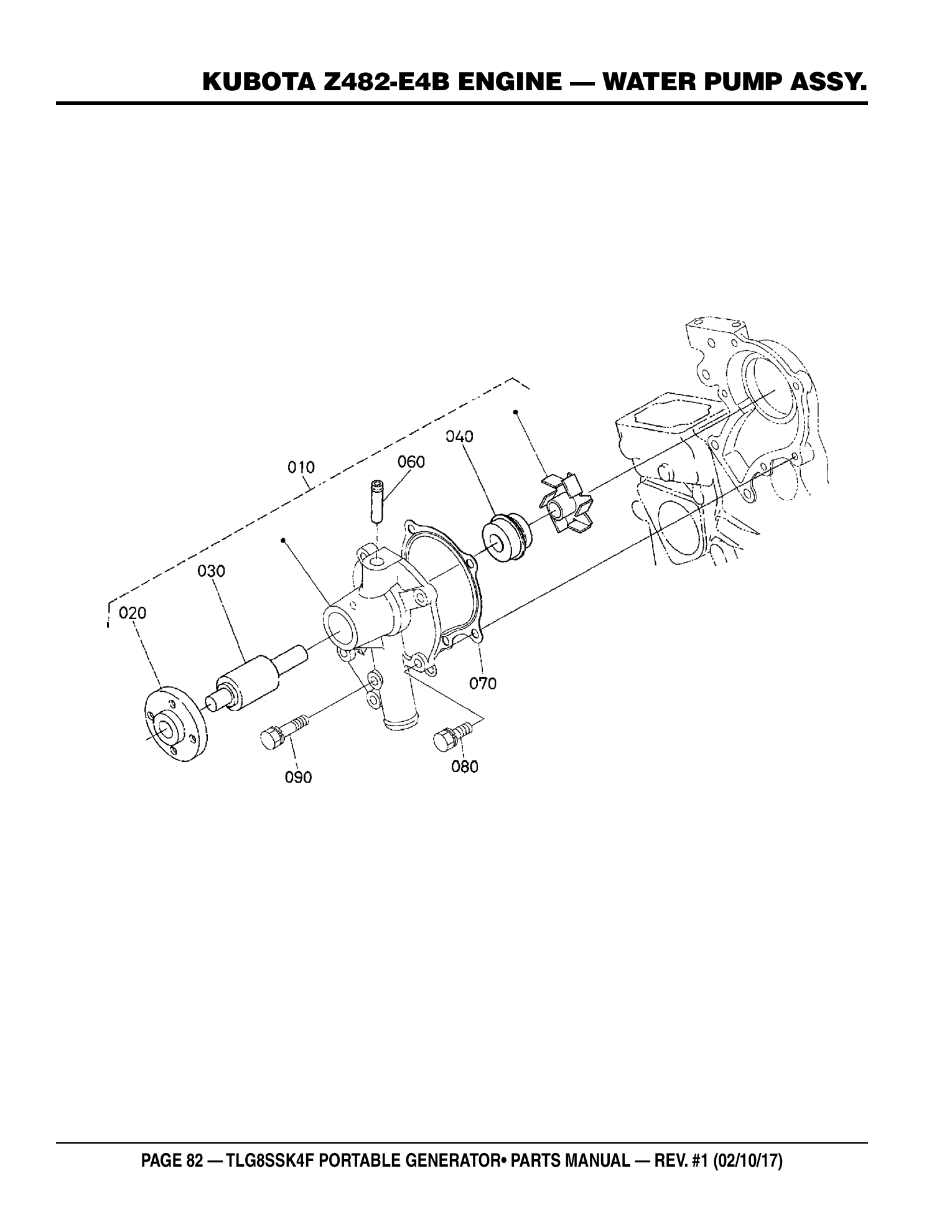

Page 82 — KUBOTA Z482-E4B ENGINE - WATER PUMP ASSY.

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - WATER PUMP ASSY. parts diagram

Parts list — exactly as printed8 rows

No.	Part No.	Part Name	Qty	Remarks
010	1E05173034	WATER PUMP ASSY	1	INCLUDES ITEMS W/%	ADD TO CART
WATER PUMP ASSY 1E05173034 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 020%, 030%, 040%, 060% view full part page → $287.95 IN A KIT + SOLD SOLO
020%	1585273520	FLANGE, WATER PUMP	1		NO LONGER AVAILABLE
PHOTO COMING FLANGE, WATER PUMP 1585273520 · qty on machine: 1 Also included in kit 010 - WATER PUMP ASSY (1E05173034) NO LONGER AVAILABLE
030%	1585273550	BEARING	1		ADD TO CART
BEARING 1585273550 · qty on machine: 1 Also included in kit 010 - WATER PUMP ASSY (1E05173034) view full part page → $39.95 IN A KIT + SOLD SOLO
040%	1548173050	SEAL, MECHANICAL ASSY.	1		ADD TO CART
SEAL, MECHANICAL ASSY. 1548173050 · qty on machine: 1 Also included in kit 010 - WATER PUMP ASSY (1E05173034) view full part page → $34.95 IN A KIT + SOLD SOLO
060%	1585273340	PIPE, WATER RETURN	1		ADD TO CART
PIPE, WATER RETURN 1585273340 · qty on machine: 1 Also included in kit 010 - WATER PUMP ASSY (1E05173034) view full part page → $5.95 IN A KIT + SOLD SOLO
070	1687173430	GASKET, WATER PUMP	1		ADD TO CART
GASKET, WATER PUMP 1687173430 · qty on machine: 1 view full part page → $10.95
080	0102350622	BOLT, SEMS	4		ADD TO CART
BOLT, SEMS 0102350622 · qty on machine: 4 view full part page → $1.53
090	0102350638	BOLT, SEMS	1		ADD TO CART
BOLT, SEMS 0102350638 · qty on machine: 1 view full part page → $0.72

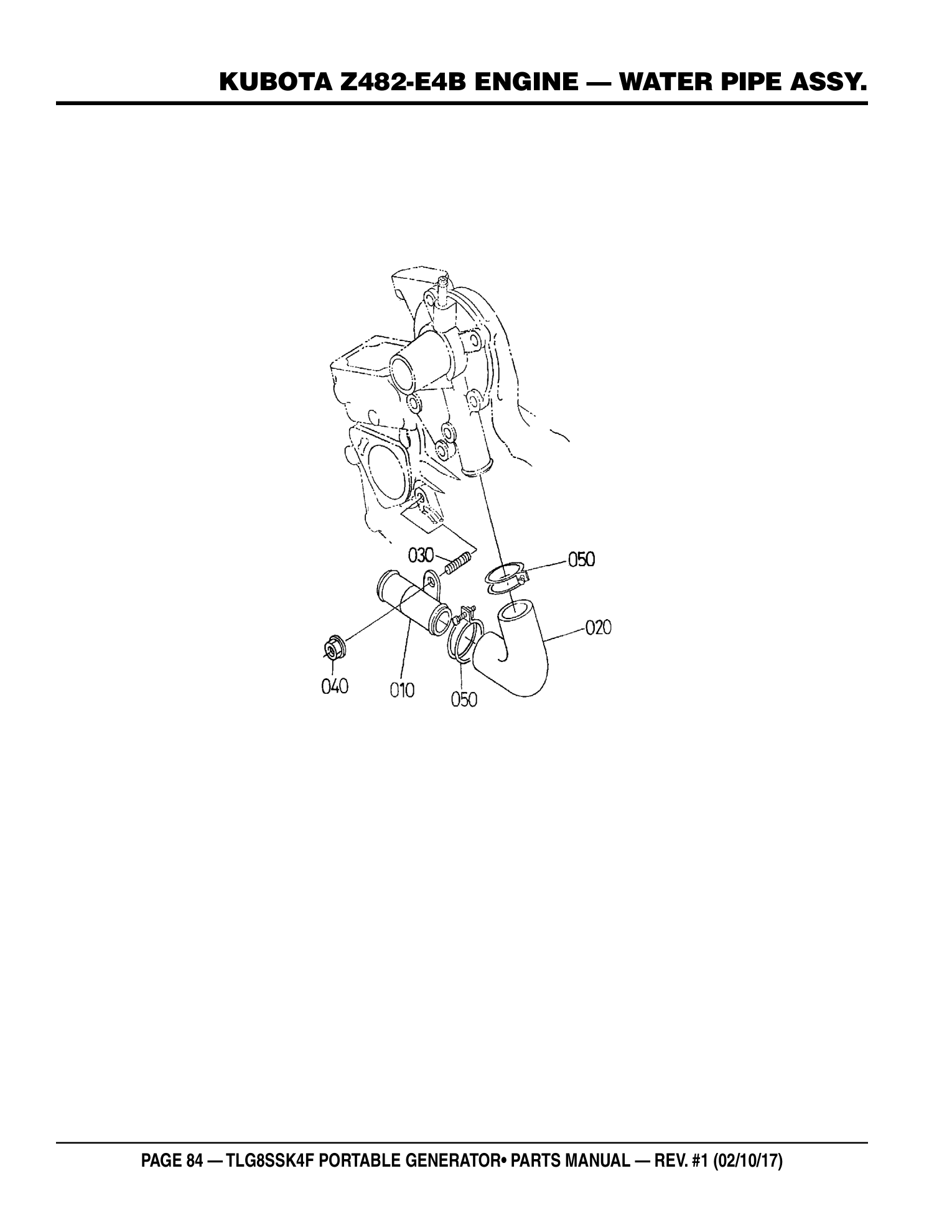

Page 84 — KUBOTA Z482-E4B ENGINE - WATER PIPE ASSY.

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - WATER PIPE ASSY. parts diagram

Parts list — exactly as printed5 rows

No.	Part No.	Part Name	Qty
010	1680572860	PIPE, WATER	1	ADD TO CART
PIPE, WATER 1680572860 · qty on machine: 1 view full part page → $16.95
020	1680572870	HOSE, WATER	1	ADD TO CART
HOSE, WATER 1680572870 · qty on machine: 1 view full part page → $16.95
030	1584191510	STUD	1	ADD TO CART
STUD 1584191510 · qty on machine: 1 view full part page → $1.64
040	0275150060	NUT, FLANGE	1	ADD TO CART
NUT, FLANGE 0275150060 · qty on machine: 1 view full part page → $0.48
050	1584172960	BAND, PIPE	2	ADD TO CART
BAND, PIPE 1584172960 · qty on machine: 2 view full part page → $9.95

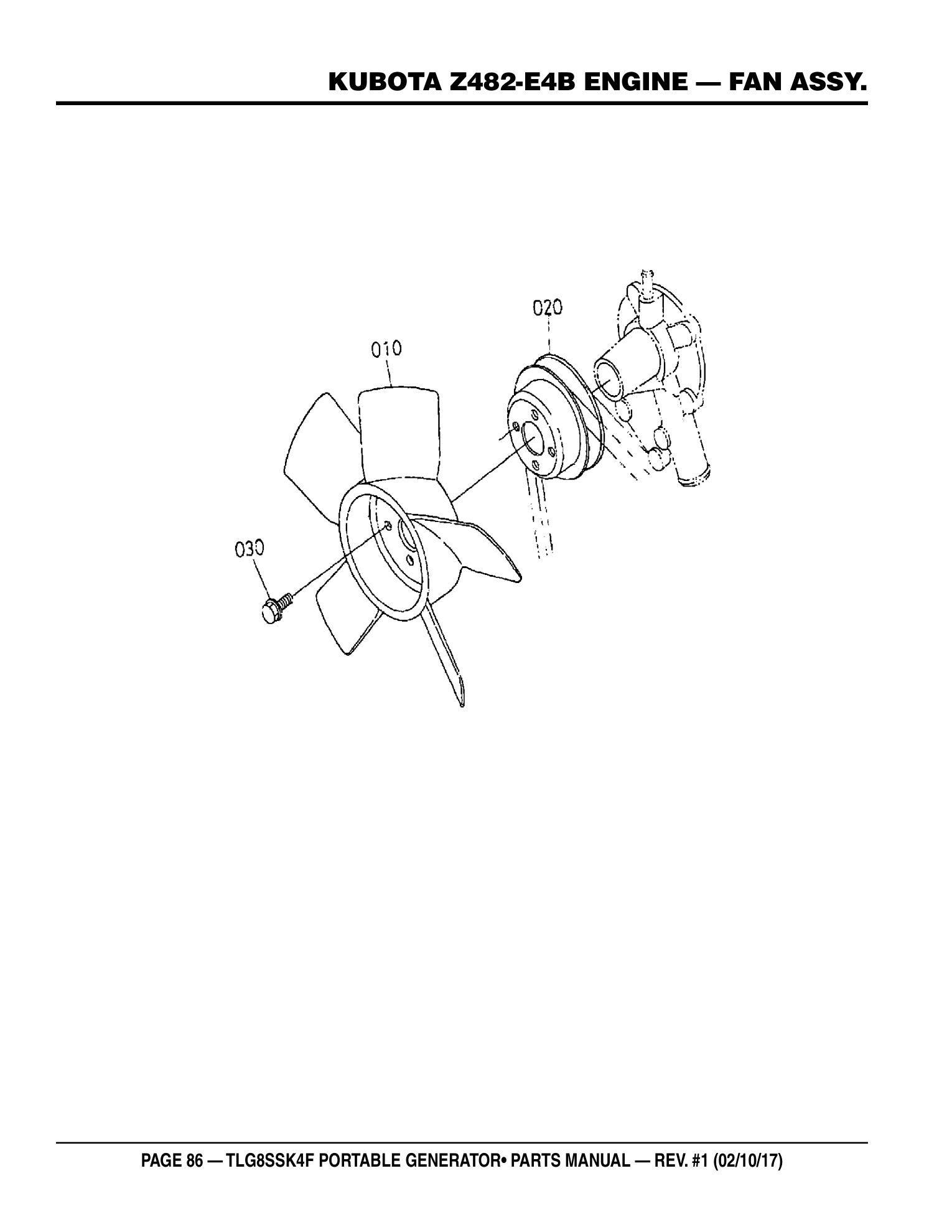

Page 86 — KUBOTA Z482-E4B ENGINE - FAN ASSY.

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - FAN ASSY. parts diagram

Parts list — exactly as printed3 rows

No.	Part No.	Part Name	Qty
010	1586774112	FAN	1	ADD TO CART
FAN 1586774112 · qty on machine: 1 view full part page → $132.95
020	1584174250	PULLEY, FAN	1	ADD TO CART
PULLEY, FAN 1584174250 · qty on machine: 1 view full part page → $81.95
030	0175450610	BOLT, FLANGE	4	ADD TO CART
BOLT, FLANGE 0175450610 · qty on machine: 4 view full part page → $1.61

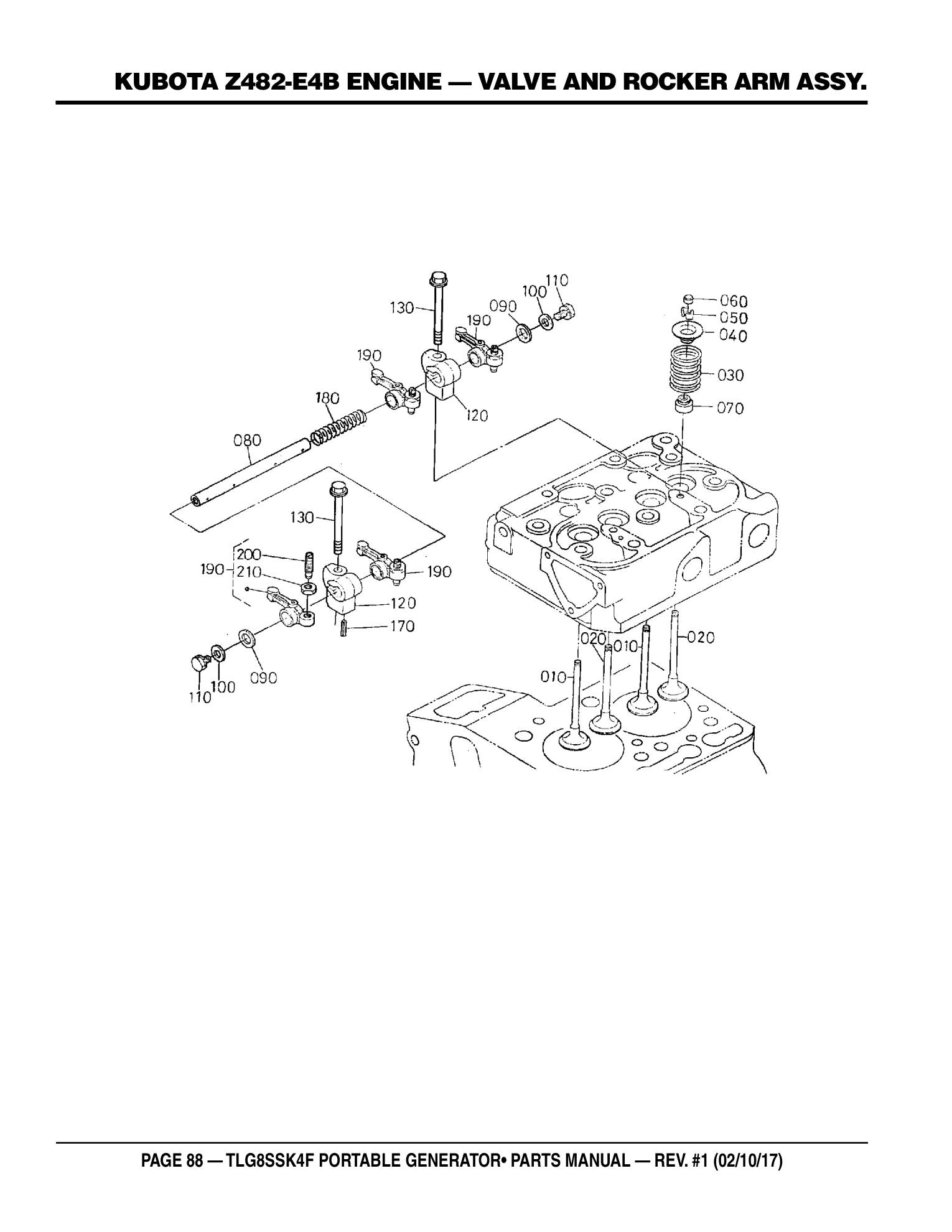

Page 88 — KUBOTA Z482-E4B ENGINE - VALVE AND ROCKER ARM ASSY.

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - VALVE AND ROCKER ARM ASSY. parts diagram

Parts list — exactly as printed18 rows

No.	Part No.	Part Name	Qty	Remarks
010	1G68613110	VALVE, INLET	2		PARTS REQUEST
PHOTO COMING VALVE, INLET 1G68613110 · qty on machine: 2 PARTS REQUEST
020	1G68613120	VALVE, EXHAUST	2		PARTS REQUEST
PHOTO COMING VALVE, EXHAUST 1G68613120 · qty on machine: 2 PARTS REQUEST
030	1460113240	SPRING, VALVE	4		ADD TO CART
SPRING, VALVE 1460113240 · qty on machine: 4 view full part page → $2.95
040	1460113330	RETAINER, VALVE SPRING	4		ADD TO CART
RETAINER, VALVE SPRING 1460113330 · qty on machine: 4 view full part page → $3.95
050	1460113980	COLLET, VALVE SPRING SET	4		PARTS REQUEST
PHOTO COMING COLLET, VALVE SPRING SET 1460113980 · qty on machine: 4 PARTS REQUEST
060	1685113280	CAP, VALVE	4		ADD TO CART
CAP, VALVE 1685113280 · qty on machine: 4 view full part page → $4.95
070	1142013150	SEAL, VALVE STEM	4		ADD TO CART
SEAL, VALVE STEM 1142013150 · qty on machine: 4 view full part page → $5.95
080	1584114264	SHAFT, ROCKER ARM	1		PARTS REQUEST
PHOTO COMING SHAFT, ROCKER ARM 1584114264 · qty on machine: 1 PARTS REQUEST
090	1687114430	WASHER	2		ADD TO CART
WASHER 1687114430 · qty on machine: 2 view full part page → $4.95
100	1584194022	WASHER, FLAT	2		ADD TO CART
WASHER, FLAT 1584194022 · qty on machine: 2 view full part page → $0.79
110	0102350610	BOLT, SEMS	2		ADD TO CART
BOLT, SEMS 0102350610 · qty on machine: 2 view full part page → $0.72
120	1G95814350	BRACKET, ROCKER ARM	2		PARTS REQUEST
PHOTO COMING BRACKET, ROCKER ARM 1G95814350 · qty on machine: 2 PARTS REQUEST
130	0175450640	BOLT FLANGE	2		ADD TO CART
BOLT FLANGE 0175450640 · qty on machine: 2 view full part page → $1.84
170	0541100420	PIN, SPRING	1		ADD TO CART
PIN, SPRING 0541100420 · qty on machine: 1 view full part page → $0.44
180	1460114312	SPRING, ROCKER ARM	1		PARTS REQUEST
PHOTO COMING SPRING, ROCKER ARM 1460114312 · qty on machine: 1 PARTS REQUEST
190	1584114036	ARM, ROCKER ASSY	4	INCLUDES ITEMS W/$	PARTS REQUEST
PHOTO COMING ARM, ROCKER ASSY 1584114036 · qty on machine: 4 INCLUDES ITEMS W/$ Kit includes: 200$, 210$ PARTS REQUEST
200$	1584114230	SCREW, ADJUSTING	4		ADD TO CART
SCREW, ADJUSTING 1584114230 · qty on machine: 4 Also included in kit 190 - ARM, ROCKER ASSY (1584114036) view full part page → $2.95 IN A KIT + SOLD SOLO
210$	1460114240	NUT	4		ADD TO CART
NUT 1460114240 · qty on machine: 4 Also included in kit 190 - ARM, ROCKER ASSY (1584114036) view full part page → $0.73 IN A KIT + SOLD SOLO

Page 90 — KUBOTA Z482-E4B ENGINE - INLET MANIFOLD ASSY.

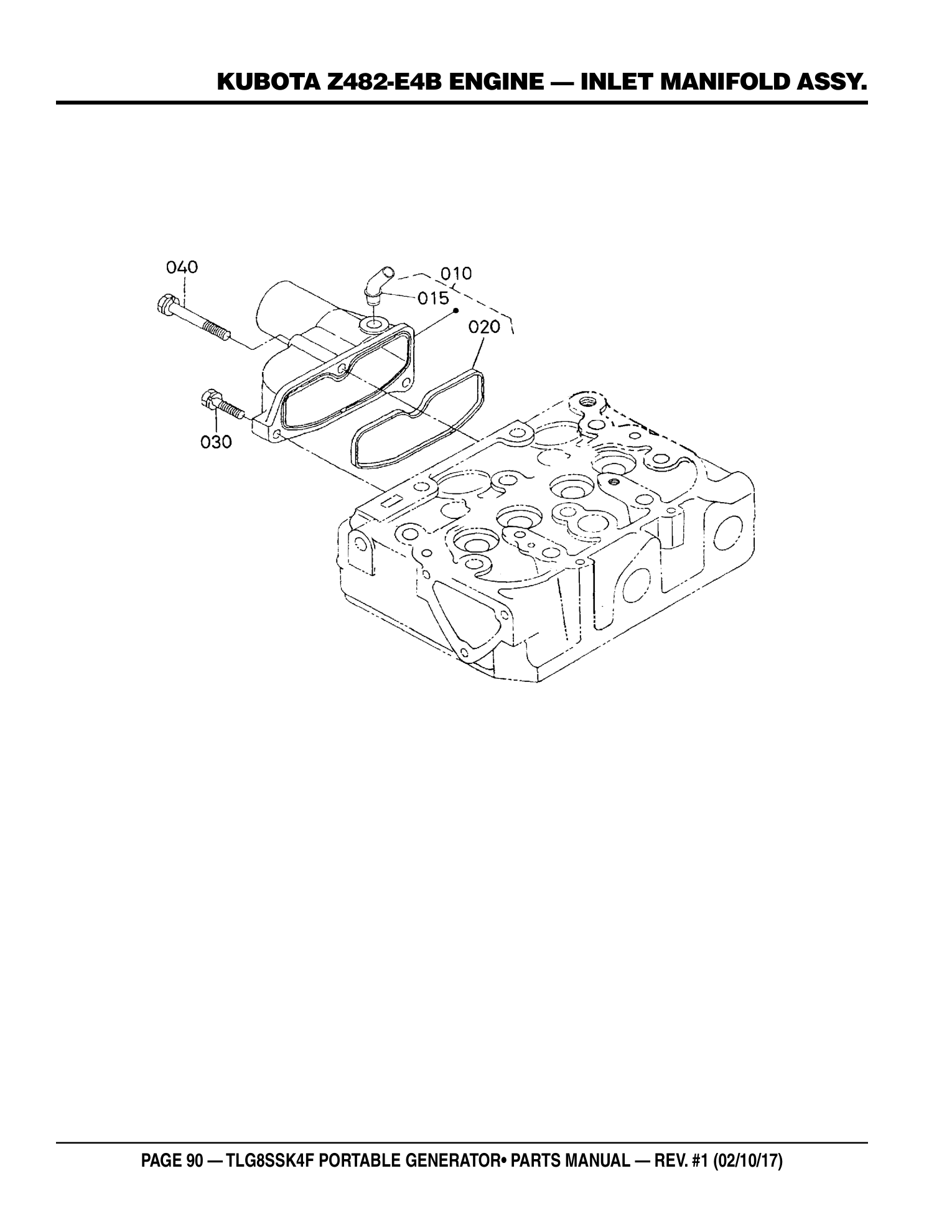

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - INLET MANIFOLD ASSY. parts diagram

Parts list — exactly as printed5 rows

No.	Part No.	Part Name	Qty	Remarks
010	1G95711772	MANIFOLD, INLET ASSY	1	INCLUDES ITEMS W/#	PARTS REQUEST
PHOTO COMING MANIFOLD, INLET ASSY 1G95711772 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 015#, 020# PARTS REQUEST
015#	1G95905550	PIPE BREATHER	1		PARTS REQUEST
PHOTO COMING PIPE BREATHER 1G95905550 · qty on machine: 1 Also included in kit 010 - MANIFOLD, INLET ASSY (1G95711772) PARTS REQUEST
020#	1584111820	GASKET, IN-MANIFOLD	1		ADD TO CART
GASKET, IN-MANIFOLD 1584111820 · qty on machine: 1 Also included in kit 010 - MANIFOLD, INLET ASSY (1G95711772) view full part page → $5.95 IN A KIT + SOLD SOLO
030	0175450616	BOLT, FLANGE	2		ADD TO CART
BOLT, FLANGE 0175450616 · qty on machine: 2 view full part page → $3.95
040	0102350645	BOLT, SEMS	1		ADD TO CART
BOLT, SEMS 0102350645 · qty on machine: 1 view full part page → $0.67

Page 92 — KUBOTA Z482-E4B ENGINE - EXHAUST MANIFOLD ASSY.

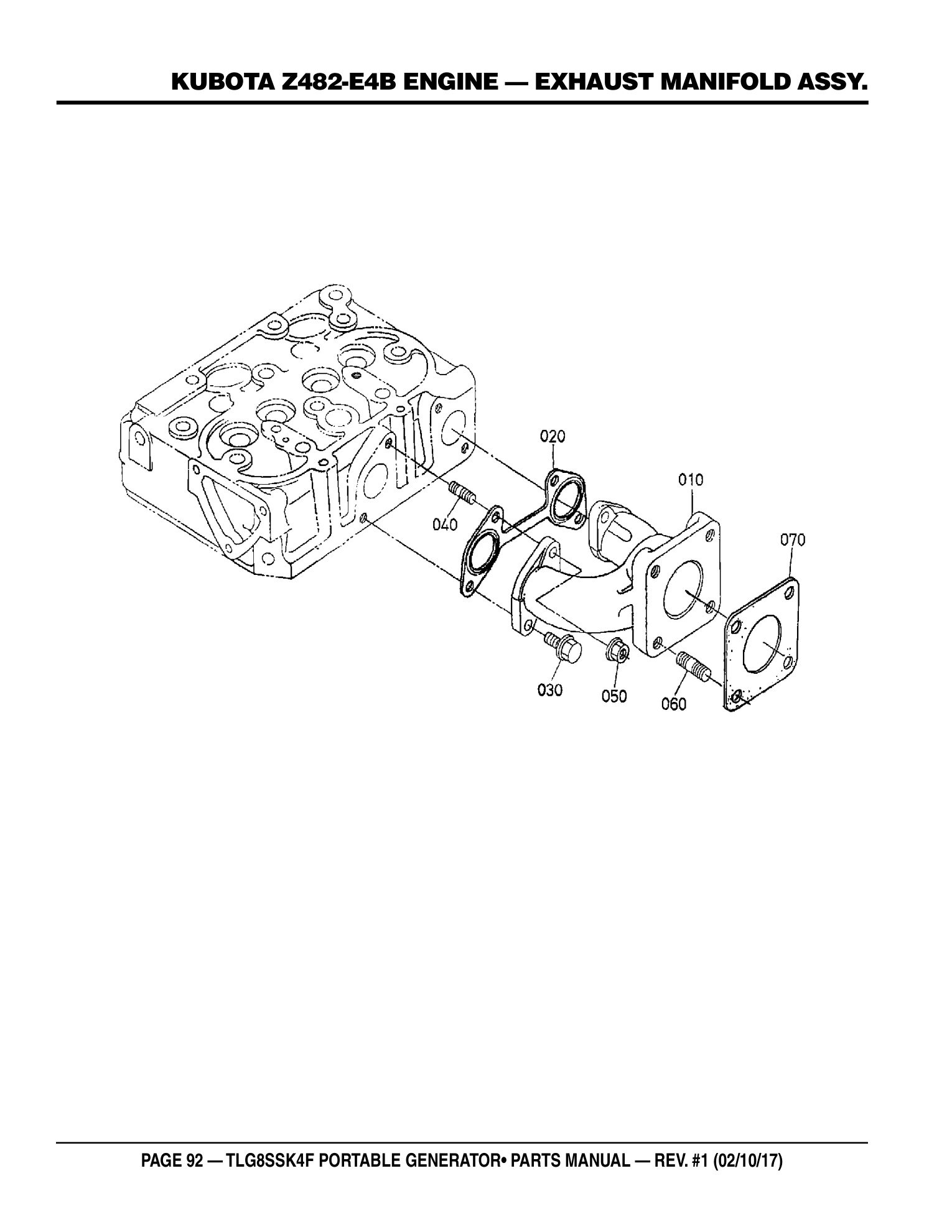

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - EXHAUST MANIFOLD ASSY. parts diagram

Parts list — exactly as printed7 rows

No.	Part No.	Part Name	Qty
010	1584112313	MANIFOLD, EXHAUST	1	ADD TO CART
MANIFOLD, EXHAUST 1584112313 · qty on machine: 1 view full part page → $109.95
020	1685112360	GASKET, EX-MANIFOLD	1	PARTS REQUEST
PHOTO COMING GASKET, EX-MANIFOLD 1685112360 · qty on machine: 1 PARTS REQUEST
030	1J09091010	BOLT, UBS	2	ADD TO CART
BOLT, UBS 1J09091010 · qty on machine: 2 Factory replaced this part - current number 0175950616 view full part page → $1.95 IN A KIT + SOLD SOLO
040	0151350620	BOLT, STUD	2	ADD TO CART
BOLT, STUD 0151350620 · qty on machine: 2 view full part page → $0.79
050	0275650060	NUT, UBS	2	ADD TO CART
NUT, UBS 0275650060 · qty on machine: 2 view full part page → $1.45
060	0151350822	BOLT, STUD	4	PARTS REQUEST
PHOTO COMING BOLT, STUD 0151350822 · qty on machine: 4 PARTS REQUEST
070	1526312370	GASKET, MUFFLER NA	1	ADD TO CART
GASKET, MUFFLER NA 1526312370 · qty on machine: 1 view full part page → $13.95

Page 94 — KUBOTA Z482-E4B ENGINE - GLOW LAMP AND TIMER ASSY.

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - GLOW LAMP AND TIMER ASSY. parts diagram

Parts list — exactly as printed1 rows

No.	Part No.	Part Name	Qty	Remarks
010	1569465990	TIMER, GLOW LAMP	1		ADD TO CART
TIMER, GLOW LAMP 1569465990 · qty on machine: 1 view full part page → $152.95

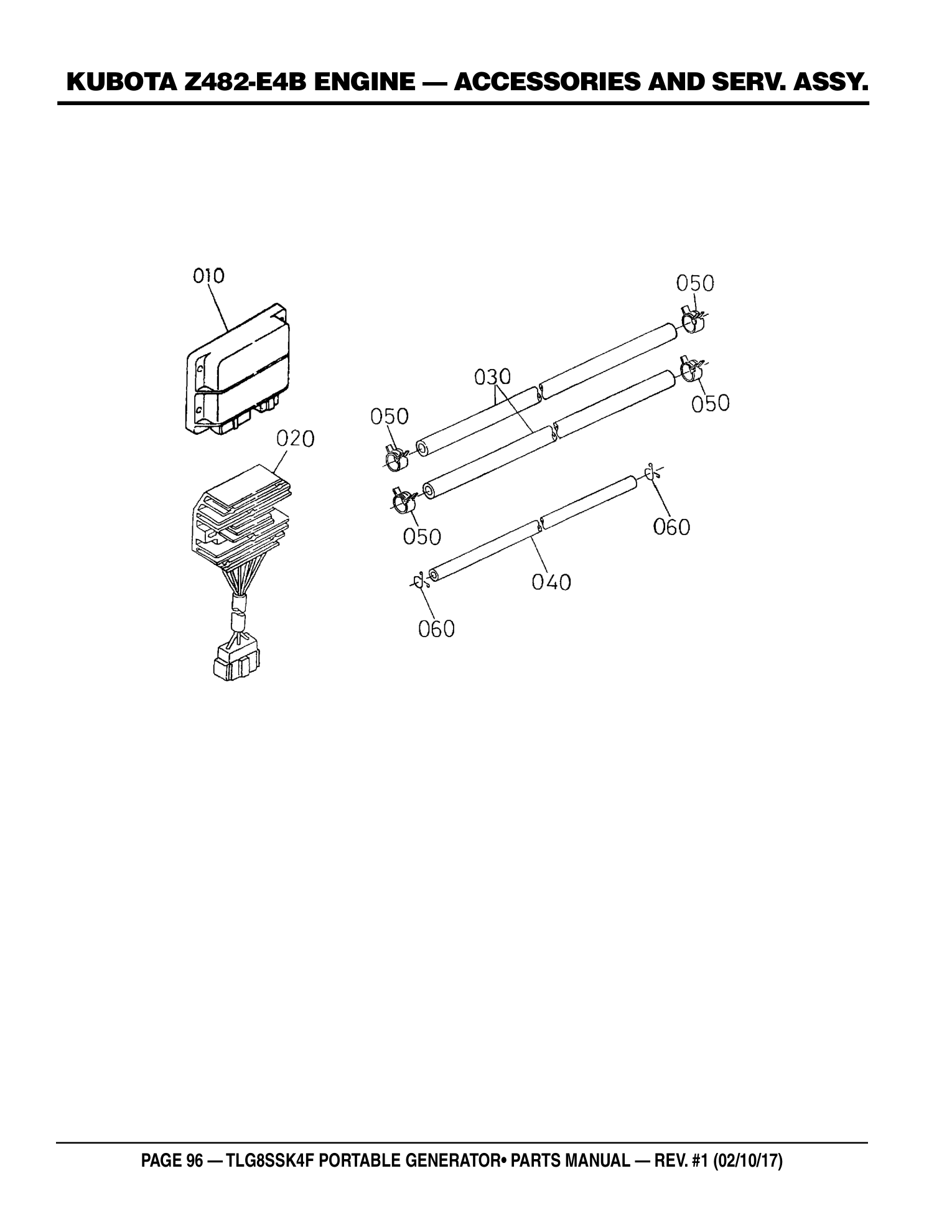

Page 96 — KUBOTA Z482-E4B ENGINE - ACCESSORIES AND SERV. ASSY.

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - ACCESSORIES AND SERV. ASSY. parts diagram

Parts list — exactly as printed8 rows

No.	Part No.	Part Name	Qty
010	1747260604	EMERGENCY UNIT	1	NO LONGER AVAILABLE
PHOTO COMING EMERGENCY UNIT 1747260604 · qty on machine: 1 NO LONGER AVAILABLE
020	1584464603	COMP. REGULATOR	1	ADD TO CART
COMP. REGULATOR 1584464603 · qty on machine: 1 view full part page → $375.95
030	0966180240	TUBE, FUEL 240MM	1	ADD TO CART
TUBE, FUEL 240MM 0966180240 · qty on machine: 1 view full part page → $10.95
030	0966180400	TUBE, FUEL 400MM	1	ADD TO CART
TUBE, FUEL 400MM 0966180400 · qty on machine: 1 view full part page → $14.95
040	0966140240	TUBE, FUEL	1	ADD TO CART
TUBE, FUEL 0966140240 · qty on machine: 1 view full part page → $4.95
040	0966140320	TUBE, FUEL	1	ADD TO CART
TUBE, FUEL 0966140320 · qty on machine: 1 view full part page → $11.95
050	1491142750	CLIP, PIPE	4	ADD TO CART
CLIP, PIPE 1491142750 · qty on machine: 4 view full part page → $2.95
060	1497142750	CLIP, PIPE	6	PARTS REQUEST
PHOTO COMING CLIP, PIPE 1497142750 · qty on machine: 6 PARTS REQUEST

Page 98 — KUBOTA Z482-E4B ENGINE - LABEL AND OPS MANUAL ASSY.

Multiquip TLG8SSK4F Generator KUBOTA Z482-E4B ENGINE - LABEL AND OPS MANUAL ASSY. parts diagram

Parts list — exactly as printed2 rows

No.	Part No.	Part Name	Qty
010	1J09089160	OPERATOR'S MANUAL	1	PARTS REQUEST
PHOTO COMING OPERATOR'S MANUAL 1J09089160 · qty on machine: 1 PARTS REQUEST
020	1J01389810	STATEMENT WARRANTY	1	PARTS REQUEST
PHOTO COMING STATEMENT WARRANTY 1J01389810 · qty on machine: 1 PARTS REQUEST

The machine itself

Price by quote Get a quote

Tell us where the machine is headed and we'll quote it with freight. One call, no games.

The Multiquip TLG8SSK4F is a generator built for portable jobsite power for tools, lighting, and equipment. Factory-documented specs and parts support; priced by quote.

Keep-it-running spares

All listed parts →

Every part that fits this machine

0071206304 Multiquip 0071206304 Bearing GDP-5000H SGW-225SS - OEM Replacement Part $53.95

0221200740 Multiquip 0221200740 Seal Rubber Denyo - OEM Replacement Part $53.95

0601800455 Multiquip 0601800455 Frequency Meter Denyo - OEM Replacement Part $330.95

0601800682 Multiquip 0601800682 Hour Meter Denyo - OEM Replacement Part $116.95

0601814013 Multiquip 0601814013 Receptacle - OEM Replacement Part (Use Y0601814034) $118.95

0601815759 Multiquip 0601815759 Terminal Board BLW-400SSW - OEM Replacement Part $36.95

0601823857 Multiquip 0601823857 Slow Down TLW-300SS - OEM Replacement Part $257.95

0601840073 Multiquip 0601840073 Rheostat Voltage Regulator for 150SSK and DCA Series Generators - OEM Replacement Part $90.95

0602325094 Multiquip 0602325094 Band Pipe Denyo - OEM Replacement Part $95.95

0605010215 Multiquip 0605010215 Door Handle - OEM Replacement Part $42.95

1522139013 Multiquip 1522139013 Switch Oil - OEM Replacement Part $47.95

1553173014 Multiquip 1553173014 Thermostat Assembly Kubota - OEM Replacement Part $58.95

1556211010 Multiquip 1556211010 Air Cleaner Assembly - OEM Replacement Part for Super Silent Generators $247.95

1569465990 Multiquip 1569465990 Timer Lamp Quick Glow - OEM Replacement Part $152.95

1575143010 Multiquip 1575143010 Fuel Filter Assembly TLW-300SS - OEM Replacement Part $104.95

1584104803 Multiquip 1584104803 Bearing Case Cover Assembly - OEM Replacement Part for Super Silent Generators $79.95

1584112313 Multiquip 1584112313 Manifold Exhaust - OEM Replacement Part $109.95

1584123250 Multiquip 1584123250 Crankshaft Collar - OEM Replacement Part $43.95

1584124110 Multiquip 1584124110 Gear Crank - OEM Replacement Part for Super Silent Generators $95.95

1584151320 Multiquip 1584151320 Screw Follow - OEM Replacement Part for WhisperWatt Generators $42.95

1584156060 Multiquip 1584156060 Lever Assy Fork - OEM Replacement Part for Super Silent Generators $66.95

1584174250 Multiquip 1584174250 Pulley TLW3DD/D7221B - OEM Replacement Part $81.95

1584198100 Multiquip 1584198100 Washer Assy Adjust - OEM Replacement Part $42.95

1584464603 Multiquip 1584464603 Regulator Comp - OEM Replacement Part for Super Silent Generators $375.95

1584633110 Multiquip 1584633110 Flange Oil Filler - OEM Replacement Part $66.95

1585242502 Multiquip 1585242502 Pipe Assy Overflow - OEM Replacement Part $57.95

1585273550 Multiquip 1585273550 Bearing - OEM Replacement Part for Super Silent Generators $39.95

1586774112 Multiquip 1586774112 Fan SDW-225SS - OEM Replacement Part $132.95

1587524250 Multiquip 1587524250 Shaft Idle Gear - OEM Replacement Part $82.95

1603253160 Multiquip 1603253160 Rod Push D905-EBG2 - OEM Replacement Part $40.95

1628663602 Multiquip 1628663602 Switch Assembly D1403,BLW-400 - OEM Replacement Part $148.95

1685104040 Multiquip 1685104040 Case Assy Main Bearing - OEM Replacement Part $106.95

1685135012 Multiquip 1685135012 Oil Pump Assembly - OEM Replacement Part for TLW300 Engine $152.95

1685160014 Multiquip 1685160014 Solenoid D722E2B DLW-300ES - OEM Replacement Part for Generator $223.95

1685174280 Multiquip 1685174280 Pulley Fan Drive - OEM Replacement Part for Super Silent Generators $83.95

1686416510 Multiquip 1686416510 Gear Cam - OEM Replacement Part $165.95

1687197300 Multiquip 1687197300 Bearing Ball D722-E2B DLW-300ES - OEM Replacement Part $42.95

1753164012 Multiquip 1753164012 Dynamo Assembly DA-7000SS - OEM Replacement Part for Super Silent Generators $290.95

1753883040 Multiquip 1753883040 Switch Thermostat V1205B - OEM Replacement Part $110.95

1754851014 Multiquip 1754851014 Injection Pump Assembly - OEM Replacement Part $1,334.95

1756157013 Multiquip 1756157013 Comp Plate Speed Co. D722-E2B - OEM Replacement Part $286.95

1921599160 Multiquip 1921599160 Oil Seal TLW-300SSD722 - OEM Replacement Part $53.95

1983763014 Multiquip 1983763014 Assembly - OEM Replacement Part for Super Silent Generators $515.95

1983763030 Multiquip 1983763030 Frame Drive End - OEM Replacement Part for Super Silent Generators $127.95

1983763070 Multiquip 1983763070 Armature - OEM Replacement Part for Super Silent Generators $397.95

1983763200 Multiquip 1983763200 Frame End - OEM Replacement Part for WhisperWatt Generator $86.95

1992636004 Multiquip 1992636004 Arm Solenoid - OEM Replacement Part $80.95

1E05104024 Multiquip 1E05104024 Case Gear - OEM Replacement Part for WhisperWatt Generator $295.95

1E05173034 Multiquip 1E05173034 Pump Assembly - OEM Replacement Part for WhisperWatt Generators $287.95

1E39103040 Multiquip 1E39103040 Head Cylinder Kubota - OEM Replacement Part $1,133.95

1G30436410 Multiquip 1G30436410 Gauge Oil - OEM Replacement Part $63.95

1G67965512 Multiquip 1G67965512 Glow Plug Z482-E4B - OEM Replacement Part $47.95

1G68722010 Multiquip 1G68722010 Connecting Rod Assembly - OEM Replacement Part for Kubota Engine $408.95

1G96005513 Multiquip 1G96005513 Tube (Breather) - OEM Replacement Part $48.95

1J09003310 Multiquip 1J09003310 Cylinder Head Gasket - OEM Replacement Part $122.95

1J09221050 Multiquip 1J09221050 Piston Ring Assembly - OEM Replacement Part $120.95

7085419004 Multiquip 7085419004 Rubber Suspension - OEM Replacement Part $34.95

7811861004 Multiquip 7811861004 Terminal Output - OEM Replacement Part $46.95

8742032003A Multiquip 8742032003A Hose Air Cleaner - OEM Replacement Part $110.95

A6311500004 Multiquip A6311500004 Radiator Hose - OEM Replacement Part $48.95

A6311500103 Multiquip A6311500103 Radiator Hose - OEM Replacement Part $112.95

A6511302602 Multiquip A6511302602 Control Panel TLG8SSK4F (JPN) - OEM Replacement Part for Super Silent Generators $181.95

A9924800024 Multiquip A9924800024 Cap & DLW-400ES,GAW-180HE - OEM Replacement Part $50.95

B0352500104 Multiquip B0352500104 Box Fuse DCA-15SPX3,10SPX3 - OEM Replacement Part $63.95

D4425200804 Multiquip D4425200804 Cover Radiator Cap - OEM Replacement Part $85.95

Y0165103820 Multiquip Y0165103820 Battery (26R-75) - OEM Replacement Part $276.95

0011305100 HEX. HEAD BOLT $1.53

0012308020 HEX. HEAD BOLT $1.88

0016906012 HEX. HEAD BOLT $0.52

0017108065 HEX. HEAD BOLT $0.95

0021004060 MACHINE SCREW $0.62

0021805012 MACHINE SCREW $0.39

0023706000 HEX. NUT $0.95

0027103020 MACHINE SCREW $0.37

0027104012 MACHINE SCREW

0027104015 MACHINE SCREW $0.53

0027104020 MACHINE SCREW $0.40

0027105015 MACHINE SCREW $0.20

0027105020 MACHINE SCREW $0.62

0027403010 MACHINE SCREW $0.79

0037806000 WING NUT $1.95

0040004000 WASHER, LOCK $0.09

0040006000 WASHER, LOCK $0.17

0040008000 WASHER, LOCK $0.63

0040010000 WASHER, LOCK $0.39

0041203000 WASHER, FLAT $0.12

0041408000 WASHER, FLAT $1.63

0042410000 WASHER, FLAT $2.93

0042806000 WASHER, FLAT $0.39

0050403020 SPRING PIN $0.53

0080200004 SNAP RING $0.29

0102350610 BOLT, SEMS $0.72

0102350612 BOLT, SEMS $0.84

0102350616 BOLT, SEMS $1.64

0102350622 BOLT, SEMS $1.53

0102350635 BOLT, SEMS $0.67

0102350638 BOLT, SEMS $0.72

0102350645 BOLT, SEMS $0.67

0102350650 BOLT, SEMS

0102350670 BOLT, SEMS

0102350675 BOLT, SEMS $1.49

011008020 HEX. HEAD BOLT $2.68

011106015 HEX. HEAD BOLT $0.69

011206020 HEX. HEAD BOLT $0.95

011208025 HEX. HEAD BOLT $0.41

011208030 HEX. HEAD BOLT $1.30

0112350814 BOLT, SEMS

0112350816 BOLT, SEMS

0112350820 BOLT, SEMS $0.95

0112350825 BOLT, SEMS $1.95

0115350855 HEX, BOLT $2.75

011606025 HEX. HEAD BOLT $1.95

0150000018 O-RING $1.87

0151350620 BOLT, STUD $0.79

0151350822 BOLT, STUD

0171707033 KEY $25.95

0175450610 BOLT, FLANGE $1.61

0175450612 BOLT, FLANGE $1.95

0175450616 BOLT, FLANGE $3.95

0175450640 BOLT FLANGE $1.84

0175450840 BOLT, FLANGE

0199100215 HOSE $3.95

0199900420 HOSE $10.95

0199900500 DRAIN HOSE $11.95

020106050 HEX. NUT $0.12

020108060 HEX. NUT $0.28

0205650060 HEX NUT $0.23

0207003000 HEX. NUT $0.21

0207110000 NUT $7.95

0207308000 HEX. NUT $0.89

021112140 HEX. NUT $0.46

0215650080 HEX, NUT $0.55

0221200110 RUBBER SEAL

0221200150 RUBBER SEAL $9.95

0222600100 RUBBER SEAL $15.95

0275150060 NUT, FLANGE $0.48

0275650060 NUT, UBS $1.45

0276150040 NUT, FLANGE $1.85

0278350100 NUT, FLANGE

0302450510 SCREW, SEMS PAN HEAD $0.48

0302450520 SCREW, SEMS PAN HEAD $0.48

031108160 WASHER, FLAT

031110160 WASHER, FLAT $0.40

0340406040 HEX. HEAD BOLT $2.68

0341510040 HEX. HEAD BOLT $8.95

0401350080 WASHER, FLAT $0.95

0401450080 WASHER, FLAT $0.56

0451250050 WASHER, SPRING LOCK

0451250060 WASHER, SPRING LOCK

0451250080 WASHER, SPRING LOCK

0461200170 CIR-CLIP, EXTERNAL $0.67

0481400160 O-RING $3.95

0481410070 O-RING $1.38

0481410160 O-RING $1.95

0481416220 O-RING

0481706230 O-RING

0501200508 PIN, STRAIGHT $0.44

0501200608 PIN, STRAIGHT

0501200814 PIN, STRAIGHT $0.72

0541100314 PIN, SPRING

0541100318 PIN, SPRING $0.94

0541100420 PIN, SPRING $0.44

0571200408 KEY, FEATHER

0571200515 KEY, FEATHER $1.40

0571200518 KEY, FEATHER $1.40

0601800268 AC VOLTMETER, 0-300V

0601806640 FUSE, 65A $11.95

0601806642 FUSE, 5A $2.77

0601806643 FUSE, 15A $5.95

0601806644 FUSE, 30A $1.43

0601810830 BULB $8.95

0601815779 TERMINAL BOARD $18.95

0601822638 SURGE ABSORBER $5.95

0601823204 RECTIFIER $16.95

0601840100 KNOB $30.95

0601851613 STOPPER $2.95

0601851660 STOPPER $1.95

0602220312 TERMINAL ASSY., POSITIVE $10.95

0602220313 TERMINAL ASSY., NEGATIVE $22.95

0605515006 HOSE BAND

0605515094 HOSE BAND $8.95

0605515132 HOSE BAND $4.95

0605515134 HOSE BAND $4.95

0605515159 HOSE BAND $1.32

0605515200 HOSE BAND $4.95

0771500401 BALL 1/4 $0.67

0771500801 BALL $0.67

0771503211 BALL $0.67

0771503217 BALL $0.67

0801086004 SET WASHER $1.95

0801830604 HEX. HEAD BOLT $11.95

0802011104 PLUG $10.95

0802081104 CAP, RESERVE TANK $5.95

0802081403 RESERVE TANK $29.95

0805081004 BATTERY SHEET $24.95

0805082704 BATTERY BOLT $3.95

0810014704 PIN $3.95

0810105900 FUEL STRAINER

0821800014 COLLAR $0.24

0845040414 TERMINAL CAP $13.95

From the guides desk

Guide · 2026-08-04

Ask ARIA about your machine.

Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.

Chat with ARIA

Multiquip TLG8SSK4F Generator

The parts bench

The machine itself

Machine

Engine

Keep-it-running spares

Every part that fits this machine

Service notices & part changes

Take the factory book with you

Get the download pack

From the guides desk

Multiquip DCA Generator Fault Shutdown and Controller Reset Guide

Multiquip Generator No-Start and No-Power Fixes

Multiquip DCA Generator Fault Codes and Diagnostics Guide

Ask ARIA about your machine.

Your cart is empty

Your cart is empty
