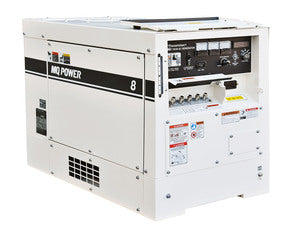

Page 6 — GENERATOR ASSY.

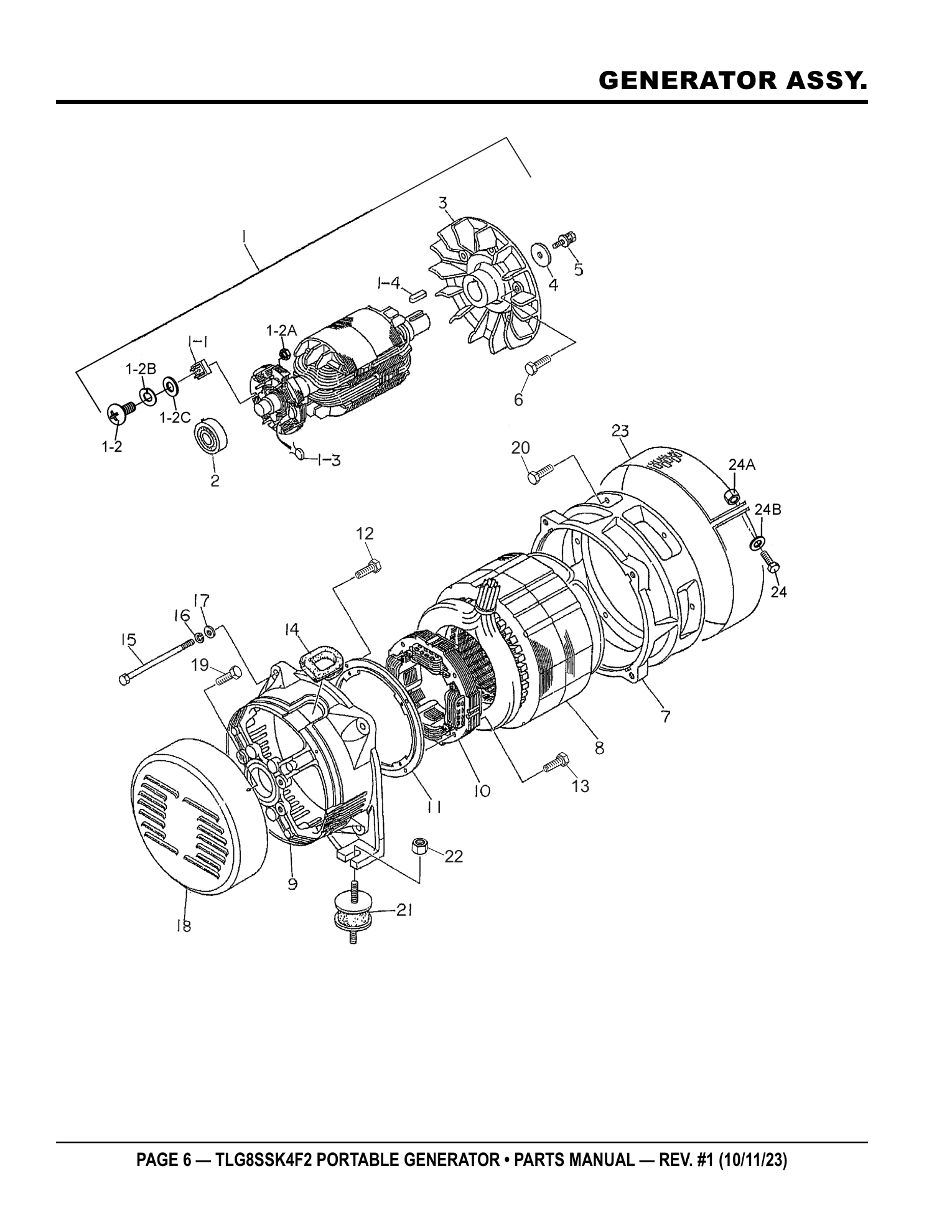

Multiquip TLG8SSK4F2 Generator GENERATOR ASSY. parts diagram

Parts list — exactly as printed34 rows

No.	Part No.	Part Name	Qty	Remarks
1	W8541000113	ROTOR ASSY	1	INCLUDES ITEMS W/#	PARTS REQUEST
PHOTO COMING ROTOR ASSY W8541000113 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 1-1#, 1-2#, 1-2A#, 1-2B#, 1-2C#, 1-3#, 1-3#, 1-4#, 2#, 3#, 4#, 5# PARTS REQUEST
1-1#	0601820037	RECTIFIER	1		ADD TO CART
RECTIFIER 0601820037 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (W8541000113) view full part page → $14.95 IN A KIT + SOLD SOLO
1-2#	D4117400104	MACHINE SCREW	1		PARTS REQUEST
PHOTO COMING MACHINE SCREW D4117400104 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (W8541000113) PARTS REQUEST
1-2A#	0207003000	HEX. NUT	1	REPLACES P/N 0030003000	ADD TO CART
HEX. NUT 0207003000 · qty on machine: 1 REPLACES P/N 0030003000 Also included in kit 1 - ROTOR ASSY (W8541000113) view full part page → $0.21 IN A KIT + SOLD SOLO
1-2B#	0040003000	WASHER, LOCK	1		PARTS REQUEST
PHOTO COMING WASHER, LOCK 0040003000 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (W8541000113) PARTS REQUEST
1-2C#	0041203000	WASHER, FLAT	1		ADD TO CART
WASHER, FLAT 0041203000 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (W8541000113) view full part page → $0.12 IN A KIT + SOLD SOLO
1-3#	0601822638	SURGE ABSORBER	1	S/N 5890018 AND BELOW	ADD TO CART
SURGE ABSORBER 0601822638 · qty on machine: 1 S/N 5890018 AND BELOW Also included in kit 1 - ROTOR ASSY (W8541000113) view full part page → $5.95 IN A KIT + SOLD SOLO
1-3#	0601822692	SURGE ABSORBER	1	S/N 5890019 AND ABOVE	PARTS REQUEST
PHOTO COMING SURGE ABSORBER 0601822692 · qty on machine: 1 S/N 5890019 AND ABOVE Also included in kit 1 - ROTOR ASSY (W8541000113) PARTS REQUEST
1-4#	0171707033	KEY	1		ADD TO CART
KEY 0171707033 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (W8541000113) view full part page → $25.95 IN A KIT + SOLD SOLO
2#	0071206304	BEARING	1		ADD TO CART
BEARING 0071206304 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (W8541000113) view full part page → $53.95 IN A KIT + SOLD SOLO
3#	W1991070022	FAN	1		PARTS REQUEST
PHOTO COMING FAN W1991070022 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (W8541000113) PARTS REQUEST
4#	1991072004	SET WASHER, FAN	1		ADD TO CART
SET WASHER, FAN 1991072004 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (W8541000113) view full part page → $4.95 IN A KIT + SOLD SOLO
5#	0012308020	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0012308020 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (W8541000113) view full part page → $1.88 IN A KIT + SOLD SOLO
6	011208025	HEX. HEAD BOLT	5	REPLACES P/N 0012308025	ADD TO CART
HEX. HEAD BOLT 011208025 · qty on machine: 5 REPLACES P/N 0012308025 view full part page → $0.41
7	W1991315122	END BRACKET	1		PARTS REQUEST
PHOTO COMING END BRACKET W1991315122 · qty on machine: 1 PARTS REQUEST
8	A6315000803	ARMATURE ASSY.	1		PARTS REQUEST
PHOTO COMING ARMATURE ASSY. A6315000803 · qty on machine: 1 PARTS REQUEST
9	W8541315412	END BRACKET	1		PARTS REQUEST
PHOTO COMING END BRACKET W8541315412 · qty on machine: 1 PARTS REQUEST
10	W8541350013	FIELD ASSY. EXCITER	1		PARTS REQUEST
PHOTO COMING FIELD ASSY. EXCITER W8541350013 · qty on machine: 1 PARTS REQUEST
11	D2155300003	SPACER	1		PARTS REQUEST
PHOTO COMING SPACER D2155300003 · qty on machine: 1 PARTS REQUEST
12	011606025	HEX. HEAD BOLT	4	REPLACES P/N 0017106025	ADD TO CART
HEX. HEAD BOLT 011606025 · qty on machine: 4 REPLACES P/N 0017106025 view full part page → $1.95
13	0017105035	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0017105035 · qty on machine: 4 view full part page → $1.9
14	1961324003	GROMMET	1		ADD TO CART
GROMMET 1961324003 · qty on machine: 1 view full part page → $9.95
15	D2131500204	SET BOLT	4		PARTS REQUEST
PHOTO COMING SET BOLT D2131500204 · qty on machine: 4 PARTS REQUEST
16	0040010000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0040010000 · qty on machine: 4 view full part page → $0.39
17	031110160	WASHER, FLAT	4	REPLACES P/N 0041210000	ADD TO CART
WASHER, FLAT 031110160 · qty on machine: 4 REPLACES P/N 0041210000 view full part page → $0.4
18	W8541331103	COVER	1		PARTS REQUEST
PHOTO COMING COVER W8541331103 · qty on machine: 1 PARTS REQUEST
19	0011305100	HEX. HEAD BOLT	4	REPLACES P/N 0017105012	ADD TO CART
HEX. HEAD BOLT 0011305100 · qty on machine: 4 REPLACES P/N 0017105012 view full part page → $1.53
20	0012308020	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0012308020 · qty on machine: 6 view full part page → $1.88
21	7085419004	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION 7085419004 · qty on machine: 2 view full part page → $34.95
22	021112140	HEX. NUT	2	REPLACES P/N 0207010000	ADD TO CART
HEX. NUT 021112140 · qty on machine: 2 REPLACES P/N 0207010000 view full part page → $0.46
23	A6132300004	COVER	1		PARTS REQUEST
PHOTO COMING COVER A6132300004 · qty on machine: 1 PARTS REQUEST
24	0340406040	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0340406040 · qty on machine: 1 view full part page → $2.68
24A	020106050	HEX. NUT	1	REPLACES P/N 0037906000	ADD TO CART
HEX. NUT 020106050 · qty on machine: 1 REPLACES P/N 0037906000 view full part page → $0.12
24B	952404470	WASHER, FLAT	1	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 1 REPLACES P/N 0041206000 view full part page → $0.19

Page 8 — CONTROL PANEL ASSY.

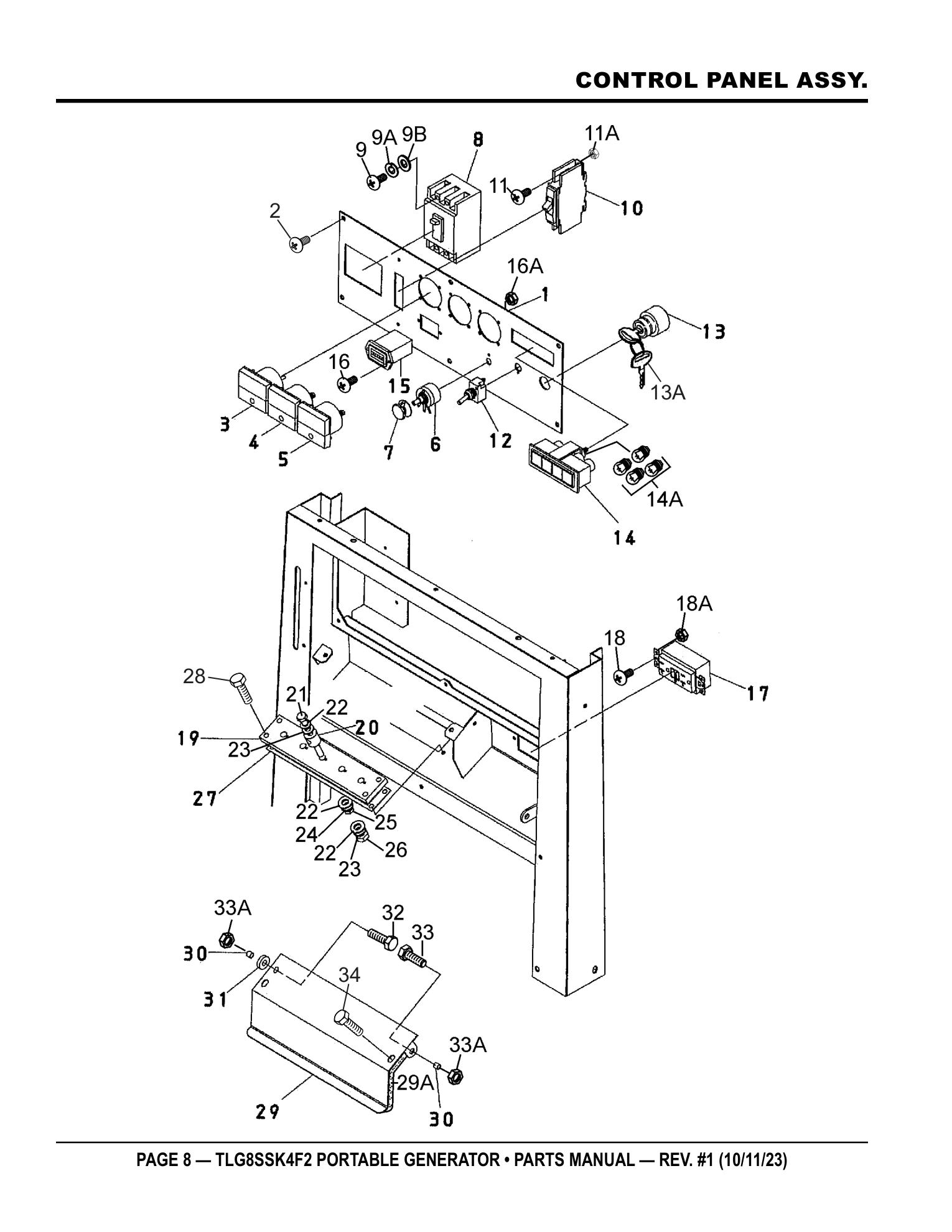

Multiquip TLG8SSK4F2 Generator CONTROL PANEL ASSY. parts diagram

Parts list — exactly as printed41 rows

No.	Part No.	Part Name	Qty	Remarks
1	A6511302602	CONTROL PANEL	1		ADD TO CART
CONTROL PANEL A6511302602 · qty on machine: 1 view full part page → $181.95
2	0021805012	MACHINE SCREW	6		ADD TO CART
MACHINE SCREW 0021805012 · qty on machine: 6 view full part page → $0.39
3	0601800455	FREQUENCY METER, 240V 45~65HZ	1		ADD TO CART
FREQUENCY METER, 240V 45~65HZ 0601800455 · qty on machine: 1 view full part page → $330.95
4	Y0601805749	AC AMMETER, 0-30A	1		PARTS REQUEST
PHOTO COMING AC AMMETER, 0-30A Y0601805749 · qty on machine: 1 PARTS REQUEST
5	0601800268	AC VOLTMETER, 0-300V	1		PARTS REQUEST
PHOTO COMING AC VOLTMETER, 0-300V 0601800268 · qty on machine: 1 PARTS REQUEST
6	0601840073	RHEOSTAT, VOLTAGE REG., 2W 1KΩ	1		ADD TO CART
RHEOSTAT, VOLTAGE REG., 2W 1KΩ 0601840073 · qty on machine: 1 view full part page → $90.95
7	0601840100	KNOB	1	REPLACES P/N 0601840121	ADD TO CART
KNOB 0601840100 · qty on machine: 1 REPLACES P/N 0601840121 view full part page → $30.95
8	Y0601872601	CIRCUIT BREAKER, 3P 20 AMP	1		ADD TO CART
CIRCUIT BREAKER, 3P 20 AMP Y0601872601 · qty on machine: 1 view full part page → $421.95
9	0021004060	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0021004060 · qty on machine: 2 view full part page → $0.62
9A	0040004000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040004000 · qty on machine: 2 view full part page → $0.09
9B	58042	WASHER, FLAT	2	REPLACES P/N 0041204000	ADD TO CART
WASHER, FLAT 58042 · qty on machine: 2 REPLACES P/N 0041204000 view full part page → $0.17
10	0601808803	CIRCUIT BREAKER, 1P 20 AMP	1		ADD TO CART
CIRCUIT BREAKER, 1P 20 AMP 0601808803 · qty on machine: 1 view full part page → $46.95
11	0027404010	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027404010 · qty on machine: 2 view full part page → $0.37
11A	OEMAA8	HEX. NUT	2	REPLACES P/N 0207004000	ADD TO CART
HEX. NUT OEMAA8 · qty on machine: 2 REPLACES P/N 0207004000 view full part page → $0.4
12	0601830771	ENGINE SPEED SWITCH	1	S/N 50012324 AND BELOW	ADD TO CART
ENGINE SPEED SWITCH 0601830771 · qty on machine: 1 S/N 50012324 AND BELOW view full part page → $21.95
12	0601830727	ENGINE SPEED SWITCH	1	S/N 50012325 AND ABOVE	ADD TO CART
ENGINE SPEED SWITCH 0601830727 · qty on machine: 1 S/N 50012325 AND ABOVE view full part page → $15.95
13	1628663602	STARTER SWITCH	1	REPLACES P/N 0602100077 INCLUDES ITEMS W/#	ADD TO CART
STARTER SWITCH 1628663602 · qty on machine: 1 REPLACES P/N 0602100077 INCLUDES ITEMS W/# Kit includes: 13A# view full part page → $148.95 IN A KIT + SOLD SOLO
13A#	3741055150	KEY	1	REPLACES P/N 0602100225	ADD TO CART
KEY 3741055150 · qty on machine: 1 REPLACES P/N 0602100225 Also included in kit 13 - STARTER SWITCH (1628663602) view full part page → $17.95 IN A KIT + SOLD SOLO
14	0601810523	INDICATOR ASSY	1	INCLUDES ITEMS W%	ADD TO CART
INDICATOR ASSY 0601810523 · qty on machine: 1 INCLUDES ITEMS W% Kit includes: 14A% view full part page → $154.95 IN A KIT + SOLD SOLO
14A%	0601810830	BULB	4		ADD TO CART
BULB 0601810830 · qty on machine: 4 Also included in kit 14 - INDICATOR ASSY (0601810523) view full part page → $8.95 IN A KIT + SOLD SOLO
15	0601800682	HOUR METER	1	S/N 5894461 AND BELOW	ADD TO CART
HOUR METER 0601800682 · qty on machine: 1 S/N 5894461 AND BELOW view full part page → $116.95
15	Y0601800674	HOUR METER	1	S/N 5894462 AND ABOVE	ADD TO CART
HOUR METER Y0601800674 · qty on machine: 1 S/N 5894462 AND ABOVE view full part page → $87.95
16	0027403010	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027403010 · qty on machine: 2 view full part page → $0.79
16A	0207003000	HEX. NUT	2		ADD TO CART
HEX. NUT 0207003000 · qty on machine: 2 view full part page → $0.21
17	Y0601814034	RECEPTACLE	1	REPLACES P/N 0601814024 S/N 5890018 AND BELOW	ADD TO CART
RECEPTACLE Y0601814034 · qty on machine: 1 REPLACES P/N 0601814024 S/N 5890018 AND BELOW view full part page → $91.95
17	Y0601814034	RECEPTACLE	1	S/N 5890019 AND ABOVE	ADD TO CART
RECEPTACLE Y0601814034 · qty on machine: 1 S/N 5890019 AND ABOVE view full part page → $91.95
18	0027104015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 2 view full part page → $0.53
18A	OEMAA8	HEX. NUT	2	REPLACES P/N 0207004000	ADD TO CART
HEX. NUT OEMAA8 · qty on machine: 2 REPLACES P/N 0207004000 view full part page → $0.4
19	A6231700004	SET BOARD, OUTPUT TERMINAL	1		PARTS REQUEST
PHOTO COMING SET BOARD, OUTPUT TERMINAL A6231700004 · qty on machine: 1 PARTS REQUEST
20	7811861004	OUTPUT TERMINAL	5		ADD TO CART
OUTPUT TERMINAL 7811861004 · qty on machine: 5 view full part page → $46.95
21	0801830604	HEX. HEAD BOLT	5		ADD TO CART
HEX. HEAD BOLT 0801830604 · qty on machine: 5 view full part page → $11.95
22	0040008000	WASHER, LOCK	15		ADD TO CART
WASHER, LOCK 0040008000 · qty on machine: 15 view full part page → $0.63
23	0041408000	WASHER, FLAT	10		ADD TO CART
WASHER, FLAT 0041408000 · qty on machine: 10 view full part page → $1.63
24	0401450080	WASHER, FLAT	5	REPLACES P/N 0041208000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 5 REPLACES P/N 0041208000 view full part page → $0.56
25	020108060	HEX. NUT	5	REPLACES P/N 0039508000	ADD TO CART
HEX. NUT 020108060 · qty on machine: 5 REPLACES P/N 0039508000 view full part page → $0.28
26	020108060	HEX. NUT	5	REPLACES P/N 0030008000	ADD TO CART
HEX. NUT 020108060 · qty on machine: 5 REPLACES P/N 0030008000 view full part page → $0.28
27	A6234500004	RUBBER SEAL	1		PARTS REQUEST
PHOTO COMING RUBBER SEAL A6234500004 · qty on machine: 1 PARTS REQUEST
28	011606025	HEX. HEAD BOLT	4	REPLACES P/N 0017106025	ADD TO CART
HEX. HEAD BOLT 011606025 · qty on machine: 4 REPLACES P/N 0017106025 view full part page → $1.95
29	A6237100604	COVER, OUTPUT TERMINAL	1		PARTS REQUEST
PHOTO COMING COVER, OUTPUT TERMINAL A6237100604 · qty on machine: 1 PARTS REQUEST
29A	A6237400304	RUBBER SHEET	1		PARTS REQUEST
PHOTO COMING RUBBER SHEET A6237400304 · qty on machine: 1 PARTS REQUEST
30	0821800014	COLLAR	2	REPLACES P/N W0821800014	ADD TO CART
COLLAR 0821800014 · qty on machine: 2 REPLACES P/N W0821800014 view full part page → $0.24

Page 10 — CONTROL PANEL ASSY. (CONT'D.)

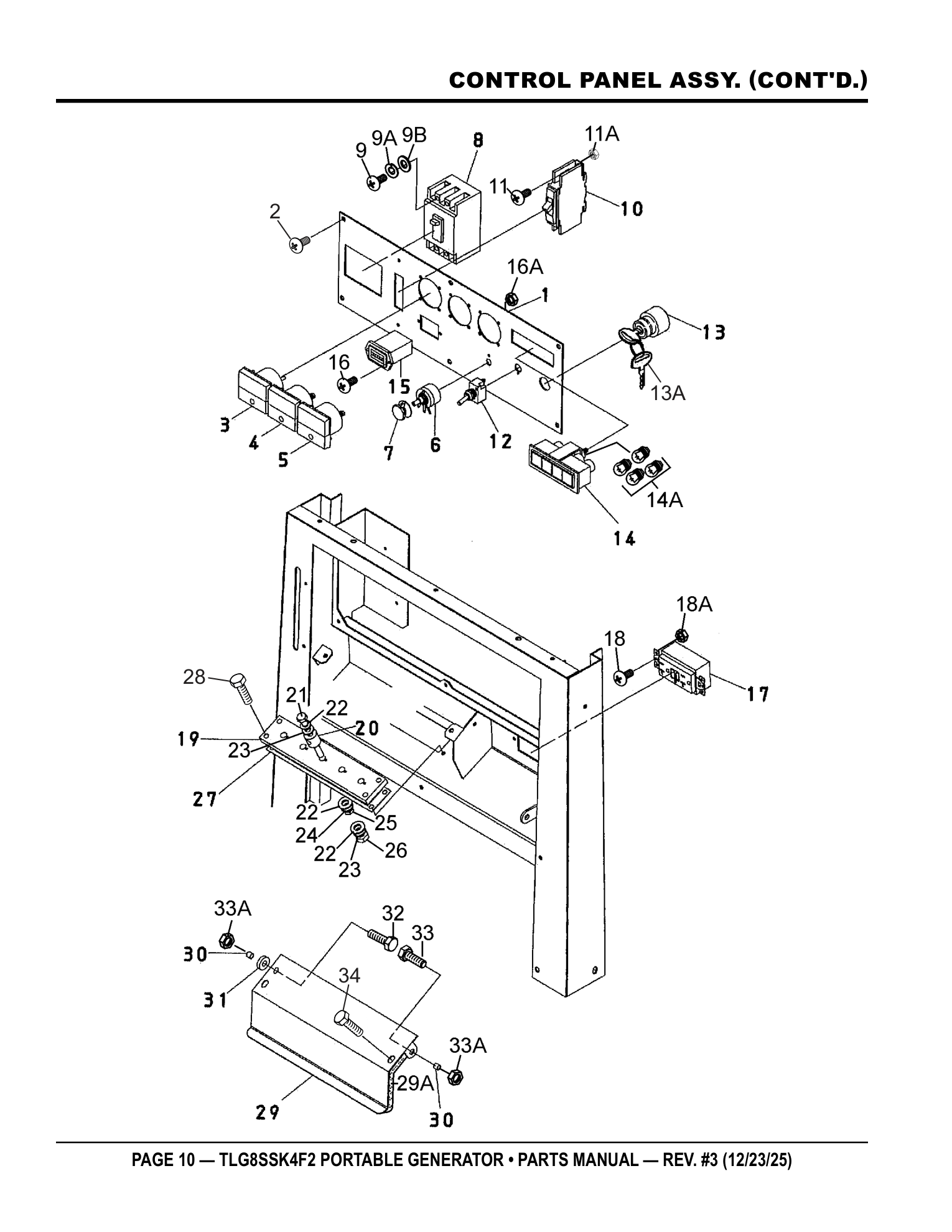

Multiquip TLG8SSK4F2 Generator CONTROL PANEL ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed5 rows

No.	Part No.	Part Name	Qty	Remarks
31	D9311200004	RUBBER WASHER	2		ADD TO CART
RUBBER WASHER D9311200004 · qty on machine: 2 view full part page → $2.82
32	011206020	HEX. HEAD BOLT	1	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 1 REPLACES P/N 0016906020 view full part page → $0.95
33	011206020	HEX. HEAD BOLT	1	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 1 REPLACES P/N 0016906020 view full part page → $0.95
33A	Y0207606000	HEX. NUT	1		PARTS REQUEST
PHOTO COMING HEX. NUT Y0207606000 · qty on machine: 1 PARTS REQUEST
34	011106015	HEX. HEAD BOLT	2	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 2 REPLACES P/N 0016906015 view full part page → $0.69

Page 12 — ELECTRIC PARTS ASSY.

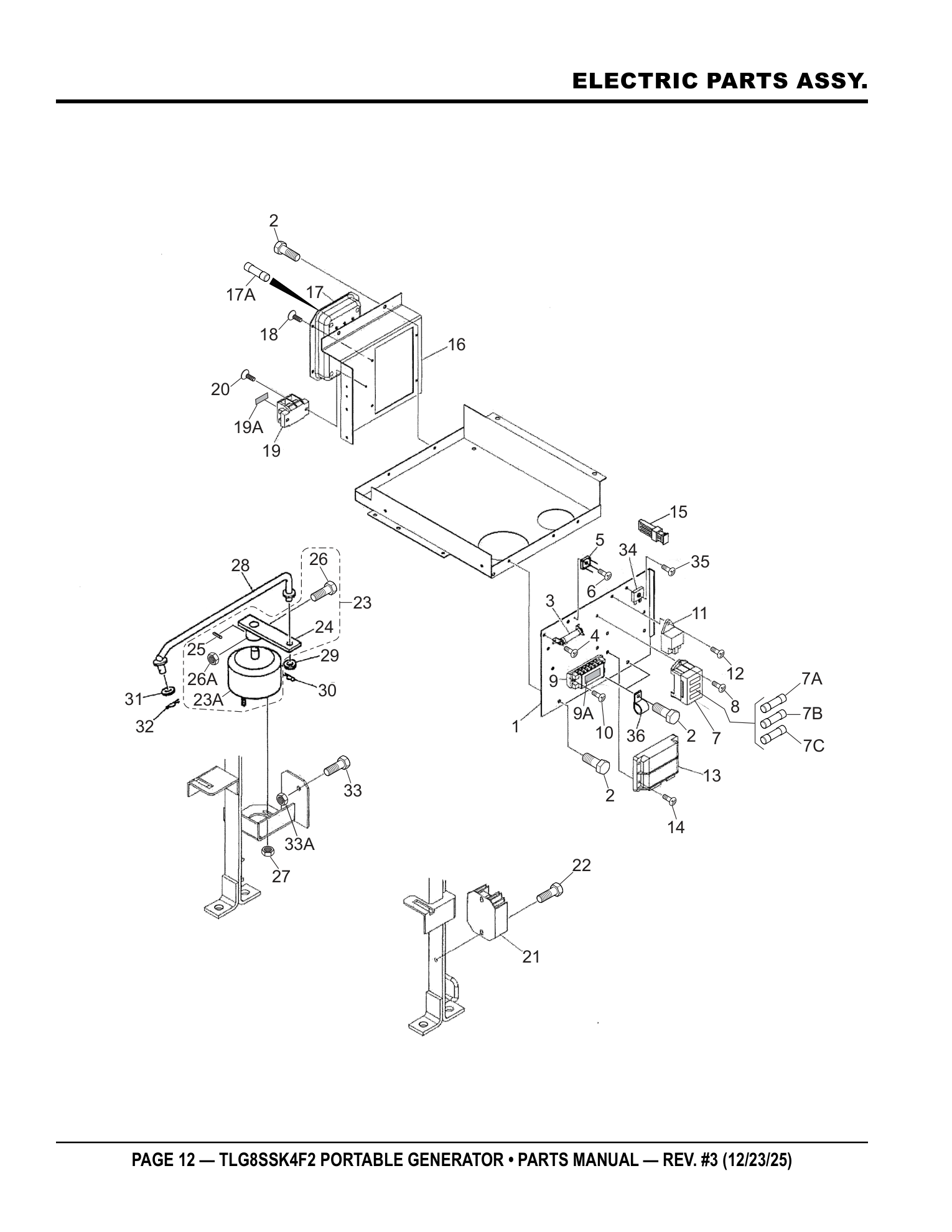

Multiquip TLG8SSK4F2 Generator ELECTRIC PARTS ASSY. parts diagram

Parts list — exactly as printed43 rows

No.	Part No.	Part Name	Qty	Remarks
1	A6261500813	BRACKET, ELECTRIC PARTS	1	S/N 5890018 AND BELOW	PARTS REQUEST
PHOTO COMING BRACKET, ELECTRIC PARTS A6261500813 · qty on machine: 1 S/N 5890018 AND BELOW PARTS REQUEST
1	A6261500823	BRACKET, ELECTRIC PARTS	1	S/N 5890019 AND ABOVE	PARTS REQUEST
PHOTO COMING BRACKET, ELECTRIC PARTS A6261500823 · qty on machine: 1 S/N 5890019 AND ABOVE PARTS REQUEST
1A	0226900120	RUBBER SEAL	1		PARTS REQUEST
PHOTO COMING RUBBER SEAL 0226900120 · qty on machine: 1 PARTS REQUEST
2	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0017106015 S/N 5890018 AND BELOW	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0017106015 S/N 5890018 AND BELOW view full part page → $0.69
2	011106015	HEX. HEAD BOLT	5	S/N 5890019 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 5 S/N 5890019 AND ABOVE view full part page → $0.69
3	0601842347	RESISTOR, 20W 30Ω	1		ADD TO CART
RESISTOR, 20W 30Ω 0601842347 · qty on machine: 1 view full part page → $19.95
4	0027104012	MACHINE SCREW	2		PARTS REQUEST
PHOTO COMING MACHINE SCREW 0027104012 · qty on machine: 2 PARTS REQUEST
5	0601823204	RECTIFIER	1		ADD TO CART
RECTIFIER 0601823204 · qty on machine: 1 view full part page → $16.95
6	0027103020	MACHINE SCREW	1		ADD TO CART
MACHINE SCREW 0027103020 · qty on machine: 1 view full part page → $0.37
7	B0352500104	FUSE BOX	1	INCLUDES ITEMS W/#	ADD TO CART
FUSE BOX B0352500104 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 7A#, 7B#, 7C# view full part page → $63.95 IN A KIT + SOLD SOLO
7A#	0601806642	FUSE, 5A	4		ADD TO CART
FUSE, 5A 0601806642 · qty on machine: 4 Also included in kit 7 - FUSE BOX (B0352500104) view full part page → $2.77 IN A KIT + SOLD SOLO
7B#	0601806643	FUSE, 15A	2		ADD TO CART
FUSE, 15A 0601806643 · qty on machine: 2 Also included in kit 7 - FUSE BOX (B0352500104) view full part page → $5.95 IN A KIT + SOLD SOLO
7C#	0601806644	FUSE, 30A	2		ADD TO CART
FUSE, 30A 0601806644 · qty on machine: 2 Also included in kit 7 - FUSE BOX (B0352500104) view full part page → $1.43 IN A KIT + SOLD SOLO
8	0027105020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027105020 · qty on machine: 2 view full part page → $0.62
9	0601815759	TERMINAL BOARD	1		ADD TO CART
TERMINAL BOARD 0601815759 · qty on machine: 1 view full part page → $36.95
9A	D9522000704	DECAL	1		ADD TO CART
DECAL D9522000704 · qty on machine: 1 view full part page → $2.95
10	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
11	1569465990	TIMER	1	REPLACES P/N 0602201273	ADD TO CART
TIMER 1569465990 · qty on machine: 1 REPLACES P/N 0602201273 view full part page → $152.95
12	0027105015	MACHINE SCREW	1		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 1 view full part page → $0.2
13	1747260604	EMERGENCY UNIT	1	REPLACES P/N 0602200475	NO LONGER AVAILABLE
PHOTO COMING EMERGENCY UNIT 1747260604 · qty on machine: 1 REPLACES P/N 0602200475 NO LONGER AVAILABLE
14	0027105025	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105025 · qty on machine: 4 view full part page → $0.35
15	0601806640	FUSE, 65A	2		ADD TO CART
FUSE, 65A 0601806640 · qty on machine: 2 view full part page → $11.95
16	W8541833003	BRACKET, ELECTRIC PARTS	1		PARTS REQUEST
PHOTO COMING BRACKET, ELECTRIC PARTS W8541833003 · qty on machine: 1 PARTS REQUEST
17	0601820660	AUTOMATIC VOLTAGE REGULATOR	1	INCLUDES ITEMS W/%	ADD TO CART
AUTOMATIC VOLTAGE REGULATOR 0601820660 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 17A%, 23A%, 24%, 25%, 26%, 26A% view full part page → $800.95 IN A KIT + SOLD SOLO
17A%	0601806681	FUSE, 5A	1		ADD TO CART
FUSE, 5A 0601806681 · qty on machine: 1 Also included in kit 17 - AUTOMATIC VOLTAGE REGULATO (0601820660) view full part page → $10.95 IN A KIT + SOLD SOLO
18	0027105015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 4 view full part page → $0.2
19	0601815779	TERMINAL BOARD	1		ADD TO CART
TERMINAL BOARD 0601815779 · qty on machine: 1 view full part page → $18.95
19A	W8540613604	DECAL	1		PARTS REQUEST
PHOTO COMING DECAL W8540613604 · qty on machine: 1 PARTS REQUEST
20	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
21	1584464603	REGULATOR	1	REPLACES P/N 0602201378	ADD TO CART
REGULATOR 1584464603 · qty on machine: 1 REPLACES P/N 0602201378 view full part page → $375.95
22	0017106035	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0017106035 · qty on machine: 2 view full part page → $0.95
23	W1992639003	SOLENOID ASSY	1	INCLUDES ITEMS W/%	PARTS REQUEST
PHOTO COMING SOLENOID ASSY W1992639003 · qty on machine: 1 INCLUDES ITEMS W/% PARTS REQUEST
23A%	1622636103Z	ROTARY SOLENOID	1	REPLACES P/N 1620150404	ADD TO CART
ROTARY SOLENOID 1622636103Z · qty on machine: 1 REPLACES P/N 1620150404 Also included in kit 17 - AUTOMATIC VOLTAGE REGULATO (0601820660) view full part page → $526.95 IN A KIT + SOLD SOLO
24%	1992636004	ARM, SOLENOID	1		ADD TO CART
ARM, SOLENOID 1992636004 · qty on machine: 1 Also included in kit 17 - AUTOMATIC VOLTAGE REGULATO (0601820660) view full part page → $80.95 IN A KIT + SOLD SOLO
25%	0050403020	SPRING PIN	1		ADD TO CART
SPRING PIN 0050403020 · qty on machine: 1 Also included in kit 17 - AUTOMATIC VOLTAGE REGULATO (0601820660) view full part page → $0.53 IN A KIT + SOLD SOLO
26%	011606025	HEX. HEAD BOLT	1	REPLACES P/N 0010106025	ADD TO CART
HEX. HEAD BOLT 011606025 · qty on machine: 1 REPLACES P/N 0010106025 Also included in kit 17 - AUTOMATIC VOLTAGE REGULATO (0601820660) view full part page → $1.95 IN A KIT + SOLD SOLO
26A%	020106050	HEX. NUT	1	REPLACES P/N 0030006000	ADD TO CART
HEX. NUT 020106050 · qty on machine: 1 REPLACES P/N 0030006000 Also included in kit 17 - AUTOMATIC VOLTAGE REGULATO (0601820660) view full part page → $0.12 IN A KIT + SOLD SOLO
27	0023706000	HEX. NUT	2	REPLACES P/N 0207206000	ADD TO CART
HEX. NUT 0023706000 · qty on machine: 2 REPLACES P/N 0207206000 view full part page → $0.95
28	A6355300304	GOVERNOR ROD	1		PARTS REQUEST
PHOTO COMING GOVERNOR ROD A6355300304 · qty on machine: 1 PARTS REQUEST
29	031108160	WASHER, FLAT	1	REPLACES P/N 0041608000	ADD TO CART
WASHER, FLAT 031108160 · qty on machine: 1 REPLACES P/N 0041608000 Factory replaced this part - current number 0401450080 view full part page → $0.56 IN A KIT + SOLD SOLO
30	0605010503	SNAP PIN	1		ADD TO CART
SNAP PIN 0605010503 · qty on machine: 1 view full part page → $0.35
31	0042806000	WASHER, FLAT	1		ADD TO CART
WASHER, FLAT 0042806000 · qty on machine: 1 view full part page → $0.39
32	505015300	SNAP PIN	1	REPLACES P/N 0605010502	ADD TO CART
SNAP PIN 505015300 · qty on machine: 1 REPLACES P/N 0605010502 view full part page → $0.95

Page 14 — ELECTRIC PARTS ASSY. (CONT'D.)

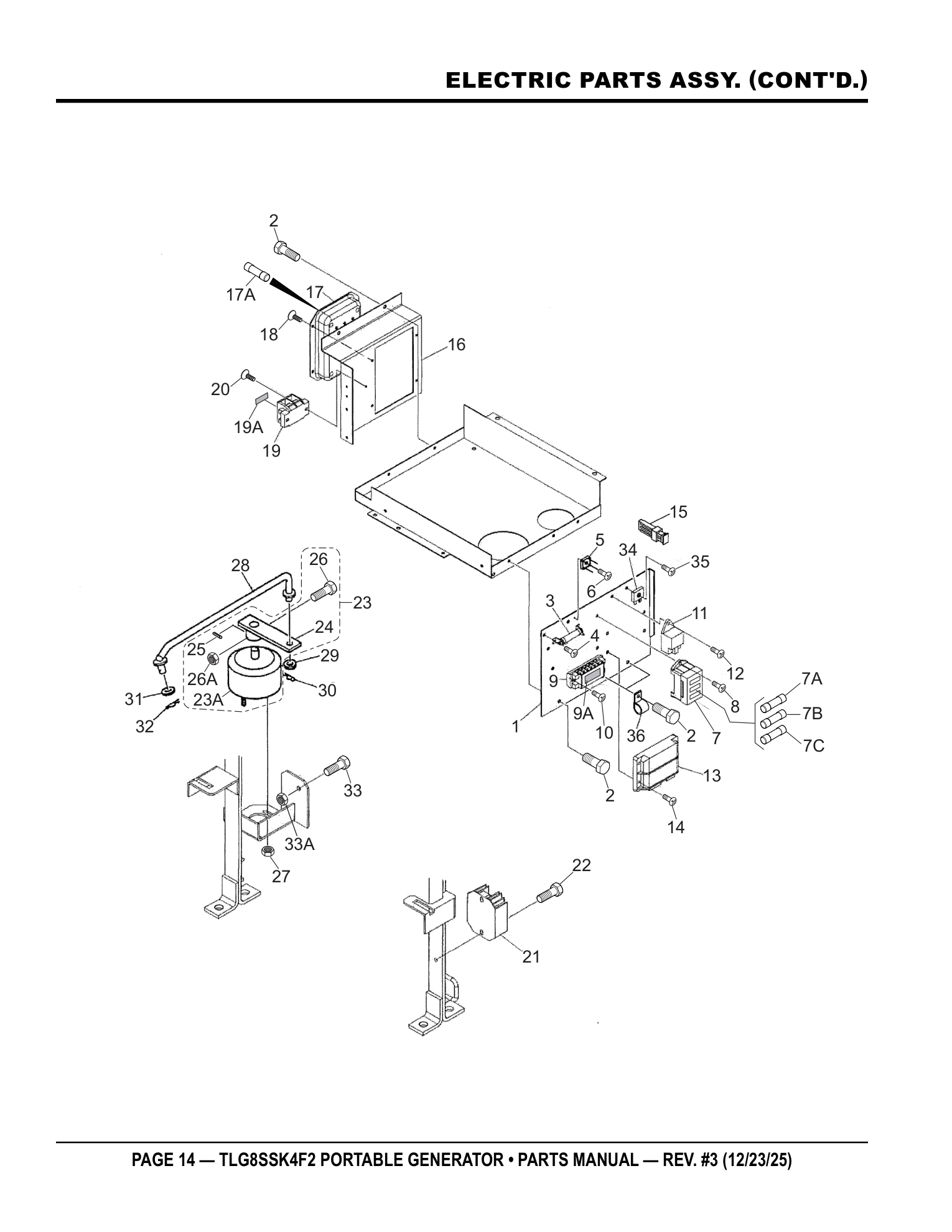

Multiquip TLG8SSK4F2 Generator ELECTRIC PARTS ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed5 rows

No.	Part No.	Part Name	Qty	Remarks
33	0010108050	HEX HEAD BOLT	1		ADD TO CART
HEX HEAD BOLT 0010108050 · qty on machine: 1 view full part page → $0.78
33A	020108060	HEX. NUT	1	REPLACES P/N 0207008000	ADD TO CART
HEX. NUT 020108060 · qty on machine: 1 REPLACES P/N 0207008000 view full part page → $0.28
34	0601821370	RECTIFIER	1	REPLACES P/N 0601823240	ADD TO CART
RECTIFIER 0601821370 · qty on machine: 1 REPLACES P/N 0601823240 view full part page → $28.95
35	0027104015	MACHINE SCREW	1		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 1 view full part page → $0.53
36	0602220930	CLAMPER	2	S/N 5890019 AND ABOVE	PARTS REQUEST
PHOTO COMING CLAMPER 0602220930 · qty on machine: 2 S/N 5890019 AND ABOVE PARTS REQUEST

Page 16 — ENGINE AND RADIATOR ASSY.

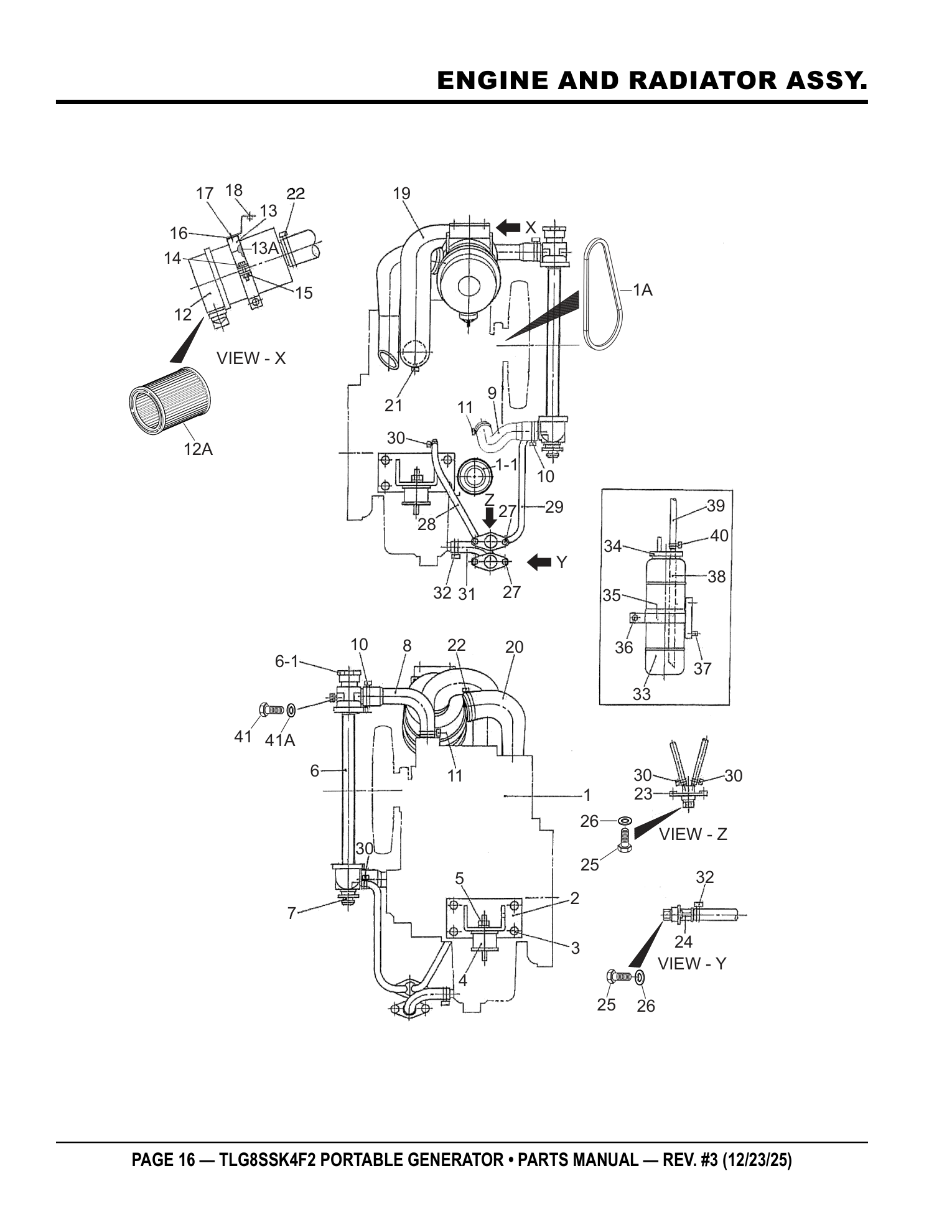

Multiquip TLG8SSK4F2 Generator ENGINE AND RADIATOR ASSY. parts diagram

Parts list — exactly as printed42 rows

No.	Part No.	Part Name	Qty	Remarks
1	A5924200174	ENGINE, KUBOTA Z482-E4B	1	INCLUDES ITEMS W/#	ADD TO CART
ENGINE, KUBOTA Z482-E4B A5924200174 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 1-1#, 1A# view full part page → $8391.95 IN A KIT + SOLD SOLO
1-1#	1J09032430	CARTRIDGE, OIL FILTER	1	REPLACES P/N Y0602041299	ADD TO CART
CARTRIDGE, OIL FILTER 1J09032430 · qty on machine: 1 REPLACES P/N Y0602041299 Also included in kit 1 - ENGINE, KUBOTA Z482-E4B (A5924200174) view full part page → $29.95 IN A KIT + SOLD SOLO
1A#	1980572530	FAN BELT	1	REPLACES P/N 0602011477	ADD TO CART
FAN BELT 1980572530 · qty on machine: 1 REPLACES P/N 0602011477 Also included in kit 1 - ENGINE, KUBOTA Z482-E4B (A5924200174) view full part page → $25.95 IN A KIT + SOLD SOLO
2	8745112003A	ENGINE FOOT	2	REPLACES P/N 8745112003	NO LONGER AVAILABLE
PHOTO COMING ENGINE FOOT 8745112003A · qty on machine: 2 REPLACES P/N 8745112003 NO LONGER AVAILABLE
3	Y0341110020	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT Y0341110020 · qty on machine: 8 view full part page → $3.95
4	7085419004	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION 7085419004 · qty on machine: 2 view full part page → $34.95
5	021112140	HEX. NUT	2	REPLACES P/N 0207010000	ADD TO CART
HEX. NUT 021112140 · qty on machine: 2 REPLACES P/N 0207010000 view full part page → $0.46
6	0602012795	RADIATOR	1	INCLUDES ITEMS W/%	ADD TO CART
RADIATOR 0602012795 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 6-1% view full part page → $430.95 IN A KIT + SOLD SOLO
6-1%	0602011079	CAP, RADIATOR	1		ADD TO CART
CAP, RADIATOR 0602011079 · qty on machine: 1 Also included in kit 6 - RADIATOR (0602012795) view full part page → $137.95 IN A KIT + SOLD SOLO
7	B1312600004	MOUNT RUBBER	2		ADD TO CART
MOUNT RUBBER B1312600004 · qty on machine: 2 view full part page → $15.95
8	A5311500404	RADIATOR HOSE (UPPER)	1		ADD TO CART
RADIATOR HOSE (UPPER) A5311500404 · qty on machine: 1 view full part page → $40.95
9	A5311500203	RADIATOR HOSE (LOWER)	1		ADD TO CART
RADIATOR HOSE (LOWER) A5311500203 · qty on machine: 1 view full part page → $44.95
10	0605515134	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515134 · qty on machine: 2 view full part page → $4.95
11	0605515159	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515159 · qty on machine: 2 view full part page → $1.32
12	1556211010	AIR CLEANER	1	INCLUDES ITEMS W/$ REPLACES P/N 0602046265	ADD TO CART
AIR CLEANER 1556211010 · qty on machine: 1 INCLUDES ITEMS W/$ REPLACES P/N 0602046265 Kit includes: 12A$ view full part page → $247.95 IN A KIT + SOLD SOLO
12A$	7000011221	ELEMENT, AIR CLEANER	1	REPLACES P/N 0602046374	ADD TO CART
ELEMENT, AIR CLEANER 7000011221 · qty on machine: 1 REPLACES P/N 0602046374 Also included in kit 12 - AIR CLEANER (1556211010) view full part page → $54.95 IN A KIT + SOLD SOLO
13	3415013960	BAND, AIR CLEANER	1	REPLACES P/N 0602040575	NO LONGER AVAILABLE
PHOTO COMING BAND, AIR CLEANER 3415013960 · qty on machine: 1 REPLACES P/N 0602040575 NO LONGER AVAILABLE
13A	0222600340	RUBBER CUSHION	1		ADD TO CART
RUBBER CUSHION 0222600340 · qty on machine: 1 view full part page → $4.95
14	011208030	HEX. HEAD BOLT	1	REPLACES P/N 0016908030	ADD TO CART
HEX. HEAD BOLT 011208030 · qty on machine: 1 REPLACES P/N 0016908030 view full part page → $1.3
15	020108060	HEX, NUT	1	REPLACES P/N 0207008000	ADD TO CART
HEX, NUT 020108060 · qty on machine: 1 REPLACES P/N 0207008000 view full part page → $0.28
16	8742031004	BRACKET, AIR CLEANER	1		ADD TO CART
BRACKET, AIR CLEANER 8742031004 · qty on machine: 1 view full part page → $14.95
17	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
18	011106015	HEX. HEAD BOLT	2	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 2 REPLACES P/N 0016906015 view full part page → $0.69
19	8742032003A	HOSE, AIR CLEANER	1	REPLACES P/N 8742032003	ADD TO CART
HOSE, AIR CLEANER 8742032003A · qty on machine: 1 REPLACES P/N 8742032003 view full part page → $110.95
20	1612036203	HOSE, AIR CLEANER	1		ADD TO CART
HOSE, AIR CLEANER 1612036203 · qty on machine: 1 view full part page → $64.31
21	0605515006	HOSE BAND	1		NO LONGER AVAILABLE
PHOTO COMING HOSE BAND 0605515006 · qty on machine: 1 NO LONGER AVAILABLE
22	Y0605515115	HOSE BAND	2		PARTS REQUEST
PHOTO COMING HOSE BAND Y0605515115 · qty on machine: 2 PARTS REQUEST
23	1622014103	DRAIN JOINT, WATER	1		ADD TO CART
DRAIN JOINT, WATER 1622014103 · qty on machine: 1 view full part page → $23.95
24	1502025103C	DRAIN JOINT, OIL	1	REPLACES P/N 1502025103	ADD TO CART
DRAIN JOINT, OIL 1502025103C · qty on machine: 1 REPLACES P/N 1502025103 view full part page → $29.95
25	0802011104	PLUG	2		ADD TO CART
PLUG 0802011104 · qty on machine: 2 view full part page → $10.95
26	0150000018	O-RING	2		ADD TO CART
O-RING 0150000018 · qty on machine: 2 view full part page → $1.87
27	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0016906015 view full part page → $0.69
28	0199900500	DRAIN HOSE	1		ADD TO CART
DRAIN HOSE 0199900500 · qty on machine: 1 view full part page → $11.95
29	0199900500	DRAIN HOSE	1		ADD TO CART
DRAIN HOSE 0199900500 · qty on machine: 1 view full part page → $11.95
30	0605515094	HOSE BAND	4		ADD TO CART
HOSE BAND 0605515094 · qty on machine: 4 view full part page → $8.95
31	A5321100204	DRAIN HOSE	1		ADD TO CART
DRAIN HOSE A5321100204 · qty on machine: 1 view full part page → $41.21
32	0605515132	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515132 · qty on machine: 2 view full part page → $4.95
33	0802081403	RESERVE TANK	1		ADD TO CART
RESERVE TANK 0802081403 · qty on machine: 1 view full part page → $29.95
34	0802081104	CAP, RESERVE TANK	1		ADD TO CART
CAP, RESERVE TANK 0802081104 · qty on machine: 1 view full part page → $5.95
35	W1622082004	BRACKET, RESERVE TANK	1		PARTS REQUEST
PHOTO COMING BRACKET, RESERVE TANK W1622082004 · qty on machine: 1 PARTS REQUEST
36	011606025	HEX. HEAD BOLT	1	REPLACES P/N 0016906025	ADD TO CART
HEX. HEAD BOLT 011606025 · qty on machine: 1 REPLACES P/N 0016906025 view full part page → $1.95
37	011106015	HEX. HEAD BOLT	2	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 2 REPLACES P/N 0016906015 view full part page → $0.69

Page 18 — ENGINE AND RADIATOR ASSY. (CONT'D.)

Multiquip TLG8SSK4F2 Generator ENGINE AND RADIATOR ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed5 rows

No.	Part No.	Part Name	Qty
38	0199100215	HOSE	1	ADD TO CART
HOSE 0199100215 · qty on machine: 1 view full part page → $3.95
39	0199900420	HOSE	1	ADD TO CART
HOSE 0199900420 · qty on machine: 1 view full part page → $10.95
40	0605515094	HOSE BAND	2	ADD TO CART
HOSE BAND 0605515094 · qty on machine: 2 view full part page → $8.95
41	Y0016906035	HEX. HEAD BOLT	2	PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0016906035 · qty on machine: 2 PARTS REQUEST
41A	Y0047006020	WASHER	2	PARTS REQUEST
PHOTO COMING WASHER Y0047006020 · qty on machine: 2 PARTS REQUEST

Page 20 — BATTERY ASSY.

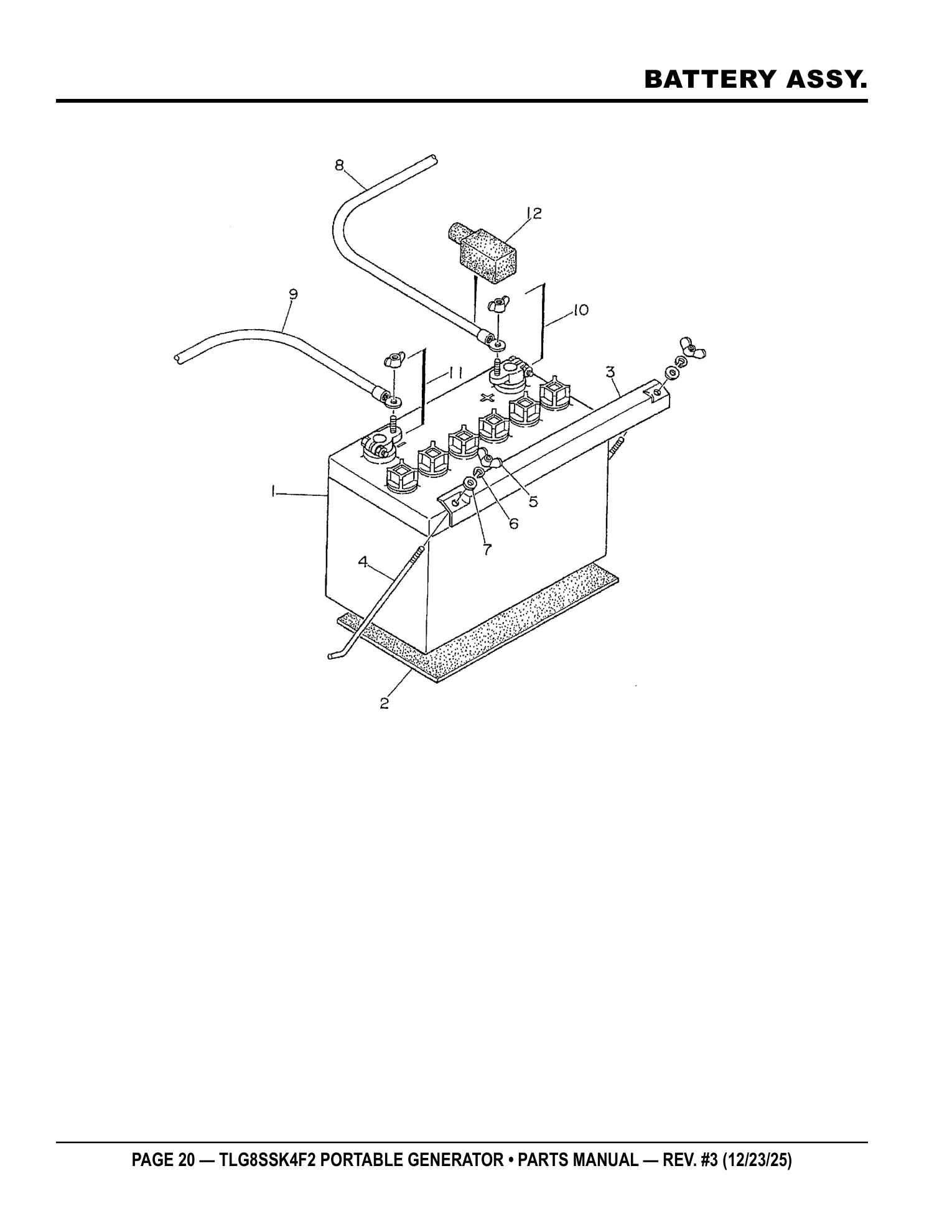

Multiquip TLG8SSK4F2 Generator BATTERY ASSY. parts diagram

Parts list — exactly as printed12 rows

No.	Part No.	Part Name	Qty	Remarks
1	Y0165103820	BATTERY	1		ADD TO CART
BATTERY Y0165103820 · qty on machine: 1 view full part page → $276.95
2	0805081004	BATTERY SHEET	1	REPLACES P/N 1702202104	ADD TO CART
BATTERY SHEET 0805081004 · qty on machine: 1 REPLACES P/N 1702202104 view full part page → $24.95
3	W1702204104	BATTERY BAND	1		PARTS REQUEST
PHOTO COMING BATTERY BAND W1702204104 · qty on machine: 1 PARTS REQUEST
4	0805082704	BATTERY BOLT	2		ADD TO CART
BATTERY BOLT 0805082704 · qty on machine: 2 view full part page → $3.95
5	0037806000	WING NUT	2		ADD TO CART
WING NUT 0037806000 · qty on machine: 2 view full part page → $1.95
6	0040006000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040006000 · qty on machine: 2 view full part page → $0.17
7	952404470	WASHER, FLAT	2	REPLACES P/N 0041606000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 2 REPLACES P/N 0041606000 view full part page → $0.19
8		BATTERY CABLE	1	PURCHASE LOCALLY	SEE REMARKS
PHOTO COMING BATTERY CABLE · qty on machine: 1 PURCHASE LOCALLY SEE REMARKS
9		BATTERY CABLE	1	PURCHASE LOCALLY	SEE REMARKS
PHOTO COMING BATTERY CABLE · qty on machine: 1 PURCHASE LOCALLY SEE REMARKS
10	0602220312	TERMINAL ASSY., POSITIVE	1		ADD TO CART
TERMINAL ASSY., POSITIVE 0602220312 · qty on machine: 1 view full part page → $10.95
11	0602220313	TERMINAL ASSY., NEGATIVE	1		ADD TO CART
TERMINAL ASSY., NEGATIVE 0602220313 · qty on machine: 1 view full part page → $22.95
12	0845040414	TERMINAL CAP	1	REPLACES P/N 0602220600	ADD TO CART
TERMINAL CAP 0845040414 · qty on machine: 1 REPLACES P/N 0602220600 view full part page → $13.95

Page 22 — MUFFLER ASSY.

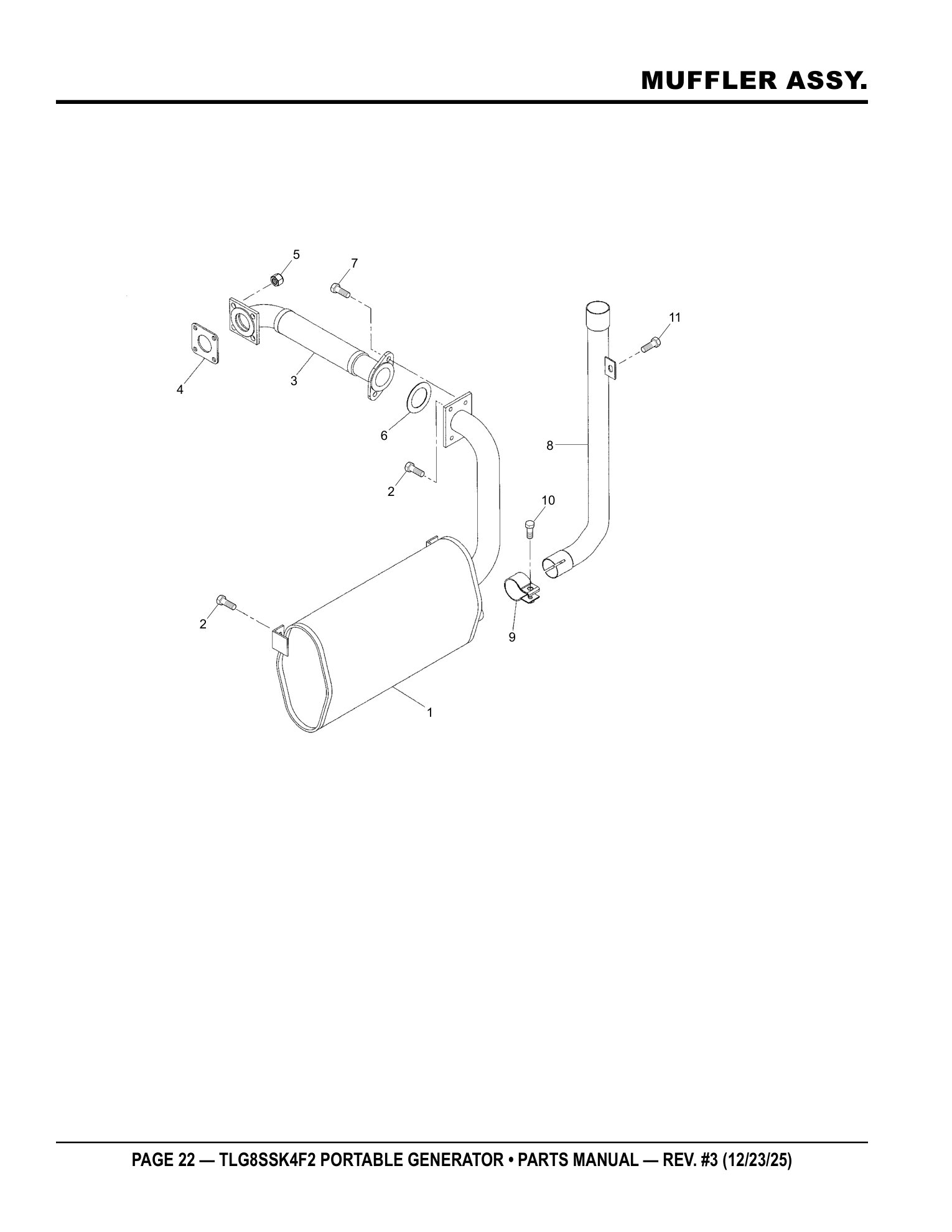

Multiquip TLG8SSK4F2 Generator MUFFLER ASSY. parts diagram

Parts list — exactly as printed11 rows

No.	Part No.	Part Name	Qty	Remarks
1	A6331001003	MUFFLER	1		PARTS REQUEST
PHOTO COMING MUFFLER A6331001003 · qty on machine: 1 PARTS REQUEST
2	011008020	HEX. HEAD BOLT	5	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 5 REPLACES P/N 0016908020 view full part page → $2.68
3	A6334000703	EXHAUST PIPE	1		PARTS REQUEST
PHOTO COMING EXHAUST PIPE A6334000703 · qty on machine: 1 PARTS REQUEST
4	1526312371	GASKET	1	REPLACES P/N 0602320153	PARTS REQUEST
PHOTO COMING GASKET 1526312371 · qty on machine: 1 REPLACES P/N 0602320153 PARTS REQUEST
5	Y0207008000	HEX. NUT	4		ADD TO CART
HEX. NUT Y0207008000 · qty on machine: 4 view full part page → $0.4
6	D9304000004	GASKET	1		ADD TO CART
GASKET D9304000004 · qty on machine: 1 view full part page → $16.95
7	0012108035	HEX. HEAD BOLT	2	REPLACES P/N 0016908035	ADD TO CART
HEX. HEAD BOLT 0012108035 · qty on machine: 2 REPLACES P/N 0016908035 view full part page → $1.95
8	A5334101204	TAIL PIPE	1		ADD TO CART
TAIL PIPE A5334101204 · qty on machine: 1 view full part page → $272.95
9	D9101200004	PIPE BAND	1		PARTS REQUEST
PHOTO COMING PIPE BAND D9101200004 · qty on machine: 1 PARTS REQUEST
10	0016908040	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0016908040 · qty on machine: 1 view full part page → $1.52
11	0016906015	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 1 view full part page → $0.95

Page 24 — FUEL TANK ASSY.

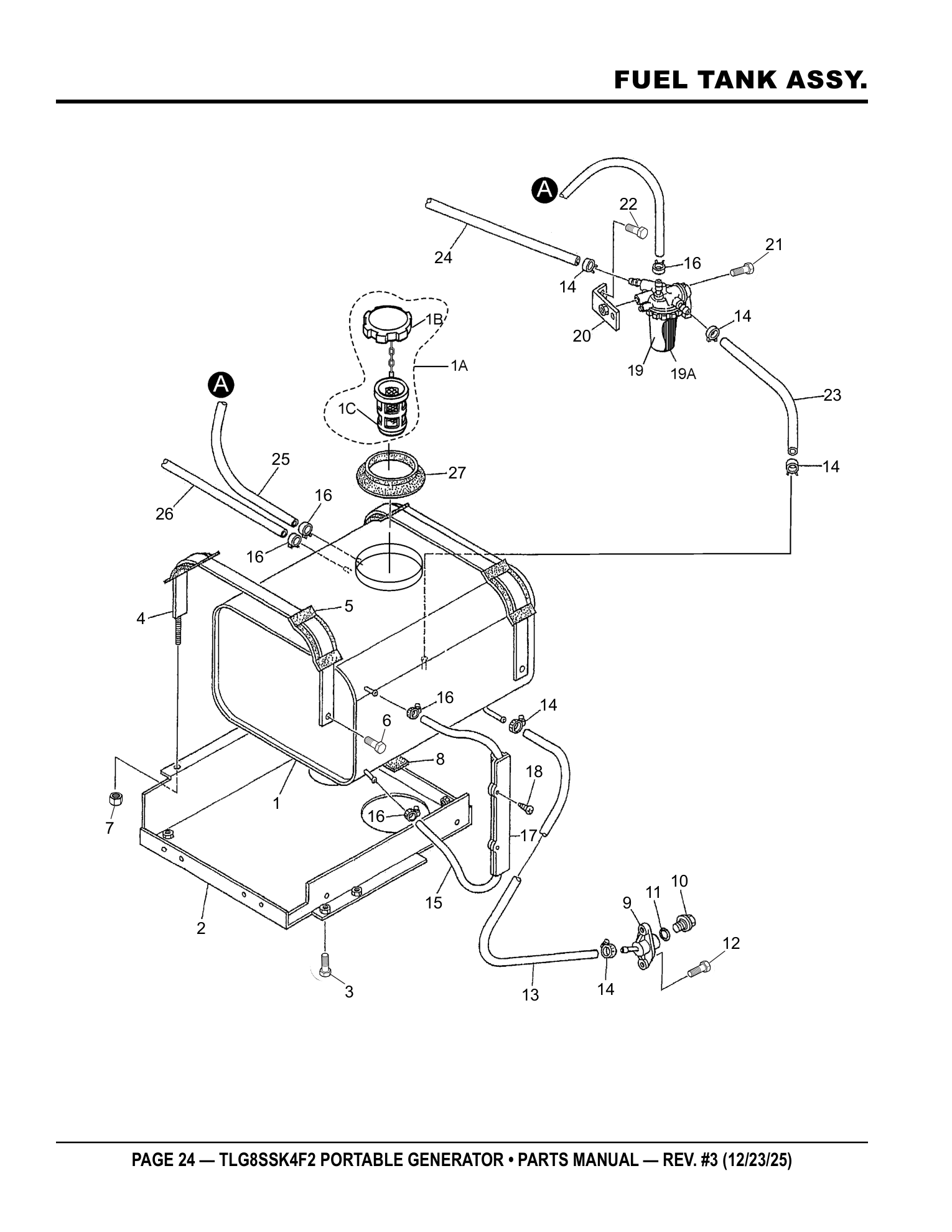

Multiquip TLG8SSK4F2 Generator FUEL TANK ASSY. parts diagram

Parts list — exactly as printed32 rows

No.	Part No.	Part Name	Qty	Remarks
1	W8545500003	FUEL TANK	1		ADD TO CART
FUEL TANK W8545500003 · qty on machine: 1 view full part page → $815.95
1A	A9924800024	CAP ASSY., FUEL TANK	1	INCLUDES ITEMS W/#	ADD TO CART
CAP ASSY., FUEL TANK A9924800024 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 1B#, 1C# view full part page → $50.95 IN A KIT + SOLD SOLO
1B#	0810105800	CAP, FUEL TANK	1		ADD TO CART
CAP, FUEL TANK 0810105800 · qty on machine: 1 Also included in kit 1A - CAP ASSY., FUEL TANK (A9924800024) view full part page → $50.95 IN A KIT + SOLD SOLO
1C#	0810105900	FUEL STRAINER	1		NO LONGER AVAILABLE
PHOTO COMING FUEL STRAINER 0810105900 · qty on machine: 1 Also included in kit 1A - CAP ASSY., FUEL TANK (A9924800024) NO LONGER AVAILABLE
2	W8545525003	BRACKET, FUEL TANK	1	S/N 5890018 AND BELOW	PARTS REQUEST
PHOTO COMING BRACKET, FUEL TANK W8545525003 · qty on machine: 1 S/N 5890018 AND BELOW PARTS REQUEST
2	W8545525013	BRACKET, FUEL TANK	1	S/N 5890019 AND ABOVE	PARTS REQUEST
PHOTO COMING BRACKET, FUEL TANK W8545525013 · qty on machine: 1 S/N 5890019 AND ABOVE PARTS REQUEST
3	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
4	W8545512004	TANK BAND	2		PARTS REQUEST
PHOTO COMING TANK BAND W8545512004 · qty on machine: 2 PARTS REQUEST
5	D6365300504	PAD, TANK BAND	4		ADD TO CART
PAD, TANK BAND D6365300504 · qty on machine: 4 view full part page → $3.95
6	0016906012	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0016906012 · qty on machine: 2 view full part page → $0.52
7	0207308000	HEX. NUT	2		ADD TO CART
HEX. NUT 0207308000 · qty on machine: 2 view full part page → $0.89
8	Y0222100310	TANK SHEET	2		PARTS REQUEST
PHOTO COMING TANK SHEET Y0222100310 · qty on machine: 2 PARTS REQUEST
9	7812014003	DRAIN JOINT	1		ADD TO CART
DRAIN JOINT 7812014003 · qty on machine: 1 view full part page → $25.95
10	0802011104	PLUG	1		ADD TO CART
PLUG 0802011104 · qty on machine: 1 view full part page → $10.95
11	0150000018	O-RING	1		ADD TO CART
O-RING 0150000018 · qty on machine: 1 view full part page → $1.87
12	011106015	HEX. HEAD BOLT	2	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 2 REPLACES P/N 0016906015 view full part page → $0.69
13	Y0370600650	DRAIN HOSE	1		ADD TO CART
DRAIN HOSE Y0370600650 · qty on machine: 1 view full part page → $14.09
14	0605515094	HOSE BAND	6		ADD TO CART
HOSE BAND 0605515094 · qty on machine: 6 view full part page → $8.95
15	Y0264200550	HOSE, FUEL GAUGE	1		ADD TO CART
HOSE, FUEL GAUGE Y0264200550 · qty on machine: 1 view full part page → $4.1
16	0605515200	HOSE BAND	6		ADD TO CART
HOSE BAND 0605515200 · qty on machine: 6 view full part page → $4.95
17	7815511203	BRACKET, FUEL GAUGE	1		ADD TO CART
BRACKET, FUEL GAUGE 7815511203 · qty on machine: 1 view full part page → $16.95
18	Y0029804012	MACHINE SCREW	2		PARTS REQUEST
PHOTO COMING MACHINE SCREW Y0029804012 · qty on machine: 2 PARTS REQUEST
19	1553143012	FUEL FILTER	1	REPLACES P/N 0602042460 INCLUDES ITEMS W/%	PARTS REQUEST
PHOTO COMING FUEL FILTER 1553143012 · qty on machine: 1 REPLACES P/N 0602042460 INCLUDES ITEMS W/% Kit includes: 19A% PARTS REQUEST
19A%	1T02143560	ELEMENT, FUEL FILTER	1	REPLACES P/N 0602042171	ADD TO CART
ELEMENT, FUEL FILTER 1T02143560 · qty on machine: 1 REPLACES P/N 0602042171 Also included in kit 19 - FUEL FILTER (1553143012) view full part page → $14.95 IN A KIT + SOLD SOLO
20	W8745515004	BRACKET, FUEL FILTER	1		PARTS REQUEST
PHOTO COMING BRACKET, FUEL FILTER W8745515004 · qty on machine: 1 PARTS REQUEST
21	0017108065	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0017108065 · qty on machine: 1 view full part page → $0.95
22	011008020	HEX. HEAD BOLT	1	REPLACES P/N 0017108020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 1 REPLACES P/N 0017108020 view full part page → $2.68
23	0370600160	SUCTION HOSE	1		PARTS REQUEST
PHOTO COMING SUCTION HOSE 0370600160 · qty on machine: 1 PARTS REQUEST
24	0370600400	SUCTION HOSE	1		PARTS REQUEST
PHOTO COMING SUCTION HOSE 0370600400 · qty on machine: 1 PARTS REQUEST
25	0370700220	RETURN HOSE	1		PARTS REQUEST
PHOTO COMING RETURN HOSE 0370700220 · qty on machine: 1 PARTS REQUEST
26	0370700160	RETURN HOSE	1		PARTS REQUEST
PHOTO COMING RETURN HOSE 0370700160 · qty on machine: 1 PARTS REQUEST
27	B9312400004	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL B9312400004 · qty on machine: 1 view full part page → $12.95

Page 26 — ENCLOSURE ASSY.

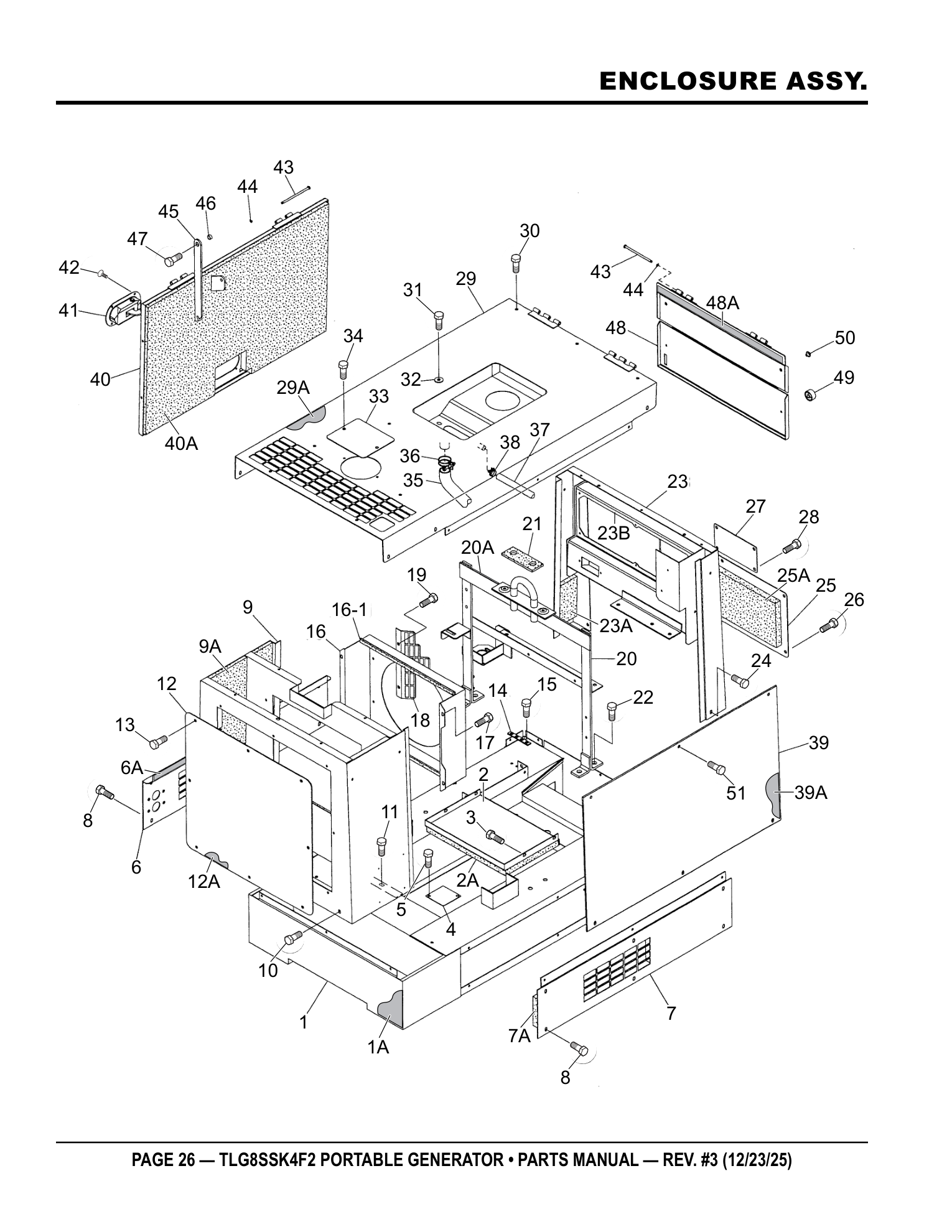

Multiquip TLG8SSK4F2 Generator ENCLOSURE ASSY. parts diagram

Parts list — exactly as printed46 rows

No.	Part No.	Part Name	Qty	Remarks
1	A6414002102	BASE	1		PARTS REQUEST
PHOTO COMING BASE A6414002102 · qty on machine: 1 PARTS REQUEST
1A	A6494001003	LINING	1		PARTS REQUEST
PHOTO COMING LINING A6494001003 · qty on machine: 1 PARTS REQUEST
2	A6414600004	DUCT	1		PARTS REQUEST
PHOTO COMING DUCT A6414600004 · qty on machine: 1 PARTS REQUEST
2A	A6494000304	LINING	1		PARTS REQUEST
PHOTO COMING LINING A6494000304 · qty on machine: 1 PARTS REQUEST
3	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0016906015 view full part page → $0.69
4	D3414800104	COVER	1		ADD TO CART
COVER D3414800104 · qty on machine: 1 view full part page → $29.95
5	011106015	HEX. HEAD BOLT	2	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 2 REPLACES P/N 0016906015 view full part page → $0.69
6	A6454200403	SPLASHER PANEL	1		PARTS REQUEST
PHOTO COMING SPLASHER PANEL A6454200403 · qty on machine: 1 PARTS REQUEST
6A	A6494000204	LINING	1		PARTS REQUEST
PHOTO COMING LINING A6494000204 · qty on machine: 1 PARTS REQUEST
7	A6414400103	SPLASHER PANEL	1		PARTS REQUEST
PHOTO COMING SPLASHER PANEL A6414400103 · qty on machine: 1 PARTS REQUEST
7A	A6494000204	LINING	1		PARTS REQUEST
PHOTO COMING LINING A6494000204 · qty on machine: 1 PARTS REQUEST
8	011106015	HEX. HEAD BOLT	12	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 12 REPLACES P/N 0016906015 view full part page → $0.69
9	A6424001202	FRONT FRAME	1		PARTS REQUEST
PHOTO COMING FRONT FRAME A6424001202 · qty on machine: 1 PARTS REQUEST
9A	A6494101603	LINING	1		PARTS REQUEST
PHOTO COMING LINING A6494101603 · qty on machine: 1 PARTS REQUEST
10	011106015	HEX. HEAD BOLT	3	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 3 REPLACES P/N 0016906015 view full part page → $0.69
11	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0017108020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0017108020 view full part page → $2.68
12	A5424100004	FRONT PANEL	1		ADD TO CART
FRONT PANEL A5424100004 · qty on machine: 1 view full part page → $335.95
12A	A6494101504	LINING	1		PARTS REQUEST
PHOTO COMING LINING A6494101504 · qty on machine: 1 PARTS REQUEST
13	011206020	HEX. HEAD BOLT	8	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 8 REPLACES P/N 0016906020 view full part page → $0.95
14	B1262800004A	PLATE	1	REPLACES P/N B1262800004	ADD TO CART
PLATE B1262800004A · qty on machine: 1 REPLACES P/N B1262800004 view full part page → $12.95
15	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0017106015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0017106015 view full part page → $0.69
16	A6311300803	FAN SHROUD	1		PARTS REQUEST
PHOTO COMING FAN SHROUD A6311300803 · qty on machine: 1 PARTS REQUEST
16-1	Y0315500375	RUBBER SEAL	4		PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0315500375 · qty on machine: 4 PARTS REQUEST
17	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0016906015 view full part page → $0.69
18	A6311200513	FAN GUARD	1		ADD TO CART
FAN GUARD A6311200513 · qty on machine: 1 view full part page → $61.95
19	011106015	HEX. HEAD BOLT	2	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 2 REPLACES P/N 0016906015 view full part page → $0.69
20	A6434300802	HANGER	1		PARTS REQUEST
PHOTO COMING HANGER A6434300802 · qty on machine: 1 PARTS REQUEST
20A	0226900200	RUBBER SEAL	1		PARTS REQUEST
PHOTO COMING RUBBER SEAL 0226900200 · qty on machine: 1 PARTS REQUEST
21	7835132314A	RUBBER SEAL	1	REPLACES P/N 7835132314	ADD TO CART
RUBBER SEAL 7835132314A · qty on machine: 1 REPLACES P/N 7835132314 view full part page → $6.95
22	0012312030	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0012312030 · qty on machine: 4 view full part page → $6.95
23	A6444002002	REAR FRAME	1		PARTS REQUEST
PHOTO COMING REAR FRAME A6444002002 · qty on machine: 1 PARTS REQUEST
23A	A6494300104	LINING	1		PARTS REQUEST
PHOTO COMING LINING A6494300104 · qty on machine: 1 PARTS REQUEST
23B	Y0226900035	RUBBER SEAL	1		PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0226900035 · qty on machine: 1 PARTS REQUEST
24	011106015	HEX. HEAD BOLT	2	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 2 REPLACES P/N 0016906015 view full part page → $0.69
25	A6444301304	COVER, REAR FRAME	1		PARTS REQUEST
PHOTO COMING COVER, REAR FRAME A6444301304 · qty on machine: 1 PARTS REQUEST
25A	A6494301104	LINING	1		PARTS REQUEST
PHOTO COMING LINING A6494301104 · qty on machine: 1 PARTS REQUEST
26	011106015	HEX. HEAD BOLT	6	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 6 REPLACES P/N 0016906015 view full part page → $0.69
27	A6444800104	COVER	1		PARTS REQUEST
PHOTO COMING COVER A6444800104 · qty on machine: 1 PARTS REQUEST
28	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0016906015 view full part page → $0.69
29	A6464001202	ROOF PANEL	1		PARTS REQUEST
PHOTO COMING ROOF PANEL A6464001202 · qty on machine: 1 PARTS REQUEST
29A	A6494500604	LINING	1		PARTS REQUEST
PHOTO COMING LINING A6494500604 · qty on machine: 1 PARTS REQUEST
30	011106015	HEX. HEAD BOLT	12	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 12 REPLACES P/N 0016906015 view full part page → $0.69
31	Y0340608020	HEX. HEAD BOLT	2		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0340608020 · qty on machine: 2 PARTS REQUEST
32	0801086004	SET WASHER	2		ADD TO CART
SET WASHER 0801086004 · qty on machine: 2 view full part page → $1.95
33	8432081004	FILLER COVER	1		ADD TO CART
FILLER COVER 8432081004 · qty on machine: 1 view full part page → $81.95
34	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0016906015 view full part page → $0.69

Page 28 — ENCLOSURE ASSY. (CONT'D.)

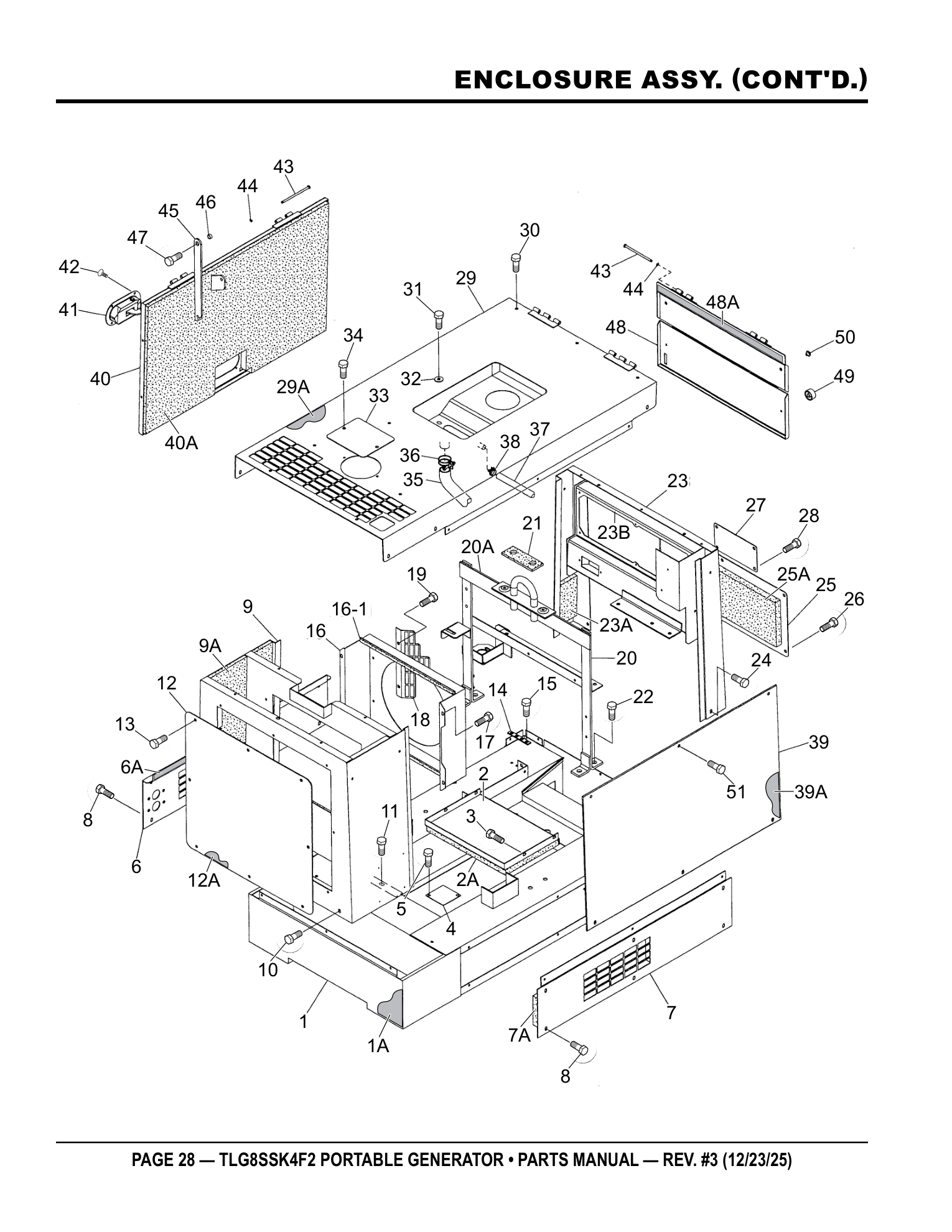

Multiquip TLG8SSK4F2 Generator ENCLOSURE ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed21 rows

No.	Part No.	Part Name	Qty	Remarks
35	A6464500103	HOSE	1		PARTS REQUEST
PHOTO COMING HOSE A6464500103 · qty on machine: 1 PARTS REQUEST
36	0605515159	HOSE BAND	1		ADD TO CART
HOSE BAND 0605515159 · qty on machine: 1 view full part page → $1.32
37	Y0264500780	HOSE	1		PARTS REQUEST
PHOTO COMING HOSE Y0264500780 · qty on machine: 1 PARTS REQUEST
38	Y0605515169	HOSE BAND	1		ADD TO CART
HOSE BAND Y0605515169 · qty on machine: 1 view full part page → $1.59
39	A6454100203	SIDE PANEL	1		PARTS REQUEST
PHOTO COMING SIDE PANEL A6454100203 · qty on machine: 1 PARTS REQUEST
39A	A6494400204	LINING	1	S/N 5815367 AND BELOW	PARTS REQUEST
PHOTO COMING LINING A6494400204 · qty on machine: 1 S/N 5815367 AND BELOW PARTS REQUEST
39A	A6494401304	LINING	1	S/N 5815368 AND ABOVE	PARTS REQUEST
PHOTO COMING LINING A6494401304 · qty on machine: 1 S/N 5815368 AND ABOVE PARTS REQUEST
40	A6454000303	SIDE DOOR	1		ADD TO CART
SIDE DOOR A6454000303 · qty on machine: 1 view full part page → $623.03
40A	A6494400204	LINING	1		PARTS REQUEST
PHOTO COMING LINING A6494400204 · qty on machine: 1 PARTS REQUEST
41	0605010215	DOOR HANDLE	1		ADD TO CART
DOOR HANDLE 0605010215 · qty on machine: 1 view full part page → $42.95
42	0021805012	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021805012 · qty on machine: 4 view full part page → $0.39
43	0810014704	PIN	4		ADD TO CART
PIN 0810014704 · qty on machine: 4 view full part page → $3.95
44	0080200004	SNAP RING	4		ADD TO CART
SNAP RING 0080200004 · qty on machine: 4 view full part page → $0.29
45	1995186004	DOOR STAY	1		ADD TO CART
DOOR STAY 1995186004 · qty on machine: 1 view full part page → $18.95
46	7835088004	COLLAR	1		ADD TO CART
COLLAR 7835088004 · qty on machine: 1 view full part page → $2.95
47	011208025	HEX. HEAD BOLT	2	REPLACES P/N 0016908025	ADD TO CART
HEX. HEAD BOLT 011208025 · qty on machine: 2 REPLACES P/N 0016908025 view full part page → $0.41
48	A6444200103	REAR DOOR	1		PARTS REQUEST
PHOTO COMING REAR DOOR A6444200103 · qty on machine: 1 PARTS REQUEST
48A	Y0226900505	RUBBER SEAL	1		PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0226900505 · qty on machine: 1 PARTS REQUEST
49	0601851613	STOPPER	2		ADD TO CART
STOPPER 0601851613 · qty on machine: 2 view full part page → $2.95
50	0601851660	STOPPER	2		ADD TO CART
STOPPER 0601851660 · qty on machine: 2 view full part page → $1.95
51	011206020	HEX. HEAD BOLT	6	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 6 REPLACES P/N 0016906020 view full part page → $0.95

Page 30 — RUBBER SEALS ASSY.

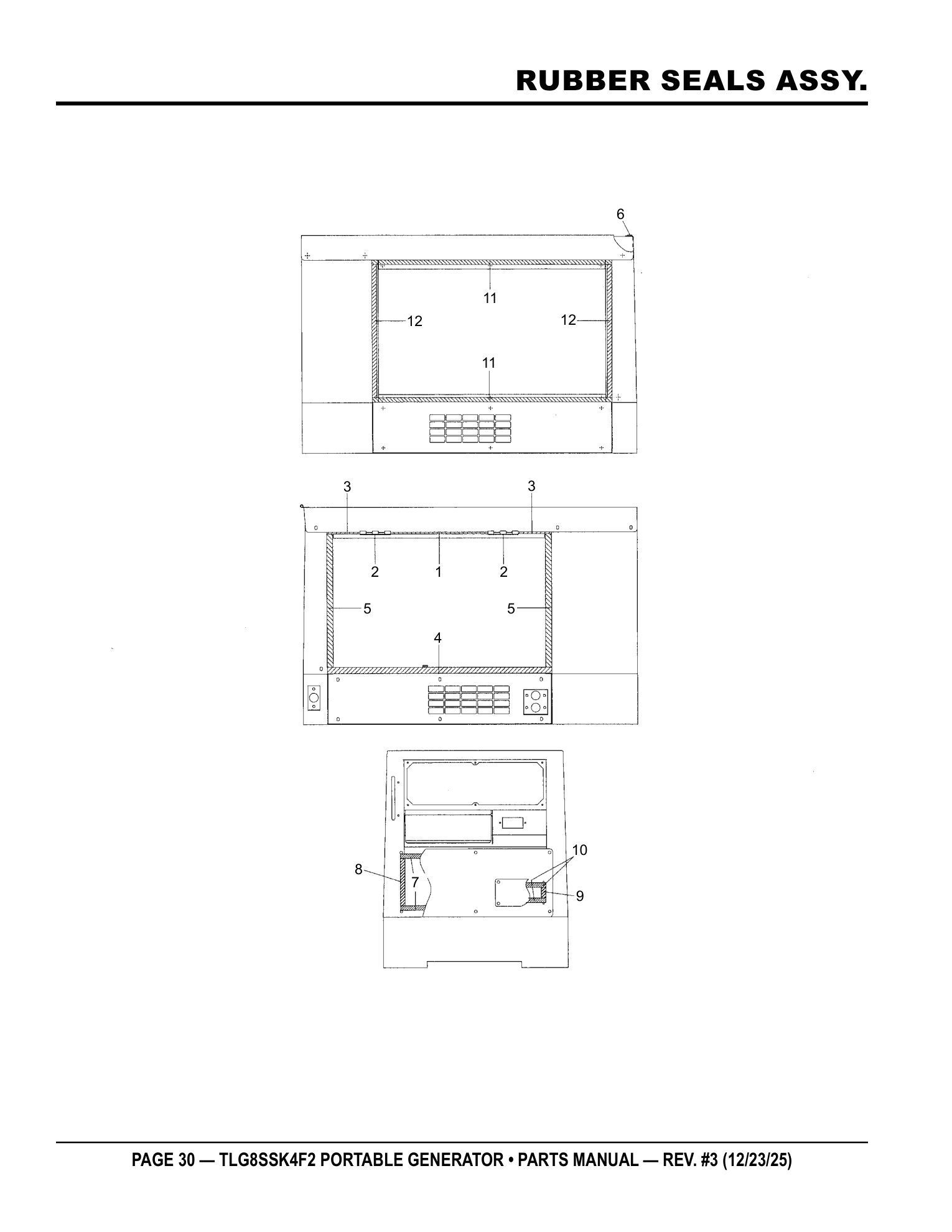

Multiquip TLG8SSK4F2 Generator RUBBER SEALS ASSY. parts diagram

Parts list — exactly as printed12 rows

No.	Part No.	Part Name	Qty
1	Y0221200320	RUBBER SEAL	1	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0221200320 · qty on machine: 1 PARTS REQUEST
2	0222600100	RUBBER SEAL	2	ADD TO CART
RUBBER SEAL 0222600100 · qty on machine: 2 view full part page → $15.95
3	0221200110	RUBBER SEAL	2	PARTS REQUEST
PHOTO COMING RUBBER SEAL 0221200110 · qty on machine: 2 PARTS REQUEST
4	0221200740	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL 0221200740 · qty on machine: 1 view full part page → $53.95
5	Y0221200445	RUBBER SEAL	2	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0221200445 · qty on machine: 2 PARTS REQUEST
6	Y0314900580	RUBBER SEAL	1	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0314900580 · qty on machine: 1 PARTS REQUEST
7	Y0314900495	RUBBER SEAL	2	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0314900495 · qty on machine: 2 PARTS REQUEST
8	Y0314900160	RUBBER SEAL	2	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0314900160 · qty on machine: 2 PARTS REQUEST
9	Y0314900035	RUBBER SEAL	2	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0314900035 · qty on machine: 2 PARTS REQUEST
10	Y0314900165	RUBBER SEAL	2	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0314900165 · qty on machine: 2 PARTS REQUEST
11	Y0314900788	RUBBER SEAL	2	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0314900788 · qty on machine: 2 PARTS REQUEST
12	Y0314900440	RUBBER SEAL	2	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0314900440 · qty on machine: 2 PARTS REQUEST

Page 32 — NAMEPLATE AND DECALS ASSY.

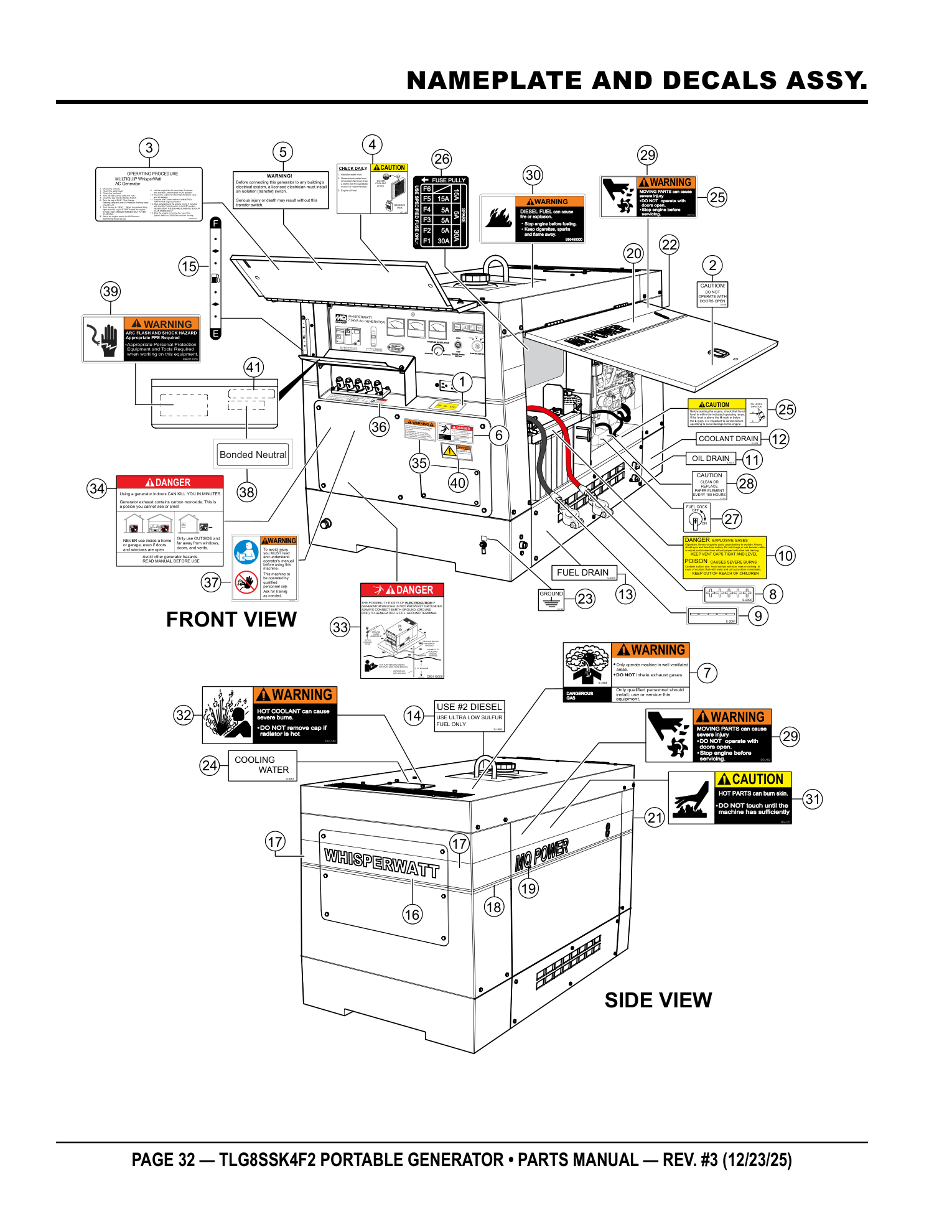

Multiquip TLG8SSK4F2 Generator NAMEPLATE AND DECALS ASSY. parts diagram

Parts list — exactly as printed41 rows

No.	Part No.	Part Name	Qty	Remarks
1	A6551001004	DECAL: AC POWER OUTPUT	1	A65100100	PARTS REQUEST
PHOTO COMING DECAL: AC POWER OUTPUT A6551001004 · qty on machine: 1 A65100100 PARTS REQUEST
2	1630610504	DECAL: CAUTION	1	S-1409	ADD TO CART
DECAL: CAUTION 1630610504 · qty on machine: 1 S-1409 view full part page → $1.95
3	A6551001103	DECAL: OPERATING PROCEDURE	1	A65100110	PARTS REQUEST
PHOTO COMING DECAL: OPERATING PROCEDURE A6551001103 · qty on machine: 1 A65100110 PARTS REQUEST
4	6390671104	DECAL: IMPORTANT "CHECK DAILY”	1	S-2377	ADD TO CART
DECAL: IMPORTANT "CHECK DAILY” 6390671104 · qty on machine: 1 S-2377 view full part page → $6.95
5	W0820610404	DECAL: WARNING	1	S-3637	PARTS REQUEST
PHOTO COMING DECAL: WARNING W0820610404 · qty on machine: 1 S-3637 PARTS REQUEST
6	8700611904	DECAL: DANGER ELECT. SHOCK HAZARD	1	S-4985	ADD TO CART
DECAL: DANGER ELECT. SHOCK HAZARD 8700611904 · qty on machine: 1 S-4985 view full part page → $5.95
7	D9504200204	DECAL: WARNING DANGEROUS GAS	1	D90420020	PARTS REQUEST
PHOTO COMING DECAL: WARNING DANGEROUS GAS D9504200204 · qty on machine: 1 D90420020 PARTS REQUEST
8	W0600689404	DECAL: +	1	S-2090	PARTS REQUEST
PHOTO COMING DECAL: + W0600689404 · qty on machine: 1 S-2090 PARTS REQUEST
9	W0600689504	DECAL: -	1	S-2091	PARTS REQUEST
PHOTO COMING DECAL: - W0600689504 · qty on machine: 1 S-2091 PARTS REQUEST
10	W0820650604	DECAL: DANGER EXPLOSIVE GASES	1		PARTS REQUEST
PHOTO COMING DECAL: DANGER EXPLOSIVE GASES W0820650604 · qty on machine: 1 PARTS REQUEST
11	1630645004	DECAL: OIL DRAIN	1	S-1403	ADD TO CART
DECAL: OIL DRAIN 1630645004 · qty on machine: 1 S-1403 view full part page → $1.43
12	1630647004	DECAL: COOLANT DRAIN	1	S-1404	ADD TO CART
DECAL: COOLANT DRAIN 1630647004 · qty on machine: 1 S-1404 view full part page → $1.43
13	7810680104	DECAL: FUEL DRAIN	1	S-3060	ADD TO CART
DECAL: FUEL DRAIN 7810680104 · qty on machine: 1 S-3060 view full part page → $2.73
14	B9504501214	DECAL: DIESEL FUEL	1	B90450121	ADD TO CART
DECAL: DIESEL FUEL B9504501214 · qty on machine: 1 B90450121 view full part page → $5.95
15	W8720615204	DECAL: FUEL GAUGE	1	S-4704A	PARTS REQUEST
PHOTO COMING DECAL: FUEL GAUGE W8720615204 · qty on machine: 1 S-4704A PARTS REQUEST
16	A5561100503	DECAL: STRIPE WHISPERWATT	1		ADD TO CART
DECAL: STRIPE WHISPERWATT A5561100503 · qty on machine: 1 view full part page → $69.95
17	A6561100204	DECAL: STRIPE	2		PARTS REQUEST
PHOTO COMING DECAL: STRIPE A6561100204 · qty on machine: 2 PARTS REQUEST
18	A6561100304	DECAL: STRIPE	1		PARTS REQUEST
PHOTO COMING DECAL: STRIPE A6561100304 · qty on machine: 1 PARTS REQUEST
19	A6561100403	DECAL: STRIPE MQ POWER 8	1		PARTS REQUEST
PHOTO COMING DECAL: STRIPE MQ POWER 8 A6561100403 · qty on machine: 1 PARTS REQUEST
20	A6561100603	DECAL: STRIPE MQ POWER 8	1		PARTS REQUEST
PHOTO COMING DECAL: STRIPE MQ POWER 8 A6561100603 · qty on machine: 1 PARTS REQUEST
21	A6561100504	DECAL: STRIPE	2		ADD TO CART
DECAL: STRIPE A6561100504 · qty on machine: 2 view full part page → $9.95
22	A6561100704	DECAL: STRIPE	1		PARTS REQUEST
PHOTO COMING DECAL: STRIPE A6561100704 · qty on machine: 1 PARTS REQUEST
23	W0600628504	DECAL: GROUND	1	S-1123	PARTS REQUEST
PHOTO COMING DECAL: GROUND W0600628504 · qty on machine: 1 S-1123 PARTS REQUEST
24	7810680204	DECAL: COOLING WATER	1	S-3061	ADD TO CART
DECAL: COOLING WATER 7810680204 · qty on machine: 1 S-3061 view full part page → $1.55
25	B9505000304	DECAL: CAUTION OIL LEVEL GAUGE	1	B90500030	ADD TO CART
DECAL: CAUTION OIL LEVEL GAUGE B9505000304 · qty on machine: 1 B90500030 view full part page → $4.95
26	8700625504	DECAL: FUSE BOX	1	S-4936	ADD TO CART
DECAL: FUSE BOX 8700625504 · qty on machine: 1 S-4936 view full part page → $1.95
27	1630680104	DECAL: FUEL COCK	1	S-1407	ADD TO CART
DECAL: FUEL COCK 1630680104 · qty on machine: 1 S-1407 view full part page → $1.95
28	1630610404	DECAL: CAUTION	1	S-1406	ADD TO CART
DECAL: CAUTION 1630610404 · qty on machine: 1 S-1406 view full part page → $1.43
29	B9504000404	DECAL: WARNING MOVING PARTS	2	B90400040	ADD TO CART
DECAL: WARNING MOVING PARTS B9504000404 · qty on machine: 2 B90400040 view full part page → $4.95
30	B9504500004	DECAL: WARNING DIESEL FUEL	1	B90450000	ADD TO CART
DECAL: WARNING DIESEL FUEL B9504500004 · qty on machine: 1 B90450000 view full part page → $4.95
31	B9504000304	DECAL: CAUTION HOT PARTS	1	B90400030	ADD TO CART
DECAL: CAUTION HOT PARTS B9504000304 · qty on machine: 1 B90400030 view full part page → $4.95
32	B9504100104	DECAL: WARNING HOT COOLANT	1	B90410010	ADD TO CART
DECAL: WARNING HOT COOLANT B9504100104 · qty on machine: 1 B90410010 view full part page → $4.95
33	D9531100004	DECAL: DANGER ELECTROCUTION	1	D93110000	ADD TO CART
DECAL: DANGER ELECTROCUTION D9531100004 · qty on machine: 1 D93110000 view full part page → $9.95
34	A9504000014	DECAL: DANGER	1	A90400001	ADD TO CART
DECAL: DANGER A9504000014 · qty on machine: 1 A90400001 view full part page → $12.95
35	920214100	DECAL: WARNING START FIRES	1	REPLACES P/N M9504200004 M90420000	ADD TO CART
DECAL: WARNING START FIRES 920214100 · qty on machine: 1 REPLACES P/N M9504200004 M90420000 view full part page → $12.95
36	A9521201003	DECAL: 3-PHASE AC OUTPUT TERMINAL	1	A92120100	PARTS REQUEST
PHOTO COMING DECAL: 3-PHASE AC OUTPUT TERMINAL A9521201003 · qty on machine: 1 A92120100 PARTS REQUEST
37	35137	DECAL: READ MANUAL	1	REPLACES P/N A9511100004 A91110000	ADD TO CART
DECAL: READ MANUAL 35137 · qty on machine: 1 REPLACES P/N A9511100004 A91110000 view full part page → $2.95
38	M9521200604	DECAL: BONDED NEUTRAL	1	M92120060	ADD TO CART
DECAL: BONDED NEUTRAL M9521200604 · qty on machine: 1 M92120060 view full part page → $11.95
39	M9520100704	DECAL: WARNING ARC FLASH	1	M92010070	ADD TO CART
DECAL: WARNING ARC FLASH M9520100704 · qty on machine: 1 M92010070 view full part page → $4.95
40	A9511101304	DECAL: WARNING PROPOSITION	65	1 A91110130 S/N 5825837 AND ABOVE	ADD TO CART
DECAL: WARNING PROPOSITION A9511101304 · qty on machine: 65 1 A91110130 S/N 5825837 AND ABOVE view full part page → $4.95
41	A9511101704	DECAL: TERMINAL BOLT TORQUE	1	A91110170 S/N 5919130 AND ABOVE	PARTS REQUEST
PHOTO COMING DECAL: TERMINAL BOLT TORQUE A9511101704 · qty on machine: 1 A91110170 S/N 5919130 AND ABOVE PARTS REQUEST

The machine itself

Price by quote Get a quote

Tell us where the machine is headed and we'll quote it with freight. One call, no games.

The Multiquip TLG8SSK4F2 is a generator built for portable jobsite power for tools, lighting, and equipment. It runs a Kubota Z482-E4B-DGDE-4 engine. Factory-documented specs and parts support; priced by quote.

Keep-it-running spares

All listed parts →

Every part that fits this machine

0071206304 Multiquip 0071206304 Bearing GDP-5000H SGW-225SS - OEM Replacement Part $53.95

0221200740 Multiquip 0221200740 Seal Rubber Denyo - OEM Replacement Part $53.95

0601800455 Multiquip 0601800455 Frequency Meter Denyo - OEM Replacement Part $330.95

0601800682 Multiquip 0601800682 Hour Meter Denyo - OEM Replacement Part $116.95

0601815759 Multiquip 0601815759 Terminal Board BLW-400SSW - OEM Replacement Part $36.95

0601820660 Multiquip 0601820660 AVR DENYO - OEM Replacement Part $800.95

0601840073 Multiquip 0601840073 Rheostat Voltage Regulator for 150SSK and DCA Series Generators - OEM Replacement Part $90.95

0602011079 Multiquip 0602011079 Radiator Cap Denyo - OEM Replacement Part $137.95

0605010215 Multiquip 0605010215 Door Handle - OEM Replacement Part $42.95

1556211010 Multiquip 1556211010 Air Cleaner Assembly - OEM Replacement Part for Super Silent Generators $247.95

1569465990 Multiquip 1569465990 Timer Lamp Quick Glow - OEM Replacement Part $152.95

1584464603 Multiquip 1584464603 Regulator Comp - OEM Replacement Part for Super Silent Generators $375.95

1992636004 Multiquip 1992636004 Arm Solenoid - OEM Replacement Part $80.95

7000011221 Multiquip 7000011221 Air Cleaner Filter - OEM Replacement Part $54.95

7085419004 Multiquip 7085419004 Rubber Suspension - OEM Replacement Part $34.95

7811861004 Multiquip 7811861004 Terminal Output - OEM Replacement Part $46.95

8432081004 Multiquip 8432081004 Cover Radiator Cap - OEM Replacement Part $81.95

8742032003A Multiquip 8742032003A Hose Air Cleaner - OEM Replacement Part $110.95

A5311500203 Multiquip A5311500203 Radiator Hose - OEM Replacement Part $44.95

A5311500404 Multiquip A5311500404 Upper Radiator Hose - OEM Replacement Part $40.95

A5424100004 Multiquip A5424100004 Front Panel - OEM Replacement Part for Super Silent Generators $335.95

A5924200174 Multiquip A5924200174 Engine - OEM Replacement Part for Super Silent Generators $8,391.95

A6511302602 Multiquip A6511302602 Control Panel TLG8SSK4F (JPN) - OEM Replacement Part for Super Silent Generators $181.95

A9924800024 Multiquip A9924800024 Cap & DLW-400ES,GAW-180HE - OEM Replacement Part $50.95

B0352500104 Multiquip B0352500104 Box Fuse DCA-15SPX3,10SPX3 - OEM Replacement Part $63.95

W8545500003 Multiquip W8545500003 Fuel Tank DENYO (JP) - OEM Replacement Part for Super Silent Generators $815.95

Y0165103820 Multiquip Y0165103820 Battery (26R-75) - OEM Replacement Part $276.95

Y0601814034 Multiquip Y0601814034 GFCI Receptacle 5-20R (KY) - OEM Replacement Part $91.95

0010108050 HEX HEAD BOLT $0.78

0011305100 HEX. HEAD BOLT $1.53

0012108035 HEX. HEAD BOLT $1.95

0012308020 HEX. HEAD BOLT $1.88

0016906012 HEX. HEAD BOLT $0.52

0016906015 HEX. HEAD BOLT $0.95

0016908040 HEX. HEAD BOLT $1.52

0017108065 HEX. HEAD BOLT $0.95

0021004060 MACHINE SCREW $0.62

0021805012 MACHINE SCREW $0.39

0023706000 HEX. NUT $0.95

0027103020 MACHINE SCREW $0.37

0027104012 MACHINE SCREW

0027104015 MACHINE SCREW $0.53

0027104020 MACHINE SCREW $0.40

0027105015 MACHINE SCREW $0.20

0027105020 MACHINE SCREW $0.62

0027403010 MACHINE SCREW $0.79

0027404010 MACHINE SCREW $0.37

0037806000 WING NUT $1.95

0040004000 WASHER, LOCK $0.09

0040006000 WASHER, LOCK $0.17

0040008000 WASHER, LOCK $0.63

0040010000 WASHER, LOCK $0.39

0041203000 WASHER, FLAT $0.12

0041408000 WASHER, FLAT $1.63

0042806000 WASHER, FLAT $0.39

0050403020 SPRING PIN $0.53

0080200004 SNAP RING $0.29

011008020 HEX. HEAD BOLT $2.68

011106015 HEX. HEAD BOLT $0.69

011206020 HEX. HEAD BOLT $0.95

011208025 HEX. HEAD BOLT $0.41

011208030 HEX. HEAD BOLT $1.30

011606025 HEX. HEAD BOLT $1.95

0150000018 O-RING $1.87

0171707033 KEY $25.95

0199100215 HOSE $3.95

0199900420 HOSE $10.95

0199900500 DRAIN HOSE $11.95

020106050 HEX. NUT $0.12

020108060 HEX. NUT $0.28

0207003000 HEX. NUT $0.21

0207308000 HEX. NUT $0.89

021112140 HEX. NUT $0.46

0221200110 RUBBER SEAL

0222600100 RUBBER SEAL $15.95

0222600340 RUBBER CUSHION $4.95

0226900120 RUBBER SEAL

0226900200 RUBBER SEAL

031108160 WASHER, FLAT

031110160 WASHER, FLAT $0.40

0340406040 HEX. HEAD BOLT $2.68

0370600400 SUCTION HOSE

0370700160 RETURN HOSE

0370700220 RETURN HOSE

0401450080 WASHER, FLAT $0.56

0601800268 AC VOLTMETER, 0-300V

0601806640 FUSE, 65A $11.95

0601806643 FUSE, 15A $5.95

0601806644 FUSE, 30A $1.43

0601810830 BULB $8.95

0601815779 TERMINAL BOARD $18.95

0601822638 SURGE ABSORBER $5.95

0601823204 RECTIFIER $16.95

0601830727 ENGINE SPEED SWITCH $15.95

0601840100 KNOB $30.95

0601851613 STOPPER $2.95

0601851660 STOPPER $1.95

0602220312 TERMINAL ASSY., POSITIVE $10.95

0602220313 TERMINAL ASSY., NEGATIVE $22.95

0602220930 CLAMPER

0605515006 HOSE BAND

0605515094 HOSE BAND $8.95

0605515132 HOSE BAND $4.95

0605515134 HOSE BAND $4.95

0605515159 HOSE BAND $1.32

0605515200 HOSE BAND $4.95

0801086004 SET WASHER $1.95

0801830604 HEX. HEAD BOLT $11.95

0802011104 PLUG $10.95

0802081104 CAP, RESERVE TANK $5.95

0802081403 RESERVE TANK $29.95

0805081004 BATTERY SHEET $24.95

0805082704 BATTERY BOLT $3.95

0810014704 PIN $3.95

0810105900 FUEL STRAINER

0821800014 COLLAR $0.24

0845040414 TERMINAL CAP $13.95

1502025103C DRAIN JOINT, OIL $29.95

1526312371 GASKET

1553143012 FUEL FILTER

16-1 Y0315500375

1622014103 DRAIN JOINT, WATER $23.95

1630645004 DECAL: OIL DRAIN $1.43

1630680104 DECAL: FUEL COCK $1.95

1747260604 EMERGENCY UNIT

1961324003 GROMMET $9.95

1980572530 FAN BELT $25.95

1991072004 SET WASHER, FAN $4.95

1995186004 DOOR STAY $18.95

1T02143560 ELEMENT, FUEL FILTER $14.95

3741055150 KEY $17.95

505015300 SNAP PIN $0.95

58042 WASHER, FLAT $0.17

7810680104 DECAL: FUEL DRAIN $2.73

7812014003 DRAIN JOINT $25.95

7815511203 BRACKET, FUEL GAUGE $16.95

7835088004 COLLAR $2.95

7835132314A RUBBER SEAL $6.95

8742031004 BRACKET, AIR CLEANER $14.95

920214100 DECAL: WARNING START FIRES $12.95

952404470 WASHER, FLAT $0.19

A5321100204 DRAIN HOSE $41.21

A6237400304 RUBBER SHEET

A6261500813 BRACKET, ELECTRIC PARTS

A6315000803 ARMATURE ASSY.

A6331001003 MUFFLER

A6414002102 BASE

A6414400103 SPLASHER PANEL

A6414600004 DUCT

A6444002002 REAR FRAME

A6454000303 SIDE DOOR $623.03

A6454100203 SIDE PANEL

A6464500103 HOSE

A6494000204 LINING

A6494000304 LINING

A6494001003 LINING

A6494101504 LINING

A6494101603 LINING

A6494300104 LINING

A6494301104 LINING

A6494400204 LINING

A6494500604 LINING

A6551001004 DECAL: AC POWER OUTPUT

A6551001103 DECAL: OPERATING PROCEDURE

A6561100204 DECAL: STRIPE

A6561100304 DECAL: STRIPE

A6561100403 DECAL: STRIPE MQ POWER 8

A6561100504 DECAL: STRIPE $9.95

A6561100603 DECAL: STRIPE MQ POWER 8

A6561100704 DECAL: STRIPE

A9511101304 DECAL: WARNING PROPOSITION 65 $4.95

A9511101704 DECAL: TERMINAL BOLT TORQUE

A9521201003 DECAL: 3-PHASE AC OUTPUT TERMINAL

B1312600004 MOUNT RUBBER $15.95

B9312400004 RUBBER SEAL $12.95

B9504000304 DECAL: CAUTION HOT PARTS $4.95

B9504000404 DECAL: WARNING MOVING PARTS $4.95

B9505000304 DECAL: CAUTION OIL LEVEL GAUGE $4.95

D2131500204 SET BOLT

D2155300003 SPACER

D6365300504 PAD, TANK BAND $3.95

D9101200004 PIPE BAND

D9304000004 GASKET $16.95

D9311200004 RUBBER WASHER $2.82

D9504200204 DECAL: WARNING DANGEROUS GAS

D9522000704 DECAL $2.95

D9531100004 DECAL: DANGER ELECTROCUTION $9.95

M9521200604 DECAL: BONDED NEUTRAL $11.95

O-RING 2

OEMAA8 HEX. NUT $0.40

PLUG 2

RECTIFIER 1

W0600628504 DECAL: GROUND

W0600689504 DECAL: -

W0820610404 DECAL: WARNING

W1622082004 BRACKET, RESERVE TANK

W1991070022 FAN

W1992639003 SOLENOID ASSY

W8540613604 DECAL

W8541000113 ROTOR ASSY

From the guides desk

Guide · 2026-08-04

Ask ARIA about your machine.

Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.

Chat with ARIA

Multiquip TLG8SSK4F2 Generator

The parts bench

The machine itself

Machine

Engine

Keep-it-running spares

Every part that fits this machine

Service notices & part changes

Take the factory book with you

Get the download pack

From the guides desk

Multiquip DCA Generator Fault Shutdown and Controller Reset Guide

Multiquip Generator No-Start and No-Power Fixes

Multiquip DCA Generator Fault Codes and Diagnostics Guide

Ask ARIA about your machine.

Your cart is empty

Your cart is empty
