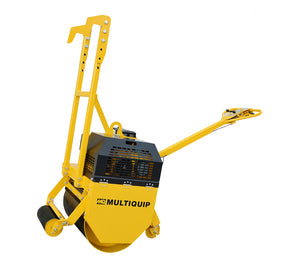

Multiquip V305 29" Roller
Factory parts book · interactive
Multiquip V305 29" Roller
The parts bench

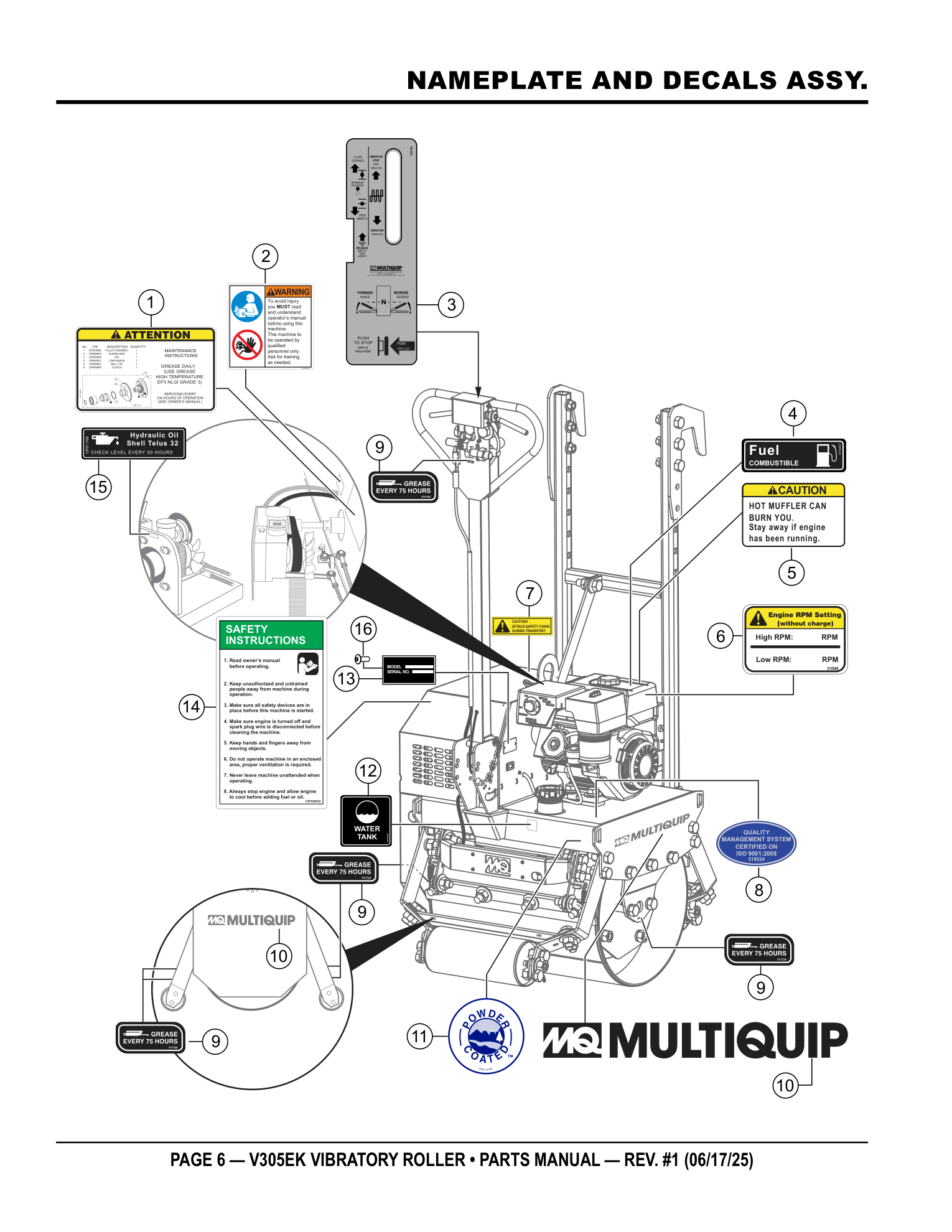

Need the PDF? ↓Page 6 — NAMEPLATE AND DECALS ASSY.
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 804294 | DECAL: ATTENTION, GREASE DAILY | 1 | ADD TO CART | |
| 2 | 35137 | DECAL: WARNING, READ MANUAL | 1 | ADD TO CART | |
| 3 | 804100 | DECAL: CONTROL | 1 | ADD TO CART | |
| 4 | 492003 | DECAL: FUEL COMBUSTIBLE | 1 | PARTS REQUEST | |
|
COMING DECAL: FUEL COMBUSTIBLE
492003 · qty on machine: 1 | |||||
| 5 | DECAL: CAUTION, HOT MUFFLER | 1 | INCLUDED W/ENGINE | SEE REMARKS | |
|
COMING DECAL: CAUTION, HOT MUFFLER
· qty on machine: 1 INCLUDED W/ENGINE SEE REMARKS
| |||||
| 6 | 513580 | DECAL: ENGINE RPM | 1 | ADD TO CART | |
| 7 | DECAL: CAUTION, ATTACH SAFETY CHAIN | 1 | INCLUDED W/ENGINE | SEE REMARKS | |
|
COMING DECAL: CAUTION, ATTACH SAFETY CHAIN
· qty on machine: 1 INCLUDED W/ENGINE SEE REMARKS
| |||||
| 8 | 518524 | DECAL: QUALITY MANAGEMENT ISO | 1 | ADD TO CART | |
| 9 | 511724 | DECAL: GREASE EVERY 75 HOURS | 1 | ADD TO CART | |
| 10 | 510892 | DECAL: MQ LOGO | 2 | PARTS REQUEST | |
|
COMING DECAL: MQ LOGO
510892 · qty on machine: 2 | |||||
| 11 | 13118 | DECAL: POWDER COATED | 1 | ADD TO CART | |
| 12 | 948438 | DECAL: WATER TANK | 1 | ADD TO CART | |
| 13 | SERIAL PLATE | 1 | CONTACT MQ PARTS DEPT. | SEE REMARKS | |
|
COMING SERIAL PLATE
· qty on machine: 1 CONTACT MQ PARTS DEPT. SEE REMARKS
| |||||
| 14 | 520935 | DECAL: SAFETY INSTRUCTIONS | 1 | ADD TO CART | |
| 15 | 511768 | DECAL: HYD. OIL CHECK EVERY 50 HRS. | 1 | ADD TO CART | |
| 16 | 491757 | RIVET | 2 | ADD TO CART | |

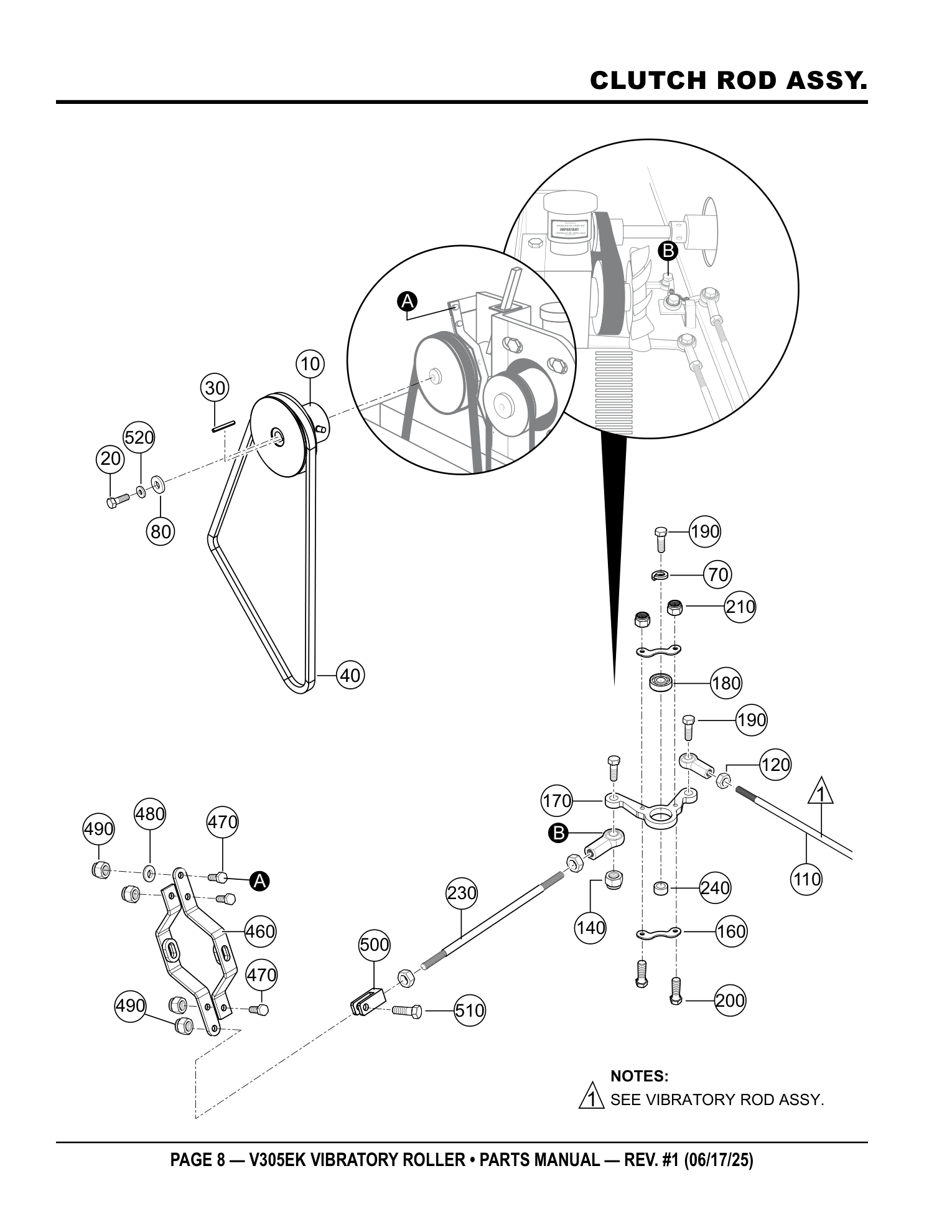

Page 8 — CLUTCH ROD ASSY.
Parts list — exactly as printed24 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 803895 | CLUTCH ASSEMBLY | 1 | ADD TO CART | |
| 20 | EM963610 | CAP SCREW | 1 | REPLACES P/N 492375 | ADD TO CART |
| 30 | 500169 | KEY SQUARE 3/16"X2" | 1 | ADD TO CART | |
| 40 | EM504233 | V-BELT, VIBRATORY DRIVE | 1 | ADD TO CART | |
| 70 | 0166A | WASHER, LOCK 3/8" | 1 | REPLACES P/N 492624 | ADD TO CART |
| 80 | 520957 | WASHER, FLAT 3/8" | 1 | ADD TO CART | |
| 110 | 800283 | ROD, CLUTCH, NO. 1 | 1 | ADD TO CART | |
| 120 | 490172 | NUT HEX, 3/8" G5 | 3 | PARTS REQUEST | |
|
COMING NUT HEX, 3/8" G5
490172 · qty on machine: 3 | |||||
| 140 | EM969013 | NUT NYLOC | 2 | REPLACES P/N 492583 | ADD TO CART |
| 160 | 520241 | RETAINER | 2 | ADD TO CART | |
| 170 | 519567 | PIVOT BRACKET | 1 | ADD TO CART | |
| 180 | 503738 | BEARING | 1 | ADD TO CART | |
| 190 | EM963057 | BOLT 3/8" | 3 | REPLACES P/N 492313 | ADD TO CART |
| 200 | EM503115 | SCREW | 2 | REPLACES P/N 503115 | ADD TO CART |
| 210 | 503119 | NUT LOCK | 2 | ADD TO CART | |
| 230 | 800284 | ROD, CLUTCH, NO. 2 | 1 | ADD TO CART | |
| 240 | 520240 | SPACER | 1 | ADD TO CART | |
| 460 | EM502643 | SHIFT FORK | 2 | ADD TO CART | |
| 470 | 0202 | SCREW HHC 5/16X18X1 | 4 | REPLACES P/N 492364 | ADD TO CART |
| 480 | EM923023 | WASHER, FLAT 5/16" | 1 | REPLACES P/N 492597 | ADD TO CART |
| 490 | 2105164 | NUT NYLON 5/16-18 | 4 | REPLACES P/N 492582 | ADD TO CART |
| 500 | 512067 | CLEVIS, CLUTCH | 1 | ADD TO CART | |
| 510 | 492303 | BOLT 5/16" NC X 1-1/4" | 1 | REPLACES P/N 492365 | ADD TO CART |
| 520 | 3019092 | WASHER 3/8" | 1 | REPLACES P/N 508346 | ADD TO CART |

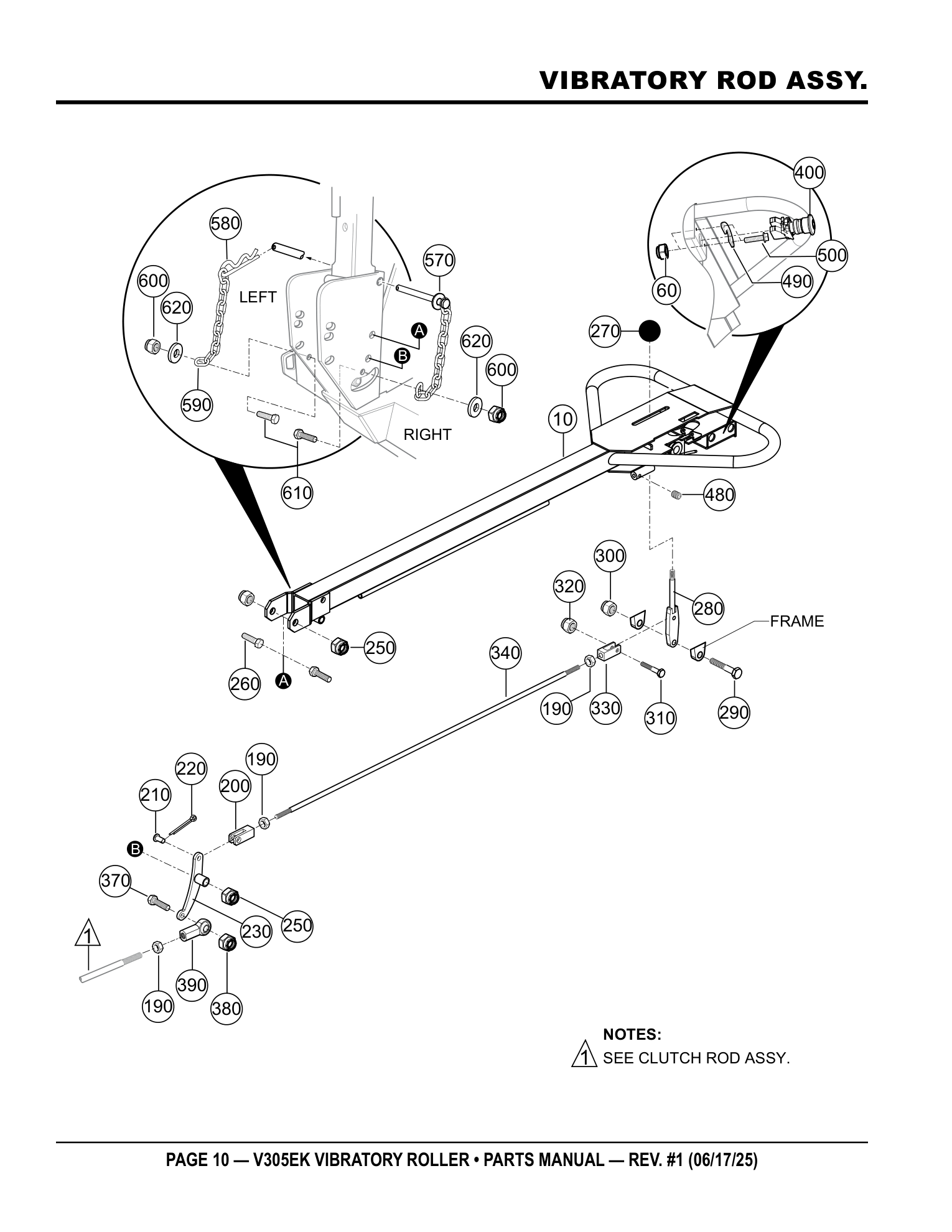

Page 10 — VIBRATORY ROD ASSY.
Parts list — exactly as printed30 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 804124 | HANDLE BAR | 1 | ADD TO CART | |
| 60 | 503119 | NUT, LOCK | 4 | ADD TO CART | |
| 190 | EM490172 | NUT, HEX 3/8" | 5 | ADD TO CART | |
| 200 | 511875 | FORK LONG GALVANIZED CONTROL | 2 | ADD TO CART | |
| 210 | 511898C | GALVANIZED FORK PIN | 2 | ADD TO CART | |
| 220 | 509157 | COTTER PIN | 2 | ADD TO CART | |
| 230 | 520243 | BRACKET, LEFT SIDE | 1 | ADD TO CART | |
| 250 | 492584 | LOCK NUT 1/2" G5 | 3 | ADD TO CART | |
| 260 | EM963102 | BOLT 1/2"X1-1/4" G5 | 2 | ADD TO CART | |
| 270 | 491019C | PLASTIC KNOB, BLACK | 1 | PARTS REQUEST | |
|
COMING PLASTIC KNOB, BLACK
491019C · qty on machine: 1 | |||||
| 280 | 505279 | LEVER, VIBRATION | 1 | ADD TO CART | |
| 290 | 492379 | SCREW, CAP 3/8"X2" G5 | 1 | ADD TO CART | |
| 300 | EM969013 | NUT, NYLOK 3/8" G8 | 1 | ADD TO CART | |
| 310 | EM492358 | BOLT 1/4" NC X 1-1/4" G5 | 1 | ADD TO CART | |
| 320 | 492581 | NUT, NYLON LOCKNUT 1/4"-20 G8 | 1 | ADD TO CART | |
| 330 | 511874 | FORK SHORT GALVANIZED CONTROL | 1 | ADD TO CART | |
| 340 | 804134 | ROD, VIBRATION | 1 | ADD TO CART | |
| 370 | EM963610 | BOLT 3/8" | 2 | ADD TO CART | |
| 380 | EM969013 | NUT, NYLOC 3/8" NC G8 | 2 | ADD TO CART | |
| 390 | EM959080 | ROD, END | 2 | ADD TO CART | |
| 400 | 519795 | RED PUSH BUTTON, CONTACT | 1 | ADD TO CART | |
| 480 | 492467 | SCREW, ALLEN 5/16"X3/8" | 1 | ADD TO CART | |
| 490 | 521090 | FLANGE BRACKET PUSH BUTTON | 1 | ADD TO CART | |
| 500 | 503118 | BOLT 3/16"X1" G2 | 2 | ADD TO CART | |
| 570 | 804253G | LOCK PIN | 1 | ADD TO CART | |
| 580 | 925191 | PIN HAIR 3/16" | 1 | PARTS REQUEST | |
|
COMING PIN HAIR 3/16"
925191 · qty on machine: 1 | |||||
| 590 | 801594 | CHAIN, LINK 3/16"X0.25M | 1 | ADD TO CART | |
| 600 | 492581 | NUT, NYLON LOCKNUT 1/4"-20 G8 | 2 | ADD TO CART | |
| 610 | 492357 | BOLT 1/4"X1" G5 | 2 | ADD TO CART | |
| 620 | 509161 | WASHER, FLAT 5/16" | 2 | NO LONGER AVAILABLE | |
|
COMING WASHER, FLAT 5/16"
509161 · qty on machine: 2 NO LONGER AVAILABLE
| |||||

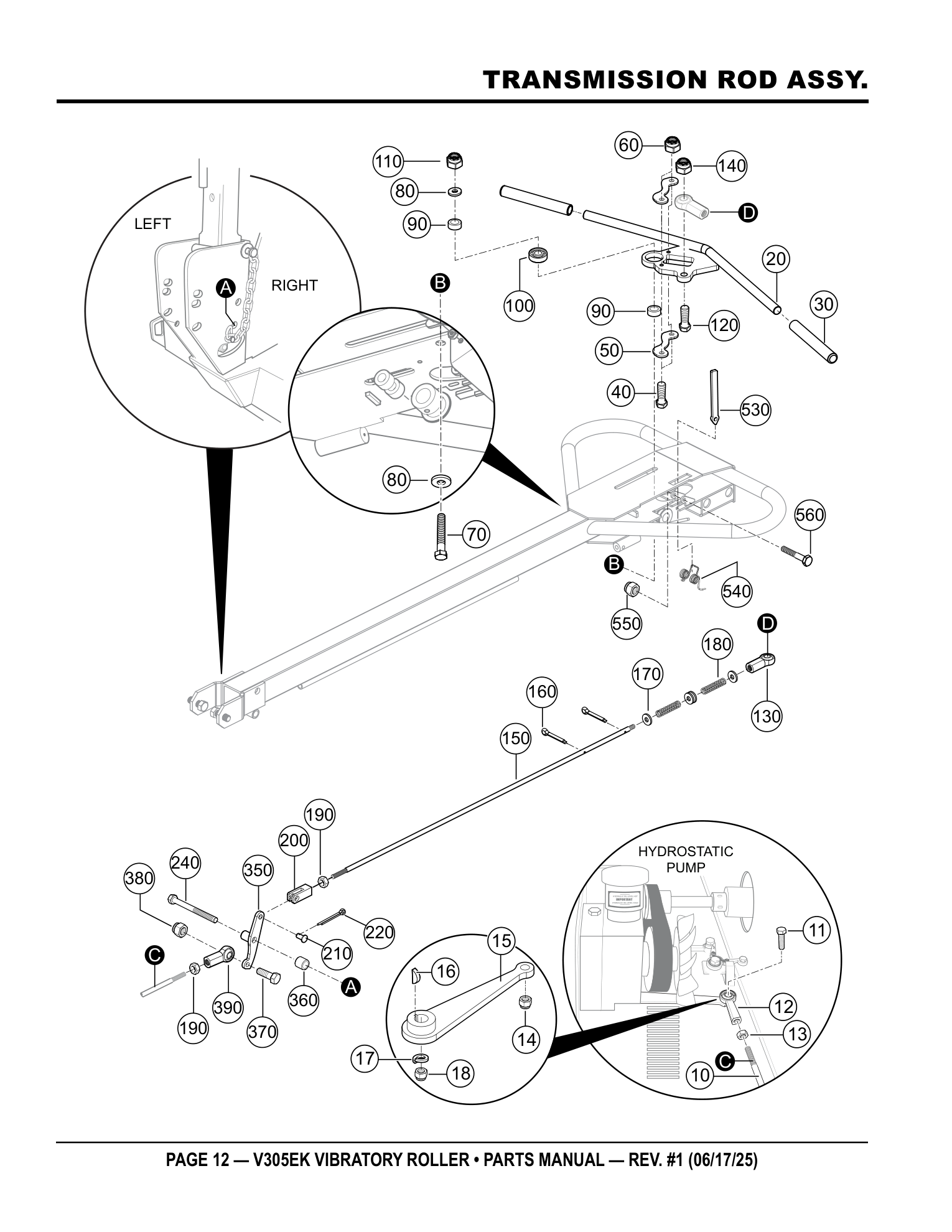

Page 12 — TRANSMISSION ROD ASSY.
Parts list — exactly as printed38 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 804143 | ROD, TRANSMISSION | 1 | ADD TO CART | |
| 11 | EM963057 | BOLT 3/8" | 1 | ADD TO CART | |
| 12 | EM959080 | ROD, END | 1 | ADD TO CART | |
| 13 | EM490172 | NUT, HEX 3/8"-24 | 1 | ADD TO CART | |
| 14 | EM969013 | NUT, NYLOC 3/8"NC G8 | 1 | ADD TO CART | |
| 15 | 804144 | LEVER, TRANSMISSION | 1 | ADD TO CART | |
| 16 | 491759 | KEY, WOODRUFF 1/8" X 1/2" | 1 | ADD TO CART | |
| 17 | 0166A | WASHER, LOCK 3/8" | 1 | ADD TO CART | |
| 18 | EM969012 | NUT, LOCK 3/8" | 1 | ADD TO CART | |
| 20 | 520252 | HANDLE, CONTROL | 1 | ADD TO CART | |
| 30 | 504564 | GRIP, HANDLE | 2 | ADD TO CART | |
| 40 | EM503115 | SCREW 3/16"NC X 3/4" G2 | 2 | ADD TO CART | |
| 50 | 520241 | RETAINER | 2 | ADD TO CART | |
| 60 | 503119 | NUT, LOCK 3/16"NC G8 | 4 | ADD TO CART | |
| 70 | 492378 | SCREW 3/8"NC X 1-3/4" G5 | 1 | ADD TO CART | |
| 80 | 3019092 | WASHER, FLAT 3/8" | 2 | ADD TO CART | |
| 90 | 520240 | ALUMINUM SPACER BUSHING | 2 | ADD TO CART | |
| 100 | 503738 | BEARING | 1 | ADD TO CART | |
| 110 | EM969013 | NUT, NYLOK 3/8"NC G8 | 1 | ADD TO CART | |
| 120 | EM963057 | BOLT 3/8" | 1 | ADD TO CART | |
| 130 | EM959080 | ROD END | 1 | ADD TO CART | |
| 140 | EM969013 | NUT, NYLOC 3/8"NC G8 | 1 | ADD TO CART | |
| 150 | 804135 | ADVANCE ROD | 1 | ADD TO CART | |
| 160 | EM491686 | PIN, COTTER | 2 | ADD TO CART | |
| 170 | 504679 | WASHER, FLAT 3/8" | 4 | ADD TO CART | |
| 180 | EM503744 | SPRING | 2 | ADD TO CART | |
| 190 | EM490172 | NUT, HEX 3/8" | 5 | ADD TO CART | |
| 200 | 511875 | FORK LONG GALVANIZED CONTROL | 2 | ADD TO CART | |
| 240 | 503111 | SCREW, HHC 1/2-13X4-1/2" | 1 | ADD TO CART | |
| 350 | 520242 | BRACKET, RIGHT SIDE | 1 | ADD TO CART | |
| 360 | 511870C | BUSHING | 1 | ADD TO CART | |
| 370 | EM963610 | BOLT 3/8" | 2 | ADD TO CART | |
| 380 | EM969013 | NUT, NYLOC 3/8" G8 | 2 | ADD TO CART | |
| 390 | EM959080 | ROD END | 2 | ADD TO CART | |
| 530 | 804131TT | LEVER, WATER RETAINER | 1 | ADD TO CART | |
| 540 | 804130 | SPRING, RATCHET LEVER | 1 | ADD TO CART | |
| 550 | 492581 | NUT, NYLON LOCKNUT 1/4"-20 G8 | 1 | ADD TO CART | |
| 560 | EM963007 | CAP SCREW 1/4" NC X 1-1/2" G5 | 1 | ADD TO CART | |

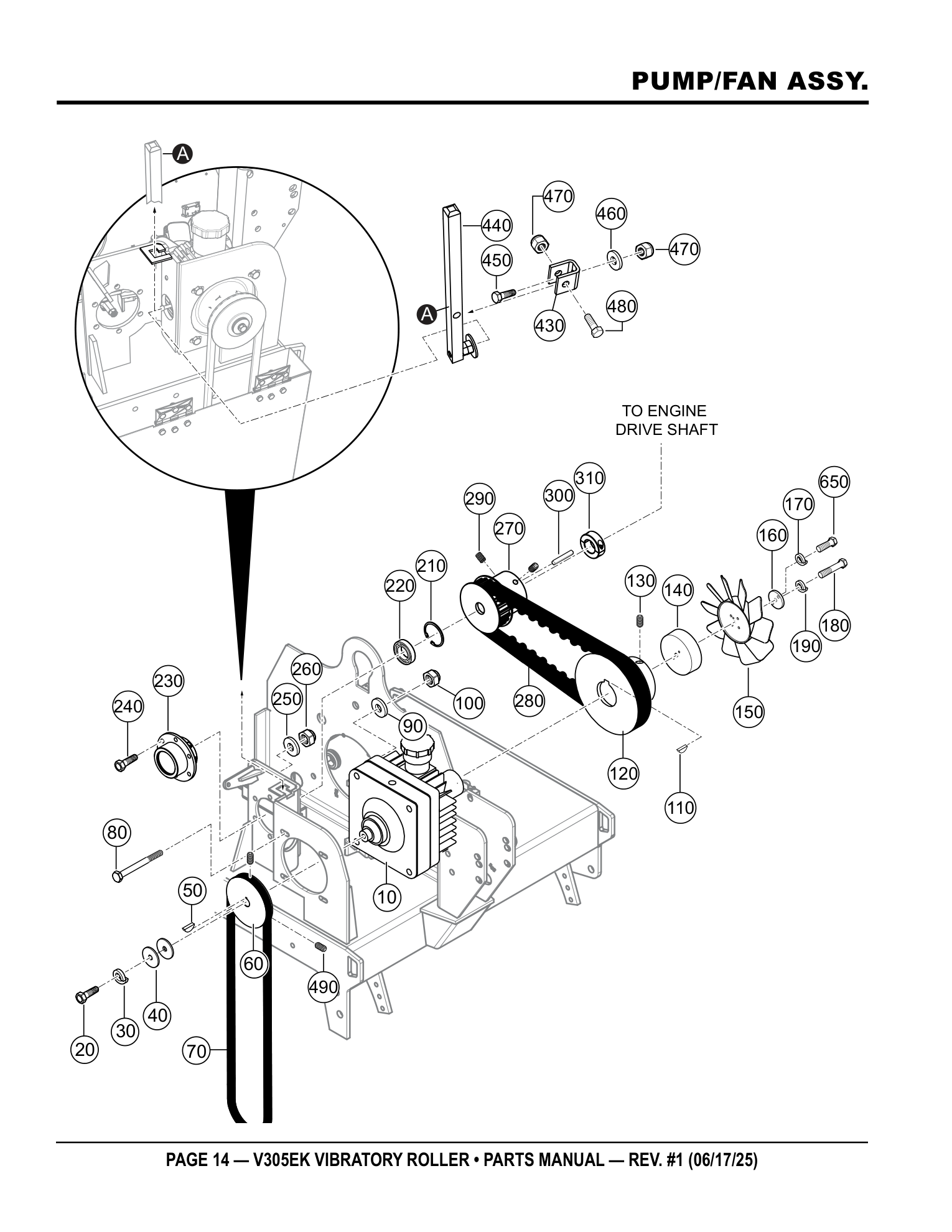

Page 14 — PUMP/FAN ASSY.
Parts list — exactly as printed37 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | EM510971 | PUMP, HYDROSTATIC | 1 | ADD TO CART | |
| 20 | 492363 | BOLT, 5/16" NC X 3/4" G5 | 1 | ADD TO CART | |
| 30 | EM923343 | WASHER, LOCK 5/16" | 1 | ADD TO CART | |
| 40 | 100536 | WASHER, BRAKE | 2 | ADD TO CART | |
| 50 | 491759 | KEY WOODRUFF 1/8"X1/2 | 1 | ADD TO CART | |
| 60 | EM490300 | PULLEY, TRAVEL | 1 | ADD TO CART | |
| 70 | EM491116 | V-BELT, DRIVE | 1 | ADD TO CART | |
| 80 | 490166 | BOLT, HEX 3/8"X3-1/2" | 4 | ADD TO CART | |
| 90 | 504679 | WASHER, FLAT 3/8" | 4 | ADD TO CART | |
| 100 | EM969013 | NUT NYLOK | 4 | ADD TO CART | |
| 110 | 491759 | KEY WOODRUFF 1/8"X1/2" | 1 | ADD TO CART | |
| 120 | 491033 | PULLEY, DRIVE BELT | 1 | ADD TO CART | |
| 130 | 503110 | SCREW SET | 1 | ADD TO CART | |
| 140 | 502651 | SPACER FAN | 1 | PARTS REQUEST | |
|
COMING SPACER FAN
502651 · qty on machine: 1 | |||||
| 150 | EM493150 | FAN | 1 | ADD TO CART | |
| 160 | EM502650 | WASHER, FAN SECURING | 1 | ADD TO CART | |
| 170 | 3103160 | WASHER, LOCK 3/16" | 2 | ADD TO CART | |
| 180 | EM963007 | CAP, SCREW | 1 | ADD TO CART | |
| 190 | 2101402 | WASHER, LOCK 1/4" | 1 | ADD TO CART | |
| 210 | 490984 | SNAP RING | 2 | ADD TO CART | |

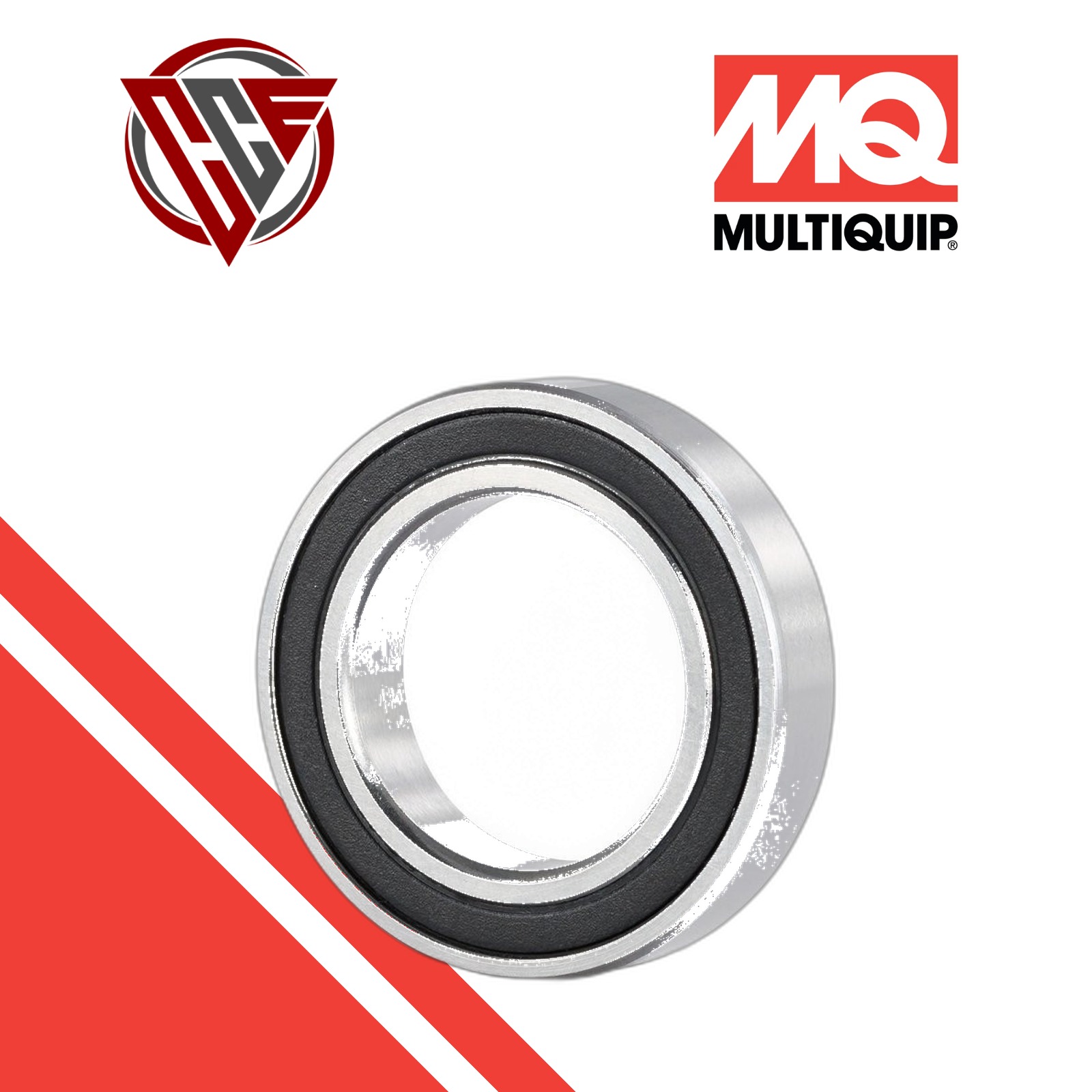

| 220 | 492179 | BEARING SHAFT PIN | 2 | ADD TO CART | |
| 230 | EM502629 | BEARING SUPPORT | 1 | ADD TO CART | |
| 240 | 492303 | BOLT 5/16" NC X 1-1/4" | 6 | ADD TO CART | |
| 250 | EM923023 | WASHER, FLAT 5/16" | 6 | ADD TO CART | |
| 260 | 2105164 | NUT NYLON 5/16-18" | 6 | ADD TO CART | |
| 270 | EM491032 | GEAR WHEEL | 1 | ADD TO CART | |
| 280 | EM491132 | BELT, ENGINE TO PUMP DRIVE | 1 | ADD TO CART | |
| 290 | 492468 | SCREW SET 5/16" | 2 | ADD TO CART | |
| 300 | 500194 | KEY SQUARE | 1 | ADD TO CART | |
| 310 | 802442 | COLLAR, LOCKING | 1 | ADD TO CART | |
| 430 | 511891 | CLEVIS | 1 | ADD TO CART | |
| 440 | EM511890 | LEVER PUMP OVERRIDE | 1 | ADD TO CART | |
| 450 | 0202 | SCREW HHC 5/16X18X1 | 1 | ADD TO CART | |
| 460 | EM923023 | WASHER, FLAT 5/16 | 1 | ADD TO CART | |
| 470 | 2105164 | NUT NYLON 5/16-18 | 2 | ADD TO CART | |
| 480 | 492303 | BOLT 5/16" NC X 1-1/4" | 1 | ADD TO CART | |
| 490 | 492466 | SET SCREW 1/4" NC X 1/2 | 2 | ADD TO CART | |

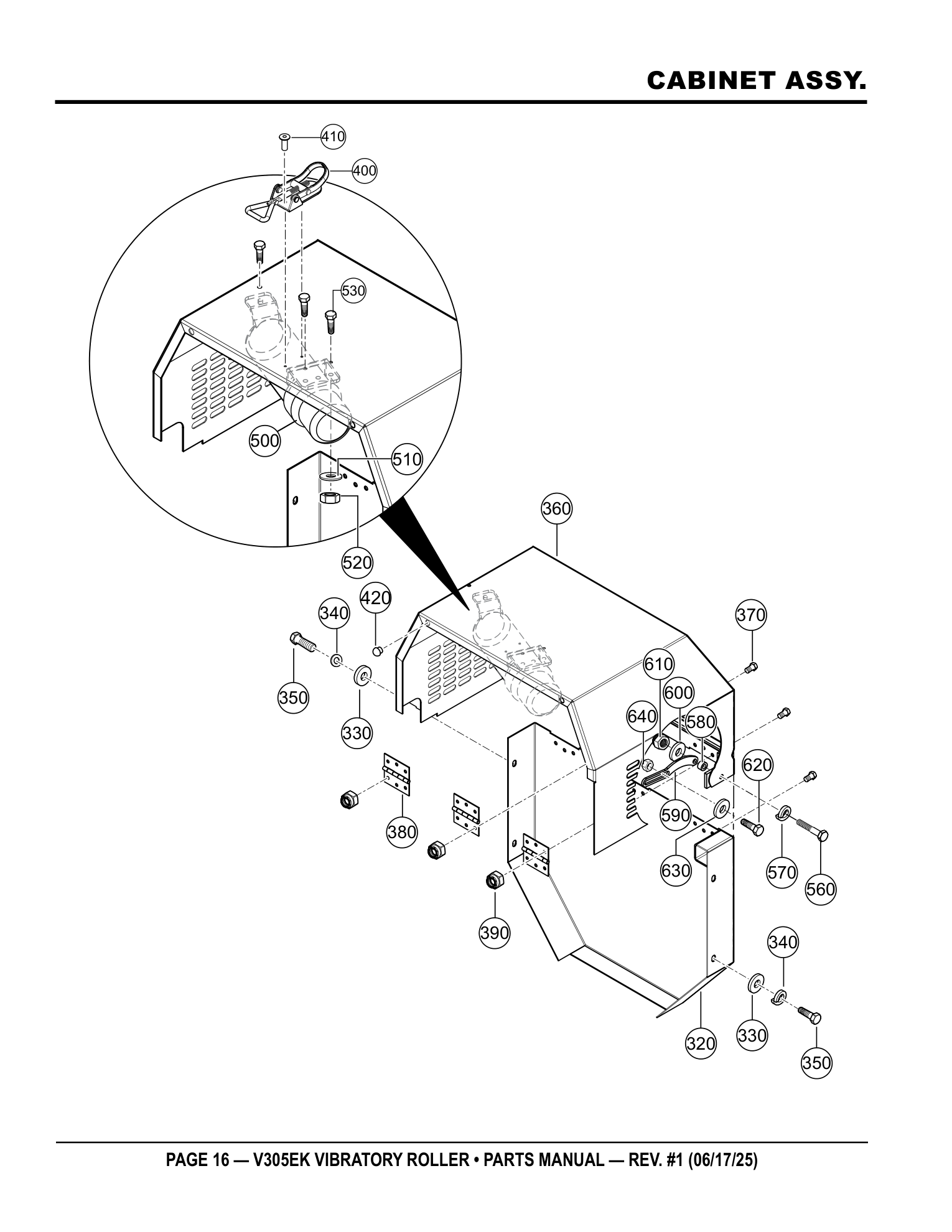

Page 16 — CABINET ASSY.
Parts list — exactly as printed24 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 320 | 519637 | COVER, BELT | 1 | ADD TO CART | |
| 330 | EM923023 | WASHER, FLAT 5/16" | 4 | ADD TO CART | |
| 340 | EM923343 | WASHER, LOCK 5/16" | 4 | ADD TO CART | |
| 350 | 492363 | BOLT 5/16" DIA. NC X3/4" G5 | 4 | ADD TO CART | |
| 360 | 800487 | COVER, COMPARTMENT | 1 | ADD TO CART | |
| 370 | 1579 | SCREW HHC 1/4-20X1/2" | 18 | PARTS REQUEST | |
|
COMING SCREW HHC 1/4-20X1/2"
1579 · qty on machine: 18 | |||||
| 380 | EM503740 | HINGE | 3 | ADD TO CART | |
| 390 | 492581 | NUT 1/4"-20 NYLON LOCKNUT | 18 | ADD TO CART | |
| 400 | 800806 | LATCH | 1 | ADD TO CART | |
| 410 | 514540 | RIVET | 2 | ADD TO CART | |
| 420 | 490202 | RUBBER PROTECTOR/BUMPER | 2 | ADD TO CART | |
| 500 | 23297 | MANUAL HOLDER | 1 | ADD TO CART | |
| 510 | EM923057 | WASHER 1/4" | 3 | ADD TO CART | |
| 520 | 492581 | NUT 1/4"-20 NYLON LOCKNUT | 3 | ADD TO CART | |
| 530 | 492356 | BOLT 1/4"X3/4" | 3 | ADD TO CART | |
| 560 | 492379 | SCREW, CAP 3/8" | 1 | ADD TO CART | |
| 570 | 0166A | WASHER, LOCK 3/8" | 1 | ADD TO CART | |
| 580 | 513979C | SPACER/BUSHING | 1 | PARTS REQUEST | |
|
COMING SPACER/BUSHING
513979C · qty on machine: 1 | |||||
| 590 | 800810 | TIE ROD | 1 | ADD TO CART | |
| 600 | 3019092 | WASHER, FLAT 3/8" | 1 | ADD TO CART | |
| 610 | EM969013 | NUT NYLOK | 1 | ADD TO CART | |
| 620 | EM963610 | CAP, SCREW | 1 | ADD TO CART | |
| 630 | 3019092 | WASHER, FLAT 3/8" | 1 | ADD TO CART | |
| 640 | 1456 | NUT, HEX 3/8" | 1 | PARTS REQUEST | |
|
COMING NUT, HEX 3/8"
1456 · qty on machine: 1 | |||||

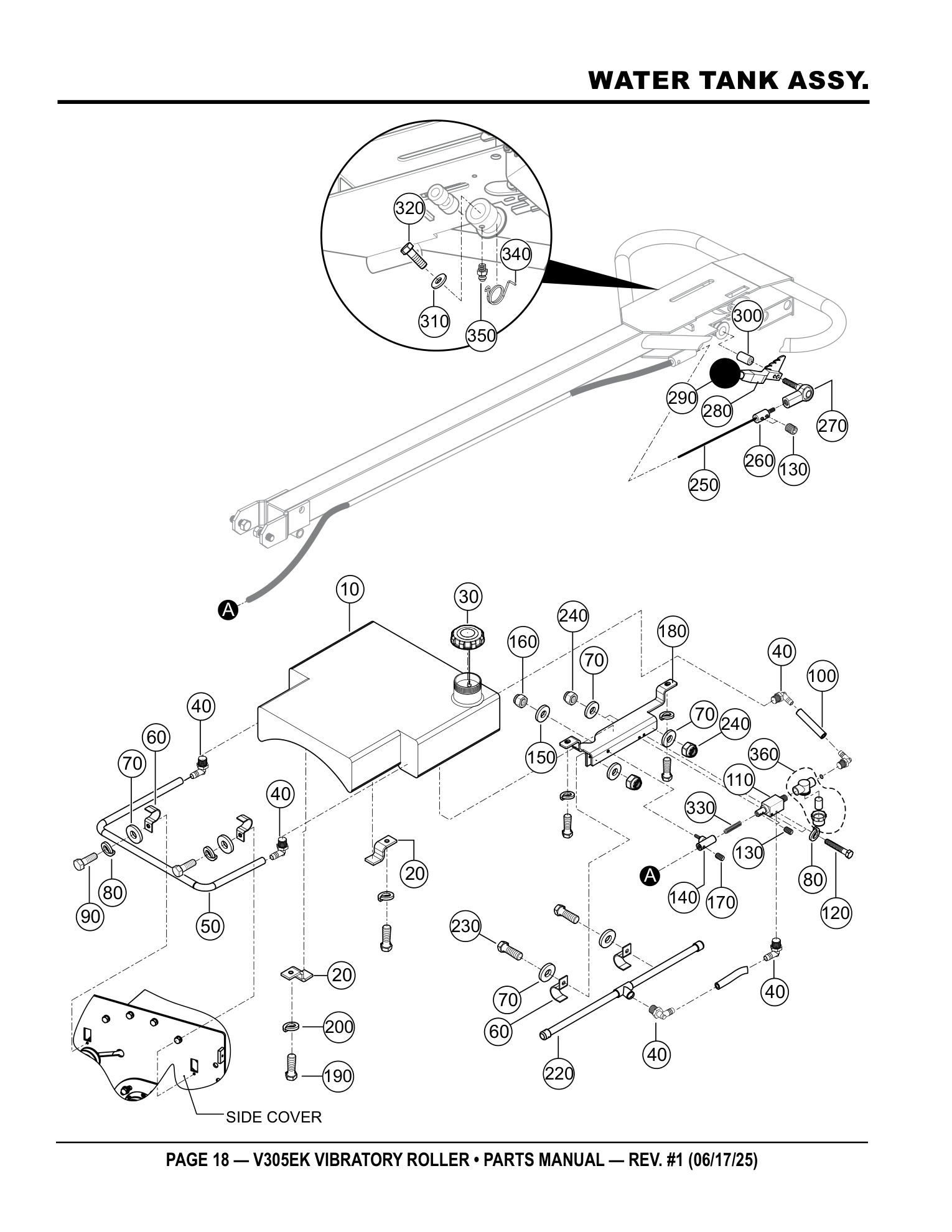

Page 18 — WATER TANK ASSY.
Parts list — exactly as printed35 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 519545 | PLASTIC TANK, WATER | 1 | ADD TO CART | |
| 20 | 800390 | FRONT BRACKET, WATER TANK | 2 | PARTS REQUEST | |
|
COMING FRONT BRACKET, WATER TANK
800390 · qty on machine: 2 | |||||
| 30 | 42435 | WATER TANK CAP | 1 | ADD TO CART | |
| 40 | 506071 | ELBOW PVC | 5 | ADD TO CART | |
| 50 | 800387 | HOSE, TANK | 1 | ADD TO CART | |
| 60 | 505389 | CLAMP, 3/4" | 4 | ADD TO CART | |
| 70 | EM923057 | WASHER, FLAT 1/4" | 8 | ADD TO CART | |
| 80 | 2101402 | WASHER, LOCK 1/4" | 4 | ADD TO CART | |
| 90 | 492356 | BOLT 1/4" X 3/4" G5 | 2 | ADD TO CART | |
| 100 | 800380 | HOSE, TANK VALVE | 1 | ADD TO CART | |
| 110 | 520268 | VALVE, WATER | 1 | ADD TO CART | |
| 120 | 2508 | SCREW HHC 1/4-20X2-1/4 | 2 | ADD TO CART | |
| 130 | 492467 | SCREW ALLEN 5/16" | 4 | ADD TO CART | |
| 140 | 800394 | PIVOT SHAFT | 1 | ADD TO CART | |
| 150 | EM923023 | WASHER, FLAT 5/16" | 1 | ADD TO CART | |
| 160 | 2105164 | NUT NYLON 5/16"-18 | 1 | ADD TO CART | |
| 170 | 492468 | SCREW SET 5/16" | 1 | ADD TO CART | |
| 180 | 800379 | SUPPORT, TANK VALVE | 1 | PARTS REQUEST | |
|
COMING SUPPORT, TANK VALVE
800379 · qty on machine: 1 | |||||
| 190 | EM963692 | BOLT 1/2"UNC X1-1/2" | 4 | ADD TO CART | |
| 200 | 6109180 | WASHER, LOCK 1/2" | 4 | ADD TO CART | |
| 220 | 520275 | SPRAYER | 1 | ADD TO CART | |
| 230 | 492356 | BOLT 1/4" X 3/4" G5 | 2 | ADD TO CART | |
| 240 | 492581 | NUT 1/4"-20 NYLON LOCKNUT | 4 | ADD TO CART | |
| 250 | 804142 | CABLE, WATER | 1 | ADD TO CART | |
| 260 | 520183 | BUSHING | 1 | ADD TO CART | |
| 270 | 516487 | END ROD | 1 | ADD TO CART | |
| 280 | 804140TT | LEVER, WATER | 1 | ADD TO CART | |
| 290 | 491019 | KNOB, BLACK PLASTIC | 1 | ADD TO CART | |
| 300 | 800371 | BUSHING FOR LEVER | 1 | ADD TO CART | |
| 310 | 3019092 | WASHER FLAT 3/8" | 1 | ADD TO CART | |
| 320 | 492378 | BOLT 3/8"X1-3/4" G5 | 1 | ADD TO CART | |
| 330 | 800398 | SPRING, VALVE | 1 | ADD TO CART | |
| 340 | 800399 | SPRING, HANDLE | 1 | ADD TO CART | |
| 350 | EM916019 | FITTING, GREASE | 1 | ADD TO CART | |
| 360 | 800796 | WATER FILTER | 1 | ADD TO CART | |

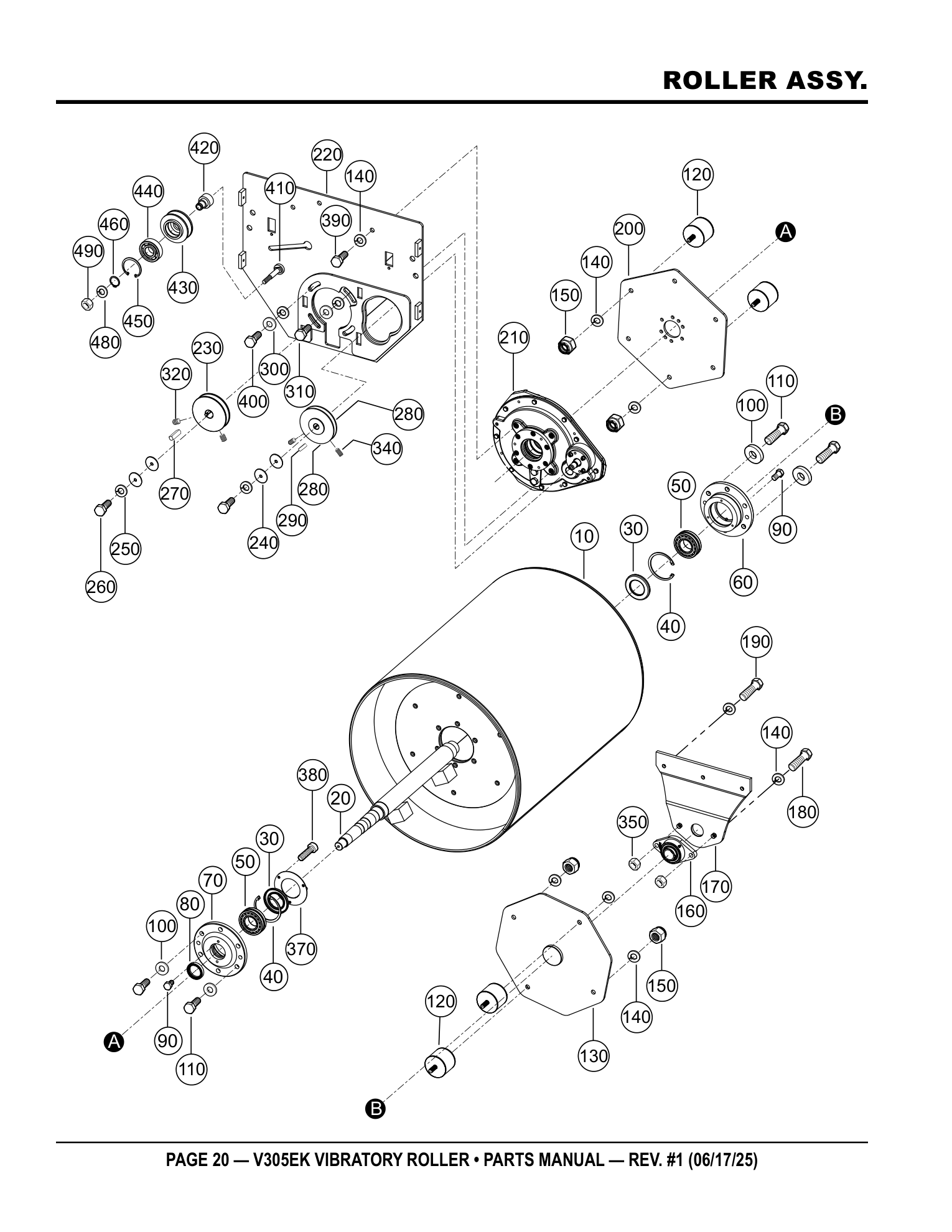

Page 20 — ROLLER ASSY.
Parts list — exactly as printed31 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 521685 | ROLLER | 1 | ADD TO CART | |
| 20 | 804694 | SHAFT, VIBRATOR | 1 | ADD TO CART | |
| 30 | 513286 | SEAL, OIL | 2 | ADD TO CART | |
| 40 | EM490985 | RING RETAINING | 2 | S/N 160400 AND BELOW | ADD TO CART |
| 40 | 506135 | RING RETAINING | 2 | S/N 160401 AND ABOVE | ADD TO CART |
| 50 | 506131 | BEARING | 2 | ADD TO CART | |
| 60 | 804669 | HOUSING, RIGHT SIDE | 1 | PARTS REQUEST | |
|
COMING HOUSING, RIGHT SIDE
804669 · qty on machine: 1 | |||||
| 70 | 804670 | HOUSING, LEFT SIDE | 1 | PARTS REQUEST | |
|
COMING HOUSING, LEFT SIDE
804670 · qty on machine: 1 | |||||
| 80 | 506144 | OIL SEAL | 1 | ADD TO CART | |
| 90 | EM492299 | HEX BOLT 5/16"X1/2" | 4 | ADD TO CART | |
| 100 | 519337 | WASHER, FLAT 1/2" | 12 | ADD TO CART | |
| 110 | EM492455 | BOLT HX HD 1/2"X1-1/2" | 12 | ADD TO CART | |
| 120 | EM504441 | MOUNT SHOCK | 10 | ADD TO CART | |
| 130 | 519493 | DRIVE SUPPORT PLATE, RIGHT-SIDE | 1 | ADD TO CART | |
| 140 | 6109180 | WASHER, LOCK 1/2" | 23 | ADD TO CART | |
| 150 | 492584 | NUT, LOCK 1/2" NC | 10 | ADD TO CART | |
| 160 | EM492174 | PILLOW BLOCK | 1 | ADD TO CART | |
| 170 | 800769 | ROLLER SUPPORT | 1 | ADD TO CART | |
| 180 | 492395 | BOLT 1/2"NC X 1-3/4" G5 | 2 | ADD TO CART | |
| 190 | 981635 | BOLT HX HD 1/2"-13 NC X1" | 3 | ADD TO CART | |
| 200 | 519492 | DRIVE SUPPORT PLATE, LEFT-SIDE | 1 | ADD TO CART | |
| 210 | EM500913 | DRIVE, GEAR REDUCTION ASSY. | 1 | ADD TO CART | |
| 220 | 519651 | TOP COVER SUPPORT | 1 | ADD TO CART | |
| 230 | 803956 | PULLEY | 1 | ADD TO CART | |
| 240 | 100536 | WASHER, BRAKE | 4 | ADD TO CART | |
| 250 | EM923343 | WASHER, LOCK 5/16" | 2 | ADD TO CART | |
| 260 | 492363 | BOLT 5/16" NC X3/4" G5 | 2 | ADD TO CART | |
| 270 | 1294220103 | SHAFT GOVERNOR | 1 | ADD TO CART | |
| 280 | 490300 | PULLEY, S-A | 1 | PARTS REQUEST | |
|
COMING PULLEY, S-A
490300 · qty on machine: 1 | |||||
| 290 | 491759 | KEY WOODRUFF 1/8"X1/2" | 1 | ADD TO CART | |
| 300 | 6109170 | WASHER, FLAT 1/2" | 4 | ADD TO CART | |

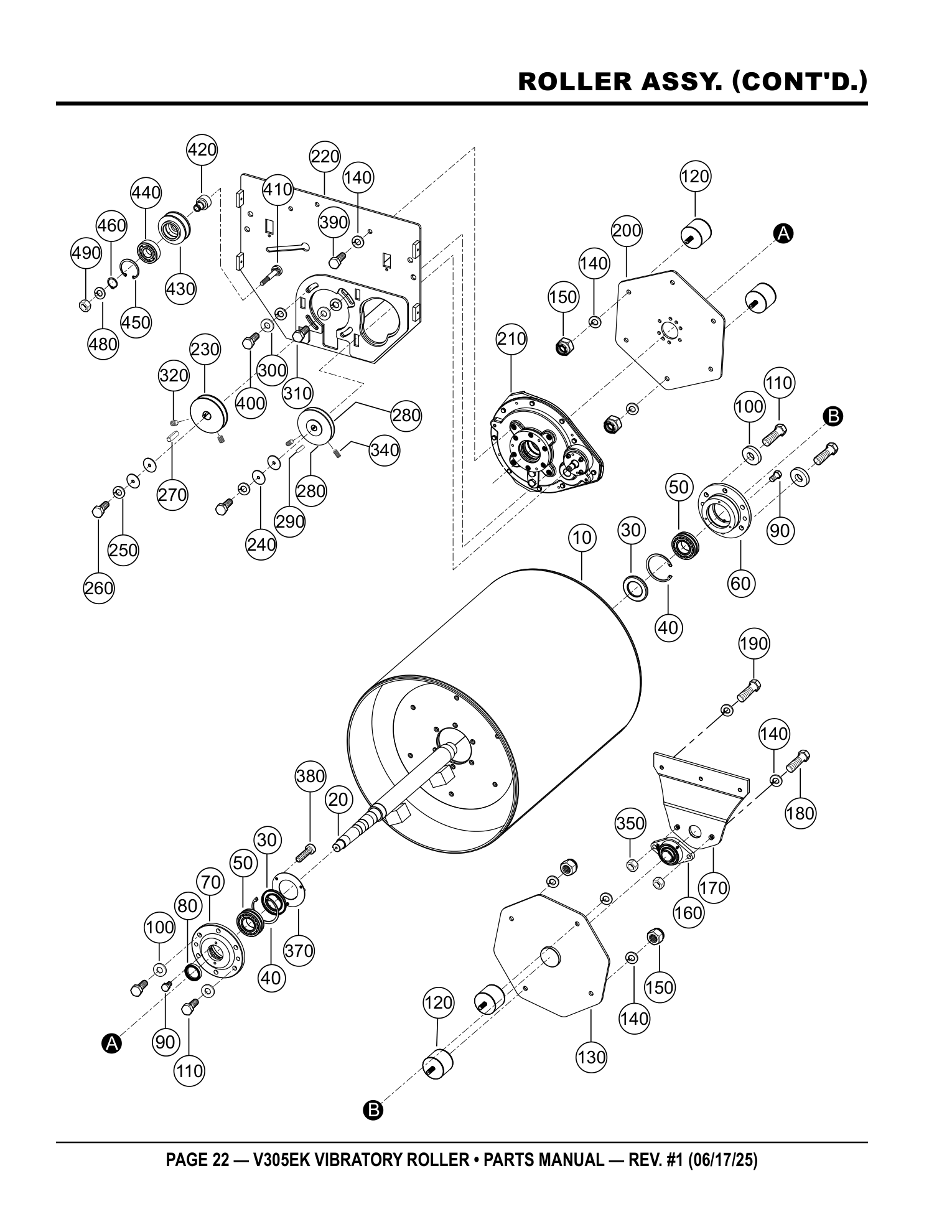

Page 22 — ROLLER ASSY. (CONT'D.)
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 310 | EM963102 | BOLT 1/2"NC X1-1/4" G5 | 1 | ADD TO CART | |
| 320 | 492467 | SCREW, ALLEN 5/16"NC X3/8" | 2 | ADD TO CART | |
| 340 | 492466 | SCREW, ALLEN 1/4"NC X1/2" | 2 | ADD TO CART | |
| 350 | 504723 | NUT 1/2" NC G8 | 2 | ADD TO CART | |
| 370 | 804695 | SPACER | 2 | PARTS REQUEST | |
|
COMING SPACER
804695 · qty on machine: 2 | |||||
| 380 | EM492254 | BOLT HX HD 1/4"NC X3/4" G8 | 6 | NO LONGER AVAILABLE | |
|
COMING BOLT HX HD 1/4"NC X3/4" G8
EM492254 · qty on machine: 6 NO LONGER AVAILABLE
| |||||
| 390 | EM504456 | BOLT HX HD 1/2-13"X3/4" G8 | 4 | ADD TO CART | |
| 400 | EM963692 | BOLT 1/2"NC X1-1/2" G5 | 3 | ADD TO CART | |
| 410 | 803994S | IDLER PULLEY SHAFT, GALVANIZED | 1 | ADD TO CART | |
| 420 | 803995S | IDLER PULLEY BUSHING, GALVANIZED | 1 | ADD TO CART | |
| 430 | EM502134 | PULLEY | 1 | ADD TO CART | |
| 440 | EM490163 | BEARING, IDLER PULLEY | 1 | ADD TO CART | |
| 450 | EM490951 | RING, SNAP | 1 | ADD TO CART | |
| 460 | EM490981 | RING, SNAP | 1 | ADD TO CART | |
| 480 | EM492625 | WASHER, LOCK 7/16 | 1 | ADD TO CART | |
| 490 | EM492555 | NUT, HEX 7/16-14 | 1 | ADD TO CART | |

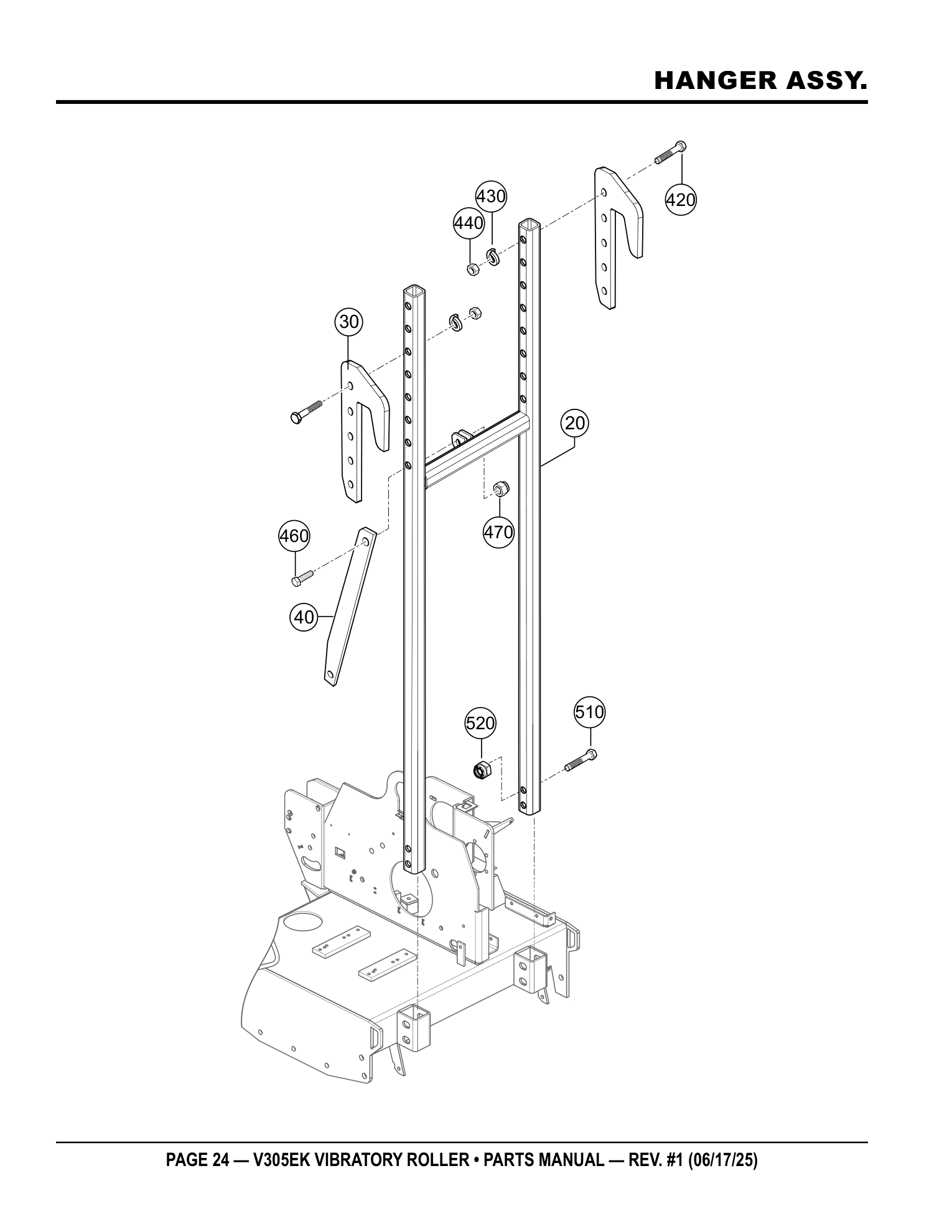

Page 24 — HANGER ASSY.
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | EM505396 | CARRYING, HANGER | 1 | ADD TO CART | |
| 30 | EM502677 | HOOK, HANGER | 2 | ADD TO CART | |
| 40 | 800774 | BRACE, TIE ROD | 1 | ADD TO CART | |
| 420 | EM492421 | SCREW, HHC 3/4"NC X3-1/2" G5 | 6 | ADD TO CART | |
| 430 | 492628 | WASHER, LOCK 3/4" | 6 | ADD TO CART | |
| 440 | EM968446 | NUT HEX 3/4" | 6 | ADD TO CART | |
| 460 | EM104 | BOLT 5/8-11"X2" | 1 | ADD TO CART | |
| 470 | EM969023 | NUT LOCK 5/8" | 2 | ADD TO CART | |
| 510 | EM492421 | SCREW, HHC 3/4"NCX3-1/2" G5 | 4 | ADD TO CART | |
| 520 | EM505069 | NUT, CRIMPED 3/4"-10 | 4 | ADD TO CART | |

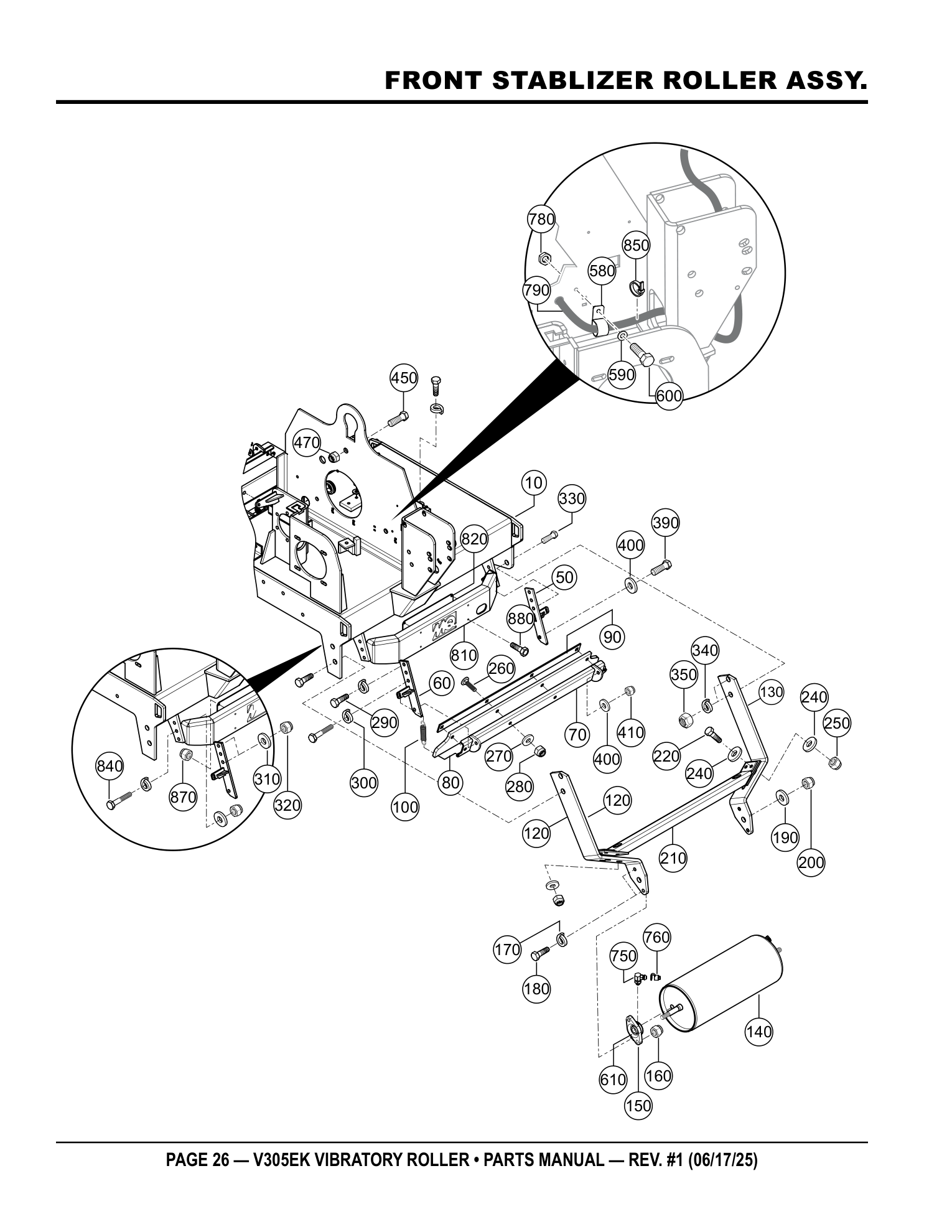

Page 26 — FRONT STABLIZER ROLLER ASSY.
Parts list — exactly as printed48 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 804155 | CHASSIS | 1 | ADD TO CART | |
| 50 | 800323 | SUPPORT, RIGHT SPRING SCRAPER | 1 | ADD TO CART | |
| 60 | 800324 | SUPPORT, LEFT SPRING SCRAPER | 1 | ADD TO CART | |
| 70 | 520329 | UPPER SUPPORT, SCRAPER | 1 | ADD TO CART | |
| 80 | 804136 | SCRAPPER, RUBBER | 1 | ADD TO CART | |
| 90 | 804137 | BACK UP PLATE, REAR | 1 | ADD TO CART | |
| 100 | 520341 | SPRING EXTENSION, SCRAPER | 2 | ADD TO CART | |
| 120 | 804139 | SUPPORT, STABIL. LFT. REAR/RT. FRONT | 1 | ADD TO CART | |
| 130 | 804138 | RIGHT SUPPORT, STABILIZER ROLLER | 1 | ADD TO CART | |
| 140 | 516312 | ROLLER, STABILIZER | 1 | ADD TO CART | |
| 150 | 492173 | BEARING | 1 | ADD TO CART | |
| 160 | EM969013 | NUT NYLOK | 2 | ADD TO CART | |
| 170 | 0166A | WASHER, LOCK 3/8" | 2 | ADD TO CART | |
| 180 | EM963057 | BOLT 3/8" | 2 | ADD TO CART | |
| 190 | EM923023 | SOCKET HEAD | 2 | ADD TO CART | |
| 200 | EM969023 | NUT LOCK 5/8" | 2 | ADD TO CART | |
| 210 | 804132 | SUPPORT, STABILIZER | 1 | ADD TO CART | |
| 220 | EM963057 | BOLT 3/8" | 3 | ADD TO CART | |
| 240 | 3019092 | WASHER, FLAT 3/8" | 6 | ADD TO CART | |
| 250 | EM969013 | NUT NYLOK | 3 | ADD TO CART | |
| 260 | 513452 | BOLT 3/8"X1-1/4" G5 | 4 | ADD TO CART | |
| 270 | 3019092 | WASHER, FLAT 3/8" | 4 | ADD TO CART | |
| 280 | EM969013 | NUT NYLOC | 4 | ADD TO CART | |
| 290 | EM963057 | BOLT 3/8" | 2 | ADD TO CART | |
| 300 | 0166A | WASHER, LOCK 3/8" | 3 | ADD TO CART | |
| 310 | 3019092 | WASHER, FLAT 3/8" | 3 | ADD TO CART | |
| 320 | EM969013 | NUT NYLOK | 3 | ADD TO CART | |
| 330 | EM104 | BOLT 5/8-11X2" | 4 | ADD TO CART | |
| 340 | EM923348 | WASHER, LOCK 5/8" | 4 | ADD TO CART | |
| 350 | EM969023 | NUT, STOP | 4 | ADD TO CART | |
| 390 | EM963057 | BOLT 3/8" | 2 | ADD TO CART | |
| 400 | 3019092 | WASHER, FLAT 3/8" | 4 | ADD TO CART | |
| 410 | EM969013 | NUT NYLOC | 2 | ADD TO CART | |
| 450 | 530298 | SCREW HEX 5/8" | 1 | ADD TO CART | |
| 470 | EM969023 | NUT LOCK 5/8" | 2 | ADD TO CART | |
| 580 | 511807 | CLAMP, NYLON 5/8" | 2 | ADD TO CART | |
| 590 | 492595 | WASHER, FLAT 3/16 | 1 | ADD TO CART | |
| 600 | EM503115 | SCREW | 1 | ADD TO CART | |
| 750 | 491704 | ZERK FITTING | 2 | PARTS REQUEST | |
|
COMING ZERK FITTING
491704 · qty on machine: 2 | |||||
| 760 | 491008 | ZERK FITTING CAP | 2 | ADD TO CART | |
| 780 | 503119 | NUT, LOCK | 1 | ADD TO CART | |
| 790 | 800417 | HOSE, FUEL 8.4" | 1 | 1 PC=1 FT. | ADD TO CART |
| 810 | 803479 | WATER FILTER, PROTECTION | 1 | ADD TO CART | |
| 820 | 800829 | BACK PLATE FILTER PROTECTION | 1 | PARTS REQUEST | |
|
COMING BACK PLATE FILTER PROTECTION
800829 · qty on machine: 1 | |||||
| 840 | 492379 | SCREW CAP 3/8" | 4 | ADD TO CART | |
| 850 | EM491028 | WRAP CABLE TIE | 6 | PARTS REQUEST | |
|
COMING WRAP CABLE TIE
EM491028 · qty on machine: 6 | |||||
| 870 | 503119 | NUT LOCK | 4 | ADD TO CART | |
| 880 | 512367 | SCREW | 4 | ADD TO CART | |

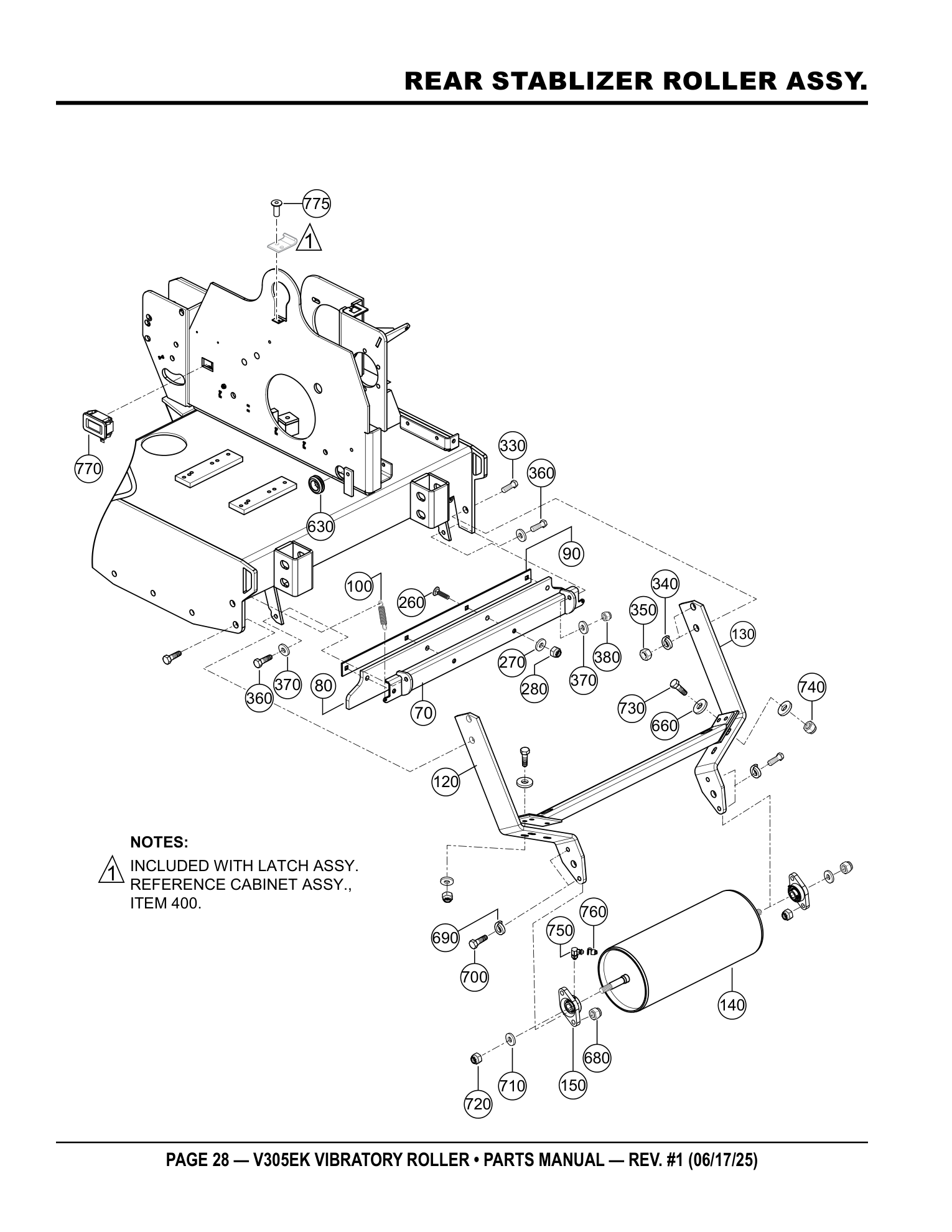

Page 28 — REAR STABLIZER ROLLER ASSY.
Parts list — exactly as printed32 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 70 | 520329 | UPPER SUPPORT, SCRAPER | 1 | ADD TO CART | |
| 80 | 804136 | SCRAPPER, RUBBER | 1 | ADD TO CART | |
| 90 | 804137 | BACK-UP PLATE, REAR | 1 | ADD TO CART | |
| 100 | 520341 | SPRING EXTENSION, SCRAPER | 2 | ADD TO CART | |
| 120 | 804139 | SUPPORT, STABIL. LFT. REAR/RT. FRONT | 1 | ADD TO CART | |
| 130 | 804138 | RIGHT SUPPORT, STABILIZER ROLLER | 1 | ADD TO CART | |
| 140 | 516312 | ROLLER, STABILIZER | 1 | ADD TO CART | |
| 150 | 492173 | BEARING | 1 | ADD TO CART | |
| 260 | 513452 | BOLT 3/8"X1-1/4" G5 | 4 | ADD TO CART | |
| 270 | 3019092 | WASHER, FLAT 3/8" | 4 | ADD TO CART | |
| 280 | EM969013 | NUT, NYLOK | 4 | ADD TO CART | |
| 330 | EM104 | BOLT 5/8-11X2" | 4 | ADD TO CART | |
| 340 | EM923348 | WASHER, LOCK 5/8" | 4 | ADD TO CART | |
| 350 | 504724 | NUT | 4 | ADD TO CART | |
| 360 | EM963057 | BOLT 3/8" | 2 | ADD TO CART | |
| 370 | 3019092 | WASHER, FLAT 3/8" | 4 | ADD TO CART | |
| 380 | EM969013 | NUT NYLOC | 2 | ADD TO CART | |
| 510 | EM492421 | HHCS 3/4" NC X3-1/2 G5 | 4 | ADD TO CART | |
| 520 | 505069 | NUT | 4 | PARTS REQUEST | |
|
COMING NUT
505069 · qty on machine: 4 | |||||
| 630 | 800773 | GROMMET | 1 | PARTS REQUEST | |
|
COMING GROMMET
800773 · qty on machine: 1 | |||||
| 660 | 3019092 | WASHER, FLAT 3/8" | 6 | ADD TO CART | |
| 680 | EM969013 | NUT NYLOC | 4 | ADD TO CART | |
| 690 | 0166A | WASHER, LOCK 3/8" | 4 | ADD TO CART | |
| 700 | EM963057 | BOLT 3/8" | 4 | ADD TO CART | |
| 710 | EM923023 | SOCKET HEAD | 2 | ADD TO CART | |
| 720 | EM969023 | NUT, LOCK 5/8" | 2 | ADD TO CART | |
| 730 | EM963057 | BOLT 3/8" | 6 | ADD TO CART | |
| 740 | EM969013 | NUT, NYLOC | 6 | ADD TO CART | |
| 750 | 491704 | ZERK FITTING | 2 | PARTS REQUEST | |
|
COMING ZERK FITTING
491704 · qty on machine: 2 | |||||
| 760 | 491008 | ZERK FITTING CAP | 2 | ADD TO CART | |
| 770 | 800803 | HOUR/TACHOMETER | 1 | ADD TO CART | |
| 775 | 491757 | RIVET | 2 | ADD TO CART | |

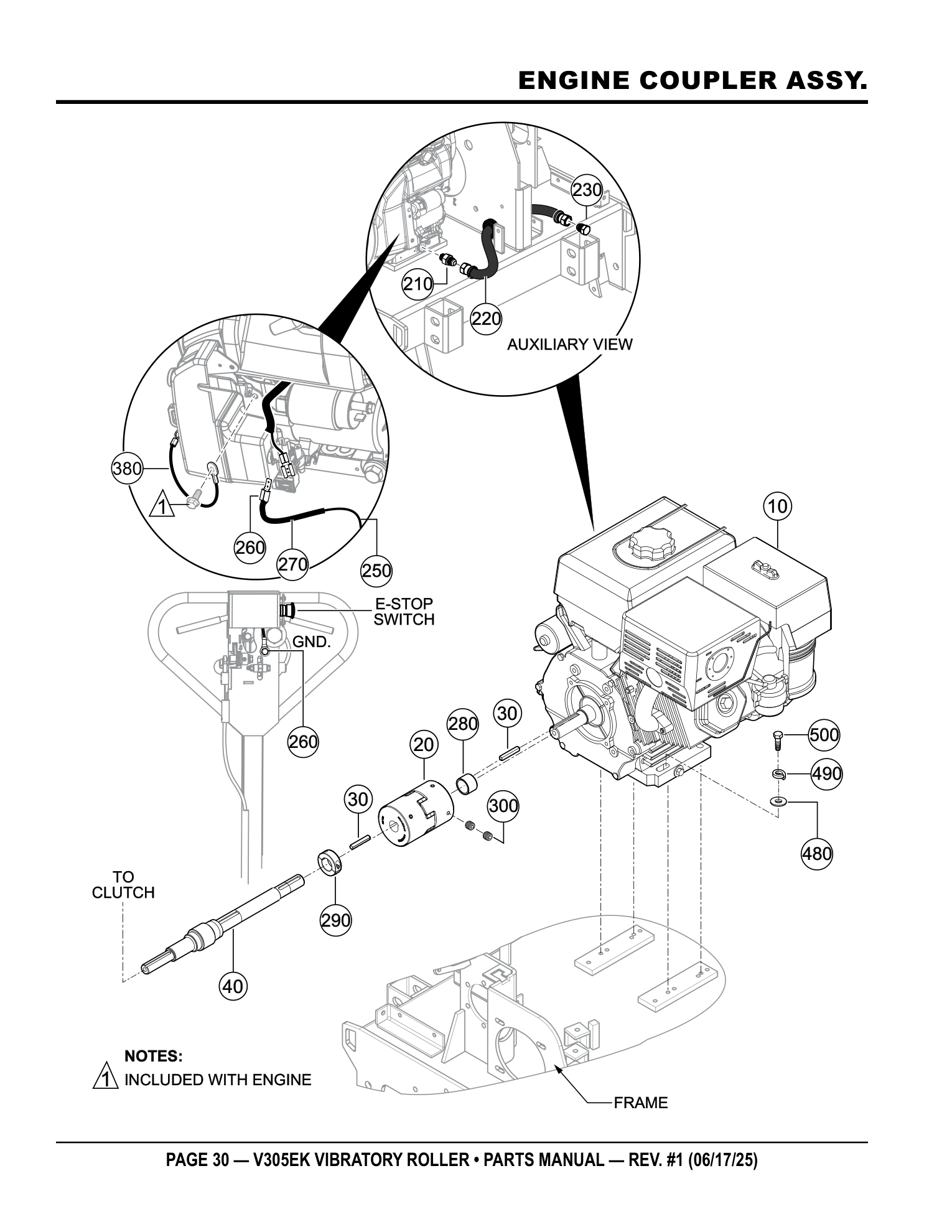

Page 30 — ENGINE COUPLER ASSY.
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 522406 | ENGINE, KOHLER C440-3275 | 1 | PARTS REQUEST | |
|
COMING ENGINE, KOHLER C440-3275
522406 · qty on machine: 1 | |||||
| 20 | 800771 | COUPLING, ENGINE/PUMP | 1 | ADD TO CART | |
| 30 | 500194 | KEY, SQUARE | 2 | ADD TO CART | |
| 40 | 803904 | SHAFT, ENGINE DRIVE | 1 | ADD TO CART | |
| 210 | 800780 | ADAPTER | 1 | ADD TO CART | |
| 220 | 800776 | DRAIN HOSE | 1 | ADD TO CART | |
| 230 | 513619 | FITTING | 1 | ADD TO CART | |
| 250 | 804146 | E-STOP SWITCH WIRE 10 AWG BLACK | 1 | ADD TO CART | |
| 260 | 505303 | TERMINAL RING, 1/4" BLUE | 1 | ADD TO CART | |
| 270 | 505314 | PROTECTIVE WIRE COVERING | 1 | NO LONGER AVAILABLE | |
|
COMING PROTECTIVE WIRE COVERING
505314 · qty on machine: 1 NO LONGER AVAILABLE
| |||||
| 280 | 521028 | SPACER, BUSHING COUPLING | 1 | ADD TO CART | |
| 290 | 802442 | COLLAR, LOCKING | 1 | ADD TO CART | |
| 300 | EM703 | SCREW ALLEN 3/8" | 8 | ADD TO CART | |
| 380 | 804123 | STEEL, LANYARD (IGNITION KEY) | 1 | ADD TO CART | |
| 480 | 3019092 | WASHER, FLAT 3/8" | 4 | ADD TO CART | |
| 490 | 0166A | WASHER, LOCK 3/8" | 4 | ADD TO CART | |
| 500 | EM963057 | BOLT 3/8" | 4 | ADD TO CART | |

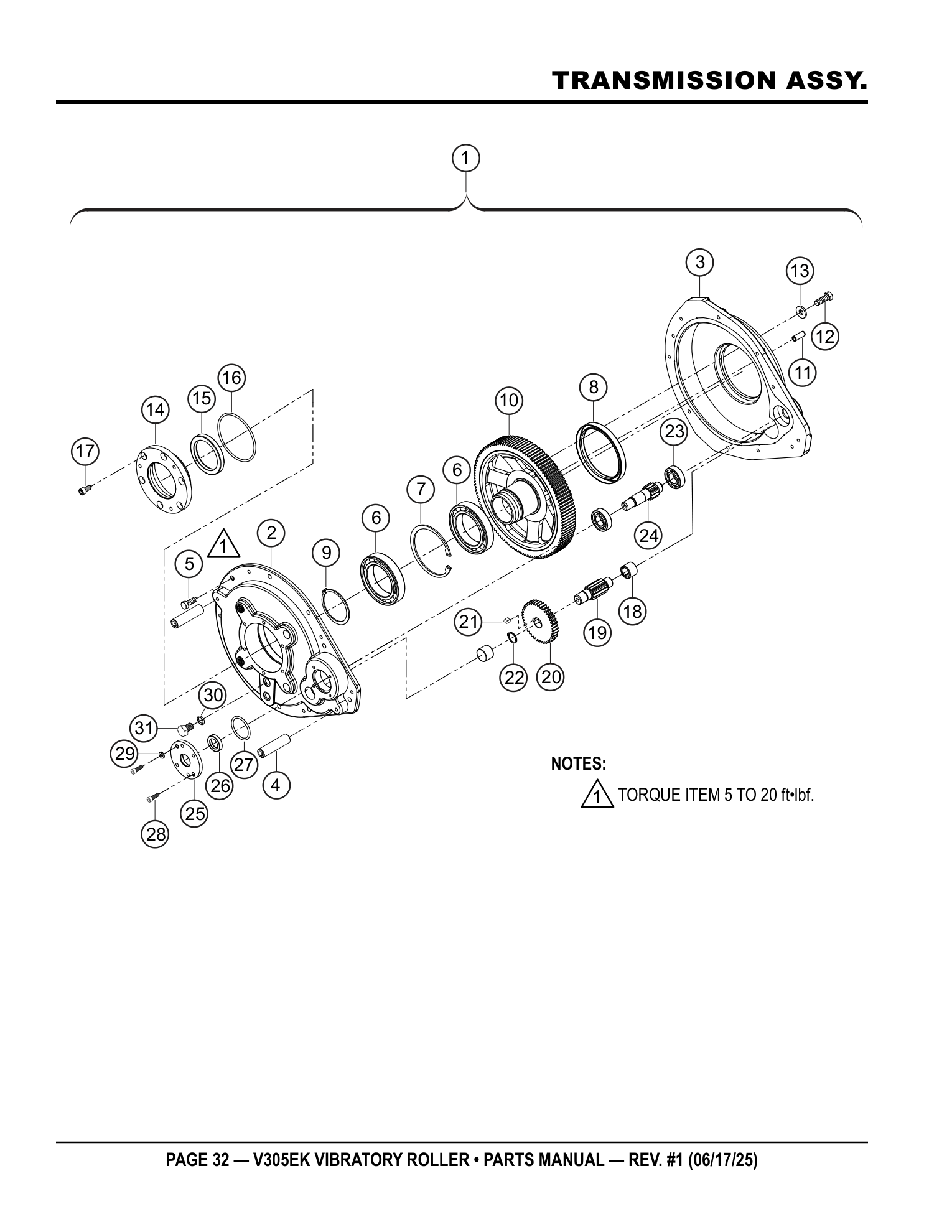

Page 32 — TRANSMISSION ASSY.
Parts list — exactly as printed31 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | EM500913 | TRANSMISSION ASSY | 1 | INCLUDES ITEMS W/# | ADD TO CART |
| 2# | EM502546 | TRANSMISSION BASE BOX | 1 | NO LONGER AVAILABLE | |
|
COMING TRANSMISSION BASE BOX
EM502546 · qty on machine: 1 Also included in kit 1 - TRANSMISSION ASSY (EM500913) NO LONGER AVAILABLE
| |||||
| 3# | EM502547 | TRANSMISSION COVER BOX | 1 | NO LONGER AVAILABLE | |
|
COMING TRANSMISSION COVER BOX
EM502547 · qty on machine: 1 Also included in kit 1 - TRANSMISSION ASSY (EM500913) NO LONGER AVAILABLE
| |||||
| 4# | EM491722 | SPIRAL PIN | 2 | NO LONGER AVAILABLE | |
|
COMING SPIRAL PIN
EM491722 · qty on machine: 2 Also included in kit 1 - TRANSMISSION ASSY (EM500913) NO LONGER AVAILABLE
| |||||
| 5# | 0202 | SCREW, HHC 5/16-18 X 1" | 9 | ADD TO CART | |
| 6# | EM492228 | BEARING | 2 | ADD TO CART | |
| 7# | EM490990 | INTERNAL RETAINING RING | 1 | ADD TO CART | |
| 8# | EM492123 | SEAL | 1 | ADD TO CART | |
| 9# | EM490968 | EXTERNAL RETAINING RING | 1 | ADD TO CART | |
| 10# | EM503802 | GEAR | 1 | ADD TO CART | |
 GEAR
EM503802 · qty on machine: 1 Also included in kit 1 - TRANSMISSION ASSY (EM500913) view full part page → $510.95 IN A KIT + SOLD SOLO | |||||
| 11# | EM503803 | PIN | 2 | ADD TO CART | |
| 12# | EM492451 | BOLT, HEX. HEAD 3/8-24 X 1" | 6 | ADD TO CART | |
| 13# | 3019092 | WASHER, FLAT 3/8" | 6 | ADD TO CART | |
| 14# | EM502556 | COVER | 1 | ADD TO CART | |
| 15# | EM492122 | SEAL | 1 | ADD TO CART | |
| 16# | EM491057 | O-RING | 1 | ADD TO CART | |
| 17# | EM492258 | HEX. SOCKET HEAD BOLT | 6 | ADD TO CART | |
| 18# | EM492229 | BEARING | 2 | ADD TO CART | |
| 19# | EM502550 | SHAFT | 1 | ADD TO CART | |
| 20# | EM502552 | GEAR | 1 | ADD TO CART | |
| 21# | EM502551 | KEY, SQUARE 1/4 X 10MM | 1 | ADD TO CART | |
| 22# | 490952 | EXTERNAL RETAINING RING | 1 | ADD TO CART | |
| 23# | EM492212 | BEARING | 2 | ADD TO CART | |
| 24# | EM502553 | SHAFT | 1 | ADD TO CART | |
| 25# | EM502555 | COVER | 1 | ADD TO CART | |
| 26# | EM492108 | SEAL | 1 | ADD TO CART | |
| 27# | EM491058 | O-RING | 1 | ADD TO CART | |
| 28# | EM492254 | HEX. SOCKET HEAD BOLT | 4 | NO LONGER AVAILABLE | |
|
COMING HEX. SOCKET HEAD BOLT
EM492254 · qty on machine: 4 Also included in kit 1 - TRANSMISSION ASSY (EM500913) NO LONGER AVAILABLE
| |||||
| 29# | 210142 | WASHER, LOCK 1/4" | 4 | PARTS REQUEST | |
|
COMING WASHER, LOCK 1/4"
210142 · qty on machine: 4 Also included in kit 1 - TRANSMISSION ASSY (EM500913) | |||||
| 30# | EM491056 | O-RING | 2 | ADD TO CART | |
| 31# | EM504456 | HEX. HEAD BOLT, 1/2-13 X 3/4" GR8 | 2 | ADD TO CART | |

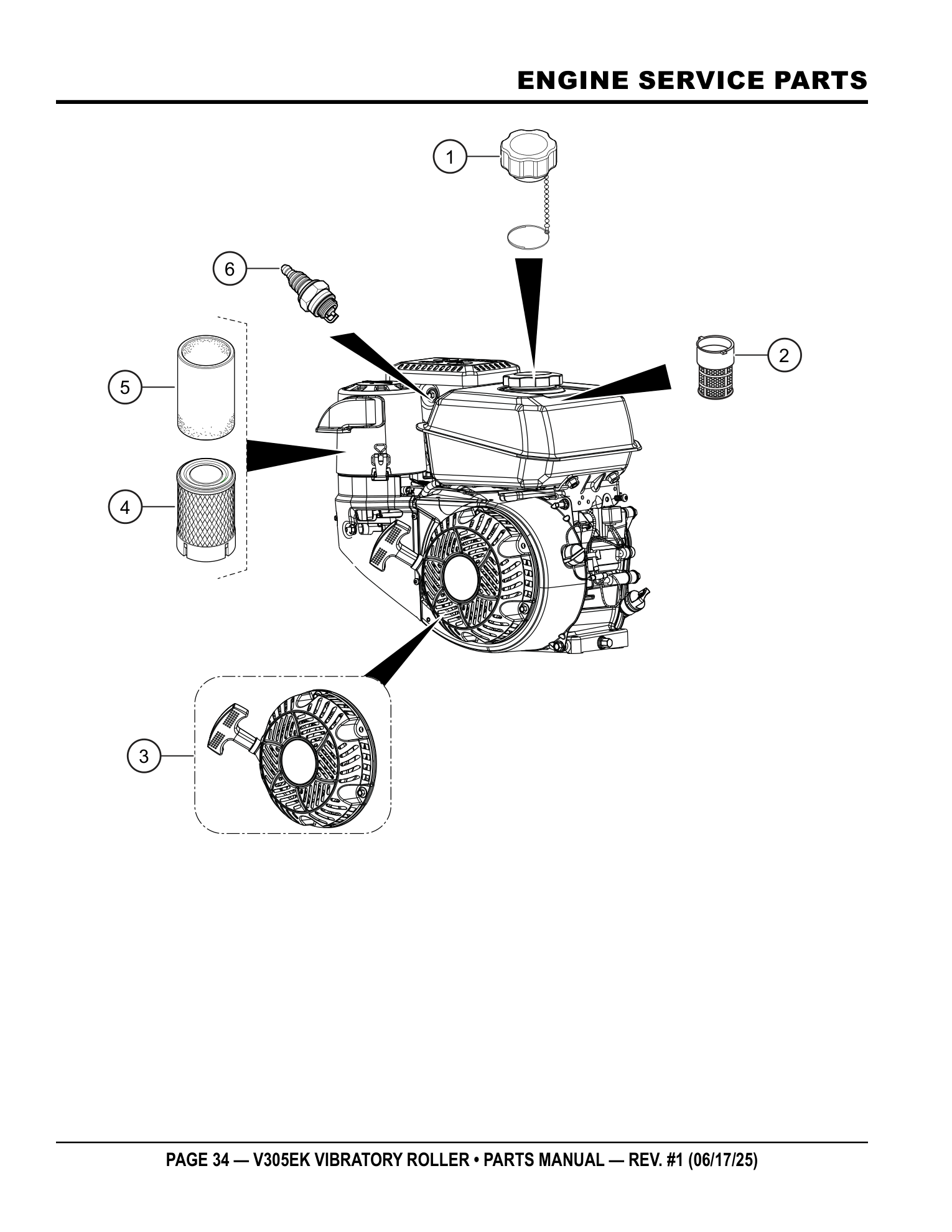

Page 34 — UNKNOWN
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 1717349-S | CAP, FUEL TANK | 1 | ADD TO CART | |
| 2 | 1705023-S | KIT, FUEL SCREEN | 1 | ADD TO CART | |
| 3 | 1734018-S | KIT, ROPE | 1 | ADD TO CART | |
| 4 | 1708332-S | ELEMENT, AIR CLEANER | 1 | ADD TO CART | |
| 5 | 1708315-S | ELEMENT, PRE-CLEANER | 1 | ADD TO CART | |
| 6 | 2513219-S | SPARK PLUG | 1 | ADD TO CART | |
The machine itself
Price by quote
Get a quote
Tell us where the machine is headed and we'll quote it with freight. One call, no games.
Machine
Engine
The Multiquip V305EK is a roller built for compacting asphalt and granular base on paving, patching, and trench restoration. It weighs in at (Empty) 1168 lbs. (530 kg.). Factory-documented specs and parts support; priced by quote.
Keep-it-running spares
All listed parts →Every part that fits this machine
1717349-S
Multiquip 1717349-S Fuel Cap Assembly - OEM Replacement Part
$100.95
42435
Multiquip 42435 Retardant Tank Cap with Lanyard - OEM Replacement Part
$40.95
506131
Multiquip 506131 Bearing MR 1309 EX - OEM Replacement Part for Ride-On Rollers
$279.95
513286
Multiquip 513286 Oil Seal 65 x 100 x 9 - OEM Replacement Part
$35.95
519492
Multiquip 519492 Drive Plate Left Side - OEM Replacement Part for Vibratory Rollers
$91.95
519493
Multiquip 519493 Drive Support Plate R/S - OEM Replacement Part for Vibratory Rollers
$123.95
519545
Multiquip 519545 Plastic Water Tank - OEM Replacement Part
$182.95
519637
Multiquip 519637 Belt Cover - OEM Replacement Part for Vibratory Rollers
$113.95
519651
Multiquip 519651 Cover Top Support - OEM Replacement Part
$288.95
519795
Multiquip 519795 Emergency Stop Button - OEM Replacement Part
$167.95
520242
Multiquip 520242 Bracket Right Side - OEM Replacement Part for Vibratory Rollers
$180.95
520243
Multiquip 520243 Bracket Left Side - OEM Replacement Part for Vibratory Rollers
$226.95
520252
Multiquip 520252 Handle Control - OEM Replacement Part for Vibratory Rollers
$45.95
520268
Multiquip 520268 Water Valve - OEM Replacement Part
$166.95
520275
Multiquip 520275 Sprayer - OEM Replacement Part for Vibratory Rollers
$41.95
520329
Multiquip 520329 Support Upper - OEM Replacement Part
$44.95
521685
Multiquip 521685 Roller V305H - OEM Replacement Part
$2,059.95
800487
Multiquip 800487 Compartment Cover - OEM Replacement Part
$234.95
800769
Multiquip 800769 Roller Support - OEM Replacement Part
$82.95
800771
Multiquip 800771 Coupling Engine/Pump - OEM Replacement Part
$385.95
800796
Multiquip 800796 Water Filter - OEM Replacement Part
$62.95
800803
Multiquip 800803 Hour Tachometer - OEM Replacement Part
$142.95
802442
Multiquip 802442 Collar Locking - OEM Replacement Part
$87.95
803895
Multiquip 803895 Clutch Assembly - OEM Replacement Part for Vibratory Rollers
$1,550.95
803904
Multiquip 803904 Engine Drive Shaft - OEM Replacement Part
$139.95
803956
Multiquip 803956 Pulley - OEM Replacement Part for Vibratory Rollers
$66.95
803995S
Multiquip 803995S Idler Pulley Bushing - OEM Replacement Part
$34.95
804124
Multiquip 804124 Handle Bar - OEM Replacement Part for Vibratory Rollers
$345.95
804131TT
Multiquip 804131TT Lever Water Retainer - OEM Replacement Part
$74.95
804132
Multiquip 804132 Support - OEM Replacement Part
$181.95
804136
Multiquip 804136 Scrapper Rubber - OEM Replacement Part
$158.95
804138
Multiquip 804138 Support Right Roller - OEM Replacement Part
$180.95
804139
Multiquip 804139 Support Left Rear Right Front - OEM Replacement Part
$189.95
804140TT
Multiquip 804140TT Lever Water - OEM Replacement Part
$88.95
804142
Multiquip 804142 Water Cable - OEM Replacement Part
$56.95
804155
Multiquip 804155 Chassis - OEM Replacement Part for Vibratory Rollers
$3,232.95
804694
Multiquip 804694 Shaft Vibrator V305EH - OEM Replacement Part
$287.95
EM490300
Multiquip EM490300 Pulley V30E - OEM Replacement Part
$50.95
EM491032
Multiquip EM491032 Gear Wheel V30E - OEM Replacement Part for Vibratory Rollers
$147.95
EM491132
Multiquip EM491132 V Belt V30E - OEM Replacement Part for Vibratory Rollers
$42.95
EM492122
Multiquip EM492122 Seal V303E - OEM Replacement Part for Vibratory Rollers
$54.95
EM492123
Multiquip EM492123 Seal V303E - OEM Replacement Part for Vibratory Rollers
$46.95
EM492174
Multiquip EM492174 Pillow Block - OEM Replacement Part
$72.95
EM492212
Multiquip EM492212 Bearing V30-3E - OEM Replacement Part
$54.95
EM492228
Multiquip EM492228 Bearing V30-3E - OEM Replacement Part
$65.95
EM500913
Multiquip EM500913 Gear Reduction Assembly - OEM Replacement Part for Vibratory Rollers
$2,106.95
EM502550
Multiquip EM502550 SHAFT V30 - OEM Replacement Part
$80.95
EM502552
Multiquip EM502552 Gear V30 - OEM Replacement Part for Vibratory Rollers
$93.95
EM502553
Multiquip EM502553 Shaft V30-3 - OEM Replacement Part
$82.95
EM502556
Multiquip EM502556 Cover V30-3E - OEM Replacement Part for Vibratory Rollers
$94.95
EM502629
Multiquip EM502629 Bearing Support V30E - OEM Replacement Part
$67.95
EM502643
Multiquip EM502643 Shift Fork - OEM Replacement Part for Vibratory Rollers
$33.95
EM502677
Multiquip EM502677 Hook Hanger 3/8" Thick V30E - OEM Replacement Part
$104.95
EM503802
Multiquip EM503802 Gear V303E - OEM Replacement Part for Vibratory Rollers
$510.95
EM504441
Multiquip EM504441 Shock Mount V30E - OEM Replacement Part
$91.95
EM505396
Multiquip EM505396 Hanger Carrying V30E - OEM Replacement Part for Vibratory Rollers
$360.95
EM510971
Multiquip EM510971 Pump Hydrostatic V30-4 - OEM Replacement Part
$2,626.95
0202
SCREW HHC 5/16X18X1
$0.21
100536
WASHER, BRAKE
$0.74
1294220103
SHAFT GOVERNOR
$12.95
13118
DECAL: POWDER COATED
$0.76
1456
NUT, HEX 3/8"
1579
SCREW HHC 1/4-20X1/2"
1705023-S
KIT, FUEL SCREEN
$5.95
1708315-S
ELEMENT, PRE-CLEANER
$9.95
1708332-S
ELEMENT, AIR CLEANER
$29.95
1734018-S
KIT, ROPE
$31.95
2101402
WASHER, LOCK 1/4"
$0.03
210142
WASHER, LOCK 1/4"
2105164
NUT NYLON 5/16-18
$0.20
23297
MANUAL HOLDER
$22.95
2508
SCREW HHC 1/4-20X2-1/4
$0.21
2513219-S
SPARK PLUG
$20.95
3019092
WASHER, FLAT 3/8"
$0.18
3103160
WASHER, LOCK 3/16"
$0.08
35137
DECAL: WARNING, READ MANUAL
$2.95
490166
BOLT, HEX 3/8"X3-1/2"
$0.95
490172
NUT HEX, 3/8" G5
490202
RUBBER PROTECTOR/BUMPER
$1.63
490300
PULLEY, S-A
490952
EXTERNAL RETAINING RING
$0.58
490984
SNAP RING
$2.95
491008
ZERK FITTING CAP
$0.28
491019
KNOB, BLACK PLASTIC
$9.95
491019C
PLASTIC KNOB, BLACK
491033
PULLEY, DRIVE BELT
$277.88
491704
ZERK FITTING
491757
RIVET
$0.14
491759
KEY, WOODRUFF 1/8" X 1/2"
$0.84
492003
DECAL: FUEL COMBUSTIBLE
492173
BEARING
$76.66
492179
BEARING SHAFT PIN
$16.95
492303
BOLT 5/16" NC X 1-1/4"
$1.95
492356
BOLT 1/4"X3/4"
$0.50
492357
BOLT 1/4"X1" G5
$1.95
492363
BOLT, 5/16" NC X 3/4" G5
$0.95
492378
SCREW 3/8"NC X 1-3/4" G5
$0.69
492379
SCREW, CAP 3/8"X2" G5
$0.78
492395
BOLT 1/2"NC X 1-3/4" G5
$0.95
492466
SET SCREW 1/4" NC X 1/2
$0.30
492467
SCREW, ALLEN 5/16"X3/8"
$0.41
492468
SCREW SET 5/16"
$0.77
492581
NUT, NYLON LOCKNUT 1/4"-20 G8
$0.19
492584
LOCK NUT 1/2" G5
$0.45
492595
WASHER, FLAT 3/16
$0.48
492628
WASHER, LOCK 3/4"
$0.65
500194
KEY SQUARE
$2.89
502651
SPACER FAN
503110
SCREW SET
$12.31
503111
SCREW, HHC 1/2-13X4-1/2"
$2.75
503118
BOLT 3/16"X1" G2
$0.95
503119
NUT LOCK
$0.26
503738
BEARING
$5.08
504564
GRIP, HANDLE
$2.95
504679
WASHER, FLAT 3/8"
$0.21
504723
NUT 1/2" NC G8
$0.48
504724
NUT
$1.84
505069
NUT
505279
LEVER, VIBRATION
$41.31
505303
TERMINAL RING, 1/4" BLUE
$8.95
505314
PROTECTIVE WIRE COVERING
505389
CLAMP, 3/4"
$0.55
506071
ELBOW PVC
$3.95
506144
OIL SEAL
$15.95
509157
COTTER PIN
$0.94
509161
WASHER, FLAT 5/16"
510892
DECAL: MQ LOGO
511724
DECAL: GREASE EVERY 75 HOURS
$0.95
511768
DECAL: HYD. OIL CHECK EVERY 50 HRS.
$0.44
511807
CLAMP, NYLON 5/8"
$0.63
511870C
BUSHING
$2.82
511874
FORK SHORT GALVANIZED CONTROL
$18.95
511875
FORK LONG GALVANIZED CONTROL
$17.95
511891
CLEVIS
$22.95
511898C
GALVANIZED FORK PIN
$11.95
512367
SCREW
$0.13
513452
BOLT 3/8"X1-1/4" G5
$0.85
513580
DECAL: ENGINE RPM
$1.42
513619
FITTING
$3.95
513979C
SPACER/BUSHING
514540
RIVET
$0.26
516312
ROLLER, STABILIZER
$300.94
516487
END ROD
$14.95
518524
DECAL: QUALITY MANAGEMENT ISO
$0.59
519337
WASHER, FLAT 1/2"
$2.95
520183
BUSHING
$25.95
520240
SPACER
$1.95
520241
RETAINER
$4.95
520341
SPRING EXTENSION, SCRAPER
$3.95
520935
DECAL: SAFETY INSTRUCTIONS
$6.95
520957
WASHER, FLAT 3/8"
$8.95
521028
SPACER, BUSHING COUPLING
$6.95
521090
FLANGE BRACKET PUSH BUTTON
$2.95
522406
ENGINE, KOHLER C440-3275
530298
SCREW HEX 5/8"
$2.66
6109170
WASHER, FLAT 1/2"
$0.48
6109180
WASHER, LOCK 1/2"
$0.21
800283
ROD, CLUTCH, NO. 1
$5.95
800284
ROD, CLUTCH, NO. 2
$4.95
800323
SUPPORT, RIGHT SPRING SCRAPER
$10.95
800324
SUPPORT, LEFT SPRING SCRAPER
$10.95
800371
BUSHING FOR LEVER
$16.95
800379
SUPPORT, TANK VALVE
800380
HOSE, TANK VALVE
$4.95
800387
HOSE, TANK
$11.95
800390
FRONT BRACKET, WATER TANK
800394
PIVOT SHAFT
$28.95
800398
SPRING, VALVE
$1.95
800399
SPRING, HANDLE
$6.95
800417
HOSE, FUEL 8.4"
800773
GROMMET
800774
BRACE, TIE ROD
$17.95
800776
DRAIN HOSE
$23.95
800780
ADAPTER
$15.95
800806
LATCH
$30.95
800810
TIE ROD
$2.76
800829
BACK PLATE FILTER PROTECTION
801594
CHAIN, LINK 3/16"X0.25M
$16.37
803994S
IDLER PULLEY SHAFT, GALVANIZED
$19.95
804100
DECAL: CONTROL
$10.95
804123
STEEL, LANYARD (IGNITION KEY)
$7.95
804130
SPRING, RATCHET LEVER
$24.95
804134
ROD, VIBRATION
$12.95
804135
ADVANCE ROD
$13.95
804137
BACK UP PLATE, REAR
$25.95
804143
ROD, TRANSMISSION
$2.95
804144
LEVER, TRANSMISSION
$4.95
804146
E-STOP SWITCH WIRE 10 AWG BLACK
$17.95
804253G
LOCK PIN
$22.95
804294
DECAL: ATTENTION, GREASE DAILY
$45.25
804669
HOUSING, RIGHT SIDE
804670
HOUSING, LEFT SIDE
804695
SPACER
925191
PIN HAIR 3/16"
948438
DECAL: WATER TANK
$0.94
981635
BOLT HX HD 1/2"-13 NC X1"
$1.67
EM104
BOLT 5/8-11"X2"
$1.32
EM490163
BEARING, IDLER PULLEY
EM490172
NUT, HEX 3/8"
EM490951
RING, SNAP
$0.59
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
