Wacker Neuson BPU2540 Vibratory Plate
Factory parts book · interactive
Wacker Neuson BPU2540 Vibratory Plate
The parts bench

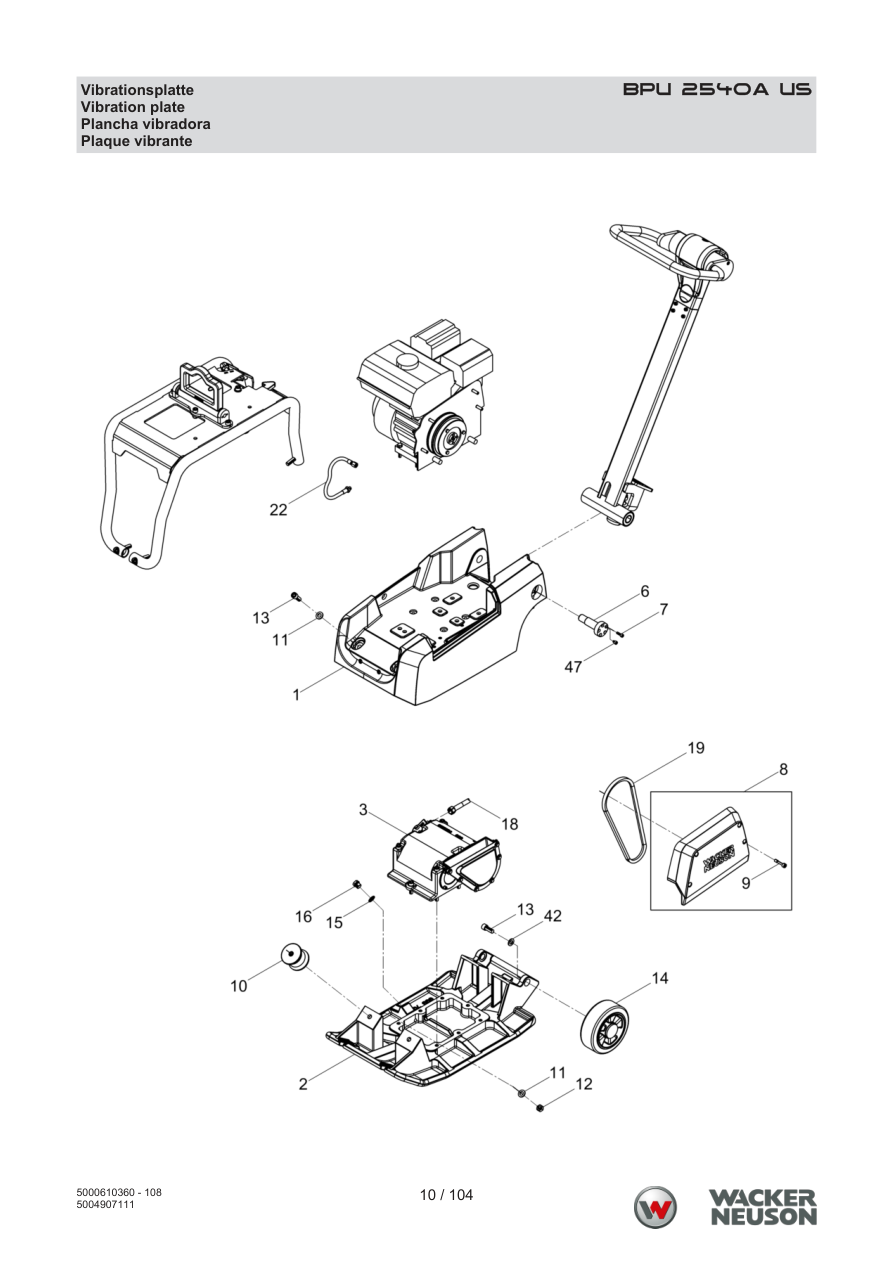

Need the PDF? ↓Page 10 — BPU 2540A US Vibratory plate
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000125930 | Upper mass | 1 | ADD TO CART | |
| 2 | 5000125369 | Baseplate | 1 | ADD TO CART | |
| 3 | 5000220478 | Exciter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Exciter cpl.
5000220478 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 6 | 5000204120 | Axle | 2 | ADD TO CART | |
| 7 | 5000011551 | Cheese head screw | 8 | 10Nm/7ft.lbs | ADD TO CART |
| 8 | 5100050070 | Belt guard | 1 | ADD TO CART | |
| 9 | 5000216658 | Screw | 4 | M 8x 38 | ADD TO CART |
| 10 | 5000125931 | Shockmount | 4 | ADD TO CART | |
| 11 | 5000010620 | Flat washer | 8 | ADD TO CART | |
| 12 | 5000010884 | Hexagon nut | 4 | M12 | DIN934 | ADD TO CART |
| 13 | 5000011529 | Cheese head screw | 6 | 86Nm/63ft.lbs | ISO4762 | ADD TO CART |
| 14 | 5000125927 | Tire | 2 | ADD TO CART | |
| 15 | 5000014968 | Usit-ring | 1 | 16,7 x 24 x 1,5 | ADD TO CART |
| 16 | 5000011034 | Plug (threaded) | 1 | M16 x 1,5 | DIN910 | ADD TO CART |
| 18 | 5000125357 | Hose pipe | 1 | ADD TO CART | |
| 19 | 5000125933 | Narrow v-belt | 1 | ADD TO CART | |
| 22 | 5000129265 | Hose pipe | 1 | ADD TO CART | |
| 42 | 5000031565 | Lockwasher | 2 | ADD TO CART | |
| 47 | 5000014425 | Cheese head screw | 2 | 10Nm/7ft.lbs | PARTS REQUEST |
|
COMING Cheese head screw
5000014425 · qty on machine: 2 10Nm/7ft.lbs | |||||

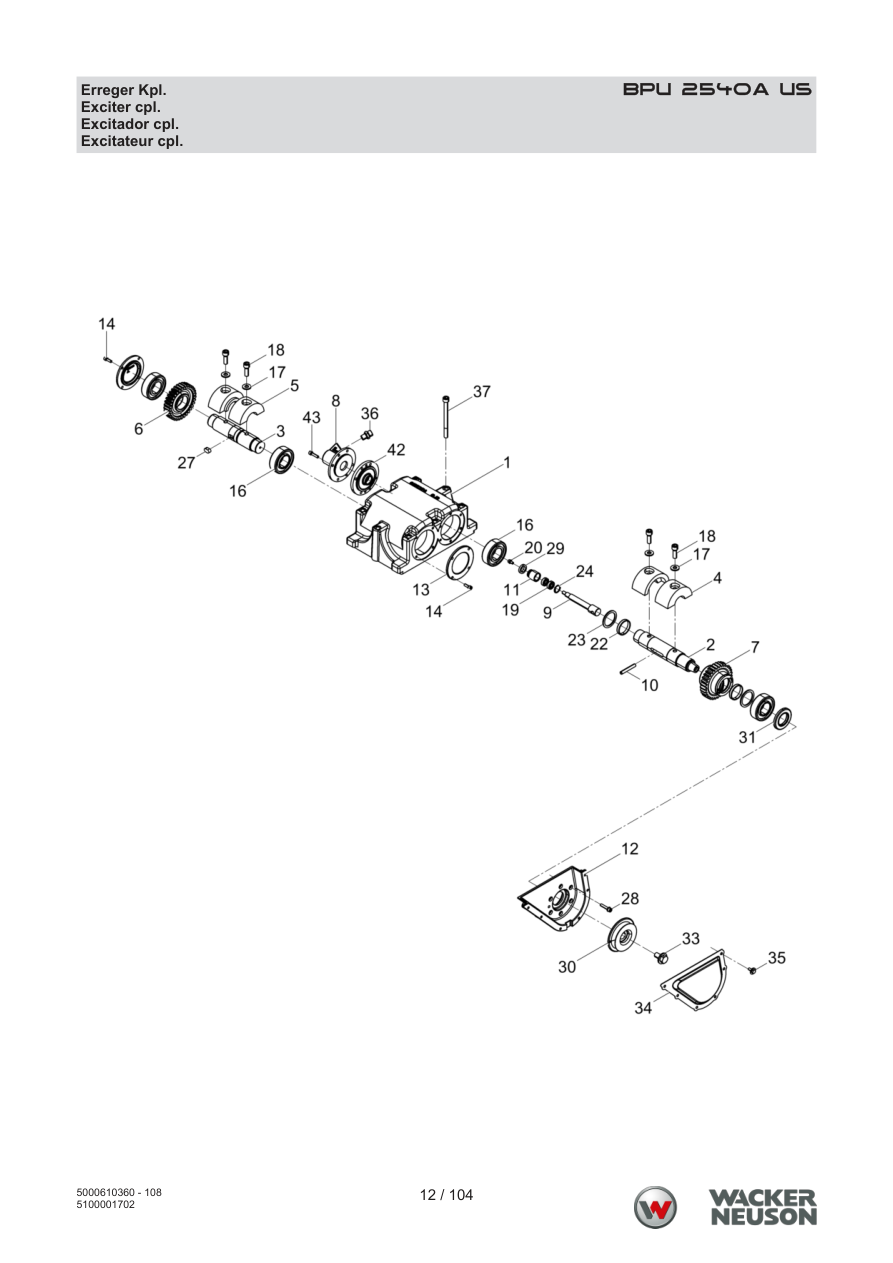

Page 12 — Exciter cpl.
Parts list — exactly as printed34 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000125375 | Exciter housing | 1 | ADD TO CART | |
| 2 | 5000220064 | Shaft | 1 | ADD TO CART | |
| 3 | 5000220065 | Shaft | 1 | PARTS REQUEST | |
|
COMING Shaft
5000220065 · qty on machine: 1 | |||||
| 4 | 5000220241 | Eccentric weight | 2 | ADD TO CART | |
| 5 | 5000220243 | Eccentric weight | 2 | ADD TO CART | |
| 6 | 5000047057 | Gear wheel | 1 | ADD TO CART | |
| 7 | 5100001454 | Adjusting sleeve | 1 | ADD TO CART | |
| 8 | 5000220220 | Cylinder cover | 1 | ADD TO CART | |
| 9 | 5000220071 | Indexing bolt | 1 | ADD TO CART | |
| 10 | 5000220073 | Tripping pin | 1 | ADD TO CART | |
| 11 | 5000220355 | Piston | 1 | ADD TO CART | |
| 12 | 5000126159 | Belt guard | 1 | ADD TO CART | |
| 13 | 5000126166 | Cover | 2 | ADD TO CART | |
| 14 | 5000011552 | Cheese head screw | 8 | M6 x 18 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 16 | 5000105139 | Cylindrical roller bearing | 4 | ADD TO CART | |
| 17 | 5000033988 | Lockwasher | 4 | ADD TO CART | |
| 18 | 5000220074 | Cheese head screw | 4 | M10x 30 85Nm/63ft.lbs | DIN912 | ADD TO CART |
| 19 | 5002006596 | Grooved ball bearing | 2 | ADD TO CART | |
| 20 | 5100072824 | Screw m 5x 10 | 1 | PARTS REQUEST | |
|
COMING Screw m 5x 10
5100072824 · qty on machine: 1 | |||||
| 22 | 5000220072 | Bushing | 2 | PARTS REQUEST | |
|
COMING Bushing
5000220072 · qty on machine: 2 | |||||
| 23 | 5000220075 | Supporting washer | 2 | S40x50 | DIN988 | PARTS REQUEST |
|
COMING Supporting washer
5000220075 · qty on machine: 2 S40x50 | DIN988 | |||||
| 24 | 5002004979 | Retaining ring | 1 | 22 x 1 | DIN472 | ADD TO CART |
| 27 | 5000014844 | Fitting key | 1 | A10 x 8 x 18 | DIN6885 | ADD TO CART |
| 28 | 5100072822 | Screw m 6x 30 | 6 | 10Nm/7ft.lbs | ADD TO CART |
| 29 | 5000220356 | Lip seal ring | 1 | 25x 17x 5,5 | ADD TO CART |
| 30 | 5000125371 | V-belt pulley | 1 | ADD TO CART | |
| 31 | 5000126167 | Rotary shaft seal | 1 | ADD TO CART | |
| 33 | 5100072825 | Vent screw | 1 | 49Nm/36ft.lbs | ADD TO CART |
| 34 | 5000125360 | Cover | 1 | ADD TO CART | |
| 35 | 5100009501 | Screw | 6 | M6 x 16 10Nm/7ft.lbs | ADD TO CART |
| 36 | 5000046461 | Screwed socket | 1 | 49Nm/36ft.lbs | DIN3901 | PARTS REQUEST |
|
COMING Screwed socket
5000046461 · qty on machine: 1 49Nm/36ft.lbs | DIN3901 | |||||
| 37 | 5000094073 | Cheese head screw | 8 | M10 x 120 69Nm/51ft.lbs | ISO4762 | ADD TO CART |
| 42 | 5000220216 | Cover | 1 | ADD TO CART | |
| 43 | 5000011550 | Cheese head screw | 4 | M6 x 25 10Nm/7ft.lbs | ISO4762 | ADD TO CART |

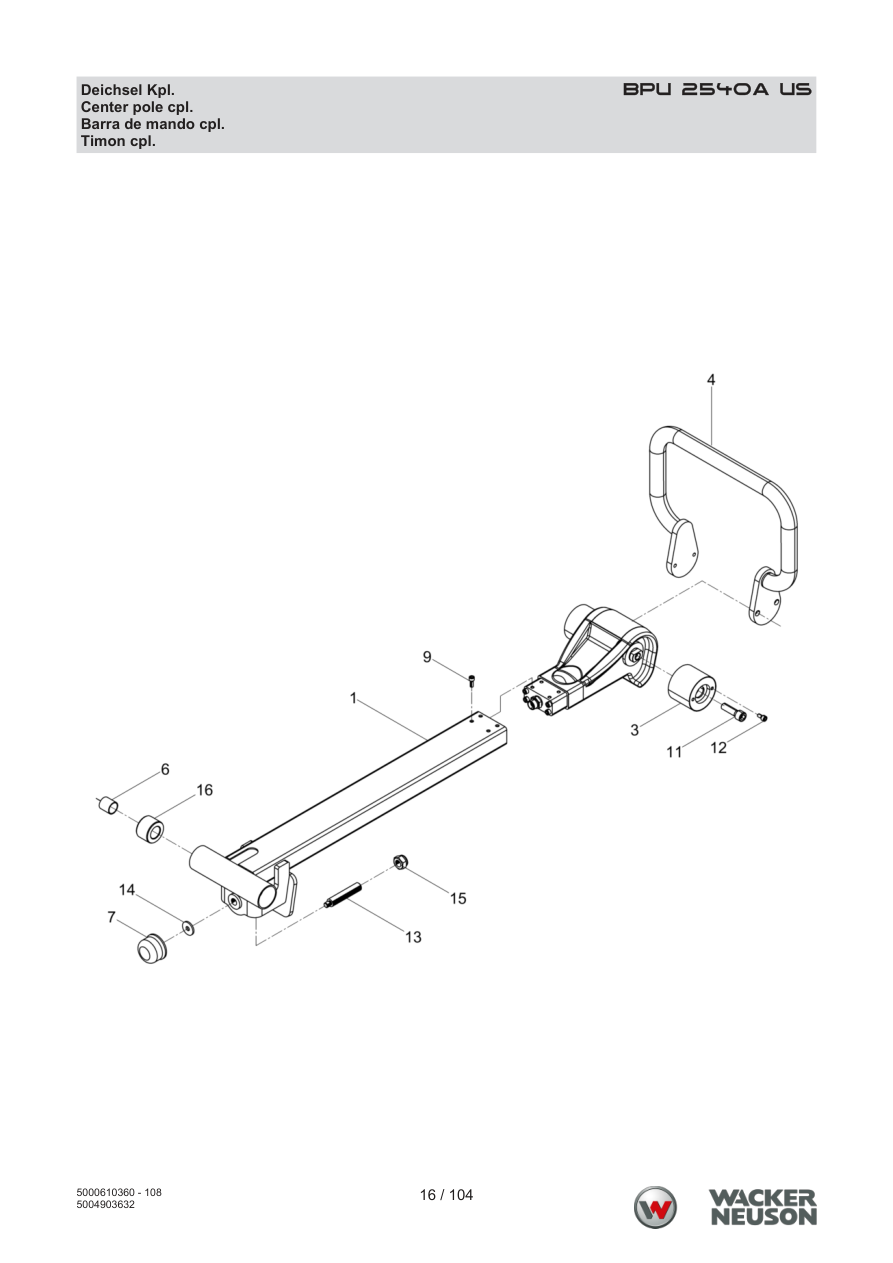

Page 16 — Center pole cpl.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000125945 | Center pole | 1 | ADD TO CART | |
| 3 | 5000215035 | Shockmount | 2 | ADD TO CART | |
| 4 | 5000214990 | Clamp | 1 | ADD TO CART | |
| 6 | 5000126164 | Slide bush | 2 | ADD TO CART | |
| 7 | 5000127085 | Shockmount | 1 | ADD TO CART | |
| 9 | 5000011553 | Cheese head screw | 8 | 10Nm/7ft.lbs | ADD TO CART |
| 11 | 5000011527 | Cheese head screw | 2 | 86Nm/63ft.lbs | ADD TO CART |
| 12 | 5000011554 | Cheese head screw | 4 | 10Nm/7ft.lbs | ADD TO CART |
| 13 | 5000201009 | Threaded spindle | 1 | ADD TO CART | |
| 14 | 5000012976 | Washer | 1 | R11 | DIN440 | ADD TO CART |
| 15 | 5000013496 | Hexagon nut | 1 | ADD TO CART | |
| 16 | 5000201018 | Bush | 2 | ADD TO CART | |

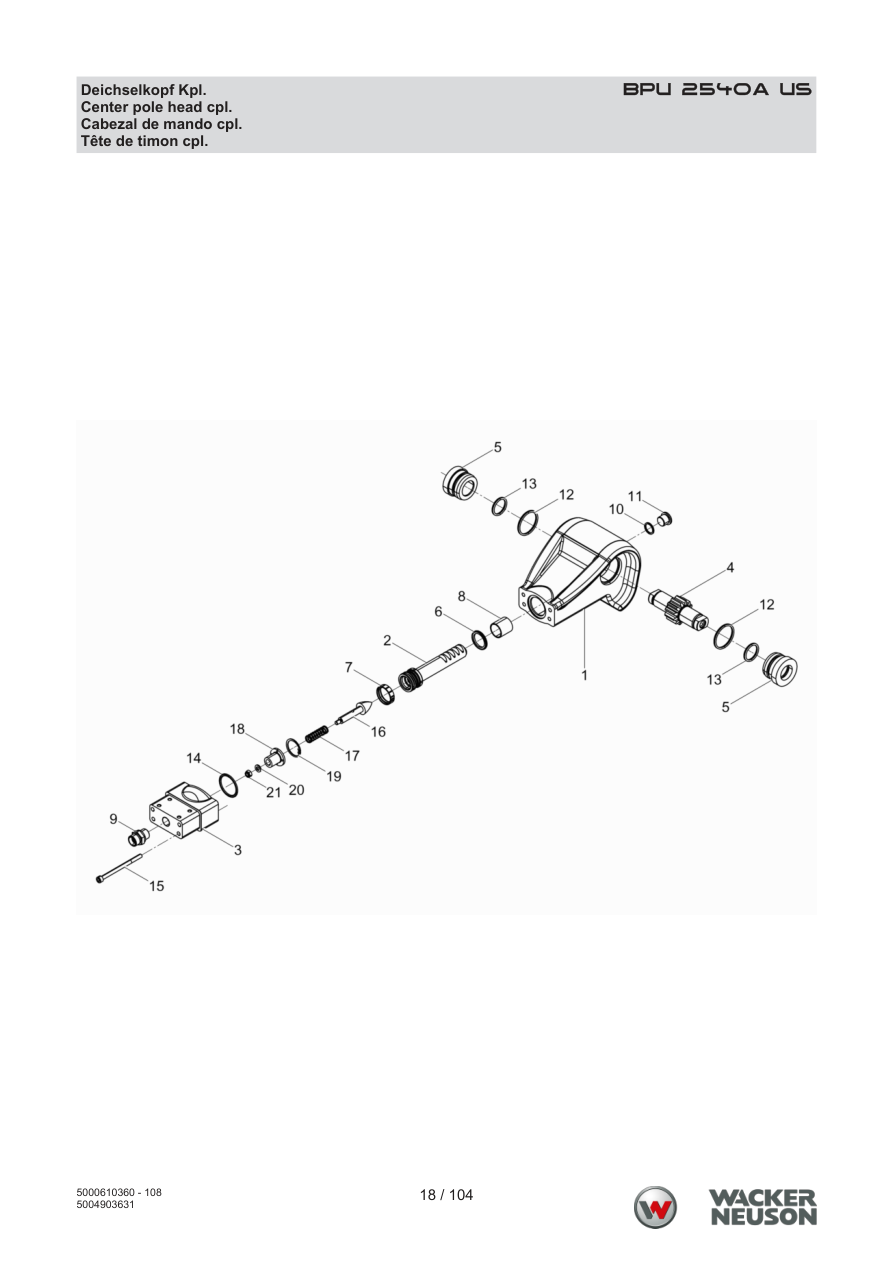

Page 18 — Center pole head cpl.
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000125363 | Center pole head | 1 | ADD TO CART | |
| 2 | 5100018558 | Piston rod | 1 | ADD TO CART | |
| 3 | 5000125924 | Guide pole head adapter | 1 | ADD TO CART | |
| 4 | 5000069726 | Long face pinion | 1 | ADD TO CART | |
| 5 | 5000125926 | Spacer | 2 | ADD TO CART | |
| 6 | 5000129269 | Compact seal | 1 | ADD TO CART | |
| 7 | 5000126163 | Piston guide ring | 1 | ADD TO CART | |
| 8 | 5000126164 | Slide bush | 1 | ADD TO CART | |
| 9 | 5000046092 | Screwed socket | 1 | ADD TO CART | |
| 10 | 5000012082 | Seal ring | 1 | A16 x 20 | DIN7603 | ADD TO CART |
| 11 | 5000011050 | Plug (threaded) | 1 | M16 x 1,5 | DIN908 | ADD TO CART |
| 12 | 5000068752 | O-ring | 2 | ADD TO CART | |
| 13 | 5000018194 | O-ring | 2 | ADD TO CART | |
| 14 | 5000067781 | O-ring | 1 | ADD TO CART | |
| 15 | 5000200651 | Cheese head screw | 4 | M6 x 90 | ISO4762 | ADD TO CART |
| 16 | 5100018559 | Seal cone | 1 | ADD TO CART | |
| 17 | 5100018591 | Compression spring | 1 | ADD TO CART | |
| 18 | 5100018590 | Guide sleeve | 1 | ADD TO CART | |
| 19 | 5002001695 | Retaining ring | 1 | 30 x 1,2 | DIN472 | ADD TO CART |
| 20 | 5000010624 | Flat washer | 1 | ADD TO CART | |
| 21 | 5000010368 | Hexagon nut | 1 | PARTS REQUEST | |
|
COMING Hexagon nut
5000010368 · qty on machine: 1 | |||||

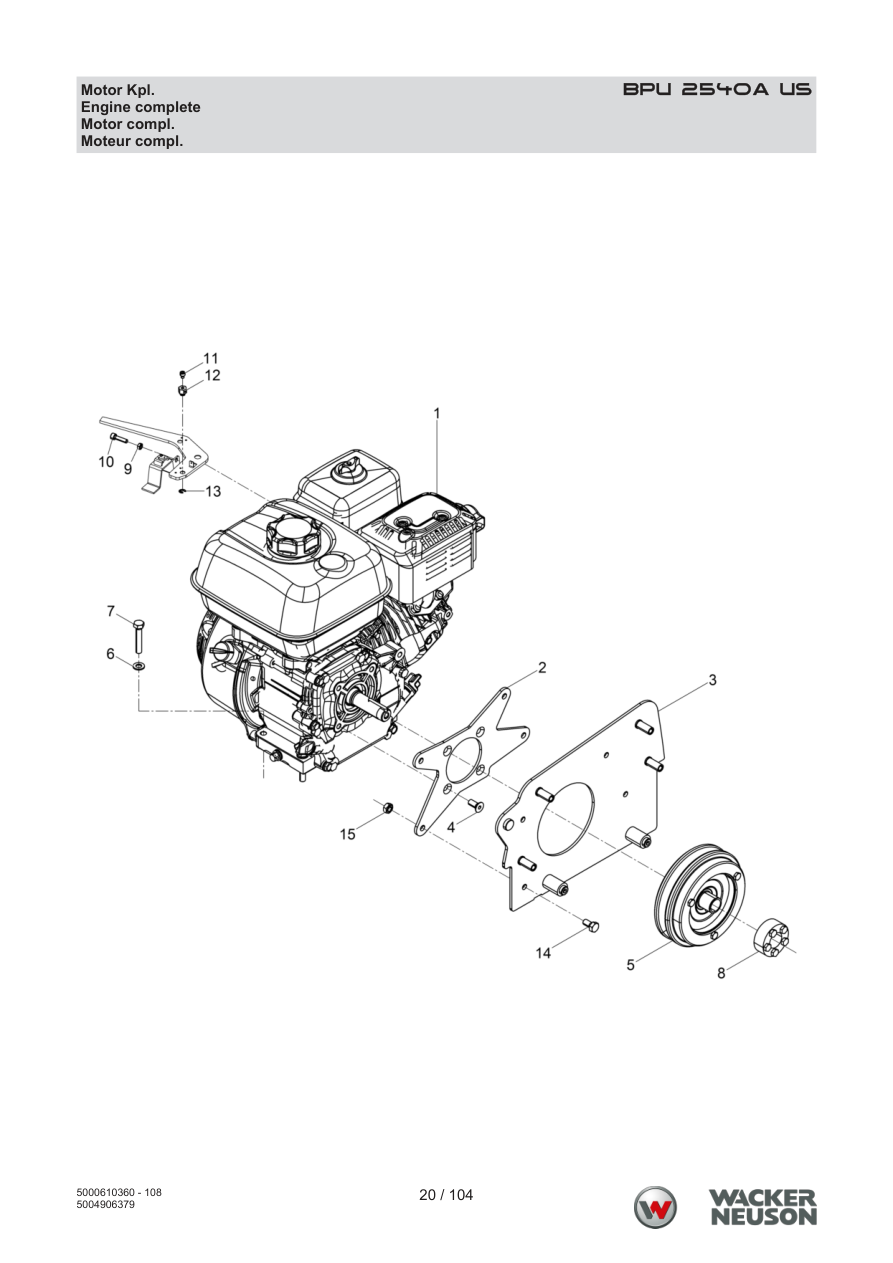

Page 20 — Engine complete
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100045995 | Gas engine | 1 | ADD TO CART | |
| 2 | 5100006029 | Plate | 1 | ADD TO CART | |
| 3 | 5100006032 | Fixing plate cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5000125350 | Countersunk flat screw | 4 | ADD TO CART | |
| 5 | 5100006041 | Centrifugal clutch | 1 | ADD TO CART | |
| 6 | 5000010622 | Flat washer | 4 | ADD TO CART | |
| 7 | 5000011453 | Hexagonal head cap screw | 4 | M8 x 45 25Nm/18ft.lbs | DIN933 | ADD TO CART |
| 8 | 5100006040 | Tightening element | 1 | ADD TO CART | |
| 9 | 5000010879 | Hexagon nut | 1 | M5 | ISO4032 | ADD TO CART |
| 10 | 5000108180 | Cheese head screw | 1 | M5 x 25 | ISO4762 | ADD TO CART |
| 11 | 5100027691 | Cheese head screw | 1 | M 4x 5 | ADD TO CART |
| 12 | 5000151819 | Clamping piece | 1 | ADD TO CART | |
| 13 | 5000151823 | Lock washer | 1 | ADD TO CART | |
| 14 | 5000012361 | Hexagonal head cap screw | 4 | 25Nm/18ft.lbs | DIN933 | PARTS REQUEST |
|
COMING Hexagonal head cap screw
5000012361 · qty on machine: 4 25Nm/18ft.lbs | DIN933 | |||||
| 15 | 5000010882 | Hexagon nut | 4 | ADD TO CART | |

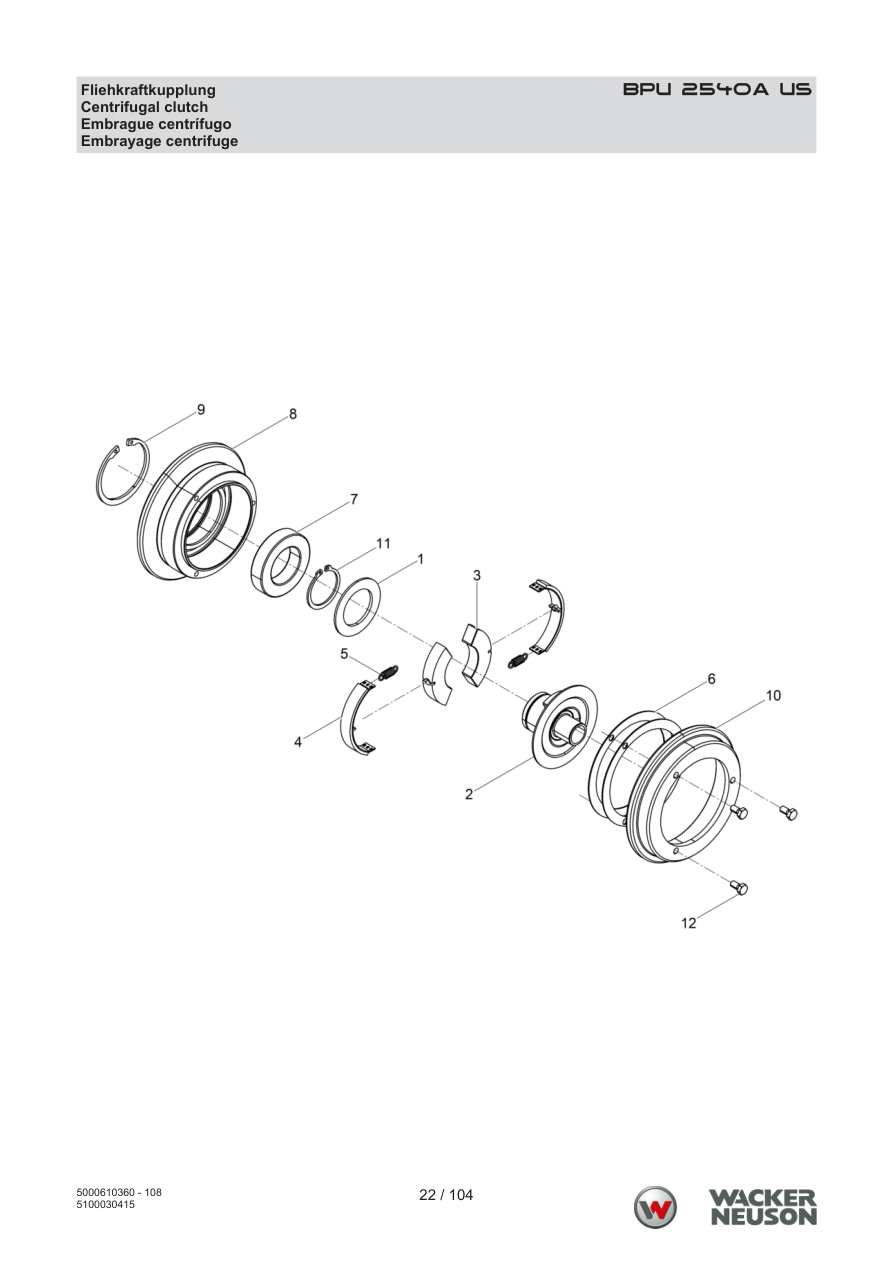

Page 22 — BPU 2540A US Centrifugal clutch
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000201727 | Washer | 1 | ADD TO CART | |
| 2 | 5100031123 | Hub | 1 | ADD TO CART | |
| 3 | 5100031124 | Centrifugal weight | 2 | ADD TO CART | |
| 4 | 5000022861 | Lining | 2 | ADD TO CART | |
| 5 | 5100031125 | Tension spring | 2 | ADD TO CART | |
| 6 | 5000201721 | Shim ring | 2 | ADD TO CART | |
| 7 | 5100031126 | Grooved ball bearing | 1 | ADD TO CART | |
| 8 | 5100031127 | Clutch drum | 1 | PARTS REQUEST | |
|
COMING Clutch drum
5100031127 · qty on machine: 1 | |||||
| 9 | 5000201715 | Retaining ring | 1 | J68 x 2,5 | ADD TO CART |
| 10 | 5000201723 | Clutch drum | 1 | ADD TO CART | |
| 11 | 5100031129 | Retaining ring | 1 | PARTS REQUEST | |
|
COMING Retaining ring
5100031129 · qty on machine: 1 | |||||
| 12 | 5100031130 | Hexagonal head cap screw | 3 | ADD TO CART | |

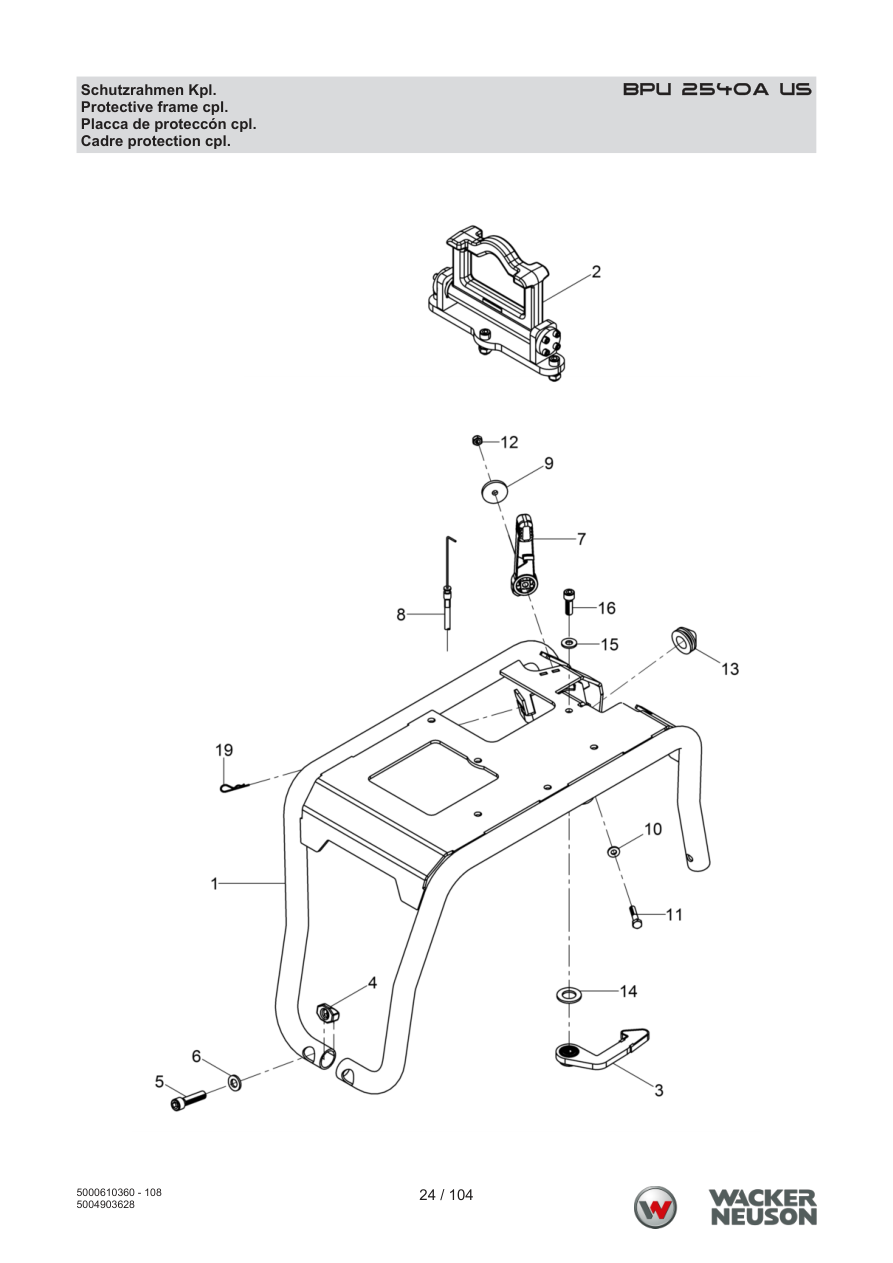

Page 24 — Protective frame cpl.
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000200630 | Protective frame | 1 | ADD TO CART | |
| 2 | 5000200628 | Jack ring cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Jack ring cpl.
5000200628 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5000200616 | Carrier cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5000125949 | Bolt | 4 | ADD TO CART | |
| 5 | 5000013569 | Cheese head screw | 4 | M12 x 50 86Nm/63ft.lbs | ISO4762 | PARTS REQUEST |
|
COMING Cheese head screw
5000013569 · qty on machine: 4 M12 x 50
86Nm/63ft.lbs | ISO4762 | |||||
| 6 | 5000021465 | Lock washer | 4 | ADD TO CART | |
| 7 | 5000203537 | Governor lever | 1 | PARTS REQUEST | |
|
COMING Governor lever
5000203537 · qty on machine: 1 | |||||
| 8 | 5000125349 | Bowden cable | 1 | ADD TO CART | |
| 9 | 5000105194 | Washer | 1 | M8 x 1,5in | ADD TO CART |
| 10 | 5000033198 | Lockwasher | 1 | ADD TO CART | |
| 11 | 5000011341 | Hexagonal head cap screw | 1 | 25Nm/18ft.lbs | DIN931 | ADD TO CART |
| 12 | 5000033356 | Hexagon nut | 1 | ADD TO CART | |
| 13 | 5000200617 | Shockmount | 1 | ADD TO CART | |
| 14 | 5000010616 | Flat washer | 1 | ADD TO CART | |
| 15 | 5000033988 | Lockwasher | 1 | ADD TO CART | |
| 16 | 5000011534 | Cheese head screw | 1 | 49Nm/36ft.lbs | ISO4762 | ADD TO CART |
| 19 | 5000129272 | Spring pin | 1 | ADD TO CART | |

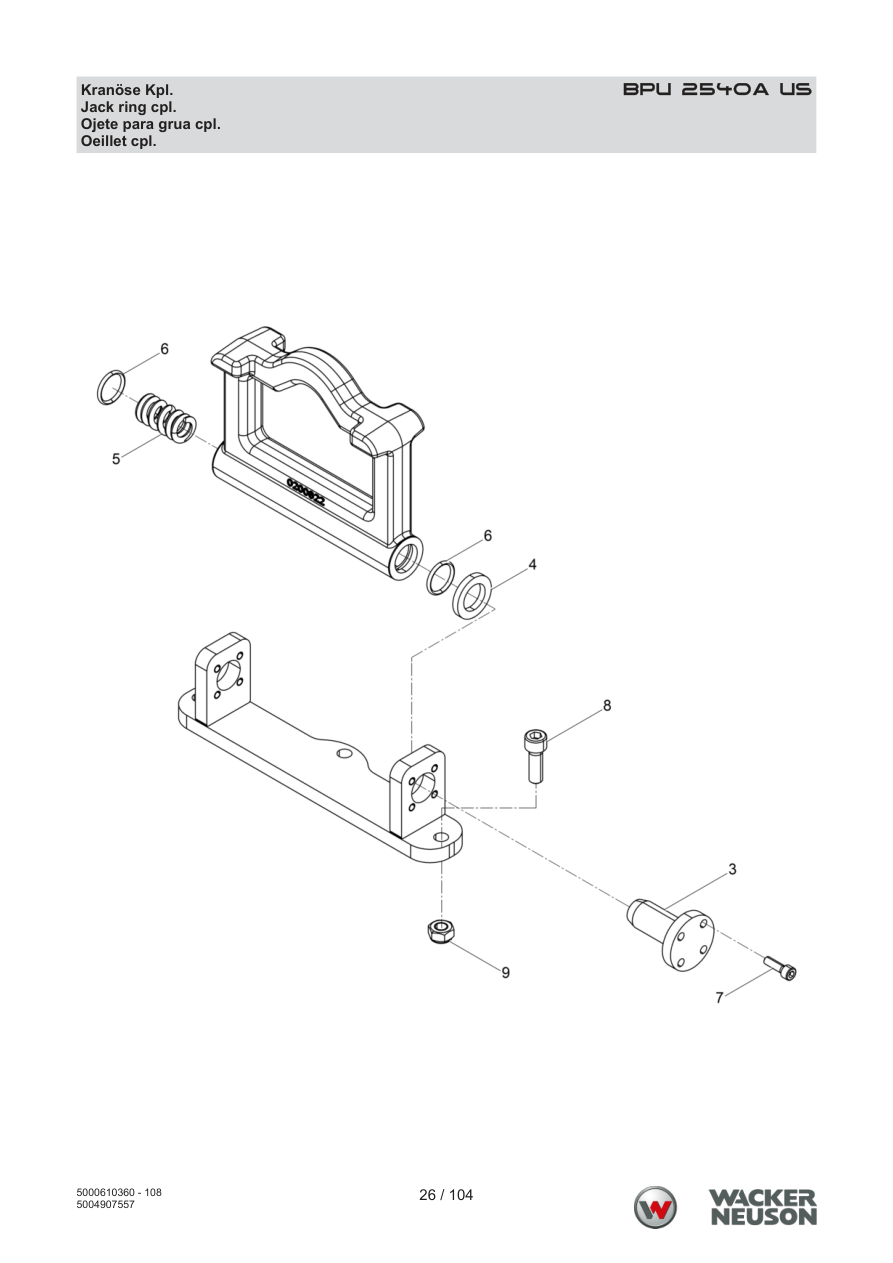

Page 26 — Jack ring cpl.
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5000216582 | Axle | 2 | ADD TO CART | |
| 4 | 5000216586 | Friction disc | 1 | ADD TO CART | |
| 5 | 5000220231 | Compression spring | 1 | ADD TO CART | |
| 6 | 5000017254 | O-ring | 2 | ADD TO CART | |
| 7 | 5100069282 | Screw m 6x 20 | 8 | 10Nm/7ft.lbs | ADD TO CART |
| 8 | 5000220226 | Cheese head screw | 3 | M10x 30 | ISO4762 | PARTS REQUEST |
|
COMING Cheese head screw
5000220226 · qty on machine: 3 M10x 30 | ISO4762 | |||||
| 9 | 5000216588 | Hexagon nut | 3 | M10 | DIN980 | ADD TO CART |

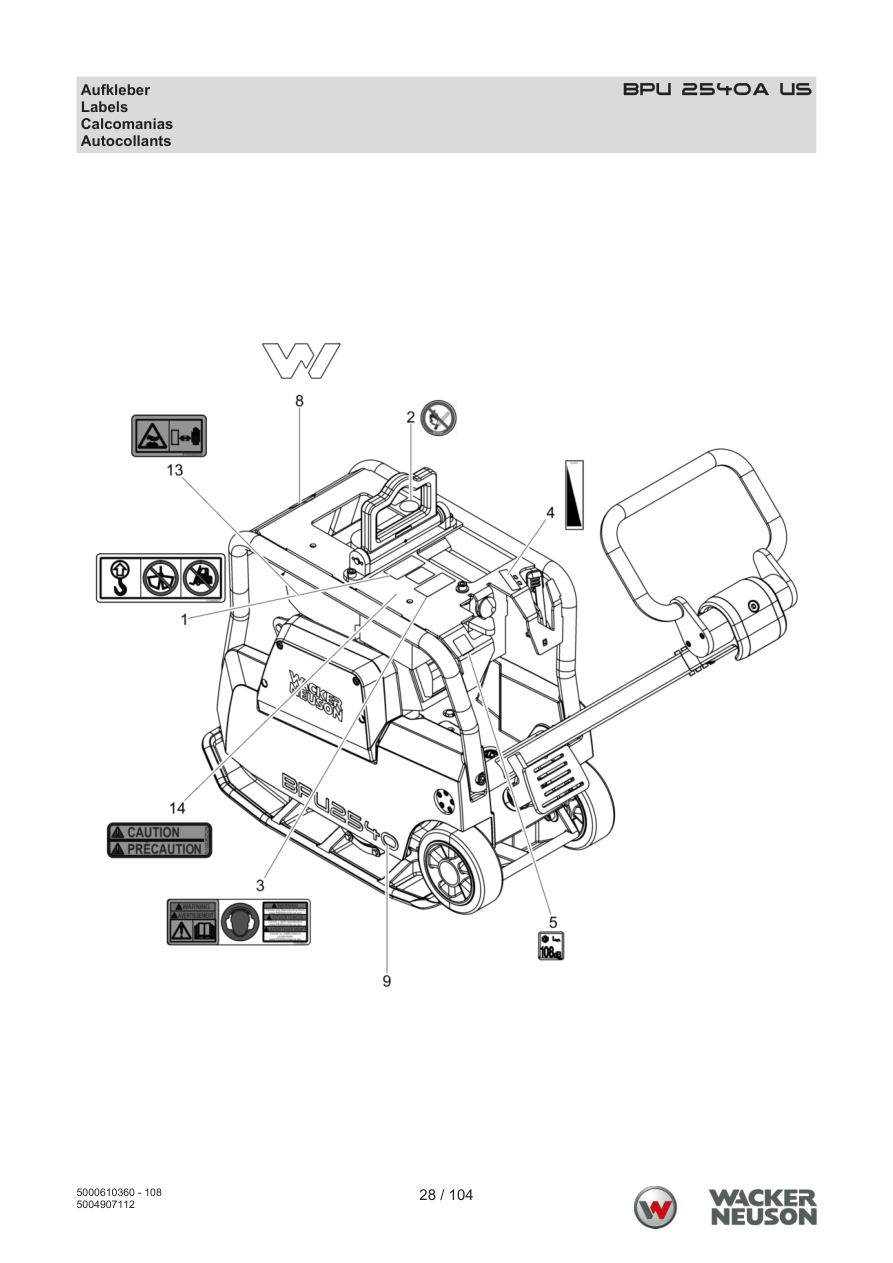

Page 28 — BPU 2540A US Decals
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100060907 | Label | 1 | ADD TO CART | |
| 2 | 5000219181 | Labels | 1 | ADD TO CART | |
| 3 | 5100068610 | Label | 1 | ADD TO CART | |
| 4 | 5000219259 | Labels | 1 | ADD TO CART | |
| 5 | 5000129784 | Decal-sound power level | 1 | ADD TO CART | |
| 8 | 5100058733 | Label symbol | 1 | ADD TO CART | |
| 9 | 5000127078 | Type label | 1 | ADD TO CART | |
| 13 | 5100062535 | Label | 1 | ADD TO CART | |
| 14 | 5100062529 | Label | 1 | ADD TO CART | |

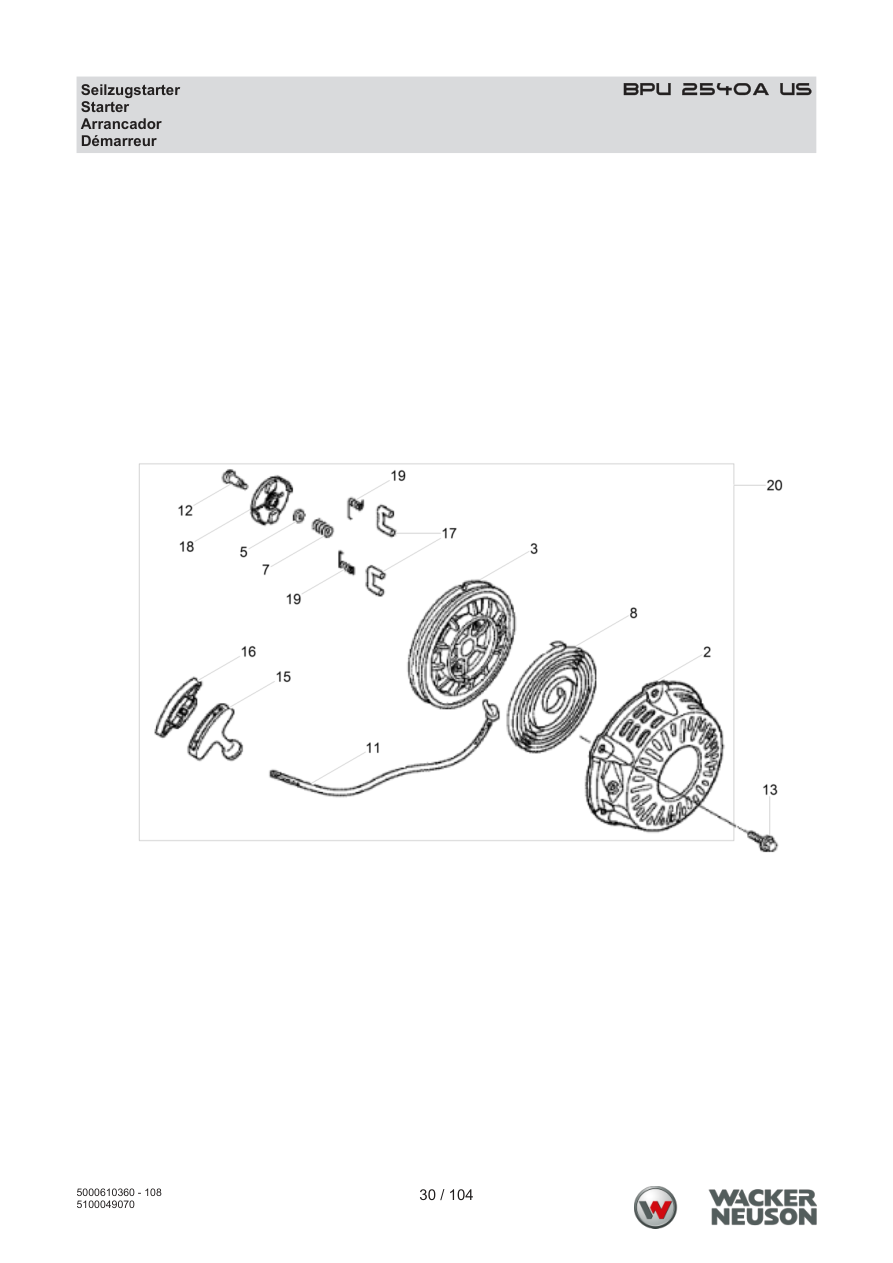

Page 30 — BPU 2540A US Recoil starter
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 15 | 5100005413 | Starter handle | 1 | PARTS REQUEST | |
|
COMING Starter handle
5100005413 · qty on machine: 1 | |||||
| 2 | 5100005307 | Housing cpl. (black) | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Housing cpl. (black)
5100005307 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5000406627 | Starter reel | 1 | PARTS REQUEST | |
|
COMING Starter reel
5000406627 · qty on machine: 1 | |||||
| 3 | 5100036077 | Starter pulley | 1 | PARTS REQUEST | |
|
COMING Starter pulley
5100036077 · qty on machine: 1 | |||||
| 5 | 5000160748 | Friction plate | 1 | ADD TO CART | |
| 6 | 5000160745 | Guide | 1 | ADD TO CART | |
| 7 | 5000160747 | Friction spring | 1 | ADD TO CART | |
| 8 | 5000081777 | Spring | 1 | ADD TO CART | |
| 11 | 5000081781 | Rope | 1 | ADD TO CART | |
| 12 | 5000207991 | Screw | 1 | ADD TO CART | |
| 13 | 5000081750 | Screw | 3 | M6 x 8 | ADD TO CART |
| 13 | 5000158458 | Flange bolt | 3 | 6 x 10 | ADD TO CART |
| 15 | 5100005309 | Starter handle us | 1 | ADD TO CART | |
| 16 | 5100005310 | Covering | 1 | PARTS REQUEST | |
|
COMING Covering
5100005310 · qty on machine: 1 | |||||
| 17 | 5100036078 | Ratchet | 2 | ADD TO CART | |
| 18 | 5100036079 | Guide | 1 | ADD TO CART | |
| 19 | 5100036230 | Return spring | 2 | ADD TO CART | |
| 20 | 5100039021 | Recoil starter | 1 | PARTS REQUEST | |
|
COMING Recoil starter
5100039021 · qty on machine: 1 | |||||
| 20 | 5100047597 | Recoil starter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |

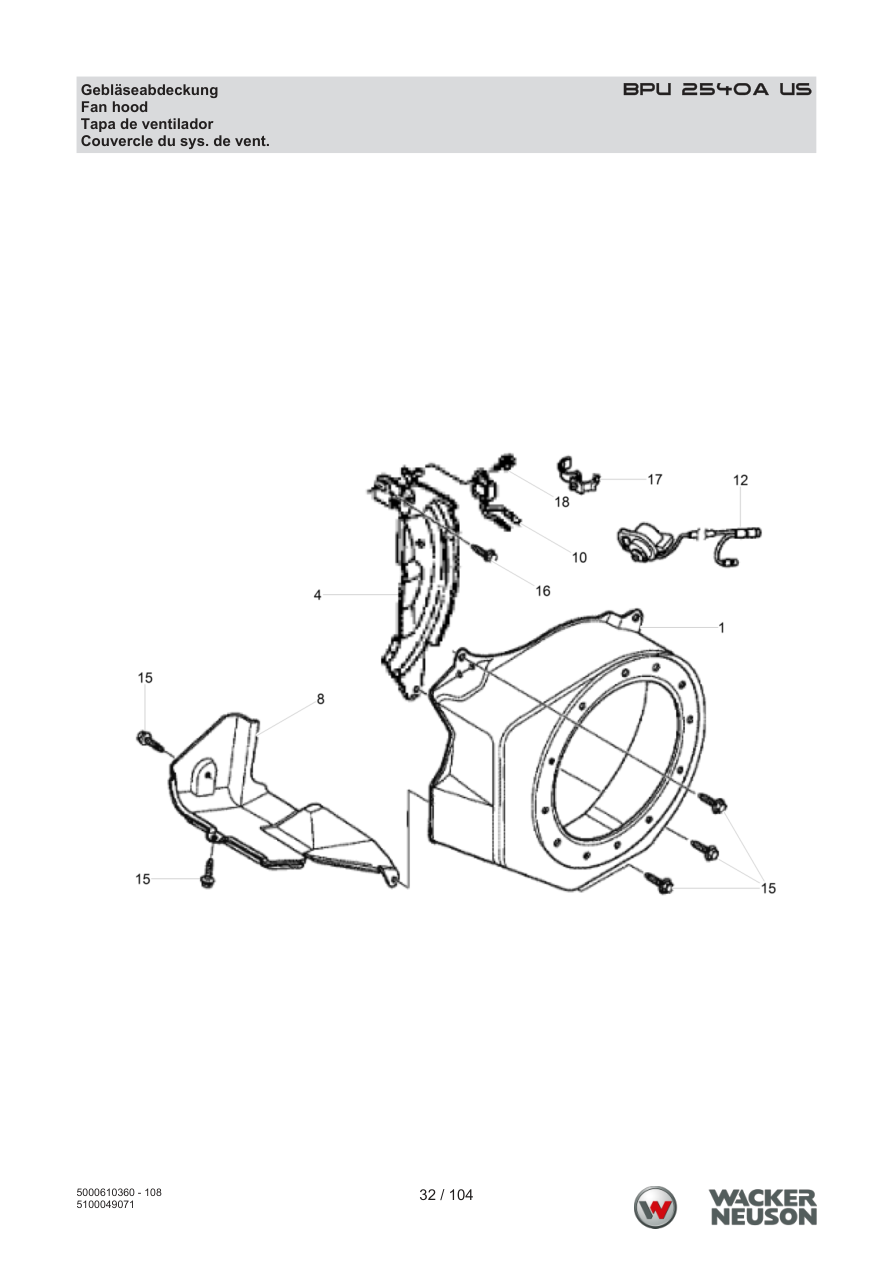

Page 32 — Fan hood
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005311 | Fan hood cpl. (black) | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5100005312 | Covering | 1 | PARTS REQUEST | |
|
COMING Covering
5100005312 · qty on machine: 1 | |||||
| 8 | 5100047598 | Air ducting | 1 | ADD TO CART | |
| 10 | 5100005313 | Oil sensor | 1 | ADD TO CART | |
| 12 | 5100049537 | Switch | 1 | PARTS REQUEST | |
|
COMING Switch
5100049537 · qty on machine: 1 | |||||
| 15 | 5000053990 | Screw | 6 | M6 x 12 10Nm/7ft.lbs | ADD TO CART |
| 16 | 5000071055 | Screw | 1 | M6 x 20 10Nm/7ft.lbs | ADD TO CART |
| 17 | 5000151700 | Clamp | 1 | ADD TO CART | |
| 18 | 5000081750 | Screw | 1 | M6 x 8 | ADD TO CART |

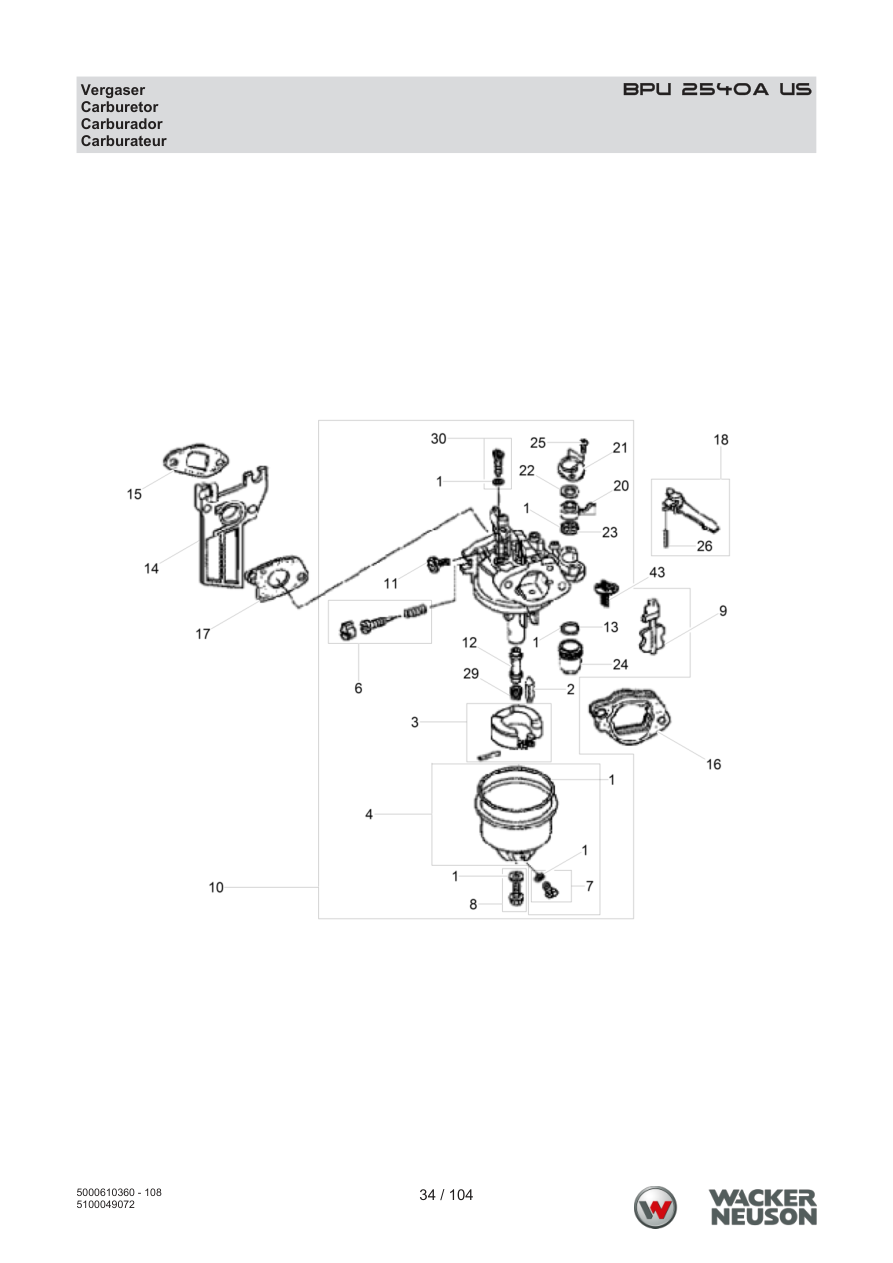

Page 34 — BPU 2540A US Carburetor
Parts list — exactly as printed29 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000072781 | Set-gaskets | 1 | ADD TO CART | |
| 2 | 5000071022 | Set-float valve | 1 | ADD TO CART | |
| 3 | 5000209764 | Set-carburetor float | 1 | ADD TO CART | |
| 4 | 5100005314 | Float housing | 1 | PARTS REQUEST | |
|
COMING Float housing
5100005314 · qty on machine: 1 | |||||
| 6 | 5000089286 | Setscrew | 1 | ADD TO CART | |
| 7 | 5200000430 | Screw w/washer | 1 | ADD TO CART | |
| 8 | 5200000431 | Screw w/washer | 1 | ADD TO CART | |
| 9 | 5100005415 | Starter flap | 1 | PARTS REQUEST | |
|
COMING Starter flap
5100005415 · qty on machine: 1 | |||||
| 10 | 5000406637 | Carburetor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Carburetor cpl.
5000406637 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 11 | 5000071018 | Throttle stop screw | 1 | ADD TO CART | |
| 12 | 5100009310 | Main jet | 1 | PARTS REQUEST | |
|
COMING Main jet
5100009310 · qty on machine: 1 | |||||
| 13 | 5000125839 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000125839 · qty on machine: 1 | |||||
| 14 | 5100005416 | Isolator | 1 | PARTS REQUEST | |
|
COMING Isolator
5100005416 · qty on machine: 1 | |||||
| 15 | 5000082009 | Gasket | 1 | ADD TO CART | |
| 16 | 5000071015 | Spacer | 1 | ADD TO CART | |
| 17 | 5000081762 | Gasket | 1 | ADD TO CART | |
| 18 | 5000071013 | Choke control lever | 1 | ADD TO CART | |
| 19 | 5000150266 | Fuel valve lever | 1 | ADD TO CART | |
| 20 | 5000073269 | Plate | 1 | ADD TO CART | |
| 21 | 5000073270 | Spring washer | 1 | ADD TO CART | |
| 22 | 5000073272 | Gasket | 1 | ADD TO CART | |
| 23 | 5000071023 | Fuel filter | 1 | ADD TO CART | |
| 24 | 5100005317 | Screw | 2 | PARTS REQUEST | |
|
COMING Screw
5100005317 · qty on machine: 2 | |||||
| 25 | 5000071014 | Pin | 1 | 2 x 12 | ADD TO CART |
| 29 | 5100005417 | Main jet | 1 | PARTS REQUEST | |
|
COMING Main jet
5100005417 · qty on machine: 1 | |||||
| 29 | 5100005418 | Main jet | 1 | PARTS REQUEST | |
|
COMING Main jet
5100005418 · qty on machine: 1 | |||||
| 29 | 5100049538 | Main jet 62 | 1 | ADD TO CART | |
| 30 | 5000071016 | Pilot jet | 1 | ADD TO CART | |
| 43 | 5100000396 | Filter | 1 | ADD TO CART | |

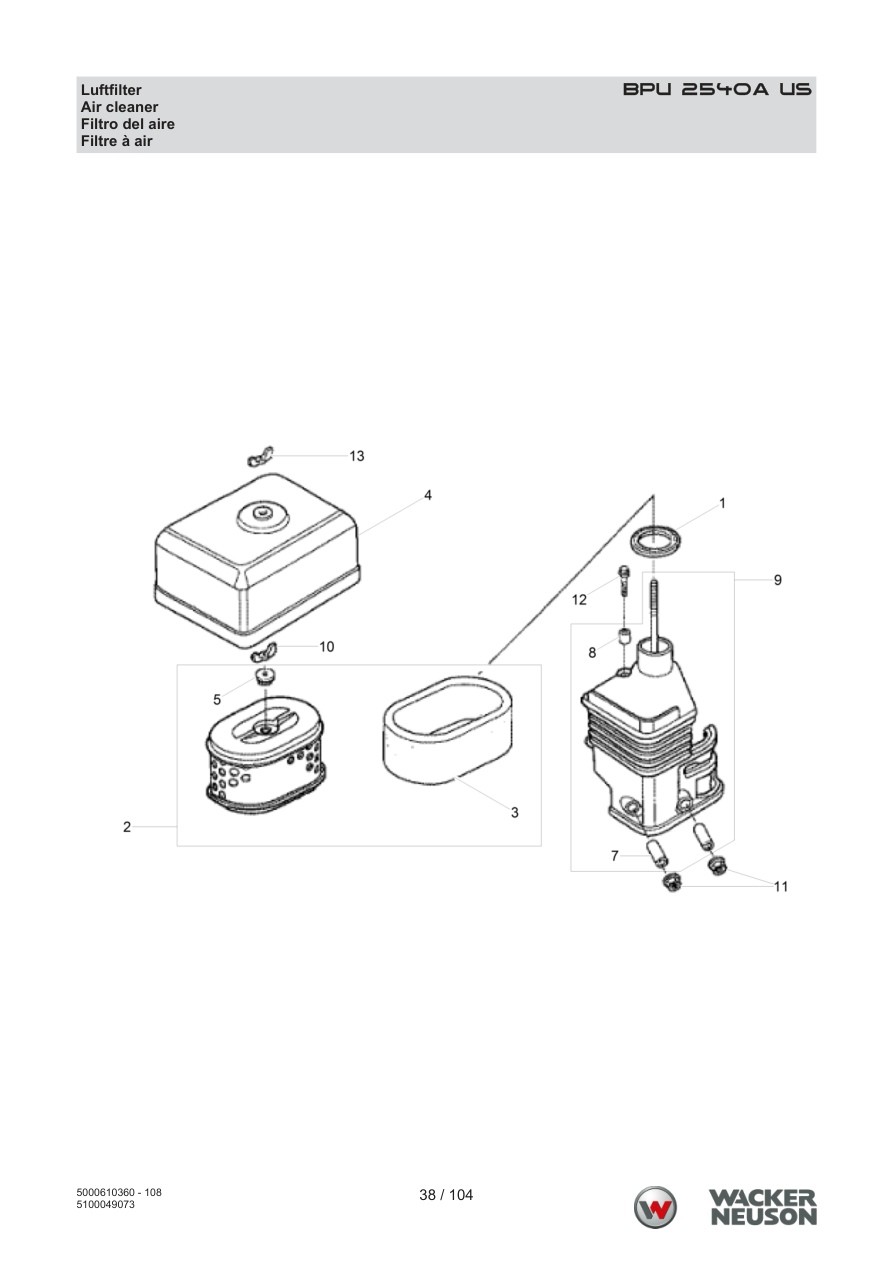

Page 38 — BPU 2540A US Air Filter
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000071032 | Gasket | 1 | ADD TO CART | |
| 2 | 5100049539 | Air filter insert cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5200006430 | Air filter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Air filter cpl.
5200006430 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5000217459 | Air filter insert | 1 | PARTS REQUEST | |
|
COMING Air filter insert
5000217459 · qty on machine: 1 | |||||
| 4 | 5100019660 | Air cleaner cover | 1 | ADD TO CART | |
| 5 | 5000072343 | Grommet | 1 | ADD TO CART | |
| 7 | 5000081746 | Sleeve | 2 | ADD TO CART | |
| 8 | 5000071035 | Sleeve | 1 | ADD TO CART | |
| 9 | 5000406642 | Air cleaner mount | 1 | ADD TO CART | |
| 10 | 5000071621 | Wing nut | 1 | ADD TO CART | |
| 11 | 5000071056 | Nut | 2 | ADD TO CART | |
| 12 | 5100003499 | Flange screw | 1 | PARTS REQUEST | |
|
COMING Flange screw
5100003499 · qty on machine: 1 | |||||
| 13 | 5100005421 | Nut | 1 | PARTS REQUEST | |
|
COMING Nut
5100005421 · qty on machine: 1 | |||||

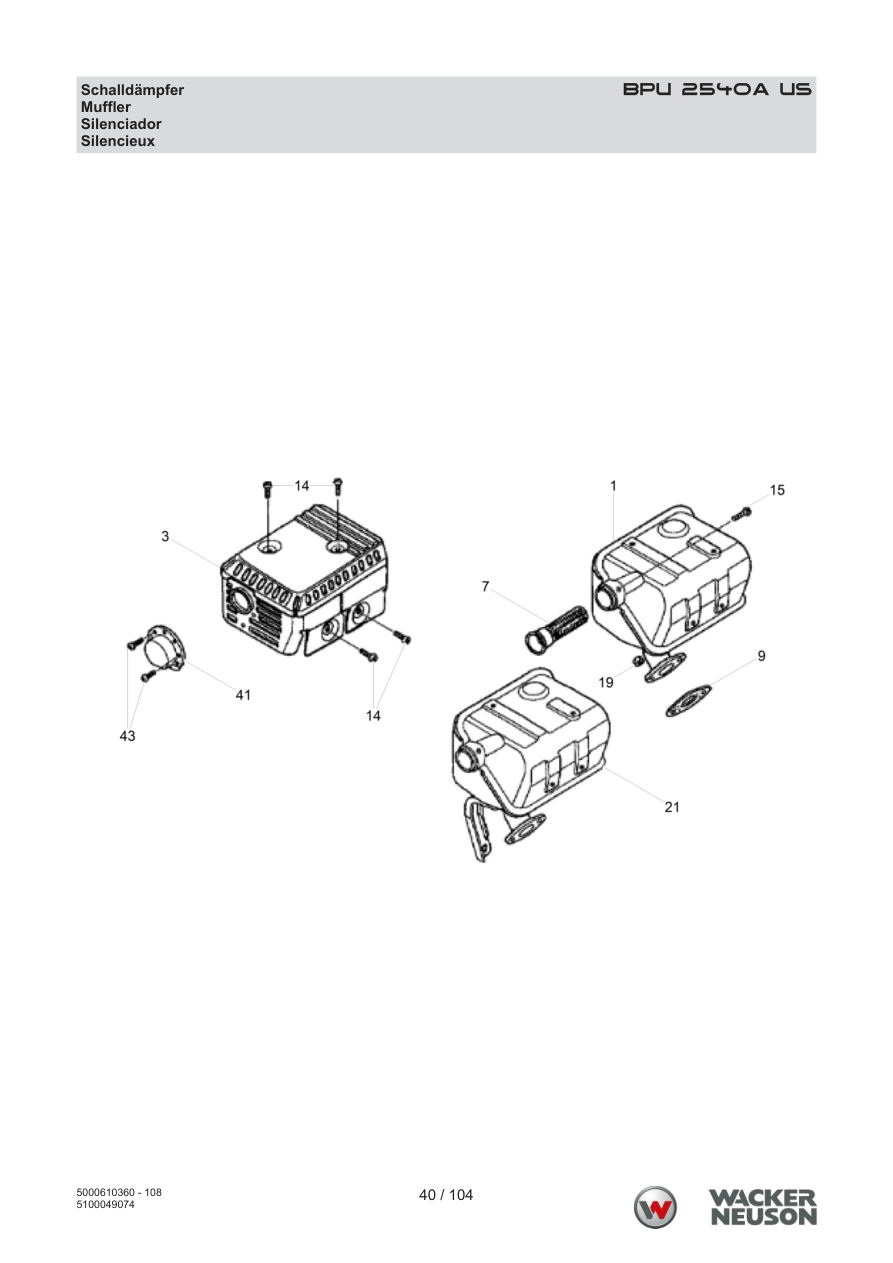

Page 40 — Muffler
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000406644 | Muffler | 1 | PARTS REQUEST | |
|
COMING Muffler
5000406644 · qty on machine: 1 | |||||
| 1 | 5100048122 | Muffler cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Muffler cpl.
5100048122 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5000406646 | Guard | 1 | PARTS REQUEST | |
|
COMING Guard
5000406646 · qty on machine: 1 | |||||
| 6 | 5000081756 | Exhaust baffle | 1 | ADD TO CART | |
| 7 | 5000071075 | Spark arrester | 1 | ADD TO CART | |
| 9 | 5000216516 | Gasket | 1 | ADD TO CART | |
| 12 | 5000209783 | Self-tapping screw | 2 | 4 x 8 | ADD TO CART |
| 14 | 5000071070 | Screw | 4 | M5 x 8 | ADD TO CART |
| 15 | 5000150916 | Screw | 1 | ADD TO CART | |
| 19 | 5100003492 | Hexagon nut | 2 | PARTS REQUEST | |
|
COMING Hexagon nut
5100003492 · qty on machine: 2 | |||||
| 41 | 5000081756 | Exhaust baffle | 1 | ADD TO CART | |
| 43 | 5000209783 | Self-tapping screw | 2 | 4 x 8 | ADD TO CART |

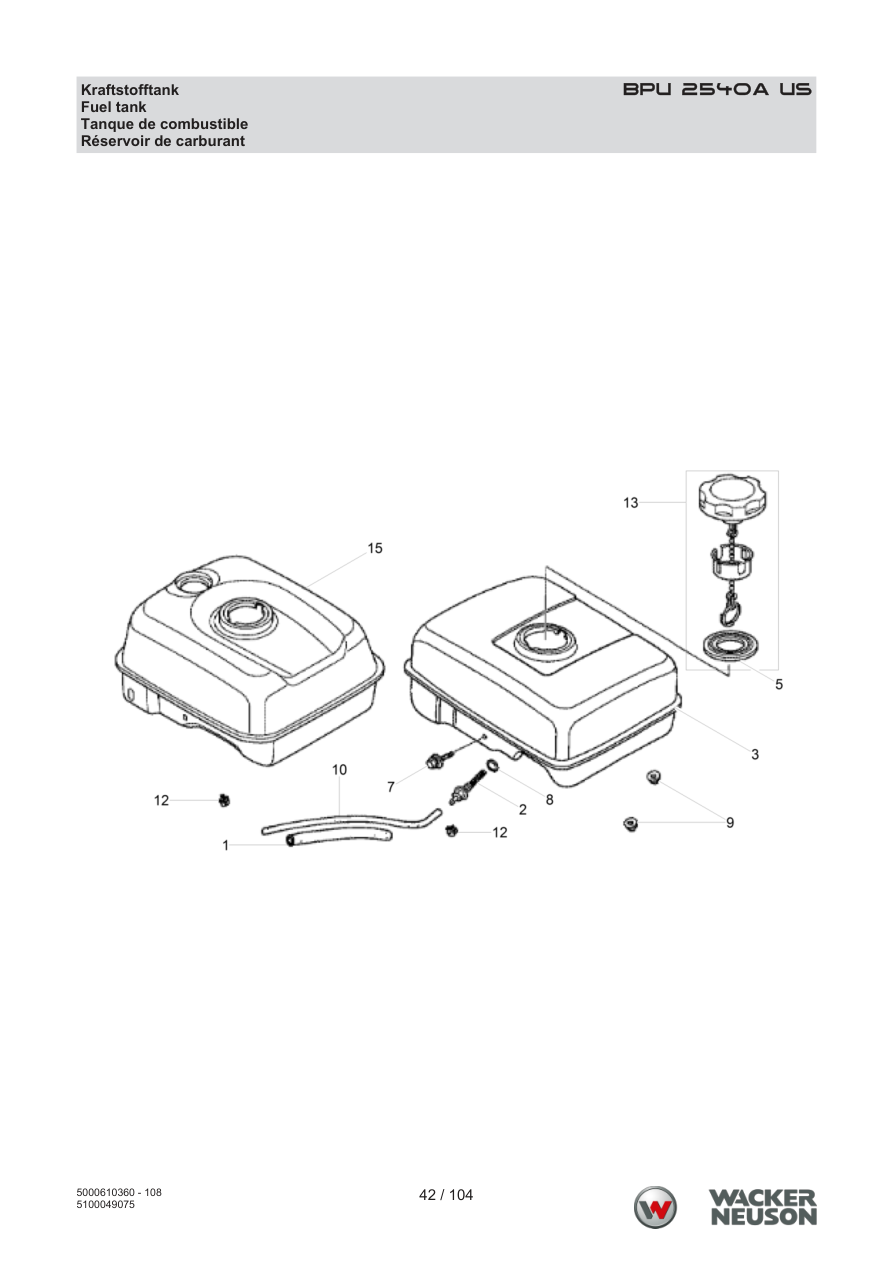

Page 42 — BPU 2540A US Fuel Tank
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000081764 | Protective hose | 1 | ADD TO CART | |
| 2 | 5100000395 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
5100000395 · qty on machine: 1 | |||||
| 3 | 5000110765 | Fuel tank | 1 | ADD TO CART | |
| 5 | 5000209770 | Gasket | 1 | ADD TO CART | |
| 7 | 5000209771 | Flange bolt | 1 | ADD TO CART | |
| 8 | 5000208616 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000208616 · qty on machine: 1 | |||||
| 9 | 5000071056 | Nut | 2 | ADD TO CART | |
| 10 | 5100005325 | Fuel hose | 1 | PARTS REQUEST | |
|
COMING Fuel hose
5100005325 · qty on machine: 1 | |||||
| 12 | 5000208617 | Clamp | 2 | ADD TO CART | |
| 13 | 5100005356 | Tank cover cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Tank cover cpl.
5100005356 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 15 | 5100005323 | Fuel tank cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Fuel tank cpl.
5100005323 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 15 | 5100005358 | Fuel tank cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Fuel tank cpl.
5100005358 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||

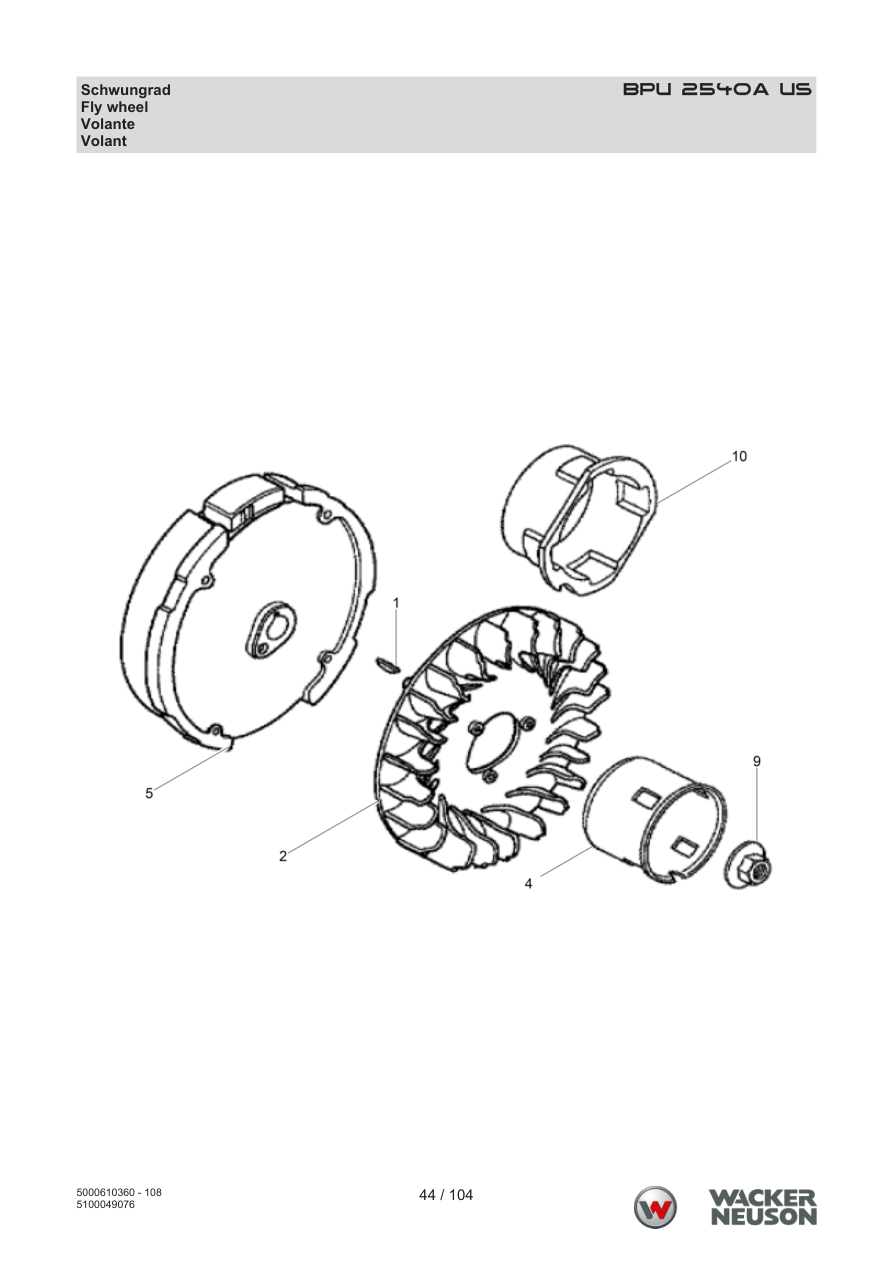

Page 44 — BPU 2540A US Flywheel
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000068967 | Woodruff key | 1 | 25 x 18 | ADD TO CART |
| 2 | 5000071652 | Fan | 1 | ADD TO CART | |
| 4 | 5000210396 | Pulley | 1 | ADD TO CART | |
| 5 | 5100005422 | Fly wheel cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Fly wheel cpl.
5100005422 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 9 | 5000162686 | Nut | 1 | ADD TO CART | |
| 10 | 5100048123 | Starter v-belt pulley | 1 | ADD TO CART | |

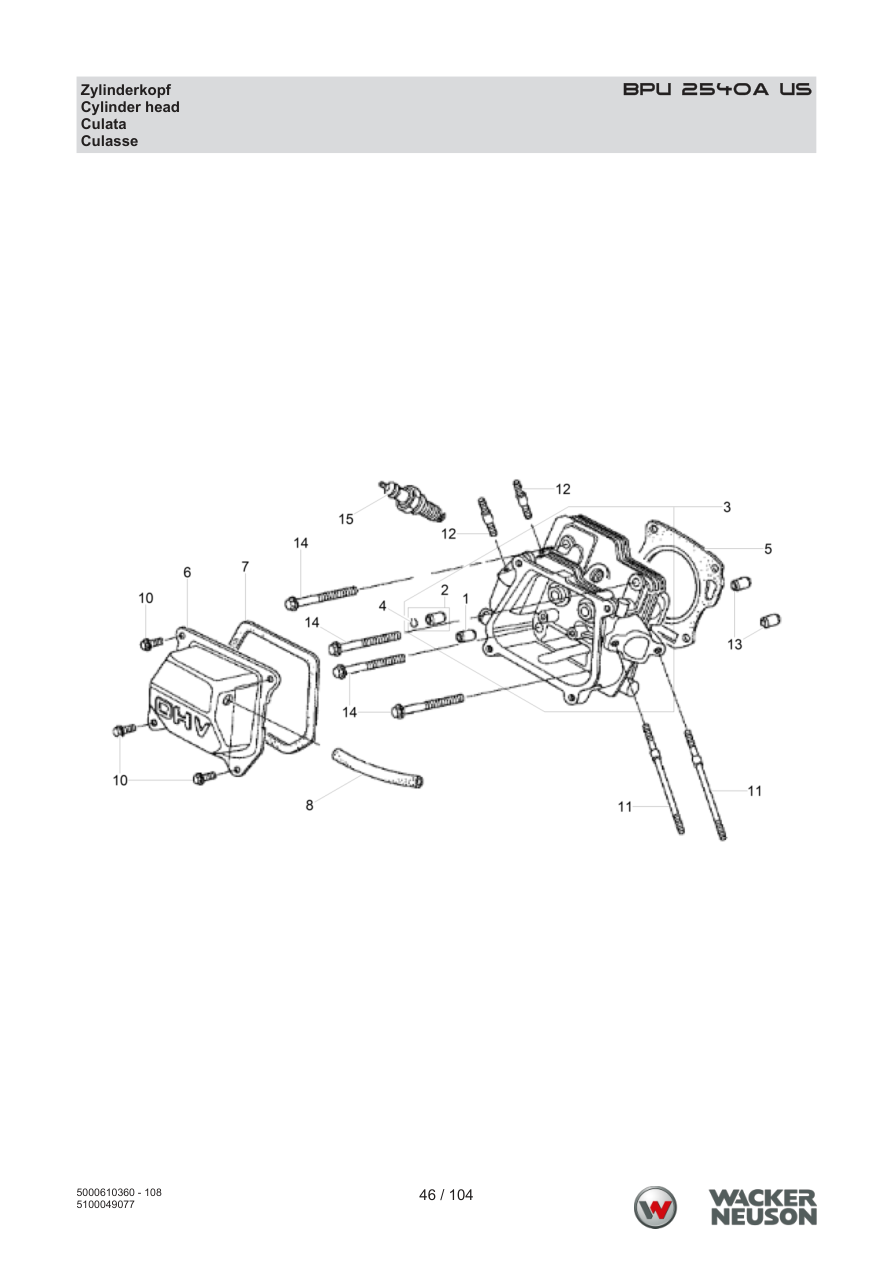

Page 46 — BPU 2540A US Cylinder head
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000070945 | Valve guide | 1 | PARTS REQUEST | |
|
COMING Valve guide
5000070945 · qty on machine: 1 | |||||
| 2 | 5000070944 | Valve guide | 1 | ADD TO CART | |
| 3 | 5100005423 | Cylinder head cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Cylinder head cpl.
5100005423 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 4 | 5000081744 | Retaining ring | 1 | ADD TO CART | |
| 5 | 5100005329 | Cylinder head gasket | 1 | PARTS REQUEST | |
|
COMING Cylinder head gasket
5100005329 · qty on machine: 1 | |||||
| 6 | 5100049540 | Cover-cylinder head | 1 | ADD TO CART | |
| 7 | 5000070942 | Gasket | 1 | ADD TO CART | |
| 8 | 5000081761 | Breather tube | 1 | ADD TO CART | |
| 10 | 5000053990 | Screw | 4 | M6 x 12 10Nm/7ft.lbs | ADD TO CART |
| 11 | 5000073263 | Stud | 2 | M6 x 109 | ADD TO CART |
| 12 | 5000070948 | Stud | 2 | M8 x 32 | ADD TO CART |
| 13 | 5000070950 | Dowel pin | 2 | ADD TO CART | |
| 14 | 5000213398 | Flange screw | 4 | ADD TO CART | |
| 15 | 5000209776 | Spark plug | 1 | PARTS REQUEST | |
|
COMING Spark plug
5000209776 · qty on machine: 1 | |||||

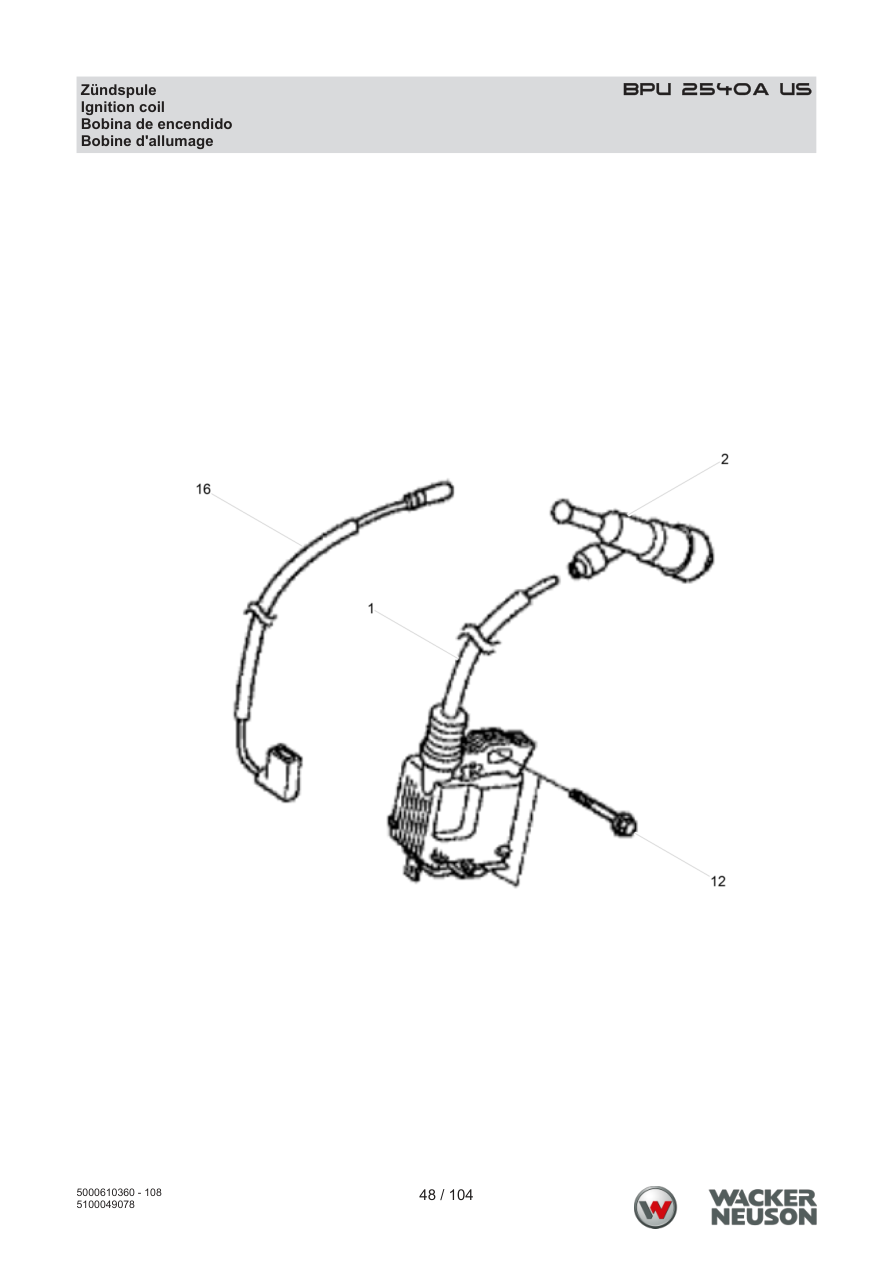

Page 48 — Ignition coil
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100049541 | Magneto cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Magneto cpl.
5100049541 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 2 | 5200006484 | Spark plug (terminal) cap | 1 | PARTS REQUEST | |
|
COMING Spark plug (terminal) cap
5200006484 · qty on machine: 1 | |||||
| 9 | 5100049542 | Leitung | 1 | ADD TO CART | |
| 12 | 5000081737 | Screw | 2 | M6 x 25 | ADD TO CART |
| 16 | 5100031335 | Cable | 1 | ADD TO CART | |

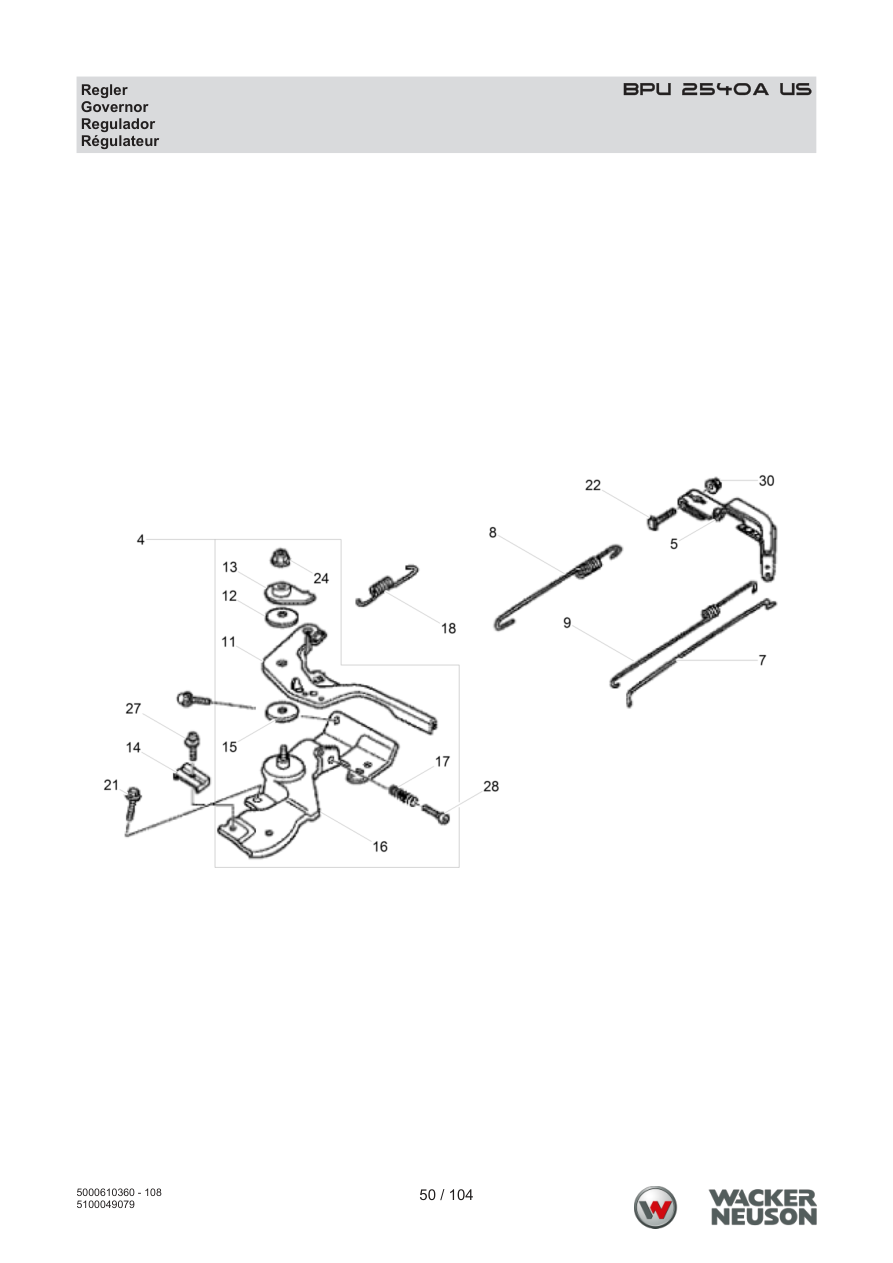

Page 50 — BPU 2540A US Governor
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 4 | 5100009311 | Governor cpl. us | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5100009312 | Governor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Governor cpl.
5100009312 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 5 | 5100005425 | Governor lever | 1 | PARTS REQUEST | |
|
COMING Governor lever
5100005425 · qty on machine: 1 | |||||
| 7 | 5100005332 | Governor rod | 1 | PARTS REQUEST | |
|
COMING Governor rod
5100005332 · qty on machine: 1 | |||||
| 8 | 5100005426 | Spring | 1 | ADD TO CART | |
| 9 | 5100005427 | Return spring | 1 | ADD TO CART | |
| 11 | 5100005333 | Governor lever | 1 | PARTS REQUEST | |
|
COMING Governor lever
5100005333 · qty on machine: 1 | |||||
| 12 | 5000071058 | Spring | 1 | ADD TO CART | |
| 13 | 5000071057 | Washer | 1 | ADD TO CART | |
| 14 | 5000071062 | Cable holder | 1 | ADD TO CART | |
| 15 | 5000071064 | Spacer | 2 | ADD TO CART | |
| 16 | 5100005363 | Bracket cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 17 | 5000054088 | Adjusting spring | 1 | ADD TO CART | |
| 18 | 5000071667 | Spring | 1 | ADD TO CART | |
| 21 | 5000053990 | Screw | 2 | M6 x 12 10Nm/7ft.lbs | ADD TO CART |
| 22 | 5100000451 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
5100000451 · qty on machine: 1 | |||||
| 24 | 5000072782 | Locknut | 1 | ADD TO CART | |
| 27 | 5000110112 | Screw | 1 | 5 x 16 | ADD TO CART |
| 28 | 5000081990 | Screw | 1 | M5 x 25 | ADD TO CART |
| 30 | 5000071056 | Nut | 1 | ADD TO CART | |

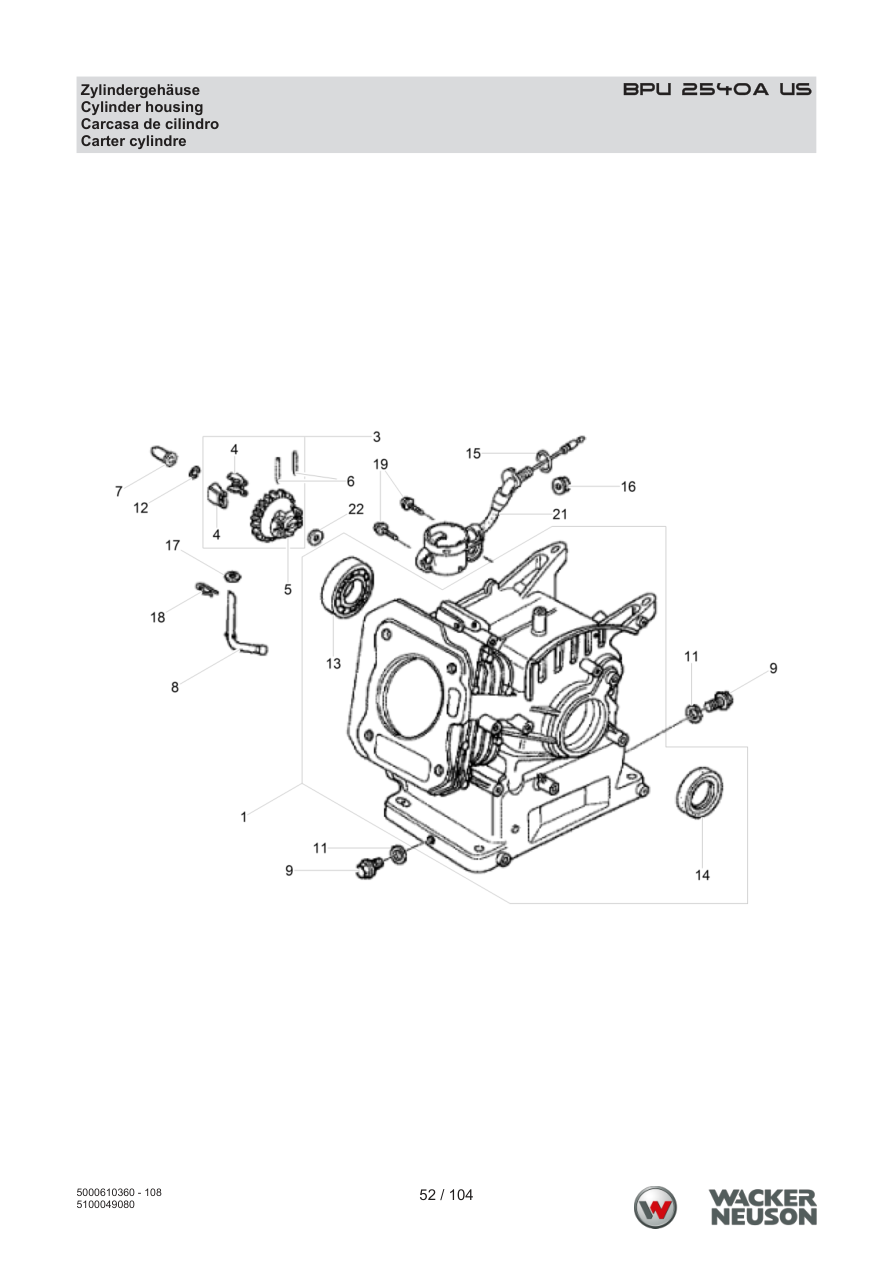

Page 52 — Cylinder housing
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005428 | Cylinder housing cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Cylinder housing cpl.
5100005428 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5100005429 | Governor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Governor cpl.
5100005429 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 4 | 5100005430 | Weight | 2 | PARTS REQUEST | |
|
COMING Weight
5100005430 · qty on machine: 2 | |||||
| 5 | 5100005431 | Bracket | 1 | PARTS REQUEST | |
|
COMING Bracket
5100005431 · qty on machine: 1 | |||||
| 6 | 5000156689 | Pin | 2 | ADD TO CART | |
| 7 | 5100005432 | Governor pin | 1 | PARTS REQUEST | |
|
COMING Governor pin
5100005432 · qty on machine: 1 | |||||
| 8 | 5100005433 | Governor | 1 | PARTS REQUEST | |
|
COMING Governor
5100005433 · qty on machine: 1 | |||||
| 9 | 5000070964 | Plug (threaded) | 2 | ADD TO CART | |
| 11 | 5000070963 | Washer | 2 | ADD TO CART | |
| 12 | 5000081615 | Retaining ring | 1 | ADD TO CART | |
| 13 | 5100003485 | Grooved ball bearing | 1 | PARTS REQUEST | |
|
COMING Grooved ball bearing
5100003485 · qty on machine: 1 | |||||
| 14 | 5100039035 | Ring seal | 1 | ADD TO CART | |
| 15 | 5000208616 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000208616 · qty on machine: 1 | |||||
| 16 | 5000072332 | Flange nut | 1 | PARTS REQUEST | |
|
COMING Flange nut
5000072332 · qty on machine: 1 | |||||
| 17 | 5000071639 | Washer | 1 | ADD TO CART | |
| 18 | 5000054033 | Pin | 1 | ADD TO CART | |
| 19 | 5100003498 | Flange screw | 2 | PARTS REQUEST | |
|
COMING Flange screw
5100003498 · qty on machine: 2 | |||||
| 21 | 5000216513 | Oil alert switch cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 22 | 5000071639 | Washer | 1 | ADD TO CART | |

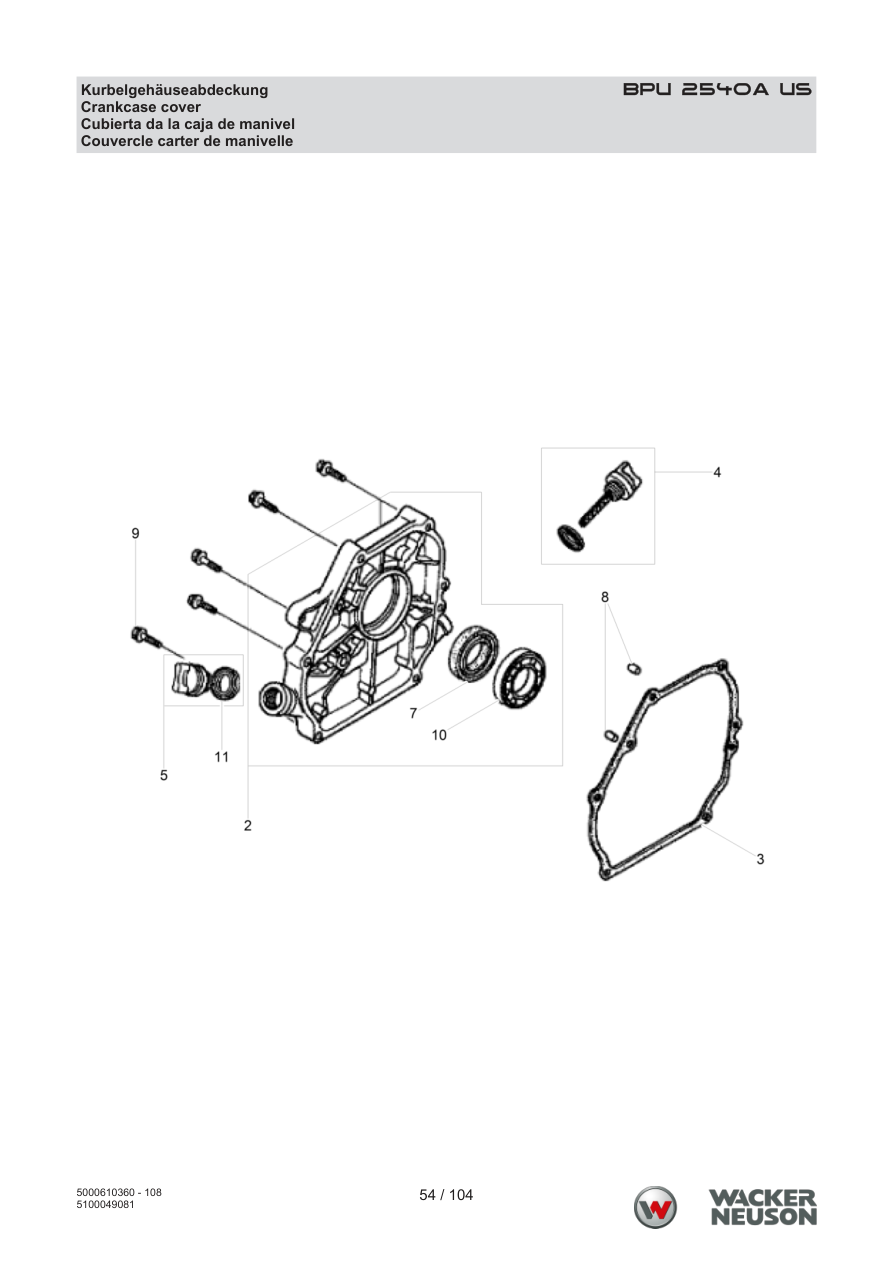

Page 54 — Crankcase cover
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000081991 | Cover | 1 | ADD TO CART | |
| 3 | 5100009314 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5100009314 · qty on machine: 1 | |||||
| 4 | 5000162645 | Dipstick assembly | 1 | ADD TO CART | |
| 5 | 5100031607 | Oil filler cap | 1 | ADD TO CART | |
| 7 | 5000053983 | Shaft seal | 1 | 25 x 41 x 6 | ADD TO CART |
| 7 | 5100039035 | Ring seal | 1 | ADD TO CART | |
| 8 | 5000053995 | Dowel pin | 2 | A8 x 14 | ADD TO CART |
| 9 | 5100003504 | Flange screw | 6 | PARTS REQUEST | |
|
COMING Flange screw
5100003504 · qty on machine: 6 | |||||
| 10 | 5100003510 | Grooved ball bearing | 1 | PARTS REQUEST | |
|
COMING Grooved ball bearing
5100003510 · qty on machine: 1 | |||||
| 11 | 5000162647 | Gasket | 1 | ADD TO CART | |

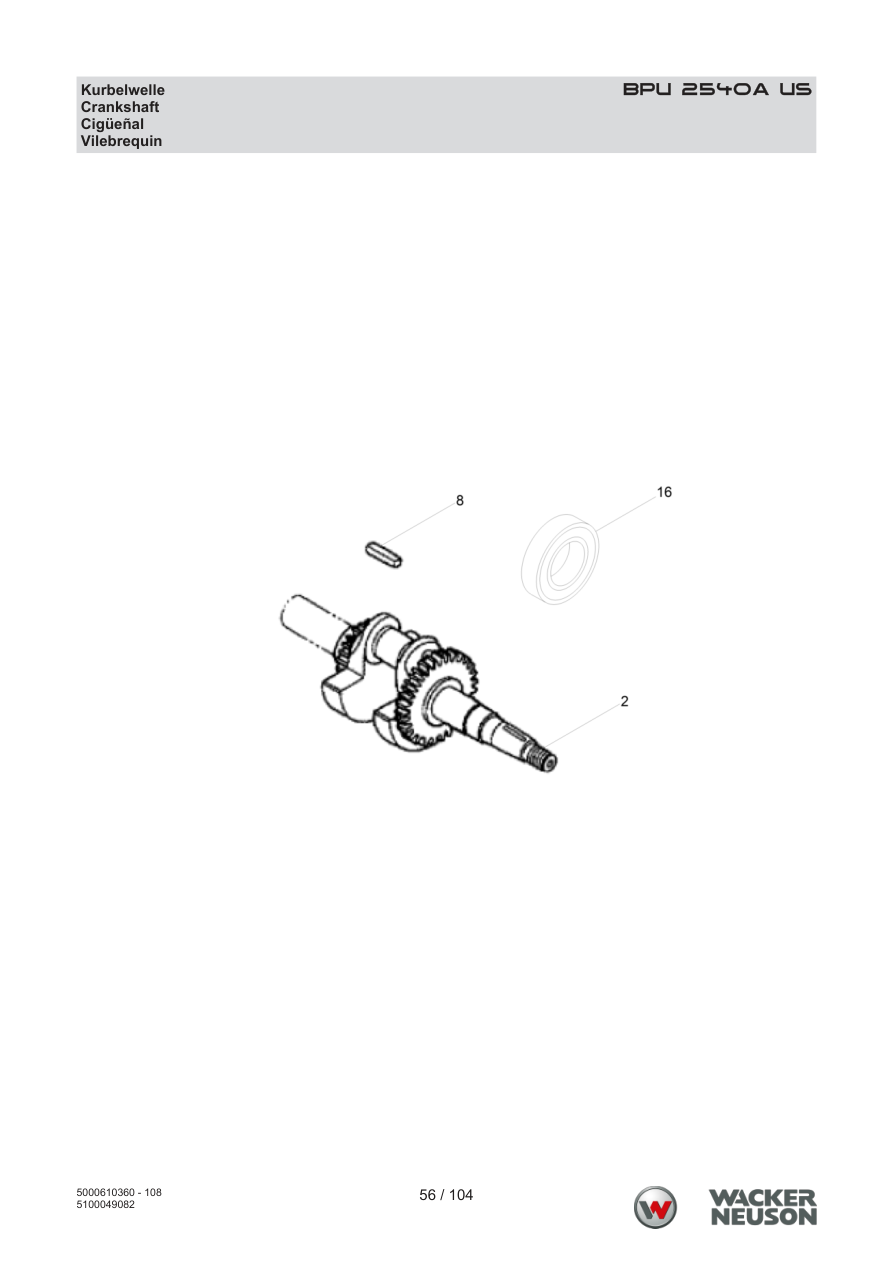

Page 56 — BPU 2540A US Crankshaft
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100005359 | Crankshaft cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 8 | 5000070999 | Fitting key | 1 | 4,78 x 38 | ADD TO CART |
| 16 | 5100003485 | Grooved ball bearing | 1 | PARTS REQUEST | |
|
COMING Grooved ball bearing
5100003485 · qty on machine: 1 | |||||

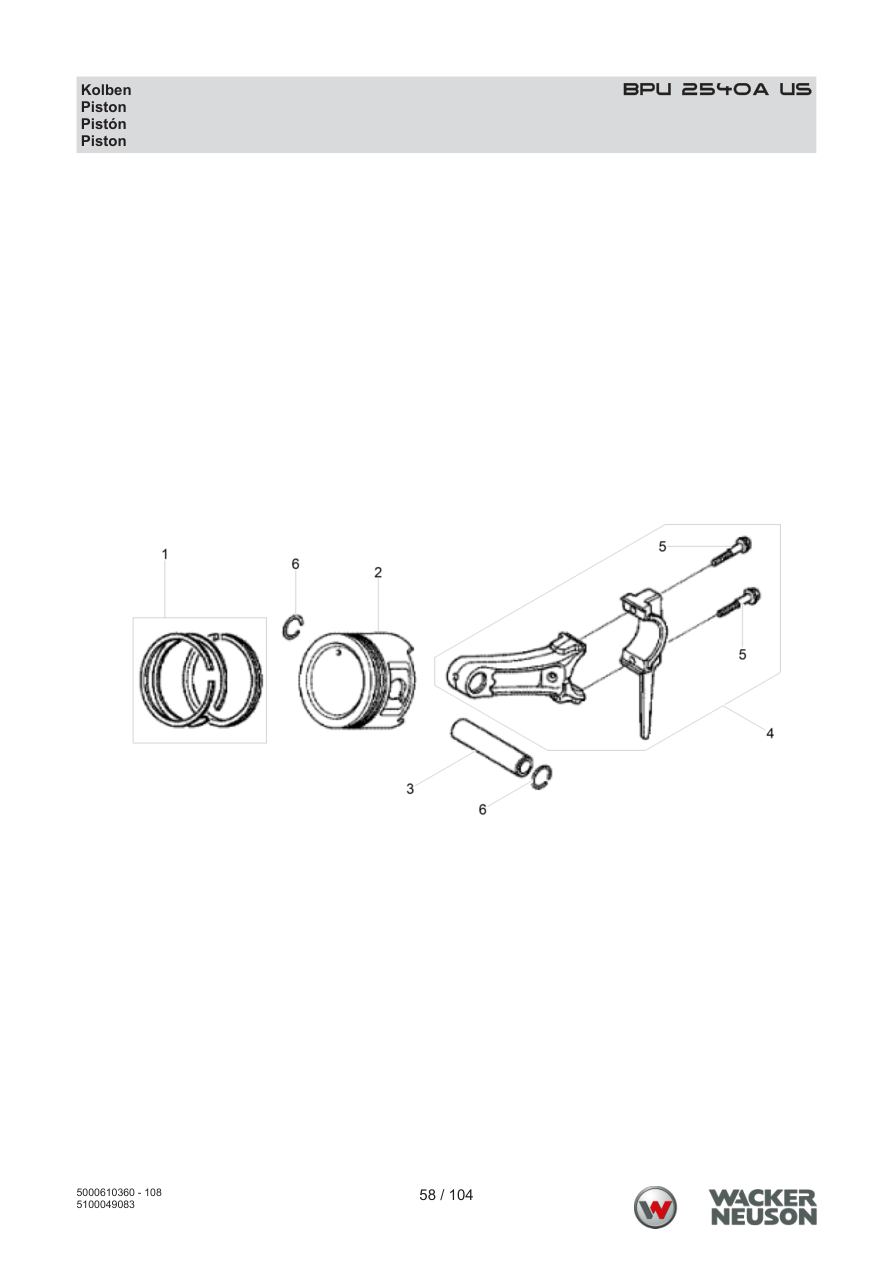

Page 58 — BPU 2540A US Piston
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000217531 | Set of piston rings | 1 | PARTS REQUEST | |
|
COMING Set of piston rings
5000217531 · qty on machine: 1 | |||||
| 1 | 5000217532 | Set of piston rings | 1 | ADD TO CART | |
| 1 | 5100005435 | Set of piston rings | 1 | PARTS REQUEST | |
|
COMING Set of piston rings
5100005435 · qty on machine: 1 | |||||
| 2 | 5100005436 | Piston | 1 | PARTS REQUEST | |
|
COMING Piston
5100005436 · qty on machine: 1 | |||||
| 2 | 5100019661 | Piston | 1 | PARTS REQUEST | |
|
COMING Piston
5100019661 · qty on machine: 1 | |||||
| 2 | 5100019662 | Piston | 1 | PARTS REQUEST | |
|
COMING Piston
5100019662 · qty on machine: 1 | |||||
| 3 | 5100005348 | Piston pin | 1 | PARTS REQUEST | |
|
COMING Piston pin
5100005348 · qty on machine: 1 | |||||
| 4 | 5100050571 | Connecting rod | 1 | ADD TO CART | |
| 5 | 5100005438 | Screw | 2 | PARTS REQUEST | |
|
COMING Screw
5100005438 · qty on machine: 2 | |||||
| 6 | 5000081994 | Retaining ring | 2 | ADD TO CART | |

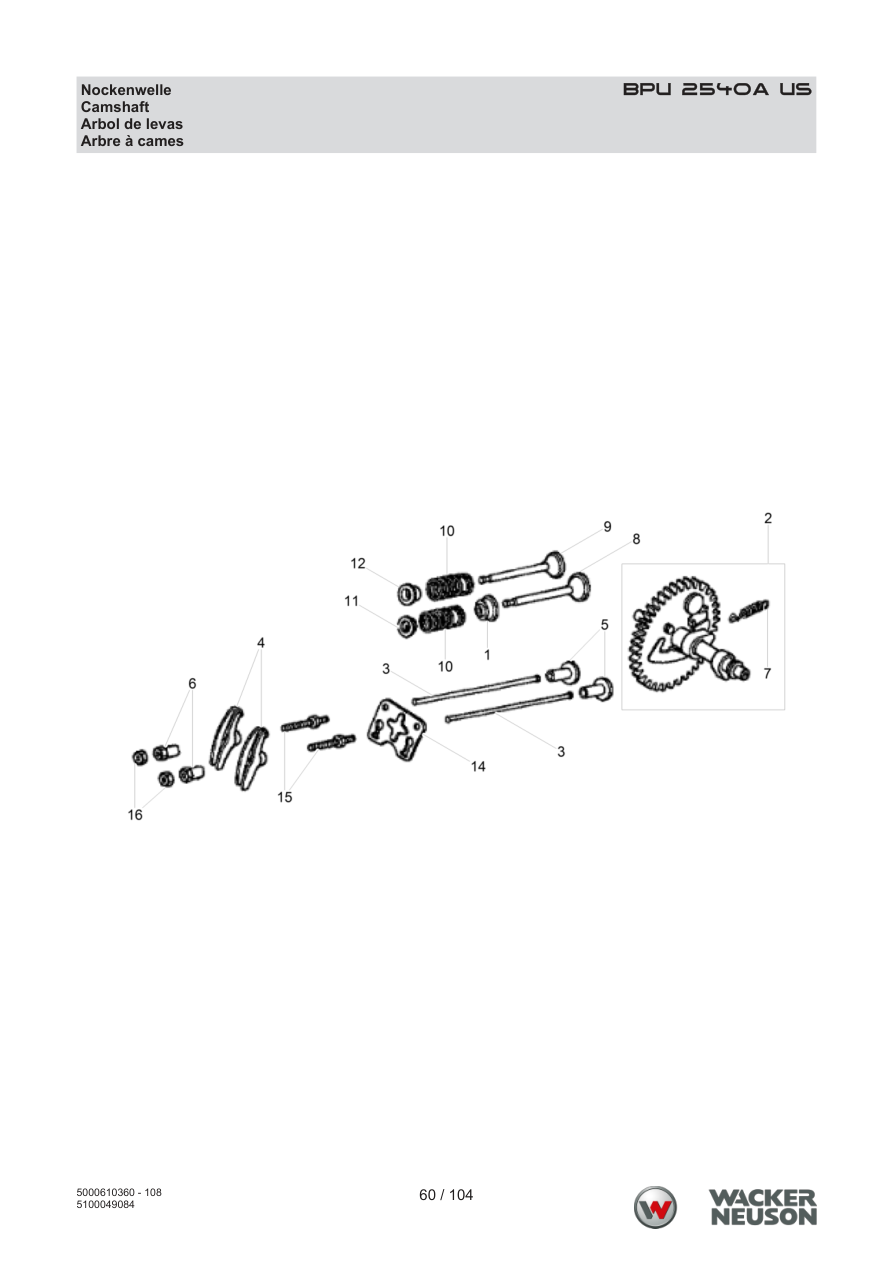

Page 60 — BPU 2540A US Camshaft
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005349 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5100005349 · qty on machine: 1 | |||||
| 2 | 5100005439 | Camshaft cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Camshaft cpl.
5100005439 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5100005440 | Push rod | 2 | PARTS REQUEST | |
|
COMING Push rod
5100005440 · qty on machine: 2 | |||||
| 4 | 5000070986 | Rocker arm | 2 | ADD TO CART | |
| 5 | 5000070990 | Valve tappet | 2 | ADD TO CART | |
| 6 | 5100031338 | Pin | 2 | ADD TO CART | |
| 7 | 5000151028 | Spring | 1 | ADD TO CART | |
| 8 | 5100005441 | Intake valve | 1 | PARTS REQUEST | |
|
COMING Intake valve
5100005441 · qty on machine: 1 | |||||
| 9 | 5100005442 | Outlet valve | 1 | PARTS REQUEST | |
|
COMING Outlet valve
5100005442 · qty on machine: 1 | |||||
| 10 | 5000081760 | Spring | 2 | ADD TO CART | |
| 11 | 5100031339 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100031339 · qty on machine: 1 | |||||
| 12 | 5100031339 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100031339 · qty on machine: 1 | |||||
| 14 | 5100005443 | Guide plate | 1 | PARTS REQUEST | |
|
COMING Guide plate
5100005443 · qty on machine: 1 | |||||
| 15 | 5000072778 | Stud | 2 | ADD TO CART | |
| 16 | 5000070984 | Locknut | 2 | ADD TO CART | |

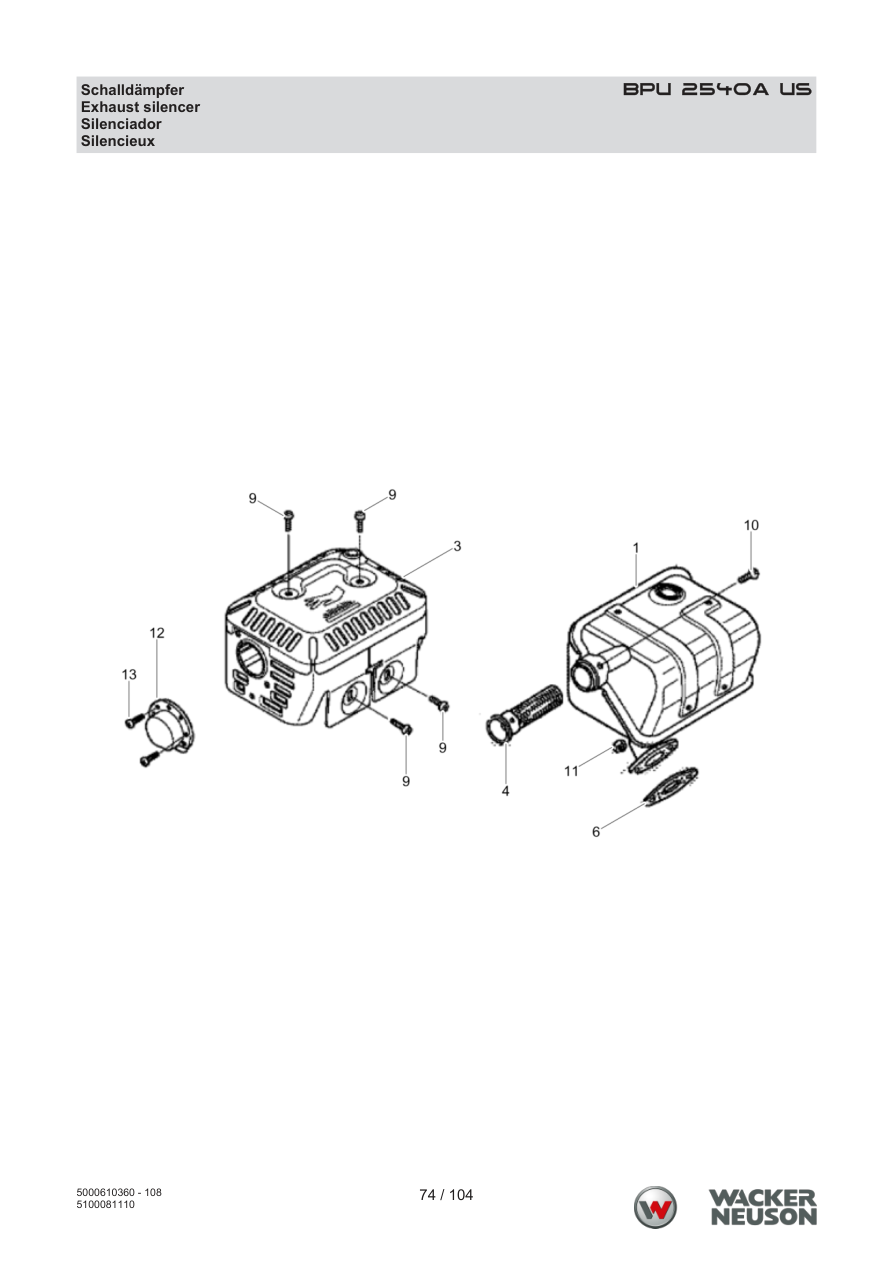

Page 74 — Exhaust silencer
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000406644 | Muffler | 1 | PARTS REQUEST | |
|
COMING Muffler
5000406644 · qty on machine: 1 | |||||
| 3 | 5000406646 | Guard | 1 | PARTS REQUEST | |
|
COMING Guard
5000406646 · qty on machine: 1 | |||||
| 4 | 5000071075 | Spark arrester | 1 | ADD TO CART | |
| 6 | 5100036264 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5100036264 · qty on machine: 1 | |||||
| 9 | 5000071070 | Screw | 4 | M5 x 8 | ADD TO CART |
| 10 | 5000150916 | Screw | 1 | ADD TO CART | |
| 11 | 5000071076 | Nut | 2 | ADD TO CART | |
| 12 | 5000081756 | Exhaust baffle | 1 | ADD TO CART | |
| 13 | 5000153131 | Screw | 2 | M4 x 8 | ADD TO CART |

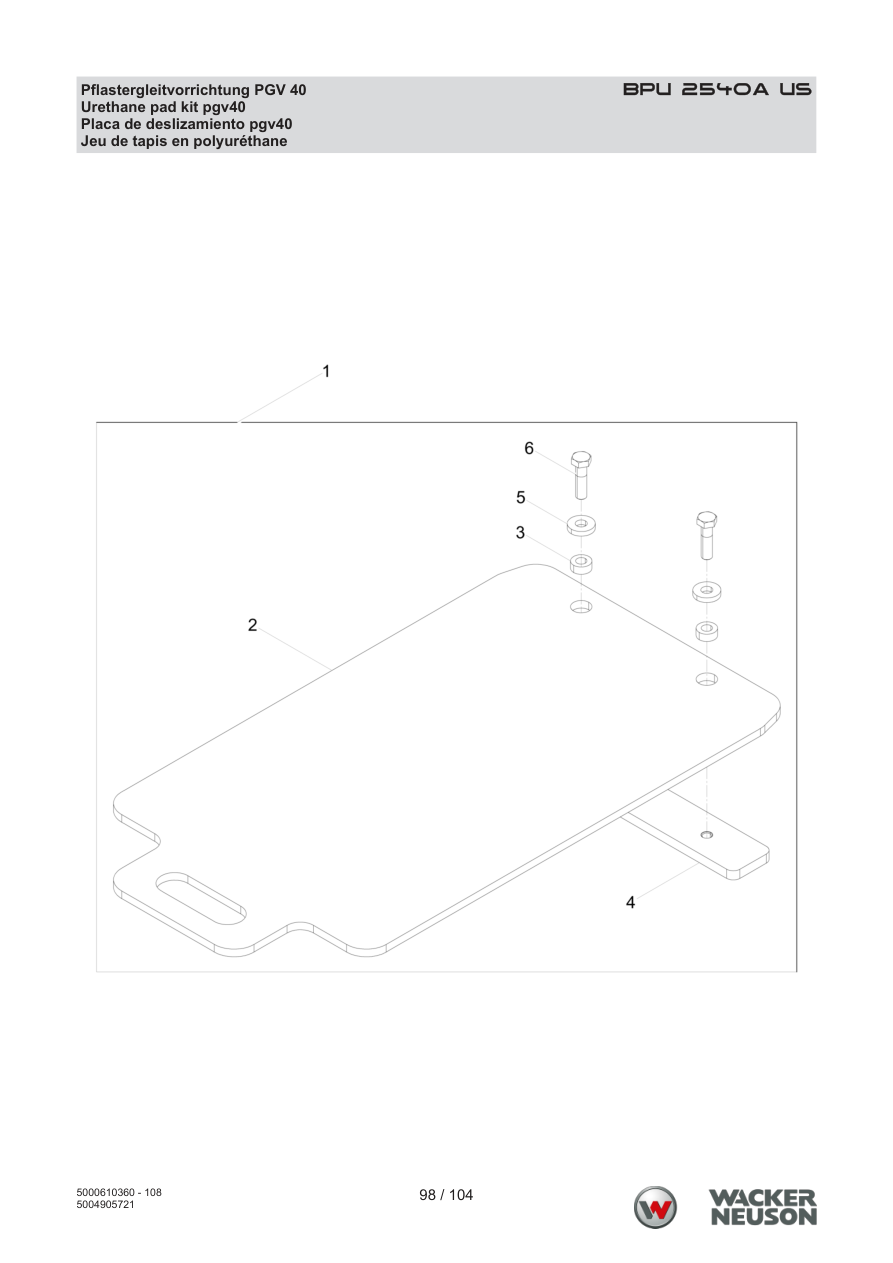

Page 98 — BPU 2540A US Paving sliding device PGV 40
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000200571 | Urethane pad kit pgv40 | 1 | PARTS REQUEST | |
|
COMING Urethane pad kit pgv40
5000200571 · qty on machine: 1 | |||||
| 2 | 5000200655 | Urethane plate | 1 | ADD TO CART | |
| 3 | 5000200569 | Bushing | 2 | ADD TO CART | |
| 4 | 5000200570 | Bar | 1 | ADD TO CART | |
| 5 | 5000013618 | Flat washer | 2 | ADD TO CART | |
| 6 | 5000011300 | Hexagonal head cap screw | 2 | 86Nm/63ft.lbs | ISO4014 | ADD TO CART |

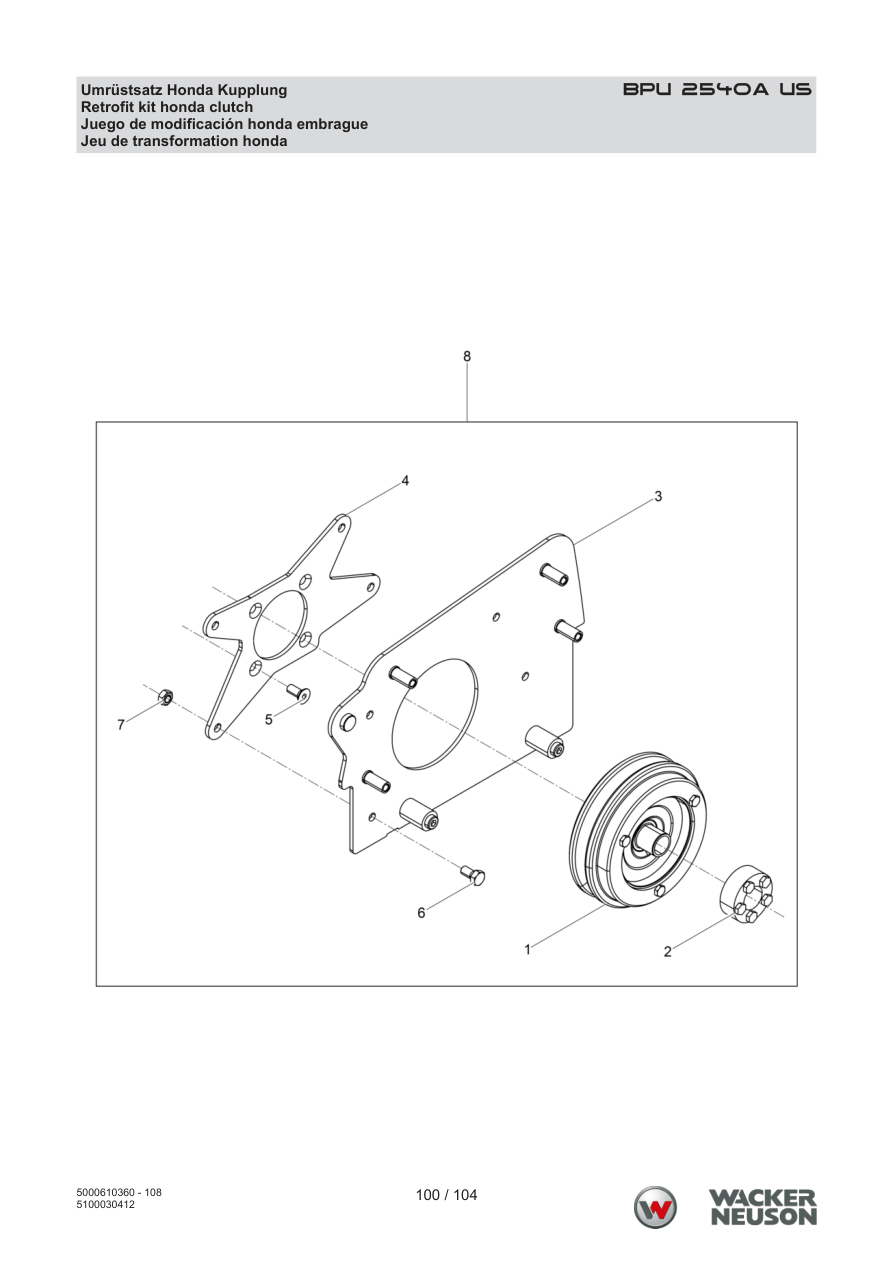

Page 100 — Retrofit kit honda clutch
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100006041 | Centrifugal clutch | 1 | ADD TO CART | |
| 2 | 5100006040 | Tightening element | 1 | ADD TO CART | |
| 3 | 5100006032 | Fixing plate cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5100006029 | Plate | 1 | ADD TO CART | |
| 5 | 5000125350 | Countersunk flat screw | 4 | ADD TO CART | |
| 6 | 5000012361 | Hexagonal head cap screw | 4 | 25Nm/18ft.lbs | DIN933 | PARTS REQUEST |
|
COMING Hexagonal head cap screw
5000012361 · qty on machine: 4 25Nm/18ft.lbs | DIN933 | |||||
| 7 | 5000010882 | Hexagon nut | 4 | ADD TO CART | |
| 8 | 5100020692 | Retrofit kit honda clutch | 1 | ADD TO CART | |
The machine itself
Machine
Engine
Wacker Neuson BPU2540 vibratory plate.
List price: $7,300.00
Keep-it-running spares
All listed parts →Every part that fits this machine
5000010368
Hexagon nut
5000010616
Flat washer
$0.95
5000010620
Flat washer
$0.95
5000010622
Flat washer
$0.95
5000010624
Flat washer
$0.95
5000010879
Hexagon nut
$0.95
5000010882
Hexagon nut
$0.95
5000010884
Hexagon nut
$0.95
5000011034
Plug (threaded)
$3.95
5000011050
Plug (threaded)
$7.95
5000011300
Hexagonal head cap screw
$0.95
5000011341
Hexagonal head cap screw
$0.95
5000011453
Hexagonal head cap screw
$0.95
5000011527
Cheese head screw
$1.95
5000011529
Cheese head screw
$0.95
5000011534
Cheese head screw
$0.95
5000011550
Cheese head screw
$0.95
5000011551
Cheese head screw
$0.95
5000011552
Cheese head screw
$0.95
5000011553
Cheese head screw
$0.95
5000011554
Cheese head screw
$0.95
5000012082
Seal ring
$0.95
5000012361
Hexagonal head cap screw
5000012976
Washer
$0.95
5000013496
Hexagon nut
$0.95
5000013569
Cheese head screw
5000013618
Flat washer
$0.95
5000014425
Cheese head screw
5000014844
Fitting key
$1.95
5000014968
Usit-ring
$1.95
5000017254
O-ring
$0.95
5000018194
O-ring
$0.95
5000021465
Lock washer
$1.95
5000022861
Lining
$36.95
5000031565
Lockwasher
$0.95
5000033198
Lockwasher
$0.95
5000033356
Hexagon nut
$0.95
5000033988
Lockwasher
$0.95
5000046092
Screwed socket
$18.95
5000046461
Screwed socket
5000047057
Gear wheel
$249.95
5000053983
Shaft seal
$10.95
5000053990
Screw
$2.95
5000053995
Dowel pin
$3.95
5000054005
Nut
$12.95
5000054033
Pin
$1.95
5000054088
Adjusting spring
$8.95
5000067781
O-ring
$0.95
5000068752
O-ring
$0.95
5000068967
Woodruff key
$8.95
5000069726
Long face pinion
$421.95
5000070942
Gasket
$5.95
5000070944
Valve guide
$15.95
5000070945
Valve guide
5000070948
Stud
$7.95
5000070950
Dowel pin
$5.95
5000070963
Washer
$1.95
5000070964
Plug (threaded)
$5.95
5000070984
Locknut
$7.95
5000070986
Rocker arm
$12.95
5000070990
Valve tappet
$24.95
5000070999
Fitting key
$25.95
5000071013
Choke control lever
$18.95
5000071014
Pin
$2.95
5000071015
Spacer
$9.95
5000071016
Pilot jet
$39.95
5000071018
Throttle stop screw
$20.95
5000071022
Set-float valve
$49.95
5000071023
Fuel filter
$24.95
5000071025
Set-engine choke
$62.95
5000071032
Gasket
$5.95
5000071035
Sleeve
$7.95
5000071055
Screw
$5.95
5000071056
Nut
$0.95
5000071057
Washer
$9.95
5000071058
Spring
$4.95
5000071062
Cable holder
$8.95
5000071064
Spacer
$9.95
5000071070
Screw
$2.95
5000071075
Spark arrester
$26.95
5000071076
Nut
$1.95
5000071621
Wing nut
$9.95
5000071639
Washer
$0.95
5000071652
Fan
$50.95
5000071664
Spring
$4.95
5000071667
Spring
$3.95
5000072332
Flange nut
5000072333
Screw
$2.95
5000072343
Grommet
$9.95
5000072778
Stud
$14.95
5000072781
Set-gaskets
$21.95
5000072782
Locknut
$6.95
5000073263
Stud
$11.95
5000073269
Plate
$7.95
5000073270
Spring washer
$4.95
5000073272
Gasket
$4.95
5000081615
Retaining ring
$1.95
5000081737
Screw
$4.95
5000081744
Retaining ring
$1.95
5000081746
Sleeve
$7.95
5000081750
Screw
$7.95
5000081756
Exhaust baffle
$28.95
5000081760
Spring
$7.95
5000081761
Breather tube
$7.95
5000081762
Gasket
$2.95
5000081764
Protective hose
$8.95
5000081777
Spring
$31.95
5000081781
Rope
$20.95
5000081990
Screw
$1.95
5000081991
Cover
$100.95
5000081994
Retaining ring
$1.95
5000082009
Gasket
$3.95
5000089286
Setscrew
$35.95
5000094073
Cheese head screw
$2.95
5000105139
Cylindrical roller bearing
$71.95
5000105194
Washer
$0.95
5000108180
Cheese head screw
$0.95
5000110112
Screw
$1.95
5000110765
Fuel tank
$327.95
5000125349
Bowden cable
$26.95
5000125350
Countersunk flat screw
$1.95
5000125357
Hose pipe
$65.95
5000125360
Cover
$33.95
5000125363
Center pole head
$551.95
5000125369
Baseplate
$1,790.95
5000125371
V-belt pulley
$134.95
5000125375
Exciter housing
$888.95
5000125839
O-ring
5000125924
Guide pole head adapter
$255.95
5000125926
Spacer
$51.95
5000125927
Tire
$142.95
5000125930
Upper mass
$2,249.95
5000125931
Shockmount
$30.95
5000125933
Narrow v-belt
$17.95
5000125945
Center pole
$559.95
5000125949
Bolt
$3.95
5000126159
Belt guard
$215.95
5000126163
Piston guide ring
$13.95
5000126164
Slide bush
$2.95
5000126166
Cover
$11.95
5000126167
Rotary shaft seal
$23.95
5000127078
Type label
$48.95
5000127085
Shockmount
$16.95
5000129265
Hose pipe
$34.95
5000129269
Compact seal
$9.95
5000129272
Spring pin
$0.95
5000129784
Decal-sound power level
$2.95
5000150266
Fuel valve lever
$17.95
5000150916
Screw
$1.95
5000151028
Spring
$5.95
5000151700
Clamp
$4.95
5000151819
Clamping piece
$15.95
5000151823
Lock washer
$6.95
5000153131
Screw
$1.95
5000156689
Pin
$2.95
5000158458
Flange bolt
$2.95
5000158498
Spark plug
$5.95
5000160745
Guide
$15.95
5000160747
Friction spring
$6.95
5000160748
Friction plate
$8.95
5000162092
Pilot jet
$24.95
5000162615
Gasket
$9.95
5000162645
Dipstick assembly
$1.95
5000162647
Gasket
$5.95
5000162686
Nut
$4.95
5000200569
Bushing
$2.95
5000200570
Bar
$199.95
5000200571
Urethane pad kit pgv40
5000200616
Carrier cpl.
$164.95
5000200617
Shockmount
$12.95
5000200628
Jack ring cpl.
5000200630
Protective frame
$975.95
5000200651
Cheese head screw
$0.95
5000200655
Urethane plate
$360.95
5000201009
Threaded spindle
$19.95
5000201018
Bush
$8.95
5000201715
Retaining ring
$3.95
5000201721
Shim ring
$9.95
5000201723
Clutch drum
$286.95
5000201727
Washer
$26.95
5000203537
Governor lever
5000204120
Axle
$67.95
5000207991
Screw
$7.95
5000208616
O-ring
5000208617
Clamp
$3.95
5000208623
Labels
$5.95
5000209764
Set-carburetor float
$44.95
5000209770
Gasket
$0.95
5000209771
Flange bolt
$1.95
5000209776
Spark plug
5000209783
Self-tapping screw
$0.95
5000210396
Pulley
$33.95
5000213398
Flange screw
$2.95
5000214990
Clamp
$287.95
5000215035
Shockmount
$62.95
5000216513
Oil alert switch cpl.
$129.95
5000216516
Gasket
$5.95
5000216582
Axle
$31.95
5000216586
Friction disc
$10.95
5000216588
Hexagon nut
$0.95
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
