Wacker Neuson BPU3750 Vibratory Plate
Factory parts book · interactive
Wacker Neuson BPU3750 Vibratory Plate
The parts bench

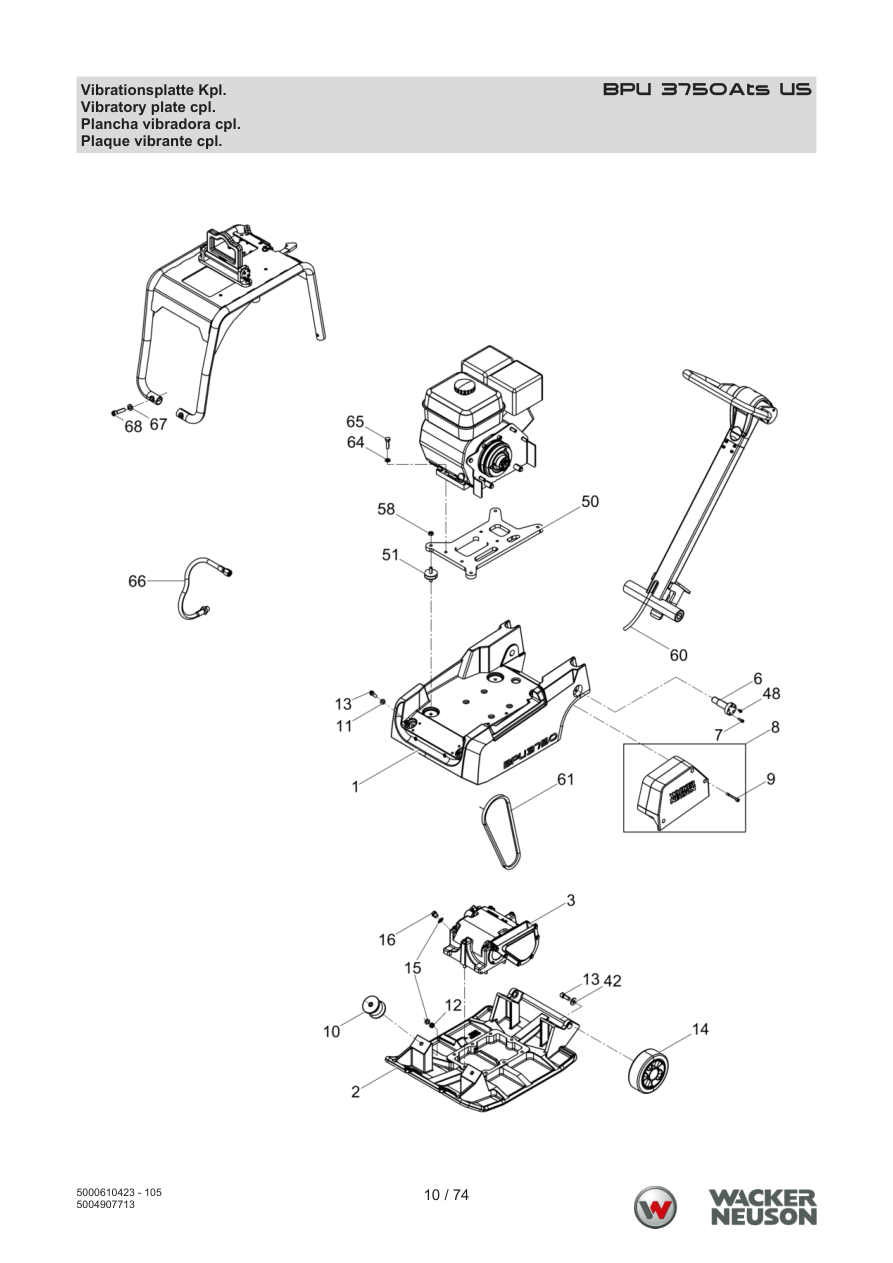

Need the PDF? ↓Page 10 — Vibratory plate cpl.
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000220058 | Upper mass | 1 | ADD TO CART | |
| 2 | 5000126173 | Baseplate | 1 | ADD TO CART | |
| 3 | 5000220070 | Exciter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 6 | 5000204120 | Axle | 2 | ADD TO CART | |
| 7 | 5000011551 | Cheese head screw | 8 | 10Nm/7ft.lbs | ADD TO CART |
| 8 | 5100050071 | Belt guard | 1 | ADD TO CART | |
| 9 | 5000216659 | Screw | 3 | M 8x 55 | ADD TO CART |
| 10 | 5000125931 | Shockmount | 4 | ADD TO CART | |
| 11 | 5000010620 | Flat washer | 8 | ADD TO CART | |
| 12 | 5000010884 | Hexagon nut | 4 | M12 | DIN934 | ADD TO CART |
| 13 | 5000011529 | Cheese head screw | 6 | 86Nm/63ft.lbs | ISO4762 | ADD TO CART |
| 14 | 5000125927 | Tire | 2 | ADD TO CART | |
| 15 | 5000014968 | Usit-ring | 1 | 16,7 x 24 x 1,5 | ADD TO CART |
| 16 | 5000011034 | Plug (threaded) | 1 | M16 x 1,5 | DIN910 | ADD TO CART |
| 42 | 5000031565 | Lockwasher | 2 | ADD TO CART | |
| 48 | 5000014425 | Cheese head screw | 2 | 10Nm/7ft.lbs | PARTS REQUEST |
|
COMING Cheese head screw
5000014425 · qty on machine: 2 10Nm/7ft.lbs | |||||
| 50 | 5000220500 | Engine support | 1 | ADD TO CART | |
| 51 | 5000216555 | Shockmount | 4 | ADD TO CART | |
| 58 | 5000010883 | Hexagon nut | 4 | ADD TO CART | |
| 60 | 5000125357 | Hose pipe | 1 | ADD TO CART | |
| 61 | 5000220515 | Narrow v-belt | 1 | XPA 932 lw | ADD TO CART |
| 64 | 5000010621 | Flat washer | 4 | ADD TO CART | |
| 65 | 5000011437 | Hexagonal head cap screw | 4 | M10 x 40 49Nm/36ft.lbs | DIN933 | PARTS REQUEST |
|
COMING Hexagonal head cap screw
5000011437 · qty on machine: 4 M10 x 40
49Nm/36ft.lbs | DIN933 | |||||
| 66 | 5000129266 | Hose pipe | 1 | 15Nm/11ft.lbs | ADD TO CART |
| 67 | 5000021465 | Lock washer | 4 | ADD TO CART | |
| 68 | 5000013569 | Cheese head screw | 4 | M12 x 50 86Nm/63ft.lbs | ISO4762 | PARTS REQUEST |
|
COMING Cheese head screw
5000013569 · qty on machine: 4 M12 x 50
86Nm/63ft.lbs | ISO4762 | |||||

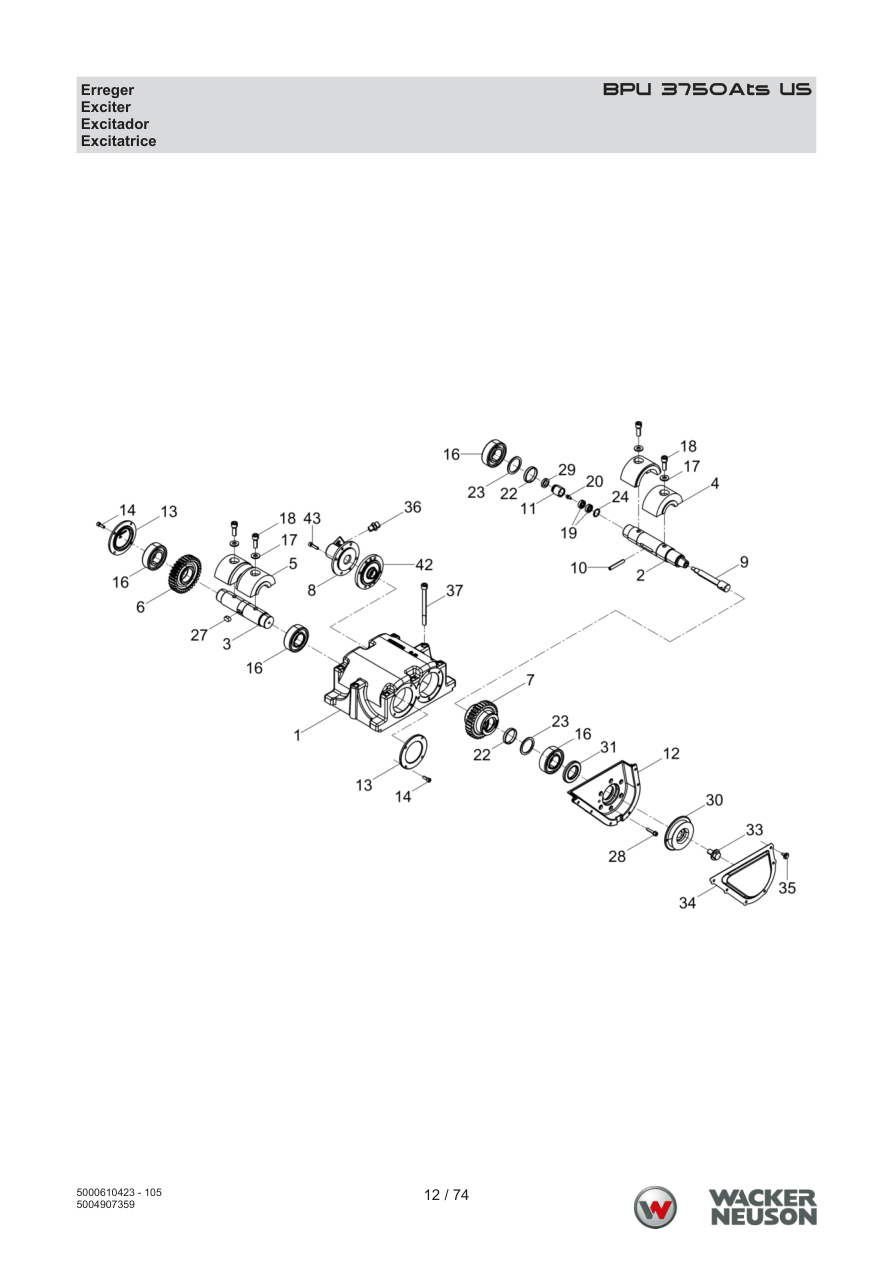

Page 12 — BPU 3750Ats US Exciter
Parts list — exactly as printed34 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000125375 | Exciter housing | 1 | ADD TO CART | |
| 2 | 5000220064 | Shaft | 1 | ADD TO CART | |
| 3 | 5000220065 | Shaft | 1 | PARTS REQUEST | |
|
COMING Shaft
5000220065 · qty on machine: 1 | |||||
| 4 | 5000220067 | Eccentric weight | 2 | ADD TO CART | |
| 5 | 5000220069 | Eccentric weight | 2 | ADD TO CART | |
| 6 | 5000047057 | Gear wheel | 1 | ADD TO CART | |
| 7 | 5000220056 | Adjusting sleeve | 1 | ADD TO CART | |
| 8 | 5000220220 | Cylinder cover | 1 | ADD TO CART | |
| 9 | 5000220071 | Indexing bolt | 1 | ADD TO CART | |
| 10 | 5000220073 | Tripping pin | 1 | ADD TO CART | |
| 11 | 5000220355 | Piston | 1 | ADD TO CART | |
| 12 | 5000126159 | Belt guard | 1 | ADD TO CART | |
| 13 | 5000126166 | Cover | 2 | ADD TO CART | |
| 14 | 5000011552 | Cheese head screw | 8 | M6 x 18 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 16 | 5000105139 | Cylindrical roller bearing | 4 | ADD TO CART | |
| 17 | 5000033988 | Lockwasher | 4 | ADD TO CART | |
| 18 | 5000220074 | Cheese head screw | 4 | M10x 30 | DIN912 | ADD TO CART |
| 19 | 5002006596 | Grooved ball bearing | 2 | ADD TO CART | |
| 20 | 5100072824 | Screw m 5x 10 | 1 | PARTS REQUEST | |
|
COMING Screw m 5x 10
5100072824 · qty on machine: 1 | |||||
| 22 | 5000220072 | Bushing | 2 | PARTS REQUEST | |
|
COMING Bushing
5000220072 · qty on machine: 2 | |||||
| 23 | 5000220075 | Supporting washer | 2 | S40x50 | DIN988 | PARTS REQUEST |
|
COMING Supporting washer
5000220075 · qty on machine: 2 S40x50 | DIN988 | |||||
| 24 | 5002004979 | Retaining ring | 1 | 22 x 1 | DIN472 | ADD TO CART |
| 27 | 5000014844 | Fitting key | 1 | A10 x 8 x 18 | DIN6885 | ADD TO CART |
| 28 | 5100072822 | Screw m 6x 30 | 6 | 10Nm/7ft.lbs | ADD TO CART |
| 29 | 5000220356 | Lip seal ring | 1 | 25x 17x 5,5 | ADD TO CART |
| 30 | 5000125371 | V-belt pulley | 1 | ADD TO CART | |
| 31 | 5000126167 | Rotary shaft seal | 1 | ADD TO CART | |
| 33 | 5100072825 | Vent screw | 1 | ADD TO CART | |
| 34 | 5000125360 | Cover | 1 | ADD TO CART | |
| 35 | 5100009501 | Screw | 6 | M6 x 16 10Nm/7ft.lbs | ADD TO CART |
| 36 | 5000046461 | Screwed socket | 1 | PARTS REQUEST | |
|
COMING Screwed socket
5000046461 · qty on machine: 1 | |||||
| 37 | 5000094073 | Cheese head screw | 8 | M10 x 120 69Nm/51ft.lbs | ISO4762 | ADD TO CART |
| 42 | 5000220216 | Cover | 1 | ADD TO CART | |
| 43 | 5000011550 | Cheese head screw | 4 | M6 x 25 10Nm/7ft.lbs | ISO4762 | ADD TO CART |

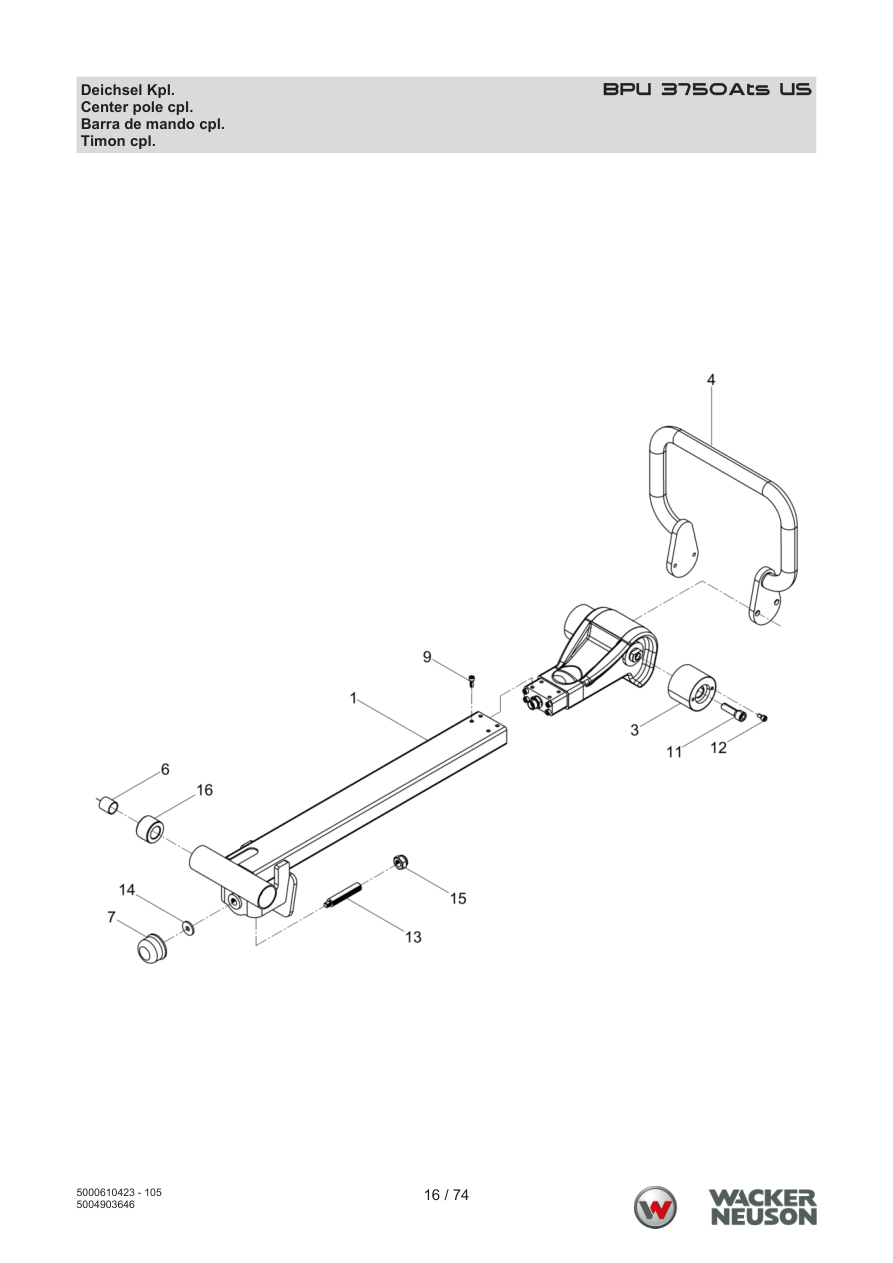

Page 16 — Center pole cpl.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 4 | 5000214990 | Clamp | 1 | ADD TO CART | |
| 1 | 5000126566 | Center pole | 1 | ADD TO CART | |
| 3 | 5000215035 | Shockmount | 2 | ADD TO CART | |
| 6 | 5000126164 | Slide bush | 2 | ADD TO CART | |
| 7 | 5000127085 | Shockmount | 1 | ADD TO CART | |
| 9 | 5000011553 | Cheese head screw | 8 | 10Nm/7ft.lbs | ADD TO CART |
| 11 | 5000011527 | Cheese head screw | 2 | 86Nm/63ft.lbs | ADD TO CART |
| 12 | 5000011554 | Cheese head screw | 4 | 10Nm/7ft.lbs | ADD TO CART |
| 13 | 5000201009 | Threaded spindle | 1 | ADD TO CART | |
| 14 | 5000012976 | Washer | 1 | R11 | DIN440 | ADD TO CART |
| 15 | 5000013496 | Hexagon nut | 1 | ADD TO CART | |
| 16 | 5000201018 | Bush | 2 | ADD TO CART | |

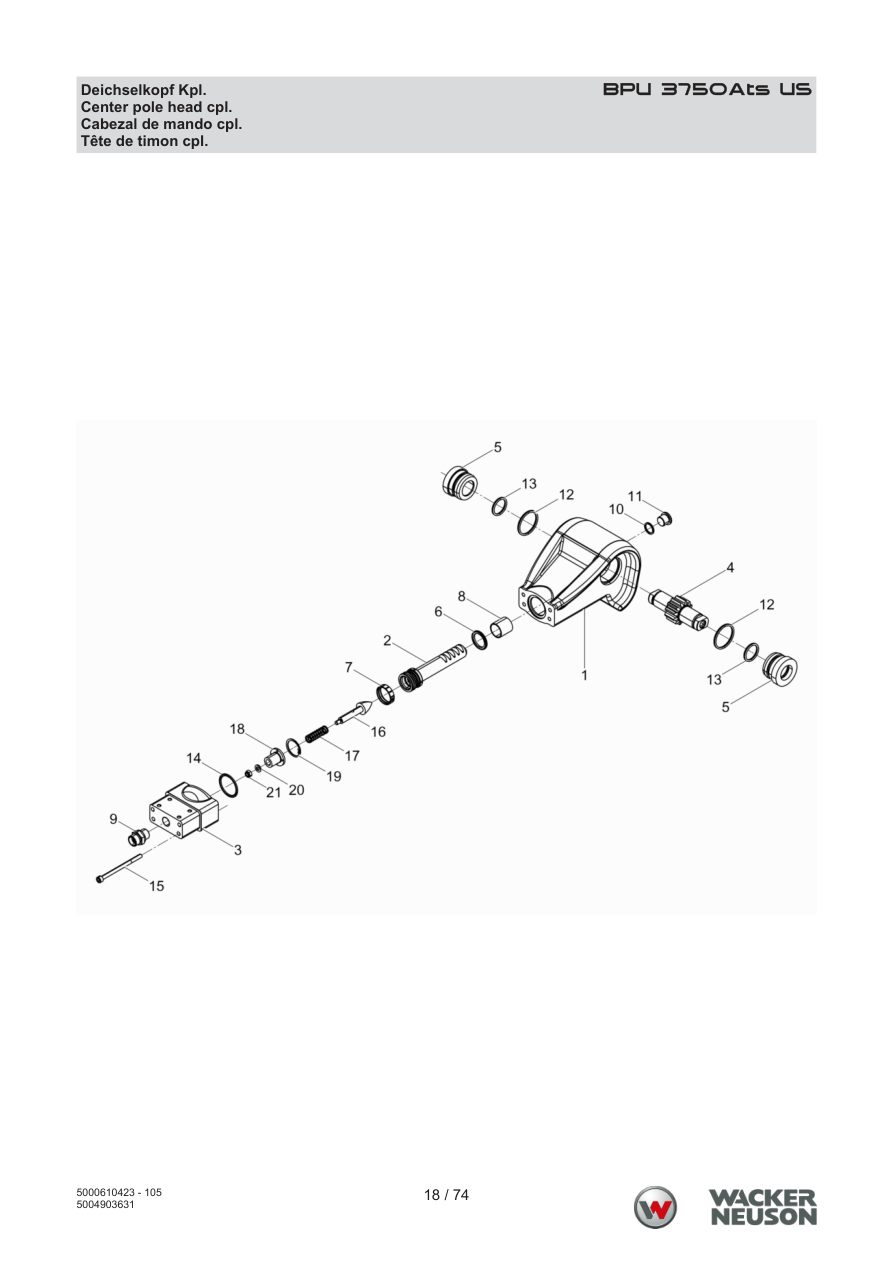

Page 18 — Center pole head cpl.
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000125363 | Center pole head | 1 | ADD TO CART | |
| 2 | 5100018558 | Piston rod | 1 | ADD TO CART | |
| 3 | 5000125924 | Guide pole head adapter | 1 | ADD TO CART | |
| 4 | 5000069726 | Long face pinion | 1 | ADD TO CART | |
| 5 | 5000125926 | Spacer | 2 | ADD TO CART | |
| 6 | 5000129269 | Compact seal | 1 | ADD TO CART | |
| 7 | 5000126163 | Piston guide ring | 1 | ADD TO CART | |
| 8 | 5000126164 | Slide bush | 1 | ADD TO CART | |
| 9 | 5000046092 | Screwed socket | 1 | ADD TO CART | |
| 10 | 5000012082 | Seal ring | 1 | A16 x 20 | DIN7603 | ADD TO CART |
| 11 | 5000011050 | Plug (threaded) | 1 | M16 x 1,5 | DIN908 | ADD TO CART |
| 12 | 5000068752 | O-ring | 2 | ADD TO CART | |
| 13 | 5000018194 | O-ring | 2 | ADD TO CART | |
| 14 | 5000067781 | O-ring | 1 | ADD TO CART | |
| 15 | 5000200651 | Cheese head screw | 4 | M6 x 90 | ISO4762 | ADD TO CART |
| 16 | 5100018559 | Seal cone | 1 | ADD TO CART | |
| 17 | 5100018591 | Compression spring | 1 | ADD TO CART | |
| 18 | 5100018590 | Guide sleeve | 1 | ADD TO CART | |
| 19 | 5002001695 | Retaining ring | 1 | 30 x 1,2 | DIN472 | ADD TO CART |
| 20 | 5000010624 | Flat washer | 1 | ADD TO CART | |
| 21 | 5000010368 | Hexagon nut | 1 | PARTS REQUEST | |
|
COMING Hexagon nut
5000010368 · qty on machine: 1 | |||||

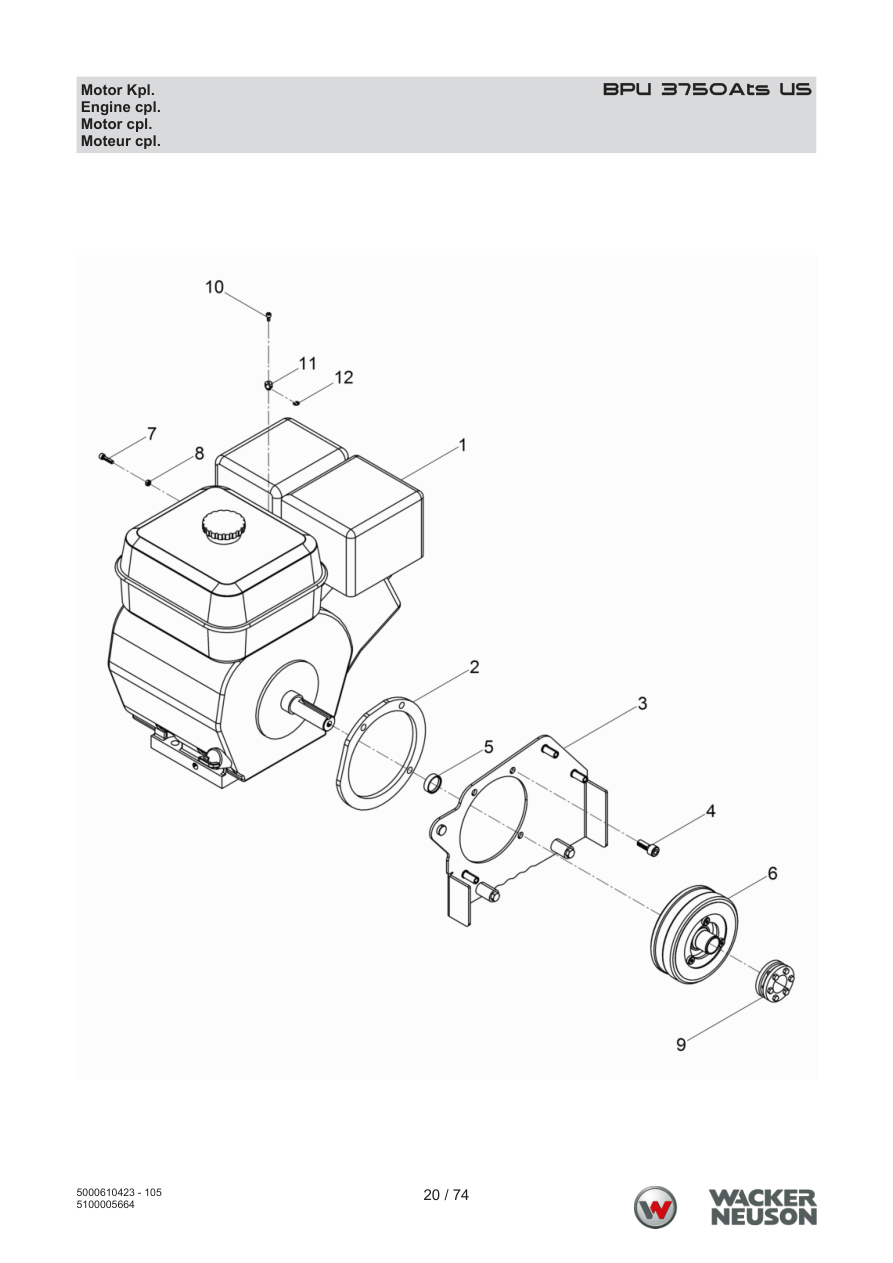

Page 20 — Engine complete
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100045996 | Gas engine | 1 | ADD TO CART | |
| 11 | 5000151819 | Clamping piece | 1 | ADD TO CART | |
| 12 | 5000151823 | Lock washer | 1 | ADD TO CART | |
| 2 | 5000125940 | Spacer | 1 | ADD TO CART | |
| 3 | 5100005452 | Fixing plate cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5000125943 | Cheese head screw | 3 | ADD TO CART | |
| 5 | 5000125948 | Ring | 1 | ADD TO CART | |
| 6 | 5000126185 | Centrifugal clutch | 1 | ADD TO CART | |
| 7 | 5000010879 | Hexagon nut | 1 | M5 | ISO4032 | ADD TO CART |
| 8 | 5000108180 | Cheese head screw | 1 | M5 x 25 | ISO4762 | ADD TO CART |
| 9 | 5000108633 | Tightening element | 1 | ADD TO CART | |
| 10 | 5100027691 | Cheese head screw | 1 | M 4x 5 | ADD TO CART |

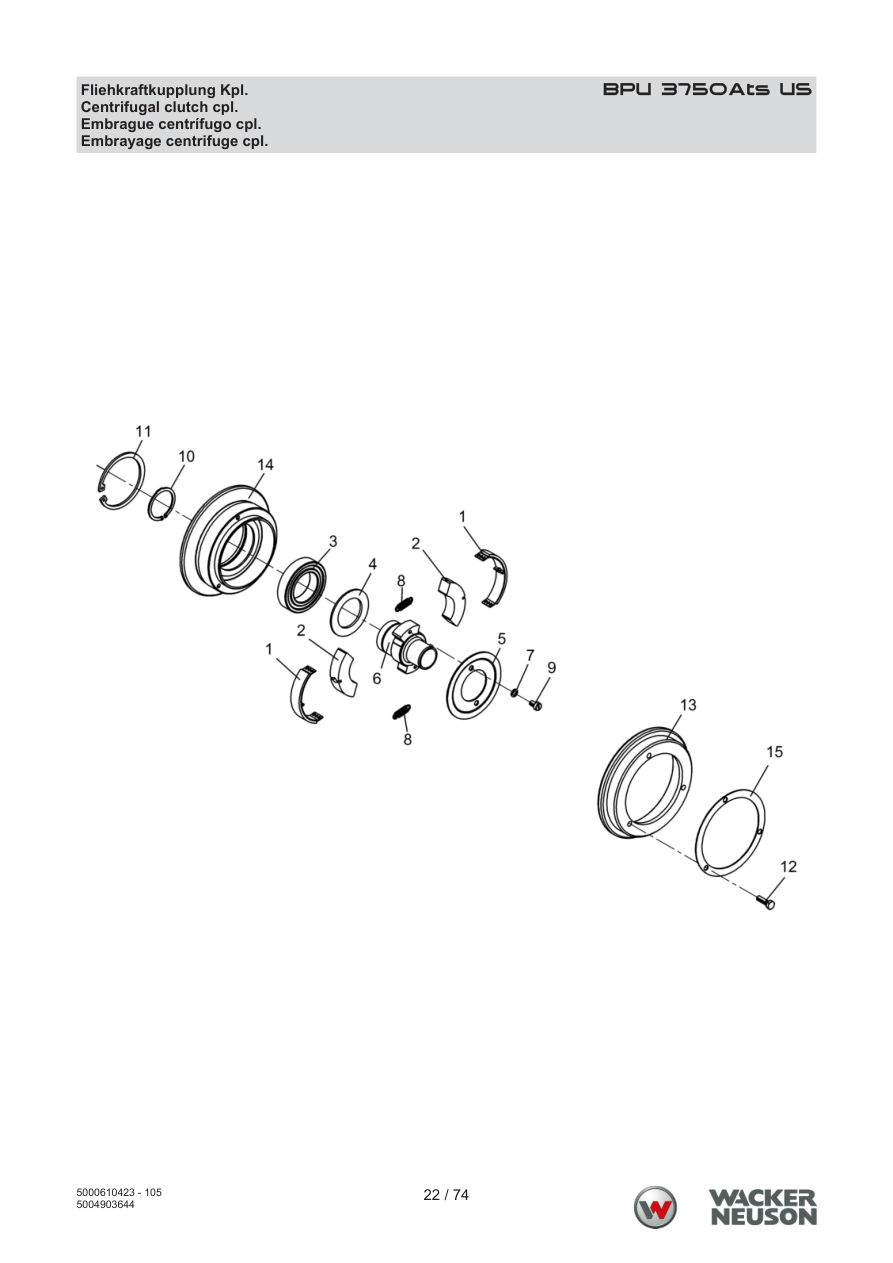

Page 22 — Centrifugal clutch cpl.
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000022861 | Lining | 2 | ADD TO CART | |
| 2 | 5000059738 | Centrifugal weight | 2 | PARTS REQUEST | |
|
COMING Centrifugal weight
5000059738 · qty on machine: 2 | |||||
| 3 | 5000018256 | Grooved ball bearing | 1 | ADD TO CART | |
| 4 | 5000201727 | Washer | 1 | ADD TO CART | |
| 5 | 5000201726 | Cover washer | 1 | ADD TO CART | |
| 6 | 5000203284 | Hub | 1 | ADD TO CART | |
| 7 | 5000201719 | Lock washer | 2 | PARTS REQUEST | |
|
COMING Lock washer
5000201719 · qty on machine: 2 | |||||
| 8 | 5000201724 | Tension spring | 2 | ADD TO CART | |
| 9 | 5000201718 | Cheese head screw | 2 | PARTS REQUEST | |
|
COMING Cheese head screw
5000201718 · qty on machine: 2 | |||||
| 10 | 5000201717 | Retaining ring | 1 | A40 x 1,75 | PARTS REQUEST |
|
COMING Retaining ring
5000201717 · qty on machine: 1 A40 x 1,75 | |||||
| 11 | 5000201715 | Retaining ring | 1 | J68 x 2,5 | ADD TO CART |
| 12 | 5000201713 | Hexagonal head cap screw | 3 | M6 x 20 | PARTS REQUEST |
|
COMING Hexagonal head cap screw
5000201713 · qty on machine: 3 M6 x 20 | |||||
| 13 | 5000201723 | Clutch drum | 1 | ADD TO CART | |
| 14 | 5000201722 | Clutch drum | 1 | ADD TO CART | |
| 15 | 5000201721 | Shim ring | 2 | ADD TO CART | |

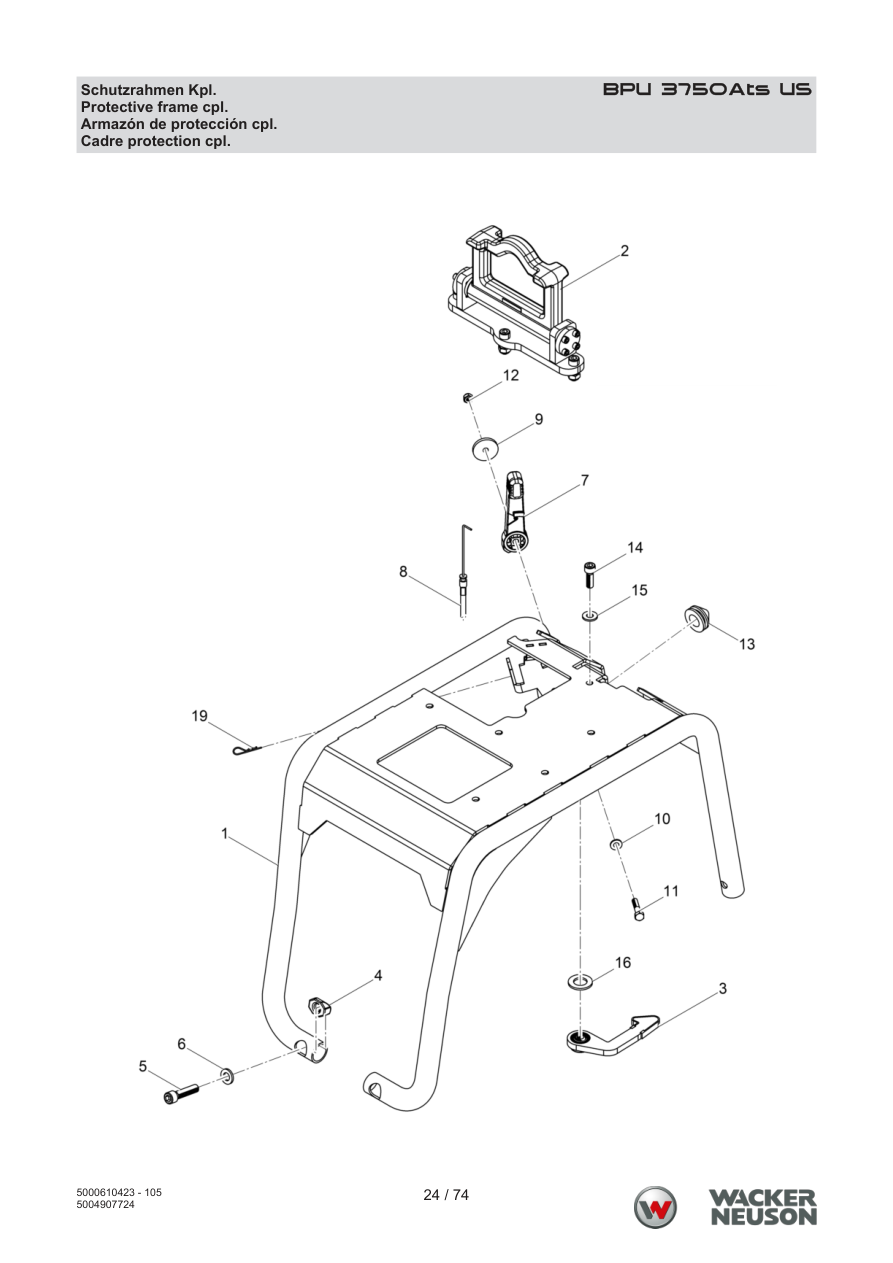

Page 24 — Protective frame cpl.
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000220548 | Protective frame | 1 | ADD TO CART | |
| 2 | 5000220230 | Jack ring cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 3 | 5000200616 | Carrier cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5000125949 | Bolt | 4 | ADD TO CART | |
| 5 | 5000013569 | Cheese head screw | 4 | M12 x 50 86Nm/63ft.lbs | ISO4762 | PARTS REQUEST |
|
COMING Cheese head screw
5000013569 · qty on machine: 4 M12 x 50
86Nm/63ft.lbs | ISO4762 | |||||
| 6 | 5000021465 | Lock washer | 4 | ADD TO CART | |
| 7 | 5000203537 | Governor lever | 1 | PARTS REQUEST | |
|
COMING Governor lever
5000203537 · qty on machine: 1 | |||||
| 8 | 5000125349 | Bowden cable | 1 | ADD TO CART | |
| 9 | 5000105194 | Washer | 1 | M8 x 1,5in | ADD TO CART |
| 10 | 5000033198 | Lockwasher | 1 | ADD TO CART | |
| 11 | 5000011341 | Hexagonal head cap screw | 1 | 25Nm/18ft.lbs | DIN931 | ADD TO CART |
| 12 | 5000033356 | Hexagon nut | 1 | ADD TO CART | |
| 13 | 5000200617 | Shockmount | 1 | ADD TO CART | |
| 14 | 5000011534 | Cheese head screw | 1 | 49Nm/36ft.lbs | ISO4762 | ADD TO CART |
| 15 | 5000033988 | Lockwasher | 1 | ADD TO CART | |
| 16 | 5000010616 | Flat washer | 1 | ADD TO CART | |
| 19 | 5000129272 | Spring pin | 1 | ADD TO CART | |

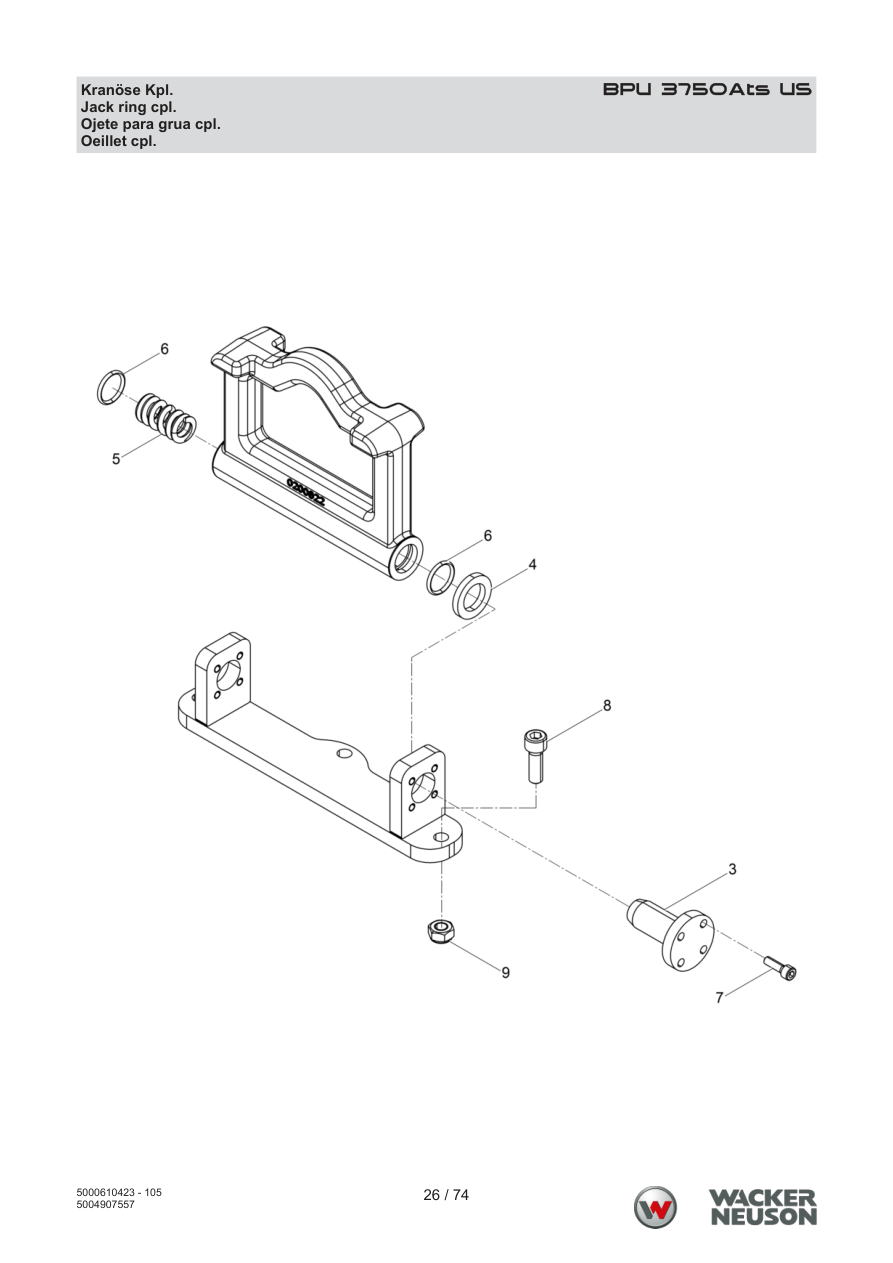

Page 26 — Jack ring cpl.
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5000216582 | Axle | 2 | ADD TO CART | |
| 4 | 5000216586 | Friction disc | 1 | ADD TO CART | |
| 5 | 5000220231 | Compression spring | 1 | ADD TO CART | |
| 6 | 5000017254 | O-ring | 2 | ADD TO CART | |
| 7 | 5100069282 | Screw m 6x 20 | 8 | 10Nm/7ft.lbs | ADD TO CART |
| 8 | 5000220226 | Cheese head screw | 3 | M10x 30 | ISO4762 | PARTS REQUEST |
|
COMING Cheese head screw
5000220226 · qty on machine: 3 M10x 30 | ISO4762 | |||||
| 9 | 5000216588 | Hexagon nut | 3 | M10 | DIN980 | ADD TO CART |

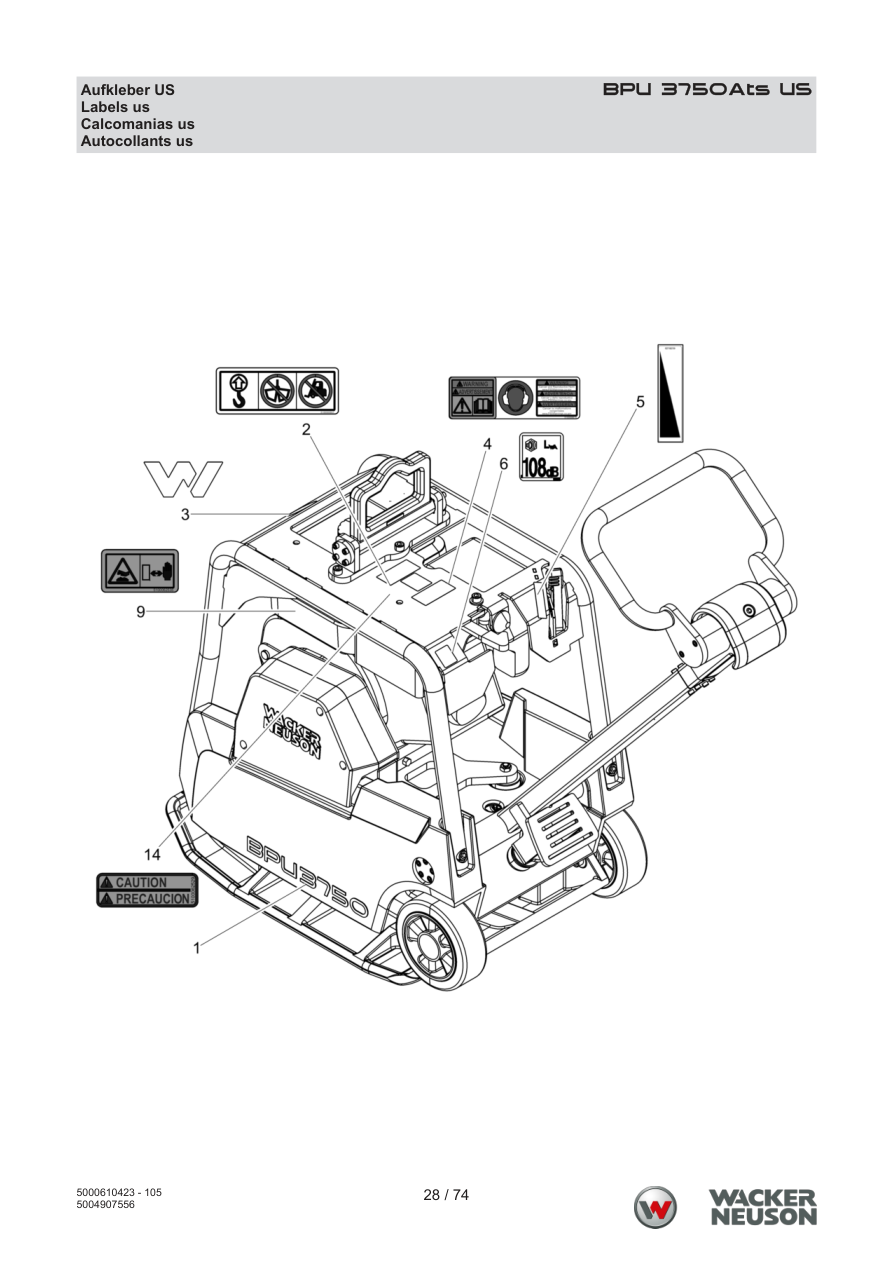

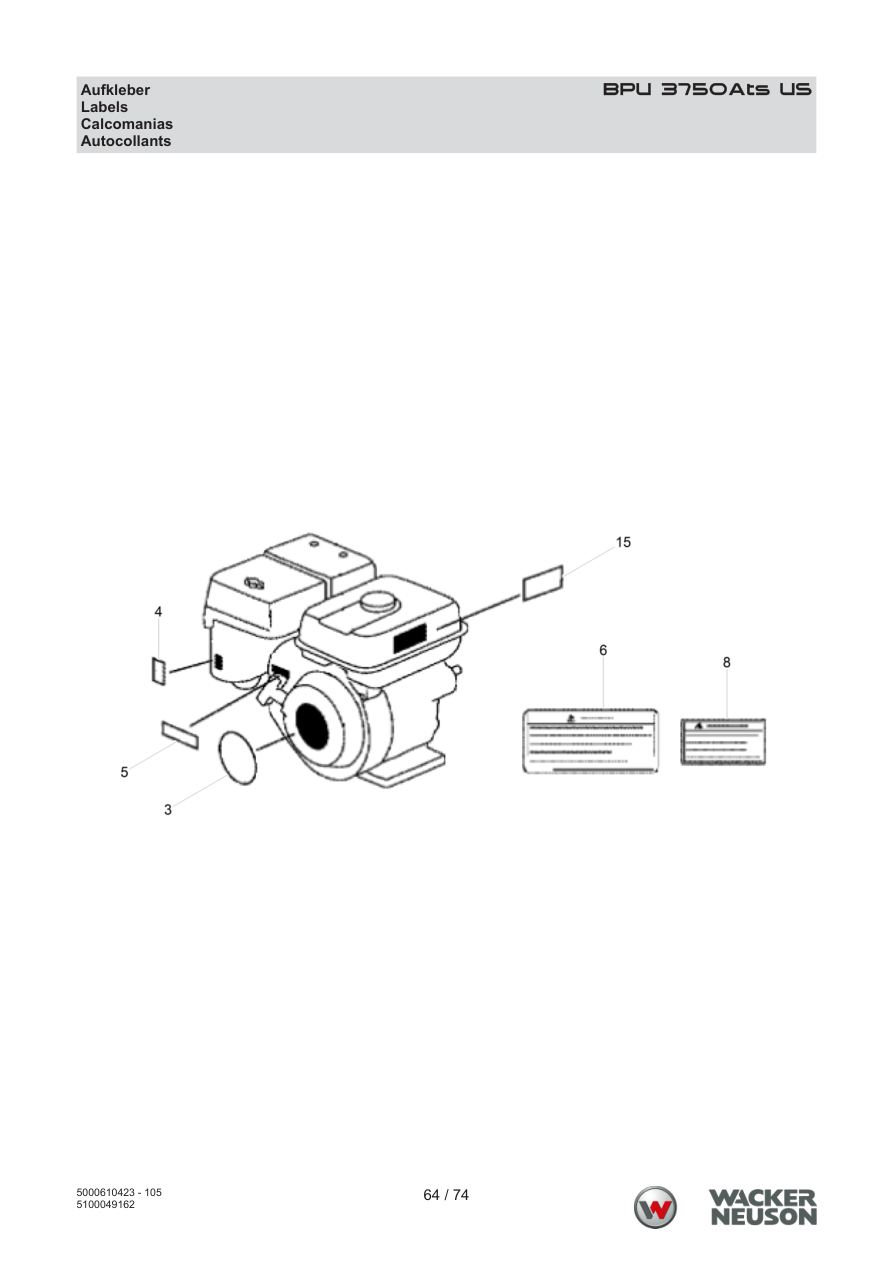

Page 28 — BPU 3750Ats US Decals US
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000220495 | Type label | 1 | ADD TO CART | |
| 2 | 5100060907 | Label | 1 | ADD TO CART | |
| 3 | 5100058733 | Label symbol | 1 | ADD TO CART | |
| 4 | 5100068610 | Label | 1 | ADD TO CART | |
| 5 | 5000219259 | Labels | 1 | ADD TO CART | |
| 6 | 5000129784 | Decal-sound power level | 1 | ADD TO CART | |
| 9 | 5100062535 | Label | 1 | ADD TO CART | |
| 14 | 5100062529 | Label | 1 | ADD TO CART | |

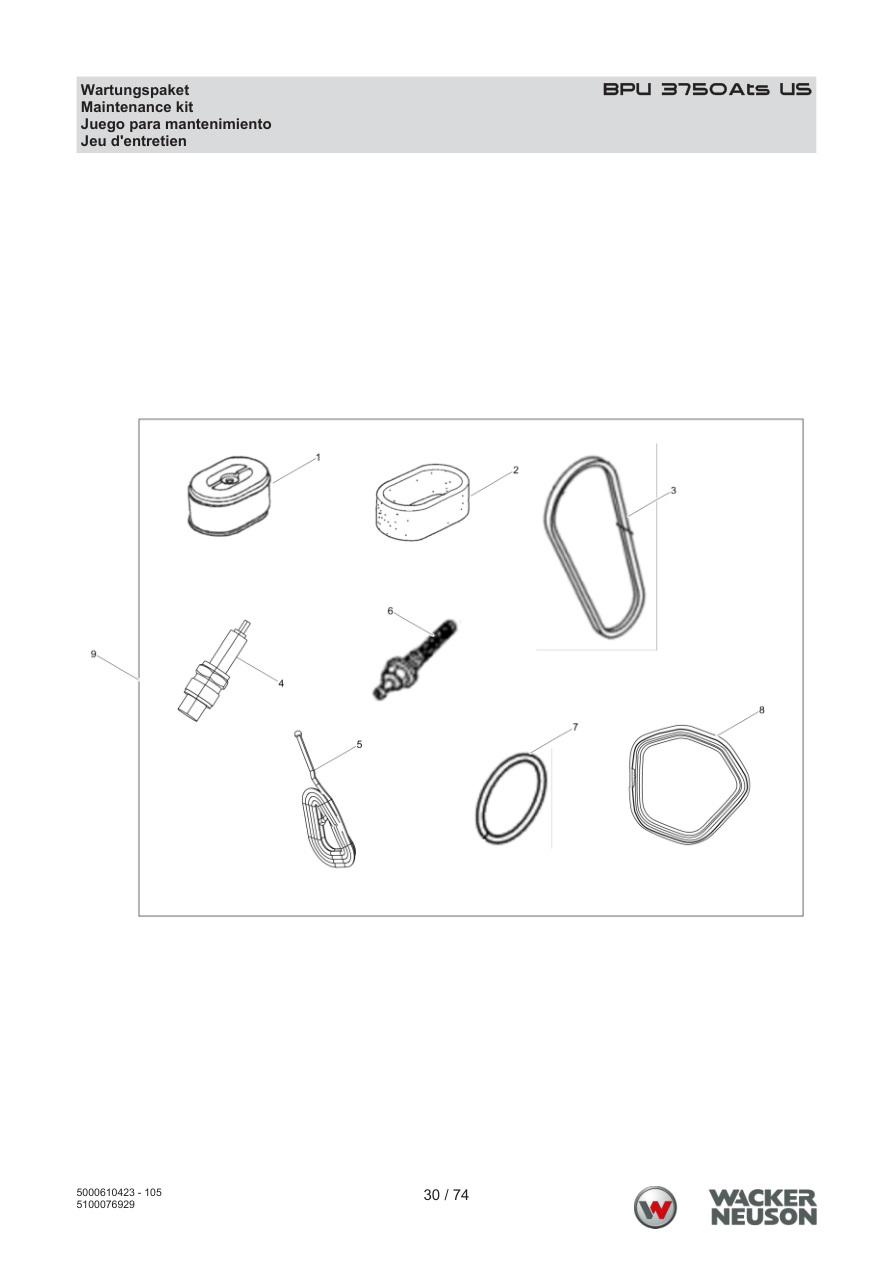

Page 30 — BPU 3750Ats US Maintenance kit
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000074737 | Air filter insert cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Air filter insert cpl.
5000074737 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 2 | 5200000440 | Air cleaner gasket | 1 | ADD TO CART | |
| 3 | 5000220515 | Narrow v-belt | 1 | XPA 932 lw | ADD TO CART |
| 4 | 5000203788 | Spark plug | 1 | ADD TO CART | |
| 5 | 5000151037 | Rope | 1 | ADD TO CART | |
| 6 | 5100000395 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
5100000395 · qty on machine: 1 | |||||
| 7 | 5000071082 | O-ring | 1 | 14 x 1,3 | ADD TO CART |
| 8 | 5000074645 | Cylinder head gasket | 1 | ADD TO CART | |
| 9 | 5100069626 | Maintenance kit | 1 | ADD TO CART | |

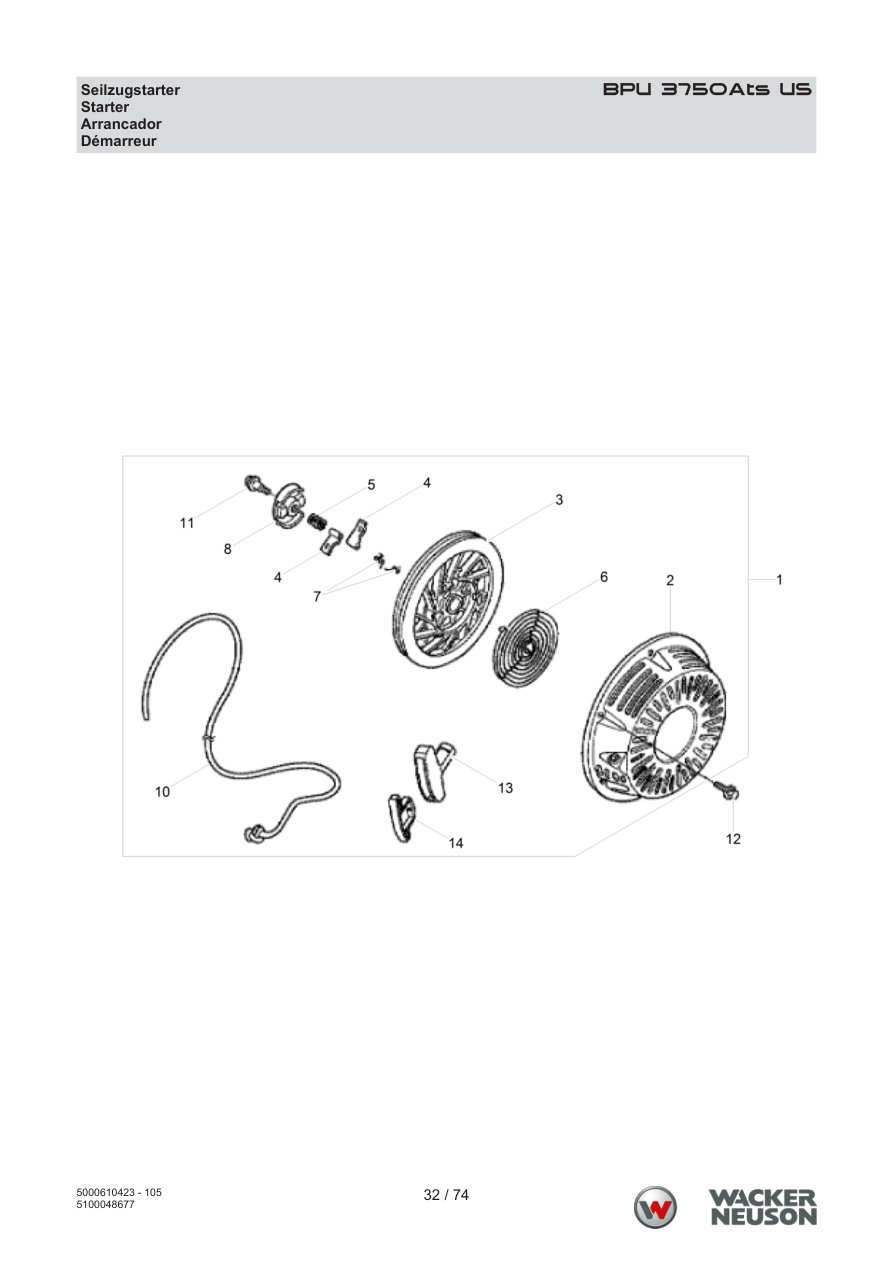

Page 32 — BPU 3750Ats US Recoil starter
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100000424 | Starter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5100000427 | Housing cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Housing cpl.
5100000427 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5000081644 | Starter pulley | 2 | ADD TO CART | |
| 4 | 5000081645 | Ratchet | 4 | ADD TO CART | |
| 5 | 5000081646 | Spring | 2 | ADD TO CART | |
| 6 | 5000081647 | Spring | 2 | ADD TO CART | |
| 7 | 5000081648 | Spring | 4 | ADD TO CART | |
| 8 | 5000081649 | Spring housing | 2 | ADD TO CART | |
| 10 | 5000151037 | Rope | 2 | ADD TO CART | |
| 11 | 5000081658 | Screw | 2 | ADD TO CART | |
| 12 | 5000071053 | Screw | 3 | M6 x 10 10Nm/7ft.lbs | ADD TO CART |
| 13 | 5100000428 | Handle | 2 | PARTS REQUEST | |
|
COMING Handle
5100000428 · qty on machine: 2 | |||||
| 13 | 5100039004 | Handle | 1 | PARTS REQUEST | |
|
COMING Handle
5100039004 · qty on machine: 1 | |||||
| 14 | 5100000429 | Handle | 1 | ADD TO CART | |

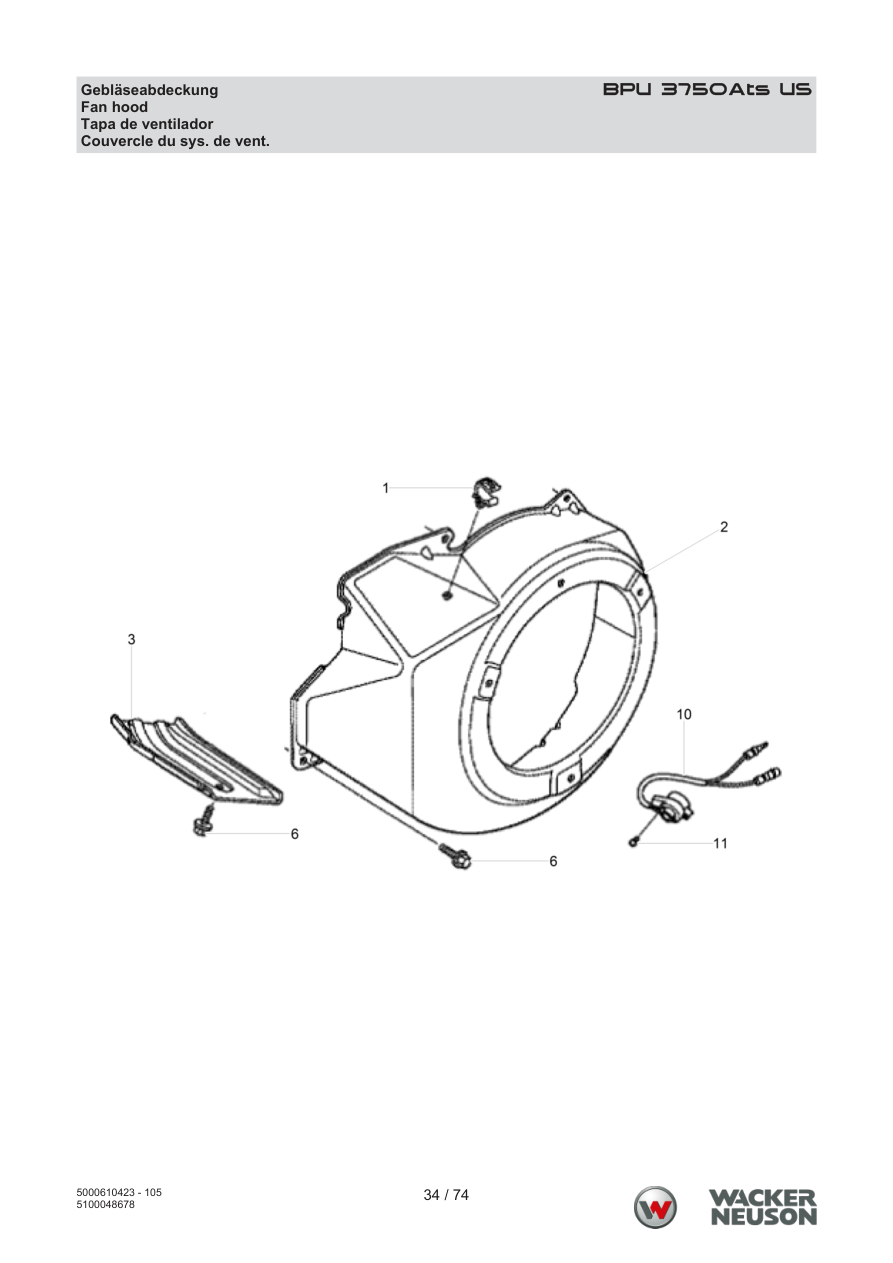

Page 34 — Fan hood
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000074689 | Clip | 1 | ADD TO CART | |
| 2 | 5100000417 | Cover cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 3 | 5100000421 | Wheel flange | 1 | ADD TO CART | |
| 6 | 5000053990 | Screw | 6 | M6 x 12 10Nm/7ft.lbs | ADD TO CART |
| 10 | 5100000436 | Engine stop cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 11 | 5100000448 | Screw | 2 | PARTS REQUEST | |
|
COMING Screw
5100000448 · qty on machine: 2 | |||||

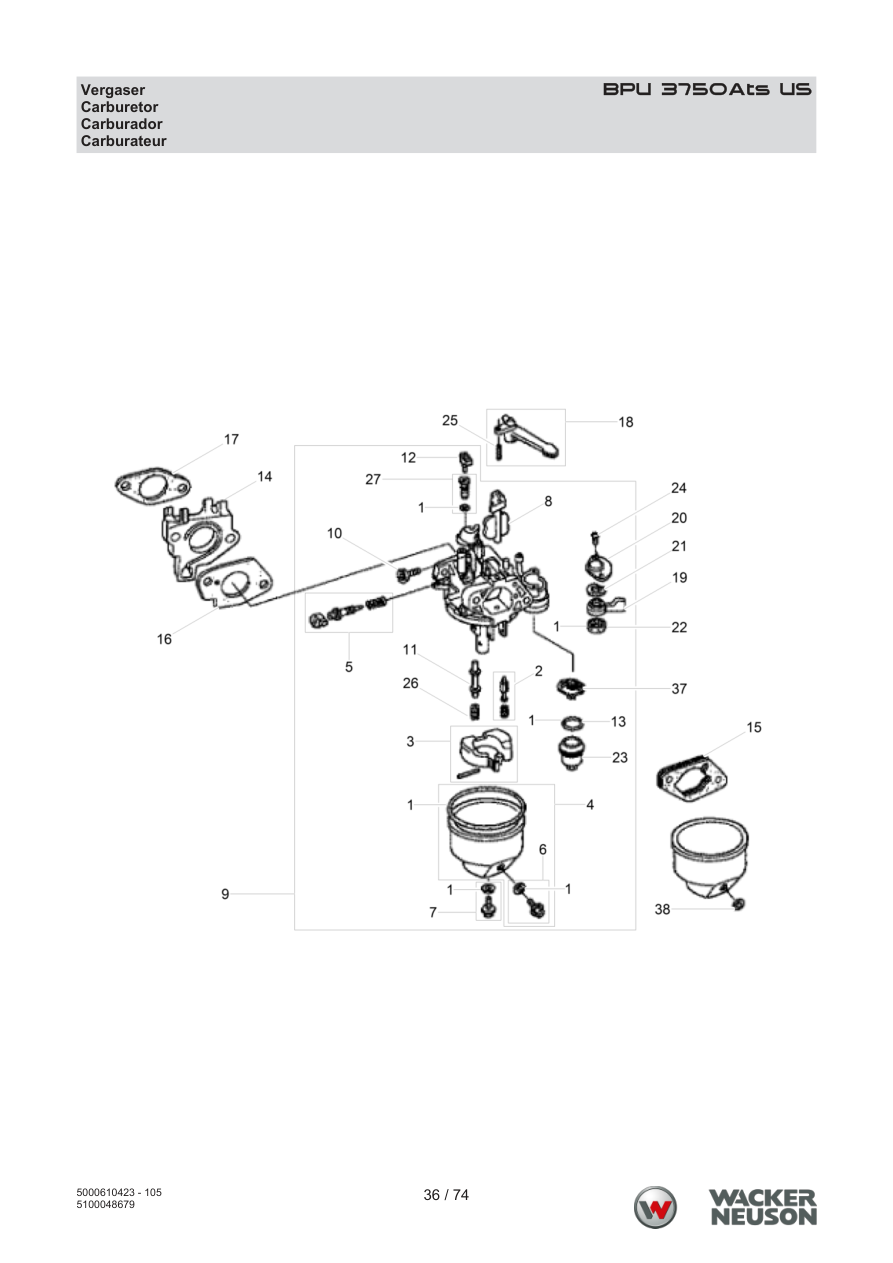

Page 36 — BPU 3750Ats US Carburetor
Parts list — exactly as printed31 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100039005 | Gasket set | 1 | PARTS REQUEST | |
|
COMING Gasket set
5100039005 · qty on machine: 1 | |||||
| 2 | 5000074759 | Float needle | 1 | ADD TO CART | |
| 3 | 5000217483 | Set-carburetor float | 1 | ADD TO CART | |
| 4 | 5200000429 | Carburetor float set | 1 | ADD TO CART | |
| 5 | 5000089286 | Setscrew | 1 | ADD TO CART | |
| 6 | 5200000430 | Screw w/washer | 1 | ADD TO CART | |
| 7 | 5200000431 | Screw w/washer | 1 | ADD TO CART | |
| 8 | 5000074756 | Valve throttle kit | 1 | ADD TO CART | |
| 9 | 5100001087 | Carburetor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 10 | 5000071018 | Throttle stop screw | 1 | ADD TO CART | |
| 11 | 5100001088 | Main jet | 1 | ADD TO CART | |
| 12 | 5000089281 | Set-collar | 1 | ADD TO CART | |
| 13 | 5000125839 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000125839 · qty on machine: 1 | |||||
| 14 | 5100000388 | Insulator | 1 | ADD TO CART | |
| 15 | 5000074761 | Carburetor mount spacer | 1 | ADD TO CART | |
| 16 | 5100000390 | Gasket | 1 | ADD TO CART | |
| 17 | 5100000389 | Gasket | 1 | ADD TO CART | |
| 18 | 5000071013 | Choke control lever | 1 | ADD TO CART | |
| 19 | 5000150266 | Fuel valve lever | 1 | ADD TO CART | |
| 20 | 5000073269 | Plate | 1 | ADD TO CART | |
| 21 | 5000073270 | Spring washer | 1 | ADD TO CART | |
| 22 | 5000073272 | Gasket | 1 | ADD TO CART | |
| 23 | 5000071023 | Fuel filter | 1 | ADD TO CART | |
| 24 | 5100005317 | Screw | 2 | PARTS REQUEST | |
|
COMING Screw
5100005317 · qty on machine: 2 | |||||
| 25 | 5000071014 | Pin | 1 | 2 x 12 | ADD TO CART |
| 26 | 5000110603 | Main jet | 1 | ADD TO CART | |
| 26 | 5000125840 | Main jet | 1 | PARTS REQUEST | |
|
COMING Main jet
5000125840 · qty on machine: 1 | |||||
| 26 | 5000127767 | Main jet | 1 | ADD TO CART | |
| 27 | 5000074754 | Jet | 1 | ADD TO CART | |
| 37 | 5100000396 | Filter | 1 | ADD TO CART | |
| 38 | 5100036241 | Disc | 1 | ADD TO CART | |

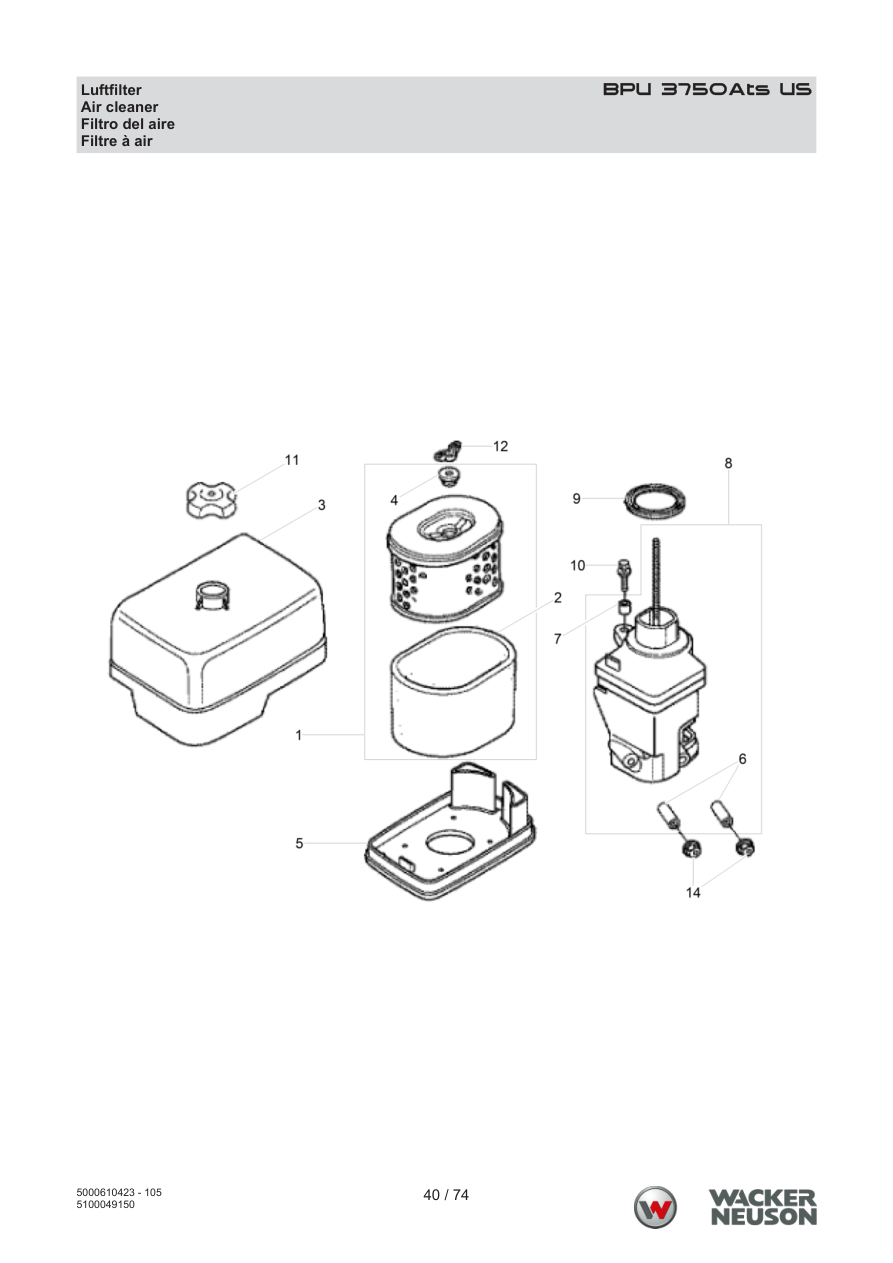

Page 40 — BPU 3750Ats US Air filter
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000217486 | Air filter insert cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5200008974 | Prefilter element | 1 | PARTS REQUEST | |
|
COMING Prefilter element
5200008974 · qty on machine: 1 | |||||
| 3 | 5100000583 | Air cleaner cover | 1 | ADD TO CART | |
| 4 | 5000072343 | Grommet | 1 | ADD TO CART | |
| 5 | 5100001089 | Bracket | 1 | PARTS REQUEST | |
|
COMING Bracket
5100001089 · qty on machine: 1 | |||||
| 6 | 5000076372 | Collar | 2 | ADD TO CART | |
| 7 | 5000071035 | Sleeve | 1 | ADD TO CART | |
| 8 | 5100000585 | Filter bracket | 1 | ADD TO CART | |
| 9 | 5200000440 | Air cleaner gasket | 1 | ADD TO CART | |
| 10 | 5000217494 | Screw w/washer | 1 | ADD TO CART | |
| 11 | 5100000590 | Wing nut | 1 | PARTS REQUEST | |
|
COMING Wing nut
5100000590 · qty on machine: 1 | |||||
| 12 | 5000071621 | Wing nut | 1 | ADD TO CART | |
| 14 | 5000071056 | Nut | 2 | ADD TO CART | |

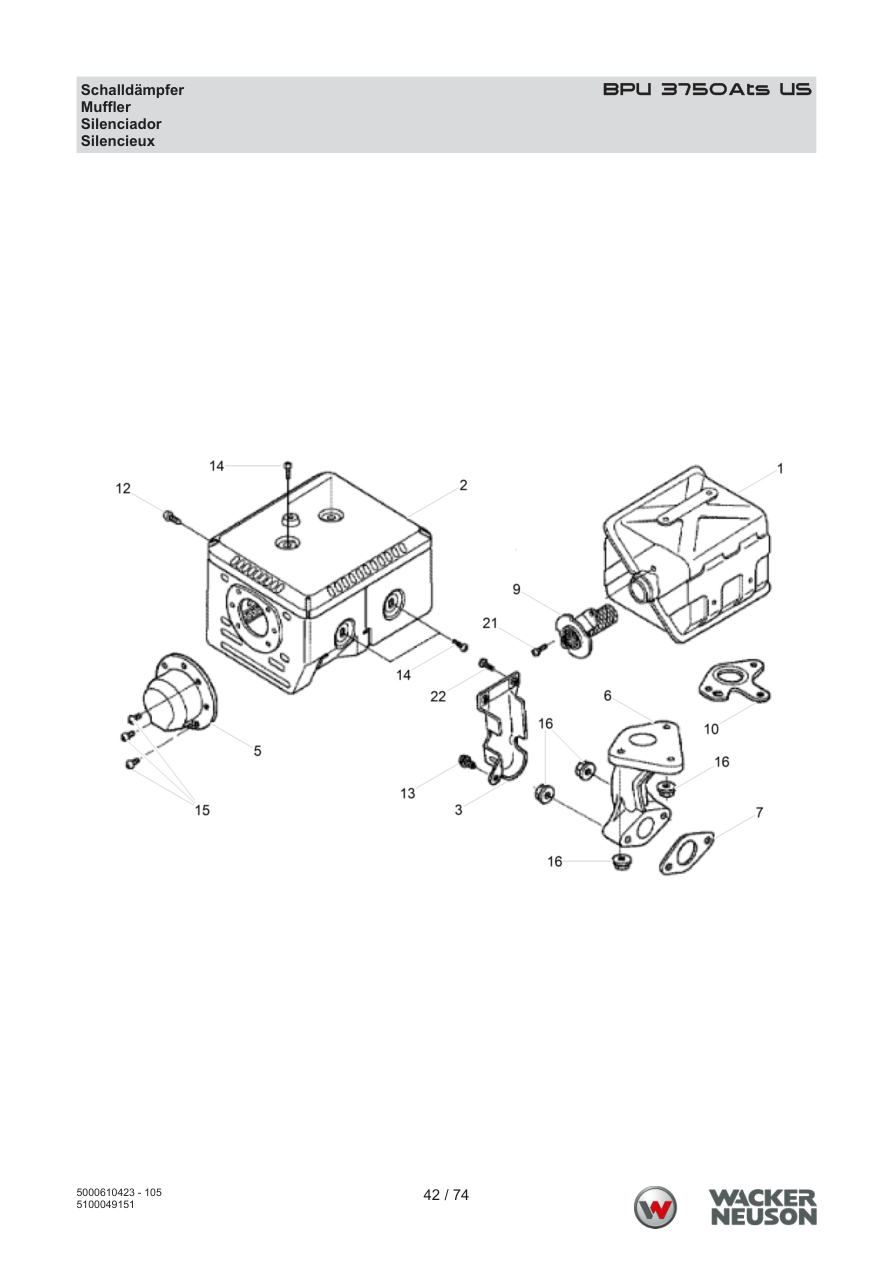

Page 42 — Muffler
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100039013 | Muffler | 1 | PARTS REQUEST | |
|
COMING Muffler
5100039013 · qty on machine: 1 | |||||
| 2 | 5100000405 | Housing cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Housing cpl.
5100000405 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5000081638 | Guard | 1 | ADD TO CART | |
| 5 | 5000217513 | Exhaustdeflector | 1 | PARTS REQUEST | |
|
COMING Exhaustdeflector
5000217513 · qty on machine: 1 | |||||
| 6 | 5200000448 | Exhaust pipe | 1 | ADD TO CART | |
| 7 | 5000217489 | Gasket | 1 | ADD TO CART | |
| 9 | 5200000449 | Spark arrester | 1 | ADD TO CART | |
| 10 | 5000081640 | Gasket | 1 | ADD TO CART | |
| 10 | 5100000410 | Exhaust gasket | 1 | ADD TO CART | |
| 12 | 5000089284 | Screw | 1 | M6 x 10 | ADD TO CART |
| 13 | 5000053990 | Screw | 1 | M6 x 12 10Nm/7ft.lbs | ADD TO CART |
| 14 | 5000071070 | Screw | 4 | M5 x 8 | ADD TO CART |
| 15 | 5000150916 | Screw | 3 | ADD TO CART | |
| 16 | 5000074738 | Flange nut | 5 | ADD TO CART | |
| 21 | 5000071070 | Screw | 2 | M5 x 8 | ADD TO CART |
| 22 | 5000071070 | Screw | 2 | M5 x 8 | ADD TO CART |

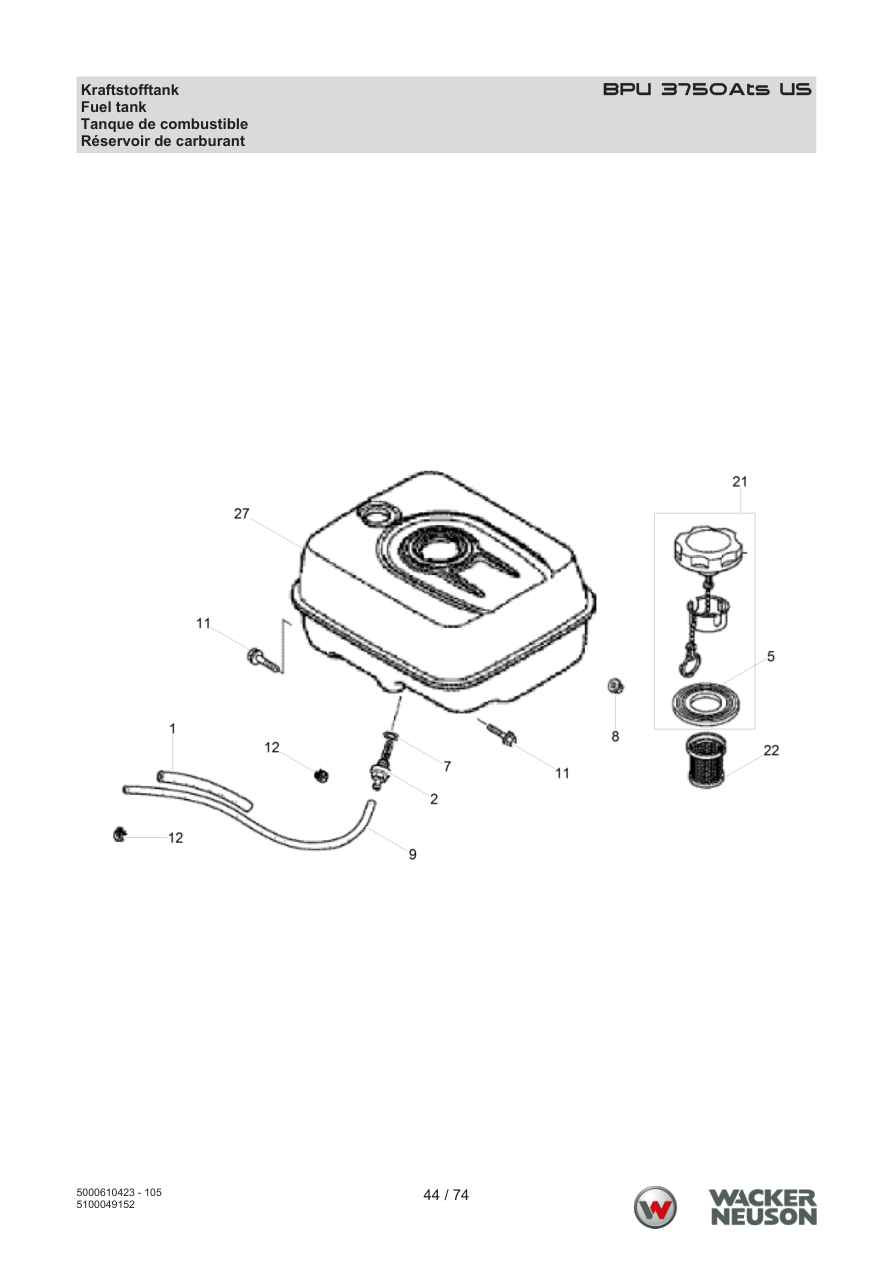

Page 44 — BPU 3750Ats US Fuel Tank
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000081764 | Protective hose | 1 | ADD TO CART | |
| 2 | 5100000395 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
5100000395 · qty on machine: 1 | |||||
| 5 | 5000209770 | Gasket | 1 | ADD TO CART | |
| 7 | 5000208616 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000208616 · qty on machine: 1 | |||||
| 8 | 5000074738 | Flange nut | 2 | ADD TO CART | |
| 9 | 5100000454 | Fuel hose | 1 | ADD TO CART | |
| 11 | 5000074751 | Screw | 2 | M8 x 25 25Nm/18ft.lbs | ADD TO CART |
| 12 | 5000208617 | Clamp | 2 | ADD TO CART | |
| 21 | 5000217460 | Cap-fuel fill | 1 | ADD TO CART | |
| 22 | 5000217453 | Fuel filter | 1 | ADD TO CART | |
| 27 | 5100039014 | Fuel tank cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |

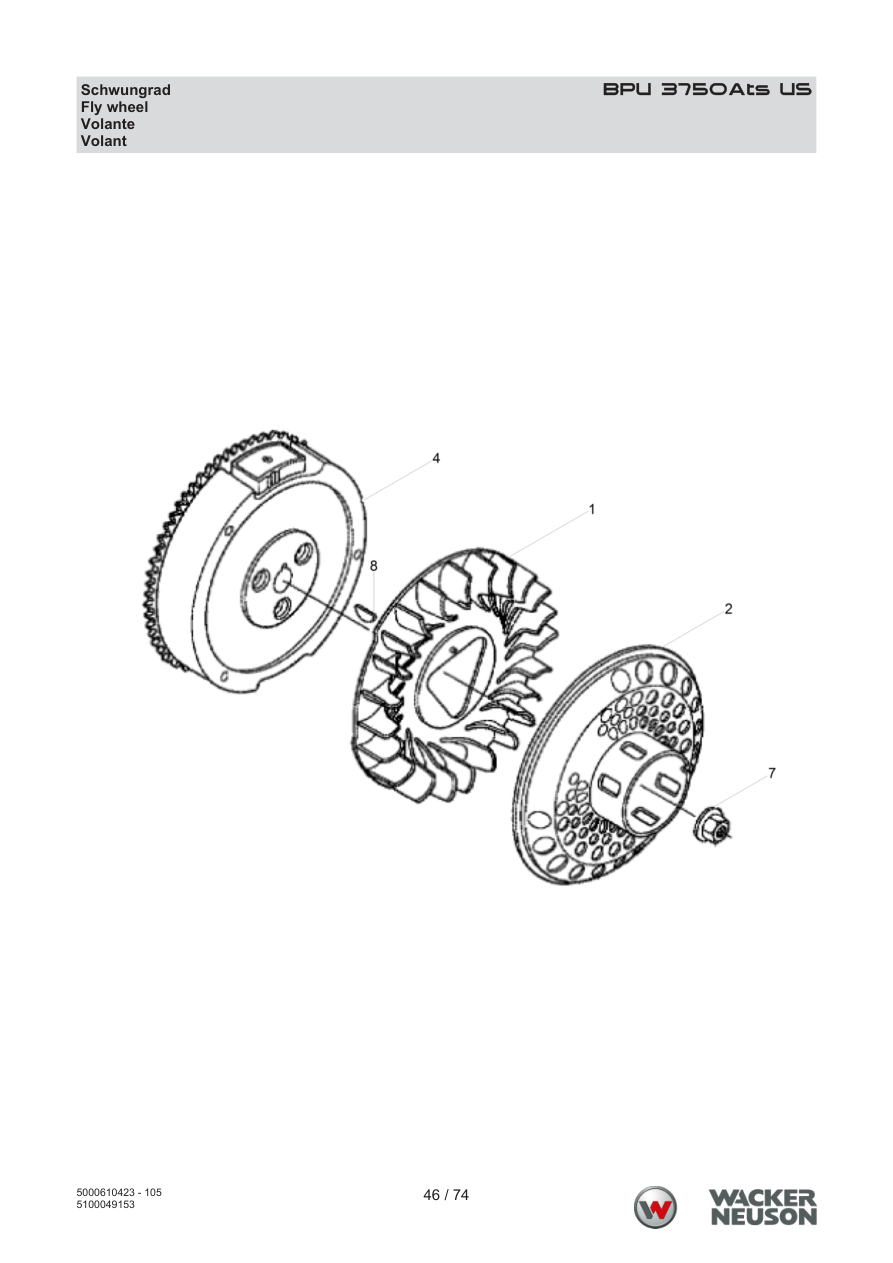

Page 46 — BPU 3750Ats US Flywheel
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000074673 | Fan motor | 1 | ADD TO CART | |
| 2 | 5000081651 | Carrier pot | 1 | ADD TO CART | |
| 4 | 5100000432 | Fly wheel cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 7 | 5000116736 | Nut | 1 | ADD TO CART | |
| 8 | 5000074672 | Woodruff key | 1 | 25 x 18 | ADD TO CART |

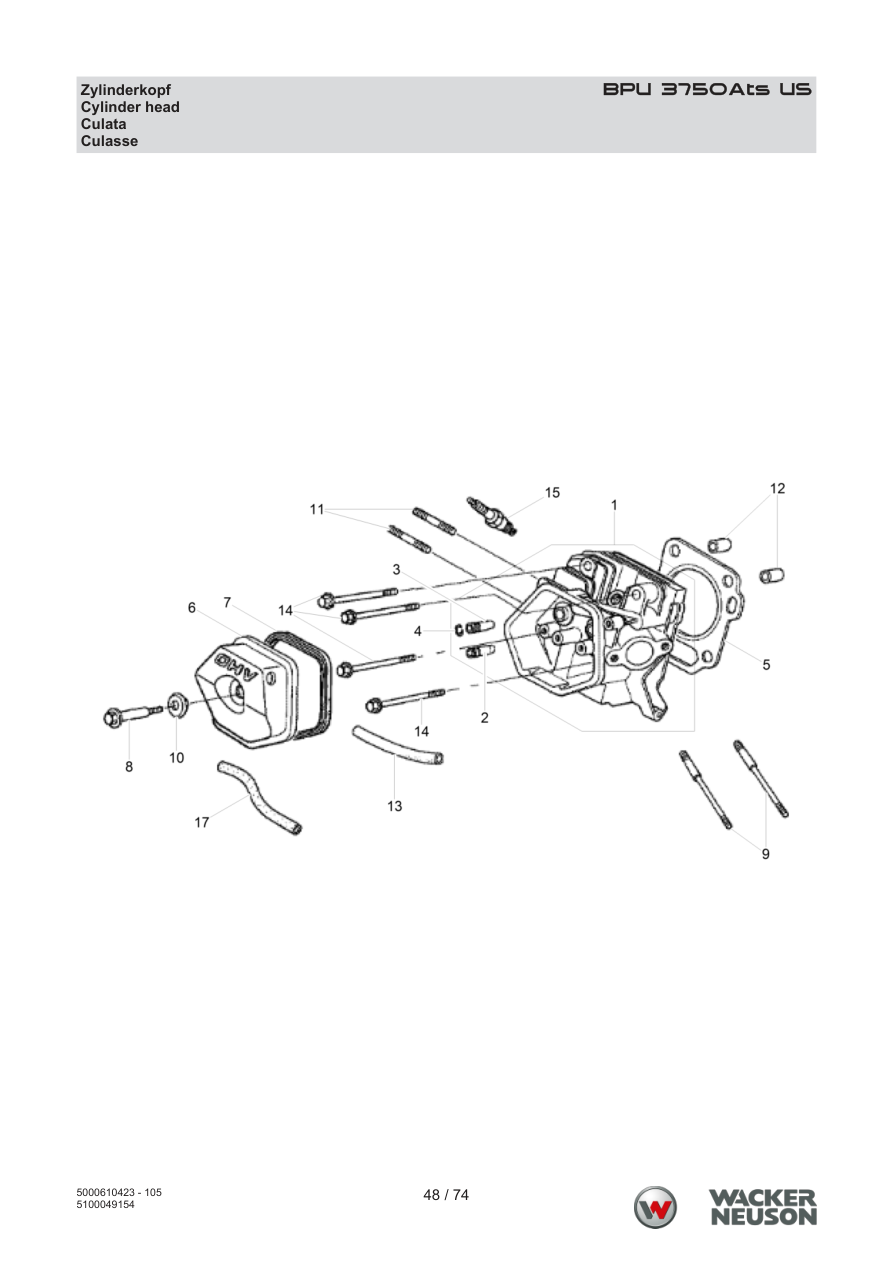

Page 48 — BPU 3750Ats US Cylinder head
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100000353 | Cylinder head cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5000110602 | Valve guide | 1 | ADD TO CART | |
| 3 | 5000074648 | Valve guide | 1 | ADD TO CART | |
| 4 | 5000074660 | Retaining ring | 1 | ADD TO CART | |
| 5 | 5100000355 | Cylinder head gasket | 1 | ADD TO CART | |
| 6 | 5000089273 | Valve hood | 1 | ADD TO CART | |
| 7 | 5000074645 | Cylinder head gasket | 1 | ADD TO CART | |
| 8 | 5200000468 | Bolt | 1 | ADD TO CART | |
| 9 | 5000074651 | Stud | 2 | M8 x 127 | ADD TO CART |
| 10 | 5000074657 | Washer | 1 | ADD TO CART | |
| 11 | 5000217497 | Stud bolt | 2 | PARTS REQUEST | |
|
COMING Stud bolt
5000217497 · qty on machine: 2 | |||||
| 12 | 5000074652 | Dowel pin | 2 | 12 x 20 | ADD TO CART |
| 13 | 5000074646 | Hose piece | 1 | 11 x 100 | PARTS REQUEST |
|
COMING Hose piece
5000074646 · qty on machine: 1 11 x 100 | |||||
| 14 | 5100003507 | Flange screw | 4 | PARTS REQUEST | |
|
COMING Flange screw
5100003507 · qty on machine: 4 | |||||
| 15 | 5000158498 | Spark plug | 1 | ADD TO CART | |
| 17 | 5200000467 | Breather tube | 1 | ADD TO CART | |

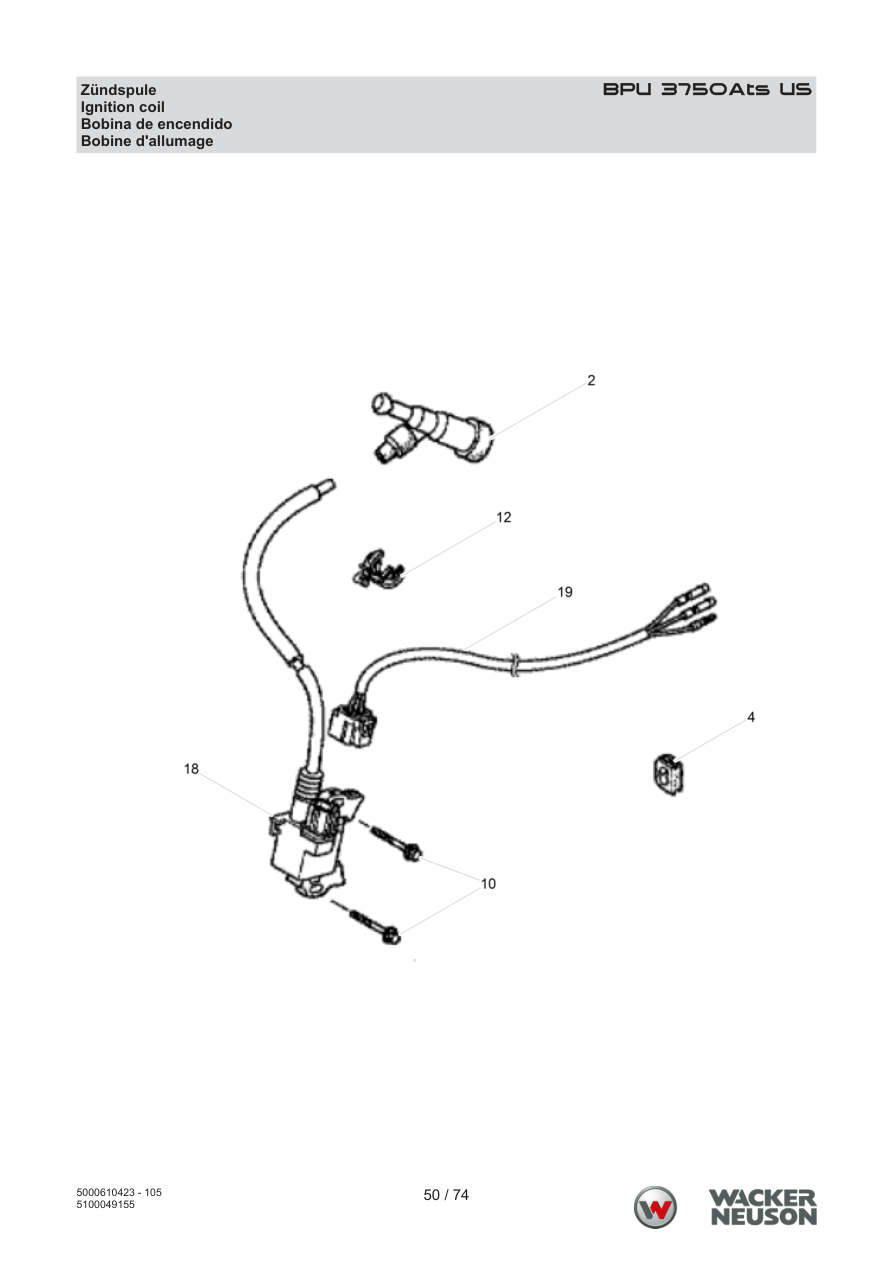

Page 50 — Ignition coil
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100049522 | Spark plug terminal cap | 1 | ADD TO CART | |
| 4 | 5000081611 | Grommet | 1 | ADD TO CART | |
| 10 | 5000070966 | Screw | 2 | M6 x 28 10Nm/7ft.lbs | ADD TO CART |
| 12 | 5000076375 | Clip | 1 | PARTS REQUEST | |
|
COMING Clip
5000076375 · qty on machine: 1 | |||||
| 18 | 5100000430 | Ignition coil cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 19 | 5100000434 | Wire harnes cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |

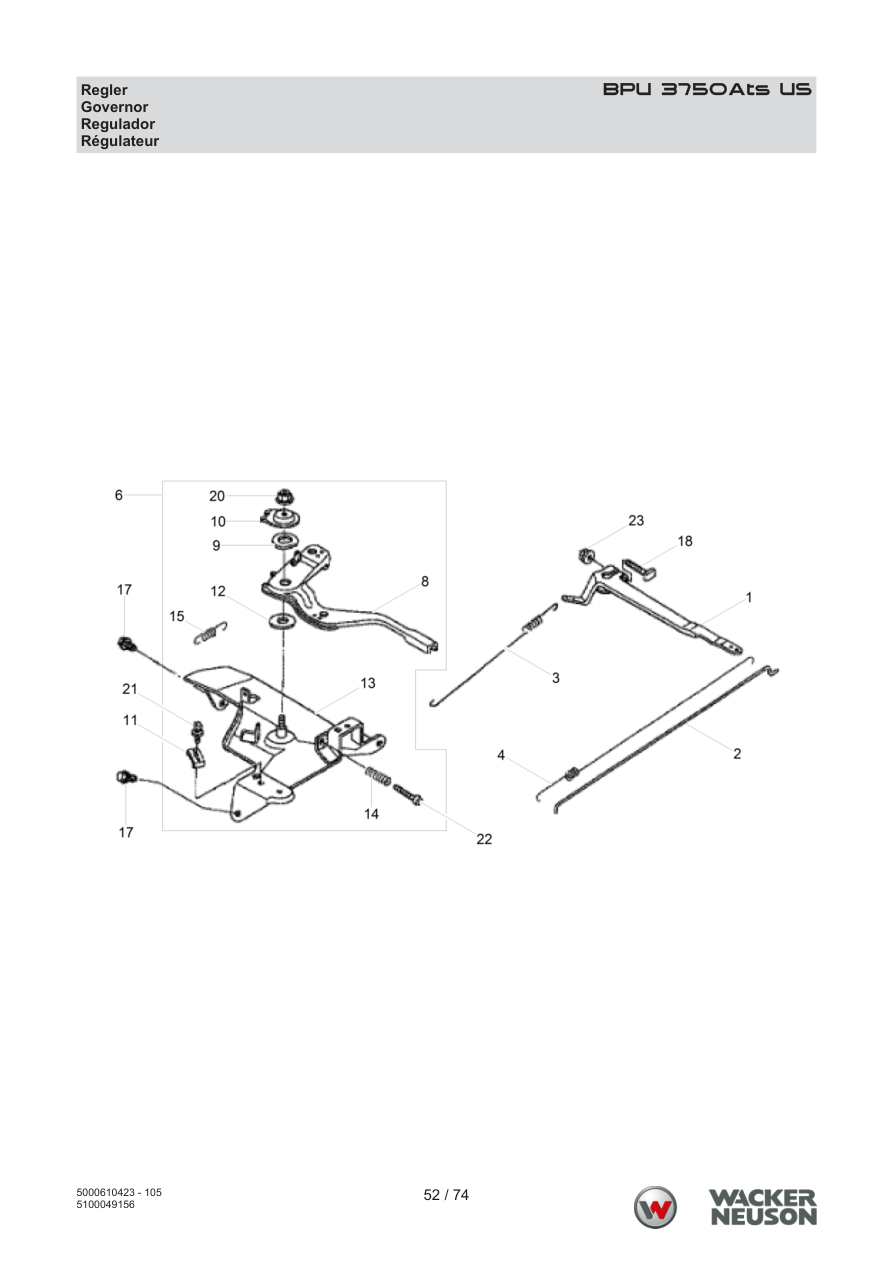

Page 52 — BPU 3750Ats US Governor
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000074735 | Governor lever | 1 | ADD TO CART | |
| 2 | 5000074733 | Governor rod | 1 | ADD TO CART | |
| 3 | 5000074731 | Governor spring | 1 | ADD TO CART | |
| 4 | 5000074732 | Spring | 1 | ADD TO CART | |
| 6 | 5100000391 | Governor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 6 | 5100049523 | Speed control module cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 8 | 5000074729 | Control lever | 1 | ADD TO CART | |
| 9 | 5000071058 | Spring | 1 | ADD TO CART | |
| 10 | 5000081633 | Washer | 1 | ADD TO CART | |
| 11 | 5000071062 | Cable holder | 1 | ADD TO CART | |
| 12 | 5000071064 | Spacer | 1 | ADD TO CART | |
| 13 | 5100000393 | Regulating plate | 1 | ADD TO CART | |
| 14 | 5000054088 | Adjusting spring | 1 | ADD TO CART | |
| 15 | 5000074730 | Spring | 1 | ADD TO CART | |
| 17 | 5000053990 | Screw | 2 | M6 x 12 10Nm/7ft.lbs | ADD TO CART |
| 18 | 5100000451 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
5100000451 · qty on machine: 1 | |||||
| 20 | 5000072782 | Locknut | 1 | ADD TO CART | |
| 21 | 5000110112 | Screw | 1 | 5 x 16 | ADD TO CART |
| 22 | 5000074728 | Screw | 1 | M5 x 28 | ADD TO CART |
| 24 | 5000071056 | Nut | 1 | ADD TO CART | |

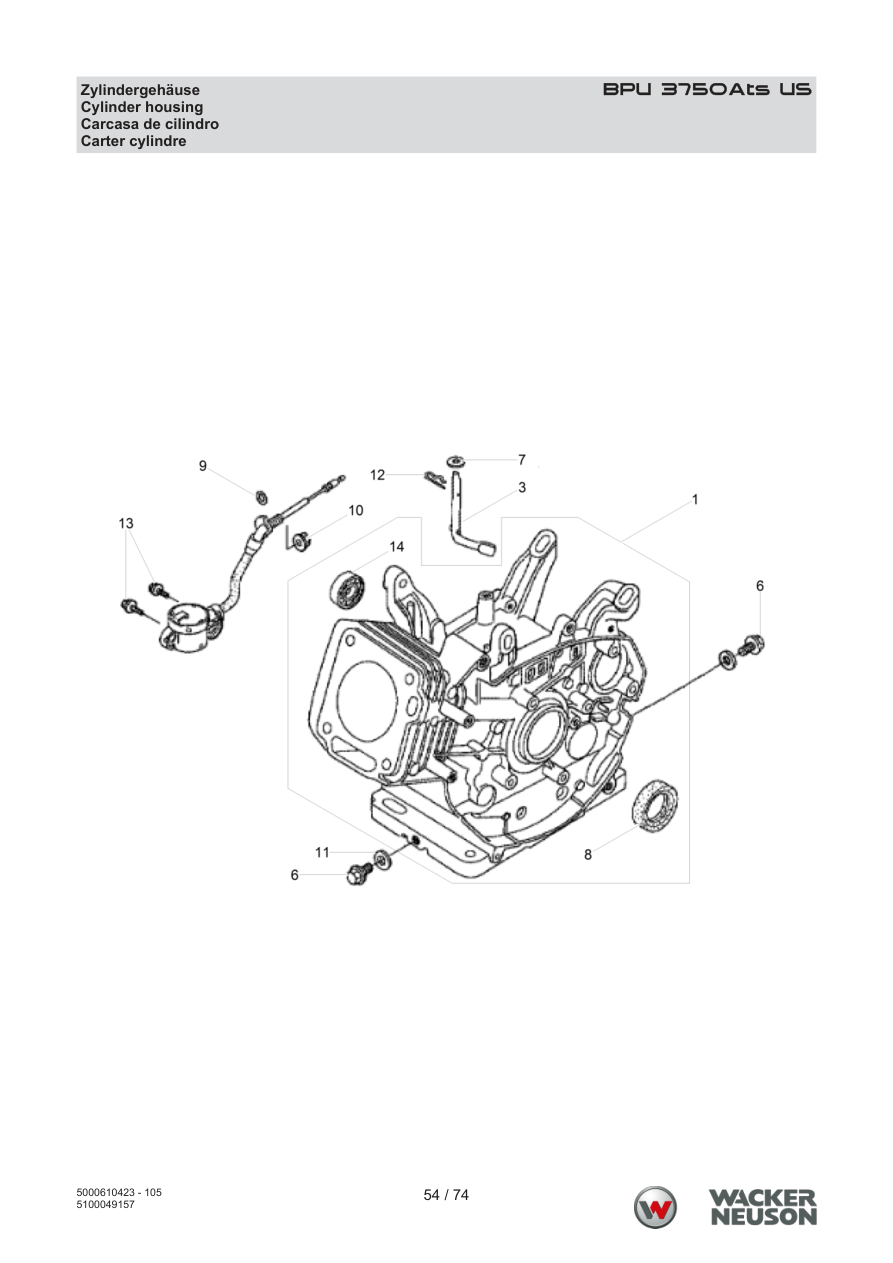

Page 54 — Cylinder housing
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100000581 | Crankcase | 1 | PARTS REQUEST | |
|
COMING Crankcase
5100000581 · qty on machine: 1 | |||||
| 3 | 5000074641 | Governor arm | 1 | ADD TO CART | |
| 3 | 5100038225 | Drain screw | 2 | ADD TO CART | |
| 4 | 5000074656 | Washer | 1 | 8.2 x 17 x 0.8 | ADD TO CART |
| 5 | 5000217495 | Oil seal | 1 | ADD TO CART | |
| 6 | 5000208616 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000208616 · qty on machine: 1 | |||||
| 7 | 5000072332 | Flange nut | 1 | PARTS REQUEST | |
|
COMING Flange nut
5000072332 · qty on machine: 1 | |||||
| 8 | 5000053994 | Ring seal | 2 | ADD TO CART | |
| 9 | 5000110110 | Cotter pin | 1 | ADD TO CART | |
| 13 | 5100003498 | Flange screw | 2 | PARTS REQUEST | |
|
COMING Flange screw
5100003498 · qty on machine: 2 | |||||
| 14 | 5100003509 | Grooved ball bearing | 1 | ADD TO CART | |
| 16 | 5000217492 | Switch assembly | 1 | ADD TO CART | |

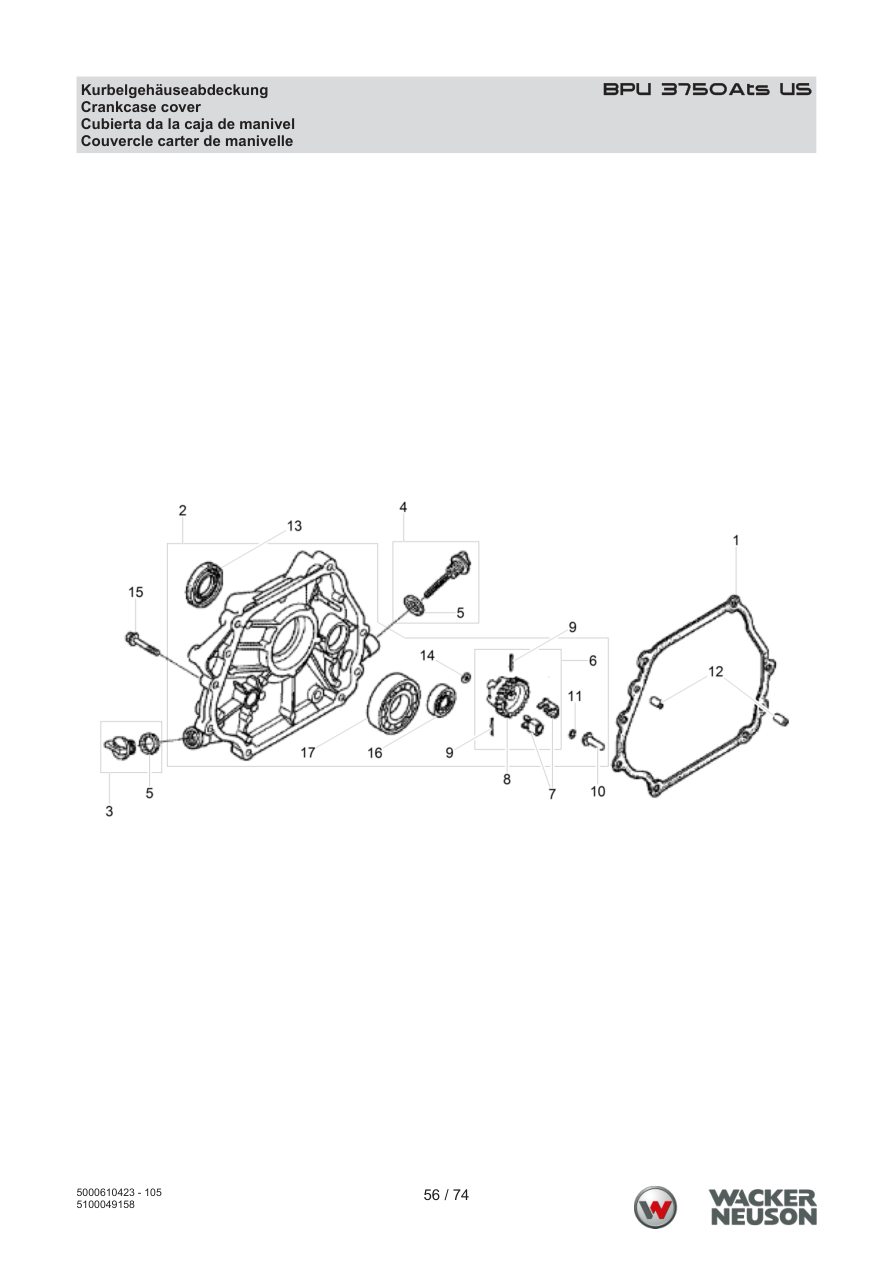

Page 56 — Crankcase cover
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100000349 | Crankcase gasket | 1 | ADD TO CART | |
| 2 | 5000217498 | Crankcase cover cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 3 | 5000162646 | Oil filler cap | 1 | ADD TO CART | |
| 4 | 5000217482 | Oil dip stick cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 5 | 5000162647 | Gasket | 2 | ADD TO CART | |
| 6 | 5000081669 | Kit-governor | 1 | ADD TO CART | |
| 7 | 5000151030 | Weight | 2 | ADD TO CART | |
| 8 | 5000081661 | Holder | 1 | ADD TO CART | |
| 9 | 5000074634 | Pin | 2 | ADD TO CART | |
| 10 | 5000074632 | Slider | 1 | ADD TO CART | |
| 11 | 5000081615 | Retaining ring | 1 | ADD TO CART | |
| 12 | 5000081617 | Dowel pin | 2 | 8 x 12 | ADD TO CART |
| 13 | 5000217495 | Oil seal | 1 | ADD TO CART | |
| 14 | 5000071639 | Washer | 1 | ADD TO CART | |
| 15 | 5100003505 | Flange screw | 7 | PARTS REQUEST | |
|
COMING Flange screw
5100003505 · qty on machine: 7 | |||||
| 16 | 5100003509 | Grooved ball bearing | 1 | ADD TO CART | |
| 17 | 5100003511 | Grooved ball bearing | 1 | ADD TO CART | |

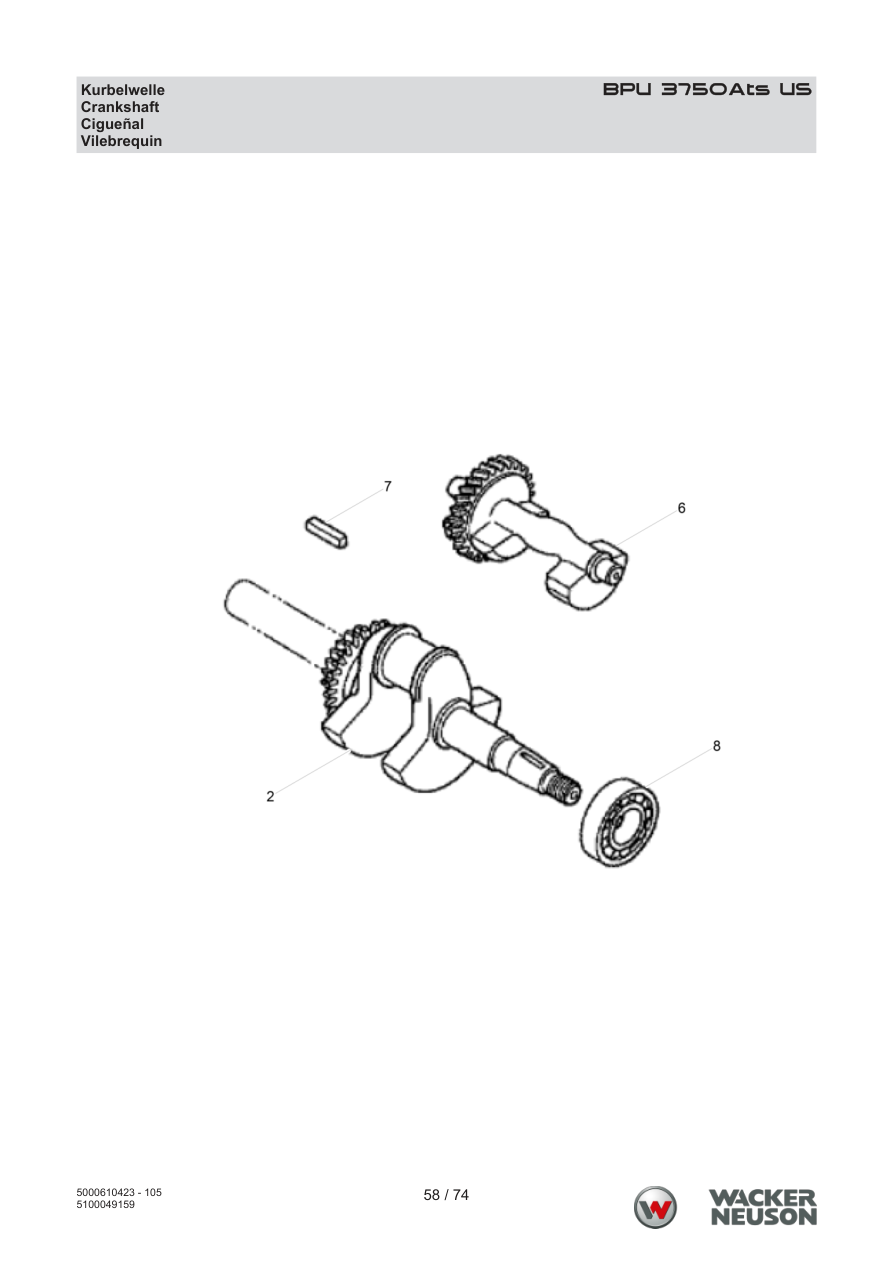

Page 58 — BPU 3750Ats US Crankshaft
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000217479 | Crankshaft cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 6 | 5000081667 | Balance weight | 1 | ADD TO CART | |
| 7 | 5000074686 | Fitting key | 1 | 6,3 x 43 | ADD TO CART |
| 8 | 5000084646 | Bearing | 1 | ADD TO CART | |

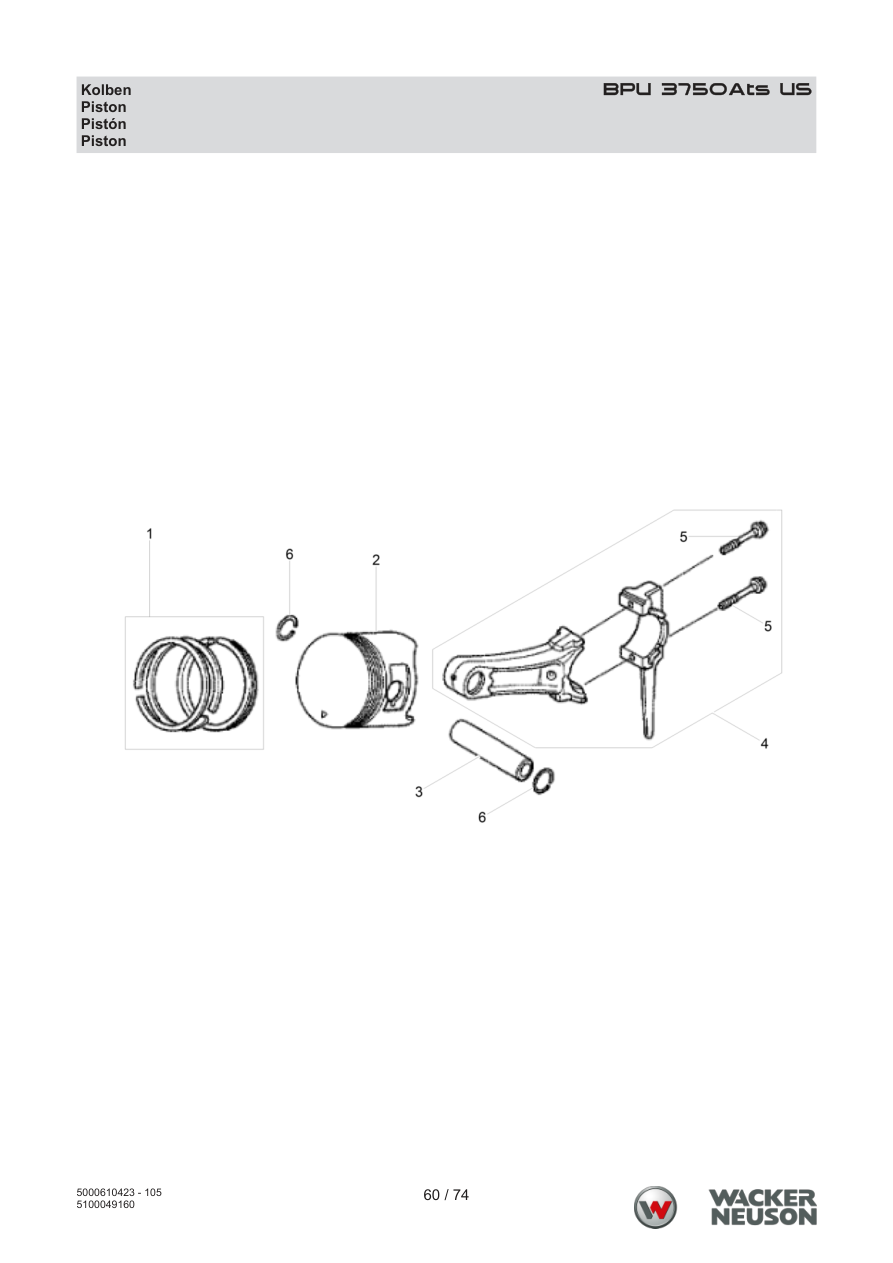

Page 60 — BPU 3750Ats US Piston
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100000357 | Piston ring set (std) | 1 | ADD TO CART | |
| 1 | 5100001284 | Piston ring set (0,25) | 1 | PARTS REQUEST | |
|
COMING Piston ring set (0,25)
5100001284 · qty on machine: 1 | |||||
| 1 | 5100001285 | Piston ring set (0,50) | 1 | PARTS REQUEST | |
|
COMING Piston ring set (0,50)
5100001285 · qty on machine: 1 | |||||
| 1 | 5100001286 | Piston ring set (0,75) | 1 | ADD TO CART | |
| 2 | 5100000367 | Piston (0,25) | 1 | PARTS REQUEST | |
|
COMING Piston (0,25)
5100000367 · qty on machine: 1 | |||||
| 2 | 5100000369 | Piston (0,50) | 1 | PARTS REQUEST | |
|
COMING Piston (0,50)
5100000369 · qty on machine: 1 | |||||
| 2 | 5100000371 | Piston (0,75) | 1 | PARTS REQUEST | |
|
COMING Piston (0,75)
5100000371 · qty on machine: 1 | |||||
| 2 | 5100049524 | Piston | 1 | ADD TO CART | |
| 3 | 5100000373 | Piston pin | 1 | PARTS REQUEST | |
|
COMING Piston pin
5100000373 · qty on machine: 1 | |||||
| 4 | 5000217477 | Connecting rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5000217478 | Connecting rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Connecting rod cpl.
5000217478 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 5 | 5000075807 | Screw | 2 | ADD TO CART | |
| 6 | 5000081994 | Retaining ring | 2 | ADD TO CART | |

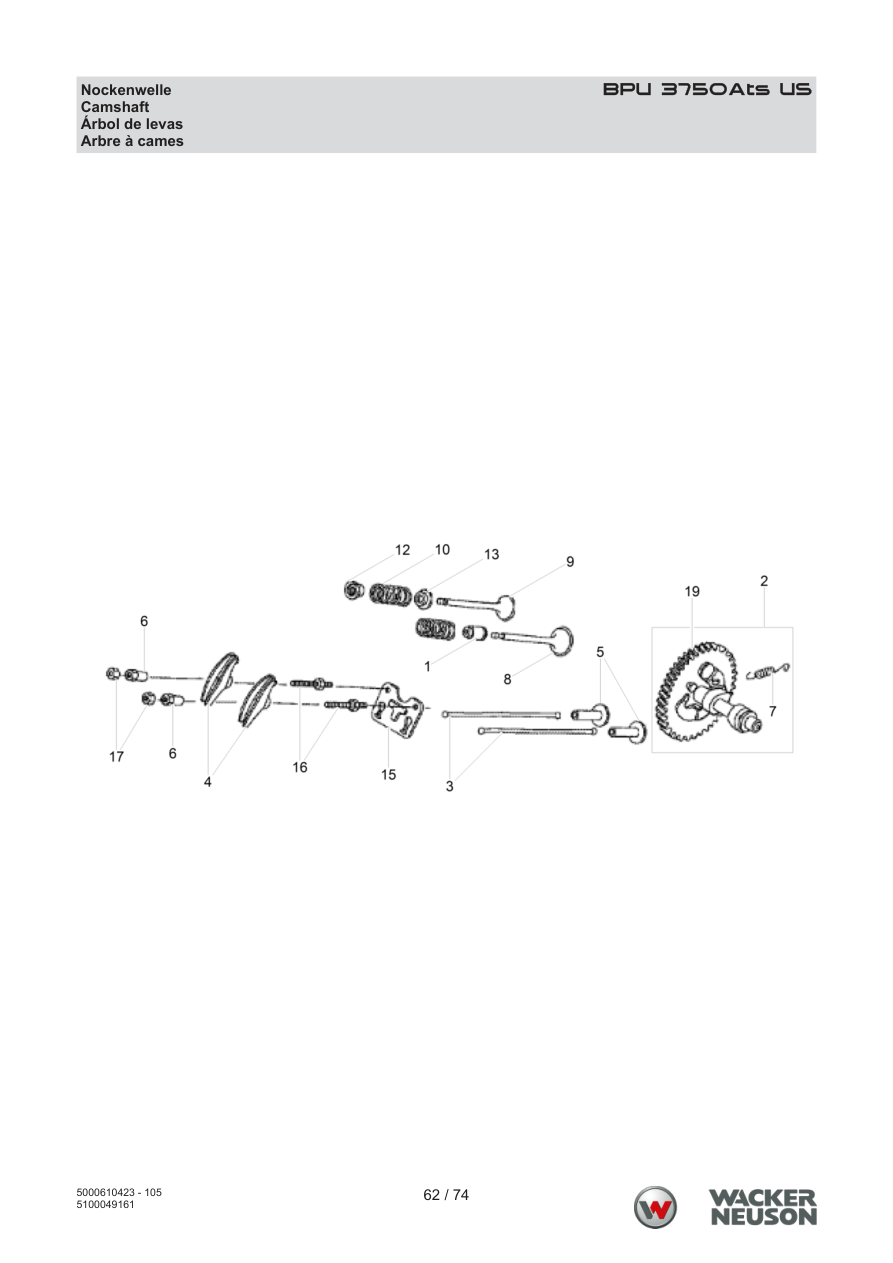

Page 62 — BPU 3750Ats US Camshaft
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000151750 | Gasket | 1 | ADD TO CART | |
| 2 | 5200001632 | Camshaft cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Camshaft cpl.
5200001632 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5000217480 | Push rod | 2 | ADD TO CART | |
| 4 | 5000074675 | Rocker arm | 2 | ADD TO CART | |
| 5 | 5000074678 | Valve tappet | 2 | ADD TO CART | |
| 6 | 5000070985 | Rocker arm pivot | 2 | ADD TO CART | |
| 7 | 5000151028 | Spring | 1 | ADD TO CART | |
| 8 | 5100049526 | Intake valve | 1 | PARTS REQUEST | |
|
COMING Intake valve
5100049526 · qty on machine: 1 | |||||
| 9 | 5100049527 | Outlet valve | 1 | PARTS REQUEST | |
|
COMING Outlet valve
5100049527 · qty on machine: 1 | |||||
| 10 | 5000217481 | Spring | 2 | ADD TO CART | |
| 12 | 5200000496 | Spring holder | 1 | PARTS REQUEST | |
|
COMING Spring holder
5200000496 · qty on machine: 1 | |||||
| 13 | 5000074659 | Spring | 1 | ADD TO CART | |
| 15 | 5200000543 | Plate | 1 | ADD TO CART | |
| 16 | 5000072778 | Stud | 2 | ADD TO CART | |
| 17 | 5000070984 | Locknut | 2 | ADD TO CART | |
| 19 | 5100000378 | Camshaft cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
Page 64 — BPU 3750Ats US Decals
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100000440 | Type label | 1 | ADD TO CART | |
| 4 | 5200000461 | Label-choke | 1 | ADD TO CART | |
| 5 | 5000208623 | Labels | 1 | ADD TO CART | |
| 6 | 5100000437 | Warning label | 1 | PARTS REQUEST | |
|
COMING Warning label
5100000437 · qty on machine: 1 | |||||
| 6 | 5100000438 | Warning label | 1 | PARTS REQUEST | |
|
COMING Warning label
5100000438 · qty on machine: 1 | |||||
| 8 | 5000226523 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5000226523 · qty on machine: 1 | |||||
| 8 | 5000226525 | Label | 1 | ADD TO CART | |
| 15 | 5100000439 | Warning label | 1 | PARTS REQUEST | |
|
COMING Warning label
5100000439 · qty on machine: 1 | |||||

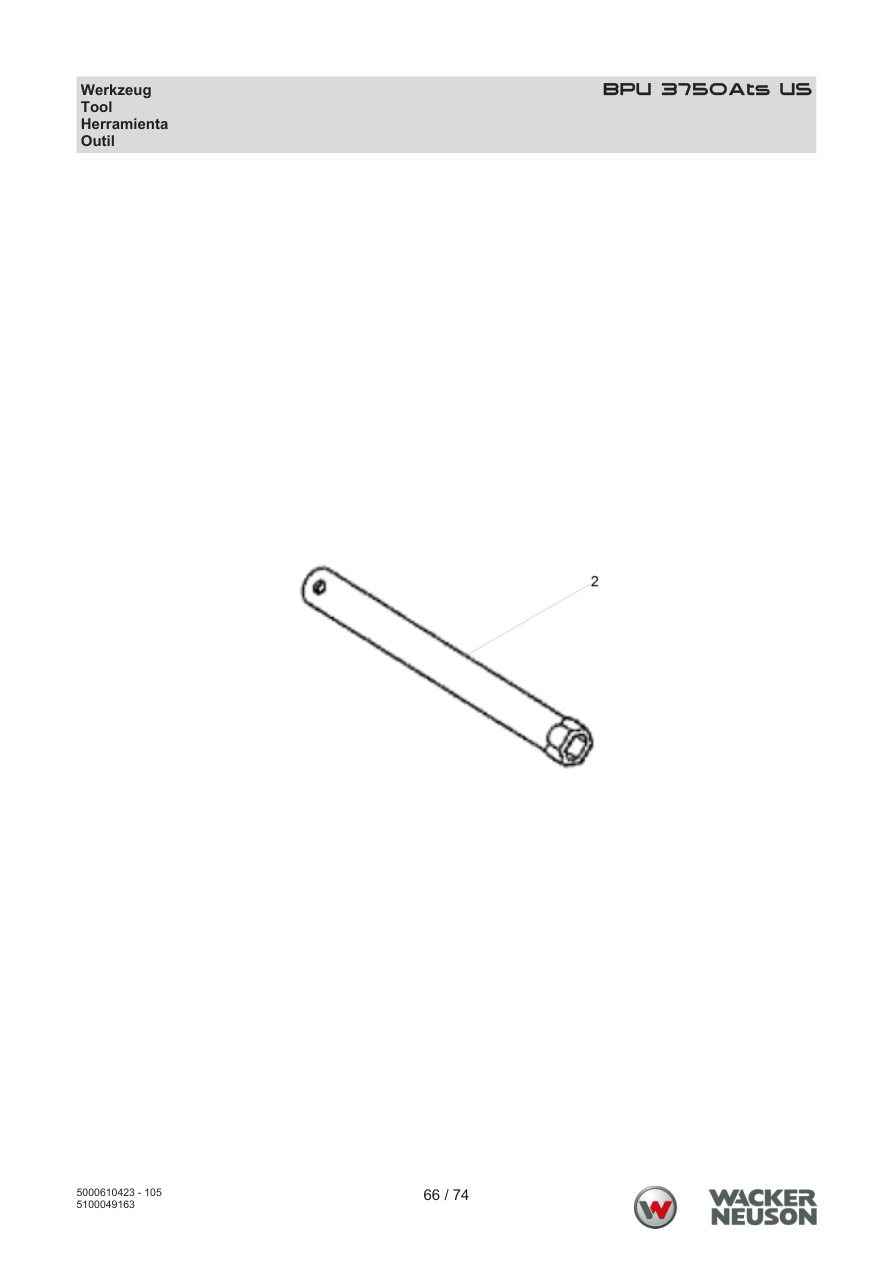

Page 66 — BPU 3750Ats US Tool
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000217462 | Key | 1 | ADD TO CART | |

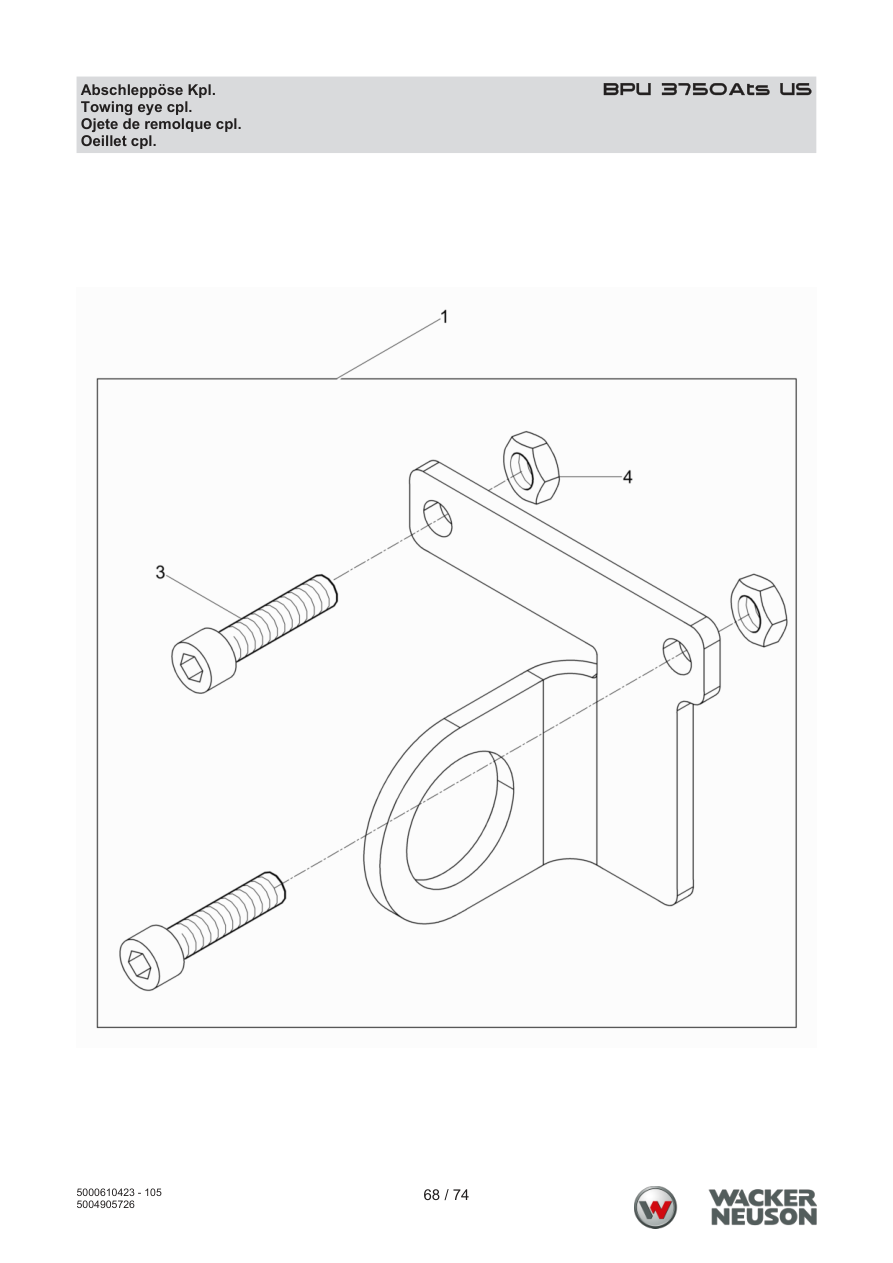

Page 68 — Towing eye cpl.
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000205381 | Towing eye cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Towing eye cpl.
5000205381 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5000011540 | Cheese head screw | 2 | 25Nm/18ft.lbs | ISO4762 | ADD TO CART |
| 4 | 5000010883 | Hexagon nut | 2 | ADD TO CART | |

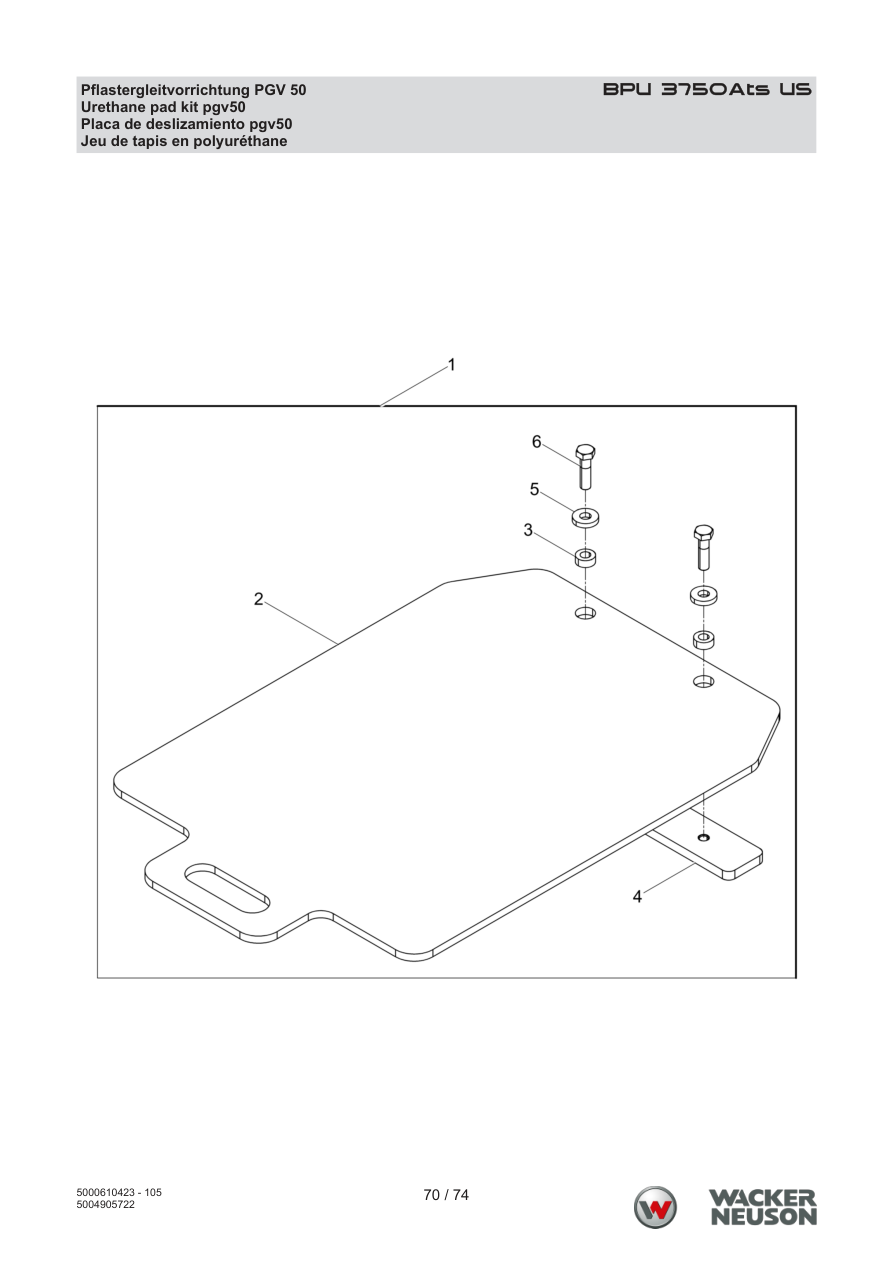

Page 70 — BPU 3750Ats US Paving sliding device PGV 50
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000200572 | Urethane pad kit pgv50 | 1 | PARTS REQUEST | |
|
COMING Urethane pad kit pgv50
5000200572 · qty on machine: 1 | |||||
| 2 | 5000200654 | Urethane plate | 1 | ADD TO CART | |
| 3 | 5000200569 | Bushing | 2 | ADD TO CART | |
| 4 | 5000200570 | Bar | 1 | ADD TO CART | |
| 5 | 5000013618 | Flat washer | 2 | ADD TO CART | |
| 6 | 5000011300 | Hexagonal head cap screw | 2 | 86Nm/63ft.lbs | ISO4014 | ADD TO CART |
The machine itself
Price by quote
Get a quote
Tell us where the machine is headed and we'll quote it with freight. One call, no games.
Machine
Engine
Wacker Neuson BPU3750 vibratory plate.
List price: $11,165.00
Keep-it-running spares
All listed parts →Every part that fits this machine
5000010368
Hexagon nut
5000010616
Flat washer
$0.95
5000010620
Flat washer
$0.95
5000010621
Flat washer
$0.95
5000010624
Flat washer
$0.95
5000010879
Hexagon nut
$0.95
5000010883
Hexagon nut
$0.95
5000010884
Hexagon nut
$0.95
5000011034
Plug (threaded)
$3.95
5000011050
Plug (threaded)
$7.95
5000011300
Hexagonal head cap screw
$0.95
5000011341
Hexagonal head cap screw
$0.95
5000011437
Hexagonal head cap screw
5000011527
Cheese head screw
$1.95
5000011529
Cheese head screw
$0.95
5000011534
Cheese head screw
$0.95
5000011540
Cheese head screw
$0.95
5000011550
Cheese head screw
$0.95
5000011551
Cheese head screw
$0.95
5000011552
Cheese head screw
$0.95
5000011553
Cheese head screw
$0.95
5000011554
Cheese head screw
$0.95
5000012082
Seal ring
$0.95
5000012976
Washer
$0.95
5000013496
Hexagon nut
$0.95
5000013569
Cheese head screw
5000013618
Flat washer
$0.95
5000014425
Cheese head screw
5000014844
Fitting key
$1.95
5000014968
Usit-ring
$1.95
5000017254
O-ring
$0.95
5000018194
O-ring
$0.95
5000018256
Grooved ball bearing
$27.95
5000021465
Lock washer
$1.95
5000022861
Lining
$36.95
5000031565
Lockwasher
$0.95
5000033198
Lockwasher
$0.95
5000033356
Hexagon nut
$0.95
5000033988
Lockwasher
$0.95
5000046092
Screwed socket
$18.95
5000046461
Screwed socket
5000047057
Gear wheel
$249.95
5000053990
Screw
$2.95
5000053994
Ring seal
$1.95
5000054088
Adjusting spring
$8.95
5000059738
Centrifugal weight
5000067781
O-ring
$0.95
5000068752
O-ring
$0.95
5000069726
Long face pinion
$421.95
5000070966
Screw
$6.95
5000070984
Locknut
$7.95
5000070985
Rocker arm pivot
$10.95
5000071013
Choke control lever
$18.95
5000071014
Pin
$2.95
5000071018
Throttle stop screw
$20.95
5000071023
Fuel filter
$24.95
5000071035
Sleeve
$7.95
5000071053
Screw
$1.95
5000071056
Nut
$0.95
5000071058
Spring
$4.95
5000071062
Cable holder
$8.95
5000071064
Spacer
$9.95
5000071070
Screw
$2.95
5000071082
O-ring
$3.95
5000071621
Wing nut
$9.95
5000071639
Washer
$0.95
5000072332
Flange nut
5000072343
Grommet
$9.95
5000072778
Stud
$14.95
5000072782
Locknut
$6.95
5000073269
Plate
$7.95
5000073270
Spring washer
$4.95
5000073272
Gasket
$4.95
5000074632
Slider
$6.95
5000074634
Pin
$2.95
5000074641
Governor arm
$21.95
5000074645
Cylinder head gasket
$13.95
5000074646
Hose piece
5000074648
Valve guide
$37.95
5000074651
Stud
$15.95
5000074652
Dowel pin
$5.95
5000074656
Washer
$2.95
5000074657
Washer
$10.95
5000074659
Spring
$6.95
5000074660
Retaining ring
$4.95
5000074672
Woodruff key
$6.95
5000074673
Fan motor
$58.95
5000074675
Rocker arm
$15.95
5000074678
Valve tappet
$28.95
5000074686
Fitting key
$19.95
5000074689
Clip
$5.95
5000074728
Screw
$1.95
5000074729
Control lever
$23.95
5000074730
Spring
$5.95
5000074731
Governor spring
$9.95
5000074732
Spring
$8.95
5000074733
Governor rod
$9.95
5000074735
Governor lever
$31.95
5000074737
Air filter insert cpl.
5000074738
Flange nut
$1.95
5000074751
Screw
$2.95
5000074754
Jet
$39.95
5000074756
Valve throttle kit
$59.95
5000074759
Float needle
$75.95
5000074761
Carburetor mount spacer
$13.95
5000075807
Screw
$7.95
5000076372
Collar
$7.95
5000076375
Clip
5000081611
Grommet
$6.95
5000081615
Retaining ring
$1.95
5000081617
Dowel pin
$4.95
5000081633
Washer
$9.95
5000081638
Guard
$42.95
5000081640
Gasket
$13.95
5000081644
Starter pulley
$71.95
5000081645
Ratchet
$12.95
5000081646
Spring
$10.95
5000081647
Spring
$31.95
5000081648
Spring
$8.95
5000081649
Spring housing
$24.95
5000081651
Carrier pot
$68.95
5000081658
Screw
$6.95
5000081661
Holder
$32.95
5000081667
Balance weight
$367.95
5000081669
Kit-governor
$45.95
5000081764
Protective hose
$8.95
5000081994
Retaining ring
$1.95
5000084646
Bearing
$55.95
5000089273
Valve hood
$109.95
5000089281
Set-collar
$11.95
5000089284
Screw
$2.95
5000089286
Setscrew
$35.95
5000094073
Cheese head screw
$2.95
5000105139
Cylindrical roller bearing
$71.95
5000105194
Washer
$0.95
5000108180
Cheese head screw
$0.95
5000108633
Tightening element
$103.95
5000110110
Cotter pin
$1.95
5000110112
Screw
$1.95
5000110602
Valve guide
$41.95
5000110603
Main jet
$13.95
5000116736
Nut
$16.95
5000125349
Bowden cable
$26.95
5000125357
Hose pipe
$65.95
5000125360
Cover
$33.95
5000125363
Center pole head
$551.95
5000125371
V-belt pulley
$134.95
5000125375
Exciter housing
$888.95
5000125839
O-ring
5000125840
Main jet
5000125924
Guide pole head adapter
$255.95
5000125926
Spacer
$51.95
5000125927
Tire
$142.95
5000125931
Shockmount
$30.95
5000125940
Spacer
$42.95
5000125943
Cheese head screw
$3.95
5000125948
Ring
$4.95
5000125949
Bolt
$3.95
5000126159
Belt guard
$215.95
5000126163
Piston guide ring
$13.95
5000126164
Slide bush
$2.95
5000126166
Cover
$11.95
5000126167
Rotary shaft seal
$23.95
5000126173
Baseplate
$1,923.95
5000126185
Centrifugal clutch
$762.95
5000126566
Center pole
$571.95
5000127085
Shockmount
$16.95
5000127767
Main jet
$13.95
5000129266
Hose pipe
$92.95
5000129269
Compact seal
$9.95
5000129272
Spring pin
$0.95
5000129784
Decal-sound power level
$2.95
5000150266
Fuel valve lever
$17.95
5000150916
Screw
$1.95
5000151028
Spring
$5.95
5000151030
Weight
$6.95
5000151037
Rope
$18.95
5000151750
Gasket
$9.95
5000151819
Clamping piece
$15.95
5000151823
Lock washer
$6.95
5000158498
Spark plug
$5.95
5000162646
Oil filler cap
$1.95
5000162647
Gasket
$5.95
5000200569
Bushing
$2.95
5000200570
Bar
$199.95
5000200572
Urethane pad kit pgv50
5000200616
Carrier cpl.
$164.95
5000200617
Shockmount
$12.95
5000200651
Cheese head screw
$0.95
5000200654
Urethane plate
$657.95
5000201009
Threaded spindle
$19.95
5000201018
Bush
$8.95
5000201713
Hexagonal head cap screw
5000201715
Retaining ring
$3.95
5000201717
Retaining ring
5000201718
Cheese head screw
5000201719
Lock washer
5000201721
Shim ring
$9.95
5000201722
Clutch drum
$322.95
5000201723
Clutch drum
$286.95
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
