Wacker Neuson PG2 Clear Water Pump
The parts bench

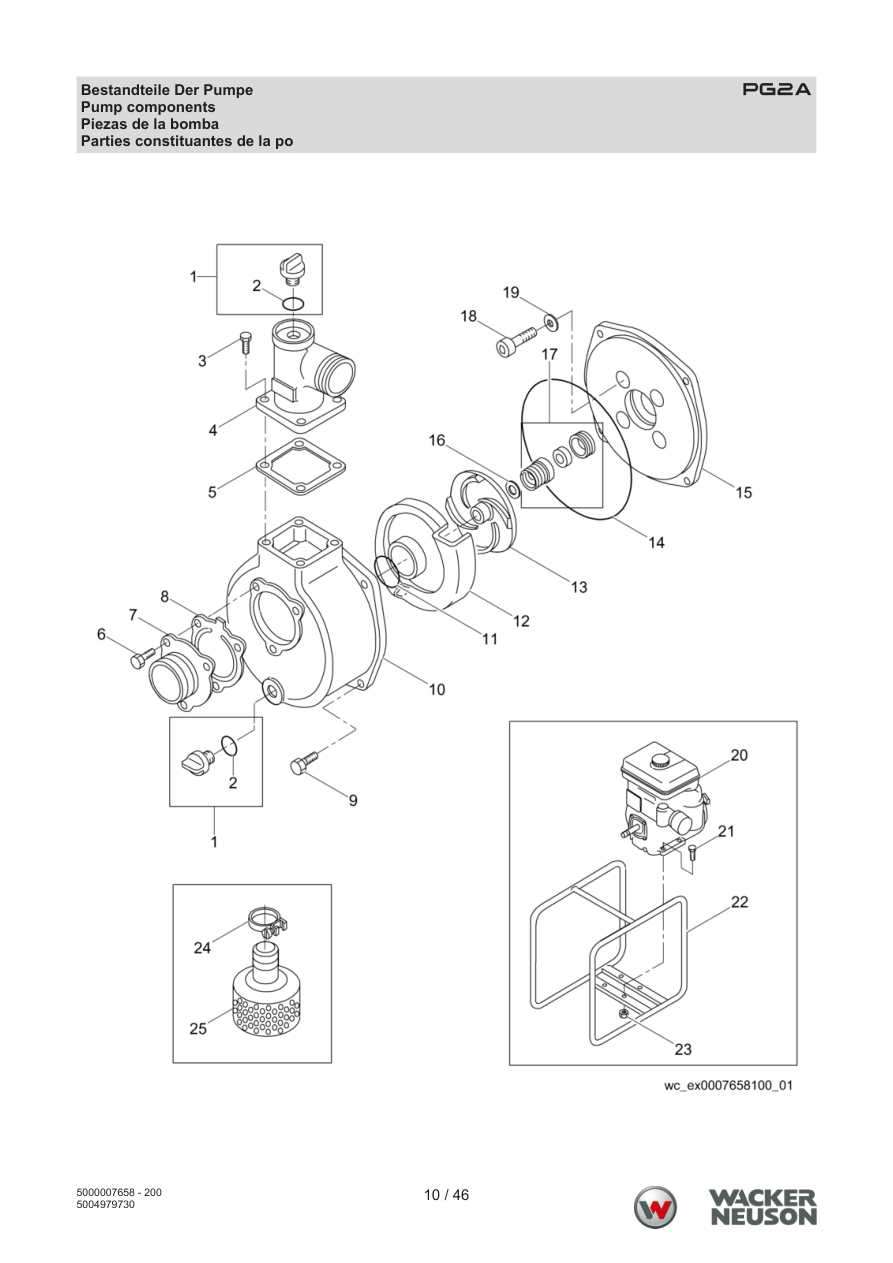

Need the PDF? ↓Page 10 — PG2A Pump Components
Parts list — exactly as printed25 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000054956 | Drain plug set | 2 | ADD TO CART | |
| 2 | 5000054958 | O-ring | 1 | 25 x 2,8 | ADD TO CART |
| 3 | 5000054967 | Hexagonal head cap screw | 4 | M8 x 25 25Nm/18ft.lbs | ADD TO CART |
| 4 | 5000072997 | Discharge port | 1 | ADD TO CART | |
| 5 | 5000054947 | Delivery flange packing | 1 | ADD TO CART | |
| 6 | 5000110732 | Hexagonal head cap screw | 3 | M8 x 20 | ADD TO CART |
| 7 | 5000110497 | Suction port | 1 | ADD TO CART | |
| 8 | 5000110498 | Flapper valve gasket | 1 | ADD TO CART | |
| 9 | 5000110505 | Screw | 4 | M8 x 22 | ADD TO CART |
| 10 | 5000110496 | Pump case housing | 1 | ADD TO CART | |
| 11 | 5000110504 | O-ring | 1 | ADD TO CART | |
| 12 | 5000110500 | Volute | 1 | ADD TO CART | |

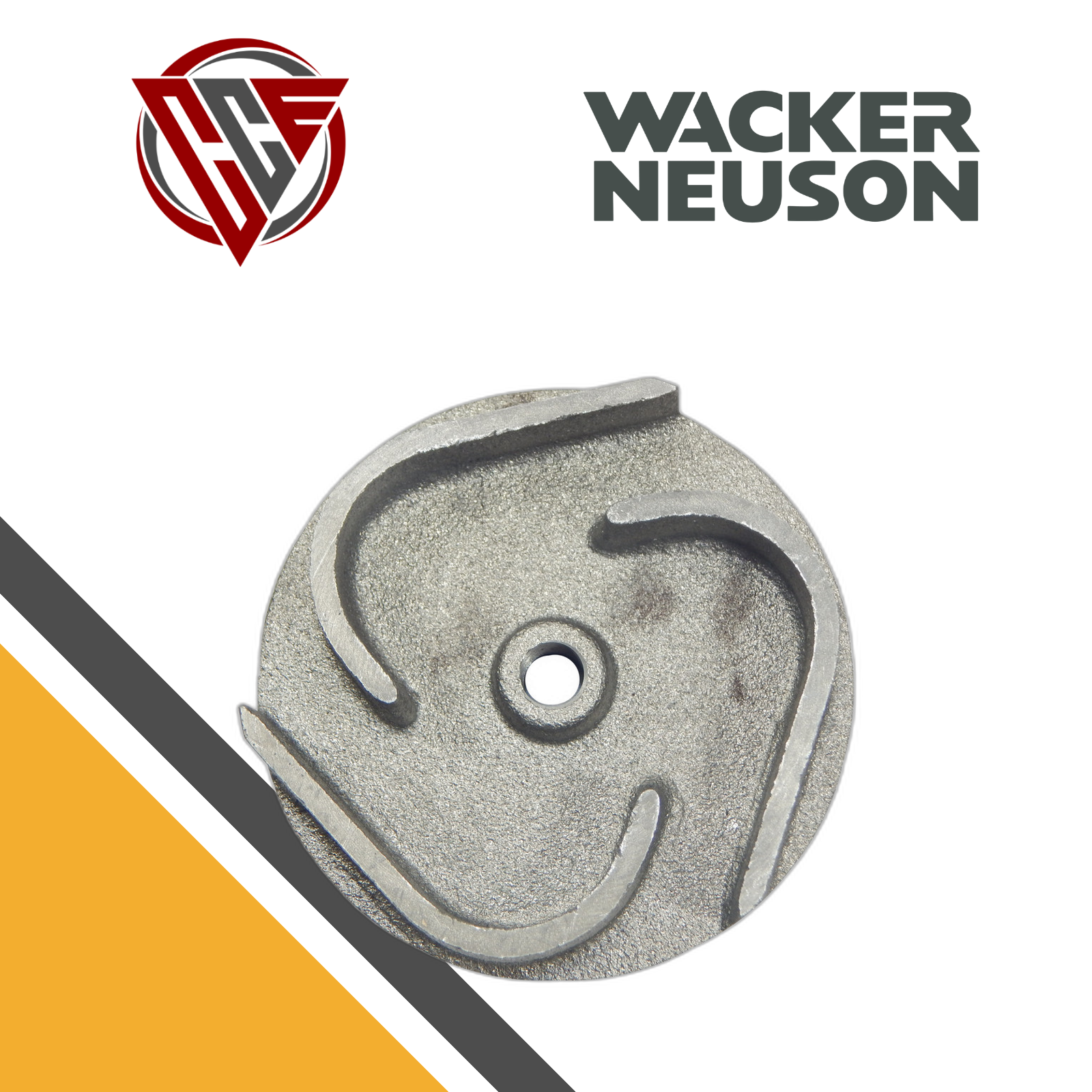

| 13 | 5000110501 | Impeller | 1 | ADD TO CART | |
| 14 | 5000113800 | O-ring | 1 | ADD TO CART | |
| 15 | 5000110499 | Mounting flange | 1 | ADD TO CART | |
| 16 | 5000054955 | Washer | 3 | ADD TO CART | |
| 17 | 5000054960 | Mechanical seal | 1 | ADD TO CART | |
| 18 | 5000054969 | Socket head cap screw | 4 | M8 x 60 41Nm/30ft.lbs | ADD TO CART |
| 19 | 5000072996 | Washer | 4 | ADD TO CART | |
| 20 | 5000086662 | Honda engine | 1 | PARTS REQUEST | |
|
COMING Honda engine
5000086662 · qty on machine: 1 | |||||
| 21 | 5000054968 | Hexagonal head cap screw | 4 | M8 x 40 25Nm/18ft.lbs | ADD TO CART |
| 22 | 5000154383 | Frame | 1 | ADD TO CART | |
| 23 | 5000070014 | Nut | 4 | ADD TO CART | |
| 24 | 5000077657 | Clamp | 3 | ADD TO CART | |
| 25 | 5000117979 | Suction strainer | 1 | PARTS REQUEST | |
|
COMING Suction strainer
5000117979 · qty on machine: 1 | |||||

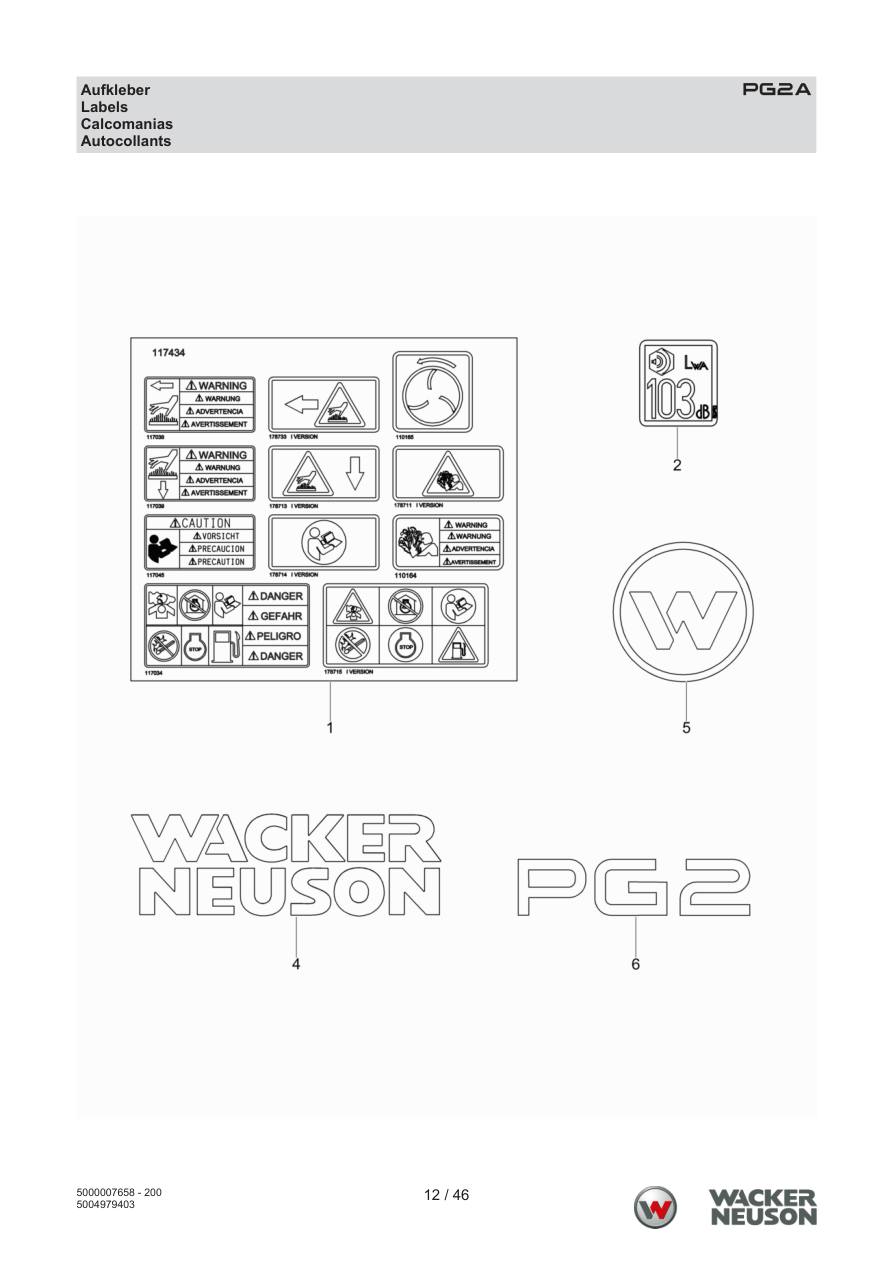

Page 12 — PG2A Decals
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000117434 | Label sheet | 1 | ADD TO CART | |
| 2 | 5000153793 | Label | 1 | ADD TO CART | |
| 4 | 5000177770 | Label-wacker neuson logo | 2 | ADD TO CART | |
| 5 | 5000222084 | Label symbol | 1 | ADD TO CART | |
| 6 | 5000117451 | Label-pg 2 | 2 | ADD TO CART | |

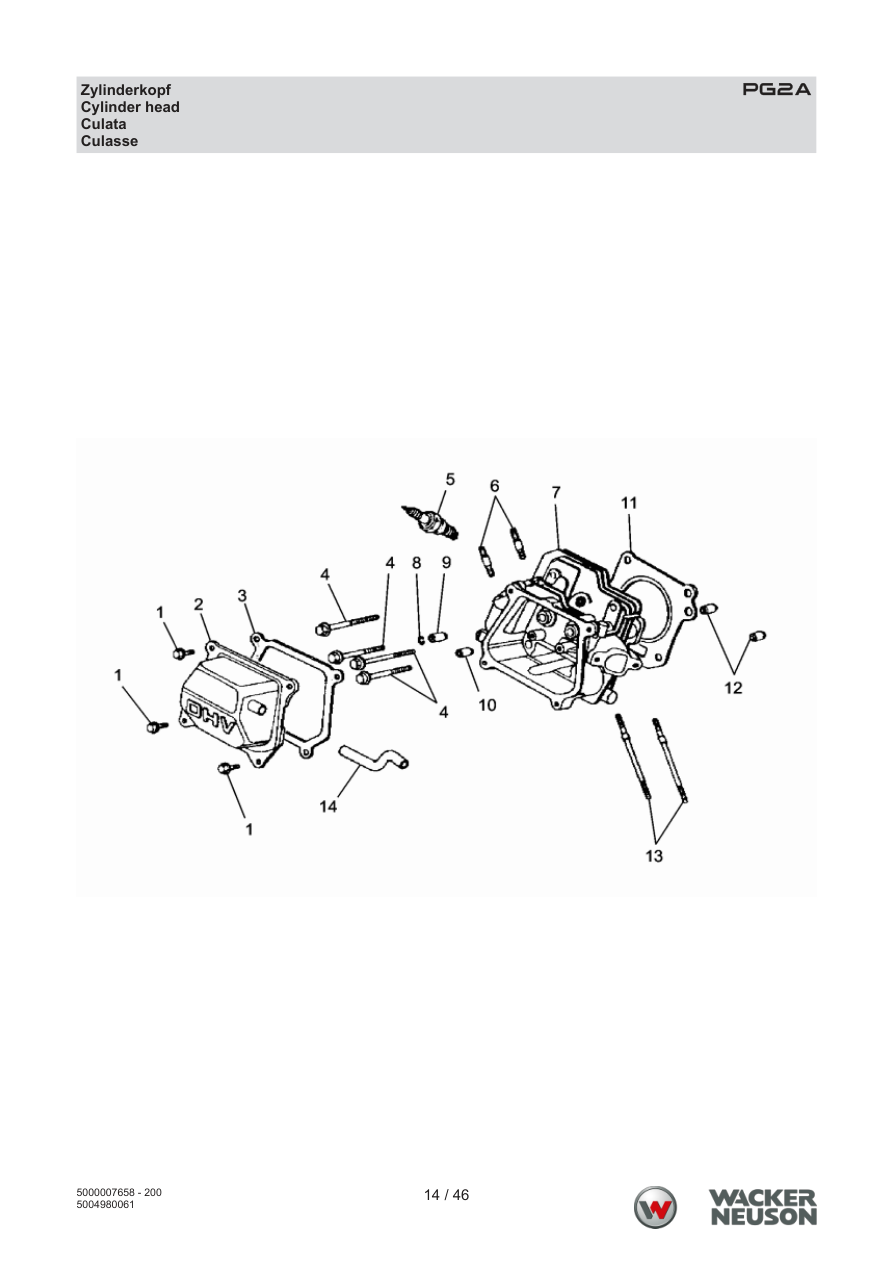

Page 14 — PG2A Cylinder head
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000072773 | Screw | 4 | M6 x 13 10Nm/7ft.lbs | ADD TO CART |
| 2 | 5000070839 | Cylinder head cover | 1 | ADD TO CART | |
| 3 | 5000070942 | Gasket | 1 | ADD TO CART | |
| 4 | 5000070943 | Screw | 4 | M8 x 55 | ADD TO CART |
| 5 | 5000075800 | Spark plug | 1 | ADD TO CART | |
| 6 | 5000070948 | Stud | 2 | M8 x 32 | ADD TO CART |
| 8 | 5000081744 | Retaining ring | 1 | ADD TO CART | |
| 9 | 5000070944 | Valve guide | 1 | ADD TO CART | |
| 10 | 5000070945 | Valve guide | 1 | PARTS REQUEST | |
|
COMING Valve guide
5000070945 · qty on machine: 1 | |||||
| 11 | 5000081787 | Cylinder head gasket | 1 | ADD TO CART | |
| 12 | 5000070950 | Dowel pin | 2 | ADD TO CART | |
| 13 | 5000073263 | Stud | 2 | M6 x 109 | ADD TO CART |
| 14 | 5000081761 | Breather tube | 1 | ADD TO CART | |

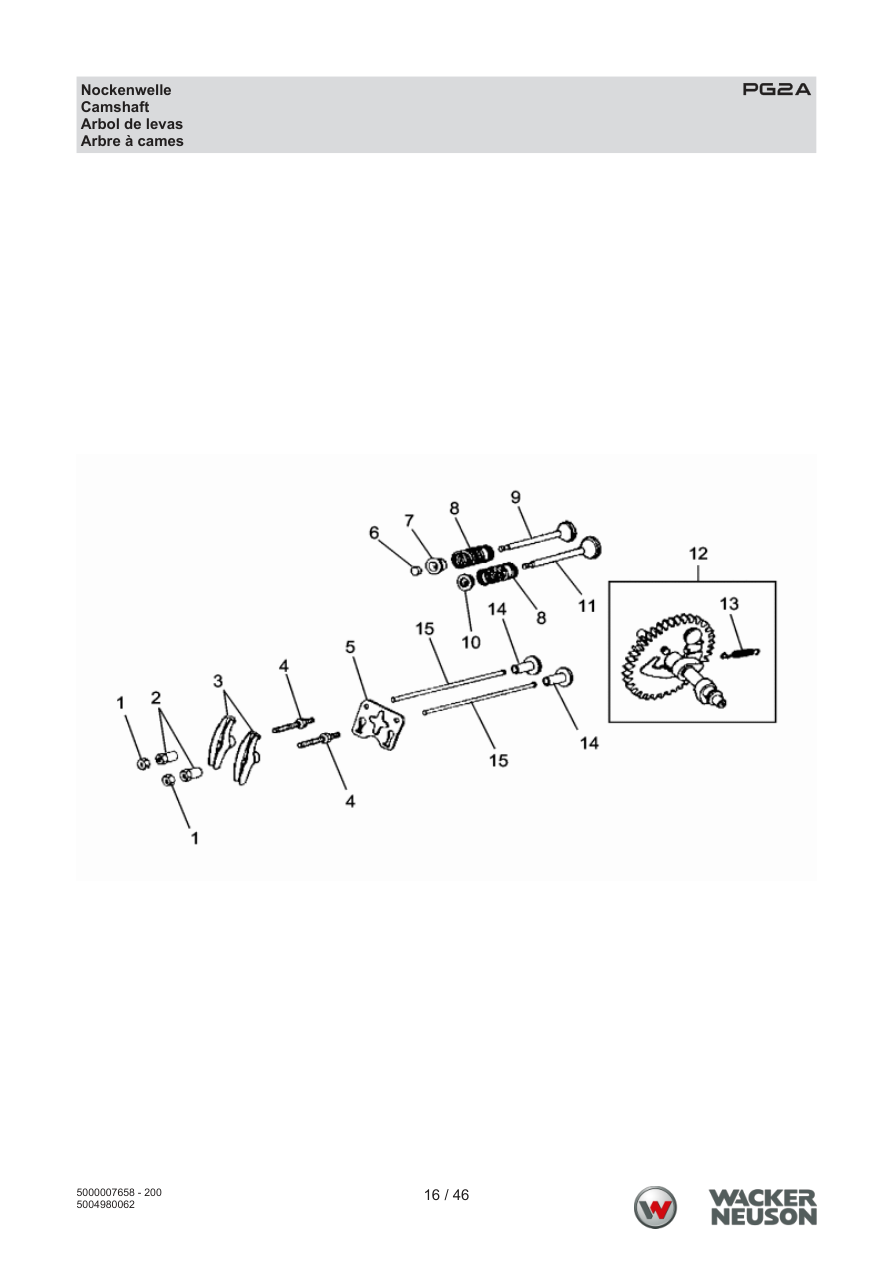

Page 16 — PG2A Camshaft
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000070984 | Locknut | 2 | ADD TO CART | |
| 2 | 5000070985 | Rocker arm pivot | 2 | ADD TO CART | |
| 3 | 5000070986 | Rocker arm | 2 | ADD TO CART | |
| 4 | 5000072778 | Stud | 2 | ADD TO CART | |
| 6 | 5000070998 | Rotator valve cap | 1 | ADD TO CART | |
| 7 | 5000070997 | Spring holder | 1 | ADD TO CART | |
| 8 | 5000081760 | Spring | 2 | ADD TO CART | |
| 9 | 5000081790 | Exhaust valve | 1 | ADD TO CART | |
| 10 | 5000070996 | Holder | 1 | ADD TO CART | |
| 11 | 5000081789 | Intake valve | 1 | ADD TO CART | |
| 12 | 5000072902 | Camshaft | 1 | ADD TO CART | |
| 13 | 5000151028 | Spring | 1 | ADD TO CART | |
| 14 | 5000070990 | Valve tappet | 2 | ADD TO CART | |
| 15 | 5000070989 | Push rod (valve lifter) | 2 | ADD TO CART | |

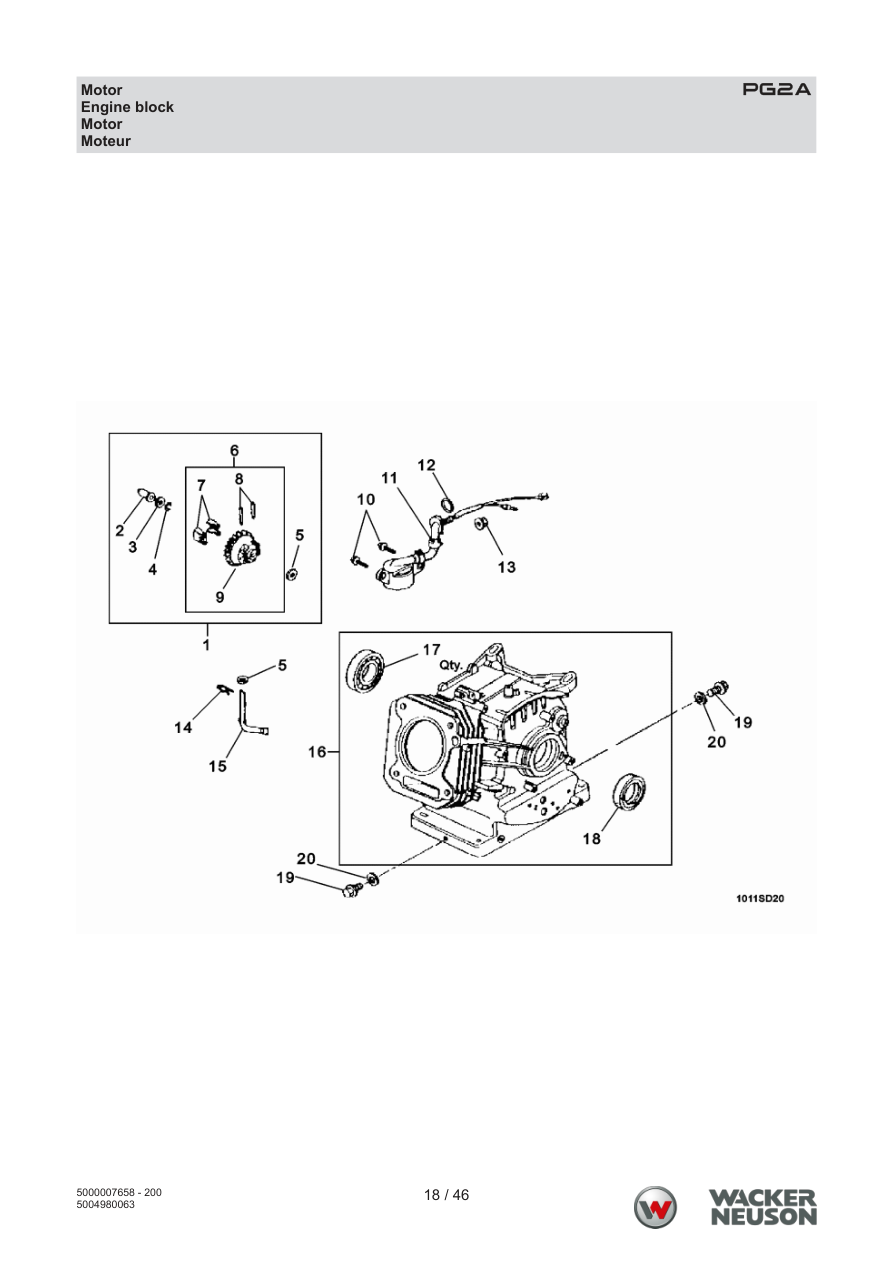

Page 18 — PG2A Engine
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 16 | 5000081785 | Cylinder | 1 | PARTS REQUEST | |
|
COMING Cylinder
5000081785 · qty on machine: 1 | |||||
| 1 | 5000081755 | Kit-governor | 1 | ADD TO CART | |
| 2 | 5000070953 | Slider | 1 | ADD TO CART | |
| 3 | 5000070959 | Washer | 1 | ADD TO CART | |
| 4 | 5000081615 | Retaining ring | 1 | ADD TO CART | |
| 5 | 5000071639 | Washer | 2 | ADD TO CART | |
| 6 | 5000076934 | Governor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 10 | 5000072333 | Screw | 2 | M6 x 12 10Nm/7ft.lbs | ADD TO CART |
| 11 | 5000072331 | Oil alert switch assy. | 1 | ADD TO CART | |
| 12 | 5000071082 | O-ring | 1 | 14 x 1,3 | ADD TO CART |
| 13 | 5000072332 | Flange nut | 1 | PARTS REQUEST | |
|
COMING Flange nut
5000072332 · qty on machine: 1 | |||||
| 14 | 5000054033 | Pin | 1 | ADD TO CART | |
| 15 | 5000071640 | Governor shaft | 1 | PARTS REQUEST | |
|
COMING Governor shaft
5000071640 · qty on machine: 1 | |||||
| 17 | 5000070961 | Grooved ball bearing | 1 | ADD TO CART | |
| 18 | 5000070962 | Shaft seal | 1 | ADD TO CART | |
| 19 | 5000070964 | Plug (threaded) | 2 | ADD TO CART | |
| 20 | 5000070963 | Washer | 2 | ADD TO CART | |

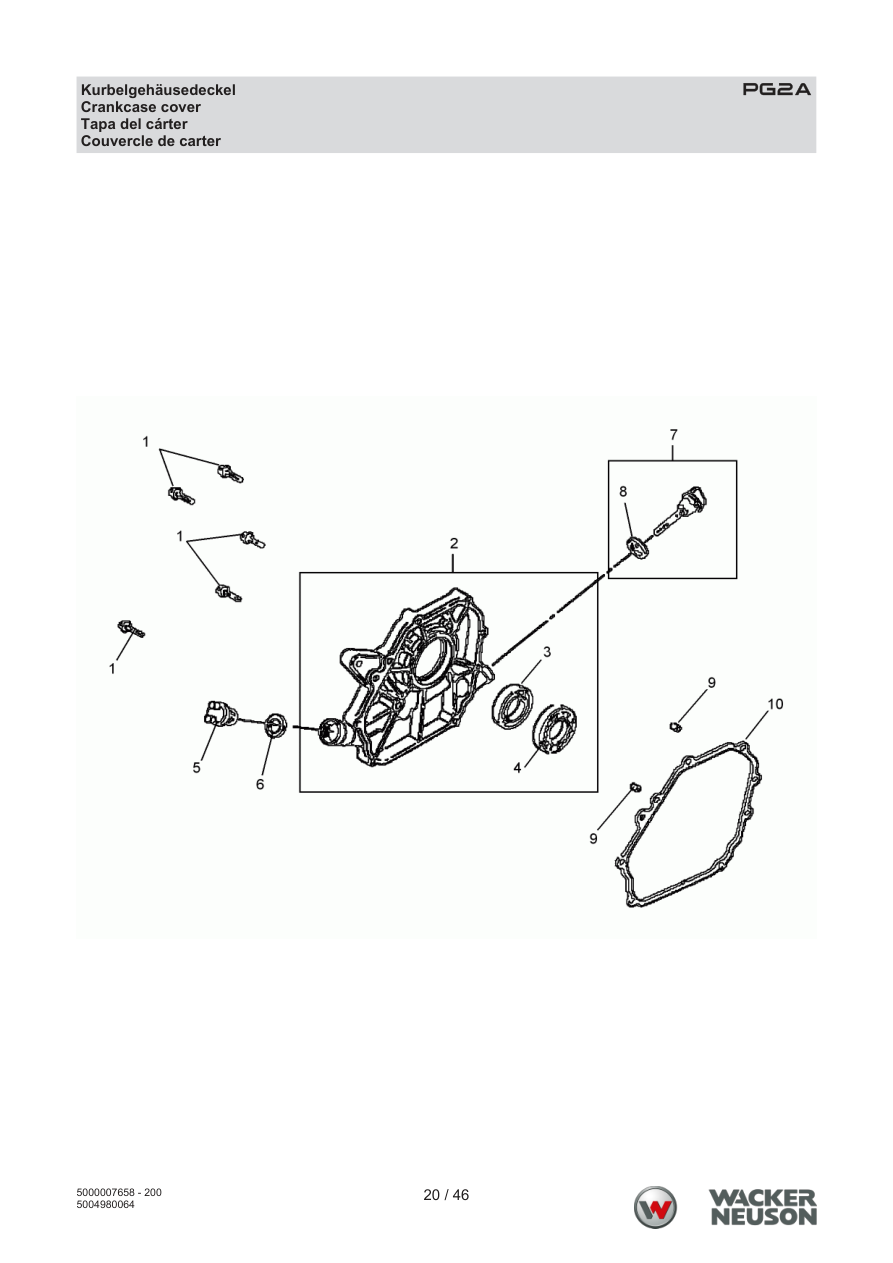

Page 20 — Crankcase cover
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000081783 | Gasket | 2 | ADD TO CART | |
| 1 | 5000070966 | Screw | 7 | M6 x 28 10Nm/7ft.lbs | ADD TO CART |
| 2 | 5000207632 | Crankcase cover | 1 | ADD TO CART | |
| 3 | 5000070969 | Shaft seal | 1 | ADD TO CART | |
| 4 | 5000070961 | Grooved ball bearing | 1 | ADD TO CART | |
| 5 | 5000074643 | Oil filler cap | 1 | ADD TO CART | |
| 6 | 5000081608 | Gasket | 1 | ADD TO CART | |
| 7 | 5000070970 | Cap | 1 | PARTS REQUEST | |
|
COMING Cap
5000070970 · qty on machine: 1 | |||||
| 8 | 5000070971 | Gasket | 1 | ADD TO CART | |
| 9 | 5000053995 | Dowel pin | 2 | A8 x 14 | ADD TO CART |

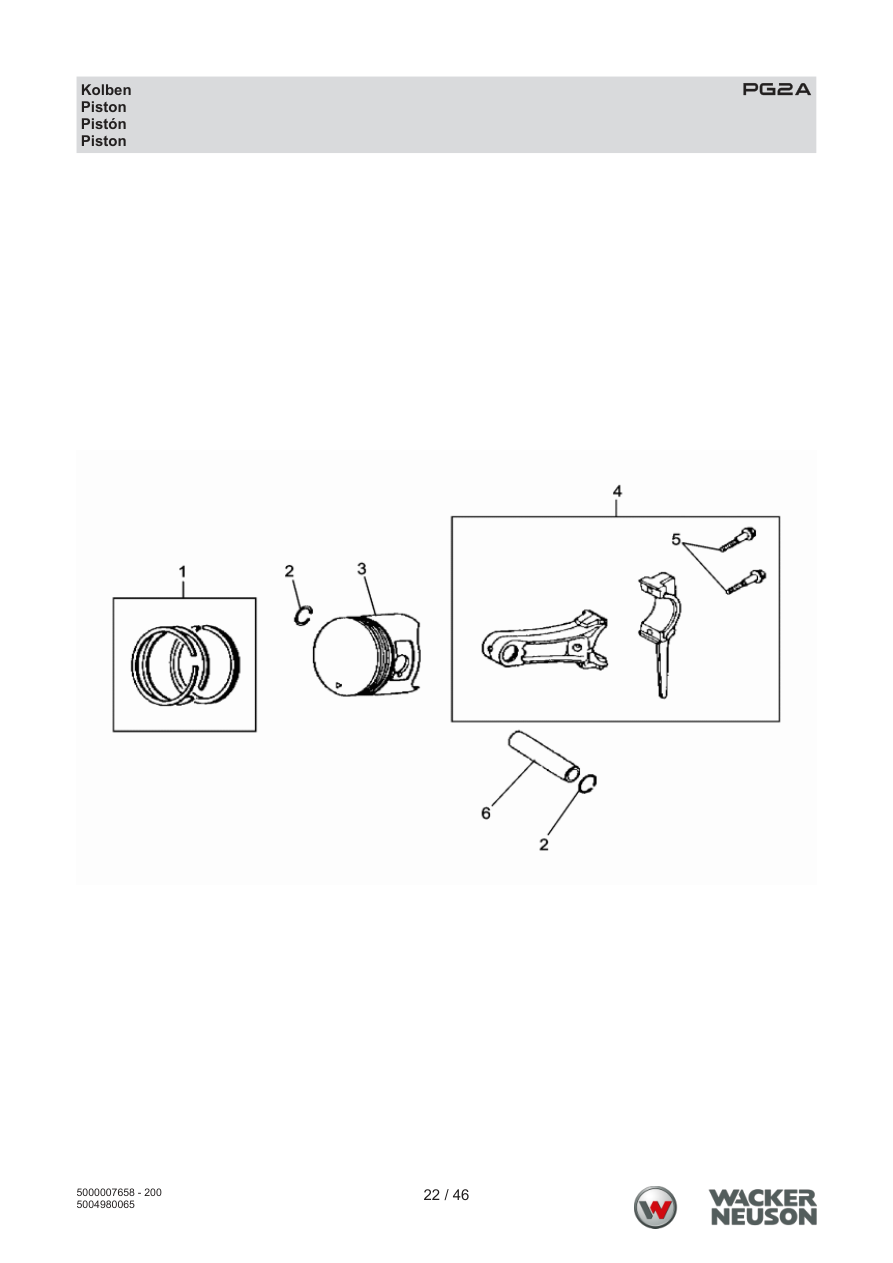

Page 22 — PG2A Piston
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000081751 | Retaining ring | 2 | ADD TO CART | |
| 4 | 5000071006 | Connecting rod | 1 | PARTS REQUEST | |
|
COMING Connecting rod
5000071006 · qty on machine: 1 | |||||
| 5 | 5000071007 | Screw | 2 | M7 x 35 | ADD TO CART |
| 6 | 5000071008 | Piston pin | 1 | PARTS REQUEST | |
|
COMING Piston pin
5000071008 · qty on machine: 1 | |||||

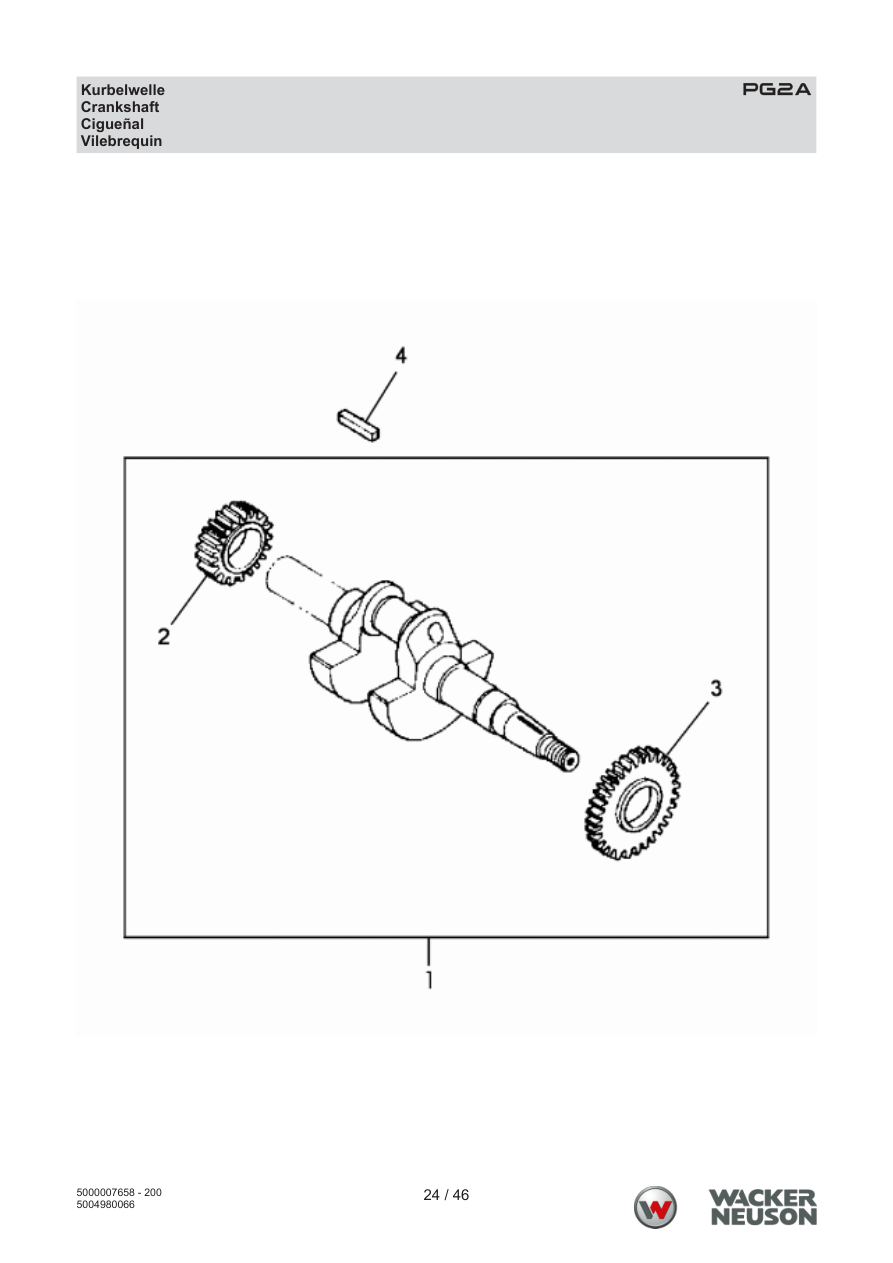

Page 24 — PG2A Crankshaft
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000110729 | Crankshaft | 1 | PARTS REQUEST | |
|
COMING Crankshaft
5000110729 · qty on machine: 1 | |||||
| 2 | 5000071001 | Timing gear | 1 | ADD TO CART | |
| 3 | 5000071002 | Gear | 1 | ADD TO CART | |
| 4 | 5000070999 | Fitting key | 1 | 4,78 x 38 | ADD TO CART |

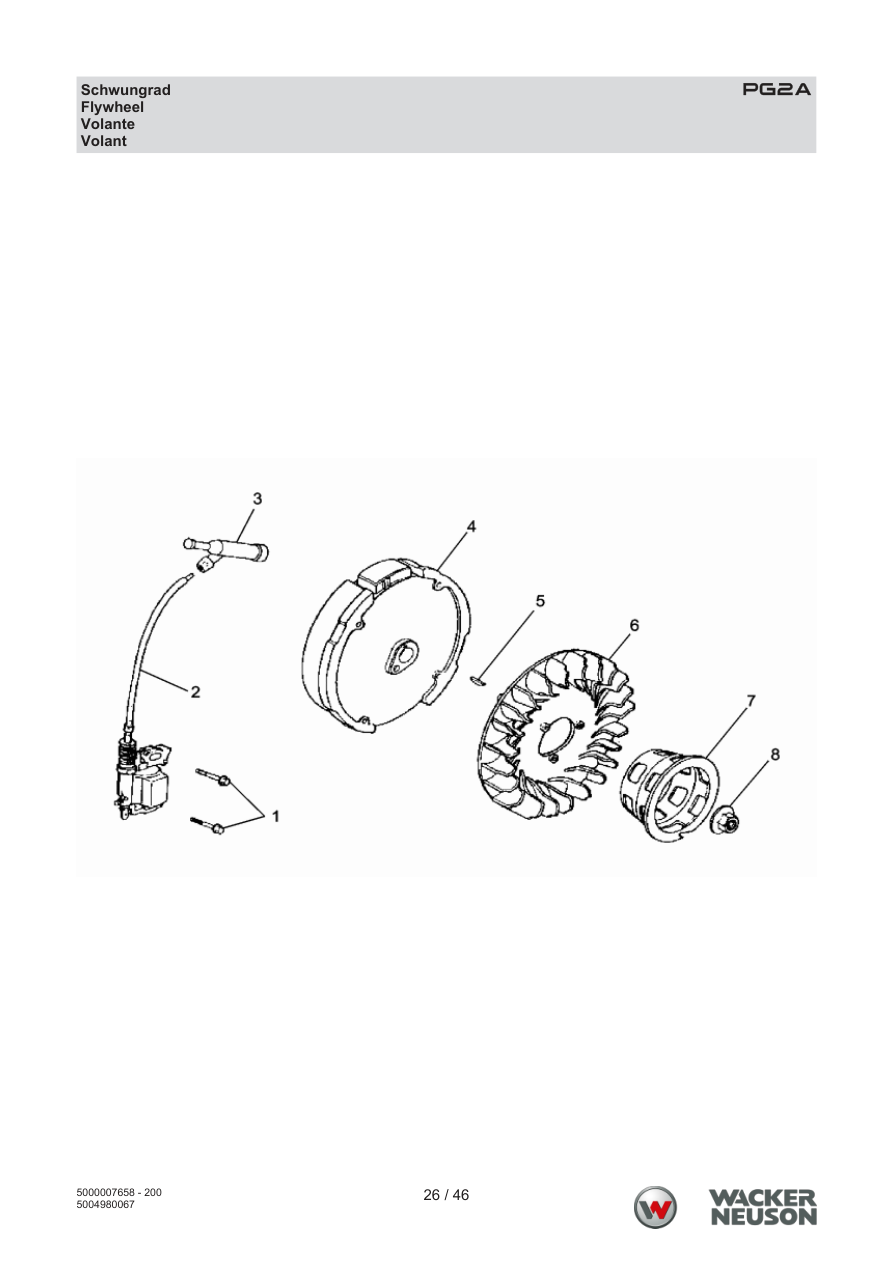

Page 26 — PG2A Flywheel
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000081737 | Screw | 2 | M6 x 25 | ADD TO CART |
| 2 | 5000070973 | Ignition coil | 1 | PARTS REQUEST | |
|
COMING Ignition coil
5000070973 · qty on machine: 1 | |||||
| 3 | 5000070974 | Spark plug terminal cap | 1 | ADD TO CART | |
| 5 | 5000068967 | Woodruff key | 1 | 25 x 18 | ADD TO CART |
| 6 | 5000070976 | Fan | 1 | ADD TO CART | |
| 7 | 5000081779 | Starter pulley | 1 | ADD TO CART | |
| 8 | 5000054005 | Nut | 1 | ADD TO CART | |

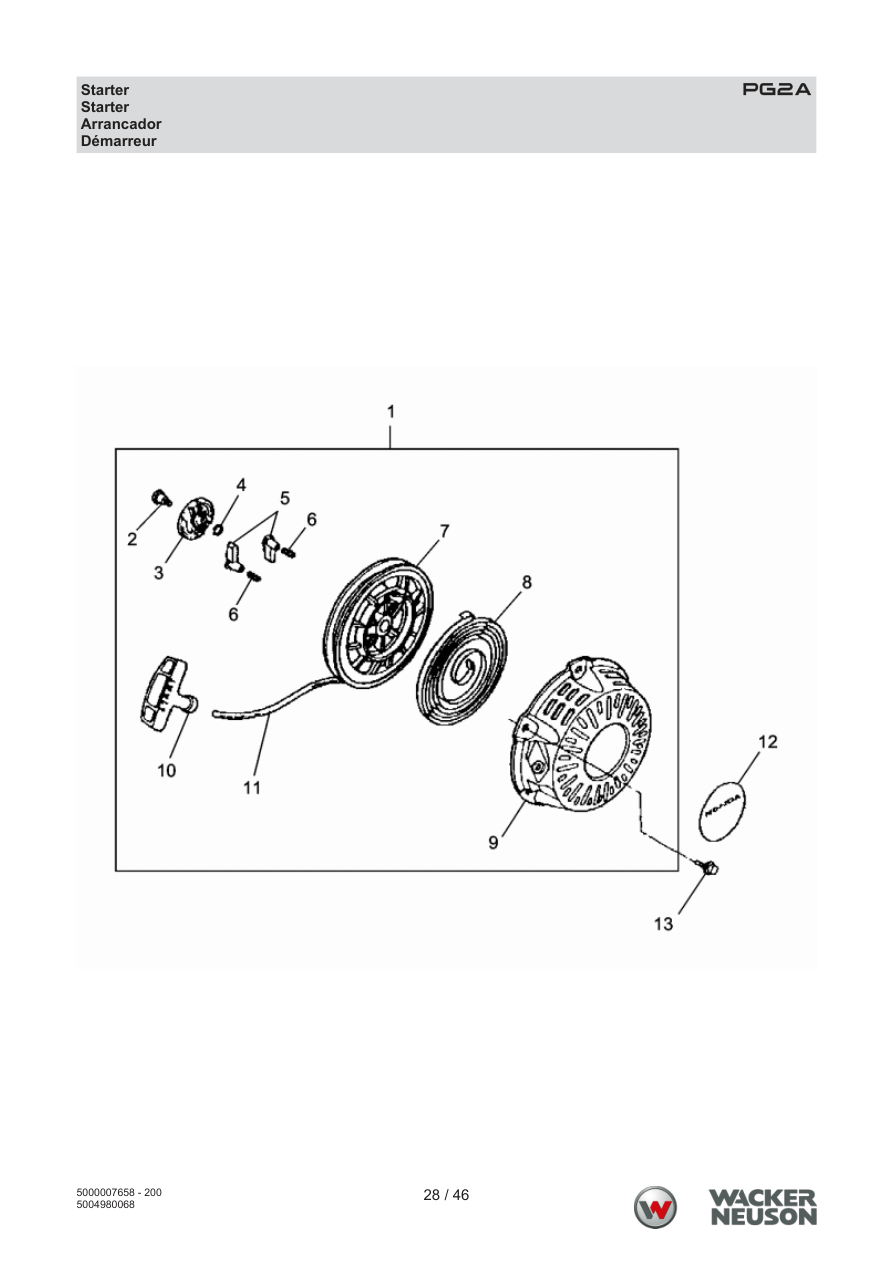

Page 28 — PG2A Starter
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000081771 | Starter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5000081782 | Screw | 1 | ADD TO CART | |
| 3 | 5000081775 | Starter ratchet guide | 1 | PARTS REQUEST | |
|
COMING Starter ratchet guide
5000081775 · qty on machine: 1 | |||||
| 4 | 5000081776 | Friction spring | 1 | ADD TO CART | |
| 5 | 5000081774 | Ratchet (pawl) | 2 | ADD TO CART | |
| 6 | 5000081778 | Spring | 2 | ADD TO CART | |
| 7 | 5000081773 | Starter reel | 1 | ADD TO CART | |
| 8 | 5000081777 | Spring | 1 | ADD TO CART | |
| 9 | 5000081772 | Starter housing | 1 | ADD TO CART | |
| 10 | 5000081780 | Starter handle | 1 | ADD TO CART | |
| 11 | 5000081781 | Rope | 1 | ADD TO CART | |
| 13 | 5000081750 | Screw | 3 | M6 x 8 | ADD TO CART |

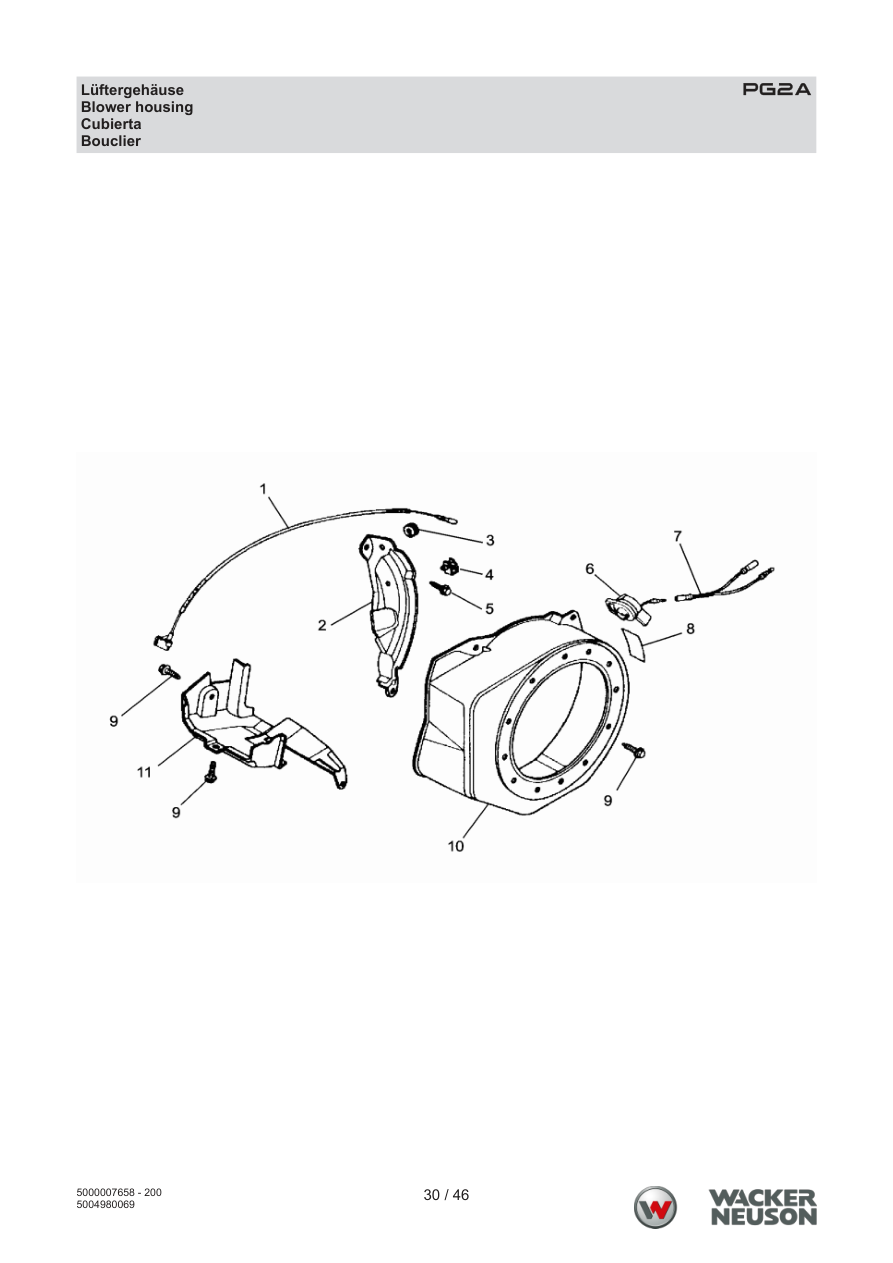

Page 30 — Blower housing
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000081663 | Short circuit cable | 1 | ADD TO CART | |
| 2 | 5000081800 | Plate | 1 | ADD TO CART | |
| 3 | 5000070979 | Grommet | 1 | ADD TO CART | |
| 4 | 5000072338 | Clamp | 1 | ADD TO CART | |
| 5 | 5000071055 | Screw | 1 | M6 x 20 10Nm/7ft.lbs | ADD TO CART |
| 6 | 5000125836 | Stop button switch | 1 | ADD TO CART | |
| 7 | 5000086764 | Short circuit cable | 1 | ADD TO CART | |
| 8 | 5000081805 | Label | 1 | ADD TO CART | |
| 9 | 5000053990 | Screw | 6 | M6 x 12 10Nm/7ft.lbs | ADD TO CART |
| 10 | 5000089353 | Blower housing (shroud) | 1 | ADD TO CART | |

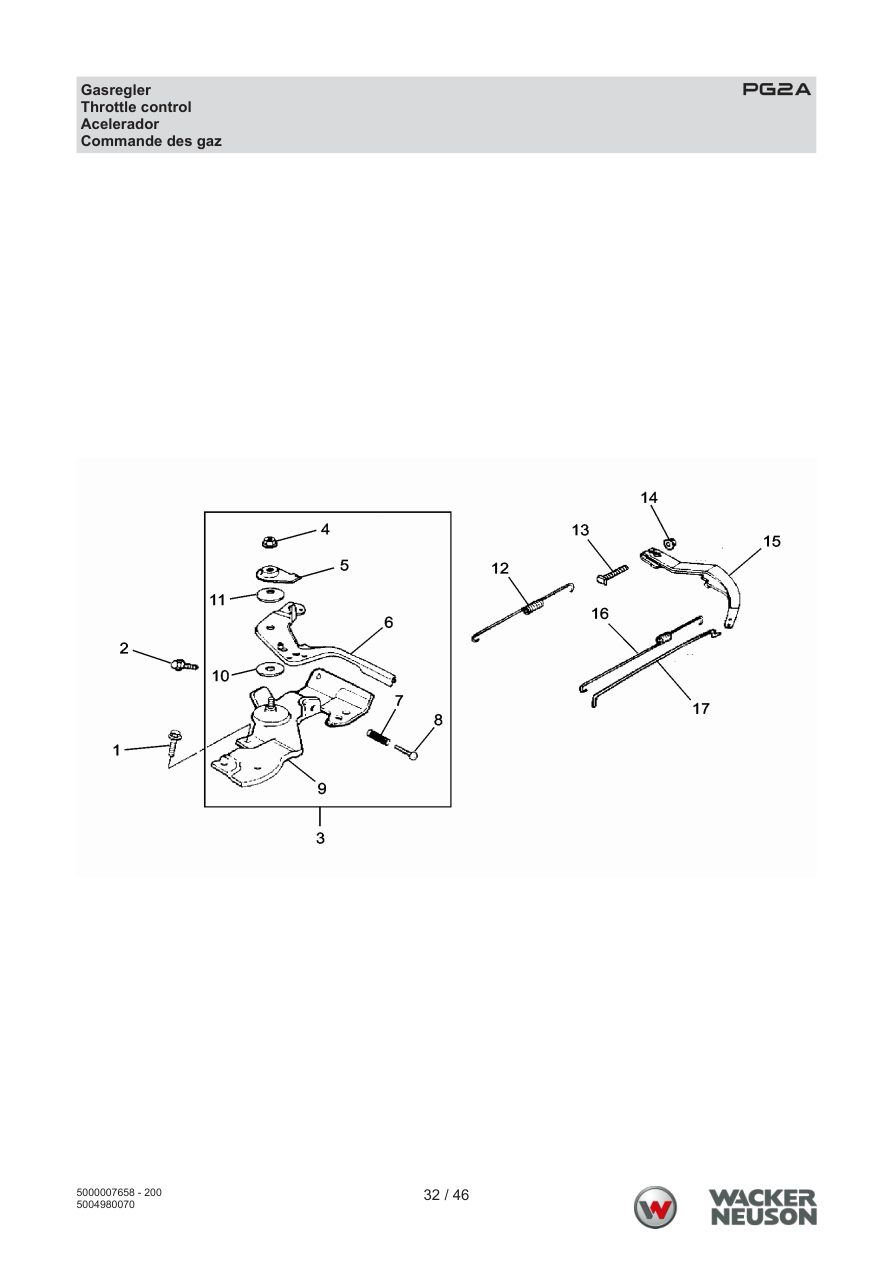

Page 32 — PG2A Gas regulator
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000053990 | Screw | 1 | M6 x 12 10Nm/7ft.lbs | ADD TO CART |
| 2 | 5000071055 | Screw | 1 | M6 x 20 10Nm/7ft.lbs | ADD TO CART |
| 3 | 5000081795 | Control cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5000072782 | Locknut | 1 | ADD TO CART | |
| 5 | 5000071057 | Washer | 1 | ADD TO CART | |
| 6 | 5000076936 | Lever | 1 | ADD TO CART | |
| 7 | 5000054088 | Adjusting spring | 1 | ADD TO CART | |
| 8 | 5000074728 | Screw | 1 | M5 x 28 | ADD TO CART |
| 9 | 5000110730 | Control | 1 | ADD TO CART | |
| 10 | 5000071064 | Spacer | 1 | ADD TO CART | |
| 11 | 5000071058 | Spring | 1 | ADD TO CART | |
| 12 | 5000081070 | Governor spring | 1 | ADD TO CART | |
| 13 | 5000068966 | Screw | 1 | ADD TO CART | |
| 14 | 5000071056 | Nut | 1 | ADD TO CART | |
| 15 | 5000081742 | Governor lever | 1 | ADD TO CART | |
| 16 | 5000081743 | Spring | 1 | ADD TO CART | |
| 17 | 5000071068 | Governor rod | 1 | PARTS REQUEST | |
|
COMING Governor rod
5000071068 · qty on machine: 1 | |||||

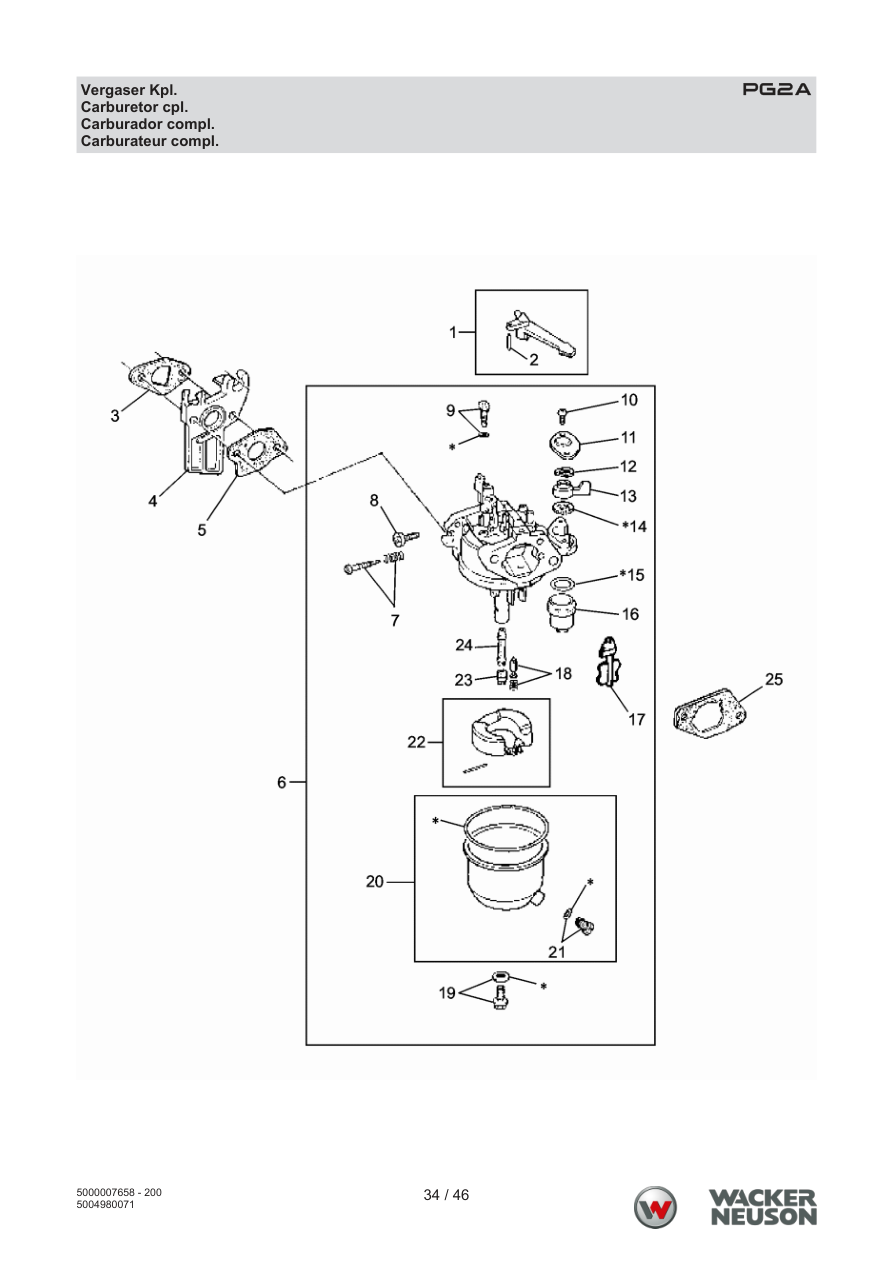

Page 34 — Carburetor cpl.
Parts list — exactly as printed27 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 25 | 5000071015 | Spacer | 1 | ADD TO CART | |
| 1 | 5000071013 | Choke control lever | 1 | ADD TO CART | |
| 2 | 5000071014 | Pin | 1 | 2 x 12 | ADD TO CART |
| 3 | 5000081794 | Gasket | 1 | ADD TO CART | |
| 4 | 5000071010 | Insulator | 1 | ADD TO CART | |
| 5 | 5000081762 | Gasket | 1 | ADD TO CART | |
| 6 | 5000081791 | Carburetor | 1 | ADD TO CART | |
| 7 | 5000071017 | Set-pilot screw | 1 | ADD TO CART | |
| 8 | 5000071018 | Throttle stop screw | 1 | ADD TO CART | |
| 9 | 5000071016 | Pilot jet | 1 | ADD TO CART | |
| 10 | 5000081614 | Screw | 2 | M3 x 8 | PARTS REQUEST |
|
COMING Screw
5000081614 · qty on machine: 2 M3 x 8 | |||||
| 11 | 5000073269 | Plate | 1 | ADD TO CART | |
| 12 | 5000073270 | Spring washer | 1 | ADD TO CART | |
| 13 | 5000073271 | Fuel valve lever | 1 | ADD TO CART | |
| 14 | 5000073272 | Gasket | 1 | ADD TO CART | |
| 15 | 5000071024 | Gasket | 1 | ADD TO CART | |
| 16 | 5000071023 | Fuel filter | 1 | ADD TO CART | |
| 17 | 5000071025 | Set-engine choke | 1 | ADD TO CART | |
| 18 | 5000071022 | Set-float valve | 1 | ADD TO CART | |
| 19 | 5000071021 | Screw w/washer | 1 | ADD TO CART | |
| 20 | 5000076940 | Set-float chamber | 1 | PARTS REQUEST | |
|
COMING Set-float chamber
5000076940 · qty on machine: 1 | |||||
| 21 | 5000073273 | Screw w/washer | 1 | ADD TO CART | |
| 22 | 5000071020 | Set-carburetor float | 1 | ADD TO CART | |
| 23 | 5000081759 | Main jet | 1 | PARTS REQUEST | |
|
COMING Main jet
5000081759 · qty on machine: 1 | |||||
| 23 | 5000085936 | Jet | 1 | PARTS REQUEST | |
|
COMING Jet
5000085936 · qty on machine: 1 | |||||
| 23 | 5000085937 | Jet | 1 | ADD TO CART | |
| 24 | 5000081793 | Jet | 1 | ADD TO CART | |

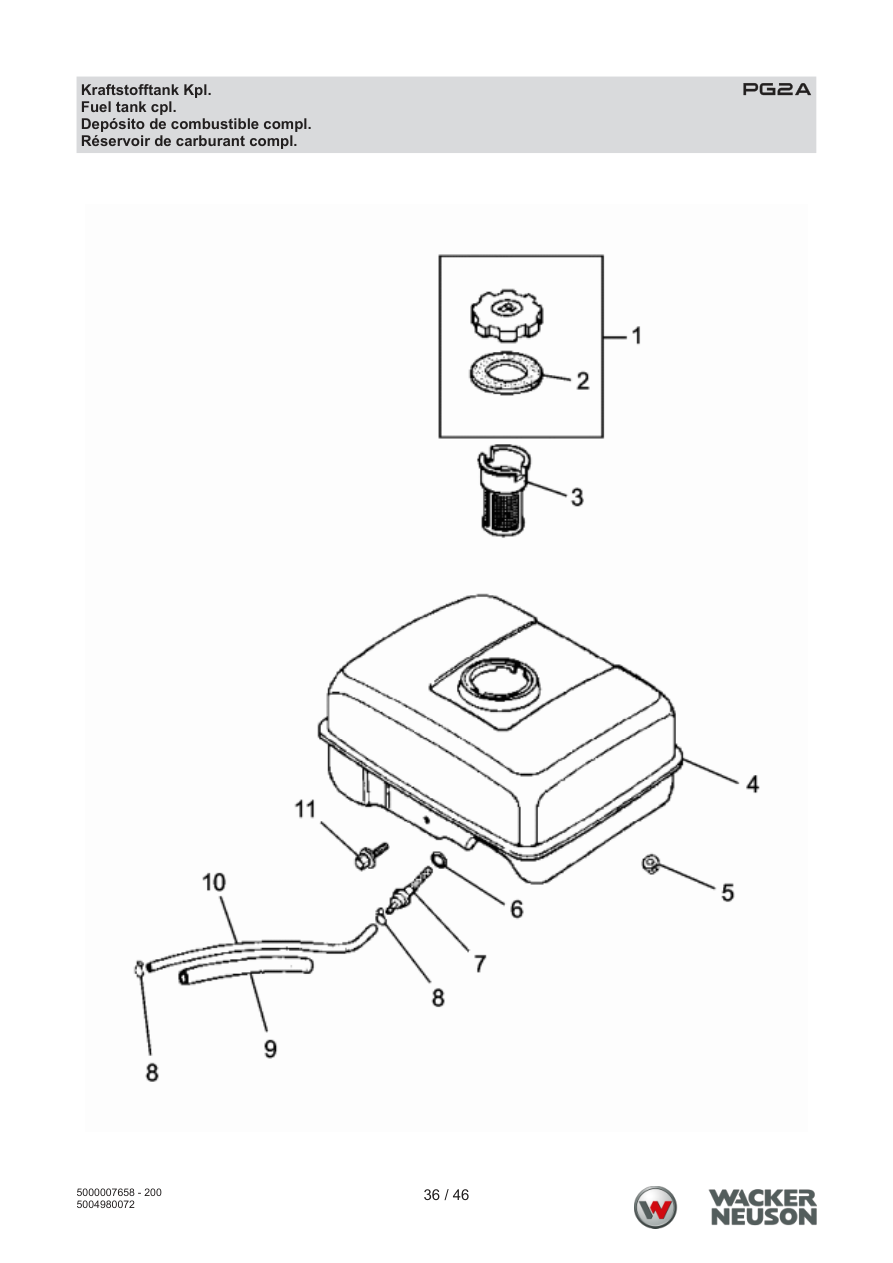

Page 36 — Fuel tank complete
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 5 | 5000071056 | Nut | 2 | ADD TO CART | |
| 6 | 5000071082 | O-ring | 1 | 14 x 1,3 | ADD TO CART |
| 7 | 5000071083 | Fuel filter | 1 | ADD TO CART | |
| 8 | 5000054136 | Hose clamp | 2 | ADD TO CART | |
| 9 | 5000081764 | Protective hose | 1 | ADD TO CART | |
| 10 | 5000077733 | Hose | 1 | ADD TO CART | |
| 11 | 5000071081 | Screw | 1 | M6 x 25 10Nm/7ft.lbs | ADD TO CART |

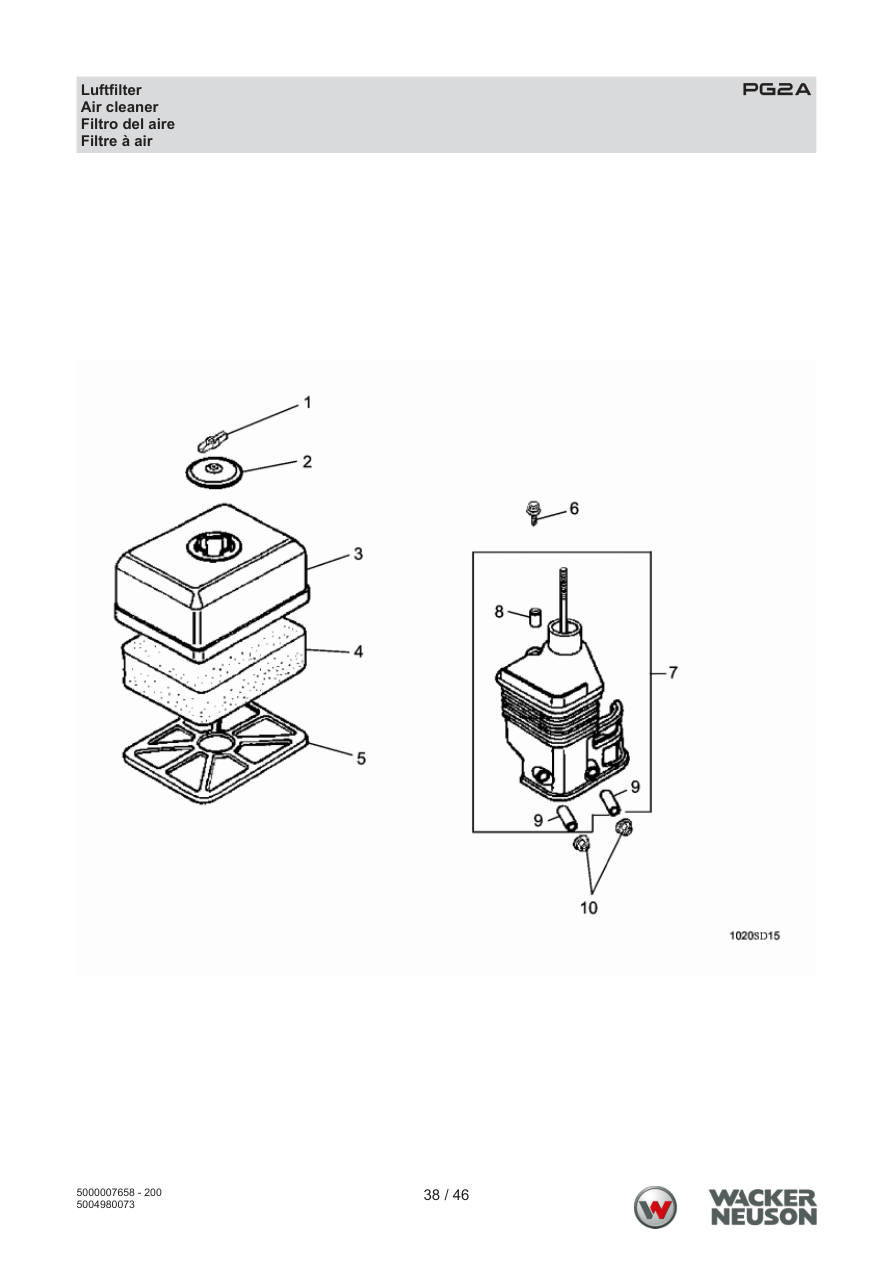

Page 38 — PG2A Air filter
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 5 | 5000072899 | Bracket | 1 | ADD TO CART | |
| 1 | 5000071621 | Wing nut | 1 | ADD TO CART | |
| 2 | 5000071028 | Cap | 1 | ADD TO CART | |
| 3 | 5000083704 | Air cleaner cover | 1 | ADD TO CART | |
| 4 | 5000072898 | Air cleaner element | 1 | ADD TO CART | |
| 6 | 5000071036 | Screw | 1 | M6 x 20 10Nm/7ft.lbs | ADD TO CART |
| 7 | 5000081749 | Air cleaner mount | 1 | ADD TO CART | |
| 8 | 5000071035 | Sleeve | 1 | ADD TO CART | |
| 9 | 5000081748 | Ring | 2 | ADD TO CART | |
| 10 | 5000071056 | Nut | 2 | ADD TO CART | |

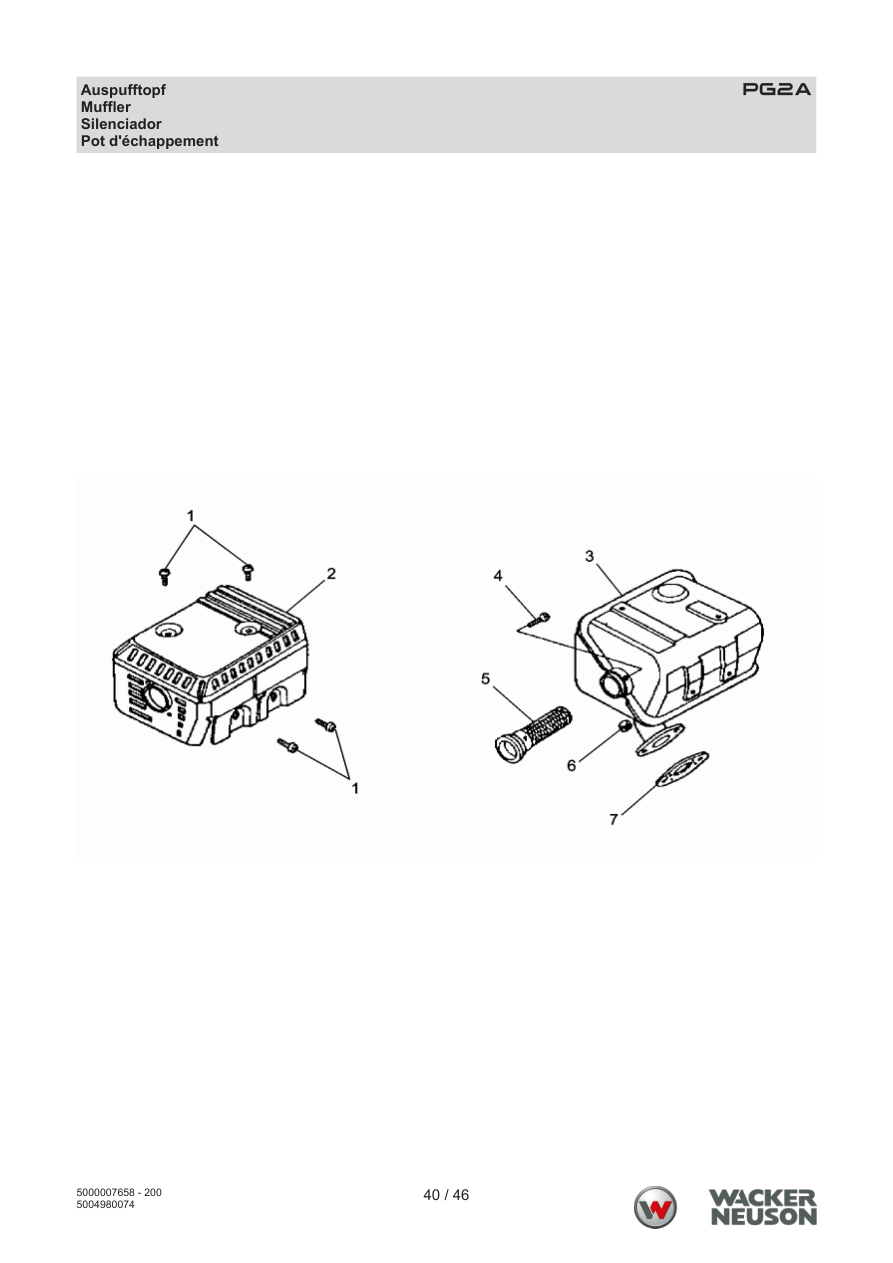

Page 40 — PG2A Muffler
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000071070 | Screw | 4 | M5 x 8 | ADD TO CART |
| 2 | 5000081767 | Guard | 1 | ADD TO CART | |
| 3 | 5000081765 | Muffler | 1 | ADD TO CART | |
| 4 | 5000071073 | Screw | 1 | M4 x 6 | ADD TO CART |
| 5 | 5000071075 | Spark arrester | 1 | ADD TO CART | |
| 6 | 5000071076 | Nut | 2 | ADD TO CART | |
| 7 | 5000081768 | Gasket | 1 | ADD TO CART | |

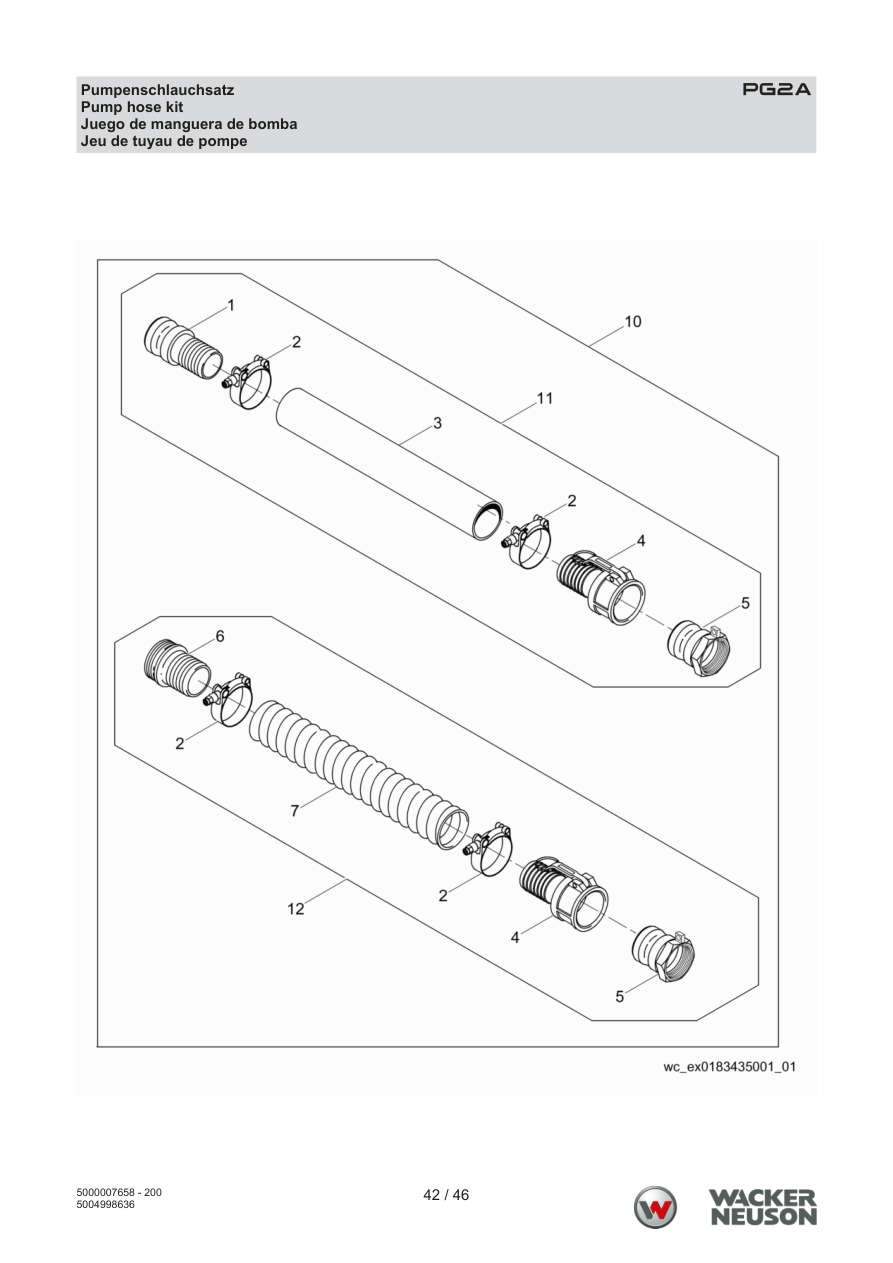

Page 42 — PG2A Pump hose kit
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000070339 | Quick disconnect coupling | 1 | PARTS REQUEST | |
|
COMING Quick disconnect coupling
5000070339 · qty on machine: 1 | |||||
| 2 | 5000028698 | T-bolt clamp | 4 | ADD TO CART | |
| 3 | 5000182857 | Discharge hose | 1 | 2in ID x 1270mm/50ft | ADD TO CART |
| 4 | 5000051452 | Quick disconnect coupling | 2 | PARTS REQUEST | |
|
COMING Quick disconnect coupling
5000051452 · qty on machine: 2 | |||||
| 5 | 5000051449 | Quick disconnect coupling | 2 | PARTS REQUEST | |
|
COMING Quick disconnect coupling
5000051449 · qty on machine: 2 | |||||
| 6 | 5000026918 | Hose coupling | 1 | PARTS REQUEST | |
|
COMING Hose coupling
5000026918 · qty on machine: 1 | |||||
| 7 | 5000028066 | Suction hose | 1 | 2in ID x 508mm/20ft | PARTS REQUEST |
|
COMING Suction hose
5000028066 · qty on machine: 1 2in ID x
508mm/20ft | |||||
| 10 | 5000183439 | Hose connection kit | 1 | PARTS REQUEST | |
|
COMING Hose connection kit
5000183439 · qty on machine: 1 | |||||
| 11 | 5000182859 | Discharge hose cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Discharge hose cpl.
5000182859 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 12 | 5000182861 | Suction hose cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
The machine itself
Machine
Engine
Wacker Neuson PG2 clear water pump.
List price: $875.00
Keep-it-running spares
All listed parts →Every part that fits this machine
5000026918
Hose coupling
5000028066
Suction hose
5000028698
T-bolt clamp
$12.95
5000051449
Quick disconnect coupling
5000051452
Quick disconnect coupling
5000053990
Screw
$2.95
5000053995
Dowel pin
$3.95
5000054005
Nut
$12.95
5000054033
Pin
$1.95
5000054088
Adjusting spring
$8.95
5000054136
Hose clamp
$3.95
5000054947
Delivery flange packing
$2.95
5000054955
Washer
$1.95
5000054956
Drain plug set
$7.95
5000054958
O-ring
$1.95
5000054960
Mechanical seal
$61.95
5000054967
Hexagonal head cap screw
$1.95
5000054968
Hexagonal head cap screw
$0.95
5000054969
Socket head cap screw
$1.95
5000068966
Screw
$5.95
5000068967
Woodruff key
$8.95
5000070014
Nut
$0.95
5000070339
Quick disconnect coupling
5000070839
Cylinder head cover
$33.95
5000070942
Gasket
$5.95
5000070943
Screw
$4.95
5000070944
Valve guide
$15.95
5000070945
Valve guide
5000070948
Stud
$7.95
5000070950
Dowel pin
$5.95
5000070953
Slider
$6.95
5000070959
Washer
$2.95
5000070961
Grooved ball bearing
$64.95
5000070962
Shaft seal
$10.95
5000070963
Washer
$1.95
5000070964
Plug (threaded)
$5.95
5000070966
Screw
$6.95
5000070969
Shaft seal
$11.95
5000070970
Cap
5000070971
Gasket
$3.95
5000070973
Ignition coil
5000070974
Spark plug terminal cap
$40.95
5000070976
Fan
$74.95
5000070979
Grommet
$2.95
5000070984
Locknut
$7.95
5000070985
Rocker arm pivot
$10.95
5000070986
Rocker arm
$12.95
5000070989
Push rod (valve lifter)
$15.95
5000070990
Valve tappet
$24.95
5000070996
Holder
$1.95
5000070997
Spring holder
$17.95
5000070998
Rotator valve cap
$10.95
5000070999
Fitting key
$25.95
5000071001
Timing gear
$35.95
5000071002
Gear
$36.95
5000071006
Connecting rod
5000071007
Screw
$6.95
5000071008
Piston pin
5000071010
Insulator
$33.95
5000071013
Choke control lever
$18.95
5000071014
Pin
$2.95
5000071015
Spacer
$9.95
5000071016
Pilot jet
$39.95
5000071017
Set-pilot screw
$25.95
5000071018
Throttle stop screw
$20.95
5000071020
Set-carburetor float
$52.95
5000071021
Screw w/washer
$22.95
5000071022
Set-float valve
$49.95
5000071023
Fuel filter
$24.95
5000071024
Gasket
$7.95
5000071025
Set-engine choke
$62.95
5000071028
Cap
$21.95
5000071035
Sleeve
$7.95
5000071036
Screw
$2.95
5000071055
Screw
$5.95
5000071056
Nut
$0.95
5000071057
Washer
$9.95
5000071058
Spring
$4.95
5000071064
Spacer
$9.95
5000071068
Governor rod
5000071070
Screw
$2.95
5000071073
Screw
$0.95
5000071075
Spark arrester
$26.95
5000071076
Nut
$1.95
5000071081
Screw
$3.95
5000071082
O-ring
$3.95
5000071083
Fuel filter
$13.95
5000071621
Wing nut
$9.95
5000071639
Washer
$0.95
5000071640
Governor shaft
5000072331
Oil alert switch assy.
$112.95
5000072332
Flange nut
5000072333
Screw
$2.95
5000072338
Clamp
$1.95
5000072773
Screw
$6.95
5000072778
Stud
$14.95
5000072782
Locknut
$6.95
5000072898
Air cleaner element
$9.95
5000072899
Bracket
$15.95
5000072902
Camshaft
$240.95
5000072996
Washer
$1.95
5000072997
Discharge port
$59.95
5000073263
Stud
$11.95
5000073269
Plate
$7.95
5000073270
Spring washer
$4.95
5000073271
Fuel valve lever
$24.95
5000073272
Gasket
$4.95
5000073273
Screw w/washer
$17.95
5000074643
Oil filler cap
$7.95
5000074728
Screw
$1.95
5000075800
Spark plug
$7.95
5000076934
Governor cpl.
$29.95
5000076936
Lever
$25.95
5000076940
Set-float chamber
5000077657
Clamp
$2.95
5000077733
Hose
$136.95
5000081070
Governor spring
$6.95
5000081608
Gasket
$6.95
5000081614
Screw
5000081615
Retaining ring
$1.95
5000081663
Short circuit cable
$19.95
5000081737
Screw
$4.95
5000081742
Governor lever
$26.95
5000081743
Spring
$7.95
5000081744
Retaining ring
$1.95
5000081748
Ring
$8.95
5000081749
Air cleaner mount
$63.95
5000081750
Screw
$7.95
5000081751
Retaining ring
$1.95
5000081755
Kit-governor
$31.95
5000081759
Main jet
5000081760
Spring
$7.95
5000081761
Breather tube
$7.95
5000081762
Gasket
$2.95
5000081764
Protective hose
$8.95
5000081765
Muffler
$166.95
5000081767
Guard
$70.95
5000081768
Gasket
$4.95
5000081771
Starter cpl.
$199.95
5000081772
Starter housing
$161.95
5000081773
Starter reel
$78.95
5000081774
Ratchet (pawl)
$15.95
5000081775
Starter ratchet guide
5000081776
Friction spring
$10.95
5000081777
Spring
$31.95
5000081778
Spring
$10.95
5000081779
Starter pulley
$59.95
5000081780
Starter handle
$14.95
5000081781
Rope
$20.95
5000081782
Screw
$11.95
5000081783
Gasket
$10.95
5000081785
Cylinder
5000081787
Cylinder head gasket
$14.95
5000081789
Intake valve
$37.95
5000081790
Exhaust valve
$102.95
5000081791
Carburetor
$261.95
5000081793
Jet
$42.95
5000081794
Gasket
$3.95
5000081795
Control cpl.
$64.95
5000081800
Plate
$10.95
5000081805
Label
$6.95
5000083704
Air cleaner cover
$63.95
5000085936
Jet
5000085937
Jet
$19.95
5000086662
Honda engine
5000086764
Short circuit cable
$19.95
5000089353
Blower housing (shroud)
$153.95
5000110496
Pump case housing
$74.95
5000110497
Suction port
$17.95
5000110498
Flapper valve gasket
$17.95
5000110499
Mounting flange
$74.95
5000110500
Volute
$67.95
5000110501
Impeller
$43.95
5000110504
O-ring
$2.95
5000110505
Screw
$1.95
5000110729
Crankshaft
5000110730
Control
$22.95
5000110732
Hexagonal head cap screw
$1.95
5000113800
O-ring
$10.95
5000117434
Label sheet
$17.95
5000117451
Label-pg 2
$0.95
5000117979
Suction strainer
5000125836
Stop button switch
$33.95
5000151028
Spring
$5.95
5000153793
Label
$32.95
5000154383
Frame
$140.95
5000177770
Label-wacker neuson logo
$0.95
5000182857
Discharge hose
$113.95
5000182859
Discharge hose cpl.
5000182861
Suction hose cpl.
$146.95
5000183439
Hose connection kit
5000207632
Crankcase cover
$171.95
5000222084
Label symbol
$13.95
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
