Wacker Neuson PG3 Clear Water Pump
The parts bench

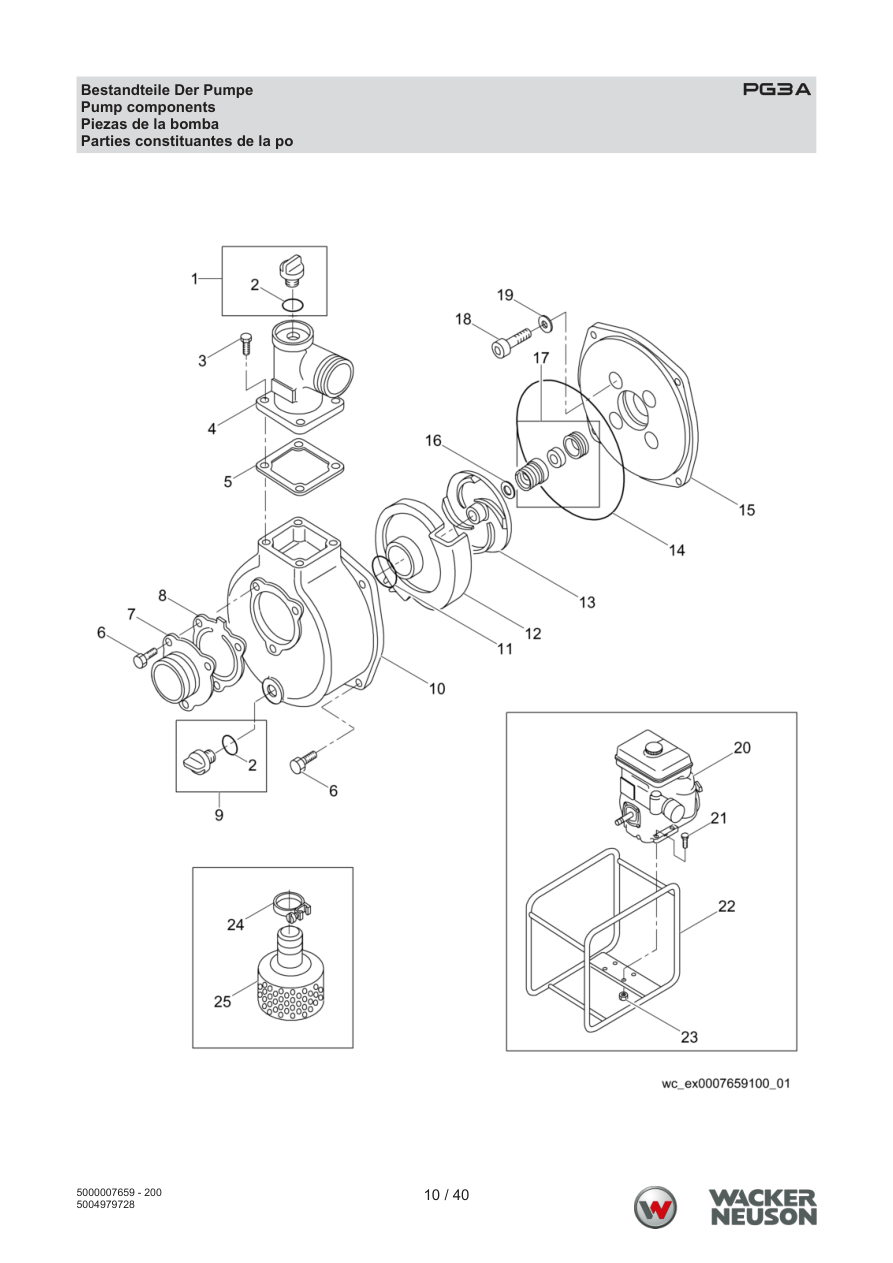

Need the PDF? ↓Page 10 — PG3A Pump Components
Parts list — exactly as printed25 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 11 | 5000110515 | O-ring | 1 | ADD TO CART | |
| 1 | 5000070000 | Drain plug set | 1 | ADD TO CART | |
| 2 | 5000070002 | O-ring | 1 | 32 x 3 | ADD TO CART |
| 3 | 5000070010 | Hexagonal head cap screw | 4 | M10 x 30 49Nm/36ft.lbs | ADD TO CART |
| 4 | 5000110512 | Discharge port | 1 | ADD TO CART | |
| 5 | 5000054992 | Gasket | 1 | ADD TO CART | |
| 6 | 5000054966 | Hexagonal head cap screw | 7 | M10 x 25 49Nm/36ft.lbs | ADD TO CART |
| 7 | 5000110507 | Suction port | 1 | ADD TO CART | |
| 8 | 5000110508 | Flapper valve gasket | 1 | ADD TO CART | |
| 9 | 5000054956 | Drain plug set | 1 | ADD TO CART | |
| 10 | 5000110506 | Pump case housing | 1 | ADD TO CART | |
| 12 | 5000110510 | Volute | 1 | ADD TO CART | |
| 13 | 5000110511 | Impeller | 1 | ADD TO CART | |
| 14 | 5000113801 | O-ring | 1 | ADD TO CART | |
| 15 | 5000110509 | Mounting flange | 1 | ADD TO CART | |
| 16 | 5000054999 | Washer | 3 | ADD TO CART | |
| 17 | 5000070004 | Mechanical seal | 1 | ADD TO CART | |
| 18 | 5000054969 | Socket head cap screw | 4 | M8 x 60 41Nm/30ft.lbs | ADD TO CART |
| 19 | 5000072996 | Washer | 4 | ADD TO CART | |
| 20 | 5000086663 | Honda engine | 1 | PARTS REQUEST | |
|
COMING Honda engine
5000086663 · qty on machine: 1 | |||||
| 21 | 5000054968 | Hexagonal head cap screw | 4 | M8 x 40 25Nm/18ft.lbs | ADD TO CART |
| 22 | 5000154384 | Frame | 1 | ADD TO CART | |
| 23 | 5000070014 | Nut | 4 | ADD TO CART | |
| 24 | 5000077657 | Clamp | 3 | ADD TO CART | |
| 25 | 5000117980 | Suction strainer | 1 | PARTS REQUEST | |
|
COMING Suction strainer
5000117980 · qty on machine: 1 | |||||

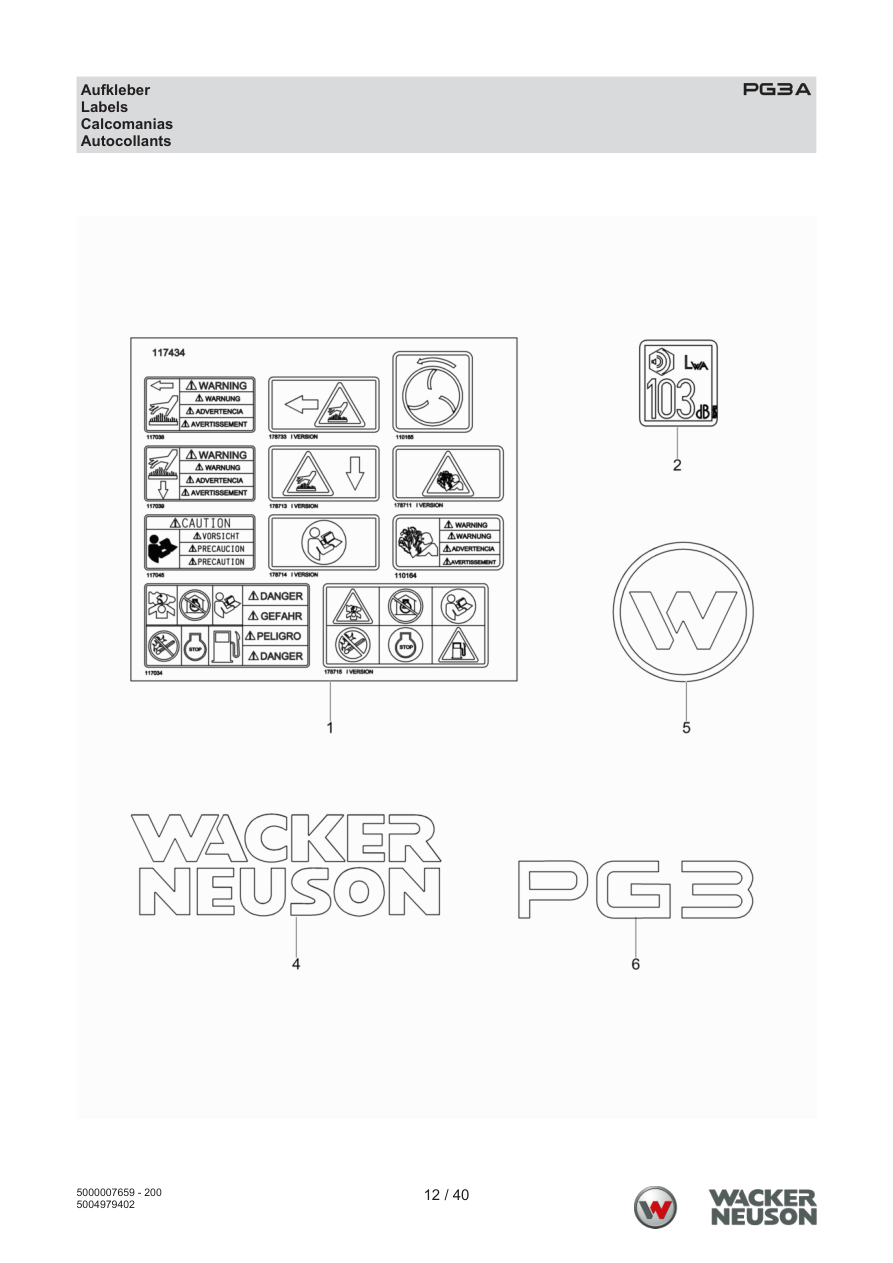

Page 12 — PG3A Decals
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000117434 | Label sheet | 1 | ADD TO CART | |
| 2 | 5000153795 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5000153795 · qty on machine: 1 | |||||
| 4 | 5000177770 | Label-wacker neuson logo | 2 | ADD TO CART | |
| 5 | 5000222084 | Label symbol | 1 | ADD TO CART | |
| 6 | 5000117452 | Label-pg 3 | 2 | ADD TO CART | |

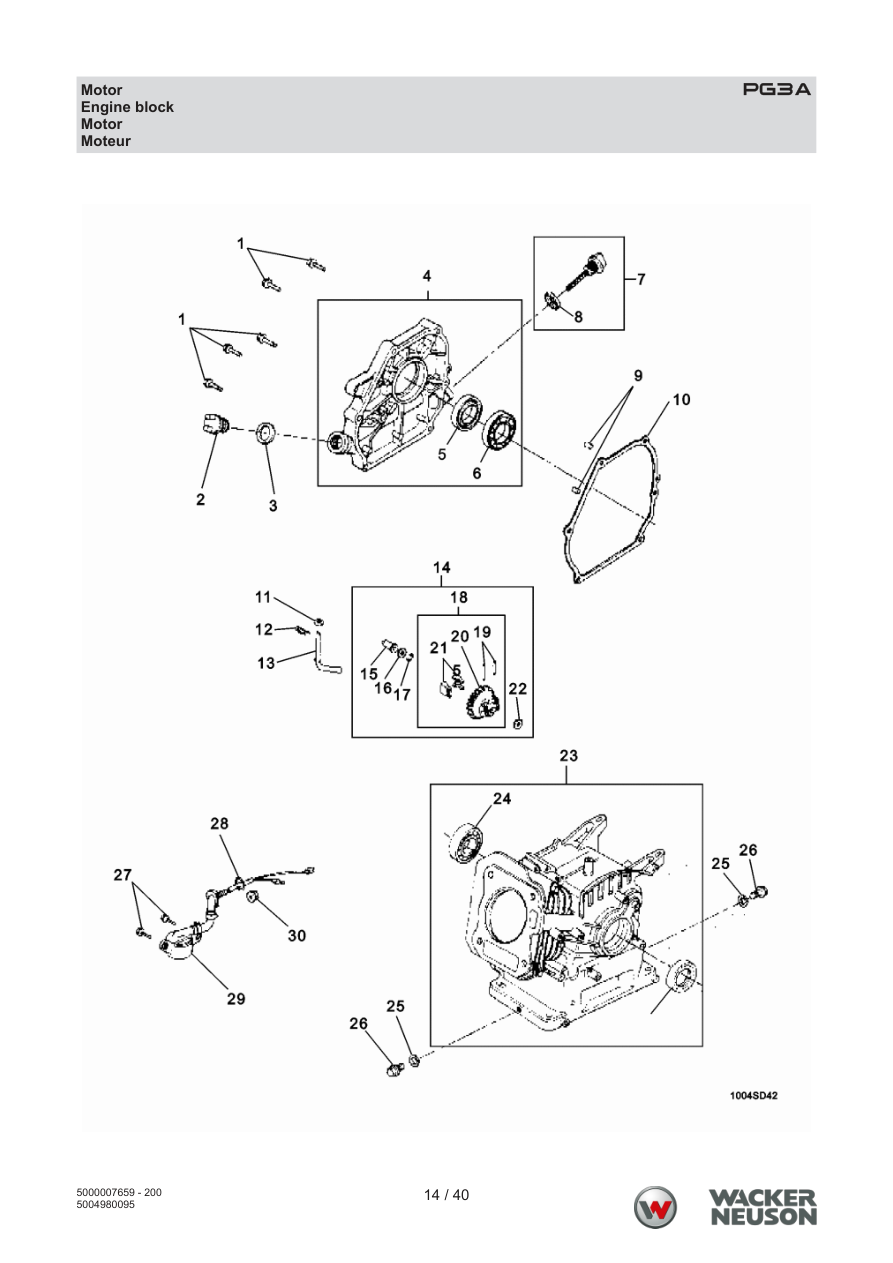

Page 14 — PG3A Engine
Parts list — exactly as printed27 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 24 | 5000082018 | Bearing | 1 | ADD TO CART | |
| 25 | 5000070963 | Washer | 2 | ADD TO CART | |
| 5000110600 | Set-gaskets | 1 | ADD TO CART | ||
| 1 | 5000071630 | Screw | 6 | M8 x 32 25Nm/18ft.lbs | ADD TO CART |
| 2 | 5000074643 | Oil filler cap | 1 | ADD TO CART | |
| 3 | 5000081608 | Gasket | 1 | ADD TO CART | |
| 4 | 5000072777 | Cover cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 5 | 5000053983 | Shaft seal | 2 | 25 x 41 x 6 | ADD TO CART |
| 6 | 5000053984 | Ball bearing | 1 | ADD TO CART | |
| 7 | 5000070970 | Cap | 1 | PARTS REQUEST | |
|
COMING Cap
5000070970 · qty on machine: 1 | |||||
| 8 | 5000070971 | Gasket | 1 | ADD TO CART | |
| 9 | 5000053995 | Dowel pin | 2 | A8 x 14 | ADD TO CART |
| 10 | 5000082000 | Gasket | 1 | ADD TO CART | |
| 11 | 5000071639 | Washer | 2 | ADD TO CART | |
| 12 | 5000054033 | Pin | 1 | ADD TO CART | |
| 13 | 5000071640 | Governor shaft | 1 | PARTS REQUEST | |
|
COMING Governor shaft
5000071640 · qty on machine: 1 | |||||
| 14 | 5000081755 | Kit-governor | 1 | ADD TO CART | |
| 15 | 5000070953 | Slider | 1 | ADD TO CART | |
| 16 | 5000070959 | Washer | 1 | ADD TO CART | |
| 17 | 5000076934 | Governor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 22 | 5000071639 | Washer | 2 | ADD TO CART | |
| 23 | 5000082001 | Cylinder | 1 | ADD TO CART | |
| 26 | 5000070964 | Plug (threaded) | 2 | ADD TO CART | |
| 27 | 5000072333 | Screw | 2 | M6 x 12 10Nm/7ft.lbs | ADD TO CART |
| 28 | 5000071082 | O-ring | 1 | 14 x 1,3 | ADD TO CART |
| 29 | 5000072331 | Oil alert switch assy. | 1 | ADD TO CART | |
| 30 | 5000072332 | Flange nut | 1 | PARTS REQUEST | |
|
COMING Flange nut
5000072332 · qty on machine: 1 | |||||

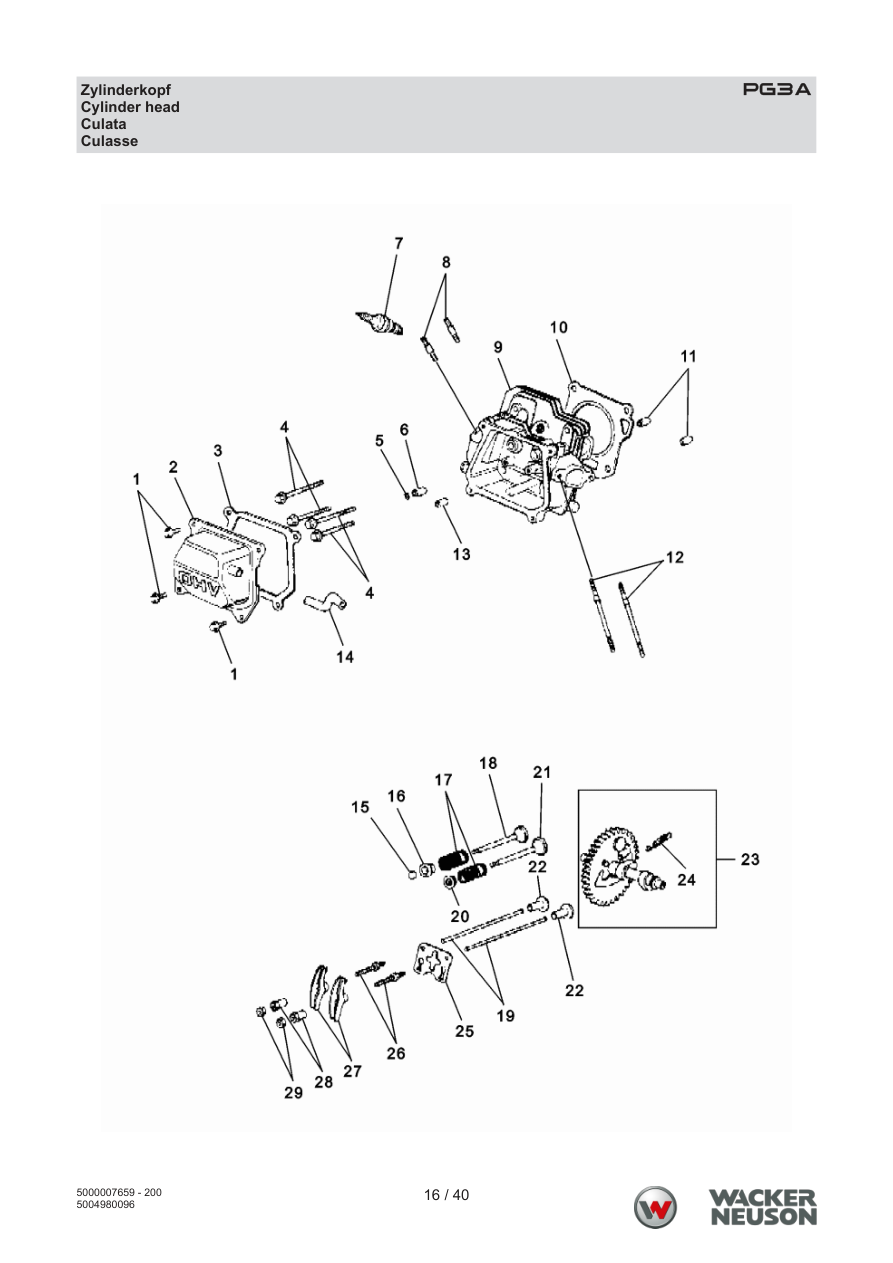

Page 16 — PG3A Cylinder head
Parts list — exactly as printed29 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000053990 | Screw | 4 | M6 x 12 10Nm/7ft.lbs | ADD TO CART |
| 2 | 5000070839 | Cylinder head cover | 1 | ADD TO CART | |
| 3 | 5000070942 | Gasket | 1 | ADD TO CART | |
| 4 | 5000071626 | Screw | 4 | M8 x 60 | ADD TO CART |
| 5 | 5000081744 | Retaining ring | 1 | ADD TO CART | |
| 6 | 5000070944 | Valve guide | 1 | ADD TO CART | |
| 7 | 5000075800 | Spark plug | 1 | ADD TO CART | |
| 8 | 5000070948 | Stud | 2 | M8 x 32 | ADD TO CART |
| 9 | 5000082002 | Cylinder head | 1 | ADD TO CART | |
| 10 | 5000082003 | Cylinder head gasket | 1 | ADD TO CART | |
| 11 | 5000070950 | Dowel pin | 2 | ADD TO CART | |
| 12 | 5000073263 | Stud | 2 | M6 x 109 | ADD TO CART |
| 13 | 5000070945 | Valve guide | 1 | PARTS REQUEST | |
|
COMING Valve guide
5000070945 · qty on machine: 1 | |||||
| 14 | 5000081761 | Breather tube | 1 | ADD TO CART | |
| 15 | 5000070998 | Rotator valve cap | 1 | ADD TO CART | |
| 16 | 5000070997 | Spring holder | 1 | ADD TO CART | |
| 17 | 5000081760 | Spring | 2 | ADD TO CART | |
| 18 | 5000082006 | Exhaust valve | 1 | PARTS REQUEST | |
|
COMING Exhaust valve
5000082006 · qty on machine: 1 | |||||
| 19 | 5000071637 | Push rod (valve lifter) | 2 | ADD TO CART | |
| 20 | 5000070996 | Holder | 1 | ADD TO CART | |
| 21 | 5000082005 | Intake valve | 1 | ADD TO CART | |
| 22 | 5000070990 | Valve tappet | 2 | ADD TO CART | |
| 23 | 5000073266 | Camshaft | 1 | ADD TO CART | |
| 24 | 5000151028 | Spring | 1 | ADD TO CART | |
| 25 | 5000073265 | Plate | 1 | ADD TO CART | |
| 26 | 5000072778 | Stud | 2 | ADD TO CART | |
| 27 | 5000070986 | Rocker arm | 2 | ADD TO CART | |
| 28 | 5000070985 | Rocker arm pivot | 2 | ADD TO CART | |
| 29 | 5000070984 | Locknut | 2 | ADD TO CART | |

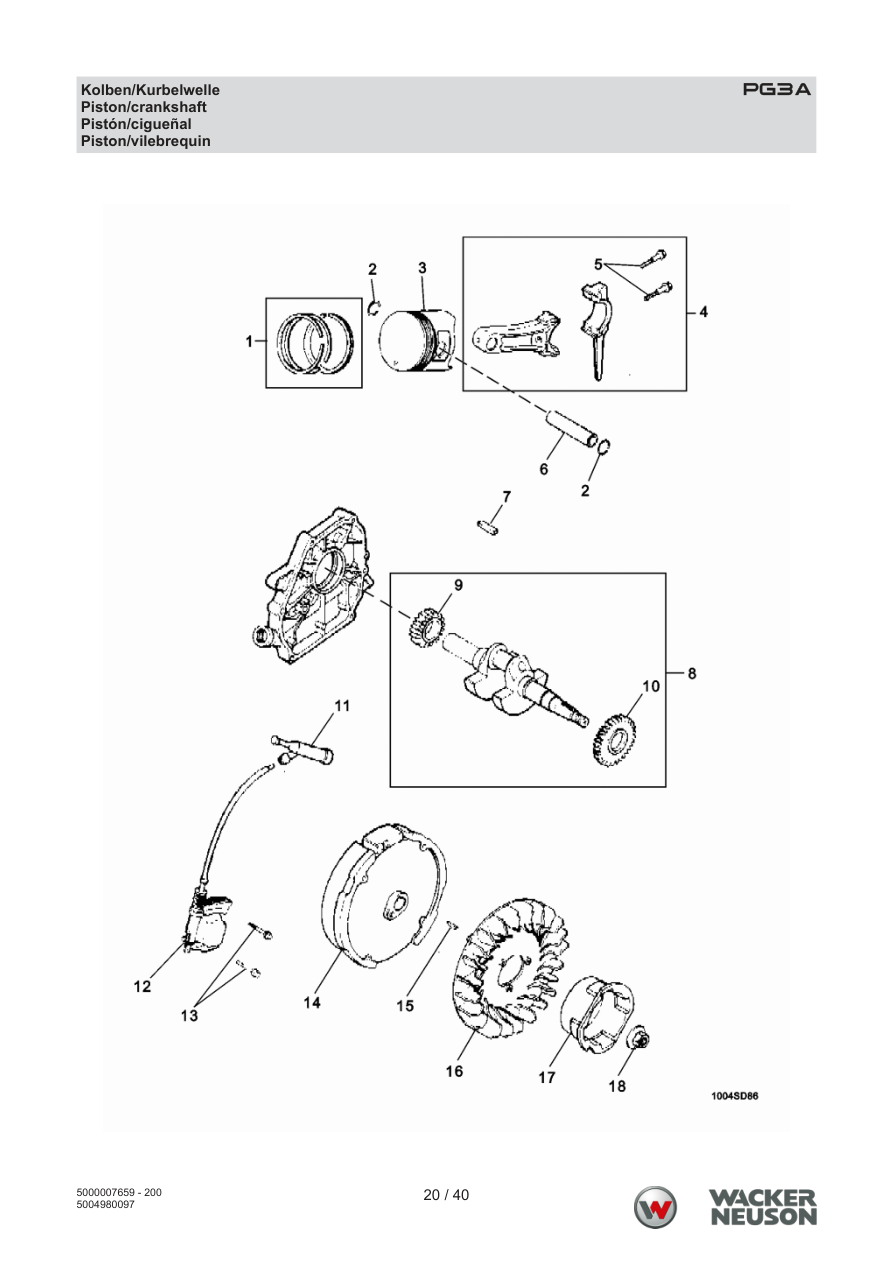

Page 20 — PG3A Piston/Crankshaft
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000081994 | Retaining ring | 2 | ADD TO CART | |
| 4 | 5000071647 | Connecting rod | 1 | ADD TO CART | |
| 5 | 5000071007 | Screw | 2 | M7 x 35 | ADD TO CART |
| 6 | 5000071648 | Piston pin | 1 | ADD TO CART | |
| 7 | 5000070999 | Fitting key | 1 | 4,78 x 38 | ADD TO CART |
| 8 | 5000072590 | Crankshaft | 1 | PARTS REQUEST | |
|
COMING Crankshaft
5000072590 · qty on machine: 1 | |||||
| 9 | 5000071642 | Gear | 1 | ADD TO CART | |
| 10 | 5000071643 | Gear | 1 | ADD TO CART | |
| 11 | 5000070974 | Spark plug terminal cap | 1 | ADD TO CART | |
| 12 | 5000070973 | Ignition coil | 1 | PARTS REQUEST | |
|
COMING Ignition coil
5000070973 · qty on machine: 1 | |||||
| 13 | 5000081737 | Screw | 2 | M6 x 25 | ADD TO CART |
| 15 | 5000068967 | Woodruff key | 1 | 25 x 18 | ADD TO CART |
| 16 | 5000071652 | Fan | 1 | ADD TO CART | |
| 17 | 5000081779 | Starter pulley | 1 | ADD TO CART | |
| 18 | 5000054005 | Nut | 1 | ADD TO CART | |

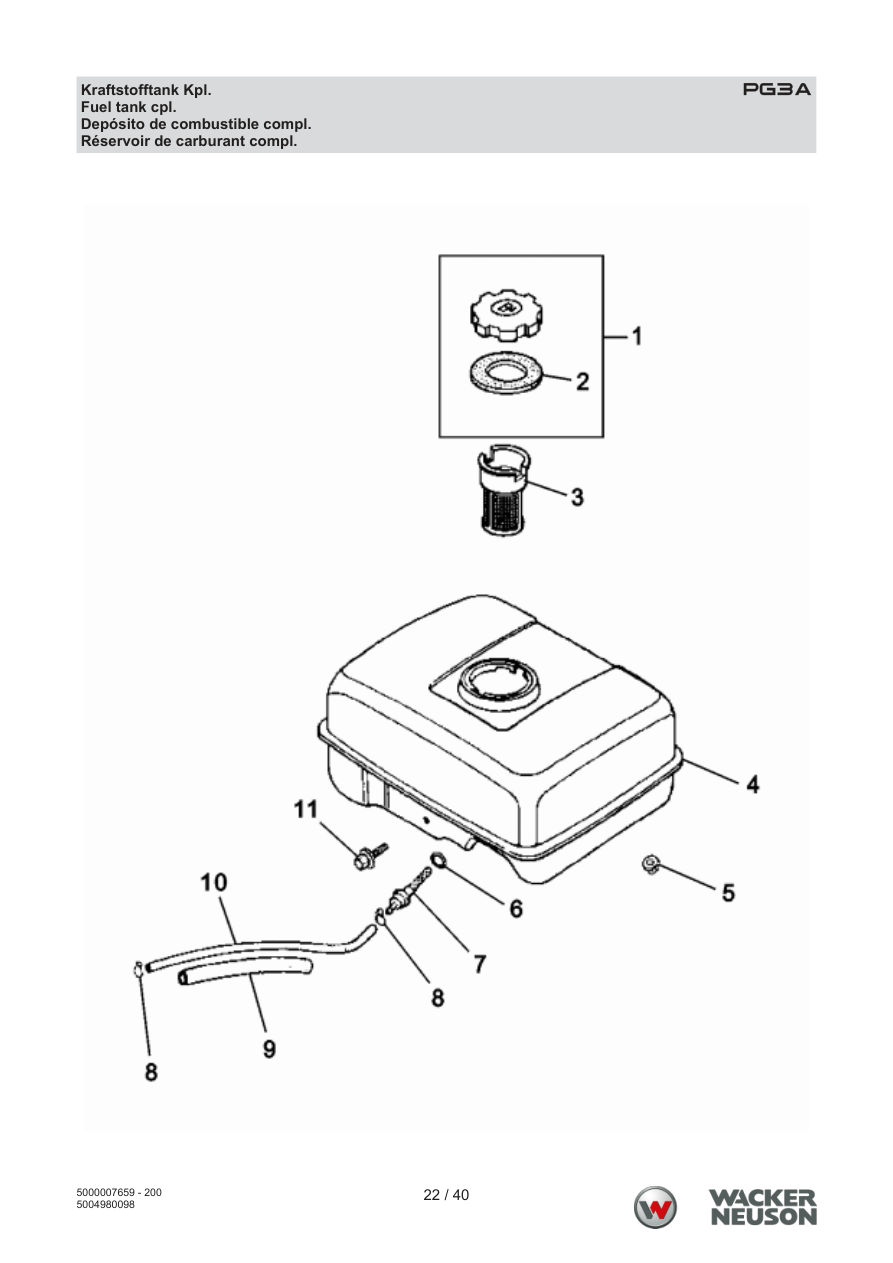

Page 22 — Fuel tank complete
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 5 | 5000071056 | Nut | 2 | ADD TO CART | |
| 6 | 5000071082 | O-ring | 1 | 14 x 1,3 | ADD TO CART |
| 7 | 5000071083 | Fuel filter | 1 | ADD TO CART | |
| 8 | 5000054136 | Hose clamp | 2 | ADD TO CART | |
| 9 | 5000081764 | Protective hose | 1 | ADD TO CART | |
| 10 | 5000077733 | Hose | 1 | ADD TO CART | |
| 11 | 5000071081 | Screw | 1 | M6 x 25 10Nm/7ft.lbs | ADD TO CART |

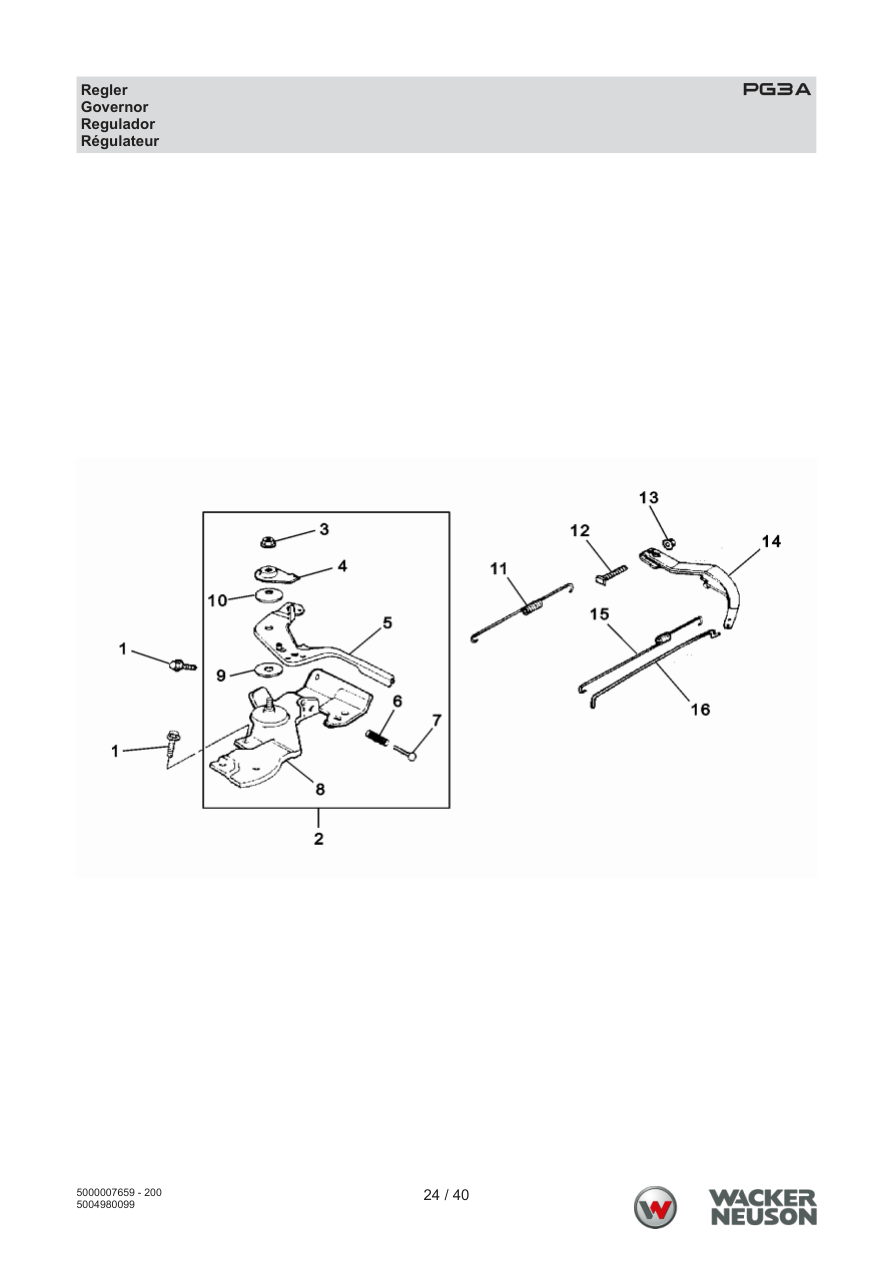

Page 24 — PG3A Regulator
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000053990 | Screw | 2 | M6 x 12 10Nm/7ft.lbs | ADD TO CART |
| 2 | 5000110727 | Governor kit | 1 | PARTS REQUEST | |
|
COMING Governor kit
5000110727 · qty on machine: 1 | |||||
| 3 | 5000072782 | Locknut | 1 | ADD TO CART | |
| 4 | 5000071057 | Washer | 1 | ADD TO CART | |
| 5 | 5000082011 | Lever | 1 | ADD TO CART | |
| 6 | 5000054088 | Adjusting spring | 1 | ADD TO CART | |
| 7 | 5000081732 | Screw | 1 | M5 x 25 | PARTS REQUEST |
|
COMING Screw
5000081732 · qty on machine: 1 M5 x 25 | |||||
| 8 | 5000084642 | Control cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Control cpl.
5000084642 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 9 | 5000071064 | Spacer | 1 | ADD TO CART | |
| 10 | 5000071058 | Spring | 1 | ADD TO CART | |
| 11 | 5000081992 | Governor spring | 1 | ADD TO CART | |
| 12 | 5000068966 | Screw | 1 | ADD TO CART | |
| 13 | 5000071056 | Nut | 1 | ADD TO CART | |
| 14 | 5000081742 | Governor lever | 1 | ADD TO CART | |
| 15 | 5000071664 | Spring | 1 | ADD TO CART | |
| 16 | 5000071663 | Rod | 1 | ADD TO CART | |

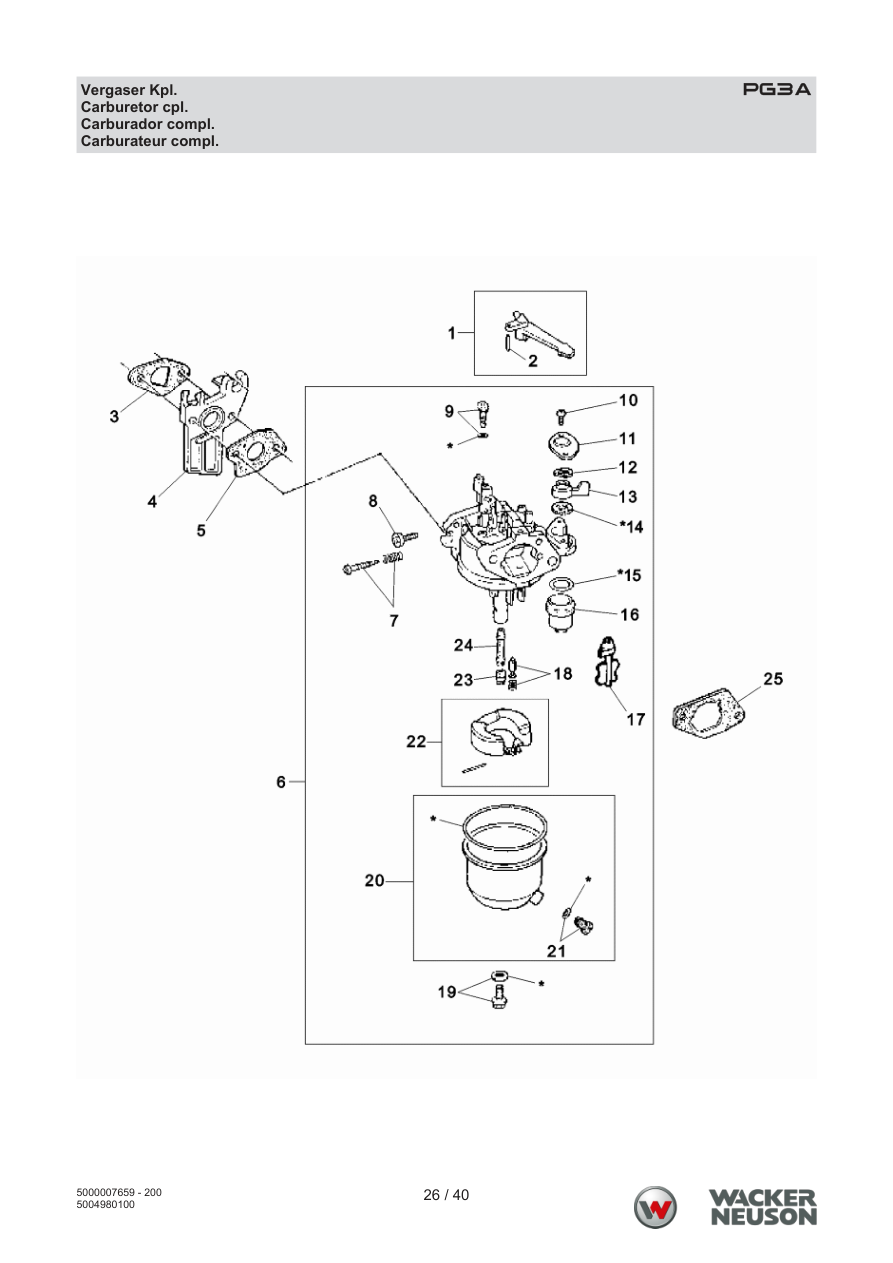

Page 26 — Carburetor cpl.
Parts list — exactly as printed28 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000071013 | Choke control lever | 1 | ADD TO CART | |
| 2 | 5000071014 | Pin | 1 | 2 x 12 | ADD TO CART |
| 3 | 5000082009 | Gasket | 1 | ADD TO CART | |
| 4 | 5000071670 | Insulator | 1 | ADD TO CART | |
| 5 | 5000081762 | Gasket | 1 | ADD TO CART | |
| 6 | 5000082007 | Carburetor | 1 | PARTS REQUEST | |
|
COMING Carburetor
5000082007 · qty on machine: 1 | |||||
| 7 | 5000089286 | Setscrew | 1 | ADD TO CART | |
| 8 | 5000071018 | Throttle stop screw | 1 | ADD TO CART | |
| 9 | 5000071016 | Pilot jet | 1 | ADD TO CART | |
| 9 | 5000081997 | Set-pilot jet | 1 | ADD TO CART | |
| 10 | 5000081614 | Screw | 2 | M3 x 8 | PARTS REQUEST |
|
COMING Screw
5000081614 · qty on machine: 2 M3 x 8 | |||||
| 11 | 5000073269 | Plate | 1 | ADD TO CART | |
| 12 | 5000073270 | Spring washer | 1 | ADD TO CART | |
| 13 | 5000073271 | Fuel valve lever | 1 | ADD TO CART | |
| 14 | 5000073272 | Gasket | 1 | ADD TO CART | |
| 15 | 5000071024 | Gasket | 1 | ADD TO CART | |
| 16 | 5000071023 | Fuel filter | 1 | ADD TO CART | |
| 17 | 5000071025 | Set-engine choke | 1 | ADD TO CART | |
| 18 | 5000071022 | Set-float valve | 1 | ADD TO CART | |
| 19 | 5000071021 | Screw w/washer | 1 | ADD TO CART | |
| 20 | 5000076940 | Set-float chamber | 1 | PARTS REQUEST | |
|
COMING Set-float chamber
5000076940 · qty on machine: 1 | |||||
| 21 | 5000073273 | Screw w/washer | 1 | ADD TO CART | |
| 22 | 5000071020 | Set-carburetor float | 1 | ADD TO CART | |
| 23 | 5000085939 | Jet | 1 | PARTS REQUEST | |
|
COMING Jet
5000085939 · qty on machine: 1 | |||||
| 23 | 5000082021 | Main jet | 1 | PARTS REQUEST | |
|
COMING Main jet
5000082021 · qty on machine: 1 | |||||
| 23 | 5000085938 | Jet | 1 | ADD TO CART | |
| 24 | 5000082008 | Main jet | 1 | ADD TO CART | |
| 25 | 5000071015 | Spacer | 1 | ADD TO CART | |

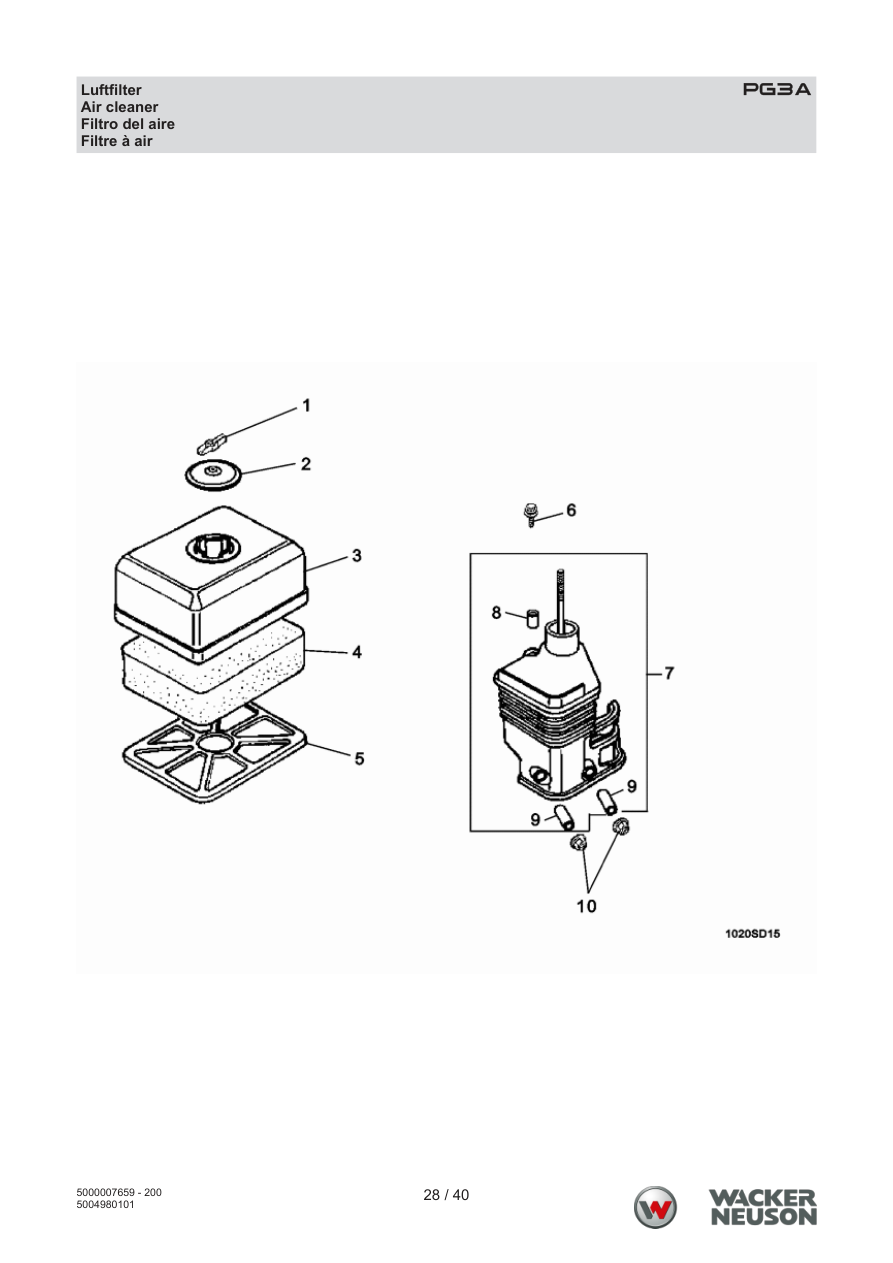

Page 28 — PG3A Air filter
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000071027 | Wing nut | 1 | ADD TO CART | |
| 2 | 5000071028 | Cap | 1 | ADD TO CART | |
| 3 | 5000072900 | Air cleaner cover | 1 | ADD TO CART | |
| 4 | 5000072898 | Air cleaner element | 1 | ADD TO CART | |
| 5 | 5000072899 | Bracket | 1 | ADD TO CART | |
| 6 | 5000071036 | Screw | 1 | M6 x 20 10Nm/7ft.lbs | ADD TO CART |
| 7 | 5000081993 | Air cleaner mount | 1 | ADD TO CART | |
| 8 | 5000071035 | Sleeve | 1 | ADD TO CART | |
| 9 | 5000081746 | Sleeve | 2 | ADD TO CART | |
| 10 | 5000071056 | Nut | 2 | ADD TO CART | |

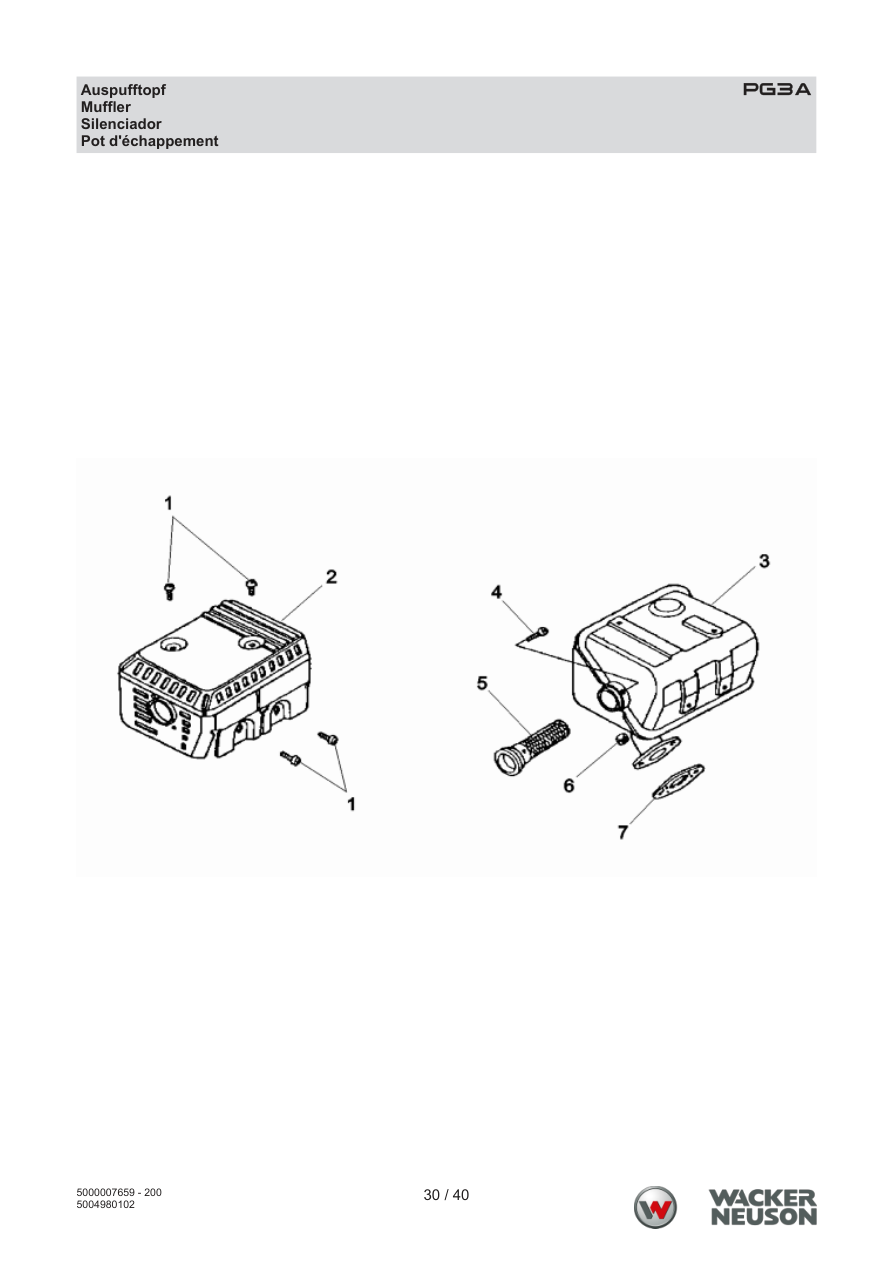

Page 30 — PG3A Muffler
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000071070 | Screw | 4 | M5 x 8 | ADD TO CART |
| 2 | 5000081767 | Guard | 1 | ADD TO CART | |
| 3 | 5000081765 | Muffler | 1 | ADD TO CART | |
| 4 | 5000071073 | Screw | 1 | M4 x 6 | ADD TO CART |
| 5 | 5000071075 | Spark arrester | 1 | ADD TO CART | |
| 6 | 5000071076 | Nut | 2 | ADD TO CART | |
| 7 | 5000081768 | Gasket | 1 | ADD TO CART | |

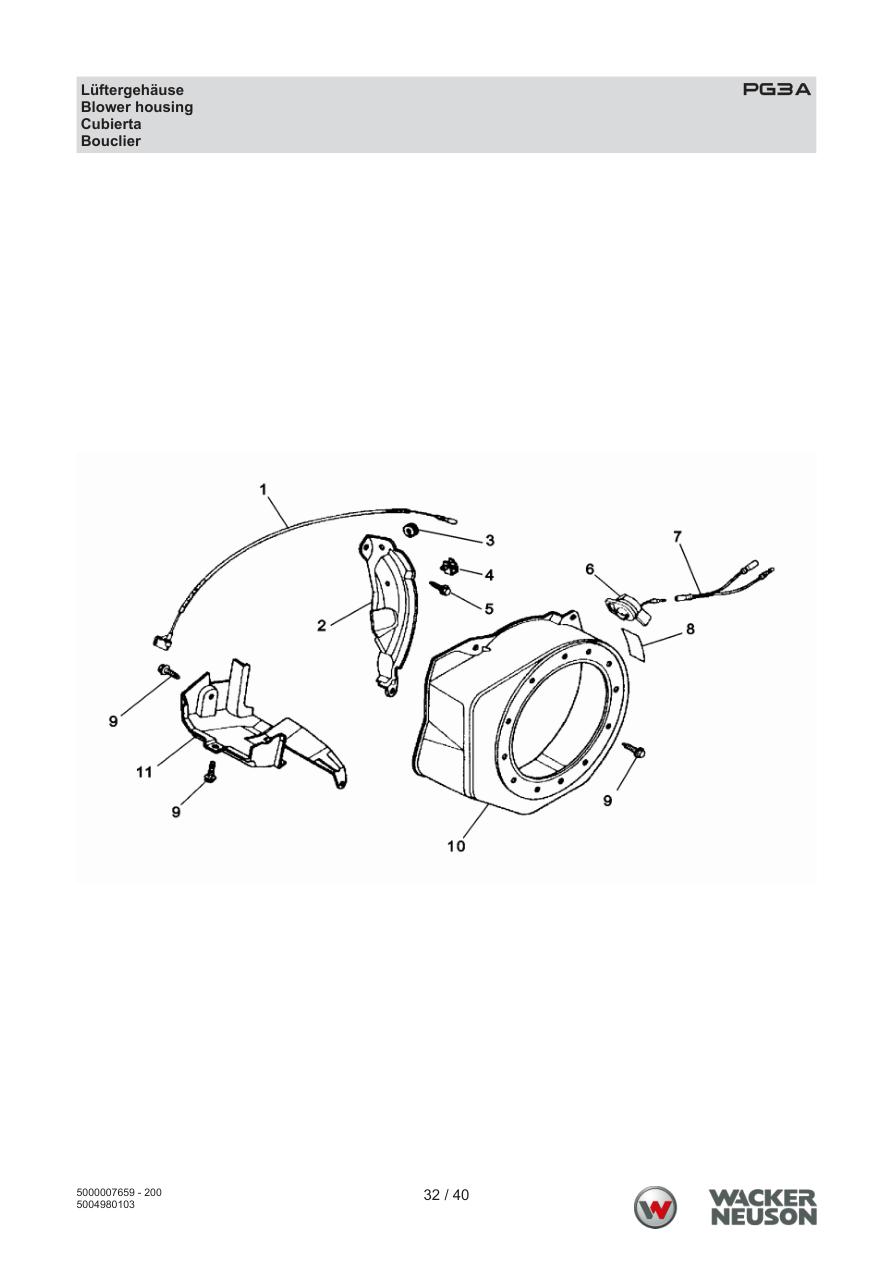

Page 32 — Blower housing
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000081663 | Short circuit cable | 1 | ADD TO CART | |
| 2 | 5000082014 | Plate | 1 | ADD TO CART | |
| 3 | 5000071813 | Rubber plug | 1 | ADD TO CART | |
| 4 | 5000072338 | Clamp | 1 | ADD TO CART | |
| 5 | 5000071055 | Screw | 1 | M6 x 20 10Nm/7ft.lbs | ADD TO CART |
| 6 | 5000054056 | Stop button switch | 1 | PARTS REQUEST | |
|
COMING Stop button switch
5000054056 · qty on machine: 1 | |||||
| 7 | 5000086764 | Short circuit cable | 1 | ADD TO CART | |
| 8 | 5000081805 | Label | 1 | ADD TO CART | |
| 9 | 5000053990 | Screw | 6 | M6 x 12 10Nm/7ft.lbs | ADD TO CART |
| 10 | 5000081999 | Flywheel housing | 1 | ADD TO CART | |
| 11 | 5000082015 | Duct | 1 | ADD TO CART | |

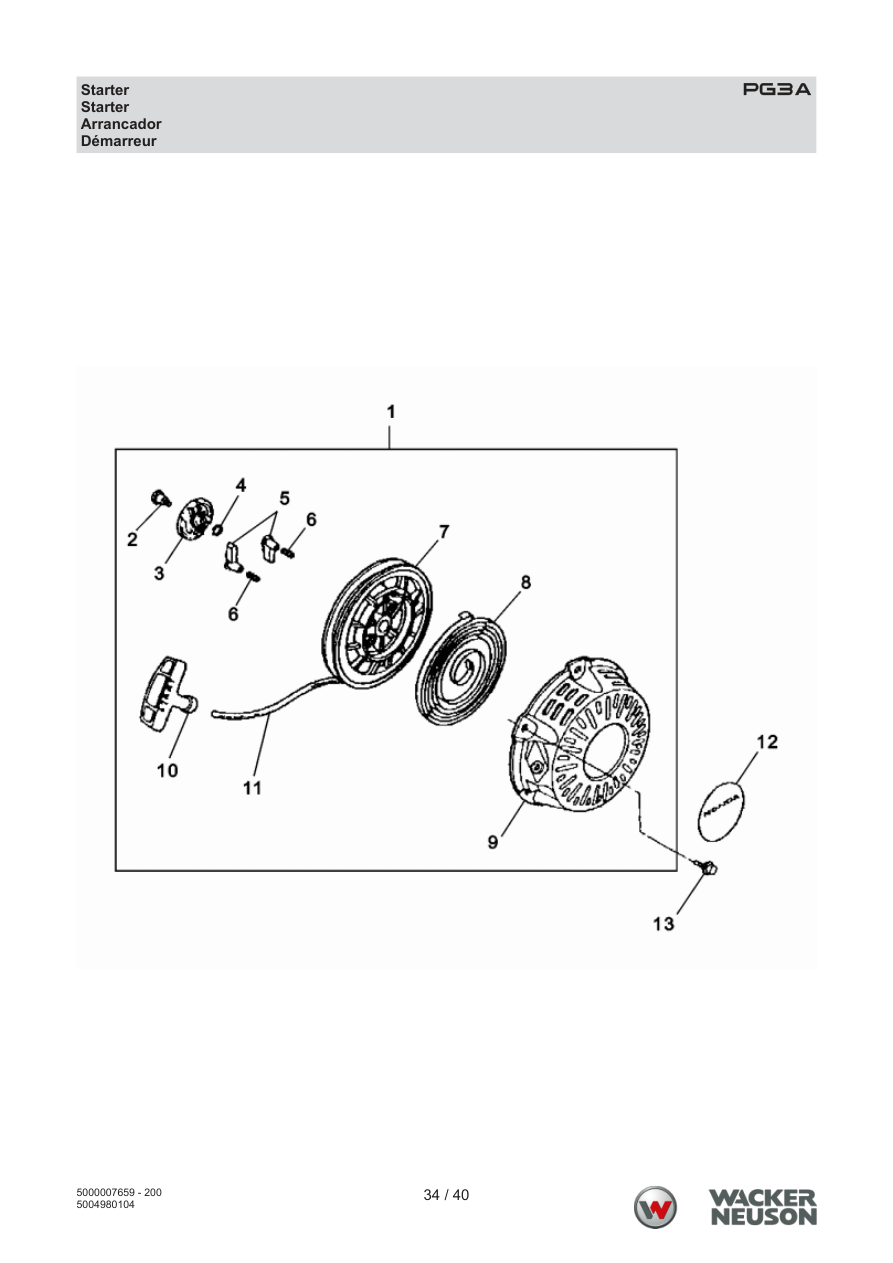

Page 34 — PG3A Starter
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000081771 | Starter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5000081782 | Screw | 1 | ADD TO CART | |
| 3 | 5000081775 | Starter ratchet guide | 1 | PARTS REQUEST | |
|
COMING Starter ratchet guide
5000081775 · qty on machine: 1 | |||||
| 4 | 5000081776 | Friction spring | 1 | ADD TO CART | |
| 5 | 5000081774 | Ratchet (pawl) | 2 | ADD TO CART | |
| 6 | 5000081778 | Spring | 2 | ADD TO CART | |
| 7 | 5000081773 | Starter reel | 1 | ADD TO CART | |
| 8 | 5000081777 | Spring | 1 | ADD TO CART | |
| 9 | 5000081772 | Starter housing | 1 | ADD TO CART | |
| 10 | 5000081780 | Starter handle | 1 | ADD TO CART | |
| 11 | 5000081781 | Rope | 1 | ADD TO CART | |
| 13 | 5000081750 | Screw | 3 | M6 x 8 | ADD TO CART |

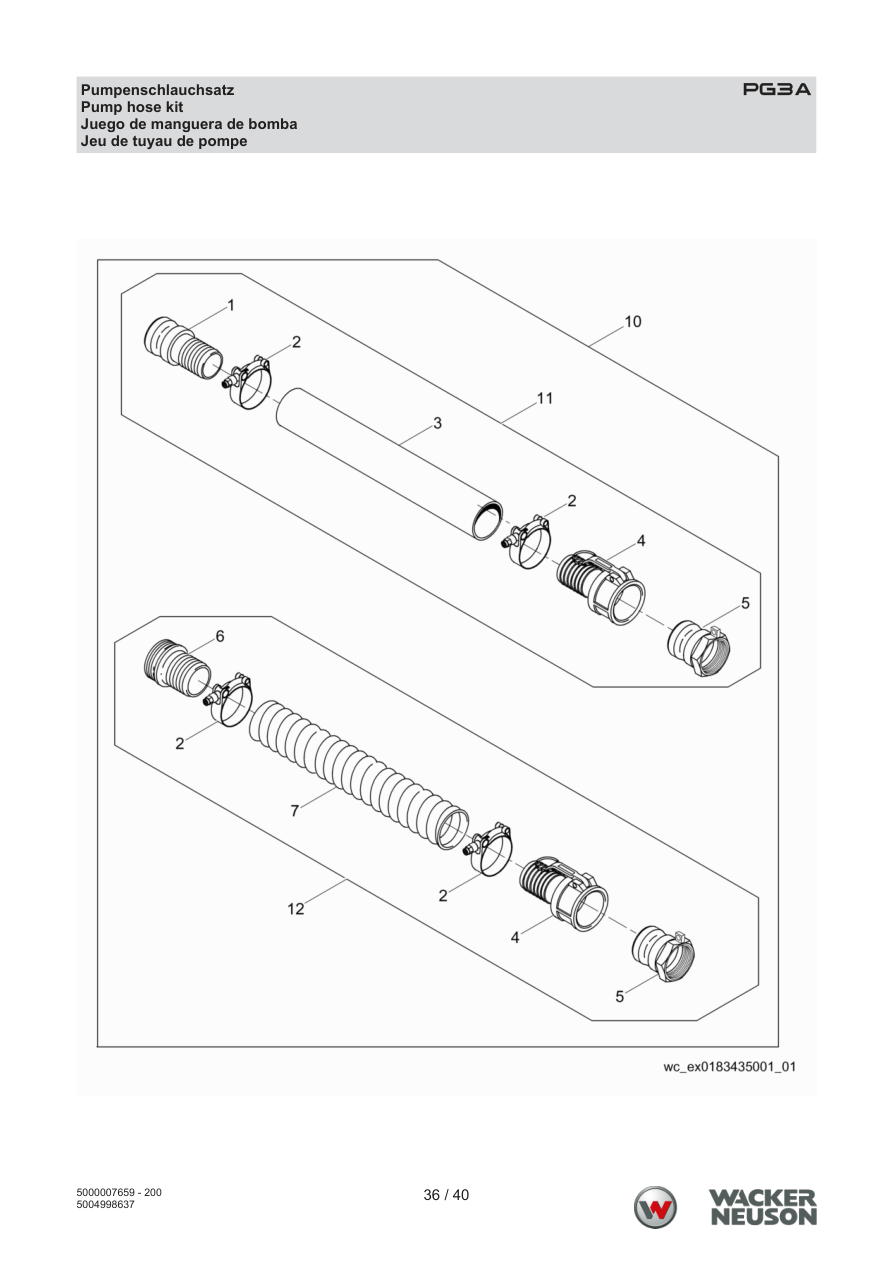

Page 36 — PG3A Pump hose kit
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000070340 | Quick disconnect coupling | 1 | PARTS REQUEST | |
|
COMING Quick disconnect coupling
5000070340 · qty on machine: 1 | |||||
| 2 | 5000028699 | Clamp | 4 | PARTS REQUEST | |
|
COMING Clamp
5000028699 · qty on machine: 4 | |||||
| 3 | 5000182858 | Discharge hose | 1 | 3in ID x 1270mm/50ft | ADD TO CART |
| 4 | 5000051453 | Quick disconnect coupling | 2 | PARTS REQUEST | |
|
COMING Quick disconnect coupling
5000051453 · qty on machine: 2 | |||||
| 5 | 5000051450 | Quick disconnect coupling | 2 | PARTS REQUEST | |
|
COMING Quick disconnect coupling
5000051450 · qty on machine: 2 | |||||
| 6 | 5000028071 | Hose coupling | 1 | ADD TO CART | |
| 7 | 5000028068 | Suction hose | 1 | 3in ID x 508mm/20ft | PARTS REQUEST |
|
COMING Suction hose
5000028068 · qty on machine: 1 3in ID x
508mm/20ft | |||||
| 10 | 5000183440 | Hose connection kit | 1 | PARTS REQUEST | |
|
COMING Hose connection kit
5000183440 · qty on machine: 1 | |||||
| 11 | 5000182860 | Discharge hose cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Discharge hose cpl.
5000182860 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 12 | 5000182862 | Suction hose cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
The machine itself
Machine
Engine
Wacker Neuson PG3 clear water pump.
List price: $1,030.00
Keep-it-running spares
All listed parts →Every part that fits this machine
5000028068
Suction hose
5000028071
Hose coupling
$30.95
5000028699
Clamp
5000051450
Quick disconnect coupling
5000051453
Quick disconnect coupling
5000053983
Shaft seal
$10.95
5000053984
Ball bearing
$59.95
5000053990
Screw
$2.95
5000053995
Dowel pin
$3.95
5000054005
Nut
$12.95
5000054033
Pin
$1.95
5000054056
Stop button switch
5000054088
Adjusting spring
$8.95
5000054136
Hose clamp
$3.95
5000054956
Drain plug set
$7.95
5000054966
Hexagonal head cap screw
$1.95
5000054968
Hexagonal head cap screw
$0.95
5000054969
Socket head cap screw
$1.95
5000054992
Gasket
$3.95
5000054999
Washer
$1.95
5000068966
Screw
$5.95
5000068967
Woodruff key
$8.95
5000070000
Drain plug set
$11.95
5000070002
O-ring
$1.95
5000070004
Mechanical seal
$65.95
5000070010
Hexagonal head cap screw
$1.95
5000070014
Nut
$0.95
5000070340
Quick disconnect coupling
5000070839
Cylinder head cover
$33.95
5000070942
Gasket
$5.95
5000070944
Valve guide
$15.95
5000070945
Valve guide
5000070948
Stud
$7.95
5000070950
Dowel pin
$5.95
5000070953
Slider
$6.95
5000070959
Washer
$2.95
5000070963
Washer
$1.95
5000070964
Plug (threaded)
$5.95
5000070970
Cap
5000070971
Gasket
$3.95
5000070973
Ignition coil
5000070974
Spark plug terminal cap
$40.95
5000070984
Locknut
$7.95
5000070985
Rocker arm pivot
$10.95
5000070986
Rocker arm
$12.95
5000070990
Valve tappet
$24.95
5000070996
Holder
$1.95
5000070997
Spring holder
$17.95
5000070998
Rotator valve cap
$10.95
5000070999
Fitting key
$25.95
5000071007
Screw
$6.95
5000071013
Choke control lever
$18.95
5000071014
Pin
$2.95
5000071015
Spacer
$9.95
5000071016
Pilot jet
$39.95
5000071018
Throttle stop screw
$20.95
5000071020
Set-carburetor float
$52.95
5000071021
Screw w/washer
$22.95
5000071022
Set-float valve
$49.95
5000071023
Fuel filter
$24.95
5000071024
Gasket
$7.95
5000071025
Set-engine choke
$62.95
5000071027
Wing nut
$16.95
5000071028
Cap
$21.95
5000071035
Sleeve
$7.95
5000071036
Screw
$2.95
5000071055
Screw
$5.95
5000071056
Nut
$0.95
5000071057
Washer
$9.95
5000071058
Spring
$4.95
5000071064
Spacer
$9.95
5000071070
Screw
$2.95
5000071073
Screw
$0.95
5000071075
Spark arrester
$26.95
5000071076
Nut
$1.95
5000071081
Screw
$3.95
5000071082
O-ring
$3.95
5000071083
Fuel filter
$13.95
5000071626
Screw
$2.95
5000071630
Screw
$1.95
5000071637
Push rod (valve lifter)
$14.95
5000071639
Washer
$0.95
5000071640
Governor shaft
5000071642
Gear
$64.95
5000071643
Gear
$36.95
5000071647
Connecting rod
$22.95
5000071648
Piston pin
$21.95
5000071652
Fan
$50.95
5000071663
Rod
$7.95
5000071664
Spring
$4.95
5000071670
Insulator
$41.95
5000071813
Rubber plug
$15.95
5000072331
Oil alert switch assy.
$112.95
5000072332
Flange nut
5000072333
Screw
$2.95
5000072338
Clamp
$1.95
5000072590
Crankshaft
5000072777
Cover cpl.
$249.95
5000072778
Stud
$14.95
5000072782
Locknut
$6.95
5000072898
Air cleaner element
$9.95
5000072899
Bracket
$15.95
5000072900
Air cleaner cover
$71.95
5000072996
Washer
$1.95
5000073263
Stud
$11.95
5000073265
Plate
$6.95
5000073266
Camshaft
$273.95
5000073269
Plate
$7.95
5000073270
Spring washer
$4.95
5000073271
Fuel valve lever
$24.95
5000073272
Gasket
$4.95
5000073273
Screw w/washer
$17.95
5000074643
Oil filler cap
$7.95
5000075800
Spark plug
$7.95
5000076934
Governor cpl.
$29.95
5000076940
Set-float chamber
5000077657
Clamp
$2.95
5000077733
Hose
$136.95
5000081608
Gasket
$6.95
5000081614
Screw
5000081663
Short circuit cable
$19.95
5000081732
Screw
5000081737
Screw
$4.95
5000081742
Governor lever
$26.95
5000081744
Retaining ring
$1.95
5000081746
Sleeve
$7.95
5000081750
Screw
$7.95
5000081755
Kit-governor
$31.95
5000081760
Spring
$7.95
5000081761
Breather tube
$7.95
5000081762
Gasket
$2.95
5000081764
Protective hose
$8.95
5000081765
Muffler
$166.95
5000081767
Guard
$70.95
5000081768
Gasket
$4.95
5000081771
Starter cpl.
$199.95
5000081772
Starter housing
$161.95
5000081773
Starter reel
$78.95
5000081774
Ratchet (pawl)
$15.95
5000081775
Starter ratchet guide
5000081776
Friction spring
$10.95
5000081777
Spring
$31.95
5000081778
Spring
$10.95
5000081779
Starter pulley
$59.95
5000081780
Starter handle
$14.95
5000081781
Rope
$20.95
5000081782
Screw
$11.95
5000081805
Label
$6.95
5000081992
Governor spring
$9.95
5000081993
Air cleaner mount
$67.95
5000081994
Retaining ring
$1.95
5000081997
Set-pilot jet
$39.95
5000081999
Flywheel housing
$111.95
5000082000
Gasket
$8.95
5000082001
Cylinder
$761.95
5000082002
Cylinder head
$410.95
5000082003
Cylinder head gasket
$21.95
5000082005
Intake valve
$35.95
5000082006
Exhaust valve
5000082007
Carburetor
5000082008
Main jet
$44.95
5000082009
Gasket
$3.95
5000082011
Lever
$24.95
5000082014
Plate
$17.95
5000082015
Duct
$28.95
5000082018
Bearing
$42.95
5000082021
Main jet
5000084642
Control cpl.
5000085938
Jet
$11.95
5000085939
Jet
5000086663
Honda engine
5000086764
Short circuit cable
$19.95
5000089286
Setscrew
$35.95
5000110506
Pump case housing
$99.95
5000110507
Suction port
$24.95
5000110508
Flapper valve gasket
$9.95
5000110509
Mounting flange
$134.95
5000110510
Volute
$70.95
5000110511
Impeller
$36.95
5000110512
Discharge port
$34.95
5000110515
O-ring
$2.95
5000110600
Set-gaskets
$49.95
5000110727
Governor kit
5000113801
O-ring
$12.95
5000117434
Label sheet
$17.95
5000117452
Label-pg 3
$40.95
5000117980
Suction strainer
5000151028
Spring
$5.95
5000153795
Label
5000154384
Frame
$171.95
5000177770
Label-wacker neuson logo
$0.95
5000182858
Discharge hose
$103.95
5000182860
Discharge hose cpl.
5000182862
Suction hose cpl.
$300.95
5000183440
Hose connection kit
5000222084
Label symbol
$13.95
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
