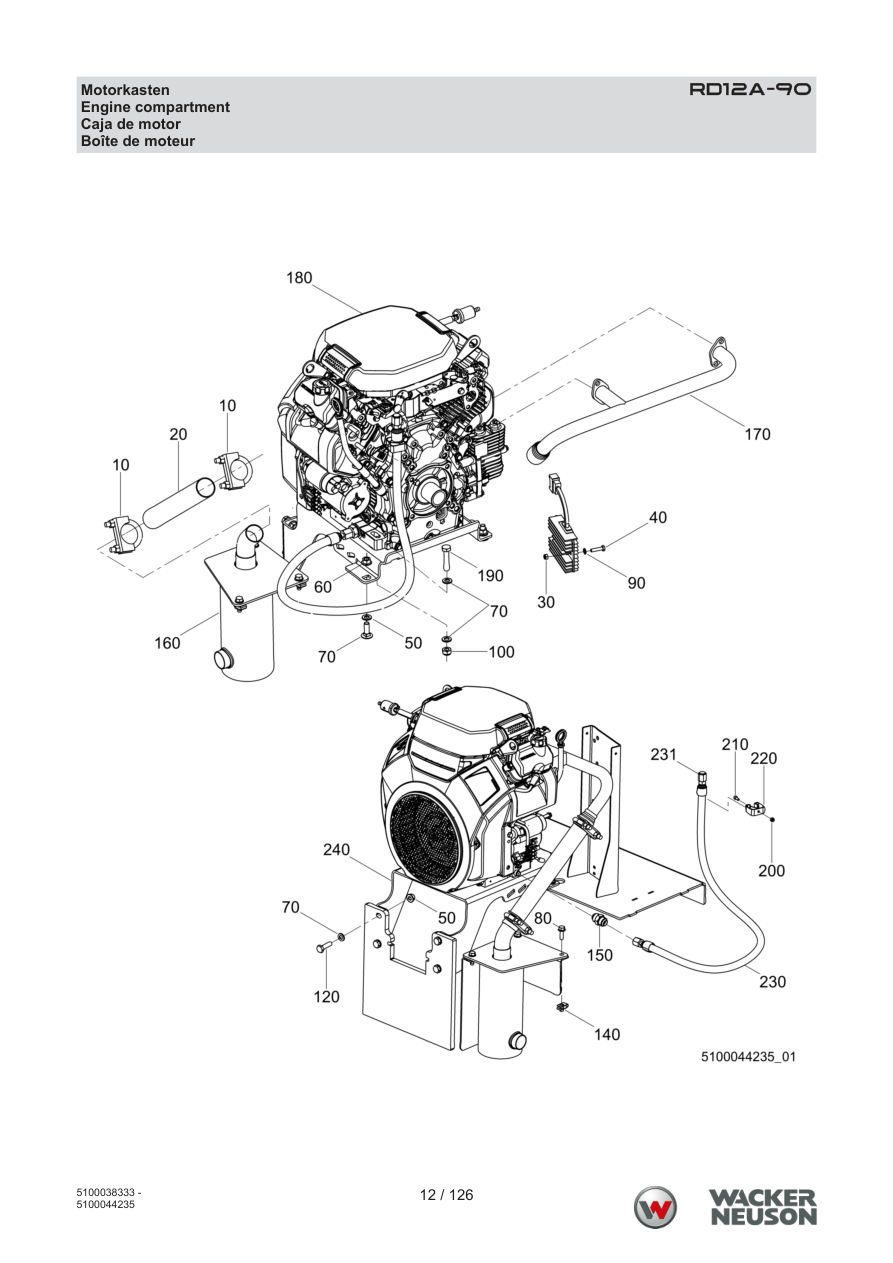

Need the PDF? ↓Page 12 — RD12A-90 Motorkasten
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000164412 | pc | 2 | ADD TO CART | |
| 20 | 5100039867 | pc | 1 | ADD TO CART | |
| 30 | 5000011469 | pc | 2 | Hexagonal head cap screw | ADD TO CART |
| 40 | 5000174694 | pc | 2 | ADD TO CART | |
| 50 | 5000096087 | pc | 6 | ADD TO CART | |
| 60 | 5100046319 | pc | 2 | ADD TO CART | |
| 70 | 5000010621 | pc | 14 | ADD TO CART | |
| 80 | 5000163947 | pc | 3 | Hexagonal flange head screw | PARTS REQUEST |
|
COMING pc
5000163947 · qty on machine: 3 Hexagonal flange head screw | |||||
| 90 | 5000010368 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5000010368 · qty on machine: 2 | |||||
| 100 | 5100046317 | pc | 4 | ADD TO CART | |
| 120 | 5100046345 | pc | 4 | Hexagonal flange head screw | ADD TO CART |
| 140 | 5000110969 | pc | 3 | ADD TO CART | |
| 150 | 5000181149 | pc | 1 | ADD TO CART | |
| 160 | 5100036628 | pc | 1 | ADD TO CART | |
| 170 | 5100037089 | pc | 1 | ADD TO CART | |
| 180 | 5100036105 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100036105 · qty on machine: 1 | |||||
| 190 | 1000357182 | pc | 4 | ADD TO CART | |
| 200 | 5000010370 | pc | 1 | ADD TO CART | |
| 210 | 5000011572 | pc | 1 | Cheese head screw | ADD TO CART |
| 220 | 5000153747 | pc | 1 | ADD TO CART | |
| 230 | 5100037962 | pc | 1 | Oil drain hose | ADD TO CART |
| 231 | 5000168840 | pc | 1 | ADD TO CART | |
| 240 | 5100043148 | pc | 1 | ADD TO CART | |

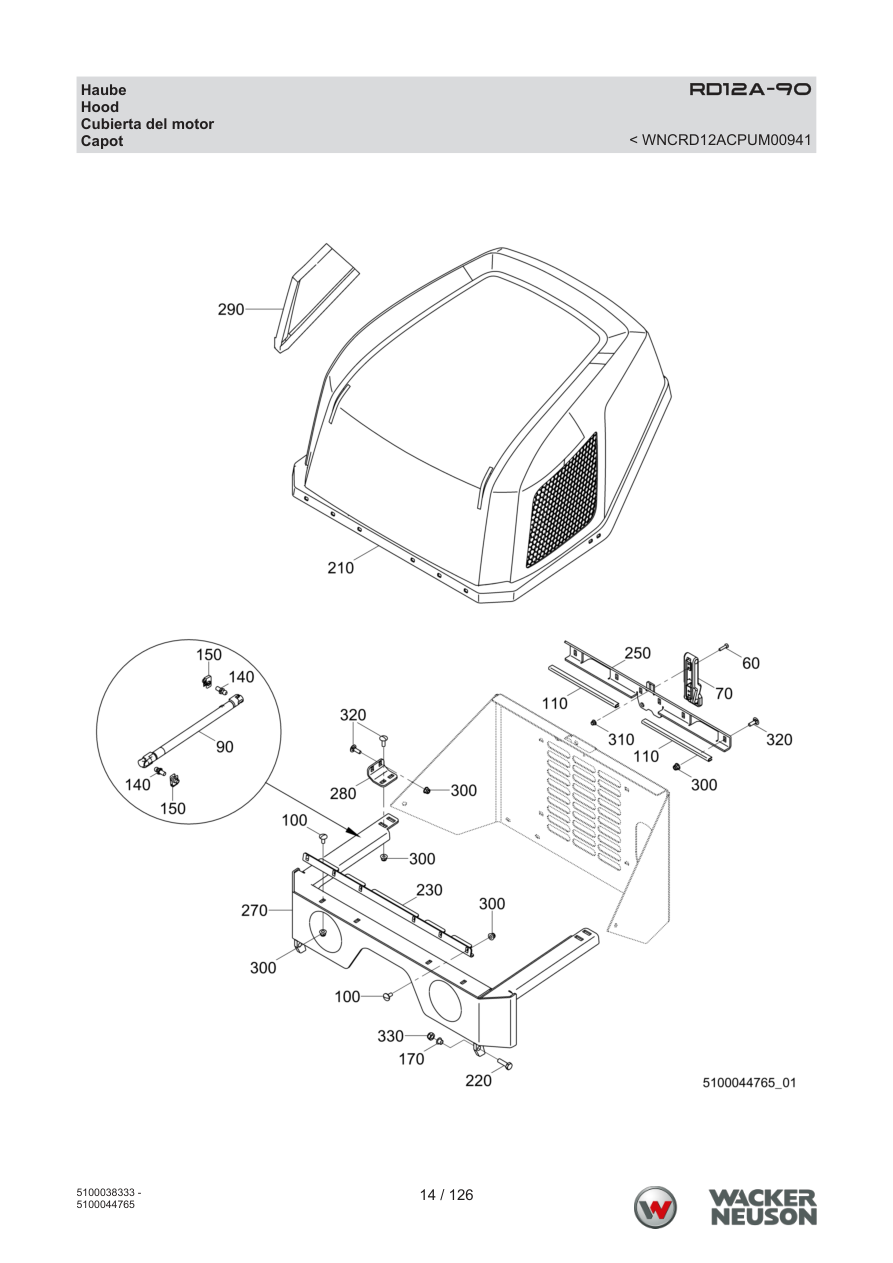

Page 14 — RD12A-90 Haube
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 60 | 5000011475 | pc | 4 | Hexagonal head cap screw | ADD TO CART |
| 70 | 5100038051 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100038051 · qty on machine: 1 | |||||
| 90 | 5000164669 | pc | 1 | ADD TO CART | |
| 100 | 5000163954 | pc | 10 | ADD TO CART | |
| 110 | 5100038056 | pc | 2 | ADD TO CART | |
| 140 | 5000155125 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5000155125 · qty on machine: 2 | |||||
| 150 | 5000110969 | pc | 2 | ADD TO CART | |
| 170 | 5000164538 | pc | 2 | ADD TO CART | |
| 210 | 5100037941 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100037941 · qty on machine: 1 | |||||
| 220 | 5000011438 | pc | 2 | Hexagonal head cap screw | ADD TO CART |
| 230 | 5100043017 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100043017 · qty on machine: 1 | |||||
| 250 | 5100043019 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100043019 · qty on machine: 1 | |||||
| 270 | 5100043021 | pc | 1 | ADD TO CART | |
| 280 | 5100043020 | pc | 2 | ADD TO CART | |
| 290 | 5100043182 | pc | 1 | ADD TO CART | |
| 300 | 5100045993 | pc | 24 | ADD TO CART | |
| 310 | 1000342931 | pc | 4 | PARTS REQUEST | |
|
COMING pc
1000342931 · qty on machine: 4 | |||||
| 320 | 5000163950 | pc | 14 | PARTS REQUEST | |
|
COMING pc
5000163950 · qty on machine: 14 | |||||
| 330 | 5000010365 | pc | 2 | ADD TO CART | |
| 210 | 5100046098 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100046098 · qty on machine: 1 | |||||
| 210 | 5100057655 | pc | 1 | Hood-rd12 gas honda | ADD TO CART |

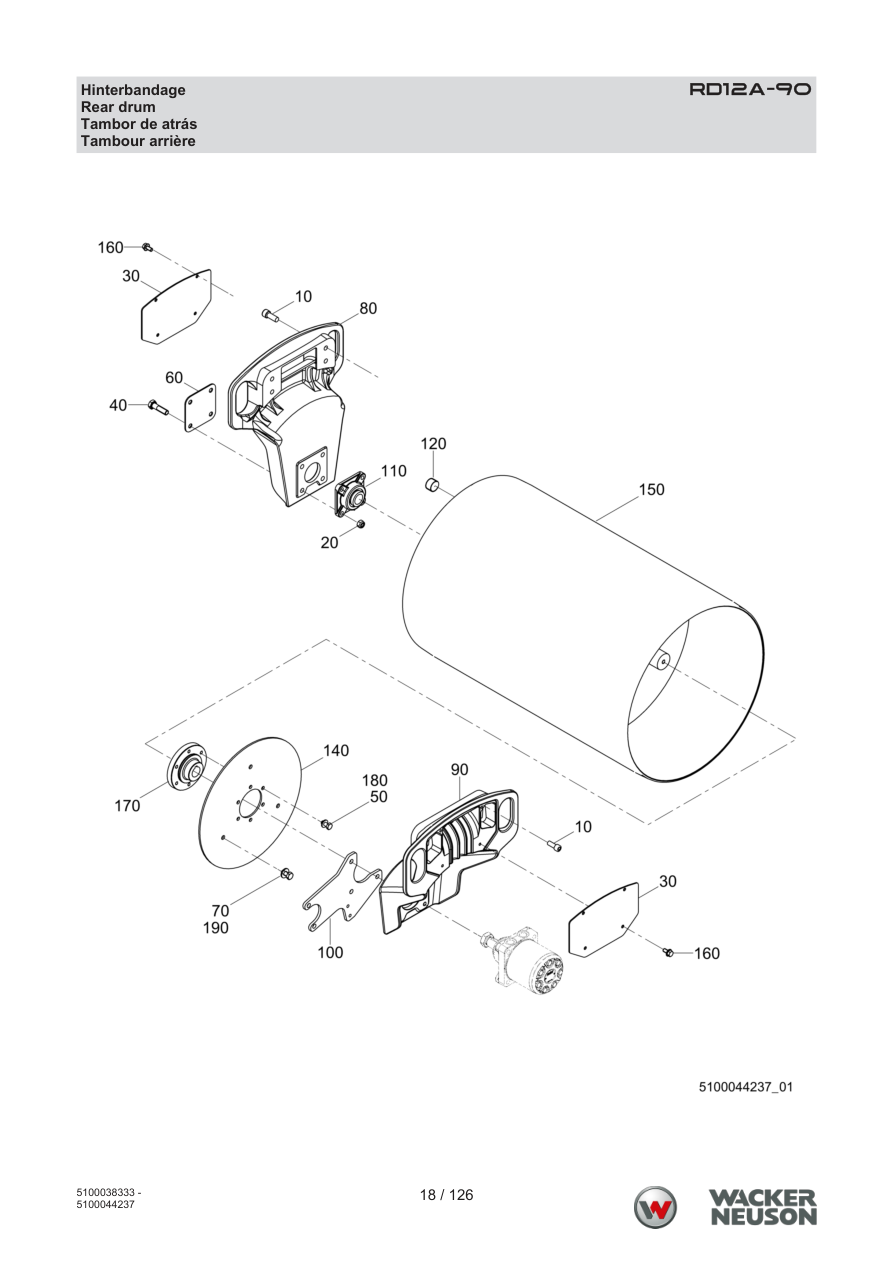

Page 18 — RD12A-90 Hinterbandage
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000011529 | pc | 8 | Cheese head screw | ADD TO CART |
| 20 | 5000010366 | pc | 4 | ADD TO CART | |
| 30 | 5100037321 | pc | 2 | ADD TO CART | |
| 40 | 5000011300 | pc | 4 | Hexagonal head cap screw | ADD TO CART |
| 50 | 5000011440 | pc | 6 | Hexagonal head cap screw | ADD TO CART |
| 60 | 5000112692 | pc | 1 | ADD TO CART | |
| 70 | 5000016433 | pc | 3 | Hexagonal head cap screw | ADD TO CART |
| 80 | 5100036852 | pc | 1 | ADD TO CART | |
| 90 | 5100036850 | pc | 1 | ADD TO CART | |
| 100 | 5100037530 | pc | 1 | ADD TO CART | |
| 110 | 5000111048 | pc | 1 | ADD TO CART | |
| 120 | 5000078305 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000078305 · qty on machine: 1 | |||||
| 140 | 5000111135 | pc | 1 | ADD TO CART | |
| 150 | 5100036855 | pc | 1 | ADD TO CART | |
| 160 | 5000163948 | pc | 8 | Hexagonal flange head screw | ADD TO CART |
| 170 | 5100040754 | pc | 1 | Hub and drum | ADD TO CART |
| 180 | 5000033988 | pc | 6 | ADD TO CART | |
| 190 | 5000031565 | pc | 3 | ADD TO CART | |

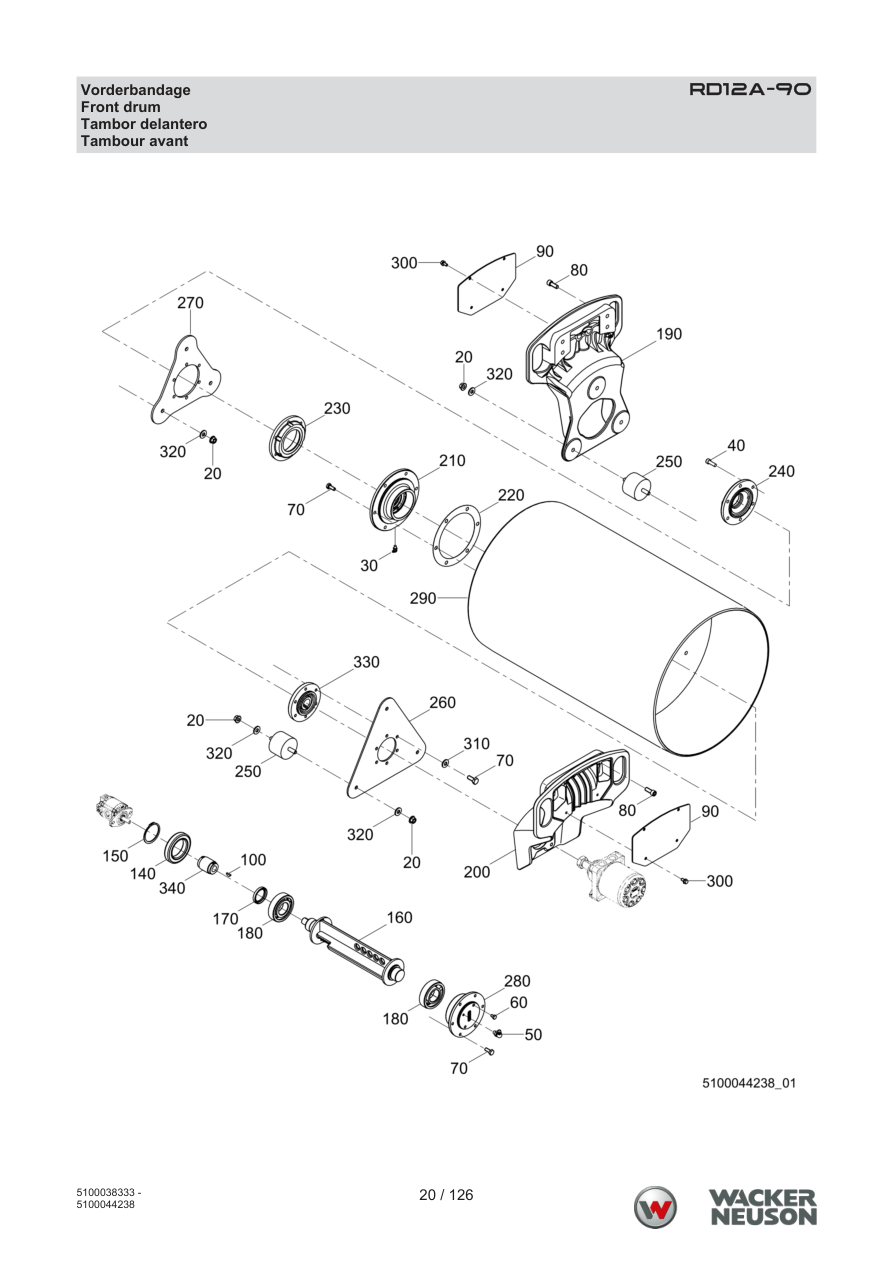

Page 20 — RD12A-90 Vorderbandage
Parts list — exactly as printed33 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5000164045 | pc | 12 | ADD TO CART | |
| 30 | 5002005948 | pc | 1 | ADD TO CART | |
| 40 | 5000011534 | pc | 6 | Cheese head screw | ADD TO CART |
| 50 | 5000114393 | pc | 1 | ADD TO CART | |
| 60 | 5000012360 | pc | 2 | Hexagonal head cap screw | ADD TO CART |
| 70 | 5000011440 | pc | 18 | Hexagonal head cap screw | ADD TO CART |
| 80 | 5000011529 | pc | 8 | Cheese head screw | ADD TO CART |
| 90 | 5100037321 | pc | 2 | ADD TO CART | |
| 100 | 5002009108 | pc | 1 | ADD TO CART | |
| 130 | 5000111759 | pc | 1 | ADD TO CART | |
| 140 | 5000039988 | pc | 1 | Grooved ball bearing | ADD TO CART |
| 150 | 5002004853 | pc | 1 | ADD TO CART | |
| 160 | 5100036765 | pc | 1 | ADD TO CART | |
| 170 | 5000072113 | pc | 1 | ADD TO CART | |
| 180 | 5000072112 | pc | 2 | ADD TO CART | |
| 190 | 5100036851 | pc | 1 | ADD TO CART | |
| 200 | 5100036850 | pc | 1 | ADD TO CART | |
| 210 | 5000111053 | pc | 1 | ADD TO CART | |
| 220 | 5000114529 | pc | 1 | ADD TO CART | |
| 230 | 5000111096 | pc | 1 | ADD TO CART | |
| 240 | 5000162952 | pc | 1 | ADD TO CART | |
| 250 | 5000111052 | pc | 6 | ADD TO CART | |
| 260 | 5100046050 | pc | 1 | ADD TO CART | |
| 270 | 5000111056 | pc | 1 | ADD TO CART | |
| 280 | 5000181479 | pc | 1 | ADD TO CART | |
| 290 | 5100036103 | pc | 1 | ADD TO CART | |
| 300 | 5000163948 | pc | 8 | Hexagonal flange head screw | ADD TO CART |
| 310 | 5000033988 | pc | 6 | ADD TO CART | |
| 320 | 5000031565 | pc | 12 | ADD TO CART | |
| 330 | 5100040753 | pc | 1 | Hub and drum | ADD TO CART |
| 340 | 5000078795 | pc | 1 | ADD TO CART | |
| 340 | 5000178336 | pc | 1 | ADD TO CART | |
| 350 | 5000012038 | pc | 1 | ADD TO CART | |

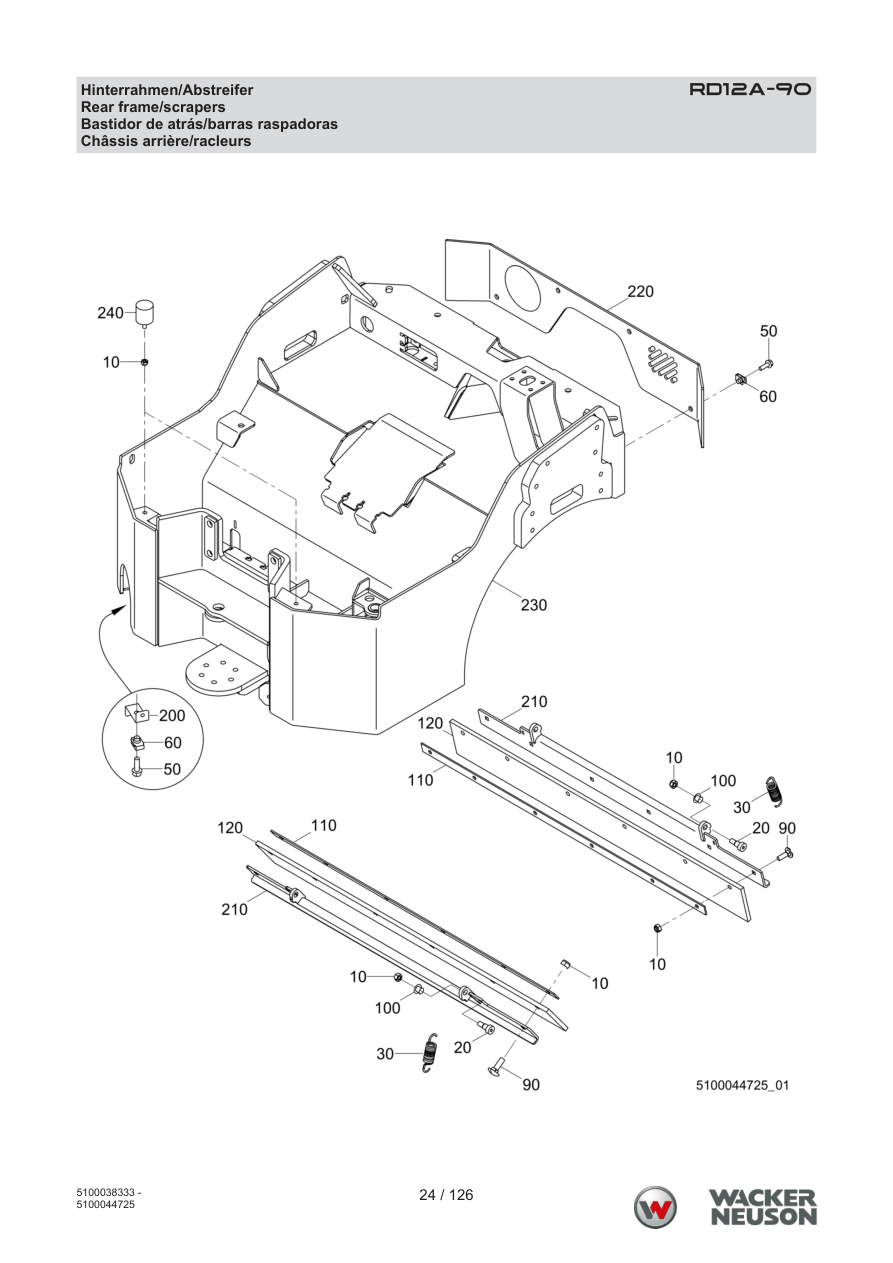

Page 24 — RD12A-90 Hinterrahmen/Abstreifer
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000010367 | pc | 18 | ADD TO CART | |
| 20 | 5000165240 | pc | 4 | Socket head screw | ADD TO CART |
| 30 | 5000164491 | pc | 4 | ADD TO CART | |
| 50 | 5000163947 | pc | 5 | Hexagonal flange head screw | PARTS REQUEST |
|
COMING pc
5000163947 · qty on machine: 5 Hexagonal flange head screw | |||||
| 60 | 5000110969 | pc | 5 | ADD TO CART | |
| 90 | 5000163950 | pc | 12 | PARTS REQUEST | |
|
COMING pc
5000163950 · qty on machine: 12 | |||||
| 100 | 5000164538 | pc | 4 | ADD TO CART | |
| 110 | 5000111038 | pc | 2 | ADD TO CART | |
| 120 | 5000183039 | pc | 2 | ADD TO CART | |
| 200 | 5100042293 | pc | 1 | ADD TO CART | |
| 210 | 5100043064 | pc | 2 | ADD TO CART | |
| 220 | 5100043052 | pc | 1 | ADD TO CART | |
| 230 | 5100043016 | pc | 1 | ADD TO CART | |
| 240 | 5100043479 | pc | 2 | ADD TO CART | |

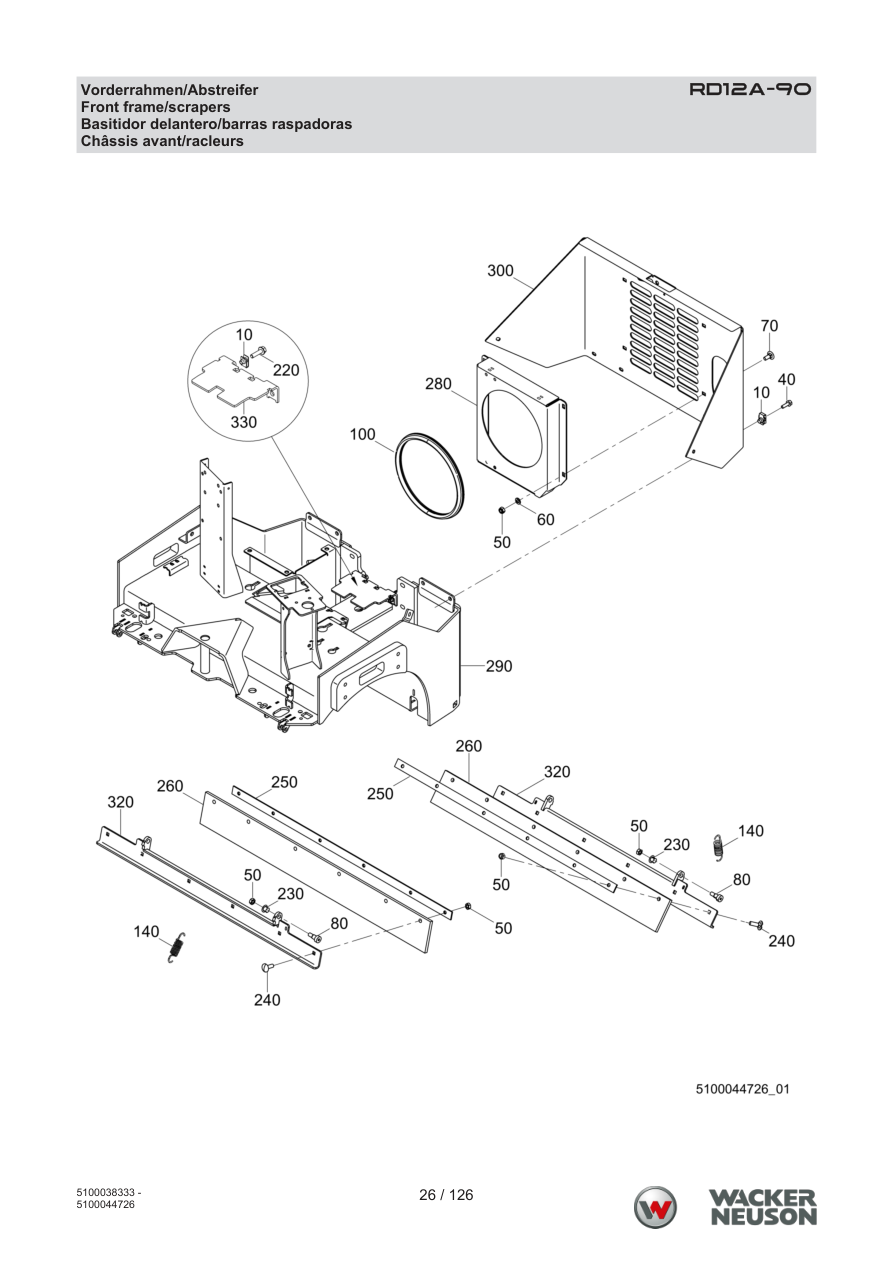

Page 26 — RD12A-90 Vorderrahmen/Abstreifer
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000110969 | pc | 8 | ADD TO CART | |
| 40 | 5000163947 | pc | 6 | Hexagonal flange head screw | PARTS REQUEST |
|
COMING pc
5000163947 · qty on machine: 6 Hexagonal flange head screw | |||||
| 50 | 5000010367 | pc | 20 | ADD TO CART | |
| 60 | 5000010622 | pc | 4 | ADD TO CART | |
| 70 | 5000163954 | pc | 4 | ADD TO CART | |
| 80 | 5000165240 | pc | 4 | Socket head screw | ADD TO CART |
| 100 | 5100038057 | pc | 1 | ADD TO CART | |
| 140 | 5000164491 | pc | 4 | ADD TO CART | |
| 220 | 5000119978 | pc | 2 | ADD TO CART | |
| 230 | 5000164538 | pc | 4 | ADD TO CART | |
| 240 | 5000163950 | pc | 12 | PARTS REQUEST | |
|
COMING pc
5000163950 · qty on machine: 12 | |||||
| 250 | 5000111038 | pc | 2 | ADD TO CART | |
| 260 | 5000183039 | pc | 2 | ADD TO CART | |
| 280 | 5100043105 | pc | 1 | ADD TO CART | |
| 290 | 5100043104 | pc | 1 | ADD TO CART | |
| 300 | 5100043149 | pc | 1 | ADD TO CART | |
| 320 | 5100043064 | pc | 2 | ADD TO CART | |
| 330 | 5100043103 | pc | 1 | ADD TO CART | |

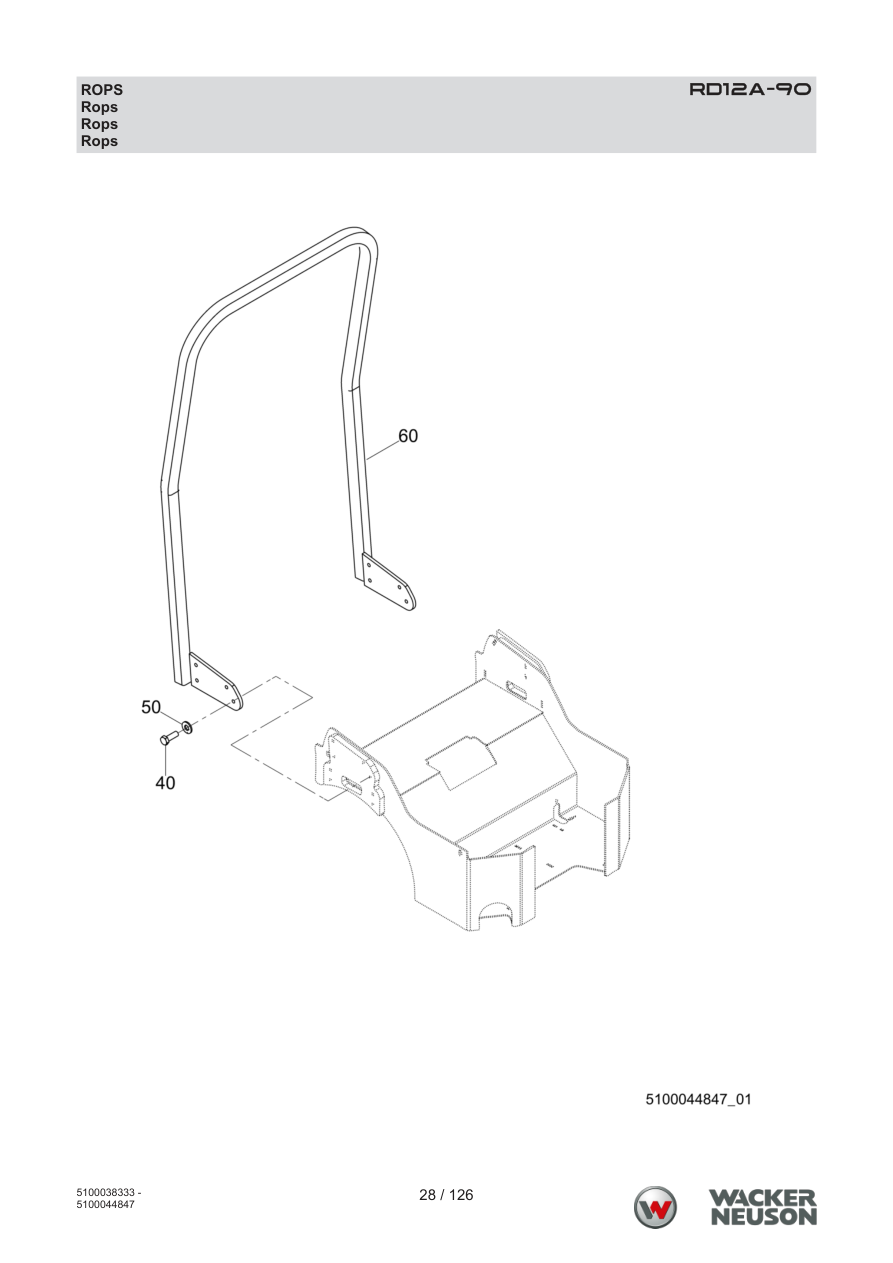

Page 28 — RD12A-90 ROPS
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 40 | 5000017909 | pc | 8 | Hexagonal head cap screw | ADD TO CART |
| 50 | 5000031565 | pc | 8 | ADD TO CART | |
| 60 | 5100036102 | pc | 1 | ADD TO CART | |

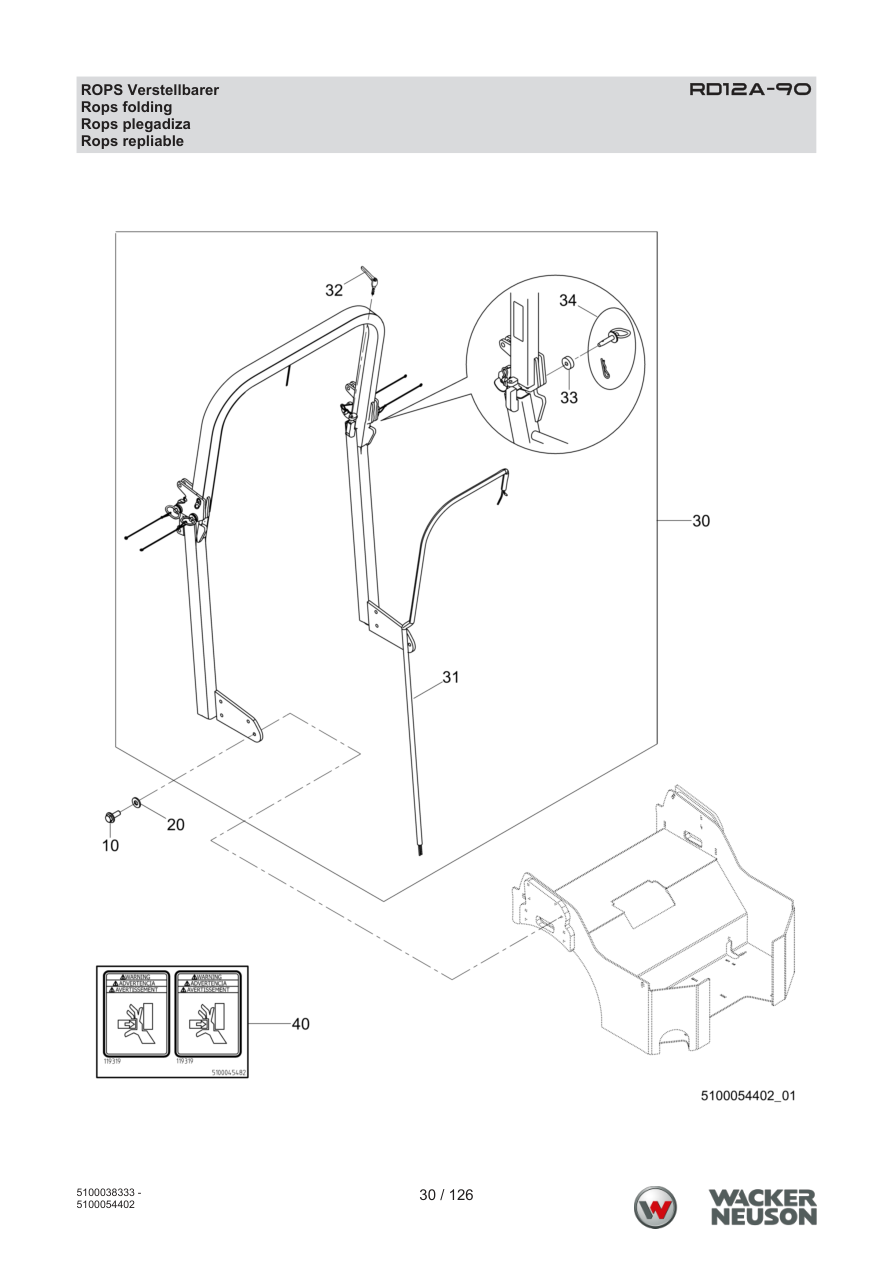

Page 30 — RD12A-90 ROPS Verstellbarer
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000017909 | pc | 8 | Hexagonal head cap screw | ADD TO CART |
| 20 | 5000031565 | pc | 8 | ADD TO CART | |
| 30 | 5100036763 | pc | 1 | ADD TO CART | |
| 31 | 5000163677 | pc | 1 | ADD TO CART | |
| 32 | 5200016011 | pc | 2 | ADD TO CART | |
| 33 | 5200016010 | pc | 4 | ADD TO CART | |
| 34 | 5200016009 | pc | 4 | ADD TO CART | |
| 40 | 5100045482 | pc | 1 | ADD TO CART | |

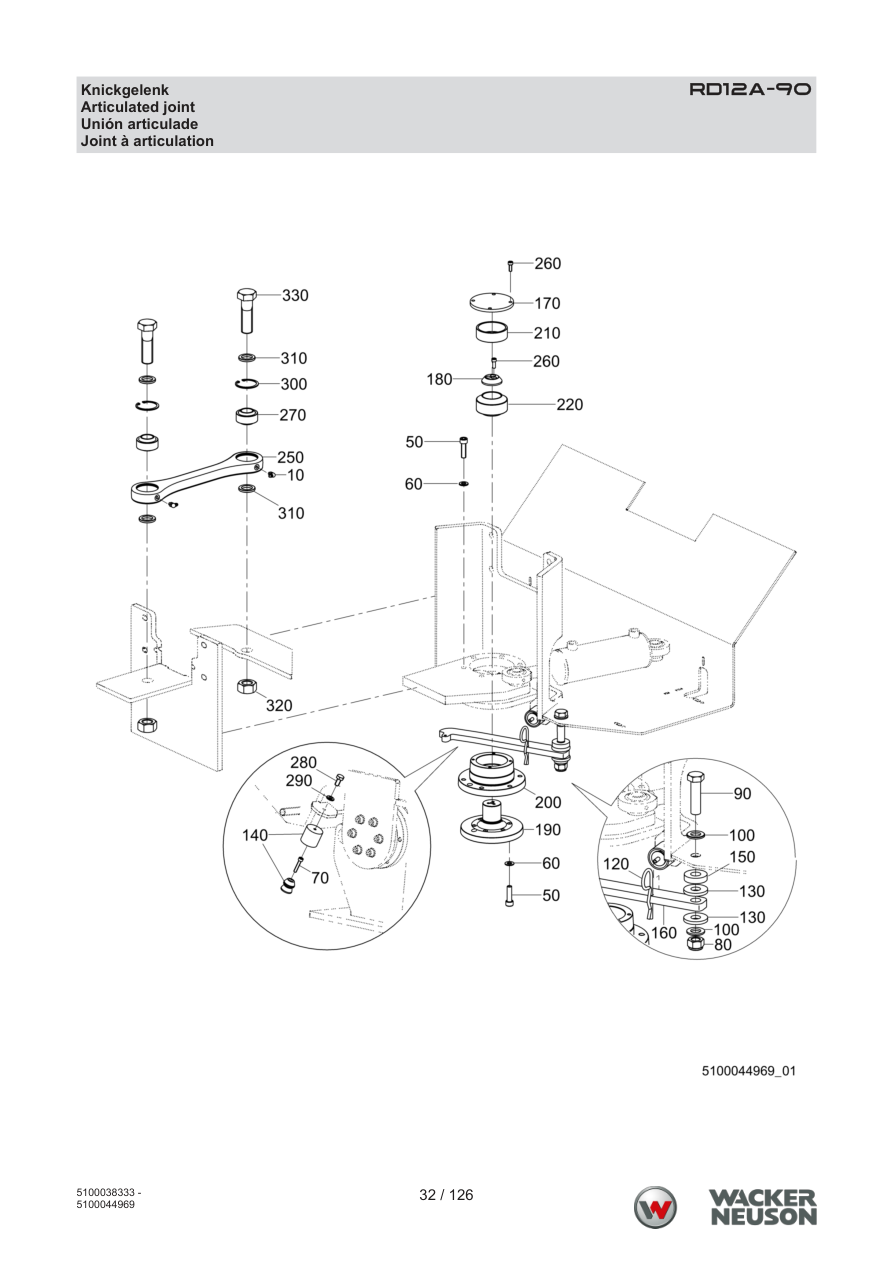

Page 32 — RD12A-90 Knickgelenk
Parts list — exactly as printed27 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000114393 | pc | 2 | ADD TO CART | |
| 50 | 5000011533 | pc | 12 | Cheese head screw | PARTS REQUEST |
|
COMING pc
5000011533 · qty on machine: 12 Cheese head screw | |||||
| 60 | 5000010621 | pc | 12 | ADD TO CART | |
| 70 | 5000011549 | pc | 1 | Cheese head screw | ADD TO CART |
| 80 | 5000013496 | pc | 1 | ADD TO CART | |
| 90 | 5000011517 | pc | 1 | Hexagonal head cap screw | ADD TO CART |
| 100 | 5000010618 | pc | 2 | ADD TO CART | |
| 120 | 5002005276 | pc | 1 | ADD TO CART | |
| 130 | 5000031121 | pc | 2 | ADD TO CART | |
| 140 | 5000111536 | pc | 1 | ADD TO CART | |
| 150 | 5100036738 | pc | 1 | ADD TO CART | |
| 160 | 5100036739 | pc | 1 | ADD TO CART | |
| 170 | 5100037087 | pc | 1 | ADD TO CART | |
| 180 | 5100037058 | pc | 1 | ADD TO CART | |
| 190 | 5100037056 | pc | 1 | ADD TO CART | |
| 200 | 5100037055 | pc | 1 | ADD TO CART | |
| 210 | 5100037038 | pc | 1 | ADD TO CART | |
| 220 | 5100037086 | pc | 1 | ADD TO CART | |
| 250 | 5100040192 | pc | 1 | ADD TO CART | |
| 260 | 5000011553 | pc | 7 | Cheese head screw | ADD TO CART |
| 270 | 5100041673 | pc | 2 | ADD TO CART | |
| 280 | 5000012357 | pc | 1 | Hexagonal head cap screw | ADD TO CART |
| 290 | 5000010624 | pc | 1 | ADD TO CART | |
| 300 | 5100040198 | pc | 2 | ADD TO CART | |
| 310 | 5100042780 | pc | 4 | ADD TO CART | |
| 320 | 5100042644 | pc | 2 | ADD TO CART | |
| 330 | 5100042643 | pc | 2 | ADD TO CART | |

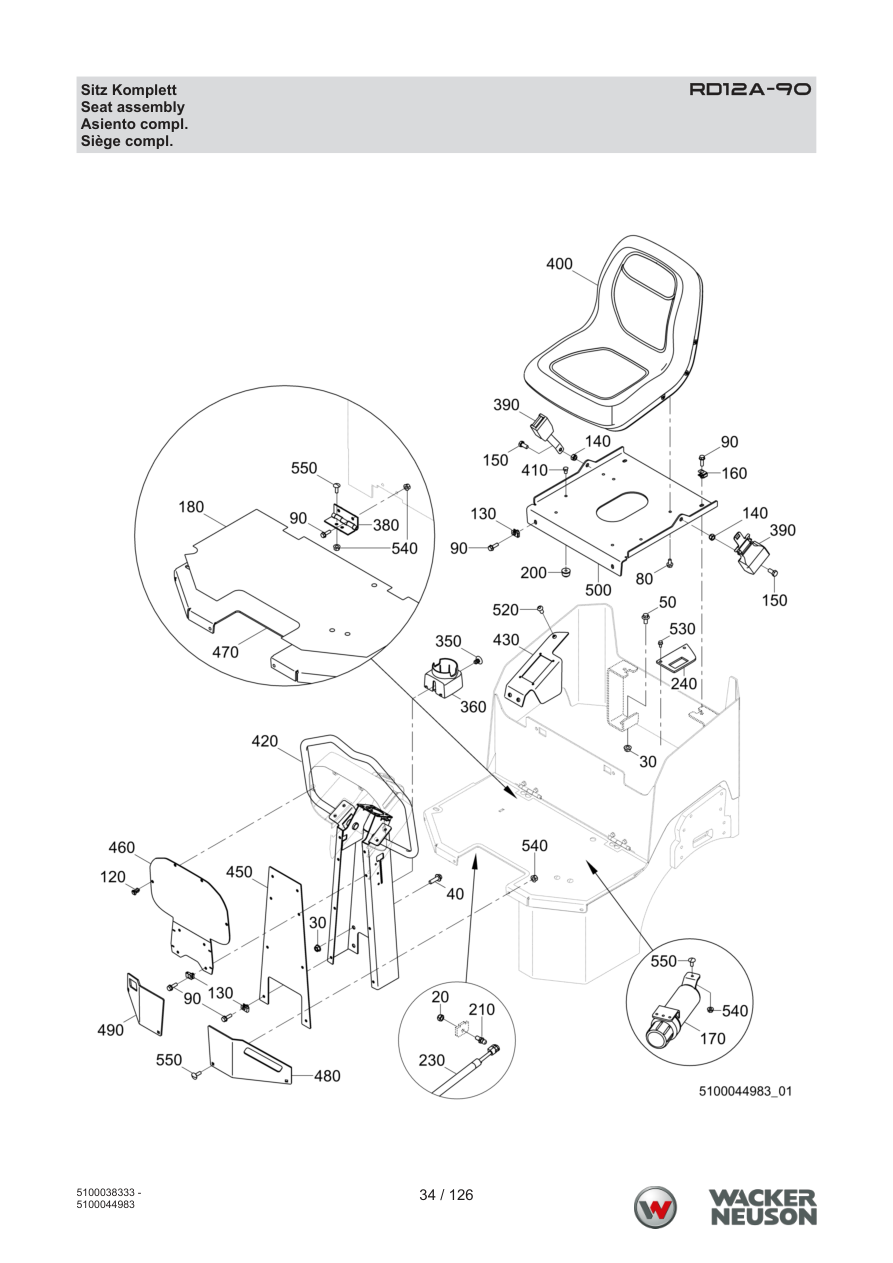

Page 34 — RD12A-90 Sitz Komplett
Parts list — exactly as printed38 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5000010367 | pc | 2 | ADD TO CART | |
| 30 | 5000164045 | pc | 8 | ADD TO CART | |
| 40 | 1000343307 | pc | 4 | PARTS REQUEST | |
|
COMING pc
1000343307 · qty on machine: 4 | |||||
| 50 | 1000343355 | pc | 4 | PARTS REQUEST | |
|
COMING pc
1000343355 · qty on machine: 4 | |||||
| 80 | 5000163948 | pc | 4 | Hexagonal flange head screw | ADD TO CART |
| 90 | 5000163947 | pc | 16 | Hexagonal flange head screw | PARTS REQUEST |
|
COMING pc
5000163947 · qty on machine: 16 Hexagonal flange head screw | |||||
| 120 | 1000343475 | pc | 4 | ADD TO CART | |
| 130 | 5000110969 | pc | 10 | ADD TO CART | |
| 140 | 5000010366 | pc | 2 | ADD TO CART | |
| 150 | 5000013002 | pc | 2 | Hexagonal head cap screw | ADD TO CART |
| 160 | 5200002421 | pc | 2 | ADD TO CART | |
| 170 | 5200008089 | pc | 1 | ADD TO CART | |
| 180 | 5100037732 | pc | 1 | ADD TO CART | |
| 200 | 5000105056 | pc | 4 | ADD TO CART | |
| 210 | 5000155125 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5000155125 · qty on machine: 2 | |||||
| 230 | 5000150104 | pc | 1 | ADD TO CART | |
| 240 | 5100037332 | pc | 1 | ADD TO CART | |
| 350 | 1000391394 | pc | 1 | PARTS REQUEST | |
|
COMING pc
1000391394 · qty on machine: 1 | |||||
| 360 | 1000397871 | pc | 1 | ADD TO CART | |
| 370 | 5000163950 | pc | 8 | PARTS REQUEST | |
|
COMING pc
5000163950 · qty on machine: 8 | |||||
| 380 | 5100040755 | pc | 2 | ADD TO CART | |
| 390 | 5000110972 | pc | 1 | Seat belt kit | ADD TO CART |
| 400 | 5000110970 | pc | 1 | ADD TO CART | |
| 410 | 5000012360 | pc | 4 | Hexagonal head cap screw | ADD TO CART |
| 420 | 5100043117 | pc | 1 | ADD TO CART | |
| 430 | 5100043113 | pc | 1 | ADD TO CART | |
| 440 | 5100043112 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100043112 · qty on machine: 1 | |||||
| 440 | 5100046166 | pc | 1 | Pedestal frame (green) | PARTS REQUEST |
|
COMING pc
5100046166 · qty on machine: 1 Pedestal frame (green) | |||||
| 450 | 5100043111 | pc | 1 | ADD TO CART | |
| 460 | 5100043110 | pc | 1 | ADD TO CART | |
| 470 | 5100043109 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100043109 · qty on machine: 1 | |||||
| 480 | 5100043108 | pc | 1 | ADD TO CART | |
| 490 | 5100043107 | pc | 1 | ADD TO CART | |
| 500 | 5100043106 | pc | 1 | ADD TO CART | |
| 520 | 5000163945 | pc | 3 | ADD TO CART | |
| 530 | 5100043393 | pc | 2 | Hexagonal flange head screw | ADD TO CART |
| 540 | 1000343350 | pc | 15 | ADD TO CART | |
| 550 | 5000163950 | pc | 11 | PARTS REQUEST | |
|
COMING pc
5000163950 · qty on machine: 11 | |||||

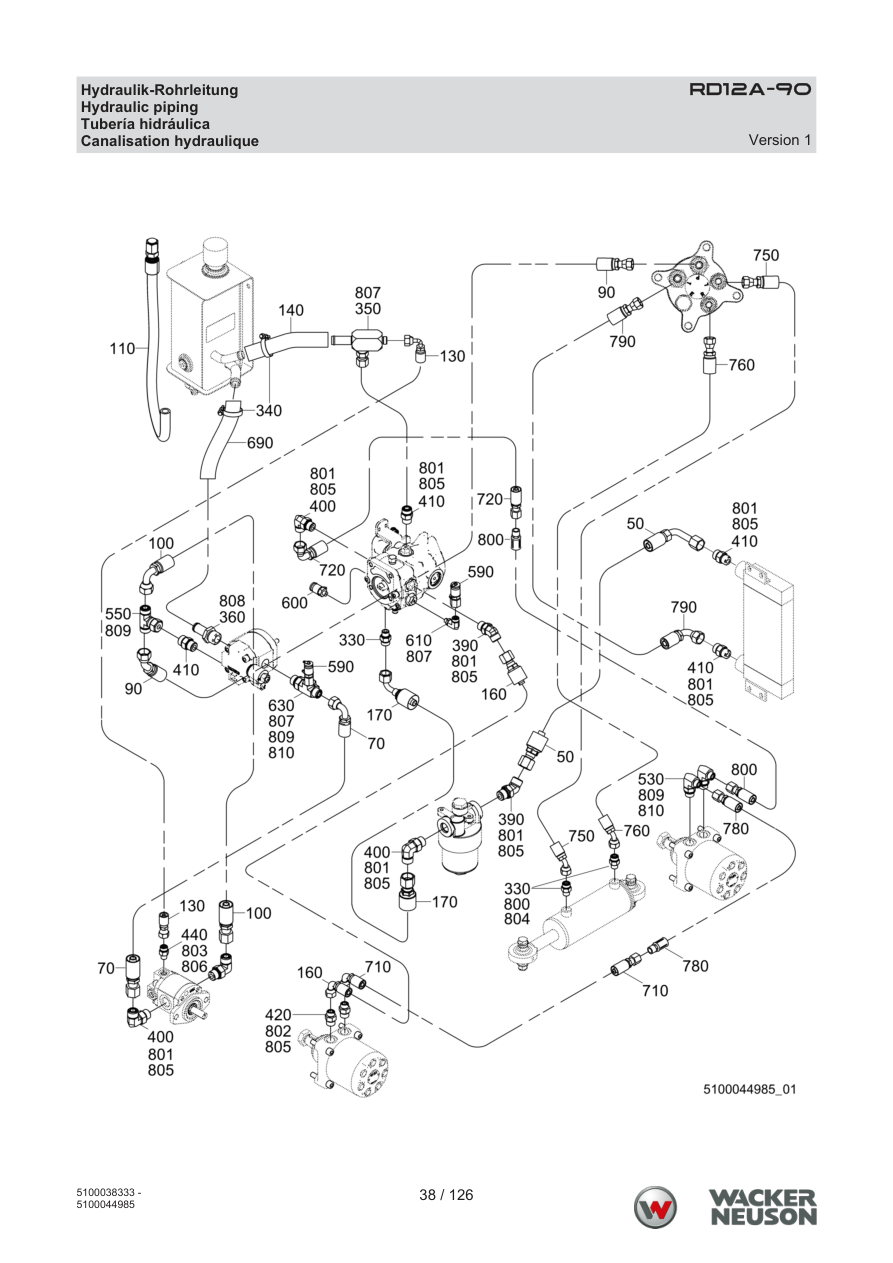

Page 38 — RD12A-90 Hydraulik-Rohrleitung
Parts list — exactly as printed44 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 50 | 5100037955 | pc | 1 | Oil cooler outlet hose | ADD TO CART |
| 70 | 5100037949 | pc | 1 | Exciter motor hose | ADD TO CART |
| 90 | 5100037952 | pc | 1 | Steering valve hose | ADD TO CART |
| 100 | 5100037951 | pc | 1 | Exciter motor hose | ADD TO CART |
| 110 | 5100037963 | pc | 1 | Oil drain hose | ADD TO CART |
| 130 | 5100037959 | pc | 1 | Case drain hose | ADD TO CART |
| 140 | 5100037961 | pc | 1 | Tank return hose | PARTS REQUEST |
|
COMING pc
5100037961 · qty on machine: 1 Tank return hose | |||||
| 160 | 5100037957 | pc | 1 | Drive motor hose | ADD TO CART |
| 170 | 5100037964 | pc | 1 | ADD TO CART | |
| 330 | 5000078816 | pc | 3 | ADD TO CART | |
| 340 | 5000172012 | pc | 5 | ADD TO CART | |
| 350 | 5100037967 | pc | 1 | ADD TO CART | |
| 360 | 1000343384 | pc | 1 | PARTS REQUEST | |
|
COMING pc
1000343384 · qty on machine: 1 | |||||
| 390 | 5100013962 | pc | 2 | ADD TO CART | |
| 400 | 5000111272 | pc | 4 | Hydraulic elbow fitting | ADD TO CART |
| 410 | 5000081583 | pc | 4 | ADD TO CART | |
| 420 | 5000079875 | pc | 6 | ADD TO CART | |
| 440 | 5000111282 | pc | 1 | ADD TO CART | |
| 550 | 5100037965 | pc | 1 | ADD TO CART | |
| 590 | 5000165282 | pc | 2 | ADD TO CART | |
| 600 | 5000165280 | pc | 1 | ADD TO CART | |
| 610 | 5000165281 | pc | 1 | Hydraulic elbow fitting | ADD TO CART |
| 630 | 5100043015 | pc | 1 | ADD TO CART | |
| 690 | 5100045623 | pc | 1 | ADD TO CART | |
| 710 | 5100045620 | pc | 1 | Drive motor hydraulic line | ADD TO CART |
| 720 | 5100045622 | pc | 1 | Drive motor hydraulic line | ADD TO CART |
| 750 | 5100045025 | pc | 1 | Hydraulic cylinder hose | ADD TO CART |
| 760 | 5100045026 | pc | 1 | Hydraulic cylinder hose | ADD TO CART |
| 780 | 5100045489 | pc | 1 | Drive motor hydraulic line | ADD TO CART |
| 790 | 5100045487 | pc | 1 | Lower radiator hose | ADD TO CART |
| 800 | 5000080731 | pc | 1 | ADD TO CART | |
| 800 | 5100045621 | pc | 1 | Drive motor hydraulic line | ADD TO CART |
| 801 | 5000080732 | pc | 1 | ADD TO CART | |
| 802 | 5000080733 | pc | 1 | ADD TO CART | |
| 803 | 5000080730 | pc | 1 | ADD TO CART | |
| 804 | 5000080736 | pc | 1 | ADD TO CART | |
| 805 | 5000080737 | pc | 1 | ADD TO CART | |
| 806 | 5000112267 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000112267 · qty on machine: 1 | |||||
| 807 | 5100041536 | pc | 1 | ADD TO CART | |
| 808 | 5100041557 | pc | 1 | ADD TO CART | |
| 130 | 5100055719 | pc | 1 | ADD TO CART | |
| 140 | 5100048221 | pc | 1 | ADD TO CART | |
| 320 | 5000163962 | pc | 1 | ADD TO CART | |
| 350 | 5100053230 | pc | 1 | ADD TO CART | |

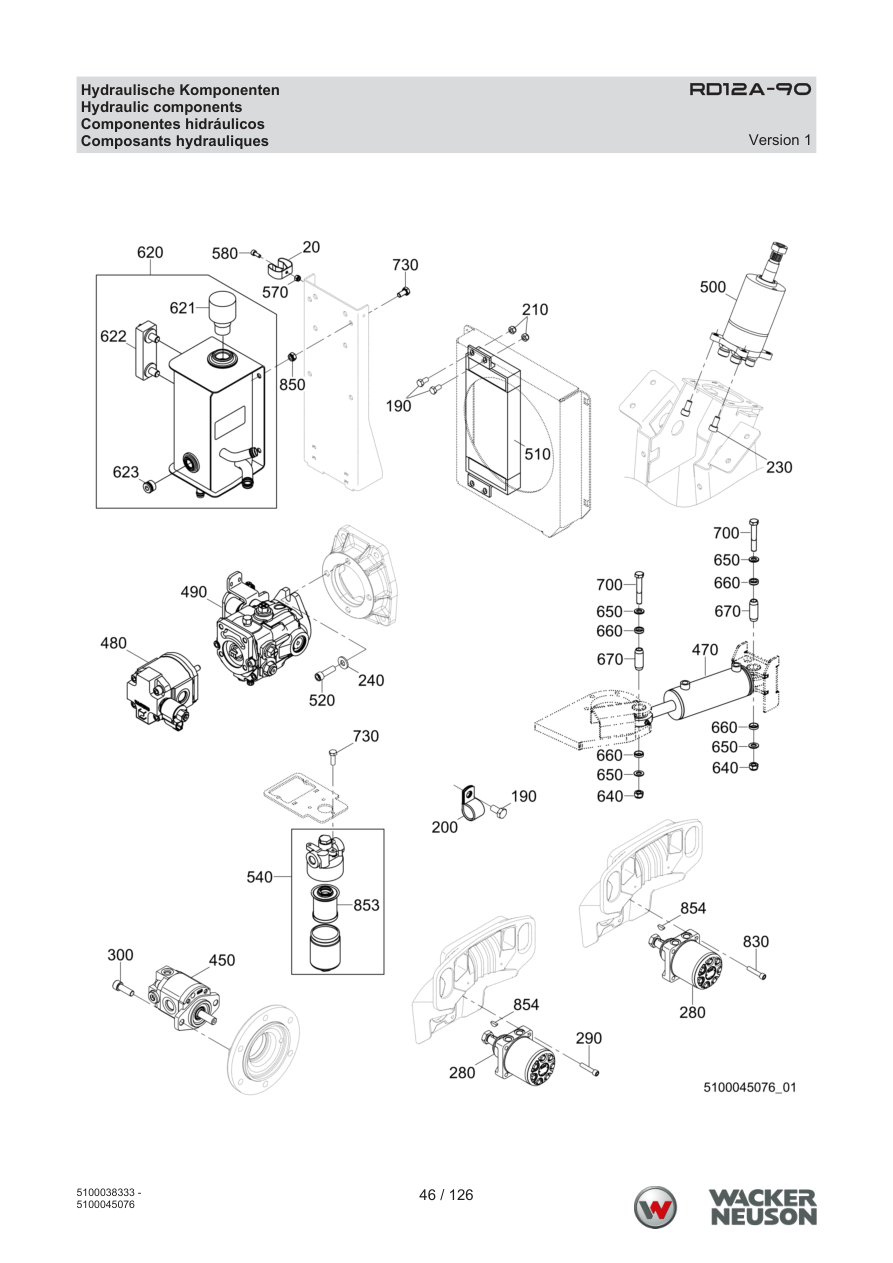

Page 46 — RD12A-90 Hydraulische Komponenten
Parts list — exactly as printed36 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5000153747 | pc | 1 | ADD TO CART | |
| 190 | 5000012361 | pc | 5 | Hexagonal head cap screw | PARTS REQUEST |
|
COMING pc
5000012361 · qty on machine: 5 Hexagonal head cap screw | |||||
| 200 | 1000366591 | pc | 1 | ADD TO CART | |
| 210 | 5000010367 | pc | 8 | ADD TO CART | |
| 230 | 5000011544 | pc | 4 | Cheese head screw | ADD TO CART |
| 240 | 5000033988 | pc | 2 | ADD TO CART | |
| 280 | 5100036104 | pc | 2 | Hydraulic drive motor | ADD TO CART |
| 280 | 5100057923 | pc | 2 | ADD TO CART | |
| 290 | 5000111979 | pc | 4 | Socket head cap screw | ADD TO CART |
| 300 | 5000011534 | pc | 2 | Cheese head screw | ADD TO CART |
| 320 | 1000364482 | pc | 9 | PARTS REQUEST | |
|
COMING pc
1000364482 · qty on machine: 9 | |||||
| 450 | 5100037059 | pc | 1 | ADD TO CART | |
| 470 | 5100036760 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100036760 · qty on machine: 1 | |||||
| 480 | 5100038050 | pc | 1 | ADD TO CART | |
| 490 | 5100036100 | pc | 1 | ADD TO CART | |
| 500 | 5000111291 | pc | 1 | ADD TO CART | |
| 510 | 5100041344 | pc | 1 | ADD TO CART | |
| 520 | 5000171021 | pc | 2 | Socket head cap screw | ADD TO CART |
| 540 | 5100040787 | pc | 1 | Hydraulic filter complete | ADD TO CART |
| 570 | 5000010370 | pc | 1 | ADD TO CART | |
| 580 | 5000011572 | pc | 1 | Cheese head screw | ADD TO CART |
| 620 | 5100042990 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100042990 · qty on machine: 1 | |||||
| 621 | 5100044106 | pc | 1 | ADD TO CART | |
| 622 | 5100044107 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100044107 · qty on machine: 1 | |||||
| 623 | 5100044105 | pc | 1 | ADD TO CART | |
| 640 | 5100046318 | pc | 2 | Hexagon lock nut | ADD TO CART |
| 650 | 5000010620 | pc | 4 | ADD TO CART | |
| 660 | 5000111132 | pc | 4 | ADD TO CART | |
| 670 | 5100042752 | pc | 1 | ADD TO CART | |
| 700 | 5000011306 | pc | 2 | Hexagonal head cap screw | PARTS REQUEST |
|
COMING pc
5000011306 · qty on machine: 2 Hexagonal head cap screw | |||||
| 730 | 5000163948 | pc | 7 | Hexagonal flange head screw | ADD TO CART |
| 830 | 5000114098 | pc | 4 | Socket head cap screw | ADD TO CART |
| 853 | 5100044533 | pc | 1 | Hydraulic filter element | ADD TO CART |
| 854 | 5100045421 | pc | 2 | ADD TO CART | |
| 620 | 5100054284 | pc | 1 | ADD TO CART | |
| 622 | 5100064977 | pc | 1 | Oil level/sight gauge | ADD TO CART |

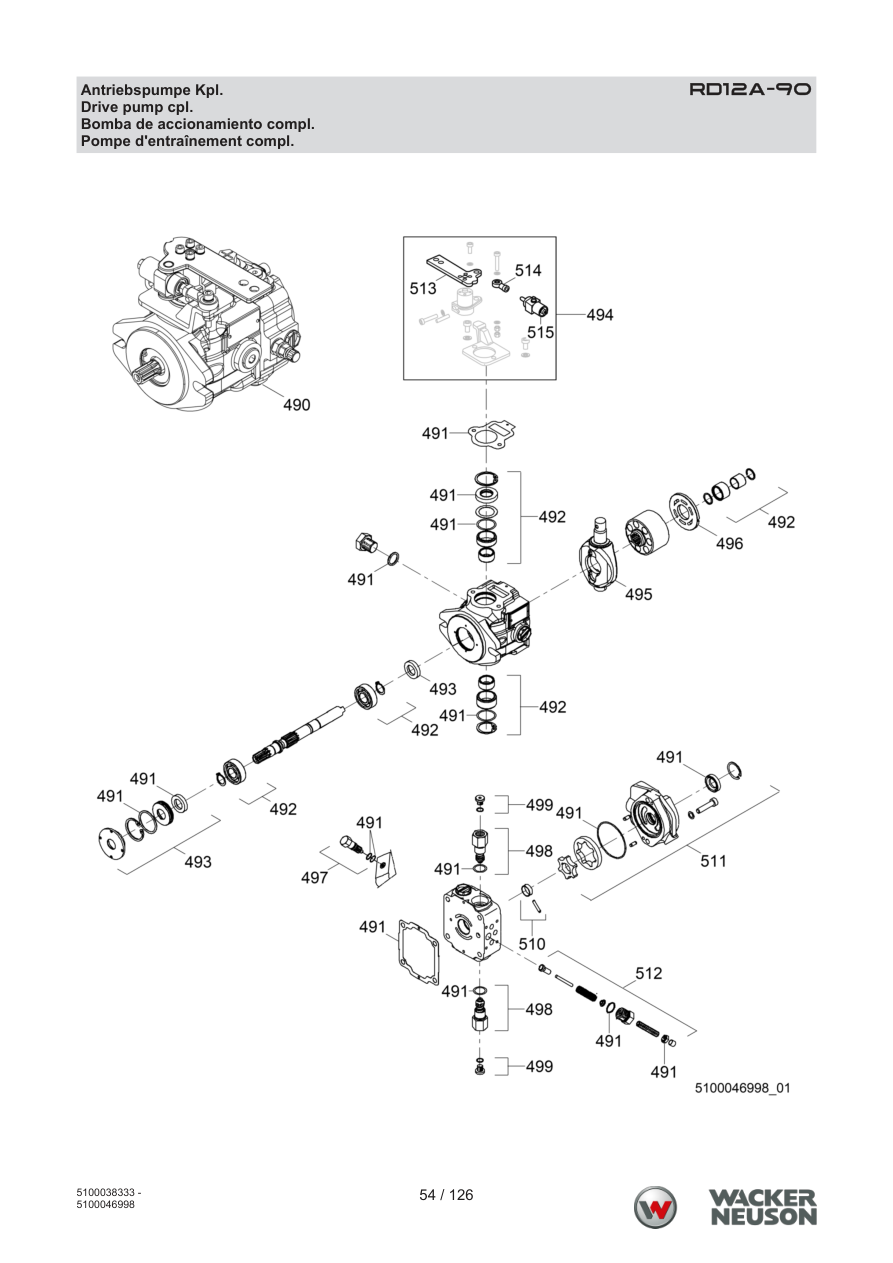

Page 54 — RD12A-90 Antriebspumpe Kpl.
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 490 | 5100036100 | pc | 1 | ADD TO CART | |
| 491 | 5100046542 | pc | 1 | ADD TO CART | |
| 492 | 5100046544 | pc | 1 | Trunnion bearing kit | ADD TO CART |
| 493 | 5100046543 | pc | 1 | Shaft bearing kit | ADD TO CART |
| 494 | 5100067084 | pc | 1 | ADD TO CART | |
| 495 | 5000183381 | pc | 1 | ADD TO CART | |
| 496 | 5000183384 | pc | 1 | ADD TO CART | |
| 497 | 5100046547 | pc | 1 | Bypass valve kit | ADD TO CART |
| 498 | 5100046544 | pc | 2 | Trunnion bearing kit | ADD TO CART |
| 499 | 5100046550 | pc | 2 | ADD TO CART | |
| 510 | 5100046544 | pc | 1 | Trunnion bearing kit | ADD TO CART |
| 511 | 5100046545 | pc | 1 | Gerotor housing kit | ADD TO CART |
| 512 | 5100046546 | pc | 1 | Charge relief kit | ADD TO CART |
| 513 | 5100067087 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100067087 · qty on machine: 1 | |||||
| 514 | 5100067086 | pc | 1 | Control lever bearing | ADD TO CART |
| 515 | 5100067085 | pc | 1 | ADD TO CART | |

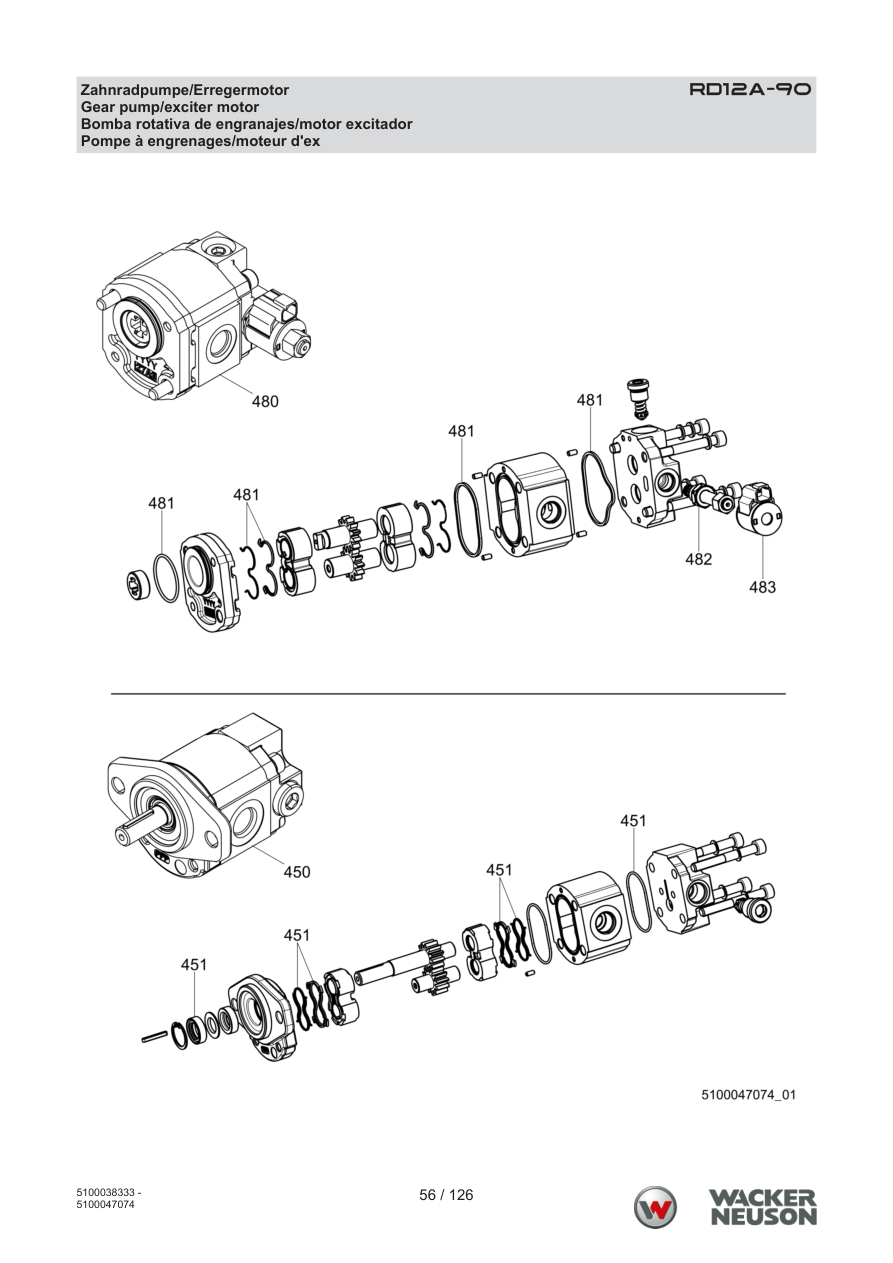

Page 56 — RD12A-90 Zahnradpumpe/Erregermotor
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 450 | 5100037059 | pc | 1 | ADD TO CART | |
| 451 | 5100046457 | pc | 1 | ADD TO CART | |
| 480 | 5100038050 | pc | 1 | ADD TO CART | |
| 481 | 5100046456 | pc | 1 | ADD TO CART | |
| 482 | 1000376117 | pc | 1 | PARTS REQUEST | |
|
COMING pc
1000376117 · qty on machine: 1 | |||||
| 483 | 5100046459 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100046459 · qty on machine: 1 | |||||

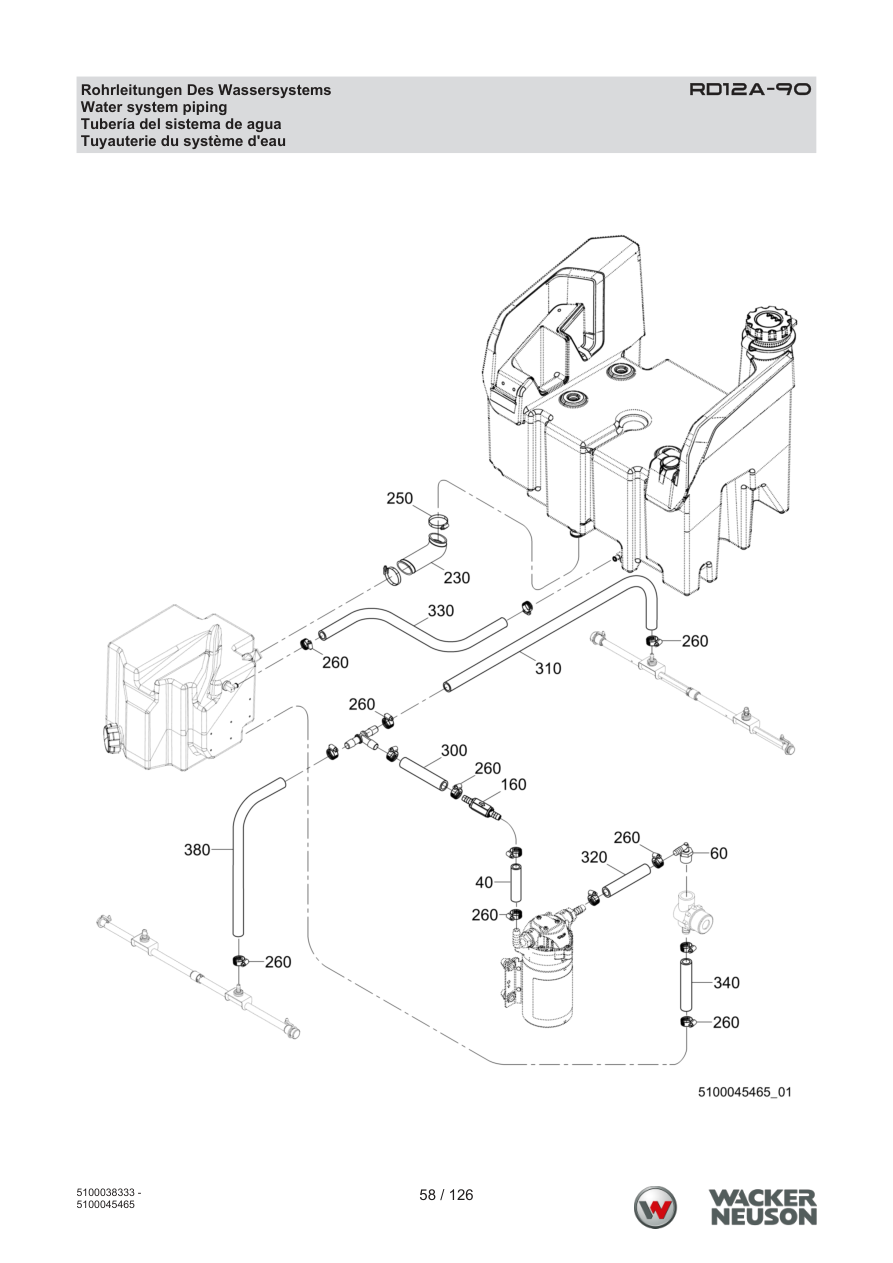

Page 58 — RD12A-90 Rohrleitungen Des Wassersystems
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000155331 | pc | 1 | Hydraulic tee fitting | ADD TO CART |
| 40 | 5100038272 | pc | 1 | ADD TO CART | |
| 60 | 5100038207 | pc | 1 | ADD TO CART | |
| 160 | 5200011143 | pc | 1 | ADD TO CART | |
| 230 | 5100041578 | pc | 1 | ADD TO CART | |
| 250 | 5000078844 | pc | 2 | ADD TO CART | |
| 260 | 5000119940 | pc | 14 | ADD TO CART | |
| 300 | 5100043159 | pc | 1 | ADD TO CART | |
| 310 | 5100043157 | pc | 1 | ADD TO CART | |
| 320 | 5100042992 | pc | 1 | ADD TO CART | |
| 330 | 5100042991 | pc | 1 | ADD TO CART | |
| 340 | 5100038270 | pc | 1 | ADD TO CART | |
| 380 | 5100043158 | pc | 1 | ADD TO CART | |

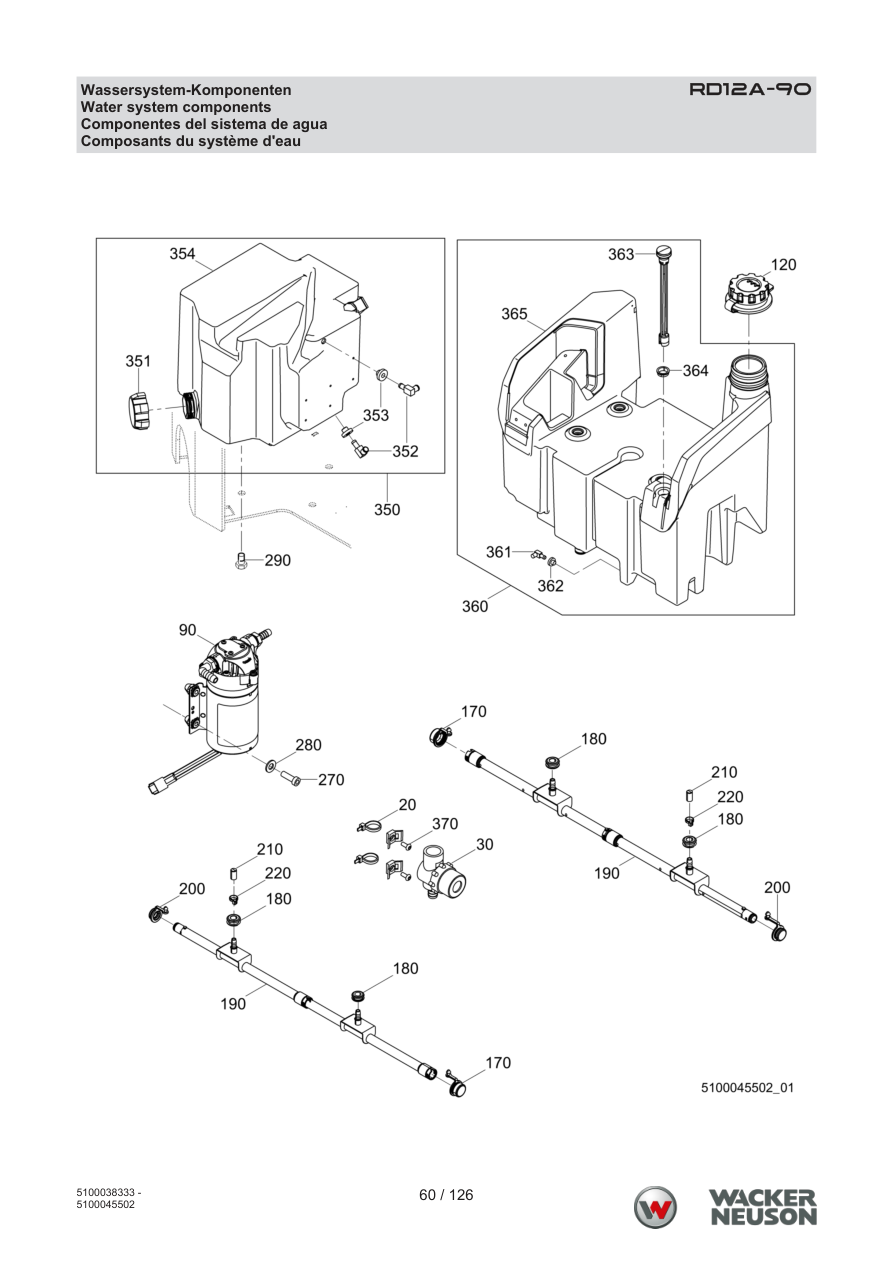

Page 60 — RD12A-90 Wassersystem-Komponenten
Parts list — exactly as printed25 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5100038208 | pc | 2 | ADD TO CART | |
| 30 | 5000078499 | pc | 1 | ADD TO CART | |
| 90 | 5100040061 | pc | 1 | Water pump complete | PARTS REQUEST |
|
COMING pc
5100040061 · qty on machine: 1 Water pump complete | |||||
| 120 | 5100030251 | pc | 1 | Water tank cap | ADD TO CART |
| 170 | 5100040245 | pc | 1 | ADD TO CART | |
| 180 | 5100040177 | pc | 2 | ADD TO CART | |
| 190 | 1000393632 | pc | 2 | Spray bar complete | ADD TO CART |
| 200 | 5100040179 | pc | 1 | ADD TO CART | |
| 210 | 5100040178 | pc | 1 | ADD TO CART | |
| 220 | 1000094905 | pc | 3 | PARTS REQUEST | |
|
COMING pc
1000094905 · qty on machine: 3 | |||||
| 270 | 5000163951 | pc | 4 | Socket head screw | ADD TO CART |
| 280 | 5000010372 | pc | 4 | ADD TO CART | |
| 290 | 5000163948 | pc | 4 | Hexagonal flange head screw | ADD TO CART |
| 350 | 5100042787 | pc | 1 | ADD TO CART | |
| 351 | 5200010567 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5200010567 · qty on machine: 1 | |||||
| 352 | 5000078500 | pc | 2 | Hydraulic elbow fitting | ADD TO CART |
| 353 | 5000053577 | pc | 2 | Tank valve bushing | PARTS REQUEST |
|
COMING pc
5000053577 · qty on machine: 2 Tank valve bushing | |||||
| 354 | 5100037979 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100037979 · qty on machine: 1 | |||||
| 360 | 5100040426 | pc | 1 | ADD TO CART | |
| 361 | 5000078500 | pc | 1 | Hydraulic elbow fitting | ADD TO CART |
| 362 | 5000053577 | pc | 1 | Tank valve bushing | PARTS REQUEST |
|
COMING pc
5000053577 · qty on machine: 1 Tank valve bushing | |||||
| 363 | 5100037329 | pc | 1 | ADD TO CART | |
| 364 | 5100036761 | pc | 1 | ADD TO CART | |
| 365 | 5100036531 | pc | 1 | ADD TO CART | |
| 370 | 1000343476 | pc | 2 | ADD TO CART | |

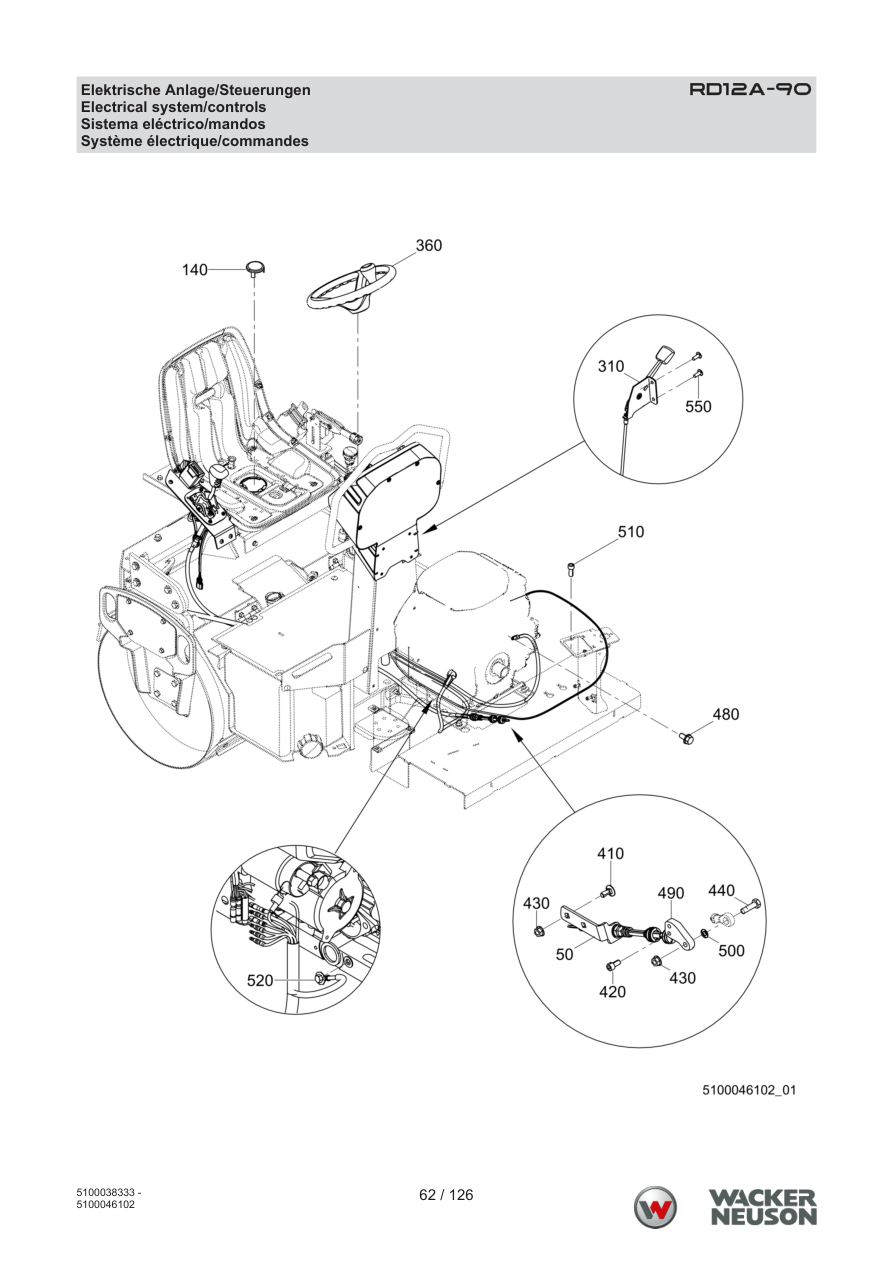

Page 62 — RD12A-90 Elektrische Anlage/Steuerungen
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 50 | 5100043116 | pc | 1 | ADD TO CART | |
| 140 | 5000164603 | pc | 1 | ADD TO CART | |
| 310 | 5100037160 | pc | 1 | ADD TO CART | |
| 360 | 5100039821 | pc | 1 | ADD TO CART | |
| 410 | 5000163954 | pc | 4 | ADD TO CART | |
| 420 | 5000011544 | pc | 2 | Cheese head screw | ADD TO CART |
| 430 | 5100045993 | pc | 7 | ADD TO CART | |
| 440 | 5000011454 | pc | 1 | Hexagonal head cap screw | ADD TO CART |
| 480 | 5000163948 | pc | 1 | Hexagonal flange head screw | ADD TO CART |
| 490 | 5100037656 | pc | 1 | ADD TO CART | |
| 500 | 5000010622 | pc | 1 | ADD TO CART | |
| 510 | 5000011553 | pc | 2 | Cheese head screw | ADD TO CART |
| 520 | 5100043393 | pc | 1 | Hexagonal flange head screw | ADD TO CART |
| 550 | 5000177093 | pc | 2 | Hexagonal flange head screw | ADD TO CART |

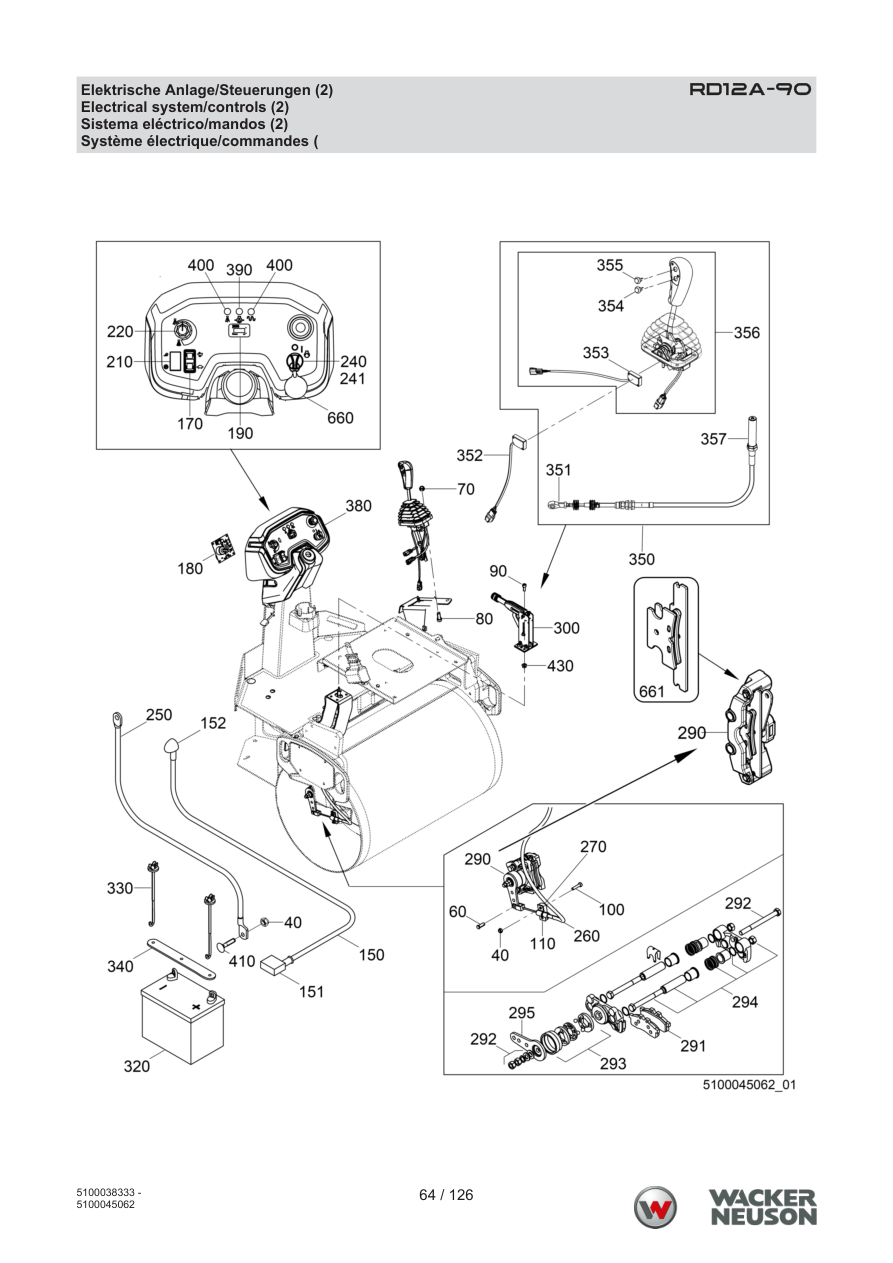

Page 64 — RD12A-90 Elektrische Anlage/Steuerungen (2)
Parts list — exactly as printed48 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 40 | 5000010367 | pc | 4 | ADD TO CART | |
| 60 | 5100038130 | pc | 1 | ADD TO CART | |
| 70 | 5000010368 | pc | 4 | PARTS REQUEST | |
|
COMING pc
5000010368 · qty on machine: 4 | |||||
| 80 | 5000011551 | pc | 4 | Cheese head screw | ADD TO CART |
| 90 | 5000011542 | pc | 4 | Cheese head screw | ADD TO CART |
| 100 | 5000011341 | pc | 2 | Hexagonal head cap screw | ADD TO CART |
| 110 | 5000111047 | pc | 1 | ADD TO CART | |
| 120 | 5000165354 | pc | 1 | Emergency stop switch | ADD TO CART |
| 150 | 5100037945 | pc | 1 | Positive battery cable | ADD TO CART |
| 151 | 5100044103 | pc | 1 | Battery terminal boot - red | ADD TO CART |
| 152 | 5100044101 | pc | 1 | Stud terminal boot - red | ADD TO CART |
| 170 | 5000165065 | pc | 1 | ADD TO CART | |
| 180 | 5100037335 | pc | 1 | ADD TO CART | |
| 190 | 5000117280 | pc | 1 | ADD TO CART | |
| 210 | 5000165065 | pc | 1 | ADD TO CART | |
| 220 | 5000165583 | pc | 1 | ADD TO CART | |
| 240 | 5100049584 | pc | 1 | ADD TO CART | |
| 241 | 5100049952 | pc | 1 | ADD TO CART | |
| 250 | 5100037944 | pc | 1 | Negative battery cable | ADD TO CART |
| 260 | 5100037355 | pc | 1 | ADD TO CART | |
| 270 | 5100038131 | pc | 1 | ADD TO CART | |
| 290 | 5100036106 | pc | 1 | ADD TO CART | |
| 290 | 5100073028 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100073028 · qty on machine: 1 | |||||
| 291 | 5100056971 | pc | 1 | ADD TO CART | |
| 292 | 5100057637 | pc | 1 | ADD TO CART | |
| 293 | 5100057638 | pc | 1 | Brake seal kit | ADD TO CART |
| 294 | 5100057639 | pc | 2 | ADD TO CART | |
| 295 | 5100057641 | pc | 1 | ADD TO CART | |
| 300 | 5100037330 | pc | 1 | ADD TO CART | |
| 320 | 5000118088 | pc | 1 | ADD TO CART | |
| 330 | 5000157185 | pc | 2 | ADD TO CART | |
| 340 | 5100039996 | pc | 1 | ADD TO CART | |
| 350 | 5100037975 | pc | 1 | Directional control lever | ADD TO CART |
| 351 | 5100043167 | pc | 1 | ADD TO CART | |
| 352 | 5100051539 | pc | 1 | Switch-travel lever, backup | PARTS REQUEST |
|
COMING pc
5100051539 · qty on machine: 1 Switch-travel lever, backup | |||||
| 353 | 5100051600 | pc | 1 | Switch-travel lever, neutral | PARTS REQUEST |
|
COMING pc
5100051600 · qty on machine: 1 Switch-travel lever, neutral | |||||
| 354 | 5100043164 | pc | 1 | ADD TO CART | |
| 355 | 5100043163 | pc | 1 | ADD TO CART | |
| 356 | 5100043154 | pc | 1 | Travel control lever | ADD TO CART |
| 357 | 5100043156 | pc | 1 | ADD TO CART | |
| 380 | 5100042767 | pc | 1 | ADD TO CART | |
| 390 | 5100043188 | pc | 1 | ADD TO CART | |
| 400 | 5100043189 | pc | 2 | ADD TO CART | |
| 410 | 5000163954 | pc | 2 | ADD TO CART | |
| 430 | 5100045993 | pc | 4 | ADD TO CART | |
| 440 | 5000011454 | pc | 1 | Hexagonal head cap screw | ADD TO CART |
| 660 | 5000113119 | pc | 1 | ADD TO CART | |
| 661 | 5100079976 | pc | 1 | ADD TO CART | |

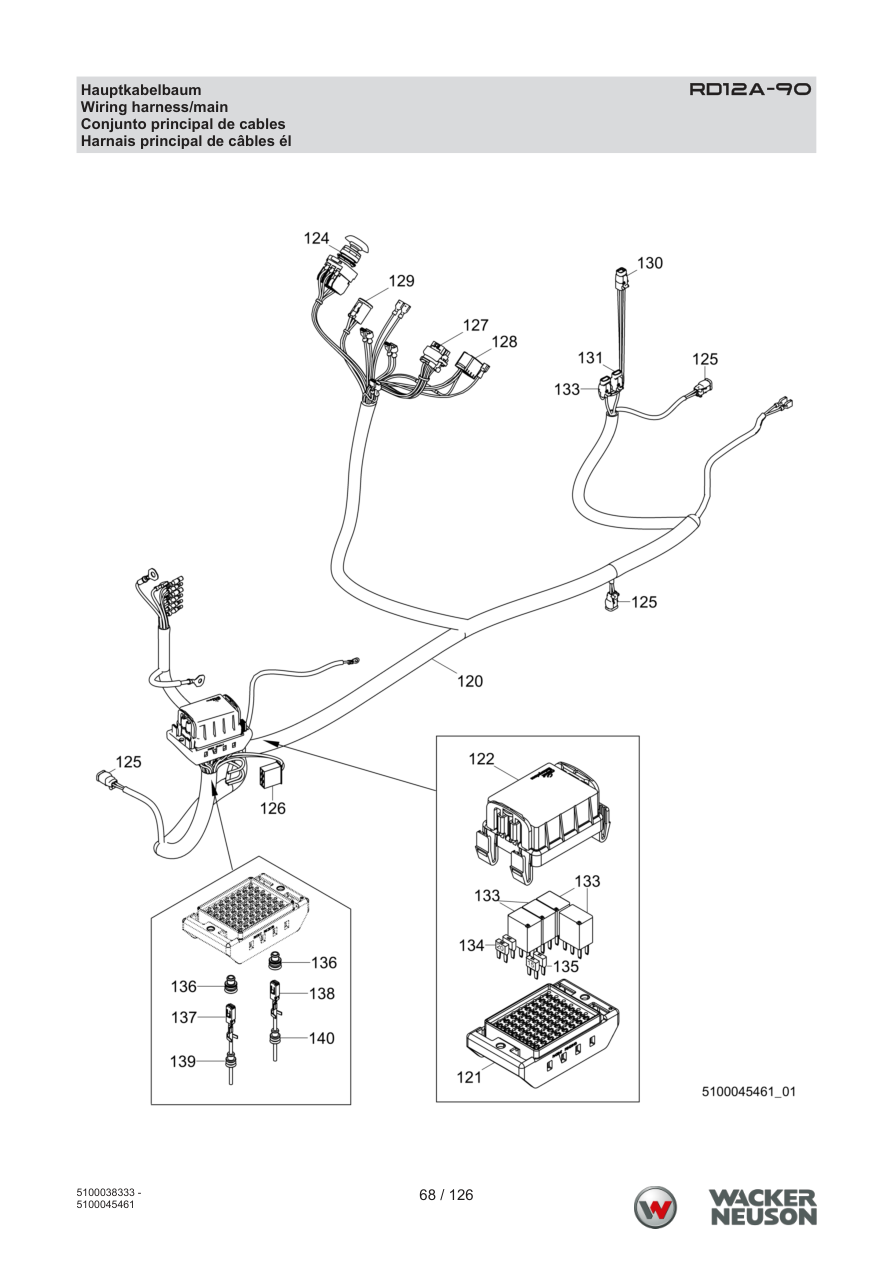

Page 68 — RD12A-90 Hauptkabelbaum
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 125 | 5100044535 | pc | 3 | ADD TO CART | |
| 120 | 5100037088 | pc | 1 | ADD TO CART | |
| 121 | 5100042122 | pc | 1 | ADD TO CART | |
| 122 | 5100044447 | pc | 1 | ADD TO CART | |
| 123 | 5100044448 | pc | 1 | ADD TO CART | |
| 124 | 5000165439 | pc | 1 | Emergency stop switch | ADD TO CART |
| 126 | 5100044446 | pc | 1 | ADD TO CART | |
| 127 | 5100044445 | pc | 1 | ADD TO CART | |
| 128 | 1000342952 | pc | 1 | PARTS REQUEST | |
|
COMING pc
1000342952 · qty on machine: 1 | |||||
| 129 | 5000111871 | pc | 1 | ADD TO CART | |
| 130 | 5100018237 | pc | 1 | ADD TO CART | |
| 131 | 1000238087 | pc | 1 | PARTS REQUEST | |
|
COMING pc
1000238087 · qty on machine: 1 | |||||
| 132 | 1000183222 | pc | 1 | PARTS REQUEST | |
|
COMING pc
1000183222 · qty on machine: 1 | |||||
| 133 | 5100044449 | pc | 4 | ADD TO CART | |
| 134 | 5000153489 | pc | 2 | ADD TO CART | |
| 135 | 5100032136 | pc | 2 | ADD TO CART | |
| 136 | 1000200198 | pc | 24 | PARTS REQUEST | |
|
COMING pc
1000200198 · qty on machine: 24 | |||||
| 137 | 1000338907 | pc | 12 | PARTS REQUEST | |
|
COMING pc
1000338907 · qty on machine: 12 | |||||
| 138 | 1000370413 | pc | 12 | PARTS REQUEST | |
|
COMING pc
1000370413 · qty on machine: 12 | |||||
| 139 | 1000344851 | pc | 12 | PARTS REQUEST | |
|
COMING pc
1000344851 · qty on machine: 12 | |||||
| 140 | 1000200197 | pc | 12 | PARTS REQUEST | |
|
COMING pc
1000200197 · qty on machine: 12 | |||||

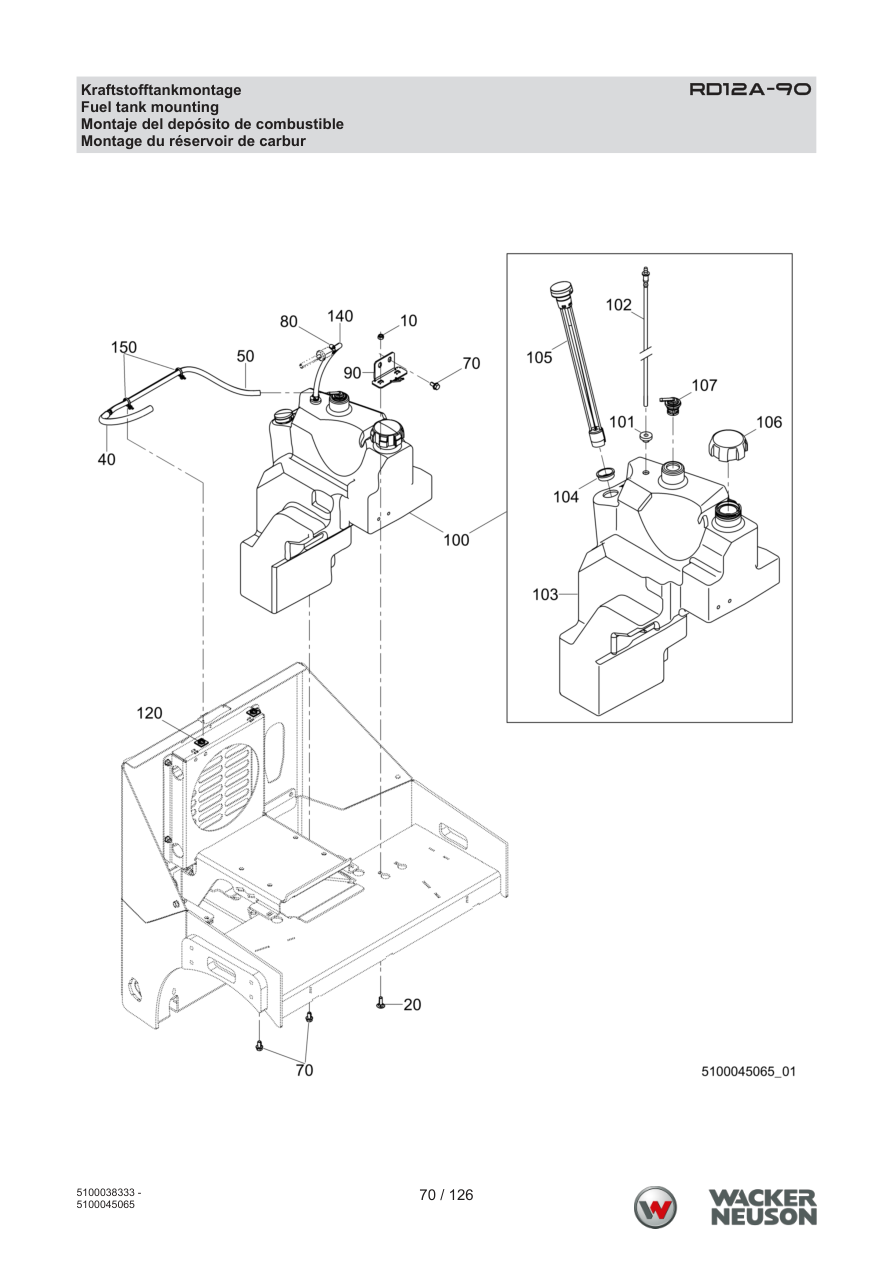

Page 70 — RD12A-90 Kraftstofftankmontage
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100045993 | pc | 2 | ADD TO CART | |
| 20 | 5000163954 | pc | 2 | ADD TO CART | |
| 40 | 5000193171 | pc | 1 | ADD TO CART | |
| 50 | 5100038133 | pc | 1 | ADD TO CART | |
| 70 | 5000163948 | pc | 4 | Hexagonal flange head screw | ADD TO CART |
| 80 | 5000028707 | pc | 4 | ADD TO CART | |
| 90 | 5100037943 | pc | 2 | ADD TO CART | |
| 100 | 5100037083 | pc | 1 | PARTS REQUEST | |
|
COMING pc

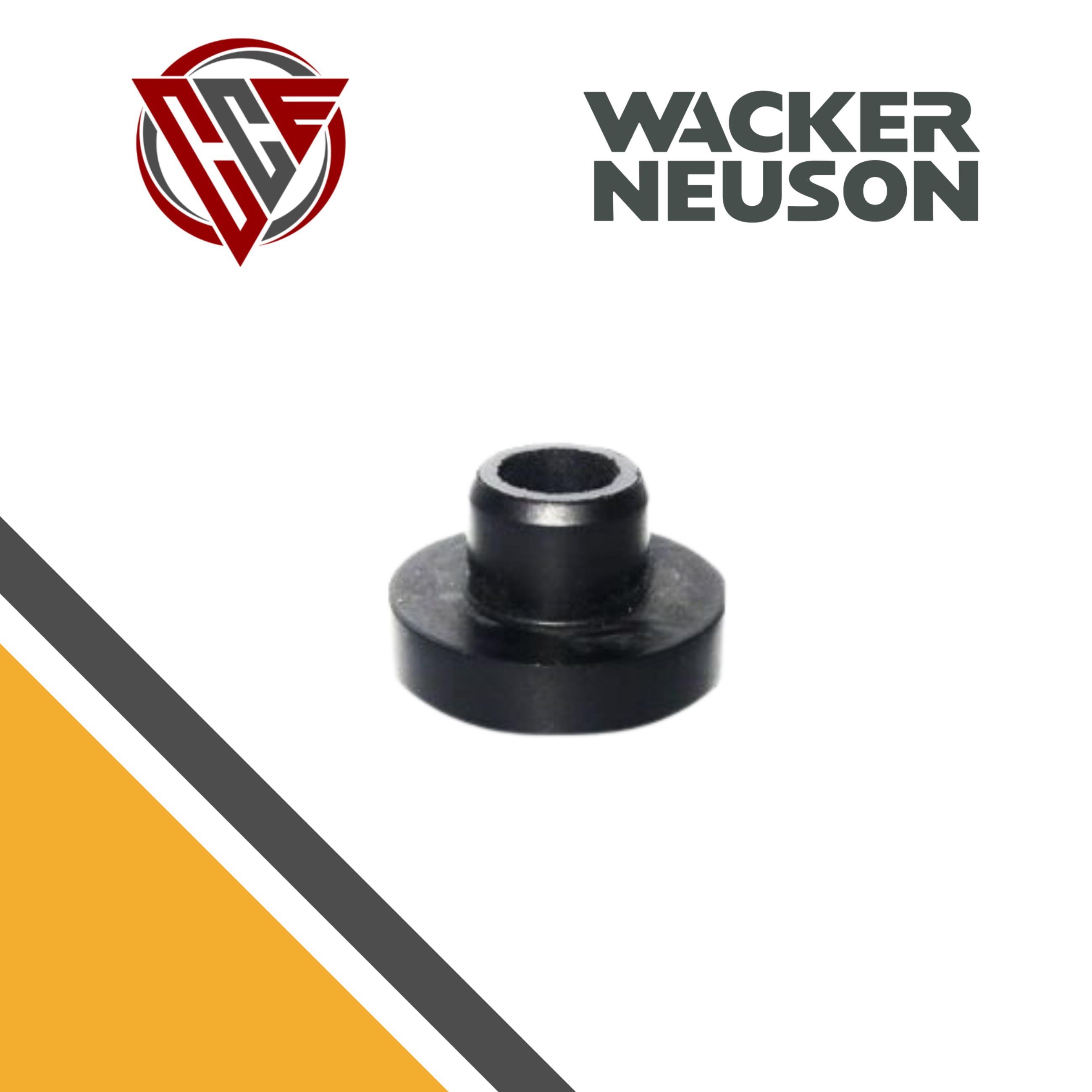

5100037083 · qty on machine: 1 | |||||
| 101 | 5000110586 | pc | 1 | ADD TO CART | |
| 102 | 5100037054 | pc | 1 | ADD TO CART | |
| 103 | 5100036530 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100036530 · qty on machine: 1 | |||||
| 104 | 5100036761 | pc | 1 | ADD TO CART | |
| 105 | 5100036762 | pc | 1 | ADD TO CART | |
| 106 | 5000186626 | pc | 1 | ADD TO CART | |
| 107 | 5100043735 | pc | 1 | ADD TO CART | |
| 120 | 1000372129 | pc | 1 | Adhesive tie point | PARTS REQUEST |
|
COMING pc
1000372129 · qty on machine: 1 Adhesive tie point | |||||
| 140 | 5100043477 | pc | 2 | ADD TO CART | |
| 150 | 1000094905 | pc | 1 | PARTS REQUEST | |
|
COMING pc
1000094905 · qty on machine: 1 | |||||

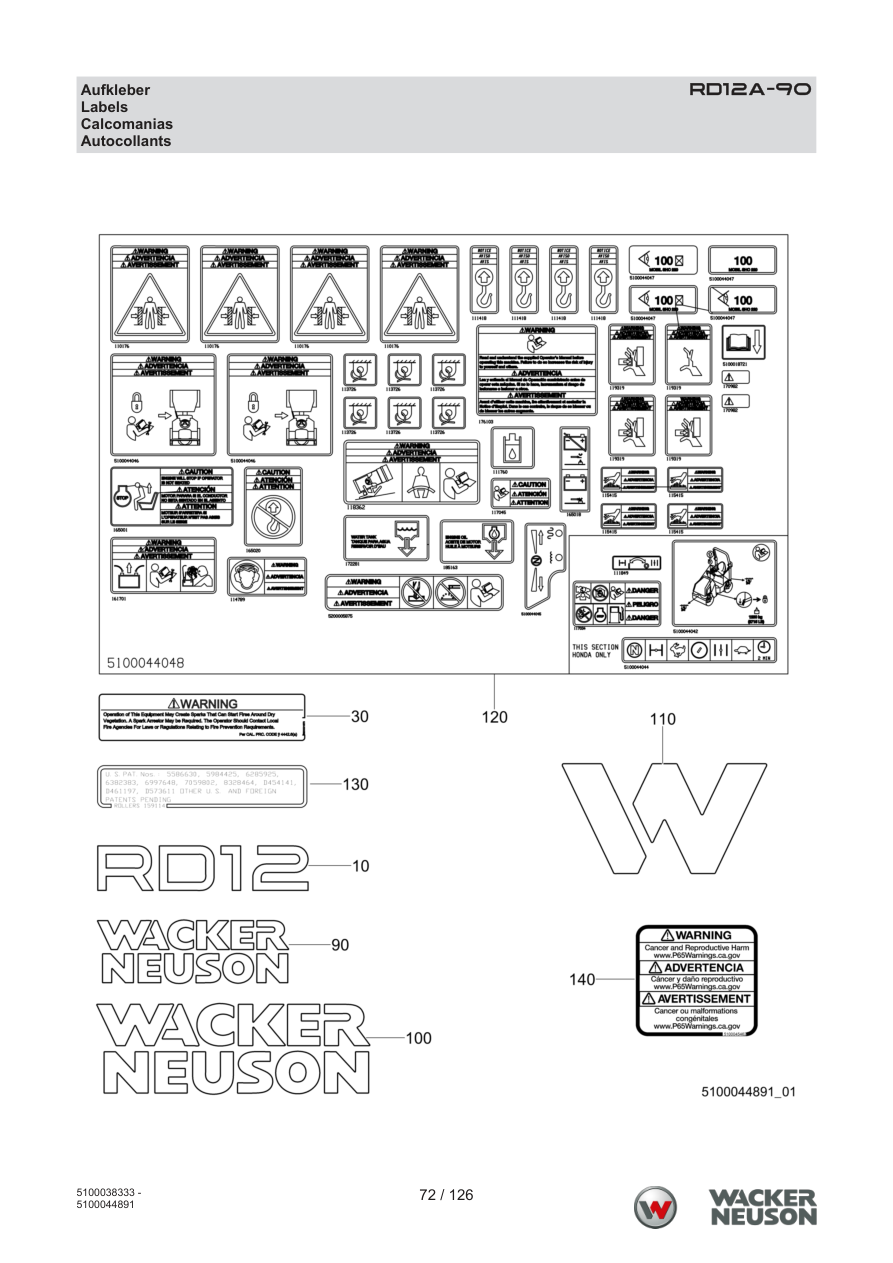

Page 72 — RD12A-90 Aufkleber
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100045483 | pc | 2 | ADD TO CART | |
| 30 | 5200001673 | pc | 1 | ADD TO CART | |
| 90 | 5000222102 | pc | 1 | Label-wacker neuson logo | ADD TO CART |
| 100 | 5000222103 | pc | 2 | ADD TO CART | |
| 110 | 5100027604 | pc | 2 | ADD TO CART | |
| 120 | 5100044048 | pc | 1 | ADD TO CART | |
| 130 | 5000159114 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000159114 · qty on machine: 1 | |||||
| 140 | 5100045462 | pc | 1 | Decal proposition 65 | PARTS REQUEST |
|
COMING pc
5100045462 · qty on machine: 1 Decal proposition 65 | |||||

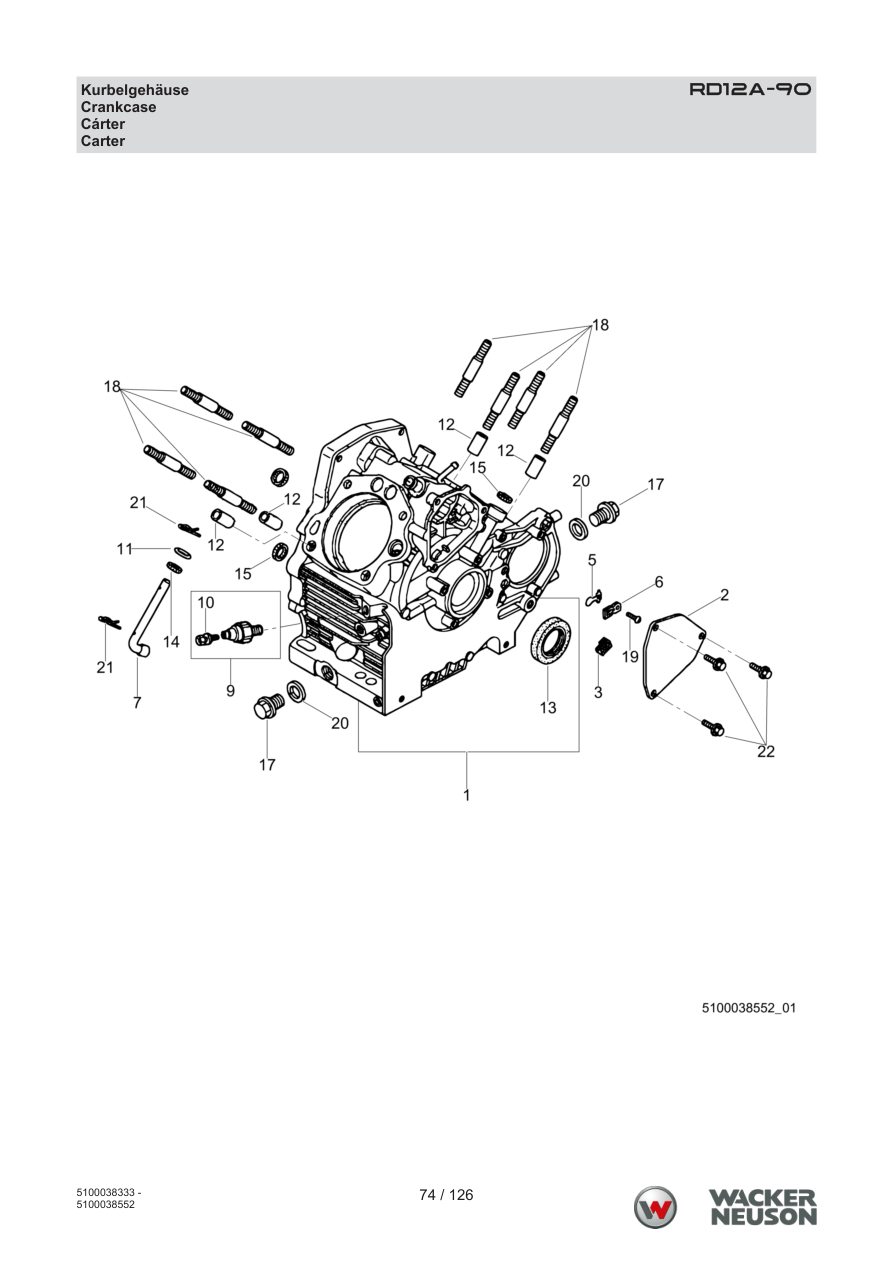

Page 74 — RD12A-90 Kurbelgehäuse
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100038531 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100038531 · qty on machine: 1 | |||||
| 2 | 5000226415 | pc | 1 | ADD TO CART | |
| 3 | 5000226416 | pc | 1 | ADD TO CART | |
| 5 | 5000162139 | pc | 1 | ADD TO CART | |
| 6 | 5000226442 | pc | 1 | ADD TO CART | |
| 7 | 5200005545 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5200005545 · qty on machine: 1 | |||||
| 9 | 5000226515 | pc | 1 | Oil pressure switch | ADD TO CART |
| 10 | 5000226527 | pc | 1 | ADD TO CART | |
| 11 | 5000226536 | pc | 1 | ADD TO CART | |
| 12 | 5000226542 | pc | 4 | ADD TO CART | |
| 13 | 5000226545 | pc | 1 | ADD TO CART | |
| 14 | 5000226546 | pc | 1 | ADD TO CART | |
| 15 | 5000226550 | pc | 3 | ADD TO CART | |
| 17 | 5000226552 | pc | 2 | ADD TO CART | |
| 18 | 5000226553 | pc | 8 | ADD TO CART | |
| 19 | 5000226554 | pc | 1 | Pan head screw | ADD TO CART |
| 20 | 5000226557 | pc | 2 | ADD TO CART | |
| 21 | 5000110110 | pc | 2 | ADD TO CART | |
| 22 | 5000151935 | pc | 3 | ADD TO CART | |

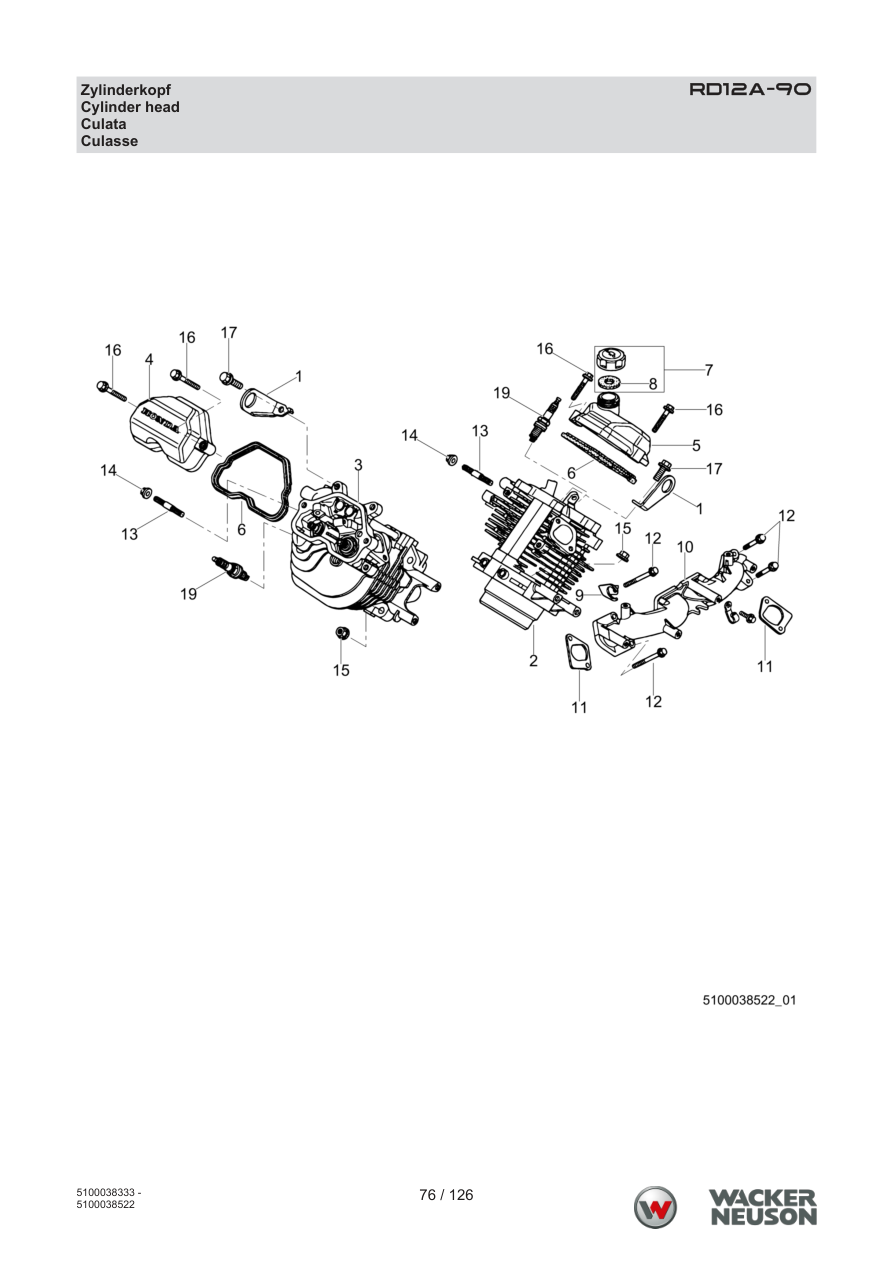

Page 76 — RD12A-90 Zylinderkopf
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000226408 | pc | 2 | ADD TO CART | |
| 2 | 5100038532 | pc | 1 | ADD TO CART | |
| 3 | 5100038533 | pc | 1 | ADD TO CART | |
| 4 | 5000226412 | pc | 1 | ADD TO CART | |
| 5 | 5000226413 | pc | 1 | ADD TO CART | |
| 6 | 5000226414 | pc | 2 | Cylinder cover gasket | ADD TO CART |
| 7 | 5000226443 | pc | 1 | ADD TO CART | |
| 8 | 5000226444 | pc | 1 | ADD TO CART | |
| 9 | 5100038534 | pc | 1 | ADD TO CART | |
| 10 | 5100038535 | pc | 1 | ADD TO CART | |
| 11 | 5100038536 | pc | 2 | ADD TO CART | |
| 12 | 5100038537 | pc | 4 | ADD TO CART | |
| 13 | 5000227787 | pc | 4 | PARTS REQUEST | |
|
COMING pc
5000227787 · qty on machine: 4 | |||||
| 14 | 5000074738 | pc | 4 | ADD TO CART | |
| 15 | 5000072332 | pc | 8 | PARTS REQUEST | |
|
COMING pc
5000072332 · qty on machine: 8 | |||||
| 16 | 5000160729 | pc | 4 | ADD TO CART | |
| 17 | 5000151925 | pc | 2 | ADD TO CART | |
| 19 | 5000226565 | pc | 2 | ADD TO CART | |

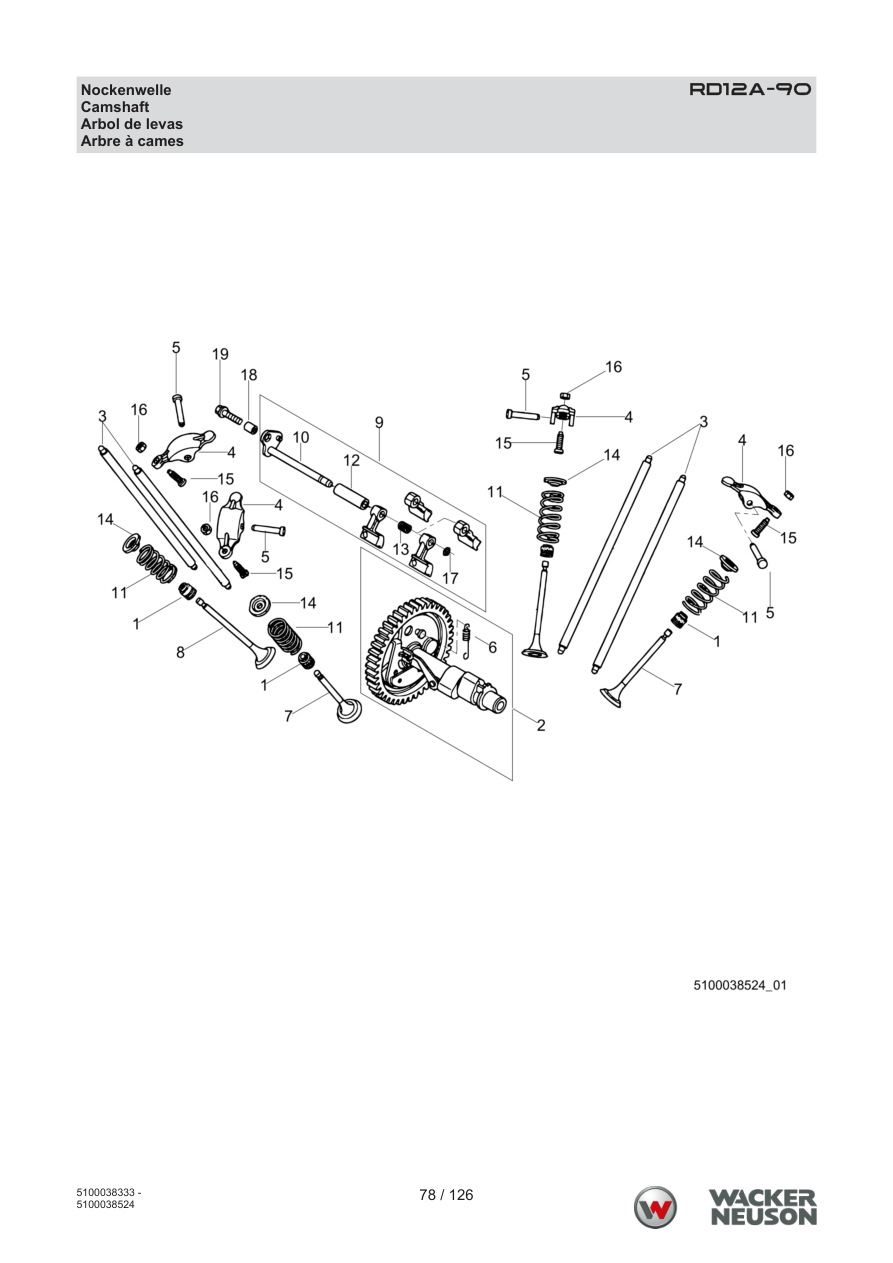

Page 78 — RD12A-90 Nockenwelle
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000226411 | pc | 4 | ADD TO CART | |
| 2 | 5000226423 | pc | 1 | ADD TO CART | |
| 3 | 5000226424 | pc | 4 | ADD TO CART | |
| 4 | 5000226425 | pc | 4 | Valve rocker arm | ADD TO CART |
| 5 | 5000226426 | pc | 4 | ADD TO CART | |
| 6 | 5000226427 | pc | 1 | ADD TO CART | |
| 7 | 5000226428 | pc | 2 | ADD TO CART | |
| 8 | 5000226429 | pc | 2 | ADD TO CART | |
| 9 | 5000226430 | pc | 1 | ADD TO CART | |
| 10 | 5000226431 | pc | 1 | ADD TO CART | |
| 11 | 5000226432 | pc | 4 | ADD TO CART | |
| 12 | 5000226433 | pc | 1 | ADD TO CART | |
| 13 | 5000226434 | pc | 1 | ADD TO CART | |
| 14 | 5000070996 | pc | 4 | ADD TO CART | |
| 15 | 5000226530 | pc | 4 | ADD TO CART | |
| 16 | 5000226532 | pc | 4 | ADD TO CART | |
| 17 | 5000081615 | pc | 1 | ADD TO CART | |
| 18 | 5000226540 | pc | 1 | ADD TO CART | |
| 19 | 5000160728 | pc | 1 | ADD TO CART | |

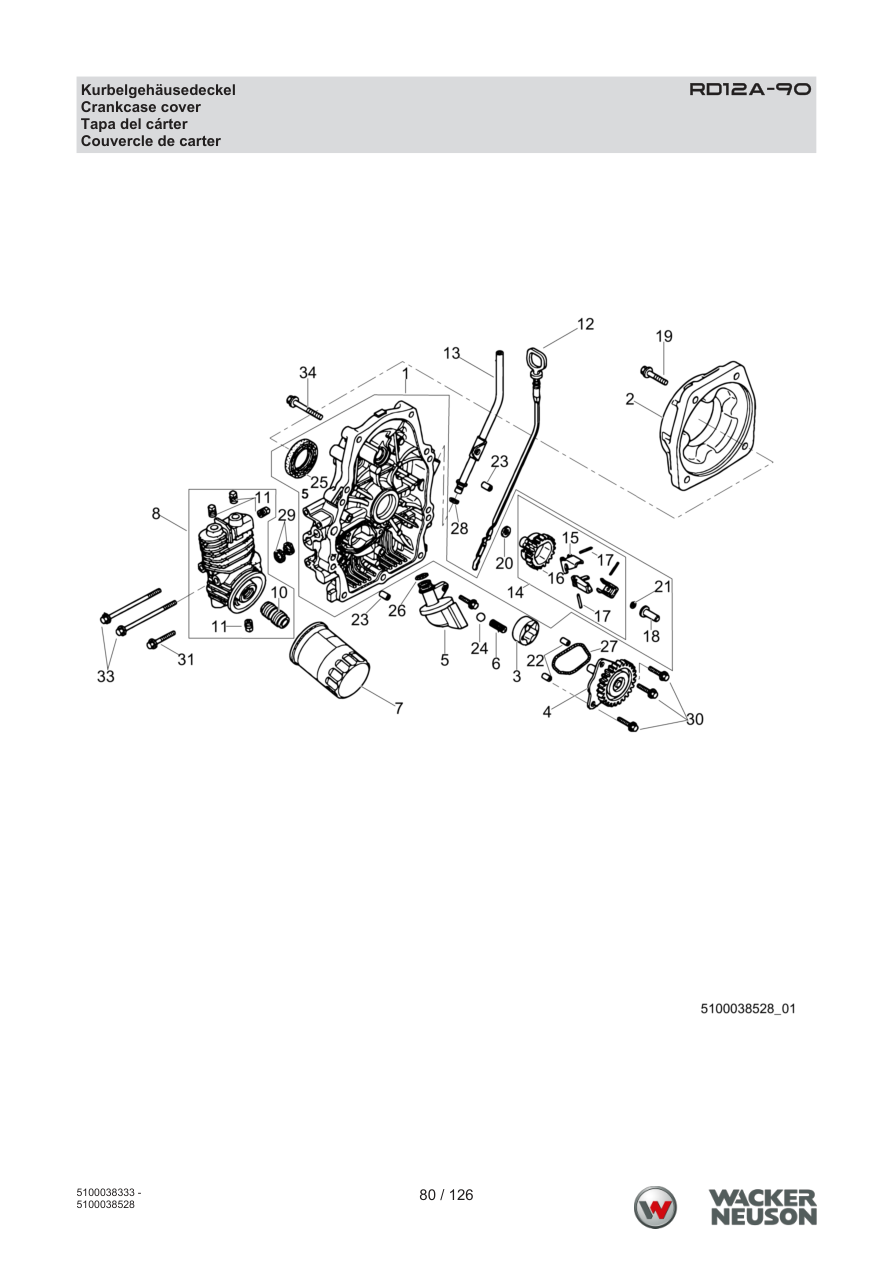

Page 80 — RD12A-90 Kurbelgehäusedeckel
Parts list — exactly as printed32 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5200005561 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5200005561 · qty on machine: 1 | |||||
| 2 | 5100038538 | pc | 1 | ADD TO CART | |
| 3 | 5000226435 | pc | 1 | ADD TO CART | |
| 4 | 5100038539 | pc | 1 | ADD TO CART | |
| 5 | 5000226437 | pc | 1 | ADD TO CART | |
| 6 | 5000226438 | pc | 1 | ADD TO CART | |
| 7 | 5000151855 | pc | 1 | ADD TO CART | |
| 8 | 5000226439 | pc | 1 | ADD TO CART | |
| 10 | 5000226440 | pc | 1 | ADD TO CART | |
| 11 | 5000226441 | pc | 4 | ADD TO CART | |
| 12 | 5000226445 | pc | 1 | ADD TO CART | |
| 13 | 5000226446 | pc | 1 | ADD TO CART | |
| 14 | 5100038541 | pc | 1 | ADD TO CART | |
| 15 | 5200005563 | pc | 3 | ADD TO CART | |
| 16 | 5200005564 | pc | 1 | ADD TO CART | |
| 17 | 5000226466 | pc | 3 | ADD TO CART | |
| 18 | 5000226467 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000226467 · qty on machine: 1 | |||||
| 19 | 5100038542 | pc | 4 | ADD TO CART | |
| 20 | 5000226535 | pc | 1 | ADD TO CART | |
| 21 | 5000081615 | pc | 1 | ADD TO CART | |
| 22 | 5000226540 | pc | 2 | ADD TO CART | |
| 23 | 5000226541 | pc | 2 | ADD TO CART | |
| 24 | 5000226544 | pc | 1 | ADD TO CART | |
| 25 | 5200005565 | pc | 1 | ADD TO CART | |
| 26 | 5000226547 | pc | 1 | ADD TO CART | |
| 27 | 5000226549 | pc | 1 | ADD TO CART | |
| 28 | 5100038543 | pc | 1 | ADD TO CART | |
| 29 | 5000226550 | pc | 2 | ADD TO CART | |
| 30 | 5000107064 | pc | 4 | ADD TO CART | |
| 31 | 5000152325 | pc | 1 | ADD TO CART | |
| 33 | 5000226562 | pc | 2 | ADD TO CART | |
| 34 | 5000226563 | pc | 9 | ADD TO CART | |

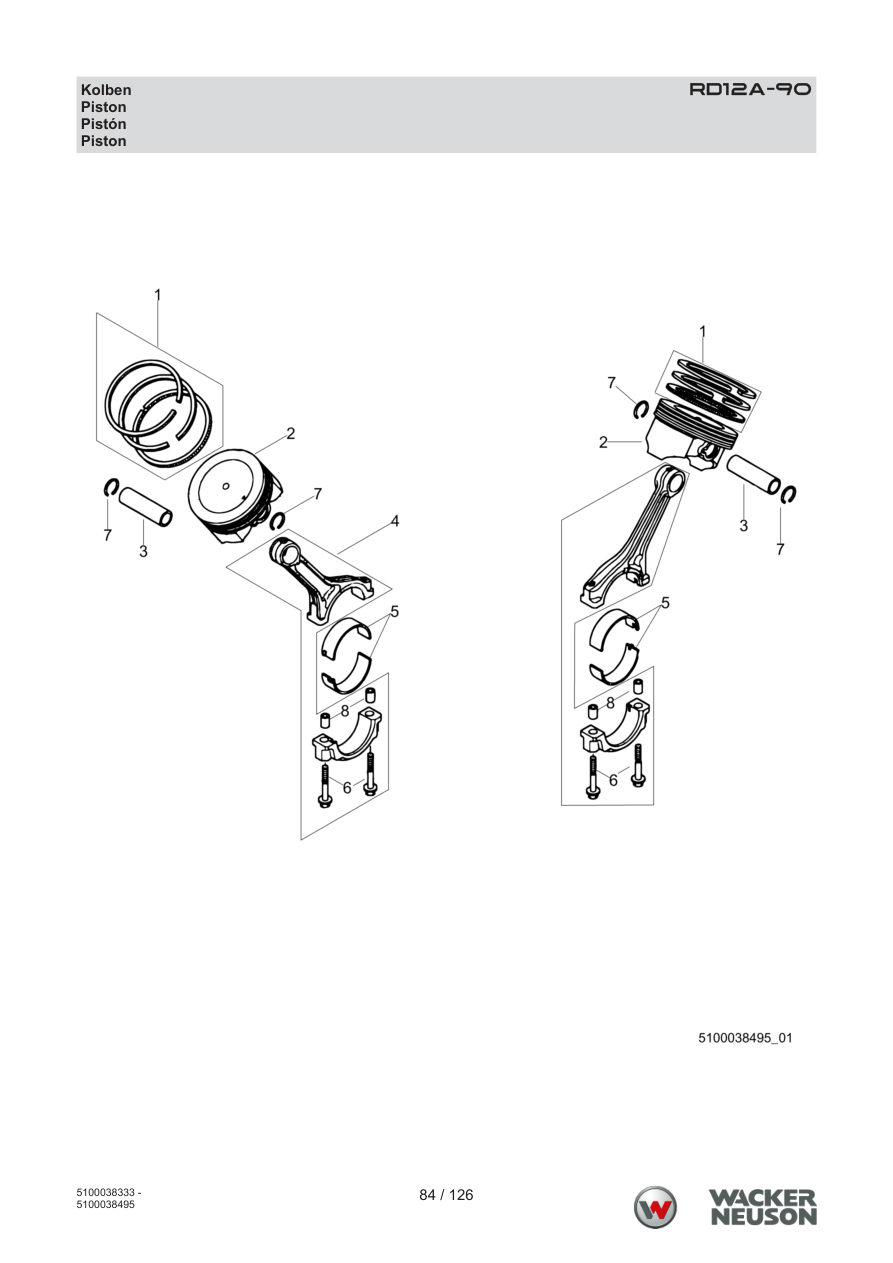

Page 84 — RD12A-90 Kolben
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000226417 | pc | 2 | Set of piston rings | ADD TO CART |
| 2 | 5000226418 | pc | 2 | ADD TO CART | |
| 3 | 5000226419 | pc | 2 | ADD TO CART | |
| 4 | 5000226420 | pc | 2 | Connecting rod cpl. | ADD TO CART |
| 5 | 5000226421 | pc | 4 | ADD TO CART | |
| 6 | 5000226526 | pc | 4 | ADD TO CART | |
| 7 | 5000081994 | pc | 4 | ADD TO CART | |
| 8 | 5000226539 | pc | 4 | ADD TO CART | |

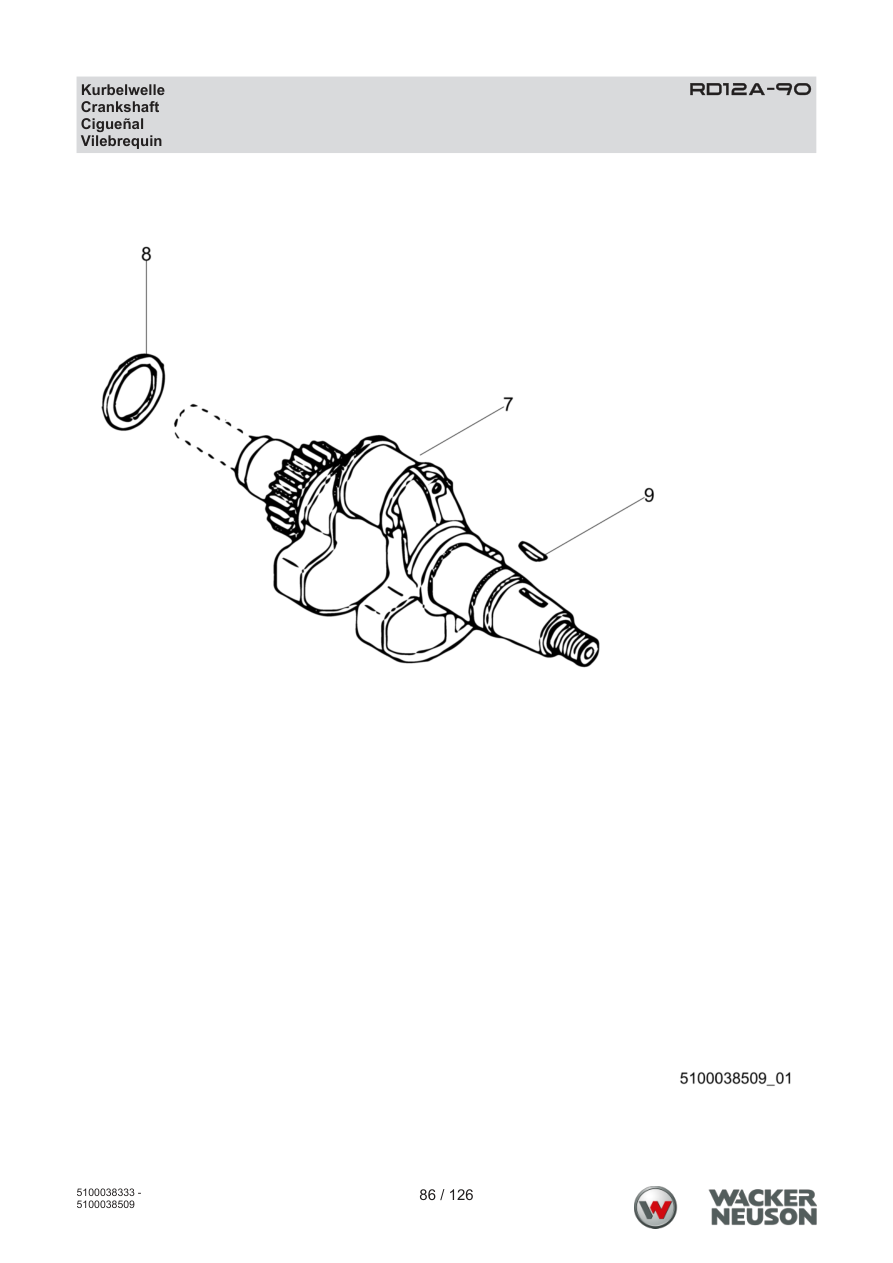

Page 86 — RD12A-90 Kurbelwelle
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 7 | 5100038544 | pc | 1 | ADD TO CART | |
| 8 | 5000226534 | pc | 1 | ADD TO CART | |
| 9 | 5000074672 | pc | 1 | ADD TO CART | |

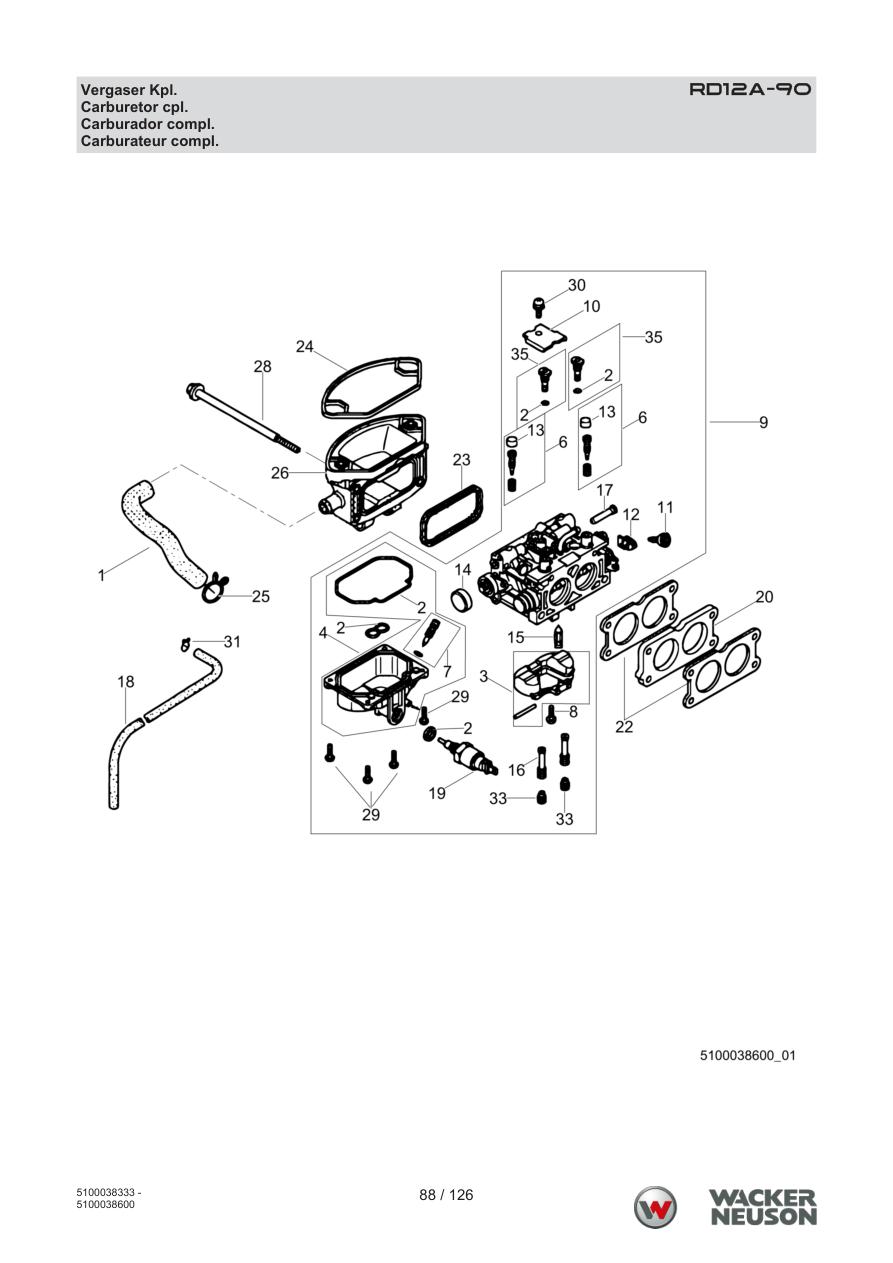

Page 88 — RD12A-90 Vergaser Kpl.
Parts list — exactly as printed30 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000226447 | pc | 1 | ADD TO CART | |
| 2 | 5000226448 | pc | 1 | ADD TO CART | |
| 3 | 5000226449 | pc | 1 | ADD TO CART | |
| 4 | 5000226450 | pc | 1 | ADD TO CART | |
| 6 | 5200005528 | pc | 2 | ADD TO CART | |
| 7 | 5000151786 | pc | 1 | ADD TO CART | |
| 8 | 5000226452 | pc | 1 | ADD TO CART | |
| 9 | 5000226453 | pc | 1 | ADD TO CART | |
| 10 | 5000226454 | pc | 1 | ADD TO CART | |
| 11 | 5000071018 | pc | 1 | Throttle stop screw | ADD TO CART |
| 12 | 5000226455 | pc | 1 | ADD TO CART | |
| 13 | 5200005529 | pc | 2 | ADD TO CART | |
| 14 | 5000151790 | pc | 1 | ADD TO CART | |
| 15 | 5000226456 | pc | 1 | ADD TO CART | |
| 16 | 5100003406 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100003406 · qty on machine: 2 | |||||
| 17 | 5000226458 | pc | 1 | ADD TO CART | |
| 18 | 5000226459 | pc | 1 | Oil drain pipe | ADD TO CART |
| 19 | 5000226460 | pc | 1 | ADD TO CART | |
| 20 | 5000226461 | pc | 1 | ADD TO CART | |
| 22 | 5000226462 | pc | 2 | ADD TO CART | |
| 23 | 5000226483 | pc | 1 | ADD TO CART | |
| 24 | 5000226484 | pc | 1 | ADD TO CART | |
| 25 | 5000226489 | pc | 1 | ADD TO CART | |
| 26 | 5000226490 | pc | 1 | ADD TO CART | |
| 28 | 5000226528 | pc | 4 | ADD TO CART | |
| 29 | 5100038545 | pc | 4 | PARTS REQUEST | |
|
COMING pc
5100038545 · qty on machine: 4 | |||||
| 30 | 5000227792 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000227792 · qty on machine: 1 | |||||
| 31 | 5000054136 | pc | 1 | ADD TO CART | |
| 33 | 5100003514 | pc | 2 | ADD TO CART | |
| 35 | 5000084654 | pc | 2 | ADD TO CART | |

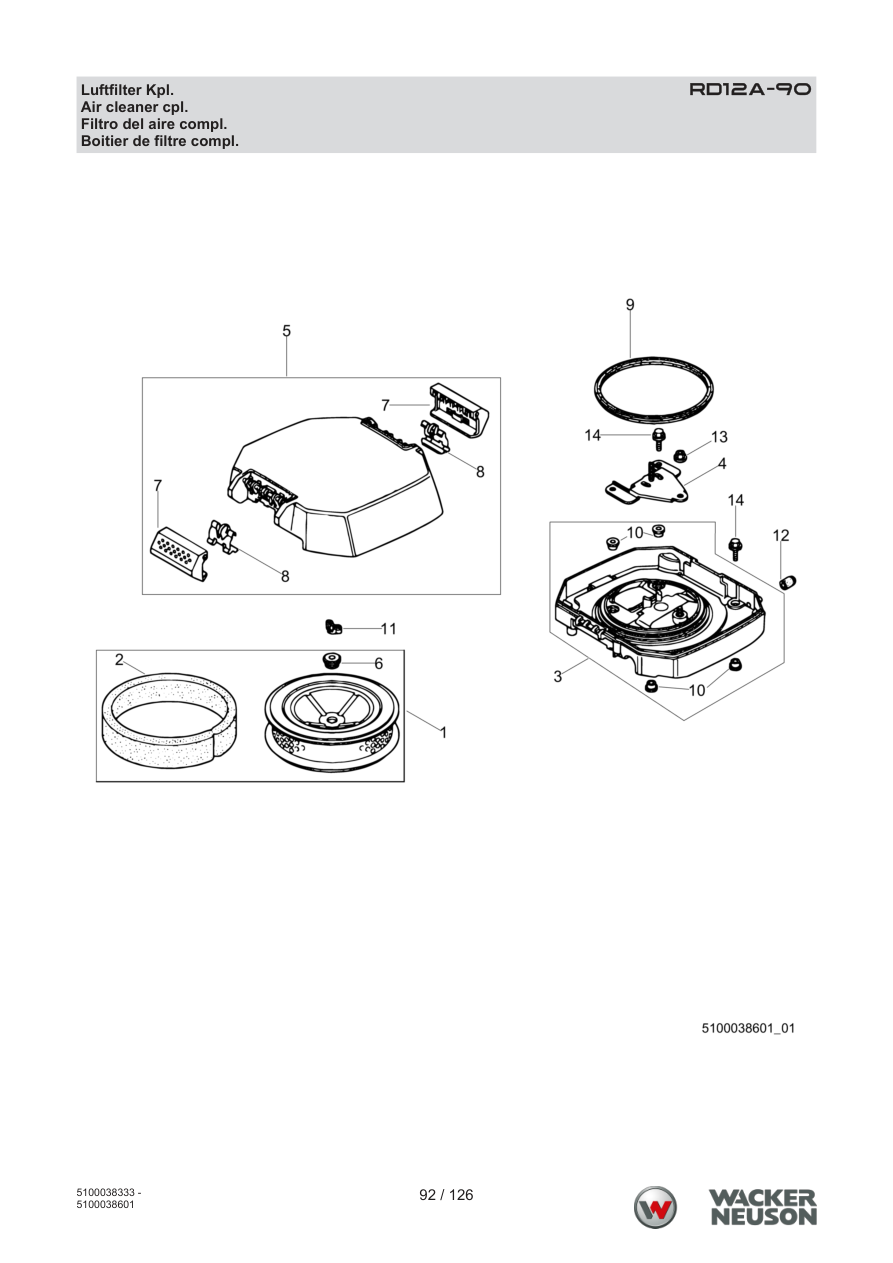

Page 92 — RD12A-90 Luftfilter Kpl.
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000226480 | pc | 1 | ADD TO CART | |
| 2 | 5100046403 | pc | 1 | ADD TO CART | |
| 3 | 5000226481 | pc | 1 | Air filter housing | ADD TO CART |
| 4 | 5000226482 | pc | 1 | ADD TO CART | |
| 5 | 5000226485 | pc | 1 | Air cleaner cover cpl. | ADD TO CART |
| 6 | 5000226486 | pc | 1 | ADD TO CART | |
| 7 | 5000226487 | pc | 2 | ADD TO CART | |
| 8 | 5000226488 | pc | 2 | ADD TO CART | |
| 9 | 5000226491 | pc | 1 | ADD TO CART | |
| 10 | 5000226495 | pc | 4 | ADD TO CART | |
| 11 | 5000071621 | pc | 1 | ADD TO CART | |
| 12 | 5000226543 | pc | 1 | ADD TO CART | |
| 13 | 5000071056 | pc | 1 | ADD TO CART | |
| 14 | 5000226560 | pc | 4 | ADD TO CART | |

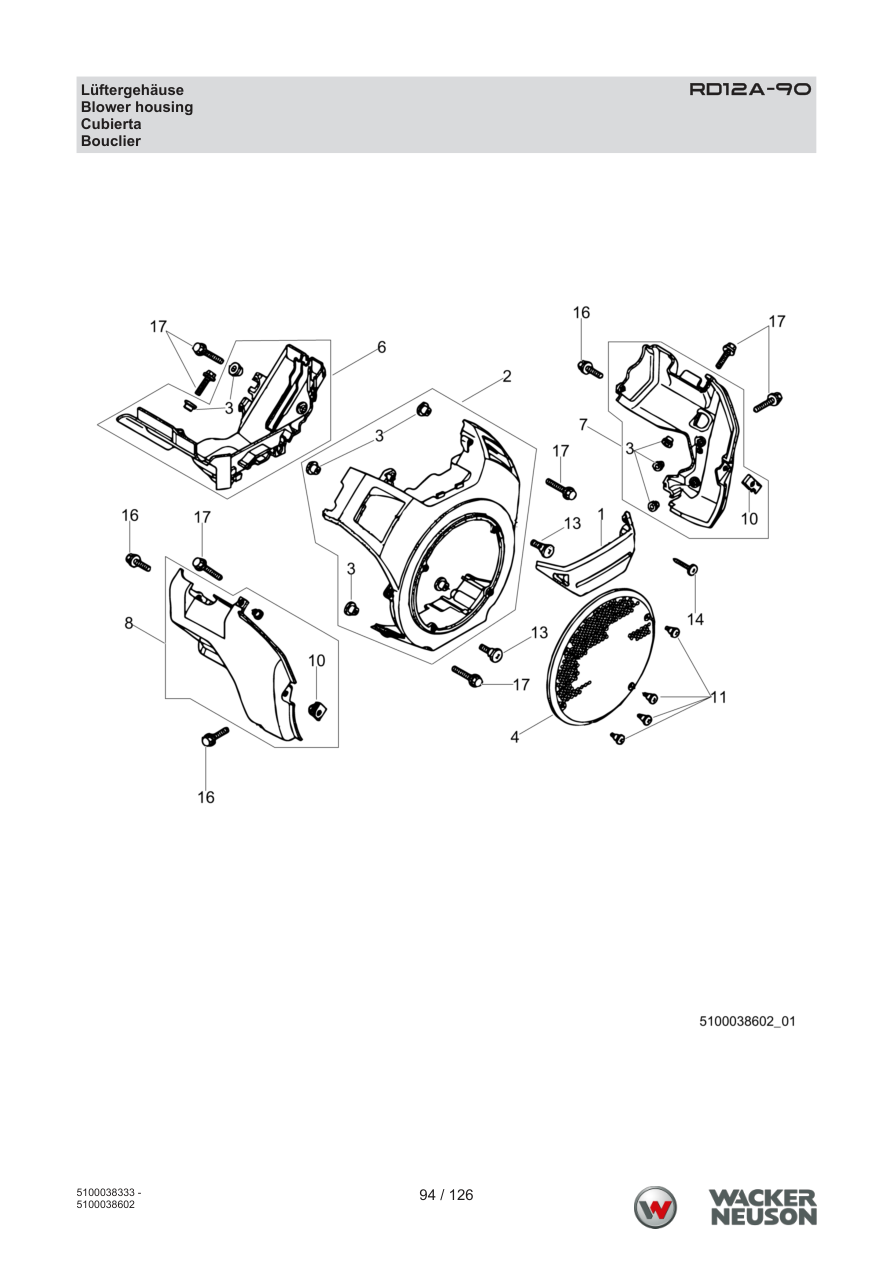

Page 94 — RD12A-90 Lüftergehäuse
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000226471 | pc | 1 | ADD TO CART | |
| 2 | 5000226494 | pc | 1 | ADD TO CART | |
| 2 | 5000227777 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000227777 · qty on machine: 1 | |||||
| 3 | 5000226495 | pc | 10 | ADD TO CART | |
| 4 | 5000226496 | pc | 1 | ADD TO CART | |
| 6 | 5000226497 | pc | 1 | ADD TO CART | |
| 7 | 5000226498 | pc | 1 | ADD TO CART | |
| 8 | 5000226499 | pc | 1 | ADD TO CART | |
| 10 | 5000226517 | pc | 2 | ADD TO CART | |
| 11 | 5100038546 | pc | 4 | ADD TO CART | |
| 13 | 5000226533 | pc | 2 | ADD TO CART | |
| 14 | 5000152541 | pc | 2 | ADD TO CART | |
| 16 | 5000212802 | pc | 3 | ADD TO CART | |
| 17 | 5000107064 | pc | 10 | ADD TO CART | |

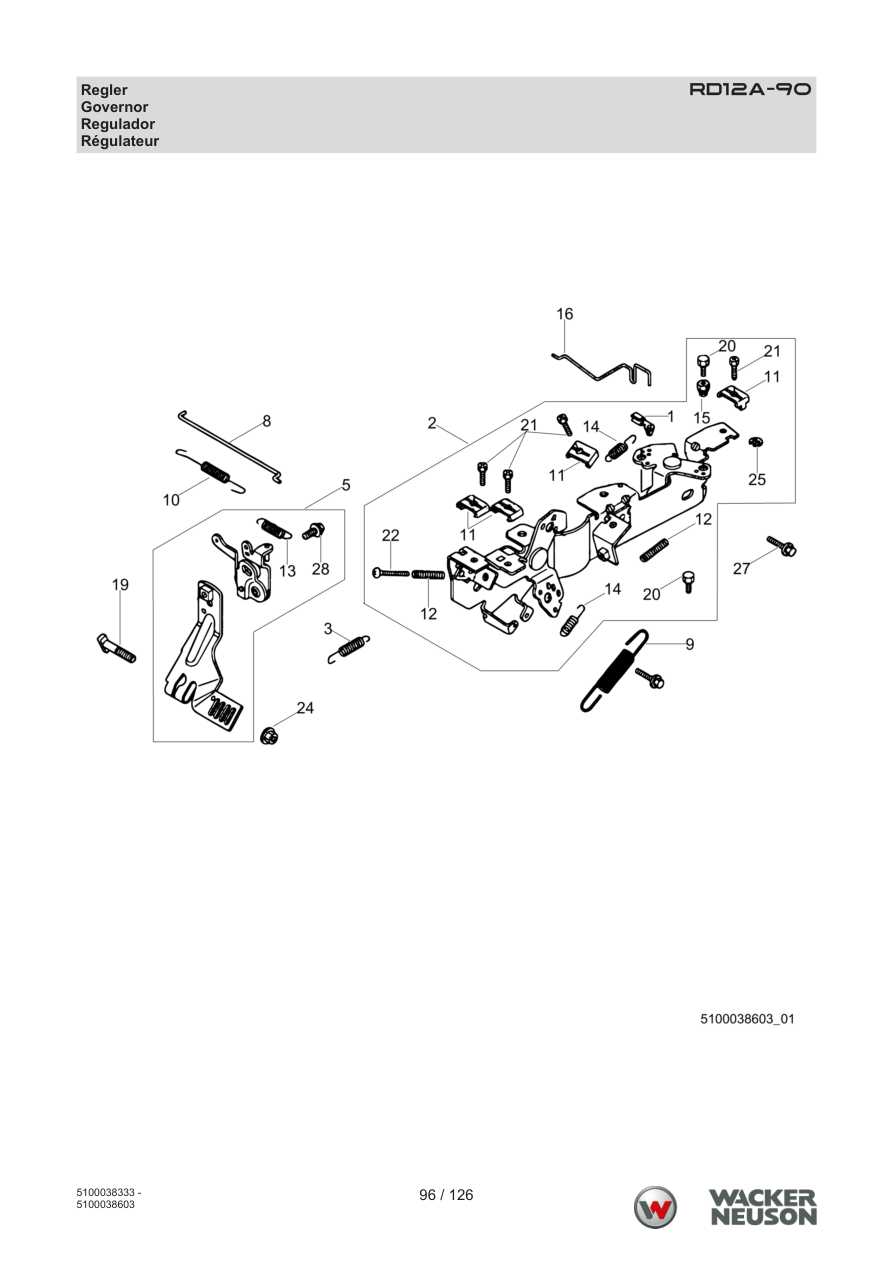

Page 96 — RD12A-90 Regler
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000226567 | pc | 1 | ADD TO CART | |
| 2 | 5100038547 | pc | 1 | ADD TO CART | |
| 3 | 5000226569 | pc | 1 | ADD TO CART | |
| 5 | 5000226570 | pc | 1 | ADD TO CART | |
| 8 | 5000226571 | pc | 1 | ADD TO CART | |
| 9 | 5000226572 | pc | 1 | ADD TO CART | |
| 10 | 5100003423 | pc | 1 | ADD TO CART | |
| 11 | 5000071062 | pc | 2 | ADD TO CART | |
| 12 | 5000054088 | pc | 1 | ADD TO CART | |
| 13 | 5000226574 | pc | 1 | ADD TO CART | |
| 14 | 5000151818 | pc | 2 | ADD TO CART | |
| 15 | 5000151819 | pc | 2 | ADD TO CART | |
| 16 | 5100038548 | pc | 1 | ADD TO CART | |
| 19 | 5000151821 | pc | 1 | ADD TO CART | |
| 20 | 5000152490 | pc | 2 | ADD TO CART | |
| 21 | 5000152491 | pc | 2 | ADD TO CART | |
| 22 | 5000227791 | pc | 1 | Pan head screw | PARTS REQUEST |
|
COMING pc
5000227791 · qty on machine: 1 Pan head screw | |||||
| 24 | 5000071056 | pc | 1 | ADD TO CART | |
| 25 | 5000226558 | pc | 2 | ADD TO CART | |
| 27 | 5000151935 | pc | 2 | ADD TO CART | |
| 28 | 5000226579 | pc | 1 | ADD TO CART | |

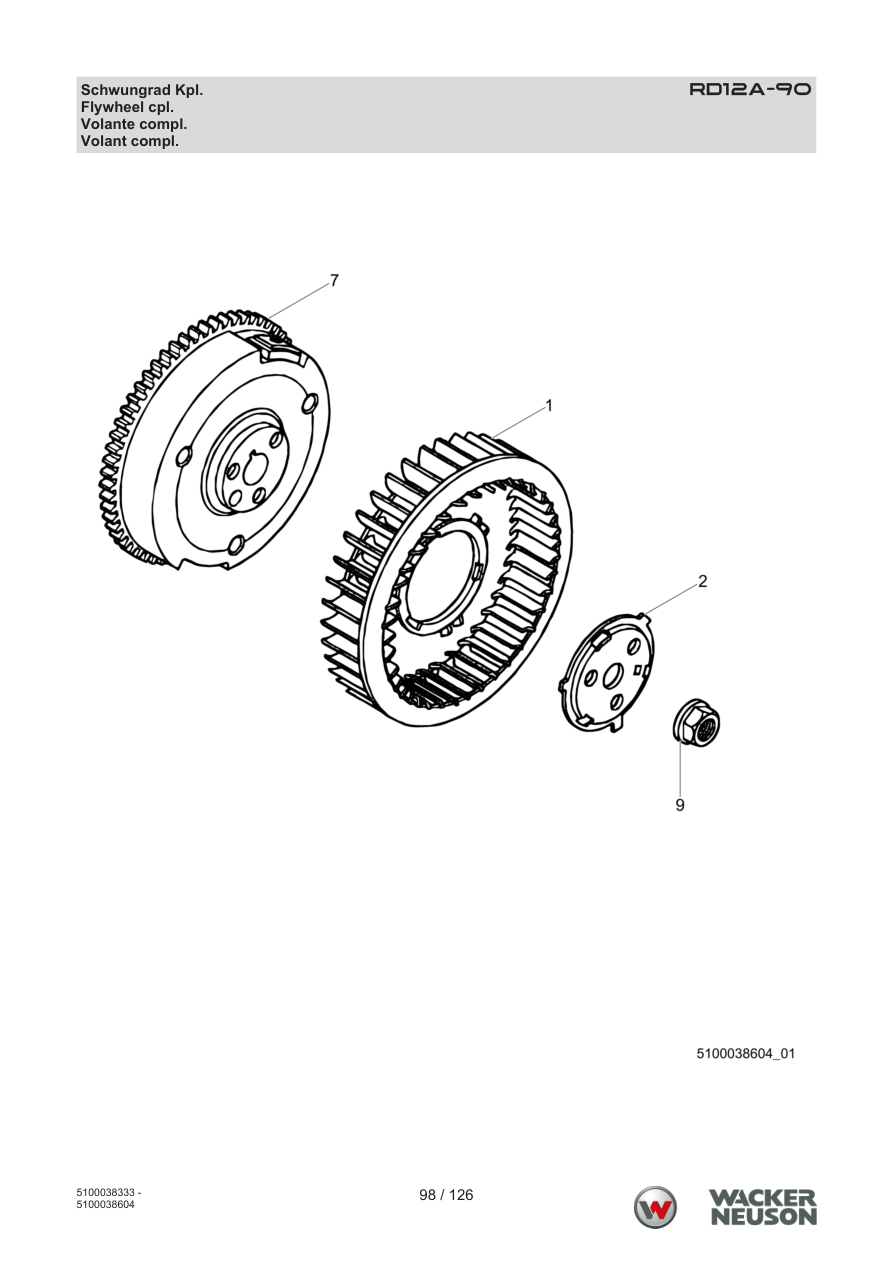

Page 98 — RD12A-90 Schwungrad Kpl.
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000226492 | pc | 1 | ADD TO CART | |
| 2 | 5000226493 | pc | 1 | ADD TO CART | |
| 7 | 5000226502 | pc | 1 | ADD TO CART | |
| 9 | 5000226531 | pc | 1 | ADD TO CART | |

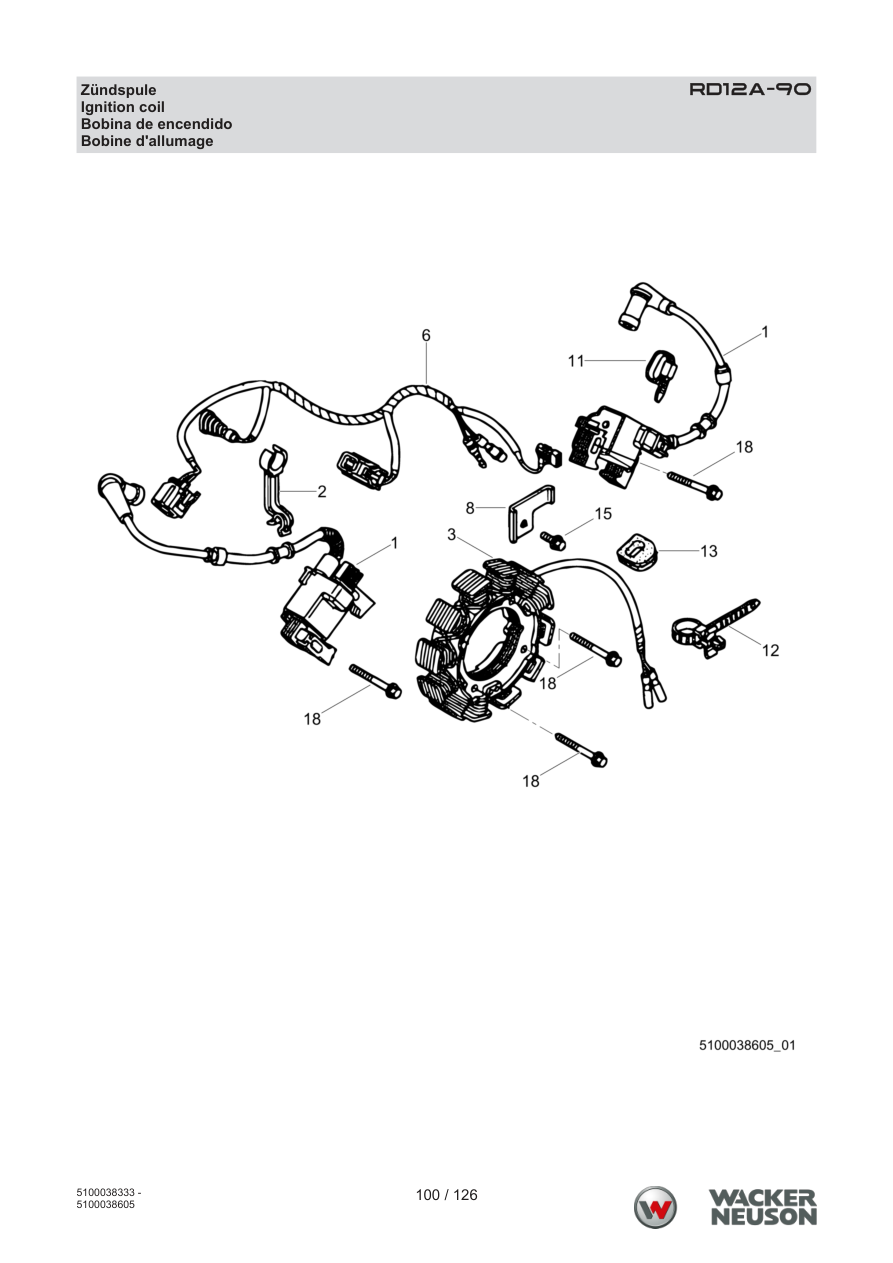

Page 100 — RD12A-90 Zündspule
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000226500 | pc | 2 | ADD TO CART | |
| 2 | 5000226501 | pc | 1 | ADD TO CART | |
| 3 | 5000226509 | pc | 1 | ADD TO CART | |
| 6 | 5000226512 | pc | 1 | Engine wiring harness | ADD TO CART |
| 8 | 5000226513 | pc | 1 | ADD TO CART | |
| 11 | 5000226537 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000226537 · qty on machine: 1 | |||||
| 12 | 5000226538 | pc | 1 | ADD TO CART | |
| 13 | 5000226551 | pc | 1 | ADD TO CART | |
| 15 | 5000072333 | pc | 1 | ADD TO CART | |
| 18 | 5000151875 | pc | 8 | ADD TO CART | |

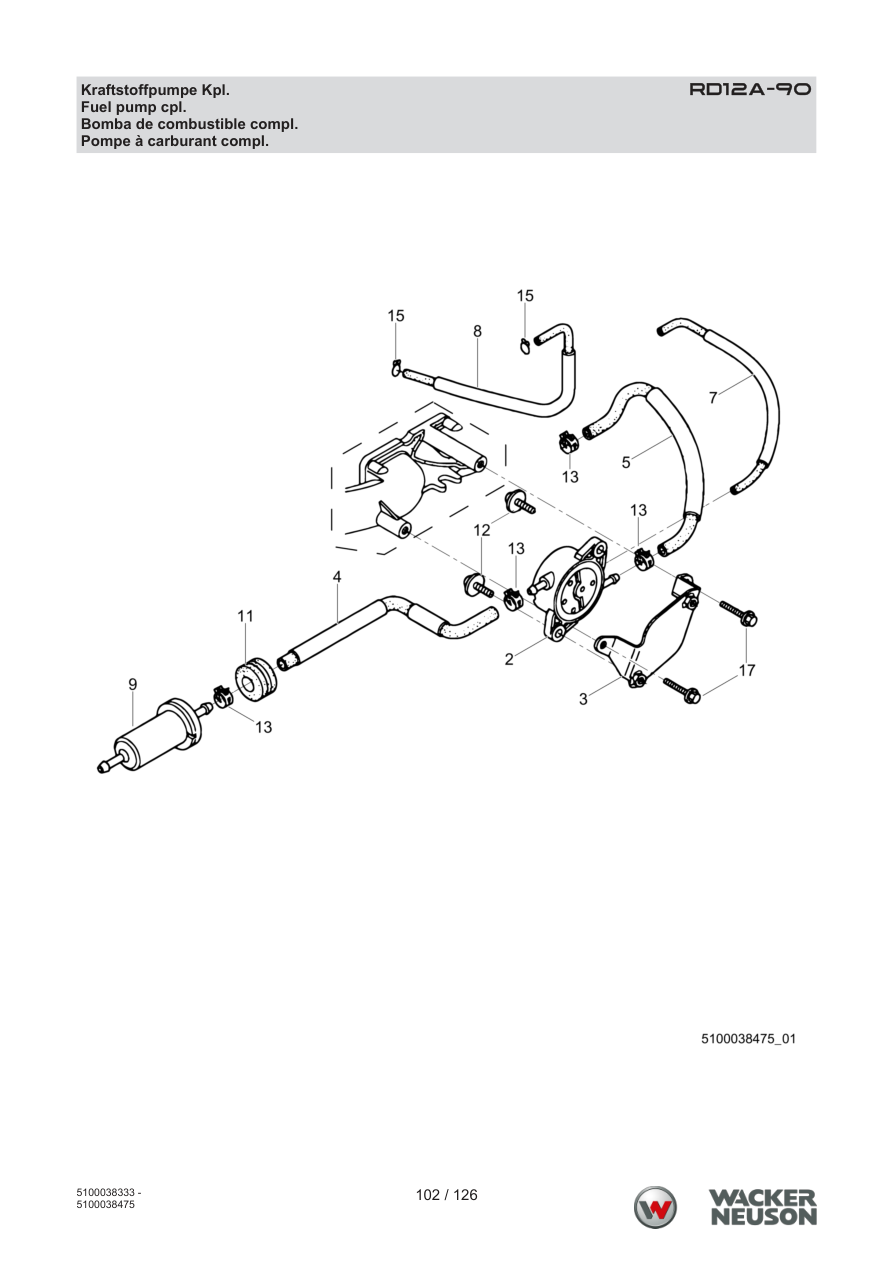

Page 102 — RD12A-90 Kraftstoffpumpe Kpl.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000226469 | pc | 1 | Fuel pump cpl. | ADD TO CART |
| 3 | 5000226470 | pc | 1 | ADD TO CART | |
| 4 | 5000226473 | pc | 1 | ADD TO CART | |
| 5 | 5000226474 | pc | 1 | ADD TO CART | |
| 7 | 5000226475 | pc | 1 | ADD TO CART | |
| 8 | 5000226476 | pc | 1 | ADD TO CART | |
| 9 | 5000226477 | pc | 1 | ADD TO CART | |
| 11 | 5000226516 | pc | 1 | ADD TO CART | |
| 12 | 5000152551 | pc | 2 | ADD TO CART | |
| 13 | 5000226559 | pc | 4 | ADD TO CART | |
| 15 | 5000160727 | pc | 2 | ADD TO CART | |
| 17 | 5000151935 | pc | 2 | ADD TO CART | |

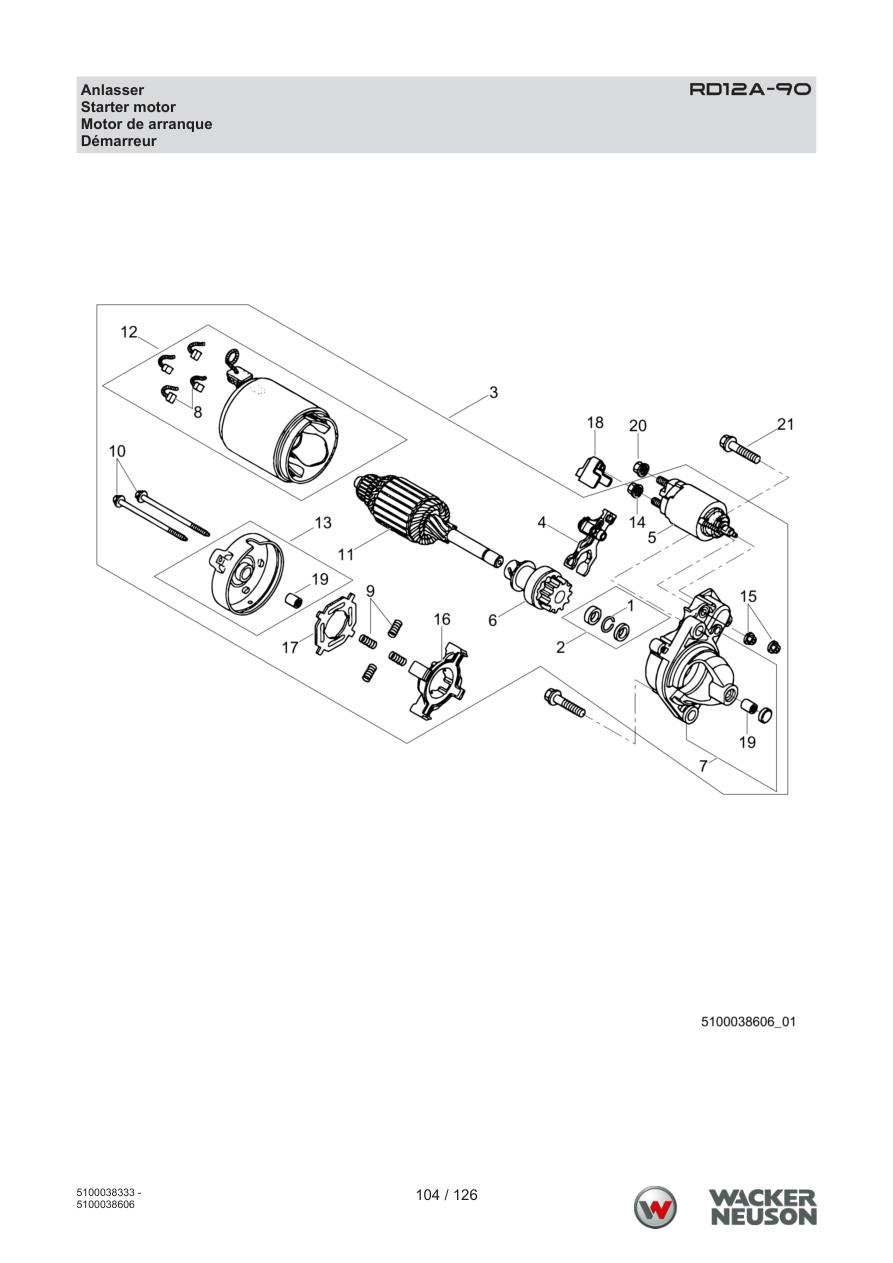

Page 104 — RD12A-90 Anlasser
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159537 | pc | 1 | ADD TO CART | |
| 2 | 5000152565 | pc | 1 | ADD TO CART | |
| 3 | 5000226503 | pc | 1 | ADD TO CART | |
| 4 | 5000152568 | pc | 1 | ADD TO CART | |
| 5 | 5000152569 | pc | 1 | ADD TO CART | |
| 6 | 5000226504 | pc | 1 | ADD TO CART | |
| 7 | 5000226505 | pc | 1 | ADD TO CART | |
| 8 | 5000152572 | pc | 4 | ADD TO CART | |
| 9 | 5000152573 | pc | 4 | ADD TO CART | |
| 10 | 5000152575 | pc | 2 | ADD TO CART | |
| 11 | 5000226506 | pc | 1 | ADD TO CART | |
| 12 | 5000152576 | pc | 1 | ADD TO CART | |
| 13 | 5000226507 | pc | 1 | ADD TO CART | |
| 14 | 5000152577 | pc | 1 | ADD TO CART | |
| 15 | 5000152578 | pc | 2 | ADD TO CART | |
| 16 | 5000152579 | pc | 1 | ADD TO CART | |
| 17 | 5000152580 | pc | 1 | ADD TO CART | |
| 18 | 5000226508 | pc | 1 | ADD TO CART | |
| 19 | 5000152582 | pc | 2 | ADD TO CART | |
| 20 | 5000226556 | pc | 1 | ADD TO CART | |
| 21 | 5000226564 | pc | 2 | ADD TO CART | |

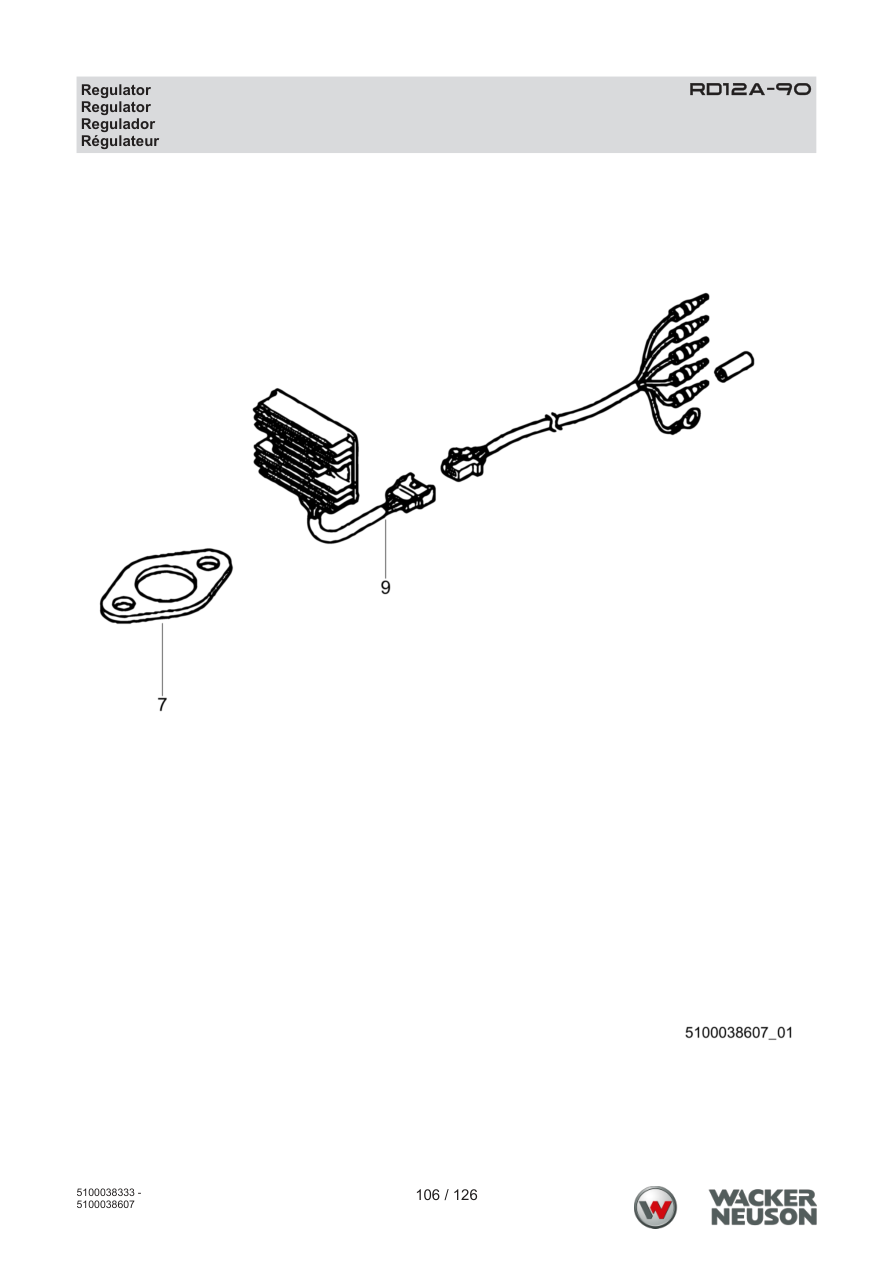

Page 106 — RD12A-90 Regulator
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 7 | 5200005548 | pc | 2 | ADD TO CART | |
| 9 | 5000226510 | pc | 1 | ADD TO CART | |

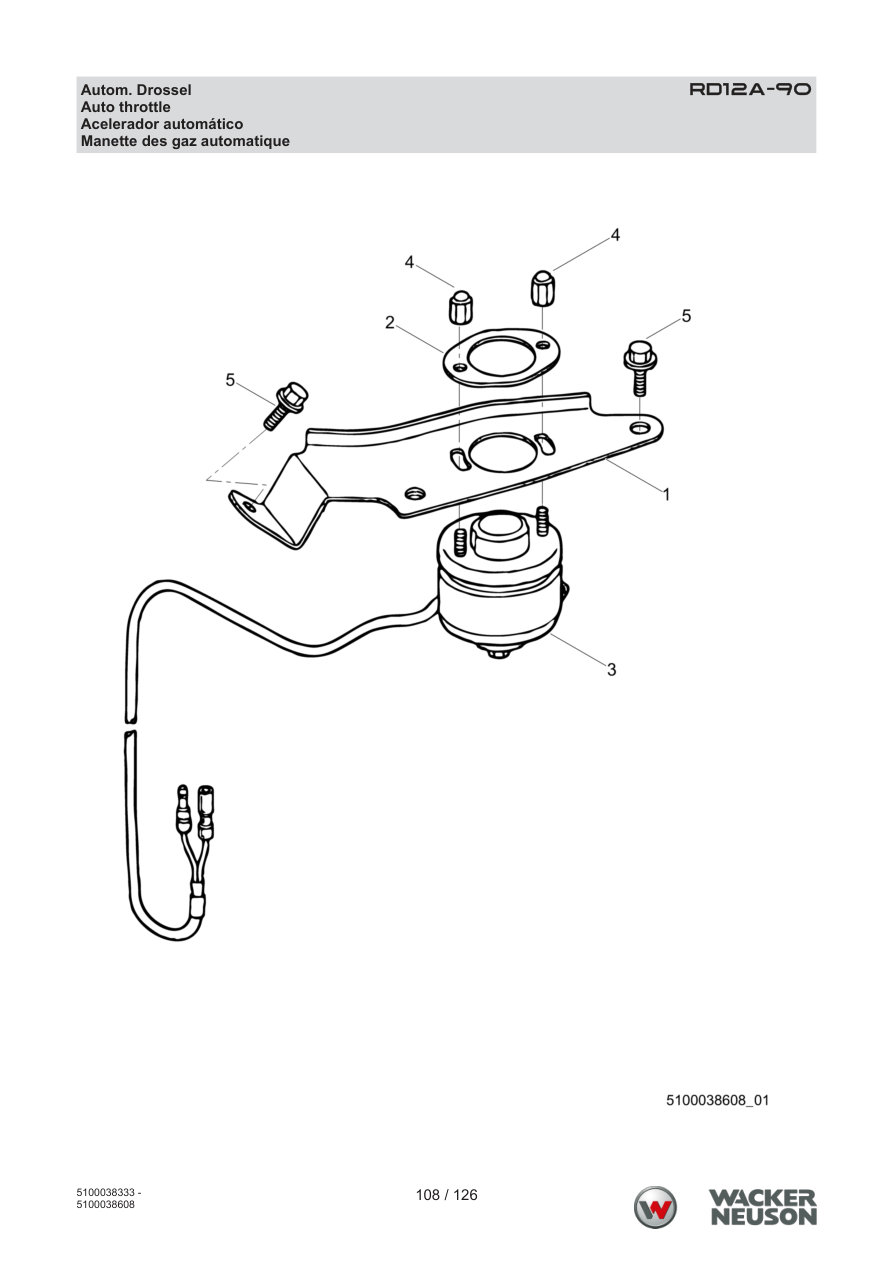

Page 108 — RD12A-90 Autom. Drossel
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000226576 | pc | 1 | ADD TO CART | |
| 2 | 5000226577 | pc | 1 | ADD TO CART | |
| 3 | 5000226578 | pc | 1 | ADD TO CART | |
| 4 | 5000214866 | pc | 2 | ADD TO CART | |
| 5 | 5000151935 | pc | 3 | ADD TO CART | |

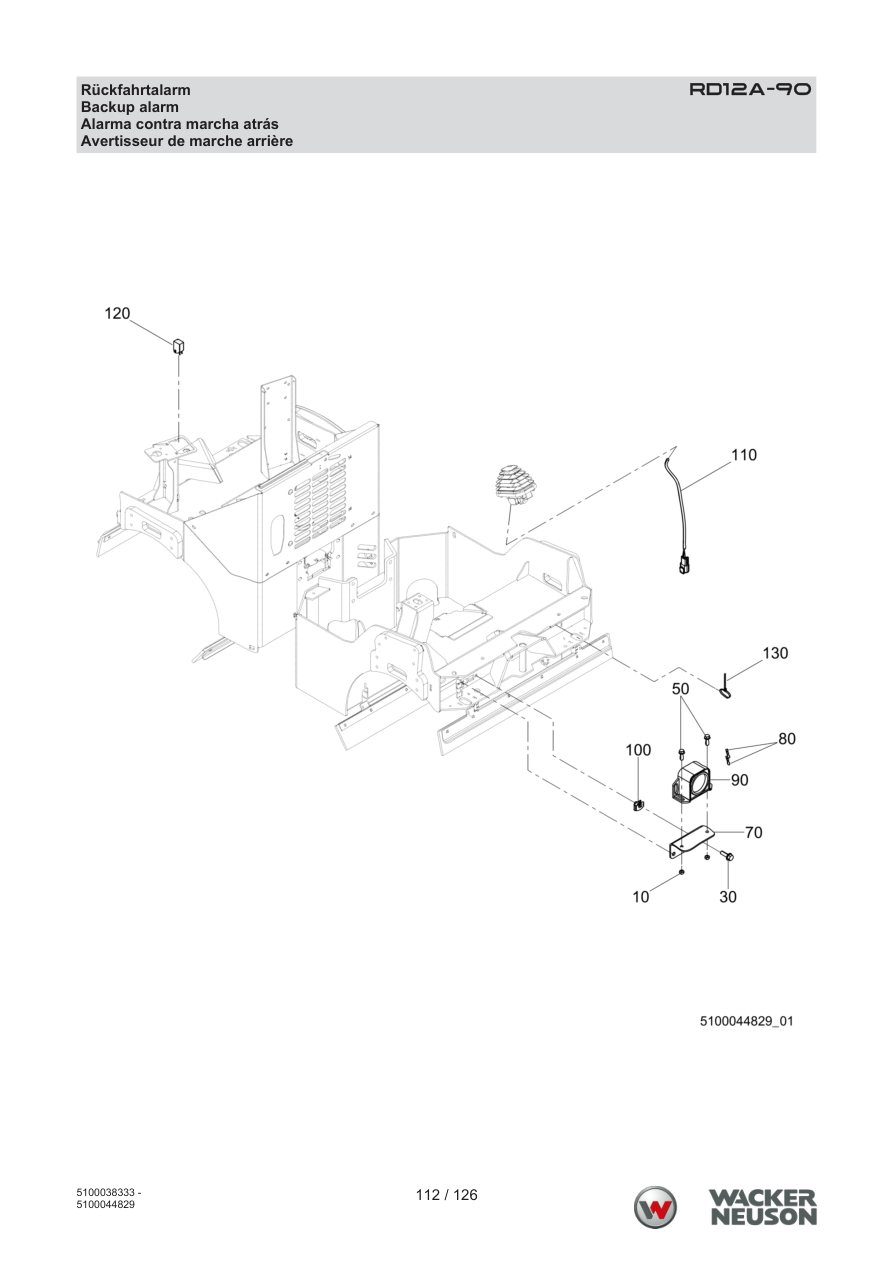

Page 112 — RD12A-90 Rückfahrtalarm
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000010368 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5000010368 · qty on machine: 2 | |||||
| 20 | 5000010624 | pc | 2 | ADD TO CART | |
| 30 | 5000163947 | pc | 2 | Hexagonal flange head screw | PARTS REQUEST |
|
COMING pc
5000163947 · qty on machine: 2 Hexagonal flange head screw | |||||
| 50 | 5200020974 | pc | 2 | Hexagonal flange head screw | ADD TO CART |
| 70 | 5100043155 | pc | 1 | ADD TO CART | |
| 80 | 5000118527 | pc | 2 | ADD TO CART | |
| 90 | 5000078352 | pc | 1 | ADD TO CART | |
| 100 | 5000110969 | pc | 2 | ADD TO CART | |
| 110 | 5100038517 | pc | 1 | Switch cpl, backup alarm | PARTS REQUEST |
|
COMING pc
5100038517 · qty on machine: 1 Switch cpl, backup alarm | |||||
| 120 | 5200025182 | pc | 1 | ADD TO CART | |
| 130 | 5000111458 | pc | 1 | ADD TO CART | |

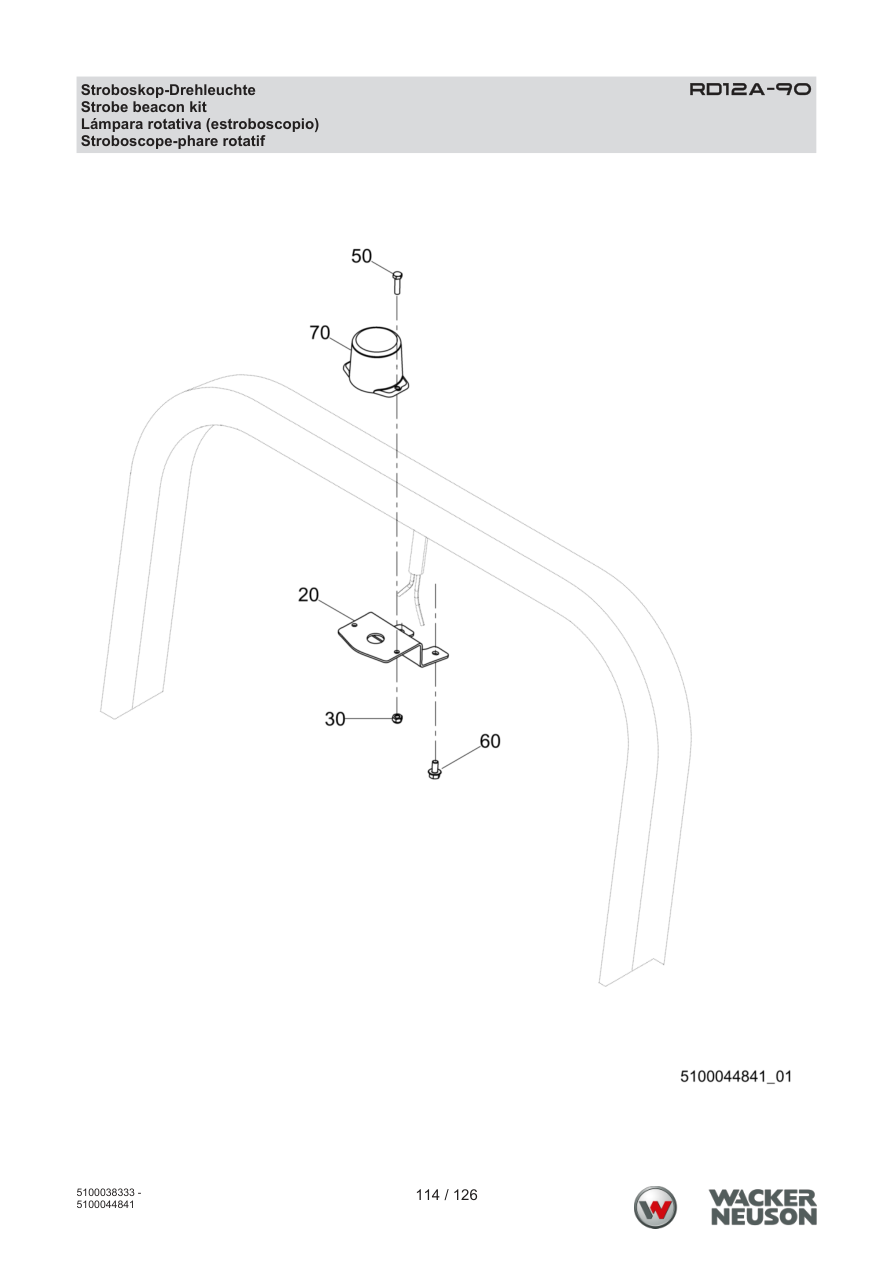

Page 114 — RD12A-90 Stroboskop-Drehleuchte
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5100043169 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100043169 · qty on machine: 1 | |||||
| 30 | 1000342931 | pc | 2 | PARTS REQUEST | |
|
COMING pc
1000342931 · qty on machine: 2 | |||||
| 50 | 5000011475 | pc | 2 | Hexagonal head cap screw | ADD TO CART |
| 60 | 5000163948 | pc | 2 | Hexagonal flange head screw | ADD TO CART |
| 70 | 5100043473 | pc | 1 | ADD TO CART | |

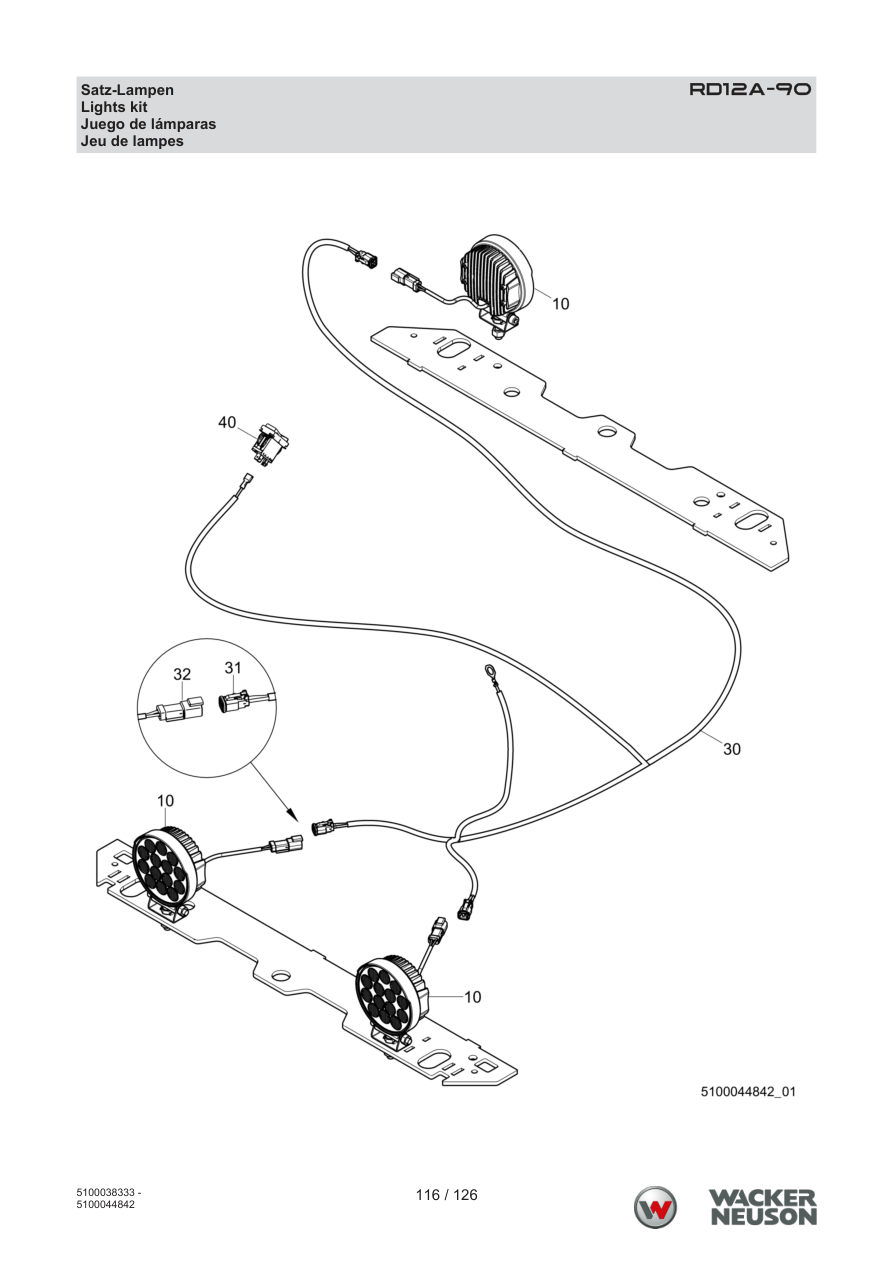

Page 116 — RD12A-90 Satz-Lampen
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100024850 | pc | 3 | Led light complete | ADD TO CART |
| 30 | 5100038672 | pc | 1 | ADD TO CART | |
| 31 | 5100044535 | pc | 3 | ADD TO CART | |
| 32 | 5000160837 | pc | 3 | ADD TO CART | |
| 40 | 5000165065 | pc | 1 | ADD TO CART | |

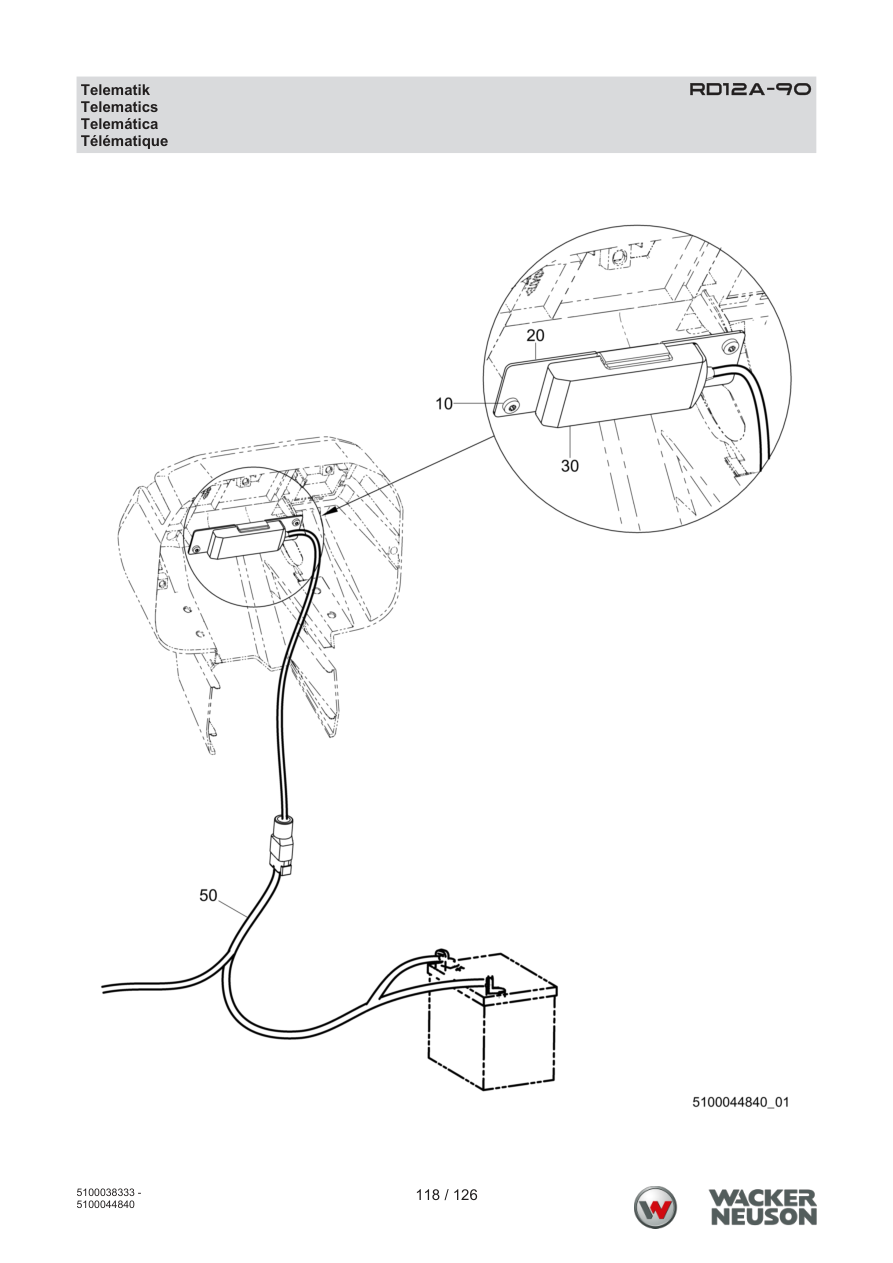

Page 118 — RD12A-90 Telematik
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 1000342707 | pc | 2 | ADD TO CART | |
| 20 | 1000363545 | pc | 1 | PARTS REQUEST | |
|
COMING pc
1000363545 · qty on machine: 1 | |||||
| 30 | 1000364160 | pc | 1 | PARTS REQUEST | |
|
COMING pc
1000364160 · qty on machine: 1 | |||||
| 50 | 5100046939 | pc | 1 | ADD TO CART | |

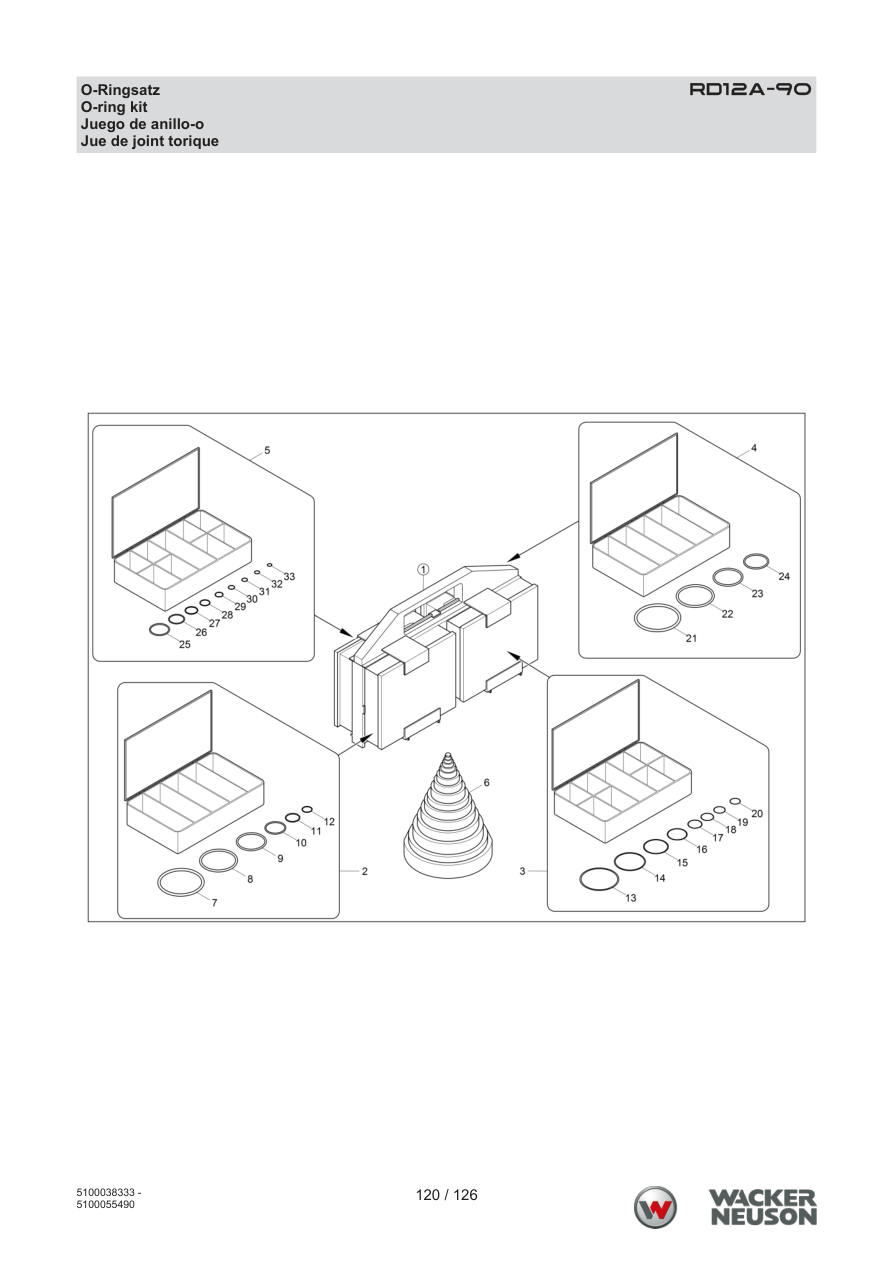

Page 120 — RD12A-90 O-Ringsatz
Parts list — exactly as printed33 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100041560 | pc | 1 | O-ring kit, complete | ADD TO CART |
| 2 | 5100041338 | pc | 1 | ADD TO CART | |
| 3 | 5100041535 | pc | 1 | ADD TO CART | |
| 4 | 5100041544 | pc | 1 | ADD TO CART | |
| 5 | 5100041549 | pc | 1 | ADD TO CART | |
| 6 | 5100041559 | pc | 1 | ADD TO CART | |
| 7 | 5100041339 | pc | 1 | ADD TO CART | |
| 8 | 5100041530 | pc | 1 | ADD TO CART | |
| 9 | 5100041531 | pc | 1 | ADD TO CART | |
| 10 | 5100041532 | pc | 1 | ADD TO CART | |
| 11 | 5100041533 | pc | 1 | ADD TO CART | |
| 12 | 5100041534 | pc | 1 | ADD TO CART | |
| 13 | 5100041536 | pc | 1 | ADD TO CART | |
| 14 | 5100041537 | pc | 1 | ADD TO CART | |
| 15 | 5100041538 | pc | 1 | ADD TO CART | |
| 16 | 5100041539 | pc | 1 | ADD TO CART | |
| 17 | 5100041540 | pc | 1 | ADD TO CART | |
| 18 | 5100041541 | pc | 1 | ADD TO CART | |
| 19 | 5100041542 | pc | 1 | ADD TO CART | |
| 20 | 5100041543 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100041543 · qty on machine: 1 | |||||
| 21 | 5100041545 | pc | 1 | ADD TO CART | |
| 22 | 5100041546 | pc | 1 | ADD TO CART | |
| 23 | 5100041547 | pc | 1 | ADD TO CART | |
| 24 | 5100041548 | pc | 1 | ADD TO CART | |
| 25 | 5100041550 | pc | 1 | ADD TO CART | |
| 26 | 5100041551 | pc | 1 | ADD TO CART | |
| 27 | 5100041552 | pc | 1 | ADD TO CART | |
| 28 | 5100041553 | pc | 1 | ADD TO CART | |
| 29 | 5100041554 | pc | 1 | ADD TO CART | |
| 30 | 5100041555 | pc | 1 | ADD TO CART | |
| 31 | 5100041556 | pc | 1 | ADD TO CART | |
| 32 | 5100041557 | pc | 1 | ADD TO CART | |
| 33 | 5100041558 | pc | 1 | ADD TO CART | |
The machine itself
Machine
Engine
Wacker Neuson RD12 roller.
Available in 4 configurations.
List price: $32,475.00 – $36,210.00
Keep-it-running spares
All listed parts →Every part that fits this machine
1000094905
pc
1000183222
pc
1000200197
pc
1000200198
pc
1000238087
pc
1000338907
pc
1000342707
pc
$0.95
1000342931
pc
1000342952
pc
1000343307
pc
1000343350
pc
$0.95
1000343355
pc
1000343384
pc
1000343475
pc
$1.95
1000343476
pc
$0.95
1000344851
pc
1000357182
pc
$0.95
1000363545
pc
1000364160
pc
1000364482
pc
1000366591
pc
$0.95
1000370413
pc
1000372129
pc
1000376117
pc
1000391394
pc
1000393632
pc
$19.95
1000397871
pc
$32.95
5000010365
pc
$0.95
5000010366
pc
$0.95
5000010367
pc
$0.95
5000010368
pc
5000010370
pc
$0.95
5000010372
pc
$0.95
5000010618
pc
$0.95
5000010620
pc
$0.95
5000010621
pc
$0.95
5000010622
pc
$0.95
5000010624
pc
$0.95
5000011300
pc
$0.95
5000011306
pc
5000011341
pc
$0.95
5000011438
pc
$0.95
5000011440
pc
$0.95
5000011454
pc
$0.95
5000011469
pc
$0.95
5000011475
pc
$0.95
5000011517
pc
$4.95
5000011529
pc
$0.95
5000011533
pc
5000011534
pc
$0.95
5000011542
pc
$0.95
5000011544
pc
$0.95
5000011549
pc
$0.95
5000011551
pc
$0.95
5000011553
pc
$0.95
5000011572
pc
$0.95
5000012038
pc
$1.95
5000012357
pc
$0.95
5000012360
pc
$0.95
5000012361
pc
5000013002
pc
$0.95
5000013496
pc
$0.95
5000016433
pc
$0.95
5000017909
pc
$0.95
5000028707
pc
$0.95
5000031121
pc
$1.95
5000031565
pc
$0.95
5000033988
pc
$0.95
5000039988
pc
$33.95
5000053577
pc
5000054088
pc
$8.95
5000054136
pc
$3.95
5000070996
pc
$1.95
5000071018
pc
$20.95
5000071056
pc
$0.95
5000071062
pc
$8.95
5000071621
pc
$9.95
5000072112
pc
$50.95
5000072113
pc
$11.95
5000072332
pc
5000072333
pc
$2.95
5000074672
pc
$6.95
5000074738
pc
$1.95
5000078305
pc
5000078352
pc
$97.95
5000078499
pc
$17.95
5000078500
pc
$10.95
5000078795
pc
$72.95
5000078816
pc
$4.95
5000078844
pc
$1.95
5000079875
pc
$4.95
5000080730
pc
$0.95
5000080731
pc
$0.95
5000080732
pc
$0.95
5000080733
pc
$0.95
5000080736
pc
$0.95
5000080737
pc
$0.95
5000081583
pc
$3.95
5000081615
pc
$1.95
5000081994
pc
$1.95
5000084654
pc
$39.95
5000096087
pc
$0.95
5000105056
pc
$4.95
5000107064
pc
$2.95
5000110110
pc
$1.95
5000110586
pc
$3.95
5000110969
pc
$0.95
5000110970
pc
$220.95
5000110972
pc
$57.95
5000111038
pc
$31.95
5000111047
pc
$5.95
5000111048
pc
$46.95
5000111052
pc
$46.95
5000111053
pc
$88.95
5000111056
pc
$76.95
5000111096
pc
$37.95
5000111132
pc
$3.95
5000111135
pc
$194.95
5000111272
pc
$11.95
5000111282
pc
$2.95
5000111291
pc
$662.95
5000111458
pc
$0.95
5000111536
pc
$11.95
5000111759
pc
$12.95
5000111871
pc
$8.95
5000111979
pc
$1.95
5000112267
pc
5000112692
pc
$8.95
5000113119
pc
$5.95
5000114098
pc
$0.95
5000114393
pc
$0.95
5000114529
pc
$12.95
5000117280
pc
$26.95
5000118088
pc
$137.95
5000118527
pc
$0.95
5000119940
pc
$1.95
5000119978
pc
$0.95
5000150104
pc
$30.95
5000151786
pc
$24.95
5000151790
pc
$11.95
5000151818
pc
$4.95
5000151819
pc
$15.95
5000151821
pc
$4.95
5000151855
pc
$13.95
5000151875
pc
$4.95
5000151925
pc
$3.95
5000151935
pc
$1.95
5000152325
pc
$2.95
5000152490
pc
$1.95
5000152491
pc
$1.95
5000152541
pc
$1.95
5000152551
pc
$1.95
5000152565
pc
$37.95
5000152568
pc
$73.95
5000152569
pc
$282.95
5000152572
pc
$35.95
5000152573
pc
$8.95
5000152575
pc
$19.95
5000152576
pc
$560.95
5000152577
pc
$2.95
5000152578
pc
$5.95
5000152579
pc
$106.95
5000152580
pc
$65.95
5000152582
pc
$17.95
5000153489
pc
$0.95
5000153747
pc
$3.95
5000155125
pc
5000155331
pc
$3.95
5000157185
pc
$2.95
5000159114
pc
5000159537
pc
$6.95
5000160727
pc
$2.95
5000160728
pc
$1.95
5000160729
pc
$4.95
5000160837
pc
$2.95
5000162139
pc
$5.95
5000162952
pc
$124.95
5000163677
pc
$77.95
5000163945
pc
$0.95
5000163947
pc
5000163948
pc
$0.95
5000163950
pc
5000163951
pc
$0.95
5000163954
pc
$0.95
5000163962
pc
$2.95
5000164045
pc
$1.95
5000164412
pc
$10.95
5000164491
pc
$14.95
5000164538
pc
$0.95
5000164603
pc
$25.95
5000164669
pc
$23.95
5000165065
pc
$14.95
5000165240
pc
$1.95
5000165280
pc
$27.95
5000165281
pc
$23.95
5000165282
pc
$55.95
5000165354
pc
$195.95
5000165439
pc
$126.95
5000165583
pc
$5.95
5000168840
pc
$1.95
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
