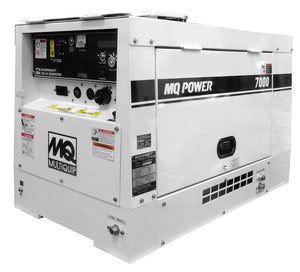

Multiquip DA7000SSA3 Generator

Name: Multiquip DA7000SSA3 Generator
Brand: Multiquip

The parts bench

Need the PDF? ↓

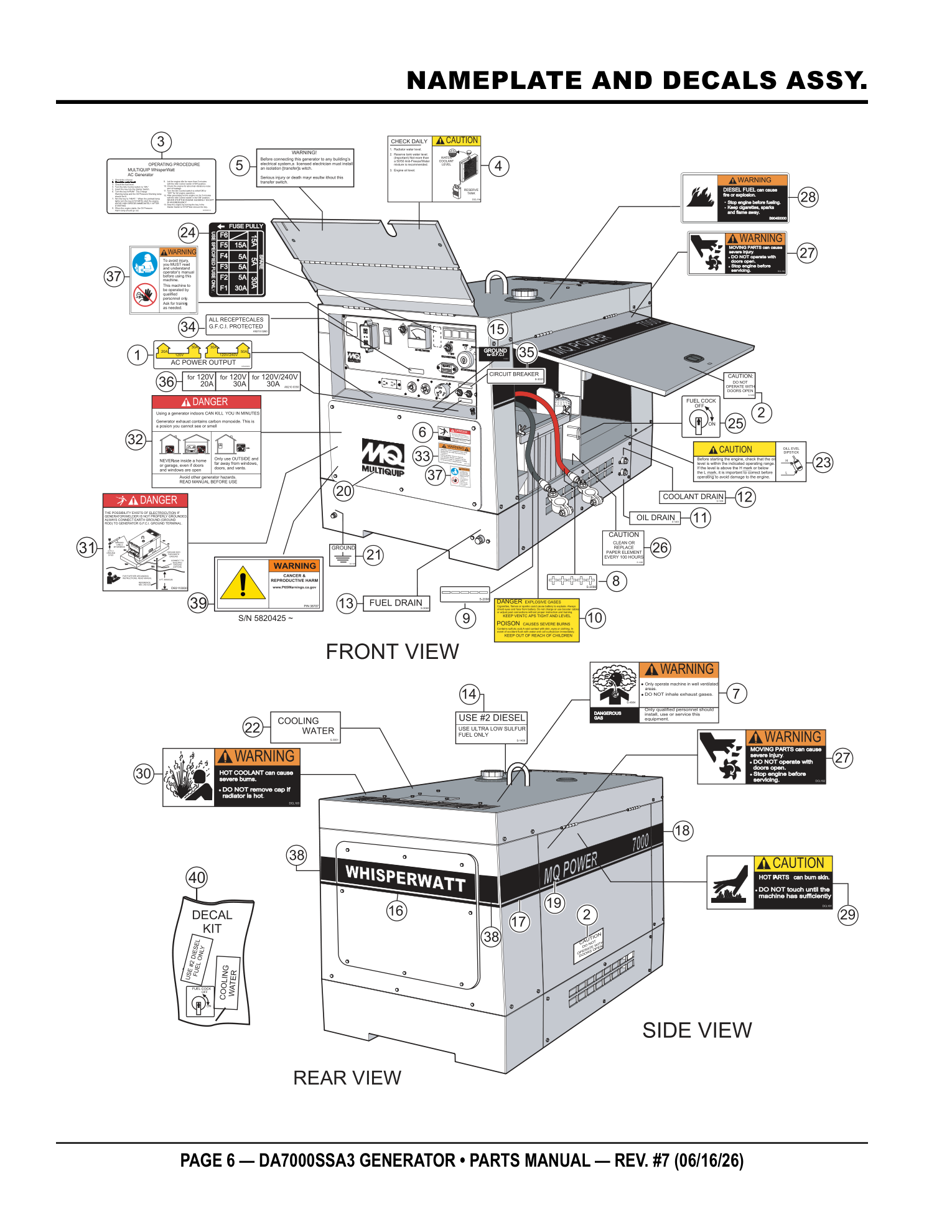

Page 6 — NAMEPLATE AND DECALS ASSY.

Multiquip DA7000SSA3 Generator NAMEPLATE AND DECALS ASSY. parts diagram

Parts list — exactly as printed40 rows

No.	Part No.	Part Name	Qty	Remarks
1$	A5551000803	DECAL: AC POWER OUTPUT	1	A55100080	ADD TO CART
DECAL: AC POWER OUTPUT A5551000803 · qty on machine: 1 A55100080 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $12.87 IN A KIT + SOLD SOLO
2$	1630610504	DECAL: CAUTION	1	S1409	ADD TO CART
DECAL: CAUTION 1630610504 · qty on machine: 1 S1409 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $1.95 IN A KIT + SOLD SOLO
3$	A5552000113	DECAL: OPERATING PROCEDURE	1	A55200011	PARTS REQUEST
PHOTO COMING DECAL: OPERATING PROCEDURE A5552000113 · qty on machine: 1 A55200011 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) PARTS REQUEST
4$	6390671104	DECAL: IMPORTANT "CHECK DAILY"	1	S2377	ADD TO CART
DECAL: IMPORTANT "CHECK DAILY" 6390671104 · qty on machine: 1 S2377 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $6.95 IN A KIT + SOLD SOLO
5$	0820610404	DECAL: WARNING	1	S3627	ADD TO CART
DECAL: WARNING 0820610404 · qty on machine: 1 S3627 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $4.95 IN A KIT + SOLD SOLO
6$	8700611904	DECAL: DANGER ELECT. SHOCK HAZ	1	S4985	ADD TO CART
DECAL: DANGER ELECT. SHOCK HAZ 8700611904 · qty on machine: 1 S4985 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $5.95 IN A KIT + SOLD SOLO
7$	8700611804	DECAL: WARNING DANGEROUS GAS	1	S4984	ADD TO CART
DECAL: WARNING DANGEROUS GAS 8700611804 · qty on machine: 1 S4984 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $5.95 IN A KIT + SOLD SOLO
8$	0800689404	DECAL: +	1	S2090	ADD TO CART
DECAL: + 0800689404 · qty on machine: 1 S2090 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $2.95 IN A KIT + SOLD SOLO
9$	0800689504	DECAL: -	1	S2091	ADD TO CART
DECAL: - 0800689504 · qty on machine: 1 S2091 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $2.95 IN A KIT + SOLD SOLO
10$	0820650604	DECAL: DANGER EXPLOSIVE GASES	1		ADD TO CART
DECAL: DANGER EXPLOSIVE GASES 0820650604 · qty on machine: 1 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $7.95 IN A KIT + SOLD SOLO
11$	1630645004	DECAL: OIL DRAIN	1	S1403	ADD TO CART
DECAL: OIL DRAIN 1630645004 · qty on machine: 1 S1403 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $1.43 IN A KIT + SOLD SOLO
12$	1630647004	DECAL: COOLANT DRAIN	1	S1404	ADD TO CART
DECAL: COOLANT DRAIN 1630647004 · qty on machine: 1 S1404 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $1.43 IN A KIT + SOLD SOLO
13$	7810680104	DECAL: FUEL DRAIN	1	S3060	ADD TO CART
DECAL: FUEL DRAIN 7810680104 · qty on machine: 1 S3060 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $2.73 IN A KIT + SOLD SOLO
14$	B9504501214	DECAL: DIESEL FUEL	1	B90450121	ADD TO CART
DECAL: DIESEL FUEL B9504501214 · qty on machine: 1 B90450121 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $5.95 IN A KIT + SOLD SOLO
15$	7670624004	DECAL: GROUND FOR G. F. C. I	1	S3821	ADD TO CART
DECAL: GROUND FOR G. F. C. I 7670624004 · qty on machine: 1 S3821 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $1.95 IN A KIT + SOLD SOLO
16$	A5561100503	DECAL: STRIPE WHISPERWATT	1		ADD TO CART
DECAL: STRIPE WHISPERWATT A5561100503 · qty on machine: 1 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $69.95 IN A KIT + SOLD SOLO
17$	A5561100204	DECAL: STRIPE	2		ADD TO CART
DECAL: STRIPE A5561100204 · qty on machine: 2 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $17.81 IN A KIT + SOLD SOLO
18$	A5561100304	DECAL: STRIPE	2		ADD TO CART
DECAL: STRIPE A5561100304 · qty on machine: 2 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $5.95 IN A KIT + SOLD SOLO
19$	A5561100403	DECAL: STRIPE MQ POWER 7000	2		ADD TO CART
DECAL: STRIPE MQ POWER 7000 A5561100403 · qty on machine: 2 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $44.59 IN A KIT + SOLD SOLO
20$	A5562000004	DECAL: MQ	1	A56200000A	ADD TO CART
DECAL: MQ A5562000004 · qty on machine: 1 A56200000A Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $19.95 IN A KIT + SOLD SOLO
21$	0800628504	DECAL: GROUND	1	S1123	ADD TO CART
DECAL: GROUND 0800628504 · qty on machine: 1 S1123 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $1.91 IN A KIT + SOLD SOLO
22$	7810680204	DECAL: COOLING WATER	1	S3061	ADD TO CART
DECAL: COOLING WATER 7810680204 · qty on machine: 1 S3061 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $1.55 IN A KIT + SOLD SOLO
23$	B9505000304	DECAL: CAUTION OIL LEVEL GAUGE	1	B90500030	ADD TO CART
DECAL: CAUTION OIL LEVEL GAUGE B9505000304 · qty on machine: 1 B90500030 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $4.95 IN A KIT + SOLD SOLO
24$	8700625504	DECAL: FUSE BOX	1	S4936	ADD TO CART
DECAL: FUSE BOX 8700625504 · qty on machine: 1 S4936 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $1.95 IN A KIT + SOLD SOLO
25$	1630680104	DECAL: FUEL COCK	1	S1407	ADD TO CART
DECAL: FUEL COCK 1630680104 · qty on machine: 1 S1407 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $1.95 IN A KIT + SOLD SOLO
26$	1630610404	DECAL: CAUTION	1	S1406	ADD TO CART
DECAL: CAUTION 1630610404 · qty on machine: 1 S1406 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $1.43 IN A KIT + SOLD SOLO
27$	B9504000404	DECAL: WARNING MOVING PARTS	2	B90400040	ADD TO CART
DECAL: WARNING MOVING PARTS B9504000404 · qty on machine: 2 B90400040 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $4.95 IN A KIT + SOLD SOLO
28$	B9504500004	DECAL: WARNING DIESEL FUEL	1	B90450000	ADD TO CART
DECAL: WARNING DIESEL FUEL B9504500004 · qty on machine: 1 B90450000 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $4.95 IN A KIT + SOLD SOLO
29$	B9504000304	DECAL: CAUTION HOT PARTS	1	B90400030	ADD TO CART
DECAL: CAUTION HOT PARTS B9504000304 · qty on machine: 1 B90400030 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $4.95 IN A KIT + SOLD SOLO
30$	B9504100104	DECAL: WARNING HOT COOLANT	1	B90410010	ADD TO CART
DECAL: WARNING HOT COOLANT B9504100104 · qty on machine: 1 B90410010 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $4.95 IN A KIT + SOLD SOLO
31$	D9531100004	DECAL: DANGER ELECTROCUTION	1	D93110000	ADD TO CART
DECAL: DANGER ELECTROCUTION D9531100004 · qty on machine: 1 D93110000 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $9.95 IN A KIT + SOLD SOLO
32$	A9504000014	DECAL: DANGER	1	A90400001	ADD TO CART
DECAL: DANGER A9504000014 · qty on machine: 1 A90400001 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $12.95 IN A KIT + SOLD SOLO
33$	920214100	DECAL: WARNING START FIRES	1	REPLACES P/N M9504200004	ADD TO CART
DECAL: WARNING START FIRES 920214100 · qty on machine: 1 REPLACES P/N M9504200004 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $12.95 IN A KIT + SOLD SOLO
34$	A9521002604	DECAL: G. F. C. I. PROTECTED	1	A92100260	ADD TO CART
DECAL: G. F. C. I. PROTECTED A9521002604 · qty on machine: 1 A92100260 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $4.73 IN A KIT + SOLD SOLO
35$	0840624504	DECAL: CIRCUIT BREAKER	1	S3031	ADD TO CART
DECAL: CIRCUIT BREAKER 0840624504 · qty on machine: 1 S3031 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $4.95 IN A KIT + SOLD SOLO
36$	A9521003504	DECAL: CIRCUIT BREAKER	1	A92100350	ADD TO CART
DECAL: CIRCUIT BREAKER A9521003504 · qty on machine: 1 A92100350 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $16.06 IN A KIT + SOLD SOLO
37$	35137	DECAL: READ MANUAL	2	REPLACES P/N A9511100004	ADD TO CART
DECAL: READ MANUAL 35137 · qty on machine: 2 REPLACES P/N A9511100004 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $2.95 IN A KIT + SOLD SOLO
38$	A5561100604	DECAL: STRIPE	2		ADD TO CART
DECAL: STRIPE A5561100604 · qty on machine: 2 Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $10.15 IN A KIT + SOLD SOLO
39$	A9511101304	DECAL: WARNING PROP.	65	1 A91110130 S/N 5820425 AND ABOVE	ADD TO CART
DECAL: WARNING PROP. A9511101304 · qty on machine: 65 1 A91110130 S/N 5820425 AND ABOVE Also included in kit 40 - KIT, DECAL (SDA7000SSA3) view full part page → $4.95 IN A KIT + SOLD SOLO
40	SDA7000SSA3	KIT, DECAL	1	INCLUDES ITEMS W/$	PARTS REQUEST
PHOTO COMING KIT, DECAL SDA7000SSA3 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 1$, 2$, 3$, 4$, 5$, 6$, 7$, 8$, 9$, 10$, 11$, 12$, 13$, 14$, 15$, 16$, 17$, 18$, 19$, 20$, 21$, 22$, 23$, 24$, 25$, 26$, 27$, 28$, 29$, 30$, 31$, 32$, 33$, 34$, 35$, 36$, 37$, 38$, 39$ PARTS REQUEST

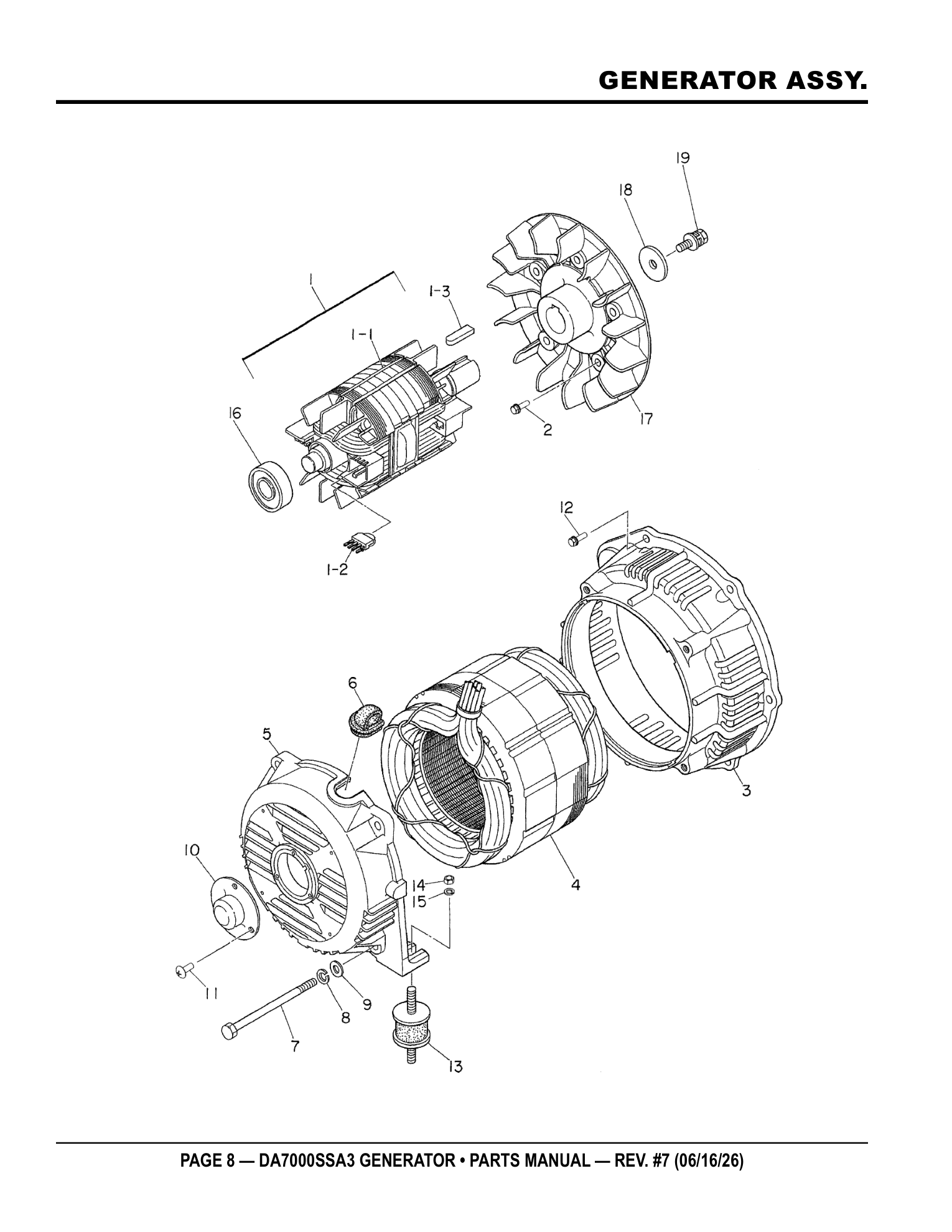

Page 8 — GENERATOR ASSY.

Multiquip DA7000SSA3 Generator GENERATOR ASSY. parts diagram

Parts list — exactly as printed22 rows

No.	Part No.	Part Name	Qty	Remarks
1	A5110200003	ROTOR ASSY	1	INCLUDES ITEMS W/#	ADD TO CART
ROTOR ASSY A5110200003 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 1-1#, 1-2#, 1-3# view full part page → $969.95 IN A KIT + SOLD SOLO
1-1#	A5116000103	FIELD ASSY.	1		ADD TO CART
FIELD ASSY. A5116000103 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (A5110200003) view full part page → $775.95 IN A KIT + SOLD SOLO
1-2#	7871025004	RECTIFIER ASSY.	2		ADD TO CART
RECTIFIER ASSY. 7871025004 · qty on machine: 2 Also included in kit 1 - ROTOR ASSY (A5110200003) view full part page → $31.95 IN A KIT + SOLD SOLO
1-3#	0171707033	KEY	1		ADD TO CART
KEY 0171707033 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (A5110200003) view full part page → $25.95 IN A KIT + SOLD SOLO
2	011208025	HEX. HEAD BOLT	5	REPLACES P/N 0012308025	ADD TO CART
HEX. HEAD BOLT 011208025 · qty on machine: 5 REPLACES P/N 0012308025 view full part page → $0.41
3	A515510002	END BRACKET	1		PARTS REQUEST
PHOTO COMING END BRACKET A515510002 · qty on machine: 1 PARTS REQUEST
4	A5136000103	ARMATURE ASSY.	1		ADD TO CART
ARMATURE ASSY. A5136000103 · qty on machine: 1 view full part page → $1882.95
5	A6155000002C	END BRACKET	1	REPLACES P/N A6155000002	ADD TO CART
END BRACKET A6155000002C · qty on machine: 1 REPLACES P/N A6155000002 view full part page → $174.95
6	7871329514	GROMMET	1		ADD TO CART
GROMMET 7871329514 · qty on machine: 1 view full part page → $4.95
7	7901316004	SET BOLT	4		ADD TO CART
SET BOLT 7901316004 · qty on machine: 4 view full part page → $4.95
8	0040008000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0040008000 · qty on machine: 4 view full part page → $0.63
9	0401450080	WASHER, FLAT	4	REPLACES P/N 0041208000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 4 REPLACES P/N 0041208000 view full part page → $0.56
10	A6155400104C	COVER	1	REPLACES P/N A6155400104	ADD TO CART
COVER A6155400104C · qty on machine: 1 REPLACES P/N A6155400104 view full part page → $9.95
11	BF0261	MACHINE SCREW	3	REPLACES P/N 0027105012	ADD TO CART
MACHINE SCREW BF0261 · qty on machine: 3 REPLACES P/N 0027105012 view full part page → $0.95
12	0012308020	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0012308020 · qty on machine: 6 view full part page → $1.88
13	0805084704	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION 0805084704 · qty on machine: 2 view full part page → $15.95
14	Y0207008000	HEX. NUT	2		ADD TO CART
HEX. NUT Y0207008000 · qty on machine: 2 view full part page → $0.4
15	0801086004	WASHER, FLAT	2		ADD TO CART
WASHER, FLAT 0801086004 · qty on machine: 2 view full part page → $1.95
16	042006304	BEARING	1	REPLACES P/N 0071206304	ADD TO CART
BEARING 042006304 · qty on machine: 1 REPLACES P/N 0071206304 view full part page → $22.95
17	A5113100002	FAN	1		ADD TO CART
FAN A5113100002 · qty on machine: 1 view full part page → $337.95
18	1991072004	SET WASHER, FAN	1		ADD TO CART
SET WASHER, FAN 1991072004 · qty on machine: 1 view full part page → $4.95
19	0012308020	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0012308020 · qty on machine: 1 view full part page → $1.88

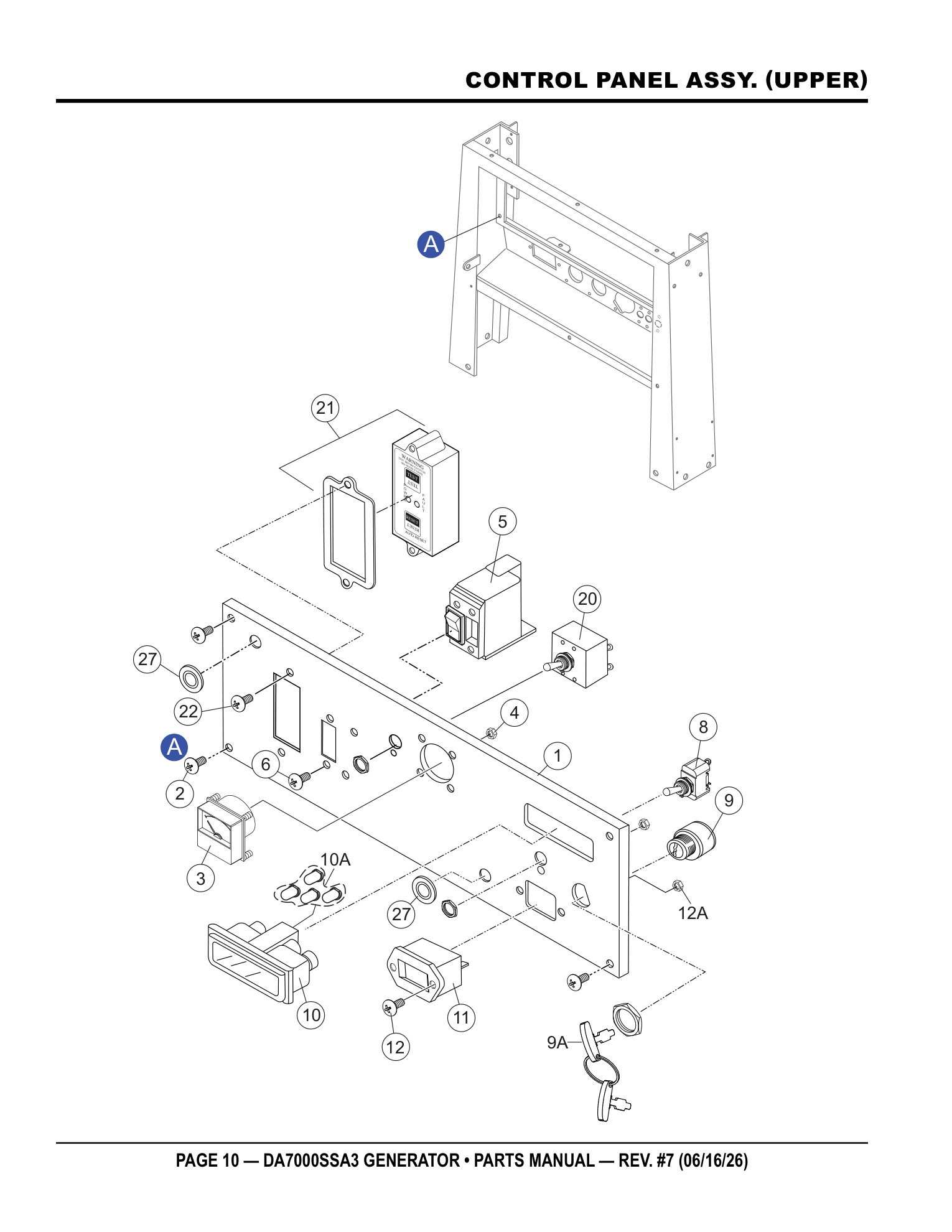

Page 10 — CONTROL PANEL ASSY. (UPPER)

Multiquip DA7000SSA3 Generator CONTROL PANEL ASSY. (UPPER) parts diagram

Parts list — exactly as printed21 rows

No.	Part No.	Part Name	Qty	Remarks
1	A5511306902	CONTROL PANEL	1		PARTS REQUEST
PHOTO COMING CONTROL PANEL A5511306902 · qty on machine: 1 PARTS REQUEST
2	0021805020	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021805020 · qty on machine: 4 view full part page → $0.77
3	0601806819	AC VOLTMETER, 0-120/240V	1		ADD TO CART
AC VOLTMETER, 0-120/240V 0601806819 · qty on machine: 1 view full part page → $65.95
4	0207003000	HEX. NUT	2		ADD TO CART
HEX. NUT 0207003000 · qty on machine: 2 view full part page → $0.21
5	Y0601872303	CIRCUIT BREAKER, 120V @25A 2P	1		ADD TO CART
CIRCUIT BREAKER, 120V @25A 2P Y0601872303 · qty on machine: 1 view full part page → $467.95
6	0021004016	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0021004016 · qty on machine: 2 view full part page → $0.17
8	0601830771	IDLE CONTROL SWITCH	1		ADD TO CART
IDLE CONTROL SWITCH 0601830771 · qty on machine: 1 view full part page → $21.95
9	1628663602	STARTER SWITCH	1	REPLACES P/N 0602100077 INCLUDES ITEMS W/$	ADD TO CART
STARTER SWITCH 1628663602 · qty on machine: 1 REPLACES P/N 0602100077 INCLUDES ITEMS W/$ Kit includes: 9A$ view full part page → $148.95 IN A KIT + SOLD SOLO
9A$	3741055150	IGNITION, KEY	2		ADD TO CART
IGNITION, KEY 3741055150 · qty on machine: 2 Also included in kit 9 - STARTER SWITCH (1628663602) view full part page → $17.95 IN A KIT + SOLD SOLO
10	0601810523	INDICATOR ASSY	1	INCLUDES ITEMS W/#	ADD TO CART
INDICATOR ASSY 0601810523 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 10A# view full part page → $154.95 IN A KIT + SOLD SOLO
10A#	0601810830	BULB	4		ADD TO CART
BULB 0601810830 · qty on machine: 4 Also included in kit 10 - INDICATOR ASSY (0601810523) view full part page → $8.95 IN A KIT + SOLD SOLO
11	0601800682	HOUR METER	1	S/N 5891296 AND BELOW	ADD TO CART
HOUR METER 0601800682 · qty on machine: 1 S/N 5891296 AND BELOW view full part page → $116.95
11	0601800674	HOUR METER	1	S/N 5891297 AND ABOVE	PARTS REQUEST
PHOTO COMING HOUR METER 0601800674 · qty on machine: 1 S/N 5891297 AND ABOVE PARTS REQUEST
12	0027403512	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027403512 · qty on machine: 2 view full part page → $0.39
12A	0030003500	HEX. NUT	2		ADD TO CART
HEX. NUT 0030003500 · qty on machine: 2 view full part page → $0.2
20	Y0601830776	FULL POWER SWITCH	1		ADD TO CART
FULL POWER SWITCH Y0601830776 · qty on machine: 1 view full part page → $327.95
21	0601829301	GFCI SENSING MODULE, 120A@120V	1	S/N 5908768 AND BELOW	NO LONGER AVAILABLE
PHOTO COMING GFCI SENSING MODULE, 120A@120V 0601829301 · qty on machine: 1 S/N 5908768 AND BELOW NO LONGER AVAILABLE
21	Y0601829302	GFCI SENSING MODULE, 120A@120V	1	S/N 5908769 ~ 50017091	ADD TO CART
GFCI SENSING MODULE, 120A@120V Y0601829302 · qty on machine: 1 S/N 5908769 ~ 50017091 view full part page → $780.95
21	0601829301	GFCI SENSING MODULE, 120A@120V	1	S/N 50017092 AND ABOVE	NO LONGER AVAILABLE
PHOTO COMING GFCI SENSING MODULE, 120A@120V 0601829301 · qty on machine: 1 S/N 50017092 AND ABOVE NO LONGER AVAILABLE
22	0021004020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0021004020 · qty on machine: 2 view full part page → $0.74
27	0601850218	GROMMET	2		PARTS REQUEST
PHOTO COMING GROMMET 0601850218 · qty on machine: 2 PARTS REQUEST

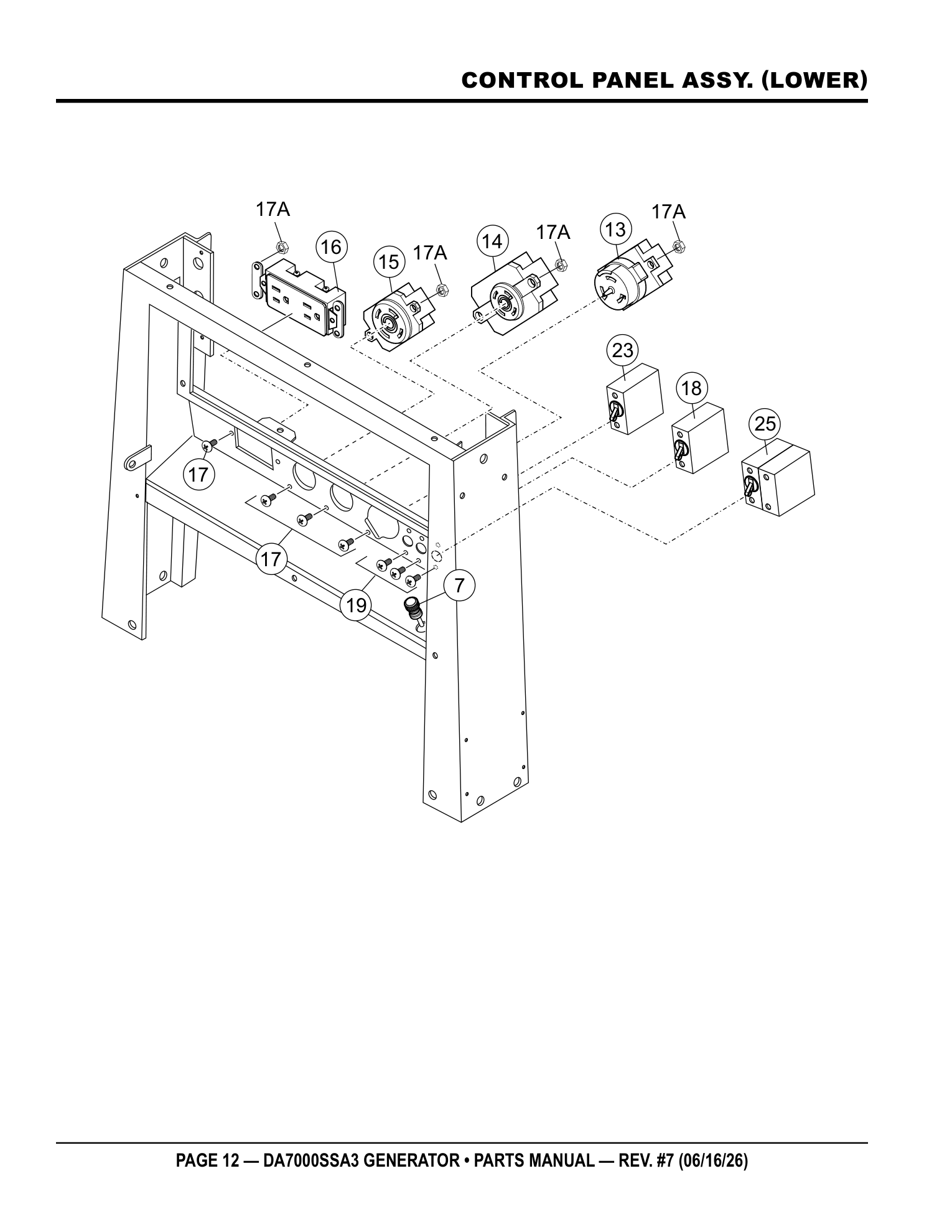

Page 12 — CONTROL PANEL ASSY. (LOWER)

Multiquip DA7000SSA3 Generator CONTROL PANEL ASSY. (LOWER) parts diagram

Parts list — exactly as printed14 rows

No.	Part No.	Part Name	Qty	Remarks
7	0601815109	GROUND TERMINAL	1		ADD TO CART
GROUND TERMINAL 0601815109 · qty on machine: 1 view full part page → $39.95
13	Y0601814014	RECEPTACLE, CS6369	1		ADD TO CART
RECEPTACLE, CS6369 Y0601814014 · qty on machine: 1 view full part page → $76.95
14	0601812529	RECEPTACLE, L14-30R 125V 30A	1		ADD TO CART
RECEPTACLE, L14-30R 125V 30A 0601812529 · qty on machine: 1 view full part page → $49.95
15	0601811031	RECEPTACLE, L5-30R 125V 30A	1	REPLACES P/N 0601811035	ADD TO CART
RECEPTACLE, L5-30R 125V 30A 0601811031 · qty on machine: 1 REPLACES P/N 0601811035 view full part page → $46.95
16	0601814065	RECEPTACLE, 5-20R	1		ADD TO CART
RECEPTACLE, 5-20R 0601814065 · qty on machine: 1 view full part page → $54.95
17	0021004010	MACHINE SCREW	8		ADD TO CART
MACHINE SCREW 0021004010 · qty on machine: 8 view full part page → $0.33
17A	OEMAA8	HEX. NUT	8	REPLACES P/N 0030004000	ADD TO CART
HEX. NUT OEMAA8 · qty on machine: 8 REPLACES P/N 0030004000 view full part page → $0.4
18	0601806424	CIRCUIT BREAKER, 1P 30A	1	S/N 50005258 AND BELOW	ADD TO CART
CIRCUIT BREAKER, 1P 30A 0601806424 · qty on machine: 1 S/N 50005258 AND BELOW view full part page → $58.95
18	0601873323	CIRCUIT BREAKER, 1P 30A	1	S/N 50005259 AND ABOVE	ADD TO CART
CIRCUIT BREAKER, 1P 30A 0601873323 · qty on machine: 1 S/N 50005259 AND ABOVE view full part page → $139.44
19	0027103006	MACHINE SCREW	6		ADD TO CART
MACHINE SCREW 0027103006 · qty on machine: 6 view full part page → $0.17
23	0601806423	CIRCUIT BREAKER,1P 20A	1	S/N 50005258 AND BELOW	ADD TO CART
CIRCUIT BREAKER,1P 20A 0601806423 · qty on machine: 1 S/N 50005258 AND BELOW view full part page → $95.95
23	0601873321	CIRCUIT BREAKER,1P 20A	1	S/N 50005259 AND ABOVE	ADD TO CART
CIRCUIT BREAKER,1P 20A 0601873321 · qty on machine: 1 S/N 50005259 AND ABOVE view full part page → $139.44
25	0601806425	CIRCUIT BREAKER, 2P 30A	1	S/N 50005258 AND BELOW	ADD TO CART
CIRCUIT BREAKER, 2P 30A 0601806425 · qty on machine: 1 S/N 50005258 AND BELOW view full part page → $190.95
25	0601873324	CIRCUIT BREAKER, 2P 30A	1	S/N 50005259 AND ABOVE	ADD TO CART
CIRCUIT BREAKER, 2P 30A 0601873324 · qty on machine: 1 S/N 50005259 AND ABOVE view full part page → $266.21

Page 14 — ELECTRIC PARTS ASSY.

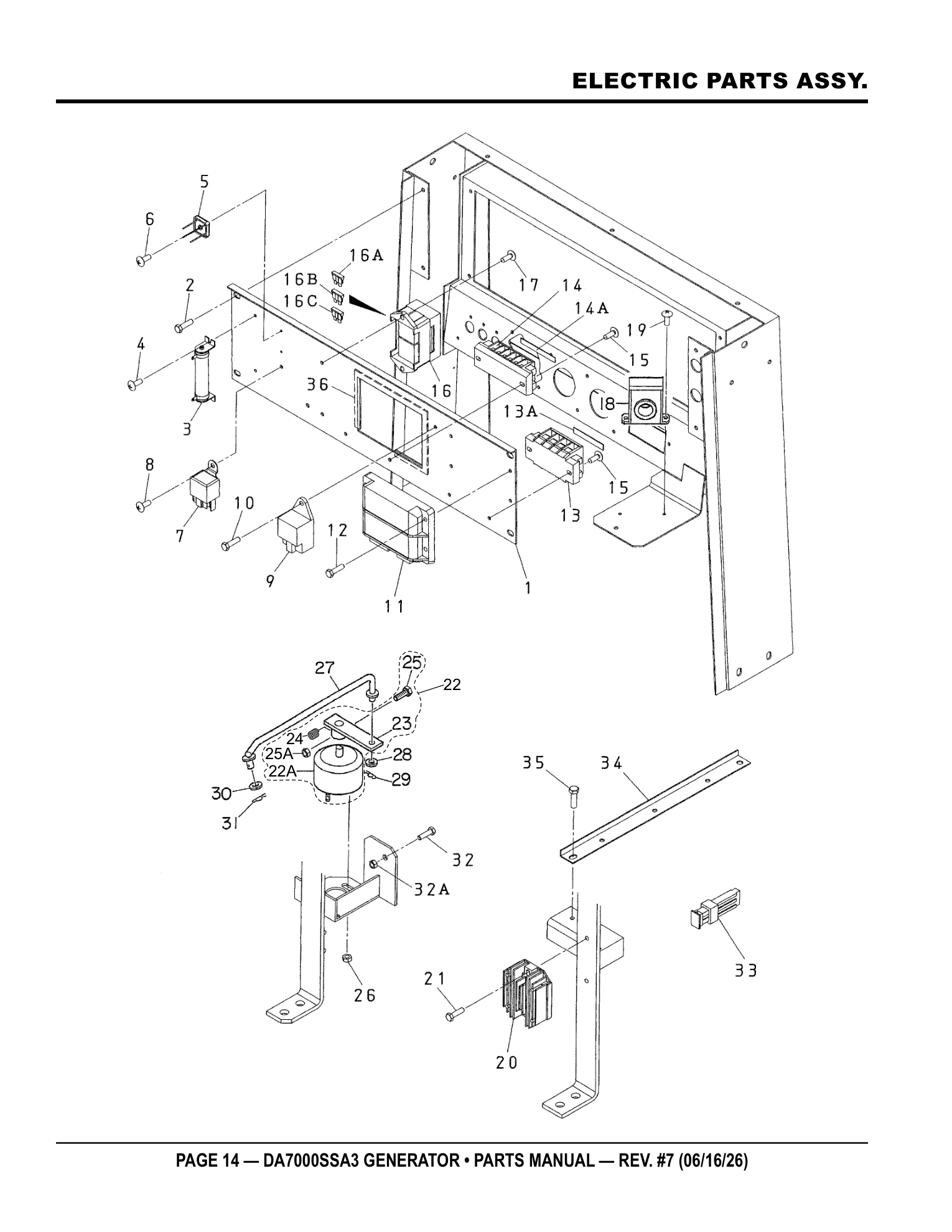

Multiquip DA7000SSA3 Generator ELECTRIC PARTS ASSY. parts diagram

Parts list — exactly as printed44 rows

No.	Part No.	Part Name	Qty	Remarks
1	A5261501403	BRACKET, ELECTRIC PARTS	1		PARTS REQUEST
PHOTO COMING BRACKET, ELECTRIC PARTS A5261501403 · qty on machine: 1 PARTS REQUEST
2	0016906016	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906016 · qty on machine: 4 view full part page → $0.81
3	0601842463	RESISTOR, 30W 10Ω	1		ADD TO CART
RESISTOR, 30W 10Ω 0601842463 · qty on machine: 1 view full part page → $29.95
4	0027104012	MACHINE SCREW	2		PARTS REQUEST
PHOTO COMING MACHINE SCREW 0027104012 · qty on machine: 2 PARTS REQUEST
5	0601823204	RECTIFIER, S5VB60	2		ADD TO CART
RECTIFIER, S5VB60 0601823204 · qty on machine: 2 view full part page → $16.95
6	0027103020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027103020 · qty on machine: 2 view full part page → $0.37
7	0601823754	RELAY	1		ADD TO CART
RELAY 0601823754 · qty on machine: 1 view full part page → $46.95
8	0027105016	MACHINE SCREW	1		ADD TO CART
MACHINE SCREW 0027105016 · qty on machine: 1 view full part page → $0.55
9	1569465990	LAMP TIMER	1	REPLACES P/N 0602201273	ADD TO CART
LAMP TIMER 1569465990 · qty on machine: 1 REPLACES P/N 0602201273 view full part page → $152.95
10	0017105016	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0017105016 · qty on machine: 1 view full part page → $0.36
11	1747260604	EMERGENCY UNIT	1	REPLACES P/N 0602200475	NO LONGER AVAILABLE
PHOTO COMING EMERGENCY UNIT 1747260604 · qty on machine: 1 REPLACES P/N 0602200475 NO LONGER AVAILABLE
12	0017105025	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0017105025 · qty on machine: 4 view full part page → $0.64
13	0601815731	TERMINAL BOARD	1		ADD TO CART
TERMINAL BOARD 0601815731 · qty on machine: 1 view full part page → $383.95
13A	A9521003604	SEAL	1		PARTS REQUEST
PHOTO COMING SEAL A9521003604 · qty on machine: 1 PARTS REQUEST
14	0601815759	TERMINAL BOARD	1		ADD TO CART
TERMINAL BOARD 0601815759 · qty on machine: 1 view full part page → $36.95
14A	D9522000704	SEAL	1		ADD TO CART
SEAL D9522000704 · qty on machine: 1 view full part page → $2.95
15	0027105020	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105020 · qty on machine: 4 view full part page → $0.62
16	B0352500104	FUSE BOX	1	INCLUDES ITEMS W/$	ADD TO CART
FUSE BOX B0352500104 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 16A$, 16B$, 16C$ view full part page → $63.95 IN A KIT + SOLD SOLO
16A$	0601806642	FUSE, 5A	4		ADD TO CART
FUSE, 5A 0601806642 · qty on machine: 4 Also included in kit 16 - FUSE BOX (B0352500104) view full part page → $2.77 IN A KIT + SOLD SOLO
16B$	0601806643	FUSE, 15A	2		ADD TO CART
FUSE, 15A 0601806643 · qty on machine: 2 Also included in kit 16 - FUSE BOX (B0352500104) view full part page → $5.95 IN A KIT + SOLD SOLO
16C$	0601806644	FUSE, 30A	2		ADD TO CART
FUSE, 30A 0601806644 · qty on machine: 2 Also included in kit 16 - FUSE BOX (B0352500104) view full part page → $1.43 IN A KIT + SOLD SOLO
17	0027105020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027105020 · qty on machine: 2 view full part page → $0.62
18	0601827350	CONTROL UNIT	1		ADD TO CART
CONTROL UNIT 0601827350 · qty on machine: 1 view full part page → $244.95
19	0027104010	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104010 · qty on machine: 2 view full part page → $0.33
20	1584464603	REGULATOR	1	REPLACES P/N 1584464600	ADD TO CART
REGULATOR 1584464603 · qty on machine: 1 REPLACES P/N 1584464600 view full part page → $375.95
21	0017105025	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0017105025 · qty on machine: 2 view full part page → $0.64
22	1992639003	ROTARY SOLENOID ASSY	1	INCLUDES ITEMS W/#	ADD TO CART
ROTARY SOLENOID ASSY 1992639003 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 22A#, 23#, 24#, 25#, 25A# view full part page → $195.95 IN A KIT + SOLD SOLO
22A#	1622636103Z	ROTARY SOLENOID	1	REPLACES P/N 1620150404	ADD TO CART
ROTARY SOLENOID 1622636103Z · qty on machine: 1 REPLACES P/N 1620150404 Also included in kit 22 - ROTARY SOLENOID ASSY (1992639003) view full part page → $526.95 IN A KIT + SOLD SOLO
23#	1992636004	ARM, SOLENOID	1		ADD TO CART
ARM, SOLENOID 1992636004 · qty on machine: 1 Also included in kit 22 - ROTARY SOLENOID ASSY (1992639003) view full part page → $80.95 IN A KIT + SOLD SOLO
24#	0050403020	SPRING PIN	1		ADD TO CART
SPRING PIN 0050403020 · qty on machine: 1 Also included in kit 22 - ROTARY SOLENOID ASSY (1992639003) view full part page → $0.53 IN A KIT + SOLD SOLO
25#	011606025	HEX. HEAD BOLT	1	REPLACES P/N 0010106025	ADD TO CART
HEX. HEAD BOLT 011606025 · qty on machine: 1 REPLACES P/N 0010106025 Also included in kit 22 - ROTARY SOLENOID ASSY (1992639003) view full part page → $1.95 IN A KIT + SOLD SOLO
25A#	020106050	HEX. NUT	1	REPLACES P/N 0030006000	ADD TO CART
HEX. NUT 020106050 · qty on machine: 1 REPLACES P/N 0030006000 Also included in kit 22 - ROTARY SOLENOID ASSY (1992639003) view full part page → $0.12 IN A KIT + SOLD SOLO
26	0023706000	HEX. NUT	2	REPLACES P/N 0207206000	ADD TO CART
HEX. NUT 0023706000 · qty on machine: 2 REPLACES P/N 0207206000 view full part page → $0.95
27	D2356300004	GOVERNOR ROD	1		ADD TO CART
GOVERNOR ROD D2356300004 · qty on machine: 1 view full part page → $37.95
28	0401450080	WASHER, FLAT	1	REPLACES P/N 031108160	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 1 REPLACES P/N 031108160 view full part page → $0.56
29	0605010503	SNAP PIN	1		ADD TO CART
SNAP PIN 0605010503 · qty on machine: 1 view full part page → $0.35
30	0042806000	WASHER, FLAT	1		ADD TO CART
WASHER, FLAT 0042806000 · qty on machine: 1 view full part page → $0.39
31	505015300	SNAP PIN	1	REPLACES P/N 0605010502	ADD TO CART
SNAP PIN 505015300 · qty on machine: 1 REPLACES P/N 0605010502 view full part page → $0.95
32	0010108050	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0010108050 · qty on machine: 1 view full part page → $0.78
32A	020108060	HEX. NUT	1	REPLACES P/N 0207008000	ADD TO CART
HEX. NUT 020108060 · qty on machine: 1 REPLACES P/N 0207008000 view full part page → $0.28
33	0601806640	FUSE, 65A	1		ADD TO CART
FUSE, 65A 0601806640 · qty on machine: 1 view full part page → $11.95
34	A5485500004	GUIDE	1		ADD TO CART
GUIDE A5485500004 · qty on machine: 1 view full part page → $28.95
35	0016906016	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0016906016 · qty on machine: 2 view full part page → $0.81
36	0226900340	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL 0226900340 · qty on machine: 1 view full part page → $37.95

Page 16 — ENGINE AND RADIATOR ASSY.

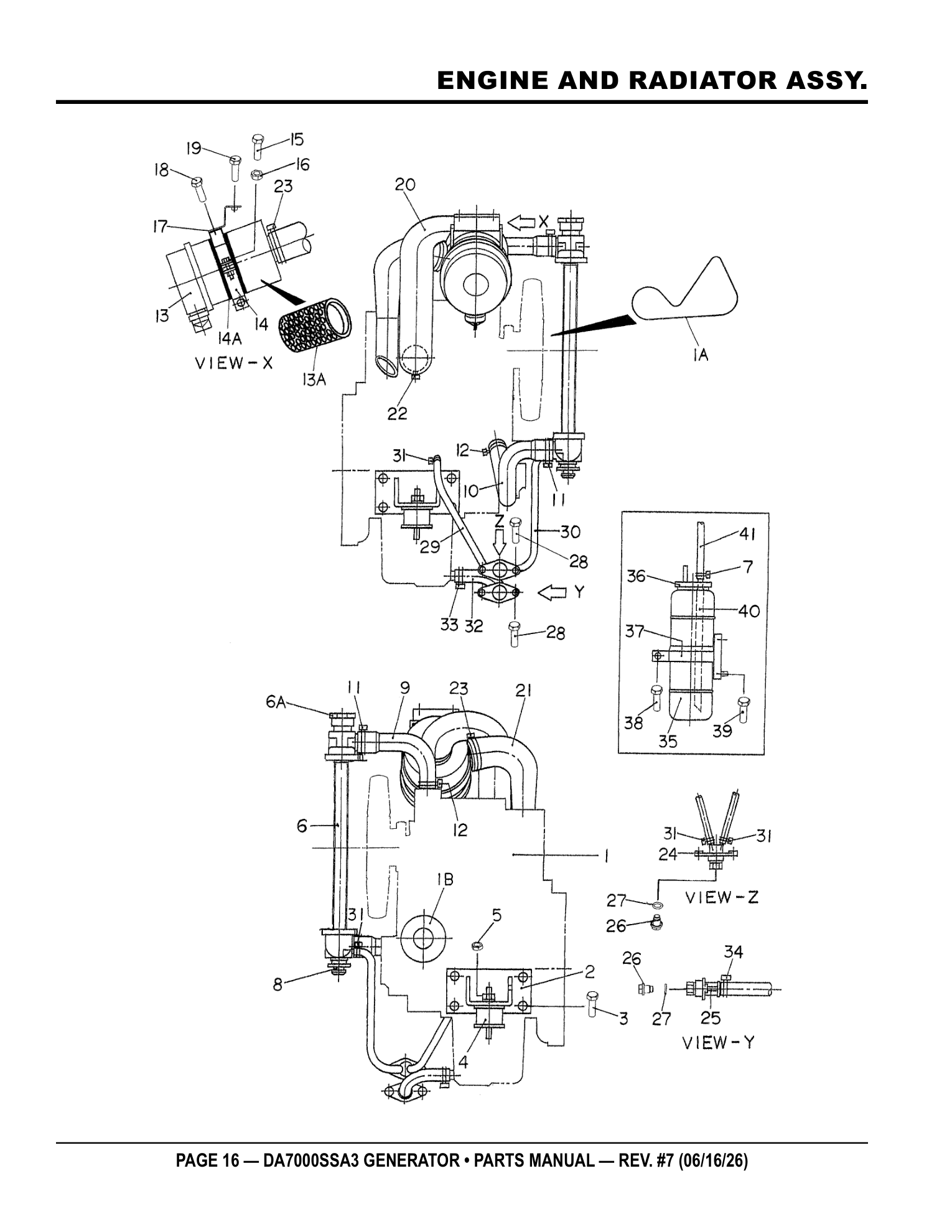

Multiquip DA7000SSA3 Generator ENGINE AND RADIATOR ASSY. parts diagram

Parts list — exactly as printed46 rows

No.	Part No.	Part Name	Qty	Remarks
1	A5924200174	ENGINE, KUBOTA Z482E4B	1	INCLUDES ITEMS W/$	ADD TO CART
ENGINE, KUBOTA Z482E4B A5924200174 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 1A$, 1B$ view full part page → $8391.95 IN A KIT + SOLD SOLO
1A$	1980572530	FAN BELT	1	REPLACES P/N 1980572531	ADD TO CART
FAN BELT 1980572530 · qty on machine: 1 REPLACES P/N 1980572531 Also included in kit 1 - ENGINE, KUBOTA Z482E4B (A5924200174) view full part page → $25.95 IN A KIT + SOLD SOLO
1B$	1J09032430	CARTRIDGE, OIL FILTER	1	REPLACES P/N Y0602041299	ADD TO CART
CARTRIDGE, OIL FILTER 1J09032430 · qty on machine: 1 REPLACES P/N Y0602041299 Also included in kit 1 - ENGINE, KUBOTA Z482E4B (A5924200174) view full part page → $29.95 IN A KIT + SOLD SOLO
2	8745112003A	ENGINE FOOT	2	REPLACES P/N 8745112003	NO LONGER AVAILABLE
PHOTO COMING ENGINE FOOT 8745112003A · qty on machine: 2 REPLACES P/N 8745112003 NO LONGER AVAILABLE
3	Y0341110020	HEX HEAD BOLT	8		ADD TO CART
HEX HEAD BOLT Y0341110020 · qty on machine: 8 view full part page → $3.95
4	7085419004	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION 7085419004 · qty on machine: 2 view full part page → $34.95
5	021112140	HEX. NUT	2	REPLACES P/N 0207010000	ADD TO CART
HEX. NUT 021112140 · qty on machine: 2 REPLACES P/N 0207010000 view full part page → $0.46
6	0602012795	RADIATOR	1	INCLUDES ITEMS W/#	ADD TO CART
RADIATOR 0602012795 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 6A# view full part page → $430.95 IN A KIT + SOLD SOLO
6A#	0602011079	CAP, RADIATOR	1		ADD TO CART
CAP, RADIATOR 0602011079 · qty on machine: 1 Also included in kit 6 - RADIATOR (0602012795) view full part page → $137.95 IN A KIT + SOLD SOLO
7	0605515170	HOSE BAND	3		ADD TO CART
HOSE BAND 0605515170 · qty on machine: 3 view full part page → $5.95
8	B1312600004	RUBBER MOUNT	2		ADD TO CART
RUBBER MOUNT B1312600004 · qty on machine: 2 view full part page → $15.95
9	A5311500404	RADIATOR HOSE, UPPER	1		ADD TO CART
RADIATOR HOSE, UPPER A5311500404 · qty on machine: 1 view full part page → $40.95
10	A5311500203	RADIATOR HOSE, LOWER	1		ADD TO CART
RADIATOR HOSE, LOWER A5311500203 · qty on machine: 1 view full part page → $44.95
11	0605515134	HOSE BAND HS-16	2		ADD TO CART
HOSE BAND HS-16 0605515134 · qty on machine: 2 view full part page → $4.95
12	0605515159	HOSE BAND, Ø32	2		ADD TO CART
HOSE BAND, Ø32 0605515159 · qty on machine: 2 view full part page → $1.32
13	1556211010	AIR CLEANER	1	REPLACES P/N 0602046265 INCLUDES ITEMS W/%	ADD TO CART
AIR CLEANER 1556211010 · qty on machine: 1 REPLACES P/N 0602046265 INCLUDES ITEMS W/% Kit includes: 13A% view full part page → $247.95 IN A KIT + SOLD SOLO
13A%	7000011221	ELEMENT, AIR CLEANER	1	REPLACES P/N 0602046374	ADD TO CART
ELEMENT, AIR CLEANER 7000011221 · qty on machine: 1 REPLACES P/N 0602046374 Also included in kit 13 - AIR CLEANER (1556211010) view full part page → $54.95 IN A KIT + SOLD SOLO
14	3415013960	BAND, AIR CLEANER	1	REPLACES P/N 0602040575	NO LONGER AVAILABLE
PHOTO COMING BAND, AIR CLEANER 3415013960 · qty on machine: 1 REPLACES P/N 0602040575 NO LONGER AVAILABLE
14A	0222600340	RUBBER CUSHION	1		ADD TO CART
RUBBER CUSHION 0222600340 · qty on machine: 1 view full part page → $4.95
15	011208030	HEX. HEAD BOLT	1	REPLACES P/N 0016908030	ADD TO CART
HEX. HEAD BOLT 011208030 · qty on machine: 1 REPLACES P/N 0016908030 view full part page → $1.3
16	020108060	HEX. NUT	1	REPLACES P/N 0207008000	ADD TO CART
HEX. NUT 020108060 · qty on machine: 1 REPLACES P/N 0207008000 view full part page → $0.28
17	8742031004	BRACKET, AIR CLEANER	1		ADD TO CART
BRACKET, AIR CLEANER 8742031004 · qty on machine: 1 view full part page → $14.95
18	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
19	011106015	HEX. HEAD BOLT	2	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 2 REPLACES P/N 0016906015 view full part page → $0.69
20	8742032003A	HOSE, AIR CLEANER	1	REPLACES P/N 8742032003	ADD TO CART
HOSE, AIR CLEANER 8742032003A · qty on machine: 1 REPLACES P/N 8742032003 view full part page → $110.95
21	1612036203	HOSE, AIR CLEANER	1		ADD TO CART
HOSE, AIR CLEANER 1612036203 · qty on machine: 1 view full part page → $64.31
22	0605515006	HOSE BAND, Ø50	1		NO LONGER AVAILABLE
PHOTO COMING HOSE BAND, Ø50 0605515006 · qty on machine: 1 NO LONGER AVAILABLE
23	0602014302	HOSE BAND, Ø55	2	REPLACE P/N 0605515021	ADD TO CART
HOSE BAND, Ø55 0602014302 · qty on machine: 2 REPLACE P/N 0605515021 view full part page → $9.95
24	1622014103	DRAIN JOINT, WATER	1		ADD TO CART
DRAIN JOINT, WATER 1622014103 · qty on machine: 1 view full part page → $23.95
25	1502025103C	DRAIN JOINT, OIL	1	REPLACES P/N 1502025103	ADD TO CART
DRAIN JOINT, OIL 1502025103C · qty on machine: 1 REPLACES P/N 1502025103 view full part page → $29.95
26	0802011104	PLUG	2		ADD TO CART
PLUG 0802011104 · qty on machine: 2 view full part page → $10.95
27	0150000018	O-RING, A P18	2		ADD TO CART
O-RING, A P18 0150000018 · qty on machine: 2 view full part page → $1.87
28	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0016906015 view full part page → $0.69
29	0199900550	DRAIN HOSE	1		ADD TO CART
DRAIN HOSE 0199900550 · qty on machine: 1 view full part page → $16.95
30	0199900500	DRAIN HOSE	1		ADD TO CART
DRAIN HOSE 0199900500 · qty on machine: 1 view full part page → $11.95
31	0605515170	HOSE BAND	4		ADD TO CART
HOSE BAND 0605515170 · qty on machine: 4 view full part page → $5.95
32	A5321100404	DRAIN HOSE	1		PARTS REQUEST
PHOTO COMING DRAIN HOSE A5321100404 · qty on machine: 1 PARTS REQUEST
33	0605515073	HOSE BAND, HS-10	1		ADD TO CART
HOSE BAND, HS-10 0605515073 · qty on machine: 1 view full part page → $6.95
34	0605515073	HOSE BAND, HS-10	1		ADD TO CART
HOSE BAND, HS-10 0605515073 · qty on machine: 1 view full part page → $6.95
35	0802081403	RESERVE TANK	1		ADD TO CART
RESERVE TANK 0802081403 · qty on machine: 1 view full part page → $29.95
36	0802081104	CAP, RESERVE TANK	1		ADD TO CART
CAP, RESERVE TANK 0802081104 · qty on machine: 1 view full part page → $5.95
37	1622082104	BRACKET, RESERVE TANK	1		NO LONGER AVAILABLE
PHOTO COMING BRACKET, RESERVE TANK 1622082104 · qty on machine: 1 NO LONGER AVAILABLE
38	011606025	HEX. HEAD BOLT	1	REPLACES P/N 0016906025	ADD TO CART
HEX. HEAD BOLT 011606025 · qty on machine: 1 REPLACES P/N 0016906025 view full part page → $1.95
39	011106015	HEX. HEAD BOLT	2	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 2 REPLACES P/N 0016906015 view full part page → $0.69
40	0199100215	HOSE	1		ADD TO CART
HOSE 0199100215 · qty on machine: 1 view full part page → $3.95
41	0199900420	HOSE	1		ADD TO CART
HOSE 0199900420 · qty on machine: 1 view full part page → $10.95

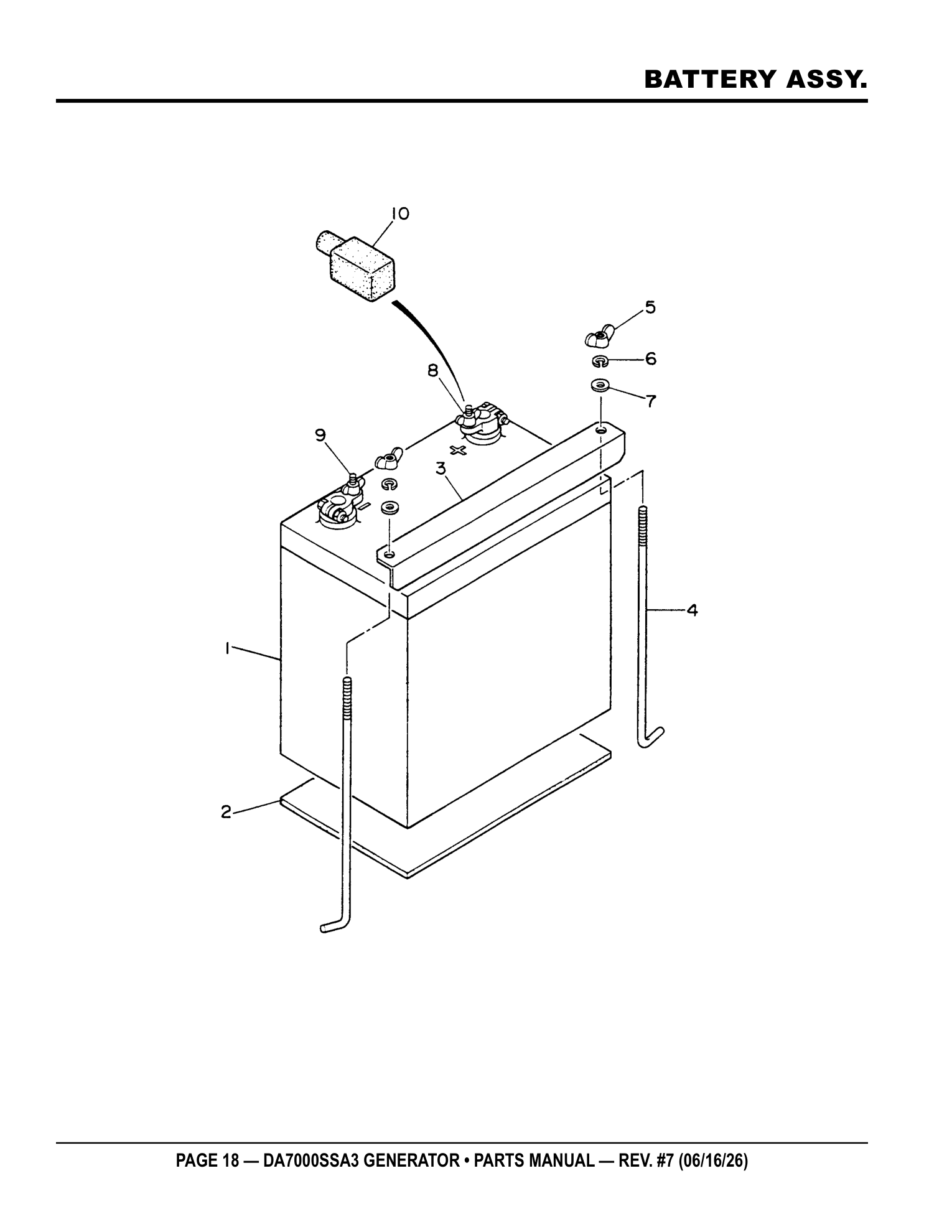

Page 18 — BATTERY ASSY.

Multiquip DA7000SSA3 Generator BATTERY ASSY. parts diagram

Parts list — exactly as printed10 rows

No.	Part No.	Part Name	Qty	Remarks
1	Y0165103820	BATTERY, 38B20R	1		ADD TO CART
BATTERY, 38B20R Y0165103820 · qty on machine: 1 view full part page → $276.95
2	0805081004	BATTERY SHEET	1	REPLACES P/N 1702202104	ADD TO CART
BATTERY SHEET 0805081004 · qty on machine: 1 REPLACES P/N 1702202104 view full part page → $24.95
3	D2345200004	BATTERY BAND	1		ADD TO CART
BATTERY BAND D2345200004 · qty on machine: 1 view full part page → $18.95
4	0805082704	BATTERY BOLT	2		ADD TO CART
BATTERY BOLT 0805082704 · qty on machine: 2 view full part page → $3.95
5	0037806000	WING NUT	2		ADD TO CART
WING NUT 0037806000 · qty on machine: 2 view full part page → $1.95
6	0040006000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040006000 · qty on machine: 2 view full part page → $0.17
7	952404470	WASHER, FLAT	2	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 2 REPLACES P/N 0041206000 view full part page → $0.19
8	0602220311	TERMINAL ASSY. (POSITIVE)	1	REPLACE P/N 0602220310	ADD TO CART
TERMINAL ASSY. (POSITIVE) 0602220311 · qty on machine: 1 REPLACE P/N 0602220310 view full part page → $26.95
9	0602220311	TERMINAL ASSY. (NEGATIVE)	1		ADD TO CART
TERMINAL ASSY. (NEGATIVE) 0602220311 · qty on machine: 1 view full part page → $26.95
10	0845040414	TERMINAL CAP	1	REPLACES P/N 0602220600	ADD TO CART
TERMINAL CAP 0845040414 · qty on machine: 1 REPLACES P/N 0602220600 view full part page → $13.95

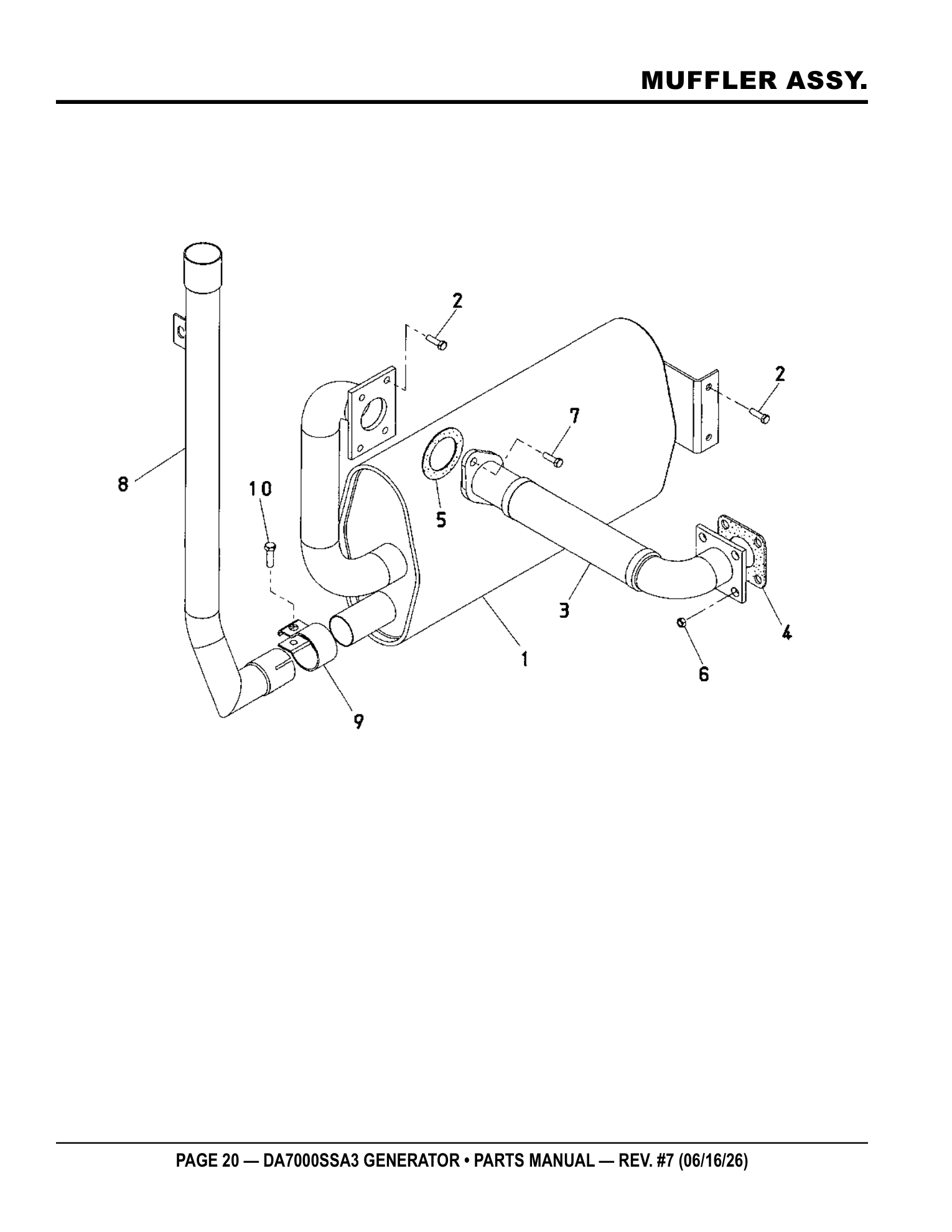

Page 20 — MUFFLER ASSY.

Multiquip DA7000SSA3 Generator MUFFLER ASSY. parts diagram

Parts list — exactly as printed10 rows

No.	Part No.	Part Name	Qty	Remarks
1	A5331000203	MUFFLER	1		ADD TO CART
MUFFLER A5331000203 · qty on machine: 1 view full part page → $912.95
2	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
3	02335000003	EXHAUST PIPE	1		PARTS REQUEST
PHOTO COMING EXHAUST PIPE 02335000003 · qty on machine: 1 PARTS REQUEST
4	0602320153	GASKET	1	REPLACES P/N 1526312371	ADD TO CART
GASKET 0602320153 · qty on machine: 1 REPLACES P/N 1526312371 Factory replaced this part - current number 1526312370 view full part page → $13.95 IN A KIT + SOLD SOLO
5	09304000004	GASKET	1		PARTS REQUEST
PHOTO COMING GASKET 09304000004 · qty on machine: 1 PARTS REQUEST
6	020108060	HEX. NUT	4	REPLACES P/N 0207008000	ADD TO CART
HEX. NUT 020108060 · qty on machine: 4 REPLACES P/N 0207008000 view full part page → $0.28
7	0012108035	HEX. HEAD BOLT	2	REPLACES P/N 0016908035	ADD TO CART
HEX. HEAD BOLT 0012108035 · qty on machine: 2 REPLACES P/N 0016908035 view full part page → $1.95
8	A5334101204	TAIL PIPE	1		ADD TO CART
TAIL PIPE A5334101204 · qty on machine: 1 view full part page → $272.95
9	09101200004	PIPE BAND	1		ADD TO CART
PIPE BAND 09101200004 · qty on machine: 1 view full part page → $44.95
10	0012308035	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0012308035 · qty on machine: 1 view full part page → $1.95

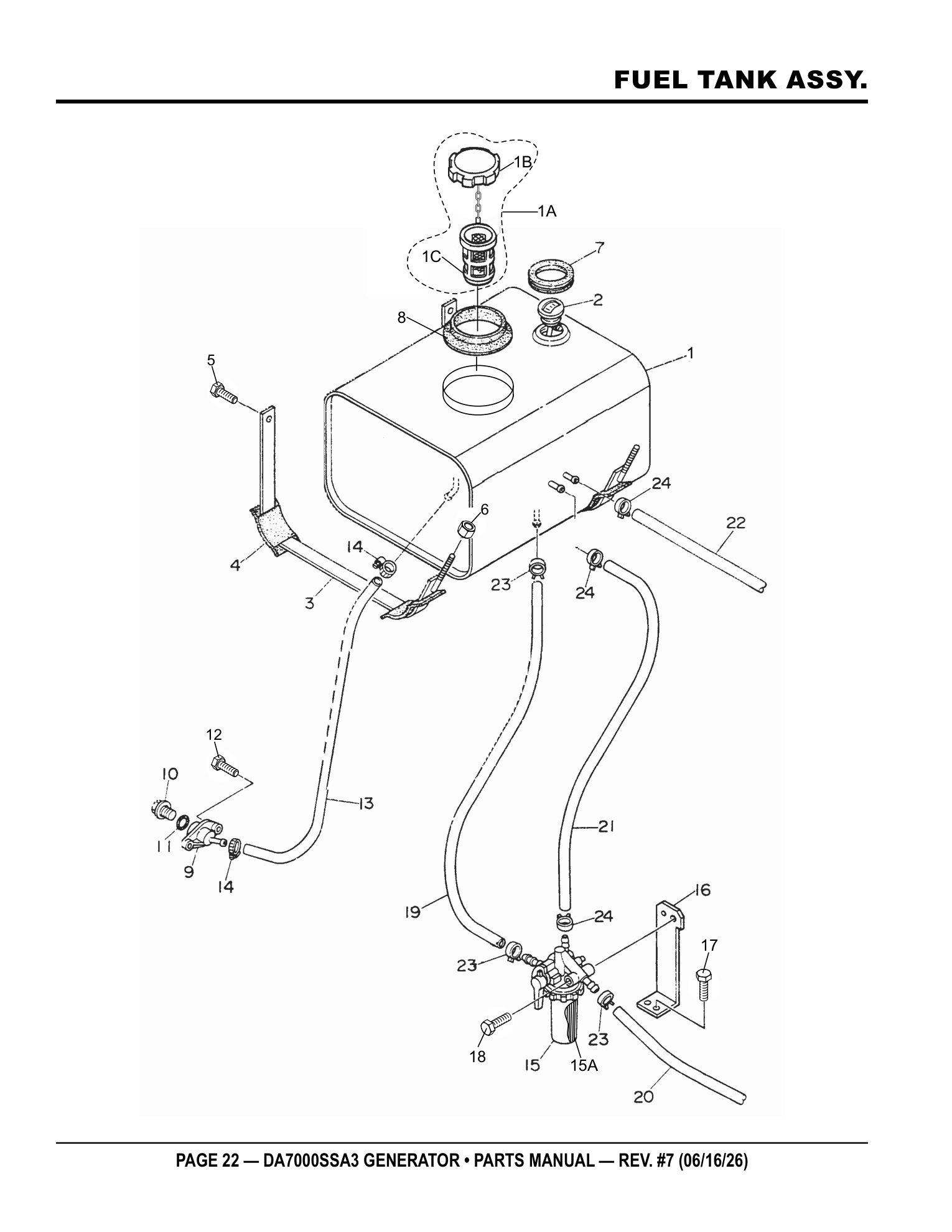

Page 22 — FUEL TANK ASSY.

Multiquip DA7000SSA3 Generator FUEL TANK ASSY. parts diagram

Parts list — exactly as printed28 rows

No.	Part No.	Part Name	Qty	Remarks
1	D2365000013B	FUEL TANK	1	REPLACES P/N D2365000013	ADD TO CART
FUEL TANK D2365000013B · qty on machine: 1 REPLACES P/N D2365000013 view full part page → $855.95
1A	A9924800024	FUEL TANK CAP ASSY	1	INCLUDES ITEM W/#	ADD TO CART
FUEL TANK CAP ASSY A9924800024 · qty on machine: 1 INCLUDES ITEM W/# Kit includes: 1B#, 1C# view full part page → $50.95 IN A KIT + SOLD SOLO
1B#	0810105800	CAP, FUEL TANK	1		ADD TO CART
CAP, FUEL TANK 0810105800 · qty on machine: 1 Also included in kit 1A - FUEL TANK CAP ASSY (A9924800024) view full part page → $50.95 IN A KIT + SOLD SOLO
1C#	0810105900	FUEL STRAINER	1		NO LONGER AVAILABLE
PHOTO COMING FUEL STRAINER 0810105900 · qty on machine: 1 Also included in kit 1A - FUEL TANK CAP ASSY (A9924800024) NO LONGER AVAILABLE
2	0602125033	FUEL GAUGE	1		ADD TO CART
FUEL GAUGE 0602125033 · qty on machine: 1 view full part page → $42.95
3	D2365200004B	TANK BAND	2	REPLACES P/N D2365200004	ADD TO CART
TANK BAND D2365200004B · qty on machine: 2 REPLACES P/N D2365200004 view full part page → $147.95
4	0805003414	PAD, TANK BAND	4		ADD TO CART
PAD, TANK BAND 0805003414 · qty on machine: 4 view full part page → $13.95
5	011106015	HEX. HEAD BOLT	2	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 2 REPLACES P/N 0016906015 view full part page → $0.69
6	0207308000	HEX. NUT	2		ADD TO CART
HEX. NUT 0207308000 · qty on machine: 2 view full part page → $0.89
7	D1490600104	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL D1490600104 · qty on machine: 1 view full part page → $2.95
8	B9312400004	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL B9312400004 · qty on machine: 1 view full part page → $12.95
9	7812014003	DRAIN JOINT	1		ADD TO CART
DRAIN JOINT 7812014003 · qty on machine: 1 view full part page → $25.95
10	0802011104	PLUG	1		ADD TO CART
PLUG 0802011104 · qty on machine: 1 view full part page → $10.95
11	0150000018	O-RING	1		ADD TO CART
O-RING 0150000018 · qty on machine: 1 view full part page → $1.87
12	0017106016	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0017106016 · qty on machine: 2 view full part page → $1.51
13	0199900670	DRAIN HOSE	1		ADD TO CART
DRAIN HOSE 0199900670 · qty on machine: 1 view full part page → $16.95
14	0605515170	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515170 · qty on machine: 2 view full part page → $5.95
15	1553143010	FUEL FILTER	1	REPLACES P/N 1553143012 INCLUDES ITEMS W/$	ADD TO CART
FUEL FILTER 1553143010 · qty on machine: 1 REPLACES P/N 1553143012 INCLUDES ITEMS W/$ Kit includes: 15A$ view full part page → $152.95 IN A KIT + SOLD SOLO
15A$	1523143560	ELEMENT, FUEL FILTER	1	REPLACES P/N 0602042171	ADD TO CART
ELEMENT, FUEL FILTER 1523143560 · qty on machine: 1 REPLACES P/N 0602042171 Also included in kit 15 - FUEL FILTER (1553143010) view full part page → $14.95 IN A KIT + SOLD SOLO
16	D2368700004B	BRACKET, FUEL FILTER	1	REPLACES P/N D2368700004	ADD TO CART
BRACKET, FUEL FILTER D2368700004B · qty on machine: 1 REPLACES P/N D2368700004 view full part page → $58.95
17	0016906016	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0016906016 · qty on machine: 2 view full part page → $0.81
18	0016908065	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0016908065 · qty on machine: 1 view full part page → $5.95
19	0966180240	SUCTION HOSE	1	REPLACES P/N 0605513158	ADD TO CART
SUCTION HOSE 0966180240 · qty on machine: 1 REPLACES P/N 0605513158 view full part page → $10.95
20	Y0370600360	SUCTION HOSE	1		PARTS REQUEST
PHOTO COMING SUCTION HOSE Y0370600360 · qty on machine: 1 PARTS REQUEST
21	0966140320	RETURN HOSE	1	REPLACES P/N 0605514101	ADD TO CART
RETURN HOSE 0966140320 · qty on machine: 1 REPLACES P/N 0605514101 view full part page → $11.95
22	0966140240	RETURN HOSE	1	REPLACES P/N 0605514102	ADD TO CART
RETURN HOSE 0966140240 · qty on machine: 1 REPLACES P/N 0605514102 view full part page → $4.95
23	0605515094	HOSE BAND	4		ADD TO CART
HOSE BAND 0605515094 · qty on machine: 4 view full part page → $8.95
24	0605515200	HOSE BAND	4		ADD TO CART
HOSE BAND 0605515200 · qty on machine: 4 view full part page → $4.95

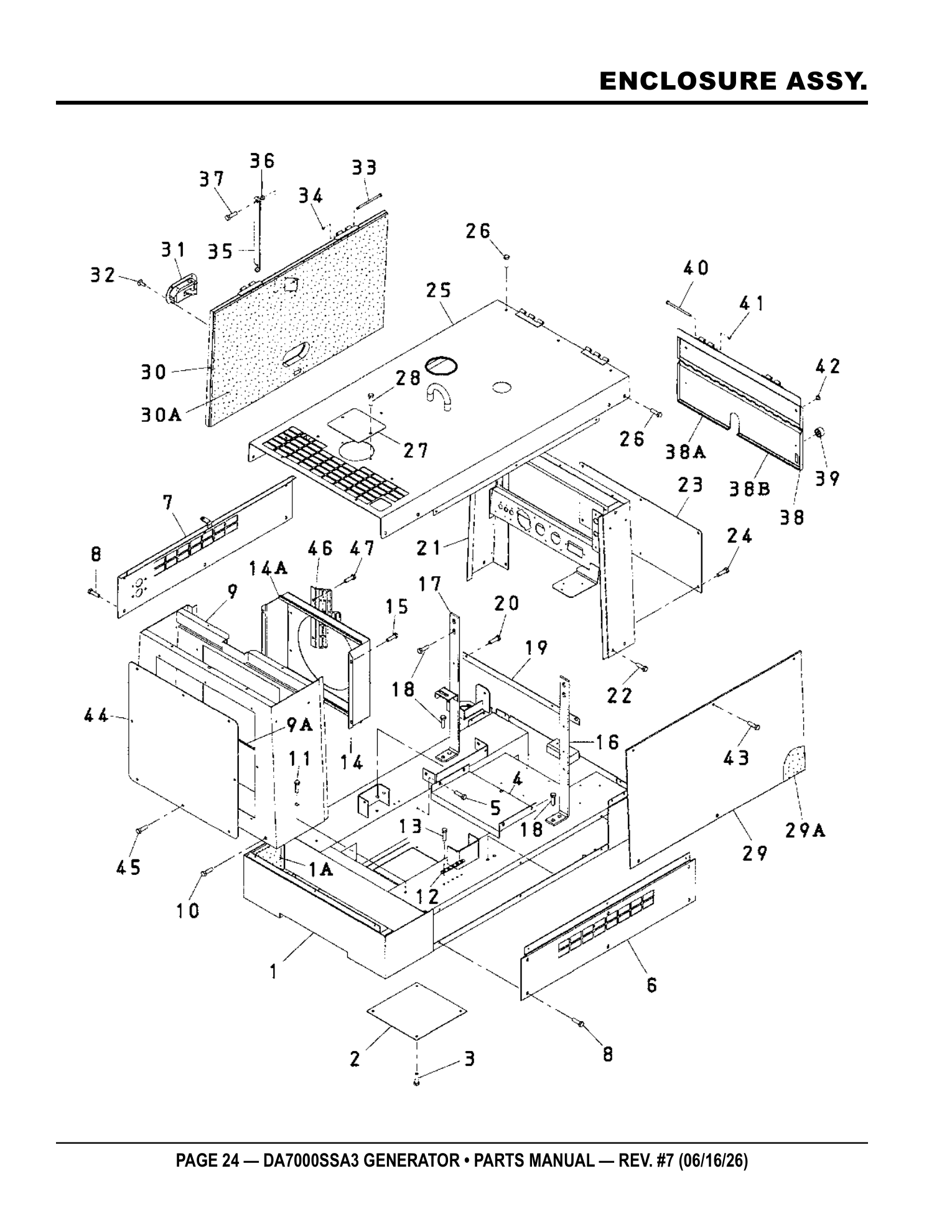

Page 24 — ENCLOSURE ASSY.

Multiquip DA7000SSA3 Generator ENCLOSURE ASSY. parts diagram

Parts list — exactly as printed27 rows

No.	Part No.	Part Name	Qty	Remarks
1	A5414001402	BASE	1		ADD TO CART
BASE A5414001402 · qty on machine: 1 view full part page → $2313.95
1A	D2492100004	LINING	1		ADD TO CART
LINING D2492100004 · qty on machine: 1 view full part page → $21.95
2	D2415100004	FLOOR PANEL	1		ADD TO CART
FLOOR PANEL D2415100004 · qty on machine: 1 view full part page → $30.95
3	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0016906015 view full part page → $0.69
4	A5415600114	DUCT	1		PARTS REQUEST
PHOTO COMING DUCT A5415600114 · qty on machine: 1 PARTS REQUEST
5	011106015	HEX. HEAD BOLT	5	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 5 REPLACES P/N 0016906015 view full part page → $0.69
6	A5454200103	SPLASHER PANEL	1		ADD TO CART
SPLASHER PANEL A5454200103 · qty on machine: 1 view full part page → $151.95
7	D2455200003A	SPLASHER PANEL	1	REPLACES P/N D2455200003	ADD TO CART
SPLASHER PANEL D2455200003A · qty on machine: 1 REPLACES P/N D2455200003 view full part page → $62.95
8	011106015	HEX. HEAD BOLT	12	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 12 REPLACES P/N 0016906015 view full part page → $0.69
9	A5424001102	FRONT FRAME	1	REPLACES P/N D2425000032	ADD TO CART
FRONT FRAME A5424001102 · qty on machine: 1 REPLACES P/N D2425000032 view full part page → $1452.95
9A	Y0315500375	RUBBER SEAL	2		PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0315500375 · qty on machine: 2 PARTS REQUEST
10	011106015	HEX. HEAD BOLT	3	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 3 REPLACES P/N 0016906015 view full part page → $0.69
11	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
12	8511864601A	TERMINAL PLATE	1	REPLACES P/N 8511864604	PARTS REQUEST
PHOTO COMING TERMINAL PLATE 8511864601A · qty on machine: 1 REPLACES P/N 8511864604 PARTS REQUEST
13	011106015	HEX. HEAD BOLT	5	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 5 REPLACES P/N 0016906015 view full part page → $0.69
14	A5311300403	FAN SHROUD	1		PARTS REQUEST
PHOTO COMING FAN SHROUD A5311300403 · qty on machine: 1 PARTS REQUEST
14A	Y0315500375	LINING	2		PARTS REQUEST
PHOTO COMING LINING Y0315500375 · qty on machine: 2 PARTS REQUEST
15	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0016906015 view full part page → $0.69
16	A5435300703	HANGER	1		PARTS REQUEST
PHOTO COMING HANGER A5435300703 · qty on machine: 1 PARTS REQUEST
17	A5435300403	HANGER	1		ADD TO CART
HANGER A5435300403 · qty on machine: 1 view full part page → $176.95
18	012210025	HEX. HEAD BOLT	8	REPLACES P/N 0012310025	ADD TO CART
HEX. HEAD BOLT 012210025 · qty on machine: 8 REPLACES P/N 0012310025 view full part page → $0.86
19	D2485500014	HARNESS GUIDE	1		ADD TO CART
HARNESS GUIDE D2485500014 · qty on machine: 1 view full part page → $24.95
20	011106015	HEX. HEAD BOLT	2	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 2 REPLACES P/N 0016906015 view full part page → $0.69
21	A5444002702	REAR FRAME	1		ADD TO CART
REAR FRAME A5444002702 · qty on machine: 1 view full part page → $1607.95
22	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0016906015 view full part page → $0.69
23	D2445300004	COVER, REAR FRAME	1		ADD TO CART
COVER, REAR FRAME D2445300004 · qty on machine: 1 view full part page → $29.95
24	011106015	HEX. HEAD BOLT	6	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 6 REPLACES P/N 0016906015 view full part page → $0.69

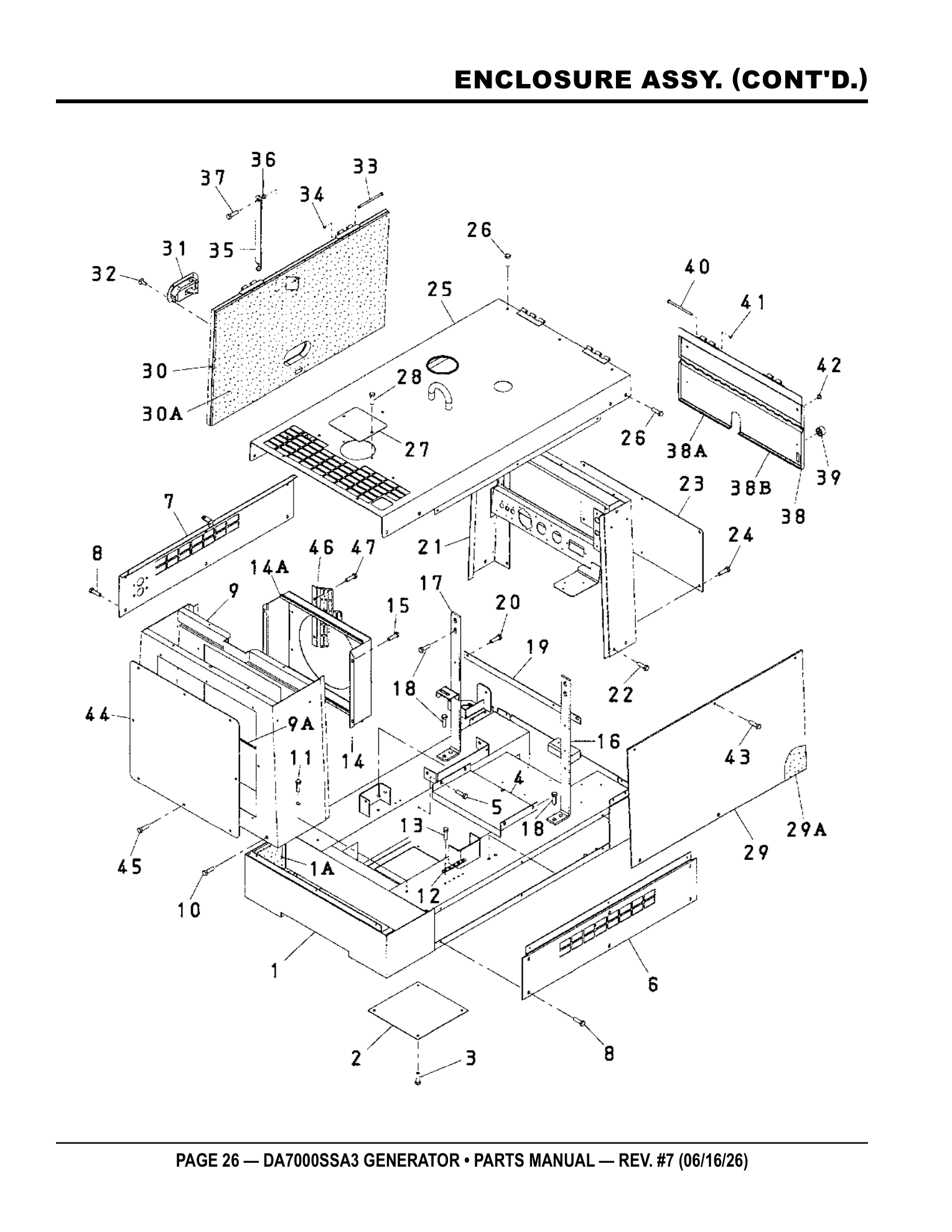

Page 26 — ENCLOSURE ASSY. (CONT'D.)

Multiquip DA7000SSA3 Generator ENCLOSURE ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed27 rows

No.	Part No.	Part Name	Qty	Remarks
25	A5464001202	ROOF PANEL	1		ADD TO CART
ROOF PANEL A5464001202 · qty on machine: 1 view full part page → $1440.95
26	011106015	HEX. HEAD BOLT	15	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 15 REPLACES P/N 0016906015 view full part page → $0.69
27	8432081004	COVER,RADIATOR CAP	1		ADD TO CART
COVER,RADIATOR CAP 8432081004 · qty on machine: 1 view full part page → $81.95
28	011106015	HEX. HEAD BOLT	2	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 2 REPLACES P/N 0016906015 view full part page → $0.69
29	A5454100304	SIDE DOOR	1		ADD TO CART
SIDE DOOR A5454100304 · qty on machine: 1 view full part page → $350.95
29A	A5494400904	LINING	1		ADD TO CART
LINING A5494400904 · qty on machine: 1 view full part page → $42.95
30	D2455000013	SIDE DOOR	1		ADD TO CART
SIDE DOOR D2455000013 · qty on machine: 1 view full part page → $176.95
30A	A5495400604	LINING	1		ADD TO CART
LINING A5495400604 · qty on machine: 1 view full part page → $64.95
31	0605010215	DOOR HANDLE	2		ADD TO CART
DOOR HANDLE 0605010215 · qty on machine: 2 view full part page → $42.95
32	0021805016	MACHINE SCREW	8		ADD TO CART
MACHINE SCREW 0021805016 · qty on machine: 8 view full part page → $0.81
33	0810014704	PIN	4		ADD TO CART
PIN 0810014704 · qty on machine: 4 view full part page → $3.95
34	0080200004	SNAP RING	4		ADD TO CART
SNAP RING 0080200004 · qty on machine: 4 view full part page → $0.29
35	D2455700004	DOOR STAY	2		ADD TO CART
DOOR STAY D2455700004 · qty on machine: 2 view full part page → $12.95
36	7835088004	COLLAR	2		ADD TO CART
COLLAR 7835088004 · qty on machine: 2 view full part page → $2.95
37	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
38	A5444200713	REAR DOOR	1		ADD TO CART
REAR DOOR A5444200713 · qty on machine: 1 view full part page → $457.95
38A	Y0226900225	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL Y0226900225 · qty on machine: 1 view full part page → $9.95
38B	Y0226900280	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL Y0226900280 · qty on machine: 1 view full part page → $10.95
39	0601851613	STOPPER	2		ADD TO CART
STOPPER 0601851613 · qty on machine: 2 view full part page → $2.95
40	0810014704	PIN	2		ADD TO CART
PIN 0810014704 · qty on machine: 2 view full part page → $3.95
41	0080200004	SNAP RING	2		ADD TO CART
SNAP RING 0080200004 · qty on machine: 2 view full part page → $0.29
42	0601851660	STOPPER	2		ADD TO CART
STOPPER 0601851660 · qty on machine: 2 view full part page → $1.95
43	0016906015	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 6 view full part page → $0.95
44	A5424100004	FRONT PANEL	1		ADD TO CART
FRONT PANEL A5424100004 · qty on machine: 1 view full part page → $335.95
45	0016906015	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 8 view full part page → $0.95
46	A6311200513	FAN GUARD	1		ADD TO CART
FAN GUARD A6311200513 · qty on machine: 1 view full part page → $61.95
47	0016906015	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 2 view full part page → $0.95

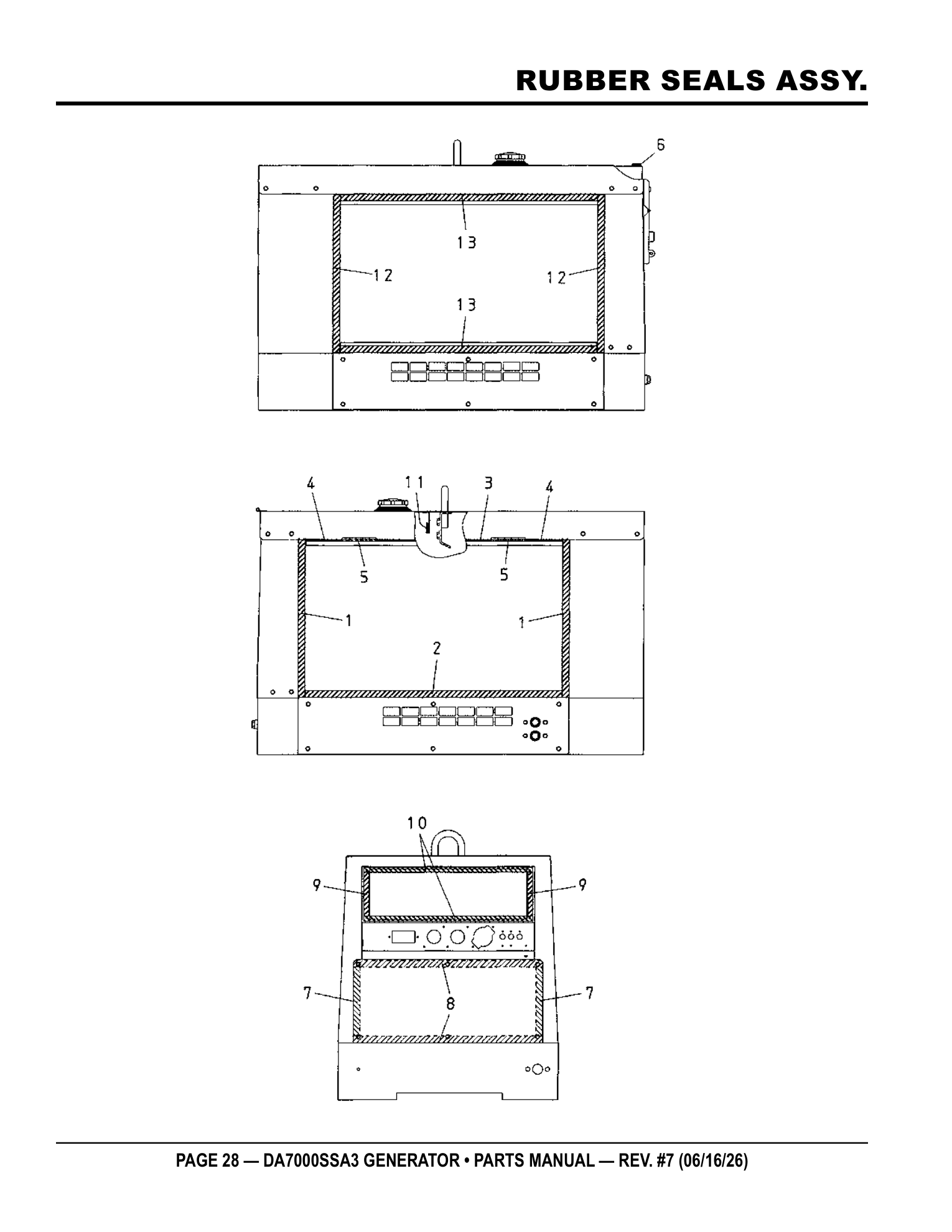

Page 28 — RUBBER SEALS ASSY.

Multiquip DA7000SSA3 Generator RUBBER SEALS ASSY. parts diagram

Parts list — exactly as printed13 rows

No.	Part No.	Part Name	Qty
1	Y0221200460	RUBBER SEAL	2	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0221200460 · qty on machine: 2 PARTS REQUEST
2	0221200760	RUBBER SEAL	1	NO LONGER AVAILABLE
PHOTO COMING RUBBER SEAL 0221200760 · qty on machine: 1 NO LONGER AVAILABLE
3	Y0221200325	RUBBER SEAL	1	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0221200325 · qty on machine: 1 PARTS REQUEST
4	Y0221200125	RUBBER SEAL	2	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0221200125 · qty on machine: 2 PARTS REQUEST
5	0222600100	RUBBER SEAL	2	ADD TO CART
RUBBER SEAL 0222600100 · qty on machine: 2 view full part page → $15.95
6	0228300600	RUBBER SEAL	1	PARTS REQUEST
PHOTO COMING RUBBER SEAL 0228300600 · qty on machine: 1 PARTS REQUEST
7	0228300200	RUBBER SEAL	2	ADD TO CART
RUBBER SEAL 0228300200 · qty on machine: 2 view full part page → $2.68
8	0228300550	RUBBER SEAL	2	ADD TO CART
RUBBER SEAL 0228300550 · qty on machine: 2 view full part page → $4.95
9	Y0318400130	RUBBER SEAL	2	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0318400130 · qty on machine: 2 PARTS REQUEST
10	Y0318400500	RUBBER SEAL	2	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0318400500 · qty on machine: 2 PARTS REQUEST
11	0222100300	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL 0222100300 · qty on machine: 1 view full part page → $9.95
12	Y0314700470	RUBBER SEAL	2	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0314700470 · qty on machine: 2 PARTS REQUEST
13	Y0314700760	RUBBER SEAL	2	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0314700760 · qty on machine: 2 PARTS REQUEST

The machine itself

Price by quote Get a quote

Tell us where the machine is headed and we'll quote it with freight. One call, no games.

The Multiquip DA7000SSA3 is a generator built for portable jobsite power for tools, lighting, and equipment. Factory-documented specs and parts support; priced by quote.

Keep-it-running spares

All listed parts →

Every part that fits this machine

0226900340 Multiquip 0226900340 Edging Denyo - OEM Replacement Part for Super Silent Generators $37.95

0601806423 Multiquip 0601806423 Circuit Breaker GA-97HZ - OEM Replacement Part $95.95

0601806425 Multiquip 0601806425 Circuit Breaker 30A GA-97HZ - OEM Replacement Part $190.95

0601806819 Multiquip 0601806819 AC Voltmeter DENYO - OEM Replacement Part $65.95

0601810523 Multiquip 0601810523 Indicator Assembly TLW-300SS - OEM Replacement Part $154.95

0601811031 Multiquip 0601811031 NEMA L5-30R 30A 125V Twist-Lock Output Receptacle - OEM Replacement Part $46.95

0601812529 Multiquip 0601812529 Female Receptacle - OEM Replacement Part for Generators $49.95

0601815109 Multiquip 0601815109 Terminal Grounding - OEM Replacement Part for Super Silent Generators $39.95

0601815731 Multiquip 0601815731 Terminal Board TLW-300SS - OEM Replacement Part $383.95

0601815759 Multiquip 0601815759 Terminal Board BLW-400SSW - OEM Replacement Part $36.95

0601823754 Multiquip 0601823754 Relay BLW-400SSW - OEM Replacement Part $46.95

0601827350 Multiquip 0601827350 Control Unit DA-7000SS - OEM Replacement Part $244.95

0602011079 Multiquip 0602011079 Radiator Cap Denyo - OEM Replacement Part $137.95

0602125033 Multiquip 0602125033 Fuel Gauge - OEM Replacement Part for Super Silent Generators $42.95

0605010215 Multiquip 0605010215 Door Handle - OEM Replacement Part $42.95

09101200004 Multiquip 09101200004 Pipe Band - OEM Replacement Part for Super Silent Generators $44.95

1553143010 Multiquip 1553143010 Fuel Filter Assembly - OEM Replacement Part $152.95

1556211010 Multiquip 1556211010 Air Cleaner Assembly - OEM Replacement Part for Super Silent Generators $247.95

1569465990 Multiquip 1569465990 Timer Lamp Quick Glow - OEM Replacement Part $152.95

1584464603 Multiquip 1584464603 Regulator Comp - OEM Replacement Part for Super Silent Generators $375.95

1628663602 Multiquip 1628663602 Switch Assembly D1403,BLW-400 - OEM Replacement Part $148.95

1992636004 Multiquip 1992636004 Arm Solenoid - OEM Replacement Part $80.95

1992639003 Multiquip 1992639003 Rotary Solenoid Assembly - OEM Replacement Part $195.95

7000011221 Multiquip 7000011221 Air Cleaner Filter - OEM Replacement Part $54.95

7085419004 Multiquip 7085419004 Rubber Suspension - OEM Replacement Part $34.95

8742032003A Multiquip 8742032003A Hose Air Cleaner - OEM Replacement Part $110.95

A5110200003 Multiquip A5110200003 Rotor Assembly DA-7000SS - OEM Replacement Part $969.95

A5136000103 Multiquip A5136000103 Armature Assembly (4-Wire) - OEM Replacement Part $1,882.95

A5311500203 Multiquip A5311500203 Radiator Hose - OEM Replacement Part $44.95

A5311500404 Multiquip A5311500404 Upper Radiator Hose - OEM Replacement Part $40.95

A5331000203 Multiquip A5331000203 Muffler - OEM Replacement Part for WhisperWatt Super Silent Generators $912.95

A5414001402 Multiquip A5414001402 Base Denyo (JP) - OEM Replacement Part for Super Silent Generator $2,313.95

A5424001102 Multiquip A5424001102 Front Frame (MQ White) - OEM Replacement Part $1,452.95

A5424100004 Multiquip A5424100004 Front Panel - OEM Replacement Part for Super Silent Generators $335.95

A5435300403 Multiquip A5435300403 Hanger DA-7000SS - OEM Replacement Part $176.95

A5464001202 Multiquip A5464001202 Roof Panel (MQ White) - OEM Replacement Part for Super Silent Generators $1,440.95

A5494400904 Multiquip A5494400904 Lining (JP) - OEM Replacement Part for Super Silent Generators $42.95

A5495400604 Multiquip A5495400604 Lining DA-7000SS - OEM Replacement Part $64.95

A5924200174 Multiquip A5924200174 Engine - OEM Replacement Part for Super Silent Generators $8,391.95

A6155000002C Multiquip A6155000002C Bracket End GA-97HZ - OEM Replacement Part $174.95

A6311200513 Multiquip A6311200513 Fan Guard - OEM Replacement Part for Super Silent Generators $61.95

B0352500104 Multiquip B0352500104 Box Fuse DCA-15SPX3,10SPX3 - OEM Replacement Part $63.95

D2365000013B Multiquip D2365000013B Tank SDW-225SS - OEM Replacement Part for Super Silent Generators $855.95

D2365200004B Multiquip D2365200004B Band SDW-225SS - OEM Replacement Part for Super Silent Generators $147.95

D2455000013 Multiquip D2455000013 Orange Side Door - OEM Replacement Part for Super Silent Generators $176.95

D2455200003A Multiquip D2455200003A Panel G-Green SDW-225SS - OEM Replacement Part $62.95

Y0165103820 Multiquip Y0165103820 Battery (26R-75) - OEM Replacement Part $276.95

Y0601814014 Multiquip Y0601814014 Receptacle - OEM Replacement Part for Super Silent Generators $76.95

Y0601830776 Multiquip Y0601830776 Full Power Switch - OEM Replacement Part for Generators $327.95

Y0601872303 Multiquip Y0601872303 Circuit Breaker - OEM Replacement Part $467.95

0012108035 HEX. HEAD BOLT $1.95

0012308020 HEX. HEAD BOLT $1.88

0012308035 HEX. HEAD BOLT $1.95

0016906015 HEX. HEAD BOLT $0.95

0016906016 HEX. HEAD BOLT $0.81

0016908065 HEX. HEAD BOLT $5.95

0017106016 HEX. HEAD BOLT $1.51

0021004010 MACHINE SCREW $0.33

0021004016 MACHINE SCREW $0.17

0021004020 MACHINE SCREW $0.74

0021805016 MACHINE SCREW $0.81

0021805020 MACHINE SCREW $0.77

0023706000 HEX. NUT $0.95

0027103020 MACHINE SCREW $0.37

0027104010 MACHINE SCREW $0.33

0027104012 MACHINE SCREW

0027105016 MACHINE SCREW $0.55

0027105020 MACHINE SCREW $0.62

0030003500 HEX. NUT $0.20

0037806000 WING NUT $1.95

0040006000 WASHER, LOCK $0.17

0040008000 WASHER, LOCK $0.63

0042806000 WASHER, FLAT $0.39

0050403020 SPRING PIN $0.53

0080200004 SNAP RING $0.29

011008020 HEX. HEAD BOLT $2.68

011106015 HEX. HEAD BOLT $0.69

011208025 HEX. HEAD BOLT $0.41

011208030 HEX. HEAD BOLT $1.30

011606025 HEX. HEAD BOLT $1.95

012210025 HEX. HEAD BOLT $0.86

0150000018 O-RING $1.87

0171707033 KEY $25.95

0199100215 HOSE $3.95

0199900420 HOSE $10.95

0199900500 DRAIN HOSE $11.95

0199900670 DRAIN HOSE $16.95

020108060 HEX. NUT $0.28

0207003000 HEX. NUT $0.21

021112140 HEX. NUT $0.46

0221200760 RUBBER SEAL

0222100300 RUBBER SEAL $9.95

0222600100 RUBBER SEAL $15.95

0222600340 RUBBER CUSHION $4.95

0228300200 RUBBER SEAL $2.68

0228300550 RUBBER SEAL $4.95

0228300600 RUBBER SEAL

0401450080 WASHER, FLAT $0.56

042006304 BEARING $22.95

0601800674 HOUR METER

0601806643 FUSE, 15A $5.95

0601806644 FUSE, 30A $1.43

0601823204 RECTIFIER, S5VB60 $16.95

0601829301 GFCI SENSING MODULE, 120A@120V

0601830771 IDLE CONTROL SWITCH $21.95

0601842463 RESISTOR, 30W 10Ω $29.95

0601850218 GROMMET

0601851613 STOPPER $2.95

0601851660 STOPPER $1.95

0601873323 CIRCUIT BREAKER, 1P 30A $139.44

0602014302 HOSE BAND, Ø55 $9.95

0602220311 TERMINAL ASSY. (NEGATIVE) $26.95

0602320153 GASKET

0605515006 HOSE BAND, Ø50

0605515073 HOSE BAND, HS-10 $6.95

0605515094 HOSE BAND $8.95

0605515134 HOSE BAND HS-16 $4.95

0605515159 HOSE BAND, Ø32 $1.32

0605515170 HOSE BAND $5.95

0605515200 HOSE BAND $4.95

0800689504 DECAL: - $2.95

0801086004 WASHER, FLAT $1.95

0802011104 PLUG $10.95

0802081104 CAP, RESERVE TANK $5.95

0802081403 RESERVE TANK $29.95

0805081004 BATTERY SHEET $24.95

0805082704 BATTERY BOLT $3.95

0805084704 RUBBER SUSPENSION $15.95

0810014704 PIN $3.95

0810105800 CAP, FUEL TANK

0810105900 FUEL STRAINER

0820610404 DECAL: WARNING $4.95

0845040414 TERMINAL CAP $13.95

0966140320 RETURN HOSE $11.95

0966180240 SUCTION HOSE $10.95

1502025103C DRAIN JOINT, OIL $29.95

1523143560 ELEMENT, FUEL FILTER

1622082104 BRACKET, RESERVE TANK

1630610404 DECAL: CAUTION $1.43

1630645004 DECAL: OIL DRAIN $1.43

1747260604 EMERGENCY UNIT

1991072004 SET WASHER, FAN $4.95

3741055150 IGNITION, KEY $17.95

505015300 SNAP PIN $0.95

7670624004 DECAL: GROUND FOR G. F. C. I $1.95

7810680104 DECAL: FUEL DRAIN $2.73

7810680204 DECAL: COOLING WATER $1.55

7812014003 DRAIN JOINT $25.95

7835088004 COLLAR $2.95

7871025004 RECTIFIER ASSY. $31.95

8511864601A TERMINAL PLATE

8700611804 DECAL: WARNING DANGEROUS GAS $5.95

8700625504 DECAL: FUSE BOX $1.95

8742031004 BRACKET, AIR CLEANER $14.95

8745112003A ENGINE FOOT

952404470 WASHER, FLAT $0.19

A5261501403 BRACKET, ELECTRIC PARTS

A5311300403 FAN SHROUD

A5321100404 DRAIN HOSE

A5485500004 GUIDE $28.95

A5511306902 CONTROL PANEL

A5551000803 DECAL: AC POWER OUTPUT $12.87

A5552000113 DECAL: OPERATING PROCEDURE

A5561100204 DECAL: STRIPE $17.81

A5561100304 DECAL: STRIPE $5.95

A5561100403 DECAL: STRIPE MQ POWER 7000 $44.59

A5561100604 DECAL: STRIPE $10.15

A5562000004 DECAL: MQ $19.95

A9504000014 DECAL: DANGER $12.95

A9511101304 DECAL: WARNING PROP. 65 $4.95

A9521002604 DECAL: G. F. C. I. PROTECTED $4.73

A9521003504 DECAL: CIRCUIT BREAKER $16.06

A9521003604 SEAL

B1312600004 RUBBER MOUNT $15.95

B9312400004 RUBBER SEAL $12.95

B9504100104 DECAL: WARNING HOT COOLANT $4.95

B9504500004 DECAL: WARNING DIESEL FUEL $4.95

BF0261 MACHINE SCREW $0.95

BULB 4

D1490600104 RUBBER SEAL $2.95

D2415100004 FLOOR PANEL $30.95

D2455700004 DOOR STAY $12.95

D2492100004 LINING $21.95

D9522000704 SEAL $2.95

GASKET 1

GROMMET 1

OEMAA8 HEX. NUT $0.40

PLUG 2

SDA7000SSA3 KIT, DECAL

Y0207008000 HEX. NUT $0.40

Y0221200125 RUBBER SEAL

Y0221200325 RUBBER SEAL

Y0221200470 RUBBER SEAL

Y0226900225 RUBBER SEAL $9.95

Y0226900280 RUBBER SEAL $10.95

Y0314700470 RUBBER SEAL

Y0314700760 RUBBER SEAL

Y0315500375 LINING

Y0318400130 RUBBER SEAL

Y0318400500 RUBBER SEAL

From the guides desk

Guide · 2026-08-04

Ask ARIA about your machine.

Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.

Chat with ARIA

Multiquip DA7000SSA3 Generator

The parts bench

The machine itself

Machine

Engine

Keep-it-running spares

Every part that fits this machine

Service notices & part changes

Take the factory book with you

Get the download pack

From the guides desk

Multiquip DCA Generator Fault Shutdown and Controller Reset Guide

Multiquip Generator No-Start and No-Power Fixes

Multiquip DCA Generator Fault Codes and Diagnostics Guide

Ask ARIA about your machine.

Your cart is empty

Your cart is empty
