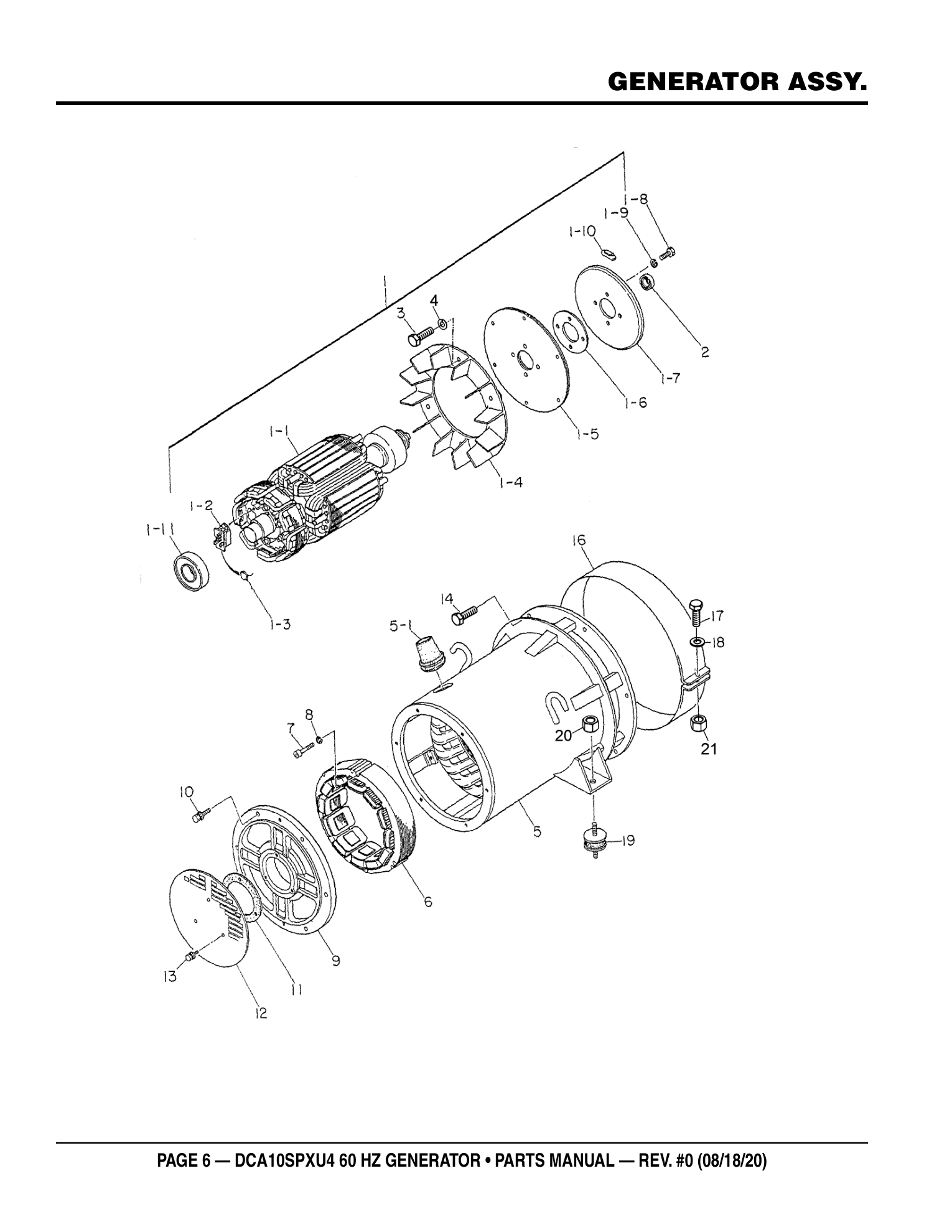

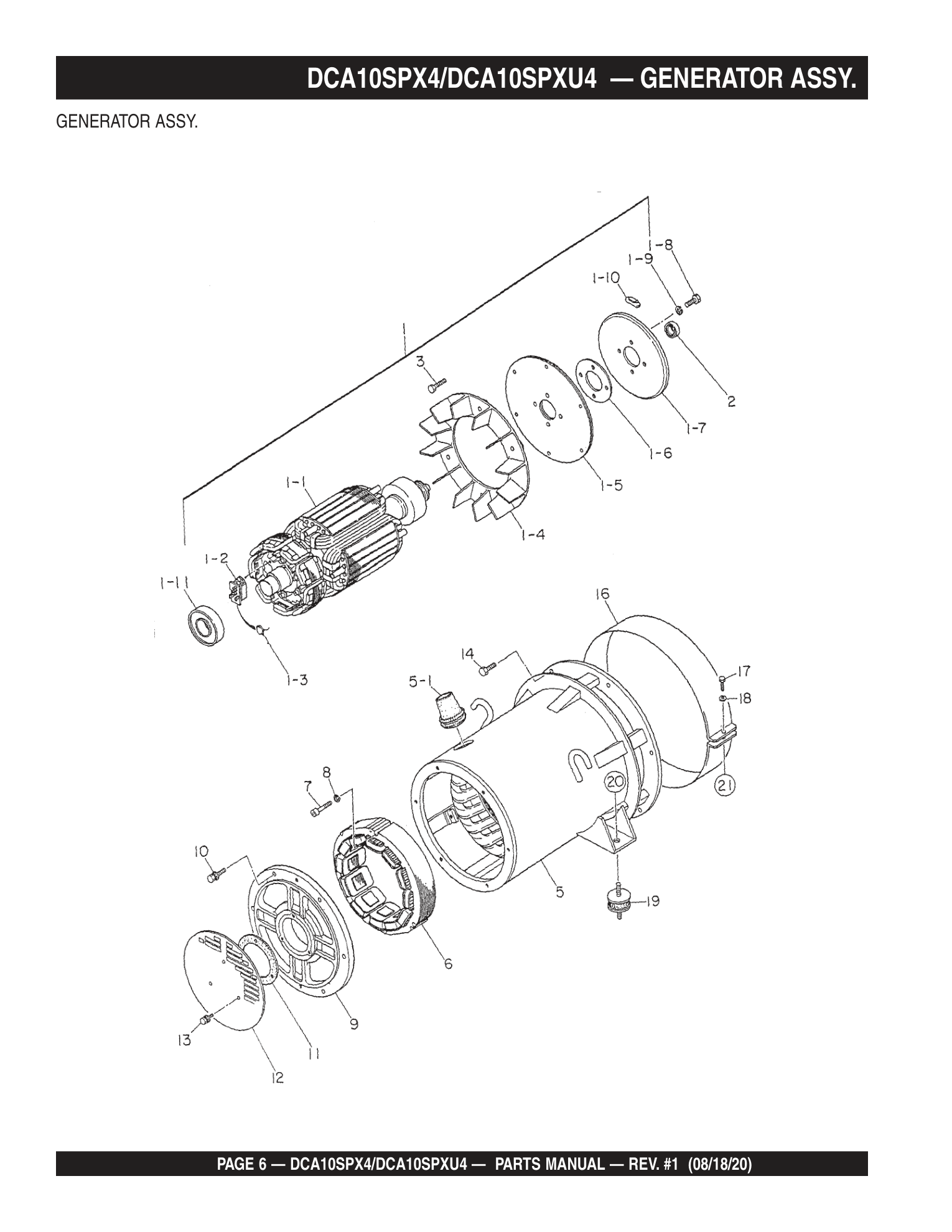

Page 6 — DCA10SPX4/DCA10SPXU4 - GENERATOR ASSY.
Parts list — exactly as printed31 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 8321000102 | ROTOR ASSY | 1 | INCLUDES ITEMS W/% | PARTS REQUEST |
|
COMING ROTOR ASSY
8321000102 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 1-1%, 1-2%, 1-3%, 1-4%, 1-5%, 1-6%, 1-7%, 1-8%, 1-9%, 1-10% | |||||
| 1-1% | FIELD ASSY | 1 | INCLUDED IN KIT | ||
|
COMING FIELD ASSY
· qty on machine: 1 Included in kit 1 - ROTOR ASSY (8321000102) INCLUDED IN KIT
| |||||
| 1-2% | 0601821374 | RECTIFIER | 1 | ADD TO CART | |
| 1-3% | 0601822630 | SURGE ABSORBER | 1 | ADD TO CART | |
| 1-4% | 8001070003 | FAN | 1 | ADD TO CART | |
 FAN
8001070003 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (8321000102) view full part page → $162.95 IN A KIT + SOLD SOLO | |||||
| 1-5% | 8351611004 | COUPLING DISK | 2 | ADD TO CART | |
| 1-6% | 8351612004 | WASHER, COUPLING HUB | 1 | ADD TO CART | |
| 1-7% | 8351615003 | BALANCING PLATE | 1 | PURCHASE 1-10 AS A SET | ADD TO CART |
| 1-8% | 0010310025 | HEX HEAD BOLT | 4 | ADD TO CART | |
| 1-9% | 0042610000 | WASHER, LOCK | 4 | ADD TO CART | |
| 1-10% | 0601000209 | BALANCING WEIGHT KIT | 1 | ADD TO CART | |
| 1-11 | 0071906308 | BEARING, 6308DDU | 1 | ADD TO CART | |
| 2 | 0070506903 | BEARING, 6903ZZ | 1 | ADD TO CART | |
| 3 | 0012808035 | HEX HEAD BOLT | 6 | ADD TO CART | |
| 5 | B0130101003 | STATOR ASSY | 1 | ADD TO CART | |
| 5-1 | 0845041904 | GROMMET | 1 | ADD TO CART | |
| 6 | 8431350003 | FIELD ASSY.,EXCITER | 1 | PARTS REQUEST | |
|
COMING FIELD ASSY.,EXCITER
8431350003 · qty on machine: 1 | |||||
| 7 | 0016008045 | HEX SOCKET HEAD CAP SCREW | 3 | ADD TO CART | |
| 8 | 0042508000 | WASHER, LOCK | 3 | ADD TO CART | |
| 9 | 8351315003 | END BRACKET | 1 | ADD TO CART | |
| 10 | 0017108035 | HEX HEAD BOLT | 6 | ADD TO CART | |
| 11 | 8351312004 | PACKING | 1 | ADD TO CART | |
| 12 | 8351331004 | COVER, SUCTION | 1 | ADD TO CART | |
| 13 | 0017106016 | HEX HEAD BOLT | 3 | ADD TO CART | |
| 14 | 0012810025 | HEX HEAD BOLT | 6 | ADD TO CART | |
| 16 | B0155400204 | COVER, FAN | 1 | ADD TO CART | |
| 17 | 0010106030 | HEX HEAD BOLT | 1 | ADD TO CART | |
| 18 | 0041206000 | WASHER, FLAT | 1 | ADD TO CART | |
| 19 | 0805083204 | RUBBER SUSPENSION | 2 | ADD TO CART | |
| 20 | 0207010000 | HEX NUT | 2 | ADD TO CART | |
| 21 | 0601815000 | NUT | 1 | 1 | PARTS REQUEST |
|
COMING NUT
0601815000 · qty on machine: 1 1 | |||||

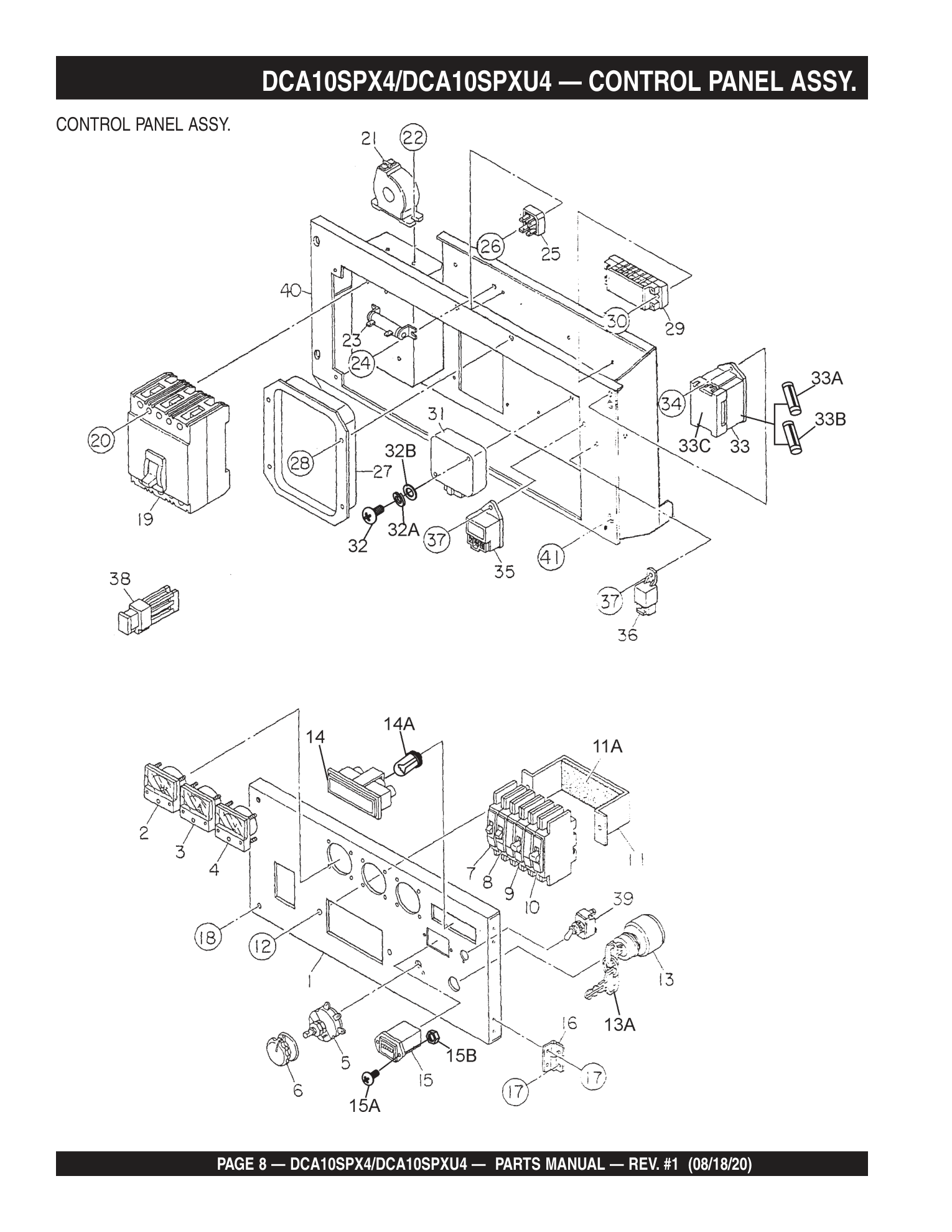

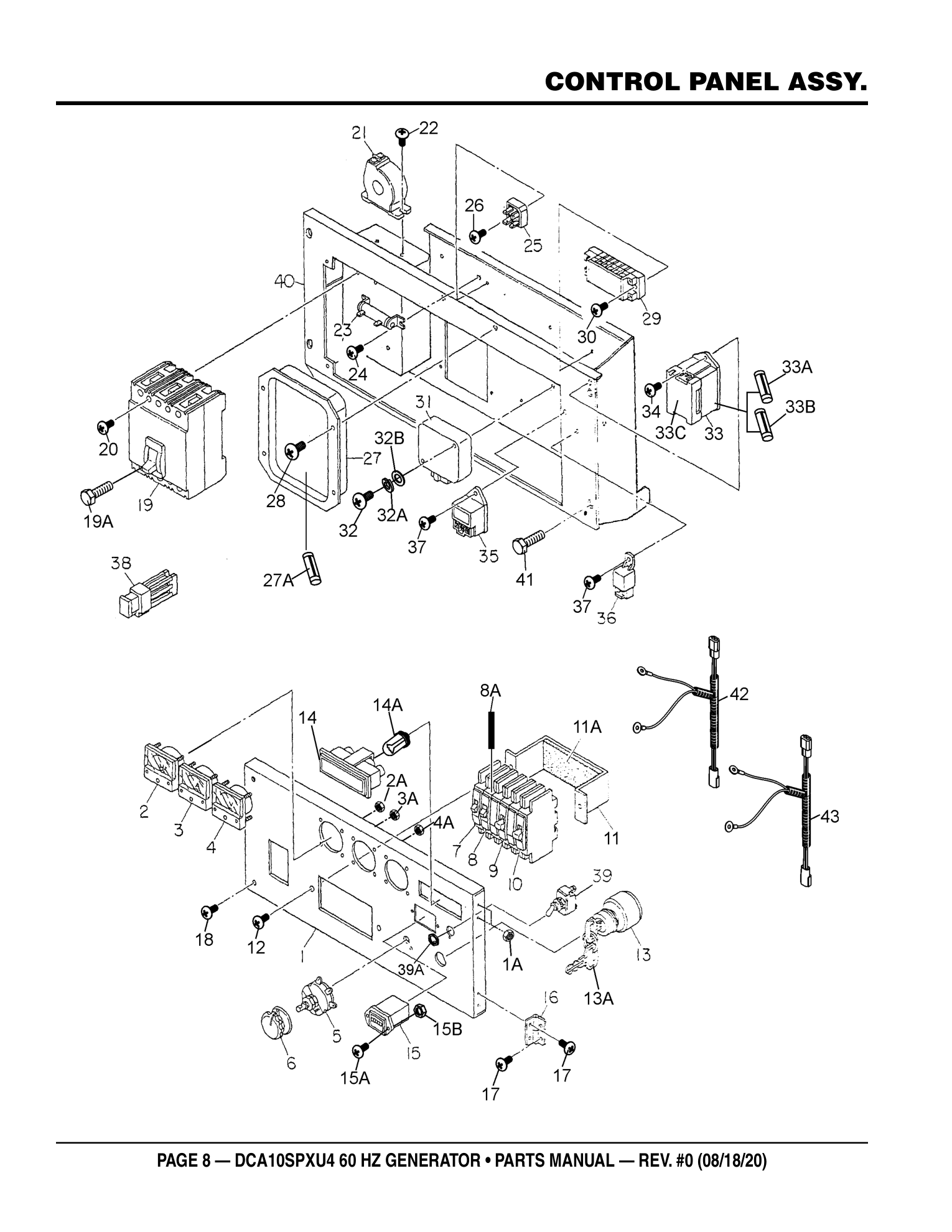

Page 8 — DCA10SPX4/DCA10SPXU4 - CONTROL PANEL ASSY.
Parts list — exactly as printed47 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | B0224005103 | CONTROL PANEL | 1 | DCA10SPX4 | ADD TO CART |
| 1 | M0224000003 | CONTROL PANEL | 1 | DCA10SPXU4 | PARTS REQUEST |
|
COMING CONTROL PANEL
M0224000003 · qty on machine: 1 DCA10SPXU4 | |||||
| 2 | 0601800455 | FREQUENCY METER, 45~65 Hz | 1 | ADD TO CART | |
| 3 | 0601805745 | AC AMMETER, O~75/5A | 1 | ADD TO CART | |
| 4 | 0601800281 | AC VOLTMETER, O~150/300V | 1 | ADD TO CART | |
| 5 | 0601840073 | RHEOSTAT (VR), 2W 1K OHM | 1 | ADD TO CART | |
| 6 | 0601840121 | KNOB, RHEOSTAT | 1 | ADD TO CART | |
| 7 | 0601808803 | CIRCUIT BREAKER, 1P 20A | 1 | ADD TO CART | |
| 8 | 0601808807 | CIRCUIT BREAKER, 1P 30A | 1 | ADD TO CART | |
| 9 | 0601808808 | CIRCUIT BREAKER, 2P 30A | 1 | ADD TO CART | |
| 10 | 0601808809 | CIRCUIT BREAKER, 2P 45A | 1 | ADD TO CART | |
| 11 | B0262600804 | BRACKET | 1 | ADD TO CART | |
| 11-1 | 0222100115 | RUBBER CUSHION | 1 | ADD TO CART | |
| 12 | 0021806015 | MACHINE SCREW | 2 | ADD TO CART | |
| 13 | 1628663602 | STARTER SWITCH | 1 | REPLACES P/N 3741059113 | ADD TO CART |
| 13A | 3741055150 | KEY, STARTER SWITCH | ADD TO CART | ||
| 14 | 0601810523 | WARNING LAMP UNIT | 1 | ADD TO CART | |
| 14A | 0601810830 | BULB | 4 | ADD TO CART | |
| 15 | 0601800682 | HOUR METER | 1 | ADD TO CART | |
| 15A | 0027403010 | MACHINE SCREW | 2 | ADD TO CART | |
| 15B | 0207003000 | HEX NUT | 2 | ADD TO CART | |
| 16 | 0605010060 | HINGE | 2 | ADD TO CART | |
| 17 | 0027103008 | MACHINE SCREW | 8 | ADD TO CART | |
| 18 | 0021806030 | MACHINE SCREW | 2 | ADD TO CART | |
| 19 | 0601808817 | CIRCUIT BREAKER, 45A | 1 | ADD TO CART | |
| 20 | 0021005080 | MACHINE SCREW | 4 | ADD TO CART | |
| 21 | 0601801123 | CURRENT TRANS., AMMETER, 150/5A | 1 | ADD TO CART | |
| 22 | 0027105015 | MACHINE SCREW | 2 | ADD TO CART | |
| 23 | 0601842304 | RESISTOR, GG20W50 OHM | 1 | ADD TO CART | |
| 24 | 0027104010 | MACHINE SCREW | 2 | ADD TO CART | |
| 25 | 0601820038 | RECTIFIER | 1 | ADD TO CART | |
| 26 | 0027104020 | MACHINE SCREW | 1 | ADD TO CART | |
| 27 | 0601820663 | AUTOMATIC VOLTAGE REGULATOR | 1 | ADD TO CART | |
| 28 | 0027105015 | MACHINE SCREW | 4 | ADD TO CART | |
| 29 | 0601815759 | TERMINAL BOARD | 1 | ADD TO CART | |
| 30 | 0027104020 | MACHINE SCREW | 2 | ADD TO CART | |
| 31 | 1G38560601 | ENGINE CONTROL UNIT | 1 | REPLACES P/N 0602202634 | ADD TO CART |
| 32 | 0021005050 | MACHINE SCREW | 2 | ADD TO CART | |
| 32A | 0040005000 | WASHER, LOCK | 2 | ADD TO CART | |
| 32B | 0041205000 | WASHER, FLAT | 2 | ADD TO CART | |
| 33 | B0214600404 | FUSE BOX | 1 | ADD TO CART | |
| 33A | 0601806642 | FUSE, 5A | 5 | ADD TO CART | |
| 33B | 0601806645 | FUSE, 10A | 4 | ADD TO CART | |
| 33C | B0551002104 | DECAL : FUSE BOX | 1 | ADD TO CART | |
| 34 | 0027105015 | MACHINE SCREW | 2 | 1 | ADD TO CART |
| 35 | RP42153731 | RELAY ASSY | 1 | REPLACES P/N 0602202635 | PARTS REQUEST |
|
COMING RELAY ASSY
RP42153731 · qty on machine: 1 REPLACES P/N 0602202635 | |||||
| 36 | 6888153542 | RELAY | 1 | REPLACES P/N 0602202566 | ADD TO CART |

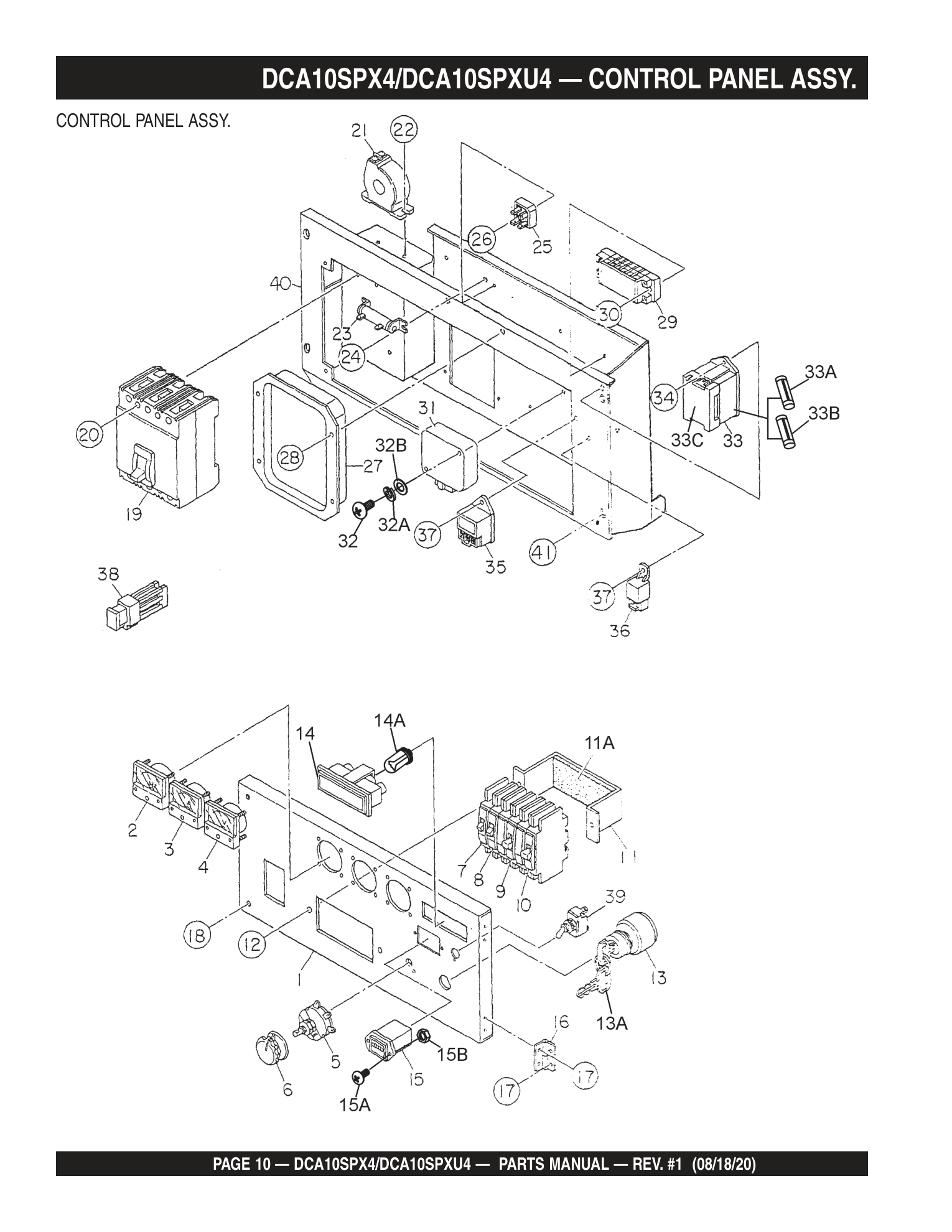

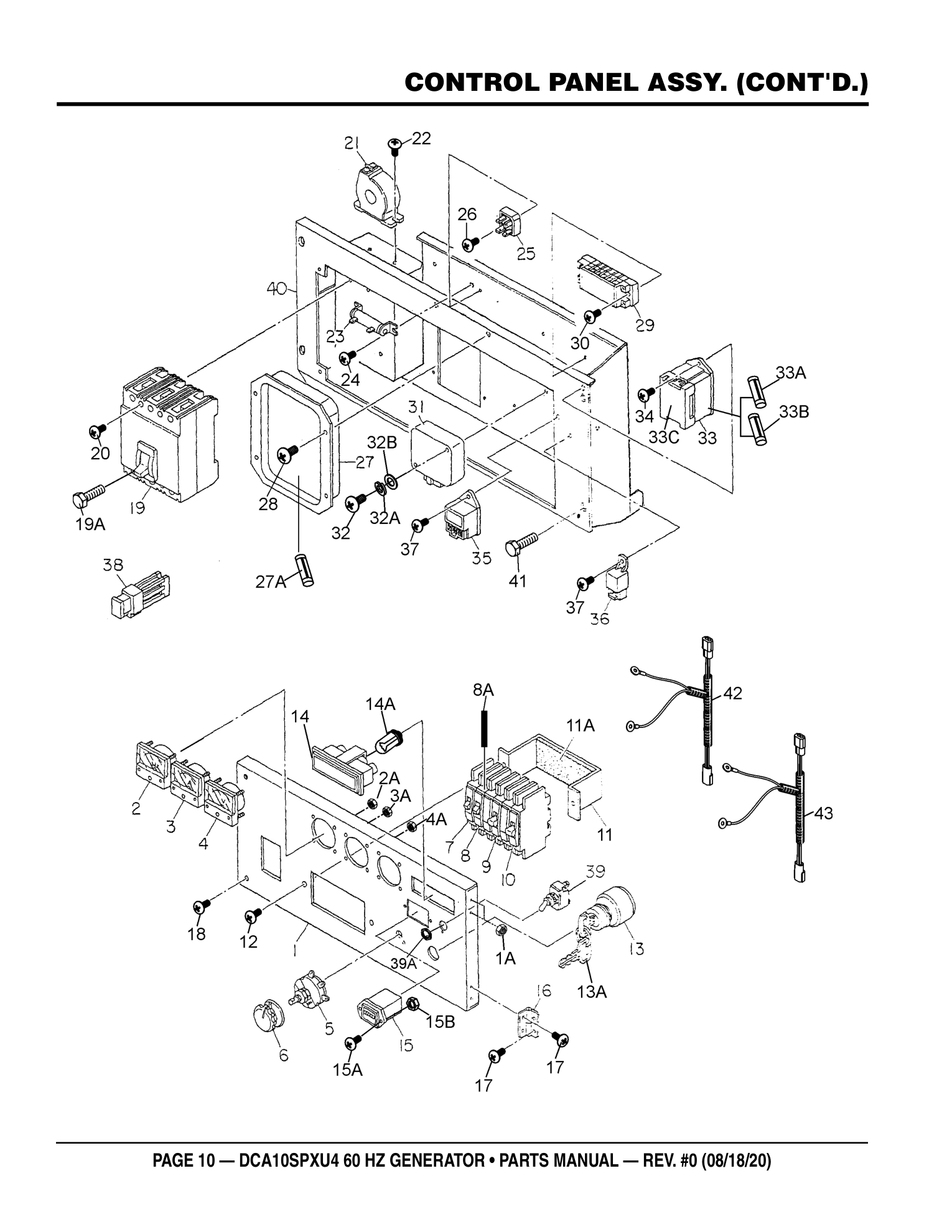

Page 10 — DCA10SPX4/DCA10SPXU4 - CONTROL PANEL ASSY.
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 37 | 0027105015 | MACHINE SCREW | 2 | ADD TO CART | |
| 38 | 0601806640 | FUSE, 65A | 1 | ADD TO CART | |
| 39 | 0601830771 | SPEED CONTROL SWITCH | 1 | ADD TO CART | |
| 40 | B0214002903 | CONTROL BOX | 1 | DCA10SPX4 | ADD TO CART |
| 40 | M0214000003 | CONTROL BOX | 1 | DCA10SPXU4 | PARTS REQUEST |
|
COMING CONTROL BOX
M0214000003 · qty on machine: 1 DCA10SPXU4 | |||||
| 41 | 0017108020 | HEX HEAD BOLT | 4 | 1 | ADD TO CART |

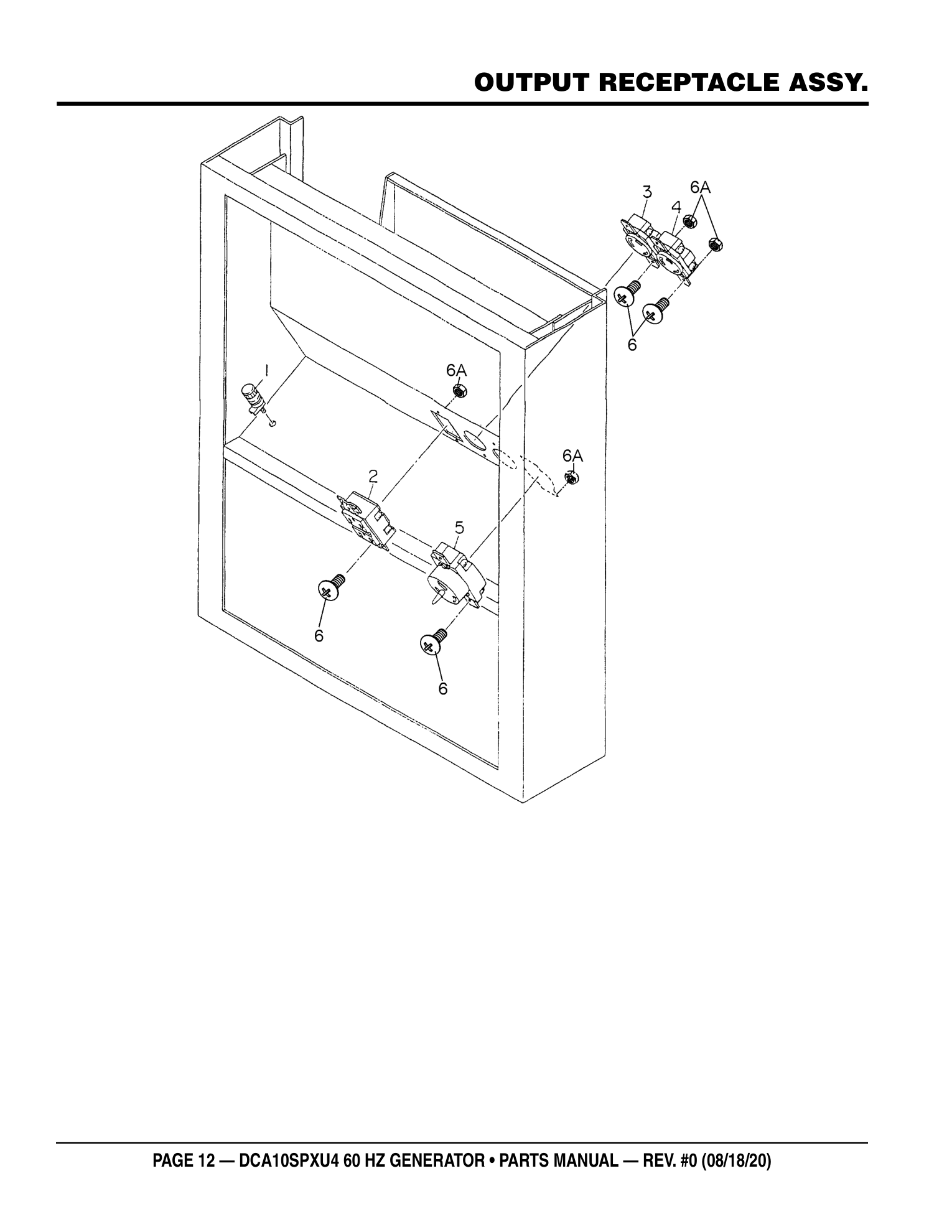

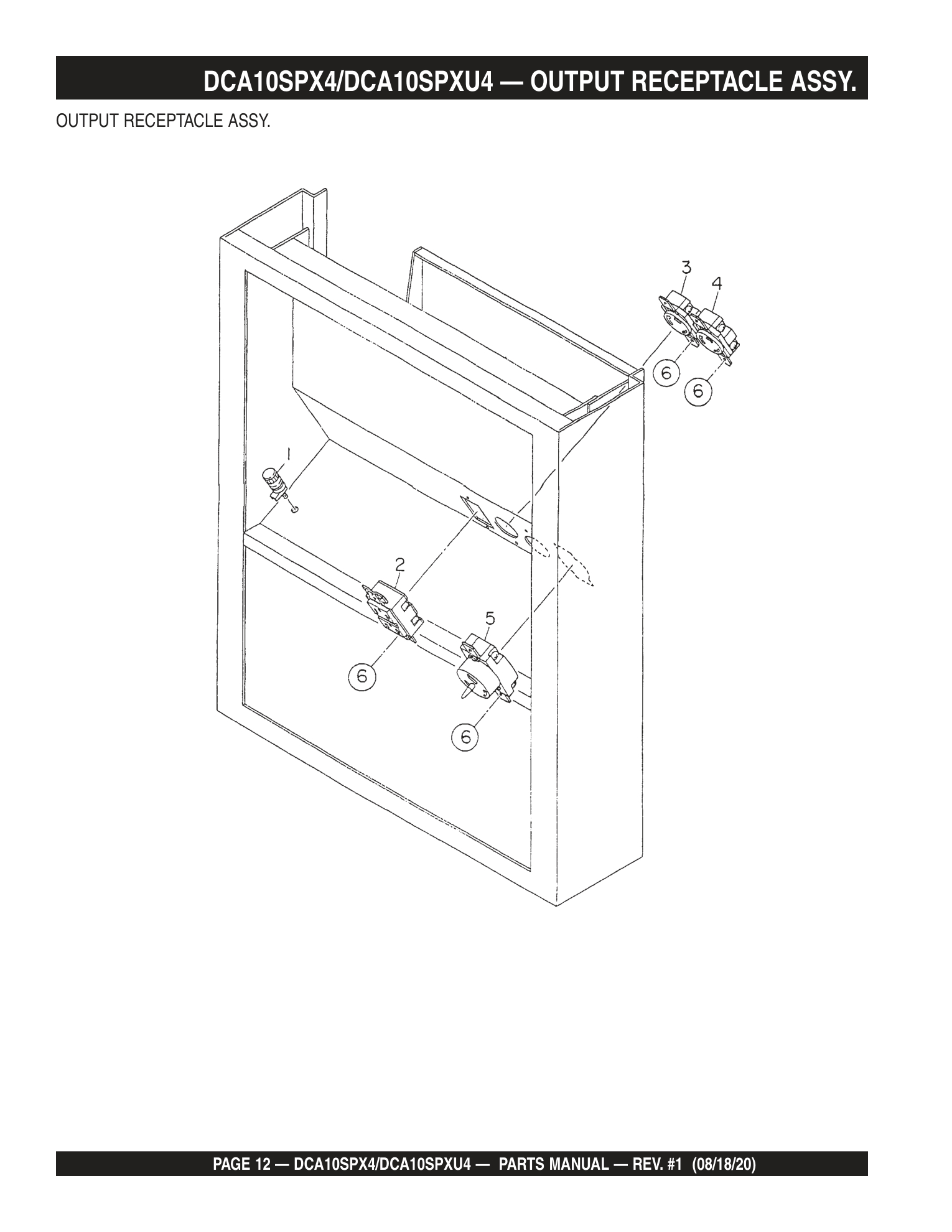

Page 12 — DCA10SPX4/DCA10SPXU4 - OUTPUT RECEPTACLE ASSY.
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 0601815109 | GROUND TERMINAL | 1 | ADD TO CART | |
| 2 | 0601812598 | RECEPTACLE, 5-20R | 1 | ADD TO CART | |
| 3 | 0601811035 | RECEPTACLE, L5-30R | 1 | ADD TO CART | |
| 4 | 0601811033 | RECEPTACLE, L6-30R | 1 | ADD TO CART | |
| 5 | 0601812565 | RECEPTACLE, CS6369 | 1 | ADD TO CART | |
| 6 | 0027104012 | MACHINE SCREW | 8 | PARTS REQUEST | |
|
COMING MACHINE SCREW
0027104012 · qty on machine: 8 | |||||
| 6A | 0207004000 | HEX NUT | 8 | 1 | ADD TO CART |

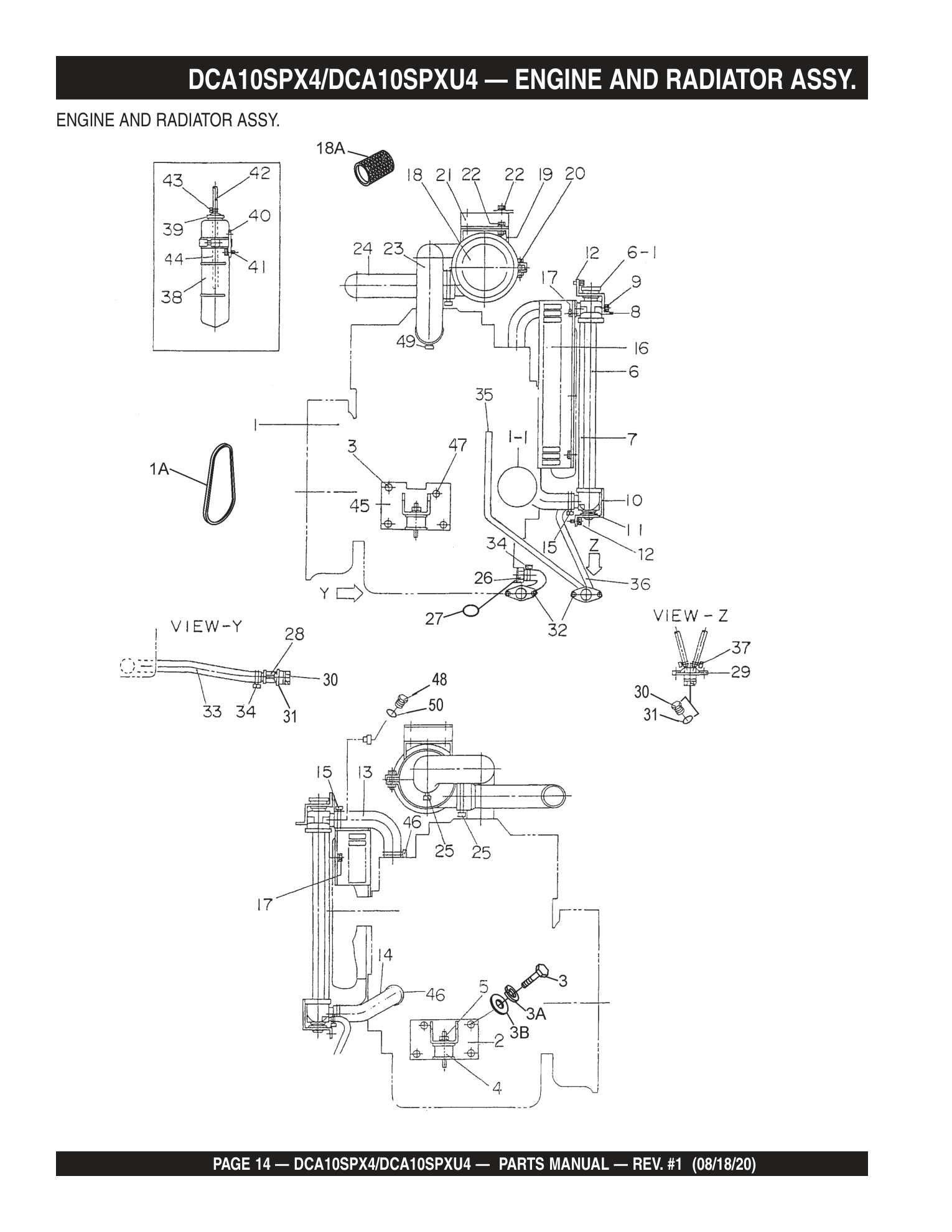

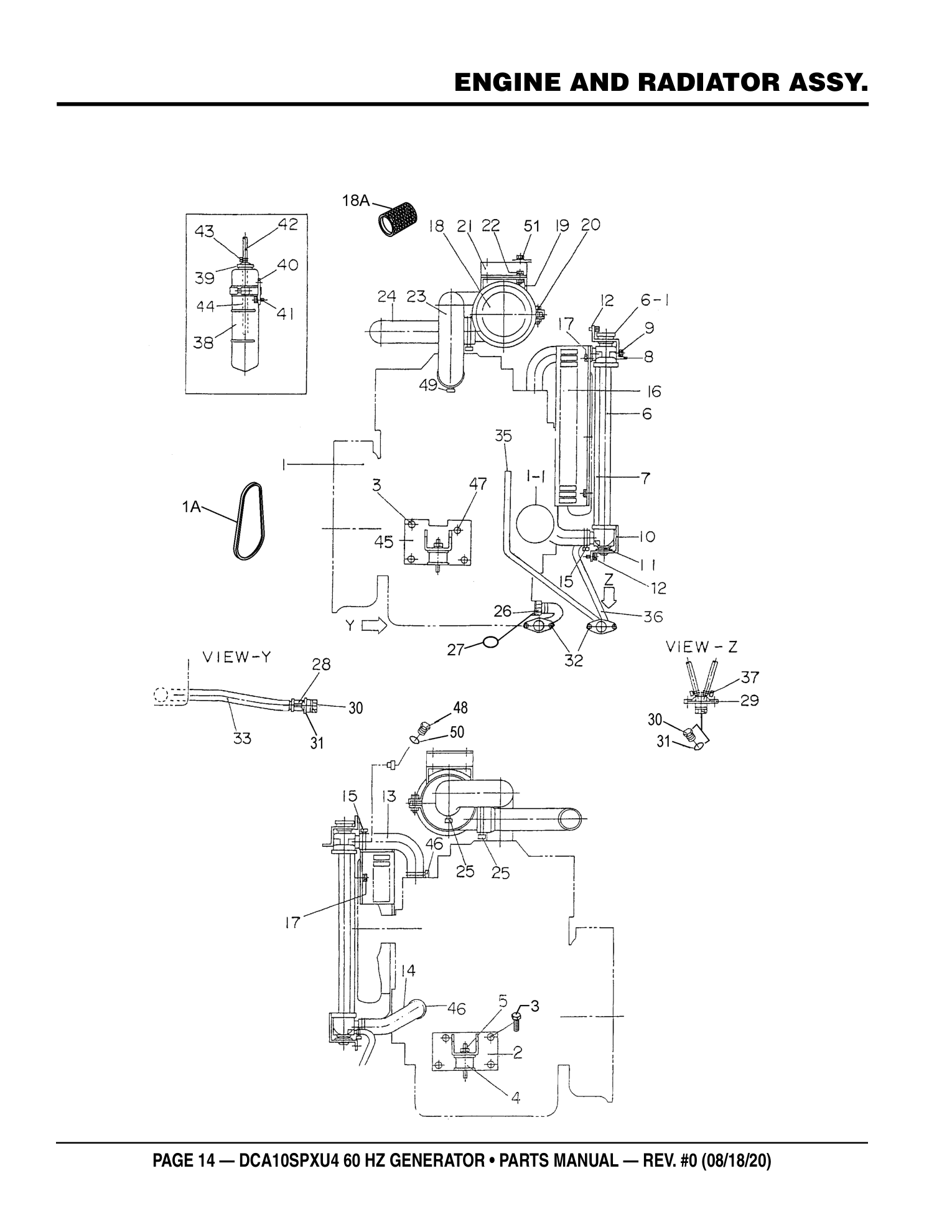

Page 14 — DCA10SPX4/DCA10SPXU4 - ENGINE AND RADIATOR ASSY.
Parts list — exactly as printed45 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | B0924200174 | ENGINE, KUBOTA D1503 | PARTS REQUEST | ||
|
COMING ENGINE, KUBOTA D1503
B0924200174 | |||||
| 1A | 1638297011 | FAN BELT, | 1 | REPLACES P/N 0602015260 | ADD TO CART |
| 1-1 | 1641432433 | CARTRIDGE, OIL FILTER, | 1 | REPLACES P/N 0602041279 | PARTS REQUEST |
|
COMING CARTRIDGE, OIL FILTER,
1641432433 · qty on machine: 1 REPLACES P/N 0602041279 | |||||
| 2 | B0304200403 | ENGINE FOOT | 1 | ADD TO CART | |
| 3 | 0011712025 | HEX HEAD BOLT | 7 | ADD TO CART | |
| 3A | 0040012000 | WASHER, LOCK | 7 | ADD TO CART | |
| 3B | 0041212000 | WASHER, FLAT | 7 | ADD TO CART | |
| 4 | 7605419004 | RUBBER SUSPENSION | 2 | PARTS REQUEST | |
|
COMING RUBBER SUSPENSION
7605419004 · qty on machine: 2 | |||||
| 5 | 0207010000 | HEX NUT | 2 | ADD TO CART | |
| 6 | 0602012733 | RADIATOR | 1 | ADD TO CART | |
| 6-1 | 0602011079 | CAP, RADIATOR | 1 | ADD TO CART | |
| 7 | 0220300400 | RUBBER SEAL | 2 | ADD TO CART | |
| 8 | B1311100204 | BRACKET, RADIATOR | 1 | ADD TO CART | |
| 9 | 0016908020 | HEX HEAD BOLT | 2 | ADD TO CART | |
| 10 | B0311100603 | BRACKET, RADIATOR | 1 | ADD TO CART | |
| 11 | B1312600004 | MOUNT RUBBER | 2 | ADD TO CART | |
| 12 | 0017108020 | HEX HEAD BOLT | 5 | ADD TO CART | |
| 13 | B0311500803 | RADIATOR HOSE, UPPER | 1 | ADD TO CART | |
| 14 | B0311500903 | RADIATOR HOSE, LOWER | 1 | ADD TO CART | |
| 15 | 0605515135 | HOSE BAND | 2 | ADD TO CART | |
| 16 | B0311200403 | FAN GUARD | 1 | ADD TO CART | |
| 17 | 0017108020 | HEX HEAD BOLT | 3 | ADD TO CART | |
| 18 | 0602046268 | AIR CLEANER | 1 | ADD TO CART | |
| 18A | 0602046335 | ELEMENT, AIR CLEANER | 1 | ADD TO CART | |
| 19 | 8722031503 | BAND, AIR CLEANER | 1 | ADD TO CART | |
| 20 | 0017108030 | HEX HEAD BOLT | 1 | ADD TO CART | |
| 21 | B1374200204 | BRACKET, AIR CLEANER | 1 | ADD TO CART | |
| 22 | 0016908020 | HEX HEAD BOLT | 4 | ADD TO CART | |
| 23 | B1374100503 | HOSE, AIR CLEANER | 1 | ADD TO CART | |
| 24 | B0374100304 | HOSE, AIR CLEANER | 1 | ADD TO CART | |
| 25 | 0605515001 | HOSE BAND | 2 | ADD TO CART | |
| 26 | 1502025004 | DRAIN JOINT | 1 | ADD TO CART | |
| 27 | 0602021193 | PACKING | 1 | ADD TO CART | |
| 28 | 1502025103 | DRAIN JOINT | 1 | PARTS REQUEST | |
|
COMING DRAIN JOINT
1502025103 · qty on machine: 1 | |||||
| 29 | 1622014103 | DRAIN JOINT | 1 | ADD TO CART | |
| 30 | 0802011104 | PLUG | 2 | ADD TO CART | |
| 31 | 0150000018 | O-RING | 2 | ADD TO CART | |
| 32 | 0016906020 | HEX HEAD BOLT | 4 | ADD TO CART | |
| 33 | B0321100304 | DRAIN HOSE | 1 | PARTS REQUEST | |
|
COMING DRAIN HOSE
B0321100304 · qty on machine: 1 | |||||
| 34 | 0605515064 | HOSE BAND | 2 | ADD TO CART | |
| 35 | 0199900500 | DRAIN HOSE | 1 | ADD TO CART | |
| 36 | 0199900350 | DRAIN HOSE | 1 | ADD TO CART | |
| 36 | 0199900350 | DRAIN HOSE | 1 | ADD TO CART | |
| 37 | 0605515094 | HOSE BAND | 4 | ADD TO CART | |
| 38 | 0802081403 | RESERVE TANK | 1 | 1 | ADD TO CART |

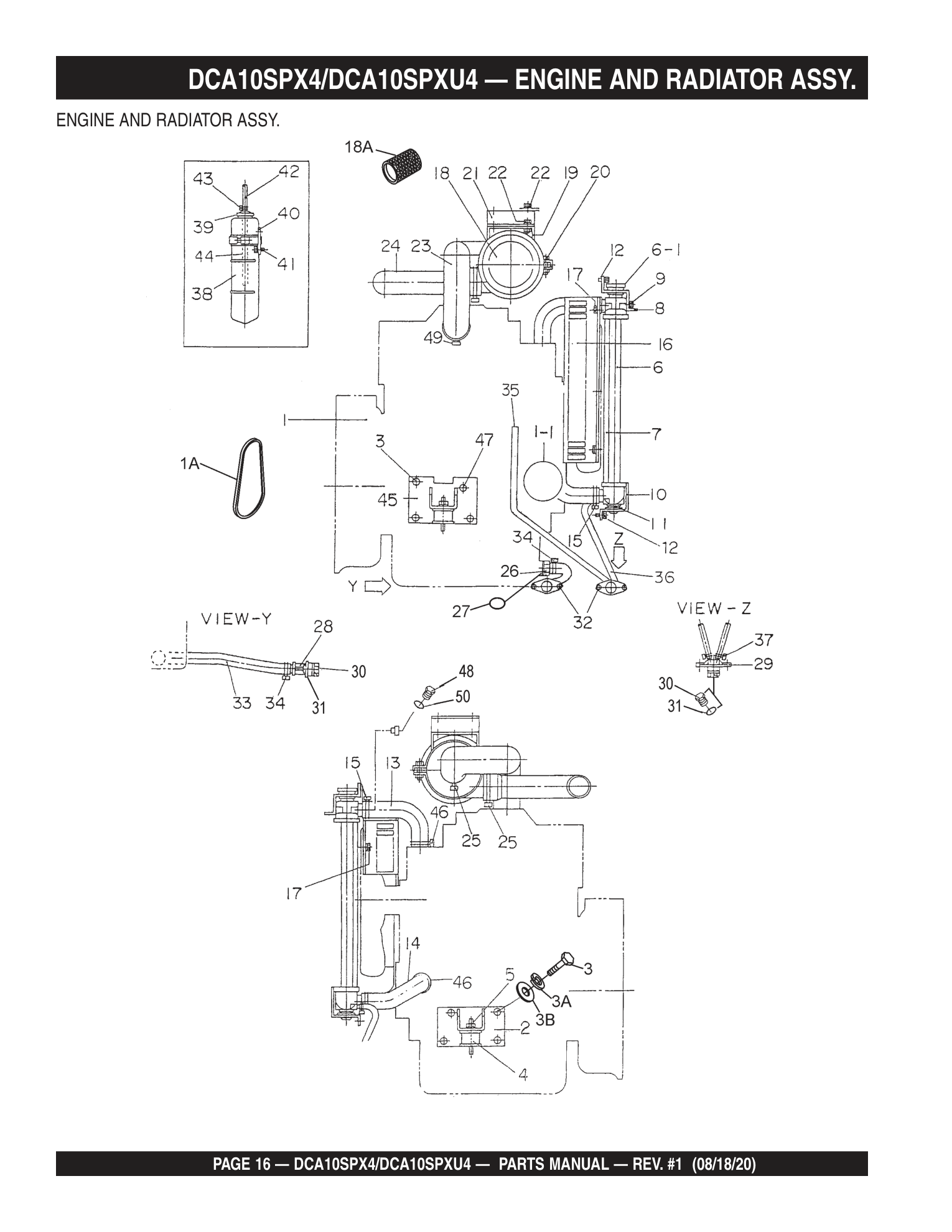

Page 16 — DCA10SPX4/DCA10SPXU4 - ENGINE AND RADIATOR ASSY.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 39 | 0802081104 | CAP, RESERVE TANK | 1 | ADD TO CART | |
| 40 | 8702082004 | BRACKET, RESERVE TANK | 1 | ADD TO CART | |
| 41 | 0016906015 | HEX HEAD BOLT | 3 | ADD TO CART | |
| 42 | 0199900450 | HOSE | 1 | ADD TO CART | |
| 43 | 0605515094 | HOSE BAND | 2 | ADD TO CART | |
| 44 | 0199100215 | HOSE | 1 | ADD TO CART | |
| 45 | B0304200504 | ENGINE FOOT | 1 | ADD TO CART | |
| 46 | 0605515136 | HOSE BAND | 2 | ADD TO CART | |
| 47 | 0012410025 | HEX HEAD BOLT | 1 | ADD TO CART | |
| 48 | M9200106904 | PLUG | 1 | PARTS REQUEST | |
|
COMING PLUG
M9200106904 · qty on machine: 1 | |||||
| 49 | 0605515117 | HOSE BAND | 1 | ADD TO CART | |
| 50 | 0150000016 | O-RING | 1 | 1 | ADD TO CART |

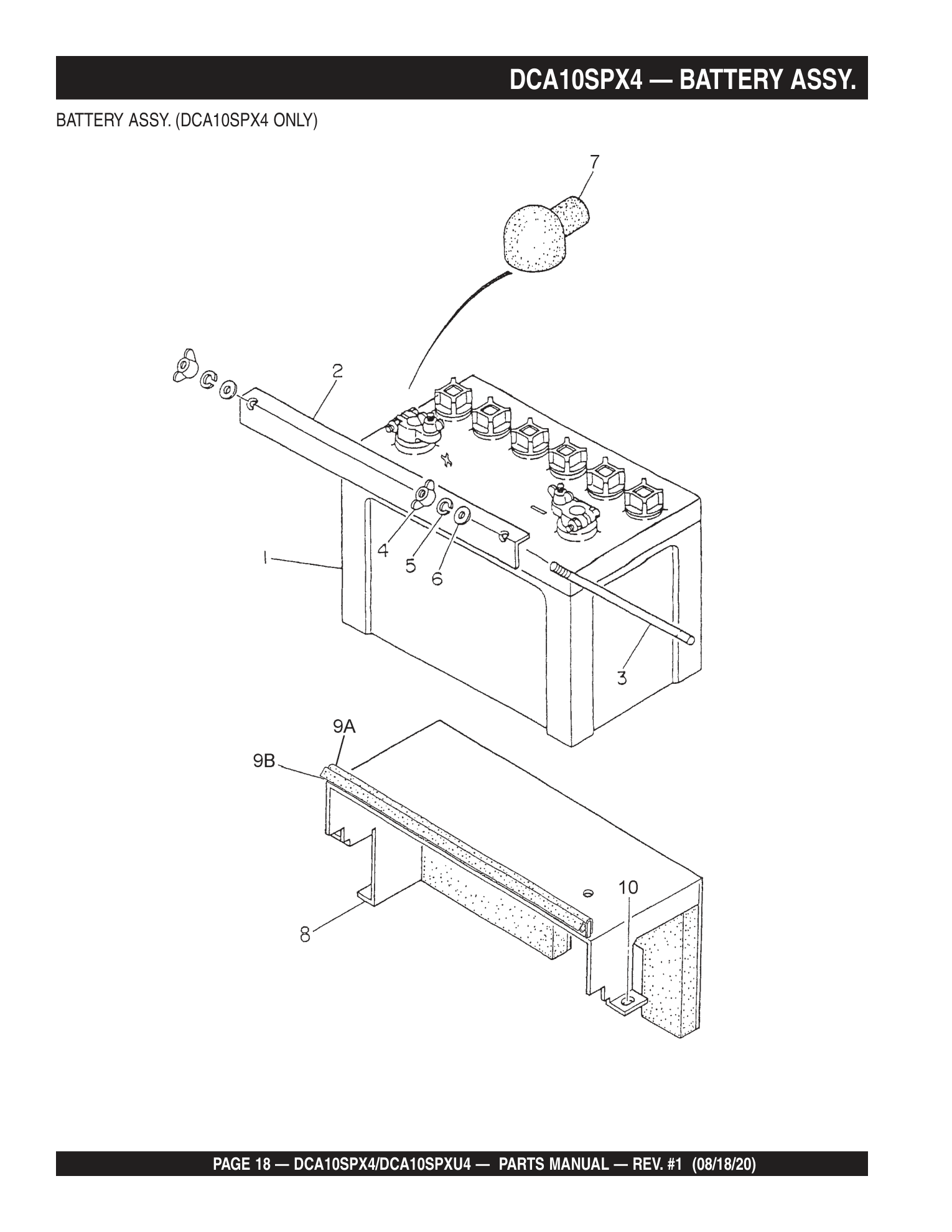

Page 18 — DCA10SPX4 - BATTERY ASSY.
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 0165308026 | BATTERY | 1 | ADD TO CART | |
| 2 | B1345200114 | BATTERY BAND | 1 | ADD TO CART | |
| 3 | 0805002904 | BATTERY BOLT | 2 | PARTS REQUEST | |
|
COMING BATTERY BOLT
0805002904 · qty on machine: 2 | |||||
| 4 | 0037808000 | WING NUT | 2 | ADD TO CART | |
| 5 | 0040008000 | WASHER, LOCK | 2 | ADD TO CART | |
| 6 | 0041208000 | WASHER, FLAT | 2 | ADD TO CART | |
| 7 | 0845040414 | TERMINAL CAP | 1 | ADD TO CART | |
| 8 | B1344200203 | BATTERY FRAME | 1 | ADD TO CART | |
| 8-1 | B0491700004 | LINING | 1 | ADD TO CART | |
| 9A | 0314200350 | RUBBER SEAL | 1 | ADD TO CART | |
| 9 | 0017108020 | HEX HEAD BOLT | 3 | 1 | ADD TO CART |

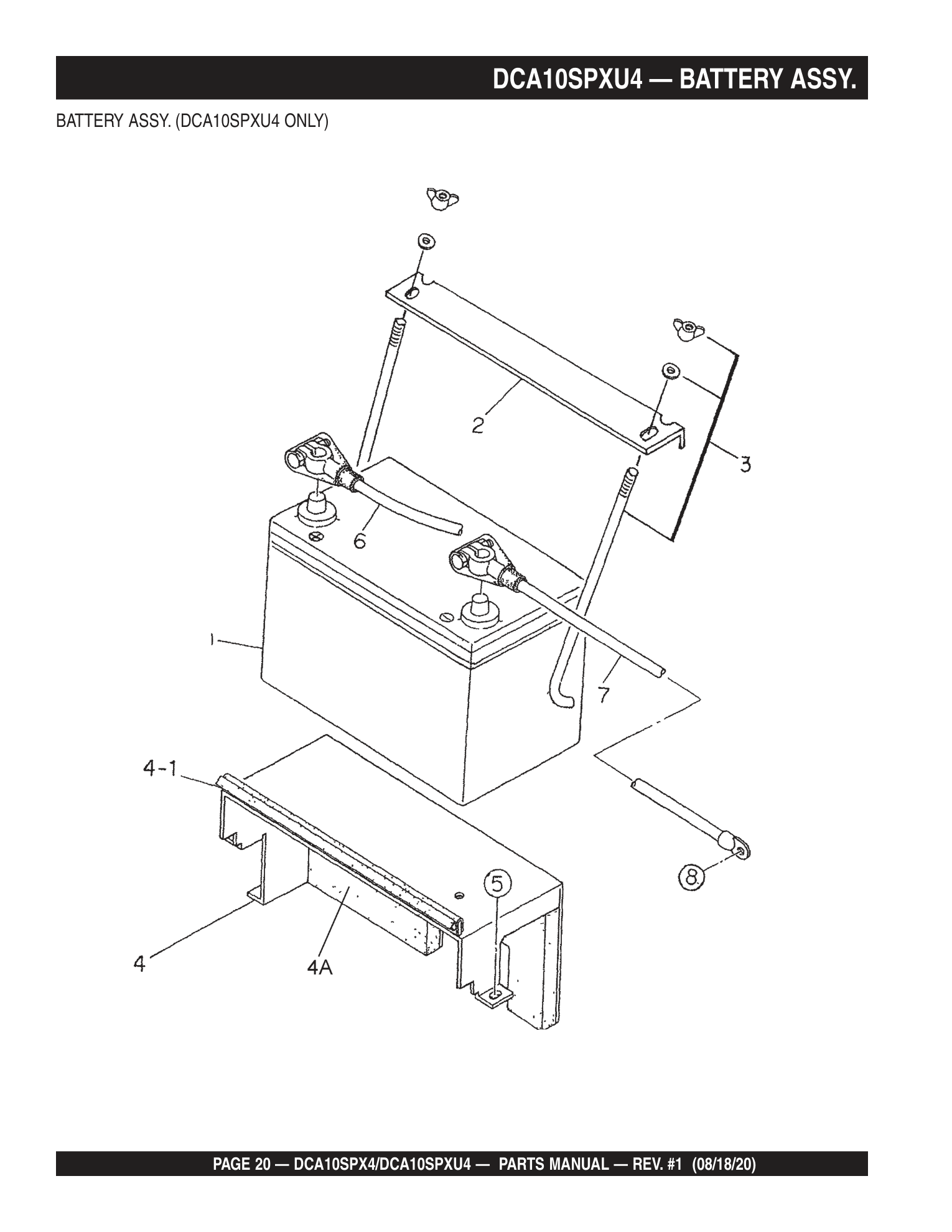

Page 20 — DCA10SPXU4 - BATTERY ASSY.
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | Y0602220193 | BATTERY | 1 | PARTS REQUEST | |
|
COMING BATTERY
Y0602220193 · qty on machine: 1 | |||||
| 2 | M0484600004 | BATTERY BAND | 1 | PARTS REQUEST | |
|
COMING BATTERY BAND
M0484600004 · qty on machine: 1 | |||||
| 3 | Y0602220920 | BATTERY BOLT | 2 | PARTS REQUEST | |
|
COMING BATTERY BOLT
Y0602220920 · qty on machine: 2 | |||||
| 4 | M0344000003 | BATTERY BASE | 1 | PARTS REQUEST | |
|
COMING BATTERY BASE
M0344000003 · qty on machine: 1 | |||||
| 4A | M049000204 | ACOUSTIC SHEET | 1 | PARTS REQUEST | |
|
COMING ACOUSTIC SHEET
M049000204 · qty on machine: 1 | |||||
| 4-1 | Y0314200350 | RUBBER SEAL | 1 | PARTS REQUEST | |
|
COMING RUBBER SEAL
Y0314200350 · qty on machine: 1 | |||||
| 5 | Y0017108020 | HEX HEAD BOLT | 3 | PARTS REQUEST | |
|
COMING HEX HEAD BOLT
Y0017108020 · qty on machine: 3 | |||||
| 6 | M0348200004 | BATTERY CABLE | 1 | ADD TO CART | |
| 7 | M0347200004 | BATTERY CABLE | 1 | ADD TO CART | |
| 8 | Y0012412025 | HEX HEAD BOLT | 1 | PARTS REQUEST | |
|
COMING HEX HEAD BOLT
Y0012412025 · qty on machine: 1 | |||||
| 9 | Y0040512000 | TOOTHED WASHER | 1 | 1 | PARTS REQUEST |
|
COMING TOOTHED WASHER
Y0040512000 · qty on machine: 1 1 | |||||

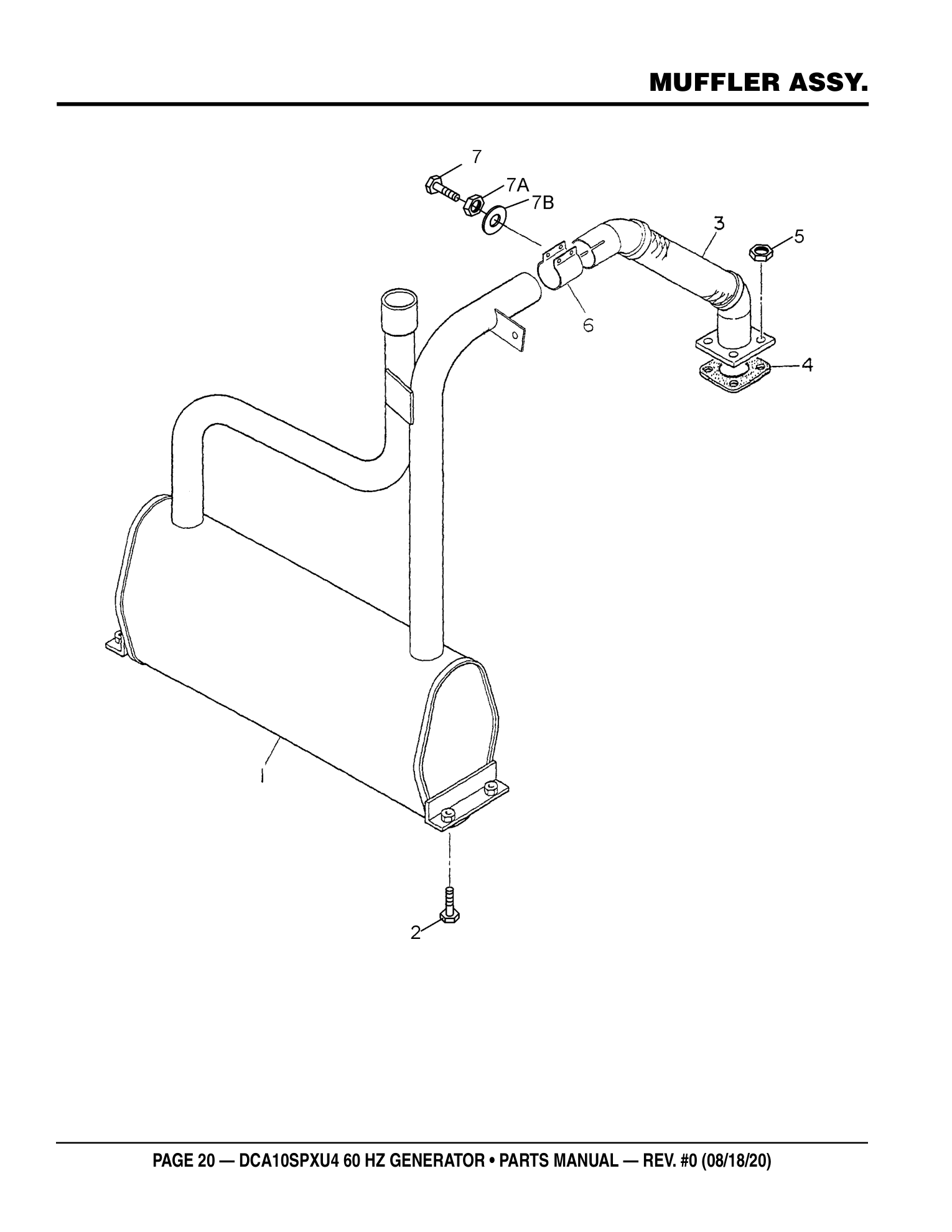

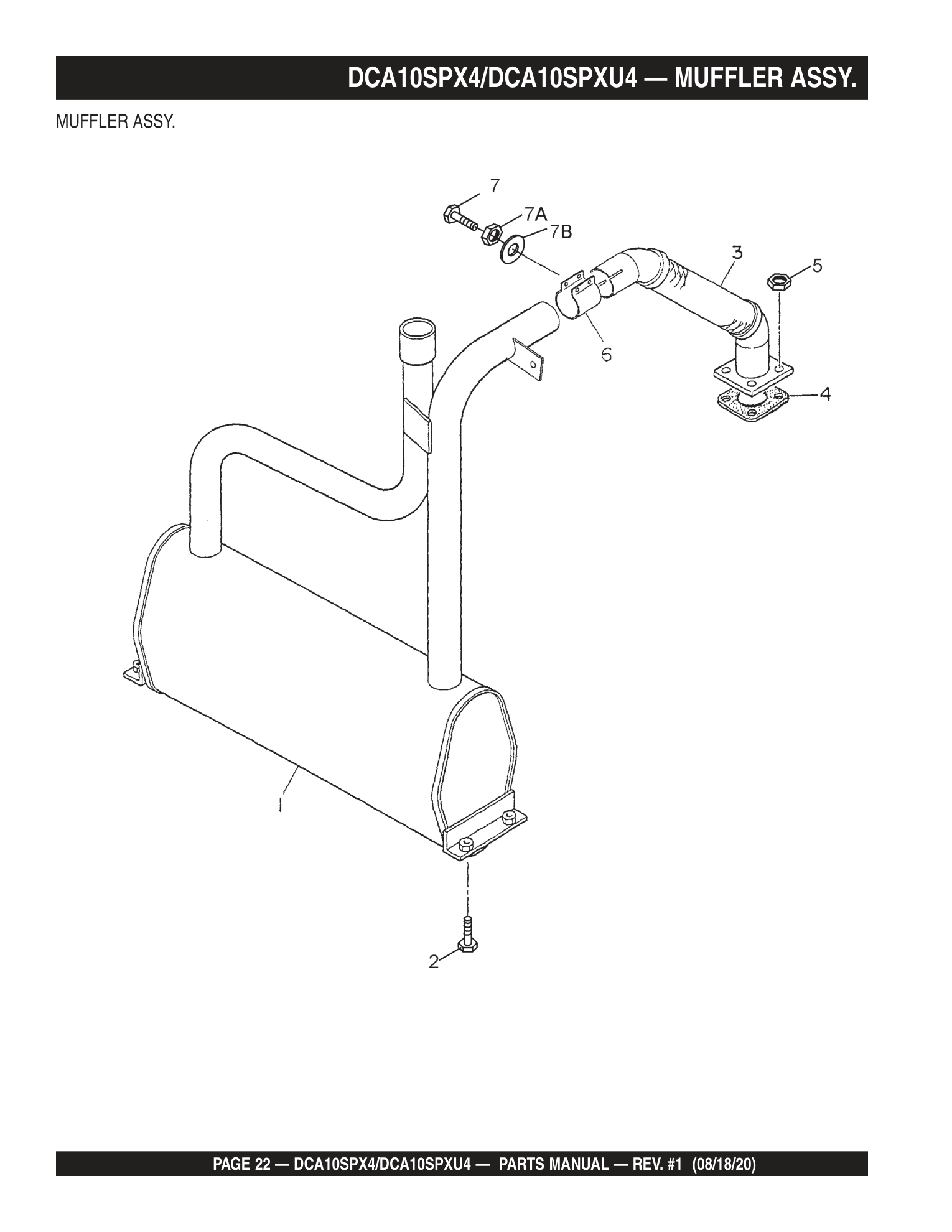

Page 22 — DCA10SPX4/DCA10SPXU4 - MUFFLER ASSY.
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | B0331100703 | MUFFLER | 1 | ADD TO CART | |
| 2 | 0017108020 | HEX HEAD BOLT | 4 | ADD TO CART | |
| 3 | B0334000503 | EXHAUST PIPE | 1 | ADD TO CART | |
| 4 | 1526312371 | GASKET | 1 | REPLACES P/N 0602320153 | PARTS REQUEST |
|
COMING GASKET
1526312371 · qty on machine: 1 REPLACES P/N 0602320153 | |||||
| 5 | 0207008000 | HEX NUT | 4 | ADD TO CART | |
| 6 | 0602325094 | PIPE BAND | 1 | ADD TO CART | |
| 7 | 0341510040 | HEX HEAD BOLT | 2 | ADD TO CART | |
| 7A | 0042410000 | WASHER, FLAT | 2 | ADD TO CART | |
| 7B | 0207110000 | NUT | 2 | 1 | ADD TO CART |

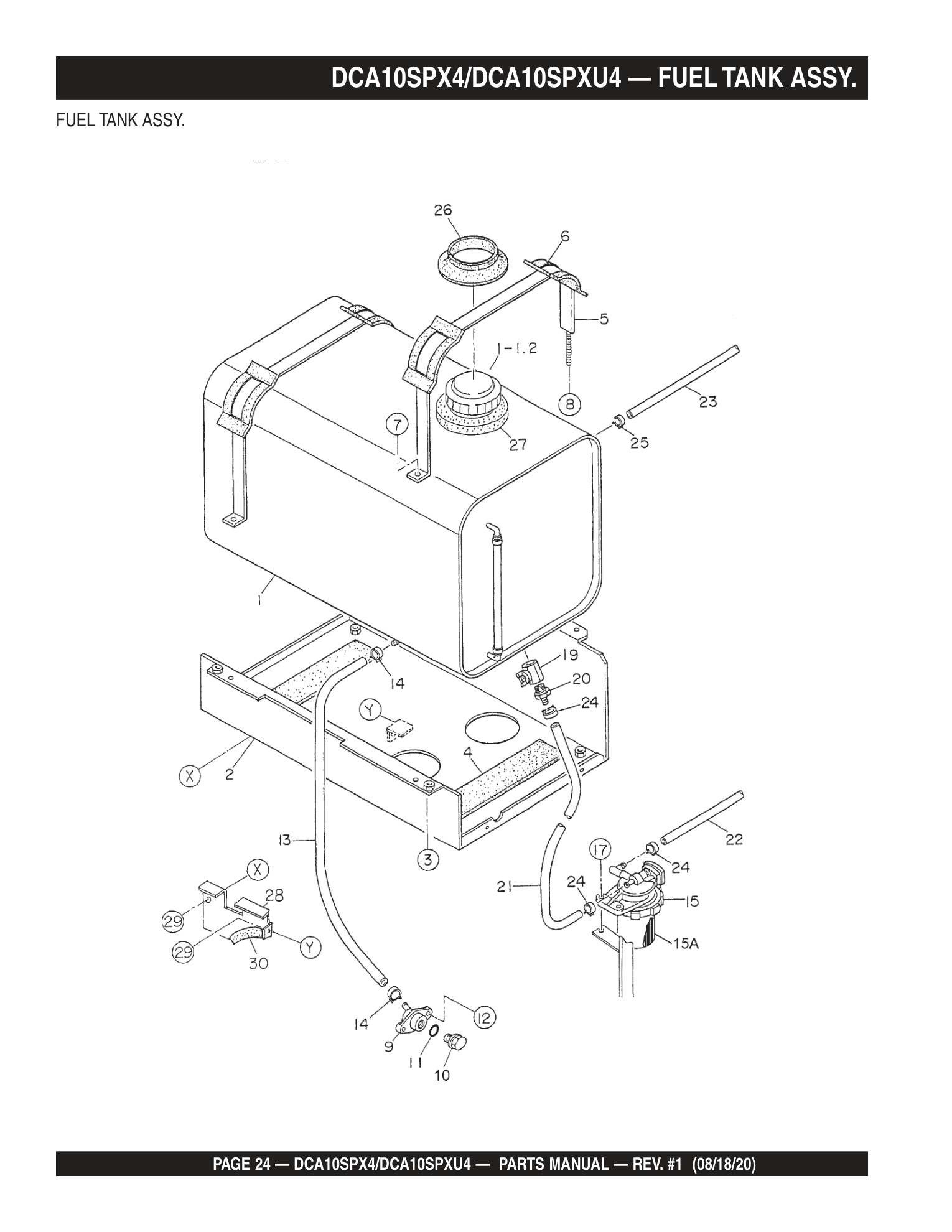

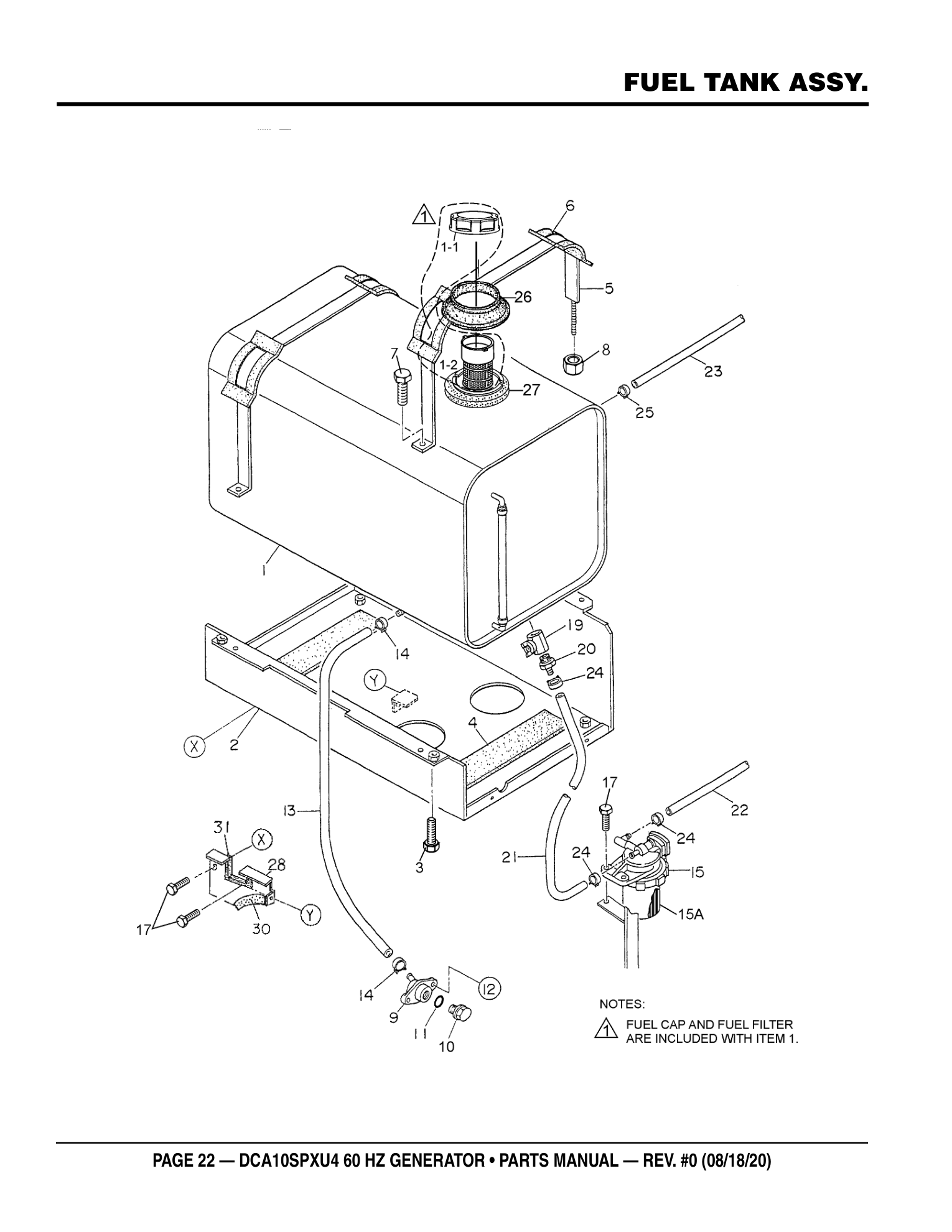

Page 24 — DCA10SPX4/DCA10SPXU4 - FUEL TANK ASSY.
Parts list — exactly as printed31 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | B0364000703 | FUEL TANK | 1 | ADD TO CART | |
| 1-1 | 0810105800 | CAP, FUEL TANK | 1 | ADD TO CART | |
| 1-2 | 0810105900 | FUEL FILTER | 1 | NO LONGER AVAILABLE | |
|
COMING FUEL FILTER
0810105900 · qty on machine: 1 NO LONGER AVAILABLE
| |||||
| 2 | B0364300403 | BRACKET, FUEL TANK | 1 | ADD TO CART | |
| 3 | 0017108020 | HEX HEAD BOLT | 4 | ADD TO CART | |
| 4 | 0222100300 | TANK SHEET | 2 | ADD TO CART | |
| 5 | 8435523024 | TANK BAND | 2 | PARTS REQUEST | |
|
COMING TANK BAND
8435523024 · qty on machine: 2 Factory replaced this part - current number 8435523024A | |||||
| 6 | 6365300504 | PAD, TANK BAND | 4 | ADD TO CART | |
| 7 | 0017108020 | HEX HEAD BOLT | 2 | ADD TO CART | |
| 8 | 0037908000 | HEX NUT | 2 | ADD TO CART | |
| 9 | 7812014003 | DRAIN JOINT | 1 | ADD TO CART | |
| 10 | 0802011104 | PLUG | 1 | ADD TO CART | |
| 11 | 0150000018 | O-RING | 1 | ADD TO CART | |
| 12 | 0016906015 | HEX HEAD BOLT | 2 | ADD TO CART | |
| 13 | 0199901200 | DRAIN HOSE | 1 | ADD TO CART | |
| 14 | 0605515094 | HOSE BAND | 2 | ADD TO CART | |
| 15 | 1522143016 | FUEL FILTER | 1 | REPLACES P/N 0602042462 | PARTS REQUEST |
|
COMING FUEL FILTER
1522143016 · qty on machine: 1 REPLACES P/N 0602042462 | |||||
| 15A | 1522143172 | ELEMENT, FUEL FILTER | 1 | REPLACES P/N 0602042551 | PARTS REQUEST |
|
COMING ELEMENT, FUEL FILTER
1522143172 · qty on machine: 1 REPLACES P/N 0602042551 | |||||
| 17 | 0017108035 | HEX HEAD BOLT | 2 | ADD TO CART | |
| 19 | 0603325013 | VALVE, 3/8 | 1 | ADD TO CART | |
| 20 | 0602022219 | HOSE JOINT | 1 | ADD TO CART | |
| 21 | 0199900200 | SUCTION HOSE | 1 | ADD TO CART | |
| 22 | 0199900260 | SUCTION HOSE | 1 | ADD TO CART | |
| 23 | 0199700250 | RETURN HOSE | 1 | ADD TO CART | |
| 24 | 0605515094 | HOSE BAND | 4 | ADD TO CART | |
| 25 | 0605515096 | HOSE BAND | 2 | ADD TO CART | |
| 26 | B9312400004 | RUBBER SEAL | 1 | ADD TO CART | |
| 27 | B9311400104 | RUBBER SEAL | 1 | ADD TO CART | |
| 28 | B0484300004 | BRACKET | 1 | ADD TO CART | |
| 29 | 0017106015 | HEX HEAD BOLT | 2 | ADD TO CART | |
| 30 | 0220300160 | RUBBER SEAL | 1 | 1 | ADD TO CART |

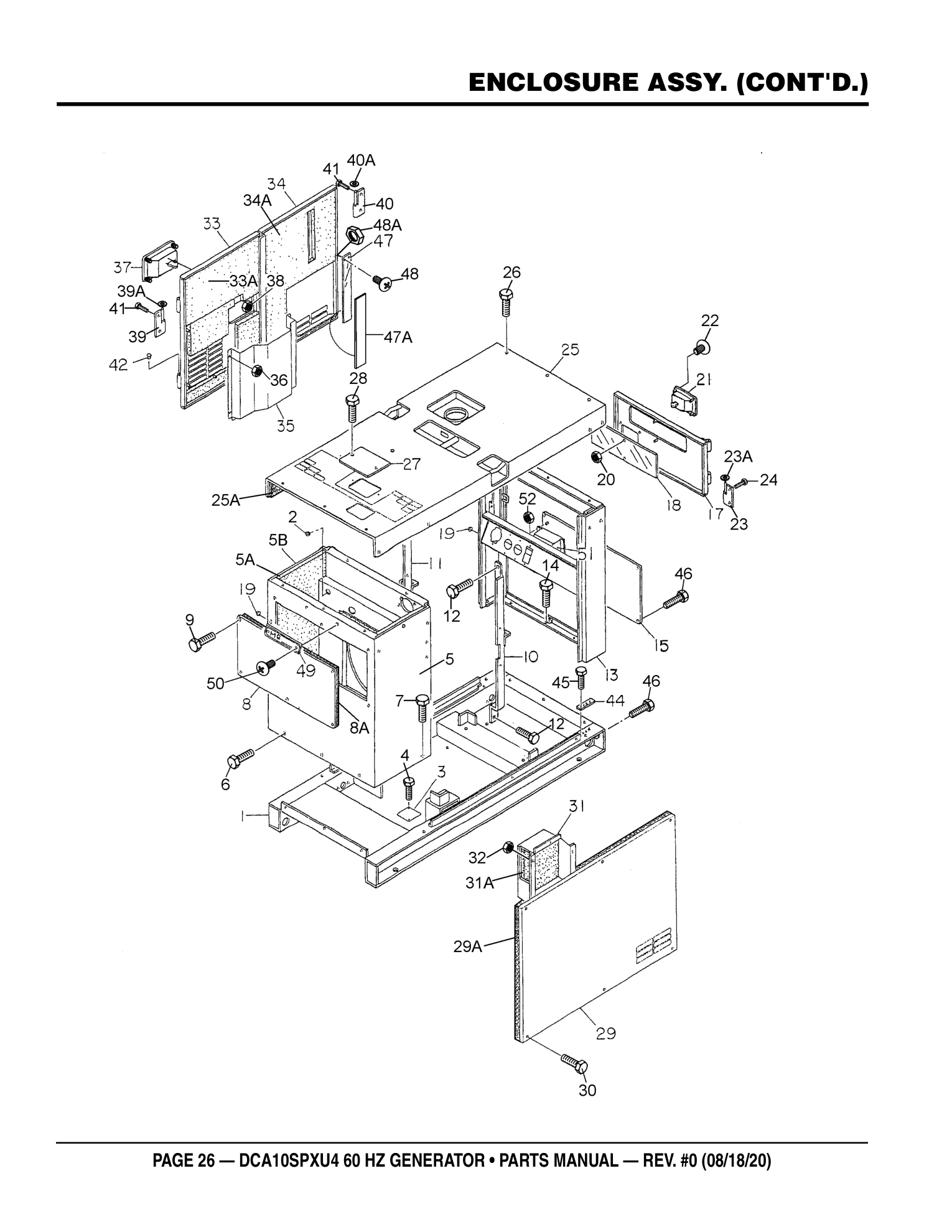

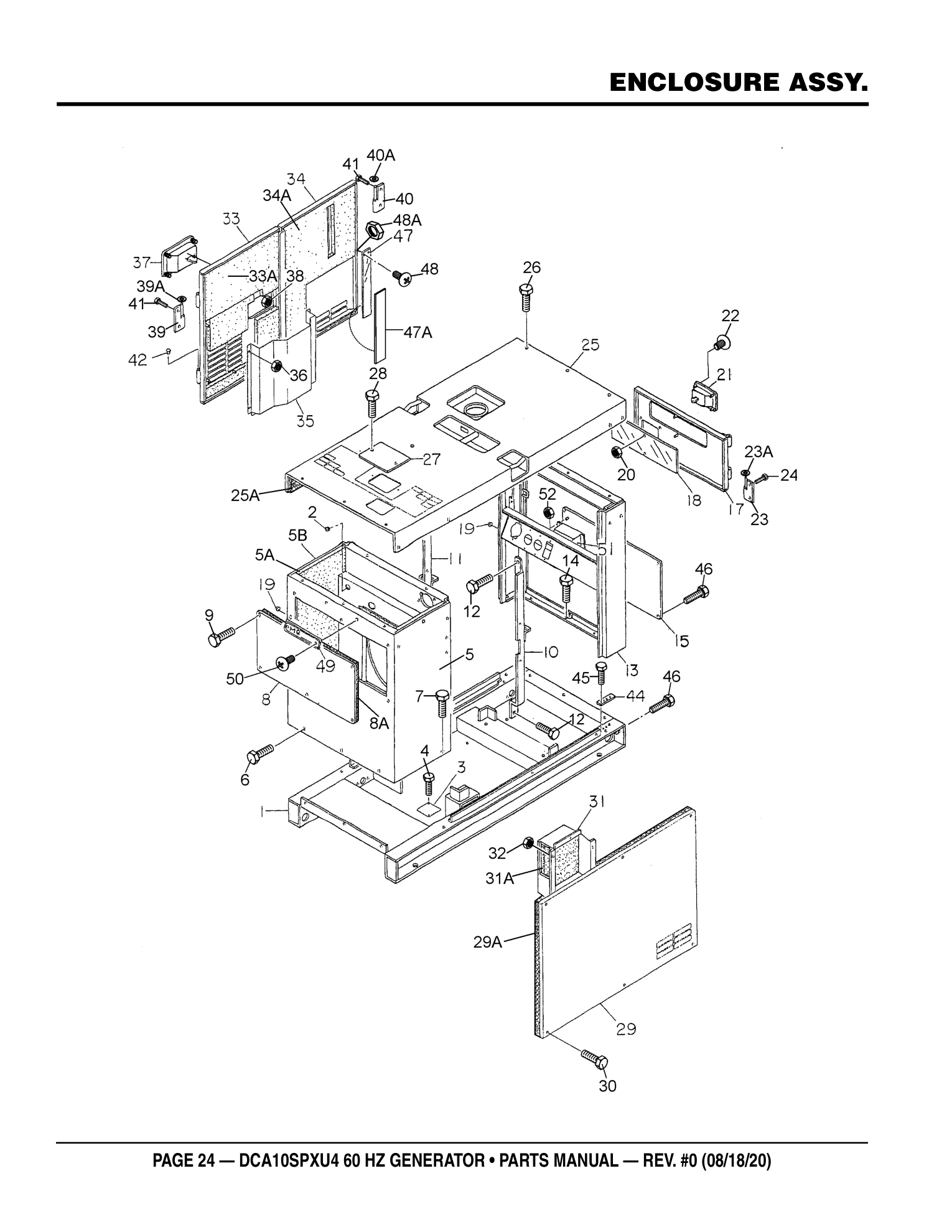

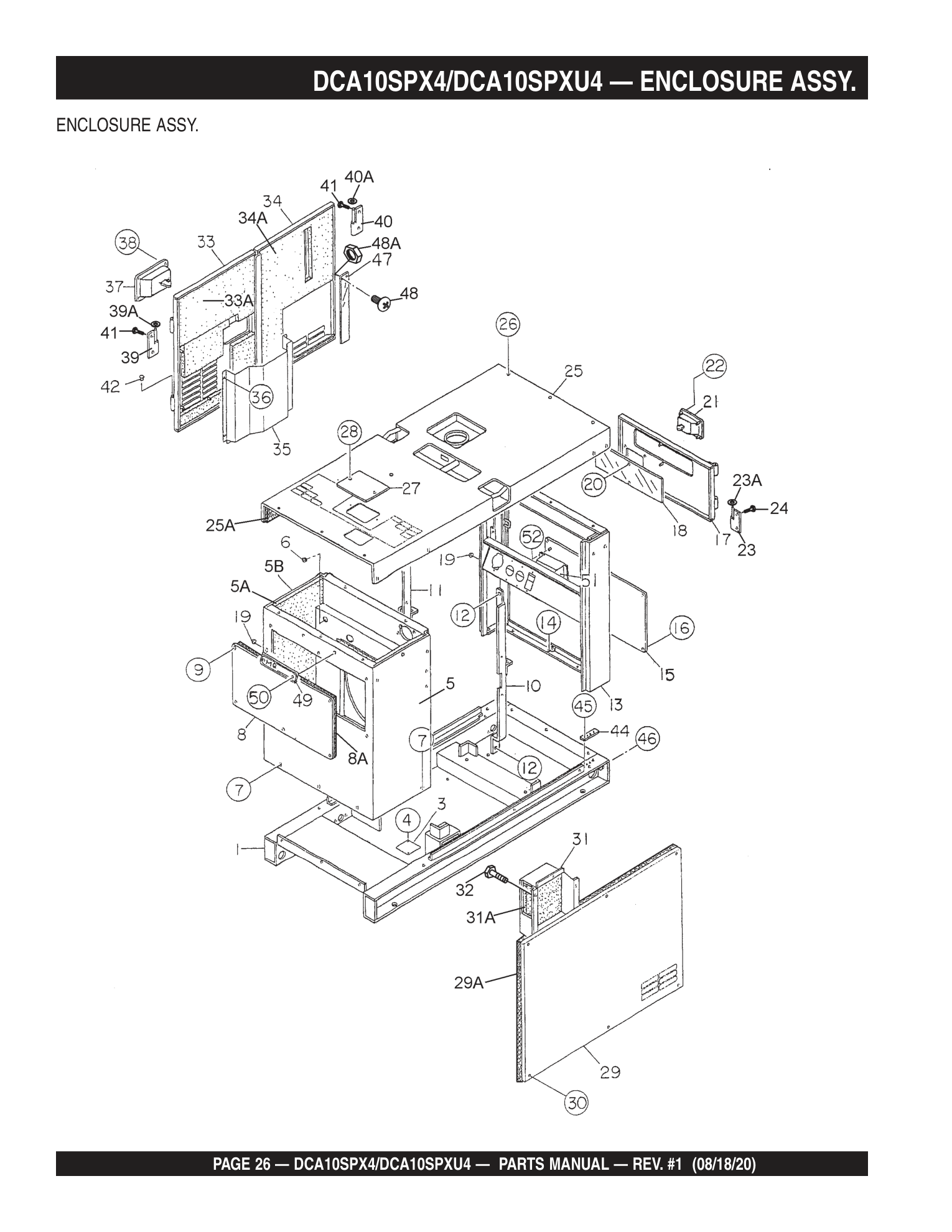

Page 26 — DCA10SPX4/DCA10SPXU4 - ENCLOSURE ASSY.
Parts list — exactly as printed38 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | B0414002202 | BASE | 1 | DCA10SPX4 | ADD TO CART |
| 1 | M0414000102 | BASE | 1 | DCA10SPXU4 | PARTS REQUEST |
|
COMING BASE
M0414000102 · qty on machine: 1 DCA10SPXU4 | |||||
| 3 | D3414800104 | COVER | 1 | ADD TO CART | |
| 3 | M0414800004 | COVER | 1 | PARTS REQUEST | |
|
COMING COVER
M0414800004 · qty on machine: 1 | |||||
| 4 | 0016906015 | HEX HEAD BOLT | 2 | ADD TO CART | |
| 5 | B0424001302 | FRONT FRAME | 1 | DCA10SPX4 | ADD TO CART |
| 5 | M0424000102 | FRONT FRAME | 1 | DCA10SPXU4 | ADD TO CART |
| 5A | B0494100904 | ACOUSTIC SHEET | 1 | DCA10SPX4 | ADD TO CART |
| 5A | M0494100504 | ACOUSTIC SHEET | 1 | DCA10SPXU4 | ADD TO CART |
| 5B | 0315900475 | RUBBER SEAL | 2 | ADD TO CART | |
| 6 | 0601850239 | GROMMET | 1 | ADD TO CART | |
| 7 | 0016908020 | HEX HEAD BOLT | 5 | ADD TO CART | |
| 8 | 8435125004 | COVER, FRONT FRAME | 1 | DCA10SPX4 | ADD TO CART |
| 8 | M0485400004 | COVER, FRONT FRAME | 1 | DCA10SPXU4 | ADD TO CART |
| 8A | B0495100804 | ACOUSTIC SHEET | 1 | DCA10SPX4 | ADD TO CART |
| 8A | M0495100104 | ACOUSTIC SHEET | 1 | DCA10SPXU4 | ADD TO CART |
| 9 | 0016908020 | HEX HEAD BOLT | 6 | ADD TO CART | |
| 10 | B0434300203 | HANGER | 1 | DCA10SPX4 | ADD TO CART |
| 10 | M0434300203 | HANGER | 1 | DCA10SPXU4 | PARTS REQUEST |
|
COMING HANGER
M0434300203 · qty on machine: 1 DCA10SPXU4 | |||||
| 11 | B0434300703 | HANGER | 1 | DCA10SPX4 | ADD TO CART |
| 11 | B0434300303 | HANGER | 1 | DCA10SPXU4 | PARTS REQUEST |
|
COMING HANGER
B0434300303 · qty on machine: 1 DCA10SPXU4 | |||||
| 12 | 0012312030 | HEX HEAD BOLT | 4 | ADD TO CART | |
| 13 | B0444003902 | REAR FRAME | 1 | DCA10SPX4 | ADD TO CART |
| 13 | M0444000102 | REAR FRAME | 1 | DCA10SPXU4 | ADD TO CART |
| 14 | 0016908020 | HEX HEAD BOLT | 5 | ADD TO CART | |
| 15 | B1454400404 | COVER, REAR FRAME | 1 | DCA10SPX4 | ADD TO CART |
| 15 | M0444300004 | COVER, REAR FRAME | 1 | DCA10SPXU4 | PARTS REQUEST |
|
COMING COVER, REAR FRAME
M0444300004 · qty on machine: 1 DCA10SPXU4 | |||||
| 16 | 0016908020 | HEX HEAD BOLT | 6 | ADD TO CART | |
| 17 | B0444200603 | DOOR, REAR FRAME | 1 | DCA10SPX4 | ADD TO CART |
| 17 | M0444200003 | DOOR, REAR FRAME | 1 | DCA10SPXU4 | ADD TO CART |
| 18 | B0445600304 | WINDOW PLATE | 1 | PARTS REQUEST | |
|
COMING WINDOW PLATE
B0445600304 · qty on machine: 1 Factory replaced this part - current number B0445600304A | |||||
| 19 | 0601851613 | STOPPER | 2 | ADD TO CART | |
| 20 | 0207006000 | HEX NUT | 2 | ADD TO CART | |
| 21 | 0605010230 | DOOR HANDLE | 1 | ADD TO CART | |
| 22 | 0021805012 | HEX NUT | 4 | ADD TO CART | |
| 23 | 0805019004 | HINGE | 2 | ADD TO CART | |
| 23A | D9116000004 | WASHER | 2 | ADD TO CART | |
| 24 | 0016906016 | HEX HEAD BOLT | 4 | 1 | ADD TO CART |

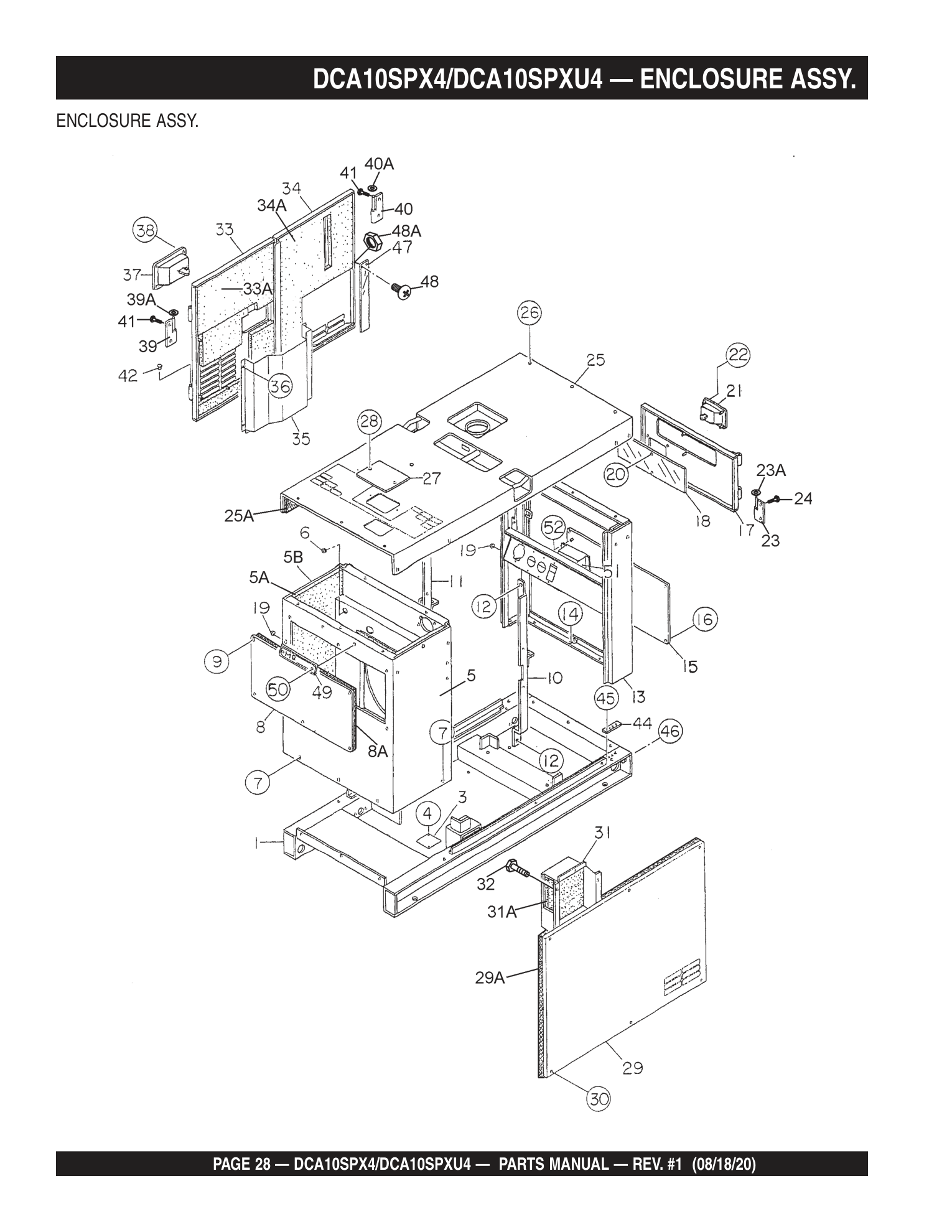

Page 28 — DCA10SPX4/DCA10SPXU4 - ENCLOSURE ASSY.
Parts list — exactly as printed43 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 25 | B0464001002 | ROOF PANEL | 1 | DCA10SPX4 | NO LONGER AVAILABLE |
|
COMING ROOF PANEL
B0464001002 · qty on machine: 1 DCA10SPX4 NO LONGER AVAILABLE
| |||||
| 25 | M0464000102 | ROOF PANEL | 1 | DCA10SPXU4 | ADD TO CART |
| 25A | B0494500104 | ACOUSTIC SHEET | 1 | DCA10SPX4 | ADD TO CART |
| 25A | M0494500604 | ACOUSTIC SHEET | 1 | DCA10SPXU4 | ADD TO CART |
| 26 | 0016908020 | HEX HEAD BOLT | 16 | ADD TO CART | |
| 27 | 8452023004 | COVER | 1 | DCA10SPX4 | ADD TO CART |
| 27 | M1465400104 | COVER | 1 | DCA10SPXU4 | ADD TO CART |
| 28 | 0016908020 | HEX HEAD BOLT | 2 | ADD TO CART | |
| 29 | B0454100503 | SIDE PANEL | 1 | DCA10SPX4 | ADD TO CART |
| 29 | M0454100103 | SIDE PANEL | 1 | DCA10SPXU4 | ADD TO CART |
| 29A | B0494400414 | LINING | 1 | ADD TO CART | |
| 30 | 0016908035 | HEX HEAD BOLT | 6 | ADD TO CART | |
| 31 | B0455300424 | DUCT | 1 | ADD TO CART | |
| 31A | B0495401014 | LINING | 1 | ADD TO CART | |
| 32 | 0207006000 | HEX NUT | 6 | ADD TO CART | |
| 33 | B0454000903 | SIDE DOOR | 1 | DCA10SPX4 | ADD TO CART |
| 33 | M0454000203 | SIDE DOOR | 1 | DCA10SPXU4 | PARTS REQUEST |
|
COMING SIDE DOOR
M0454000203 · qty on machine: 1 DCA10SPXU4 | |||||
| 33A | B0494400504 | ACOUSTIC SHEET | 1 | DCA10SPX4 | ADD TO CART |
| 33A | M0494401204 | ACOUSTIC SHEET | 1 | DCA10SPXU4 | ADD TO CART |
| 34 | B0454000803 | SIDE DOOR | 1 | DCA10SPX4 | NO LONGER AVAILABLE |
|
COMING SIDE DOOR
B0454000803 · qty on machine: 1 DCA10SPX4 NO LONGER AVAILABLE
| |||||
| 34 | M0454000303 | SIDE DOOR | 1 | DCA10SPXU4 | PARTS REQUEST |
|
COMING SIDE DOOR
M0454000303 · qty on machine: 1 DCA10SPXU4 | |||||
| 34A | B0494400604 | ACOUSTIC SHEET | 1 | DCA10SPX4 | ADD TO CART |
| 34A | M0494401704 | ACOUSTIC SHEET | 1 | DCA10SPXU4 | ADD TO CART |
| 35 | B0454300404 | DUCT | 1 | ADD TO CART | |
| 36 | 0207006000 | HEX NUT | 5 | ADD TO CART | |
| 37 | B9114000002 | DOOR HANDLE | 1 | ADD TO CART | |
| 38 | 0021806015 | MACHINE SCREW | 4 | ADD TO CART | |
| 39 | 0845047204 | HINGE | 2 | ADD TO CART | |
| 39A | 0845045004 | WASHER | 2 | ADD TO CART | |
| 40 | 0845047104 | HINGE | 2 | ADD TO CART | |
| 40A | 0845045004 | WASHER | 2 | ADD TO CART | |
| 41 | 0016908020 | HEX HEAD BOLT | 8 | ADD TO CART | |
| 42 | 0845031504 | CAP | 4 | ADD TO CART | |
| 44 | B1262800004 | PLATE | 1 | PARTS REQUEST | |
|
COMING PLATE
B1262800004 · qty on machine: 1 | |||||
| 45 | 0016906015 | HEX HEAD BOLT | 4 | ADD TO CART | |
| 46 | 0019208020 | HEX HEAD BOLT | 1 | ADD TO CART | |
| 47 | B0444600104 | WINDOW PLATE | 1 | ADD TO CART | |
| 48 | 0027103010 | MACHINE SCREW | 4 | ADD TO CART | |
| 48A | 0207003000 | HEX NUT | 4 | ADD TO CART | |
| 49 | 0600500090 | EMBLEM | 1 | ADD TO CART | |
| 50 | 0021106015 | MACHINE SCREW | 2 | ADD TO CART | |
| 51 | B1454301004 | DUCT | 1 | ADD TO CART | |
| 52 | 0207006000 | HEX NUT | 4 | 1 | ADD TO CART |

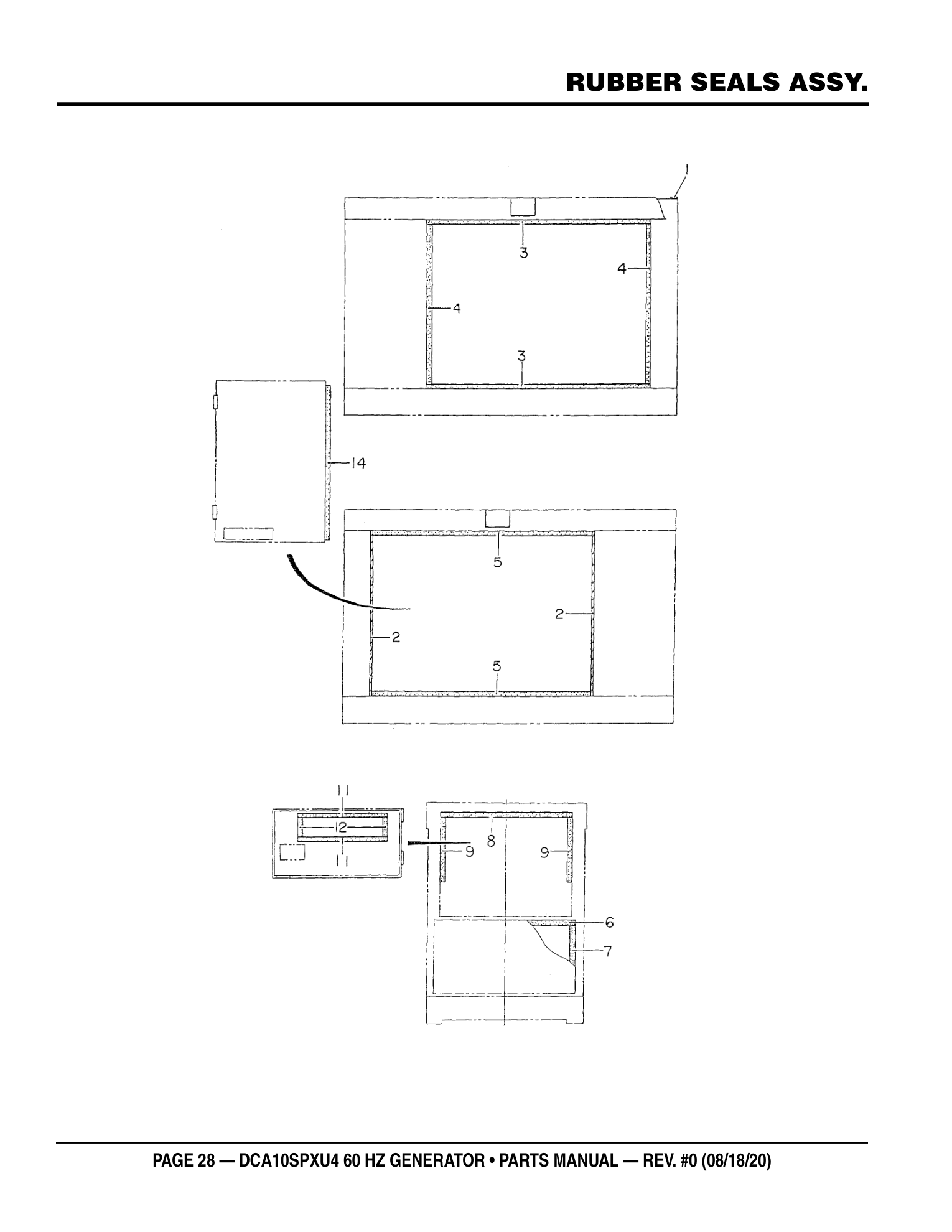

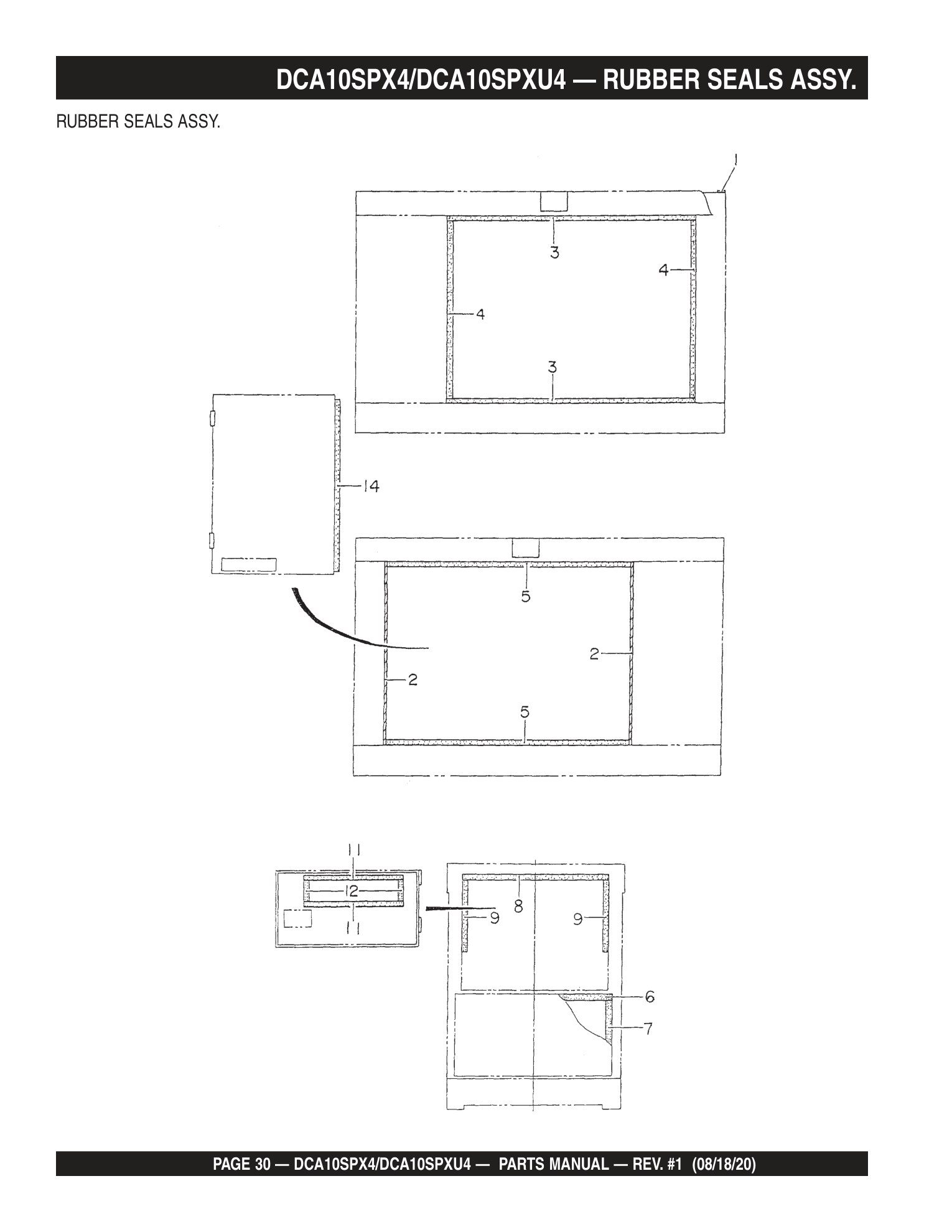

Page 30 — DCA10SPX4/DCA10SPXU4 - RUBBER SEALS ASSY.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 0229200650 | RUBBER SEAL | 1 | ADD TO CART | |
| 2 | 0229400695 | RUBBER SEAL | 2 | ADD TO CART | |
| 3 | 0221700900 | RUBBER SEAL | 2 | ADD TO CART | |
| 4 | 0221700640 | RUBBER SEAL | 2 | ADD TO CART | |
| 5 | 0229400920 | RUBBER SEAL | 2 | ADD TO CART | |
| 6 | 0229200590 | RUBBER SEAL | 2 | ADD TO CART | |
| 7 | 0229200255 | RUBBER SEAL | 2 | ADD TO CART | |
| 8 | 0229400545 | RUBBER SEAL | 1 | ADD TO CART | |
| 9 | 0229400250 | RUBBER SEAL | 2 | ADD TO CART | |
| 11 | 0227500380 | RUBBER SEAL | 2 | ADD TO CART | |
| 12 | 0227500080 | RUBBER SEAL | 2 | ADD TO CART | |
| 14 | 0229400660 | RUBBER SEAL | 1 | 1 | ADD TO CART |

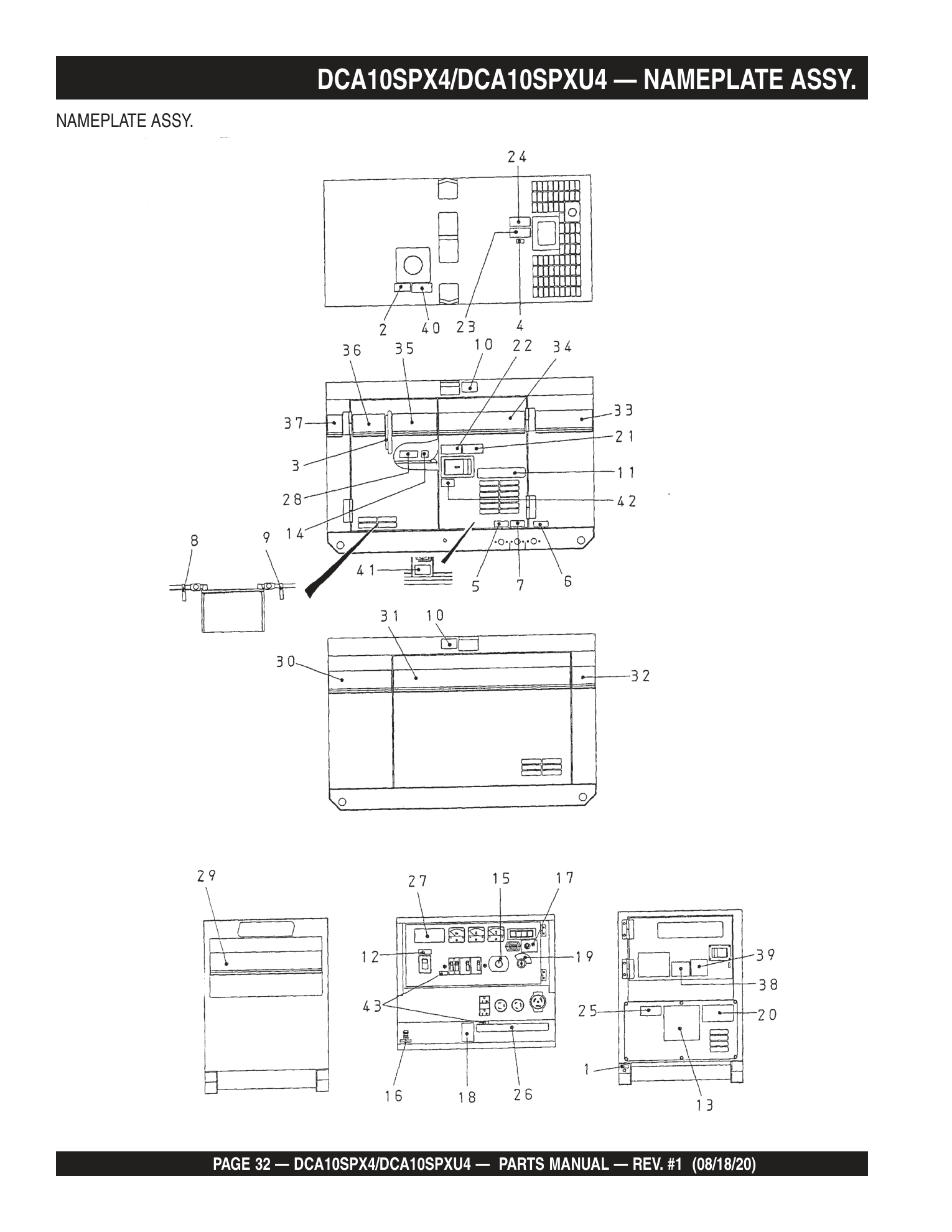

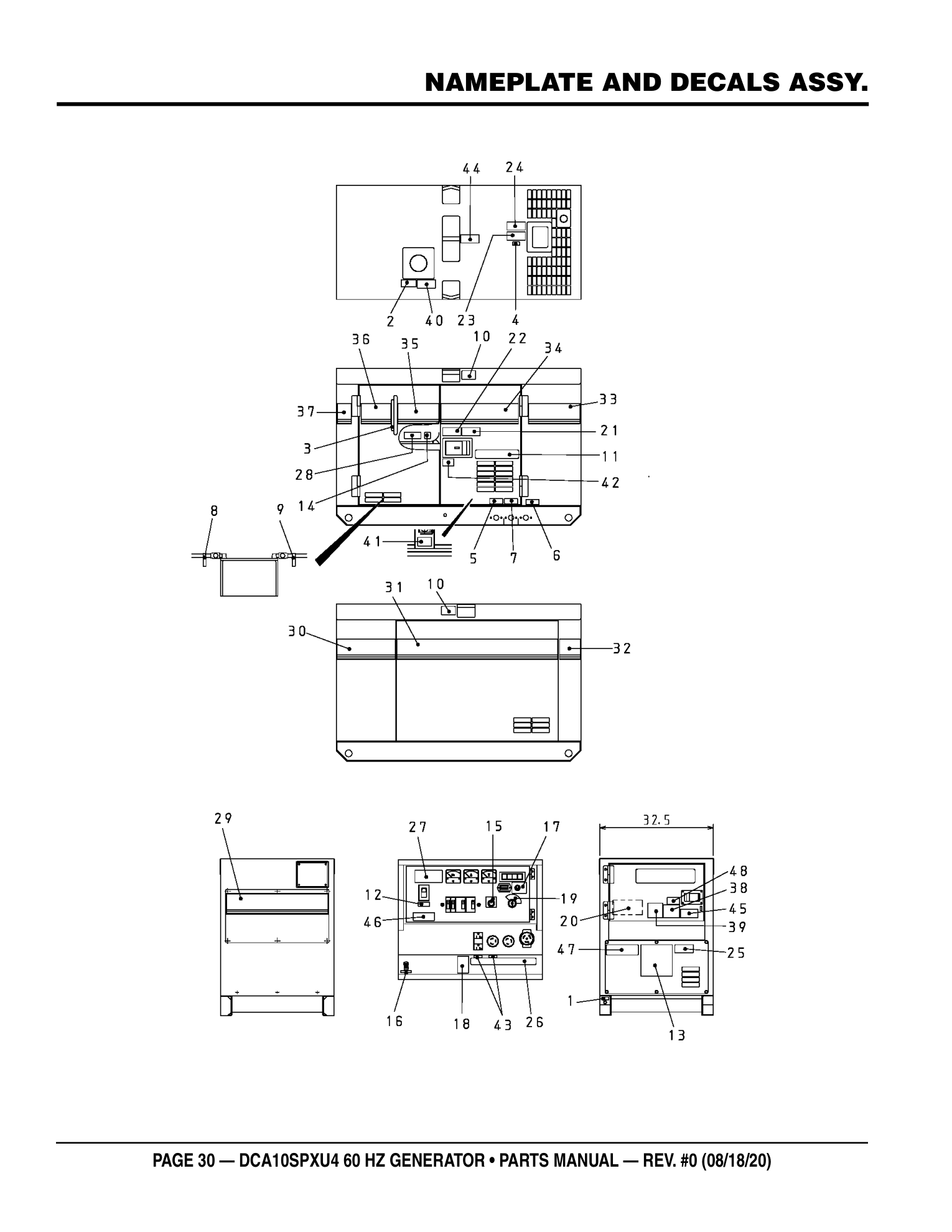

Page 32 — DCA10SPX4/DCA10SPXU4 - NAMEPLATE ASSY.
Parts list — exactly as printed43 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 0840614104 | DECAL : GROUND S-2635 | 1 | ADD TO CART | |
| 2 | B9504501204 | DECAL : DIESEL FUEL B9045 | 1 | 0120 | ADD TO CART |
| 3 | 0800650804 | DECAL : FUEL GAUGE S-1765 | 1 | ADD TO CART | |
| 4 | 6360610304 | DECAL : WATER S-1880 | 1 | ADD TO CART | |
| 5 | 6360620004 | DECAL : FUEL DRAIN PLUG S-1883 | 1 | ADD TO CART | |
| 6 | 6360620104 | DECAL : WATER DRAIN PLUG S-1884 | 1 | ADD TO CART | |
| 7 | 6360620204 | DECAL : OIL DRAIN PLUG S-1885 | 1 | ADD TO CART | |
| 8 | 0800689404 | DECAL : + S-2090 | 1 | ADD TO CART | |
| 9 | 0800689504 | DECAL : - S-2091 | 1 | ADD TO CART | |
| 10 | 1320621504 | DECAL : SUPPORT HOOK S-2257 | 2 | ADD TO CART | |
| 11 | 1320610603 | DECAL : WATER - OIL CHECK AND FILL DAILY S-1760 | 1 | ADD TO CART | |
| 12 | 0840624504 | DECAL : CIRCUIT BREAKER S-3031 | 1 | ADD TO CART | |
| 13 | 0840625902 | DECAL : MQ POWER S-3057 | 1 | ADD TO CART | |
| 14 | 1980680004 | DECAL : FUEL COCK S-3704 | 1 | NO LONGER AVAILABLE | |
|
COMING DECAL : FUEL COCK S-3704
1980680004 · qty on machine: 1 NO LONGER AVAILABLE
| |||||
| 15 | 7670623004 | DECAL : VOLTAGE REGULATOR S-3737 | 1 | ADD TO CART | |
| 16 | 7670624004 | DECAL : GROUND FOR G.F.C.I S-3821 | 1 | ADD TO CART | |
| 17 | B0551001904 | DECAL : SPEED CONTROL SWITCH B05100190 | 1 | ADD TO CART | |
| 18 | 7670650004 | DECAL : DANGER HIGH VOLTAGE S-3956 | 1 | ADD TO CART | |
| 19 | 7560615004 | DECAL : STARTER SWITCH S-4547 | 1 | ADD TO CART | |
| 20 | B0551001803 | DECAL : OPERATING PROCEDURE B05100180 | 1 | ADD TO CART | |
| 21 | B9504000304 | DECAL : CAUTION HOT PARTS B90400030 | 1 | ADD TO CART | |
| 22 | B9504000404 | DECAL : WARNING MOVING PARTS B90400040 | 1 | ADD TO CART | |
| 23 | B9504100104 | DECAL : WARNING HOT COOLANT B90410010 | 1 | ADD TO CART | |
| 24 | B9504200004 | DECAL : WARNING ENGINE EXHAUST B90420000 | 1 | ADD TO CART | |
| 25 | B951110304 | DECAL : WARNING B91110030 | 1 | PARTS REQUEST | |
|
COMING DECAL : WARNING B91110030
B951110304 · qty on machine: 1 | |||||
| 26 | B9521007403 | DECAL : AC POWER OUTPUT B92100740 | 1 | ADD TO CART | |
| 27 | B9531100604 | DECAL : WARNING ELECTRIC SHOCK HAZARD B93110060 | 1 | ADD TO CART | |
| 28 | 0820650604 | DECAL : POISON / DANGER | 1 | ADD TO CART | |
| 29 | 7670633003 | STRIPE : WHISPERWATT S-5273 | 1 | ADD TO CART | |
| 30 | B0562100004 | STRIPE : MQ POWER | 1 | ADD TO CART | |
| 31 | B0561100004 | STRIPE | 1 | ADD TO CART | |
| 32 | B0561100104 | STRIPE | 1 | ADD TO CART | |
| 33 | B0561100604 | STRIPE | 1 | ADD TO CART | |
| 34 | B0561100504 | STRIPE | 1 | ADD TO CART | |
| 35 | B0561100404 | STRIPE | 1 | ADD TO CART | |
| 36 | B0561100304 | STRIPE | 1 | ADD TO CART | |
| 37 | B0561100204 | STRIPE | 1 | ADD TO CART | |
| 38 | A9504000014 | DECAL : DANGER A90400001 | 1 | ADD TO CART | |
| 39 | B9531100004 | DECAL : GROUND B93110000 | 1 | ADD TO CART | |
| 40 | B9504500004 | DECAL : WARNING FIRE B90450000 | 1 | ADD TO CART | |
| 41 | B9505000304 | DECAL : CAUTION B90500030 | 1 | ADD TO CART | |
| 42 | 1630610504 | DECAL : CAUTION DOOR S-1409 | 1 | ADD TO CART | |
| 43 | D9522001004 | DECAL : GFCI D92200100 | 2 | 1 | ADD TO CART |
Page 6 — GENERATOR ASSY.
Parts list — exactly as printed32 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 8321000102 | ROTOR ASSY | 1 | INCLUDES ITEMS W/# | PARTS REQUEST |
|
COMING ROTOR ASSY
8321000102 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 1-1#, 1-2#, 1-3#, 1-4#, 1-5#, 1-6#, 1-7#, 1-8#, 1-9#, 1-10#, 1-11# | |||||
| 1-1# | FIELD ASSY. | 1 | INCLUDED IN KIT | ||
|
COMING FIELD ASSY.
· qty on machine: 1 Included in kit 1 - ROTOR ASSY (8321000102) INCLUDED IN KIT
| |||||
| 1-2# | 0601821374 | RECTIFIER | 1 | ADD TO CART | |
| 1-3# | 0601822630 | SURGE ABSORBER | 1 | ADD TO CART | |
| 1-4# | 8001070003 | FAN | 1 | ADD TO CART | |
|
FAN
8001070003 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (8321000102) view full part page → $162.95 IN A KIT + SOLD SOLO | |||||
| 1-5# | 8351611004 | COUPLING DISK | 2 | ADD TO CART | |
| 1-6# | 8351612004 | WASHER, COUPLING HUB | 1 | ADD TO CART | |
| 1-7# | 8351615003 | BALANCING PLATE | 1 | PURCHASE IT. 1-10 AS A SET | ADD TO CART |
| 1-8# | 0105091025 | HEX. HEAD BOLT | 4 | REPLACES P/N 0010310025 | ADD TO CART |
| 1-9# | 0042610000 | WASHER, LOCK | 4 | ADD TO CART | |
| 1-10# | 0601000209 | BALANCING WEIGHT KIT | 1 | ADD TO CART | |
| 1-11# | 042006308 | BEARING | 1 | REPLACES P/N 0071906308 | ADD TO CART |
| 2 | 0070506903 | BEARING | 1 | ADD TO CART | |
| 3 | 0012108035 | HEX. HEAD BOLT | 6 | ADD TO CART | |
| 4 | 0040008000 | WASHER, LOCK | 6 | ADD TO CART | |
| 5 | B0130101003 | STATOR ASSY. | 1 | ADD TO CART | |
| 5-1 | 0845041904 | GROMMET | 1 | ADD TO CART | |
| 6 | 8351350103A | FIELD ASSY. EXCITER | 1 | REPLACES P/N 8431350003 | ADD TO CART |
| 7 | 0016008045 | HEX. SOCKET HEAD CAP SCREW | 3 | ADD TO CART | |
| 8 | 0042508000 | WASHER, LOCK | 3 | ADD TO CART | |
| 9 | 8351315003 | END BRACKET | 1 | ADD TO CART | |
| 10 | 0017108035 | HEX. HEAD BOLT | 6 | ADD TO CART | |
| 11 | 8351312004 | PACKING | 1 | ADD TO CART | |
| 12 | 8351331004 | COVER, SUCTION | 1 | ADD TO CART | |
| 13 | 0017106016 | HEX. HEAD BOLT | 3 | ADD TO CART | |
| 14 | 012010030 | HEX. HEAD BOLT | 6 | REPLACES P/N 0012810030 | ADD TO CART |
| 16 | B0155400204 | COVER, FAN | 1 | ADD TO CART | |
| 17 | 0340406040 | HEX. HEAD BOLT | 1 | ADD TO CART | |
| 18 | 952404470 | WASHER, FLAT | 1 | REPLACES P/N 0041206000 | ADD TO CART |
| 19 | 0805083204 | RUBBER SUSPENSION | 2 | REPLACES P/N M9312600004 | ADD TO CART |
| 20 | 021112140 | HEX. NUT | 2 | REPLACES P/N 0207010000 | ADD TO CART |
| 21 | 0601815000 | NUT | 1 | PARTS REQUEST | |
|
COMING NUT
0601815000 · qty on machine: 1 | |||||
Page 8 — CONTROL PANEL ASSY.
Parts list — exactly as printed44 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | M0224000023 | CONTROL PANEL | 1 | S/N 8710435 AND BELOW | PARTS REQUEST |
|
COMING CONTROL PANEL
M0224000023 · qty on machine: 1 S/N 8710435 AND BELOW | |||||
| 1 | M0224000033 | CONTROL PANEL | 1 | S/N 8710436 AND ABOVE | PARTS REQUEST |
|
COMING CONTROL PANEL
M0224000033 · qty on machine: 1 S/N 8710436 AND ABOVE | |||||
| 1A | 0207003000 | HEX NUT | 4 | S/N 8710436 AND ABOVE | ADD TO CART |
| 2 | 0601800455 | FREQUENCY METER, 240V 45~65HZ | 1 | ADD TO CART | |
| 2A | 0207003000 | HEX. NUT | 3 | ADD TO CART | |
| 3 | 0601805745 | AC AMMETER, 0~75/5A | 1 | ADD TO CART | |
| 3A | 0207003000 | HEX. NUT | 3 | ADD TO CART | |
| 4 | 0601800281 | AC VOLTMETER, 0~150/300V | 1 | ADD TO CART | |
| 4A | 0207003000 | HEX. NUT | 3 | ADD TO CART | |
| 5 | 0601840073 | RHEOSTAT, VOLTAGE REG., 2W 1K OHM | 1 | ADD TO CART | |
| 6 | 0601840100 | KNOB, RHEOSTAT | 1 | REPLACES P/N 0601840121 | ADD TO CART |
| 7 | 0601808803 | CIRCUIT BREAKER, 1P 20A | 1 | ADD TO CART | |
| 8 | Y0601870454 | CIRCUIT BREAKER, 1P 30A | 1 | S/N 8710418 AND BELOW | ADD TO CART |
| 8 | Y0601870456 | CIRCUIT BREAKER, 1P 30A | 1 | S/N 8710419 AND ABOVE | ADD TO CART |
| 8A | Y0222900050 | RUBBER SEAL | 1 | PARTS REQUEST | |
|
COMING RUBBER SEAL
Y0222900050 · qty on machine: 1 | |||||
| 9 | 0601808808 | CIRCUIT BREAKER, 2P 30A | 1 | ADD TO CART | |
| 10 | 0601808809 | CIRCUIT BREAKER, 2P 45A | 1 | ADD TO CART | |
| 11 | M0261600004 | BRACKET FITTING COVER | 1 | PARTS REQUEST | |
|
COMING BRACKET FITTING COVER
M0261600004 · qty on machine: 1 | |||||
| 11A | 0222100120 | RUBBER CUSHION | 1 | ADD TO CART | |
| 12 | 0021806015 | MACHINE SCREW | 2 | ADD TO CART | |
| 13 | 1628663602 | STARTER SWITCH ASSY | 1 | REPLACES P/N 3741059113 | ADD TO CART |
| 13A | 3741055150 | KEY | 1 | ADD TO CART | |
| 14 | 0601810523 | WARNING LAMP UNIT | 1 | ADD TO CART | |
| 14A | 0601810830 | BULB | 4 | ADD TO CART | |
| 15 | 0601800682 | HOUR METER, DC10~32V | 1 | ADD TO CART | |
| 15A | 0021003010 | MACHINE SCREW | 2 | ADD TO CART | |
| 15B | 0207003000 | HEX NUT | 2 | ADD TO CART | |
| 16 | 0605010060 | HINGE | 2 | ADD TO CART | |
| 17 | 0027103010 | MACHINE SCREW | 8 | REPLACES P/N 0021103010 | ADD TO CART |
| 18 | 0021506030 | MACHINE SCREW | 2 | REPLACES P/N 0021806030 | ADD TO CART |
| 19 | Y0601808830 | CIRCUIT BREAKER, 3P 45A | 1 | ADD TO CART | |
| 19A | Y0013202100 | HEX. HEAD BOLT | 6 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0013202100 · qty on machine: 6 | |||||
| 20 | 0021004070 | MACHINE SCREW | 2 | ADD TO CART | |
| 21 | 0601801123 | CRNT. TRANSFORMER, AMMETER, 150/5A | 1 | ADD TO CART | |
| 22 | 0027105015 | MACHINE SCREW | 2 | ADD TO CART | |
| 23 | 0601842384 | RESISTOR, 20W 50 OHM | 1 | ADD TO CART | |
| 24 | 0027104015 | MACHINE SCREW | 2 | ADD TO CART | |
| 25 | 0601820038 | RECTIFIER | 1 | ADD TO CART | |
| 26 | 0027104020 | MACHINE SCREW | 1 | ADD TO CART | |
| 27 | 0601820663 | AUTOMATIC VOLTAGE REGULATOR | 1 | ADD TO CART | |
| 27A | 0601806642 | FUSE, 250V 5A | 1 | REPLACES P/N 0601806682 | ADD TO CART |
| 28 | 0027105015 | MACHINE SCREW | 4 | ADD TO CART | |
| 29 | 0601815759 | TERMINAL BOARD | 1 | ADD TO CART | |
| 30 | 0027104020 | MACHINE SCREW | 2 | ADD TO CART | |
Page 10 — CONTROL PANEL ASSY. (CONT'D.)
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 31 | 1G38560601 | ENGINE CONTROL UNIT | 1 | REPLACES P/N Y0602202634 | ADD TO CART |
| 32 | 0021005050 | MACHINE SCREW | 2 | ADD TO CART | |
| 32A | 0032005000 | WASHER, LOCK | 2 | REPLACES P/N 0040005000 | ADD TO CART |
| 32B | 0401450050 | WASHER, FLAT | 2 | REPLACES P/N 0041205000 | ADD TO CART |
| 33 | M0261200004 | FUSE BOX | 1 | PARTS REQUEST | |
|
COMING FUSE BOX
M0261200004 · qty on machine: 1 | |||||
| 33A | 0601806642 | FUSE, 5A | 5 | ADD TO CART | |
| 33B | 0601806645 | FUSE, 10A | 4 | ADD TO CART | |
| 33C | M9521000204 | DECAL: FUSE BOX | 1 | ADD TO CART | |
| 34 | 0027105015 | MACHINE SCREW | 2 | ADD TO CART | |
| 35 | RP42153730 | RELAY ASSY | 1 | REPLACES P/N Y0602202635 | ADD TO CART |
| 36 | 6888153542 | RELAY | 1 | REPLACES P/N 0602202566 | ADD TO CART |
| 37 | 0027104020 | MACHINE SCREW | 2 | ADD TO CART | |
| 38 | 0601806640 | FUSE, 65A | 1 | ADD TO CART | |
| 39 | 0601830727 | SWITCH, IDLE CONTROL | 1 | REPLACES P/N 0601830708 | ADD TO CART |
| 39A | Y0601831978 | INSTALLATION RING | 1 | PARTS REQUEST | |
|
COMING INSTALLATION RING
Y0601831978 · qty on machine: 1 | |||||
| 40 | M0214000003 | CONTROL BOX | 1 | PARTS REQUEST | |
|
COMING CONTROL BOX
M0214000003 · qty on machine: 1 | |||||
| 41 | 011008020 | HEX. HEAD BOLT | 4 | REPLACES P/N 0017108020 | ADD TO CART |
| 42 | M0247700110 | GENERATOR WIRE HARNESS | 1 | PARTS REQUEST | |
|
COMING GENERATOR WIRE HARNESS
M0247700110 · qty on machine: 1 | |||||
| 43 | M0358200100 | ENGINE WIRE HARNESS | 1 | ADD TO CART | |
Page 12 — OUTPUT RECEPTACLE ASSY.
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 0601815109 | GROUND TERMINAL | 1 | ADD TO CART | |
| 2 | Y0601814024 | RECEPTACLE, GFRST20DEN | 1 | S/N 8710628 AND BELOW | PARTS REQUEST |
|
COMING RECEPTACLE, GFRST20DEN
Y0601814024 · qty on machine: 1 S/N 8710628 AND BELOW | |||||
| 2 | Y0601814034 | RECEPTACLE, GFWR2-E | 1 | S/N 8710629 AND ABOVE | ADD TO CART |
| 3 | 0601811031 | RECEPTACLE, L5-30R | 1 | REPLACES P/N 0601811035 | ADD TO CART |
| 4 | 0601811033 | RECEPTACLE, L6-30R | 1 | ADD TO CART | |
| 5 | 0601814014 | RECEPTACLE, CS-639L | 1 | ADD TO CART | |
| 6 | 0027104015 | MACHINE SCREW | 8 | ADD TO CART | |
| 6A | 0207004000 | HEX NUT | 8 | ADD TO CART | |
Page 14 — ENGINE AND RADIATOR ASSY.
Parts list — exactly as printed34 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | D1503M | ENGINE, KUBOTA | 1 | REPLACES P/N M0924200014 | PARTS REQUEST |
|
COMING ENGINE, KUBOTA
D1503M · qty on machine: 1 REPLACES P/N M0924200014 | |||||
| 1A | 1G38297010 | FAN BELT | 1 | REPLACES P/N Y0602015260 | ADD TO CART |
| 1-1 | HH16432430 | CARTRIDGE, OIL FILTER | 1 | REPLACES P/N Y0602041279 | ADD TO CART |
| 2 | M0304200104 | ENGINE FOOT | 1 | PARTS REQUEST | |
|
COMING ENGINE FOOT
M0304200104 · qty on machine: 1 | |||||
| 3 | 012212025 | HEX. HEAD BOLT | 7 | REPLACES P/N 0012412025 | ADD TO CART |
| 4 | 9312600104 | RUBBER SUSPENSION | 2 | ADD TO CART | |
| 5 | 021112140 | HEX. NUT | 2 | REPLACES P/N 0207010000 | ADD TO CART |
| 6 | 0602012733 | RADIATOR | 1 | ADD TO CART | |
| 6-1 | 0602011079 | CAP, RADIATOR | 1 | ADD TO CART | |
| 7 | 0220300400 | RUBBER SEAL | 2 | ADD TO CART | |
| 8 | M0311200004 | BRACKET, RADIATOR | 1 | ADD TO CART | |
| 9 | 011208030 | HEX. HEAD BOLT | 2 | REPLACES P/N 0016908030 | ADD TO CART |
| 10 | M0311200203 | BRACKET, RADIATOR | 1 | ADD TO CART | |
| 11 | M9312200104 | MOUNT RUBBER | 2 | ADD TO CART | |
| 12 | 011008020 | HEX. HEAD BOLT | 5 | REPLACES P/N 0016908020 | ADD TO CART |
| 13 | M0311500203 | RADIATOR HOSE | 1 | ADD TO CART | |
| 14 | B0311500903 | RADIATOR HOSE | 1 | REPLACES P/N M0311500303 | ADD TO CART |
| 15 | 0605515149 | HOSE BAND | 2 | ADD TO CART | |
| 16 | M0311300103 | FAN GUARD | 1 | ADD TO CART | |
| 17 | 011008020 | HEX. HEAD BOLT | 3 | REPLACES P/N 0016908020 | ADD TO CART |
| 18 | 0602046268 | AIR CLEANER | 1 | ADD TO CART | |
| 18A | 0602046335 | ELEMENT, AIR CLEANER | 1 | ADD TO CART | |
| 19 | M0375200103 | BAND, AIR CLEANER | 1 | PARTS REQUEST | |
|
COMING BAND, AIR CLEANER
M0375200103 · qty on machine: 1 | |||||
| 20 | 011208030 | HEX. HEAD BOLT | 1 | REPLACES P/N 0016908030 | ADD TO CART |
| 21 | M0374200004 | BRACKET, AIR CLEANER | 1 | PARTS REQUEST | |
|
COMING BRACKET, AIR CLEANER
M0374200004 · qty on machine: 1 | |||||
| 22 | 011008020 | HEX. HEAD BOLT | 2 | REPLACES P/N 0016908020 | ADD TO CART |
| 23 | B1374100503 | HOSE, AIR CLEANER | 1 | REPLACES P/N M0374100103 | ADD TO CART |
| 24 | M0374100204 | HOSE, AIR CLEANER | 1 | PARTS REQUEST | |
|
COMING HOSE, AIR CLEANER
M0374100204 · qty on machine: 1 | |||||
| 25 | 0605515147 | HOSE BAND | 2 | ADD TO CART | |
| 26 | M0322200004 | DRAIN JOINT | 1 | ADD TO CART | |
| 27 | 0602021193 | PACKING | 1 | ADD TO CART | |
| 28 | 1502025103C | DRAIN JOINT | 1 | REPLACES P/N M9200000003 | ADD TO CART |
| 29 | 1622014103 | DRAIN JOINT | 1 | REPLACES P/N M9602000003 | ADD TO CART |
| 30 | 0802011104 | PLUG | 2 | REPLACES P/N M9200200004 | ADD TO CART |
Page 16 — ENGINE AND RADIATOR ASSY. (CONT'D.)
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 31 | 0150000018 | O-RING | 2 | ADD TO CART | |
| 32 | 011206020 | HEX. HEAD BOLT | 4 | REPLACES P/N 0019206020 | ADD TO CART |
| 33 | Y0269200430 | PUSH LOCK HOSE | 1 | PARTS REQUEST | |
|
COMING PUSH LOCK HOSE
Y0269200430 · qty on machine: 1 | |||||
| 35 | 0199900500 | DRAIN HOSE | 1 | ADD TO CART | |
| 36 | 0199900350 | DRAIN HOSE | 1 | ADD TO CART | |
| 37 | 0605515189 | HOSE BAND | 4 | ADD TO CART | |
| 38 | 0802081403D | RESERVE TANK | 1 | REPLACES P/N M9300000003 | ADD TO CART |
| 39 | 0802081104 | CAP, RESERVE TANK | 1 | REPLACES P/N M9300100003 | ADD TO CART |
| 40 | M1318100204 | BRACKET, RESERVE TANK | 1 | ADD TO CART | |
| 41 | 011106015 | HEX. HEAD BOLT | 3 | REPLACES P/N 0017106015 | ADD TO CART |
| 42 | 0199900450 | HOSE | 1 | ADD TO CART | |
| 43 | 0605515189 | HOSE BAND | 2 | ADD TO CART | |
| 44 | 0199100215 | HOSE | 1 | ADD TO CART | |
| 45 | M0304200004 | ENGINE FOOT | 1 | PARTS REQUEST | |
|
COMING ENGINE FOOT
M0304200004 · qty on machine: 1 | |||||
| 46 | 0605515149 | HOSE BAND | 2 | ADD TO CART | |
| 47 | 0012410025 | HEX. HEAD BOLT | 1 | ADD TO CART | |
| 48 | M9200100904 | PLUG | 1 | ADD TO CART | |
| 49 | 0605515199 | HOSE BAND | 1 | ADD TO CART | |
| 50 | 0150000016 | O-RING | 1 | ADD TO CART | |
| 51 | 0019208020 | HEX HEAD BOLT | 2 | ADD TO CART | |

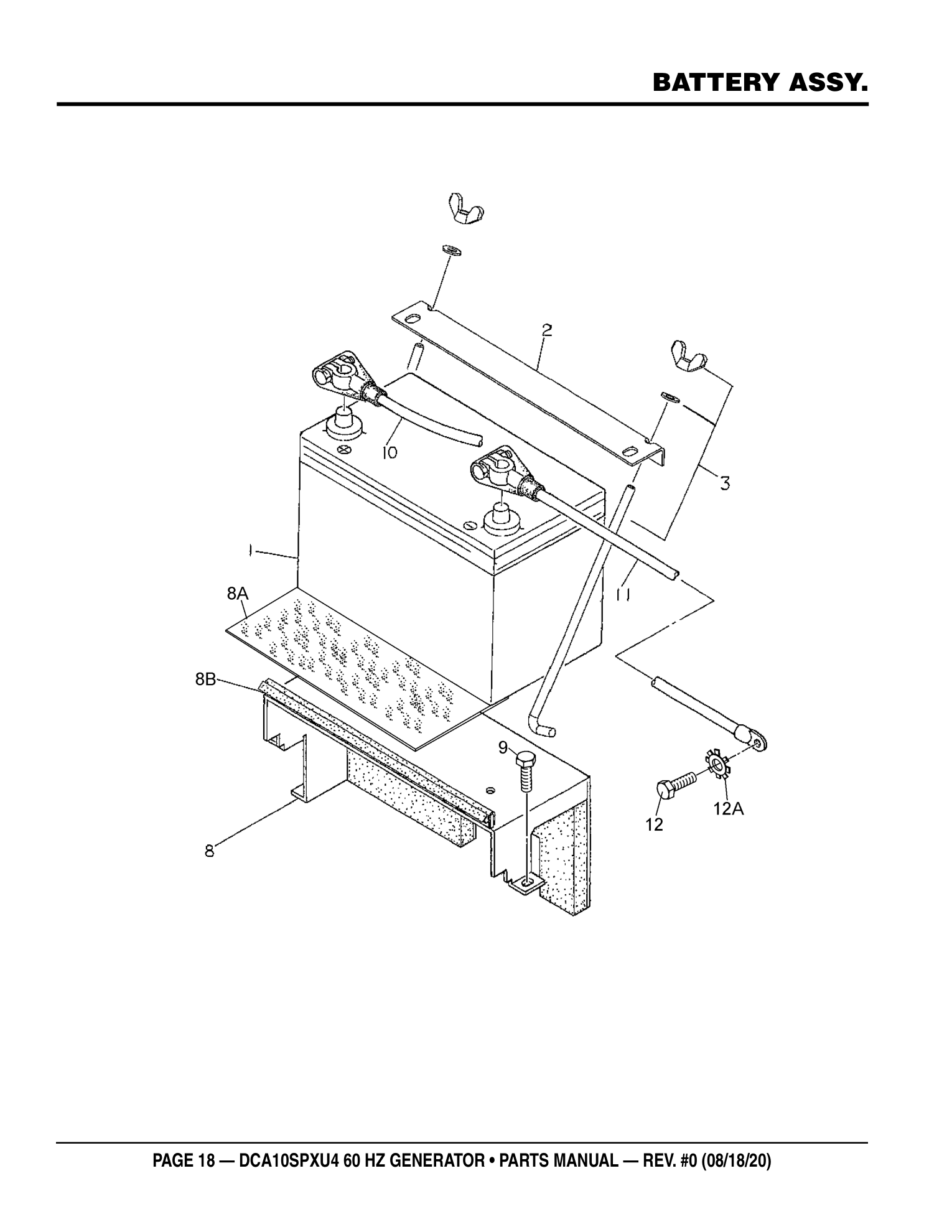

Page 18 — BATTERY ASSY.
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 0602220193 | BATTERY | 1 | ADD TO CART | |
| 2 | M0484600004 | BATTERY BAND | 1 | PARTS REQUEST | |
|
COMING BATTERY BAND
M0484600004 · qty on machine: 1 | |||||
| 3 | 0602220920 | BATTERY BOLT W/HARDWARE | 2 | ADD TO CART | |
| 8 | M0344000003 | BATTERY BASE | 1 | PARTS REQUEST | |
|
COMING BATTERY BASE
M0344000003 · qty on machine: 1 | |||||
| 8A | M0494000204 | ACOUSTIC SHEET | 1 | ADD TO CART | |
| 8B | 0314200350 | RUBBER SEAL | 1 | ADD TO CART | |
| 9 | 011008020 | HEX. HEAD BOLT | 3 | REPLACES P/N 0017108020 | ADD TO CART |
| 10 | M0348200004 | BATTERY CABLE, POSITIVE | 1 | ADD TO CART | |
| 11 | M0347200004 | BATTERY CABLE, NEGATIVE | 1 | ADD TO CART | |
| 12 | 012212025 | HEX HEAD BOLT | 1 | REPLACES P/N 0012412025 | ADD TO CART |
| 12A | 0040512000 | TOOTHED WASHER | 1 | ADD TO CART | |
Page 20 — MUFFLER ASSY.
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | M0331100203 | MUFFLER | 1 | PARTS REQUEST | |
|
COMING MUFFLER
M0331100203 · qty on machine: 1 | |||||
| 2 | 011008020 | HEX. HEAD BOLT | 5 | REPLACES P/N 0016908020 | ADD TO CART |
| 3 | M0334000103 | EXHAUST PIPE | 1 | PARTS REQUEST | |
|
COMING EXHAUST PIPE
M0334000103 · qty on machine: 1 | |||||
| 4 | 1526312370 | GASKET | 1 | REPLACES P/N 1526312371 | ADD TO CART |
| 5 | Y0207008000 | HEX. NUT | 4 | ADD TO CART | |
| 6 | 0602325094 | PIPE BAND | 1 | ADD TO CART | |
| 7 | 0341510040 | HEX. HEAD BOLT | 2 | ADD TO CART | |
| 7A | 0042410000 | WASHER, FLAT | 2 | ADD TO CART | |
| 7B | 0207110000 | NUT | 2 | ADD TO CART | |
Page 22 — FUEL TANK ASSY.
Parts list — exactly as printed32 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | B0364000703 | FUEL TANK | 1 | REPLACES P/N M0364000003 INCLUDES ITEMS W/# | ADD TO CART |
| 1-1# | W0810105000 | CAP, FUEL TANK | 1 | ADD TO CART | |
| 1-2# | 0810105400 | FUEL FILTER | 1 | ADD TO CART | |
| 2 | M0364300103 | FUEL TANK BASE | 1 | PARTS REQUEST | |
|
COMING FUEL TANK BASE
M0364300103 · qty on machine: 1 | |||||
| 3 | 011008020 | HEX. HEAD BOLT | 4 | REPLACES P/N 0017108020 | ADD TO CART |
| 4 | 0222100300 | TANK SHEET | 2 | ADD TO CART | |
| 5 | M0365200004 | TANK BAND | 2 | PARTS REQUEST | |
|
COMING TANK BAND
M0365200004 · qty on machine: 2 | |||||
| 6 | M9310500104 | PAD, TANK BAND | 4 | ADD TO CART | |
| 7 | 011008020 | HEX. HEAD BOLT | 2 | REPLACES P/N 0016908020 | ADD TO CART |
| 8 | 0207308000 | HEX. NUT | 2 | ADD TO CART | |
| 9 | 7812014003B | DRAIN JOINT | 1 | REPLACES P/N M2320300103 | ADD TO CART |
| 10 | 0802011104 | PLUG | 1 | REPLACES P/N M9200200004 | ADD TO CART |
| 11 | 0150000018 | O-RING | 1 | ADD TO CART | |
| 12 | 011206020 | HEX. HEAD BOLT | 2 | REPLACES P/N 0019206020 | ADD TO CART |
| 13 | 0199901200 | DRAIN HOSE | 1 | ADD TO CART | |
| 14 | 0605515198 | HOSE BAND | 2 | ADD TO CART | |
| 15 | 1522143016 | FUEL FILTER | 1 | REPLACES P/N 0602042462 | PARTS REQUEST |
|
COMING FUEL FILTER
1522143016 · qty on machine: 1 REPLACES P/N 0602042462 | |||||
| 15A | 1522143170 | ELEMENT, FUEL FILTER | 1 | REPLACES P/N 0602042551 | ADD TO CART |
| 17 | 011208030 | HEX. HEAD BOLT | 2 | REPLACES P/N 0016908030 | ADD TO CART |
| 19 | 0603325013 | VALVE | 1 | ADD TO CART | |
| 20 | 0602022219 | HOSE JOINT | 1 | ADD TO CART | |
| 21 | 0199900200 | SUCTION HOSE | 1 | ADD TO CART | |
| 22 | Y0199900250 | SUCTION HOSE | 1 | PARTS REQUEST | |
|
COMING SUCTION HOSE
Y0199900250 · qty on machine: 1 | |||||
| 23 | 0199700250 | RETURN HOSE | 1 | ADD TO CART | |
| 24 | 0605515198 | HOSE BAND | 4 | ADD TO CART | |
| 25 | Y0605515104 | HOSE BAND | 2 | ADD TO CART | |
| 26 | M0365400004 | RUBBER SEAL | 1 | ADD TO CART | |
| 27 | M0364400004 | RUBBER SEAL | 1 | ADD TO CART | |
| 28 | M0484300004 | BRACKET | 1 | PARTS REQUEST | |
|
COMING BRACKET
M0484300004 · qty on machine: 1 | |||||
| 29 | 011106015 | HEX. HEAD BOLT | 2 | REPLACES P/N 0017106015 | ADD TO CART |
| 30 | 0220300160 | RUBBER SEAL | 1 | ADD TO CART | |
| 31 | Y0411100100 | EDGE TRIM | 1 | PARTS REQUEST | |
|
COMING EDGE TRIM
Y0411100100 · qty on machine: 1 | |||||
Page 24 — ENCLOSURE ASSY.
Parts list — exactly as printed43 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | M0414000102 | BASE | 1 | PARTS REQUEST | |
|
COMING BASE
M0414000102 · qty on machine: 1 | |||||
| 2 | 0601850239 | GROMMET | 1 | ADD TO CART | |
| 3 | M0414800004 | COVER | 1 | PARTS REQUEST | |
|
COMING COVER
M0414800004 · qty on machine: 1 | |||||
| 4 | 0016906016 | HEX. HEAD BOLT | 2 | ADD TO CART | |
| 5 | M0424000112 | FRONT FRAME | 1 | ADD TO CART | |
| 5A | M0494100514 | ACOUSTIC SHEET | 1 | ADD TO CART | |
| 5B | 0315900475 | RUBBER SEAL | 2 | ADD TO CART | |
| 6 | 0019208020 | HEX. HEAD BOLT | 3 | ADD TO CART | |
| 7 | 011008020 | HEX. HEAD BOLT | 2 | REPLACES P/N 0016908020 | ADD TO CART |
| 8 | M0485400004 | COVER, FRONT FRAME | 1 | ADD TO CART | |
| 8A | M0495100104 | ACOUSTIC SHEET | 1 | ADD TO CART | |
| 9 | 0019208020 | HEX. HEAD BOLT | 6 | ADD TO CART | |
| 10 | M0434300203 | HANGER | 1 | PARTS REQUEST | |
|
COMING HANGER
M0434300203 · qty on machine: 1 | |||||
| 11 | M0434300303 | HANGER | 1 | PARTS REQUEST | |
|
COMING HANGER
M0434300303 · qty on machine: 1 | |||||
| 12 | 0012312030 | HEX. HEAD BOLT | 4 | ADD TO CART | |
| 13 | M0444000102 | REAR FRAME | 1 | ADD TO CART | |
| 14 | 011008020 | HEX. HEAD BOLT | 5 | REPLACES P/N 0016908020 | ADD TO CART |
| 15 | M0444300004 | COVER, REAR FRAME | 1 | PARTS REQUEST | |
|
COMING COVER, REAR FRAME
M0444300004 · qty on machine: 1 | |||||
| 16 | 0019208020 | HEX. HEAD BOLT | 6 | ADD TO CART | |
| 17 | M0444200003 | DOOR REAR FRAME | 1 | ADD TO CART | |
| 18 | M0444600004 | WINDOW PLATE | 1 | ADD TO CART | |
| 19 | 0601851613 | STOPPER | 2 | ADD TO CART | |
| 20 | Y0207006000 | HEX. NUT | 2 | ADD TO CART | |
| 21 | 0605010230 | DOOR HANDLE | 1 | ADD TO CART | |
| 22 | 0021805015 | MACHINE SCREW | 4 | ADD TO CART | |
| 23 | M9112100004 | HINGE | 2 | ADD TO CART | |
| 23A | M9118000004 | WASHER | 2 | ADD TO CART | |
| 24 | 0019206016 | HEX. HEAD BOLT | 4 | ADD TO CART | |
| 25 | M0464000102 | ROOF PANEL | 1 | ADD TO CART | |
| 25A | M0494500604 | ACOUSTIC SHEET | 1 | ADD TO CART | |
| 26 | 0019208020 | HEX. HEAD BOLT | 16 | ADD TO CART | |
| 27 | M1465400104 | COVER | 1 | ADD TO CART | |
| 28 | 0019208020 | HEX. HEAD BOLT | 2 | ADD TO CART | |
| 29 | M0454100103 | SIDE PANEL | 1 | ADD TO CART | |
| 29A | M0494401804 | ACOUSTIC SHEET | 1 | ADD TO CART | |
| 30 | Y0019208035 | HEX. HEAD BOLT | 6 | ADD TO CART | |
| 31 | M0454300404 | DUCT | 1 | PARTS REQUEST | |
|
COMING DUCT
M0454300404 · qty on machine: 1 | |||||
| 31A | M0494400204 | LINING | 1 | ADD TO CART | |
| 32 | Y0207006000 | HEX. NUT | 6 | ADD TO CART | |
| 33 | M0454000213 | SIDE DOOR | 1 | PARTS REQUEST | |
|
COMING SIDE DOOR
M0454000213 · qty on machine: 1 | |||||
| 33A | M0494401204 | ACOUSTIC SHEET | 1 | ADD TO CART | |
| 34 | M0454000303 | SIDE DOOR | 1 | PARTS REQUEST | |
|
COMING SIDE DOOR
M0454000303 · qty on machine: 1 | |||||
| 34A | M0494401704 | ACOUSTIC SHEET | 1 | ADD TO CART | |
Page 26 — ENCLOSURE ASSY. (CONT'D.)
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 35 | M0454300304 | DUCT | 1 | PARTS REQUEST | |
|
COMING DUCT
M0454300304 · qty on machine: 1 | |||||
| 36 | Y0207006000 | HEX. NUT | 5 | ADD TO CART | |
| 37 | Y0605012309 | DOOR HANDLE | 1 | ADD TO CART | |
| 38 | Y0207006000 | HEX NUT | 4 | ADD TO CART | |
| 39 | M9110100304 | HINGE, MALE (R) | 2 | ADD TO CART | |
| 39A | M9116100004 | WASHER | 2 | ADD TO CART | |
| 40 | M9110100204 | HINGE, MALE (L) | 2 | ADD TO CART | |
| 40A | M9116100004 | WASHER | 2 | ADD TO CART | |
| 41 | 0019208020 | HEX. HEAD BOLT | 8 | ADD TO CART | |
| 42 | M9310000004 | CAP | 4 | PARTS REQUEST | |
|
COMING CAP
M9310000004 · qty on machine: 4 | |||||
| 44 | M1278200004 | PLATE | 1 | ADD TO CART | |
| 45 | 0016906015 | HEX. HEAD BOLT | 4 | ADD TO CART | |
| 46 | 0019208020 | HEX. HEAD BOLT | 1 | ADD TO CART | |
| 47 | M0454400004 | WINDOW PLATE | 1 | ADD TO CART | |
| 47A | Y0279100210 | DOUBLE SIDED TAPE | 1 | NO LONGER AVAILABLE | |
|
COMING DOUBLE SIDED TAPE
Y0279100210 · qty on machine: 1 NO LONGER AVAILABLE
| |||||
| 48 | 0027103010 | MACHINE SCREW | 4 | ADD TO CART | |
| 48A | 0207003000 | HEX. NUT | 4 | ADD TO CART | |
| 49 | 0600500092 | EMBLEM | 1 | REPLACES P/N Y0600500092 | ADD TO CART |
| 50 | 0021106015 | MACHINE SCREW | 2 | ADD TO CART | |
| 51 | M0444300104 | DUCT | 1 | PARTS REQUEST | |
|
COMING DUCT
M0444300104 · qty on machine: 1 | |||||
| 52 | Y0207006000 | HEX. NUT | 4 | ADD TO CART | |
Page 28 — RUBBER SEALS ASSY.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 0229200650 | RUBBER SEAL | 1 | ADD TO CART | |
| 2 | 0229400695 | RUBBER SEAL | 2 | ADD TO CART | |
| 3 | 0221700900 | RUBBER SEAL | 2 | ADD TO CART | |
| 4 | 0221700640 | RUBBER SEAL | 2 | ADD TO CART | |
| 5 | 0229400920 | RUBBER SEAL | 2 | ADD TO CART | |
| 6 | 0229200590 | RUBBER SEAL | 2 | ADD TO CART | |
| 7 | 0229200255 | RUBBER SEAL | 2 | ADD TO CART | |
| 8 | 0229400545 | RUBBER SEAL | 1 | ADD TO CART | |
| 9 | 0229400250 | RUBBER SEAL | 2 | ADD TO CART | |
| 11 | 0227500380 | RUBBER SEAL | 2 | ADD TO CART | |
| 12 | 0227500080 | RUBBER SEAL | 2 | ADD TO CART | |
| 14 | 0229400660 | RUBBER SEAL | 1 | ADD TO CART | |
Page 30 — NAMEPLATE AND DECALS ASSY.
Parts list — exactly as printed48 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | M9520000004 | DECAL: GROUND | 1 | M92000000 | ADD TO CART |
| 2 | M9501500004 | DECAL: DIESEL FUEL | 1 | M90150000 | ADD TO CART |
| 3 | M9502500104 | DECAL: FUEL GAUGE | 1 | M90250010 | ADD TO CART |
| 4 | M9500100004 | DECAL: WATER | 1 | M90010000 | ADD TO CART |
| 5 | M9500500104 | DECAL: FUEL DRAIN PLUG | 1 | M90050010 | ADD TO CART |
| 6 | M9500100104 | DECAL: WATER DRAIN PLUG | 1 | M90010010 | ADD TO CART |
| 7 | M9500000004 | DECAL: OIL DRAIN PLUG | 1 | M90000000 | ADD TO CART |
| 8 | M9500300104 | DECAL: + | 1 | M90030010 | ADD TO CART |
| 9 | M9500300004 | DECAL: − | 1 | M90030000 | ADD TO CART |
| 10 | M9512000004 | DECAL: SUPPORT HOOK | 2 | M91200000 | ADD TO CART |
| 11 | M9503000103 | DECAL: WATER-OIL CHK. AND FILL DAILY | 1 | M90300010 | ADD TO CART |
| 12 | M9522000504 | DECAL: CIRCUIT BREAKER | 1 | M92200050 | ADD TO CART |
| 13 | M9511200204 | DECAL: MQ POWER | 1 | M91120020 | ADD TO CART |
| 14 | M9502500004 | DECAL: FUEL COCK | 1 | M90250000 | ADD TO CART |
| 15 | M9522000604 | DECAL: VOLTAGE REGULATOR | 1 | M92200060 | ADD TO CART |
| 16 | M9522001504 | DECAL: GROUND FOR G.F.C.I. | 1 | M92200150 | ADD TO CART |
| 17 | M9501400014 | DECAL: SPEED CONTROL SWITCH | 1 | M90140001 | ADD TO CART |
| 18 | M9522100004 | DECAL: DANGER HIGH VOLTAGE | 1 | M92210000 | ADD TO CART |
| 19 | M9502400004 | DECAL: STARTER SWITCH | 1 | M90240000 | PARTS REQUEST |
|
COMING DECAL: STARTER SWITCH
M9502400004 · qty on machine: 1 M90240000 | |||||
| 20 | M0551000103 | DECAL: OPERATING PROCEDURE | 1 | M05100010 | ADD TO CART |
| 21 | M9510100004 | DECAL: CAUTION HOT PARTS | 1 | M91010000 | ADD TO CART |
| 22 | M9503000004 | DECAL: WARNING ROTATING PARTS | 1 | M90300000 | ADD TO CART |
| 23 | M9503100004 | DECAL: RADIATOR CAP | 1 | M90310000 | ADD TO CART |
| 24 | M9503200004 | DECAL: WARNING ENGINE EXHAUST | 1 | M90320000 | ADD TO CART |
| 25 | M9520100503 | DECAL: WARNING INTERIOR WIRING | 1 | M91010020 | ADD TO CART |
| 26 | M0551000203 | DECAL: AC POWER OUTPUT | 1 | M05100020 | PARTS REQUEST |
|
COMING DECAL: AC POWER OUTPUT
M0551000203 · qty on machine: 1 M05100020 | |||||
| 27 | M9520100004 | DECAL: WARNING ELECT. SHK. HAZARD | 1 | M92010000 | ADD TO CART |
| 28 | M9504300004 | DECAL: DANGER EXPLOSIVE GASES | 1 | ADD TO CART | |
| 29 | M0562100003 | STRIPE: WHISPERWATT | 1 | M06210000 | ADD TO CART |
| 30 | M0561100804 | STRIPE: MQ POWER | 1 | M06110080 | ADD TO CART |
| 31 | M0561101004 | STRIPE | 1 | ADD TO CART | |
| 32 | M0561100304 | STRIPE | 1 | ADD TO CART | |
| 33 | M0561100904 | STRIPE | 1 | ADD TO CART | |
| 34 | M0561101304 | STRIPE | 1 | ADD TO CART | |
| 35 | M0561101204 | STRIPE | 1 | ADD TO CART | |
| 36 | M0561101104 | STRIPE | 1 | ADD TO CART | |
| 37 | M0561100404 | STRIPE | 1 | ADD TO CART | |
| 38 | M9503200104 | DECAL: DANGER EX. GAS | 1 | M90320010 | ADD TO CART |
| 39 | M9531100004 | DECAL: DANGER | 1 | M93110000 | ADD TO CART |
| 40 | M9503500004 | DECAL: WARNING FIRE ACCIDENT | 1 | M90350000 | ADD TO CART |
| 41 | M9504000004 | DECAL: CAUTION | 1 | M90400000 | PARTS REQUEST |
|
COMING DECAL: CAUTION
M9504000004 · qty on machine: 1 M90400000 | |||||
| 42 | M9504400004 | DECAL: CAUTION DOOR | 1 | M90440000 | ADD TO CART |
| 43 | M9521000104 | DECAL: G.F.C.I. | 2 | M92100010 | ADD TO CART |
| 44 | M0551000304 | DECAL: MAX CAPACITY OF LIFTING | 1 | M05100030 | ADD TO CART |
| 45 | M9542000004 | DECAL: WARNING START FIRES | 1 | M90420000 | PARTS REQUEST |
|
COMING DECAL: WARNING START FIRES
M9542000004 · qty on machine: 1 M90420000 | |||||
| 46 | M0561000004 | DECAL: MQ STICKER 10 KW | 1 | M06100000 | PARTS REQUEST |
|
COMING DECAL: MQ STICKER 10 KW
M0561000004 · qty on machine: 1 M06100000 | |||||
| 47 | M9511200103 | DECAL: TIER 4F | 1 | M91120010 | ADD TO CART |
| 48 | M9504200104 | DECAL: WARNING PROPOSITION | 65 | 1 M90420010 S/N 8710563~ | ADD TO CART |
The machine itself
Price by quote
Get a quote
Tell us where the machine is headed and we'll quote it with freight. One call, no games.
Machine
Engine
The Multiquip DCA10SPXU4 is a generator built for portable jobsite power for tools, lighting, and equipment. Factory-documented specs and parts support; priced by quote.
Keep-it-running spares
All listed parts →Every part that fits this machine
0601800281
Multiquip 0601800281 Voltmeter AC BLW-400SSW - OEM Replacement Part
$83.95
0601800682
Multiquip 0601800682 Hour Meter Denyo - OEM Replacement Part
$116.95
0601801123
Multiquip 0601801123 Transformer Current Ammeter 150/5 Ratio - OEM Replacement Part
$221.95
0601805745
Multiquip 0601805745 AC Ammeter - OEM Replacement Part
$105.95
0601808808
Multiquip 0601808808 Circuit Breaker Denyo - OEM Replacement Part
$249.95
0601808809
Multiquip 0601808809 Circuit Breaker DENYO - OEM Replacement Part
$137.95
0601810523
Multiquip 0601810523 Indicator Assembly TLW-300SS - OEM Replacement Part
$154.95
0601811031
Multiquip 0601811031 NEMA L5-30R 30A 125V Twist-Lock Output Receptacle - OEM Replacement Part
$46.95
0601814014
Multiquip 0601814014 GFCI Receptacle - OEM Replacement Part
$90.95
0601815109
Multiquip 0601815109 Terminal Grounding - OEM Replacement Part for Super Silent Generators
$39.95
0601815759
Multiquip 0601815759 Terminal Board BLW-400SSW - OEM Replacement Part
$36.95
0601820663
Multiquip 0601820663 Regulator Auto Voltage TLG-12SPX - OEM Replacement Part
$795.95
0601821374
Multiquip 0601821374 Rectifier Denyo - OEM Replacement Part for Super Silent Generators
$106.95
0601840073
Multiquip 0601840073 Rheostat Voltage Regulator for 150SSK and DCA Series Generators - OEM Replacement Part
$90.95
0601842384
Multiquip 0601842384 Resistor Denyo - OEM Replacement Part
$36.95
0602046335
Multiquip 0602046335 Air Cleaner Element - OEM Replacement Part for Denyo Super Silent Generators
$57.95
0602220193
Multiquip 0602220193 Battery Denyo - OEM Replacement Part
$291.95
0602325094
Multiquip 0602325094 Band Pipe Denyo - OEM Replacement Part
$95.95
0605010230
Multiquip 0605010230 Handle Door TLW-300SS - OEM Replacement Part
$121.95
1628663602
Multiquip 1628663602 Switch Assembly D1403,BLW-400 - OEM Replacement Part
$148.95
1G38560601
Multiquip 1G38560601 Engine Control Unit - OEM Replacement Part
$1,047.95
8001070003
Multiquip 8001070003 Fan DCA-25SSI(II),25SSIU - OEM Replacement Part
$162.95
8351315003
Multiquip 8351315003 Bracket End DCA-25SSI(II) - OEM Replacement Part
$260.95
8351331004
Multiquip 8351331004 Cover Suction DCA-25SSI(II) - OEM Replacement Part
$69.95
8351350103A
Multiquip 8351350103A Field Assy Exciter - OEM Replacement Part for Super Silent Generators
$794.95
8351615003
Multiquip 8351615003 Plate Balancing - OEM Replacement Part for WhisperWatt Generators
$82.95
B0130101003
Multiquip B0130101003 DCA-10SPX3 Generator Assembly - OEM Replacement Part
$4,071.95
B0311500903
Multiquip B0311500903 Lower Hose Radiator 60Hz Generator - OEM Replacement Part
$92.95
B0364000703
Multiquip B0364000703 Fuel Tank (Black) - OEM Replacement Part for Super Silent Generators
$1,271.95
M0311200004
Multiquip M0311200004 Radiator Bracket - OEM Replacement Part for Denyo Super Silent Generators
$171.95
M0311300103
Multiquip M0311300103 Fan Guard Denyo - OEM Replacement Part for Super Silent Generators
$119.95
M0347200004
Multiquip M0347200004 Battery Cable (-) 10SPXU4 - OEM Replacement Part for Super Silent Generators
$56.95
M0358200100
Multiquip M0358200100 Engine Wiring Harness Denyo - OEM Replacement Part
$1,297.95
M0424000112
Multiquip M0424000112 Front Frame (White) Denyo - OEM Replacement Part for Super Silent Generators
$507.95
M0444000102
Multiquip M0444000102 Rear Frame Denyo - OEM Replacement Part for Super Silent Generators
$400.95
M0444200003
Multiquip M0444200003 Door Rear Frame White Denyo - OEM Replacement Part
$138.95
M0454100103
Multiquip M0454100103 Side Door Denyo - OEM Replacement Part for Super Silent Generators
$240.95
M0464000102
Multiquip M0464000102 Roof Panel Denyo - OEM Replacement Part for Super Silent Generators
$481.95
M0494000204
Multiquip M0494000204 Acoustic Sheet Battery Base (2 Pieces) - OEM Replacement Part
$351.95
M0494100514
Multiquip M0494100514 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators
$43.95
M0494400204
Multiquip M0494400204 Acoustic Sheet Side Panel Duct - OEM Replacement Part
$186.95
M0494401204
Multiquip M0494401204 Acoustic Sheet F.S. Door (4 Pieces) - OEM Replacement Part
$633.95
M0494401704
Multiquip M0494401704 Acoustic Sheet Right Side Door - OEM Replacement Part
$364.95
M0494401804
Multiquip M0494401804 Acoustic Sheet Denyo - OEM Replacement Part
$63.95
M0494500604
Multiquip M0494500604 Acoustic Sheet Roof Denyo - OEM Replacement Part
$42.95
M0561100404
Multiquip M0561100404 DENYO Component - OEM Replacement Part for Super Silent Generators
$45.95
M1278200004
Multiquip M1278200004 Plate Denyo - OEM Replacement Part for Super Silent Generators
$42.95
M1318100204
Multiquip M1318100204 Bracket Reserve Tank Denyo - OEM Replacement Part
$77.95
M9200100904
Multiquip M9200100904 Plug Denyo - OEM Replacement Part
$42.95
M9510100004
Multiquip M9510100004 Hot Parts Caution Safety Decal - OEM Replacement Part
$68.95
RP42153730
Multiquip RP42153730 Relay Assembly (JP) - OEM Replacement Part
$281.95
Y0601808830
Multiquip Y0601808830 Circuit Breaker DENYO - OEM Replacement Part for Super Silent Generators
$296.95
Y0601870454
Multiquip Y0601870454 Circuit Breaker DENYO - OEM Replacement Part
$676.95
Y0605012309
Multiquip Y0605012309 Door Handle with Bolts - OEM Replacement Part
$49.95
0012312030
HEX. HEAD BOLT
$6.95
0012410025
HEX. HEAD BOLT
$1.95
0016906015
HEX. HEAD BOLT
$0.95
0016906016
HEX. HEAD BOLT
$0.81
0017106016
HEX. HEAD BOLT
$1.51
0017108035
HEX. HEAD BOLT
$1.95
0019206016
HEX. HEAD BOLT
$2.73
0019208020
HEX HEAD BOLT
$3.95
0021003010
MACHINE SCREW
$0.37
0021004070
MACHINE SCREW
$2.95
0021805015
MACHINE SCREW
$0.58
0021806015
MACHINE SCREW
$0.87
0027103010
MACHINE SCREW
$0.44
0027104015
MACHINE SCREW
$0.53
0027104020
MACHINE SCREW
$0.40
0027105015
MACHINE SCREW
$0.20
0032005000
WASHER, LOCK
$0.41
0040008000
WASHER, LOCK
$0.63
0042410000
WASHER, FLAT
$2.93
0042508000
WASHER, LOCK
$0.62
0042610000
WASHER, LOCK
$0.53
011008020
HEX. HEAD BOLT
$2.68
011106015
HEX. HEAD BOLT
$0.69
011206020
HEX. HEAD BOLT
$0.95
011208030
HEX. HEAD BOLT
$1.30
012010030
HEX. HEAD BOLT
$0.95
012212025
HEX. HEAD BOLT
$1.95
0150000016
O-RING
$1.63
0150000018
O-RING
$1.87
0199100215
HOSE
$3.95
0199700250
RETURN HOSE
$6.95
0199900200
SUCTION HOSE
$6.95
0199900350
DRAIN HOSE
$6.95
0199900500
DRAIN HOSE
$11.95
0207003000
HEX NUT
$0.21
0207004000
HEX NUT
0207110000
NUT
$7.95
021112140
HEX. NUT
$0.46
0220300400
RUBBER SEAL
$22.95
0221700640
RUBBER SEAL
$2.74
0221700900
RUBBER SEAL
$2.95
0222100120
RUBBER CUSHION
$3.95
0227500080
RUBBER SEAL
$2.95
0227500380
RUBBER SEAL
$10.95
0229200255
RUBBER SEAL
$3.95
0229200590
RUBBER SEAL
$11.95
0229200650
RUBBER SEAL
$15.95
0229400250
RUBBER SEAL
$8.95
0229400545
RUBBER SEAL
$10.95
0229400660
RUBBER SEAL
$18.95
0229400695
RUBBER SEAL
$17.95
0229400920
RUBBER SEAL
$23.95
0314200350
RUBBER SEAL
$21.95
0315900475
RUBBER SEAL
$12.95
0340406040
HEX. HEAD BOLT
$2.68
0341510040
HEX. HEAD BOLT
$8.95
042006308
BEARING
$25.95
0600500092
EMBLEM
$21.95
0601000209
BALANCING WEIGHT KIT
$9.95
0601806640
FUSE, 65A
$11.95
0601806642
FUSE, 250V 5A
$2.77
0601806645
FUSE, 10A
$2.90
0601810830
BULB
$8.95
0601820038
RECTIFIER
$18.95
0601822630
SURGE ABSORBER
$19.95
0601830727
SWITCH, IDLE CONTROL
$15.95
0601840100
KNOB, RHEOSTAT
$30.95
0601850239
GROMMET
$3.95
0601851613
STOPPER
$2.95
0602021193
PACKING
$6.95
0602220920
BATTERY BOLT W/HARDWARE
$5.95
0605010060
HINGE
$19.95
0605515147
HOSE BAND
$3.95
0605515149
HOSE BAND
$1.95
0605515189
HOSE BAND
$1.85
0605515198
HOSE BAND
$1.71
0605515199
HOSE BAND
$2.95
0802011104
PLUG
$10.95
0802081403D
RESERVE TANK
0810105400
FUEL FILTER
$9.95
0845041904
GROMMET
$11.95
1502025103C
DRAIN JOINT
$29.95
1522143016
FUEL FILTER
1526312370
GASKET
$13.95
7812014003B
DRAIN JOINT
$25.95
8321000102
ROTOR ASSY
8351312004
PACKING
$21.95
8351611004
COUPLING DISK
$21.95
8351612004
WASHER, COUPLING HUB
$13.95
952404470
WASHER, FLAT
$0.19
BEARING
1
D1503M
ENGINE, KUBOTA
HH16432430
CARTRIDGE, OIL FILTER
$25.95
HOSE
1
M0214000003
CONTROL BOX
M0224000023
CONTROL PANEL
M0261200004
FUSE BOX
M0261600004
BRACKET FITTING COVER
M0304200004
ENGINE FOOT
M0322200004
DRAIN JOINT
$22.95
M0331100203
MUFFLER
M0344000003
BATTERY BASE
M0364300103
FUEL TANK BASE
M0364400004
RUBBER SEAL
$9.95
M0365200004
TANK BAND
M0365400004
RUBBER SEAL
$14.95
M0374100204
HOSE, AIR CLEANER
M0375200103
BAND, AIR CLEANER
M0414000102
BASE
M0414800004
COVER
M0434300203
HANGER
M0434300303
HANGER
M0444300104
DUCT
M0444600004
WINDOW PLATE
$20.95
M0454000213
SIDE DOOR
M0454000303
SIDE DOOR
M0454300304
DUCT
M0454300404
DUCT
M0454400004
WINDOW PLATE
$21.95
M0484300004
BRACKET
M0484600004
BATTERY BAND
M0495100104
ACOUSTIC SHEET
$18.95
M0551000304
DECAL: MAX CAPACITY OF LIFTING
$22.95
M0561000004
DECAL: MQ STICKER 10 KW
M0561100304
STRIPE
$7.95
M0561100904
STRIPE
$7.95
M0561101004
STRIPE
$17.95
M0561101104
STRIPE
$10.95
M0561101204
STRIPE
$7.95
M0561101304
STRIPE
$8.95
M0562100003
STRIPE: WHISPERWATT
$7.95
M1465400104
COVER
$18.95
M9110100204
HINGE, MALE (L)
$23.95
M9110100304
HINGE, MALE (R)
$19.95
M9112100004
HINGE
$12.95
M9116100004
WASHER
$1.93
M9118000004
WASHER
$0.88
M9310000004
CAP
M9310500104
PAD, TANK BAND
$5.95
M9312200104
MOUNT RUBBER
$16.95
M9500000004
DECAL: OIL DRAIN PLUG
$2.95
M9500300004
DECAL: −
$1.95
M9500500104
DECAL: FUEL DRAIN PLUG
$4.95
M9501400014
DECAL: SPEED CONTROL SWITCH
$6.95
M9502400004
DECAL: STARTER SWITCH
M9502500104
DECAL: FUEL GAUGE
$1.80
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
Guide · 2026-08-04
Multiquip DCA Generator Fault Shutdown and Controller Reset Guide
Fix common Multiquip generator problems fast. This practical guide covers fault codes, restart procedures, and maintenance tips for contr...
Read it → Guide · 2026-08-04Multiquip Generator No-Start and No-Power Fixes
Fix common Multiquip generator problems fast. This practical guide covers no-start, low output, overheating, and more for contractors on ...
Read it → Guide · 2026-08-04Multiquip DCA Generator Fault Codes and Diagnostics Guide
Fix common Multiquip generator problems fast. This contractor-focused guide covers fault codes, restart procedures, and when to call a de...
Read it →
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
