Page 6 — GENERATOR ASSY.

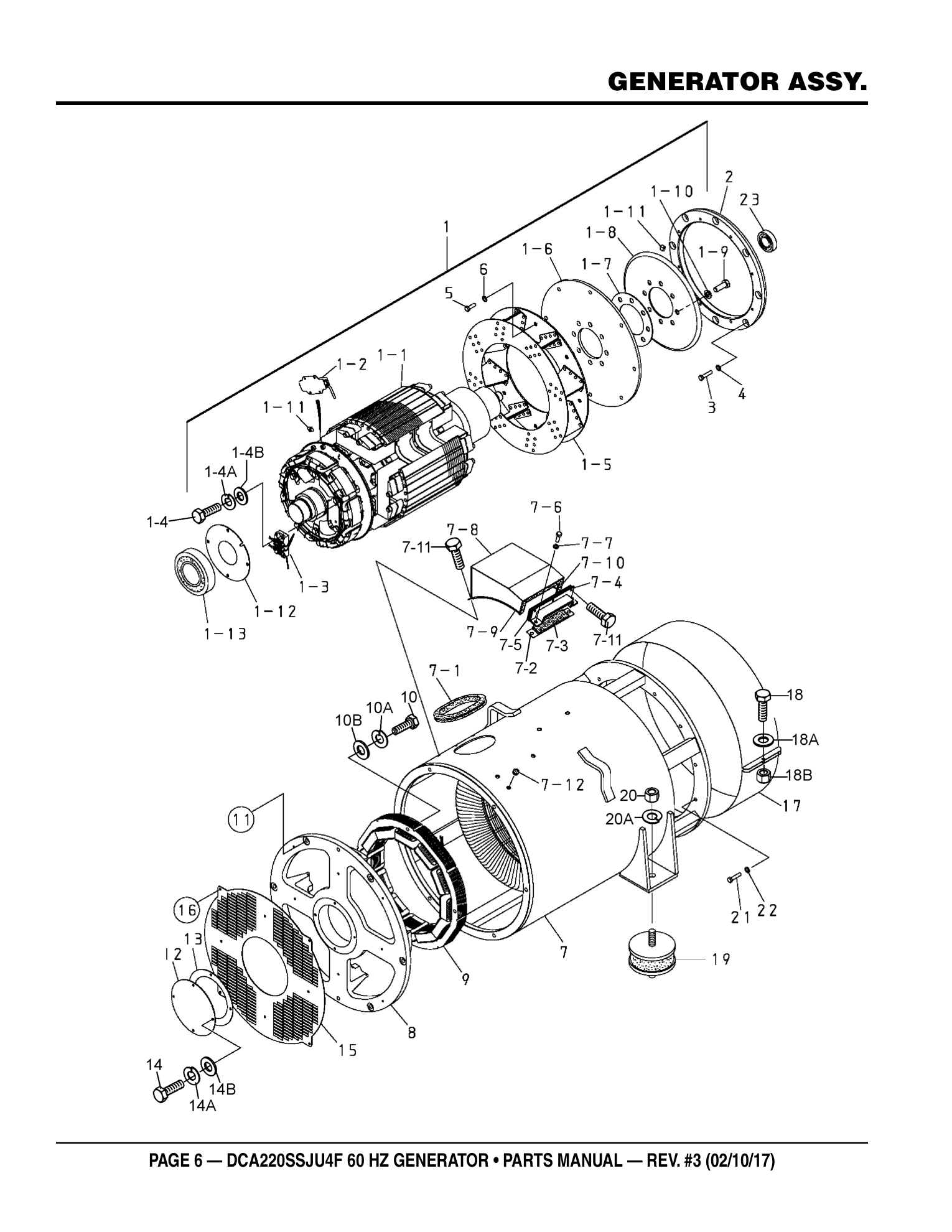

Multiquip DCA220SSJU4F Generator GENERATOR ASSY. parts diagram

Parts list — exactly as printed39 rows

No.	Part No.	Part Name	Qty	Remarks
1	C1110000102	ROTOR ASSY	1	INCLUDES ITEMS W/%	ADD TO CART
ROTOR ASSY C1110000102 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 1-1%, 1-2%, 1-3%, 1-4%, 1-4A%, 1-4B%, 1-5%, 1-6%, 1-7%, 1-8%, 1-9%, 1-10%, 1-11%, 1-12%, 1-13% view full part page → $19002.95 IN A KIT + SOLD SOLO
1-1%		FIELD ASSY.	1		INCLUDED IN KIT
PHOTO COMING FIELD ASSY. · qty on machine: 1 Included in kit 1 - ROTOR ASSY (C1110000102) INCLUDED IN KIT
1-2%	0601842334	RESISTOR, 80W, 100 OHM	1		ADD TO CART
RESISTOR, 80W, 100 OHM 0601842334 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (C1110000102) view full part page → $343.95 IN A KIT + SOLD SOLO
1-3%	0601823282	RECTIFIER	1		NO LONGER AVAILABLE
PHOTO COMING RECTIFIER 0601823282 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (C1110000102) NO LONGER AVAILABLE
1-4%	0018205020	HEX. SOCKET HEAD CAP SCREW	2		ADD TO CART
HEX. SOCKET HEAD CAP SCREW 0018205020 · qty on machine: 2 Also included in kit 1 - ROTOR ASSY (C1110000102) view full part page → $1.55 IN A KIT + SOLD SOLO
1-4A%	0032005000	WASHER, LOCK	2	REPLACES P/N 0040005000	ADD TO CART
WASHER, LOCK 0032005000 · qty on machine: 2 REPLACES P/N 0040005000 Also included in kit 1 - ROTOR ASSY (C1110000102) view full part page → $0.41 IN A KIT + SOLD SOLO
1-4B%	Y004120500	WASHER, FLAT	2		PARTS REQUEST
PHOTO COMING WASHER, FLAT Y004120500 · qty on machine: 2 Also included in kit 1 - ROTOR ASSY (C1110000102) PARTS REQUEST
1-5%	8171070002	FAN	1		ADD TO CART
FAN 8171070002 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (C1110000102) view full part page → $4003.95 IN A KIT + SOLD SOLO
1-6%	8171611003	COUPLING DISK	9		ADD TO CART
COUPLING DISK 8171611003 · qty on machine: 9 Also included in kit 1 - ROTOR ASSY (C1110000102) view full part page → $41.95 IN A KIT + SOLD SOLO
1-7%	C1164200004	WASHER, COUPLING HUB	1		ADD TO CART
WASHER, COUPLING HUB C1164200004 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (C1110000102) view full part page → $81.95 IN A KIT + SOLD SOLO
1-8%	8171015003	BALANCING PLATE	1	ITEM 1-11 MUST BE ORDERED WHEN REPLACING ITEM 1-8	ADD TO CART
BALANCING PLATE 8171015003 · qty on machine: 1 ITEM 1-11 MUST BE ORDERED WHEN REPLACING ITEM 1-8 Also included in kit 1 - ROTOR ASSY (C1110000102) view full part page → $300.95 IN A KIT + SOLD SOLO
1-9%	0012116045	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0012116045 · qty on machine: 8 Also included in kit 1 - ROTOR ASSY (C1110000102) view full part page → $6.95 IN A KIT + SOLD SOLO
1-10%	0042616000	WASHER, LOCK	8		ADD TO CART
WASHER, LOCK 0042616000 · qty on machine: 8 Also included in kit 1 - ROTOR ASSY (C1110000102) view full part page → $1.95 IN A KIT + SOLD SOLO
1-11%	0601000209	BALANCING WEIGHT KIT	1		ADD TO CART
BALANCING WEIGHT KIT 0601000209 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (C1110000102) view full part page → $9.95 IN A KIT + SOLD SOLO
1-12%	C1112500004	BEARING FLANGE	1		ADD TO CART
BEARING FLANGE C1112500004 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (C1110000102) view full part page → $101.95 IN A KIT + SOLD SOLO
1-13%	0071906314	BEARING	1		ADD TO CART
BEARING 0071906314 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (C1110000102) view full part page → $276.95 IN A KIT + SOLD SOLO
2	M4163400003	COUPLING RING	1		PARTS REQUEST
PHOTO COMING COUPLING RING M4163400003 · qty on machine: 1 PARTS REQUEST
3	0343206120	HEX. HEAD BOLT	8		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT 0343206120 · qty on machine: 8 PARTS REQUEST
4	0043606000	WASHER, LOCK	8		PARTS REQUEST
PHOTO COMING WASHER, LOCK 0043606000 · qty on machine: 8 PARTS REQUEST
5	0012112040	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0012112040 · qty on machine: 8 view full part page → $4.95
6	0042512000	WASHER, LOCK	8		ADD TO CART
WASHER, LOCK 0042512000 · qty on machine: 8 view full part page → $0.95
7	C1130100103	STATOR ASSY	1	INCLUDES ITEMS W/#	ADD TO CART
STATOR ASSY C1130100103 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 7-1#, 7-2#, 7-3#, 7-4#, 7-5#, 7-6#, 7-7#, 7-8#, 7-9#, 7-10#, 7-11# view full part page → $22170.95 IN A KIT + SOLD SOLO
7-1#	0226100420	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL 0226100420 · qty on machine: 1 Also included in kit 7 - STATOR ASSY (C1130100103) view full part page → $19.95 IN A KIT + SOLD SOLO
7-2#	8171323004	CLAMPER	1		ADD TO CART
CLAMPER 8171323004 · qty on machine: 1 Also included in kit 7 - STATOR ASSY (C1130100103) view full part page → $51.95 IN A KIT + SOLD SOLO
7-3#	0223300120	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL 0223300120 · qty on machine: 1 Also included in kit 7 - STATOR ASSY (C1130100103) view full part page → $13.95 IN A KIT + SOLD SOLO
7-4#	8171323103	CLAMPER	1		ADD TO CART
CLAMPER 8171323103 · qty on machine: 1 Also included in kit 7 - STATOR ASSY (C1130100103) view full part page → $37.95 IN A KIT + SOLD SOLO
7-5#	Y0223100150	RUBBER SEAL	1		PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0223100150 · qty on machine: 1 Also included in kit 7 - STATOR ASSY (C1130100103) PARTS REQUEST
7-6#	0010110035	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0010110035 · qty on machine: 2 Also included in kit 7 - STATOR ASSY (C1130100103) view full part page → $0.95 IN A KIT + SOLD SOLO
7-7#	031110160	WASHER, FLAT	2	REPLACES P/N 0041210000	ADD TO CART
WASHER, FLAT 031110160 · qty on machine: 2 REPLACES P/N 0041210000 Also included in kit 7 - STATOR ASSY (C1130100103) view full part page → $0.4 IN A KIT + SOLD SOLO
7-8#	C1132200003	COVER	1		ADD TO CART
COVER C1132200003 · qty on machine: 1 Also included in kit 7 - STATOR ASSY (C1130100103) view full part page → $98.95 IN A KIT + SOLD SOLO
7-9#	0226000510	RUBBER SEAL	2		ADD TO CART
RUBBER SEAL 0226000510 · qty on machine: 2 Also included in kit 7 - STATOR ASSY (C1130100103) view full part page → $10.95 IN A KIT + SOLD SOLO
7-10#	0225000470	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL 0225000470 · qty on machine: 1 Also included in kit 7 - STATOR ASSY (C1130100103) view full part page → $10.95 IN A KIT + SOLD SOLO
7-11#	0017106016	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0017106016 · qty on machine: 6 Also included in kit 7 - STATOR ASSY (C1130100103) view full part page → $1.51 IN A KIT + SOLD SOLO
7-12	0601850144	GROMMET	1		ADD TO CART
GROMMET 0601850144 · qty on machine: 1 view full part page → $4.95
8	C1154000002	END BRACKET	1		ADD TO CART
END BRACKET C1154000002 · qty on machine: 1 view full part page → $1970.95
9	C1138000003	FIELD ASSY., EXCITER	1		ADD TO CART
FIELD ASSY., EXCITER C1138000003 · qty on machine: 1 view full part page → $2313.95
10	0012110065	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0012110065 · qty on machine: 4 view full part page → $4.95
10A	0042610000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0042610000 · qty on machine: 4 view full part page → $0.53
10B	031110160	WASHER, FLAT	4	REPLACES P/N 0041210000	ADD TO CART
WASHER, FLAT 031110160 · qty on machine: 4 REPLACES P/N 0041210000 view full part page → $0.4

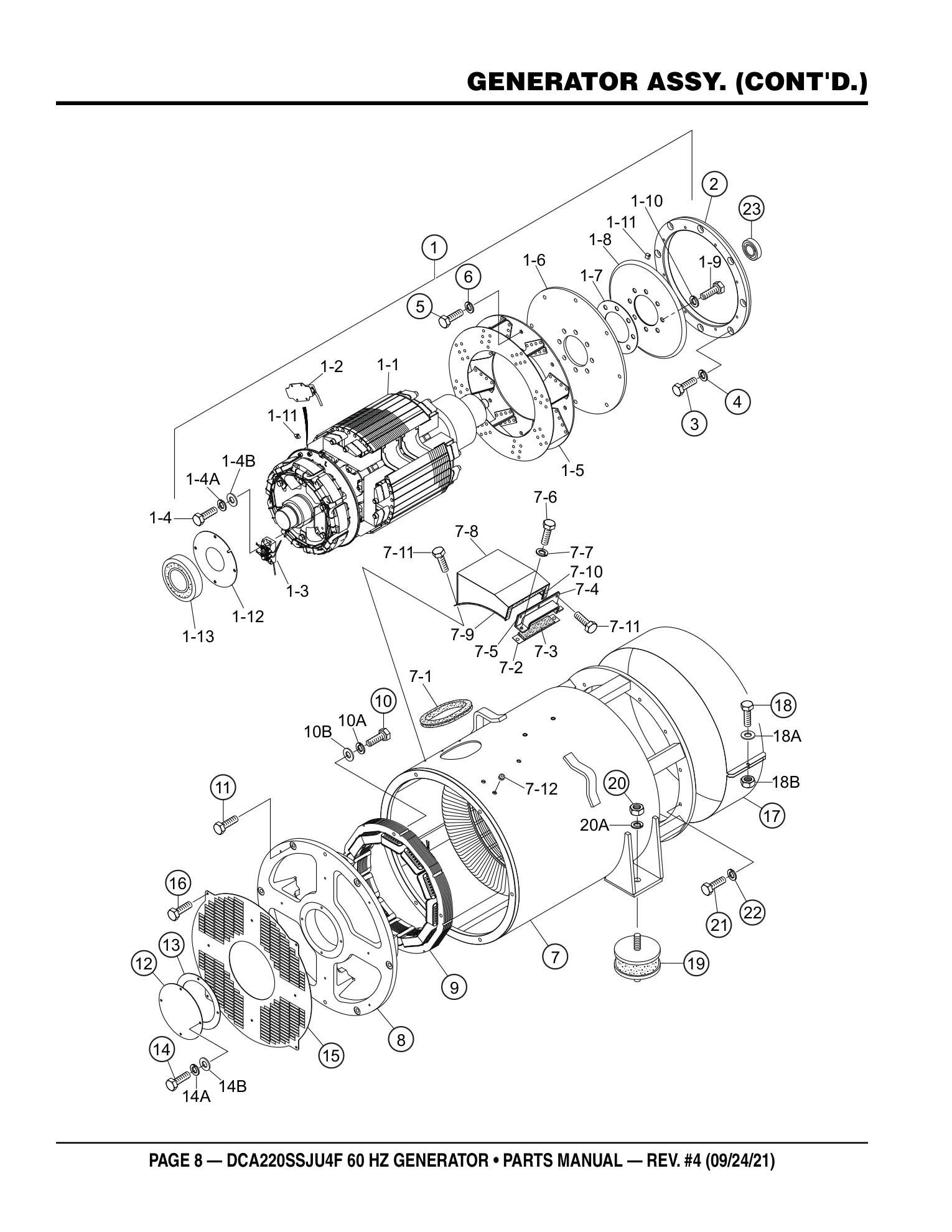

Page 8 — GENERATOR ASSY. (CONT'D.)

Multiquip DCA220SSJU4F Generator GENERATOR ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed18 rows

No.	Part No.	Part Name	Qty	Remarks
11	0017112045	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0017112045 · qty on machine: 6 view full part page → $1.76
12	C1154400004	COVER, BEARING	1		ADD TO CART
COVER, BEARING C1154400004 · qty on machine: 1 view full part page → $54.95
13	C1154300004	GASKET, BEARING	1		ADD TO CART
GASKET, BEARING C1154300004 · qty on machine: 1 view full part page → $44.95
14	0010106060	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0010106060 · qty on machine: 4 view full part page → $1.31
14A	0040006000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0040006000 · qty on machine: 4 view full part page → $0.17
14B	952404470	WASHER, FLAT	4	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 4 REPLACES P/N 0041206000 view full part page → $0.19
15	C1154400103	SUCTION COVER	1		ADD TO CART
SUCTION COVER C1154400103 · qty on machine: 1 view full part page → $95.95
16	0017106016	HEX HEAD BOLT	8		ADD TO CART
HEX HEAD BOLT 0017106016 · qty on machine: 8 view full part page → $1.51
17	C1132300114	COVER, FAN	1		ADD TO CART
COVER, FAN C1132300114 · qty on machine: 1 view full part page → $547.95
18	0010006030	HEX. HEAD BOLT	1	REPLACES P/N 0010106030	ADD TO CART
HEX. HEAD BOLT 0010006030 · qty on machine: 1 REPLACES P/N 0010106030 view full part page → $0.25
18A	952404470	WASHER, FLAT	1	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 1 REPLACES P/N 0041206000 view full part page → $0.19
18B	020106050	NUT	1	REPLACES P/N 0600815000	ADD TO CART
NUT 020106050 · qty on machine: 1 REPLACES P/N 0600815000 view full part page → $0.12
19	0605000012	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION 0605000012 · qty on machine: 2 view full part page → $401.95
20	0030020000	HEX. NUT	4		ADD TO CART
HEX. NUT 0030020000 · qty on machine: 4 view full part page → $1.82
20A	030220510	WASHER, LOCK	4	REPLACES P/N 0040020000	ADD TO CART
WASHER, LOCK 030220510 · qty on machine: 4 REPLACES P/N 0040020000 view full part page → $1.95
21	012010030	HEX. HEAD BOLT	12	REPLACES P/N 0012110030	ADD TO CART
HEX. HEAD BOLT 012010030 · qty on machine: 12 REPLACES P/N 0012110030 view full part page → $0.95
22	030210250	WASHER, LOCK	12	REPLACES P/N 0042510000	ADD TO CART
WASHER, LOCK 030210250 · qty on machine: 12 REPLACES P/N 0042510000 view full part page → $0.28
23	0070506307	BEARING	1		ADD TO CART
BEARING 0070506307 · qty on machine: 1 view full part page → $60.95

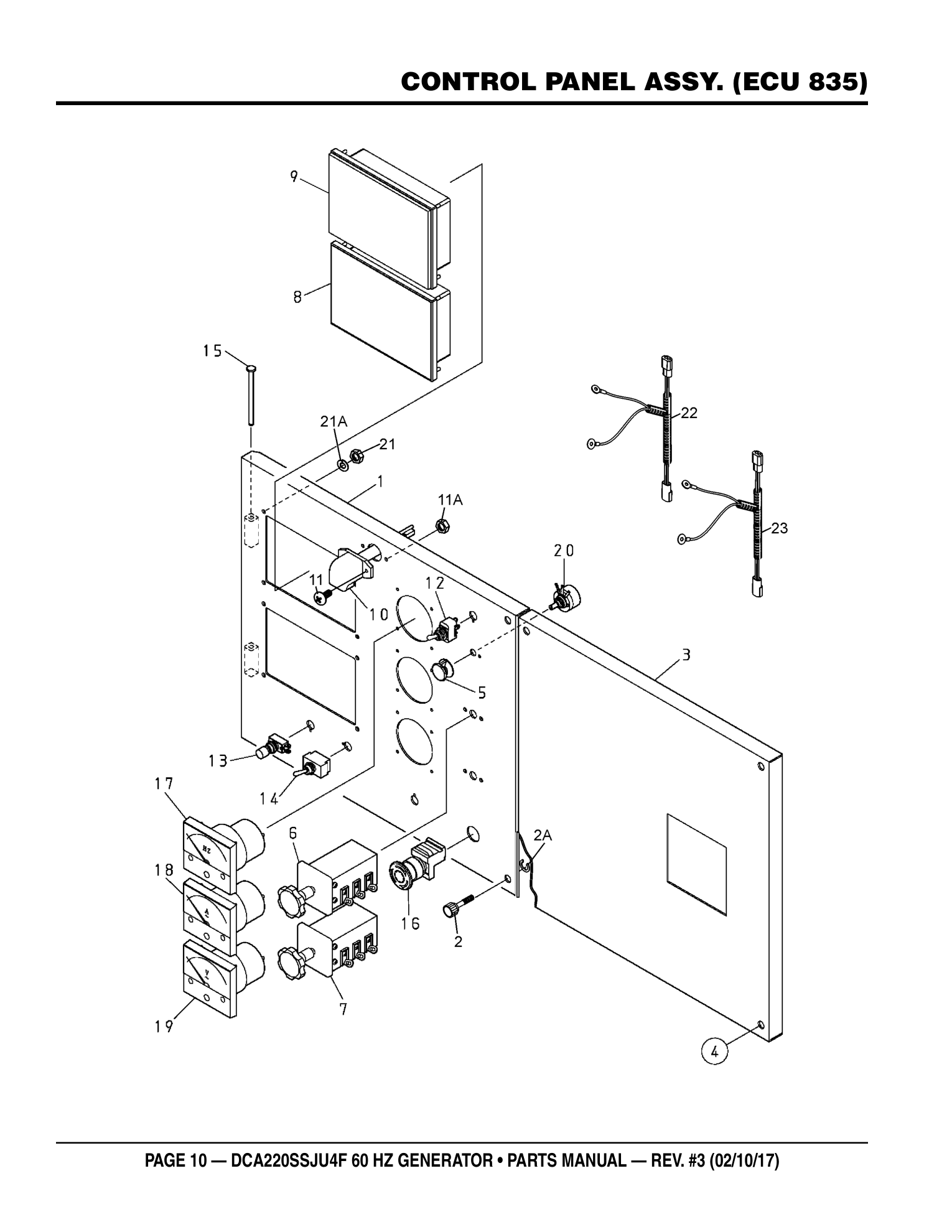

Page 10 — CONTROL PANEL ASSY. (ECU 835)

Multiquip DCA220SSJU4F Generator CONTROL PANEL ASSY. (ECU 835) parts diagram

Parts list — exactly as printed28 rows

No.	Part No.	Part Name	Qty	Remarks
1	M4223000503	CONTROL PANEL	1		ADD TO CART
CONTROL PANEL M4223000503 · qty on machine: 1 view full part page → $217.95
2	M9220100004	SET SCREW	2		ADD TO CART
SET SCREW M9220100004 · qty on machine: 2 view full part page → $12.95
2A	0080200007	E-RING	2		ADD TO CART
E-RING 0080200007 · qty on machine: 2 view full part page → $1.39
3	M4223000604	CONTROL PANEL	1		ADD TO CART
CONTROL PANEL M4223000604 · qty on machine: 1 view full part page → $143.95
4	0017108040	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0017108040 · qty on machine: 4 view full part page → $1.58
5	0601840100	KNOB	1	REPLACES P/N 0601840121	ADD TO CART
KNOB 0601840100 · qty on machine: 1 REPLACES P/N 0601840121 view full part page → $30.95
6	0601801040	CHANGE-OVER SWITCH, AMMETER	1		ADD TO CART
CHANGE-OVER SWITCH, AMMETER 0601801040 · qty on machine: 1 view full part page → $95.95
7	0601801041	CHANGE-OVER SWITCH, VOLTMETER	1		ADD TO CART
CHANGE-OVER SWITCH, VOLTMETER 0601801041 · qty on machine: 1 view full part page → $157.95
8	Y0602202651	ECU CONTROLLER	1		ADD TO CART
ECU CONTROLLER Y0602202651 · qty on machine: 1 view full part page → $1815.95
9	Y0602120569	GAUGE UNIT ASSY.	1		ADD TO CART
GAUGE UNIT ASSY. Y0602120569 · qty on machine: 1 view full part page → $756.95
10	Y0601810170	PANEL LIGHT, 12V	1		ADD TO CART
PANEL LIGHT, 12V Y0601810170 · qty on machine: 1 view full part page → $142.95
11	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
11A	OEMAA8	HEX. NUT	2	REPLACES P/N 0207004000	ADD TO CART
HEX. NUT OEMAA8 · qty on machine: 2 REPLACES P/N 0207004000 view full part page → $0.4
12	0601830710	PANEL LIGHT SWITCH	1		ADD TO CART
PANEL LIGHT SWITCH 0601830710 · qty on machine: 1 view full part page → $29.95
13	0601831205	PUSH BUTTON	1		ADD TO CART
PUSH BUTTON 0601831205 · qty on machine: 1 view full part page → $25.95
14	82608	TOGGLE SWITCH	1	REPLACES P/N 0601831340	ADD TO CART
TOGGLE SWITCH 82608 · qty on machine: 1 REPLACES P/N 0601831340 view full part page → $34.95
15	0605011211	PIN	2		ADD TO CART
PIN 0605011211 · qty on machine: 2 view full part page → $1.55
16	0601831557	EMERGENCY STOP BUTTON	1		ADD TO CART
EMERGENCY STOP BUTTON 0601831557 · qty on machine: 1 view full part page → $95.95
17	0601807642	FREQUENCY METER 45~65HZ 240V	1		ADD TO CART
FREQUENCY METER 45~65HZ 240V 0601807642 · qty on machine: 1 view full part page → $1023.95
18	0601808992	AC AMMETER 0~400A/800A:5A	1		ADD TO CART
AC AMMETER 0~400A/800A:5A 0601808992 · qty on machine: 1 view full part page → $548.95
19	0601800275	AC VOLTMETER 0-600	1		ADD TO CART
AC VOLTMETER 0-600 0601800275 · qty on machine: 1 view full part page → $146.95
20	0601840073	VOLT. REG., 20A, 1K	1		ADD TO CART
VOLT. REG., 20A, 1K 0601840073 · qty on machine: 1 view full part page → $90.95
21	Y0206707000	HEX. NUT	8		ADD TO CART
HEX. NUT Y0206707000 · qty on machine: 8 view full part page → $0.45
21A	Y0044807000	WASHER, LOCK	8		ADD TO CART
WASHER, LOCK Y0044807000 · qty on machine: 8 view full part page → $0.45
22	M4246700604	WIRE HARNESS, GENERATOR	1	S/N 8010902 AND BELOW	ADD TO CART
WIRE HARNESS, GENERATOR M4246700604 · qty on machine: 1 S/N 8010902 AND BELOW view full part page → $2884.95
22	M4246700614	WIRE HARNESS, GENERATOR	1	S/N 8010903 AND ABOVE	PARTS REQUEST
PHOTO COMING WIRE HARNESS, GENERATOR M4246700614 · qty on machine: 1 S/N 8010903 AND ABOVE PARTS REQUEST
23	M5358200302	WIRE HARNESS, ENGINE	1	S/N 8011012 AND BELOW	ADD TO CART
WIRE HARNESS, ENGINE M5358200302 · qty on machine: 1 S/N 8011012 AND BELOW view full part page → $1550.95
23	M4358200002	WIRE HARNESS, ENGINE	1	S/N 8011013 AND ABOVE	ADD TO CART
WIRE HARNESS, ENGINE M4358200002 · qty on machine: 1 S/N 8011013 AND ABOVE view full part page → $2296.95

Page 12 — CONTROL PANEL ASSY. (BASLER DGC2020HD OPTION)

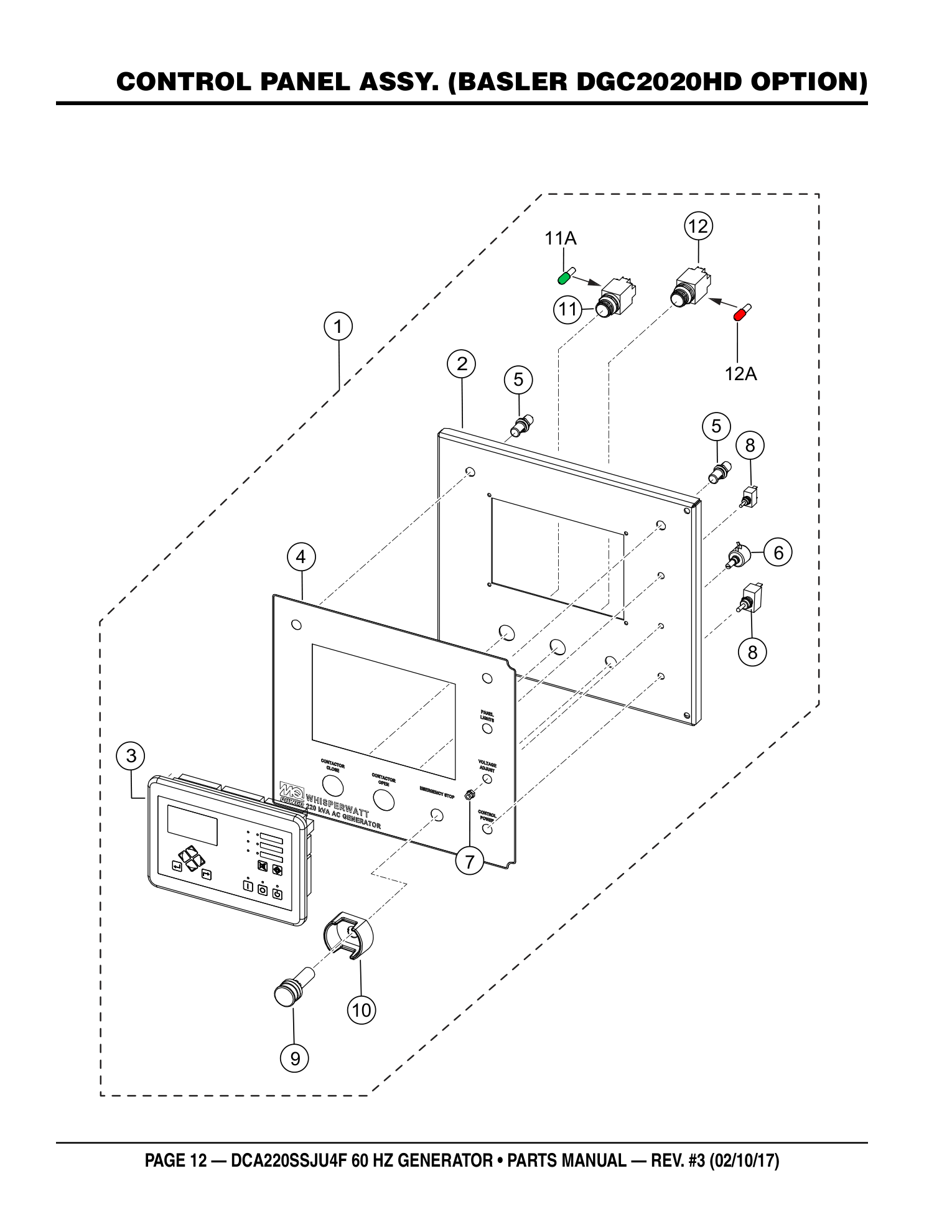

Multiquip DCA220SSJU4F Generator CONTROL PANEL ASSY. (BASLER DGC2020HD OPTION) parts diagram

Parts list — exactly as printed14 rows

No.	Part No.	Part Name	Qty	Remarks
1	EE59231	PANEL ASSY., PARALLELING, DGC2020HD	1	INCLUDES ITEMS W/%	ADD TO CART
PANEL ASSY., PARALLELING, DGC2020HD EE59231 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 2%, 3%, 4%, 5%, 6%, 7%#, 8%, 9%, 10%, 11%, 11A%, 12%, 12A% view full part page → $5555.95 IN A KIT + SOLD SOLO
2%	EE59122	PANEL, PARALLEL, BASLER DGC2020HD	1		PARTS REQUEST
PHOTO COMING PANEL, PARALLEL, BASLER DGC2020HD EE59122 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING, (EE59231) PARTS REQUEST
3%	EE59259	CONTROLLER, DGC2020HD, COLOR	1		ADD TO CART
CONTROLLER, DGC2020HD, COLOR EE59259 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING, (EE59231) view full part page → $5217.95 IN A KIT + SOLD SOLO
4%	EE59123	DECAL, PARALLEL, BASLER 2020HD	1		PARTS REQUEST
PHOTO COMING DECAL, PARALLEL, BASLER 2020HD EE59123 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING, (EE59231) PARTS REQUEST
5%	EE55761	LIGHT, PANEL, LED POWERED, 12-36VDC	2		ADD TO CART
LIGHT, PANEL, LED POWERED, 12-36VDC EE55761 · qty on machine: 2 Also included in kit 1 - PANEL ASSY., PARALLELING, (EE59231) view full part page → $43.95 IN A KIT + SOLD SOLO
6%	EE2115	POTENTIOMETER, 5K OHM	1	INCLUDES ITEMS W/#	ADD TO CART
POTENTIOMETER, 5K OHM EE2115 · qty on machine: 1 INCLUDES ITEMS W/# Also included in kit 1 - PANEL ASSY., PARALLELING, (EE59231) view full part page → $70.95 IN A KIT + SOLD SOLO
7%#	EE9949	NUT, SHAFT LOCK, POTENTIOMETER	1		ADD TO CART
NUT, SHAFT LOCK, POTENTIOMETER EE9949 · qty on machine: 1 Also included in kit 6 - POTENTIOMETER, 5K OHM (EE2115); kit 1 - PANEL ASSY., PARALLELING, (EE59231) view full part page → $33.95 IN A KIT + SOLD SOLO
8%	EE2591	SWITCH, TOGGLE, SPST	2		ADD TO CART
SWITCH, TOGGLE, SPST EE2591 · qty on machine: 2 Also included in kit 1 - PANEL ASSY., PARALLELING, (EE59231) view full part page → $11.95 IN A KIT + SOLD SOLO
9%	EE57855	SWITCH, E-STOP, RED, 24V LED	1		ADD TO CART
SWITCH, E-STOP, RED, 24V LED EE57855 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING, (EE59231) view full part page → $164.95 IN A KIT + SOLD SOLO
10%	EE52893	BEZEL EMERG. STOP YELLOW PLASTIC	1		ADD TO CART
BEZEL EMERG. STOP YELLOW PLASTIC EE52893 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING, (EE59231) view full part page → $34.95 IN A KIT + SOLD SOLO
11%	EE23374	PUSHBUTTON, SWITCH (GREEN)	1		ADD TO CART
PUSHBUTTON, SWITCH (GREEN) EE23374 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING, (EE59231) view full part page → $82.95 IN A KIT + SOLD SOLO
11A%	EE39554	LED, 12V GREEN	1		ADD TO CART
LED, 12V GREEN EE39554 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING, (EE59231) view full part page → $6.95 IN A KIT + SOLD SOLO
12%	EE23375	PUSHBUTTON, SWITCH (RED)	1		ADD TO CART
PUSHBUTTON, SWITCH (RED) EE23375 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING, (EE59231) view full part page → $82.95 IN A KIT + SOLD SOLO
12A%	EE5895	LED, 12V, RED	1		ADD TO CART
LED, 12V, RED EE5895 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING, (EE59231) view full part page → $6.95 IN A KIT + SOLD SOLO

Page 14 — CONTROL BOX ASSY.

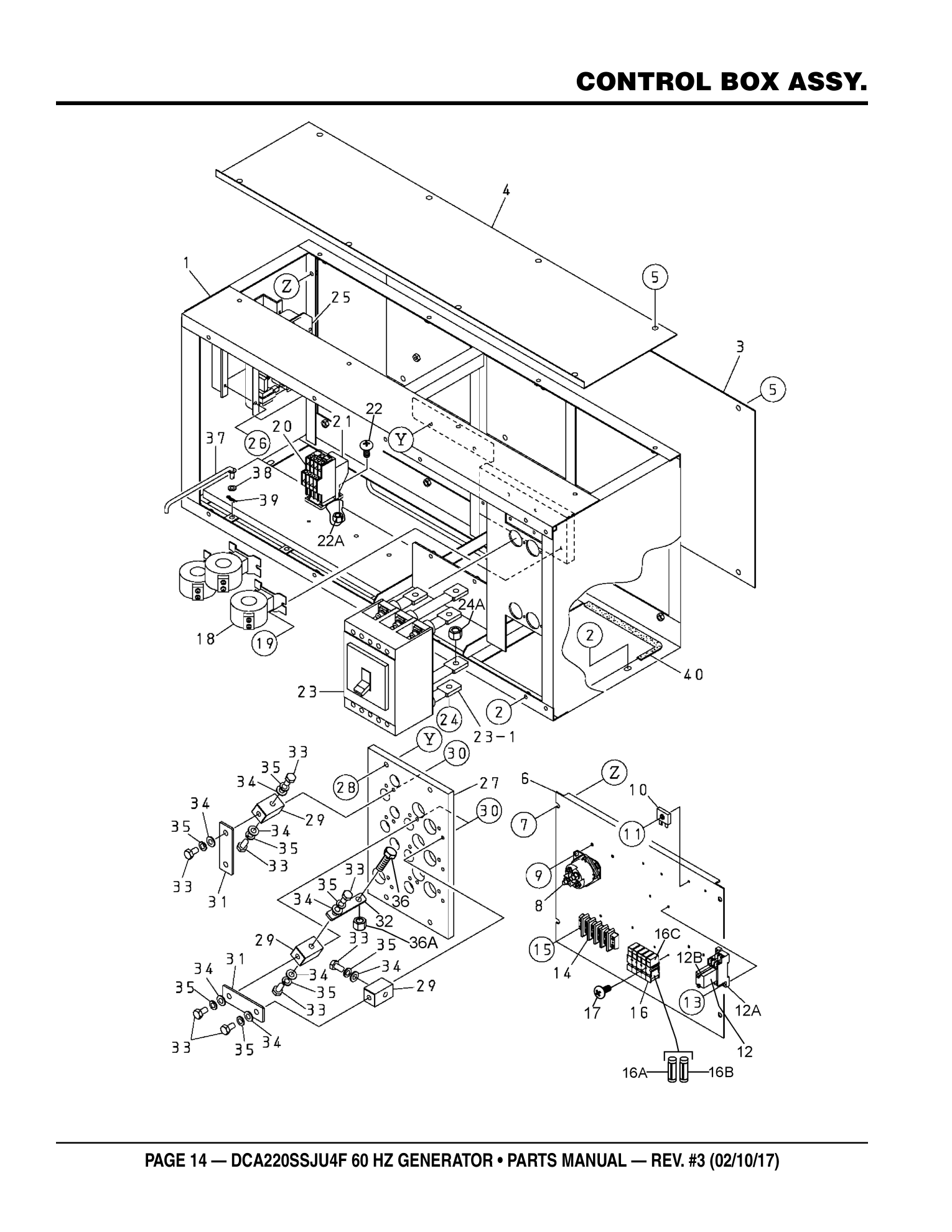

Multiquip DCA220SSJU4F Generator CONTROL BOX ASSY. parts diagram

Parts list — exactly as printed41 rows

No.	Part No.	Part Name	Qty	Remarks
1	M4213000212	CONTROL BOX	1	S/N 8010902 AND BELOW	ADD TO CART
CONTROL BOX M4213000212 · qty on machine: 1 S/N 8010902 AND BELOW view full part page → $613.95
1	M4213000222	CONTROL BOX	1	S/N 8010903 AND ABOVE	PARTS REQUEST
PHOTO COMING CONTROL BOX M4213000222 · qty on machine: 1 S/N 8010903 AND ABOVE PARTS REQUEST
2	011008020	HEX. HEAD BOLT	14	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 14 REPLACES P/N 0016908020 view full part page → $2.68
3	M5214400304	BACK PANEL	1		PARTS REQUEST
PHOTO COMING BACK PANEL M5214400304 · qty on machine: 1 PARTS REQUEST
4	M4213500104	UP PANEL	1		ADD TO CART
UP PANEL M4213500104 · qty on machine: 1 view full part page → $204.95
5	011008020	HEX. HEAD BOLT	16	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 16 REPLACES P/N 0016908020 view full part page → $2.68
6	M3261500003	SET PANEL	1		ADD TO CART
SET PANEL M3261500003 · qty on machine: 1 view full part page → $123.95
7	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
8	Y0602201458	STARTER RELAY	1		ADD TO CART
STARTER RELAY Y0602201458 · qty on machine: 1 view full part page → $116.95
9	011808015	MACHINE SCREW	2	REPLACES P/N 0027106015	ADD TO CART
MACHINE SCREW 011808015 · qty on machine: 2 REPLACES P/N 0027106015 view full part page → $6.95
10	0601821370	RECTIFIER DE-45	1	REPLACES P/N 0601823240	ADD TO CART
RECTIFIER DE-45 0601821370 · qty on machine: 1 REPLACES P/N 0601823240 view full part page → $28.95
11	0027104020	MACHINE SCREW	1		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 1 view full part page → $0.4
12	LY2DUS12VDC	RELAY, DC12V	1	REPLACES P/N 0601827656	ADD TO CART
RELAY, DC12V LY2DUS12VDC · qty on machine: 1 REPLACES P/N 0601827656 view full part page → $46.95
12A	PTF08A	RELAY BASE	1	REPLACES P/N 0601823109	ADD TO CART
RELAY BASE PTF08A · qty on machine: 1 REPLACES P/N 0601823109 view full part page → $47.95
12B	PYCA1	RELAY CLIP	2	REPLACES P/N 0601824400	ADD TO CART
RELAY CLIP PYCA1 · qty on machine: 2 REPLACES P/N 0601824400 view full part page → $1.71
13	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
14	0601815153	TERMINAL BLOCK	1		NO LONGER AVAILABLE
PHOTO COMING TERMINAL BLOCK 0601815153 · qty on machine: 1 NO LONGER AVAILABLE
15	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
16	M5214600004	FUSE HOLDER ASSY	1		ADD TO CART
FUSE HOLDER ASSY M5214600004 · qty on machine: 1 view full part page → $0.95
16A	0601806643	FUSE, 15A	2		ADD TO CART
FUSE, 15A 0601806643 · qty on machine: 2 view full part page → $5.95
16B	Y0601806647	FUSE, 25A	3		ADD TO CART
FUSE, 25A Y0601806647 · qty on machine: 3 view full part page → $1.95
16C	M9501400304	DECAL: FUSE HOLDER	1	M90140030	ADD TO CART
DECAL: FUSE HOLDER M9501400304 · qty on machine: 1 M90140030 view full part page → $8.95
17	Y0027203035	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW Y0027203035 · qty on machine: 2 view full part page → $0.37
18	0601809667	CURRENT TRANSFORMER	3		ADD TO CART
CURRENT TRANSFORMER 0601809667 · qty on machine: 3 view full part page → $178.95
19	011206020	MACHINE SCREW	6	REPLACES P/N 0027106020	ADD TO CART
MACHINE SCREW 011206020 · qty on machine: 6 REPLACES P/N 0027106020 view full part page → $0.95
20	0601820847	OVER CURRENT RELAY	1	S/N 8010902 AND BELOW	NO LONGER AVAILABLE
PHOTO COMING OVER CURRENT RELAY 0601820847 · qty on machine: 1 S/N 8010902 AND BELOW NO LONGER AVAILABLE
20	Y0601820843	OVER CURRENT RELAY	1	S/N 8010903 AND ABOVE	ADD TO CART
OVER CURRENT RELAY Y0601820843 · qty on machine: 1 S/N 8010903 AND ABOVE view full part page → $114.95
21	0601820848	OVER CURRENT RELAY BASE	1	S/N 8010902 AND BELOW	ADD TO CART
OVER CURRENT RELAY BASE 0601820848 · qty on machine: 1 S/N 8010902 AND BELOW view full part page → $83.95
21	Y0601820844	OVER CURRENT RELAY BASE	1	S/N 8010903 AND ABOVE	ADD TO CART
OVER CURRENT RELAY BASE Y0601820844 · qty on machine: 1 S/N 8010903 AND ABOVE view full part page → $24.95
22	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
22A	OEMAA8	HEX. NUT	2	REPLACES P/N 0207004000	ADD TO CART
HEX. NUT OEMAA8 · qty on machine: 2 REPLACES P/N 0207004000 view full part page → $0.4
23	Y0601807533	CIRCUIT BREAKER 3P, 600A	1		NO LONGER AVAILABLE
PHOTO COMING CIRCUIT BREAKER 3P, 600A Y0601807533 · qty on machine: 1 NO LONGER AVAILABLE
23-1	Y0601827412	REAR TERMINAL BUSBAR (SET)	2		ADD TO CART
REAR TERMINAL BUSBAR (SET) Y0601827412 · qty on machine: 2 view full part page → $164.95
24	014210040	HEX. HEAD BOLT	6	REPLACES P/N 0017110040	ADD TO CART
HEX. HEAD BOLT 014210040 · qty on machine: 6 REPLACES P/N 0017110040 view full part page → $1.95
24A	021112140	SELF-LOCKING NUT	6	REPLACES P/N 0207010000	ADD TO CART
SELF-LOCKING NUT 021112140 · qty on machine: 6 REPLACES P/N 0207010000 view full part page → $0.46
25	0601820604	AUTOMATIC VOLTAGE REGULATOR	1		ADD TO CART
AUTOMATIC VOLTAGE REGULATOR 0601820604 · qty on machine: 1 view full part page → $1877.95
26	0027105015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 4 view full part page → $0.2
27	M4273000003	TERM. BRD., VOLTAGE CHANGE-OVER	1		ADD TO CART
TERM. BRD., VOLTAGE CHANGE-OVER M4273000003 · qty on machine: 1 view full part page → $399.95
28	011208030	HEX. HEAD BOLT	4	REPLACES P/N 0016908030	ADD TO CART
HEX. HEAD BOLT 011208030 · qty on machine: 4 REPLACES P/N 0016908030 view full part page → $1.3
29	8181852104	CHANGE TERMINAL	10	REPLACES P/N M4276400004	ADD TO CART
CHANGE TERMINAL 8181852104 · qty on machine: 10 REPLACES P/N M4276400004 view full part page → $147.95
30	011606025	HEX. HEAD BOLT	20	REPLACES P/N 0016906025	ADD TO CART
HEX. HEAD BOLT 011606025 · qty on machine: 20 REPLACES P/N 0016906025 view full part page → $1.95

Page 16 — CONTROL BOX ASSY. (CONT'D.)

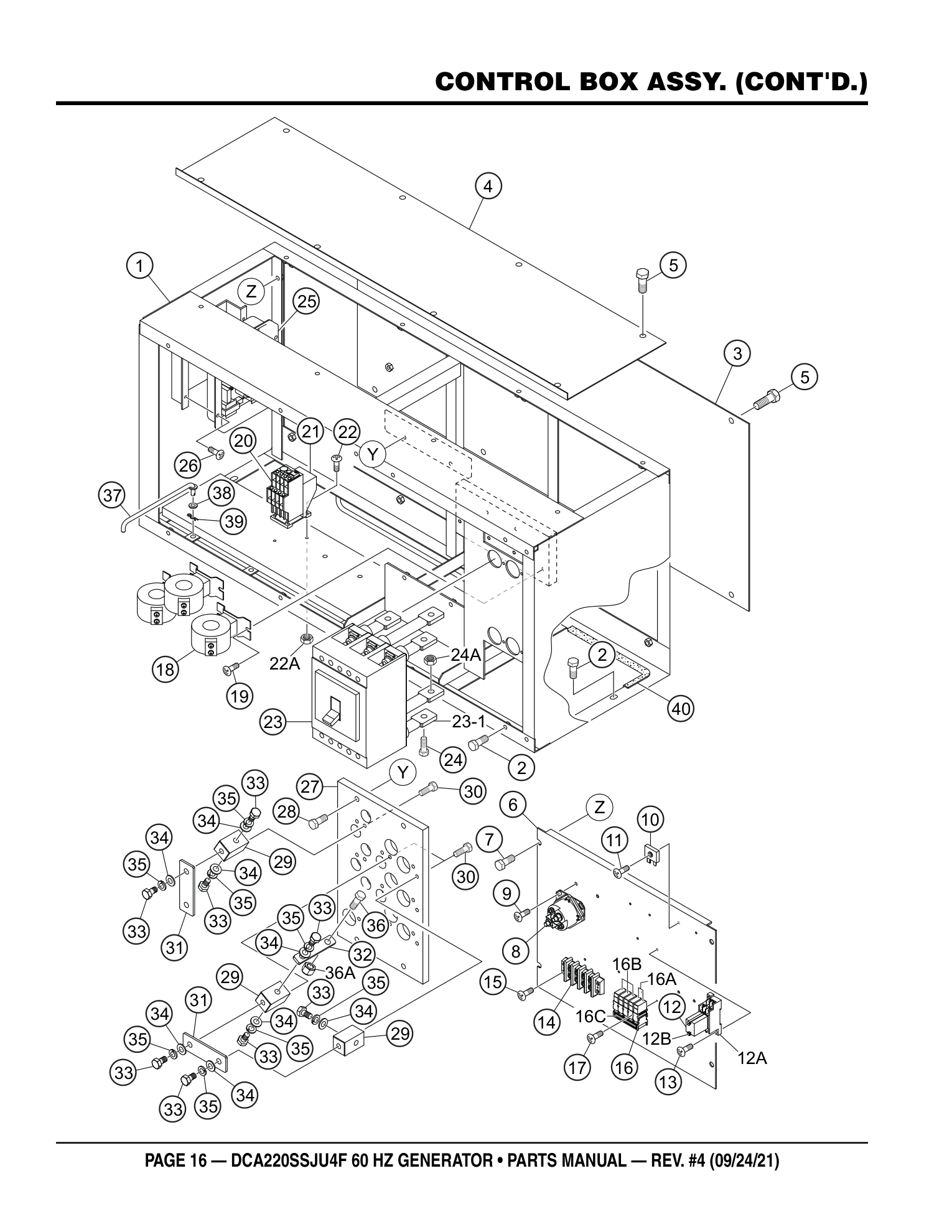

Multiquip DCA220SSJU4F Generator CONTROL BOX ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed11 rows

No.	Part No.	Part Name	Qty	Remarks
31	8181853104	CHANGE-OVER PLATE	6	REPLACES P/N M4276300004	ADD TO CART
CHANGE-OVER PLATE 8181853104 · qty on machine: 6 REPLACES P/N M4276300004 view full part page → $58.95
32	M4276200004	CHANGE PLATE	3		ADD TO CART
CHANGE PLATE M4276200004 · qty on machine: 3 view full part page → $134.95
33	012210020	TIE BOLT	26	REPLACES P/N M9220100104	ADD TO CART
TIE BOLT 012210020 · qty on machine: 26 REPLACES P/N M9220100104 view full part page → $0.95
34	0041410000	WASHER, FLAT	26		ADD TO CART
WASHER, FLAT 0041410000 · qty on machine: 26 view full part page → $0.89
35	0040010000	WASHER, LOCK	26		ADD TO CART
WASHER, LOCK 0040010000 · qty on machine: 26 view full part page → $0.39
36	014210040	HEX. HEAD BOLT	3	REPLACES P/N 0017110040	ADD TO CART
HEX. HEAD BOLT 014210040 · qty on machine: 3 REPLACES P/N 0017110040 view full part page → $1.95
36A	021112140	SELF-LOCKING NUT	3	REPLACES P/N 0207010000	ADD TO CART
SELF-LOCKING NUT 021112140 · qty on machine: 3 REPLACES P/N 0207010000 view full part page → $0.46
37	M4213600104	STOPPER, CONTROL PANEL	1		ADD TO CART
STOPPER, CONTROL PANEL M4213600104 · qty on machine: 1 view full part page → $63.95
38	952404470	WASHER, FLAT	1	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 1 REPLACES P/N 0041206000 view full part page → $0.19
39	505015300	SNAP PIN	1	REPLACES P/N 0605010502	ADD TO CART
SNAP PIN 505015300 · qty on machine: 1 REPLACES P/N 0605010502 view full part page → $0.95
40	Y0411100250	EDGE TRIM	1		PARTS REQUEST
PHOTO COMING EDGE TRIM Y0411100250 · qty on machine: 1 PARTS REQUEST

Page 18 — CONTROL BOX ASSY. (BASLER OPTION)

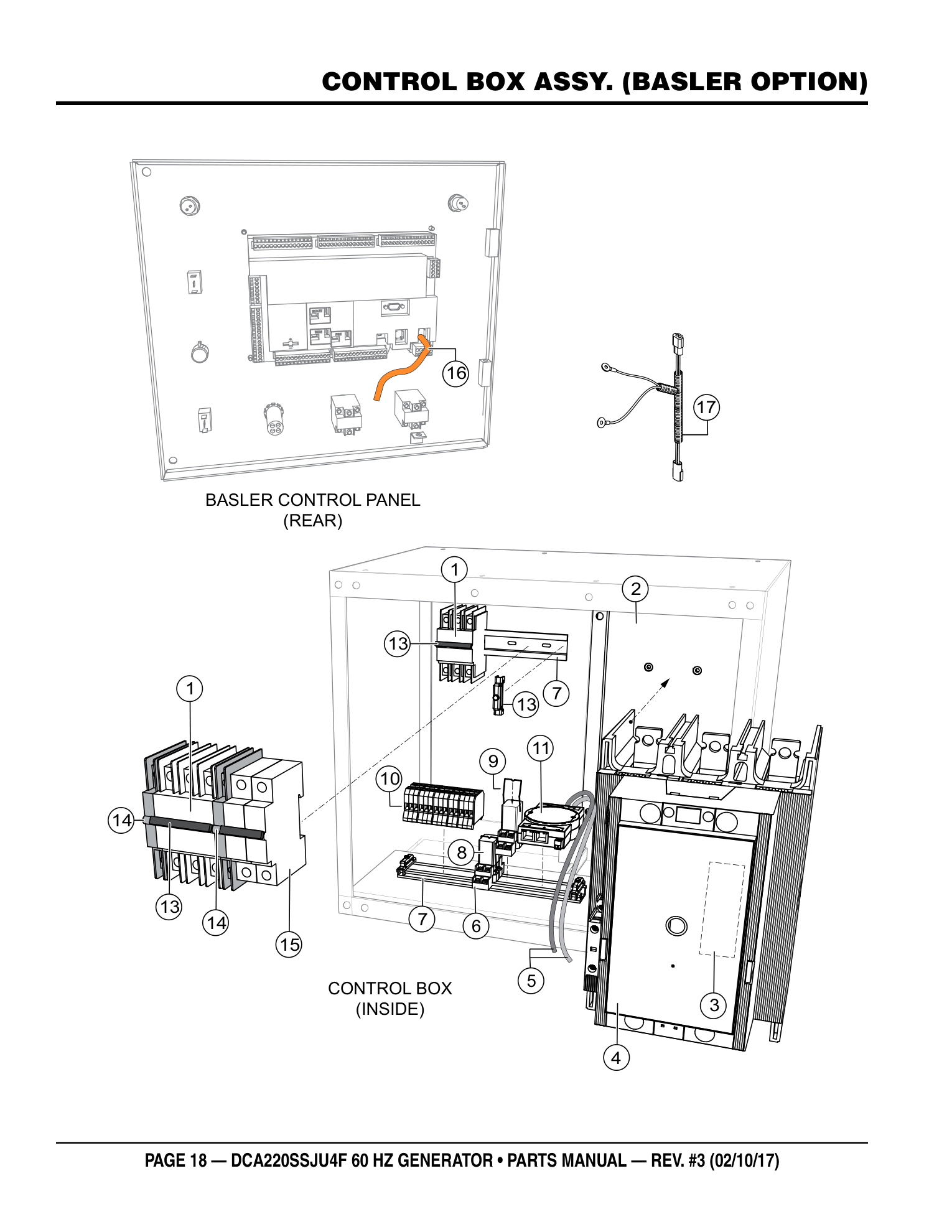

Multiquip DCA220SSJU4F Generator CONTROL BOX ASSY. (BASLER OPTION) parts diagram

Parts list — exactly as printed17 rows

No.	Part No.	Part Name	Qty
1	EE55784	CIRCUIT BREAKER (ABB), 3P, 10A, 480V	2	ADD TO CART
CIRCUIT BREAKER (ABB), 3P, 10A, 480V EE55784 · qty on machine: 2 view full part page → $349.95
2	EE59124	BRACKET, CONTACTOR	1	PARTS REQUEST
PHOTO COMING BRACKET, CONTACTOR EE59124 · qty on machine: 1 PARTS REQUEST
3	EE56647	SWITCH (ABB), AUX/BELL	1	PARTS REQUEST
PHOTO COMING SWITCH (ABB), AUX/BELL EE56647 · qty on machine: 1 PARTS REQUEST
4	EE59127	CONTACTOR (ABB), 650A, 100-250V	1	ADD TO CART
CONTACTOR (ABB), 650A, 100-250V EE59127 · qty on machine: 1 view full part page → $3674.95
5	EE50312	CABLE, ETHERNET, 10FT	2	ADD TO CART
CABLE, ETHERNET, 10FT EE50312 · qty on machine: 2 view full part page → $10.95
6	EE26385	RELAY BASE	2	ADD TO CART
RELAY BASE EE26385 · qty on machine: 2 view full part page → $7.95
7	EE10071	RAIL, DIN, ALUM,.413" X 1.37" X 36"	1	ADD TO CART
RAIL, DIN, ALUM,.413" X 1.37" X 36" EE10071 · qty on machine: 1 view full part page → $12.95
8	EE58130	RELAY, DC12V	2	ADD TO CART
RELAY, DC12V EE58130 · qty on machine: 2 view full part page → $31.95
9	EE26135	RELAY CLIP	2	ADD TO CART
RELAY CLIP EE26135 · qty on machine: 2 view full part page → $0.37
10	EE26112	BLOCK, TERMINAL 14 POS.	1	ADD TO CART
BLOCK, TERMINAL 14 POS. EE26112 · qty on machine: 1 view full part page → $2.95
11	EE58065	ETHERNET SWITCH, 5 PORT 10-30VDC	1	ADD TO CART
ETHERNET SWITCH, 5 PORT 10-30VDC EE58065 · qty on machine: 1 view full part page → $453.95
12	EE2940	END STOP, DIN RAIL	4	ADD TO CART
END STOP, DIN RAIL EE2940 · qty on machine: 4 view full part page → $1.85
13	EE32611	JUMPER, 3-POLE	2	ADD TO CART
JUMPER, 3-POLE EE32611 · qty on machine: 2 view full part page → $12.95
14	EE55785	SWITCH (ABB), AUX	2	ADD TO CART
SWITCH (ABB), AUX EE55785 · qty on machine: 2 view full part page → $54.95
15	EE38585	CIRCUIT BREAKER (ABB), 2-POLE, 10A	1	ADD TO CART
CIRCUIT BREAKER (ABB), 2-POLE, 10A EE38585 · qty on machine: 1 view full part page → $60.95
16	EE56188	CABLE, ETHERNET, ORANGE, 3 FT	1	PARTS REQUEST
PHOTO COMING CABLE, ETHERNET, ORANGE, 3 FT EE56188 · qty on machine: 1 PARTS REQUEST
17	EE59200	HARNESS, PARALLELING	1	PARTS REQUEST
PHOTO COMING HARNESS, PARALLELING EE59200 · qty on machine: 1 PARTS REQUEST

Page 20 — ETHERNET CABLE ASSY. (BASLER OPTION)

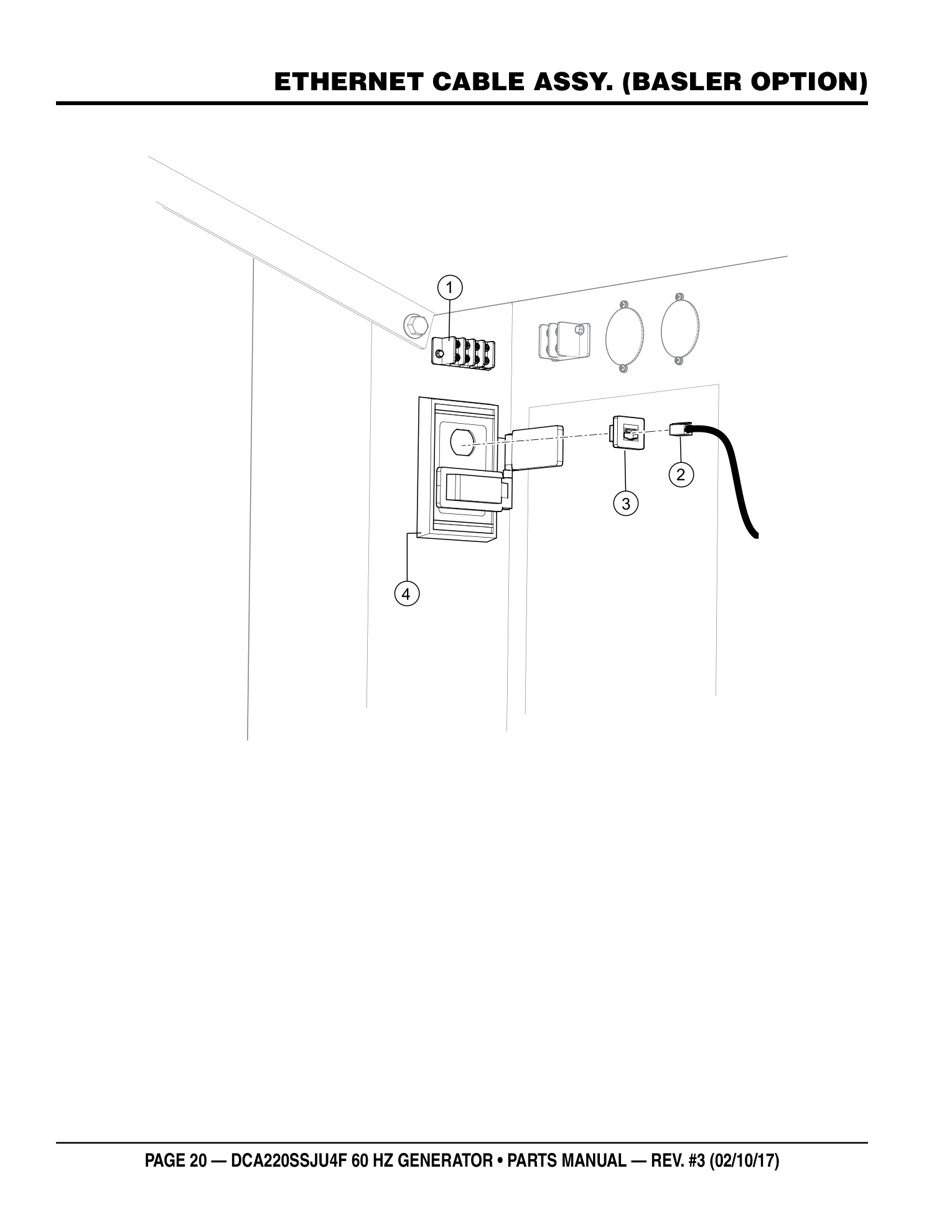

Multiquip DCA220SSJU4F Generator ETHERNET CABLE ASSY. (BASLER OPTION) parts diagram

Parts list — exactly as printed4 rows

No.	Part No.	Part Name	Qty	Remarks
1	EE59027	TERMINAL BLOCK, 4-POS.	1		PARTS REQUEST
PHOTO COMING TERMINAL BLOCK, 4-POS. EE59027 · qty on machine: 1 PARTS REQUEST
2	EE55780	CABLE, ETHERNET CAT5E SHIELDED	1	50 FT	ADD TO CART
CABLE, ETHERNET CAT5E SHIELDED EE55780 · qty on machine: 1 50 FT view full part page → $81.95
3	EE55760	JACK, FEEDTHROUGH, RJ45, CAT5E	2		ADD TO CART
JACK, FEEDTHROUGH, RJ45, CAT5E EE55760 · qty on machine: 2 view full part page → $43.95
4	EE58796	COVER, NONMETALLIC, WEATHERPROOF	1		PARTS REQUEST
PHOTO COMING COVER, NONMETALLIC, WEATHERPROOF EE58796 · qty on machine: 1 PARTS REQUEST

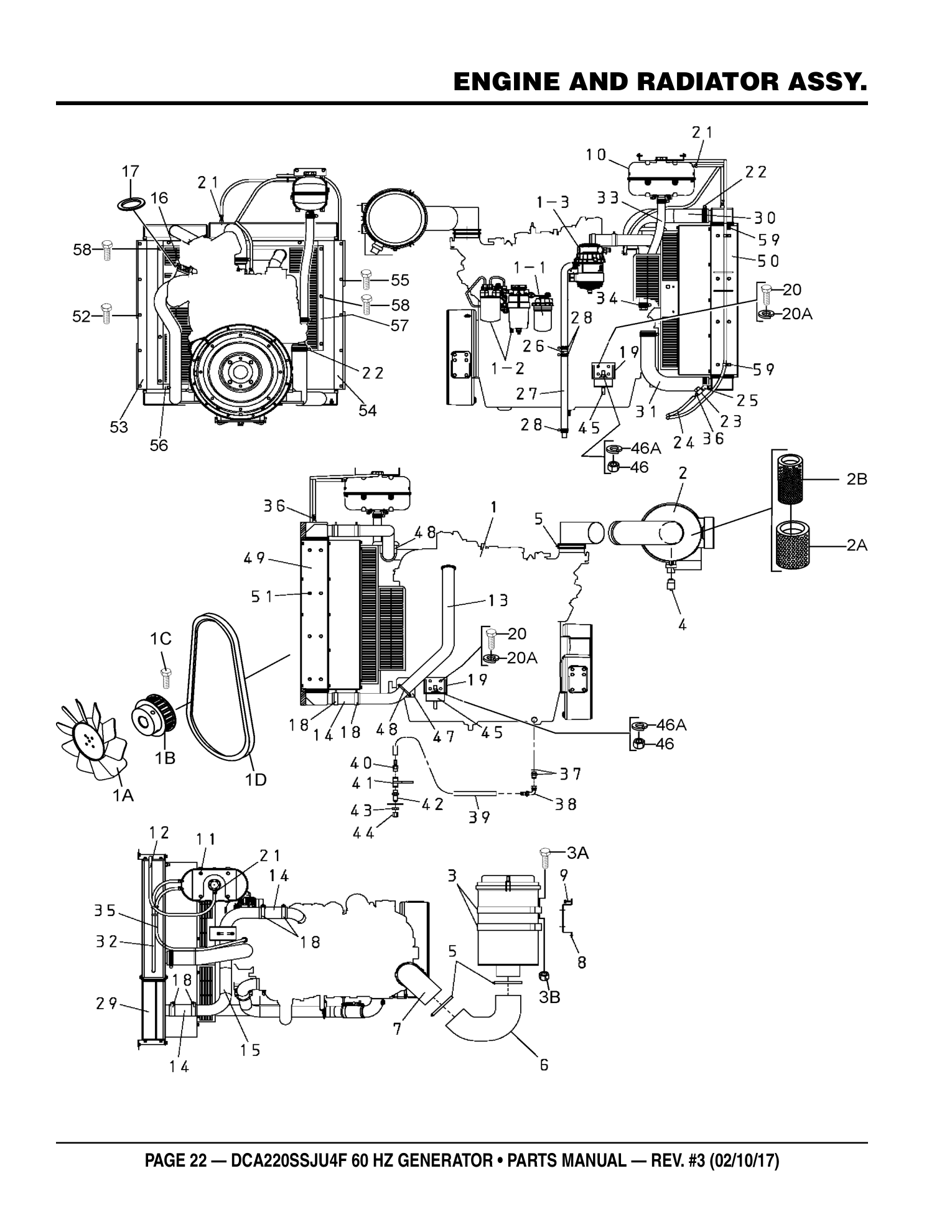

Page 22 — ENGINE AND RADIATOR ASSY.

Multiquip DCA220SSJU4F Generator ENGINE AND RADIATOR ASSY. parts diagram

Parts list — exactly as printed41 rows

No.	Part No.	Part Name	Qty	Remarks
1	M5924200014	ENGINE, JOHN DEERE 6068HFG09	1	S/N 8011012 AND BELOW	PARTS REQUEST
PHOTO COMING ENGINE, JOHN DEERE 6068HFG09 M5924200014 · qty on machine: 1 S/N 8011012 AND BELOW PARTS REQUEST
1	M4924200004	ENGINE, JOHN DEERE 6068HFG09	1	S/N 8011013 AND ABOVE	PARTS REQUEST
PHOTO COMING ENGINE, JOHN DEERE 6068HFG09 M4924200004 · qty on machine: 1 S/N 8011013 AND ABOVE PARTS REQUEST
1A	RE555046	ENGINE FAN	1	REPLACES P/N Y0602060030	ADD TO CART
ENGINE FAN RE555046 · qty on machine: 1 REPLACES P/N Y0602060030 view full part page → $885.95
1B	RE544293	FAN CLUTCH, 12V	1	REPLACES P/N Y0602061100	ADD TO CART
FAN CLUTCH, 12V RE544293 · qty on machine: 1 REPLACES P/N Y0602061100 view full part page → $4208.95
1C	Y0602060501	CAP SCREW	1		PARTS REQUEST
PHOTO COMING CAP SCREW Y0602060501 · qty on machine: 1 PARTS REQUEST
1D	R529383	FAN BELT	1	REPLACES P/N Y0602015207	ADD TO CART
FAN BELT R529383 · qty on machine: 1 REPLACES P/N Y0602015207 view full part page → $207.95
1-1	RE539279	CARTRIDGE, OIL FILTER	1		ADD TO CART
CARTRIDGE, OIL FILTER RE539279 · qty on machine: 1 view full part page → $93.95
1-2	RE556406	FUEL FILTER KIT, PRIMARY/SECONDARY	1	REPLACES P/N Y0602042599 S/N 8011012 AND BELOW	ADD TO CART
FUEL FILTER KIT, PRIMARY/SECONDARY RE556406 · qty on machine: 1 REPLACES P/N Y0602042599 S/N 8011012 AND BELOW view full part page → $334.95
1-2A	RE551507	FUEL FILTER, PRIMARY	1	REPLACES P/N Y0602042800 S/N 8011013 AND ABOVE	ADD TO CART
FUEL FILTER, PRIMARY RE551507 · qty on machine: 1 REPLACES P/N Y0602042800 S/N 8011013 AND ABOVE view full part page → $168.95
1-2B	RE560681	FUEL FILTER, SECONDARY	1	REPLACES P/N Y0602042801 S/N 8011013 AND ABOVE	ADD TO CART
FUEL FILTER, SECONDARY RE560681 · qty on machine: 1 REPLACES P/N Y0602042801 S/N 8011013 AND ABOVE view full part page → $146.95
1-2C	RE562696	SEAL KIT, FUEL FILTER	2	REPLACES P/N Y0602042603 S/N 8011013 AND ABOVE	ADD TO CART
SEAL KIT, FUEL FILTER RE562696 · qty on machine: 2 REPLACES P/N Y0602042603 S/N 8011013 AND ABOVE view full part page → $72.95
1-3	RE553703	CARTRIDGE, BLOWBY FILTER	1	REPLACES P/N Y0602044231	ADD TO CART
CARTRIDGE, BLOWBY FILTER RE553703 · qty on machine: 1 REPLACES P/N Y0602044231 view full part page → $399.95
2	0602046586	AIR CLEANER	1		ADD TO CART
AIR CLEANER 0602046586 · qty on machine: 1 view full part page → $751.95
2A	P537876	ELEMENT, PRIMARY	1	REPLACES P/N 0602046682	ADD TO CART
ELEMENT, PRIMARY P537876 · qty on machine: 1 REPLACES P/N 0602046682 view full part page → $161.95
2B	0602046683	ELEMENT, SAFETY	1		ADD TO CART
ELEMENT, SAFETY 0602046683 · qty on machine: 1 view full part page → $141.95
3	0602040558	AIR CLEANER BAND	2		ADD TO CART
AIR CLEANER BAND 0602040558 · qty on machine: 2 view full part page → $75.95
3A	011208025	HEX. HEAD BOLT	4	REPLACES P/N 0016908025	ADD TO CART
HEX. HEAD BOLT 011208025 · qty on machine: 4 REPLACES P/N 0016908025 view full part page → $0.41
3B	020108060	SELF-LOCK NUT	4	REPLACES P/N 0207008000	ADD TO CART
SELF-LOCK NUT 020108060 · qty on machine: 4 REPLACES P/N 0207008000 view full part page → $0.28
4	0602040650	AIR CLEANER INDICATOR	1		ADD TO CART
AIR CLEANER INDICATOR 0602040650 · qty on machine: 1 view full part page → $34.95
5	0605515202	HOSE BAND	3		ADD TO CART
HOSE BAND 0605515202 · qty on machine: 3 view full part page → $9.95
6	M5374100003	AIR CLEANER HOSE	1		ADD TO CART
AIR CLEANER HOSE M5374100003 · qty on machine: 1 view full part page → $441.95
7	M5374000404	AIR CLEANER PIPE	1		PARTS REQUEST
PHOTO COMING AIR CLEANER PIPE M5374000404 · qty on machine: 1 PARTS REQUEST
8	M5374200204	AIR CLEANER BRACKET	1		PARTS REQUEST
PHOTO COMING AIR CLEANER BRACKET M5374200204 · qty on machine: 1 PARTS REQUEST
9	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
10	Y0602010222	SURGE TANK	1		ADD TO CART
SURGE TANK Y0602010222 · qty on machine: 1 Factory replaced this part - current number DZ102101B view full part page → $631.95 IN A KIT + SOLD SOLO
11	Y0016908015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT Y0016908015 · qty on machine: 4 view full part page → $1.95
12	Y0193602250	OVER FLOW HOSE	1		ADD TO CART
OVER FLOW HOSE Y0193602250 · qty on machine: 1 view full part page → $10.95
13	M5311400103	CAC PIPE (HOT SIDE)	1		ADD TO CART
CAC PIPE (HOT SIDE) M5311400103 · qty on machine: 1 view full part page → $612.95
14	Y0602015610	CAC HOSE	3		ADD TO CART
CAC HOSE Y0602015610 · qty on machine: 3 view full part page → $124.95
15	M3311400203	CAC PIPE (COLD SIDE)	1		PARTS REQUEST
PHOTO COMING CAC PIPE (COLD SIDE) M3311400203 · qty on machine: 1 PARTS REQUEST
16	Y0602325033	V-BAND CLAMP	1		PARTS REQUEST
PHOTO COMING V-BAND CLAMP Y0602325033 · qty on machine: 1 PARTS REQUEST
17	Y0602320206	GASKET	1		ADD TO CART
GASKET Y0602320206 · qty on machine: 1 view full part page → $53.95
18	0605515215	T-BOLT CLAMP	6		ADD TO CART
T-BOLT CLAMP 0605515215 · qty on machine: 6 view full part page → $28.95
19	M3303200404	ENGINE FOOT	2		ADD TO CART
ENGINE FOOT M3303200404 · qty on machine: 2 view full part page → $39.95
20	0012312030	HEX. HEAD BOLT	6	REPLACES P/N 0013612030	ADD TO CART
HEX. HEAD BOLT 0012312030 · qty on machine: 6 REPLACES P/N 0013612030 view full part page → $6.95
20A	0040012000	WASHER, LOCK	6		ADD TO CART
WASHER, LOCK 0040012000 · qty on machine: 6 view full part page → $0.95
21	0605515189	HOSE BAND	5		ADD TO CART
HOSE BAND 0605515189 · qty on machine: 5 view full part page → $1.85
22	0605515236	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515236 · qty on machine: 2 view full part page → $46.95
23	Y0605511394	MINI BALL VALVE	1		ADD TO CART
MINI BALL VALVE Y0605511394 · qty on machine: 1 view full part page → $70.95
24	0193600300	DRAIN HOSE	1		ADD TO CART
DRAIN HOSE 0193600300 · qty on machine: 1 view full part page → $2.95
25	Y0603307520	45° ELBOW	1		PARTS REQUEST
PHOTO COMING 45° ELBOW Y0603307520 · qty on machine: 1 PARTS REQUEST

Page 24 — ENGINE AND RADIATOR ASSY. (CONT'D.)

Multiquip DCA220SSJU4F Generator ENGINE AND RADIATOR ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed44 rows

No.	Part No.	Part Name	Qty	Remarks
26	M5327100004	BLOWBY PIPE	1		ADD TO CART
BLOWBY PIPE M5327100004 · qty on machine: 1 view full part page → $405.95
27	Y0191700480	BLOWBY HOSE	1		ADD TO CART
BLOWBY HOSE Y0191700480 · qty on machine: 1 view full part page → $63.95
28	0605515134	HOSE BAND	3		ADD TO CART
HOSE BAND 0605515134 · qty on machine: 3 view full part page → $4.95
29	Y0602012952	RADIATOR AND INTER-COOLER	1		ADD TO CART
RADIATOR AND INTER-COOLER Y0602012952 · qty on machine: 1 view full part page → $4526.95
29A	M3494420304	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M3494420304 · qty on machine: 1 PARTS REQUEST
30	M3311500503	RADIATOR HOSE, UPPER	1		ADD TO CART
RADIATOR HOSE, UPPER M3311500503 · qty on machine: 1 view full part page → $194.95
31	M3311500603	RADIATOR HOSE, LOWER	1		ADD TO CART
RADIATOR HOSE, LOWER M3311500603 · qty on machine: 1 view full part page → $197.95
32	Y0199900730	VENT HOSE	1		PARTS REQUEST
PHOTO COMING VENT HOSE Y0199900730 · qty on machine: 1 PARTS REQUEST
33	M5311501203	SURGE TANK HOSE	1		ADD TO CART
SURGE TANK HOSE M5311501203 · qty on machine: 1 view full part page → $225.97
34	0605515201	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515201 · qty on machine: 2 view full part page → $3.95
35	Y0199901200	VENT HOSE	1		PARTS REQUEST
PHOTO COMING VENT HOSE Y0199901200 · qty on machine: 1 PARTS REQUEST
36	Y0605512192	HOSE JOINT	2		PARTS REQUEST
PHOTO COMING HOSE JOINT Y0605512192 · qty on machine: 2 PARTS REQUEST
37	0602022580	ADAPTER	1		ADD TO CART
ADAPTER 0602022580 · qty on machine: 1 view full part page → $37.95
38	0602022561	90° ELBOW	1		ADD TO CART
90° ELBOW 0602022561 · qty on machine: 1 view full part page → $76.95
39	Y0269201300	PUSH-LOCK HOSE	1		PARTS REQUEST
PHOTO COMING PUSH-LOCK HOSE Y0269201300 · qty on machine: 1 PARTS REQUEST
40	0603306395	MALE PIPE	1		ADD TO CART
MALE PIPE 0603306395 · qty on machine: 1 view full part page → $16.95
41	0605511395	BALL VALVE	1		ADD TO CART
BALL VALVE 0605511395 · qty on machine: 1 view full part page → $46.95
42	0603306590	MALE BULKHEAD CONNECTOR	1		ADD TO CART
MALE BULKHEAD CONNECTOR 0603306590 · qty on machine: 1 view full part page → $86.95
43	0603300285	BULKHEAD LOCKNUT	1		ADD TO CART
BULKHEAD LOCKNUT 0603300285 · qty on machine: 1 view full part page → $4.95
44	0602021070	CAP	1		ADD TO CART
CAP 0602021070 · qty on machine: 1 view full part page → $11.95
45	Y0605000462	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION Y0605000462 · qty on machine: 2 view full part page → $110.95
46	0030016000	HEX. NUT	4		ADD TO CART
HEX. NUT 0030016000 · qty on machine: 4 view full part page → $1.9
46A	0040016000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 4 view full part page → $4.95
47	M3314300104	CAC PIPE BRACKET	1		PARTS REQUEST
PHOTO COMING CAC PIPE BRACKET M3314300104 · qty on machine: 1 PARTS REQUEST
47A	Y0010116030	HEX. HEAD BOLT	1		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0010116030 · qty on machine: 1 PARTS REQUEST
47B	0010116060	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0010116060 · qty on machine: 1 view full part page → $3.95
47C	0040016000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 2 view full part page → $4.95
47D	0041216000	WASHER, FLAT	3		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 3 view full part page → $1.95
47E	0030016000	HEX. NUT	1		ADD TO CART
HEX. NUT 0030016000 · qty on machine: 1 view full part page → $1.9
48	0602326063	U-BOLT	2		ADD TO CART
U-BOLT 0602326063 · qty on machine: 2 view full part page → $11.95
49	M5311200404	RADIATOR BRACKET	1		ADD TO CART
RADIATOR BRACKET M5311200404 · qty on machine: 1 view full part page → $308.95
50	M5311200504	RADIATOR BRACKET	1		ADD TO CART
RADIATOR BRACKET M5311200504 · qty on machine: 1 view full part page → $308.95
51	Y0016908015	HEX. HEAD BOLT	16		ADD TO CART
HEX. HEAD BOLT Y0016908015 · qty on machine: 16 view full part page → $1.95
52	011008020	HEX. HEAD BOLT	10	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 10 REPLACES P/N 0016908020 view full part page → $2.68
53	M5311300603	FAN SHROUD	1		ADD TO CART
FAN SHROUD M5311300603 · qty on machine: 1 view full part page → $692.95
54	M5311300703	FAN SHROUD	1		PARTS REQUEST
PHOTO COMING FAN SHROUD M5311300703 · qty on machine: 1 PARTS REQUEST
55	011008020	HEX. HEAD BOLT	12	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 12 REPLACES P/N 0016908020 view full part page → $2.68
56	M3311300803	FAN GUARD	1	S/N 8010867 AND BELOW	ADD TO CART
FAN GUARD M3311300803 · qty on machine: 1 S/N 8010867 AND BELOW view full part page → $129.95
56	M3311300813	FAN GUARD	1	S/N 8010868 AND ABOVE	ADD TO CART
FAN GUARD M3311300813 · qty on machine: 1 S/N 8010868 AND ABOVE view full part page → $158.95
57	M3311300903	FAN GUARD	1	S/N 8010867 AND BELOW	PARTS REQUEST
PHOTO COMING FAN GUARD M3311300903 · qty on machine: 1 S/N 8010867 AND BELOW PARTS REQUEST
57	M3311300913	FAN GUARD	1	S/N 8010868 AND ABOVE	PARTS REQUEST
PHOTO COMING FAN GUARD M3311300913 · qty on machine: 1 S/N 8010868 AND ABOVE PARTS REQUEST
58	011008020	HEX. HEAD BOLT	17	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 17 REPLACES P/N 0016908020 view full part page → $2.68
59	0602220911	CLAMP	2		ADD TO CART
CLAMP 0602220911 · qty on machine: 2 view full part page → $1.85
60	0605515208	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515208 · qty on machine: 2 view full part page → $61.95

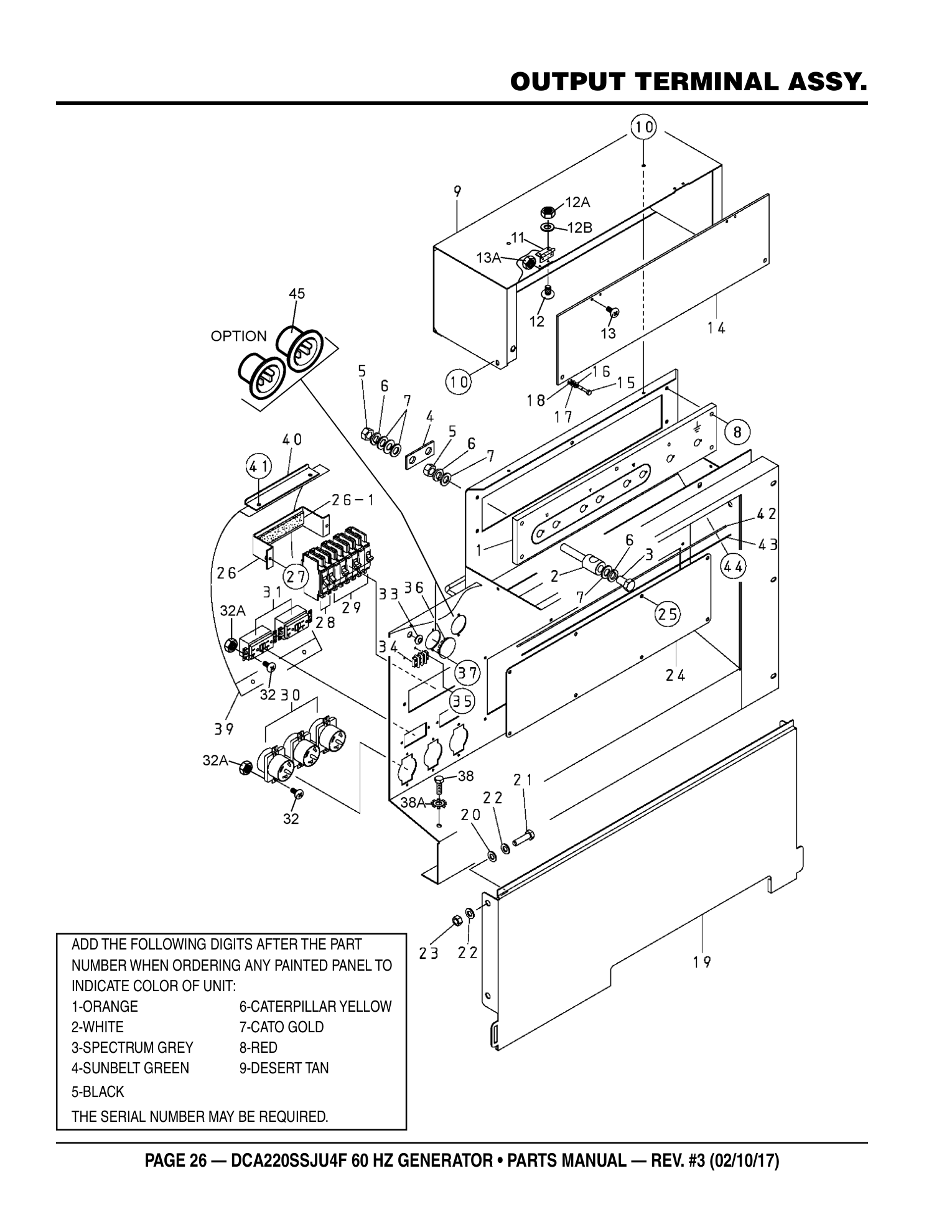

Page 26 — OUTPUT TERMINAL ASSY.

Multiquip DCA220SSJU4F Generator OUTPUT TERMINAL ASSY. parts diagram

Parts list — exactly as printed40 rows

No.	Part No.	Part Name	Qty	Remarks
1	C1231700003	TERMINAL BOARD	1	REPLACES P/N M4230700003	ADD TO CART
TERMINAL BOARD C1231700003 · qty on machine: 1 REPLACES P/N M4230700003 view full part page → $541.95
2	M9220100304	OUTPUT TERMINAL BOLT	8		ADD TO CART
OUTPUT TERMINAL BOLT M9220100304 · qty on machine: 8 view full part page → $118.95
3	0801830804	TIE BOLT	8	REPLACES P/N M9220100404	ADD TO CART
TIE BOLT 0801830804 · qty on machine: 8 REPLACES P/N M9220100404 view full part page → $19.95
4	3461860504	TERMINAL PLATE	3	REPLACES P/N M4233200004	ADD TO CART
TERMINAL PLATE 3461860504 · qty on machine: 3 REPLACES P/N M4233200004 view full part page → $29.95
5	0039316000	HEX. NUT	16		ADD TO CART
HEX. NUT 0039316000 · qty on machine: 16 view full part page → $5.95
6	0040016000	WASHER, LOCK	24		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 24 view full part page → $4.95
7	0401450160	WASHER, FLAT	32	REPLACES P/N 0041416000	ADD TO CART
WASHER, FLAT 0401450160 · qty on machine: 32 REPLACES P/N 0041416000 view full part page → $0.53
8	0016908040	HEX. HEAD BOLT	5		ADD TO CART
HEX. HEAD BOLT 0016908040 · qty on machine: 5 view full part page → $1.52
9	M4236100403	TERMINAL COVER	1		ADD TO CART
TERMINAL COVER M4236100403 · qty on machine: 1 view full part page → $231.95
10	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0016906015 view full part page → $0.69
11	0605010040	HINGE	2		ADD TO CART
HINGE 0605010040 · qty on machine: 2 view full part page → $4.95
12	0027103010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027103010 · qty on machine: 4 view full part page → $0.44
12A	0207003000	HEX. NUT	4	REPLACES P/N 0030003000	ADD TO CART
HEX. NUT 0207003000 · qty on machine: 4 REPLACES P/N 0030003000 view full part page → $0.21
12B	0041203000	WASHER, FLAT	4		ADD TO CART
WASHER, FLAT 0041203000 · qty on machine: 4 view full part page → $0.12
13	0027103015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027103015 · qty on machine: 4 view full part page → $0.64
13A	0207003000	HEX. NUT	4	REPLACES P/N 0030003000	ADD TO CART
HEX. NUT 0207003000 · qty on machine: 4 REPLACES P/N 0030003000 view full part page → $0.21
14	M4236100504	OUTPUT WINDOW	1		ADD TO CART
OUTPUT WINDOW M4236100504 · qty on machine: 1 view full part page → $102.95
15	M9220100804	SET SCREW	2		ADD TO CART
SET SCREW M9220100804 · qty on machine: 2 view full part page → $20.95
16	0040006000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040006000 · qty on machine: 2 view full part page → $0.17
17	952404470	WASHER, FLAT	2	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 2 REPLACES P/N 0041206000 view full part page → $0.19
18	0080200005	E RING	2		ADD TO CART
E RING 0080200005 · qty on machine: 2 view full part page → $0.25
19	M5454400003	TERMINAL COVER	1		PARTS REQUEST
PHOTO COMING TERMINAL COVER M5454400003 · qty on machine: 1 PARTS REQUEST
20	0605050060	CONICAL LOCK WASHER	2		ADD TO CART
CONICAL LOCK WASHER 0605050060 · qty on machine: 2 view full part page → $5.95
21	012212045	HEX. HEAD BOLT	2	REPLACES P/N 0010112045	ADD TO CART
HEX. HEAD BOLT 012212045 · qty on machine: 2 REPLACES P/N 0010112045 view full part page → $2.95
22	031112230	WASHER, FLAT	6	REPLACES P/N 0041212000	ADD TO CART
WASHER, FLAT 031112230 · qty on machine: 6 REPLACES P/N 0041212000 view full part page → $0.95
23	0030012000	HEX. NUT	2		ADD TO CART
HEX. NUT 0030012000 · qty on machine: 2 view full part page → $0.5
24	M4236400204	COVER	1		PARTS REQUEST
PHOTO COMING COVER M4236400204 · qty on machine: 1 PARTS REQUEST
25	011106015	HEX. HEAD BOLT	8	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 8 REPLACES P/N 0016906015 view full part page → $0.69
26	M4260600104	BRACKET, CIRCUIT BREAKER	1		ADD TO CART
BRACKET, CIRCUIT BREAKER M4260600104 · qty on machine: 1 view full part page → $57.95
26-1	0222100150	RUBBER CUSHION	1		ADD TO CART
RUBBER CUSHION 0222100150 · qty on machine: 1 view full part page → $6.95
27	011206020	HEX. HEAD BOLT	2	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 2 REPLACES P/N 0016906020 view full part page → $0.95
28	0601808803	CIRCUIT BREAKER, 1P 20A	2		ADD TO CART
CIRCUIT BREAKER, 1P 20A 0601808803 · qty on machine: 2 view full part page → $46.95
29	0601808804	CIRCUIT BREAKER, 2P 50A	3		ADD TO CART
CIRCUIT BREAKER, 2P 50A 0601808804 · qty on machine: 3 view full part page → $98.95
30	0601814014	RECEPTACLE, 50A	3		ADD TO CART
RECEPTACLE, 50A 0601814014 · qty on machine: 3 view full part page → $90.95
31	0601814024	RECEPTACLE, 20A	2		ADD TO CART
RECEPTACLE, 20A 0601814024 · qty on machine: 2 view full part page → $78.95
32	0027104015	MACHINE SCREW	10		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 10 view full part page → $0.53
32A	OEMAA8	HEX. NUT	10	REPLACES P/N 0207004000	ADD TO CART
HEX. NUT OEMAA8 · qty on machine: 10 REPLACES P/N 0207004000 view full part page → $0.4
33	0601850275	GROMMET	1		ADD TO CART
GROMMET 0601850275 · qty on machine: 1 view full part page → $2.68
34	0601815194	TERMINAL BLOCK	1		NO LONGER AVAILABLE
PHOTO COMING TERMINAL BLOCK 0601815194 · qty on machine: 1 NO LONGER AVAILABLE
35	0027104015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 2 view full part page → $0.53

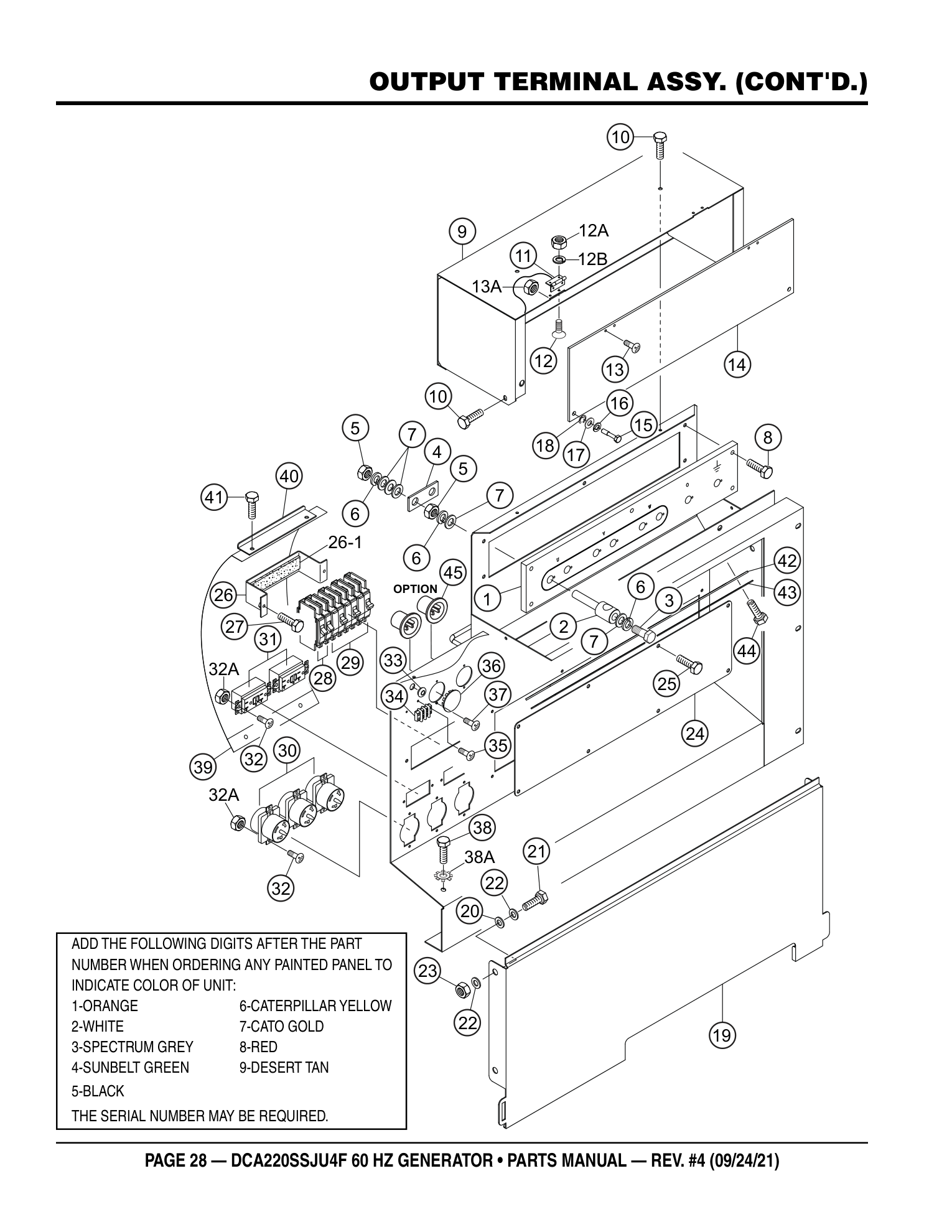

Page 28 — OUTPUT TERMINAL ASSY. (CONT'D.)

Multiquip DCA220SSJU4F Generator OUTPUT TERMINAL ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed11 rows

No.	Part No.	Part Name	Qty	Remarks
36	0603306775	BLIND PLUG	2		ADD TO CART
BLIND PLUG 0603306775 · qty on machine: 2 view full part page → $3.95
37	0027104015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 4 view full part page → $0.53
38	0019210025	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0019210025 · qty on machine: 1 view full part page → $7.95
38A	0040510000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040510000 · qty on machine: 1 view full part page → $0.77
39	M3237100204	INSULATING COVER	1		ADD TO CART
INSULATING COVER M3237100204 · qty on machine: 1 view full part page → $176.95
40	M4236400304	BRACKET	1		ADD TO CART
BRACKET M4236400304 · qty on machine: 1 view full part page → $19.95
41	011106015	HEX. HEAD BOLT	2	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 2 REPLACES P/N 0016906015 view full part page → $0.69
42	M4236400004	CABLE OUTLET COVER	1		ADD TO CART
CABLE OUTLET COVER M4236400004 · qty on machine: 1 view full part page → $9.95
43	M4236400104	SUPPORTER, CABLE OUTLET COVER	1		ADD TO CART
SUPPORTER, CABLE OUTLET COVER M4236400104 · qty on machine: 1 view full part page → $88.95
44	011206020	HEX. HEAD BOLT	8	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 8 REPLACES P/N 0016906020 view full part page → $0.95
45	HBL5278C	INLET FLANGE RECPT., 15 AMP NEMA, 125V	2	OPTION	ADD TO CART
INLET FLANGE RECPT., 15 AMP NEMA, 125V HBL5278C · qty on machine: 2 OPTION view full part page → $53.95

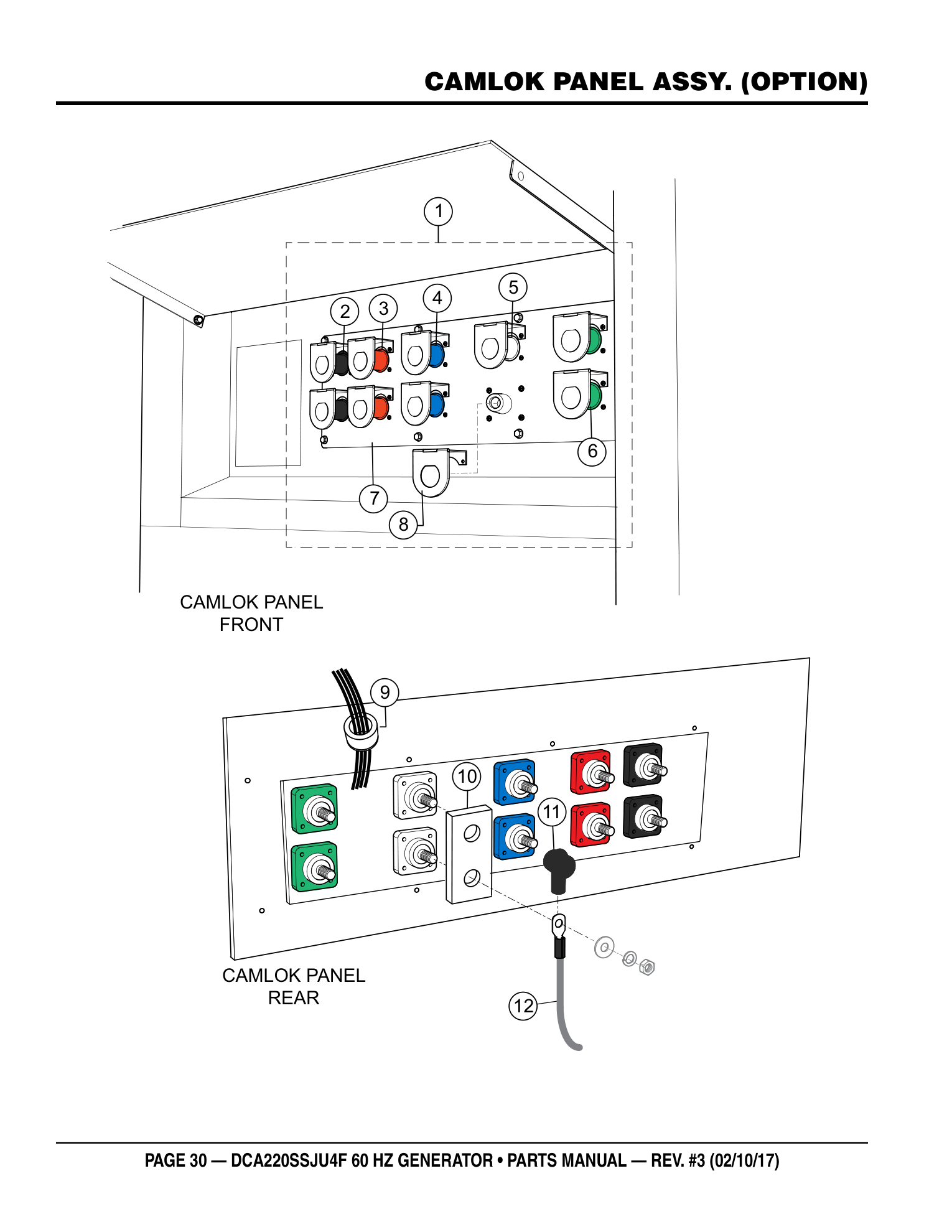

Page 30 — CAMLOK PANEL ASSY. (OPTION)

Multiquip DCA220SSJU4F Generator CAMLOK PANEL ASSY. (OPTION) parts diagram

Parts list — exactly as printed12 rows

No.	Part No.	Part Name	Qty	Remarks
1	CAMLOK-2KITAL	CAMLOK 2 SETS	1	INCLUDES ITEMS W/%	PARTS REQUEST
PHOTO COMING CAMLOK 2 SETS CAMLOK-2KITAL · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 2%, 3%, 4%, 5%, 6%, 7%, 8%, 9%, 11% PARTS REQUEST
2%	EE6378	RECEPT, PANEL MNT., FEMALE, BLK, 4/0	2		ADD TO CART
RECEPT, PANEL MNT., FEMALE, BLK, 4/0 EE6378 · qty on machine: 2 Also included in kit 1 - CAMLOK 2 SETS (CAMLOK-2KITAL) view full part page → $69.95 IN A KIT + SOLD SOLO
3%	EE6380	RECEPT, PANEL MNT., FEMALE, RED, 4/0	2		ADD TO CART
RECEPT, PANEL MNT., FEMALE, RED, 4/0 EE6380 · qty on machine: 2 Also included in kit 1 - CAMLOK 2 SETS (CAMLOK-2KITAL) view full part page → $69.95 IN A KIT + SOLD SOLO
4%	EE6381	RECEPT, PANEL MNT., FEMALE, BLUE, 4/0	2		ADD TO CART
RECEPT, PANEL MNT., FEMALE, BLUE, 4/0 EE6381 · qty on machine: 2 Also included in kit 1 - CAMLOK 2 SETS (CAMLOK-2KITAL) view full part page → $69.95 IN A KIT + SOLD SOLO
5%	EE6379	RECEPT, PANEL MNT., FEMALE, WHT, 4/0	2		ADD TO CART
RECEPT, PANEL MNT., FEMALE, WHT, 4/0 EE6379 · qty on machine: 2 Also included in kit 1 - CAMLOK 2 SETS (CAMLOK-2KITAL) view full part page → $69.95 IN A KIT + SOLD SOLO
6%	EE6382	RECEPT, PANEL MNT., FEMALE, GRN, 4/0	2		ADD TO CART
RECEPT, PANEL MNT., FEMALE, GRN, 4/0 EE6382 · qty on machine: 2 Also included in kit 1 - CAMLOK 2 SETS (CAMLOK-2KITAL) view full part page → $21.95 IN A KIT + SOLD SOLO
7%	EE56983	PANEL, TWO CONDUCT CAMLOK, ALU.	1		ADD TO CART
PANEL, TWO CONDUCT CAMLOK, ALU. EE56983 · qty on machine: 1 Also included in kit 1 - CAMLOK 2 SETS (CAMLOK-2KITAL) view full part page → $61.95 IN A KIT + SOLD SOLO
8%	CL40WTC-L-125-J	SNAP BACK PLASTIC COVER	10		ADD TO CART
SNAP BACK PLASTIC COVER CL40WTC-L-125-J · qty on machine: 10 Also included in kit 1 - CAMLOK 2 SETS (CAMLOK-2KITAL) view full part page → $44.95 IN A KIT + SOLD SOLO
9%	EE26643	TRANSFORMER,CURRENT, 600:5	1		ADD TO CART
TRANSFORMER,CURRENT, 600:5 EE26643 · qty on machine: 1 Also included in kit 1 - CAMLOK 2 SETS (CAMLOK-2KITAL) view full part page → $40.95 IN A KIT + SOLD SOLO
10	EE7342	BUS BAR, 2-INCH	5		ADD TO CART
BUS BAR, 2-INCH EE7342 · qty on machine: 5 view full part page → $34.95
11%	EE59031	CAP, TERMINAL INSULATOR, BLACK	8		ADD TO CART
CAP, TERMINAL INSULATOR, BLACK EE59031 · qty on machine: 8 Also included in kit 1 - CAMLOK 2 SETS (CAMLOK-2KITAL) view full part page → $8.95 IN A KIT + SOLD SOLO
12	CAMLOK-2KIT	4/0 SINGLE CONDUCTOR CABLE	1		ADD TO CART
4/0 SINGLE CONDUCTOR CABLE CAMLOK-2KIT · qty on machine: 1 view full part page → $1478.04

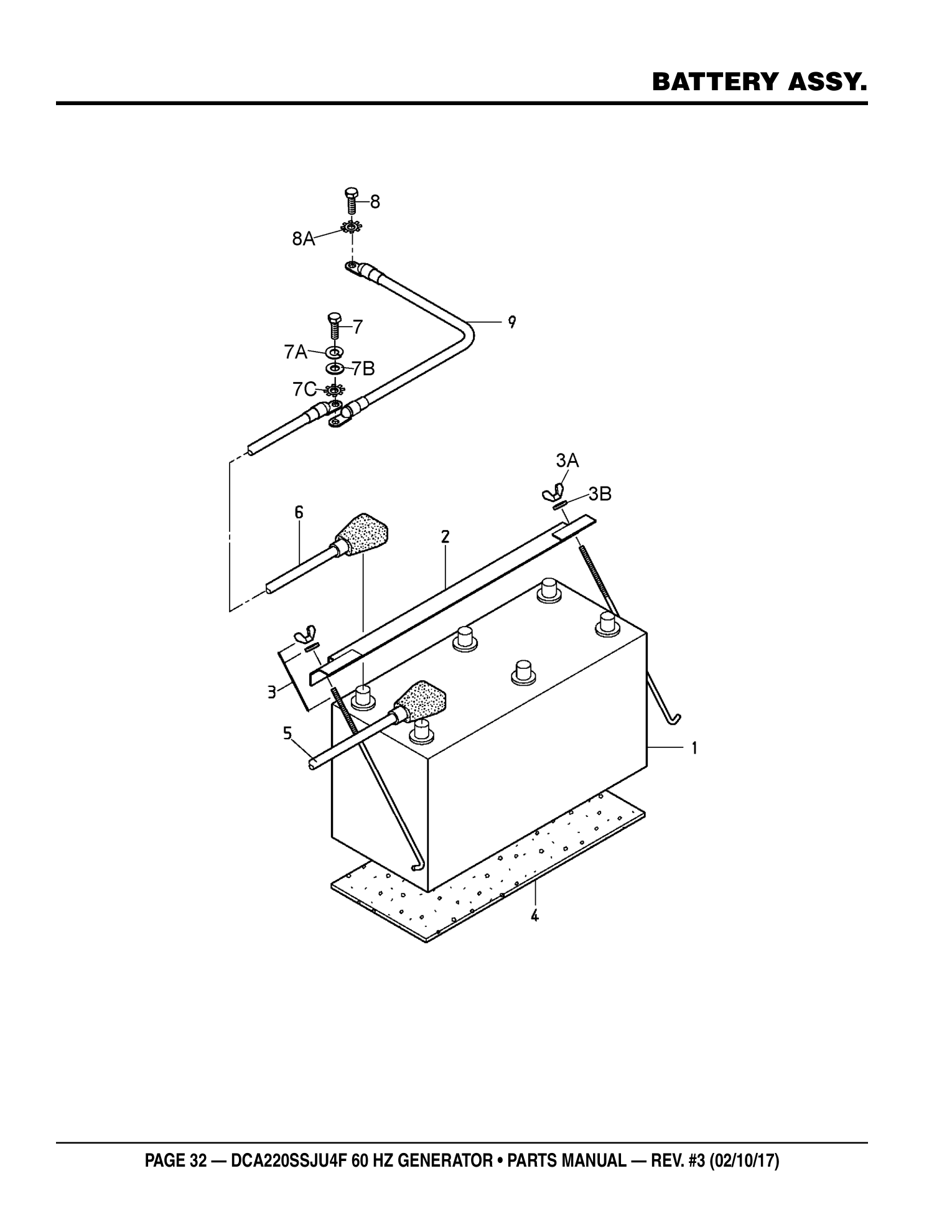

Page 32 — BATTERY ASSY.

Multiquip DCA220SSJU4F Generator BATTERY ASSY. parts diagram

Parts list — exactly as printed15 rows

No.	Part No.	Part Name	Qty	Remarks
1	0602220198	BATTERY	1		ADD TO CART
BATTERY 0602220198 · qty on machine: 1 view full part page → $500.95
2	M9103000504	BATTERY BAND	1		ADD TO CART
BATTERY BAND M9103000504 · qty on machine: 1 view full part page → $107.95
3	0602220921	BATTERY BOLT SET	2	INCLUDES ITEMS W/$	ADD TO CART
BATTERY BOLT SET 0602220921 · qty on machine: 2 INCLUDES ITEMS W/$ Kit includes: 3A$, 3B$ view full part page → $5.95 IN A KIT + SOLD SOLO
3A$		WING NUT	2		INCLUDED IN KIT
PHOTO COMING WING NUT · qty on machine: 2 Included in kit 3 - BATTERY BOLT SET (0602220921) INCLUDED IN KIT
3B$		PLASTIC WASHER	2		INCLUDED IN KIT
PHOTO COMING PLASTIC WASHER · qty on machine: 2 Included in kit 3 - BATTERY BOLT SET (0602220921) INCLUDED IN KIT
4	M9310500404	BATTERY SHEET	1		PARTS REQUEST
PHOTO COMING BATTERY SHEET M9310500404 · qty on machine: 1 PARTS REQUEST
5	M5347900504	BATTERY CABLE	1		ADD TO CART
BATTERY CABLE M5347900504 · qty on machine: 1 view full part page → $365.95
6	M5347900604	BATTERY CABLE	1		PARTS REQUEST
PHOTO COMING BATTERY CABLE M5347900604 · qty on machine: 1 PARTS REQUEST
7	Y0010116030	HEX. HEAD BOLT	1		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0010116030 · qty on machine: 1 PARTS REQUEST
7A	0040016000	WASHER, LOCK	1		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 1 view full part page → $4.95
7B	0041216000	WASHER, FLAT	1		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 1 view full part page → $1.95
7C	0040516000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040516000 · qty on machine: 1 view full part page → $1.39
8	0016910025	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0016910025 · qty on machine: 1 view full part page → $1.56
8A	0040510000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040510000 · qty on machine: 1 view full part page → $0.77
9		EARTH CABLE	1	MAKE LOCALLY	SEE REMARKS
PHOTO COMING EARTH CABLE · qty on machine: 1 MAKE LOCALLY SEE REMARKS

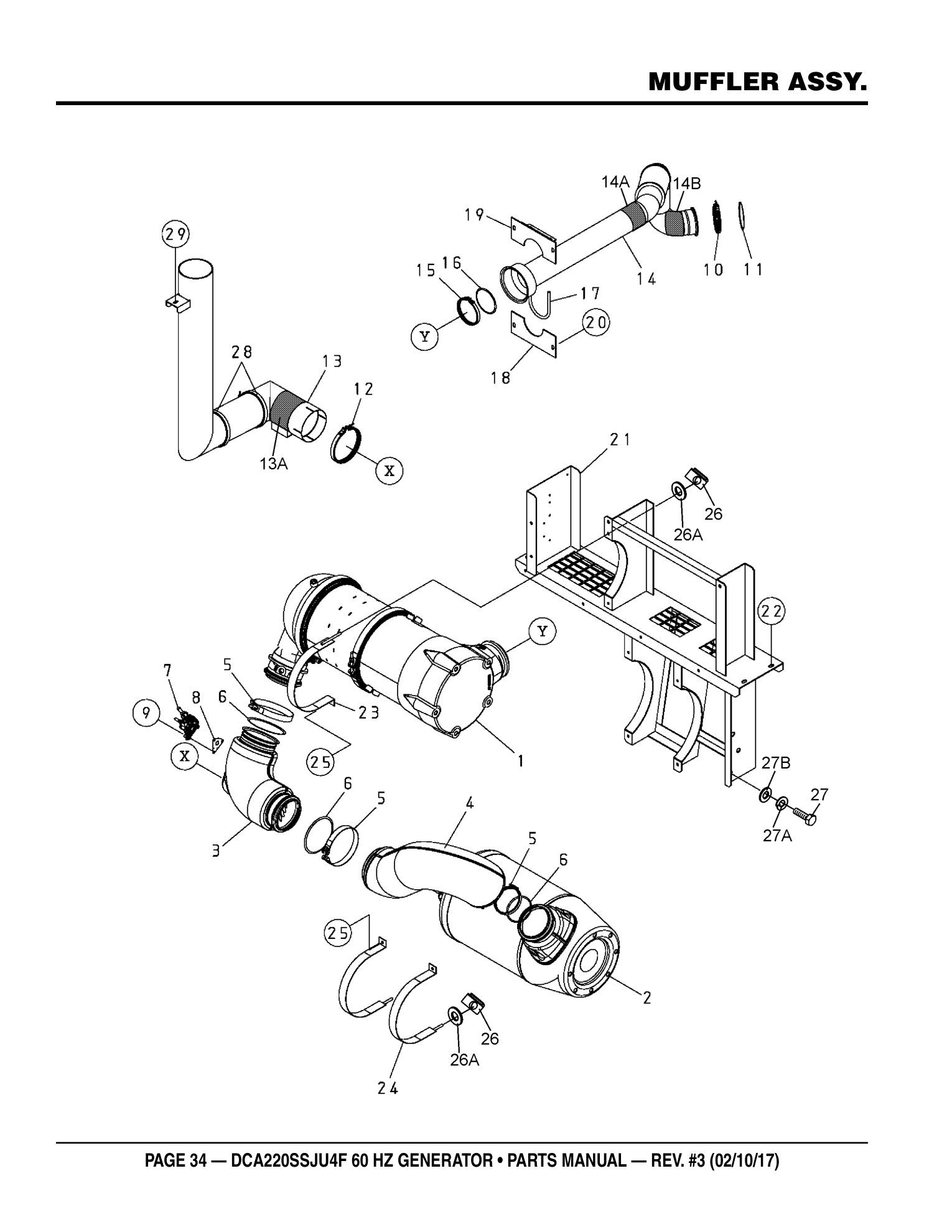

Page 34 — MUFFLER ASSY.

Multiquip DCA220SSJU4F Generator MUFFLER ASSY. parts diagram

Parts list — exactly as printed36 rows

No.	Part No.	Part Name	Qty	Remarks
1	RE560424	DIESEL PARTICULATE FILTER	1	REPLACES P/N Y0602330104 S/N 8011012 AND BELOW	NO LONGER AVAILABLE
PHOTO COMING DIESEL PARTICULATE FILTER RE560424 · qty on machine: 1 REPLACES P/N Y0602330104 S/N 8011012 AND BELOW NO LONGER AVAILABLE
1	Y0602330107	DIESEL PARTICULATE FILTER	1	S/N 8011013 AND ABOVE	PARTS REQUEST
PHOTO COMING DIESEL PARTICULATE FILTER Y0602330107 · qty on machine: 1 S/N 8011013 AND ABOVE PARTS REQUEST
2	RE554144	SCR CATALYST	1	REPLACES P/N Y0602330302 S/N 8011012 AND BELOW	ADD TO CART
SCR CATALYST RE554144 · qty on machine: 1 REPLACES P/N Y0602330302 S/N 8011012 AND BELOW view full part page → $16346.95
2	Y0602330304	SCR CATALYST	1	S/N 8011013 AND ABOVE	PARTS REQUEST
PHOTO COMING SCR CATALYST Y0602330304 · qty on machine: 1 S/N 8011013 AND ABOVE PARTS REQUEST
3	RE565074	DECOMPOSITION TUBE	1	REPLACES P/N Y0602330403	ADD TO CART
DECOMPOSITION TUBE RE565074 · qty on machine: 1 REPLACES P/N Y0602330403 view full part page → $2420.95
4	RE559456	DECOMPOSITION EXTENSION TUBE	1	REPLACES P/N Y0602330404	PARTS REQUEST
PHOTO COMING DECOMPOSITION EXTENSION TUBE RE559456 · qty on machine: 1 REPLACES P/N Y0602330404 PARTS REQUEST
5	RE540348	V-BAND CLAMP	3	REPLACES P/N Y0602325034	ADD TO CART
V-BAND CLAMP RE540348 · qty on machine: 3 REPLACES P/N Y0602325034 view full part page → $163.95
6	RE529640	SEALING RING	3	REPLACES P/N Y0602320205	ADD TO CART
SEALING RING RE529640 · qty on machine: 3 REPLACES P/N Y0602320205 view full part page → $328.95
7	RE560468	DEF INJECTOR	1	REPLACES P/N Y0602330405	ADD TO CART
DEF INJECTOR RE560468 · qty on machine: 1 REPLACES P/N Y0602330405 view full part page → $1355.95
8	RE556879	GASKET	1	REPLACES P/N Y0602330406	ADD TO CART
GASKET RE556879 · qty on machine: 1 REPLACES P/N Y0602330406 view full part page → $25.95
9	RE537624	HEX. HEAD BOLT	3	REPLACES P/N Y0602330407	PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT RE537624 · qty on machine: 3 REPLACES P/N Y0602330407 PARTS REQUEST
10	RE304965	V-BAND CLAMP	1	REPLACES P/N Y0602325035	ADD TO CART
V-BAND CLAMP RE304965 · qty on machine: 1 REPLACES P/N Y0602325035 view full part page → $147.95
11	RE529510	SEALING RING	1	REPLACES P/N Y0602320204	PARTS REQUEST
PHOTO COMING SEALING RING RE529510 · qty on machine: 1 REPLACES P/N Y0602320204 PARTS REQUEST
12	Y0602325026	PIPE BAND	1		ADD TO CART
PIPE BAND Y0602325026 · qty on machine: 1 view full part page → $37.95
13	M5334100103	TAIL PIPE	1	S/N 8011012 AND BELOW	ADD TO CART
TAIL PIPE M5334100103 · qty on machine: 1 S/N 8011012 AND BELOW view full part page → $1026.95
13	M4334100003	TAIL PIPE	1	S/N 8011013 AND ABOVE	ADD TO CART
TAIL PIPE M4334100003 · qty on machine: 1 S/N 8011013 AND ABOVE view full part page → $947.95
13A	Y0400005000	EXHAUST INSULATING WRAP	1		ADD TO CART
EXHAUST INSULATING WRAP Y0400005000 · qty on machine: 1 view full part page → $124.95
14	M5334000203	EXHAUST PIPE	1	S/N 8011012 AND BELOW	ADD TO CART
EXHAUST PIPE M5334000203 · qty on machine: 1 S/N 8011012 AND BELOW view full part page → $2455.95
14	M4334000003	EXHAUST PIPE	1	S/N 8011013 AND ABOVE	PARTS REQUEST
PHOTO COMING EXHAUST PIPE M4334000003 · qty on machine: 1 S/N 8011013 AND ABOVE PARTS REQUEST
14A	Y0602311146	EXHAUST INSULATING MATERIAL	1		ADD TO CART
EXHAUST INSULATING MATERIAL Y0602311146 · qty on machine: 1 view full part page → $503.95
14B	Y0602311147	EXHAUST INSULATING MATERIAL	1		ADD TO CART
EXHAUST INSULATING MATERIAL Y0602311147 · qty on machine: 1 view full part page → $924.95
15	RE540348	V-BAND CLAMP	1	REPLACES P/N Y0602325034 S/N 8011012 AND BELOW	ADD TO CART
V-BAND CLAMP RE540348 · qty on machine: 1 REPLACES P/N Y0602325034 S/N 8011012 AND BELOW view full part page → $163.95
15	RE298757	V-BAND CLAMP	1	REPLACES P/N Y0602325036 S/N 8011013 AND ABOVE	ADD TO CART
V-BAND CLAMP RE298757 · qty on machine: 1 REPLACES P/N Y0602325036 S/N 8011013 AND ABOVE view full part page → $162.95
16	R529640	SEALING RING	1	REPLACES P/N Y0602320205 S/N 8011012 AND BELOW	ADD TO CART
SEALING RING R529640 · qty on machine: 1 REPLACES P/N Y0602320205 S/N 8011012 AND BELOW view full part page → $97.95
16	R300529	SEALING RING	1	REPLACES P/N Y0602320203 S/N 8011013 AND ABOVE	ADD TO CART
SEALING RING R300529 · qty on machine: 1 REPLACES P/N Y0602320203 S/N 8011013 AND ABOVE view full part page → $140.95
17	0602326061	U-BOLT	1		ADD TO CART
U-BOLT 0602326061 · qty on machine: 1 view full part page → $17.95
18	M5331401004	COVER, EXHAUST PIPE	1		ADD TO CART
COVER, EXHAUST PIPE M5331401004 · qty on machine: 1 view full part page → $35.95
19	M5331401104	BRACKET, EXHAUST PIPE	1		PARTS REQUEST
PHOTO COMING BRACKET, EXHAUST PIPE M5331401104 · qty on machine: 1 PARTS REQUEST
20	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
21	M5331200103	BRACKET, DPF AND SCR	1	S/N 8011012 AND BELOW	PARTS REQUEST
PHOTO COMING BRACKET, DPF AND SCR M5331200103 · qty on machine: 1 S/N 8011012 AND BELOW PARTS REQUEST
21	M3331200102	BRACKET, DPF AND SCR	1	S/N 8011013 AND ABOVE	PARTS REQUEST
PHOTO COMING BRACKET, DPF AND SCR M3331200102 · qty on machine: 1 S/N 8011013 AND ABOVE PARTS REQUEST
22	0016910025	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016910025 · qty on machine: 4 view full part page → $1.56
23	M5331400604	DPF BAND	1	S/N 8011012 AND BELOW	PARTS REQUEST
PHOTO COMING DPF BAND M5331400604 · qty on machine: 1 S/N 8011012 AND BELOW PARTS REQUEST
23	M3331400604	DPF BAND	2	S/N 8011013 AND ABOVE	ADD TO CART
DPF BAND M3331400604 · qty on machine: 2 S/N 8011013 AND ABOVE view full part page → $77.95
24	M5331400904	SCR BAND	2	S/N 8011012 AND BELOW	PARTS REQUEST
PHOTO COMING SCR BAND M5331400904 · qty on machine: 2 S/N 8011012 AND BELOW PARTS REQUEST
24	M3331400704	SCR BAND	2	S/N 8011013 AND ABOVE	ADD TO CART
SCR BAND M3331400704 · qty on machine: 2 S/N 8011013 AND ABOVE view full part page → $17.95

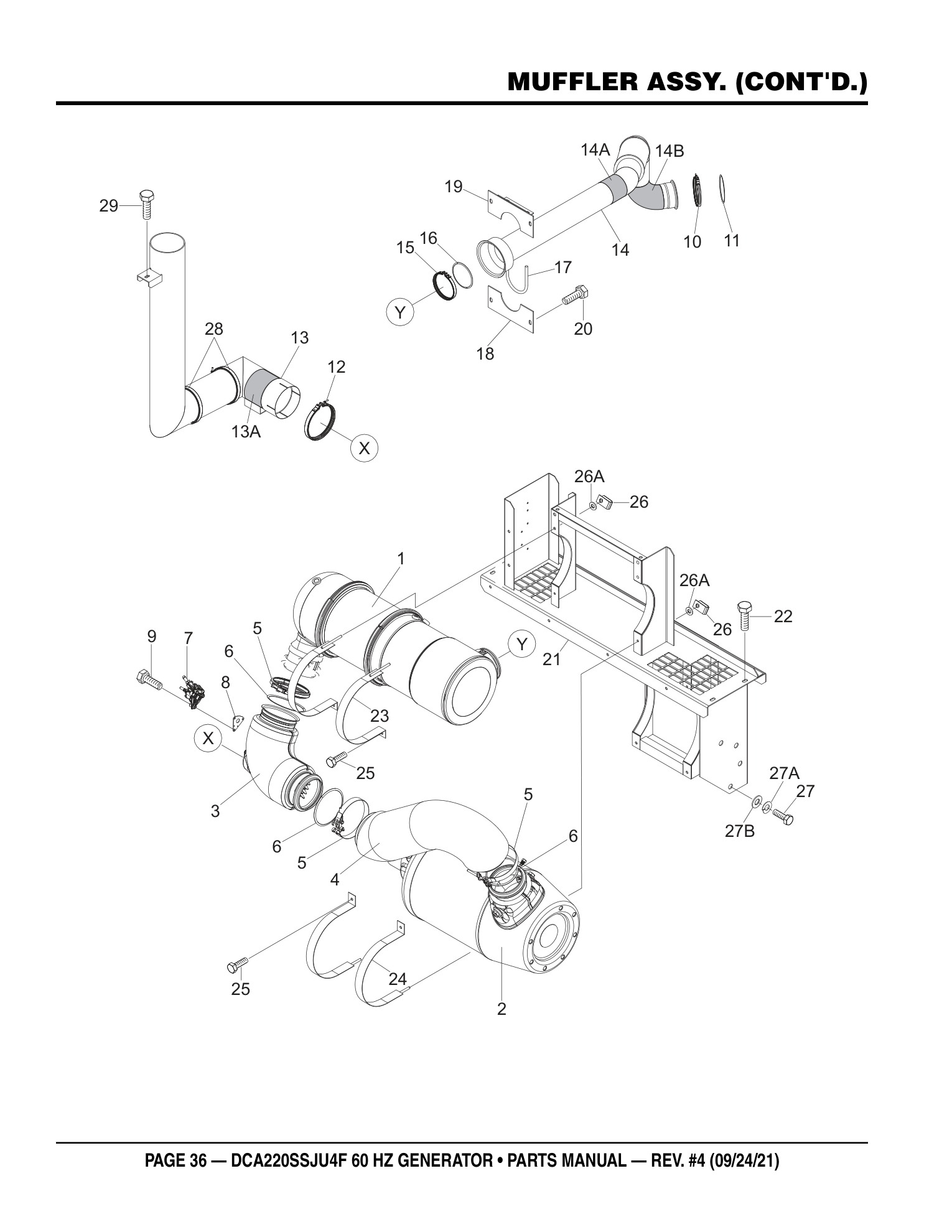

Page 36 — MUFFLER ASSY. (CONT'D.)

Multiquip DCA220SSJU4F Generator MUFFLER ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed14 rows

No.	Part No.	Part Name	Qty	Remarks
25	011008020	HEX. HEAD BOLT	3	REPLACES P/N 0016908020 S/N 8011012 AND BELOW	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 3 REPLACES P/N 0016908020 S/N 8011012 AND BELOW view full part page → $2.68
25	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020 S/N 8011013 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 S/N 8011013 AND ABOVE view full part page → $2.68
26	020108060	U-NUT	3	REPLACES P/N 0037908000 S/N 8011012 AND BELOW	ADD TO CART
U-NUT 020108060 · qty on machine: 3 REPLACES P/N 0037908000 S/N 8011012 AND BELOW view full part page → $0.28
26	020108060	U-NUT	4	REPLACES P/N 0037908000 S/N 8011013 AND ABOVE	ADD TO CART
U-NUT 020108060 · qty on machine: 4 REPLACES P/N 0037908000 S/N 8011013 AND ABOVE view full part page → $0.28
26A	401450080	WASHER, FLAT	3	REPLACES P/N 0041208000 S/N 8011012 AND BELOW	PARTS REQUEST
PHOTO COMING WASHER, FLAT 401450080 · qty on machine: 3 REPLACES P/N 0041208000 S/N 8011012 AND BELOW PARTS REQUEST
26A	401450080	WASHER, FLAT	4	REPLACES P/N 0041208000 S/N 8011013 AND ABOVE	PARTS REQUEST
PHOTO COMING WASHER, FLAT 401450080 · qty on machine: 4 REPLACES P/N 0041208000 S/N 8011013 AND ABOVE PARTS REQUEST
27	Y0010116030	HEX. HEAD BOLT	5	S/N 8011012 AND BELOW	PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0010116030 · qty on machine: 5 S/N 8011012 AND BELOW PARTS REQUEST
27	Y0010116030	HEX. DEAD BOLT	4	S/N 8011013 AND ABOVE	PARTS REQUEST
PHOTO COMING HEX. DEAD BOLT Y0010116030 · qty on machine: 4 S/N 8011013 AND ABOVE PARTS REQUEST
27A	0040016000	WASHER, LOCK	5	S/N 8011012 AND BELOW	ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 5 S/N 8011012 AND BELOW view full part page → $4.95
27A	0040016000	WASHER, LOCK	4	S/N 8011013 AND ABOVE	ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 4 S/N 8011013 AND ABOVE view full part page → $4.95
27B	0041216000	WASHER, FLAT	5	S/N 8011012 AND BELOW	ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 5 S/N 8011012 AND BELOW view full part page → $1.95
27B	0041216000	WASHER, FLAT	4	S/N 8011013 AND ABOVE	ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 4 S/N 8011013 AND ABOVE view full part page → $1.95
28	0605515202	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515202 · qty on machine: 2 view full part page → $9.95
29	011008020	HEX. HEAD BOLT	1	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 1 REPLACES P/N 0016908020 view full part page → $2.68

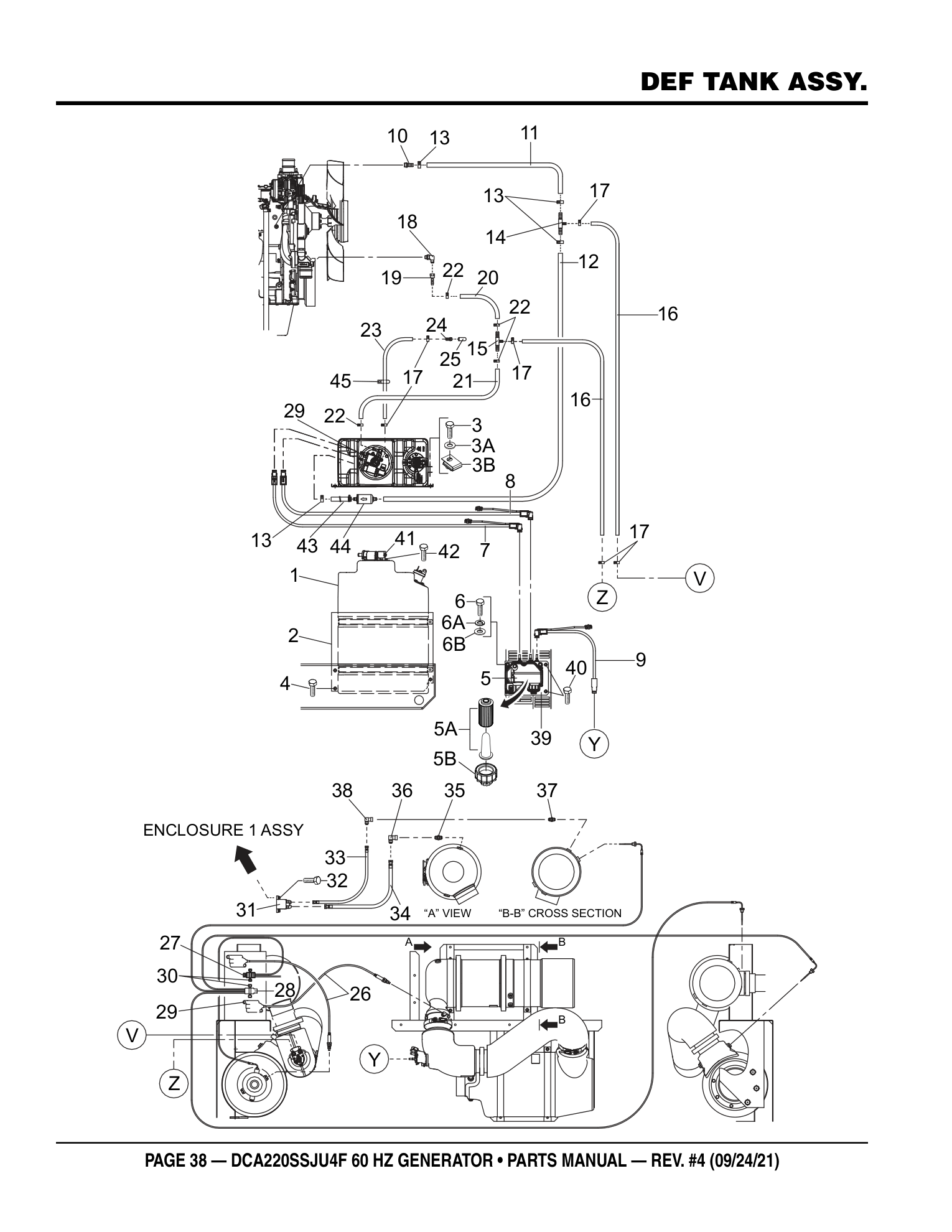

Page 38 — DEF TANK ASSY.

Multiquip DCA220SSJU4F Generator DEF TANK ASSY. parts diagram

Parts list — exactly as printed38 rows

No.	Part No.	Part Name	Qty	Remarks
1	RE558330	DEF TANK	1	REPLACES P/N Y0605500070 S/N 8010872 AND BELOW	PARTS REQUEST
PHOTO COMING DEF TANK RE558330 · qty on machine: 1 REPLACES P/N Y0605500070 S/N 8010872 AND BELOW PARTS REQUEST
1	Y0605500072	DEF TANK	1	S/N 8010873 AND ABOVE	NO LONGER AVAILABLE
PHOTO COMING DEF TANK Y0605500072 · qty on machine: 1 S/N 8010873 AND ABOVE NO LONGER AVAILABLE
2	M3331400503	BRACKET, DEF TANK	1		PARTS REQUEST
PHOTO COMING BRACKET, DEF TANK M3331400503 · qty on machine: 1 PARTS REQUEST
3	011208025	HEX. HEAD BOLT	2	REPLACES P/N 0016908025	ADD TO CART
HEX. HEAD BOLT 011208025 · qty on machine: 2 REPLACES P/N 0016908025 view full part page → $0.41
3A	0401450080	WASHER, FLAT	2	REPLACES P/N 0041208000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 2 REPLACES P/N 0041208000 view full part page → $0.56
3B	020108060	U-NUT	2	REPLACES P/N 0037908000	ADD TO CART
U-NUT 020108060 · qty on machine: 2 REPLACES P/N 0037908000 view full part page → $0.28
4	011208025	HEX. HEAD BOLT	3	REPLACES P/N 0016908025	ADD TO CART
HEX. HEAD BOLT 011208025 · qty on machine: 3 REPLACES P/N 0016908025 view full part page → $0.41
5	RE552175	DEF SUPPLY MODULE	1	REPLACES P/N Y0602330400	ADD TO CART
DEF SUPPLY MODULE RE552175 · qty on machine: 1 REPLACES P/N Y0602330400 view full part page → $2050.95
5A	RE554498	FILTER KIT	1	REPLACES P/N Y0602330414	ADD TO CART
FILTER KIT RE554498 · qty on machine: 1 REPLACES P/N Y0602330414 view full part page → $309.95
5B	RE555351	COVER	1		ADD TO CART
COVER RE555351 · qty on machine: 1 view full part page → $34.95
6	Y0010108090	HEX. HEAD BOLT	3		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0010108090 · qty on machine: 3 PARTS REQUEST
6A	0040008000	WASHER, LOCK	3		ADD TO CART
WASHER, LOCK 0040008000 · qty on machine: 3 view full part page → $0.63
6B	0401450080	WASHER, FLAT	3	REPLACES P/N 0041208000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 3 REPLACES P/N 0041208000 view full part page → $0.56
7	RE560902	DEF SUCTION LINE	1	REPLACES P/N Y0602330411	ADD TO CART
DEF SUCTION LINE RE560902 · qty on machine: 1 REPLACES P/N Y0602330411 view full part page → $733.95
8	RE560900	DEF BACKFLOW LINE	1	REPLACES P/N Y0602330412	ADD TO CART
DEF BACKFLOW LINE RE560900 · qty on machine: 1 REPLACES P/N Y0602330412 view full part page → $591.95
9	RE560894	DEF PRESSURE LINE	1	REPLACES P/N Y0602330413	ADD TO CART
DEF PRESSURE LINE RE560894 · qty on machine: 1 REPLACES P/N Y0602330413 view full part page → $570.95
10	AT377287	HOSE BARB	1	REPLACES P/N Y0602022975	ADD TO CART
HOSE BARB AT377287 · qty on machine: 1 REPLACES P/N Y0602022975 view full part page → $49.95
11	Y0269300730	COOLANT HOSE	1		ADD TO CART
COOLANT HOSE Y0269300730 · qty on machine: 1 view full part page → $12.95
12	Y0269300250	COOLANT HOSE	1	S/N 8011012 AND BELOW	ADD TO CART
COOLANT HOSE Y0269300250 · qty on machine: 1 S/N 8011012 AND BELOW view full part page → $5.95
12	Y0269301250	COOLANT HOSE	1	S/N 8011013 AND ABOVE	ADD TO CART
COOLANT HOSE Y0269301250 · qty on machine: 1 S/N 8011013 AND ABOVE view full part page → $20.95
13	Y0605515341	HOSE BAND	6	S/N 8011012 AND BELOW	ADD TO CART
HOSE BAND Y0605515341 · qty on machine: 6 S/N 8011012 AND BELOW view full part page → $2.95
13	Y0605515341	HOSE BAND	4	S/N 8011013 AND ABOVE	ADD TO CART
HOSE BAND Y0605515341 · qty on machine: 4 S/N 8011013 AND ABOVE view full part page → $2.95
14	T317541	BLACK TEE-FITTING WITH ORIFICE	1	REPLACES P/N Y0602022976	ADD TO CART
BLACK TEE-FITTING WITH ORIFICE T317541 · qty on machine: 1 REPLACES P/N Y0602022976 view full part page → $17.95
15	T296925	WHITE TEE-FITTING	1	REPLACES P/N Y0602022977	ADD TO CART
WHITE TEE-FITTING T296925 · qty on machine: 1 REPLACES P/N Y0602022977 view full part page → $12.95
16	Y0379601300	COOLANT HOSE	2		PARTS REQUEST
PHOTO COMING COOLANT HOSE Y0379601300 · qty on machine: 2 PARTS REQUEST
17	Y0605515340	HOSE BAND	6		ADD TO CART
HOSE BAND Y0605515340 · qty on machine: 6 view full part page → $2.95
18	Y0602022559	90° ELBOW	1		PARTS REQUEST
PHOTO COMING 90° ELBOW Y0602022559 · qty on machine: 1 PARTS REQUEST
19	0602022980	HOSE JOINT	1		ADD TO CART
HOSE JOINT 0602022980 · qty on machine: 1 view full part page → $11.95
20	Y0379700680	COOLANT HOSE	1		PARTS REQUEST
PHOTO COMING COOLANT HOSE Y0379700680 · qty on machine: 1 PARTS REQUEST
21	Y0379701300	COOLANT HOSE	1		PARTS REQUEST
PHOTO COMING COOLANT HOSE Y0379701300 · qty on machine: 1 PARTS REQUEST
22	Y0605515341	HOSE BAND	4		ADD TO CART
HOSE BAND Y0605515341 · qty on machine: 4 view full part page → $2.95
23	0191301150	SUCTION HOSE	1		ADD TO CART
SUCTION HOSE 0191301150 · qty on machine: 1 view full part page → $47.95
24	H216170	DEF TANK VENT FITTING	1	REPLACES P/N Y0602330402	ADD TO CART
DEF TANK VENT FITTING H216170 · qty on machine: 1 REPLACES P/N Y0602330402 view full part page → $32.95
25	H216169	DEF TANK VENT FILTER	1	REPLACES P/N Y0602330401	ADD TO CART
DEF TANK VENT FILTER H216169 · qty on machine: 1 REPLACES P/N Y0602330401 view full part page → $54.95
26	RE552182	NOX SENSOR	2	REPLACES P/N Y0602330410	ADD TO CART
NOX SENSOR RE552182 · qty on machine: 2 REPLACES P/N Y0602330410 view full part page → $1348.95
27	RE552186	SCR TEMP. SENSOR	1	REPLACES P/N Y0602330409 S/N 8011012 AND BELOW	ADD TO CART
SCR TEMP. SENSOR RE552186 · qty on machine: 1 REPLACES P/N Y0602330409 S/N 8011012 AND BELOW view full part page → $917.95
28	RE552185	DPF TEMP. SENSOR	1	REPLACES P/N Y0602330204 S/N 8011012 AND BELOW	ADD TO CART
DPF TEMP. SENSOR RE552185 · qty on machine: 1 REPLACES P/N Y0602330204 S/N 8011012 AND BELOW view full part page → $991.95
28	Y0602330426	DPF TEMP. SENSOR	1	S/N 8011013 AND ABOVE	PARTS REQUEST
PHOTO COMING DPF TEMP. SENSOR Y0602330426 · qty on machine: 1 S/N 8011013 AND ABOVE PARTS REQUEST

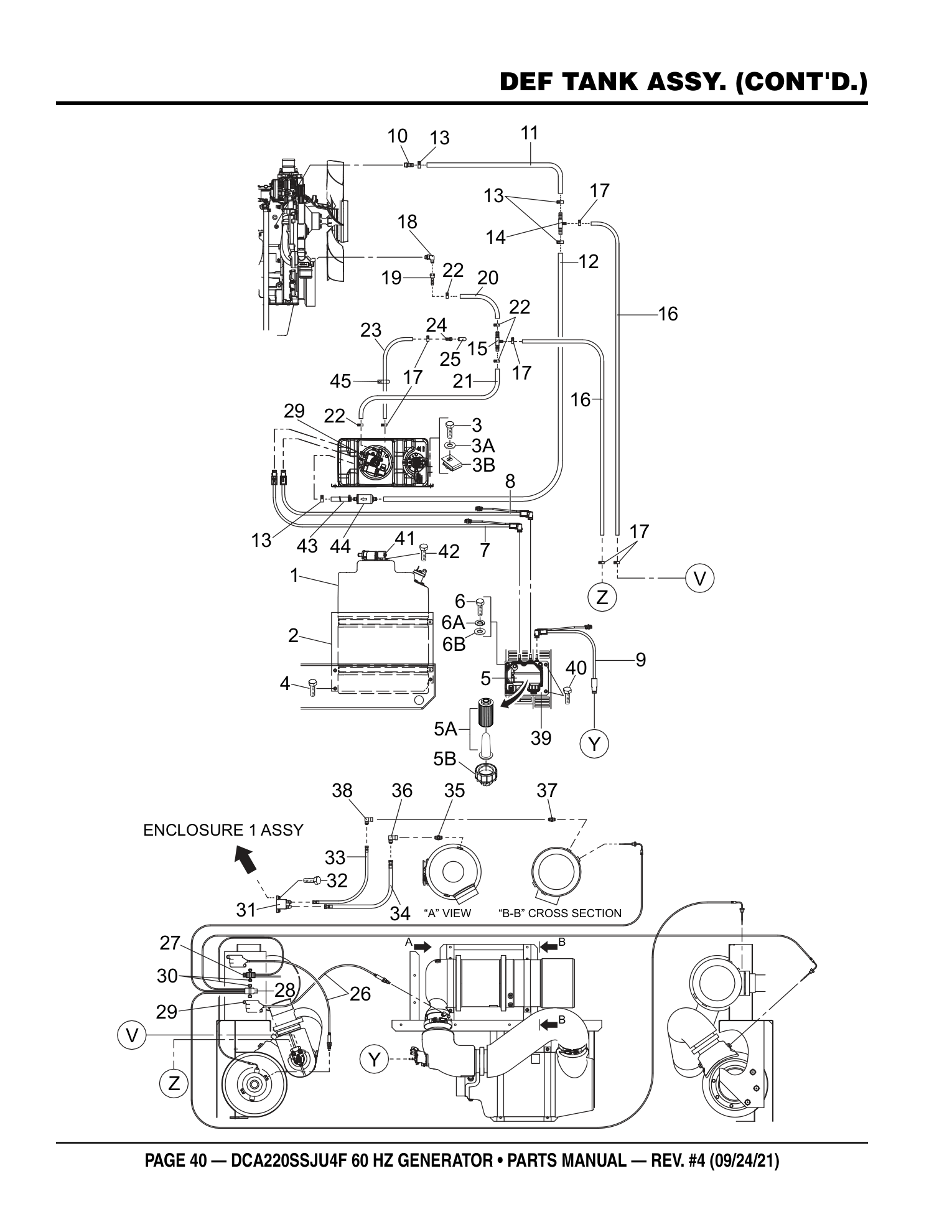

Page 40 — DEF TANK ASSY. (CONT'D.)

Multiquip DCA220SSJU4F Generator DEF TANK ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed21 rows

No.	Part No.	Part Name	Qty	Remarks
29	011106015	HEX. HEAD BOLT	8	REPLACES P/N 0016906015 S/N 8011012 AND BELOW	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 8 REPLACES P/N 0016906015 S/N 8011012 AND BELOW view full part page → $0.69
29	011106015	HEX. HEAD BOLT	6	REPLACES P/N 0016906015 S/N 8011013 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 6 REPLACES P/N 0016906015 S/N 8011013 AND ABOVE view full part page → $0.69
30	RE542006	STRAP, TEMP. SENSOR	2	REPLACES P/N Y0602330205 S/N 8011012 AND BELOW	ADD TO CART
STRAP, TEMP. SENSOR RE542006 · qty on machine: 2 REPLACES P/N Y0602330205 S/N 8011012 AND BELOW view full part page → $23.95
30	RE542006	STRAP, TEMP. SENSOR	1	REPLACES P/N Y0602330205 S/N 8011013 AND ABOVE	ADD TO CART
STRAP, TEMP. SENSOR RE542006 · qty on machine: 1 REPLACES P/N Y0602330205 S/N 8011013 AND ABOVE view full part page → $23.95
31	RE538131	PRESSURE SENSOR	1	REPLACES P/N Y0602330203	ADD TO CART
PRESSURE SENSOR RE538131 · qty on machine: 1 REPLACES P/N Y0602330203 view full part page → $292.95
32	011208030	HEX. HEAD BOLT	2	REPLACES P/N 0016908030	ADD TO CART
HEX. HEAD BOLT 011208030 · qty on machine: 2 REPLACES P/N 0016908030 view full part page → $1.3
33	RE544013	FLEXIBLE LINE	1	REPLACES P/N Y0602330002	PARTS REQUEST
PHOTO COMING FLEXIBLE LINE RE544013 · qty on machine: 1 REPLACES P/N Y0602330002 PARTS REQUEST
34	RE544012	FLEXIBLE LINE	1	REPLACES P/N Y0602330001	ADD TO CART
FLEXIBLE LINE RE544012 · qty on machine: 1 REPLACES P/N Y0602330001 view full part page → $351.95
35	RE543081	JOINT	1	REPLACES P/N Y0602330201	ADD TO CART
JOINT RE543081 · qty on machine: 1 REPLACES P/N Y0602330201 view full part page → $18.95
36	Y0603306489	SWIVEL JOINT	1		ADD TO CART
SWIVEL JOINT Y0603306489 · qty on machine: 1 view full part page → $30.95
37	RE542003	JOINT	1	REPLACES P/N Y0602330200	ADD TO CART
JOINT RE542003 · qty on machine: 1 REPLACES P/N Y0602330200 view full part page → $18.95
38	Y0603306488	SWIVEL JOINT	1		ADD TO CART
SWIVEL JOINT Y0603306488 · qty on machine: 1 view full part page → $21.95
39	M3331400804	SUPPLY MODULE BRACKET	1	S/N 8010867 AND BELOW	PARTS REQUEST
PHOTO COMING SUPPLY MODULE BRACKET M3331400804 · qty on machine: 1 S/N 8010867 AND BELOW PARTS REQUEST
39	M3331400814	SUPPLY MODULE BRACKET	1	S/N 8010868 AND ABOVE	PARTS REQUEST
PHOTO COMING SUPPLY MODULE BRACKET M3331400814 · qty on machine: 1 S/N 8010868 AND ABOVE PARTS REQUEST
40	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
41	RE560048	DEF HEADER	1	REPLACES P/N Y0602330408 S/N 8011012 AND BELOW	ADD TO CART
DEF HEADER RE560048 · qty on machine: 1 REPLACES P/N Y0602330408 S/N 8011012 AND BELOW view full part page → $4276.95
41	Y0602330422	DEF HEADER	1	S/N 8011013 AND ABOVE	NO LONGER AVAILABLE
PHOTO COMING DEF HEADER Y0602330422 · qty on machine: 1 S/N 8011013 AND ABOVE NO LONGER AVAILABLE
42	011106015	HEX. HEAD BOLT	3	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 3 REPLACES P/N 0016906015 view full part page → $0.69
43	Y0269300950	COOLANT HOSE	1	S/N 8011012 AND BELOW	ADD TO CART
COOLANT HOSE Y0269300950 · qty on machine: 1 S/N 8011012 AND BELOW view full part page → $16.95
44	Y0602330416	COOLANT FILTER	1	S/N 8011012 AND BELOW	PARTS REQUEST
PHOTO COMING COOLANT FILTER Y0602330416 · qty on machine: 1 S/N 8011012 AND BELOW PARTS REQUEST
45	0602220911	CLAMP	1		ADD TO CART
CLAMP 0602220911 · qty on machine: 1 view full part page → $1.85

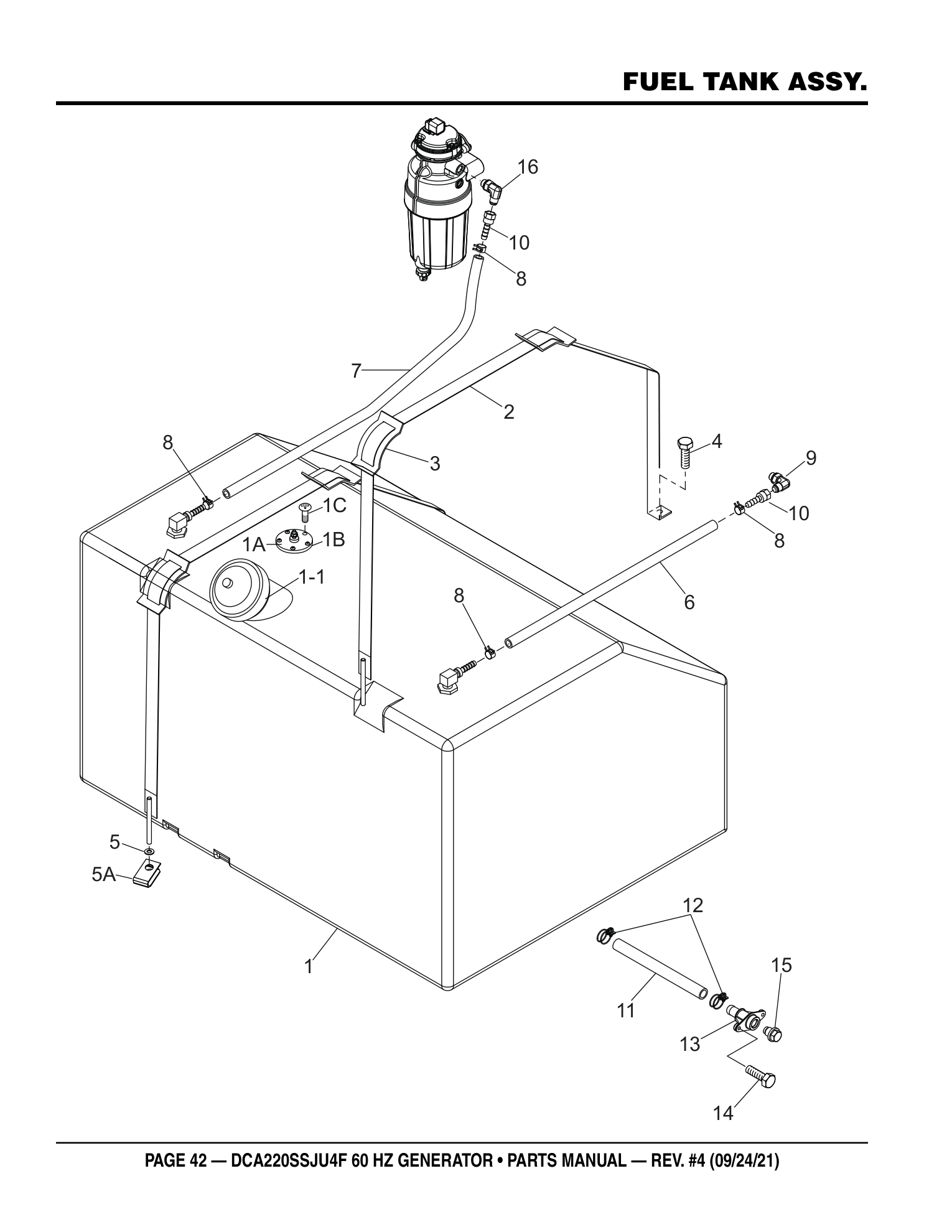

Page 42 — FUEL TANK ASSY.

Multiquip DCA220SSJU4F Generator FUEL TANK ASSY. parts diagram

Parts list — exactly as printed22 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3364000402	FUEL TANK	1	INCLUDES ITEMS W/#	ADD TO CART
FUEL TANK M3364000402 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 1A#, 1B#, 1C#, 1-1# view full part page → $997.95 IN A KIT + SOLD SOLO
1A#	Y0605501065	FUEL SENDER UNIT	1		ADD TO CART
FUEL SENDER UNIT Y0605501065 · qty on machine: 1 Also included in kit 1 - FUEL TANK (M3364000402) view full part page → $190.95 IN A KIT + SOLD SOLO
1B#	Y0605516090	GASKET	1		ADD TO CART
GASKET Y0605516090 · qty on machine: 1 Also included in kit 1 - FUEL TANK (M3364000402) view full part page → $27.95 IN A KIT + SOLD SOLO
1C#	Y0605053020	HEX. HEAD BOLT W/ SEAL WASHER	5		ADD TO CART
HEX. HEAD BOLT W/ SEAL WASHER Y0605053020 · qty on machine: 5 Also included in kit 1 - FUEL TANK (M3364000402) view full part page → $1.87 IN A KIT + SOLD SOLO
1-1#	0605505070	FUEL TANK CAP	1		ADD TO CART
FUEL TANK CAP 0605505070 · qty on machine: 1 Also included in kit 1 - FUEL TANK (M3364000402) view full part page → $50.95 IN A KIT + SOLD SOLO
2	M4363200004	TANK BAND	2		ADD TO CART
TANK BAND M4363200004 · qty on machine: 2 view full part page → $22.95
3	M9310500104	SUPPORTER SHEET	4		ADD TO CART
SUPPORTER SHEET M9310500104 · qty on machine: 4 view full part page → $5.95
4	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
5	020108060	U-NUT	2	REPLACES P/N 0037908000	ADD TO CART
U-NUT 020108060 · qty on machine: 2 REPLACES P/N 0037908000 view full part page → $0.28
5A	0401450080	WASHER, FLAT	2	REPLACES P/N 0041208000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 2 REPLACES P/N 0041208000 view full part page → $0.56
6	0191302300	SUCTION HOSE	1		ADD TO CART
SUCTION HOSE 0191302300 · qty on machine: 1 view full part page → $113.95
7	0191302800	RETURN HOSE	1		ADD TO CART
RETURN HOSE 0191302800 · qty on machine: 1 view full part page → $88.95
8	Y0605515340	HOSE BAND	4		ADD TO CART
HOSE BAND Y0605515340 · qty on machine: 4 view full part page → $2.95
9	Y0602022577	90° ELBOW	1		ADD TO CART
90° ELBOW Y0602022577 · qty on machine: 1 view full part page → $39.95
10	Y0602022985	HOSE JOINT	2		ADD TO CART
HOSE JOINT Y0602022985 · qty on machine: 2 view full part page → $6.95
11	M1363400104	DRAIN HOSE	1		NO LONGER AVAILABLE
PHOTO COMING DRAIN HOSE M1363400104 · qty on machine: 1 Factory replaced this part - current number Y0191500220 NO LONGER AVAILABLE
12	0605515198	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515198 · qty on machine: 2 view full part page → $1.71
13	1502025103C	DRAIN JOINT	1	REPLACES P/N M9200000003	ADD TO CART
DRAIN JOINT 1502025103C · qty on machine: 1 REPLACES P/N M9200000003 view full part page → $29.95
14	011206020	HEX. HEAD BOLT	2	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 2 REPLACES P/N 0016906020 view full part page → $0.95
15	0802011104	DRAIN BOLT	1	REPLACES P/N M9200200004	ADD TO CART
DRAIN BOLT 0802011104 · qty on machine: 1 REPLACES P/N M9200200004 view full part page → $10.95
15A	0150000018	O-RING	1		ADD TO CART
O-RING 0150000018 · qty on machine: 1 view full part page → $1.87
16	Y0602022578	90° ELBOW	1		ADD TO CART
90° ELBOW Y0602022578 · qty on machine: 1 view full part page → $67.95

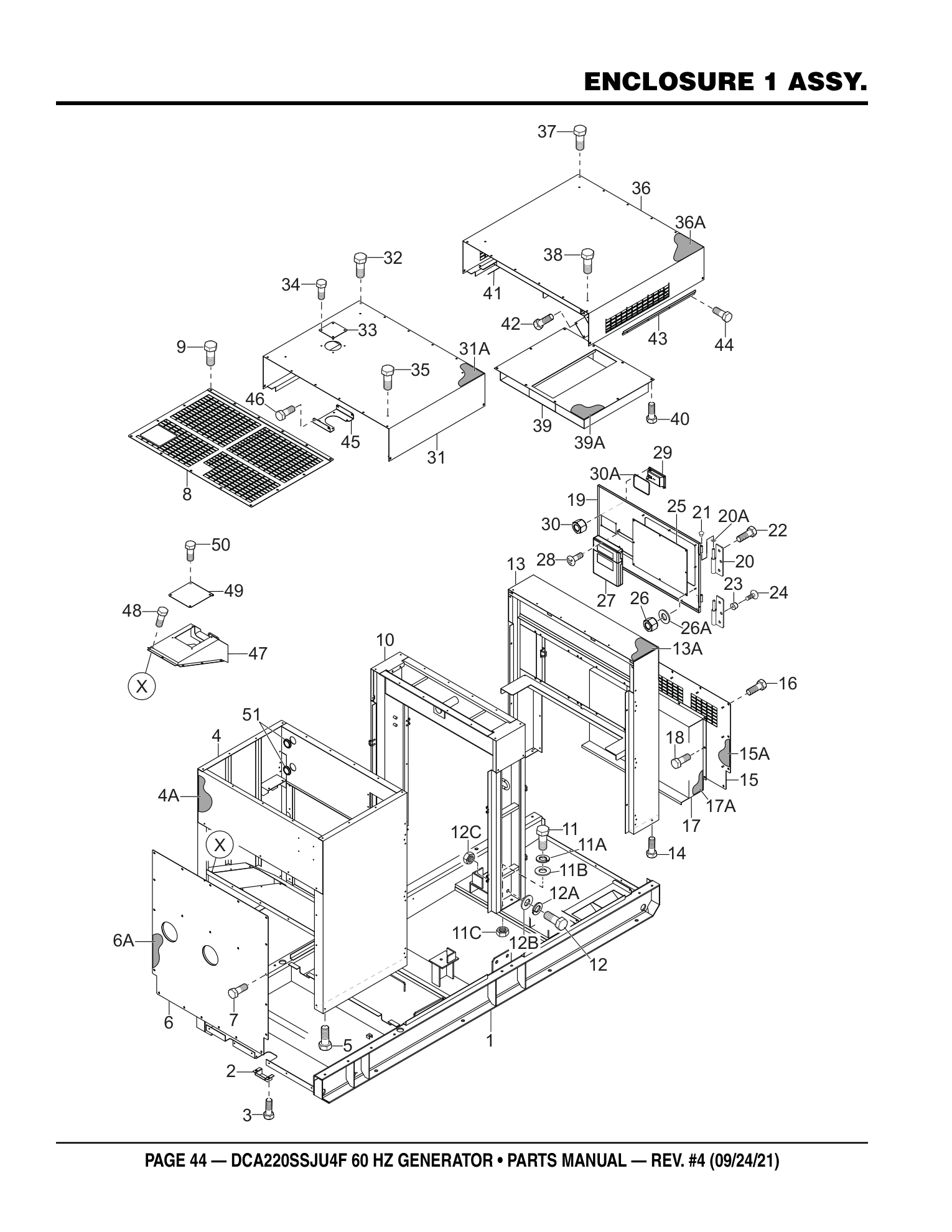

Page 44 — ENCLOSURE 1 ASSY.

Multiquip DCA220SSJU4F Generator ENCLOSURE 1 ASSY. parts diagram

Parts list — exactly as printed45 rows

No.	Part No.	Part Name	Qty	Remarks
1	M5414000302	BASE	1		PARTS REQUEST
PHOTO COMING BASE M5414000302 · qty on machine: 1 PARTS REQUEST
1A	0019208020	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 1 view full part page → $3.95
1B	0040508000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040508000 · qty on machine: 1 view full part page → $0.35
2	M1413400004	COVER	1		ADD TO CART
COVER M1413400004 · qty on machine: 1 view full part page → $35.95
3	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
4	M5424000702	FRONT FRAME	1	S/N 8011012 AND BELOW	ADD TO CART
FRONT FRAME M5424000702 · qty on machine: 1 S/N 8011012 AND BELOW view full part page → $3602.95
4	M4424000002	FRONT FRAME	1	S/N 8011013 AND ABOVE	ADD TO CART
FRONT FRAME M4424000002 · qty on machine: 1 S/N 8011013 AND ABOVE view full part page → $3227.95
4A	M5494104303	ACOUSTIC SHEET	1	S/N 8011012 AND BELOW	ADD TO CART
ACOUSTIC SHEET M5494104303 · qty on machine: 1 S/N 8011012 AND BELOW view full part page → $939.95
4A	M4494100003	ACOUSTIC SHEET	1	S/N 8011013 AND ABOVE	PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M4494100003 · qty on machine: 1 S/N 8011013 AND ABOVE PARTS REQUEST
5	0016910025	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0016910025 · qty on machine: 8 view full part page → $1.56
6	M3424200304	COVER, FRONT FRAME	1		ADD TO CART
COVER, FRONT FRAME M3424200304 · qty on machine: 1 view full part page → $771.95
6A	M3491200104	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3491200104 · qty on machine: 1 view full part page → $51.95
7	0019208020	HEX. HEAD BOLT	22		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 22 view full part page → $3.95
8	M5424201703	OVER COVER, FRONT FRAME	1		ADD TO CART
OVER COVER, FRONT FRAME M5424201703 · qty on machine: 1 view full part page → $620.95
9	0019208020	HEX. HEAD BOLT	15		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 15 view full part page → $3.95
10	M5434000302	CENTER FRAME	1		ADD TO CART
CENTER FRAME M5434000302 · qty on machine: 1 view full part page → $2815.95
11	0010114040	HEX. HEAD BOLT	4		NO LONGER AVAILABLE
PHOTO COMING HEX. HEAD BOLT 0010114040 · qty on machine: 4 NO LONGER AVAILABLE
11A	030214350	WASHER, LOCK	4	REPLACES P/N 0040014000	ADD TO CART
WASHER, LOCK 030214350 · qty on machine: 4 REPLACES P/N 0040014000 view full part page → $0.46
11B	031114260	WASHER, FLAT	8	REPLACES P/N 0041214000	ADD TO CART
WASHER, FLAT 031114260 · qty on machine: 8 REPLACES P/N 0041214000 view full part page → $0.69
11C	515455840	HEX. NUT	4	REPLACES P/N 0030014000	ADD TO CART
HEX. NUT 515455840 · qty on machine: 4 REPLACES P/N 0030014000 view full part page → $35.95
12	0010120050	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0010120050 · qty on machine: 4 view full part page → $6.95
12A	030220510	WASHER, LOCK	4	REPLACES P/N 0040020000	ADD TO CART
WASHER, LOCK 030220510 · qty on machine: 4 REPLACES P/N 0040020000 view full part page → $1.95
12B	0041220000	WASHER, FLAT	8		ADD TO CART
WASHER, FLAT 0041220000 · qty on machine: 8 view full part page → $0.95
12C	0030020000	HEX. NUT	4		ADD TO CART
HEX. NUT 0030020000 · qty on machine: 4 view full part page → $1.82
13	M5444000202	REAR FRAME	1		PARTS REQUEST
PHOTO COMING REAR FRAME M5444000202 · qty on machine: 1 PARTS REQUEST
13A	M5494301504	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M5494301504 · qty on machine: 1 view full part page → $442.95
14	0016910025	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016910025 · qty on machine: 4 view full part page → $1.56
15	M4443300404	COVER, REAR FRAME	1		PARTS REQUEST
PHOTO COMING COVER, REAR FRAME M4443300404 · qty on machine: 1 PARTS REQUEST
15A	M4493302904	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M4493302904 · qty on machine: 1 view full part page → $131.95
16	0019208020	HEX. HEAD BOLT	14		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 14 view full part page → $3.95
17	M4443300503	DUCT, REAR FRAME	1		ADD TO CART
DUCT, REAR FRAME M4443300503 · qty on machine: 1 view full part page → $469.95
17A	M4493303004	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M4493303004 · qty on machine: 1 view full part page → $58.95
18	020108060	HEX. NUT	9	REPLACES P/N 0207008000	ADD TO CART
HEX. NUT 020108060 · qty on machine: 9 REPLACES P/N 0207008000 view full part page → $0.28
19	M3444200303	DOOR, REAR FRAME	1		ADD TO CART
DOOR, REAR FRAME M3444200303 · qty on machine: 1 view full part page → $495.95
20	M9110100204	HINGE	2		ADD TO CART
HINGE M9110100204 · qty on machine: 2 view full part page → $23.95
20A	M9116100004	WASHER	2		ADD TO CART
WASHER M9116100004 · qty on machine: 2 view full part page → $1.93
ADDTHE	FOLLOWINGDIGITS	AFTER THE PART			PARTS REQUEST
PHOTO COMING AFTER THE PART FOLLOWINGDIGITS PARTS REQUEST
NUMBER	WHENORDERING	ANY PAINTED PANEL TO			PARTS REQUEST
PHOTO COMING ANY PAINTED PANEL TO WHENORDERING PARTS REQUEST
INDICATE	COLOROFUNIT:				PARTS REQUEST
PHOTO COMING COLOROFUNIT: PARTS REQUEST
1-ORANGE		6-CATERPILLAR YELLOW			SEE REMARKS
PHOTO COMING 6-CATERPILLAR YELLOW SEE REMARKS
2-WHITE		7-CATO GOLD			SEE REMARKS
PHOTO COMING 7-CATO GOLD SEE REMARKS
3-SPECTRUM	GREY	8-RED			PARTS REQUEST
PHOTO COMING 8-RED GREY PARTS REQUEST
4-SUNBELT	GREEN	9-DESERT TAN			PARTS REQUEST
PHOTO COMING 9-DESERT TAN GREEN PARTS REQUEST
5-BLACK					SEE REMARKS
PHOTO COMING SEE REMARKS
THESERIAL	NUMBERMAY	BE REQUIRED.			PARTS REQUEST
PHOTO COMING BE REQUIRED. NUMBERMAY PARTS REQUEST

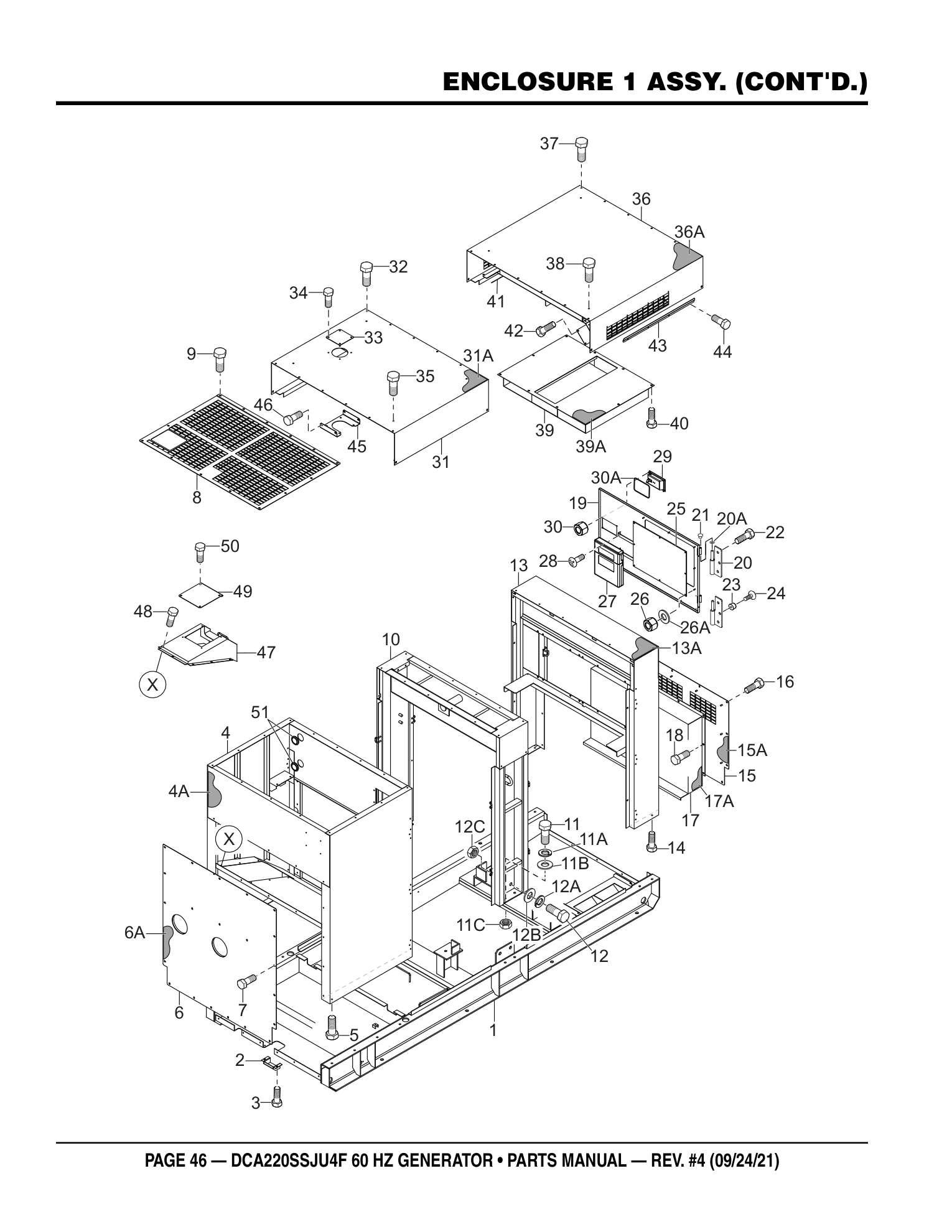

Page 46 — ENCLOSURE 1 ASSY. (CONT'D.)

Multiquip DCA220SSJU4F Generator ENCLOSURE 1 ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed46 rows

No.	Part No.	Part Name	Qty	Remarks
21	0845031504	BLIND PLUG	2	REPLACES P/N M9310000004	ADD TO CART
BLIND PLUG 0845031504 · qty on machine: 2 REPLACES P/N M9310000004 view full part page → $2.95
22	0019208020	HEX. HEAD BOLT	3		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 3 view full part page → $3.95
23	0601850097	STOPPER	1		ADD TO CART
STOPPER 0601850097 · qty on machine: 1 view full part page → $2.95
24	0027208025	MACHINE SCREW	1		ADD TO CART
MACHINE SCREW 0027208025 · qty on machine: 1 view full part page → $0.76
25	M4443600004	WINDOW PLATE	1		ADD TO CART
WINDOW PLATE M4443600004 · qty on machine: 1 view full part page → $155.95
26	020106050	SELF-LOCKING U NUT	8	REPLACES P/N 0037906000	ADD TO CART
SELF-LOCKING U NUT 020106050 · qty on machine: 8 REPLACES P/N 0037906000 view full part page → $0.12
26A	952404470	WASHER, FLAT	8	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 8 REPLACES P/N 0041206000 view full part page → $0.19
27	0600800320	MANUAL PAK	1		ADD TO CART
MANUAL PAK 0600800320 · qty on machine: 1 view full part page → $43.95
28	0027106016	MACHINE SCREW	4	REPLACES P/N 0021806015	ADD TO CART
MACHINE SCREW 0027106016 · qty on machine: 4 REPLACES P/N 0021806015 view full part page → $0.55
29	Y0605012309	DOOR HANDLE	1		ADD TO CART
DOOR HANDLE Y0605012309 · qty on machine: 1 view full part page → $49.95
30	0176060030	SELF-LOCKING NUT	4	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 4 REPLACES P/N 0207006000 view full part page → $2.95
30A	C9312500004	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL C9312500004 · qty on machine: 1 view full part page → $10.95
31	M5464100402	ROOF PANEL	1		ADD TO CART
ROOF PANEL M5464100402 · qty on machine: 1 view full part page → $1429.95
31A	M5494502704	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M5494502704 · qty on machine: 1 view full part page → $720.95
32	0019208020	HEX. HEAD BOLT	10		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 10 view full part page → $3.95
33	M3310600004	COVER	1		ADD TO CART
COVER M3310600004 · qty on machine: 1 view full part page → $17.95
34	0019208020	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 4 view full part page → $3.95
35	0019210025	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0019210025 · qty on machine: 4 view full part page → $7.95
36	M5464200202	ROOF PANEL	1		ADD TO CART
ROOF PANEL M5464200202 · qty on machine: 1 view full part page → $2143.95
36A	M5494502904	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M5494502904 · qty on machine: 1 view full part page → $780.95
37	0019208020	HEX. HEAD BOLT	16		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 16 view full part page → $3.95
38	0019210025	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0019210025 · qty on machine: 4 view full part page → $7.95
39	M5464400003	DUCT, REAR ROOF	1		PARTS REQUEST
PHOTO COMING DUCT, REAR ROOF M5464400003 · qty on machine: 1 PARTS REQUEST
39A	M4493503204	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M4493503204 · qty on machine: 1 view full part page → $58.95
40	011008020	HEX. HEAD BOLT	10	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 10 REPLACES P/N 0016908020 view full part page → $2.68
41	M4463200304	BACK PLATE	2		ADD TO CART
BACK PLATE M4463200304 · qty on machine: 2 view full part page → $137.95
42	011106015	HEX. HEAD BOLT	12	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 12 REPLACES P/N 0016906015 view full part page → $0.69
43	M4463500204	ROOF BRACKET	2		ADD TO CART
ROOF BRACKET M4463500204 · qty on machine: 2 view full part page → $81.95
44	0019206015	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0019206015 · qty on machine: 8 view full part page → $3.95
45	M3317100004	BRACKET, SURGE TANK	1		ADD TO CART
BRACKET, SURGE TANK M3317100004 · qty on machine: 1 view full part page → $263.95
46	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
47	M3424700003	DEF TANK COVER	1	S/N 8010872 AND BELOW	ADD TO CART
DEF TANK COVER M3424700003 · qty on machine: 1 S/N 8010872 AND BELOW view full part page → $153.95
47	M3424700013	DEF TANK COVER	1	S/N 8010873 AND ABOVE	PARTS REQUEST
PHOTO COMING DEF TANK COVER M3424700013 · qty on machine: 1 S/N 8010873 AND ABOVE PARTS REQUEST
48	0019208020	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 6 view full part page → $3.95
49	M3424700104	DEF TANK COVER	1		ADD TO CART
DEF TANK COVER M3424700104 · qty on machine: 1 view full part page → $48.95
50	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0016906015 view full part page → $0.69
51	0601851736	GROMMET	2		ADD TO CART
GROMMET 0601851736 · qty on machine: 2 view full part page → $12.95
ADDTHE	FOLLOWINGDIGITS	AFTER THE PART			PARTS REQUEST
PHOTO COMING AFTER THE PART FOLLOWINGDIGITS PARTS REQUEST
NUMBER	WHENORDERING	ANY PAINTED PANEL TO			PARTS REQUEST
PHOTO COMING ANY PAINTED PANEL TO WHENORDERING PARTS REQUEST
INDICATE	COLOROFUNIT:				PARTS REQUEST
PHOTO COMING COLOROFUNIT: PARTS REQUEST
1-ORANGE		6-CATERPILLAR YELLOW			SEE REMARKS
PHOTO COMING 6-CATERPILLAR YELLOW SEE REMARKS
2-WHITE		7-CATO GOLD			SEE REMARKS
PHOTO COMING 7-CATO GOLD SEE REMARKS
3-SPECTRUM	GREY	8-RED			PARTS REQUEST
PHOTO COMING 8-RED GREY PARTS REQUEST
4-SUNBELT	GREEN	9-DESERT TAN			PARTS REQUEST
PHOTO COMING 9-DESERT TAN GREEN PARTS REQUEST
5-BLACK					SEE REMARKS
PHOTO COMING SEE REMARKS
THESERIAL	NUMBERMAY	BE REQUIRED.			PARTS REQUEST
PHOTO COMING BE REQUIRED. NUMBERMAY PARTS REQUEST

Page 48 — ENCLOSURE 2 ASSY.

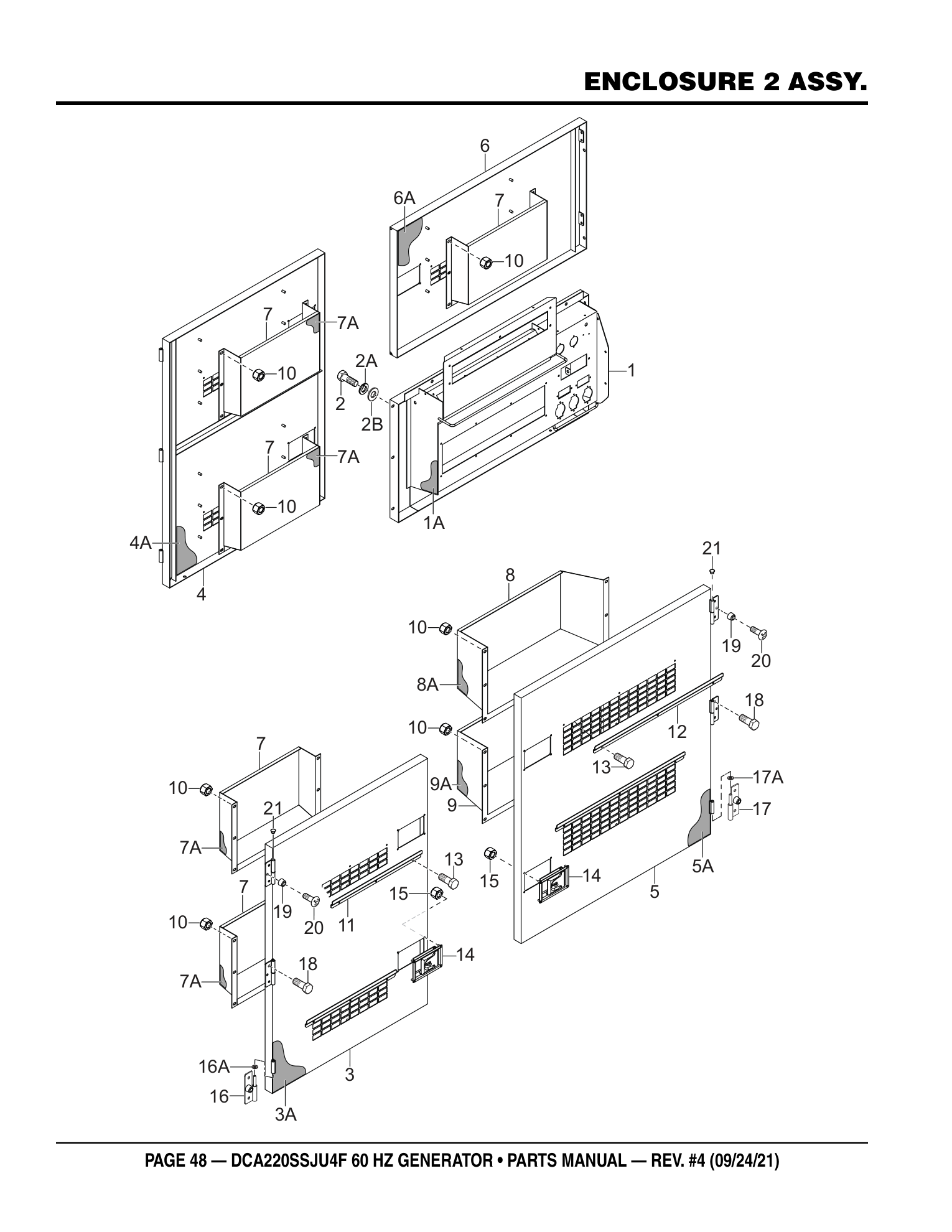

Multiquip DCA220SSJU4F Generator ENCLOSURE 2 ASSY. parts diagram

Parts list — exactly as printed42 rows

No.	Part No.	Part Name	Qty	Remarks
1	M5454200302	SPLASHER PANEL	1		PARTS REQUEST
PHOTO COMING SPLASHER PANEL M5454200302 · qty on machine: 1 PARTS REQUEST
1A	M5491500004	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M5491500004 · qty on machine: 1 PARTS REQUEST
2	0019108065	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0019108065 · qty on machine: 6 view full part page → $1.95
2A	0042308000	WASHER, LOCK	6		ADD TO CART
WASHER, LOCK 0042308000 · qty on machine: 6 view full part page → $0.83
2B	031108160	WASHER, FLAT	6	REPLACES P/N 0042408000	ADD TO CART
WASHER, FLAT 031108160 · qty on machine: 6 REPLACES P/N 0042408000 Factory replaced this part - current number 0401450080 view full part page → $0.56 IN A KIT + SOLD SOLO
3	M5454000703	SIDE DOOR	1		ADD TO CART
SIDE DOOR M5454000703 · qty on machine: 1 view full part page → $1048.95
3A	M3494406804	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494406804 · qty on machine: 1 view full part page → $686.95
4	M5454000803	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M5454000803 · qty on machine: 1 PARTS REQUEST
4A	M3494406904	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494406904 · qty on machine: 1 view full part page → $686.95
5	M5454000903	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M5454000903 · qty on machine: 1 PARTS REQUEST
5A	M3494407004	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494407004 · qty on machine: 1 view full part page → $648.95
6	M5454001003	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M5454001003 · qty on machine: 1 PARTS REQUEST
6A	M5494412804	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M5494412804 · qty on machine: 1 PARTS REQUEST
7	M3454300604	DUCT	5		ADD TO CART
DUCT M3454300604 · qty on machine: 5 view full part page → $387.95
7A	M3494407204	ACOUSTIC SHEET	4		ADD TO CART
ACOUSTIC SHEET M3494407204 · qty on machine: 4 view full part page → $395.95
8	M5454300904	DUCT	1		PARTS REQUEST
PHOTO COMING DUCT M5454300904 · qty on machine: 1 PARTS REQUEST
8A	M3494407504	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M3494407504 · qty on machine: 1 PARTS REQUEST
9	M5454301004	DUCT	1		PARTS REQUEST
PHOTO COMING DUCT M5454301004 · qty on machine: 1 PARTS REQUEST
9A	M3494407304	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494407304 · qty on machine: 1 view full part page → $108.95
10	020108060	HEX. NUT	49	REPLACES P/N 0207008000	ADD TO CART
HEX. NUT 020108060 · qty on machine: 49 REPLACES P/N 0207008000 view full part page → $0.28
11	M4453600104	DOOR BRACKET	5		PARTS REQUEST
PHOTO COMING DOOR BRACKET M4453600104 · qty on machine: 5 PARTS REQUEST
12	M5454600004	DOOR BRACKET	2		PARTS REQUEST
PHOTO COMING DOOR BRACKET M5454600004 · qty on machine: 2 PARTS REQUEST
13	0019206015	HEX. HEAD BOLT	21		ADD TO CART
HEX. HEAD BOLT 0019206015 · qty on machine: 21 view full part page → $3.95
14	Y0605012309	DOOR HANDLE	7		ADD TO CART
DOOR HANDLE Y0605012309 · qty on machine: 7 view full part page → $49.95
15	0176060030	SELF-LOCKING NUT	28	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 28 REPLACES P/N 0207006000 view full part page → $2.95
16	0845046904	HINGE	5	REPLACES P/N M9110100804	ADD TO CART
HINGE 0845046904 · qty on machine: 5 REPLACES P/N M9110100804 view full part page → $16.95
16A	M9116100004	WASHER	5		ADD TO CART
WASHER M9116100004 · qty on machine: 5 view full part page → $1.93
17	0845047004	HINGE	6	REPLACES P/N M9110100904	ADD TO CART
HINGE 0845047004 · qty on machine: 6 REPLACES P/N M9110100904 view full part page → $36.95
17A	M9116100004	WASHER	6		ADD TO CART
WASHER M9116100004 · qty on machine: 6 view full part page → $1.93
18	0019208020	HEX. HEAD BOLT	25		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 25 view full part page → $3.95
19	0601850097	STOPPER	8		ADD TO CART
STOPPER 0601850097 · qty on machine: 8 view full part page → $2.95
20	0027208025	MACHINE SCREW	8		ADD TO CART
MACHINE SCREW 0027208025 · qty on machine: 8 view full part page → $0.76
21	0845031504	BLIND PLUG	11	REPLACES P/N M9310000004	ADD TO CART
BLIND PLUG 0845031504 · qty on machine: 11 REPLACES P/N M9310000004 view full part page → $2.95
ADDTHE	FOLLOWINGDIGITS	AFTER THE PART			PARTS REQUEST
PHOTO COMING AFTER THE PART FOLLOWINGDIGITS PARTS REQUEST
NUMBER	WHENORDERING	ANY PAINTED PANEL TO			PARTS REQUEST
PHOTO COMING ANY PAINTED PANEL TO WHENORDERING PARTS REQUEST
INDICATE	COLOROFUNIT:				PARTS REQUEST
PHOTO COMING COLOROFUNIT: PARTS REQUEST
1-ORANGE		6-CATERPILLAR YELLOW			SEE REMARKS
PHOTO COMING 6-CATERPILLAR YELLOW SEE REMARKS
2-WHITE		7-CATO GOLD			SEE REMARKS
PHOTO COMING 7-CATO GOLD SEE REMARKS
3-SPECTRUM	GREY	8-RED			PARTS REQUEST
PHOTO COMING 8-RED GREY PARTS REQUEST
4-SUNBELT	GREEN	9-DESERT TAN			PARTS REQUEST
PHOTO COMING 9-DESERT TAN GREEN PARTS REQUEST
5-BLACK					SEE REMARKS
PHOTO COMING SEE REMARKS
THESERIAL	NUMBERMAY	BE REQUIRED.			PARTS REQUEST
PHOTO COMING BE REQUIRED. NUMBERMAY PARTS REQUEST

Page 50 — RUBBER SEALS ASSY.

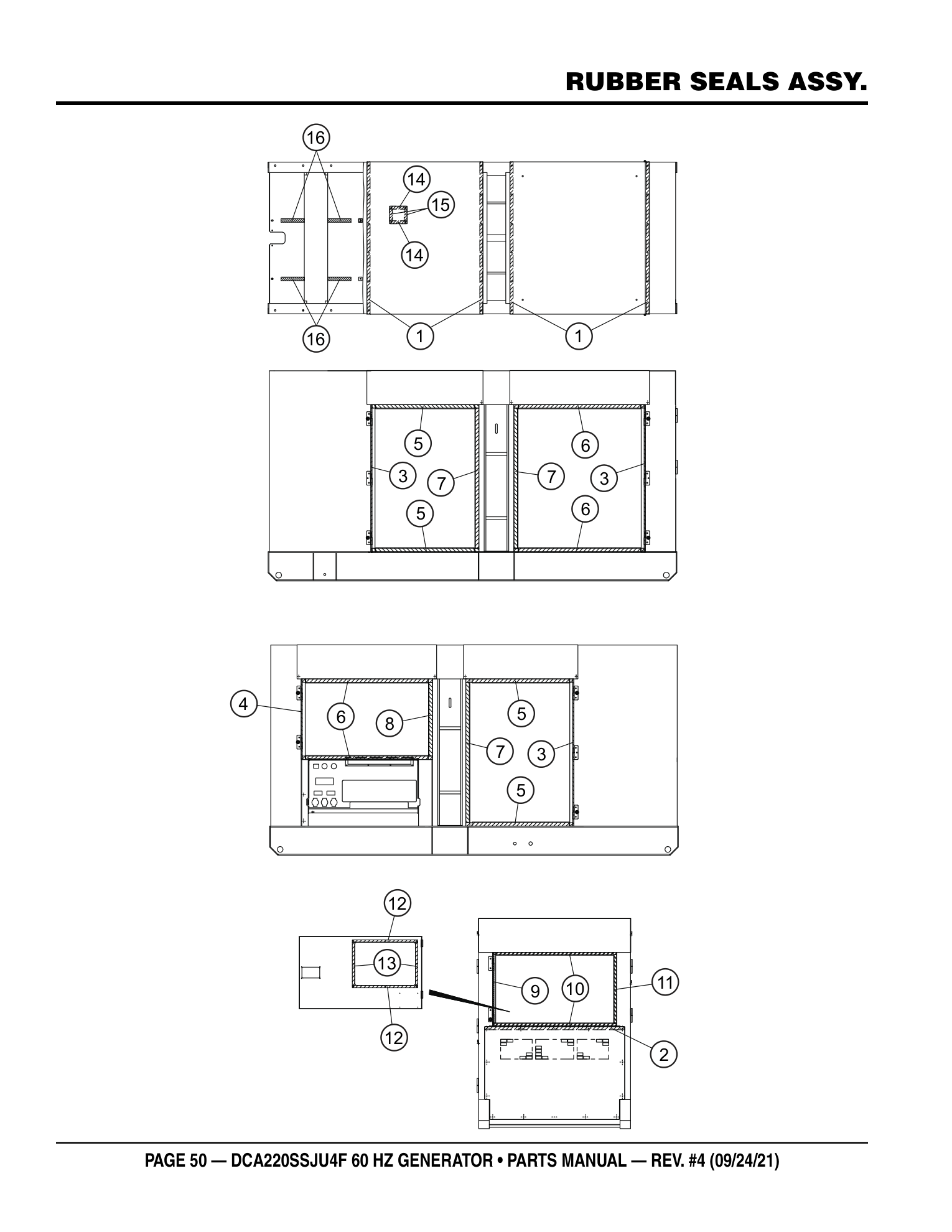

Multiquip DCA220SSJU4F Generator RUBBER SEALS ASSY. parts diagram

Parts list — exactly as printed16 rows

No.	Part No.	Part Name	Qty
1	0229201300	SEAL, RUBBER	4	ADD TO CART
SEAL, RUBBER 0229201300 · qty on machine: 4 view full part page → $31.95
2	0229201200	SEAL, RUBBER	1	ADD TO CART
SEAL, RUBBER 0229201200 · qty on machine: 1 view full part page → $26.95
3	0228901260	SEAL, RUBBER	3	ADD TO CART
SEAL, RUBBER 0228901260 · qty on machine: 3 view full part page → $38.95
4	0228900690	SEAL, RUBBER	1	PARTS REQUEST
PHOTO COMING SEAL, RUBBER 0228900690 · qty on machine: 1 PARTS REQUEST
5	0228900915	SEAL, RUBBER	4	ADD TO CART
SEAL, RUBBER 0228900915 · qty on machine: 4 view full part page → $21.95
6	0228901155	SEAL, RUBBER	4	ADD TO CART
SEAL, RUBBER 0228901155 · qty on machine: 4 view full part page → $34.95
7	0228901200	SEAL, RUBBER	3	ADD TO CART
SEAL, RUBBER 0228901200 · qty on machine: 3 view full part page → $18.95
8	0228900630	SEAL, RUBBER	1	ADD TO CART
SEAL, RUBBER 0228900630 · qty on machine: 1 view full part page → $14.95
9	0229400630	SEAL, RUBBER	1	ADD TO CART
SEAL, RUBBER 0229400630 · qty on machine: 1 view full part page → $13.95
10	0228801050	SEAL, RUBBER	2	ADD TO CART
SEAL, RUBBER 0228801050 · qty on machine: 2 view full part page → $27.95
11	0228800590	SEAL, RUBBER	1	ADD TO CART
SEAL, RUBBER 0228800590 · qty on machine: 1 view full part page → $15.95
12	0228100560	SEAL, RUBBER	2	ADD TO CART
SEAL, RUBBER 0228100560 · qty on machine: 2 view full part page → $5.95
13	0228100370	SEAL, RUBBER	2	ADD TO CART
SEAL, RUBBER 0228100370 · qty on machine: 2 view full part page → $2.95
14	Y0229200145	SEAL, RUBBER	2	ADD TO CART
SEAL, RUBBER Y0229200145 · qty on machine: 2 view full part page → $0.65
15	Y0229200100	SEAL, RUBBER	2	ADD TO CART
SEAL, RUBBER Y0229200100 · qty on machine: 2 view full part page → $0.67
16	0222100200	SEAL, RUBBER	4	ADD TO CART
SEAL, RUBBER 0222100200 · qty on machine: 4 view full part page → $9.95

Page 52 — WATER HEATING ELEMENT ASSY. (OPTION)

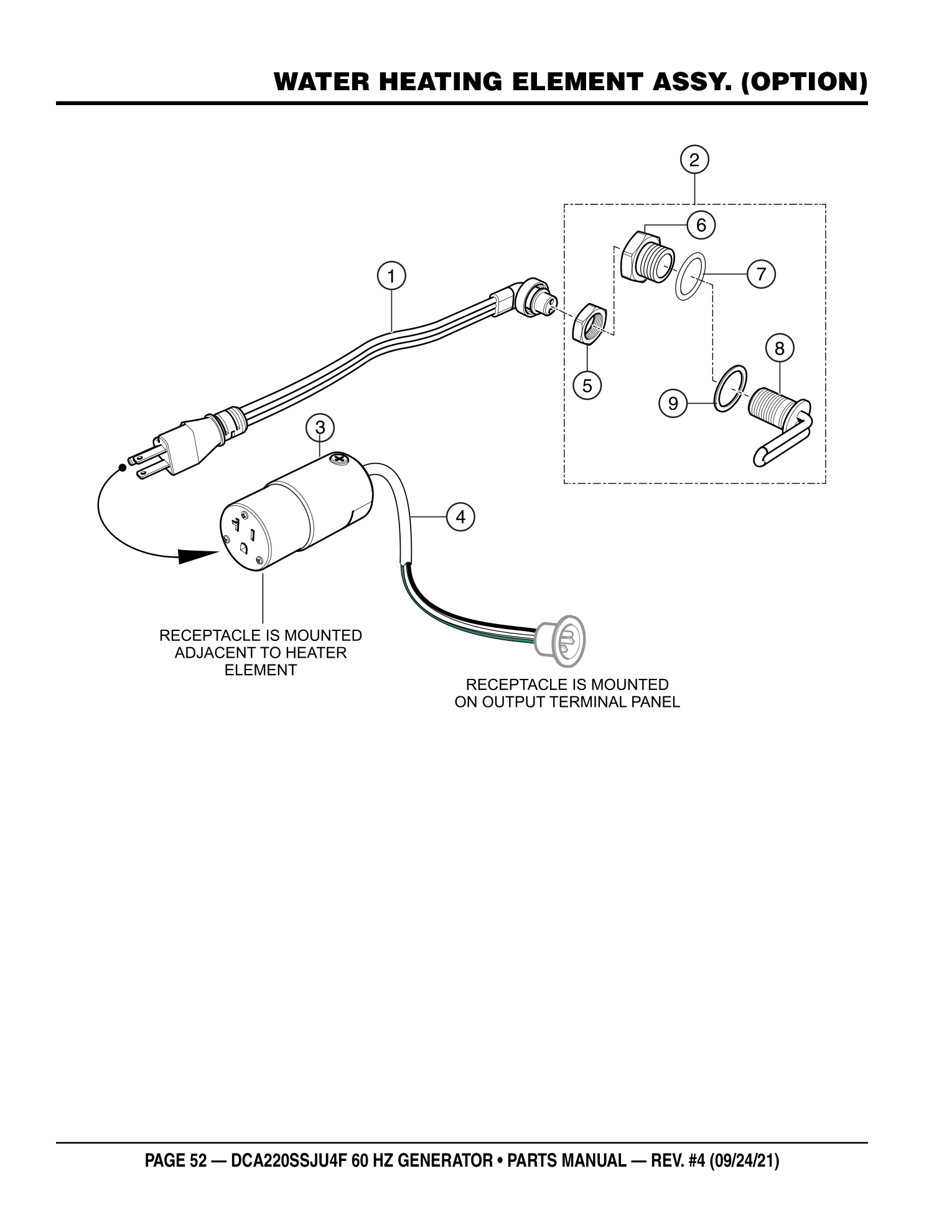

Multiquip DCA220SSJU4F Generator WATER HEATING ELEMENT ASSY. (OPTION) parts diagram

Parts list — exactly as printed9 rows

No.	Part No.	Part Name	Qty	Remarks
1	AR50411	CORD ASSY., 110V	1		ADD TO CART
CORD ASSY., 110V AR50411 · qty on machine: 1 view full part page → $38.95
2	EE54798	COOLANT HEATER KIT, 110V	1	INCLUDES ITEMS W/$	ADD TO CART
COOLANT HEATER KIT, 110V EE54798 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 5$, 6$, 7$, 8$, 9$ view full part page → $181.95 IN A KIT + SOLD SOLO
3	HBL5369C	CONNECTOR, 20 AMP, 125V	1		ADD TO CART
CONNECTOR, 20 AMP, 125V HBL5369C · qty on machine: 1 view full part page → $103.95
4	EE56557	CORD, CAROL 3/C 14 AWG	10	1PC=1FT	ADD TO CART
CORD, CAROL 3/C 14 AWG EE56557 · qty on machine: 10 1PC=1FT view full part page → $1.95
5$		NUT, CLAMPING	1		INCLUDED IN KIT
PHOTO COMING NUT, CLAMPING · qty on machine: 1 Included in kit 2 - COOLANT HEATER KIT, 110V (EE54798) INCLUDED IN KIT
6$		ADAPTER	1		INCLUDED IN KIT
PHOTO COMING ADAPTER · qty on machine: 1 Included in kit 2 - COOLANT HEATER KIT, 110V (EE54798) INCLUDED IN KIT
7$		O-RING	1		INCLUDED IN KIT
PHOTO COMING O-RING · qty on machine: 1 Included in kit 2 - COOLANT HEATER KIT, 110V (EE54798) INCLUDED IN KIT
8$		HEATER ELEMENT, 1000 WATT	1		INCLUDED IN KIT
PHOTO COMING HEATER ELEMENT, 1000 WATT · qty on machine: 1 Included in kit 2 - COOLANT HEATER KIT, 110V (EE54798) INCLUDED IN KIT
9$		GASKET	1		INCLUDED IN KIT
PHOTO COMING GASKET · qty on machine: 1 Included in kit 2 - COOLANT HEATER KIT, 110V (EE54798) INCLUDED IN KIT

Page 54 — BATTERY CHARGER ASSY. (OPTION)

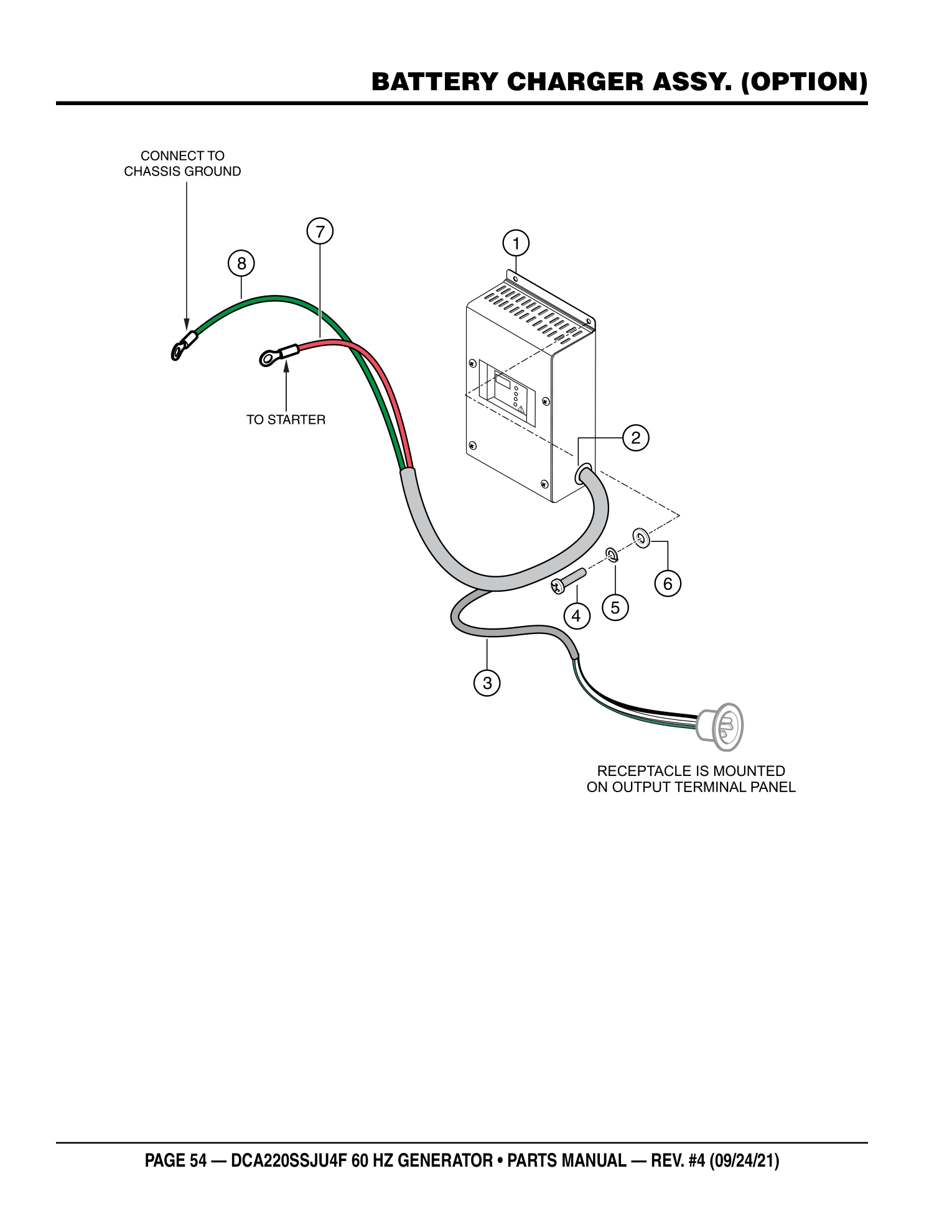

Multiquip DCA220SSJU4F Generator BATTERY CHARGER ASSY. (OPTION) parts diagram

Parts list — exactly as printed8 rows

No.	Part No.	Part Name	Qty	Remarks
1	EE57370	CHARGER BATTERY, 10 AMP 12/24V	1		ADD TO CART
CHARGER BATTERY, 10 AMP 12/24V EE57370 · qty on machine: 1 view full part page → $2020.95
2		GROMMENT, 7/8" HOLE SIZE	1	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING GROMMENT, 7/8" HOLE SIZE · qty on machine: 1 OBTAIN LOCALLY SEE REMARKS
3	EE56557	CORD, 3-CONDUCTOR, 14 AWG (6 FT.)	1	1PC=1FT	ADD TO CART
CORD, 3-CONDUCTOR, 14 AWG (6 FT.) EE56557 · qty on machine: 1 1PC=1FT view full part page → $1.95
4		SCREW, M4X10	4	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING SCREW, M4X10 · qty on machine: 4 OBTAIN LOCALLY SEE REMARKS
5		WASHER, LOCK M4	4	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WASHER, LOCK M4 · qty on machine: 4 OBTAIN LOCALLY SEE REMARKS
6		WASHER, FLAT M4	4	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WASHER, FLAT M4 · qty on machine: 4 OBTAIN LOCALLY SEE REMARKS
7		WIRE, 16GA, RED (9 FT.)	1	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WIRE, 16GA, RED (9 FT.) · qty on machine: 1 OBTAIN LOCALLY SEE REMARKS
8		WIRE, 16GA, GREEN (9 FT.)	1	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WIRE, 16GA, GREEN (9 FT.) · qty on machine: 1 OBTAIN LOCALLY SEE REMARKS

Page 56 — NAMEPLATE AND DECALS ASSY.

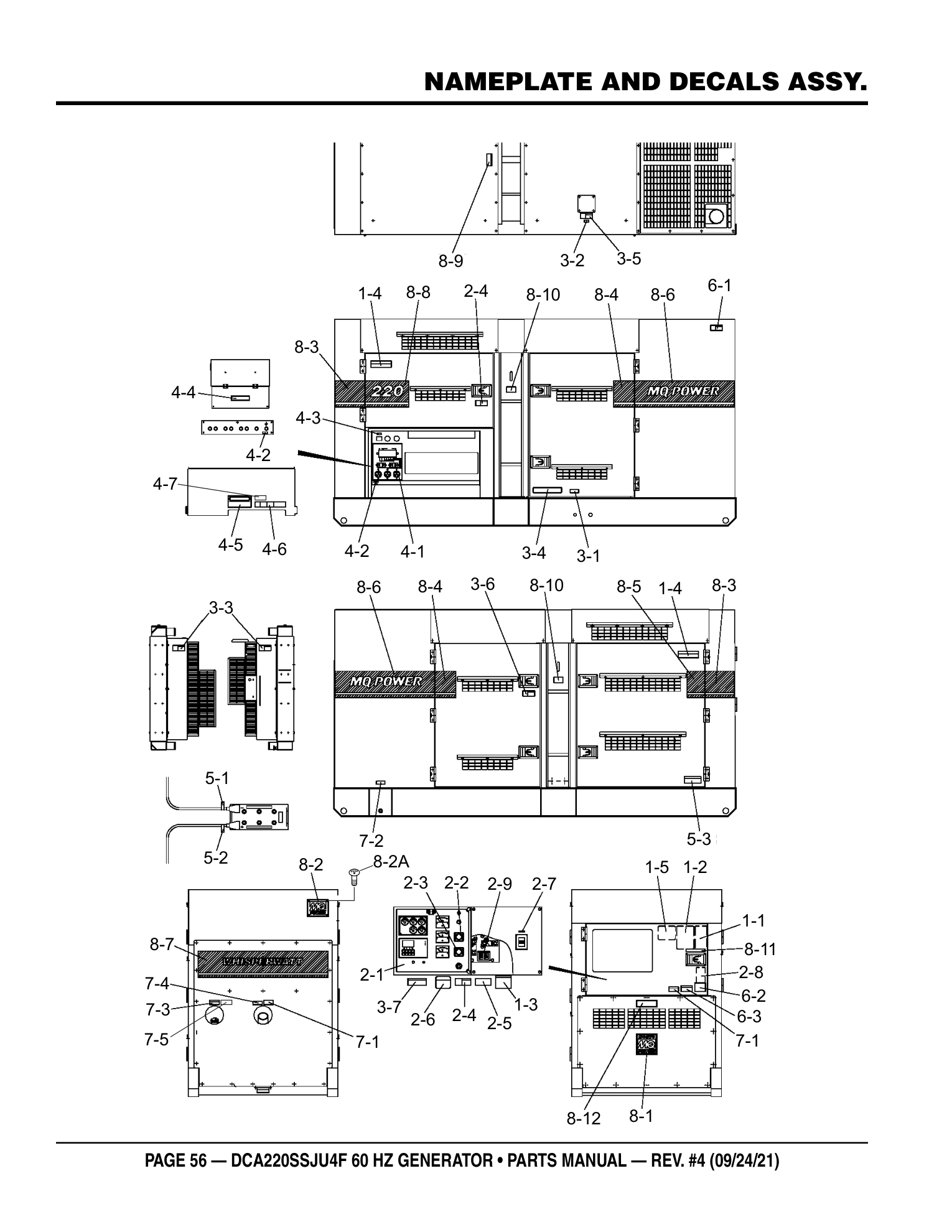

Multiquip DCA220SSJU4F Generator NAMEPLATE AND DECALS ASSY. parts diagram

Parts list — exactly as printed31 rows

No.	Part No.	Part Name	Qty	Remarks
1-1	M3551000103	DECAL: OPERATING PRECAUTIONS	1	M35100010	ADD TO CART
DECAL: OPERATING PRECAUTIONS M3551000103 · qty on machine: 1 M35100010 view full part page → $8.95
1-2	M3551000303	DECAL: DPF REGENERATION PROCED	1	M35100030	ADD TO CART
DECAL: DPF REGENERATION PROCED M3551000303 · qty on machine: 1 M35100030 view full part page → $5.95
1-3	M9520100304	DECAL: SAFETY INSTRUCTIONS	1	M92010030	ADD TO CART
DECAL: SAFETY INSTRUCTIONS M9520100304 · qty on machine: 1 M92010030 view full part page → $3.95
1-4	M9520100603	DECAL: CAUTION	2	M92010060	ADD TO CART
DECAL: CAUTION M9520100603 · qty on machine: 2 M92010060 view full part page → $8.95
1-5	M3551000603	DECAL: SCR INDICATOR CONTROL PANEL AND BOX GROUP	1	M35100060	ADD TO CART
DECAL: SCR INDICATOR CONTROL PANEL AND BOX GROUP M3551000603 · qty on machine: 1 M35100060 view full part page → $14.95
2-1	M5551000602	DECAL: CONTROL PANEL	1	M55100060	PARTS REQUEST
PHOTO COMING DECAL: CONTROL PANEL M5551000602 · qty on machine: 1 M55100060 PARTS REQUEST
2-2	M9520000104	PLATE: AMMETER CHANGE-OVER SW.	1	M92000010	ADD TO CART
PLATE: AMMETER CHANGE-OVER SW. M9520000104 · qty on machine: 1 M92000010 view full part page → $11.95
2-3	M9520000204	PLATE: VOLTMETER CHANGE-OVER SW.	1	M92000020	ADD TO CART
PLATE: VOLTMETER CHANGE-OVER SW. M9520000204 · qty on machine: 1 M92000020 view full part page → $11.95
2-4	M9520100004	DECAL: WARNING: ELECT. SHCK. HAZARD	2	M92010000	ADD TO CART
DECAL: WARNING: ELECT. SHCK. HAZARD M9520100004 · qty on machine: 2 M92010000 view full part page → $5.95
2-5	M9520100704	DECAL: WARNING: ARC FLASH	1	M92010070	ADD TO CART
DECAL: WARNING: ARC FLASH M9520100704 · qty on machine: 1 M92010070 view full part page → $4.95
2-6	M9520200404	DECAL: O. C. R. RESET	1	M92020040	ADD TO CART
DECAL: O. C. R. RESET M9520200404 · qty on machine: 1 M92020040 view full part page → $3.95
2-7	M9522000504	DECAL: CIRCUIT BREAKER	1	M92200050	ADD TO CART
DECAL: CIRCUIT BREAKER M9522000504 · qty on machine: 1 M92200050 view full part page → $25.95
2-8	M9520200303	DECAL: SETTING FOR OUTPUT VOLTAGE	1	M92020030	ADD TO CART
DECAL: SETTING FOR OUTPUT VOLTAGE M9520200303 · qty on machine: 1 M92020030 view full part page → $45.95
2-9	M9520200504	DECAL: SETTING FOR OUTPUT VOLTAGE(S).1 ENGINE AND RADIATOR GROUP		M92020050	ADD TO CART
DECAL: SETTING FOR OUTPUT VOLTAGE(S).1 ENGINE AND RADIATOR GROUP M9520200504 M92020050 view full part page → $17.95
3-1	M9500000004	DECAL: OIL DRAIN	1	M90000000	ADD TO CART
DECAL: OIL DRAIN M9500000004 · qty on machine: 1 M90000000 view full part page → $2.95
3-2	M9500100004	DECAL: WATER	1	M90010000	ADD TO CART
DECAL: WATER M9500100004 · qty on machine: 1 M90010000 view full part page → $1.95
3-3	M9503000004	DECAL: WARNING: ROTATING PART	2	M90300000	ADD TO CART
DECAL: WARNING: ROTATING PART M9503000004 · qty on machine: 2 M90300000 view full part page → $1.95
3-4	M9503000103	DECAL: WATER-OIL CHECK	1	M90300010	ADD TO CART
DECAL: WATER-OIL CHECK M9503000103 · qty on machine: 1 M90300010 view full part page → $7.95
3-5	M9503100004	DECAL: WARNING: HOT COOLANT	1	M90310000	ADD TO CART
DECAL: WARNING: HOT COOLANT M9503100004 · qty on machine: 1 M90310000 view full part page → $4.95
3-6	M9510100004	DECAL: CAUTION: HOT PARTS	1	M91010000	ADD TO CART
DECAL: CAUTION: HOT PARTS M9510100004 · qty on machine: 1 M91010000 view full part page → $68.95
3-7	M9501300004	DECAL: CAUTION: BATTERY CABLES OUTPUT TERMINAL GROUP	1	M90130000	ADD TO CART
DECAL: CAUTION: BATTERY CABLES OUTPUT TERMINAL GROUP M9501300004 · qty on machine: 1 M90130000 view full part page → $27.95
4-1	M4550000503	DECAL: RECEPTACLE & CIRC. BREAKER	1	M45000050	ADD TO CART
DECAL: RECEPTACLE & CIRC. BREAKER M4550000503 · qty on machine: 1 M45000050 view full part page → $231.95
4-2	M9520000004	DECAL: GROUND	2	M92000000	ADD TO CART
DECAL: GROUND M9520000004 · qty on machine: 2 M92000000 view full part page → $1.95
4-3	M9520000504	DECAL: START CONTACT	1	M92000050	ADD TO CART
DECAL: START CONTACT M9520000504 · qty on machine: 1 M92000050 view full part page → $67.95
4-4	M9520000704	DECAL: 3-PHASE OUTPUT TERMINAL	1	M92000070	ADD TO CART
DECAL: 3-PHASE OUTPUT TERMINAL M9520000704 · qty on machine: 1 M92000070 view full part page → $59.95
4-5	M9520100404	DECAL: DANGER: HIGH VOLTAGE	1	M92010040	ADD TO CART
DECAL: DANGER: HIGH VOLTAGE M9520100404 · qty on machine: 1 M92010040 view full part page → $37.95
4-6	M9520100503	DECAL: WARNING	1	M92010050	ADD TO CART
DECAL: WARNING M9520100503 · qty on machine: 1 M92010050 view full part page → $1.95
4-7	M9521200604	DECAL: BONDED NEUTRAL BATTERY GROUP	1	M92120060 S/N 8010862 AND ABOVE	ADD TO CART
DECAL: BONDED NEUTRAL BATTERY GROUP M9521200604 · qty on machine: 1 M92120060 S/N 8010862 AND ABOVE view full part page → $11.95
5-1	M9500300004	DECAL: -	1	M90030000	ADD TO CART
DECAL: - M9500300004 · qty on machine: 1 M90030000 view full part page → $1.95
5-2	M9500300104	DECAL: +	1	M90030010	ADD TO CART
DECAL: + M9500300104 · qty on machine: 1 M90030010 view full part page → $1.95
5-3	M951000403	DECAL: CAUTION	1	M91010040A	PARTS REQUEST
PHOTO COMING DECAL: CAUTION M951000403 · qty on machine: 1 M91010040A PARTS REQUEST

Page 58 — NAMEPLATE AND DECALS ASSY. (CONT'D.)

Multiquip DCA220SSJU4F Generator NAMEPLATE AND DECALS ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed22 rows

No.	Part No.	Part Name	Qty	Remarks
		MUFFLER GROUP			SEE REMARKS
PHOTO COMING MUFFLER GROUP SEE REMARKS
6-1	M9503200004	DECAL: WARNING: ENGINE EXHAUST	1	M90320000	ADD TO CART
DECAL: WARNING: ENGINE EXHAUST M9503200004 · qty on machine: 1 M90320000 view full part page → $14.95
6-2	M9503200104	DECAL: DANGER: EXHAUST	1	M90320010	ADD TO CART
DECAL: DANGER: EXHAUST M9503200104 · qty on machine: 1 M90320010 view full part page → $4.95
6-3	920214100	DECAL: WARNING: START FIRES FUEL TANK GROUP	1	REPLACES P/N M9504200004 M90420000	ADD TO CART
DECAL: WARNING: START FIRES FUEL TANK GROUP 920214100 · qty on machine: 1 REPLACES P/N M9504200004 M90420000 view full part page → $12.95
7-1	M9501500004	DECAL: DIESEL FUEL	2	M90150000	ADD TO CART
DECAL: DIESEL FUEL M9501500004 · qty on machine: 2 M90150000 view full part page → $3.95
7-2	M9500500104	DECAL: FUEL DRAIN PLUG	1	M90050010	ADD TO CART
DECAL: FUEL DRAIN PLUG M9500500104 · qty on machine: 1 M90050010 view full part page → $4.95
7-3	M9501500104	DECAL: DIESEL EXHAUST FLUID	1	M90150010	ADD TO CART
DECAL: DIESEL EXHAUST FLUID M9501500104 · qty on machine: 1 M90150010 view full part page → $14.95
7-4	M9504500004	DECAL: REFILL DEF AS WELL	1	M90450000	ADD TO CART
DECAL: REFILL DEF AS WELL M9504500004 · qty on machine: 1 M90450000 view full part page → $9.95
7-5	M9541100004	DECAL: CAUTION: EXHAUST FLUID ONLY ENCLOSURE GROUP	1	M94110000 S/N 8010993 AND ABOVE	ADD TO CART
DECAL: CAUTION: EXHAUST FLUID ONLY ENCLOSURE GROUP M9541100004 · qty on machine: 1 M94110000 S/N 8010993 AND ABOVE view full part page → $3.95
8-1	M9511200204	DECAL: MQ	1	M91120020	ADD TO CART
DECAL: MQ M9511200204 · qty on machine: 1 M91120020 view full part page → $5.95
8-2	0600500092	EMBLEM	1		ADD TO CART
EMBLEM 0600500092 · qty on machine: 1 view full part page → $21.95
8-2A	0021106015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021106015 · qty on machine: 4 view full part page → $0.17
8-3	M4560100704	STRIPE	2		ADD TO CART
STRIPE M4560100704 · qty on machine: 2 view full part page → $12.95
8-4	M5561101104	STRIPE	2		ADD TO CART
STRIPE M5561101104 · qty on machine: 2 view full part page → $29.95
8-5	M5561101204	STRIPE	1		ADD TO CART
STRIPE M5561101204 · qty on machine: 1 view full part page → $26.95
8-6	M3561100203	STRIPE	2		ADD TO CART
STRIPE M3561100203 · qty on machine: 2 view full part page → $22.95
8-7	M4560100003	STRIPE	1		ADD TO CART
STRIPE M4560100003 · qty on machine: 1 view full part page → $51.95
8-8	M5561101004	STRIPE	1		ADD TO CART
STRIPE M5561101004 · qty on machine: 1 view full part page → $54.95
8-9	M3550002204	DECAL: CAUTION	1	M35000220	ADD TO CART
DECAL: CAUTION M3550002204 · qty on machine: 1 M35000220 view full part page → $15.95
8-10	M9512000004	DECAL: SUPPORT HOOK	2	M91200000	ADD TO CART
DECAL: SUPPORT HOOK M9512000004 · qty on machine: 2 M91200000 view full part page → $5.95
8-11	M9510000104	DECAL: DOCUMENT BOX LOCATED	1	M91000010	ADD TO CART
DECAL: DOCUMENT BOX LOCATED M9510000104 · qty on machine: 1 M91000010 view full part page → $4.95
8-12	M9511200103	DECAL: TIER 4F	1	M91120010	ADD TO CART
DECAL: TIER 4F M9511200103 · qty on machine: 1 M91120010 view full part page → $17.95

The machine itself

Price by quote Get a quote

Tell us where the machine is headed and we'll quote it with freight. One call, no games.

The Multiquip DCA220SSJU4F is a generator built for portable jobsite power for tools, lighting, and equipment. Factory-documented specs and parts support; priced by quote.

Keep-it-running spares

All listed parts →

Every part that fits this machine

0071906314 Multiquip 0071906314 Bearing Denyo - OEM Replacement Part for Super Silent Generators $276.95

0191301150 Multiquip 0191301150 Hose Suction 85SSK - OEM Replacement Part for Super Silent Generators $47.95

0191302800 Multiquip 0191302800 Hose Return Denyo - OEM Replacement Part $88.95

0228901155 Multiquip 0228901155 Seal Rubber Denyo - OEM Replacement Part for Super Silent Generators $34.95

0228901260 Multiquip 0228901260 Seal Rubber Denyo - OEM Replacement Part for Super Silent Generators $38.95

0600800320 Multiquip 0600800320 Manual Pak Denyo - OEM Replacement Part $43.95

0601800275 Multiquip 0601800275 AC Voltmeter Denyo - OEM Replacement Part $146.95

0601801041 Multiquip 0601801041 Change-Over Switch Voltmeter Denyo - OEM Replacement Part $157.95

0601807642 Multiquip 0601807642 Frequency Meter Denyo (JP) - OEM Replacement Part $1,023.95

0601808804 Multiquip 0601808804 Circuit Breaker 2P 50A - OEM Replacement Part for Super Silent Generators $98.95

0601808992 Multiquip 0601808992 Ammeter AC Denyo - OEM Replacement Part for Super Silent Generators $548.95

0601809667 Multiquip 0601809667 Current Transformer 400/5A DENYO - OEM Replacement Part $178.95

0601814014 Multiquip 0601814014 GFCI Receptacle - OEM Replacement Part $90.95

0601814024 Multiquip 0601814024 GFCI Receptacle - OEM Replacement Part $78.95

0601820604 Multiquip 0601820604 Voltage Regulator Auto - OEM Replacement Part $1,877.95

0601831557 Multiquip 0601831557 Button Emergency Denyo - OEM Replacement Part $95.95

0601840073 Multiquip 0601840073 Rheostat Voltage Regulator for 150SSK and DCA Series Generators - OEM Replacement Part $90.95

0601842334 Multiquip 0601842334 Resistor Denyo - OEM Replacement Part for Super Silent Generators $343.95

0602022561 Multiquip 0602022561 90 Degree Elbow DENYO - OEM Replacement Part for Generator Systems $76.95

0602022580 Multiquip 0602022580 Adapter with Seal - OEM Replacement Part for DCA Super Silent Generators $37.95

0602040558 Multiquip 0602040558 Air Cleaner Band - OEM Replacement Part for DENYO Super Silent Generators $75.95

0602040650 Multiquip 0602040650 Indicator A/C 2545SSIU/2 DENYO - OEM Replacement Part $34.95

0602220198 Multiquip 0602220198 Battery Denyo - OEM Replacement Part for Super Silent Generators $500.95

0603306590 Multiquip 0603306590 Male Bulkhead Connector - OEM Replacement Part for Denyo Generators $86.95

0605505070 Multiquip 0605505070 Fuel Tank Cap DENYO - OEM Replacement Part $50.95

0605511395 Multiquip 0605511395 Ball Valve DENYO - OEM Replacement Part $46.95

0605515208 Multiquip 0605515208 Hose Band Clamp (Denyo) - OEM Replacement Part $61.95

0605515236 Multiquip 0605515236 Band Hose Denyo - OEM Replacement Part $46.95

0845047004 Multiquip 0845047004 Hinge Orange Denyo - OEM Replacement Part $36.95

515455840 Multiquip 515455840 Mount Nut (M14) Scraper - OEM Replacement Part $35.95

8171015003 Multiquip 8171015003 Plate Balancing - OEM Replacement Part for Super Silent Generators $300.95

8171070002 Multiquip 8171070002 Fan - OEM Replacement Part for Super Silent Generators $4,003.95

8171323004 Multiquip 8171323004 Clamper - OEM Replacement Part for WhisperWatt Super Silent Generators $51.95

8171323103 Multiquip 8171323103 Clamper - OEM Replacement Part for WhisperWatt Super Silent Generators $37.95

8171611003 Multiquip 8171611003 Coupling Disk - OEM Replacement Part for WhisperWatt Generators $41.95

8181853104 Multiquip 8181853104 Plate Change 220SSVU - OEM Replacement Part $58.95

82608 Multiquip 82608 Toggle Switch Denyo Mods - OEM Replacement Part for Super Silent Generators $34.95

AR50411 Multiquip AR50411 Power Cord 90 Degree John Deere - OEM Replacement Part $38.95

AT377287 Multiquip AT377287 Fitting Hose Barb Brass 5/8" - OEM Replacement Part $49.95

C1110000102 Multiquip C1110000102 Rotor Assembly (JP) - OEM Replacement Part for Super Silent Generators $19,002.95

C1112500004 Multiquip C1112500004 Bearing Flange 180SSI - OEM Replacement Part for Super Silent Generators $101.95

C1130100103 Multiquip C1130100103 Assembly - OEM Replacement Part for Super Silent Generators $22,170.95

C1132300114 Multiquip C1132300114 Cover Fan DCA-220SSVU - OEM Replacement Part $547.95

C1138000003 Multiquip C1138000003 Exciter Field Assembly - OEM Replacement Part $2,313.95

C1154000002 Multiquip C1154000002 Bracket End - OEM Replacement Part for Super Silent Generators $1,970.95

C1154300004 Multiquip C1154300004 Bearing Gasket - OEM Replacement Part for Super Silent Generators $44.95

C1154400004 Multiquip C1154400004 Bearing Cover - OEM Replacement Part for Super Silent Generators $54.95

C1164200004 Multiquip C1164200004 Washer Coupling Hub - OEM Replacement Part for 180SSI Generators $81.95

C1231700003 Multiquip C1231700003 Set Board DCA 220SSK/SSV - OEM Replacement Part $541.95

CL40WTC-L-125-J Multiquip CL40WTC-L-125-J Snap Back Plastic Cover - OEM Replacement Part $44.95

EE2115 Multiquip EE2115 Potentiometer 5Kohm 10 Turn 2 Watt - OEM Replacement Part $70.95

EE23374 Multiquip EE23374 Pushbutton 1 NO 1 NC Contact 24V Green - OEM Replacement Part $82.95

EE23375 Multiquip EE23375 Pushbutton 1 NO 1 NC Contact 24V Red - OEM Replacement Part $82.95

EE26643 Multiquip EE26643 Current Transformer 600:5 Ratio Medium - OEM Replacement Part $40.95

EE38585 Multiquip EE38585 ABB 2 Pole 10A Circuit Breaker - OEM Replacement Part $60.95

EE52893 Multiquip EE52893 Emergency Stop Bezel 22mm Yellow Plastic - OEM Replacement Part $34.95

EE54798 Multiquip EE54798 110V Coolant Heater Kit - OEM Replacement Part $181.95

EE55761 Multiquip EE55761 LED Light Panel 12-36VDC - OEM Replacement Part $43.95

EE55780 Multiquip EE55780 Ethernet Cat5E Shielded Cable 50ft Grey - OEM Replacement Part $81.95

EE55784 Multiquip EE55784 ABB 3-Pole 10A Circuit Breaker UL@480V - OEM Replacement Part $349.95

EE55785 Multiquip EE55785 Contact Aux ABB S2C-H6RU Series - OEM Replacement Part $54.95

EE56983 Multiquip EE56983 Panel Two Conductors Camlok Aluminum - OEM Replacement Part $61.95

EE57370 Multiquip EE57370 Charger 10A 12/24V with 115V AC Input NRG - OEM Replacement Part $2,020.95

EE57855 Multiquip EE57855 Emergency Stop Switch XW1E - OEM Replacement Part $164.95

EE58065 Multiquip EE58065 Ethernet Switch 5 Port 10-30VDC - OEM Replacement Part $453.95

EE59127 Multiquip EE59127 Contactor ABB 650A 100-250V Control - OEM Replacement Part $3,674.95

EE59231 Multiquip EE59231 Panel Paralleling Assembly - OEM Replacement Part $5,555.95

EE59259 Multiquip EE59259 Controller w.Connector Kit - OEM Replacement Part $5,217.95

EE6379 Multiquip EE6379 Receptacle Panel Mount Female White 4/0 - OEM Replacement Part $69.95

EE6380 Multiquip EE6380 Receptacle Panel Mount Female Red 4/0 - OEM Replacement Part $69.95

EE6381 Multiquip EE6381 Receptacle Panel Mount Female Blue 4/0 - OEM Replacement Part $69.95

EE7342 Multiquip EE7342 Copper Fuse Bar 2in AC Bus Board Assembly - OEM Replacement Part $34.95

LY2DUS12VDC Multiquip LY2DUS12VDC Relay with Diode - OEM Replacement Part for DCA Generators $46.95

M1413400004 Multiquip M1413400004 Under Cover DENYO - OEM Replacement Part for Super Silent Generators $35.95

M3237100204 Multiquip M3237100204 Insulating Cover (JP) - OEM Replacement Part $176.95

M3303200404 Multiquip M3303200404 Engine Foot - OEM Replacement Part for Denyo Super Silent Generators $39.95

M3311300813 Multiquip M3311300813 Radiator Fan Guard - OEM Replacement Part $158.95

M3311500503 Multiquip M3311500503 Upper Radiator Hose DENYO - OEM Replacement Part $194.95

M3311500603 Multiquip M3311500603 Lower Radiator Hose DENYO - OEM Replacement Part $197.95

M3317100004 Multiquip M3317100004 Surge Tank Bracket - OEM Replacement Part for Super Silent Generators $263.95

M3364000402 Multiquip M3364000402 Fuel Tank Denyo - OEM Replacement Part $997.95

M3424200304 Multiquip M3424200304 Front Cover for Super Silent Generators - OEM Replacement Part $771.95

M3424700104 Multiquip M3424700104 DEF Tank Cover - OEM Replacement Part for Super Silent Generators $48.95

M3454300604 Multiquip M3454300604 Duct (White) Denyo - OEM Replacement Part $387.95

M3491200104 Multiquip M3491200104 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $51.95

M3494406804 Multiquip M3494406804 Acoustic Sheet Denyo - OEM Replacement Part $686.95

M3494406904 Multiquip M3494406904 Acoustic Sheet Denyo - OEM Replacement Part $686.95

M3494407004 Multiquip M3494407004 Acoustic Sheet Denyo - OEM Replacement Part $648.95

M3494407204 Multiquip M3494407204 Acoustic Sheet Denyo - OEM Replacement Part $395.95

M3494407304 Multiquip M3494407304 Acoustic Sheet - OEM Replacement Part for Super Silent Generators $108.95

M4213000212 Multiquip M4213000212 Control Box Denyo - OEM Replacement Part for Super Silent Generators $613.95

M4213500104 Multiquip M4213500104 Control Box Cover DENYO - OEM Replacement Part $204.95

M4213600104 Multiquip M4213600104 Control Panel DENYO - OEM Replacement Part for Super Silent Generators $63.95

M4223000503 Multiquip M4223000503 Control Panel Denyo - OEM Replacement Part for Super Silent Generator $217.95

M4223000604 Multiquip M4223000604 Control Panel Denyo (KY) - OEM Replacement Part $143.95

M4236100403 Multiquip M4236100403 Terminal Cover Denyo - OEM Replacement Part $231.95

M4236400104 Multiquip M4236400104 Supporter Cable Outlet Cover - OEM Replacement Part for Denyo Super Silent Generators $88.95

M4246700604 Multiquip M4246700604 Wire Harness Generator 1 (Jp) - OEM Replacement Part $2,884.95

M4273000003 Multiquip M4273000003 Terminal Board (JP) - OEM Replacement Part for Super Silent Generators $399.95

M4424000002 Multiquip M4424000002 Front Frame Denyo - OEM Replacement Part for Super Silent Generators $3,227.95

M4443300503 Multiquip M4443300503 Duct Rear Frame Denyo - OEM Replacement Part $469.95

M4443600004 Multiquip M4443600004 Plate Window Denyo - OEM Replacement Part $155.95

M4493302904 Multiquip M4493302904 Acoustic Sheet Denyo - OEM Replacement Part $131.95

M4493303004 Multiquip M4493303004 Acoustic Sheet Denyo - OEM Replacement Part $58.95

M4493503204 Multiquip M4493503204 Acoustic Sheet Denyo - OEM Replacement Part $58.95

M4550000503 Multiquip M4550000503 Decal Receptacle & Circuit Breaker - OEM Replacement Part $231.95

M4560100003 Multiquip M4560100003 DENYO Component - OEM Replacement Part for Super Silent Generators $51.95

M5311200404 Multiquip M5311200404 Radiator Bracket - OEM Replacement Part for Denyo Generators $308.95

M5311200504 Multiquip M5311200504 Radiator Bracket - OEM Replacement Part for Denyo Super Silent Generators $308.95

M5311400103 Multiquip M5311400103 CAC Pipe (Hot Side) - OEM Replacement Part for Super Silent Generators $612.95

M5327100004 Multiquip M5327100004 Blowby Pipe DENYO (KY) - OEM Replacement Part $405.95

M5331401004 Multiquip M5331401004 Exhaust Pipe Cover - OEM Replacement Part $35.95

M5334000203 Multiquip M5334000203 Exhaust Pipe Denyo (KY) - OEM Replacement Part for Super Silent Generators $2,455.95

M5334100103 Multiquip M5334100103 Tail Pipe Denyo (KY) - OEM Replacement Part $1,026.95

M5347900504 Multiquip M5347900504 Battery Cable Positive - OEM Replacement Part for Super Silent Generators $365.95

M5358200302 Multiquip M5358200302 Wire Harness Engine Denyo - OEM Replacement Part $1,550.95

M5374100003 Multiquip M5374100003 Air Cleaner Hose (JP) - OEM Replacement Part for Super Silent Generators $441.95

M5424201703 Multiquip M5424201703 Front Frame Over Cover (KY) - OEM Replacement Part $620.95

M5434000302 Multiquip M5434000302 Center Frame White Denyo - OEM Replacement Part for Super Silent Generators $2,815.95

M5464100402 Multiquip M5464100402 Roof Panel Denyo (KY) - OEM Replacement Part $1,429.95

M5464200202 Multiquip M5464200202 Roof Panel Denyo (KY) - OEM Replacement Part for Super Silent Generators $2,143.95

M5494301504 Multiquip M5494301504 Acoustic Denyo Panel - OEM Replacement Part for Super Silent Generators $442.95

M5494502704 Multiquip M5494502704 Acoustic Sheet Denyo (KY) - OEM Replacement Part $720.95

M5494502904 Multiquip M5494502904 Acoustic Sheet Denyo (KY) - OEM Replacement Part $780.95

M5561101004 Multiquip M5561101004 Denyo OEM Replacement Part for Super Silent Generators $54.95

M9103000504 Multiquip M9103000504 Battery Band - OEM Replacement Part for Super Silent Generators $107.95

M9520000504 Multiquip M9520000504 Denyo Contact Information Decal - OEM Replacement Part $67.95

M9520100404 Multiquip M9520100404 Danger High Voltage Decal - OEM Replacement Part $37.95

P537876 Multiquip P537876 Air Cleaner Element - OEM Replacement Part $161.95

R300529 Multiquip R300529 Sealing Ring John Deere - OEM Replacement Part $140.95

R529383 Multiquip R529383 Fan Belt - OEM Replacement Part for Super Silent Generators $207.95

R529640 Multiquip R529640 Gasket - OEM Replacement Part for Super Silent Generators $97.95

RE298757 Multiquip RE298757 V-Band Clamp - OEM Replacement Part $162.95

RE304965 Multiquip RE304965 V-Band Clamp - OEM Replacement Part for Super Silent Generators $147.95

RE529640 Multiquip RE529640 Air Intake - OEM Replacement Part for Super Silent Generators $328.95

RE538131 Multiquip RE538131 Pressure Sensor John Deere - OEM Replacement Part $292.95

RE540348 Multiquip RE540348 Clamp V Band - OEM Replacement Part for Super Silent Generators $163.95

RE551507 Multiquip RE551507 Fuel Filter Element (Primary) - OEM Replacement Part $168.95

RE552175 Multiquip RE552175 DEF Dosing Unit Pump - OEM Replacement Part $2,050.95

RE552182 Multiquip RE552182 NOx Sensor - OEM Replacement Part for Super Silent Generators $1,348.95

RE552185 Multiquip RE552185 DPF Temperature Sensor (DCA) - OEM Replacement Part $991.95

RE553703 Multiquip RE553703 Cartridge Blow-By Filter - OEM Replacement Part $399.95

RE555046 Multiquip RE555046 Blower Fan John Deere - OEM Replacement Part $885.95

RE556406 Multiquip RE556406 Fuel Filter Kit (Primary, Secondary) DCA-150/220 - OEM Replacement Part $334.95

RE560681 Multiquip RE560681 Fuel Filter Element (Secondary) - OEM Replacement Part $146.95

RE560900 Multiquip RE560900 DEF Line Backflow Line - OEM Replacement Part $591.95

RE562696 Multiquip RE562696 Seal Kit for Fuel Filter - OEM Replacement Part $72.95

Y0191700480 Multiquip Y0191700480 Blowby Hose DENYO - OEM Replacement Part for Super Silent Generators $63.95

Y0400005000 Multiquip Y0400005000 Exhaust Insulating Wrap (KY) - OEM Replacement Part $124.95

Y0601810170 Multiquip Y0601810170 Panel Light Denyo - OEM Replacement Part $142.95

Y0601820843 Multiquip Y0601820843 OCR Relay Denyo - OEM Replacement Part for Super Silent Generators $114.95

Y0602012952 Multiquip Y0602012952 Radiator/Intercooler Assembly - OEM Replacement Part $4,526.95

Y0602015610 Multiquip Y0602015610 CAC Hose Denyo - OEM Replacement Part $124.95

Y0602022577 Multiquip Y0602022577 90° Elbow KY - OEM Replacement Part for Super Silent Generators $39.95

Y0602120569 Multiquip Y0602120569 Gauge Unit Assembly Denyo - OEM Replacement Part $756.95

Y0602202651 Multiquip Y0602202651 Controller Denyo - OEM Replacement Part for Super Silent Generators $1,815.95

Y0602311146 Multiquip Y0602311146 Exhaust Insulating Material - OEM Replacement Part for Denyo Super Silent Generators $503.95

Y0602311147 Multiquip Y0602311147 Exhaust Insulating Denyo - OEM Replacement Part $924.95

Y0602320206 Multiquip Y0602320206 Gasket Denyo - OEM Replacement Part for Super Silent Generators $53.95

Y0602325026 Multiquip Y0602325026 Pipe Band - OEM Replacement Part for Denyo Super Silent Generators $37.95

Y0605000462 Multiquip Y0605000462 Rubber Suspension - OEM Replacement Part $110.95

Y0605012309 Multiquip Y0605012309 Door Handle with Bolts - OEM Replacement Part $49.95

Y0605511394 Multiquip Y0605511394 Mini Ball Valve Denyo - OEM Replacement Part $70.95

0010006030 HEX. HEAD BOLT $0.25

0010106060 HEX. HEAD BOLT $1.31

0010110035 HEX. HEAD BOLT $0.95

0010114040 HEX. HEAD BOLT

0010116060 HEX. HEAD BOLT $3.95

0012110065 HEX. HEAD BOLT $4.95

0012112040 HEX. HEAD BOLT $4.95

0012116045 HEX. HEAD BOLT $6.95

0012312030 HEX. HEAD BOLT $6.95

0016910025 HEX. HEAD BOLT $1.56

0017106016 HEX. HEAD BOLT $1.51

0017108040 HEX. HEAD BOLT $1.58

0017112045 HEX. HEAD BOLT $1.76

0018205020 HEX. SOCKET HEAD CAP SCREW $1.55

0019108065 HEX. HEAD BOLT $1.95

0019206015 HEX. HEAD BOLT $3.95

0019208020 HEX. HEAD BOLT $3.95

0019210025 HEX. HEAD BOLT $7.95

0021106015 MACHINE SCREW $0.17

0027103015 MACHINE SCREW $0.64

0027104015 MACHINE SCREW $0.53

0027104020 MACHINE SCREW $0.40

0027105015 MACHINE SCREW $0.20

0027106016 MACHINE SCREW $0.55

0027208025 MACHINE SCREW $0.76

0030012000 HEX. NUT $0.50

0030016000 HEX. NUT $1.90

0030020000 HEX. NUT $1.82

0032005000 WASHER, LOCK $0.41

0039316000 HEX. NUT $5.95

0040006000 WASHER, LOCK $0.17

0040008000 WASHER, LOCK $0.63

0040010000 WASHER, LOCK $0.39

0040016000 WASHER, LOCK $4.95

0040508000 TOOTHED WASHER $0.35

0040510000 TOOTHED WASHER $0.77

0040516000 TOOTHED WASHER $1.39

From the guides desk

Guide · 2026-08-04

Ask ARIA about your machine.

Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.

Chat with ARIA

Multiquip DCA220SSJU4F Generator

The parts bench

The machine itself

Machine

Engine

Keep-it-running spares

Every part that fits this machine

Service notices & part changes

Take the factory book with you

Get the download pack

From the guides desk

Multiquip DCA Generator Fault Shutdown and Controller Reset Guide

Multiquip Generator No-Start and No-Power Fixes

Multiquip DCA Generator Fault Codes and Diagnostics Guide

Ask ARIA about your machine.

Your cart is empty

Your cart is empty
