Page 6 — GENERATOR ASSY.

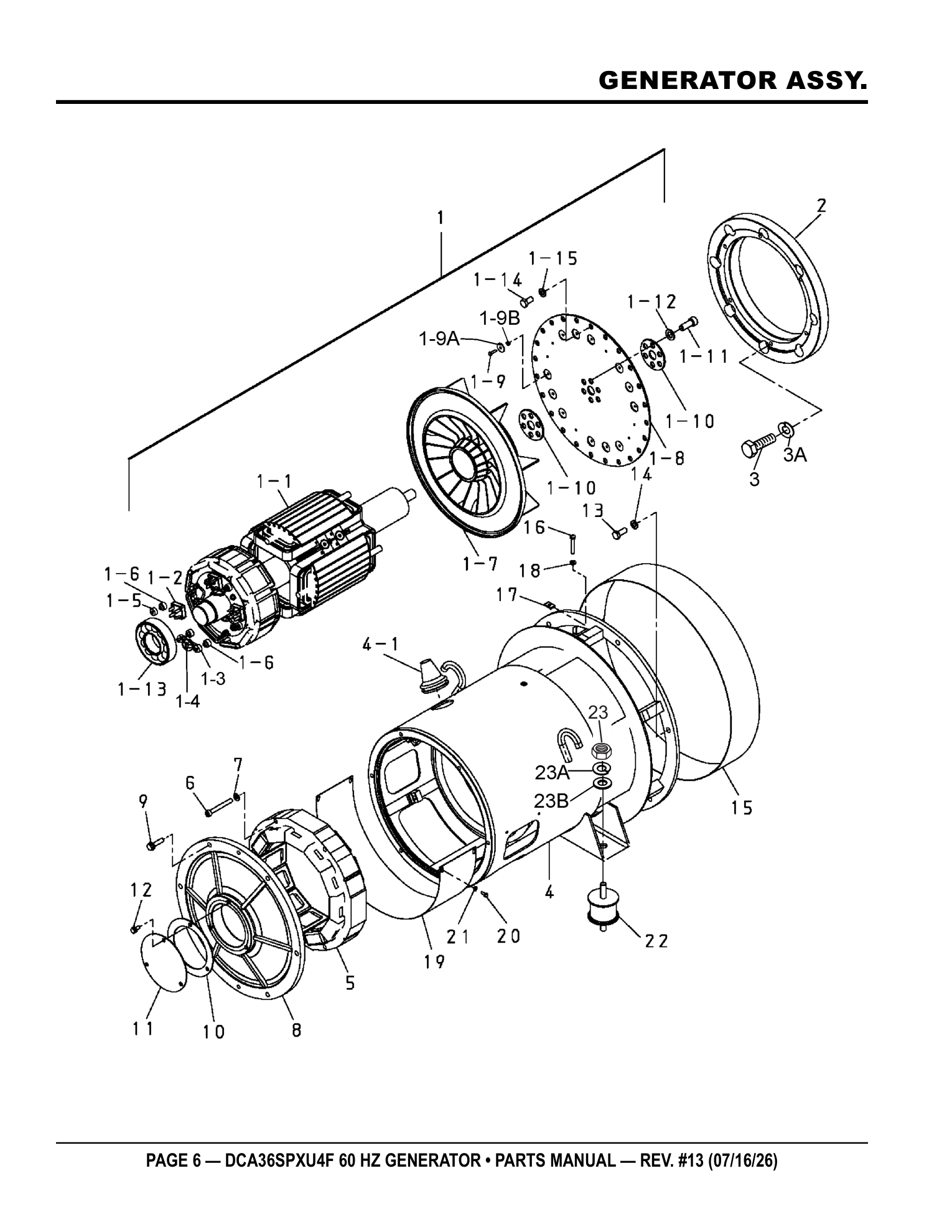

Multiquip DCA36SPXU4F Generator GENERATOR ASSY. parts diagram

Parts list — exactly as printed44 rows

No.	Part No.	Part Name	Qty	Remarks
1	B5110000402	ROTOR ASSY	1	INCLUDES ITEMS W/#	ADD TO CART
ROTOR ASSY B5110000402 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 1-1#, 1-2#, 1-3#, 1-4#, 1-5#, 1-6#, 1-7#, 1-8#, 1-9#, 1-9A#, 1-9B#, 1-10#, 1-11#, 1-12#, 1-13# view full part page → $9560.95 IN A KIT + SOLD SOLO
1-1#		FIELD ASSY.	1		INCLUDED IN KIT
PHOTO COMING FIELD ASSY. · qty on machine: 1 Included in kit 1 - ROTOR ASSY (B5110000402) INCLUDED IN KIT
1-2#	0601820083	RECTIFIER	3		ADD TO CART
RECTIFIER 0601820083 · qty on machine: 3 Also included in kit 1 - ROTOR ASSY (B5110000402) view full part page → $33.95 IN A KIT + SOLD SOLO
1-3#	0601822664	ZNR	1		ADD TO CART
ZNR 0601822664 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (B5110000402) view full part page → $18.95 IN A KIT + SOLD SOLO
1-4#	B3120100804	HOLDER, ZNR	1		ADD TO CART
HOLDER, ZNR B3120100804 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (B5110000402) view full part page → $140.95 IN A KIT + SOLD SOLO
1-5#	B3120100604	INSULATOR WASHER	3		ADD TO CART
INSULATOR WASHER B3120100604 · qty on machine: 3 Also included in kit 1 - ROTOR ASSY (B5110000402) view full part page → $1.95 IN A KIT + SOLD SOLO
1-6#	B3120100704	INSULATOR WASHER	5		ADD TO CART
INSULATOR WASHER B3120100704 · qty on machine: 5 Also included in kit 1 - ROTOR ASSY (B5110000402) view full part page → $1.95 IN A KIT + SOLD SOLO
1-7#	B3111100603	FAN	1		ADD TO CART
FAN B3111100603 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (B5110000402) view full part page → $232.95 IN A KIT + SOLD SOLO
1-8#	B3163100204	COUPLING DISK	3	PURCHASE SET 0F 1-9 WHEN ORDERING	ADD TO CART
COUPLING DISK B3163100204 · qty on machine: 3 PURCHASE SET 0F 1-9 WHEN ORDERING Also included in kit 1 - ROTOR ASSY (B5110000402) view full part page → $89.95 IN A KIT + SOLD SOLO
1-9#	0010304016	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0010304016 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (B5110000402) view full part page → $2.72 IN A KIT + SOLD SOLO
1-9A#	B4163700004	BALANCING WEIGHT	1		ADD TO CART
BALANCING WEIGHT B4163700004 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (B5110000402) view full part page → $3.99 IN A KIT + SOLD SOLO
1-9B#	0204004000	U NUT	1		ADD TO CART
U NUT 0204004000 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (B5110000402) view full part page → $1.53 IN A KIT + SOLD SOLO
1-10#	B3163200104	COUPLING WASHER	2		ADD TO CART
COUPLING WASHER B3163200104 · qty on machine: 2 Also included in kit 1 - ROTOR ASSY (B5110000402) view full part page → $112.95 IN A KIT + SOLD SOLO
1-11#	0342612030	HEX. SOCKET HEAD CAP SCREW	6		ADD TO CART
HEX. SOCKET HEAD CAP SCREW 0342612030 · qty on machine: 6 Also included in kit 1 - ROTOR ASSY (B5110000402) view full part page → $2.82 IN A KIT + SOLD SOLO
1-12#	0046512000	WASHER, FLAT	6		ADD TO CART
WASHER, FLAT 0046512000 · qty on machine: 6 Also included in kit 1 - ROTOR ASSY (B5110000402) view full part page → $3.95 IN A KIT + SOLD SOLO
1-13#	0071906309	BEARING	1		ADD TO CART
BEARING 0071906309 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (B5110000402) view full part page → $160.95 IN A KIT + SOLD SOLO
1-14	014208020	HEX. HEAD BOLT	6	REPLACES P/N 0010308020	ADD TO CART
HEX. HEAD BOLT 014208020 · qty on machine: 6 REPLACES P/N 0010308020 view full part page → $0.77
1-15	0042508000	WASHER, LOCK	6		ADD TO CART
WASHER, LOCK 0042508000 · qty on machine: 6 view full part page → $0.62
2	M1164400203	COUPLING RING	1		ADD TO CART
COUPLING RING M1164400203 · qty on machine: 1 view full part page → $1321.95
3	012210035	HEX. HEAD BOLT	8	REPLACES P/N 0010310035	ADD TO CART
HEX. HEAD BOLT 012210035 · qty on machine: 8 REPLACES P/N 0010310035 view full part page → $1.95
3A	0040010000	WASHER, LOCK	8		ADD TO CART
WASHER, LOCK 0040010000 · qty on machine: 8 view full part page → $0.39
4	B4130100903	STATOR ASSY	1	INCLUDES ITEMS W/%	PARTS REQUEST
PHOTO COMING STATOR ASSY B4130100903 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 4-1% PARTS REQUEST
4-1%	0845041904	GROMMET	1		ADD TO CART
GROMMET 0845041904 · qty on machine: 1 Also included in kit 4 - STATOR ASSY (B4130100903) view full part page → $11.95 IN A KIT + SOLD SOLO
5	B3137000803	FIELD ASSY., EXCITER	1		ADD TO CART
FIELD ASSY., EXCITER B3137000803 · qty on machine: 1 view full part page → $1882.95
6	0016008060	HEX SOCKET HEAD CAP SCREW	4		ADD TO CART
HEX SOCKET HEAD CAP SCREW 0016008060 · qty on machine: 4 view full part page → $2.95
7	0042508000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0042508000 · qty on machine: 4 view full part page → $0.62
8	B3153000513	END BRACKET	1		ADD TO CART
END BRACKET B3153000513 · qty on machine: 1 view full part page → $636.95
9	0017108035	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0017108035 · qty on machine: 6 view full part page → $1.95
10	B3153400504	PACKING	1		ADD TO CART
PACKING B3153400504 · qty on machine: 1 view full part page → $25.95
11	B3153400404	COVER, SUCTION	1		ADD TO CART
COVER, SUCTION B3153400404 · qty on machine: 1 view full part page → $40.95
12	0017106016	HEX. HEAD BOLT	3		ADD TO CART
HEX. HEAD BOLT 0017106016 · qty on machine: 3 view full part page → $1.51
13	0105091025	HEX. HEAD BOLT	6	REPLACES P/N 0010310025	ADD TO CART
HEX. HEAD BOLT 0105091025 · qty on machine: 6 REPLACES P/N 0010310025 view full part page → $0.68
14	030210250	WASHER, LOCK	6	REPLACES P/N 0042510000	ADD TO CART
WASHER, LOCK 030210250 · qty on machine: 6 REPLACES P/N 0042510000 view full part page → $0.28
15	B3131300004	COVER, END BRACKET	1		ADD TO CART
COVER, END BRACKET B3131300004 · qty on machine: 1 view full part page → $142.95
16	0340406040	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0340406040 · qty on machine: 1 view full part page → $2.68
17	020106050	NUT	1	REPLACES P/N 0600815000	ADD TO CART
NUT 020106050 · qty on machine: 1 REPLACES P/N 0600815000 view full part page → $0.12
18	952404470	WASHER, FLAT	1	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 1 REPLACES P/N 0041206000 view full part page → $0.19
19	B3131300804	COVER, END BRACKET	1		ADD TO CART
COVER, END BRACKET B3131300804 · qty on machine: 1 view full part page → $60.95
20	0029205012	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0029205012 · qty on machine: 4 view full part page → $1.45
21	58151	WASHER, FLAT	4	REPLACES P/N 0041205000	ADD TO CART
WASHER, FLAT 58151 · qty on machine: 4 REPLACES P/N 0041205000 view full part page → $0.41
22	Y0605000407	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION Y0605000407 · qty on machine: 2 view full part page → $47.95
23	0030012000	HEX. NUT	2		ADD TO CART
HEX. NUT 0030012000 · qty on machine: 2 view full part page → $0.5
23A	0040012000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040012000 · qty on machine: 2 view full part page → $0.95
23B	031112230	WASHER, FLAT	2	REPLACES P/N 0041212000	ADD TO CART
WASHER, FLAT 031112230 · qty on machine: 2 REPLACES P/N 0041212000 view full part page → $0.95

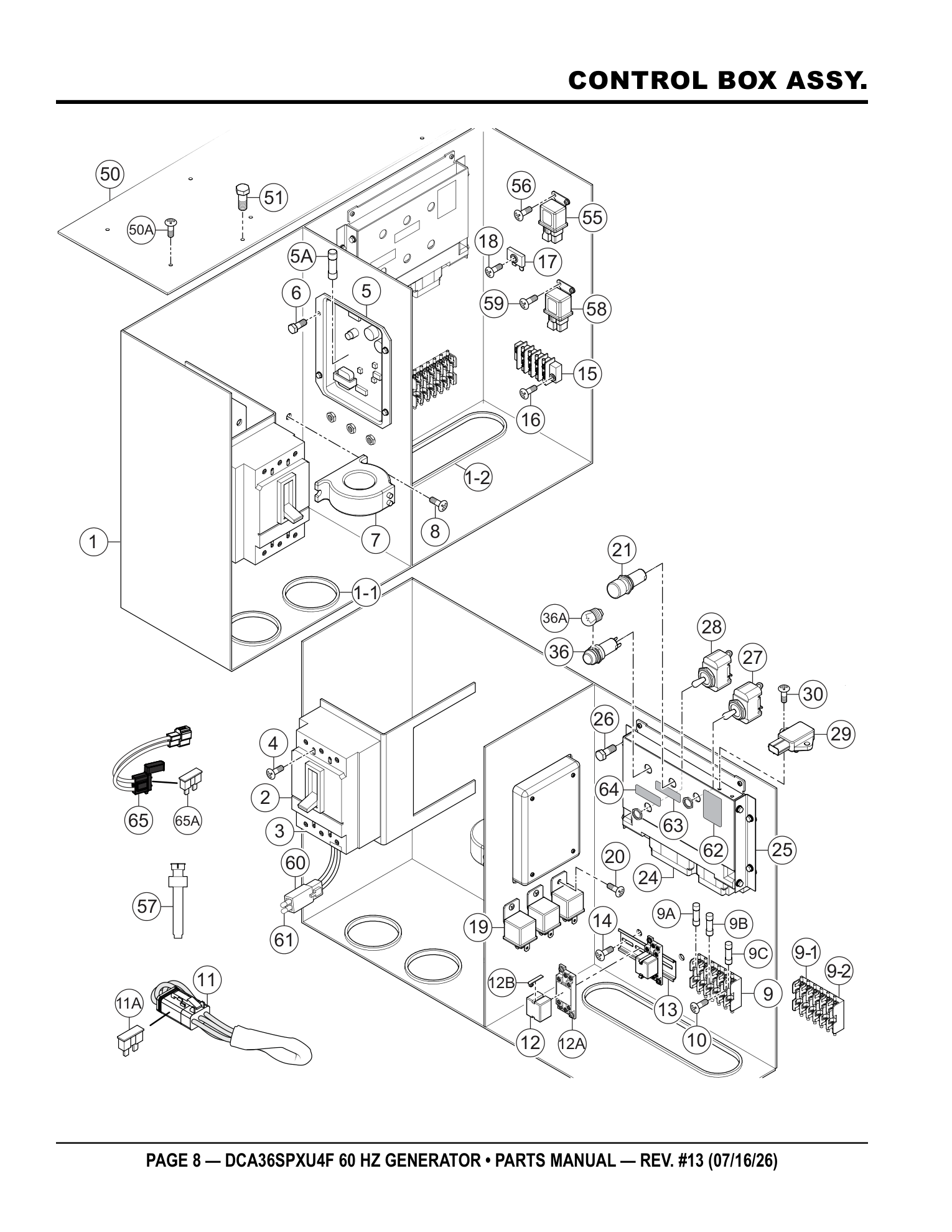

Page 8 — CONTROL BOX ASSY.

Multiquip DCA36SPXU4F Generator CONTROL BOX ASSY. parts diagram

Parts list — exactly as printed36 rows

No.	Part No.	Part Name	Qty	Remarks
1	M1214000602	CONTROL BOX	1		PARTS REQUEST
PHOTO COMING CONTROL BOX M1214000602 · qty on machine: 1 PARTS REQUEST
1-1	0411100185	EDGING	2		PARTS REQUEST
PHOTO COMING EDGING 0411100185 · qty on machine: 2 PARTS REQUEST
1-2	0411100585	EDGING	1		PARTS REQUEST
PHOTO COMING EDGING 0411100585 · qty on machine: 1 PARTS REQUEST
2	0601870434	CIRCUIT BREAKER 3P 150A	1		ADD TO CART
CIRCUIT BREAKER 3P 150A 0601870434 · qty on machine: 1 view full part page → $2427.95
3	0601870490	END CAP KIT	2		ADD TO CART
END CAP KIT 0601870490 · qty on machine: 2 view full part page → $26.95
4	0021004040	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021004040 · qty on machine: 4 view full part page → $0.64
5	0601820626	AUTOMATIC VOLTAGE REGULATOR	1	INCLUDES ITEMS W/$	ADD TO CART
AUTOMATIC VOLTAGE REGULATOR 0601820626 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 5A$ view full part page → $2354.95 IN A KIT + SOLD SOLO
5A$	Y0601806684	FUSE 250V 7A	1		PARTS REQUEST
PHOTO COMING FUSE 250V 7A Y0601806684 · qty on machine: 1 Also included in kit 5 - AUTOMATIC VOLTAGE REGULATO (0601820626) PARTS REQUEST
6	0027105015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 4 view full part page → $0.2
7	0601801124	CURRENT TRANSFORMER	2		ADD TO CART
CURRENT TRANSFORMER 0601801124 · qty on machine: 2 view full part page → $97.95
8	011206020	MACHINE SCREW	4	REPLACES P/N 0027106020	ADD TO CART
MACHINE SCREW 011206020 · qty on machine: 4 REPLACES P/N 0027106020 view full part page → $0.95
9	0601802218	HOLDER, FUSE 6P	1	S/N 8730365 AND BELOW S/N 8730387 AND ABOVE	ADD TO CART
HOLDER, FUSE 6P 0601802218 · qty on machine: 1 S/N 8730365 AND BELOW S/N 8730387 AND ABOVE view full part page → $47.95
9-1	Y0601818020	HOLDER, FUSE 1P	1	S/N 8730366 ~ 8730388	ADD TO CART
HOLDER, FUSE 1P Y0601818020 · qty on machine: 1 S/N 8730366 ~ 8730388 view full part page → $10.95
9-2	Y0601818021	HOLDER, FUSE 2P	1	S/N 8730366 ~ 8730388	ADD TO CART
HOLDER, FUSE 2P Y0601818021 · qty on machine: 1 S/N 8730366 ~ 8730388 view full part page → $27.95
9A	0601806671	FUSE 15A	2		ADD TO CART
FUSE 15A 0601806671 · qty on machine: 2 view full part page → $3.95
9B	0601802149	FUSE 10A	3		ADD TO CART
FUSE 10A 0601802149 · qty on machine: 3 view full part page → $3.95
9C	0601802133	FUSE 5A	1		ADD TO CART
FUSE 5A 0601802133 · qty on machine: 1 view full part page → $1.95
10	0027103015	MACHINE SCREW	2	S/N 8730365 AND BELOW S/N 8730397 AND ABOVE	ADD TO CART
MACHINE SCREW 0027103015 · qty on machine: 2 S/N 8730365 AND BELOW S/N 8730397 AND ABOVE view full part page → $0.64
10	0027103010	MACHINE SCREW	4	S/N 8730366 ~ 8730396	ADD TO CART
MACHINE SCREW 0027103010 · qty on machine: 4 S/N 8730366 ~ 8730396 view full part page → $0.44
11	M2357202104	FUSE HOLDER	1		PARTS REQUEST
PHOTO COMING FUSE HOLDER M2357202104 · qty on machine: 1 PARTS REQUEST
11A	0601806644	FUSE 30A	1		ADD TO CART
FUSE 30A 0601806644 · qty on machine: 1 view full part page → $1.43
12	LY2DUS12VDC	RELAY WITH DIODE	2	REPLACES P/N 0601827656 S/N 8730225 AND BELOW	ADD TO CART
RELAY WITH DIODE LY2DUS12VDC · qty on machine: 2 REPLACES P/N 0601827656 S/N 8730225 AND BELOW view full part page → $46.95
12	LY2DUS12VDC	RELAY WITH DIODE	1	REPLACES P/N 0601827656 S/N 8730226 AND ABOVE	ADD TO CART
RELAY WITH DIODE LY2DUS12VDC · qty on machine: 1 REPLACES P/N 0601827656 S/N 8730226 AND ABOVE view full part page → $46.95
12A	PTF08A	BASE	2	REPLACES P/N 0601823109 S/N 8730225 AND BELOW	ADD TO CART
BASE PTF08A · qty on machine: 2 REPLACES P/N 0601823109 S/N 8730225 AND BELOW view full part page → $47.95
12A	PTF08A	BASE	1	REPLACES P/N 0601823109 S/N 8730226 AND ABOVE	ADD TO CART
BASE PTF08A · qty on machine: 1 REPLACES P/N 0601823109 S/N 8730226 AND ABOVE view full part page → $47.95
12B	PYCA1	CLIP	4	REPLACES P/N 0601824400 S/N 8730225 AND BELOW	ADD TO CART
CLIP PYCA1 · qty on machine: 4 REPLACES P/N 0601824400 S/N 8730225 AND BELOW view full part page → $1.71
12B	PYCA1	CLIP	2	REPLACES P/N 0601824400 S/N 8730226 AND ABOVE	ADD TO CART
CLIP PYCA1 · qty on machine: 2 REPLACES P/N 0601824400 S/N 8730226 AND ABOVE view full part page → $1.71
13	Y0290000100	MOUNTING RAIL	1		ADD TO CART
MOUNTING RAIL Y0290000100 · qty on machine: 1 view full part page → $27.95
14	7538070	MACHINE SCREW	2	REPLACES P/N 0027104015	ADD TO CART
MACHINE SCREW 7538070 · qty on machine: 2 REPLACES P/N 0027104015 view full part page → $0.52
15	0601815153	TERMINAL BLOCK	1	S/N 8730333 AND BELOW	NO LONGER AVAILABLE
PHOTO COMING TERMINAL BLOCK 0601815153 · qty on machine: 1 S/N 8730333 AND BELOW NO LONGER AVAILABLE
15	Y0601816538	TERMINAL BLOCK	1	S/N 8730334 AND ABOVE	ADD TO CART
TERMINAL BLOCK Y0601816538 · qty on machine: 1 S/N 8730334 AND ABOVE view full part page → $51.95
16	7538070	MACHINE SCREW	2	REPLACES P/N 0027104015	ADD TO CART
MACHINE SCREW 7538070 · qty on machine: 2 REPLACES P/N 0027104015 view full part page → $0.52
17	0601821370	RECTIFIER	2	REPLACES P/N 0601823240	ADD TO CART
RECTIFIER 0601821370 · qty on machine: 2 REPLACES P/N 0601823240 view full part page → $28.95
18	0027104030	MACHINE SCREW	1		ADD TO CART
MACHINE SCREW 0027104030 · qty on machine: 1 view full part page → $0.59
19	5825500290	RELAY	3	REPLACES P/N 0602201400	ADD TO CART
RELAY 5825500290 · qty on machine: 3 REPLACES P/N 0602201400 view full part page → $65.95
20	0027105010	MACHINE SCREW	3		ADD TO CART
MACHINE SCREW 0027105010 · qty on machine: 3 view full part page → $0.56

Page 10 — CONTROL BOX ASSY. (CONT'D.)

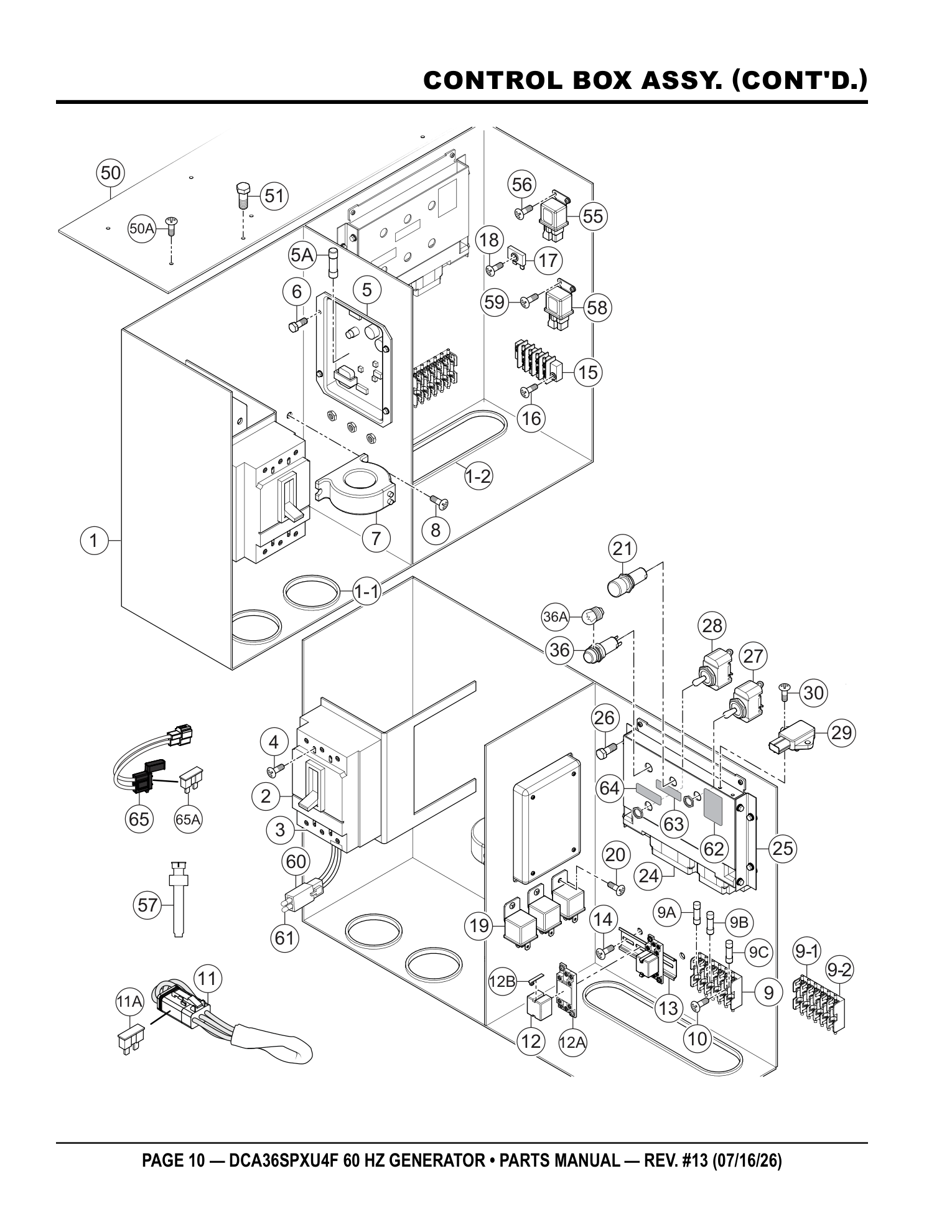

Multiquip DCA36SPXU4F Generator CONTROL BOX ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed22 rows

No.	Part No.	Part Name	Qty	Remarks
21	0601831205	PUSH BUTTON SWITCH	1		ADD TO CART
PUSH BUTTON SWITCH 0601831205 · qty on machine: 1 view full part page → $25.95
24	8975062140	ENGINE CONTROLLER (ECM)	1	REPLACES P/N 8982460530	ADD TO CART
ENGINE CONTROLLER (ECM) 8975062140 · qty on machine: 1 REPLACES P/N 8982460530 view full part page → $4844.95
25	M1214600204	CONTROLLER BRACKET	1		PARTS REQUEST
PHOTO COMING CONTROLLER BRACKET M1214600204 · qty on machine: 1 PARTS REQUEST
26	011106015	HEX. HEAD BOLT	8	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 8 REPLACES P/N 0016906015 view full part page → $0.69
27	0601830710	DIAGNOSTIC SWITCH	1		ADD TO CART
DIAGNOSTIC SWITCH 0601830710 · qty on machine: 1 view full part page → $29.95
28	0601830762	FUEL PUMP SWITCH	1		ADD TO CART
FUEL PUMP SWITCH 0601830762 · qty on machine: 1 view full part page → $36.95
29	8972177780	BAROMETRIC PRESSURE SENSOR	1	REPLACES P/N 0602130220	ADD TO CART
BAROMETRIC PRESSURE SENSOR 8972177780 · qty on machine: 1 REPLACES P/N 0602130220 view full part page → $174.95
30	0027105015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 2 view full part page → $0.2
36	0602103092	ALARM LAMP	1	INCLUDES ITEMS W/# S/N 8730250 AND BELOW	ADD TO CART
ALARM LAMP 0602103092 · qty on machine: 1 INCLUDES ITEMS W/# S/N 8730250 AND BELOW Kit includes: 36A# view full part page → $36.95 IN A KIT + SOLD SOLO
36	Y0601814453	LED LAMP	1	S/N 8730251 AND ABOVE	ADD TO CART
LED LAMP Y0601814453 · qty on machine: 1 S/N 8730251 AND ABOVE Kit includes: 36A# view full part page → $36.95 IN A KIT + SOLD SOLO
36A#	0601810277	BULB	1	S/N 8730250 AND BELOW	ADD TO CART
BULB 0601810277 · qty on machine: 1 S/N 8730250 AND BELOW Also included in kit 36 - ALARM LAMP (0602103092) view full part page → $36.95 IN A KIT + SOLD SOLO
50	M1213500704	CONTROL BOX COVER	1		ADD TO CART
CONTROL BOX COVER M1213500704 · qty on machine: 1 view full part page → $40.95
50A	0027105015	MACHINE SCREW	4	S/N 8730371 AND ABOVE	ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 4 S/N 8730371 AND ABOVE view full part page → $0.2
51	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0016906015 view full part page → $0.69
57	0601806640	FUSE 65A	1		ADD TO CART
FUSE 65A 0601806640 · qty on machine: 1 view full part page → $11.95
60	0601812626	PLUG	1		ADD TO CART
PLUG 0601812626 · qty on machine: 1 view full part page → $1.88
61	0601812712	PINS (MALE)	2		ADD TO CART
PINS (MALE) 0601812712 · qty on machine: 2 view full part page → $0.77
62	M9520000904	DECAL; DIAGNOSTIC SWITCH	1		ADD TO CART
DECAL; DIAGNOSTIC SWITCH M9520000904 · qty on machine: 1 view full part page → $4.95
63	M9520001104	DECAL; DIAGNOSTIC BUTTON	1		ADD TO CART
DECAL; DIAGNOSTIC BUTTON M9520001104 · qty on machine: 1 view full part page → $1.84
64	M9520002104	DECAL; FUEL PUMP SWITCH	1		ADD TO CART
DECAL; FUEL PUMP SWITCH M9520002104 · qty on machine: 1 view full part page → $1.31
65	M2357202104	HOLDER, FUSE	1	S/N 8730226 AND ABOVE	PARTS REQUEST
PHOTO COMING HOLDER, FUSE M2357202104 · qty on machine: 1 S/N 8730226 AND ABOVE PARTS REQUEST
65A	0601806645	FUSE	1	S/N 8730226 AND ABOVE	ADD TO CART
FUSE 0601806645 · qty on machine: 1 S/N 8730226 AND ABOVE view full part page → $2.9

Page 12 — CONTROL PANEL ASSY.

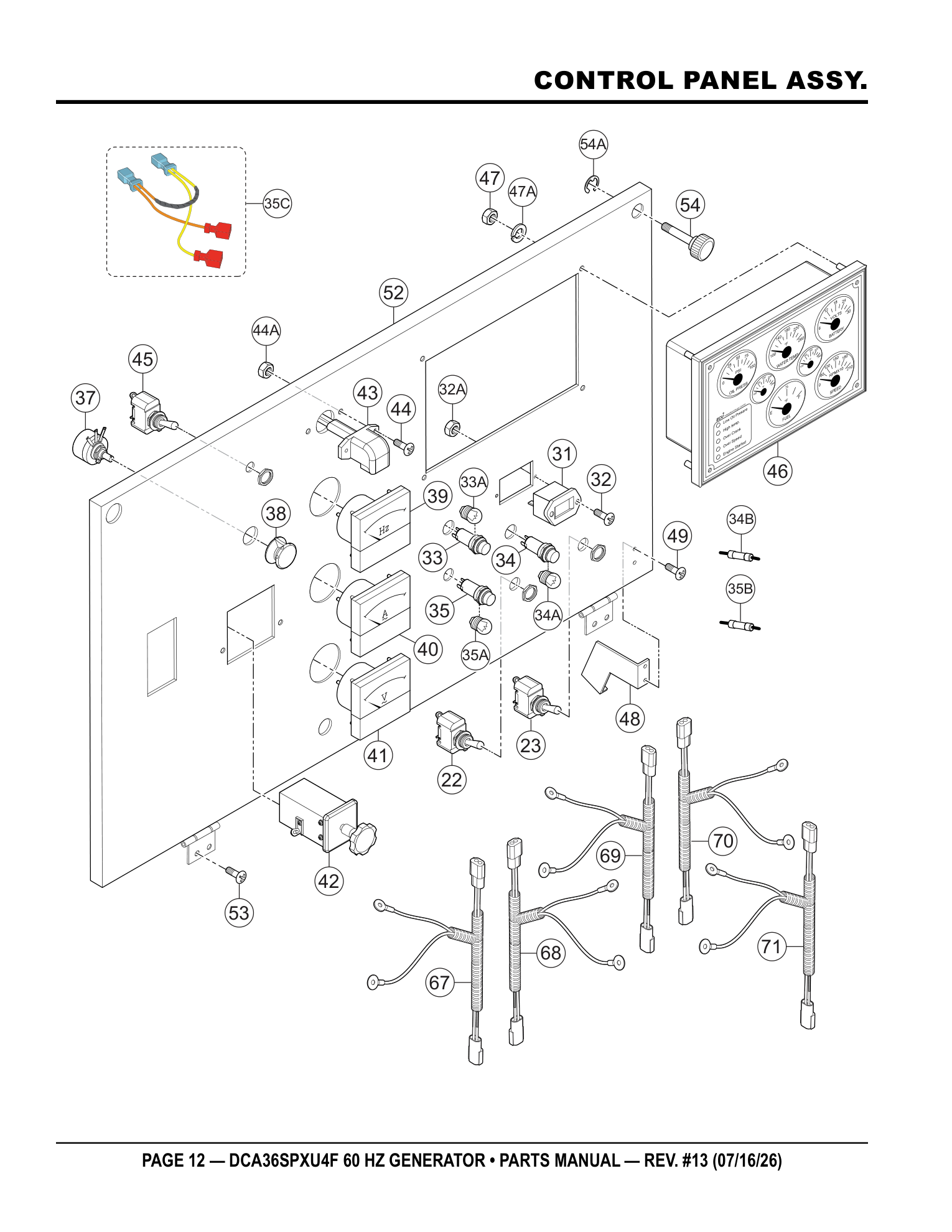

Multiquip DCA36SPXU4F Generator CONTROL PANEL ASSY. parts diagram

Parts list — exactly as printed35 rows

No.	Part No.	Part Name	Qty	Remarks
22	82608	AUTO START/STOP SWITCH	1	REPLACES P/N 0601831340 S/N 8730414 AND BELOW	ADD TO CART
AUTO START/STOP SWITCH 82608 · qty on machine: 1 REPLACES P/N 0601831340 S/N 8730414 AND BELOW view full part page → $34.95
22	Y0601831345	AUTO START/STOP SWITCH	1	S/N 8730415 AND ABOVE	ADD TO CART
AUTO START/STOP SWITCH Y0601831345 · qty on machine: 1 S/N 8730415 AND ABOVE view full part page → $49.95
23	0601830710	ENGINE SPEED SWITCH	1		ADD TO CART
ENGINE SPEED SWITCH 0601830710 · qty on machine: 1 view full part page → $29.95
31	0601800682	HOUR METER	1	S/N 8730323 AND BELOW	ADD TO CART
HOUR METER 0601800682 · qty on machine: 1 S/N 8730323 AND BELOW view full part page → $116.95
31	Y0601800674	HOUR METER, LD12F1RS-B	1	S/N 8730324 AND ABOVE	ADD TO CART
HOUR METER, LD12F1RS-B Y0601800674 · qty on machine: 1 S/N 8730324 AND ABOVE view full part page → $87.95
32	0027103015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027103015 · qty on machine: 2 view full part page → $0.64
32A	0207003000	SELF-LOCKING NUT	2		ADD TO CART
SELF-LOCKING NUT 0207003000 · qty on machine: 2 view full part page → $0.21
33	0602103092	FUEL LEAK DETECTED ALARM LAMP	1	INCLUDES ITEMS W/# S/N 8730250 AND BELOW	ADD TO CART
FUEL LEAK DETECTED ALARM LAMP 0602103092 · qty on machine: 1 INCLUDES ITEMS W/# S/N 8730250 AND BELOW Kit includes: 33A# view full part page → $36.95 IN A KIT + SOLD SOLO
33	Y0601814453	LED LAMP	1	S/N 8730251 AND ABOVE	ADD TO CART
LED LAMP Y0601814453 · qty on machine: 1 S/N 8730251 AND ABOVE Kit includes: 33A# view full part page → $36.95 IN A KIT + SOLD SOLO
33A#	0601810277	BULB	1	S/N 8730250 AND BELOW	ADD TO CART
BULB 0601810277 · qty on machine: 1 S/N 8730250 AND BELOW Also included in kit 33 - FUEL LEAK DETECTED ALARM L (0602103092) view full part page → $36.95 IN A KIT + SOLD SOLO
34	0602103092	PREHEAT LAMP	1	INCLUDES ITEMS W/% S/N 8730250 AND BELOW	ADD TO CART
PREHEAT LAMP 0602103092 · qty on machine: 1 INCLUDES ITEMS W/% S/N 8730250 AND BELOW Kit includes: 34A% view full part page → $36.95 IN A KIT + SOLD SOLO
34	Y0601814453	LED LAMP	1	S/N 8730251 AND ABOVE	ADD TO CART
LED LAMP Y0601814453 · qty on machine: 1 S/N 8730251 AND ABOVE Kit includes: 34A% view full part page → $36.95 IN A KIT + SOLD SOLO
34A%	0601810277	BULB	1	S/N 8730250 AND BELOW	ADD TO CART
BULB 0601810277 · qty on machine: 1 S/N 8730250 AND BELOW Also included in kit 34 - PREHEAT LAMP (0602103092) view full part page → $36.95 IN A KIT + SOLD SOLO
34B	0601842542	RESISTOR, 2W210 1KΩ	1	S/N 8730251 AND ABOVE	PARTS REQUEST
PHOTO COMING RESISTOR, 2W210 1KΩ 0601842542 · qty on machine: 1 S/N 8730251 AND ABOVE PARTS REQUEST
35	0602103092	WARNING LAMP	1	INCLUDES ITEMS W/@ S/N 8730250 AND BELOW	ADD TO CART
WARNING LAMP 0602103092 · qty on machine: 1 INCLUDES ITEMS W/@ S/N 8730250 AND BELOW Kit includes: 35A@ view full part page → $36.95 IN A KIT + SOLD SOLO
35	Y0601814453	WARNING LED LAMP	1	S/N 8730251 AND ABOVE	ADD TO CART
WARNING LED LAMP Y0601814453 · qty on machine: 1 S/N 8730251 AND ABOVE Kit includes: 35A@ view full part page → $36.95 IN A KIT + SOLD SOLO
35A@	0601810277	BULB	1	S/N 8730250 AND BELOW	ADD TO CART
BULB 0601810277 · qty on machine: 1 S/N 8730250 AND BELOW Also included in kit 35 - WARNING LAMP (0602103092) view full part page → $36.95 IN A KIT + SOLD SOLO
35B	0601842542	RESISTOR, 2W210 1KΩ	1	S/N 8730264 ~ 8730353	PARTS REQUEST
PHOTO COMING RESISTOR, 2W210 1KΩ 0601842542 · qty on machine: 1 S/N 8730264 ~ 8730353 PARTS REQUEST
35C	M1358203504	RESISTOR HARNESS, WARNING LAMP	1	S/N 8730251 AND ABOVE	ADD TO CART
RESISTOR HARNESS, WARNING LAMP M1358203504 · qty on machine: 1 S/N 8730251 AND ABOVE view full part page → $41.95
37	0601840073	RHEOSTAT (VOLT. REG.) 2W 1KΩ	1		ADD TO CART
RHEOSTAT (VOLT. REG.) 2W 1KΩ 0601840073 · qty on machine: 1 view full part page → $90.95
38	0601840100	KNOB	1	REPLACES P/N 0601840121	ADD TO CART
KNOB 0601840100 · qty on machine: 1 REPLACES P/N 0601840121 view full part page → $30.95
39	0601807641	FREQUENCY METER	1		ADD TO CART
FREQUENCY METER 0601807641 · qty on machine: 1 view full part page → $591.95
40	0601806845	AC AMMETER	1		ADD TO CART
AC AMMETER 0601806845 · qty on machine: 1 view full part page → $227.95
41	0601800271	AC VOLTMETER	1		ADD TO CART
AC VOLTMETER 0601800271 · qty on machine: 1 view full part page → $156.95
42	0601801040	CHANGE-OVER SWITCH, AMMETER	1		ADD TO CART
CHANGE-OVER SWITCH, AMMETER 0601801040 · qty on machine: 1 view full part page → $95.95
43	Y0601810170	PANEL LIGHT	1		ADD TO CART
PANEL LIGHT Y0601810170 · qty on machine: 1 view full part page → $142.95
44	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
44A	OEMAA8	SELF-LOCKING NUT	2	REPLACES P/N 0207004000	ADD TO CART
SELF-LOCKING NUT OEMAA8 · qty on machine: 2 REPLACES P/N 0207004000 view full part page → $0.4
45	0601830710	PANEL LIGHT SWITCH	1		ADD TO CART
PANEL LIGHT SWITCH 0601830710 · qty on machine: 1 view full part page → $29.95
46	Y0602202653	CONTROLLER (ECU-750)	1	S/N 8730225 AND BELOW	ADD TO CART
CONTROLLER (ECU-750) Y0602202653 · qty on machine: 1 S/N 8730225 AND BELOW view full part page → $1140.95
46	Y0602203045	CONTROLLER (ECU-754)	1	S/N 8730226 ~ 8730268	PARTS REQUEST
PHOTO COMING CONTROLLER (ECU-754) Y0602203045 · qty on machine: 1 S/N 8730226 ~ 8730268 PARTS REQUEST
46	Y0602203074	CONTROLLER (ECU-754)	1	S/N 8730269 ~ 8730370	PARTS REQUEST
PHOTO COMING CONTROLLER (ECU-754) Y0602203074 · qty on machine: 1 S/N 8730269 ~ 8730370 PARTS REQUEST
46	Y0602203084	CONTROLLER (ECU-755)	1	S/N 8730371 AND ABOVE	ADD TO CART
CONTROLLER (ECU-755) Y0602203084 · qty on machine: 1 S/N 8730371 AND ABOVE view full part page → $1161.95
47	Y0206707000	HEX. NUT	4		ADD TO CART
HEX. NUT Y0206707000 · qty on machine: 4 view full part page → $0.45
47A	Y0044807000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK Y0044807000 · qty on machine: 4 view full part page → $0.45

Page 14 — CONTROL PANEL ASSY. (CONT'D.)

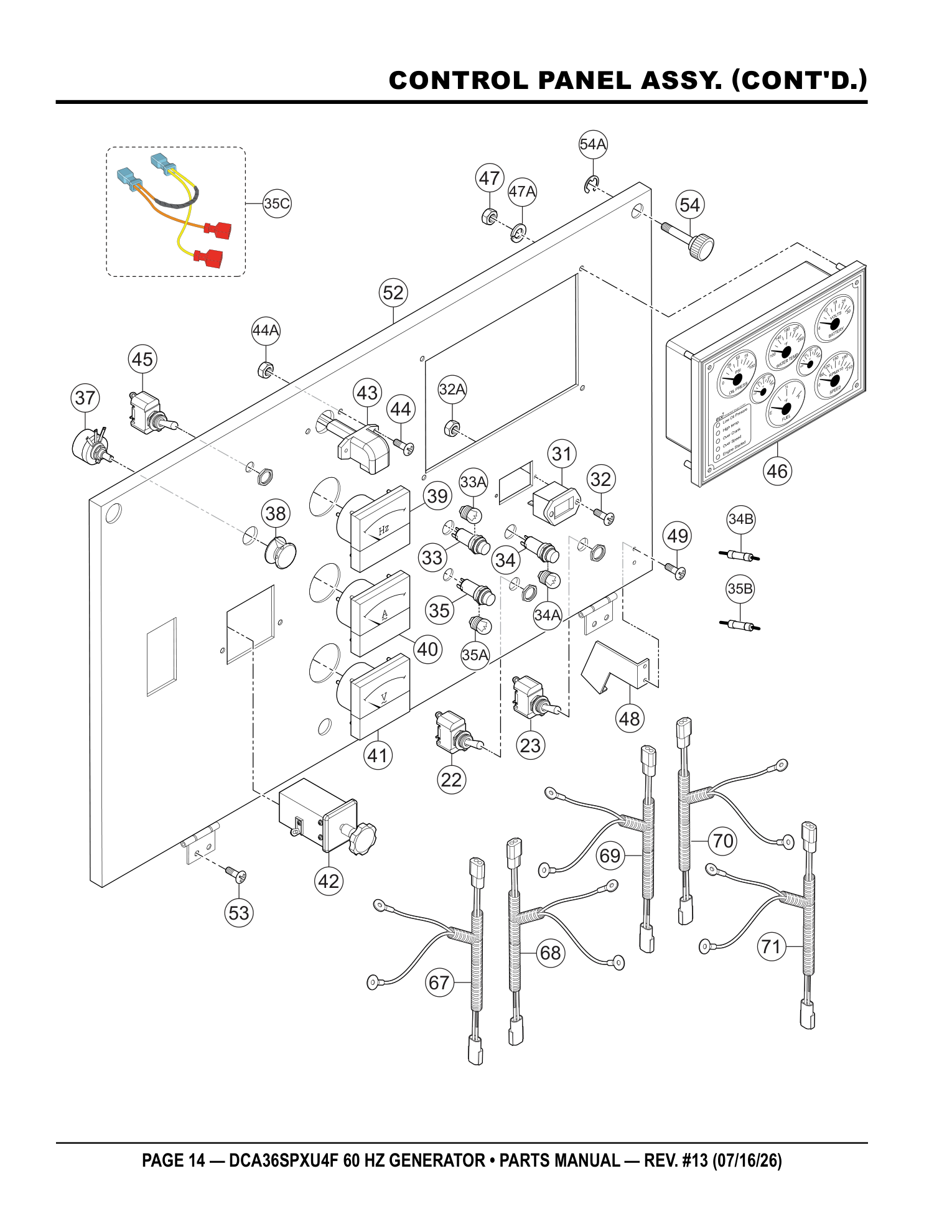

Multiquip DCA36SPXU4F Generator CONTROL PANEL ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed12 rows

No.	Part No.	Part Name	Qty	Remarks
48	M1224100104	STOPPER	1		ADD TO CART
STOPPER M1224100104 · qty on machine: 1 view full part page → $13.95
49	0027105015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 2 view full part page → $0.2
52	M1224000203	CONTROL PANEL	1		PARTS REQUEST
PHOTO COMING CONTROL PANEL M1224000203 · qty on machine: 1 PARTS REQUEST
53	0027105010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105010 · qty on machine: 4 view full part page → $0.56
67	M1247702104	WIRE HARNESS, GENERATOR	1	S/N 8730225 AND BELOW	ADD TO CART
WIRE HARNESS, GENERATOR M1247702104 · qty on machine: 1 S/N 8730225 AND BELOW view full part page → $722.95
67	V1247702114	WIRE HARNESS, GENERATOR	1	S/N 8730226 AND ABOVE	PARTS REQUEST
PHOTO COMING WIRE HARNESS, GENERATOR V1247702114 · qty on machine: 1 S/N 8730226 AND ABOVE PARTS REQUEST
68	M1358201702	WIRE HARNESS, GENERATOR	1	S/N 8730370 AND BELOW	ADD TO CART
WIRE HARNESS, GENERATOR M1358201702 · qty on machine: 1 S/N 8730370 AND BELOW view full part page → $930.95
68	M1358201712	WIRE HARNESS, GENERATOR	1	S/N 8730371 AND ABOVE	ADD TO CART
WIRE HARNESS, GENERATOR M1358201712 · qty on machine: 1 S/N 8730371 AND ABOVE view full part page → $865.95
69	M1358200302	WIRE HARNESS, CONTROLLER	1	S/N 8730353 AND BELOW	ADD TO CART
WIRE HARNESS, CONTROLLER M1358200302 · qty on machine: 1 S/N 8730353 AND BELOW view full part page → $2137.95
69	M1358200312	WIRE HARNESS, CONTROLLER	1	S/N 8730354 AND ABOVE	ADD TO CART
WIRE HARNESS, CONTROLLER M1358200312 · qty on machine: 1 S/N 8730354 AND ABOVE view full part page → $6343.95
70	M1358202204	WIRE HARNESS, PRESSURE SWITCH	1	S/N 8730226 ~ 8730370	ADD TO CART
WIRE HARNESS, PRESSURE SWITCH M1358202204 · qty on machine: 1 S/N 8730226 ~ 8730370 view full part page → $65.95
71	Y0602044311	WIRE HARNESS, PCV HEATER	1	S/N 8730226 AND ABOVE	ADD TO CART
WIRE HARNESS, PCV HEATER Y0602044311 · qty on machine: 1 S/N 8730226 AND ABOVE view full part page → $59.95

Page 16 — ENGINE AND RADIATOR ASSY.

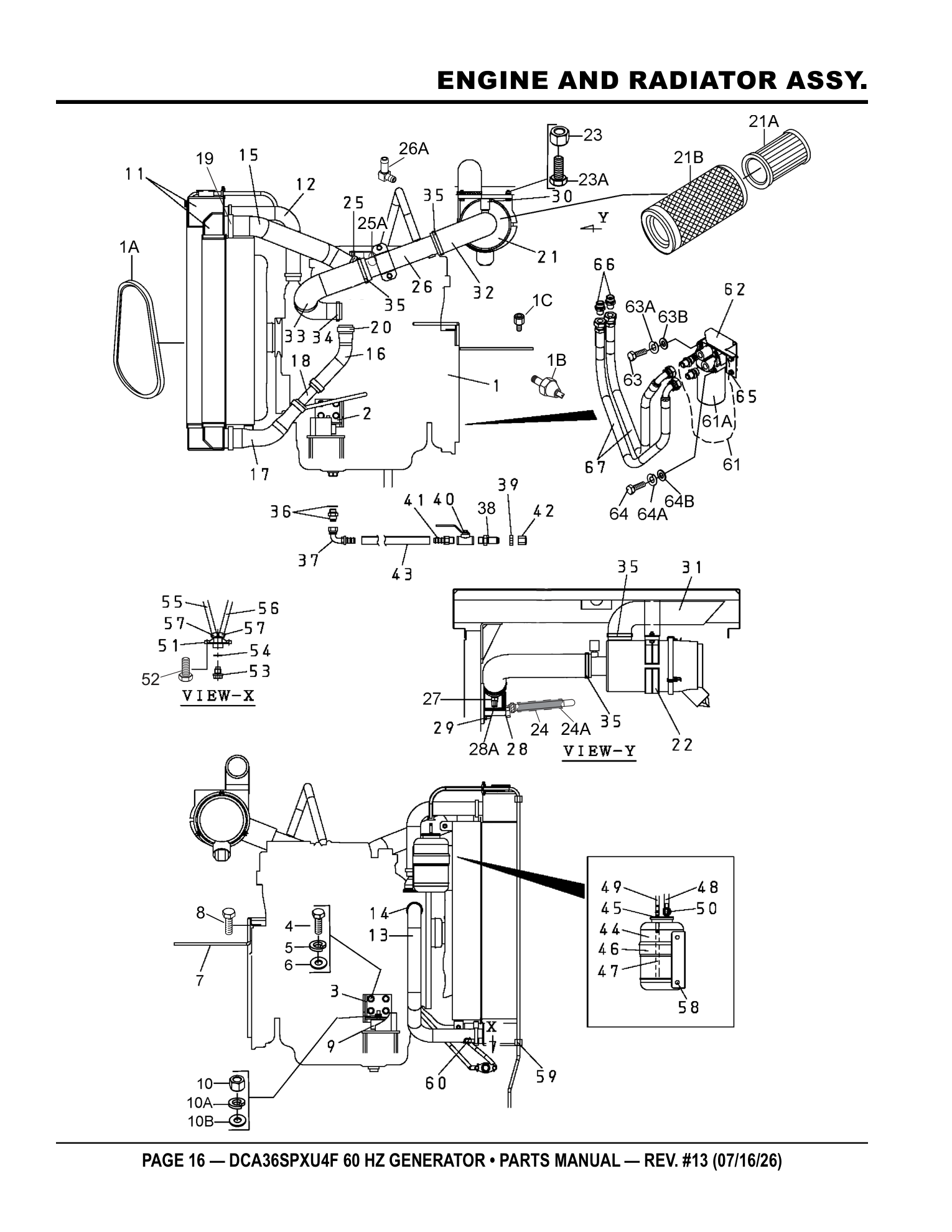

Multiquip DCA36SPXU4F Generator ENGINE AND RADIATOR ASSY. parts diagram

Parts list — exactly as printed44 rows

No.	Part No.	Part Name	Qty	Remarks
1	M1924200084	ENGINE, ISUZU 4LE2X	1		PARTS REQUEST
PHOTO COMING ENGINE, ISUZU 4LE2X M1924200084 · qty on machine: 1 Factory replaced this part - current number 4LE2XAGD-01 PARTS REQUEST
1A	8980490340	V-BELT	1		ADD TO CART
V-BELT 8980490340 · qty on machine: 1 view full part page → $44.95
1B	8983193760	PRESSURE SWITCH	1	REPLACES P/N Y0602210060 S/N 8730226 AND ABOVE	ADD TO CART
PRESSURE SWITCH 8983193760 · qty on machine: 1 REPLACES P/N Y0602210060 S/N 8730226 AND ABOVE view full part page → $195.95
1C	Y0602211629	ADAPTER	1	S/N 8730226 AND ABOVE	PARTS REQUEST
PHOTO COMING ADAPTER Y0602211629 · qty on machine: 1 S/N 8730226 AND ABOVE PARTS REQUEST
2	M1304200004	ENGINE FOOT	1		ADD TO CART
ENGINE FOOT M1304200004 · qty on machine: 1 view full part page → $98.95
3	M1304200104	ENGINE FOOT	1		ADD TO CART
ENGINE FOOT M1304200104 · qty on machine: 1 view full part page → $98.95
4	0105091025	HEX. HEAD BOLT	8	REPLACES P/N 0010310025	ADD TO CART
HEX. HEAD BOLT 0105091025 · qty on machine: 8 REPLACES P/N 0010310025 view full part page → $0.68
5	0040010000	WASHER, LOCK	8		ADD TO CART
WASHER, LOCK 0040010000 · qty on machine: 8 view full part page → $0.39
6	031110160	WASHER, FLAT	8	REPLACES P/N 0041210000	ADD TO CART
WASHER, FLAT 031110160 · qty on machine: 8 REPLACES P/N 0041210000 view full part page → $0.4
7	M1358300403	CLAMPER ROD	1		PARTS REQUEST
PHOTO COMING CLAMPER ROD M1358300403 · qty on machine: 1 PARTS REQUEST
8	012210020	HEX. HEAD BOLT	2	REPLACES P/N 0017110020	ADD TO CART
HEX. HEAD BOLT 012210020 · qty on machine: 2 REPLACES P/N 0017110020 view full part page → $0.95
9	Y0605000407	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION Y0605000407 · qty on machine: 2 view full part page → $47.95
10	0030012000	HEX. NUT	2		ADD TO CART
HEX. NUT 0030012000 · qty on machine: 2 view full part page → $0.5
10A	0040012000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040012000 · qty on machine: 2 view full part page → $0.95
10B	031112230	WASHER, FLAT	2	REPLACES P/N 0041212000	ADD TO CART
WASHER, FLAT 031112230 · qty on machine: 2 REPLACES P/N 0041212000 view full part page → $0.95
11	Y0602012904	RADIATOR AND INTER-COOLER	1		ADD TO CART
RADIATOR AND INTER-COOLER Y0602012904 · qty on machine: 1 view full part page → $3300.95
12	M1311500603	RADIATOR HOSE, UPPER	1		ADD TO CART
RADIATOR HOSE, UPPER M1311500603 · qty on machine: 1 view full part page → $29.95
13	M1311500703	RADIATOR HOSE, LOWER	1		ADD TO CART
RADIATOR HOSE, LOWER M1311500703 · qty on machine: 1 view full part page → $74.95
14	0605515149	HOSE BAND	4		ADD TO CART
HOSE BAND 0605515149 · qty on machine: 4 view full part page → $1.95
15	M1311500803	INTER-COOLER HOSE UPPER	1		ADD TO CART
INTER-COOLER HOSE UPPER M1311500803 · qty on machine: 1 view full part page → $1246.95
16	M1311500903	INTER-COOLER HOSE, MIDDLE	1		ADD TO CART
INTER-COOLER HOSE, MIDDLE M1311500903 · qty on machine: 1 view full part page → $216.95
17	M1311501003	INTER-COOLER HOSE, LOWER	1		ADD TO CART
INTER-COOLER HOSE, LOWER M1311501003 · qty on machine: 1 view full part page → $313.95
18	M1311400004	INTER-COOLER PIPE	1		ADD TO CART
INTER-COOLER PIPE M1311400004 · qty on machine: 1 view full part page → $47.95
19	Y0605515300	HOSE BAND	3		ADD TO CART
HOSE BAND Y0605515300 · qty on machine: 3 view full part page → $21.95
20	Y0605515264	HOSE BAND	3		ADD TO CART
HOSE BAND Y0605515264 · qty on machine: 3 view full part page → $42.95
21	Y0602046590	AIR CLEANER	1	INCLUDES ITEMS W/#	ADD TO CART
AIR CLEANER Y0602046590 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 21A#, 21B# view full part page → $248.95 IN A KIT + SOLD SOLO
21A#	PMAF25436	AIR FILTER PRIMARY	1		ADD TO CART
AIR FILTER PRIMARY PMAF25436 · qty on machine: 1 Also included in kit 21 - AIR CLEANER (Y0602046590) view full part page → $102.95 IN A KIT + SOLD SOLO
21B#	P822769	ELEMENT, AIR SECONDARY	1		ADD TO CART
ELEMENT, AIR SECONDARY P822769 · qty on machine: 1 Also included in kit 21 - AIR CLEANER (Y0602046590) view full part page → $100.95 IN A KIT + SOLD SOLO
22	Y0602040553	AIR CLEANER BAND	1		ADD TO CART
AIR CLEANER BAND Y0602040553 · qty on machine: 1 view full part page → $43.95
23	011208030	HEX. HEAD BOLT	2	REPLACES P/N 0016908030	ADD TO CART
HEX. HEAD BOLT 011208030 · qty on machine: 2 REPLACES P/N 0016908030 view full part page → $1.3
23A	020108060	SELF-LOCKING-NUT	2	REPLACES P/N 0207008000	ADD TO CART
SELF-LOCKING-NUT 020108060 · qty on machine: 2 REPLACES P/N 0207008000 view full part page → $0.28
24	0269200640	PUSH-LOCK-HOSE	1	S/N 8730225 AND BELOW	ADD TO CART
PUSH-LOCK-HOSE 0269200640 · qty on machine: 1 S/N 8730225 AND BELOW view full part page → $40.95
24	M1327200104	BLOW-BY HOSE	1	S/N 8730226 AND ABOVE	ADD TO CART
BLOW-BY HOSE M1327200104 · qty on machine: 1 S/N 8730226 AND ABOVE view full part page → $86.95
24A	Y0378100170	AEROFLEX TUBE	1	S/N 8730226 AND ABOVE	ADD TO CART
AEROFLEX TUBE Y0378100170 · qty on machine: 1 S/N 8730226 AND ABOVE view full part page → $1.6
25	0605515198	HOSE BAND	2	S/N 8730225 AND BELOW	ADD TO CART
HOSE BAND 0605515198 · qty on machine: 2 S/N 8730225 AND BELOW view full part page → $1.71
25	0605515198	HOSE BAND	1	S/N 8730226 AND ABOVE	ADD TO CART
HOSE BAND 0605515198 · qty on machine: 1 S/N 8730226 AND ABOVE view full part page → $1.71
25A	Y0605515321	HOSE BAND	1	S/N 8730226 AND ABOVE	PARTS REQUEST
PHOTO COMING HOSE BAND Y0605515321 · qty on machine: 1 S/N 8730226 AND ABOVE PARTS REQUEST
26	M1374000104	AIR CLEANER PIPE	1	S/N 8730225 AND BELOW	ADD TO CART
AIR CLEANER PIPE M1374000104 · qty on machine: 1 S/N 8730225 AND BELOW Factory replaced this part - current number M1374000113 view full part page → $141.95 IN A KIT + SOLD SOLO
26	M1374000113	AIR CLEANER PIPE	1	S/N 8730226 AND ABOVE	ADD TO CART
AIR CLEANER PIPE M1374000113 · qty on machine: 1 S/N 8730226 AND ABOVE view full part page → $141.95
26A	8981924670	PCV HEATER	1	REPLACES P/N Y0602044300 S/N 8730226 AND ABOVE	ADD TO CART
PCV HEATER 8981924670 · qty on machine: 1 REPLACES P/N Y0602044300 S/N 8730226 AND ABOVE view full part page → $196.95
27	8121468300	INLET AIR TEMPERATURE SENSOR	1	REPLACES P/N 0603210240	ADD TO CART
INLET AIR TEMPERATURE SENSOR 8121468300 · qty on machine: 1 REPLACES P/N 0603210240 view full part page → $215.95
28	M1374200204	BRACKET, AIR CLEANER PIPE	1	S/N 8730225 AND BELOW	PARTS REQUEST
PHOTO COMING BRACKET, AIR CLEANER PIPE M1374200204 · qty on machine: 1 S/N 8730225 AND BELOW PARTS REQUEST
28	M1374200214	BRACKET, AIR CLEANER PIPE	1	S/N 8730226 AND ABOVE	ADD TO CART
BRACKET, AIR CLEANER PIPE M1374200214 · qty on machine: 1 S/N 8730226 AND ABOVE view full part page → $39.95
28A	Y0222100060	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL Y0222100060 · qty on machine: 1 view full part page → $456.95

Page 18 — ENGINE AND RADIATOR ASSY. (CONT'D.)

Multiquip DCA36SPXU4F Generator ENGINE AND RADIATOR ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed45 rows

No.	Part No.	Part Name	Qty	Remarks
29	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
30	0602040651	INDICATOR, AIR CLEANER	1		ADD TO CART
INDICATOR, AIR CLEANER 0602040651 · qty on machine: 1 view full part page → $52.95
31	M1374100703	AIR CLEANER HOSE	1		ADD TO CART
AIR CLEANER HOSE M1374100703 · qty on machine: 1 view full part page → $66.95
32	M1374100503	AIR CLEANER HOSE	1		ADD TO CART
AIR CLEANER HOSE M1374100503 · qty on machine: 1 view full part page → $59.95
33	M1374100603	AIR CLEANER HOSE	1		ADD TO CART
AIR CLEANER HOSE M1374100603 · qty on machine: 1 view full part page → $124.95
34	0605515147	HOSE BAND	1		ADD TO CART
HOSE BAND 0605515147 · qty on machine: 1 view full part page → $3.95
35	9500202080	HOSE BAND	4	REPLACES P/N 0605515178	ADD TO CART
HOSE BAND 9500202080 · qty on machine: 4 REPLACES P/N 0605515178 view full part page → $3.95
36	0602022581	ADAPTER	1		ADD TO CART
ADAPTER 0602022581 · qty on machine: 1 view full part page → $147.95
37	0602022561	90° ELBOW	1	S/N 8730258 AND BELOW	ADD TO CART
90° ELBOW 0602022561 · qty on machine: 1 S/N 8730258 AND BELOW view full part page → $76.95
38	0603306590	CONNECTOR	1		ADD TO CART
CONNECTOR 0603306590 · qty on machine: 1 view full part page → $86.95
39	0603300285	LOCKNUT	1		ADD TO CART
LOCKNUT 0603300285 · qty on machine: 1 view full part page → $4.95
40	0605511395	VALVE	1		ADD TO CART
VALVE 0605511395 · qty on machine: 1 view full part page → $46.95
41	0603306395	HOSE JOINT	1	S/N 8730258 AND BELOW	ADD TO CART
HOSE JOINT 0603306395 · qty on machine: 1 S/N 8730258 AND BELOW view full part page → $16.95
42	0602021070	CAP	1		ADD TO CART
CAP 0602021070 · qty on machine: 1 view full part page → $11.95
43	Y0269200490	DRAIN HOSE	1	S/N 8730258 AND BELOW	ADD TO CART
DRAIN HOSE Y0269200490 · qty on machine: 1 S/N 8730258 AND BELOW view full part page → $33.95
43	M1321100304	DRAIN HOSE	1	S/N 8730259 AND ABOVE	PARTS REQUEST
PHOTO COMING DRAIN HOSE M1321100304 · qty on machine: 1 S/N 8730259 AND ABOVE PARTS REQUEST
44	0845031303	RESERVE TANK	1	REPLACES P/N M9300000103	ADD TO CART
RESERVE TANK 0845031303 · qty on machine: 1 REPLACES P/N M9300000103 view full part page → $45.95
45	0802081104	CAP, RESERVE TANK	1	REPLACES P/N M9300100003	ADD TO CART
CAP, RESERVE TANK 0802081104 · qty on machine: 1 REPLACES P/N M9300100003 view full part page → $5.95
46	M2316100304	BRACKET, RESERVE TANK	1		ADD TO CART
BRACKET, RESERVE TANK M2316100304 · qty on machine: 1 view full part page → $73.95
47	0193600165	HOSE	1		PARTS REQUEST
PHOTO COMING HOSE 0193600165 · qty on machine: 1 PARTS REQUEST
48	0199900450	OVER FLOW HOSE	1		ADD TO CART
OVER FLOW HOSE 0199900450 · qty on machine: 1 view full part page → $8.95
49	0193601500	OVER FLOW HOSE	1		ADD TO CART
OVER FLOW HOSE 0193601500 · qty on machine: 1 view full part page → $19.95
50	0605515189	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515189 · qty on machine: 2 view full part page → $1.85
51	1622014103	DRAIN JOINT	1	REPLACES P/N M9602000003	ADD TO CART
DRAIN JOINT 1622014103 · qty on machine: 1 REPLACES P/N M9602000003 view full part page → $23.95
52	011206020	HEX. HEAD BOLT	2	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 2 REPLACES P/N 0016906020 view full part page → $0.95
53	0802011104	DRAIN BOLT	1	REPLACES P/N M9200200004	ADD TO CART
DRAIN BOLT 0802011104 · qty on machine: 1 REPLACES P/N M9200200004 view full part page → $10.95
54	0150000018	O-RING	1		ADD TO CART
O-RING 0150000018 · qty on machine: 1 view full part page → $1.87
55	Y0199900440	DRAIN HOSE	1		ADD TO CART
DRAIN HOSE Y0199900440 · qty on machine: 1 view full part page → $2.95
56	Y0199901310	DRAIN HOSE	1		ADD TO CART
DRAIN HOSE Y0199901310 · qty on machine: 1 view full part page → $6.95
57	0605515189	HOSE BAND	4		ADD TO CART
HOSE BAND 0605515189 · qty on machine: 4 view full part page → $1.85
58	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
59	0602220911	CLAMP	2		ADD TO CART
CLAMP 0602220911 · qty on machine: 2 view full part page → $1.85
60	Y0605512183	HOSE JOINT	1		ADD TO CART
HOSE JOINT Y0605512183 · qty on machine: 1 view full part page → $16.95
61	8980756710	OIL FILTER ASSY	1	INCLUDES ITEMS W/$	ADD TO CART
OIL FILTER ASSY 8980756710 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 61A$ view full part page → $507.95 IN A KIT + SOLD SOLO
61A$	8980756761	OIL FILTER	1		ADD TO CART
OIL FILTER 8980756761 · qty on machine: 1 Also included in kit 61 - OIL FILTER ASSY (8980756710) view full part page → $80.95 IN A KIT + SOLD SOLO
62	M1324400004	BRACKET, OIL FILTER	1		ADD TO CART
BRACKET, OIL FILTER M1324400004 · qty on machine: 1 view full part page → $195.95
63	Y0010108090	HEX. HEAD BOLT	2		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0010108090 · qty on machine: 2 PARTS REQUEST
63A	0040008000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040008000 · qty on machine: 2 view full part page → $0.63
63B	0401450080	WASHER, FLAT	2	REPLACES P/N 0041208000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 2 REPLACES P/N 0041208000 view full part page → $0.56
64	Y0010108110	HEX. HEAD BOLT	2		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0010108110 · qty on machine: 2 PARTS REQUEST
64A	0040008000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040008000 · qty on machine: 2 view full part page → $0.63
64B	0401450080	WASHER, FLAT	2	REPLACES P/N 0041208000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 2 REPLACES P/N 0041208000 view full part page → $0.56
65	011208025	HEX. HEAD BOLT	2	REPLACES P/N 0016908025	ADD TO CART
HEX. HEAD BOLT 011208025 · qty on machine: 2 REPLACES P/N 0016908025 view full part page → $0.41
66	Y0602022534	STRAIGHT ADAPTER	4		ADD TO CART
STRAIGHT ADAPTER Y0602022534 · qty on machine: 4 view full part page → $125.95
67	M1324300004	OIL FILTER HOSE	2		ADD TO CART
OIL FILTER HOSE M1324300004 · qty on machine: 2 view full part page → $248.95

Page 20 — OUTPUT TERMINAL ASSY.

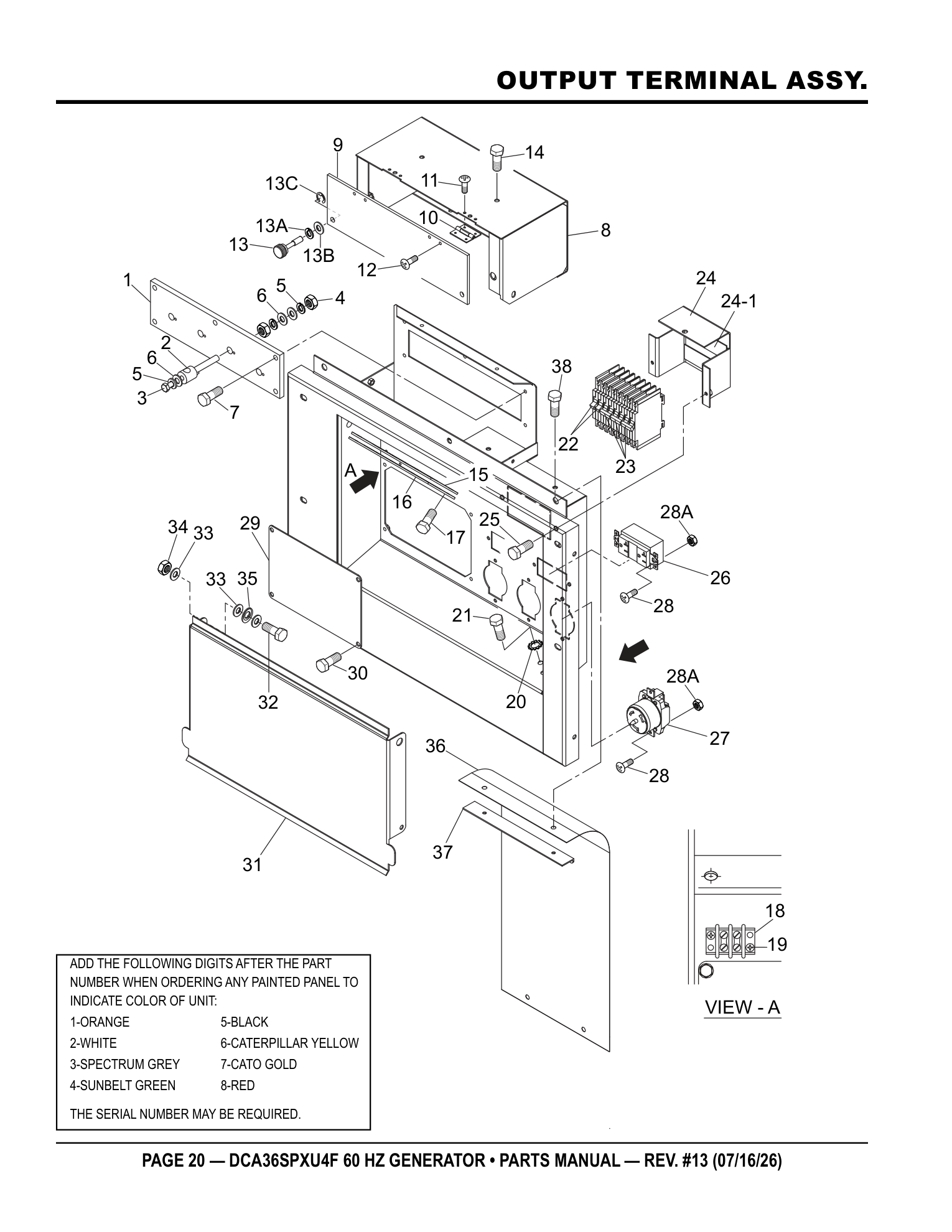

Multiquip DCA36SPXU4F Generator OUTPUT TERMINAL ASSY. parts diagram

Parts list — exactly as printed43 rows

No.	Part No.	Part Name	Qty	Remarks
1	M1230700303	TERMINAL PANEL	1		ADD TO CART
TERMINAL PANEL M1230700303 · qty on machine: 1 view full part page → $195.95
2	M2233000004	OUTPUT TERMINAL BOLT	4		ADD TO CART
OUTPUT TERMINAL BOLT M2233000004 · qty on machine: 4 view full part page → $70.95
3	M2233100004	TIE BOLT	4		ADD TO CART
TIE BOLT M2233100004 · qty on machine: 4 view full part page → $14.95
4	0039312000	HEX. NUT	8		ADD TO CART
HEX. NUT 0039312000 · qty on machine: 8 view full part page → $0.46
5	0040012000	WASHER, LOCK	12		ADD TO CART
WASHER, LOCK 0040012000 · qty on machine: 12 view full part page → $0.95
6	0041412000	WASHER, FLAT	16		ADD TO CART
WASHER, FLAT 0041412000 · qty on machine: 16 view full part page → $2.95
7	011208030	HEX. HEAD BOLT	5	REPLACES P/N 0017108030	ADD TO CART
HEX. HEAD BOLT 011208030 · qty on machine: 5 REPLACES P/N 0017108030 view full part page → $1.3
8	M1237100303	3-PHASE OUTPUT TERMINAL COVER	1		PARTS REQUEST
PHOTO COMING 3-PHASE OUTPUT TERMINAL COVER M1237100303 · qty on machine: 1 PARTS REQUEST
9	M1236100704	OUTPUT WINDOW	1		ADD TO CART
OUTPUT WINDOW M1236100704 · qty on machine: 1 view full part page → $52.95
10	0605010040	HINGE	2		ADD TO CART
HINGE 0605010040 · qty on machine: 2 view full part page → $4.95
11	0027103010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027103010 · qty on machine: 4 view full part page → $0.44
11A	0207003000	HEX. NUT	4	REPLACES P/N 0030003000	ADD TO CART
HEX. NUT 0207003000 · qty on machine: 4 REPLACES P/N 0030003000 view full part page → $0.21
11B	0041203000	WASHER, FLAT	4		ADD TO CART
WASHER, FLAT 0041203000 · qty on machine: 4 view full part page → $0.12
12	0027103010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027103010 · qty on machine: 4 view full part page → $0.44
12A	0207003000	HEX. NUT	4	REPLACES P/N 0030003000	ADD TO CART
HEX. NUT 0207003000 · qty on machine: 4 REPLACES P/N 0030003000 view full part page → $0.21
13	M9220100804	SET SCREW	2		ADD TO CART
SET SCREW M9220100804 · qty on machine: 2 view full part page → $20.95
13A	0040006000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040006000 · qty on machine: 2 view full part page → $0.17
13B	952404470	WASHER, FLAT	2	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 2 REPLACES P/N 0041206000 view full part page → $0.19
13C	0080200005	E-SNAP RING	2		ADD TO CART
E-SNAP RING 0080200005 · qty on machine: 2 view full part page → $0.25
14	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0016906015 view full part page → $0.69
15	M1236400004	CABLE OUTLET COVER	1		ADD TO CART
CABLE OUTLET COVER M1236400004 · qty on machine: 1 view full part page → $5.95
16	M1236300004	SUPPORTER, CABLE OUTLET COVER	1		ADD TO CART
SUPPORTER, CABLE OUTLET COVER M1236300004 · qty on machine: 1 view full part page → $18.95
17	011206020	HEX. HEAD BOLT	6	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 6 REPLACES P/N 0016906020 view full part page → $0.95
18	Y0601816539	TERMINAL BLOCK, 601-GP-02	1	REPLACES P/N 0601815194 S/N 8730333 AND BELOW	ADD TO CART
TERMINAL BLOCK, 601-GP-02 Y0601816539 · qty on machine: 1 REPLACES P/N 0601815194 S/N 8730333 AND BELOW view full part page → $15.95
18	Y0601816539	TERMINAL BLOCK, TB200-02		S/N 8730344 ~ 8730353	ADD TO CART
TERMINAL BLOCK, TB200-02 Y0601816539 S/N 8730344 ~ 8730353 view full part page → $15.95
18	0601815870	TERMINAL BLOCK, KT-20-2P	1	S/N 8730334 ~ 8730343 S/N 8730354 AND ABOVE	ADD TO CART
TERMINAL BLOCK, KT-20-2P 0601815870 · qty on machine: 1 S/N 8730334 ~ 8730343 S/N 8730354 AND ABOVE view full part page → $56.95
19	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
20	0040508000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040508000 · qty on machine: 1 view full part page → $0.35
21	0019208020	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 1 view full part page → $3.95
22	0601870440	CIRCUIT BREAKER 1P 20A	2	S/N 8730135 AND BELOW	ADD TO CART
CIRCUIT BREAKER 1P 20A 0601870440 · qty on machine: 2 S/N 8730135 AND BELOW view full part page → $34.95
22	0601808803	CIRCUIT BREAKER 1P 20A	2	S/N 8730136 AND ABOVE	ADD TO CART
CIRCUIT BREAKER 1P 20A 0601808803 · qty on machine: 2 S/N 8730136 AND ABOVE view full part page → $46.95
23	0601870441	CIRCUIT BREAKER 2P 50A	3	S/N 8730135 AND BELOW	ADD TO CART
CIRCUIT BREAKER 2P 50A 0601870441 · qty on machine: 3 S/N 8730135 AND BELOW view full part page → $77.95
23	0601808804	CIRCUIT BREAKER 2P 50A	3	S/N 8730136 AND ABOVE	ADD TO CART
CIRCUIT BREAKER 2P 50A 0601808804 · qty on machine: 3 S/N 8730136 AND ABOVE view full part page → $98.95
24	M1260700504	BREAKER FITTING COVER	1	S/N 8730135 AND BELOW	ADD TO CART
BREAKER FITTING COVER M1260700504 · qty on machine: 1 S/N 8730135 AND BELOW view full part page → $11.95
24	M1260700304	BREAKER FITTING COVER	1	S/N 8730136 AND ABOVE	ADD TO CART
BREAKER FITTING COVER M1260700304 · qty on machine: 1 S/N 8730136 AND ABOVE view full part page → $75.95
24-1	0222100100	CUSHION RUBBER	2	S/N 8730135 AND BELOW	ADD TO CART
CUSHION RUBBER 0222100100 · qty on machine: 2 S/N 8730135 AND BELOW view full part page → $6.95
24-1	0222100150	CUSHION RUBBER	2	S/N 8730136 AND ABOVE	ADD TO CART
CUSHION RUBBER 0222100150 · qty on machine: 2 S/N 8730136 AND ABOVE view full part page → $6.95
25	011206020	HEX. HEAD BOLT	2	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 2 REPLACES P/N 0016906020 view full part page → $0.95
26	Y0601814034	RECEPTACLE, 125V 20A, GFWR2-E	2		ADD TO CART
RECEPTACLE, 125V 20A, GFWR2-E Y0601814034 · qty on machine: 2 view full part page → $91.95
27	Y0601814014	RECEPTACLE, 250V 50A	3		ADD TO CART
RECEPTACLE, 250V 50A Y0601814014 · qty on machine: 3 view full part page → $76.95
28	7538070	MACHINE SCREW	10	REPLACES P/N 0027104015	ADD TO CART
MACHINE SCREW 7538070 · qty on machine: 10 REPLACES P/N 0027104015 view full part page → $0.52
28A	OEMAA8	HEX. NUT	10	REPLACES P/N 0207004000	ADD TO CART
HEX. NUT OEMAA8 · qty on machine: 10 REPLACES P/N 0207004000 view full part page → $0.4
29	M1236400104	COVER	1		ADD TO CART
COVER M1236400104 · qty on machine: 1 view full part page → $16.95

Page 22 — OUTPUT TERMINAL ASSY. (CONT'D.)

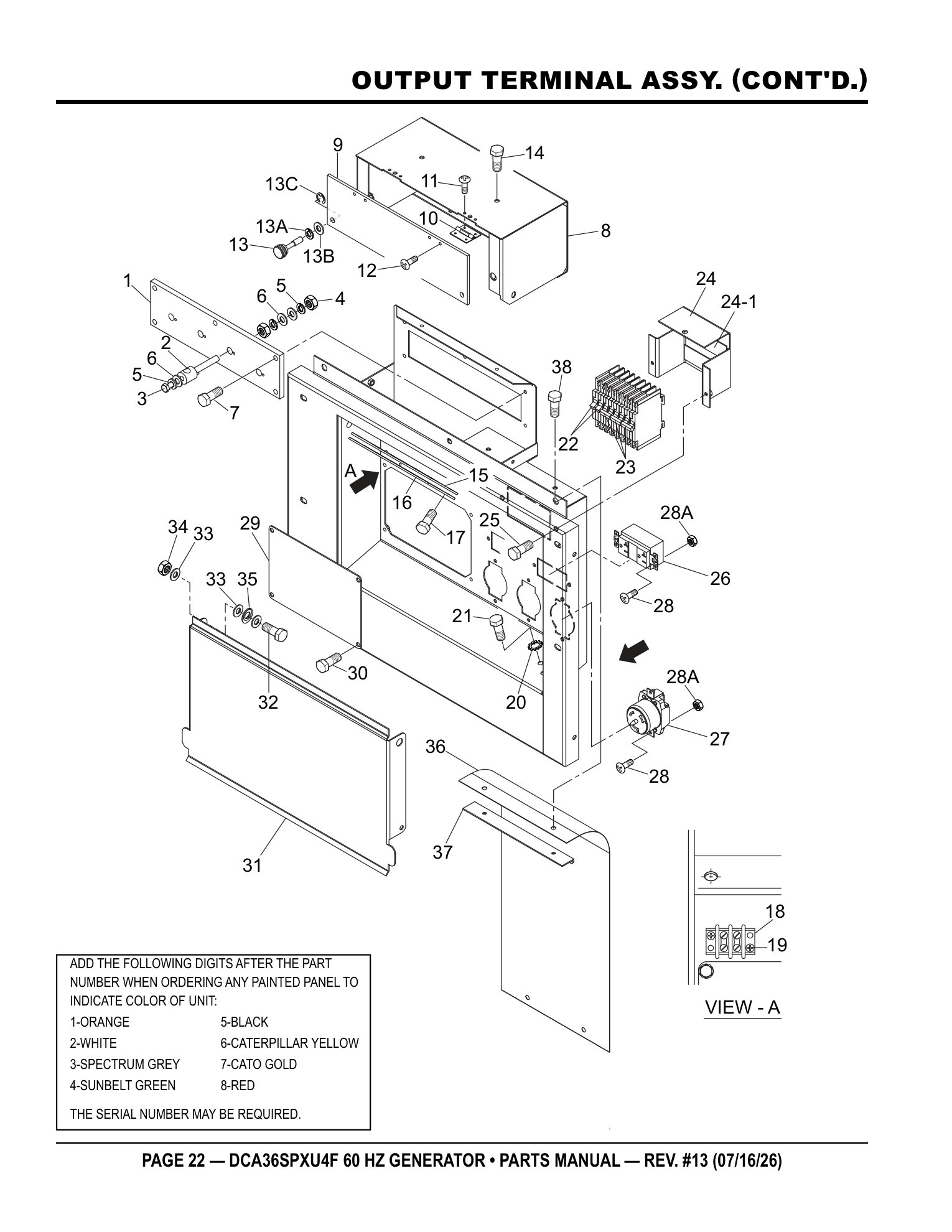

Multiquip DCA36SPXU4F Generator OUTPUT TERMINAL ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed9 rows

No.	Part No.	Part Name	Qty	Remarks
30	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0016906015 view full part page → $0.69
31	M1237100203	TERMINAL COVER	1		ADD TO CART
TERMINAL COVER M1237100203 · qty on machine: 1 view full part page → $52.95
32	012212045	HEX. HEAD BOLT	2	REPLACES P/N 0010112045	ADD TO CART
HEX. HEAD BOLT 012212045 · qty on machine: 2 REPLACES P/N 0010112045 view full part page → $2.95
33	031112230	WASHER, FLAT	6	REPLACES P/N 0041212000	ADD TO CART
WASHER, FLAT 031112230 · qty on machine: 6 REPLACES P/N 0041212000 view full part page → $0.95
34	0030012000	HEX. NUT	2		ADD TO CART
HEX. NUT 0030012000 · qty on machine: 2 view full part page → $0.5
35	0605050060	CONICAL LOCK WASHER	2		ADD TO CART
CONICAL LOCK WASHER 0605050060 · qty on machine: 2 view full part page → $5.95
36	M1237101204	INSULATING COVER	1		ADD TO CART
INSULATING COVER M1237101204 · qty on machine: 1 view full part page → $181.6
37	M1236400304	SUPPORTER	1		ADD TO CART
SUPPORTER M1236400304 · qty on machine: 1 view full part page → $28.95
38	0016906015	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 2 view full part page → $0.95

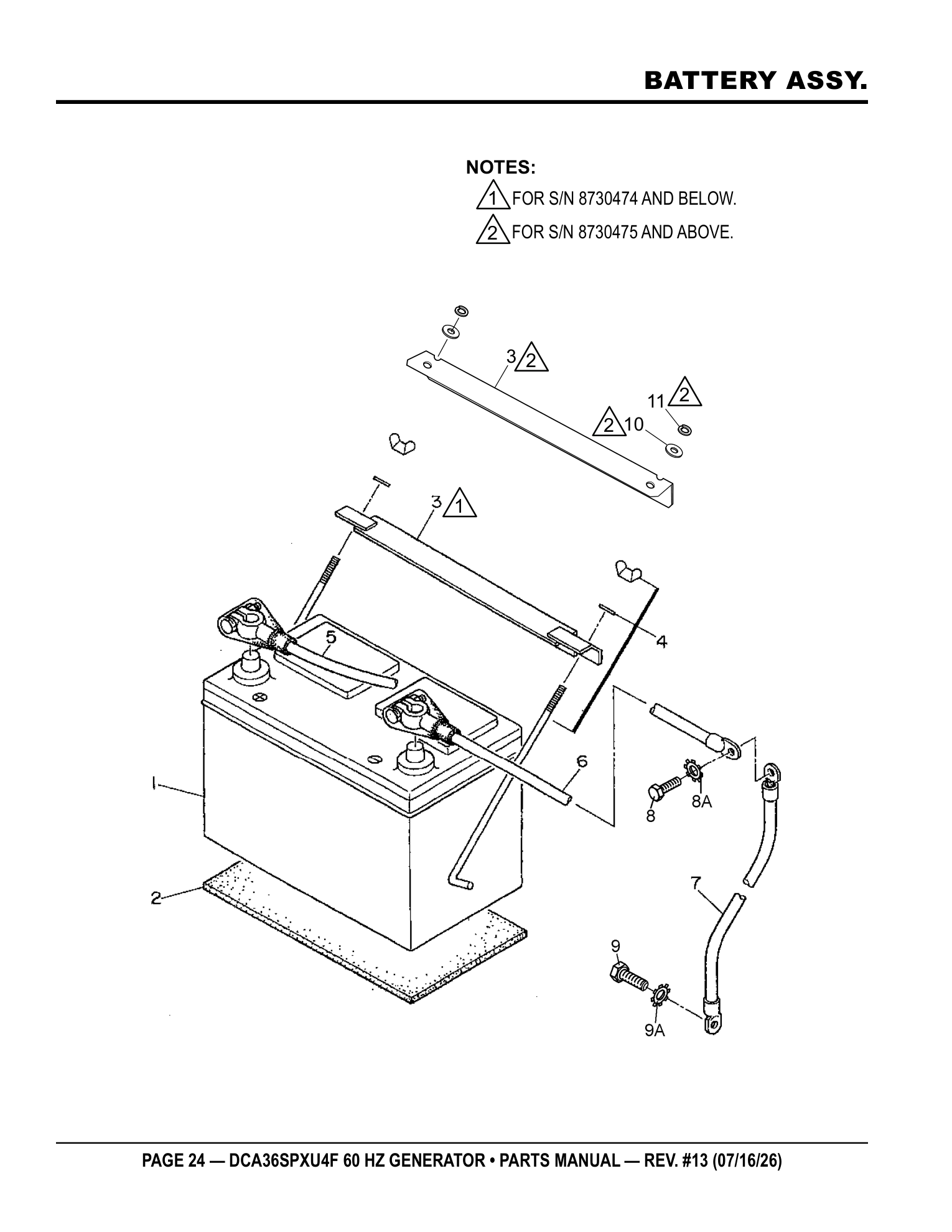

Page 24 — BATTERY ASSY.

Multiquip DCA36SPXU4F Generator BATTERY ASSY. parts diagram

Parts list — exactly as printed14 rows

No.	Part No.	Part Name	Qty	Remarks
1	0602220199	BATTERY	1		ADD TO CART
BATTERY 0602220199 · qty on machine: 1 view full part page → $288.95
2	M9310500014	BATTERY SHEET	1		ADD TO CART
BATTERY SHEET M9310500014 · qty on machine: 1 view full part page → $5.95
3	M9103000304	BATTERY BAND	1	S/N 8730474 AND BELOW	ADD TO CART
BATTERY BAND M9103000304 · qty on machine: 1 S/N 8730474 AND BELOW view full part page → $72.95
3	M9103000904	BATTERY BAND	1	S/N 8730475 AND ABOVE	PARTS REQUEST
PHOTO COMING BATTERY BAND M9103000904 · qty on machine: 1 S/N 8730475 AND ABOVE PARTS REQUEST
4	0602220920	BATTERY BOLT SET	2		ADD TO CART
BATTERY BOLT SET 0602220920 · qty on machine: 2 view full part page → $5.95
5	M2346900204	BATTERY CABLE	1		ADD TO CART
BATTERY CABLE M2346900204 · qty on machine: 1 view full part page → $97.95
6	M2346900304	BATTERY CABLE	1		ADD TO CART
BATTERY CABLE M2346900304 · qty on machine: 1 view full part page → $149.95
7		CABLE	1	PURCHASE LOCALLY	SEE REMARKS
PHOTO COMING CABLE · qty on machine: 1 PURCHASE LOCALLY SEE REMARKS
8	0017112025	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0017112025 · qty on machine: 1 view full part page → $2.93
8A	0040512000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040512000 · qty on machine: 1 view full part page → $0.77
9	011208025	HEX. HEAD BOLT	1	REPLACES P/N 0016908025	ADD TO CART
HEX. HEAD BOLT 011208025 · qty on machine: 1 REPLACES P/N 0016908025 view full part page → $0.41
9A	0040508000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040508000 · qty on machine: 1 view full part page → $0.35
10	0401450080	WASHER, FLAT	2	REPLACES P/N 0041208000 S/N 8730475 AND ABOVE	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 2 REPLACES P/N 0041208000 S/N 8730475 AND ABOVE view full part page → $0.56
11	0040008000	WASHER, LOCK	2	S/N 8730475 AND ABOVE	ADD TO CART
WASHER, LOCK 0040008000 · qty on machine: 2 S/N 8730475 AND ABOVE view full part page → $0.63

Page 26 — MUFFLER ASSY.

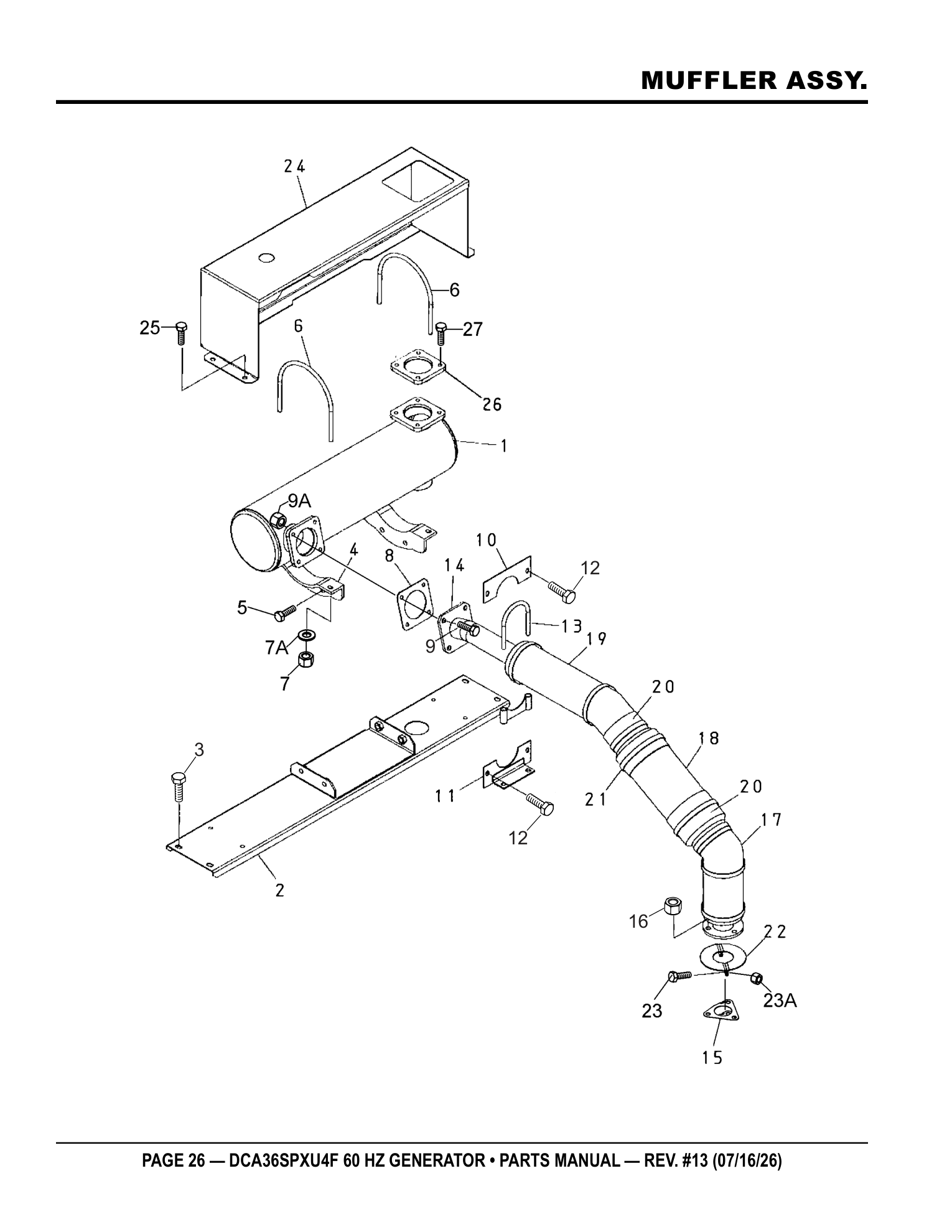

Multiquip DCA36SPXU4F Generator MUFFLER ASSY. parts diagram

Parts list — exactly as printed30 rows

No.	Part No.	Part Name	Qty	Remarks
1	8982353890	DOC	1	REPLACES P/N Y0602330111	ADD TO CART
DOC 8982353890 · qty on machine: 1 REPLACES P/N Y0602330111 view full part page → $5850.95
2	M1331400403	DOC BRACKET	1		PARTS REQUEST
PHOTO COMING DOC BRACKET M1331400403 · qty on machine: 1 PARTS REQUEST
3	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
4	8982284330	DOC SUPPORT	2	REPLACES P/N Y0602330210	ADD TO CART
DOC SUPPORT 8982284330 · qty on machine: 2 REPLACES P/N Y0602330210 view full part page → $91.95
5	012010030	HEX. HEAD BOLT	4	REPLACES P/N 0017110030	ADD TO CART
HEX. HEAD BOLT 012010030 · qty on machine: 4 REPLACES P/N 0017110030 view full part page → $0.95
6	8982103230	U-BOLT	2	REPLACES P/N Y0602322091	ADD TO CART
U-BOLT 8982103230 · qty on machine: 2 REPLACES P/N Y0602322091 view full part page → $31.95
7	020108060	SELF-LOCKING NUT	4	REPLACES P/N 0037908000	ADD TO CART
SELF-LOCKING NUT 020108060 · qty on machine: 4 REPLACES P/N 0037908000 view full part page → $0.28
7A	0401450080	WASHER, FLAT	4	REPLACES P/N 0041208000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 4 REPLACES P/N 0041208000 view full part page → $0.56
8	8973731080	GASKET	1	REPLACES P/N Y0602320212	ADD TO CART
GASKET 8973731080 · qty on machine: 1 REPLACES P/N Y0602320212 view full part page → $24.95
9	8980435280	HEX. HEAD BOLT	4	REPLACES P/N Y0602322090	ADD TO CART
HEX. HEAD BOLT 8980435280 · qty on machine: 4 REPLACES P/N Y0602322090 view full part page → $15.95
9A	8971616070	HEX. NUT	4	REPLACES P/N Y0602323007	ADD TO CART
HEX. NUT 8971616070 · qty on machine: 4 REPLACES P/N Y0602323007 view full part page → $23.95
10	M1331400204	COVER, EXHAUST PIPE	1		ADD TO CART
COVER, EXHAUST PIPE M1331400204 · qty on machine: 1 view full part page → $7.95
11	M1331400304	BRACKET, EXHAUST PIPE	1		PARTS REQUEST
PHOTO COMING BRACKET, EXHAUST PIPE M1331400304 · qty on machine: 1 PARTS REQUEST
12	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0016906015 view full part page → $0.69
13	Y0602326066	U BOLT	1		ADD TO CART
U BOLT Y0602326066 · qty on machine: 1 view full part page → $9.95
14	M1334000803	EXHAUST PIPE	1		ADD TO CART
EXHAUST PIPE M1334000803 · qty on machine: 1 view full part page → $814.95
15	8973679180	GASKET	1	REPLACES P/N Y0602320211	ADD TO CART
GASKET 8973679180 · qty on machine: 1 REPLACES P/N Y0602320211 view full part page → $24.95
16	0207108000	SELF-LOCKING NUT	3		ADD TO CART
SELF-LOCKING NUT 0207108000 · qty on machine: 3 view full part page → $3.95
17	M1331400604	EXHAUST HEAT SHIELD (A)	1		ADD TO CART
EXHAUST HEAT SHIELD (A) M1331400604 · qty on machine: 1 view full part page → $335.95
18	M1331400704	EXHAUST HEAT SHIELD (B)	1		ADD TO CART
EXHAUST HEAT SHIELD (B) M1331400704 · qty on machine: 1 view full part page → $450.95
19	M1331400804	EXHAUST HEAT SHIELD (C)	1		ADD TO CART
EXHAUST HEAT SHIELD (C) M1331400804 · qty on machine: 1 view full part page → $410.95
20	Y0272100370	HEAT SHIELD TAPE	2		ADD TO CART
HEAT SHIELD TAPE Y0272100370 · qty on machine: 2 view full part page → $8.95
21	Y0602325051	METAL CABLE TIE	8		ADD TO CART
METAL CABLE TIE Y0602325051 · qty on machine: 8 view full part page → $4.95
22	M1334300404	HEAT SHIELD STOPPER	2		ADD TO CART
HEAT SHIELD STOPPER M1334300404 · qty on machine: 2 view full part page → $16.95
23	0019206015	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0019206015 · qty on machine: 2 view full part page → $3.95
23A	0176060030	SELF-LOCKING NUT	2	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 2 REPLACES P/N 0207006000 view full part page → $2.95
24	M1331300004	DOC COVER	1		PARTS REQUEST
PHOTO COMING DOC COVER M1331300004 · qty on machine: 1 PARTS REQUEST
25	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
26	M1334300504	FLANGE	1	S/N 8730131 AND ABOVE	ADD TO CART
FLANGE M1334300504 · qty on machine: 1 S/N 8730131 AND ABOVE view full part page → $22.95
27	Y0016908020	HEX. HEAD BOLT	4	S/N 8730131 AND ABOVE	PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0016908020 · qty on machine: 4 S/N 8730131 AND ABOVE PARTS REQUEST

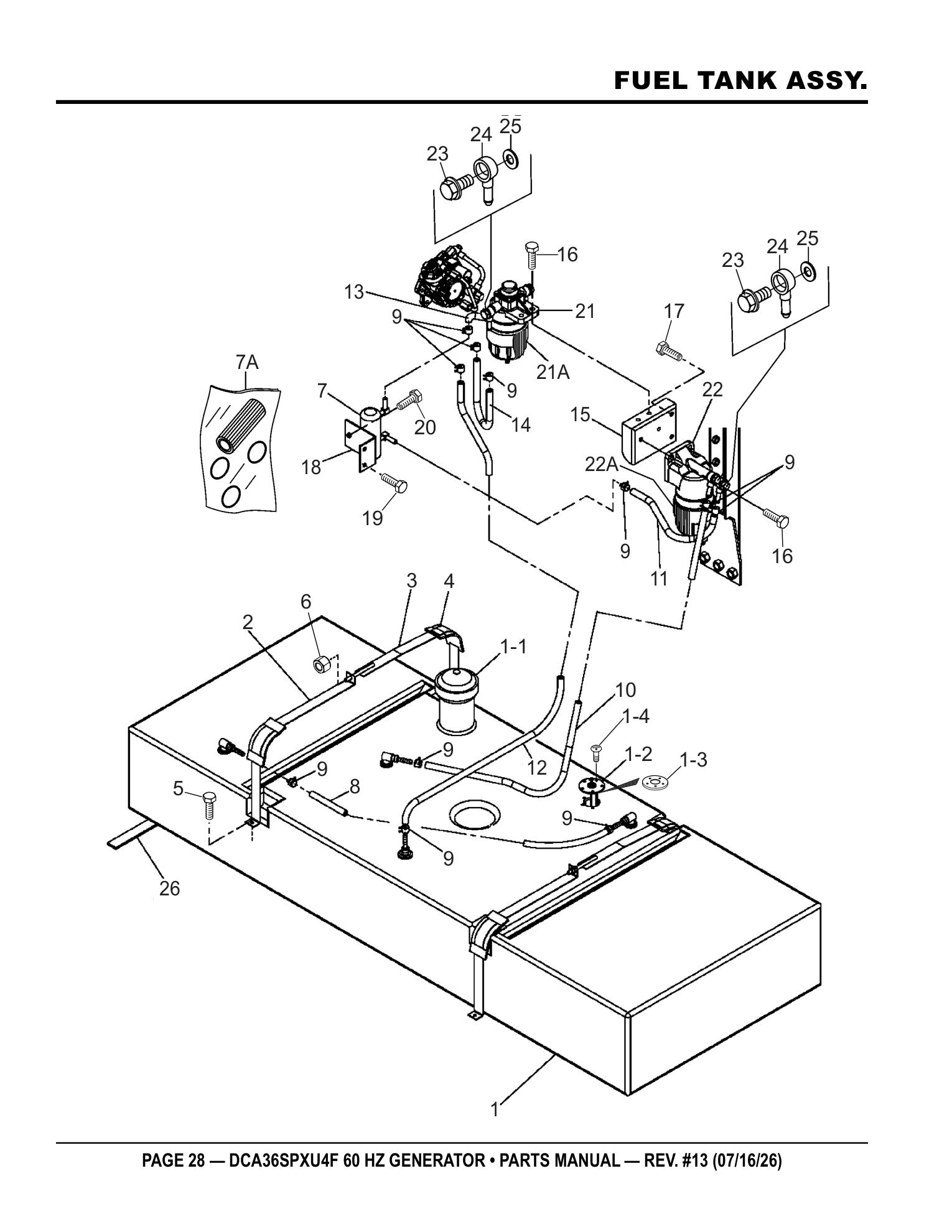

Page 28 — FUEL TANK ASSY.

Multiquip DCA36SPXU4F Generator FUEL TANK ASSY. parts diagram

Parts list — exactly as printed37 rows

No.	Part No.	Part Name	Qty	Remarks
1	M1364000202	FUEL TANK	1	INCLUDES ITEMS W/#	ADD TO CART
FUEL TANK M1364000202 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 1-1#, 1-2#, 1-2#, 1-3#, 1-3#, 1-4#, 1-4# view full part page → $1178.95 IN A KIT + SOLD SOLO
1-1#	0605505070	FUEL TANK CAP	1		ADD TO CART
FUEL TANK CAP 0605505070 · qty on machine: 1 Also included in kit 1 - FUEL TANK (M1364000202) view full part page → $50.95 IN A KIT + SOLD SOLO
1-2#	Y0605501056	FUEL SENDER UNIT	1	S/N 8730365 AND BELOW	ADD TO CART
FUEL SENDER UNIT Y0605501056 · qty on machine: 1 S/N 8730365 AND BELOW Also included in kit 1 - FUEL TANK (M1364000202) view full part page → $165.95 IN A KIT + SOLD SOLO
1-2#	Y0605501046	FUEL SENDER UNIT	1	S/N 8730366 AND ABOVE	ADD TO CART
FUEL SENDER UNIT Y0605501046 · qty on machine: 1 S/N 8730366 AND ABOVE Also included in kit 1 - FUEL TANK (M1364000202) view full part page → $270.95 IN A KIT + SOLD SOLO
1-3#	Y0605516090	GASKET	1	S/N 8730365 AND BELOW	ADD TO CART
GASKET Y0605516090 · qty on machine: 1 S/N 8730365 AND BELOW Also included in kit 1 - FUEL TANK (M1364000202) view full part page → $27.95 IN A KIT + SOLD SOLO
1-3#	Y0605516092	GASKET	1	S/N 8730366 AND ABOVE	ADD TO CART
GASKET Y0605516092 · qty on machine: 1 S/N 8730366 AND ABOVE Also included in kit 1 - FUEL TANK (M1364000202) view full part page → $52.95 IN A KIT + SOLD SOLO
1-4#	Y0605553020	MACHINE SCREW	5	S/N 8730365 AND BELOW	PARTS REQUEST
PHOTO COMING MACHINE SCREW Y0605553020 · qty on machine: 5 S/N 8730365 AND BELOW Also included in kit 1 - FUEL TANK (M1364000202) PARTS REQUEST
1-4#	Y0605553040	MACHINE SCREW	5	S/N 8730366 AND ABOVE	ADD TO CART
MACHINE SCREW Y0605553040 · qty on machine: 5 S/N 8730366 AND ABOVE Also included in kit 1 - FUEL TANK (M1364000202) view full part page → $1.95 IN A KIT + SOLD SOLO
2	M1364200004	TANK BAND	2		ADD TO CART
TANK BAND M1364200004 · qty on machine: 2 view full part page → $38.95
3	M1363200404	TANK BAND	2		ADD TO CART
TANK BAND M1363200404 · qty on machine: 2 view full part page → $108.95
4	M9310500104	SUPPORTER SHEET	4		ADD TO CART
SUPPORTER SHEET M9310500104 · qty on machine: 4 view full part page → $5.95
5	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
6	Y0207008000	SELF-LOCKING NUT	4		ADD TO CART
SELF-LOCKING NUT Y0207008000 · qty on machine: 4 view full part page → $0.4
7	8980682750	FUEL FEED PUMP	1	REPLACES P/N 0602023240	NO LONGER AVAILABLE
PHOTO COMING FUEL FEED PUMP 8980682750 · qty on machine: 1 REPLACES P/N 0602023240 NO LONGER AVAILABLE
7A	8981731650	KIT, FEED PUMP, FILTER	1		ADD TO CART
KIT, FEED PUMP, FILTER 8981731650 · qty on machine: 1 view full part page → $38.95
8	0191301150	VENT HOSE	1		ADD TO CART
VENT HOSE 0191301150 · qty on machine: 1 view full part page → $47.95
9	0605515189	HOSE BAND	12	S/N 8730365 AND BELOW	ADD TO CART
HOSE BAND 0605515189 · qty on machine: 12 S/N 8730365 AND BELOW view full part page → $1.85
9	Y0605515361	HOSE CLIP	12	S/N 8730366 AND ABOVE	ADD TO CART
HOSE CLIP Y0605515361 · qty on machine: 12 S/N 8730366 AND ABOVE view full part page → $2.61
10	0191300950	SUCTION HOSE	1		ADD TO CART
SUCTION HOSE 0191300950 · qty on machine: 1 view full part page → $9.95
11	0191300550	SUCTION HOSE	1		ADD TO CART
SUCTION HOSE 0191300550 · qty on machine: 1 view full part page → $2.95
12	0191301100	RETURN HOSE	1		ADD TO CART
RETURN HOSE 0191301100 · qty on machine: 1 view full part page → $46.95
13	Y0191300260	SUCTION HOSE	1		PARTS REQUEST
PHOTO COMING SUCTION HOSE Y0191300260 · qty on machine: 1 PARTS REQUEST
14	0191300530	SUCTION HOSE	1		ADD TO CART
SUCTION HOSE 0191300530 · qty on machine: 1 view full part page → $14.95
15	M1484500204	FUEL FILTER BRACKET	1		ADD TO CART
FUEL FILTER BRACKET M1484500204 · qty on machine: 1 view full part page → $134.95
16	012210035	HEX. HEAD BOLT	4	REPLACES P/N 0017110035	ADD TO CART
HEX. HEAD BOLT 012210035 · qty on machine: 4 REPLACES P/N 0017110035 view full part page → $1.95
17	0016910030	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0016910030 · qty on machine: 2 view full part page → $2.95
18	M1366700304	FUEL PUMP BRACKET	1		ADD TO CART
FUEL PUMP BRACKET M1366700304 · qty on machine: 1 view full part page → $27.95
19	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
20	011606025	HEX. HEAD BOLT	2	REPLACES P/N 0016906025	ADD TO CART
HEX. HEAD BOLT 011606025 · qty on machine: 2 REPLACES P/N 0016906025 view full part page → $1.95
21	8982369900	FUEL FILTER (MAIN)	1	REPLACES P/N 0602042428	ADD TO CART
FUEL FILTER (MAIN) 8982369900 · qty on machine: 1 REPLACES P/N 0602042428 view full part page → $317.95
21A	8982402800	ELEMENT, FUEL FILTER (MAIN)	1		ADD TO CART
ELEMENT, FUEL FILTER (MAIN) 8982402800 · qty on machine: 1 view full part page → $70.95
22	8982369910	FUEL FILTER (PRE)	1	REPLACES P/N 0602042429	ADD TO CART
FUEL FILTER (PRE) 8982369910 · qty on machine: 1 REPLACES P/N 0602042429 view full part page → $286.95
22A	8982402790	ELEMENT, FUEL FILTER (PRE)	1		ADD TO CART
ELEMENT, FUEL FILTER (PRE) 8982402790 · qty on machine: 1 view full part page → $75.95
23	1096751930	EYE BOLT	4	REPLACES P/N Y0602042624	ADD TO CART
EYE BOLT 1096751930 · qty on machine: 4 REPLACES P/N Y0602042624 view full part page → $27.95
24	8981263320	JOINT PIPE	4	REPLACES P/N Y0602042623	ADD TO CART
JOINT PIPE 8981263320 · qty on machine: 4 REPLACES P/N Y0602042623 view full part page → $46.95
25	1096300850	PACKING	8	REPLACES P/N Y0602021700	ADD TO CART
PACKING 1096300850 · qty on machine: 8 REPLACES P/N Y0602021700 view full part page → $0.95
26	0222100700	RUBBER SEAL	5		ADD TO CART
RUBBER SEAL 0222100700 · qty on machine: 5 view full part page → $22.95

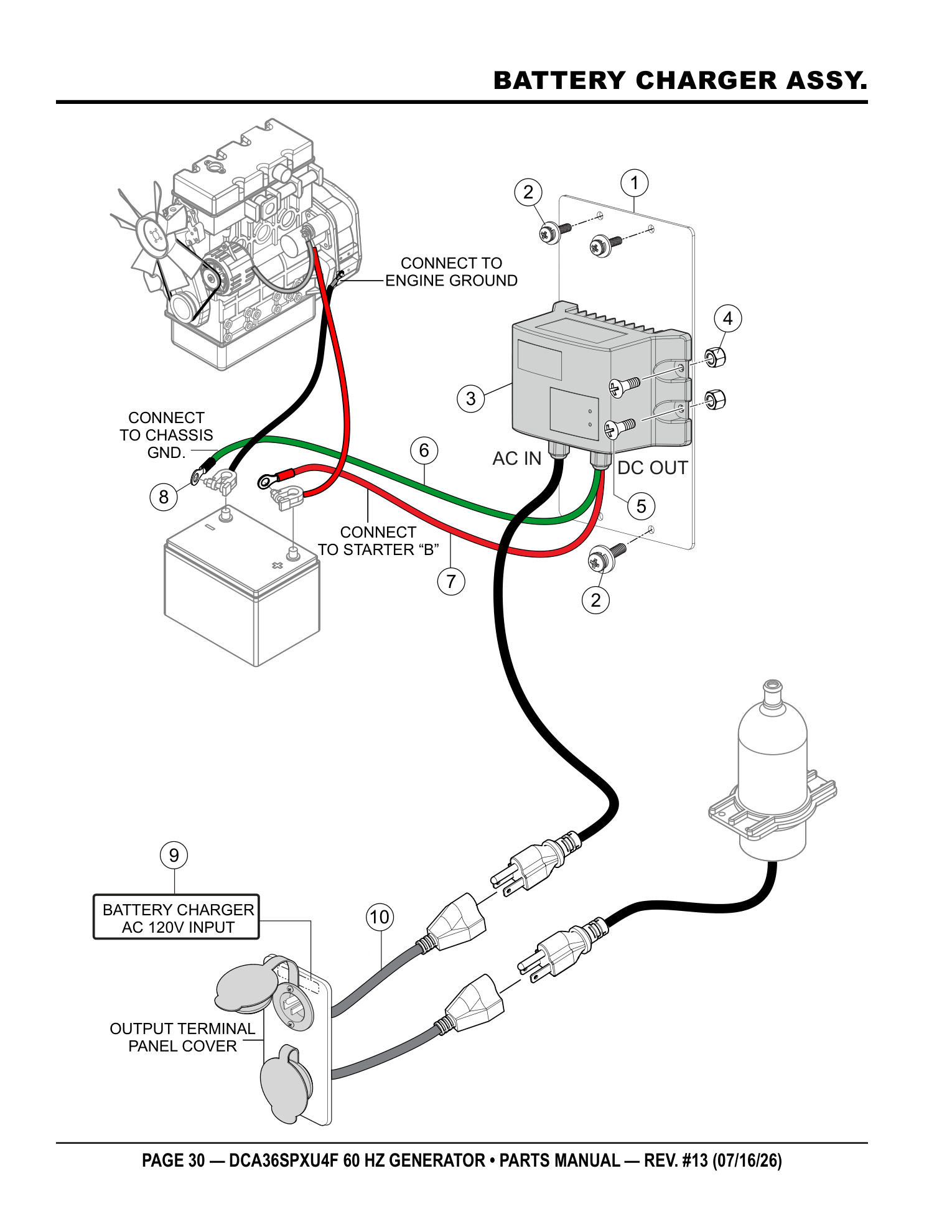

Page 30 — BATTERY CHARGER ASSY.

Multiquip DCA36SPXU4F Generator BATTERY CHARGER ASSY. parts diagram

Parts list — exactly as printed10 rows

No.	Part No.	Part Name	Qty	Remarks
1	EE62021	MOUNTING PLATE, BATTERY	1		ADD TO CART
MOUNTING PLATE, BATTERY EE62021 · qty on machine: 1 view full part page → $30.95
2		SCREW, PAN HD. M4 X 12MM	4	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING SCREW, PAN HD. M4 X 12MM · qty on machine: 4 OBTAIN LOCALLY SEE REMARKS
3	EE62075	BATTERY, CHARGER, 12V, 6A	1		ADD TO CART
BATTERY, CHARGER, 12V, 6A EE62075 · qty on machine: 1 view full part page → $361.95
4		HEX. NUT 10-32	4	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING HEX. NUT 10-32 · qty on machine: 4 OBTAIN LOCALLY SEE REMARKS
5		SCREW, FLAT HEAD 10-32 X 1/2"	4	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING SCREW, FLAT HEAD 10-32 X 1/2" · qty on machine: 4 OBTAIN LOCALLY SEE REMARKS
6		WIRE, 16GA, GREEN 9FT	1	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WIRE, 16GA, GREEN 9FT · qty on machine: 1 OBTAIN LOCALLY SEE REMARKS
7		WIRE, 16GA, RED 9FT	1	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WIRE, 16GA, RED 9FT · qty on machine: 1 OBTAIN LOCALLY SEE REMARKS
8		1/2" RING TERMINAL, 14-16 AWG	2	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING 1/2" RING TERMINAL, 14-16 AWG · qty on machine: 2 OBTAIN LOCALLY SEE REMARKS
9	M1940011014Q	DECAL, BATTERY CHARGER, 120V IN	1		ADD TO CART
DECAL, BATTERY CHARGER, 120V IN M1940011014Q · qty on machine: 1 view full part page → $1.36
10	EE62076	INLET RECPT. W/ CORD	1		ADD TO CART
INLET RECPT. W/ CORD EE62076 · qty on machine: 1 view full part page → $66.95

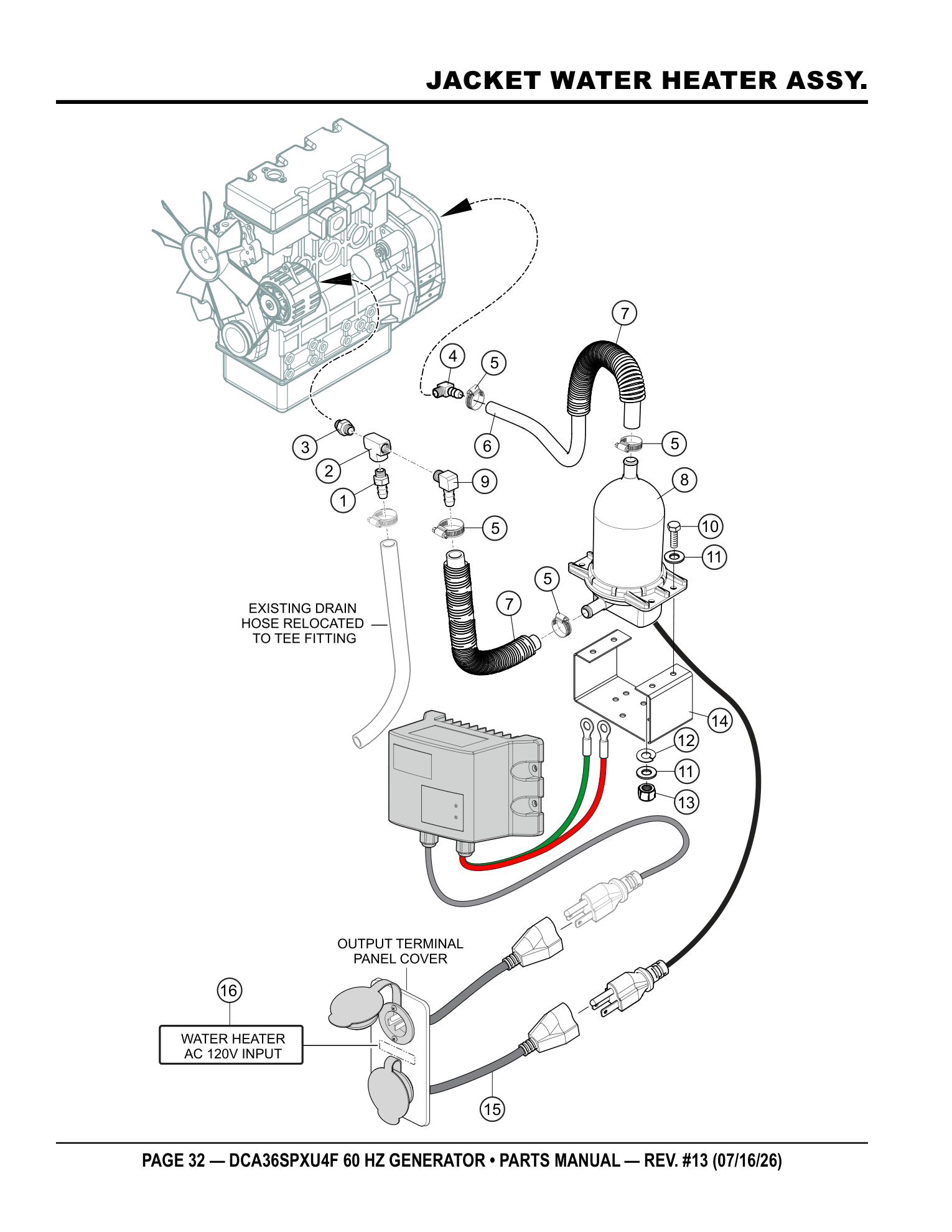

Page 32 — JACKET WATER HEATER ASSY.

Multiquip DCA36SPXU4F Generator JACKET WATER HEATER ASSY. parts diagram

Parts list — exactly as printed16 rows

No.	Part No.	Part Name	Qty	Remarks
1		1/4" MP X 5/16 HB NIPPLE	1	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING 1/4" MP X 5/16 HB NIPPLE · qty on machine: 1 OBTAIN LOCALLY SEE REMARKS
2		1/4 X 1/4 1/4" FEMALE PIPE TEE	1	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING 1/4 X 1/4 1/4" FEMALE PIPE TEE · qty on machine: 1 OBTAIN LOCALLY SEE REMARKS
3		1/4 X 1/4 MALE TO MALE PIPE NIPPLE	1	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING 1/4 X 1/4 MALE TO MALE PIPE NIPPLE · qty on machine: 1 OBTAIN LOCALLY SEE REMARKS
4		3/8" MP X 5/8 HB 90° ELBOW	1	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING 3/8" MP X 5/8 HB 90° ELBOW · qty on machine: 1 OBTAIN LOCALLY SEE REMARKS
5		HOSE CLAMP #10	4	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING HOSE CLAMP #10 · qty on machine: 4 OBTAIN LOCALLY SEE REMARKS
6		HEATER HOSE, 5/8" ID X 30" LONG	1	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING HEATER HOSE, 5/8" ID X 30" LONG · qty on machine: 1 OBTAIN LOCALLY SEE REMARKS
7		SPLIT LOOM, 1 " X 20"	2	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING SPLIT LOOM, 1 " X 20" · qty on machine: 2 OBTAIN LOCALLY SEE REMARKS
8	EE10814	HEATER, 1000W, 120 VAC	1	INCLUDES ITEMS W/#	ADD TO CART
HEATER, 1000W, 120 VAC EE10814 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 10#, 14# view full part page → $191.95 IN A KIT + SOLD SOLO
9		1/4" MP X 5/8" HB 90° ELBOW	1	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING 1/4" MP X 5/8" HB 90° ELBOW · qty on machine: 1 OBTAIN LOCALLY SEE REMARKS
10#		BOLT, 1/4"-20 X 1"	4	OBTAIN LOCALLY	INCLUDED IN KIT
PHOTO COMING BOLT, 1/4"-20 X 1" · qty on machine: 4 OBTAIN LOCALLY Included in kit 8 - HEATER, 1000W, 120 VAC (EE10814) INCLUDED IN KIT
11		WASHER, FLAT 1"	4	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WASHER, FLAT 1" · qty on machine: 4 OBTAIN LOCALLY SEE REMARKS
12		WASHER, LOCK 1/4"	6	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WASHER, LOCK 1/4" · qty on machine: 6 OBTAIN LOCALLY SEE REMARKS
13		NUT, 1/4"	4	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING NUT, 1/4" · qty on machine: 4 OBTAIN LOCALLY SEE REMARKS
14#	EE1266	BRACKET, HOT START	1		ADD TO CART
BRACKET, HOT START EE1266 · qty on machine: 1 Also included in kit 8 - HEATER, 1000W, 120 VAC (EE10814) view full part page → $24.95 IN A KIT + SOLD SOLO
15	EE62076	INLET RECEPT W/ CORD	1		ADD TO CART
INLET RECEPT W/ CORD EE62076 · qty on machine: 1 view full part page → $66.95
16	M1940011005Q	DECAL, WATER HEATER, 120V INPUT	1		ADD TO CART
DECAL, WATER HEATER, 120V INPUT M1940011005Q · qty on machine: 1 view full part page → $1.36

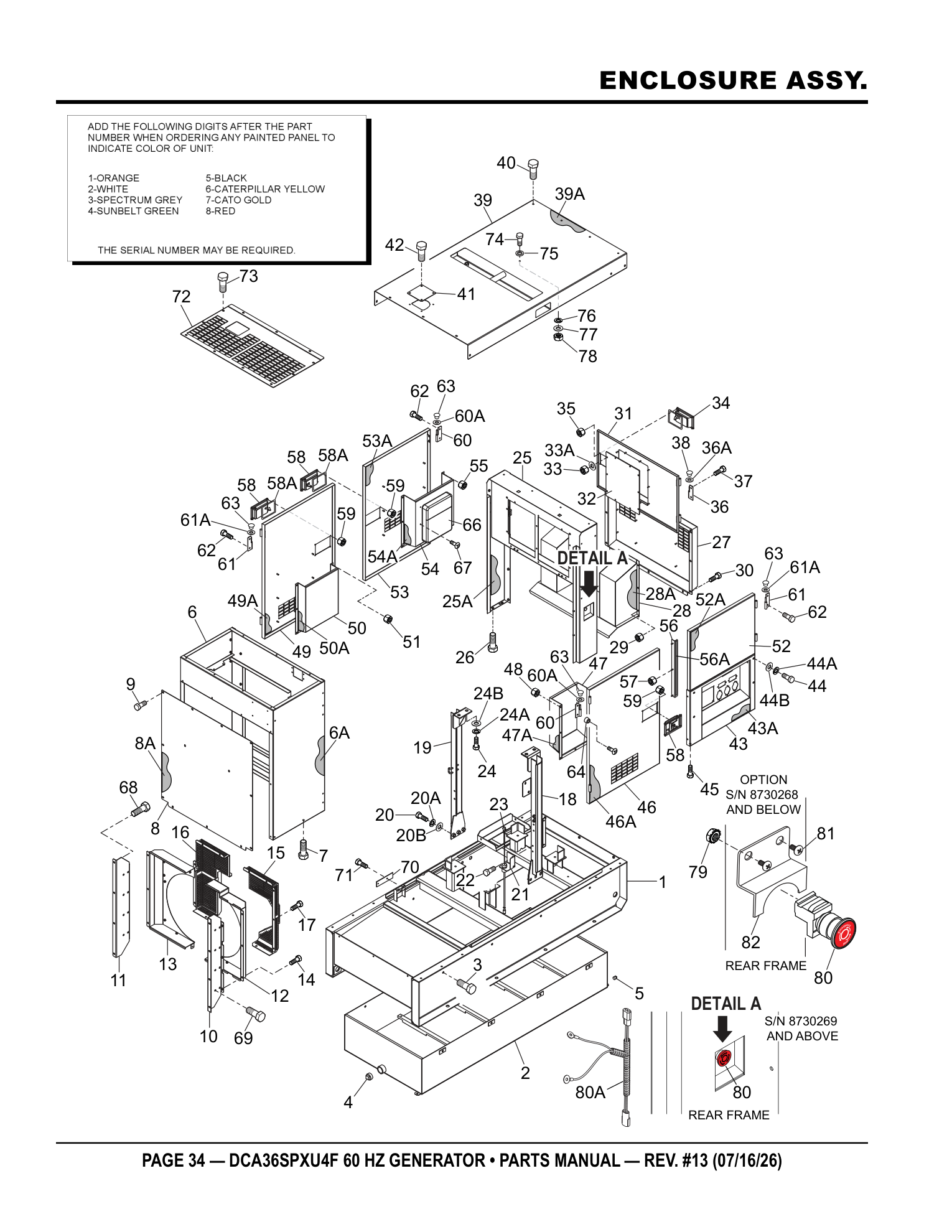

Page 34 — ENCLOSURE ASSY.

Multiquip DCA36SPXU4F Generator ENCLOSURE ASSY. parts diagram

Parts list — exactly as printed47 rows

No.	Part No.	Part Name	Qty	Remarks
1	M1414000602	BASE	1		ADD TO CART
BASE M1414000602 · qty on machine: 1 view full part page → $1977.95
2	M1414800003	ENVIRONMENTAL TANK	1		ADD TO CART
ENVIRONMENTAL TANK M1414800003 · qty on machine: 1 view full part page → $1602.95
3	0016910030	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0016910030 · qty on machine: 8 view full part page → $2.95
4	0603306797	SQUARE HEAD PIPE PLUG 1-1/2"	1		ADD TO CART
SQUARE HEAD PIPE PLUG 1-1/2" 0603306797 · qty on machine: 1 view full part page → $12.95
5	Y0603306793	SQUARE HEAD PIPE PLUG 1/2"	1	S/N 8730225 AND BELOW	ADD TO CART
SQUARE HEAD PIPE PLUG 1/2" Y0603306793 · qty on machine: 1 S/N 8730225 AND BELOW view full part page → $2.95
6	M1424000702	FRONT FRAME	1	S/N 8730230 AND BELOW	ADD TO CART
FRONT FRAME M1424000702 · qty on machine: 1 S/N 8730230 AND BELOW view full part page → $794.95
6	M1424000712	FRONT FRAME	1	S/N 8730231 AND ABOVE	ADD TO CART
FRONT FRAME M1424000712 · qty on machine: 1 S/N 8730231 AND ABOVE view full part page → $1058.95
6A	M1494101903	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494101903 · qty on machine: 1 view full part page → $263.95
7	011008020	HEX. HEAD BOLT	6	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 6 REPLACES P/N 0016908020 view full part page → $2.68
8	M1424201004	COVER, FRONT FRAME	1		PARTS REQUEST
PHOTO COMING COVER, FRONT FRAME M1424201004 · qty on machine: 1 PARTS REQUEST
8A	M1494102004	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494102004 · qty on machine: 1 view full part page → $192.95
9	0019208020	HEX. HEAD BOLT	13		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 13 view full part page → $3.95
10	M1311200604	RADIATOR BRACKET	1	S/N 8730225 AND BELOW	ADD TO CART
RADIATOR BRACKET M1311200604 · qty on machine: 1 S/N 8730225 AND BELOW view full part page → $77.95
10	M1311200614	RADIATOR BRACKET	1	S/N 8730226 AND ABOVE	PARTS REQUEST
PHOTO COMING RADIATOR BRACKET M1311200614 · qty on machine: 1 S/N 8730226 AND ABOVE PARTS REQUEST
11	M1311200704	RADIATOR BRACKET	1		ADD TO CART
RADIATOR BRACKET M1311200704 · qty on machine: 1 view full part page → $77.95
12	M1311300503	FAN SHROUD	1	S/N 8730225 AND BELOW	ADD TO CART
FAN SHROUD M1311300503 · qty on machine: 1 S/N 8730225 AND BELOW view full part page → $154.95
12	M1311300513	FAN SHROUD	1	S/N 8730226 AND ABOVE	PARTS REQUEST
PHOTO COMING FAN SHROUD M1311300513 · qty on machine: 1 S/N 8730226 AND ABOVE PARTS REQUEST
13	M1311300603	FAN SHROUD	1		ADD TO CART
FAN SHROUD M1311300603 · qty on machine: 1 view full part page → $151.95
14	011008020	HEX. HEAD BOLT	8	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 8 REPLACES P/N 0016908020 view full part page → $2.68
15	M1311300703	FAN GUARD	1		ADD TO CART
FAN GUARD M1311300703 · qty on machine: 1 view full part page → $149.95
16	M1311300803	FAN GUARD	1		ADD TO CART
FAN GUARD M1311300803 · qty on machine: 1 view full part page → $72.95
17	011008020	HEX. HEAD BOLT	11	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 11 REPLACES P/N 0016908020 view full part page → $2.68
18	M1434000203	CENTER FRAME	1		ADD TO CART
CENTER FRAME M1434000203 · qty on machine: 1 view full part page → $222.95
19	M1434000303	CENTER FRAME	1		ADD TO CART
CENTER FRAME M1434000303 · qty on machine: 1 view full part page → $211.95
20	0013616040	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0013616040 · qty on machine: 6 view full part page → $5.95
20A	0040016000	WASHER, LOCK	6		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 6 view full part page → $4.95
20B	0041216000	WASHER, FLAT	6		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 6 view full part page → $1.95
21	M1414800404	FUEL LEAK SWITCH BRACKET	1		ADD TO CART
FUEL LEAK SWITCH BRACKET M1414800404 · qty on machine: 1 view full part page → $118.95
22	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
23	0605503062	FUEL LEAK DETECTED SWITCH	1		ADD TO CART
FUEL LEAK DETECTED SWITCH 0605503062 · qty on machine: 1 view full part page → $213.95
24	Y0013616035	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT Y0013616035 · qty on machine: 4 view full part page → $2.63
24A	0040016000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 4 view full part page → $4.95
24B	0041216000	WASHER, FLAT	4		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 4 view full part page → $1.95
25	M1444000302	REAR FRAME	1	S/N 8730268 AND BELOW	PARTS REQUEST
PHOTO COMING REAR FRAME M1444000302 · qty on machine: 1 S/N 8730268 AND BELOW PARTS REQUEST
25	M1444000312	REAR FRAME	1	S/N 8730269 AND ABOVE	ADD TO CART
REAR FRAME M1444000312 · qty on machine: 1 S/N 8730269 AND ABOVE view full part page → $506.95
25A	M1494301204	ACOUSTIC SHEET	2	S/N 8730268 AND BELOW	ADD TO CART
ACOUSTIC SHEET M1494301204 · qty on machine: 2 S/N 8730268 AND BELOW view full part page → $18.95
25A	M1494304604	ACOUSTIC SHEET	2	S/N 8730269 AND ABOVE	ADD TO CART
ACOUSTIC SHEET M1494304604 · qty on machine: 2 S/N 8730269 AND ABOVE view full part page → $319.95
26	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
27	M1444300603	REAR COVER	1		ADD TO CART
REAR COVER M1444300603 · qty on machine: 1 view full part page → $493.95
28	M1444800403	DUCT, REAR COVER	1		ADD TO CART
DUCT, REAR COVER M1444800403 · qty on machine: 1 view full part page → $427.95
28A	M1494302503	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494302503 · qty on machine: 1 view full part page → $163.95
29	176060030	SELF-LOCKING NUT	12	REPLACES P/N 0207006000	PARTS REQUEST
PHOTO COMING SELF-LOCKING NUT 176060030 · qty on machine: 12 REPLACES P/N 0207006000 PARTS REQUEST
30	0019208020	HEX. HEAD BOLT	10		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 10 view full part page → $3.95
31	M1444200203	REAR DOOR	1		PARTS REQUEST
PHOTO COMING REAR DOOR M1444200203 · qty on machine: 1 PARTS REQUEST
32	M1445600204	WINDOW PLATE	1		ADD TO CART
WINDOW PLATE M1445600204 · qty on machine: 1 view full part page → $57.95
33	020106050	LOCK NUT	10	REPLACES P/N 0037906000	ADD TO CART
LOCK NUT 020106050 · qty on machine: 10 REPLACES P/N 0037906000 view full part page → $0.12
33A	952404470	WASHER, FLAT	10	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 10 REPLACES P/N 0041206000 view full part page → $0.19

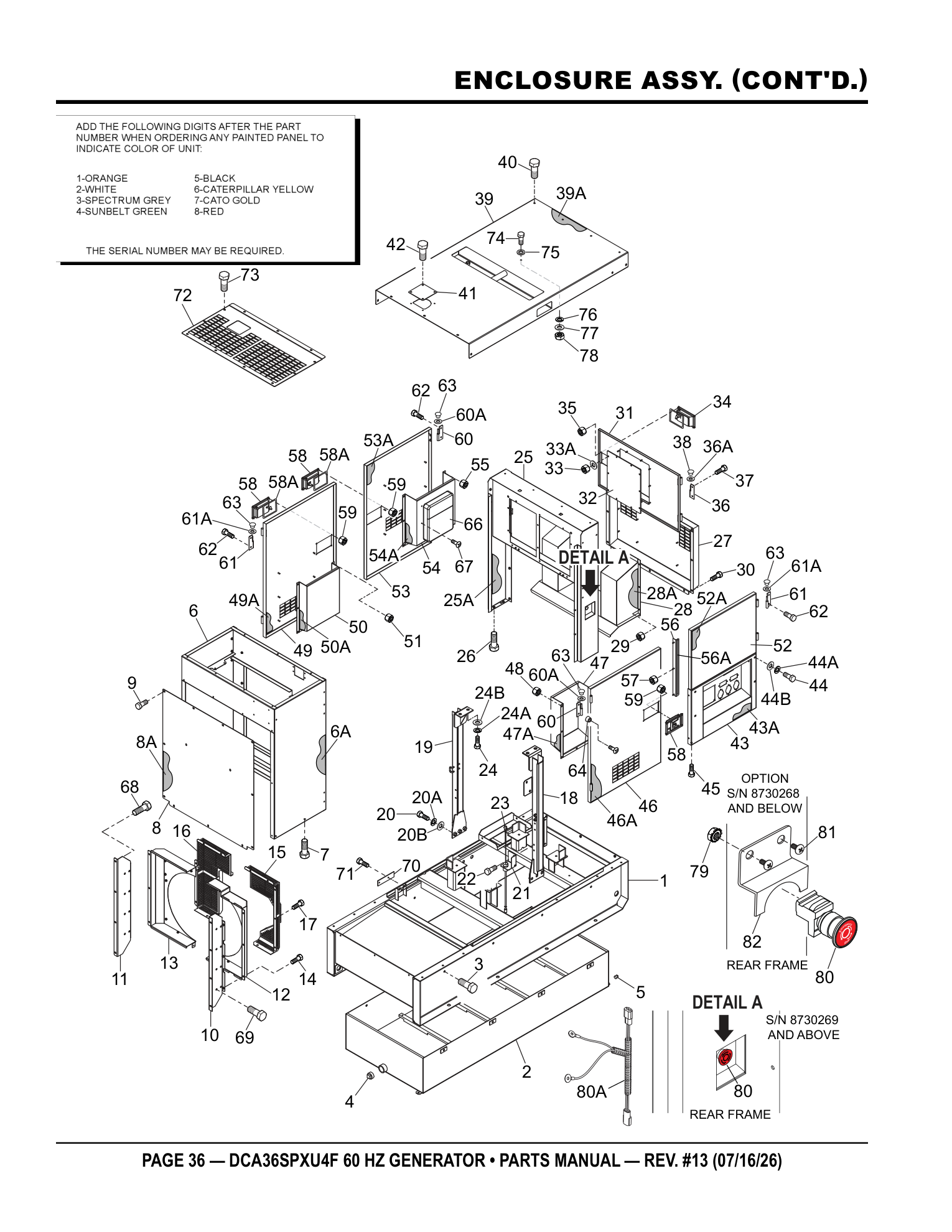

Page 36 — ENCLOSURE ASSY. (CONT'D.)

Multiquip DCA36SPXU4F Generator ENCLOSURE ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed45 rows

No.	Part No.	Part Name	Qty	Remarks
34	Y0605012309	DOOR HANDLE ASSY.	1		ADD TO CART
DOOR HANDLE ASSY. Y0605012309 · qty on machine: 1 view full part page → $49.95
34A	C9312500004	SEAL RUBBER	1		ADD TO CART
SEAL RUBBER C9312500004 · qty on machine: 1 view full part page → $10.95
35	176060030	SELF-LOCKING NUT	4	REPLACES P/N 0207006000	PARTS REQUEST
PHOTO COMING SELF-LOCKING NUT 176060030 · qty on machine: 4 REPLACES P/N 0207006000 PARTS REQUEST
36	M9110100204	HINGE	2		ADD TO CART
HINGE M9110100204 · qty on machine: 2 view full part page → $23.95
36A	M9116100004	WASHER	2		ADD TO CART
WASHER M9116100004 · qty on machine: 2 view full part page → $1.93
37	0019208020	HEX. HEAD BOLT	3		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 3 view full part page → $3.95
38	845031504	BLIND PLUG	2	REPLACES P/N M9310000004	PARTS REQUEST
PHOTO COMING BLIND PLUG 845031504 · qty on machine: 2 REPLACES P/N M9310000004 PARTS REQUEST
39	M1464000202	ROOF PANEL	1	S/N 8730230 AND BELOW	PARTS REQUEST
PHOTO COMING ROOF PANEL M1464000202 · qty on machine: 1 S/N 8730230 AND BELOW PARTS REQUEST
39	M1464000212	ROOF PANEL	1	S/N 8730231 AND ABOVE	ADD TO CART
ROOF PANEL M1464000212 · qty on machine: 1 S/N 8730231 AND ABOVE view full part page → $1826.95
39A	M1494500803	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494500803 · qty on machine: 1 view full part page → $176.95
40	0019208020	HEX. HEAD BOLT	19	S/N 8730230 AND BELOW	ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 19 S/N 8730230 AND BELOW view full part page → $3.95
40	0019208020	HEX. HEAD BOLT	13	S/N 8730231 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 13 S/N 8730231 AND ABOVE view full part page → $3.95
41	M3310600004	COVER	1		ADD TO CART
COVER M3310600004 · qty on machine: 1 view full part page → $17.95
42	0019208020	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 4 view full part page → $3.95
43	M1454200702	SPLASHER PANEL	1	S/N 8730135 AND BELOW	ADD TO CART
SPLASHER PANEL M1454200702 · qty on machine: 1 S/N 8730135 AND BELOW view full part page → $343.95
43	M1454200712	SPLASHER PANEL	1	S/N 8730136 ~ 8730333 S/N 8730344 ~ 8730353	PARTS REQUEST
PHOTO COMING SPLASHER PANEL M1454200712 · qty on machine: 1 S/N 8730136 ~ 8730333 S/N 8730344 ~ 8730353 PARTS REQUEST
43	M1454201902	SPLASHER PANEL	1	S/N 8730334 ~ 8730343 S/N 8730354 AND AOBOVE	PARTS REQUEST
PHOTO COMING SPLASHER PANEL M1454201902 · qty on machine: 1 S/N 8730334 ~ 8730343 S/N 8730354 AND AOBOVE PARTS REQUEST
43A	M1494401304	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494401304 · qty on machine: 1 view full part page → $18.95
44	0019108055	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0019108055 · qty on machine: 4 view full part page → $3.95
44A	0042308000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0042308000 · qty on machine: 4 view full part page → $0.83
44B	031108160	WASHER, FLAT	4	REPLACES P/N 0042408000	ADD TO CART
WASHER, FLAT 031108160 · qty on machine: 4 REPLACES P/N 0042408000 Factory replaced this part - current number 0401450080 view full part page → $0.56 IN A KIT + SOLD SOLO
45	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
46	M1454001003	SIDE DOOR	1		ADD TO CART
SIDE DOOR M1454001003 · qty on machine: 1 view full part page → $405.95
46A	M1494401404	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494401404 · qty on machine: 1 view full part page → $282.95
47	M1454300404	DUCT	1		ADD TO CART
DUCT M1454300404 · qty on machine: 1 view full part page → $196.95
47A	M1494401904	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494401904 · qty on machine: 1 view full part page → $59.95
48	176060030	SELF-LOCKING NUT	7	REPLACES P/N 0207006000	PARTS REQUEST
PHOTO COMING SELF-LOCKING NUT 176060030 · qty on machine: 7 REPLACES P/N 0207006000 PARTS REQUEST
49	M1454001103	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M1454001103 · qty on machine: 1 PARTS REQUEST
49A	M1494401504	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494401504 · qty on machine: 1 view full part page → $59.95
50	M1454300604	DUCT	1		ADD TO CART
DUCT M1454300604 · qty on machine: 1 view full part page → $114.95
50A	M1494402104	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494402104 · qty on machine: 1 view full part page → $79.95
51	176060030	SELF-LOCKING NUT	7	REPLACES P/N 0207006000	PARTS REQUEST
PHOTO COMING SELF-LOCKING NUT 176060030 · qty on machine: 7 REPLACES P/N 0207006000 PARTS REQUEST
52	M1454001203	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M1454001203 · qty on machine: 1 PARTS REQUEST
52A	M1494401604	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494401604 · qty on machine: 1 view full part page → $18.95
53	M1454001303	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M1454001303 · qty on machine: 1 PARTS REQUEST
53A	M1494401703	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494401703 · qty on machine: 1 view full part page → $265.95
54	M1454300703	DUCT	1		ADD TO CART
DUCT M1454300703 · qty on machine: 1 view full part page → $124.95
54A	M1494402204	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494402204 · qty on machine: 1 view full part page → $79.95
55	176060030	SELF-LOCKING NUT	7	REPLACES P/N 0207006000	PARTS REQUEST
PHOTO COMING SELF-LOCKING NUT 176060030 · qty on machine: 7 REPLACES P/N 0207006000 PARTS REQUEST
56	M1454700104	DOOR SUPPORTER	1		ADD TO CART
DOOR SUPPORTER M1454700104 · qty on machine: 1 view full part page → $25.95
56A	Y0229200480	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL Y0229200480 · qty on machine: 1 view full part page → $2.95
57	176060030	SELF-LOCKING NUT	3	REPLACES P/N 0207006000	PARTS REQUEST
PHOTO COMING SELF-LOCKING NUT 176060030 · qty on machine: 3 REPLACES P/N 0207006000 PARTS REQUEST
58	Y0605012309	DOOR HANDLE ASSY.	3		ADD TO CART
DOOR HANDLE ASSY. Y0605012309 · qty on machine: 3 view full part page → $49.95
58A	C9312500004	SEAL RUBBER	3		ADD TO CART
SEAL RUBBER C9312500004 · qty on machine: 3 view full part page → $10.95
59	176060030	SELF-LOCKING NUT	12	REPLACES P/N 0207006000	PARTS REQUEST
PHOTO COMING SELF-LOCKING NUT 176060030 · qty on machine: 12 REPLACES P/N 0207006000 PARTS REQUEST

Page 38 — ENCLOSURE ASSY. (CONT'D.)

Parts list — exactly as printed27 rows

No.	Part No.	Part Name	Qty	Remarks
60	M9110100204	HINGE	4		ADD TO CART
HINGE M9110100204 · qty on machine: 4 view full part page → $23.95
60A	M9116100004	WASHER	4		ADD TO CART
WASHER M9116100004 · qty on machine: 4 view full part page → $1.93
61	M9110100304	HINGE	4		ADD TO CART
HINGE M9110100304 · qty on machine: 4 view full part page → $19.95
61A	M9116100004	WASHER	4		ADD TO CART
WASHER M9116100004 · qty on machine: 4 view full part page → $1.93
62	0019208020	HEX. HEAD BOLT	9		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 9 view full part page → $3.95
63	845031504	BLIND PLUG	8	REPLACES P/N M9310000004	PARTS REQUEST
PHOTO COMING BLIND PLUG 845031504 · qty on machine: 8 REPLACES P/N M9310000004 PARTS REQUEST
64	0601850097	DOOR STOPPER	8		ADD TO CART
DOOR STOPPER 0601850097 · qty on machine: 8 view full part page → $2.95
65	0027208025	MACHINE SCREW	8		ADD TO CART
MACHINE SCREW 0027208025 · qty on machine: 8 view full part page → $0.76
66	0600800320	MANUAL PAK	1		ADD TO CART
MANUAL PAK 0600800320 · qty on machine: 1 view full part page → $43.95
67	27106016	MACHINE SCREW	4	REPLACES P/N 0021806015	ADD TO CART
MACHINE SCREW 27106016 · qty on machine: 4 REPLACES P/N 0021806015 Factory replaced this part - current number 0021806015 view full part page → $0.87 IN A KIT + SOLD SOLO
68	011008020	HEX. HEAD BOLT	8	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 8 REPLACES P/N 0016908020 view full part page → $2.68
69	011008020	HEX. HEAD BOLT	16	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 16 REPLACES P/N 0016908020 view full part page → $2.68
70	M2414800304	HOLE COVER (BASE)	1	S/N 8730226 AND ABOVE	ADD TO CART
HOLE COVER (BASE) M2414800304 · qty on machine: 1 S/N 8730226 AND ABOVE view full part page → $74.95
71	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020 S/N 8730226 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 S/N 8730226 AND ABOVE view full part page → $2.68
72	M1424100004	FRONT FRAME OVER COVER	1	S/N 8730231 AND ABOVE	ADD TO CART
FRONT FRAME OVER COVER M1424100004 · qty on machine: 1 S/N 8730231 AND ABOVE view full part page → $160.95
73	011008020	HEX. HEAD BOLT	8	REPLACES P/N 0016908020 S/N 8730231 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 8 REPLACES P/N 0016908020 S/N 8730231 AND ABOVE view full part page → $2.68
74	0019112030	HEX. HEAD BOLT	1	S/N 8730264 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 0019112030 · qty on machine: 1 S/N 8730264 AND ABOVE view full part page → $5.95
75	Y0605050040	SEALING WASHER	1	S/N 8730264 AND ABOVE	ADD TO CART
SEALING WASHER Y0605050040 · qty on machine: 1 S/N 8730264 AND ABOVE view full part page → $1.95
76	0042312000	WASHER, LOCK	1	S/N 8730264 AND ABOVE	ADD TO CART
WASHER, LOCK 0042312000 · qty on machine: 1 S/N 8730264 AND ABOVE view full part page → $0.94
77	0042412000	WASHER, FLAT	1	S/N 8730264 AND ABOVE	ADD TO CART
WASHER, FLAT 0042412000 · qty on machine: 1 S/N 8730264 AND ABOVE view full part page → $1.63
78	0030012000	HEX. HEAD BOLT	1	S/N 8730264 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 0030012000 · qty on machine: 1 S/N 8730264 AND ABOVE view full part page → $0.5
79		NUT, 10-24 (W/ STAR WASHER)	2	OBTAIN LOCALLY S/N 8730268 AND BELOW	SEE REMARKS
PHOTO COMING NUT, 10-24 (W/ STAR WASHER) · qty on machine: 2 OBTAIN LOCALLY S/N 8730268 AND BELOW SEE REMARKS
80	EE55989	SWITCH, EMERGENCY STOP	1	OPTION S/N 8730268 AND BELOW	ADD TO CART
SWITCH, EMERGENCY STOP EE55989 · qty on machine: 1 OPTION S/N 8730268 AND BELOW view full part page → $82.95
80	Y0601831953	EMERGENCY STOP BUTTON	1	S/N 8730269 AND ABOVE	ADD TO CART
EMERGENCY STOP BUTTON Y0601831953 · qty on machine: 1 S/N 8730269 AND ABOVE view full part page → $152.95
80A	M1358203104	E-STOP WIRE HARNESS	1	S/N 8730269 ~ 8730370	PARTS REQUEST
PHOTO COMING E-STOP WIRE HARNESS M1358203104 · qty on machine: 1 S/N 8730269 ~ 8730370 PARTS REQUEST
81		MACHINE SCREW, 10-24X1/2	2	OBTAIN LOCALLY S/N 8730268 AND BELOW	SEE REMARKS
PHOTO COMING MACHINE SCREW, 10-24X1/2 · qty on machine: 2 OBTAIN LOCALLY S/N 8730268 AND BELOW SEE REMARKS
82	EE1687	GUARD, EMERGENCY STOP	1	S/N 8730268 AND BELOW	ADD TO CART
GUARD, EMERGENCY STOP EE1687 · qty on machine: 1 S/N 8730268 AND BELOW view full part page → $16.95

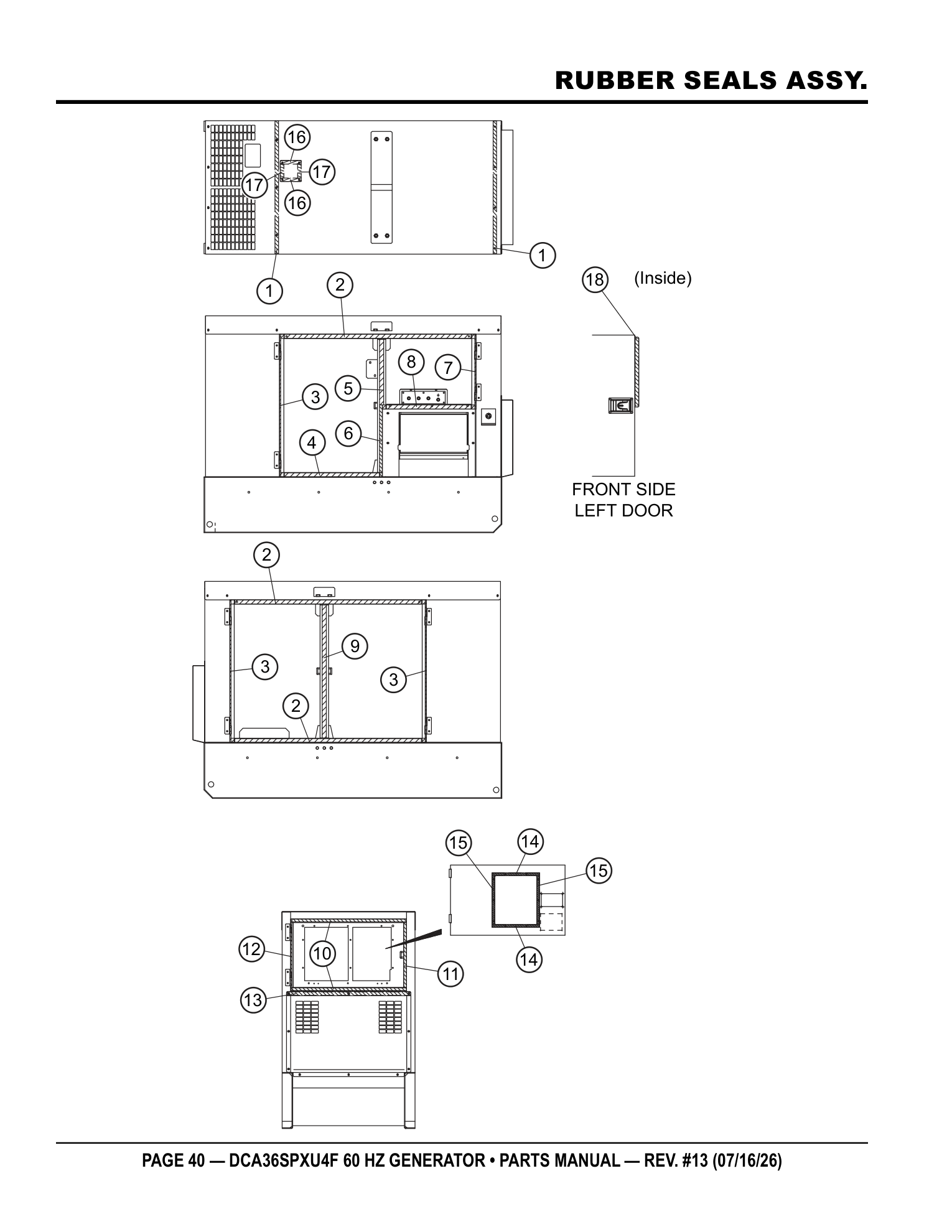

Page 40 — RUBBER SEALS ASSY.

Multiquip DCA36SPXU4F Generator RUBBER SEALS ASSY. parts diagram

Parts list — exactly as printed18 rows

No.	Part No.	Part Name	Qty	Remarks
1	0229200950	RUBBER SEAL	2		ADD TO CART
RUBBER SEAL 0229200950 · qty on machine: 2 view full part page → $9.95
2	0228901390	RUBBER SEAL	3		ADD TO CART
RUBBER SEAL 0228901390 · qty on machine: 3 view full part page → $44.95
3	Y0229401020	RUBBER SEAL	3		ADD TO CART
RUBBER SEAL Y0229401020 · qty on machine: 3 view full part page → $12.95
4	Y0228900705	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL Y0228900705 · qty on machine: 1 view full part page → $9.95
5	0228900475	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL 0228900475 · qty on machine: 1 view full part page → $12.95
6	0228800515	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL 0228800515 · qty on machine: 1 view full part page → $11.95
7	Y0229400535	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL Y0229400535 · qty on machine: 1 view full part page → $5.95
8	0228900660	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL 0228900660 · qty on machine: 1 view full part page → $24.95
9	0228900960	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL 0228900960 · qty on machine: 1 view full part page → $25.95
10	Y0228800820	RUBBER SEAL	2		ADD TO CART
RUBBER SEAL Y0228800820 · qty on machine: 2 view full part page → $22.95
11	0228800470	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL 0228800470 · qty on machine: 1 view full part page → $8.95
12	0228800510	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL 0228800510 · qty on machine: 1 view full part page → $8.95
13	0229200880	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL 0229200880 · qty on machine: 1 view full part page → $5.95
14	0228100340	RUBBER SEAL	2		ADD TO CART
RUBBER SEAL 0228100340 · qty on machine: 2 view full part page → $1.95
15	70NS2016	RUBBER SEAL	2	REPLACES P/N 0228100350	ADD TO CART
RUBBER SEAL 70NS2016 · qty on machine: 2 REPLACES P/N 0228100350 view full part page → $2.95
16	Y0229200145	RUBBER SEAL	2		ADD TO CART
RUBBER SEAL Y0229200145 · qty on machine: 2 view full part page → $0.65
17	Y0229200100	RUBBER SEAL	2		ADD TO CART
RUBBER SEAL Y0229200100 · qty on machine: 2 view full part page → $0.67
18	Y0229200480	RUBBER SEAL	1	S/N 8730264 AND ABOVE	ADD TO CART
RUBBER SEAL Y0229200480 · qty on machine: 1 S/N 8730264 AND ABOVE view full part page → $2.95

Page 42 — NAMEPLATE AND DECALS ASSY.

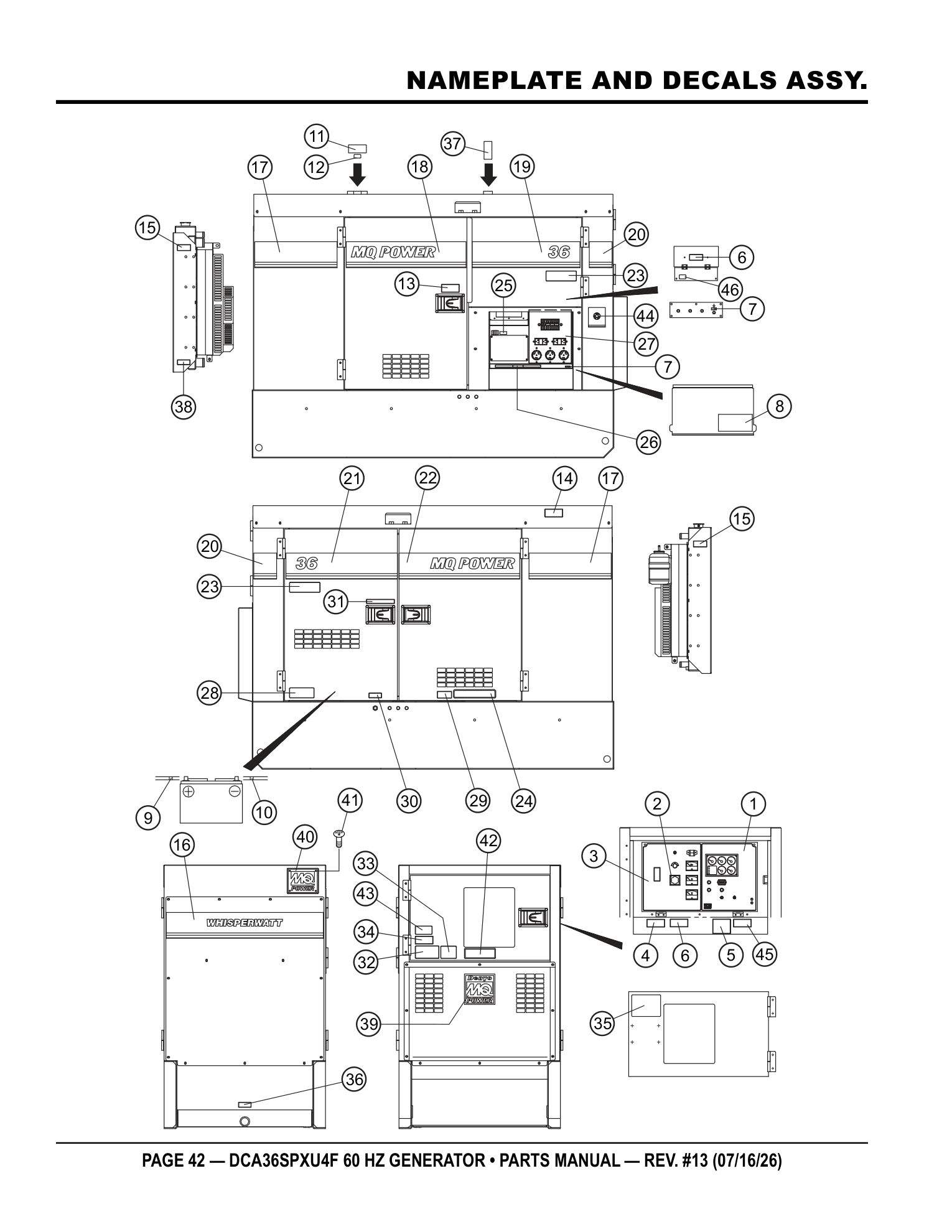

Multiquip DCA36SPXU4F Generator NAMEPLATE AND DECALS ASSY. parts diagram

Parts list — exactly as printed41 rows

No.	Part No.	Part Name	Qty	Remarks
1	M1551000903	DECAL: ENGINE OPERATING	1	M15100090 S/N 8730323 AND BELOW	PARTS REQUEST
PHOTO COMING DECAL: ENGINE OPERATING M1551000903 · qty on machine: 1 M15100090 S/N 8730323 AND BELOW PARTS REQUEST
1	M1551000913	DECAL: ENGINE OPERATING	1	S/N 8730324 AND ABOVE	PARTS REQUEST
PHOTO COMING DECAL: ENGINE OPERATING M1551000913 · qty on machine: 1 S/N 8730324 AND ABOVE PARTS REQUEST
2	M9521000504	DECAL: AMMETER CHANGE-OVER SW	1	M92100050	PARTS REQUEST
PHOTO COMING DECAL: AMMETER CHANGE-OVER SW M9521000504 · qty on machine: 1 M92100050 PARTS REQUEST
3	M1551000803	DECAL: GENERATOR CONTROL	1	M15100080	PARTS REQUEST
PHOTO COMING DECAL: GENERATOR CONTROL M1551000803 · qty on machine: 1 M15100080 PARTS REQUEST
4	M9520100704	DECAL: WARNING ARC FLASH	1	M92010070	ADD TO CART
DECAL: WARNING ARC FLASH M9520100704 · qty on machine: 1 M92010070 view full part page → $4.95
5	M9520100304	DECAL: GENERAL CAUTIONS	1	M92010030	ADD TO CART
DECAL: GENERAL CAUTIONS M9520100304 · qty on machine: 1 M92010030 view full part page → $3.95
6	M9520100004	DECAL: WARNING ELECT. SHOCK	2	M92010000	ADD TO CART
DECAL: WARNING ELECT. SHOCK M9520100004 · qty on machine: 2 M92010000 view full part page → $5.95
7	M9520000004	DECAL: GROUNDING	2	M92000000	ADD TO CART
DECAL: GROUNDING M9520000004 · qty on machine: 2 M92000000 view full part page → $1.95
8	M9520100404	DECAL: DANGER HIGH VOLTAGE	1	M92010040	ADD TO CART
DECAL: DANGER HIGH VOLTAGE M9520100404 · qty on machine: 1 M92010040 view full part page → $37.95
9	M9500300104	DECAL: +	1	M90030010	ADD TO CART
DECAL: + M9500300104 · qty on machine: 1 M90030010 view full part page → $1.95
10	M9500300004	DECAL: -	1	M90030000	ADD TO CART
DECAL: - M9500300004 · qty on machine: 1 M90030000 view full part page → $1.95
11	M9503100004	DECAL: WARNING RADIATOR CAP	1	M90310000	ADD TO CART
DECAL: WARNING RADIATOR CAP M9503100004 · qty on machine: 1 M90310000 view full part page → $4.95
12	M9500100004	DECAL: WATER	1	M90010000	ADD TO CART
DECAL: WATER M9500100004 · qty on machine: 1 M90010000 view full part page → $1.95
13	M9510100004	DECAL: CAUTION HIGH TEMP	1	M91010000	ADD TO CART
DECAL: CAUTION HIGH TEMP M9510100004 · qty on machine: 1 M91010000 view full part page → $68.95
14	M9503200004	DECAL: WARNING EXHAUST GAS	1	M90320000	ADD TO CART
DECAL: WARNING EXHAUST GAS M9503200004 · qty on machine: 1 M90320000 view full part page → $14.95
15	M9503000004	DECAL: WARNING ROTATING PART	2	M90300000	ADD TO CART
DECAL: WARNING ROTATING PART M9503000004 · qty on machine: 2 M90300000 view full part page → $1.95
16	M1561101103	STRIPE	1		ADD TO CART
STRIPE M1561101103 · qty on machine: 1 view full part page → $9.95
17	M1561101203	STRIPE	2		ADD TO CART
STRIPE M1561101203 · qty on machine: 2 view full part page → $5.95
18	M1561101303	STRIPE	1		ADD TO CART
STRIPE M1561101303 · qty on machine: 1 view full part page → $8.95
19	M1561102203	STRIPE	1		PARTS REQUEST
PHOTO COMING STRIPE M1561102203 · qty on machine: 1 PARTS REQUEST
20	M1561101504	STRIPE	2		ADD TO CART
STRIPE M1561101504 · qty on machine: 2 view full part page → $3.95
21	M1561102303	STRIPE	1		ADD TO CART
STRIPE M1561102303 · qty on machine: 1 view full part page → $56.95
22	M1561101703	STRIPE	1		ADD TO CART
STRIPE M1561101703 · qty on machine: 1 view full part page → $9.95
23	M9520100603	DECAL: CAUTION AUTO START	2	M92010060	ADD TO CART
DECAL: CAUTION AUTO START M9520100603 · qty on machine: 2 M92010060 view full part page → $8.95
24	M9503000103	DECAL: DAILY CHECK WATER AND OIL	1	M90300010	ADD TO CART
DECAL: DAILY CHECK WATER AND OIL M9503000103 · qty on machine: 1 M90300010 view full part page → $7.95
25	M9520000504	DECAL: START CONTACT	1	M92000050	ADD TO CART
DECAL: START CONTACT M9520000504 · qty on machine: 1 M92000050 view full part page → $67.95
26	M9520100503	DECAL: WARNING	1	M92010050	ADD TO CART
DECAL: WARNING M9520100503 · qty on machine: 1 M92010050 view full part page → $1.95
27	M1550002203	DECAL: AUXILIARY OUTPUTS	1	M15000220 S/N 8730135 AND BELOW	ADD TO CART
DECAL: AUXILIARY OUTPUTS M1550002203 · qty on machine: 1 M15000220 S/N 8730135 AND BELOW view full part page → $33.95
27	M1550000703	DECAL: AUXILIARY OUTPUTS	1	M15000070 S/N 8730136 AND ABOVE	ADD TO CART
DECAL: AUXILIARY OUTPUTS M1550000703 · qty on machine: 1 M15000070 S/N 8730136 AND ABOVE view full part page → $36.95
28	M9510100403	DECAL: CAUTION BATTERY CONNECT	1	M91010040	ADD TO CART
DECAL: CAUTION BATTERY CONNECT M9510100403 · qty on machine: 1 M91010040 view full part page → $16.95
29	M9501500004	DECAL: DIESEL FUEL	1	M90150000	ADD TO CART
DECAL: DIESEL FUEL M9501500004 · qty on machine: 1 M90150000 view full part page → $3.95
30	M9500000004	DECAL: OIL DRAIN	1	M90000000	ADD TO CART
DECAL: OIL DRAIN M9500000004 · qty on machine: 1 M90000000 view full part page → $2.95
31	M9510000104	DECAL: DOCUMENT BOX LOCATED	1	M91000010	ADD TO CART
DECAL: DOCUMENT BOX LOCATED M9510000104 · qty on machine: 1 M91000010 view full part page → $4.95
32	M9511100004	DECAL: ENVIRONMENTAL WARNING	1	M91110000	ADD TO CART
DECAL: ENVIRONMENTAL WARNING M9511100004 · qty on machine: 1 M91110000 view full part page → $6.95
33	M9503200104	DECAL: DANGER EX. GAS (INDOOR)	1	M90320010	ADD TO CART
DECAL: DANGER EX. GAS (INDOOR) M9503200104 · qty on machine: 1 M90320010 view full part page → $4.95
34	920214100	DECAL: WARNING START FIRES	1	REPLACES P/N M9504200004 M90420000	ADD TO CART
DECAL: WARNING START FIRES 920214100 · qty on machine: 1 REPLACES P/N M9504200004 M90420000 view full part page → $12.95
35	M2550002303	OPERATING PRECAUTIONS	1	M25000230 S/N 8730268 AND BELOW	ADD TO CART
OPERATING PRECAUTIONS M2550002303 · qty on machine: 1 M25000230 S/N 8730268 AND BELOW view full part page → $11.95
35	M1551001503	OPERATING PRECAUTIONS	1	M15000150 S/N 8730269 AND ABOVE	ADD TO CART
OPERATING PRECAUTIONS M1551001503 · qty on machine: 1 M15000150 S/N 8730269 AND ABOVE view full part page → $9.95
36	M9510000004	DECAL: FLUID DRAIN	1	M91000000	ADD TO CART
DECAL: FLUID DRAIN M9510000004 · qty on machine: 1 M91000000 view full part page → $26.95
37	M1550001504	CAUTION: LIFTING CAPACITY	1	M15000150	ADD TO CART
CAUTION: LIFTING CAPACITY M1550001504 · qty on machine: 1 M15000150 view full part page → $35.95
38	M9500100304	INTER-COOLER DRAIN	1	M90010030	ADD TO CART
INTER-COOLER DRAIN M9500100304 · qty on machine: 1 M90010030 view full part page → $1.95

Page 44 — NAMEPLATE AND DECALS ASSY. (CONT'D.)

Multiquip DCA36SPXU4F Generator NAMEPLATE AND DECALS ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed8 rows

No.	Part No.	Part Name	Qty	Remarks
39	M9511200204	STICKER: MQ	1	M91120020	ADD TO CART
STICKER: MQ M9511200204 · qty on machine: 1 M91120020 view full part page → $5.95
40	0600500092	EMBLEM	1		ADD TO CART
EMBLEM 0600500092 · qty on machine: 1 view full part page → $21.95
41	0021106015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021106015 · qty on machine: 4 view full part page → $0.17
42	M9511200103	TIER 4F	1	M91120010	ADD TO CART
TIER 4F M9511200103 · qty on machine: 1 M91120010 view full part page → $17.95
43	M9504200104	DECAL: WARNING PROPOSITION	65	1 M90420100 S/N 8730231 AND ABOVE	ADD TO CART
DECAL: WARNING PROPOSITION M9504200104 · qty on machine: 65 1 M90420100 S/N 8730231 AND ABOVE view full part page → $4.95
44	M9521002804	DECAL: EMERGENCY STOP BUTTON	1	M92100280 S/N 8730269 AND ABOVE	ADD TO CART
DECAL: EMERGENCY STOP BUTTON M9521002804 · qty on machine: 1 M92100280 S/N 8730269 AND ABOVE view full part page → $3.95
45	M1551001704	DECAL: NOTICE RELEASE E-STOP	1	M15100170 S/N 8730324 AND ABOVE	ADD TO CART
DECAL: NOTICE RELEASE E-STOP M1551001704 · qty on machine: 1 M15100170 S/N 8730324 AND ABOVE view full part page → $1.95
46	M1551001904	DECAL:OUTPUT TERM. BOLT TQ	1	M15100190 S/N 8730366 AND ABOVE	PARTS REQUEST
PHOTO COMING DECAL:OUTPUT TERM. BOLT TQ M1551001904 · qty on machine: 1 M15100190 S/N 8730366 AND ABOVE PARTS REQUEST

The machine itself

Price by quote Get a quote

Tell us where the machine is headed and we'll quote it with freight. One call, no games.

The Multiquip DCA36SPXU4F is a generator built for portable jobsite power for tools, lighting, and equipment. Factory-documented specs and parts support; priced by quote.

Keep-it-running spares

All listed parts →

Every part that fits this machine

0071906309 Multiquip 0071906309 Bearing DENYO - OEM Replacement Part for Super Silent Generators $160.95

0191301100 Multiquip 0191301100 Hose Suction Denyo - OEM Replacement Part $46.95

0191301150 Multiquip 0191301150 Hose Suction 85SSK - OEM Replacement Part for Super Silent Generators $47.95

0228901390 Multiquip 0228901390 Seal Rubber Denyo - OEM Replacement Part for Super Silent Generators $44.95

0269200640 Multiquip 0269200640 Drain Hose Denyo - OEM Replacement Part for Super Silent Generators $40.95

0600800320 Multiquip 0600800320 Manual Pak Denyo - OEM Replacement Part $43.95

0601800271 Multiquip 0601800271 AC Voltmeter DENYO - OEM Replacement Part $156.95

0601800682 Multiquip 0601800682 Hour Meter Denyo - OEM Replacement Part $116.95

0601801040 Multiquip 0601801040 Switch C/Over Ammeter 25,40,85,125,150 - OEM Replacement Part $95.95

0601801124 Multiquip 0601801124 Transformer Denyo - OEM Replacement Part for Super Silent Generators $97.95

0601806845 Multiquip 0601806845 AC Ammeter Denyo - OEM Replacement Part $227.95

0601820083 Multiquip 0601820083 Rectifier with Instruction 8.8 - OEM Replacement Part for Super Silent Generators $33.95

0601820626 Multiquip 0601820626 Automatic Voltage Regulator Denyo - OEM Replacement Part $2,354.95

0601830762 Multiquip 0601830762 Switch Selector Auto/Manual - OEM Replacement Part $36.95

0601840073 Multiquip 0601840073 Rheostat Voltage Regulator for 150SSK and DCA Series Generators - OEM Replacement Part $90.95

0601870434 Multiquip 0601870434 Circuit Breaker DENYO - OEM Replacement Part $2,427.95

0601870440 Multiquip 0601870440 Circuit Breaker DENYO - OEM Replacement Part $34.95

0601870441 Multiquip 0601870441 Circuit Breaker DENYO - OEM Replacement Part $77.95

0602040651 Multiquip 0602040651 Indicator A/C Denyo - OEM Replacement Part $52.95

0602103092 Multiquip 0602103092 Lamp Alarm Charge Red - OEM Replacement Part $36.95

0602220199 Multiquip 0602220199 Battery (Wet) DENYO - OEM Replacement Part $288.95

0603306590 Multiquip 0603306590 Male Bulkhead Connector - OEM Replacement Part for Denyo Generators $86.95

0605511395 Multiquip 0605511395 Ball Valve DENYO - OEM Replacement Part $46.95

0845031303 Multiquip 0845031303 Reserve Fuel Tank - OEM Replacement Part for Super Silent Generators $45.95

5825500290 Multiquip 5825500290 Relay Assembly Blower - OEM Replacement Part $65.95

8121468300 Multiquip 8121468300 Sensor DCA-400SSI,4HK1 - OEM Replacement Part $215.95

82608 Multiquip 82608 Toggle Switch Denyo Mods - OEM Replacement Part for Super Silent Generators $34.95

8972177780 Multiquip 8972177780 Sensor DCA-400SSI - OEM Replacement Part $174.95

8975062140 Multiquip 8975062140 Control Unit - OEM Replacement Part for WhisperWatt Generators $4,844.95

8980756710 Multiquip 8980756710 Filter Assembly Isuzu - OEM Replacement Part $507.95

8981924670 Multiquip 8981924670 HEATER PCV - OEM Replacement Part $196.95

8982353890 Multiquip 8982353890 DOC - OEM Replacement Part $5,850.95

8982369900 Multiquip 8982369900 Fuel Filter Main - OEM Replacement Part for DCA Generators $317.95

8982369910 Multiquip 8982369910 Fuel Filter Pre - OEM Replacement Part $286.95

B3111100603 Multiquip B3111100603 Fan DCA-45USI2 - OEM Replacement Part for Super Silent Generators $232.95

B3120100804 Multiquip B3120100804 Holder ZNR - OEM Replacement Part for Super Silent Generators $140.95

B3131300004 Multiquip B3131300004 End Bracket Cover (JP) - OEM Replacement Part $142.95

B3131300804 Multiquip B3131300804 End Bracket Cover for DCA Generator - OEM Replacement Part $60.95

B3153000513 Multiquip B3153000513 End Bracket for DCA Series Generators - OEM Replacement Part $636.95

B3153400404 Multiquip B3153400404 Bearing Cover for DCA Series Generators - OEM Replacement Part $40.95

B3163100204 Multiquip B3163100204 Coupling Disc (JP) - OEM Replacement Part for Super Silent Generators $89.95

B3163200104 Multiquip B3163200104 Washer Coupler - OEM Replacement Part for Super Silent Generators $112.95

B5110000402 Multiquip B5110000402 Rotor Assembly - OEM Replacement Generator Part $9,560.95

EE10814 Multiquip EE10814 Tank Heater Kim Hotstart 120V 1000W - OEM Replacement Part $191.95

EE55989 Multiquip EE55989 Emergency Stop Switch 22mm 1NO 1NC - OEM Replacement Part $82.95

EE62075 Multiquip EE62075 Battery Charger MicroGenius LE 6 Amp 12V - OEM Replacement Part $361.95

EE62076 Multiquip EE62076 Inlet Receptacle & Cord NEMA 5-15P 15A 125V - OEM Replacement Part $66.95

LY2DUS12VDC Multiquip LY2DUS12VDC Relay with Diode - OEM Replacement Part for DCA Generators $46.95

M1164400203 Multiquip M1164400203 Coupling Ring Denyo - OEM Replacement Part for Super Silent Generators $1,321.95

M1213500704 Multiquip M1213500704 Control Box Cover DENYO - OEM Replacement Part $40.95

M1230700303 Multiquip M1230700303 Terminal Panel DENYO - OEM Replacement Part for Super Silent Generators $195.95

M1236100704 Multiquip M1236100704 Window Output Terminal - OEM Replacement Part $52.95

M1247702104 Multiquip M1247702104 Wire Harness Denyo - OEM Replacement Part $722.95

M1304200104 Multiquip M1304200104 Engine Foot Textured Black - OEM Replacement Part for Super Silent Generators $98.95

M1311200604 Multiquip M1311200604 Radiator Bracket Denyo - OEM Replacement Part $77.95

M1311200704 Multiquip M1311200704 Radiator Bracket - OEM Replacement Part for Super Silent Generators $77.95

M1311300503 Multiquip M1311300503 Shroud Denyo - OEM Replacement Part for Super Silent Generators $154.95

M1311300603 Multiquip M1311300603 E-Coat Shroud - OEM Replacement Part for Super Silent Generators $151.95

M1311300803 Multiquip M1311300803 Fan Guard E-Coat - OEM Replacement Part for Super Silent Generators $72.95

M1311400004 Multiquip M1311400004 Inter-Cooler Pipe DENYO - OEM Replacement Part $47.95

M1311500703 Multiquip M1311500703 Radiator Hose Lower Denyo - OEM Replacement Part $74.95

M1311500803 Multiquip M1311500803 Inter Cooler Hose - OEM Replacement Part for Super Silent Generators $1,246.95

M1311500903 Multiquip M1311500903 Inter-Cooler Hose Upper/Lower DENYO - OEM Replacement Part $216.95

M1311501003 Multiquip M1311501003 Inter-Cooler Hose Upper/Lower DENYO - OEM Replacement Part $313.95

M1324300004 Multiquip M1324300004 Oil Filter Hose Denyo - OEM Replacement Part for Super Silent Generators $248.95

M1324400004 Multiquip M1324400004 Oil Filter Bracket - OEM Replacement Part for Super Silent Generators $195.95

M1331400604 Multiquip M1331400604 Exhaust Heat Shield - OEM Replacement Part for Super Silent Generators $335.95

M1331400704 Multiquip M1331400704 Exhaust Heat Shield (JP) - OEM Replacement Part $450.95

M1331400804 Multiquip M1331400804 Exhaust Heat Shield (JP) - OEM Replacement Part $410.95

M1334000803 Multiquip M1334000803 Exhaust Pipe DENYO - OEM Replacement Part for Super Silent Generators $814.95

M1358200302 Multiquip M1358200302 Controller Wiring Harness Denyo - OEM Replacement Part $2,137.95

M1358201702 Multiquip M1358201702 Wire Harness Engine Denyo - OEM Replacement Part $930.95

M1358202204 Multiquip M1358202204 Pressure Switch Harness - OEM Replacement Part for Super Silent Generators $65.95

M1363200404 Multiquip M1363200404 Bank Tank E-Coat DENYO - OEM Replacement Part $108.95

M1364000202 Multiquip M1364000202 Fuel Tank - OEM Replacement Part for Super Silent Generators $1,178.95

M1364200004 Multiquip M1364200004 Tank Band E-Coat - OEM Replacement Part for Super Silent Generators $38.95

M1374100503 Multiquip M1374100503 Air Cleaner Hose - OEM Replacement Part for Denyo Super Silent Generators $59.95

M1374100603 Multiquip M1374100603 Air Cleaner Hose - OEM Replacement Part for Super Silent Generators $124.95

M1374100703 Multiquip M1374100703 Air Cleaner Hose - OEM Replacement Part for Super Silent Generators $66.95

M1374200214 Multiquip M1374200214 Air Cleaner Pipe Bracket - OEM Replacement Part $39.95

M1414000602 Multiquip M1414000602 Base (Black Only) Denyo - OEM Replacement Part $1,977.95

M1414800003 Multiquip M1414800003 Tank Environmental - OEM Replacement Part for Super Silent Generators $1,602.95

M1414800404 Multiquip M1414800404 Fuel Leak Switch DENYO - OEM Replacement Part $118.95

M1424000712 Multiquip M1424000712 Front Frame Denyo White - OEM Replacement Part for Super Silent Generators $1,058.95

M1424100004 Multiquip M1424100004 Front Frames Cover (White) - OEM Replacement Part for Super Silent Generators $160.95

M1434000303 Multiquip M1434000303 Center Frame (White) - OEM Replacement Part for Denyo Generators $211.95

M1444800403 Multiquip M1444800403 Duct Rear Cover - OEM Replacement Part for Super Silent Generators $427.95

M1445600204 Multiquip M1445600204 Window Plate Denyo - OEM Replacement Part for Super Silent Generators $57.95

M1454001003 Multiquip M1454001003 Side Door - OEM Replacement Part for Super Silent Generators $405.95

M1454200702 Multiquip M1454200702 Splasher Panel Denyo - OEM Replacement Part for Super Silent Generators $343.95

M1454300404 Multiquip M1454300404 Duct Denyo - OEM Replacement Part for Super Silent Generators $196.95

M1454300604 Multiquip M1454300604 Duct Denyo - OEM Replacement Part for Super Silent Generators $114.95

M1454300703 Multiquip M1454300703 Duct Assembly - OEM Replacement Part for Super Silent Generators $124.95

M1464000212 Multiquip M1464000212 Roof Panel White DENYO - OEM Replacement Part for Super Silent Generators $1,826.95

M1484500204 Multiquip M1484500204 Fuel Filter Bracket - OEM Replacement Part for Super Silent Generators $134.95

M1494102004 Multiquip M1494102004 Acoustic Sheet Denyo - OEM Replacement Part $192.95

M1494302503 Multiquip M1494302503 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $163.95

M1494401404 Multiquip M1494401404 Acoustic Sheet Denyo - OEM Replacement Part $282.95

M1494401504 Multiquip M1494401504 Acoustic Sheet Denyo - OEM Replacement Part $59.95

M1494401703 Multiquip M1494401703 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $265.95

M1494401904 Multiquip M1494401904 Acoustic Sheet Denyo - OEM Replacement Part $59.95

M1494402104 Multiquip M1494402104 Acoustic Sheet Denyo - OEM Replacement Part $79.95

M1494402204 Multiquip M1494402204 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $79.95

M1550000703 Multiquip M1550000703 Decal Aux Output - OEM Replacement Part $36.95

M1550002203 Multiquip M1550002203 Decal Auxiliary Output Denyo - OEM Replacement Part $33.95

M1561102303 Multiquip M1561102303 DENYO (KY) Component - OEM Replacement Part for Super Silent Generators $56.95

M2233000004 Multiquip M2233000004 Output Terminal Bolt - OEM Replacement Part for Denyo Generators $70.95

M2316100304 Multiquip M2316100304 Reserve Tank Bracket - OEM Replacement Part for Super Silent Generators $73.95

M2346900204 Multiquip M2346900204 Battery Cable Positive Denyo - OEM Replacement Part $97.95

M2346900304 Multiquip M2346900304 Battery Cable Negative Denyo - OEM Replacement Part $149.95

M9103000304 Multiquip M9103000304 Battery Band - OEM Replacement Part $72.95

M9510100004 Multiquip M9510100004 Hot Parts Caution Safety Decal - OEM Replacement Part $68.95

M9520000504 Multiquip M9520000504 Denyo Contact Information Decal - OEM Replacement Part $67.95

P822769 Multiquip P822769 Air Filter Safety Element - OEM Replacement Part $100.95

PTF08A Multiquip PTF08A Relay Base - OEM Replacement Part $47.95

Y0269200490 Multiquip Y0269200490 Drain Hose Denyo - OEM Replacement Part $33.95

Y0601810170 Multiquip Y0601810170 Panel Light Denyo - OEM Replacement Part $142.95

Y0601814014 Multiquip Y0601814014 Receptacle - OEM Replacement Part for Super Silent Generators $76.95

Y0601814034 Multiquip Y0601814034 GFCI Receptacle 5-20R (KY) - OEM Replacement Part $91.95

Y0601814453 Multiquip Y0601814453 Preheat Lamp (JP) - OEM Replacement Part for Super Silent Generators $36.95

Y0601816538 Multiquip Y0601816538 Terminal Denyo - OEM Replacement Part for Super Silent Generators $51.95

Y0601831345 Multiquip Y0601831345 3-Pole Switch - OEM Replacement Part $49.95

Y0601831953 Multiquip Y0601831953 Emergency Denyo - OEM Replacement Part $152.95

Y0602022534 Multiquip Y0602022534 Adapter Denyo - OEM Replacement Part $125.95

Y0602040553 Multiquip Y0602040553 Air Cleaner Band - OEM Replacement Part $43.95

Y0602046590 Multiquip Y0602046590 Air Cleaner Denyo - OEM Replacement Part $248.95

Y0602202653 Multiquip Y0602202653 Controller Denyo - OEM Replacement Part for Super Silent Generators $1,140.95

Y0605012309 Multiquip Y0605012309 Door Handle with Bolts - OEM Replacement Part $49.95

Y0605501056 Multiquip Y0605501056 Fuel Sender - OEM Replacement Part for Super Silent Generators $165.95

Y0605515264 Multiquip Y0605515264 Hose Band Denyo - OEM Replacement Part for Super Silent Generators $42.95

0010304016 HEX. HEAD BOLT $2.72

0013616040 HEX. HEAD BOLT $5.95

0016008060 HEX SOCKET HEAD CAP SCREW $2.95

0016906015 HEX. HEAD BOLT $0.95

0016910030 HEX. HEAD BOLT $2.95

0017106016 HEX. HEAD BOLT $1.51

0017108035 HEX. HEAD BOLT $1.95

0017112025 HEX. HEAD BOLT $2.93

0019108055 HEX. HEAD BOLT $3.95

0019112030 HEX. HEAD BOLT $5.95

0019206015 HEX. HEAD BOLT $3.95

0019208020 HEX. HEAD BOLT $3.95

0021004040 MACHINE SCREW $0.64

0027103010 MACHINE SCREW $0.44

0027103015 MACHINE SCREW $0.64

0027104020 MACHINE SCREW $0.40

0027105010 MACHINE SCREW $0.56

0027105015 MACHINE SCREW $0.20

0027208025 MACHINE SCREW $0.76

0029205012 MACHINE SCREW $1.45

0030012000 HEX. NUT $0.50

0039312000 HEX. NUT $0.46

0040006000 WASHER, LOCK $0.17

0040008000 WASHER, LOCK $0.63

0040012000 WASHER, LOCK $0.95

0040016000 WASHER, LOCK $4.95

0040508000 TOOTHED WASHER $0.35

0040512000 TOOTHED WASHER $0.77

0041216000 WASHER, FLAT $1.95

0041412000 WASHER, FLAT $2.95

0042308000 WASHER, LOCK $0.83

0042312000 WASHER, LOCK $0.94

0042508000 WASHER, LOCK $0.62

0046512000 WASHER, FLAT $3.95

0105091025 HEX. HEAD BOLT $0.68

011008020 HEX. HEAD BOLT $2.68

011106015 HEX. HEAD BOLT $0.69

011206020 MACHINE SCREW $0.95

011208025 HEX. HEAD BOLT $0.41

011208030 HEX. HEAD BOLT $1.30

012010030 HEX. HEAD BOLT $0.95

012210020 HEX. HEAD BOLT $0.95

012210035 HEX. HEAD BOLT $1.95

012212045 HEX. HEAD BOLT $2.95

014208020 HEX. HEAD BOLT $0.77

0176060030 SELF-LOCKING NUT $2.95

0191300530 SUCTION HOSE $14.95

0191300550 SUCTION HOSE $2.95

0191300950 SUCTION HOSE $9.95

0193600165 HOSE

0193601500 OVER FLOW HOSE $19.95

0199900450 OVER FLOW HOSE $8.95

020106050 NUT $0.12

020108060 SELF-LOCKING NUT $0.28

0204004000 U NUT $1.53

0207003000 SELF-LOCKING NUT $0.21

0222100100 CUSHION RUBBER $6.95

0222100150 CUSHION RUBBER $6.95

0228100340 RUBBER SEAL $1.95

0228800470 RUBBER SEAL $8.95

0228800510 RUBBER SEAL $8.95

0228800515 RUBBER SEAL $11.95

0228900475 RUBBER SEAL $12.95

0228900660 RUBBER SEAL $24.95

0228900960 RUBBER SEAL $25.95

0229200880 RUBBER SEAL $5.95

0229200950 RUBBER SEAL $9.95

031108160 WASHER, FLAT

031110160 WASHER, FLAT $0.40

031112230 WASHER, FLAT $0.95

From the guides desk

Guide · 2026-08-04

Ask ARIA about your machine.

Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.

Chat with ARIA

Multiquip DCA36SPXU4F Generator

The parts bench

The machine itself

Machine

Engine

Keep-it-running spares

Every part that fits this machine

Service notices & part changes

Take the factory book with you

Get the download pack

From the guides desk

Multiquip DCA Generator Fault Shutdown and Controller Reset Guide

Multiquip Generator No-Start and No-Power Fixes

Multiquip DCA Generator Fault Codes and Diagnostics Guide

Ask ARIA about your machine.

Your cart is empty

Your cart is empty
