Multiquip DCA45SSIU4FC8 Generator

Name: Multiquip DCA45SSIU4FC8 Generator
Brand: Multiquip

The parts bench

Need the PDF? ↓

Page 6 — GENERATOR ASSY.

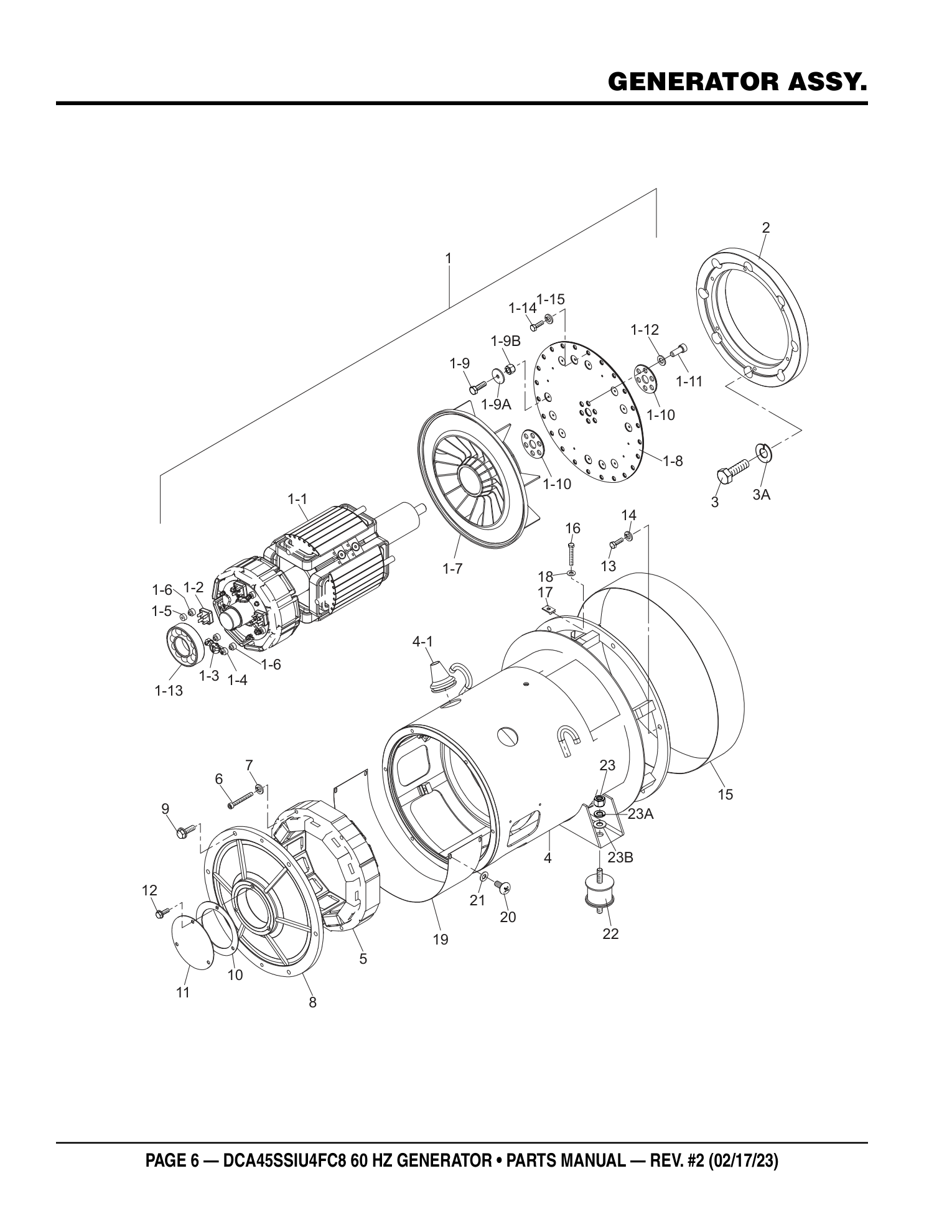

Multiquip DCA45SSIU4FC8 Generator GENERATOR ASSY. parts diagram

Parts list — exactly as printed44 rows

No.	Part No.	Part Name	Qty	Remarks
1	B3110100702	ROTOR ASSY	1	INCLUDES ITEMS W/$	ADD TO CART
ROTOR ASSY B3110100702 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 1-1$, 1-2$, 1-3$, 1-4$, 1-5$, 1-6$, 1-7$, 1-8$, 1-10$, 1-11$, 1-12$, 1-13$ view full part page → $8302.95 IN A KIT + SOLD SOLO
1-1$		FIELD ASSY.	1		INCLUDED IN KIT
PHOTO COMING FIELD ASSY. · qty on machine: 1 Included in kit 1 - ROTOR ASSY (B3110100702) INCLUDED IN KIT
1-2$	0601820083	RECTIFIER, S25VB60	3		ADD TO CART
RECTIFIER, S25VB60 0601820083 · qty on machine: 3 Also included in kit 1 - ROTOR ASSY (B3110100702) view full part page → $33.95 IN A KIT + SOLD SOLO
1-3$	0601822664	ZNR	1		ADD TO CART
ZNR 0601822664 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (B3110100702) view full part page → $18.95 IN A KIT + SOLD SOLO
1-4$	B3120100804	HOLDER, ZNR	1		ADD TO CART
HOLDER, ZNR B3120100804 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (B3110100702) view full part page → $140.95 IN A KIT + SOLD SOLO
1-5$	B3120100604	INSULATOR WASHER	3		ADD TO CART
INSULATOR WASHER B3120100604 · qty on machine: 3 Also included in kit 1 - ROTOR ASSY (B3110100702) view full part page → $1.95 IN A KIT + SOLD SOLO
1-6$	B3120100704	INSULATOR WASHER	5		ADD TO CART
INSULATOR WASHER B3120100704 · qty on machine: 5 Also included in kit 1 - ROTOR ASSY (B3110100702) view full part page → $1.95 IN A KIT + SOLD SOLO
1-7$	B3111100603	FAN	1		ADD TO CART
FAN B3111100603 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (B3110100702) view full part page → $232.95 IN A KIT + SOLD SOLO
1-8$	B3163100204	COUPLING DISK	3	PURCHASE ITEM 1-9 AS A SET	ADD TO CART
COUPLING DISK B3163100204 · qty on machine: 3 PURCHASE ITEM 1-9 AS A SET Also included in kit 1 - ROTOR ASSY (B3110100702) view full part page → $89.95 IN A KIT + SOLD SOLO
1-9	Y0019104016	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT Y0019104016 · qty on machine: 1 view full part page → $0.62
1-9A	B4163700004	BALANCING WEIGHT	1		ADD TO CART
BALANCING WEIGHT B4163700004 · qty on machine: 1 view full part page → $3.99
1-9B	Y0204104000	U-NUT	1		ADD TO CART
U-NUT Y0204104000 · qty on machine: 1 view full part page → $2.59
1-10$	B3163200104	COUPLING WASHER	2		ADD TO CART
COUPLING WASHER B3163200104 · qty on machine: 2 Also included in kit 1 - ROTOR ASSY (B3110100702) view full part page → $112.95 IN A KIT + SOLD SOLO
1-11$	0342612030	HEX. SOCKET HEAD CAP SCREW	6		ADD TO CART
HEX. SOCKET HEAD CAP SCREW 0342612030 · qty on machine: 6 Also included in kit 1 - ROTOR ASSY (B3110100702) view full part page → $2.82 IN A KIT + SOLD SOLO
1-12$	0046512000	WASHER, FLAT	6		ADD TO CART
WASHER, FLAT 0046512000 · qty on machine: 6 Also included in kit 1 - ROTOR ASSY (B3110100702) view full part page → $3.95 IN A KIT + SOLD SOLO
1-13$	0071906309	BEARING	1		ADD TO CART
BEARING 0071906309 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (B3110100702) view full part page → $160.95 IN A KIT + SOLD SOLO
1-14	014208020	HEX. HEAD BOLT	6	REPLACES P/N 0010308020	ADD TO CART
HEX. HEAD BOLT 014208020 · qty on machine: 6 REPLACES P/N 0010308020 view full part page → $0.77
1-15	0040008000	WASHER, LOCK	6		ADD TO CART
WASHER, LOCK 0040008000 · qty on machine: 6 view full part page → $0.63
2	M1164400203	COUPLING RING	1		ADD TO CART
COUPLING RING M1164400203 · qty on machine: 1 view full part page → $1321.95
3	012210035	HEX. HEAD BOLT	8	REPLACES P/N 0010310035	ADD TO CART
HEX. HEAD BOLT 012210035 · qty on machine: 8 REPLACES P/N 0010310035 view full part page → $1.95
3A	0040010000	WASHER, LOCK	8		ADD TO CART
WASHER, LOCK 0040010000 · qty on machine: 8 view full part page → $0.39
4	B3130101003	STATOR ASSY	1	INCLUDES ITEMS W/#	ADD TO CART
STATOR ASSY B3130101003 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 4-1# view full part page → $8554.95 IN A KIT + SOLD SOLO
4-1#	0845041904	GROMMET	2		ADD TO CART
GROMMET 0845041904 · qty on machine: 2 Also included in kit 4 - STATOR ASSY (B3130101003) view full part page → $11.95 IN A KIT + SOLD SOLO
5	B3137000803	FIELD ASSY., EXCITER	1		ADD TO CART
FIELD ASSY., EXCITER B3137000803 · qty on machine: 1 view full part page → $1882.95
6	0016008060	HEX. SOCKET HEAD CAP SCREW	4		ADD TO CART
HEX. SOCKET HEAD CAP SCREW 0016008060 · qty on machine: 4 view full part page → $2.95
7	0042508000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0042508000 · qty on machine: 4 view full part page → $0.62
8	B3153000513	END BRACKET	1		ADD TO CART
END BRACKET B3153000513 · qty on machine: 1 view full part page → $636.95
9	0017108035	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0017108035 · qty on machine: 6 view full part page → $1.95
10	B3153400504	PACKING	1		ADD TO CART
PACKING B3153400504 · qty on machine: 1 view full part page → $25.95
11	B3153400404	COVER, SUCTION	1		ADD TO CART
COVER, SUCTION B3153400404 · qty on machine: 1 view full part page → $40.95
12	0017106016	HEX. HEAD BOLT	3		ADD TO CART
HEX. HEAD BOLT 0017106016 · qty on machine: 3 view full part page → $1.51
13	0105091025	HEX. HEAD BOLT	6	REPLACES P/N 0010310025	ADD TO CART
HEX. HEAD BOLT 0105091025 · qty on machine: 6 REPLACES P/N 0010310025 view full part page → $0.68
14	0040010000	WASHER, LOCK	6		ADD TO CART
WASHER, LOCK 0040010000 · qty on machine: 6 view full part page → $0.39
15	B3131300004	COVER, END BRACKET	1		ADD TO CART
COVER, END BRACKET B3131300004 · qty on machine: 1 view full part page → $142.95
16	0340406040	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0340406040 · qty on machine: 1 view full part page → $2.68
17	020106050	NUT, USN-6001	1	REPLACES P/N 0600815000	ADD TO CART
NUT, USN-6001 020106050 · qty on machine: 1 REPLACES P/N 0600815000 view full part page → $0.12
18	952404470	WASHER, FLAT	1	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 1 REPLACES P/N 0041206000 view full part page → $0.19
19	B3131300804	COVER, END BRACKET	1		ADD TO CART
COVER, END BRACKET B3131300804 · qty on machine: 1 view full part page → $60.95
20	0029205012	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0029205012 · qty on machine: 4 view full part page → $1.45
21	0401450050	WASHER, FLAT	4	REPLACES P/N 0041205000	ADD TO CART
WASHER, FLAT 0401450050 · qty on machine: 4 REPLACES P/N 0041205000 Factory replaced this part - current number 58151 view full part page → $0.41 IN A KIT + SOLD SOLO
22	Y0605000407	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION Y0605000407 · qty on machine: 2 view full part page → $47.95
23	0030012000	HEX. NUT	2		ADD TO CART
HEX. NUT 0030012000 · qty on machine: 2 view full part page → $0.5
23A	0040012000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040012000 · qty on machine: 2 view full part page → $0.95
23B	031112230	WASHER, FLAT	2	REPLACES P/N 0041212000	ADD TO CART
WASHER, FLAT 031112230 · qty on machine: 2 REPLACES P/N 0041212000 view full part page → $0.95

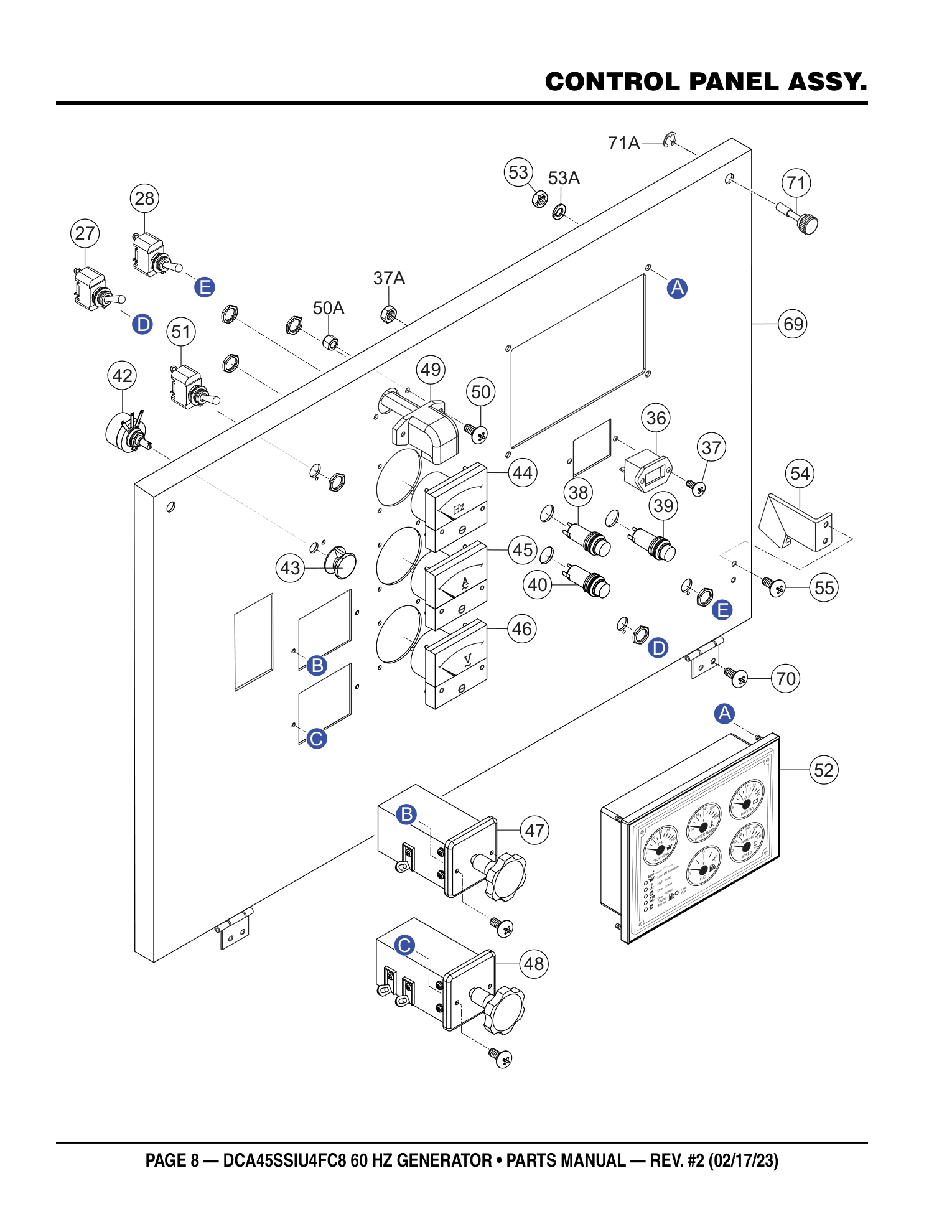

Page 8 — CONTROL PANEL ASSY.

Multiquip DCA45SSIU4FC8 Generator CONTROL PANEL ASSY. parts diagram

Parts list — exactly as printed29 rows

No.	Part No.	Part Name	Qty	Remarks
27	82608	AUTO START/STOP SWITCH	1	REPLACES P/N 0601831340	ADD TO CART
AUTO START/STOP SWITCH 82608 · qty on machine: 1 REPLACES P/N 0601831340 view full part page → $34.95
28	0601830710	ENGINE SPEED SWITCH	1		ADD TO CART
ENGINE SPEED SWITCH 0601830710 · qty on machine: 1 view full part page → $29.95
36	0601800682	HOUR METER #82014	1	S/N 9810011 AND BELOW	ADD TO CART
HOUR METER #82014 0601800682 · qty on machine: 1 S/N 9810011 AND BELOW view full part page → $116.95
36	Y0601800674	HOUR METER LD12F1RS-B	1	S/N 9810012 AND ABOVE	ADD TO CART
HOUR METER LD12F1RS-B Y0601800674 · qty on machine: 1 S/N 9810012 AND ABOVE view full part page → $87.95
37	0027103015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027103015 · qty on machine: 2 view full part page → $0.64
37A	0207003000	SELF-LOCKING NUT	2		ADD TO CART
SELF-LOCKING NUT 0207003000 · qty on machine: 2 view full part page → $0.21
38	Y0601814453	FUEL LEAK DETECTED ALARM LAMP	1		ADD TO CART
FUEL LEAK DETECTED ALARM LAMP Y0601814453 · qty on machine: 1 view full part page → $36.95
39	Y0601814453	PREHEAT LAMP	1		ADD TO CART
PREHEAT LAMP Y0601814453 · qty on machine: 1 view full part page → $36.95
40	Y0601814453	WARNING LAMP	1	INCLUDES ITEM W/%	ADD TO CART
WARNING LAMP Y0601814453 · qty on machine: 1 INCLUDES ITEM W/% view full part page → $36.95
42	0601840073	RHEOSTAT (VR) 2W 1KΩ	1		ADD TO CART
RHEOSTAT (VR) 2W 1KΩ 0601840073 · qty on machine: 1 view full part page → $90.95
43	0601840100	KNOB, 25N	1	REPLACES P/N 0601840121	ADD TO CART
KNOB, 25N 0601840100 · qty on machine: 1 REPLACES P/N 0601840121 view full part page → $30.95
44	0601807641	FREQUENCY METER 45~65HZ 240V	1		ADD TO CART
FREQUENCY METER 45~65HZ 240V 0601807641 · qty on machine: 1 view full part page → $591.95
45	0601808986	AC AMMETER, 0~75A, 0~150A/5A	1		ADD TO CART
AC AMMETER, 0~75A, 0~150A/5A 0601808986 · qty on machine: 1 view full part page → $262.95
46	0601806859	AC VOLTMETER, 0~600V	1		ADD TO CART
AC VOLTMETER, 0~600V 0601806859 · qty on machine: 1 view full part page → $368.95
47	0601801040	CHANGE-OVER SW., AMMETER, SL-2AS	1		ADD TO CART
CHANGE-OVER SW., AMMETER, SL-2AS 0601801040 · qty on machine: 1 view full part page → $95.95
48	0601801041	CHANGE-OVER SW., VOLTMETER, SL-2VS	1		ADD TO CART
CHANGE-OVER SW., VOLTMETER, SL-2VS 0601801041 · qty on machine: 1 view full part page → $157.95
49	Y0601810170	PANEL LIGHT, 12V	1		ADD TO CART
PANEL LIGHT, 12V Y0601810170 · qty on machine: 1 view full part page → $142.95
50	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
50A	OEMAA8	SELF-LOCKING NUT	2	REPLACES P/N 0207004000	ADD TO CART
SELF-LOCKING NUT OEMAA8 · qty on machine: 2 REPLACES P/N 0207004000 view full part page → $0.4
51	0601830710	PANEL LIGHT SWITCH	1		ADD TO CART
PANEL LIGHT SWITCH 0601830710 · qty on machine: 1 view full part page → $29.95
52	Y0602203074	CONTROLLER, ECU-754	1		PARTS REQUEST
PHOTO COMING CONTROLLER, ECU-754 Y0602203074 · qty on machine: 1 PARTS REQUEST
53	Y0206707000	HEX. NUT	4		ADD TO CART
HEX. NUT Y0206707000 · qty on machine: 4 view full part page → $0.45
53A	Y0044807000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK Y0044807000 · qty on machine: 4 view full part page → $0.45
54	M1224100104	STOPPER	1		ADD TO CART
STOPPER M1224100104 · qty on machine: 1 view full part page → $13.95
55	0027105015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 2 view full part page → $0.2
69	M1224000203	CONTROL PANEL	1		PARTS REQUEST
PHOTO COMING CONTROL PANEL M1224000203 · qty on machine: 1 PARTS REQUEST
70	0027105010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105010 · qty on machine: 4 view full part page → $0.56
71	M9220100004	SET SCREW	2		ADD TO CART
SET SCREW M9220100004 · qty on machine: 2 view full part page → $12.95
71A	0080200007	E-SNAP RING	2		ADD TO CART
E-SNAP RING 0080200007 · qty on machine: 2 view full part page → $1.39

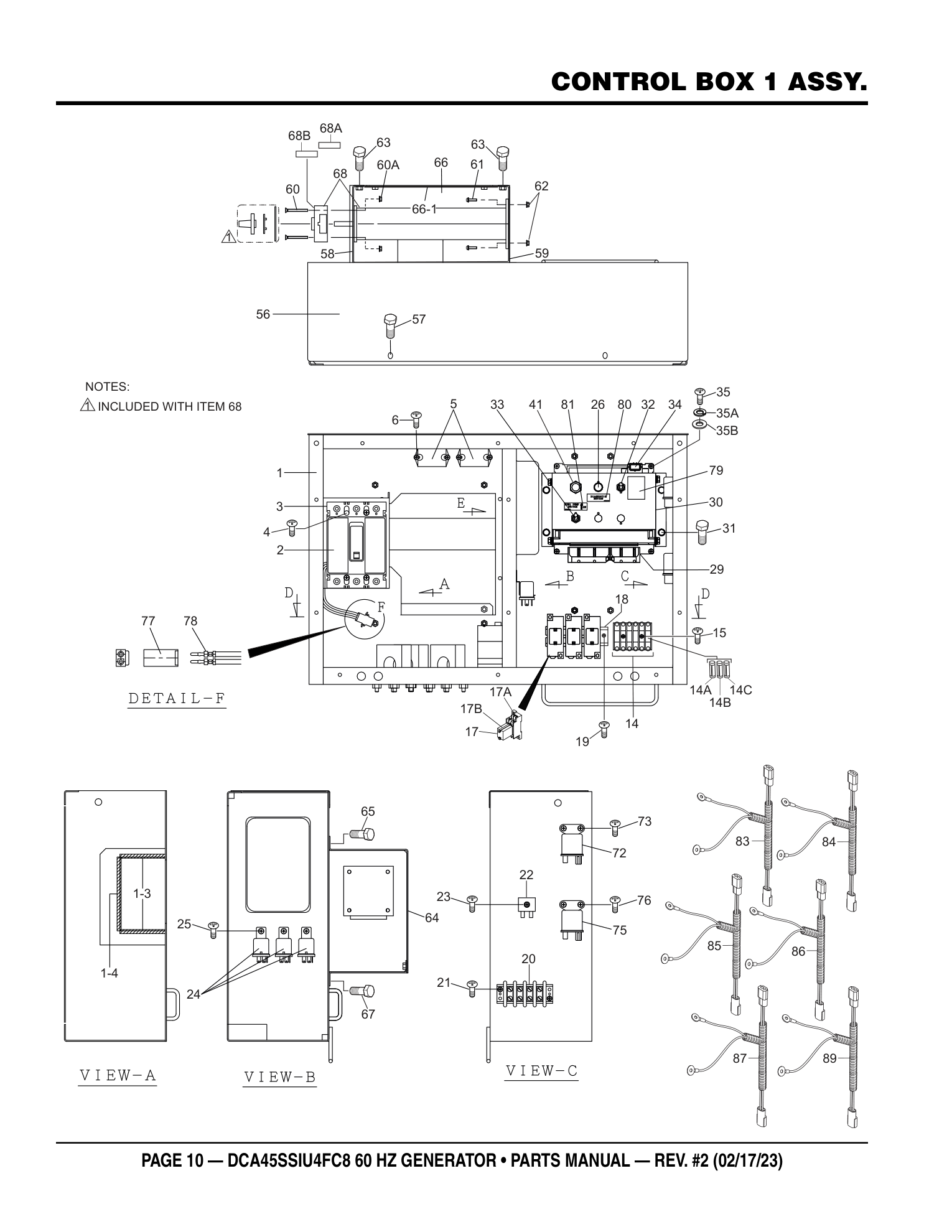

Page 10 — CONTROL BOX 1 ASSY.

Multiquip DCA45SSIU4FC8 Generator CONTROL BOX 1 ASSY. parts diagram

Parts list — exactly as printed46 rows

No.	Part No.	Part Name	Qty	Remarks
1	M1214000412	CONTROL BOX	1		ADD TO CART
CONTROL BOX M1214000412 · qty on machine: 1 view full part page → $204.95
1-3	Y0411100080	EDGING	2		PARTS REQUEST
PHOTO COMING EDGING Y0411100080 · qty on machine: 2 PARTS REQUEST
1-4	Y0411100130	EDGING	1		PARTS REQUEST
PHOTO COMING EDGING Y0411100130 · qty on machine: 1 PARTS REQUEST
2	0601870431	CIRCUIT BREAKER, 3P 110A	1		ADD TO CART
CIRCUIT BREAKER, 3P 110A 0601870431 · qty on machine: 1 view full part page → $898.95
3	0601870490	END CAP KIT	2		ADD TO CART
END CAP KIT 0601870490 · qty on machine: 2 view full part page → $26.95
4	0021004040	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021004040 · qty on machine: 4 view full part page → $0.64
5	0601823863	RELAY UNIT	2		ADD TO CART
RELAY UNIT 0601823863 · qty on machine: 2 view full part page → $159.95
6	7538070	MACHINE SCREW	4	REPLACES P/N 0027104015	ADD TO CART
MACHINE SCREW 7538070 · qty on machine: 4 REPLACES P/N 0027104015 view full part page → $0.52
14	0601802218	HOLDER, FUSE	2	REPLACES P/N Y0601802214	ADD TO CART
HOLDER, FUSE 0601802218 · qty on machine: 2 REPLACES P/N Y0601802214 view full part page → $47.95
14A	0601806671	FUSE, 15A	2		ADD TO CART
FUSE, 15A 0601806671 · qty on machine: 2 view full part page → $3.95
14B	0601802149	FUSE, 10A	3		ADD TO CART
FUSE, 10A 0601802149 · qty on machine: 3 view full part page → $3.95
14C	0601802133	FUSE, 5A	1		ADD TO CART
FUSE, 5A 0601802133 · qty on machine: 1 view full part page → $1.95
15	0027103015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027103015 · qty on machine: 2 view full part page → $0.64
17	LY2DUS12VDC	RELAY	3	REPLACES P/N 0601827656	ADD TO CART
RELAY LY2DUS12VDC · qty on machine: 3 REPLACES P/N 0601827656 view full part page → $46.95
17A	PTF08A	BASE	3	REPLACES P/N 0601823109	ADD TO CART
BASE PTF08A · qty on machine: 3 REPLACES P/N 0601823109 view full part page → $47.95
17B	PYCA1	CLIP	6	REPLACES P/N 0601824400	ADD TO CART
CLIP PYCA1 · qty on machine: 6 REPLACES P/N 0601824400 view full part page → $1.71
18	Y0290000100	MOUNTING RAIL	1		ADD TO CART
MOUNTING RAIL Y0290000100 · qty on machine: 1 view full part page → $27.95
19	0027104010	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104010 · qty on machine: 2 view full part page → $0.33
20	0601815153	TERMINAL BLOCK	1		NO LONGER AVAILABLE
PHOTO COMING TERMINAL BLOCK 0601815153 · qty on machine: 1 NO LONGER AVAILABLE
21	7538070	MACHINE SCREW	2	REPLACES P/N 0027104015	ADD TO CART
MACHINE SCREW 7538070 · qty on machine: 2 REPLACES P/N 0027104015 view full part page → $0.52
22	0601821370	RECTIFIER	2	REPLACES P/N 0601823240	ADD TO CART
RECTIFIER 0601821370 · qty on machine: 2 REPLACES P/N 0601823240 view full part page → $28.95
23	0027104030	MACHINE SCREW	1		ADD TO CART
MACHINE SCREW 0027104030 · qty on machine: 1 view full part page → $0.59
24	5825500290	RELAY	3	REPLACES P/N 0602201400	ADD TO CART
RELAY 5825500290 · qty on machine: 3 REPLACES P/N 0602201400 view full part page → $65.95
25	0027105010	MACHINE SCREW	3		ADD TO CART
MACHINE SCREW 0027105010 · qty on machine: 3 view full part page → $0.56
26	0601831205	PUSH BUTTON SWITCH	1		ADD TO CART
PUSH BUTTON SWITCH 0601831205 · qty on machine: 1 view full part page → $25.95
29	8975062140	ENGINE CONTROLLER (ECM)	1	REPLACES P/N 8982460530	ADD TO CART
ENGINE CONTROLLER (ECM) 8975062140 · qty on machine: 1 REPLACES P/N 8982460530 view full part page → $4844.95
30	M1214600204	CONTROLLER BRACKET	1		PARTS REQUEST
PHOTO COMING CONTROLLER BRACKET M1214600204 · qty on machine: 1 PARTS REQUEST
31	011106015	HEX. HEAD BOLT	8	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 8 REPLACES P/N 0016906015 view full part page → $0.69
32	0601830710	DIAGNOSTIC SWITCH	1		ADD TO CART
DIAGNOSTIC SWITCH 0601830710 · qty on machine: 1 view full part page → $29.95
33	0601830762	FUEL PUMP SWITCH	1		ADD TO CART
FUEL PUMP SWITCH 0601830762 · qty on machine: 1 view full part page → $36.95
34	8972177780	BAROMETRIC PRESSURE SENSOR	1	REPLACES P/N 0602130220	ADD TO CART
BAROMETRIC PRESSURE SENSOR 8972177780 · qty on machine: 1 REPLACES P/N 0602130220 view full part page → $174.95
35	0021005020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0021005020 · qty on machine: 2 view full part page → $0.32
35A	0032005000	WASHER, LOCK	2	REPLACES P/N 0040005000	ADD TO CART
WASHER, LOCK 0032005000 · qty on machine: 2 REPLACES P/N 0040005000 view full part page → $0.41
35B	58151	WASHER, FLAT	2	REPLACES P/N 0041205000	ADD TO CART
WASHER, FLAT 58151 · qty on machine: 2 REPLACES P/N 0041205000 view full part page → $0.41
41	Y0601814453	ALARM LAMP	1		ADD TO CART
ALARM LAMP Y0601814453 · qty on machine: 1 view full part page → $36.95
56	M1213500704	CONTROL BOX COVER	1		ADD TO CART
CONTROL BOX COVER M1213500704 · qty on machine: 1 view full part page → $40.95
57	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0016906015 view full part page → $0.69
58	M1213601104	SWITCH BRACKET	1		ADD TO CART
SWITCH BRACKET M1213601104 · qty on machine: 1 view full part page → $57.95
59	M1213601204	SWITCH BRACKET	1		ADD TO CART
SWITCH BRACKET M1213601204 · qty on machine: 1 view full part page → $63.95
60	0021104035	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021104035 · qty on machine: 4 view full part page → $1.65
60A	OEMAA8	SELF-LOCKING NUT	4	REPLACES P/N 0207004000	ADD TO CART
SELF-LOCKING NUT OEMAA8 · qty on machine: 4 REPLACES P/N 0207004000 view full part page → $0.4
61	7538070	MACHINE SCREW	4	REPLACES P/N 0027104015	ADD TO CART
MACHINE SCREW 7538070 · qty on machine: 4 REPLACES P/N 0027104015 view full part page → $0.52
62	OEMAA8	SELF-LOCKING NUT	4	REPLACES P/N 0207004000	ADD TO CART
SELF-LOCKING NUT OEMAA8 · qty on machine: 4 REPLACES P/N 0207004000 view full part page → $0.4
63	011106015	HEX. HEAD BOLT	8	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 8 REPLACES P/N 0016906015 view full part page → $0.69
64	M1213602604	SWITCH COVER	1		ADD TO CART
SWITCH COVER M1213602604 · qty on machine: 1 view full part page → $215.95
65	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0016906015 view full part page → $0.69

Page 12 — CONTROL BOX 1 ASSY. (CONT'D.)

Multiquip DCA45SSIU4FC8 Generator CONTROL BOX 1 ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed21 rows

No.	Part No.	Part Name	Qty	Remarks
66	M1213602704	SWITCH COVER	1		ADD TO CART
SWITCH COVER M1213602704 · qty on machine: 1 view full part page → $215.95
66-1	0317700180	WEATHER STRIP	1		ADD TO CART
WEATHER STRIP 0317700180 · qty on machine: 1 view full part page → $13.95
67	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0016906015 view full part page → $0.69
68	M1270100204	SELECTOR SWITCH	1		ADD TO CART
SELECTOR SWITCH M1270100204 · qty on machine: 1 view full part page → $1384.95
68A	M1550003104	DECAL: SELECTOR SWITCH NUMBER	1	M15000310	ADD TO CART
DECAL: SELECTOR SWITCH NUMBER M1550003104 · qty on machine: 1 M15000310 view full part page → $5.95
68B	M1550003204	DECAL: SELECTOR SWITCH NUMBER	1	M15000320	ADD TO CART
DECAL: SELECTOR SWITCH NUMBER M1550003204 · qty on machine: 1 M15000320 view full part page → $9.95
72	8944001061	RELAY, STARTER	1	REPLACES P/N 8942481610	ADD TO CART
RELAY, STARTER 8944001061 · qty on machine: 1 REPLACES P/N 8942481610 view full part page → $214.95
73	0027105010	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027105010 · qty on machine: 2 view full part page → $0.56
75	8970119490	GLOW PLUG RELAY	1	REPLACES P/N 0602202685	ADD TO CART
GLOW PLUG RELAY 8970119490 · qty on machine: 1 REPLACES P/N 0602202685 view full part page → $301.95
76	0027105010	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027105010 · qty on machine: 2 view full part page → $0.56
77	0601812626	PLUG	1		ADD TO CART
PLUG 0601812626 · qty on machine: 1 view full part page → $1.88
78	0601812712	PINS (MALE)	2		ADD TO CART
PINS (MALE) 0601812712 · qty on machine: 2 view full part page → $0.77
79	M9520000904	DECAL: DIAGNOSTIC SWITCH	1	M92000090	ADD TO CART
DECAL: DIAGNOSTIC SWITCH M9520000904 · qty on machine: 1 M92000090 view full part page → $4.95
80	M9520001104	DECAL: DIAGNOSTIC BUTTON	1	M92000110	ADD TO CART
DECAL: DIAGNOSTIC BUTTON M9520001104 · qty on machine: 1 M92000110 view full part page → $1.84
81	M9520002104	DECAL: FUEL PUMP SWITCH	1	M92000210	ADD TO CART
DECAL: FUEL PUMP SWITCH M9520002104 · qty on machine: 1 M92000210 view full part page → $1.31
83	M1247700714	WIRE HARNESS, GENERATOR	1		PARTS REQUEST
PHOTO COMING WIRE HARNESS, GENERATOR M1247700714 · qty on machine: 1 Factory replaced this part - current number M1247700714B PARTS REQUEST
84	M1358201712	WIRE HARNESS, ENGINE	1		ADD TO CART
WIRE HARNESS, ENGINE M1358201712 · qty on machine: 1 view full part page → $865.95
85	M1358200302	WIRE HARNESS, CONTROLLER	1		ADD TO CART
WIRE HARNESS, CONTROLLER M1358200302 · qty on machine: 1 view full part page → $2137.95
86	M1358202204	WIRE HARNESS, PRESSURE SWITCH	1		ADD TO CART
WIRE HARNESS, PRESSURE SWITCH M1358202204 · qty on machine: 1 view full part page → $65.95
87	8983346930	WIRE HARNESS, PCV HEATER	1	REPLACES P/N 0602044311	ADD TO CART
WIRE HARNESS, PCV HEATER 8983346930 · qty on machine: 1 REPLACES P/N 0602044311 view full part page → $133.95
89	M1358203304	WIRE HARNESS, FUEL LEAK/SENDER	1		PARTS REQUEST
PHOTO COMING WIRE HARNESS, FUEL LEAK/SENDER M1358203304 · qty on machine: 1 PARTS REQUEST

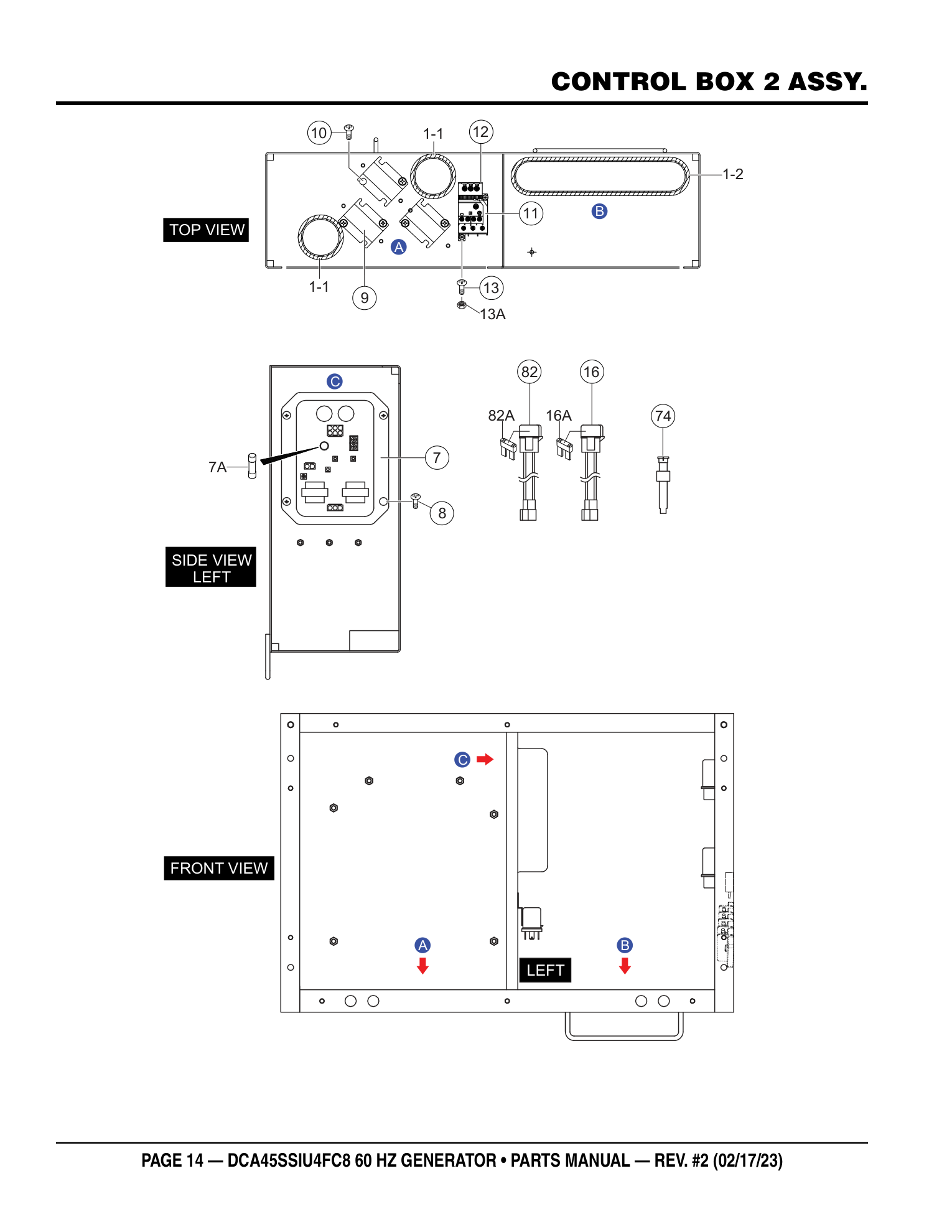

Page 14 — CONTROL BOX 2 ASSY.

Multiquip DCA45SSIU4FC8 Generator CONTROL BOX 2 ASSY. parts diagram

Parts list — exactly as printed16 rows

No.	Part No.	Part Name	Qty	Remarks
1-1	Y0411100185	EDGING	2		PARTS REQUEST
PHOTO COMING EDGING Y0411100185 · qty on machine: 2 PARTS REQUEST
1-2	Y0411100585	EDGING	1		PARTS REQUEST
PHOTO COMING EDGING Y0411100585 · qty on machine: 1 PARTS REQUEST
7	0601820608	AUTOMATIC VOLTAGE REGULATOR	1		ADD TO CART
AUTOMATIC VOLTAGE REGULATOR 0601820608 · qty on machine: 1 view full part page → $1591.95
7A	Y0601806683	FUSE, 250V, 8A	1		NO LONGER AVAILABLE
PHOTO COMING FUSE, 250V, 8A Y0601806683 · qty on machine: 1 NO LONGER AVAILABLE
8	0027105015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 4 view full part page → $0.2
9	Y0601809693	CURRENT TRANSFORMER	3		ADD TO CART
CURRENT TRANSFORMER Y0601809693 · qty on machine: 3 view full part page → $63.95
10	011808015	MACHINE SCREW	6	REPLACES P/N 0027106015	ADD TO CART
MACHINE SCREW 011808015 · qty on machine: 6 REPLACES P/N 0027106015 view full part page → $6.95
11	Y0601820843	OVER CURRENT RELAY	1		ADD TO CART
OVER CURRENT RELAY Y0601820843 · qty on machine: 1 view full part page → $114.95
12	Y0601820844	OVER CURRENT RELAY BASE	1		ADD TO CART
OVER CURRENT RELAY BASE Y0601820844 · qty on machine: 1 view full part page → $24.95
13	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
13A	OEMAA8	SELF-LOCKING NUT	2	REPLACES P/N 0207004000	ADD TO CART
SELF-LOCKING NUT OEMAA8 · qty on machine: 2 REPLACES P/N 0207004000 view full part page → $0.4
16	C3358201704	HOLDER, FUSE	1	REPLACES P/N M2357202104	ADD TO CART
HOLDER, FUSE C3358201704 · qty on machine: 1 REPLACES P/N M2357202104 view full part page → $41.95
16A	0601806644	FUSE, 30A	2		ADD TO CART
FUSE, 30A 0601806644 · qty on machine: 2 view full part page → $1.43
74	0601806640	FUSE, 65A	1		ADD TO CART
FUSE, 65A 0601806640 · qty on machine: 1 view full part page → $11.95
82	C3358201704	HOLDER, FUSE	1	REPLACES P/N M2357202104	ADD TO CART
HOLDER, FUSE C3358201704 · qty on machine: 1 REPLACES P/N M2357202104 view full part page → $41.95
82A	0601806645	FUSE, 10A	1		ADD TO CART
FUSE, 10A 0601806645 · qty on machine: 1 view full part page → $2.9

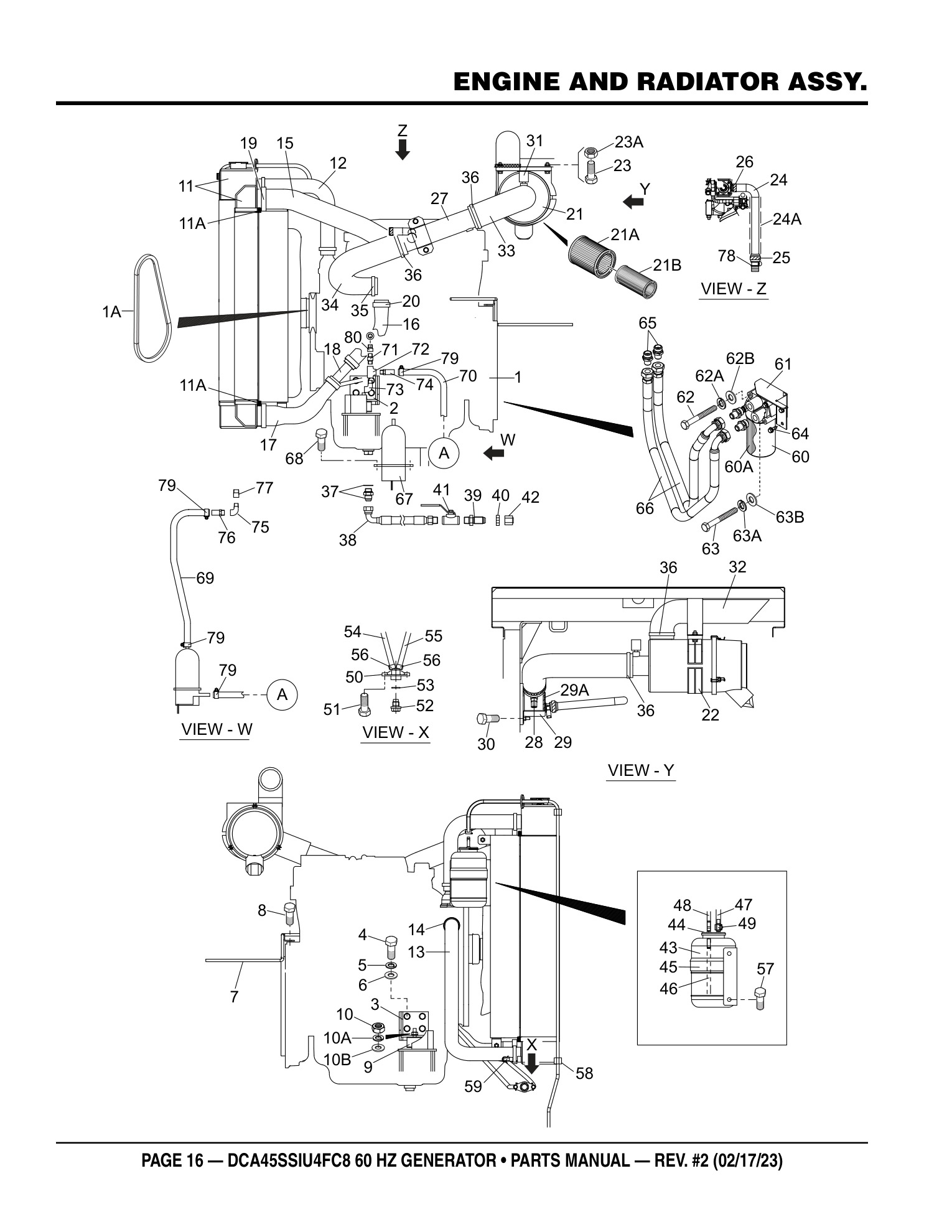

Page 16 — ENGINE AND RADIATOR ASSY.

Multiquip DCA45SSIU4FC8 Generator ENGINE AND RADIATOR ASSY. parts diagram

Parts list — exactly as printed50 rows

No.	Part No.	Part Name	Qty	Remarks
1	M1924200084	ENGINE, ISUZU 4LE2X	1		PARTS REQUEST
PHOTO COMING ENGINE, ISUZU 4LE2X M1924200084 · qty on machine: 1 Factory replaced this part - current number 4LE2XAGD-01 PARTS REQUEST
1A	8980490340	BELT, COOLING FAN, L950	1		ADD TO CART
BELT, COOLING FAN, L950 8980490340 · qty on machine: 1 view full part page → $44.95
2	M1304200004	ENGINE FOOT	1		ADD TO CART
ENGINE FOOT M1304200004 · qty on machine: 1 view full part page → $98.95
3	M1304200104	ENGINE FOOT	1		ADD TO CART
ENGINE FOOT M1304200104 · qty on machine: 1 view full part page → $98.95
4	0105091025	HEX. HEAD BOLT	8	REPLACES P/N 0010310025	ADD TO CART
HEX. HEAD BOLT 0105091025 · qty on machine: 8 REPLACES P/N 0010310025 view full part page → $0.68
5	0040010000	WASHER, LOCK	8		ADD TO CART
WASHER, LOCK 0040010000 · qty on machine: 8 view full part page → $0.39
6	031110160	WASHER, FLAT	8	REPLACES P/N 0041210000	ADD TO CART
WASHER, FLAT 031110160 · qty on machine: 8 REPLACES P/N 0041210000 view full part page → $0.4
7	M1358300403	CLAMPER ROD	1		PARTS REQUEST
PHOTO COMING CLAMPER ROD M1358300403 · qty on machine: 1 PARTS REQUEST
8	012210020	HEX. HEAD BOLT	2	REPLACES P/N 0017110020	ADD TO CART
HEX. HEAD BOLT 012210020 · qty on machine: 2 REPLACES P/N 0017110020 view full part page → $0.95
9	Y0605000407	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION Y0605000407 · qty on machine: 2 view full part page → $47.95
10	0030012000	HEX. NUT	2		ADD TO CART
HEX. NUT 0030012000 · qty on machine: 2 view full part page → $0.5
10A	0040012000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040012000 · qty on machine: 2 view full part page → $0.95
10B	031112230	WASHER, FLAT	2	REPLACES P/N 0041212000	ADD TO CART
WASHER, FLAT 031112230 · qty on machine: 2 REPLACES P/N 0041212000 view full part page → $0.95
11	Y0602012904	RADIATOR AND INTER-COOLER	1		ADD TO CART
RADIATOR AND INTER-COOLER Y0602012904 · qty on machine: 1 view full part page → $3300.95
11A	M1494102104	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M1494102104 · qty on machine: 1 PARTS REQUEST
12	M1311500603	RADIATOR HOSE, UPPER	1		ADD TO CART
RADIATOR HOSE, UPPER M1311500603 · qty on machine: 1 view full part page → $29.95
13	M1311500703	RADIATOR HOSE, LOWER	1		ADD TO CART
RADIATOR HOSE, LOWER M1311500703 · qty on machine: 1 view full part page → $74.95
14	0605515149	HOSE BAND	4		ADD TO CART
HOSE BAND 0605515149 · qty on machine: 4 view full part page → $1.95
15	M1311500803	INTER-COOLER HOSE, UPPER	1		ADD TO CART
INTER-COOLER HOSE, UPPER M1311500803 · qty on machine: 1 view full part page → $1246.95
16	M1311500903	INTER-COOLER HOSE, UPPER/LOWER	1		ADD TO CART
INTER-COOLER HOSE, UPPER/LOWER M1311500903 · qty on machine: 1 view full part page → $216.95
17	M1311501003	INTER-COOLER HOSE, LOWER	1		ADD TO CART
INTER-COOLER HOSE, LOWER M1311501003 · qty on machine: 1 view full part page → $313.95
18	M1311400004	INTER-COOLER PIPE	1		ADD TO CART
INTER-COOLER PIPE M1311400004 · qty on machine: 1 view full part page → $47.95
19	Y0605515300	HOSE BAND	3		ADD TO CART
HOSE BAND Y0605515300 · qty on machine: 3 view full part page → $21.95
20	Y0605515264	HOSE BAND	3		ADD TO CART
HOSE BAND Y0605515264 · qty on machine: 3 view full part page → $42.95
21	Y0602046590	AIR CLEANER	1	INCLUDES ITEMS W/#	ADD TO CART
AIR CLEANER Y0602046590 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 21A#, 21B# view full part page → $248.95 IN A KIT + SOLD SOLO
21A#	PMAF25436	PRIMARY ELEMENT	1	REPLACES P/N 0602046309	ADD TO CART
PRIMARY ELEMENT PMAF25436 · qty on machine: 1 REPLACES P/N 0602046309 Also included in kit 21 - AIR CLEANER (Y0602046590) view full part page → $102.95 IN A KIT + SOLD SOLO
21B#	P822769	SAFETY ELEMENT	1	REPLACES P/N 0602046689	ADD TO CART
SAFETY ELEMENT P822769 · qty on machine: 1 REPLACES P/N 0602046689 Also included in kit 21 - AIR CLEANER (Y0602046590) view full part page → $100.95 IN A KIT + SOLD SOLO
22	Y0602040553	AIR CLEANER BAND	1		ADD TO CART
AIR CLEANER BAND Y0602040553 · qty on machine: 1 view full part page → $43.95
23	011208030	HEX. HEAD BOLT	2	REPLACES P/N 0016908030	ADD TO CART
HEX. HEAD BOLT 011208030 · qty on machine: 2 REPLACES P/N 0016908030 view full part page → $1.3
23A	020108060	SELF-LOCKING NUT	2	REPLACES P/N 0207008000	ADD TO CART
SELF-LOCKING NUT 020108060 · qty on machine: 2 REPLACES P/N 0207008000 view full part page → $0.28
24	M1327200104	BLOW-BY HOSE	1		ADD TO CART
BLOW-BY HOSE M1327200104 · qty on machine: 1 view full part page → $86.95
24A	Y0378100170	AEROFLEX TUBE	1		ADD TO CART
AEROFLEX TUBE Y0378100170 · qty on machine: 1 view full part page → $1.6
25	Y0605515321	HOSE BAND	1		PARTS REQUEST
PHOTO COMING HOSE BAND Y0605515321 · qty on machine: 1 PARTS REQUEST
26	Y0605515198	HOSE BAND	1		ADD TO CART
HOSE BAND Y0605515198 · qty on machine: 1 view full part page → $2.95
27	M1374000113	AIR CLEANER PIPE	1		ADD TO CART
AIR CLEANER PIPE M1374000113 · qty on machine: 1 view full part page → $141.95
28	8121468300	INLET AIR TEMPERATURE SENSOR	1	REPLACES P/N 0603210240	ADD TO CART
INLET AIR TEMPERATURE SENSOR 8121468300 · qty on machine: 1 REPLACES P/N 0603210240 view full part page → $215.95
29	M1374200214	BRACKET, AIR CLEANER PIPE	1		ADD TO CART
BRACKET, AIR CLEANER PIPE M1374200214 · qty on machine: 1 view full part page → $39.95
29A	Y0222100060	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL Y0222100060 · qty on machine: 1 view full part page → $456.95
30	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
31	0602040651	INDICATOR, AIR CLEANER	1		ADD TO CART
INDICATOR, AIR CLEANER 0602040651 · qty on machine: 1 view full part page → $52.95
32	M1374100703	AIR CLEANER HOSE	1		ADD TO CART
AIR CLEANER HOSE M1374100703 · qty on machine: 1 view full part page → $66.95
33	M1374100503	AIR CLEANER HOSE	1		ADD TO CART
AIR CLEANER HOSE M1374100503 · qty on machine: 1 view full part page → $59.95
34	M1374100603	AIR CLEANER HOSE	1		ADD TO CART
AIR CLEANER HOSE M1374100603 · qty on machine: 1 view full part page → $124.95
35	0605515147	HOSE BAND	1		ADD TO CART
HOSE BAND 0605515147 · qty on machine: 1 view full part page → $3.95
36	9500202080	HOSE BAND	4	REPLACES P/N 0605515178	ADD TO CART
HOSE BAND 9500202080 · qty on machine: 4 REPLACES P/N 0605515178 view full part page → $3.95
37	0602022581	ADAPTER, 10M 24X2.0	1		ADD TO CART
ADAPTER, 10M 24X2.0 0602022581 · qty on machine: 1 view full part page → $147.95
38	M1321100304	DRAIN HOSE	1		PARTS REQUEST
PHOTO COMING DRAIN HOSE M1321100304 · qty on machine: 1 PARTS REQUEST
39	0603306590	CONNECTOR	1		ADD TO CART
CONNECTOR 0603306590 · qty on machine: 1 view full part page → $86.95
40	0603300285	LOCKNUT	1		ADD TO CART
LOCKNUT 0603300285 · qty on machine: 1 view full part page → $4.95
41	0605511395	VALVE	1		ADD TO CART
VALVE 0605511395 · qty on machine: 1 view full part page → $46.95

Page 18 — ENGINE AND RADIATOR ASSY. (CONT'D.)

Multiquip DCA45SSIU4FC8 Generator ENGINE AND RADIATOR ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed44 rows

No.	Part No.	Part Name	Qty	Remarks
42	0602021070	CAP	1		ADD TO CART
CAP 0602021070 · qty on machine: 1 view full part page → $11.95
43	0845031303	RESERVE TANK	1	REPLACES P/N M9300000103	ADD TO CART
RESERVE TANK 0845031303 · qty on machine: 1 REPLACES P/N M9300000103 view full part page → $45.95
44	0802081104	CAP, RESERVE TANK	1	REPLACES P/N M9300100003	ADD TO CART
CAP, RESERVE TANK 0802081104 · qty on machine: 1 REPLACES P/N M9300100003 view full part page → $5.95
45	M2316100304	BRACKET, RESERVE TANK	1		ADD TO CART
BRACKET, RESERVE TANK M2316100304 · qty on machine: 1 view full part page → $73.95
46	Y0193600165	HOSE	1		PARTS REQUEST
PHOTO COMING HOSE Y0193600165 · qty on machine: 1 PARTS REQUEST
47	0199900450	OVER FLOW HOSE	1		ADD TO CART
OVER FLOW HOSE 0199900450 · qty on machine: 1 view full part page → $8.95
48	0193601500	OVER FLOW HOSE	1		ADD TO CART
OVER FLOW HOSE 0193601500 · qty on machine: 1 view full part page → $19.95
49	0605515189	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515189 · qty on machine: 2 view full part page → $1.85
50	1622014103	DRAIN JOINT	1	REPLACES P/N M9602000003	ADD TO CART
DRAIN JOINT 1622014103 · qty on machine: 1 REPLACES P/N M9602000003 view full part page → $23.95
51	011206020	HEX. HEAD BOLT	2	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 2 REPLACES P/N 0016906020 view full part page → $0.95
52	0802011104	DRAIN BOLT	1	REPLACES P/N M9200200004	ADD TO CART
DRAIN BOLT 0802011104 · qty on machine: 1 REPLACES P/N M9200200004 view full part page → $10.95
53	0150000018	O-RING	1		ADD TO CART
O-RING 0150000018 · qty on machine: 1 view full part page → $1.87
54	Y0199900440	DRAIN HOSE	1		ADD TO CART
DRAIN HOSE Y0199900440 · qty on machine: 1 view full part page → $2.95
55	Y0199901310	DRAIN HOSE	1		ADD TO CART
DRAIN HOSE Y0199901310 · qty on machine: 1 view full part page → $6.95
56	0605515189	HOSE BAND	4		ADD TO CART
HOSE BAND 0605515189 · qty on machine: 4 view full part page → $1.85
57	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
58	0602220911	CLAMP	2		ADD TO CART
CLAMP 0602220911 · qty on machine: 2 view full part page → $1.85
59	Y0605512183	HOSE JOINT	1		ADD TO CART
HOSE JOINT Y0605512183 · qty on machine: 1 view full part page → $16.95
60	8980756710	OIL FILTER ASSY	1	INCLUDES ITEMS W/%	ADD TO CART
OIL FILTER ASSY 8980756710 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 60A% view full part page → $507.95 IN A KIT + SOLD SOLO
60A%	2944566410	OIL FILTER ELEMENT	1	REPLACES P/N 0602041008	ADD TO CART
OIL FILTER ELEMENT 2944566410 · qty on machine: 1 REPLACES P/N 0602041008 Also included in kit 60 - OIL FILTER ASSY (8980756710) view full part page → $32.95 IN A KIT + SOLD SOLO
61	M1324400004	BRACKET, OIL FILTER	1		ADD TO CART
BRACKET, OIL FILTER M1324400004 · qty on machine: 1 view full part page → $195.95
62	Y0010108090	HEX. HEAD BOLT	2		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0010108090 · qty on machine: 2 PARTS REQUEST
62A	0040008000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040008000 · qty on machine: 2 view full part page → $0.63
62B	0401450080	WASHER, FLAT	2	REPLACES P/N 0041208000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 2 REPLACES P/N 0041208000 view full part page → $0.56
63	Y0010108110	HEX. HEAD BOLT	2		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0010108110 · qty on machine: 2 PARTS REQUEST
63A	Y0040008000	WASHER, LOCK	2		PARTS REQUEST
PHOTO COMING WASHER, LOCK Y0040008000 · qty on machine: 2 PARTS REQUEST
63B	Y0041208000	WASHER, FLAT	2		PARTS REQUEST
PHOTO COMING WASHER, FLAT Y0041208000 · qty on machine: 2 PARTS REQUEST
64	011208025	HEX. HEAD BOLT	2	REPLACES P/N 0016908025	ADD TO CART
HEX. HEAD BOLT 011208025 · qty on machine: 2 REPLACES P/N 0016908025 view full part page → $0.41
65	Y0602022534	STRAIGHT ADAPTER	4		ADD TO CART
STRAIGHT ADAPTER Y0602022534 · qty on machine: 4 view full part page → $125.95
66	M1324300004	OIL FILTER HOSE	2		ADD TO CART
OIL FILTER HOSE M1324300004 · qty on machine: 2 view full part page → $248.95
67	EE10814	WATER HEATER	1	REPLACES P/N Y0602014292	ADD TO CART
WATER HEATER EE10814 · qty on machine: 1 REPLACES P/N Y0602014292 view full part page → $191.95
68	011206020	HEX. HEAD BOLT	2	REPLACES P/N 0019206020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 2 REPLACES P/N 0019206020 view full part page → $0.95
69	Y0269300860	HOSE	1		PARTS REQUEST
PHOTO COMING HOSE Y0269300860 · qty on machine: 1 PARTS REQUEST
70	Y0269300650	HOSE	1		PARTS REQUEST
PHOTO COMING HOSE Y0269300650 · qty on machine: 1 PARTS REQUEST
71	0131502000	NIPPLE	1		ADD TO CART
NIPPLE 0131502000 · qty on machine: 1 view full part page → $15.95
72	Y0130402000	TEE	1		PARTS REQUEST
PHOTO COMING TEE Y0130402000 · qty on machine: 1 PARTS REQUEST
73	0130202000	STREET ELBOW	1		ADD TO CART
STREET ELBOW 0130202000 · qty on machine: 1 view full part page → $10.95
74	Y0602022939	HOSE JOINT	1		PARTS REQUEST
PHOTO COMING HOSE JOINT Y0602022939 · qty on machine: 1 PARTS REQUEST
75	0130204000	ELBOW	1		ADD TO CART
ELBOW 0130204000 · qty on machine: 1 view full part page → $6.95
76	0602022292	HOSE JOINT	1		ADD TO CART
HOSE JOINT 0602022292 · qty on machine: 1 view full part page → $22.95
77	Y0603307381	BUSHING	1		PARTS REQUEST
PHOTO COMING BUSHING Y0603307381 · qty on machine: 1 PARTS REQUEST
78	8981924670	PCV HEATER	1	REPLACES P/N Y0602044300	ADD TO CART
PCV HEATER 8981924670 · qty on machine: 1 REPLACES P/N Y0602044300 view full part page → $196.95
79	Y0605515198	HOSE BAND	4		ADD TO CART
HOSE BAND Y0605515198 · qty on machine: 4 view full part page → $2.95
80	Y0603307380	BUSHING	1		PARTS REQUEST
PHOTO COMING BUSHING Y0603307380 · qty on machine: 1 PARTS REQUEST

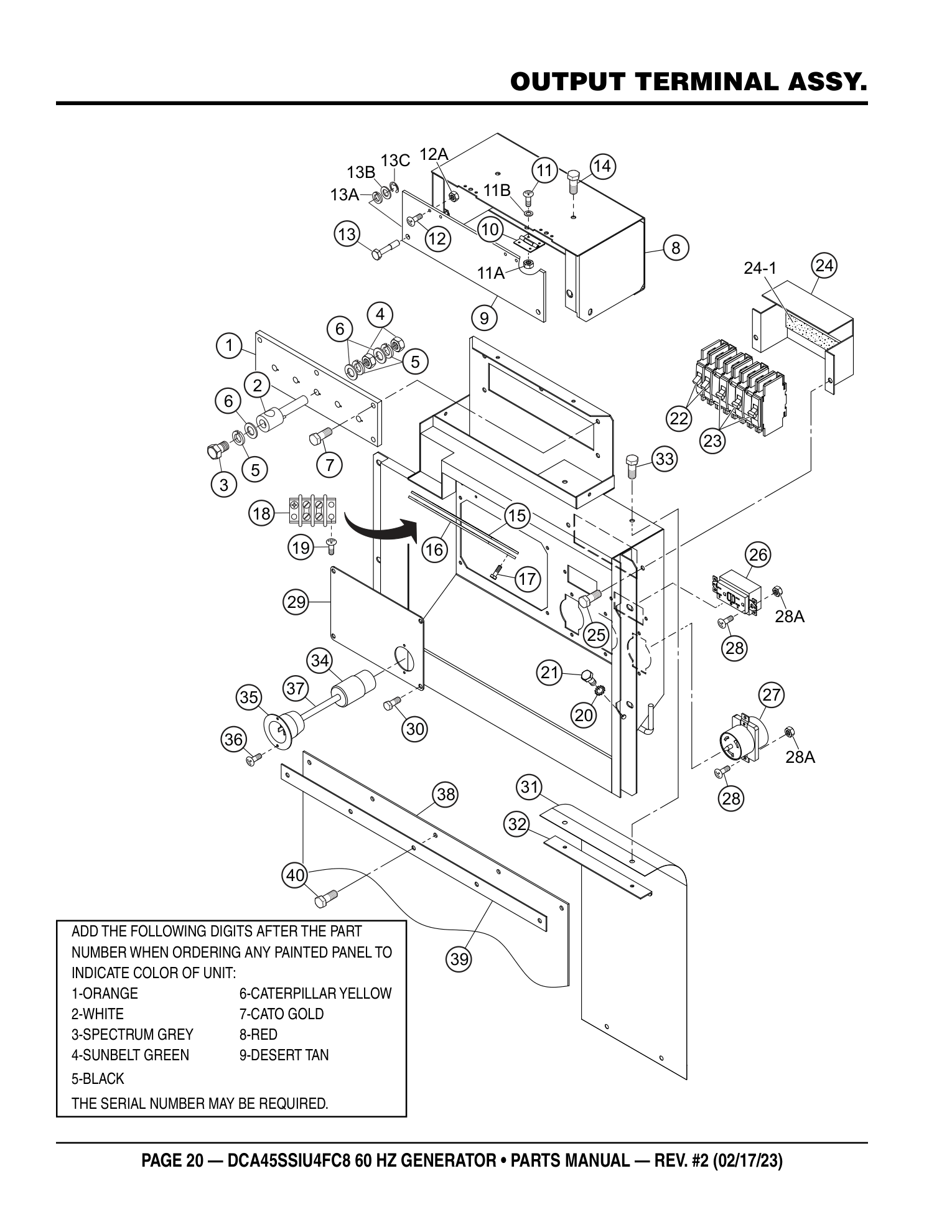

Page 20 — OUTPUT TERMINAL ASSY.

Multiquip DCA45SSIU4FC8 Generator OUTPUT TERMINAL ASSY. parts diagram

Parts list — exactly as printed44 rows

No.	Part No.	Part Name	Qty	Remarks
1	8111860303	TERMINAL PANEL	1	REPLACES P/N M1230700103	ADD TO CART
TERMINAL PANEL 8111860303 · qty on machine: 1 REPLACES P/N M1230700103 view full part page → $157.95
2	0801831704A	OUTPUT TERMINAL BOLT	5	REPLACES P/N M9220100204	ADD TO CART
OUTPUT TERMINAL BOLT 0801831704A · qty on machine: 5 REPLACES P/N M9220100204 view full part page → $183.95
3	012210020	TIE BOLT	5	REPLACES P/N M9220100104	ADD TO CART
TIE BOLT 012210020 · qty on machine: 5 REPLACES P/N M9220100104 view full part page → $0.95
4	0039310000	HEX. NUT	10		ADD TO CART
HEX. NUT 0039310000 · qty on machine: 10 view full part page → $3.95
5	0040010000	WASHER, LOCK	15		ADD TO CART
WASHER, LOCK 0040010000 · qty on machine: 15 view full part page → $0.39
6	0041410000	WASHER, FLAT	20		ADD TO CART
WASHER, FLAT 0041410000 · qty on machine: 20 view full part page → $0.89
7	011208025	HEX. HEAD BOLT	5	REPLACES P/N 0016908025	ADD TO CART
HEX. HEAD BOLT 011208025 · qty on machine: 5 REPLACES P/N 0016908025 view full part page → $0.41
8	M1237100303	3-PHASE OUTPUT TERMINAL COVER	1		PARTS REQUEST
PHOTO COMING 3-PHASE OUTPUT TERMINAL COVER M1237100303 · qty on machine: 1 PARTS REQUEST
9	M1236100704	OUTPUT WINDOW	1		ADD TO CART
OUTPUT WINDOW M1236100704 · qty on machine: 1 view full part page → $52.95
10	0605010040	HINGE	2		ADD TO CART
HINGE 0605010040 · qty on machine: 2 view full part page → $4.95
11	0027103010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027103010 · qty on machine: 4 view full part page → $0.44
11A	0207003000	HEX. NUT	4	REPLACES P/N 0030003000	ADD TO CART
HEX. NUT 0207003000 · qty on machine: 4 REPLACES P/N 0030003000 view full part page → $0.21
11B	0041203000	WASHER, FLAT	4		ADD TO CART
WASHER, FLAT 0041203000 · qty on machine: 4 view full part page → $0.12
12	0027103010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027103010 · qty on machine: 4 view full part page → $0.44
12A	0207003000	HEX. NUT	4	REPLACES P/N 0030003000	ADD TO CART
HEX. NUT 0207003000 · qty on machine: 4 REPLACES P/N 0030003000 view full part page → $0.21
13	M9220100804	SET SCREW	2		ADD TO CART
SET SCREW M9220100804 · qty on machine: 2 view full part page → $20.95
13A	0040006000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040006000 · qty on machine: 2 view full part page → $0.17
13B	952404470	WASHER, FLAT	2	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 2 REPLACES P/N 0041206000 view full part page → $0.19
13C	0080200005	E-SNAP RING	2		ADD TO CART
E-SNAP RING 0080200005 · qty on machine: 2 view full part page → $0.25
14	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0016906015 view full part page → $0.69
15	M1236400004	CABLE OUTLET COVER	1		ADD TO CART
CABLE OUTLET COVER M1236400004 · qty on machine: 1 view full part page → $5.95
16	M1236300004	SUPPORTER, CABLE OUTLET COVER	1		ADD TO CART
SUPPORTER, CABLE OUTLET COVER M1236300004 · qty on machine: 1 view full part page → $18.95
17	011206020	HEX. HEAD BOLT	6	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 6 REPLACES P/N 0016906020 view full part page → $0.95
18	0601815194	TERMINAL BLOCK	1		NO LONGER AVAILABLE
PHOTO COMING TERMINAL BLOCK 0601815194 · qty on machine: 1 NO LONGER AVAILABLE
19	7538070	MACHINE SCREW	2	REPLACES P/N 0027104015	ADD TO CART
MACHINE SCREW 7538070 · qty on machine: 2 REPLACES P/N 0027104015 view full part page → $0.52
20	0040508000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040508000 · qty on machine: 1 view full part page → $0.35
21	0019208020	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 1 view full part page → $3.95
22	0601808803	CIRCUIT BREAKER, 1P 20A	2		ADD TO CART
CIRCUIT BREAKER, 1P 20A 0601808803 · qty on machine: 2 view full part page → $46.95
23	0601808804	CIRCUIT BREAKER, 2P 50A	3		ADD TO CART
CIRCUIT BREAKER, 2P 50A 0601808804 · qty on machine: 3 view full part page → $98.95
24	M1260700304	BREAKER FITTING COVER	1		ADD TO CART
BREAKER FITTING COVER M1260700304 · qty on machine: 1 view full part page → $75.95
24-1	Y0222100150	CUSHION RUBBER	1		PARTS REQUEST
PHOTO COMING CUSHION RUBBER Y0222100150 · qty on machine: 1 PARTS REQUEST
25	011206020	HEX. HEAD BOLT	2	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 2 REPLACES P/N 0016906020 view full part page → $0.95
26	Y0601814034	RECEPTACLE, 125V 20A X 2	2		ADD TO CART
RECEPTACLE, 125V 20A X 2 Y0601814034 · qty on machine: 2 view full part page → $91.95
27	Y0601814014	RECEPTACLE, 250V 50A	3		ADD TO CART
RECEPTACLE, 250V 50A Y0601814014 · qty on machine: 3 view full part page → $76.95
28	7538070	MACHINE SCREW	8	REPLACES P/N 0027104015	ADD TO CART
MACHINE SCREW 7538070 · qty on machine: 8 REPLACES P/N 0027104015 view full part page → $0.52
28A	OEMAA8	HEX. NUT	8	REPLACES P/N 0207004000	ADD TO CART
HEX. NUT OEMAA8 · qty on machine: 8 REPLACES P/N 0207004000 view full part page → $0.4
29	M1454700304	COVER	1		ADD TO CART
COVER M1454700304 · qty on machine: 1 view full part page → $60.95
30	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0016906015 view full part page → $0.69
31	M1237101204	INSULATING COVER	1		ADD TO CART
INSULATING COVER M1237101204 · qty on machine: 1 view full part page → $181.6
32	M1236400304	SUPPORTER, INSULATING COVER	1		ADD TO CART
SUPPORTER, INSULATING COVER M1236400304 · qty on machine: 1 view full part page → $28.95
33	011106015	HEX. HEAD BOLT	2	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 2 REPLACES P/N 0016906015 view full part page → $0.69
34	0601812527	CONNECTOR	1		ADD TO CART
CONNECTOR 0601812527 · qty on machine: 1 view full part page → $64.95
35	Y0601811177	RECEPTACLE	1		PARTS REQUEST
PHOTO COMING RECEPTACLE Y0601811177 · qty on machine: 1 PARTS REQUEST
36	0027104015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 2 view full part page → $0.53

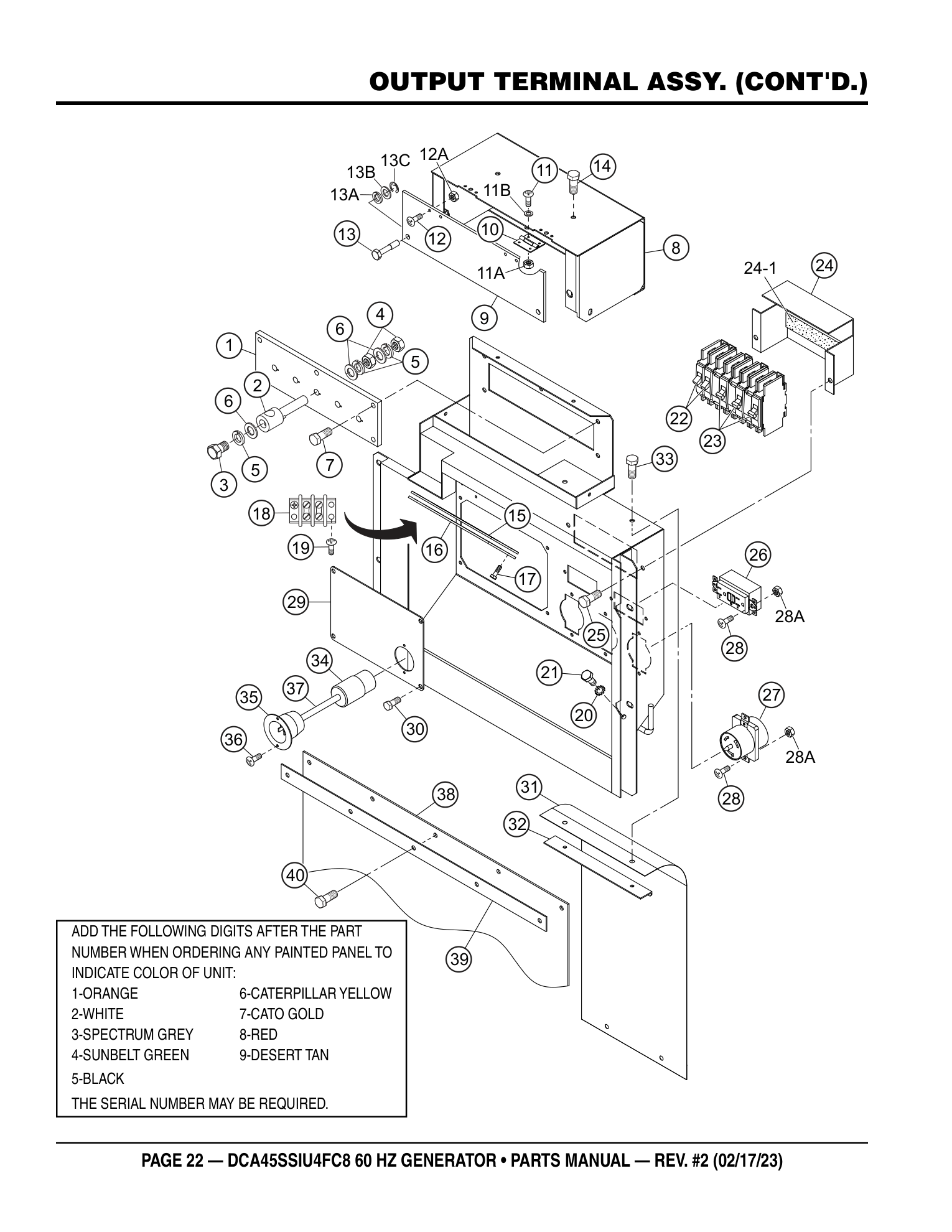

Page 22 — OUTPUT TERMINAL ASSY. (CONT'D.)

Multiquip DCA45SSIU4FC8 Generator OUTPUT TERMINAL ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed4 rows

No.	Part No.	Part Name	Qty	Remarks
37	Y0329100300	HARNESS, WATER HEATER	1		PARTS REQUEST
PHOTO COMING HARNESS, WATER HEATER Y0329100300 · qty on machine: 1 PARTS REQUEST
38	M1454701304	RUBBER SHEET	1		PARTS REQUEST
PHOTO COMING RUBBER SHEET M1454701304 · qty on machine: 1 PARTS REQUEST
39	M1454701404	RUBBER SHEET HOLDER	1		PARTS REQUEST
PHOTO COMING RUBBER SHEET HOLDER M1454701404 · qty on machine: 1 PARTS REQUEST
40	011206020	HEX HEAD BOLT	5	REPLACES P/N 0019206020	ADD TO CART
HEX HEAD BOLT 011206020 · qty on machine: 5 REPLACES P/N 0019206020 view full part page → $0.95

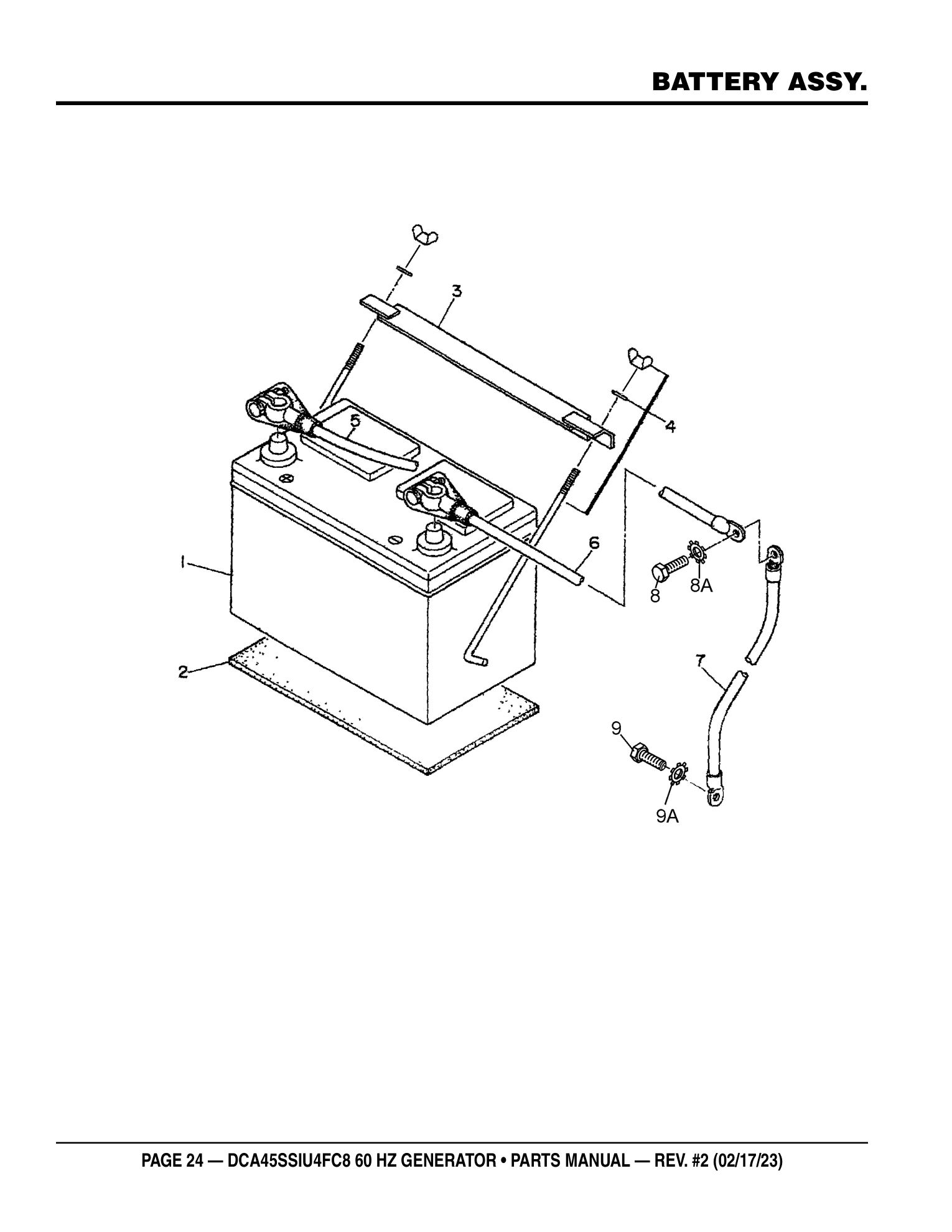

Page 24 — BATTERY ASSY.

Multiquip DCA45SSIU4FC8 Generator BATTERY ASSY. parts diagram

Parts list — exactly as printed11 rows

No.	Part No.	Part Name	Qty	Remarks
1	0602220199	BATTERY	1		ADD TO CART
BATTERY 0602220199 · qty on machine: 1 view full part page → $288.95
2	M9310500014	BATTERY SHEET	1		ADD TO CART
BATTERY SHEET M9310500014 · qty on machine: 1 view full part page → $5.95
3	M9103000304	BATTERY BAND	1		ADD TO CART
BATTERY BAND M9103000304 · qty on machine: 1 view full part page → $72.95
4	0602220920	BATTERY BOLT SET, 1/4-L10"	2		ADD TO CART
BATTERY BOLT SET, 1/4-L10" 0602220920 · qty on machine: 2 view full part page → $5.95
5	M2346900204	BATTERY CABLE	1		ADD TO CART
BATTERY CABLE M2346900204 · qty on machine: 1 view full part page → $97.95
6	M2346900304	BATTERY CABLE	1		ADD TO CART
BATTERY CABLE M2346900304 · qty on machine: 1 view full part page → $149.95
7		CABLE	1	MAKE LOCALLY	SEE REMARKS
PHOTO COMING CABLE · qty on machine: 1 MAKE LOCALLY SEE REMARKS
8	0017112025	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0017112025 · qty on machine: 1 view full part page → $2.93
8A	0040512000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040512000 · qty on machine: 1 view full part page → $0.77
9	011208025	HEX. HEAD BOLT	1	REPLACES P/N 0016908025	ADD TO CART
HEX. HEAD BOLT 011208025 · qty on machine: 1 REPLACES P/N 0016908025 view full part page → $0.41
9A	0040508000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040508000 · qty on machine: 1 view full part page → $0.35

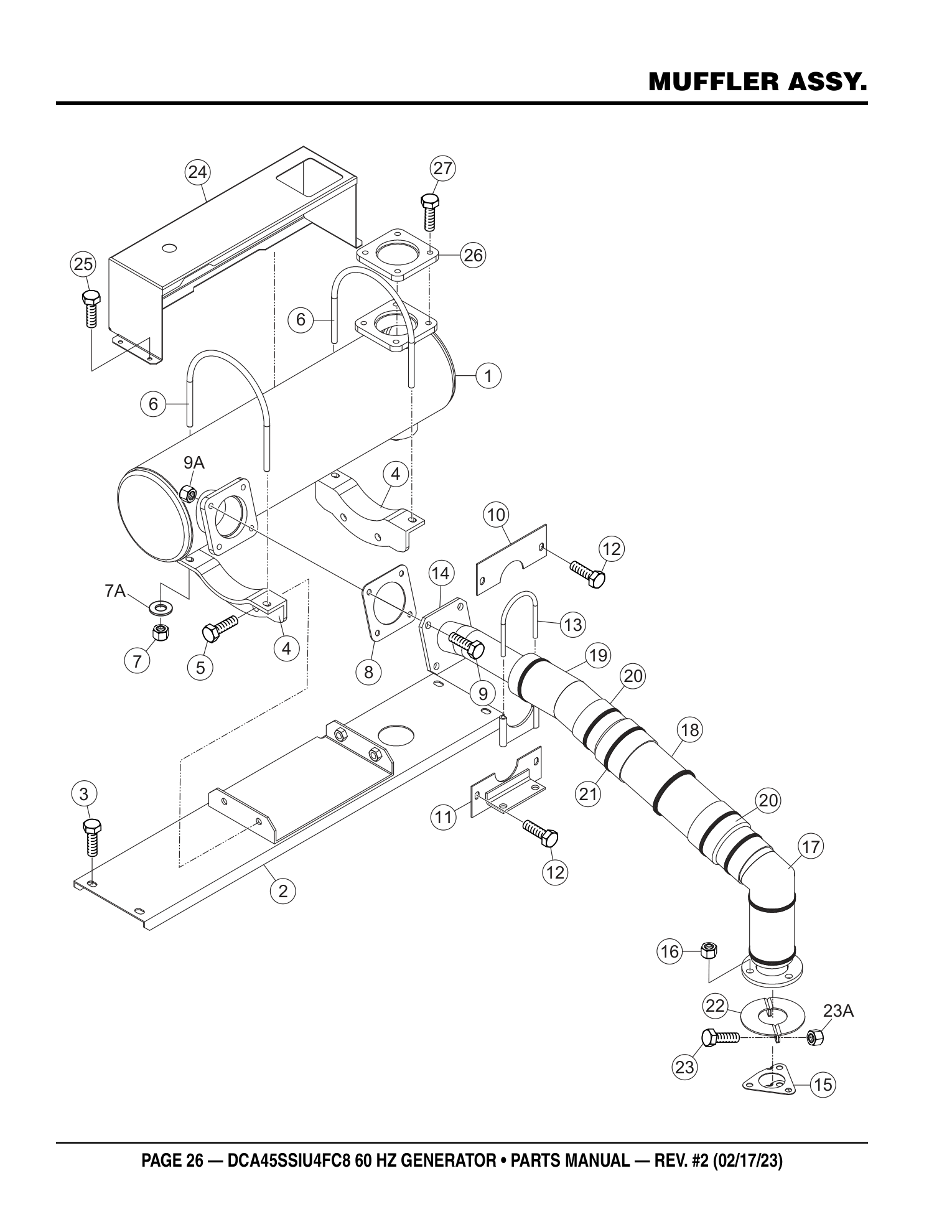

Page 26 — MUFFLER ASSY.

Multiquip DCA45SSIU4FC8 Generator MUFFLER ASSY. parts diagram

Parts list — exactly as printed30 rows

No.	Part No.	Part Name	Qty	Remarks
1	8982353890	DOC, MUFFLER	1	REPLACES P/N Y0602330111	ADD TO CART
DOC, MUFFLER 8982353890 · qty on machine: 1 REPLACES P/N Y0602330111 view full part page → $5850.95
2	M1331400403	DOC, BRACKET	1		PARTS REQUEST
PHOTO COMING DOC, BRACKET M1331400403 · qty on machine: 1 PARTS REQUEST
3	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
4	8982284330	DOC, SUPPORT	2	REPLACES P/N Y0602330210	ADD TO CART
DOC, SUPPORT 8982284330 · qty on machine: 2 REPLACES P/N Y0602330210 view full part page → $91.95
5	012010030	HEX. HEAD BOLT	4	REPLACES P/N 0017110030	ADD TO CART
HEX. HEAD BOLT 012010030 · qty on machine: 4 REPLACES P/N 0017110030 view full part page → $0.95
6	8982103230	U-BOLT	2	REPLACES P/N Y0602322091	ADD TO CART
U-BOLT 8982103230 · qty on machine: 2 REPLACES P/N Y0602322091 view full part page → $31.95
7	020108060	SELF-LOCKING NUT	4	REPLACES P/N 0037908000	ADD TO CART
SELF-LOCKING NUT 020108060 · qty on machine: 4 REPLACES P/N 0037908000 view full part page → $0.28
7A	0401450080	WASHER, FLAT	4	REPLACES P/N 0041208000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 4 REPLACES P/N 0041208000 view full part page → $0.56
8	8973731080	GASKET	1	REPLACES P/N Y0602320212	ADD TO CART
GASKET 8973731080 · qty on machine: 1 REPLACES P/N Y0602320212 view full part page → $24.95
9	8980435280	HEX. HEAD BOLT	4	REPLACES P/N Y0602322090	ADD TO CART
HEX. HEAD BOLT 8980435280 · qty on machine: 4 REPLACES P/N Y0602322090 view full part page → $15.95
9A	8971616070	HEX. NUT	4	REPLACES P/N Y0602323007	ADD TO CART
HEX. NUT 8971616070 · qty on machine: 4 REPLACES P/N Y0602323007 view full part page → $23.95
10	M1331400204	COVER, EXHAUST PIPE	1		ADD TO CART
COVER, EXHAUST PIPE M1331400204 · qty on machine: 1 view full part page → $7.95
11	M1331400304	BRACKET, EXHAUST PIPE	1		PARTS REQUEST
PHOTO COMING BRACKET, EXHAUST PIPE M1331400304 · qty on machine: 1 PARTS REQUEST
12	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95
13	Y0602326066	U-BOLT	1		ADD TO CART
U-BOLT Y0602326066 · qty on machine: 1 view full part page → $9.95
14	M1334000803	EXHAUST PIPE	1		ADD TO CART
EXHAUST PIPE M1334000803 · qty on machine: 1 view full part page → $814.95
15	8973679180	GASKET	1	REPLACES P/N Y0602320211	ADD TO CART
GASKET 8973679180 · qty on machine: 1 REPLACES P/N Y0602320211 view full part page → $24.95
16	0207108000	SELF-LOCKING NUT	3		ADD TO CART
SELF-LOCKING NUT 0207108000 · qty on machine: 3 view full part page → $3.95
17	M1331400604	EXHAUST HEAT SHIELD	1		ADD TO CART
EXHAUST HEAT SHIELD M1331400604 · qty on machine: 1 view full part page → $335.95
18	M1331400704	EXHAUST HEAT SHIELD	1		ADD TO CART
EXHAUST HEAT SHIELD M1331400704 · qty on machine: 1 view full part page → $450.95
19	M1331400804	EXHAUST HEAT SHIELD	1		ADD TO CART
EXHAUST HEAT SHIELD M1331400804 · qty on machine: 1 view full part page → $410.95
20	Y0272100370	HEAT SHIELD TAPE	2		ADD TO CART
HEAT SHIELD TAPE Y0272100370 · qty on machine: 2 view full part page → $8.95
21	Y0602325051	METAL CABLE TIE	8		ADD TO CART
METAL CABLE TIE Y0602325051 · qty on machine: 8 view full part page → $4.95
22	M1334300404	HEAT SHIELD STOPPER	2		ADD TO CART
HEAT SHIELD STOPPER M1334300404 · qty on machine: 2 view full part page → $16.95
23	0019206015	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0019206015 · qty on machine: 2 view full part page → $3.95
23A	0176060030	SELF-LOCKING NUT	2	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 2 REPLACES P/N 0207006000 view full part page → $2.95
24	M1331300004	DOC COVER	1		PARTS REQUEST
PHOTO COMING DOC COVER M1331300004 · qty on machine: 1 PARTS REQUEST
25	011008020	HEX HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
26	M1334300504	FLANGE	1		ADD TO CART
FLANGE M1334300504 · qty on machine: 1 view full part page → $22.95
27	011008020	HEX HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68

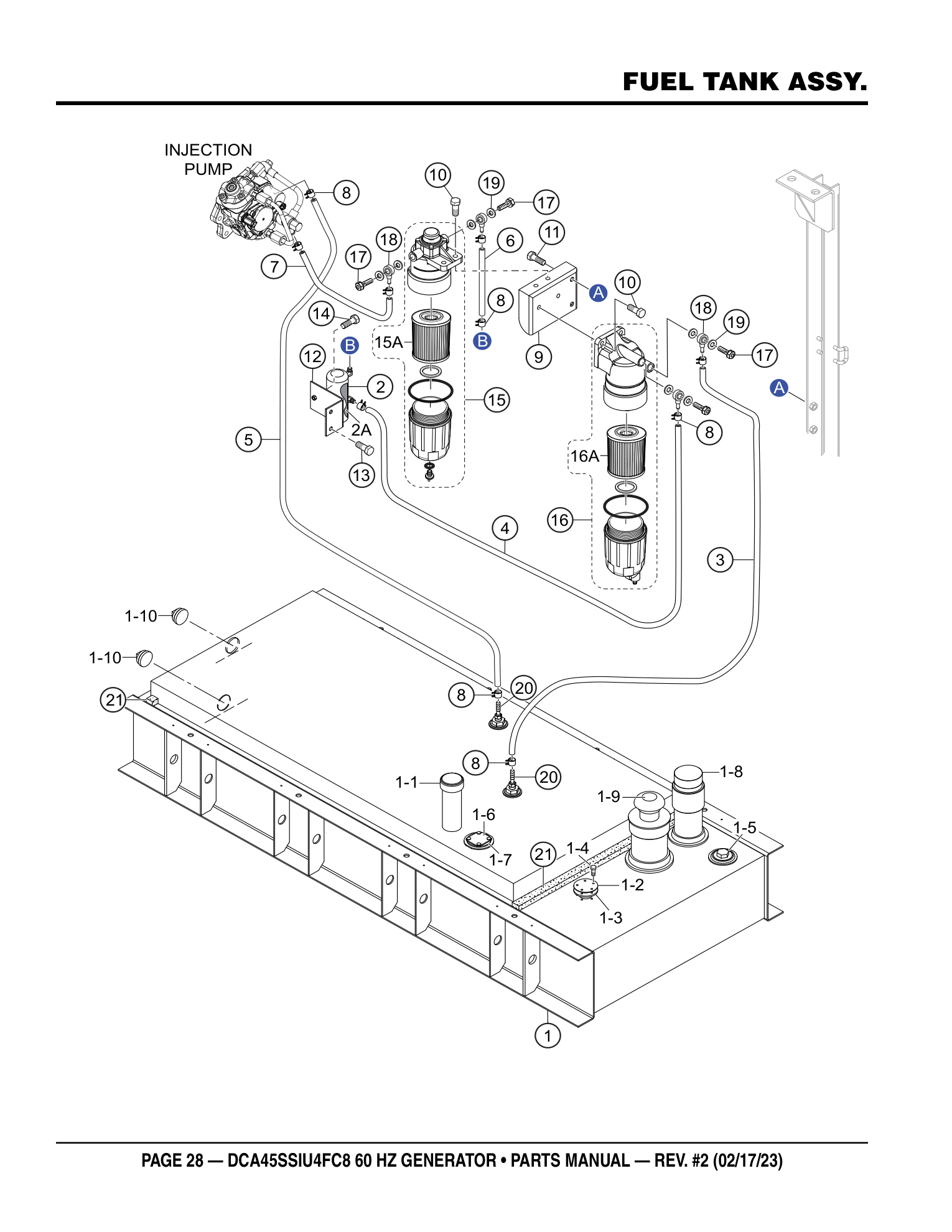

Page 28 — FUEL TANK ASSY.

Multiquip DCA45SSIU4FC8 Generator FUEL TANK ASSY. parts diagram

Parts list — exactly as printed34 rows

No.	Part No.	Part Name	Qty	Remarks
1	Y0605500061	FUEL TANK	1	INCLUDES ITEMS W/#	PARTS REQUEST
PHOTO COMING FUEL TANK Y0605500061 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 1-1#, 1-2#, 1-3#, 1-4#, 1-5#, 1-6#, 1-7#, 1-8#, 1-9#, 1-10# PARTS REQUEST
1-1#	Y0605505050	FUEL TANK CAP	1		PARTS REQUEST
PHOTO COMING FUEL TANK CAP Y0605505050 · qty on machine: 1 Also included in kit 1 - FUEL TANK (Y0605500061) PARTS REQUEST
1-2#	Y0605501046	FUEL SENDER UNIT	1		ADD TO CART
FUEL SENDER UNIT Y0605501046 · qty on machine: 1 Also included in kit 1 - FUEL TANK (Y0605500061) view full part page → $270.95 IN A KIT + SOLD SOLO
1-3#	Y0605516092	GASKET	1		ADD TO CART
GASKET Y0605516092 · qty on machine: 1 Also included in kit 1 - FUEL TANK (Y0605500061) view full part page → $52.95 IN A KIT + SOLD SOLO
1-4#	Y0605053040	HEX HEAD BOLT	5		ADD TO CART
HEX HEAD BOLT Y0605053040 · qty on machine: 5 Also included in kit 1 - FUEL TANK (Y0605500061) view full part page → $1.95 IN A KIT + SOLD SOLO
1-5#	Y0605503221	FUEL LEAK DETECTED SWITCH	1		PARTS REQUEST
PHOTO COMING FUEL LEAK DETECTED SWITCH Y0605503221 · qty on machine: 1 Also included in kit 1 - FUEL TANK (Y0605500061) PARTS REQUEST
1-6#	Y0605503231	VISUAL LEVEL GAUGE	1		PARTS REQUEST
PHOTO COMING VISUAL LEVEL GAUGE Y0605503231 · qty on machine: 1 Also included in kit 1 - FUEL TANK (Y0605500061) PARTS REQUEST
1-7#	Y0605516092	GASKET	1		ADD TO CART
GASKET Y0605516092 · qty on machine: 1 Also included in kit 1 - FUEL TANK (Y0605500061) view full part page → $52.95 IN A KIT + SOLD SOLO
1-8#	Y0605519000	E-VENT	1		PARTS REQUEST
PHOTO COMING E-VENT Y0605519000 · qty on machine: 1 Also included in kit 1 - FUEL TANK (Y0605500061) PARTS REQUEST
1-9#	Y0605519010	NORMAL VENT	1		PARTS REQUEST
PHOTO COMING NORMAL VENT Y0605519010 · qty on machine: 1 Also included in kit 1 - FUEL TANK (Y0605500061) PARTS REQUEST
1-10#	Y0605512611	DRAIN PLUG	2		PARTS REQUEST
PHOTO COMING DRAIN PLUG Y0605512611 · qty on machine: 2 Also included in kit 1 - FUEL TANK (Y0605500061) PARTS REQUEST
2	8980682750	FUEL FEED PUMP	1	REPLACES P/N 0602023240	NO LONGER AVAILABLE
PHOTO COMING FUEL FEED PUMP 8980682750 · qty on machine: 1 REPLACES P/N 0602023240 NO LONGER AVAILABLE
2A	8980714010	FUEL FILTER, FEED PUMP	1		ADD TO CART
FUEL FILTER, FEED PUMP 8980714010 · qty on machine: 1 view full part page → $26.95
3	Y0191301070	SUCTION HOSE	1		PARTS REQUEST
PHOTO COMING SUCTION HOSE Y0191301070 · qty on machine: 1 PARTS REQUEST
4	0191300550	SUCTION HOSE	1		ADD TO CART
SUCTION HOSE 0191300550 · qty on machine: 1 view full part page → $2.95
5	0191300700	RETURN HOSE	1		ADD TO CART
RETURN HOSE 0191300700 · qty on machine: 1 view full part page → $19.95
6	Y0191300260	SUCTION HOSE	1		PARTS REQUEST
PHOTO COMING SUCTION HOSE Y0191300260 · qty on machine: 1 PARTS REQUEST
7	0191300530	SUCTION HOSE	1		ADD TO CART
SUCTION HOSE 0191300530 · qty on machine: 1 view full part page → $14.95
8	Y0605515361	HOSE BAND	10		ADD TO CART
HOSE BAND Y0605515361 · qty on machine: 10 view full part page → $2.61
9	M1484500204	BRACKET, FUEL FILTER	1		ADD TO CART
BRACKET, FUEL FILTER M1484500204 · qty on machine: 1 view full part page → $134.95
10	012210035	HEX. HEAD BOLT	4	REPLACES P/N 0017110035	ADD TO CART
HEX. HEAD BOLT 012210035 · qty on machine: 4 REPLACES P/N 0017110035 view full part page → $1.95
11	0016910030	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0016910030 · qty on machine: 2 view full part page → $2.95
12	M1366700304	BRACKET, FUEL PUMP	1		ADD TO CART
BRACKET, FUEL PUMP M1366700304 · qty on machine: 1 view full part page → $27.95
13	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
14	011606025	HEX. HEAD BOLT	2	REPLACES P/N 0016906025	ADD TO CART
HEX. HEAD BOLT 011606025 · qty on machine: 2 REPLACES P/N 0016906025 view full part page → $1.95
15	8982369900	FUEL FILTER, MAIN ASSY	1	REPLACES P/N 0602042428	ADD TO CART
FUEL FILTER, MAIN ASSY 8982369900 · qty on machine: 1 REPLACES P/N 0602042428 view full part page → $317.95
15A	8982402800	ELEMENT, FUEL FILTER, MAIN	1		ADD TO CART
ELEMENT, FUEL FILTER, MAIN 8982402800 · qty on machine: 1 view full part page → $70.95
16	8982369910	FUEL FILTER, PRE. ASSY	1	REPLACES P/N 0602042429	ADD TO CART
FUEL FILTER, PRE. ASSY 8982369910 · qty on machine: 1 REPLACES P/N 0602042429 view full part page → $286.95
16A	8982402790	ELEMENT, FUEL FILTER. PRE.	1		ADD TO CART
ELEMENT, FUEL FILTER. PRE. 8982402790 · qty on machine: 1 view full part page → $75.95
17	1096751930	EYE BOLT	4	REPLACES P/N Y0602042624	ADD TO CART
EYE BOLT 1096751930 · qty on machine: 4 REPLACES P/N Y0602042624 view full part page → $27.95
18	8981263320	JOINT PIPE	4	REPLACES P/N Y0602042623	ADD TO CART
JOINT PIPE 8981263320 · qty on machine: 4 REPLACES P/N Y0602042623 view full part page → $46.95
19	1096300850	PACKING	8	REPLACES P/N Y0602021700	ADD TO CART
PACKING 1096300850 · qty on machine: 8 REPLACES P/N Y0602021700 view full part page → $0.95
20	Y0602022988	HOSE JOINT	2		PARTS REQUEST
PHOTO COMING HOSE JOINT Y0602022988 · qty on machine: 2 PARTS REQUEST
21	M1494600404	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M1494600404 · qty on machine: 1 PARTS REQUEST

Page 30 — ENCLOSURE ASSY.

Multiquip DCA45SSIU4FC8 Generator ENCLOSURE ASSY. parts diagram

Parts list — exactly as printed49 rows

No.	Part No.	Part Name	Qty	Remarks
1	M1414001602	BASE	1		PARTS REQUEST
PHOTO COMING BASE M1414001602 · qty on machine: 1 PARTS REQUEST
2	0013616040	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0013616040 · qty on machine: 8 view full part page → $5.95
2A	0030016000	HEX. NUT	8		ADD TO CART
HEX. NUT 0030016000 · qty on machine: 8 view full part page → $1.9
2B	0040016000	WASHER, LOCK	8		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 8 view full part page → $4.95
2C	0041216000	WASHER, FLAT	16		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 16 view full part page → $1.95
3	M2414800304	HOLE COVER	1		ADD TO CART
HOLE COVER M2414800304 · qty on machine: 1 view full part page → $74.95
4	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
5	M1424001502	FRONT FRAME	1		PARTS REQUEST
PHOTO COMING FRONT FRAME M1424001502 · qty on machine: 1 PARTS REQUEST
5A	M1494101903	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494101903 · qty on machine: 1 view full part page → $263.95
6	011008020	HEX. HEAD BOLT	6	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 6 REPLACES P/N 0016908020 view full part page → $2.68
7	M1424201703	COVER, FRONT FRAME	1		ADD TO CART
COVER, FRONT FRAME M1424201703 · qty on machine: 1 view full part page → $261.95
7A	M1494107404	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M1494107404 · qty on machine: 1 PARTS REQUEST
8	0019208020	HEX. HEAD BOLT	13		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 13 view full part page → $3.95
9	M1424201404	DUCT	1		PARTS REQUEST
PHOTO COMING DUCT M1424201404 · qty on machine: 1 PARTS REQUEST
10	0176060030	SELF-LOCKING NUT	5	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 5 REPLACES P/N 0207006000 view full part page → $2.95
11	0601851727	GROMMET	1		PARTS REQUEST
PHOTO COMING GROMMET 0601851727 · qty on machine: 1 PARTS REQUEST
12	M1311200614	RADIATOR BRACKET	1		PARTS REQUEST
PHOTO COMING RADIATOR BRACKET M1311200614 · qty on machine: 1 PARTS REQUEST
13	M1311200704	RADIATOR BRACKET	1		ADD TO CART
RADIATOR BRACKET M1311200704 · qty on machine: 1 view full part page → $77.95
14	M1311300513	FAN SHROUD	1		PARTS REQUEST
PHOTO COMING FAN SHROUD M1311300513 · qty on machine: 1 PARTS REQUEST
15	M1311300603	FAN SHROUD	1		ADD TO CART
FAN SHROUD M1311300603 · qty on machine: 1 view full part page → $151.95
16	011008020	HEX. HEAD BOLT	8	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 8 REPLACES P/N 0016908020 view full part page → $2.68
17	M1311300703	FAN GUARD	1		ADD TO CART
FAN GUARD M1311300703 · qty on machine: 1 view full part page → $149.95
18	M1311300803	FAN GUARD	1		ADD TO CART
FAN GUARD M1311300803 · qty on machine: 1 view full part page → $72.95
19	011008020	HEX. HEAD BOLT	11	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 11 REPLACES P/N 0016908020 view full part page → $2.68
20	M1434000503	CENTER FRAME	1		PARTS REQUEST
PHOTO COMING CENTER FRAME M1434000503 · qty on machine: 1 PARTS REQUEST
21	M1434000303	CENTER FRAME	1		ADD TO CART
CENTER FRAME M1434000303 · qty on machine: 1 view full part page → $211.95
22	0013616040	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0013616040 · qty on machine: 6 view full part page → $5.95
22A	0040016000	WASHER, LOCK	6		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 6 view full part page → $4.95
22B	0041216000	WASHER, FLAT	6		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 6 view full part page → $1.95
23	Y0013616035	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT Y0013616035 · qty on machine: 4 view full part page → $2.63
23A	0040016000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 4 view full part page → $4.95
23B	0041216000	WASHER, FLAT	4		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 4 view full part page → $1.95
24	M1444000502	REAR FRAME	1		PARTS REQUEST
PHOTO COMING REAR FRAME M1444000502 · qty on machine: 1 PARTS REQUEST
24A	M1494304604	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494304604 · qty on machine: 1 view full part page → $319.95
25	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
26	M1444300213	REAR COVER	1		ADD TO CART
REAR COVER M1444300213 · qty on machine: 1 view full part page → $207.95
27	M1444300313	DUCT, REAR COVER	1		ADD TO CART
DUCT, REAR COVER M1444300313 · qty on machine: 1 view full part page → $320.95
27A	M1494301313	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494301313 · qty on machine: 1 view full part page → $195.95
28	0176060030	SELF-LOCKING NUT	12	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 12 REPLACES P/N 0207006000 view full part page → $2.95
29	0019208020	HEX. HEAD BOLT	10		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 10 view full part page → $3.95
30	M1444200203	REAR DOOR	1		PARTS REQUEST
PHOTO COMING REAR DOOR M1444200203 · qty on machine: 1 PARTS REQUEST
31	M1445600204	WINDOW PLATE	1		ADD TO CART
WINDOW PLATE M1445600204 · qty on machine: 1 view full part page → $57.95
32	020106050	LOCK NUT	10	REPLACES P/N 0037906000	ADD TO CART
LOCK NUT 020106050 · qty on machine: 10 REPLACES P/N 0037906000 view full part page → $0.12
32A	952404470	WASHER, FLAT	10	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 10 REPLACES P/N 0041206000 view full part page → $0.19
33	Y0605012318	DOOR HANDLE ASSY.	1		ADD TO CART
DOOR HANDLE ASSY. Y0605012318 · qty on machine: 1 view full part page → $75.95
33A	C9312500004	SEAL RUBBER	1		ADD TO CART
SEAL RUBBER C9312500004 · qty on machine: 1 view full part page → $10.95
34	Y0207006000	SELF-LOCKING NUT	4		ADD TO CART
SELF-LOCKING NUT Y0207006000 · qty on machine: 4 view full part page → $0.23
35	M9110100204	HINGE, MALE(L)	2		ADD TO CART
HINGE, MALE(L) M9110100204 · qty on machine: 2 view full part page → $23.95
35A	M9116100004	WASHER	2		ADD TO CART
WASHER M9116100004 · qty on machine: 2 view full part page → $1.93

Page 32 — ENCLOSURE ASSY. (CONT'D.)

Multiquip DCA45SSIU4FC8 Generator ENCLOSURE ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed49 rows

No.	Part No.	Part Name	Qty	Remarks
36	0019208020	HEX. HEAD BOLT	3		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 3 view full part page → $3.95
37	0845031504	BLIND PLUG	2	REPLACES P/N M9310000004	ADD TO CART
BLIND PLUG 0845031504 · qty on machine: 2 REPLACES P/N M9310000004 view full part page → $2.95
38	M1464000212	ROOF PANEL	1		ADD TO CART
ROOF PANEL M1464000212 · qty on machine: 1 view full part page → $1826.95
38A	M1494500803	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494500803 · qty on machine: 1 view full part page → $176.95
39	0019208020	HEX. HEAD BOLT	10		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 10 view full part page → $3.95
40	M1424100004	OVER COVER, FRONT FRAME	1		ADD TO CART
OVER COVER, FRONT FRAME M1424100004 · qty on machine: 1 view full part page → $160.95
41	0019208020	HEX. HEAD BOLT	11		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 11 view full part page → $3.95
42	M3310600004	COVER	1		ADD TO CART
COVER M3310600004 · qty on machine: 1 view full part page → $17.95
43	0019208020	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 4 view full part page → $3.95
44	M1454201302	SPLASHER PANEL	1		PARTS REQUEST
PHOTO COMING SPLASHER PANEL M1454201302 · qty on machine: 1 PARTS REQUEST
45	0019108055	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0019108055 · qty on machine: 4 view full part page → $3.95
45A	0042308000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0042308000 · qty on machine: 4 view full part page → $0.83
45B	031108160	WASHER, FLAT	4	REPLACES P/N 0042408000	ADD TO CART
WASHER, FLAT 031108160 · qty on machine: 4 REPLACES P/N 0042408000 Factory replaced this part - current number 0401450080 view full part page → $0.56 IN A KIT + SOLD SOLO
46	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
47	M1454002803	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M1454002803 · qty on machine: 1 PARTS REQUEST
47A	M1494401404	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494401404 · qty on machine: 1 view full part page → $282.95
48	M1454300404	DUCT	1		ADD TO CART
DUCT M1454300404 · qty on machine: 1 view full part page → $196.95
48A	M1494401904	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494401904 · qty on machine: 1 view full part page → $59.95
49	0176060030	SELF-LOCKING NUT	7	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 7 REPLACES P/N 0207006000 view full part page → $2.95
50	M1454001103	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M1454001103 · qty on machine: 1 PARTS REQUEST
50A	M1494401504	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494401504 · qty on machine: 1 view full part page → $59.95
51	M1454300604	DUCT	1		ADD TO CART
DUCT M1454300604 · qty on machine: 1 view full part page → $114.95
51A	M1494402104	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494402104 · qty on machine: 1 view full part page → $79.95
52	0176060030	SELF-LOCKING NUT	7	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 7 REPLACES P/N 0207006000 view full part page → $2.95
53	M1454002503	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M1454002503 · qty on machine: 1 PARTS REQUEST
53A	M1494409104	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M1494409104 · qty on machine: 1 PARTS REQUEST
54	M1454003003	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M1454003003 · qty on machine: 1 PARTS REQUEST
54A	M1494401703	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494401703 · qty on machine: 1 view full part page → $265.95
55	M1454300703	DUCT	1		ADD TO CART
DUCT M1454300703 · qty on machine: 1 view full part page → $124.95
55A	M1494402204	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494402204 · qty on machine: 1 view full part page → $79.95
56	0176060030	SELF-LOCKING NUT	7	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 7 REPLACES P/N 0207006000 view full part page → $2.95
57	Y0605012318	DOOR HANDLE ASSY.	4		ADD TO CART
DOOR HANDLE ASSY. Y0605012318 · qty on machine: 4 view full part page → $75.95
57A	C9312500004	SEAL RUBBER	4		ADD TO CART
SEAL RUBBER C9312500004 · qty on machine: 4 view full part page → $10.95
58	0176060030	SELF-LOCKING NUT	16	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 16 REPLACES P/N 0207006000 view full part page → $2.95
59	M9110100204	HINGE, MALE (L)	4		ADD TO CART
HINGE, MALE (L) M9110100204 · qty on machine: 4 view full part page → $23.95
59A	M9116100004	WASHER	4		ADD TO CART
WASHER M9116100004 · qty on machine: 4 view full part page → $1.93
60	M9110100304	HINGE, MALE (R)	4		ADD TO CART
HINGE, MALE (R) M9110100304 · qty on machine: 4 view full part page → $19.95
60A	M9116100004	WASHER	4		ADD TO CART
WASHER M9116100004 · qty on machine: 4 view full part page → $1.93
61	0019208020	HEX. HEAD BOLT	9		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 9 view full part page → $3.95
62	0845031504	BLIND PLUG	8	REPLACES P/N M9310000004	ADD TO CART
BLIND PLUG 0845031504 · qty on machine: 8 REPLACES P/N M9310000004 view full part page → $2.95
63	0601850097	DOOR STOPPER	9		ADD TO CART
DOOR STOPPER 0601850097 · qty on machine: 9 view full part page → $2.95
64	0027208025	MACHINE SCREW	9		ADD TO CART
MACHINE SCREW 0027208025 · qty on machine: 9 view full part page → $0.76
65	0600800320	MANUAL HOLDER	1		ADD TO CART
MANUAL HOLDER 0600800320 · qty on machine: 1 view full part page → $43.95
66	0027106016	MACHINE SCREW	4	REPLACES P/N 0021806015	ADD TO CART
MACHINE SCREW 0027106016 · qty on machine: 4 REPLACES P/N 0021806015 view full part page → $0.55
67	011008020	HEX. HEAD BOLT	8	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 8 REPLACES P/N 0016908020 view full part page → $2.68
68	011008020	HEX. HEAD BOLT	16	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 16 REPLACES P/N 0016908020 view full part page → $2.68
69	Y0605050040	SEALING WASHER	1		ADD TO CART
SEALING WASHER Y0605050040 · qty on machine: 1 view full part page → $1.95
70	0019112030	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0019112030 · qty on machine: 1 view full part page → $5.95
71	0030012000	HEX. HEAD NUT	1		ADD TO CART
HEX. HEAD NUT 0030012000 · qty on machine: 1 view full part page → $0.5

Page 34 — ENCLOSURE ASSY. (CONT'D.)

Parts list — exactly as printed10 rows

No.	Part No.	Part Name	Qty
72	0042312000	WASHER, LOCK	1	ADD TO CART
WASHER, LOCK 0042312000 · qty on machine: 1 view full part page → $0.94
73	0042412000	WASHER, FLAT	1	ADD TO CART
WASHER, FLAT 0042412000 · qty on machine: 1 view full part page → $1.63
74	M1454701504	GUTTER	1	PARTS REQUEST
PHOTO COMING GUTTER M1454701504 · qty on machine: 1 PARTS REQUEST
75	0019206015	HEX. HEAD BOLT	3	ADD TO CART
HEX. HEAD BOLT 0019206015 · qty on machine: 3 view full part page → $3.95
76	M1454701604	GUTTER	1	PARTS REQUEST
PHOTO COMING GUTTER M1454701604 · qty on machine: 1 PARTS REQUEST
77	0019206015	HEX. HEAD BOLT	3	ADD TO CART
HEX. HEAD BOLT 0019206015 · qty on machine: 3 view full part page → $3.95
78	M1454701704	GUTTER	1	PARTS REQUEST
PHOTO COMING GUTTER M1454701704 · qty on machine: 1 PARTS REQUEST
79	0019206015	HEX. HEAD BOLT	3	ADD TO CART
HEX. HEAD BOLT 0019206015 · qty on machine: 3 view full part page → $3.95
80	Y0601831953	EMERGENCY STOP BUTTON	1	ADD TO CART
EMERGENCY STOP BUTTON Y0601831953 · qty on machine: 1 view full part page → $152.95
80A	M1358203104	WIRE HARNESS, EMERGENCY STOP	1	PARTS REQUEST
PHOTO COMING WIRE HARNESS, EMERGENCY STOP M1358203104 · qty on machine: 1 PARTS REQUEST

Page 36 — RUBBER SEALS ASSY.

Multiquip DCA45SSIU4FC8 Generator RUBBER SEALS ASSY. parts diagram

Parts list — exactly as printed13 rows

No.	Part No.	Part Name	Qty	Remarks
1	0229200950	RUBBER SEAL	2		ADD TO CART
RUBBER SEAL 0229200950 · qty on machine: 2 view full part page → $9.95
2	Y0417001390	RUBBER SEAL	3		PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0417001390 · qty on machine: 3 PARTS REQUEST
3	Y0417001020	RUBBER SEAL	4		PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0417001020 · qty on machine: 4 PARTS REQUEST
4	Y0417000780	RUBBER SEAL	1		PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0417000780 · qty on machine: 1 PARTS REQUEST
5	Y0417000980	RUBBER SEAL	2		PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0417000980 · qty on machine: 2 PARTS REQUEST
6	Y0417000820	RUBBER SEAL	2		PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0417000820 · qty on machine: 2 PARTS REQUEST
7	Y0417000470	RUBBER SEAL	1		PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0417000470 · qty on machine: 1 PARTS REQUEST
8	Y0417000510	RUBBER SEAL	1		PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0417000510 · qty on machine: 1 PARTS REQUEST
9	0229200880	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL 0229200880 · qty on machine: 1 view full part page → $5.95
10	0228100340	RUBBER SEAL	2		ADD TO CART
RUBBER SEAL 0228100340 · qty on machine: 2 view full part page → $1.95
11	70NS2016	RUBBER SEAL	2	REPLACES P/N 0228100350	ADD TO CART
RUBBER SEAL 70NS2016 · qty on machine: 2 REPLACES P/N 0228100350 view full part page → $2.95
12	Y0229200145	RUBBER SEAL	2		ADD TO CART
RUBBER SEAL Y0229200145 · qty on machine: 2 view full part page → $0.65
13	Y0229200100	RUBBER SEAL	2		ADD TO CART
RUBBER SEAL Y0229200100 · qty on machine: 2 view full part page → $0.67

Page 38 — BATTERY CHARGER ASSY. (OPTION)

Multiquip DCA45SSIU4FC8 Generator BATTERY CHARGER ASSY. (OPTION) parts diagram

Parts list — exactly as printed14 rows

No.	Part No.	Part Name	Qty	Remarks
1	MQPBCKIT-J	BATTERY CHARGER ASSY	1	INCLUDES ITEMS W/#	ADD TO CART
BATTERY CHARGER ASSY MQPBCKIT-J · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 2#, 3#, 4#, 5#, 6#, 7#, 8#, 9#, 10#, 11#, 12#, 13#, 14# view full part page → $786.48 IN A KIT + SOLD SOLO
2#	EE62075	BATTERY CHARGER, 6A 12V	1		ADD TO CART
BATTERY CHARGER, 6A 12V EE62075 · qty on machine: 1 Also included in kit 1 - BATTERY CHARGER ASSY (MQPBCKIT-J) view full part page → $361.95 IN A KIT + SOLD SOLO
3#	EE62021	ADAPTER, BATTERY CHARGER, LE	1		ADD TO CART
ADAPTER, BATTERY CHARGER, LE EE62021 · qty on machine: 1 Also included in kit 1 - BATTERY CHARGER ASSY (MQPBCKIT-J) view full part page → $30.95 IN A KIT + SOLD SOLO
4#	EE62076	INLET REC. AND CORD, NEMA 5-15P	1		ADD TO CART
INLET REC. AND CORD, NEMA 5-15P EE62076 · qty on machine: 1 Also included in kit 1 - BATTERY CHARGER ASSY (MQPBCKIT-J) view full part page → $66.95 IN A KIT + SOLD SOLO
5#		HEX. HD. SCREW W/ WASHER, M4X12MM	1	OBTAIN LOCALLY	INCLUDED IN KIT
PHOTO COMING HEX. HD. SCREW W/ WASHER, M4X12MM · qty on machine: 1 OBTAIN LOCALLY Included in kit 1 - BATTERY CHARGER ASSY (MQPBCKIT-J) INCLUDED IN KIT
6#		FLAT HEAD SCREW, 10-32X1/2"	4	OBTAIN LOCALLY	INCLUDED IN KIT
PHOTO COMING FLAT HEAD SCREW, 10-32X1/2" · qty on machine: 4 OBTAIN LOCALLY Included in kit 1 - BATTERY CHARGER ASSY (MQPBCKIT-J) INCLUDED IN KIT
7#		RING TERMINAL, 5/16", 14-16AWG	2	OBTAIN LOCALLY	INCLUDED IN KIT
PHOTO COMING RING TERMINAL, 5/16", 14-16AWG · qty on machine: 2 OBTAIN LOCALLY Included in kit 1 - BATTERY CHARGER ASSY (MQPBCKIT-J) INCLUDED IN KIT
8#		RING TERMINAL, 3/8", 14-16AWG	2	OBTAIN LOCALLY	INCLUDED IN KIT
PHOTO COMING RING TERMINAL, 3/8", 14-16AWG · qty on machine: 2 OBTAIN LOCALLY Included in kit 1 - BATTERY CHARGER ASSY (MQPBCKIT-J) INCLUDED IN KIT
9#		RING TERMINAL, 1/2", 14-16AWG	2	OBTAIN LOCALLY	INCLUDED IN KIT
PHOTO COMING RING TERMINAL, 1/2", 14-16AWG · qty on machine: 2 OBTAIN LOCALLY Included in kit 1 - BATTERY CHARGER ASSY (MQPBCKIT-J) INCLUDED IN KIT
10#		SELF TAPPING HEX. SCREW, #8	4	OBTAIN LOCALLY	INCLUDED IN KIT
PHOTO COMING SELF TAPPING HEX. SCREW, #8 · qty on machine: 4 OBTAIN LOCALLY Included in kit 1 - BATTERY CHARGER ASSY (MQPBCKIT-J) INCLUDED IN KIT
11#		ZIP TIES, #6	20	OBTAIN LOCALLY	INCLUDED IN KIT
PHOTO COMING ZIP TIES, #6 · qty on machine: 20 OBTAIN LOCALLY Included in kit 1 - BATTERY CHARGER ASSY (MQPBCKIT-J) INCLUDED IN KIT
12#	EE60983	3A BATTERY CHARGER KIT, INST.	1		PARTS REQUEST
PHOTO COMING 3A BATTERY CHARGER KIT, INST. EE60983 · qty on machine: 1 Also included in kit 1 - BATTERY CHARGER ASSY (MQPBCKIT-J) PARTS REQUEST
13#		HEX. NUT, 10-32	4	OBTAIN LOCALLY	INCLUDED IN KIT
PHOTO COMING HEX. NUT, 10-32 · qty on machine: 4 OBTAIN LOCALLY Included in kit 1 - BATTERY CHARGER ASSY (MQPBCKIT-J) INCLUDED IN KIT
14#	M1940011014Q	DECAL, BATTERY CHARGER	1		ADD TO CART
DECAL, BATTERY CHARGER M1940011014Q · qty on machine: 1 Also included in kit 1 - BATTERY CHARGER ASSY (MQPBCKIT-J) view full part page → $1.36 IN A KIT + SOLD SOLO

Page 40 — ENGINE BLOCK HEATER ASSY. (OPTION)

Multiquip DCA45SSIU4FC8 Generator ENGINE BLOCK HEATER ASSY. (OPTION) parts diagram

Parts list — exactly as printed4 rows

No.	Part No.	Part Name	Qty	Remarks
1	MQPHEATTKIT-A	BLOCK HEATER, 500W	1	INCLUDES ITEMS W/#	ADD TO CART
BLOCK HEATER, 500W MQPHEATTKIT-A · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 2#, 3#, 4# view full part page → $822.64 IN A KIT + SOLD SOLO
2#	M194001005Q	DECAL, WATER HEATER	1		PARTS REQUEST
PHOTO COMING DECAL, WATER HEATER M194001005Q · qty on machine: 1 Also included in kit 1 - BLOCK HEATER, 500W (MQPHEATTKIT-A) PARTS REQUEST
3#	TPS051GT10000	HEATER, TANK, 500W	1		ADD TO CART
HEATER, TANK, 500W TPS051GT10000 · qty on machine: 1 Also included in kit 1 - BLOCK HEATER, 500W (MQPHEATTKIT-A) view full part page → $209.95 IN A KIT + SOLD SOLO
4#	EE62076	INLET REC. AND CORD, NEMA 5-15P, 15A	1		ADD TO CART
INLET REC. AND CORD, NEMA 5-15P, 15A EE62076 · qty on machine: 1 Also included in kit 1 - BLOCK HEATER, 500W (MQPHEATTKIT-A) view full part page → $66.95 IN A KIT + SOLD SOLO

Page 42 — NAMEPLATE AND DECALS ASSY.

Multiquip DCA45SSIU4FC8 Generator NAMEPLATE AND DECALS ASSY. parts diagram

Parts list — exactly as printed50 rows

No.	Part No.	Part Name	Qty	Remarks
1	M1551000303	DECAL: ENGINE OPERATING	1	M15100030 S/N 9810011 AND BELOW	ADD TO CART
DECAL: ENGINE OPERATING M1551000303 · qty on machine: 1 M15100030 S/N 9810011 AND BELOW view full part page → $30.95
1	M1551000313	DECAL: ENGINE OPERATING	1	S/N 9810012 AND ABOVE	PARTS REQUEST
PHOTO COMING DECAL: ENGINE OPERATING M1551000313 · qty on machine: 1 S/N 9810012 AND ABOVE PARTS REQUEST
2	M9520000104	DECAL: AMMETER CHANGE-OVER SW	1	M92000010	ADD TO CART
DECAL: AMMETER CHANGE-OVER SW M9520000104 · qty on machine: 1 M92000010 view full part page → $11.95
3	M9520000204	DECAL: VOLTMETER CHANGE-OVER SW	1	M92000020	ADD TO CART
DECAL: VOLTMETER CHANGE-OVER SW M9520000204 · qty on machine: 1 M92000020 view full part page → $11.95
4	M1551000203	DECAL: GENERATOR CONTROL	1	M15100020	ADD TO CART
DECAL: GENERATOR CONTROL M1551000203 · qty on machine: 1 M15100020 view full part page → $30.95
5	M9520100704	DECAL: WARNING ARC FLASH	1	M92010070	ADD TO CART
DECAL: WARNING ARC FLASH M9520100704 · qty on machine: 1 M92010070 view full part page → $4.95
6	M9520100304	DECAL: GENERAL CAUTIONS	1	M92010030	ADD TO CART
DECAL: GENERAL CAUTIONS M9520100304 · qty on machine: 1 M92010030 view full part page → $3.95
7	M9520100004	DECAL: WARNING ELECTRICAL SHOCK	2	M92010000	ADD TO CART
DECAL: WARNING ELECTRICAL SHOCK M9520100004 · qty on machine: 2 M92010000 view full part page → $5.95
8	M9520200404	DECAL: O.C.R. RESET	1	M92020040A	ADD TO CART
DECAL: O.C.R. RESET M9520200404 · qty on machine: 1 M92020040A view full part page → $3.95
9	M9520200003	DECAL: CONNECTION OF OUTPUT CABLE	1	M92020000	ADD TO CART
DECAL: CONNECTION OF OUTPUT CABLE M9520200003 · qty on machine: 1 M92020000 view full part page → $7.95
10	M9520000004	DECAL: GROUNDING	2	M92000000	ADD TO CART
DECAL: GROUNDING M9520000004 · qty on machine: 2 M92000000 view full part page → $1.95
11	M9520100404	DECAL: DANGER HIGH VOLTAGE	1	M92010040	ADD TO CART
DECAL: DANGER HIGH VOLTAGE M9520100404 · qty on machine: 1 M92010040 view full part page → $37.95
12	M9520100204	DECAL: CAUTION CHANGE-OVER SW	1	M92010020A	ADD TO CART
DECAL: CAUTION CHANGE-OVER SW M9520100204 · qty on machine: 1 M92010020A view full part page → $3.95
13	M9500300104	DECAL: +	1	M90030010	ADD TO CART
DECAL: + M9500300104 · qty on machine: 1 M90030010 view full part page → $1.95
14	M9500300004	DECAL: -	1	M90030000	ADD TO CART
DECAL: - M9500300004 · qty on machine: 1 M90030000 view full part page → $1.95
15	M9503100004	DECAL: WARNING RADIATOR CAP	1	M90310000	ADD TO CART
DECAL: WARNING RADIATOR CAP M9503100004 · qty on machine: 1 M90310000 view full part page → $4.95
16	M9500100004	DECAL: WATER	1	M90010000	ADD TO CART
DECAL: WATER M9500100004 · qty on machine: 1 M90010000 view full part page → $1.95
17	M9510100004	DECAL: CAUTION HIGH TEMP	1	M91010000	ADD TO CART
DECAL: CAUTION HIGH TEMP M9510100004 · qty on machine: 1 M91010000 view full part page → $68.95
18	M9503200004	DECAL: WARNING EXHAUST GAS	1	M90320000	ADD TO CART
DECAL: WARNING EXHAUST GAS M9503200004 · qty on machine: 1 M90320000 view full part page → $14.95
19	M9503000004	DECAL: WARNING ROTATING PART	2	M90300000	ADD TO CART
DECAL: WARNING ROTATING PART M9503000004 · qty on machine: 2 M90300000 view full part page → $1.95
20	M1561101103	STRIPE	1		ADD TO CART
STRIPE M1561101103 · qty on machine: 1 view full part page → $9.95
21	M1561101203	STRIPE	2		ADD TO CART
STRIPE M1561101203 · qty on machine: 2 view full part page → $5.95
22	M1561102903	STRIPE	1		PARTS REQUEST
PHOTO COMING STRIPE M1561102903 · qty on machine: 1 PARTS REQUEST
23	M1561102803	STRIPE	1		PARTS REQUEST
PHOTO COMING STRIPE M1561102803 · qty on machine: 1 PARTS REQUEST
24	M1561101504	STRIPE	2		ADD TO CART
STRIPE M1561101504 · qty on machine: 2 view full part page → $3.95
25	M1561101603	STRIPE	1		ADD TO CART
STRIPE M1561101603 · qty on machine: 1 view full part page → $5.95
26	M1561101703	STRIPE	1		ADD TO CART
STRIPE M1561101703 · qty on machine: 1 view full part page → $9.95
27	M9520100603	DECAL: WARNING AUTO START	2	M92010060	ADD TO CART
DECAL: WARNING AUTO START M9520100603 · qty on machine: 2 M92010060 view full part page → $8.95
28	M1551000504	DECAL: NOTICE LOAD SHARING	1	M15100050	ADD TO CART
DECAL: NOTICE LOAD SHARING M1551000504 · qty on machine: 1 M15100050 view full part page → $25.95
29	M9503000103	DECAL: DAILY CHECK WATER AND OIL	1	M90300010	ADD TO CART
DECAL: DAILY CHECK WATER AND OIL M9503000103 · qty on machine: 1 M90300010 view full part page → $7.95
30	M9520000504	DECAL: START CONTACT	1	M92000050	ADD TO CART
DECAL: START CONTACT M9520000504 · qty on machine: 1 M92000050 view full part page → $67.95
31	M9520100503	DECAL: WARNING	1	M92010050	ADD TO CART
DECAL: WARNING M9520100503 · qty on machine: 1 M92010050 view full part page → $1.95
32	M9511100104	DECAL: NOTICE RECEPTACLE	1	M91110010	ADD TO CART
DECAL: NOTICE RECEPTACLE M9511100104 · qty on machine: 1 M91110010 view full part page → $3.95
33	M1550000703	DECAL: AUXILIARY OUTPUTS	1	M15000070A	ADD TO CART
DECAL: AUXILIARY OUTPUTS M1550000703 · qty on machine: 1 M15000070A view full part page → $36.95
34	M9510100403	DECAL: WARNING BATTERY CONNECT	1	M91010040A	ADD TO CART
DECAL: WARNING BATTERY CONNECT M9510100403 · qty on machine: 1 M91010040A view full part page → $16.95
35	M9501500004	DECAL: DIESEL FUEL	1	M90150000	ADD TO CART
DECAL: DIESEL FUEL M9501500004 · qty on machine: 1 M90150000 view full part page → $3.95
36	M9500000004	DECAL: OIL DRAIN	1	M90000000	ADD TO CART
DECAL: OIL DRAIN M9500000004 · qty on machine: 1 M90000000 view full part page → $2.95
37	M9510000104	DECAL: DOCUMENT BOX LOCATED	1	M91000010	ADD TO CART
DECAL: DOCUMENT BOX LOCATED M9510000104 · qty on machine: 1 M91000010 view full part page → $4.95
38	M9511100004	DECAL: ENVIRONMENTAL WARNING	1	M91110000	ADD TO CART
DECAL: ENVIRONMENTAL WARNING M9511100004 · qty on machine: 1 M91110000 view full part page → $6.95
39	M9503200104	DECAL: DANGER EX. GAS (INDOOR)	1	M90320010	ADD TO CART
DECAL: DANGER EX. GAS (INDOOR) M9503200104 · qty on machine: 1 M90320010 view full part page → $4.95
40	M9504200004	DECAL: WARNING START FIRES	1	M90420000	ADD TO CART
DECAL: WARNING START FIRES M9504200004 · qty on machine: 1 M90420000 view full part page → $3.95
41	M1551001503	OPERATING PRECAUTIONS	1	M15100150	ADD TO CART
OPERATING PRECAUTIONS M1551001503 · qty on machine: 1 M15100150 view full part page → $9.95
42	M9510000004	DECAL: FLUID DRAIN	1	M91000000	ADD TO CART
DECAL: FLUID DRAIN M9510000004 · qty on machine: 1 M91000000 view full part page → $26.95
43	M1550001504	CAUTION: LIFTING CAPACITY	1	M15000150	ADD TO CART
CAUTION: LIFTING CAPACITY M1550001504 · qty on machine: 1 M15000150 view full part page → $35.95
44	M9500100304	INTER-COOLER DRAIN	1	M90010030	ADD TO CART
INTER-COOLER DRAIN M9500100304 · qty on machine: 1 M90010030 view full part page → $1.95
45	M9511200204	STICKER, MQ	1	M91120020	ADD TO CART
STICKER, MQ M9511200204 · qty on machine: 1 M91120020 view full part page → $5.95
46	0600500092	EMBLEM	1		ADD TO CART
EMBLEM 0600500092 · qty on machine: 1 view full part page → $21.95
47	0021106015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021106015 · qty on machine: 4 view full part page → $0.17
48	M9511200103	TIER 4F	1	M91120010	ADD TO CART
TIER 4F M9511200103 · qty on machine: 1 M91120010 view full part page → $17.95
49	M9521200604	BONDED NEUTRAL	1	M92120060	ADD TO CART
BONDED NEUTRAL M9521200604 · qty on machine: 1 M92120060 view full part page → $11.95

Page 44 — NAMEPLATE AND DECALS ASSY. (CONT'D.)

Multiquip DCA45SSIU4FC8 Generator NAMEPLATE AND DECALS ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed4 rows

No.	Part No.	Part Name	Qty	Remarks
50	M9522000004	DECAL: WATER HEATER	1		ADD TO CART
DECAL: WATER HEATER M9522000004 · qty on machine: 1 view full part page → $7.95
51	M9504200104	DECAL: WARNING PROPOSITION	65	1 M90420010	ADD TO CART
DECAL: WARNING PROPOSITION M9504200104 · qty on machine: 65 1 M90420010 view full part page → $4.95
52	M9521002804	DECAL: EMERGENCY STOP BUTTON	1		ADD TO CART
DECAL: EMERGENCY STOP BUTTON M9521002804 · qty on machine: 1 view full part page → $3.95
53	M1551001704	DECAL: NOTICE RELEASE E-STOP	1	S/N 9810012 AND ABOVE	ADD TO CART
DECAL: NOTICE RELEASE E-STOP M1551001704 · qty on machine: 1 S/N 9810012 AND ABOVE view full part page → $1.95

The machine itself

Price by quote Get a quote

Tell us where the machine is headed and we'll quote it with freight. One call, no games.

The Multiquip DCA45SSIU4FC8 is a generator built for portable jobsite power for tools, lighting, and equipment. Factory-documented specs and parts support; priced by quote.

Keep-it-running spares

All listed parts →

Every part that fits this machine

0071906309 Multiquip 0071906309 Bearing DENYO - OEM Replacement Part for Super Silent Generators $160.95

0600800320 Multiquip 0600800320 Manual Pak Denyo - OEM Replacement Part $43.95

0601800682 Multiquip 0601800682 Hour Meter Denyo - OEM Replacement Part $116.95

0601801040 Multiquip 0601801040 Switch C/Over Ammeter 25,40,85,125,150 - OEM Replacement Part $95.95

0601801041 Multiquip 0601801041 Change-Over Switch Voltmeter Denyo - OEM Replacement Part $157.95

0601806859 Multiquip 0601806859 Voltmeter AC DENYO - OEM Replacement Part for Generator Control Panels $368.95

0601808803 Multiquip 0601808803 Circuit Breaker 1P 20A - OEM Replacement Part for Super Silent Generators $46.95

0601808804 Multiquip 0601808804 Circuit Breaker 2P 50A - OEM Replacement Part for Super Silent Generators $98.95

0601808986 Multiquip 0601808986 Ammeter AC Denyo - OEM Replacement Part for WhisperWatt Generators $262.95

0601820083 Multiquip 0601820083 Rectifier with Instruction 8.8 - OEM Replacement Part for Super Silent Generators $33.95

0601820608 Multiquip 0601820608 Autovoltage Regulator Denyo - OEM Replacement Part $1,591.95

0601823863 Multiquip 0601823863 Relay Unit 12V DENYO - OEM Replacement Part $159.95

0601830762 Multiquip 0601830762 Switch Selector Auto/Manual - OEM Replacement Part $36.95

0601870431 Multiquip 0601870431 Circuit Breaker DENYO - OEM Replacement Part $898.95

0602220199 Multiquip 0602220199 Battery (Wet) DENYO - OEM Replacement Part $288.95

0603306590 Multiquip 0603306590 Male Bulkhead Connector - OEM Replacement Part for Denyo Generators $86.95

0605511395 Multiquip 0605511395 Ball Valve DENYO - OEM Replacement Part $46.95

0845031303 Multiquip 0845031303 Reserve Fuel Tank - OEM Replacement Part for Super Silent Generators $45.95

5825500290 Multiquip 5825500290 Relay Assembly Blower - OEM Replacement Part $65.95

8111860303 Multiquip 8111860303 Panel Output Terminal - OEM Replacement Part $157.95

8121468300 Multiquip 8121468300 Sensor DCA-400SSI,4HK1 - OEM Replacement Part $215.95

82608 Multiquip 82608 Toggle Switch Denyo Mods - OEM Replacement Part for Super Silent Generators $34.95

8944001061 Multiquip 8944001061 Relay Glow TLG-12SPX - OEM Replacement Part $214.95

8970119490 Multiquip 8970119490 Relay Glow Plug DCA-125SSIU - OEM Replacement Part $301.95

8972177780 Multiquip 8972177780 Sensor DCA-400SSI - OEM Replacement Part $174.95

8975062140 Multiquip 8975062140 Control Unit - OEM Replacement Part for WhisperWatt Generators $4,844.95

8980490340 Multiquip 8980490340 Belt Cooling Fan - OEM Replacement Part $44.95

8980756710 Multiquip 8980756710 Filter Assembly Isuzu - OEM Replacement Part $507.95

8981924670 Multiquip 8981924670 HEATER PCV - OEM Replacement Part $196.95

8982353890 Multiquip 8982353890 DOC - OEM Replacement Part $5,850.95

8982369900 Multiquip 8982369900 Fuel Filter Main - OEM Replacement Part for DCA Generators $317.95

8982369910 Multiquip 8982369910 Fuel Filter Pre - OEM Replacement Part $286.95

8983346930 Multiquip 8983346930 Wire Harness PVC Heater - OEM Replacement Part $133.95

B3110100702 Multiquip B3110100702 Rotor Assembly (JP) - OEM Replacement Part for Super Silent Generators $8,302.95

B3111100603 Multiquip B3111100603 Fan DCA-45USI2 - OEM Replacement Part for Super Silent Generators $232.95

B3120100804 Multiquip B3120100804 Holder ZNR - OEM Replacement Part for Super Silent Generators $140.95

B3130101003 Multiquip B3130101003 Assembly - OEM Replacement Part for Super Silent Generators $8,554.95

B3131300004 Multiquip B3131300004 End Bracket Cover (JP) - OEM Replacement Part $142.95

B3131300804 Multiquip B3131300804 End Bracket Cover for DCA Generator - OEM Replacement Part $60.95

B3153000513 Multiquip B3153000513 End Bracket for DCA Series Generators - OEM Replacement Part $636.95

B3153400404 Multiquip B3153400404 Bearing Cover for DCA Series Generators - OEM Replacement Part $40.95

B3163100204 Multiquip B3163100204 Coupling Disc (JP) - OEM Replacement Part for Super Silent Generators $89.95

B3163200104 Multiquip B3163200104 Washer Coupler - OEM Replacement Part for Super Silent Generators $112.95

C3358201704 Multiquip C3358201704 Fuse Holder Assembly - OEM Replacement Part $41.95

EE10814 Multiquip EE10814 Tank Heater Kim Hotstart 120V 1000W - OEM Replacement Part $191.95

EE62076 Multiquip EE62076 Inlet Receptacle & Cord NEMA 5-15P 15A 125V - OEM Replacement Part $66.95

LY2DUS12VDC Multiquip LY2DUS12VDC Relay with Diode - OEM Replacement Part for DCA Generators $46.95

M1164400203 Multiquip M1164400203 Coupling Ring Denyo - OEM Replacement Part for Super Silent Generators $1,321.95

M1213500704 Multiquip M1213500704 Control Box Cover DENYO - OEM Replacement Part $40.95

M1213601204 Multiquip M1213601204 Bracket Switch (E-Coat) - OEM Replacement Part $63.95

M1213602604 Multiquip M1213602604 Cover Switch Denyo - OEM Replacement Part for Super Silent Generators $215.95

M1213602704 Multiquip M1213602704 Switch Cover E-Coat - OEM Replacement Part $215.95

M1214000412 Multiquip M1214000412 Control Box - OEM Replacement Part for Super Silent Generators $204.95

M1236100704 Multiquip M1236100704 Window Output Terminal - OEM Replacement Part $52.95

M1260700304 Multiquip M1260700304 Cover Breaker Fitting - OEM Replacement Part $75.95

M1304200004 Multiquip M1304200004 Engine Foot Textured Black - OEM Replacement Part $98.95

M1304200104 Multiquip M1304200104 Engine Foot Textured Black - OEM Replacement Part for Super Silent Generators $98.95

M1311200704 Multiquip M1311200704 Radiator Bracket - OEM Replacement Part for Super Silent Generators $77.95

M1311300603 Multiquip M1311300603 E-Coat Shroud - OEM Replacement Part for Super Silent Generators $151.95

M1311300803 Multiquip M1311300803 Fan Guard E-Coat - OEM Replacement Part for Super Silent Generators $72.95

M1311400004 Multiquip M1311400004 Inter-Cooler Pipe DENYO - OEM Replacement Part $47.95

M1311500703 Multiquip M1311500703 Radiator Hose Lower Denyo - OEM Replacement Part $74.95

M1311500803 Multiquip M1311500803 Inter Cooler Hose - OEM Replacement Part for Super Silent Generators $1,246.95

M1311500903 Multiquip M1311500903 Inter-Cooler Hose Upper/Lower DENYO - OEM Replacement Part $216.95

M1311501003 Multiquip M1311501003 Inter-Cooler Hose Upper/Lower DENYO - OEM Replacement Part $313.95

M1324300004 Multiquip M1324300004 Oil Filter Hose Denyo - OEM Replacement Part for Super Silent Generators $248.95

M1324400004 Multiquip M1324400004 Oil Filter Bracket - OEM Replacement Part for Super Silent Generators $195.95

M1327200104 Multiquip M1327200104 Blow-By Hose (JPN) - OEM Replacement Part for Super Silent Generators $86.95

M1331400604 Multiquip M1331400604 Exhaust Heat Shield - OEM Replacement Part for Super Silent Generators $335.95

M1331400704 Multiquip M1331400704 Exhaust Heat Shield (JP) - OEM Replacement Part $450.95

M1331400804 Multiquip M1331400804 Exhaust Heat Shield (JP) - OEM Replacement Part $410.95

M1334000803 Multiquip M1334000803 Exhaust Pipe DENYO - OEM Replacement Part for Super Silent Generators $814.95

M1358200302 Multiquip M1358200302 Controller Wiring Harness Denyo - OEM Replacement Part $2,137.95

M1358201712 Multiquip M1358201712 Wire Harness Engine Denyo - OEM Replacement Part $865.95

M1358202204 Multiquip M1358202204 Pressure Switch Harness - OEM Replacement Part for Super Silent Generators $65.95

M1374000113 Multiquip M1374000113 Air Cleaner Pipe - OEM Replacement Part for Denyo Super Silent Generators $141.95

M1374100503 Multiquip M1374100503 Air Cleaner Hose - OEM Replacement Part for Denyo Super Silent Generators $59.95

M1374100603 Multiquip M1374100603 Air Cleaner Hose - OEM Replacement Part for Super Silent Generators $124.95

M1374100703 Multiquip M1374100703 Air Cleaner Hose - OEM Replacement Part for Super Silent Generators $66.95

M1424100004 Multiquip M1424100004 Front Frames Cover (White) - OEM Replacement Part for Super Silent Generators $160.95

M1434000303 Multiquip M1434000303 Center Frame (White) - OEM Replacement Part for Denyo Generators $211.95

M1444300313 Multiquip M1444300313 Duct Rear Cover White Denyo - OEM Replacement Part $320.95

M1445600204 Multiquip M1445600204 Window Plate Denyo - OEM Replacement Part for Super Silent Generators $57.95

M1454300404 Multiquip M1454300404 Duct Denyo - OEM Replacement Part for Super Silent Generators $196.95

M1454300604 Multiquip M1454300604 Duct Denyo - OEM Replacement Part for Super Silent Generators $114.95

M1454300703 Multiquip M1454300703 Duct Assembly - OEM Replacement Part for Super Silent Generators $124.95

M1454700304 Multiquip M1454700304 Cover - OEM Replacement Part $60.95

M1484500204 Multiquip M1484500204 Fuel Filter Bracket - OEM Replacement Part for Super Silent Generators $134.95

M1494101903 Multiquip M1494101903 Acoustic Sheet Denyo - OEM Replacement Part $263.95

M1494301313 Multiquip M1494301313 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $195.95

M1494304604 Multiquip M1494304604 Acoustic Sheet - OEM Replacement Part for WhisperWatt Generators $319.95

M1494401404 Multiquip M1494401404 Acoustic Sheet Denyo - OEM Replacement Part $282.95

M1494401504 Multiquip M1494401504 Acoustic Sheet Denyo - OEM Replacement Part $59.95

M1494401703 Multiquip M1494401703 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $265.95

M1494401904 Multiquip M1494401904 Acoustic Sheet Denyo - OEM Replacement Part $59.95

M1494402104 Multiquip M1494402104 Acoustic Sheet Denyo - OEM Replacement Part $79.95

M1494402204 Multiquip M1494402204 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $79.95

M1494500803 Multiquip M1494500803 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $176.95

M1550000703 Multiquip M1550000703 Decal Aux Output - OEM Replacement Part $36.95

M1550001504 Multiquip M1550001504 Decal Caution Denyo - OEM Replacement Part $35.95

M2316100304 Multiquip M2316100304 Reserve Tank Bracket - OEM Replacement Part for Super Silent Generators $73.95

M2346900204 Multiquip M2346900204 Battery Cable Positive Denyo - OEM Replacement Part $97.95

M2346900304 Multiquip M2346900304 Battery Cable Negative Denyo - OEM Replacement Part $149.95

M2414800304 Multiquip M2414800304 Hole Cover Base (E-Coat) - OEM Replacement Part $74.95

M9103000304 Multiquip M9103000304 Battery Band - OEM Replacement Part $72.95

M9510100004 Multiquip M9510100004 Hot Parts Caution Safety Decal - OEM Replacement Part $68.95

M9520100404 Multiquip M9520100404 Danger High Voltage Decal - OEM Replacement Part $37.95

P822769 Multiquip P822769 Air Filter Safety Element - OEM Replacement Part $100.95

TPS051GT10000 Multiquip TPS051GT10000 Tank Heater 500W 120V - OEM Replacement Part $209.95

Y0222100060 Multiquip Y0222100060 Rubber Seal Denyo - OEM Replacement Part for Super Silent Generators $456.95

Y0601809693 Multiquip Y0601809693 Current Transformer Denyo - OEM Replacement Part $63.95

Y0601810170 Multiquip Y0601810170 Panel Light Denyo - OEM Replacement Part $142.95

Y0601814014 Multiquip Y0601814014 Receptacle - OEM Replacement Part for Super Silent Generators $76.95

Y0601814453 Multiquip Y0601814453 Preheat Lamp (JP) - OEM Replacement Part for Super Silent Generators $36.95

Y0601831953 Multiquip Y0601831953 Emergency Denyo - OEM Replacement Part $152.95

Y0602046590 Multiquip Y0602046590 Air Cleaner Denyo - OEM Replacement Part $248.95

Y0605012318 Multiquip Y0605012318 Door Handle (KY) - OEM Replacement Part $75.95

Y0605501046 Multiquip Y0605501046 Fuel Sender - OEM Replacement Part for Super Silent Generators $270.95

Y0605515264 Multiquip Y0605515264 Hose Band Denyo - OEM Replacement Part for Super Silent Generators $42.95

Y0605516092 Multiquip Y0605516092 Gasket - OEM Replacement Part $52.95

0013616040 HEX. HEAD BOLT $5.95

0016008060 HEX. SOCKET HEAD CAP SCREW $2.95

0016906015 HEX. HEAD BOLT $0.95

0017106016 HEX. HEAD BOLT $1.51

0017108035 HEX. HEAD BOLT $1.95

0017112025 HEX. HEAD BOLT $2.93

0019108055 HEX. HEAD BOLT $3.95

0019112030 HEX. HEAD BOLT $5.95

0019206015 HEX. HEAD BOLT $3.95

0019208020 HEX. HEAD BOLT $3.95

0021004040 MACHINE SCREW $0.64

0021104035 MACHINE SCREW $1.65

0027103010 MACHINE SCREW $0.44

0027103015 MACHINE SCREW $0.64

0027104010 MACHINE SCREW $0.33

0027104015 MACHINE SCREW $0.53

0027104020 MACHINE SCREW $0.40

0027104030 MACHINE SCREW $0.59

0027105010 MACHINE SCREW $0.56

0027105015 MACHINE SCREW $0.20

0027106016 MACHINE SCREW $0.55

0027208025 MACHINE SCREW $0.76

0029205012 MACHINE SCREW $1.45

0030012000 HEX. NUT $0.50

0030016000 HEX. NUT $1.90

0032005000 WASHER, LOCK $0.41

0040006000 WASHER, LOCK $0.17

0040008000 WASHER, LOCK $0.63

0040010000 WASHER, LOCK $0.39

0040012000 WASHER, LOCK $0.95

0040016000 WASHER, LOCK $4.95

0040512000 TOOTHED WASHER $0.77

0041216000 WASHER, FLAT $1.95

0041410000 WASHER, FLAT $0.89

0042308000 WASHER, LOCK $0.83

0042312000 WASHER, LOCK $0.94

0042412000 WASHER, FLAT $1.63

0042508000 WASHER, LOCK $0.62

0046512000 WASHER, FLAT $3.95

0080200007 E-SNAP RING $1.39

0105091025 HEX. HEAD BOLT $0.68

011008020 HEX. HEAD BOLT $2.68

011106015 HEX. HEAD BOLT $0.69

011206020 HEX. HEAD BOLT $0.95

011208025 HEX. HEAD BOLT $0.41

011208030 HEX. HEAD BOLT $1.30

011808015 MACHINE SCREW $6.95

012010030 HEX. HEAD BOLT $0.95

012210020 HEX. HEAD BOLT $0.95

012210035 HEX. HEAD BOLT $1.95

0130202000 STREET ELBOW $10.95

0130204000 ELBOW $6.95

0131502000 NIPPLE $15.95

014208020 HEX. HEAD BOLT $0.77

0176060030 SELF-LOCKING NUT $2.95

0191300530 SUCTION HOSE $14.95

0191300550 SUCTION HOSE $2.95

0191300700 RETURN HOSE $19.95

0193601500 OVER FLOW HOSE $19.95

0199900450 OVER FLOW HOSE $8.95

020106050 NUT, USN-6001 $0.12

020108060 SELF-LOCKING NUT $0.28

0207003000 SELF-LOCKING NUT $0.21

0228100340 RUBBER SEAL $1.95

0229200880 RUBBER SEAL $5.95

0229200950 RUBBER SEAL $9.95

031108160 WASHER, FLAT

031110160 WASHER, FLAT $0.40

031112230 WASHER, FLAT $0.95

0317700180 WEATHER STRIP $13.95

0340406040 HEX. HEAD BOLT $2.68

0342612030 HEX. SOCKET HEAD CAP SCREW $2.82

0401450050 WASHER, FLAT

0401450080 WASHER, FLAT $0.56

0601802133 FUSE, 5A $1.95

0601802149 FUSE, 10A $3.95

0601806640 FUSE, 65A $11.95

0601806644 FUSE, 30A $1.43

0601806671 FUSE, 15A $3.95

0601812626 PLUG $1.88

From the guides desk

Guide · 2026-08-04

Ask ARIA about your machine.

Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.

Chat with ARIA

Multiquip DCA45SSIU4FC8 Generator

The parts bench

The machine itself

Machine

Engine

Keep-it-running spares

Every part that fits this machine

Service notices & part changes

Take the factory book with you

Get the download pack

From the guides desk

Multiquip DCA Generator Fault Shutdown and Controller Reset Guide

Multiquip Generator No-Start and No-Power Fixes

Multiquip DCA Generator Fault Codes and Diagnostics Guide

Ask ARIA about your machine.

Your cart is empty

Your cart is empty
