Page 6 — GENERATOR ASSY.

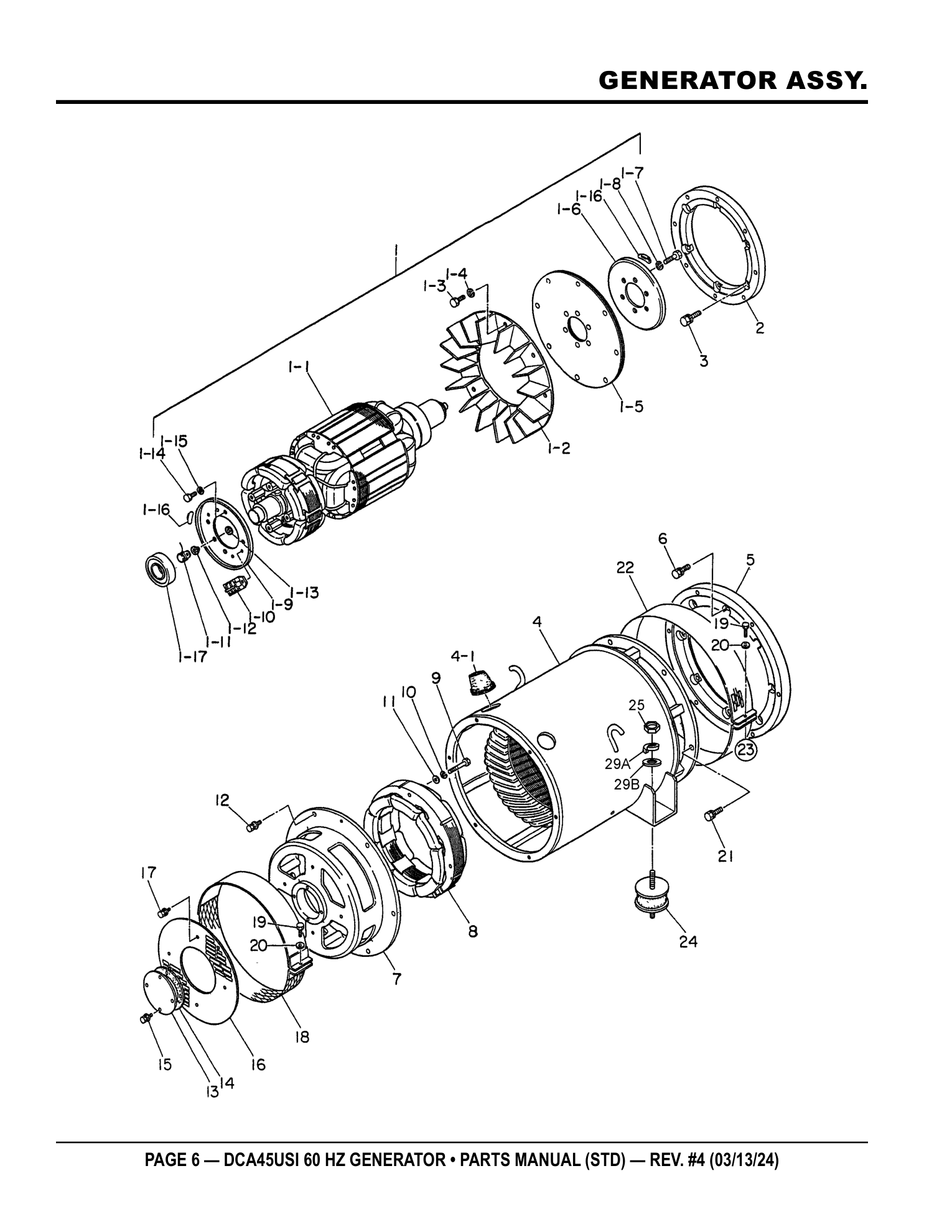

Multiquip DCA45USI Generator GENERATOR ASSY. parts diagram

Parts list — exactly as printed45 rows

No.	Part No.	Part Name	Qty	Remarks
1	B3110100202	ROTOR ASSY.	1		ADD TO CART
ROTOR ASSY. B3110100202 · qty on machine: 1 view full part page → $7586.95
1-1		FIELD ASSY.	1		SEE REMARKS
PHOTO COMING FIELD ASSY. · qty on machine: 1 SEE REMARKS
1-2	8051070003	FAN	1		ADD TO CART
FAN 8051070003 · qty on machine: 1 view full part page → $323.95
1-3	0010310035	HEX, HEAD BOLT	8		ADD TO CART
HEX, HEAD BOLT 0010310035 · qty on machine: 8 Factory replaced this part - current number 012210035 view full part page → $1.95 IN A KIT + SOLD SOLO
1-4	0042510000	SPRING WASHER	8		PARTS REQUEST
PHOTO COMING SPRING WASHER 0042510000 · qty on machine: 8 PARTS REQUEST
1-5	8041611004	COUPLING DISK	4		ADD TO CART
COUPLING DISK 8041611004 · qty on machine: 4 view full part page → $23.95
1-6	8041015003	BALANCING PLATE	1	PURCHASE SET OF 1-16	ADD TO CART
BALANCING PLATE 8041015003 · qty on machine: 1 PURCHASE SET OF 1-16 view full part page → $248.95
1-7	0010310025	HEX, HEAD BOLT	6		ADD TO CART
HEX, HEAD BOLT 0010310025 · qty on machine: 6 Factory replaced this part - current number 0105091025 view full part page → $0.68 IN A KIT + SOLD SOLO
1-8	0042510000	SPRING WASHER	6		PARTS REQUEST
PHOTO COMING SPRING WASHER 0042510000 · qty on machine: 6 PARTS REQUEST
1-9	8001026013	SET PLATE, RECTIFIER BALANCING PLATE	1	PURCHASE SET OF 1-16	ADD TO CART
SET PLATE, RECTIFIER BALANCING PLATE 8001026013 · qty on machine: 1 PURCHASE SET OF 1-16 view full part page → $63.95
1-10	0601821349	RECTIFIER	2	PT3610	ADD TO CART
RECTIFIER 0601821349 · qty on machine: 2 PT3610 view full part page → $247.95
1-11	0601822601	SURGE ABSORBER	1	ERZ-M14JK621A	ADD TO CART
SURGE ABSORBER 0601822601 · qty on machine: 1 ERZ-M14JK621A view full part page → $60.95
1-12	8001020004	INSULATOR WASHER	1		ADD TO CART
INSULATOR WASHER 8001020004 · qty on machine: 1 view full part page → $8.95
1-13	8001020504	INSULATOR WASHER	1		ADD TO CART
INSULATOR WASHER 8001020504 · qty on machine: 1 view full part page → $4.95
1-14	0010108020	HEX, HEAD BOLT	4		ADD TO CART
HEX, HEAD BOLT 0010108020 · qty on machine: 4 Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO
1-15	0040008000	SPRING WASHER	4		ADD TO CART
SPRING WASHER 0040008000 · qty on machine: 4 view full part page → $0.63
1-16	0601000209	BALANCING WEIGHT KIT	1		ADD TO CART
BALANCING WEIGHT KIT 0601000209 · qty on machine: 1 view full part page → $9.95
1-17	0071906310	BEARING	1	6310DDU C3	ADD TO CART
BEARING 0071906310 · qty on machine: 1 6310DDU C3 view full part page → $115.95
2	M1164400003	COUPLING RING	1		PARTS REQUEST
PHOTO COMING COUPLING RING M1164400003 · qty on machine: 1 PARTS REQUEST
3	0012808030	HEX, HEAD BOLT	6		PARTS REQUEST
PHOTO COMING HEX, HEAD BOLT 0012808030 · qty on machine: 6 PARTS REQUEST
4	B3130100103	STATOR ASSY.	1		ADD TO CART
STATOR ASSY. B3130100103 · qty on machine: 1 view full part page → $6978.95
4-1	0845041904	GROMMET	2		ADD TO CART
GROMMET 0845041904 · qty on machine: 2 view full part page → $11.95
5	M1164600003	COUPLING ADAPTER	1		ADD TO CART
COUPLING ADAPTER M1164600003 · qty on machine: 1 view full part page → $850.95
6	0012810030	HEX, HEAD BOLT	8		ADD TO CART
HEX, HEAD BOLT 0012810030 · qty on machine: 8 Factory replaced this part - current number 012010030 view full part page → $0.95 IN A KIT + SOLD SOLO
7	8041315202	END BRACKET	1		ADD TO CART
END BRACKET 8041315202 · qty on machine: 1 view full part page → $790.95
8	8041350013	FIELD ASSY. EXCITER	1		ADD TO CART
FIELD ASSY. EXCITER 8041350013 · qty on machine: 1 view full part page → $2667.95
9	0010308065	HEX, HEAD BOLT	4		PARTS REQUEST
PHOTO COMING HEX, HEAD BOLT 0010308065 · qty on machine: 4 PARTS REQUEST
10	0042608000	SPRING WASHER	4		ADD TO CART
SPRING WASHER 0042608000 · qty on machine: 4 view full part page → $0.62
11	0041208000	PLAIN WASHER	4		ADD TO CART
PLAIN WASHER 0041208000 · qty on machine: 4 Factory replaced this part - current number 0401450080 view full part page → $0.56 IN A KIT + SOLD SOLO
12	0017108030	HEX, HEAD BOLT	6		ADD TO CART
HEX, HEAD BOLT 0017108030 · qty on machine: 6 Factory replaced this part - current number 011208030 view full part page → $1.3 IN A KIT + SOLD SOLO
13	8041310024	COVER, BEARING	1		ADD TO CART
COVER, BEARING 8041310024 · qty on machine: 1 view full part page → $47.95
14	8041312014	GASKET, BEARING	1		ADD TO CART
GASKET, BEARING 8041312014 · qty on machine: 1 view full part page → $21.95
15	0017106012	HEX, HEAD BOLT	4		ADD TO CART
HEX, HEAD BOLT 0017106012 · qty on machine: 4 Factory replaced this part - current number 0105050616 view full part page → $0.45 IN A KIT + SOLD SOLO
16	8041331014	COVER, END BRACKET	1		ADD TO CART
COVER, END BRACKET 8041331014 · qty on machine: 1 view full part page → $302.95
17	0017106012	HEX, HEAD BOLT	4		ADD TO CART
HEX, HEAD BOLT 0017106012 · qty on machine: 4 Factory replaced this part - current number 0105050616 view full part page → $0.45 IN A KIT + SOLD SOLO
18	8001333003	COVER, END BRACKET	1		ADD TO CART
COVER, END BRACKET 8001333003 · qty on machine: 1 view full part page → $67.95
19	0340406040	HEX, HEAD BOLT	2		ADD TO CART
HEX, HEAD BOLT 0340406040 · qty on machine: 2 view full part page → $2.68
20	0041206000	PLAIN WASHER	2		ADD TO CART
PLAIN WASHER 0041206000 · qty on machine: 2 Factory replaced this part - current number 952404470 view full part page → $0.19 IN A KIT + SOLD SOLO
21	0012810030	HEX, HEAD BOLT	6		ADD TO CART
HEX, HEAD BOLT 0012810030 · qty on machine: 6 Factory replaced this part - current number 012010030 view full part page → $0.95 IN A KIT + SOLD SOLO
22	8051332014	COVER, FAN	1		ADD TO CART
COVER, FAN 8051332014 · qty on machine: 1 view full part page → $113.95
23	0600815000	NUT	1		ADD TO CART
NUT 0600815000 · qty on machine: 1 Factory replaced this part - current number 020106050 view full part page → $0.12 IN A KIT + SOLD SOLO
24	0605000055	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION 0605000055 · qty on machine: 2 view full part page → $95.95
25	0030012000	HEX, NUT	2		ADD TO CART
HEX, NUT 0030012000 · qty on machine: 2 view full part page → $0.5
25A	0040012000	SPRING WASHER	2		ADD TO CART
SPRING WASHER 0040012000 · qty on machine: 2 view full part page → $0.95
25B	0041212000	PLAIN WASHER	2		ADD TO CART
PLAIN WASHER 0041212000 · qty on machine: 2 Factory replaced this part - current number 031112230 view full part page → $0.95 IN A KIT + SOLD SOLO

Page 8 — CONTROL BOX ASSY.

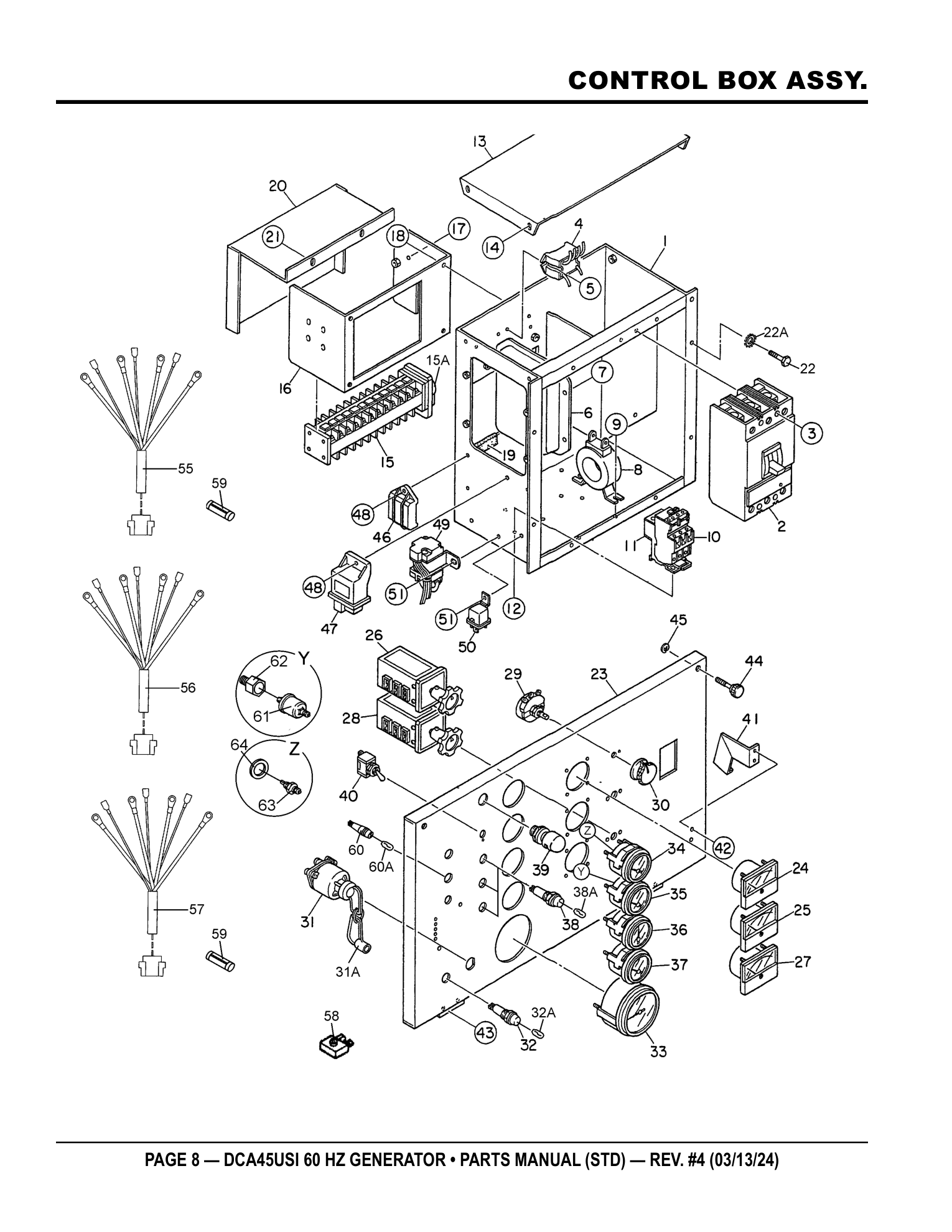

Multiquip DCA45USI Generator CONTROL BOX ASSY. parts diagram

Parts list — exactly as printed31 rows

No.	Part No.	Part Name	Qty	Remarks
1	M1214000102	CONTROL BOX	1		ADD TO CART
CONTROL BOX M1214000102 · qty on machine: 1 view full part page → $179.95
2	0601808825	CIRCUIT BREAKER, 3-POLE, 110A	1	KAF361101039	NO LONGER AVAILABLE
PHOTO COMING CIRCUIT BREAKER, 3-POLE, 110A 0601808825 · qty on machine: 1 KAF361101039 NO LONGER AVAILABLE
3	0021005080	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021005080 · qty on machine: 4 view full part page → $0.95
4	0601823863	RELAY UNIT	2	MSA9013A	ADD TO CART
RELAY UNIT 0601823863 · qty on machine: 2 MSA9013A view full part page → $159.95
5	0027104016	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027104016 · qty on machine: 4 Factory replaced this part - current number 7538070 view full part page → $0.52 IN A KIT + SOLD SOLO
6	0601820671	AUTOMATIC VOLTAGE REGULATOR	1	NTA-5A-2DB	ADD TO CART
AUTOMATIC VOLTAGE REGULATOR 0601820671 · qty on machine: 1 NTA-5A-2DB view full part page → $1939.95
7	0027105016	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105016 · qty on machine: 4 view full part page → $0.55
8	0601806116	CURRENT TRANSFORMER	3	812-943 75/5A	ADD TO CART
CURRENT TRANSFORMER 0601806116 · qty on machine: 3 812-943 75/5A view full part page → $112.95
9	0027106016	MACHINE SCREW	6		ADD TO CART
MACHINE SCREW 0027106016 · qty on machine: 6 view full part page → $0.55
10	0601820845	OVER CURRENT RELAY	1	LR2D1308	NO LONGER AVAILABLE
PHOTO COMING OVER CURRENT RELAY 0601820845 · qty on machine: 1 LR2D1308 NO LONGER AVAILABLE
11	0601820846	OVER CURRENT RELAY	1	LA7D1064	ADD TO CART
OVER CURRENT RELAY 0601820846 · qty on machine: 1 LA7D1064 view full part page → $54.95
12	0027104016	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104016 · qty on machine: 2 Factory replaced this part - current number 7538070 view full part page → $0.52 IN A KIT + SOLD SOLO
12A	0207004000	HEX, NUT	2		ADD TO CART
HEX, NUT 0207004000 · qty on machine: 2 Factory replaced this part - current number OEMAA8 view full part page → $0.4 IN A KIT + SOLD SOLO
13	M1213500303	CONTROL BOX COVER	1		ADD TO CART
CONTROL BOX COVER M1213500303 · qty on machine: 1 view full part page → $47.95
14	0016906016	HEX, HEAD BOLT	4		ADD TO CART
HEX, HEAD BOLT 0016906016 · qty on machine: 4 view full part page → $0.81
15	M1201000004	SELECTOR SWITCH	1	VY-40	NO LONGER AVAILABLE
PHOTO COMING SELECTOR SWITCH M1201000004 · qty on machine: 1 VY-40 NO LONGER AVAILABLE
15A	TBDKNOB,	SELECTOR	1		PARTS REQUEST
PHOTO COMING SELECTOR TBDKNOB, · qty on machine: 1 PARTS REQUEST
16	M1215601204	SWITCH BRACKET	1		ADD TO CART
SWITCH BRACKET M1215601204 · qty on machine: 1 view full part page → $446.95
17	0027103010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027103010 · qty on machine: 4 view full part page → $0.44
18	0016906016	HEX, HEAD BOLT	4		ADD TO CART
HEX, HEAD BOLT 0016906016 · qty on machine: 4 view full part page → $0.81
19	0330000530	EDGING	1		ADD TO CART
EDGING 0330000530 · qty on machine: 1 view full part page → $11.95
20	M1215601104	SWITCH COVER	1		ADD TO CART
SWITCH COVER M1215601104 · qty on machine: 1 view full part page → $59.95
21	0016906016	HEX, HEAD BOLT	3		ADD TO CART
HEX, HEAD BOLT 0016906016 · qty on machine: 3 view full part page → $0.81
22	0016906016	HEX, HEAD BOLT	8		ADD TO CART
HEX, HEAD BOLT 0016906016 · qty on machine: 8 view full part page → $0.81
22A	0040506000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040506000 · qty on machine: 1 view full part page → $0.77
23	M1224000003	CONTROL PANEL	1		ADD TO CART
CONTROL PANEL M1224000003 · qty on machine: 1 view full part page → $119.95
24	0601807641	FREQUENCY METER	1	FCF-6 45~65Hz 240V	ADD TO CART
FREQUENCY METER 0601807641 · qty on machine: 1 FCF-6 45~65Hz 240V view full part page → $591.95
25	0601808986	AC AMMETER	1	ACF-6 0~75A/150A:5A	ADD TO CART
AC AMMETER 0601808986 · qty on machine: 1 ACF-6 0~75A/150A:5A view full part page → $262.95
26	0601801040	CHANGE-OVER SWITCH, AMMETER	1	SL-2 AS	ADD TO CART
CHANGE-OVER SWITCH, AMMETER 0601801040 · qty on machine: 1 SL-2 AS view full part page → $95.95
27	0601806859	AC VOLTMETER	1	SCF-6 0~600V	ADD TO CART
AC VOLTMETER 0601806859 · qty on machine: 1 SCF-6 0~600V view full part page → $368.95
28	0601801041	CHANGE-OVER SWITCH, VOLTMETER	1	SL-2 VS	ADD TO CART
CHANGE-OVER SWITCH, VOLTMETER 0601801041 · qty on machine: 1 SL-2 VS view full part page → $157.95

Page 10 — CONTROL BOX ASSY.

Parts list — exactly as printed43 rows

No.	Part No.	Part Name	Qty	Remarks
29	0601840073	RHEOSTAT (VOLTAGE REGULATOR)	1	RA20A2SE102BJ 2W 1K OHM	ADD TO CART
RHEOSTAT (VOLTAGE REGULATOR) 0601840073 · qty on machine: 1 RA20A2SE102BJ 2W 1K OHM view full part page → $90.95
30	0601840121	KNOB	1		ADD TO CART
KNOB 0601840121 · qty on machine: 1 Factory replaced this part - current number 0601840100 view full part page → $30.95 IN A KIT + SOLD SOLO
31	0602100009	STARTER SWITCH	1	ISUZU 897044-4180	PARTS REQUEST
PHOTO COMING STARTER SWITCH 0602100009 · qty on machine: 1 ISUZU 897044-4180 PARTS REQUEST
31A	8944024980	IGNITION KEY	1		ADD TO CART
IGNITION KEY 8944024980 · qty on machine: 1 view full part page → $59.95
32	0602103092	PREHEAT LAMP	1	PL-05	ADD TO CART
PREHEAT LAMP 0602103092 · qty on machine: 1 PL-05 view full part page → $36.95
32A	0601810245	BULB, E-10 T-10 DC18V	1		ADD TO CART
BULB, E-10 T-10 DC18V 0601810245 · qty on machine: 1 view full part page → $3.95
33	0602120095	TACHOMETER	1	103680	ADD TO CART
TACHOMETER 0602120095 · qty on machine: 1 103680 Factory replaced this part - current number Y0602120099 view full part page → $307.02 IN A KIT + SOLD SOLO
34	0602122093	OIL PRESSURE GAUGE	1	100174	ADD TO CART
OIL PRESSURE GAUGE 0602122093 · qty on machine: 1 100174 view full part page → $81.95
35	0602123090	WATER TEMPERATURE GAUGE	1	100683	ADD TO CART
WATER TEMPERATURE GAUGE 0602123090 · qty on machine: 1 100683 view full part page → $75.95
36	0602121080	CHARGING AMMETER	1	100158	ADD TO CART
CHARGING AMMETER 0602121080 · qty on machine: 1 100158 view full part page → $75.95
37	0602125090	FUEL GAUGE	1	100176	ADD TO CART
FUEL GAUGE 0602125090 · qty on machine: 1 100176 view full part page → $77.95
38	0602103092	ALARM LAMP, PL-05	3		ADD TO CART
ALARM LAMP, PL-05 0602103092 · qty on machine: 3 view full part page → $36.95
38	0602103092	ALARM LAMP, PL05	4	S/N 8200081 AND ABOVE	ADD TO CART
ALARM LAMP, PL05 0602103092 · qty on machine: 4 S/N 8200081 AND ABOVE view full part page → $36.95
38A	0601810245	BULB, E-10 T-10 DC18V	3		ADD TO CART
BULB, E-10 T-10 DC18V 0601810245 · qty on machine: 3 view full part page → $3.95
38A	0601810245	BULB, E-10 T-10 DC18V	4	S/N 8200081 AND ABOVE	ADD TO CART
BULB, E-10 T-10 DC18V 0601810245 · qty on machine: 4 S/N 8200081 AND ABOVE view full part page → $3.95
39	0601810141	PANEL LIGHT	1	98268-O0370	PARTS REQUEST
PHOTO COMING PANEL LIGHT 0601810141 · qty on machine: 1 98268-O0370 PARTS REQUEST
40	0601831330	SWITCH, PANEL LIGHT	1		ADD TO CART
SWITCH, PANEL LIGHT 0601831330 · qty on machine: 1 view full part page → $11.95
41	M1224100104	STOPPER	1		ADD TO CART
STOPPER M1224100104 · qty on machine: 1 view full part page → $13.95
42	0027105010	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027105010 · qty on machine: 2 view full part page → $0.56
43	0027105010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105010 · qty on machine: 4 view full part page → $0.56
44	M9220100004	SET SCREW	2		ADD TO CART
SET SCREW M9220100004 · qty on machine: 2 view full part page → $12.95
45	0080200007	SNAP RING	2		ADD TO CART
SNAP RING 0080200007 · qty on machine: 2 view full part page → $1.39
46	0602200432	EMERGENCY RELAY	1	897111-9621	PARTS REQUEST
PHOTO COMING EMERGENCY RELAY 0602200432 · qty on machine: 1 897111-9621 PARTS REQUEST
47	0602202506	PREHEAT CONTROLLER	1	897246-5100	NO LONGER AVAILABLE
PHOTO COMING PREHEAT CONTROLLER 0602202506 · qty on machine: 1 897246-5100 Factory replaced this part - current number 8972465100 NO LONGER AVAILABLE
48	0016906020	HEX, HEAD BOLT	3		ADD TO CART
HEX, HEAD BOLT 0016906020 · qty on machine: 3 Factory replaced this part - current number 011206020 view full part page → $0.95 IN A KIT + SOLD SOLO
49	0602200305	SAFETY RELAY	1	182553-0430	PARTS REQUEST
PHOTO COMING SAFETY RELAY 0602200305 · qty on machine: 1 182553-0430 PARTS REQUEST
50	0602201400	RELAY	1	582550-0290	PARTS REQUEST
PHOTO COMING RELAY 0602201400 · qty on machine: 1 582550-0290 PARTS REQUEST
51	0016906016	HEX, HEAD BOLT	3		ADD TO CART
HEX, HEAD BOLT 0016906016 · qty on machine: 3 view full part page → $0.81
52	0606503062	FUEL LEAK DETECTED SWITCH	1		PARTS REQUEST
PHOTO COMING FUEL LEAK DETECTED SWITCH 0606503062 · qty on machine: 1 PARTS REQUEST
53	M1414800104	BRACKET	1		ADD TO CART
BRACKET M1414800104 · qty on machine: 1 view full part page → $39.95
54	0016908020	HEX, HEAD BOLT	2		ADD TO CART
HEX, HEAD BOLT 0016908020 · qty on machine: 2 Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO
55	M1247700114	WIRE HARNESS, GENERATOR	1		ADD TO CART
WIRE HARNESS, GENERATOR M1247700114 · qty on machine: 1 view full part page → $1946.95
56	M1358200112	WIRE HARNESS, ENGINE	1		ADD TO CART
WIRE HARNESS, ENGINE M1358200112 · qty on machine: 1 view full part page → $1841.95
57	M3357200304	WIRE, HARNESS, FUEL LEAK	1	S/N 8200081 AND ABOVE	ADD TO CART
WIRE, HARNESS, FUEL LEAK M3357200304 · qty on machine: 1 S/N 8200081 AND ABOVE view full part page → $85.95
58	0601823223	RECTIFIER	2	S/N 8200001 ~ 8200080	ADD TO CART
RECTIFIER 0601823223 · qty on machine: 2 S/N 8200001 ~ 8200080 view full part page → $18.95
58	0601823245	RECTIFIER	2	S/N 8200001 ~ 8200080	NO LONGER AVAILABLE
PHOTO COMING RECTIFIER 0601823245 · qty on machine: 2 S/N 8200001 ~ 8200080 NO LONGER AVAILABLE
59	0601802149	FUSE, 10A	2	S/N 8200081 AND ABOVE	ADD TO CART
FUSE, 10A 0601802149 · qty on machine: 2 S/N 8200081 AND ABOVE view full part page → $3.95
60	0602103092	ALARM LAMP, PL05	4	S/N 8200081 AND ABOVE	ADD TO CART
ALARM LAMP, PL05 0602103092 · qty on machine: 4 S/N 8200081 AND ABOVE view full part page → $36.95
60A	0601810245	BULB, E-10 T-10 DC18V	4	S/N 8200081 AND ABOVE	ADD TO CART
BULB, E-10 T-10 DC18V 0601810245 · qty on machine: 4 S/N 8200081 AND ABOVE view full part page → $3.95
61	06021222272	UNIT, OIL PRESSURE	1	108497	PARTS REQUEST
PHOTO COMING UNIT, OIL PRESSURE 06021222272 · qty on machine: 1 108497 PARTS REQUEST
62	M9200100004	ADAPTER	1		ADD TO CART
ADAPTER M9200100004 · qty on machine: 1 view full part page → $25.95
63	0602123260	UNIT, WATER TEMPERATURE	1	02094-00	ADD TO CART
UNIT, WATER TEMPERATURE 0602123260 · qty on machine: 1 02094-00 view full part page → $24.95
64	0602021109	PACKING	1	909572-0140	PARTS REQUEST
PHOTO COMING PACKING 0602021109 · qty on machine: 1 909572-0140 PARTS REQUEST

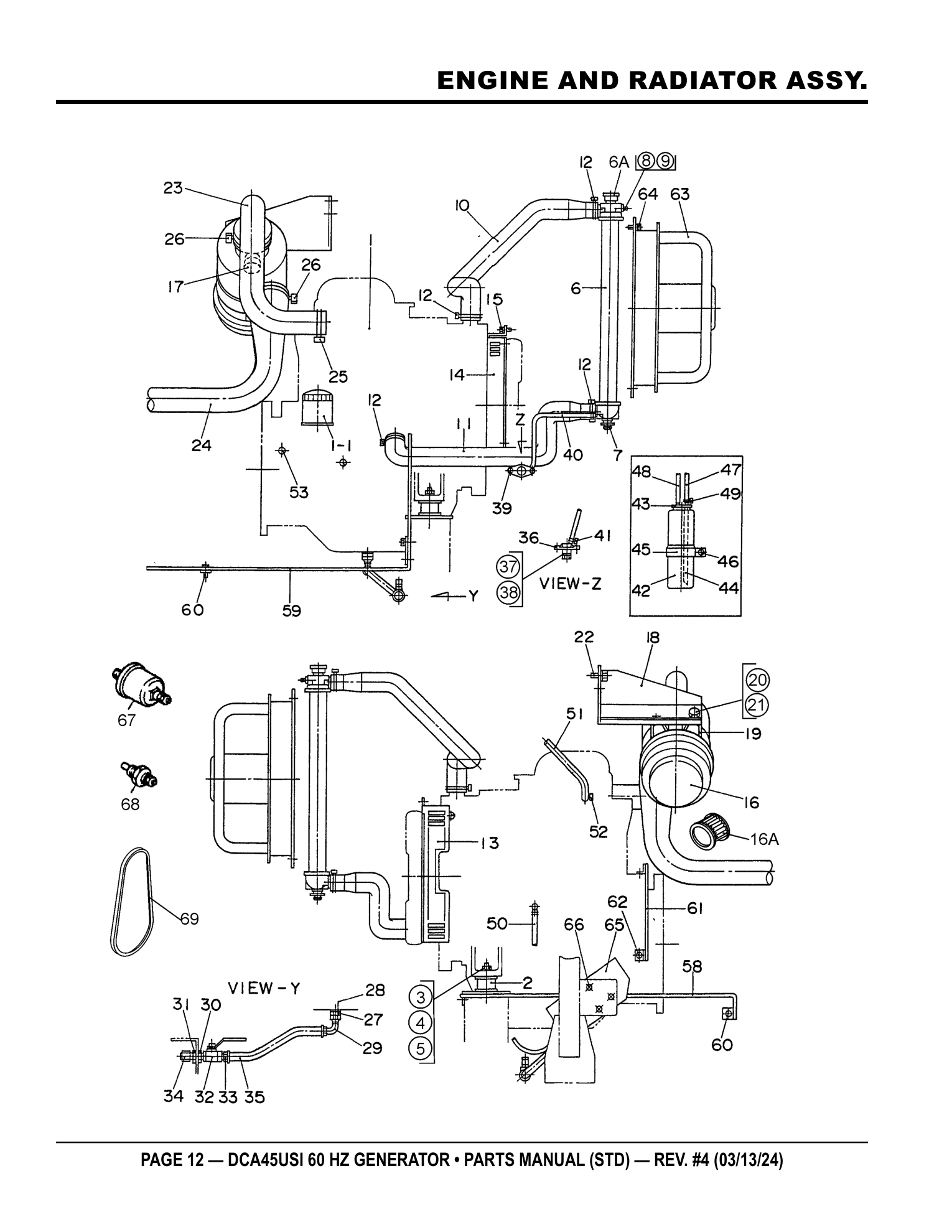

Page 12 — ENGINE AND RADIATOR ASSY.

Multiquip DCA45USI Generator ENGINE AND RADIATOR ASSY. parts diagram

Parts list — exactly as printed33 rows

No.	Part No.	Part Name	Qty	Remarks
1	M1924200014	ENGINE	1	ISUZU BB-4JG1T	NO LONGER AVAILABLE
PHOTO COMING ENGINE M1924200014 · qty on machine: 1 ISUZU BB-4JG1T Factory replaced this part - current number 4JG1TPD04-A NO LONGER AVAILABLE
1-1	897049-7081	CARTRIDGE, OIL FILTER	1	REPLACES 0602041214	PARTS REQUEST
PHOTO COMING CARTRIDGE, OIL FILTER 897049-7081 · qty on machine: 1 REPLACES 0602041214 PARTS REQUEST
2	0605000048	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION 0605000048 · qty on machine: 2 view full part page → $36.95
3	0030010000	HEX, NUT	2		ADD TO CART
HEX, NUT 0030010000 · qty on machine: 2 Factory replaced this part - current number 020310080 view full part page → $1.67 IN A KIT + SOLD SOLO
4	0040010000	SPRING WASHER	2		ADD TO CART
SPRING WASHER 0040010000 · qty on machine: 2 view full part page → $0.39
5	0041210000	PLAIN WASHER	2		ADD TO CART
PLAIN WASHER 0041210000 · qty on machine: 2 Factory replaced this part - current number 031110160 view full part page → $0.4 IN A KIT + SOLD SOLO
6	M1923200084	RADIATOR	1	2951-293-0000	ADD TO CART
RADIATOR M1923200084 · qty on machine: 1 2951-293-0000 view full part page → $616.95
6A	0602011079	CAP, RADIATOR	1	6713-092-0901	ADD TO CART
CAP, RADIATOR 0602011079 · qty on machine: 1 6713-092-0901 view full part page → $137.95
7	M9312200104	MOUNT RUBBER	2		ADD TO CART
MOUNT RUBBER M9312200104 · qty on machine: 2 view full part page → $16.95
8	0016908040	HEX, HEAD BOLT	2		ADD TO CART
HEX, HEAD BOLT 0016908040 · qty on machine: 2 view full part page → $1.52
9	0207008000	HEX, NUT	2		ADD TO CART
HEX, NUT 0207008000 · qty on machine: 2 Factory replaced this part - current number 020108060 view full part page → $0.28 IN A KIT + SOLD SOLO
10	M1311500003	RADIATOR HOSE	1		ADD TO CART
RADIATOR HOSE M1311500003 · qty on machine: 1 view full part page → $99.95
11	M1311500103	RADIATOR HOSE	1		ADD TO CART
RADIATOR HOSE M1311500103 · qty on machine: 1 view full part page → $166.95
12	0605515201	HOSE BAND	4		ADD TO CART
HOSE BAND 0605515201 · qty on machine: 4 view full part page → $3.95
13	M1424700104	FAN GUARD	1		ADD TO CART
FAN GUARD M1424700104 · qty on machine: 1 view full part page → $49.95
14	M1424700004	FAN GUARD	1		ADD TO CART
FAN GUARD M1424700004 · qty on machine: 1 view full part page → $58.95
15	0016906016	HEX, HEAD BOLT	7		ADD TO CART
HEX, HEAD BOLT 0016906016 · qty on machine: 7 view full part page → $0.81
16	0602046582	AIR CLEANER	1	FPG08-2527	ADD TO CART
AIR CLEANER 0602046582 · qty on machine: 1 FPG08-2527 view full part page → $250.95
16A	0602046681	ELEMENT, AIR CLEANER	1	P82-8889	PARTS REQUEST
PHOTO COMING ELEMENT, AIR CLEANER 0602046681 · qty on machine: 1 P82-8889 PARTS REQUEST
17	0602040651	INDICATOR, AIR CLEANER	1	RBX00-2352	ADD TO CART
INDICATOR, AIR CLEANER 0602040651 · qty on machine: 1 RBX00-2352 view full part page → $52.95
18	M1374200104	BRACKET, AIR CLEANER	1		ADD TO CART
BRACKET, AIR CLEANER M1374200104 · qty on machine: 1 view full part page → $49.95
19	0602040556	BAND, AIR CLEANER	1		ADD TO CART
BAND, AIR CLEANER 0602040556 · qty on machine: 1 view full part page → $121.95
20	0016908020	HEX, HEAD BOLT	2		ADD TO CART
HEX, HEAD BOLT 0016908020 · qty on machine: 2 Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO
21	0207008000	HEX, NUT	2		ADD TO CART
HEX, NUT 0207008000 · qty on machine: 2 Factory replaced this part - current number 020108060 view full part page → $0.28 IN A KIT + SOLD SOLO
22	0016910025	HEX, HEAD BOLT	2		ADD TO CART
HEX, HEAD BOLT 0016910025 · qty on machine: 2 view full part page → $1.56
23	M1374100003	HOSE, AIR CLEANER	1		ADD TO CART
HOSE, AIR CLEANER M1374100003 · qty on machine: 1 view full part page → $283.95
24	M1374100103	HOSE, AIR CLEANER	1		ADD TO CART
HOSE, AIR CLEANER M1374100103 · qty on machine: 1 view full part page → $376.95
25	0605515148	HOSE BAND	1		ADD TO CART
HOSE BAND 0605515148 · qty on machine: 1 view full part page → $4.95
26	0605515200	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515200 · qty on machine: 2 view full part page → $4.95
27	0602022560	ADAPTER	1		ADD TO CART
ADAPTER 0602022560 · qty on machine: 1 view full part page → $86.95
28	M1320300304	PACKING	1		ADD TO CART
PACKING M1320300304 · qty on machine: 1 view full part page → $1461.95
29	0602022561	90 DEG. ELBOW	1		ADD TO CART
90 DEG. ELBOW 0602022561 · qty on machine: 1 view full part page → $76.95
30	0603306590	CONNECTOR	1		ADD TO CART
CONNECTOR 0603306590 · qty on machine: 1 view full part page → $86.95

Page 14 — ENGINE AND RADIATOR ASSY. (CONT'D.)

Multiquip DCA45USI Generator ENGINE AND RADIATOR ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed35 rows

No.	Part No.	Part Name	Qty	Remarks
31	0603300285	ROCKNUT	1		ADD TO CART
ROCKNUT 0603300285 · qty on machine: 1 view full part page → $4.95
32	0605511395	VALVE	1		ADD TO CART
VALVE 0605511395 · qty on machine: 1 view full part page → $46.95
33	0603306395	HOSE JOINT	1		ADD TO CART
HOSE JOINT 0603306395 · qty on machine: 1 view full part page → $16.95
34	0602021070	CAP	1		ADD TO CART
CAP 0602021070 · qty on machine: 1 view full part page → $11.95
35	0269200310	DRAIN HOSE	1		PARTS REQUEST
PHOTO COMING DRAIN HOSE 0269200310 · qty on machine: 1 PARTS REQUEST
36	M2320300103	DRAIN JOINT	1		PARTS REQUEST
PHOTO COMING DRAIN JOINT M2320300103 · qty on machine: 1 PARTS REQUEST
37	M920020004	PLUG	1		PARTS REQUEST
PHOTO COMING PLUG M920020004 · qty on machine: 1 PARTS REQUEST
38	0150000018	O-RING	1		ADD TO CART
O-RING 0150000018 · qty on machine: 1 view full part page → $1.87
39	0016906016	HEX, HEAD BOLT	2		ADD TO CART
HEX, HEAD BOLT 0016906016 · qty on machine: 2 view full part page → $0.81
40	0199100850	DRAIN HOSE	1		ADD TO CART
DRAIN HOSE 0199100850 · qty on machine: 1 view full part page → $41.95
41	0605515106	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515106 · qty on machine: 2 Factory replaced this part - current number 0605515170 view full part page → $5.95 IN A KIT + SOLD SOLO
42	M9300000003	RESERVE TANK	1		ADD TO CART
RESERVE TANK M9300000003 · qty on machine: 1 Factory replaced this part - current number 0802081403 view full part page → $29.95 IN A KIT + SOLD SOLO
43	M9300100003	CAP, RESERVE TANK	1		ADD TO CART
CAP, RESERVE TANK M9300100003 · qty on machine: 1 Factory replaced this part - current number 0802081104 view full part page → $5.95 IN A KIT + SOLD SOLO
44	0199100215	HOSE	1		ADD TO CART
HOSE 0199100215 · qty on machine: 1 view full part page → $3.95
45	M1317100004	BRACKET, RESERVE TANK	1		ADD TO CART
BRACKET, RESERVE TANK M1317100004 · qty on machine: 1 view full part page → $13.95
46	0016908020	HEX, HEAD BOLT	1		ADD TO CART
HEX, HEAD BOLT 0016908020 · qty on machine: 1 Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO
47	0199101700	HOSE	1		ADD TO CART
HOSE 0199101700 · qty on machine: 1 view full part page → $33.95
48	0193601200	HOSE	1		ADD TO CART
HOSE 0193601200 · qty on machine: 1 view full part page → $49.95
49	0605515106	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515106 · qty on machine: 2 Factory replaced this part - current number 0605515170 view full part page → $5.95 IN A KIT + SOLD SOLO
50	0199800730	HOSE	1		NO LONGER AVAILABLE
PHOTO COMING HOSE 0199800730 · qty on machine: 1 NO LONGER AVAILABLE
51	0269200480	BLOWBY HOSE	1		ADD TO CART
BLOWBY HOSE 0269200480 · qty on machine: 1 view full part page → $29.95
52	0605515198	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515198 · qty on machine: 2 view full part page → $1.71
53	0602120465	PICK UP, TACHOMETER	1		ADD TO CART
PICK UP, TACHOMETER 0602120465 · qty on machine: 1 view full part page → $202.95
58	M1358300104	HARNESS CLAMP	1		PARTS REQUEST
PHOTO COMING HARNESS CLAMP M1358300104 · qty on machine: 1 PARTS REQUEST
59	M1358300004	HARNESS CLAMP	1		ADD TO CART
HARNESS CLAMP M1358300004 · qty on machine: 1 view full part page → $79.95
60	0016908020	HEX, HEAD BOLT	5		ADD TO CART
HEX, HEAD BOLT 0016908020 · qty on machine: 5 Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO
61	M1358300204	HARNESS CLAMP	1		ADD TO CART
HARNESS CLAMP M1358300204 · qty on machine: 1 view full part page → $13.95
62	0017110020	HEX, HEAD BOLT	2		ADD TO CART
HEX, HEAD BOLT 0017110020 · qty on machine: 2 Factory replaced this part - current number 012210020 view full part page → $0.95 IN A KIT + SOLD SOLO
63	M1924200004	MOTOR FAN	1		ADD TO CART
MOTOR FAN M1924200004 · qty on machine: 1 Factory replaced this part - current number 0601822968 view full part page → $2204.95 IN A KIT + SOLD SOLO
64	0016910025	HEX, HEAD BOLT	4		ADD TO CART
HEX, HEAD BOLT 0016910025 · qty on machine: 4 view full part page → $1.56
65	0602210810	ENGINE STOPPER	1	181900-1902	ADD TO CART
ENGINE STOPPER 0602210810 · qty on machine: 1 181900-1902 Factory replaced this part - current number 1819001902 view full part page → $1131.95 IN A KIT + SOLD SOLO
66	0027106016	MACHINE SCREW	3		ADD TO CART
MACHINE SCREW 0027106016 · qty on machine: 3 view full part page → $0.55
67	9827200690	SENDER, OIL PRESSURE	1		PARTS REQUEST
PHOTO COMING SENDER, OIL PRESSURE 9827200690 · qty on machine: 1 PARTS REQUEST
68	8970785920	SENDER, WATER TEMPERATURE	1		ADD TO CART
SENDER, WATER TEMPERATURE 8970785920 · qty on machine: 1 view full part page → $30.95
69	8971882810	V-BELT	1		ADD TO CART
V-BELT 8971882810 · qty on machine: 1 view full part page → $50.95

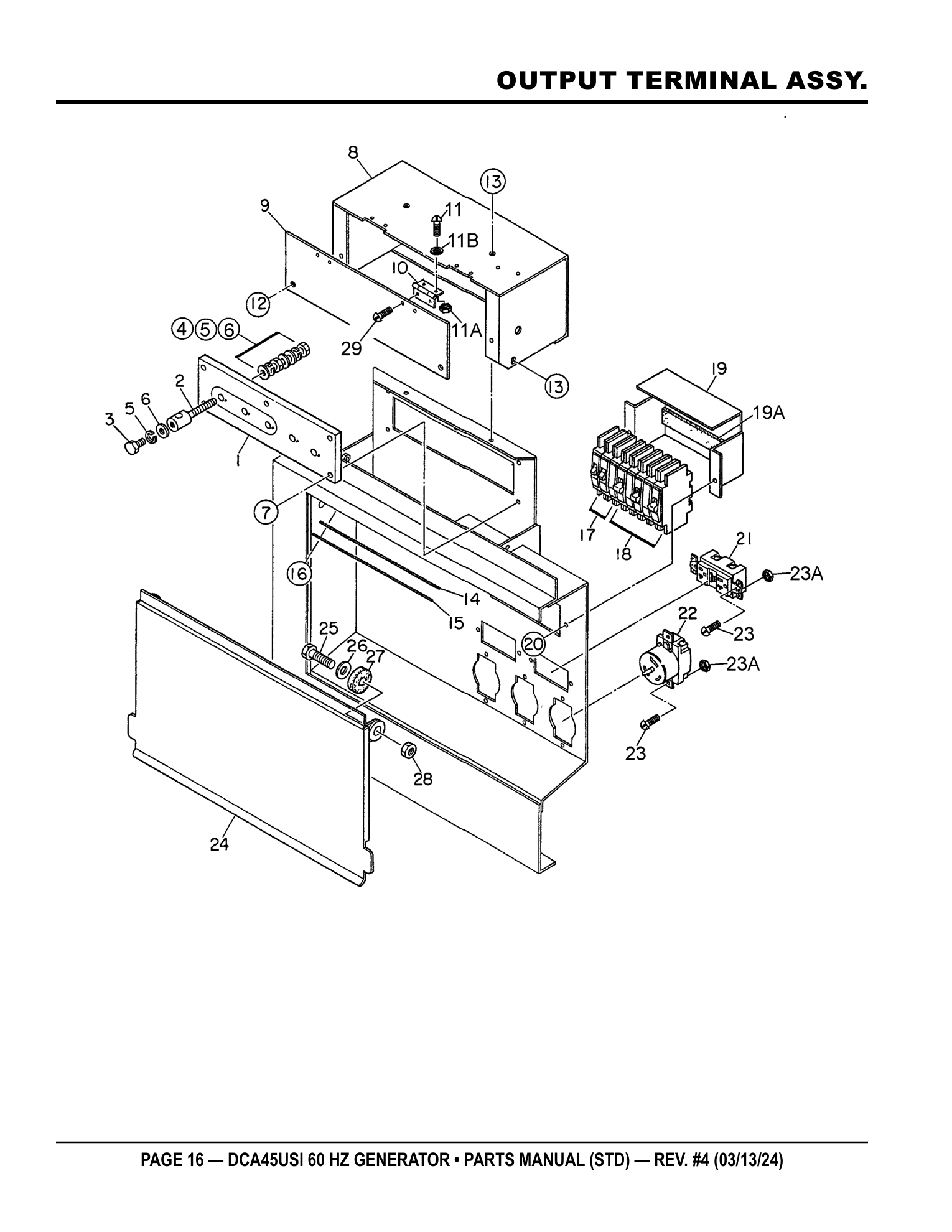

Page 16 — OUTPUT TERMINAL ASSY.

Multiquip DCA45USI Generator OUTPUT TERMINAL ASSY. parts diagram

Parts list — exactly as printed33 rows

No.	Part No.	Part Name	Qty	Remarks
1	M1230700103	TERMINAL PANEL	1		PARTS REQUEST
PHOTO COMING TERMINAL PANEL M1230700103 · qty on machine: 1 PARTS REQUEST
2	M9220100204	OUTPUT TERMINAL BOLT	5		ADD TO CART
OUTPUT TERMINAL BOLT M9220100204 · qty on machine: 5 Factory replaced this part - current number 0801831704A view full part page → $183.95 IN A KIT + SOLD SOLO
3	M9220100104	TIE SCREW	5		ADD TO CART
TIE SCREW M9220100104 · qty on machine: 5 Factory replaced this part - current number 012210020 view full part page → $0.95 IN A KIT + SOLD SOLO
4	0039310000	HEX, NUT	10		ADD TO CART
HEX, NUT 0039310000 · qty on machine: 10 view full part page → $3.95
5	0040010000	SPRING WASHER	15		ADD TO CART
SPRING WASHER 0040010000 · qty on machine: 15 view full part page → $0.39
6	0041410000	PLAIN WASHER	20		ADD TO CART
PLAIN WASHER 0041410000 · qty on machine: 20 view full part page → $0.89
7	0016908025	HEX, HEAD BOLT	5		ADD TO CART
HEX, HEAD BOLT 0016908025 · qty on machine: 5 Factory replaced this part - current number 011208025 view full part page → $0.41 IN A KIT + SOLD SOLO
8	M1236100613	TERMINAL COVER	1		ADD TO CART
TERMINAL COVER M1236100613 · qty on machine: 1 view full part page → $134.95
9	M1236100704	OUTPUT WINDOW	1		ADD TO CART
OUTPUT WINDOW M1236100704 · qty on machine: 1 view full part page → $52.95
10	0605010040	HINGE	2		ADD TO CART
HINGE 0605010040 · qty on machine: 2 view full part page → $4.95
11	0027103010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027103010 · qty on machine: 4 view full part page → $0.44
11A	0030003000	HEX, NUT	8		ADD TO CART
HEX, NUT 0030003000 · qty on machine: 8 Factory replaced this part - current number 0207003000 view full part page → $0.21 IN A KIT + SOLD SOLO
11B	0041203000	PLAIN WASHER	4		ADD TO CART
PLAIN WASHER 0041203000 · qty on machine: 4 view full part page → $0.12
12	0016906020	HEX, HEAD BOLT	2		ADD TO CART
HEX, HEAD BOLT 0016906020 · qty on machine: 2 Factory replaced this part - current number 011206020 view full part page → $0.95 IN A KIT + SOLD SOLO
13	0016906016	HEX, HEAD BOLT	4		ADD TO CART
HEX, HEAD BOLT 0016906016 · qty on machine: 4 view full part page → $0.81
14	M1236400004	CABLE OUTLET COVER	1		ADD TO CART
CABLE OUTLET COVER M1236400004 · qty on machine: 1 view full part page → $5.95
15	M1236300004	SUPPORTER, CABLE OUTLET COVER	1		ADD TO CART
SUPPORTER, CABLE OUTLET COVER M1236300004 · qty on machine: 1 view full part page → $18.95
16	0016906020	HEX, HEAD BOLT	6		ADD TO CART
HEX, HEAD BOLT 0016906020 · qty on machine: 6 Factory replaced this part - current number 011206020 view full part page → $0.95 IN A KIT + SOLD SOLO
17	0601808803	CIRCUIT BREAKER, 1-POLE, 20A	2	QOU 120B	ADD TO CART
CIRCUIT BREAKER, 1-POLE, 20A 0601808803 · qty on machine: 2 QOU 120B view full part page → $46.95
18	0601808804	CIRCUIT BREAKER, 2-POLE, 50A	3	QOU 250B	ADD TO CART
CIRCUIT BREAKER, 2-POLE, 50A 0601808804 · qty on machine: 3 QOU 250B view full part page → $98.95
19	M1260700304	BREAKER FITTING COVER	1		ADD TO CART
BREAKER FITTING COVER M1260700304 · qty on machine: 1 view full part page → $75.95
19A	0222100150	CUSHION RUBBER	1		ADD TO CART
CUSHION RUBBER 0222100150 · qty on machine: 1 view full part page → $6.95
20	0016906020	HEX, HEAD BOLT	2		ADD TO CART
HEX, HEAD BOLT 0016906020 · qty on machine: 2 Factory replaced this part - current number 011206020 view full part page → $0.95 IN A KIT + SOLD SOLO
21	0601812598	RECEPTACLE	2	GF-530EM 125V 20A X 2	ADD TO CART
RECEPTACLE 0601812598 · qty on machine: 2 GF-530EM 125V 20A X 2 Factory replaced this part - current number 0601812597 view full part page → $142.95 IN A KIT + SOLD SOLO
22	0601812538	RECEPTACLE	3	CS6369 250V 50A	ADD TO CART
RECEPTACLE 0601812538 · qty on machine: 3 CS6369 250V 50A Factory replaced this part - current number 0601811034 view full part page → $195.95 IN A KIT + SOLD SOLO
23	0027104016	MACHINE SCREW	10		ADD TO CART
MACHINE SCREW 0027104016 · qty on machine: 10 Factory replaced this part - current number 7538070 view full part page → $0.52 IN A KIT + SOLD SOLO
23A	0207004000	HEX, NUT	10		ADD TO CART
HEX, NUT 0207004000 · qty on machine: 10 Factory replaced this part - current number OEMAA8 view full part page → $0.4 IN A KIT + SOLD SOLO
24	M1236100803	TERMINAL COVER	1		ADD TO CART
TERMINAL COVER M1236100803 · qty on machine: 1 view full part page → $168.95
25	0010112045	HEX, HEAD BOLT	2		ADD TO CART
HEX, HEAD BOLT 0010112045 · qty on machine: 2 Factory replaced this part - current number 012212045 view full part page → $2.95 IN A KIT + SOLD SOLO
26	0041212000	PLAIN WASHER	2		ADD TO CART
PLAIN WASHER 0041212000 · qty on machine: 2 Factory replaced this part - current number 031112230 view full part page → $0.95 IN A KIT + SOLD SOLO
27	M9310200004	STAY RUBBER	2		ADD TO CART
STAY RUBBER M9310200004 · qty on machine: 2 Factory replaced this part - current number 0805009804 view full part page → $2.95 IN A KIT + SOLD SOLO
28	0030012000	HEX, NUT	2		ADD TO CART
HEX, NUT 0030012000 · qty on machine: 2 view full part page → $0.5
29	0027103010	MACHINE SCREW ADD NUMBER INDICATE 1-ORANGE 2-WHITE 3-SPECTRUM 4-SUNBELT THE	4	THE FOLLOWING DIGITS AFTER THE PART WHEN ORDERING ANY PAINTED PANEL TO COLOR OF UNIT: 5-BLACK 6-CATERPILLAR YELLOW GREY 7-CATO GOLD GREEN 8-RED SERIAL NUMBER MAY BE REQUIRED.	ADD TO CART
MACHINE SCREW ADD NUMBER INDICATE 1-ORANGE 2-WHITE 3-SPECTRUM 4-SUNBELT THE 0027103010 · qty on machine: 4 THE FOLLOWING DIGITS AFTER THE PART WHEN ORDERING ANY PAINTED PANEL TO COLOR OF UNIT: 5-BLACK 6-CATERPILLAR YELLOW GREY 7-CATO GOLD GREEN 8-RED SERIAL NUMBER MAY BE REQUIRED. view full part page → $0.44

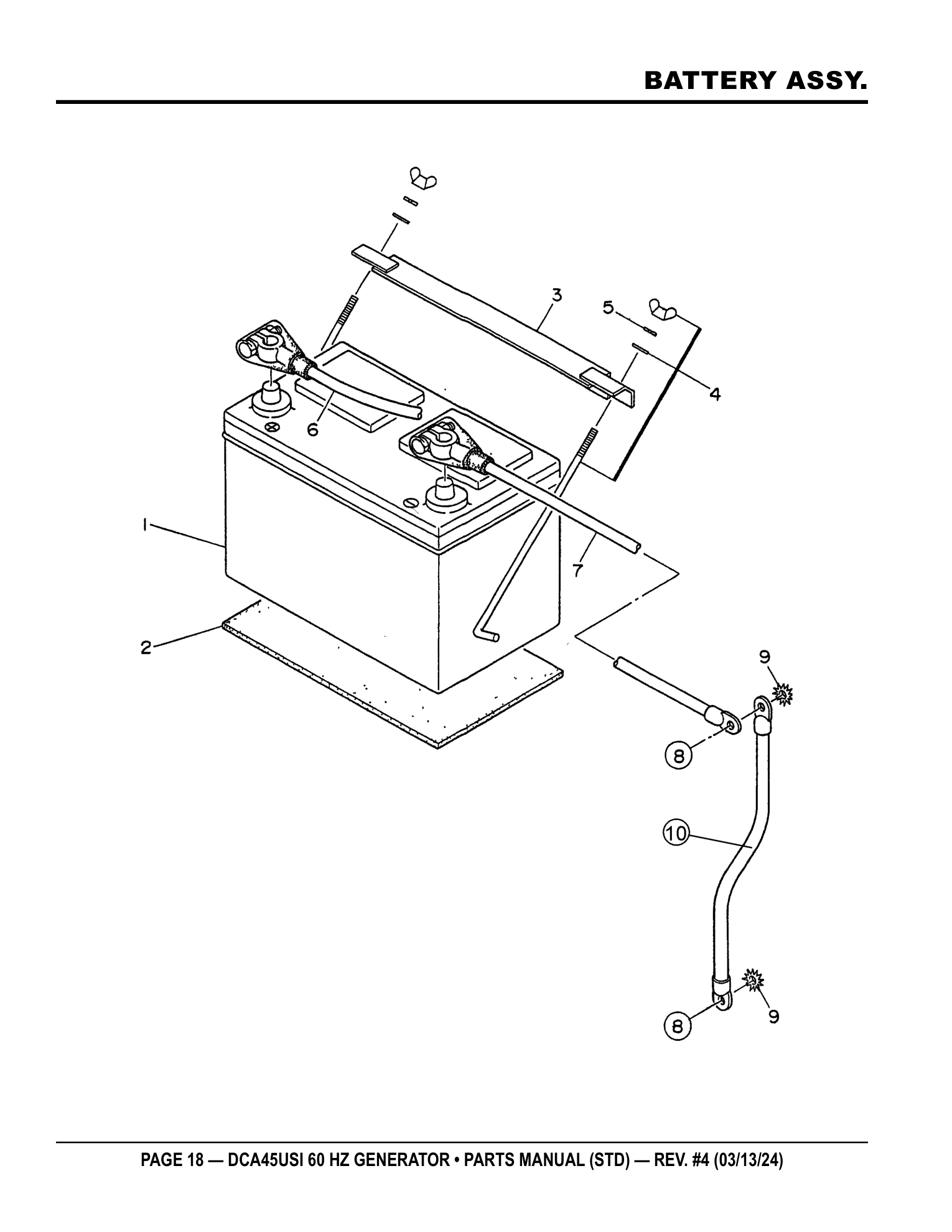

Page 18 — BATTERY ASSY.

Multiquip DCA45USI Generator BATTERY ASSY. parts diagram

Parts list — exactly as printed10 rows

No.	Part No.	Part Name	Qty	Remarks
1	0602220187	BATTERY	1		ADD TO CART
BATTERY 0602220187 · qty on machine: 1 Factory replaced this part - current number 551010280 view full part page → $361.95 IN A KIT + SOLD SOLO
2	M9310500014	BATTERY SHEET	1		ADD TO CART
BATTERY SHEET M9310500014 · qty on machine: 1 view full part page → $5.95
3	M9103000304	BATTERY BAND	1		ADD TO CART
BATTERY BAND M9103000304 · qty on machine: 1 view full part page → $72.95
4	0602220920	BATTERY BOLT SET	2		ADD TO CART
BATTERY BOLT SET 0602220920 · qty on machine: 2 view full part page → $5.95
5	0040006000	SPRING WASHER	2		ADD TO CART
SPRING WASHER 0040006000 · qty on machine: 2 view full part page → $0.17
6	M1347200004	BATTERY CABLE	1		ADD TO CART
BATTERY CABLE M1347200004 · qty on machine: 1 view full part page → $41.95
7	M1347200104	BATTERY CABLE	1		ADD TO CART
BATTERY CABLE M1347200104 · qty on machine: 1 view full part page → $42.95
8	0016910020	HEX, HEAD BOLT	2		ADD TO CART
HEX, HEAD BOLT 0016910020 · qty on machine: 2 view full part page → $17.95
9	0040510000	TOOTHED WASHER	2		ADD TO CART
TOOTHED WASHER 0040510000 · qty on machine: 2 view full part page → $0.77
10		CABLE, GROUND	1	MAKE LOCALLY	SEE REMARKS
PHOTO COMING CABLE, GROUND · qty on machine: 1 MAKE LOCALLY SEE REMARKS

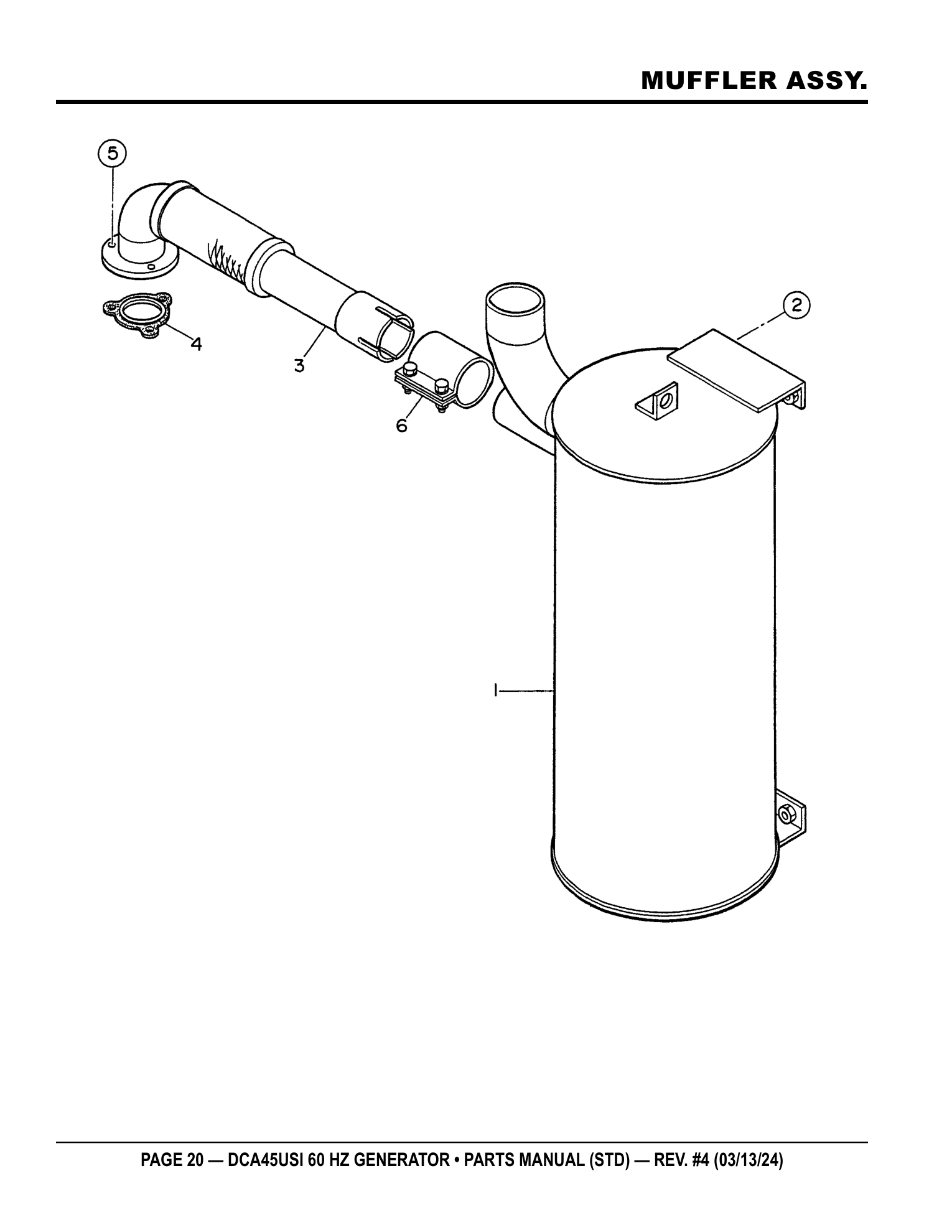

Page 20 — MUFFLER ASSY.

Multiquip DCA45USI Generator MUFFLER ASSY. parts diagram

Parts list — exactly as printed6 rows

No.	Part No.	Part Name	Qty	Remarks
1	M1331100102	MUFFLER	1		ADD TO CART
MUFFLER M1331100102 · qty on machine: 1 view full part page → $2765.95
2	0017112030	HEX, HEAD BOLT	4		ADD TO CART
HEX, HEAD BOLT 0017112030 · qty on machine: 4 Factory replaced this part - current number 012212030 view full part page → $2.95 IN A KIT + SOLD SOLO
3	M1334000003	EXHAUST PIPE	1		ADD TO CART
EXHAUST PIPE M1334000003 · qty on machine: 1 view full part page → $916.95
4	0602320101	GASKET	1	894369-0210	ADD TO CART
GASKET 0602320101 · qty on machine: 1 894369-0210 Factory replaced this part - current number 8943690210 view full part page → $57.95 IN A KIT + SOLD SOLO
5	0039308000	HEX, NUT	6		ADD TO CART
HEX, NUT 0039308000 · qty on machine: 6 view full part page → $1.28
6	0602325088	SEAL CLAMP	1		ADD TO CART
SEAL CLAMP 0602325088 · qty on machine: 1 view full part page → $28.95

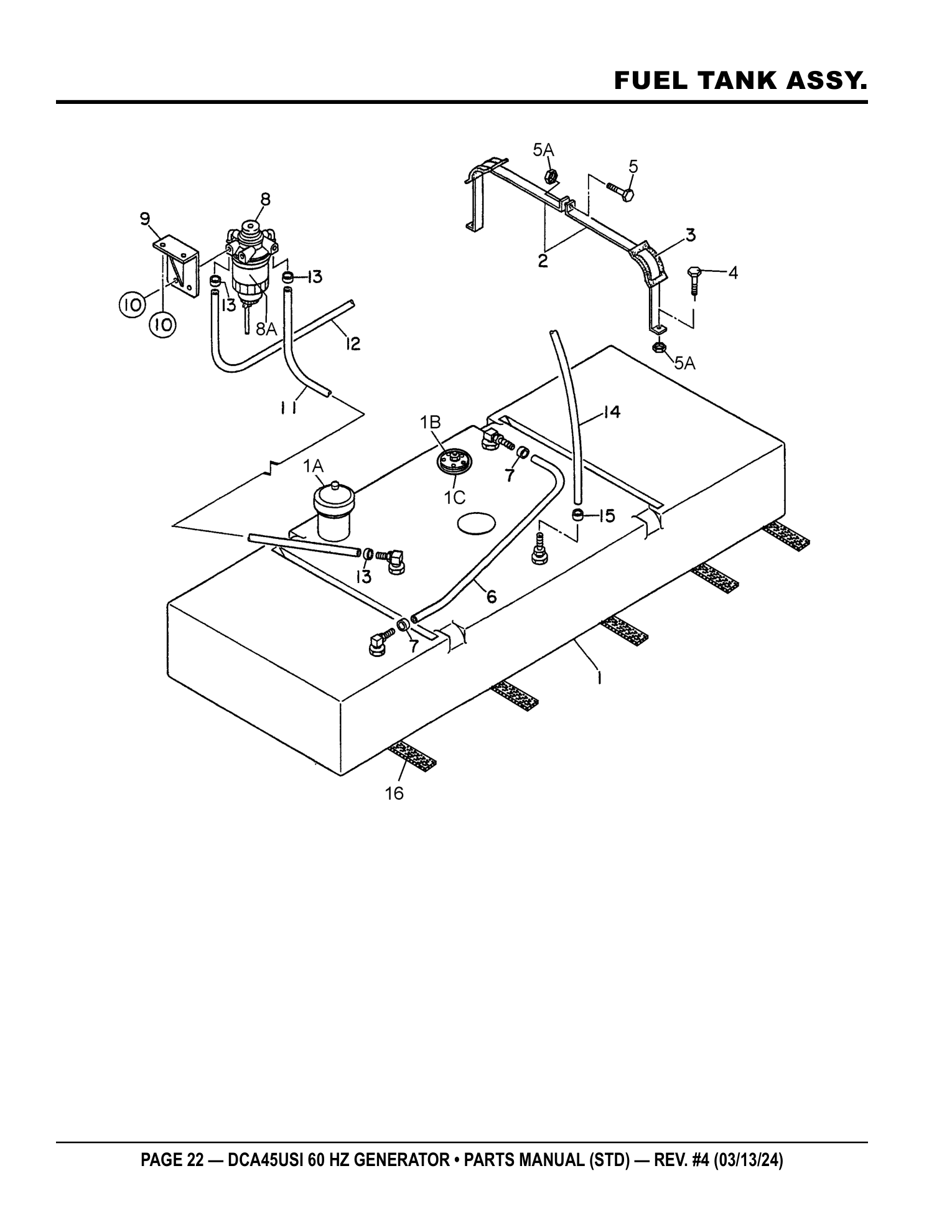

Page 22 — FUEL TANK ASSY.

Multiquip DCA45USI Generator FUEL TANK ASSY. parts diagram

Parts list — exactly as printed21 rows

No.	Part No.	Part Name	Qty
1	M1364000102	FUEL TANK	1	NO LONGER AVAILABLE
PHOTO COMING FUEL TANK M1364000102 · qty on machine: 1 NO LONGER AVAILABLE
1A	0605505070	FUEL TANK CAP	1	ADD TO CART
FUEL TANK CAP 0605505070 · qty on machine: 1 view full part page → $50.95
1B	0605501072	FUEL SENDER UNIT	1	ADD TO CART
FUEL SENDER UNIT 0605501072 · qty on machine: 1 view full part page → $165.95
1C	0605516090	GASKET	1	NO LONGER AVAILABLE
PHOTO COMING GASKET 0605516090 · qty on machine: 1 NO LONGER AVAILABLE
2	M1364200004	TANK BAND	4	ADD TO CART
TANK BAND M1364200004 · qty on machine: 4 view full part page → $38.95
3	M9310500104	SUPPORTER SHEET	4	ADD TO CART
SUPPORTER SHEET M9310500104 · qty on machine: 4 view full part page → $5.95
4	0016908020	HEX, HEAD BOLT	4	ADD TO CART
HEX, HEAD BOLT 0016908020 · qty on machine: 4 Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO
5	0016908065	HEX, HEAD BOLT	2	ADD TO CART
HEX, HEAD BOLT 0016908065 · qty on machine: 2 view full part page → $5.95
5A	0207008000	HEX, NUT	6	ADD TO CART
HEX, NUT 0207008000 · qty on machine: 6 Factory replaced this part - current number 020108060 view full part page → $0.28 IN A KIT + SOLD SOLO
6	0191301300	VENT HOSE	1	ADD TO CART
VENT HOSE 0191301300 · qty on machine: 1 view full part page → $4.95
7	0605515109	HOSE BAND	2	ADD TO CART
HOSE BAND 0605515109 · qty on machine: 2 view full part page → $0.95
8	8943672924	PUMP PRIMARY	1	ADD TO CART
PUMP PRIMARY 8943672924 · qty on machine: 1 view full part page → $304.95
8A	8980374810	ELEMENT FUEL FILTER W/O SENSOR	1	ADD TO CART
ELEMENT FUEL FILTER W/O SENSOR 8980374810 · qty on machine: 1 view full part page → $104.95
9	M1367700004	BRACKET, FUEL FILTER	1	ADD TO CART
BRACKET, FUEL FILTER M1367700004 · qty on machine: 1 view full part page → $23.95
10	0016908020	HEX, HEAD BOLT	4	ADD TO CART
HEX, HEAD BOLT 0016908020 · qty on machine: 4 Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO
11	0191200550	SUCTION HOSE	1	ADD TO CART
SUCTION HOSE 0191200550 · qty on machine: 1 view full part page → $5.95
12	0191201600	SUCTION HOSE	1	ADD TO CART
SUCTION HOSE 0191201600 · qty on machine: 1 view full part page → $17.95
13	0605515108	HOSE BAND	4	ADD TO CART
HOSE BAND 0605515108 · qty on machine: 4 Factory replaced this part - current number 0605515189 view full part page → $1.85 IN A KIT + SOLD SOLO
14	0191300750	RETURN HOSE	1	ADD TO CART
RETURN HOSE 0191300750 · qty on machine: 1 view full part page → $6.95
15	0605515109	HOSE BAND	2	ADD TO CART
HOSE BAND 0605515109 · qty on machine: 2 view full part page → $0.95
15	0222100700	TANK SHEET	5	ADD TO CART
TANK SHEET 0222100700 · qty on machine: 5 view full part page → $22.95

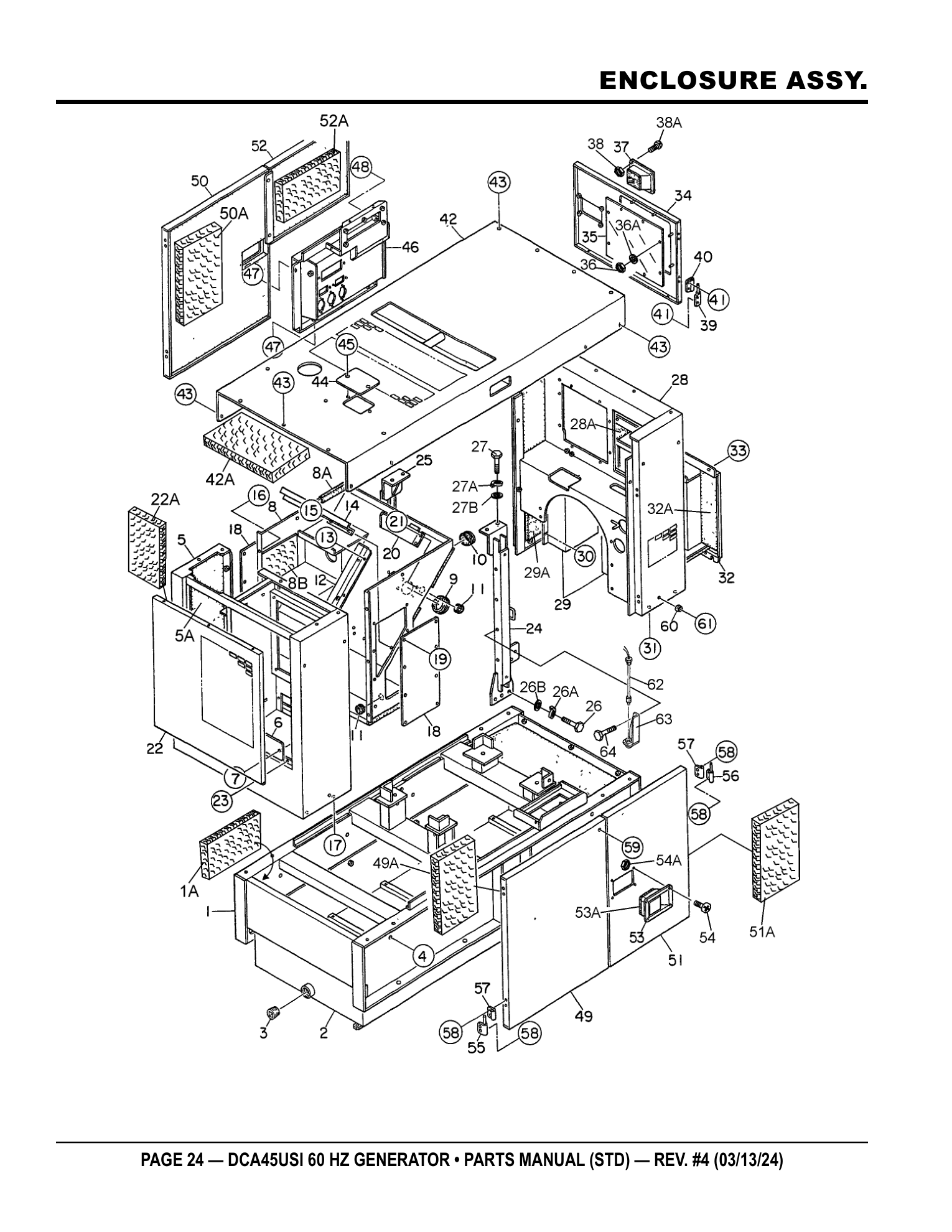

Page 24 — ENCLOSURE ASSY.

Multiquip DCA45USI Generator ENCLOSURE ASSY. parts diagram

Parts list — exactly as printed37 rows

No.	Part No.	Part Name	Qty	Remarks
1	M1414000202	BASE	1		ADD TO CART
BASE M1414000202 · qty on machine: 1 view full part page → $3220.95
1A	M1494000004	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494000004 · qty on machine: 1 view full part page → $103.95
2	M1414800003	ENVIRONMENTAL TANK	1		ADD TO CART
ENVIRONMENTAL TANK M1414800003 · qty on machine: 1 view full part page → $1602.95
3	0603306797	PLUG,1-1/2	1		ADD TO CART
PLUG,1-1/2 0603306797 · qty on machine: 1 view full part page → $12.95
4	0017110040	HEX, HEAD BOLT	8		ADD TO CART
HEX, HEAD BOLT 0017110040 · qty on machine: 8 Factory replaced this part - current number 014210040 view full part page → $1.95 IN A KIT + SOLD SOLO
5	M1424000012	FRONT FRAME	1		ADD TO CART
FRONT FRAME M1424000012 · qty on machine: 1 view full part page → $1050.95
5A	M1494100004	ACOUSTIC SHEET	1	S/N 8200001 ~ 8200080	ADD TO CART
ACOUSTIC SHEET M1494100004 · qty on machine: 1 S/N 8200001 ~ 8200080 view full part page → $195.95
5A	M1493104804	ACOUSTIC SHEET	1	S/N 8200081 AND ABOVE	ADD TO CART
ACOUSTIC SHEET M1493104804 · qty on machine: 1 S/N 8200081 AND ABOVE view full part page → $352.95
6	M1311600004	RADIATOR COVER	1		ADD TO CART
RADIATOR COVER M1311600004 · qty on machine: 1 view full part page → $38.95
7	0016908020	HEX, HEAD BOLT	2		ADD TO CART
HEX, HEAD BOLT 0016908020 · qty on machine: 2 Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO
8	M1424000302	FRONT FRAME	1	S/N 8200001 ~ 8200080	ADD TO CART
FRONT FRAME M1424000302 · qty on machine: 1 S/N 8200001 ~ 8200080 view full part page → $203.95
8	M1424000402	FRONT FRAME	1	S/N 8200081 AND ABOVE	ADD TO CART
FRONT FRAME M1424000402 · qty on machine: 1 S/N 8200081 AND ABOVE view full part page → $900.95
8A	0314502100	SEAL	1		ADD TO CART
SEAL 0314502100 · qty on machine: 1 view full part page → $79.95
8B	M1494100004	ACOUSTIC SHEET	1	S/N 8200001 ~ 8200080	ADD TO CART
ACOUSTIC SHEET M1494100004 · qty on machine: 1 S/N 8200001 ~ 8200080 view full part page → $195.95
8B	M1493104804	ACOUSTIC SHEET	1	S/N 8200081 AND ABOVE	ADD TO CART
ACOUSTIC SHEET M1493104804 · qty on machine: 1 S/N 8200081 AND ABOVE view full part page → $352.95
9	0601851756	GROMMET, C30-SG-70A	1	S/N 8200001 ~ 8200080	ADD TO CART
GROMMET, C30-SG-70A 0601851756 · qty on machine: 1 S/N 8200001 ~ 8200080 view full part page → $15.95
10	0601851736	GROMMET, C30-SG-60A	2		ADD TO CART
GROMMET, C30-SG-60A 0601851736 · qty on machine: 2 view full part page → $12.95
11	0601850266	GROMMET, C30-SG-28A	4		PARTS REQUEST
PHOTO COMING GROMMET, C30-SG-28A 0601850266 · qty on machine: 4 PARTS REQUEST
12	M1424500204	BLOWBY COVER	1		ADD TO CART
BLOWBY COVER M1424500204 · qty on machine: 1 view full part page → $29.95
13	0016906016	HEX, HEAD BOLT	6		ADD TO CART
HEX, HEAD BOLT 0016906016 · qty on machine: 6 view full part page → $0.81
14	M1424500104	GUARD	1		ADD TO CART
GUARD M1424500104 · qty on machine: 1 view full part page → $18.95
15	0016906016	HEX, HEAD BOLT	4		ADD TO CART
HEX, HEAD BOLT 0016906016 · qty on machine: 4 view full part page → $0.81
16	0016908020	HEX, HEAD BOLT	8		ADD TO CART
HEX, HEAD BOLT 0016908020 · qty on machine: 8 Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO
17	0016908020	HEX, HEAD BOLT	4		ADD TO CART
HEX, HEAD BOLT 0016908020 · qty on machine: 4 Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO
18	M1424200504	DUCT COVER	2		ADD TO CART
DUCT COVER M1424200504 · qty on machine: 2 view full part page → $64.95
19	0016906016	HEX, HEAD BOLT	16		ADD TO CART
HEX, HEAD BOLT 0016906016 · qty on machine: 16 view full part page → $0.81
20	M1311600104	HOSE COVER	1	S/N 8200001 ~ 8200080	PARTS REQUEST
PHOTO COMING HOSE COVER M1311600104 · qty on machine: 1 S/N 8200001 ~ 8200080 PARTS REQUEST
20	M1484400004	HOSE COVER	1	S/N 8200081 AND ABOVE	ADD TO CART
HOSE COVER M1484400004 · qty on machine: 1 S/N 8200081 AND ABOVE view full part page → $18.95
20	M1484400103	HOSE COVER	1	S/N 8200081 AND ABOVE	ADD TO CART
HOSE COVER M1484400103 · qty on machine: 1 S/N 8200081 AND ABOVE view full part page → $34.95
21	0016906018	HEX, HEAD BOLT	4		PARTS REQUEST
PHOTO COMING HEX, HEAD BOLT 0016906018 · qty on machine: 4 PARTS REQUEST
22	M1424200303	COVER, FRONT FRAME	1	S/N 8200001 ~ 8200080	PARTS REQUEST
PHOTO COMING COVER, FRONT FRAME M1424200303 · qty on machine: 1 S/N 8200001 ~ 8200080 PARTS REQUEST
22	M1424200313	COVER, FRONT FRAME	1	S/N 8200081 AND ABOVE	PARTS REQUEST
PHOTO COMING COVER, FRONT FRAME M1424200313 · qty on machine: 1 S/N 8200081 AND ABOVE PARTS REQUEST
22A	M1494100104	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494100104 · qty on machine: 1 view full part page → $74.95
23	0016908020	HEX, HEAD BOLT	3		ADD TO CART
HEX, HEAD BOLT 0016908020 · qty on machine: 3 Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO
24	M1434300203	CENTER FRAME	1		ADD TO CART
CENTER FRAME M1434300203 · qty on machine: 1 view full part page → $163.95
25	M1434300303	CENTER FRAME	1		ADD TO CART
CENTER FRAME M1434300303 · qty on machine: 1 view full part page → $163.95
26	0010116040	HEX, HEAD BOLT ADD NUMBER INDICATE 1-ORANGE 2-WHITE 3-SPECTRUM 4-SUNBELT THE	6	THE FOLLOWING DIGITS AFTER THE PART WHEN ORDERING ANY PAINTED PANEL TO COLOR OF UNIT: 5-BLACK 6-CATERPILLAR YELLOW GREY 7-CATO GOLD GREEN 8-RED SERIAL NUMBER MAY BE REQUIRED.	PARTS REQUEST
PHOTO COMING HEX, HEAD BOLT ADD NUMBER INDICATE 1-ORANGE 2-WHITE 3-SPECTRUM 4-SUNBELT THE 0010116040 · qty on machine: 6 THE FOLLOWING DIGITS AFTER THE PART WHEN ORDERING ANY PAINTED PANEL TO COLOR OF UNIT: 5-BLACK 6-CATERPILLAR YELLOW GREY 7-CATO GOLD GREEN 8-RED SERIAL NUMBER MAY BE REQUIRED. PARTS REQUEST

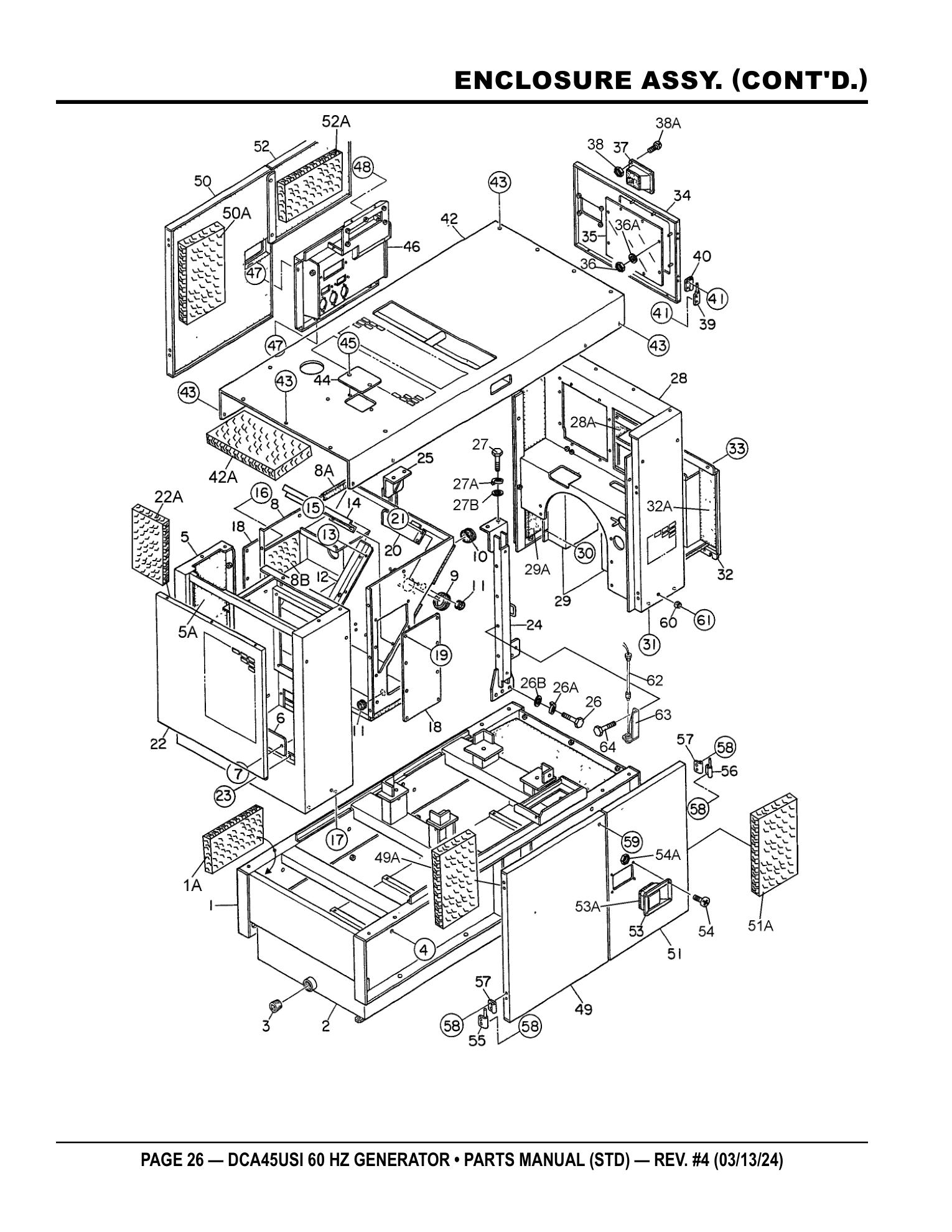

Page 26 — ENCLOSURE ASSY. (CONT'D.)

Multiquip DCA45USI Generator ENCLOSURE ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed37 rows

No.	Part No.	Part Name	Qty	Remarks
26A	0040016000	SPRING WASHER	6		ADD TO CART
SPRING WASHER 0040016000 · qty on machine: 6 view full part page → $4.95
26B	0041216000	PLAIN WASHER	6		ADD TO CART
PLAIN WASHER 0041216000 · qty on machine: 6 view full part page → $1.95
27	0010116040	HEX, HEAD BOLT	4		PARTS REQUEST
PHOTO COMING HEX, HEAD BOLT 0010116040 · qty on machine: 4 PARTS REQUEST
27A	0040016000	SPRING WASHER	4		ADD TO CART
SPRING WASHER 0040016000 · qty on machine: 4 view full part page → $4.95
27B	0041216000	PLAIN WASHER	4		ADD TO CART
PLAIN WASHER 0041216000 · qty on machine: 4 view full part page → $1.95
28	M1444000102	REAR FRAME	1		PARTS REQUEST
PHOTO COMING REAR FRAME M1444000102 · qty on machine: 1 PARTS REQUEST
28A	M1494300003	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M1494300003 · qty on machine: 1 Factory replaced this part - current number M1494300004 PARTS REQUEST
29	M1444800004	DUCT	2		ADD TO CART
DUCT M1444800004 · qty on machine: 2 view full part page → $104.95
29A	M1494300204	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M1494300204 · qty on machine: 1 PARTS REQUEST
30	0207006000	HEX, NUT	12		ADD TO CART
HEX, NUT 0207006000 · qty on machine: 12 Factory replaced this part - current number 0176060030 view full part page → $2.95 IN A KIT + SOLD SOLO
31	0016908020	HEX, HEAD BOLT	4		ADD TO CART
HEX, HEAD BOLT 0016908020 · qty on machine: 4 Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO
32	M1444300003	REAR COVER	1		PARTS REQUEST
PHOTO COMING REAR COVER M1444300003 · qty on machine: 1 PARTS REQUEST
32A	M1494300104	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M1494300104 · qty on machine: 1 PARTS REQUEST
33	0016908020	HEX, HEAD BOLT	6	S/N 8200001 ~ 8200080	ADD TO CART
HEX, HEAD BOLT 0016908020 · qty on machine: 6 S/N 8200001 ~ 8200080 Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO
33	0019208020	HEX, HEAD BOLT	6	S/N 8200081 AND ABOVE	ADD TO CART
HEX, HEAD BOLT 0019208020 · qty on machine: 6 S/N 8200081 AND ABOVE view full part page → $3.95
34	M1444200003	REAR DOOR	1		PARTS REQUEST
PHOTO COMING REAR DOOR M1444200003 · qty on machine: 1 PARTS REQUEST
35	M1444600004	WINDOW PLATE	1		ADD TO CART
WINDOW PLATE M1444600004 · qty on machine: 1 view full part page → $109.95
36	0207306000	HEX, NUT	8		ADD TO CART
HEX, NUT 0207306000 · qty on machine: 8 Factory replaced this part - current number 020106050 view full part page → $0.12 IN A KIT + SOLD SOLO
36A	0041206000	PLAIN WASHER	8		ADD TO CART
PLAIN WASHER 0041206000 · qty on machine: 8 Factory replaced this part - current number 952404470 view full part page → $0.19 IN A KIT + SOLD SOLO
37	M9113000002	DOOR HANDLE ASSY.	1		PARTS REQUEST
PHOTO COMING DOOR HANDLE ASSY. M9113000002 · qty on machine: 1 PARTS REQUEST
38	0021806016	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021806016 · qty on machine: 4 view full part page → $0.95
38A	0030006000	HEX, NUT	4		ADD TO CART
HEX, NUT 0030006000 · qty on machine: 4 Factory replaced this part - current number 020106050 view full part page → $0.12 IN A KIT + SOLD SOLO
39	M9112100404	HINGE	2		ADD TO CART
HINGE M9112100404 · qty on machine: 2 view full part page → $49.95
40	M9112100604	HINGE	2		ADD TO CART
HINGE M9112100604 · qty on machine: 2 view full part page → $26.95
41	0016908020	HEX, HEAD BOLT	8		ADD TO CART
HEX, HEAD BOLT 0016908020 · qty on machine: 8 Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO
42	M1464000002	ROOF PANEL	1		PARTS REQUEST
PHOTO COMING ROOF PANEL M1464000002 · qty on machine: 1 PARTS REQUEST
42A	M1494500004	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494500004 · qty on machine: 1 view full part page → $277.95
43	0016908020	HEX, HEAD BOLT	18	S/N 8200001 ~ 8200080	ADD TO CART
HEX, HEAD BOLT 0016908020 · qty on machine: 18 S/N 8200001 ~ 8200080 Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO
43	0019208020	HEX, HEAD BOLT	18	S/N 8200081 AND ABOVE	ADD TO CART
HEX, HEAD BOLT 0019208020 · qty on machine: 18 S/N 8200081 AND ABOVE view full part page → $3.95
44	M1465400104	COVER	1		ADD TO CART
COVER M1465400104 · qty on machine: 1 view full part page → $18.95
45	0016908020	HEX, HEAD BOLT	2	S/N 8200001 ~ 8200080	ADD TO CART
HEX, HEAD BOLT 0016908020 · qty on machine: 2 S/N 8200001 ~ 8200080 Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO
45	0019208020	HEX, HEAD BOLT	2	S/N 8200081 AND ABOVE	ADD TO CART
HEX, HEAD BOLT 0019208020 · qty on machine: 2 S/N 8200081 AND ABOVE view full part page → $3.95
46	M1454200002	SPLASHER PANEL	1		PARTS REQUEST
PHOTO COMING SPLASHER PANEL M1454200002 · qty on machine: 1 PARTS REQUEST
47	0016908020	HEX, HEAD BOLT	3		ADD TO CART
HEX, HEAD BOLT 0016908020 · qty on machine: 3 Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO
48	0016908065	HEX, HEAD BOLT	1	S/N 8200001 ~ 8200080	ADD TO CART
HEX, HEAD BOLT 0016908065 · qty on machine: 1 S/N 8200001 ~ 8200080 view full part page → $5.95
48	0019208065	HEX, HEAD BOLT	1	S/N 8200081 AND ABOVE	ADD TO CART
HEX, HEAD BOLT 0019208065 · qty on machine: 1 S/N 8200081 AND ABOVE view full part page → $10.95
49	M1454000403	SIDE DOOR ADD NUMBER INDICATE 1-ORANGE 2-WHITE 3-SPECTRUM 4-SUNBELT THE	1	THE FOLLOWING DIGITS AFTER THE PART WHEN ORDERING ANY PAINTED PANEL TO COLOR OF UNIT: 5-BLACK 6-CATERPILLAR YELLOW GREY 7-CATO GOLD GREEN 8-RED SERIAL NUMBER MAY BE REQUIRED.	PARTS REQUEST
PHOTO COMING SIDE DOOR ADD NUMBER INDICATE 1-ORANGE 2-WHITE 3-SPECTRUM 4-SUNBELT THE M1454000403 · qty on machine: 1 THE FOLLOWING DIGITS AFTER THE PART WHEN ORDERING ANY PAINTED PANEL TO COLOR OF UNIT: 5-BLACK 6-CATERPILLAR YELLOW GREY 7-CATO GOLD GREEN 8-RED SERIAL NUMBER MAY BE REQUIRED. PARTS REQUEST

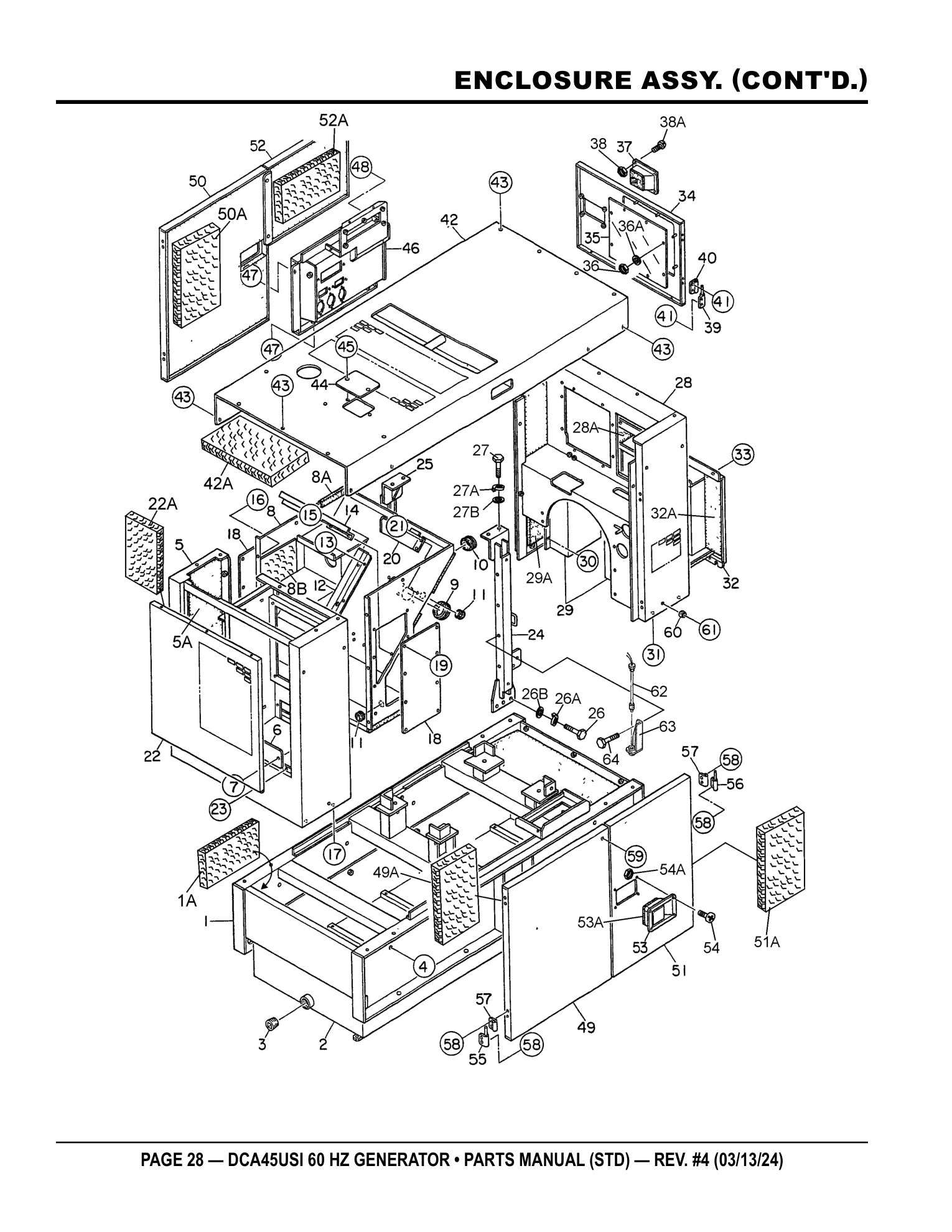

Page 28 — ENCLOSURE ASSY. (CONT'D.)

Parts list — exactly as printed21 rows

No.	Part No.	Part Name	Qty	Remarks
49A	M1494400404	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494400404 · qty on machine: 1 view full part page → $148.95
50	M1454000103	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M1454000103 · qty on machine: 1 PARTS REQUEST
50A	M1494400104	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494400104 · qty on machine: 1 view full part page → $158.95
51	M1454000503	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M1454000503 · qty on machine: 1 PARTS REQUEST
51A	M1494400504	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494400504 · qty on machine: 1 view full part page → $104.95
52	M1454000303	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M1454000303 · qty on machine: 1 PARTS REQUEST
52A	M1494400304	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494400304 · qty on machine: 1 view full part page → $59.95
53	M9113000002	DOOR HANDLE ASSY.	2		PARTS REQUEST
PHOTO COMING DOOR HANDLE ASSY. M9113000002 · qty on machine: 2 PARTS REQUEST
53A	C9312500004	SEAL RUBBER	2		ADD TO CART
SEAL RUBBER C9312500004 · qty on machine: 2 view full part page → $10.95
54	0021806016	MACHINE SCREW	8		ADD TO CART
MACHINE SCREW 0021806016 · qty on machine: 8 view full part page → $0.95
54A	0030006000	HEX, NUT	8		ADD TO CART
HEX, NUT 0030006000 · qty on machine: 8 Factory replaced this part - current number 020106050 view full part page → $0.12 IN A KIT + SOLD SOLO
55	M9112100404	HINGE	4		ADD TO CART
HINGE M9112100404 · qty on machine: 4 view full part page → $49.95
56	M9112100504	HINGE	4		ADD TO CART
HINGE M9112100504 · qty on machine: 4 view full part page → $25.95
57	M9112100604	HINGE	8		ADD TO CART
HINGE M9112100604 · qty on machine: 8 view full part page → $26.95
58	0016908020	HEX, HEAD BOLT	32		ADD TO CART
HEX, HEAD BOLT 0016908020 · qty on machine: 32 Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO
59	0016908020	HEX, HEAD BOLT	2		ADD TO CART
HEX, HEAD BOLT 0016908020 · qty on machine: 2 Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO
60	0601850097	STOPPER	5		ADD TO CART
STOPPER 0601850097 · qty on machine: 5 view full part page → $2.95
61	0027208025	MACHINE SCREW	5		ADD TO CART
MACHINE SCREW 0027208025 · qty on machine: 5 view full part page → $0.76
62	0605503062	FUEL LEAK DETECTION SWITCH	1	S/N 8200081 AND ABOVE	ADD TO CART
FUEL LEAK DETECTION SWITCH 0605503062 · qty on machine: 1 S/N 8200081 AND ABOVE view full part page → $213.95
63	M1414800104	BRACKET	1	S/N 8200081 AND ABOVE	ADD TO CART
BRACKET M1414800104 · qty on machine: 1 S/N 8200081 AND ABOVE view full part page → $39.95
64	0017108020	HEX HEAD BOLT	2	S/N 8200081 AND ABOVE ADD THE FOLLOWING DIGITS AFTER THE PART NUMBER WHEN ORDERING ANY PAINTED PANEL TO INDICATE COLOR OF UNIT: 1-ORANGE 5-BLACK 2-WHITE 6-CATERPILLAR YELLOW 3-SPECTRUM GREY 7-CATO GOLD 4-SUNBELT GREEN 8-RED THE SERIAL NUMBER MAY BE REQUIRED.	ADD TO CART
HEX HEAD BOLT 0017108020 · qty on machine: 2 S/N 8200081 AND ABOVE ADD THE FOLLOWING DIGITS AFTER THE PART NUMBER WHEN ORDERING ANY PAINTED PANEL TO INDICATE COLOR OF UNIT: 1-ORANGE 5-BLACK 2-WHITE 6-CATERPILLAR YELLOW 3-SPECTRUM GREY 7-CATO GOLD 4-SUNBELT GREEN 8-RED THE SERIAL NUMBER MAY BE REQUIRED. Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO

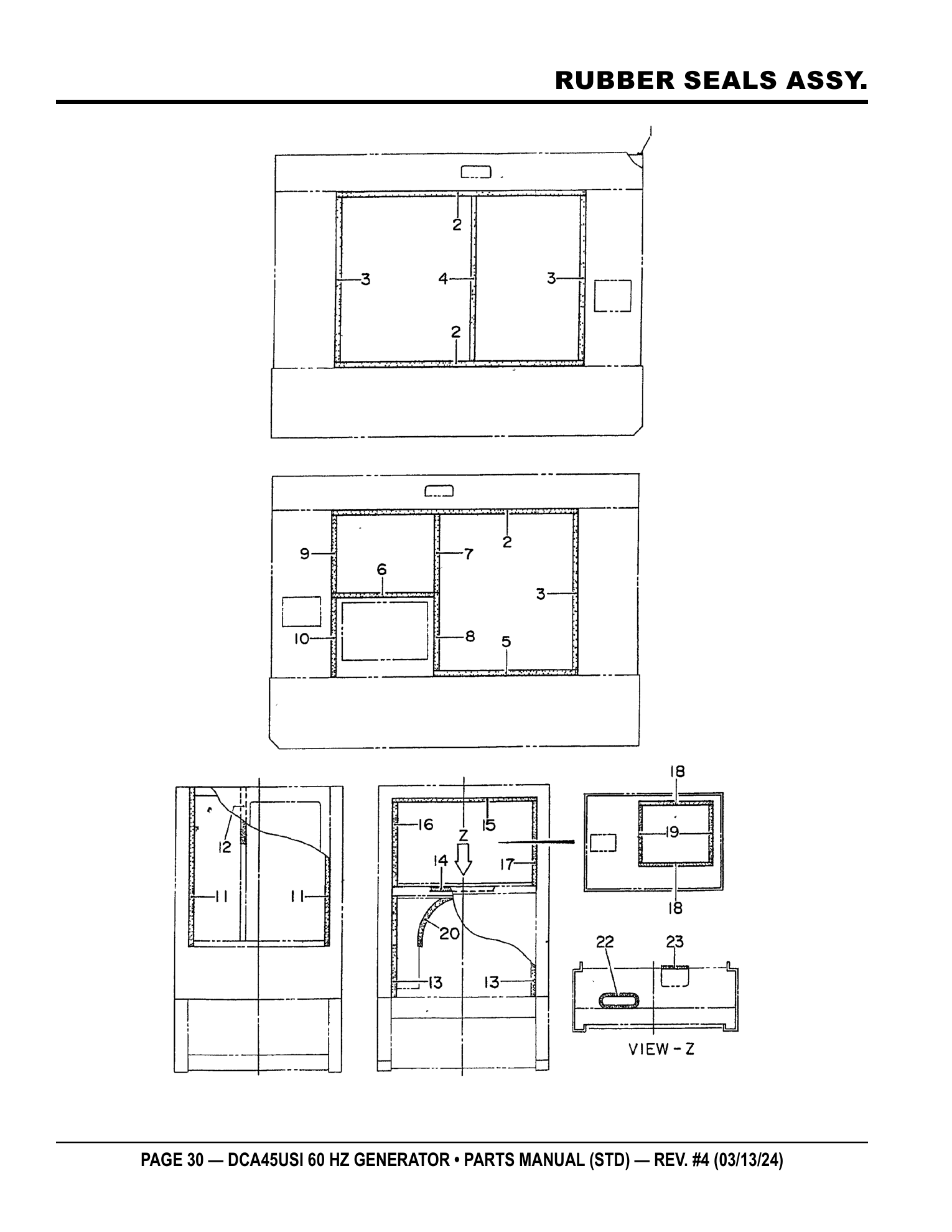

Page 30 — RUBBER SEALS ASSY.

Multiquip DCA45USI Generator RUBBER SEALS ASSY. parts diagram

Parts list — exactly as printed25 rows

No.	Part No.	Part Name	Qty	Remarks
1	0229200950	SEAL RUBBER	1		ADD TO CART
SEAL RUBBER 0229200950 · qty on machine: 1 view full part page → $9.95
2	0228901385	SEAL RUBBER	3		ADD TO CART
SEAL RUBBER 0228901385 · qty on machine: 3 view full part page → $37.95
3	0228900900	SEAL RUBBER	3		ADD TO CART
SEAL RUBBER 0228900900 · qty on machine: 3 view full part page → $25.95
4	0229400900	SEAL RUBBER	1		ADD TO CART
SEAL RUBBER 0229400900 · qty on machine: 1 view full part page → $20.95
5	0228900795	SEAL RUBBER	1		ADD TO CART
SEAL RUBBER 0228900795 · qty on machine: 1 view full part page → $15.95
6	0028900590	SEAL RUBBER	1		ADD TO CART
SEAL RUBBER 0028900590 · qty on machine: 1 view full part page → $15.95
7	0229400445	SEAL RUBBER	1		ADD TO CART
SEAL RUBBER 0229400445 · qty on machine: 1 view full part page → $15.95
8	0228800455	SEAL RUBBER	1		ADD TO CART
SEAL RUBBER 0228800455 · qty on machine: 1 view full part page → $15.95
9	0228900445	SEAL RUBBER	1		ADD TO CART
SEAL RUBBER 0228900445 · qty on machine: 1 view full part page → $15.95
10	0229200455	SEAL RUBBER	1		ADD TO CART
SEAL RUBBER 0229200455 · qty on machine: 1 view full part page → $7.95
11	0228100870	SEAL RUBBER	2		ADD TO CART
SEAL RUBBER 0228100870 · qty on machine: 2 view full part page → $0.95
12	0229200840	SEAL RUBBER	1		PARTS REQUEST
PHOTO COMING SEAL RUBBER 0229200840 · qty on machine: 1 PARTS REQUEST
13	0229200560	SEAL RUBBER	2		ADD TO CART
SEAL RUBBER 0229200560 · qty on machine: 2 view full part page → $9.95
14	0229200790	SEAL RUBBER	1		ADD TO CART
SEAL RUBBER 0229200790 · qty on machine: 1 view full part page → $10.95
15	0228800800	SEAL RUBBER	1	S/N 8200001 ~ 8200080	ADD TO CART
SEAL RUBBER 0228800800 · qty on machine: 1 S/N 8200001 ~ 8200080 view full part page → $20.95
15	0228800800	SEAL RUBBER	2	S/N 8200081 AND ABOVE	ADD TO CART
SEAL RUBBER 0228800800 · qty on machine: 2 S/N 8200081 AND ABOVE view full part page → $20.95
16	0228900475	SEAL RUBBER	1	S/N 8200001 ~ 8200080	ADD TO CART
SEAL RUBBER 0228900475 · qty on machine: 1 S/N 8200001 ~ 8200080 view full part page → $12.95
16	0228900470	SEAL RUBBER	1	S/N 8200081 AND ABOVE	ADD TO CART
SEAL RUBBER 0228900470 · qty on machine: 1 S/N 8200081 AND ABOVE view full part page → $13.95
17	0228800475	SEAL RUBBER	1	S/N 8200001 ~ 8200080	ADD TO CART
SEAL RUBBER 0228800475 · qty on machine: 1 S/N 8200001 ~ 8200080 view full part page → $3.95
17	0228800470	SEAL RUBBER	1	S/N 8200081 AND ABOVE	ADD TO CART
SEAL RUBBER 0228800470 · qty on machine: 1 S/N 8200081 AND ABOVE view full part page → $8.95
18	0228100420	SEAL RUBBER	2		ADD TO CART
SEAL RUBBER 0228100420 · qty on machine: 2 view full part page → $2.81
19	0228100325	SEAL RUBBER	2		PARTS REQUEST
PHOTO COMING SEAL RUBBER 0228100325 · qty on machine: 2 PARTS REQUEST
20	0314500700	SEAL	1		ADD TO CART
SEAL 0314500700 · qty on machine: 1 view full part page → $28.95
22	0330000460	EDGING	1		ADD TO CART
EDGING 0330000460 · qty on machine: 1 view full part page → $2.64
23	0330000180	EDGING	1		ADD TO CART
EDGING 0330000180 · qty on machine: 1 view full part page → $1.95

Page 32 — NAMEPLATE AND DECALS ASSY. (CONT'D.)

Multiquip DCA45USI Generator NAMEPLATE AND DECALS ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed38 rows

No.	Part No.	Part Name	Qty	Remarks
1	M1511400002	DECAL, GENERATOR CONTROL	1	M11140000A	ADD TO CART
DECAL, GENERATOR CONTROL M1511400002 · qty on machine: 1 M11140000A view full part page → $49.95
2	M1511400102	DECAL, ENGINE OPERATING	1	M11140010A	ADD TO CART
DECAL, ENGINE OPERATING M1511400102 · qty on machine: 1 M11140010A view full part page → $20.95
3	M1550000204	DECAL, NOTE	1	M15000020	ADD TO CART
DECAL, NOTE M1550000204 · qty on machine: 1 M15000020 view full part page → $43.95
4	M1550000703	DECAL, AUXILIARY OUTPUT	1	M15000070	ADD TO CART
DECAL, AUXILIARY OUTPUT M1550000703 · qty on machine: 1 M15000070 view full part page → $36.95
5	M1550000804	DECAL, NOTE	1	M15000080	ADD TO CART
DECAL, NOTE M1550000804 · qty on machine: 1 M15000080 view full part page → $16.95
6	M9500000004	DECAL, OIL DRAIN PLUG	1	M90000000	ADD TO CART
DECAL, OIL DRAIN PLUG M9500000004 · qty on machine: 1 M90000000 view full part page → $2.95
7	M9500100004	DECAL, WATER	1	M90010000	ADD TO CART
DECAL, WATER M9500100004 · qty on machine: 1 M90010000 view full part page → $1.95
8	M9500300004	DECAL, -	1	M90030000	ADD TO CART
DECAL, - M9500300004 · qty on machine: 1 M90030000 view full part page → $1.95
9	M9500300104	DECAL, +	1	M90030010	ADD TO CART
DECAL, + M9500300104 · qty on machine: 1 M90030010 view full part page → $1.95
10	M9500500004	DECAL, DIESEL FUEL	1	M90050000	ADD TO CART
DECAL, DIESEL FUEL M9500500004 · qty on machine: 1 M90050000 view full part page → $1.95
11	M9503000004	DECAL, WARNING MOVING PARTS	2	M90300000	ADD TO CART
DECAL, WARNING MOVING PARTS M9503000004 · qty on machine: 2 M90300000 view full part page → $1.95
12	M9503000103	DECAL, WATER - OIL CHECK	1	M90300010	ADD TO CART
DECAL, WATER - OIL CHECK M9503000103 · qty on machine: 1 M90300010 view full part page → $7.95
13	M9503100004	DECAL, WARNING HOT COOLANT	1	M90310000	ADD TO CART
DECAL, WARNING HOT COOLANT M9503100004 · qty on machine: 1 M90310000 view full part page → $4.95
14	M9503200004	DECAL, WARNING ENGINE EXHAUST	1	M90320000	ADD TO CART
DECAL, WARNING ENGINE EXHAUST M9503200004 · qty on machine: 1 M90320000 view full part page → $14.95
15	M9510000004	DECAL, FLUID DRAIN	1	M91000000	ADD TO CART
DECAL, FLUID DRAIN M9510000004 · qty on machine: 1 M91000000 view full part page → $26.95
16	M9510100004	DECAL, CAUTION HOT PARTS	1	M91010000	ADD TO CART
DECAL, CAUTION HOT PARTS M9510100004 · qty on machine: 1 M91010000 view full part page → $68.95
17	M9512200004	DECAL, MQ	1	M91220000	ADD TO CART
DECAL, MQ M9512200004 · qty on machine: 1 M91220000 view full part page → $7.95
18	M9520000004	DECAL, GROUND	1	M92000000	ADD TO CART
DECAL, GROUND M9520000004 · qty on machine: 1 M92000000 view full part page → $1.95
19	M9520000104	DECAL, AMMETER CHANGE-OVER SW	1	M92000010	ADD TO CART
DECAL, AMMETER CHANGE-OVER SW M9520000104 · qty on machine: 1 M92000010 view full part page → $11.95
20	M9520000204	DECAL, VOLTMETER CHANGE-OVER SW	1	M92000020	ADD TO CART
DECAL, VOLTMETER CHANGE-OVER SW M9520000204 · qty on machine: 1 M92000020 view full part page → $11.95
21	M9520100004	DECAL, WARNING ELECTRIC SHOCK HAZARD	2	M92010000	ADD TO CART
DECAL, WARNING ELECTRIC SHOCK HAZARD M9520100004 · qty on machine: 2 M92010000 view full part page → $5.95
22	M9520100204	DECAL, CAUTION	1	M92010020A	ADD TO CART
DECAL, CAUTION M9520100204 · qty on machine: 1 M92010020A view full part page → $3.95
23	M9520100304	DECAL, SAFETY INSTRUCTION	1	M92010030	ADD TO CART
DECAL, SAFETY INSTRUCTION M9520100304 · qty on machine: 1 M92010030 view full part page → $3.95
24	M9520100404	DECAL, DANGER HIGH VOLTAGE	1	M92010040	ADD TO CART
DECAL, DANGER HIGH VOLTAGE M9520100404 · qty on machine: 1 M92010040 view full part page → $37.95
25	M9520100503	DECAL, WARNING	1	M92010050	ADD TO CART
DECAL, WARNING M9520100503 · qty on machine: 1 M92010050 view full part page → $1.95
26	M9520200003	DECAL, CONNECTION OF OUTPUT CABLE	1	M92020000	ADD TO CART
DECAL, CONNECTION OF OUTPUT CABLE M9520200003 · qty on machine: 1 M92020000 view full part page → $7.95
27	M9520200104	DECAL, OVER CURRENT RELAY	1	C92020010	ADD TO CART
DECAL, OVER CURRENT RELAY M9520200104 · qty on machine: 1 C92020010 view full part page → $3.95
28	M1561000004	DECAL, MQ POWER	3	S/N 8200001 ~ S/N 8200080	ADD TO CART
DECAL, MQ POWER M1561000004 · qty on machine: 3 S/N 8200001 ~ S/N 8200080 view full part page → $5.95
28	M1561000004	DECAL, MQ POWER	2	S/N 8200081~	ADD TO CART
DECAL, MQ POWER M1561000004 · qty on machine: 2 S/N 8200081~ view full part page → $5.95
29	M1561100004	STRIPE	2		ADD TO CART
STRIPE M1561100004 · qty on machine: 2 view full part page → $7.95
30	M1561100103	STRIPE, WHISPERWATT	2		ADD TO CART
STRIPE, WHISPERWATT M1561100103 · qty on machine: 2 view full part page → $13.95
31	M1561100204	STRIPE, 45	1		ADD TO CART
STRIPE, 45 M1561100204 · qty on machine: 1 view full part page → $16.95
32	M1561100304	STRIPE, 45	1		ADD TO CART
STRIPE, 45 M1561100304 · qty on machine: 1 view full part page → $16.95
33	M1561100404	STRIPE	2		ADD TO CART
STRIPE M1561100404 · qty on machine: 2 view full part page → $7.95
34	M9510100304	DECAL, ENVIRONMENTAL WARNING	1	S/N 8200081 AND ABOVE	ADD TO CART
DECAL, ENVIRONMENTAL WARNING M9510100304 · qty on machine: 1 S/N 8200081 AND ABOVE view full part page → $0.95
35	M9520000304	DECAL, FUEL LEAK DETECTED	1	S/N 8200081 AND ABOVE	ADD TO CART
DECAL, FUEL LEAK DETECTED M9520000304 · qty on machine: 1 S/N 8200081 AND ABOVE view full part page → $11.95
36	0600500092	PLATE, MQ POWER	1	S/N 8200081 AND ABOVE	ADD TO CART
PLATE, MQ POWER 0600500092 · qty on machine: 1 S/N 8200081 AND ABOVE view full part page → $21.95
37	0021106016	MACHINE SCREW	4	S/N 8200081 AND ABOVE	ADD TO CART
MACHINE SCREW 0021106016 · qty on machine: 4 S/N 8200081 AND ABOVE view full part page → $0.37

The machine itself

Price by quote Get a quote

Tell us where the machine is headed and we'll quote it with freight. One call, no games.

The Multiquip DCA45USI is a generator built for portable jobsite power for tools, lighting, and equipment. It runs a ISUZU BB-4JG1T engine. Factory-documented specs and parts support; priced by quote.

Keep-it-running spares

All listed parts →

Every part that fits this machine

0071906310 Multiquip 0071906310 Bearing 6310DDUC3 DENYO - OEM Replacement Part $115.95

0193601200 Multiquip 0193601200 48" Hose DENYO - OEM Replacement Part for Super Silent Generators $49.95

0199100850 Multiquip 0199100850 Drain Hose - OEM Replacement Part for Ultra Silent Generator $41.95

0199101700 Multiquip 0199101700 HOSE DENYO - OEM Replacement Part for Ultra Silent Generators $33.95

0228901385 Multiquip 0228901385 Seal Rubber Denyo - OEM Replacement Part $37.95

0314502100 Multiquip 0314502100 Seal Denyo - OEM Replacement Part for Ultra Silent Generators $79.95

0601801040 Multiquip 0601801040 Switch C/Over Ammeter 25,40,85,125,150 - OEM Replacement Part $95.95

0601801041 Multiquip 0601801041 Change-Over Switch Voltmeter Denyo - OEM Replacement Part $157.95

0601806116 Multiquip 0601806116 Current Transformer - OEM Replacement Part for Super Silent Generators $112.95

0601807641 Multiquip 0601807641 Frequency Meter Denyo - OEM Replacement Part $591.95

0601808803 Multiquip 0601808803 Circuit Breaker 1P 20A - OEM Replacement Part for Super Silent Generators $46.95

0601820671 Multiquip 0601820671 Automatic Voltage Regulator NTA-5A-2DB - OEM Replacement Part $1,939.95

0601821349 Multiquip 0601821349 Rectifier Denyo - OEM Replacement Part for Super Silent Generators $247.95

0601822601 Multiquip 0601822601 Surge Absorber 2540 Denyo - OEM Replacement Part $60.95

0601823863 Multiquip 0601823863 Relay Unit 12V DENYO - OEM Replacement Part $159.95

0601840073 Multiquip 0601840073 Rheostat Voltage Regulator for 150SSK and DCA Series Generators - OEM Replacement Part $90.95

0602022560 Multiquip 0602022560 Adapter Denyo - OEM Replacement Part $86.95

0602022561 Multiquip 0602022561 90 Degree Elbow DENYO - OEM Replacement Part for Generator Systems $76.95

0602040556 Multiquip 0602040556 Band Air Cleaner Denyo - OEM Replacement Part $121.95

0602040651 Multiquip 0602040651 Indicator A/C Denyo - OEM Replacement Part $52.95

0602046582 Multiquip 0602046582 Air Cleaner Denyo - OEM Replacement Part $250.95

0602103092 Multiquip 0602103092 Lamp Alarm Charge Red - OEM Replacement Part $36.95

0602120465 Multiquip 0602120465 Pick Up Tachometer Denyo - OEM Replacement Part $202.95

0602123090 Multiquip 0602123090 Water Temperature Gauge - OEM Replacement Part $75.95

0602125090 Multiquip 0602125090 Fuel Gauge 100176 Denyo - OEM Replacement Part $77.95

0603306590 Multiquip 0603306590 Male Bulkhead Connector - OEM Replacement Part for Denyo Generators $86.95

0605000048 Multiquip 0605000048 Rubber Suspension - OEM Replacement Part for Super Silent Generators $36.95

0605000055 Multiquip 0605000055 Suspension Rubber Denyo - OEM Replacement Part $95.95

0605501072 Multiquip 0605501072 Fuel Sender Unit - OEM Replacement Part $165.95

0605503062 Multiquip 0605503062 Fuel Leak Detected Switch - OEM Replacement Part $213.95

0605505070 Multiquip 0605505070 Fuel Tank Cap DENYO - OEM Replacement Part $50.95

0605511395 Multiquip 0605511395 Ball Valve DENYO - OEM Replacement Part $46.95

8001026013 Multiquip 8001026013 Rectifier Set Plate - OEM Replacement Part for Super Silent Generators $63.95

8001333003 Multiquip 8001333003 Cover End Bracket DCA-44SPK - OEM Replacement Part $67.95

8041015003 Multiquip 8041015003 Balancing Plate - OEM Replacement Part for Super Silent Generators $248.95

8041310024 Multiquip 8041310024 Cover Bearing - OEM Replacement Part for Super Silent Generators $47.95

8041315202 Multiquip 8041315202 Bracket End - OEM Replacement Part for Super Silent Generators $790.95

8041331014 Multiquip 8041331014 Cover End Bracket - OEM Replacement Part for Super Silent Generators $302.95

8041350013 Multiquip 8041350013 Field Assembly Exciter - OEM Replacement Part for Super Silent Generators $2,667.95

8051070003 Multiquip 8051070003 Fan - OEM Replacement Part for Super Silent Generator $323.95

8051332014 Multiquip 8051332014 Cover Fan - OEM Replacement Part for Super Silent Generator $113.95

8943672924 Multiquip 8943672924 Fuel Filter Assembly - OEM Replacement Part $304.95

8944024980 Multiquip 8944024980 Key Ignition DPS-90SST - OEM Replacement Part $59.95

8971882810 Multiquip 8971882810 V Belt Cooling Fan 4JG2 - OEM Replacement Part $50.95

8980374810 Multiquip 8980374810 Element Fuel Filter W/O Sensor 4LE2 - OEM Replacement Part $104.95

B3110100202 Multiquip B3110100202 Rotor Assembly DCA-45USI - OEM Replacement Part for Super Silent Generators $7,586.95

B3130100103 Multiquip B3130100103 Assy DCA-45USI Generator Assembly - OEM Replacement Part $6,978.95

M1164600003 Multiquip M1164600003 Adapter Coupling Denyo - OEM Replacement Part for Super Silent Generators $850.95

M1213500303 Multiquip M1213500303 Cover Control Box - OEM Replacement Part $47.95

M1214000102 Multiquip M1214000102 Control Box Denyo - OEM Replacement Part for Ultra Silent Generators $179.95

M1215601104 Multiquip M1215601104 Switch Cover DENYO - OEM Replacement Part for Ultra Silent Generators $59.95

M1215601204 Multiquip M1215601204 Bracket Switch Denyo - OEM Replacement Part for Ultra Silent Generators $446.95

M1224000003 Multiquip M1224000003 Control Panel DENYO - OEM Replacement Part for Ultra Silent Generator $119.95

M1236100613 Multiquip M1236100613 Terminal Cover - OEM Replacement Part for Super Silent Generators $134.95

M1236100704 Multiquip M1236100704 Window Output Terminal - OEM Replacement Part $52.95

M1236100803 Multiquip M1236100803 Cover Output Term - OEM Replacement Part for Super Silent Generators $168.95

M1247700114 Multiquip M1247700114 Wire Harness Generator - OEM Replacement Part for Denyo Ultra Silent Generators $1,946.95

M1260700304 Multiquip M1260700304 Cover Breaker Fitting - OEM Replacement Part $75.95

M1311500003 Multiquip M1311500003 Radiator Upper Hose - OEM Replacement Part for Denyo Generators $99.95

M1311500103 Multiquip M1311500103 Radiator Lower Hose - OEM Replacement Part for Denyo Generators $166.95

M1311600004 Multiquip M1311600004 Radiator Cover - OEM Replacement Part for Denyo Generators $38.95

M1320300304 Multiquip M1320300304 Packing Denyo - OEM Replacement Part for Super Silent Generators $1,461.95

M1331100102 Multiquip M1331100102 Muffler Denyo - OEM Replacement Part for Ultra Silent Generators $2,765.95

M1334000003 Multiquip M1334000003 Exhaust Pipe Denyo - OEM Replacement Part for Ultra Silent Generators $916.95

M1347200004 Multiquip M1347200004 Battery Cable DENYO - OEM Replacement Part $41.95

M1347200104 Multiquip M1347200104 Battery Cable - OEM Replacement Part for Denyo Generators $42.95

M1358200112 Multiquip M1358200112 Wire Harness Engine Denyo - OEM Replacement Part $1,841.95

M1358300004 Multiquip M1358300004 Clamp Harness Denyo - OEM Replacement Part $79.95

M1364200004 Multiquip M1364200004 Tank Band E-Coat - OEM Replacement Part for Super Silent Generators $38.95

M1374100003 Multiquip M1374100003 Air Cleaner Hose - OEM Replacement Part $283.95

M1374100103 Multiquip M1374100103 Air Cleaner Hose - OEM Replacement Part for Ultra Silent Generators $376.95

M1414000202 Multiquip M1414000202 Base Denyo - OEM Replacement Part for Ultra Silent Generators $3,220.95

M1414800003 Multiquip M1414800003 Tank Environmental - OEM Replacement Part for Super Silent Generators $1,602.95

M1414800104 Multiquip M1414800104 Bracket Denyo - OEM Replacement Part for Generators $39.95

M1424000012 Multiquip M1424000012 Frame Front Parent - OEM Replacement Part for Ultra Silent Generators $1,050.95

M1424000302 Multiquip M1424000302 Frame Front (White) Denyo - OEM Replacement Part $203.95

M1424200504 Multiquip M1424200504 Cover Duct Denyo - OEM Replacement Part for Ultra Silent Generators $64.95

M1424700004 Multiquip M1424700004 Fan Guard Denyo - OEM Replacement Part for Ultra Silent Generators $58.95

M1424700104 Multiquip M1424700104 Fan Guard Denyo - OEM Replacement Part for Ultra Silent Generator $49.95

M1434300203 Multiquip M1434300203 Frame Center Denyo - OEM Replacement Part for Ultra Silent Generators $163.95

M1434300303 Multiquip M1434300303 Frame Center Denyo - OEM Replacement Part for Ultra Silent Generators $163.95

M1444600004 Multiquip M1444600004 Plate Window Denyo - OEM Replacement Part for Generator Control Panel $109.95

M1444800004 Multiquip M1444800004 Duct Denyo - OEM Replacement Part for Ultra Silent Generators $104.95

M1484400103 Multiquip M1484400103 Cover Hose Denyo - OEM Replacement Part for Ultra Silent Generators $34.95

M1494000004 Multiquip M1494000004 Acoustic Sheet Denyo - OEM Replacement Part for Ultra Silent Generators $103.95

M1494100004 Multiquip M1494100004 Acoustic Sheet Denyo - OEM Replacement Part for Ultra Silent Generators $195.95

M1494100104 Multiquip M1494100104 Acoustic Sheet Denyo - OEM Replacement Part for Ultra Silent Generators $74.95

M1494400104 Multiquip M1494400104 Acoustic Sheet Denyo - OEM Replacement Part for Ultra Silent Generators $158.95

M1494400304 Multiquip M1494400304 Acoustic Sheet Denyo - OEM Replacement Part for Ultra Silent Generators $59.95

M1494400404 Multiquip M1494400404 Acoustic Sheet Denyo - OEM Replacement Part for Ultra Silent Generators $148.95

M1494400504 Multiquip M1494400504 Acoustic Sheet - OEM Replacement Part $104.95

M1494500004 Multiquip M1494500004 Acoustic Sheet Denyo - OEM Replacement Part for Ultra Silent Generators $277.95

M1511400002 Multiquip M1511400002 Decal Generator Control Denyo - OEM Replacement Part $49.95

M1550000204 Multiquip M1550000204 Decal Note For Receptacle - OEM Replacement Part $43.95

M1923200084 Multiquip M1923200084 Radiator Denyo - OEM Replacement Part for Ultra Silent Generators $616.95

M3357200304 Multiquip M3357200304 Wire Harness Fuel Leak Denyo - OEM Replacement Part $85.95

M9103000304 Multiquip M9103000304 Battery Band - OEM Replacement Part $72.95

M9112100404 Multiquip M9112100404 Hinge (White) Denyo - OEM Replacement Part $49.95

0010108020 HEX, HEAD BOLT

0010112045 HEX, HEAD BOLT

0010116040 HEX, HEAD BOLT

0010308065 HEX, HEAD BOLT

0010310035 HEX, HEAD BOLT

0012808030 HEX, HEAD BOLT

0012810030 HEX, HEAD BOLT

0016906016 HEX, HEAD BOLT $0.81

0016906020 HEX, HEAD BOLT

0016908020 HEX, HEAD BOLT

0016908025 HEX, HEAD BOLT

0016908040 HEX, HEAD BOLT $1.52

0016908065 HEX, HEAD BOLT $5.95

0016910020 HEX, HEAD BOLT $17.95

0016910025 HEX, HEAD BOLT $1.56

0017106012 HEX, HEAD BOLT

0017108020 HEX HEAD BOLT

0017108030 HEX, HEAD BOLT

0017110020 HEX, HEAD BOLT

0017110040 HEX, HEAD BOLT

0017112030 HEX, HEAD BOLT

0021106016 MACHINE SCREW $0.37

0021806016 MACHINE SCREW $0.95

0027103010 MACHINE SCREW $0.44

0027104016 MACHINE SCREW

0027105010 MACHINE SCREW $0.56

0027208025 MACHINE SCREW $0.76

0028900590 SEAL RUBBER $15.95

0030003000 HEX, NUT

0030006000 HEX, NUT

0030010000 HEX, NUT

0030012000 HEX, NUT $0.50

0039310000 HEX, NUT $3.95

0040006000 SPRING WASHER $0.17

0040008000 SPRING WASHER $0.63

0040010000 SPRING WASHER $0.39

0040012000 SPRING WASHER $0.95

0040016000 SPRING WASHER $4.95

0040506000 TOOTHED WASHER $0.77

0040510000 TOOTHED WASHER $0.77

0041203000 PLAIN WASHER $0.12

0041206000 PLAIN WASHER

0041208000 PLAIN WASHER

0041210000 PLAIN WASHER

0041212000 PLAIN WASHER

0041216000 PLAIN WASHER $1.95

0041410000 PLAIN WASHER $0.89

0042510000 SPRING WASHER

0042608000 SPRING WASHER $0.62

0080200007 SNAP RING $1.39

0150000018 O-RING $1.87

0191200550 SUCTION HOSE $5.95

0191201600 SUCTION HOSE $17.95

0191300750 RETURN HOSE $6.95

0191301300 VENT HOSE $4.95

0199100215 HOSE $3.95

0199800730 HOSE

0207004000 HEX, NUT

0207006000 HEX, NUT

0207008000 HEX, NUT

0207306000 HEX, NUT

0222100150 CUSHION RUBBER $6.95

0222100700 TANK SHEET $22.95

0228100325 SEAL RUBBER

0228100420 SEAL RUBBER $2.81

0228100870 SEAL RUBBER $0.95

0228800455 SEAL RUBBER $15.95

0228800475 SEAL RUBBER $3.95

0228800800 SEAL RUBBER $20.95

0228900445 SEAL RUBBER $15.95

0228900475 SEAL RUBBER $12.95

0228900795 SEAL RUBBER $15.95

0228900900 SEAL RUBBER $25.95

0229200455 SEAL RUBBER $7.95

0229200560 SEAL RUBBER $9.95

0229200790 SEAL RUBBER $10.95

0229200840 SEAL RUBBER

0229200950 SEAL RUBBER $9.95

0229400445 SEAL RUBBER $15.95

0229400900 SEAL RUBBER $20.95

0269200310 DRAIN HOSE

0269200480 BLOWBY HOSE $29.95

0314500700 SEAL $28.95

0330000180 EDGING $1.95

0330000460 EDGING $2.64

0330000530 EDGING $11.95

0340406040 HEX, HEAD BOLT $2.68

0600500092 PLATE, MQ POWER $21.95

0600815000 NUT

0601000209 BALANCING WEIGHT KIT $9.95

0601808825 CIRCUIT BREAKER, 3-POLE, 110A

0601810245 BULB, E-10 T-10 DC18V $3.95

0601812598 RECEPTACLE

0601820845 OVER CURRENT RELAY

0601823245 RECTIFIER

0601831330 SWITCH, PANEL LIGHT $11.95

0601850097 STOPPER $2.95

0601850266 GROMMET, C30-SG-28A

0601851756 GROMMET, C30-SG-70A $15.95

0602021070 CAP $11.95

0602120095 TACHOMETER

06021222272 UNIT, OIL PRESSURE

From the guides desk

Guide · 2026-08-04

Ask ARIA about your machine.

Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.

Chat with ARIA

Multiquip DCA45USI Generator

The parts bench

The machine itself

Machine

Engine

Keep-it-running spares

Every part that fits this machine

Service notices & part changes

Take the factory book with you

Get the download pack

From the guides desk

Multiquip DCA Generator Fault Shutdown and Controller Reset Guide

Multiquip Generator No-Start and No-Power Fixes

Multiquip DCA Generator Fault Codes and Diagnostics Guide

Ask ARIA about your machine.

Your cart is empty

Your cart is empty
