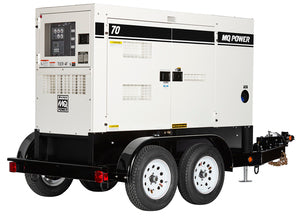

Multiquip DCA70SSIU4F Generator

Name: Multiquip DCA70SSIU4F Generator
Brand: Multiquip

The parts bench

Need the PDF? ↓

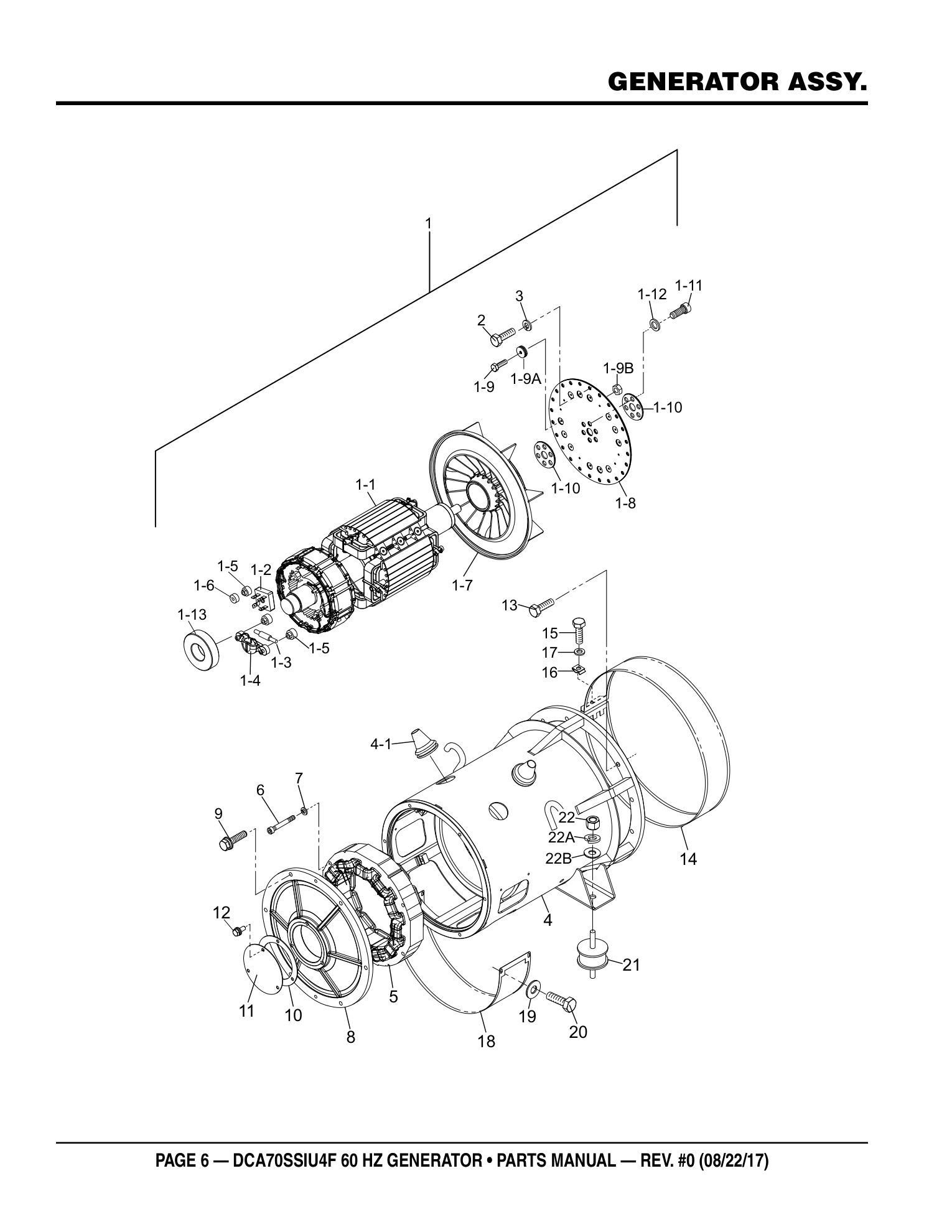

Page 6 — GENERATOR ASSY.

Multiquip DCA70SSIU4F Generator GENERATOR ASSY. parts diagram

Parts list — exactly as printed41 rows

No.	Part No.	Part Name	Qty	Remarks
1	B5110000402	ROTOR ASSY	1	INCLUDES ITEMS W/#	ADD TO CART
ROTOR ASSY B5110000402 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 1-1#, 1-2#, 1-3#, 1-4#, 1-5#, 1-6#, 1-7#, 1-8#, 1-9#, 1-9A#, 1-9B#, 1-10#, 1-11#, 1-12#, 1-13# view full part page → $9560.95 IN A KIT + SOLD SOLO
1-1#		FIELD ASSY.	1		INCLUDED IN KIT
PHOTO COMING FIELD ASSY. · qty on machine: 1 Included in kit 1 - ROTOR ASSY (B5110000402) INCLUDED IN KIT
1-2#	Y0601820083	RECTIFIER	3		PARTS REQUEST
PHOTO COMING RECTIFIER Y0601820083 · qty on machine: 3 Also included in kit 1 - ROTOR ASSY (B5110000402) PARTS REQUEST
1-3#	Y0601822664	ZNR	1		PARTS REQUEST
PHOTO COMING ZNR Y0601822664 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (B5110000402) PARTS REQUEST
1-4#	B3120100804	HOLDER	1		ADD TO CART
HOLDER B3120100804 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (B5110000402) view full part page → $140.95 IN A KIT + SOLD SOLO
1-5#	B3120100704	INSULATOR WASHER	5		ADD TO CART
INSULATOR WASHER B3120100704 · qty on machine: 5 Also included in kit 1 - ROTOR ASSY (B5110000402) view full part page → $1.95 IN A KIT + SOLD SOLO
1-6#	B3120100604	INSULATOR WASHER	3		ADD TO CART
INSULATOR WASHER B3120100604 · qty on machine: 3 Also included in kit 1 - ROTOR ASSY (B5110000402) view full part page → $1.95 IN A KIT + SOLD SOLO
1-7#	B3111100603	FAN	1		ADD TO CART
FAN B3111100603 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (B5110000402) view full part page → $232.95 IN A KIT + SOLD SOLO
1-8#	B2163100004	COUPLING DISK	3	PURCHASE IT.1-9 AS A SET.	ADD TO CART
COUPLING DISK B2163100004 · qty on machine: 3 PURCHASE IT.1-9 AS A SET. Also included in kit 1 - ROTOR ASSY (B5110000402) view full part page → $95.95 IN A KIT + SOLD SOLO
1-9#	Y0019104016	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT Y0019104016 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (B5110000402) view full part page → $0.62 IN A KIT + SOLD SOLO
1-9A#	B2163700004	BALANCING WEIGHT	1		ADD TO CART
BALANCING WEIGHT B2163700004 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (B5110000402) view full part page → $3.07 IN A KIT + SOLD SOLO
1-9B#	Y0204104000	NUT	1		ADD TO CART
NUT Y0204104000 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (B5110000402) view full part page → $2.59 IN A KIT + SOLD SOLO
1-10#	B3163200104	COUPLING WASHER	2		ADD TO CART
COUPLING WASHER B3163200104 · qty on machine: 2 Also included in kit 1 - ROTOR ASSY (B5110000402) view full part page → $112.95 IN A KIT + SOLD SOLO
1-11#	Y0342612030	HEX. SOCKET HEAD CAP SCREW	6		PARTS REQUEST
PHOTO COMING HEX. SOCKET HEAD CAP SCREW Y0342612030 · qty on machine: 6 Also included in kit 1 - ROTOR ASSY (B5110000402) PARTS REQUEST
1-12#	Y0046512000	WASHER, FLAT	6		PARTS REQUEST
PHOTO COMING WASHER, FLAT Y0046512000 · qty on machine: 6 Also included in kit 1 - ROTOR ASSY (B5110000402) PARTS REQUEST
1-13#	Y0071906309	BEARING	1		PARTS REQUEST
PHOTO COMING BEARING Y0071906309 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (B5110000402) PARTS REQUEST
2	Y0343204080	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT Y0343204080 · qty on machine: 8 view full part page → $4.95
3	EM923344	WASHER, LOCK	8	REPLACES P/N 0043604000	ADD TO CART
WASHER, LOCK EM923344 · qty on machine: 8 REPLACES P/N 0043604000 Factory replaced this part - current number 0166A view full part page → $0.17 IN A KIT + SOLD SOLO
4	B5130000303	STATOR ASSY	1	INCLUDES ITEMS W/$	ADD TO CART
STATOR ASSY B5130000303 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 4-1$ view full part page → $17465.95 IN A KIT + SOLD SOLO
4-1$	0845041904	GROMMET	2		ADD TO CART
GROMMET 0845041904 · qty on machine: 2 Also included in kit 4 - STATOR ASSY (B5130000303) view full part page → $11.95 IN A KIT + SOLD SOLO
5	B3137000803	FIELD ASSY., EXCITER	1		ADD TO CART
FIELD ASSY., EXCITER B3137000803 · qty on machine: 1 view full part page → $1882.95
6	Y0016008060	HEX. SOCKET HEAD CAP SCREW	4		PARTS REQUEST
PHOTO COMING HEX. SOCKET HEAD CAP SCREW Y0016008060 · qty on machine: 4 PARTS REQUEST
7	Y0042508000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK Y0042508000 · qty on machine: 4 view full part page → $0.11
8	B3153000513	END BRACKET	1		ADD TO CART
END BRACKET B3153000513 · qty on machine: 1 view full part page → $636.95
9	Y0017108035	HEX. HEAD BOLT	6		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0017108035 · qty on machine: 6 PARTS REQUEST
10	B3153400504	PACKING	1		ADD TO CART
PACKING B3153400504 · qty on machine: 1 view full part page → $25.95
11	B3153400404	COVER, BEARING	1		ADD TO CART
COVER, BEARING B3153400404 · qty on machine: 1 view full part page → $40.95
12	Y0017106016	HEX. HEAD BOLT	3		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0017106016 · qty on machine: 3 PARTS REQUEST
13	0105091025	HEX. HEAD BOLT	12	REPLACES P/N 0010310025	ADD TO CART
HEX. HEAD BOLT 0105091025 · qty on machine: 12 REPLACES P/N 0010310025 view full part page → $0.68
13A	030210250	WASHER, LOCK	12	REPLACES P/N 0042510000	ADD TO CART
WASHER, LOCK 030210250 · qty on machine: 12 REPLACES P/N 0042510000 view full part page → $0.28
14	B5131300004	COVER, END BRACKET	1		ADD TO CART
COVER, END BRACKET B5131300004 · qty on machine: 1 view full part page → $63.95
15	Y0340406040	HEX. HEAD BOLT	1		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0340406040 · qty on machine: 1 PARTS REQUEST
16	020106050	U-NUT	1	REPLACES P/N 0600815000	ADD TO CART
U-NUT 020106050 · qty on machine: 1 REPLACES P/N 0600815000 view full part page → $0.12
17	952404470	WASHER, FLAT	1	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 1 REPLACES P/N 0041206000 view full part page → $0.19
18	B3131300804	COVER, END BRACKET	1		ADD TO CART
COVER, END BRACKET B3131300804 · qty on machine: 1 view full part page → $60.95
19	Y0029205012	HEX. HEAD BOLT	4		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0029205012 · qty on machine: 4 PARTS REQUEST
20	0401450050	WASHER, FLAT	4	REPLACES P/N 0041205000	ADD TO CART
WASHER, FLAT 0401450050 · qty on machine: 4 REPLACES P/N 0041205000 Factory replaced this part - current number 58151 view full part page → $0.41 IN A KIT + SOLD SOLO
21	Y0605000402	RUBBER SUSPENSION	2		PARTS REQUEST
PHOTO COMING RUBBER SUSPENSION Y0605000402 · qty on machine: 2 PARTS REQUEST
22	Y0030012000	HEX. NUT	2		PARTS REQUEST
PHOTO COMING HEX. NUT Y0030012000 · qty on machine: 2 PARTS REQUEST
22A	Y0040012000	WASHER, LOCK	2		PARTS REQUEST
PHOTO COMING WASHER, LOCK Y0040012000 · qty on machine: 2 PARTS REQUEST
22B	031112230	WASHER, FLAT	2	REPLACES P/N 0041212000	ADD TO CART
WASHER, FLAT 031112230 · qty on machine: 2 REPLACES P/N 0041212000 view full part page → $0.95

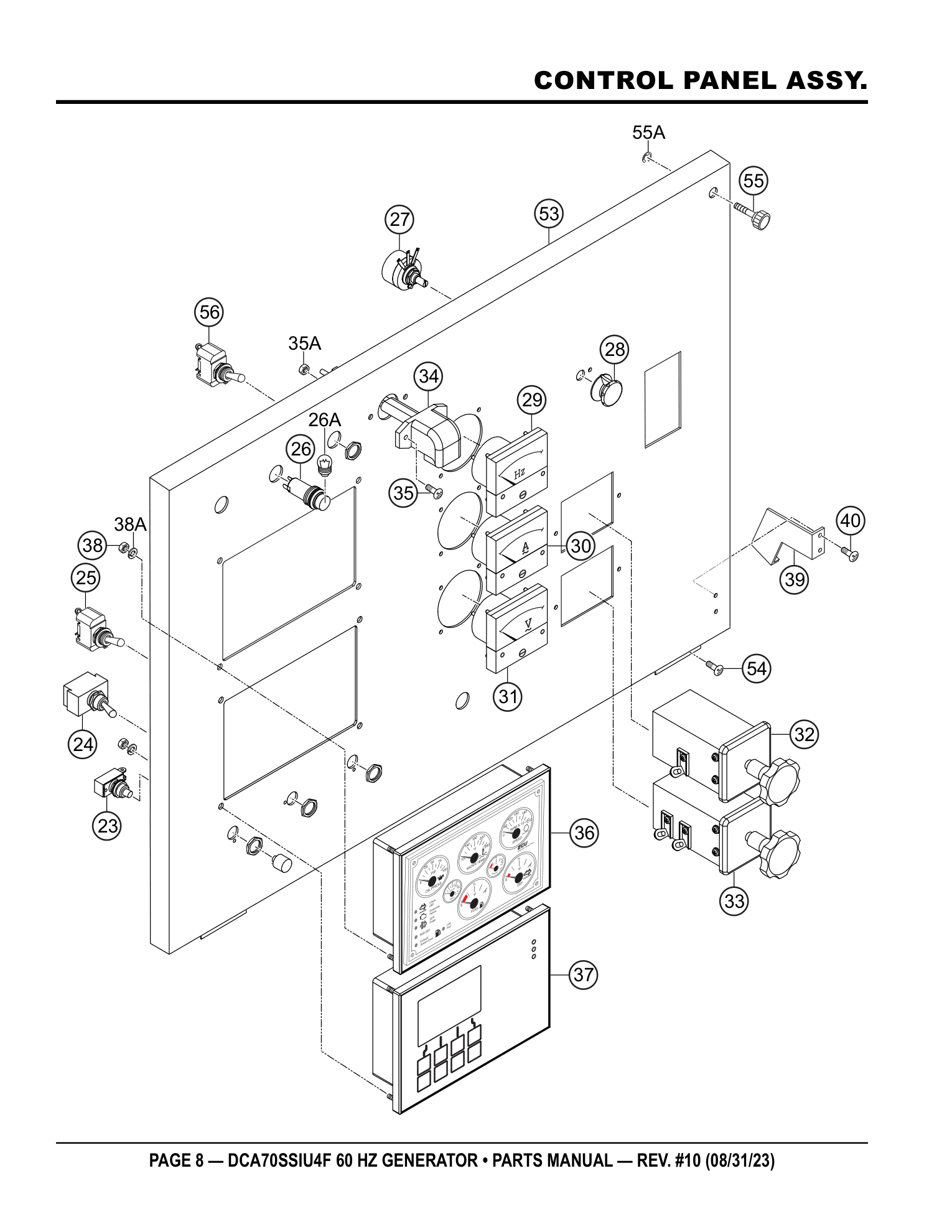

Page 8 — CONTROL PANEL ASSY.

Multiquip DCA70SSIU4F Generator CONTROL PANEL ASSY. parts diagram

Parts list — exactly as printed34 rows

No.	Part No.	Part Name	Qty	Remarks
23	0601831205	PUSH BUTTON SWITCH	1		ADD TO CART
PUSH BUTTON SWITCH 0601831205 · qty on machine: 1 view full part page → $25.95
24	82608	TOGGLE SWITCH	1	REPLACES P/N 0601831340	ADD TO CART
TOGGLE SWITCH 82608 · qty on machine: 1 REPLACES P/N 0601831340 view full part page → $34.95
25	0601830710	TOGGLE SWITCH	1		ADD TO CART
TOGGLE SWITCH 0601830710 · qty on machine: 1 view full part page → $29.95
26	0602103092	ALARM LAMP	1	INCLUDES ITEM W/$ S/N 7356142 AND BELOW	ADD TO CART
ALARM LAMP 0602103092 · qty on machine: 1 INCLUDES ITEM W/$ S/N 7356142 AND BELOW Kit includes: 26A$ view full part page → $36.95 IN A KIT + SOLD SOLO
26	Y0601814453	LED LAMP	1	S/N 7356143 AND ABOVE	ADD TO CART
LED LAMP Y0601814453 · qty on machine: 1 S/N 7356143 AND ABOVE Kit includes: 26A$ view full part page → $36.95 IN A KIT + SOLD SOLO
26A$	0602103092	BULB, 18V	1	REPLACES P/N 0601810277 S/N 7356142 AND BELOW	ADD TO CART
BULB, 18V 0602103092 · qty on machine: 1 REPLACES P/N 0601810277 S/N 7356142 AND BELOW Also included in kit 26 - ALARM LAMP (0602103092) view full part page → $36.95 IN A KIT + SOLD SOLO
27	0601840073	RHEOSTAT (VR) 2W 1K OHM	1		ADD TO CART
RHEOSTAT (VR) 2W 1K OHM 0601840073 · qty on machine: 1 view full part page → $90.95
28	0601840100	KNOB	1	REPLACES P/N 0601840121	ADD TO CART
KNOB 0601840100 · qty on machine: 1 REPLACES P/N 0601840121 view full part page → $30.95
29	Y0601807631	FREQUENCY METER, 240V 45~65HZ	1	S/N 7353967 AND BELOW	ADD TO CART
FREQUENCY METER, 240V 45~65HZ Y0601807631 · qty on machine: 1 S/N 7353967 AND BELOW view full part page → $139.95
29	0601807641	FREQUENCY METER, 240V 45~65HZ	1	S/N 7353968 AND ABOVE	ADD TO CART
FREQUENCY METER, 240V 45~65HZ 0601807641 · qty on machine: 1 S/N 7353968 AND ABOVE view full part page → $591.95
30	Y0601817034	AC AMMETER, 0~150A/300A:5A	1	S/N 7353967 AND BELOW	PARTS REQUEST
PHOTO COMING AC AMMETER, 0~150A/300A:5A Y0601817034 · qty on machine: 1 S/N 7353967 AND BELOW PARTS REQUEST
30	0601808987	AC AMMETER, 0~150A/300A:5A	1	S/N 7353968 AND ABOVE	ADD TO CART
AC AMMETER, 0~150A/300A:5A 0601808987 · qty on machine: 1 S/N 7353968 AND ABOVE view full part page → $246.95
31	0601806947	AC VOLTMETER, 600V	1	S/N 7353967 AND BELOW	NO LONGER AVAILABLE
PHOTO COMING AC VOLTMETER, 600V 0601806947 · qty on machine: 1 S/N 7353967 AND BELOW NO LONGER AVAILABLE
31	0601806859	AC VOLTMETER, 600V	1	S/N 7353968 AND ABOVE	ADD TO CART
AC VOLTMETER, 600V 0601806859 · qty on machine: 1 S/N 7353968 AND ABOVE view full part page → $368.95
32	0601801040	CHANGE-OVER SWITCH, AMMETER	1		ADD TO CART
CHANGE-OVER SWITCH, AMMETER 0601801040 · qty on machine: 1 view full part page → $95.95
33	0601801041	CHANGE-OVER SWITCH, VOLTMETER	1		ADD TO CART
CHANGE-OVER SWITCH, VOLTMETER 0601801041 · qty on machine: 1 view full part page → $157.95
34	Y0601810170	PANEL LIGHT, 12V	1		ADD TO CART
PANEL LIGHT, 12V Y0601810170 · qty on machine: 1 view full part page → $142.95
35	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
35A	OEMAA8	SELF-LOCKING NUT	2	REPLACES P/N 0207004000	ADD TO CART
SELF-LOCKING NUT OEMAA8 · qty on machine: 2 REPLACES P/N 0207004000 view full part page → $0.4
36	Y0602120569	GAUGE UNIT ASSY	1	S/N 7355077 AND BELOW	ADD TO CART
GAUGE UNIT ASSY Y0602120569 · qty on machine: 1 S/N 7355077 AND BELOW view full part page → $756.95
36	Y0602120901	GAUGE UNIT ASSY., ECU-670	1	S/N 7355078 ~ 7357602	ADD TO CART
GAUGE UNIT ASSY., ECU-670 Y0602120901 · qty on machine: 1 S/N 7355078 ~ 7357602 view full part page → $930.95
36	Y0602120902	GAUGE UNIT ASSY., ECU-670 (UL)	1	S/N 7357603 AND ABOVE	ADD TO CART
GAUGE UNIT ASSY., ECU-670 (UL) Y0602120902 · qty on machine: 1 S/N 7357603 AND ABOVE view full part page → $757.95
37	ECU835	CONTROLLER, ECU-835	1	S/N 7355077 AND BELOW REPLACES P/N Y0602203040	ADD TO CART
CONTROLLER, ECU-835 ECU835 · qty on machine: 1 S/N 7355077 AND BELOW REPLACES P/N Y0602203040 view full part page → $1778.95
37	Y0602203070A	CONTROLLER, ECU-845	1	S/N 7355078 ~ 7357605	PARTS REQUEST
PHOTO COMING CONTROLLER, ECU-845 Y0602203070A · qty on machine: 1 S/N 7355078 ~ 7357605 PARTS REQUEST
37	Y0602203075	CONTROLLER, ECU-845 (UL)	1	S/N 7357606 AND ABOVE	ADD TO CART
CONTROLLER, ECU-845 (UL) Y0602203075 · qty on machine: 1 S/N 7357606 AND ABOVE view full part page → $1862.95
38	Y0206707000	HEX. NUT	8		ADD TO CART
HEX. NUT Y0206707000 · qty on machine: 8 view full part page → $0.45
38A	Y0044807000	WASHER, LOCK	8		ADD TO CART
WASHER, LOCK Y0044807000 · qty on machine: 8 view full part page → $0.45
39	M1224100104	STOPPER	1		ADD TO CART
STOPPER M1224100104 · qty on machine: 1 view full part page → $13.95
40	0027105015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 2 view full part page → $0.2
53	M2224000203	CONTROL PANEL	1		ADD TO CART
CONTROL PANEL M2224000203 · qty on machine: 1 view full part page → $242.95
54	0027105015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 4 view full part page → $0.2
55	M9220100004	SET SCREW	2		ADD TO CART
SET SCREW M9220100004 · qty on machine: 2 view full part page → $12.95
55A	0080200007	E-SNAP RING	2		ADD TO CART
E-SNAP RING 0080200007 · qty on machine: 2 view full part page → $1.39
56	0601830710	PANEL LIGHT SWITCH	1		ADD TO CART
PANEL LIGHT SWITCH 0601830710 · qty on machine: 1 view full part page → $29.95

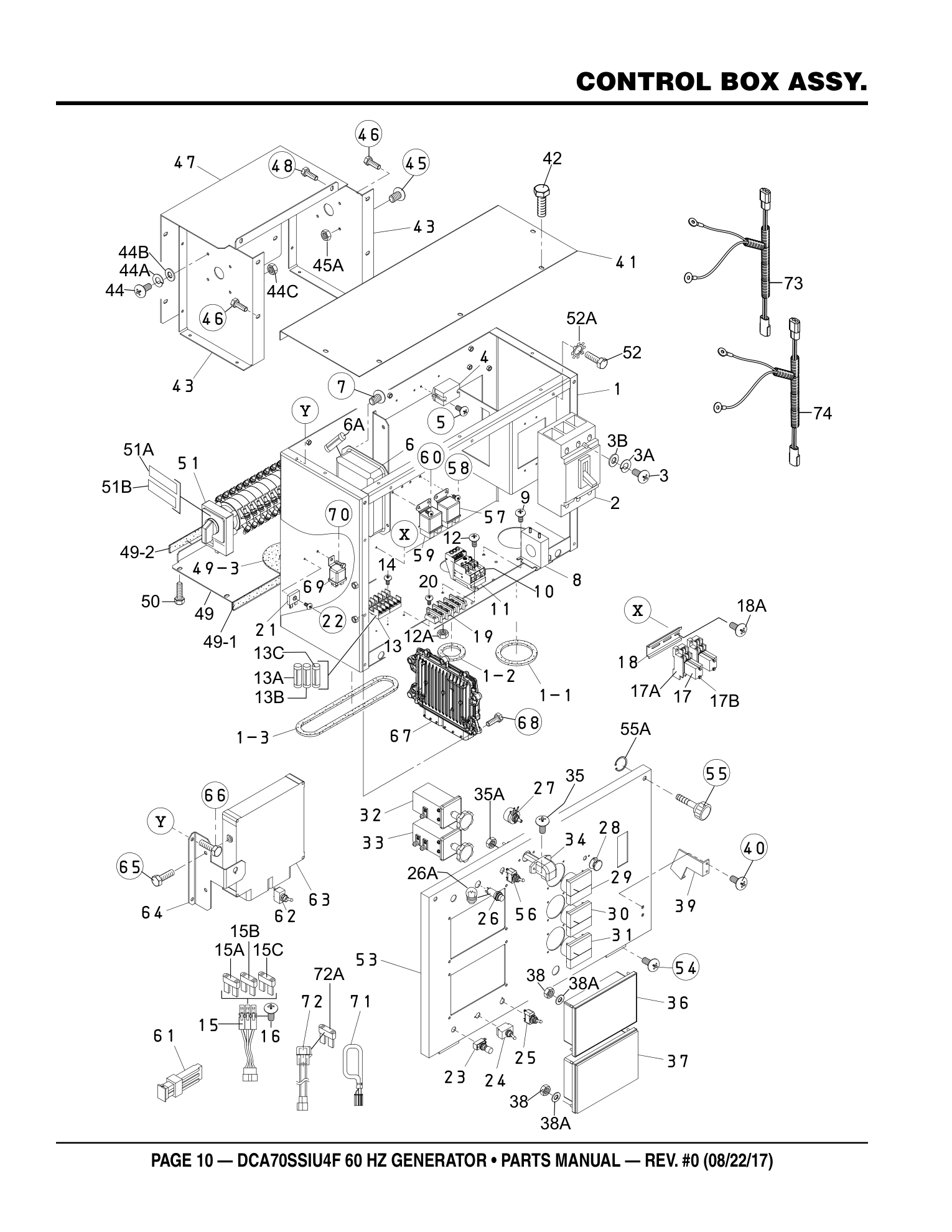

Page 10 — CONTROL BOX ASSY.

Multiquip DCA70SSIU4F Generator CONTROL BOX ASSY. parts diagram

Parts list — exactly as printed47 rows

No.	Part No.	Part Name	Qty	Remarks
1	M2214000402	CONTROL BOX	1		ADD TO CART
CONTROL BOX M2214000402 · qty on machine: 1 view full part page → $1080.25
1-1	Y0411100260	EDGE TRIM	2		ADD TO CART
EDGE TRIM Y0411100260 · qty on machine: 2 view full part page → $1.95
1-2	Y0411100170	EDGE TRIM	1		ADD TO CART
EDGE TRIM Y0411100170 · qty on machine: 1 view full part page → $1.55
1-3	Y0411100630	EDGE TRIM	2		ADD TO CART
EDGE TRIM Y0411100630 · qty on machine: 2 view full part page → $4.95
2	Y0601808833	CIRCUIT BREAKER, 3P 200A	1		ADD TO CART
CIRCUIT BREAKER, 3P 200A Y0601808833 · qty on machine: 1 view full part page → $770.95
3	0021004070	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0021004070 · qty on machine: 2 view full part page → $2.95
3A	0040004000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040004000 · qty on machine: 2 view full part page → $0.09
3B	58042	WASHER, FLAT	2	REPLACES P/N 0041204000	ADD TO CART
WASHER, FLAT 58042 · qty on machine: 2 REPLACES P/N 0041204000 view full part page → $0.17
4	0601823863	RELAY UNIT	2		ADD TO CART
RELAY UNIT 0601823863 · qty on machine: 2 view full part page → $159.95
5	0027104010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027104010 · qty on machine: 4 view full part page → $0.33
6	Y0601820638	AUTOMATIC VOLTAGE REGULATOR	1	INCLUDES ITEMS W/#	ADD TO CART
AUTOMATIC VOLTAGE REGULATOR Y0601820638 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 6A# view full part page → $1205.95 IN A KIT + SOLD SOLO
6A#	Y0601806683	FUSE, 250V 8A	1		NO LONGER AVAILABLE
PHOTO COMING FUSE, 250V 8A Y0601806683 · qty on machine: 1 Also included in kit 6 - AUTOMATIC VOLTAGE REGULATO (Y0601820638) NO LONGER AVAILABLE
7	0027105015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 4 view full part page → $0.2
8	Y0601809693	CURRENT TRANSFORMER, 150/5A	3		ADD TO CART
CURRENT TRANSFORMER, 150/5A Y0601809693 · qty on machine: 3 view full part page → $63.95
9	011808015	MACHINE SCREW	6	REPLACES P/N 0027106015	ADD TO CART
MACHINE SCREW 011808015 · qty on machine: 6 REPLACES P/N 0027106015 view full part page → $6.95
10	Y0601820839	OVER CURRENT RELAY	1		ADD TO CART
OVER CURRENT RELAY Y0601820839 · qty on machine: 1 view full part page → $120.95
11	Y0601820844	OVER CURRENT RELAY BASE	1		ADD TO CART
OVER CURRENT RELAY BASE Y0601820844 · qty on machine: 1 view full part page → $24.95
12	0027103020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027103020 · qty on machine: 2 view full part page → $0.37
12A	0207003000	HEX. NUT	2		ADD TO CART
HEX. NUT 0207003000 · qty on machine: 2 view full part page → $0.21
13	0601802218	HOLDER, FUSE 3P	2	S/N 7358134 AND BELOW	ADD TO CART
HOLDER, FUSE 3P 0601802218 · qty on machine: 2 S/N 7358134 AND BELOW view full part page → $47.95
13	Y0601818020	HOLDER, FUSE 1P	2	S/N 7358135 AND ABOVE	ADD TO CART
HOLDER, FUSE 1P Y0601818020 · qty on machine: 2 S/N 7358135 AND ABOVE view full part page → $10.95
13	Y0601818021	HOLDER, FUSE 2P	2	S/N 7358135 AND ABOVE	ADD TO CART
HOLDER, FUSE 2P Y0601818021 · qty on machine: 2 S/N 7358135 AND ABOVE view full part page → $27.95
13A	0601802133	FUSE, 5A	1		ADD TO CART
FUSE, 5A 0601802133 · qty on machine: 1 view full part page → $1.95
13B	0601802149	FUSE, 10A	2		ADD TO CART
FUSE, 10A 0601802149 · qty on machine: 2 view full part page → $3.95
13C	0601806671	FUSE, 15A	3	S/N 7354017 AND BELOW	ADD TO CART
FUSE, 15A 0601806671 · qty on machine: 3 S/N 7354017 AND BELOW view full part page → $3.95
13C	0601806671	FUSE, 15A	2	S/N 7354018 AND ABOVE	ADD TO CART
FUSE, 15A 0601806671 · qty on machine: 2 S/N 7354018 AND ABOVE view full part page → $3.95
13C	0601806653	FUSE, 20A	1	S/N 7354018 AND ABOVE	ADD TO CART
FUSE, 20A 0601806653 · qty on machine: 1 S/N 7354018 AND ABOVE view full part page → $2.67
14	0027103020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027103020 · qty on machine: 2 view full part page → $0.37
15	M3214601004	HOLDER, FUSE	1		ADD TO CART
HOLDER, FUSE M3214601004 · qty on machine: 1 view full part page → $140.95
15A	0601806645	FUSE, 10A	1		ADD TO CART
FUSE, 10A 0601806645 · qty on machine: 1 view full part page → $2.9
15B	Y0601806646	FUSE, 20A	1		ADD TO CART
FUSE, 20A Y0601806646 · qty on machine: 1 view full part page → $0.68
15C	0601806644	FUSE, 30A	1		ADD TO CART
FUSE, 30A 0601806644 · qty on machine: 1 view full part page → $1.43
15D	M9501400404	DECAL: FUSE HOLDER	1		PARTS REQUEST
PHOTO COMING DECAL: FUSE HOLDER M9501400404 · qty on machine: 1 PARTS REQUEST
16	Y0027203035	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW Y0027203035 · qty on machine: 2 view full part page → $0.37
17	LY2DUS12VDC	RELAY	2	REPLACES P/N 0601827656	ADD TO CART
RELAY LY2DUS12VDC · qty on machine: 2 REPLACES P/N 0601827656 view full part page → $46.95
17A	PTF08A	BASE	2	REPLACES P/N 0601823109	ADD TO CART
BASE PTF08A · qty on machine: 2 REPLACES P/N 0601823109 view full part page → $47.95
17B	PYCA1	CLIP	4	REPLACES P/N 0601824400	ADD TO CART
CLIP PYCA1 · qty on machine: 4 REPLACES P/N 0601824400 view full part page → $1.71
18	Y0290000100	RAIL	1		ADD TO CART
RAIL Y0290000100 · qty on machine: 1 view full part page → $27.95
18A	0027104010	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104010 · qty on machine: 2 view full part page → $0.33
19	Y0601816538	TERMINAL BLOCK, TB400-04	1	S/N 7357599 AND BELOW	ADD TO CART
TERMINAL BLOCK, TB400-04 Y0601816538 · qty on machine: 1 S/N 7357599 AND BELOW view full part page → $51.95
19	Y0601815731	TERMINAL BLOCK, KT-30-4P	1	S/N 7357600 AND ABOVE	PARTS REQUEST
PHOTO COMING TERMINAL BLOCK, KT-30-4P Y0601815731 · qty on machine: 1 S/N 7357600 AND ABOVE PARTS REQUEST
20	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
21	0601821370	RECTIFIER	1	REPLACES P/N 0601823240	ADD TO CART
RECTIFIER 0601821370 · qty on machine: 1 REPLACES P/N 0601823240 view full part page → $28.95
22	0027104020	MACHINE SCREW	1		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 1 view full part page → $0.4
41	M2214500104	CONTROL BOX COVER	1		PARTS REQUEST
PHOTO COMING CONTROL BOX COVER M2214500104 · qty on machine: 1 PARTS REQUEST
42	011106015	HEX. HEAD BOLT	8	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 8 REPLACES P/N 0016906015 view full part page → $0.69
43	M2213602704	SWITCH BRACKET	2		ADD TO CART
SWITCH BRACKET M2213602704 · qty on machine: 2 view full part page → $89.95

Page 12 — CONTROL BOX ASSY. (CONT'D.)

Multiquip DCA70SSIU4F Generator CONTROL BOX ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed38 rows

No.	Part No.	Part Name	Qty	Remarks
44	0021004040	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021004040 · qty on machine: 4 view full part page → $0.64
44A	0040004000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0040004000 · qty on machine: 4 view full part page → $0.09
44B	58042	WASHER, FLAT	4	REPLACES P/N 0041204000	ADD TO CART
WASHER, FLAT 58042 · qty on machine: 4 REPLACES P/N 0041204000 view full part page → $0.17
44C	OEMAA8	HEX. NUT	4	REPLACES P/N 0207004000	ADD TO CART
HEX. NUT OEMAA8 · qty on machine: 4 REPLACES P/N 0207004000 view full part page → $0.4
45	0027104015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 4 view full part page → $0.53
45A	OEMAA8	HEX. NUT	4	REPLACES P/N 0207004000	ADD TO CART
HEX. NUT OEMAA8 · qty on machine: 4 REPLACES P/N 0207004000 view full part page → $0.4
46	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0016906015 view full part page → $0.69
47	M2213602804	SWITCH COVER	1		PARTS REQUEST
PHOTO COMING SWITCH COVER M2213602804 · qty on machine: 1 PARTS REQUEST
48	011106015	HEX. HEAD BOLT	6	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 6 REPLACES P/N 0016906015 view full part page → $0.69
49	M2213602904	SWITCH COVER	1		ADD TO CART
SWITCH COVER M2213602904 · qty on machine: 1 view full part page → $59.95
49-1	0228800165	SEAL RUBBER	1		ADD TO CART
SEAL RUBBER 0228800165 · qty on machine: 1 view full part page → $3.95
49-2	0228800115	SEAL RUBBER	1		ADD TO CART
SEAL RUBBER 0228800115 · qty on machine: 1 view full part page → $4.95
49-3	0317700180	WEATHER STRIP	1		ADD TO CART
WEATHER STRIP 0317700180 · qty on machine: 1 view full part page → $13.95
50	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0016906015 view full part page → $0.69
51	M2270100104	SELECTOR SWITCH	1		ADD TO CART
SELECTOR SWITCH M2270100104 · qty on machine: 1 view full part page → $2136.95
51A	M2550001604	DECAL: SELECTOR SWITCH NUMBER	1	M25000160	ADD TO CART
DECAL: SELECTOR SWITCH NUMBER M2550001604 · qty on machine: 1 M25000160 view full part page → $12.95
51B	M2550001704	DECAL: SELECTOR SWITCH NUMBER	1	M25000170	ADD TO CART
DECAL: SELECTOR SWITCH NUMBER M2550001704 · qty on machine: 1 M25000170 view full part page → $5.95
52	011106015	HEX. HEAD BOLT	10	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 10 REPLACES P/N 0016906015 view full part page → $0.69
52A	0040506000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040506000 · qty on machine: 1 view full part page → $0.77
57	8944001061	RELAY, STARTER	1	REPLACES P/N 8942481610	ADD TO CART
RELAY, STARTER 8944001061 · qty on machine: 1 REPLACES P/N 8942481610 view full part page → $214.95
58	011808015	MACHINE SCREW	2	REPLACES P/N 0027106015	ADD TO CART
MACHINE SCREW 011808015 · qty on machine: 2 REPLACES P/N 0027106015 view full part page → $6.95
59	8970119490	RELAY, GLOW PLUG	1	REPLACES P/N 0602202685	ADD TO CART
RELAY, GLOW PLUG 8970119490 · qty on machine: 1 REPLACES P/N 0602202685 view full part page → $301.95
60	011808015	MACHINE SCREW	2	REPLACES P/N 0027106015	ADD TO CART
MACHINE SCREW 011808015 · qty on machine: 2 REPLACES P/N 0027106015 view full part page → $6.95
61	0601806640	FUSE, 65A	1		ADD TO CART
FUSE, 65A 0601806640 · qty on machine: 1 view full part page → $11.95
62	0601830762	FUEL PUMP SWITCH	1		ADD TO CART
FUEL PUMP SWITCH 0601830762 · qty on machine: 1 view full part page → $36.95
63	8976586210	ENGINE CONTROLLER, ECM	1	REPLACES P/N 8982995492 S/N 7354017 AND BELOW	ADD TO CART
ENGINE CONTROLLER, ECM 8976586210 · qty on machine: 1 REPLACES P/N 8982995492 S/N 7354017 AND BELOW view full part page → $3897.95
63	8975055470	ENGINE CONTROLLER, ECM	1	REPLACES P/N 8983627510 S/N 7354018 AND ABOVE	ADD TO CART
ENGINE CONTROLLER, ECM 8975055470 · qty on machine: 1 REPLACES P/N 8983627510 S/N 7354018 AND ABOVE view full part page → $4844.95
64	M2352600004	BRACKET	1		PARTS REQUEST
PHOTO COMING BRACKET M2352600004 · qty on machine: 1 PARTS REQUEST
65	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
66	011106015	HEX. HEAD BOLT	2	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 2 REPLACES P/N 0016906015 view full part page → $0.69
67	8982454051	DOSING CONTROL UNIT	1	REPLACES P/N Y0602203021 S/N 7354017 AND BELOW	PARTS REQUEST
PHOTO COMING DOSING CONTROL UNIT 8982454051 · qty on machine: 1 REPLACES P/N Y0602203021 S/N 7354017 AND BELOW PARTS REQUEST
67	8983243390	DOSING CONTROL UNIT	1	REPLACES P/N Y0602203024 S/N 7354018 AND ABOVE	ADD TO CART
DOSING CONTROL UNIT 8983243390 · qty on machine: 1 REPLACES P/N Y0602203024 S/N 7354018 AND ABOVE view full part page → $2540.95
68	011208030	HEX. HEAD BOLT	4	REPLACES P/N 0016908030	ADD TO CART
HEX. HEAD BOLT 011208030 · qty on machine: 4 REPLACES P/N 0016908030 view full part page → $1.3
69	5825500290	RELAY	5	REPLACES P/N 0602201400	ADD TO CART
RELAY 5825500290 · qty on machine: 5 REPLACES P/N 0602201400 view full part page → $65.95
70	0027105015	HEX. HEAD BOLT	5		ADD TO CART
HEX. HEAD BOLT 0027105015 · qty on machine: 5 view full part page → $0.2
71	M2267600004	RESISTOR ASSY.	1		PARTS REQUEST
PHOTO COMING RESISTOR ASSY. M2267600004 · qty on machine: 1 Factory replaced this part - current number C3267600204-1 PARTS REQUEST
72	C3558201704	FUSE HOLDER UNIT	1	REPLACES P/N M2357202104	ADD TO CART
FUSE HOLDER UNIT C3558201704 · qty on machine: 1 REPLACES P/N M2357202104 view full part page → $37.95
72A	0601806645	FUSE, 10A	1		ADD TO CART
FUSE, 10A 0601806645 · qty on machine: 1 view full part page → $2.9

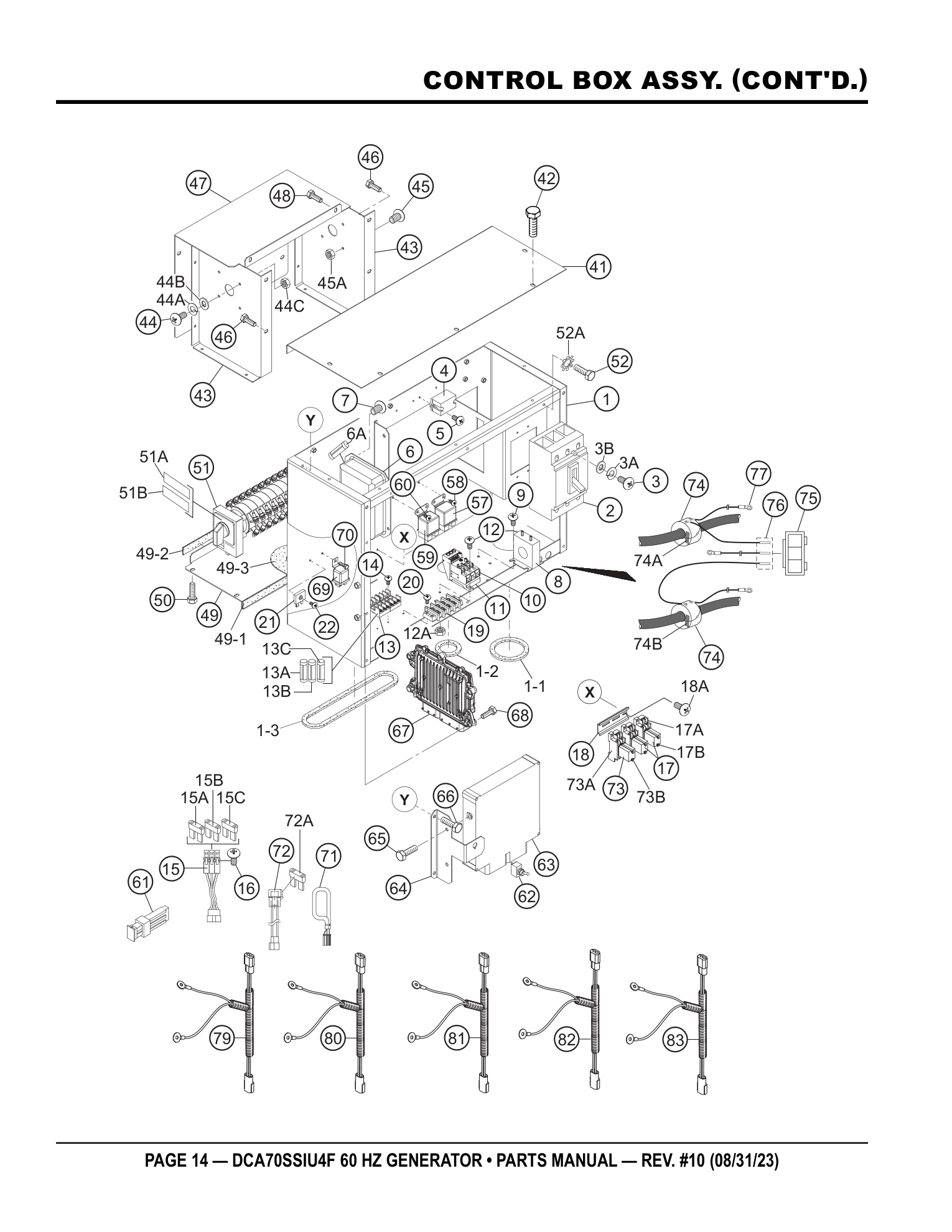

Page 14 — CONTROL BOX ASSY. (CONT'D.)

Parts list — exactly as printed16 rows

No.	Part No.	Part Name	Qty	Remarks
73	LY2DUS12VDC	RELAY	1	REPLACES P/N 0601827656 S/N 7353902 AND ABOVE	ADD TO CART
RELAY LY2DUS12VDC · qty on machine: 1 REPLACES P/N 0601827656 S/N 7353902 AND ABOVE view full part page → $46.95
73A	PTF08A	BASE	1	REPLACES P/N 0601823109 S/N 7353902 AND ABOVE	ADD TO CART
BASE PTF08A · qty on machine: 1 REPLACES P/N 0601823109 S/N 7353902 AND ABOVE view full part page → $47.95
73B	PYCA1	CLIP	2	REPLACES P/N 0601824400 S/N 7353902 AND ABOVE	ADD TO CART
CLIP PYCA1 · qty on machine: 2 REPLACES P/N 0601824400 S/N 7353902 AND ABOVE view full part page → $1.71
74	Y0601872910	CURRENT TRANSFORMER	2	S/N 7355078 AND ABOVE	ADD TO CART
CURRENT TRANSFORMER Y0601872910 · qty on machine: 2 S/N 7355078 AND ABOVE view full part page → $98.33
74A	M9521001604	DECAL: CT4	1	S/N 7355078 AND ABOVE	ADD TO CART
DECAL: CT4 M9521001604 · qty on machine: 1 S/N 7355078 AND ABOVE view full part page → $0.95
74B	M9521001704	DECAL: CT5	1	S/N 7355078 AND ABOVE	ADD TO CART
DECAL: CT5 M9521001704 · qty on machine: 1 S/N 7355078 AND ABOVE view full part page → $0.95
75	Y0601813924	PLUG	1	S/N 7355078 AND ABOVE	PARTS REQUEST
PHOTO COMING PLUG Y0601813924 · qty on machine: 1 S/N 7355078 AND ABOVE PARTS REQUEST
76	0601812711	PINS	3	S/N 7355078 AND ABOVE	ADD TO CART
PINS 0601812711 · qty on machine: 3 S/N 7355078 AND ABOVE view full part page → $0.56
77	Y0601815586	ROUND TERMINAL	3	S/N 7355078 AND ABOVE	PARTS REQUEST
PHOTO COMING ROUND TERMINAL Y0601815586 · qty on machine: 3 S/N 7355078 AND ABOVE PARTS REQUEST
79	M2247700304	WIRE HARNESS, GENERATOR	1	S/N 7355077 AND BELOW	ADD TO CART
WIRE HARNESS, GENERATOR M2247700304 · qty on machine: 1 S/N 7355077 AND BELOW view full part page → $861.95
79	M2247701304	WIRE HARNESS, GENERATOR	1	S/N 7355078 AND ABOVE	ADD TO CART
WIRE HARNESS, GENERATOR M2247701304 · qty on machine: 1 S/N 7355078 AND ABOVE view full part page → $1317.95
80	M2358200602	WIRE HARNESS, ENGINE	1		ADD TO CART
WIRE HARNESS, ENGINE M2358200602 · qty on machine: 1 view full part page → $1880.95
81	M2358200304	WIRE HARNESS, CONTROLLER	1	S/N 7354017 AND BELOW	ADD TO CART
WIRE HARNESS, CONTROLLER M2358200304 · qty on machine: 1 S/N 7354017 AND BELOW view full part page → $4492.95
81	M2358200324	WIRE HARNESS, CONTROLLER	1	S/N 7354018 AND ABOVE	ADD TO CART
WIRE HARNESS, CONTROLLER M2358200324 · qty on machine: 1 S/N 7354018 AND ABOVE view full part page → $5334.95
82	M2358200804	WIRE HARNESS, PCV HEATER	1		ADD TO CART
WIRE HARNESS, PCV HEATER M2358200804 · qty on machine: 1 view full part page → $220.95
83	M2358200904	WIRE HARNESS, PRESSURE SWITCH	1	S/N 7353902 AND ABOVE	ADD TO CART
WIRE HARNESS, PRESSURE SWITCH M2358200904 · qty on machine: 1 S/N 7353902 AND ABOVE view full part page → $64.95

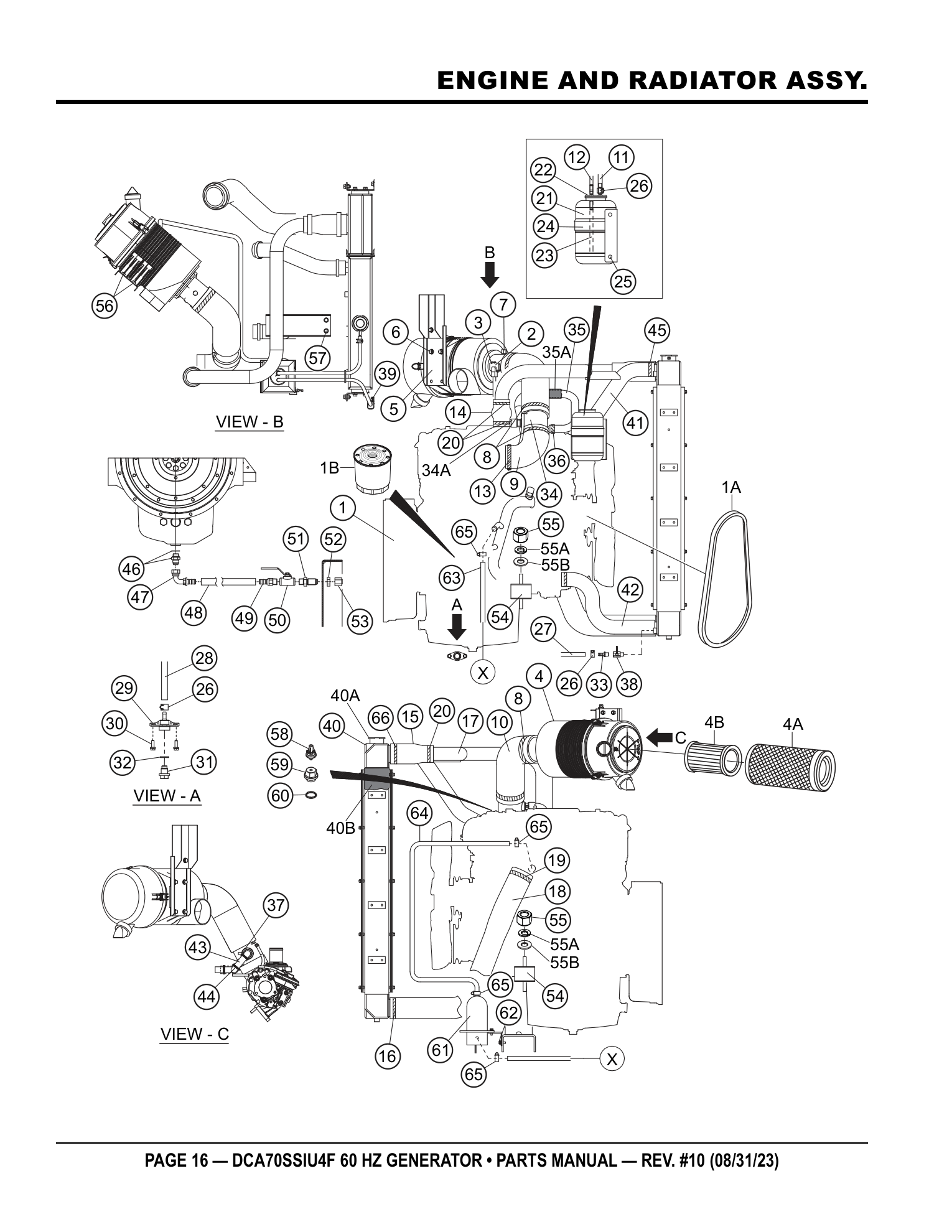

Page 16 — ENGINE AND RADIATOR ASSY.

Multiquip DCA70SSIU4F Generator ENGINE AND RADIATOR ASSY. parts diagram

Parts list — exactly as printed44 rows

No.	Part No.	Part Name	Qty	Remarks
1	M2924000044	ENGINE, ISUZU 4JJ1X	1	INCLUDES ITEMS W/# S/N 7354017 AND BELOW	ADD TO CART
ENGINE, ISUZU 4JJ1X M2924000044 · qty on machine: 1 INCLUDES ITEMS W/# S/N 7354017 AND BELOW Kit includes: 1A#$, 1B#$ view full part page → $23910.95 IN A KIT + SOLD SOLO
1	M2924000054	ENGINE, ISUZU 4JJ1X	1	INCLUDES ITEMS W/$ S/N 7354018 AND ABOVE	NO LONGER AVAILABLE
PHOTO COMING ENGINE, ISUZU 4JJ1X M2924000054 · qty on machine: 1 INCLUDES ITEMS W/$ S/N 7354018 AND ABOVE Kit includes: 1A#$, 1B#$ NO LONGER AVAILABLE
1A#$	8973629260	FAN BELT	1	REPLACES P/N 0602015256	ADD TO CART
FAN BELT 8973629260 · qty on machine: 1 REPLACES P/N 0602015256 Also included in kit 1 - ENGINE, ISUZU 4JJ1X (M2924000044); kit 1 - ENGINE, ISUZU 4JJ1X (M2924000054) view full part page → $59.95 IN A KIT + SOLD SOLO
1B#$	8980188580	CARTRIDGE, OIL FILTER	2	REPLACES P/N Y0602041222	ADD TO CART
CARTRIDGE, OIL FILTER 8980188580 · qty on machine: 2 REPLACES P/N Y0602041222 Also included in kit 1 - ENGINE, ISUZU 4JJ1X (M2924000044); kit 1 - ENGINE, ISUZU 4JJ1X (M2924000054) view full part page → $41.95 IN A KIT + SOLD SOLO
2	8976019670	MAF SENSOR	1	REPLACES P/N Y0602047050	ADD TO CART
MAF SENSOR 8976019670 · qty on machine: 1 REPLACES P/N Y0602047050 view full part page → $814.95
3	0027104010	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104010 · qty on machine: 2 view full part page → $0.33
4	Y0602046578	AIR CLEANER	1	INCLUDES ITEMS W/%	ADD TO CART
AIR CLEANER Y0602046578 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 4A%, 4B% view full part page → $893.95 IN A KIT + SOLD SOLO
4A%	0602046365	ELEMENT, PRIMARY	1		ADD TO CART
ELEMENT, PRIMARY 0602046365 · qty on machine: 1 Also included in kit 4 - AIR CLEANER (Y0602046578) view full part page → $116.95 IN A KIT + SOLD SOLO
4B%	Y0602046634	ELEMENT, SECONDARY (SAFETY)	1		ADD TO CART
ELEMENT, SECONDARY (SAFETY) Y0602046634 · qty on machine: 1 Also included in kit 4 - AIR CLEANER (Y0602046578) view full part page → $79.95 IN A KIT + SOLD SOLO
5	M2374200004	AIR CLEANER BRACKET	1		PARTS REQUEST
PHOTO COMING AIR CLEANER BRACKET M2374200004 · qty on machine: 1 PARTS REQUEST
6	011208025	HEX. HEAD BOLT	4	REPLACES P/N 0016908025	ADD TO CART
HEX. HEAD BOLT 011208025 · qty on machine: 4 REPLACES P/N 0016908025 view full part page → $0.41
7	0602040650	AIR CLEANER INDICATOR	1		ADD TO CART
AIR CLEANER INDICATOR 0602040650 · qty on machine: 1 view full part page → $34.95
8	0605515225	HOSE BAND	3		ADD TO CART
HOSE BAND 0605515225 · qty on machine: 3 view full part page → $14.95
9	M2374100103	AIR CLEANER HOSE	1		ADD TO CART
AIR CLEANER HOSE M2374100103 · qty on machine: 1 view full part page → $665.95
10	M2374100203	AIR CLEANER HOSE	1		ADD TO CART
AIR CLEANER HOSE M2374100203 · qty on machine: 1 view full part page → $717.95
11	0199900500	OVERFLOW HOSE	1		ADD TO CART
OVERFLOW HOSE 0199900500 · qty on machine: 1 view full part page → $11.95
12	0193601800	OVERFLOW HOSE	1		ADD TO CART
OVERFLOW HOSE 0193601800 · qty on machine: 1 view full part page → $18.95
13	0605515146	HOSE BAND	1		ADD TO CART
HOSE BAND 0605515146 · qty on machine: 1 view full part page → $10.95
14	M2311500703	INTER-COOLER HOSE	1	S/N 7355202 AND BELOW	ADD TO CART
INTER-COOLER HOSE M2311500703 · qty on machine: 1 S/N 7355202 AND BELOW view full part page → $1493.95
14	Y0602015620	CAC HUMP HOSE	1	S/N 7355203 AND ABOVE	ADD TO CART
CAC HUMP HOSE Y0602015620 · qty on machine: 1 S/N 7355203 AND ABOVE view full part page → $111.95
15	M2311500803	INTER-COOLER HOSE	1	S/N 7355202 AND BELOW	ADD TO CART
INTER-COOLER HOSE M2311500803 · qty on machine: 1 S/N 7355202 AND BELOW view full part page → $1408.95
15	Y0602015621	CAC REDUCER	1	S/N 7355203 AND ABOVE	ADD TO CART
CAC REDUCER Y0602015621 · qty on machine: 1 S/N 7355203 AND ABOVE view full part page → $133.95
16	0605515236	HOSE BAND	2	S/N 7355202 AND BELOW	ADD TO CART
HOSE BAND 0605515236 · qty on machine: 2 S/N 7355202 AND BELOW view full part page → $46.95
16	0605515236	HOSE BAND	1	S/N 7355203 AND ABOVE	ADD TO CART
HOSE BAND 0605515236 · qty on machine: 1 S/N 7355203 AND ABOVE view full part page → $46.95
17	M2311400004	INTER-COOLER PIPE	1	S/N 7355202 AND BELOW	ADD TO CART
INTER-COOLER PIPE M2311400004 · qty on machine: 1 S/N 7355202 AND BELOW view full part page → $2973.95
17	M2311400013	INTER-COOLER PIPE	1	S/N 7355203 AND ABOVE	ADD TO CART
INTER-COOLER PIPE M2311400013 · qty on machine: 1 S/N 7355203 AND ABOVE view full part page → $198.95
18	M2311500903	INTER-COOLER HOSE	1		ADD TO CART
INTER-COOLER HOSE M2311500903 · qty on machine: 1 view full part page → $3494.16
19	0605515208	HOSE BAND	1		ADD TO CART
HOSE BAND 0605515208 · qty on machine: 1 view full part page → $61.95
20	Y0605515300	HOSE BAND	3		ADD TO CART
HOSE BAND Y0605515300 · qty on machine: 3 view full part page → $21.95
21	0845031303	RESERVE TANK	1	REPLACES P/N M9300000103	ADD TO CART
RESERVE TANK 0845031303 · qty on machine: 1 REPLACES P/N M9300000103 view full part page → $45.95
22	0802081104	CAP, RESERVE TANK	1	REPLACES P/N M9300100003	ADD TO CART
CAP, RESERVE TANK 0802081104 · qty on machine: 1 REPLACES P/N M9300100003 view full part page → $5.95
23	Y0193600165	HOSE	1		PARTS REQUEST
PHOTO COMING HOSE Y0193600165 · qty on machine: 1 PARTS REQUEST
24	M2316100304	BRACKET, RESERVE TANK	1		ADD TO CART
BRACKET, RESERVE TANK M2316100304 · qty on machine: 1 view full part page → $73.95
25	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
26	0605515189	HOSE BAND	4		ADD TO CART
HOSE BAND 0605515189 · qty on machine: 4 view full part page → $1.85
27	0193600500	DRAIN HOSE	1		ADD TO CART
DRAIN HOSE 0193600500 · qty on machine: 1 view full part page → $11.95
28	0199901500	DRAIN HOSE	1		ADD TO CART
DRAIN HOSE 0199901500 · qty on machine: 1 view full part page → $44.95
29	7812014003B	DRAIN JOINT	1	REPLACES P/N M2320300103	ADD TO CART
DRAIN JOINT 7812014003B · qty on machine: 1 REPLACES P/N M2320300103 view full part page → $25.95
30	011206020	HEX. HEAD BOLT	2	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 2 REPLACES P/N 0016906020 view full part page → $0.95
31	0802011104	DRAIN BOLT	1	REPLACES P/N M9200200004	ADD TO CART
DRAIN BOLT 0802011104 · qty on machine: 1 REPLACES P/N M9200200004 view full part page → $10.95
32	0150000018	O-RING	1		ADD TO CART
O-RING 0150000018 · qty on machine: 1 view full part page → $1.87
33	Y0605512192	HOSE JOINT	1		PARTS REQUEST
PHOTO COMING HOSE JOINT Y0605512192 · qty on machine: 1 PARTS REQUEST
34	M2374000104	BLOWBY PIPE	1	INCLUDES ITEMS W/@	PARTS REQUEST
PHOTO COMING BLOWBY PIPE M2374000104 · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 34A@ PARTS REQUEST
34A@	Y0602044300	PCV HEATER	1		ADD TO CART
PCV HEATER Y0602044300 · qty on machine: 1 Also included in kit 34 - BLOWBY PIPE (M2374000104) view full part page → $80.95 IN A KIT + SOLD SOLO

Page 18 — ENGINE AND RADIATOR ASSY. (CONT'D.)

Multiquip DCA70SSIU4F Generator ENGINE AND RADIATOR ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed37 rows

No.	Part No.	Part Name	Qty	Remarks
35	M2327200004	BLOWBY HOSE	1		ADD TO CART
BLOWBY HOSE M2327200004 · qty on machine: 1 view full part page → $106.95
35A	Y0378500230	AEROFLEX TUBE	1		PARTS REQUEST
PHOTO COMING AEROFLEX TUBE Y0378500230 · qty on machine: 1 PARTS REQUEST
36	0605515198	HOSE BAND	1		ADD TO CART
HOSE BAND 0605515198 · qty on machine: 1 view full part page → $1.71
37	Y06055153214	HOSE BAND	1		PARTS REQUEST
PHOTO COMING HOSE BAND Y06055153214 · qty on machine: 1 PARTS REQUEST
38	Y0605511394	MINI BALL VALVE	1		ADD TO CART
MINI BALL VALVE Y0605511394 · qty on machine: 1 view full part page → $70.95
39	0602220911	CLAMP	2		ADD TO CART
CLAMP 0602220911 · qty on machine: 2 view full part page → $1.85
40	Y0602012908	RADIATOR AND INTER-COOLER	1		ADD TO CART
RADIATOR AND INTER-COOLER Y0602012908 · qty on machine: 1 view full part page → $3241.95
40A	Y0602015750	CAP, RADIATOR	1		ADD TO CART
CAP, RADIATOR Y0602015750 · qty on machine: 1 view full part page → $76.95
40B	M2491200204	ACOUSTIC SHEET	2		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M2491200204 · qty on machine: 2 PARTS REQUEST
41	M2311500503	RADIATOR HOSE, UPPER	1		ADD TO CART
RADIATOR HOSE, UPPER M2311500503 · qty on machine: 1 view full part page → $62.95
42	M2311500603	RADIATOR HOSE, LOWER	1		ADD TO CART
RADIATOR HOSE, LOWER M2311500603 · qty on machine: 1 view full part page → $50.95
43	Y0199000170	TURBO CONTROL HOSE	1		PARTS REQUEST
PHOTO COMING TURBO CONTROL HOSE Y0199000170 · qty on machine: 1 PARTS REQUEST
44	Y0605515104	HOSE BAND	2		ADD TO CART
HOSE BAND Y0605515104 · qty on machine: 2 view full part page → $0.94
45	0605515147	HOSE BAND	4		ADD TO CART
HOSE BAND 0605515147 · qty on machine: 4 view full part page → $3.95
46	0602022581	ADAPTER, 10-M24X2.0	1		ADD TO CART
ADAPTER, 10-M24X2.0 0602022581 · qty on machine: 1 view full part page → $147.95
47	0602022561	90° ELBOW	1		ADD TO CART
90° ELBOW 0602022561 · qty on machine: 1 view full part page → $76.95
48	Y0269200350	PUSH-LOCK HOSE	1		PARTS REQUEST
PHOTO COMING PUSH-LOCK HOSE Y0269200350 · qty on machine: 1 PARTS REQUEST
49	0603306395	MALE PIPE	1		ADD TO CART
MALE PIPE 0603306395 · qty on machine: 1 view full part page → $16.95
50	0605511395	BALL VALVE	1		ADD TO CART
BALL VALVE 0605511395 · qty on machine: 1 view full part page → $46.95
51	0603306590	MALE BULKHEAD CONNECTOR	1		ADD TO CART
MALE BULKHEAD CONNECTOR 0603306590 · qty on machine: 1 view full part page → $86.95
52	0603300285	BULKHEAD LOCKNUT	1		ADD TO CART
BULKHEAD LOCKNUT 0603300285 · qty on machine: 1 view full part page → $4.95
53	0602021070	CAP	1		ADD TO CART
CAP 0602021070 · qty on machine: 1 view full part page → $11.95
54	Y0605000461	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION Y0605000461 · qty on machine: 2 view full part page → $55.95
55	0030012000	HEX. NUT	2		ADD TO CART
HEX. NUT 0030012000 · qty on machine: 2 view full part page → $0.5
55A	0040012000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040012000 · qty on machine: 2 view full part page → $0.95
55B	Y0602005000	WASHER, FLAT	2		PARTS REQUEST
PHOTO COMING WASHER, FLAT Y0602005000 · qty on machine: 2 PARTS REQUEST
56	0016908030	HEX. HEAD BOLT	2	REPLACES P/N 011208030	ADD TO CART
HEX. HEAD BOLT 0016908030 · qty on machine: 2 REPLACES P/N 011208030 Factory replaced this part - current number 011208030 view full part page → $1.3 IN A KIT + SOLD SOLO
57	0016908020	HEX. HEAD BOLT	4	REPLACES P/N 011008020	ADD TO CART
HEX. HEAD BOLT 0016908020 · qty on machine: 4 REPLACES P/N 011008020 Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO
58	8983193760	PRESSURE SWITCH	1	REPLACES P/N Y0602210060 S/N 7353902 AND ABOVE	ADD TO CART
PRESSURE SWITCH 8983193760 · qty on machine: 1 REPLACES P/N Y0602210060 S/N 7353902 AND ABOVE view full part page → $195.95
59	Y0602211628	ADAPTER	1	S/N 7353902 AND ABOVE	PARTS REQUEST
PHOTO COMING ADAPTER Y0602211628 · qty on machine: 1 S/N 7353902 AND ABOVE PARTS REQUEST
60	8941236231	PACKING	1	REPLACES P/N Y0602021704 S/N 7353902 AND ABOVE	ADD TO CART
PACKING 8941236231 · qty on machine: 1 REPLACES P/N Y0602021704 S/N 7353902 AND ABOVE view full part page → $15.95
61	EE10814	WATER HEATER	1	REPLACES P/N 0602014292 S/N 7355078 AND ABOVE	ADD TO CART
WATER HEATER EE10814 · qty on machine: 1 REPLACES P/N 0602014292 S/N 7355078 AND ABOVE view full part page → $191.95
62	011606025	HEX. HEAD BOLT	2	REPLACES P/N 0016906025 S/N 7355078 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 011606025 · qty on machine: 2 REPLACES P/N 0016906025 S/N 7355078 AND ABOVE view full part page → $1.95
63	Y0269301440	HOSE	1	S/N 7355078 AND ABOVE	ADD TO CART
HOSE Y0269301440 · qty on machine: 1 S/N 7355078 AND ABOVE view full part page → $27.47
64	Y0269300680	HOSE	1	S/N 7355078 AND ABOVE	PARTS REQUEST
PHOTO COMING HOSE Y0269300680 · qty on machine: 1 S/N 7355078 AND ABOVE PARTS REQUEST
65	0605515198	HOSE BAND	4	S/N 7355078 AND ABOVE	ADD TO CART
HOSE BAND 0605515198 · qty on machine: 4 S/N 7355078 AND ABOVE view full part page → $1.71
66	Y0605515205	HOSE BAND	1	S/N 7355203 AND ABOVE	ADD TO CART
HOSE BAND Y0605515205 · qty on machine: 1 S/N 7355203 AND ABOVE view full part page → $23.95

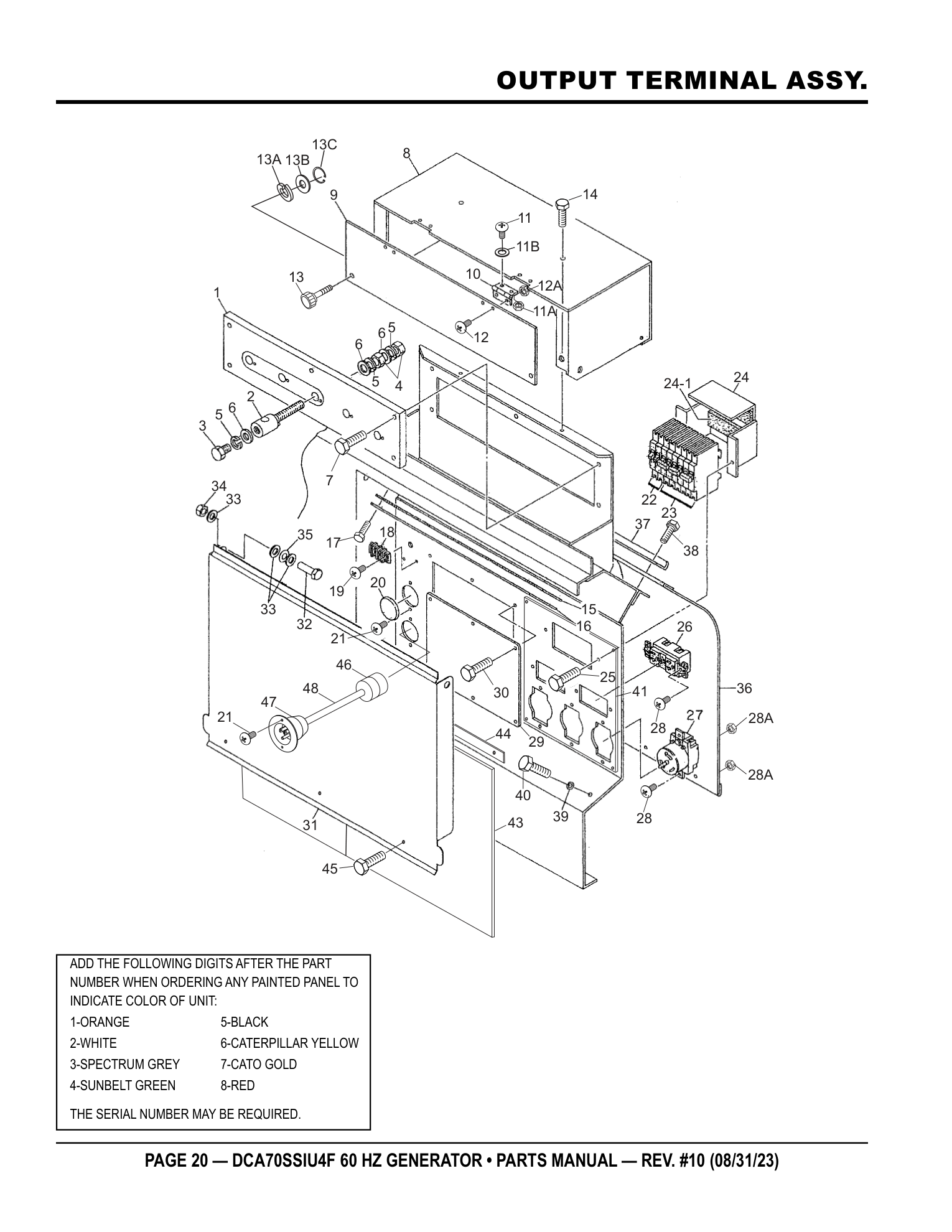

Page 20 — OUTPUT TERMINAL ASSY.

Multiquip DCA70SSIU4F Generator OUTPUT TERMINAL ASSY. parts diagram

Parts list — exactly as printed42 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3230700003	TERMINAL PANEL	1		ADD TO CART
TERMINAL PANEL M3230700003 · qty on machine: 1 view full part page → $258.95
2	M9220100304	OUTPUT TERMINAL BOLT	5		ADD TO CART
OUTPUT TERMINAL BOLT M9220100304 · qty on machine: 5 view full part page → $118.95
3	0801830804	TIE BOLT	5	REPLACES P/N M9220100404	ADD TO CART
TIE BOLT 0801830804 · qty on machine: 5 REPLACES P/N M9220100404 view full part page → $19.95
4	0039316000	HEX. NUT	10		ADD TO CART
HEX. NUT 0039316000 · qty on machine: 10 view full part page → $5.95
5	0040016000	WASHER, LOCK	15		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 15 view full part page → $4.95
6	0401450160	WASHER, FLAT	20	REPLACES P/N 0041416000	ADD TO CART
WASHER, FLAT 0401450160 · qty on machine: 20 REPLACES P/N 0041416000 view full part page → $0.53
7	0012108035	HEX. HEAD BOLT	5	REPLACES P/N 0016908035	ADD TO CART
HEX. HEAD BOLT 0012108035 · qty on machine: 5 REPLACES P/N 0016908035 view full part page → $1.95
8	M2237100103	3-PHASE OUTPUT TERMINAL COVER	1		ADD TO CART
3-PHASE OUTPUT TERMINAL COVER M2237100103 · qty on machine: 1 view full part page → $111.95
9	M3236100104	OUTPUT WINDOW	1		ADD TO CART
OUTPUT WINDOW M3236100104 · qty on machine: 1 view full part page → $72.95
10	0605010040	HINGE	2		ADD TO CART
HINGE 0605010040 · qty on machine: 2 view full part page → $4.95
11	0027103010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027103010 · qty on machine: 4 view full part page → $0.44
11A	0207003000	HEX. NUT	4	REPLACES P/N 0030003000	ADD TO CART
HEX. NUT 0207003000 · qty on machine: 4 REPLACES P/N 0030003000 view full part page → $0.21
11B	0041203000	WASHER, FLAT	4		ADD TO CART
WASHER, FLAT 0041203000 · qty on machine: 4 view full part page → $0.12
12	0027103010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027103010 · qty on machine: 4 view full part page → $0.44
12A	0207003000	HEX. NUT	4	REPLACES P/N 0030003000	ADD TO CART
HEX. NUT 0207003000 · qty on machine: 4 REPLACES P/N 0030003000 view full part page → $0.21
13	M9220100804	SET SCREW	2		ADD TO CART
SET SCREW M9220100804 · qty on machine: 2 view full part page → $20.95
13A	0040006000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040006000 · qty on machine: 2 view full part page → $0.17
13B	952404470	WASHER, FLAT	2	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 2 REPLACES P/N 0041206000 view full part page → $0.19
13C	0080200005	E-SNAP RING	2		ADD TO CART
E-SNAP RING 0080200005 · qty on machine: 2 view full part page → $0.25
14	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0016906015 view full part page → $0.69
15	M3236400004	RUBBER, CABLE OUTLET COVER	1		ADD TO CART
RUBBER, CABLE OUTLET COVER M3236400004 · qty on machine: 1 view full part page → $14.95
16	M3236300004	SUPPORTER, CABLE OUTLET COVER	1		ADD TO CART
SUPPORTER, CABLE OUTLET COVER M3236300004 · qty on machine: 1 view full part page → $24.95
17	011206020	HEX. HEAD BOLT	6	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 6 REPLACES P/N 0016906020 view full part page → $0.95
18	0601815194	TERMINAL BLOCK	1	S/N 7357434 AND BELOW	NO LONGER AVAILABLE
PHOTO COMING TERMINAL BLOCK 0601815194 · qty on machine: 1 S/N 7357434 AND BELOW NO LONGER AVAILABLE
18	Y0601816539	TERMINAL BLOCK	1	S/N 7357435 ~ 7357504 S/N 7357815 ~ 7358459 S/N 7358562 ~ 7358569	ADD TO CART
TERMINAL BLOCK Y0601816539 · qty on machine: 1 S/N 7357435 ~ 7357504 S/N 7357815 ~ 7358459 S/N 7358562 ~ 7358569 view full part page → $15.95
18	Y0601815870	TERMINAL BLOCK	1	S/N 7357505 ~ 7357814 S/N 7358460 ~ 7358561 S/N 7358570 AND ABOVE	ADD TO CART
TERMINAL BLOCK Y0601815870 · qty on machine: 1 S/N 7357505 ~ 7357814 S/N 7358460 ~ 7358561 S/N 7358570 AND ABOVE view full part page → $52.95
19	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
20	0603306775	BLIND PLUG	2	S/N 7355077 AND BELOW	ADD TO CART
BLIND PLUG 0603306775 · qty on machine: 2 S/N 7355077 AND BELOW view full part page → $3.95
20	0603306775	BLIND PLUG	1	S/N 7355078 AND ABOVE	ADD TO CART
BLIND PLUG 0603306775 · qty on machine: 1 S/N 7355078 AND ABOVE view full part page → $3.95
21	0027104015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 4 view full part page → $0.53
22	0601808803	CIRCUIT BREAKER, 1P 20A	2		ADD TO CART
CIRCUIT BREAKER, 1P 20A 0601808803 · qty on machine: 2 view full part page → $46.95
23	0601808804	CIRCUIT BREAKER, 2P 50A	3		ADD TO CART
CIRCUIT BREAKER, 2P 50A 0601808804 · qty on machine: 3 view full part page → $98.95
24	M1260700304	BREAKER FITTING COVER	1		ADD TO CART
BREAKER FITTING COVER M1260700304 · qty on machine: 1 view full part page → $75.95
24-1	0222100150	CUSHION RUBBER	1		ADD TO CART
CUSHION RUBBER 0222100150 · qty on machine: 1 view full part page → $6.95
25	011106015	HEX. HEAD BOLT	2	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 2 REPLACES P/N 0016906015 view full part page → $0.69
26	Y0601814024	RECEPTACLE, 125V 20AX2	2	S/N 7355487 AND BELOW	PARTS REQUEST
PHOTO COMING RECEPTACLE, 125V 20AX2 Y0601814024 · qty on machine: 2 S/N 7355487 AND BELOW PARTS REQUEST
26	Y0601814034	RECEPTACLE, 125V 20AX2	2	S/N 7355488 AND ABOVE	ADD TO CART
RECEPTACLE, 125V 20AX2 Y0601814034 · qty on machine: 2 S/N 7355488 AND ABOVE view full part page → $91.95
27	0601814014	RECEPTACLE, 250V 50A	3		ADD TO CART
RECEPTACLE, 250V 50A 0601814014 · qty on machine: 3 view full part page → $90.95
28	0027104015	MACHINE SCREW	10		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 10 view full part page → $0.53
28A	OEMAA8	HEX. NUT	10	REPLACES P/N 0207004000	ADD TO CART
HEX. NUT OEMAA8 · qty on machine: 10 REPLACES P/N 0207004000 view full part page → $0.4
29	M2453400004	COVER	1		ADD TO CART
COVER M2453400004 · qty on machine: 1 view full part page → $23.95
30	011106015	HEX. HEAD BOLT	6	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 6 REPLACES P/N 0016906015 view full part page → $0.69

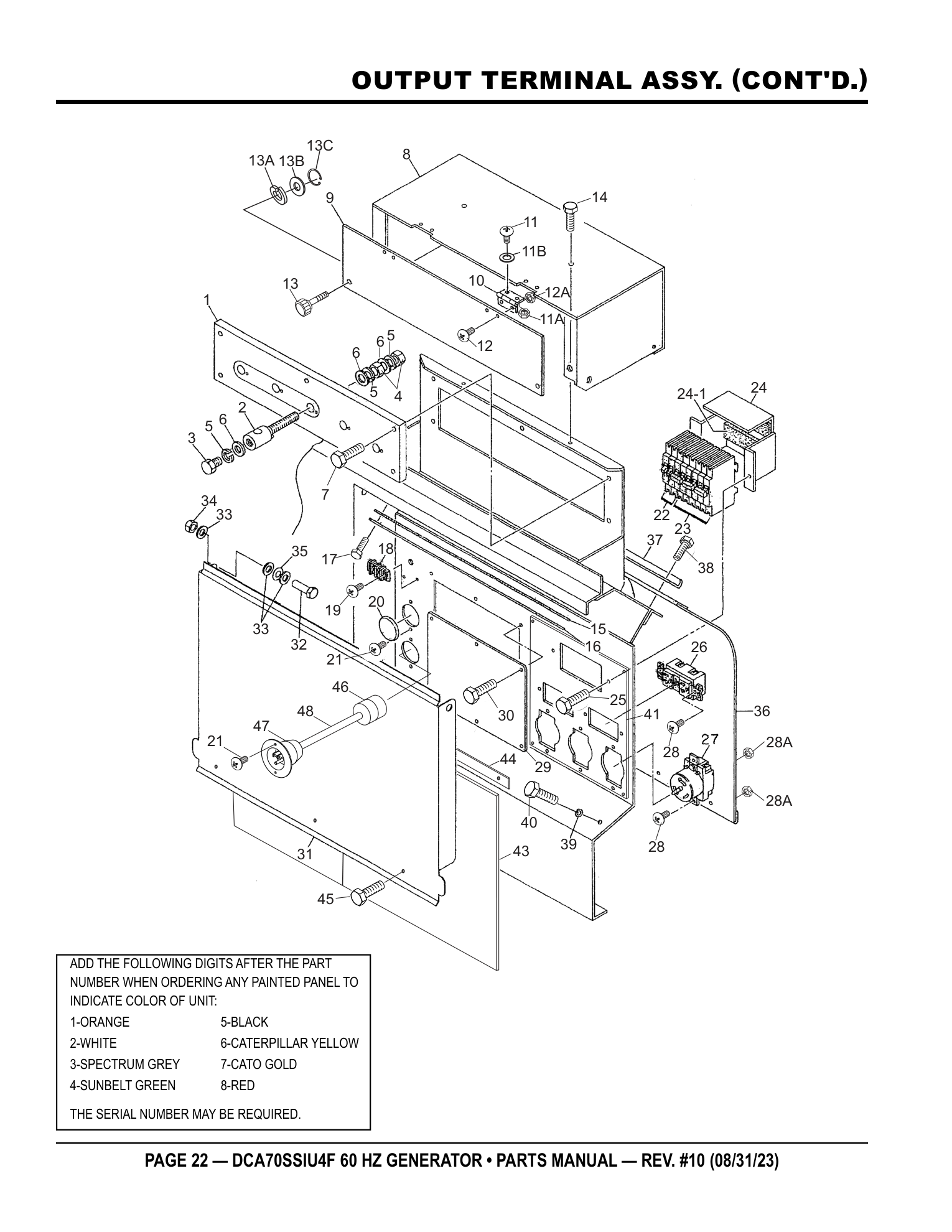

Page 22 — OUTPUT TERMINAL ASSY. (CONT'D.)

Multiquip DCA70SSIU4F Generator OUTPUT TERMINAL ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed20 rows

No.	Part No.	Part Name	Qty	Remarks
31	M2237100003	TERMINAL COVER	1	S/N 7354617 AND BELOW	ADD TO CART
TERMINAL COVER M2237100003 · qty on machine: 1 S/N 7354617 AND BELOW view full part page → $97.95
31	M2237100403	TERMINAL COVER	1	S/N 7354618 AND ABOVE	ADD TO CART
TERMINAL COVER M2237100403 · qty on machine: 1 S/N 7354618 AND ABOVE view full part page → $122.95
32	012212045	HEX. HEAD BOLT	2	REPLACES P/N 0010112045	ADD TO CART
HEX. HEAD BOLT 012212045 · qty on machine: 2 REPLACES P/N 0010112045 view full part page → $2.95
33	031112230	WASHER, FLAT	6	REPLACES P/N 0041212000	ADD TO CART
WASHER, FLAT 031112230 · qty on machine: 6 REPLACES P/N 0041212000 view full part page → $0.95
34	0030012000	HEX. NUT	2		ADD TO CART
HEX. NUT 0030012000 · qty on machine: 2 view full part page → $0.5
35	0605050060	CONICAL LOCK WASHER	2		ADD TO CART
CONICAL LOCK WASHER 0605050060 · qty on machine: 2 view full part page → $5.95
36	M1237101204	INSULATING COVER	1	REPLACES P/N M4236100604	ADD TO CART
INSULATING COVER M1237101204 · qty on machine: 1 REPLACES P/N M4236100604 view full part page → $181.6
37	M4236400304	SUPPORTER, INSULATING COVER	1		ADD TO CART
SUPPORTER, INSULATING COVER M4236400304 · qty on machine: 1 view full part page → $19.95
38	011106015	HEX. HEAD BOLT	2	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 2 REPLACES P/N 0016906015 view full part page → $0.69
39	0040508000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040508000 · qty on machine: 1 view full part page → $0.35
40	011008020	HEX. HEAD BOLT	1	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 1 REPLACES P/N 0016908020 view full part page → $2.68
41	M3454200904	RECEPTACLE BOARD	1	S/N 7354618 AND ABOVE	ADD TO CART
RECEPTACLE BOARD M3454200904 · qty on machine: 1 S/N 7354618 AND ABOVE view full part page → $30.95
42	011106015	HEX. HEAD BOLT	6	REPLACES P/N 0016906015 S/N 7354618 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 6 REPLACES P/N 0016906015 S/N 7354618 AND ABOVE view full part page → $0.69
43	M2454700704	RUBBER SHEET	1	S/N 7354618 AND ABOVE	ADD TO CART
RUBBER SHEET M2454700704 · qty on machine: 1 S/N 7354618 AND ABOVE view full part page → $41.95
44	M2454700804	RUBBER SHEET HOLDER	1	S/N 7354618 AND ABOVE	PARTS REQUEST
PHOTO COMING RUBBER SHEET HOLDER M2454700804 · qty on machine: 1 S/N 7354618 AND ABOVE PARTS REQUEST
45	011206020	HEX. HEAD BOLT	3	REPLACES P/N 0019206020 S/N 7354618 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 3 REPLACES P/N 0019206020 S/N 7354618 AND ABOVE view full part page → $0.95
46	0601812527	CONNECTOR	1	S/N 7355078 ~ 7356642	ADD TO CART
CONNECTOR 0601812527 · qty on machine: 1 S/N 7355078 ~ 7356642 view full part page → $64.95
47	Y0601811177	RECEPTACLE	1	S/N 7355078 ~ 7356642	PARTS REQUEST
PHOTO COMING RECEPTACLE Y0601811177 · qty on machine: 1 S/N 7355078 ~ 7356642 PARTS REQUEST
48	M1358200804	WIRE HARNESS, WATER HEATER	1	S/N 7355078 ~ 7356642	PARTS REQUEST
PHOTO COMING WIRE HARNESS, WATER HEATER M1358200804 · qty on machine: 1 S/N 7355078 ~ 7356642 PARTS REQUEST
48	Y0601813078	WATER HEATER CABLE	1	S/N 7356643 AND ABOVE	ADD TO CART
WATER HEATER CABLE Y0601813078 · qty on machine: 1 S/N 7356643 AND ABOVE view full part page → $105.95

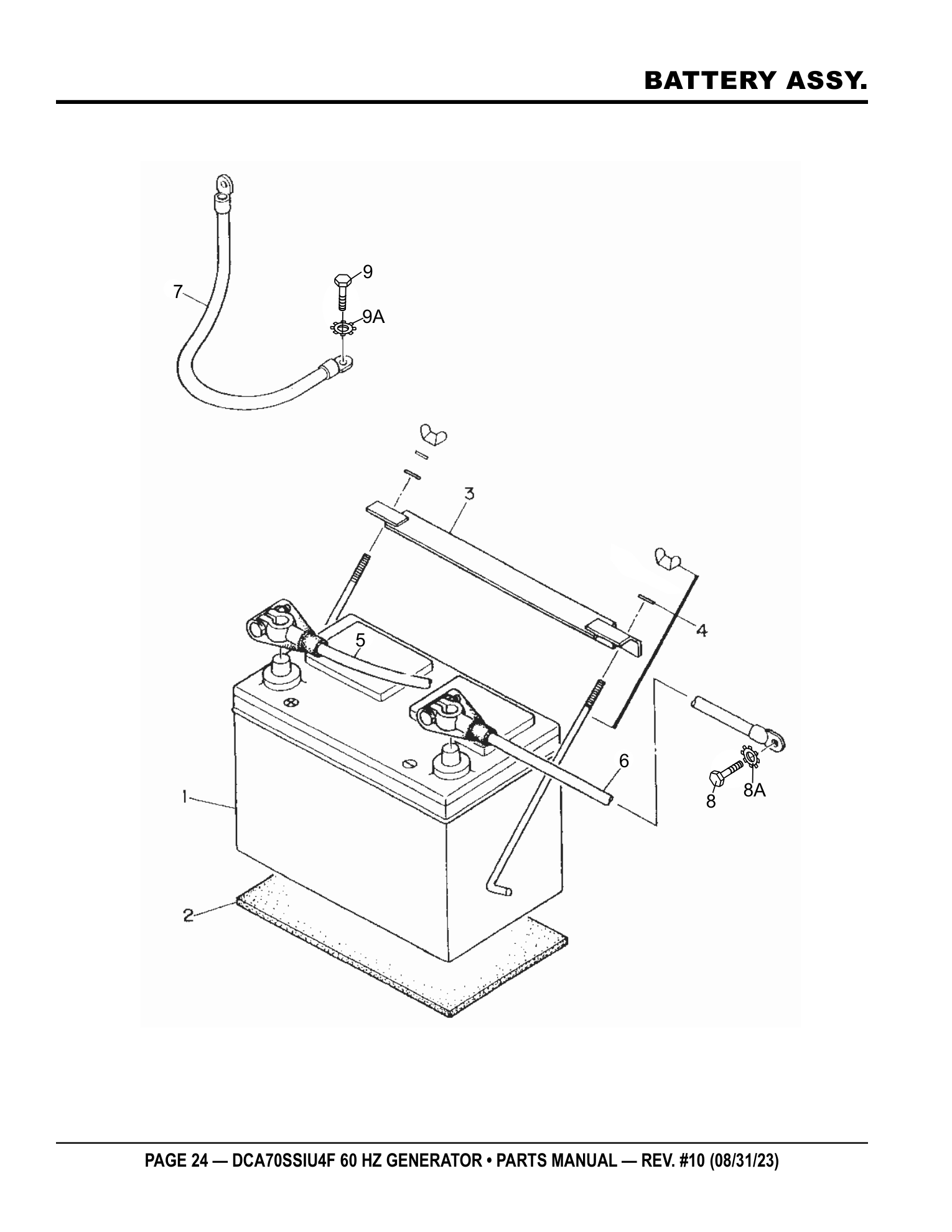

Page 24 — BATTERY ASSY.

Multiquip DCA70SSIU4F Generator BATTERY ASSY. parts diagram

Parts list — exactly as printed15 rows

No.	Part No.	Part Name	Qty	Remarks
1	0602220199	BATTERY	1	S/N 7357053 AND BELOW	ADD TO CART
BATTERY 0602220199 · qty on machine: 1 S/N 7357053 AND BELOW view full part page → $288.95
1	Y0602221291	BATTERY	1	S/N 7357054 ~ 7357362	PARTS REQUEST
PHOTO COMING BATTERY Y0602221291 · qty on machine: 1 S/N 7357054 ~ 7357362 PARTS REQUEST
1	0602220199	BATTERY	1	S/N 7357363 AND ABOVE	ADD TO CART
BATTERY 0602220199 · qty on machine: 1 S/N 7357363 AND ABOVE view full part page → $288.95
2	M9310500014	BATTERY SHEET	1		ADD TO CART
BATTERY SHEET M9310500014 · qty on machine: 1 view full part page → $5.95
3	M9103000304	BATTERY BAND	1		ADD TO CART
BATTERY BAND M9103000304 · qty on machine: 1 view full part page → $72.95
4	0602220920	BATTERY BOLT SET	2	S/N 7357053 AND BELOW	ADD TO CART
BATTERY BOLT SET 0602220920 · qty on machine: 2 S/N 7357053 AND BELOW view full part page → $5.95
4	0602220921	BATTERY BOLT SET	2	S/N 7357054 ~ 7357362	ADD TO CART
BATTERY BOLT SET 0602220921 · qty on machine: 2 S/N 7357054 ~ 7357362 view full part page → $5.95
4	0602220920	BATTERY BOLT SET	2	S/N 7357363 AND ABOVE	ADD TO CART
BATTERY BOLT SET 0602220920 · qty on machine: 2 S/N 7357363 AND ABOVE view full part page → $5.95
5	M2347400004	BATTERY CABLE	1		ADD TO CART
BATTERY CABLE M2347400004 · qty on machine: 1 view full part page → $158.95
6	M2347400104	BATTERY CABLE	1		ADD TO CART
BATTERY CABLE M2347400104 · qty on machine: 1 view full part page → $76.95
7		CABLE	1	MAKE LOCALLY	SEE REMARKS
PHOTO COMING CABLE · qty on machine: 1 MAKE LOCALLY SEE REMARKS
8	0017112025	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0017112025 · qty on machine: 1 view full part page → $2.93
8A	0040512000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040512000 · qty on machine: 1 view full part page → $0.77
9	011208025	HEX. HEAD BOLT	1	REPLACES P/N 0016908025	ADD TO CART
HEX. HEAD BOLT 011208025 · qty on machine: 1 REPLACES P/N 0016908025 view full part page → $0.41
9A	0040508000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040508000 · qty on machine: 1 view full part page → $0.35

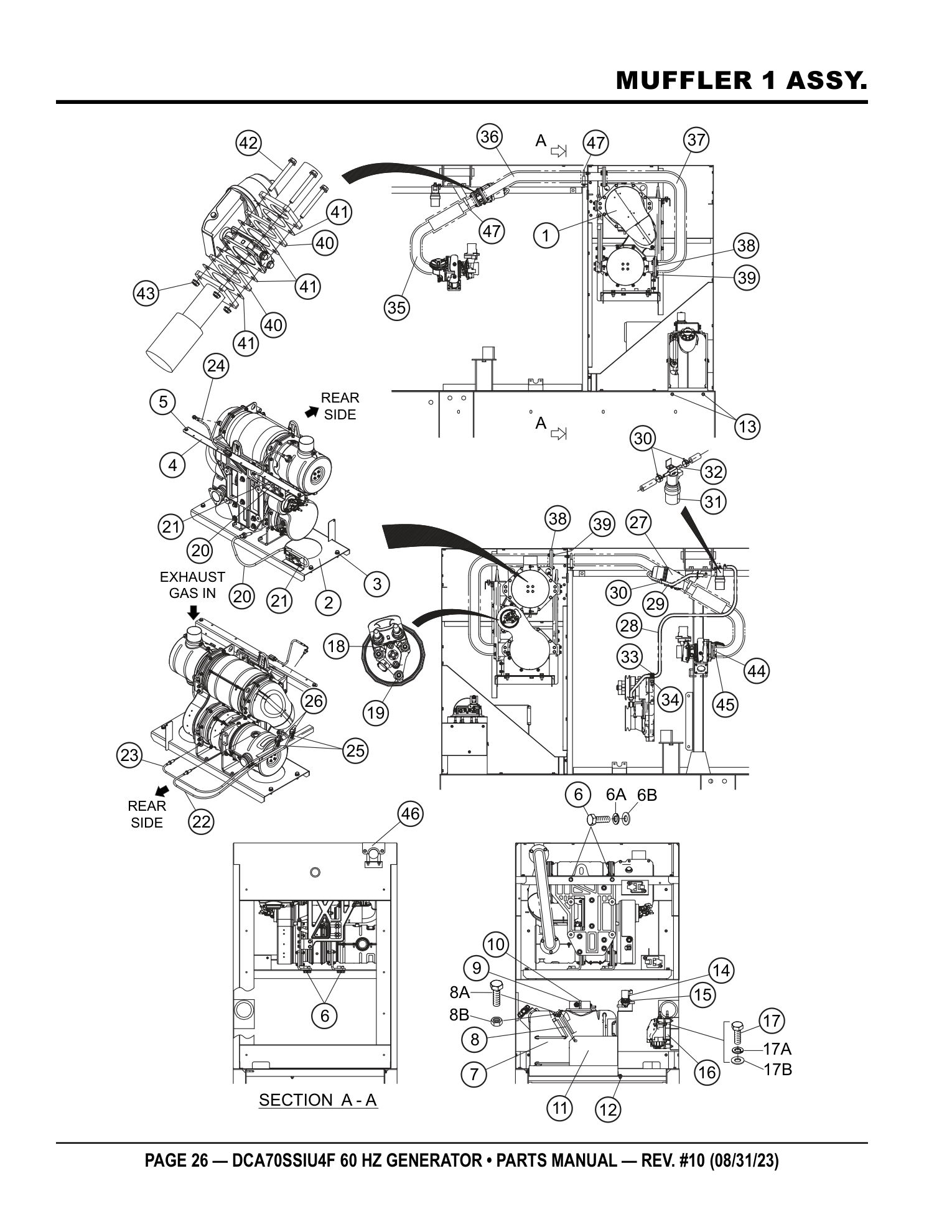

Page 26 — MUFFLER 1 ASSY.

Multiquip DCA70SSIU4F Generator MUFFLER 1 ASSY. parts diagram

Parts list — exactly as printed43 rows

No.	Part No.	Part Name	Qty	Remarks
1	8983029372	SCR ASSY	1	REPLACES P/N Y0602330322	ADD TO CART
SCR ASSY 8983029372 · qty on machine: 1 REPLACES P/N Y0602330322 view full part page → $32542.95
2	M2331200003	SCR BRACKET	1		PARTS REQUEST
PHOTO COMING SCR BRACKET M2331200003 · qty on machine: 1 PARTS REQUEST
3	0016910025	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016910025 · qty on machine: 4 view full part page → $1.56
4	M2331200104	SCR SUPPORT	1	S/N 7353967 AND BELOW	PARTS REQUEST
PHOTO COMING SCR SUPPORT M2331200104 · qty on machine: 1 S/N 7353967 AND BELOW PARTS REQUEST
4	M2331200114	SCR SUPPORT	1	S/N 7353968 AND ABOVE	ADD TO CART
SCR SUPPORT M2331200114 · qty on machine: 1 S/N 7353968 AND ABOVE view full part page → $92.95
5	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
6	0019112030	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0019112030 · qty on machine: 6 view full part page → $5.95
6A	0042312000	WASHER, LOCK	6		ADD TO CART
WASHER, LOCK 0042312000 · qty on machine: 6 view full part page → $0.94
6B	0042412000	WASHER, FLAT	6		ADD TO CART
WASHER, FLAT 0042412000 · qty on machine: 6 view full part page → $1.63
7	8982984470	DEF TANK	1	REPLACES P/N Y0602330447	ADD TO CART
DEF TANK 8982984470 · qty on machine: 1 REPLACES P/N Y0602330447 view full part page → $2395.95
8	0602330441	RETAINER	1		PARTS REQUEST
PHOTO COMING RETAINER 0602330441 · qty on machine: 1 PARTS REQUEST
8A	0602330442	BOLT SCREW	2		ADD TO CART
BOLT SCREW 0602330442 · qty on machine: 2 view full part page → $49.95
8B	0602330443	HEX. HEAD NUT	2		PARTS REQUEST
PHOTO COMING HEX. HEAD NUT 0602330443 · qty on machine: 2 PARTS REQUEST
9	0602330448	DEF TANK COVER ASSY.	1		PARTS REQUEST
PHOTO COMING DEF TANK COVER ASSY. 0602330448 · qty on machine: 1 PARTS REQUEST
10	0602330443	DEF TANK COVER CLIP	1		PARTS REQUEST
PHOTO COMING DEF TANK COVER CLIP 0602330443 · qty on machine: 1 PARTS REQUEST
11	M2334300203	DEF TANK BRACKET	1		ADD TO CART
DEF TANK BRACKET M2334300203 · qty on machine: 1 view full part page → $152.95
12	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
13	011208025	HEX. HEAD BOLT	2	REPLACES P/N 0016908025	ADD TO CART
HEX. HEAD BOLT 011208025 · qty on machine: 2 REPLACES P/N 0016908025 view full part page → $0.41
14	8981213061	COOLANT CONTROL VALVE	1	REPLACES P/N Y0602330484	ADD TO CART
COOLANT CONTROL VALVE 8981213061 · qty on machine: 1 REPLACES P/N Y0602330484 view full part page → $467.95
15	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
16	8982688110	DEF SUPPLY MODULE	1	REPLACES P/N Y0602330483	NO LONGER AVAILABLE
PHOTO COMING DEF SUPPLY MODULE 8982688110 · qty on machine: 1 REPLACES P/N Y0602330483 NO LONGER AVAILABLE
17	Y0013608090	HEX. HEAD BOLT	3		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0013608090 · qty on machine: 3 PARTS REQUEST
17A	0040008000	WASHER, LOCK	3		ADD TO CART
WASHER, LOCK 0040008000 · qty on machine: 3 view full part page → $0.63
17B	0401450080	WASHER, FLAT	3	REPLACES P/N 0041208000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 3 REPLACES P/N 0041208000 view full part page → $0.56
18	8982318982	DEF DOSING MODULE	1	REPLACES P/N Y0602330474	NO LONGER AVAILABLE
PHOTO COMING DEF DOSING MODULE 8982318982 · qty on machine: 1 REPLACES P/N Y0602330474 NO LONGER AVAILABLE
19	0911801060	HEX. NUT	3	REPLACES P/N Y0602330475	ADD TO CART
HEX. NUT 0911801060 · qty on machine: 3 REPLACES P/N Y0602330475 view full part page → $0.31
20	8982465062	NOX SENSOR	1	REPLACES P/N Y0602330482 S/N 7354017 AND BELOW	ADD TO CART
NOX SENSOR 8982465062 · qty on machine: 1 REPLACES P/N Y0602330482 S/N 7354017 AND BELOW view full part page → $1953.95
20	8982465062	NOX SENSOR	2	REPLACES P/N Y0602330482 S/N 7354018 AND ABOVE	ADD TO CART
NOX SENSOR 8982465062 · qty on machine: 2 REPLACES P/N Y0602330482 S/N 7354018 AND ABOVE view full part page → $1953.95
21	011206020	HEX. HEAD BOLT	2	REPLACES P/N 0016906020 S/N 7354017 AND BELOW	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 2 REPLACES P/N 0016906020 S/N 7354017 AND BELOW view full part page → $0.95
21	011206020	HEX. HEAD BOLT	4	REPLACES P/N 0016906020 S/N 7354018 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 4 REPLACES P/N 0016906020 S/N 7354018 AND ABOVE view full part page → $0.95
22	8981783581	DOC TEMP SENSOR, FRONT	1	REPLACES P/N 0602330481	ADD TO CART
DOC TEMP SENSOR, FRONT 8981783581 · qty on machine: 1 REPLACES P/N 0602330481 view full part page → $332.95
23	8981867621	DOC TEMP SENSOR, REAR	1	REPLACES P/N 0602330471	ADD TO CART
DOC TEMP SENSOR, REAR 8981867621 · qty on machine: 1 REPLACES P/N 0602330471 view full part page → $284.95
24	8980863290	SCR TEMP SENSOR	1	REPLACES P/N 0602330470	ADD TO CART
SCR TEMP SENSOR 8980863290 · qty on machine: 1 REPLACES P/N 0602330470 view full part page → $317.95
25	0602330472	TEMP SENSOR BRACKET	2		ADD TO CART
TEMP SENSOR BRACKET 0602330472 · qty on machine: 2 view full part page → $49.63
26	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
27	0602315010	EXHAUST THROTTLE	1		PARTS REQUEST
PHOTO COMING EXHAUST THROTTLE 0602315010 · qty on machine: 1 Factory replaced this part - current number 8983055340 PARTS REQUEST
28	0602315011	VACUUM HOSE	1		PARTS REQUEST
PHOTO COMING VACUUM HOSE 0602315011 · qty on machine: 1 PARTS REQUEST
29	0602315012	VACUUM HOSE	1		PARTS REQUEST
PHOTO COMING VACUUM HOSE 0602315012 · qty on machine: 1 PARTS REQUEST
30	0602315013	VACUUM HOSE CLIP	4		PARTS REQUEST
PHOTO COMING VACUUM HOSE CLIP 0602315013 · qty on machine: 4 PARTS REQUEST
31	0602315001	MAGNETIC VALVE	1		ADD TO CART
MAGNETIC VALVE 0602315001 · qty on machine: 1 view full part page → $480.95
32	011008020	HEX. HEAD BOLT	1	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 1 REPLACES P/N 0016908020 view full part page → $2.68
33	0602220911	CLAMP	1		ADD TO CART
CLAMP 0602220911 · qty on machine: 1 view full part page → $1.85
34	011008020	HEX. HEAD BOLT	1	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 1 REPLACES P/N 0016908020 view full part page → $2.68

Page 28 — MUFFLER 1 ASSY. (CONT'D.)

Multiquip DCA70SSIU4F Generator MUFFLER 1 ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed20 rows

No.	Part No.	Part Name	Qty	Remarks
35	M2334000303	EXHAUST PIPE	1		ADD TO CART
EXHAUST PIPE M2334000303 · qty on machine: 1 view full part page → $918.95
35A	Y0602311160	HEAT SHIELD	1		ADD TO CART
HEAT SHIELD Y0602311160 · qty on machine: 1 view full part page → $324.95
36	M2334000603	EXHAUST PIPE	1		ADD TO CART
EXHAUST PIPE M2334000603 · qty on machine: 1 view full part page → $562.95
36A	Y0602311161	HEAT SHIELD	1		ADD TO CART
HEAT SHIELD Y0602311161 · qty on machine: 1 view full part page → $297.95
37	M2334000504	EXHAUST PIPE	1		ADD TO CART
EXHAUST PIPE M2334000504 · qty on machine: 1 view full part page → $562.95
37A	Y0602311162	HEAT SHIELD	1		ADD TO CART
HEAT SHIELD Y0602311162 · qty on machine: 1 view full part page → $487.95
38	8973767580	GASKET	2	REPLACES P/N 0602320214	ADD TO CART
GASKET 8973767580 · qty on machine: 2 REPLACES P/N 0602320214 view full part page → $57.95
39	0019208035	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0019208035 · qty on machine: 6 view full part page → $7.73
39A	020108060	SELF-LOCKING NUT	6	REPLACES P/N 0207008000	ADD TO CART
SELF-LOCKING NUT 020108060 · qty on machine: 6 REPLACES P/N 0207008000 view full part page → $0.28
40	M1334300504	EXHAUST PIPE SPACER	2		ADD TO CART
EXHAUST PIPE SPACER M1334300504 · qty on machine: 2 view full part page → $22.95
41	8973731080	GASKET	4	REPLACES P/N Y0602320212	ADD TO CART
GASKET 8973731080 · qty on machine: 4 REPLACES P/N Y0602320212 view full part page → $24.95
42	Y0019108080	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT Y0019108080 · qty on machine: 4 view full part page → $3.95
42A	0042308000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0042308000 · qty on machine: 4 view full part page → $0.83
42B	0401450080	WASHER, FLAT	4	REPLACES P/N 0042408000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 4 REPLACES P/N 0042408000 view full part page → $0.56
43	020108060	SELF-LOCKING NUT	4	REPLACES P/N 0207008000	ADD TO CART
SELF-LOCKING NUT 020108060 · qty on machine: 4 REPLACES P/N 0207008000 view full part page → $0.28
44	8943690210	GASKET	1	REPLACES P/N 0602320101	ADD TO CART
GASKET 8943690210 · qty on machine: 1 REPLACES P/N 0602320101 view full part page → $57.95
45	0207108000	SELF-LOCKING NUT	3		ADD TO CART
SELF-LOCKING NUT 0207108000 · qty on machine: 3 view full part page → $3.95
46	M2334300304	COVER, EXHAUST PIPE	1		ADD TO CART
COVER, EXHAUST PIPE M2334300304 · qty on machine: 1 view full part page → $17.95
46A	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
47	Y0602326066	U-BOLT	2		ADD TO CART
U-BOLT Y0602326066 · qty on machine: 2 view full part page → $9.95

Page 30 — MUFFLER 2 ASSY.

Multiquip DCA70SSIU4F Generator MUFFLER 2 ASSY. parts diagram

Parts list — exactly as printed28 rows

No.	Part No.	Part Name	Qty	Remarks
48	Y0602330461	DEF LINE	1		ADD TO CART
DEF LINE Y0602330461 · qty on machine: 1 view full part page → $372.95
49	Y0602330462	DEF LINE	1		ADD TO CART
DEF LINE Y0602330462 · qty on machine: 1 view full part page → $365.95
50	Y0602330463	DEF LINE	1		ADD TO CART
DEF LINE Y0602330463 · qty on machine: 1 view full part page → $605.95
51	Y0378900165	AEROFLEX TUBE	1		ADD TO CART
AEROFLEX TUBE Y0378900165 · qty on machine: 1 view full part page → $1.45
52	Y0602330453	90° ELBOW JOINT	4		ADD TO CART
90° ELBOW JOINT Y0602330453 · qty on machine: 4 view full part page → $618.95
53	Y0602330454	T-CONNECTOR	2		ADD TO CART
T-CONNECTOR Y0602330454 · qty on machine: 2 view full part page → $422.95
54	Y0377102210	SCR COOLANT LINE	1		ADD TO CART
SCR COOLANT LINE Y0377102210 · qty on machine: 1 view full part page → $26.95
55	Y0378501830	AEROFLEX TUBE	2		ADD TO CART
AEROFLEX TUBE Y0378501830 · qty on machine: 2 view full part page → $15.95
56	Y0378500330	AEROFLEX TUBE	1		ADD TO CART
AEROFLEX TUBE Y0378500330 · qty on machine: 1 view full part page → $5.95
57	Y0377100200	SCR COOLANT LINE	1		ADD TO CART
SCR COOLANT LINE Y0377100200 · qty on machine: 1 view full part page → $3.95
58	Y0378501450	AEROFLEX TUBE	1		ADD TO CART
AEROFLEX TUBE Y0378501450 · qty on machine: 1 view full part page → $12.95
59	Y0377101500	SCR COOLANT LINE	1		ADD TO CART
SCR COOLANT LINE Y0377101500 · qty on machine: 1 view full part page → $16.95
60	Y0378501450	AEROFLEX TUBE	1		ADD TO CART
AEROFLEX TUBE Y0378501450 · qty on machine: 1 view full part page → $12.95
61	Y0377100300	SCR COOLANT LINE	1		ADD TO CART
SCR COOLANT LINE Y0377100300 · qty on machine: 1 view full part page → $4.95
62	Y0378500250	AEROFLEX TUBE	1		ADD TO CART
AEROFLEX TUBE Y0378500250 · qty on machine: 1 view full part page → $3.95
63	Y0377100500	SCR COOLANT LINE	1		ADD TO CART
SCR COOLANT LINE Y0377100500 · qty on machine: 1 view full part page → $5.95
64	Y0378700520	AEROFLEX TUBE	1		ADD TO CART
AEROFLEX TUBE Y0378700520 · qty on machine: 1 view full part page → $5.95
65	Y0378700070	AEROFLEX TUBE	1	S/N 7357022	ADD TO CART
AEROFLEX TUBE Y0378700070 · qty on machine: 1 S/N 7357022 view full part page → $2.95
66	Y0377101630	SCR COOLANT LINE	1		ADD TO CART
SCR COOLANT LINE Y0377101630 · qty on machine: 1 view full part page → $19.95
67	Y0377701850	AEROFLEX TUBE	1		ADD TO CART
AEROFLEX TUBE Y0377701850 · qty on machine: 1 view full part page → $18.95
68	Y0378500090	AEROFLEX TUBE	1		ADD TO CART
AEROFLEX TUBE Y0378500090 · qty on machine: 1 view full part page → $2.86
69	Y0377100600	SCR COOLANT LINE	1		ADD TO CART
SCR COOLANT LINE Y0377100600 · qty on machine: 1 view full part page → $6.95
70	Y0378500550	AEROFLEX TUBE	1		ADD TO CART
AEROFLEX TUBE Y0378500550 · qty on machine: 1 view full part page → $5.95
71	Y0377103140	SCR COOLANT LINE	1		ADD TO CART
SCR COOLANT LINE Y0377103140 · qty on machine: 1 view full part page → $37.95
72	Y0378501830	AEROFLEX TUBE	1		ADD TO CART
AEROFLEX TUBE Y0378501830 · qty on machine: 1 view full part page → $15.95
73	Y0378501260	AEROFLEX TUBE	1		ADD TO CART
AEROFLEX TUBE Y0378501260 · qty on machine: 1 view full part page → $11.95
74	Y0605515341	HOSE BAND	14		ADD TO CART
HOSE BAND Y0605515341 · qty on machine: 14 view full part page → $2.95
75	Y0605515198	HOSE BAND	2		ADD TO CART
HOSE BAND Y0605515198 · qty on machine: 2 view full part page → $2.95

Page 32 — FUEL TANK ASSY.

Multiquip DCA70SSIU4F Generator FUEL TANK ASSY. parts diagram

Parts list — exactly as printed37 rows

No.	Part No.	Part Name	Qty	Remarks
1	M2363001202	FUEL TANK	1	INCLUDES ITEMS W/#	ADD TO CART
FUEL TANK M2363001202 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 1-1#, 1-2#, 1-2#, 1-2A#, 1-2B# view full part page → $1750.95 IN A KIT + SOLD SOLO
1-1#	0605505070	FUEL TANK CAP	1		ADD TO CART
FUEL TANK CAP 0605505070 · qty on machine: 1 Also included in kit 1 - FUEL TANK (M2363001202) view full part page → $50.95 IN A KIT + SOLD SOLO
1-2#	Y0605501057	FUEL SENDER UNIT	1	S/N 7358774 AND BELOW	NO LONGER AVAILABLE
PHOTO COMING FUEL SENDER UNIT Y0605501057 · qty on machine: 1 S/N 7358774 AND BELOW Also included in kit 1 - FUEL TANK (M2363001202) NO LONGER AVAILABLE
1-2#	Y0605501047	FUEL SENDER UNIT	1	S/N 7358775 AND ABOVE	ADD TO CART
FUEL SENDER UNIT Y0605501047 · qty on machine: 1 S/N 7358775 AND ABOVE Also included in kit 1 - FUEL TANK (M2363001202) view full part page → $163.95 IN A KIT + SOLD SOLO
1-2A#	0605516090	GASKET	1		NO LONGER AVAILABLE
PHOTO COMING GASKET 0605516090 · qty on machine: 1 Also included in kit 1 - FUEL TANK (M2363001202) NO LONGER AVAILABLE
1-2B#	7538070	MACHINE SCREW	5	REPLACES P/N 0027104016	ADD TO CART
MACHINE SCREW 7538070 · qty on machine: 5 REPLACES P/N 0027104016 Also included in kit 1 - FUEL TANK (M2363001202) view full part page → $0.52 IN A KIT + SOLD SOLO
2	M2363200704	TANK BAND	3		ADD TO CART
TANK BAND M2363200704 · qty on machine: 3 view full part page → $16.95
3	M2363200804	TANK BAND	3		ADD TO CART
TANK BAND M2363200804 · qty on machine: 3 view full part page → $84.95
4	M9310500104	SUPPORTER SHEET	6		ADD TO CART
SUPPORTER SHEET M9310500104 · qty on machine: 6 view full part page → $5.95
5	011008020	HEX. HEAD BOLT	10	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 10 REPLACES P/N 0016908020 view full part page → $2.68
6	020108060	SELF-LOCKING NUT	6	REPLACES P/N 0207008000	ADD TO CART
SELF-LOCKING NUT 020108060 · qty on machine: 6 REPLACES P/N 0207008000 view full part page → $0.28
7	0222100710	TANK SHEET	5		ADD TO CART
TANK SHEET 0222100710 · qty on machine: 5 view full part page → $20.95
8	0191302200	VENT HOSE	1		ADD TO CART
VENT HOSE 0191302200 · qty on machine: 1 view full part page → $90.95
9	Y0605515340	HOSE BAND	12	S/N 7358774 AND BELOW	ADD TO CART
HOSE BAND Y0605515340 · qty on machine: 12 S/N 7358774 AND BELOW view full part page → $2.95
9	Y0605515361	HOSE CLIP	12	S/N 7358775 AND ABOVE	ADD TO CART
HOSE CLIP Y0605515361 · qty on machine: 12 S/N 7358775 AND ABOVE view full part page → $2.61
10	0191300760	SUCTION HOSE	1		ADD TO CART
SUCTION HOSE 0191300760 · qty on machine: 1 view full part page → $8.95
11	0191300350	RETURN HOSE	1		ADD TO CART
RETURN HOSE 0191300350 · qty on machine: 1 view full part page → $5.95
12	0191301160	SUCTION HOSE	1		ADD TO CART
SUCTION HOSE 0191301160 · qty on machine: 1 view full part page → $14.95
13	0191301000	SUCTION HOSE	1		ADD TO CART
SUCTION HOSE 0191301000 · qty on machine: 1 view full part page → $42.95
14	Y0191301450	SUCTION HOSE	1		ADD TO CART
SUCTION HOSE Y0191301450 · qty on machine: 1 view full part page → $26.88
15	8980682750	FUEL FEED PUMP	1	REPLACES P/N 0602023240	NO LONGER AVAILABLE
PHOTO COMING FUEL FEED PUMP 8980682750 · qty on machine: 1 REPLACES P/N 0602023240 NO LONGER AVAILABLE
15A	8980714010	FUEL FEED PUMP FILTER	1		ADD TO CART
FUEL FEED PUMP FILTER 8980714010 · qty on machine: 1 view full part page → $26.95
16	011606025	HEX. HEAD BOLT	2	REPLACES P/N 0016906025	ADD TO CART
HEX. HEAD BOLT 011606025 · qty on machine: 2 REPLACES P/N 0016906025 view full part page → $1.95
17	M2364300103	BRACKET, FUEL FILTER	1		PARTS REQUEST
PHOTO COMING BRACKET, FUEL FILTER M2364300103 · qty on machine: 1 PARTS REQUEST
18	0010110045	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0010110045 · qty on machine: 4 view full part page → $1.34
18A	0040010000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0040010000 · qty on machine: 4 view full part page → $0.39
18B	031110160	WASHER, FLAT	4	REPLACES P/N 0041210000	ADD TO CART
WASHER, FLAT 031110160 · qty on machine: 4 REPLACES P/N 0041210000 view full part page → $0.4
19	0010110080	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0010110080 · qty on machine: 2 view full part page → $1.95
19A	0040010000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040010000 · qty on machine: 2 view full part page → $0.39
19B	031110160	WASHER, FLAT	2	REPLACES P/N 0041210000	ADD TO CART
WASHER, FLAT 031110160 · qty on machine: 2 REPLACES P/N 0041210000 view full part page → $0.4
20	8983129150	FUEL FILTER, MAIN	1	REPLACES P/N Y0602042416	NO LONGER AVAILABLE
PHOTO COMING FUEL FILTER, MAIN 8983129150 · qty on machine: 1 REPLACES P/N Y0602042416 NO LONGER AVAILABLE
20A	8983129180	FUEL FILTER ELEMENT, MAIN	1		ADD TO CART
FUEL FILTER ELEMENT, MAIN 8983129180 · qty on machine: 1 view full part page → $161.95
21	8980758553	FUEL FILTER, PRE	1	REPLACES P/N 0602042405	NO LONGER AVAILABLE
PHOTO COMING FUEL FILTER, PRE 8980758553 · qty on machine: 1 REPLACES P/N 0602042405 NO LONGER AVAILABLE
21A	8980742881	FUEL FILTER ELEMENT, PRE	1		ADD TO CART
FUEL FILTER ELEMENT, PRE 8980742881 · qty on machine: 1 view full part page → $123.95
22	8973834270	JOINT PIPE	4	REPLACES P/N 0602042661	ADD TO CART
JOINT PIPE 8973834270 · qty on machine: 4 REPLACES P/N 0602042661 view full part page → $53.95
23	1096750951	EYE BOLT	4		ADD TO CART
EYE BOLT 1096750951 · qty on machine: 4 view full part page → $28.95
24	1096300860	PACKING	8		ADD TO CART
PACKING 1096300860 · qty on machine: 8 view full part page → $8.95

Page 34 — ENCLOSURE ASSY.

Multiquip DCA70SSIU4F Generator ENCLOSURE ASSY. parts diagram

Parts list — exactly as printed45 rows

No.	Part No.	Part Name	Qty	Remarks
1	M2414000302	BASE	1		ADD TO CART
BASE M2414000302 · qty on machine: 1 view full part page → $2925.95
1-1	Y0229200800	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL Y0229200800 · qty on machine: 1 view full part page → $1.95
2	M2364300303	ENVIRONMENTAL TANK	1		ADD TO CART
ENVIRONMENTAL TANK M2364300303 · qty on machine: 1 view full part page → $2422.95
3	0016910030	HEX. HEAD BOLT	12		ADD TO CART
HEX. HEAD BOLT 0016910030 · qty on machine: 12 view full part page → $2.95
4	0603306797	SQUARE HEAD PIPE PLUG, 1-1/2"	1		ADD TO CART
SQUARE HEAD PIPE PLUG, 1-1/2" 0603306797 · qty on machine: 1 view full part page → $12.95
5	Y0603306793	SQUARE HEAD PIPE PLUG, 1/2"	1	S/N 7354617 AND BELOW	ADD TO CART
SQUARE HEAD PIPE PLUG, 1/2" Y0603306793 · qty on machine: 1 S/N 7354617 AND BELOW view full part page → $2.95
6	M2424000202	FRONT FRAME	1	S/N 7353751 AND BELOW	ADD TO CART
FRONT FRAME M2424000202 · qty on machine: 1 S/N 7353751 AND BELOW view full part page → $1349.95
6	M2424000212	FRONT FRAME	1	S/N 7353752 AND ABOVE	PARTS REQUEST
PHOTO COMING FRONT FRAME M2424000212 · qty on machine: 1 S/N 7353752 AND ABOVE PARTS REQUEST
6A	M2494102203	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M2494102203 · qty on machine: 1 view full part page → $521.95
7	011008020	HEX. HEAD BOLT	6	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 6 REPLACES P/N 0016908020 view full part page → $2.68
8	M2424100204	COVER, FRONT FRAME	1		PARTS REQUEST
PHOTO COMING COVER, FRONT FRAME M2424100204 · qty on machine: 1 PARTS REQUEST
8A	M2491200004	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M2491200004 · qty on machine: 1 view full part page → $315.95
9	0019208020	HEX. HEAD BOLT	15		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 15 view full part page → $3.95
10	0601851736	GROMMET	1		ADD TO CART
GROMMET 0601851736 · qty on machine: 1 view full part page → $12.95
11	Y0601851765	GROMMET	1		ADD TO CART
GROMMET Y0601851765 · qty on machine: 1 view full part page → $43.95
12	M2311200204	RADIATOR BRACKET	1		ADD TO CART
RADIATOR BRACKET M2311200204 · qty on machine: 1 view full part page → $151.95
12A	M2491200104	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M2491200104 · qty on machine: 1 PARTS REQUEST
13	M2311200304	RADIATOR BRACKET	1		ADD TO CART
RADIATOR BRACKET M2311200304 · qty on machine: 1 view full part page → $151.95
13A	M2491200104	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M2491200104 · qty on machine: 1 PARTS REQUEST
14	011008020	HEX. HEAD BOLT	10	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 10 REPLACES P/N 0016908020 view full part page → $2.68
15	Y0016908015	HEX. HEAD BOLT	16		ADD TO CART
HEX. HEAD BOLT Y0016908015 · qty on machine: 16 view full part page → $1.95
16	M2311300803	FAN SHROUD	1		ADD TO CART
FAN SHROUD M2311300803 · qty on machine: 1 view full part page → $550.95
17	M2311300903	FAN SHROUD	1		ADD TO CART
FAN SHROUD M2311300903 · qty on machine: 1 view full part page → $520.95
18	011008020	HEX. HEAD BOLT	12	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 12 REPLACES P/N 0016908020 view full part page → $2.68
19	M2311301003	FAN GUARD	1		ADD TO CART
FAN GUARD M2311301003 · qty on machine: 1 view full part page → $93.95
20	M2311301103	FAN GUARD	1		ADD TO CART
FAN GUARD M2311301103 · qty on machine: 1 view full part page → $385.95
21	011008020	HEX. HEAD BOLT	11	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 11 REPLACES P/N 0016908020 view full part page → $2.68
22	M2434000303	HANGER	1		ADD TO CART
HANGER M2434000303 · qty on machine: 1 view full part page → $246.95
23	M2434000403	HANGER	1		ADD TO CART
HANGER M2434000403 · qty on machine: 1 view full part page → $217.95
24	Y0013620040	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT Y0013620040 · qty on machine: 4 view full part page → $5.95
24A	030220510	WASHER, LOCK	4	REPLACES P/N 0040020000	ADD TO CART
WASHER, LOCK 030220510 · qty on machine: 4 REPLACES P/N 0040020000 view full part page → $1.95
24B	0041220000	WASHER, FLAT	4		ADD TO CART
WASHER, FLAT 0041220000 · qty on machine: 4 view full part page → $0.95
25	M2414800104	FUEL LEAK SWITCH BRACKET	1		PARTS REQUEST
PHOTO COMING FUEL LEAK SWITCH BRACKET M2414800104 · qty on machine: 1 PARTS REQUEST
26	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
27	0605503062	FUEL LEAK DETECTED SWITCH	1		ADD TO CART
FUEL LEAK DETECTED SWITCH 0605503062 · qty on machine: 1 view full part page → $213.95
28	Y0013616035	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT Y0013616035 · qty on machine: 4 view full part page → $2.63
28A	0041216000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0041216000 · qty on machine: 4 view full part page → $1.95
28B	0040016000	WASHER, FLAT	4		ADD TO CART
WASHER, FLAT 0040016000 · qty on machine: 4 view full part page → $4.95
29	Y0013612035	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT Y0013612035 · qty on machine: 2 view full part page → $1.28
29A	031112230	WASHER, LOCK	2	REPLACES P/N 0041212000	ADD TO CART
WASHER, LOCK 031112230 · qty on machine: 2 REPLACES P/N 0041212000 view full part page → $0.95
29B	0040012000	WASHER, FLAT	2		ADD TO CART
WASHER, FLAT 0040012000 · qty on machine: 2 view full part page → $0.95
30	M2444000202	REAR FRAME	1	S/N 7356622 AND BELOW	PARTS REQUEST
PHOTO COMING REAR FRAME M2444000202 · qty on machine: 1 S/N 7356622 AND BELOW PARTS REQUEST
30	M2444000212	REAR FRAME	1	S/N 7356623 AND ABOVE	ADD TO CART
REAR FRAME M2444000212 · qty on machine: 1 S/N 7356623 AND ABOVE view full part page → $1522.95
30A	M2494301204	ACOUSTIC SHEET	1	S/N 7356622 AND BELOW	ADD TO CART
ACOUSTIC SHEET M2494301204 · qty on machine: 1 S/N 7356622 AND BELOW view full part page → $59.95
30A	M2494302604	ACOUSTIC SHEET	1	S/N 7356623 AND ABOVE	ADD TO CART
ACOUSTIC SHEET M2494302604 · qty on machine: 1 S/N 7356623 AND ABOVE view full part page → $451.95

Page 36 — ENCLOSURE ASSY. (CONT'D.)

Multiquip DCA70SSIU4F Generator ENCLOSURE ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed41 rows

No.	Part No.	Part Name	Qty	Remarks
31	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
32	M2444100004	REAR COVER	1		PARTS REQUEST
PHOTO COMING REAR COVER M2444100004 · qty on machine: 1 PARTS REQUEST
32A	M2494300804	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M2494300804 · qty on machine: 1 view full part page → $194.95
33	M2444300203	DUCT, REAR COVER	1		ADD TO CART
DUCT, REAR COVER M2444300203 · qty on machine: 1 view full part page → $649.95
33A	M2491400003	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M2491400003 · qty on machine: 1 view full part page → $263.95
34	M2444800004	RAIN GUTTER	1		ADD TO CART
RAIN GUTTER M2444800004 · qty on machine: 1 view full part page → $38.95
35	0176060030	SELF-LOCKING NUT	10	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 10 REPLACES P/N 0207006000 view full part page → $2.95
36	0019208020	HEX. HEAD BOLT	9		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 9 view full part page → $3.95
37	M2444200203	REAR DOOR	1		PARTS REQUEST
PHOTO COMING REAR DOOR M2444200203 · qty on machine: 1 PARTS REQUEST
38	M4443600004	WINDOW PLATE	1		ADD TO CART
WINDOW PLATE M4443600004 · qty on machine: 1 view full part page → $155.95
39	020106050	LOCK NUT	8	REPLACES P/N 0037906000	ADD TO CART
LOCK NUT 020106050 · qty on machine: 8 REPLACES P/N 0037906000 view full part page → $0.12
39A	952404470	WASHER, FLAT	8	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 8 REPLACES P/N 0041206000 view full part page → $0.19
40	Y0605012309	DOOR HANDLE	1	S/N 7355267 AND BELOW	ADD TO CART
DOOR HANDLE Y0605012309 · qty on machine: 1 S/N 7355267 AND BELOW view full part page → $49.95
40	Y0605012318	DOOR HANDLE	1	S/N 7355268 AND ABOVE	ADD TO CART
DOOR HANDLE Y0605012318 · qty on machine: 1 S/N 7355268 AND ABOVE view full part page → $75.95
40A	C9312500004	SEAL RUBBER	1		ADD TO CART
SEAL RUBBER C9312500004 · qty on machine: 1 view full part page → $10.95
41	0176060030	HEX. NUT	4	REPLACES P/N 0207006000	ADD TO CART
HEX. NUT 0176060030 · qty on machine: 4 REPLACES P/N 0207006000 view full part page → $2.95
42	M9110100204	HINGE	2		ADD TO CART
HINGE M9110100204 · qty on machine: 2 view full part page → $23.95
43	M9116100004	WASHER	2		ADD TO CART
WASHER M9116100004 · qty on machine: 2 view full part page → $1.93
44	0019208020	HEX. HEAD BOLT	3		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 3 view full part page → $3.95
45	0845031504	BLIND PLUG	1	REPLACES P/N M9310000004	ADD TO CART
BLIND PLUG 0845031504 · qty on machine: 1 REPLACES P/N M9310000004 view full part page → $2.95
46	M2464000102	ROOF PANEL	1		PARTS REQUEST
PHOTO COMING ROOF PANEL M2464000102 · qty on machine: 1 PARTS REQUEST
46A	M2494500803	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M2494500803 · qty on machine: 1 view full part page → $361.95
47	M2424100404	OVER COVER, FRONT FRAME	1	S/N 7353751 AND BELOW	PARTS REQUEST
PHOTO COMING OVER COVER, FRONT FRAME M2424100404 · qty on machine: 1 S/N 7353751 AND BELOW PARTS REQUEST
47	M2424100414	OVER COVER, FRONT FRAME	1	S/N 7353752 AND ABOVE	ADD TO CART
OVER COVER, FRONT FRAME M2424100414 · qty on machine: 1 S/N 7353752 AND ABOVE view full part page → $218.95
48	0019208020	HEX. HEAD BOLT	10		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 10 view full part page → $3.95
49	M3310600004	COVER	1		ADD TO CART
COVER M3310600004 · qty on machine: 1 view full part page → $17.95
50	0019208020	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 4 view full part page → $3.95
51	M2454200202	SPLASHER PANEL	1	S/N 7354617 AND BELOW	ADD TO CART
SPLASHER PANEL M2454200202 · qty on machine: 1 S/N 7354617 AND BELOW view full part page → $401.95
51	M2454200502	SPLASHER PANEL	1	S/N 7354618 ~ 7357504 S/N 7357815 ~ 7358459 S/N 7358562 ~ 7358569	PARTS REQUEST
PHOTO COMING SPLASHER PANEL M2454200502 · qty on machine: 1 S/N 7354618 ~ 7357504 S/N 7357815 ~ 7358459 S/N 7358562 ~ 7358569 PARTS REQUEST
51	M2454200902	SPLASHER PANEL	1	S/N 7357505 ~ 7357814 S/N 7358460 ~ 7358561 S/N 7358570 AND ABOVE	ADD TO CART
SPLASHER PANEL M2454200902 · qty on machine: 1 S/N 7357505 ~ 7357814 S/N 7358460 ~ 7358561 S/N 7358570 AND ABOVE view full part page → $1830.95
51A	M2494404604	ACOUSTIC SHEET	1	S/N 7354617 AND BELOW	ADD TO CART
ACOUSTIC SHEET M2494404604 · qty on machine: 1 S/N 7354617 AND BELOW view full part page → $60.95
51A	M2494409504	ACOUSTIC SHEET	1	S/N 7354618 AND ABOVE	ADD TO CART
ACOUSTIC SHEET M2494409504 · qty on machine: 1 S/N 7354618 AND ABOVE view full part page → $63.95
52	0019108055	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0019108055 · qty on machine: 2 view full part page → $3.95
52A	0042308000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0042308000 · qty on machine: 2 view full part page → $0.83
52B	0401450080	WASHER, FLAT	2	REPLACES P/N 0042408000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 2 REPLACES P/N 0042408000 view full part page → $0.56
53	0019208020	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 2 view full part page → $3.95
54	011008020	HEX. HEAD BOLT	3	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 3 REPLACES P/N 0016908020 view full part page → $2.68
55	M2454000803	SIDE DOOR	1		ADD TO CART
SIDE DOOR M2454000803 · qty on machine: 1 view full part page → $456.95
55A	M2494403804	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M2494403804 · qty on machine: 1 view full part page → $79.95
56	M2454000903	SIDE DOOR	1		ADD TO CART
SIDE DOOR M2454000903 · qty on machine: 1 view full part page → $428.95
56A	M2494403904	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M2494403904 · qty on machine: 1 view full part page → $80.95

Page 38 — ENCLOSURE ASSY. (CONT'D.)

Parts list — exactly as printed43 rows

No.	Part No.	Part Name	Qty	Remarks
57	M2454001003	SIDE DOOR	1		ADD TO CART
SIDE DOOR M2454001003 · qty on machine: 1 view full part page → $395.95
57A	M2494404004	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M2494404004 · qty on machine: 1 view full part page → $20.95
58	M2454001103	SIDE DOOR	1		ADD TO CART
SIDE DOOR M2454001103 · qty on machine: 1 view full part page → $360.95
58A	M2494404104	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M2494404104 · qty on machine: 1 view full part page → $96.95
59	M2454300504	DUCT	1		ADD TO CART
DUCT M2454300504 · qty on machine: 1 view full part page → $358.95
59A	M2494404204	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M2494404204 · qty on machine: 1 view full part page → $116.95
60	M2454300604	DUCT	1		ADD TO CART
DUCT M2454300604 · qty on machine: 1 view full part page → $238.95
60A	M2494404304	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M2494404304 · qty on machine: 1 view full part page → $96.95
61	M2454300704	DUCT	1		PARTS REQUEST
PHOTO COMING DUCT M2454300704 · qty on machine: 1 PARTS REQUEST
61A	M2494404404	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M2494404404 · qty on machine: 1 view full part page → $80.95
62	M2454301004	DUCT	1		PARTS REQUEST
PHOTO COMING DUCT M2454301004 · qty on machine: 1 PARTS REQUEST
62A	M2494404804	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M2494404804 · qty on machine: 1 view full part page → $113.95
63	M2454300904	DUCT	1		ADD TO CART
DUCT M2454300904 · qty on machine: 1 view full part page → $205.95
63A	M2494404704	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M2494404704 · qty on machine: 1 view full part page → $79.95
64	M2454300804	DUCT	1		ADD TO CART
DUCT M2454300804 · qty on machine: 1 view full part page → $205.95
64A	M2494404504	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M2494404504 · qty on machine: 1 view full part page → $79.95
65	0176060030	SELF-LOCKING NUT	42	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 42 REPLACES P/N 0207006000 view full part page → $2.95
66	M2454700604	DOOR SUPPORTER	1		ADD TO CART
DOOR SUPPORTER M2454700604 · qty on machine: 1 view full part page → $74.95
66A	0229200460	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL 0229200460 · qty on machine: 1 view full part page → $14.95
67	0176060030	SELF-LOCKING NUT	3	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 3 REPLACES P/N 0207006000 view full part page → $2.95
68	Y0605012309	DOOR HANDLE	3	S/N 7355267 AND BELOW	ADD TO CART
DOOR HANDLE Y0605012309 · qty on machine: 3 S/N 7355267 AND BELOW view full part page → $49.95
68	Y0605012318	DOOR HANDLE	3	S/N 7355268 AND ABOVE	ADD TO CART
DOOR HANDLE Y0605012318 · qty on machine: 3 S/N 7355268 AND ABOVE view full part page → $75.95
68A	C9312500004	SEAL RUBBER	3		ADD TO CART
SEAL RUBBER C9312500004 · qty on machine: 3 view full part page → $10.95
69	0176060030	HEX. NUT	12	REPLACES P/N 0207006000	ADD TO CART
HEX. NUT 0176060030 · qty on machine: 12 REPLACES P/N 0207006000 view full part page → $2.95
70	M9110100204	HINGE	4		ADD TO CART
HINGE M9110100204 · qty on machine: 4 view full part page → $23.95
71	M9110100304	HINGE	4		ADD TO CART
HINGE M9110100304 · qty on machine: 4 view full part page → $19.95
72	M9116100004	WASHER	7		ADD TO CART
WASHER M9116100004 · qty on machine: 7 view full part page → $1.93
73	0019208020	HEX. HEAD BOLT	9		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 9 view full part page → $3.95
74	0601850097	DOOR STOPPER	8		ADD TO CART
DOOR STOPPER 0601850097 · qty on machine: 8 view full part page → $2.95
75	0027208025	MACHINE SCREW	7		ADD TO CART
MACHINE SCREW 0027208025 · qty on machine: 7 view full part page → $0.76
76	0845031504	BLIND PLUG	7	REPLACES P/N M9310000004	ADD TO CART
BLIND PLUG 0845031504 · qty on machine: 7 REPLACES P/N M9310000004 view full part page → $2.95
77	0600800320	MANUAL PAK	1		ADD TO CART
MANUAL PAK 0600800320 · qty on machine: 1 view full part page → $43.95
78	0176060030	HEX. NUT	4	REPLACES P/N 0207006000	ADD TO CART
HEX. NUT 0176060030 · qty on machine: 4 REPLACES P/N 0207006000 view full part page → $2.95
79	0019208020	HEX. HEAD BOLT	10		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 10 view full part page → $3.95
80	M2414800304	HOLE COVER	1	S/N 7354458 AND ABOVE	ADD TO CART
HOLE COVER M2414800304 · qty on machine: 1 S/N 7354458 AND ABOVE view full part page → $74.95
81	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020 S/N 7354458 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 S/N 7354458 AND ABOVE view full part page → $2.68
82	0019112030	HEX. HEAD BOLT	1	S/N 7356383 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 0019112030 · qty on machine: 1 S/N 7356383 AND ABOVE view full part page → $5.95
83	Y0605050040	SEALING WASHER	1	S/N 7356383 AND ABOVE	ADD TO CART
SEALING WASHER Y0605050040 · qty on machine: 1 S/N 7356383 AND ABOVE view full part page → $1.95
84	0042312000	WASHER, LOCK	1	S/N 7356383 AND ABOVE	ADD TO CART
WASHER, LOCK 0042312000 · qty on machine: 1 S/N 7356383 AND ABOVE view full part page → $0.94
85	0042412000	WASHER, FLAT	1	S/N 7356383 AND ABOVE	ADD TO CART
WASHER, FLAT 0042412000 · qty on machine: 1 S/N 7356383 AND ABOVE view full part page → $1.63
86	0030012000	HEX. HEAD NUT	1	S/N 7356383 AND ABOVE	ADD TO CART
HEX. HEAD NUT 0030012000 · qty on machine: 1 S/N 7356383 AND ABOVE view full part page → $0.5
87	Y0601831953	EMERGENCY STOP BUTTON	1	S/N 7356623 AND ABOVE	ADD TO CART
EMERGENCY STOP BUTTON Y0601831953 · qty on machine: 1 S/N 7356623 AND ABOVE view full part page → $152.95
87A	M2358201204	WIRE HARNESS, E-STOP	1	S/N 7356623 AND ABOVE	ADD TO CART
WIRE HARNESS, E-STOP M2358201204 · qty on machine: 1 S/N 7356623 AND ABOVE view full part page → $166.81

Page 40 — RUBBER SEALS ASSY.

Multiquip DCA70SSIU4F Generator RUBBER SEALS ASSY. parts diagram

Parts list — exactly as printed17 rows

No.	Part No.	Part Name	Qty
1	0229200950	RUBBER SEAL	2	ADD TO CART
RUBBER SEAL 0229200950 · qty on machine: 2 view full part page → $9.95
2	Y0228901720	RUBBER SEAL	3	ADD TO CART
RUBBER SEAL Y0228901720 · qty on machine: 3 view full part page → $26.95
3	Y0229401180	RUBBER SEAL	3	ADD TO CART
RUBBER SEAL Y0229401180 · qty on machine: 3 view full part page → $40.95
4	0228900850	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL 0228900850 · qty on machine: 1 view full part page → $25.95
5	Y0228800680	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL Y0228800680 · qty on machine: 1 view full part page → $7.95
6	Y0228900845	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL Y0228900845 · qty on machine: 1 view full part page → $12.95
7	Y0229400500	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL Y0229400500 · qty on machine: 1 view full part page → $16.95
8	0228900470	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL 0228900470 · qty on machine: 1 view full part page → $13.95
9	0228800580	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL 0228800580 · qty on machine: 1 view full part page → $14.95
10	Y0228800820	RUBBER SEAL	2	ADD TO CART
RUBBER SEAL Y0228800820 · qty on machine: 2 view full part page → $22.95
11	0228800540	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL 0228800540 · qty on machine: 1 view full part page → $11.95
12	Y0229200885	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL Y0229200885 · qty on machine: 1 view full part page → $1.95
13	0228901120	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL 0228901120 · qty on machine: 1 view full part page → $37.95
14	0228100560	RUBBER SEAL	2	ADD TO CART
RUBBER SEAL 0228100560 · qty on machine: 2 view full part page → $5.95
15	0228100370	RUBBER SEAL	2	ADD TO CART
RUBBER SEAL 0228100370 · qty on machine: 2 view full part page → $2.95
16	Y0229200145	RUBBER SEAL	2	ADD TO CART
RUBBER SEAL Y0229200145 · qty on machine: 2 view full part page → $0.65
17	Y0229200100	RUBBER SEAL	2	ADD TO CART
RUBBER SEAL Y0229200100 · qty on machine: 2 view full part page → $0.67

Page 42 — BATTERY CHARGER ASSY. (OPTION)

Multiquip DCA70SSIU4F Generator BATTERY CHARGER ASSY. (OPTION) parts diagram

Parts list — exactly as printed10 rows

No.	Part No.	Part Name	Qty	Remarks
1	EE62021	MOUNTING PLATE, BATTERY CHARGER	1		ADD TO CART
MOUNTING PLATE, BATTERY CHARGER EE62021 · qty on machine: 1 view full part page → $30.95
2		M4 X 12MM PAN HD. SCREW W/FLAT WASHER	4	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING M4 X 12MM PAN HD. SCREW W/FLAT WASHER · qty on machine: 4 OBTAIN LOCALLY SEE REMARKS
3	EE62075	BATTERY CHARGER, MICROGENIUS LE, 6A, 12V	1		ADD TO CART
BATTERY CHARGER, MICROGENIUS LE, 6A, 12V EE62075 · qty on machine: 1 view full part page → $361.95
4		HEX. NUT 10-32	4	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING HEX. NUT 10-32 · qty on machine: 4 OBTAIN LOCALLY SEE REMARKS
5		SCREW, FLAT HEAD 10-32 X 1/2"	4	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING SCREW, FLAT HEAD 10-32 X 1/2" · qty on machine: 4 OBTAIN LOCALLY SEE REMARKS
6		WIRE, 16GA, GREEN 9FT	1	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WIRE, 16GA, GREEN 9FT · qty on machine: 1 OBTAIN LOCALLY SEE REMARKS
7		WIRE, 16GA, RED 9FT	1	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WIRE, 16GA, RED 9FT · qty on machine: 1 OBTAIN LOCALLY SEE REMARKS
8		1/2" RING TERMINAL, 14-16 AWG	2	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING 1/2" RING TERMINAL, 14-16 AWG · qty on machine: 2 OBTAIN LOCALLY SEE REMARKS
9	M1940011014Q	DECAL, BATTERY CHARGER, 120V INPUT	1		ADD TO CART
DECAL, BATTERY CHARGER, 120V INPUT M1940011014Q · qty on machine: 1 view full part page → $1.36
10	EE62076	INLET RECPT. W/ CORD, NEMA 5-15P, 15A, 125V	1		ADD TO CART
INLET RECPT. W/ CORD, NEMA 5-15P, 15A, 125V EE62076 · qty on machine: 1 view full part page → $66.95

Page 44 — JACKET WATER HEATER ASSY. (OPTION)

Multiquip DCA70SSIU4F Generator JACKET WATER HEATER ASSY. (OPTION) parts diagram

Parts list — exactly as printed15 rows

No.	Part No.	Part Name	Qty	Remarks
1		1/4" MP X 5/16 HB NIPPLE	1	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING 1/4" MP X 5/16 HB NIPPLE · qty on machine: 1 OBTAIN LOCALLY SEE REMARKS
2		1/4 X 1/4 X 1/4" FEMALE PIPE TEE	1	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING 1/4 X 1/4 X 1/4" FEMALE PIPE TEE · qty on machine: 1 OBTAIN LOCALLY SEE REMARKS
3		1/4 X 1/4 MALE TO MALE PIPE NIPPLE	1	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING 1/4 X 1/4 MALE TO MALE PIPE NIPPLE · qty on machine: 1 OBTAIN LOCALLY SEE REMARKS
4		3/8" MP X 5/8 HB 90° ELBOW	1	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING 3/8" MP X 5/8 HB 90° ELBOW · qty on machine: 1 OBTAIN LOCALLY SEE REMARKS
5		HOSE CLAMP #10	1	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING HOSE CLAMP #10 · qty on machine: 1 OBTAIN LOCALLY SEE REMARKS
6		HEATER HOSE, 5/8" ID X 30" LONG	1	OBTAIN LOCALLYH	SEE REMARKS
PHOTO COMING HEATER HOSE, 5/8" ID X 30" LONG · qty on machine: 1 OBTAIN LOCALLYH SEE REMARKS
7		SPLIT LOOM, 1 " X 20"	2	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING SPLIT LOOM, 1 " X 20" · qty on machine: 2 OBTAIN LOCALLY SEE REMARKS
8	EE10814	HEATER, 1000W, 120 VAC	1		ADD TO CART
HEATER, 1000W, 120 VAC EE10814 · qty on machine: 1 view full part page → $191.95
9		1/4" MP X 5/8" HB 90° ELBOW	1	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING 1/4" MP X 5/8" HB 90° ELBOW · qty on machine: 1 OBTAIN LOCALLY SEE REMARKS
10		NUT, 1/4	4	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING NUT, 1/4 · qty on machine: 4 OBTAIN LOCALLY SEE REMARKS
11		WASHER, LOCK 1/4"	6	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WASHER, LOCK 1/4" · qty on machine: 6 OBTAIN LOCALLY SEE REMARKS
12		WASHER, FLAT 1"	4	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WASHER, FLAT 1" · qty on machine: 4 OBTAIN LOCALLY SEE REMARKS
13	34410	BRACKET, HOT START	2	OBTAIN LOCALLY	ADD TO CART
BRACKET, HOT START 34410 · qty on machine: 2 OBTAIN LOCALLY view full part page → $211.95
14	EE62076	INLET RECPT. W/ CORD, NEMA 5-15P, 15A, 125V	1		ADD TO CART
INLET RECPT. W/ CORD, NEMA 5-15P, 15A, 125V EE62076 · qty on machine: 1 view full part page → $66.95
15	M1940011005Q	DECAL, WATER HEATER, 120V INPUT	1		ADD TO CART
DECAL, WATER HEATER, 120V INPUT M1940011005Q · qty on machine: 1 view full part page → $1.36

Page 46 — NAMEPLATE AND DECALS ASSY.

Multiquip DCA70SSIU4F Generator NAMEPLATE AND DECALS ASSY. parts diagram

Parts list — exactly as printed43 rows

No.	Part No.	Part Name	Qty	Remarks
1	M2551000503	DECAL: ENGINE OPERATION	1	M25100050	ADD TO CART
PHOTO COMING DECAL: ENGINE OPERATION M2551000503 · qty on machine: 1 M25100050 view full part page → $45.95
2	M9520000104	DECAL: AMMETER CHANGE-OVER SW	1	M92000010	ADD TO CART
DECAL: AMMETER CHANGE-OVER SW M9520000104 · qty on machine: 1 M92000010 view full part page → $11.95
3	M9520000204	DECAL: VM CHANGE-OVER SW	1	M92000020	ADD TO CART
DECAL: VM CHANGE-OVER SW M9520000204 · qty on machine: 1 M92000020 view full part page → $11.95
4	M2551000403	DECAL: GENERATOR CONTROL	1	M25100040	ADD TO CART
DECAL: GENERATOR CONTROL M2551000403 · qty on machine: 1 M25100040 view full part page → $45.95
5	M9520100704	DECAL: WARNING ARC FLASH	1	M92010070	ADD TO CART
DECAL: WARNING ARC FLASH M9520100704 · qty on machine: 1 M92010070 view full part page → $4.95
6	M9520100304	DECAL: GENERAL CAUTIONS	1	M92010030	ADD TO CART
DECAL: GENERAL CAUTIONS M9520100304 · qty on machine: 1 M92010030 view full part page → $3.95
7	M9520100004	DECAL: WARNING ELECT. SHOCK	2	M92010000	ADD TO CART
DECAL: WARNING ELECT. SHOCK M9520100004 · qty on machine: 2 M92010000 view full part page → $5.95
8	M9520200404	DECAL: O. C. R. RESET	1	M92020040	ADD TO CART
DECAL: O. C. R. RESET M9520200404 · qty on machine: 1 M92020040 view full part page → $3.95
9	M9520200003	DECAL: CONNECT. OF OUTPUT CABLE	1	M92020000	ADD TO CART
DECAL: CONNECT. OF OUTPUT CABLE M9520200003 · qty on machine: 1 M92020000 view full part page → $7.95
10	M9520000004	DECAL: GROUNDING	2	M92000000	ADD TO CART
DECAL: GROUNDING M9520000004 · qty on machine: 2 M92000000 view full part page → $1.95
11	M9520100404	DECAL: DANGER HIGH VOLTAGE	1	M92010040	ADD TO CART
DECAL: DANGER HIGH VOLTAGE M9520100404 · qty on machine: 1 M92010040 view full part page → $37.95
12	M9520100204	DECAL: CAUTION CHANGE-OVER SW	1	M92010020A	ADD TO CART
DECAL: CAUTION CHANGE-OVER SW M9520100204 · qty on machine: 1 M92010020A view full part page → $3.95
13	M9500300104	DECAL: +	1	M90030010	ADD TO CART
DECAL: + M9500300104 · qty on machine: 1 M90030010 view full part page → $1.95
14	M9500300004	DECAL: -	1	M90030000	ADD TO CART
DECAL: - M9500300004 · qty on machine: 1 M90030000 view full part page → $1.95
15	M9503100004	DECAL: WARNING RADIATOR CAP	1	M90310000	ADD TO CART
DECAL: WARNING RADIATOR CAP M9503100004 · qty on machine: 1 M90310000 view full part page → $4.95
16	M9500100004	DECAL: WATER	1	M90010000	ADD TO CART
DECAL: WATER M9500100004 · qty on machine: 1 M90010000 view full part page → $1.95
17	M1550001504	DECAL: CAUTION LIFTING CAPACITY	1	M15000150	ADD TO CART
DECAL: CAUTION LIFTING CAPACITY M1550001504 · qty on machine: 1 M15000150 view full part page → $35.95
18	M9510100004	DECAL: CAUTION HIGH TEMP	1	M91010000	ADD TO CART
DECAL: CAUTION HIGH TEMP M9510100004 · qty on machine: 1 M91010000 view full part page → $68.95
19	9503200004	DECAL: WARNING EXHAUST GAS	1	M90320000	ADD TO CART
DECAL: WARNING EXHAUST GAS 9503200004 · qty on machine: 1 M90320000 view full part page → $17.47
20	M9503000004	DECAL: WARNING ROTATING PART	2	M90300000	ADD TO CART
DECAL: WARNING ROTATING PART M9503000004 · qty on machine: 2 M90300000 view full part page → $1.95
21	M2561100903	STRIPE	1		ADD TO CART
STRIPE M2561100903 · qty on machine: 1 view full part page → $20.95
22	M2561100803	STRIPE	1		ADD TO CART
STRIPE M2561100803 · qty on machine: 1 view full part page → $20.95
23	M2561101104	STRIPE	1		ADD TO CART
STRIPE M2561101104 · qty on machine: 1 view full part page → $5.95
24	M2561100703	STRIPE	2		ADD TO CART
STRIPE M2561100703 · qty on machine: 2 view full part page → $20.95
25	M9520100603	DECAL: WARNING AUTO START	2	M92010060	ADD TO CART
DECAL: WARNING AUTO START M9520100603 · qty on machine: 2 M92010060 view full part page → $8.95
26	M2550000304	DECAL: NOTE LOAD SHARING	1	M25000030A	ADD TO CART
DECAL: NOTE LOAD SHARING M2550000304 · qty on machine: 1 M25000030A view full part page → $8.95
27	M9503000103	DECAL: DAILY CHECK WATER AND OIL	1	M90300010	ADD TO CART
DECAL: DAILY CHECK WATER AND OIL M9503000103 · qty on machine: 1 M90300010 view full part page → $7.95
28	M9520000504	DECAL: START CONTACT	1	M92000050	ADD TO CART
DECAL: START CONTACT M9520000504 · qty on machine: 1 M92000050 view full part page → $67.95
29	M9520100503	DECAL: WARNING	1	M92010050	ADD TO CART
DECAL: WARNING M9520100503 · qty on machine: 1 M92010050 view full part page → $1.95
30	M9511100104	DECAL: NOTE RECEPTACLE	1	M91110010	ADD TO CART
DECAL: NOTE RECEPTACLE M9511100104 · qty on machine: 1 M91110010 view full part page → $3.95
31	M1550000703	DECAL: AUXILIARY OUTPUT	1	M15000070 S/N 7354617 AND BELOW	ADD TO CART
DECAL: AUXILIARY OUTPUT M1550000703 · qty on machine: 1 M15000070 S/N 7354617 AND BELOW view full part page → $36.95
31	M3551002003	DECAL: AUXILIARY OUTPUT	1	M35100200 S/N 7354618 AND ABOVE	PARTS REQUEST
PHOTO COMING DECAL: AUXILIARY OUTPUT M3551002003 · qty on machine: 1 M35100200 S/N 7354618 AND ABOVE PARTS REQUEST
32	M2561101904	STRIPE	1	REPLACES P/N M2561101203	NO LONGER AVAILABLE
PHOTO COMING STRIPE M2561101904 · qty on machine: 1 REPLACES P/N M2561101203 NO LONGER AVAILABLE
33	M2561101004	STRIPE	3		ADD TO CART
STRIPE M2561101004 · qty on machine: 3 view full part page → $3.95
34	M9510100403	DECAL: WARNING BATTERY CONNECT	1	M91010040A	ADD TO CART
DECAL: WARNING BATTERY CONNECT M9510100403 · qty on machine: 1 M91010040A view full part page → $16.95
35	M9501500004	DECAL: DIESEL FUEL	1	M90150000	ADD TO CART
DECAL: DIESEL FUEL M9501500004 · qty on machine: 1 M90150000 view full part page → $3.95
36	M9500000004	DECAL: OIL DRAIN	1	M90000000	ADD TO CART
DECAL: OIL DRAIN M9500000004 · qty on machine: 1 M90000000 view full part page → $2.95
37	M9510000104	DECAL: DOCUMENT BOX LOCATED	1	M91000010	ADD TO CART
DECAL: DOCUMENT BOX LOCATED M9510000104 · qty on machine: 1 M91000010 view full part page → $4.95
38	M9511100004	DECAL: WARNING ENV. TANK	1	M91110000	ADD TO CART
DECAL: WARNING ENV. TANK M9511100004 · qty on machine: 1 M91110000 view full part page → $6.95
39	M9503200104	DECAL: DANGER EX. GAS (INDOOR)	1	M90320010	ADD TO CART
DECAL: DANGER EX. GAS (INDOOR) M9503200104 · qty on machine: 1 M90320010 view full part page → $4.95
40	920214100	DECAL: WARNING START FIRES	1	REPLACES P/N M9504200004 M90420000	ADD TO CART
DECAL: WARNING START FIRES 920214100 · qty on machine: 1 REPLACES P/N M9504200004 M90420000 view full part page → $12.95
41	9501200003	DECAL: SCR PURGE SYSTEM	1	M90120000	ADD TO CART
DECAL: SCR PURGE SYSTEM 9501200003 · qty on machine: 1 M90120000 view full part page → $25.44
42	M2551000303	OPERATING PROCEDURES	1	M25100030 S/N 7356622 AND BELOW	ADD TO CART
OPERATING PROCEDURES M2551000303 · qty on machine: 1 M25100030 S/N 7356622 AND BELOW view full part page → $29.95

Page 48 — NAMEPLATE AND DECALS ASSY. (CONT'D.)

Multiquip DCA70SSIU4F Generator NAMEPLATE AND DECALS ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed17 rows

No.	Part No.	Part Name	Qty	Remarks
42	M2551000803	OPERATING PROCEDURES	1	M25100080 S/N 7356623 AND ABOVE	ADD TO CART
OPERATING PROCEDURES M2551000803 · qty on machine: 1 M25100080 S/N 7356623 AND ABOVE view full part page → $18.95
43	M9511200204	STICKER, MQ	1	M91120020	ADD TO CART
STICKER, MQ M9511200204 · qty on machine: 1 M91120020 view full part page → $5.95
44	2561100103	STRIPE	1		ADD TO CART
STRIPE 2561100103 · qty on machine: 1 view full part page → $14.79
45	M9510000004	DECAL: FLUID DRAIN	1	M91000000	ADD TO CART
DECAL: FLUID DRAIN M9510000004 · qty on machine: 1 M91000000 view full part page → $26.95
46	0600500092	EMBLEM	1		ADD TO CART
EMBLEM 0600500092 · qty on machine: 1 view full part page → $21.95
47	0021106015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021106015 · qty on machine: 4 view full part page → $0.17
48	M9504500004	DECAL: REFILL DEF AS WELL	1	M90450000	ADD TO CART
DECAL: REFILL DEF AS WELL M9504500004 · qty on machine: 1 M90450000 view full part page → $9.95
49	M9501500104	DECAL: DIESEL EXHAUST FLUID	1	M90150010	ADD TO CART
DECAL: DIESEL EXHAUST FLUID M9501500104 · qty on machine: 1 M90150010 view full part page → $14.95
50	M9500100304	DECAL: INTER-COOLER DRAIN	1	M90010030	ADD TO CART
DECAL: INTER-COOLER DRAIN M9500100304 · qty on machine: 1 M90010030 view full part page → $1.95
51	M9520002104	DECAL: FUEL PUMP SWITCH	1	M92000210	ADD TO CART
DECAL: FUEL PUMP SWITCH M9520002104 · qty on machine: 1 M92000210 view full part page → $1.31
52	M9511200103	DECAL: TIER 4F	1	M91120010	ADD TO CART
DECAL: TIER 4F M9511200103 · qty on machine: 1 M91120010 view full part page → $17.95
53	M9501300104	DECAL: CAUTION BATTERY CABLES	1	M90130010	ADD TO CART
DECAL: CAUTION BATTERY CABLES M9501300104 · qty on machine: 1 M90130010 view full part page → $1.85
54	M9521200604	DECAL: BONDED NEUTRAL	1	M92120060 S/N 7353347 AND ABOVE	ADD TO CART
DECAL: BONDED NEUTRAL M9521200604 · qty on machine: 1 M92120060 S/N 7353347 AND ABOVE view full part page → $11.95
55	M9541100004	DECAL: CAUTION EXH. FLUID ONLY	1	M94110000 S/N 7354148 AND ABOVE	ADD TO CART
DECAL: CAUTION EXH. FLUID ONLY M9541100004 · qty on machine: 1 M94110000 S/N 7354148 AND ABOVE view full part page → $3.95
56	M9504200104	DECAL: WARNING PROPOSITION	65	1 M90420010 S/N 7354848 AND ABOVE	ADD TO CART
DECAL: WARNING PROPOSITION M9504200104 · qty on machine: 65 1 M90420010 S/N 7354848 AND ABOVE view full part page → $4.95
57	M9522000004	DECAL: WATER HEATER	1	M92200000 S/N 7355078 AND ABOVE	ADD TO CART
DECAL: WATER HEATER M9522000004 · qty on machine: 1 M92200000 S/N 7355078 AND ABOVE view full part page → $7.95
58	M9521002804	DECAL: EMERGENCY STOP BUTTON	1	M92100280 S/N 7356623 AND ABOVE	ADD TO CART
DECAL: EMERGENCY STOP BUTTON M9521002804 · qty on machine: 1 M92100280 S/N 7356623 AND ABOVE view full part page → $3.95

The machine itself

Price by quote Get a quote

Tell us where the machine is headed and we'll quote it with freight. One call, no games.

The Multiquip DCA70SSIU4F is a generator built for portable jobsite power for tools, lighting, and equipment. It runs a DCA70SSIU4F engine. Factory-documented specs and parts support; priced by quote.

Keep-it-running spares

All listed parts →

Every part that fits this machine

0191301000 Multiquip 0191301000 Hose Return Denyo - OEM Replacement Part for Super Silent Generators $42.95

0191302200 Multiquip 0191302200 Hose Return Denyo - OEM Replacement Part $90.95

0199901500 Multiquip 0199901500 Hose Denyo - OEM Replacement Part for Super Silent Generators $44.95

0228901120 Multiquip 0228901120 Seal Rubber Denyo - OEM Replacement Part $37.95

0601801041 Multiquip 0601801041 Change-Over Switch Voltmeter Denyo - OEM Replacement Part $157.95

0601802218 Multiquip 0601802218 Fuse Holder - OEM Replacement Part for Generators $47.95

0601806859 Multiquip 0601806859 Voltmeter AC DENYO - OEM Replacement Part for Generator Control Panels $368.95

0601807641 Multiquip 0601807641 Frequency Meter Denyo - OEM Replacement Part $591.95

0601808803 Multiquip 0601808803 Circuit Breaker 1P 20A - OEM Replacement Part for Super Silent Generators $46.95

0601808804 Multiquip 0601808804 Circuit Breaker 2P 50A - OEM Replacement Part for Super Silent Generators $98.95

0601808987 Multiquip 0601808987 Ammeter AC AFC6 Denyo - OEM Replacement Part $246.95

0601812527 Multiquip 0601812527 Connector Denyo - OEM Replacement Part for Generator Control Systems $64.95

0601830762 Multiquip 0601830762 Switch Selector Auto/Manual - OEM Replacement Part $36.95

0601840073 Multiquip 0601840073 Rheostat Voltage Regulator for 150SSK and DCA Series Generators - OEM Replacement Part $90.95

0602022561 Multiquip 0602022561 90 Degree Elbow DENYO - OEM Replacement Part for Generator Systems $76.95

0602022581 Multiquip 0602022581 Adapter Denyo - OEM Replacement Part for DCA Generators $147.95

0602103092 Multiquip 0602103092 Lamp Alarm Charge Red - OEM Replacement Part $36.95

0602220199 Multiquip 0602220199 Battery (Wet) DENYO - OEM Replacement Part $288.95

0602315001 Multiquip 0602315001 Magnetic Valve - OEM Replacement Part $480.95

0603306590 Multiquip 0603306590 Male Bulkhead Connector - OEM Replacement Part for Denyo Generators $86.95

0605511395 Multiquip 0605511395 Ball Valve DENYO - OEM Replacement Part $46.95

0605515208 Multiquip 0605515208 Hose Band Clamp (Denyo) - OEM Replacement Part $61.95

0605515236 Multiquip 0605515236 Band Hose Denyo - OEM Replacement Part $46.95

0845031303 Multiquip 0845031303 Reserve Fuel Tank - OEM Replacement Part for Super Silent Generators $45.95

34410 Multiquip 34410 Heater Bracket - OEM Replacement Part for Super Silent Generators $211.95

82608 Multiquip 82608 Toggle Switch Denyo Mods - OEM Replacement Part for Super Silent Generators $34.95

8943690210 Multiquip 8943690210 Gasket Exh 4BD1T DCA-60SSIT - OEM Replacement Part $57.95

8944001061 Multiquip 8944001061 Relay Glow TLG-12SPX - OEM Replacement Part $214.95

8970119490 Multiquip 8970119490 Relay Glow Plug DCA-125SSIU - OEM Replacement Part $301.95

8973629260 Multiquip 8973629260 Fan Belt DCA-70SSIU2 - OEM Replacement Part $59.95

8973767580 Multiquip 8973767580 Gasket Turbo to Exhaust Duct - OEM Replacement Part $57.95

8973834270 Multiquip 8973834270 Pipe Joint DCA-125SSIU - OEM Replacement Part $53.95

8975055470 Multiquip 8975055470 Engine Control Unit - OEM Replacement Part $4,844.95

8976019670 Multiquip 8976019670 Mass Air Flow Sensor - OEM Replacement Part $814.95

8976586210 Multiquip 8976586210 ECM - OEM Replacement Part $3,897.95

8980863290 Multiquip 8980863290 SCR Temp Sensor - OEM Replacement Part $317.95

8981213061 Multiquip 8981213061 Coolant Control Valve - OEM Replacement Part $467.95

8981783581 Multiquip 8981783581 DOC Temp Sensor Front - OEM Replacement Part $332.95

8982465062 Multiquip 8982465062 DEF DCM Exhaust NOX Sensor - OEM Replacement Part $1,953.95

8982984470 Multiquip 8982984470 DEF Tank - OEM Replacement Part $2,395.95

8983029372 Multiquip 8983029372 SCR Assembly - OEM Replacement Part for Super Silent Generators $32,542.95

8983129180 Multiquip 8983129180 Secondary Fuel Filter Element - OEM Replacement Part $161.95

8983193760 Multiquip 8983193760 Air Pressure Switch - OEM Replacement Part $195.95

8983243390 Multiquip 8983243390 Control Unit - OEM Replacement Part $2,540.95

B2163100004 Multiquip B2163100004 Coupling Disk - OEM Replacement Part for Super Silent Generators $95.95

B3111100603 Multiquip B3111100603 Fan DCA-45USI2 - OEM Replacement Part for Super Silent Generators $232.95

B3120100804 Multiquip B3120100804 Holder ZNR - OEM Replacement Part for Super Silent Generators $140.95

B3131300804 Multiquip B3131300804 End Bracket Cover for DCA Generator - OEM Replacement Part $60.95

B3137000803 Multiquip B3137000803 Exciter Field Assembly - OEM Generator Replacement Part $1,882.95

B3153000513 Multiquip B3153000513 End Bracket for DCA Series Generators - OEM Replacement Part $636.95

B3153400404 Multiquip B3153400404 Bearing Cover for DCA Series Generators - OEM Replacement Part $40.95

B3163200104 Multiquip B3163200104 Washer Coupler - OEM Replacement Part for Super Silent Generators $112.95

B5110000402 Multiquip B5110000402 Rotor Assembly - OEM Replacement Generator Part $9,560.95

B5131300004 Multiquip B5131300004 Cover End Bracket DCA-45USI2 - OEM Replacement Part $63.95

C3558201704 Multiquip C3558201704 Fuse Holder Unit - OEM Replacement Part for Super Silent Generators $37.95

ECU835 Multiquip ECU835 ECU Power Balance Application - OEM Replacement Part for Super Silent Generators $1,778.95

EE10814 Multiquip EE10814 Tank Heater Kim Hotstart 120V 1000W - OEM Replacement Part $191.95

EE62075 Multiquip EE62075 Battery Charger MicroGenius LE 6 Amp 12V - OEM Replacement Part $361.95

EE62076 Multiquip EE62076 Inlet Receptacle & Cord NEMA 5-15P 15A 125V - OEM Replacement Part $66.95

LY2DUS12VDC Multiquip LY2DUS12VDC Relay with Diode - OEM Replacement Part for DCA Generators $46.95

M1260700304 Multiquip M1260700304 Cover Breaker Fitting - OEM Replacement Part $75.95

M1550000703 Multiquip M1550000703 Decal Aux Output - OEM Replacement Part $36.95

M1550001504 Multiquip M1550001504 Decal Caution Denyo - OEM Replacement Part $35.95

M2224000203 Multiquip M2224000203 Control Panel - OEM Replacement Part for Super Silent Generators $242.95

M2237100003 Multiquip M2237100003 Terminal Cover (White) Denyo - OEM Replacement Part $97.95

M2237100103 Multiquip M2237100103 3-Phase Output Terminal Cover - OEM Replacement Part $111.95

M2247700304 Multiquip M2247700304 Wire Harness Denyo - OEM Replacement Part $861.95

M2311200204 Multiquip M2311200204 Radiator Bracket - OEM Replacement Part $151.95

M2311200304 Multiquip M2311200304 Radiator Bracket - OEM Replacement Part $151.95

M2311300803 Multiquip M2311300803 Fan Guard E-Coat - OEM Replacement Part $550.95

M2311300903 Multiquip M2311300903 Fan Guard E-Coat - OEM Replacement Part $520.95

M2311301103 Multiquip M2311301103 Fan Guard Denyo - OEM Replacement Part $385.95

M2311400004 Multiquip M2311400004 Inter-Cooler Pipe - OEM Replacement Part $2,973.95

M2311500503 Multiquip M2311500503 Upper Radiator Hose - OEM Replacement Part $62.95

M2311500603 Multiquip M2311500603 Lower Radiator Hose (KY) - OEM Replacement Part $50.95

M2311500703 Multiquip M2311500703 Intercooler Hose - OEM Replacement Part $1,493.95

M2311500803 Multiquip M2311500803 Intercooler Hose - OEM Replacement Part for Super Silent Generators $1,408.95

M2316100304 Multiquip M2316100304 Reserve Tank Bracket - OEM Replacement Part for Super Silent Generators $73.95

M2327200004 Multiquip M2327200004 Blowby Hose (JP) - OEM Replacement Part for Super Silent Generators $106.95

M2334000303 Multiquip M2334000303 Exhaust Pipe Denyo - OEM Replacement Part $918.95

M2334000504 Multiquip M2334000504 Exhaust Pipe (JP) - OEM Replacement Part $562.95

M2334000603 Multiquip M2334000603 Exhaust Pipe Denyo - OEM Replacement Part $562.95

M2334300203 Multiquip M2334300203 DEF Tank Bracket (E-Coat) - OEM Replacement Part for DENYO Generators $152.95

M2347400104 Multiquip M2347400104 Battery Cable (-) 70SSIU4F - OEM Replacement Part $76.95

M2358200304 Multiquip M2358200304 Wire Harness Controller Denyo - OEM Replacement Part $4,492.95

M2358200602 Multiquip M2358200602 Engine Wiring Harness Denyo - OEM Replacement Part $1,880.95

M2358200804 Multiquip M2358200804 Wire Harness PCV Heater - OEM Replacement Part $220.95

M2358200904 Multiquip M2358200904 Pressure Switch Harness - OEM Replacement Part for Super Silent Generators $64.95

M2363001202 Multiquip M2363001202 Fuel Tank Denyo - OEM Replacement Part for DCA Generators $1,750.95

M2363200804 Multiquip M2363200804 Band Tank Denyo - OEM Replacement Part $84.95

M2364300303 Multiquip M2364300303 Environmental Tank E-Coat Black - OEM Replacement Part $2,422.95

M2374100103 Multiquip M2374100103 Hose Denyo (JP) - OEM Replacement Part $665.95

M2374100203 Multiquip M2374100203 Air Cleaner Hose (B) - OEM Replacement Part $717.95

M2414000302 Multiquip M2414000302 BASE - OEM Replacement Part for Super Silent Generator $2,925.95

M2414800304 Multiquip M2414800304 Hole Cover Base (E-Coat) - OEM Replacement Part $74.95

M2434000403 Multiquip M2434000403 Center Frame Right Hanger White - OEM Replacement Part $217.95

M2444300203 Multiquip M2444300203 Rear Cover Duct (White) - OEM Replacement Part $649.95

M2444800004 Multiquip M2444800004 Rain Gutter White - OEM Replacement Part for Denyo Super Silent Generators $38.95

M2454000903 Multiquip M2454000903 Side Door White Denyo - OEM Replacement Part $428.95

M2454001003 Multiquip M2454001003 Side Door (White) Denyo - OEM Replacement Part $395.95

M2454001103 Multiquip M2454001103 Side Door - OEM Replacement Part for WhisperWatt Super Silent Generators $360.95

M2454200202 Multiquip M2454200202 Splasher Panel (White) - OEM Replacement Part for DENYO Generators $401.95

M2454200902 Multiquip M2454200902 Splasher Panel - OEM Replacement Part for Super Silent Generators $1,830.95

M2454300504 Multiquip M2454300504 Duct (KY) - OEM Replacement Part for Super Silent Generators $358.95

M2454300604 Multiquip M2454300604 Duct (KY) - OEM Replacement Part for Super Silent Generators $238.95

M2454300804 Multiquip M2454300804 White Duct - OEM Replacement Part for Super Silent Generators $205.95

M2454300904 Multiquip M2454300904 White Air Duct (Denyo) - OEM Replacement Part for Super Silent Generators $205.95

M2454700704 Multiquip M2454700704 Rubber Sheet 70SSIU4F - OEM Replacement Part $41.95

M2491200004 Multiquip M2491200004 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $315.95

M2491400003 Multiquip M2491400003 Acoustic Sheet - OEM Replacement Part $263.95

M2494300804 Multiquip M2494300804 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $194.95

M2494301204 Multiquip M2494301204 Acoustic Sheet DENYO - OEM Replacement Part $59.95

M2494403804 Multiquip M2494403804 Acoustic Sheet Denyo - OEM Replacement Part $79.95

M2494403904 Multiquip M2494403904 Acoustic Sheet Denyo - OEM Replacement Part $80.95

M2494404104 Multiquip M2494404104 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $96.95

M2494404204 Multiquip M2494404204 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $116.95

M2494404304 Multiquip M2494404304 Acoustic Sheet Denyo - OEM Replacement Part $96.95

M2494404404 Multiquip M2494404404 Acoustic Sheet Denyo - OEM Replacement Part $80.95

M2494404504 Multiquip M2494404504 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $79.95

M2494404604 Multiquip M2494404604 Splasher Panel Acoustic Sheet - OEM Replacement Part $60.95

M2494404704 Multiquip M2494404704 Acoustic Sheet Denyo - OEM Replacement Part $79.95

M2494404804 Multiquip M2494404804 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $113.95

M2494500803 Multiquip M2494500803 Acoustic Sheet Denyo - OEM Replacement Part $361.95

M2551000503 Multiquip M2551000503 Engine Control Decal - OEM Replacement Part for Denyo Generators $45.95

M2924000044 Multiquip M2924000044 4JJ1XAGD01A Engine - OEM Replacement Part $23,910.95

M3214601004 Multiquip M3214601004 Fuse Holder Assembly - OEM Replacement Part $140.95

M3230700003 Multiquip M3230700003 Output Panel Denyo - OEM Replacement Part for Generator $258.95

M3236100104 Multiquip M3236100104 Window Output - OEM Replacement Part for Super Silent Generators $72.95

M4443600004 Multiquip M4443600004 Plate Window Denyo - OEM Replacement Part $155.95

M9103000304 Multiquip M9103000304 Battery Band - OEM Replacement Part $72.95

M9220100304 Multiquip M9220100304 Bolt Output Term - OEM Replacement Part for Generators $118.95

M9520100404 Multiquip M9520100404 Danger High Voltage Decal - OEM Replacement Part $37.95

PTF08A Multiquip PTF08A Relay Base - OEM Replacement Part $47.95

Y0229401180 Multiquip Y0229401180 Rubber Seal Denyo - OEM Replacement Part for Super Silent Generators $40.95

Y0377103140 Multiquip Y0377103140 Coolant Line Screw 3140mm - OEM Replacement Part $37.95

Y0601808833 Multiquip Y0601808833 Circuit Breaker 2P 200A - OEM Replacement Part $770.95

Y0601809693 Multiquip Y0601809693 Current Transformer Denyo - OEM Replacement Part $63.95

Y0601810170 Multiquip Y0601810170 Panel Light Denyo - OEM Replacement Part $142.95

Y0601814034 Multiquip Y0601814034 GFCI Receptacle 5-20R (KY) - OEM Replacement Part $91.95

Y0601814453 Multiquip Y0601814453 Preheat Lamp (JP) - OEM Replacement Part for Super Silent Generators $36.95

Y0601815870 Multiquip Y0601815870 Terminal Block DENYO - OEM Replacement Part $52.95

Y0601816538 Multiquip Y0601816538 Terminal Denyo - OEM Replacement Part for Super Silent Generators $51.95

Y0601820638 Multiquip Y0601820638 AVR Model Denyo - OEM Replacement Part for Super Silent Generators $1,205.95

Y0601851765 Multiquip Y0601851765 Grommet - OEM Replacement Part for Super Silent Generators $43.95

Y0602012908 Multiquip Y0602012908 Radiator & Inter-Cooler Denyo - OEM Replacement Part $3,241.95

Y0602015750 Multiquip Y0602015750 Radiator Cap (KY) - OEM Replacement Part $76.95

Y0602046578 Multiquip Y0602046578 Air Cleaner Assembly DENYO - OEM Replacement Part $893.95

Y0602046634 Multiquip Y0602046634 Air Filter Element - OEM Replacement Part $79.95

Y0602120901 Multiquip Y0602120901 Gauge Unit Assembly - OEM Replacement Part $930.95

Y0602311160 Multiquip Y0602311160 Exhaust Pipe Heatshield (A) - OEM Replacement Part $324.95

Y0602311161 Multiquip Y0602311161 Heat Shield Denyo - OEM Replacement Part $297.95

Y0602311162 Multiquip Y0602311162 Heat Shield Denyo - OEM Replacement Part $487.95

Y0602330453 Multiquip Y0602330453 Elbow Joint Denyo - OEM Replacement Part for Super Silent Generators $618.95

Y0602330454 Multiquip Y0602330454 Tee Fitting Denyo - OEM Replacement Part for Super Silent Generators $422.95

Y0602330461 Multiquip Y0602330461 DEF Suction Line - OEM Replacement Part for Super Silent Generators $372.95

Y0602330462 Multiquip Y0602330462 DEF Line Backflow Preventer - OEM Replacement Part $365.95

Y0602330463 Multiquip Y0602330463 Pressure Line DEF Line - OEM Replacement Part $605.95

Y0605000461 Multiquip Y0605000461 Rubber Suspension - OEM Replacement Part $55.95

Y0605012309 Multiquip Y0605012309 Door Handle with Bolts - OEM Replacement Part $49.95

Y0605012318 Multiquip Y0605012318 Door Handle (KY) - OEM Replacement Part $75.95

Y0605511394 Multiquip Y0605511394 Mini Ball Valve Denyo - OEM Replacement Part $70.95

0010110045 HEX. HEAD BOLT $1.34

0016908030 HEX. HEAD BOLT

0016910025 HEX. HEAD BOLT $1.56

0016910030 HEX. HEAD BOLT $2.95

0017112025 HEX. HEAD BOLT $2.93

0019108055 HEX. HEAD BOLT $3.95

0019112030 HEX. HEAD BOLT $5.95

0019208020 HEX. HEAD BOLT $3.95

0021004040 MACHINE SCREW $0.64

0021004070 MACHINE SCREW $2.95

0021106015 MACHINE SCREW $0.17

0027103010 MACHINE SCREW $0.44

0027103020 MACHINE SCREW $0.37

0027104010 MACHINE SCREW $0.33

0027104015 MACHINE SCREW $0.53

0027104020 MACHINE SCREW $0.40

0027105015 MACHINE SCREW $0.20

0027208025 MACHINE SCREW $0.76

0030012000 HEX. NUT $0.50

0040004000 WASHER, LOCK $0.09

0040006000 WASHER, LOCK $0.17

0040008000 WASHER, LOCK $0.63

0040010000 WASHER, LOCK $0.39

0040012000 WASHER, LOCK $0.95

0040016000 WASHER, LOCK $4.95

0040512000 TOOTHED WASHER $0.77

0041216000 WASHER, LOCK $1.95

0042308000 WASHER, LOCK $0.83

0042312000 WASHER, LOCK $0.94

0042412000 WASHER, FLAT $1.63

0080200007 E-SNAP RING $1.39

0105091025 HEX. HEAD BOLT $0.68

011008020 HEX. HEAD BOLT $2.68

011106015 HEX. HEAD BOLT $0.69

011206020 HEX. HEAD BOLT $0.95

011208025 HEX. HEAD BOLT $0.41

011208030 HEX. HEAD BOLT $1.30

011606025 HEX. HEAD BOLT $1.95

011808015 MACHINE SCREW $6.95

From the guides desk

Guide · 2026-08-04

Ask ARIA about your machine.

Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.

Chat with ARIA

Multiquip DCA70SSIU4F Generator

The parts bench

The machine itself

Machine

Engine

Keep-it-running spares

Every part that fits this machine

Service notices & part changes

Take the factory book with you

Get the download pack

From the guides desk

Multiquip DCA Generator Fault Shutdown and Controller Reset Guide

Multiquip Generator No-Start and No-Power Fixes

Multiquip DCA Generator Fault Codes and Diagnostics Guide

Ask ARIA about your machine.

Your cart is empty

Your cart is empty
