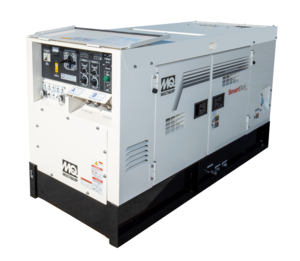

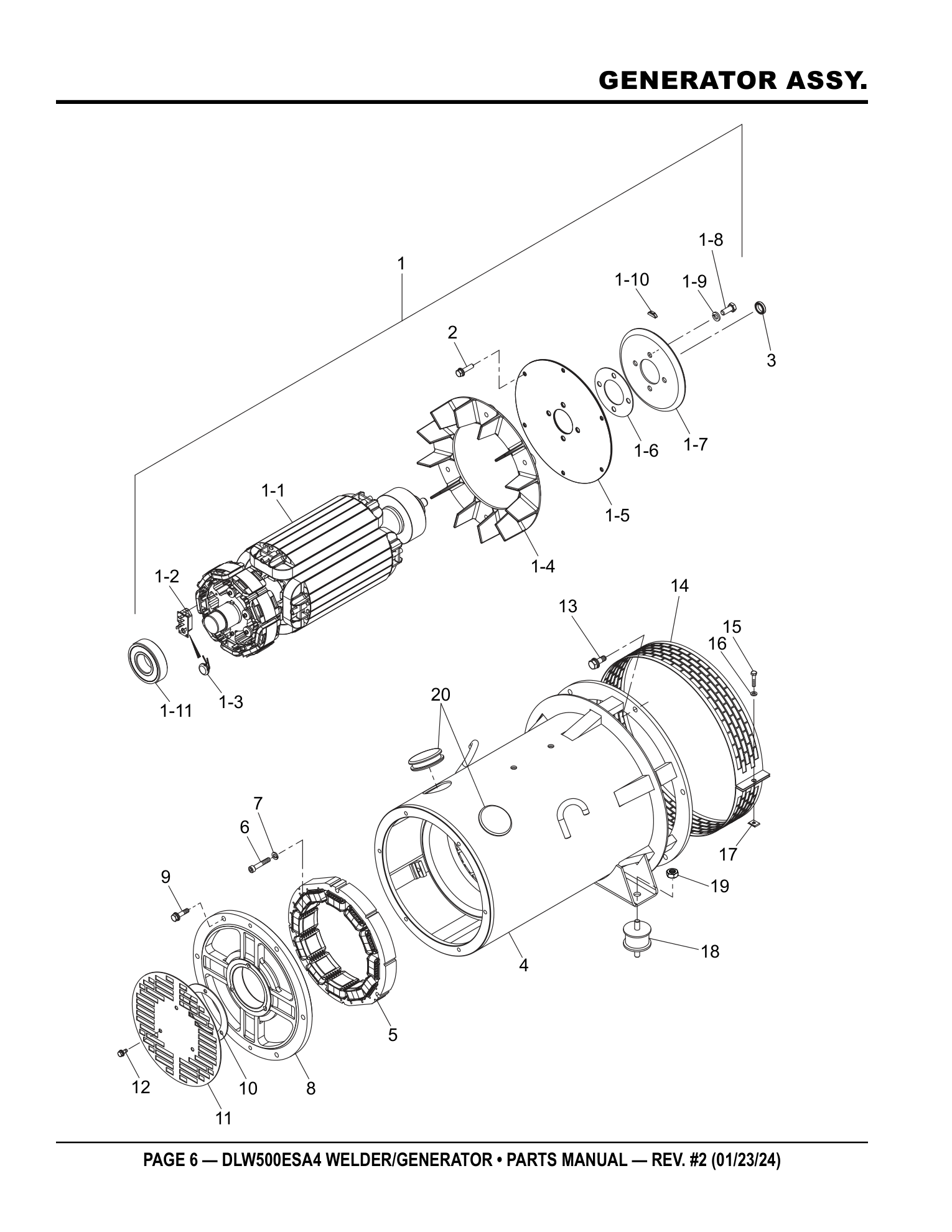

Page 6 — GENERATOR ASSY.

Multiquip DLW500 Diesel Welder GENERATOR ASSY. parts diagram

Parts list — exactly as printed33 rows

No.	Part No.	Part Name	Qty	Remarks
1	D6110100102	ROTOR ASSY	1	INCLUDES ITEMS W/# S/N 5936273 AND BELOW	PARTS REQUEST
PHOTO COMING ROTOR ASSY D6110100102 · qty on machine: 1 INCLUDES ITEMS W/# S/N 5936273 AND BELOW Kit includes: 1-1#$, 1-2#, 1-2$, 1-3#$, 1-4#$, 1-5#$, 1-6#$, 1-7#$, 1-8#$, 1-9#$, 1-10#$, 1-11#$ PARTS REQUEST
1	D6110100112	ROTOR ASSY	1	INCLUDES ITEMS W/$ S/N 5936274 AND ABOVE	PARTS REQUEST
PHOTO COMING ROTOR ASSY D6110100112 · qty on machine: 1 INCLUDES ITEMS W/$ S/N 5936274 AND ABOVE Kit includes: 1-1#$, 1-2#, 1-2$, 1-3#$, 1-4#$, 1-5#$, 1-6#$, 1-7#$, 1-8#$, 1-9#$, 1-10#$, 1-11#$ PARTS REQUEST
1-1#$		FIELD ASSY.	1		INCLUDED IN KIT
PHOTO COMING FIELD ASSY. · qty on machine: 1 Included in kit 1 - ROTOR ASSY (D6110100102); kit 1 - ROTOR ASSY (D6110100112) INCLUDED IN KIT
1-2#	0601821374	RECTIFIER	1	S/N 5936273 AND BELOW	ADD TO CART
RECTIFIER 0601821374 · qty on machine: 1 S/N 5936273 AND BELOW Also included in kit 1 - ROTOR ASSY (D6110100102) view full part page → $106.95 IN A KIT + SOLD SOLO
1-2$	0601823217	RECTIFIER	1	S/N 5936274 AND ABOVE	PARTS REQUEST
PHOTO COMING RECTIFIER 0601823217 · qty on machine: 1 S/N 5936274 AND ABOVE Also included in kit 1 - ROTOR ASSY (D6110100112) PARTS REQUEST
1-3#$	Y0601822696	SURGE ABSORBER	1		ADD TO CART
SURGE ABSORBER Y0601822696 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (D6110100102); kit 1 - ROTOR ASSY (D6110100112) view full part page → $18.95 IN A KIT + SOLD SOLO
1-4#$	8001070003	FAN	1		ADD TO CART
FAN 8001070003 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (D6110100102); kit 1 - ROTOR ASSY (D6110100112) view full part page → $162.95 IN A KIT + SOLD SOLO
1-5#$	8351611004	COUPLING DISK	2		ADD TO CART
COUPLING DISK 8351611004 · qty on machine: 2 Also included in kit 1 - ROTOR ASSY (D6110100102); kit 1 - ROTOR ASSY (D6110100112) view full part page → $21.95 IN A KIT + SOLD SOLO
1-6#$	8351612004	WASHER, COUPLING HUB	1		ADD TO CART
WASHER, COUPLING HUB 8351612004 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (D6110100102); kit 1 - ROTOR ASSY (D6110100112) view full part page → $13.95 IN A KIT + SOLD SOLO
1-7#$	B1112300003	BALANCING PLATE	1	PURCHASE SET OF 1-10 AT THE SAME TIME	ADD TO CART
BALANCING PLATE B1112300003 · qty on machine: 1 PURCHASE SET OF 1-10 AT THE SAME TIME Also included in kit 1 - ROTOR ASSY (D6110100102); kit 1 - ROTOR ASSY (D6110100112) view full part page → $69.95 IN A KIT + SOLD SOLO
1-8#$	0105091025	HEX. HEAD BOLT	4	REPLACES P/N 0010310025	ADD TO CART
HEX. HEAD BOLT 0105091025 · qty on machine: 4 REPLACES P/N 0010310025 Also included in kit 1 - ROTOR ASSY (D6110100102); kit 1 - ROTOR ASSY (D6110100112) view full part page → $0.68 IN A KIT + SOLD SOLO
1-9#$	0042610000	LOCK WASHER	4		ADD TO CART
LOCK WASHER 0042610000 · qty on machine: 4 Also included in kit 1 - ROTOR ASSY (D6110100102); kit 1 - ROTOR ASSY (D6110100112) view full part page → $0.53 IN A KIT + SOLD SOLO
1-10#$	0601000209	BALANCING WEIGHT KIT	1		ADD TO CART
BALANCING WEIGHT KIT 0601000209 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (D6110100102); kit 1 - ROTOR ASSY (D6110100112) view full part page → $9.95 IN A KIT + SOLD SOLO
1-11#$	042006308	BEARING	1	REPLACES P/N 0071906308	ADD TO CART
BEARING 042006308 · qty on machine: 1 REPLACES P/N 0071906308 Also included in kit 1 - ROTOR ASSY (D6110100102); kit 1 - ROTOR ASSY (D6110100112) view full part page → $25.95 IN A KIT + SOLD SOLO
2	0012808035	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0012808035 · qty on machine: 6 view full part page → $2.95
3	0070506803	BEARING	1		ADD TO CART
BEARING 0070506803 · qty on machine: 1 view full part page → $34.95
4	D6130100503	STATOR ASSY.	1		PARTS REQUEST
PHOTO COMING STATOR ASSY. D6130100503 · qty on machine: 1 PARTS REQUEST
5	B1138000003	FIELD ASSY., EXCITER	1		ADD TO CART
FIELD ASSY., EXCITER B1138000003 · qty on machine: 1 view full part page → $1295.95
6	0016008045	HEX. SOCKET HEAD CAP SCREW	3		ADD TO CART
HEX. SOCKET HEAD CAP SCREW 0016008045 · qty on machine: 3 view full part page → $3.95
7	0042508000	LOCK WASHER	3		ADD TO CART
LOCK WASHER 0042508000 · qty on machine: 3 view full part page → $0.62
8	8351315003	END BRACKET	1		ADD TO CART
END BRACKET 8351315003 · qty on machine: 1 view full part page → $260.95
9	0017108035	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0017108035 · qty on machine: 6 view full part page → $1.95
10	8351312004	PACKING	1		ADD TO CART
PACKING 8351312004 · qty on machine: 1 view full part page → $21.95
11	8351331004	COVER, SUCTION	1		ADD TO CART
COVER, SUCTION 8351331004 · qty on machine: 1 view full part page → $69.95
12	0017106016	HEX. HEAD BOLT	3		ADD TO CART
HEX. HEAD BOLT 0017106016 · qty on machine: 3 view full part page → $1.51
13	012010030	HEX. HEAD BOLT	6	REPLACES P/N 0012810030	ADD TO CART
HEX. HEAD BOLT 012010030 · qty on machine: 6 REPLACES P/N 0012810030 view full part page → $0.95
14	B0155400204	COVER, FAN	1		ADD TO CART
COVER, FAN B0155400204 · qty on machine: 1 view full part page → $88.95
15	0010006030	HEX. HEAD BOLT	1	REPLACES P/N 0010106030	ADD TO CART
HEX. HEAD BOLT 0010006030 · qty on machine: 1 REPLACES P/N 0010106030 view full part page → $0.25
16	952404470	FLAT WASHER	1	REPLACES P/N 0041206000	ADD TO CART
FLAT WASHER 952404470 · qty on machine: 1 REPLACES P/N 0041206000 view full part page → $0.19
17	020106050	NUT	1	REPLACES P/N 0600815000	ADD TO CART
NUT 020106050 · qty on machine: 1 REPLACES P/N 0600815000 view full part page → $0.12
18	7085419004	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION 7085419004 · qty on machine: 2 view full part page → $34.95
19	021112140	HEX. NUT	2	REPLACES P/N 0207010000	ADD TO CART
HEX. NUT 021112140 · qty on machine: 2 REPLACES P/N 0207010000 view full part page → $0.46
20	0801358204	GROMMET	1		ADD TO CART
GROMMET 0801358204 · qty on machine: 1 view full part page → $9.95

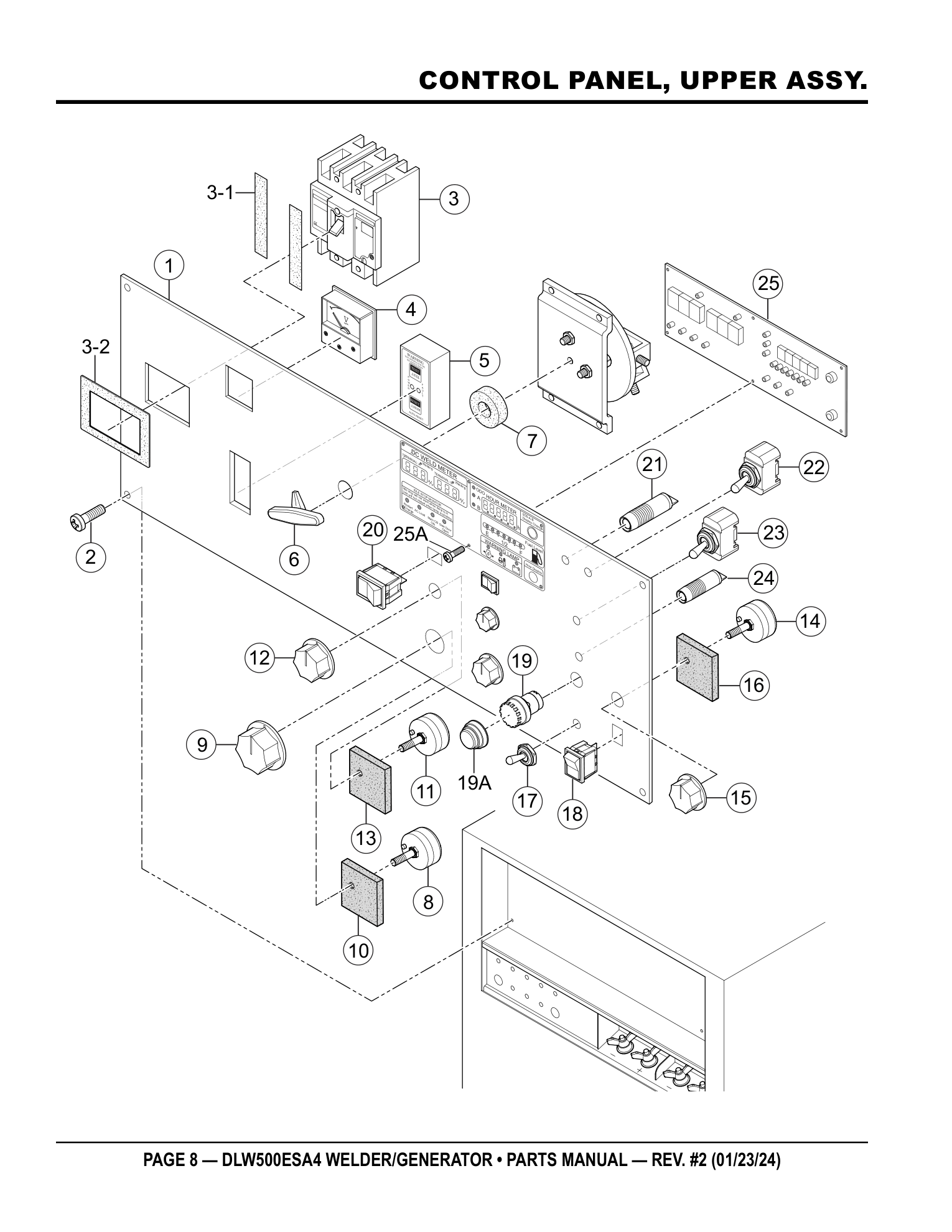

Page 8 — CONTROL PANEL, UPPER ASSY.

Multiquip DLW500 Diesel Welder CONTROL PANEL, UPPER ASSY. parts diagram

Parts list — exactly as printed32 rows

No.	Part No.	Part Name	Qty	Remarks
1	D6511303002	CONTROL PANEL	1	S/N 5880101 AND BELOW	PARTS REQUEST
PHOTO COMING CONTROL PANEL D6511303002 · qty on machine: 1 S/N 5880101 AND BELOW PARTS REQUEST
1	D6511303012	CONTROL PANEL	1	S/N 5880102 AND ABOVE	PARTS REQUEST
PHOTO COMING CONTROL PANEL D6511303012 · qty on machine: 1 S/N 5880102 AND ABOVE PARTS REQUEST
2	Y0021806130	MACHINE SCREW	6		PARTS REQUEST
PHOTO COMING MACHINE SCREW Y0021806130 · qty on machine: 6 PARTS REQUEST
3	Y0601872279	CIRCUIT BREAKER, 3P 60A	1		PARTS REQUEST
PHOTO COMING CIRCUIT BREAKER, 3P 60A Y0601872279 · qty on machine: 1 PARTS REQUEST
3-1	0317900080	RUBBER SEAL	2		ADD TO CART
RUBBER SEAL 0317900080 · qty on machine: 2 view full part page → $7.95
3-2	D5491400204	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL D5491400204 · qty on machine: 1 view full part page → $6.95
4	0601800281	AC VOLTMETER, 5A 0-150/300V	1		ADD TO CART
AC VOLTMETER, 5A 0-150/300V 0601800281 · qty on machine: 1 view full part page → $83.95
5	0601829301	EARTH LEAKAGE RELAY, 120V	1	S/N 5936273 AND BELOW	NO LONGER AVAILABLE
PHOTO COMING EARTH LEAKAGE RELAY, 120V 0601829301 · qty on machine: 1 S/N 5936273 AND BELOW NO LONGER AVAILABLE
5	0601829302	EARTH LEAKAGE RELAY	1	S/N 5936274 AND ABOVE	ADD TO CART
EARTH LEAKAGE RELAY 0601829302 · qty on machine: 1 S/N 5936274 AND ABOVE view full part page → $780.95
6	Y0601803076	CHANGE-OVER SWITCH	1		ADD TO CART
CHANGE-OVER SWITCH Y0601803076 · qty on machine: 1 view full part page → $810.95
7	8705945004	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL 8705945004 · qty on machine: 1 view full part page → $1.95
8	Y0601840208	RHEOSTAT (CURRENT/VOLTAGE REG.)	2		PARTS REQUEST
PHOTO COMING RHEOSTAT (CURRENT/VOLTAGE REG.) Y0601840208 · qty on machine: 2 PARTS REQUEST
9	0601840103	KNOB	2		ADD TO CART
KNOB 0601840103 · qty on machine: 2 view full part page → $9.95
10	0801883003	INSULATOR	2		ADD TO CART
INSULATOR 0801883003 · qty on machine: 2 view full part page → $2.95
11	0601840095	RHEOSTAT (WELDING REGULATOR)	2		ADD TO CART
RHEOSTAT (WELDING REGULATOR) 0601840095 · qty on machine: 2 view full part page → $28.95
12	0601840100	KNOB	2		ADD TO CART
KNOB 0601840100 · qty on machine: 2 view full part page → $30.95
13	0801883003	INSULATOR	2		ADD TO CART
INSULATOR 0801883003 · qty on machine: 2 view full part page → $2.95
14	0601840095	RHEOSTAT (TIME REGULATOR)	1		ADD TO CART
RHEOSTAT (TIME REGULATOR) 0601840095 · qty on machine: 1 view full part page → $28.95
15	0601840170	KNOB	1		ADD TO CART
KNOB 0601840170 · qty on machine: 1 view full part page → $6.95
16	0801883003	INSULATOR	1		ADD TO CART
INSULATOR 0801883003 · qty on machine: 1 view full part page → $2.95
17	0601830731	STARTER SWITCH	1		ADD TO CART
STARTER SWITCH 0601830731 · qty on machine: 1 view full part page → $47.95
18	0601831600	SWITCH, IDLE STOP SELECTOR	1		ADD TO CART
SWITCH, IDLE STOP SELECTOR 0601831600 · qty on machine: 1 view full part page → $24.95
19	0601831966	SWITCH, TIME REGULATOR	1		ADD TO CART
SWITCH, TIME REGULATOR 0601831966 · qty on machine: 1 view full part page → $50.95
19A	0601832048	CAP	1		ADD TO CART
CAP 0601832048 · qty on machine: 1 view full part page → $25.95
20	0601831600	SWITCH, WELDING MODE SELECTOR	2		ADD TO CART
SWITCH, WELDING MODE SELECTOR 0601831600 · qty on machine: 2 view full part page → $24.95
21	Y0601816716	ENGINE DIAGNOSTIC LAMP	1		PARTS REQUEST
PHOTO COMING ENGINE DIAGNOSTIC LAMP Y0601816716 · qty on machine: 1 PARTS REQUEST
22	Y0601831376	SWITCH, ENGINE DIAGNOSTIC	1		PARTS REQUEST
PHOTO COMING SWITCH, ENGINE DIAGNOSTIC Y0601831376 · qty on machine: 1 PARTS REQUEST
23	Y0601831605	SWITCH, E MODE SELECTOR	1	S/N 5880101 AND BELOW	ADD TO CART
SWITCH, E MODE SELECTOR Y0601831605 · qty on machine: 1 S/N 5880101 AND BELOW view full part page → $65.95
23	Y0601831379	SWITCH, E MODE SELECTOR	1	S/N 5880102 AND ABOVE	ADD TO CART
SWITCH, E MODE SELECTOR Y0601831379 · qty on machine: 1 S/N 5880102 AND ABOVE view full part page → $71.95
24	Y0601816706	OPERATION LAMP	1		PARTS REQUEST
PHOTO COMING OPERATION LAMP Y0601816706 · qty on machine: 1 PARTS REQUEST
25	D6267200004	DIGITAL PANEL	1		ADD TO CART
DIGITAL PANEL D6267200004 · qty on machine: 1 view full part page → $677.95
25A	0027103005	MACHINE SCREW	6		ADD TO CART
MACHINE SCREW 0027103005 · qty on machine: 6 view full part page → $0.95

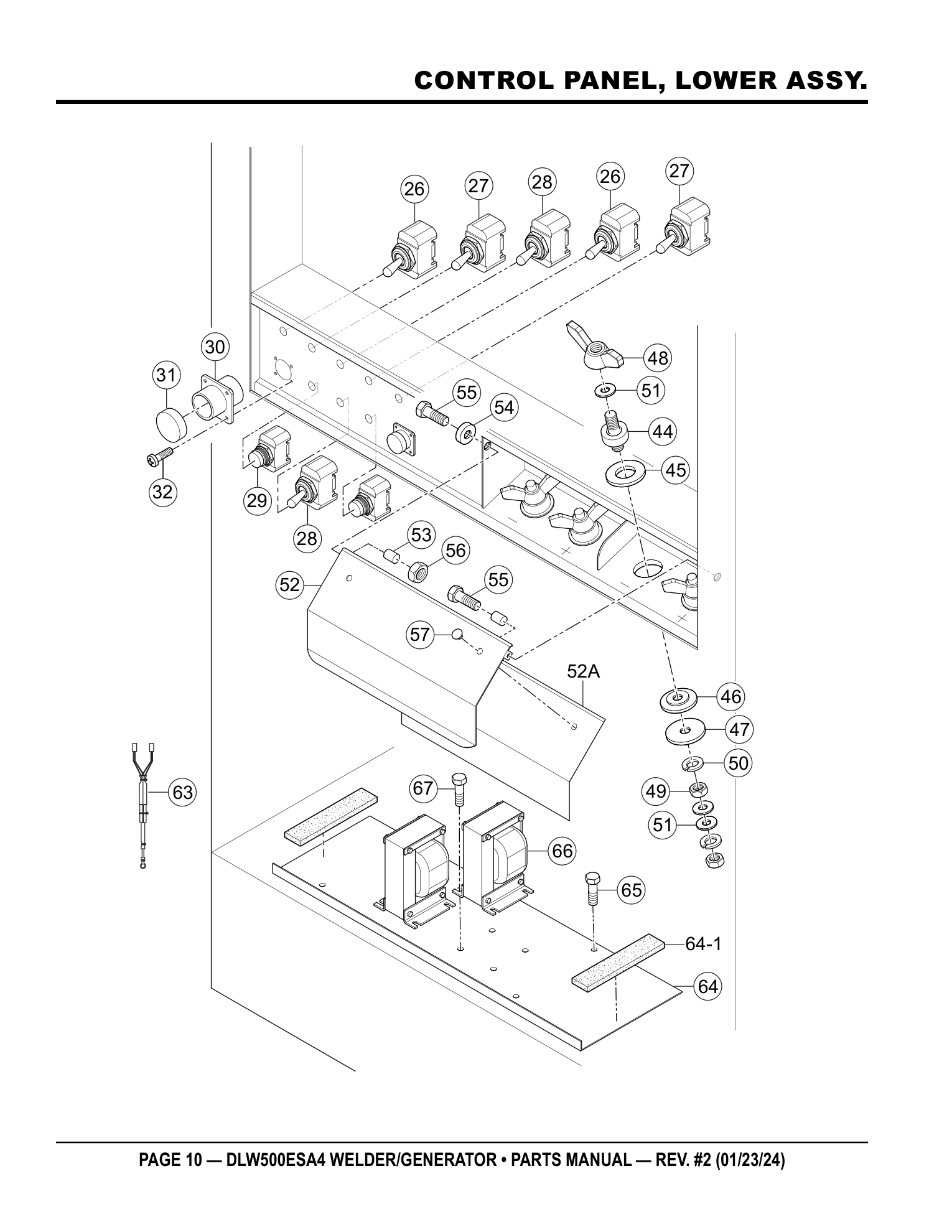

Page 10 — CONTROL PANEL, LOWER ASSY.

Multiquip DLW500 Diesel Welder CONTROL PANEL, LOWER ASSY. parts diagram

Parts list — exactly as printed28 rows

No.	Part No.	Part Name	Qty	Remarks
26	0601831311	SWITCH, LOCAL/REMOTE REGULATOR	2		ADD TO CART
SWITCH, LOCAL/REMOTE REGULATOR 0601831311 · qty on machine: 2 view full part page → $52.95
27	Y0601831365	SWITCH, LOCAL/REMOTE WELD OUTPUT	2		PARTS REQUEST
PHOTO COMING SWITCH, LOCAL/REMOTE WELD OUTPUT Y0601831365 · qty on machine: 2 PARTS REQUEST
28	Y0601831368	SWITCH, POLARITY	2		PARTS REQUEST
PHOTO COMING SWITCH, POLARITY Y0601831368 · qty on machine: 2 PARTS REQUEST
29	Y0601873320	AC CIRCUIT BREAKER	2		PARTS REQUEST
PHOTO COMING AC CIRCUIT BREAKER Y0601873320 · qty on machine: 2 PARTS REQUEST
30	Y0601816631	REMOTE CONNECTOR	2		PARTS REQUEST
PHOTO COMING REMOTE CONNECTOR Y0601816631 · qty on machine: 2 PARTS REQUEST
31	Y0601811431	CAP	2		PARTS REQUEST
PHOTO COMING CAP Y0601811431 · qty on machine: 2 PARTS REQUEST
32	Y0029004012	MACHINE SCREW	8		PARTS REQUEST
PHOTO COMING MACHINE SCREW Y0029004012 · qty on machine: 8 PARTS REQUEST
44	0801888204	OUTPUT TERMINAL, WELDING	4		ADD TO CART
OUTPUT TERMINAL, WELDING 0801888204 · qty on machine: 4 view full part page → $36.95
45	0801840104	INSULATOR WASHER	4		ADD TO CART
INSULATOR WASHER 0801840104 · qty on machine: 4 view full part page → $10.95
46	0801840004	INSULATOR WASHER	4		ADD TO CART
INSULATOR WASHER 0801840004 · qty on machine: 4 view full part page → $11.95
47	6109170	SET, WASHER, OUTPUT TERMINAL	4	REPLACES P/N 0801841204	ADD TO CART
SET, WASHER, OUTPUT TERMINAL 6109170 · qty on machine: 4 REPLACES P/N 0801841204 view full part page → $0.48
48	022910220	WING NUT	4	REPLACES P/N 0801884004	ADD TO CART
WING NUT 022910220 · qty on machine: 4 REPLACES P/N 0801884004 view full part page → $5.95
49	0039312000	HEX. NUT	8	REPLACES P/N 0039512000	ADD TO CART
HEX. NUT 0039312000 · qty on machine: 8 REPLACES P/N 0039512000 view full part page → $0.46
50	0042212000	LOCK WASHER	8		ADD TO CART
LOCK WASHER 0042212000 · qty on machine: 8 view full part page → $2.95
51	0041412000	FLAT WASHER	12		ADD TO CART
FLAT WASHER 0041412000 · qty on machine: 12 view full part page → $2.95
52	D6237101203	COVER, OUTPUT TERMINAL	1		PARTS REQUEST
PHOTO COMING COVER, OUTPUT TERMINAL D6237101203 · qty on machine: 1 PARTS REQUEST
52A	D4237401004	RUBBER SHEET	1		PARTS REQUEST
PHOTO COMING RUBBER SHEET D4237401004 · qty on machine: 1 PARTS REQUEST
53	0821800014	COLLAR	2		ADD TO CART
COLLAR 0821800014 · qty on machine: 2 view full part page → $0.24
54	0805088004	STAY RUBBER	1		ADD TO CART
STAY RUBBER 0805088004 · qty on machine: 1 view full part page → $0.95
55	Y0016906020	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT Y0016906020 · qty on machine: 2 view full part page → $1.45
56	Y0207006000	HEX. NUT	1		ADD TO CART
HEX. NUT Y0207006000 · qty on machine: 1 view full part page → $0.23
57	0845031504	CAP	2		ADD TO CART
CAP 0845031504 · qty on machine: 2 view full part page → $2.95
63	D4268304714	NOISE FILTER	2		PARTS REQUEST
PHOTO COMING NOISE FILTER D4268304714 · qty on machine: 2 PARTS REQUEST
64	D6264900704	BRACKET	1		PARTS REQUEST
PHOTO COMING BRACKET D6264900704 · qty on machine: 1 PARTS REQUEST
64-1	Y0414200295	RUBBER SEAL	2		PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0414200295 · qty on machine: 2 PARTS REQUEST
65	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95
66	D6264500103	DC REACTOR	2		PARTS REQUEST
PHOTO COMING DC REACTOR D6264500103 · qty on machine: 2 PARTS REQUEST
67	0016906015	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 8 view full part page → $0.95

Page 12 — OUTPUT TERMINAL ASSY.

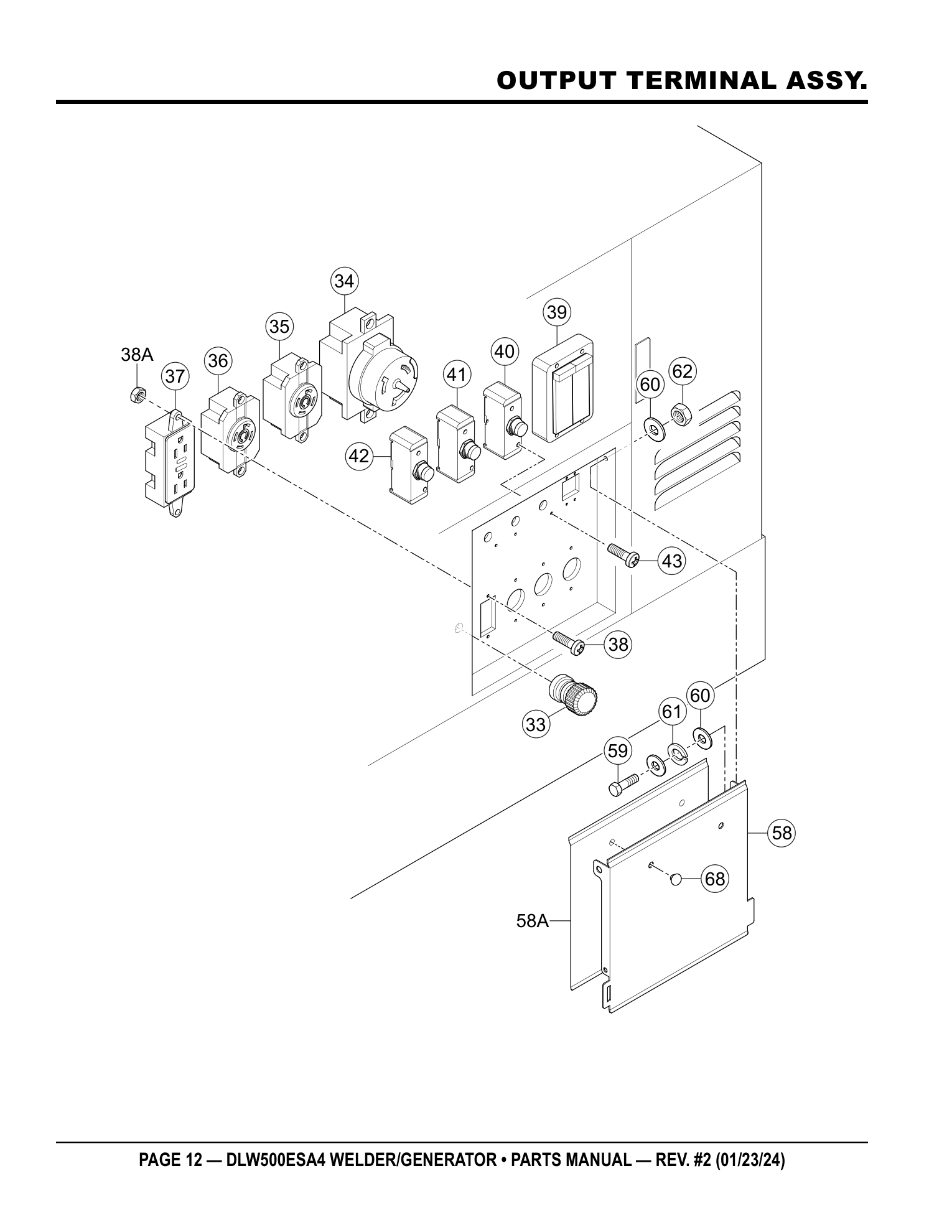

Multiquip DLW500 Diesel Welder OUTPUT TERMINAL ASSY. parts diagram

Parts list — exactly as printed19 rows

No.	Part No.	Part Name	Qty	Remarks
33	0601815109	GROUND TERMINAL	1		ADD TO CART
GROUND TERMINAL 0601815109 · qty on machine: 1 view full part page → $39.95
34	0601814014	RECEPTACLE, CS-6369L	1		ADD TO CART
RECEPTACLE, CS-6369L 0601814014 · qty on machine: 1 view full part page → $90.95
35	0601811033	RECEPTACLE, L6-30R	1		ADD TO CART
RECEPTACLE, L6-30R 0601811033 · qty on machine: 1 view full part page → $61.95
36	0601811031	RECEPTACLE, L5-30R	1	REPLACES P/N 0601811035	ADD TO CART
RECEPTACLE, L5-30R 0601811031 · qty on machine: 1 REPLACES P/N 0601811035 view full part page → $46.95
37	0601814034	RECEPTACLE, 5-20R GFWR2-E (GFCI)	1		ADD TO CART
RECEPTACLE, 5-20R GFWR2-E (GFCI) 0601814034 · qty on machine: 1 view full part page → $331.95
38	0027104015	MACHINE SCREW	8		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 8 view full part page → $0.53
38A	OEMAA8	HEX. NUT	8	REPLACES P/N 0207004000	ADD TO CART
HEX. NUT OEMAA8 · qty on machine: 8 REPLACES P/N 0207004000 view full part page → $0.4
39	Y0601873310	CIRCUIT PROTECTOR, 2P 30A	1		PARTS REQUEST
PHOTO COMING CIRCUIT PROTECTOR, 2P 30A Y0601873310 · qty on machine: 1 PARTS REQUEST
40	0601806425	CIRCUIT PROTECTOR, 2P 30A	1		ADD TO CART
CIRCUIT PROTECTOR, 2P 30A 0601806425 · qty on machine: 1 view full part page → $190.95
41	0601806424	CIRCUIT PROTECTOR, 1P 30A	1		ADD TO CART
CIRCUIT PROTECTOR, 1P 30A 0601806424 · qty on machine: 1 view full part page → $58.95
42	Y0601806433	CIRCUIT PROTECTOR, 2P 20A	1		ADD TO CART
CIRCUIT PROTECTOR, 2P 20A Y0601806433 · qty on machine: 1 view full part page → $189.95
43	0021003005	MACHINE SCREW	10		ADD TO CART
MACHINE SCREW 0021003005 · qty on machine: 10 view full part page → $0.62
58	D6237101103	COVER, OUTPUT TERMINAL	1		PARTS REQUEST
PHOTO COMING COVER, OUTPUT TERMINAL D6237101103 · qty on machine: 1 PARTS REQUEST
58A	D4237401104	RUBBER SHEET	1		PARTS REQUEST
PHOTO COMING RUBBER SHEET D4237401104 · qty on machine: 1 PARTS REQUEST
59	0010112040	HEX. HEAD BOLT	2		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT 0010112040 · qty on machine: 2 PARTS REQUEST
60	031112230	FLAT WASHER	6	REPLACES P/N 0041212000	ADD TO CART
FLAT WASHER 031112230 · qty on machine: 6 REPLACES P/N 0041212000 view full part page → $0.95
61	0605050060	CONICAL LOCK WASHER	2		ADD TO CART
CONICAL LOCK WASHER 0605050060 · qty on machine: 2 view full part page → $5.95
62	0030012000	HEX. NUT	2		ADD TO CART
HEX. NUT 0030012000 · qty on machine: 2 view full part page → $0.5
68	0845031504	CAP	2		ADD TO CART
CAP 0845031504 · qty on machine: 2 view full part page → $2.95

Page 14 — ELECTRIC PARTS (1) ASSY.

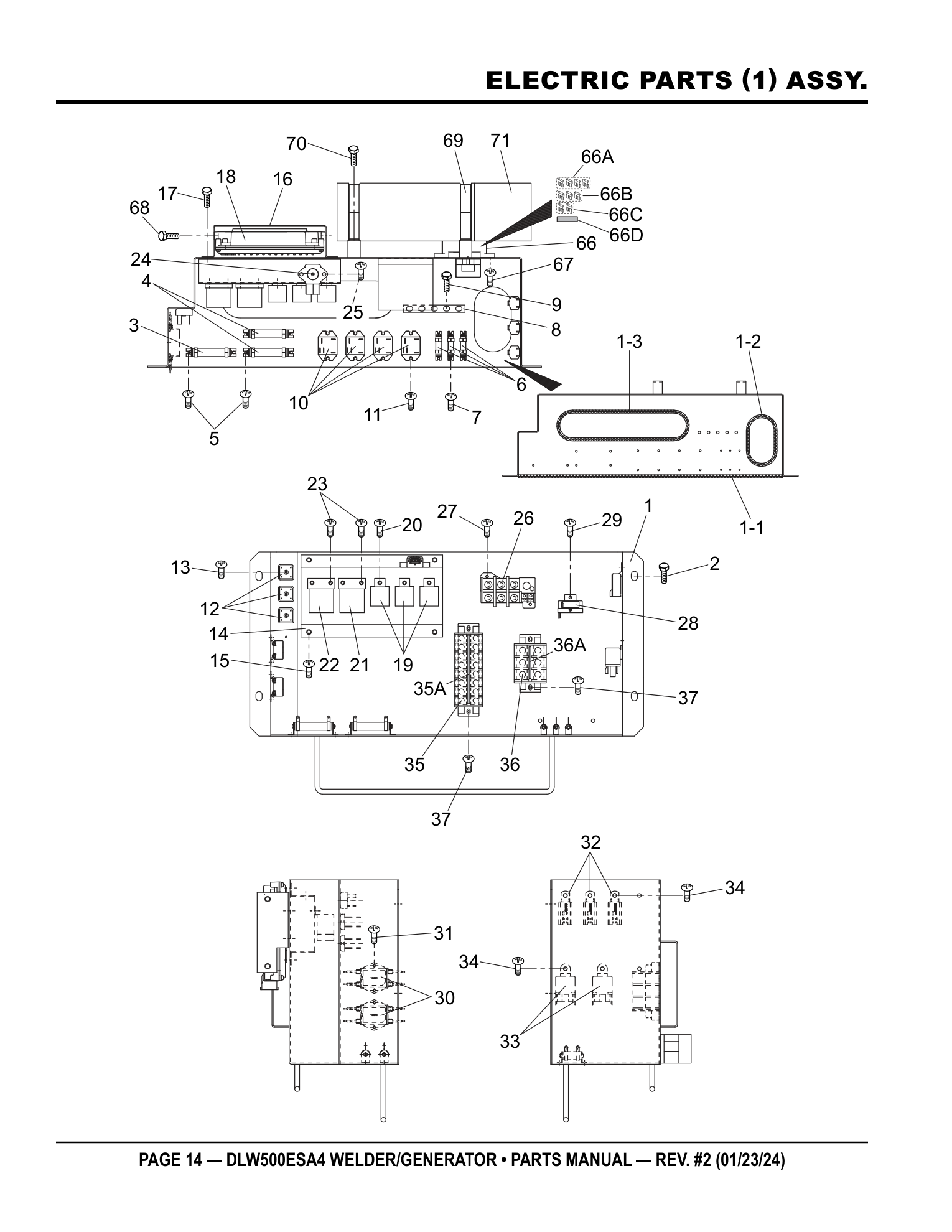

Multiquip DLW500 Diesel Welder ELECTRIC PARTS (1) ASSY. parts diagram

Parts list — exactly as printed42 rows

No.	Part No.	Part Name	Qty	Remarks
1	D6214000902	CONTROL BOX	1		PARTS REQUEST
PHOTO COMING CONTROL BOX D6214000902 · qty on machine: 1 PARTS REQUEST
1-1	0226900570	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL 0226900570 · qty on machine: 1 view full part page → $24.95
1-2	0226900300	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL 0226900300 · qty on machine: 1 view full part page → $15.95
1-3	0226900650	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL 0226900650 · qty on machine: 1 view full part page → $17.95
2	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
3	0601842384	RESISTOR, 20W 50Ω	1		ADD TO CART
RESISTOR, 20W 50Ω 0601842384 · qty on machine: 1 view full part page → $36.95
4	0601842198	RESISTOR, 20W 1KΩ	2	REPLACES P/N 0601842262	ADD TO CART
RESISTOR, 20W 1KΩ 0601842198 · qty on machine: 2 REPLACES P/N 0601842262 view full part page → $16.95
5	0027104015	MACHINE SCREW	6		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 6 view full part page → $0.53
6	Y0601842548	RESISTOR, 5W 60Ω	3		PARTS REQUEST
PHOTO COMING RESISTOR, 5W 60Ω Y0601842548 · qty on machine: 3 PARTS REQUEST
7	0027104015	MACHINE SCREW	6		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 6 view full part page → $0.53
8	8511864601A	PLATE	1	REPLACES P/N 8511864604	PARTS REQUEST
PHOTO COMING PLATE 8511864601A · qty on machine: 1 REPLACES P/N 8511864604 PARTS REQUEST
9	0016906015	HEX. HEAD BOLT	5		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 5 view full part page → $0.95
10	Y0601820901	RELAY, DC12V1C	4		ADD TO CART
RELAY, DC12V1C Y0601820901 · qty on machine: 4 view full part page → $120.95
11	0027104015	MACHINE SCREW	8		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 8 view full part page → $0.53
12	0601823204	RECTIFIER	3		ADD TO CART
RECTIFIER 0601823204 · qty on machine: 3 view full part page → $16.95
13	0027103015	MACHINE SCREW	3		ADD TO CART
MACHINE SCREW 0027103015 · qty on machine: 3 view full part page → $0.64
14	D6214601104	BRACKET, RELAY	1		PARTS REQUEST
PHOTO COMING BRACKET, RELAY D6214601104 · qty on machine: 1 PARTS REQUEST
15	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95
16	D6214601004	BRACKET	1		PARTS REQUEST
PHOTO COMING BRACKET D6214601004 · qty on machine: 1 PARTS REQUEST
17	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95
18	8976670710	ECM	1	REPLACES P/N Y0602202724	PARTS REQUEST
PHOTO COMING ECM 8976670710 · qty on machine: 1 REPLACES P/N Y0602202724 PARTS REQUEST
19	5825500290	MAIN RELAY	3	REPLACES P/N Y0602301400	ADD TO CART
MAIN RELAY 5825500290 · qty on machine: 3 REPLACES P/N Y0602301400 view full part page → $65.95
20	0027105015	MACHINE SCREW	3		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 3 view full part page → $0.2
21	8944001061	STARTER RELAY	1	REPLACES P/N 0602202502	ADD TO CART
STARTER RELAY 8944001061 · qty on machine: 1 REPLACES P/N 0602202502 view full part page → $214.95
22	8970119490	GLOW PLUG, RELAY	1	REPLACES P/N 0602202685	ADD TO CART
GLOW PLUG, RELAY 8970119490 · qty on machine: 1 REPLACES P/N 0602202685 view full part page → $301.95
23	0027105015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 4 view full part page → $0.2
24	8972177780	SENSOR, BAROMETIC PRESS	1	REPLACES P/N 0602130220	ADD TO CART
SENSOR, BAROMETIC PRESS 8972177780 · qty on machine: 1 REPLACES P/N 0602130220 view full part page → $174.95
25	0027105015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 2 view full part page → $0.2
26	Y0601820879	OVER CURRENT RELAY	1		PARTS REQUEST
PHOTO COMING OVER CURRENT RELAY Y0601820879 · qty on machine: 1 PARTS REQUEST
27	0027104015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 2 view full part page → $0.53
28	Y0601804203	DC CURRENT TRANSFORMER	1		ADD TO CART
DC CURRENT TRANSFORMER Y0601804203 · qty on machine: 1 view full part page → $88.95
29	0027104015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 2 view full part page → $0.53
30	Y0601825139	NOISE FILTER	2		PARTS REQUEST
PHOTO COMING NOISE FILTER Y0601825139 · qty on machine: 2 PARTS REQUEST
31	0027103015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027103015 · qty on machine: 4 view full part page → $0.64
32	0601823707	RELAY	3		ADD TO CART
RELAY 0601823707 · qty on machine: 3 view full part page → $20.95
33	0601823754	RELAY	2		ADD TO CART
RELAY 0601823754 · qty on machine: 2 view full part page → $46.95
34	0027105015	MACHINE SCREW	5		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 5 view full part page → $0.2
35	Y0601815426	TERMINAL BLOCK, KT-30 8P	1		PARTS REQUEST
PHOTO COMING TERMINAL BLOCK, KT-30 8P Y0601815426 · qty on machine: 1 PARTS REQUEST
35A	D9521003804	DECAL; SYMBOL MARK	1		PARTS REQUEST
PHOTO COMING DECAL; SYMBOL MARK D9521003804 · qty on machine: 1 PARTS REQUEST
36	Y0601815811	TERMINAL BLOCK, KT-60 3P	1		PARTS REQUEST
PHOTO COMING TERMINAL BLOCK, KT-60 3P Y0601815811 · qty on machine: 1 PARTS REQUEST
36A	D9521003704	DECAL; SYMBOL MARK	1		PARTS REQUEST
PHOTO COMING DECAL; SYMBOL MARK D9521003704 · qty on machine: 1 PARTS REQUEST
37	0027104015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 4 view full part page → $0.53

Page 16 — ELECTRIC PARTS (1) ASSY. (CONT’D.)

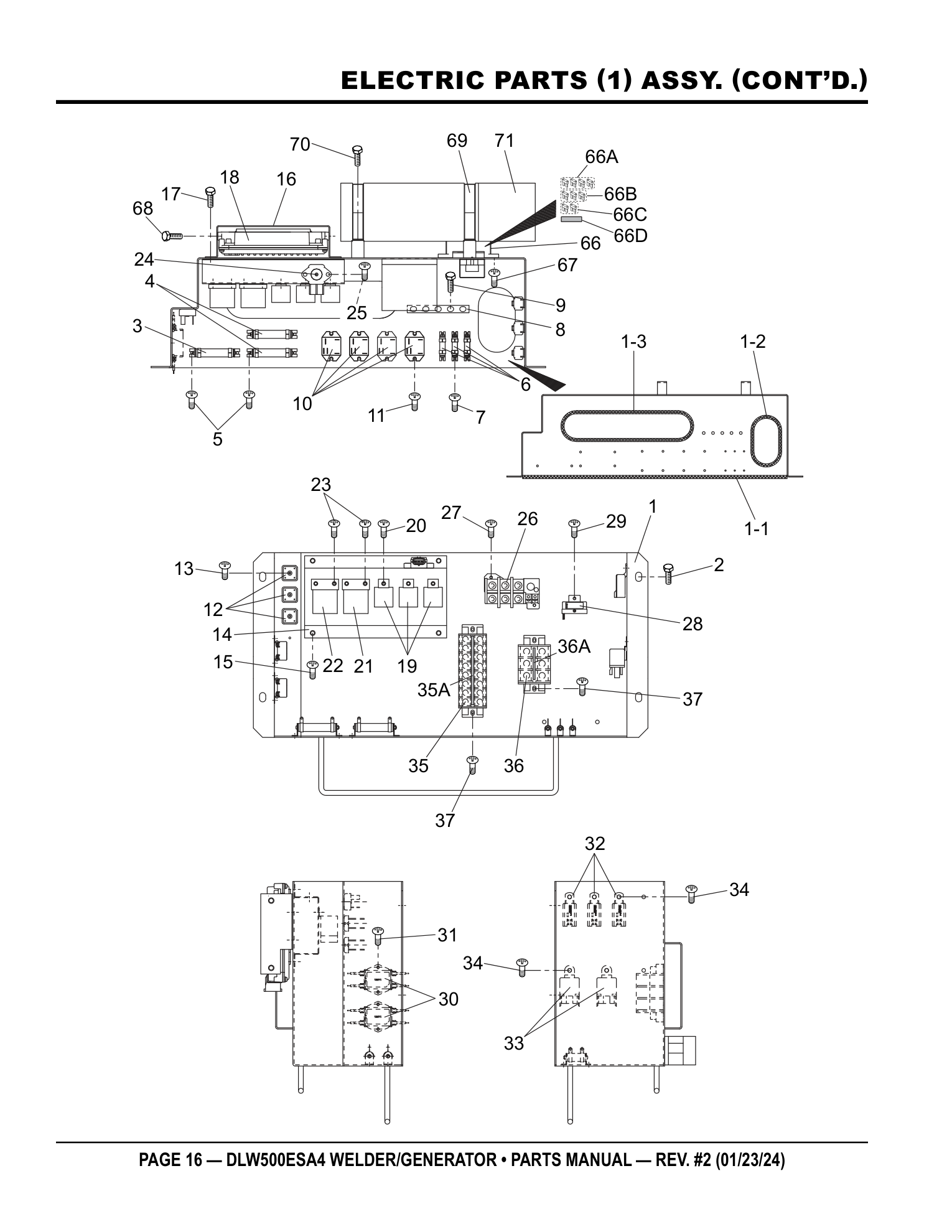

Multiquip DLW500 Diesel Welder ELECTRIC PARTS (1) ASSY. (CONT’D.) parts diagram

Parts list — exactly as printed10 rows

No.	Part No.	Part Name	Qty	Remarks
66	D6214600704	FUSE BOX ASSY	1	INCLUDES ITEMS W/%	PARTS REQUEST
PHOTO COMING FUSE BOX ASSY D6214600704 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 66A%, 66B%, 66C%, 66D% PARTS REQUEST
66A%	0601806645	FUSE, 10A	4		ADD TO CART
FUSE, 10A 0601806645 · qty on machine: 4 Also included in kit 66 - FUSE BOX ASSY (D6214600704) view full part page → $2.9 IN A KIT + SOLD SOLO
66B%	Y0601806646	FUSE, 20A	3		ADD TO CART
FUSE, 20A Y0601806646 · qty on machine: 3 Also included in kit 66 - FUSE BOX ASSY (D6214600704) view full part page → $0.68 IN A KIT + SOLD SOLO
66C%	0601806644	FUSE, 30A	2		ADD TO CART
FUSE, 30A 0601806644 · qty on machine: 2 Also included in kit 66 - FUSE BOX ASSY (D6214600704) view full part page → $1.43 IN A KIT + SOLD SOLO
66D%	D6551009704	DECAL	1		PARTS REQUEST
PHOTO COMING DECAL D6551009704 · qty on machine: 1 Also included in kit 66 - FUSE BOX ASSY (D6214600704) PARTS REQUEST
67	0021005020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0021005020 · qty on machine: 2 view full part page → $0.32
68	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95
69	D6484600204	CLAMPER	2		PARTS REQUEST
PHOTO COMING CLAMPER D6484600204 · qty on machine: 2 PARTS REQUEST
70	011206020	HEX. HEAD BOLT	4	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 4 REPLACES P/N 0016906020 view full part page → $0.95
71	0600800321	MANUAL CASE	1		ADD TO CART
MANUAL CASE 0600800321 · qty on machine: 1 view full part page → $33.95

Page 18 — ELECTRIC PARTS (2) ASSY.

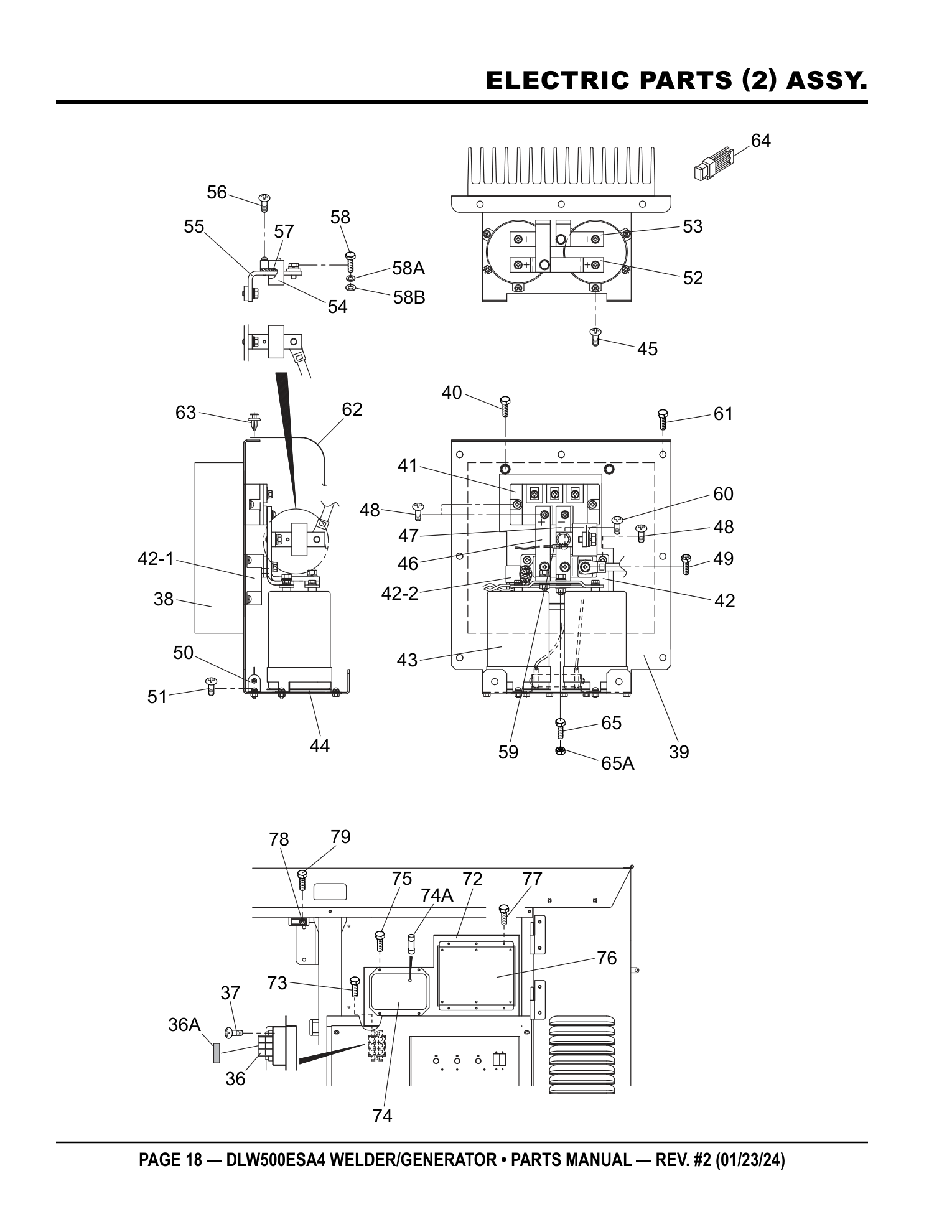

Multiquip DLW500 Diesel Welder ELECTRIC PARTS (2) ASSY. parts diagram

Parts list — exactly as printed46 rows

No.	Part No.	Part Name	Qty	Remarks
36	Y0601815811	TERMINAL BLOCK, KT-60 3P	1		PARTS REQUEST
PHOTO COMING TERMINAL BLOCK, KT-60 3P Y0601815811 · qty on machine: 1 PARTS REQUEST
36A	D9521003704	DECAL; SYMBOL MARK	1		PARTS REQUEST
PHOTO COMING DECAL; SYMBOL MARK D9521003704 · qty on machine: 1 PARTS REQUEST
37	0027104015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 2 view full part page → $0.53
38	D6267302504	COOLING FIN	2		PARTS REQUEST
PHOTO COMING COOLING FIN D6267302504 · qty on machine: 2 PARTS REQUEST
39	D6261602504	BRACKET	2		PARTS REQUEST
PHOTO COMING BRACKET D6261602504 · qty on machine: 2 PARTS REQUEST
40	0016906015	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 8 view full part page → $0.95
41	0601823256	RECTIFIER	2		ADD TO CART
RECTIFIER 0601823256 · qty on machine: 2 view full part page → $400.95
42	D4268000403	IGBT MODULE ASSY	2	INCLUDES ITEMS W/#	ADD TO CART
IGBT MODULE ASSY D4268000403 · qty on machine: 2 INCLUDES ITEMS W/# Kit includes: 42-1#, 42-2# view full part page → $1005.95 IN A KIT + SOLD SOLO
42-1#	0601821258	IGBT MODULE	2		PARTS REQUEST
PHOTO COMING IGBT MODULE 0601821258 · qty on machine: 2 Also included in kit 42 - IGBT MODULE ASSY (D4268000403) PARTS REQUEST
42-2#	D9925800044	IGBT PROTECTIVE UNIT	2		ADD TO CART
IGBT PROTECTIVE UNIT D9925800044 · qty on machine: 2 Also included in kit 42 - IGBT MODULE ASSY (D4268000403) view full part page → $44.95 IN A KIT + SOLD SOLO
43	Y0601826144	CONDENSER	4		PARTS REQUEST
PHOTO COMING CONDENSER Y0601826144 · qty on machine: 4 PARTS REQUEST
44	D6261800904	INSULATOR RUBBER	4		PARTS REQUEST
PHOTO COMING INSULATOR RUBBER D6261800904 · qty on machine: 4 PARTS REQUEST
45	0027104010	MACHINE SCREW	8		ADD TO CART
MACHINE SCREW 0027104010 · qty on machine: 8 view full part page → $0.33
46	D6267302604	CONNECTION PLATE	2		PARTS REQUEST
PHOTO COMING CONNECTION PLATE D6267302604 · qty on machine: 2 PARTS REQUEST
47	D6267302704	CONNECTION PLATE	2		PARTS REQUEST
PHOTO COMING CONNECTION PLATE D6267302704 · qty on machine: 2 PARTS REQUEST
48	0027105016	MACHINE SCREW	16		ADD TO CART
MACHINE SCREW 0027105016 · qty on machine: 16 view full part page → $0.55
49	0017806014	HEX. HEAD BOLT	6		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT 0017806014 · qty on machine: 6 PARTS REQUEST
50	0601842198	RESISTOR, 20W 1KΩ	2	REPLACES P/N 0601842262	ADD TO CART
RESISTOR, 20W 1KΩ 0601842198 · qty on machine: 2 REPLACES P/N 0601842262 view full part page → $16.95
51	0027104010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027104010 · qty on machine: 4 view full part page → $0.33
52	D4268304204	CONNECTION PLATE	2		ADD TO CART
CONNECTION PLATE D4268304204 · qty on machine: 2 view full part page → $99.95
53	D6267302804	CONNECTION PLATE	2		PARTS REQUEST
PHOTO COMING CONNECTION PLATE D6267302804 · qty on machine: 2 PARTS REQUEST
54	0601804202	DC CURRENT TRANSFORMER	2		ADD TO CART
DC CURRENT TRANSFORMER 0601804202 · qty on machine: 2 view full part page → $83.95
55	D3267300604	CONNECTION PLATE	2		PARTS REQUEST
PHOTO COMING CONNECTION PLATE D3267300604 · qty on machine: 2 PARTS REQUEST
56	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
57	D4235400004	INSULATOR	2		ADD TO CART
INSULATOR D4235400004 · qty on machine: 2 view full part page → $17.95
58	0019008016	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0019008016 · qty on machine: 4 view full part page → $1.95
58A	0040008000	LOCK WASHER	4		ADD TO CART
LOCK WASHER 0040008000 · qty on machine: 4 view full part page → $0.63
58B	0042708000	FLAT WASHER	4		ADD TO CART
FLAT WASHER 0042708000 · qty on machine: 4 view full part page → $0.44
59	0601803660	THERMISTOR	2		ADD TO CART
THERMISTOR 0601803660 · qty on machine: 2 view full part page → $50.95
60	0021003010	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0021003010 · qty on machine: 2 view full part page → $0.37
61	0016906015	HEX. HEAD BOLT	14		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 14 view full part page → $0.95
62	D6261700004	COVER, ELECTRIC PARTS	2		PARTS REQUEST
PHOTO COMING COVER, ELECTRIC PARTS D6261700004 · qty on machine: 2 PARTS REQUEST
63	Y0605011412	RIVET	8		PARTS REQUEST
PHOTO COMING RIVET Y0605011412 · qty on machine: 8 PARTS REQUEST
64	0601806640	FUSE, 65A	2		ADD TO CART
FUSE, 65A 0601806640 · qty on machine: 2 view full part page → $11.95
65	011206020	HEX. HEAD BOLT	4	REPLACES P/N 0017106020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 4 REPLACES P/N 0017106020 view full part page → $0.95
65A	0023706000	HEX. NUT	4	REPLACES P/N 0207206000	ADD TO CART
HEX. NUT 0023706000 · qty on machine: 4 REPLACES P/N 0207206000 view full part page → $0.95
72	D6261602403	BRACKET	1		PARTS REQUEST
PHOTO COMING BRACKET D6261602403 · qty on machine: 1 PARTS REQUEST
73	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
74	0601820664	AUTOMATIC VOLTAGE REGULATOR	1	INCLUDES ITEMS W/$	ADD TO CART
AUTOMATIC VOLTAGE REGULATOR 0601820664 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 74A$ view full part page → $767.95 IN A KIT + SOLD SOLO
74A$	0601806681	FUSE, 250V 5A	1		ADD TO CART
FUSE, 250V 5A 0601806681 · qty on machine: 1 Also included in kit 74 - AUTOMATIC VOLTAGE REGULATO (0601820664) view full part page → $10.95 IN A KIT + SOLD SOLO
75	Y0016905015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT Y0016905015 · qty on machine: 4 view full part page → $1.58
76	D6267200104	CONTROL UNIT	1		PARTS REQUEST
PHOTO COMING CONTROL UNIT D6267200104 · qty on machine: 1 PARTS REQUEST
77	0016906015	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 6 view full part page → $0.95
78	Y0601830347	DOOR SWITCH	3	S/N 5895115 AND BELOW	ADD TO CART
DOOR SWITCH Y0601830347 · qty on machine: 3 S/N 5895115 AND BELOW view full part page → $175.95
78	Y0601830361	DOOR SWITCH	3	S/N 5895116 AND ABOVE	PARTS REQUEST
PHOTO COMING DOOR SWITCH Y0601830361 · qty on machine: 3 S/N 5895116 AND ABOVE PARTS REQUEST
79	0027104030	MACHINE SCREW	6		ADD TO CART
MACHINE SCREW 0027104030 · qty on machine: 6 view full part page → $0.59

Page 20 — ENGINE AND RADIATOR ASSY.

Multiquip DLW500 Diesel Welder ENGINE AND RADIATOR ASSY. parts diagram

Parts list — exactly as printed45 rows

No.	Part No.	Part Name	Qty	Remarks
1	D6924200144	ENGINE, ISUZU 4LE2T	1		PARTS REQUEST
PHOTO COMING ENGINE, ISUZU 4LE2T D6924200144 · qty on machine: 1 PARTS REQUEST
2	B1304202104	ENGINE FOOT	1		PARTS REQUEST
PHOTO COMING ENGINE FOOT B1304202104 · qty on machine: 1 PARTS REQUEST
3	B1305200004	ENGINE FOOT	1		PARTS REQUEST
PHOTO COMING ENGINE FOOT B1305200004 · qty on machine: 1 PARTS REQUEST
4	012210025	HEX. HEAD BOLT	8	REPLACES P/N 0012310025	ADD TO CART
HEX. HEAD BOLT 012210025 · qty on machine: 8 REPLACES P/N 0012310025 view full part page → $0.86
5	0605000066	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION 0605000066 · qty on machine: 2 view full part page → $63.95
6	021112140	HEX. NUT	2	REPLACES P/N 0207010000	ADD TO CART
HEX. NUT 021112140 · qty on machine: 2 REPLACES P/N 0207010000 view full part page → $0.46
7	0602012773	RADIATOR	1	INCLUDES ITEMS W/%	ADD TO CART
RADIATOR 0602012773 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 7-1% view full part page → $1075.95 IN A KIT + SOLD SOLO
7-1%	0602011079	CAP, RADIATOR	1		ADD TO CART
CAP, RADIATOR 0602011079 · qty on machine: 1 Also included in kit 7 - RADIATOR (0602012773) view full part page → $137.95 IN A KIT + SOLD SOLO
8	D6311100804	BRACKET, RADIATOR	1		PARTS REQUEST
PHOTO COMING BRACKET, RADIATOR D6311100804 · qty on machine: 1 PARTS REQUEST
9	D6311100904	BRACKET, RADIATOR	1		PARTS REQUEST
PHOTO COMING BRACKET, RADIATOR D6311100904 · qty on machine: 1 PARTS REQUEST
10	D6311101004	BRACKET, RADIATOR	2		PARTS REQUEST
PHOTO COMING BRACKET, RADIATOR D6311101004 · qty on machine: 2 PARTS REQUEST
11	011008020	HEX. HEAD BOLT	8	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 8 REPLACES P/N 0016908020 view full part page → $2.68
12	B1312600004	RUBBER MOUNT	4		ADD TO CART
RUBBER MOUNT B1312600004 · qty on machine: 4 view full part page → $15.95
13	D6311501103	RADIATOR HOSE	1		PARTS REQUEST
PHOTO COMING RADIATOR HOSE D6311501103 · qty on machine: 1 PARTS REQUEST
14	D6311501203	RADIATOR HOSE	1		PARTS REQUEST
PHOTO COMING RADIATOR HOSE D6311501203 · qty on machine: 1 PARTS REQUEST
15	0605515139	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515139 · qty on machine: 2 view full part page → $6.95
16	0605515136	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515136 · qty on machine: 2 view full part page → $20.95
17	D6924200154	AIR CLEANER	1	INCLUDES ITEMS W/#	PARTS REQUEST
PHOTO COMING AIR CLEANER D6924200154 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 17-1#, 17-2# PARTS REQUEST
17-1#	PMAF25436	ELEMENT AIR CLEANER, OUTER	1	REPLACES P/N 0602046309	ADD TO CART
ELEMENT AIR CLEANER, OUTER PMAF25436 · qty on machine: 1 REPLACES P/N 0602046309 Also included in kit 17 - AIR CLEANER (D6924200154) view full part page → $102.95 IN A KIT + SOLD SOLO
17-2#	P822769	ELEMENT AIR CLEANER, INNER	1	REPLACES P/N Y0602046633	ADD TO CART
ELEMENT AIR CLEANER, INNER P822769 · qty on machine: 1 REPLACES P/N Y0602046633 Also included in kit 17 - AIR CLEANER (D6924200154) view full part page → $100.95 IN A KIT + SOLD SOLO
18	D6374200704	BRACKET, AIR CLEANER	1		PARTS REQUEST
PHOTO COMING BRACKET, AIR CLEANER D6374200704 · qty on machine: 1 PARTS REQUEST
19	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
20	D6374101303	HOSE, AIR CLEANER	1		PARTS REQUEST
PHOTO COMING HOSE, AIR CLEANER D6374101303 · qty on machine: 1 PARTS REQUEST
21	D6374101103	HOSE, AIR CLEANER	1		PARTS REQUEST
PHOTO COMING HOSE, AIR CLEANER D6374101103 · qty on machine: 1 PARTS REQUEST
22	D6374101403	HOSE, AIR CLEANER	1		PARTS REQUEST
PHOTO COMING HOSE, AIR CLEANER D6374101403 · qty on machine: 1 PARTS REQUEST
23	D6374000103	PIPE, AIR CLEANER	1		PARTS REQUEST
PHOTO COMING PIPE, AIR CLEANER D6374000103 · qty on machine: 1 PARTS REQUEST
24	0605515018	HOSE BAND, ø80	3		ADD TO CART
HOSE BAND, ø80 0605515018 · qty on machine: 3 view full part page → $3.95
25	0605515008	HOSE BAND, ø90	1		ADD TO CART
HOSE BAND, ø90 0605515008 · qty on machine: 1 view full part page → $4.95
26	0605515001	HOSE BAND, ø60	1		ADD TO CART
HOSE BAND, ø60 0605515001 · qty on machine: 1 view full part page → $1.43
27	D6374200904	BRACKET, AIR CLEANER PIPE	1		PARTS REQUEST
PHOTO COMING BRACKET, AIR CLEANER PIPE D6374200904 · qty on machine: 1 PARTS REQUEST
27-1	Y0222100060	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL Y0222100060 · qty on machine: 1 view full part page → $456.95
28	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
29	8921468300	SENSOR, INLET AIR TEMP	1	REPLACES P/N 0603210240	PARTS REQUEST
PHOTO COMING SENSOR, INLET AIR TEMP 8921468300 · qty on machine: 1 REPLACES P/N 0603210240 PARTS REQUEST
30	8981924670	PCV HEATER	1	REPLACES P/N Y0602044300	ADD TO CART
PCV HEATER 8981924670 · qty on machine: 1 REPLACES P/N Y0602044300 view full part page → $196.95
31	D6327100004	BLOW-BY HOSE	1		PARTS REQUEST
PHOTO COMING BLOW-BY HOSE D6327100004 · qty on machine: 1 PARTS REQUEST
31A	Y0378100170	SEROFLEX TUBE	1		ADD TO CART
SEROFLEX TUBE Y0378100170 · qty on machine: 1 view full part page → $1.6
32	0605515074	HOSE BAND	1		ADD TO CART
HOSE BAND 0605515074 · qty on machine: 1 view full part page → $2.95
33	06015515198	HOSE BAND	1	REPLACES P/N 0605515064	ADD TO CART
HOSE BAND 06015515198 · qty on machine: 1 REPLACES P/N 0605515064 Factory replaced this part - current number 0605515198 view full part page → $1.71 IN A KIT + SOLD SOLO
34	0802024004	PACKING	1		NO LONGER AVAILABLE
PHOTO COMING PACKING 0802024004 · qty on machine: 1 NO LONGER AVAILABLE
35	C9101000104	PIPE JOINT	1		ADD TO CART
PIPE JOINT C9101000104 · qty on machine: 1 view full part page → $264.95
36	0805008004	PACKING	1		ADD TO CART
PACKING 0805008004 · qty on machine: 1 view full part page → $3.95
37	W0802025004	OIL DRAIN JOINT	1		PARTS REQUEST
PHOTO COMING OIL DRAIN JOINT W0802025004 · qty on machine: 1 PARTS REQUEST
38	0265801000	DRAIN HOSE	1		ADD TO CART
DRAIN HOSE 0265801000 · qty on machine: 1 view full part page → $128.95
39	Y0605515053	HOSE BAND	2		PARTS REQUEST
PHOTO COMING HOSE BAND Y0605515053 · qty on machine: 2 PARTS REQUEST
40	0602022202	HOSE JOINT	1		ADD TO CART
HOSE JOINT 0602022202 · qty on machine: 1 view full part page → $37.95

Page 22 — ENGINE AND RADIATOR ASSY. (CONT’D.)

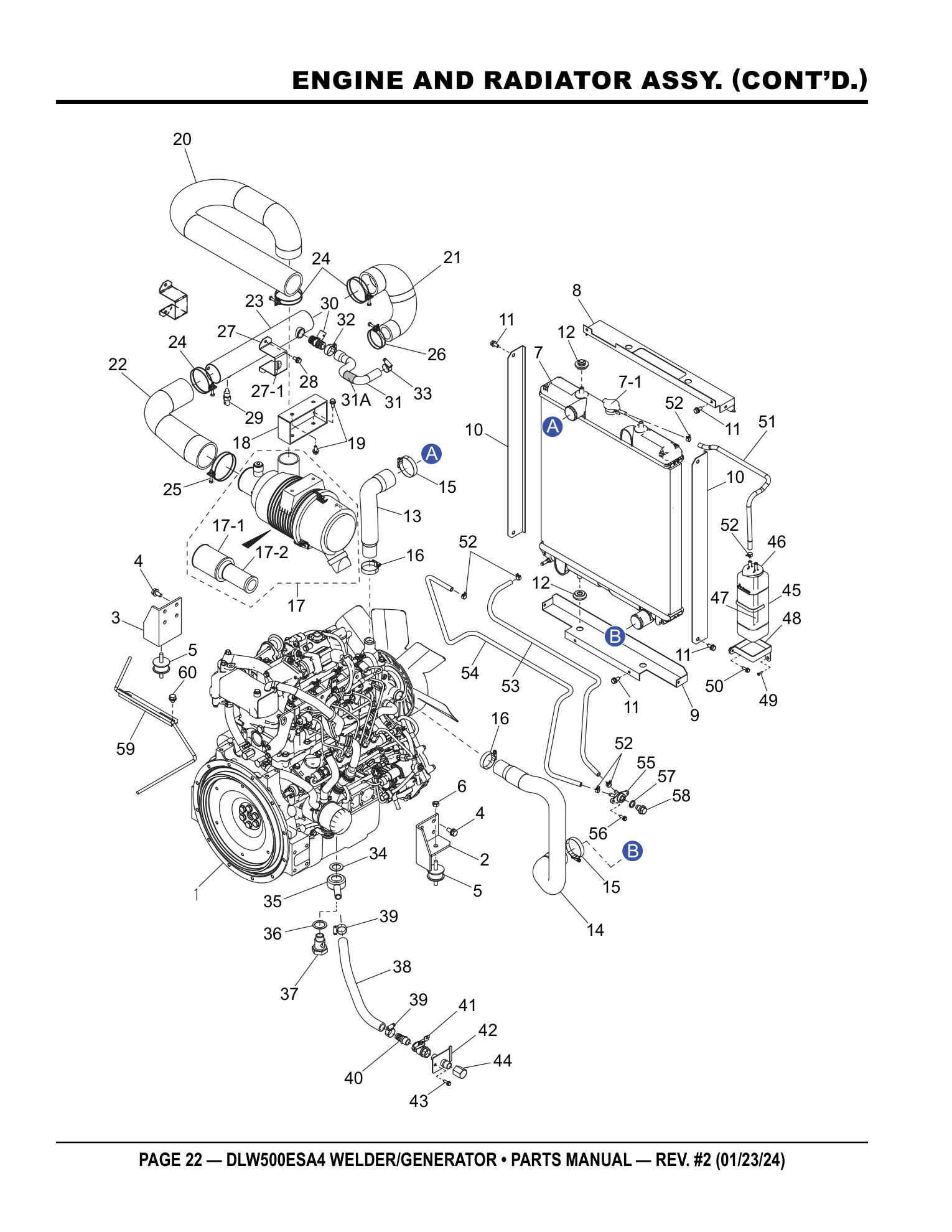

Multiquip DLW500 Diesel Welder ENGINE AND RADIATOR ASSY. (CONT’D.) parts diagram

Parts list — exactly as printed21 rows

No.	Part No.	Part Name	Qty	Remarks
41	Y0603325067	VALVE	1		PARTS REQUEST
PHOTO COMING VALVE Y0603325067 · qty on machine: 1 PARTS REQUEST
42	D9201000104	OIL DRAIN PIPE	1		PARTS REQUEST
PHOTO COMING OIL DRAIN PIPE D9201000104 · qty on machine: 1 PARTS REQUEST
43	011206020	HEX. HEAD BOLT	1	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 1 REPLACES P/N 0016906020 view full part page → $0.95
44	B9201200104	DRAIN PLUG	1		PARTS REQUEST
PHOTO COMING DRAIN PLUG B9201200104 · qty on machine: 1 PARTS REQUEST
45	0802081403	RESERVE TANK	1		ADD TO CART
RESERVE TANK 0802081403 · qty on machine: 1 view full part page → $29.95
46	0802081104	CAP, RESERVE TANK	1		ADD TO CART
CAP, RESERVE TANK 0802081104 · qty on machine: 1 view full part page → $5.95
47	0199100215	HOSE	1		ADD TO CART
HOSE 0199100215 · qty on machine: 1 view full part page → $3.95
48	D4317100304	BRACKET, RESERVE TANK	1		PARTS REQUEST
PHOTO COMING BRACKET, RESERVE TANK D4317100304 · qty on machine: 1 PARTS REQUEST
49	0021104015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0021104015 · qty on machine: 2 view full part page → $1.6
50	011606025	HEX. HEAD BOLT	1	REPLACES P/N 0016906025	ADD TO CART
HEX. HEAD BOLT 011606025 · qty on machine: 1 REPLACES P/N 0016906025 view full part page → $1.95
51	0199900550	HOSE	1		ADD TO CART
HOSE 0199900550 · qty on machine: 1 view full part page → $16.95
52	0605515094	HOSE BAND, Ø12	6		ADD TO CART
HOSE BAND, Ø12 0605515094 · qty on machine: 6 view full part page → $8.95
53	0199901500	HOSE	1	S/N 5887702 AND BELOW	ADD TO CART
HOSE 0199901500 · qty on machine: 1 S/N 5887702 AND BELOW view full part page → $44.95
53	0199901100	HOSE	1	S/N 5887703 AND ABOVE	ADD TO CART
HOSE 0199901100 · qty on machine: 1 S/N 5887703 AND ABOVE view full part page → $25.95
54	Y0199901290	HOSE	1		PARTS REQUEST
PHOTO COMING HOSE Y0199901290 · qty on machine: 1 PARTS REQUEST
55	1622014103	DRAIN JOINT	1		ADD TO CART
DRAIN JOINT 1622014103 · qty on machine: 1 view full part page → $23.95
56	011206020	HEX. HEAD BOLT	2	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 2 REPLACES P/N 0016906020 view full part page → $0.95
57	0150000018	O-RING	1		ADD TO CART
O-RING 0150000018 · qty on machine: 1 view full part page → $1.87
58	0802011104	DRAIN BOLT	1		ADD TO CART
DRAIN BOLT 0802011104 · qty on machine: 1 view full part page → $10.95
59	D6358300003	CLAMPER ROD	1		PARTS REQUEST
PHOTO COMING CLAMPER ROD D6358300003 · qty on machine: 1 PARTS REQUEST
60	0017110015	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0017110015 · qty on machine: 2 view full part page → $1.84

Page 24 — BATTERY ASSY.

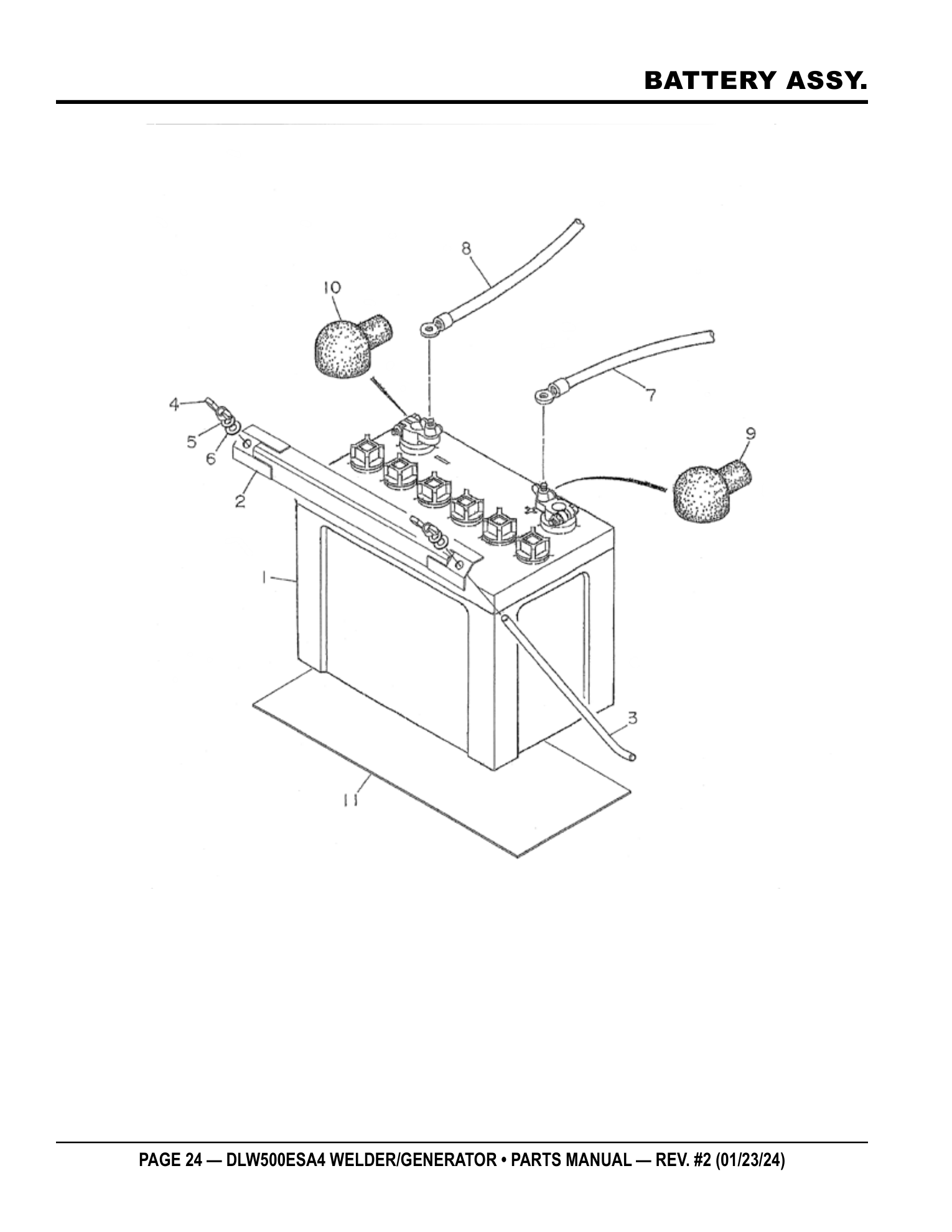

Multiquip DLW500 Diesel Welder BATTERY ASSY. parts diagram

Parts list — exactly as printed11 rows

No.	Part No.	Part Name	Qty	Remarks
1	Y0165311531	BATTERY, 115D31R	1		PARTS REQUEST
PHOTO COMING BATTERY, 115D31R Y0165311531 · qty on machine: 1 PARTS REQUEST
2	D6344200104	BATTERY BAND	1		PARTS REQUEST
PHOTO COMING BATTERY BAND D6344200104 · qty on machine: 1 PARTS REQUEST
3	B9105200004	BATTERY BOLT	2		PARTS REQUEST
PHOTO COMING BATTERY BOLT B9105200004 · qty on machine: 2 PARTS REQUEST
4	57216	WING NUT WASHER	2	REPLACES P/N 0037808000	ADD TO CART
WING NUT WASHER 57216 · qty on machine: 2 REPLACES P/N 0037808000 view full part page → $2.95
5	0040008000	LOCK WASHER	2		ADD TO CART
LOCK WASHER 0040008000 · qty on machine: 2 view full part page → $0.63
6	0401450080	FLAT WASHER	2	REPLACES P/N 0041208000	ADD TO CART
FLAT WASHER 0401450080 · qty on machine: 2 REPLACES P/N 0041208000 view full part page → $0.56
7		BATTERY CABLE	1		SEE REMARKS
PHOTO COMING BATTERY CABLE · qty on machine: 1 SEE REMARKS
8		BATTERY CABLE	1		SEE REMARKS
PHOTO COMING BATTERY CABLE · qty on machine: 1 SEE REMARKS
9	0845040414	TERMINAL CAP, POSITIVE	1		ADD TO CART
TERMINAL CAP, POSITIVE 0845040414 · qty on machine: 1 view full part page → $13.95
10	0845041304	TERMINAL CAP, NEGATIVE	1		ADD TO CART
TERMINAL CAP, NEGATIVE 0845041304 · qty on machine: 1 view full part page → $14.95
11	D6344200304	BATTERY SHEET	1	S/N 5887703 AND ABOVE	PARTS REQUEST
PHOTO COMING BATTERY SHEET D6344200304 · qty on machine: 1 S/N 5887703 AND ABOVE PARTS REQUEST

Page 26 — MUFFLER ASSY.

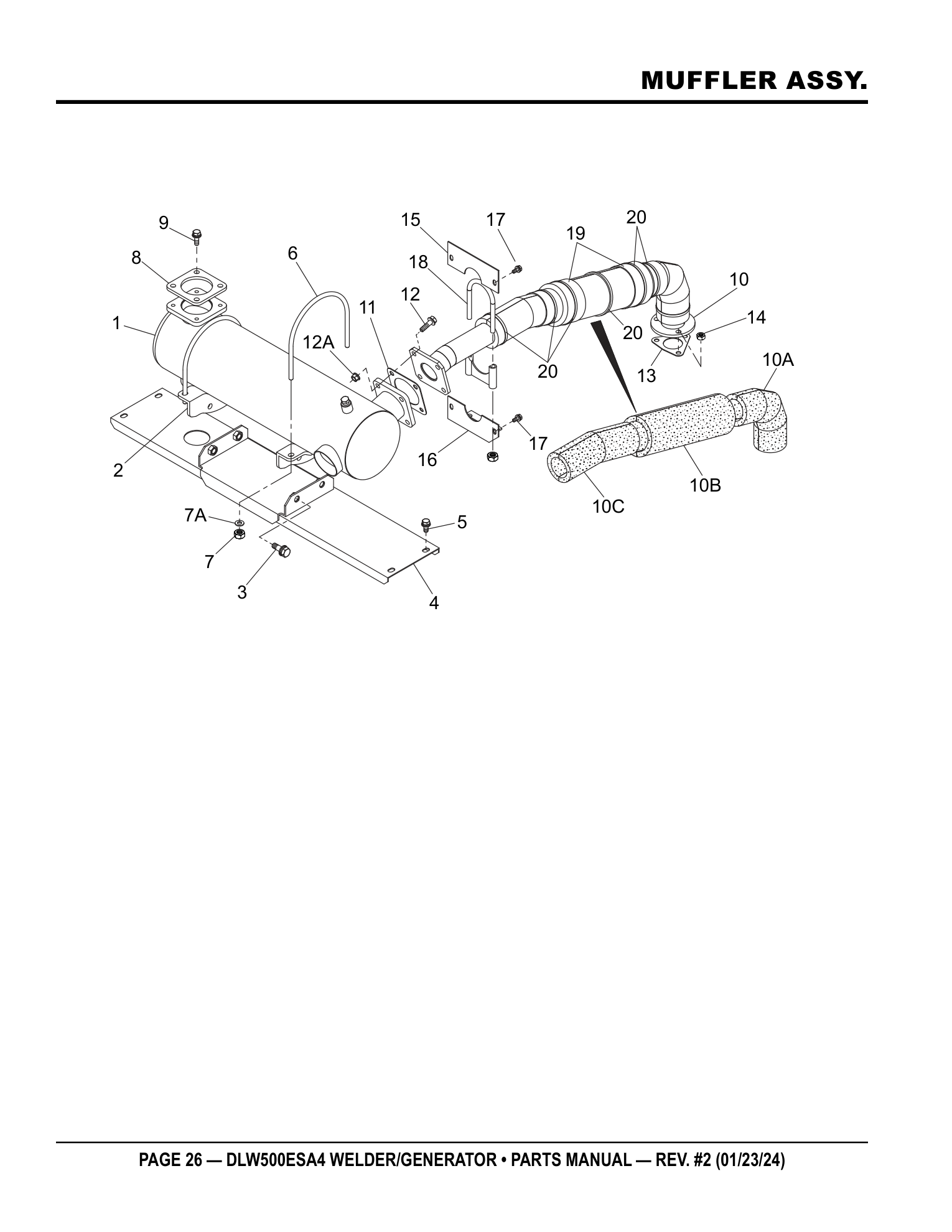

Multiquip DLW500 Diesel Welder MUFFLER ASSY. parts diagram

Parts list — exactly as printed25 rows

No.	Part No.	Part Name	Qty	Remarks
1	8982353890	DOC	1	REPLACES P/N Y0602330111	ADD TO CART
DOC 8982353890 · qty on machine: 1 REPLACES P/N Y0602330111 view full part page → $5850.95
2	8982284330	DOC SUPPORT	2	REPLACES P/N 0602330210	ADD TO CART
DOC SUPPORT 8982284330 · qty on machine: 2 REPLACES P/N 0602330210 view full part page → $91.95
3	0012310030	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0012310030 · qty on machine: 4 view full part page → $0.95
4	D6331400603	BRACKET	1		PARTS REQUEST
PHOTO COMING BRACKET D6331400603 · qty on machine: 1 PARTS REQUEST
5	001230802	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 001230802 · qty on machine: 4 view full part page → $2.12
6	8982103230	U-BOLT	2	REPLACES P/N Y0602322091	ADD TO CART
U-BOLT 8982103230 · qty on machine: 2 REPLACES P/N Y0602322091 view full part page → $31.95
7	0207608000	U-NUT	4		ADD TO CART
U-NUT 0207608000 · qty on machine: 4 view full part page → $2.95
7A	0401450080	FLAT WASHER	4	REPLACES P/N 0041208000	ADD TO CART
FLAT WASHER 0401450080 · qty on machine: 4 REPLACES P/N 0041208000 view full part page → $0.56
8	D6334300104	GASKET	1		PARTS REQUEST
PHOTO COMING GASKET D6334300104 · qty on machine: 1 PARTS REQUEST
9	011208025	HEX. HEAD BOLT	4	REPLACES P/N 0016908025	ADD TO CART
HEX. HEAD BOLT 011208025 · qty on machine: 4 REPLACES P/N 0016908025 view full part page → $0.41
10	D6334001203	EXHAUST PIPE	1		PARTS REQUEST
PHOTO COMING EXHAUST PIPE D6334001203 · qty on machine: 1 PARTS REQUEST
10A	D6331400304	WARM COVER, EXHAUST PIPE	1		PARTS REQUEST
PHOTO COMING WARM COVER, EXHAUST PIPE D6331400304 · qty on machine: 1 PARTS REQUEST
10B	D6331401304	WARM COVER, EXHAUST PIPE	1		PARTS REQUEST
PHOTO COMING WARM COVER, EXHAUST PIPE D6331401304 · qty on machine: 1 PARTS REQUEST
10C	D6331402004	WARM COVER, EXHAUST PIPE	1		PARTS REQUEST
PHOTO COMING WARM COVER, EXHAUST PIPE D6331402004 · qty on machine: 1 PARTS REQUEST
11	8973731080	GASKET	1	REPLACES P/N Y0602320212	ADD TO CART
GASKET 8973731080 · qty on machine: 1 REPLACES P/N Y0602320212 view full part page → $24.95
12	8980435280	HEX. HEAD BOLT	4	REPLACES P/N Y0602322090	ADD TO CART
HEX. HEAD BOLT 8980435280 · qty on machine: 4 REPLACES P/N Y0602322090 view full part page → $15.95
12A	8971616070	HEX. NUT	4	REPLACES P/N Y0602323007	ADD TO CART
HEX. NUT 8971616070 · qty on machine: 4 REPLACES P/N Y0602323007 view full part page → $23.95
13	8973679180	GASKET	1	REPLACES P/N Y0602320211	ADD TO CART
GASKET 8973679180 · qty on machine: 1 REPLACES P/N Y0602320211 view full part page → $24.95
14	0207108000	HEX. NUT	3		ADD TO CART
HEX. NUT 0207108000 · qty on machine: 3 view full part page → $3.95
15	D6331400204	COVER, EXHAUST PIPE	1		PARTS REQUEST
PHOTO COMING COVER, EXHAUST PIPE D6331400204 · qty on machine: 1 PARTS REQUEST
16	D6331400104	BRACKET, EXHAUST PIPE	1		PARTS REQUEST
PHOTO COMING BRACKET, EXHAUST PIPE D6331400104 · qty on machine: 1 PARTS REQUEST
17	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95
18	Y0602326066	U-BOLT	1		ADD TO CART
U-BOLT Y0602326066 · qty on machine: 1 view full part page → $9.95
19	Y0272100300	HEAT SHIELD TAPE	2		PARTS REQUEST
PHOTO COMING HEAT SHIELD TAPE Y0272100300 · qty on machine: 2 PARTS REQUEST
20	Y0601001104	BAND	7		PARTS REQUEST
PHOTO COMING BAND Y0601001104 · qty on machine: 7 PARTS REQUEST

Page 28 — FUEL TANK ASSY.

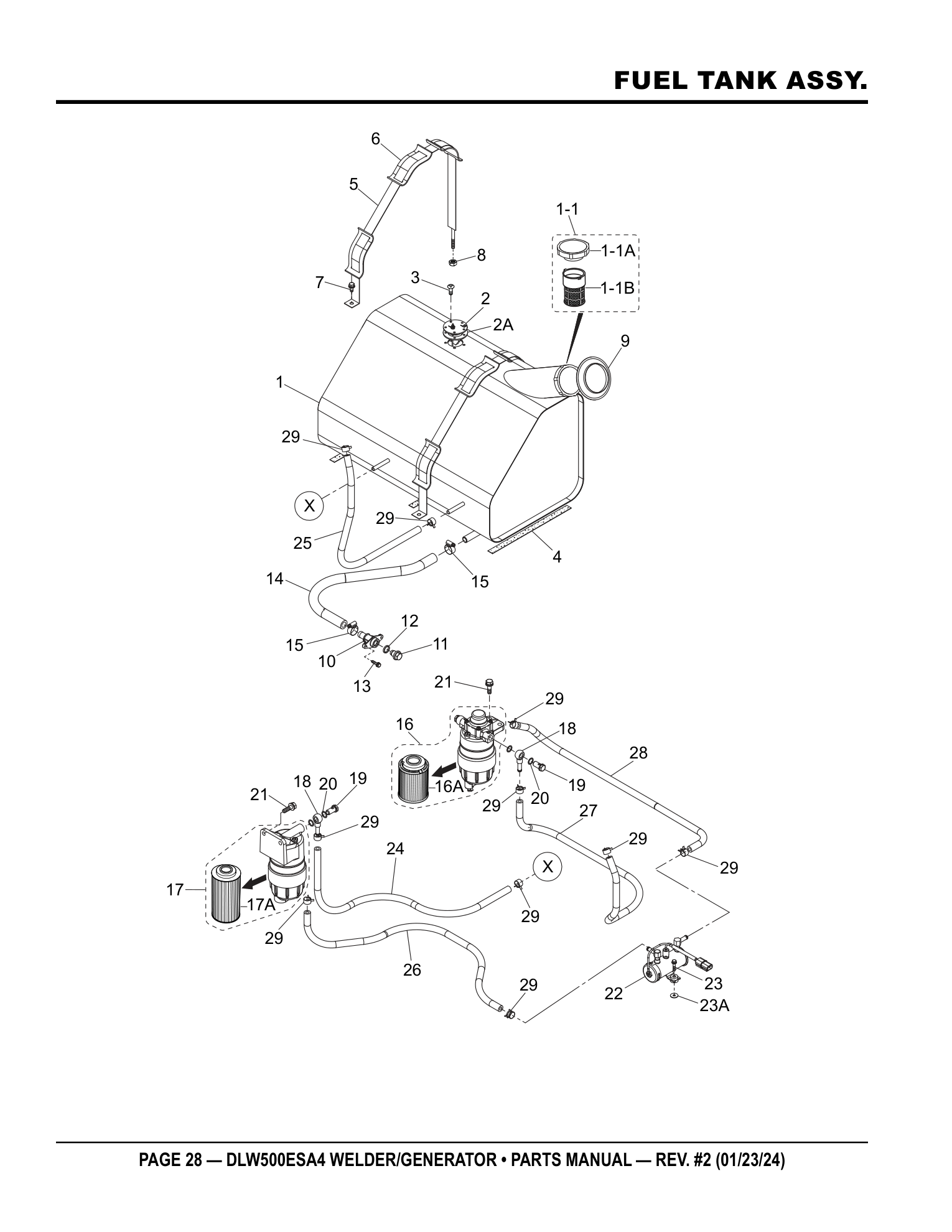

Multiquip DLW500 Diesel Welder FUEL TANK ASSY. parts diagram

Parts list — exactly as printed36 rows

No.	Part No.	Part Name	Qty	Remarks
1	D6364001103	FUEL TANK	1		PARTS REQUEST
PHOTO COMING FUEL TANK D6364001103 · qty on machine: 1 PARTS REQUEST
1-1	A9924800024	CAP, FUEL TANK ASSY	1	INCLUDES ITEMS W/#	ADD TO CART
CAP, FUEL TANK ASSY A9924800024 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 1-1A#, 1-1B# view full part page → $50.95 IN A KIT + SOLD SOLO
1-1A#	0845500104	CAP, FUEL TANK	1	REPLACES P/N W0810105800	ADD TO CART
CAP, FUEL TANK 0845500104 · qty on machine: 1 REPLACES P/N W0810105800 Also included in kit 1-1 - CAP, FUEL TANK ASSY (A9924800024) view full part page → $44.95 IN A KIT + SOLD SOLO
1-1B#	0810105900	FUEL FILTER	1		NO LONGER AVAILABLE
PHOTO COMING FUEL FILTER 0810105900 · qty on machine: 1 Also included in kit 1-1 - CAP, FUEL TANK ASSY (A9924800024) NO LONGER AVAILABLE
2	D6924300034	SENDER, FUEL GAUGE	1		PARTS REQUEST
PHOTO COMING SENDER, FUEL GAUGE D6924300034 · qty on machine: 1 PARTS REQUEST
2A	B3924300184	GASKET	1		ADD TO CART
GASKET B3924300184 · qty on machine: 1 view full part page → $28.14
3	0022905015	MACHINE SCREW	5		ADD TO CART
MACHINE SCREW 0022905015 · qty on machine: 5 view full part page → $2.95
4	Y0310600310	TANK SHEET	3		PARTS REQUEST
PHOTO COMING TANK SHEET Y0310600310 · qty on machine: 3 PARTS REQUEST
5	D6364201004	TANK BAND	2		PARTS REQUEST
PHOTO COMING TANK BAND D6364201004 · qty on machine: 2 PARTS REQUEST
6	0805003414	PAD, TANK BAND	6		ADD TO CART
PAD, TANK BAND 0805003414 · qty on machine: 6 view full part page → $13.95
7	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0017108020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0017108020 view full part page → $2.68
8	0207308000	HEX. NUT	2		ADD TO CART
HEX. NUT 0207308000 · qty on machine: 2 view full part page → $0.89
9	0845039604	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL 0845039604 · qty on machine: 1 view full part page → $8.95
10	1502025103C	DRAIN JOINT	1	REPLACES P/N 1502025103	ADD TO CART
DRAIN JOINT 1502025103C · qty on machine: 1 REPLACES P/N 1502025103 view full part page → $29.95
11	0802011104	PLUG	1		ADD TO CART
PLUG 0802011104 · qty on machine: 1 view full part page → $10.95
12	0150000018	O-RING, A P18	1		ADD TO CART
O-RING, A P18 0150000018 · qty on machine: 1 view full part page → $1.87
13	011606025	HEX. HEAD BOLT	2	REPLACES P/N 0016906025	ADD TO CART
HEX. HEAD BOLT 011606025 · qty on machine: 2 REPLACES P/N 0016906025 view full part page → $1.95
14	0191500700	DRAIN HOSE	1		ADD TO CART
DRAIN HOSE 0191500700 · qty on machine: 1 view full part page → $59.95
15	0605515073	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515073 · qty on machine: 2 view full part page → $6.95
16	8982369900	FUEL FILTER (MAIN)	1	REPLACES P/N 0602042428 INCLUDES ITEMS W/$	ADD TO CART
FUEL FILTER (MAIN) 8982369900 · qty on machine: 1 REPLACES P/N 0602042428 INCLUDES ITEMS W/$ Kit includes: 16A$ view full part page → $317.95 IN A KIT + SOLD SOLO
16A$	8982402800	ELEMENT, FUEL FILTER	1	REPLACES P/N Y0602042508	ADD TO CART
ELEMENT, FUEL FILTER 8982402800 · qty on machine: 1 REPLACES P/N Y0602042508 Also included in kit 16 - FUEL FILTER (MAIN) (8982369900) view full part page → $70.95 IN A KIT + SOLD SOLO
17	8982369910	FUEL FILTER (PRE)	1	REPLACES P/N 0602042429 INCLUDES ITEMS W/%	ADD TO CART
FUEL FILTER (PRE) 8982369910 · qty on machine: 1 REPLACES P/N 0602042429 INCLUDES ITEMS W/% Kit includes: 17A% view full part page → $286.95 IN A KIT + SOLD SOLO
17A%	8982402790	ELEMENT, FUEL FILTER	1	REPLACES P/N Y0602042507	ADD TO CART
ELEMENT, FUEL FILTER 8982402790 · qty on machine: 1 REPLACES P/N Y0602042507 Also included in kit 17 - FUEL FILTER (PRE) (8982369910) view full part page → $75.95 IN A KIT + SOLD SOLO
18	8981263320	PIPE JOINT	4	REPLACES P/N Y0602042623	ADD TO CART
PIPE JOINT 8981263320 · qty on machine: 4 REPLACES P/N Y0602042623 view full part page → $46.95
19	1096751930	EYE BOLT	4	REPLACES P/N Y0602042624	ADD TO CART
EYE BOLT 1096751930 · qty on machine: 4 REPLACES P/N Y0602042624 view full part page → $27.95
20	8982513450	GASKET	8	REPLACES P/N Y0602042642	ADD TO CART
GASKET 8982513450 · qty on machine: 8 REPLACES P/N Y0602042642 view full part page → $6.95
21	012210035	HEX. HEAD BOLT	4	REPLACES P/N 0017110035	ADD TO CART
HEX. HEAD BOLT 012210035 · qty on machine: 4 REPLACES P/N 0017110035 view full part page → $1.95
22	8980682751	FUEL PUMP	1	REPLACES P/N 0602023240	ADD TO CART
FUEL PUMP 8980682751 · qty on machine: 1 REPLACES P/N 0602023240 view full part page → $624.95
23	Y0016906035	HEX. HEAD BOLT	2		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0016906035 · qty on machine: 2 PARTS REQUEST
23A	0805014504	FLAT WASHER	2		ADD TO CART
FLAT WASHER 0805014504 · qty on machine: 2 view full part page → $0.95
24	Y0191301140	RETURN HOSE	1		PARTS REQUEST
PHOTO COMING RETURN HOSE Y0191301140 · qty on machine: 1 PARTS REQUEST
25	Y0191300990	RETURN HOSE	1		PARTS REQUEST
PHOTO COMING RETURN HOSE Y0191300990 · qty on machine: 1 PARTS REQUEST
26	Y0191300940	SUCTION HOSE	1		PARTS REQUEST
PHOTO COMING SUCTION HOSE Y0191300940 · qty on machine: 1 PARTS REQUEST
27	Y0191301210	SUCTION HOSE	1		PARTS REQUEST
PHOTO COMING SUCTION HOSE Y0191301210 · qty on machine: 1 PARTS REQUEST
28	Y0191300860	SUCTION HOSE	1		PARTS REQUEST
PHOTO COMING SUCTION HOSE Y0191300860 · qty on machine: 1 PARTS REQUEST
29	0605515109	HOSE BAND	10		ADD TO CART
HOSE BAND 0605515109 · qty on machine: 10 view full part page → $0.95

Page 30 — REMOTE CONTROL ASSY. (OPTION)

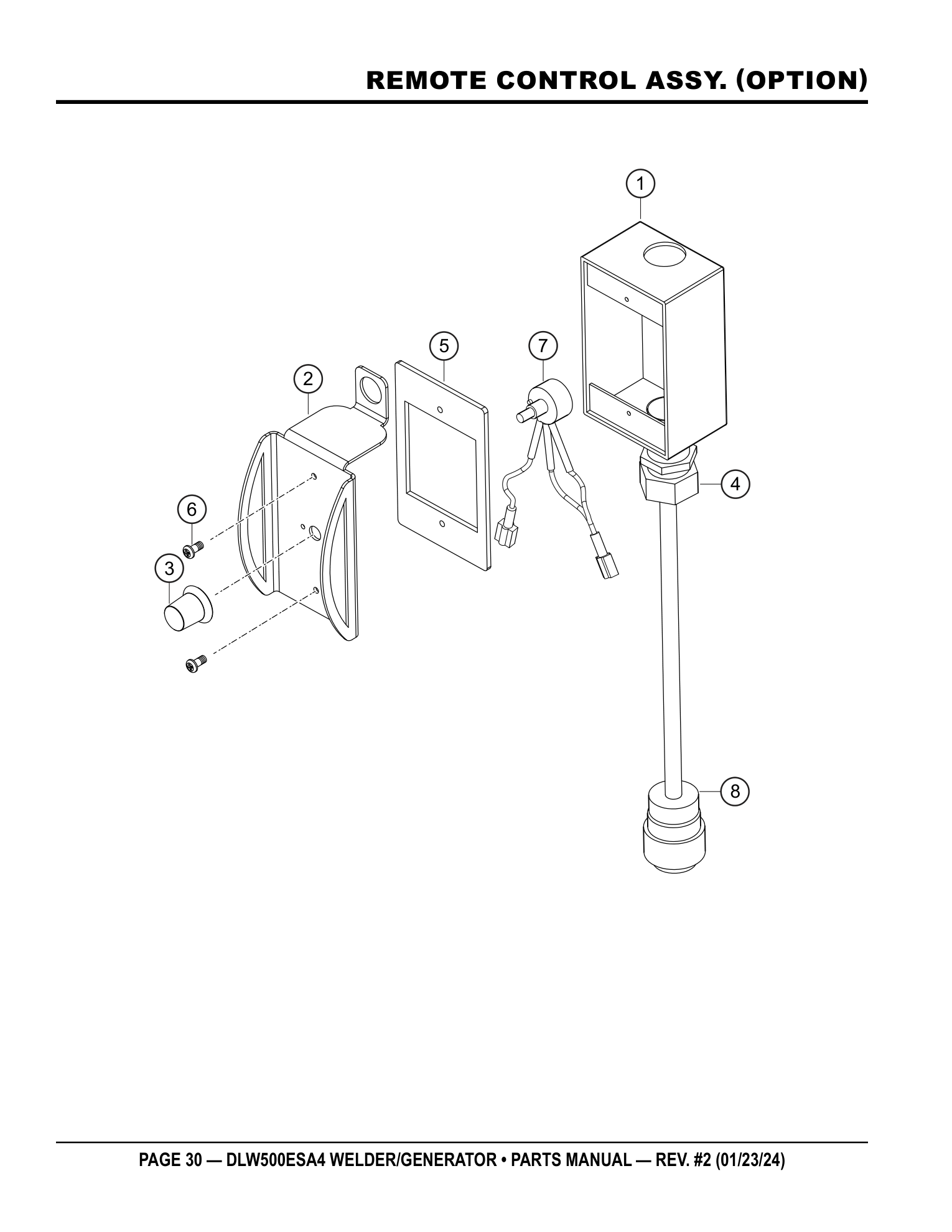

Multiquip DLW500 Diesel Welder REMOTE CONTROL ASSY. (OPTION) parts diagram

Parts list — exactly as printed8 rows

No.	Part No.	Part Name	Qty
1	14292	BOX, ELECTRICAL 4 X 3 X 2	1	ADD TO CART
BOX, ELECTRICAL 4 X 3 X 2 14292 · qty on machine: 1 Factory replaced this part - current number TPS101GT10000 view full part page → $314.95 IN A KIT + SOLD SOLO
2	14293	COVER, ELECTRICAL BOX	1	PARTS REQUEST
PHOTO COMING COVER, ELECTRICAL BOX 14293 · qty on machine: 1 PARTS REQUEST
3	14294	KNOB, ROUND SKIRTED	1	ADD TO CART
KNOB, ROUND SKIRTED 14294 · qty on machine: 1 view full part page → $47.18
4	14295	FITTING, COMPRESSION CABLE	1	ADD TO CART
FITTING, COMPRESSION CABLE 14295 · qty on machine: 1 view full part page → $144.33
5	14301	GASKET, FOAM ELECTRICAL	1	ADD TO CART
GASKET, FOAM ELECTRICAL 14301 · qty on machine: 1 view full part page → $3.27
6	19298	SCREW, PHP 6-32 X3/8	2	ADD TO CART
SCREW, PHP 6-32 X3/8 19298 · qty on machine: 2 view full part page → $0.36
7	EE63046	VOLTAGE CONTROL ASSY., 10KΩ, 3-WIRE	1	PARTS REQUEST
PHOTO COMING VOLTAGE CONTROL ASSY., 10KΩ, 3-WIRE EE63046 · qty on machine: 1 PARTS REQUEST
8	EE63047	CABLE ASSEMBLY	1	PARTS REQUEST
PHOTO COMING CABLE ASSEMBLY EE63047 · qty on machine: 1 PARTS REQUEST

Page 32 — ENCLOSURE ASSY.

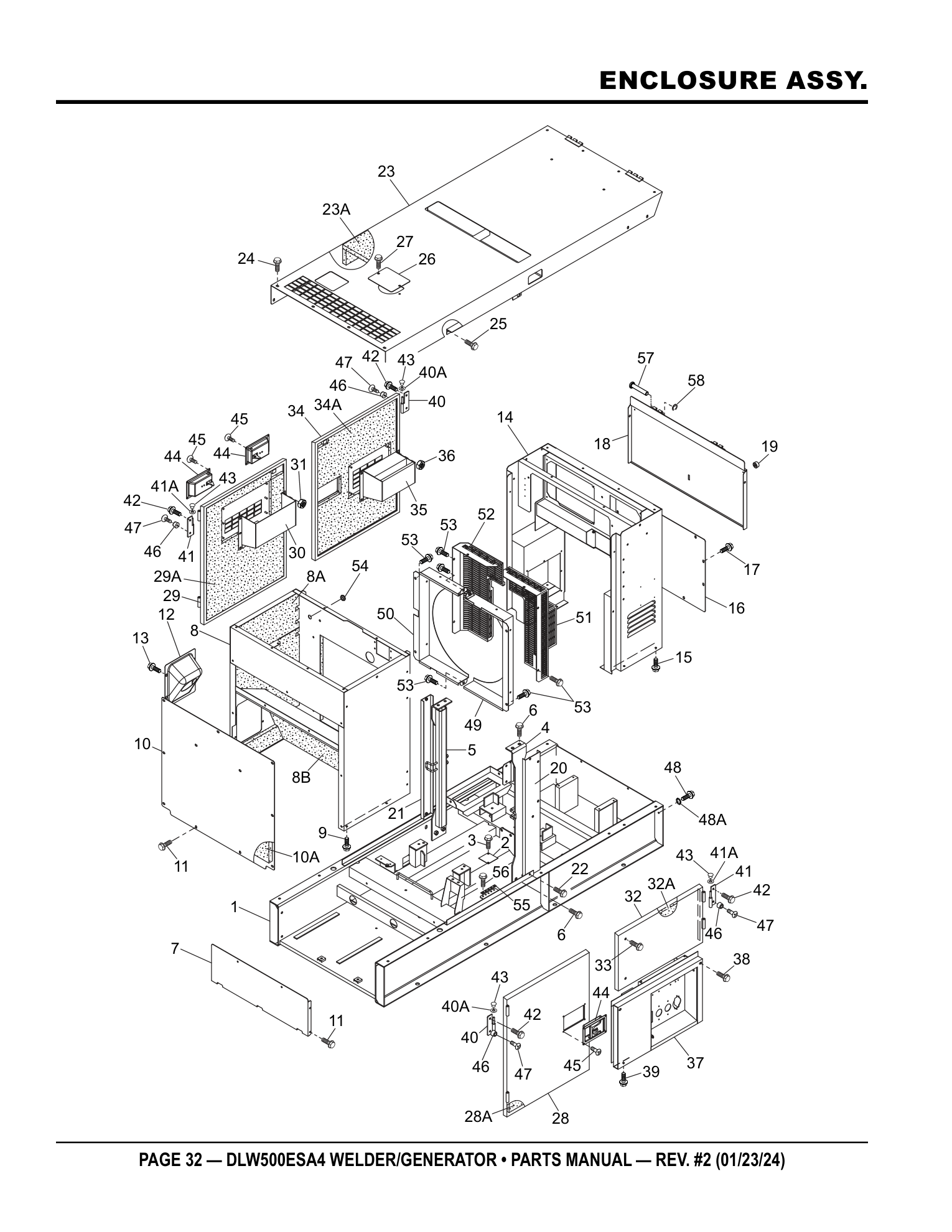

Multiquip DLW500 Diesel Welder ENCLOSURE ASSY. parts diagram

Parts list — exactly as printed44 rows

No.	Part No.	Part Name	Qty	Remarks
1	D6414001702	BASE	1		PARTS REQUEST
PHOTO COMING BASE D6414001702 · qty on machine: 1 PARTS REQUEST
2	D3414800104	FLOOR PANEL	1		ADD TO CART
FLOOR PANEL D3414800104 · qty on machine: 1 view full part page → $29.95
3	0016906015	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 2 view full part page → $0.95
4	D6434000303	CENTER FRAME	1		PARTS REQUEST
PHOTO COMING CENTER FRAME D6434000303 · qty on machine: 1 PARTS REQUEST
5	D6434000203	CENTER FRAME	1		PARTS REQUEST
PHOTO COMING CENTER FRAME D6434000203 · qty on machine: 1 PARTS REQUEST
6	0012312030	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0012312030 · qty on machine: 8 view full part page → $6.95
7	D6414400004	FRONT COVER	1		PARTS REQUEST
PHOTO COMING FRONT COVER D6414400004 · qty on machine: 1 PARTS REQUEST
8	D6424001402	FRONT FRAME	1		PARTS REQUEST
PHOTO COMING FRONT FRAME D6424001402 · qty on machine: 1 PARTS REQUEST
8A	D6494101803	LINING	1		PARTS REQUEST
PHOTO COMING LINING D6494101803 · qty on machine: 1 PARTS REQUEST
8B	D6497100504	LINING	1		PARTS REQUEST
PHOTO COMING LINING D6497100504 · qty on machine: 1 PARTS REQUEST
9	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
10	D6424200904	COVER, FRONT FRAME	1		PARTS REQUEST
PHOTO COMING COVER, FRONT FRAME D6424200904 · qty on machine: 1 PARTS REQUEST
10A	D6494101904	LINING	1		PARTS REQUEST
PHOTO COMING LINING D6494101904 · qty on machine: 1 PARTS REQUEST
11	011008020	HEX. HEAD BOLT	15	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 15 REPLACES P/N 0016908020 view full part page → $2.68
12	0845039703	FILLER BRACKET	1		ADD TO CART
FILLER BRACKET 0845039703 · qty on machine: 1 view full part page → $88.95
13	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
14	D6444002602	REAR FRAME	1		PARTS REQUEST
PHOTO COMING REAR FRAME D6444002602 · qty on machine: 1 PARTS REQUEST
15	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
16	D6444301503	COVER, REAR FRAME	1		PARTS REQUEST
PHOTO COMING COVER, REAR FRAME D6444301503 · qty on machine: 1 PARTS REQUEST
17	011008020	HEX. HEAD BOLT	9	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 9 REPLACES P/N 0016908020 view full part page → $2.68
18	D6444201403	REAR DOOR	1		ADD TO CART
REAR DOOR D6444201403 · qty on machine: 1 view full part page → $581.48
19	0601851613	STOPPER	2		ADD TO CART
STOPPER 0601851613 · qty on machine: 2 view full part page → $2.95
20	D6434100204	CENTER PANEL	1		PARTS REQUEST
PHOTO COMING CENTER PANEL D6434100204 · qty on machine: 1 PARTS REQUEST
21	D6434100104	CENTER PANEL	1		PARTS REQUEST
PHOTO COMING CENTER PANEL D6434100104 · qty on machine: 1 PARTS REQUEST
22	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95
23	D6464001002	ROOF PANEL	1	S/N 5895115 AND BELOW	PARTS REQUEST
PHOTO COMING ROOF PANEL D6464001002 · qty on machine: 1 S/N 5895115 AND BELOW PARTS REQUEST
23	D6464001302	ROOF PANEL	1	S/N 5895116 AND ABOVE	PARTS REQUEST
PHOTO COMING ROOF PANEL D6464001302 · qty on machine: 1 S/N 5895116 AND ABOVE PARTS REQUEST
23A	D6494500703	LINING	1		PARTS REQUEST
PHOTO COMING LINING D6494500703 · qty on machine: 1 PARTS REQUEST
24	011008020	HEX. HEAD BOLT	18	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 18 REPLACES P/N 0016908020 view full part page → $2.68
25	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95
26	8452023004	COVER, RADIATOR CAP	1		ADD TO CART
COVER, RADIATOR CAP 8452023004 · qty on machine: 1 view full part page → $55.95
27	0016906015	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 2 view full part page → $0.95
28	D6454001703	SIDE DOOR	1	S/N 5895115 AND BELOW	PARTS REQUEST
PHOTO COMING SIDE DOOR D6454001703 · qty on machine: 1 S/N 5895115 AND BELOW PARTS REQUEST
28	D6454002303	SIDE DOOR	1	S/N 5895116 AND ABOVE	PARTS REQUEST
PHOTO COMING SIDE DOOR D6454002303 · qty on machine: 1 S/N 5895116 AND ABOVE PARTS REQUEST
28A	D6494403004	LINING	1	S/N 5895115 AND BELOW	PARTS REQUEST
PHOTO COMING LINING D6494403004 · qty on machine: 1 S/N 5895115 AND BELOW PARTS REQUEST
28A	D6494403014	LINING	1	S/N 5895116 AND ABOVE	PARTS REQUEST
PHOTO COMING LINING D6494403014 · qty on machine: 1 S/N 5895116 AND ABOVE PARTS REQUEST
29	D6454001603	SIDE DOOR	1	S/N 5895115 AND BELOW	PARTS REQUEST
PHOTO COMING SIDE DOOR D6454001603 · qty on machine: 1 S/N 5895115 AND BELOW PARTS REQUEST
29	D6454002203	SIDE DOOR	1	S/N 5895116 AND ABOVE	PARTS REQUEST
PHOTO COMING SIDE DOOR D6454002203 · qty on machine: 1 S/N 5895116 AND ABOVE PARTS REQUEST
29A	D6494402904	LINING	1		PARTS REQUEST
PHOTO COMING LINING D6494402904 · qty on machine: 1 PARTS REQUEST
30	D6454301004	DUCT	1		PARTS REQUEST
PHOTO COMING DUCT D6454301004 · qty on machine: 1 PARTS REQUEST
31	0176060030	HEX. NUT	7	REPLACES P/N 0207006000	ADD TO CART
HEX. NUT 0176060030 · qty on machine: 7 REPLACES P/N 0207006000 view full part page → $2.95
32	D6454001903	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR D6454001903 · qty on machine: 1 PARTS REQUEST
32A	D6494403204	LINING	1		PARTS REQUEST
PHOTO COMING LINING D6494403204 · qty on machine: 1 PARTS REQUEST
33	Y0016908050	HEX. HEAD BOLT	2		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0016908050 · qty on machine: 2 PARTS REQUEST

Page 34 — ENCLOSURE ASSY. (CONT’D.)

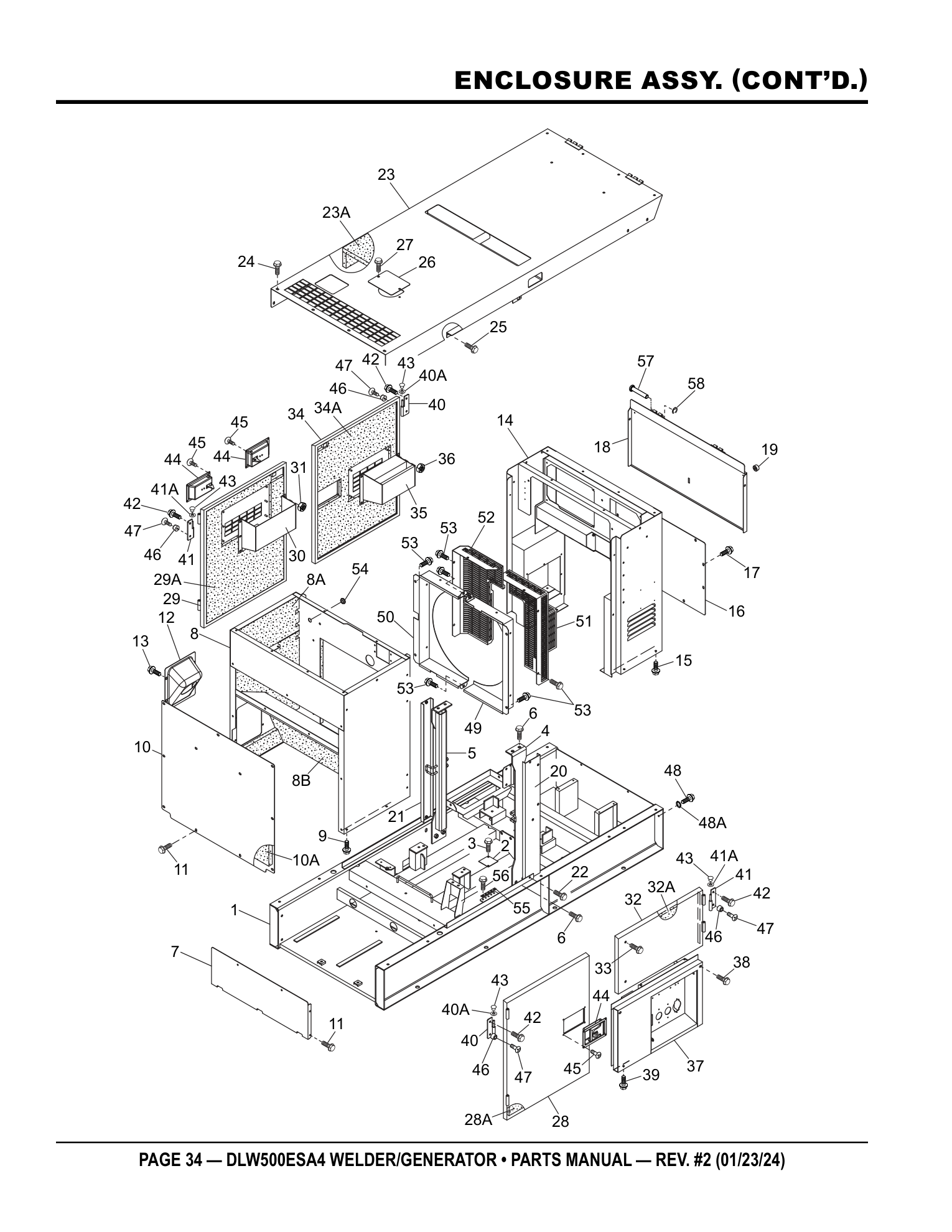

Multiquip DLW500 Diesel Welder ENCLOSURE ASSY. (CONT’D.) parts diagram

Parts list — exactly as printed31 rows

No.	Part No.	Part Name	Qty	Remarks
34	D6454001803	SIDE DOOR	1	S/N 5895115 AND BELOW	PARTS REQUEST
PHOTO COMING SIDE DOOR D6454001803 · qty on machine: 1 S/N 5895115 AND BELOW PARTS REQUEST
34	D6454002403	SIDE DOOR	1	S/N 5895116 AND ABOVE	PARTS REQUEST
PHOTO COMING SIDE DOOR D6454002403 · qty on machine: 1 S/N 5895116 AND ABOVE PARTS REQUEST
34A	D6494403104	LINING	1	S/N 5895115 AND BELOW	PARTS REQUEST
PHOTO COMING LINING D6494403104 · qty on machine: 1 S/N 5895115 AND BELOW PARTS REQUEST
34A	D6494403114	LINING	1	S/N 5895116 AND ABOVE	PARTS REQUEST
PHOTO COMING LINING D6494403114 · qty on machine: 1 S/N 5895116 AND ABOVE PARTS REQUEST
35	D6454301204	DUCT	1		PARTS REQUEST
PHOTO COMING DUCT D6454301204 · qty on machine: 1 PARTS REQUEST
36	0176060030	HEX. NUT	5	REPLACES P/N 0207006000	ADD TO CART
HEX. NUT 0176060030 · qty on machine: 5 REPLACES P/N 0207006000 view full part page → $2.95
37	D6454200602	SPLASHER PANEL	1		PARTS REQUEST
PHOTO COMING SPLASHER PANEL D6454200602 · qty on machine: 1 PARTS REQUEST
38	0016908055	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0016908055 · qty on machine: 2 view full part page → $0.58
39	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
40	M9110100204	HINGE MALE (L)	4	REPLACES P/N 0845047104	ADD TO CART
HINGE MALE (L) M9110100204 · qty on machine: 4 REPLACES P/N 0845047104 view full part page → $23.95
40A	0845045004	WASHER	4		ADD TO CART
WASHER 0845045004 · qty on machine: 4 view full part page → $1.43
41	M9110100304	HINGE MALE (R)	4	REPLACES P/N 0845047204	ADD TO CART
HINGE MALE (R) M9110100304 · qty on machine: 4 REPLACES P/N 0845047204 view full part page → $19.95
41A	0845045004	WASHER	4		ADD TO CART
WASHER 0845045004 · qty on machine: 4 view full part page → $1.43
42	011008020	HEX. HEAD BOLT	16	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 16 REPLACES P/N 0016908020 view full part page → $2.68
43	0845031504	CAP	8		ADD TO CART
CAP 0845031504 · qty on machine: 8 view full part page → $2.95
44	B9114000002	DOOR HANDLE ASSY.	3		ADD TO CART
DOOR HANDLE ASSY. B9114000002 · qty on machine: 3 view full part page → $81.95
45	0021806015	MACHINE SCREW	12		ADD TO CART
MACHINE SCREW 0021806015 · qty on machine: 12 view full part page → $0.87
46	0601850097	STOPPER	4		ADD TO CART
STOPPER 0601850097 · qty on machine: 4 view full part page → $2.95
47	0027208025	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027208025 · qty on machine: 4 view full part page → $0.76
48	Y0345908020	HEX. HEAD BOLT	1		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0345908020 · qty on machine: 1 PARTS REQUEST
48A	0040508000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040508000 · qty on machine: 1 view full part page → $0.35
49	D6311300303	FAN SHROUD	1		PARTS REQUEST
PHOTO COMING FAN SHROUD D6311300303 · qty on machine: 1 PARTS REQUEST
50	D6311300203	FAN SHROUD	1		PARTS REQUEST
PHOTO COMING FAN SHROUD D6311300203 · qty on machine: 1 PARTS REQUEST
51	D6311201003	FAN GUARD	1		PARTS REQUEST
PHOTO COMING FAN GUARD D6311201003 · qty on machine: 1 PARTS REQUEST
52	D6311200903	FAN GUARD	1		PARTS REQUEST
PHOTO COMING FAN GUARD D6311200903 · qty on machine: 1 PARTS REQUEST
53	011008020	HEX. HEAD BOLT	12	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 12 REPLACES P/N 0016908020 view full part page → $2.68
54	0601850239	GROMMET	1		ADD TO CART
GROMMET 0601850239 · qty on machine: 1 view full part page → $3.95
55	8511864601A	PLATE	1	REPLACES P/N 8511864604	PARTS REQUEST
PHOTO COMING PLATE 8511864601A · qty on machine: 1 REPLACES P/N 8511864604 PARTS REQUEST
56	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95
57	0810014704	PIN	2		ADD TO CART
PIN 0810014704 · qty on machine: 2 view full part page → $3.95
58	0080200004	SNAP RING	2		ADD TO CART
SNAP RING 0080200004 · qty on machine: 2 view full part page → $0.29

Page 36 — RUBBER SEALS ASSY.

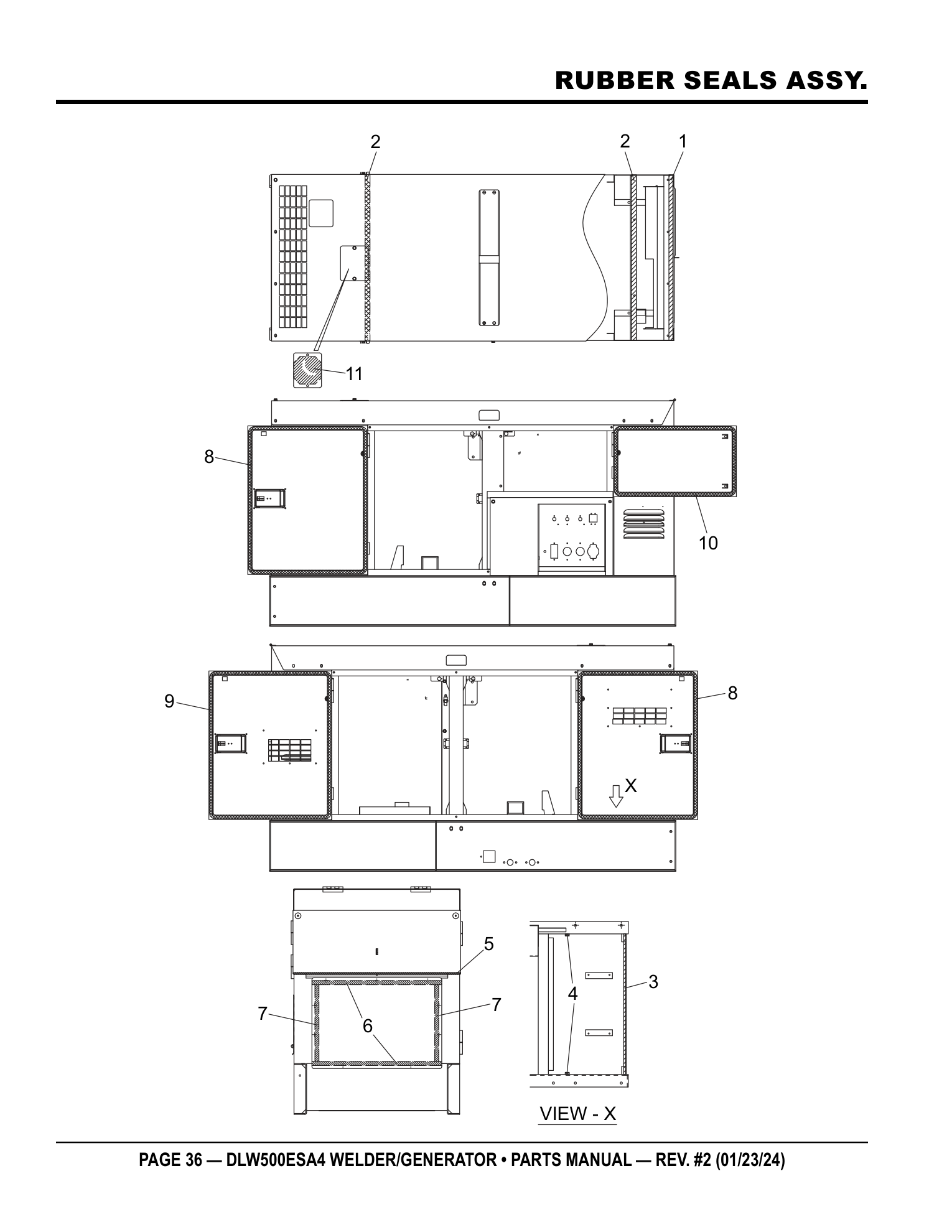

Multiquip DLW500 Diesel Welder RUBBER SEALS ASSY. parts diagram

Parts list — exactly as printed11 rows

No.	Part No.	Part Name	Qty
1	D6491400404	RUBBER SEAL	1	PARTS REQUEST
PHOTO COMING RUBBER SEAL D6491400404 · qty on machine: 1 PARTS REQUEST
2	Y0229200830	RUBBER SEAL	2	ADD TO CART
RUBBER SEAL Y0229200830 · qty on machine: 2 view full part page → $8.95
3	D6491700104	RUBBER SEAL	1	PARTS REQUEST
PHOTO COMING RUBBER SEAL D6491700104 · qty on machine: 1 PARTS REQUEST
4	D6491700204	RUBBER SEAL	1	PARTS REQUEST
PHOTO COMING RUBBER SEAL D6491700204 · qty on machine: 1 PARTS REQUEST
5	Y0226900835	RUBBER SEAL	1	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0226900835 · qty on machine: 1 PARTS REQUEST
6	Y0228400650	RUBBER SEAL	2	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0228400650 · qty on machine: 2 PARTS REQUEST
7	Y0228400385	RUBBER SEAL	2	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0228400385 · qty on machine: 2 PARTS REQUEST
8	Y0314202610	RUBBER SEAL	2	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0314202610 · qty on machine: 2 PARTS REQUEST
9	Y0314202640	RUBBER SEAL	1	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0314202640 · qty on machine: 1 PARTS REQUEST
10	Y0314201860	RUBBER SEAL	1	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0314201860 · qty on machine: 1 PARTS REQUEST
11	D9311400504	RUBBER SEAL	1	PARTS REQUEST
PHOTO COMING RUBBER SEAL D9311400504 · qty on machine: 1 PARTS REQUEST

Page 38 — NAMEPLATE AND DECALS ASSY.

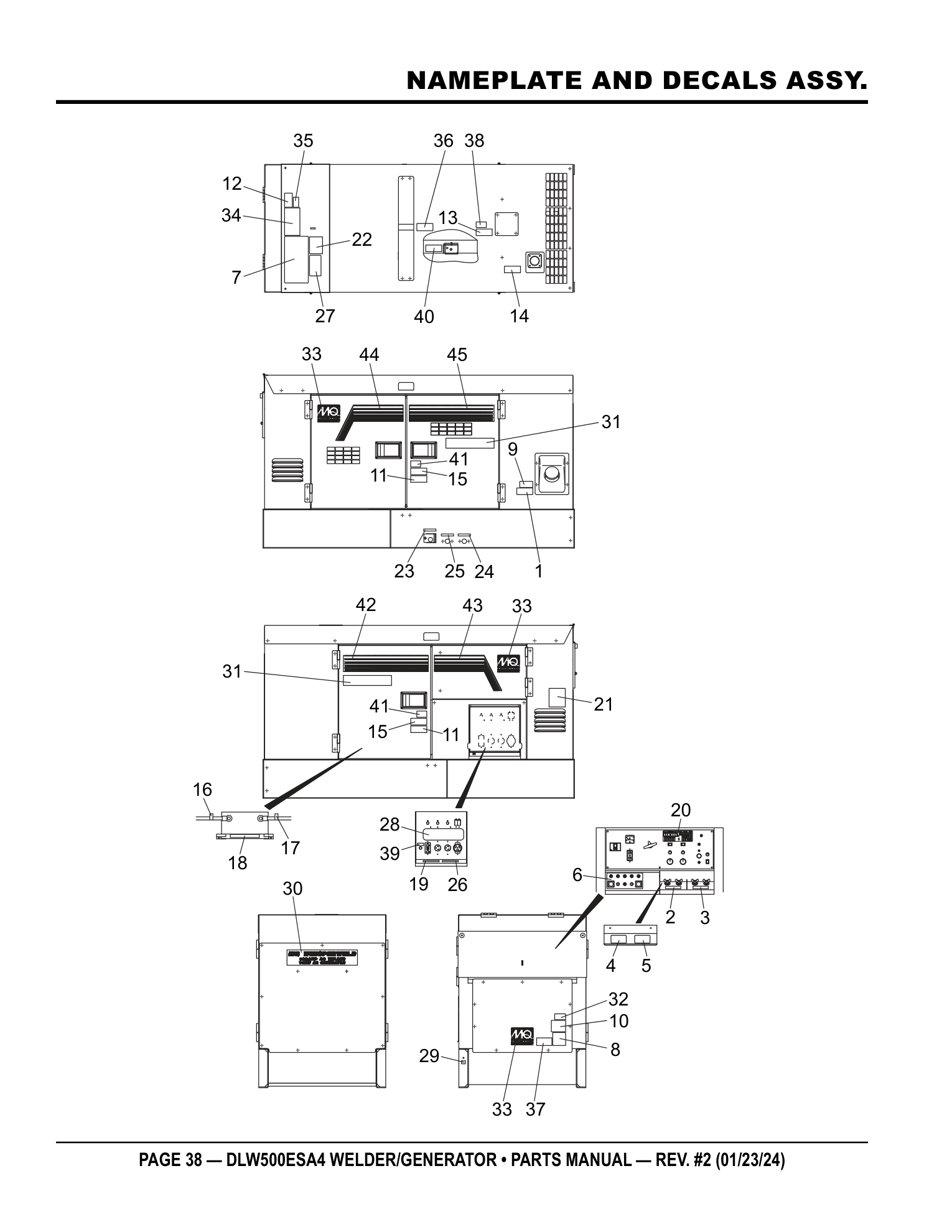

Multiquip DLW500 Diesel Welder NAMEPLATE AND DECALS ASSY. parts diagram

Parts list — exactly as printed45 rows

No.	Part No.	Part Name	Qty	Remarks
1	B9504500004	DECAL; WARNING	1	B90450000	ADD TO CART
DECAL; WARNING B9504500004 · qty on machine: 1 B90450000 view full part page → $4.95
2	D5551001904	DECAL; A WELDING OUTPUT TERMINAL	1	D55100190	ADD TO CART
DECAL; A WELDING OUTPUT TERMINAL D5551001904 · qty on machine: 1 D55100190 view full part page → $7.95
3	D5551002004	DECAL; B WELDING OUTPUT TERMINAL	1	D55100200	ADD TO CART
DECAL; B WELDING OUTPUT TERMINAL D5551002004 · qty on machine: 1 D55100200 view full part page → $7.95
4	D5551002104	DECAL; A WELDING OUTPUT TERMINAL	1	D55100210	ADD TO CART
DECAL; A WELDING OUTPUT TERMINAL D5551002104 · qty on machine: 1 D55100210 view full part page → $8.95
5	D5551002204	DECAL; B WELDING OUTPUT TERMINAL	1	D55100220	ADD TO CART
DECAL; B WELDING OUTPUT TERMINAL D5551002204 · qty on machine: 1 D55100220 view full part page → $8.95
6	D6551009802	DECAL; FEEDER OUTPUT OPERATION	1	D65100980A	PARTS REQUEST
PHOTO COMING DECAL; FEEDER OUTPUT OPERATION D6551009802 · qty on machine: 1 D65100980A PARTS REQUEST
7	D6551009903	DECAL; OPERATION	1	D65100990	PARTS REQUEST
PHOTO COMING DECAL; OPERATION D6551009903 · qty on machine: 1 D65100990 PARTS REQUEST
8	D9531100004	DECAL; WARNING EARTH GROUND	1	D93110000	ADD TO CART
DECAL; WARNING EARTH GROUND D9531100004 · qty on machine: 1 D93110000 view full part page → $9.95
9	B9504501214	DECAL; DIESEL FUEL	1	B90450121	ADD TO CART
DECAL; DIESEL FUEL B9504501214 · qty on machine: 1 B90450121 view full part page → $5.95
10	A9504000014	DECAL; DANGER	1	A90400001	ADD TO CART
DECAL; DANGER A9504000014 · qty on machine: 1 A90400001 view full part page → $12.95
11	B9504000404	DECAL; WARNING MOVING PARTS	2	B90400040	ADD TO CART
DECAL; WARNING MOVING PARTS B9504000404 · qty on machine: 2 B90400040 view full part page → $4.95
12	0820610404	DECAL; WARNING	1	S-3627	ADD TO CART
DECAL; WARNING 0820610404 · qty on machine: 1 S-3627 view full part page → $4.95
13	B9504100104	DECAL; WARNING HOT COOLANT	1	B90410010	ADD TO CART
DECAL; WARNING HOT COOLANT B9504100104 · qty on machine: 1 B90410010 view full part page → $4.95
14	W8700611804	DECAL; WARNING DANGEROUS	1	S-4984	ADD TO CART
DECAL; WARNING DANGEROUS W8700611804 · qty on machine: 1 S-4984 view full part page → $5.95
15	B9504000304	DECAL; WARNING HOT PARTS	2	B90400030	ADD TO CART
DECAL; WARNING HOT PARTS B9504000304 · qty on machine: 2 B90400030 view full part page → $4.95
16	0800689404	DECAL; +	1	S-2090	ADD TO CART
DECAL; + 0800689404 · qty on machine: 1 S-2090 view full part page → $2.95
17	0800689504	DECAL; −	1	S-2091	ADD TO CART
DECAL; − 0800689504 · qty on machine: 1 S-2091 view full part page → $2.95
18	D6551009604	DECAL; CAUTION BATTERY	1		PARTS REQUEST
PHOTO COMING DECAL; CAUTION BATTERY D6551009604 · qty on machine: 1 PARTS REQUEST
19	8700611904	DECAL; DANGER, ELEC. SHK. HAZARD	1	S-4985	ADD TO CART
DECAL; DANGER, ELEC. SHK. HAZARD 8700611904 · qty on machine: 1 S-4985 view full part page → $5.95
20	D2551000603	DECAL; OPERATION INDICATION	1		ADD TO CART
DECAL; OPERATION INDICATION D2551000603 · qty on machine: 1 view full part page → $64.95
21	D6531102504	DECAL; SPECIFICATION	1	D63110250	PARTS REQUEST
PHOTO COMING DECAL; SPECIFICATION D6531102504 · qty on machine: 1 D63110250 PARTS REQUEST
22	6390671104	DECAL; IMPORTANT CHECK DAILY	1	S-2377	ADD TO CART
DECAL; IMPORTANT CHECK DAILY 6390671104 · qty on machine: 1 S-2377 view full part page → $6.95
23	1630645004	DECAL; OIL DRAIN	1	S-1403	ADD TO CART
DECAL; OIL DRAIN 1630645004 · qty on machine: 1 S-1403 view full part page → $1.43
24	1630647004	DECAL; WATER DRAIN	1	S-1404	ADD TO CART
DECAL; WATER DRAIN 1630647004 · qty on machine: 1 S-1404 view full part page → $1.43
25	7810680104	DECAL; FUEL DRAIN	1	S-3060	ADD TO CART
DECAL; FUEL DRAIN 7810680104 · qty on machine: 1 S-3060 view full part page → $2.73
26	B9511100304	DECAL; WARNING	1	B91110030	ADD TO CART
DECAL; WARNING B9511100304 · qty on machine: 1 B91110030 view full part page → $4.95
27	D2551001004	DECAL; ERROR CODES	1	D25100100	ADD TO CART
DECAL; ERROR CODES D2551001004 · qty on machine: 1 D25100100 view full part page → $12.95
28	D6551009503	DECAL; AC POWER OUTPUT	1	D65100950	PARTS REQUEST
PHOTO COMING DECAL; AC POWER OUTPUT D6551009503 · qty on machine: 1 D65100950 PARTS REQUEST
29	0800628504	DECAL; GROUND	1	S-1123	ADD TO CART
DECAL; GROUND 0800628504 · qty on machine: 1 S-1123 view full part page → $1.91
30	D6561001002	DECAL; MQ WHISPERWELD	1	D66100100	PARTS REQUEST
PHOTO COMING DECAL; MQ WHISPERWELD D6561001002 · qty on machine: 1 D66100100 PARTS REQUEST
31	D9511200803	DECAL; SMART STICK	2		ADD TO CART
DECAL; SMART STICK D9511200803 · qty on machine: 2 view full part page → $30.95
32	A9511101304	DECAL; WARNING PROPOSITION	65	1 A91110130	ADD TO CART
DECAL; WARNING PROPOSITION A9511101304 · qty on machine: 65 1 A91110130 view full part page → $4.95
33	D3561000104	DECAL; MQ	3		ADD TO CART
DECAL; MQ D3561000104 · qty on machine: 3 view full part page → $19.95
34	D9512100203	DECAL; CAUTIONS ON WELDING OPER.	1	D91210020	ADD TO CART
DECAL; CAUTIONS ON WELDING OPER. D9512100203 · qty on machine: 1 D91210020 view full part page → $12.95
35	D6551010004	DECAL; CAUTION	1	D65101000	PARTS REQUEST
PHOTO COMING DECAL; CAUTION D6551010004 · qty on machine: 1 D65101000 PARTS REQUEST
36	D6551010104	DECAL; MAX. CAPACITY OF LIFTING	1	D65101010	PARTS REQUEST
PHOTO COMING DECAL; MAX. CAPACITY OF LIFTING D6551010104 · qty on machine: 1 D65101010 PARTS REQUEST
37	920214100	DECAL; WARNING START FIRES	1	REPLACES P/N M9504200004 M90420000	ADD TO CART
DECAL; WARNING START FIRES 920214100 · qty on machine: 1 REPLACES P/N M9504200004 M90420000 view full part page → $12.95
38	W7810680204	DECAL; COOLING WATER	1	S-3061	ADD TO CART
DECAL; COOLING WATER W7810680204 · qty on machine: 1 S-3061 view full part page → $1.56
39	7670624004	DECAL; GROUND	1	S-3821	ADD TO CART
DECAL; GROUND 7670624004 · qty on machine: 1 S-3821 view full part page → $1.95
40	8700611524	DECAL; CAUTION OIL LEVEL GAUGE	1	S-4926B	ADD TO CART
DECAL; CAUTION OIL LEVEL GAUGE 8700611524 · qty on machine: 1 S-4926B view full part page → $4.95
41	1630610504	DECAL; CAUTION DOOR	2	S-1409	ADD TO CART
DECAL; CAUTION DOOR 1630610504 · qty on machine: 2 S-1409 view full part page → $1.95
42	D6561100102	STRIPE	1	D66110010	PARTS REQUEST
PHOTO COMING STRIPE D6561100102 · qty on machine: 1 D66110010 PARTS REQUEST
43	D6561100202	STRIPE	1	D66110020	PARTS REQUEST
PHOTO COMING STRIPE D6561100202 · qty on machine: 1 D66110020 PARTS REQUEST
44	D6561100302	STRIPE	1	D66110030	PARTS REQUEST
PHOTO COMING STRIPE D6561100302 · qty on machine: 1 D66110030 PARTS REQUEST
45	D6561100402	STRIPE	1	D66110040	PARTS REQUEST
PHOTO COMING STRIPE D6561100402 · qty on machine: 1 D66110040 PARTS REQUEST

The machine itself

Price by quote Get a quote

Tell us where the machine is headed and we'll quote it with freight. One call, no games.

The Multiquip DLW500ESA4 is a welder built for field welding on construction, pipeline, and fabrication work where shore power is not available. Factory-documented specs and parts support; priced by quote.

Keep-it-running spares

All listed parts →

Every part that fits this machine

0070506803 Multiquip 0070506803 Bearing 6803ZZ BLW-400SSW - OEM Replacement Part $34.95

0199901500 Multiquip 0199901500 Hose Denyo - OEM Replacement Part for Super Silent Generators $44.95

0265801000 Multiquip 0265801000 Hose Drain Denyo - OEM Replacement Part $128.95

0601800281 Multiquip 0601800281 Voltmeter AC BLW-400SSW - OEM Replacement Part $83.95

0601803660 Multiquip 0601803660 Thermostat BDW-180 - OEM Replacement Part $50.95

0601804202 Multiquip 0601804202 DC Current Transformer - OEM Replacement Part $83.95

0601806424 Multiquip 0601806424 Circuit Breaker 30A 250V GA-97HZ - OEM Replacement Part $58.95

0601806425 Multiquip 0601806425 Circuit Breaker 30A GA-97HZ - OEM Replacement Part $190.95

0601811031 Multiquip 0601811031 NEMA L5-30R 30A 125V Twist-Lock Output Receptacle - OEM Replacement Part $46.95

0601811033 Multiquip 0601811033 Receptacle Connector 30A/250V - OEM Replacement Part $61.95

0601814014 Multiquip 0601814014 GFCI Receptacle - OEM Replacement Part $90.95

0601815109 Multiquip 0601815109 Terminal Grounding - OEM Replacement Part for Super Silent Generators $39.95

0601821374 Multiquip 0601821374 Rectifier Denyo - OEM Replacement Part for Super Silent Generators $106.95

0601823256 Multiquip 0601823256 Rectifier DLW-300ES - OEM Replacement Part $400.95

0601823754 Multiquip 0601823754 Relay BLW-400SSW - OEM Replacement Part $46.95

0601830731 Multiquip 0601830731 Switch for Ram Tool - OEM Replacement Part $47.95

0601831311 Multiquip 0601831311 Switch DCI-500EIW/SSW - OEM Replacement Part for Welders $52.95

0601831966 Multiquip 0601831966 Engine Button - OEM Replacement Part $50.95

0602011079 Multiquip 0602011079 Radiator Cap Denyo - OEM Replacement Part $137.95

0602022202 Multiquip 0602022202 Joint Hose Denyo - OEM Replacement Part for Welder/Generator $37.95

0801888204 Multiquip 0801888204 Terminal DC Output BLW-400SSW - OEM Replacement Part $36.95

8001070003 Multiquip 8001070003 Fan DCA-25SSI(II),25SSIU - OEM Replacement Part $162.95

8351315003 Multiquip 8351315003 Bracket End DCA-25SSI(II) - OEM Replacement Part $260.95

8351331004 Multiquip 8351331004 Cover Suction DCA-25SSI(II) - OEM Replacement Part $69.95

8452023004 Multiquip 8452023004 Cover DCA-15SPX3,10SPX3 - OEM Replacement Part for Super Silent Generators $55.95

8944001061 Multiquip 8944001061 Relay Glow TLG-12SPX - OEM Replacement Part $214.95

8972177780 Multiquip 8972177780 Sensor DCA-400SSI - OEM Replacement Part $174.95

8981924670 Multiquip 8981924670 HEATER PCV - OEM Replacement Part $196.95

8982353890 Multiquip 8982353890 DOC - OEM Replacement Part $5,850.95

8982369900 Multiquip 8982369900 Fuel Filter Main - OEM Replacement Part for DCA Generators $317.95

8982402790 Multiquip 8982402790 Pre Fuel Filter Element - OEM Replacement Part $75.95

8982402800 Multiquip 8982402800 Main Fuel Filter Element - OEM Replacement Part $70.95

A9924800024 Multiquip A9924800024 Cap & DLW-400ES,GAW-180HE - OEM Replacement Part $50.95

B1112300003 Multiquip B1112300003 Plate Balancing DCA-25USI - OEM Replacement Part $69.95

B1138000003 Multiquip B1138000003 Field Assembly Exciter DCA-25USI - OEM Replacement Part $1,295.95

B9114000002 Multiquip B9114000002 Door Handle Assembly Black - OEM Replacement Part for Super Silent Generators $81.95

D4268000403 Multiquip D4268000403 IGBT Module Assembly - OEM Replacement Part $1,005.95

D4268304204 Multiquip D4268304204 Connection Plate DLW-400ES - OEM Replacement Part $99.95

D6267200004 Multiquip D6267200004 Digital Panel DM-79 (JP) - OEM Replacement Part for Welder Generator $677.95

D9925800044 Multiquip D9925800044 Protective Unit - OEM Replacement Part $44.95

P822769 Multiquip P822769 Air Filter Safety Element - OEM Replacement Part $100.95

Y0222100060 Multiquip Y0222100060 Rubber Seal Denyo - OEM Replacement Part for Super Silent Generators $456.95

Y0601803076 Multiquip Y0601803076 Selector Switch - OEM Replacement Part for Welders $810.95

Y0601804203 Multiquip Y0601804203 DC Current Transformer (JP) - OEM Replacement Part $88.95

Y0601806433 Multiquip Y0601806433 Circuit Breaker - OEM Replacement Part $189.95

Y0601820901 Multiquip Y0601820901 Relay - OEM Replacement Part for Welders $120.95

Y0601830347 Multiquip Y0601830347 Door Switch - OEM Replacement Part $175.95

Y0601831605 Multiquip Y0601831605 E Mode Selector Switch - OEM Replacement Part $65.95

0010006030 HEX. HEAD BOLT $0.25

0010112040 HEX. HEAD BOLT

001230802 HEX. HEAD BOLT $2.12

0012310030 HEX. HEAD BOLT $0.95

0012312030 HEX. HEAD BOLT $6.95

0016008045 HEX. SOCKET HEAD CAP SCREW $3.95

0016906015 HEX. HEAD BOLT $0.95

0016908055 HEX. HEAD BOLT $0.58

0017106016 HEX. HEAD BOLT $1.51

0017108035 HEX. HEAD BOLT $1.95

0017110015 HEX. HEAD BOLT $1.84

0017806014 HEX. HEAD BOLT

0019008016 HEX. HEAD BOLT $1.95

0021003005 MACHINE SCREW $0.62

0021003010 MACHINE SCREW $0.37

0021005020 MACHINE SCREW $0.32

0021104015 MACHINE SCREW $1.60

0021806015 MACHINE SCREW $0.87

0022905015 MACHINE SCREW $2.95

0027103005 MACHINE SCREW $0.95

0027103015 MACHINE SCREW $0.64

0027104010 MACHINE SCREW $0.33

0027104015 MACHINE SCREW $0.53

0027104020 MACHINE SCREW $0.40

0027104030 MACHINE SCREW $0.59

0027105015 MACHINE SCREW $0.20

0027105016 MACHINE SCREW $0.55

0027208025 MACHINE SCREW $0.76

0030012000 HEX. NUT $0.50

0039312000 HEX. NUT $0.46

0040008000 LOCK WASHER $0.63

0040508000 TOOTHED WASHER $0.35

0041412000 FLAT WASHER $2.95

0042508000 LOCK WASHER $0.62

0042708000 FLAT WASHER $0.44

0080200004 SNAP RING $0.29

0105091025 HEX. HEAD BOLT $0.68

011008020 HEX. HEAD BOLT $2.68

011206020 HEX. HEAD BOLT $0.95

011208025 HEX. HEAD BOLT $0.41

011606025 HEX. HEAD BOLT $1.95

012010030 HEX. HEAD BOLT $0.95

012210025 HEX. HEAD BOLT $0.86

012210035 HEX. HEAD BOLT $1.95

0176060030 HEX. NUT $2.95

0199100215 HOSE $3.95

020106050 NUT $0.12

0207108000 HEX. NUT $3.95

021112140 HEX. NUT $0.46

0226900300 RUBBER SEAL $15.95

0226900570 RUBBER SEAL $24.95

0226900650 RUBBER SEAL $17.95

031112230 FLAT WASHER $0.95

0317900080 RUBBER SEAL $7.95

0401450080 FLAT WASHER $0.56

042006308 BEARING $25.95

0601000209 BALANCING WEIGHT KIT $9.95

06015515198 HOSE BAND

0601806640 FUSE, 65A $11.95

0601806644 FUSE, 30A $1.43

0601806681 FUSE, 250V 5A $10.95

0601823204 RECTIFIER $16.95

0601823707 RELAY $20.95

0601829301 EARTH LEAKAGE RELAY, 120V

0601831600 SWITCH, IDLE STOP SELECTOR $24.95

0601832048 CAP $25.95

0601840095 RHEOSTAT (WELDING REGULATOR) $28.95

0601840100 KNOB $30.95

0601840103 KNOB $9.95

0601840170 KNOB $6.95

0601842198 RESISTOR, 20W 1KΩ $16.95

0601850097 STOPPER $2.95

0601851613 STOPPER $2.95

0605515001 HOSE BAND, ø60 $1.43

0605515008 HOSE BAND, ø90 $4.95

0605515018 HOSE BAND, ø80 $3.95

0605515073 HOSE BAND $6.95

0605515074 HOSE BAND $2.95

0605515109 HOSE BAND $0.95

0605515136 HOSE BAND $20.95

0605515139 HOSE BAND $6.95

0800628504 DECAL; GROUND $1.91

0800689504 DECAL; − $2.95

0801840004 INSULATOR WASHER $11.95

0801840104 INSULATOR WASHER $10.95

0801883003 INSULATOR $2.95

0802081104 CAP, RESERVE TANK $5.95

0802081403 RESERVE TANK $29.95

0805003414 PAD, TANK BAND $13.95

0805008004 PACKING $3.95

0805014504 FLAT WASHER $0.95

0805088004 STAY RUBBER $0.95

0810014704 PIN $3.95

0810105900 FUEL FILTER

0821800014 COLLAR $0.24

0845031504 CAP $2.95

0845039604 RUBBER SEAL $8.95

0845040414 TERMINAL CAP, POSITIVE $13.95

0845041304 TERMINAL CAP, NEGATIVE $14.95

0845045004 WASHER $1.43

1096751930 EYE BOLT $27.95

14292 BOX, ELECTRICAL 4 X 3 X 2

14293 COVER, ELECTRICAL BOX

14294 KNOB, ROUND SKIRTED $47.18

14295 FITTING, COMPRESSION CABLE $144.33

14301 GASKET, FOAM ELECTRICAL $3.27

1502025103C DRAIN JOINT $29.95

1622014103 DRAIN JOINT $23.95

1630645004 DECAL; OIL DRAIN $1.43

19298 SCREW, PHP 6-32 X3/8 $0.36

57216 WING NUT WASHER $2.95

6109170 SET, WASHER, OUTPUT TERMINAL $0.48

7810680104 DECAL; FUEL DRAIN $2.73

8351312004 PACKING $21.95

8351611004 COUPLING DISK $21.95

8351612004 WASHER, COUPLING HUB $13.95

8511864601A PLATE

8700611524 DECAL; CAUTION OIL LEVEL GAUGE $4.95

8700611904 DECAL; DANGER, ELEC. SHK. HAZARD $5.95

8705945004 RUBBER SEAL $1.95

8971616070 HEX. NUT $23.95

8973731080 GASKET $24.95

8976670710 ECM

8982103230 U-BOLT $31.95

A9511101304 DECAL; WARNING PROPOSITION 65 $4.95

B1304202104 ENGINE FOOT

B1305200004 ENGINE FOOT

B3924300184 GASKET $28.14

B9105200004 BATTERY BOLT

B9504000304 DECAL; WARNING HOT PARTS $4.95

B9504000404 DECAL; WARNING MOVING PARTS $4.95

B9504100104 DECAL; WARNING HOT COOLANT $4.95

B9504500004 DECAL; WARNING $4.95

B9504501214 DECAL; DIESEL FUEL $5.95

D2551001004 DECAL; ERROR CODES $12.95

D3267300604 CONNECTION PLATE

D3414800104 FLOOR PANEL $29.95

D4235400004 INSULATOR $17.95

D4237401004 RUBBER SHEET

D4237401104 RUBBER SHEET

D4268304714 NOISE FILTER

D4317100304 BRACKET, RESERVE TANK

D5491400204 RUBBER SEAL $6.95

D5551002004 DECAL; B WELDING OUTPUT TERMINAL $7.95

D5551002204 DECAL; B WELDING OUTPUT TERMINAL $8.95

D6110100102 ROTOR ASSY

D6110100112 ROTOR ASSY

D6130100503 STATOR ASSY.

D6214000902 CONTROL BOX

D6214600704 FUSE BOX ASSY

D6214601004 BRACKET

D6214601104 BRACKET, RELAY

Ask ARIA about your machine.

Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.

Chat with ARIA

Multiquip DLW500 Diesel Welder

The parts bench

The machine itself

Machine

Engine

Keep-it-running spares

Every part that fits this machine

Service notices & part changes

Take the factory book with you

Get the download pack

From the guides desk

Ask ARIA about your machine.

Your cart is empty

Your cart is empty
