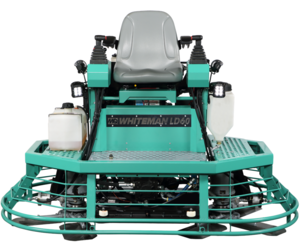

Page 6 — NAMEPLATE AND DECALS ASSY.

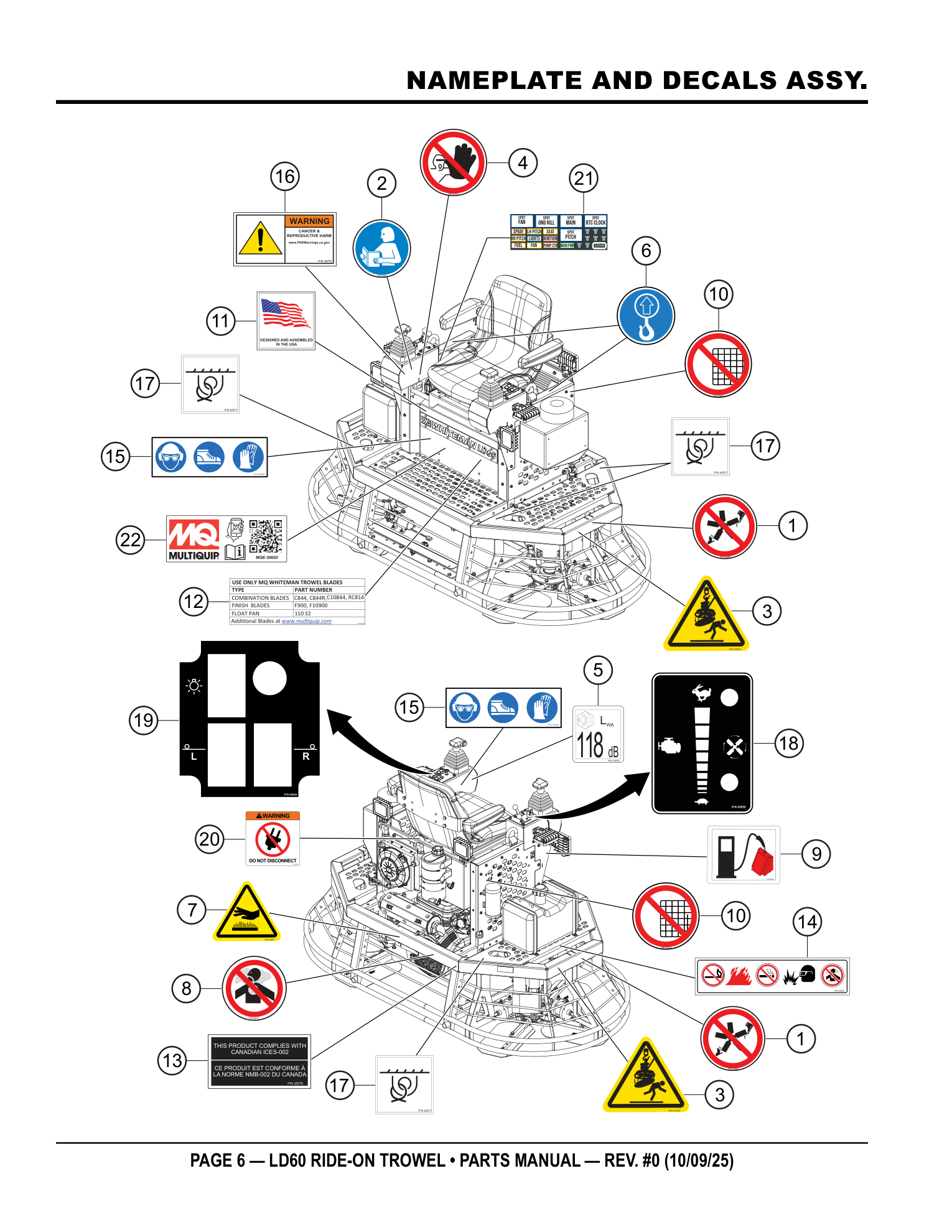

Multiquip LD6 Ride-On Trowel NAMEPLATE AND DECALS ASSY. parts diagram

Parts list — exactly as printed22 rows

No.	Part No.	Part Name	Qty
1	23698	DECAL ISO, ROATING BLADE HAZARD	2	ADD TO CART
DECAL ISO, ROATING BLADE HAZARD 23698 · qty on machine: 2 view full part page → $1.32
2	23699	DECAL ISO, READ MANUAL	1	ADD TO CART
DECAL ISO, READ MANUAL 23699 · qty on machine: 1 view full part page → $0.95
3	23700	DECAL ISO, LIFTING/CRUSH, 2.4" X 2.0"	2	ADD TO CART
DECAL ISO, LIFTING/CRUSH, 2.4" X 2.0" 23700 · qty on machine: 2 view full part page → $1.79
4	23701	DECAL ISO, ASK FOR TRAINING	1	ADD TO CART
DECAL ISO, ASK FOR TRAINING 23701 · qty on machine: 1 view full part page → $3.95
5	23803-118	DECAL, GUARANTEED SOUND POWER LEVEL	1	PARTS REQUEST
PHOTO COMING DECAL, GUARANTEED SOUND POWER LEVEL 23803-118 · qty on machine: 1 PARTS REQUEST
6	23805	DECAL ISO, LIFTING POINT, 1.00" DIA.	2	ADD TO CART
DECAL ISO, LIFTING POINT, 1.00" DIA. 23805 · qty on machine: 2 view full part page → $0.68
7	23808	DECAL ISO, HOT SURFACE HAZARD	1	ADD TO CART
DECAL ISO, HOT SURFACE HAZARD 23808 · qty on machine: 1 view full part page → $3.95
8	23810	DECAL ISO, INHALATION HAZARD, 2"	1	ADD TO CART
DECAL ISO, INHALATION HAZARD, 2" 23810 · qty on machine: 1 view full part page → $1.69
9	23812	DECAL ISO, FUEL GASOLINE 3.0" X 2.45"	1	ADD TO CART
DECAL ISO, FUEL GASOLINE 3.0" X 2.45" 23812 · qty on machine: 1 view full part page → $6.95
10	23874	DECAL ISO, DO NOT REMOVE GUARDS, HAZARD 2.00" DIA.	2	ADD TO CART
DECAL ISO, DO NOT REMOVE GUARDS, HAZARD 2.00" DIA. 23874 · qty on machine: 2 view full part page → $0.88
11	30538	DECAL, FLAG DESIGNED ASM IN USA	1	ADD TO CART
DECAL, FLAG DESIGNED ASM IN USA 30538 · qty on machine: 1 view full part page → $1.31
12	32219	DECAL, TROWEL BLADES	1	ADD TO CART
DECAL, TROWEL BLADES 32219 · qty on machine: 1 view full part page → $1.42
13	32578	DECAL, CANADIAN COMPLIANCE	1	PARTS REQUEST
PHOTO COMING DECAL, CANADIAN COMPLIANCE 32578 · qty on machine: 1 PARTS REQUEST
14	34630	DECAL ISO, FIRE, EXPLOSION, SMOKING HAZARD 6.50" X 1.40"	1	ADD TO CART
DECAL ISO, FIRE, EXPLOSION, SMOKING HAZARD 6.50" X 1.40" 34630 · qty on machine: 1 view full part page → $1.32
15	36099	DECAL ISO, PROTECTIVE CLOTHING, 3.50" X 1.13"	2	ADD TO CART
DECAL ISO, PROTECTIVE CLOTHING, 3.50" X 1.13" 36099 · qty on machine: 2 view full part page → $1.55
16	38707	DECAL, CANCER AND REPRODUCTIVE HARM	1	ADD TO CART
DECAL, CANCER AND REPRODUCTIVE HARM 38707 · qty on machine: 1 view full part page → $1.32
17	42971	DECAL ISO, TIE-DOWN	4	ADD TO CART
DECAL ISO, TIE-DOWN 42971 · qty on machine: 4 view full part page → $1.38
18	45650	DECAL, SPEED CONTROL	1	PARTS REQUEST
PHOTO COMING DECAL, SPEED CONTROL 45650 · qty on machine: 1 PARTS REQUEST
19	45658	DECAL, LH CONSOLE	1	ADD TO CART
DECAL, LH CONSOLE 45658 · qty on machine: 1 view full part page → $3.95
20	48056	DECAL SAFETY SWITCH, DO NOT DISCONNECT	1	ADD TO CART
DECAL SAFETY SWITCH, DO NOT DISCONNECT 48056 · qty on machine: 1 view full part page → $1.51
21	52049	DECAL, FUSEBOX	1	PARTS REQUEST
PHOTO COMING DECAL, FUSEBOX 52049 · qty on machine: 1 Factory replaced this part - current number BOX PARTS REQUEST
22	50013	DECAL, QR CODE	1	PARTS REQUEST
PHOTO COMING DECAL, QR CODE 50013 · qty on machine: 1 PARTS REQUEST

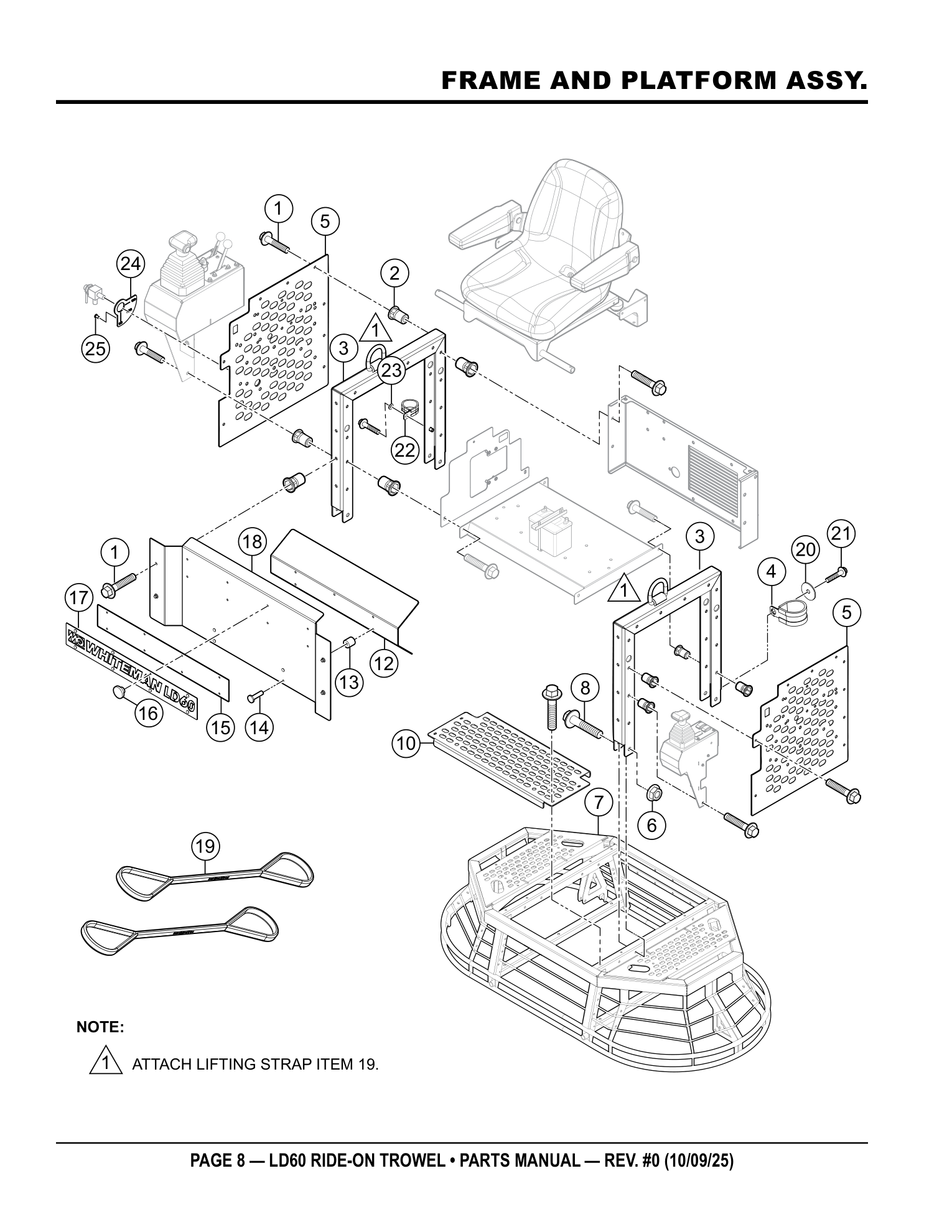

Page 8 — FRAME AND PLATFORM ASSY.

Multiquip LD6 Ride-On Trowel FRAME AND PLATFORM ASSY. parts diagram

Parts list — exactly as printed23 rows

No.	Part No.	Part Name	Qty
1	42325	SCREW, HHC M6-1.0 X 20, CAPTIVE WASHER	28	ADD TO CART
SCREW, HHC M6-1.0 X 20, CAPTIVE WASHER 42325 · qty on machine: 28 view full part page → $0.52
2	42496	NUT, BLIND, HEX, M6-1.0 X 0.7 - 4.2 GRIP	54	ADD TO CART
NUT, BLIND, HEX, M6-1.0 X 0.7 - 4.2 GRIP 42496 · qty on machine: 54 view full part page → $0.95
3	48994	FRAME, LIFT	2	ADD TO CART
FRAME, LIFT 48994 · qty on machine: 2 view full part page → $21.38
4	29796	CLAMP, CUSHIONED LOOP, 1-3/4" DIA. X 1" WIDE	1	ADD TO CART
CLAMP, CUSHIONED LOOP, 1-3/4" DIA. X 1" WIDE 29796 · qty on machine: 1 view full part page → $4.95
5	45435	PANEL, SIDE	2	PARTS REQUEST
PHOTO COMING PANEL, SIDE 45435 · qty on machine: 2 PARTS REQUEST
6	021112140	NUT, HEX, NYLOC, M12-1.75	4	ADD TO CART
NUT, HEX, NYLOC, M12-1.75 021112140 · qty on machine: 4 view full part page → $0.46
7	45401	FRAME, MAIN	1	ADD TO CART
FRAME, MAIN 45401 · qty on machine: 1 view full part page → $2090.95
8	9173	SCREW, HHF M12-1.75 X 70 GR 10.9 PATCH	4	ADD TO CART
SCREW, HHF M12-1.75 X 70 GR 10.9 PATCH 9173 · qty on machine: 4 view full part page → $9.57
10	45553	PLATFORM, FRONT	1	PARTS REQUEST
PHOTO COMING PLATFORM, FRONT 45553 · qty on machine: 1 PARTS REQUEST
12	45423	SHIELD, HEAT	1	ADD TO CART
SHIELD, HEAT 45423 · qty on machine: 1 view full part page → $33.95
13	23995	SPACER, .50 OD X .206 ID	4	ADD TO CART
SPACER, .50 OD X .206 ID 23995 · qty on machine: 4 view full part page → $1.84
14	30059	RIVET, POP BH, .187 X .626 - .750 AL/AL	4	ADD TO CART
RIVET, POP BH, .187 X .626 - .750 AL/AL 30059 · qty on machine: 4 view full part page → $0.35
15	45641	BACKING, EMBLEM	1	ADD TO CART
BACKING, EMBLEM 45641 · qty on machine: 1 view full part page → $11.95
16	30029	RIVET, POP BH, .187 X .063 - .125 AL/AL	8	ADD TO CART
RIVET, POP BH, .187 X .063 - .125 AL/AL 30029 · qty on machine: 8 view full part page → $0.17
17	45551	EMBLEM	1	ADD TO CART
EMBLEM 45551 · qty on machine: 1 view full part page → $19.95
18	45422	PANEL, FRONT	1	ADD TO CART
PANEL, FRONT 45422 · qty on machine: 1 view full part page → $56.95
19	52078	LIFTING STRAP, 3FT-6IN 6200LBS CAP.	2	ADD TO CART
LIFTING STRAP, 3FT-6IN 6200LBS CAP. 52078 · qty on machine: 2 view full part page → $89.95
20	10930	WASHER, FENDER 1/4 X 1-1/4	1	ADD TO CART
WASHER, FENDER 1/4 X 1-1/4 10930 · qty on machine: 1 view full part page → $0.15
21	43724	SCREW, HFS M6-1.0 X 25MM CLASS 8.8	6	ADD TO CART
SCREW, HFS M6-1.0 X 25MM CLASS 8.8 43724 · qty on machine: 6 view full part page → $0.08
22	30017	CLAMP, LOOP CUSHIONED #20 0.25 HOLE	1	ADD TO CART
CLAMP, LOOP CUSHIONED #20 0.25 HOLE 30017 · qty on machine: 1 view full part page → $10.95
23	0948	WASHER, FLAT SAE 1/4	1	PARTS REQUEST
PHOTO COMING WASHER, FLAT SAE 1/4 0948 · qty on machine: 1 PARTS REQUEST
24	52206	PACARD, FUEL CUTOFF VALVE	1	ADD TO CART
PACARD, FUEL CUTOFF VALVE 52206 · qty on machine: 1 view full part page → $3511.35
25	19847	RIVET, POP ALUM. 3/16 X 1/8-1/4 GRIP	1	ADD TO CART
RIVET, POP ALUM. 3/16 X 1/8-1/4 GRIP 19847 · qty on machine: 1 view full part page → $0.18

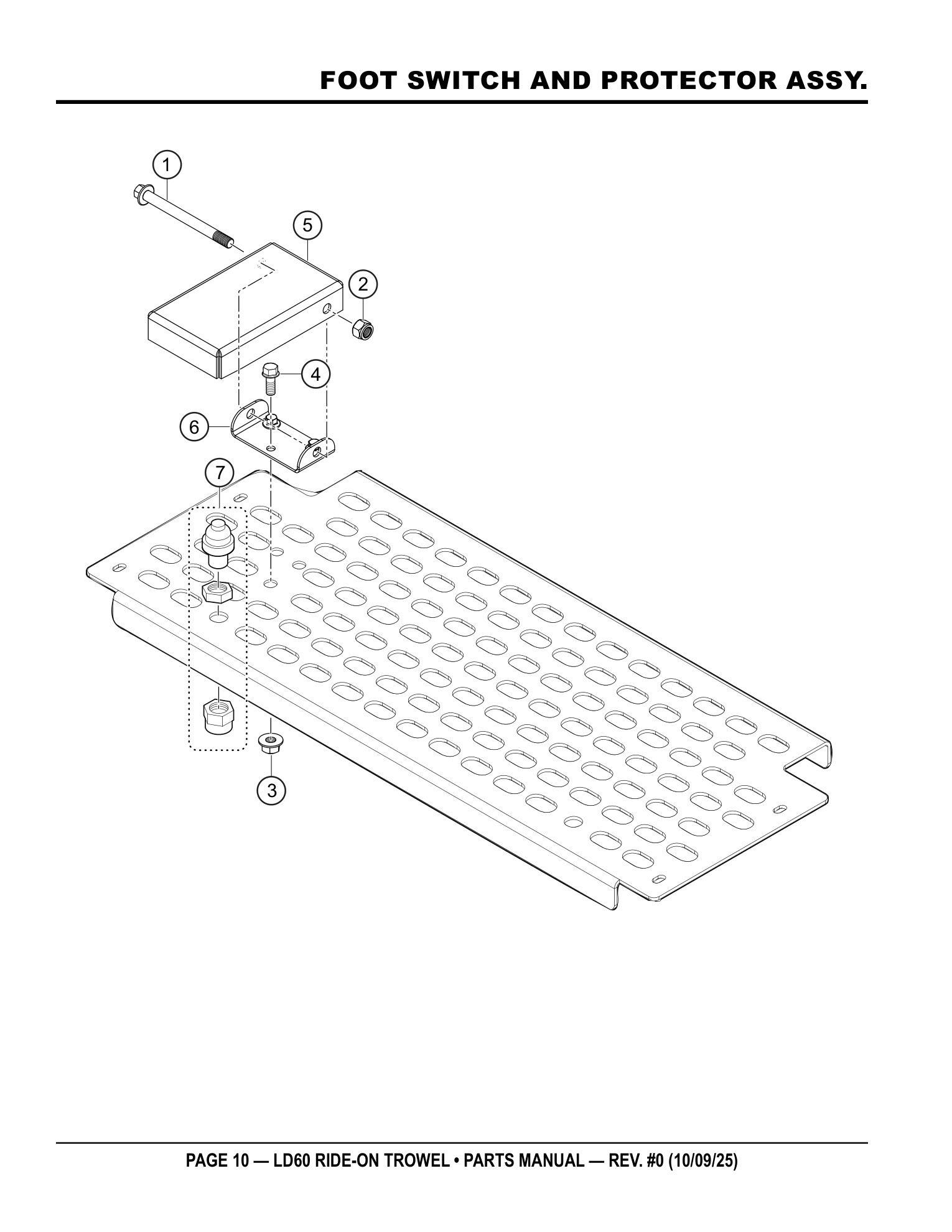

Page 10 — FOOT SWITCH AND PROTECTOR ASSY.

Multiquip LD6 Ride-On Trowel FOOT SWITCH AND PROTECTOR ASSY. parts diagram

Parts list — exactly as printed7 rows

No.	Part No.	Part Name	Qty
1	22022	SCREW, HHF M8-1.25, CLASS 8.8	1	ADD TO CART
SCREW, HHF M8-1.25, CLASS 8.8 22022 · qty on machine: 1 view full part page → $1.77
2	42344	NUT, NYLOC M8-1.25 X 90 GR. 10.9	1	ADD TO CART
NUT, NYLOC M8-1.25 X 90 GR. 10.9 42344 · qty on machine: 1 view full part page → $0.44
3	42352	NUT, HEX. SERRATED-FLANGE M6-1.0	3	ADD TO CART
NUT, HEX. SERRATED-FLANGE M6-1.0 42352 · qty on machine: 3 view full part page → $0.31
4	42542	SCREW, HFS M6-1.0 X 16	3	ADD TO CART
SCREW, HFS M6-1.0 X 16 42542 · qty on machine: 3 view full part page → $0.83
5	45956	FOOT SWITCH PROTECTOR	1	PARTS REQUEST
PHOTO COMING FOOT SWITCH PROTECTOR 45956 · qty on machine: 1 PARTS REQUEST
6	45957	SWITCH PROTECTOR MOUNT	1	PARTS REQUEST
PHOTO COMING SWITCH PROTECTOR MOUNT 45957 · qty on machine: 1 PARTS REQUEST
7	45549	SWITCH, FOOT, NORM. OPEN	1	ADD TO CART
SWITCH, FOOT, NORM. OPEN 45549 · qty on machine: 1 view full part page → $104.95

Page 12 — SPRAY PUMP/EDGER ASSY.

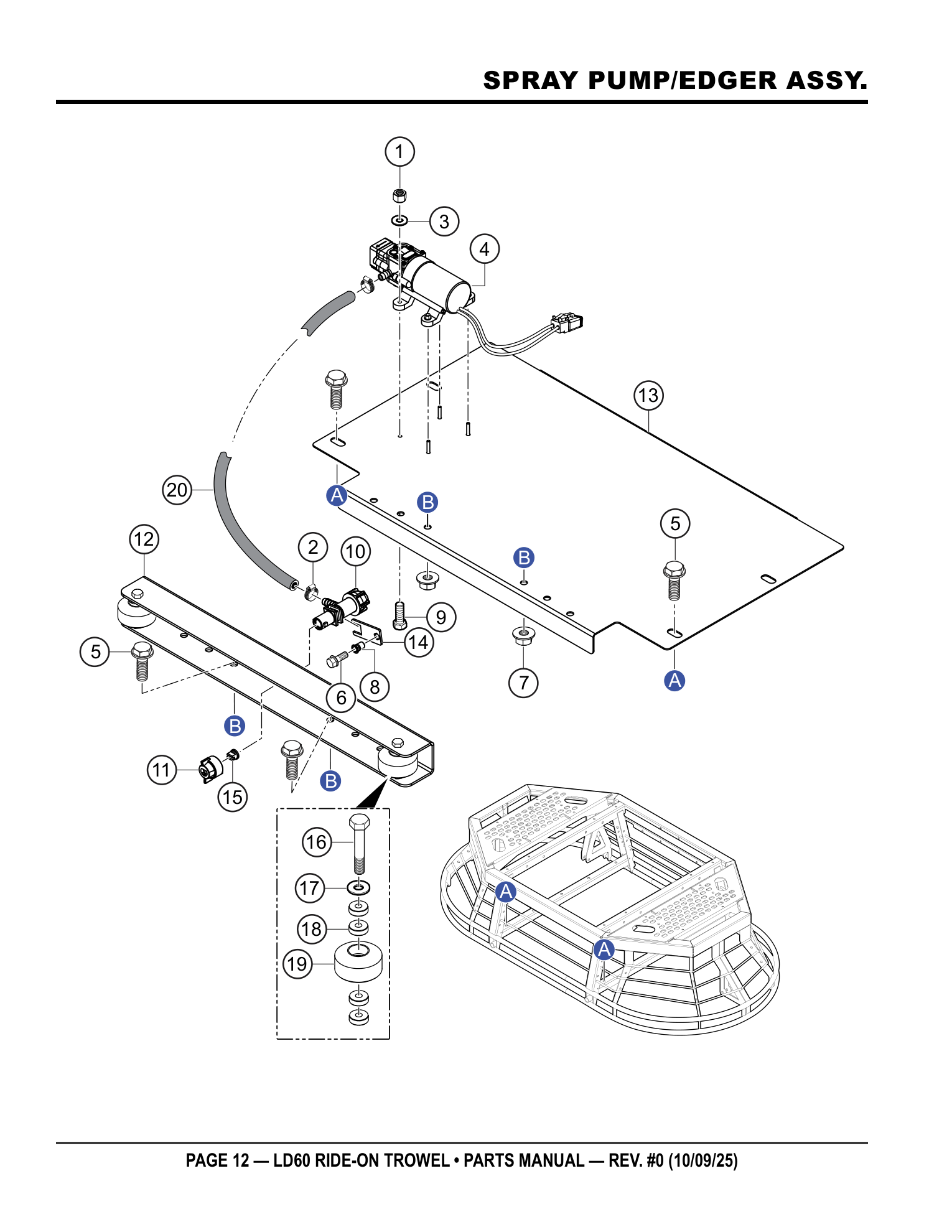

Multiquip LD6 Ride-On Trowel SPRAY PUMP/EDGER ASSY. parts diagram

Parts list — exactly as printed20 rows

No.	Part No.	Part Name	Qty	Remarks
1	15518-004	NUT, NYLOC, M4-.7	4		ADD TO CART
NUT, NYLOC, M4-.7 15518-004 · qty on machine: 4 view full part page → $0.9
2	15538	CLAMP, HOSE WORM # 6	1		ADD TO CART
CLAMP, HOSE WORM # 6 15538 · qty on machine: 1 view full part page → $2.77
3	28922-058	WASHER, M5	4		PARTS REQUEST
PHOTO COMING WASHER, M5 28922-058 · qty on machine: 4 PARTS REQUEST
4	30547	PUMP ASSEMBLY	1		ADD TO CART
PUMP ASSEMBLY 30547 · qty on machine: 1 view full part page → $53.95
5	32976	SCREW, HFS M10-1.5 X 25 - 10.9	6		ADD TO CART
SCREW, HFS M10-1.5 X 25 - 10.9 32976 · qty on machine: 6 view full part page → $4.95
6	42325	SCREW, HHC M6-1.0 X 20, CAPTIVE WASHER	1		ADD TO CART
SCREW, HHC M6-1.0 X 20, CAPTIVE WASHER 42325 · qty on machine: 1 view full part page → $0.52
7	42353	NUT, HEX, SERRATED-FLANGE, M10- 1.5	2		ADD TO CART
NUT, HEX, SERRATED-FLANGE, M10- 1.5 42353 · qty on machine: 2 view full part page → $1.46
8	42496	NUT, BLIND, HEX, M6-1.0 X 0.7 - 4.2 GRIP	1		ADD TO CART
NUT, BLIND, HEX, M6-1.0 X 0.7 - 4.2 GRIP 42496 · qty on machine: 1 view full part page → $0.95
9	42894	SCREW, HHC M4-0.7 X 20MM	4		PARTS REQUEST
PHOTO COMING SCREW, HHC M4-0.7 X 20MM 42894 · qty on machine: 4 PARTS REQUEST
10	45472	NOZZLE, TEEJET BODY, SINGLE	1		ADD TO CART
NOZZLE, TEEJET BODY, SINGLE 45472 · qty on machine: 1 view full part page → $20.95
11	45474	SPRAY TIP, CAP W/ GASKET	1		ADD TO CART
SPRAY TIP, CAP W/ GASKET 45474 · qty on machine: 1 view full part page → $2.95
12	45477	BRACKET W/A, SPRAY/EDGER	1		PARTS REQUEST
PHOTO COMING BRACKET W/A, SPRAY/EDGER 45477 · qty on machine: 1 PARTS REQUEST
13	45495	PAN, BELLY 6 FOOT	1		PARTS REQUEST
PHOTO COMING PAN, BELLY 6 FOOT 45495 · qty on machine: 1 PARTS REQUEST
14	45605	MOUNT, NOZZLE TAB	1		PARTS REQUEST
PHOTO COMING MOUNT, NOZZLE TAB 45605 · qty on machine: 1 PARTS REQUEST
15	49247	SPRAY, FLAT TIP BROWN	1		ADD TO CART
SPRAY, FLAT TIP BROWN 49247 · qty on machine: 1 view full part page → $14.95
16	15520-050	SCREW, HHC M8-1.25 X 50MM	2		ADD TO CART
SCREW, HHC M8-1.25 X 50MM 15520-050 · qty on machine: 2 view full part page → $1.65
17	0300B	WASHER, FLAT SAE 5/16	2		ADD TO CART
WASHER, FLAT SAE 5/16 0300B · qty on machine: 2 view full part page → $0.08
18	21369	BEARING, SEALED 5/16 ID X 7/8 OD	8		ADD TO CART
BEARING, SEALED 5/16 ID X 7/8 OD 21369 · qty on machine: 8 view full part page → $2.95
19	21189	WHEEL, 2.13 OD X 1.25 W	2		ADD TO CART
WHEEL, 2.13 OD X 1.25 W 21189 · qty on machine: 2 view full part page → $17.95
20	60021	HOSE, 3/8 ID x 5/8OD, BRAIDED PVC	1	1 FT. 17 IN.	ADD TO CART
HOSE, 3/8 ID x 5/8OD, BRAIDED PVC 60021 · qty on machine: 1 1 FT. 17 IN. view full part page → $1.82

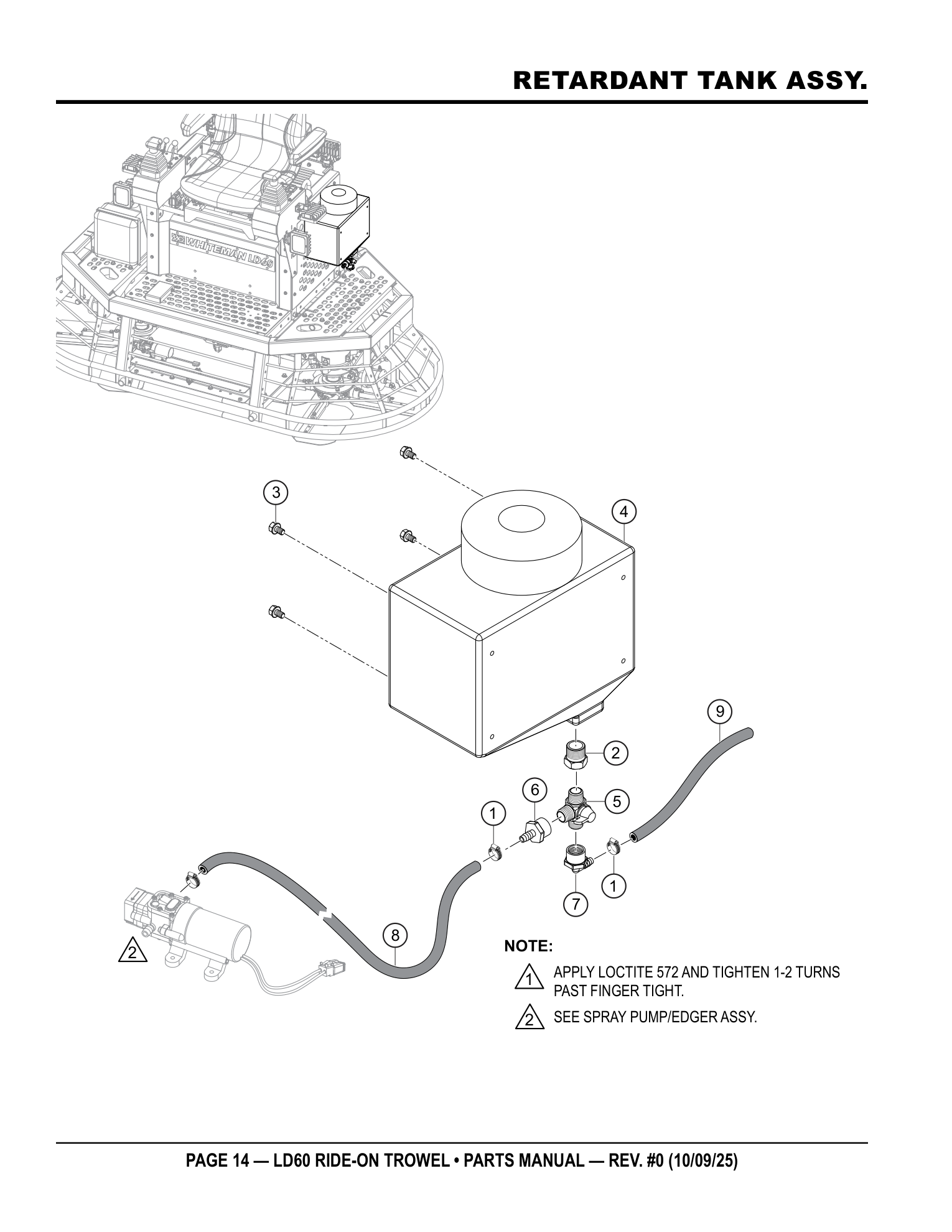

Page 14 — RETARDANT TANK ASSY.

Multiquip LD6 Ride-On Trowel RETARDANT TANK ASSY. parts diagram

Parts list — exactly as printed9 rows

No.	Part No.	Part Name	Qty	Remarks
1	15538	CLAMP, HOSE WORM # 6	2		ADD TO CART
CLAMP, HOSE WORM # 6 15538 · qty on machine: 2 view full part page → $2.77
2	16585	FITTING, BUSH 1/2FP X 3/4MP STEEL	1		ADD TO CART
FITTING, BUSH 1/2FP X 3/4MP STEEL 16585 · qty on machine: 1 view full part page → $4.95
3	34002	SCREW, HHFS 5/16-18 x 1/2 GR 5	4		ADD TO CART
SCREW, HHFS 5/16-18 x 1/2 GR 5 34002 · qty on machine: 4 view full part page → $0.45
4	45200	TANK, 3 GAL. LARGE MOUTH RETARDANT	1		ADD TO CART
TANK, 3 GAL. LARGE MOUTH RETARDANT 45200 · qty on machine: 1 view full part page → $155.95
5	48650	3-WAY DIVERTER VALVE, 1/2 MNPT	1		ADD TO CART
3-WAY DIVERTER VALVE, 1/2 MNPT 48650 · qty on machine: 1 view full part page → $27.95
6	48651	FITTING,1/2" FNPT X 3/8" BARB	1		ADD TO CART
FITTING,1/2" FNPT X 3/8" BARB 48651 · qty on machine: 1 view full part page → $7.95
7	48652	FITTING, 1/2" FNPT X 3/8" BARB, 90°	1		PARTS REQUEST
PHOTO COMING FITTING, 1/2" FNPT X 3/8" BARB, 90° 48652 · qty on machine: 1 PARTS REQUEST
8	60021	HOSE, 3/8 ID x 5/8OD, BRAIDED PVC	1	4 FT. 58 IN.	ADD TO CART
HOSE, 3/8 ID x 5/8OD, BRAIDED PVC 60021 · qty on machine: 1 4 FT. 58 IN. view full part page → $1.82
9	60021	HOSE, 3/8 ID x 5/8OD, BRAIDED PVC	1	1 FT.	ADD TO CART
HOSE, 3/8 ID x 5/8OD, BRAIDED PVC 60021 · qty on machine: 1 1 FT. view full part page → $1.82

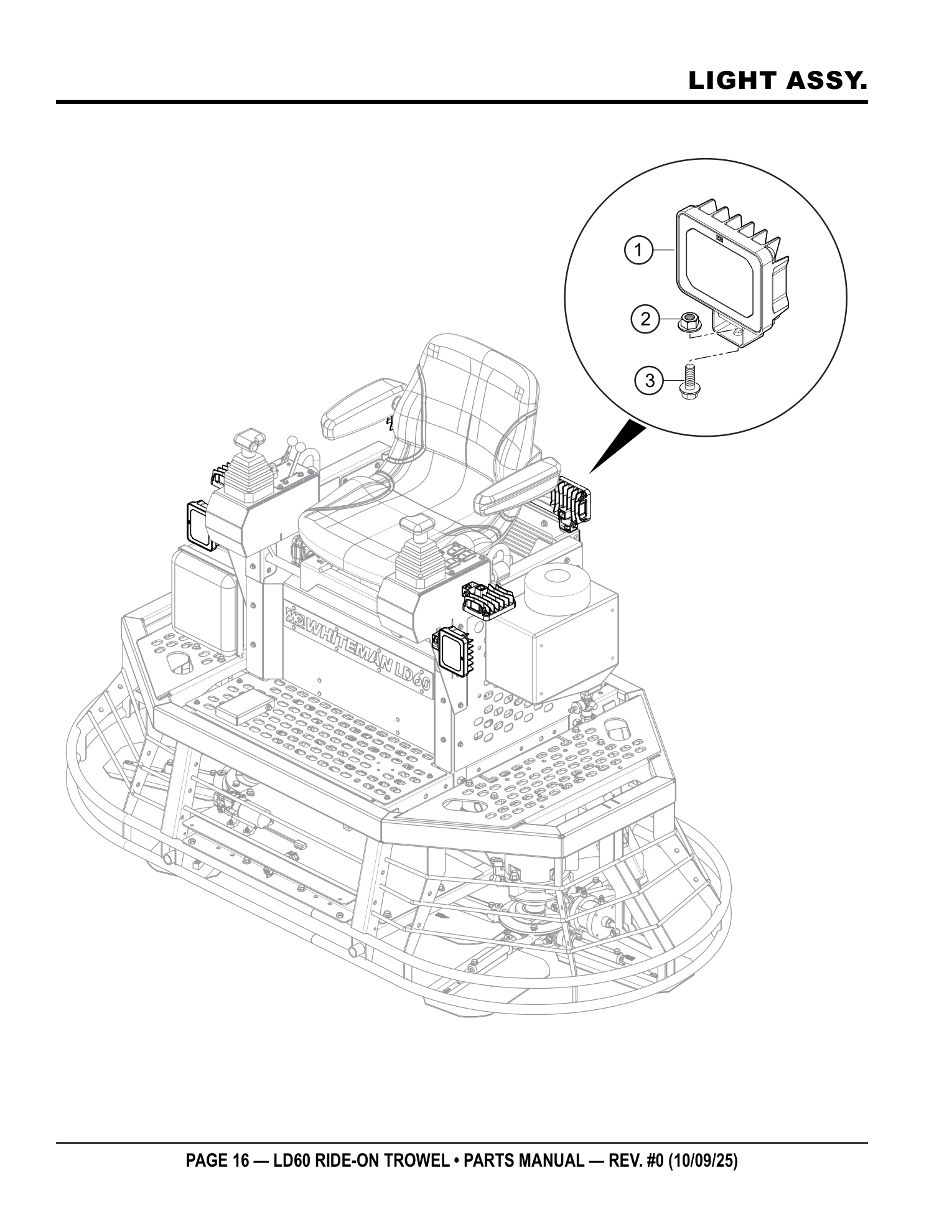

Page 16 — LIGHT ASSY.

Multiquip LD6 Ride-On Trowel LIGHT ASSY. parts diagram

Parts list — exactly as printed3 rows

No.	Part No.	Part Name	Qty
1	45573	LIGHT, 4" SQ. LED 100°	6	ADD TO CART
LIGHT, 4" SQ. LED 100° 45573 · qty on machine: 6 view full part page → $87.95
2	42353	NUT, HEX. SERRATED FLANGE M10-1.5	6	ADD TO CART
NUT, HEX. SERRATED FLANGE M10-1.5 42353 · qty on machine: 6 view full part page → $1.46
3	45632	SCREW, HFS M10-1.5 X 20 CLASS 8.8	6	PARTS REQUEST
PHOTO COMING SCREW, HFS M10-1.5 X 20 CLASS 8.8 45632 · qty on machine: 6 PARTS REQUEST

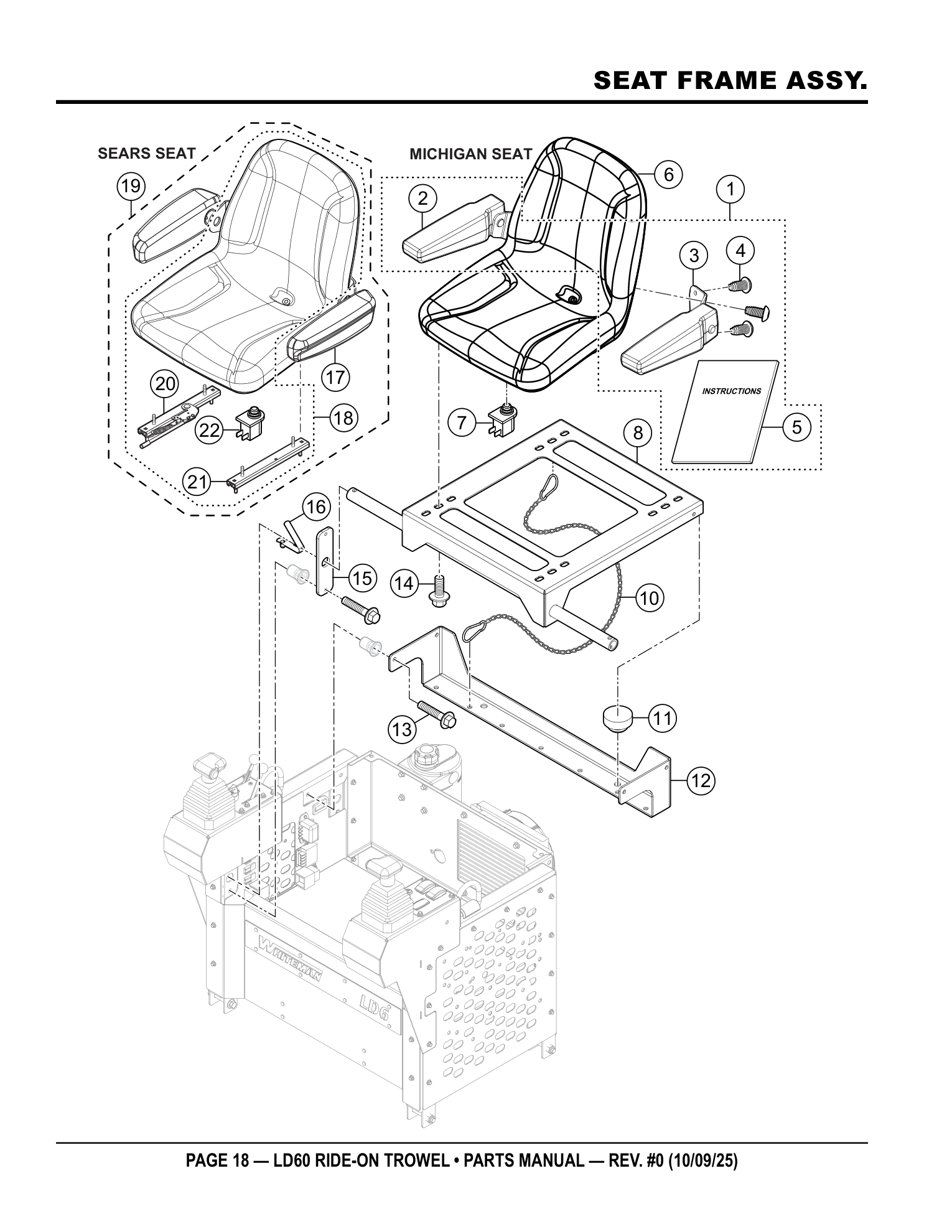

Page 18 — SEAT FRAME ASSY.

Multiquip LD6 Ride-On Trowel SEAT FRAME ASSY. parts diagram

Parts list — exactly as printed21 rows

No.	Part No.	Part Name	Qty	Remarks
1	21868	ARMREST KIT, MICHIGAN, OPTIONAL	1	INCLUDES ITEMS W/@	ADD TO CART
ARMREST KIT, MICHIGAN, OPTIONAL 21868 · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 2@, 3@, 4@, 5@ view full part page → $217.95 IN A KIT + SOLD SOLO
2@	21867	ASSEMBLY, ARMREST, RH, MICHIGAN	1		PARTS REQUEST
PHOTO COMING ASSEMBLY, ARMREST, RH, MICHIGAN 21867 · qty on machine: 1 Also included in kit 1 - ARMREST KIT, MICHIGAN, OPT (21868) PARTS REQUEST
3@	21866	ASSEMBLY, ARMREST, LH, MICHIGAN	1		PARTS REQUEST
PHOTO COMING ASSEMBLY, ARMREST, LH, MICHIGAN 21866 · qty on machine: 1 Also included in kit 1 - ARMREST KIT, MICHIGAN, OPT (21868) PARTS REQUEST
4@	21869	SCREW, SELF-TAPPING, 5/16-18	6		ADD TO CART
SCREW, SELF-TAPPING, 5/16-18 21869 · qty on machine: 6 Also included in kit 1 - ARMREST KIT, MICHIGAN, OPT (21868) view full part page → $2.95 IN A KIT + SOLD SOLO
5@	45720	INSTRUCTIONS, ARMREST KIT	1		ADD TO CART
INSTRUCTIONS, ARMREST KIT 45720 · qty on machine: 1 Also included in kit 1 - ARMREST KIT, MICHIGAN, OPT (21868) view full part page → $94.86 IN A KIT + SOLD SOLO
6	21860	SEAT, BASIC MICHIGAN V-2805 SERIES	1	NO LONGER AVAILABLE	ADD TO CART
SEAT, BASIC MICHIGAN V-2805 SERIES 21860 · qty on machine: 1 NO LONGER AVAILABLE Factory replaced this part - current number 32960 view full part page → $381.95 IN A KIT + SOLD SOLO
7	21870	KILL SWITCH, DELTA SYSTEMS 6440-62	1		ADD TO CART
KILL SWITCH, DELTA SYSTEMS 6440-62 21870 · qty on machine: 1 view full part page → $15.95
8	45425	FRAME, SEAT	1		ADD TO CART
FRAME, SEAT 45425 · qty on machine: 1 view full part page → $180.77
10	52099	CABLE ASSY., SEAT STOP	1		ADD TO CART
CABLE ASSY., SEAT STOP 52099 · qty on machine: 1 view full part page → $15.95
11	21597	BUMPER, STEM 1.0"D X .5S X .31	2		ADD TO CART
BUMPER, STEM 1.0"D X .5S X .31 21597 · qty on machine: 2 view full part page → $1.54
12	45436	BRACE, SEAT CROSS	1		ADD TO CART
BRACE, SEAT CROSS 45436 · qty on machine: 1 view full part page → $51.95
13	43724	SCREW, HHFS M6-1.0 X 25MM CLASS 8.8	8		ADD TO CART
SCREW, HHFS M6-1.0 X 25MM CLASS 8.8 43724 · qty on machine: 8 view full part page → $0.08
14	34002	SCREW, HHF 5/16-18 X 1/2", GR 5	4		ADD TO CART
SCREW, HHF 5/16-18 X 1/2", GR 5 34002 · qty on machine: 4 view full part page → $0.45
15	45428	PLATE, SEAT BEARING	2		PARTS REQUEST
PHOTO COMING PLATE, SEAT BEARING 45428 · qty on machine: 2 PARTS REQUEST
16	45569	CONNECTOR, QUICK RELEASE, .25	2		PARTS REQUEST
PHOTO COMING CONNECTOR, QUICK RELEASE, .25 45569 · qty on machine: 2 PARTS REQUEST
17$	34792	ARMREST KIT, SEARS	1		ADD TO CART
ARMREST KIT, SEARS 34792 · qty on machine: 1 Also included in kit 19 - SEAT, ADJUSTABLE W/ ARMS, (32960-SK) view full part page → $158.95 IN A KIT + SOLD SOLO
18$	32963-SK	SEAT, ADJUSTABLE W/O ARMS, SEARS	1	INCLUDES ITEMS W/#	ADD TO CART
SEAT, ADJUSTABLE W/O ARMS, SEARS 32963-SK · qty on machine: 1 INCLUDES ITEMS W/# Also included in kit 19 - SEAT, ADJUSTABLE W/ ARMS, (32960-SK) view full part page → $403.95 IN A KIT + SOLD SOLO
19	32960-SK	SEAT, ADJUSTABLE W/ ARMS, SEARS	1	INCLUDES ITEMS W/$	ADD TO CART
SEAT, ADJUSTABLE W/ ARMS, SEARS 32960-SK · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 17$, 18$, 20#$, 21#$, 22#$ view full part page → $515.95 IN A KIT + SOLD SOLO
20#$	32965	SEAT ADJUSTER RH, SEARS	1		PARTS REQUEST
PHOTO COMING SEAT ADJUSTER RH, SEARS 32965 · qty on machine: 1 Also included in kit 18 - SEAT, ADJUSTABLE W/O ARMS, (32963-SK); kit 19 - SEAT, ADJUSTABLE W/ ARMS, (32960-SK) PARTS REQUEST
21#$	32964	SEAT ADJUSTER LH, SEARS	1		PARTS REQUEST
PHOTO COMING SEAT ADJUSTER LH, SEARS 32964 · qty on machine: 1 Also included in kit 18 - SEAT, ADJUSTABLE W/O ARMS, (32963-SK); kit 19 - SEAT, ADJUSTABLE W/ ARMS, (32960-SK) PARTS REQUEST
22#$	32962	KILL SWITCH, SEARS	1		ADD TO CART
KILL SWITCH, SEARS 32962 · qty on machine: 1 Also included in kit 18 - SEAT, ADJUSTABLE W/O ARMS, (32963-SK); kit 19 - SEAT, ADJUSTABLE W/ ARMS, (32960-SK) view full part page → $34.95 IN A KIT + SOLD SOLO

Page 20 — LEFT-HAND CONTROL BOX ASSY.

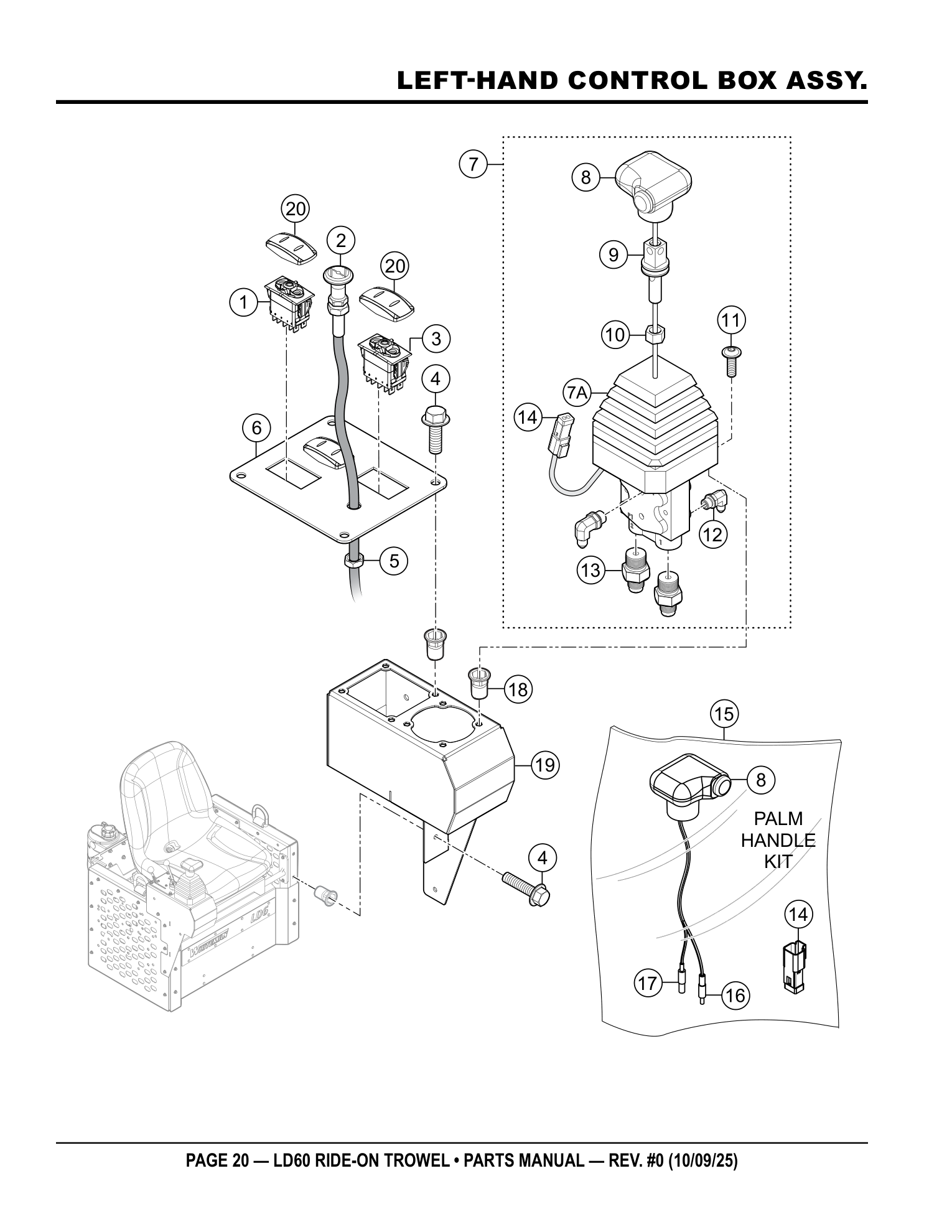

Multiquip LD6 Ride-On Trowel LEFT-HAND CONTROL BOX ASSY. parts diagram

Parts list — exactly as printed21 rows

No.	Part No.	Part Name	Qty	Remarks
1	42178-007	SWITCH BASE, 10 TERM, MOM ON/OFF	2		ADD TO CART
SWITCH BASE, 10 TERM, MOM ON/OFF 42178-007 · qty on machine: 2 view full part page → $44.41
2	35280	CABLE, CHOKE 35"	1		ADD TO CART
CABLE, CHOKE 35" 35280 · qty on machine: 1 view full part page → $31.95
3	42178-006	SWITCH BASE, 10 TERM, ON/OFF DP	1		ADD TO CART
SWITCH BASE, 10 TERM, ON/OFF DP 42178-006 · qty on machine: 1 view full part page → $33.96
4	42325	SCREW, HHC M6-1.0 X 20	9		ADD TO CART
SCREW, HHC M6-1.0 X 20 42325 · qty on machine: 9 view full part page → $0.52
5	2199	NUT, HEX JAM 3/8-24	1		ADD TO CART
NUT, HEX JAM 3/8-24 2199 · qty on machine: 1 view full part page → $0.12
6	45444	PANEL, SWITCH, LH	1		PARTS REQUEST
PHOTO COMING PANEL, SWITCH, LH 45444 · qty on machine: 1 PARTS REQUEST
7	45437-SK	ASSY., VALVE, LH STEERING W/SWITCH	1	INCLUDES ITEMS W/@	ADD TO CART
ASSY., VALVE, LH STEERING W/SWITCH 45437-SK · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 7A@, 8@#, 9@, 10@, 11@, 12@, 13@, 14@# view full part page → $701.95 IN A KIT + SOLD SOLO
7A@	21631	BOOT, STEERING HANDLE	1		ADD TO CART
BOOT, STEERING HANDLE 21631 · qty on machine: 1 Also included in kit 7 - ASSY., VALVE, LH STEERING (45437-SK) view full part page → $52.95 IN A KIT + SOLD SOLO
8@#	22001	HANDLE, PALM W/SWITCH, LEFT	2		PARTS REQUEST
PHOTO COMING HANDLE, PALM W/SWITCH, LEFT 22001 · qty on machine: 2 Also included in kit 15 - KIT, PALM HANDLE W/SWITCH, (20150); kit 7 - ASSY., VALVE, LH STEERING (45437-SK) PARTS REQUEST
9@	21053	ADAPTOR, LH PALM HANDLE	1		ADD TO CART
ADAPTOR, LH PALM HANDLE 21053 · qty on machine: 1 Also included in kit 7 - ASSY., VALVE, LH STEERING (45437-SK) view full part page → $77.95 IN A KIT + SOLD SOLO
10@	16083	NUT, HEX M12-1.75 NO PLATE	1		ADD TO CART
NUT, HEX M12-1.75 NO PLATE 16083 · qty on machine: 1 Also included in kit 7 - ASSY., VALVE, LH STEERING (45437-SK) view full part page → $0.34 IN A KIT + SOLD SOLO
11@	42325	SCREW, BHSC, M6-1.0 X 20, FLANGED	4		ADD TO CART
SCREW, BHSC, M6-1.0 X 20, FLANGED 42325 · qty on machine: 4 Also included in kit 7 - ASSY., VALVE, LH STEERING (45437-SK) view full part page → $0.52 IN A KIT + SOLD SOLO
12@	37407	FITTING, 4MJ X 6MO - 90	2		NO LONGER AVAILABLE
PHOTO COMING FITTING, 4MJ X 6MO - 90 37407 · qty on machine: 2 Also included in kit 7 - ASSY., VALVE, LH STEERING (45437-SK) NO LONGER AVAILABLE
13@	367470	FITTING, STR 4MJ - 6MO	2		ADD TO CART
FITTING, STR 4MJ - 6MO 367470 · qty on machine: 2 Also included in kit 7 - ASSY., VALVE, LH STEERING (45437-SK) view full part page → $1.95 IN A KIT + SOLD SOLO
14@#	37402	CONNECTOR KIT, MALE 2 POSITION	2		ADD TO CART
CONNECTOR KIT, MALE 2 POSITION 37402 · qty on machine: 2 Also included in kit 15 - KIT, PALM HANDLE W/SWITCH, (20150); kit 7 - ASSY., VALVE, LH STEERING (45437-SK) view full part page → $5.95 IN A KIT + SOLD SOLO
15	20150	KIT, PALM HANDLE W/SWITCH, LEFT	1	INCLUDES ITEMS W/#	ADD TO CART
KIT, PALM HANDLE W/SWITCH, LEFT 20150 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 8@#, 14@#, 16#, 17# view full part page → $240.95 IN A KIT + SOLD SOLO
16#	1318	TERMINAL, BULLET, FEMALE, 18-22	2		ADD TO CART
TERMINAL, BULLET, FEMALE, 18-22 1318 · qty on machine: 2 Also included in kit 15 - KIT, PALM HANDLE W/SWITCH, (20150) view full part page → $0.5 IN A KIT + SOLD SOLO
17#	4692	TERMINAL, BULLET, .156 MALE, 14-16 GA	2		ADD TO CART
TERMINAL, BULLET, .156 MALE, 14-16 GA 4692 · qty on machine: 2 Also included in kit 15 - KIT, PALM HANDLE W/SWITCH, (20150) view full part page → $0.61 IN A KIT + SOLD SOLO
18	42496	NUT, BLIND, HEX, M6-1.0 X 0.7 - 4.2 GRIP	8		ADD TO CART
NUT, BLIND, HEX, M6-1.0 X 0.7 - 4.2 GRIP 42496 · qty on machine: 8 view full part page → $0.95
19	45442	STEERING BOX, LH	1		PARTS REQUEST
PHOTO COMING STEERING BOX, LH 45442 · qty on machine: 1 PARTS REQUEST
20	42179-001	ACTUATOR, ROCKER SW.	3		ADD TO CART
ACTUATOR, ROCKER SW. 42179-001 · qty on machine: 3 view full part page → $2.9

Page 22 — RIGHT-HAND CONTROL BOX ASSY.

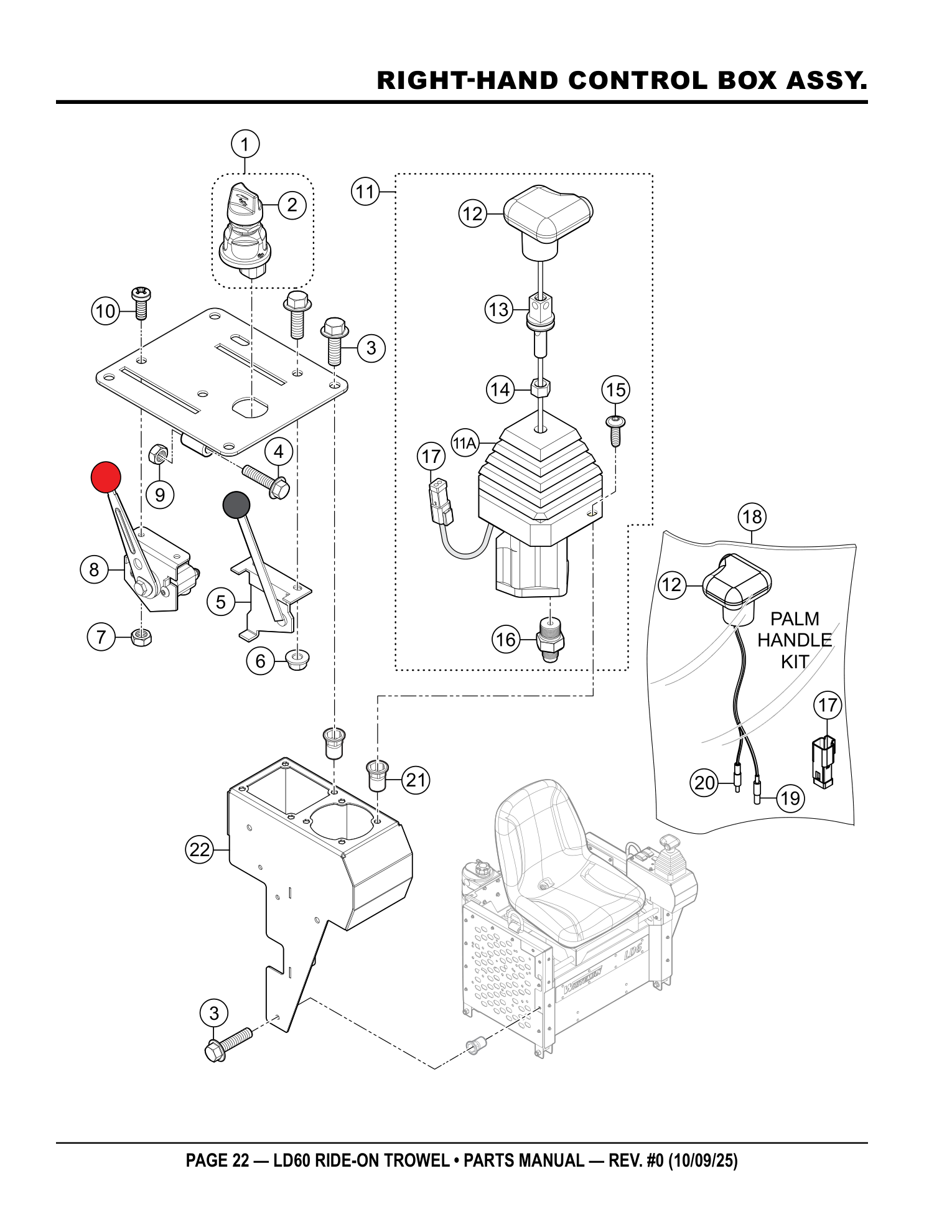

Multiquip LD6 Ride-On Trowel RIGHT-HAND CONTROL BOX ASSY. parts diagram

Parts list — exactly as printed23 rows

No.	Part No.	Part Name	Qty	Remarks
1	23959	SWITCH, IGNITION	1	INCLUDES ITEMS W/@	ADD TO CART
SWITCH, IGNITION 23959 · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 2@ view full part page → $46.95 IN A KIT + SOLD SOLO
2@	23959-01	KEY, IGNITION	1		NO LONGER AVAILABLE
PHOTO COMING KEY, IGNITION 23959-01 · qty on machine: 1 Also included in kit 1 - SWITCH, IGNITION (23959) NO LONGER AVAILABLE
3	42325	SCREW, HFS M6-1.0 X 20	10		ADD TO CART
SCREW, HFS M6-1.0 X 20 42325 · qty on machine: 10 view full part page → $0.52
4	42354	SCREW HFS, M6-1.0 X 35 CLASS 8.8	1		ADD TO CART
SCREW HFS, M6-1.0 X 35 CLASS 8.8 42354 · qty on machine: 1 view full part page → $0.65
5	15168	HANDLE ASSY., CONTROL, W/KNOB	1		ADD TO CART
HANDLE ASSY., CONTROL, W/KNOB 15168 · qty on machine: 1 view full part page → $67.95
6	42352	NUT, HEX, SERRATED-FLANGE, M6-1.0	2		ADD TO CART
NUT, HEX, SERRATED-FLANGE, M6-1.0 42352 · qty on machine: 2 view full part page → $0.31
7	10019	NUT, NYLOC 10-32	2		ADD TO CART
NUT, NYLOC 10-32 10019 · qty on machine: 2 view full part page → $0.09
8	45498	LEVER, SPEED CONTROL	1		ADD TO CART
LEVER, SPEED CONTROL 45498 · qty on machine: 1 view full part page → $151.95
9	17113	NUT, HEX FINISH M6-1.00 ZN	1		ADD TO CART
NUT, HEX FINISH M6-1.00 ZN 17113 · qty on machine: 1 view full part page → $0.12
10	5065B	SCREW, PHP 10-32 X 1/2"	2		ADD TO CART
SCREW, PHP 10-32 X 1/2" 5065B · qty on machine: 2 view full part page → $0.23
11	45438-SK	VALVE ASSY., RH STEERING W/SWITCH	1	INCLUDES ITEMS W/#	ADD TO CART
VALVE ASSY., RH STEERING W/SWITCH 45438-SK · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 11A#, 12#+, 13#, 14#, 15#, 16#, 17#+ view full part page → $831.95 IN A KIT + SOLD SOLO
11A#	21631	BOOT, STEERING HANDLE	1		ADD TO CART
BOOT, STEERING HANDLE 21631 · qty on machine: 1 Also included in kit 11 - VALVE ASSY., RH STEERING W (45438-SK) view full part page → $52.95 IN A KIT + SOLD SOLO
12#+	12999	HANDLE, PALM W/SWITCH, RIGHT	2		PARTS REQUEST
PHOTO COMING HANDLE, PALM W/SWITCH, RIGHT 12999 · qty on machine: 2 Also included in kit 11 - VALVE ASSY., RH STEERING W (45438-SK); kit 18 - KIT, PALM HANDLE W/SWITCH, (20155) PARTS REQUEST
13#	20834	ADAPTOR, RH PALM HANDLE	1		ADD TO CART
ADAPTOR, RH PALM HANDLE 20834 · qty on machine: 1 Also included in kit 11 - VALVE ASSY., RH STEERING W (45438-SK) view full part page → $59.95 IN A KIT + SOLD SOLO
14#	16083	NUT, HEX M12-1.75 NO PLATE	1		ADD TO CART
NUT, HEX M12-1.75 NO PLATE 16083 · qty on machine: 1 Also included in kit 11 - VALVE ASSY., RH STEERING W (45438-SK) view full part page → $0.34 IN A KIT + SOLD SOLO
15#	42325	SCREW, BHSC, M6-1.0 X 20, FLANGED	4		ADD TO CART
SCREW, BHSC, M6-1.0 X 20, FLANGED 42325 · qty on machine: 4 Also included in kit 11 - VALVE ASSY., RH STEERING W (45438-SK) view full part page → $0.52 IN A KIT + SOLD SOLO
16#	367470	FITTING, STR 4MJ - 6MO	6		ADD TO CART
FITTING, STR 4MJ - 6MO 367470 · qty on machine: 6 Also included in kit 11 - VALVE ASSY., RH STEERING W (45438-SK) view full part page → $1.95 IN A KIT + SOLD SOLO
17#+	37402	CONNECTOR KIT, MALE 2 POSITION	2		ADD TO CART
CONNECTOR KIT, MALE 2 POSITION 37402 · qty on machine: 2 Also included in kit 11 - VALVE ASSY., RH STEERING W (45438-SK); kit 18 - KIT, PALM HANDLE W/SWITCH, (20155) view full part page → $5.95 IN A KIT + SOLD SOLO
18	20155	KIT, PALM HANDLE W/SWITCH, RIGHT	1	INCLUDES ITEMS W/+	ADD TO CART
KIT, PALM HANDLE W/SWITCH, RIGHT 20155 · qty on machine: 1 INCLUDES ITEMS W/+ Kit includes: 12#+, 17#+, 19+, 20+ view full part page → $258.95 IN A KIT + SOLD SOLO
19+	4692	TERMINAL, BULLET, .156 MALE, 14-16 GA	2		ADD TO CART
TERMINAL, BULLET, .156 MALE, 14-16 GA 4692 · qty on machine: 2 Also included in kit 18 - KIT, PALM HANDLE W/SWITCH, (20155) view full part page → $0.61 IN A KIT + SOLD SOLO
20+	1318	TERMINAL, BULLET, FEMALE, 18-22	2		ADD TO CART
TERMINAL, BULLET, FEMALE, 18-22 1318 · qty on machine: 2 Also included in kit 18 - KIT, PALM HANDLE W/SWITCH, (20155) view full part page → $0.5 IN A KIT + SOLD SOLO
21	42496	NUT, BLIND, HEX, M6-1.0 X 0.7 - 4.2 GRIP	8		ADD TO CART
NUT, BLIND, HEX, M6-1.0 X 0.7 - 4.2 GRIP 42496 · qty on machine: 8 view full part page → $0.95
22	45439-001	STEERING BOX, RH	1		PARTS REQUEST
PHOTO COMING STEERING BOX, RH 45439-001 · qty on machine: 1 PARTS REQUEST

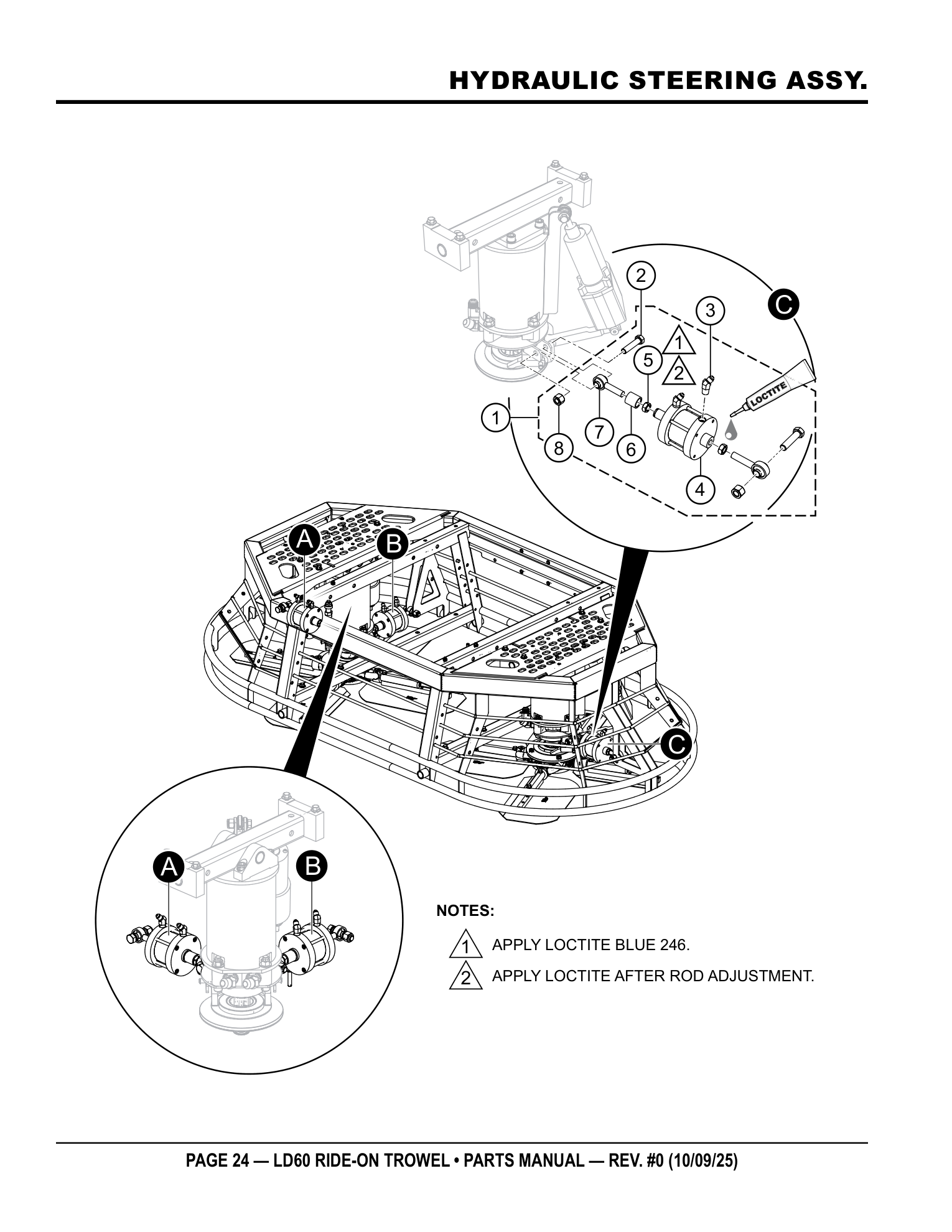

Page 24 — HYDRAULIC STEERING ASSY.

Multiquip LD6 Ride-On Trowel HYDRAULIC STEERING ASSY. parts diagram

Parts list — exactly as printed8 rows

No.	Part No.	Part Name	Qty	Remarks
1	45457	CYLINDER ASSY., HYD. STEERING	3	INCLUDES ITEMS W/@	PARTS REQUEST
PHOTO COMING CYLINDER ASSY., HYD. STEERING 45457 · qty on machine: 3 INCLUDES ITEMS W/@ Kit includes: 2@, 3@, 4@, 5@, 6@, 7@, 8@ PARTS REQUEST
2@	13178	SCREW, HHC 1/2-13 X 2-1/4"	6		ADD TO CART
SCREW, HHC 1/2-13 X 2-1/4" 13178 · qty on machine: 6 Also included in kit 1 - CYLINDER ASSY., HYD. STEER (45457) view full part page → $0.89 IN A KIT + SOLD SOLO
3@	45466	FITTING, 4MJ-4MP 45°	6		PARTS REQUEST
PHOTO COMING FITTING, 4MJ-4MP 45° 45466 · qty on machine: 6 Also included in kit 1 - CYLINDER ASSY., HYD. STEER (45457) PARTS REQUEST
4@	45585	MQ CYLINDER, 2.5" BORE X 1.5" STR X 0.75"	3		ADD TO CART
MQ CYLINDER, 2.5" BORE X 1.5" STR X 0.75" 45585 · qty on machine: 3 Also included in kit 1 - CYLINDER ASSY., HYD. STEER (45457) view full part page → $163.95 IN A KIT + SOLD SOLO
5@	11146	NUT, HEX JAM 1/2-20 PLATED	6		ADD TO CART
NUT, HEX JAM 1/2-20 PLATED 11146 · qty on machine: 6 Also included in kit 1 - CYLINDER ASSY., HYD. STEER (45457) view full part page → $0.33 IN A KIT + SOLD SOLO
6@	23261	SPACER, STEERING CYLINDER	3		ADD TO CART
SPACER, STEERING CYLINDER 23261 · qty on machine: 3 Also included in kit 1 - CYLINDER ASSY., HYD. STEER (45457) view full part page → $16.23 IN A KIT + SOLD SOLO
7@	21944	ROD END, 1/2-20 M RH W/CUSTOM BALL	6		ADD TO CART
ROD END, 1/2-20 M RH W/CUSTOM BALL 21944 · qty on machine: 6 Also included in kit 1 - CYLINDER ASSY., HYD. STEER (45457) view full part page → $24.95 IN A KIT + SOLD SOLO
8@	10176	NUT, NYLOC 1/2-13	6		ADD TO CART
NUT, NYLOC 1/2-13 10176 · qty on machine: 6 Also included in kit 1 - CYLINDER ASSY., HYD. STEER (45457) view full part page → $2.95 IN A KIT + SOLD SOLO

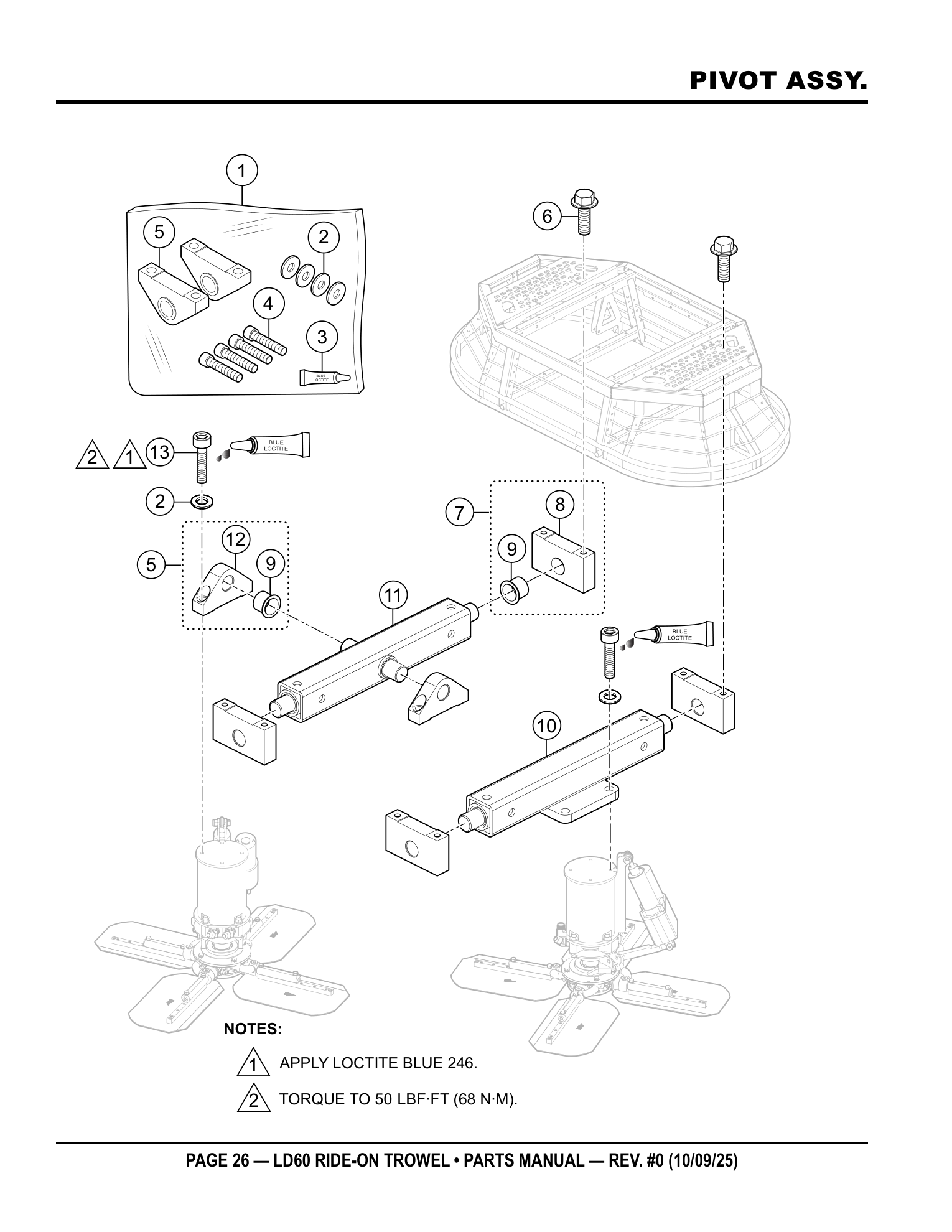

Page 26 — PIVOT ASSY.

Multiquip LD6 Ride-On Trowel PIVOT ASSY. parts diagram

Parts list — exactly as printed13 rows

No.	Part No.	Part Name	Qty	Remarks
1	42280-SK	KIT, BLOCK MOTOR MOUNT 2 DOF PIVOT	1	INCLUDES ITEMS W/@	ADD TO CART
KIT, BLOCK MOTOR MOUNT 2 DOF PIVOT 42280-SK · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 2@, 3@, 4@, 5@ view full part page → $136.95 IN A KIT + SOLD SOLO
2@	43180	WASHER, FLAT M12, DIN 433	12		PARTS REQUEST
PHOTO COMING WASHER, FLAT M12, DIN 433 43180 · qty on machine: 12 Also included in kit 1 - KIT, BLOCK MOTOR MOUNT 2 D (42280-SK) PARTS REQUEST
3@	1477	LOCTITE 242 BLUE .5CC	1		ADD TO CART
LOCTITE 242 BLUE .5CC 1477 · qty on machine: 1 Also included in kit 1 - KIT, BLOCK MOTOR MOUNT 2 D (42280-SK) view full part page → $6.95 IN A KIT + SOLD SOLO
4@	43181	SCREW, SHC M12 X 60, DIN912, GR 12.9	4		PARTS REQUEST
PHOTO COMING SCREW, SHC M12 X 60, DIN912, GR 12.9 43181 · qty on machine: 4 Also included in kit 1 - KIT, BLOCK MOTOR MOUNT 2 D (42280-SK) PARTS REQUEST
5@	42280	ASSY., BLOCK, MOTOR MOUNT 2 DOF PIVOT	4	INCLUDES ITEMS W/#	ADD TO CART
ASSY., BLOCK, MOTOR MOUNT 2 DOF PIVOT 42280 · qty on machine: 4 INCLUDES ITEMS W/# Also included in kit 1 - KIT, BLOCK MOTOR MOUNT 2 D (42280-SK) view full part page → $63.95 IN A KIT + SOLD SOLO
6	32976	SCREW, HFS M10-1.5 X 25 CLASS 10.9	8		ADD TO CART
SCREW, HFS M10-1.5 X 25 CLASS 10.9 32976 · qty on machine: 8 view full part page → $4.95
7	43152	PIVOT BLOCK ASSY., MOTOR MOUNT W/BUSHING	4	INCLUDES ITEMS W/+	ADD TO CART
PIVOT BLOCK ASSY., MOTOR MOUNT W/BUSHING 43152 · qty on machine: 4 INCLUDES ITEMS W/+ Kit includes: 8+, 9#+ view full part page → $55.95 IN A KIT + SOLD SOLO
8+	43151	PIVOT BLOCK, MOTOR MOUNT	1		PARTS REQUEST
PHOTO COMING PIVOT BLOCK, MOTOR MOUNT 43151 · qty on machine: 1 Also included in kit 7 - PIVOT BLOCK ASSY., MOTOR M (43152) PARTS REQUEST
9#+	10221	BUSHING, GLIDE IGUS #TFI-1618-16	8		ADD TO CART
BUSHING, GLIDE IGUS #TFI-1618-16 10221 · qty on machine: 8 Also included in kit 5 - ASSY., BLOCK, MOTOR MOUNT (42280); kit 7 - PIVOT BLOCK ASSY., MOTOR M (43152) view full part page → $15.95 IN A KIT + SOLD SOLO
10	45566	TRUNNION, SOF, W/A	1		PARTS REQUEST
PHOTO COMING TRUNNION, SOF, W/A 45566 · qty on machine: 1 PARTS REQUEST
11	45560	TRUNNION, DOF, W/A	1		PARTS REQUEST
PHOTO COMING TRUNNION, DOF, W/A 45560 · qty on machine: 1 PARTS REQUEST
12#	3942280	PIVOT BLOCK, MOTOR MOUNT	4		PARTS REQUEST
PHOTO COMING PIVOT BLOCK, MOTOR MOUNT 3942280 · qty on machine: 4 Also included in kit 5 - ASSY., BLOCK, MOTOR MOUNT (42280) PARTS REQUEST
13	17105	SCREW, SHC M12-1.75 X 35 SS, DIN912	8		ADD TO CART
SCREW, SHC M12-1.75 X 35 SS, DIN912 17105 · qty on machine: 8 view full part page → $2.95

Page 28 — LEFT-SIDE HYDRAULIC MOTOR ASSY.

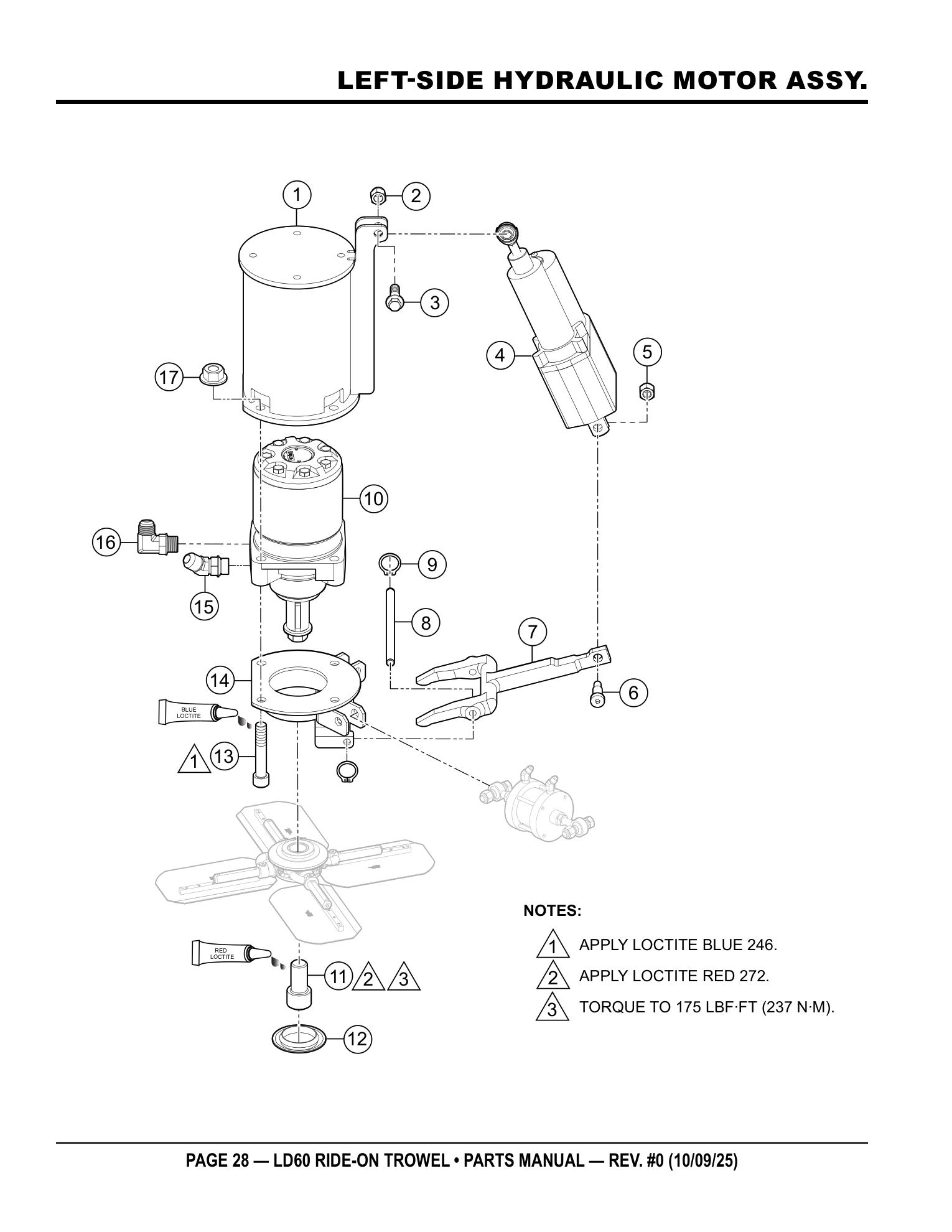

Multiquip LD6 Ride-On Trowel LEFT-SIDE HYDRAULIC MOTOR ASSY. parts diagram

Parts list — exactly as printed17 rows

No.	Part No.	Part Name	Qty
1	45452	HOUSING W/A, UPPER ROTOR	1	PARTS REQUEST
PHOTO COMING HOUSING W/A, UPPER ROTOR 45452 · qty on machine: 1 PARTS REQUEST
2	021112140	NUT, HEX, NYLOC, M12-1.75	1	ADD TO CART
NUT, HEX, NYLOC, M12-1.75 021112140 · qty on machine: 1 view full part page → $0.46
3	42351	SCREW, HFS, ZP, M12-1.75 X 40, CLASS 8.8	1	ADD TO CART
SCREW, HFS, ZP, M12-1.75 X 40, CLASS 8.8 42351 · qty on machine: 1 view full part page → $2.9
4	45497	ACTUATOR, LINEAR, PA-17, 2"	1	ADD TO CART
ACTUATOR, LINEAR, PA-17, 2" 45497 · qty on machine: 1 view full part page → $643.95
5	10133	NUT, NYLOC 3/8-16	1	ADD TO CART
NUT, NYLOC 3/8-16 10133 · qty on machine: 1 view full part page → $0.17
6	2527	SCREW, SHC, SHOULDER, 1/2 X 1, 3/8-16	1	ADD TO CART
SCREW, SHC, SHOULDER, 1/2 X 1, 3/8-16 2527 · qty on machine: 1 view full part page → $6.95
7	45496	YOKE	1	ADD TO CART
YOKE 45496 · qty on machine: 1 view full part page → $87.95
8	20801	PIN, YOKE	1	ADD TO CART
PIN, YOKE 20801 · qty on machine: 1 view full part page → $4.95
9	20802	RING, SNAP, TRUARC 5100-37	2	ADD TO CART
RING, SNAP, TRUARC 5100-37 20802 · qty on machine: 2 view full part page → $0.26
10	45468	MOTOR, HYDRAULIC, TG, 360 CC	1	ADD TO CART
MOTOR, HYDRAULIC, TG, 360 CC 45468 · qty on machine: 1 view full part page → $1028.95
11	43760	SCREW, SHC 5/8-18 X 1.25	1	ADD TO CART
SCREW, SHC 5/8-18 X 1.25 43760 · qty on machine: 1 view full part page → $9.95
12	45494	PLUGCAP, BOTTOM SPIDER, 1.00"	1	ADD TO CART
PLUGCAP, BOTTOM SPIDER, 1.00" 45494 · qty on machine: 1 view full part page → $0.65
13	17332	SCREW, SHC M12-1.75 X 70 SS, DIN912	4	ADD TO CART
SCREW, SHC M12-1.75 X 70 SS, DIN912 17332 · qty on machine: 4 view full part page → $7.95
14	45555	HOUSING, LOWER ROTOR, W/A	1	ADD TO CART
HOUSING, LOWER ROTOR, W/A 45555 · qty on machine: 1 view full part page → $153.95
15	16336	FITTING, 45 10MJ-10MO	1	ADD TO CART
FITTING, 45 10MJ-10MO 16336 · qty on machine: 1 view full part page → $17.95
16	3322	FITTING, 90 10MJ-10MO	1	ADD TO CART
FITTING, 90 10MJ-10MO 3322 · qty on machine: 1 view full part page → $18.95
17	42451	NUT, HEX, SERRATED-FLANGE, M12-1.75	4	ADD TO CART
NUT, HEX, SERRATED-FLANGE, M12-1.75 42451 · qty on machine: 4 view full part page → $1.41

Page 30 — RIGHT-SIDE HYDRAULIC MOTOR ASSY.

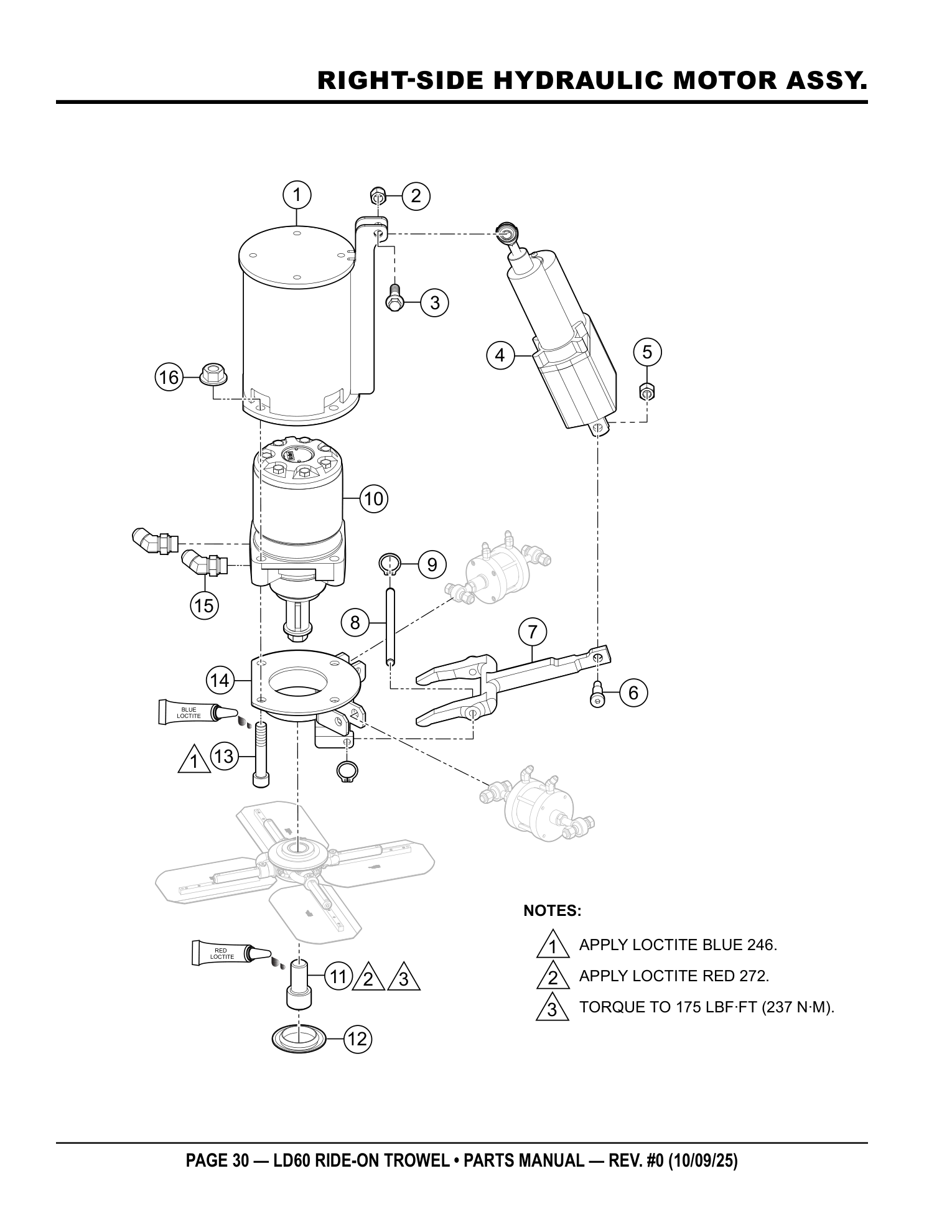

Multiquip LD6 Ride-On Trowel RIGHT-SIDE HYDRAULIC MOTOR ASSY. parts diagram

Parts list — exactly as printed16 rows

No.	Part No.	Part Name	Qty
1	45452	HOUSING W/A, UPPER ROTOR	1	PARTS REQUEST
PHOTO COMING HOUSING W/A, UPPER ROTOR 45452 · qty on machine: 1 PARTS REQUEST
2	021112140	NUT, HEX, NYLOC, M12-1.75	1	ADD TO CART
NUT, HEX, NYLOC, M12-1.75 021112140 · qty on machine: 1 view full part page → $0.46
3	42351	SCREW, HFS, ZP, M12-1.75 X 40, CLASS 8.8	1	ADD TO CART
SCREW, HFS, ZP, M12-1.75 X 40, CLASS 8.8 42351 · qty on machine: 1 view full part page → $2.9
4	45497	ACTUATOR, LINEAR, PA-17, 2"	1	ADD TO CART
ACTUATOR, LINEAR, PA-17, 2" 45497 · qty on machine: 1 view full part page → $643.95
5	10133	NUT, NYLOC 3/8-16	1	ADD TO CART
NUT, NYLOC 3/8-16 10133 · qty on machine: 1 view full part page → $0.17
6	2527	SCREW, SHC, SHOULDER, 1/2 X 1, 3/8-16	1	ADD TO CART
SCREW, SHC, SHOULDER, 1/2 X 1, 3/8-16 2527 · qty on machine: 1 view full part page → $6.95
7	45496	YOKE	1	ADD TO CART
YOKE 45496 · qty on machine: 1 view full part page → $87.95
8	20801	PIN, YOKE	1	ADD TO CART
PIN, YOKE 20801 · qty on machine: 1 view full part page → $4.95
9	20802	RING, SNAP, TRUARC 5100-37	2	ADD TO CART
RING, SNAP, TRUARC 5100-37 20802 · qty on machine: 2 view full part page → $0.26
10	45468	MOTOR, HYDRAULIC, TG, 360 CC	1	ADD TO CART
MOTOR, HYDRAULIC, TG, 360 CC 45468 · qty on machine: 1 view full part page → $1028.95
11	43760	SCREW, SHC 5/8-18 X 1.25	1	ADD TO CART
SCREW, SHC 5/8-18 X 1.25 43760 · qty on machine: 1 view full part page → $9.95
12	45494	PLUGCAP, BOTTOM SPIDER, 1.00"	1	ADD TO CART
PLUGCAP, BOTTOM SPIDER, 1.00" 45494 · qty on machine: 1 view full part page → $0.65
13	17332	SCREW, SHC M12-1.75 X 70 SS, DIN912	4	ADD TO CART
SCREW, SHC M12-1.75 X 70 SS, DIN912 17332 · qty on machine: 4 view full part page → $7.95
14	45555	HOUSING, LOWER ROTOR, W/A	1	ADD TO CART
HOUSING, LOWER ROTOR, W/A 45555 · qty on machine: 1 view full part page → $153.95
15	16336	FITTING, 45 10MJ-10MO	2	ADD TO CART
FITTING, 45 10MJ-10MO 16336 · qty on machine: 2 view full part page → $17.95
16	42451	NUT, HEX, SERRATED-FLANGE, M12-1.75	4	ADD TO CART
NUT, HEX, SERRATED-FLANGE, M12-1.75 42451 · qty on machine: 4 view full part page → $1.41

Page 32 — LEFT-SIDE SPIDER ASSY.

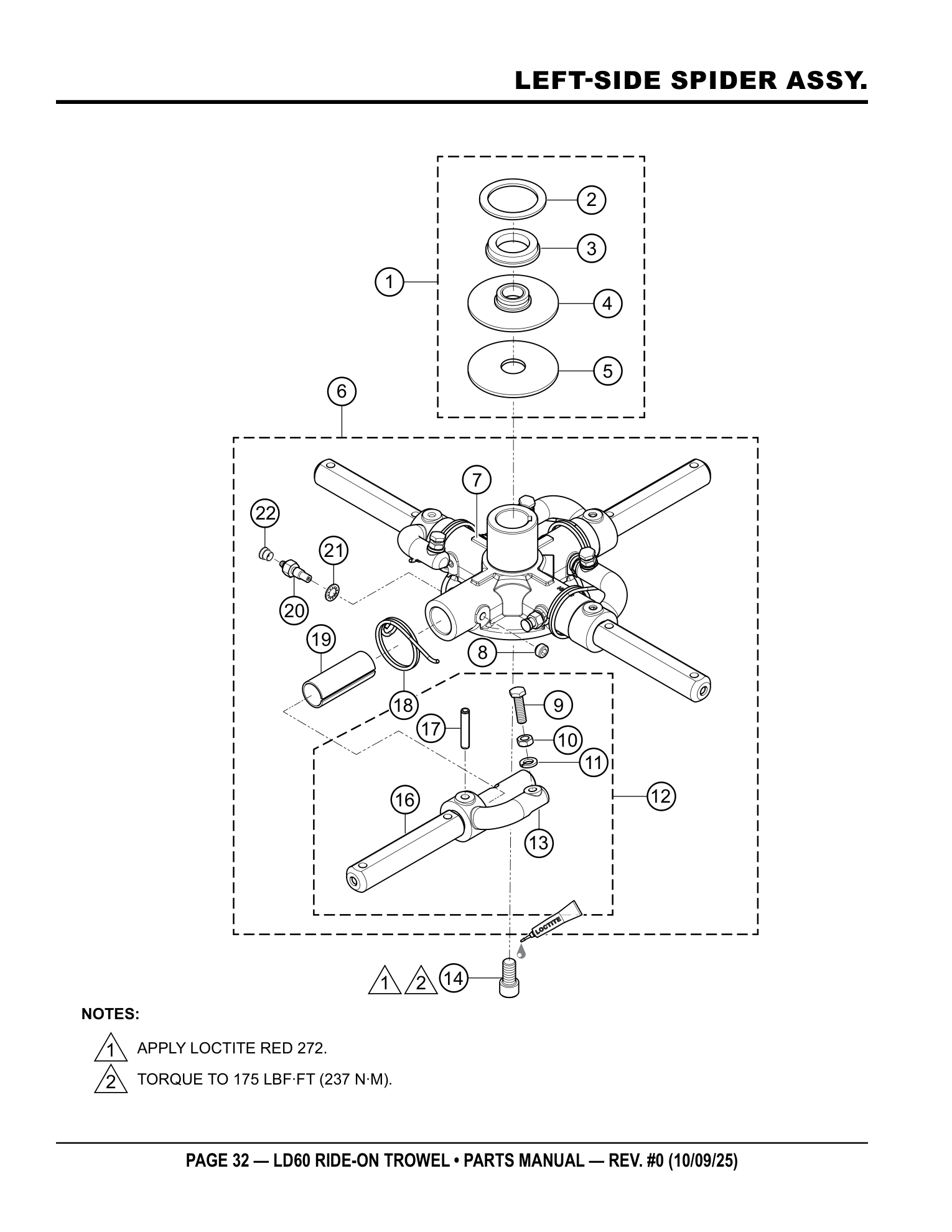

Multiquip LD6 Ride-On Trowel LEFT-SIDE SPIDER ASSY. parts diagram

Parts list — exactly as printed21 rows

No.	Part No.	Part Name	Qty	Remarks
1	10968	THRUST ASSEMBLY	1	INCLUDES ITEMS W/@	ADD TO CART
THRUST ASSEMBLY 10968 · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 2@, 3@, 4@, 5@ view full part page → $173.95 IN A KIT + SOLD SOLO
2@	12208	WEAR RING, SEALED BEARING	1		ADD TO CART
WEAR RING, SEALED BEARING 12208 · qty on machine: 1 Also included in kit 1 - THRUST ASSEMBLY (10968) view full part page → $10.95 IN A KIT + SOLD SOLO
3@	12778	BEARING, 65MM X 100MM, FLANGED	1		ADD TO CART
BEARING, 65MM X 100MM, FLANGED 12778 · qty on machine: 1 Also included in kit 1 - THRUST ASSEMBLY (10968) view full part page → $46.95 IN A KIT + SOLD SOLO
4@	10793	ASSY., THRUST COLLAR	1		ADD TO CART
ASSY., THRUST COLLAR 10793 · qty on machine: 1 Also included in kit 1 - THRUST ASSEMBLY (10968) view full part page → $98.95 IN A KIT + SOLD SOLO
5@	1154A	PLATE, WEAR THRUST COLLAR	1		ADD TO CART
PLATE, WEAR THRUST COLLAR 1154A · qty on machine: 1 Also included in kit 1 - THRUST ASSEMBLY (10968) view full part page → $10.95 IN A KIT + SOLD SOLO
6	45462	SPIDER ASSY., 4BLD LH	1	INCLUDES ITEMS W/#	ADD TO CART
SPIDER ASSY., 4BLD LH 45462 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 7#, 8#, 9#+, 10#+, 11#+, 12#, 13#+, 16#+, 17#+, 18#, 19#, 20#, 21#, 22# view full part page → $509.95 IN A KIT + SOLD SOLO
7#	45568	SPIDER PLATE, 1-1/4 SHAFT 4BLD	1		PARTS REQUEST
PHOTO COMING SPIDER PLATE, 1-1/4 SHAFT 4BLD 45568 · qty on machine: 1 Also included in kit 6 - SPIDER ASSY., 4BLD LH (45462) PARTS REQUEST
8#	11602	SCREW, SHS 3/8-16 X 1/4"	4		ADD TO CART
SCREW, SHS 3/8-16 X 1/4" 11602 · qty on machine: 4 Also included in kit 6 - SPIDER ASSY., 4BLD LH (45462) view full part page → $0.25 IN A KIT + SOLD SOLO
9#+	0164B	SCREW, TROWEL ADJUSTMENT 3/8-16	4		ADD TO CART
SCREW, TROWEL ADJUSTMENT 3/8-16 0164B · qty on machine: 4 Also included in kit 6 - SPIDER ASSY., 4BLD LH (45462); kit 12 - TROWEL ARM ASSY., LH (45459) view full part page → $1.42 IN A KIT + SOLD SOLO
10#+	1876	NUT, HEX JAM 3/8-16 CLASS 2B	4		ADD TO CART
NUT, HEX JAM 3/8-16 CLASS 2B 1876 · qty on machine: 4 Also included in kit 6 - SPIDER ASSY., 4BLD LH (45462); kit 12 - TROWEL ARM ASSY., LH (45459) view full part page → $0.13 IN A KIT + SOLD SOLO
11#+	0166A	WASHER, LOCK, 3/8" MED.	4		ADD TO CART
WASHER, LOCK, 3/8" MED. 0166A · qty on machine: 4 Also included in kit 6 - SPIDER ASSY., 4BLD LH (45462); kit 12 - TROWEL ARM ASSY., LH (45459) view full part page → $0.17 IN A KIT + SOLD SOLO
12#	45459	TROWEL ARM ASSY., LH	4	INCLUDES ITEMS W/+	PARTS REQUEST
PHOTO COMING TROWEL ARM ASSY., LH 45459 · qty on machine: 4 INCLUDES ITEMS W/+ Also included in kit 6 - SPIDER ASSY., 4BLD LH (45462) PARTS REQUEST
13#+	1163	LEVER, TROWEL ARM, RIGHT HAND	4		PARTS REQUEST
PHOTO COMING LEVER, TROWEL ARM, RIGHT HAND 1163 · qty on machine: 4 Also included in kit 6 - SPIDER ASSY., 4BLD LH (45462); kit 12 - TROWEL ARM ASSY., LH (45459) PARTS REQUEST
14	43760	SCREW, SHC 5/8-18 X 1.25"	1		ADD TO CART
SCREW, SHC 5/8-18 X 1.25" 43760 · qty on machine: 1 view full part page → $9.95
16#+	2826	ARM, TROWEL	4		ADD TO CART
ARM, TROWEL 2826 · qty on machine: 4 Also included in kit 6 - SPIDER ASSY., 4BLD LH (45462); kit 12 - TROWEL ARM ASSY., LH (45459) view full part page → $22.95 IN A KIT + SOLD SOLO
17#+	4164	PIN, SLOTTED SPRING, 5/16 X 1-3/4" NP	4		ADD TO CART
PIN, SLOTTED SPRING, 5/16 X 1-3/4" NP 4164 · qty on machine: 4 Also included in kit 6 - SPIDER ASSY., 4BLD LH (45462); kit 12 - TROWEL ARM ASSY., LH (45459) view full part page → $0.83 IN A KIT + SOLD SOLO
18#	1316	SPRING, LS ARM RETURN	4		ADD TO CART
SPRING, LS ARM RETURN 1316 · qty on machine: 4 Also included in kit 6 - SPIDER ASSY., 4BLD LH (45462) view full part page → $2.95 IN A KIT + SOLD SOLO
19#	1157A	BUSHING, TROWEL ARM	4		ADD TO CART
BUSHING, TROWEL ARM 1157A · qty on machine: 4 Also included in kit 6 - SPIDER ASSY., 4BLD LH (45462) view full part page → $15.95 IN A KIT + SOLD SOLO
20#	1322	SCREW ASSY., TROWEL ARM RETAINING	4		ADD TO CART
SCREW ASSY., TROWEL ARM RETAINING 1322 · qty on machine: 4 Also included in kit 6 - SPIDER ASSY., 4BLD LH (45462) view full part page → $3.95 IN A KIT + SOLD SOLO
21#	1875	WASHER, INT. SHKP, 3/8"	4		ADD TO CART
WASHER, INT. SHKP, 3/8" 1875 · qty on machine: 4 Also included in kit 6 - SPIDER ASSY., 4BLD LH (45462) view full part page → $6.95 IN A KIT + SOLD SOLO
22#	1162A	CAP, GREASE ZERK, #2 YELLOW	4		ADD TO CART
CAP, GREASE ZERK, #2 YELLOW 1162A · qty on machine: 4 Also included in kit 6 - SPIDER ASSY., 4BLD LH (45462) view full part page → $0.48 IN A KIT + SOLD SOLO

Page 34 — RIGHT-SIDE SPIDER ASSY.

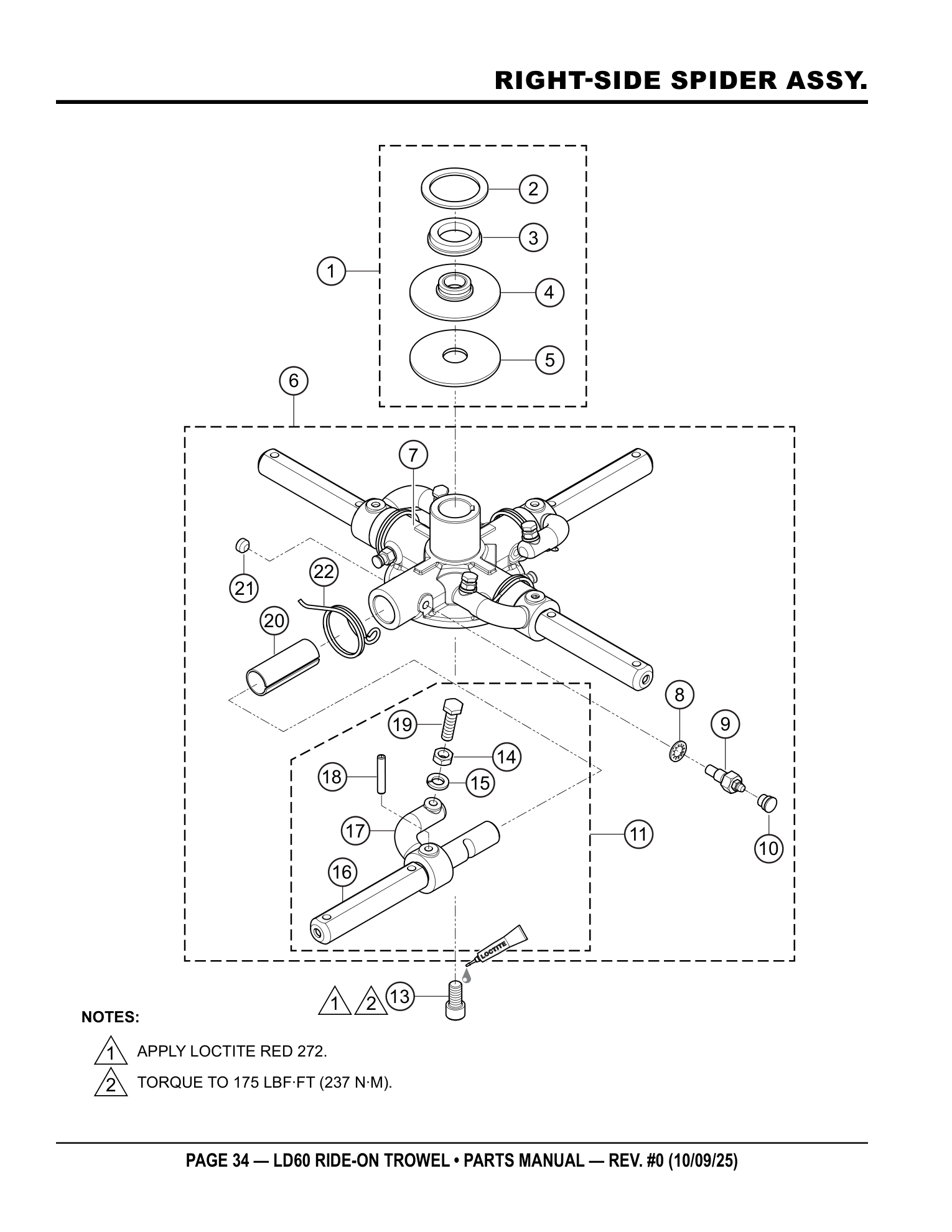

Multiquip LD6 Ride-On Trowel RIGHT-SIDE SPIDER ASSY. parts diagram

Parts list — exactly as printed21 rows

No.	Part No.	Part Name	Qty	Remarks
1	10968	THRUST ASSEMBLY	1	INCLUDES ITEMS W/@	ADD TO CART
THRUST ASSEMBLY 10968 · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 2@, 3@, 4@, 5@ view full part page → $173.95 IN A KIT + SOLD SOLO
2@	12208	WEAR RING, SEALED BEARING	1		ADD TO CART
WEAR RING, SEALED BEARING 12208 · qty on machine: 1 Also included in kit 1 - THRUST ASSEMBLY (10968) view full part page → $10.95 IN A KIT + SOLD SOLO
3@	12778	BEARING, 65MM X 100MM, FLANGED	1		ADD TO CART
BEARING, 65MM X 100MM, FLANGED 12778 · qty on machine: 1 Also included in kit 1 - THRUST ASSEMBLY (10968) view full part page → $46.95 IN A KIT + SOLD SOLO
4@	10793	ASSY., THRUST COLLAR	1		ADD TO CART
ASSY., THRUST COLLAR 10793 · qty on machine: 1 Also included in kit 1 - THRUST ASSEMBLY (10968) view full part page → $98.95 IN A KIT + SOLD SOLO
5@	1154A	PLATE, WEAR THRUST COLLAR	1		ADD TO CART
PLATE, WEAR THRUST COLLAR 1154A · qty on machine: 1 Also included in kit 1 - THRUST ASSEMBLY (10968) view full part page → $10.95 IN A KIT + SOLD SOLO
6	45461	SPIDER ASSY., 4BLD RH	1	INCLUDES ITEMS W/#	ADD TO CART
SPIDER ASSY., 4BLD RH 45461 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 7#, 8#, 9#, 10#, 11#, 14#+, 15#+, 16#+, 17#+, 18#+, 19#+, 20#, 21#, 22# view full part page → $616.95 IN A KIT + SOLD SOLO
7#	45568	SPIDER PLATE, 1-1/4" SHAFT 4BLD	1		PARTS REQUEST
PHOTO COMING SPIDER PLATE, 1-1/4" SHAFT 4BLD 45568 · qty on machine: 1 Also included in kit 6 - SPIDER ASSY., 4BLD RH (45461) PARTS REQUEST
8#	1875	WASHER, INT. SHKP, 3/8"	4		ADD TO CART
WASHER, INT. SHKP, 3/8" 1875 · qty on machine: 4 Also included in kit 6 - SPIDER ASSY., 4BLD RH (45461) view full part page → $6.95 IN A KIT + SOLD SOLO
9#	1322	SCREW ASSY., TROWEL ARM RETAINING	4		ADD TO CART
SCREW ASSY., TROWEL ARM RETAINING 1322 · qty on machine: 4 Also included in kit 6 - SPIDER ASSY., 4BLD RH (45461) view full part page → $3.95 IN A KIT + SOLD SOLO
10#	1162A	CAP, GREASE ZERK, #2 YELLOW	4		ADD TO CART
CAP, GREASE ZERK, #2 YELLOW 1162A · qty on machine: 4 Also included in kit 6 - SPIDER ASSY., 4BLD RH (45461) view full part page → $0.48 IN A KIT + SOLD SOLO
11#	45460	TROWEL ARM ASSY., RH	4	INCLUDES ITEMS W/+	PARTS REQUEST
PHOTO COMING TROWEL ARM ASSY., RH 45460 · qty on machine: 4 INCLUDES ITEMS W/+ Also included in kit 6 - SPIDER ASSY., 4BLD RH (45461) PARTS REQUEST
13	43760	SCREW, SHC 5/8-18 X 1.25"	1		ADD TO CART
SCREW, SHC 5/8-18 X 1.25" 43760 · qty on machine: 1 view full part page → $9.95
14#+	1876	NUT, HEX JAM 3/8-16 CLASS 2B	4		ADD TO CART
NUT, HEX JAM 3/8-16 CLASS 2B 1876 · qty on machine: 4 Also included in kit 6 - SPIDER ASSY., 4BLD RH (45461); kit 11 - TROWEL ARM ASSY., RH (45460) view full part page → $0.13 IN A KIT + SOLD SOLO
15#+	0166A	WASHER, LOCK, 3/8" MED.	4		ADD TO CART
WASHER, LOCK, 3/8" MED. 0166A · qty on machine: 4 Also included in kit 6 - SPIDER ASSY., 4BLD RH (45461); kit 11 - TROWEL ARM ASSY., RH (45460) view full part page → $0.17 IN A KIT + SOLD SOLO
16#+	2826	ARM, TROWEL	4		ADD TO CART
ARM, TROWEL 2826 · qty on machine: 4 Also included in kit 6 - SPIDER ASSY., 4BLD RH (45461); kit 11 - TROWEL ARM ASSY., RH (45460) view full part page → $22.95 IN A KIT + SOLD SOLO
17#+	1555	LEVER TROWEL ARM, LEFT HAND	4		ADD TO CART
LEVER TROWEL ARM, LEFT HAND 1555 · qty on machine: 4 Also included in kit 6 - SPIDER ASSY., 4BLD RH (45461); kit 11 - TROWEL ARM ASSY., RH (45460) view full part page → $42.95 IN A KIT + SOLD SOLO
18#+	4164	PIN, SLOTTED SPRING, 5/16 X 1-3/4" NP	4		ADD TO CART
PIN, SLOTTED SPRING, 5/16 X 1-3/4" NP 4164 · qty on machine: 4 Also included in kit 6 - SPIDER ASSY., 4BLD RH (45461); kit 11 - TROWEL ARM ASSY., RH (45460) view full part page → $0.83 IN A KIT + SOLD SOLO
19#+	0164B	SCREW, TROWEL ADJUSTMENT 3/8-16	4		ADD TO CART
SCREW, TROWEL ADJUSTMENT 3/8-16 0164B · qty on machine: 4 Also included in kit 6 - SPIDER ASSY., 4BLD RH (45461); kit 11 - TROWEL ARM ASSY., RH (45460) view full part page → $1.42 IN A KIT + SOLD SOLO
20#	1157A	BUSHING, TROWEL ARM	4		ADD TO CART
BUSHING, TROWEL ARM 1157A · qty on machine: 4 Also included in kit 6 - SPIDER ASSY., 4BLD RH (45461) view full part page → $15.95 IN A KIT + SOLD SOLO
21#	11602	SCREW, SHS 3/8-16 X 1/4"	1		ADD TO CART
SCREW, SHS 3/8-16 X 1/4" 11602 · qty on machine: 1 Also included in kit 6 - SPIDER ASSY., 4BLD RH (45461) view full part page → $0.25 IN A KIT + SOLD SOLO
22#	1317	SPRING, RS ARM RETURN	4		ADD TO CART
SPRING, RS ARM RETURN 1317 · qty on machine: 4 Also included in kit 6 - SPIDER ASSY., 4BLD RH (45461) view full part page → $3.95 IN A KIT + SOLD SOLO

Page 36 — HYDRAULIC TANK AND COOLER ASSY.

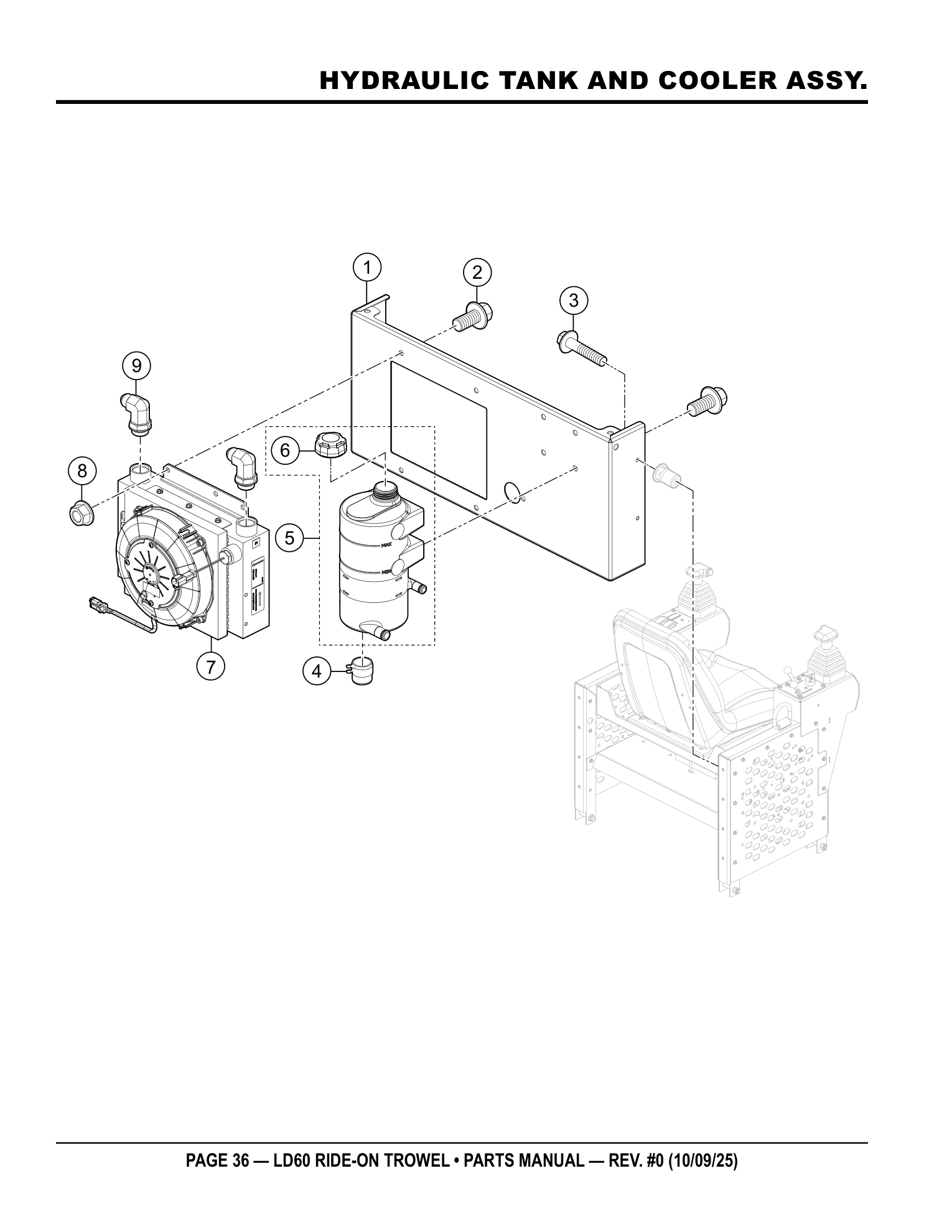

Multiquip LD6 Ride-On Trowel HYDRAULIC TANK AND COOLER ASSY. parts diagram

Parts list — exactly as printed9 rows

No.	Part No.	Part Name	Qty	Remarks
1	45419	BRACKET, HYD COOLER	1		ADD TO CART
BRACKET, HYD COOLER 45419 · qty on machine: 1 view full part page → $92.95
2	42342	SCREW, HHFS, M8-1.25 X 16 GR 8.8	8		ADD TO CART
SCREW, HHFS, M8-1.25 X 16 GR 8.8 42342 · qty on machine: 8 view full part page → $0.95
3	42325	SCREW, HHC M6-1.0 X 20	4		ADD TO CART
SCREW, HHC M6-1.0 X 20 42325 · qty on machine: 4 view full part page → $0.52
4	45645	CAP, 8GPM CYCLONE, DRAIN	1		ADD TO CART
CAP, 8GPM CYCLONE, DRAIN 45645 · qty on machine: 1 view full part page → $36.95
5	45132	CYCLONE, HYD. RESERVOIR 8 GPM	1	INCLUDES ITEMS W/@	ADD TO CART
CYCLONE, HYD. RESERVOIR 8 GPM 45132 · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 6@ view full part page → $765.95 IN A KIT + SOLD SOLO
6@	45132-01	RESERVOIR CAP	1		ADD TO CART
RESERVOIR CAP 45132-01 · qty on machine: 1 Also included in kit 5 - CYCLONE, HYD. RESERVOIR 8 (45132) view full part page → $16.95 IN A KIT + SOLD SOLO
7	45326	HEAT EXCHANGER, HYDRAULIC	1		ADD TO CART
HEAT EXCHANGER, HYDRAULIC 45326 · qty on machine: 1 view full part page → $737.95
8	23802	NUT, HEX FLANGE M8-1.25 SERRATED	4		ADD TO CART
NUT, HEX FLANGE M8-1.25 SERRATED 23802 · qty on machine: 4 view full part page → $0.41
9	22145	FITTING, 90 -12MO X- 10MJ	2		ADD TO CART
FITTING, 90 -12MO X- 10MJ 22145 · qty on machine: 2 view full part page → $17.95

Page 38 — HYDRAULIC PUMP ASSY.

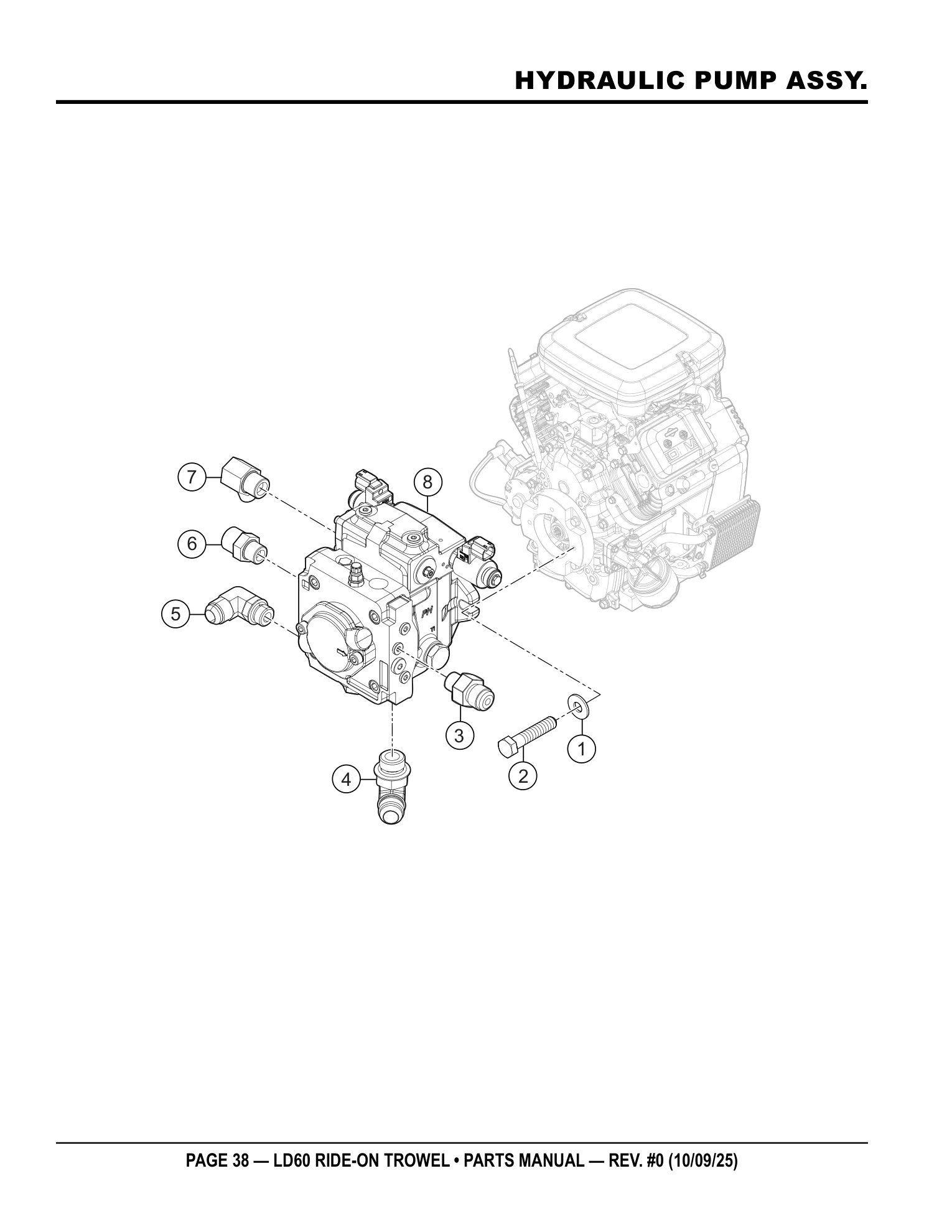

Multiquip LD6 Ride-On Trowel HYDRAULIC PUMP ASSY. parts diagram

Parts list — exactly as printed8 rows

No.	Part No.	Part Name	Qty
1	933242	WASHER, FLAT SAE 3/8" GRD 9 YZ	2	PARTS REQUEST
PHOTO COMING WASHER, FLAT SAE 3/8" GRD 9 YZ 933242 · qty on machine: 2 PARTS REQUEST
2	915107	SCREW, HHC 3/8-16 X 1-1/4" GR8	2	ADD TO CART
SCREW, HHC 3/8-16 X 1-1/4" GR8 915107 · qty on machine: 2 view full part page → $0.65
3	11887	FITTING, STR 6MJ-4MO	1	ADD TO CART
FITTING, STR 6MJ-4MO 11887 · qty on machine: 1 view full part page → $10.95
4	45626	FITTING, 90 -12MO X -12MJ	1	ADD TO CART
FITTING, 90 -12MO X -12MJ 45626 · qty on machine: 1 view full part page → $31.21
5	45576	FITTING, 10MJICX-8MORB	1	ADD TO CART
FITTING, 10MJICX-8MORB 45576 · qty on machine: 1 view full part page → $23.0
6	16587	FITTING,STR 10MJ X 8MO	1	ADD TO CART
FITTING,STR 10MJ X 8MO 16587 · qty on machine: 1 view full part page → $5.95
7	26010	FITTING, 90 -10MOX-8MJ	1	ADD TO CART
FITTING, 90 -10MOX-8MJ 26010 · qty on machine: 1 view full part page → $22.95
8	45465-SK	SERVICE KIT, PUMP, HYDRAULIC	1	ADD TO CART
SERVICE KIT, PUMP, HYDRAULIC 45465-SK · qty on machine: 1 view full part page → $2615.95

Page 40 — HYDRAULIC FILTER AND MANIFOLD ASSY.

Multiquip LD6 Ride-On Trowel HYDRAULIC FILTER AND MANIFOLD ASSY. parts diagram

Parts list — exactly as printed18 rows

No.	Part No.	Part Name	Qty	Remarks
1	45554	BRACKET, HYD. MANIFOLD	1		PARTS REQUEST
PHOTO COMING BRACKET, HYD. MANIFOLD 45554 · qty on machine: 1 PARTS REQUEST
2	45649	VALVE ASSY., STEERING HIC	1	INCLUDES ITEMS W/@	PARTS REQUEST
PHOTO COMING VALVE ASSY., STEERING HIC 45649 · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 3@, 4@, 5@, 7@ PARTS REQUEST
3@	45598	MANIFOLD, RETURN/STEERING	1		PARTS REQUEST
PHOTO COMING MANIFOLD, RETURN/STEERING 45598 · qty on machine: 1 Also included in kit 2 - VALVE ASSY., STEERING HIC (45649) PARTS REQUEST
4@	45467	VALVE ASSY., PRESSURE REDUCTION, STEERING	1		ADD TO CART
VALVE ASSY., PRESSURE REDUCTION, STEERING 45467 · qty on machine: 1 Also included in kit 2 - VALVE ASSY., STEERING HIC (45649) view full part page → $173.99 IN A KIT + SOLD SOLO
5@	45643	FITTING, PLUG 1/16MP HEX SKT HD	1		PARTS REQUEST
PHOTO COMING FITTING, PLUG 1/16MP HEX SKT HD 45643 · qty on machine: 1 Also included in kit 2 - VALVE ASSY., STEERING HIC (45649) PARTS REQUEST
6	11722	FITTING, 90 6MJ-6MO	1		ADD TO CART
FITTING, 90 6MJ-6MO 11722 · qty on machine: 1 view full part page → $3.95
7@	2113	FITTING, PLUG 1/8MP HEX SKT HD	1		ADD TO CART
FITTING, PLUG 1/8MP HEX SKT HD 2113 · qty on machine: 1 Also included in kit 2 - VALVE ASSY., STEERING HIC (45649) view full part page → $0.76 IN A KIT + SOLD SOLO
8	12546	FITTING, QD 4MO DIAGN PARKER PD341	2		ADD TO CART
FITTING, QD 4MO DIAGN PARKER PD341 12546 · qty on machine: 2 view full part page → $40.95
9	21095	FITTING, STR 4MJ - 4MO	4		ADD TO CART
FITTING, STR 4MJ - 4MO 21095 · qty on machine: 4 view full part page → $2.95
10	11749	FITTING, STR 8MJ-8MO	1		ADD TO CART
FITTING, STR 8MJ-8MO 11749 · qty on machine: 1 view full part page → $6.95
11	42929	SCREW, HHFS M6-1.0 X 65	2		PARTS REQUEST
PHOTO COMING SCREW, HHFS M6-1.0 X 65 42929 · qty on machine: 2 PARTS REQUEST
12	45578	FITTING, STR, 12MORB X 12MORB	1		ADD TO CART
FITTING, STR, 12MORB X 12MORB 45578 · qty on machine: 1 view full part page → $16.32
13	45644	FILTER, 10 MICRON, SCHROEDER PZ10	1		ADD TO CART
FILTER, 10 MICRON, SCHROEDER PZ10 45644 · qty on machine: 1 view full part page → $181.95
14	42451	NUT, HEX, SERRATED-FLANGE, M12-1.75	2		ADD TO CART
NUT, HEX, SERRATED-FLANGE, M12-1.75 42451 · qty on machine: 2 view full part page → $1.41
15	21096	FITTING, STR 10MJ-12MO	1		ADD TO CART
FITTING, STR 10MJ-12MO 21096 · qty on machine: 1 view full part page → $12.95
16	45624	HOUSING, FILTER, SAE-12 INLINE	1		ADD TO CART
HOUSING, FILTER, SAE-12 INLINE 45624 · qty on machine: 1 view full part page → $51.67
17	34317	SCREW, HHFS M12-1.75 X 20	2		PARTS REQUEST
PHOTO COMING SCREW, HHFS M12-1.75 X 20 34317 · qty on machine: 2 PARTS REQUEST
18	42352	NUT, HEX, SERRATED-FLANGE, M6 -1.0	2		ADD TO CART
NUT, HEX, SERRATED-FLANGE, M6 -1.0 42352 · qty on machine: 2 view full part page → $0.31

Page 42 — HYDRAULIC HOSE KIT ASSY. (COMPLETE)

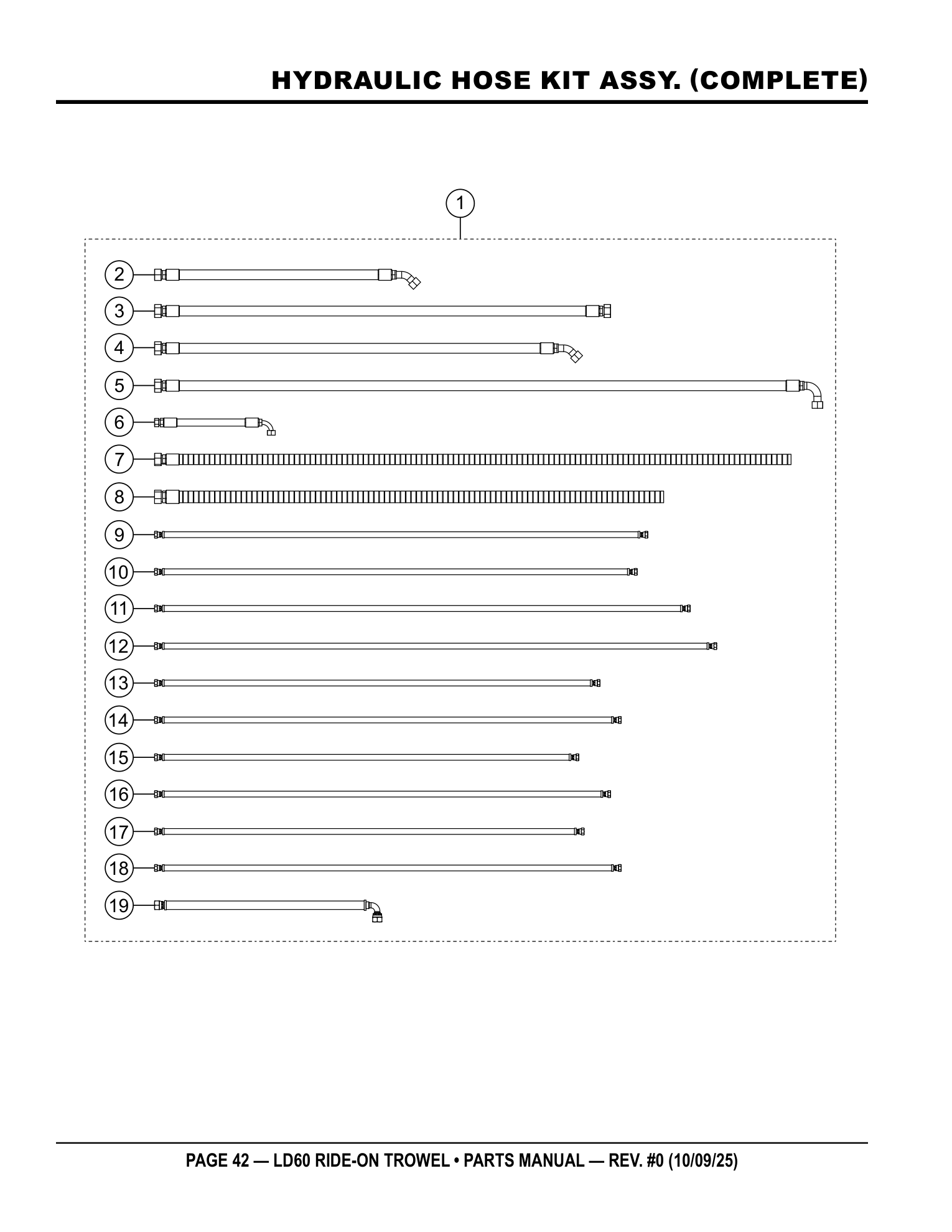

Multiquip LD6 Ride-On Trowel HYDRAULIC HOSE KIT ASSY. (COMPLETE) parts diagram

Parts list — exactly as printed19 rows

No.	Part No.	Part Name	Qty	Remarks
1	45383	HOSE KIT ASSEMBLY	1	INCLUDES ITEMS W/@	PARTS REQUEST
PHOTO COMING HOSE KIT ASSEMBLY 45383 · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 2@, 3@, 4@, 5@, 6@, 7@, 8@, 9@, 10@, 11@, 12@, 13@, 14@, 15@, 16@, 17@, 18@, 19@ PARTS REQUEST
2@	45384	HOSE ASSY., 5/8" X 24.75", -10FJIC X -10FJIC45	1	HOSE 1	ADD TO CART
HOSE ASSY., 5/8" X 24.75", -10FJIC X -10FJIC45 45384 · qty on machine: 1 HOSE 1 Also included in kit 1 - HOSE KIT ASSEMBLY (45383) view full part page → $293.95 IN A KIT + SOLD SOLO
3@	45385	HOSE ASSY., 5/8" X 43", -10FJIC X -10FJIC	1	HOSE 2	PARTS REQUEST
PHOTO COMING HOSE ASSY., 5/8" X 43", -10FJIC X -10FJIC 45385 · qty on machine: 1 HOSE 2 Also included in kit 1 - HOSE KIT ASSEMBLY (45383) PARTS REQUEST
4@	45386	HOSE ASSY., 5/8" X 40", -10FJIC X -10FJIC45	1	HOSE 3	ADD TO CART
HOSE ASSY., 5/8" X 40", -10FJIC X -10FJIC45 45386 · qty on machine: 1 HOSE 3 Also included in kit 1 - HOSE KIT ASSEMBLY (45383) view full part page → $168.95 IN A KIT + SOLD SOLO
5@	45391	HOSE ASSY., 5/8" X 60.5", -10FJIC X -10FJIC	1	HOSE 4	ADD TO CART
HOSE ASSY., 5/8" X 60.5", -10FJIC X -10FJIC 45391 · qty on machine: 1 HOSE 4 Also included in kit 1 - HOSE KIT ASSEMBLY (45383) view full part page → $185.81 IN A KIT + SOLD SOLO
6@	45588	HOSE ASSY., 1/4" X 45.5", -4FJIC X -4FJIC	1	HOSE 5	PARTS REQUEST
PHOTO COMING HOSE ASSY., 1/4" X 45.5", -4FJIC X -4FJIC 45588 · qty on machine: 1 HOSE 5 Also included in kit 1 - HOSE KIT ASSEMBLY (45383) PARTS REQUEST
7@	45390	HOSE ASSY., 5/8" X 60", -10FJIC	1	HOSE 6	ADD TO CART
HOSE ASSY., 5/8" X 60", -10FJIC 45390 · qty on machine: 1 HOSE 6 Also included in kit 1 - HOSE KIT ASSEMBLY (45383) view full part page → $166.95 IN A KIT + SOLD SOLO
8@	45389	HOSE ASSY., 3/4" X 48", -12FJIC	1	HOSE 7	ADD TO CART
HOSE ASSY., 3/4" X 48", -12FJIC 45389 · qty on machine: 1 HOSE 7 Also included in kit 1 - HOSE KIT ASSEMBLY (45383) view full part page → $216.95 IN A KIT + SOLD SOLO
9@	45398	HOSE ASSY., 1/4" X 46.5", -4FJIC X -4FJIC	1	HOSE 8	ADD TO CART
HOSE ASSY., 1/4" X 46.5", -4FJIC X -4FJIC 45398 · qty on machine: 1 HOSE 8 Also included in kit 1 - HOSE KIT ASSEMBLY (45383) view full part page → $67.65 IN A KIT + SOLD SOLO
10@	45388	HOSE ASSY., 3/8" X 11", -6FJIC X -6FJIC	1	HOSE 9	ADD TO CART
HOSE ASSY., 3/8" X 11", -6FJIC X -6FJIC 45388 · qty on machine: 1 HOSE 9 Also included in kit 1 - HOSE KIT ASSEMBLY (45383) view full part page → $81.59 IN A KIT + SOLD SOLO
11@	45395	HOSE ASSY., 1/4" X 50.5", -4FJIC X -4FJIC	1	HOSE 10	ADD TO CART
HOSE ASSY., 1/4" X 50.5", -4FJIC X -4FJIC 45395 · qty on machine: 1 HOSE 10 Also included in kit 1 - HOSE KIT ASSEMBLY (45383) view full part page → $54.95 IN A KIT + SOLD SOLO
12@	45396	HOSE ASSY., 1/4" X 53", -4FJIC X -4FJIC	1	HOSE 11	ADD TO CART
HOSE ASSY., 1/4" X 53", -4FJIC X -4FJIC 45396 · qty on machine: 1 HOSE 11 Also included in kit 1 - HOSE KIT ASSEMBLY (45383) view full part page → $60.95 IN A KIT + SOLD SOLO
13@	45394	HOSE ASSY., 1/4" X 42", -4FJIC X -4FJIC	1	HOSE 12	ADD TO CART
HOSE ASSY., 1/4" X 42", -4FJIC X -4FJIC 45394 · qty on machine: 1 HOSE 12 Also included in kit 1 - HOSE KIT ASSEMBLY (45383) view full part page → $81.59 IN A KIT + SOLD SOLO
14@	45397	HOSE ASSY., 1/4" X 44", -4FJIC X -4FJIC	1	HOSE 13	PARTS REQUEST
PHOTO COMING HOSE ASSY., 1/4" X 44", -4FJIC X -4FJIC 45397 · qty on machine: 1 HOSE 13 Also included in kit 1 - HOSE KIT ASSEMBLY (45383) PARTS REQUEST
15@	45589	HOSE ASSY., 3/4" X 48", -12FJIC	1	HOSE 14	ADD TO CART
HOSE ASSY., 3/4" X 48", -12FJIC 45589 · qty on machine: 1 HOSE 14 Also included in kit 1 - HOSE KIT ASSEMBLY (45383) view full part page → $18.03 IN A KIT + SOLD SOLO
16@	45393	HOSE ASSY., 1/4" X 43", -4FJIC X -4FJIC	1	HOSE 15	PARTS REQUEST
PHOTO COMING HOSE ASSY., 1/4" X 43", -4FJIC X -4FJIC 45393 · qty on machine: 1 HOSE 15 Also included in kit 1 - HOSE KIT ASSEMBLY (45383) PARTS REQUEST
17@	45399	HOSE ASSY., 1/4" X 40.5", -4FJIC X -4FJIC	1	HOSE 16	ADD TO CART
HOSE ASSY., 1/4" X 40.5", -4FJIC X -4FJIC 45399 · qty on machine: 1 HOSE 16 Also included in kit 1 - HOSE KIT ASSEMBLY (45383) view full part page → $1170.68 IN A KIT + SOLD SOLO
18@	45392	HOSE ASSY., 1/4" X 44", -4FJIC X -4FJIC	1	HOSE 17	ADD TO CART
HOSE ASSY., 1/4" X 44", -4FJIC X -4FJIC 45392 · qty on machine: 1 HOSE 17 Also included in kit 1 - HOSE KIT ASSEMBLY (45383) view full part page → $59.01 IN A KIT + SOLD SOLO
19@	45387	HOSE ASSY., 1/2" X 21", -8FJIC X -8FJIC90	1	HOSE 18	ADD TO CART
HOSE ASSY., 1/2" X 21", -8FJIC X -8FJIC90 45387 · qty on machine: 1 HOSE 18 Also included in kit 1 - HOSE KIT ASSEMBLY (45383) view full part page → $81.59 IN A KIT + SOLD SOLO

Page 44 — HYDRAULIC HOSE ASSY. (HYD. STEERING CYLINDERS)

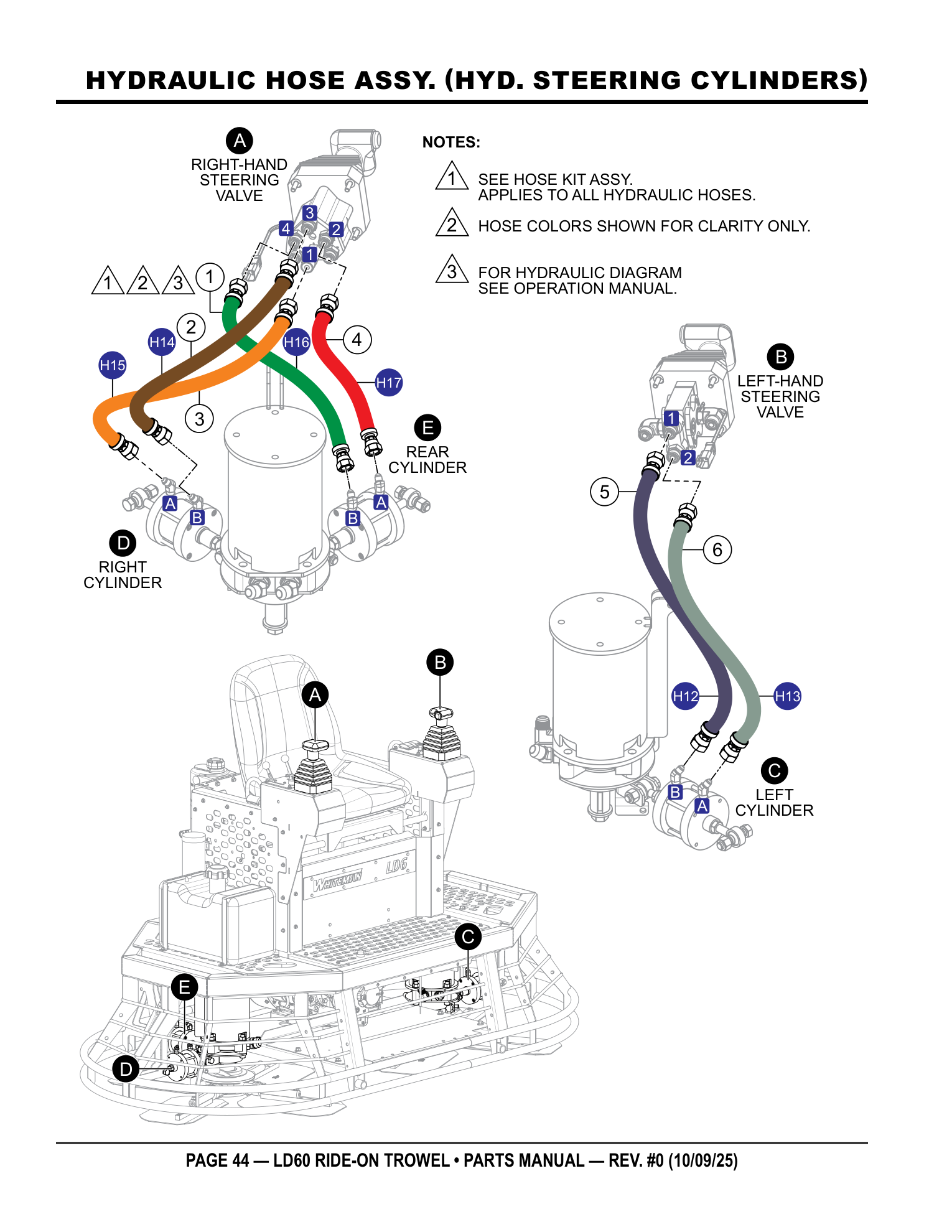

Multiquip LD6 Ride-On Trowel HYDRAULIC HOSE ASSY. (HYD. STEERING CYLINDERS) parts diagram

Parts list — exactly as printed6 rows

No.	Part No.	Part Name	Qty	Remarks
1	45399	HOSE ASSY., 1/4" X 40.5", -4FJIC X -4FJIC	1	HOSE 16	ADD TO CART
HOSE ASSY., 1/4" X 40.5", -4FJIC X -4FJIC 45399 · qty on machine: 1 HOSE 16 view full part page → $1170.68
2	45589	HOSE ASSY., 3/4" X 48", -12FJIC	1	HOSE 14	ADD TO CART
HOSE ASSY., 3/4" X 48", -12FJIC 45589 · qty on machine: 1 HOSE 14 view full part page → $18.03
3	45393	HOSE ASSY., 1/4" X 43", -4FJIC X -4FJIC	1	HOSE 15	PARTS REQUEST
PHOTO COMING HOSE ASSY., 1/4" X 43", -4FJIC X -4FJIC 45393 · qty on machine: 1 HOSE 15 PARTS REQUEST
4	45392	HOSE ASSY., 1/4" X 44", -4FJIC X -4FJIC	1	HOSE 17	ADD TO CART
HOSE ASSY., 1/4" X 44", -4FJIC X -4FJIC 45392 · qty on machine: 1 HOSE 17 view full part page → $59.01
5	45394	HOSE ASSY., 1/4" X 42", -4FJIC X -4FJIC	1	HOSE 12	ADD TO CART
HOSE ASSY., 1/4" X 42", -4FJIC X -4FJIC 45394 · qty on machine: 1 HOSE 12 view full part page → $81.59
6	45397	HOSE ASSY., 1/4" X 44", -4FJIC X -4FJIC	1	HOSE 13	PARTS REQUEST
PHOTO COMING HOSE ASSY., 1/4" X 44", -4FJIC X -4FJIC 45397 · qty on machine: 1 HOSE 13 PARTS REQUEST

Page 46 — HYDRAULIC HOSE ASSY. (MANIFOLD)

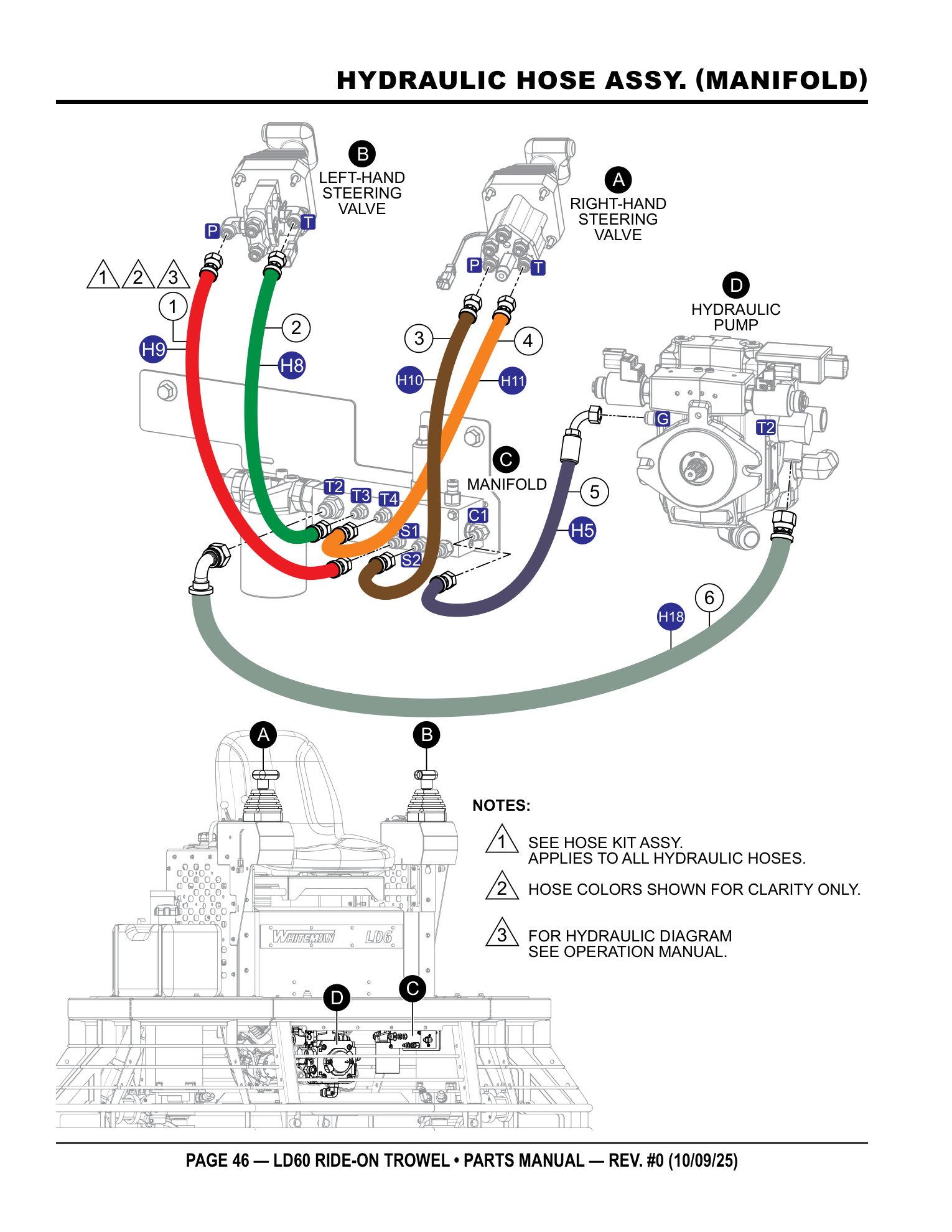

Multiquip LD6 Ride-On Trowel HYDRAULIC HOSE ASSY. (MANIFOLD) parts diagram

Parts list — exactly as printed6 rows

No.	Part No.	Part Name	Qty	Remarks
1	45388	HOSE ASSY., 1/4" X 45.5", -4FJIC X -4FJIC	1	HOSE 9	ADD TO CART
HOSE ASSY., 1/4" X 45.5", -4FJIC X -4FJIC 45388 · qty on machine: 1 HOSE 9 view full part page → $81.59
2	45398	HOSE ASSY., 1/4" X 46.5", -4FJIC X -4FJIC	1	HOSE 8	ADD TO CART
HOSE ASSY., 1/4" X 46.5", -4FJIC X -4FJIC 45398 · qty on machine: 1 HOSE 8 view full part page → $67.65
3	45395	HOSE ASSY., 1/4" X 50.5", -4FJIC X -4FJIC	1	HOSE 10	ADD TO CART
HOSE ASSY., 1/4" X 50.5", -4FJIC X -4FJIC 45395 · qty on machine: 1 HOSE 10 view full part page → $54.95
4	45396	HOSE ASSY., 1/4" X 53", -4FJIC X -4FJIC	1	HOSE 11	ADD TO CART
HOSE ASSY., 1/4" X 53", -4FJIC X -4FJIC 45396 · qty on machine: 1 HOSE 11 view full part page → $60.95
5	45588	HOSE ASSY., 3/8" X 11", -6FJIC X -6FJIC	1	HOSE 5	PARTS REQUEST
PHOTO COMING HOSE ASSY., 3/8" X 11", -6FJIC X -6FJIC 45588 · qty on machine: 1 HOSE 5 Factory replaced this part - current number 23911-10 PARTS REQUEST
6	45387	HOSE ASSY., 1/2" X 21", -8FJIC X -8FJIC90	1	HOSE 18	ADD TO CART
HOSE ASSY., 1/2" X 21", -8FJIC X -8FJIC90 45387 · qty on machine: 1 HOSE 18 view full part page → $81.59

Page 48 — HYD. HOSE ASSY. (HYD. TANK/FILTER/COOLER/MOTORS)

Multiquip LD6 Ride-On Trowel HYD. HOSE ASSY. (HYD. TANK/FILTER/COOLER/MOTORS) parts diagram

Parts list — exactly as printed7 rows

No.	Part No.	Part Name	Qty	Remarks
1	45390	HOSE ASSY., 5/8" X 60", -10FJIC	1	HOSE 6	ADD TO CART
HOSE ASSY., 5/8" X 60", -10FJIC 45390 · qty on machine: 1 HOSE 6 view full part page → $166.95
2	3333	CLAMP, HOSE WORM #12	2		ADD TO CART
CLAMP, HOSE WORM #12 3333 · qty on machine: 2 view full part page → $3.95
3	45386	HOSE ASSY., 5/8" X 40", -10FJIC X -10FJIC45	1	HOSE 3	ADD TO CART
HOSE ASSY., 5/8" X 40", -10FJIC X -10FJIC45 45386 · qty on machine: 1 HOSE 3 view full part page → $168.95
4	45385	HOSE ASSY., 5/8" X 43", -10FJIC X -10FJIC	1	HOSE 2	PARTS REQUEST
PHOTO COMING HOSE ASSY., 5/8" X 43", -10FJIC X -10FJIC 45385 · qty on machine: 1 HOSE 2 PARTS REQUEST
5	45384	HOSE ASSY., 5/8" X 24.75", -10FJIC X -10FJIC45	1	HOSE 1	ADD TO CART
HOSE ASSY., 5/8" X 24.75", -10FJIC X -10FJIC45 45384 · qty on machine: 1 HOSE 1 view full part page → $293.95
6	45391	HOSE ASSY., 5/8" X 60.5", -10FJIC X -10FJIC	1	HOSE 4	ADD TO CART
HOSE ASSY., 5/8" X 60.5", -10FJIC X -10FJIC 45391 · qty on machine: 1 HOSE 4 view full part page → $185.81
7	45389	HOSE ASSY., 3/4" X 48", -12FJIC	1	HOSE 7	ADD TO CART
HOSE ASSY., 3/4" X 48", -12FJIC 45389 · qty on machine: 1 HOSE 7 view full part page → $216.95

Page 50 — ELECTRICAL PANEL ASSY.

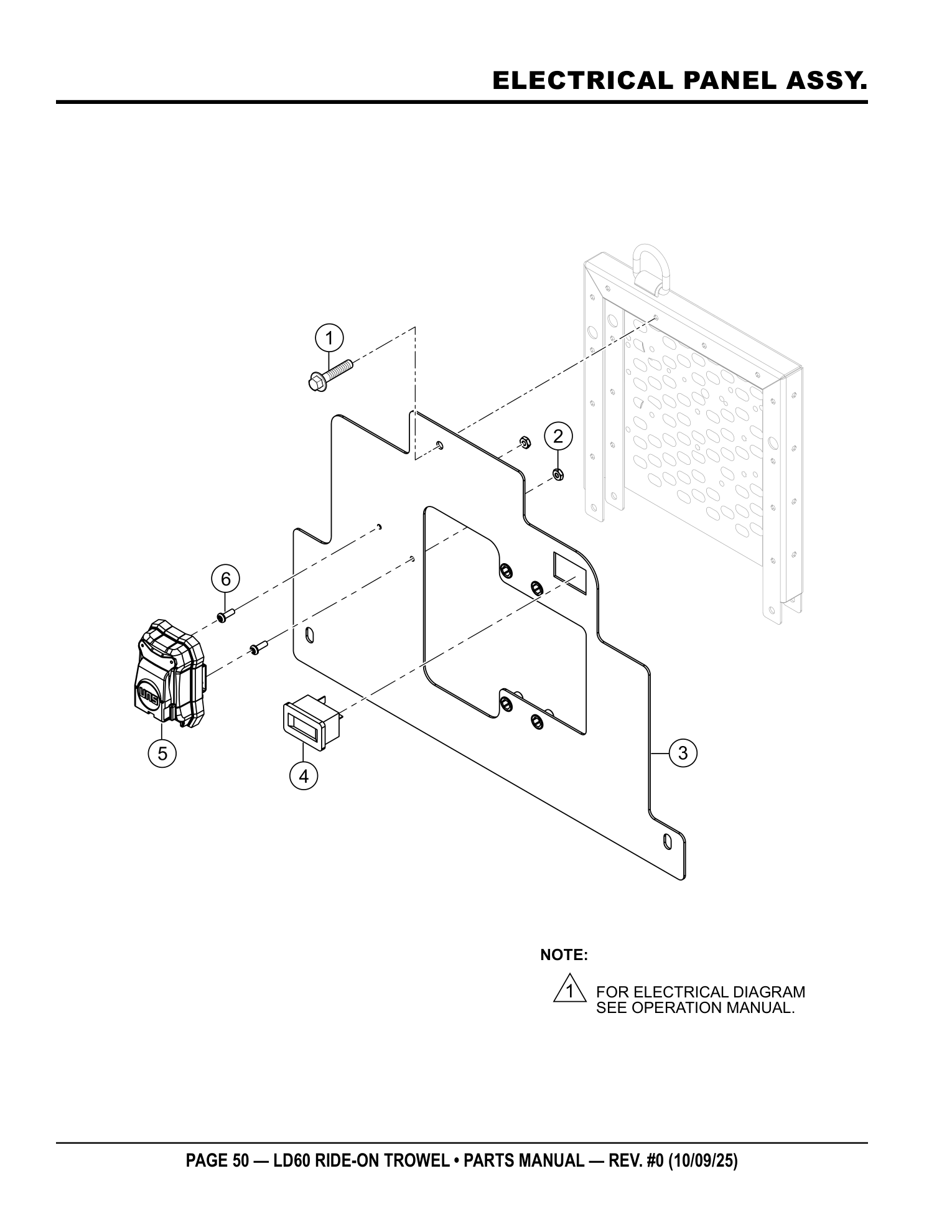

Multiquip LD6 Ride-On Trowel ELECTRICAL PANEL ASSY. parts diagram

Parts list — exactly as printed6 rows

No.	Part No.	Part Name	Qty
1	43724	SCREW, HHFS M6-1.0 X 25MM CLASS 8.8	4	ADD TO CART
SCREW, HHFS M6-1.0 X 25MM CLASS 8.8 43724 · qty on machine: 4 view full part page → $0.08
2	13287	NUT, NYLOC 8-32	2	ADD TO CART
NUT, NYLOC 8-32 13287 · qty on machine: 2 view full part page → $4.95
3	48921	PANEL, ELECTRICAL	1	PARTS REQUEST
PHOTO COMING PANEL, ELECTRICAL 48921 · qty on machine: 1 PARTS REQUEST
4	29640	HOUR METER, SENDEC RECT. FLUSH MOUNT	1	ADD TO CART
HOUR METER, SENDEC RECT. FLUSH MOUNT 29640 · qty on machine: 1 view full part page → $67.95
5	48393-SK	CONTROLLER, VALVE DRIVER	1	PARTS REQUEST
PHOTO COMING CONTROLLER, VALVE DRIVER 48393-SK · qty on machine: 1 PARTS REQUEST
6	1307	SCREW, PHP 8-32 X 1/2"	2	PARTS REQUEST
PHOTO COMING SCREW, PHP 8-32 X 1/2" 1307 · qty on machine: 2 PARTS REQUEST

Page 52 — HARNESS ASSY. (MAIN)

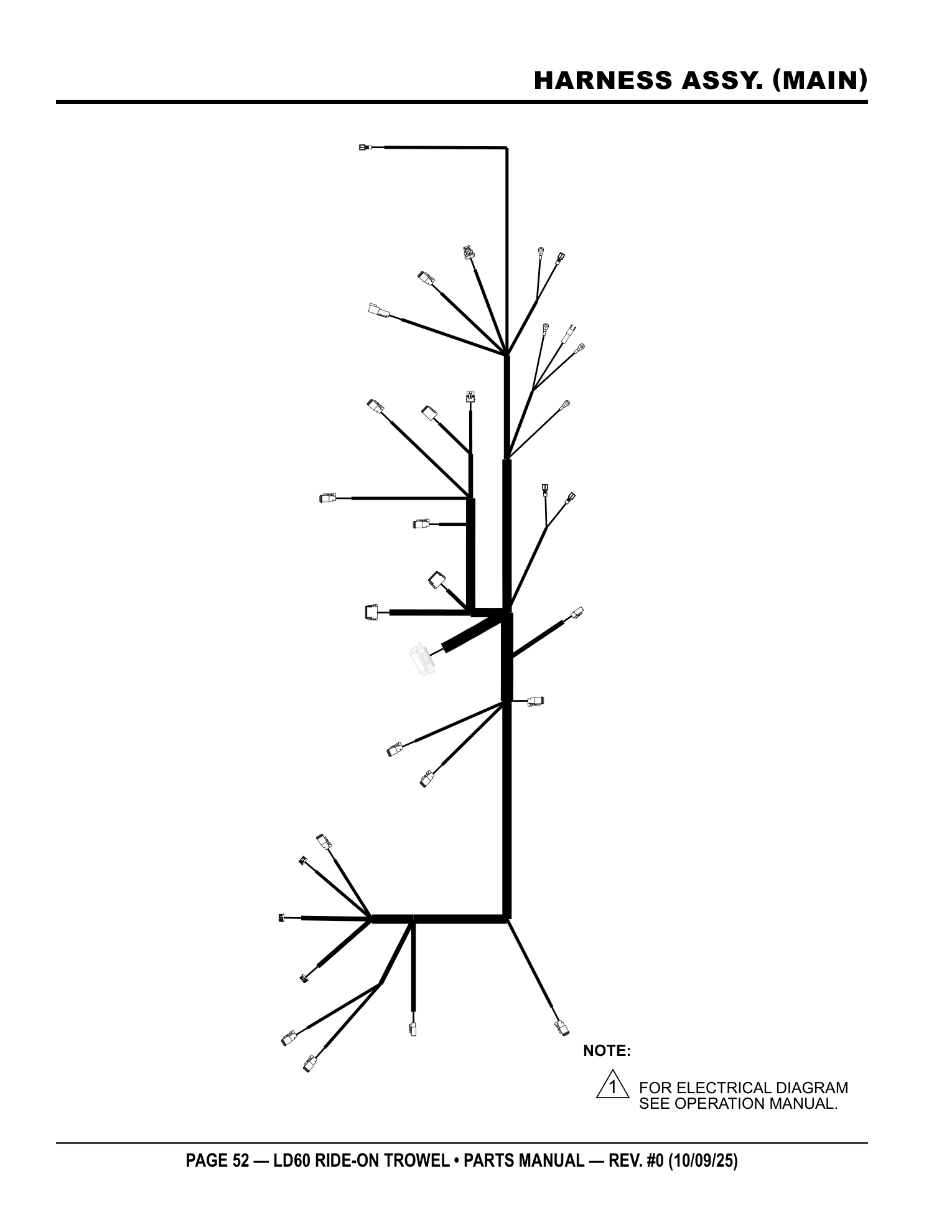

Multiquip LD6 Ride-On Trowel HARNESS ASSY. (MAIN) parts diagram

Parts list — exactly as printed1 rows

No.	Part No.	Part Name	Qty	Remarks
1	48944	HARNESS, MAIN	1		ADD TO CART
HARNESS, MAIN 48944 · qty on machine: 1 view full part page → $1510.74

Page 54 — HARNESS ASSY. (PITCH)

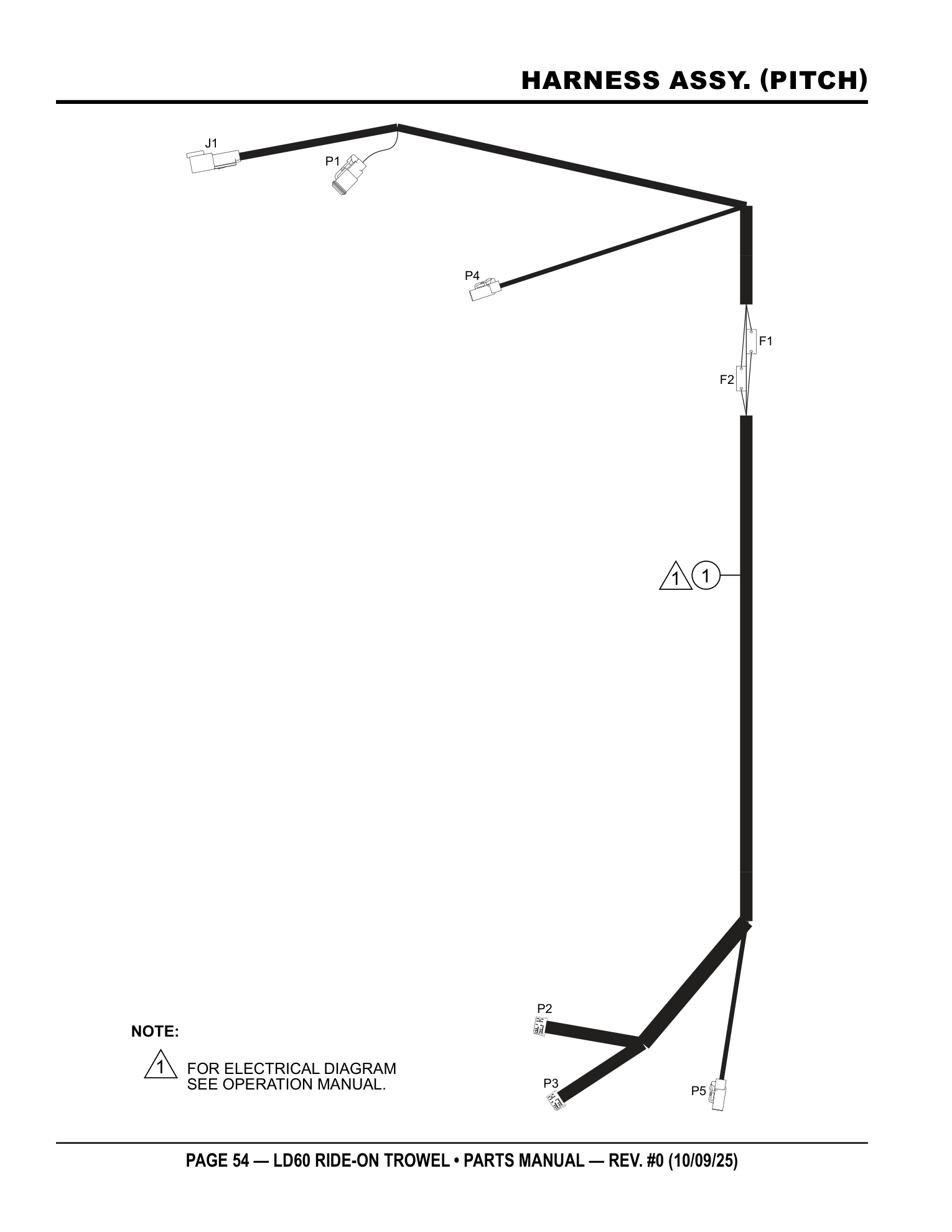

Multiquip LD6 Ride-On Trowel HARNESS ASSY. (PITCH) parts diagram

Parts list — exactly as printed1 rows

No.	Part No.	Part Name	Qty	Remarks
1	45380	HARNESS, PITCH	1		ADD TO CART
HARNESS, PITCH 45380 · qty on machine: 1 view full part page → $271.95

Page 56 — BATTERY ASSY.

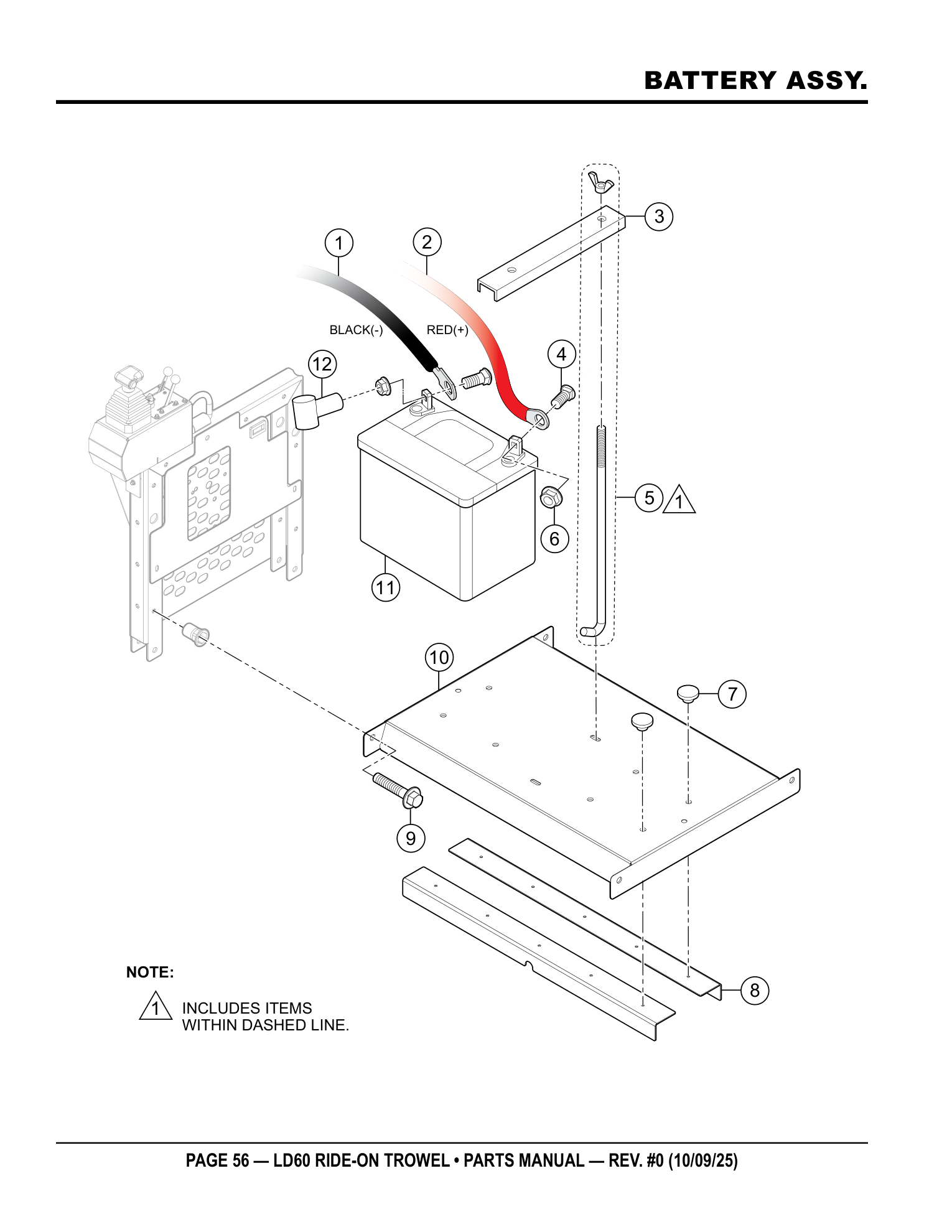

Multiquip LD6 Ride-On Trowel BATTERY ASSY. parts diagram

Parts list — exactly as printed12 rows

No.	Part No.	Part Name	Qty
1	45306	CABLE, BATTERY NEG., BK 31", 6 GA	1	ADD TO CART
CABLE, BATTERY NEG., BK 31", 6 GA 45306 · qty on machine: 1 view full part page → $45.95
2	12675	CABLE, BATTERY POS., 4 GA X 36"	1	ADD TO CART
CABLE, BATTERY POS., 4 GA X 36" 12675 · qty on machine: 1 view full part page → $30.95
3	11105	BRACKET, SMALL BATTERY HOLD DOWN	1	ADD TO CART
BRACKET, SMALL BATTERY HOLD DOWN 11105 · qty on machine: 1 view full part page → $12.95
4	42542	SCREW, HFS M6-1.0 X 16	2	ADD TO CART
SCREW, HFS M6-1.0 X 16 42542 · qty on machine: 2 view full part page → $0.83
5	20194	KIT, BATTERY J-BOLTS, 8"	1	ADD TO CART
KIT, BATTERY J-BOLTS, 8" 20194 · qty on machine: 1 view full part page → $14.95
6	42352	NUT, HEX.,SERRATED-FLANGE M6-1.0	2	ADD TO CART
NUT, HEX.,SERRATED-FLANGE M6-1.0 42352 · qty on machine: 2 view full part page → $0.31
7	30029	RIVET, POP BH, .187 X .063 -.125 AL/AL	10	ADD TO CART
RIVET, POP BH, .187 X .063 -.125 AL/AL 30029 · qty on machine: 10 view full part page → $0.17
8	45541	BRACE, BATTERY	2	PARTS REQUEST
PHOTO COMING BRACE, BATTERY 45541 · qty on machine: 2 PARTS REQUEST
9	43724	SCREW, HFS M6-1.0 X 25MM CLASS 8.8	4	ADD TO CART
SCREW, HFS M6-1.0 X 25MM CLASS 8.8 43724 · qty on machine: 4 view full part page → $0.08
10	45506	HEAT SHIELD, SEAT	1	ADD TO CART
HEAT SHIELD, SEAT 45506 · qty on machine: 1 view full part page → $81.95
11	4671	BATTERY, WET GR UI	1	ADD TO CART
BATTERY, WET GR UI 4671 · qty on machine: 1 view full part page → $162.95
12	2762	BOOT, TERMINAL	2	ADD TO CART
BOOT, TERMINAL 2762 · qty on machine: 2 view full part page → $16.95

Page 58 — FUEL SYSTEM ASSY.

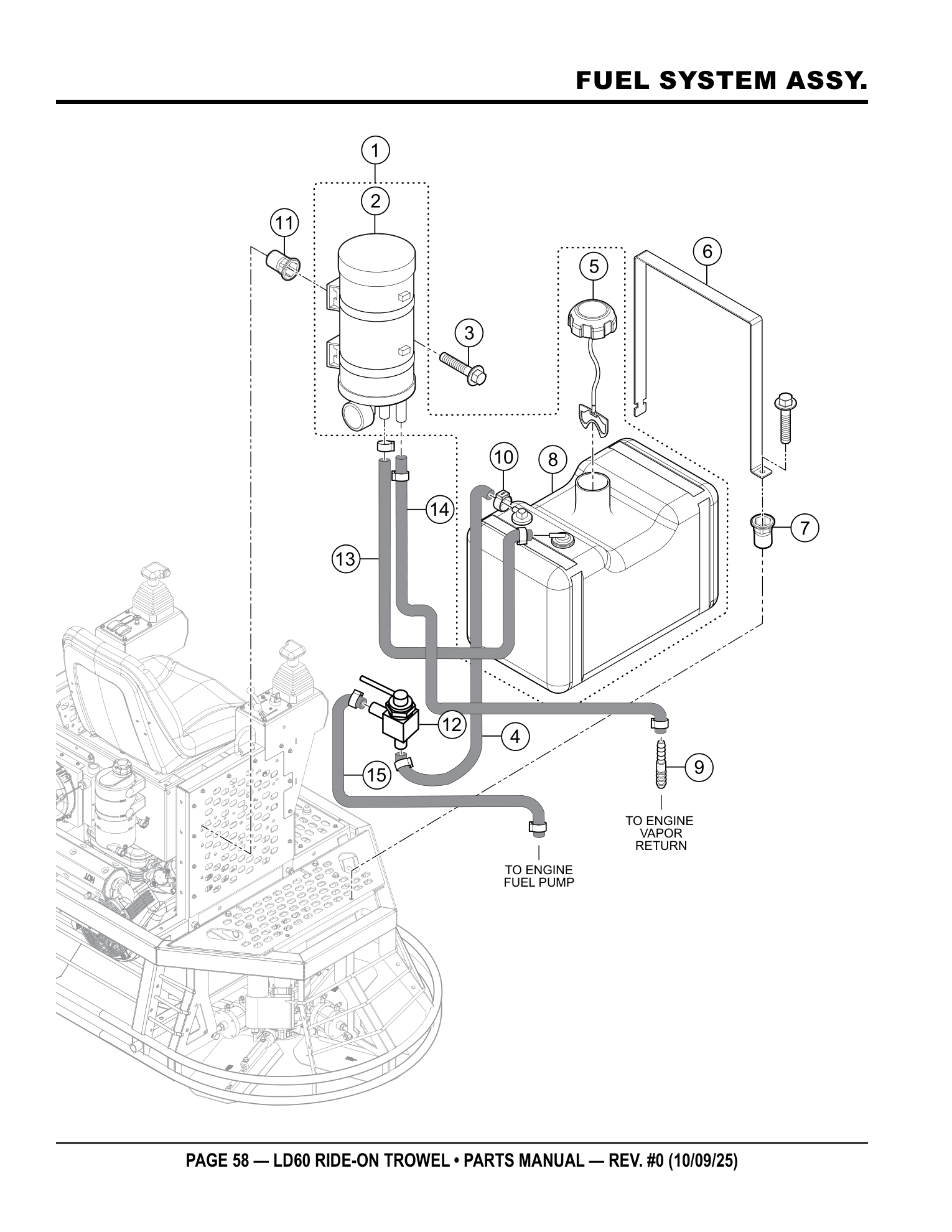

Multiquip LD6 Ride-On Trowel FUEL SYSTEM ASSY. parts diagram

Parts list — exactly as printed15 rows

No.	Part No.	Part Name	Qty	Remarks
1	45546	KIT, FUEL TANK	1	INCLUDES ITEMS W/@	ADD TO CART
KIT, FUEL TANK 45546 · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 2@, 5@, 8@ view full part page → $322.95 IN A KIT + SOLD SOLO
2@	45544	CANISTER, CARBON WITH 1/4" PORTS	1		ADD TO CART
CANISTER, CARBON WITH 1/4" PORTS 45544 · qty on machine: 1 Also included in kit 1 - KIT, FUEL TANK (45546) view full part page → $120.95 IN A KIT + SOLD SOLO
3	42325	SCREW, HHC M6-1.0 X 20, CAPTIVE WASHER	4		ADD TO CART
SCREW, HHC M6-1.0 X 20, CAPTIVE WASHER 42325 · qty on machine: 4 view full part page → $0.52
4	60013	HOSE, FUEL Ø.250 LOW PERM 50 PSI (29.04 IN.)	1		ADD TO CART
HOSE, FUEL Ø.250 LOW PERM 50 PSI (29.04 IN.) 60013 · qty on machine: 1 view full part page → $3.95
5@	45547	CAP, VENTED RATCHETING	1		ADD TO CART
CAP, VENTED RATCHETING 45547 · qty on machine: 1 Also included in kit 1 - KIT, FUEL TANK (45546) view full part page → $36.95 IN A KIT + SOLD SOLO
6	45542	STRAP, FUEL TANK	2		ADD TO CART
STRAP, FUEL TANK 45542 · qty on machine: 2 view full part page → $24.95
7	43655	NUT, BLIND, HEX, M6-1.0 X 4.2 - 6.6 GRIP	2		ADD TO CART
NUT, BLIND, HEX, M6-1.0 X 4.2 - 6.6 GRIP 43655 · qty on machine: 2 view full part page → $1.38
8@	45543	TANK, NATURAL, 4 GALLON	1		ADD TO CART
TANK, NATURAL, 4 GALLON 45543 · qty on machine: 1 Also included in kit 1 - KIT, FUEL TANK (45546) view full part page → $166.95 IN A KIT + SOLD SOLO
9	11978	FITTING, BARBED 3/16" TO 1/4" HOSE	1		ADD TO CART
FITTING, BARBED 3/16" TO 1/4" HOSE 11978 · qty on machine: 1 view full part page → $93.95
10	22067	CLAMP, STEPLESS EAR 1/4" HOSE #138	8		ADD TO CART
CLAMP, STEPLESS EAR 1/4" HOSE #138 22067 · qty on machine: 8 view full part page → $0.95
11	42496	NUT, BLIND, HEX, M6-1.0 X 0.7 - 4.2 GRIP	2		ADD TO CART
NUT, BLIND, HEX, M6-1.0 X 0.7 - 4.2 GRIP 42496 · qty on machine: 2 view full part page → $0.95
12	52205	BALL VALVE, 1/4" 90° PANEL MOUNT	1		ADD TO CART
BALL VALVE, 1/4" 90° PANEL MOUNT 52205 · qty on machine: 1 view full part page → $27.36
13	60013	HOSE, FUEL Ø.250 LOW PERM 50 PSI (18 IN.)	1		ADD TO CART
HOSE, FUEL Ø.250 LOW PERM 50 PSI (18 IN.) 60013 · qty on machine: 1 view full part page → $3.95
14	60013	HOSE, FUEL Ø.250 LOW PERM 50 PSI (18.96 IN.)	1		ADD TO CART
HOSE, FUEL Ø.250 LOW PERM 50 PSI (18.96 IN.) 60013 · qty on machine: 1 view full part page → $3.95
15	60013	HOSE, FUEL Ø.250 LOW PERM 50 PSI (8.04 IN.)	1		ADD TO CART
HOSE, FUEL Ø.250 LOW PERM 50 PSI (8.04 IN.) 60013 · qty on machine: 1 view full part page → $3.95

Page 60 — ENGINE MOUNTING ASSY.

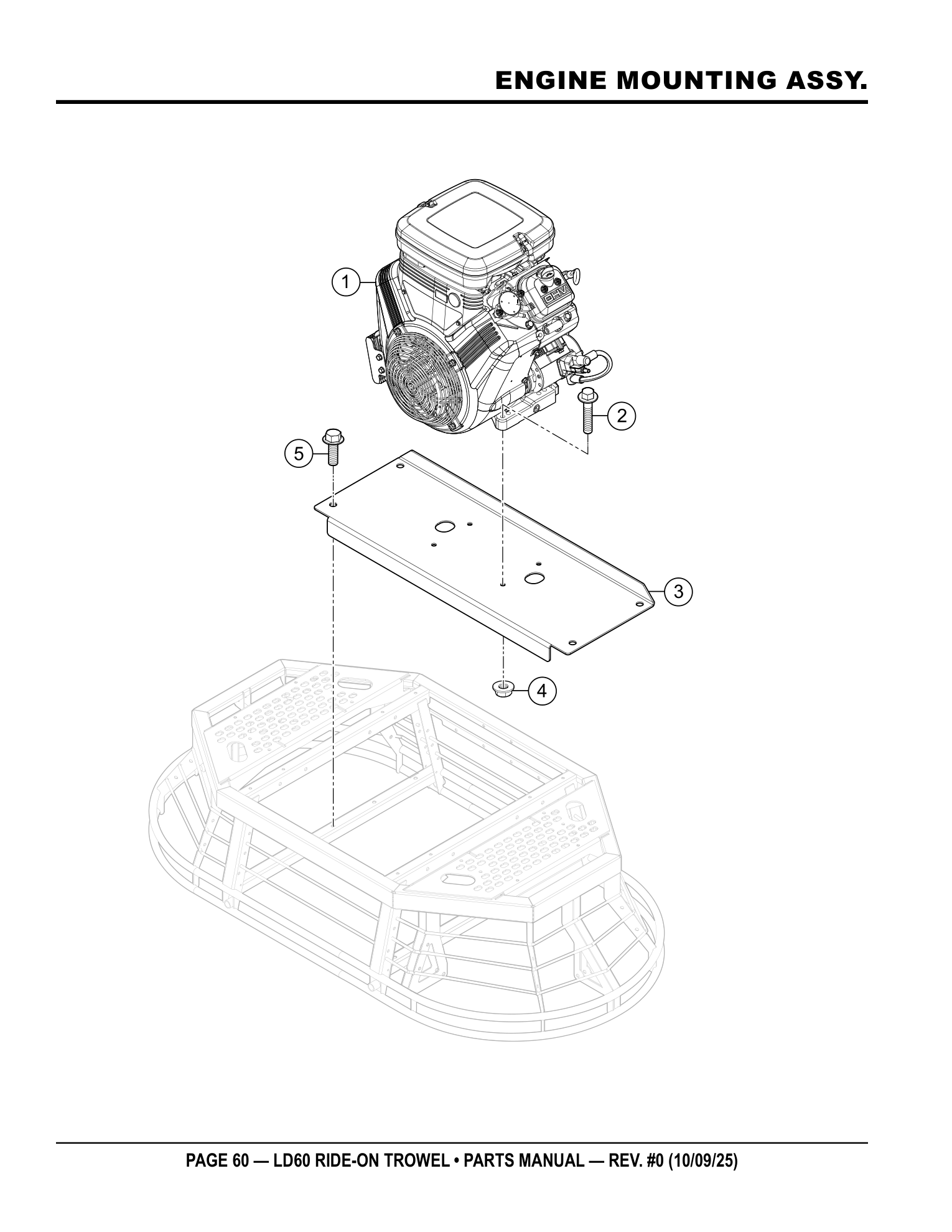

Multiquip LD6 Ride-On Trowel ENGINE MOUNTING ASSY. parts diagram

Parts list — exactly as printed5 rows

No.	Part No.	Part Name	Qty
1	45487	ENGINE, BRIGGS 23HP	1	ADD TO CART
ENGINE, BRIGGS 23HP 45487 · qty on machine: 1 view full part page → $2021.95
2	9086	SCREW, HHFS M8-1.25 X 45	4	PARTS REQUEST
PHOTO COMING SCREW, HHFS M8-1.25 X 45 9086 · qty on machine: 4 PARTS REQUEST
3	45488	MOUNT, ENGINE	1	ADD TO CART
MOUNT, ENGINE 45488 · qty on machine: 1 view full part page → $90.95
4	23802	NUT, HEX FLANGE M8-1.25 SERRATED	4	ADD TO CART
NUT, HEX FLANGE M8-1.25 SERRATED 23802 · qty on machine: 4 view full part page → $0.41
5	32976	SCREW, HFS M10-1.5 X 25 CLASS 10.9	4	ADD TO CART
SCREW, HFS M10-1.5 X 25 CLASS 10.9 32976 · qty on machine: 4 view full part page → $4.95

Page 62 — EXHAUST ASSY.

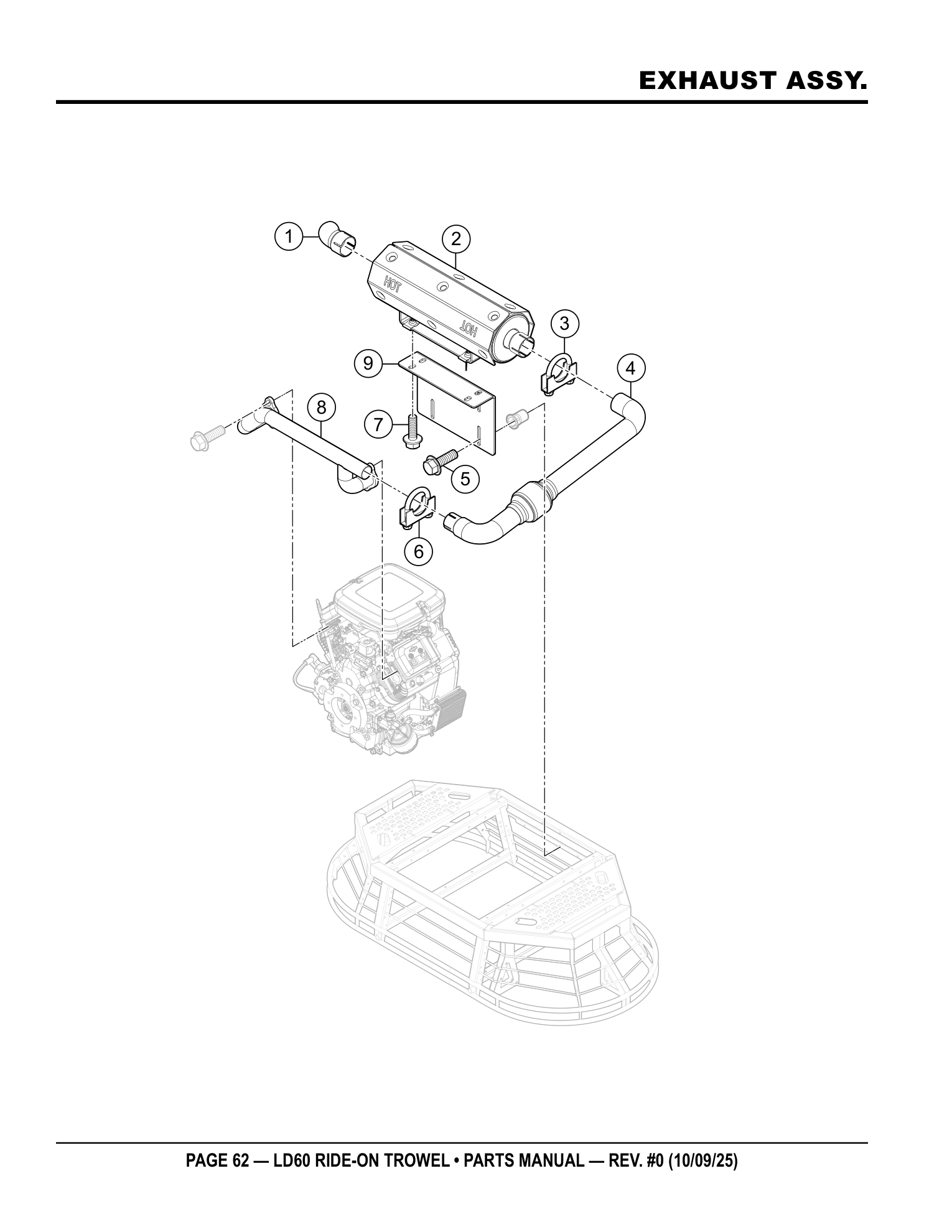

Multiquip LD6 Ride-On Trowel EXHAUST ASSY. parts diagram

Parts list — exactly as printed9 rows

No.	Part No.	Part Name	Qty
1	45586	TIP, EXHAUST	1	ADD TO CART
TIP, EXHAUST 45586 · qty on machine: 1 view full part page → $42.95
2	45491	MUFFLER	1	ADD TO CART
MUFFLER 45491 · qty on machine: 1 view full part page → $287.95
3	10855	CLAMP, 1-1/2" MUFFLER, GUILLOTINE	2	ADD TO CART
CLAMP, 1-1/2" MUFFLER, GUILLOTINE 10855 · qty on machine: 2 view full part page → $8.95
4	45493	EXHAUST	1	ADD TO CART
EXHAUST 45493 · qty on machine: 1 view full part page → $113.95
5	43724	SCREW, HFS M6-1.0 X 25MM CLASS 8.8	4	ADD TO CART
SCREW, HFS M6-1.0 X 25MM CLASS 8.8 43724 · qty on machine: 4 view full part page → $0.08
6	45625	CLAMP, EXHAUST 1-5/16"	1	PARTS REQUEST
PHOTO COMING CLAMP, EXHAUST 1-5/16" 45625 · qty on machine: 1 PARTS REQUEST
7	42342	SCREW, HHFS, M8-1.25 X 16 GR 8.8	4	ADD TO CART
SCREW, HHFS, M8-1.25 X 16 GR 8.8 42342 · qty on machine: 4 view full part page → $0.95
8	45492	HEADER, BRIGGS 23HP	1	ADD TO CART
HEADER, BRIGGS 23HP 45492 · qty on machine: 1 view full part page → $125.95
9	45489	MOUNT, MUFFLER	1	PARTS REQUEST
PHOTO COMING MOUNT, MUFFLER 45489 · qty on machine: 1 PARTS REQUEST

Page 64 — UNKNOWN

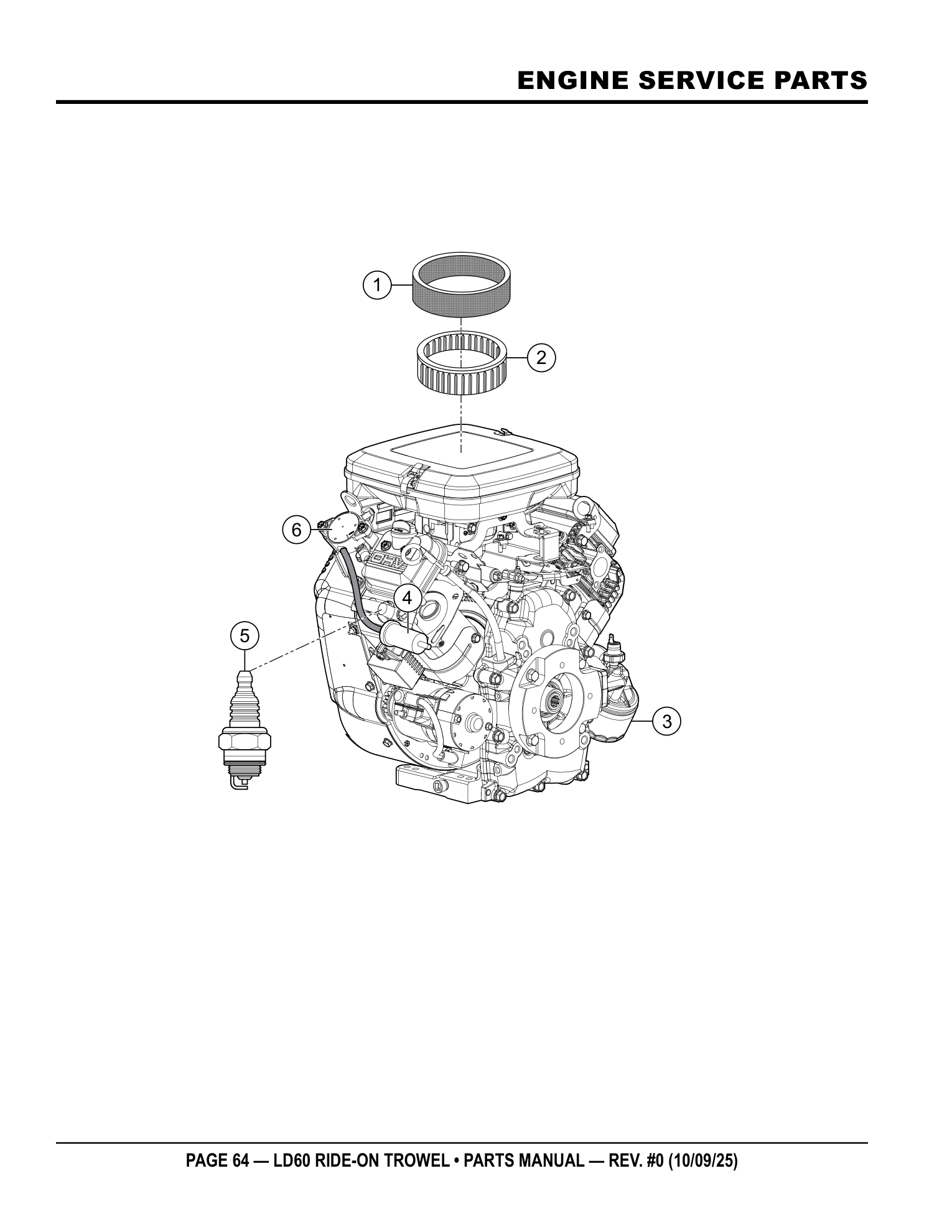

Multiquip LD6 Ride-On Trowel UNKNOWN parts diagram

Parts list — exactly as printed6 rows

No.	Part No.	Part Name	Qty
1	692520	FILTER, PRE AIR CLEANER	1	ADD TO CART
FILTER, PRE AIR CLEANER 692520 · qty on machine: 1 view full part page → $11.95
2	692519	FILTER, AIR CLEANER CARTRIDGE	1	ADD TO CART
FILTER, AIR CLEANER CARTRIDGE 692519 · qty on machine: 1 view full part page → $33.95
3	842921	FILTER, OIL	1	ADD TO CART
FILTER, OIL 842921 · qty on machine: 1 view full part page → $23.95
4	845125	FILTER, FUEL 20 MICRON	1	ADD TO CART
FILTER, FUEL 20 MICRON 845125 · qty on machine: 1 view full part page → $12.95
5	792015	SPARK PLUG	2	ADD TO CART
SPARK PLUG 792015 · qty on machine: 2 view full part page → $11.95
6	808656	PUMP, FUEL	1	ADD TO CART
PUMP, FUEL 808656 · qty on machine: 1 view full part page → $48.95

Page 66 — FOOT PEDAL KIT ASSY. (OPTION)

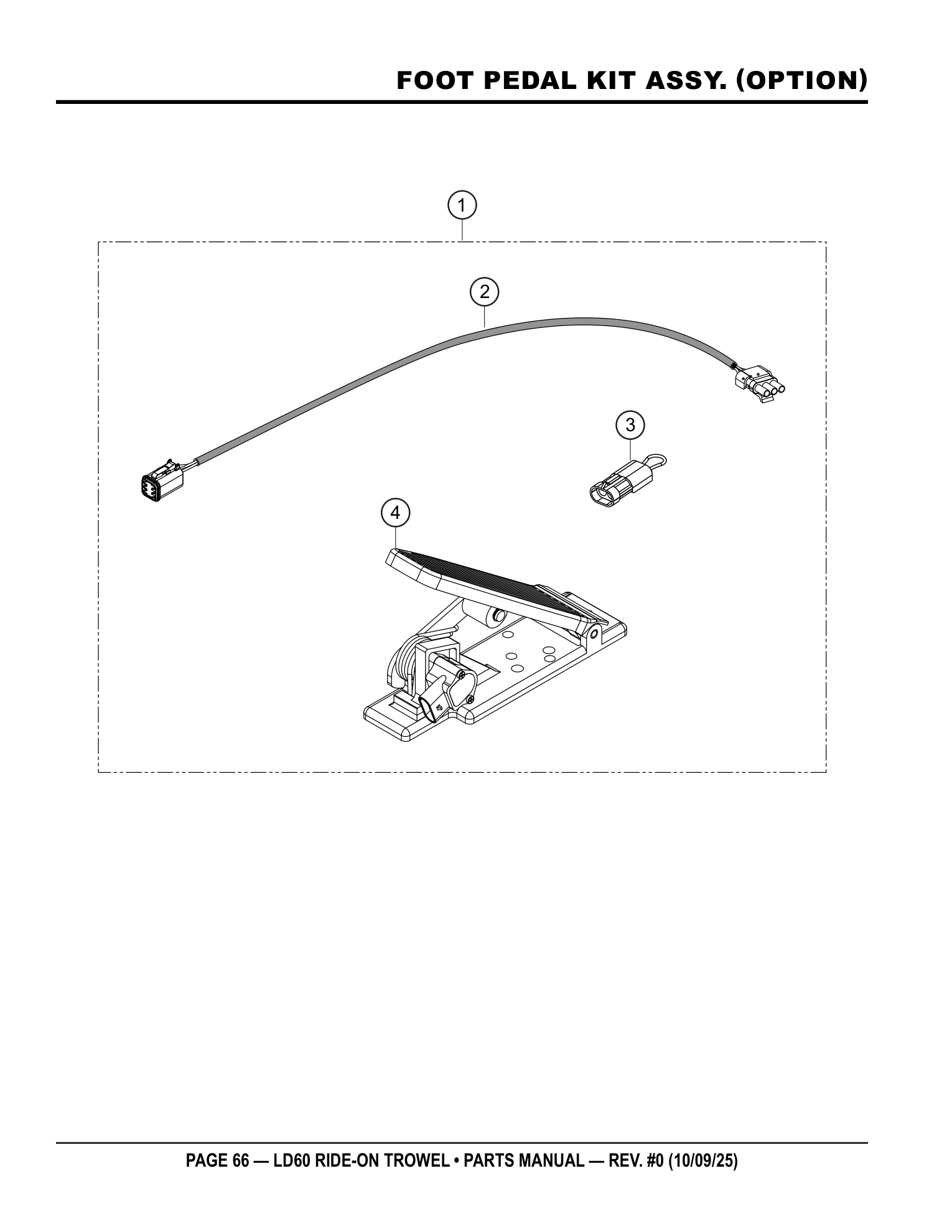

Multiquip LD6 Ride-On Trowel FOOT PEDAL KIT ASSY. (OPTION) parts diagram

Parts list — exactly as printed4 rows

No.	Part No.	Part Name	Qty	Remarks
1	48231	KIT, FOOT PEDAL	1	INCLUDES ITEMS W/#	ADD TO CART
KIT, FOOT PEDAL 48231 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 2#, 3#, 4# view full part page → $427.95 IN A KIT + SOLD SOLO
2#	48232	HARNESS, FOOT PEDAL	1		ADD TO CART
HARNESS, FOOT PEDAL 48232 · qty on machine: 1 Also included in kit 1 - KIT, FOOT PEDAL (48231) view full part page → $59.95 IN A KIT + SOLD SOLO
3#	48233	JUMPER, FOOT PEDAL	1		ADD TO CART
JUMPER, FOOT PEDAL 48233 · qty on machine: 1 Also included in kit 1 - KIT, FOOT PEDAL (48231) view full part page → $12.95 IN A KIT + SOLD SOLO
4#	43144	PEDAL, FOOT	1		ADD TO CART
PEDAL, FOOT 43144 · qty on machine: 1 Also included in kit 1 - KIT, FOOT PEDAL (48231) view full part page → $313.95 IN A KIT + SOLD SOLO

Page 68 — MUFFLER KIT ASSY. (OPTION)

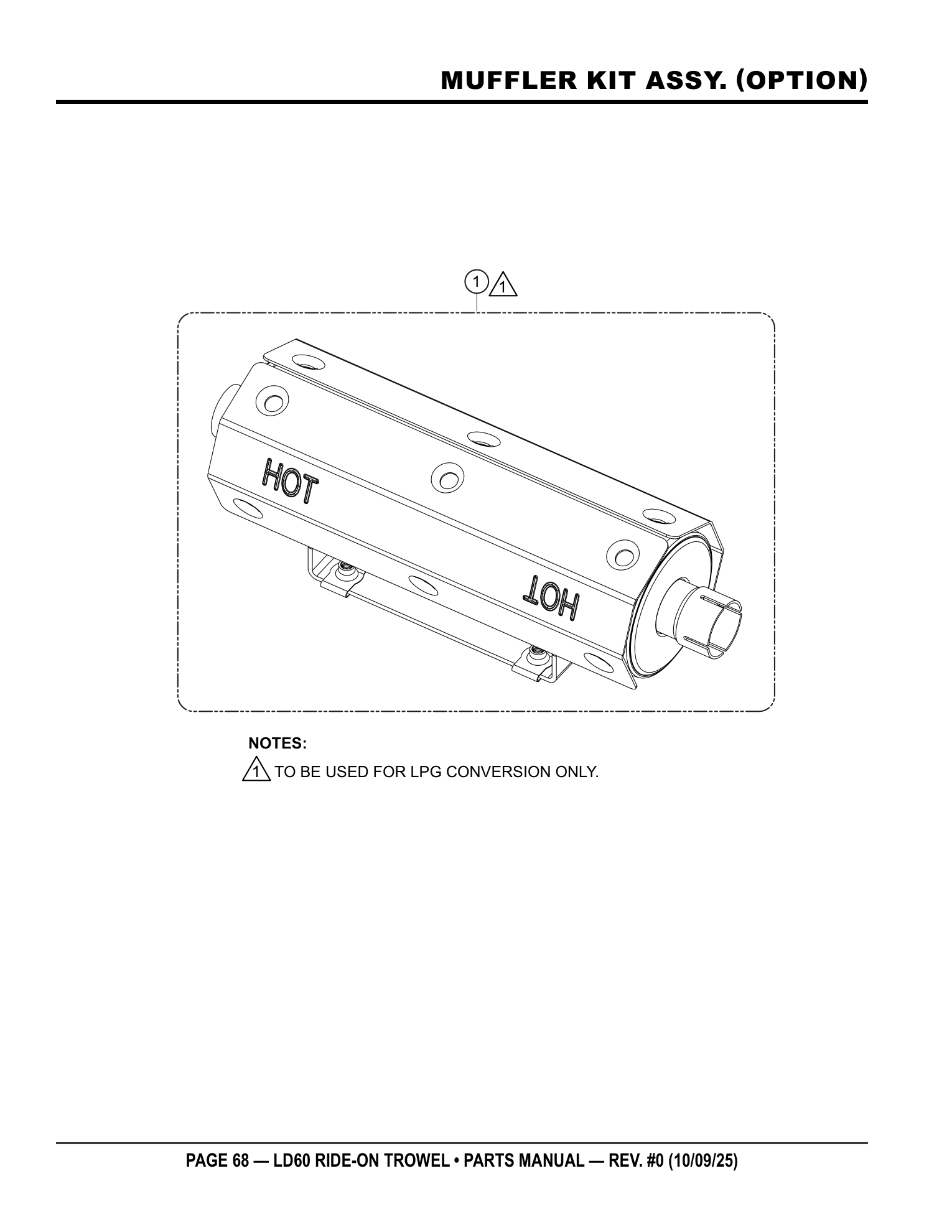

Multiquip LD6 Ride-On Trowel MUFFLER KIT ASSY. (OPTION) parts diagram

Parts list — exactly as printed3 rows

No.	Part No.	Part Name	Qty
1	45776	CAT. MUFFLER	1	ADD TO CART
CAT. MUFFLER 45776 · qty on machine: 1 view full part page → $1271.95
NOTICE				SEE REMARKS
PHOTO COMING SEE REMARKS
P/N45776	tobeused	for LPG Conversion only.		PARTS REQUEST
PHOTO COMING for LPG Conversion only. tobeused PARTS REQUEST

Page 70 — EZ MOVER KIT ASSY. (OPTION)

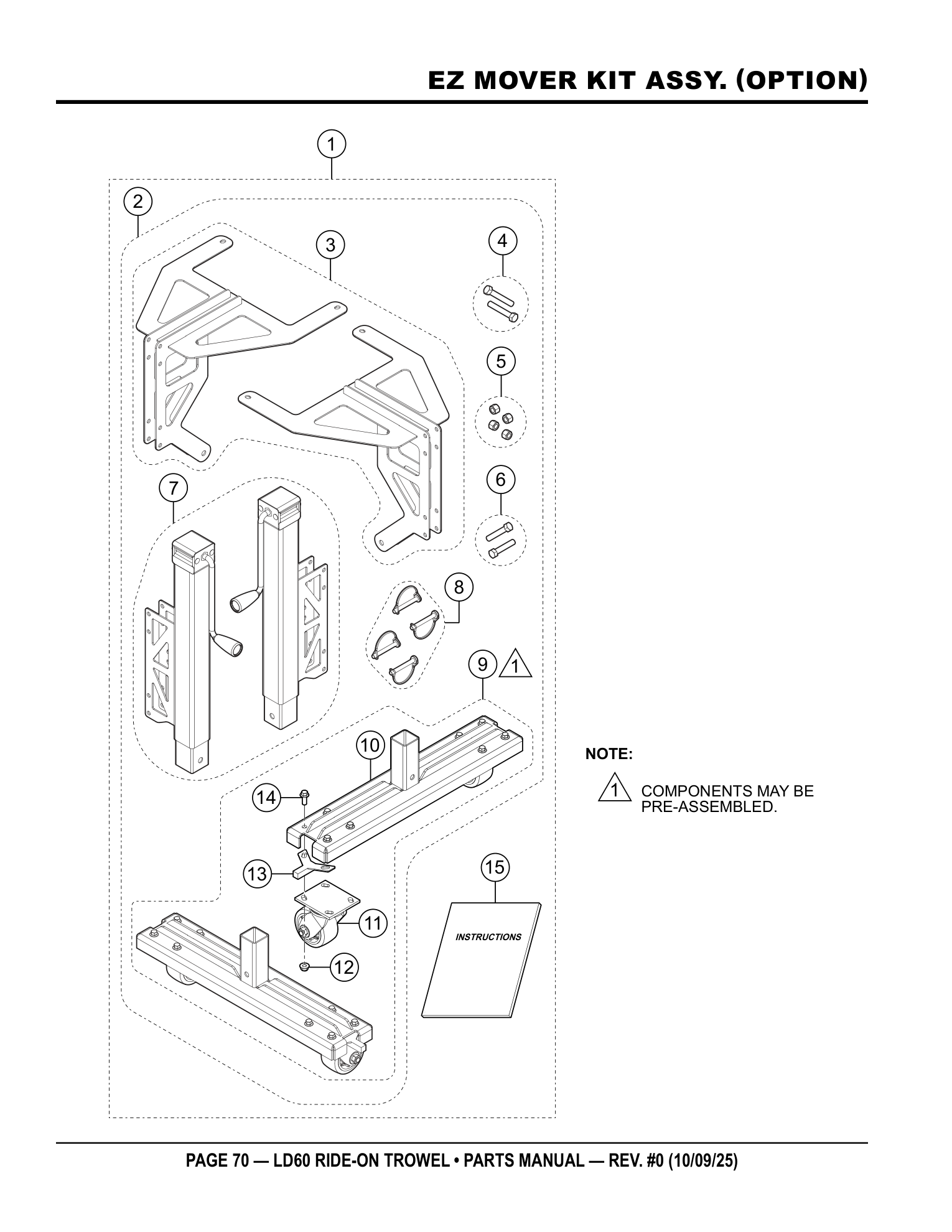

Multiquip LD6 Ride-On Trowel EZ MOVER KIT ASSY. (OPTION) parts diagram

Parts list — exactly as printed17 rows

No.	Part No.	Part Name	Qty	Remarks
1	LD6EZM	KIT, EZ MOVER	1	INCLUDES ITEMS W/@	ADD TO CART
KIT, EZ MOVER LD6EZM · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 2@, 3@#, 4@#, 5@#, 6@#, 7@#, 8@#, 9@#, 10@#+, 11@#+, 12@#+, 13@#+, 14@#+, 15@ view full part page → $2096.15 IN A KIT + SOLD SOLO
2@	45700	ASSY., EZ MOVER	2	INCLUDES ITEMS W/#	ADD TO CART
ASSY., EZ MOVER 45700 · qty on machine: 2 INCLUDES ITEMS W/# Also included in kit 1 - KIT, EZ MOVER (LD6EZM) view full part page → $87.82 IN A KIT + SOLD SOLO
3@#	45708	LIFT BRACKET, EZ MOVER	2		ADD TO CART
LIFT BRACKET, EZ MOVER 45708 · qty on machine: 2 Also included in kit 2 - ASSY., EZ MOVER (45700); kit 1 - KIT, EZ MOVER (LD6EZM) view full part page → $94.92 IN A KIT + SOLD SOLO
4@#	2549	SCREW, HHC 1/2-13 X 3"	2		ADD TO CART
SCREW, HHC 1/2-13 X 3" 2549 · qty on machine: 2 Also included in kit 2 - ASSY., EZ MOVER (45700); kit 1 - KIT, EZ MOVER (LD6EZM) view full part page → $1.39 IN A KIT + SOLD SOLO
5@#	10176	NUT, NYLOC 1/2-13	4		ADD TO CART
NUT, NYLOC 1/2-13 10176 · qty on machine: 4 Also included in kit 2 - ASSY., EZ MOVER (45700); kit 1 - KIT, EZ MOVER (LD6EZM) view full part page → $2.95 IN A KIT + SOLD SOLO
6@#	12402	SCREW, HHC 1/2-13 X 2-1/2"	2		ADD TO CART
SCREW, HHC 1/2-13 X 2-1/2" 12402 · qty on machine: 2 Also included in kit 2 - ASSY., EZ MOVER (45700); kit 1 - KIT, EZ MOVER (LD6EZM) view full part page → $1.33 IN A KIT + SOLD SOLO
7@#	45705	JACK, EZ MOVER	2		ADD TO CART
JACK, EZ MOVER 45705 · qty on machine: 2 Also included in kit 2 - ASSY., EZ MOVER (45700); kit 1 - KIT, EZ MOVER (LD6EZM) view full part page → $442.39 IN A KIT + SOLD SOLO
8@#	16743	PIN, SECTION SAFETY SNAP 3/8" DIA.	4		ADD TO CART
PIN, SECTION SAFETY SNAP 3/8" DIA. 16743 · qty on machine: 4 Also included in kit 2 - ASSY., EZ MOVER (45700); kit 1 - KIT, EZ MOVER (LD6EZM) view full part page → $9.95 IN A KIT + SOLD SOLO
9@#		ASSY., WHEEL PLATE	1	INCLUDES ITEMS W/+	INCLUDED IN KIT
PHOTO COMING ASSY., WHEEL PLATE · qty on machine: 1 INCLUDES ITEMS W/+ Included in kit 2 - ASSY., EZ MOVER (45700); kit 1 - KIT, EZ MOVER (LD6EZM) INCLUDED IN KIT
10@#+	45701	CASTER PLATE, EZ MOVER	2		ADD TO CART
CASTER PLATE, EZ MOVER 45701 · qty on machine: 2 Also included in kit 2 - ASSY., EZ MOVER (45700); kit 1 - KIT, EZ MOVER (LD6EZM); kit 9 - ASSY., WHEEL PLATE () view full part page → $240.09 IN A KIT + SOLD SOLO
11@#+	45711	WHEEL CASTER, CUSHIONED LOAD, 4"	4		ADD TO CART
WHEEL CASTER, CUSHIONED LOAD, 4" 45711 · qty on machine: 4 Also included in kit 2 - ASSY., EZ MOVER (45700); kit 1 - KIT, EZ MOVER (LD6EZM); kit 9 - ASSY., WHEEL PLATE () view full part page → $50.96 IN A KIT + SOLD SOLO
12@#+	42353	NUT, HEX, SERRATED-FLANGE, M10-1.5	16		ADD TO CART
NUT, HEX, SERRATED-FLANGE, M10-1.5 42353 · qty on machine: 16 Also included in kit 2 - ASSY., EZ MOVER (45700); kit 1 - KIT, EZ MOVER (LD6EZM); kit 9 - ASSY., WHEEL PLATE () view full part page → $1.46 IN A KIT + SOLD SOLO
13@#+	45712	CASTER WHEEL LOCK, EZ MOVER	2		ADD TO CART
CASTER WHEEL LOCK, EZ MOVER 45712 · qty on machine: 2 Also included in kit 2 - ASSY., EZ MOVER (45700); kit 1 - KIT, EZ MOVER (LD6EZM); kit 9 - ASSY., WHEEL PLATE () view full part page → $36.67 IN A KIT + SOLD SOLO
14@#+	32976	SCREW, HFS M10-1.5 X 25	16		ADD TO CART
SCREW, HFS M10-1.5 X 25 32976 · qty on machine: 16 Also included in kit 2 - ASSY., EZ MOVER (45700); kit 1 - KIT, EZ MOVER (LD6EZM); kit 9 - ASSY., WHEEL PLATE () view full part page → $4.95 IN A KIT + SOLD SOLO
15@	45719	INSTRUCTIONS, EZ MOVER KIT	1		ADD TO CART
INSTRUCTIONS, EZ MOVER KIT 45719 · qty on machine: 1 Also included in kit 1 - KIT, EZ MOVER (LD6EZM) view full part page → $54.96 IN A KIT + SOLD SOLO
TODOWNLOAD	INSTRUCTIONS	P/N 45719, VISIT HTTP://WWW.MULTIQUIP.COM/MULTIQUIP/LD6.HTM			PARTS REQUEST
PHOTO COMING P/N 45719, VISIT HTTP://WWW.MULTIQUIP.COM/MULTIQUIP/LD6.HTM INSTRUCTIONS PARTS REQUEST
ORHTTP://SERVICE.MULTIQUIP.COM/INSTRUCTIONS-TROWELS-HYDRAULIC-RIDE-ON.HTML					SEE REMARKS
PHOTO COMING SEE REMARKS

The machine itself

Price by quote Get a quote

Tell us where the machine is headed and we'll quote it with freight. One call, no games.

The Multiquip LD60 is a power trowel built for finishing concrete slabs to a flat, dense, burnished surface. It weighs in at 850 lb. (386 kg). Factory-documented specs and parts support; priced by quote.

Keep-it-running spares

All listed parts →

Every part that fits this machine

11978 Multiquip 11978 Plastic Barb Fitting (4 Barb to 3 Barb) - OEM Replacement Part $93.95

12546 Multiquip 12546 Quick Disconnect Fitting 4MO Diagnostic Parker PD341 - OEM Replacement Part $40.95

15168 Multiquip 15168 Control Handle with Knob - OEM Replacement Part for Saws $67.95

20150 Multiquip 20150 Palm Handle Kit Left with Switch - OEM Replacement Part $240.95

20155 Multiquip 20155 Palm Handle Kit RH w/Switch - OEM Replacement Part $258.95

20834 Multiquip 20834 Adaptor Palm Handle RH - OEM Replacement Part for Power Trowels $59.95

21053 Multiquip 21053 Adaptor LH Palm Handle - OEM Replacement Part for Power Trowels $77.95

21868 Multiquip 21868 Armrest Kit for Michigan V-2805 Seat - OEM Replacement Part $217.95

23959 Multiquip 23959 Switch, Ign, Ip67 Rated - OEM Replacement Part $46.95

29640 Multiquip 29640 Hour Meter Sendec Rectangular Flush Mount - OEM Replacement Part $67.95

30547 Multiquip 30547 Pump Assembly Right HHN - OEM Replacement Part $53.95

32962 Multiquip 32962 Kill Switch Sears Delta - OEM Replacement Part for Trowels $34.95

32963-SK Multiquip 32963-SK Adjustable Seat Kit Without Arms - OEM Replacement Part $403.95

34792 Multiquip 34792 Armrest Seat Kit - OEM Replacement Part for Ride-On Trowels $158.95

42280 Multiquip 42280 Block Motor Mount 2 DOF Pivot Assembly - OEM Replacement Part $63.95

42280-SK Multiquip 42280-SK Motor Mount Block Assembly Kit - OEM Replacement Part $136.95

43144 Multiquip 43144 Pedal Foot - OEM Replacement Part $313.95

43152 Multiquip 43152 Pivot Block Motor Mount Assembly with Bushing - OEM Replacement Part $55.95

45132 Multiquip 45132 Cyclone Hydraulic Reservoir 8 GPM - OEM Replacement Part $765.95

45200 Multiquip 45200 Tank 3 Gallon Large Mouth Retardant - OEM Replacement Part $155.95

45306 Multiquip 45306 Negative Battery Cable 31" 6 GA - OEM Replacement Part $45.95

45326 Multiquip 45326 Hydraulic Heat Exchanger ELD 1.5H - OEM Replacement Part $737.95

45380 Multiquip 45380 Harness Pitch Kit - OEM Replacement Part for Ride-On Trowels $271.95

45384 Multiquip 45384 Hydraulic Hose Assembly 5/8" x 2.4.75" - OEM Replacement Part $293.95

45386 Multiquip 45386 ASM HOSE 5/8" X 28.5" - 10FJICX-1010FJIC - OEM Replacement Part $168.95

45389 Multiquip 45389 Hydraulic Hose Assembly 3/4" x 44" 12FJIC - OEM Replacement Part $216.95

45390 Multiquip 45390 Hydraulic Hose Assembly 5/8" x 28" 10FJIC - OEM Replacement Part $166.95

45395 Multiquip 45395 Hydraulic Hose Assembly 1/4" x 50.5" 4FJIC - OEM Replacement Part $54.95

45401 Multiquip 45401 Main Frame LD6 - OEM Replacement Part for Ride-On Trowels $2,090.95

45419 Multiquip 45419 Hydraulic Cooler Bracket Assembly - OEM Replacement Part $92.95

45422 Multiquip 45422 Front Panel MRX - OEM Replacement Part for Power Trowels $56.95

45423 Multiquip 45423 Heat Shield MRX - OEM Replacement Part for Concrete Trowels $33.95

45436 Multiquip 45436 Cross Brace Seat Assembly - OEM Replacement Part for Ride-On Trowels $51.95

45437-SK Multiquip 45437-SK Valve Assembly Left Hand with Switch - OEM Replacement Part $701.95

45438-SK Multiquip 45438-SK Valve Assembly Right Hand with Switch - OEM Replacement Part $831.95

45461 Multiquip 45461 Spider Assembly 4-Blade Right Hand - OEM Replacement Part $616.95

45462 Multiquip 45462 Spider Assembly 4-Blade Left Hand - OEM Replacement Part for Concrete Trowels $509.95

45465-SK Multiquip 45465-SK Poclain 18CC EP Control Hydraulic Pump - OEM Replacement Part $2,615.95

45468 Multiquip 45468 Hydraulic Motor 360 CC - OEM Replacement Part for Trowels $1,028.95

45487 Multiquip 45487 Briggs 23HP Engine - OEM Replacement Part $2,021.95

45488 Multiquip 45488 Engine Mount MRX - OEM Replacement Part for Hydraulic Ride-On Trowels $90.95

45491 Multiquip 45491 MRX Muffler - OEM Replacement Part for Ride-On Trowels $287.95

45492 Multiquip 45492 Header Briggs 23HP MRX - OEM Replacement Part for Trowels $125.95

45493 Multiquip 45493 Exhaust MRX - OEM Replacement Part for Ride-On Power Trowels $113.95

45496 Multiquip 45496 Yoke MRX - OEM Replacement Part for Ride-On Power Trowels $87.95

45497 Multiquip 45497 Linear Actuator PA-17 2" - OEM Replacement Part $643.95

45498 Multiquip 45498 Lever Speed Control MRX - OEM Replacement Part for Ride-On Trowels $151.95

45506 Multiquip 45506 Heat Shield Seat MRX - OEM Replacement Part $81.95

45543 Multiquip 45543 4 Gallon Natural Tank - OEM Replacement Part $166.95

45546 Multiquip 45546 Fuel Tank Kit - OEM Replacement Part for LD6 and LD60 Trowels $322.95

45547 Multiquip 45547 Vented Ratcheting Cap - OEM Replacement Part $36.95

45549 Multiquip 45549 Foot Switch Normally Open - OEM Replacement Part for Trowels $104.95

45555 Multiquip 45555 Housing Lower Rotor Assembly - OEM Replacement Part for Ride-On Trowels $153.95

45573 Multiquip 45573 Work Light 4IN SQ LED 100° - OEM Replacement Part $87.95

45585 Multiquip 45585 Hydraulic Steering Cylinder 2.5" Bore - OEM Replacement Part $163.95

45586 Multiquip 45586 TIP EXHAUST MRX - OEM Replacement Part for Trowels $42.95

45644 Multiquip 45644 10 Micron Hydraulic Filter Schroeder PZ10 - OEM Replacement Part $181.95

45645 Multiquip 45645 8GPM Cyclone Drain Cap - OEM Replacement Part $36.95

45776 Multiquip 45776 CAT Muffler LD6 - OEM Replacement Part for Ride-On Power Trowels $1,271.95

4671 Multiquip 4671 12V Group U1 Wet Cell Battery - OEM Replacement Part $162.95

48231 Multiquip 48231 Foot Pedal Kit LD6 - OEM Replacement Part $427.95

52078 Multiquip 52078 Lifting 3FT-6IN 6200LBS Capacity - OEM Replacement Part $89.95

12778 Multiquip 12778 Thrust Bearing 6013-2RS with Flange - OEM Replacement Part $46.95

021112140 NUT, HEX, NYLOC, M12-1.75 $0.46

0948 WASHER, FLAT SAE 1/4

10019 NUT, NYLOC 10-32 $0.09

10133 NUT, NYLOC 3/8-16 $0.17

10176 NUT, NYLOC 1/2-13 $2.95

10221 BUSHING, GLIDE IGUS #TFI-1618-16 $15.95

10793 Multiquip 10793 Thrust Collar Assembly Silver - OEM Replacement Part for Power Trowels $98.95

10855 CLAMP, 1-1/2" MUFFLER, GUILLOTINE $8.95

10930 WASHER, FENDER 1/4 X 1-1/4 $0.15

10968 Multiquip 10968 Thrust Collar Assembly - OEM Replacement Part for Trowels $173.95

11105 BRACKET, SMALL BATTERY HOLD DOWN $12.95

11146 NUT, HEX JAM 1/2-20 PLATED $0.33

11602 SCREW, SHS 3/8-16 X 1/4" $0.25

11722 FITTING, 90 6MJ-6MO $3.95

11749 FITTING, STR 8MJ-8MO $6.95

11887 FITTING, STR 6MJ-4MO $10.95

12402 SCREW, HHC 1/2-13 X 2-1/2" $1.33

12675 CABLE, BATTERY POS., 4 GA X 36" $30.95

12999 HANDLE, PALM W/SWITCH, RIGHT

1307 SCREW, PHP 8-32 X 1/2"

1316 SPRING, LS ARM RETURN $2.95

1317 SPRING, RS ARM RETURN $3.95

1318 TERMINAL, BULLET, FEMALE, 18-22 $0.50

1322 SCREW ASSY., TROWEL ARM RETAINING $3.95

13287 NUT, NYLOC 8-32 $4.95

1477 LOCTITE 242 BLUE .5CC $6.95

15518-004 NUT, NYLOC, M4-.7 $0.90

15520-050 SCREW, HHC M8-1.25 X 50MM $1.65

15538 CLAMP, HOSE WORM # 6 $2.77

1555 LEVER TROWEL ARM, LEFT HAND

16083 NUT, HEX M12-1.75 NO PLATE $0.34

16336 FITTING, 45 10MJ-10MO $17.95

16585 FITTING, BUSH 1/2FP X 3/4MP STEEL $4.95

16587 FITTING,STR 10MJ X 8MO $5.95

16743 PIN, SECTION SAFETY SNAP 3/8" DIA. $9.95

17105 SCREW, SHC M12-1.75 X 35 SS, DIN912 $2.95

17113 NUT, HEX FINISH M6-1.00 ZN $0.12

17332 SCREW, SHC M12-1.75 X 70 SS, DIN912 $7.95

1875 WASHER, INT. SHKP, 3/8" $6.95

1876 NUT, HEX JAM 3/8-16 CLASS 2B $0.13

19847 RIVET, POP ALUM. 3/16 X 1/8-1/4 GRIP $0.18

20194 KIT, BATTERY J-BOLTS, 8" $14.95

20801 PIN, YOKE $4.95

20802 RING, SNAP, TRUARC 5100-37 $0.26

21095 FITTING, STR 4MJ - 4MO $2.95

21096 FITTING, STR 10MJ-12MO $12.95

2113 FITTING, PLUG 1/8MP HEX SKT HD $0.76

21189 WHEEL, 2.13 OD X 1.25 W $17.95

21369 BEARING, SEALED 5/16 ID X 7/8 OD $2.95

21597 BUMPER, STEM 1.0"D X .5S X .31 $1.54

21860 SEAT, BASIC MICHIGAN V-2805 SERIES

21866 ASSEMBLY, ARMREST, LH, MICHIGAN

21869 SCREW, SELF-TAPPING, 5/16-18 $2.95

21944 ROD END, 1/2-20 M RH W/CUSTOM BALL $24.95

2199 NUT, HEX JAM 3/8-24 $0.12

22001 HANDLE, PALM W/SWITCH, LEFT

22022 SCREW, HHF M8-1.25, CLASS 8.8 $1.77

22067 CLAMP, STEPLESS EAR 1/4" HOSE #138 $0.95

22145 FITTING, 90 -12MO X- 10MJ $17.95

23261 SPACER, STEERING CYLINDER $16.23

23698 DECAL ISO, ROATING BLADE HAZARD $1.32

23699 DECAL ISO, READ MANUAL $0.95

23700 DECAL ISO, LIFTING/CRUSH, 2.4" X 2.0" $1.79

23701 DECAL ISO, ASK FOR TRAINING $3.95

23802 NUT, HEX FLANGE M8-1.25 SERRATED $0.41

23803-118 DECAL, GUARANTEED SOUND POWER LEVEL

23805 DECAL ISO, LIFTING POINT, 1.00" DIA. $0.68

23808 DECAL ISO, HOT SURFACE HAZARD $3.95

23810 DECAL ISO, INHALATION HAZARD, 2" $1.69

23812 DECAL ISO, FUEL GASOLINE 3.0" X 2.45" $6.95

23874 DECAL ISO, DO NOT REMOVE GUARDS, $0.88

23995 SPACER, .50 OD X .206 ID $1.84

2527 SCREW, SHC, SHOULDER, 1/2 X 1, 3/8-16 $6.95

2549 SCREW, HHC 1/2-13 X 3" $1.39

26010 FITTING, 90 -10MOX-8MJ $22.95

2762 BOOT, TERMINAL $16.95

2826 ARM, TROWEL $22.95

28922-058 WASHER, M5

29796 CLAMP, CUSHIONED LOOP, 1-3/4" DIA. X 1" WIDE $4.95

30017 CLAMP, LOOP CUSHIONED #20 0.25 HOLE $10.95

30029 RIVET, POP BH, .187 X .063 - .125 AL/AL $0.17

30059 RIVET, POP BH, .187 X .626 - .750 AL/AL $0.35

30538 DECAL, FLAG DESIGNED ASM IN USA $1.31

32219 DECAL, TROWEL BLADES $1.42

32578 DECAL, CANADIAN COMPLIANCE

32964 SEAT ADJUSTER LH, SEARS

32965 SEAT ADJUSTER RH, SEARS

32976 SCREW, HFS M10-1.5 X 25 - 10.9 $4.95

3322 FITTING, 90 10MJ-10MO $18.95

34002 SCREW, HHFS 5/16-18 x 1/2 GR 5 $0.45

34317 SCREW, HHFS M12-1.75 X 20

34630 DECAL ISO, FIRE, EXPLOSION, $1.32

35280 CABLE, CHOKE 35" $31.95

36099 DECAL ISO, PROTECTIVE CLOTHING, 3.50" X 1.13" $1.55

367470 FITTING, STR 4MJ - 6MO $1.95

37402 CONNECTOR KIT, MALE 2 POSITION $5.95

37407 FITTING, 4MJ X 6MO - 90

38707 DECAL, CANCER AND REPRODUCTIVE HARM $1.32

3942280 PIVOT BLOCK, MOTOR MOUNT

4164 PIN, SLOTTED SPRING, 5/16 X 1-3/4" NP $0.83

42178-006 SWITCH BASE, 10 TERM, ON/OFF DP $33.96

42178-007 SWITCH BASE, 10 TERM, MOM ON/OFF $44.41

42179-001 ACTUATOR, ROCKER SW. $2.90

42325 SCREW, HHC M6-1.0 X 20, CAPTIVE WASHER $0.52

42342 SCREW, HHFS, M8-1.25 X 16 GR 8.8 $0.95

42344 NUT, NYLOC M8-1.25 X 90 GR. 10.9 $0.44

42351 SCREW, HFS, ZP, M12-1.75 X 40, CLASS 8.8 $2.90

42352 NUT, HEX. SERRATED-FLANGE M6-1.0 $0.31

42353 NUT, HEX, SERRATED-FLANGE, M10- 1.5 $1.46

42354 SCREW HFS, M6-1.0 X 35 CLASS 8.8 $0.65

42451 NUT, HEX, SERRATED-FLANGE, M12-1.75 $1.41

42496 NUT, BLIND, HEX, M6-1.0 X 0.7 - 4.2 GRIP $0.95

42542 SCREW, HFS M6-1.0 X 16 $0.83

42894 SCREW, HHC M4-0.7 X 20MM

42929 SCREW, HHFS M6-1.0 X 65

42971 DECAL ISO, TIE-DOWN $1.38

43181 SCREW, SHC M12 X 60, DIN912, GR 12.9

43655 NUT, BLIND, HEX, M6-1.0 X 4.2 - 6.6 GRIP $1.38

43724 SCREW, HFS M6-1.0 X 25MM CLASS 8.8 $0.08

43760 SCREW, SHC 5/8-18 X 1.25 $9.95

45383 HOSE KIT ASSEMBLY

45385 HOSE ASSY., 5/8" X 43", -10FJIC X -10FJIC

45387 HOSE ASSY., 1/2" X 21", -8FJIC X -8FJIC90 $81.59

45388 HOSE ASSY., 1/4" X 45.5", -4FJIC X -4FJIC $81.59

45391 HOSE ASSY., 5/8" X 60.5", -10FJIC X -10FJIC $185.81

45393 HOSE ASSY., 1/4" X 43", -4FJIC X -4FJIC

45394 HOSE ASSY., 1/4" X 42", -4FJIC X -4FJIC $81.59

45398 HOSE ASSY., 1/4" X 46.5", -4FJIC X -4FJIC $67.65

45399 HOSE ASSY., 1/4" X 40.5", -4FJIC X -4FJIC $1,170.68

45425 FRAME, SEAT $180.77

45428 PLATE, SEAT BEARING

45435 PANEL, SIDE

45439-001 STEERING BOX, RH

45442 STEERING BOX, LH

45444 PANEL, SWITCH, LH

45452 HOUSING W/A, UPPER ROTOR

45457 CYLINDER ASSY., HYD. STEERING

Ask ARIA about your machine.

Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.

Chat with ARIA

Multiquip LD6 Ride-On Trowel

The parts bench

The machine itself

Machine

Engine

Keep-it-running spares

Every part that fits this machine

Service notices & part changes

Take the factory book with you

Get the download pack

From the guides desk

Ask ARIA about your machine.

Your cart is empty

Your cart is empty
