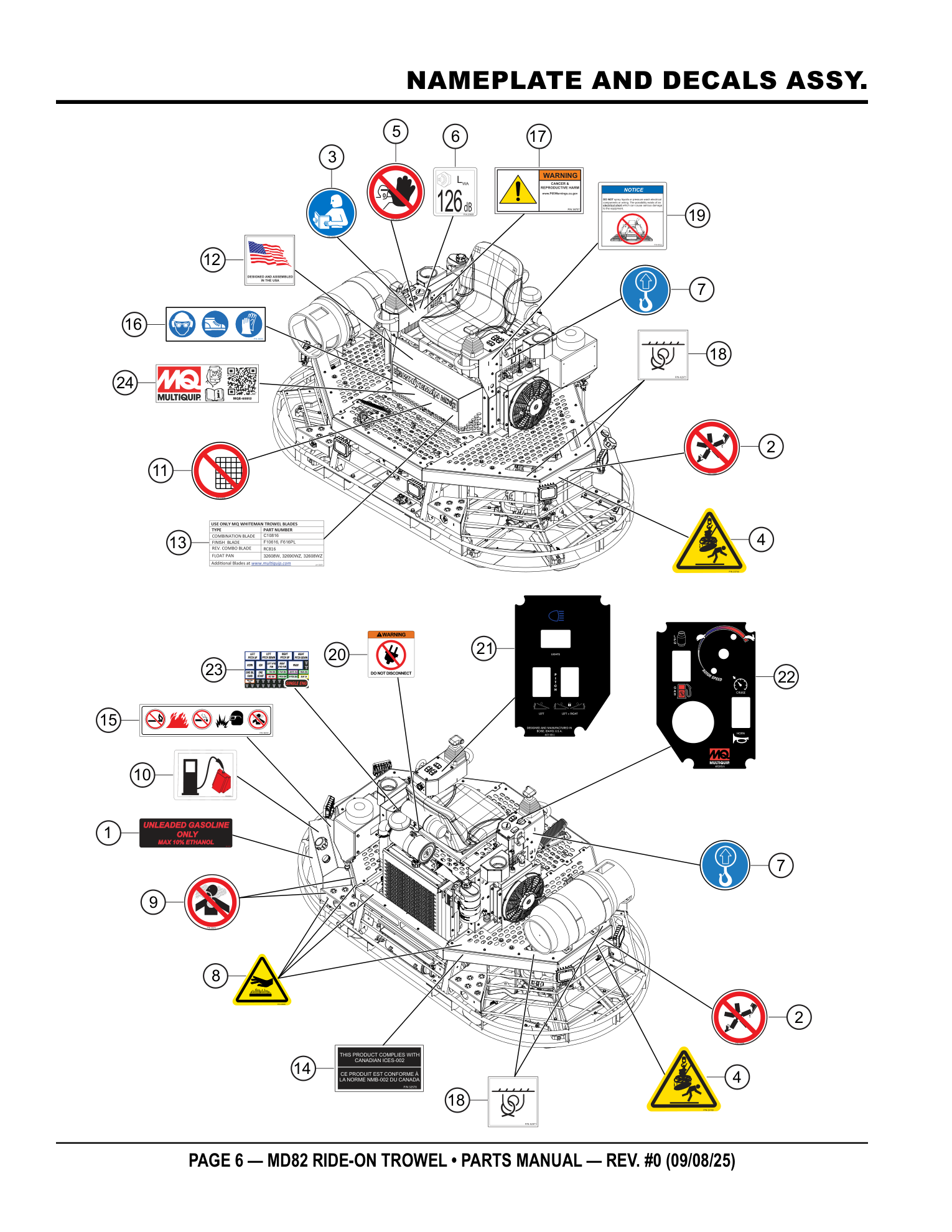

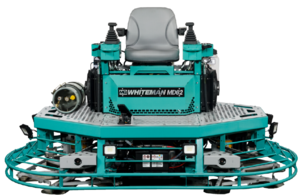

Need the PDF? ↓Page 6 — NAMEPLATE AND DECALS ASSY.
Parts list — exactly as printed24 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 23587 | DECAL, UNLEADED GASOLINE | 1 | ADD TO CART | |
| 2 | 23698 | DECAL, ISO, ROATING BLADE HAZARD | 2 | ADD TO CART | |
| 3 | 23699 | DECAL, ISO, READ MANUAL | 1 | ADD TO CART | |
| 4 | 23700 | DECAL, ISO, LIFTING/CRUSH | 2 | ADD TO CART | |
| 5 | 23701 | DECAL, ISO, ASK FOR TRAINING | 1 | ADD TO CART | |
| 6 | 23803-126 | DECAL, GUARANTEED SOUND POWER LEVEL | 1 | PARTS REQUEST | |
|
COMING DECAL, GUARANTEED SOUND POWER LEVEL
23803-126 · qty on machine: 1 | |||||
| 7 | 23805 | DECAL, ISO, LIFTING POINT | 2 | ADD TO CART | |
| 8 | 23808 | DECAL, ISO, HOT SURFACE HAZARD | 4 | ADD TO CART | |
| 9 | 23810 | DECAL, ISO, INHALATION HAZARD | 2 | ADD TO CART | |
| 10 | 23812 | DECAL, ISO, FUEL GASOLINE | 1 | ADD TO CART | |
| 11 | 23874 | DECAL, ISO, DO NOT REMOVE GUARDS, HAZARD | 1 | ADD TO CART | |
| 12 | 30538 | DECAL, FLAG DESIGNED ASSEMBLED IN USA | 1 | ADD TO CART | |
| 13 | 32220 | DECAL, TROWEL BLADES | 1 | PARTS REQUEST | |
|
COMING DECAL, TROWEL BLADES
32220 · qty on machine: 1 | |||||
| 14 | 32578 | DECAL, CANADIAN COMPLIANCE | 1 | PARTS REQUEST | |
|
COMING DECAL, CANADIAN COMPLIANCE
32578 · qty on machine: 1 | |||||
| 15 | 34630 | DECAL, ISO, FIRE, EXPLOSION, SMOKING HAZARD | 1 | ADD TO CART | |
| 16 | 36099 | DECAL, ISO, PROTECTIVE CLOTHING | 1 | ADD TO CART | |
| 17 | 38707 | DECAL, CANCER AND REPRODUCTIVE HARM | 1 | ADD TO CART | |
| 18 | 42971 | DECAL, ISO, TIE-DOWN | 4 | ADD TO CART | |
| 19 | 48022 | DECAL, PRESSURE WASH | 1 | ADD TO CART | |
| 20 | 48056 | DECAL, SAFETY SWITCH DO NOT DISCONNECT | 1 | ADD TO CART | |
| 21 | 48721 | DECAL, LH CONTROL PANEL | 1 | ADD TO CART | |
| 22 | 48725 | DECAL, RH CONTROL PANEL | 1 | ADD TO CART | |
| 23 | 48906 | DECAL, FUSE MAP | 1 | ADD TO CART | |
| 24 | 50013 | DECAL, QR LABEL W/ HR BARCODE LOGO | 1 | PARTS REQUEST | |
|
COMING DECAL, QR LABEL W/ HR BARCODE LOGO
50013 · qty on machine: 1 | |||||

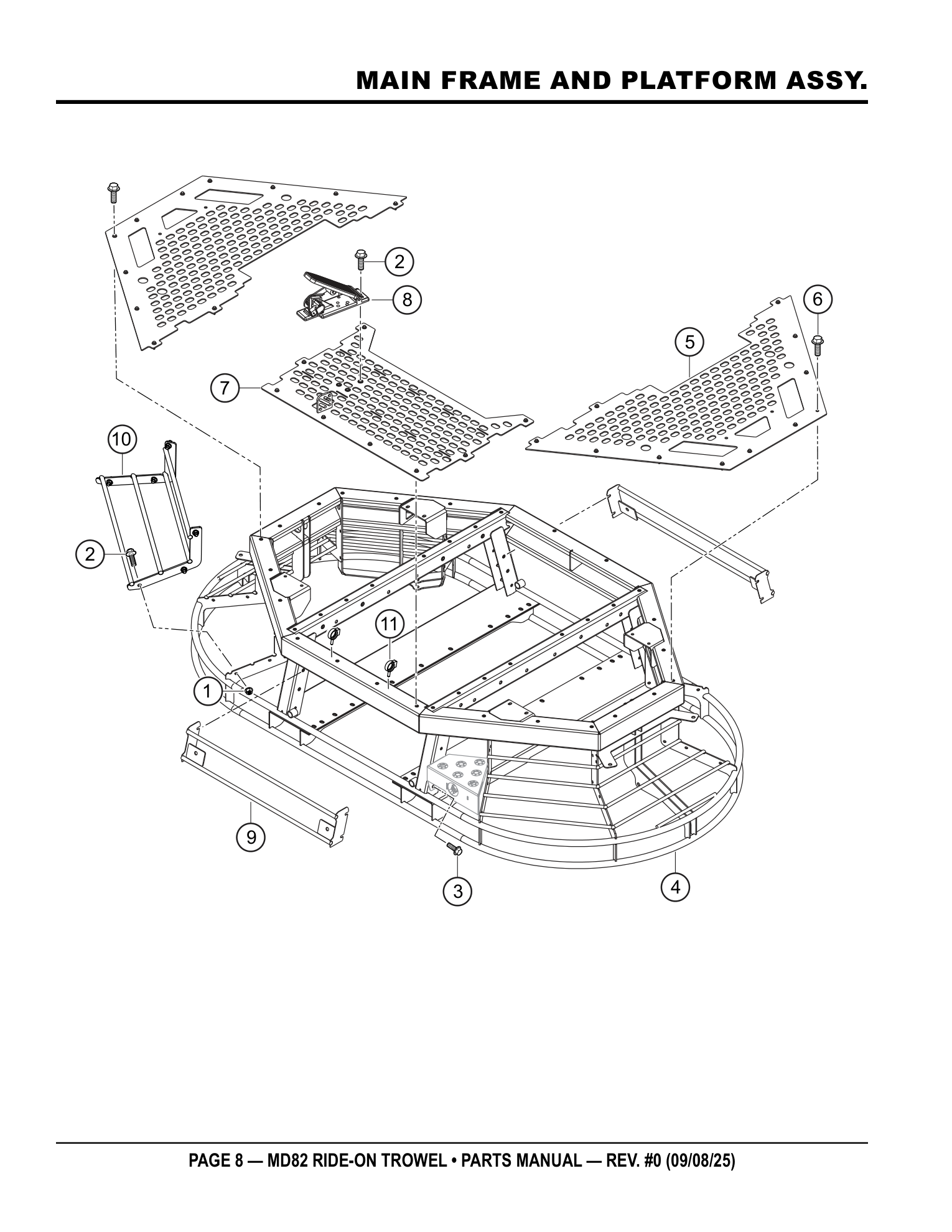

Page 8 — MAIN FRAME AND PLATFORM ASSY.
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 23802 | NUT, HEX. FLANGED M8-1.25 | 15 | ADD TO CART | |
| 2 | 42436 | SCREW, HFS M8-1.25 X 25 | 16 | ADD TO CART | |
| 3 | 42542 | SCREW, HFS M6-1.0 X 16 | 8 | ADD TO CART | |
| 4 | 45803 | FRAME ASSEMBLY | 1 | ADD TO CART | |
| 5 | 45865 | SIDE DECK PANEL | 2 | ADD TO CART | |
| 6 | 42325 | SCREW, HHC M6-1.0 X 20 | 30 | ADD TO CART | |
| 7 | 48065 | FOOT PANEL | 1 | ADD TO CART | |
| 8 | 43144 | PEDAL, FOOT | 1 | ADD TO CART | |
| 9 | 48341 | PANEL W/A, CENTER FRAME | 2 | ADD TO CART | |
| 10 | 48379 | ROTOR ACCESS PANEL | 1 | ADD TO CART | |
| 11 | 23843 | CLIP, 1" WIRE LOOM | 2 | ADD TO CART | |

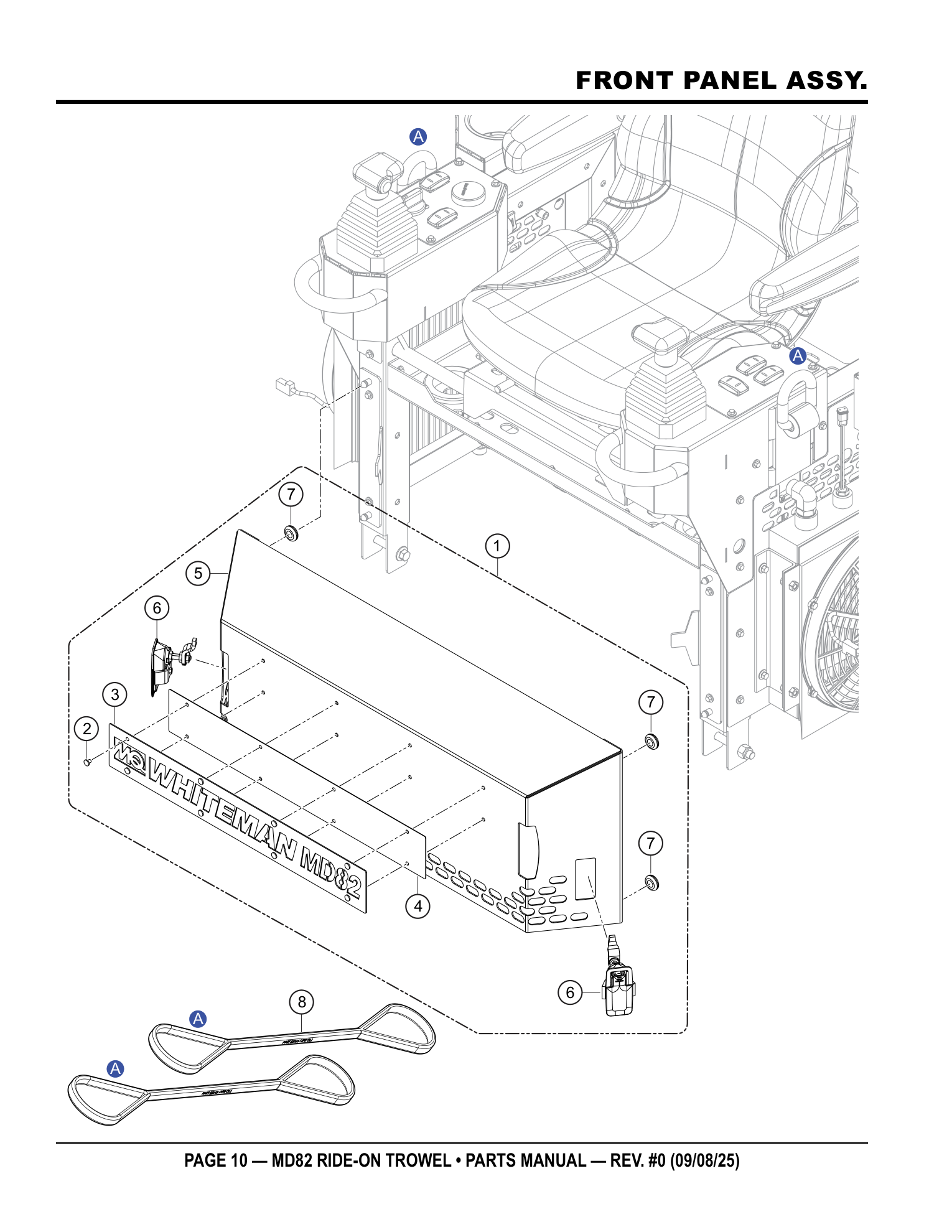

Page 10 — FRONT PANEL ASSY.
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 48990 | FRONT PANEL ASSEMBLY | 1 | INCLUDES ITEMS W/# | ADD TO CART |
| 2# | 19847 | RIVET, POP, ALUM, 3/16 X 1/8-1/4 GRIP | 8 | ADD TO CART | |
| 3# | 48664 | BADGE, MODEL | 1 | ADD TO CART | |
| 4# | 45641 | BACKING, EMBLEM | 1 | ADD TO CART | |
| 5# | 48983 | FRONT PANEL, LATCHING | 1 | ADD TO CART | |
| 6# | 48987 | COMPRESSION LATCH, LIFT TURN, MED. | 2 | ADD TO CART | |
| 7# | 48986 | GROMMET, RUBBER, .438 ID X .688 OD | 4 | PARTS REQUEST | |
|
COMING GROMMET, RUBBER, .438 ID X .688 OD
48986 · qty on machine: 4 Also included in kit 1 - FRONT PANEL ASSEMBLY (48990) | |||||
| 8 | 52078 | LIFTING STRAP, 3 FT-6 IN 6200LBS CAP. | 2 | ADD TO CART | |

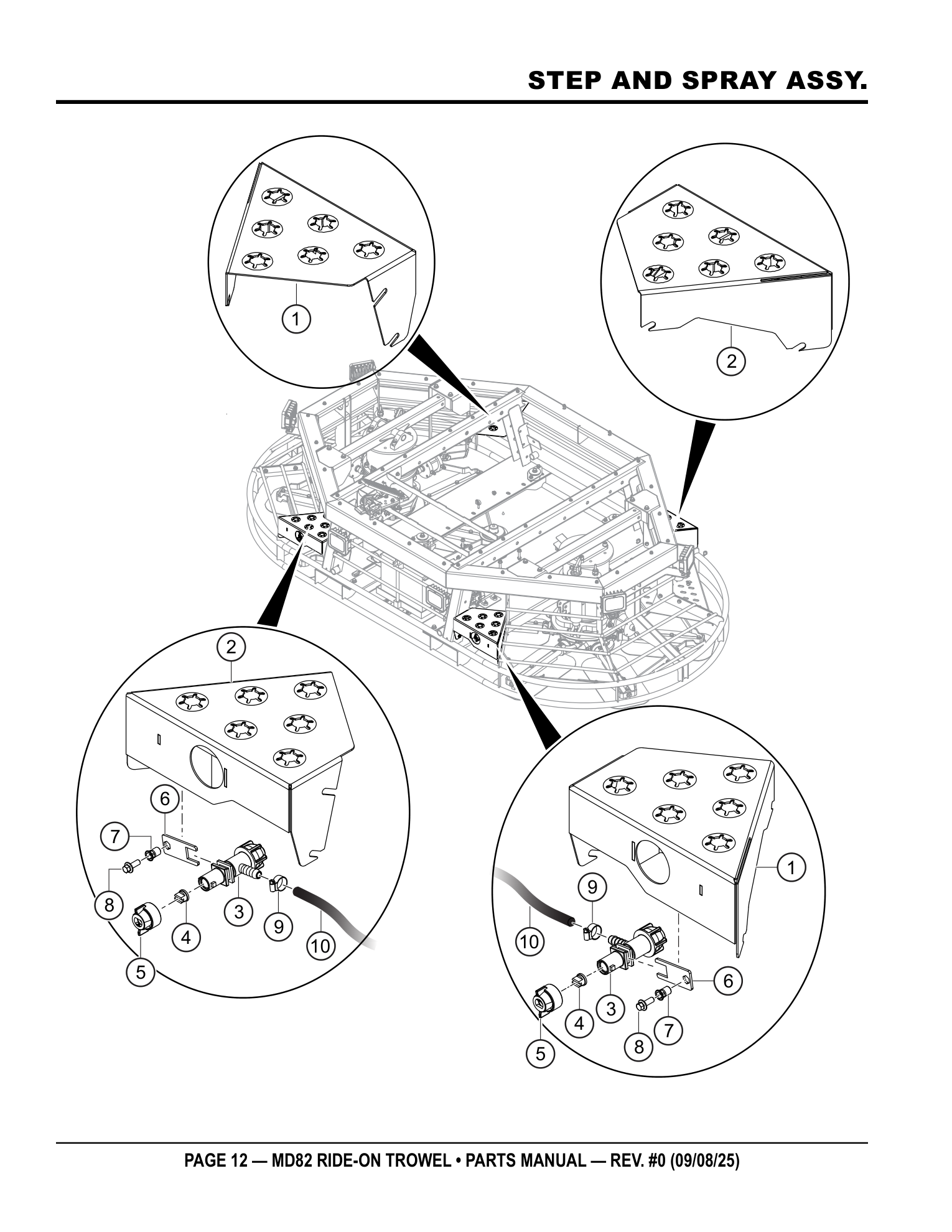

Page 12 — STEP AND SPRAY ASSY.
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 45906 | STEP W/A, LH | 2 | ADD TO CART | |
| 2 | 45903 | STEP W/A, RH | 2 | ADD TO CART | |
| 3 | 45472 | NOZZLE, TEEJET BODY, SINGLE | 2 | ADD TO CART | |
| 4 | 49247 | SPRAY, FLAT TIP BROWN | 2 | ADD TO CART | |
| 5 | 45474 | SPRAY TIP, CAP W/ GASKET | 2 | ADD TO CART | |
| 6 | 45605 | MOUNT, NOZZLE TAB | 2 | PARTS REQUEST | |
|
COMING MOUNT, NOZZLE TAB
45605 · qty on machine: 2 | |||||
| 7 | 42496 | NUT, BLIND, HEX. M6-1.0 X0.7 - 4.2 GRIP | 2 | ADD TO CART | |
| 8 | 42542 | SCREW, HFS M6-1.0 X 16 | 2 | ADD TO CART | |
| 9 | 15538 | CLAMP, HOSE WORM #6 | 2 | ADD TO CART | |
| 10 | 60021 | HOSE, 3/8 ID X 5/8 OD (1.5 FT.) | 2 | ADD TO CART | |

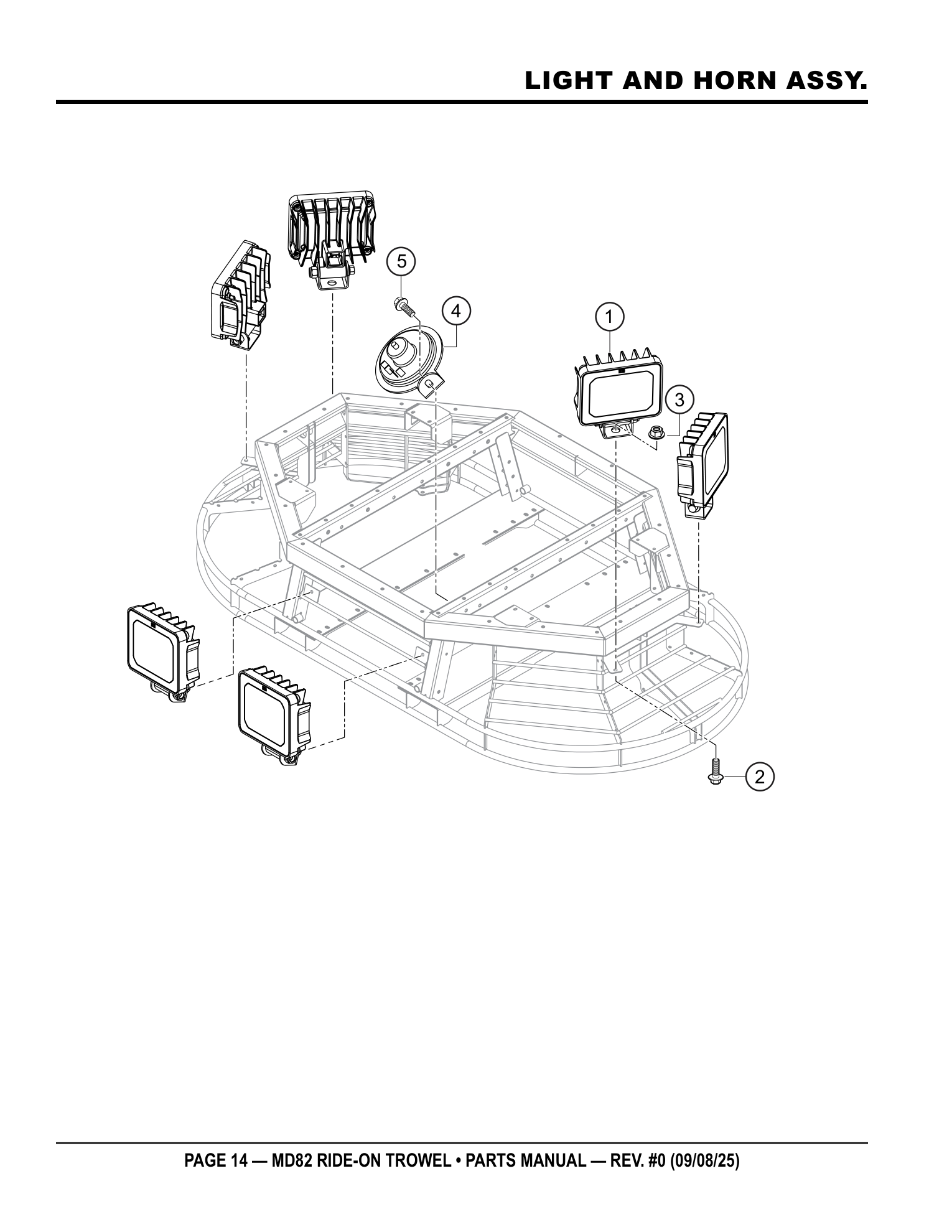

Page 14 — LIGHT AND HORN ASSY.
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 45573 | LIGHT, 4" SQ. LED 100° | 6 | ADD TO CART | |
| 2 | 45632 | SCREW, HFS M10-1.5 X 20 CLASS 8.8 | 6 | PARTS REQUEST | |
|
COMING SCREW, HFS M10-1.5 X 20 CLASS 8.8
45632 · qty on machine: 6 | |||||
| 3 | 42353 | NUT, HEX SERRATED FLANGE M10-1.5 | 6 | ADD TO CART | |
| 4 | 45271 | HORN | 1 | PARTS REQUEST | |
|
COMING HORN
45271 · qty on machine: 1 | |||||
| 5 | 42436 | SCREW, HFS M8-1.25 X 25 CLASS 8.8 | 1 | ADD TO CART | |

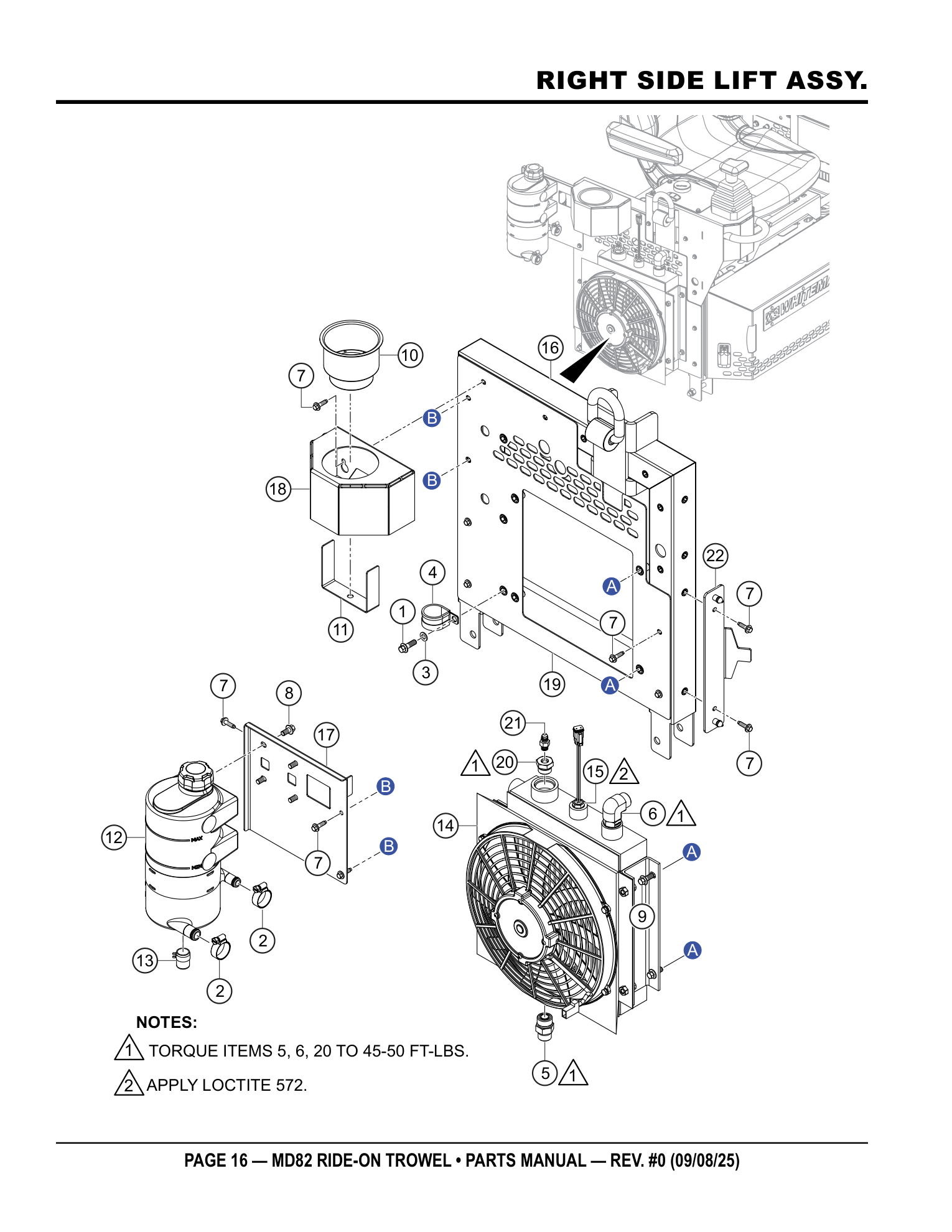

Page 16 — RIGHT SIDE LIFT ASSY.
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 15226 | SCREW, HFS, M8-1.25 X 25 | 1 | PARTS REQUEST | |
|
COMING SCREW, HFS, M8-1.25 X 25
15226 · qty on machine: 1 | |||||
| 2 | 23119 | CLAMP, HOSE WORM 3/4" TO 1-1/8" | 2 | ADD TO CART | |
| 3 | 25591 | WASHER, M8 | 1 | ADD TO CART | |
| 4 | 29796 | CLAMP, CUSHIONED LOOP, 1-3/4 X 1 | 1 | ADD TO CART | |
| 5 | 32342 | FITTING, STR -10MORFS X -10MOR | 1 | TORQUE TO 45-50 FT-LBS | ADD TO CART |
| 6 | 32358 | FITTING, 90° -10MORFS X -10MOR | 1 | TORQUE TO 45-50 FT-LBS | ADD TO CART |
| 7 | 42325 | SCREW, HHC M6-1.0 X 20, CAP. WASHER | 11 | ADD TO CART | |
| 8 | 42342 | SCREW, HFS, M8-1.25 X 16 GR 8.8 | 4 | ADD TO CART | |
| 9 | 42343 | SCREW, HFS M8-1.25 X 20 GR 8.8 | 4 | ADD TO CART | |
| 10 | 43643 | CUP HOLDER, STAINLESS STEEL | 1 | ADD TO CART | |
| 11 | 43734 | RETAINER, CUP HOLDER | 1 | ADD TO CART | |
| 12 | 45132 | CYCLONE, HYDRAULIC RESERVOIR | 1 | ADD TO CART | |
| 13 | 45645 | CAP, 8GPM CYCLONE, DRAIN | 1 | ADD TO CART | |
| 14 | 48163 | HEAT EXCHANGER ASSY. | 1 | ADD TO CART | |
| 15 | 48395 | SWITCH, TEMP 120°F RISING, 3/8 MP | 1 | APPLY LOCTITE 572 | PARTS REQUEST |
|
COMING SWITCH, TEMP 120°F RISING, 3/8 MP
48395 · qty on machine: 1 APPLY LOCTITE 572 | |||||
| 16 | 48486 | LIFT FRAME W/A-RH | 1 | ADD TO CART | |
| 17 | 48577 | MOUNT, HYD. RESERVOIR | 1 | ADD TO CART | |
| 18 | 48578 | CUP HOLDER | 1 | ADD TO CART | |
| 19 | 48661 | SIDE PANEL ASSEMBLY-RH | 1 | ADD TO CART | |
| 20 | 48704 | FITTING, ADAPTOR -10MORB X -4FORB | 1 | TORQUE TO 45-50 FT-LBS | ADD TO CART |
| 21 | 48709 | FITTING, ORIFICE 4MJ-4MO X .031 | 1 | ADD TO CART | |
| 22 | 48992 | LATCH BRACKET W/A | 1 | ADD TO CART | |

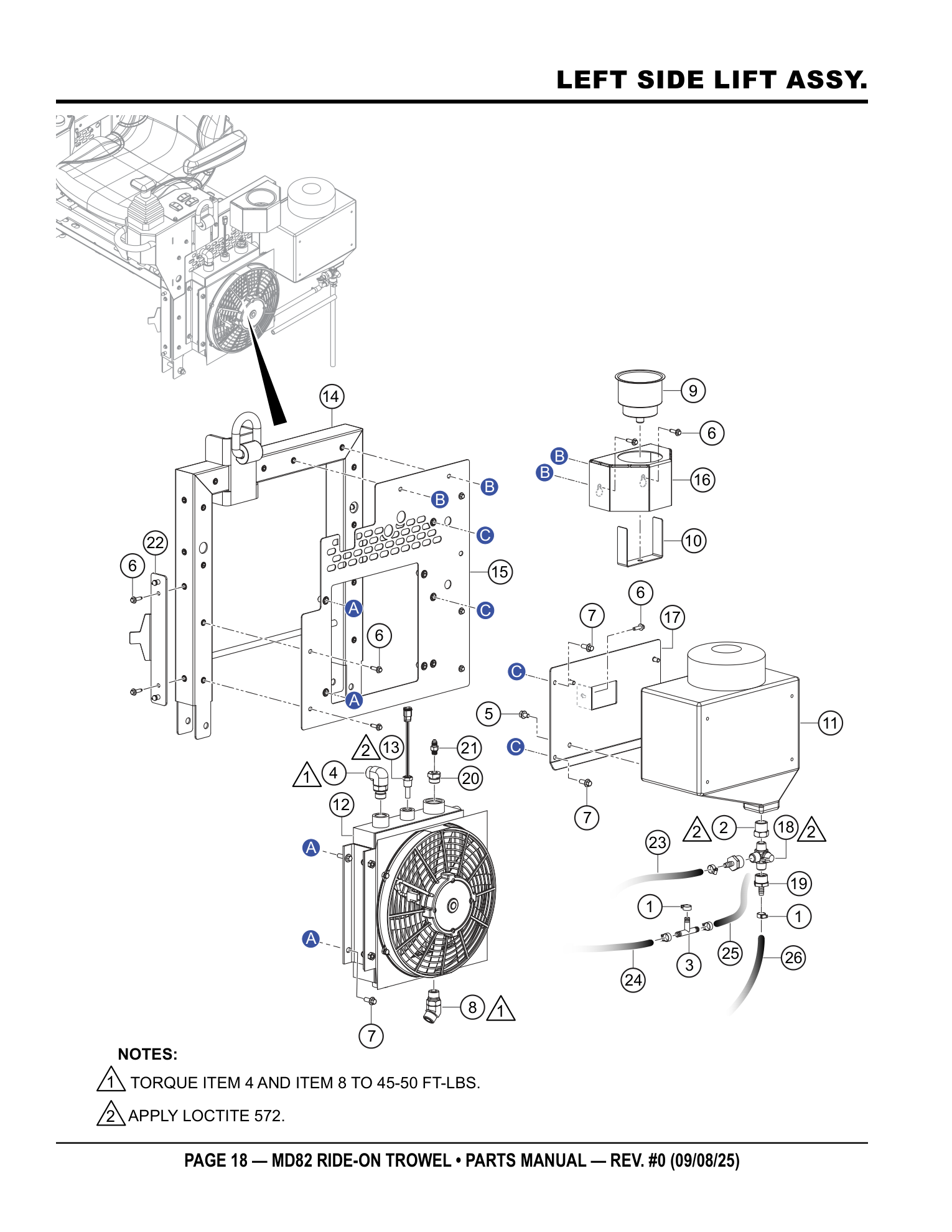

Page 18 — LEFT SIDE LIFT ASSY.
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 15538 | CLAMP, HOSE WORM #6 | 5 | ADD TO CART | |
| 2 | 16585 | FITTING, BUSH 1/2FP X 3/4MP STEEL | 1 | APPLY LOCTITE 572 | ADD TO CART |
| 3 | 23307 | TEE, .375 PLASTIC BARB | 1 | ADD TO CART | |
| 4 | 32358 | FITTING, 90° -10MORFS X -10MOR | 1 | TORQUE 45-50 FT-LBS | ADD TO CART |
| 5 | 34002 | SCREW, HHFS 5/16-18 X 1/2 GR 5 | 4 | ADD TO CART | |
| 6 | 42325 | SCREW, HHC M6-1.0 X 20, CAP. WASHER | 10 | ADD TO CART | |
| 7 | 42343 | SCREW, HFS M8-1.25 X 20 GR 8.8 | 6 | ADD TO CART | |
| 8 | 42939 | FITTING, 45 10MORFS X 10MOR | 1 | TORQUE 45-50 FT-LBS | ADD TO CART |
| 9 | 43643 | CUP HOLDER, STAINLESS STEEL | 1 | ADD TO CART | |
| 10 | 43734 | RETAINER, CUP HOLDER | 1 | ADD TO CART | |
| 11 | 45200 | TANK, 3 GAL. LG. MOUTH RETARDANT | 1 | ADD TO CART | |
| 12 | 48163 | HEAT EXCHANGER ASSY. | 1 | ADD TO CART | |
| 13 | 48395 | SWITCH, TEMP 120°F RISING, 3/8 MP | 1 | APPLY LOCTITE 572 | PARTS REQUEST |
|
COMING SWITCH, TEMP 120°F RISING, 3/8 MP
48395 · qty on machine: 1 APPLY LOCTITE 572 | |||||
| 14 | 48459 | LIFT FRAME W/A-LH | 1 | ADD TO CART | |
| 15 | 48576 | SIDE PANEL ASSEMBLY-LH | 1 | ADD TO CART | |
| 16 | 48578 | CUP HOLDER | 1 | ADD TO CART | |
| 17 | 48582 | RETARDANT RESERVOIR MOUNT | 1 | ADD TO CART | |
| 18 | 48650 | 3-WAY DIVERTER VALVE, 1/2 MNPT | 1 | APPLY LOCTITE 572 | ADD TO CART |
| 19 | 48651 | FITTING, 1/2" FNPT X 3/8" BARB | 2 | ADD TO CART | |
| 20 | 48704 | FITTING, ADAPTOR -10MORB X -4FORB | 1 | ADD TO CART | |
| 21 | 48709 | FITTING, ORIFICE 4MJ - 4MO X .031 | 1 | ADD TO CART | |
| 22 | 48992 | LATCH BRACKET W/A | 1 | ADD TO CART | |
| 23 | 60021 | HOSE, 3/8 ID X 5/8 OD (4.33 FT.) | 1 | ADD TO CART | |
| 24 | 60021 | HOSE, 3/8 ID X 5/8 OD (1 FT.) | 1 | ADD TO CART | |
| 25 | 60021 | HOSE, 3/8 ID X 5/8 OD (1 FT.) | 1 | ADD TO CART | |
| 26 | 60021 | HOSE, 3/8 ID X 5/8 OD (1.17 FT.) | 1 | ADD TO CART | |

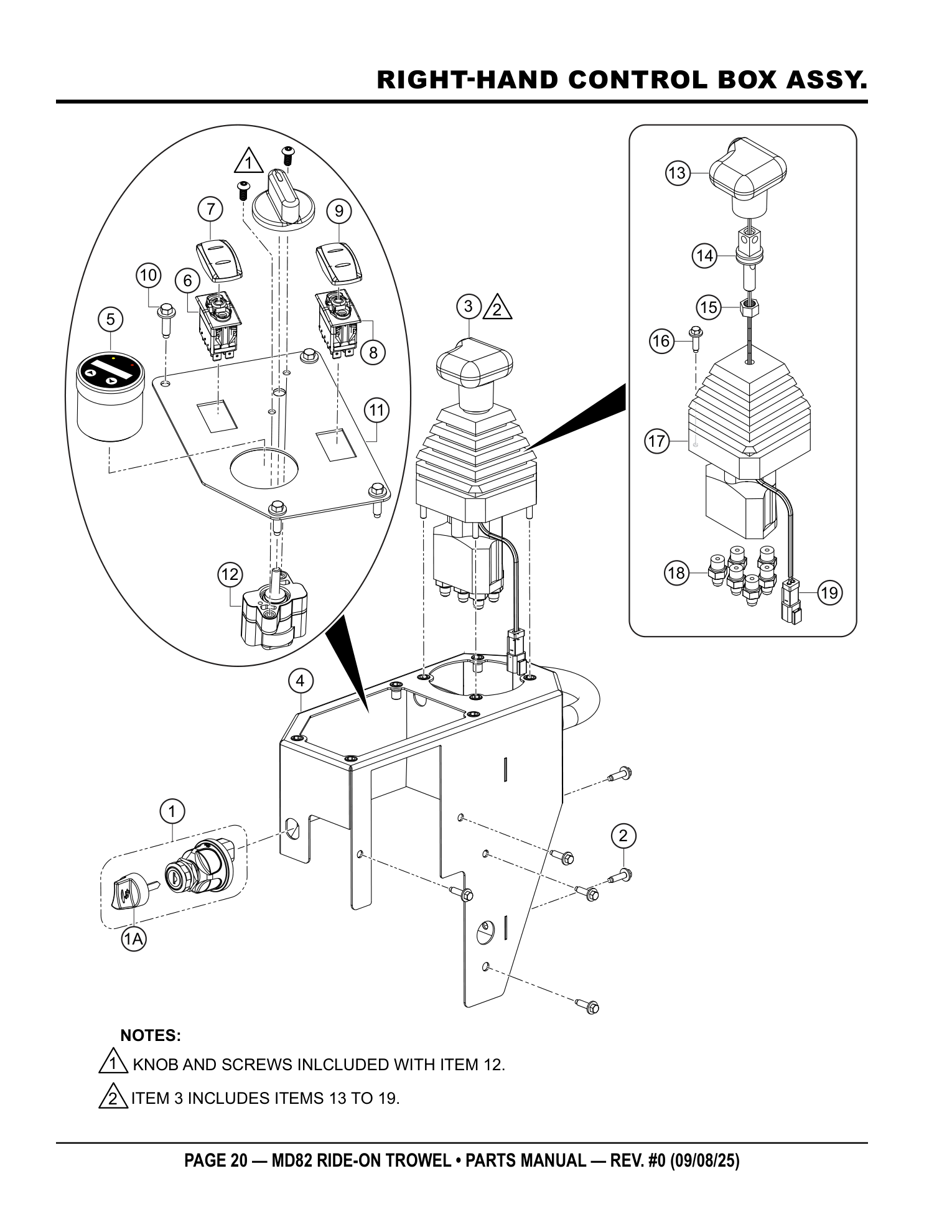

Page 20 — RIGHT-HAND CONTROL BOX ASSY.
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 23959 | SWITCH, IGNITION | 1 | INCLUDES ITEMS W/% | ADD TO CART |
 SWITCH, IGNITION
23959 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 1A% view full part page → $46.95 IN A KIT + SOLD SOLO | |||||
| 1A% | 23959-1 | KEY, IGNITION SWITCH | 1 | SET COMES W/ 2 KEYS | ADD TO CART |
| 2 | 42325 | SCREW, HHC M6-1.0 X 20, CAP. WASHER | 6 | ADD TO CART | |
| 3 | 45438-SK | VALVE ASSY., RH STEERING W/ SWITCH | 1 | INCLUDES ITEMS W/# | ADD TO CART |
| 4 | 45876 | STICK BOX, RH | 1 | ADD TO CART | |
| 5 | 42070 | DISPLAY, J1939-MURPHY PV25 | 1 | ADD TO CART | |
| 6 | 42178-005 | SWITCH BASE, 10 TERM, ON-OFF | 1 | PARTS REQUEST | |
|
COMING SWITCH BASE, 10 TERM, ON-OFF
42178-005 · qty on machine: 1 | |||||
| 7 | 42179-002 | ACTUATOR | 1 | ADD TO CART | |
| 8 | 42178-007 | SWITCH BASE, 10 TERM (DPDT) | 1 | ADD TO CART | |
| 9 | 42179-001 | ACTUATOR | 1 | ADD TO CART | |
| 10 | 42325 | SCREW, HHC M6-1.0 X 20, CAP. WASHER | 4 | ADD TO CART | |
| 11 | 45888 | CONTROL PANEL, RH | 1 | ADD TO CART | |
| 12 | 45977 | ROTARY HALL SENSOR, DIAL KNOB | 1 | PARTS REQUEST | |
|
COMING ROTARY HALL SENSOR, DIAL KNOB
45977 · qty on machine: 1 | |||||
| 13# | 12999 | HANDLE, PALM W/ SWITCH, RIGHT | 1 | PARTS REQUEST | |
|
COMING HANDLE, PALM W/ SWITCH, RIGHT
12999 · qty on machine: 1 Also included in kit 3 - VALVE ASSY., RH STEERING W (45438-SK) | |||||
| 14# | 20834 | ADAPTOR, PH PALM HANDLE | 1 | ADD TO CART | |
| 15# | 16083 | NUT, HEX. M12-1.75 NO PLATE | 1 | ADD TO CART | |
| 16# | 42325 | SCREW, HHC M6-1.0 X 20, CAP. WASHER | 4 | ADD TO CART | |
| 17# | 20832 | VALVE, RH STEERING | 1 | ADD TO CART | |
| 18# | 367470 | FITTING, STR 4MJ-6MO | 6 | ADD TO CART | |
| 19# | 37402 | CONNECTOR KIT, MALE 2 POSITION | 1 | ADD TO CART | |

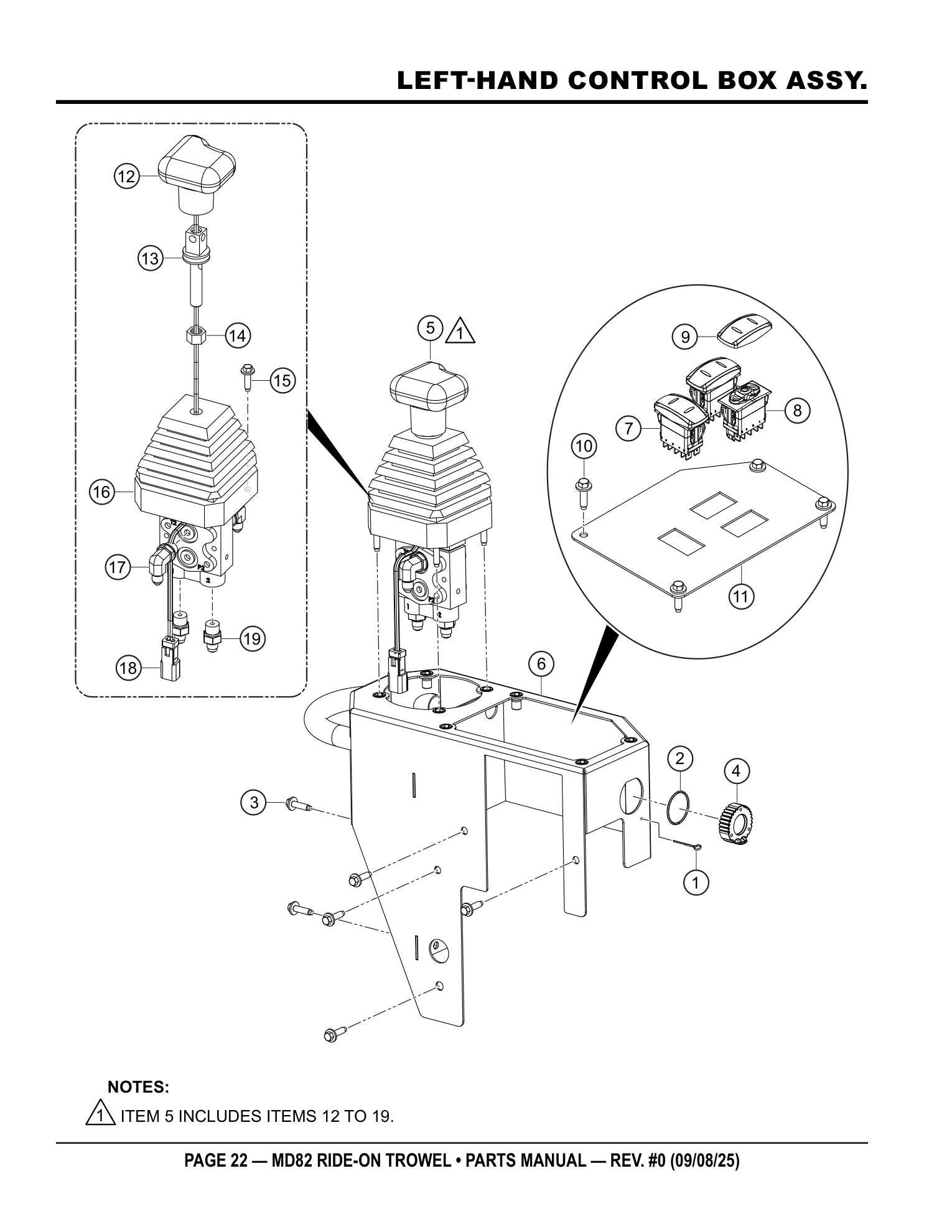

Page 22 — LEFT-HAND CONTROL BOX ASSY.
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5117 | PIN, COTTER 1/16DX1/2 | 1 | PARTS REQUEST | |
|
COMING PIN, COTTER 1/16DX1/2
5117 · qty on machine: 1 | |||||
| 2 | 36496 | O-RING, SIZE-026 | 1 | ADD TO CART | |
| 3 | 42325 | SCREW, HHC, M6-1.0 X 20, CAP. WASHER | 6 | ADD TO CART | |
| 4 | 42442 | CON. CAP, HD10, 9 PIN W/ LANYARD | 1 | ADD TO CART | |
| 5 | 45437-SK | VALVE, LH STEERING W/ SWITCH ASSY | 1 | INCLUDES ITEMS W/% | ADD TO CART |
| 6 | 45877 | STICK BOX, LH | 1 | ADD TO CART | |
| 7 | 42178-006 | SW. BASE 10 TERM, ON-OFF DUAL POLE | 1 | ADD TO CART | |
| 8 | 42178-007 | SWITCH BASE, 10 TERM. (DPDT) | 2 | ADD TO CART | |
| 9 | 42179-001 | ACTUATOR | 3 | ADD TO CART | |
| 10 | 42325 | SCREW, HHC M6-1.0 X 20, CAP. WASHER | 4 | ADD TO CART | |
| 11 | 45994 | SWTCH PANEL, LH | 1 | ADD TO CART | |
| 12% | 22001 | HANDLE, PALM W/ SWITCH, LEFT | 1 | PARTS REQUEST | |
|
COMING HANDLE, PALM W/ SWITCH, LEFT
22001 · qty on machine: 1 Also included in kit 5 - VALVE, LH STEERING W/ SWIT (45437-SK) | |||||
| 13% | 21053 | ADAPTOR, LH PALM HANDLE | 1 | ADD TO CART | |
| 14% | 16083 | NUT, HEX. M12-1.75 NO PLATE | 1 | ADD TO CART | |
| 15% | 42325 | SCREW, HHC, M6-1.0 X 20, CAP. WASHER | 4 | ADD TO CART | |
| 16% | 20833 | VALVE, LH STEERING | 1 | ADD TO CART | |
| 17% | 37407 | 90° FITTING, 4MJ X 6MO | 2 | NO LONGER AVAILABLE | |
|
COMING 90° FITTING, 4MJ X 6MO
37407 · qty on machine: 2 Also included in kit 5 - VALVE, LH STEERING W/ SWIT (45437-SK) NO LONGER AVAILABLE
| |||||
| 18% | 37402 | CONNECTOR KIT, MALE 2 POSITION | 1 | ADD TO CART | |
| 19% | 367470 | FITTING, STR 4MJ-6MO | 2 | ADD TO CART | |

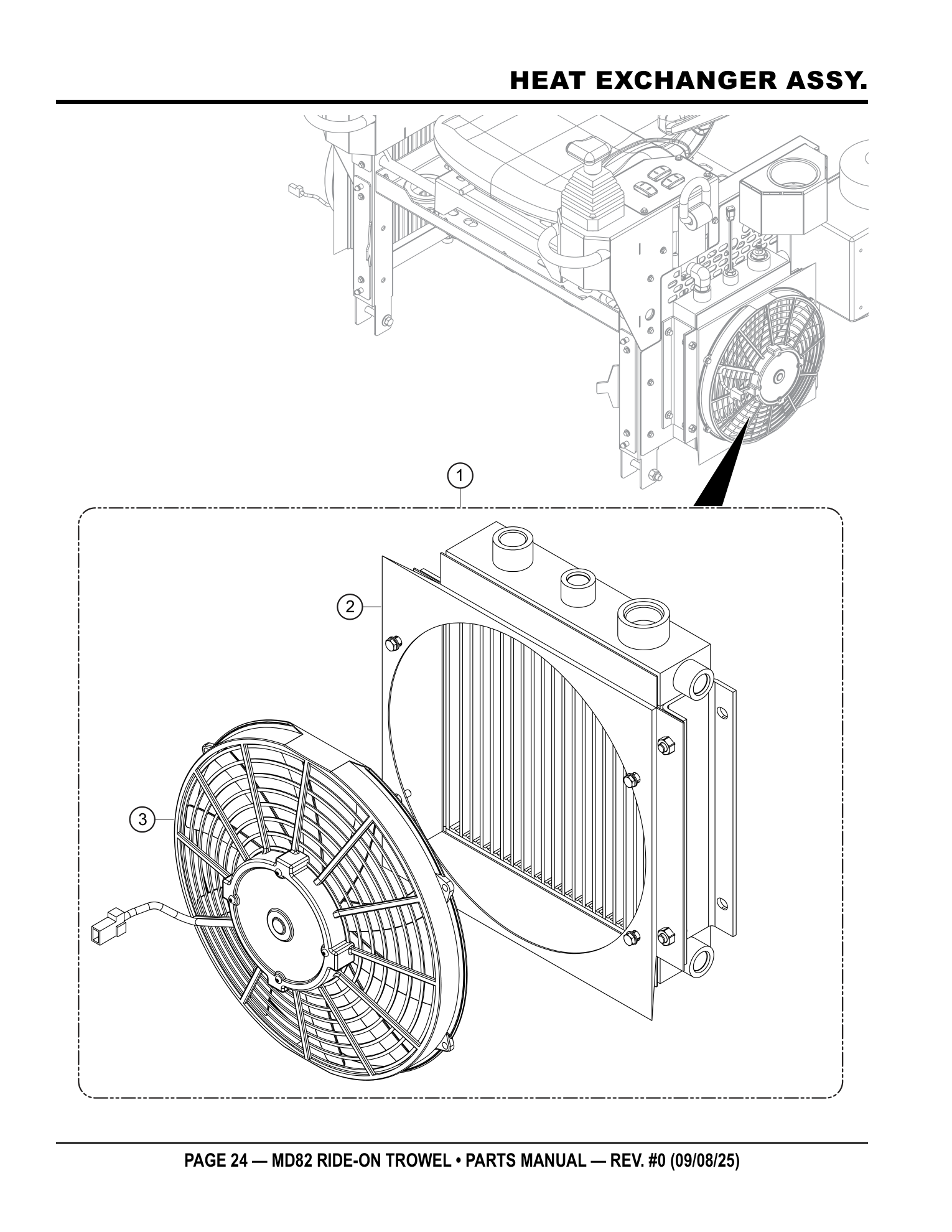

Page 24 — HEAT EXCHANGER ASSY.
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 48163 | HEAT EXCHANGER ASSY | 1 | INCLUDES ITEMS W/# | ADD TO CART |
 HEAT EXCHANGER ASSY
48163 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 2#, 3# view full part page → $838.0 IN A KIT + SOLD SOLO | |||||
| 2# | 48162 | HEAT EXCHANGER, HYDRAULIC | 1 | ADD TO CART | |
| 3# | 42648-01 | FAN, HEAT EXCHANGER - 12" | 1 | ADD TO CART | |

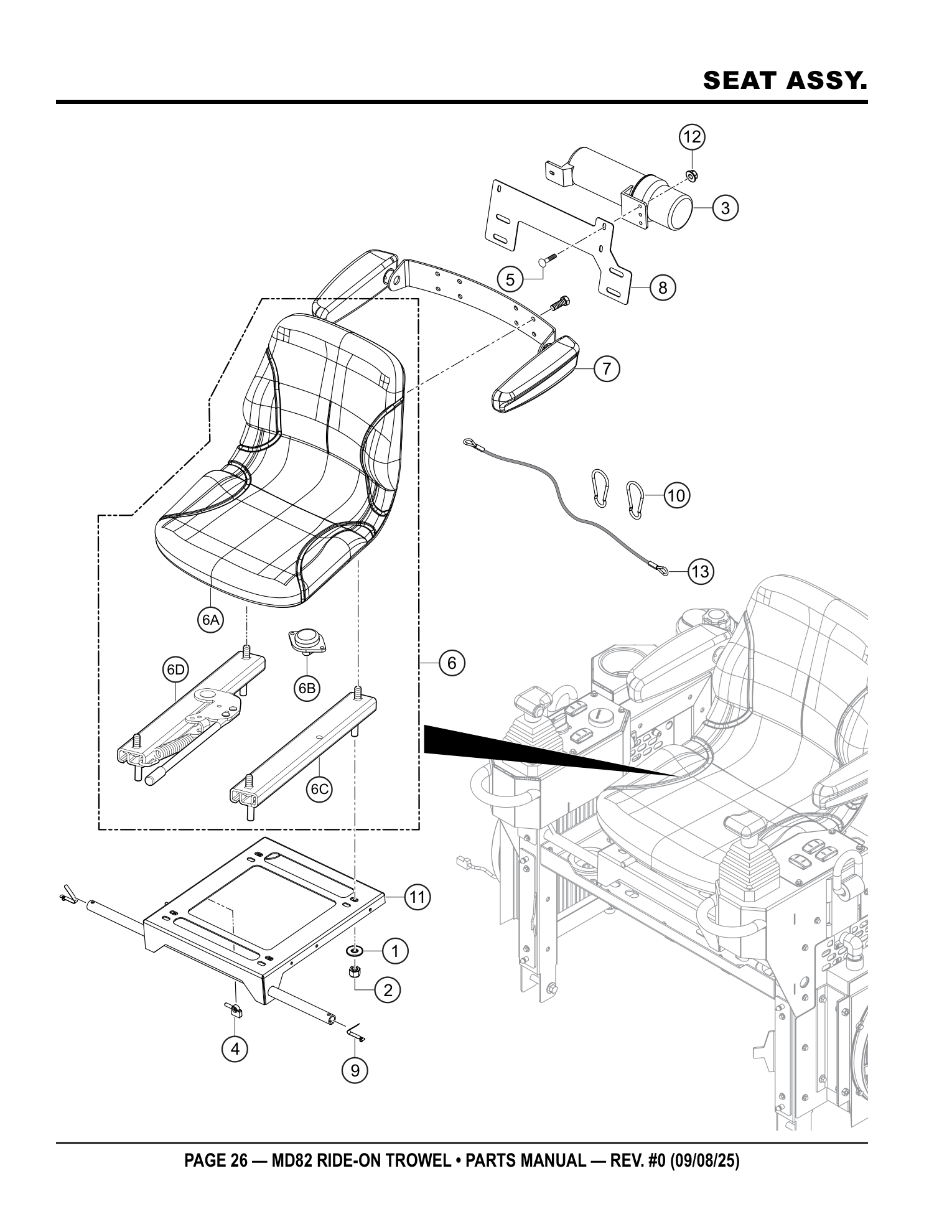

Page 26 — SEAT ASSY.
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 0300B | WASHER, FLAT SAE 5/16 | 4 | ADD TO CART | |
| 2 | 5283 | NUT, NYLOC 5/16-18 | 4 | ADD TO CART | |
| 3 | 23297 | MANUAL HOLDER | 1 | ADD TO CART | |
| 4 | 23841 | CLIP 1/4" WIRE LOOM | 2 | PARTS REQUEST | |
|
COMING CLIP 1/4" WIRE LOOM
23841 · qty on machine: 2 | |||||
| 5 | 29712 | BOLT, CARRIAGE 1/4-20 X 3/4 | 3 | ADD TO CART | |
| 6 | 32960SK | SEAT, SEARS-ADJUSTABLE W/ ARMS | 1 | INCLUDES ITEMS W/# | PARTS REQUEST |
|
COMING SEAT, SEARS-ADJUSTABLE W/ ARMS
32960SK · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 6A#, 6B#, 6C#, 6D# | |||||
| 6A# | 32963 | SEAT, SEARS BASIC | 1 | ADD TO CART | |
| 6B# | 32962 | KILL SWITCH, SEAR DELTA | 1 | ADD TO CART | |
| 6C# | 32964 | SEAT ADJUSTER, LH SEARS | 1 | PARTS REQUEST | |
|
COMING SEAT ADJUSTER, LH SEARS
32964 · qty on machine: 1 Also included in kit 6 - SEAT, SEARS-ADJUSTABLE W/ (32960SK) | |||||
| 6D# | 32965 | SEAT ADJUSTER, RH SEARS | 1 | PARTS REQUEST | |
|
COMING SEAT ADJUSTER, RH SEARS
32965 · qty on machine: 1 Also included in kit 6 - SEAT, SEARS-ADJUSTABLE W/ (32960SK) | |||||
| 7 | 34792 | ARMREST, SEARS SEAT | 1 | ADD TO CART | |
| 8 | 43979 | MOUNTING BRACKET | 1 | ADD TO CART | |
| 9 | 45569 | CONNECTOR, QUICK RELEASE 0.25 | 2 | PARTS REQUEST | |
|
COMING CONNECTOR, QUICK RELEASE 0.25
45569 · qty on machine: 2 | |||||
| 10 | 45571 | QUICK LINK, SPRING, 3/16 | 2 | ADD TO CART | |
| 11 | 45936 | SEAT FRAME W/A | 1 | ADD TO CART | |
| 12 | 49070 | NUT, HFS 1/4-20 | 3 | ADD TO CART | |
| 13 | 52099 | SEAT STOP CABLE ASSY. | 1 | ADD TO CART | |

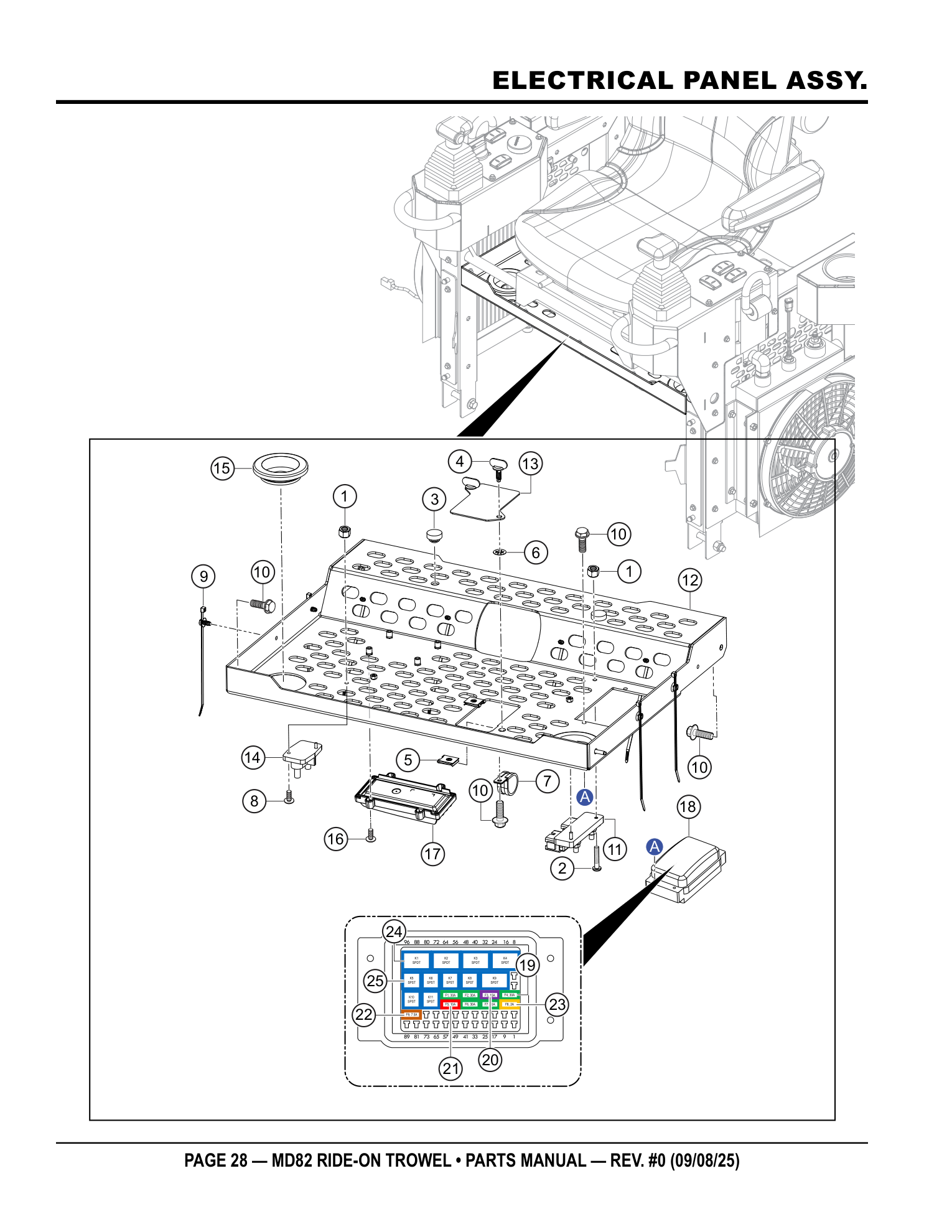

Page 28 — ELECTRICAL PANEL ASSY.
Parts list — exactly as printed25 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 10019 | NUT, NYLOC 10-32 | 4 | ADD TO CART | |
| 2 | 15177 | SCREW, PHP 10-32 X 1 | 2 | PARTS REQUEST | |
|
COMING SCREW, PHP 10-32 X 1
15177 · qty on machine: 2 | |||||
| 3 | 21597 | BUMPER, STEM 1.0"D X .5S X .31 | 2 | ADD TO CART | |
| 4 | 21893 | SCREW, FAST LEAD | 2 | ADD TO CART | |
| 5 | 21894 | NUT, CLIP, FAST LEAD | 2 | ADD TO CART | |
| 6 | 21986 | WASHER, FAST LEAD-STAINLESS | 2 | ADD TO CART | |
| 7 | 22852 | CLAMP, CUSHIONED LOOP #24 | 3 | ADD TO CART | |
| 8 | 34306 | SCREW, PHP, 10-32 X 5/8, TYPE F | 2 | ADD TO CART | |
| 9 | 42315 | TIE, CABLE ASM, FIR TREE MT./CABLE | 8 | ADD TO CART | |
| 10 | 42325 | SCREW, HHC, M6-1.0 X 20, CAP. WASHER | 11 | ADD TO CART | |
| 11 | 42713 | BUSS BAR, DEUTSCH STYLE, 24 PIN | 1 | ADD TO CART | |
| 12 | 45938 | PANEL, ELECTRICAL | 1 | PARTS REQUEST | |
|
COMING PANEL, ELECTRICAL
45938 · qty on machine: 1 | |||||
| 13 | 48703 | FUSE BOX COVER, ELEC. PNL. | 1 | ADD TO CART | |
| 14 | 48790 | DUAL BATTERY POWER POST | 1 | PARTS REQUEST | |
|
COMING DUAL BATTERY POWER POST
48790 · qty on machine: 1 | |||||
| 15 | 59372 | GROMMET, ROUND LIGHT, 2 1/2" | 2 | ADD TO CART | |
| 16 | 42347 | SCREW, HFS M6-1.0 X 30 GR 8.8 | 4 | ADD TO CART | |
| 17 | 48942 | CONTROLLER, PROGRAMMED | 1 | ADD TO CART | |
| 18 | 48699 | POWER DISTRIBUTION MODULE, 96 PIN | 1 | INCLUDES ITEMS W/# | ADD TO CART |
| 19# | 46259W | FUSE, 30A | 5 | PARTS REQUEST | |
|
COMING FUSE, 30A
46259W · qty on machine: 5 Also included in kit 18 - POWER DISTRIBUTION MODULE, (48699) | |||||
| 20# | 46256W | FUSE, 15A | 1 | PARTS REQUEST | |
|
COMING FUSE, 15A
46256W · qty on machine: 1 Also included in kit 18 - POWER DISTRIBUTION MODULE, (48699) | |||||
| 21# | 46255W | FUSE, 10A | 1 | PARTS REQUEST | |
|
COMING FUSE, 10A
46255W · qty on machine: 1 Also included in kit 18 - POWER DISTRIBUTION MODULE, (48699) | |||||
| 22# | 46254W | FUSE, 7.5A | 1 | PARTS REQUEST | |
|
COMING FUSE, 7.5A
46254W · qty on machine: 1 Also included in kit 18 - POWER DISTRIBUTION MODULE, (48699) | |||||
| 23# | 46250W | FUSE, 2A | 1 | PARTS REQUEST | |
|
COMING FUSE, 2A
46250W · qty on machine: 1 Also included in kit 18 - POWER DISTRIBUTION MODULE, (48699) | |||||
| 24# | 3011CCR1U01 | RELAY, 5-PIN MICRO | 5 | PARTS REQUEST | |
|
COMING RELAY, 5-PIN MICRO
3011CCR1U01 · qty on machine: 5 Also included in kit 18 - POWER DISTRIBUTION MODULE, (48699) | |||||
| 25# | 3031AHCR1U01 | RELAY, 4-PIN MICRO | 6 | PARTS REQUEST | |
|
COMING RELAY, 4-PIN MICRO
3031AHCR1U01 · qty on machine: 6 Also included in kit 18 - POWER DISTRIBUTION MODULE, (48699) | |||||

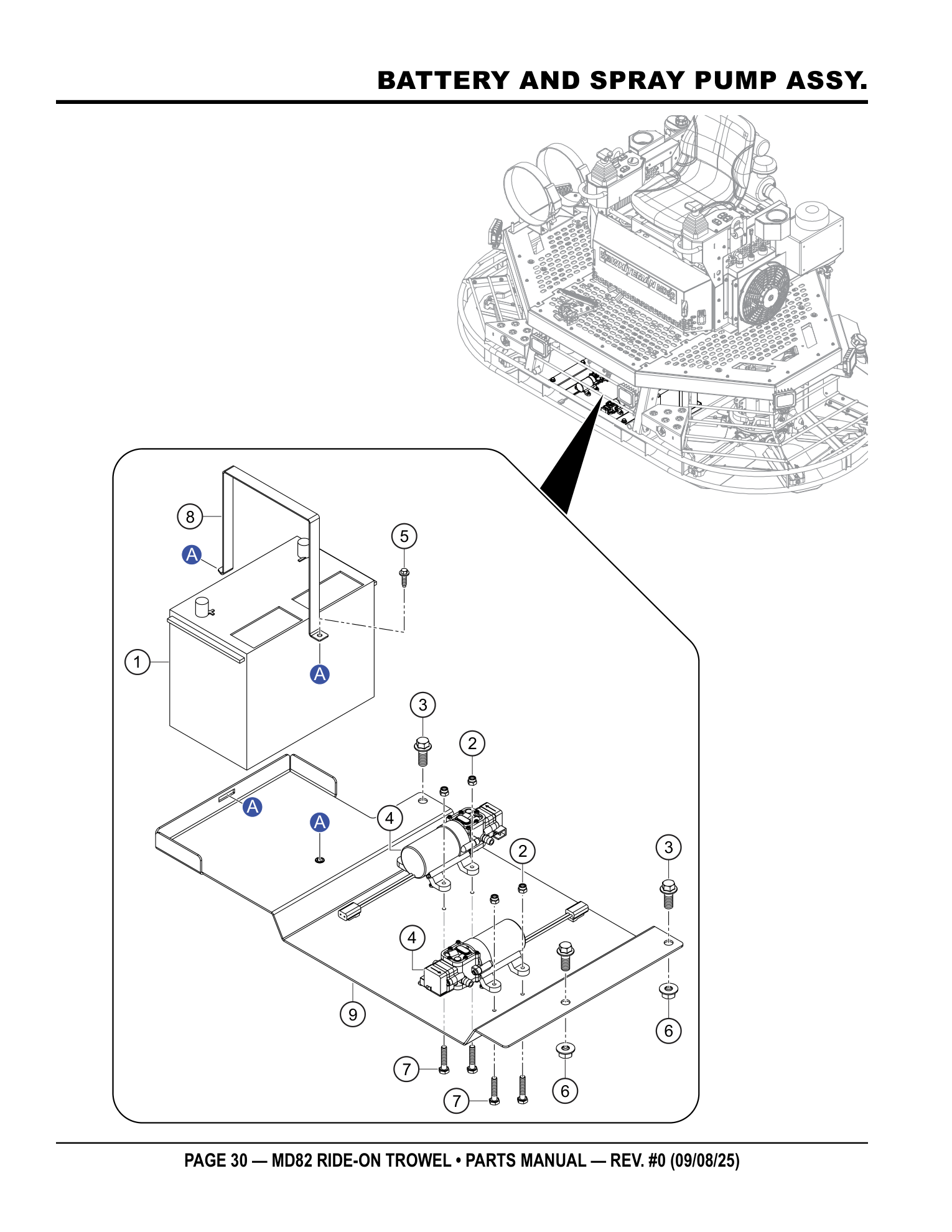

Page 30 — BATTERY AND SPRAY PUMP ASSY.
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 10315 | BATTERY, GROUP 24 | 1 | ADD TO CART | |
| 2 | 15518-004 | NUT, NYLOC, M4-.7 | 8 | ADD TO CART | |
| 3 | 23305 | SCREW, HFS M12-1.75 X 30 8.8 | 3 | ADD TO CART | |
| 4 | 30547 | PUMP ASSEMBLY | 2 | ADD TO CART | |
| 5 | 42325 | SCREW, HHC, M6-1.0 X 20, CAP. WASHER | 1 | ADD TO CART | |
| 6 | 42451 | NUT, HEX. SERRATED-FLANGE, M6-1.0 | 3 | ADD TO CART | |
| 7 | 42894 | SCREW, HHC M4-0.7 X 20MM | 8 | PARTS REQUEST | |
|
COMING SCREW, HHC M4-0.7 X 20MM
42894 · qty on machine: 8 | |||||
| 8 | 45943 | BATTERY STRAP, GROUP 24 | 1 | PARTS REQUEST | |
|
COMING BATTERY STRAP, GROUP 24
45943 · qty on machine: 1 | |||||
| 9 | 48505 | BATTERY TRAY ASSEMBLY | 1 | ADD TO CART | |

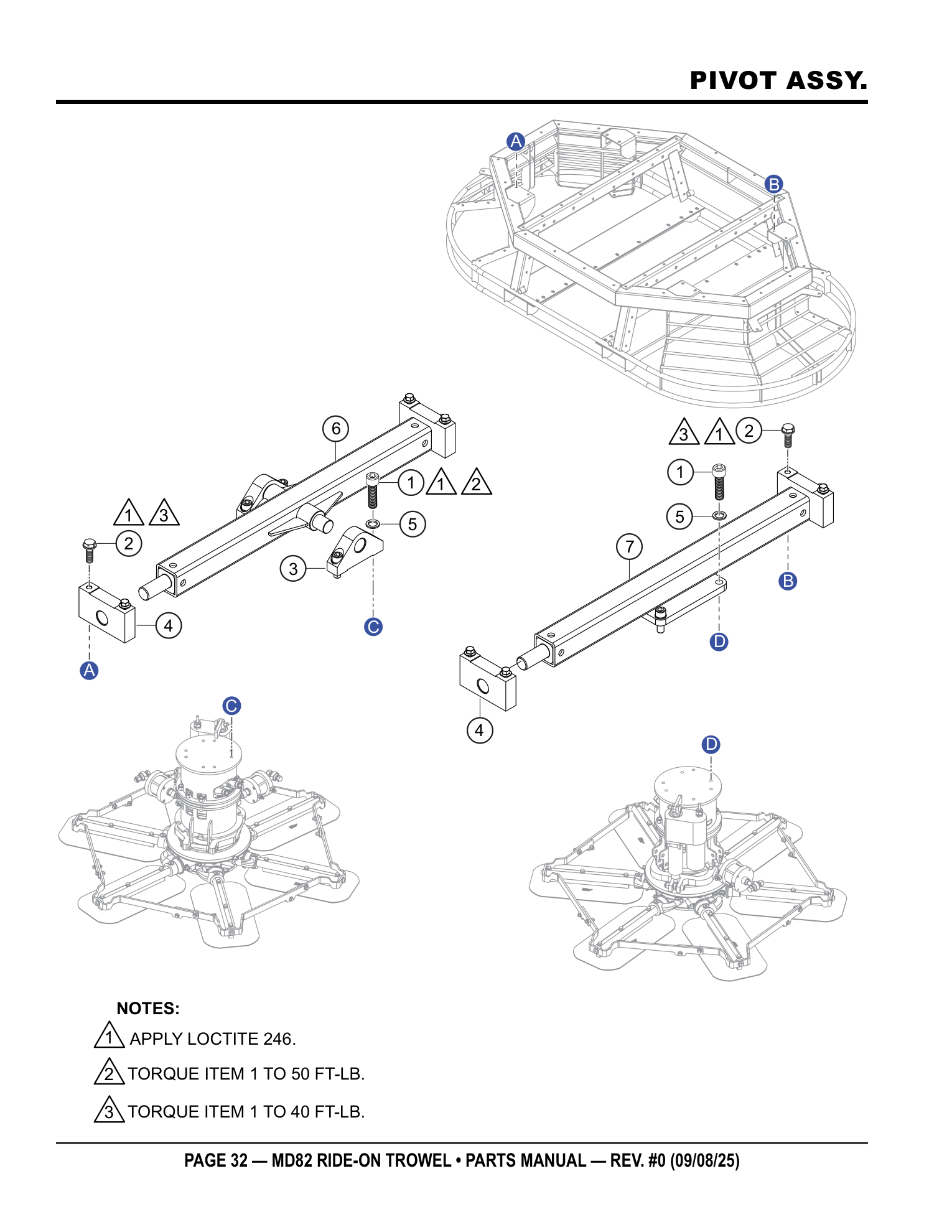

Page 32 — PIVOT ASSY.
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 32977 | SCREW, SHC M12-1.75 X 45 GR 12.9 | 8 | APPLY LOCTITE 246 TORQUE TO 50 FT-LB | PARTS REQUEST |
|
COMING SCREW, SHC M12-1.75 X 45 GR 12.9
32977 · qty on machine: 8 APPLY LOCTITE 246 TORQUE TO 50 FT-LB | |||||
| 2 | 32976 | SCREW, HFS M10-1.5 X 25-10.9 | 8 | APPLY LOCTITE 246 TORQUE TO 40 FT-LB | ADD TO CART |
| 3 | 42280 | BLOCK, MOTOR MT. 2 DOF PIVOT, ASSY. | 2 | ADD TO CART | |
| 4 | 43152 | PIVOT BLOCK ASSEMBLY | 4 | ADD TO CART | |
| 5 | 43180 | WASHER, FLAT M12 | 8 | PARTS REQUEST | |
|
COMING WASHER, FLAT M12
43180 · qty on machine: 8 | |||||
| 6 | 43194 | TRUNNION, SQ DOUBLE DOF | 1 | ADD TO CART | |
| 7 | 43106 | TRUNNION W/A, SINGLE DOF | 1 | ADD TO CART | |

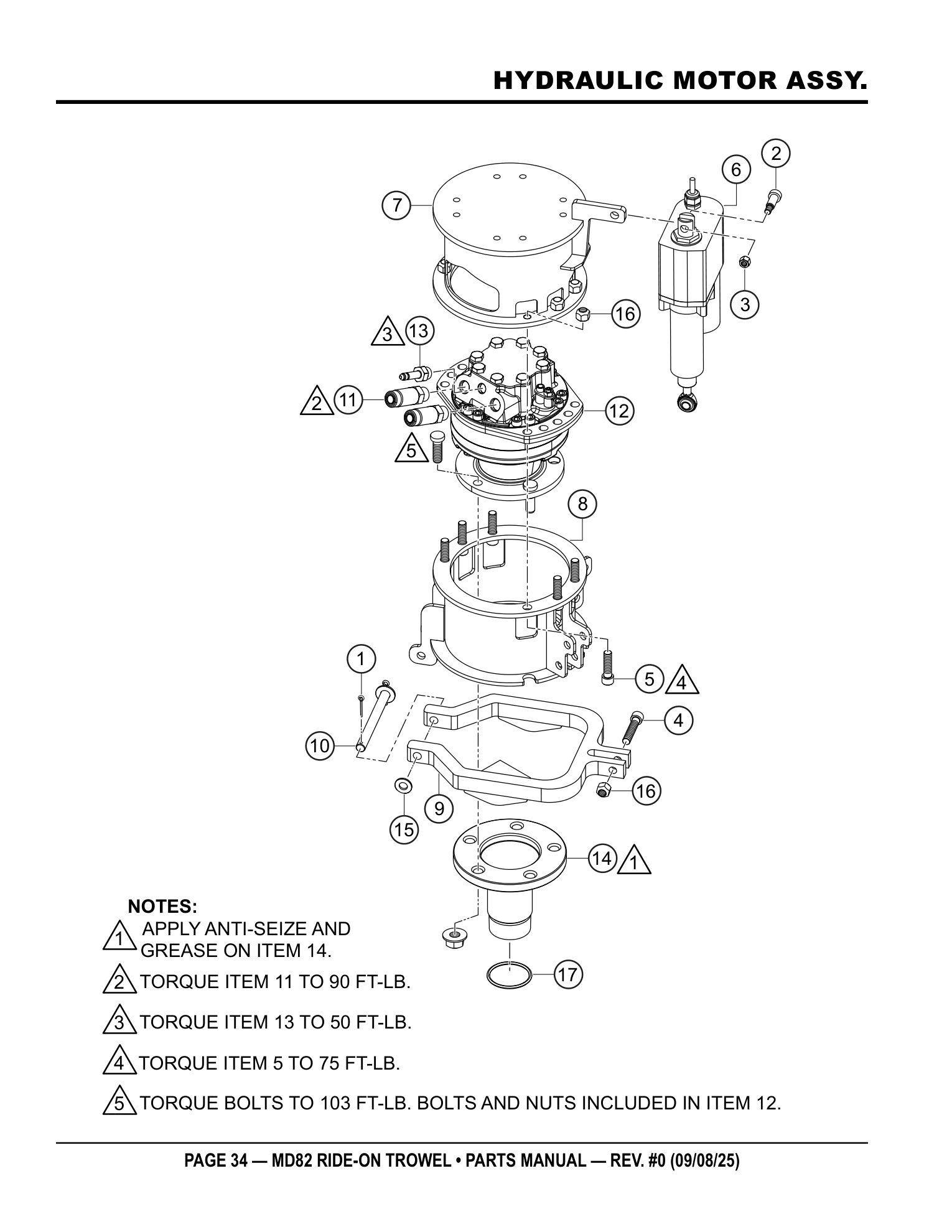

Page 34 — HYDRAULIC MOTOR ASSY.
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 0183 | PIN, COTTER 1/8 X 1-1/4 | 2 | PARTS REQUEST | |
|
COMING PIN, COTTER 1/8 X 1-1/4
0183 · qty on machine: 2 | |||||
| 2 | 2527 | SCREW, SHC, SHOULDER, 3/8-16, 1/2 X | 1 | 1 | ADD TO CART |
| 3 | 10133 | NUT, NYLOC 3/8-16 | 1 | ADD TO CART | |
| 4 | 17106 | SCREW, SHC M12-1.75 X6 0 | 1 | ADD TO CART | |
| 5 | 32977 | SCREW, SHC M12-1.75 X 45 GR 12.9 | 6 | PARTS REQUEST | |
|
COMING SCREW, SHC M12-1.75 X 45 GR 12.9
32977 · qty on machine: 6 | |||||
| 6 | 45497 | ACTUATOR, LINEAR, PA-17, 2" | 1 | ADD TO CART | |
| 7 | 45818 | HOUSING W/A, UPPER ROTOR | 1 | ADD TO CART | |
| 8 | 45819 | ROTOR HOUSING W/A, LOWER | 1 | ADD TO CART | |
| 9 | 45850 | YOKE W/A | 1 | ADD TO CART | |
| 10 | 45857 | PIN, YOKE PIVOT | 1 | ADD TO CART | |
| 11 | 45948 | FITTING, STR LG -10MORB TO -10 MORFS | 2 | PARTS REQUEST | |
|
COMING FITTING, STR LG -10MORB TO -10 MORFS
45948 · qty on machine: 2 | |||||
| 12 | 48387 | MOTOR, HYD. MSE02, POCLAIN 364CC | 1 | PARTS REQUEST | |
|
COMING MOTOR, HYD. MSE02, POCLAIN 364CC
48387 · qty on machine: 1 | |||||
| 13 | 48706 | FITTING, STR LONG, -4MJIC X -8MORB | 1 | PARTS REQUEST | |
|
COMING FITTING, STR LONG, -4MJIC X -8MORB
48706 · qty on machine: 1 | |||||
| 14 | 48741 | DRIVE ADAPTOR | 1 | ADD TO CART | |
| 15 | 933244 | WASHER, FLAT SAE 1/2 GRD 9 | 2 | ADD TO CART | |
| 16 | 021112140 | NUT, HEX., NYLOC M12-1.75 | 7 | ADD TO CART | |
| 17 | 43186 | O-RING, SIZE 2-226 VITON | 1 | ADD TO CART | |

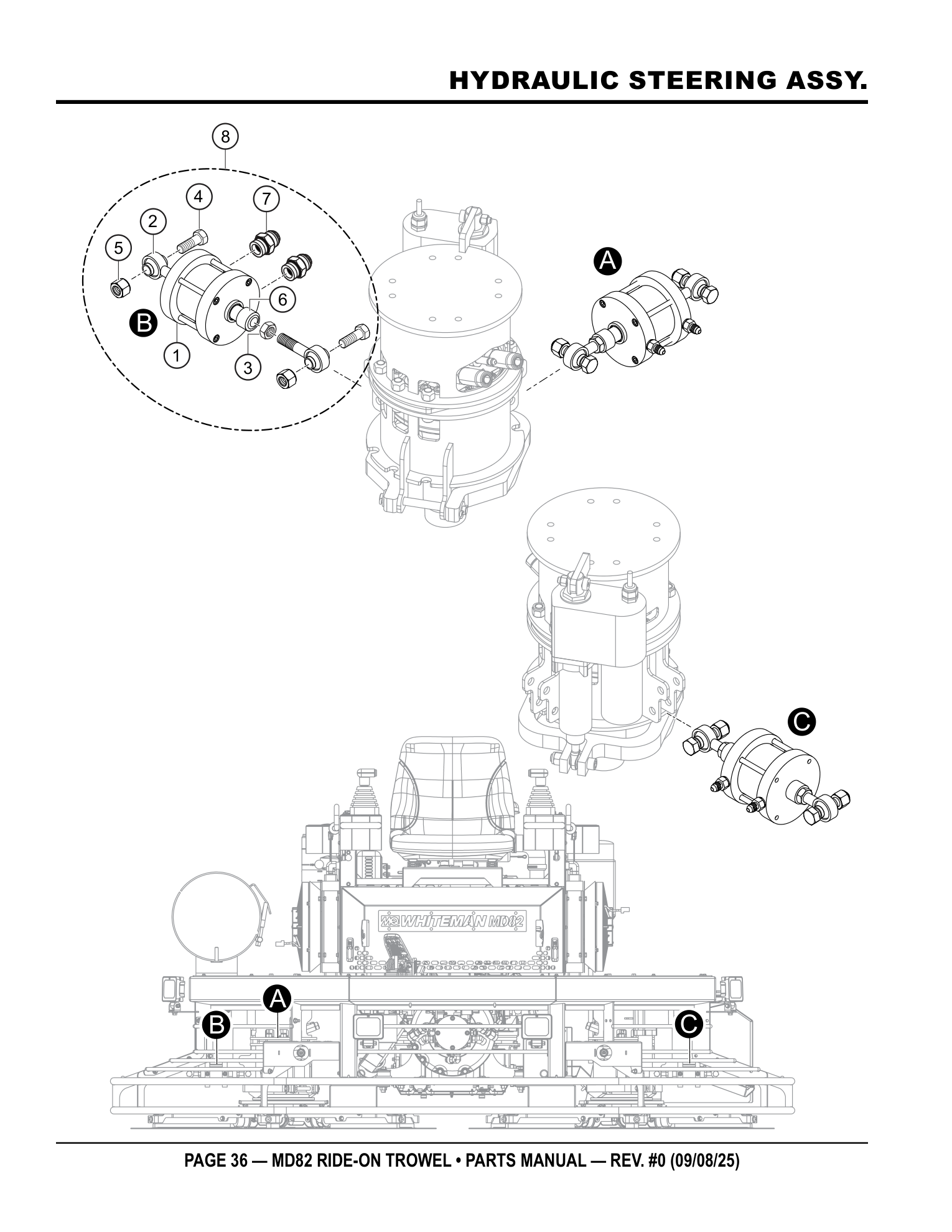

Page 36 — HYDRAULIC STEERING ASSY.
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1# | 45585 | CYLINDER, 2.5" BORE | 3 | ADD TO CART | |
| 2# | 21944 | ROD END, 1/2-20 M RH W/ CUSTOM BALL | 6 | ADD TO CART | |
| 3# | 11146 | NUT, HEX. JAM 1/2-20 PLATED | 6 | ADD TO CART | |
| 4# | 13178 | SCREW, HHC 1/2-13 X 2 1/4 GR5 | 6 | ADD TO CART | |
| 5# | 10176 | NUT, NYLOC 1/2-13 | 6 | ADD TO CART | |
| 6# | 45961 | SPACER, STEERING CYLINDER | 3 | ADD TO CART | |
| 7# | 366155 | FITTING, STR 4MJ-1/4MP | 6 | PARTS REQUEST | |
|
COMING FITTING, STR 4MJ-1/4MP
366155 · qty on machine: 6 Also included in kit 8 - STEERING CYLINDER ASSY (45960SK) | |||||
| 8 | 45960SK | STEERING CYLINDER ASSY | 3 | INCLUDES ITEMS W/# | PARTS REQUEST |
|
COMING STEERING CYLINDER ASSY
45960SK · qty on machine: 3 INCLUDES ITEMS W/# Kit includes: 1#, 2#, 3#, 4#, 5#, 6#, 7# | |||||

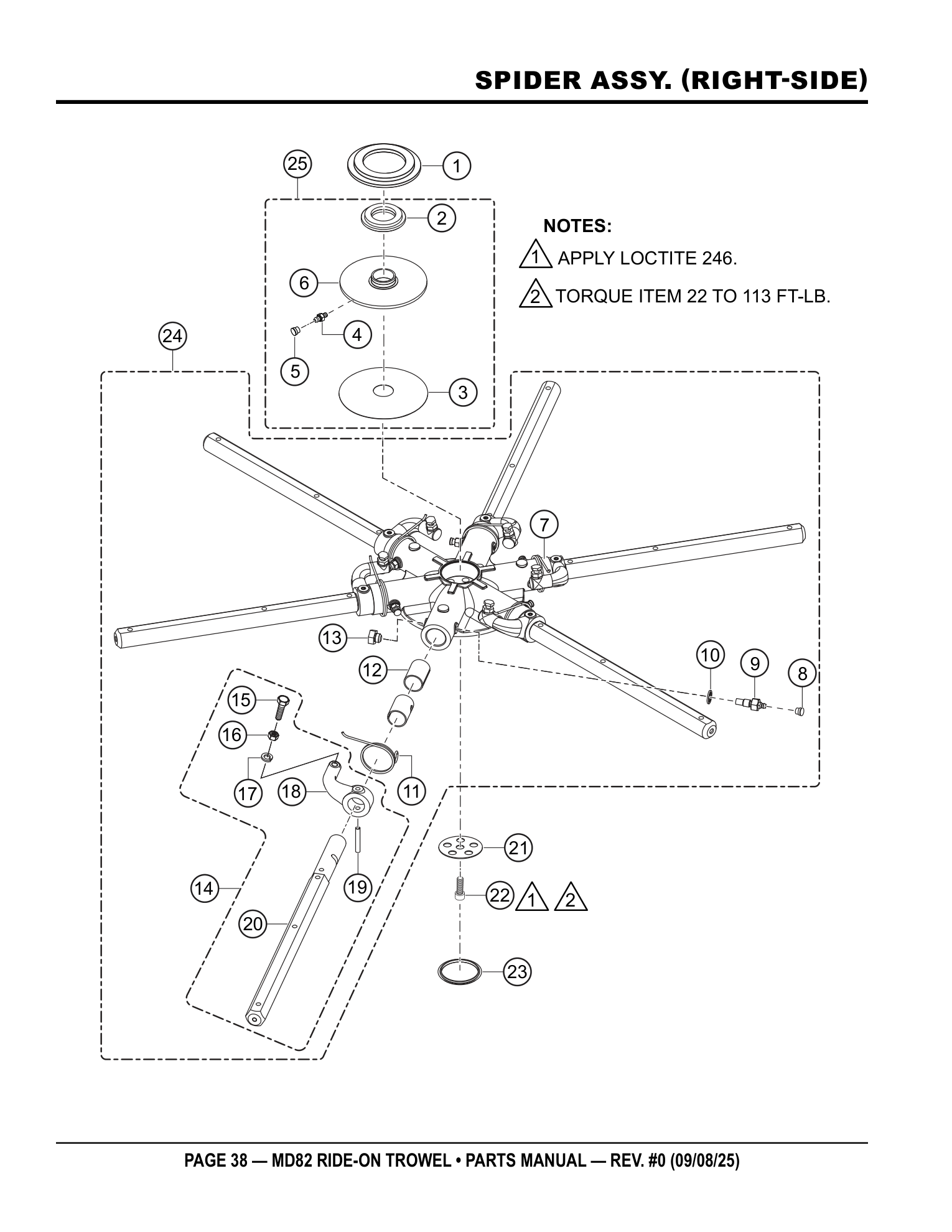

Page 38 — SPIDER ASSY. (RIGHT-SIDE)
Parts list — exactly as printed25 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 43089 | COLLAR, BEARING EXTENDER | 1 | ADD TO CART | |
| 2$ | 12779 | BEARING, 85MM X 130MM, FLANGED | 1 | ADD TO CART | |
| 3$ | 12250 | PLATE, WEAR | 1 | ADD TO CART | |
| 4$ | 2621 | FITTING, GREASE ZERK STR 1/4-28 | 2 | ADD TO CART | |
| 5$ | 1162A | CAP, GREASE ZERK | 2 | ADD TO CART | |
| 6$ | 12315 | THRUST COLLAR W/ BUSHING | 1 | ADD TO CART | |
| 7# | 48182 | SPIDER PLATE, RD HUB | 1 | ADD TO CART | |
| 8# | 1162A | CAP, GREASE ZERK | 6 | ADD TO CART | |
| 9# | 1322 | SCREW, TROWEL ARM RETAINING | 6 | ADD TO CART | |
| 10# | 1875 | WASHER, INT. SHKP 3/8 | 6 | ADD TO CART | |
| 11# | 2143 | SPRING, RS H ARM RETURN | 6 | ADD TO CART | |
| 12# | 11039 | BUSHING, TROWEL ARM 2 PIECE | 12 | ADD TO CART | |
| 13# | 11602 | SCREW, SHX 3/8-16 X 1/4 | 6 | ADD TO CART | |
| 14# | 32385 | ARM ASSEMBLY, LONG RS | 6 | INCLUDES ITEMS W/% | ADD TO CART |
| 15%# | 21031 | SCREW HHC ROUNDED 7/16-14 | 6 | ADD TO CART | |
| 16%# | 07034-007 | NUT, HEX JAM 7/16-14 PLATED | 6 | ADD TO CART | |
| 17%# | 2955 | WASHER, LOCK, 7/16 ZINC | 6 | ADD TO CART | |
| 18%# | 21050 | LEVER, TROWEL ARM RS | 6 | ADD TO CART | |
| 19%# | 32045 | PIN, COILED SPRING 5/16 X 2.00" | 6 | ADD TO CART | |
| 20%# | 32383 | ARM, TROWEL, LONG HD | 6 | PARTS REQUEST | |
|
COMING ARM, TROWEL, LONG HD
32383 · qty on machine: 6 Also included in kit 24 - SPIDER ASSY., 6-BLADE RH L (48356); kit 14 - ARM ASSEMBLY, LONG RS (32385) | |||||
| 21 | 48183 | WASHER, HARDENED M14 SPIDER HUB | 1 | ADD TO CART | |
| 22 | 48184 | SCREW, SHC, M14-2.0 X 30, 12.9 | 6 | APPLY LOCTITE 246 | ADD TO CART |
| 23 | 43729 | CAP PLUG, SPIDER HUB | 1 | ADD TO CART | |
| 24 | 48356 | SPIDER ASSY., 6-BLADE RH LONG | 1 | INCLUDES ITEMS W/# | ADD TO CART |
| 25 | 20939 | THRUST COLLAR ASSEMBLY | 1 | INCLUDES ITEMS W/$ | ADD TO CART |

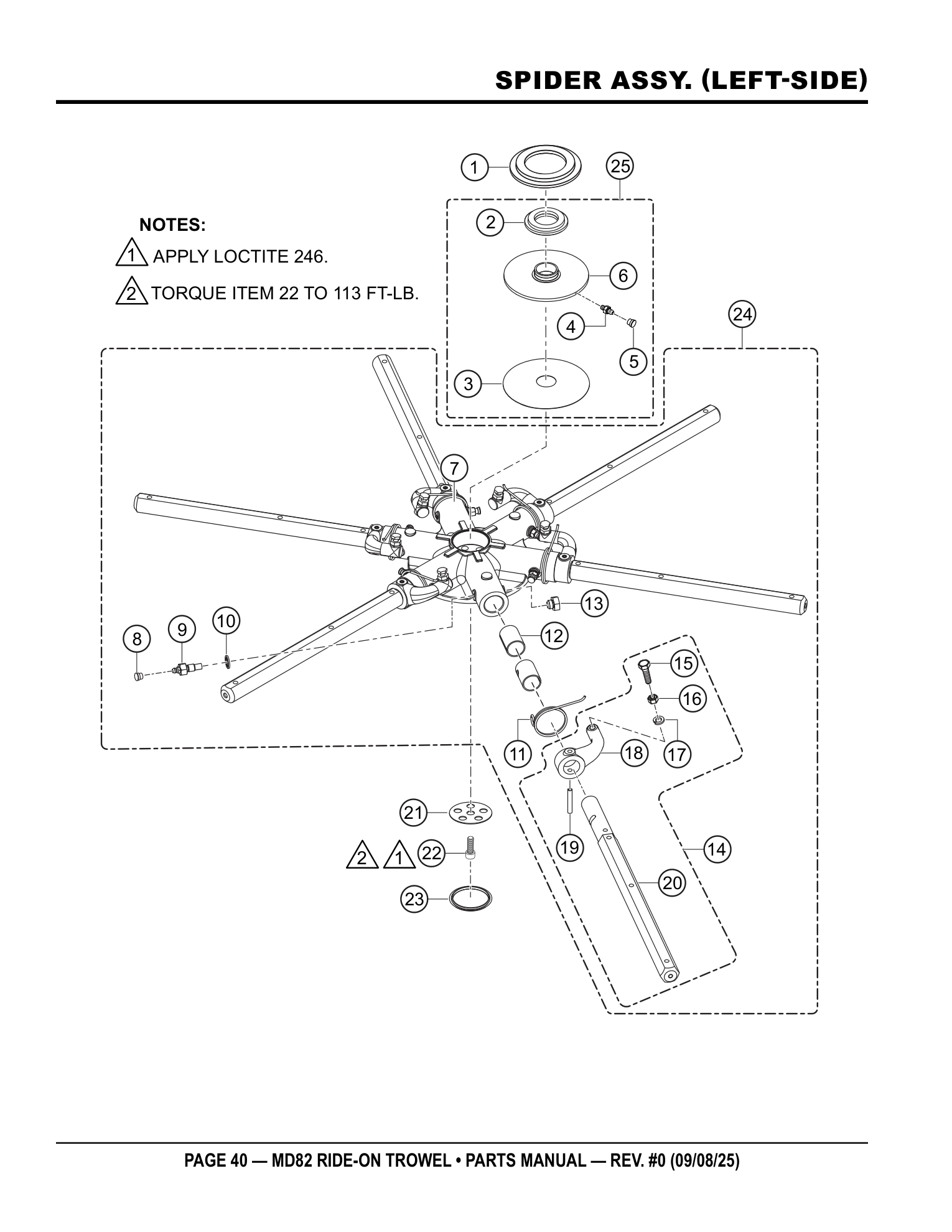

Page 40 — SPIDER ASSY. (LEFT-SIDE)
Parts list — exactly as printed25 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 43089 | COLLAR, BEARING EXTENDER | 1 | ADD TO CART | |
| 2$ | 12779 | BEARING, 85MM X 130MM, FLANGED | 1 | ADD TO CART | |
| 3$ | 12250 | PLATE, WEAR | 1 | ADD TO CART | |
| 4$ | 2621 | FITTING, GREASE ZERK STR 1/4-28 | 2 | ADD TO CART | |
| 5$ | 1162A | CAP, GREASE ZERK | 2 | ADD TO CART | |
| 6$ | 12315 | THRUST COLLAR W/ BUSHING | 1 | ADD TO CART | |
| 7# | 48182 | SPIDER PLATE, RD HUB | 1 | ADD TO CART | |
| 8# | 1162A | CAP, GREASE ZERK | 6 | ADD TO CART | |
| 9# | 1322 | SCREW, TROWEL ARM RETAINING | 6 | ADD TO CART | |
| 10# | 1875 | WASHER, INT. SHKP 3/8 | 6 | ADD TO CART | |
| 11# | 9111 | SPRING, LS H ARM RETURN | 6 | ADD TO CART | |
| 12# | 11039 | BUSHING, TROWEL ARM 2 PIECE | 12 | ADD TO CART | |
| 13# | 11602 | SCREW, SHX 3/8-16 X 1/4 | 6 | ADD TO CART | |
| 14# | 32384 | ARM ASSEMBLY, LONG LS | 6 | INCLUDES ITEMS W/% | ADD TO CART |
| 15%# | 21031 | SCREW HHC ROUNDED 7/16-14 | 6 | ADD TO CART | |
| 16%# | 07034-007 | NUT, HEX JAM 7/16-14 PLATED | 6 | ADD TO CART | |
| 17%# | 2955 | WASHER, LOCK, 7/16 ZINC | 6 | ADD TO CART | |
| 18%# | 21049 | LEVER, TROWEL ARM LS | 6 | ADD TO CART | |
| 19%# | 32045 | PIN, COILED SPRING 5/16 X 2.00" | 6 | ADD TO CART | |
| 20%# | 32383 | ARM, TROWEL, LONG HD | 6 | PARTS REQUEST | |
|
COMING ARM, TROWEL, LONG HD
32383 · qty on machine: 6 Also included in kit 24 - SPIDER ASSY., 6-BLADE LH L (48357); kit 14 - ARM ASSEMBLY, LONG LS (32384) | |||||
| 21 | 48183 | WASHER, HARDENED M14 SPIDER HUB | 1 | ADD TO CART | |
| 22 | 48184 | SCREW, SHC, M14-2.0 X 30, 12.9 | 6 | APPLY LOCTITE 246 | ADD TO CART |
| 23 | 43729 | CAP PLUG, SPIDER HUB | 1 | ADD TO CART | |
| 24 | 48357 | SPIDER ASSY., 6-BLADE LH LONG | 1 | INCLUDES ITEMS W/# | ADD TO CART |
| 25 | 20939 | THRUST COLLAR ASSEMBLY | 1 | INCLUDES ITEMS W/$ | ADD TO CART |

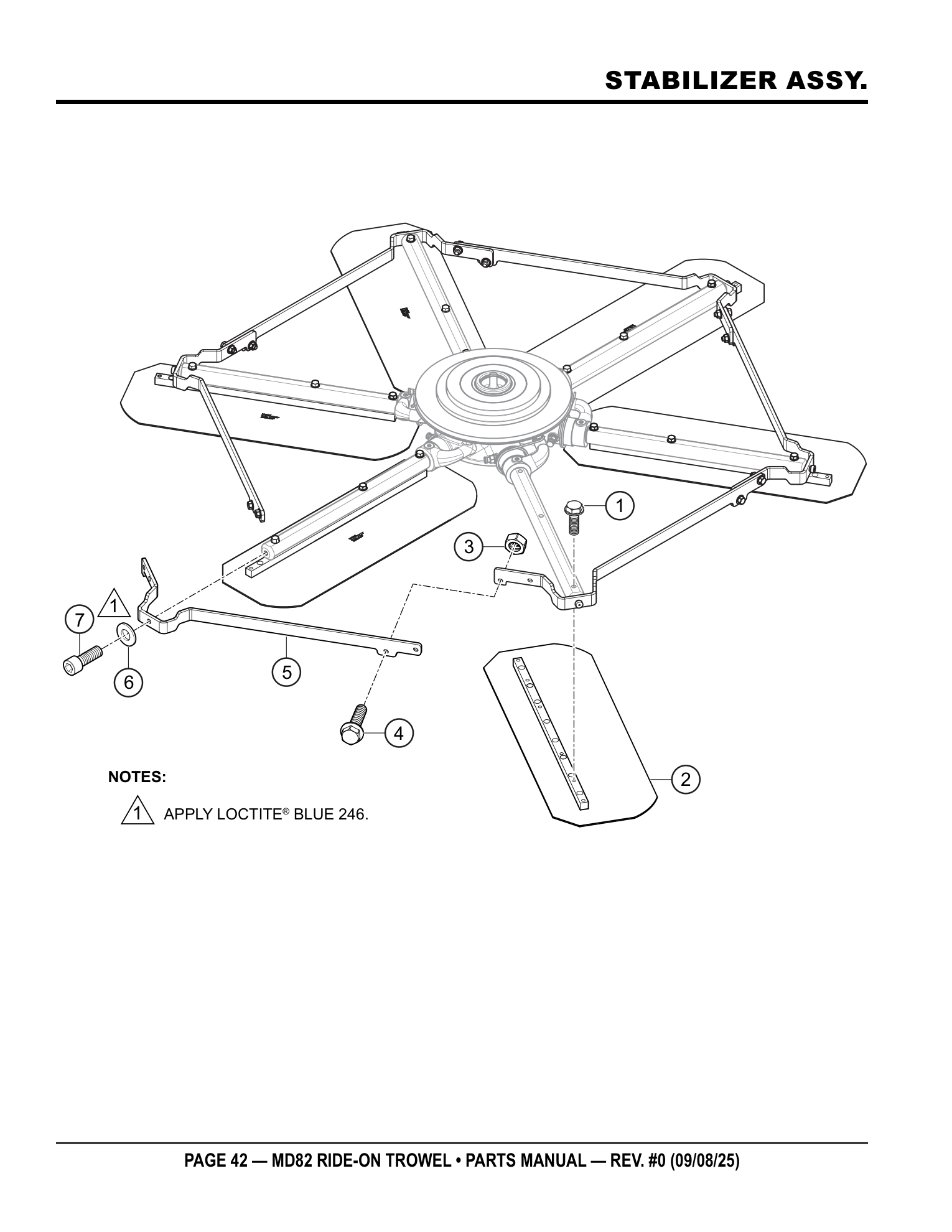

Page 42 — STABILIZER ASSY.
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 22174 | SCREW, HHFS 5/16-18 X 1.75 GR 5 | 18 | ADD TO CART | |
| 2 | BLADE, COMBO ENDURO 8 X | 16 | 6 CONTACT MQ UNIT SALES | SEE REMARKS | |
|
COMING BLADE, COMBO ENDURO 8 X
· qty on machine: 16 6 CONTACT MQ UNIT SALES SEE REMARKS
| |||||
| 3 | 23802 | NUT, HEX. FLANGED M8-1.25 | 12 | ADD TO CART | |
| 4 | 42436 | SCREW, HFS M8-1.25 X 25 GR 8.8 | 12 | ADD TO CART | |
| 5 | 43887 | STRUT, STABILIZER GEN 4 | 6 | ADD TO CART | |
| 6 | 28275-001 | WASHER, FLAT 5/16 USS HI-STRENGTH | 6 | ADD TO CART | |
| 7 | 10382 | BOLT, SHOULDER 3/8 X 3/8 LONG | 6 | APPLY LOCTITE 246 | ADD TO CART |
Page 44 — HYDRAULIC FILTER AND MANIFOLD ASSY.
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 2113 | FITTING, PLUG 1/8MP HEX. SKT HD | 1 | ADD TO CART | |
| 2 | 3322 | FITTING, 90° 10MJ-10MO | 1 | ADD TO CART | |
| 3 | 11722 | FITTING, 90° 6MJ-6MO | 1 | ADD TO CART | |
| 4 | 12546 | FITTING, QD 4MO DIAGN. | 2 | ADD TO CART | |
| 5 | 21095 | FITTING, STR 4MJ-4MO | 2 | ADD TO CART | |
| 6 | 22145 | FITTING, 90° -12MO X -10MJ | 1 | ADD TO CART | |
| 7 | 32468 | FITTING, PLUG - ORING - 10 | 1 | ADD TO CART | |
| 8 | 35157 | FITTING, TEE 4MO - 4MJ - 4MJ RUN | 2 | PARTS REQUEST | |
|
COMING FITTING, TEE 4MO - 4MJ - 4MJ RUN
35157 · qty on machine: 2 | |||||
| 9 | 42342 | SCREW, HFS, M8-1.25 X 16 GR 8.8 | 2 | ADD TO CART | |
| 10 | 42352 | NUT, HEX. SERRATED-FLANGE, M6 -1.0 | 2 | ADD TO CART | |
| 11 | 42929 | SCREW, HHF M6-1.0 X 70 - 8.8 | 2 | PARTS REQUEST | |
|
COMING SCREW, HHF M6-1.0 X 70 - 8.8
42929 · qty on machine: 2 | |||||
| 12 | 45467 | VALVE ASSY., PRESS. REDUC. STEERING | 1 | ADD TO CART | |
| 13 | 45531 | DECAL, TEMP IND, 86°F TO 194°F | 1 | ADD TO CART | |
| 14 | 45624 | HOUSING, FILTER, SAE-12 INLINE | 1 | ADD TO CART | |
| 15 | 45643 | FITTING, PLUG 1/16MP HEX. SKT. HD. | 1 | PARTS REQUEST | |
|
COMING FITTING, PLUG 1/16MP HEX. SKT. HD.
45643 · qty on machine: 1 | |||||
| 16 | 45644 | FILTER, HYDRAULIC 10 MICRON | 1 | ADD TO CART | |
| 17 | 48628 | BRACKET, HYD. MANIFOLD | 1 | ADD TO CART | |
| 18 | 48644 | MANIFOLD, RETURN/STEERING | 1 | ADD TO CART | |
| 19 | 48646 | FITTING, 12MO 12MO 90° | 1 | PARTS REQUEST | |
|
COMING FITTING, 12MO 12MO 90°
48646 · qty on machine: 1 | |||||
| 20 | 368817 | FITTING, 90° 4MJ - 4MO | 2 | ADD TO CART | |

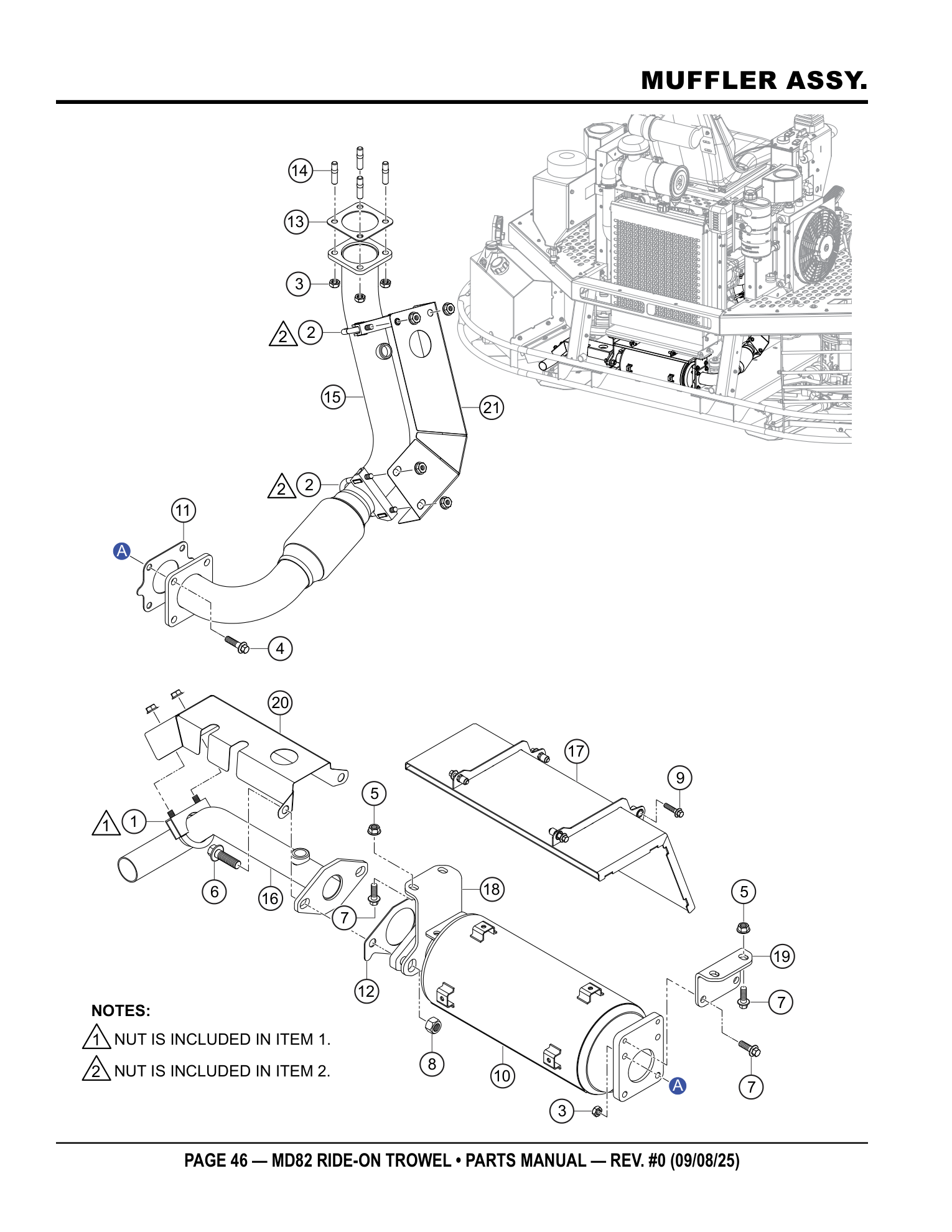

Page 46 — MUFFLER ASSY.
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 10855 | CLAMP, 1-1/2 MUFFLER, GUILLOTINE | 1 | ADD TO CART | |
| 2 | 12597 | CLAMP, MUFFLER, 2" | 2 | ADD TO CART | |
| 3 | 20440 | NUT, HEX LOCK M8-1.25 THIN | 8 | ADD TO CART | |
| 4 | 23792 | SCREW, HFS M8-1.25 X 30 | 4 | ADD TO CART | |
| 5 | 23802 | NUT, HEX FLANGED M8-1.25 SERRATED | 4 | ADD TO CART | |
| 6 | 42351 | SCREW, HFS M12-1.75 X 40 GR 8.8 | 2 | ADD TO CART | |
| 7 | 42436 | SCREW, HFS M8-1.25 X 25 GR 8.8 | 6 | ADD TO CART | |
| 8 | 42443 | NUT, HEX LOCK M12-1.75 DEFORMED | 2 | ADD TO CART | |
| 9 | 43724 | SCREW, HFS M6-1.0 X 25MM CLASS 8.8 | 4 | ADD TO CART | |
| 10 | 48202-01 | CATALYTIC CONVERTER | 1 | PARTS REQUEST | |
|
COMING CATALYTIC CONVERTER
48202-01 · qty on machine: 1 | |||||
| 11 | 48202-22 | GASKET, EXHAUST | 1 | PARTS REQUEST | |
|
COMING GASKET, EXHAUST
48202-22 · qty on machine: 1 | |||||
| 12 | 48202-23 | GASKET, EXHAUST | 1 | PARTS REQUEST | |
|
COMING GASKET, EXHAUST
48202-23 · qty on machine: 1 | |||||
| 13 | 48202-24 | GASKET, ENGINE EXHAUST | 1 | PARTS REQUEST | |
|
COMING GASKET, ENGINE EXHAUST
48202-24 · qty on machine: 1 | |||||
| 14 | 48202-25 | STUD, M8 - 1.25 X 30MM | 4 | PARTS REQUEST | |
|
COMING STUD, M8 - 1.25 X 30MM
48202-25 · qty on machine: 4 | |||||
| 15 | 48218 | EXHAUST PIPE | 1 | ADD TO CART | |
| 16 | 48219 | EXHAUST TIP | 1 | ADD TO CART | |
| 17 | 48932 | HEAT SHIELD ASSY., CAT/MUFFER | 1 | ADD TO CART | |
| 18 | 48949 | BRACKET, MUFFLER, LEFT | 1 | ADD TO CART | |
| 19 | 48950 | BRACKET, MUFFLER, RIGHT | 1 | ADD TO CART | |
| 20 | 48995 | HEAT SHIELD, EXHAUST TIP | 1 | PARTS REQUEST | |
|
COMING HEAT SHIELD, EXHAUST TIP
48995 · qty on machine: 1 | |||||
| 21 | 48996 | HEAT SHIELD, EXHAUST UPPER | 1 | PARTS REQUEST | |
|
COMING HEAT SHIELD, EXHAUST UPPER
48996 · qty on machine: 1 | |||||

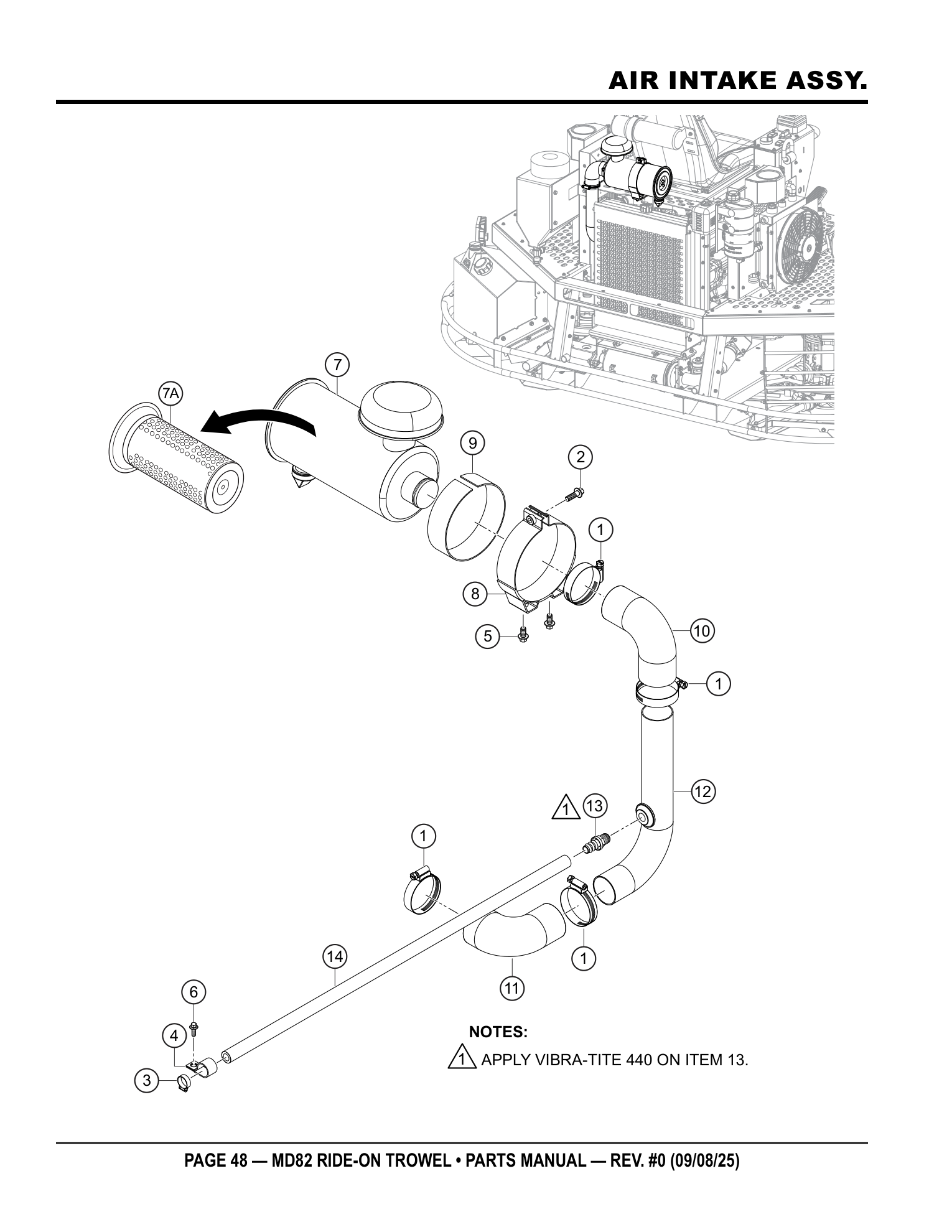

Page 48 — AIR INTAKE ASSY.
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 12277 | CLAMP, HOSE WORM # 36 | 4 | ADD TO CART | |
| 2 | 15226 | SCREW, HFS, M8 - 1.25 X 25 | 1 | PARTS REQUEST | |
|
COMING SCREW, HFS, M8 - 1.25 X 25
15226 · qty on machine: 1 | |||||
| 3 | 15538 | CLAMP, HOSE WORM # 6 | 1 | ADD TO CART | |
| 4 | 25647 | CLAMP, HOSE 3/4 LOOP X .406 HOLE | 1 | ADD TO CART | |
| 5 | 42342 | SCREW, HFS, M8-1.25 X 16 GR 8.8 | 2 | ADD TO CART | |
| 6 | 42542 | SCREW HFS M6-1.0 X16 | 1 | ADD TO CART | |
| 7 | 48202-10 | AIR FILTER ASSEMBLY | 1 | PARTS REQUEST | |
|
COMING AIR FILTER ASSEMBLY
48202-10 · qty on machine: 1 | |||||
| 7A | 1574111084 | ASSY. ELEMENT, A/C | 1 | ADD TO CART | |
| 8 | 48202-11 | BRACKET, AIR FILTER | 1 | PARTS REQUEST | |
|
COMING BRACKET, AIR FILTER
48202-11 · qty on machine: 1 | |||||
| 9 | 48202-26 | RUBBER LINER STRIP, AIRBOX | 1 | PARTS REQUEST | |
|
COMING RUBBER LINER STRIP, AIRBOX
48202-26 · qty on machine: 1 | |||||
| 10 | 48785 | INTAKE ELBOW, 2 IN | 1 | PARTS REQUEST | |
|
COMING INTAKE ELBOW, 2 IN
48785 · qty on machine: 1 | |||||
| 11 | 48786 | INTAKE ELBOW, REDUCTION | 1 | PARTS REQUEST | |
|
COMING INTAKE ELBOW, REDUCTION
48786 · qty on machine: 1 | |||||
| 12 | 48925 | INTAKE PIPE W/A | 1 | PARTS REQUEST | |
|
COMING INTAKE PIPE W/A
48925 · qty on machine: 1 | |||||
| 13 | 369007 | FITTING, BRASS 8 PUSH-ON - 3/8MP | 1 | APPLY VIBRA-TITE 440 | ADD TO CART |
| 14 | EE60377 | HOSE,1/2" ID, 200 PSI (2.542) | 1 | PARTS REQUEST | |
|
COMING HOSE,1/2" ID, 200 PSI (2.542)
EE60377 · qty on machine: 1 | |||||

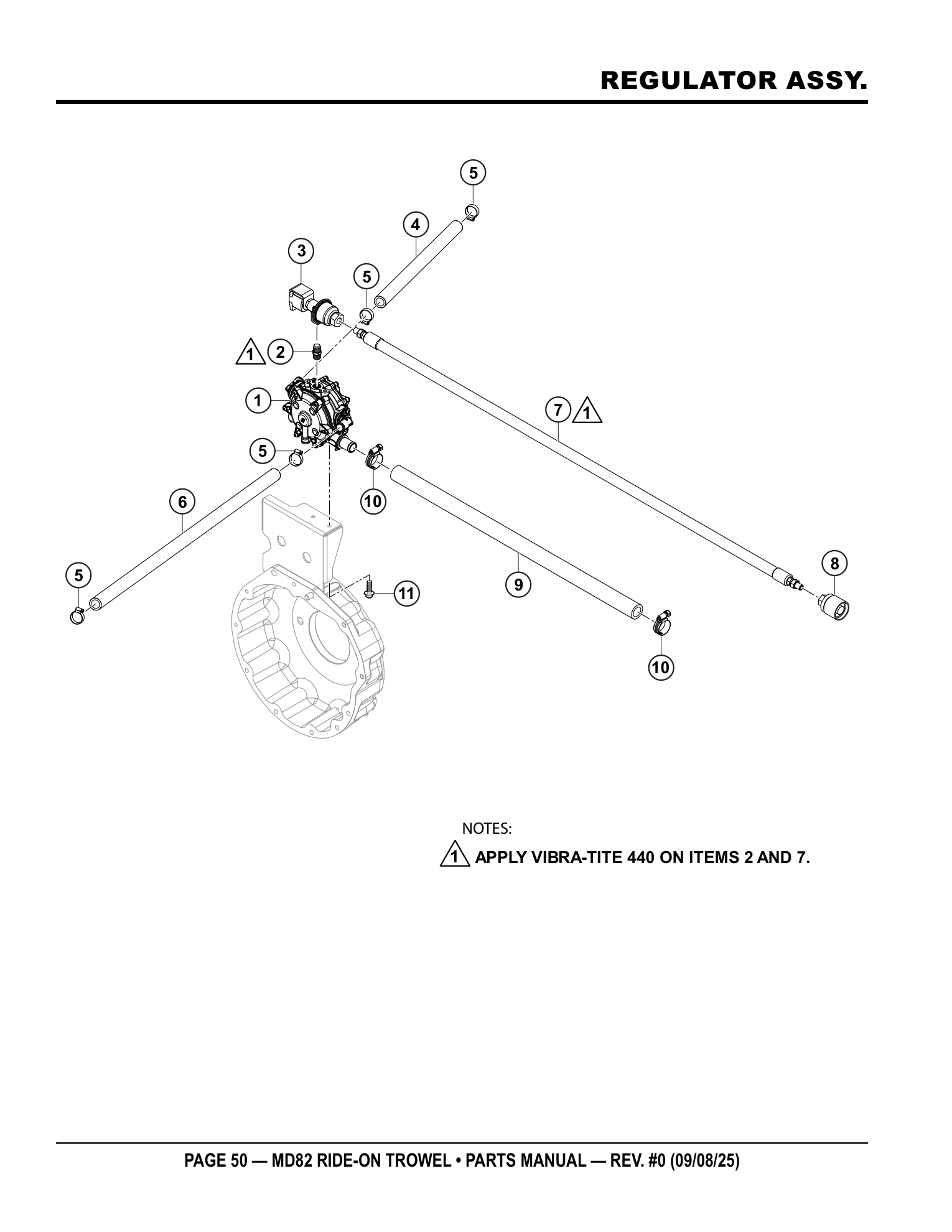

Page 50 — REGULATOR ASSY.
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 48202-12 | LPG VAPOR REGULATOR | 1 | PARTS REQUEST | |
|
COMING LPG VAPOR REGULATOR
48202-12 · qty on machine: 1 | |||||
| 2 | 43719 | FITTING, BRASS 1/4MP - 1/4MP X 1.13" | 1 | APPLY VIBRA-TITE 440 | ADD TO CART |
| 3 | 48202-06 | SOLENOID VALVE | 1 | PARTS REQUEST | |
|
COMING SOLENOID VALVE
48202-06 · qty on machine: 1 | |||||
| 4 | 60169 | HOSE, OIL DRAIN, 0.625 ID, 300F | 1 | 1.08 FT. | ADD TO CART |
| 5 | 15538 | CLAMP, HOSE WORM # 6 | 4 | ADD TO CART | |
| 6 | 60169 | HOSE, OIL DRAIN, 0.625 ID, 300F | 1 | 2.67 FT. | ADD TO CART |
| 7 | 43047 | HOSE ASSY., 1/4"ID LPG X 44.5", 2X 1/4MP | 1 | APPLY VIBRA-TITE 440 | ADD TO CART |
| 8 | 30007 | CONNECTOR, PROPANE TANK, FEMALE | 1 | ADD TO CART | |
| 9 | 60151 | HOSE, 3/4"IDX1.00"BLACK RUBBER | 1 | 2 FT. | PARTS REQUEST |
|
COMING HOSE, 3/4"IDX1.00"BLACK RUBBER
60151 · qty on machine: 1 2 FT. | |||||
| 10 | 3333 | CLAMP, HOSE WORM # 12 | 2 | ADD TO CART | |
| 11 | 42542 | SCREW HFS M6-1.0 X16 | 2 | ADD TO CART | |

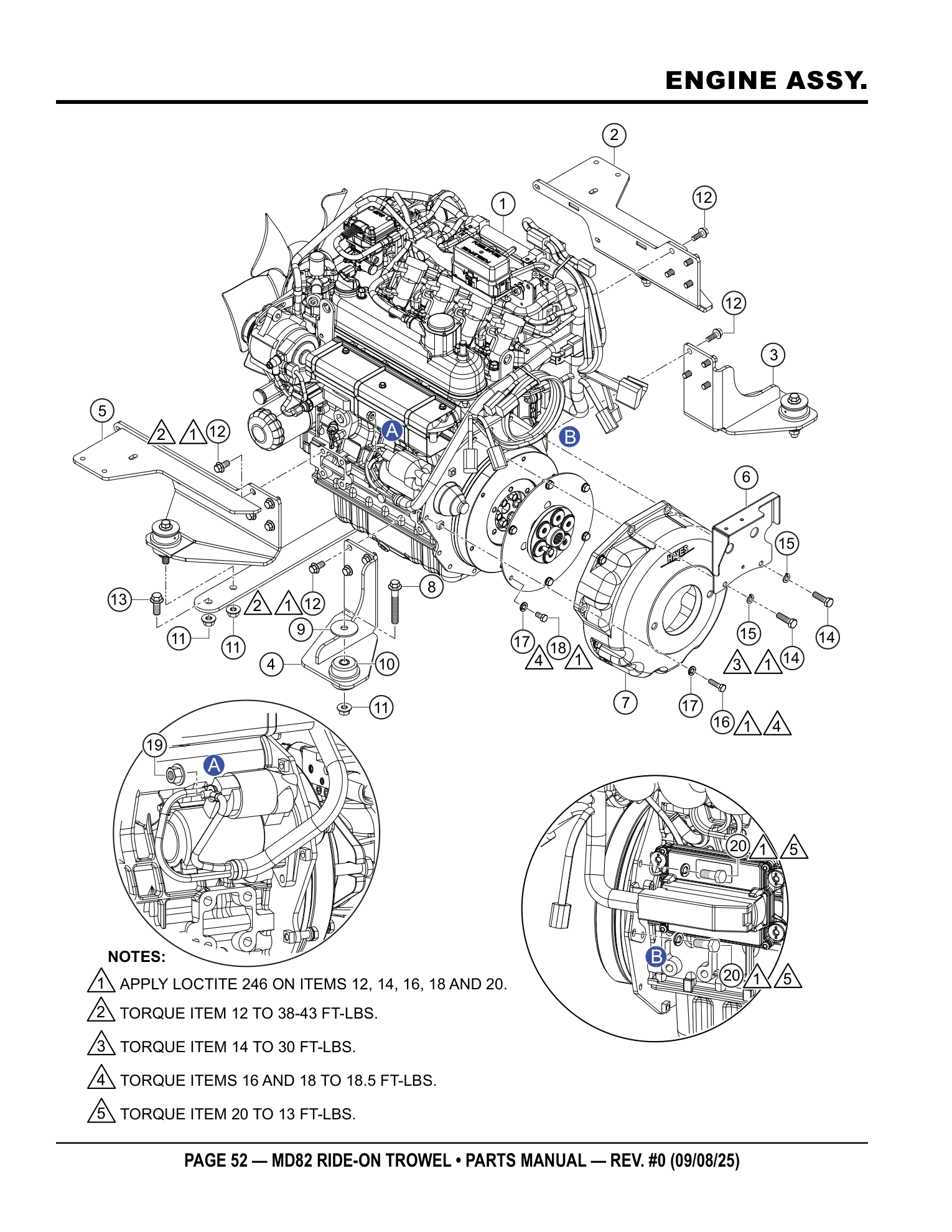

Page 52 — ENGINE ASSY.
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 48202 | ENGINE, KUBOTA WG1605, DF | 1 | PARTS REQUEST | |
|
COMING ENGINE, KUBOTA WG1605, DF
48202 · qty on machine: 1 | |||||
| 2 | 48076 | ENGINE MOUNT, LEFT HAND REAR | 1 | ADD TO CART | |
| 3 | 48930 | ENGINE MOUNT, LEFT HAND FRONT | 1 | ADD TO CART | |
| 4 | 48929 | ENGINE MOUNT, RIGHT HAND FRONT | 1 | ADD TO CART | |
| 5 | 48077 | ENGINE MOUNT, RIGHT HAND REAR | 1 | ADD TO CART | |
| 6 | 48216 | REGULATOR BRACKET, LPG | 1 | ADD TO CART | |
| 7 | 48495 | COUPLING ASSY., KUBOTA -05 HOUSING | 1 | PARTS REQUEST | |
|
COMING COUPLING ASSY., KUBOTA -05 HOUSING
48495 · qty on machine: 1 | |||||
| 8 | 9176 | SCREW, HHF M12-1.75 X 80 GR 10.9 | 4 | ADD TO CART | |
| 9 | 20743 | WASHER, ISO SNUB | 4 | ADD TO CART | |
| 10 | 23201-2 | ISOLATOR, ARMOR PLATED UNIVERSAL | 4 | ADD TO CART | |
| 11 | 42451 | NUT, HEX, SERRATED-FLANGE, M12-1.75 | 6 | ADD TO CART | |
| 12 | 23767 | SCREW, HHF M10-1.25 X 20M GR 10.9 | 16 | APPLY LOCTITE 246 TORQUE TO 38-43 FT-LBS | ADD TO CART |
| 13 | 23305 | SCREW, HFS M12-1.75 X 30 8.8 | 2 | ADD TO CART | |
| 14 | 42336 | SCREW, HHC, M10-1.25 X 35, CLASS 8.8 | 2 | APPLY LOCTITE 246 TORQUE TO 30 FT-LBS | ADD TO CART |
| 15 | 29091 | WASHER, SPLIT LOCK, M10 | 2 | ADD TO CART | |
| 16 | 20983 | SCREW, HHC M8-1.25 X 30 MM | 6 | APPLY LOCTITE 246 TORQUE TO 18.5 FT-LBS | ADD TO CART |
| 17 | 42358 | WASHER, SPLIT LOCK, M8 | 14 | PARTS REQUEST | |
|
COMING WASHER, SPLIT LOCK, M8
42358 · qty on machine: 14 | |||||
| 18 | 2299 | SCREW, HHC M8-1.25 X 16MM | 6 | APPLY LOCTITE 246 TORQUE TO 18.5 FT-LBS | ADD TO CART |
| 19 | 23802 | NUT, HEX FLANGED M8-1.25 SERRATED | 1 | ADD TO CART | |
| 20 | 2866 | SCREW, HHC M8-1.25 X 20MM | 2 | APPLY LOCTITE 246 TORQUE TO 13 FT-LBS | ADD TO CART |

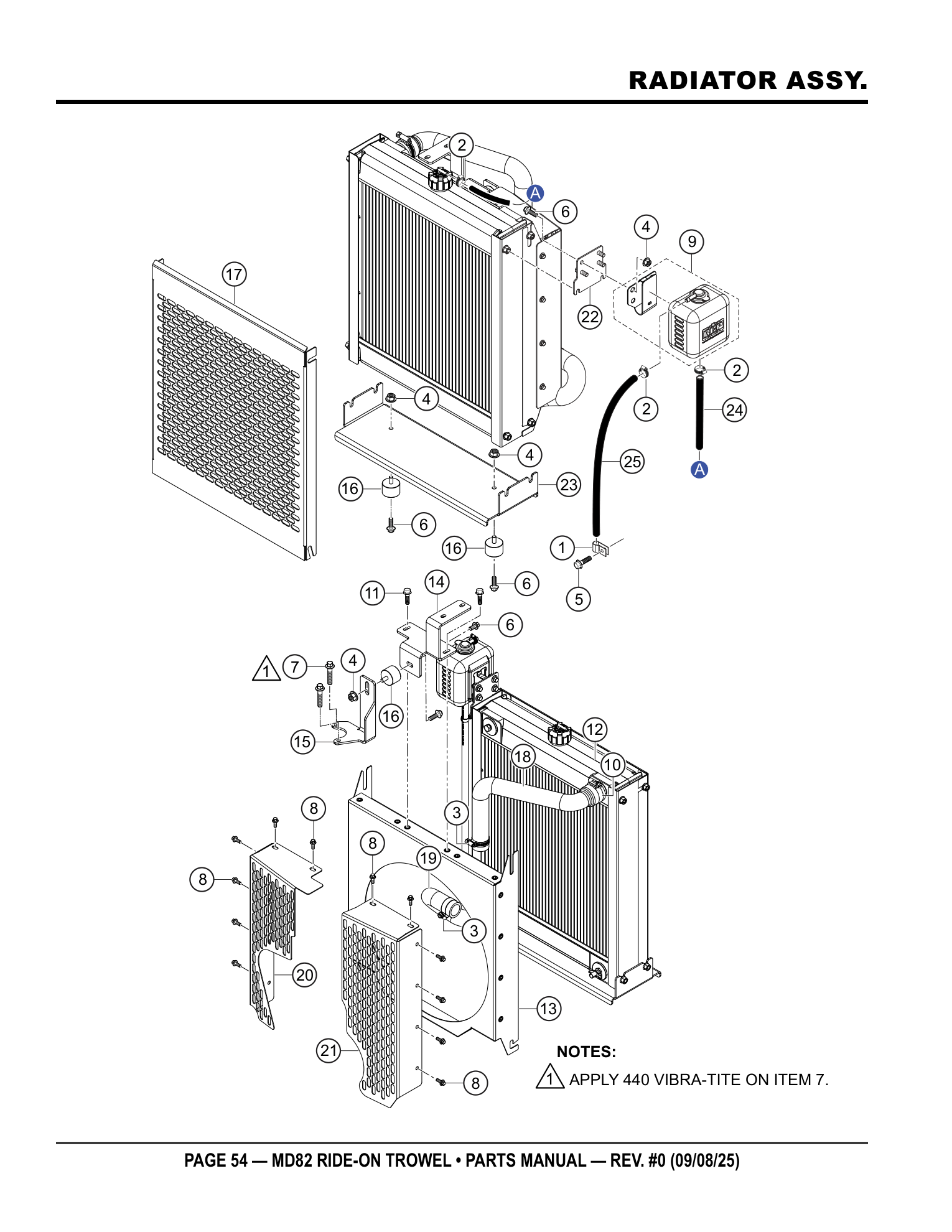

Page 54 — RADIATOR ASSY.
Parts list — exactly as printed25 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 8126 | CLAMP, HOSE 1/2" LOOP X 0.25 HOLE | 1 | ADD TO CART | |
| 2 | 19473 | CLAMP, HOSE WORM #2, 1/4" TO 5/8" | 3 | ADD TO CART | |
| 3 | 21552 | CLAMP, HOSE WORM #16 | 2 | ADD TO CART | |
| 4 | 23802 | NUT, HEX. FLANGED M8-1.25 SERRATED | 7 | ADD TO CART | |
| 5 | 42325 | SCREW, HHC M6-1.0 X 20 CAP. WASHER | 1 | ADD TO CART | |
| 6 | 42342 | SCREW, HFS M8-1.25 X 16 GR 8.8 | 7 | ADD TO CART | |
| 7 | 42346 | SCREW, HFS M8-1.25 X 40 GR 8.8 | 2 | APPLY VIBRA-TITE 440 | ADD TO CART |
| 8 | 42542 | SCREW, HFS M6-1.0 X 16 | 12 | ADD TO CART | |
| 9 | 43140-79 | OVERFLOW TANK W/ BRACKET | 1 | ADD TO CART | |
| 10 | 43146 | CLAMP, HOSE TORRO 35-50/12 | 2 | ADD TO CART | |
| 11 | 43724 | SCREW, HFS M6-1.0 X 25MM CLASS 8.8 | 2 | ADD TO CART | |
| 12 | 48206 | RADIATOR, KUBOTA ENGINE | 1 | ADD TO CART | |
| 13 | 48211 | FAN SHROUD ASSEMBLY | 1 | ADD TO CART | |
| 14 | 48212 | MOUNT, TOP RADIATOR | 1 | ADD TO CART | |
| 15 | 48213 | MOUNT, RAD. THERMOSTAT HSG. | 1 | ADD TO CART | |
| 16 | 48214 | ISOLATOR, M8 X 1.25 | 3 | ADD TO CART | |
| 17 | 48716 | ROCK GUARD | 1 | ADD TO CART | |
| 18 | 48778 | HOSE, UPPER RADIATOR | 1 | ADD TO CART | |
| 19 | 48779 | HOSE, LOWER RADIATOR | 1 | ADD TO CART | |
| 20 | 48926 | FAN GUARD, RH | 1 | ADD TO CART | |
| 21 | 48927 | FAN GUARD, LH | 1 | ADD TO CART | |
| 22 | 48928 | BRACKET, OVERFLOW TANK | 1 | PARTS REQUEST | |
|
COMING BRACKET, OVERFLOW TANK
48928 · qty on machine: 1 | |||||
| 23 | 52131 | MOUNT, RADIATOR LOWER | 1 | ADD TO CART | |
| 24 | 60028 | HOSE, FUEL Ø .312 LOW PERM 50 PSI | 1 | 1.67 FT. | ADD TO CART |
| 25 | 60028 | HOSE, FUEL Ø .312 LOW PERM 50 PSI | 1 | 1.50 FT. | ADD TO CART |

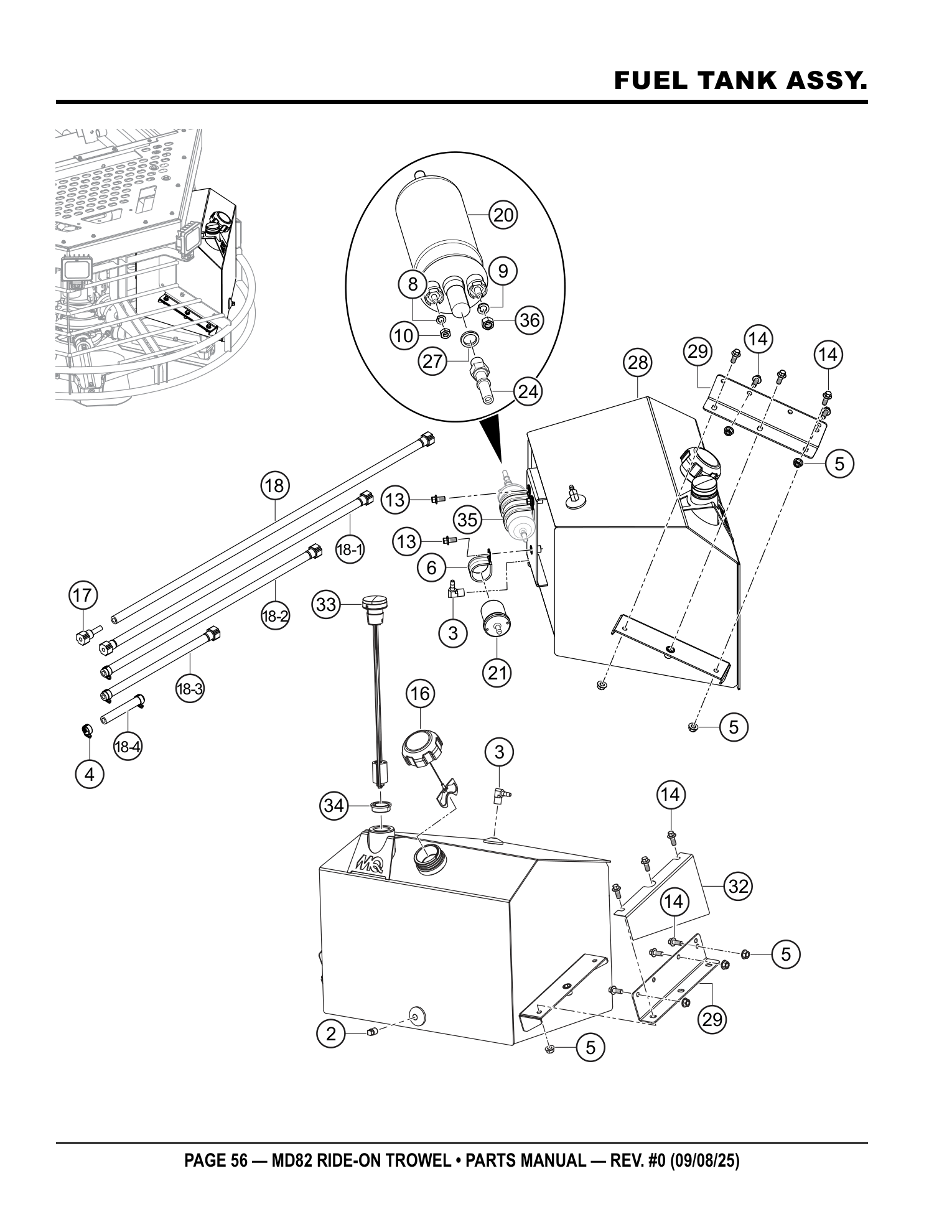

Page 56 — FUEL TANK ASSY.
Parts list — exactly as printed28 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 16185 | FITTING, PLUG 1/4 MP SQ. HD. | 1 | ADD TO CART | |
| 3 | 17206 | FITTING, 90° 5BARB - 1/4 MP | 2 | ADD TO CART | |
| 4 | 19473 | CLAMP, HOSE WORM #2 1/4" TO 5/8" | 4 | ADD TO CART | |
| 5 | 23802 | NUT, HEX. FLANGED M8-1.25 SERRATED | 9 | ADD TO CART | |
| 6 | 29796 | CLAMP, CUSHIONED LOOP | 1 | ADD TO CART | |
| 8 | 32662 | WASHER, SPLIT LOCK M4 | 1 | NO LONGER AVAILABLE | |
|
COMING WASHER, SPLIT LOCK M4
32662 · qty on machine: 1 NO LONGER AVAILABLE
| |||||
| 9 | 32663 | WASHER, SPLIT LOCK M5 | 1 | PARTS REQUEST | |
|
COMING WASHER, SPLIT LOCK M5
32663 · qty on machine: 1 | |||||
| 10 | 32664 | NUT, HEX. M4 | 1 | PARTS REQUEST | |
|
COMING NUT, HEX. M4
32664 · qty on machine: 1 | |||||
| 13 | 42342 | SCREW, HFS M8-1.25 X 16 GR 8.8 | 3 | ADD TO CART | |
| 14 | 42343 | SCREW, HFS M8-1.25 X 20 GR 8.8 | 11 | ADD TO CART | |
| 16 | 42446 | CAP, FUEL | 1 | ADD TO CART | |
| 17 | 42457 | FITTING, FUEL .312, STRAIGHT | 6 | ADD TO CART | |
| 18 | 42459 | HOSE, RUBBER .3125, LOW PERM 100 PSI | 1 | 2.5 FT. | ADD TO CART |
| 18-1 | 42459 | HOSE, RUBBER .3125, LOW PERM 100 PSI | 1 | 2.0 FT. | ADD TO CART |
| 18-2 | 42459 | HOSE, RUBBER .3125, LOW PERM 100 PSI | 1 | 1.67 FT. | ADD TO CART |
| 18-3 | 42459 | HOSE, RUBBER .3125, LOW PERM 100 PSI | 1 | 0.83 FT. | ADD TO CART |
| 18-4 | 42459 | HOSE, RUBBER .3125, LOW PERM 100 PSI | 1 | 0.31 FT. | ADD TO CART |
| 20 | 48202-04 | FUEL PUMP | 1 | PARTS REQUEST | |
|
COMING FUEL PUMP
48202-04 · qty on machine: 1 | |||||
| 21 | 48202-05 | FUEL FILTER | 1 | PARTS REQUEST | |
|
COMING FUEL FILTER
48202-05 · qty on machine: 1 | |||||
| 24 | 48202-18 | FUEL FITTING, COPPER SEAL M-10-1.0 | 1 | PARTS REQUEST | |
|
COMING FUEL FITTING, COPPER SEAL M-10-1.0
48202-18 · qty on machine: 1 | |||||
| 27 | 48202-21 | SEAL WASHER, 10MM | 1 | PARTS REQUEST | |
|
COMING SEAL WASHER, 10MM
48202-21 · qty on machine: 1 | |||||
| 28 | 48496 | FUEL TANK | 1 | PARTS REQUEST | |
|
COMING FUEL TANK
48496 · qty on machine: 1 | |||||
| 29 | 48503 | MOUNT BRACKET, FUEL TANK | 2 | ADD TO CART | |
| 32 | 48797 | HEAT SHIELD, FUEL TANK | 1 | ADD TO CART | |
| 33 | 48798 | FUEL TANK GUAGE | 1 | PARTS REQUEST | |
|
COMING FUEL TANK GUAGE
48798 · qty on machine: 1 | |||||
| 34 | 48799 | GROMMET, FUEL TANK GAUGE | 1 | PARTS REQUEST | |
|
COMING GROMMET, FUEL TANK GAUGE
48799 · qty on machine: 1 | |||||
| 35 | 59005 | CLAMP, LOOP 2.0" X .53 HOLE | 2 | ADD TO CART | |
| 36 | 940150 | NUT, HEX. FULL M5-0.8P | 1 | ADD TO CART | |

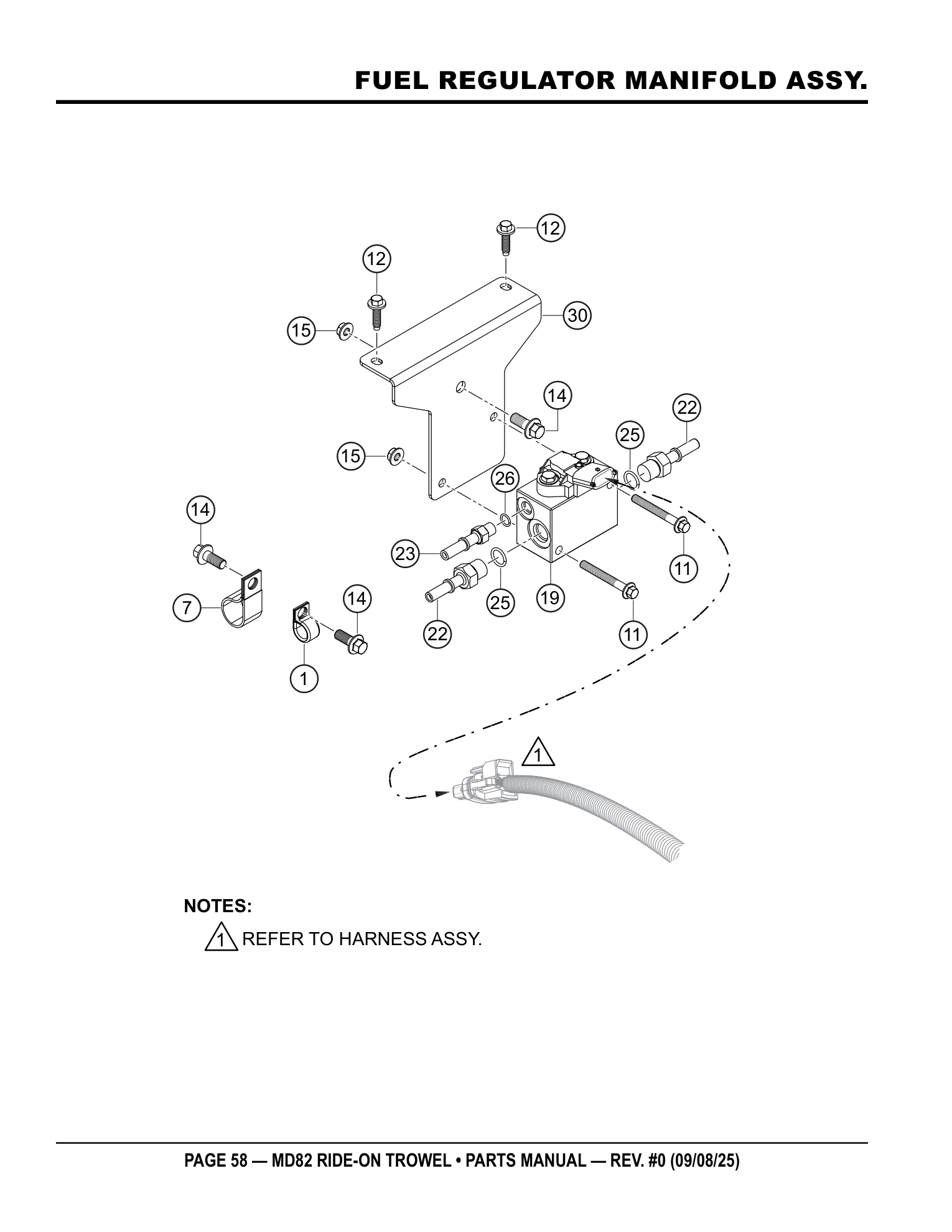

Page 58 — FUEL REGULATOR MANIFOLD ASSY.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 11505 | CLAMP, VINYL LOOP 1/2" X .406 | 1 | ADD TO CART | |
| 7 | 32083 | CLAMP, LOOP-VINYL | 1 | NO LONGER AVAILABLE | |
|
COMING CLAMP, LOOP-VINYL
32083 · qty on machine: 1 NO LONGER AVAILABLE
| |||||
| 11 | 32796 | SCREW, HFS M6-1 X 50 | 2 | PARTS REQUEST | |
|
COMING SCREW, HFS M6-1 X 50
32796 · qty on machine: 2 | |||||
| 12 | 42325 | SCREW, HHC M6-1.0 X 20, CAP. WASHER | 2 | ADD TO CART | |
| 14 | 42343 | SCREW, HFS M8-1.25 X 20 GR 8.8 | 3 | ADD TO CART | |
| 15 | 42352 | NUT, HEX. SERRATED-FLANGE, M6 -1.0 | 2 | ADD TO CART | |
| 19 | 48202-03 | FUEL REGULATOR MANIFOLD | 1 | PARTS REQUEST | |
|
COMING FUEL REGULATOR MANIFOLD
48202-03 · qty on machine: 1 | |||||
| 22 | 48202-16 | FUEL FITTING, 6 SAE O-RING SEAL | 2 | PARTS REQUEST | |
|
COMING FUEL FITTING, 6 SAE O-RING SEAL
48202-16 · qty on machine: 2 | |||||
| 23 | 48202-17 | FUEL FITTING, 3 SAE O-RING SEAL | 1 | PARTS REQUEST | |
|
COMING FUEL FITTING, 3 SAE O-RING SEAL
48202-17 · qty on machine: 1 | |||||
| 25 | 48202-19 | O-RING SEAL, 14MM | 2 | PARTS REQUEST | |
|
COMING O-RING SEAL, 14MM
48202-19 · qty on machine: 2 | |||||
| 26 | 48202-20 | O-RING SEAL, 9MM | 1 | PARTS REQUEST | |
|
COMING O-RING SEAL, 9MM
48202-20 · qty on machine: 1 | |||||
| 30 | 48506 | MOUNT BRACKET, FUEL MANIFOLD | 1 | ADD TO CART | |

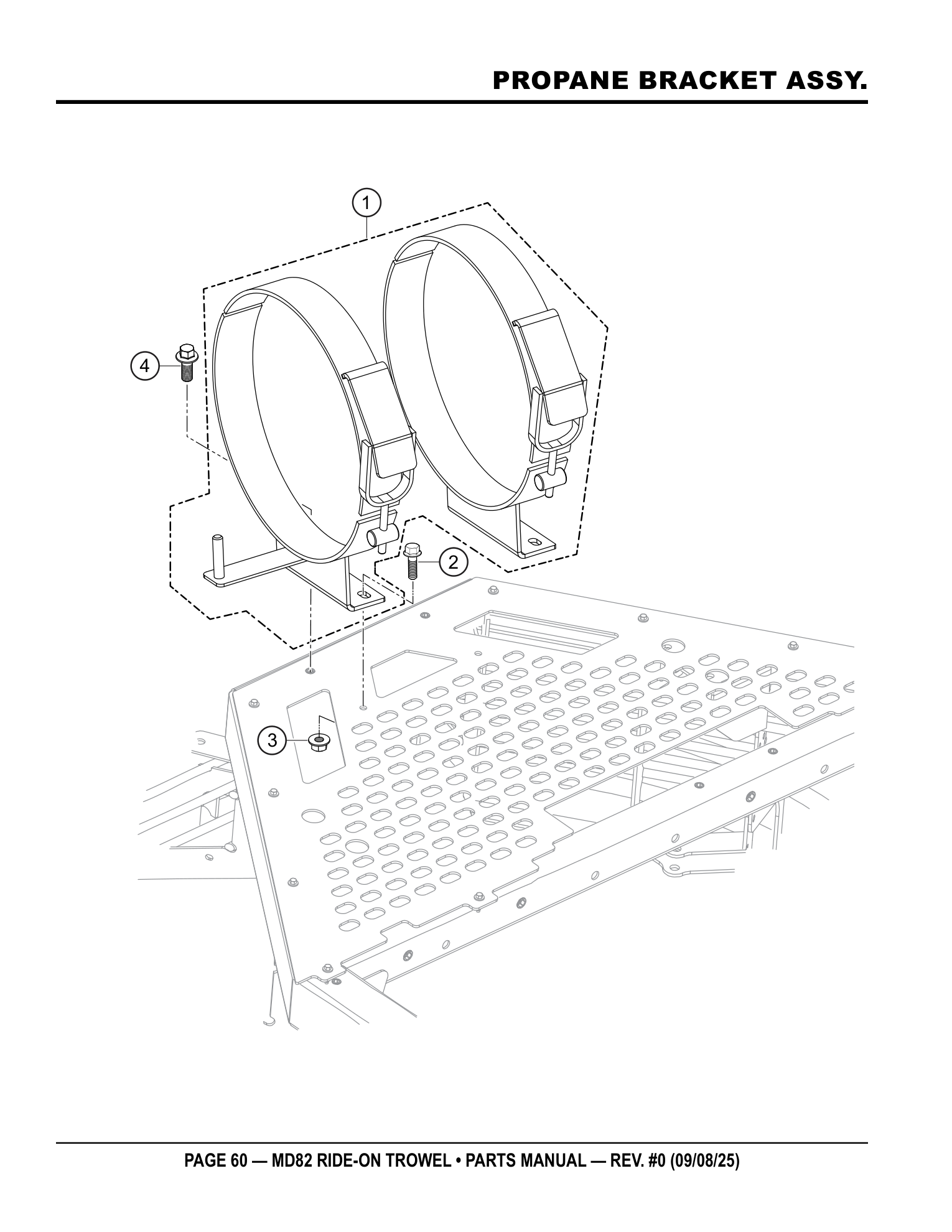

Page 60 — PROPANE BRACKET ASSY.
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 48455 | PROPANE BRACKET | 1 | ADD TO CART | |
| 2 | 42436 | SCREW, HFS M8-1.25 X 25 GR 8.8 | 2 | ADD TO CART | |
| 3 | 23802 | NUT, HEX. FLANGED M8-1.25 SERRATED | 2 | ADD TO CART | |
| 4 | 43724 | SCREW, HFS M6-1.0 X 25MM CLASS 8.8 | 2 | ADD TO CART | |

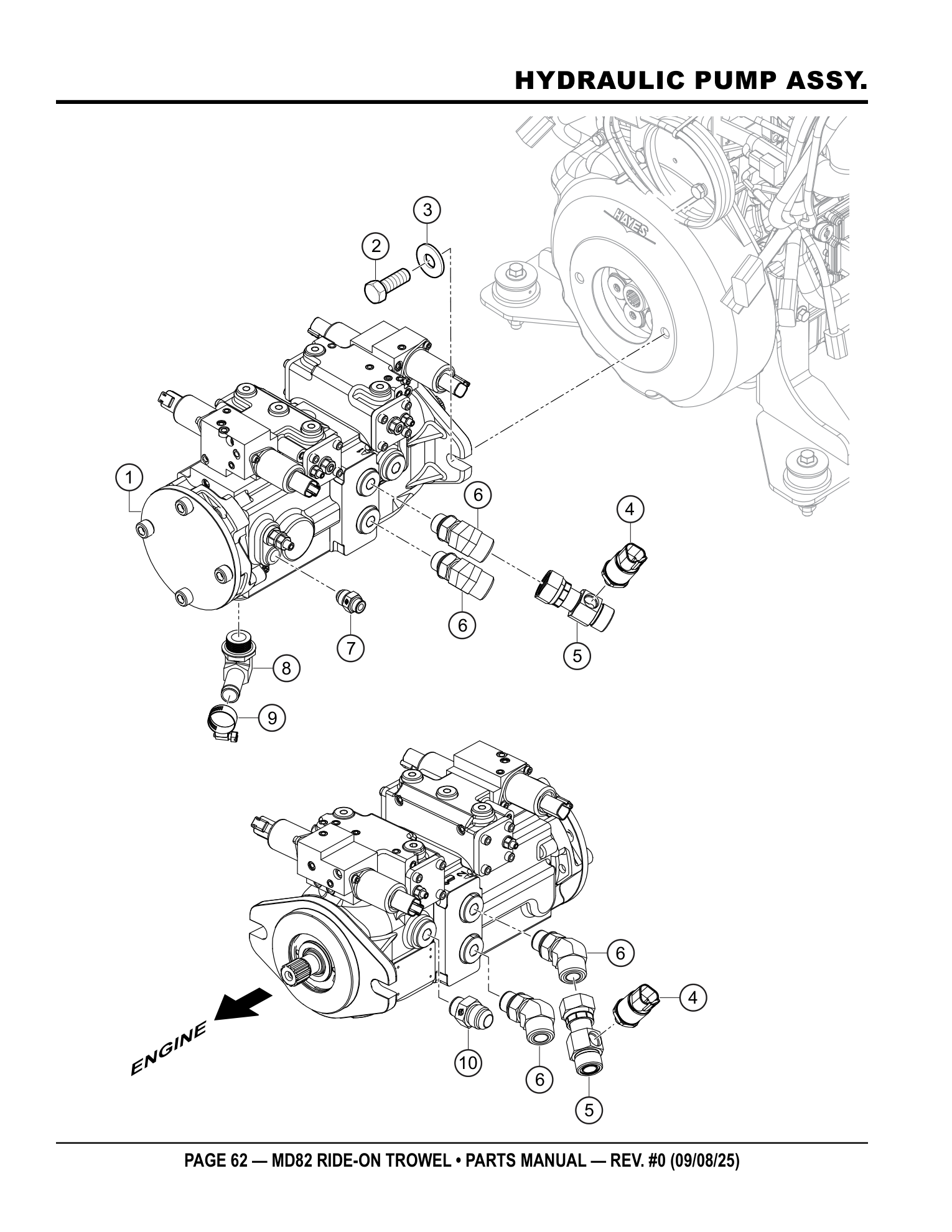

Page 62 — HYDRAULIC PUMP ASSY.
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 48920 | HYDRAULIC PUMP, 21CC | 1 | PARTS REQUEST | |
|
COMING HYDRAULIC PUMP, 21CC
48920 · qty on machine: 1 | |||||
| 2 | 16525 | SCREW, HHC 1/2-13 X 1-1/2 GD 8 | 2 | ADD TO CART | |
| 3 | 933244 | WASHER, FLAT SAE 1/2 GR 9 YZ | 2 | ADD TO CART | |
| 4 | 43120 | PRESSURE TRANSDUCER, 0-400 BAR | 2 | ADD TO CART | |
| 5 | 43942 | DIAGNOSTIC FITTING, -10 | 2 | ADD TO CART | |
| 6 | 48511 | FITTING, 45° 8MORB X 10MORF | 4 | PARTS REQUEST | |
|
COMING FITTING, 45° 8MORB X 10MORF
48511 · qty on machine: 4 | |||||
| 7 | 11887 | FITTING, STR. 6MJ-4MO | 1 | ADD TO CART | |
| 8 | 48936 | FITTING, 90° 3/4 BARB X -8MORB | 1 | PARTS REQUEST | |
|
COMING FITTING, 90° 3/4 BARB X -8MORB
48936 · qty on machine: 1 | |||||
| 9 | 23119 | CLAMP, HOSE WORM 3/4" TO 1-1/8" | 1 | ADD TO CART | |
| 10 | 48919 | FITTING, STR. -10MJIC X -8MORB | 1 | ADD TO CART | |

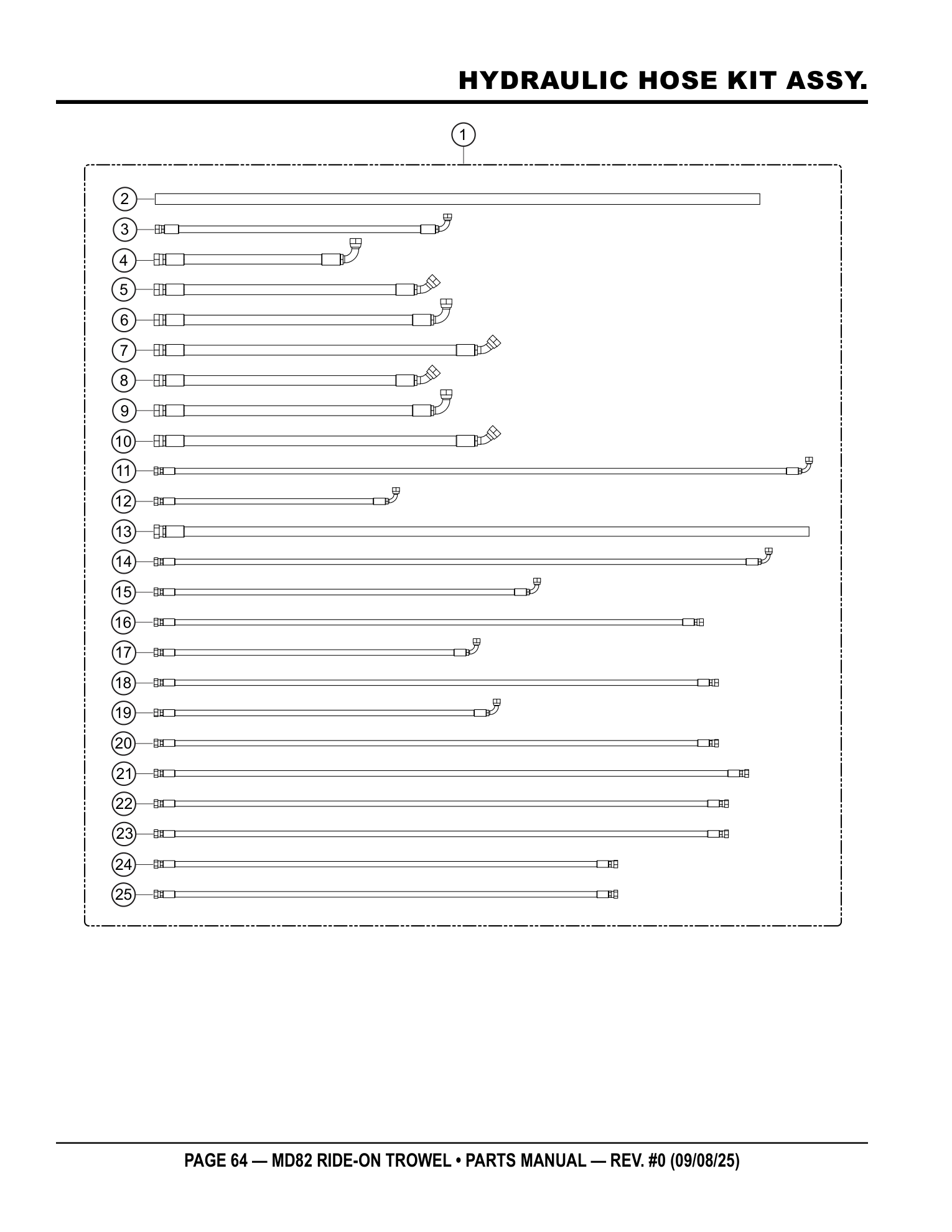

Page 64 — HYDRAULIC HOSE KIT ASSY.
Parts list — exactly as printed25 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 48701 | HOSE KIT ASSEMBLY | 1 | INCLUDES ITEMS W/# | PARTS REQUEST |
|
COMING HOSE KIT ASSEMBLY
48701 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 2#, 3#, 4#, 5#, 6#, 7#, 8#, 9#, 10#, 11#, 12#, 13#, 14#, 15#, 16#, 17#, 18#, 19#, 20#, 21#, 22#, 23#, 24#, 25# | |||||
| 2# | 48954 | HOSE, 3/4" X 60" | 1 | HOSE 1 | ADD TO CART |
| 3# | 48955 | HOSE ASSY., 3/8" X 29", -6FJIC X -6FJIC90 | 1 | HOSE 2 | PARTS REQUEST |
|
COMING HOSE ASSY., 3/8" X 29", -6FJIC X -6FJIC90
48955 · qty on machine: 1 HOSE 2 Also included in kit 1 - HOSE KIT ASSEMBLY (48701) | |||||
| 4# | 48956 | HOSE ASSY., 5/8" X 20", -10FJIC X -10FJIC90 | 1 | HOSE 4 | PARTS REQUEST |
|
COMING HOSE ASSY., 5/8" X 20", -10FJIC X -10FJIC90
48956 · qty on machine: 1 HOSE 4 Also included in kit 1 - HOSE KIT ASSEMBLY (48701) | |||||
| 5# | 48957 | HOSE ASSY., 5/8" X 28",-10FORF X-10FORF45 | 1 | HOSE 5 | PARTS REQUEST |
|
COMING HOSE ASSY., 5/8" X 28",-10FORF X-10FORF45
48957 · qty on machine: 1 HOSE 5 Also included in kit 1 - HOSE KIT ASSEMBLY (48701) | |||||
| 6# | 52046 | HOSE ASSY., 5/8" X 29", -10FORF X-10FORF90 | 1 | HOSE 6 | ADD TO CART |
| 7# | 48959 | HOSE ASSY., 5/8" X 34", -10FORF X-10FORF45 | 1 | HOSE 7 | ADD TO CART |
| 8# | 48960 | HOSE ASSY., 5/8" X 28", -10FORF X-10FORF45 | 1 | HOSE 8 | ADD TO CART |
| 9# | 52048 | HOSE ASSY., 5/8" X 29", -10FORF X -10FORF90 | 1 | HOSE 9 | PARTS REQUEST |
|
COMING HOSE ASSY., 5/8" X 29", -10FORF X -10FORF90
52048 · qty on machine: 1 HOSE 9 Also included in kit 1 - HOSE KIT ASSEMBLY (48701) | |||||
| 10# | 48962 | HOSE ASSY., 5/8" X 34", -10FORF X -10FORF45 | 1 | HOSE 10 | ADD TO CART |
| 11# | 48963 | HOSE ASSY., 1/4" X 65", -4FJIC X -4FJIC90 | 1 | HOSE 11 | ADD TO CART |
| 12# | 48964 | HOSE ASSY., 1/4" X 24", -4FJIC X -4FJIC90 | 1 | HOSE 12 | ADD TO CART |
| 13# | 48475 | HOSE ASSY., 5/8" X 65", -10FJIC | 1 | HOSE 14 | ADD TO CART |
| 14# | 48476 | HOSE ASSY., 1/4" X 61", -4FJIC X -4FJIC90 | 1 | HOSE 15 | PARTS REQUEST |
|
COMING HOSE ASSY., 1/4" X 61", -4FJIC X -4FJIC90
48476 · qty on machine: 1 HOSE 15 Also included in kit 1 - HOSE KIT ASSEMBLY (48701) | |||||
| 15# | 48965 | HOSE ASSY., 1/4" X 38", -4FJIC X -4FJIC90 | 1 | HOSE 16 | ADD TO CART |
| 16# | 48966 | HOSE ASSY., 1/4" X 54.5", -4FJIC X -4FJIC | 1 | HOSE 17 | ADD TO CART |
| 17# | 48967 | HOSE ASSY., 1/4" X 32" -4FJIC X -4FJIC90 | 1 | HOSE 18 | ADD TO CART |
| 18# | 48978 | HOSE ASSY., 1/4" X 56", -4FJIC X -4FJIC | 1 | HOSE 19 | ADD TO CART |
| 19# | 48979 | HOSE ASSY., 1/4" X 34", -4FJIC X -4FJIC90 | 1 | HOSE 20 | ADD TO CART |
| 20# | 48482 | HOSE ASSY., 1/4" X 56", -4FJIC X -4FJIC | 1 | HOSE 21 | ADD TO CART |
| 21# | 48554 | HOSE ASSY., 1/4" X 59", -4FJIC X -4FJIC | 1 | HOSE 22 | ADD TO CART |
| 22# | 48555 | HOSE ASSY., 1/4" X 57", -4FJIC X -4FJIC | 1 | HOSE 23 | ADD TO CART |
| 23# | 48556 | HOSE ASSY., 1/4" X 57", -4FJIC X -4FJIC | 1 | HOSE24 | ADD TO CART |
| 24# | 48483 | HOSE ASSY., 1/4" X 46", -4FJIC X -4FJIC | 1 | HOSE 25 | ADD TO CART |
| 25# | 48557 | HOSE ASSY., 1/4" X 46", -4FJIC X -4FJIC | 1 | HOSE 26 | ADD TO CART |

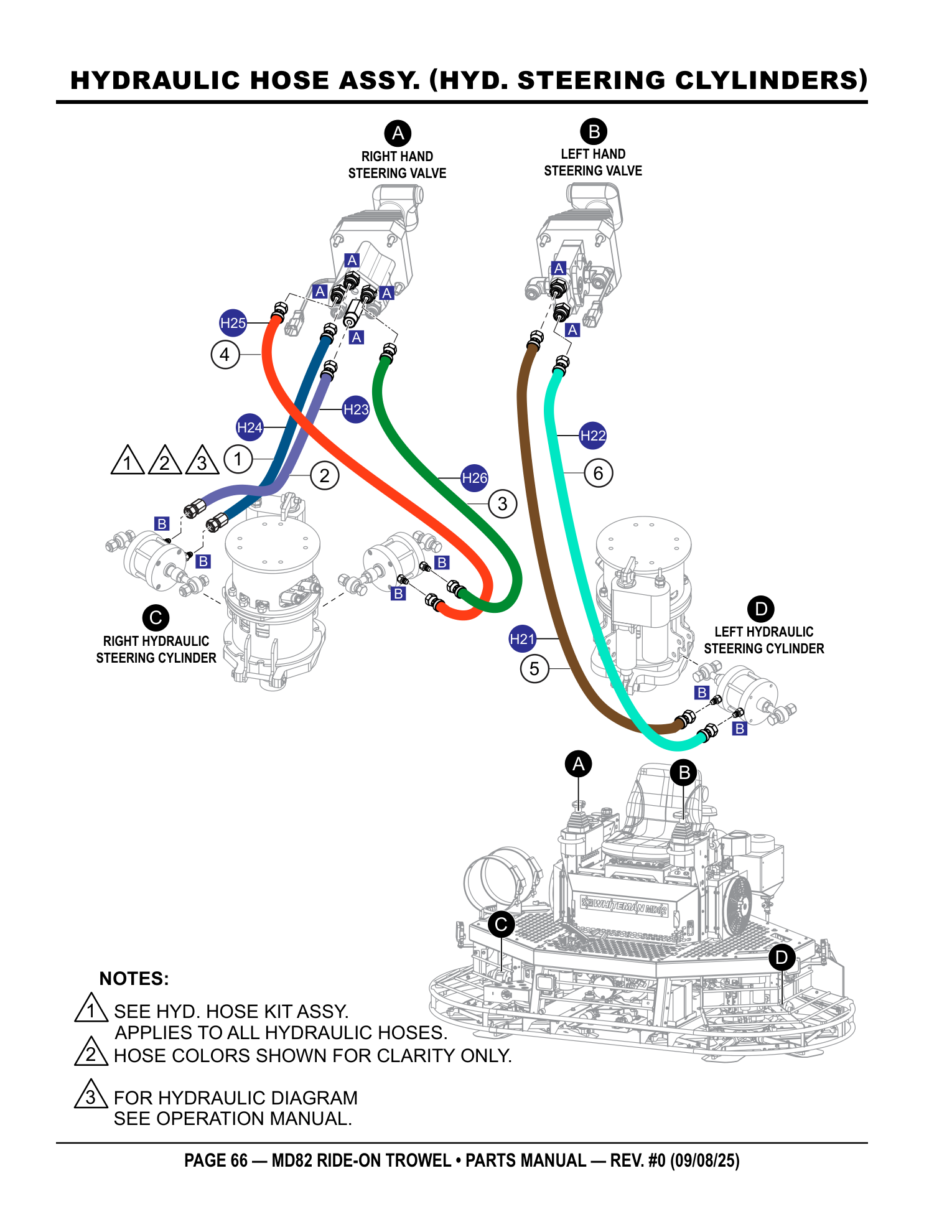

Page 66 — HYDRAULIC HOSE ASSY. (HYD. STEERING CLYLINDERS)
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 48556 | HOSE ASSY., 1/4" X 57", -4FJIC X -4FJIC | 1 | HOSE 24 | ADD TO CART |
| 2 | 48555 | HOSE ASSY., 1/4" X 57", -4FJIC X -4FJIC | 1 | HOSE 23 | ADD TO CART |
| 3 | 48557 | HOSE ASSY., 1/4" X 46", -4FJIC X -4FJIC | 1 | HOSE 26 | ADD TO CART |
| 4 | 48483 | HOSE ASSY., 1/4" X 46", -4FJIC X -4FJIC | 1 | HOSE 25 | ADD TO CART |
| 5 | 48482 | HOSE ASSY., 1/4" X 56", -4FJIC X -4FJIC | 1 | HOSE 21 | ADD TO CART |
| 6 | 48554 | HOSE ASSY., 1/4" X 59", -4FJIC X -4FJIC | 1 | HOSE 22 | ADD TO CART |

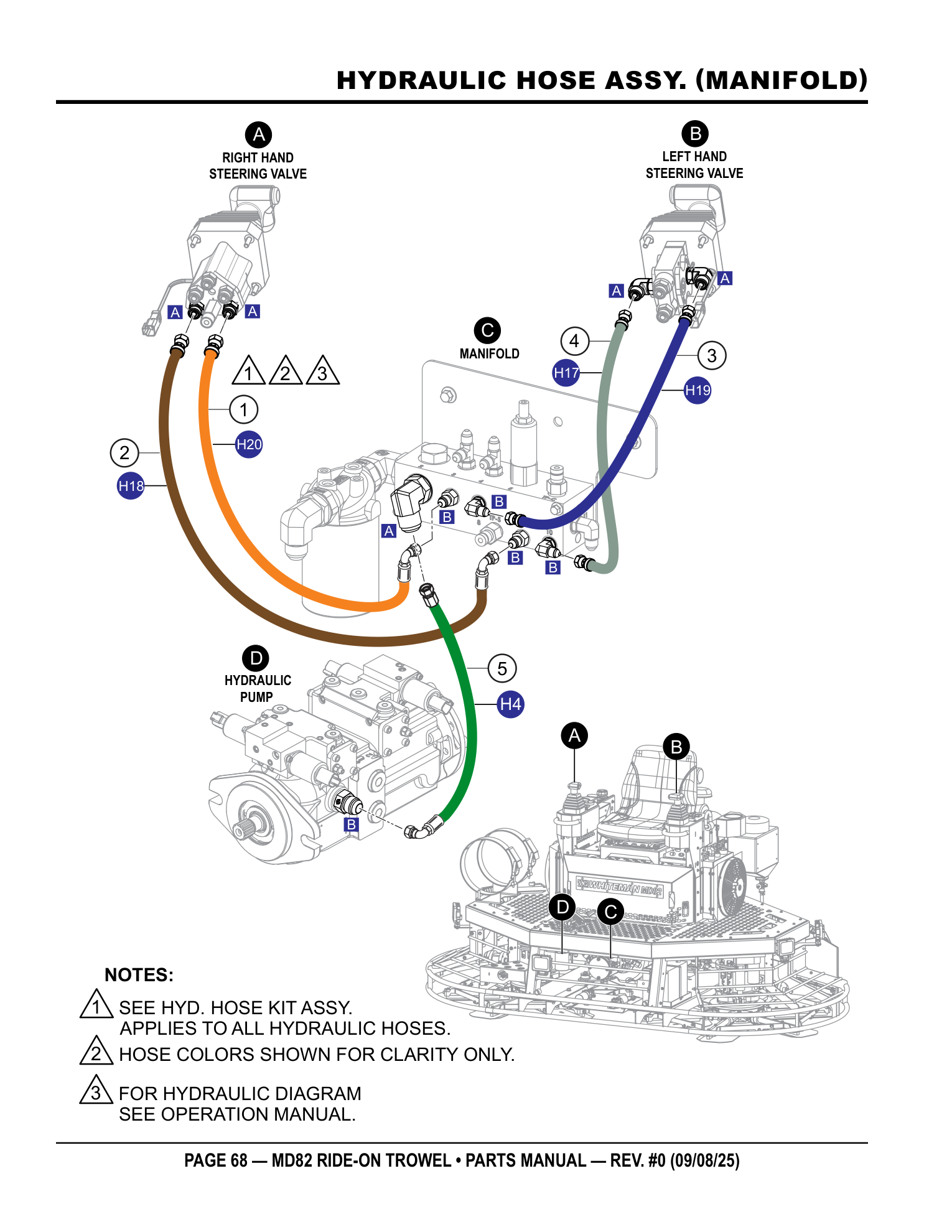

Page 68 — HYDRAULIC HOSE ASSY. (MANIFOLD)
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 48979 | HOSE ASSY., 1/4" X 34", -4FJIC X -4FJIC90 | 1 | HOSE 20 | ADD TO CART |
| 2 | 48967 | HOSE ASSY., 1/4" X 32" -4FJIC X -4FJIC90 | 1 | HOSE 18 | ADD TO CART |
| 3 | 48978 | HOSE ASSY., 1/4" X 56", -4FJIC X -4FJIC | 1 | HOSE 19 | ADD TO CART |
| 4 | 48966 | HOSE ASSY., 1/4" X 54.5", -4FJIC X -4FJIC | 1 | HOSE 17 | ADD TO CART |
| 5 | 48956 | HOSE ASSY., 5/8" X 20",-10FJICX-10FJIC90 | 1 | HOSE 4 | PARTS REQUEST |
|
COMING HOSE ASSY., 5/8" X 20",-10FJICX-10FJIC90
48956 · qty on machine: 1 HOSE 4 | |||||

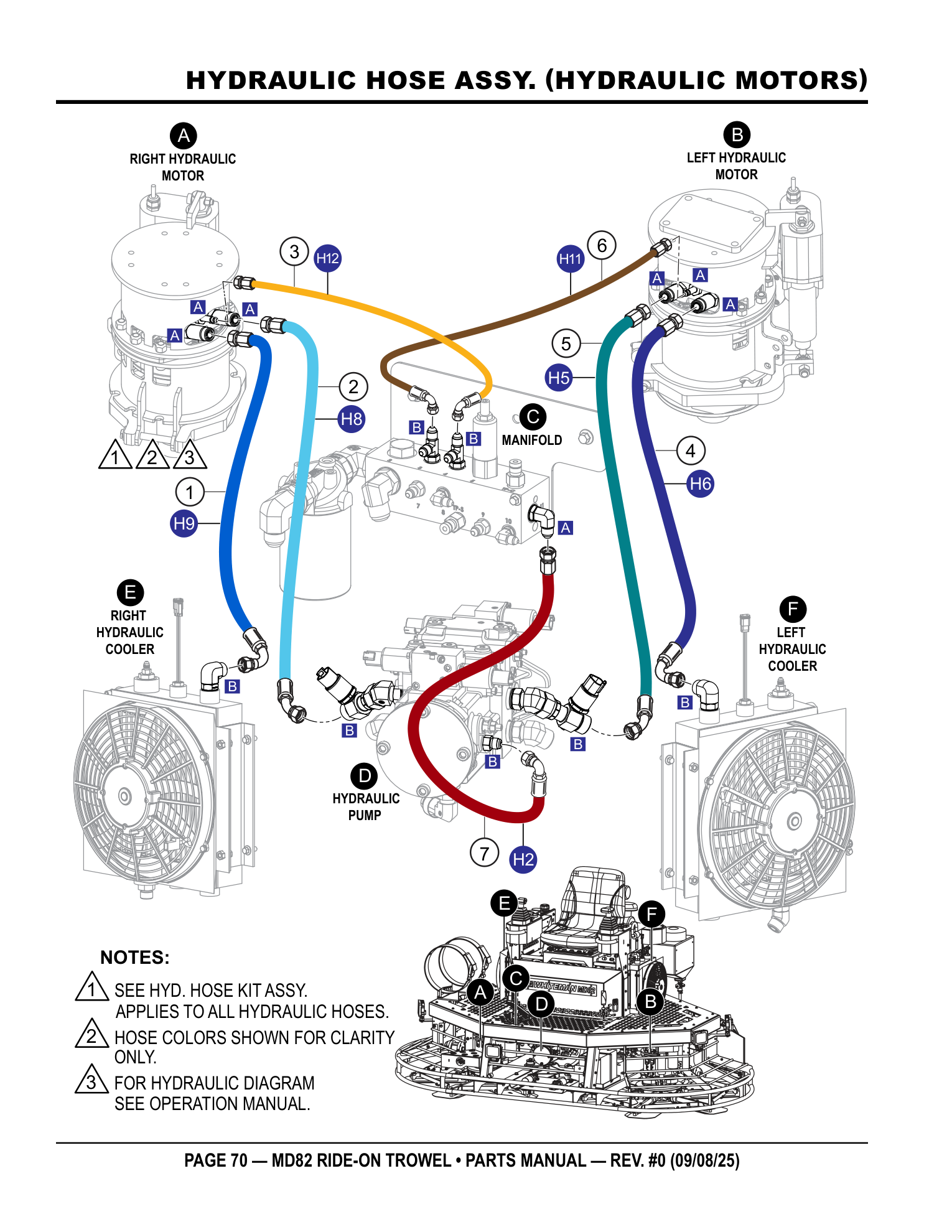

Page 70 — HYDRAULIC HOSE ASSY. (HYDRAULIC MOTORS)
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 52048 | HOSE ASSY., 5/8" X 29", -10FORF X -10FORF90 | 1 | HOSE 9 | PARTS REQUEST |
|
COMING HOSE ASSY., 5/8" X 29", -10FORF X -10FORF90
52048 · qty on machine: 1 HOSE 9 | |||||
| 2 | 48960 | HOSE ASSY., 5/8" X 28", -10FORF X -10FORF45 | 1 | HOSE 8 | ADD TO CART |
| 3 | 48964 | HOSE ASSY., 1/4" X 24", -4FJIC X -4FJIC90 | 1 | HOSE 12 | ADD TO CART |
| 4 | 52046 | HOSE ASSY., 5/8 X 29, -10FORF X -10FORF90 | 1 | HOSE 6 | ADD TO CART |
| 5 | 48957 | HOSE ASSY., 5/8" X 28", -10FORF X -10FORF45 | 1 | HOSE 5 | PARTS REQUEST |
|
COMING HOSE ASSY., 5/8" X 28", -10FORF X -10FORF45
48957 · qty on machine: 1 HOSE 5 | |||||
| 6 | 48963 | HOSE ASSY., 1/4" X 65", -4FJIC X -4FJIC90 | 1 | HOSE 11 | ADD TO CART |
| 7 | 48955 | HOSE ASSY., 3/8" X 29", -6FJIC X -6FJIC90 | 1 | HOSE 2 | PARTS REQUEST |
|
COMING HOSE ASSY., 3/8" X 29", -6FJIC X -6FJIC90
48955 · qty on machine: 1 HOSE 2 | |||||
Page 72 — HYDRAULIC HOSE ASSY. (HYD. PUMP/COOLER/TANK)
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 48965 | HOSE ASSY., 1/4" X 38", -4FJIC X -4FJIC90 | 1 | HOSE 16 | ADD TO CART |
| 2 | 48476 | HOSE ASSY., 1/4" X 61", -4FJIC X -4FJIC90 | 1 | HOSE 15 | PARTS REQUEST |
|
COMING HOSE ASSY., 1/4" X 61", -4FJIC X -4FJIC90
48476 · qty on machine: 1 HOSE 15 | |||||
| 3 | 48475 | HOSE ASSY., 5/8" X 65", -10FJIC | 1 | HOSE 14 | ADD TO CART |
| 4 | 48959 | HOSE ASSY., 5/8" X 34", -10FORF X -10FORF45 | 1 | HOSE 7 | ADD TO CART |
| 5 | 48962 | HOSE ASSY., 5/8" X 34", -10FORF X -10FORF45 | 1 | HOSE 10 | ADD TO CART |
| 6 | 48954 | HOSE, 3/4" X 60" | 1 | HOSE 1 | ADD TO CART |

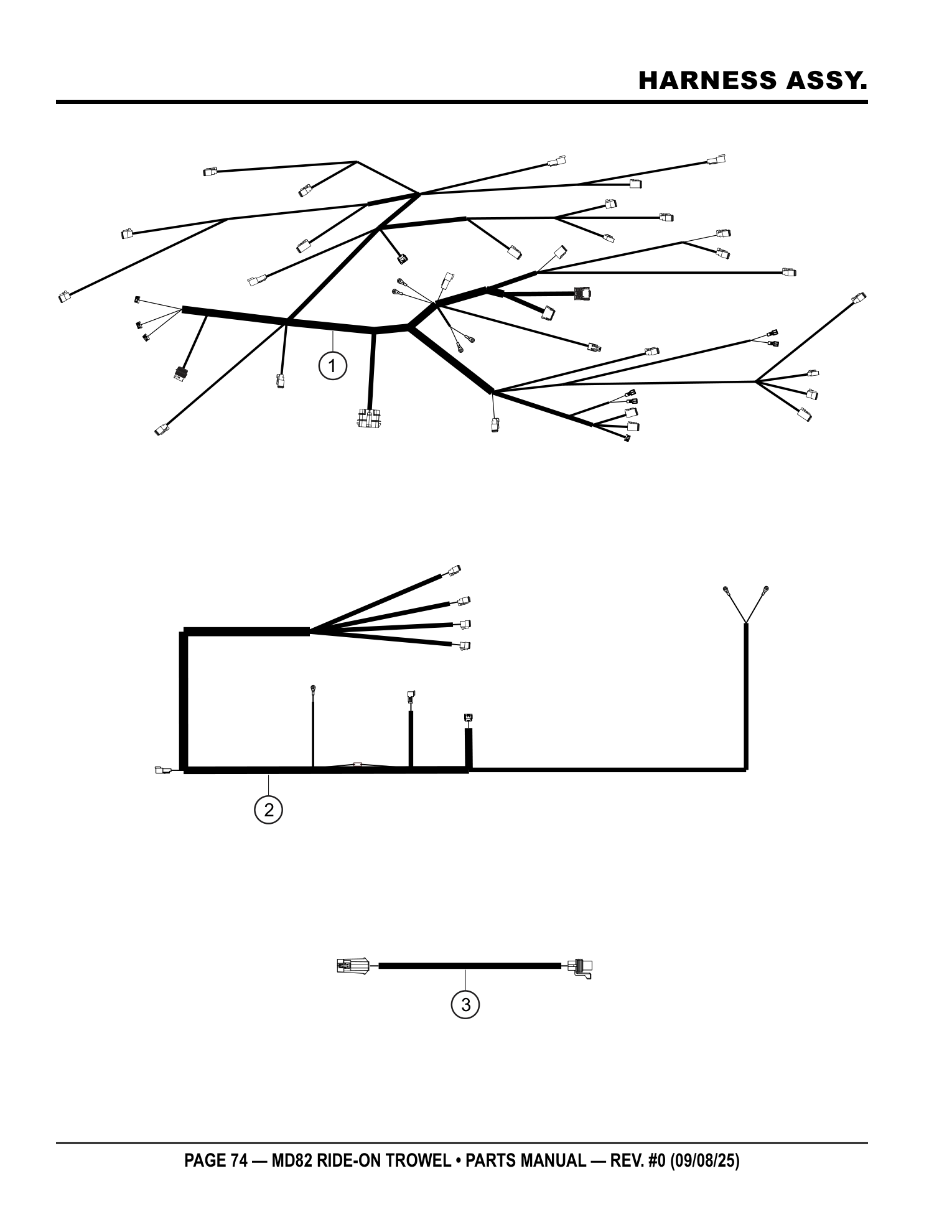

Page 74 — HARNESS ASSY.
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 48098 | HARNESS, MAIN | 1 | ADD TO CART | |
| 2 | 52163 | HARNESS, ENGINE | 1 | ADD TO CART | |
| 3 | 48753 | HARNESS, FUEL PUMP MANIFOLD | 1 | ADD TO CART | |

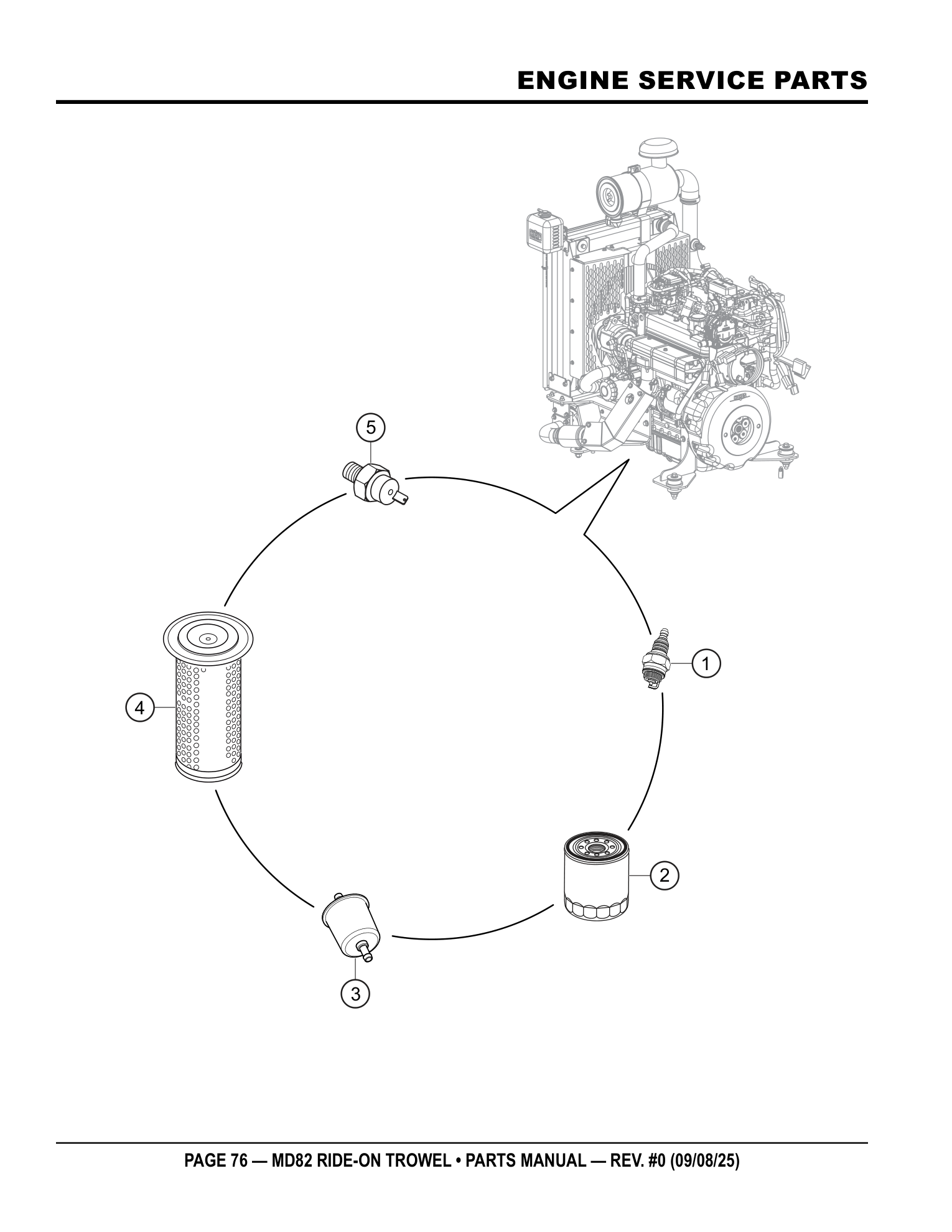

Page 76 — ASSY. ELEMENT, A/C
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | EG52367710 | SPARK PLUG | 1 | ADD TO CART | |
| 2 | HH16032093 | OIL FILTER | 1 | ADD TO CART | |
| 3 | 1258143012 | FUEL FILTER | 1 | ADD TO CART | |
| 4 | 1574111084 | ASSY. ELEMENT, A/C | 1 | ADD TO CART | |
| 5 | 1A02439010 | OIL SWITCH | 1 | ADD TO CART | |
The machine itself
Price by quote
Get a quote
Tell us where the machine is headed and we'll quote it with freight. One call, no games.
Machine
Engine
The Multiquip MD82 is a power trowel built for finishing concrete slabs to a flat, dense, burnished surface. It weighs in at 1,818 lb. (824.6 kg). Factory-documented specs and parts support; priced by quote.
Keep-it-running spares
All listed parts →Every part that fits this machine
10315
Multiquip 10315 Battery 12V Group 24 Wet Cell - OEM Replacement Part
$236.95
12315
Multiquip 12315 Thrust Collar with Bushing - OEM Replacement Part for Power Trowels
$231.95
12546
Multiquip 12546 Quick Disconnect Fitting 4MO Diagnostic Parker PD341 - OEM Replacement Part
$40.95
1574111084
Multiquip 1574111084 Air Cleaner Element Assembly - OEM Replacement Part
$83.95
1A02439010
Multiquip 1A02439010 Oil Pressure Switch - OEM Replacement Part for Ride-On Trowels
$52.95
20832
Multiquip 20832 Valve RH - OEM Replacement Part
$709.95
20833
Multiquip 20833 Valve LH - OEM Replacement Part
$552.95
20834
Multiquip 20834 Adaptor Palm Handle RH - OEM Replacement Part for Power Trowels
$59.95
21053
Multiquip 21053 Adaptor LH Palm Handle - OEM Replacement Part for Power Trowels
$77.95
23959
Multiquip 23959 Switch, Ign, Ip67 Rated - OEM Replacement Part
$46.95
30547
Multiquip 30547 Pump Assembly Right HHN - OEM Replacement Part
$53.95
32962
Multiquip 32962 Kill Switch Sears Delta - OEM Replacement Part for Trowels
$34.95
34792
Multiquip 34792 Armrest Seat Kit - OEM Replacement Part for Ride-On Trowels
$158.95
42070
Multiquip 42070 Display J1939 Murphy PV25 - OEM Replacement Part
$522.95
42280
Multiquip 42280 Block Motor Mount 2 DOF Pivot Assembly - OEM Replacement Part
$63.95
42648-01
Multiquip 42648-01 Fan Heat Exchanger 12" - OEM Replacement Part
$182.95
42713
Multiquip 42713 Buss Bar Deutsch 24 PIN - OEM Replacement Part
$128.95
43089
Multiquip 43089 Collar Bearing Extender - OEM Replacement Part
$266.95
43106
Multiquip 43106 Trunnion Single DOF Assembly - OEM Replacement Part
$245.95
43120
Multiquip 43120 Pressure Transducer 0-400 BAR - OEM Replacement Part
$265.95
43140-79
Multiquip 43140-79 Overflow Engine Coolant - OEM Replacement Part
$54.95
43144
Multiquip 43144 Pedal Foot - OEM Replacement Part
$313.95
43152
Multiquip 43152 Pivot Block Motor Mount Assembly with Bushing - OEM Replacement Part
$55.95
43194
Multiquip 43194 Trunnion Square Double DOF Assembly - OEM Replacement Part
$279.95
45132
Multiquip 45132 Cyclone Hydraulic Reservoir 8 GPM - OEM Replacement Part
$765.95
45200
Multiquip 45200 Tank 3 Gallon Large Mouth Retardant - OEM Replacement Part
$155.95
45437-SK
Multiquip 45437-SK Valve Assembly Left Hand with Switch - OEM Replacement Part
$701.95
45438-SK
Multiquip 45438-SK Valve Assembly Right Hand with Switch - OEM Replacement Part
$831.95
45497
Multiquip 45497 Linear Actuator PA-17 2" - OEM Replacement Part
$643.95
45531
Multiquip 45531 Temperature Indicator Decal 86°F to 194°F - OEM Replacement Part
$176.95
45573
Multiquip 45573 Work Light 4IN SQ LED 100° - OEM Replacement Part
$87.95
45585
Multiquip 45585 Hydraulic Steering Cylinder 2.5" Bore - OEM Replacement Part
$163.95
45644
Multiquip 45644 10 Micron Hydraulic Filter Schroeder PZ10 - OEM Replacement Part
$181.95
45645
Multiquip 45645 8GPM Cyclone Drain Cap - OEM Replacement Part
$36.95
45819
Multiquip 45819 Rotor Housing Lower Assembly MD - OEM Replacement Part
$431.95
45850
Multiquip 45850 Pitch Yoke Assembly MD Series - OEM Replacement Part
$270.95
48206
Multiquip 48206 Radiator for Kubota Engine - OEM Replacement Part
$713.95
48214
Multiquip 48214 Isolator M8x1.25 40 Durometer - OEM Replacement Part
$35.95
48218
Multiquip 48218 Exhaust Pipe for Kubota Engine - OEM Replacement Part
$229.95
48219
Multiquip 48219 Exhaust Tip Kubota Engine - OEM Replacement Part
$140.95
48356
Multiquip 48356 Spider Assembly 6-Blade Right Hand Long - OEM Replacement Part
$1,205.95
48357
Multiquip 48357 Spider Assembly 6 Blade Left Hand Long - OEM Replacement Part
$1,209.95
48379
Multiquip 48379 Rotor Access Panel Assembly - OEM Replacement Part
$72.95
48455
Multiquip 48455 Propane Bracket High Profile - OEM Replacement Part
$160.95
48741
Multiquip 48741 Drive Adaptor MD Series Motors - OEM Replacement Part
$159.95
48779
Multiquip 48779 Lower Radiator Hose Kubota Engine - OEM Replacement Part
$53.95
52078
Multiquip 52078 Lifting 3FT-6IN 6200LBS Capacity - OEM Replacement Part
$89.95
52131
Multiquip 52131 Mount Radiator Lower - OEM Replacement Part for Ride-On Trowels
$51.95
EG52367710
Multiquip EG52367710 Spark Plug - OEM Replacement Part
$52.95
0183
PIN, COTTER 1/8 X 1-1/4
021112140
NUT, HEX., NYLOC M12-1.75
$0.46
07034-007
NUT, HEX JAM 7/16-14 PLATED
$0.17
10019
NUT, NYLOC 10-32
$0.09
10133
NUT, NYLOC 3/8-16
$0.17
10176
NUT, NYLOC 1/2-13
$2.95
10382
BOLT, SHOULDER 3/8 X 3/8 LONG
$2.95
10855
CLAMP, 1-1/2 MUFFLER, GUILLOTINE
$8.95
11039
BUSHING, TROWEL ARM 2 PIECE
$15.95
11146
NUT, HEX. JAM 1/2-20 PLATED
$0.33
11505
CLAMP, VINYL LOOP 1/2" X .406
$1.95
11602
SCREW, SHX 3/8-16 X 1/4
$0.25
11722
FITTING, 90° 6MJ-6MO
$3.95
11887
FITTING, STR. 6MJ-4MO
$10.95
12250
PLATE, WEAR
$8.95
12277
CLAMP, HOSE WORM # 36
$3.95
1258143012
FUEL FILTER
$17.95
12597
CLAMP, MUFFLER, 2"
$6.95
12779
Multiquip 12779 Thrust Bearing 6017-2RS with Flange - OEM Replacement Part
$359.95
12999
HANDLE, PALM W/ SWITCH, RIGHT
13178
SCREW, HHC 1/2-13 X 2 1/4 GR5
$0.89
1322
SCREW, TROWEL ARM RETAINING
$3.95
15177
SCREW, PHP 10-32 X 1
15226
SCREW, HFS, M8-1.25 X 25
15518-004
NUT, NYLOC, M4-.7
$0.90
15538
CLAMP, HOSE WORM #6
$2.77
16083
NUT, HEX. M12-1.75 NO PLATE
$0.34
16185
FITTING, PLUG 1/4 MP SQ. HD.
$0.36
16525
SCREW, HHC 1/2-13 X 1-1/2 GD 8
$0.95
16585
FITTING, BUSH 1/2FP X 3/4MP STEEL
$4.95
17106
SCREW, SHC M12-1.75 X6 0
$410.80
17206
FITTING, 90° 5BARB - 1/4 MP
$7.95
1875
WASHER, INT. SHKP 3/8
$6.95
19473
CLAMP, HOSE WORM #2, 1/4" TO 5/8"
$1.95
20440
NUT, HEX LOCK M8-1.25 THIN
$0.55
20743
WASHER, ISO SNUB
$1.95
20983
SCREW, HHC M8-1.25 X 30 MM
$0.43
21049
LEVER, TROWEL ARM LS
21050
LEVER, TROWEL ARM RS
21095
FITTING, STR 4MJ-4MO
$2.95
2113
FITTING, PLUG 1/8MP HEX. SKT HD
$0.76
2143
SPRING, RS H ARM RETURN
$2.95
21552
CLAMP, HOSE WORM #16
$1.95
21597
BUMPER, STEM 1.0"D X .5S X .31
$1.54
21893
SCREW, FAST LEAD
$8.95
21894
NUT, CLIP, FAST LEAD
$3.95
21944
ROD END, 1/2-20 M RH W/ CUSTOM BALL
$24.95
21986
WASHER, FAST LEAD-STAINLESS
$0.95
22001
HANDLE, PALM W/ SWITCH, LEFT
22145
FITTING, 90° -12MO X -10MJ
$17.95
22174
SCREW, HHFS 5/16-18 X 1.75 GR 5
$0.81
22852
CLAMP, CUSHIONED LOOP #24
$3.95
2299
SCREW, HHC M8-1.25 X 16MM
$0.44
23119
CLAMP, HOSE WORM 3/4" TO 1-1/8"
$2.90
23201-2
ISOLATOR, ARMOR PLATED UNIVERSAL
$20.95
23297
MANUAL HOLDER
$22.95
23305
SCREW, HFS M12-1.75 X 30 8.8
$3.95
23587
DECAL, UNLEADED GASOLINE
$3.95
23698
DECAL, ISO, ROATING BLADE HAZARD
$1.32
23699
DECAL, ISO, READ MANUAL
$0.95
23700
DECAL, ISO, LIFTING/CRUSH
$1.79
23701
DECAL, ISO, ASK FOR TRAINING
$3.95
23767
SCREW, HHF M10-1.25 X 20M GR 10.9
$1.86
23792
SCREW, HFS M8-1.25 X 30
$0.85
23802
NUT, HEX. FLANGED M8-1.25
$0.41
23803-126
DECAL, GUARANTEED SOUND POWER LEVEL
23805
DECAL, ISO, LIFTING POINT
$0.68
23808
DECAL, ISO, HOT SURFACE HAZARD
$3.95
23810
DECAL, ISO, INHALATION HAZARD
$1.69
23812
DECAL, ISO, FUEL GASOLINE
$6.95
23841
CLIP 1/4" WIRE LOOM
23843
CLIP, 1" WIRE LOOM
$2.77
23874
DECAL, ISO, DO NOT REMOVE GUARDS, HAZARD
$0.88
2527
SCREW, SHC, SHOULDER, 3/8-16, 1/2 X 1
$6.95
25591
WASHER, M8
$0.08
25647
CLAMP, HOSE 3/4 LOOP X .406 HOLE
$24.95
2621
FITTING, GREASE ZERK STR 1/4-28
$0.40
28275-001
WASHER, FLAT 5/16 USS HI-STRENGTH
$1.95
2866
SCREW, HHC M8-1.25 X 20MM
$0.26
29091
WASHER, SPLIT LOCK, M10
$0.18
2955
WASHER, LOCK, 7/16 ZINC
$0.18
29712
BOLT, CARRIAGE 1/4-20 X 3/4
$0.13
29796
CLAMP, CUSHIONED LOOP, 1-3/4 X 1
$4.95
30007
CONNECTOR, PROPANE TANK, FEMALE
$30.95
3011CCR1U01
RELAY, 5-PIN MICRO
3031AHCR1U01
RELAY, 4-PIN MICRO
30538
DECAL, FLAG DESIGNED ASSEMBLED IN USA
$1.31
32045
PIN, COILED SPRING 5/16 X 2.00"
$1.95
32083
CLAMP, LOOP-VINYL
32220
DECAL, TROWEL BLADES
32342
FITTING, STR -10MORFS X -10MOR
$8.95
32358
FITTING, 90° -10MORFS X -10MOR
$13.95
32383
ARM, TROWEL, LONG HD
32384
ARM ASSEMBLY, LONG LS
$115.15
32385
ARM ASSEMBLY, LONG RS
$188.44
32468
FITTING, PLUG - ORING - 10
$6.95
32578
DECAL, CANADIAN COMPLIANCE
32662
WASHER, SPLIT LOCK M4
32663
WASHER, SPLIT LOCK M5
32664
NUT, HEX. M4
32796
SCREW, HFS M6-1 X 50
32960SK
SEAT, SEARS-ADJUSTABLE W/ ARMS
$515.95
32964
SEAT ADJUSTER, LH SEARS
32965
SEAT ADJUSTER, RH SEARS
32976
SCREW, HFS M10-1.5 X 25-10.9
$4.95
32977
SCREW, SHC M12-1.75 X 45 GR 12.9
3322
FITTING, 90° 10MJ-10MO
$18.95
34306
SCREW, PHP, 10-32 X 5/8, TYPE F
$0.68
34630
DECAL, ISO, FIRE, EXPLOSION, SMOKING HAZARD
$1.32
35157
FITTING, TEE 4MO - 4MJ - 4MJ RUN
36099
DECAL, ISO, PROTECTIVE CLOTHING
$1.55
36496
O-RING, SIZE-026
$0.35
366155
FITTING, STR 4MJ-1/4MP
367470
FITTING, STR 4MJ-6MO
$1.95
368817
FITTING, 90° 4MJ - 4MO
$6.95
369007
FITTING, BRASS 8 PUSH-ON - 3/8MP
$1.95
37402
CONNECTOR KIT, MALE 2 POSITION
$5.95
37407
90° FITTING, 4MJ X 6MO
38707
DECAL, CANCER AND REPRODUCTIVE HARM
$1.32
42178-005
SWITCH BASE, 10 TERM, ON-OFF
42178-006
SW. BASE 10 TERM, ON-OFF DUAL POLE
$33.96
42178-007
SWITCH BASE, 10 TERM (DPDT)
$44.41
42179-001
ACTUATOR
$2.90
42179-002
ACTUATOR
$7.95
42315
TIE, CABLE ASM, FIR TREE MT./CABLE
$0.95
42325
SCREW, HHC M6-1.0 X 20
$0.52
42336
SCREW, HHC, M10-1.25 X 35, CLASS 8.8
$110.50
42342
SCREW, HFS, M8-1.25 X 16 GR 8.8
$0.95
42343
SCREW, HFS M8-1.25 X 20 GR 8.8
$0.74
42346
SCREW, HFS M8-1.25 X 40 GR 8.8
$140.88
42347
SCREW, HFS M6-1.0 X 30 GR 8.8
$1.38
42351
SCREW, HFS M12-1.75 X 40 GR 8.8
$2.90
42352
NUT, HEX. SERRATED-FLANGE, M6 -1.0
$0.31
42353
NUT, HEX SERRATED FLANGE M10-1.5
$1.46
42358
WASHER, SPLIT LOCK, M8
42436
SCREW, HFS M8-1.25 X 25
$0.81
42442
CON. CAP, HD10, 9 PIN W/ LANYARD
$28.95
42443
NUT, HEX LOCK M12-1.75 DEFORMED
$0.95
42446
CAP, FUEL
$26.95
42451
NUT, HEX. SERRATED-FLANGE, M6-1.0
$1.41
42457
FITTING, FUEL .312, STRAIGHT
$4.95
42459
HOSE, RUBBER .3125, LOW PERM 100 PSI
$3.95
42496
NUT, BLIND, HEX. M6-1.0 X0.7 - 4.2 GRIP
$0.95
42542
SCREW, HFS M6-1.0 X 16
$0.83
42894
SCREW, HHC M4-0.7 X 20MM
42929
SCREW, HHF M6-1.0 X 70 - 8.8
42939
FITTING, 45 10MORFS X 10MOR
$18.95
42971
DECAL, ISO, TIE-DOWN
$1.38
43146
CLAMP, HOSE TORRO 35-50/12
$55.70
43180
WASHER, FLAT M12
43186
O-RING, SIZE 2-226 VITON
$10.95
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
