Multiquip MRH601 Roller
Factory parts book · interactive
Multiquip MRH601 Roller
The parts bench

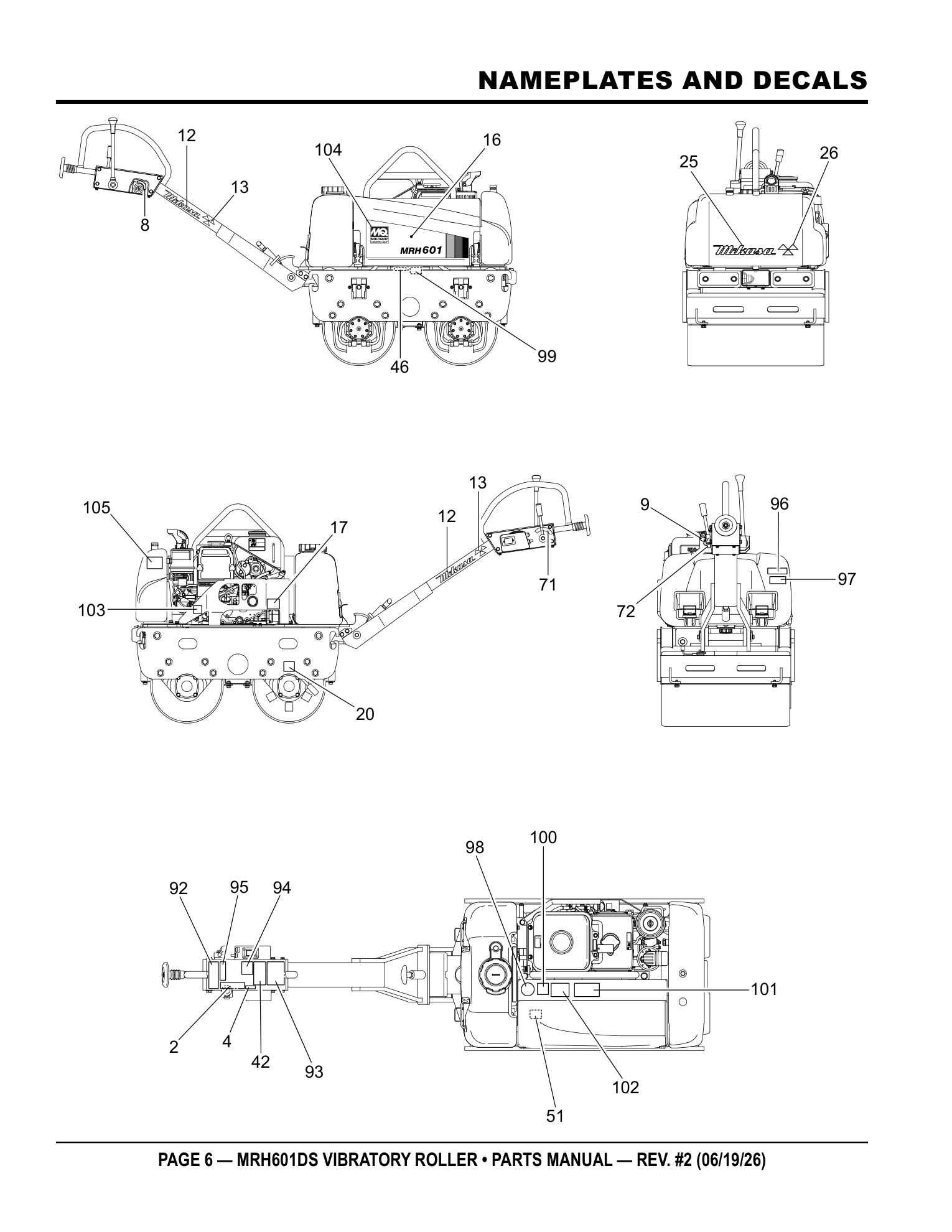

Need the PDF? ↓Page 6 — UNKNOWN
Parts list — exactly as printed30 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 920108070 | DECAL: FORWARD AND REVERSE | 1 | ADD TO CART | |
| 4 | 920217900 | DECAL: GLOW LAMP | 1 | PARTS REQUEST | |
|
COMING DECAL: GLOW LAMP
920217900 · qty on machine: 1 | |||||
| 8 | 920215140 | LABEL: MAIN SWITCH | 1 | ADD TO CART | |
| 9 | 920217140 | DECAL: HORN (ICON) | 1 | PARTS REQUEST | |
|
COMING DECAL: HORN (ICON)
920217140 · qty on machine: 1 | |||||
| 12 | 920217130 | DECAL: MIKASA MARK (W) 200L | 2 | ADD TO CART | |
| 13 | 920217110 | DECAL: MIKASA MARK 35X70 | 2 | ADD TO CART | |
| 16 | 920217340 | DECAL: MODEL (OR) | 1 | PARTS REQUEST | |
|
COMING DECAL: MODEL (OR)
920217340 · qty on machine: 1 | |||||
| 17 | 920217860 | DECAL: SPRINKLER | 1 | PARTS REQUEST | |
|
COMING DECAL: SPRINKLER
920217860 · qty on machine: 1 | |||||
| 20 | 920217660 | DECAL: CAUTION (BRAKE) | 1 | PARTS REQUEST | |
|
COMING DECAL: CAUTION (BRAKE)
920217660 · qty on machine: 1 | |||||
| 25 | 920217120 | DECAL: MIKASA MARK (W) 250L | 1 | PARTS REQUEST | |
|
COMING DECAL: MIKASA MARK (W) 250L
920217120 · qty on machine: 1 | |||||
| 26 | 920217100 | DECAL: MIKASA MARK 40X80 | 1 | PARTS REQUEST | |
|
COMING DECAL: MIKASA MARK 40X80
920217100 · qty on machine: 1 | |||||
| 42 | 920202910 | DECAL: BUZZER (HYDRAULIC) | 1 | ADD TO CART | |
| 46 | 920112570 | DECAL: V-BELT, A-36 | 1 | NO LONGER AVAILABLE | |
|
COMING DECAL: V-BELT, A-36
920112570 · qty on machine: 1 NO LONGER AVAILABLE
| |||||
| 51 | 920217490 | DECAL: MODEL | 1 | PARTS REQUEST | |
|
COMING DECAL: MODEL
920217490 · qty on machine: 1 | |||||
| 71 | 920206080 | DECAL: E/G THROTTLE DIAL/E | 1 | ADD TO CART | |
| 72 | 920217150 | DECAL: HEAD LAMP ICON | 1 | PARTS REQUEST | |
|
COMING DECAL: HEAD LAMP ICON
920217150 · qty on machine: 1 | |||||
| 92 | 920202920 | DECAL: CAUTION (BRAKE) | 1 | ADD TO CART | |
| 93 | 920205640 | DECAL: WARNING (PARKING) | 1 | ADD TO CART | |
| 94 | 920212600 | DECAL: CAUTION (VIB. ON-OFF) | 1 | PARTS REQUEST | |
|
COMING DECAL: CAUTION (VIB. ON-OFF)
920212600 · qty on machine: 1 | |||||
| 95 | 920214100 | DECAL: E/G FIRE WARNING | 1 | ADD TO CART | |
| 96 | 920200320 | DECAL: WATER TANK/EXP | 1 | ADD TO CART | |
| 97 | 920104280 | DECAL: CAUTION/DRAINAGE | 1 | ADD TO CART | |
| 98 | 920203330 | EAR PROTECTION LABEL | 1 | ADD TO CART | |
| 99 | 920206280 | DECAL: DANGER | 1 | ADD TO CART | |
| 100 | 920206290 | DECAL: CAUTION (MANUAL/EXP) | 1 | ADD TO CART | |
| 101 | 920217830 | DECAL: OPERATION | 1 | PARTS REQUEST | |
|
COMING DECAL: OPERATION
920217830 · qty on machine: 1 | |||||
| 102 | 920217840 | DECAL: WARNING (SLOPE) | 1 | PARTS REQUEST | |
|
COMING DECAL: WARNING (SLOPE)
920217840 · qty on machine: 1 | |||||
| 103 | 920217850 | DECAL: E/G SET R.P.M. | 1 | PARTS REQUEST | |
|
COMING DECAL: E/G SET R.P.M.
920217850 · qty on machine: 1 | |||||
| 104 | 920201910 | DECAL: MQ MARK 110X100 | 1 | NO LONGER AVAILABLE | |
|
COMING DECAL: MQ MARK 110X100
920201910 · qty on machine: 1 NO LONGER AVAILABLE
| |||||
| 105 | 920213000 | DECAL, OIL TANK/EXP | 1 | ADD TO CART | |

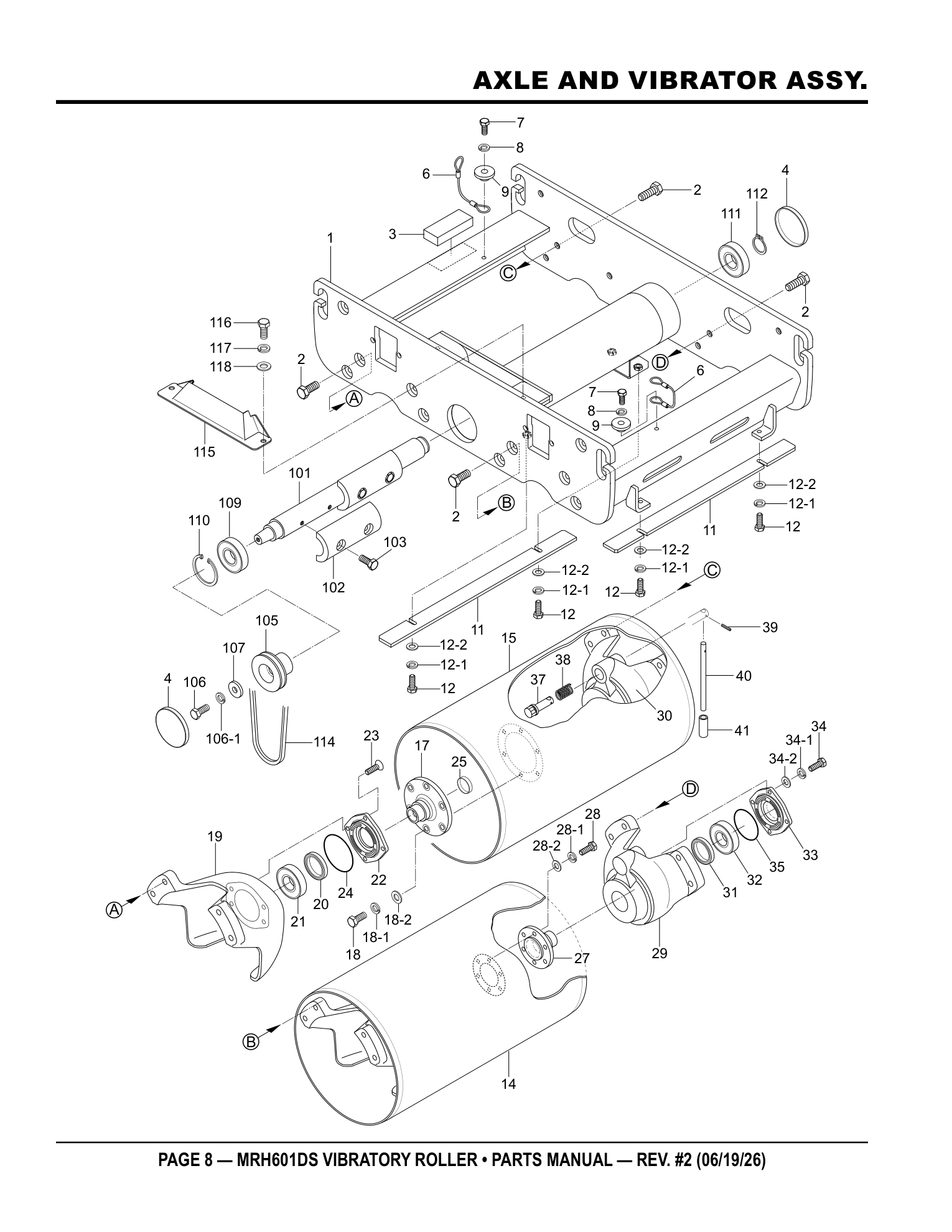

Page 8 — AXLE AND VIBRATOR ASSY.
Parts list — exactly as printed47 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 518120790 | FRAME | 1 | PARTS REQUEST | |
|
COMING FRAME
518120790 · qty on machine: 1 | |||||
| 2 | 001221435 | BOLT 14X35 | 16 | PARTS REQUEST | |
|
COMING BOLT 14X35
001221435 · qty on machine: 16 | |||||
| 3 | 518466220 | RUBBER PLATE | 1 | PARTS REQUEST | |
|
COMING RUBBER PLATE
518466220 · qty on machine: 1 | |||||
| 4 | 953408650 | SEAL CAP 100X10 | 2 | ADD TO CART | |
| 6 | 518466210 | WIRE ROPE | 2 | PARTS REQUEST | |
|
COMING WIRE ROPE
518466210 · qty on machine: 2 | |||||
| 7 | 012212035 | BOLT 12X35 | 4 | REPLACES P/N 001221235 | ADD TO CART |
| 8 | 030212300 | WASHER, LOCK M12 | 4 | ADD TO CART | |
| 9 | 518466180 | SPACER 13X19X40XL15 | 4 | PARTS REQUEST | |
|
COMING SPACER 13X19X40XL15
518466180 · qty on machine: 4 | |||||
| 11 | 518351420 | SCRAPER | 4 | PARTS REQUEST | |
|
COMING SCRAPER
518351420 · qty on machine: 4 | |||||
| 12 | 0105091025 | BOLT 10X25 | 8 | REPLACES P/N 001221025 | ADD TO CART |
| 12-1 | 030210250 | WASHER, LOCK M10 | 8 | ADD TO CART | |
| 12-2 | 031110160 | WASHER, FLAT M10 | 8 | ADD TO CART | |
| 14 | 518120730 | DRUM (F) | 1 | PARTS REQUEST | |
|
COMING DRUM (F)
518120730 · qty on machine: 1 | |||||
| 15 | 518120740 | DRUM (R) | 1 | PARTS REQUEST | |
|
COMING DRUM (R)
518120740 · qty on machine: 1 | |||||
| 17 | 518351430 | FLANGE | 2 | ADD TO CART | |
| 18 | 012010030 | BOLT 10X30 | 12 | REPLACES P/N 001221030 | ADD TO CART |
| 18-1 | 030210250 | WASHER, LOCK M10 | 12 | ADD TO CART | |
| 18-2 | 031110160 | WASHER, FLAT M10 | 12 | ADD TO CART | |
| 19 | 518120620 | BRACKET, REAR DRUM/R | 2 | PARTS REQUEST | |
|
COMING BRACKET, REAR DRUM/R
518120620 · qty on machine: 2 | |||||
| 20 | 060405010 | OIL SEAL | 2 | PARTS REQUEST | |
|
COMING OIL SEAL
060405010 · qty on machine: 2 | |||||
| 21 | 046006308 | BEARING | 2 | ADD TO CART | |
| 22 | 518351190 | BEARING COVER (R) | 2 | PARTS REQUEST | |
|
COMING BEARING COVER (R)
518351190 · qty on machine: 2 | |||||
| 23 | 009120412 | SUNK HEAD BOLT 8X25 | 8 | PARTS REQUEST | |
|
COMING SUNK HEAD BOLT 8X25
009120412 · qty on machine: 8 | |||||
| 24 | 050300950 | O-RING | 2 | ADD TO CART | |
| 25 | 953408640 | SEAL CAP 32X7 | 2 | PARTS REQUEST | |
|
COMING SEAL CAP 32X7
953408640 · qty on machine: 2 | |||||
| 27 | 518351440 | DRUM SHAFT (L) | 2 | ADD TO CART | |
| 28 | 012010030 | BOLT 10X30 | 12 | REPLACES P/N 001221030 | ADD TO CART |
| 28-1 | 030210250 | WASHER, LOCK M10 | 12 | ADD TO CART | |
| 28-2 | 031110160 | WASHER, FLAT M10 | 12 | ADD TO CART | |
| 29 | 518120630 | BRACKET, REAR DRUM/LF | 1 | ADD TO CART | |
| 30 | 518120640 | BRACKET, REAR DRUM/LR | 1 | PARTS REQUEST | |
|
COMING BRACKET, REAR DRUM/LR
518120640 · qty on machine: 1 | |||||
| 31 | 060405010 | OIL SEAL | 2 | PARTS REQUEST | |
|
COMING OIL SEAL
060405010 · qty on machine: 2 | |||||
| 32 | 046006308 | BEARING | 2 | ADD TO CART | |
| 33 | 518351200 | BEARING COVER (L) | 2 | PARTS REQUEST | |
|
COMING BEARING COVER (L)
518351200 · qty on machine: 2 | |||||
| 34 | 011208025 | BOLT 8X25 | 8 | REPLACES P/N 001220825 | ADD TO CART |
| 34-1 | 030208200 | WASHER, LOCK M8 | 8 | ADD TO CART | |
| 34-2 | 0401450080 | WASHER, FLAT M8 | 8 | REPLACES P/N 031108160 | ADD TO CART |
| 35 | 050300950 | O-RING | 2 | ADD TO CART | |
| 37 | 518466110 | LOCK PIN, BRAKE | 1 | ADD TO CART | |
| 38 | 518466160 | SPRING, BRAKE | 1 | ADD TO CART | |
| 39 | 025405025 | SPRING PIN 5X25 | 1 | ADD TO CART | |
| 40 | 518466120 | LOCK HANDLE | 1 | ADD TO CART | |
| 41 | 953408890 | CAP, BRAKE | 1 | ADD TO CART | |
| 101 | 518351380 | ROTARY SHAFT | 1 | ADD TO CART | |
| 102 | 518465960 | ECCENTRIC ROTATOR | 2 | PARTS REQUEST | |
|
COMING ECCENTRIC ROTATOR
518465960 · qty on machine: 2 | |||||
| 103 | 012210035 | BOLT 10X35 | 4 | REPLACES P/N 001221035 | ADD TO CART |
| 105 | 518465910 | PULLEY | 1 | ADD TO CART | |
Page 10 — AXLE AND VIBRATOR ASSY. (CONT'D.)
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 106 | 012210035 | BOLT 10X35 | 1 | REPLACES P/N 001221035 | ADD TO CART |
| 106-1 | 030210250 | WASHER, LOCK M10 | 1 | ADD TO CART | |
| 107 | 952402330 | WASHER | 1 | ADD TO CART | |
| 109 | 046006308 | BEARING | 1 | ADD TO CART | |
| 110 | 080100900 | STOP RING | 1 | NO LONGER AVAILABLE | |
|
COMING STOP RING
080100900 · qty on machine: 1 NO LONGER AVAILABLE
| |||||
| 111 | 046006208 | BEARING | 1 | ADD TO CART | |
| 112 | 080200400 | STOP RING | 1 | ADD TO CART | |
| 114 | 070100361 | V-BELT A-36 | 1 | ADD TO CART | |
| 115 | 518351390 | GUARD, V-BELT | 1 | PARTS REQUEST | |
|
COMING GUARD, V-BELT
518351390 · qty on machine: 1 | |||||
| 116 | 012210020 | BOLT 10X20 | 2 | REPLACES P/N 001221020 | ADD TO CART |
| 117 | 030210250 | WASHER, LOCK M10 | 2 | ADD TO CART | |
| 118 | 031110160 | WASHER, FLAT M10 | 2 | ADD TO CART | |

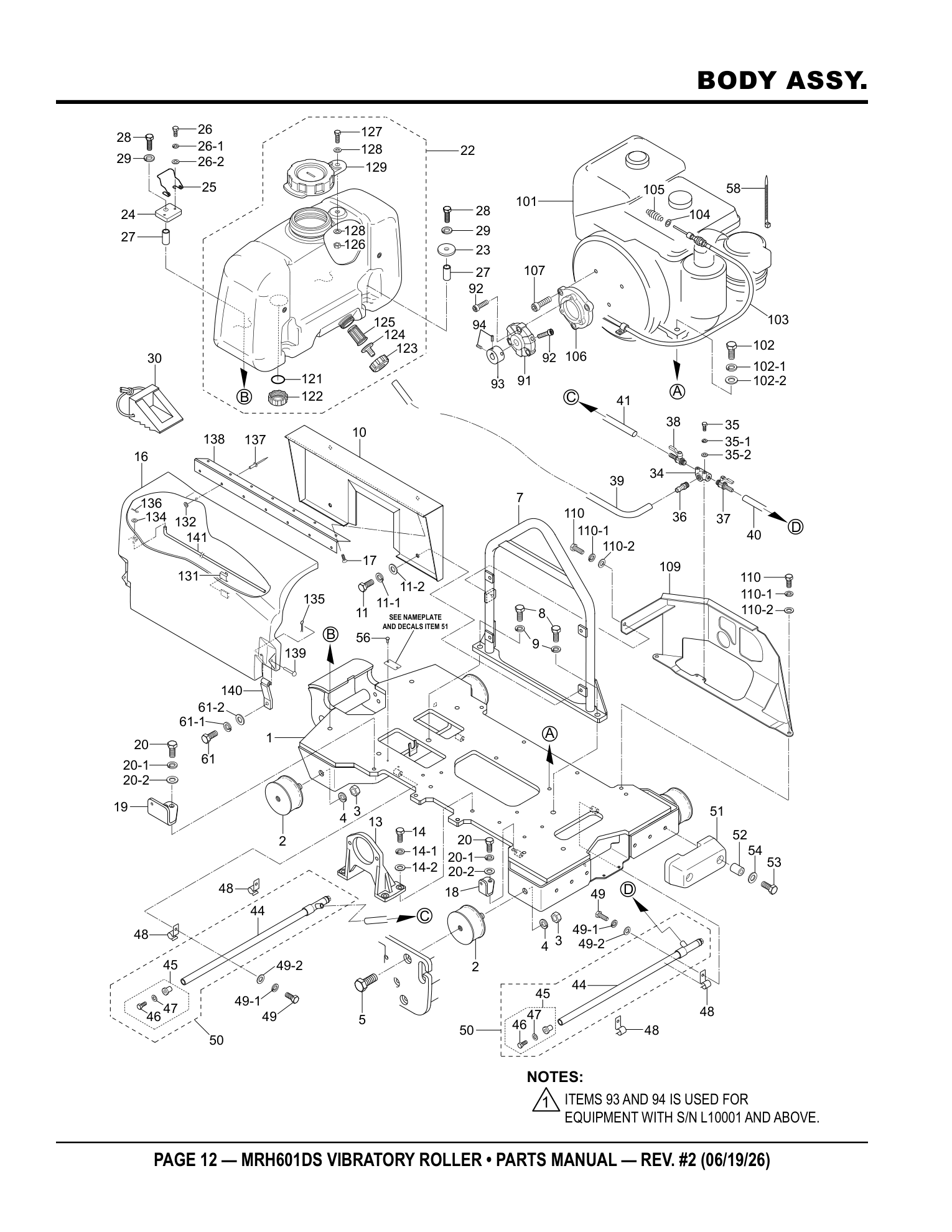

Page 12 — BODY ASSY.
Parts list — exactly as printed43 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 518120820 | BASE | 1 | PARTS REQUEST | |
|
COMING BASE
518120820 · qty on machine: 1 | |||||
| 2 | 939010350 | SHOCK ABSORBER | 4 | ADD TO CART | |
| 3 | 020316130 | NUT M16 | 4 | ADD TO CART | |
| 4 | 030216400 | WASHER, LOCK M16 | 4 | ADD TO CART | |
| 5 | 001221625 | BOLT 16X25 | 4 | ADD TO CART | |
| 7 | 518218650 | HOOK | 1 | ADD TO CART | |
| 8 | 001221435 | BOLT 14X35 | 2 | PARTS REQUEST | |
|
COMING BOLT 14X35
001221435 · qty on machine: 2 | |||||
| 9 | 030214350 | WASHER, LOCK M14 | 2 | ADD TO CART | |
| 10 | 518218660 | COVER, ENGINE | 1 | PARTS REQUEST | |
|
COMING COVER, ENGINE
518218660 · qty on machine: 1 | |||||
| 11 | 012210020 | BOLT 10X20 | 4 | REPLACES P/N 001221020 | ADD TO CART |
| 11-1 | 030210250 | WASHER, LOCK M10 | 4 | ADD TO CART | |
| 11-2 | 031110160 | WASHER, FLAT M10 | 4 | ADD TO CART | |
| 13 | 518218620 | PUMP BRACKET | 1 | PARTS REQUEST | |
|
COMING PUMP BRACKET
518218620 · qty on machine: 1 | |||||
| 14 | 012010030 | BOLT 10X30 | 4 | REPLACES P/N 001221030 | ADD TO CART |
| 14-1 | 030210250 | WASHER, LOCK M10 | 4 | ADD TO CART | |
| 14-2 | 031110160 | WASHER, FLAT M10 | 4 | ADD TO CART | |
| 16 | 518920020 | BONNET COVER | 1 | ADD TO CART | |
| 17 | 092004008 | SCREW 4X8 | 7 | ADD TO CART | |
| 18 | 518467210 | STAY, COVER (R) | 1 | PARTS REQUEST | |
|
COMING STAY, COVER (R)
518467210 · qty on machine: 1 | |||||
| 19 | 518467220 | STAY, COVER (L) | 1 | PARTS REQUEST | |
|
COMING STAY, COVER (L)
518467220 · qty on machine: 1 | |||||
| 20 | 0105091025 | BOLT 10X25 | 2 | REPLACES P/N 001221025 | ADD TO CART |
| 20-1 | 030210250 | WASHER, LOCK M10 | 2 | ADD TO CART | |
| 20-2 | 031110160 | WASHER, FLAT M10 | 2 | ADD TO CART | |
| 22 | 518930020 | WATER TANK, ORANGE | 1 | ADD TO CART | |
| 23 | 952405950 | WASHER | 2 | ADD TO CART | |
| 24 | 518466050 | PLATE, WATER TANK | 2 | ADD TO CART | |
| 25 | 515449870 | HOLDER, STOPPER | 2 | ADD TO CART | |
| 26 | 011006010 | BOLT 6X10 | 4 | REPLACES P/N 001220610 | ADD TO CART |
| 26-1 | 030206150 | WASHER, LOCK M6 | 4 | ADD TO CART | |
| 26-2 | 952404470 | WASHER, FLAT M6 | 4 | REPLACES P/N 031106100 | ADD TO CART |
| 27 | 506434690 | SPACER, WATER TANK | 4 | NO LONGER AVAILABLE | |
|
COMING SPACER, WATER TANK
506434690 · qty on machine: 4 NO LONGER AVAILABLE
| |||||
| 28 | 001221253 | BOLT 12X65 | 4 | ADD TO CART | |
| 29 | 030212300 | WASHER, LOCK M12 | 4 | ADD TO CART | |
| 30 | 517338540 | STOPPER | 2 | ADD TO CART | |
| 34 | 518466200 | SEPARATE PIPE | 1 | ADD TO CART | |
| 35 | 011206020 | BOLT 6X20 | 2 | REPLACES P/N 001220620 | ADD TO CART |
| 35-1 | 030206150 | WASHER, LOCK M6 | 2 | ADD TO CART | |
| 35-2 | 952404470 | WASHER, FLAT M6 | 2 | REPLACES P/N 031106100 | ADD TO CART |
| 36 | 954406210 | CONNECTOR 3/8X12 | 1 | ADD TO CART | |
| 37 | 954404221 | COCK PT1/4, (AL)/L | 1 | ADD TO CART | |
| 38 | 954403241 | COCK PT1/4, (AL)/R | 1 | ADD TO CART | |
| 39 | 959028721 | HOSE | 1 | ADD TO CART | |
| 40 | 515450440 | WATER HOSE (R) | 1 | ADD TO CART | |

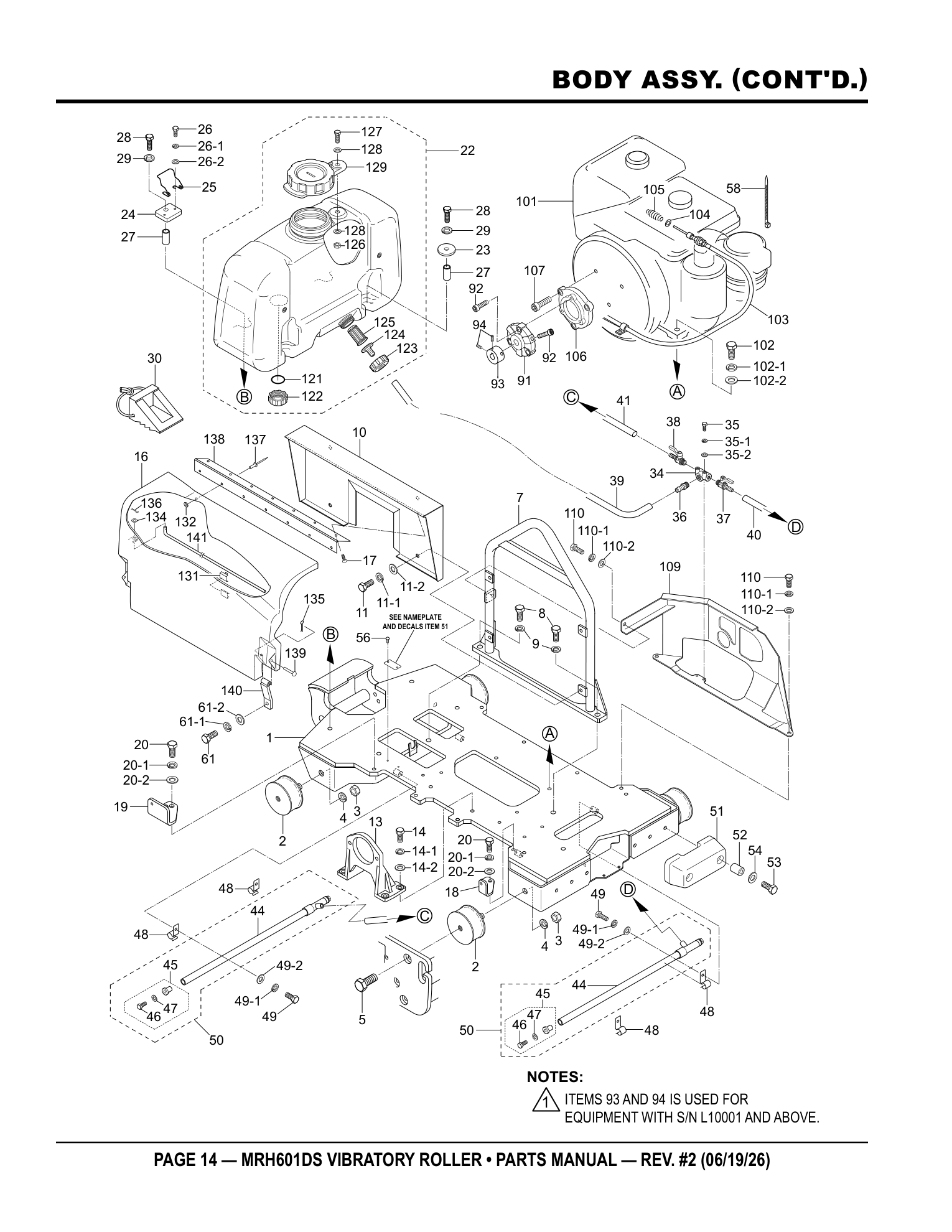

Page 14 — BODY ASSY. (CONT'D.)
Parts list — exactly as printed43 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 41 | 518466320 | WATER HOSE (R) | 1 | ADD TO CART | |
| 44# | 518351530 | SPRINKLING PIPE | 2 | PARTS REQUEST | |
|
COMING SPRINKLING PIPE
518351530 · qty on machine: 2 Also included in kit 50 - SPRINKLING PIPE ASSY (518910020) | |||||
| 45# | 515910050 | CAP ASSY, W/BOLT, WASHER | 4 | INCLUDES ITEMS W/ @ | ADD TO CART |
| 46@ | 011206020 | BOLT 6X20 | 4 | REPLACES P/N 001220620 | ADD TO CART |
| 47@ | 952404470 | WASHER, FLAT M6 | 4 | REPLACES P/N 031106100 | ADD TO CART |
| 48 | 515449900 | CLAMP | 4 | ADD TO CART | |
| 49 | 001220610 | BOLT 6X10 T | 4 | PARTS REQUEST | |
|
COMING BOLT 6X10 T
001220610 · qty on machine: 4 | |||||
| 49-1 | 030206150 | WASHER, LOCK M6 | 4 | ADD TO CART | |
| 49-2 | 031106100 | WASHER, FLAT M6 | 4 | ADD TO CART | |
| 50 | 518910020 | SPRINKLING PIPE ASSY | 2 | INCLUDES ITEMS W/ # | ADD TO CART |
| 51 | 515336210 | BUMPER | 2 | ADD TO CART | |
| 52 | 515449720 | SPACER, BUMPER | 4 | ADD TO CART | |
| 53 | 012210040 | BOLT 10X40 | 4 | REPLACES P/N 001221040 | ADD TO CART |
| 54 | 031110160 | WASHER, FLAT M10 | 4 | ADD TO CART | |
| 56 | 233010020 | RIVET | 2 | ADD TO CART | |
| 58 | 507010110 | CLAMP | 1 | PARTS REQUEST | |
|
COMING CLAMP
507010110 · qty on machine: 1 | |||||
| 61 | 014208020 | BOLT 8X20 | 2 | REPLACES P/N 001220820 | ADD TO CART |
| 61-1 | 030208200 | WASHER, LOCK M8 | 2 | ADD TO CART | |
| 61-2 | 0401450080 | WASHER, FLAT M8 | 2 | REPLACES P/N 031108160 | ADD TO CART |
| 91 | 518351500 | CENTER FLEX | 1 | S/N K10020 AND BELOW | ADD TO CART |
| 91 | 918359470 | CENTER FLEX/DAIKIN | 1 | S/N L10001 AND ABOVE | PARTS REQUEST |
|
COMING CENTER FLEX/DAIKIN
918359470 · qty on machine: 1 S/N L10001 AND ABOVE | |||||
| 92 | 009110038 | SOCKET HEAD BOLT 8X30 ZN | 3 | S/N K10020 AND BELOW | ADD TO CART |
| 92 | 009110038 | SOCKET HEAD BOLT 8X30 ZN | 6 | S/N L10001 AND ABOVE | ADD TO CART |
| 93 | 518359310 | KEY HUB H37 | 1 | S/N L10001 AND ABOVE | PARTS REQUEST |
|
COMING KEY HUB H37
518359310 · qty on machine: 1 S/N L10001 AND ABOVE | |||||
| 94 | 098204010 | HEX. SOCKET HEAD SETSCREW 4X10 | 2 | S/N L10001 AND ABOVE | PARTS REQUEST |
|
COMING HEX. SOCKET HEAD SETSCREW 4X10
098204010 · qty on machine: 2 S/N L10001 AND ABOVE | |||||
| 101 | 915533002 | ENGINE,KUBOTA EA330-E3-NB3-HGMS | 1 | ADD TO CART | |
| 102 | 012210035 | BOLT 10X35 | 4 | REPLACES P/N 001221035 | ADD TO CART |
| 102-1 | 030210250 | WASHER, LOCK M10 | 4 | ADD TO CART | |
| 102-2 | 031110160 | WASHER, FLAT M10 | 4 | ADD TO CART | |
| 103 | 956100034 | THROTTLE WIRE | 1 | ADD TO CART | |
| 104 | 58042 | WASHER, FLAT M4 | 1 | REPLACES P/N 031104080 | ADD TO CART |
| 105 | 402010110 | COIL SPRING | 1 | REPLACES P/N 0830000010 | ADD TO CART |
| 106 | 518351240 | COUPLING FLANGE | 1 | PARTS REQUEST | |
|
COMING COUPLING FLANGE
518351240 · qty on machine: 1 | |||||
| 107 | 009110070 | SOCKET HEAD BOLT 10X25 | 3 | PARTS REQUEST | |
|
COMING SOCKET HEAD BOLT 10X25
009110070 · qty on machine: 3 | |||||
| 109 | 518218680 | ENGINE GUARD | 1 | ADD TO CART | |
| 110 | 012210020 | BOLT 10X20 | 3 | REPLACES P/N 001221020 | ADD TO CART |
| 110-1 | 030210250 | WASHER, LOCK M10 | 4 | ADD TO CART | |
| 110-2 | 031110160 | WASHER, FLAT M10 | 4 | ADD TO CART | |
| 121 | 050710120 | O-RING | 1 | ADD TO CART | |
| 122 | 953408610 | CAP, DRAIN | 1 | PARTS REQUEST | |
|
COMING CAP, DRAIN
953408610 · qty on machine: 1 Factory replaced this part - current number 953408611 | |||||
| 123 | 954408620 | ADAPTER, HOSE NIPPLE | 1 | PARTS REQUEST | |
|
COMING ADAPTER, HOSE NIPPLE
954408620 · qty on machine: 1 | |||||
| 124 | 954408730 | HOSE, NIPPLE | 1 | ADD TO CART | |
| 125 | 954408580 | STRAINER | 1 | ADD TO CART | |
Page 16 — BODY ASSY. (CONT'D.)
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 126 | 022910280 | NYLON NUT M10 | 1 | PARTS REQUEST | |
|
COMING NYLON NUT M10
022910280 · qty on machine: 1 | |||||
| 127 | 001241030 | BOLT 10X30 | 1 | ADD TO CART | |
| 128 | 033910160 | WASHER, FLAT M10 | 2 | ADD TO CART | |
| 129 | 954300342 | CAP, WATER TANK | 1 | ADD TO CART | |
| 131 | 518351590 | HOLDER, ROD | 1 | ADD TO CART | |
| 132 | 952408750 | WASHER | 7 | PARTS REQUEST | |
|
COMING WASHER
952408750 · qty on machine: 7 | |||||
| 133 | 033910260 | WASHER, FLAT M5 | 2 | PARTS REQUEST | |
|
COMING WASHER, FLAT M5
033910260 · qty on machine: 2 | |||||
| 134 | 033910270 | WASHER, FLAT M6 | 1 | PARTS REQUEST | |
|
COMING WASHER, FLAT M6
033910270 · qty on machine: 1 | |||||
| 135 | 025911030 | SNAP PIN | 2 | PARTS REQUEST | |
|
COMING SNAP PIN
025911030 · qty on machine: 2 | |||||
| 136 | 025911020 | SNAP PIN | 1 | PARTS REQUEST | |
|
COMING SNAP PIN
025911020 · qty on machine: 1 | |||||
| 137 | 518010040 | BLIND RIVET | 7 | PARTS REQUEST | |
|
COMING BLIND RIVET
518010040 · qty on machine: 7 | |||||
| 138 | 518218710 | RUBBER HINGE | 1 | NO LONGER AVAILABLE | |
|
COMING RUBBER HINGE
518218710 · qty on machine: 1 NO LONGER AVAILABLE
| |||||
| 139 | 518466260 | BUTTON HEAD PIN, COVER | 2 | ADD TO CART | |
| 140 | 518466290 | BONNET STRAP | 2 | ADD TO CART | |
| 141 | 518466250 | ROD, COVER | 1 | PARTS REQUEST | |
|
COMING ROD, COVER
518466250 · qty on machine: 1 | |||||

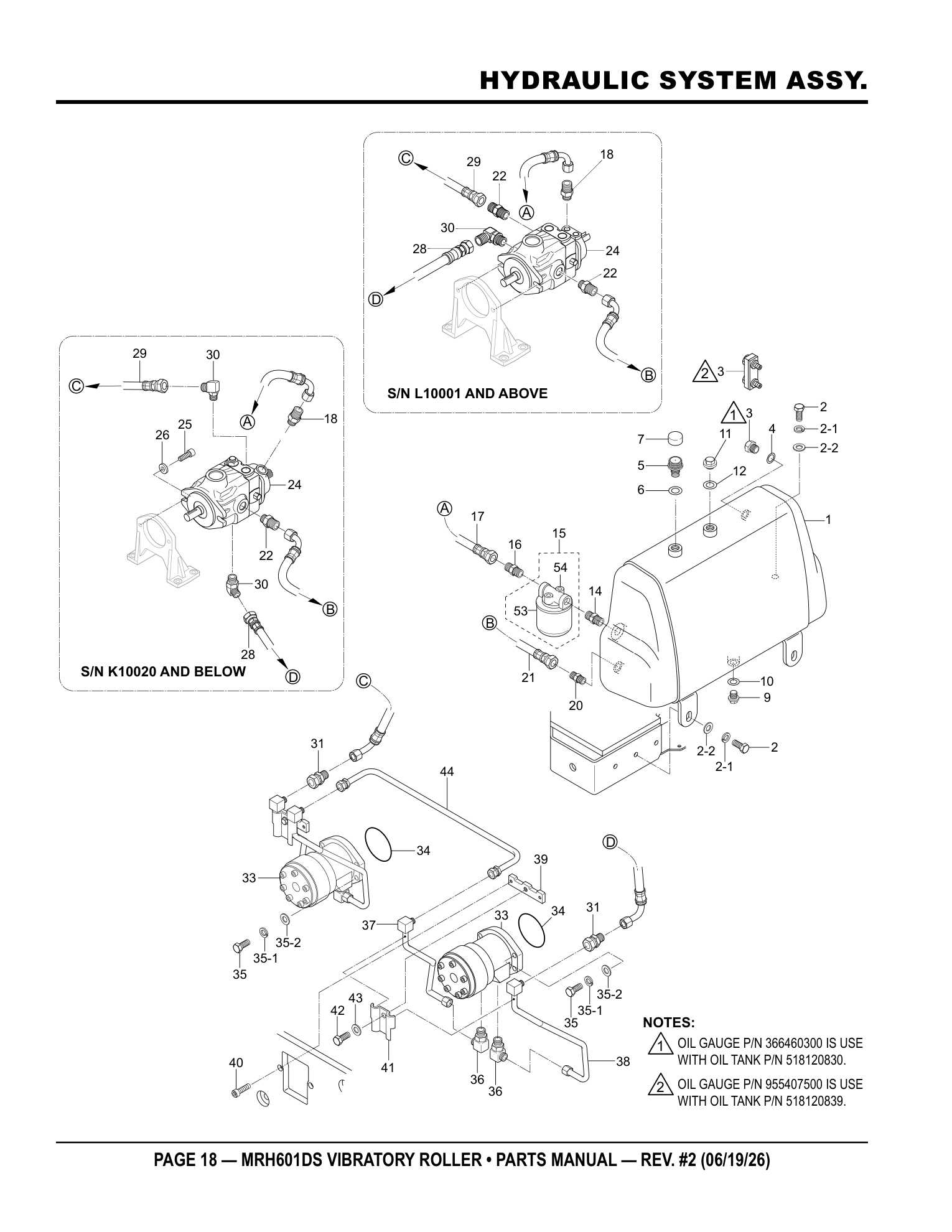

Page 18 — HYDRAULIC SYSTEM ASSY.
Parts list — exactly as printed45 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 518120839 | OIL TANK | 1 | REPLACES P/N 518120830 | ADD TO CART |
| 2 | 0105091025 | BOLT 10X25 | 4 | REPLACES P/N 001221025 | ADD TO CART |
| 2-1 | 030210250 | WASHER, LOCK M10 | 4 | ADD TO CART | |
| 2-2 | 031110160 | WASHER, FLAT M10 | 4 | ADD TO CART | |
| 3 | 366460300 | OIL GAUGE ASSY | 1 | USE WITH P/N 518120830 | ADD TO CART |
| 3 | 955407500 | OIL GAUGE ASSY | 1 | USE WITH P/N 518120839 | ADD TO CART |
| 4 | 953404670 | COPPER PACKING | 1 | ADD TO CART | |
| 5 | 518466240 | BREATHER, OIL TANK | 1 | ADD TO CART | |
| 6 | 953402930 | COPPER PACKING | 1 | ADD TO CART | |
| 7 | 458451630 | BREATHER CAP | 1 | ADD TO CART | |
| 9 | 953405270 | PLUG | 1 | ADD TO CART | |
| 10 | 953405260 | PACKING | 1 | ADD TO CART | |
| 11 | 953405840 | DRAIN PLUG | 1 | ADD TO CART | |
| 12 | 953402930 | COPPER PACKING | 1 | ADD TO CART | |
| 14 | 954003000 | NIPPLE | 1 | PARTS REQUEST | |
|
COMING NIPPLE
954003000 · qty on machine: 1 | |||||
| 15 | 954003080 | OIL FILTER ASSY | 1 | INCLUDES ITEM W/# | ADD TO CART |
| 16 | 954003030 | MALE CONNECTOR | 1 | PARTS REQUEST | |
|
COMING MALE CONNECTOR
954003030 · qty on machine: 1 | |||||
| 17 | 954002970 | OIL HOSE | 1 | PARTS REQUEST | |
|
COMING OIL HOSE
954002970 · qty on machine: 1 | |||||
| 18 | 954003020 | MALE CONNECTOR, O-RING 1/2 | 1 | S/N K10020 AND BELOW | PARTS REQUEST |
|
COMING MALE CONNECTOR, O-RING 1/2
954003020 · qty on machine: 1 S/N K10020 AND BELOW | |||||
| 18 | 954003490 | MALE CONNECTOR, G3/8-G1/2 | 1 | S/N L10001 AND ABOVE | PARTS REQUEST |
|
COMING MALE CONNECTOR, G3/8-G1/2
954003490 · qty on machine: 1 S/N L10001 AND ABOVE | |||||
| 20 | 954003070 | MALE CONNECTOR | 1 | PARTS REQUEST | |
|
COMING MALE CONNECTOR
954003070 · qty on machine: 1 | |||||
| 21 | 954003050 | OIL HOSE 3/8" | 1 | PARTS REQUEST | |
|
COMING OIL HOSE 3/8"
954003050 · qty on machine: 1 | |||||
| 22 | 954003060 | MALE CONNECTOR, O-RING 3/8 | 1 | S/N K10020 AND BELOW | PARTS REQUEST |
|
COMING MALE CONNECTOR, O-RING 3/8
954003060 · qty on machine: 1 S/N K10020 AND BELOW | |||||
| 22 | 954003060 | MALE CONNECTOR, O-RING 3/8 | 2 | S/N L10001 AND ABOVE | PARTS REQUEST |
|
COMING MALE CONNECTOR, O-RING 3/8
954003060 · qty on machine: 2 S/N L10001 AND ABOVE | |||||
| 24 | 518120880 | VARIABLE PUMP | 1 | S/N K10020 AND BELOW | ADD TO CART |
| 24 | 518123510 | VARIABLE PUMP, PV10 | 1 | S/N L10001 AND ABOVE | PARTS REQUEST |
|
COMING VARIABLE PUMP, PV10
518123510 · qty on machine: 1 S/N L10001 AND ABOVE | |||||
| 25 | 009110019 | SOCKET HEAD BOLT 10X30 | 2 | S/N K10020 AND BELOW | NO LONGER AVAILABLE |
|
COMING SOCKET HEAD BOLT 10X30
009110019 · qty on machine: 2 S/N K10020 AND BELOW NO LONGER AVAILABLE
| |||||
| 25 | 001221030 | BOLT 10X30 T | 2 | S/N L10001 AND ABOVE | PARTS REQUEST |
|
COMING BOLT 10X30 T
001221030 · qty on machine: 2 S/N L10001 AND ABOVE | |||||
| 26 | 952404110 | COLLAR 10.5X22X5 | 2 | ADD TO CART | |
| 28 | 954002960 | OIL HOSE 3/8 90-1005 320L | 1 | S/N K10020 AND BELOW | ADD TO CART |
| 28 | 954003440 | OIL HOSE 3/8 90-1005 610L | 1 | S/N L10001 AND ABOVE | PARTS REQUEST |
|
COMING OIL HOSE 3/8 90-1005 610L
954003440 · qty on machine: 1 S/N L10001 AND ABOVE | |||||
| 29 | 954002950 | OIL HOSE 3/8 90-1005 470L | 1 | ADD TO CART | |
| 30 | 954002990 | ELBOW 90°, PF3/8" | 2 | S/N K10020 AND BELOW | ADD TO CART |
| 30 | 954002990 | ELBOW 90°, PF3/8" | 1 | S/N L10001 AND ABOVE | ADD TO CART |
| 31 | 954002980 | CONNECTOR, SWIVEL PF3/8" | 2 | ADD TO CART | |
| 33 | 518351480 | OIL MOTOR | 2 | ADD TO CART | |
| 34 | 050710060 | O-RING | 2 | ADD TO CART | |
| 35 | 012210035 | BOLT 10X35 | 8 | REPLACES P/N 001221035 | ADD TO CART |
| 35-1 | 030210250 | WASHER, LOCK M10 | 8 | ADD TO CART | |
| 35-2 | 031110160 | WASHER, FLAT M10 | 8 | ADD TO CART | |
| 36 | 954003040 | CONNECTOR, ELBOW PF1/2" | 4 | ADD TO CART | |
| 37 | 518466330 | OIL PIPE (L) | 2 | ADD TO CART | |
| 38 | 518466340 | OIL PIPE (R) | 2 | ADD TO CART | |
| 39 | 518466080 | HOLDER, PIPE | 2 | PARTS REQUEST | |
|
COMING HOLDER, PIPE
518466080 · qty on machine: 2 | |||||
| 40 | 014208020 | SOCKET HEAD BOLT 8X20 | 4 | REPLACES P/N 001520820 | ADD TO CART |

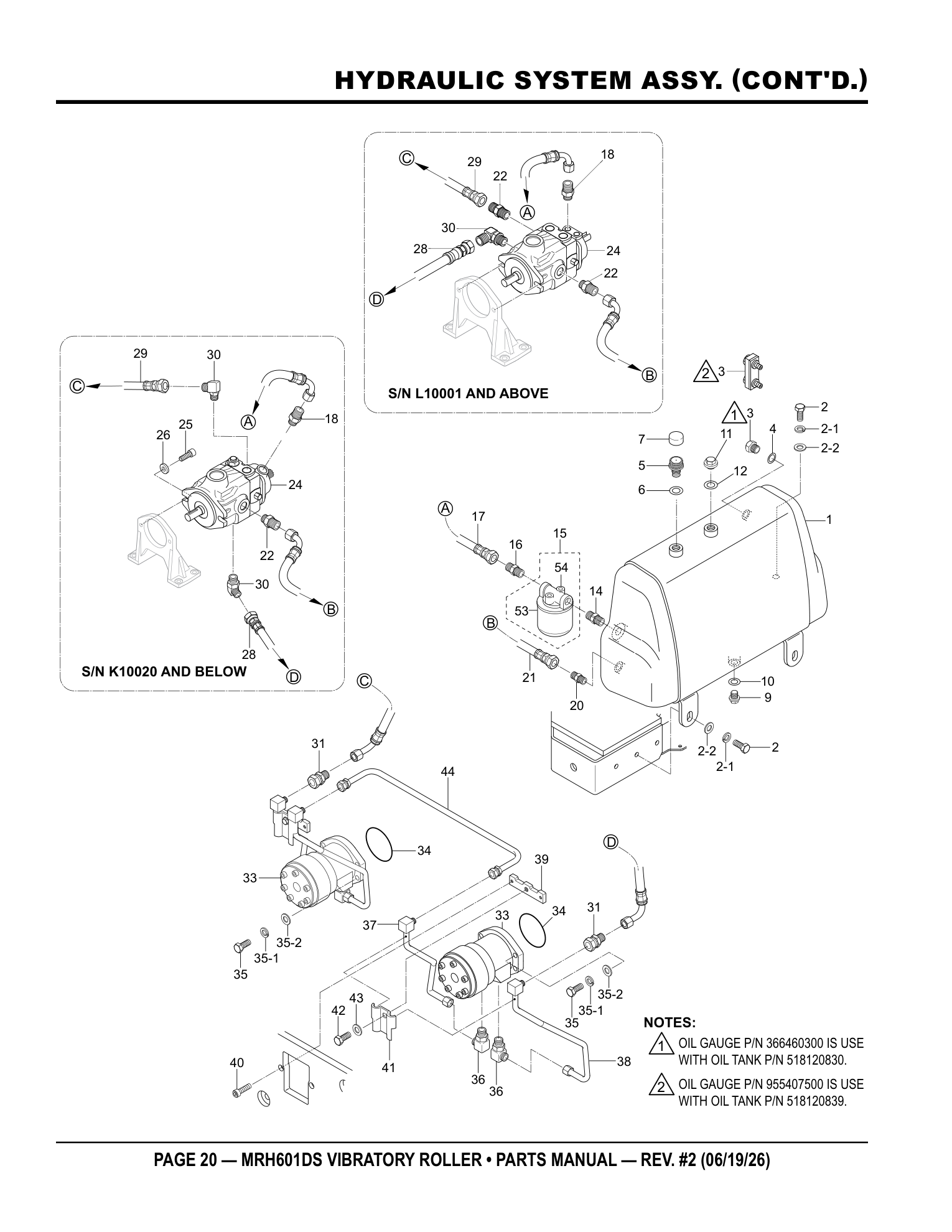

Page 20 — HYDRAULIC SYSTEM ASSY. (CONT'D.)
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 41 | 518465970 | GUARD, PIPE | 2 | PARTS REQUEST | |
|
COMING GUARD, PIPE
518465970 · qty on machine: 2 | |||||
| 42 | 012210020 | BOLT 10X20 | 2 | REPLACES P/N 001221020 | ADD TO CART |
| 43 | 031110160 | WASHER, FLAT M10 | 2 | ADD TO CART | |
| 44 | 518466360 | OIL PIPE (A-B) | 1 | PARTS REQUEST | |
|
COMING OIL PIPE (A-B)
518466360 · qty on machine: 1 Kit includes: 53#, 54# | |||||
| 53# | 954001380 | OIL ELEMENT | 1 | ADD TO CART | |
| 54# | 954003310 | FILTER HEAD | 1 | PARTS REQUEST | |
|
COMING FILTER HEAD
954003310 · qty on machine: 1 Also included in kit 44 - OIL PIPE (A-B) (518466360) | |||||

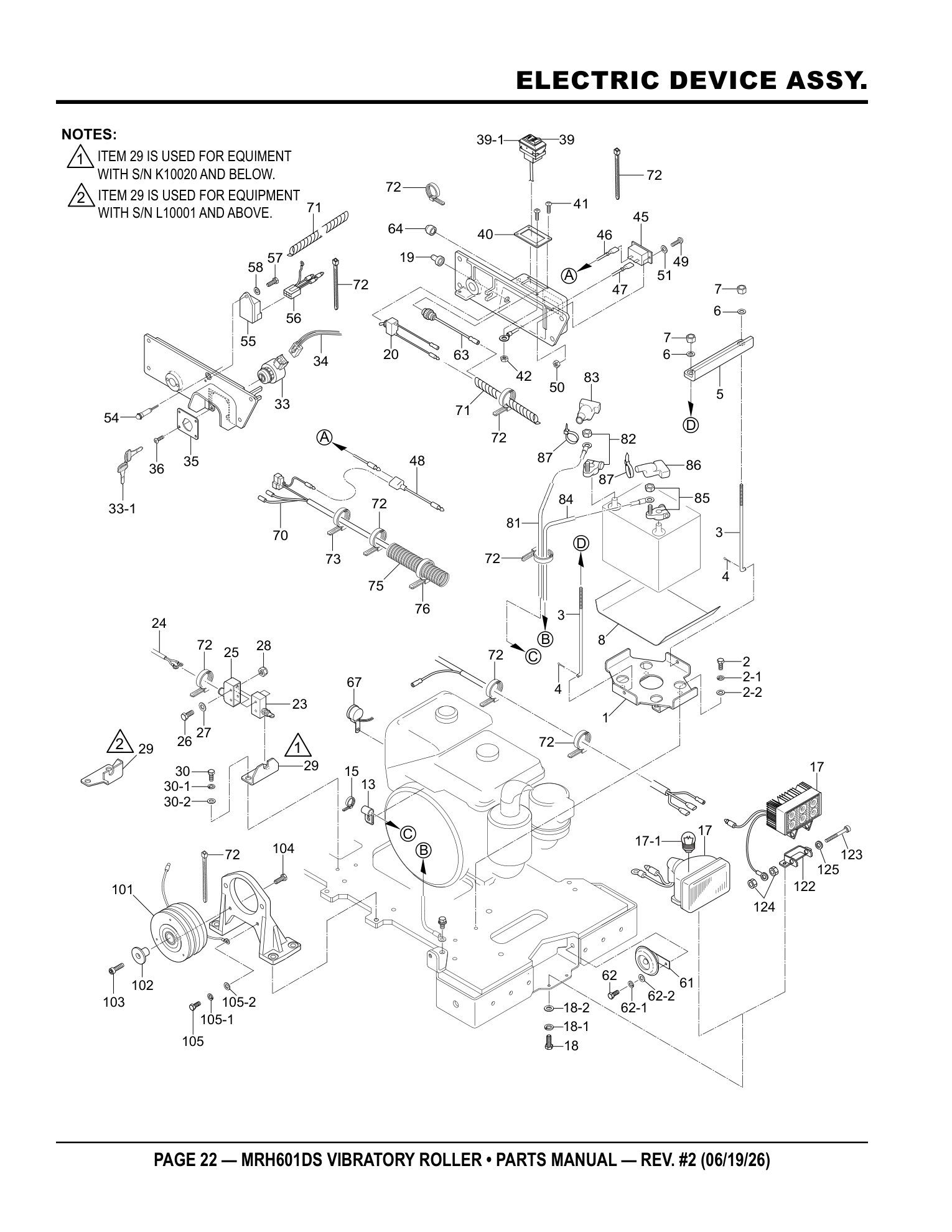

Page 22 — ELECTRIC DEVICE ASSY.
Parts list — exactly as printed39 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 518218670 | BASE, BATTERY | 1 | PARTS REQUEST | |
|
COMING BASE, BATTERY
518218670 · qty on machine: 1 | |||||
| 2 | 014208020 | BOLT 8X20 | 4 | REPLACES P/N 001220820 | ADD TO CART |
| 2-1 | 030208200 | WASHER, LOCK | 4 | ADD TO CART | |
| 2-2 | 0401450080 | WASHER, FLAT | 4 | REPLACES P/N 031108160 | ADD TO CART |
| 3 | 515448210 | ROD, BATTERY | 2 | ADD TO CART | |
| 4 | 025910060 | SNAP PIN | 2 | ADD TO CART | |
| 5 | 518465980 | BATTERY HOLDER | 1 | PARTS REQUEST | |
|
COMING BATTERY HOLDER
518465980 · qty on machine: 1 | |||||
| 6 | 952404470 | WASHER, FLAT M6 | 2 | REPLACES P/N 031106100 | ADD TO CART |
| 7 | 022710607 | NYLON NUT M6 | 2 | ADD TO CART | |
| 8 | 601303150 | RUBBER PLATE | 1 | ADD TO CART | |
| 13 | 954406400 | CLAMP | 1 | ADD TO CART | |
| 15 | 506010070 | CLAMP | 1 | ADD TO CART | |
| 17 | 955200030 | HEAD LAMP ASSY. 12V-25W | 1 | INCLUDES ITEMS W/@ | ADD TO CART |
| 17 | 955301160 | HEAD LAMP ASSY., LED | 1 | PARTS REQUEST | |
|
COMING HEAD LAMP ASSY., LED
955301160 · qty on machine: 1 Kit includes: 17-1@ | |||||
| 17-1@ | 955200060 | PILOT LAMP, 12V | 1 | PARTS REQUEST | |
|
COMING PILOT LAMP, 12V
955200060 · qty on machine: 1 Also included in kit 17 - HEAD LAMP ASSY. 12V-25W (955200030) | |||||
| 18 | 0105050616 | BOLT 6X15 T | 2 | REPLACES P/N 001220615 | ADD TO CART |
| 18-1 | 030206150 | WASHER, LOCK M6 | 2 | ADD TO CART | |
| 18-2 | 952404470 | WASHER, FLAT M6 | 2 | REPLACES P/N 031106100 | ADD TO CART |
| 19 | 304402600 | CAP | 1 | ADD TO CART | |
| 20 | 515449910 | SWITCH, W/CORD | 1 | ADD TO CART | |
| 23 | 955405910 | MICRO-SWITCH | 1 | ADD TO CART | |
| 24 | 515453230 | READ CORD, MICRO-SWITCH | 1 | ADD TO CART | |
| 25 | 955405450 | COVER, MICRO-SWITCH | 1 | ADD TO CART | |
| 26 | 001200430 | BOLT 4X30 | 2 | ADD TO CART | |
| 27 | 58042 | WASHER, FLAT M4 | 2 | REPLACES P/N 031104080 | ADD TO CART |
| 28 | 022710405 | NYLON NUT M4 | 2 | ADD TO CART | |
| 29 | 518466060 | STAY, SWITCH | 1 | S/N K10020 AND BELOW | PARTS REQUEST |
|
COMING STAY, SWITCH
518466060 · qty on machine: 1 S/N K10020 AND BELOW | |||||
| 29 | 518476270 | STAY, LIMIT SWITCH | 1 | S/N L10001 AND ABOVE | PARTS REQUEST |
|
COMING STAY, LIMIT SWITCH
518476270 · qty on machine: 1 S/N L10001 AND ABOVE | |||||
| 30 | 014208020 | BOLT 8X20 | 2 | REPLACES P/N 001220820 | ADD TO CART |
| 30-1 | 030208200 | WASHER, LOCK M8 | 2 | ADD TO CART | |
| 30-2 | 0401450080 | WASHER, FLAT M8 | 2 | REPLACES P/N 031108160 | ADD TO CART |
| 33 | 1G34763590 | STARTER SWITCH ASSY | 1 | INCLUDES ITEMS W/ $ | ADD TO CART |
| 33-1$ | 1524863700 | KEY, IGNITION SWITCH | 1 | ADD TO CART | |
| 34 | 518351570 | WIRE HARNESS ASSY. | 1 | ADD TO CART | |
| 35 | 518466070 | BRACKET, KEY SWITCH | 1 | PARTS REQUEST | |
|
COMING BRACKET, KEY SWITCH
518466070 · qty on machine: 1 | |||||
| 36 | 091005012 | SCREW 5X12 | 4 | PARTS REQUEST | |
|
COMING SCREW 5X12
091005012 · qty on machine: 4 | |||||
| 39 | 516217920 | SEESAW SWITCH/MAG, CLUTCH | 1 | INCLUDES ITEMS W/ % | ADD TO CART |
| 39-1% | 516010140 | SWITCH COVER | 1 | PARTS REQUEST | |
|
COMING SWITCH COVER
516010140 · qty on machine: 1 Also included in kit 39 - SEESAW SWITCH/MAG, CLUTCH (516217920) | |||||
| 40 | 516458960 | SWITCH PLATE | 1 | ADD TO CART | |

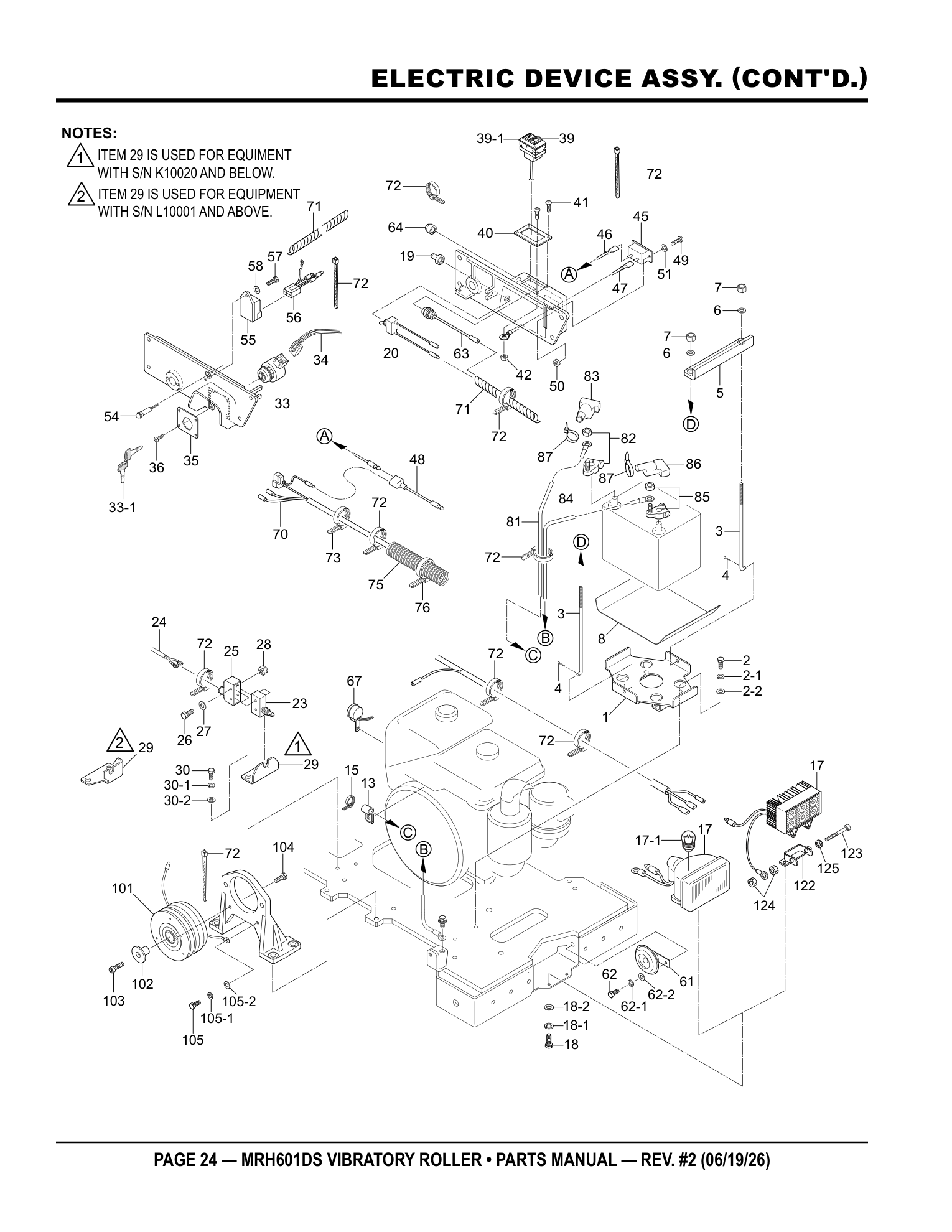

Page 24 — ELECTRIC DEVICE ASSY. (CONT'D.)
Parts list — exactly as printed45 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 41 | 091505015 | SCREW 5X15 SW | 4 | ADD TO CART | |
| 42 | 020305040 | NUT M5 | 1 | ADD TO CART | |
| 45 | 955010312 | HOUR METER/SENDEC | 1 | ADD TO CART | |
| 46 | 518466490 | LEAD CORD, H-METER (+) SW | 1 | PARTS REQUEST | |
|
COMING LEAD CORD, H-METER (+) SW
518466490 · qty on machine: 1 | |||||
| 47 | 518466500 | LEAD CORD, H-METER (-) GROUND | 1 | PARTS REQUEST | |
|
COMING LEAD CORD, H-METER (-) GROUND
518466500 · qty on machine: 1 | |||||
| 48 | 515450380 | WIRE HARNESS | 1 | ADD TO CART | |
| 49 | 091003015 | SCREW 3X15 | 2 | PARTS REQUEST | |
|
COMING SCREW 3X15
091003015 · qty on machine: 2 | |||||
| 50 | 020303020 | NUT M3 | 2 | NO LONGER AVAILABLE | |
|
COMING NUT M3
020303020 · qty on machine: 2 NO LONGER AVAILABLE
| |||||
| 51 | 031103050 | WASHER, FLAT M3 | 2 | ADD TO CART | |
| 54 | 955408260 | GLOW LAMP | 1 | ADD TO CART | |
| 55 | 1569465990 | LAMP TIMER | 1 | ADD TO CART | |
| 56 | 516349450 | WIRE HARNESS | 1 | ADD TO CART | |
| 57 | 0105050616 | BOLT 6X15 | 1 | REPLACES P/N 001220615 | ADD TO CART |
| 58 | 952404470 | WASHER, FLAT M6 | 1 | REPLACES P/N 031106100 | ADD TO CART |
| 61 | 955300420 | HORN ASSY., DC12V | 1 | ADD TO CART | |
| 62 | 011006010 | BOLT 6X10 | 1 | REPLACES P/N 001220610 | ADD TO CART |
| 62-1 | 030206150 | WASHER, LOCK M6 | 1 | ADD TO CART | |
| 62-2 | 952404470 | WASHER, FLAT M6 | 1 | REPLACES P/N 031106100 | ADD TO CART |
| 63 | 955400800 | HORN BUTTON ASSY. | 1 | ADD TO CART | |
| 64 | 955405980 | COVER, HORN BUTTON | 1 | ADD TO CART | |
| 67 | 955300400 | BUZZER | 1 | ADD TO CART | |
| 70 | 518351580 | WIRE HARNESS ASSY (L-H-C) | 1 | ADD TO CART | |
| 71 | 959021826 | SPIRAL TUBE | 2 | PARTS REQUEST | |
|
COMING SPIRAL TUBE
959021826 · qty on machine: 2 | |||||
| 72 | 507010110 | CLAMP | 12 | PARTS REQUEST | |
|
COMING CLAMP
507010110 · qty on machine: 12 | |||||
| 73 | 511010040 | CLAMP | 1 | PARTS REQUEST | |
|
COMING CLAMP
511010040 · qty on machine: 1 | |||||
| 75 | 959021911 | TUBE | 1 | ADD TO CART | |
| 76 | 507010110 | CLAMP | 7 | PARTS REQUEST | |
|
COMING CLAMP
507010110 · qty on machine: 7 | |||||
| 81 | 515448530 | BATTERY CORD (+) | 1 | NO LONGER AVAILABLE | |
|
COMING BATTERY CORD (+)
515448530 · qty on machine: 1 NO LONGER AVAILABLE
| |||||
| 82 | 955300480 | BATTERY TERMINAL (+) | 1 | ADD TO CART | |
| 83 | 955300460 | TERMINAL COVER (+) | 1 | REPLACES P/N 955300500 | ADD TO CART |
| 84 | 515447360 | BATTERY CORD (-) | 1 | ADD TO CART | |
| 85 | 955300490 | BATTERY TERMINAL (-) | 1 | ADD TO CART | |
| 86 | 955300470 | TERMINAL COVER (-) | 1 | REPLACES P/N 955300510 | PARTS REQUEST |
|
COMING TERMINAL COVER (-)
955300470 · qty on machine: 1 REPLACES P/N 955300510 | |||||
| 87 | 506010070 | CLAMP | 2 | ADD TO CART | |
| 101 | 518351510 | MAGNETIC CLUTCH | 1 | ADD TO CART | |
| 102 | 518466170 | WASHER, STEPPED | 1 | ADD TO CART | |
| 103 | 009110080 | SOCKET HEAD BOLT 6X30 ZN | 1 | PARTS REQUEST | |
|
COMING SOCKET HEAD BOLT 6X30 ZN
009110080 · qty on machine: 1 | |||||
| 104 | 011206020 | BOLT 6X20 | 1 | REPLACES P/N 001220620 | ADD TO CART |
| 105 | 011006010 | BOLT 6X10 | 1 | REPLACES P/N 001220610 | ADD TO CART |
| 105-1 | 030206150 | WASHER, LOCK M6 | 1 | ADD TO CART | |
| 105-2 | 952404470 | WASHER, FLAT M6 | 1 | REPLACES P/N 031106100 | ADD TO CART |
| 122 | 515472950 | HEAD LAMP BRACKET | 1 | PARTS REQUEST | |
|
COMING HEAD LAMP BRACKET
515472950 · qty on machine: 1 | |||||
| 123 | 009110023 | SOCKET HEAD BOLT 8X70 T | 1 | PARTS REQUEST | |
|
COMING SOCKET HEAD BOLT 8X70 T
009110023 · qty on machine: 1 | |||||
| 124 | 020308060 | NUT M8 | 2 | ADD TO CART | |
| 125 | 031108160 | WASHER, FLAT M8 | 1 | ADD TO CART | |

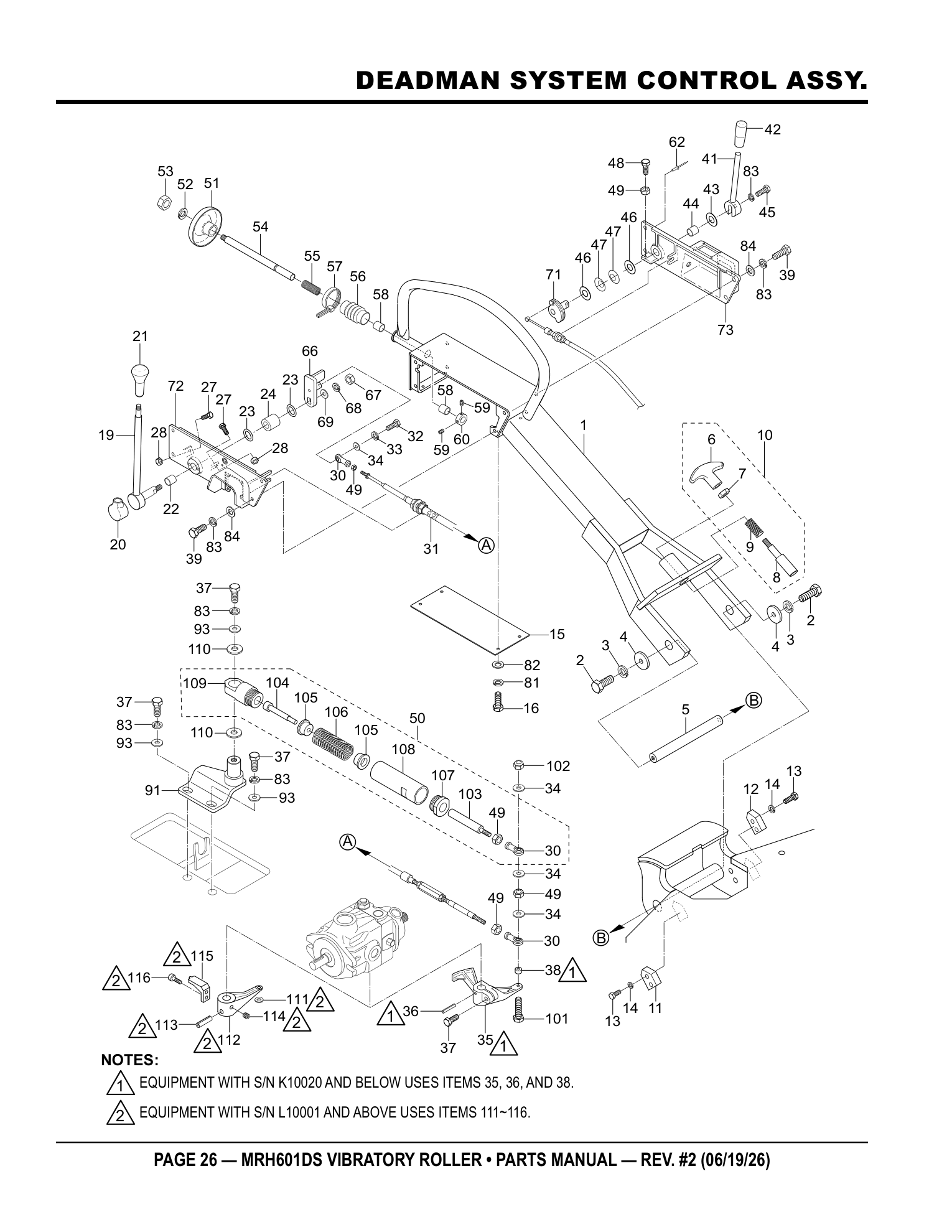

Page 26 — DEADMAN SYSTEM CONTROL ASSY.
Parts list — exactly as printed45 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 518120800 | HANDLE | 1 | PARTS REQUEST | |
|
COMING HANDLE
518120800 · qty on machine: 1 | |||||
| 2 | 012210035 | BOLT 10X35 | 2 | REPLACES P/N 001221035 | ADD TO CART |
| 3 | 030210250 | WASHER, LOCK M10 | 2 | ADD TO CART | |
| 4 | 952408680 | WASHER | 2 | PARTS REQUEST | |
|
COMING WASHER
952408680 · qty on machine: 2 | |||||
| 5 | 518466130 | SHAFT, HANDLE | 1 | PARTS REQUEST | |
|
COMING SHAFT, HANDLE
518466130 · qty on machine: 1 | |||||
| 6# | 959007140 | T-KNOB, M12 | 1 | ADD TO CART | |
| 7# | 0039312000 | NUT M12 | 1 | REPLACES P/N 020312100 | ADD TO CART |
| 8# | 517459710 | STOPPER, HANDLE | 1 | ADD TO CART | |
| 9# | 517459700 | SPRING, HANDLE | 1 | ADD TO CART | |
| 10 | 515910090 | HANDLE/STOPPER ASSY | 1 | INCLUDES ITEMS W/ # | PARTS REQUEST |
|
COMING HANDLE/STOPPER ASSY
515910090 · qty on machine: 1 INCLUDES ITEMS W/ # Kit includes: 6#, 7#, 8#, 9# | |||||
| 11 | 518466090 | STOPPER, HANDLE/IN-OP | 1 | ADD TO CART | |
| 12 | 518466100 | STOPPER, HANDLE/IN-HO | 1 | ADD TO CART | |
| 13 | 012210035 | BOLT 10X35 | 4 | REPLACES P/N 001221035 | ADD TO CART |
| 14 | 030210250 | WASHER, LOCK M10 | 4 | ADD TO CART | |
| 15 | 518351400 | HANDLE COVER | 1 | ADD TO CART | |
| 16 | 011206020 | BOLT 6X20 | 4 | REPLACES P/N 001220620 | ADD TO CART |
| 19 | 518352810 | TRAVELLING, LEVER | 1 | NO LONGER AVAILABLE | |
|
COMING TRAVELLING, LEVER
518352810 · qty on machine: 1 NO LONGER AVAILABLE
| |||||
| 20 | 518467530 | LEVER COVER | 1 | ADD TO CART | |
| 21 | 959300870 | KNOB | 1 | ADD TO CART | |
| 22 | 464010010 | DRY BUSHING | 1 | ADD TO CART | |
| 23 | 458450660 | WASHER | 2 | ADD TO CART | |
| 24 | 952408970 | COLLAR | 1 | ADD TO CART | |
| 27 | 011208025 | BOLT 8X25 | 2 | REPLACES P/N 001220825 | ADD TO CART |
| 28 | 020108060 | NUT M8 | 2 | REPLACES P/N 020308060 | ADD TO CART |
| 30% | 501011162 | ROD END | 3 | ADD TO CART | |
| 31 | 517342410 | PUSH-PULL CABLE | 1 | ADD TO CART | |
| 32 | 011606025 | BOLT 6X25 | 1 | REPLACES P/N 001220625 | ADD TO CART |
| 33 | 030206150 | WASHER, LOCK M6 | 1 | ADD TO CART | |
| 34 | 952404470 | WASHER | 4 | ADD TO CART | |
| 35 | 518351470 | PV LEVER | 1 | S/N K10020 AND BELOW | ADD TO CART |
| 36 | 025405032 | SPRING PIN 5X32 | 1 | S/N K10020 AND BELOW | PARTS REQUEST |
|
COMING SPRING PIN 5X32
025405032 · qty on machine: 1 S/N K10020 AND BELOW | |||||
| 37 | 014208020 | BOLT 8X20 | 4 | REPLACES P/N 001220820 S/N K10020 AND BELOW | ADD TO CART |
| 37 | 014208020 | BOLT 8X20 | 3 | REPLACES P/N 001220820 S/N L10001 AND ABOVE | ADD TO CART |
| 38 | 952408770 | COLLAR | 1 | S/N K10020 AND BELOW | ADD TO CART |
| 39 | 014208020 | BOLT 8X20 | 8 | REPLACES P/N 001220820 | ADD TO CART |
| 41 | 518466140 | THROTTLE LEVER | 1 | PARTS REQUEST | |
|
COMING THROTTLE LEVER
518466140 · qty on machine: 1 | |||||
| 42 | 959403840 | BAR GRIP | 1 | ADD TO CART | |
| 43 | 952408560 | WASHER, BRASS | 1 | ADD TO CART | |
| 44 | 464010010 | DRY BUSHING | 1 | ADD TO CART | |
| 45 | 011208025 | BOLT 8X25 | 1 | REPLACES P/N 001220825 | ADD TO CART |
| 46 | 458450660 | WASHER | 2 | ADD TO CART | |
| 47 | 033910080 | CONICAL WASHER, LOCK | 2 | ADD TO CART | |
| 48 | 0105050616 | BOLT 6X15 | 1 | REPLACES P/N 001220615 | ADD TO CART |
| 49% | 020106050 | NUT M6 | 5 | REPLACES P/N 020306050 | ADD TO CART |
| 50 | 518910120 | CYLINDER ASSY | 1 | INCLUDES ITEMS W/ % | PARTS REQUEST |
|
COMING CYLINDER ASSY
518910120 · qty on machine: 1 INCLUDES ITEMS W/ % Kit includes: 30%, 49% | |||||
Page 28 — DEADMAN SYSTEM CONTROL ASSY. (CONT'D.)
Parts list — exactly as printed40 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 51 | 515447720 | DISC PLATE, DEADMAN | 1 | ADD TO CART | |
| 52 | 030212300 | WASHER, LOCK M12 | 1 | ADD TO CART | |
| 53 | 0039312000 | NUT M12 | 1 | REPLACES P/N 020312100 | ADD TO CART |
| 54 | 518351460 | ROD, DEADMAN | 1 | ADD TO CART | |
| 55 | 509436980 | SPRING, DEADMAN | 1 | ADD TO CART | |
| 56 | 509436990 | PROTECTOR, DEADMAN | 1 | ADD TO CART | |
| 57 | 507010110 | CLAMP | 1 | PARTS REQUEST | |
|
COMING CLAMP
507010110 · qty on machine: 1 | |||||
| 58 | 464010010 | DRY BUSHING | 2 | ADD TO CART | |
| 59 | 01420601 | SOCKET HEAD SCREW 6X6 | 2 | REPLACES P/N 099206006 | PARTS REQUEST |
|
COMING SOCKET HEAD SCREW 6X6
01420601 · qty on machine: 2 REPLACES P/N 099206006 | |||||
| 60 | 509436960 | ROD STOPPER, DEADMAN | 1 | PARTS REQUEST | |
|
COMING ROD STOPPER, DEADMAN
509436960 · qty on machine: 1 | |||||
| 62 | 515010080 | DECAL, WINDOW SHADE RIVET | 2 | NO LONGER AVAILABLE | |
|
COMING DECAL, WINDOW SHADE RIVET
515010080 · qty on machine: 2 NO LONGER AVAILABLE
| |||||
| 66 | 518352800 | LEVER, JOINT, TRAVELLING | 1 | ADD TO CART | |
| 67 | 020310080 | NUT M10 | 1 | ADD TO CART | |
| 68 | 030210250 | WASHER, LOCK M10 | 1 | ADD TO CART | |
| 69 | 031110160 | WASHER, FLAT M10 | 1 | ADD TO CART | |
| 71 | 518351450 | SHAFT, THROTTLE | 1 | PARTS REQUEST | |
|
COMING SHAFT, THROTTLE
518351450 · qty on machine: 1 | |||||
| 72 | 518120680 | TRAVELLING LEVER BRACKET | 1 | PARTS REQUEST | |
|
COMING TRAVELLING LEVER BRACKET
518120680 · qty on machine: 1 | |||||
| 73 | 518120690 | THROTTLE LEVER BRACKET | 1 | PARTS REQUEST | |
|
COMING THROTTLE LEVER BRACKET
518120690 · qty on machine: 1 | |||||
| 81 | 030206150 | WASHER, LOCK M6 | 4 | ADD TO CART | |
| 82 | 952404470 | WASHER, FLAT M6 | 4 | REPLACES P/N 031106100 | ADD TO CART |
| 83 | 030208200 | WASHER, LOCK M8 | 12 | ADD TO CART | |
| 84 | 0401450080 | WASHER, FLAT M8 | 8 | REPLACES P/N 031108160 | ADD TO CART |
| 91 | 518352580 | CYLINDER, STAY | 1 | PARTS REQUEST | |
|
COMING CYLINDER, STAY
518352580 · qty on machine: 1 | |||||
| 93 | 952401560 | WASHER | 3 | ADD TO CART | |
| 101 | 001820650 | BOLT 6X50 | 1 | ADD TO CART | |
| 102 | 022710607 | NYLON NUT M6 | 1 | ADD TO CART | |
| 103% | 515461610 | OUTER SHAFT | 1 | ADD TO CART | |
| 104% | 515461600 | INNER SHAFT | 1 | ADD TO CART | |
| 105% | 518467400 | CYLINDER, PISTON | 2 | ADD TO CART | |
| 106% | 518467390 | SPRING, CYLINDER | 1 | ADD TO CART | |
| 107% | 506442930 | CAP | 1 | ADD TO CART | |
| 108% | 515461590 | CYLINDER | 1 | ADD TO CART | |
| 109% | 515461580 | LINK CAP | 1 | ADD TO CART | |
| 110 | 506442940 | COLLAR | 2 | ADD TO CART | |
| 111 | 031106100 | WASHER, FLAT M6 | 1 | S/N L10001 AND ABOVE | ADD TO CART |
| 112 | 518359450 | PV LEVER | 1 | S/N L10001 AND ABOVE | PARTS REQUEST |
|
COMING PV LEVER
518359450 · qty on machine: 1 S/N L10001 AND ABOVE | |||||
| 113 | 025406035 | SPRING PIN 6X35 | 1 | S/N L10001 AND ABOVE | PARTS REQUEST |
|
COMING SPRING PIN 6X35
025406035 · qty on machine: 1 S/N L10001 AND ABOVE | |||||
| 114 | 098208008 | SOCKET HEAD BOLT8X8T | 1 | S/N L10001 AND ABOVE | ADD TO CART |
| 115 | 518476260 | ARM, LIMIT SWITCH | 1 | S/N L10001 AND ABOVE | PARTS REQUEST |
|
COMING ARM, LIMIT SWITCH
518476260 · qty on machine: 1 S/N L10001 AND ABOVE | |||||
| 116 | 001520615 | SOCKET HEAD BOLT 6X15 T | 2 | S/N L10001 AND ABOVE | ADD TO CART |

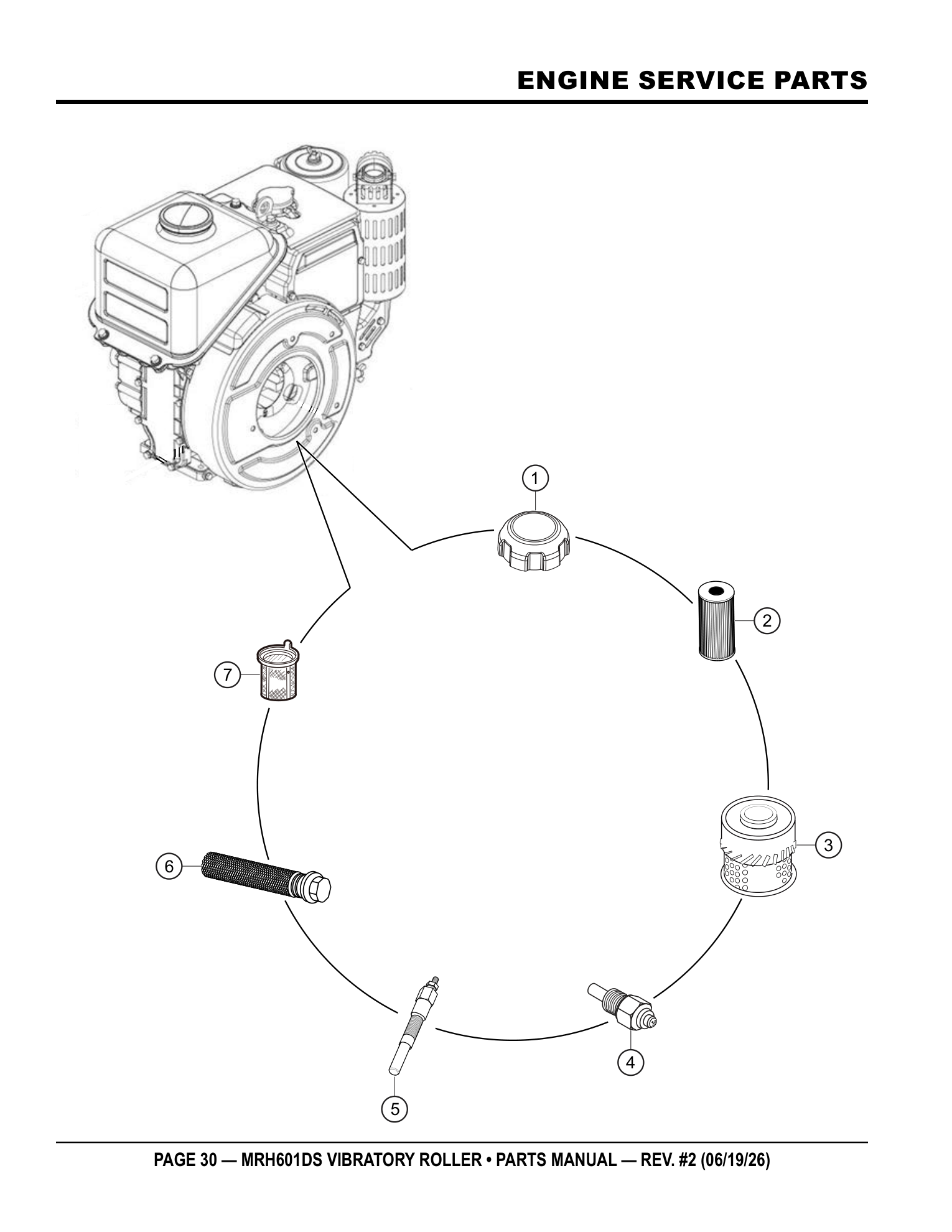

Page 30 — UNKNOWN
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 1252141030 | CAP, FUEL TANK | 1 | ADD TO CART | |
| 2 | 1T02143560 | ELEMENT, FUEL FILTER | 1 | ADD TO CART | |
| 3 | 1497111180 | ELEMENT, AIR CLEANER | 1 | ADD TO CART | |
| 4 | 1152139013 | SWITCH, OIL | 1 | PARTS REQUEST | |
|
COMING SWITCH, OIL
1152139013 · qty on machine: 1 | |||||
| 5 | 1685165512 | GLOW PLUG | 1 | ADD TO CART | |
| 6 | 1491132110 | FILTER, OIL | 1 | ADD TO CART | |
| 7 | 1254541350 | FITLER, FUEL TANK | 1 | ADD TO CART | |
The machine itself
Price by quote
Get a quote
Tell us where the machine is headed and we'll quote it with freight. One call, no games.
Machine
Engine

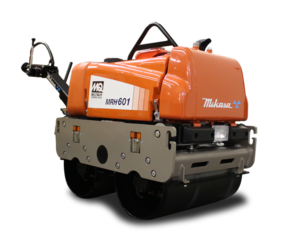

The Multiquip MRH601DS is a roller built for compacting asphalt and granular base on paving, patching, and trench restoration. Factory-documented specs and parts support; priced by quote.
Keep-it-running spares
All listed parts →Every part that fits this machine
046006208
Multiquip 046006208 Bearing - OEM Replacement Part for Vibratory Rollers
$51.95
046006308
Multiquip 046006308 Bearing - OEM Replacement Part for Vibratory Rollers
$61.95
070100361
Multiquip 070100361 V-Belt A-36 (Red) - OEM Replacement Part
$38.95
1119763070
Multiquip 1119763070 Armature Assembly - OEM Replacement Part for Vibratory Rollers
$556.95
1119763080
Multiquip 1119763080 Yoke Assembly DCA-10SPX3 D1403/V2203 - OEM Replacement Part
$487.95
1146063270
Multiquip 1146063270 Gear DCA-10SPX3 D1403/V2203 - OEM Replacement Part
$45.95
1173725010
Multiquip 1173725010 Flywheel Complete - OEM Replacement Part for Vibratory Rollers
$1,383.95
1192412470
Multiquip 1192412470 Muffler Pipe Cover - OEM Replacement Part
$42.95
1428602310
Multiquip 1428602310 Cylinder Liner Kubota - OEM Replacement Part
$400.95
1428621050
Multiquip 1428621050 Piston Ring Assembly - OEM Replacement Part
$158.95
1428621112
Multiquip 1428621112 Piston - OEM Replacement Part for Vibratory Rollers
$233.95
1428963010
Multiquip 1428963010 Kubota EA330 Motor - OEM Replacement Part
$941.95
1441665050
Multiquip 1441665050 Wire Harness - OEM Replacement Part for Vibratory Rollers
$248.95
1441672210
Multiquip 1441672210 Radiator Cover - OEM Replacement Part
$142.95
1442864602
Multiquip 1442864602 Regulator Assy - OEM Replacement Part for Vibratory Rollers
$360.95
1454174322
Multiquip 1454174322 Tension Pulley (JP) - OEM Replacement Part
$54.95
1491112412
Multiquip 1491112412 Pipe Muffler Vibratory Roller - OEM Replacement Part
$80.95
1491132110
Multiquip 1491132110 Oil Screen EA330 - OEM Replacement Part
$73.95
1497111012
Multiquip 1497111012 Air Cleaner Assembly - OEM Replacement Part
$335.95
1497111050
Multiquip 1497111050 Body Cap - OEM Replacement Part
$85.95
1497111100
Multiquip 1497111100 Case CP - OEM Replacement Part for Vibratory Rollers
$93.95
1497111614
Multiquip 1497111614 Air Cleaner Flange - OEM Replacement Part
$121.95
1497112112
Multiquip 1497112112 Muffler - OEM Replacement Part
$671.95
1497143010
Multiquip 1497143010 Fuel Filter Assembly - OEM Replacement Part
$146.95
1497156040
Multiquip 1497156040 Governor Lever CP - OEM Replacement Part for Vibratory Rollers
$88.95
1497172250
Multiquip 1497172250 Radiator - OEM Replacement Part for Vibratory Rollers
$180.95
1497174280
Multiquip 1497174280 Pulley Fan Drive Kubota - OEM Replacement Part
$122.95
1497174410
Multiquip 1497174410 Support Tension Pulley (JP) - OEM Replacement Part
$46.95
1527114030
Multiquip 1527114030 Rocker Arm Assembly DNS - OEM Replacement Part
$39.95
1569422010
Multiquip 1569422010 Connecting Rod Assembly DH850 - OEM Replacement Part for Vibratory Rollers
$184.95
1569465990
Multiquip 1569465990 Timer Lamp Quick Glow - OEM Replacement Part
$152.95
1584198100
Multiquip 1584198100 Washer Assy Adjust - OEM Replacement Part
$42.95
1685165512
Multiquip 1685165512 Glow Plug D722B - OEM Replacement Part
$91.95
1G11151012
Multiquip 1G11151012 Injection Pump Assembly - OEM Replacement Part for Vibratory Rollers
$444.95
1G34763590
Multiquip 1G34763590 Switch Assembly - OEM Replacement Part for Vibratory Rollers
$126.95
1G82097010
Multiquip 1G82097010 Fan Belt (RM32.5) - OEM Replacement Part
$42.95
1J13095680
Multiquip 1J13095680 Nozzle Holder Joint Kubota EA330 - OEM Replacement Part
$37.95
506442930
Multiquip 506442930 Cap - OEM Replacement Part for Vibratory Rollers
$52.95
509436980
Multiquip 509436980 Spring Dead-Man MR-8DB - OEM Replacement Part for Vibratory Rollers
$44.95
515447720
Multiquip 515447720 Disc Plate Dead Man for Vibratory Rollers - OEM Replacement Part
$80.95
515461580
Multiquip 515461580 Link Cap - OEM Replacement Part for Vibratory Rollers
$208.95
515461590
Multiquip 515461590 Cylinder - OEM Replacement Part
$59.95
515461600
Multiquip 515461600 Inner Shaft - OEM Replacement Part for Vibratory Rollers
$44.95
516217920
Multiquip 516217920 Seesaw Switch/Mag Clutch - OEM Replacement Part
$95.95
517342410
Multiquip 517342410 Push-Pull Cable - OEM Replacement Part for Vibratory Rollers
$173.95
518120630
Multiquip 518120630 Rear Drum Bracket - OEM Replacement Part for Vibratory Rollers
$395.95
518120880
Multiquip 518120880 Variable Pump - OEM Replacement Part for Vibratory Rollers
$1,161.95
518218650
Multiquip 518218650 Hook - OEM Replacement Part for Vibratory Rollers
$365.95
518218680
Multiquip 518218680 Engine Guard - OEM Replacement Part
$222.95
518351380
Multiquip 518351380 Rotary Shaft - OEM Replacement Part for Vibratory Rollers
$273.95
518351400
Multiquip 518351400 Handle Cover - OEM Replacement Part for Vibratory Rollers
$52.95
518351430
Multiquip 518351430 Flange (JP) - OEM Replacement Part for Vibratory Rollers
$205.95
518351440
Multiquip 518351440 Drum Shaft (L) - OEM Replacement Part
$132.95
518351470
Multiquip 518351470 PV Lever - OEM Replacement Part for Vibratory Rollers
$117.95
518351480
Multiquip 518351480 Motor - OEM Replacement Part
$674.95
518351570
Multiquip 518351570 Wire Harness Assembly - OEM Replacement Part for Vibratory Rollers
$114.95
518351580
Multiquip 518351580 Wire Harness Assembly (L-H-C) (JP) - OEM Replacement Part
$86.95
518352800
Multiquip 518352800 Lever Joint Traveling - OEM Replacement Part for Vibratory Rollers
$112.95
518466050
Multiquip 518466050 Plate - OEM Replacement Part for Vibratory Rollers
$42.95
518466100
Multiquip 518466100 Handle/In-Ho (JP) - OEM Replacement Part for Vibratory Rollers
$42.95
518466120
Multiquip 518466120 Lock Handle - OEM Replacement Part
$35.95
518466170
Multiquip 518466170 Washer for MRH601 Vibratory Roller - OEM Replacement Part
$48.95
518466200
Multiquip 518466200 Hose Nipple (No.124) - OEM Replacement Part
$53.95
518466240
Multiquip 518466240 Breather Oil Tank Cap - OEM Replacement Part
$97.95
518466330
Multiquip 518466330 Oil Pipe (L) - OEM Replacement Part
$125.95
518466340
Multiquip 518466340 Oil Pipe (R) - OEM Replacement Part for Vibratory Rollers
$125.95
518910020
Multiquip 518910020 Sprinkling Pipe Assembly - OEM Replacement Part for Vibratory Rollers
$60.95
518920020
Multiquip 518920020 Bonnet Cover - OEM Replacement Part
$351.95
518930020
Multiquip 518930020 Water Tank - OEM Replacement Part for Vibratory Rollers
$364.95
915533002
Multiquip 915533002 Kubota Diesel Engine - OEM Replacement Part for Vibratory Rollers
$4,516.95
939010350
Multiquip 939010350 Shock Absorber - OEM Replacement Part
$92.95
953405840
Multiquip 953405840 Drain Plug M18 - OEM Replacement Part
$35.95
954001380
Multiquip 954001380 Oil Filter Element - OEM Replacement Part for Vibratory Rollers
$52.95
954002950
Multiquip 954002950 Oil Hose 3/8 90-1005 470L - OEM Replacement Part
$89.95
954002960
Multiquip 954002960 Oil Hose 3/8 90-1005 320L - OEM Replacement Part
$81.95
954003080
Multiquip 954003080 Oil Filter Assembly (JP) - OEM Replacement Part
$84.95
954300342
Multiquip 954300342 Water Tank Cap - OEM Replacement Part
$38.95
954403241
Multiquip 954403241 Water Valve Assembly - OEM Replacement Part for Compactors
$48.95
954404221
Multiquip 954404221 Cock PT1/4 (AL)/L - OEM Replacement Part for Vibratory Rollers
$41.95
955010312
Multiquip 955010312 Hour Meter/Sendec - OEM Replacement Part for Vibratory Rollers
$151.95
955200030
Multiquip 955200030 Lamp Head MRH-800 - OEM Replacement Part
$114.95
955300400
Multiquip 955300400 Buzzer - OEM Replacement Part for Vibratory Rollers
$53.95
955405910
Multiquip 955405910 Micro-Switch - OEM Replacement Part for Vibratory Rollers
$114.95
956100034
Multiquip 956100034 Throttle Wire - OEM Replacement Part for Vibratory Rollers
$47.95
001200430
BOLT 4X30
$0.83
001220610
BOLT 6X10 T
001221253
BOLT 12X65
$4.95
001221435
BOLT 14X35
001221625
BOLT 16X25
$4.95
001241030
BOLT 10X30
$3.95
001820650
BOLT 6X50
$2.95
0039312000
NUT M12
$0.46
009110019
SOCKET HEAD BOLT 10X30
009110038
SOCKET HEAD BOLT 8X30 ZN
$0.95
009110070
SOCKET HEAD BOLT 10X25
009110080
SOCKET HEAD BOLT 6X30 ZN
009120412
SUNK HEAD BOLT 8X25
0102350612
BOLT
$0.84
0102350614
BOLT
$0.67
0102350616
BOLT
$1.64
0102350618
BOLT
$0.67
0102350620
BOLT
$1.53
0102350622
BOLT
$1.53
0102350625
BOLT
$0.72
0102350632
BOLT
0102350635
BOLT
$0.67
0102350660
BOLT
0102350665
BOLT
0102350680
BOLT
$1.95
0105050616
BOLT 6X15
$0.45
0105091025
BOLT 10X25
$0.68
0105350512
BOLT
0105350608
BOLT
0105350614
BOLT
$0.44
0105550630
BOLT
011006010
BOLT 6X10
$0.46
011206020
BOLT 6X20
$0.95
011208025
BOLT 8X25
$0.41
0112350845
BOLT
011606025
BOLT 6X25
$1.95
012010030
BOLT 10X30
$0.95
012210020
BOLT 10X20
$0.95
012210035
BOLT 10X35
$1.95
012210040
BOLT 10X40
$1.95
012212035
BOLT 12X35
$2.95
0122250608
BOLT
01420601
SOCKET HEAD SCREW 6X6
014208020
BOLT 8X20
$0.77
0151350816
STUD BOLT
$1.64
0151850616
STUD BOLT
0151850620
STUD
0175450612
BOLT, FLANGE
$1.95
0175450614
FLANGE BOLT
0175450618
FLANGE BOLT
$1.95
0175450620
FLANGE BOLT
0175450625
FLANGE BOLT
0175450630
FLANGE BOLT
$1.95
0175450820
FLANGE BOLT
$3.95
0175450830
FLANGE BOLT
$2.70
0175450855
FLANGE BOLT
$2.86
0177451030
FLANGE BOLT
0182050635
BOLT, KNOB
0201260060
NUT
0201450060
NUT
020303020
NUT M3
020305040
NUT M5
$0.26
020310080
NUT M10
$1.67
020316130
NUT M16
$0.79
0205250080
NUT
$0.44
0205450040
NUT
0205650050
NUT
0205650060
NUT
$0.23
0211250120
NUT
0211450080
NUT
$1.95
022710607
NYLON NUT M6
$0.87
022910280
NYLON NUT M10
025405025
SPRING PIN 5X25
$1.71
025405032
SPRING PIN 5X32
025910060
SNAP PIN
$0.83
025911020
SNAP PIN
025911030
SNAP PIN
0276150040
FLANGE NUT
$1.85
030206150
WASHER, LOCK M6
$0.07
030208200
WASHER, LOCK M8
$0.23
030210250
WASHER, LOCK M10
$0.28
030212300
WASHER, LOCK M12
$0.15
030214350
WASHER, LOCK M14
$0.46
030216400
WASHER, LOCK M16
$0.69
0302450408
SCREW, W/WASHER
0302450510
SCREW, W/WASHER
$0.48
0302450514
SCREW, W/WASHER
031103050
WASHER, FLAT M3
$0.26
031106100
WASHER, FLAT M6
031110160
WASHER, FLAT M10
$0.40
033910160
WASHER, FLAT M10
$0.94
033910260
WASHER, FLAT M5
033910270
WASHER, FLAT M6
0401250060
WASHER, FLAT
$0.95
0401250080
WASHER, FLAT
$0.44
0401360040
WASHER, FLAT
$0.44
0401360060
WASHER, FLAT
$0.44
0401450080
WASHER, FLAT M8
$0.56
0451250080
WASHER, LOCK
0451260060
WASHER, LOCK
$0.84
0451260120
WASHER, LOCK
$0.44
0461100500
CIR-CLIP, INTERNAL
0472400100
PACKING
0472400160
PACKING
$0.90
0481140140
O-RING
$2.81
0481600070
O-RING
0481600080
O-RING
0481600100
O-RING FILTER
0481600390
O-RING, FILTER CUP
$3.64
0481606100
O-RING
0481750300
O-RING
$2.95
0501200612
PIN, STRAIGHT
$0.52
0501200614
PIN, STRAIGHT
050300950
O-RING
$6.95
050710060
O-RING
$5.95
050710120
O-RING
$2.95
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
