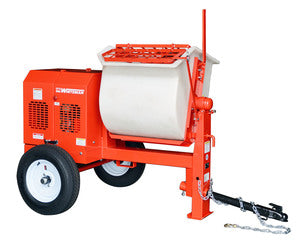

Multiquip WM70 Mortar Mixer

Name: Multiquip WM70 Mortar Mixer
Brand: Multiquip
SKU: WM70PE
Price: 5260.0 USD
Availability: InStock

Pick your options below. We build the exact machine and start your quote.

The parts bench

Need the PDF? ↓

Page 6 — UNKNOWN

Multiquip WM70 Mortar Mixer UNKNOWN parts diagram

Parts list — exactly as printed13 rows

No.	Part No.	Part Name	Qty	Remarks
1	EM948630	DECAL, PUSH TO STOP (ENGLISH)	1		ADD TO CART
DECAL, PUSH TO STOP (ENGLISH) EM948630 · qty on machine: 1 view full part page → $1.44
2	CIP520932	DECAL, PUSH TO STOP (FRENCH)	1		PARTS REQUEST
PHOTO COMING DECAL, PUSH TO STOP (FRENCH) CIP520932 · qty on machine: 1 PARTS REQUEST
3	CIP520933	DECAL, DO NOT SMOKE	1		PARTS REQUEST
PHOTO COMING DECAL, DO NOT SMOKE CIP520933 · qty on machine: 1 PARTS REQUEST
4	CIP520938	DECAL, READ MANUAL, CRUSH HAZARD	1		PARTS REQUEST
PHOTO COMING DECAL, READ MANUAL, CRUSH HAZARD CIP520938 · qty on machine: 1 PARTS REQUEST
5	CIP520935	DECAL, SAFETY INSTRUCTIONS (ENGLISH)	1		PARTS REQUEST
PHOTO COMING DECAL, SAFETY INSTRUCTIONS (ENGLISH) CIP520935 · qty on machine: 1 PARTS REQUEST
6	515275	DECAL, WHITEMAN LOGO	1		ADD TO CART
DECAL, WHITEMAN LOGO 515275 · qty on machine: 1 view full part page → $2.95
8	CIP520922	DECAL, SAFETY INSTRUCTIONS (FRENCH)	1		PARTS REQUEST
PHOTO COMING DECAL, SAFETY INSTRUCTIONS (FRENCH) CIP520922 · qty on machine: 1 PARTS REQUEST
9	CIP520934	DECAL, HANDLE KICK BACK, SAFETY GRATE, CRUSH HAZARD	1		PARTS REQUEST
PHOTO COMING DECAL, HANDLE KICK BACK, SAFETY GRATE, CRUSH HAZARD CIP520934 · qty on machine: 1 PARTS REQUEST
10	CIP520915	DECAL, POWDER COATED (FRENCH)	1		PARTS REQUEST
PHOTO COMING DECAL, POWDER COATED (FRENCH) CIP520915 · qty on machine: 1 PARTS REQUEST
11	13118	DECAL, POWDER COATED (ENGLISH)	1		ADD TO CART
DECAL, POWDER COATED (ENGLISH) 13118 · qty on machine: 1 view full part page → $0.76
12	CIP520936	DECAL, DRUM LOCK POSITIONING	1		PARTS REQUEST
PHOTO COMING DECAL, DRUM LOCK POSITIONING CIP520936 · qty on machine: 1 PARTS REQUEST
13		NAMEPLATE	1	CONTACT MQ PARTS DEPT.	SEE REMARKS
PHOTO COMING NAMEPLATE · qty on machine: 1 CONTACT MQ PARTS DEPT. SEE REMARKS
14	CIP520937	DECAL, INSPECT BEFORE TOWING	1		PARTS REQUEST
PHOTO COMING DECAL, INSPECT BEFORE TOWING CIP520937 · qty on machine: 1 PARTS REQUEST

Page 8 — FRAME ASSY.

Multiquip WM70 Mortar Mixer FRAME ASSY. parts diagram

Parts list — exactly as printed18 rows

No.	Part No.	Part Name	Qty	Remarks
1	514842	LOCK PIN UNIT	1		ADD TO CART
LOCK PIN UNIT 514842 · qty on machine: 1 view full part page → $43.95
2	491692	COTTER PIN	1		ADD TO CART
COTTER PIN 491692 · qty on machine: 1 view full part page → $1.35
3	530023	SPRING LOCKING PIN	1		ADD TO CART
SPRING LOCKING PIN 530023 · qty on machine: 1 view full part page → $2.95
4	507444	WASHER, FLAT 3/4"	1		ADD TO CART
WASHER, FLAT 3/4" 507444 · qty on machine: 1 view full part page → $1.71
5	520619	MAIN FRAME	1		PARTS REQUEST
PHOTO COMING MAIN FRAME 520619 · qty on machine: 1 PARTS REQUEST
7	514836	HANDLE, CLUTCH ENGAGE	1		ADD TO CART
HANDLE, CLUTCH ENGAGE 514836 · qty on machine: 1 view full part page → $78.95
8	EM963692	BOLT 1/2" UNC 1-1/2"	6		ADD TO CART
BOLT 1/2" UNC 1-1/2" EM963692 · qty on machine: 6 view full part page → $0.86
9	492584	NUT, LOCK 1/2"	6		ADD TO CART
NUT, LOCK 1/2" 492584 · qty on machine: 6 view full part page → $0.45
10	514802	AXLE, UNIVERSAL	1		ADD TO CART
AXLE, UNIVERSAL 514802 · qty on machine: 1 view full part page → $264.95
11	10176	LOCK NUT 1/2" NC	1		ADD TO CART
LOCK NUT 1/2" NC 10176 · qty on machine: 1 view full part page → $2.95
12	EM124	BOLT 1/2"-13 X 4 G5	1		ADD TO CART
BOLT 1/2"-13 X 4 G5 EM124 · qty on machine: 1 view full part page → $1.95
13@		SAFETY CHAIN	1		INCLUDED IN KIT
PHOTO COMING SAFETY CHAIN · qty on machine: 1 Included in kit 15 - CHAIN AND LINK KIT (13363KIT) INCLUDED IN KIT
14@	01004	CONNECTOR LINK	1		ADD TO CART
CONNECTOR LINK 01004 · qty on machine: 1 Also included in kit 15 - CHAIN AND LINK KIT (13363KIT) view full part page → $1.79 IN A KIT + SOLD SOLO
14A@	516580	CLEVIS SAFETY HOOK	1		ADD TO CART
CLEVIS SAFETY HOOK 516580 · qty on machine: 1 Also included in kit 15 - CHAIN AND LINK KIT (13363KIT) view full part page → $5.95 IN A KIT + SOLD SOLO
15	13363KIT	CHAIN AND LINK KIT	1	INCLUDES ITEMS W/@	ADD TO CART
CHAIN AND LINK KIT 13363KIT · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 13@, 14@, 14A@ view full part page → $97.95 IN A KIT + SOLD SOLO
16	HBC-1	BALL HITCH 2-INCH	1	CONTACT UNIT SALES	PARTS REQUEST
PHOTO COMING BALL HITCH 2-INCH HBC-1 · qty on machine: 1 CONTACT UNIT SALES PARTS REQUEST
17	HLC-1	LOOP HITCH	1	CONTACT UNIT SALES	PARTS REQUEST
PHOTO COMING LOOP HITCH HLC-1 · qty on machine: 1 CONTACT UNIT SALES PARTS REQUEST
18	HPC-1	PIN HITCH 1-INCH	1	CONTACT UNIT SALES	PARTS REQUEST
PHOTO COMING PIN HITCH 1-INCH HPC-1 · qty on machine: 1 CONTACT UNIT SALES PARTS REQUEST

Page 10 — PADDLE SHAFT ASSY.

Multiquip WM70 Mortar Mixer PADDLE SHAFT ASSY. parts diagram

Parts list — exactly as printed18 rows

No.	Part No.	Part Name	Qty	Remarks
1	514752	PADDLE SHAFT	1		ADD TO CART
PADDLE SHAFT 514752 · qty on machine: 1 view full part page → $333.95
2	492584	NUT, LOCK 1/2"	8		ADD TO CART
NUT, LOCK 1/2" 492584 · qty on machine: 8 view full part page → $0.45
3	EM202896	PADDLE ARM, CENTER ENGINE END	1		ADD TO CART
PADDLE ARM, CENTER ENGINE END EM202896 · qty on machine: 1 view full part page → $46.95
5	EM200292	INSERT, PADDLE ARM	8		ADD TO CART
INSERT, PADDLE ARM EM200292 · qty on machine: 8 view full part page → $4.95
6	EM202898	PADDLE ARM, ENGINE END	1		ADD TO CART
PADDLE ARM, ENGINE END EM202898 · qty on machine: 1 view full part page → $52.95
7	6109170	WASHER, FLAT 1/2"	8		ADD TO CART
WASHER, FLAT 1/2" 6109170 · qty on machine: 8 view full part page → $0.48
8	EM200297	U-BOLT	4		ADD TO CART
U-BOLT EM200297 · qty on machine: 4 view full part page → $2.95
9	EM202897	PADDLE ARM, CENTER TOW END	1		ADD TO CART
PADDLE ARM, CENTER TOW END EM202897 · qty on machine: 1 Kit includes: 10@#, 11@#, 13@#, 14@#, 17@# view full part page → $46.95 IN A KIT + SOLD SOLO
10@#	2105162	SCREW, HHC 5/16-18 X 1-3/4 G5	14		ADD TO CART
SCREW, HHC 5/16-18 X 1-3/4 G5 2105162 · qty on machine: 14 Also included in kit 9 - PADDLE ARM, CENTER TOW END (EM202897); kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $0.68 IN A KIT + SOLD SOLO
11@#	EM923023	WASHER, FLAT 5/16"	28		ADD TO CART
WASHER, FLAT 5/16" EM923023 · qty on machine: 28 Also included in kit 9 - PADDLE ARM, CENTER TOW END (EM202897); kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $0.21 IN A KIT + SOLD SOLO
12@	EM202929	BLADE, SIDE, RUBBER	4		ADD TO CART
BLADE, SIDE, RUBBER EM202929 · qty on machine: 4 Also included in kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $3.95 IN A KIT + SOLD SOLO
13@#	EM202928	BLADE, SIDE, SCRAPER	4		ADD TO CART
BLADE, SIDE, SCRAPER EM202928 · qty on machine: 4 Also included in kit 9 - PADDLE ARM, CENTER TOW END (EM202897); kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $5.95 IN A KIT + SOLD SOLO
14@#	2105164	NUT, HEX 5/16" NC G5	14		ADD TO CART
NUT, HEX 5/16" NC G5 2105164 · qty on machine: 14 Also included in kit 9 - PADDLE ARM, CENTER TOW END (EM202897); kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $0.2 IN A KIT + SOLD SOLO
15@	EM923343	WASHER, LOCK 5/16"	14		ADD TO CART
WASHER, LOCK 5/16" EM923343 · qty on machine: 14 Also included in kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $0.21 IN A KIT + SOLD SOLO
16	EM202899	PADDLE ARM, TOW END	1		ADD TO CART
PADDLE ARM, TOW END EM202899 · qty on machine: 1 view full part page → $52.95
17@#	EM202927	BLADE ,SCRAPPER END	4		ADD TO CART
BLADE ,SCRAPPER END EM202927 · qty on machine: 4 Also included in kit 9 - PADDLE ARM, CENTER TOW END (EM202897); kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $7.95 IN A KIT + SOLD SOLO
18@	EM202926	BLADE, RUBBER END	4		ADD TO CART
BLADE, RUBBER END EM202926 · qty on machine: 4 Also included in kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $3.94 IN A KIT + SOLD SOLO
19	EM203010	KIT, WIPERS, SCRAPERS & HARDWARE	1	INCLUDES ITEMS W/@	ADD TO CART
KIT, WIPERS, SCRAPERS & HARDWARE EM203010 · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 10@#, 11@#, 12@, 13@#, 14@#, 15@, 17@#, 18@ view full part page → $115.95 IN A KIT + SOLD SOLO

Page 12 — STEEL TUB ASSY.

Multiquip WM70 Mortar Mixer STEEL TUB ASSY. parts diagram

Parts list — exactly as printed32 rows

No.	Part No.	Part Name	Qty	Remarks
1	530028C	DRUM BEARING BRACKET	2		PARTS REQUEST
PHOTO COMING DRUM BEARING BRACKET 530028C · qty on machine: 2 PARTS REQUEST
2	3249	CAP, DUST	1		ADD TO CART
CAP, DUST 3249 · qty on machine: 1 view full part page → $11.95
3	20561-001	BEARING SEALED	2	SET SCREWS AND BEARING COLLAR CANNOT BE PURCHASED SEPARATELY	ADD TO CART
BEARING SEALED 20561-001 · qty on machine: 2 SET SCREWS AND BEARING COLLAR CANNOT BE PURCHASED SEPARATELY view full part page → $30.95
4	491008	CAP, GREASE FITTING	2		ADD TO CART
CAP, GREASE FITTING 491008 · qty on machine: 2 view full part page → $0.28
5	EM916019	FITTING, GREASE	2		ADD TO CART
FITTING, GREASE EM916019 · qty on machine: 2 view full part page → $1.95
6	EM969013	NUT, LOCK 3/8"	18		ADD TO CART
NUT, LOCK 3/8" EM969013 · qty on machine: 18 view full part page → $0.21
7	3019092	WASHER, FLAT 3/8"	8		ADD TO CART
WASHER, FLAT 3/8" 3019092 · qty on machine: 8 view full part page → $0.18
8	514778C	TRUNNION HUB	2		PARTS REQUEST
PHOTO COMING TRUNNION HUB 514778C · qty on machine: 2 PARTS REQUEST
9	513453	ROLL PIN 3/16" X 3/4"	2		ADD TO CART
ROLL PIN 3/16" X 3/4" 513453 · qty on machine: 2 Factory replaced this part - current number 07594-012 view full part page → $0.13 IN A KIT + SOLD SOLO
10	20654-001	SEAL, SHAFT (BLACK)	2		ADD TO CART
SEAL, SHAFT (BLACK) 20654-001 · qty on machine: 2 view full part page → $5.95
11	530029	RING, RETENTION	2		ADD TO CART
RING, RETENTION 530029 · qty on machine: 2 view full part page → $10.95
12	20104-002	SEAL, SHAFT URETHANE (YELLOW)	2		ADD TO CART
SEAL, SHAFT URETHANE (YELLOW) 20104-002 · qty on machine: 2 view full part page → $7.95
13	513452	BOLT, 3/8" X 1-1/4"	8		ADD TO CART
BOLT, 3/8" X 1-1/4" 513452 · qty on machine: 8 view full part page → $0.85
14	520621	DRUM, STEEL	1		PARTS REQUEST
PHOTO COMING DRUM, STEEL 520621 · qty on machine: 1 PARTS REQUEST
15	EM961019	SET SCREW	2		ADD TO CART
SET SCREW EM961019 · qty on machine: 2 view full part page → $0.95
16	530043	MAIN GEAR	1		ADD TO CART
MAIN GEAR 530043 · qty on machine: 1 view full part page → $189.95
17	501016	KEY, 3/8" X 88 MM	1		ADD TO CART
KEY, 3/8" X 88 MM 501016 · qty on machine: 1 view full part page → $9.95
18	17985-012	CARRIAGE BOLT 3/8-16 X 1-1/2"	4		ADD TO CART
CARRIAGE BOLT 3/8-16 X 1-1/2" 17985-012 · qty on machine: 4 view full part page → $0.58
19	514752	SHAFT, PADDLE	1		ADD TO CART
SHAFT, PADDLE 514752 · qty on machine: 1 view full part page → $333.95
20	6109170	WASHER, 1/2" FLAT	1		ADD TO CART
WASHER, 1/2" FLAT 6109170 · qty on machine: 1 view full part page → $0.48
21	520542	GRATE BAR	1		ADD TO CART
GRATE BAR 520542 · qty on machine: 1 view full part page → $11.36
22	EM925191	PIN, COTTER	1		ADD TO CART
PIN, COTTER EM925191 · qty on machine: 1 view full part page → $0.75
23	520540	GRATE, FIXED	1		ADD TO CART
GRATE, FIXED 520540 · qty on machine: 1 view full part page → $230.95
25	6109160	HEX NUT 1/2" G5	2		ADD TO CART
HEX NUT 1/2" G5 6109160 · qty on machine: 2 view full part page → $0.28
26	6109180	WASHER, LOCK 1/2"	2		ADD TO CART
WASHER, LOCK 1/2" 6109180 · qty on machine: 2 view full part page → $0.21
27	EM963692	BOLT 1/2" UNC 1-1/2"	3		ADD TO CART
BOLT 1/2" UNC 1-1/2" EM963692 · qty on machine: 3 view full part page → $0.86
29	492584	NUT, LOCK1/2" NC	1		ADD TO CART
NUT, LOCK1/2" NC 492584 · qty on machine: 1 view full part page → $0.45
30	EM201537	HANDLE DUMP	1		ADD TO CART
HANDLE DUMP EM201537 · qty on machine: 1 view full part page → $34.95
31	EM98195	GRIP, DUMP HANDLE	1		ADD TO CART
GRIP, DUMP HANDLE EM98195 · qty on machine: 1 view full part page → $1.71
32	507418	WASHER, TOOTHED	4		PARTS REQUEST
PHOTO COMING WASHER, TOOTHED 507418 · qty on machine: 4 PARTS REQUEST
33	520541	GATE, MOBILE	1		ADD TO CART
GATE, MOBILE 520541 · qty on machine: 1 view full part page → $186.95
34	EM963610	CAPSCREW, 3/8" NC X 1-1/4" G8	6		ADD TO CART
CAPSCREW, 3/8" NC X 1-1/4" G8 EM963610 · qty on machine: 6 view full part page → $0.69

Page 14 — AXLE ASSY.

Multiquip WM70 Mortar Mixer AXLE ASSY. parts diagram

Parts list — exactly as printed12 rows

No.	Part No.	Part Name	Qty	Remarks
1#	3469	DUST CAP	2		ADD TO CART
DUST CAP 3469 · qty on machine: 2 Also included in kit 11 - HUB ASSY., 4-BOLT (EM941306) view full part page → $4.95 IN A KIT + SOLD SOLO
2#	8115	LUG NUTS	8		ADD TO CART
LUG NUTS 8115 · qty on machine: 8 Also included in kit 11 - HUB ASSY., 4-BOLT (EM941306) view full part page → $1.52 IN A KIT + SOLD SOLO
3	3005	TIRE AND RIM, CARLISE	2		ADD TO CART
TIRE AND RIM, CARLISE 3005 · qty on machine: 2 Factory replaced this part - current number 516476 view full part page → $281.95 IN A KIT + SOLD SOLO
4	8164	CASTLE NUT 1"	2		ADD TO CART
CASTLE NUT 1" 8164 · qty on machine: 2 view full part page → $3.95
5	491688	COTTER PIN 1/8" X 1-1/2'	2		PARTS REQUEST
PHOTO COMING COTTER PIN 1/8" X 1-1/2' 491688 · qty on machine: 2 PARTS REQUEST
6	EM511159	WASHER, FLAT, .087" THICKNESS	2		ADD TO CART
WASHER, FLAT, .087" THICKNESS EM511159 · qty on machine: 2 view full part page → $2.77
7	EM501299	WASHER, FLAT, .135" THICKNESS	1		ADD TO CART
WASHER, FLAT, .135" THICKNESS EM501299 · qty on machine: 1 view full part page → $4.95
8#	EM903113	BEARING CONE	4		ADD TO CART
BEARING CONE EM903113 · qty on machine: 4 Also included in kit 11 - HUB ASSY., 4-BOLT (EM941306) view full part page → $7.95 IN A KIT + SOLD SOLO
9#	EM903012	BEARING CUP	4		ADD TO CART
BEARING CUP EM903012 · qty on machine: 4 Also included in kit 11 - HUB ASSY., 4-BOLT (EM941306) view full part page → $2.95 IN A KIT + SOLD SOLO
10#	EM914288	OIL SEAL	2		ADD TO CART
OIL SEAL EM914288 · qty on machine: 2 Also included in kit 11 - HUB ASSY., 4-BOLT (EM941306) view full part page → $3.95 IN A KIT + SOLD SOLO
11	EM941306	HUB ASSY., 4-BOLT	2	INCLUDES ITEMS W/ #	ADD TO CART
HUB ASSY., 4-BOLT EM941306 · qty on machine: 2 INCLUDES ITEMS W/ # Kit includes: 1#, 2#, 8#, 9#, 10# view full part page → $75.95 IN A KIT + SOLD SOLO
12	514802	AXLE, UNIVERSAL	1		ADD TO CART
AXLE, UNIVERSAL 514802 · qty on machine: 1 view full part page → $264.95

Page 16 — ENGINE ASSY.

Multiquip WM70 Mortar Mixer ENGINE ASSY. parts diagram

Parts list — exactly as printed44 rows

No.	Part No.	Part Name	Qty	Remarks
1	EM969013	NUT 3/8" NC G5	8		ADD TO CART
NUT 3/8" NC G5 EM969013 · qty on machine: 8 view full part page → $0.21
2	506488	FLAT WASHER 3/8	8		PARTS REQUEST
PHOTO COMING FLAT WASHER 3/8 506488 · qty on machine: 8 PARTS REQUEST
3	EM905016	PILLOW BLOCK BEARING	2		ADD TO CART
PILLOW BLOCK BEARING EM905016 · qty on machine: 2 view full part page → $48.95
4	492378	BOLT 3/8" NC X 1-3/4" G5	4		ADD TO CART
BOLT 3/8" NC X 1-3/4" G5 492378 · qty on machine: 4 view full part page → $0.69
5	490957	RING, RETENTION	1		PARTS REQUEST
PHOTO COMING RING, RETENTION 490957 · qty on machine: 1 PARTS REQUEST
6	513868	PINION GEAR	1		ADD TO CART
PINION GEAR 513868 · qty on machine: 1 view full part page → $38.95
7	500214	KEY, 1/4" X 30 MM	1		ADD TO CART
KEY, 1/4" X 30 MM 500214 · qty on machine: 1 view full part page → $1.51
8	EM502226	PINION SHAFT	1		ADD TO CART
PINION SHAFT EM502226 · qty on machine: 1 view full part page → $25.95
9	492057	PULLEY (LARGE)	1		ADD TO CART
PULLEY (LARGE) 492057 · qty on machine: 1 view full part page → $69.95
10	505084	KEY, 1/4" X 55 MM	1		ADD TO CART
KEY, 1/4" X 55 MM 505084 · qty on machine: 1 view full part page → $10.95
11	492467	SET SCREW, 5/16' NC 3/8"	4		ADD TO CART
SET SCREW, 5/16' NC 3/8" 492467 · qty on machine: 4 view full part page → $0.41
12	505834	V-BELT, A-37	2	GX160UT1HX2	PARTS REQUEST
PHOTO COMING V-BELT, A-37 505834 · qty on machine: 2 GX160UT1HX2 PARTS REQUEST
12	505834	V-BELT, A-36	2	GX240UT1HA2	PARTS REQUEST
PHOTO COMING V-BELT, A-36 505834 · qty on machine: 2 GX240UT1HA2 PARTS REQUEST
13	503117	BOLT, 3/8" NC X 3" G5	1		ADD TO CART
BOLT, 3/8" NC X 3" G5 503117 · qty on machine: 1 view full part page → $0.95
14	501019	SQ. KEY 3/16" X 45 MM 4.8 HP	1	GX160UT1HX2	ADD TO CART
SQ. KEY 3/16" X 45 MM 4.8 HP 501019 · qty on machine: 1 GX160UT1HX2 view full part page → $1.31
14	90745ZE2600	SQ. KEY 6.3 X 6.3 X 43 MM 7.8 HP	1	GX240UT1HA2	ADD TO CART
SQ. KEY 6.3 X 6.3 X 43 MM 7.8 HP 90745ZE2600 · qty on machine: 1 GX240UT1HA2 view full part page → $32.95
15	492367	BOLT 5/16" NC X 1-3/4" G5	4	GX160UT1HX2	PARTS REQUEST
PHOTO COMING BOLT 5/16" NC X 1-3/4" G5 492367 · qty on machine: 4 GX160UT1HX2 PARTS REQUEST
15	492378	BOLT 3/8" NC X 1-3/4" G5	4	GX240UT1HA2	ADD TO CART
BOLT 3/8" NC X 1-3/4" G5 492378 · qty on machine: 4 GX240UT1HA2 view full part page → $0.69
16	GX160UT1HX2	ENGINE, HONDA 4.8 HP	1		ADD TO CART
ENGINE, HONDA 4.8 HP GX160UT1HX2 · qty on machine: 1 view full part page → $1413.95
16	GX240UT1HA2	ENGINE, HONDA 7.8 HP	1		ADD TO CART
ENGINE, HONDA 7.8 HP GX240UT1HA2 · qty on machine: 1 view full part page → $1777.95
17	515040	BELT RETAINER BAR	1		ADD TO CART
BELT RETAINER BAR 515040 · qty on machine: 1 view full part page → $13.95
18	492055	PULLEY, (SMALL), 4.8 HP	1	GX160UT1HX2	ADD TO CART
PULLEY, (SMALL), 4.8 HP 492055 · qty on machine: 1 GX160UT1HX2 view full part page → $29.95
18	EM901074	PULLEY, (SMALL), 7.8 HP	1	GX240UT1HA2	ADD TO CART
PULLEY, (SMALL), 7.8 HP EM901074 · qty on machine: 1 GX240UT1HA2 view full part page → $89.95
22	492597	WASHER, FLAT 5/16"	6	GX160UT1HX2	PARTS REQUEST
PHOTO COMING WASHER, FLAT 5/16" 492597 · qty on machine: 6 GX160UT1HX2 PARTS REQUEST
22	492598	WASHER, FLAT 3/8"	6	GX240UT1HA2	PARTS REQUEST
PHOTO COMING WASHER, FLAT 3/8" 492598 · qty on machine: 6 GX240UT1HA2 PARTS REQUEST
23	492623	WASHER, LOCK 5/16"	4	GX160UT1HX2	PARTS REQUEST
PHOTO COMING WASHER, LOCK 5/16" 492623 · qty on machine: 4 GX160UT1HX2 PARTS REQUEST
23	492624	WASHER, LOCK 3/8"	4	GX240UT1HA2	ADD TO CART
WASHER, LOCK 3/8" 492624 · qty on machine: 4 GX240UT1HA2 Factory replaced this part - current number 0166A view full part page → $0.17 IN A KIT + SOLD SOLO
24	492553	NUT, HEX 5/16"	4	GX160UT1HX2	PARTS REQUEST
PHOTO COMING NUT, HEX 5/16" 492553 · qty on machine: 4 GX160UT1HX2 PARTS REQUEST
24	492554	NUT, HEX 3/8"	4	GX240UT1HA2	PARTS REQUEST
PHOTO COMING NUT, HEX 3/8" 492554 · qty on machine: 4 GX240UT1HA2 PARTS REQUEST
25	492600	WASHER, FLAT 1/2"	1		PARTS REQUEST
PHOTO COMING WASHER, FLAT 1/2" 492600 · qty on machine: 1 PARTS REQUEST
26	505084	SQ. KEY, 1/4" X 55 MM	1		ADD TO CART
SQ. KEY, 1/4" X 55 MM 505084 · qty on machine: 1 view full part page → $10.95
27	492394	BOLT 1/2" NC X 1-1/2" G5	1		PARTS REQUEST
PHOTO COMING BOLT 1/2" NC X 1-1/2" G5 492394 · qty on machine: 1 PARTS REQUEST
28	EM102014	SPRING, EXTENSION	1		ADD TO CART
SPRING, EXTENSION EM102014 · qty on machine: 1 view full part page → $4.95
29	EM203098	SPRING CLIP	1		ADD TO CART
SPRING CLIP EM203098 · qty on machine: 1 view full part page → $24.95
30	492313	BOLT 3/8" NC X 1-1/2" G5	3		PARTS REQUEST
PHOTO COMING BOLT 3/8" NC X 1-1/2" G5 492313 · qty on machine: 3 PARTS REQUEST
31	EM507713	ARM, IDLER	1	GX160UT1HX2	ADD TO CART
ARM, IDLER EM507713 · qty on machine: 1 GX160UT1HX2 view full part page → $3.95
31	EM507491	ARM, IDLER	1	GX240UT1HA2	ADD TO CART
ARM, IDLER EM507491 · qty on machine: 1 GX240UT1HA2 view full part page → $4.95
32	EM959080	ROD-END	2		ADD TO CART
ROD-END EM959080 · qty on machine: 2 view full part page → $14.95
33	492584	NUT, HEX 1/2"	1		ADD TO CART
NUT, HEX 1/2" 492584 · qty on machine: 1 view full part page → $0.45
34	492574	NUT, HEX 3/8" NF G5	2		PARTS REQUEST
PHOTO COMING NUT, HEX 3/8" NF G5 492574 · qty on machine: 2 PARTS REQUEST
35	492476	SET SCREW, 5/16' NC 3/4"	1		NO LONGER AVAILABLE
PHOTO COMING SET SCREW, 5/16' NC 3/4" 492476 · qty on machine: 1 NO LONGER AVAILABLE
36	EM901515	PULLEY, IDLER	1		ADD TO CART
PULLEY, IDLER EM901515 · qty on machine: 1 view full part page → $10.95
37	515299	ROD	1	GX160UT1HX2	ADD TO CART
ROD 515299 · qty on machine: 1 GX160UT1HX2 view full part page → $2.95
37	515045	ROD	1	GX240UT1HA2	ADD TO CART
ROD 515045 · qty on machine: 1 GX240UT1HA2 view full part page → $3.95

Page 18 — CABINET ASSY.

Multiquip WM70 Mortar Mixer CABINET ASSY. parts diagram

Parts list — exactly as printed14 rows

No.	Part No.	Part Name	Qty	Remarks
1	520620	CABINET, ENGINE W/DECALS	1	INCLUDES ITEMS W/@	NO LONGER AVAILABLE
PHOTO COMING CABINET, ENGINE W/DECALS 520620 · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 6@ NO LONGER AVAILABLE
2	EM505186	BUMPER, STICK ON	4		ADD TO CART
BUMPER, STICK ON EM505186 · qty on machine: 4 view full part page → $0.17
5	503723	POP RIVET	10		PARTS REQUEST
PHOTO COMING POP RIVET 503723 · qty on machine: 10 PARTS REQUEST
6@	491010	LATCH ASSY., COMPLETE	2		ADD TO CART
LATCH ASSY., COMPLETE 491010 · qty on machine: 2 Also included in kit 1 - CABINET, ENGINE W/DECALS (520620) view full part page → $8.95 IN A KIT + SOLD SOLO
7	EM963610	CAPSCREW 3/8" NC X 1-1/4" G8	4		ADD TO CART
CAPSCREW 3/8" NC X 1-1/4" G8 EM963610 · qty on machine: 4 view full part page → $0.69
8	3019092	WASHER, FLAT 3/8"	12		ADD TO CART
WASHER, FLAT 3/8" 3019092 · qty on machine: 12 view full part page → $0.18
9	EM969013	NUT NYLOCK	4		ADD TO CART
NUT NYLOCK EM969013 · qty on machine: 4 view full part page → $0.21
10	29174-001	KNOB, MUSHROOM	1		ADD TO CART
KNOB, MUSHROOM 29174-001 · qty on machine: 1 view full part page → $2.89
11	29173-001	SWITCH, PUSH-PULL	1		ADD TO CART
SWITCH, PUSH-PULL 29173-001 · qty on machine: 1 view full part page → $18.95
12	504135C	WIRE HARNESS	1		ADD TO CART
WIRE HARNESS 504135C · qty on machine: 1 Factory replaced this part - current number 510573 view full part page → $11.95 IN A KIT + SOLD SOLO
13	EM974007	PAINT, SPRAY 12 OZ. TRAFFIC RED	1		ADD TO CART
PAINT, SPRAY 12 OZ. TRAFFIC RED EM974007 · qty on machine: 1 view full part page → $45.95
14	520560	GUARD	1		ADD TO CART
GUARD 520560 · qty on machine: 1 view full part page → $72.95
15	EM963055	HEX HEAD CAPSCREW	8		ADD TO CART
HEX HEAD CAPSCREW EM963055 · qty on machine: 8 view full part page → $0.7
16	520561	SPACER	4		ADD TO CART
SPACER 520561 · qty on machine: 4 view full part page → $6.95

Page 6 — UNKNOWN

Parts list — exactly as printed13 rows

No.	Part No.	Part Name	Qty	Remarks
1	EM948630	DECAL, PUSH TO STOP (ENGLISH)	1		ADD TO CART
DECAL, PUSH TO STOP (ENGLISH) EM948630 · qty on machine: 1 view full part page → $1.44
2	CIP520932	DECAL, PUSH TO STOP (FRENCH)	1		PARTS REQUEST
PHOTO COMING DECAL, PUSH TO STOP (FRENCH) CIP520932 · qty on machine: 1 PARTS REQUEST
3	CIP520933	DECAL, DO NOT SMOKE	1		PARTS REQUEST
PHOTO COMING DECAL, DO NOT SMOKE CIP520933 · qty on machine: 1 PARTS REQUEST
4	CIP520938	DECAL, READ MANUAL, CRUSH HAZARD	1		PARTS REQUEST
PHOTO COMING DECAL, READ MANUAL, CRUSH HAZARD CIP520938 · qty on machine: 1 PARTS REQUEST
5	CIP520935	DECAL, SAFETY INSTRUCTIONS (ENGLISH)	1		PARTS REQUEST
PHOTO COMING DECAL, SAFETY INSTRUCTIONS (ENGLISH) CIP520935 · qty on machine: 1 PARTS REQUEST
6	515275	DECAL, WHITEMAN LOGO	1		ADD TO CART
DECAL, WHITEMAN LOGO 515275 · qty on machine: 1 view full part page → $2.95
8	CIP520922	DECAL, SAFETY INSTRUCTIONS (FRENCH)	1		PARTS REQUEST
PHOTO COMING DECAL, SAFETY INSTRUCTIONS (FRENCH) CIP520922 · qty on machine: 1 PARTS REQUEST
9	CIP520934	DECAL, HANDLE KICK BACK, SAFETY GRATE, CRUSH HAZARD	1		PARTS REQUEST
PHOTO COMING DECAL, HANDLE KICK BACK, SAFETY GRATE, CRUSH HAZARD CIP520934 · qty on machine: 1 PARTS REQUEST
10	CIP520915	DECAL, POWDER COATED (FRENCH)	1		PARTS REQUEST
PHOTO COMING DECAL, POWDER COATED (FRENCH) CIP520915 · qty on machine: 1 PARTS REQUEST
11	13118	DECAL, POWDER COATED (ENGLISH)	1		ADD TO CART
DECAL, POWDER COATED (ENGLISH) 13118 · qty on machine: 1 view full part page → $0.76
12	CIP520936	DECAL, DRUM LOCK POSITIONING	1		PARTS REQUEST
PHOTO COMING DECAL, DRUM LOCK POSITIONING CIP520936 · qty on machine: 1 PARTS REQUEST
13		NAMEPLATE	1	CONTACT MQ PARTS DEPT.	SEE REMARKS
PHOTO COMING NAMEPLATE · qty on machine: 1 CONTACT MQ PARTS DEPT. SEE REMARKS
14	CIP520937	DECAL, INSPECT BEFORE TOWING	1		PARTS REQUEST
PHOTO COMING DECAL, INSPECT BEFORE TOWING CIP520937 · qty on machine: 1 PARTS REQUEST

Page 8 — FRAME ASSY.

Parts list — exactly as printed18 rows

No.	Part No.	Part Name	Qty	Remarks
1	514842	LOCK PIN UNIT	1		ADD TO CART
LOCK PIN UNIT 514842 · qty on machine: 1 view full part page → $43.95
2	491692	COTTER PIN	1		ADD TO CART
COTTER PIN 491692 · qty on machine: 1 view full part page → $1.35
3	530023	SPRING LOCKING PIN	1		ADD TO CART
SPRING LOCKING PIN 530023 · qty on machine: 1 view full part page → $2.95
4	507444	WASHER, FLAT 3/4"	1		ADD TO CART
WASHER, FLAT 3/4" 507444 · qty on machine: 1 view full part page → $1.71
5	520619	MAIN FRAME	1		PARTS REQUEST
PHOTO COMING MAIN FRAME 520619 · qty on machine: 1 PARTS REQUEST
7	514836	HANDLE, CLUTCH ENGAGE	1		ADD TO CART
HANDLE, CLUTCH ENGAGE 514836 · qty on machine: 1 view full part page → $78.95
8	EM963692	BOLT 1/2" UNC 1-1/2"	6		ADD TO CART
BOLT 1/2" UNC 1-1/2" EM963692 · qty on machine: 6 view full part page → $0.86
9	492584	NUT, LOCK 1/2"	6		ADD TO CART
NUT, LOCK 1/2" 492584 · qty on machine: 6 view full part page → $0.45
10	514802	AXLE, UNIVERSAL	1		ADD TO CART
AXLE, UNIVERSAL 514802 · qty on machine: 1 view full part page → $264.95
11	10176	LOCK NUT 1/2" NC	1		ADD TO CART
LOCK NUT 1/2" NC 10176 · qty on machine: 1 view full part page → $2.95
12	EM124	BOLT 1/2"-13 X 4 G5	1		ADD TO CART
BOLT 1/2"-13 X 4 G5 EM124 · qty on machine: 1 view full part page → $1.95
13@		SAFETY CHAIN	1		INCLUDED IN KIT
PHOTO COMING SAFETY CHAIN · qty on machine: 1 Included in kit 15 - CHAIN AND LINK KIT (13363KIT) INCLUDED IN KIT
14@	01004	CONNECTOR LINK	1		ADD TO CART
CONNECTOR LINK 01004 · qty on machine: 1 Also included in kit 15 - CHAIN AND LINK KIT (13363KIT) view full part page → $1.79 IN A KIT + SOLD SOLO
14A@	516580	CLEVIS SAFETY HOOK	1		ADD TO CART
CLEVIS SAFETY HOOK 516580 · qty on machine: 1 Also included in kit 15 - CHAIN AND LINK KIT (13363KIT) view full part page → $5.95 IN A KIT + SOLD SOLO
15	13363KIT	CHAIN AND LINK KIT	1	INCLUDES ITEMS W/@	ADD TO CART
CHAIN AND LINK KIT 13363KIT · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 13@, 14@, 14A@ view full part page → $97.95 IN A KIT + SOLD SOLO
16	HBC-1	BALL HITCH 2-INCH	1	CONTACT UNIT SALES	PARTS REQUEST
PHOTO COMING BALL HITCH 2-INCH HBC-1 · qty on machine: 1 CONTACT UNIT SALES PARTS REQUEST
17	HLC-1	LOOP HITCH	1	CONTACT UNIT SALES	PARTS REQUEST
PHOTO COMING LOOP HITCH HLC-1 · qty on machine: 1 CONTACT UNIT SALES PARTS REQUEST
18	HPC-1	PIN HITCH 1-INCH	1	CONTACT UNIT SALES	PARTS REQUEST
PHOTO COMING PIN HITCH 1-INCH HPC-1 · qty on machine: 1 CONTACT UNIT SALES PARTS REQUEST

Page 10 — PADDLE SHAFT ASSY.

Parts list — exactly as printed18 rows

No.	Part No.	Part Name	Qty	Remarks
1	514752	PADDLE SHAFT	1		ADD TO CART
PADDLE SHAFT 514752 · qty on machine: 1 view full part page → $333.95
2	492584	NUT, LOCK 1/2"	8		ADD TO CART
NUT, LOCK 1/2" 492584 · qty on machine: 8 view full part page → $0.45
3	EM202896	PADDLE ARM, CENTER ENGINE END	1		ADD TO CART
PADDLE ARM, CENTER ENGINE END EM202896 · qty on machine: 1 view full part page → $46.95
5	EM200292	INSERT, PADDLE ARM	8		ADD TO CART
INSERT, PADDLE ARM EM200292 · qty on machine: 8 view full part page → $4.95
6	EM202898	PADDLE ARM, ENGINE END	1		ADD TO CART
PADDLE ARM, ENGINE END EM202898 · qty on machine: 1 view full part page → $52.95
7	6109170	WASHER, FLAT 1/2"	8		ADD TO CART
WASHER, FLAT 1/2" 6109170 · qty on machine: 8 view full part page → $0.48
8	EM200297	U-BOLT	4		ADD TO CART
U-BOLT EM200297 · qty on machine: 4 view full part page → $2.95
9	EM202897	PADDLE ARM, CENTER TOW END	1		ADD TO CART
PADDLE ARM, CENTER TOW END EM202897 · qty on machine: 1 Kit includes: 10@#, 11@#, 13@#, 14@#, 17@# view full part page → $46.95 IN A KIT + SOLD SOLO
10@#	2105162	SCREW, HHC 5/16-18 X 1-3/4 G5	14		ADD TO CART
SCREW, HHC 5/16-18 X 1-3/4 G5 2105162 · qty on machine: 14 Also included in kit 9 - PADDLE ARM, CENTER TOW END (EM202897); kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $0.68 IN A KIT + SOLD SOLO
11@#	EM923023	WASHER, FLAT 5/16"	28		ADD TO CART
WASHER, FLAT 5/16" EM923023 · qty on machine: 28 Also included in kit 9 - PADDLE ARM, CENTER TOW END (EM202897); kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $0.21 IN A KIT + SOLD SOLO
12@	EM202929	BLADE, SIDE, RUBBER	4		ADD TO CART
BLADE, SIDE, RUBBER EM202929 · qty on machine: 4 Also included in kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $3.95 IN A KIT + SOLD SOLO
13@#	EM202928	BLADE, SIDE, SCRAPER	4		ADD TO CART
BLADE, SIDE, SCRAPER EM202928 · qty on machine: 4 Also included in kit 9 - PADDLE ARM, CENTER TOW END (EM202897); kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $5.95 IN A KIT + SOLD SOLO
14@#	2105164	NUT, HEX 5/16" NC G5	14		ADD TO CART
NUT, HEX 5/16" NC G5 2105164 · qty on machine: 14 Also included in kit 9 - PADDLE ARM, CENTER TOW END (EM202897); kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $0.2 IN A KIT + SOLD SOLO
15@	EM923343	WASHER, LOCK 5/16"	14		ADD TO CART
WASHER, LOCK 5/16" EM923343 · qty on machine: 14 Also included in kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $0.21 IN A KIT + SOLD SOLO
16	EM202899	PADDLE ARM, TOW END	1		ADD TO CART
PADDLE ARM, TOW END EM202899 · qty on machine: 1 view full part page → $52.95
17@#	EM202927	BLADE ,SCRAPPER END	4		ADD TO CART
BLADE ,SCRAPPER END EM202927 · qty on machine: 4 Also included in kit 9 - PADDLE ARM, CENTER TOW END (EM202897); kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $7.95 IN A KIT + SOLD SOLO
18@	EM202926	BLADE, RUBBER END	4		ADD TO CART
BLADE, RUBBER END EM202926 · qty on machine: 4 Also included in kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $3.94 IN A KIT + SOLD SOLO
19	EM203010	KIT, WIPERS, SCRAPERS & HARDWARE	1	INCLUDES ITEMS W/@	ADD TO CART
KIT, WIPERS, SCRAPERS & HARDWARE EM203010 · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 10@#, 11@#, 12@, 13@#, 14@#, 15@, 17@#, 18@ view full part page → $115.95 IN A KIT + SOLD SOLO

Page 12 — STEEL TUB ASSY.

Parts list — exactly as printed32 rows

No.	Part No.	Part Name	Qty	Remarks
1	530028C	DRUM BEARING BRACKET	2		PARTS REQUEST
PHOTO COMING DRUM BEARING BRACKET 530028C · qty on machine: 2 PARTS REQUEST
2	3249	CAP, DUST	1		ADD TO CART
CAP, DUST 3249 · qty on machine: 1 view full part page → $11.95
3	20561-001	BEARING SEALED	2	SET SCREWS AND BEARING COLLAR CANNOT BE PURCHASED SEPARATELY	ADD TO CART
BEARING SEALED 20561-001 · qty on machine: 2 SET SCREWS AND BEARING COLLAR CANNOT BE PURCHASED SEPARATELY view full part page → $30.95
4	491008	CAP, GREASE FITTING	2		ADD TO CART
CAP, GREASE FITTING 491008 · qty on machine: 2 view full part page → $0.28
5	EM916019	FITTING, GREASE	2		ADD TO CART
FITTING, GREASE EM916019 · qty on machine: 2 view full part page → $1.95
6	EM969013	NUT, LOCK 3/8"	18		ADD TO CART
NUT, LOCK 3/8" EM969013 · qty on machine: 18 view full part page → $0.21
7	3019092	WASHER, FLAT 3/8"	8		ADD TO CART
WASHER, FLAT 3/8" 3019092 · qty on machine: 8 view full part page → $0.18
8	514778C	TRUNNION HUB	2		PARTS REQUEST
PHOTO COMING TRUNNION HUB 514778C · qty on machine: 2 PARTS REQUEST
9	513453	ROLL PIN 3/16" X 3/4"	2		ADD TO CART
ROLL PIN 3/16" X 3/4" 513453 · qty on machine: 2 Factory replaced this part - current number 07594-012 view full part page → $0.13 IN A KIT + SOLD SOLO
10	20654-001	SEAL, SHAFT (BLACK)	2		ADD TO CART
SEAL, SHAFT (BLACK) 20654-001 · qty on machine: 2 view full part page → $5.95
11	530029	RING, RETENTION	2		ADD TO CART
RING, RETENTION 530029 · qty on machine: 2 view full part page → $10.95
12	20104-002	SEAL, SHAFT URETHANE (YELLOW)	2		ADD TO CART
SEAL, SHAFT URETHANE (YELLOW) 20104-002 · qty on machine: 2 view full part page → $7.95
13	513452	BOLT, 3/8" X 1-1/4"	8		ADD TO CART
BOLT, 3/8" X 1-1/4" 513452 · qty on machine: 8 view full part page → $0.85
14	520621	DRUM, STEEL	1		PARTS REQUEST
PHOTO COMING DRUM, STEEL 520621 · qty on machine: 1 PARTS REQUEST
15	EM961019	SET SCREW	2		ADD TO CART
SET SCREW EM961019 · qty on machine: 2 view full part page → $0.95
16	530043	MAIN GEAR	1		ADD TO CART
MAIN GEAR 530043 · qty on machine: 1 view full part page → $189.95
17	501016	KEY, 3/8" X 88 MM	1		ADD TO CART
KEY, 3/8" X 88 MM 501016 · qty on machine: 1 view full part page → $9.95
18	17985-012	CARRIAGE BOLT 3/8-16 X 1-1/2"	4		ADD TO CART
CARRIAGE BOLT 3/8-16 X 1-1/2" 17985-012 · qty on machine: 4 view full part page → $0.58
19	514752	SHAFT, PADDLE	1		ADD TO CART
SHAFT, PADDLE 514752 · qty on machine: 1 view full part page → $333.95
20	6109170	WASHER, 1/2" FLAT	1		ADD TO CART
WASHER, 1/2" FLAT 6109170 · qty on machine: 1 view full part page → $0.48
21	520542	GRATE BAR	1		ADD TO CART
GRATE BAR 520542 · qty on machine: 1 view full part page → $11.36
22	EM925191	PIN, COTTER	1		ADD TO CART
PIN, COTTER EM925191 · qty on machine: 1 view full part page → $0.75
23	520540	GRATE, FIXED	1		ADD TO CART
GRATE, FIXED 520540 · qty on machine: 1 view full part page → $230.95
25	6109160	HEX NUT 1/2" G5	2		ADD TO CART
HEX NUT 1/2" G5 6109160 · qty on machine: 2 view full part page → $0.28
26	6109180	WASHER, LOCK 1/2"	2		ADD TO CART
WASHER, LOCK 1/2" 6109180 · qty on machine: 2 view full part page → $0.21
27	EM963692	BOLT 1/2" UNC 1-1/2"	3		ADD TO CART
BOLT 1/2" UNC 1-1/2" EM963692 · qty on machine: 3 view full part page → $0.86
29	492584	NUT, LOCK1/2" NC	1		ADD TO CART
NUT, LOCK1/2" NC 492584 · qty on machine: 1 view full part page → $0.45
30	EM201537	HANDLE DUMP	1		ADD TO CART
HANDLE DUMP EM201537 · qty on machine: 1 view full part page → $34.95
31	EM98195	GRIP, DUMP HANDLE	1		ADD TO CART
GRIP, DUMP HANDLE EM98195 · qty on machine: 1 view full part page → $1.71
32	507418	WASHER, TOOTHED	4		PARTS REQUEST
PHOTO COMING WASHER, TOOTHED 507418 · qty on machine: 4 PARTS REQUEST
33	520541	GATE, MOBILE	1		ADD TO CART
GATE, MOBILE 520541 · qty on machine: 1 view full part page → $186.95
34	EM963610	CAPSCREW, 3/8" NC X 1-1/4" G8	6		ADD TO CART
CAPSCREW, 3/8" NC X 1-1/4" G8 EM963610 · qty on machine: 6 view full part page → $0.69

Page 14 — AXLE ASSY.

Parts list — exactly as printed12 rows

No.	Part No.	Part Name	Qty	Remarks
1#	3469	DUST CAP	2		ADD TO CART
DUST CAP 3469 · qty on machine: 2 Also included in kit 11 - HUB ASSY., 4-BOLT (EM941306) view full part page → $4.95 IN A KIT + SOLD SOLO
2#	8115	LUG NUTS	8		ADD TO CART
LUG NUTS 8115 · qty on machine: 8 Also included in kit 11 - HUB ASSY., 4-BOLT (EM941306) view full part page → $1.52 IN A KIT + SOLD SOLO
3	3005	TIRE AND RIM, CARLISE	2		ADD TO CART
TIRE AND RIM, CARLISE 3005 · qty on machine: 2 Factory replaced this part - current number 516476 view full part page → $281.95 IN A KIT + SOLD SOLO
4	8164	CASTLE NUT 1"	2		ADD TO CART
CASTLE NUT 1" 8164 · qty on machine: 2 view full part page → $3.95
5	491688	COTTER PIN 1/8" X 1-1/2'	2		PARTS REQUEST
PHOTO COMING COTTER PIN 1/8" X 1-1/2' 491688 · qty on machine: 2 PARTS REQUEST
6	EM511159	WASHER, FLAT, .087" THICKNESS	2		ADD TO CART
WASHER, FLAT, .087" THICKNESS EM511159 · qty on machine: 2 view full part page → $2.77
7	EM501299	WASHER, FLAT, .135" THICKNESS	1		ADD TO CART
WASHER, FLAT, .135" THICKNESS EM501299 · qty on machine: 1 view full part page → $4.95
8#	EM903113	BEARING CONE	4		ADD TO CART
BEARING CONE EM903113 · qty on machine: 4 Also included in kit 11 - HUB ASSY., 4-BOLT (EM941306) view full part page → $7.95 IN A KIT + SOLD SOLO
9#	EM903012	BEARING CUP	4		ADD TO CART
BEARING CUP EM903012 · qty on machine: 4 Also included in kit 11 - HUB ASSY., 4-BOLT (EM941306) view full part page → $2.95 IN A KIT + SOLD SOLO
10#	EM914288	OIL SEAL	2		ADD TO CART
OIL SEAL EM914288 · qty on machine: 2 Also included in kit 11 - HUB ASSY., 4-BOLT (EM941306) view full part page → $3.95 IN A KIT + SOLD SOLO
11	EM941306	HUB ASSY., 4-BOLT	2	INCLUDES ITEMS W/ #	ADD TO CART
HUB ASSY., 4-BOLT EM941306 · qty on machine: 2 INCLUDES ITEMS W/ # Kit includes: 1#, 2#, 8#, 9#, 10# view full part page → $75.95 IN A KIT + SOLD SOLO
12	514802	AXLE, UNIVERSAL	1		ADD TO CART
AXLE, UNIVERSAL 514802 · qty on machine: 1 view full part page → $264.95

Page 16 — ENGINE ASSY.

Parts list — exactly as printed44 rows

No.	Part No.	Part Name	Qty	Remarks
1	EM969013	NUT 3/8" NC G5	8		ADD TO CART
NUT 3/8" NC G5 EM969013 · qty on machine: 8 view full part page → $0.21
2	506488	FLAT WASHER 3/8	8		PARTS REQUEST
PHOTO COMING FLAT WASHER 3/8 506488 · qty on machine: 8 PARTS REQUEST
3	EM905016	PILLOW BLOCK BEARING	2		ADD TO CART
PILLOW BLOCK BEARING EM905016 · qty on machine: 2 view full part page → $48.95
4	492378	BOLT 3/8" NC X 1-3/4" G5	4		ADD TO CART
BOLT 3/8" NC X 1-3/4" G5 492378 · qty on machine: 4 view full part page → $0.69
5	490957	RING, RETENTION	1		PARTS REQUEST
PHOTO COMING RING, RETENTION 490957 · qty on machine: 1 PARTS REQUEST
6	513868	PINION GEAR	1		ADD TO CART
PINION GEAR 513868 · qty on machine: 1 view full part page → $38.95
7	500214	KEY, 1/4" X 30 MM	1		ADD TO CART
KEY, 1/4" X 30 MM 500214 · qty on machine: 1 view full part page → $1.51
8	EM502226	PINION SHAFT	1		ADD TO CART
PINION SHAFT EM502226 · qty on machine: 1 view full part page → $25.95
9	492057	PULLEY (LARGE)	1		ADD TO CART
PULLEY (LARGE) 492057 · qty on machine: 1 view full part page → $69.95
10	505084	KEY, 1/4" X 55 MM	1		ADD TO CART
KEY, 1/4" X 55 MM 505084 · qty on machine: 1 view full part page → $10.95
11	492467	SET SCREW, 5/16' NC 3/8"	4		ADD TO CART
SET SCREW, 5/16' NC 3/8" 492467 · qty on machine: 4 view full part page → $0.41
12	505834	V-BELT, A-37	2	GX160UT1HX2	PARTS REQUEST
PHOTO COMING V-BELT, A-37 505834 · qty on machine: 2 GX160UT1HX2 PARTS REQUEST
12	505834	V-BELT, A-36	2	GX240UT1HA2	PARTS REQUEST
PHOTO COMING V-BELT, A-36 505834 · qty on machine: 2 GX240UT1HA2 PARTS REQUEST
13	503117	BOLT, 3/8" NC X 3" G5	1		ADD TO CART
BOLT, 3/8" NC X 3" G5 503117 · qty on machine: 1 view full part page → $0.95
14	501019	SQ. KEY 3/16" X 45 MM 4.8 HP	1	GX160UT1HX2	ADD TO CART
SQ. KEY 3/16" X 45 MM 4.8 HP 501019 · qty on machine: 1 GX160UT1HX2 view full part page → $1.31
14	90745ZE2600	SQ. KEY 6.3 X 6.3 X 43 MM 7.8 HP	1	GX240UT1HA2	ADD TO CART
SQ. KEY 6.3 X 6.3 X 43 MM 7.8 HP 90745ZE2600 · qty on machine: 1 GX240UT1HA2 view full part page → $32.95
15	492367	BOLT 5/16" NC X 1-3/4" G5	4	GX160UT1HX2	PARTS REQUEST
PHOTO COMING BOLT 5/16" NC X 1-3/4" G5 492367 · qty on machine: 4 GX160UT1HX2 PARTS REQUEST
15	492378	BOLT 3/8" NC X 1-3/4" G5	4	GX240UT1HA2	ADD TO CART
BOLT 3/8" NC X 1-3/4" G5 492378 · qty on machine: 4 GX240UT1HA2 view full part page → $0.69
16	GX160UT1HX2	ENGINE, HONDA 4.8 HP	1		ADD TO CART
ENGINE, HONDA 4.8 HP GX160UT1HX2 · qty on machine: 1 view full part page → $1413.95
16	GX240UT1HA2	ENGINE, HONDA 7.8 HP	1		ADD TO CART
ENGINE, HONDA 7.8 HP GX240UT1HA2 · qty on machine: 1 view full part page → $1777.95
17	515040	BELT RETAINER BAR	1		ADD TO CART
BELT RETAINER BAR 515040 · qty on machine: 1 view full part page → $13.95
18	492055	PULLEY, (SMALL), 4.8 HP	1	GX160UT1HX2	ADD TO CART
PULLEY, (SMALL), 4.8 HP 492055 · qty on machine: 1 GX160UT1HX2 view full part page → $29.95
18	EM901074	PULLEY, (SMALL), 7.8 HP	1	GX240UT1HA2	ADD TO CART
PULLEY, (SMALL), 7.8 HP EM901074 · qty on machine: 1 GX240UT1HA2 view full part page → $89.95
22	492597	WASHER, FLAT 5/16"	6	GX160UT1HX2	PARTS REQUEST
PHOTO COMING WASHER, FLAT 5/16" 492597 · qty on machine: 6 GX160UT1HX2 PARTS REQUEST
22	492598	WASHER, FLAT 3/8"	6	GX240UT1HA2	PARTS REQUEST
PHOTO COMING WASHER, FLAT 3/8" 492598 · qty on machine: 6 GX240UT1HA2 PARTS REQUEST
23	492623	WASHER, LOCK 5/16"	4	GX160UT1HX2	PARTS REQUEST
PHOTO COMING WASHER, LOCK 5/16" 492623 · qty on machine: 4 GX160UT1HX2 PARTS REQUEST
23	492624	WASHER, LOCK 3/8"	4	GX240UT1HA2	ADD TO CART
WASHER, LOCK 3/8" 492624 · qty on machine: 4 GX240UT1HA2 Factory replaced this part - current number 0166A view full part page → $0.17 IN A KIT + SOLD SOLO
24	492553	NUT, HEX 5/16"	4	GX160UT1HX2	PARTS REQUEST
PHOTO COMING NUT, HEX 5/16" 492553 · qty on machine: 4 GX160UT1HX2 PARTS REQUEST
24	492554	NUT, HEX 3/8"	4	GX240UT1HA2	PARTS REQUEST
PHOTO COMING NUT, HEX 3/8" 492554 · qty on machine: 4 GX240UT1HA2 PARTS REQUEST
25	492600	WASHER, FLAT 1/2"	1		PARTS REQUEST
PHOTO COMING WASHER, FLAT 1/2" 492600 · qty on machine: 1 PARTS REQUEST
26	505084	SQ. KEY, 1/4" X 55 MM	1		ADD TO CART
SQ. KEY, 1/4" X 55 MM 505084 · qty on machine: 1 view full part page → $10.95
27	492394	BOLT 1/2" NC X 1-1/2" G5	1		PARTS REQUEST
PHOTO COMING BOLT 1/2" NC X 1-1/2" G5 492394 · qty on machine: 1 PARTS REQUEST
28	EM102014	SPRING, EXTENSION	1		ADD TO CART
SPRING, EXTENSION EM102014 · qty on machine: 1 view full part page → $4.95
29	EM203098	SPRING CLIP	1		ADD TO CART
SPRING CLIP EM203098 · qty on machine: 1 view full part page → $24.95
30	492313	BOLT 3/8" NC X 1-1/2" G5	3		PARTS REQUEST
PHOTO COMING BOLT 3/8" NC X 1-1/2" G5 492313 · qty on machine: 3 PARTS REQUEST
31	EM507713	ARM, IDLER	1	GX160UT1HX2	ADD TO CART
ARM, IDLER EM507713 · qty on machine: 1 GX160UT1HX2 view full part page → $3.95
31	EM507491	ARM, IDLER	1	GX240UT1HA2	ADD TO CART
ARM, IDLER EM507491 · qty on machine: 1 GX240UT1HA2 view full part page → $4.95
32	EM959080	ROD-END	2		ADD TO CART
ROD-END EM959080 · qty on machine: 2 view full part page → $14.95
33	492584	NUT, HEX 1/2"	1		ADD TO CART
NUT, HEX 1/2" 492584 · qty on machine: 1 view full part page → $0.45
34	492574	NUT, HEX 3/8" NF G5	2		PARTS REQUEST
PHOTO COMING NUT, HEX 3/8" NF G5 492574 · qty on machine: 2 PARTS REQUEST
35	492476	SET SCREW, 5/16' NC 3/4"	1		NO LONGER AVAILABLE
PHOTO COMING SET SCREW, 5/16' NC 3/4" 492476 · qty on machine: 1 NO LONGER AVAILABLE
36	EM901515	PULLEY, IDLER	1		ADD TO CART
PULLEY, IDLER EM901515 · qty on machine: 1 view full part page → $10.95
37	515299	ROD	1	GX160UT1HX2	ADD TO CART
ROD 515299 · qty on machine: 1 GX160UT1HX2 view full part page → $2.95
37	515045	ROD	1	GX240UT1HA2	ADD TO CART
ROD 515045 · qty on machine: 1 GX240UT1HA2 view full part page → $3.95

Page 18 — CABINET ASSY.

Parts list — exactly as printed14 rows

No.	Part No.	Part Name	Qty	Remarks
1	520620	CABINET, ENGINE W/DECALS	1	INCLUDES ITEMS W/@	NO LONGER AVAILABLE
PHOTO COMING CABINET, ENGINE W/DECALS 520620 · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 6@ NO LONGER AVAILABLE
2	EM505186	BUMPER, STICK ON	4		ADD TO CART
BUMPER, STICK ON EM505186 · qty on machine: 4 view full part page → $0.17
5	503723	POP RIVET	10		PARTS REQUEST
PHOTO COMING POP RIVET 503723 · qty on machine: 10 PARTS REQUEST
6@	491010	LATCH ASSY., COMPLETE	2		ADD TO CART
LATCH ASSY., COMPLETE 491010 · qty on machine: 2 Also included in kit 1 - CABINET, ENGINE W/DECALS (520620) view full part page → $8.95 IN A KIT + SOLD SOLO
7	EM963610	CAPSCREW 3/8" NC X 1-1/4" G8	4		ADD TO CART
CAPSCREW 3/8" NC X 1-1/4" G8 EM963610 · qty on machine: 4 view full part page → $0.69
8	3019092	WASHER, FLAT 3/8"	12		ADD TO CART
WASHER, FLAT 3/8" 3019092 · qty on machine: 12 view full part page → $0.18
9	EM969013	NUT NYLOCK	4		ADD TO CART
NUT NYLOCK EM969013 · qty on machine: 4 view full part page → $0.21
10	29174-001	KNOB, MUSHROOM	1		ADD TO CART
KNOB, MUSHROOM 29174-001 · qty on machine: 1 view full part page → $2.89
11	29173-001	SWITCH, PUSH-PULL	1		ADD TO CART
SWITCH, PUSH-PULL 29173-001 · qty on machine: 1 view full part page → $18.95
12	504135C	WIRE HARNESS	1		ADD TO CART
WIRE HARNESS 504135C · qty on machine: 1 Factory replaced this part - current number 510573 view full part page → $11.95 IN A KIT + SOLD SOLO
13	EM974007	PAINT, SPRAY 12 OZ. TRAFFIC RED	1		ADD TO CART
PAINT, SPRAY 12 OZ. TRAFFIC RED EM974007 · qty on machine: 1 view full part page → $45.95
14	520560	GUARD	1		ADD TO CART
GUARD 520560 · qty on machine: 1 view full part page → $72.95
15	EM963055	HEX HEAD CAPSCREW	8		ADD TO CART
HEX HEAD CAPSCREW EM963055 · qty on machine: 8 view full part page → $0.7
16	520561	SPACER	4		ADD TO CART
SPACER 520561 · qty on machine: 4 view full part page → $6.95

Page 6 — UNKNOWN

Parts list — exactly as printed13 rows

No.	Part No.	Part Name	Qty	Remarks
1	EM948630	DECAL, PUSH TO STOP (ENGLISH)	1		ADD TO CART
DECAL, PUSH TO STOP (ENGLISH) EM948630 · qty on machine: 1 view full part page → $1.44
2	CIP520932	DECAL, PUSH TO STOP (FRENCH)	1		PARTS REQUEST
PHOTO COMING DECAL, PUSH TO STOP (FRENCH) CIP520932 · qty on machine: 1 PARTS REQUEST
3	CIP520933	DECAL, DO NOT SMOKE	1		PARTS REQUEST
PHOTO COMING DECAL, DO NOT SMOKE CIP520933 · qty on machine: 1 PARTS REQUEST
4	CIP520938	DECAL, READ MANUAL, CRUSH HAZARD	1		PARTS REQUEST
PHOTO COMING DECAL, READ MANUAL, CRUSH HAZARD CIP520938 · qty on machine: 1 PARTS REQUEST
5	CIP520935	DECAL, SAFETY INSTRUCTIONS (ENGLISH)	1		PARTS REQUEST
PHOTO COMING DECAL, SAFETY INSTRUCTIONS (ENGLISH) CIP520935 · qty on machine: 1 PARTS REQUEST
6	515275	DECAL, WHITEMAN LOGO	1		ADD TO CART
DECAL, WHITEMAN LOGO 515275 · qty on machine: 1 view full part page → $2.95
8	CIP520922	DECAL, SAFETY INSTRUCTIONS (FRENCH)	1		PARTS REQUEST
PHOTO COMING DECAL, SAFETY INSTRUCTIONS (FRENCH) CIP520922 · qty on machine: 1 PARTS REQUEST
9	CIP520934	DECAL, HANDLE KICK BACK, SAFETY GRATE, CRUSH HAZARD	1		PARTS REQUEST
PHOTO COMING DECAL, HANDLE KICK BACK, SAFETY GRATE, CRUSH HAZARD CIP520934 · qty on machine: 1 PARTS REQUEST
10	CIP520915	DECAL, POWDER COATED (FRENCH)	1		PARTS REQUEST
PHOTO COMING DECAL, POWDER COATED (FRENCH) CIP520915 · qty on machine: 1 PARTS REQUEST
11	13118	DECAL, POWDER COATED (ENGLISH)	1		ADD TO CART
DECAL, POWDER COATED (ENGLISH) 13118 · qty on machine: 1 view full part page → $0.76
12	CIP520936	DECAL, DRUM LOCK POSITIONING	1		PARTS REQUEST
PHOTO COMING DECAL, DRUM LOCK POSITIONING CIP520936 · qty on machine: 1 PARTS REQUEST
13		NAMEPLATE	1	CONTACT MQ PARTS DEPT.	SEE REMARKS
PHOTO COMING NAMEPLATE · qty on machine: 1 CONTACT MQ PARTS DEPT. SEE REMARKS
14	CIP520937	DECAL, INSPECT BEFORE TOWING	1		PARTS REQUEST
PHOTO COMING DECAL, INSPECT BEFORE TOWING CIP520937 · qty on machine: 1 PARTS REQUEST

Page 8 — FRAME ASSY.

Parts list — exactly as printed18 rows

No.	Part No.	Part Name	Qty	Remarks
1	514842	LOCK PIN UNIT	1		ADD TO CART
LOCK PIN UNIT 514842 · qty on machine: 1 view full part page → $43.95
2	491692	COTTER PIN	1		ADD TO CART
COTTER PIN 491692 · qty on machine: 1 view full part page → $1.35
3	530023	SPRING LOCKING PIN	1		ADD TO CART
SPRING LOCKING PIN 530023 · qty on machine: 1 view full part page → $2.95
4	507444	WASHER, FLAT 3/4"	1		ADD TO CART
WASHER, FLAT 3/4" 507444 · qty on machine: 1 view full part page → $1.71
5	520619	MAIN FRAME	1		PARTS REQUEST
PHOTO COMING MAIN FRAME 520619 · qty on machine: 1 PARTS REQUEST
7	514836	HANDLE, CLUTCH ENGAGE	1		ADD TO CART
HANDLE, CLUTCH ENGAGE 514836 · qty on machine: 1 view full part page → $78.95
8	EM963692	BOLT 1/2" UNC 1-1/2"	6		ADD TO CART
BOLT 1/2" UNC 1-1/2" EM963692 · qty on machine: 6 view full part page → $0.86
9	492584	NUT, LOCK 1/2"	6		ADD TO CART
NUT, LOCK 1/2" 492584 · qty on machine: 6 view full part page → $0.45
10	514802	AXLE, UNIVERSAL	1		ADD TO CART
AXLE, UNIVERSAL 514802 · qty on machine: 1 view full part page → $264.95
11	10176	LOCK NUT 1/2" NC	1		ADD TO CART
LOCK NUT 1/2" NC 10176 · qty on machine: 1 view full part page → $2.95
12	EM124	BOLT 1/2"-13 X 4 G5	1		ADD TO CART
BOLT 1/2"-13 X 4 G5 EM124 · qty on machine: 1 view full part page → $1.95
13@		SAFETY CHAIN	1		INCLUDED IN KIT
PHOTO COMING SAFETY CHAIN · qty on machine: 1 Included in kit 15 - CHAIN AND LINK KIT (13363KIT) INCLUDED IN KIT
14@	01004	CONNECTOR LINK	1		ADD TO CART
CONNECTOR LINK 01004 · qty on machine: 1 Also included in kit 15 - CHAIN AND LINK KIT (13363KIT) view full part page → $1.79 IN A KIT + SOLD SOLO
14A@	516580	CLEVIS SAFETY HOOK	1		ADD TO CART
CLEVIS SAFETY HOOK 516580 · qty on machine: 1 Also included in kit 15 - CHAIN AND LINK KIT (13363KIT) view full part page → $5.95 IN A KIT + SOLD SOLO
15	13363KIT	CHAIN AND LINK KIT	1	INCLUDES ITEMS W/@	ADD TO CART
CHAIN AND LINK KIT 13363KIT · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 13@, 14@, 14A@ view full part page → $97.95 IN A KIT + SOLD SOLO
16	HBC-1	BALL HITCH 2-INCH	1	CONTACT UNIT SALES	PARTS REQUEST
PHOTO COMING BALL HITCH 2-INCH HBC-1 · qty on machine: 1 CONTACT UNIT SALES PARTS REQUEST
17	HLC-1	LOOP HITCH	1	CONTACT UNIT SALES	PARTS REQUEST
PHOTO COMING LOOP HITCH HLC-1 · qty on machine: 1 CONTACT UNIT SALES PARTS REQUEST
18	HPC-1	PIN HITCH 1-INCH	1	CONTACT UNIT SALES	PARTS REQUEST
PHOTO COMING PIN HITCH 1-INCH HPC-1 · qty on machine: 1 CONTACT UNIT SALES PARTS REQUEST

Page 10 — PADDLE SHAFT ASSY.

Parts list — exactly as printed18 rows

No.	Part No.	Part Name	Qty	Remarks
1	514752	PADDLE SHAFT	1		ADD TO CART
PADDLE SHAFT 514752 · qty on machine: 1 view full part page → $333.95
2	492584	NUT, LOCK 1/2"	8		ADD TO CART
NUT, LOCK 1/2" 492584 · qty on machine: 8 view full part page → $0.45
3	EM202896	PADDLE ARM, CENTER ENGINE END	1		ADD TO CART
PADDLE ARM, CENTER ENGINE END EM202896 · qty on machine: 1 view full part page → $46.95
5	EM200292	INSERT, PADDLE ARM	8		ADD TO CART
INSERT, PADDLE ARM EM200292 · qty on machine: 8 view full part page → $4.95
6	EM202898	PADDLE ARM, ENGINE END	1		ADD TO CART
PADDLE ARM, ENGINE END EM202898 · qty on machine: 1 view full part page → $52.95
7	6109170	WASHER, FLAT 1/2"	8		ADD TO CART
WASHER, FLAT 1/2" 6109170 · qty on machine: 8 view full part page → $0.48
8	EM200297	U-BOLT	4		ADD TO CART
U-BOLT EM200297 · qty on machine: 4 view full part page → $2.95
9	EM202897	PADDLE ARM, CENTER TOW END	1		ADD TO CART
PADDLE ARM, CENTER TOW END EM202897 · qty on machine: 1 Kit includes: 10@#, 11@#, 13@#, 14@#, 17@# view full part page → $46.95 IN A KIT + SOLD SOLO
10@#	2105162	SCREW, HHC 5/16-18 X 1-3/4 G5	14		ADD TO CART
SCREW, HHC 5/16-18 X 1-3/4 G5 2105162 · qty on machine: 14 Also included in kit 9 - PADDLE ARM, CENTER TOW END (EM202897); kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $0.68 IN A KIT + SOLD SOLO
11@#	EM923023	WASHER, FLAT 5/16"	28		ADD TO CART
WASHER, FLAT 5/16" EM923023 · qty on machine: 28 Also included in kit 9 - PADDLE ARM, CENTER TOW END (EM202897); kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $0.21 IN A KIT + SOLD SOLO
12@	EM202929	BLADE, SIDE, RUBBER	4		ADD TO CART
BLADE, SIDE, RUBBER EM202929 · qty on machine: 4 Also included in kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $3.95 IN A KIT + SOLD SOLO
13@#	EM202928	BLADE, SIDE, SCRAPER	4		ADD TO CART
BLADE, SIDE, SCRAPER EM202928 · qty on machine: 4 Also included in kit 9 - PADDLE ARM, CENTER TOW END (EM202897); kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $5.95 IN A KIT + SOLD SOLO
14@#	2105164	NUT, HEX 5/16" NC G5	14		ADD TO CART
NUT, HEX 5/16" NC G5 2105164 · qty on machine: 14 Also included in kit 9 - PADDLE ARM, CENTER TOW END (EM202897); kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $0.2 IN A KIT + SOLD SOLO
15@	EM923343	WASHER, LOCK 5/16"	14		ADD TO CART
WASHER, LOCK 5/16" EM923343 · qty on machine: 14 Also included in kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $0.21 IN A KIT + SOLD SOLO
16	EM202899	PADDLE ARM, TOW END	1		ADD TO CART
PADDLE ARM, TOW END EM202899 · qty on machine: 1 view full part page → $52.95
17@#	EM202927	BLADE ,SCRAPPER END	4		ADD TO CART
BLADE ,SCRAPPER END EM202927 · qty on machine: 4 Also included in kit 9 - PADDLE ARM, CENTER TOW END (EM202897); kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $7.95 IN A KIT + SOLD SOLO
18@	EM202926	BLADE, RUBBER END	4		ADD TO CART
BLADE, RUBBER END EM202926 · qty on machine: 4 Also included in kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $3.94 IN A KIT + SOLD SOLO
19	EM203010	KIT, WIPERS, SCRAPERS & HARDWARE	1	INCLUDES ITEMS W/@	ADD TO CART
KIT, WIPERS, SCRAPERS & HARDWARE EM203010 · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 10@#, 11@#, 12@, 13@#, 14@#, 15@, 17@#, 18@ view full part page → $115.95 IN A KIT + SOLD SOLO

Page 12 — STEEL TUB ASSY.

Parts list — exactly as printed32 rows

No.	Part No.	Part Name	Qty	Remarks
1	530028C	DRUM BEARING BRACKET	2		PARTS REQUEST
PHOTO COMING DRUM BEARING BRACKET 530028C · qty on machine: 2 PARTS REQUEST
2	3249	CAP, DUST	1		ADD TO CART
CAP, DUST 3249 · qty on machine: 1 view full part page → $11.95
3	20561-001	BEARING SEALED	2	SET SCREWS AND BEARING COLLAR CANNOT BE PURCHASED SEPARATELY	ADD TO CART
BEARING SEALED 20561-001 · qty on machine: 2 SET SCREWS AND BEARING COLLAR CANNOT BE PURCHASED SEPARATELY view full part page → $30.95
4	491008	CAP, GREASE FITTING	2		ADD TO CART
CAP, GREASE FITTING 491008 · qty on machine: 2 view full part page → $0.28
5	EM916019	FITTING, GREASE	2		ADD TO CART
FITTING, GREASE EM916019 · qty on machine: 2 view full part page → $1.95
6	EM969013	NUT, LOCK 3/8"	18		ADD TO CART
NUT, LOCK 3/8" EM969013 · qty on machine: 18 view full part page → $0.21
7	3019092	WASHER, FLAT 3/8"	8		ADD TO CART
WASHER, FLAT 3/8" 3019092 · qty on machine: 8 view full part page → $0.18
8	514778C	TRUNNION HUB	2		PARTS REQUEST
PHOTO COMING TRUNNION HUB 514778C · qty on machine: 2 PARTS REQUEST
9	513453	ROLL PIN 3/16" X 3/4"	2		ADD TO CART
ROLL PIN 3/16" X 3/4" 513453 · qty on machine: 2 Factory replaced this part - current number 07594-012 view full part page → $0.13 IN A KIT + SOLD SOLO
10	20654-001	SEAL, SHAFT (BLACK)	2		ADD TO CART
SEAL, SHAFT (BLACK) 20654-001 · qty on machine: 2 view full part page → $5.95
11	530029	RING, RETENTION	2		ADD TO CART
RING, RETENTION 530029 · qty on machine: 2 view full part page → $10.95
12	20104-002	SEAL, SHAFT URETHANE (YELLOW)	2		ADD TO CART
SEAL, SHAFT URETHANE (YELLOW) 20104-002 · qty on machine: 2 view full part page → $7.95
13	513452	BOLT, 3/8" X 1-1/4"	8		ADD TO CART
BOLT, 3/8" X 1-1/4" 513452 · qty on machine: 8 view full part page → $0.85
14	520621	DRUM, STEEL	1		PARTS REQUEST
PHOTO COMING DRUM, STEEL 520621 · qty on machine: 1 PARTS REQUEST
15	EM961019	SET SCREW	2		ADD TO CART
SET SCREW EM961019 · qty on machine: 2 view full part page → $0.95
16	530043	MAIN GEAR	1		ADD TO CART
MAIN GEAR 530043 · qty on machine: 1 view full part page → $189.95
17	501016	KEY, 3/8" X 88 MM	1		ADD TO CART
KEY, 3/8" X 88 MM 501016 · qty on machine: 1 view full part page → $9.95
18	17985-012	CARRIAGE BOLT 3/8-16 X 1-1/2"	4		ADD TO CART
CARRIAGE BOLT 3/8-16 X 1-1/2" 17985-012 · qty on machine: 4 view full part page → $0.58
19	514752	SHAFT, PADDLE	1		ADD TO CART
SHAFT, PADDLE 514752 · qty on machine: 1 view full part page → $333.95
20	6109170	WASHER, 1/2" FLAT	1		ADD TO CART
WASHER, 1/2" FLAT 6109170 · qty on machine: 1 view full part page → $0.48
21	520542	GRATE BAR	1		ADD TO CART
GRATE BAR 520542 · qty on machine: 1 view full part page → $11.36
22	EM925191	PIN, COTTER	1		ADD TO CART
PIN, COTTER EM925191 · qty on machine: 1 view full part page → $0.75
23	520540	GRATE, FIXED	1		ADD TO CART
GRATE, FIXED 520540 · qty on machine: 1 view full part page → $230.95
25	6109160	HEX NUT 1/2" G5	2		ADD TO CART
HEX NUT 1/2" G5 6109160 · qty on machine: 2 view full part page → $0.28
26	6109180	WASHER, LOCK 1/2"	2		ADD TO CART
WASHER, LOCK 1/2" 6109180 · qty on machine: 2 view full part page → $0.21
27	EM963692	BOLT 1/2" UNC 1-1/2"	3		ADD TO CART
BOLT 1/2" UNC 1-1/2" EM963692 · qty on machine: 3 view full part page → $0.86
29	492584	NUT, LOCK1/2" NC	1		ADD TO CART
NUT, LOCK1/2" NC 492584 · qty on machine: 1 view full part page → $0.45
30	EM201537	HANDLE DUMP	1		ADD TO CART
HANDLE DUMP EM201537 · qty on machine: 1 view full part page → $34.95
31	EM98195	GRIP, DUMP HANDLE	1		ADD TO CART
GRIP, DUMP HANDLE EM98195 · qty on machine: 1 view full part page → $1.71
32	507418	WASHER, TOOTHED	4		PARTS REQUEST
PHOTO COMING WASHER, TOOTHED 507418 · qty on machine: 4 PARTS REQUEST
33	520541	GATE, MOBILE	1		ADD TO CART
GATE, MOBILE 520541 · qty on machine: 1 view full part page → $186.95
34	EM963610	CAPSCREW, 3/8" NC X 1-1/4" G8	6		ADD TO CART
CAPSCREW, 3/8" NC X 1-1/4" G8 EM963610 · qty on machine: 6 view full part page → $0.69

Page 14 — AXLE ASSY.

Parts list — exactly as printed12 rows

No.	Part No.	Part Name	Qty	Remarks
1#	3469	DUST CAP	2		ADD TO CART
DUST CAP 3469 · qty on machine: 2 Also included in kit 11 - HUB ASSY., 4-BOLT (EM941306) view full part page → $4.95 IN A KIT + SOLD SOLO
2#	8115	LUG NUTS	8		ADD TO CART
LUG NUTS 8115 · qty on machine: 8 Also included in kit 11 - HUB ASSY., 4-BOLT (EM941306) view full part page → $1.52 IN A KIT + SOLD SOLO
3	3005	TIRE AND RIM, CARLISE	2		ADD TO CART
TIRE AND RIM, CARLISE 3005 · qty on machine: 2 Factory replaced this part - current number 516476 view full part page → $281.95 IN A KIT + SOLD SOLO
4	8164	CASTLE NUT 1"	2		ADD TO CART
CASTLE NUT 1" 8164 · qty on machine: 2 view full part page → $3.95
5	491688	COTTER PIN 1/8" X 1-1/2'	2		PARTS REQUEST
PHOTO COMING COTTER PIN 1/8" X 1-1/2' 491688 · qty on machine: 2 PARTS REQUEST
6	EM511159	WASHER, FLAT, .087" THICKNESS	2		ADD TO CART
WASHER, FLAT, .087" THICKNESS EM511159 · qty on machine: 2 view full part page → $2.77
7	EM501299	WASHER, FLAT, .135" THICKNESS	1		ADD TO CART
WASHER, FLAT, .135" THICKNESS EM501299 · qty on machine: 1 view full part page → $4.95
8#	EM903113	BEARING CONE	4		ADD TO CART
BEARING CONE EM903113 · qty on machine: 4 Also included in kit 11 - HUB ASSY., 4-BOLT (EM941306) view full part page → $7.95 IN A KIT + SOLD SOLO
9#	EM903012	BEARING CUP	4		ADD TO CART
BEARING CUP EM903012 · qty on machine: 4 Also included in kit 11 - HUB ASSY., 4-BOLT (EM941306) view full part page → $2.95 IN A KIT + SOLD SOLO
10#	EM914288	OIL SEAL	2		ADD TO CART
OIL SEAL EM914288 · qty on machine: 2 Also included in kit 11 - HUB ASSY., 4-BOLT (EM941306) view full part page → $3.95 IN A KIT + SOLD SOLO
11	EM941306	HUB ASSY., 4-BOLT	2	INCLUDES ITEMS W/ #	ADD TO CART
HUB ASSY., 4-BOLT EM941306 · qty on machine: 2 INCLUDES ITEMS W/ # Kit includes: 1#, 2#, 8#, 9#, 10# view full part page → $75.95 IN A KIT + SOLD SOLO
12	514802	AXLE, UNIVERSAL	1		ADD TO CART
AXLE, UNIVERSAL 514802 · qty on machine: 1 view full part page → $264.95

Page 16 — ENGINE ASSY.

Parts list — exactly as printed44 rows

No.	Part No.	Part Name	Qty	Remarks
1	EM969013	NUT 3/8" NC G5	8		ADD TO CART
NUT 3/8" NC G5 EM969013 · qty on machine: 8 view full part page → $0.21
2	506488	FLAT WASHER 3/8	8		PARTS REQUEST
PHOTO COMING FLAT WASHER 3/8 506488 · qty on machine: 8 PARTS REQUEST
3	EM905016	PILLOW BLOCK BEARING	2		ADD TO CART
PILLOW BLOCK BEARING EM905016 · qty on machine: 2 view full part page → $48.95
4	492378	BOLT 3/8" NC X 1-3/4" G5	4		ADD TO CART
BOLT 3/8" NC X 1-3/4" G5 492378 · qty on machine: 4 view full part page → $0.69
5	490957	RING, RETENTION	1		PARTS REQUEST
PHOTO COMING RING, RETENTION 490957 · qty on machine: 1 PARTS REQUEST
6	513868	PINION GEAR	1		ADD TO CART
PINION GEAR 513868 · qty on machine: 1 view full part page → $38.95
7	500214	KEY, 1/4" X 30 MM	1		ADD TO CART
KEY, 1/4" X 30 MM 500214 · qty on machine: 1 view full part page → $1.51
8	EM502226	PINION SHAFT	1		ADD TO CART
PINION SHAFT EM502226 · qty on machine: 1 view full part page → $25.95
9	492057	PULLEY (LARGE)	1		ADD TO CART
PULLEY (LARGE) 492057 · qty on machine: 1 view full part page → $69.95
10	505084	KEY, 1/4" X 55 MM	1		ADD TO CART
KEY, 1/4" X 55 MM 505084 · qty on machine: 1 view full part page → $10.95
11	492467	SET SCREW, 5/16' NC 3/8"	4		ADD TO CART
SET SCREW, 5/16' NC 3/8" 492467 · qty on machine: 4 view full part page → $0.41
12	505834	V-BELT, A-37	2	GX160UT1HX2	PARTS REQUEST
PHOTO COMING V-BELT, A-37 505834 · qty on machine: 2 GX160UT1HX2 PARTS REQUEST
12	505834	V-BELT, A-36	2	GX240UT1HA2	PARTS REQUEST
PHOTO COMING V-BELT, A-36 505834 · qty on machine: 2 GX240UT1HA2 PARTS REQUEST
13	503117	BOLT, 3/8" NC X 3" G5	1		ADD TO CART
BOLT, 3/8" NC X 3" G5 503117 · qty on machine: 1 view full part page → $0.95
14	501019	SQ. KEY 3/16" X 45 MM 4.8 HP	1	GX160UT1HX2	ADD TO CART
SQ. KEY 3/16" X 45 MM 4.8 HP 501019 · qty on machine: 1 GX160UT1HX2 view full part page → $1.31
14	90745ZE2600	SQ. KEY 6.3 X 6.3 X 43 MM 7.8 HP	1	GX240UT1HA2	ADD TO CART
SQ. KEY 6.3 X 6.3 X 43 MM 7.8 HP 90745ZE2600 · qty on machine: 1 GX240UT1HA2 view full part page → $32.95
15	492367	BOLT 5/16" NC X 1-3/4" G5	4	GX160UT1HX2	PARTS REQUEST
PHOTO COMING BOLT 5/16" NC X 1-3/4" G5 492367 · qty on machine: 4 GX160UT1HX2 PARTS REQUEST
15	492378	BOLT 3/8" NC X 1-3/4" G5	4	GX240UT1HA2	ADD TO CART
BOLT 3/8" NC X 1-3/4" G5 492378 · qty on machine: 4 GX240UT1HA2 view full part page → $0.69
16	GX160UT1HX2	ENGINE, HONDA 4.8 HP	1		ADD TO CART
ENGINE, HONDA 4.8 HP GX160UT1HX2 · qty on machine: 1 view full part page → $1413.95
16	GX240UT1HA2	ENGINE, HONDA 7.8 HP	1		ADD TO CART
ENGINE, HONDA 7.8 HP GX240UT1HA2 · qty on machine: 1 view full part page → $1777.95
17	515040	BELT RETAINER BAR	1		ADD TO CART
BELT RETAINER BAR 515040 · qty on machine: 1 view full part page → $13.95
18	492055	PULLEY, (SMALL), 4.8 HP	1	GX160UT1HX2	ADD TO CART
PULLEY, (SMALL), 4.8 HP 492055 · qty on machine: 1 GX160UT1HX2 view full part page → $29.95
18	EM901074	PULLEY, (SMALL), 7.8 HP	1	GX240UT1HA2	ADD TO CART
PULLEY, (SMALL), 7.8 HP EM901074 · qty on machine: 1 GX240UT1HA2 view full part page → $89.95
22	492597	WASHER, FLAT 5/16"	6	GX160UT1HX2	PARTS REQUEST
PHOTO COMING WASHER, FLAT 5/16" 492597 · qty on machine: 6 GX160UT1HX2 PARTS REQUEST
22	492598	WASHER, FLAT 3/8"	6	GX240UT1HA2	PARTS REQUEST
PHOTO COMING WASHER, FLAT 3/8" 492598 · qty on machine: 6 GX240UT1HA2 PARTS REQUEST
23	492623	WASHER, LOCK 5/16"	4	GX160UT1HX2	PARTS REQUEST
PHOTO COMING WASHER, LOCK 5/16" 492623 · qty on machine: 4 GX160UT1HX2 PARTS REQUEST
23	492624	WASHER, LOCK 3/8"	4	GX240UT1HA2	ADD TO CART
WASHER, LOCK 3/8" 492624 · qty on machine: 4 GX240UT1HA2 Factory replaced this part - current number 0166A view full part page → $0.17 IN A KIT + SOLD SOLO
24	492553	NUT, HEX 5/16"	4	GX160UT1HX2	PARTS REQUEST
PHOTO COMING NUT, HEX 5/16" 492553 · qty on machine: 4 GX160UT1HX2 PARTS REQUEST
24	492554	NUT, HEX 3/8"	4	GX240UT1HA2	PARTS REQUEST
PHOTO COMING NUT, HEX 3/8" 492554 · qty on machine: 4 GX240UT1HA2 PARTS REQUEST
25	492600	WASHER, FLAT 1/2"	1		PARTS REQUEST
PHOTO COMING WASHER, FLAT 1/2" 492600 · qty on machine: 1 PARTS REQUEST
26	505084	SQ. KEY, 1/4" X 55 MM	1		ADD TO CART
SQ. KEY, 1/4" X 55 MM 505084 · qty on machine: 1 view full part page → $10.95
27	492394	BOLT 1/2" NC X 1-1/2" G5	1		PARTS REQUEST
PHOTO COMING BOLT 1/2" NC X 1-1/2" G5 492394 · qty on machine: 1 PARTS REQUEST
28	EM102014	SPRING, EXTENSION	1		ADD TO CART
SPRING, EXTENSION EM102014 · qty on machine: 1 view full part page → $4.95
29	EM203098	SPRING CLIP	1		ADD TO CART
SPRING CLIP EM203098 · qty on machine: 1 view full part page → $24.95
30	492313	BOLT 3/8" NC X 1-1/2" G5	3		PARTS REQUEST
PHOTO COMING BOLT 3/8" NC X 1-1/2" G5 492313 · qty on machine: 3 PARTS REQUEST
31	EM507713	ARM, IDLER	1	GX160UT1HX2	ADD TO CART
ARM, IDLER EM507713 · qty on machine: 1 GX160UT1HX2 view full part page → $3.95
31	EM507491	ARM, IDLER	1	GX240UT1HA2	ADD TO CART
ARM, IDLER EM507491 · qty on machine: 1 GX240UT1HA2 view full part page → $4.95
32	EM959080	ROD-END	2		ADD TO CART
ROD-END EM959080 · qty on machine: 2 view full part page → $14.95
33	492584	NUT, HEX 1/2"	1		ADD TO CART
NUT, HEX 1/2" 492584 · qty on machine: 1 view full part page → $0.45
34	492574	NUT, HEX 3/8" NF G5	2		PARTS REQUEST
PHOTO COMING NUT, HEX 3/8" NF G5 492574 · qty on machine: 2 PARTS REQUEST
35	492476	SET SCREW, 5/16' NC 3/4"	1		NO LONGER AVAILABLE
PHOTO COMING SET SCREW, 5/16' NC 3/4" 492476 · qty on machine: 1 NO LONGER AVAILABLE
36	EM901515	PULLEY, IDLER	1		ADD TO CART
PULLEY, IDLER EM901515 · qty on machine: 1 view full part page → $10.95
37	515299	ROD	1	GX160UT1HX2	ADD TO CART
ROD 515299 · qty on machine: 1 GX160UT1HX2 view full part page → $2.95
37	515045	ROD	1	GX240UT1HA2	ADD TO CART
ROD 515045 · qty on machine: 1 GX240UT1HA2 view full part page → $3.95

Page 18 — CABINET ASSY.

Parts list — exactly as printed14 rows

No.	Part No.	Part Name	Qty	Remarks
1	520620	CABINET, ENGINE W/DECALS	1	INCLUDES ITEMS W/@	NO LONGER AVAILABLE
PHOTO COMING CABINET, ENGINE W/DECALS 520620 · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 6@ NO LONGER AVAILABLE
2	EM505186	BUMPER, STICK ON	4		ADD TO CART
BUMPER, STICK ON EM505186 · qty on machine: 4 view full part page → $0.17
5	503723	POP RIVET	10		PARTS REQUEST
PHOTO COMING POP RIVET 503723 · qty on machine: 10 PARTS REQUEST
6@	491010	LATCH ASSY., COMPLETE	2		ADD TO CART
LATCH ASSY., COMPLETE 491010 · qty on machine: 2 Also included in kit 1 - CABINET, ENGINE W/DECALS (520620) view full part page → $8.95 IN A KIT + SOLD SOLO
7	EM963610	CAPSCREW 3/8" NC X 1-1/4" G8	4		ADD TO CART
CAPSCREW 3/8" NC X 1-1/4" G8 EM963610 · qty on machine: 4 view full part page → $0.69
8	3019092	WASHER, FLAT 3/8"	12		ADD TO CART
WASHER, FLAT 3/8" 3019092 · qty on machine: 12 view full part page → $0.18
9	EM969013	NUT NYLOCK	4		ADD TO CART
NUT NYLOCK EM969013 · qty on machine: 4 view full part page → $0.21
10	29174-001	KNOB, MUSHROOM	1		ADD TO CART
KNOB, MUSHROOM 29174-001 · qty on machine: 1 view full part page → $2.89
11	29173-001	SWITCH, PUSH-PULL	1		ADD TO CART
SWITCH, PUSH-PULL 29173-001 · qty on machine: 1 view full part page → $18.95
12	504135C	WIRE HARNESS	1		ADD TO CART
WIRE HARNESS 504135C · qty on machine: 1 Factory replaced this part - current number 510573 view full part page → $11.95 IN A KIT + SOLD SOLO
13	EM974007	PAINT, SPRAY 12 OZ. TRAFFIC RED	1		ADD TO CART
PAINT, SPRAY 12 OZ. TRAFFIC RED EM974007 · qty on machine: 1 view full part page → $45.95
14	520560	GUARD	1		ADD TO CART
GUARD 520560 · qty on machine: 1 view full part page → $72.95
15	EM963055	HEX HEAD CAPSCREW	8		ADD TO CART
HEX HEAD CAPSCREW EM963055 · qty on machine: 8 view full part page → $0.7
16	520561	SPACER	4		ADD TO CART
SPACER 520561 · qty on machine: 4 view full part page → $6.95

Page 6 — NAMEPLATE AND DECALS ASSY.

Multiquip WM70 Mortar Mixer NAMEPLATE AND DECALS ASSY. parts diagram

Parts list — exactly as printed13 rows

No.	Part No.	Part Name	Qty	Remarks
1	521229	DECAL; WARNING, BODILY INJURY	2		ADD TO CART
DECAL; WARNING, BODILY INJURY 521229 · qty on machine: 2 view full part page → $6.95
2	515275	DECAL; MQ WHITEMAN (SMALL)	3		ADD TO CART
DECAL; MQ WHITEMAN (SMALL) 515275 · qty on machine: 3 view full part page → $2.95
3	521230	DECAL; WARNING, PREVENT ACCIDENTS	1		ADD TO CART
DECAL; WARNING, PREVENT ACCIDENTS 521230 · qty on machine: 1 view full part page → $9.95
4	521231	DECAL; DRUM LOCK POSITION	1		ADD TO CART
DECAL; DRUM LOCK POSITION 521231 · qty on machine: 1 view full part page → $4.95
5	504714	DECAL; MQ WHITEMAN (LARGE)	1		ADD TO CART
DECAL; MQ WHITEMAN (LARGE) 504714 · qty on machine: 1 view full part page → $2.62
6	521232	DECAL; CAUTION INSPECT BEFORE TOW	2		ADD TO CART
DECAL; CAUTION INSPECT BEFORE TOW 521232 · qty on machine: 2 view full part page → $1.65
7	948630	DECAL; PUSH TO STOP	1		ADD TO CART
DECAL; PUSH TO STOP 948630 · qty on machine: 1 Factory replaced this part - current number EM948630 view full part page → $1.44 IN A KIT + SOLD SOLO
8	521228	DECAL; DANGER, NO SMOKING	2		ADD TO CART
DECAL; DANGER, NO SMOKING 521228 · qty on machine: 2 view full part page → $1.95
9	520935	DECAL; SAFETY INSTRUCTIONS	1		ADD TO CART
DECAL; SAFETY INSTRUCTIONS 520935 · qty on machine: 1 view full part page → $6.95
10	518524	DECAL; ISO 9001:2000 EXPORT	1		ADD TO CART
DECAL; ISO 9001:2000 EXPORT 518524 · qty on machine: 1 view full part page → $0.59
11	13118	DECAL; POWDER COATED	1		ADD TO CART
DECAL; POWDER COATED 13118 · qty on machine: 1 view full part page → $0.76
12		NAMEPLATE	1	CONTACT MQ PARTS DEPT.	SEE REMARKS
PHOTO COMING NAMEPLATE · qty on machine: 1 CONTACT MQ PARTS DEPT. SEE REMARKS
13	503723	RIVET; ID PLATE	2		PARTS REQUEST
PHOTO COMING RIVET; ID PLATE 503723 · qty on machine: 2 PARTS REQUEST

Page 8 — FRAME ASSY.

Parts list — exactly as printed16 rows

No.	Part No.	Part Name	Qty	Remarks
1	514842	LOCK PIN UNIT	1		ADD TO CART
LOCK PIN UNIT 514842 · qty on machine: 1 view full part page → $43.95
2	491692	COTTER PIN	1		ADD TO CART
COTTER PIN 491692 · qty on machine: 1 view full part page → $1.35
3	530023	SPRING LOCKING PIN	1		ADD TO CART
SPRING LOCKING PIN 530023 · qty on machine: 1 view full part page → $2.95
4	507444	WASHER, FLAT 3/4"	1		ADD TO CART
WASHER, FLAT 3/4" 507444 · qty on machine: 1 view full part page → $1.71
5	514835	MAIN FRAME	1		ADD TO CART
MAIN FRAME 514835 · qty on machine: 1 view full part page → $930.95
7	514836	HANDLE, CLUTCH ENGAGE	1		ADD TO CART
HANDLE, CLUTCH ENGAGE 514836 · qty on machine: 1 view full part page → $78.95
11	10176	LOCK NUT 1/2" NC	1		ADD TO CART
LOCK NUT 1/2" NC 10176 · qty on machine: 1 view full part page → $2.95
12	EM124	BOLT 1/2"-13 X 4 G5	1		ADD TO CART
BOLT 1/2"-13 X 4 G5 EM124 · qty on machine: 1 view full part page → $1.95
13%		SAFETY CHAIN	1		INCLUDED IN KIT
PHOTO COMING SAFETY CHAIN · qty on machine: 1 Included in kit 15 - CHAIN AND LINK KIT (13363KIT) INCLUDED IN KIT
14%	01004	CONNECTOR LINK	2	BEFORE JANUARY 2006	ADD TO CART
CONNECTOR LINK 01004 · qty on machine: 2 BEFORE JANUARY 2006 Also included in kit 15 - CHAIN AND LINK KIT (13363KIT) view full part page → $1.79 IN A KIT + SOLD SOLO
14%	01004	CONNECTOR LINK	1	AFTER JANUARY 2006	ADD TO CART
CONNECTOR LINK 01004 · qty on machine: 1 AFTER JANUARY 2006 Also included in kit 15 - CHAIN AND LINK KIT (13363KIT) view full part page → $1.79 IN A KIT + SOLD SOLO
14A%	516580	CLEVIS SAFETY HOOK	1	AFTER JANUARY 2006	ADD TO CART
CLEVIS SAFETY HOOK 516580 · qty on machine: 1 AFTER JANUARY 2006 Also included in kit 15 - CHAIN AND LINK KIT (13363KIT) view full part page → $5.95 IN A KIT + SOLD SOLO
15	13363KIT	CHAIN AND LINK KIT	1	INCLUDES ITEMS W/%	ADD TO CART
CHAIN AND LINK KIT 13363KIT · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 13%, 14%, 14%, 14A% view full part page → $97.95 IN A KIT + SOLD SOLO
16	HBC-1	BALL HITCH 2-INCH	1	CONTACT UNIT SALES	PARTS REQUEST
PHOTO COMING BALL HITCH 2-INCH HBC-1 · qty on machine: 1 CONTACT UNIT SALES PARTS REQUEST
17	HLC-1	LOOP HITCH	1	CONTACT UNIT SALES	PARTS REQUEST
PHOTO COMING LOOP HITCH HLC-1 · qty on machine: 1 CONTACT UNIT SALES PARTS REQUEST
18	HPC-1	PIN HITCH 1-INCH	1	CONTACT UNIT SALES	PARTS REQUEST
PHOTO COMING PIN HITCH 1-INCH HPC-1 · qty on machine: 1 CONTACT UNIT SALES PARTS REQUEST

Page 10 — PADDLE SHAFT ASSY.

Parts list — exactly as printed22 rows

No.	Part No.	Part Name	Qty	Remarks
1	514752	PADDLE SHAFT	1		ADD TO CART
PADDLE SHAFT 514752 · qty on machine: 1 view full part page → $333.95
2	492584	NUT, LOCK 1/2"	6		ADD TO CART
NUT, LOCK 1/2" 492584 · qty on machine: 6 view full part page → $0.45
3	EM202896	PADDLE ARM, CENTER ENGINE END	1		ADD TO CART
PADDLE ARM, CENTER ENGINE END EM202896 · qty on machine: 1 view full part page → $46.95
4	EM963110	BOLT, 1/2-13 X 3-3/4"	2		ADD TO CART
BOLT, 1/2-13 X 3-3/4" EM963110 · qty on machine: 2 view full part page → $2.95
5	EM200292	INSERT, PADDLE ARM	4		ADD TO CART
INSERT, PADDLE ARM EM200292 · qty on machine: 4 view full part page → $4.95
6	EM202898	PADDLE ARM, ENGINE END	1		ADD TO CART
PADDLE ARM, ENGINE END EM202898 · qty on machine: 1 view full part page → $52.95
7	504322	WASHER, FLAT 1/2"	6		PARTS REQUEST
PHOTO COMING WASHER, FLAT 1/2" 504322 · qty on machine: 6 PARTS REQUEST
8	EM200297	U-BOLT, END PADDLES	2		ADD TO CART
U-BOLT, END PADDLES EM200297 · qty on machine: 2 view full part page → $2.95
9	EM202897	PADDLE ARM, CENTER TOW END	1		ADD TO CART
PADDLE ARM, CENTER TOW END EM202897 · qty on machine: 1 view full part page → $46.95
10%#	492367	SCREW, HHC 5/16-18 X 1-3/4 G5	14		PARTS REQUEST
PHOTO COMING SCREW, HHC 5/16-18 X 1-3/4 G5 492367 · qty on machine: 14 Also included in kit 19 - KIT, WIPERS, SCRAPERS AND (EM204624); kit 19 - KIT, WIPERS, SCRAPERS AND (EM203010) PARTS REQUEST
11%#	EM923023	WASHER, FLAT 5/16"	28		ADD TO CART
WASHER, FLAT 5/16" EM923023 · qty on machine: 28 Also included in kit 19 - KIT, WIPERS, SCRAPERS AND (EM204624); kit 19 - KIT, WIPERS, SCRAPERS AND (EM203010) view full part page → $0.21 IN A KIT + SOLD SOLO
12#	EM507497	BLADE, SIDE, POLY	4	PLASTIC DRUM	ADD TO CART
BLADE, SIDE, POLY EM507497 · qty on machine: 4 PLASTIC DRUM Also included in kit 19 - KIT, WIPERS, SCRAPERS AND (EM204624) view full part page → $6.95 IN A KIT + SOLD SOLO
12%	EM202929	BLADE, SIDE, RUBBER	4	STEEL DRUM	ADD TO CART
BLADE, SIDE, RUBBER EM202929 · qty on machine: 4 STEEL DRUM Also included in kit 19 - KIT, WIPERS, SCRAPERS AND (EM203010) view full part page → $3.95 IN A KIT + SOLD SOLO
13%#	EM202928	BLADE, SIDE, SCRAPER	4	STEEL & PLASTIC DRUM	ADD TO CART
BLADE, SIDE, SCRAPER EM202928 · qty on machine: 4 STEEL & PLASTIC DRUM Also included in kit 19 - KIT, WIPERS, SCRAPERS AND (EM204624); kit 19 - KIT, WIPERS, SCRAPERS AND (EM203010) view full part page → $5.95 IN A KIT + SOLD SOLO
14%#	2105164	NUT, HEX 5/16" NC G5	14		ADD TO CART
NUT, HEX 5/16" NC G5 2105164 · qty on machine: 14 Also included in kit 19 - KIT, WIPERS, SCRAPERS AND (EM204624); kit 19 - KIT, WIPERS, SCRAPERS AND (EM203010) view full part page → $0.2 IN A KIT + SOLD SOLO
15%	EM923343	WASHER, LOCK 5/16"	14		ADD TO CART
WASHER, LOCK 5/16" EM923343 · qty on machine: 14 Also included in kit 19 - KIT, WIPERS, SCRAPERS AND (EM203010) view full part page → $0.21 IN A KIT + SOLD SOLO
16	EM202899	PADDLE ARM, TOW END	1		ADD TO CART
PADDLE ARM, TOW END EM202899 · qty on machine: 1 view full part page → $52.95
17%#	EM202927	BLADE, SCRAPER END	4	STEEL & PLASTIC DRUM	ADD TO CART
BLADE, SCRAPER END EM202927 · qty on machine: 4 STEEL & PLASTIC DRUM Also included in kit 19 - KIT, WIPERS, SCRAPERS AND (EM204624); kit 19 - KIT, WIPERS, SCRAPERS AND (EM203010) view full part page → $7.95 IN A KIT + SOLD SOLO
18#	EM507496	BLADE, PLASTIC END	4	PLASTIC DRUM	ADD TO CART
BLADE, PLASTIC END EM507496 · qty on machine: 4 PLASTIC DRUM Also included in kit 19 - KIT, WIPERS, SCRAPERS AND (EM204624) view full part page → $4.95 IN A KIT + SOLD SOLO
18%	EM202926	BLADE, RUBBER END	4	STEEL DRUM	ADD TO CART
BLADE, RUBBER END EM202926 · qty on machine: 4 STEEL DRUM Also included in kit 19 - KIT, WIPERS, SCRAPERS AND (EM203010) view full part page → $3.94 IN A KIT + SOLD SOLO
19	EM203010	KIT, WIPERS, SCRAPERS AND HDWARE STEEL DRUM	1	INCLUDES ITEMS W/%	ADD TO CART
KIT, WIPERS, SCRAPERS AND HDWARE STEEL DRUM EM203010 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 10%#, 11%#, 12#, 12%, 13%#, 14%#, 15%, 17%#, 18#, 18% view full part page → $115.95 IN A KIT + SOLD SOLO
19	EM204624	KIT, WIPERS, SCRAPERS AND HDWARE PLASTIC DRUM	1	INCLUDES ITEMS W/#	ADD TO CART
KIT, WIPERS, SCRAPERS AND HDWARE PLASTIC DRUM EM204624 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 10%#, 11%#, 12#, 12%, 13%#, 14%#, 15%, 17%#, 18#, 18% view full part page → $83.95 IN A KIT + SOLD SOLO

Page 12 — STEEL DRUM ASSY.

Multiquip WM70 Mortar Mixer STEEL DRUM ASSY. parts diagram

Parts list — exactly as printed30 rows

No.	Part No.	Part Name	Qty	Remarks
1	530028	DRUM BEARING BRACKET	2		ADD TO CART
DRUM BEARING BRACKET 530028 · qty on machine: 2 view full part page → $29.95
2	3249	CAP, DUST	1		ADD TO CART
CAP, DUST 3249 · qty on machine: 1 view full part page → $11.95
3	20561-001	BEARING SEALED	2	SET SCREWS AND BEARING COLLAR CANNOT BE PURCHASED SEPARATELY	ADD TO CART
BEARING SEALED 20561-001 · qty on machine: 2 SET SCREWS AND BEARING COLLAR CANNOT BE PURCHASED SEPARATELY view full part page → $30.95
4	491008	CAP, GREASE FITTING	2		ADD TO CART
CAP, GREASE FITTING 491008 · qty on machine: 2 view full part page → $0.28
5	EM916019	FITTING, GREASE	2		ADD TO CART
FITTING, GREASE EM916019 · qty on machine: 2 view full part page → $1.95
6	EM969013	NUT, LOCK 3/8"	12		ADD TO CART
NUT, LOCK 3/8" EM969013 · qty on machine: 12 view full part page → $0.21
7	3019092	WASHER, FLAT 3/8"	4		ADD TO CART
WASHER, FLAT 3/8" 3019092 · qty on machine: 4 view full part page → $0.18
8	514778	TRUNNION HUB	2		ADD TO CART
TRUNNION HUB 514778 · qty on machine: 2 view full part page → $45.95
9	513453	ROLL PIN, 3/16" X 3/4"	2		ADD TO CART
ROLL PIN, 3/16" X 3/4" 513453 · qty on machine: 2 Factory replaced this part - current number 07594-012 view full part page → $0.13 IN A KIT + SOLD SOLO
10	20654-001	SEAL, SHAFT (BLACK)	2		ADD TO CART
SEAL, SHAFT (BLACK) 20654-001 · qty on machine: 2 view full part page → $5.95
11	530029	RING, RETENTION	2		ADD TO CART
RING, RETENTION 530029 · qty on machine: 2 view full part page → $10.95
12	20104-002	SEAL, SHAFT URETHANE (YELLOW)	2		ADD TO CART
SEAL, SHAFT URETHANE (YELLOW) 20104-002 · qty on machine: 2 view full part page → $7.95
13	504943	BOLT, FHCS 3/8" NC X 2" G5	8		ADD TO CART
BOLT, FHCS 3/8" NC X 2" G5 504943 · qty on machine: 8 view full part page → $0.94
14	514749	DRUM, STEEL	1		ADD TO CART
DRUM, STEEL 514749 · qty on machine: 1 view full part page → $979.95
15	EM961019	SET SCREW	2		ADD TO CART
SET SCREW EM961019 · qty on machine: 2 view full part page → $0.95
16	530043	MAIN GEAR	1		ADD TO CART
MAIN GEAR 530043 · qty on machine: 1 view full part page → $189.95
17	501016	KEY, 3/8" X 88 MM	1		ADD TO CART
KEY, 3/8" X 88 MM 501016 · qty on machine: 1 view full part page → $9.95
18	17985-012	CARRIAGE BOLT 3/8-16 X 1-1/2"	4		ADD TO CART
CARRIAGE BOLT 3/8-16 X 1-1/2" 17985-012 · qty on machine: 4 view full part page → $0.58
19	514752	SHAFT, PADDLE	1		ADD TO CART
SHAFT, PADDLE 514752 · qty on machine: 1 view full part page → $333.95
20	492600	WASHER, FLAT 1/2"	4		PARTS REQUEST
PHOTO COMING WASHER, FLAT 1/2" 492600 · qty on machine: 4 PARTS REQUEST
21	514986	LIFT BAR	1		ADD TO CART
LIFT BAR 514986 · qty on machine: 1 view full part page → $13.95
22	EM925191	PIN, COTTER	1		ADD TO CART
PIN, COTTER EM925191 · qty on machine: 1 view full part page → $0.75
23	514962	GRATE	1		ADD TO CART
GRATE 514962 · qty on machine: 1 view full part page → $185.95
24	505070	PIN, COTTER	2		PARTS REQUEST
PHOTO COMING PIN, COTTER 505070 · qty on machine: 2 PARTS REQUEST
25	6109160	HEX NUT, 1/2" G5	2		ADD TO CART
HEX NUT, 1/2" G5 6109160 · qty on machine: 2 view full part page → $0.28
26	6109180	WASHER, LOCK 1/2"	2		ADD TO CART
WASHER, LOCK 1/2" 6109180 · qty on machine: 2 view full part page → $0.21
27	EM963692	BOLT, 1/2" UNC 1-1/2"	2		ADD TO CART
BOLT, 1/2" UNC 1-1/2" EM963692 · qty on machine: 2 view full part page → $0.86
28	EM963102	CAPSCREW, HHCS 1/2" NC X 1-1/4"	1		ADD TO CART
CAPSCREW, HHCS 1/2" NC X 1-1/4" EM963102 · qty on machine: 1 view full part page → $0.35
29	492584	NUT, LOCK 1/2" NC	1		ADD TO CART
NUT, LOCK 1/2" NC 492584 · qty on machine: 1 view full part page → $0.45
30	EM201537	HANDLE DUMP	1		ADD TO CART
HANDLE DUMP EM201537 · qty on machine: 1 view full part page → $34.95

Page 14 — PLASTIC DRUM ASSY.

Multiquip WM70 Mortar Mixer PLASTIC DRUM ASSY. parts diagram

Parts list — exactly as printed36 rows

No.	Part No.	Part Name	Qty	Remarks
1	530028	DRUM BEARING BRACKET	2		ADD TO CART
DRUM BEARING BRACKET 530028 · qty on machine: 2 view full part page → $29.95
2	3249	CAP, DUST	1		ADD TO CART
CAP, DUST 3249 · qty on machine: 1 view full part page → $11.95
3	20561-001	BEARING SEALED	2	SET SCREWS AND BEARING COLLAR CANNOT BE PURCHASED SEPARATELY	ADD TO CART
BEARING SEALED 20561-001 · qty on machine: 2 SET SCREWS AND BEARING COLLAR CANNOT BE PURCHASED SEPARATELY view full part page → $30.95
4	491008	CAP, GREASE FITTING	2		ADD TO CART
CAP, GREASE FITTING 491008 · qty on machine: 2 view full part page → $0.28
5	EM916019	FITTING, GREASE	2		ADD TO CART
FITTING, GREASE EM916019 · qty on machine: 2 view full part page → $1.95
6	EM969013	NUT, LOCK 3/8"	20		ADD TO CART
NUT, LOCK 3/8" EM969013 · qty on machine: 20 view full part page → $0.21
7	3019092	WASHER, FLAT 3/8"	6		ADD TO CART
WASHER, FLAT 3/8" 3019092 · qty on machine: 6 view full part page → $0.18
8	514778	TRUNNION HUB	2		ADD TO CART
TRUNNION HUB 514778 · qty on machine: 2 view full part page → $45.95
9	513453	ROLL PIN 3/16" X 3/4"	2		ADD TO CART
ROLL PIN 3/16" X 3/4" 513453 · qty on machine: 2 Factory replaced this part - current number 07594-012 view full part page → $0.13 IN A KIT + SOLD SOLO
10	20654-001	SEAL, SHAFT (BLACK)	2		ADD TO CART
SEAL, SHAFT (BLACK) 20654-001 · qty on machine: 2 view full part page → $5.95
11	530029	RING, RETENTION	2		ADD TO CART
RING, RETENTION 530029 · qty on machine: 2 view full part page → $10.95
12	20104-002	SEAL, SHAFT URETHANE (YELLOW)	2		ADD TO CART
SEAL, SHAFT URETHANE (YELLOW) 20104-002 · qty on machine: 2 view full part page → $7.95
13	504943	BOLT, FHCS 3/8" NC X 2" G5	8		ADD TO CART
BOLT, FHCS 3/8" NC X 2" G5 504943 · qty on machine: 8 view full part page → $0.94
14	515053	DRUM, PLASTIC	1		ADD TO CART
DRUM, PLASTIC 515053 · qty on machine: 1 view full part page → $773.95
15	EM961019	SET SCREW	2		ADD TO CART
SET SCREW EM961019 · qty on machine: 2 view full part page → $0.95
16	530043	MAIN GEAR	1		ADD TO CART
MAIN GEAR 530043 · qty on machine: 1 view full part page → $189.95
17	501016	KEY, 3/8" X 88 MM	1		ADD TO CART
KEY, 3/8" X 88 MM 501016 · qty on machine: 1 view full part page → $9.95
18	17985-012	CARRIAGE BOLT 3/8-16 X 1-1/2"	4		ADD TO CART
CARRIAGE BOLT 3/8-16 X 1-1/2" 17985-012 · qty on machine: 4 view full part page → $0.58
19	514752	SHAFT, PADDLE	1		ADD TO CART
SHAFT, PADDLE 514752 · qty on machine: 1 view full part page → $333.95
20	492600	WASHER, FLAT 1/2"	1		PARTS REQUEST
PHOTO COMING WASHER, FLAT 1/2" 492600 · qty on machine: 1 PARTS REQUEST
21	514987	LIFT BAR	1		ADD TO CART
LIFT BAR 514987 · qty on machine: 1 view full part page → $16.95
22	EM925191	PIN, COTTER	1		ADD TO CART
PIN, COTTER EM925191 · qty on machine: 1 view full part page → $0.75
23	504535	GRATE, MOVABLE	1		ADD TO CART
GRATE, MOVABLE 504535 · qty on machine: 1 view full part page → $135.95
24	505070	PIN, COTTER	2		PARTS REQUEST
PHOTO COMING PIN, COTTER 505070 · qty on machine: 2 PARTS REQUEST
25	6109160	HEX NUT 1/2" G5	2		ADD TO CART
HEX NUT 1/2" G5 6109160 · qty on machine: 2 view full part page → $0.28
26	6109180	WASHER, LOCK 1/2"	2		ADD TO CART
WASHER, LOCK 1/2" 6109180 · qty on machine: 2 view full part page → $0.21
27	EM963692	BOLT 1/2" UNC 1-1/2"	2		ADD TO CART
BOLT 1/2" UNC 1-1/2" EM963692 · qty on machine: 2 view full part page → $0.86
28	EM963102	CAPSCREW, HHCS 1/2" NC X 1-1/4"	1		ADD TO CART
CAPSCREW, HHCS 1/2" NC X 1-1/4" EM963102 · qty on machine: 1 view full part page → $0.35
29	492584	NUT, LOCK1/2" NC	1		ADD TO CART
NUT, LOCK1/2" NC 492584 · qty on machine: 1 view full part page → $0.45
30	EM201537	HANDLE DUMP	1		ADD TO CART
HANDLE DUMP EM201537 · qty on machine: 1 view full part page → $34.95
32	515033	RETAINING RING	1		ADD TO CART
RETAINING RING 515033 · qty on machine: 1 view full part page → $27.95
33	511910	BOLT, 1/4" NC X 1-1/4" G5	8		ADD TO CART
BOLT, 1/4" NC X 1-1/4" G5 511910 · qty on machine: 8 view full part page → $1.35
34	2101428	NUT, 1/4" NC	8		ADD TO CART
NUT, 1/4" NC 2101428 · qty on machine: 8 view full part page → $0.13
35	514934	U-SUPPORT PLASTIC DRUM	1		ADD TO CART
U-SUPPORT PLASTIC DRUM 514934 · qty on machine: 1 view full part page → $207.95
36	504534	GRATE, STATIONARY	1		ADD TO CART
GRATE, STATIONARY 504534 · qty on machine: 1 view full part page → $244.95
37	0401450160	WASHER, FLAT 5/8"	1		ADD TO CART
WASHER, FLAT 5/8" 0401450160 · qty on machine: 1 view full part page → $0.53

Page 16 — DRUM AND PADDLE SHAFT COMPLETE ASSY. (PLASTIC)

Multiquip WM70 Mortar Mixer DRUM AND PADDLE SHAFT COMPLETE ASSY. (PLASTIC) parts diagram

Parts list — exactly as printed1 rows

No.	Part No.	Part Name	Qty	Remarks
1	516062	DRUM AND SHAFT COMPLETE ASSY BEARING BRACKET, DRUM CAP, DUST BEARING SEALED CAP, GREASE FITTING FITTING, GREASE NUT, LOCK 3/8" WASHER, FLAT 3/8" TRUNNION HUB ROLL PIN 3/16" X 3/4" SEAL, SHAFT (BLACK) RING, RETENTION SEAL, SHAFT URETHANE (YELLOW) BOLT, 3/8" NC X 1/4" G5 DRUM, PLASTIC SET SCREW MAIN GEAR KEY, 3/8" X 50 MM CAPSCREW HHCS 3/8 X 1-1/2" SHAFT, PADDLE GRATE, MOVABLE PIN COTTER HEX NUT, 1/2" G5 WASHER, LOCK 1/2" BOLT 1/2" UNC 1-1/2" PADDLE SHAFT NUT, LOCK 1/2" PADDLE ARM, CENTER ENGINE END BOLT, 1/2" X 6" G5 INSERT, PADDLE ARM PADDLE ARM, ENGINE END WASHER, FLAT 1/2" U-BOLT, END PADDLES PADDLE ARM, CENTER TOW END SCREW, HHC 5/16-18 X 1-3/4 G5 WASHER, FLAT 5/16" BLADE, SIDE, POLY BLADE, SIDE SCRAPER NUT, HEX 5/16" NC G5 WASHER, LOCK 5/15" PADDLE ARM, TOW END BLADE, SCRAPER END BLADE, PLASTIC END	1	INCLUDES ALL ITEMS BELOW	ADD TO CART
DRUM AND SHAFT COMPLETE ASSY BEARING BRACKET, DRUM CAP, DUST BEARING SEALED CAP, GREASE FITTING FITTING, GREASE NUT, LOCK 3/8" WASHER, FLAT 3/8" TRUNNION HUB ROLL PIN 3/16" X 3/4" SEAL, SHAFT (BLACK) RING, RETENTION SEAL, SHAFT URETHANE (YELLOW) BOLT, 3/8" NC X 1/4" G5 DRUM, PLASTIC SET SCREW MAIN GEAR KEY, 3/8" X 50 MM CAPSCREW HHCS 3/8 X 1-1/2" SHAFT, PADDLE GRATE, MOVABLE PIN COTTER HEX NUT, 1/2" G5 WASHER, LOCK 1/2" BOLT 1/2" UNC 1-1/2" PADDLE SHAFT NUT, LOCK 1/2" PADDLE ARM, CENTER ENGINE END BOLT, 1/2" X 6" G5 INSERT, PADDLE ARM PADDLE ARM, ENGINE END WASHER, FLAT 1/2" U-BOLT, END PADDLES PADDLE ARM, CENTER TOW END SCREW, HHC 5/16-18 X 1-3/4 G5 WASHER, FLAT 5/16" BLADE, SIDE, POLY BLADE, SIDE SCRAPER NUT, HEX 5/16" NC G5 WASHER, LOCK 5/15" PADDLE ARM, TOW END BLADE, SCRAPER END BLADE, PLASTIC END 516062 · qty on machine: 1 INCLUDES ALL ITEMS BELOW view full part page → $3495.95

Page 18 — DRUM AND PADDLE SHAFT COMPLETE ASSY. (STEEL)

Multiquip WM70 Mortar Mixer DRUM AND PADDLE SHAFT COMPLETE ASSY. (STEEL) parts diagram

Parts list — exactly as printed1 rows

No.	Part No.	Part Name	Qty	Remarks
1	516061	DRUM AND SHAFT COMPLETE ASSY BEARING BRACKET, DRUM CAP, DUST BEARING SEALED CAP, GREASE FITTING FITTING, GREASE NUT, LOCK 3/8" WASHER, FLAT 3/8" TRUNNION HUB ROLL PIN 3/16" X 3/4" SEAL, SHAFT (BLACK) RING, RETENTION SEAL, SHAFT URETHANE (YELLOW) BOLT 3/8" NC X 2" G5 DRUM, STEEL SET SCREW MAIN GEAR KEY, 3/8" X 88 MM CAPSCREW HHCS 3/8 X 1-1/2" SHAFT, PADDLE WASHER, FLAT 1/2" GRATE PIN COTTER HEX NUT 1/2" G5 WASHER, LOCK 1/2" BOLT, 1/2" UNC 1-1/2" HANDLE DUMP GRIP, DUMP HANDLE PADDLE SHAFT NUT, LOCK 1/2" PADDLE ARM, CENTER ENGINE END BOLT, 1/2" X 6" G5 INSERT, PADDLE ARM PADDLE ARM, ENGINE END WASHER, FLAT 1/2" U-BOLT, END PADDLES PADDLE ARM, CENTER TOW END SCREW, HHC 5/16-18 X 1-3/4 G5 WASHER, FLAT 5/16" BLADE, SIDE RUBBER BLADE, SIDE SCRAPER NUT, HEX 5/16" NC G5 WASHER, LOCK 5/15" PADDLE ARM, TOW END BLADE, SCRAPER END BLADE, RUBBER END	1	INCLUDES ALL ITEMS BELOW	ADD TO CART
DRUM AND SHAFT COMPLETE ASSY BEARING BRACKET, DRUM CAP, DUST BEARING SEALED CAP, GREASE FITTING FITTING, GREASE NUT, LOCK 3/8" WASHER, FLAT 3/8" TRUNNION HUB ROLL PIN 3/16" X 3/4" SEAL, SHAFT (BLACK) RING, RETENTION SEAL, SHAFT URETHANE (YELLOW) BOLT 3/8" NC X 2" G5 DRUM, STEEL SET SCREW MAIN GEAR KEY, 3/8" X 88 MM CAPSCREW HHCS 3/8 X 1-1/2" SHAFT, PADDLE WASHER, FLAT 1/2" GRATE PIN COTTER HEX NUT 1/2" G5 WASHER, LOCK 1/2" BOLT, 1/2" UNC 1-1/2" HANDLE DUMP GRIP, DUMP HANDLE PADDLE SHAFT NUT, LOCK 1/2" PADDLE ARM, CENTER ENGINE END BOLT, 1/2" X 6" G5 INSERT, PADDLE ARM PADDLE ARM, ENGINE END WASHER, FLAT 1/2" U-BOLT, END PADDLES PADDLE ARM, CENTER TOW END SCREW, HHC 5/16-18 X 1-3/4 G5 WASHER, FLAT 5/16" BLADE, SIDE RUBBER BLADE, SIDE SCRAPER NUT, HEX 5/16" NC G5 WASHER, LOCK 5/15" PADDLE ARM, TOW END BLADE, SCRAPER END BLADE, RUBBER END 516061 · qty on machine: 1 INCLUDES ALL ITEMS BELOW view full part page → $3192.95

Page 20 — AXLE ASSY.

Parts list — exactly as printed14 rows

No.	Part No.	Part Name	Qty	Remarks
1	492584	NUT, LOCK 1/2"	6		ADD TO CART
NUT, LOCK 1/2" 492584 · qty on machine: 6 view full part page → $0.45
2	EM963692	BOLT, 1/2" UNC 1-1/2"	6		ADD TO CART
BOLT, 1/2" UNC 1-1/2" EM963692 · qty on machine: 6 view full part page → $0.86
3	514802	AXLE, UNIVERSAL	1		ADD TO CART
AXLE, UNIVERSAL 514802 · qty on machine: 1 view full part page → $264.95
4#	3469	DUST CAP	2		ADD TO CART
DUST CAP 3469 · qty on machine: 2 Also included in kit 14 - HUB ASSY., 4-BOLT (EM941306) view full part page → $4.95 IN A KIT + SOLD SOLO
5#	8115	LUG NUTS	8		ADD TO CART
LUG NUTS 8115 · qty on machine: 8 Also included in kit 14 - HUB ASSY., 4-BOLT (EM941306) view full part page → $1.52 IN A KIT + SOLD SOLO
6	516476	TIRE AND RIM	2		ADD TO CART
TIRE AND RIM 516476 · qty on machine: 2 view full part page → $281.95
7	8164	CASTLE NUT 1"	2		ADD TO CART
CASTLE NUT 1" 8164 · qty on machine: 2 view full part page → $3.95
8	491688	COTTER PIN 1/8" X 1-1/2"	2		PARTS REQUEST
PHOTO COMING COTTER PIN 1/8" X 1-1/2" 491688 · qty on machine: 2 PARTS REQUEST
9	EM501299	WASHER, FLAT, .135" THICKNESS	4		ADD TO CART
WASHER, FLAT, .135" THICKNESS EM501299 · qty on machine: 4 view full part page → $4.95
10	EM511159	WASHER, FLAT, .087" THICKNESS	2		ADD TO CART
WASHER, FLAT, .087" THICKNESS EM511159 · qty on machine: 2 view full part page → $2.77
11#	EM903113	BEARING, CONE, AXLE	4		ADD TO CART
BEARING, CONE, AXLE EM903113 · qty on machine: 4 Also included in kit 14 - HUB ASSY., 4-BOLT (EM941306) view full part page → $7.95 IN A KIT + SOLD SOLO
12#	EM903012	BEARING, CUP, AXLE	4		ADD TO CART
BEARING, CUP, AXLE EM903012 · qty on machine: 4 Also included in kit 14 - HUB ASSY., 4-BOLT (EM941306) view full part page → $2.95 IN A KIT + SOLD SOLO
13#	EM914288	OIL SEAL	2		ADD TO CART
OIL SEAL EM914288 · qty on machine: 2 Also included in kit 14 - HUB ASSY., 4-BOLT (EM941306) view full part page → $3.95 IN A KIT + SOLD SOLO
14	EM941306	HUB ASSY., 4-BOLT	2	INCLUDES ITEMS W/#	ADD TO CART
HUB ASSY., 4-BOLT EM941306 · qty on machine: 2 INCLUDES ITEMS W/# Kit includes: 4#, 5#, 11#, 12#, 13# view full part page → $75.95 IN A KIT + SOLD SOLO

Page 22 — ENGINE ASSY.

Parts list — exactly as printed35 rows

No.	Part No.	Part Name	Qty	Remarks
1	EM969013	NUT 3/8" NC G5	8	REPLACES P/N 492583	ADD TO CART
NUT 3/8" NC G5 EM969013 · qty on machine: 8 REPLACES P/N 492583 view full part page → $0.21
2	506488	FLAT WASHER 3/8	8		PARTS REQUEST
PHOTO COMING FLAT WASHER 3/8 506488 · qty on machine: 8 PARTS REQUEST
3	EM905016	PILLOW BLOCK BEARING	2		ADD TO CART
PILLOW BLOCK BEARING EM905016 · qty on machine: 2 view full part page → $48.95
4	492378	BOLT 3/8" NC X 1-3/4" G5	4		ADD TO CART
BOLT 3/8" NC X 1-3/4" G5 492378 · qty on machine: 4 view full part page → $0.69
5	490957	RING, RETENTION	1		PARTS REQUEST
PHOTO COMING RING, RETENTION 490957 · qty on machine: 1 PARTS REQUEST
6	513868	PINION GEAR	1		ADD TO CART
PINION GEAR 513868 · qty on machine: 1 view full part page → $38.95
7	500214	KEY, 1/4" X 30 MM	1		ADD TO CART
KEY, 1/4" X 30 MM 500214 · qty on machine: 1 view full part page → $1.51
8	EM502226	PINION SHAFT	1	REPLACES P/N 502226	ADD TO CART
PINION SHAFT EM502226 · qty on machine: 1 REPLACES P/N 502226 view full part page → $25.95
9	492057	PULLEY (LARGE)	1		ADD TO CART
PULLEY (LARGE) 492057 · qty on machine: 1 view full part page → $69.95
10	505084	KEY, 1/4" X 55 MM	1		ADD TO CART
KEY, 1/4" X 55 MM 505084 · qty on machine: 1 view full part page → $10.95
11	492467	SET SCREW, 5/16' NC 3/8"	4		ADD TO CART
SET SCREW, 5/16' NC 3/8" 492467 · qty on machine: 4 view full part page → $0.41
12	EM505834	V-BELT, A36	2	REPLACES P/N 505834	ADD TO CART
V-BELT, A36 EM505834 · qty on machine: 2 REPLACES P/N 505834 view full part page → $4.95
13	503117	BOLT, 3/8" NC X 3" G5	1		ADD TO CART
BOLT, 3/8" NC X 3" G5 503117 · qty on machine: 1 view full part page → $0.95
14	90745ZE2600	SQ. KEY 6.3 X 6.3 X 43 MM	1		ADD TO CART
SQ. KEY 6.3 X 6.3 X 43 MM 90745ZE2600 · qty on machine: 1 view full part page → $32.95
15	492378	BOLT 3/8" NC X 1-3/4" G5	4		ADD TO CART
BOLT 3/8" NC X 1-3/4" G5 492378 · qty on machine: 4 view full part page → $0.69
16	522366	ENGINE, MPOWER, 9.0 HP W/ GEAR	1		ADD TO CART
ENGINE, MPOWER, 9.0 HP W/ GEAR 522366 · qty on machine: 1 view full part page → $874.95
17	515040	BELT RETAINER BAR	1		ADD TO CART
BELT RETAINER BAR 515040 · qty on machine: 1 view full part page → $13.95
18	EM901074	PULLEY (SMALL)	1		ADD TO CART
PULLEY (SMALL) EM901074 · qty on machine: 1 view full part page → $89.95
22	492598	WASHER, FLAT 3/8"	6		PARTS REQUEST
PHOTO COMING WASHER, FLAT 3/8" 492598 · qty on machine: 6 PARTS REQUEST
23	0166A	WASHER, LOCK 3/8"	4	REPLACES P/N 492624	ADD TO CART
WASHER, LOCK 3/8" 0166A · qty on machine: 4 REPLACES P/N 492624 view full part page → $0.17
24	1456	NUT, HEX 3/8"	4	REPLACES P/N 492554	PARTS REQUEST
PHOTO COMING NUT, HEX 3/8" 1456 · qty on machine: 4 REPLACES P/N 492554 PARTS REQUEST
25	6109170	WASHER, FLAT 1/2"	1	REPLACES P/N 492600	ADD TO CART
WASHER, FLAT 1/2" 6109170 · qty on machine: 1 REPLACES P/N 492600 view full part page → $0.48
26	505084	SQ. KEY, 1/4" X 55 MM	1		ADD TO CART
SQ. KEY, 1/4" X 55 MM 505084 · qty on machine: 1 view full part page → $10.95
27	EM963692	BOLT 1/2" NC X 1-1/2" G5	1	REPLACES P/N 492394	ADD TO CART
BOLT 1/2" NC X 1-1/2" G5 EM963692 · qty on machine: 1 REPLACES P/N 492394 view full part page → $0.86
28	EM102014	SPRING, EXTENSION	1		ADD TO CART
SPRING, EXTENSION EM102014 · qty on machine: 1 view full part page → $4.95
29	EM203098	SPRING CLIP	1		ADD TO CART
SPRING CLIP EM203098 · qty on machine: 1 view full part page → $24.95
30	EM963057	BOLT 3/8" NC X 1-1/2" G5	3	REPLACES P/N 492313	ADD TO CART
BOLT 3/8" NC X 1-1/2" G5 EM963057 · qty on machine: 3 REPLACES P/N 492313 view full part page → $0.81
31	EM507491	ARM, IDLER	1		ADD TO CART
ARM, IDLER EM507491 · qty on machine: 1 view full part page → $4.95
32	EM959080	ROD-END	2		ADD TO CART
ROD-END EM959080 · qty on machine: 2 view full part page → $14.95
33	492584	NUT, HEX 1/2"	1		ADD TO CART
NUT, HEX 1/2" 492584 · qty on machine: 1 view full part page → $0.45
34	EM492574	NUT, HEX 3/8" NF G5	2	REPLACES P/N 492574	ADD TO CART
NUT, HEX 3/8" NF G5 EM492574 · qty on machine: 2 REPLACES P/N 492574 view full part page → $0.75
35	492468	SET SCREW, 5/16' NC 3/4"	1	REPLACES P/N 492476	ADD TO CART
SET SCREW, 5/16' NC 3/4" 492468 · qty on machine: 1 REPLACES P/N 492476 view full part page → $0.77
36	EM901515	PULLEY, IDLER	1		ADD TO CART
PULLEY, IDLER EM901515 · qty on machine: 1 view full part page → $10.95
37	515045	ROD	1		ADD TO CART
ROD 515045 · qty on machine: 1 view full part page → $3.95
38	522377	EXHAUST PIPE	1		ADD TO CART
EXHAUST PIPE 522377 · qty on machine: 1 view full part page → $16.95

Page 24 — CABINET ASSY.

Parts list — exactly as printed13 rows

No.	Part No.	Part Name	Qty	Remarks
1	514964	CABINET, GASOLINE ENGINE W/DECALS	1	INCLUDES ITEMS W/%	ADD TO CART
CABINET, GASOLINE ENGINE W/DECALS 514964 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 6% view full part page → $507.95 IN A KIT + SOLD SOLO
1	516585	CABINET, ELECTRIC MOTOR W/DECALS	1	INCLUDES ITEMS W/%	ADD TO CART
CABINET, ELECTRIC MOTOR W/DECALS 516585 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 6% view full part page → $558.95 IN A KIT + SOLD SOLO
2	490202	RUBBER PROTECTOR	4		ADD TO CART
RUBBER PROTECTOR 490202 · qty on machine: 4 view full part page → $1.63
3	13287	LOCK NUT 8-32	6	REPLACEMENT PART ONLY	ADD TO CART
LOCK NUT 8-32 13287 · qty on machine: 6 REPLACEMENT PART ONLY view full part page → $4.95
4	2203	WASHER, FLAT #10	6	REPLACEMENT PART ONLY	PARTS REQUEST
PHOTO COMING WASHER, FLAT #10 2203 · qty on machine: 6 REPLACEMENT PART ONLY PARTS REQUEST
5	1307	SCREW RHMS 8-32 X 1/2"	6	REPLACEMENT PART ONLY	PARTS REQUEST
PHOTO COMING SCREW RHMS 8-32 X 1/2" 1307 · qty on machine: 6 REPLACEMENT PART ONLY PARTS REQUEST
6%	491010	LATCH ASSY., COMPLETE	2		ADD TO CART
LATCH ASSY., COMPLETE 491010 · qty on machine: 2 Also included in kit 1 - CABINET, GASOLINE ENGINE W (514964) view full part page → $8.95 IN A KIT + SOLD SOLO
7	492375	BOLT 3/8" NC X 1" G5	4		PARTS REQUEST
PHOTO COMING BOLT 3/8" NC X 1" G5 492375 · qty on machine: 4 PARTS REQUEST
8	492598	WASHER, FLAT 3/8"	4		PARTS REQUEST
PHOTO COMING WASHER, FLAT 3/8" 492598 · qty on machine: 4 PARTS REQUEST
9	492583	NUT 3/8" NC G5	4		PARTS REQUEST
PHOTO COMING NUT 3/8" NC G5 492583 · qty on machine: 4 PARTS REQUEST
10	29174-001	KNOB, MUSHROOM	1		ADD TO CART
KNOB, MUSHROOM 29174-001 · qty on machine: 1 view full part page → $2.89
11	29173-001	SWITCH, PUSH-PULL	1		ADD TO CART
SWITCH, PUSH-PULL 29173-001 · qty on machine: 1 view full part page → $18.95
12	504135C	WIRE HARNESS	1		ADD TO CART
WIRE HARNESS 504135C · qty on machine: 1 Factory replaced this part - current number 510573 view full part page → $11.95 IN A KIT + SOLD SOLO

Page 26 — PULL HANDLE ASSY.

Multiquip WM70 Mortar Mixer PULL HANDLE ASSY. parts diagram

Parts list — exactly as printed5 rows

No.	Part No.	Part Name	Qty
1	16400-A0710-0008	CAP WITH GASKET, FUEL TANK	1	PARTS REQUEST
PHOTO COMING CAP WITH GASKET, FUEL TANK 16400-A0710-0008 · qty on machine: 1 PARTS REQUEST
2	16610-A0710-0008	FUEL FILTER CUP	1	ADD TO CART
FUEL FILTER CUP 16610-A0710-0008 · qty on machine: 1 view full part page → $1.95
3	23230-A0712-0001	PULL HANDLE ASSY.	1	ADD TO CART
PULL HANDLE ASSY. 23230-A0712-0001 · qty on machine: 1 view full part page → $2.95
4	27100-A0710-0001	SPARK PLUG, BPR6ES, NGK	1	ADD TO CART
SPARK PLUG, BPR6ES, NGK 27100-A0710-0001 · qty on machine: 1 view full part page → $12.95
5	17124-A1010-0001	ELEMENT, AIR FILTER	1	ADD TO CART
ELEMENT, AIR FILTER 17124-A1010-0001 · qty on machine: 1 view full part page → $34.95

Page 6 — UNKNOWN

Parts list — exactly as printed13 rows

No.	Part No.	Part Name	Qty	Remarks
1	EM948630	DECAL, PUSH TO STOP (ENGLISH)	1		ADD TO CART
DECAL, PUSH TO STOP (ENGLISH) EM948630 · qty on machine: 1 view full part page → $1.44
2	CIP520932	DECAL, PUSH TO STOP (FRENCH)	1		PARTS REQUEST
PHOTO COMING DECAL, PUSH TO STOP (FRENCH) CIP520932 · qty on machine: 1 PARTS REQUEST
3	CIP520933	DECAL, DO NOT SMOKE	1		PARTS REQUEST
PHOTO COMING DECAL, DO NOT SMOKE CIP520933 · qty on machine: 1 PARTS REQUEST
4	CIP520938	DECAL, READ MANUAL, CRUSH HAZARD	1		PARTS REQUEST
PHOTO COMING DECAL, READ MANUAL, CRUSH HAZARD CIP520938 · qty on machine: 1 PARTS REQUEST
5	CIP520935	DECAL, SAFETY INSTRUCTIONS (ENGLISH)	1		PARTS REQUEST
PHOTO COMING DECAL, SAFETY INSTRUCTIONS (ENGLISH) CIP520935 · qty on machine: 1 PARTS REQUEST
6	515275	DECAL, WHITEMAN LOGO	1		ADD TO CART
DECAL, WHITEMAN LOGO 515275 · qty on machine: 1 view full part page → $2.95
8	CIP520922	DECAL, SAFETY INSTRUCTIONS (FRENCH)	1		PARTS REQUEST
PHOTO COMING DECAL, SAFETY INSTRUCTIONS (FRENCH) CIP520922 · qty on machine: 1 PARTS REQUEST
9	CIP520934	DECAL, HANDLE KICK BACK, SAFETY GRATE, CRUSH HAZARD	1		PARTS REQUEST
PHOTO COMING DECAL, HANDLE KICK BACK, SAFETY GRATE, CRUSH HAZARD CIP520934 · qty on machine: 1 PARTS REQUEST
10	CIP520915	DECAL, POWDER COATED (FRENCH)	1		PARTS REQUEST
PHOTO COMING DECAL, POWDER COATED (FRENCH) CIP520915 · qty on machine: 1 PARTS REQUEST
11	13118	DECAL, POWDER COATED (ENGLISH)	1		ADD TO CART
DECAL, POWDER COATED (ENGLISH) 13118 · qty on machine: 1 view full part page → $0.76
12	CIP520936	DECAL, DRUM LOCK POSITIONING	1		PARTS REQUEST
PHOTO COMING DECAL, DRUM LOCK POSITIONING CIP520936 · qty on machine: 1 PARTS REQUEST
13		NAMEPLATE	1	CONTACT MQ PARTS DEPT.	SEE REMARKS
PHOTO COMING NAMEPLATE · qty on machine: 1 CONTACT MQ PARTS DEPT. SEE REMARKS
14	CIP520937	DECAL, INSPECT BEFORE TOWING	1		PARTS REQUEST
PHOTO COMING DECAL, INSPECT BEFORE TOWING CIP520937 · qty on machine: 1 PARTS REQUEST

Page 8 — FRAME ASSY.

Parts list — exactly as printed18 rows

No.	Part No.	Part Name	Qty	Remarks
1	514842	LOCK PIN UNIT	1		ADD TO CART
LOCK PIN UNIT 514842 · qty on machine: 1 view full part page → $43.95
2	491692	COTTER PIN	1		ADD TO CART
COTTER PIN 491692 · qty on machine: 1 view full part page → $1.35
3	530023	SPRING LOCKING PIN	1		ADD TO CART
SPRING LOCKING PIN 530023 · qty on machine: 1 view full part page → $2.95
4	507444	WASHER, FLAT 3/4"	1		ADD TO CART
WASHER, FLAT 3/4" 507444 · qty on machine: 1 view full part page → $1.71
5	520619	MAIN FRAME	1		PARTS REQUEST
PHOTO COMING MAIN FRAME 520619 · qty on machine: 1 PARTS REQUEST
7	514836	HANDLE, CLUTCH ENGAGE	1		ADD TO CART
HANDLE, CLUTCH ENGAGE 514836 · qty on machine: 1 view full part page → $78.95
8	EM963692	BOLT 1/2" UNC 1-1/2"	6		ADD TO CART
BOLT 1/2" UNC 1-1/2" EM963692 · qty on machine: 6 view full part page → $0.86
9	492584	NUT, LOCK 1/2"	6		ADD TO CART
NUT, LOCK 1/2" 492584 · qty on machine: 6 view full part page → $0.45
10	514802	AXLE, UNIVERSAL	1		ADD TO CART
AXLE, UNIVERSAL 514802 · qty on machine: 1 view full part page → $264.95
11	10176	LOCK NUT 1/2" NC	1		ADD TO CART
LOCK NUT 1/2" NC 10176 · qty on machine: 1 view full part page → $2.95
12	EM124	BOLT 1/2"-13 X 4 G5	1		ADD TO CART
BOLT 1/2"-13 X 4 G5 EM124 · qty on machine: 1 view full part page → $1.95
13@		SAFETY CHAIN	1		INCLUDED IN KIT
PHOTO COMING SAFETY CHAIN · qty on machine: 1 Included in kit 15 - CHAIN AND LINK KIT (13363KIT) INCLUDED IN KIT
14@	01004	CONNECTOR LINK	1		ADD TO CART
CONNECTOR LINK 01004 · qty on machine: 1 Also included in kit 15 - CHAIN AND LINK KIT (13363KIT) view full part page → $1.79 IN A KIT + SOLD SOLO
14A@	516580	CLEVIS SAFETY HOOK	1		ADD TO CART
CLEVIS SAFETY HOOK 516580 · qty on machine: 1 Also included in kit 15 - CHAIN AND LINK KIT (13363KIT) view full part page → $5.95 IN A KIT + SOLD SOLO
15	13363KIT	CHAIN AND LINK KIT	1	INCLUDES ITEMS W/@	ADD TO CART
CHAIN AND LINK KIT 13363KIT · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 13@, 14@, 14A@ view full part page → $97.95 IN A KIT + SOLD SOLO
16	HBC-1	BALL HITCH 2-INCH	1	CONTACT UNIT SALES	PARTS REQUEST
PHOTO COMING BALL HITCH 2-INCH HBC-1 · qty on machine: 1 CONTACT UNIT SALES PARTS REQUEST
17	HLC-1	LOOP HITCH	1	CONTACT UNIT SALES	PARTS REQUEST
PHOTO COMING LOOP HITCH HLC-1 · qty on machine: 1 CONTACT UNIT SALES PARTS REQUEST
18	HPC-1	PIN HITCH 1-INCH	1	CONTACT UNIT SALES	PARTS REQUEST
PHOTO COMING PIN HITCH 1-INCH HPC-1 · qty on machine: 1 CONTACT UNIT SALES PARTS REQUEST

Page 10 — PADDLE SHAFT ASSY.

Parts list — exactly as printed18 rows

No.	Part No.	Part Name	Qty	Remarks
1	514752	PADDLE SHAFT	1		ADD TO CART
PADDLE SHAFT 514752 · qty on machine: 1 view full part page → $333.95
2	492584	NUT, LOCK 1/2"	8		ADD TO CART
NUT, LOCK 1/2" 492584 · qty on machine: 8 view full part page → $0.45
3	EM202896	PADDLE ARM, CENTER ENGINE END	1		ADD TO CART
PADDLE ARM, CENTER ENGINE END EM202896 · qty on machine: 1 view full part page → $46.95
5	EM200292	INSERT, PADDLE ARM	8		ADD TO CART
INSERT, PADDLE ARM EM200292 · qty on machine: 8 view full part page → $4.95
6	EM202898	PADDLE ARM, ENGINE END	1		ADD TO CART
PADDLE ARM, ENGINE END EM202898 · qty on machine: 1 view full part page → $52.95
7	6109170	WASHER, FLAT 1/2"	8		ADD TO CART
WASHER, FLAT 1/2" 6109170 · qty on machine: 8 view full part page → $0.48
8	EM200297	U-BOLT	4		ADD TO CART
U-BOLT EM200297 · qty on machine: 4 view full part page → $2.95
9	EM202897	PADDLE ARM, CENTER TOW END	1		ADD TO CART
PADDLE ARM, CENTER TOW END EM202897 · qty on machine: 1 Kit includes: 10@#, 11@#, 13@#, 14@#, 17@# view full part page → $46.95 IN A KIT + SOLD SOLO
10@#	2105162	SCREW, HHC 5/16-18 X 1-3/4 G5	14		ADD TO CART
SCREW, HHC 5/16-18 X 1-3/4 G5 2105162 · qty on machine: 14 Also included in kit 9 - PADDLE ARM, CENTER TOW END (EM202897); kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $0.68 IN A KIT + SOLD SOLO
11@#	EM923023	WASHER, FLAT 5/16"	28		ADD TO CART
WASHER, FLAT 5/16" EM923023 · qty on machine: 28 Also included in kit 9 - PADDLE ARM, CENTER TOW END (EM202897); kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $0.21 IN A KIT + SOLD SOLO
12@	EM202929	BLADE, SIDE, RUBBER	4		ADD TO CART
BLADE, SIDE, RUBBER EM202929 · qty on machine: 4 Also included in kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $3.95 IN A KIT + SOLD SOLO
13@#	EM202928	BLADE, SIDE, SCRAPER	4		ADD TO CART
BLADE, SIDE, SCRAPER EM202928 · qty on machine: 4 Also included in kit 9 - PADDLE ARM, CENTER TOW END (EM202897); kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $5.95 IN A KIT + SOLD SOLO
14@#	2105164	NUT, HEX 5/16" NC G5	14		ADD TO CART
NUT, HEX 5/16" NC G5 2105164 · qty on machine: 14 Also included in kit 9 - PADDLE ARM, CENTER TOW END (EM202897); kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $0.2 IN A KIT + SOLD SOLO
15@	EM923343	WASHER, LOCK 5/16"	14		ADD TO CART
WASHER, LOCK 5/16" EM923343 · qty on machine: 14 Also included in kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $0.21 IN A KIT + SOLD SOLO
16	EM202899	PADDLE ARM, TOW END	1		ADD TO CART
PADDLE ARM, TOW END EM202899 · qty on machine: 1 view full part page → $52.95
17@#	EM202927	BLADE ,SCRAPPER END	4		ADD TO CART
BLADE ,SCRAPPER END EM202927 · qty on machine: 4 Also included in kit 9 - PADDLE ARM, CENTER TOW END (EM202897); kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $7.95 IN A KIT + SOLD SOLO
18@	EM202926	BLADE, RUBBER END	4		ADD TO CART
BLADE, RUBBER END EM202926 · qty on machine: 4 Also included in kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $3.94 IN A KIT + SOLD SOLO
19	EM203010	KIT, WIPERS, SCRAPERS & HARDWARE	1	INCLUDES ITEMS W/@	ADD TO CART
KIT, WIPERS, SCRAPERS & HARDWARE EM203010 · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 10@#, 11@#, 12@, 13@#, 14@#, 15@, 17@#, 18@ view full part page → $115.95 IN A KIT + SOLD SOLO

Page 12 — STEEL TUB ASSY.

Parts list — exactly as printed32 rows

No.	Part No.	Part Name	Qty	Remarks
1	530028C	DRUM BEARING BRACKET	2		PARTS REQUEST
PHOTO COMING DRUM BEARING BRACKET 530028C · qty on machine: 2 PARTS REQUEST
2	3249	CAP, DUST	1		ADD TO CART
CAP, DUST 3249 · qty on machine: 1 view full part page → $11.95
3	20561-001	BEARING SEALED	2	SET SCREWS AND BEARING COLLAR CANNOT BE PURCHASED SEPARATELY	ADD TO CART
BEARING SEALED 20561-001 · qty on machine: 2 SET SCREWS AND BEARING COLLAR CANNOT BE PURCHASED SEPARATELY view full part page → $30.95
4	491008	CAP, GREASE FITTING	2		ADD TO CART
CAP, GREASE FITTING 491008 · qty on machine: 2 view full part page → $0.28
5	EM916019	FITTING, GREASE	2		ADD TO CART
FITTING, GREASE EM916019 · qty on machine: 2 view full part page → $1.95
6	EM969013	NUT, LOCK 3/8"	18		ADD TO CART
NUT, LOCK 3/8" EM969013 · qty on machine: 18 view full part page → $0.21
7	3019092	WASHER, FLAT 3/8"	8		ADD TO CART
WASHER, FLAT 3/8" 3019092 · qty on machine: 8 view full part page → $0.18
8	514778C	TRUNNION HUB	2		PARTS REQUEST
PHOTO COMING TRUNNION HUB 514778C · qty on machine: 2 PARTS REQUEST
9	513453	ROLL PIN 3/16" X 3/4"	2		ADD TO CART
ROLL PIN 3/16" X 3/4" 513453 · qty on machine: 2 Factory replaced this part - current number 07594-012 view full part page → $0.13 IN A KIT + SOLD SOLO
10	20654-001	SEAL, SHAFT (BLACK)	2		ADD TO CART
SEAL, SHAFT (BLACK) 20654-001 · qty on machine: 2 view full part page → $5.95
11	530029	RING, RETENTION	2		ADD TO CART
RING, RETENTION 530029 · qty on machine: 2 view full part page → $10.95
12	20104-002	SEAL, SHAFT URETHANE (YELLOW)	2		ADD TO CART
SEAL, SHAFT URETHANE (YELLOW) 20104-002 · qty on machine: 2 view full part page → $7.95
13	513452	BOLT, 3/8" X 1-1/4"	8		ADD TO CART
BOLT, 3/8" X 1-1/4" 513452 · qty on machine: 8 view full part page → $0.85
14	520621	DRUM, STEEL	1		PARTS REQUEST
PHOTO COMING DRUM, STEEL 520621 · qty on machine: 1 PARTS REQUEST
15	EM961019	SET SCREW	2		ADD TO CART
SET SCREW EM961019 · qty on machine: 2 view full part page → $0.95
16	530043	MAIN GEAR	1		ADD TO CART
MAIN GEAR 530043 · qty on machine: 1 view full part page → $189.95
17	501016	KEY, 3/8" X 88 MM	1		ADD TO CART
KEY, 3/8" X 88 MM 501016 · qty on machine: 1 view full part page → $9.95
18	17985-012	CARRIAGE BOLT 3/8-16 X 1-1/2"	4		ADD TO CART
CARRIAGE BOLT 3/8-16 X 1-1/2" 17985-012 · qty on machine: 4 view full part page → $0.58
19	514752	SHAFT, PADDLE	1		ADD TO CART
SHAFT, PADDLE 514752 · qty on machine: 1 view full part page → $333.95
20	6109170	WASHER, 1/2" FLAT	1		ADD TO CART
WASHER, 1/2" FLAT 6109170 · qty on machine: 1 view full part page → $0.48
21	520542	GRATE BAR	1		ADD TO CART
GRATE BAR 520542 · qty on machine: 1 view full part page → $11.36
22	EM925191	PIN, COTTER	1		ADD TO CART
PIN, COTTER EM925191 · qty on machine: 1 view full part page → $0.75
23	520540	GRATE, FIXED	1		ADD TO CART
GRATE, FIXED 520540 · qty on machine: 1 view full part page → $230.95
25	6109160	HEX NUT 1/2" G5	2		ADD TO CART
HEX NUT 1/2" G5 6109160 · qty on machine: 2 view full part page → $0.28
26	6109180	WASHER, LOCK 1/2"	2		ADD TO CART
WASHER, LOCK 1/2" 6109180 · qty on machine: 2 view full part page → $0.21
27	EM963692	BOLT 1/2" UNC 1-1/2"	3		ADD TO CART
BOLT 1/2" UNC 1-1/2" EM963692 · qty on machine: 3 view full part page → $0.86
29	492584	NUT, LOCK1/2" NC	1		ADD TO CART
NUT, LOCK1/2" NC 492584 · qty on machine: 1 view full part page → $0.45
30	EM201537	HANDLE DUMP	1		ADD TO CART
HANDLE DUMP EM201537 · qty on machine: 1 view full part page → $34.95
31	EM98195	GRIP, DUMP HANDLE	1		ADD TO CART
GRIP, DUMP HANDLE EM98195 · qty on machine: 1 view full part page → $1.71
32	507418	WASHER, TOOTHED	4		PARTS REQUEST
PHOTO COMING WASHER, TOOTHED 507418 · qty on machine: 4 PARTS REQUEST
33	520541	GATE, MOBILE	1		ADD TO CART
GATE, MOBILE 520541 · qty on machine: 1 view full part page → $186.95
34	EM963610	CAPSCREW, 3/8" NC X 1-1/4" G8	6		ADD TO CART
CAPSCREW, 3/8" NC X 1-1/4" G8 EM963610 · qty on machine: 6 view full part page → $0.69

Page 14 — AXLE ASSY.

Parts list — exactly as printed12 rows

No.	Part No.	Part Name	Qty	Remarks
1#	3469	DUST CAP	2		ADD TO CART
DUST CAP 3469 · qty on machine: 2 Also included in kit 11 - HUB ASSY., 4-BOLT (EM941306) view full part page → $4.95 IN A KIT + SOLD SOLO
2#	8115	LUG NUTS	8		ADD TO CART
LUG NUTS 8115 · qty on machine: 8 Also included in kit 11 - HUB ASSY., 4-BOLT (EM941306) view full part page → $1.52 IN A KIT + SOLD SOLO
3	3005	TIRE AND RIM, CARLISE	2		ADD TO CART
TIRE AND RIM, CARLISE 3005 · qty on machine: 2 Factory replaced this part - current number 516476 view full part page → $281.95 IN A KIT + SOLD SOLO
4	8164	CASTLE NUT 1"	2		ADD TO CART
CASTLE NUT 1" 8164 · qty on machine: 2 view full part page → $3.95
5	491688	COTTER PIN 1/8" X 1-1/2'	2		PARTS REQUEST
PHOTO COMING COTTER PIN 1/8" X 1-1/2' 491688 · qty on machine: 2 PARTS REQUEST
6	EM511159	WASHER, FLAT, .087" THICKNESS	2		ADD TO CART
WASHER, FLAT, .087" THICKNESS EM511159 · qty on machine: 2 view full part page → $2.77
7	EM501299	WASHER, FLAT, .135" THICKNESS	1		ADD TO CART
WASHER, FLAT, .135" THICKNESS EM501299 · qty on machine: 1 view full part page → $4.95
8#	EM903113	BEARING CONE	4		ADD TO CART
BEARING CONE EM903113 · qty on machine: 4 Also included in kit 11 - HUB ASSY., 4-BOLT (EM941306) view full part page → $7.95 IN A KIT + SOLD SOLO
9#	EM903012	BEARING CUP	4		ADD TO CART
BEARING CUP EM903012 · qty on machine: 4 Also included in kit 11 - HUB ASSY., 4-BOLT (EM941306) view full part page → $2.95 IN A KIT + SOLD SOLO
10#	EM914288	OIL SEAL	2		ADD TO CART
OIL SEAL EM914288 · qty on machine: 2 Also included in kit 11 - HUB ASSY., 4-BOLT (EM941306) view full part page → $3.95 IN A KIT + SOLD SOLO
11	EM941306	HUB ASSY., 4-BOLT	2	INCLUDES ITEMS W/ #	ADD TO CART
HUB ASSY., 4-BOLT EM941306 · qty on machine: 2 INCLUDES ITEMS W/ # Kit includes: 1#, 2#, 8#, 9#, 10# view full part page → $75.95 IN A KIT + SOLD SOLO
12	514802	AXLE, UNIVERSAL	1		ADD TO CART
AXLE, UNIVERSAL 514802 · qty on machine: 1 view full part page → $264.95

Page 16 — ENGINE ASSY.

Parts list — exactly as printed44 rows

No.	Part No.	Part Name	Qty	Remarks
1	EM969013	NUT 3/8" NC G5	8		ADD TO CART
NUT 3/8" NC G5 EM969013 · qty on machine: 8 view full part page → $0.21
2	506488	FLAT WASHER 3/8	8		PARTS REQUEST
PHOTO COMING FLAT WASHER 3/8 506488 · qty on machine: 8 PARTS REQUEST
3	EM905016	PILLOW BLOCK BEARING	2		ADD TO CART
PILLOW BLOCK BEARING EM905016 · qty on machine: 2 view full part page → $48.95
4	492378	BOLT 3/8" NC X 1-3/4" G5	4		ADD TO CART
BOLT 3/8" NC X 1-3/4" G5 492378 · qty on machine: 4 view full part page → $0.69
5	490957	RING, RETENTION	1		PARTS REQUEST
PHOTO COMING RING, RETENTION 490957 · qty on machine: 1 PARTS REQUEST
6	513868	PINION GEAR	1		ADD TO CART
PINION GEAR 513868 · qty on machine: 1 view full part page → $38.95
7	500214	KEY, 1/4" X 30 MM	1		ADD TO CART
KEY, 1/4" X 30 MM 500214 · qty on machine: 1 view full part page → $1.51
8	EM502226	PINION SHAFT	1		ADD TO CART
PINION SHAFT EM502226 · qty on machine: 1 view full part page → $25.95
9	492057	PULLEY (LARGE)	1		ADD TO CART
PULLEY (LARGE) 492057 · qty on machine: 1 view full part page → $69.95
10	505084	KEY, 1/4" X 55 MM	1		ADD TO CART
KEY, 1/4" X 55 MM 505084 · qty on machine: 1 view full part page → $10.95
11	492467	SET SCREW, 5/16' NC 3/8"	4		ADD TO CART
SET SCREW, 5/16' NC 3/8" 492467 · qty on machine: 4 view full part page → $0.41
12	505834	V-BELT, A-37	2	GX160UT1HX2	PARTS REQUEST
PHOTO COMING V-BELT, A-37 505834 · qty on machine: 2 GX160UT1HX2 PARTS REQUEST
12	505834	V-BELT, A-36	2	GX240UT1HA2	PARTS REQUEST
PHOTO COMING V-BELT, A-36 505834 · qty on machine: 2 GX240UT1HA2 PARTS REQUEST
13	503117	BOLT, 3/8" NC X 3" G5	1		ADD TO CART
BOLT, 3/8" NC X 3" G5 503117 · qty on machine: 1 view full part page → $0.95
14	501019	SQ. KEY 3/16" X 45 MM 4.8 HP	1	GX160UT1HX2	ADD TO CART
SQ. KEY 3/16" X 45 MM 4.8 HP 501019 · qty on machine: 1 GX160UT1HX2 view full part page → $1.31
14	90745ZE2600	SQ. KEY 6.3 X 6.3 X 43 MM 7.8 HP	1	GX240UT1HA2	ADD TO CART
SQ. KEY 6.3 X 6.3 X 43 MM 7.8 HP 90745ZE2600 · qty on machine: 1 GX240UT1HA2 view full part page → $32.95
15	492367	BOLT 5/16" NC X 1-3/4" G5	4	GX160UT1HX2	PARTS REQUEST
PHOTO COMING BOLT 5/16" NC X 1-3/4" G5 492367 · qty on machine: 4 GX160UT1HX2 PARTS REQUEST
15	492378	BOLT 3/8" NC X 1-3/4" G5	4	GX240UT1HA2	ADD TO CART
BOLT 3/8" NC X 1-3/4" G5 492378 · qty on machine: 4 GX240UT1HA2 view full part page → $0.69
16	GX160UT1HX2	ENGINE, HONDA 4.8 HP	1		ADD TO CART
ENGINE, HONDA 4.8 HP GX160UT1HX2 · qty on machine: 1 view full part page → $1413.95
16	GX240UT1HA2	ENGINE, HONDA 7.8 HP	1		ADD TO CART
ENGINE, HONDA 7.8 HP GX240UT1HA2 · qty on machine: 1 view full part page → $1777.95
17	515040	BELT RETAINER BAR	1		ADD TO CART
BELT RETAINER BAR 515040 · qty on machine: 1 view full part page → $13.95
18	492055	PULLEY, (SMALL), 4.8 HP	1	GX160UT1HX2	ADD TO CART
PULLEY, (SMALL), 4.8 HP 492055 · qty on machine: 1 GX160UT1HX2 view full part page → $29.95
18	EM901074	PULLEY, (SMALL), 7.8 HP	1	GX240UT1HA2	ADD TO CART
PULLEY, (SMALL), 7.8 HP EM901074 · qty on machine: 1 GX240UT1HA2 view full part page → $89.95
22	492597	WASHER, FLAT 5/16"	6	GX160UT1HX2	PARTS REQUEST
PHOTO COMING WASHER, FLAT 5/16" 492597 · qty on machine: 6 GX160UT1HX2 PARTS REQUEST
22	492598	WASHER, FLAT 3/8"	6	GX240UT1HA2	PARTS REQUEST
PHOTO COMING WASHER, FLAT 3/8" 492598 · qty on machine: 6 GX240UT1HA2 PARTS REQUEST
23	492623	WASHER, LOCK 5/16"	4	GX160UT1HX2	PARTS REQUEST
PHOTO COMING WASHER, LOCK 5/16" 492623 · qty on machine: 4 GX160UT1HX2 PARTS REQUEST
23	492624	WASHER, LOCK 3/8"	4	GX240UT1HA2	ADD TO CART
WASHER, LOCK 3/8" 492624 · qty on machine: 4 GX240UT1HA2 Factory replaced this part - current number 0166A view full part page → $0.17 IN A KIT + SOLD SOLO
24	492553	NUT, HEX 5/16"	4	GX160UT1HX2	PARTS REQUEST
PHOTO COMING NUT, HEX 5/16" 492553 · qty on machine: 4 GX160UT1HX2 PARTS REQUEST
24	492554	NUT, HEX 3/8"	4	GX240UT1HA2	PARTS REQUEST
PHOTO COMING NUT, HEX 3/8" 492554 · qty on machine: 4 GX240UT1HA2 PARTS REQUEST
25	492600	WASHER, FLAT 1/2"	1		PARTS REQUEST
PHOTO COMING WASHER, FLAT 1/2" 492600 · qty on machine: 1 PARTS REQUEST
26	505084	SQ. KEY, 1/4" X 55 MM	1		ADD TO CART
SQ. KEY, 1/4" X 55 MM 505084 · qty on machine: 1 view full part page → $10.95
27	492394	BOLT 1/2" NC X 1-1/2" G5	1		PARTS REQUEST
PHOTO COMING BOLT 1/2" NC X 1-1/2" G5 492394 · qty on machine: 1 PARTS REQUEST
28	EM102014	SPRING, EXTENSION	1		ADD TO CART
SPRING, EXTENSION EM102014 · qty on machine: 1 view full part page → $4.95
29	EM203098	SPRING CLIP	1		ADD TO CART
SPRING CLIP EM203098 · qty on machine: 1 view full part page → $24.95
30	492313	BOLT 3/8" NC X 1-1/2" G5	3		PARTS REQUEST
PHOTO COMING BOLT 3/8" NC X 1-1/2" G5 492313 · qty on machine: 3 PARTS REQUEST
31	EM507713	ARM, IDLER	1	GX160UT1HX2	ADD TO CART
ARM, IDLER EM507713 · qty on machine: 1 GX160UT1HX2 view full part page → $3.95
31	EM507491	ARM, IDLER	1	GX240UT1HA2	ADD TO CART
ARM, IDLER EM507491 · qty on machine: 1 GX240UT1HA2 view full part page → $4.95
32	EM959080	ROD-END	2		ADD TO CART
ROD-END EM959080 · qty on machine: 2 view full part page → $14.95
33	492584	NUT, HEX 1/2"	1		ADD TO CART
NUT, HEX 1/2" 492584 · qty on machine: 1 view full part page → $0.45
34	492574	NUT, HEX 3/8" NF G5	2		PARTS REQUEST
PHOTO COMING NUT, HEX 3/8" NF G5 492574 · qty on machine: 2 PARTS REQUEST
35	492476	SET SCREW, 5/16' NC 3/4"	1		NO LONGER AVAILABLE
PHOTO COMING SET SCREW, 5/16' NC 3/4" 492476 · qty on machine: 1 NO LONGER AVAILABLE
36	EM901515	PULLEY, IDLER	1		ADD TO CART
PULLEY, IDLER EM901515 · qty on machine: 1 view full part page → $10.95
37	515299	ROD	1	GX160UT1HX2	ADD TO CART
ROD 515299 · qty on machine: 1 GX160UT1HX2 view full part page → $2.95
37	515045	ROD	1	GX240UT1HA2	ADD TO CART
ROD 515045 · qty on machine: 1 GX240UT1HA2 view full part page → $3.95

Page 18 — CABINET ASSY.

Parts list — exactly as printed14 rows

No.	Part No.	Part Name	Qty	Remarks
1	520620	CABINET, ENGINE W/DECALS	1	INCLUDES ITEMS W/@	NO LONGER AVAILABLE
PHOTO COMING CABINET, ENGINE W/DECALS 520620 · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 6@ NO LONGER AVAILABLE
2	EM505186	BUMPER, STICK ON	4		ADD TO CART
BUMPER, STICK ON EM505186 · qty on machine: 4 view full part page → $0.17
5	503723	POP RIVET	10		PARTS REQUEST
PHOTO COMING POP RIVET 503723 · qty on machine: 10 PARTS REQUEST
6@	491010	LATCH ASSY., COMPLETE	2		ADD TO CART
LATCH ASSY., COMPLETE 491010 · qty on machine: 2 Also included in kit 1 - CABINET, ENGINE W/DECALS (520620) view full part page → $8.95 IN A KIT + SOLD SOLO
7	EM963610	CAPSCREW 3/8" NC X 1-1/4" G8	4		ADD TO CART
CAPSCREW 3/8" NC X 1-1/4" G8 EM963610 · qty on machine: 4 view full part page → $0.69
8	3019092	WASHER, FLAT 3/8"	12		ADD TO CART
WASHER, FLAT 3/8" 3019092 · qty on machine: 12 view full part page → $0.18
9	EM969013	NUT NYLOCK	4		ADD TO CART
NUT NYLOCK EM969013 · qty on machine: 4 view full part page → $0.21
10	29174-001	KNOB, MUSHROOM	1		ADD TO CART
KNOB, MUSHROOM 29174-001 · qty on machine: 1 view full part page → $2.89
11	29173-001	SWITCH, PUSH-PULL	1		ADD TO CART
SWITCH, PUSH-PULL 29173-001 · qty on machine: 1 view full part page → $18.95
12	504135C	WIRE HARNESS	1		ADD TO CART
WIRE HARNESS 504135C · qty on machine: 1 Factory replaced this part - current number 510573 view full part page → $11.95 IN A KIT + SOLD SOLO
13	EM974007	PAINT, SPRAY 12 OZ. TRAFFIC RED	1		ADD TO CART
PAINT, SPRAY 12 OZ. TRAFFIC RED EM974007 · qty on machine: 1 view full part page → $45.95
14	520560	GUARD	1		ADD TO CART
GUARD 520560 · qty on machine: 1 view full part page → $72.95
15	EM963055	HEX HEAD CAPSCREW	8		ADD TO CART
HEX HEAD CAPSCREW EM963055 · qty on machine: 8 view full part page → $0.7
16	520561	SPACER	4		ADD TO CART
SPACER 520561 · qty on machine: 4 view full part page → $6.95

Page 6 — UNKNOWN

Parts list — exactly as printed13 rows

No.	Part No.	Part Name	Qty	Remarks
1	EM948630	DECAL, PUSH TO STOP (ENGLISH)	1		ADD TO CART
DECAL, PUSH TO STOP (ENGLISH) EM948630 · qty on machine: 1 view full part page → $1.44
2	CIP520932	DECAL, PUSH TO STOP (FRENCH)	1		PARTS REQUEST
PHOTO COMING DECAL, PUSH TO STOP (FRENCH) CIP520932 · qty on machine: 1 PARTS REQUEST
3	CIP520933	DECAL, DO NOT SMOKE	1		PARTS REQUEST
PHOTO COMING DECAL, DO NOT SMOKE CIP520933 · qty on machine: 1 PARTS REQUEST
4	CIP520938	DECAL, READ MANUAL, CRUSH HAZARD	1		PARTS REQUEST
PHOTO COMING DECAL, READ MANUAL, CRUSH HAZARD CIP520938 · qty on machine: 1 PARTS REQUEST
5	CIP520935	DECAL, SAFETY INSTRUCTIONS (ENGLISH)	1		PARTS REQUEST
PHOTO COMING DECAL, SAFETY INSTRUCTIONS (ENGLISH) CIP520935 · qty on machine: 1 PARTS REQUEST
6	515275	DECAL, WHITEMAN LOGO	1		ADD TO CART
DECAL, WHITEMAN LOGO 515275 · qty on machine: 1 view full part page → $2.95
8	CIP520922	DECAL, SAFETY INSTRUCTIONS (FRENCH)	1		PARTS REQUEST
PHOTO COMING DECAL, SAFETY INSTRUCTIONS (FRENCH) CIP520922 · qty on machine: 1 PARTS REQUEST
9	CIP520934	DECAL, HANDLE KICK BACK, SAFETY GRATE, CRUSH HAZARD	1		PARTS REQUEST
PHOTO COMING DECAL, HANDLE KICK BACK, SAFETY GRATE, CRUSH HAZARD CIP520934 · qty on machine: 1 PARTS REQUEST
10	CIP520915	DECAL, POWDER COATED (FRENCH)	1		PARTS REQUEST
PHOTO COMING DECAL, POWDER COATED (FRENCH) CIP520915 · qty on machine: 1 PARTS REQUEST
11	13118	DECAL, POWDER COATED (ENGLISH)	1		ADD TO CART
DECAL, POWDER COATED (ENGLISH) 13118 · qty on machine: 1 view full part page → $0.76
12	CIP520936	DECAL, DRUM LOCK POSITIONING	1		PARTS REQUEST
PHOTO COMING DECAL, DRUM LOCK POSITIONING CIP520936 · qty on machine: 1 PARTS REQUEST
13		NAMEPLATE	1	CONTACT MQ PARTS DEPT.	SEE REMARKS
PHOTO COMING NAMEPLATE · qty on machine: 1 CONTACT MQ PARTS DEPT. SEE REMARKS
14	CIP520937	DECAL, INSPECT BEFORE TOWING	1		PARTS REQUEST
PHOTO COMING DECAL, INSPECT BEFORE TOWING CIP520937 · qty on machine: 1 PARTS REQUEST

Page 8 — FRAME ASSY.

Parts list — exactly as printed18 rows

No.	Part No.	Part Name	Qty	Remarks
1	514842	LOCK PIN UNIT	1		ADD TO CART
LOCK PIN UNIT 514842 · qty on machine: 1 view full part page → $43.95
2	491692	COTTER PIN	1		ADD TO CART
COTTER PIN 491692 · qty on machine: 1 view full part page → $1.35
3	530023	SPRING LOCKING PIN	1		ADD TO CART
SPRING LOCKING PIN 530023 · qty on machine: 1 view full part page → $2.95
4	507444	WASHER, FLAT 3/4"	1		ADD TO CART
WASHER, FLAT 3/4" 507444 · qty on machine: 1 view full part page → $1.71
5	520619	MAIN FRAME	1		PARTS REQUEST
PHOTO COMING MAIN FRAME 520619 · qty on machine: 1 PARTS REQUEST
7	514836	HANDLE, CLUTCH ENGAGE	1		ADD TO CART
HANDLE, CLUTCH ENGAGE 514836 · qty on machine: 1 view full part page → $78.95
8	EM963692	BOLT 1/2" UNC 1-1/2"	6		ADD TO CART
BOLT 1/2" UNC 1-1/2" EM963692 · qty on machine: 6 view full part page → $0.86
9	492584	NUT, LOCK 1/2"	6		ADD TO CART
NUT, LOCK 1/2" 492584 · qty on machine: 6 view full part page → $0.45
10	514802	AXLE, UNIVERSAL	1		ADD TO CART
AXLE, UNIVERSAL 514802 · qty on machine: 1 view full part page → $264.95
11	10176	LOCK NUT 1/2" NC	1		ADD TO CART
LOCK NUT 1/2" NC 10176 · qty on machine: 1 view full part page → $2.95
12	EM124	BOLT 1/2"-13 X 4 G5	1		ADD TO CART
BOLT 1/2"-13 X 4 G5 EM124 · qty on machine: 1 view full part page → $1.95
13@		SAFETY CHAIN	1		INCLUDED IN KIT
PHOTO COMING SAFETY CHAIN · qty on machine: 1 Included in kit 15 - CHAIN AND LINK KIT (13363KIT) INCLUDED IN KIT
14@	01004	CONNECTOR LINK	1		ADD TO CART
CONNECTOR LINK 01004 · qty on machine: 1 Also included in kit 15 - CHAIN AND LINK KIT (13363KIT) view full part page → $1.79 IN A KIT + SOLD SOLO
14A@	516580	CLEVIS SAFETY HOOK	1		ADD TO CART
CLEVIS SAFETY HOOK 516580 · qty on machine: 1 Also included in kit 15 - CHAIN AND LINK KIT (13363KIT) view full part page → $5.95 IN A KIT + SOLD SOLO
15	13363KIT	CHAIN AND LINK KIT	1	INCLUDES ITEMS W/@	ADD TO CART
CHAIN AND LINK KIT 13363KIT · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 13@, 14@, 14A@ view full part page → $97.95 IN A KIT + SOLD SOLO
16	HBC-1	BALL HITCH 2-INCH	1	CONTACT UNIT SALES	PARTS REQUEST
PHOTO COMING BALL HITCH 2-INCH HBC-1 · qty on machine: 1 CONTACT UNIT SALES PARTS REQUEST
17	HLC-1	LOOP HITCH	1	CONTACT UNIT SALES	PARTS REQUEST
PHOTO COMING LOOP HITCH HLC-1 · qty on machine: 1 CONTACT UNIT SALES PARTS REQUEST
18	HPC-1	PIN HITCH 1-INCH	1	CONTACT UNIT SALES	PARTS REQUEST
PHOTO COMING PIN HITCH 1-INCH HPC-1 · qty on machine: 1 CONTACT UNIT SALES PARTS REQUEST

Page 10 — PADDLE SHAFT ASSY.

Parts list — exactly as printed18 rows

No.	Part No.	Part Name	Qty	Remarks
1	514752	PADDLE SHAFT	1		ADD TO CART
PADDLE SHAFT 514752 · qty on machine: 1 view full part page → $333.95
2	492584	NUT, LOCK 1/2"	8		ADD TO CART
NUT, LOCK 1/2" 492584 · qty on machine: 8 view full part page → $0.45
3	EM202896	PADDLE ARM, CENTER ENGINE END	1		ADD TO CART
PADDLE ARM, CENTER ENGINE END EM202896 · qty on machine: 1 view full part page → $46.95
5	EM200292	INSERT, PADDLE ARM	8		ADD TO CART
INSERT, PADDLE ARM EM200292 · qty on machine: 8 view full part page → $4.95
6	EM202898	PADDLE ARM, ENGINE END	1		ADD TO CART
PADDLE ARM, ENGINE END EM202898 · qty on machine: 1 view full part page → $52.95
7	6109170	WASHER, FLAT 1/2"	8		ADD TO CART
WASHER, FLAT 1/2" 6109170 · qty on machine: 8 view full part page → $0.48
8	EM200297	U-BOLT	4		ADD TO CART
U-BOLT EM200297 · qty on machine: 4 view full part page → $2.95
9	EM202897	PADDLE ARM, CENTER TOW END	1		ADD TO CART
PADDLE ARM, CENTER TOW END EM202897 · qty on machine: 1 Kit includes: 10@#, 11@#, 13@#, 14@#, 17@# view full part page → $46.95 IN A KIT + SOLD SOLO
10@#	2105162	SCREW, HHC 5/16-18 X 1-3/4 G5	14		ADD TO CART
SCREW, HHC 5/16-18 X 1-3/4 G5 2105162 · qty on machine: 14 Also included in kit 9 - PADDLE ARM, CENTER TOW END (EM202897); kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $0.68 IN A KIT + SOLD SOLO
11@#	EM923023	WASHER, FLAT 5/16"	28		ADD TO CART
WASHER, FLAT 5/16" EM923023 · qty on machine: 28 Also included in kit 9 - PADDLE ARM, CENTER TOW END (EM202897); kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $0.21 IN A KIT + SOLD SOLO
12@	EM202929	BLADE, SIDE, RUBBER	4		ADD TO CART
BLADE, SIDE, RUBBER EM202929 · qty on machine: 4 Also included in kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $3.95 IN A KIT + SOLD SOLO
13@#	EM202928	BLADE, SIDE, SCRAPER	4		ADD TO CART
BLADE, SIDE, SCRAPER EM202928 · qty on machine: 4 Also included in kit 9 - PADDLE ARM, CENTER TOW END (EM202897); kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $5.95 IN A KIT + SOLD SOLO
14@#	2105164	NUT, HEX 5/16" NC G5	14		ADD TO CART
NUT, HEX 5/16" NC G5 2105164 · qty on machine: 14 Also included in kit 9 - PADDLE ARM, CENTER TOW END (EM202897); kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $0.2 IN A KIT + SOLD SOLO
15@	EM923343	WASHER, LOCK 5/16"	14		ADD TO CART
WASHER, LOCK 5/16" EM923343 · qty on machine: 14 Also included in kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $0.21 IN A KIT + SOLD SOLO
16	EM202899	PADDLE ARM, TOW END	1		ADD TO CART
PADDLE ARM, TOW END EM202899 · qty on machine: 1 view full part page → $52.95
17@#	EM202927	BLADE ,SCRAPPER END	4		ADD TO CART
BLADE ,SCRAPPER END EM202927 · qty on machine: 4 Also included in kit 9 - PADDLE ARM, CENTER TOW END (EM202897); kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $7.95 IN A KIT + SOLD SOLO
18@	EM202926	BLADE, RUBBER END	4		ADD TO CART
BLADE, RUBBER END EM202926 · qty on machine: 4 Also included in kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $3.94 IN A KIT + SOLD SOLO
19	EM203010	KIT, WIPERS, SCRAPERS & HARDWARE	1	INCLUDES ITEMS W/@	ADD TO CART
KIT, WIPERS, SCRAPERS & HARDWARE EM203010 · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 10@#, 11@#, 12@, 13@#, 14@#, 15@, 17@#, 18@ view full part page → $115.95 IN A KIT + SOLD SOLO

Page 12 — STEEL TUB ASSY.

Parts list — exactly as printed32 rows

No.	Part No.	Part Name	Qty	Remarks
1	530028C	DRUM BEARING BRACKET	2		PARTS REQUEST
PHOTO COMING DRUM BEARING BRACKET 530028C · qty on machine: 2 PARTS REQUEST
2	3249	CAP, DUST	1		ADD TO CART
CAP, DUST 3249 · qty on machine: 1 view full part page → $11.95
3	20561-001	BEARING SEALED	2	SET SCREWS AND BEARING COLLAR CANNOT BE PURCHASED SEPARATELY	ADD TO CART
BEARING SEALED 20561-001 · qty on machine: 2 SET SCREWS AND BEARING COLLAR CANNOT BE PURCHASED SEPARATELY view full part page → $30.95
4	491008	CAP, GREASE FITTING	2		ADD TO CART
CAP, GREASE FITTING 491008 · qty on machine: 2 view full part page → $0.28
5	EM916019	FITTING, GREASE	2		ADD TO CART
FITTING, GREASE EM916019 · qty on machine: 2 view full part page → $1.95
6	EM969013	NUT, LOCK 3/8"	18		ADD TO CART
NUT, LOCK 3/8" EM969013 · qty on machine: 18 view full part page → $0.21
7	3019092	WASHER, FLAT 3/8"	8		ADD TO CART
WASHER, FLAT 3/8" 3019092 · qty on machine: 8 view full part page → $0.18
8	514778C	TRUNNION HUB	2		PARTS REQUEST
PHOTO COMING TRUNNION HUB 514778C · qty on machine: 2 PARTS REQUEST
9	513453	ROLL PIN 3/16" X 3/4"	2		ADD TO CART
ROLL PIN 3/16" X 3/4" 513453 · qty on machine: 2 Factory replaced this part - current number 07594-012 view full part page → $0.13 IN A KIT + SOLD SOLO
10	20654-001	SEAL, SHAFT (BLACK)	2		ADD TO CART
SEAL, SHAFT (BLACK) 20654-001 · qty on machine: 2 view full part page → $5.95
11	530029	RING, RETENTION	2		ADD TO CART
RING, RETENTION 530029 · qty on machine: 2 view full part page → $10.95
12	20104-002	SEAL, SHAFT URETHANE (YELLOW)	2		ADD TO CART
SEAL, SHAFT URETHANE (YELLOW) 20104-002 · qty on machine: 2 view full part page → $7.95
13	513452	BOLT, 3/8" X 1-1/4"	8		ADD TO CART
BOLT, 3/8" X 1-1/4" 513452 · qty on machine: 8 view full part page → $0.85
14	520621	DRUM, STEEL	1		PARTS REQUEST
PHOTO COMING DRUM, STEEL 520621 · qty on machine: 1 PARTS REQUEST
15	EM961019	SET SCREW	2		ADD TO CART
SET SCREW EM961019 · qty on machine: 2 view full part page → $0.95
16	530043	MAIN GEAR	1		ADD TO CART
MAIN GEAR 530043 · qty on machine: 1 view full part page → $189.95
17	501016	KEY, 3/8" X 88 MM	1		ADD TO CART
KEY, 3/8" X 88 MM 501016 · qty on machine: 1 view full part page → $9.95
18	17985-012	CARRIAGE BOLT 3/8-16 X 1-1/2"	4		ADD TO CART
CARRIAGE BOLT 3/8-16 X 1-1/2" 17985-012 · qty on machine: 4 view full part page → $0.58
19	514752	SHAFT, PADDLE	1		ADD TO CART
SHAFT, PADDLE 514752 · qty on machine: 1 view full part page → $333.95
20	6109170	WASHER, 1/2" FLAT	1		ADD TO CART
WASHER, 1/2" FLAT 6109170 · qty on machine: 1 view full part page → $0.48
21	520542	GRATE BAR	1		ADD TO CART
GRATE BAR 520542 · qty on machine: 1 view full part page → $11.36
22	EM925191	PIN, COTTER	1		ADD TO CART
PIN, COTTER EM925191 · qty on machine: 1 view full part page → $0.75
23	520540	GRATE, FIXED	1		ADD TO CART
GRATE, FIXED 520540 · qty on machine: 1 view full part page → $230.95
25	6109160	HEX NUT 1/2" G5	2		ADD TO CART
HEX NUT 1/2" G5 6109160 · qty on machine: 2 view full part page → $0.28
26	6109180	WASHER, LOCK 1/2"	2		ADD TO CART
WASHER, LOCK 1/2" 6109180 · qty on machine: 2 view full part page → $0.21
27	EM963692	BOLT 1/2" UNC 1-1/2"	3		ADD TO CART
BOLT 1/2" UNC 1-1/2" EM963692 · qty on machine: 3 view full part page → $0.86
29	492584	NUT, LOCK1/2" NC	1		ADD TO CART
NUT, LOCK1/2" NC 492584 · qty on machine: 1 view full part page → $0.45
30	EM201537	HANDLE DUMP	1		ADD TO CART
HANDLE DUMP EM201537 · qty on machine: 1 view full part page → $34.95
31	EM98195	GRIP, DUMP HANDLE	1		ADD TO CART
GRIP, DUMP HANDLE EM98195 · qty on machine: 1 view full part page → $1.71
32	507418	WASHER, TOOTHED	4		PARTS REQUEST
PHOTO COMING WASHER, TOOTHED 507418 · qty on machine: 4 PARTS REQUEST
33	520541	GATE, MOBILE	1		ADD TO CART
GATE, MOBILE 520541 · qty on machine: 1 view full part page → $186.95
34	EM963610	CAPSCREW, 3/8" NC X 1-1/4" G8	6		ADD TO CART
CAPSCREW, 3/8" NC X 1-1/4" G8 EM963610 · qty on machine: 6 view full part page → $0.69

Page 14 — AXLE ASSY.

Parts list — exactly as printed12 rows

No.	Part No.	Part Name	Qty	Remarks
1#	3469	DUST CAP	2		ADD TO CART
DUST CAP 3469 · qty on machine: 2 Also included in kit 11 - HUB ASSY., 4-BOLT (EM941306) view full part page → $4.95 IN A KIT + SOLD SOLO
2#	8115	LUG NUTS	8		ADD TO CART
LUG NUTS 8115 · qty on machine: 8 Also included in kit 11 - HUB ASSY., 4-BOLT (EM941306) view full part page → $1.52 IN A KIT + SOLD SOLO
3	3005	TIRE AND RIM, CARLISE	2		ADD TO CART
TIRE AND RIM, CARLISE 3005 · qty on machine: 2 Factory replaced this part - current number 516476 view full part page → $281.95 IN A KIT + SOLD SOLO
4	8164	CASTLE NUT 1"	2		ADD TO CART
CASTLE NUT 1" 8164 · qty on machine: 2 view full part page → $3.95
5	491688	COTTER PIN 1/8" X 1-1/2'	2		PARTS REQUEST
PHOTO COMING COTTER PIN 1/8" X 1-1/2' 491688 · qty on machine: 2 PARTS REQUEST
6	EM511159	WASHER, FLAT, .087" THICKNESS	2		ADD TO CART
WASHER, FLAT, .087" THICKNESS EM511159 · qty on machine: 2 view full part page → $2.77
7	EM501299	WASHER, FLAT, .135" THICKNESS	1		ADD TO CART
WASHER, FLAT, .135" THICKNESS EM501299 · qty on machine: 1 view full part page → $4.95
8#	EM903113	BEARING CONE	4		ADD TO CART
BEARING CONE EM903113 · qty on machine: 4 Also included in kit 11 - HUB ASSY., 4-BOLT (EM941306) view full part page → $7.95 IN A KIT + SOLD SOLO
9#	EM903012	BEARING CUP	4		ADD TO CART
BEARING CUP EM903012 · qty on machine: 4 Also included in kit 11 - HUB ASSY., 4-BOLT (EM941306) view full part page → $2.95 IN A KIT + SOLD SOLO
10#	EM914288	OIL SEAL	2		ADD TO CART
OIL SEAL EM914288 · qty on machine: 2 Also included in kit 11 - HUB ASSY., 4-BOLT (EM941306) view full part page → $3.95 IN A KIT + SOLD SOLO
11	EM941306	HUB ASSY., 4-BOLT	2	INCLUDES ITEMS W/ #	ADD TO CART
HUB ASSY., 4-BOLT EM941306 · qty on machine: 2 INCLUDES ITEMS W/ # Kit includes: 1#, 2#, 8#, 9#, 10# view full part page → $75.95 IN A KIT + SOLD SOLO
12	514802	AXLE, UNIVERSAL	1		ADD TO CART
AXLE, UNIVERSAL 514802 · qty on machine: 1 view full part page → $264.95

Page 16 — ENGINE ASSY.

Parts list — exactly as printed44 rows

No.	Part No.	Part Name	Qty	Remarks
1	EM969013	NUT 3/8" NC G5	8		ADD TO CART
NUT 3/8" NC G5 EM969013 · qty on machine: 8 view full part page → $0.21
2	506488	FLAT WASHER 3/8	8		PARTS REQUEST
PHOTO COMING FLAT WASHER 3/8 506488 · qty on machine: 8 PARTS REQUEST
3	EM905016	PILLOW BLOCK BEARING	2		ADD TO CART
PILLOW BLOCK BEARING EM905016 · qty on machine: 2 view full part page → $48.95
4	492378	BOLT 3/8" NC X 1-3/4" G5	4		ADD TO CART
BOLT 3/8" NC X 1-3/4" G5 492378 · qty on machine: 4 view full part page → $0.69
5	490957	RING, RETENTION	1		PARTS REQUEST
PHOTO COMING RING, RETENTION 490957 · qty on machine: 1 PARTS REQUEST
6	513868	PINION GEAR	1		ADD TO CART
PINION GEAR 513868 · qty on machine: 1 view full part page → $38.95
7	500214	KEY, 1/4" X 30 MM	1		ADD TO CART
KEY, 1/4" X 30 MM 500214 · qty on machine: 1 view full part page → $1.51
8	EM502226	PINION SHAFT	1		ADD TO CART
PINION SHAFT EM502226 · qty on machine: 1 view full part page → $25.95
9	492057	PULLEY (LARGE)	1		ADD TO CART
PULLEY (LARGE) 492057 · qty on machine: 1 view full part page → $69.95
10	505084	KEY, 1/4" X 55 MM	1		ADD TO CART
KEY, 1/4" X 55 MM 505084 · qty on machine: 1 view full part page → $10.95
11	492467	SET SCREW, 5/16' NC 3/8"	4		ADD TO CART
SET SCREW, 5/16' NC 3/8" 492467 · qty on machine: 4 view full part page → $0.41
12	505834	V-BELT, A-37	2	GX160UT1HX2	PARTS REQUEST
PHOTO COMING V-BELT, A-37 505834 · qty on machine: 2 GX160UT1HX2 PARTS REQUEST
12	505834	V-BELT, A-36	2	GX240UT1HA2	PARTS REQUEST
PHOTO COMING V-BELT, A-36 505834 · qty on machine: 2 GX240UT1HA2 PARTS REQUEST
13	503117	BOLT, 3/8" NC X 3" G5	1		ADD TO CART
BOLT, 3/8" NC X 3" G5 503117 · qty on machine: 1 view full part page → $0.95
14	501019	SQ. KEY 3/16" X 45 MM 4.8 HP	1	GX160UT1HX2	ADD TO CART
SQ. KEY 3/16" X 45 MM 4.8 HP 501019 · qty on machine: 1 GX160UT1HX2 view full part page → $1.31
14	90745ZE2600	SQ. KEY 6.3 X 6.3 X 43 MM 7.8 HP	1	GX240UT1HA2	ADD TO CART
SQ. KEY 6.3 X 6.3 X 43 MM 7.8 HP 90745ZE2600 · qty on machine: 1 GX240UT1HA2 view full part page → $32.95
15	492367	BOLT 5/16" NC X 1-3/4" G5	4	GX160UT1HX2	PARTS REQUEST
PHOTO COMING BOLT 5/16" NC X 1-3/4" G5 492367 · qty on machine: 4 GX160UT1HX2 PARTS REQUEST
15	492378	BOLT 3/8" NC X 1-3/4" G5	4	GX240UT1HA2	ADD TO CART
BOLT 3/8" NC X 1-3/4" G5 492378 · qty on machine: 4 GX240UT1HA2 view full part page → $0.69
16	GX160UT1HX2	ENGINE, HONDA 4.8 HP	1		ADD TO CART
ENGINE, HONDA 4.8 HP GX160UT1HX2 · qty on machine: 1 view full part page → $1413.95
16	GX240UT1HA2	ENGINE, HONDA 7.8 HP	1		ADD TO CART
ENGINE, HONDA 7.8 HP GX240UT1HA2 · qty on machine: 1 view full part page → $1777.95
17	515040	BELT RETAINER BAR	1		ADD TO CART
BELT RETAINER BAR 515040 · qty on machine: 1 view full part page → $13.95
18	492055	PULLEY, (SMALL), 4.8 HP	1	GX160UT1HX2	ADD TO CART
PULLEY, (SMALL), 4.8 HP 492055 · qty on machine: 1 GX160UT1HX2 view full part page → $29.95
18	EM901074	PULLEY, (SMALL), 7.8 HP	1	GX240UT1HA2	ADD TO CART
PULLEY, (SMALL), 7.8 HP EM901074 · qty on machine: 1 GX240UT1HA2 view full part page → $89.95
22	492597	WASHER, FLAT 5/16"	6	GX160UT1HX2	PARTS REQUEST
PHOTO COMING WASHER, FLAT 5/16" 492597 · qty on machine: 6 GX160UT1HX2 PARTS REQUEST
22	492598	WASHER, FLAT 3/8"	6	GX240UT1HA2	PARTS REQUEST
PHOTO COMING WASHER, FLAT 3/8" 492598 · qty on machine: 6 GX240UT1HA2 PARTS REQUEST
23	492623	WASHER, LOCK 5/16"	4	GX160UT1HX2	PARTS REQUEST
PHOTO COMING WASHER, LOCK 5/16" 492623 · qty on machine: 4 GX160UT1HX2 PARTS REQUEST
23	492624	WASHER, LOCK 3/8"	4	GX240UT1HA2	ADD TO CART
WASHER, LOCK 3/8" 492624 · qty on machine: 4 GX240UT1HA2 Factory replaced this part - current number 0166A view full part page → $0.17 IN A KIT + SOLD SOLO
24	492553	NUT, HEX 5/16"	4	GX160UT1HX2	PARTS REQUEST
PHOTO COMING NUT, HEX 5/16" 492553 · qty on machine: 4 GX160UT1HX2 PARTS REQUEST
24	492554	NUT, HEX 3/8"	4	GX240UT1HA2	PARTS REQUEST
PHOTO COMING NUT, HEX 3/8" 492554 · qty on machine: 4 GX240UT1HA2 PARTS REQUEST
25	492600	WASHER, FLAT 1/2"	1		PARTS REQUEST
PHOTO COMING WASHER, FLAT 1/2" 492600 · qty on machine: 1 PARTS REQUEST
26	505084	SQ. KEY, 1/4" X 55 MM	1		ADD TO CART
SQ. KEY, 1/4" X 55 MM 505084 · qty on machine: 1 view full part page → $10.95
27	492394	BOLT 1/2" NC X 1-1/2" G5	1		PARTS REQUEST
PHOTO COMING BOLT 1/2" NC X 1-1/2" G5 492394 · qty on machine: 1 PARTS REQUEST
28	EM102014	SPRING, EXTENSION	1		ADD TO CART
SPRING, EXTENSION EM102014 · qty on machine: 1 view full part page → $4.95
29	EM203098	SPRING CLIP	1		ADD TO CART
SPRING CLIP EM203098 · qty on machine: 1 view full part page → $24.95
30	492313	BOLT 3/8" NC X 1-1/2" G5	3		PARTS REQUEST
PHOTO COMING BOLT 3/8" NC X 1-1/2" G5 492313 · qty on machine: 3 PARTS REQUEST
31	EM507713	ARM, IDLER	1	GX160UT1HX2	ADD TO CART
ARM, IDLER EM507713 · qty on machine: 1 GX160UT1HX2 view full part page → $3.95
31	EM507491	ARM, IDLER	1	GX240UT1HA2	ADD TO CART
ARM, IDLER EM507491 · qty on machine: 1 GX240UT1HA2 view full part page → $4.95
32	EM959080	ROD-END	2		ADD TO CART
ROD-END EM959080 · qty on machine: 2 view full part page → $14.95
33	492584	NUT, HEX 1/2"	1		ADD TO CART
NUT, HEX 1/2" 492584 · qty on machine: 1 view full part page → $0.45
34	492574	NUT, HEX 3/8" NF G5	2		PARTS REQUEST
PHOTO COMING NUT, HEX 3/8" NF G5 492574 · qty on machine: 2 PARTS REQUEST
35	492476	SET SCREW, 5/16' NC 3/4"	1		NO LONGER AVAILABLE
PHOTO COMING SET SCREW, 5/16' NC 3/4" 492476 · qty on machine: 1 NO LONGER AVAILABLE
36	EM901515	PULLEY, IDLER	1		ADD TO CART
PULLEY, IDLER EM901515 · qty on machine: 1 view full part page → $10.95
37	515299	ROD	1	GX160UT1HX2	ADD TO CART
ROD 515299 · qty on machine: 1 GX160UT1HX2 view full part page → $2.95
37	515045	ROD	1	GX240UT1HA2	ADD TO CART
ROD 515045 · qty on machine: 1 GX240UT1HA2 view full part page → $3.95

Page 18 — CABINET ASSY.

Parts list — exactly as printed14 rows

No.	Part No.	Part Name	Qty	Remarks
1	520620	CABINET, ENGINE W/DECALS	1	INCLUDES ITEMS W/@	NO LONGER AVAILABLE
PHOTO COMING CABINET, ENGINE W/DECALS 520620 · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 6@ NO LONGER AVAILABLE
2	EM505186	BUMPER, STICK ON	4		ADD TO CART
BUMPER, STICK ON EM505186 · qty on machine: 4 view full part page → $0.17
5	503723	POP RIVET	10		PARTS REQUEST
PHOTO COMING POP RIVET 503723 · qty on machine: 10 PARTS REQUEST
6@	491010	LATCH ASSY., COMPLETE	2		ADD TO CART
LATCH ASSY., COMPLETE 491010 · qty on machine: 2 Also included in kit 1 - CABINET, ENGINE W/DECALS (520620) view full part page → $8.95 IN A KIT + SOLD SOLO
7	EM963610	CAPSCREW 3/8" NC X 1-1/4" G8	4		ADD TO CART
CAPSCREW 3/8" NC X 1-1/4" G8 EM963610 · qty on machine: 4 view full part page → $0.69
8	3019092	WASHER, FLAT 3/8"	12		ADD TO CART
WASHER, FLAT 3/8" 3019092 · qty on machine: 12 view full part page → $0.18
9	EM969013	NUT NYLOCK	4		ADD TO CART
NUT NYLOCK EM969013 · qty on machine: 4 view full part page → $0.21
10	29174-001	KNOB, MUSHROOM	1		ADD TO CART
KNOB, MUSHROOM 29174-001 · qty on machine: 1 view full part page → $2.89
11	29173-001	SWITCH, PUSH-PULL	1		ADD TO CART
SWITCH, PUSH-PULL 29173-001 · qty on machine: 1 view full part page → $18.95
12	504135C	WIRE HARNESS	1		ADD TO CART
WIRE HARNESS 504135C · qty on machine: 1 Factory replaced this part - current number 510573 view full part page → $11.95 IN A KIT + SOLD SOLO
13	EM974007	PAINT, SPRAY 12 OZ. TRAFFIC RED	1		ADD TO CART
PAINT, SPRAY 12 OZ. TRAFFIC RED EM974007 · qty on machine: 1 view full part page → $45.95
14	520560	GUARD	1		ADD TO CART
GUARD 520560 · qty on machine: 1 view full part page → $72.95
15	EM963055	HEX HEAD CAPSCREW	8		ADD TO CART
HEX HEAD CAPSCREW EM963055 · qty on machine: 8 view full part page → $0.7
16	520561	SPACER	4		ADD TO CART
SPACER 520561 · qty on machine: 4 view full part page → $6.95

Page 6 — UNKNOWN

Parts list — exactly as printed13 rows

No.	Part No.	Part Name	Qty	Remarks
1	EM948630	DECAL, PUSH TO STOP (ENGLISH)	1		ADD TO CART
DECAL, PUSH TO STOP (ENGLISH) EM948630 · qty on machine: 1 view full part page → $1.44
2	CIP520932	DECAL, PUSH TO STOP (FRENCH)	1		PARTS REQUEST
PHOTO COMING DECAL, PUSH TO STOP (FRENCH) CIP520932 · qty on machine: 1 PARTS REQUEST
3	CIP520933	DECAL, DO NOT SMOKE	1		PARTS REQUEST
PHOTO COMING DECAL, DO NOT SMOKE CIP520933 · qty on machine: 1 PARTS REQUEST
4	CIP520938	DECAL, READ MANUAL, CRUSH HAZARD	1		PARTS REQUEST
PHOTO COMING DECAL, READ MANUAL, CRUSH HAZARD CIP520938 · qty on machine: 1 PARTS REQUEST
5	CIP520935	DECAL, SAFETY INSTRUCTIONS (ENGLISH)	1		PARTS REQUEST
PHOTO COMING DECAL, SAFETY INSTRUCTIONS (ENGLISH) CIP520935 · qty on machine: 1 PARTS REQUEST
6	515275	DECAL, WHITEMAN LOGO	1		ADD TO CART
DECAL, WHITEMAN LOGO 515275 · qty on machine: 1 view full part page → $2.95
8	CIP520922	DECAL, SAFETY INSTRUCTIONS (FRENCH)	1		PARTS REQUEST
PHOTO COMING DECAL, SAFETY INSTRUCTIONS (FRENCH) CIP520922 · qty on machine: 1 PARTS REQUEST
9	CIP520934	DECAL, HANDLE KICK BACK, SAFETY GRATE, CRUSH HAZARD	1		PARTS REQUEST
PHOTO COMING DECAL, HANDLE KICK BACK, SAFETY GRATE, CRUSH HAZARD CIP520934 · qty on machine: 1 PARTS REQUEST
10	CIP520915	DECAL, POWDER COATED (FRENCH)	1		PARTS REQUEST
PHOTO COMING DECAL, POWDER COATED (FRENCH) CIP520915 · qty on machine: 1 PARTS REQUEST
11	13118	DECAL, POWDER COATED (ENGLISH)	1		ADD TO CART
DECAL, POWDER COATED (ENGLISH) 13118 · qty on machine: 1 view full part page → $0.76
12	CIP520936	DECAL, DRUM LOCK POSITIONING	1		PARTS REQUEST
PHOTO COMING DECAL, DRUM LOCK POSITIONING CIP520936 · qty on machine: 1 PARTS REQUEST
13		NAMEPLATE	1	CONTACT MQ PARTS DEPT.	SEE REMARKS
PHOTO COMING NAMEPLATE · qty on machine: 1 CONTACT MQ PARTS DEPT. SEE REMARKS
14	CIP520937	DECAL, INSPECT BEFORE TOWING	1		PARTS REQUEST
PHOTO COMING DECAL, INSPECT BEFORE TOWING CIP520937 · qty on machine: 1 PARTS REQUEST

Page 8 — FRAME ASSY.

Parts list — exactly as printed18 rows

No.	Part No.	Part Name	Qty	Remarks
1	514842	LOCK PIN UNIT	1		ADD TO CART
LOCK PIN UNIT 514842 · qty on machine: 1 view full part page → $43.95
2	491692	COTTER PIN	1		ADD TO CART
COTTER PIN 491692 · qty on machine: 1 view full part page → $1.35
3	530023	SPRING LOCKING PIN	1		ADD TO CART
SPRING LOCKING PIN 530023 · qty on machine: 1 view full part page → $2.95
4	507444	WASHER, FLAT 3/4"	1		ADD TO CART
WASHER, FLAT 3/4" 507444 · qty on machine: 1 view full part page → $1.71
5	520619	MAIN FRAME	1		PARTS REQUEST
PHOTO COMING MAIN FRAME 520619 · qty on machine: 1 PARTS REQUEST
7	514836	HANDLE, CLUTCH ENGAGE	1		ADD TO CART
HANDLE, CLUTCH ENGAGE 514836 · qty on machine: 1 view full part page → $78.95
8	EM963692	BOLT 1/2" UNC 1-1/2"	6		ADD TO CART
BOLT 1/2" UNC 1-1/2" EM963692 · qty on machine: 6 view full part page → $0.86
9	492584	NUT, LOCK 1/2"	6		ADD TO CART
NUT, LOCK 1/2" 492584 · qty on machine: 6 view full part page → $0.45
10	514802	AXLE, UNIVERSAL	1		ADD TO CART
AXLE, UNIVERSAL 514802 · qty on machine: 1 view full part page → $264.95
11	10176	LOCK NUT 1/2" NC	1		ADD TO CART
LOCK NUT 1/2" NC 10176 · qty on machine: 1 view full part page → $2.95
12	EM124	BOLT 1/2"-13 X 4 G5	1		ADD TO CART
BOLT 1/2"-13 X 4 G5 EM124 · qty on machine: 1 view full part page → $1.95
13@		SAFETY CHAIN	1		INCLUDED IN KIT
PHOTO COMING SAFETY CHAIN · qty on machine: 1 Included in kit 15 - CHAIN AND LINK KIT (13363KIT) INCLUDED IN KIT
14@	01004	CONNECTOR LINK	1		ADD TO CART
CONNECTOR LINK 01004 · qty on machine: 1 Also included in kit 15 - CHAIN AND LINK KIT (13363KIT) view full part page → $1.79 IN A KIT + SOLD SOLO
14A@	516580	CLEVIS SAFETY HOOK	1		ADD TO CART
CLEVIS SAFETY HOOK 516580 · qty on machine: 1 Also included in kit 15 - CHAIN AND LINK KIT (13363KIT) view full part page → $5.95 IN A KIT + SOLD SOLO
15	13363KIT	CHAIN AND LINK KIT	1	INCLUDES ITEMS W/@	ADD TO CART
CHAIN AND LINK KIT 13363KIT · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 13@, 14@, 14A@ view full part page → $97.95 IN A KIT + SOLD SOLO
16	HBC-1	BALL HITCH 2-INCH	1	CONTACT UNIT SALES	PARTS REQUEST
PHOTO COMING BALL HITCH 2-INCH HBC-1 · qty on machine: 1 CONTACT UNIT SALES PARTS REQUEST
17	HLC-1	LOOP HITCH	1	CONTACT UNIT SALES	PARTS REQUEST
PHOTO COMING LOOP HITCH HLC-1 · qty on machine: 1 CONTACT UNIT SALES PARTS REQUEST
18	HPC-1	PIN HITCH 1-INCH	1	CONTACT UNIT SALES	PARTS REQUEST
PHOTO COMING PIN HITCH 1-INCH HPC-1 · qty on machine: 1 CONTACT UNIT SALES PARTS REQUEST

Page 10 — PADDLE SHAFT ASSY.

Parts list — exactly as printed18 rows

No.	Part No.	Part Name	Qty	Remarks
1	514752	PADDLE SHAFT	1		ADD TO CART
PADDLE SHAFT 514752 · qty on machine: 1 view full part page → $333.95
2	492584	NUT, LOCK 1/2"	8		ADD TO CART
NUT, LOCK 1/2" 492584 · qty on machine: 8 view full part page → $0.45
3	EM202896	PADDLE ARM, CENTER ENGINE END	1		ADD TO CART
PADDLE ARM, CENTER ENGINE END EM202896 · qty on machine: 1 view full part page → $46.95
5	EM200292	INSERT, PADDLE ARM	8		ADD TO CART
INSERT, PADDLE ARM EM200292 · qty on machine: 8 view full part page → $4.95
6	EM202898	PADDLE ARM, ENGINE END	1		ADD TO CART
PADDLE ARM, ENGINE END EM202898 · qty on machine: 1 view full part page → $52.95
7	6109170	WASHER, FLAT 1/2"	8		ADD TO CART
WASHER, FLAT 1/2" 6109170 · qty on machine: 8 view full part page → $0.48
8	EM200297	U-BOLT	4		ADD TO CART
U-BOLT EM200297 · qty on machine: 4 view full part page → $2.95
9	EM202897	PADDLE ARM, CENTER TOW END	1		ADD TO CART
PADDLE ARM, CENTER TOW END EM202897 · qty on machine: 1 Kit includes: 10@#, 11@#, 13@#, 14@#, 17@# view full part page → $46.95 IN A KIT + SOLD SOLO
10@#	2105162	SCREW, HHC 5/16-18 X 1-3/4 G5	14		ADD TO CART
SCREW, HHC 5/16-18 X 1-3/4 G5 2105162 · qty on machine: 14 Also included in kit 9 - PADDLE ARM, CENTER TOW END (EM202897); kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $0.68 IN A KIT + SOLD SOLO
11@#	EM923023	WASHER, FLAT 5/16"	28		ADD TO CART
WASHER, FLAT 5/16" EM923023 · qty on machine: 28 Also included in kit 9 - PADDLE ARM, CENTER TOW END (EM202897); kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $0.21 IN A KIT + SOLD SOLO
12@	EM202929	BLADE, SIDE, RUBBER	4		ADD TO CART
BLADE, SIDE, RUBBER EM202929 · qty on machine: 4 Also included in kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $3.95 IN A KIT + SOLD SOLO
13@#	EM202928	BLADE, SIDE, SCRAPER	4		ADD TO CART
BLADE, SIDE, SCRAPER EM202928 · qty on machine: 4 Also included in kit 9 - PADDLE ARM, CENTER TOW END (EM202897); kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $5.95 IN A KIT + SOLD SOLO
14@#	2105164	NUT, HEX 5/16" NC G5	14		ADD TO CART
NUT, HEX 5/16" NC G5 2105164 · qty on machine: 14 Also included in kit 9 - PADDLE ARM, CENTER TOW END (EM202897); kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $0.2 IN A KIT + SOLD SOLO
15@	EM923343	WASHER, LOCK 5/16"	14		ADD TO CART
WASHER, LOCK 5/16" EM923343 · qty on machine: 14 Also included in kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $0.21 IN A KIT + SOLD SOLO
16	EM202899	PADDLE ARM, TOW END	1		ADD TO CART
PADDLE ARM, TOW END EM202899 · qty on machine: 1 view full part page → $52.95
17@#	EM202927	BLADE ,SCRAPPER END	4		ADD TO CART
BLADE ,SCRAPPER END EM202927 · qty on machine: 4 Also included in kit 9 - PADDLE ARM, CENTER TOW END (EM202897); kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $7.95 IN A KIT + SOLD SOLO
18@	EM202926	BLADE, RUBBER END	4		ADD TO CART
BLADE, RUBBER END EM202926 · qty on machine: 4 Also included in kit 19 - KIT, WIPERS, SCRAPERS & HA (EM203010) view full part page → $3.94 IN A KIT + SOLD SOLO
19	EM203010	KIT, WIPERS, SCRAPERS & HARDWARE	1	INCLUDES ITEMS W/@	ADD TO CART
KIT, WIPERS, SCRAPERS & HARDWARE EM203010 · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 10@#, 11@#, 12@, 13@#, 14@#, 15@, 17@#, 18@ view full part page → $115.95 IN A KIT + SOLD SOLO

Page 12 — STEEL TUB ASSY.

Parts list — exactly as printed32 rows

No.	Part No.	Part Name	Qty	Remarks
1	530028C	DRUM BEARING BRACKET	2		PARTS REQUEST
PHOTO COMING DRUM BEARING BRACKET 530028C · qty on machine: 2 PARTS REQUEST
2	3249	CAP, DUST	1		ADD TO CART
CAP, DUST 3249 · qty on machine: 1 view full part page → $11.95
3	20561-001	BEARING SEALED	2	SET SCREWS AND BEARING COLLAR CANNOT BE PURCHASED SEPARATELY	ADD TO CART
BEARING SEALED 20561-001 · qty on machine: 2 SET SCREWS AND BEARING COLLAR CANNOT BE PURCHASED SEPARATELY view full part page → $30.95
4	491008	CAP, GREASE FITTING	2		ADD TO CART
CAP, GREASE FITTING 491008 · qty on machine: 2 view full part page → $0.28
5	EM916019	FITTING, GREASE	2		ADD TO CART
FITTING, GREASE EM916019 · qty on machine: 2 view full part page → $1.95
6	EM969013	NUT, LOCK 3/8"	18		ADD TO CART
NUT, LOCK 3/8" EM969013 · qty on machine: 18 view full part page → $0.21
7	3019092	WASHER, FLAT 3/8"	8		ADD TO CART
WASHER, FLAT 3/8" 3019092 · qty on machine: 8 view full part page → $0.18
8	514778C	TRUNNION HUB	2		PARTS REQUEST
PHOTO COMING TRUNNION HUB 514778C · qty on machine: 2 PARTS REQUEST
9	513453	ROLL PIN 3/16" X 3/4"	2		ADD TO CART
ROLL PIN 3/16" X 3/4" 513453 · qty on machine: 2 Factory replaced this part - current number 07594-012 view full part page → $0.13 IN A KIT + SOLD SOLO
10	20654-001	SEAL, SHAFT (BLACK)	2		ADD TO CART
SEAL, SHAFT (BLACK) 20654-001 · qty on machine: 2 view full part page → $5.95
11	530029	RING, RETENTION	2		ADD TO CART
RING, RETENTION 530029 · qty on machine: 2 view full part page → $10.95
12	20104-002	SEAL, SHAFT URETHANE (YELLOW)	2		ADD TO CART
SEAL, SHAFT URETHANE (YELLOW) 20104-002 · qty on machine: 2 view full part page → $7.95
13	513452	BOLT, 3/8" X 1-1/4"	8		ADD TO CART
BOLT, 3/8" X 1-1/4" 513452 · qty on machine: 8 view full part page → $0.85
14	520621	DRUM, STEEL	1		PARTS REQUEST
PHOTO COMING DRUM, STEEL 520621 · qty on machine: 1 PARTS REQUEST
15	EM961019	SET SCREW	2		ADD TO CART
SET SCREW EM961019 · qty on machine: 2 view full part page → $0.95
16	530043	MAIN GEAR	1		ADD TO CART
MAIN GEAR 530043 · qty on machine: 1 view full part page → $189.95
17	501016	KEY, 3/8" X 88 MM	1		ADD TO CART
KEY, 3/8" X 88 MM 501016 · qty on machine: 1 view full part page → $9.95
18	17985-012	CARRIAGE BOLT 3/8-16 X 1-1/2"	4		ADD TO CART
CARRIAGE BOLT 3/8-16 X 1-1/2" 17985-012 · qty on machine: 4 view full part page → $0.58
19	514752	SHAFT, PADDLE	1		ADD TO CART
SHAFT, PADDLE 514752 · qty on machine: 1 view full part page → $333.95
20	6109170	WASHER, 1/2" FLAT	1		ADD TO CART
WASHER, 1/2" FLAT 6109170 · qty on machine: 1 view full part page → $0.48
21	520542	GRATE BAR	1		ADD TO CART
GRATE BAR 520542 · qty on machine: 1 view full part page → $11.36
22	EM925191	PIN, COTTER	1		ADD TO CART
PIN, COTTER EM925191 · qty on machine: 1 view full part page → $0.75
23	520540	GRATE, FIXED	1		ADD TO CART
GRATE, FIXED 520540 · qty on machine: 1 view full part page → $230.95
25	6109160	HEX NUT 1/2" G5	2		ADD TO CART
HEX NUT 1/2" G5 6109160 · qty on machine: 2 view full part page → $0.28
26	6109180	WASHER, LOCK 1/2"	2		ADD TO CART
WASHER, LOCK 1/2" 6109180 · qty on machine: 2 view full part page → $0.21
27	EM963692	BOLT 1/2" UNC 1-1/2"	3		ADD TO CART
BOLT 1/2" UNC 1-1/2" EM963692 · qty on machine: 3 view full part page → $0.86
29	492584	NUT, LOCK1/2" NC	1		ADD TO CART
NUT, LOCK1/2" NC 492584 · qty on machine: 1 view full part page → $0.45
30	EM201537	HANDLE DUMP	1		ADD TO CART
HANDLE DUMP EM201537 · qty on machine: 1 view full part page → $34.95
31	EM98195	GRIP, DUMP HANDLE	1		ADD TO CART
GRIP, DUMP HANDLE EM98195 · qty on machine: 1 view full part page → $1.71
32	507418	WASHER, TOOTHED	4		PARTS REQUEST
PHOTO COMING WASHER, TOOTHED 507418 · qty on machine: 4 PARTS REQUEST
33	520541	GATE, MOBILE	1		ADD TO CART
GATE, MOBILE 520541 · qty on machine: 1 view full part page → $186.95
34	EM963610	CAPSCREW, 3/8" NC X 1-1/4" G8	6		ADD TO CART
CAPSCREW, 3/8" NC X 1-1/4" G8 EM963610 · qty on machine: 6 view full part page → $0.69

Page 14 — AXLE ASSY.

Parts list — exactly as printed12 rows

No.	Part No.	Part Name	Qty	Remarks
1#	3469	DUST CAP	2		ADD TO CART
DUST CAP 3469 · qty on machine: 2 Also included in kit 11 - HUB ASSY., 4-BOLT (EM941306) view full part page → $4.95 IN A KIT + SOLD SOLO
2#	8115	LUG NUTS	8		ADD TO CART
LUG NUTS 8115 · qty on machine: 8 Also included in kit 11 - HUB ASSY., 4-BOLT (EM941306) view full part page → $1.52 IN A KIT + SOLD SOLO
3	3005	TIRE AND RIM, CARLISE	2		ADD TO CART
TIRE AND RIM, CARLISE 3005 · qty on machine: 2 Factory replaced this part - current number 516476 view full part page → $281.95 IN A KIT + SOLD SOLO
4	8164	CASTLE NUT 1"	2		ADD TO CART
CASTLE NUT 1" 8164 · qty on machine: 2 view full part page → $3.95
5	491688	COTTER PIN 1/8" X 1-1/2'	2		PARTS REQUEST
PHOTO COMING COTTER PIN 1/8" X 1-1/2' 491688 · qty on machine: 2 PARTS REQUEST
6	EM511159	WASHER, FLAT, .087" THICKNESS	2		ADD TO CART
WASHER, FLAT, .087" THICKNESS EM511159 · qty on machine: 2 view full part page → $2.77
7	EM501299	WASHER, FLAT, .135" THICKNESS	1		ADD TO CART
WASHER, FLAT, .135" THICKNESS EM501299 · qty on machine: 1 view full part page → $4.95
8#	EM903113	BEARING CONE	4		ADD TO CART
BEARING CONE EM903113 · qty on machine: 4 Also included in kit 11 - HUB ASSY., 4-BOLT (EM941306) view full part page → $7.95 IN A KIT + SOLD SOLO
9#	EM903012	BEARING CUP	4		ADD TO CART
BEARING CUP EM903012 · qty on machine: 4 Also included in kit 11 - HUB ASSY., 4-BOLT (EM941306) view full part page → $2.95 IN A KIT + SOLD SOLO
10#	EM914288	OIL SEAL	2		ADD TO CART
OIL SEAL EM914288 · qty on machine: 2 Also included in kit 11 - HUB ASSY., 4-BOLT (EM941306) view full part page → $3.95 IN A KIT + SOLD SOLO
11	EM941306	HUB ASSY., 4-BOLT	2	INCLUDES ITEMS W/ #	ADD TO CART
HUB ASSY., 4-BOLT EM941306 · qty on machine: 2 INCLUDES ITEMS W/ # Kit includes: 1#, 2#, 8#, 9#, 10# view full part page → $75.95 IN A KIT + SOLD SOLO
12	514802	AXLE, UNIVERSAL	1		ADD TO CART
AXLE, UNIVERSAL 514802 · qty on machine: 1 view full part page → $264.95

Page 16 — ENGINE ASSY.

Parts list — exactly as printed44 rows

No.	Part No.	Part Name	Qty	Remarks
1	EM969013	NUT 3/8" NC G5	8		ADD TO CART
NUT 3/8" NC G5 EM969013 · qty on machine: 8 view full part page → $0.21
2	506488	FLAT WASHER 3/8	8		PARTS REQUEST
PHOTO COMING FLAT WASHER 3/8 506488 · qty on machine: 8 PARTS REQUEST
3	EM905016	PILLOW BLOCK BEARING	2		ADD TO CART
PILLOW BLOCK BEARING EM905016 · qty on machine: 2 view full part page → $48.95
4	492378	BOLT 3/8" NC X 1-3/4" G5	4		ADD TO CART
BOLT 3/8" NC X 1-3/4" G5 492378 · qty on machine: 4 view full part page → $0.69
5	490957	RING, RETENTION	1		PARTS REQUEST
PHOTO COMING RING, RETENTION 490957 · qty on machine: 1 PARTS REQUEST
6	513868	PINION GEAR	1		ADD TO CART
PINION GEAR 513868 · qty on machine: 1 view full part page → $38.95
7	500214	KEY, 1/4" X 30 MM	1		ADD TO CART
KEY, 1/4" X 30 MM 500214 · qty on machine: 1 view full part page → $1.51
8	EM502226	PINION SHAFT	1		ADD TO CART
PINION SHAFT EM502226 · qty on machine: 1 view full part page → $25.95
9	492057	PULLEY (LARGE)	1		ADD TO CART
PULLEY (LARGE) 492057 · qty on machine: 1 view full part page → $69.95
10	505084	KEY, 1/4" X 55 MM	1		ADD TO CART
KEY, 1/4" X 55 MM 505084 · qty on machine: 1 view full part page → $10.95
11	492467	SET SCREW, 5/16' NC 3/8"	4		ADD TO CART
SET SCREW, 5/16' NC 3/8" 492467 · qty on machine: 4 view full part page → $0.41
12	505834	V-BELT, A-37	2	GX160UT1HX2	PARTS REQUEST
PHOTO COMING V-BELT, A-37 505834 · qty on machine: 2 GX160UT1HX2 PARTS REQUEST
12	505834	V-BELT, A-36	2	GX240UT1HA2	PARTS REQUEST
PHOTO COMING V-BELT, A-36 505834 · qty on machine: 2 GX240UT1HA2 PARTS REQUEST
13	503117	BOLT, 3/8" NC X 3" G5	1		ADD TO CART
BOLT, 3/8" NC X 3" G5 503117 · qty on machine: 1 view full part page → $0.95
14	501019	SQ. KEY 3/16" X 45 MM 4.8 HP	1	GX160UT1HX2	ADD TO CART
SQ. KEY 3/16" X 45 MM 4.8 HP 501019 · qty on machine: 1 GX160UT1HX2 view full part page → $1.31
14	90745ZE2600	SQ. KEY 6.3 X 6.3 X 43 MM 7.8 HP	1	GX240UT1HA2	ADD TO CART
SQ. KEY 6.3 X 6.3 X 43 MM 7.8 HP 90745ZE2600 · qty on machine: 1 GX240UT1HA2 view full part page → $32.95
15	492367	BOLT 5/16" NC X 1-3/4" G5	4	GX160UT1HX2	PARTS REQUEST
PHOTO COMING BOLT 5/16" NC X 1-3/4" G5 492367 · qty on machine: 4 GX160UT1HX2 PARTS REQUEST
15	492378	BOLT 3/8" NC X 1-3/4" G5	4	GX240UT1HA2	ADD TO CART
BOLT 3/8" NC X 1-3/4" G5 492378 · qty on machine: 4 GX240UT1HA2 view full part page → $0.69
16	GX160UT1HX2	ENGINE, HONDA 4.8 HP	1		ADD TO CART
ENGINE, HONDA 4.8 HP GX160UT1HX2 · qty on machine: 1 view full part page → $1413.95
16	GX240UT1HA2	ENGINE, HONDA 7.8 HP	1		ADD TO CART
ENGINE, HONDA 7.8 HP GX240UT1HA2 · qty on machine: 1 view full part page → $1777.95
17	515040	BELT RETAINER BAR	1		ADD TO CART
BELT RETAINER BAR 515040 · qty on machine: 1 view full part page → $13.95
18	492055	PULLEY, (SMALL), 4.8 HP	1	GX160UT1HX2	ADD TO CART
PULLEY, (SMALL), 4.8 HP 492055 · qty on machine: 1 GX160UT1HX2 view full part page → $29.95
18	EM901074	PULLEY, (SMALL), 7.8 HP	1	GX240UT1HA2	ADD TO CART
PULLEY, (SMALL), 7.8 HP EM901074 · qty on machine: 1 GX240UT1HA2 view full part page → $89.95
22	492597	WASHER, FLAT 5/16"	6	GX160UT1HX2	PARTS REQUEST
PHOTO COMING WASHER, FLAT 5/16" 492597 · qty on machine: 6 GX160UT1HX2 PARTS REQUEST
22	492598	WASHER, FLAT 3/8"	6	GX240UT1HA2	PARTS REQUEST
PHOTO COMING WASHER, FLAT 3/8" 492598 · qty on machine: 6 GX240UT1HA2 PARTS REQUEST
23	492623	WASHER, LOCK 5/16"	4	GX160UT1HX2	PARTS REQUEST
PHOTO COMING WASHER, LOCK 5/16" 492623 · qty on machine: 4 GX160UT1HX2 PARTS REQUEST
23	492624	WASHER, LOCK 3/8"	4	GX240UT1HA2	ADD TO CART
WASHER, LOCK 3/8" 492624 · qty on machine: 4 GX240UT1HA2 Factory replaced this part - current number 0166A view full part page → $0.17 IN A KIT + SOLD SOLO
24	492553	NUT, HEX 5/16"	4	GX160UT1HX2	PARTS REQUEST
PHOTO COMING NUT, HEX 5/16" 492553 · qty on machine: 4 GX160UT1HX2 PARTS REQUEST
24	492554	NUT, HEX 3/8"	4	GX240UT1HA2	PARTS REQUEST
PHOTO COMING NUT, HEX 3/8" 492554 · qty on machine: 4 GX240UT1HA2 PARTS REQUEST
25	492600	WASHER, FLAT 1/2"	1		PARTS REQUEST
PHOTO COMING WASHER, FLAT 1/2" 492600 · qty on machine: 1 PARTS REQUEST
26	505084	SQ. KEY, 1/4" X 55 MM	1		ADD TO CART
SQ. KEY, 1/4" X 55 MM 505084 · qty on machine: 1 view full part page → $10.95
27	492394	BOLT 1/2" NC X 1-1/2" G5	1		PARTS REQUEST
PHOTO COMING BOLT 1/2" NC X 1-1/2" G5 492394 · qty on machine: 1 PARTS REQUEST
28	EM102014	SPRING, EXTENSION	1		ADD TO CART
SPRING, EXTENSION EM102014 · qty on machine: 1 view full part page → $4.95
29	EM203098	SPRING CLIP	1		ADD TO CART
SPRING CLIP EM203098 · qty on machine: 1 view full part page → $24.95
30	492313	BOLT 3/8" NC X 1-1/2" G5	3		PARTS REQUEST
PHOTO COMING BOLT 3/8" NC X 1-1/2" G5 492313 · qty on machine: 3 PARTS REQUEST
31	EM507713	ARM, IDLER	1	GX160UT1HX2	ADD TO CART
ARM, IDLER EM507713 · qty on machine: 1 GX160UT1HX2 view full part page → $3.95
31	EM507491	ARM, IDLER	1	GX240UT1HA2	ADD TO CART
ARM, IDLER EM507491 · qty on machine: 1 GX240UT1HA2 view full part page → $4.95
32	EM959080	ROD-END	2		ADD TO CART
ROD-END EM959080 · qty on machine: 2 view full part page → $14.95
33	492584	NUT, HEX 1/2"	1		ADD TO CART
NUT, HEX 1/2" 492584 · qty on machine: 1 view full part page → $0.45
34	492574	NUT, HEX 3/8" NF G5	2		PARTS REQUEST
PHOTO COMING NUT, HEX 3/8" NF G5 492574 · qty on machine: 2 PARTS REQUEST
35	492476	SET SCREW, 5/16' NC 3/4"	1		NO LONGER AVAILABLE
PHOTO COMING SET SCREW, 5/16' NC 3/4" 492476 · qty on machine: 1 NO LONGER AVAILABLE
36	EM901515	PULLEY, IDLER	1		ADD TO CART
PULLEY, IDLER EM901515 · qty on machine: 1 view full part page → $10.95
37	515299	ROD	1	GX160UT1HX2	ADD TO CART
ROD 515299 · qty on machine: 1 GX160UT1HX2 view full part page → $2.95
37	515045	ROD	1	GX240UT1HA2	ADD TO CART
ROD 515045 · qty on machine: 1 GX240UT1HA2 view full part page → $3.95

Page 18 — CABINET ASSY.

Parts list — exactly as printed14 rows

No.	Part No.	Part Name	Qty	Remarks
1	520620	CABINET, ENGINE W/DECALS	1	INCLUDES ITEMS W/@	NO LONGER AVAILABLE
PHOTO COMING CABINET, ENGINE W/DECALS 520620 · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 6@ NO LONGER AVAILABLE
2	EM505186	BUMPER, STICK ON	4		ADD TO CART
BUMPER, STICK ON EM505186 · qty on machine: 4 view full part page → $0.17
5	503723	POP RIVET	10		PARTS REQUEST
PHOTO COMING POP RIVET 503723 · qty on machine: 10 PARTS REQUEST
6@	491010	LATCH ASSY., COMPLETE	2		ADD TO CART
LATCH ASSY., COMPLETE 491010 · qty on machine: 2 Also included in kit 1 - CABINET, ENGINE W/DECALS (520620) view full part page → $8.95 IN A KIT + SOLD SOLO
7	EM963610	CAPSCREW 3/8" NC X 1-1/4" G8	4		ADD TO CART
CAPSCREW 3/8" NC X 1-1/4" G8 EM963610 · qty on machine: 4 view full part page → $0.69
8	3019092	WASHER, FLAT 3/8"	12		ADD TO CART
WASHER, FLAT 3/8" 3019092 · qty on machine: 12 view full part page → $0.18
9	EM969013	NUT NYLOCK	4		ADD TO CART
NUT NYLOCK EM969013 · qty on machine: 4 view full part page → $0.21
10	29174-001	KNOB, MUSHROOM	1		ADD TO CART
KNOB, MUSHROOM 29174-001 · qty on machine: 1 view full part page → $2.89
11	29173-001	SWITCH, PUSH-PULL	1		ADD TO CART
SWITCH, PUSH-PULL 29173-001 · qty on machine: 1 view full part page → $18.95
12	504135C	WIRE HARNESS	1		ADD TO CART
WIRE HARNESS 504135C · qty on machine: 1 Factory replaced this part - current number 510573 view full part page → $11.95 IN A KIT + SOLD SOLO
13	EM974007	PAINT, SPRAY 12 OZ. TRAFFIC RED	1		ADD TO CART
PAINT, SPRAY 12 OZ. TRAFFIC RED EM974007 · qty on machine: 1 view full part page → $45.95
14	520560	GUARD	1		ADD TO CART
GUARD 520560 · qty on machine: 1 view full part page → $72.95
15	EM963055	HEX HEAD CAPSCREW	8		ADD TO CART
HEX HEAD CAPSCREW EM963055 · qty on machine: 8 view full part page → $0.7
16	520561	SPACER	4		ADD TO CART
SPACER 520561 · qty on machine: 4 view full part page → $6.95

Page 6 — NAMEPLATE AND DECALS ASSY.

Parts list — exactly as printed13 rows

No.	Part No.	Part Name	Qty	Remarks
1	521229	DECAL; WARNING, BODILY INJURY	2		ADD TO CART
DECAL; WARNING, BODILY INJURY 521229 · qty on machine: 2 view full part page → $6.95
2	515275	DECAL; MQ WHITEMAN (SMALL)	3		ADD TO CART
DECAL; MQ WHITEMAN (SMALL) 515275 · qty on machine: 3 view full part page → $2.95
3	521230	DECAL; WARNING, PREVENT ACCIDENTS	1		ADD TO CART
DECAL; WARNING, PREVENT ACCIDENTS 521230 · qty on machine: 1 view full part page → $9.95
4	521231	DECAL; DRUM LOCK POSITION	1		ADD TO CART
DECAL; DRUM LOCK POSITION 521231 · qty on machine: 1 view full part page → $4.95
5	504714	DECAL; MQ WHITEMAN (LARGE)	1		ADD TO CART
DECAL; MQ WHITEMAN (LARGE) 504714 · qty on machine: 1 view full part page → $2.62
6	521232	DECAL; CAUTION INSPECT BEFORE TOW	2		ADD TO CART
DECAL; CAUTION INSPECT BEFORE TOW 521232 · qty on machine: 2 view full part page → $1.65
7	948630	DECAL; PUSH TO STOP	1		ADD TO CART
DECAL; PUSH TO STOP 948630 · qty on machine: 1 Factory replaced this part - current number EM948630 view full part page → $1.44 IN A KIT + SOLD SOLO
8	521228	DECAL; DANGER, NO SMOKING	2		ADD TO CART
DECAL; DANGER, NO SMOKING 521228 · qty on machine: 2 view full part page → $1.95
9	520935	DECAL; SAFETY INSTRUCTIONS	1		ADD TO CART
DECAL; SAFETY INSTRUCTIONS 520935 · qty on machine: 1 view full part page → $6.95
10	518524	DECAL; ISO 9001:2000 EXPORT	1		ADD TO CART
DECAL; ISO 9001:2000 EXPORT 518524 · qty on machine: 1 view full part page → $0.59
11	13118	DECAL; POWDER COATED	1		ADD TO CART
DECAL; POWDER COATED 13118 · qty on machine: 1 view full part page → $0.76
12		NAMEPLATE	1	CONTACT MQ PARTS DEPT.	SEE REMARKS
PHOTO COMING NAMEPLATE · qty on machine: 1 CONTACT MQ PARTS DEPT. SEE REMARKS
13	503723	RIVET; ID PLATE	2		PARTS REQUEST
PHOTO COMING RIVET; ID PLATE 503723 · qty on machine: 2 PARTS REQUEST

Page 8 — FRAME ASSY.

Parts list — exactly as printed16 rows

No.	Part No.	Part Name	Qty	Remarks
1	514842	LOCK PIN UNIT	1		ADD TO CART
LOCK PIN UNIT 514842 · qty on machine: 1 view full part page → $43.95
2	491692	COTTER PIN	1		ADD TO CART
COTTER PIN 491692 · qty on machine: 1 view full part page → $1.35
3	530023	SPRING LOCKING PIN	1		ADD TO CART
SPRING LOCKING PIN 530023 · qty on machine: 1 view full part page → $2.95
4	507444	WASHER, FLAT 3/4"	1		ADD TO CART
WASHER, FLAT 3/4" 507444 · qty on machine: 1 view full part page → $1.71
5	514835	MAIN FRAME	1		ADD TO CART
MAIN FRAME 514835 · qty on machine: 1 view full part page → $930.95
7	514836	HANDLE, CLUTCH ENGAGE	1		ADD TO CART
HANDLE, CLUTCH ENGAGE 514836 · qty on machine: 1 view full part page → $78.95
11	10176	LOCK NUT 1/2" NC	1		ADD TO CART
LOCK NUT 1/2" NC 10176 · qty on machine: 1 view full part page → $2.95
12	EM124	BOLT 1/2"-13 X 4 G5	1		ADD TO CART
BOLT 1/2"-13 X 4 G5 EM124 · qty on machine: 1 view full part page → $1.95
13%		SAFETY CHAIN	1		INCLUDED IN KIT
PHOTO COMING SAFETY CHAIN · qty on machine: 1 Included in kit 15 - CHAIN AND LINK KIT (13363KIT) INCLUDED IN KIT
14%	01004	CONNECTOR LINK	2	BEFORE JANUARY 2006	ADD TO CART
CONNECTOR LINK 01004 · qty on machine: 2 BEFORE JANUARY 2006 Also included in kit 15 - CHAIN AND LINK KIT (13363KIT) view full part page → $1.79 IN A KIT + SOLD SOLO
14%	01004	CONNECTOR LINK	1	AFTER JANUARY 2006	ADD TO CART
CONNECTOR LINK 01004 · qty on machine: 1 AFTER JANUARY 2006 Also included in kit 15 - CHAIN AND LINK KIT (13363KIT) view full part page → $1.79 IN A KIT + SOLD SOLO
14A%	516580	CLEVIS SAFETY HOOK	1	AFTER JANUARY 2006	ADD TO CART
CLEVIS SAFETY HOOK 516580 · qty on machine: 1 AFTER JANUARY 2006 Also included in kit 15 - CHAIN AND LINK KIT (13363KIT) view full part page → $5.95 IN A KIT + SOLD SOLO
15	13363KIT	CHAIN AND LINK KIT	1	INCLUDES ITEMS W/%	ADD TO CART
CHAIN AND LINK KIT 13363KIT · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 13%, 14%, 14%, 14A% view full part page → $97.95 IN A KIT + SOLD SOLO
16	HBC-1	BALL HITCH 2-INCH	1	CONTACT UNIT SALES	PARTS REQUEST
PHOTO COMING BALL HITCH 2-INCH HBC-1 · qty on machine: 1 CONTACT UNIT SALES PARTS REQUEST
17	HLC-1	LOOP HITCH	1	CONTACT UNIT SALES	PARTS REQUEST
PHOTO COMING LOOP HITCH HLC-1 · qty on machine: 1 CONTACT UNIT SALES PARTS REQUEST
18	HPC-1	PIN HITCH 1-INCH	1	CONTACT UNIT SALES	PARTS REQUEST
PHOTO COMING PIN HITCH 1-INCH HPC-1 · qty on machine: 1 CONTACT UNIT SALES PARTS REQUEST

Page 10 — PADDLE SHAFT ASSY.

Parts list — exactly as printed22 rows

No.	Part No.	Part Name	Qty	Remarks
1	514752	PADDLE SHAFT	1		ADD TO CART
PADDLE SHAFT 514752 · qty on machine: 1 view full part page → $333.95
2	492584	NUT, LOCK 1/2"	6		ADD TO CART
NUT, LOCK 1/2" 492584 · qty on machine: 6 view full part page → $0.45
3	EM202896	PADDLE ARM, CENTER ENGINE END	1		ADD TO CART
PADDLE ARM, CENTER ENGINE END EM202896 · qty on machine: 1 view full part page → $46.95
4	EM963110	BOLT, 1/2-13 X 3-3/4"	2		ADD TO CART
BOLT, 1/2-13 X 3-3/4" EM963110 · qty on machine: 2 view full part page → $2.95
5	EM200292	INSERT, PADDLE ARM	4		ADD TO CART
INSERT, PADDLE ARM EM200292 · qty on machine: 4 view full part page → $4.95
6	EM202898	PADDLE ARM, ENGINE END	1		ADD TO CART
PADDLE ARM, ENGINE END EM202898 · qty on machine: 1 view full part page → $52.95
7	504322	WASHER, FLAT 1/2"	6		PARTS REQUEST
PHOTO COMING WASHER, FLAT 1/2" 504322 · qty on machine: 6 PARTS REQUEST
8	EM200297	U-BOLT, END PADDLES	2		ADD TO CART
U-BOLT, END PADDLES EM200297 · qty on machine: 2 view full part page → $2.95
9	EM202897	PADDLE ARM, CENTER TOW END	1		ADD TO CART
PADDLE ARM, CENTER TOW END EM202897 · qty on machine: 1 view full part page → $46.95
10%#	492367	SCREW, HHC 5/16-18 X 1-3/4 G5	14		PARTS REQUEST
PHOTO COMING SCREW, HHC 5/16-18 X 1-3/4 G5 492367 · qty on machine: 14 Also included in kit 19 - KIT, WIPERS, SCRAPERS AND (EM204624); kit 19 - KIT, WIPERS, SCRAPERS AND (EM203010) PARTS REQUEST
11%#	EM923023	WASHER, FLAT 5/16"	28		ADD TO CART
WASHER, FLAT 5/16" EM923023 · qty on machine: 28 Also included in kit 19 - KIT, WIPERS, SCRAPERS AND (EM204624); kit 19 - KIT, WIPERS, SCRAPERS AND (EM203010) view full part page → $0.21 IN A KIT + SOLD SOLO
12#	EM507497	BLADE, SIDE, POLY	4	PLASTIC DRUM	ADD TO CART
BLADE, SIDE, POLY EM507497 · qty on machine: 4 PLASTIC DRUM Also included in kit 19 - KIT, WIPERS, SCRAPERS AND (EM204624) view full part page → $6.95 IN A KIT + SOLD SOLO
12%	EM202929	BLADE, SIDE, RUBBER	4	STEEL DRUM	ADD TO CART
BLADE, SIDE, RUBBER EM202929 · qty on machine: 4 STEEL DRUM Also included in kit 19 - KIT, WIPERS, SCRAPERS AND (EM203010) view full part page → $3.95 IN A KIT + SOLD SOLO
13%#	EM202928	BLADE, SIDE, SCRAPER	4	STEEL & PLASTIC DRUM	ADD TO CART
BLADE, SIDE, SCRAPER EM202928 · qty on machine: 4 STEEL & PLASTIC DRUM Also included in kit 19 - KIT, WIPERS, SCRAPERS AND (EM204624); kit 19 - KIT, WIPERS, SCRAPERS AND (EM203010) view full part page → $5.95 IN A KIT + SOLD SOLO
14%#	2105164	NUT, HEX 5/16" NC G5	14		ADD TO CART
NUT, HEX 5/16" NC G5 2105164 · qty on machine: 14 Also included in kit 19 - KIT, WIPERS, SCRAPERS AND (EM204624); kit 19 - KIT, WIPERS, SCRAPERS AND (EM203010) view full part page → $0.2 IN A KIT + SOLD SOLO
15%	EM923343	WASHER, LOCK 5/16"	14		ADD TO CART
WASHER, LOCK 5/16" EM923343 · qty on machine: 14 Also included in kit 19 - KIT, WIPERS, SCRAPERS AND (EM203010) view full part page → $0.21 IN A KIT + SOLD SOLO
16	EM202899	PADDLE ARM, TOW END	1		ADD TO CART
PADDLE ARM, TOW END EM202899 · qty on machine: 1 view full part page → $52.95
17%#	EM202927	BLADE, SCRAPER END	4	STEEL & PLASTIC DRUM	ADD TO CART
BLADE, SCRAPER END EM202927 · qty on machine: 4 STEEL & PLASTIC DRUM Also included in kit 19 - KIT, WIPERS, SCRAPERS AND (EM204624); kit 19 - KIT, WIPERS, SCRAPERS AND (EM203010) view full part page → $7.95 IN A KIT + SOLD SOLO
18#	EM507496	BLADE, PLASTIC END	4	PLASTIC DRUM	ADD TO CART
BLADE, PLASTIC END EM507496 · qty on machine: 4 PLASTIC DRUM Also included in kit 19 - KIT, WIPERS, SCRAPERS AND (EM204624) view full part page → $4.95 IN A KIT + SOLD SOLO
18%	EM202926	BLADE, RUBBER END	4	STEEL DRUM	ADD TO CART
BLADE, RUBBER END EM202926 · qty on machine: 4 STEEL DRUM Also included in kit 19 - KIT, WIPERS, SCRAPERS AND (EM203010) view full part page → $3.94 IN A KIT + SOLD SOLO
19	EM203010	KIT, WIPERS, SCRAPERS AND HDWARE STEEL DRUM	1	INCLUDES ITEMS W/%	ADD TO CART
KIT, WIPERS, SCRAPERS AND HDWARE STEEL DRUM EM203010 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 10%#, 11%#, 12#, 12%, 13%#, 14%#, 15%, 17%#, 18#, 18% view full part page → $115.95 IN A KIT + SOLD SOLO
19	EM204624	KIT, WIPERS, SCRAPERS AND HDWARE PLASTIC DRUM	1	INCLUDES ITEMS W/#	ADD TO CART
KIT, WIPERS, SCRAPERS AND HDWARE PLASTIC DRUM EM204624 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 10%#, 11%#, 12#, 12%, 13%#, 14%#, 15%, 17%#, 18#, 18% view full part page → $83.95 IN A KIT + SOLD SOLO

Page 12 — STEEL DRUM ASSY.

Parts list — exactly as printed30 rows

No.	Part No.	Part Name	Qty	Remarks
1	530028	DRUM BEARING BRACKET	2		ADD TO CART
DRUM BEARING BRACKET 530028 · qty on machine: 2 view full part page → $29.95
2	3249	CAP, DUST	1		ADD TO CART
CAP, DUST 3249 · qty on machine: 1 view full part page → $11.95
3	20561-001	BEARING SEALED	2	SET SCREWS AND BEARING COLLAR CANNOT BE PURCHASED SEPARATELY	ADD TO CART
BEARING SEALED 20561-001 · qty on machine: 2 SET SCREWS AND BEARING COLLAR CANNOT BE PURCHASED SEPARATELY view full part page → $30.95
4	491008	CAP, GREASE FITTING	2		ADD TO CART
CAP, GREASE FITTING 491008 · qty on machine: 2 view full part page → $0.28
5	EM916019	FITTING, GREASE	2		ADD TO CART
FITTING, GREASE EM916019 · qty on machine: 2 view full part page → $1.95
6	EM969013	NUT, LOCK 3/8"	12		ADD TO CART
NUT, LOCK 3/8" EM969013 · qty on machine: 12 view full part page → $0.21
7	3019092	WASHER, FLAT 3/8"	4		ADD TO CART
WASHER, FLAT 3/8" 3019092 · qty on machine: 4 view full part page → $0.18
8	514778	TRUNNION HUB	2		ADD TO CART
TRUNNION HUB 514778 · qty on machine: 2 view full part page → $45.95
9	513453	ROLL PIN, 3/16" X 3/4"	2		ADD TO CART
ROLL PIN, 3/16" X 3/4" 513453 · qty on machine: 2 Factory replaced this part - current number 07594-012 view full part page → $0.13 IN A KIT + SOLD SOLO
10	20654-001	SEAL, SHAFT (BLACK)	2		ADD TO CART
SEAL, SHAFT (BLACK) 20654-001 · qty on machine: 2 view full part page → $5.95
11	530029	RING, RETENTION	2		ADD TO CART
RING, RETENTION 530029 · qty on machine: 2 view full part page → $10.95
12	20104-002	SEAL, SHAFT URETHANE (YELLOW)	2		ADD TO CART
SEAL, SHAFT URETHANE (YELLOW) 20104-002 · qty on machine: 2 view full part page → $7.95
13	504943	BOLT, FHCS 3/8" NC X 2" G5	8		ADD TO CART
BOLT, FHCS 3/8" NC X 2" G5 504943 · qty on machine: 8 view full part page → $0.94
14	514749	DRUM, STEEL	1		ADD TO CART
DRUM, STEEL 514749 · qty on machine: 1 view full part page → $979.95
15	EM961019	SET SCREW	2		ADD TO CART
SET SCREW EM961019 · qty on machine: 2 view full part page → $0.95
16	530043	MAIN GEAR	1		ADD TO CART
MAIN GEAR 530043 · qty on machine: 1 view full part page → $189.95
17	501016	KEY, 3/8" X 88 MM	1		ADD TO CART
KEY, 3/8" X 88 MM 501016 · qty on machine: 1 view full part page → $9.95
18	17985-012	CARRIAGE BOLT 3/8-16 X 1-1/2"	4		ADD TO CART
CARRIAGE BOLT 3/8-16 X 1-1/2" 17985-012 · qty on machine: 4 view full part page → $0.58
19	514752	SHAFT, PADDLE	1		ADD TO CART
SHAFT, PADDLE 514752 · qty on machine: 1 view full part page → $333.95
20	492600	WASHER, FLAT 1/2"	4		PARTS REQUEST
PHOTO COMING WASHER, FLAT 1/2" 492600 · qty on machine: 4 PARTS REQUEST
21	514986	LIFT BAR	1		ADD TO CART
LIFT BAR 514986 · qty on machine: 1 view full part page → $13.95
22	EM925191	PIN, COTTER	1		ADD TO CART
PIN, COTTER EM925191 · qty on machine: 1 view full part page → $0.75
23	514962	GRATE	1		ADD TO CART
GRATE 514962 · qty on machine: 1 view full part page → $185.95
24	505070	PIN, COTTER	2		PARTS REQUEST
PHOTO COMING PIN, COTTER 505070 · qty on machine: 2 PARTS REQUEST
25	6109160	HEX NUT, 1/2" G5	2		ADD TO CART
HEX NUT, 1/2" G5 6109160 · qty on machine: 2 view full part page → $0.28
26	6109180	WASHER, LOCK 1/2"	2		ADD TO CART
WASHER, LOCK 1/2" 6109180 · qty on machine: 2 view full part page → $0.21
27	EM963692	BOLT, 1/2" UNC 1-1/2"	2		ADD TO CART
BOLT, 1/2" UNC 1-1/2" EM963692 · qty on machine: 2 view full part page → $0.86
28	EM963102	CAPSCREW, HHCS 1/2" NC X 1-1/4"	1		ADD TO CART
CAPSCREW, HHCS 1/2" NC X 1-1/4" EM963102 · qty on machine: 1 view full part page → $0.35
29	492584	NUT, LOCK 1/2" NC	1		ADD TO CART
NUT, LOCK 1/2" NC 492584 · qty on machine: 1 view full part page → $0.45
30	EM201537	HANDLE DUMP	1		ADD TO CART
HANDLE DUMP EM201537 · qty on machine: 1 view full part page → $34.95

Page 14 — PLASTIC DRUM ASSY.

Parts list — exactly as printed36 rows

No.	Part No.	Part Name	Qty	Remarks
1	530028	DRUM BEARING BRACKET	2		ADD TO CART
DRUM BEARING BRACKET 530028 · qty on machine: 2 view full part page → $29.95
2	3249	CAP, DUST	1		ADD TO CART
CAP, DUST 3249 · qty on machine: 1 view full part page → $11.95
3	20561-001	BEARING SEALED	2	SET SCREWS AND BEARING COLLAR CANNOT BE PURCHASED SEPARATELY	ADD TO CART
BEARING SEALED 20561-001 · qty on machine: 2 SET SCREWS AND BEARING COLLAR CANNOT BE PURCHASED SEPARATELY view full part page → $30.95
4	491008	CAP, GREASE FITTING	2		ADD TO CART
CAP, GREASE FITTING 491008 · qty on machine: 2 view full part page → $0.28
5	EM916019	FITTING, GREASE	2		ADD TO CART
FITTING, GREASE EM916019 · qty on machine: 2 view full part page → $1.95
6	EM969013	NUT, LOCK 3/8"	20		ADD TO CART
NUT, LOCK 3/8" EM969013 · qty on machine: 20 view full part page → $0.21
7	3019092	WASHER, FLAT 3/8"	6		ADD TO CART
WASHER, FLAT 3/8" 3019092 · qty on machine: 6 view full part page → $0.18
8	514778	TRUNNION HUB	2		ADD TO CART
TRUNNION HUB 514778 · qty on machine: 2 view full part page → $45.95
9	513453	ROLL PIN 3/16" X 3/4"	2		ADD TO CART
ROLL PIN 3/16" X 3/4" 513453 · qty on machine: 2 Factory replaced this part - current number 07594-012 view full part page → $0.13 IN A KIT + SOLD SOLO
10	20654-001	SEAL, SHAFT (BLACK)	2		ADD TO CART
SEAL, SHAFT (BLACK) 20654-001 · qty on machine: 2 view full part page → $5.95
11	530029	RING, RETENTION	2		ADD TO CART
RING, RETENTION 530029 · qty on machine: 2 view full part page → $10.95
12	20104-002	SEAL, SHAFT URETHANE (YELLOW)	2		ADD TO CART
SEAL, SHAFT URETHANE (YELLOW) 20104-002 · qty on machine: 2 view full part page → $7.95
13	504943	BOLT, FHCS 3/8" NC X 2" G5	8		ADD TO CART
BOLT, FHCS 3/8" NC X 2" G5 504943 · qty on machine: 8 view full part page → $0.94
14	515053	DRUM, PLASTIC	1		ADD TO CART
DRUM, PLASTIC 515053 · qty on machine: 1 view full part page → $773.95
15	EM961019	SET SCREW	2		ADD TO CART
SET SCREW EM961019 · qty on machine: 2 view full part page → $0.95
16	530043	MAIN GEAR	1		ADD TO CART
MAIN GEAR 530043 · qty on machine: 1 view full part page → $189.95
17	501016	KEY, 3/8" X 88 MM	1		ADD TO CART
KEY, 3/8" X 88 MM 501016 · qty on machine: 1 view full part page → $9.95
18	17985-012	CARRIAGE BOLT 3/8-16 X 1-1/2"	4		ADD TO CART
CARRIAGE BOLT 3/8-16 X 1-1/2" 17985-012 · qty on machine: 4 view full part page → $0.58
19	514752	SHAFT, PADDLE	1		ADD TO CART
SHAFT, PADDLE 514752 · qty on machine: 1 view full part page → $333.95
20	492600	WASHER, FLAT 1/2"	1		PARTS REQUEST
PHOTO COMING WASHER, FLAT 1/2" 492600 · qty on machine: 1 PARTS REQUEST
21	514987	LIFT BAR	1		ADD TO CART
LIFT BAR 514987 · qty on machine: 1 view full part page → $16.95
22	EM925191	PIN, COTTER	1		ADD TO CART
PIN, COTTER EM925191 · qty on machine: 1 view full part page → $0.75
23	504535	GRATE, MOVABLE	1		ADD TO CART
GRATE, MOVABLE 504535 · qty on machine: 1 view full part page → $135.95
24	505070	PIN, COTTER	2		PARTS REQUEST
PHOTO COMING PIN, COTTER 505070 · qty on machine: 2 PARTS REQUEST
25	6109160	HEX NUT 1/2" G5	2		ADD TO CART
HEX NUT 1/2" G5 6109160 · qty on machine: 2 view full part page → $0.28
26	6109180	WASHER, LOCK 1/2"	2		ADD TO CART
WASHER, LOCK 1/2" 6109180 · qty on machine: 2 view full part page → $0.21
27	EM963692	BOLT 1/2" UNC 1-1/2"	2		ADD TO CART
BOLT 1/2" UNC 1-1/2" EM963692 · qty on machine: 2 view full part page → $0.86
28	EM963102	CAPSCREW, HHCS 1/2" NC X 1-1/4"	1		ADD TO CART
CAPSCREW, HHCS 1/2" NC X 1-1/4" EM963102 · qty on machine: 1 view full part page → $0.35
29	492584	NUT, LOCK1/2" NC	1		ADD TO CART
NUT, LOCK1/2" NC 492584 · qty on machine: 1 view full part page → $0.45
30	EM201537	HANDLE DUMP	1		ADD TO CART
HANDLE DUMP EM201537 · qty on machine: 1 view full part page → $34.95
32	515033	RETAINING RING	1		ADD TO CART
RETAINING RING 515033 · qty on machine: 1 view full part page → $27.95
33	511910	BOLT, 1/4" NC X 1-1/4" G5	8		ADD TO CART
BOLT, 1/4" NC X 1-1/4" G5 511910 · qty on machine: 8 view full part page → $1.35
34	2101428	NUT, 1/4" NC	8		ADD TO CART
NUT, 1/4" NC 2101428 · qty on machine: 8 view full part page → $0.13
35	514934	U-SUPPORT PLASTIC DRUM	1		ADD TO CART
U-SUPPORT PLASTIC DRUM 514934 · qty on machine: 1 view full part page → $207.95
36	504534	GRATE, STATIONARY	1		ADD TO CART
GRATE, STATIONARY 504534 · qty on machine: 1 view full part page → $244.95
37	0401450160	WASHER, FLAT 5/8"	1		ADD TO CART
WASHER, FLAT 5/8" 0401450160 · qty on machine: 1 view full part page → $0.53

Page 16 — DRUM AND PADDLE SHAFT COMPLETE ASSY. (PLASTIC)

Parts list — exactly as printed1 rows

No.	Part No.	Part Name	Qty	Remarks
1	516062	DRUM AND SHAFT COMPLETE ASSY BEARING BRACKET, DRUM CAP, DUST BEARING SEALED CAP, GREASE FITTING FITTING, GREASE NUT, LOCK 3/8" WASHER, FLAT 3/8" TRUNNION HUB ROLL PIN 3/16" X 3/4" SEAL, SHAFT (BLACK) RING, RETENTION SEAL, SHAFT URETHANE (YELLOW) BOLT, 3/8" NC X 1/4" G5 DRUM, PLASTIC SET SCREW MAIN GEAR KEY, 3/8" X 50 MM CAPSCREW HHCS 3/8 X 1-1/2" SHAFT, PADDLE GRATE, MOVABLE PIN COTTER HEX NUT, 1/2" G5 WASHER, LOCK 1/2" BOLT 1/2" UNC 1-1/2" PADDLE SHAFT NUT, LOCK 1/2" PADDLE ARM, CENTER ENGINE END BOLT, 1/2" X 6" G5 INSERT, PADDLE ARM PADDLE ARM, ENGINE END WASHER, FLAT 1/2" U-BOLT, END PADDLES PADDLE ARM, CENTER TOW END SCREW, HHC 5/16-18 X 1-3/4 G5 WASHER, FLAT 5/16" BLADE, SIDE, POLY BLADE, SIDE SCRAPER NUT, HEX 5/16" NC G5 WASHER, LOCK 5/15" PADDLE ARM, TOW END BLADE, SCRAPER END BLADE, PLASTIC END	1	INCLUDES ALL ITEMS BELOW	ADD TO CART
DRUM AND SHAFT COMPLETE ASSY BEARING BRACKET, DRUM CAP, DUST BEARING SEALED CAP, GREASE FITTING FITTING, GREASE NUT, LOCK 3/8" WASHER, FLAT 3/8" TRUNNION HUB ROLL PIN 3/16" X 3/4" SEAL, SHAFT (BLACK) RING, RETENTION SEAL, SHAFT URETHANE (YELLOW) BOLT, 3/8" NC X 1/4" G5 DRUM, PLASTIC SET SCREW MAIN GEAR KEY, 3/8" X 50 MM CAPSCREW HHCS 3/8 X 1-1/2" SHAFT, PADDLE GRATE, MOVABLE PIN COTTER HEX NUT, 1/2" G5 WASHER, LOCK 1/2" BOLT 1/2" UNC 1-1/2" PADDLE SHAFT NUT, LOCK 1/2" PADDLE ARM, CENTER ENGINE END BOLT, 1/2" X 6" G5 INSERT, PADDLE ARM PADDLE ARM, ENGINE END WASHER, FLAT 1/2" U-BOLT, END PADDLES PADDLE ARM, CENTER TOW END SCREW, HHC 5/16-18 X 1-3/4 G5 WASHER, FLAT 5/16" BLADE, SIDE, POLY BLADE, SIDE SCRAPER NUT, HEX 5/16" NC G5 WASHER, LOCK 5/15" PADDLE ARM, TOW END BLADE, SCRAPER END BLADE, PLASTIC END 516062 · qty on machine: 1 INCLUDES ALL ITEMS BELOW view full part page → $3495.95

Page 18 — DRUM AND PADDLE SHAFT COMPLETE ASSY. (STEEL)

Parts list — exactly as printed1 rows

No.	Part No.	Part Name	Qty	Remarks
1	516061	DRUM AND SHAFT COMPLETE ASSY BEARING BRACKET, DRUM CAP, DUST BEARING SEALED CAP, GREASE FITTING FITTING, GREASE NUT, LOCK 3/8" WASHER, FLAT 3/8" TRUNNION HUB ROLL PIN 3/16" X 3/4" SEAL, SHAFT (BLACK) RING, RETENTION SEAL, SHAFT URETHANE (YELLOW) BOLT 3/8" NC X 2" G5 DRUM, STEEL SET SCREW MAIN GEAR KEY, 3/8" X 88 MM CAPSCREW HHCS 3/8 X 1-1/2" SHAFT, PADDLE WASHER, FLAT 1/2" GRATE PIN COTTER HEX NUT 1/2" G5 WASHER, LOCK 1/2" BOLT, 1/2" UNC 1-1/2" HANDLE DUMP GRIP, DUMP HANDLE PADDLE SHAFT NUT, LOCK 1/2" PADDLE ARM, CENTER ENGINE END BOLT, 1/2" X 6" G5 INSERT, PADDLE ARM PADDLE ARM, ENGINE END WASHER, FLAT 1/2" U-BOLT, END PADDLES PADDLE ARM, CENTER TOW END SCREW, HHC 5/16-18 X 1-3/4 G5 WASHER, FLAT 5/16" BLADE, SIDE RUBBER BLADE, SIDE SCRAPER NUT, HEX 5/16" NC G5 WASHER, LOCK 5/15" PADDLE ARM, TOW END BLADE, SCRAPER END BLADE, RUBBER END	1	INCLUDES ALL ITEMS BELOW	ADD TO CART
DRUM AND SHAFT COMPLETE ASSY BEARING BRACKET, DRUM CAP, DUST BEARING SEALED CAP, GREASE FITTING FITTING, GREASE NUT, LOCK 3/8" WASHER, FLAT 3/8" TRUNNION HUB ROLL PIN 3/16" X 3/4" SEAL, SHAFT (BLACK) RING, RETENTION SEAL, SHAFT URETHANE (YELLOW) BOLT 3/8" NC X 2" G5 DRUM, STEEL SET SCREW MAIN GEAR KEY, 3/8" X 88 MM CAPSCREW HHCS 3/8 X 1-1/2" SHAFT, PADDLE WASHER, FLAT 1/2" GRATE PIN COTTER HEX NUT 1/2" G5 WASHER, LOCK 1/2" BOLT, 1/2" UNC 1-1/2" HANDLE DUMP GRIP, DUMP HANDLE PADDLE SHAFT NUT, LOCK 1/2" PADDLE ARM, CENTER ENGINE END BOLT, 1/2" X 6" G5 INSERT, PADDLE ARM PADDLE ARM, ENGINE END WASHER, FLAT 1/2" U-BOLT, END PADDLES PADDLE ARM, CENTER TOW END SCREW, HHC 5/16-18 X 1-3/4 G5 WASHER, FLAT 5/16" BLADE, SIDE RUBBER BLADE, SIDE SCRAPER NUT, HEX 5/16" NC G5 WASHER, LOCK 5/15" PADDLE ARM, TOW END BLADE, SCRAPER END BLADE, RUBBER END 516061 · qty on machine: 1 INCLUDES ALL ITEMS BELOW view full part page → $3192.95

Page 20 — AXLE ASSY.

Parts list — exactly as printed14 rows

No.	Part No.	Part Name	Qty	Remarks
1	492584	NUT, LOCK 1/2"	6		ADD TO CART
NUT, LOCK 1/2" 492584 · qty on machine: 6 view full part page → $0.45
2	EM963692	BOLT, 1/2" UNC 1-1/2"	6		ADD TO CART
BOLT, 1/2" UNC 1-1/2" EM963692 · qty on machine: 6 view full part page → $0.86
3	514802	AXLE, UNIVERSAL	1		ADD TO CART
AXLE, UNIVERSAL 514802 · qty on machine: 1 view full part page → $264.95
4#	3469	DUST CAP	2		ADD TO CART
DUST CAP 3469 · qty on machine: 2 Also included in kit 14 - HUB ASSY., 4-BOLT (EM941306) view full part page → $4.95 IN A KIT + SOLD SOLO
5#	8115	LUG NUTS	8		ADD TO CART
LUG NUTS 8115 · qty on machine: 8 Also included in kit 14 - HUB ASSY., 4-BOLT (EM941306) view full part page → $1.52 IN A KIT + SOLD SOLO
6	516476	TIRE AND RIM	2		ADD TO CART
TIRE AND RIM 516476 · qty on machine: 2 view full part page → $281.95
7	8164	CASTLE NUT 1"	2		ADD TO CART
CASTLE NUT 1" 8164 · qty on machine: 2 view full part page → $3.95
8	491688	COTTER PIN 1/8" X 1-1/2"	2		PARTS REQUEST
PHOTO COMING COTTER PIN 1/8" X 1-1/2" 491688 · qty on machine: 2 PARTS REQUEST
9	EM501299	WASHER, FLAT, .135" THICKNESS	4		ADD TO CART
WASHER, FLAT, .135" THICKNESS EM501299 · qty on machine: 4 view full part page → $4.95
10	EM511159	WASHER, FLAT, .087" THICKNESS	2		ADD TO CART
WASHER, FLAT, .087" THICKNESS EM511159 · qty on machine: 2 view full part page → $2.77
11#	EM903113	BEARING, CONE, AXLE	4		ADD TO CART
BEARING, CONE, AXLE EM903113 · qty on machine: 4 Also included in kit 14 - HUB ASSY., 4-BOLT (EM941306) view full part page → $7.95 IN A KIT + SOLD SOLO
12#	EM903012	BEARING, CUP, AXLE	4		ADD TO CART
BEARING, CUP, AXLE EM903012 · qty on machine: 4 Also included in kit 14 - HUB ASSY., 4-BOLT (EM941306) view full part page → $2.95 IN A KIT + SOLD SOLO
13#	EM914288	OIL SEAL	2		ADD TO CART
OIL SEAL EM914288 · qty on machine: 2 Also included in kit 14 - HUB ASSY., 4-BOLT (EM941306) view full part page → $3.95 IN A KIT + SOLD SOLO
14	EM941306	HUB ASSY., 4-BOLT	2	INCLUDES ITEMS W/#	ADD TO CART
HUB ASSY., 4-BOLT EM941306 · qty on machine: 2 INCLUDES ITEMS W/# Kit includes: 4#, 5#, 11#, 12#, 13# view full part page → $75.95 IN A KIT + SOLD SOLO

Page 22 — ENGINE ASSY.

Parts list — exactly as printed35 rows

No.	Part No.	Part Name	Qty	Remarks
1	EM969013	NUT 3/8" NC G5	8	REPLACES P/N 492583	ADD TO CART
NUT 3/8" NC G5 EM969013 · qty on machine: 8 REPLACES P/N 492583 view full part page → $0.21
2	506488	FLAT WASHER 3/8	8		PARTS REQUEST
PHOTO COMING FLAT WASHER 3/8 506488 · qty on machine: 8 PARTS REQUEST
3	EM905016	PILLOW BLOCK BEARING	2		ADD TO CART
PILLOW BLOCK BEARING EM905016 · qty on machine: 2 view full part page → $48.95
4	492378	BOLT 3/8" NC X 1-3/4" G5	4		ADD TO CART
BOLT 3/8" NC X 1-3/4" G5 492378 · qty on machine: 4 view full part page → $0.69
5	490957	RING, RETENTION	1		PARTS REQUEST
PHOTO COMING RING, RETENTION 490957 · qty on machine: 1 PARTS REQUEST
6	513868	PINION GEAR	1		ADD TO CART
PINION GEAR 513868 · qty on machine: 1 view full part page → $38.95
7	500214	KEY, 1/4" X 30 MM	1		ADD TO CART
KEY, 1/4" X 30 MM 500214 · qty on machine: 1 view full part page → $1.51
8	EM502226	PINION SHAFT	1	REPLACES P/N 502226	ADD TO CART
PINION SHAFT EM502226 · qty on machine: 1 REPLACES P/N 502226 view full part page → $25.95
9	492057	PULLEY (LARGE)	1		ADD TO CART
PULLEY (LARGE) 492057 · qty on machine: 1 view full part page → $69.95
10	505084	KEY, 1/4" X 55 MM	1		ADD TO CART
KEY, 1/4" X 55 MM 505084 · qty on machine: 1 view full part page → $10.95
11	492467	SET SCREW, 5/16' NC 3/8"	4		ADD TO CART
SET SCREW, 5/16' NC 3/8" 492467 · qty on machine: 4 view full part page → $0.41
12	EM505834	V-BELT, A36	2	REPLACES P/N 505834	ADD TO CART
V-BELT, A36 EM505834 · qty on machine: 2 REPLACES P/N 505834 view full part page → $4.95
13	503117	BOLT, 3/8" NC X 3" G5	1		ADD TO CART
BOLT, 3/8" NC X 3" G5 503117 · qty on machine: 1 view full part page → $0.95
14	90745ZE2600	SQ. KEY 6.3 X 6.3 X 43 MM	1		ADD TO CART
SQ. KEY 6.3 X 6.3 X 43 MM 90745ZE2600 · qty on machine: 1 view full part page → $32.95
15	492378	BOLT 3/8" NC X 1-3/4" G5	4		ADD TO CART
BOLT 3/8" NC X 1-3/4" G5 492378 · qty on machine: 4 view full part page → $0.69
16	522366	ENGINE, MPOWER, 9.0 HP W/ GEAR	1		ADD TO CART
ENGINE, MPOWER, 9.0 HP W/ GEAR 522366 · qty on machine: 1 view full part page → $874.95
17	515040	BELT RETAINER BAR	1		ADD TO CART
BELT RETAINER BAR 515040 · qty on machine: 1 view full part page → $13.95
18	EM901074	PULLEY (SMALL)	1		ADD TO CART
PULLEY (SMALL) EM901074 · qty on machine: 1 view full part page → $89.95
22	492598	WASHER, FLAT 3/8"	6		PARTS REQUEST
PHOTO COMING WASHER, FLAT 3/8" 492598 · qty on machine: 6 PARTS REQUEST
23	0166A	WASHER, LOCK 3/8"	4	REPLACES P/N 492624	ADD TO CART
WASHER, LOCK 3/8" 0166A · qty on machine: 4 REPLACES P/N 492624 view full part page → $0.17
24	1456	NUT, HEX 3/8"	4	REPLACES P/N 492554	PARTS REQUEST
PHOTO COMING NUT, HEX 3/8" 1456 · qty on machine: 4 REPLACES P/N 492554 PARTS REQUEST
25	6109170	WASHER, FLAT 1/2"	1	REPLACES P/N 492600	ADD TO CART
WASHER, FLAT 1/2" 6109170 · qty on machine: 1 REPLACES P/N 492600 view full part page → $0.48
26	505084	SQ. KEY, 1/4" X 55 MM	1		ADD TO CART
SQ. KEY, 1/4" X 55 MM 505084 · qty on machine: 1 view full part page → $10.95
27	EM963692	BOLT 1/2" NC X 1-1/2" G5	1	REPLACES P/N 492394	ADD TO CART
BOLT 1/2" NC X 1-1/2" G5 EM963692 · qty on machine: 1 REPLACES P/N 492394 view full part page → $0.86
28	EM102014	SPRING, EXTENSION	1		ADD TO CART
SPRING, EXTENSION EM102014 · qty on machine: 1 view full part page → $4.95
29	EM203098	SPRING CLIP	1		ADD TO CART
SPRING CLIP EM203098 · qty on machine: 1 view full part page → $24.95
30	EM963057	BOLT 3/8" NC X 1-1/2" G5	3	REPLACES P/N 492313	ADD TO CART
BOLT 3/8" NC X 1-1/2" G5 EM963057 · qty on machine: 3 REPLACES P/N 492313 view full part page → $0.81
31	EM507491	ARM, IDLER	1		ADD TO CART
ARM, IDLER EM507491 · qty on machine: 1 view full part page → $4.95
32	EM959080	ROD-END	2		ADD TO CART
ROD-END EM959080 · qty on machine: 2 view full part page → $14.95
33	492584	NUT, HEX 1/2"	1		ADD TO CART
NUT, HEX 1/2" 492584 · qty on machine: 1 view full part page → $0.45
34	EM492574	NUT, HEX 3/8" NF G5	2	REPLACES P/N 492574	ADD TO CART
NUT, HEX 3/8" NF G5 EM492574 · qty on machine: 2 REPLACES P/N 492574 view full part page → $0.75
35	492468	SET SCREW, 5/16' NC 3/4"	1	REPLACES P/N 492476	ADD TO CART
SET SCREW, 5/16' NC 3/4" 492468 · qty on machine: 1 REPLACES P/N 492476 view full part page → $0.77
36	EM901515	PULLEY, IDLER	1		ADD TO CART
PULLEY, IDLER EM901515 · qty on machine: 1 view full part page → $10.95
37	515045	ROD	1		ADD TO CART
ROD 515045 · qty on machine: 1 view full part page → $3.95
38	522377	EXHAUST PIPE	1		ADD TO CART
EXHAUST PIPE 522377 · qty on machine: 1 view full part page → $16.95

Page 24 — CABINET ASSY.

Parts list — exactly as printed13 rows

No.	Part No.	Part Name	Qty	Remarks
1	514964	CABINET, GASOLINE ENGINE W/DECALS	1	INCLUDES ITEMS W/%	ADD TO CART
CABINET, GASOLINE ENGINE W/DECALS 514964 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 6% view full part page → $507.95 IN A KIT + SOLD SOLO
1	516585	CABINET, ELECTRIC MOTOR W/DECALS	1	INCLUDES ITEMS W/%	ADD TO CART
CABINET, ELECTRIC MOTOR W/DECALS 516585 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 6% view full part page → $558.95 IN A KIT + SOLD SOLO
2	490202	RUBBER PROTECTOR	4		ADD TO CART
RUBBER PROTECTOR 490202 · qty on machine: 4 view full part page → $1.63
3	13287	LOCK NUT 8-32	6	REPLACEMENT PART ONLY	ADD TO CART
LOCK NUT 8-32 13287 · qty on machine: 6 REPLACEMENT PART ONLY view full part page → $4.95
4	2203	WASHER, FLAT #10	6	REPLACEMENT PART ONLY	PARTS REQUEST
PHOTO COMING WASHER, FLAT #10 2203 · qty on machine: 6 REPLACEMENT PART ONLY PARTS REQUEST
5	1307	SCREW RHMS 8-32 X 1/2"	6	REPLACEMENT PART ONLY	PARTS REQUEST
PHOTO COMING SCREW RHMS 8-32 X 1/2" 1307 · qty on machine: 6 REPLACEMENT PART ONLY PARTS REQUEST
6%	491010	LATCH ASSY., COMPLETE	2		ADD TO CART
LATCH ASSY., COMPLETE 491010 · qty on machine: 2 Also included in kit 1 - CABINET, GASOLINE ENGINE W (514964) view full part page → $8.95 IN A KIT + SOLD SOLO
7	492375	BOLT 3/8" NC X 1" G5	4		PARTS REQUEST
PHOTO COMING BOLT 3/8" NC X 1" G5 492375 · qty on machine: 4 PARTS REQUEST
8	492598	WASHER, FLAT 3/8"	4		PARTS REQUEST
PHOTO COMING WASHER, FLAT 3/8" 492598 · qty on machine: 4 PARTS REQUEST
9	492583	NUT 3/8" NC G5	4		PARTS REQUEST
PHOTO COMING NUT 3/8" NC G5 492583 · qty on machine: 4 PARTS REQUEST
10	29174-001	KNOB, MUSHROOM	1		ADD TO CART
KNOB, MUSHROOM 29174-001 · qty on machine: 1 view full part page → $2.89
11	29173-001	SWITCH, PUSH-PULL	1		ADD TO CART
SWITCH, PUSH-PULL 29173-001 · qty on machine: 1 view full part page → $18.95
12	504135C	WIRE HARNESS	1		ADD TO CART
WIRE HARNESS 504135C · qty on machine: 1 Factory replaced this part - current number 510573 view full part page → $11.95 IN A KIT + SOLD SOLO

Page 26 — PULL HANDLE ASSY.

Parts list — exactly as printed5 rows

No.	Part No.	Part Name	Qty
1	16400-A0710-0008	CAP WITH GASKET, FUEL TANK	1	PARTS REQUEST
PHOTO COMING CAP WITH GASKET, FUEL TANK 16400-A0710-0008 · qty on machine: 1 PARTS REQUEST
2	16610-A0710-0008	FUEL FILTER CUP	1	ADD TO CART
FUEL FILTER CUP 16610-A0710-0008 · qty on machine: 1 view full part page → $1.95
3	23230-A0712-0001	PULL HANDLE ASSY.	1	ADD TO CART
PULL HANDLE ASSY. 23230-A0712-0001 · qty on machine: 1 view full part page → $2.95
4	27100-A0710-0001	SPARK PLUG, BPR6ES, NGK	1	ADD TO CART
SPARK PLUG, BPR6ES, NGK 27100-A0710-0001 · qty on machine: 1 view full part page → $12.95
5	17124-A1010-0001	ELEMENT, AIR FILTER	1	ADD TO CART
ELEMENT, AIR FILTER 17124-A1010-0001 · qty on machine: 1 view full part page → $34.95

The machine itself

Get a quote

The Multiquip WM70PH5 is a concrete mixer built for mixing concrete on site for slabs, footings, and small to mid-size pours. Factory-documented specs and parts support; priced by quote.
