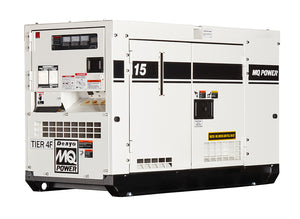

Page 6 — GENERATOR ASSY.

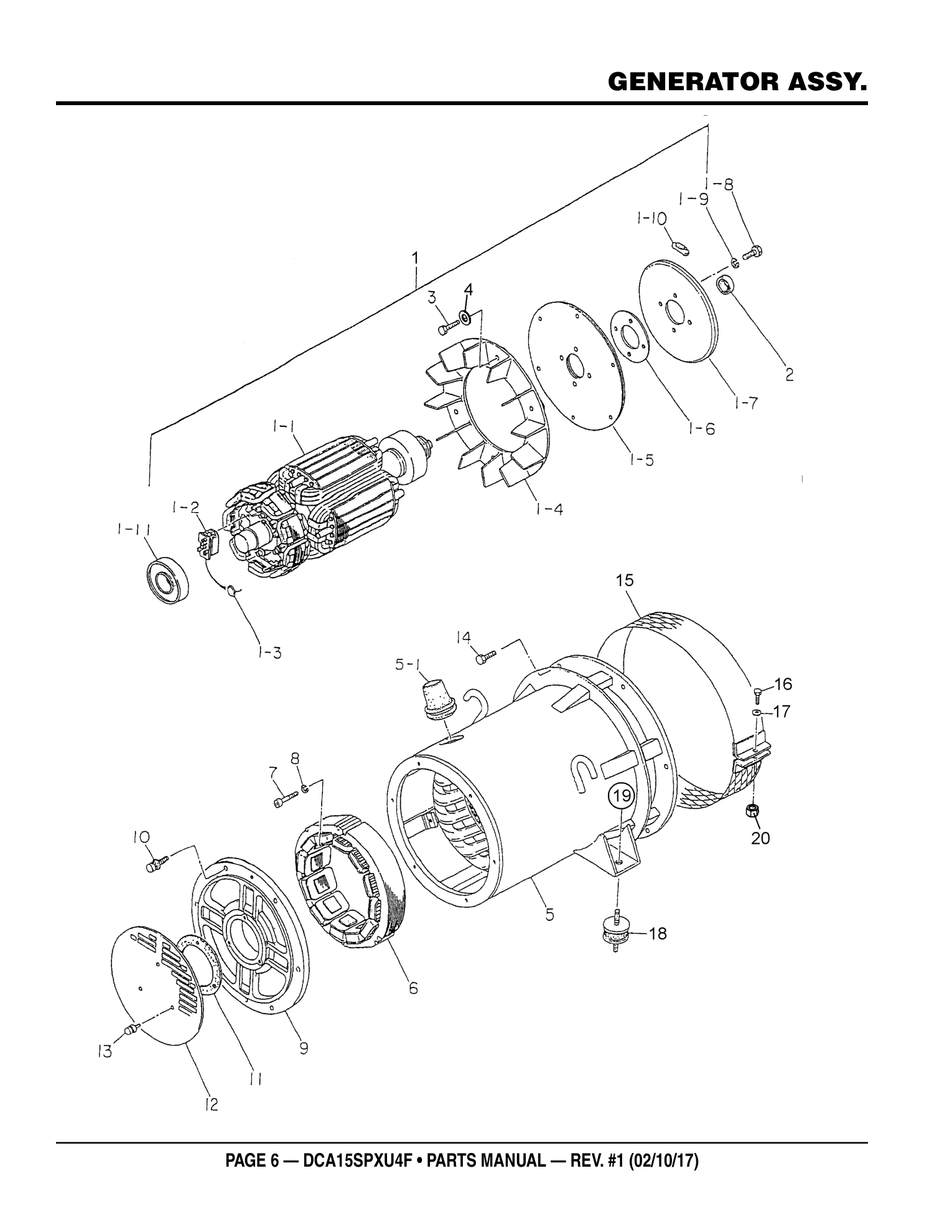

Multiquip DCA15SPXU4F Generator GENERATOR ASSY. parts diagram

Parts list — exactly as printed32 rows

No.	Part No.	Part Name	Qty	Remarks
1	7671000102	ROTOR ASSY	1	INCLUDES ITEMS W/%	ADD TO CART
ROTOR ASSY 7671000102 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 1-1%, 1-2%, 1-3%, 1-4%, 1-5%, 1-6%, 1-7%, 1-8%, 1-9%, 1-10%, 1-11%, 2%, 3%, 4% view full part page → $4852.95 IN A KIT + SOLD SOLO
1-1%		FIELD ASSY.	1		INCLUDED IN KIT
PHOTO COMING FIELD ASSY. · qty on machine: 1 Included in kit 1 - ROTOR ASSY (7671000102) INCLUDED IN KIT
1-2%	7961025004	RECTIFIER	1		ADD TO CART
RECTIFIER 7961025004 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (7671000102) view full part page → $147.95 IN A KIT + SOLD SOLO
1-3%	0601822643	SURGE ABSORBER	1		ADD TO CART
SURGE ABSORBER 0601822643 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (7671000102) view full part page → $17.95 IN A KIT + SOLD SOLO
1-4%	8001070003	FAN	1		ADD TO CART
FAN 8001070003 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (7671000102) view full part page → $162.95 IN A KIT + SOLD SOLO
1-5%	8351611004	COUPLING DISK	2		ADD TO CART
COUPLING DISK 8351611004 · qty on machine: 2 Also included in kit 1 - ROTOR ASSY (7671000102) view full part page → $21.95 IN A KIT + SOLD SOLO
1-6%	8351612004	WASHER, COUPLING HUB	1		ADD TO CART
WASHER, COUPLING HUB 8351612004 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (7671000102) view full part page → $13.95 IN A KIT + SOLD SOLO
1-7%	8351615003	BALANCING PLATE	1	PURCHASE 1-10 AS A SET	ADD TO CART
BALANCING PLATE 8351615003 · qty on machine: 1 PURCHASE 1-10 AS A SET Also included in kit 1 - ROTOR ASSY (7671000102) view full part page → $82.95 IN A KIT + SOLD SOLO
1-8%	0010310025	HEX HEAD BOLT	4		ADD TO CART
HEX HEAD BOLT 0010310025 · qty on machine: 4 Also included in kit 1 - ROTOR ASSY (7671000102) view full part page → $0.68 IN A KIT + SOLD SOLO
1-9%	0042610000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0042610000 · qty on machine: 4 Also included in kit 1 - ROTOR ASSY (7671000102) view full part page → $0.53 IN A KIT + SOLD SOLO
1-10%	0601000209	BALANCING WEIGHT KIT	1		ADD TO CART
BALANCING WEIGHT KIT 0601000209 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (7671000102) view full part page → $9.95 IN A KIT + SOLD SOLO
1-11%	0071906308	BEARING, 6308DDU	1		ADD TO CART
BEARING, 6308DDU 0071906308 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (7671000102) view full part page → $25.95 IN A KIT + SOLD SOLO
2%	0070506903	BEARING, 6903ZZ	1		ADD TO CART
BEARING, 6903ZZ 0070506903 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (7671000102) view full part page → $34.95 IN A KIT + SOLD SOLO
3%	0012808035	HEX HEAD BOLT	6		ADD TO CART
HEX HEAD BOLT 0012808035 · qty on machine: 6 Also included in kit 1 - ROTOR ASSY (7671000102) view full part page → $2.95 IN A KIT + SOLD SOLO
4%	0042508000	WASHER, LOCK	6		ADD TO CART
WASHER, LOCK 0042508000 · qty on machine: 6 Also included in kit 1 - ROTOR ASSY (7671000102) view full part page → $0.62 IN A KIT + SOLD SOLO
5	B0130101003	STATOR ASSY.	1		ADD TO CART
STATOR ASSY. B0130101003 · qty on machine: 1 view full part page → $4071.95
5-1	0845041904	GROMMET	1		ADD TO CART
GROMMET 0845041904 · qty on machine: 1 view full part page → $11.95
6	8431350003	FIELD ASSY.,EXCITER	1		PARTS REQUEST
PHOTO COMING FIELD ASSY.,EXCITER 8431350003 · qty on machine: 1 PARTS REQUEST
7	0016008045	HEX SOCKET HEAD CAP SCREW	3		ADD TO CART
HEX SOCKET HEAD CAP SCREW 0016008045 · qty on machine: 3 view full part page → $3.95
8	0042508000	WASHER, LOCK	3		ADD TO CART
WASHER, LOCK 0042508000 · qty on machine: 3 view full part page → $0.62
9	8351315003	END BRACKET	1		ADD TO CART
END BRACKET 8351315003 · qty on machine: 1 view full part page → $260.95
10	0017108035	HEX HEAD BOLT	6		ADD TO CART
HEX HEAD BOLT 0017108035 · qty on machine: 6 view full part page → $1.95
11	8351312004	PACKING	1		ADD TO CART
PACKING 8351312004 · qty on machine: 1 view full part page → $21.95
12	B0155400504	COVER, SUCTION	1		ADD TO CART
COVER, SUCTION B0155400504 · qty on machine: 1 view full part page → $75.95
13	0017106016	HEX HEAD BOLT	3		ADD TO CART
HEX HEAD BOLT 0017106016 · qty on machine: 3 view full part page → $1.51
14	0012810030	HEX HEAD BOLT	6		ADD TO CART
HEX HEAD BOLT 0012810030 · qty on machine: 6 Factory replaced this part - current number 012010030 view full part page → $0.95 IN A KIT + SOLD SOLO
15	B0155400204	COVER, FAN	1		ADD TO CART
COVER, FAN B0155400204 · qty on machine: 1 view full part page → $88.95
16	0340406040	HEX HEAD BOLT	1		ADD TO CART
HEX HEAD BOLT 0340406040 · qty on machine: 1 view full part page → $2.68
17	0041206000	WASHER, FLAT	1		ADD TO CART
WASHER, FLAT 0041206000 · qty on machine: 1 Factory replaced this part - current number 952404470 view full part page → $0.19 IN A KIT + SOLD SOLO
18	0605000409	RUBBER SUSPENSION	2		PARTS REQUEST
PHOTO COMING RUBBER SUSPENSION 0605000409 · qty on machine: 2 PARTS REQUEST
19	0207010000	HEX NUT	2		ADD TO CART
HEX NUT 0207010000 · qty on machine: 2 Factory replaced this part - current number 021112140 view full part page → $0.46 IN A KIT + SOLD SOLO
20	0601815000	NUT	1		PARTS REQUEST
PHOTO COMING NUT 0601815000 · qty on machine: 1 PARTS REQUEST

Page 8 — CONTROL BOX ASSY.

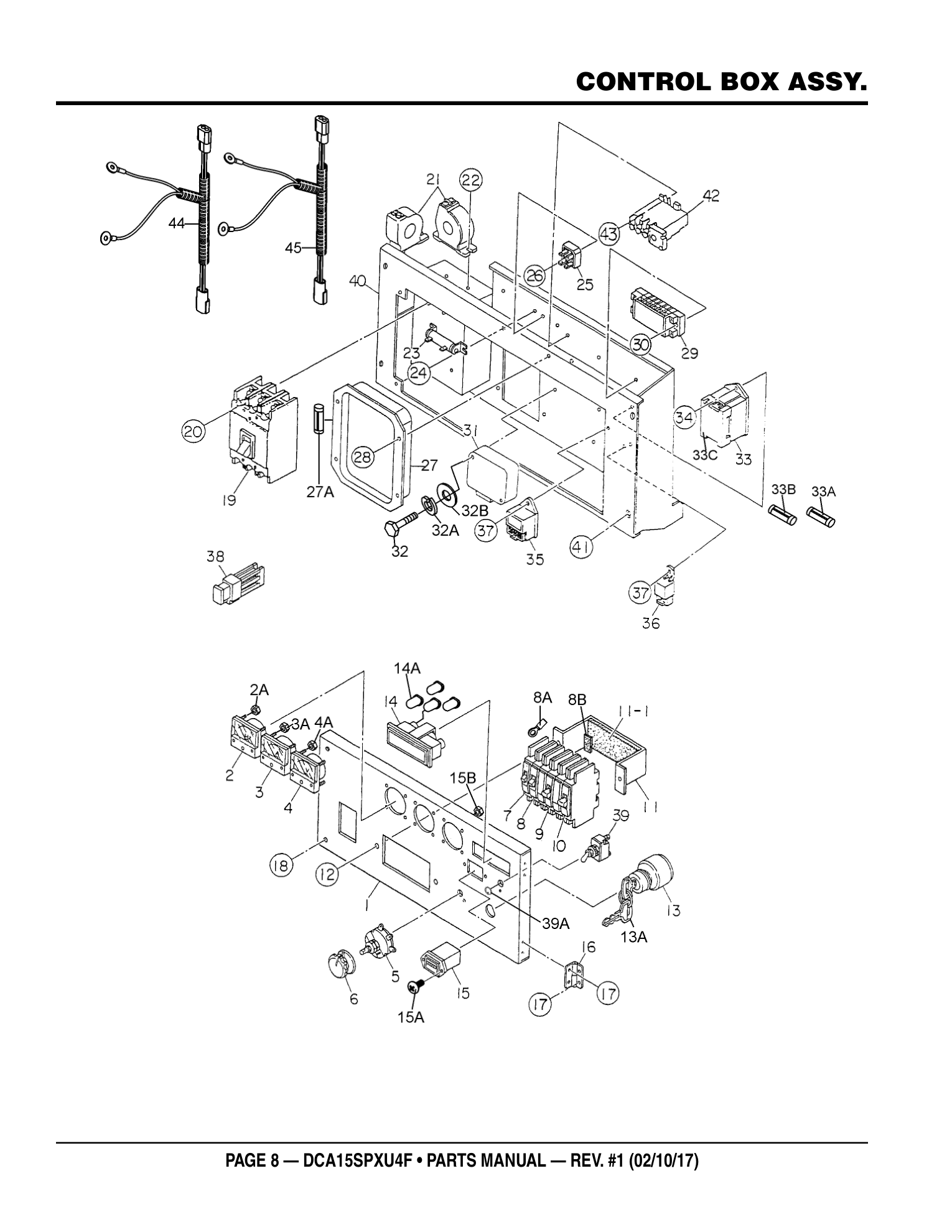

Multiquip DCA15SPXU4F Generator CONTROL BOX ASSY. parts diagram

Parts list — exactly as printed45 rows

No.	Part No.	Part Name	Qty	Remarks
1	M0224000023	CONTROL PANEL	1		PARTS REQUEST
PHOTO COMING CONTROL PANEL M0224000023 · qty on machine: 1 PARTS REQUEST
2	0601800455	FREQUENCY METER, 45~65 Hz	1		ADD TO CART
FREQUENCY METER, 45~65 Hz 0601800455 · qty on machine: 1 view full part page → $330.95
2A	0207003000	HEX NUT	4		ADD TO CART
HEX NUT 0207003000 · qty on machine: 4 view full part page → $0.21
3	0601805746	AC AMMETER, 0~75/5A	1		ADD TO CART
AC AMMETER, 0~75/5A 0601805746 · qty on machine: 1 view full part page → $123.95
3A	0207003000	HEX NUT	4		ADD TO CART
HEX NUT 0207003000 · qty on machine: 4 view full part page → $0.21
4	0601800281	AC VOLTMETER, 0~150/300V	1		ADD TO CART
AC VOLTMETER, 0~150/300V 0601800281 · qty on machine: 1 view full part page → $83.95
4A	0207003000	HEX NUT	4		ADD TO CART
HEX NUT 0207003000 · qty on machine: 4 view full part page → $0.21
5	0601840073	RHEOSTAT (VR), 2W 1K OHM	1		ADD TO CART
RHEOSTAT (VR), 2W 1K OHM 0601840073 · qty on machine: 1 view full part page → $90.95
6	0601840121	KNOB, RHEOSTAT	1		ADD TO CART
KNOB, RHEOSTAT 0601840121 · qty on machine: 1 Factory replaced this part - current number 0601840100 view full part page → $30.95 IN A KIT + SOLD SOLO
7	0601808803	CIRCUIT BREAKER, 1P 20A	1		ADD TO CART
CIRCUIT BREAKER, 1P 20A 0601808803 · qty on machine: 1 view full part page → $46.95
8	0601870454	CIRCUIT BREAKER, 1P 30A	1		ADD TO CART
CIRCUIT BREAKER, 1P 30A 0601870454 · qty on machine: 1 Factory replaced this part - current number Y0601870454 view full part page → $676.95 IN A KIT + SOLD SOLO
8A	0601815588	INSULATED FASTON TERMINAL	1		PARTS REQUEST
PHOTO COMING INSULATED FASTON TERMINAL 0601815588 · qty on machine: 1 PARTS REQUEST
8B	0222700050	RUBBER SEAL	1		PARTS REQUEST
PHOTO COMING RUBBER SEAL 0222700050 · qty on machine: 1 PARTS REQUEST
9	0601808808	CIRCUIT BREAKER, 2P 30A	1		ADD TO CART
CIRCUIT BREAKER, 2P 30A 0601808808 · qty on machine: 1 view full part page → $249.95
10	0601808804	CIRCUIT BREAKER, 2P 50A	1		ADD TO CART
CIRCUIT BREAKER, 2P 50A 0601808804 · qty on machine: 1 view full part page → $98.95
11	0261600004	BRACKET FITTING COVER	1		PARTS REQUEST
PHOTO COMING BRACKET FITTING COVER 0261600004 · qty on machine: 1 PARTS REQUEST
11-1	0222100120	RUBBER CUSHION	1		ADD TO CART
RUBBER CUSHION 0222100120 · qty on machine: 1 view full part page → $3.95
12	0021806015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0021806015 · qty on machine: 2 view full part page → $0.87
13	1628663602	STARTER SWITCH	1	REPLACES P/N 0602100077	ADD TO CART
STARTER SWITCH 1628663602 · qty on machine: 1 REPLACES P/N 0602100077 view full part page → $148.95
13A	3741055150	KEY, STARTER SWITCH	1		ADD TO CART
KEY, STARTER SWITCH 3741055150 · qty on machine: 1 view full part page → $17.95
14	0601810523	WARNING LAMP UNIT	1		ADD TO CART
WARNING LAMP UNIT 0601810523 · qty on machine: 1 view full part page → $154.95
14A	0601810830	BULB	4		ADD TO CART
BULB 0601810830 · qty on machine: 4 view full part page → $8.95
15	0601800682	HOUR METER	1		ADD TO CART
HOUR METER 0601800682 · qty on machine: 1 view full part page → $116.95
15A	0027403010	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027403010 · qty on machine: 2 view full part page → $0.79
15B	0207003000	HEX NUT	2		ADD TO CART
HEX NUT 0207003000 · qty on machine: 2 view full part page → $0.21
16	0605010060	HINGE	2		ADD TO CART
HINGE 0605010060 · qty on machine: 2 view full part page → $19.95
17	0027103008	MACHINE SCREW	8		ADD TO CART
MACHINE SCREW 0027103008 · qty on machine: 8 view full part page → $0.69
18	0021806030	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0021806030 · qty on machine: 2 Factory replaced this part - current number 0021506030 view full part page → $0.28 IN A KIT + SOLD SOLO
19	0601808831	CIRCUIT BREAKER, 70A	1		ADD TO CART
CIRCUIT BREAKER, 70A 0601808831 · qty on machine: 1 view full part page → $523.95
20	0021004070	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021004070 · qty on machine: 4 view full part page → $2.95
21	0601801122	CURRENT TRANS., AMMETER, 150/5A	1		ADD TO CART
CURRENT TRANS., AMMETER, 150/5A 0601801122 · qty on machine: 1 view full part page → $131.95
22	0027105015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 2 view full part page → $0.2
23	0601842384	RESISTOR, GG20W 50 OHM	1		ADD TO CART
RESISTOR, GG20W 50 OHM 0601842384 · qty on machine: 1 view full part page → $36.95
24	0027104015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 2 view full part page → $0.53
25	0601820038	RECTIFIER	1		ADD TO CART
RECTIFIER 0601820038 · qty on machine: 1 view full part page → $18.95
26	0027104020	MACHINE SCREW	1		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 1 view full part page → $0.4
27	0601820663	AUTOMATIC VOLTAGE REGULATOR	1		ADD TO CART
AUTOMATIC VOLTAGE REGULATOR 0601820663 · qty on machine: 1 view full part page → $795.95
27A	0601806682	FUSE, 5A	1		ADD TO CART
FUSE, 5A 0601806682 · qty on machine: 1 Factory replaced this part - current number 0601806642 view full part page → $2.77 IN A KIT + SOLD SOLO
28	0027105015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 4 view full part page → $0.2
29	0601815759	TERMINAL BOARD	1		ADD TO CART
TERMINAL BOARD 0601815759 · qty on machine: 1 view full part page → $36.95
30	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
31	1G38560601	ENGINE CONTROL UNIT	1	REPLACES P/N 0602202634	ADD TO CART
ENGINE CONTROL UNIT 1G38560601 · qty on machine: 1 REPLACES P/N 0602202634 view full part page → $1047.95
32	0021005050	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0021005050 · qty on machine: 2 view full part page → $0.44
32A	0040005000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040005000 · qty on machine: 2 Factory replaced this part - current number 0032005000 view full part page → $0.41 IN A KIT + SOLD SOLO
32B	0041205000	WASHER, FLAT	2		ADD TO CART
WASHER, FLAT 0041205000 · qty on machine: 2 Factory replaced this part - current number 58151 view full part page → $0.41 IN A KIT + SOLD SOLO

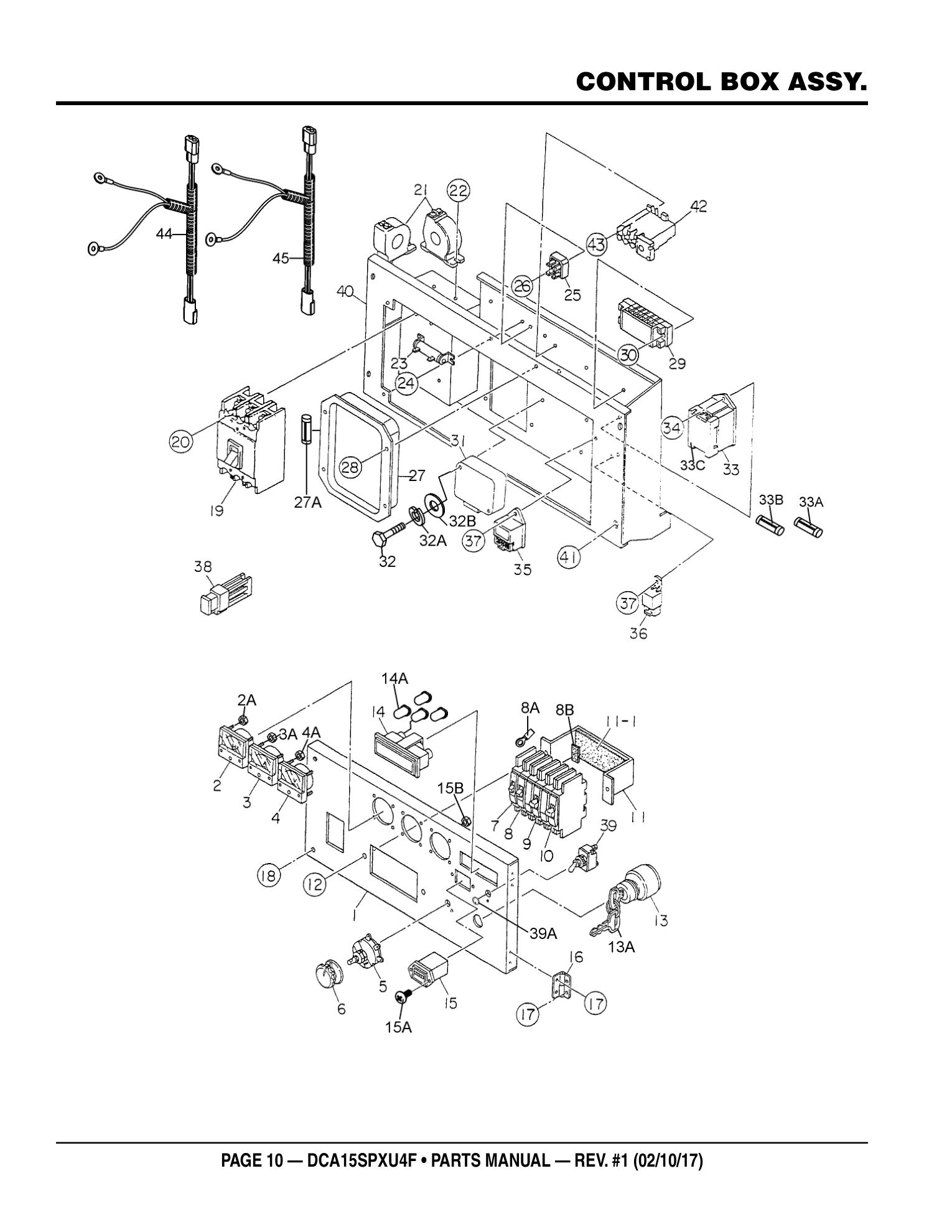

Page 10 — CONTROL BOX ASSY.

Parts list — exactly as printed17 rows

No.	Part No.	Part Name	Qty	Remarks
33	0261200004	FUSE BOX	1		PARTS REQUEST
PHOTO COMING FUSE BOX 0261200004 · qty on machine: 1 PARTS REQUEST
33A	0601806642	FUSE, 5A	5		ADD TO CART
FUSE, 5A 0601806642 · qty on machine: 5 view full part page → $2.77
33B	0601806645	FUSE, 10A	4		ADD TO CART
FUSE, 10A 0601806645 · qty on machine: 4 view full part page → $2.9
33C	M9521000204	DECAL: FUSE BOX	1		ADD TO CART
DECAL: FUSE BOX M9521000204 · qty on machine: 1 view full part page → $14.95
34	0027105015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 2 view full part page → $0.2
35	RP42153730	RELAY ASSY	1	REPLACES P/N RP42153731	ADD TO CART
RELAY ASSY RP42153730 · qty on machine: 1 REPLACES P/N RP42153731 view full part page → $281.95
36	6888153542	RELAY	1	REPLACES P/N 0602202566	ADD TO CART
RELAY 6888153542 · qty on machine: 1 REPLACES P/N 0602202566 view full part page → $56.95
37	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
38	0601806640	FUSE, 65A	1		ADD TO CART
FUSE, 65A 0601806640 · qty on machine: 1 view full part page → $11.95
39	0601830708	SPEED CONTROL SWITCH	1		ADD TO CART
SPEED CONTROL SWITCH 0601830708 · qty on machine: 1 Factory replaced this part - current number 0601830727 view full part page → $15.95 IN A KIT + SOLD SOLO
39A	0601831978	INSTALLATION RING	1		PARTS REQUEST
PHOTO COMING INSTALLATION RING 0601831978 · qty on machine: 1 PARTS REQUEST
40	M0214000102	CONTROL BOX	1		PARTS REQUEST
PHOTO COMING CONTROL BOX M0214000102 · qty on machine: 1 PARTS REQUEST
41	0016908020	HEX HEAD BOLT	4		ADD TO CART
HEX HEAD BOLT 0016908020 · qty on machine: 4 Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO
42	0601820891	OVER CURRENT RELAY	1		ADD TO CART
OVER CURRENT RELAY 0601820891 · qty on machine: 1 Factory replaced this part - current number Y0601820891 view full part page → $77.95 IN A KIT + SOLD SOLO
43	0027104015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 2 view full part page → $0.53
44	M0247700010	GENERATOR WIRE HARNESS	1		ADD TO CART
GENERATOR WIRE HARNESS M0247700010 · qty on machine: 1 view full part page → $535.95
45	M0358200100	ENGINE WIRE HARNESS	1		ADD TO CART
ENGINE WIRE HARNESS M0358200100 · qty on machine: 1 view full part page → $1297.95

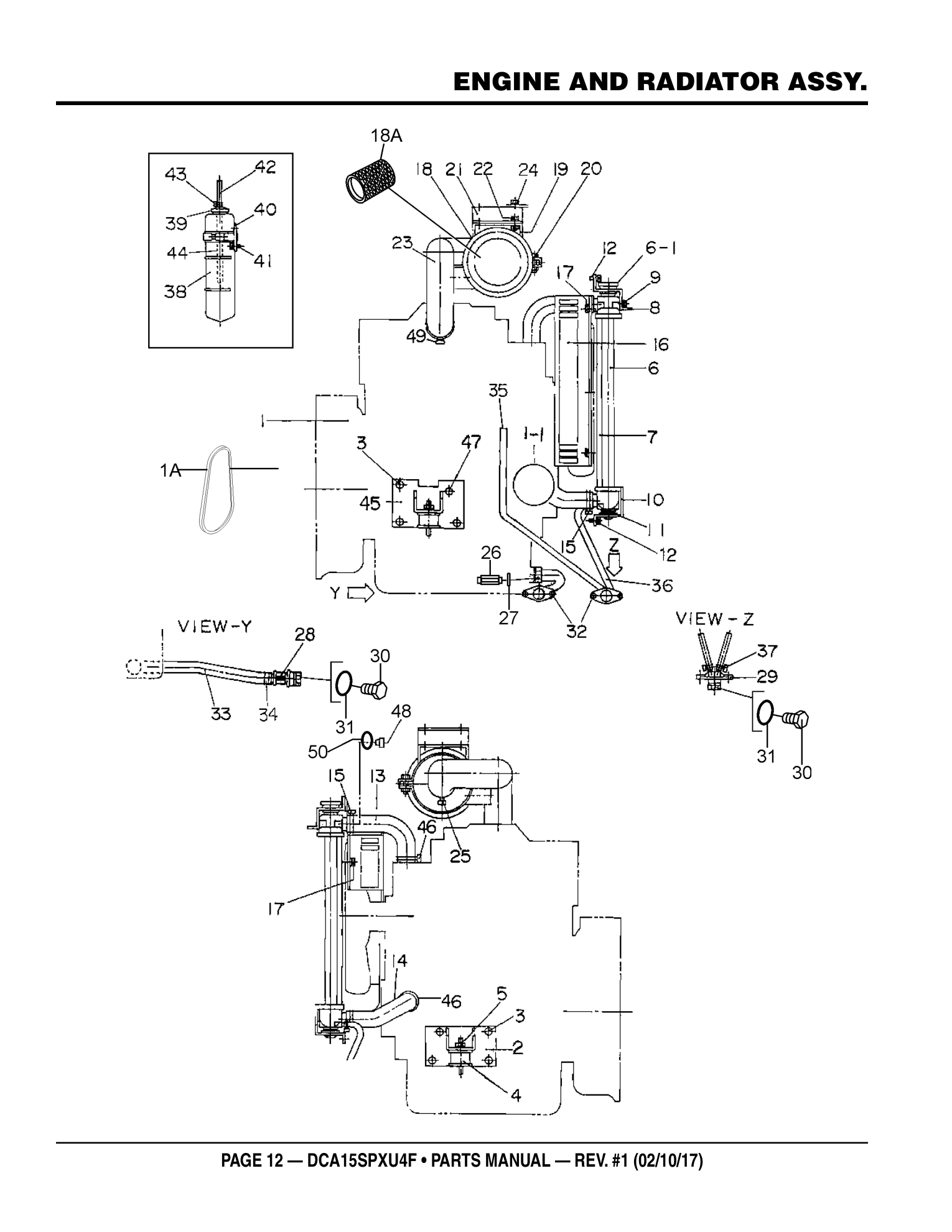

Page 12 — ENGINE AND RADIATOR ASSY.

Multiquip DCA15SPXU4F Generator ENGINE AND RADIATOR ASSY. parts diagram

Parts list — exactly as printed42 rows

No.	Part No.	Part Name	Qty	Remarks
1	M0924200014	ENGINE, KUBOTA D1503-M	1		ADD TO CART
ENGINE, KUBOTA D1503-M M0924200014 · qty on machine: 1 view full part page → $16057.95
1A	1G38297010	FAN BELT	1	REPLACES P/N 1G38297011	ADD TO CART
FAN BELT 1G38297010 · qty on machine: 1 REPLACES P/N 1G38297011 view full part page → $47.95
1-1	HH16432430	CARTRIDGE, OIL FILTER	1	REPLACES P/N 1641432433	ADD TO CART
CARTRIDGE, OIL FILTER HH16432430 · qty on machine: 1 REPLACES P/N 1641432433 view full part page → $25.95
2	M0304200104	ENGINE FOOT	1		PARTS REQUEST
PHOTO COMING ENGINE FOOT M0304200104 · qty on machine: 1 PARTS REQUEST
3	012212025	HEX. HEAD BOLT	7	REPLACES P/N 0012412025	ADD TO CART
HEX. HEAD BOLT 012212025 · qty on machine: 7 REPLACES P/N 0012412025 view full part page → $1.95
4	Y0605000409	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION Y0605000409 · qty on machine: 2 view full part page → $19.95
5	021112140	HEX. NUT	2	REPLACES P/N 0207010000	ADD TO CART
HEX. NUT 021112140 · qty on machine: 2 REPLACES P/N 0207010000 view full part page → $0.46
6	0602012733	RADIATOR	1		ADD TO CART
RADIATOR 0602012733 · qty on machine: 1 view full part page → $551.95
6-1	0602011079	CAP, RADIATOR	1		ADD TO CART
CAP, RADIATOR 0602011079 · qty on machine: 1 view full part page → $137.95
7	0220300400	RUBBER SEAL	2		ADD TO CART
RUBBER SEAL 0220300400 · qty on machine: 2 view full part page → $22.95
8	M0311200004	BRACKET, RADIATOR	1		ADD TO CART
BRACKET, RADIATOR M0311200004 · qty on machine: 1 view full part page → $171.95
9	011208030	HEX. HEAD BOLT	2	REPLACES P/N 0016908030	ADD TO CART
HEX. HEAD BOLT 011208030 · qty on machine: 2 REPLACES P/N 0016908030 view full part page → $1.3
10	M0311200203	BRACKET, RADIATOR	1		ADD TO CART
BRACKET, RADIATOR M0311200203 · qty on machine: 1 view full part page → $138.95
11	M9312200104	MOUNT RUBBER	2		ADD TO CART
MOUNT RUBBER M9312200104 · qty on machine: 2 view full part page → $16.95
12	011008020	HEX. HEAD BOLT	5	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 5 REPLACES P/N 0016908020 view full part page → $2.68
13	M0311500203	RADIATOR HOSE, UPPER	1		ADD TO CART
RADIATOR HOSE, UPPER M0311500203 · qty on machine: 1 view full part page → $92.95
14	M0311500303	RADIATOR HOSE, LOWER	1		ADD TO CART
RADIATOR HOSE, LOWER M0311500303 · qty on machine: 1 view full part page → $92.95
15	0605515149	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515149 · qty on machine: 2 view full part page → $1.95
16	M0311300103	FAN GUARD	1		ADD TO CART
FAN GUARD M0311300103 · qty on machine: 1 view full part page → $119.95
17	011008020	HEX. HEAD BOLT	3	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 3 REPLACES P/N 0016908020 view full part page → $2.68
18	0602046268	AIR FILTER	1		ADD TO CART
AIR FILTER 0602046268 · qty on machine: 1 view full part page → $167.95
18A	0602046335	ELEMENT, AIR FILTER	1	REPLACES P/N 113043002	ADD TO CART
ELEMENT, AIR FILTER 0602046335 · qty on machine: 1 REPLACES P/N 113043002 view full part page → $57.95
19	M0375200103	BAND, AIR CLEANER	1		PARTS REQUEST
PHOTO COMING BAND, AIR CLEANER M0375200103 · qty on machine: 1 PARTS REQUEST
20	011208030	HEX. HEAD BOLT	1	REPLACES P/N 0016908030	ADD TO CART
HEX. HEAD BOLT 011208030 · qty on machine: 1 REPLACES P/N 0016908030 view full part page → $1.3
21	M0374200004	BRACKET, AIR CLEANER	1		PARTS REQUEST
PHOTO COMING BRACKET, AIR CLEANER M0374200004 · qty on machine: 1 PARTS REQUEST
22	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
23	M0374100103	HOSE, AIR CLEANER	1		PARTS REQUEST
PHOTO COMING HOSE, AIR CLEANER M0374100103 · qty on machine: 1 PARTS REQUEST
24	0019208020	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 2 view full part page → $3.95
25	0605515147	HOSE BAND	1		ADD TO CART
HOSE BAND 0605515147 · qty on machine: 1 view full part page → $3.95
26	M0322200004	DRAIN JOINT	1		ADD TO CART
DRAIN JOINT M0322200004 · qty on machine: 1 view full part page → $22.95
27	0602021193	PACKING	1		ADD TO CART
PACKING 0602021193 · qty on machine: 1 view full part page → $6.95
28	1502025103C	DRAIN JOINT	1	REPLACES P/N M9200000003	ADD TO CART
DRAIN JOINT 1502025103C · qty on machine: 1 REPLACES P/N M9200000003 view full part page → $29.95
29	1622014103	DRAIN JOINT	1	REPLACES P/N M9602000003	ADD TO CART
DRAIN JOINT 1622014103 · qty on machine: 1 REPLACES P/N M9602000003 view full part page → $23.95
30	0802011104	PLUG	2	REPLACES P/N M9200200004	ADD TO CART
PLUG 0802011104 · qty on machine: 2 REPLACES P/N M9200200004 view full part page → $10.95
31	0150000018	O-RING	2		ADD TO CART
O-RING 0150000018 · qty on machine: 2 view full part page → $1.87
32	011206020	HEX. HEAD BOLT	4	REPLACES P/N 0019206020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 4 REPLACES P/N 0019206020 view full part page → $0.95
33	0269200500	PUSH LOCK HOSE	1		ADD TO CART
PUSH LOCK HOSE 0269200500 · qty on machine: 1 view full part page → $49.95
34	0605515073	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515073 · qty on machine: 2 view full part page → $6.95
35	0199900500	DRAIN HOSE	1		ADD TO CART
DRAIN HOSE 0199900500 · qty on machine: 1 view full part page → $11.95
36	0199900350	DRAIN HOSE	1		ADD TO CART
DRAIN HOSE 0199900350 · qty on machine: 1 view full part page → $6.95
37	0605515170	HOSE BAND	4	REPLACES P/N 0605515106	ADD TO CART
HOSE BAND 0605515170 · qty on machine: 4 REPLACES P/N 0605515106 view full part page → $5.95
38	0802081403D	RESERVE TANK	1	REPLACES P/N M9300000003	ADD TO CART
RESERVE TANK 0802081403D · qty on machine: 1 REPLACES P/N M9300000003 Factory replaced this part - current number 0802081403 view full part page → $29.95 IN A KIT + SOLD SOLO

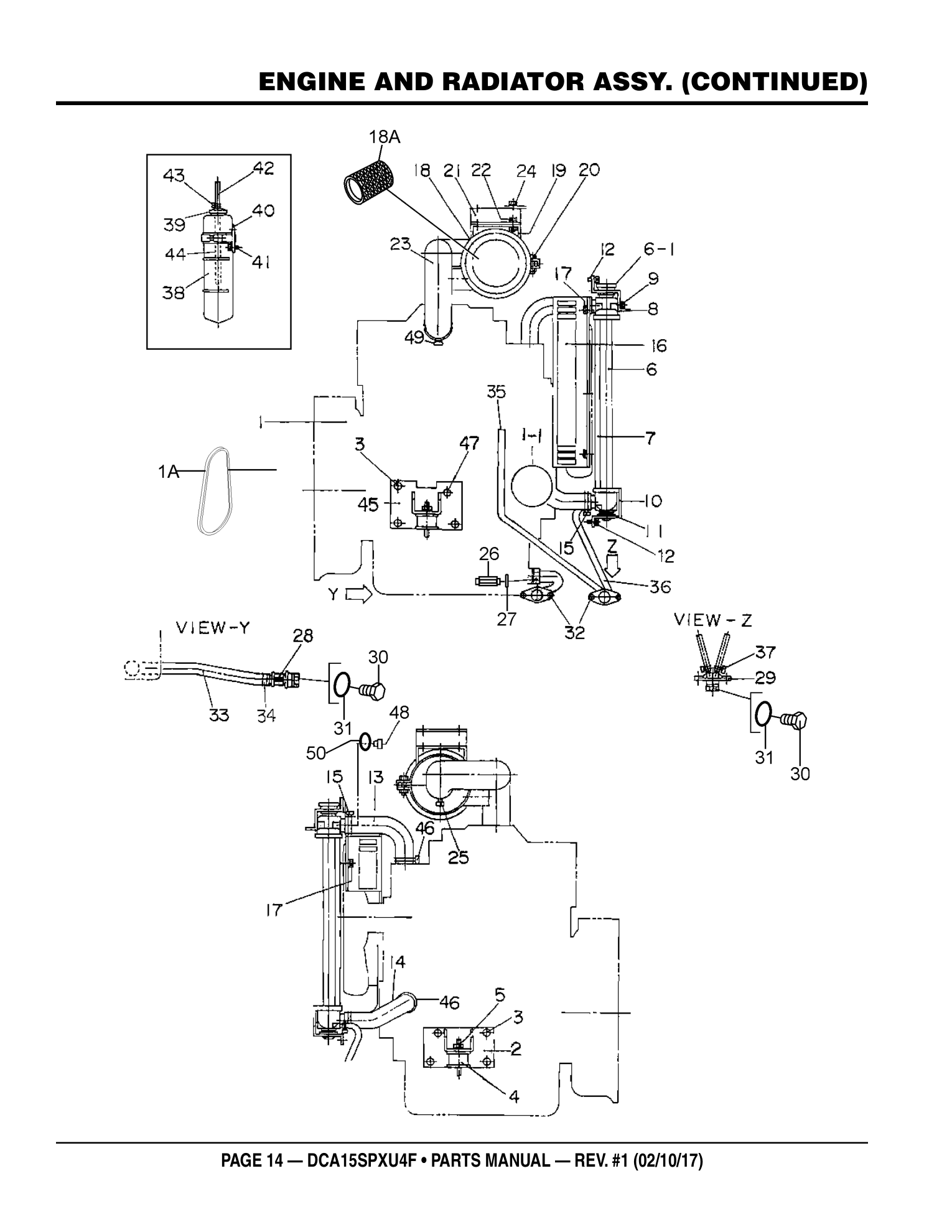

Page 14 — ENGINE AND RADIATOR ASSY. (CONTINUED)

Multiquip DCA15SPXU4F Generator ENGINE AND RADIATOR ASSY. (CONTINUED) parts diagram

Parts list — exactly as printed12 rows

No.	Part No.	Part Name	Qty	Remarks
39	0802081104	CAP, RESERVE TANK	1	REPLACES P/N M9300100003	ADD TO CART
CAP, RESERVE TANK 0802081104 · qty on machine: 1 REPLACES P/N M9300100003 view full part page → $5.95
40	M1318100204	BRACKET, RESERVE TANK	1		ADD TO CART
BRACKET, RESERVE TANK M1318100204 · qty on machine: 1 view full part page → $77.95
41	011106015	HEX. HEAD BOLT	3	REPLACES P/N 0017106015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 3 REPLACES P/N 0017106015 view full part page → $0.69
42	0199900450	HOSE	1		ADD TO CART
HOSE 0199900450 · qty on machine: 1 view full part page → $8.95
43	0605515170	HOSE BAND	2	REPLACES P/N 0605515106	ADD TO CART
HOSE BAND 0605515170 · qty on machine: 2 REPLACES P/N 0605515106 view full part page → $5.95
44	0199100215	HOSE	1		ADD TO CART
HOSE 0199100215 · qty on machine: 1 view full part page → $3.95
45	M0304200004	ENGINE FOOT	1		PARTS REQUEST
PHOTO COMING ENGINE FOOT M0304200004 · qty on machine: 1 PARTS REQUEST
46	0605515149	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515149 · qty on machine: 2 view full part page → $1.95
47	0012410025	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0012410025 · qty on machine: 1 view full part page → $1.95
48	M9200100904	PLUG	1		ADD TO CART
PLUG M9200100904 · qty on machine: 1 view full part page → $42.95
49	0605515199	HOSE BAND	1		ADD TO CART
HOSE BAND 0605515199 · qty on machine: 1 view full part page → $2.95
50	0150000016	O-RING	1		ADD TO CART
O-RING 0150000016 · qty on machine: 1 view full part page → $1.63

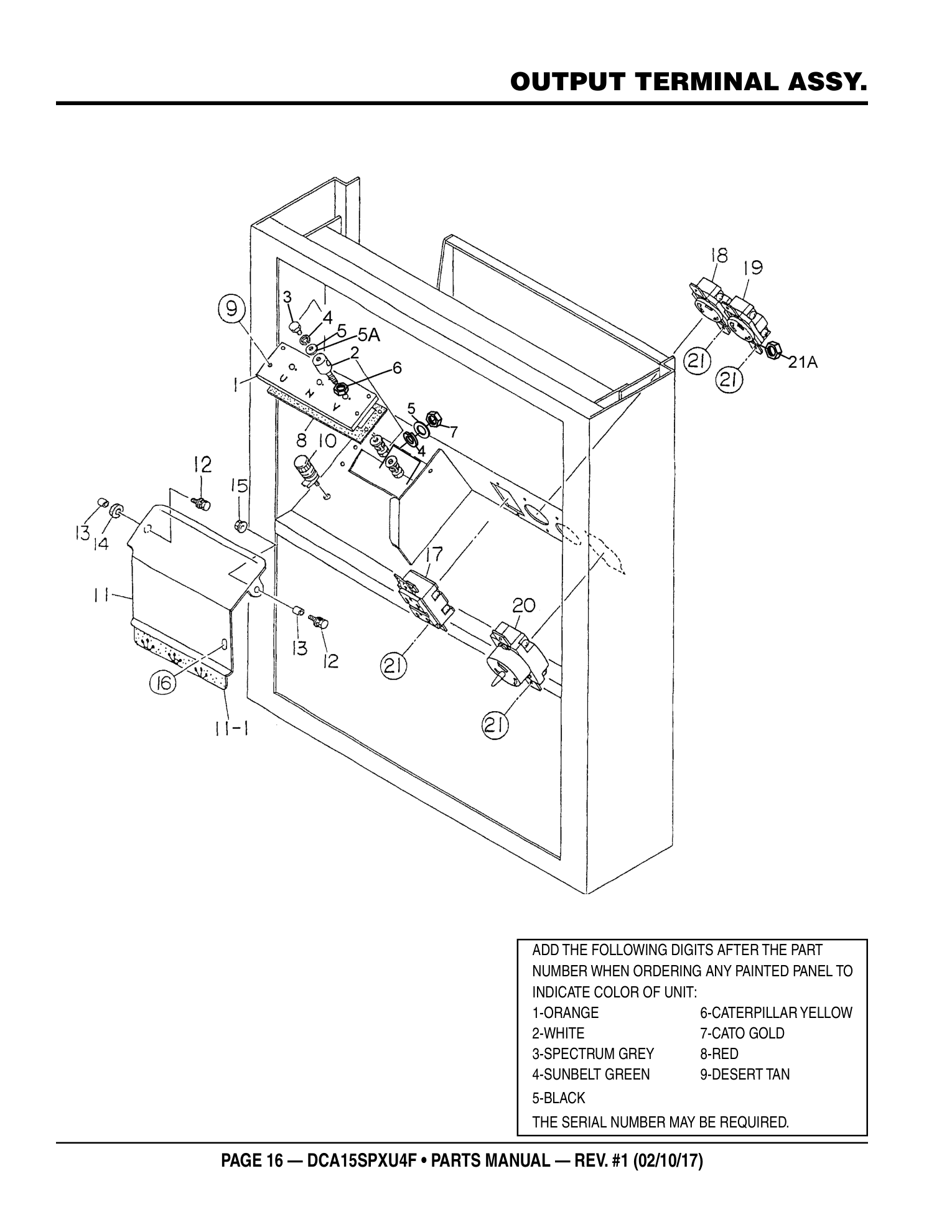

Page 16 — OUTPUT TERMINAL ASSY.

Multiquip DCA15SPXU4F Generator OUTPUT TERMINAL ASSY. parts diagram

Parts list — exactly as printed24 rows

No.	Part No.	Part Name	Qty	Remarks
1	M0232700014	SET BOARD, OUTPUT TERMINAL	1		ADD TO CART
SET BOARD, OUTPUT TERMINAL M0232700014 · qty on machine: 1 view full part page → $107.95
2	M0235100014	OUTPUT TERMINAL BOLT	3		ADD TO CART
OUTPUT TERMINAL BOLT M0235100014 · qty on machine: 3 Factory replaced this part - current number 7811861004 view full part page → $46.95 IN A KIT + SOLD SOLO
3	0801832204	HEX HEAD BOLT	3	REPLACES P/N M9220000104	ADD TO CART
HEX HEAD BOLT 0801832204 · qty on machine: 3 REPLACES P/N M9220000104 view full part page → $2.95
4	0040008000	WASHER, LOCK	9		ADD TO CART
WASHER, LOCK 0040008000 · qty on machine: 9 view full part page → $0.63
5	0041208000	WASHER, FLAT	3		ADD TO CART
WASHER, FLAT 0041208000 · qty on machine: 3 Factory replaced this part - current number 0401450080 view full part page → $0.56 IN A KIT + SOLD SOLO
5A	0041408000	WASHER, FLAT	6		ADD TO CART
WASHER, FLAT 0041408000 · qty on machine: 6 view full part page → $1.63
6	0039508000	HEX NUT	3		ADD TO CART
HEX NUT 0039508000 · qty on machine: 3 Factory replaced this part - current number 020108060 view full part page → $0.28 IN A KIT + SOLD SOLO
7	0039508000	HEX NUT	3		ADD TO CART
HEX NUT 0039508000 · qty on machine: 3 Factory replaced this part - current number 020108060 view full part page → $0.28 IN A KIT + SOLD SOLO
8	0235500004	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL 0235500004 · qty on machine: 1 view full part page → $6.95
9	0016906020	HEX HEAD BOLT	4		ADD TO CART
HEX HEAD BOLT 0016906020 · qty on machine: 4 Factory replaced this part - current number 011206020 view full part page → $0.95 IN A KIT + SOLD SOLO
10	0601815109	GROUND TERMINAL	1		ADD TO CART
GROUND TERMINAL 0601815109 · qty on machine: 1 view full part page → $39.95
11	M0238100003	COVER, OUTPUT TERMINAL	1		ADD TO CART
COVER, OUTPUT TERMINAL M0238100003 · qty on machine: 1 view full part page → $92.95
11-1	M0235400004	RUBBER SHEET	1		ADD TO CART
RUBBER SHEET M0235400004 · qty on machine: 1 view full part page → $34.95
12	0016906020	HEX HEAD BOLT	2		ADD TO CART
HEX HEAD BOLT 0016906020 · qty on machine: 2 Factory replaced this part - current number 011206020 view full part page → $0.95 IN A KIT + SOLD SOLO
13	M9118000104	COLLAR	2		PARTS REQUEST
PHOTO COMING COLLAR M9118000104 · qty on machine: 2 PARTS REQUEST
14	M9312200004	STAY RUBBER	1		PARTS REQUEST
PHOTO COMING STAY RUBBER M9312200004 · qty on machine: 1 PARTS REQUEST
15	0207006000	HEX NUT	1		ADD TO CART
HEX NUT 0207006000 · qty on machine: 1 Factory replaced this part - current number 0176060030 view full part page → $2.95 IN A KIT + SOLD SOLO
16	0016906015	HEX HEAD BOLT	1		ADD TO CART
HEX HEAD BOLT 0016906015 · qty on machine: 1 view full part page → $0.95
17	0601814013	RECEPTACLE, 5-20R	1		ADD TO CART
RECEPTACLE, 5-20R 0601814013 · qty on machine: 1 view full part page → $118.95
18	0601811035	RECEPTACLE, L5-30R	1		ADD TO CART
RECEPTACLE, L5-30R 0601811035 · qty on machine: 1 Factory replaced this part - current number 0601811031 view full part page → $46.95 IN A KIT + SOLD SOLO
19	0601811033	RECEPTACLE, L6-30R	1		ADD TO CART
RECEPTACLE, L6-30R 0601811033 · qty on machine: 1 view full part page → $61.95
20	0601814014	RECEPTACLE, CS-6369	1		ADD TO CART
RECEPTACLE, CS-6369 0601814014 · qty on machine: 1 view full part page → $90.95
21	0027104015	MACHINE SCREW	8		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 8 view full part page → $0.53
21A	0207004000	HEX NUT	8		ADD TO CART
HEX NUT 0207004000 · qty on machine: 8 Factory replaced this part - current number OEMAA8 view full part page → $0.4 IN A KIT + SOLD SOLO

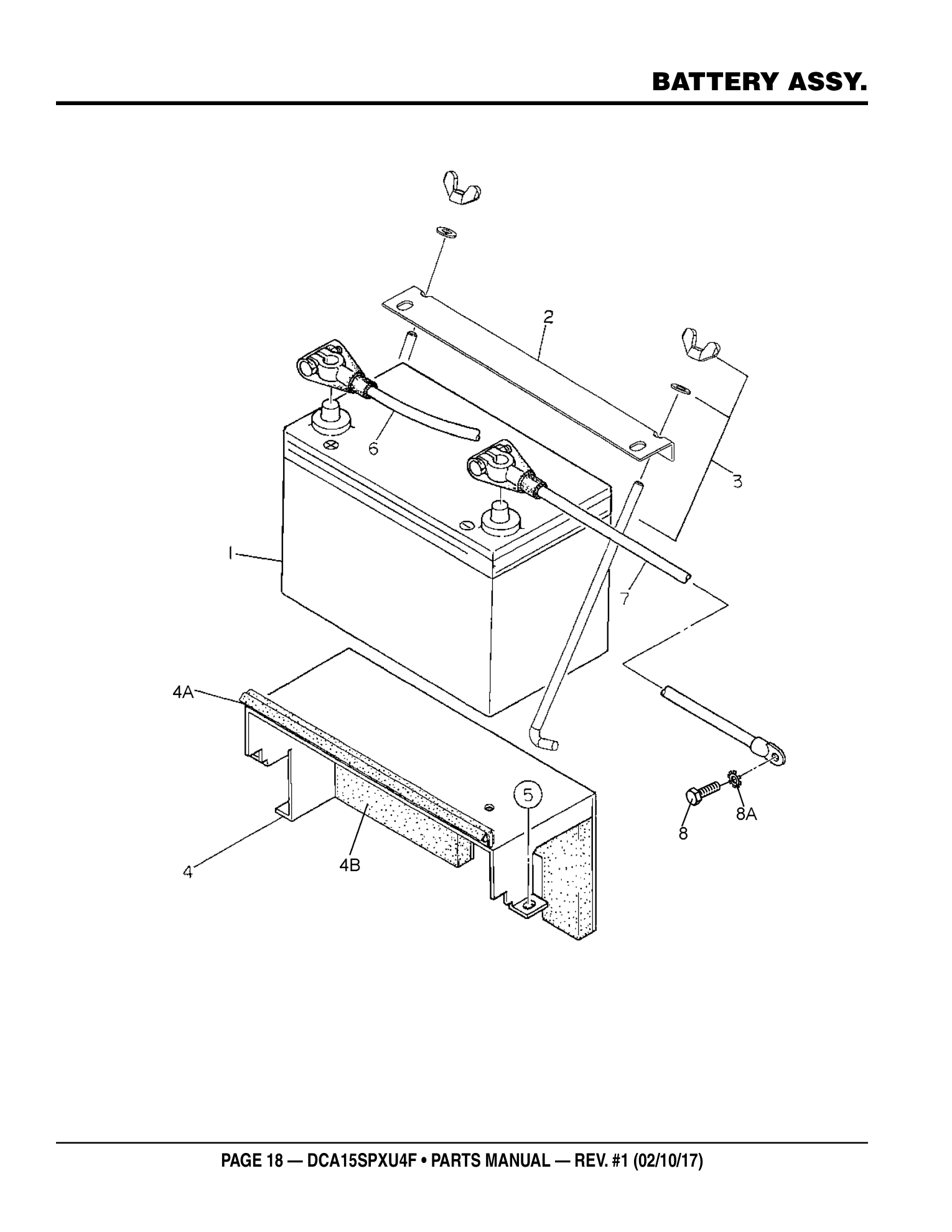

Page 18 — BATTERY ASSY.

Multiquip DCA15SPXU4F Generator BATTERY ASSY. parts diagram

Parts list — exactly as printed11 rows

No.	Part No.	Part Name	Qty	Remarks
1	0602220193	BATTERY	1	80D26R	ADD TO CART
BATTERY 0602220193 · qty on machine: 1 80D26R view full part page → $291.95
2	M0484600004	BATTERY BAND	1		PARTS REQUEST
PHOTO COMING BATTERY BAND M0484600004 · qty on machine: 1 PARTS REQUEST
3	0602220920	BATTERY BOLT	2		ADD TO CART
BATTERY BOLT 0602220920 · qty on machine: 2 view full part page → $5.95
4	M0344000103	BATTERY BASE	2		PARTS REQUEST
PHOTO COMING BATTERY BASE M0344000103 · qty on machine: 2 PARTS REQUEST
4A	0314200380	RUBBER SEAL	1		PARTS REQUEST
PHOTO COMING RUBBER SEAL 0314200380 · qty on machine: 1 PARTS REQUEST
4B	0494000304	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET 0494000304 · qty on machine: 1 PARTS REQUEST
5	0016908020	HEX HEAD BOLT	3		ADD TO CART
HEX HEAD BOLT 0016908020 · qty on machine: 3 Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO
6	M0348200004	BATTERY CABLE	1		ADD TO CART
BATTERY CABLE M0348200004 · qty on machine: 1 view full part page → $422.95
7	M0348200104	BATTERY CABLE	1		ADD TO CART
BATTERY CABLE M0348200104 · qty on machine: 1 view full part page → $43.95
8	0012412025	HEX HEAD BOLT	1		ADD TO CART
HEX HEAD BOLT 0012412025 · qty on machine: 1 Factory replaced this part - current number 012212025 view full part page → $1.95 IN A KIT + SOLD SOLO
8A	0040512000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040512000 · qty on machine: 1 view full part page → $0.77

Page 20 — MUFFLER ASSY.

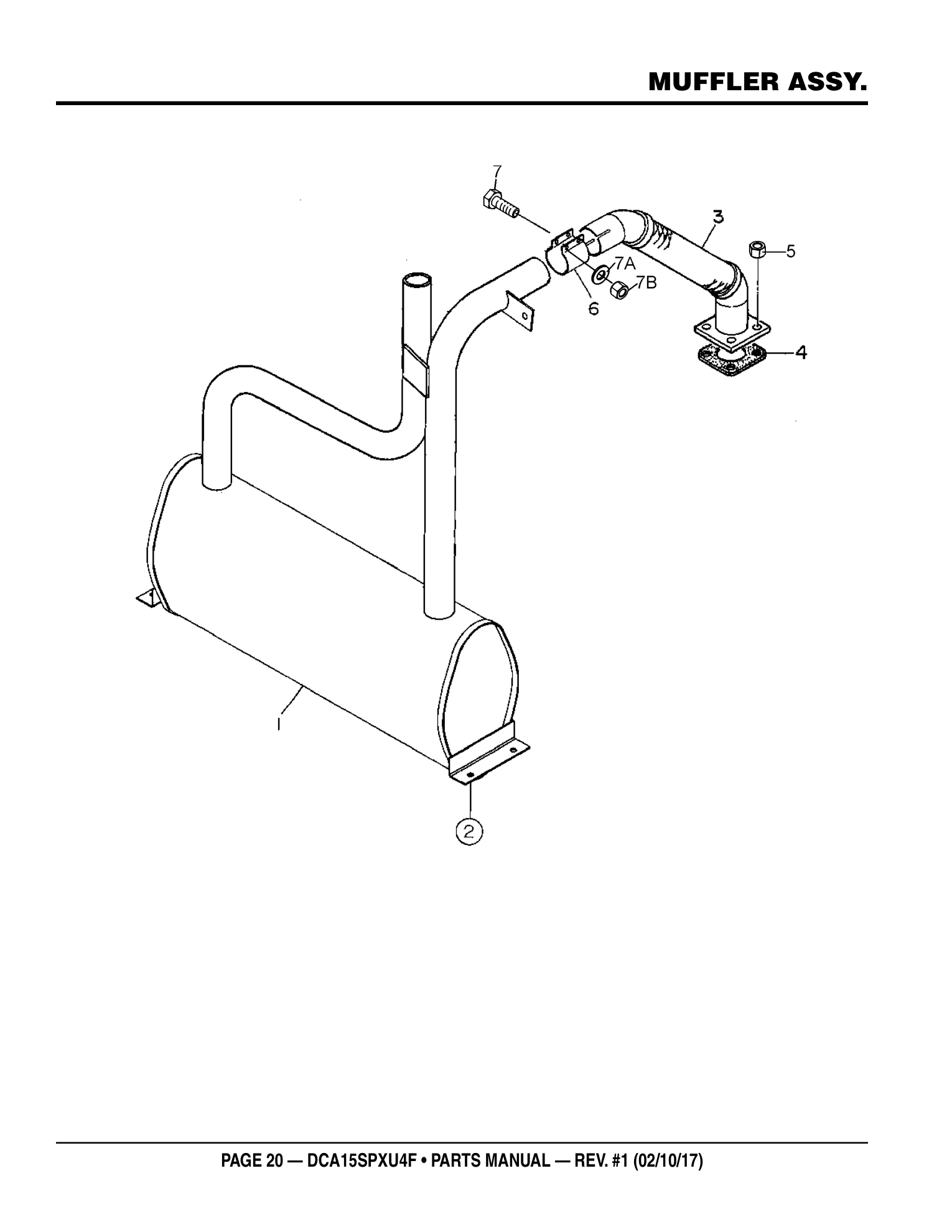

Multiquip DCA15SPXU4F Generator MUFFLER ASSY. parts diagram

Parts list — exactly as printed9 rows

No.	Part No.	Part Name	Qty	Remarks
1	M0331000003	MUFFLER	1		ADD TO CART
MUFFLER M0331000003 · qty on machine: 1 view full part page → $631.95
2	0016908020	HEX HEAD BOLT	5		ADD TO CART
HEX HEAD BOLT 0016908020 · qty on machine: 5 Factory replaced this part - current number 011008020 view full part page → $2.68 IN A KIT + SOLD SOLO
3	M0334000103	EXHAUST PIPE	1		PARTS REQUEST
PHOTO COMING EXHAUST PIPE M0334000103 · qty on machine: 1 PARTS REQUEST
4	1526312370	GASKET	1	REPLACES P/N 1526312371	ADD TO CART
GASKET 1526312370 · qty on machine: 1 REPLACES P/N 1526312371 view full part page → $13.95
5	0207108000	HEX NUT	4		ADD TO CART
HEX NUT 0207108000 · qty on machine: 4 view full part page → $3.95
6	0602325094	PIPE BAND	4		ADD TO CART
PIPE BAND 0602325094 · qty on machine: 4 view full part page → $95.95
7	0341510040	HEX HEAD BOLT	2		ADD TO CART
HEX HEAD BOLT 0341510040 · qty on machine: 2 view full part page → $8.95
7A	0042410000	WASHER, FLAT	2		ADD TO CART
WASHER, FLAT 0042410000 · qty on machine: 2 view full part page → $2.93
7B	0207110000	HEX NUT	2		ADD TO CART
HEX NUT 0207110000 · qty on machine: 2 view full part page → $7.95

Page 22 — FUEL TANK ASSY.

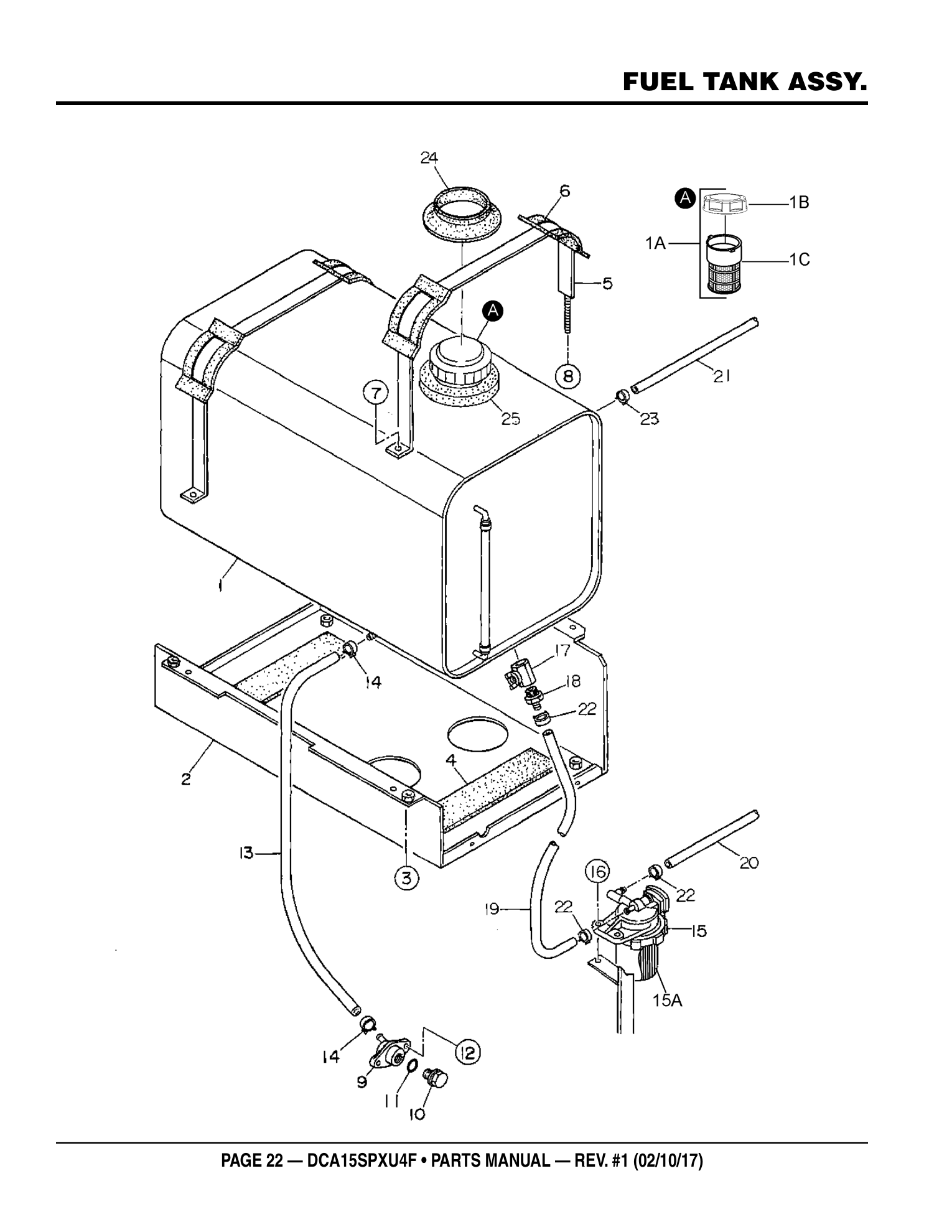

Multiquip DCA15SPXU4F Generator FUEL TANK ASSY. parts diagram

Parts list — exactly as printed29 rows

No.	Part No.	Part Name	Qty	Remarks
1	M0364000003	FUEL TANK	1		PARTS REQUEST
PHOTO COMING FUEL TANK M0364000003 · qty on machine: 1 PARTS REQUEST
1A	A9924800024	CAP, FUEL TANK ASSY.	1		ADD TO CART
CAP, FUEL TANK ASSY. A9924800024 · qty on machine: 1 view full part page → $50.95
1B	A9924800024	CAP, FUEL TANK	1	REPLACES P/N 0810105800	ADD TO CART
CAP, FUEL TANK A9924800024 · qty on machine: 1 REPLACES P/N 0810105800 view full part page → $50.95
1C	0810105900	FUEL FILTER	1		NO LONGER AVAILABLE
PHOTO COMING FUEL FILTER 0810105900 · qty on machine: 1 NO LONGER AVAILABLE
2	M0364300103	FUEL TANK BASE	1		PARTS REQUEST
PHOTO COMING FUEL TANK BASE M0364300103 · qty on machine: 1 PARTS REQUEST
3	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
4	0222100300	TANK SHEET	2		ADD TO CART
TANK SHEET 0222100300 · qty on machine: 2 view full part page → $9.95
5	M0365200004	TANK BAND	2		PARTS REQUEST
PHOTO COMING TANK BAND M0365200004 · qty on machine: 2 PARTS REQUEST
6	M9310500104	PAD, TANK BAND	4		ADD TO CART
PAD, TANK BAND M9310500104 · qty on machine: 4 view full part page → $5.95
7	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
8	0207308000	HEX. NUT	2		ADD TO CART
HEX. NUT 0207308000 · qty on machine: 2 view full part page → $0.89
9	7812014003B	DRAIN JOINT	1	REPLACES P/N M2320300103	ADD TO CART
DRAIN JOINT 7812014003B · qty on machine: 1 REPLACES P/N M2320300103 view full part page → $25.95
10	0802011104	PLUG	1	REPLACES P/N M9200200004	ADD TO CART
PLUG 0802011104 · qty on machine: 1 REPLACES P/N M9200200004 view full part page → $10.95
11	0150000018	O-RING	1		ADD TO CART
O-RING 0150000018 · qty on machine: 1 view full part page → $1.87
12	011206020	HEX. HEAD BOLT	2	REPLACES P/N 0019206020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 2 REPLACES P/N 0019206020 view full part page → $0.95
13	0199901200	DRAIN HOSE	1		ADD TO CART
DRAIN HOSE 0199901200 · qty on machine: 1 view full part page → $39.95
14	0605515198	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515198 · qty on machine: 2 view full part page → $1.71
15	1522143010	FUEL FILTER	1	REPLACES P/N 0602042462	ADD TO CART
FUEL FILTER 1522143010 · qty on machine: 1 REPLACES P/N 0602042462 view full part page → $141.95
15A	1522143170	ELEMENT, FUEL FILTER	1	REPLACES P/N 1522143172	ADD TO CART
ELEMENT, FUEL FILTER 1522143170 · qty on machine: 1 REPLACES P/N 1522143172 view full part page → $38.95
16	011208030	HEX. HEAD BOLT	2	REPLACES P/N 0016908030	ADD TO CART
HEX. HEAD BOLT 011208030 · qty on machine: 2 REPLACES P/N 0016908030 view full part page → $1.3
17	0603325013	VALVE	1		ADD TO CART
VALVE 0603325013 · qty on machine: 1 view full part page → $58.95
18	0602022219	HOSE JOINT	1		ADD TO CART
HOSE JOINT 0602022219 · qty on machine: 1 view full part page → $17.95
19	0199900200	SUCTION HOSE	1		ADD TO CART
SUCTION HOSE 0199900200 · qty on machine: 1 view full part page → $6.95
20	Y0199900250	SUCTION HOSE	1		PARTS REQUEST
PHOTO COMING SUCTION HOSE Y0199900250 · qty on machine: 1 PARTS REQUEST
21	0199700250	RETURN HOSE	1		ADD TO CART
RETURN HOSE 0199700250 · qty on machine: 1 view full part page → $6.95
22	0605515198	HOSE BAND	4		ADD TO CART
HOSE BAND 0605515198 · qty on machine: 4 view full part page → $1.71
23	Y0605515104	HOSE BAND	2		ADD TO CART
HOSE BAND Y0605515104 · qty on machine: 2 view full part page → $0.94
24	M0365400004	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL M0365400004 · qty on machine: 1 view full part page → $14.95
25	M0364400004	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL M0364400004 · qty on machine: 1 view full part page → $9.95

Page 24 — ENCLOSURE ASSY.

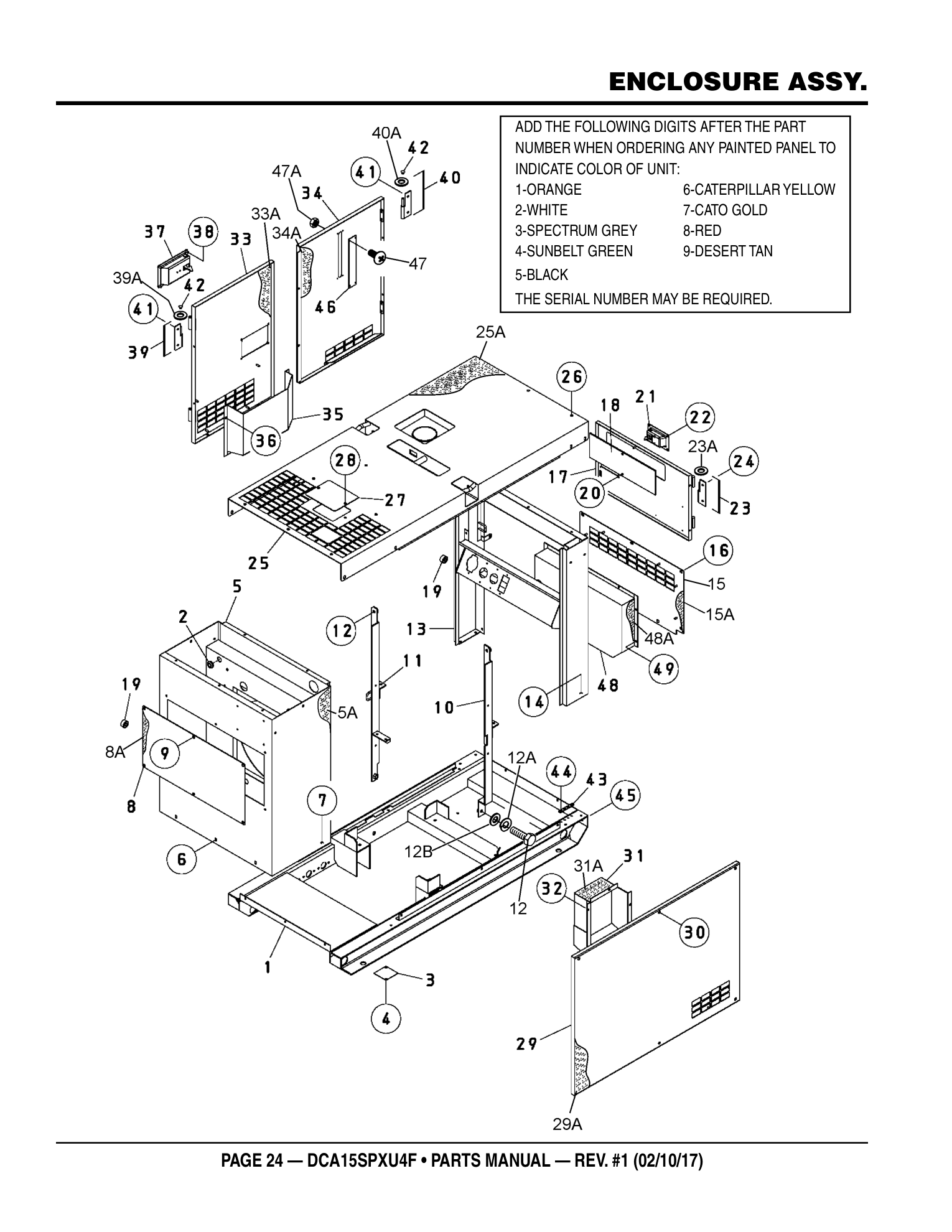

Multiquip DCA15SPXU4F Generator ENCLOSURE ASSY. parts diagram

Parts list — exactly as printed43 rows

No.	Part No.	Part Name	Qty	Remarks
1	M0414000202	BASE	1		PARTS REQUEST
PHOTO COMING BASE M0414000202 · qty on machine: 1 PARTS REQUEST
2	0601850239	GROMMET	1		ADD TO CART
GROMMET 0601850239 · qty on machine: 1 view full part page → $3.95
3	M0414800004	COVER	1		PARTS REQUEST
PHOTO COMING COVER M0414800004 · qty on machine: 1 PARTS REQUEST
4	0016906015	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 2 view full part page → $0.95
5	M0424000112	FRONT FRAME	1		ADD TO CART
FRONT FRAME M0424000112 · qty on machine: 1 view full part page → $507.95
5A	M0494100514	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M0494100514 · qty on machine: 1 view full part page → $43.95
6	0019208020	HEX. HEAD BOLT	3		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 3 view full part page → $3.95
7	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
8	M0485400004	COVER, FRONT FRAME	1		ADD TO CART
COVER, FRONT FRAME M0485400004 · qty on machine: 1 view full part page → $77.95
8A	M0495100104	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M0495100104 · qty on machine: 1 view full part page → $18.95
9	0019208020	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 6 view full part page → $3.95
10	M0434300203	HANGER	1		PARTS REQUEST
PHOTO COMING HANGER M0434300203 · qty on machine: 1 PARTS REQUEST
11	M0434300303	HANGER	1		PARTS REQUEST
PHOTO COMING HANGER M0434300303 · qty on machine: 1 PARTS REQUEST
12	0012312030	HEX. HEAD BOLT	4	REPLACES P/N 0013612030	ADD TO CART
HEX. HEAD BOLT 0012312030 · qty on machine: 4 REPLACES P/N 0013612030 view full part page → $6.95
12A	0040012000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0040012000 · qty on machine: 4 view full part page → $0.95
12B	031112230	WASHER, FLAT	4	REPLACES P/N 0041212000	ADD TO CART
WASHER, FLAT 031112230 · qty on machine: 4 REPLACES P/N 0041212000 view full part page → $0.95
13	M0444000202	REAR FRAME	1		PARTS REQUEST
PHOTO COMING REAR FRAME M0444000202 · qty on machine: 1 PARTS REQUEST
14	011008020	HEX. HEAD BOLT	5	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 5 REPLACES P/N 0016908020 view full part page → $2.68
15	M0444300203	COVER, REAR FRAME	1		PARTS REQUEST
PHOTO COMING COVER, REAR FRAME M0444300203 · qty on machine: 1 PARTS REQUEST
15A	M0444100104	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M0444100104 · qty on machine: 1 view full part page → $26.95
16	0019208020	HEX. HEAD BOLT	7		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 7 view full part page → $3.95
17	M0444200003	DOOR, REAR FRAME	1		ADD TO CART
DOOR, REAR FRAME M0444200003 · qty on machine: 1 view full part page → $138.95
18	M0444600004	WINDOW PLATE	1		ADD TO CART
WINDOW PLATE M0444600004 · qty on machine: 1 view full part page → $20.95
19	0601851613	STOPPER	2		ADD TO CART
STOPPER 0601851613 · qty on machine: 2 view full part page → $2.95
20	0176060030	NUT, FLANGE 6MM	2	REPLACES P/N 0207006000	ADD TO CART
NUT, FLANGE 6MM 0176060030 · qty on machine: 2 REPLACES P/N 0207006000 view full part page → $2.95
21	0605010230	DOOR HANDLE	1		ADD TO CART
DOOR HANDLE 0605010230 · qty on machine: 1 view full part page → $121.95
22	0021805015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021805015 · qty on machine: 4 view full part page → $0.58
23	M9112100004	HINGE	2		ADD TO CART
HINGE M9112100004 · qty on machine: 2 view full part page → $12.95
23A	M9118000004	WASHER	2		ADD TO CART
WASHER M9118000004 · qty on machine: 2 view full part page → $0.88
24	0019206015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0019206015 · qty on machine: 4 view full part page → $3.95
25	M0464000202	ROOF PANEL	1		ADD TO CART
ROOF PANEL M0464000202 · qty on machine: 1 view full part page → $622.95
25A	M0494500604	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M0494500604 · qty on machine: 1 view full part page → $42.95
26	0019208020	HEX. HEAD BOLT	16		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 16 view full part page → $3.95
27	M1465400104	COVER	1		ADD TO CART
COVER M1465400104 · qty on machine: 1 view full part page → $18.95
28	0019208020	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 2 view full part page → $3.95
29	M0454100203	SIDE PANEL	1		ADD TO CART
SIDE PANEL M0454100203 · qty on machine: 1 view full part page → $307.95
29A	M0494402404	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M0494402404 · qty on machine: 1 view full part page → $282.95
30	Y0019208035	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT Y0019208035 · qty on machine: 6 view full part page → $5.95
31	M0454300404	DUCT	1		PARTS REQUEST
PHOTO COMING DUCT M0454300404 · qty on machine: 1 PARTS REQUEST
31A	M0414000203	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M0414000203 · qty on machine: 1 PARTS REQUEST
32	0176060030	HEX. NUT	6	REPLACES P/N 0601850240	ADD TO CART
HEX. NUT 0176060030 · qty on machine: 6 REPLACES P/N 0601850240 view full part page → $2.95
33	M0414800005	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M0414800005 · qty on machine: 1 PARTS REQUEST
33A	0016906016	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET 0016906016 · qty on machine: 1 view full part page → $0.81

Page 26 — ENCLOSURE ASSY. (CONTINUED)

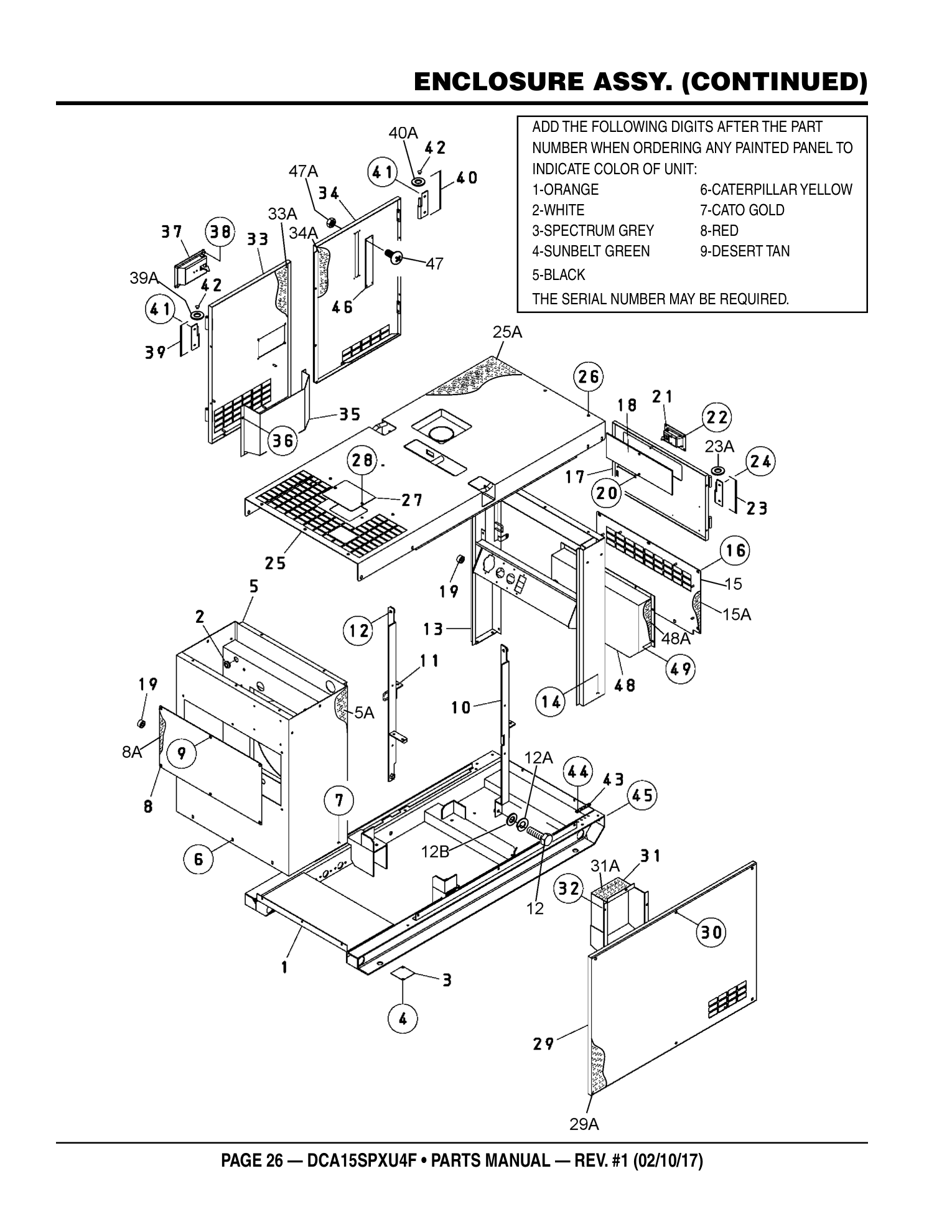

Multiquip DCA15SPXU4F Generator ENCLOSURE ASSY. (CONTINUED) parts diagram

Parts list — exactly as printed21 rows

No.	Part No.	Part Name	Qty	Remarks
34	M0454000503	SIDE DOOR	1		ADD TO CART
SIDE DOOR M0454000503 · qty on machine: 1 view full part page → $181.95
34A	M0494402304	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M0494402304 · qty on machine: 1 view full part page → $30.95
35	M0454300604	DUCT	1		ADD TO CART
DUCT M0454300604 · qty on machine: 1 view full part page → $84.95
36	0176060030	NUT, FLANGE 6MM	4	REPLACES P/N 0207006000	ADD TO CART
NUT, FLANGE 6MM 0176060030 · qty on machine: 4 REPLACES P/N 0207006000 view full part page → $2.95
37	0605012309	DOOR HANDLE	1		ADD TO CART
DOOR HANDLE 0605012309 · qty on machine: 1 view full part page → $49.95
38	0176060030	NUT, FLANGE 6MM	4	REPLACES P/N 0207006000	ADD TO CART
NUT, FLANGE 6MM 0176060030 · qty on machine: 4 REPLACES P/N 0207006000 view full part page → $2.95
39	M9110100304	HINGE	2		ADD TO CART
HINGE M9110100304 · qty on machine: 2 view full part page → $19.95
39A	M9116100004	WASHER	2		ADD TO CART
WASHER M9116100004 · qty on machine: 2 view full part page → $1.93
40	M9110100204	HINGE	2		ADD TO CART
HINGE M9110100204 · qty on machine: 2 view full part page → $23.95
40A	M9116100004	WASHER	2		ADD TO CART
WASHER M9116100004 · qty on machine: 2 view full part page → $1.93
41	0019208020	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 8 view full part page → $3.95
42	0845031504	CAP	4	REPLACES P/N M9310000004	ADD TO CART
CAP 0845031504 · qty on machine: 4 REPLACES P/N M9310000004 view full part page → $2.95
43	M1278200004	PLATE	1		ADD TO CART
PLATE M1278200004 · qty on machine: 1 view full part page → $42.95
44	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95
45	0019208020	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 1 view full part page → $3.95
46	M0454400004	WINDOW PLATE	1		ADD TO CART
WINDOW PLATE M0454400004 · qty on machine: 1 view full part page → $21.95
47	0027103010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027103010 · qty on machine: 4 view full part page → $0.44
47A	0207003000	HEX. NUT	4		ADD TO CART
HEX. NUT 0207003000 · qty on machine: 4 view full part page → $0.21
48	M0444800003	DUCT	1		PARTS REQUEST
PHOTO COMING DUCT M0444800003 · qty on machine: 1 PARTS REQUEST
48A	M0444100104	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M0444100104 · qty on machine: 1 view full part page → $26.95
49	0176060030	NUT, FLANGE 6MM	6	REPLACES P/N 0207006000	ADD TO CART
NUT, FLANGE 6MM 0176060030 · qty on machine: 6 REPLACES P/N 0207006000 view full part page → $2.95

Page 28 — RUBBER SEALS ASSY.

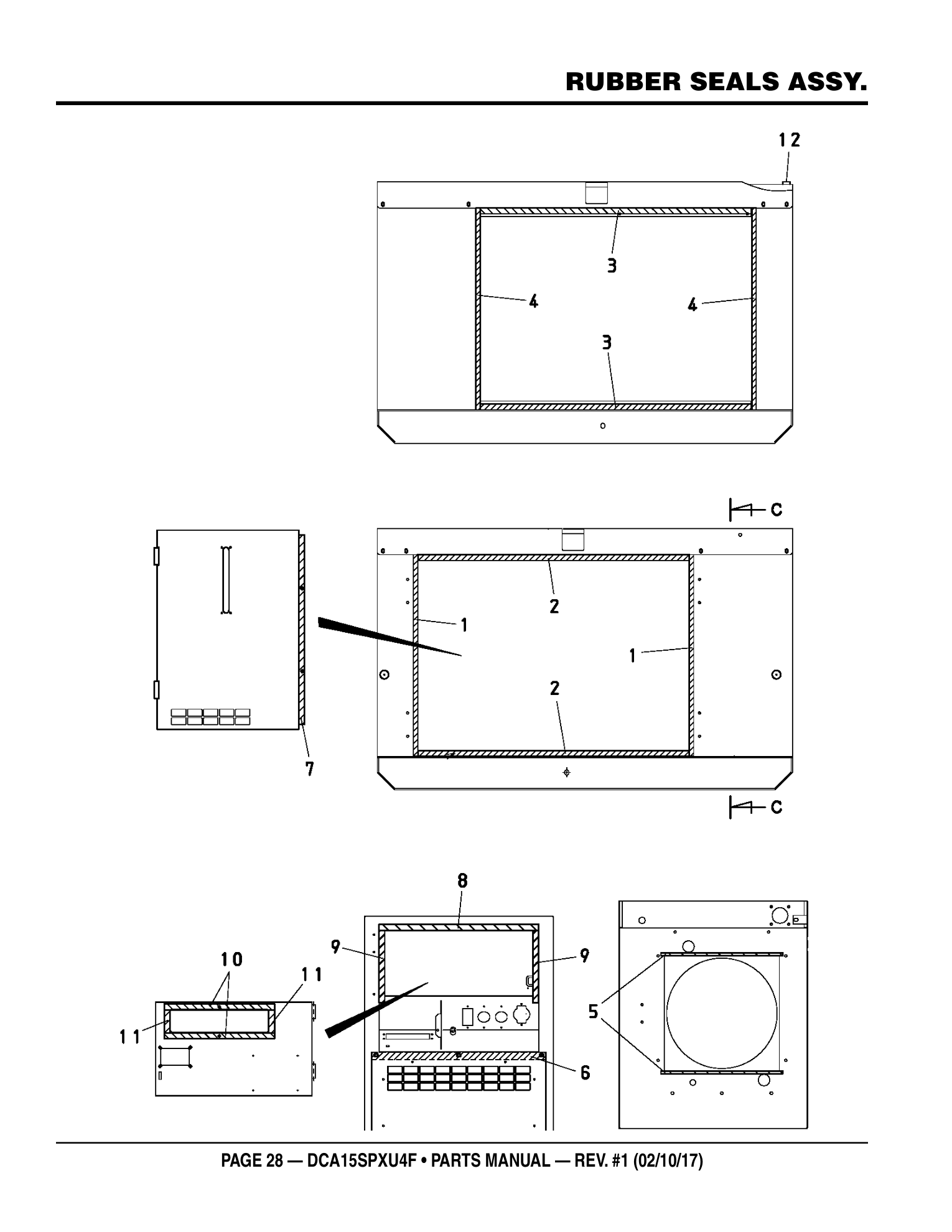

Multiquip DCA15SPXU4F Generator RUBBER SEALS ASSY. parts diagram

Parts list — exactly as printed12 rows

No.	Part No.	Part Name	Qty
1	0229400695	RUBBER SEAL	2	ADD TO CART
RUBBER SEAL 0229400695 · qty on machine: 2 view full part page → $17.95
2	Y0229400950	RUBBER SEAL	2	ADD TO CART
RUBBER SEAL Y0229400950 · qty on machine: 2 view full part page → $11.95
3	0221700950	RUBBER SEAL	2	ADD TO CART
RUBBER SEAL 0221700950 · qty on machine: 2 view full part page → $12.95
4	0221700695	RUBBER SEAL	2	ADD TO CART
RUBBER SEAL 0221700695 · qty on machine: 2 view full part page → $10.95
5	0315900475	RUBBER SEAL	2	ADD TO CART
RUBBER SEAL 0315900475 · qty on machine: 2 view full part page → $12.95
6	0229200600	RUBBER SEAL	1	NO LONGER AVAILABLE
PHOTO COMING RUBBER SEAL 0229200600 · qty on machine: 1 NO LONGER AVAILABLE
7	0229400660	RUBBER SEAL	2	ADD TO CART
RUBBER SEAL 0229400660 · qty on machine: 2 view full part page → $18.95
8	0229400550	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL 0229400550 · qty on machine: 1 view full part page → $17.95
9	0229400250	RUBBER SEAL	2	ADD TO CART
RUBBER SEAL 0229400250 · qty on machine: 2 view full part page → $8.95
10	0227500380	RUBBER SEAL	2	ADD TO CART
RUBBER SEAL 0227500380 · qty on machine: 2 view full part page → $10.95
11	0227500080	RUBBER SEAL	2	ADD TO CART
RUBBER SEAL 0227500080 · qty on machine: 2 view full part page → $2.95
12	Y0229200650	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL Y0229200650 · qty on machine: 1 Factory replaced this part - current number 0229200650 view full part page → $15.95 IN A KIT + SOLD SOLO

Page 30 — BATTERY CHARGER ASSY.

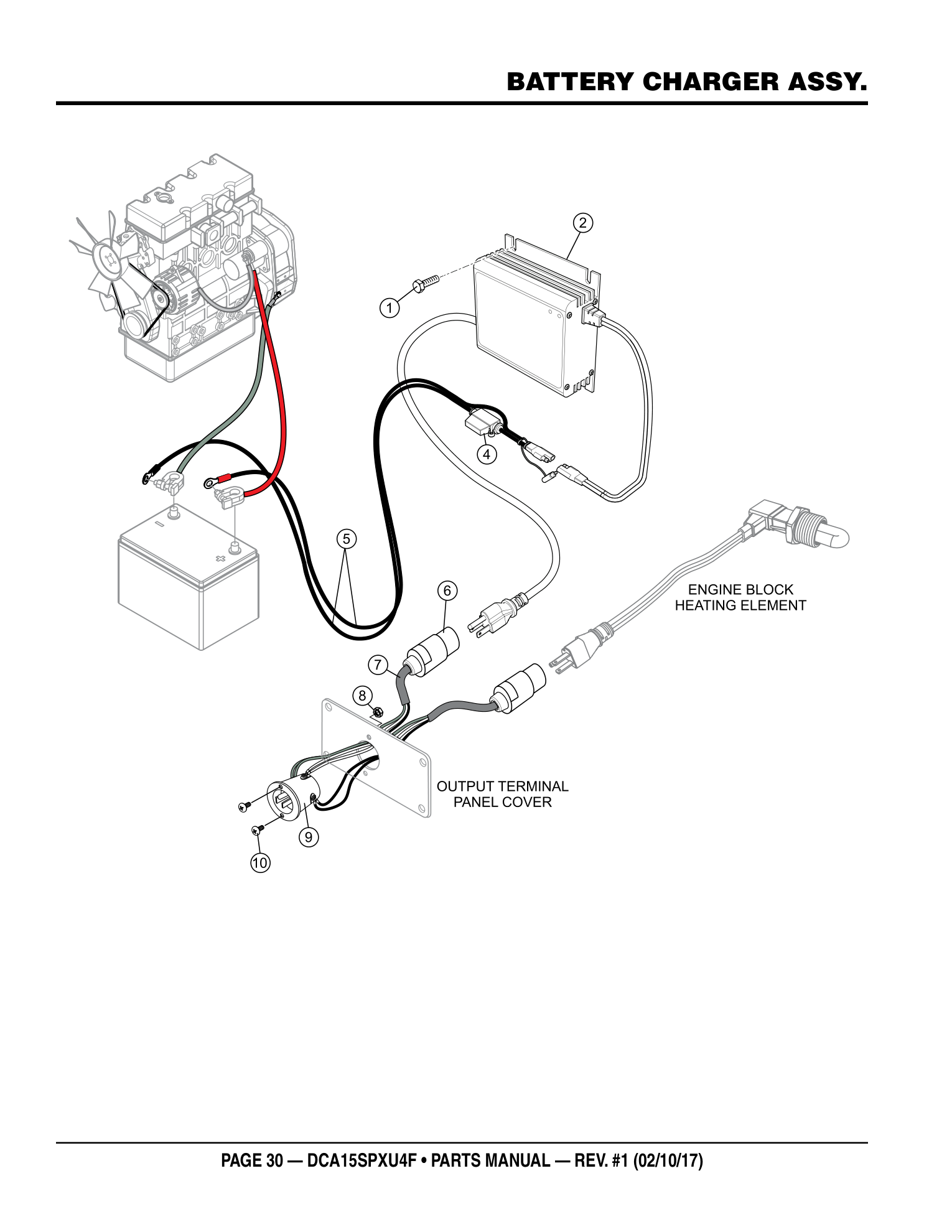

Multiquip DCA15SPXU4F Generator BATTERY CHARGER ASSY. parts diagram

Parts list — exactly as printed10 rows

No.	Part No.	Part Name	Qty	Remarks
1		SCREW, 10-24 X 1/2"	2	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING SCREW, 10-24 X 1/2" · qty on machine: 2 OBTAIN LOCALLY SEE REMARKS
2	LC125002	CHARGER, BATT., FLOAT TYPE, 3A, 12V	1	INCLUDES ITEMS W/$	NO LONGER AVAILABLE
PHOTO COMING CHARGER, BATT., FLOAT TYPE, 3A, 12V LC125002 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 3$, 4$, 5$ NO LONGER AVAILABLE
3$	EE58072	CORD, CHARGE SIDE	1		PARTS REQUEST
PHOTO COMING CORD, CHARGE SIDE EE58072 · qty on machine: 1 Also included in kit 2 - CHARGER, BATT., FLOAT TYPE (LC125002) PARTS REQUEST
4$	23284-030	FUSE, 3 AMP	2		ADD TO CART
FUSE, 3 AMP 23284-030 · qty on machine: 2 Also included in kit 2 - CHARGER, BATT., FLOAT TYPE (LC125002) view full part page → $1.91 IN A KIT + SOLD SOLO
5$	EE58070	CORD, CHARGE, STARTER SIDE	1		PARTS REQUEST
PHOTO COMING CORD, CHARGE, STARTER SIDE EE58070 · qty on machine: 1 Also included in kit 2 - CHARGER, BATT., FLOAT TYPE (LC125002) PARTS REQUEST
6	HBL5369C	CONNECTOR, 20 AMP, 125V	1		ADD TO CART
CONNECTOR, 20 AMP, 125V HBL5369C · qty on machine: 1 view full part page → $103.95
7	EE56557	CORD, CAROL 3/C 14 AWG		AR 1PC = 1FT.	ADD TO CART
CORD, CAROL 3/C 14 AWG EE56557 AR 1PC = 1FT. view full part page → $1.95
8	OEMAA8	HEX NUT, 4MM	2		ADD TO CART
HEX NUT, 4MM OEMAA8 · qty on machine: 2 view full part page → $0.4
9	HBL5278C	INLET FLANGE, NEMA 15A 125V	1		ADD TO CART
INLET FLANGE, NEMA 15A 125V HBL5278C · qty on machine: 1 view full part page → $53.95
10	7538070	SCREW, PHILLIPS HD.	2		ADD TO CART
SCREW, PHILLIPS HD. 7538070 · qty on machine: 2 view full part page → $0.52

Page 34 — NAMEPLATE AND DECALS ASSY.

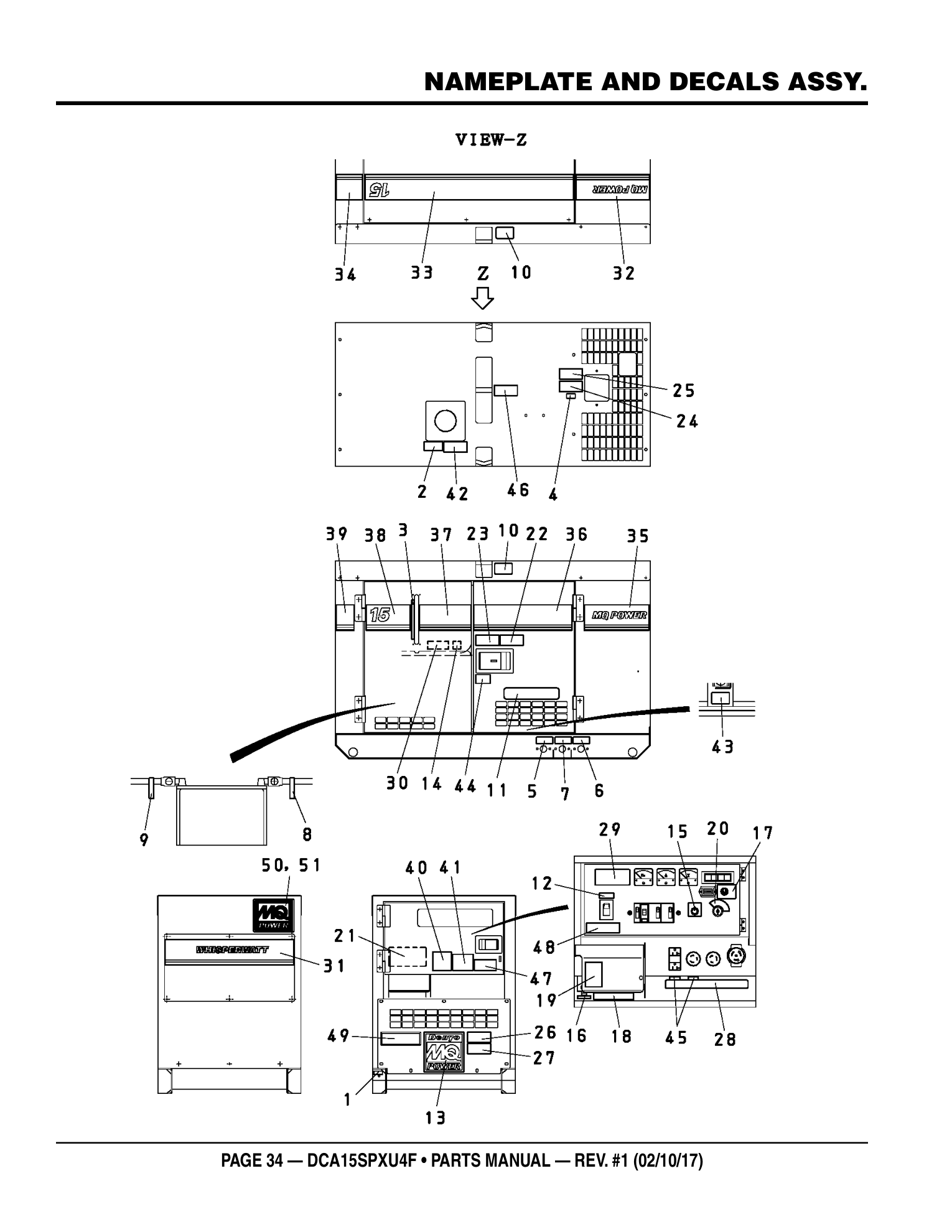

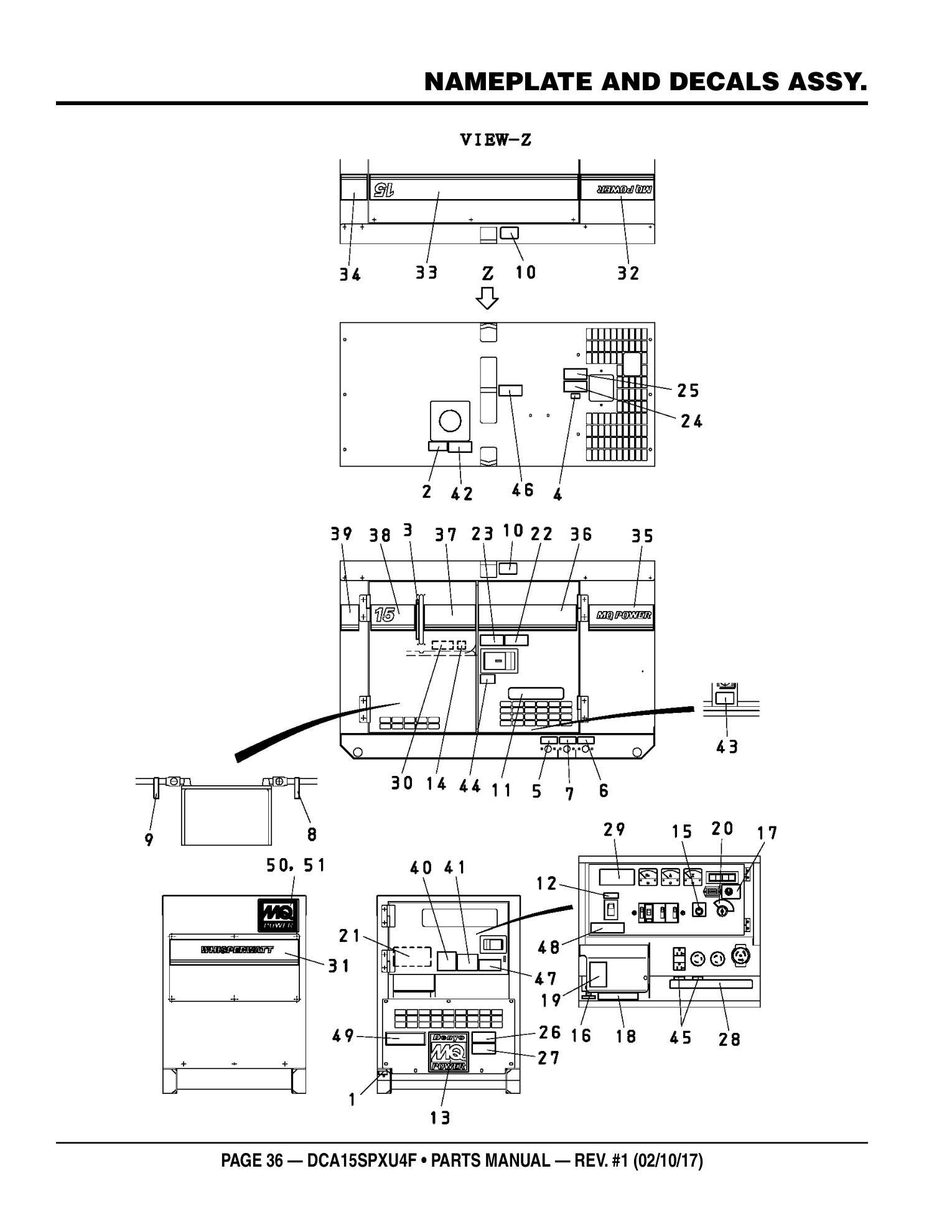

Multiquip DCA15SPXU4F Generator NAMEPLATE AND DECALS ASSY. parts diagram

Parts list — exactly as printed42 rows

No.	Part No.	Part Name	Qty	Remarks
1	M9520000004	DECAL: GROUND	1	M92000000	ADD TO CART
DECAL: GROUND M9520000004 · qty on machine: 1 M92000000 view full part page → $1.95
2	M9501500004	DECAL: DIESEL FUEL	1	M90150000	ADD TO CART
DECAL: DIESEL FUEL M9501500004 · qty on machine: 1 M90150000 view full part page → $3.95
3	M9502500104	DECAL: FUEL GAUGE	1	M90250010	ADD TO CART
DECAL: FUEL GAUGE M9502500104 · qty on machine: 1 M90250010 view full part page → $1.8
4	M9500100004	DECAL: WATER	1	M90010000	ADD TO CART
DECAL: WATER M9500100004 · qty on machine: 1 M90010000 view full part page → $1.95
5	M9500500104	DECAL: FUEL DRAIN PLUG	1	M90050010	ADD TO CART
DECAL: FUEL DRAIN PLUG M9500500104 · qty on machine: 1 M90050010 view full part page → $4.95
6	M9500100104	DECAL: WATER DRAIN PLUG	1	M90010010	ADD TO CART
DECAL: WATER DRAIN PLUG M9500100104 · qty on machine: 1 M90010010 view full part page → $9.95
7	M9500000004	DECAL: OIL DRAIN PLUG	1	M90000000	ADD TO CART
DECAL: OIL DRAIN PLUG M9500000004 · qty on machine: 1 M90000000 view full part page → $2.95
8	M9500300104	DECAL: +	1	M90030010	ADD TO CART
DECAL: + M9500300104 · qty on machine: 1 M90030010 view full part page → $1.95
9	M9500300004	DECAL: -	1	M90030000	ADD TO CART
DECAL: - M9500300004 · qty on machine: 1 M90030000 view full part page → $1.95
10	M9512000004	DECAL: SUPPORT HOOK	2	M91200000	ADD TO CART
DECAL: SUPPORT HOOK M9512000004 · qty on machine: 2 M91200000 view full part page → $5.95
11	M9503000103	DECAL: WATER • OIL CHK. AND FILL DAILY	1	M90300010	ADD TO CART
DECAL: WATER • OIL CHK. AND FILL DAILY M9503000103 · qty on machine: 1 M90300010 view full part page → $7.95
12	M9522000504	DECAL: CIRCUIT BREAKER	1	M92200050	ADD TO CART
DECAL: CIRCUIT BREAKER M9522000504 · qty on machine: 1 M92200050 view full part page → $25.95
13	M9511200203	DECAL: MQ POWER	1	M91120020	ADD TO CART
DECAL: MQ POWER M9511200203 · qty on machine: 1 M91120020 view full part page → $3.95
14	M9502500004	DECAL: FUEL COCK	1	M90250000	ADD TO CART
DECAL: FUEL COCK M9502500004 · qty on machine: 1 M90250000 view full part page → $1.8
15	M9522000604	DECAL: VOLTAGE REGULATOR	1	M92200060	ADD TO CART
DECAL: VOLTAGE REGULATOR M9522000604 · qty on machine: 1 M92200060 view full part page → $18.95
16	M9522001504	DECAL: GROUND FOR G. F. C. I	1	M92200150	ADD TO CART
DECAL: GROUND FOR G. F. C. I M9522001504 · qty on machine: 1 M92200150 view full part page → $1.79
17	M9501400014	DECAL: SPEED CONTROL SWITCH	1	M90140001	ADD TO CART
DECAL: SPEED CONTROL SWITCH M9501400014 · qty on machine: 1 M90140001 view full part page → $6.95
18	M9522200004	DECAL: AC OUTPUT TERMINAL	1	M92220000	ADD TO CART
DECAL: AC OUTPUT TERMINAL M9522200004 · qty on machine: 1 M92220000 view full part page → $1.31
19	M9522100004	DECAL: DANGER HIGH VOLTAGE	1	M92210000	ADD TO CART
DECAL: DANGER HIGH VOLTAGE M9522100004 · qty on machine: 1 M92210000 view full part page → $11.95
20	M9502400004	DECAL: STARTER SWITCH	1	M90240000	PARTS REQUEST
PHOTO COMING DECAL: STARTER SWITCH M9502400004 · qty on machine: 1 M90240000 PARTS REQUEST
21	M0551000103	DECAL: OPERATING PROCEDURE	1	M05100010	ADD TO CART
DECAL: OPERATING PROCEDURE M0551000103 · qty on machine: 1 M05100010 view full part page → $1.8
22	M9510100004	DECAL: CAUTION HOT PARTS	1	M91010000	ADD TO CART
DECAL: CAUTION HOT PARTS M9510100004 · qty on machine: 1 M91010000 view full part page → $68.95
23	M9503000004	DECAL: WARNING MOVING PARTS	1	M90300000	ADD TO CART
DECAL: WARNING MOVING PARTS M9503000004 · qty on machine: 1 M90300000 view full part page → $1.95
24	M9503100004	DECAL: WARNING HOT COOLANT	1	M90310000	ADD TO CART
DECAL: WARNING HOT COOLANT M9503100004 · qty on machine: 1 M90310000 view full part page → $4.95
25	M9503200004	DECAL: WARNING ENGINE EXHAUST	1	M90320000	ADD TO CART
DECAL: WARNING ENGINE EXHAUST M9503200004 · qty on machine: 1 M90320000 view full part page → $14.95
26	M9520100503	DECAL: WARNING	1	M91010020 REPLACES P/N M9510100204	ADD TO CART
DECAL: WARNING M9520100503 · qty on machine: 1 M91010020 REPLACES P/N M9510100204 view full part page → $1.95
27	M9520100503	DECAL: WARNING	1	M92010010 REPLACES P/N M9520100104	ADD TO CART
DECAL: WARNING M9520100503 · qty on machine: 1 M92010010 REPLACES P/N M9520100104 view full part page → $1.95
28	M0552000103	DECAL: AC POWER OUTPUT	1	M05200010	ADD TO CART
DECAL: AC POWER OUTPUT M0552000103 · qty on machine: 1 M05200010 view full part page → $25.95
29	M9520100004	DECAL: WARNING ELECT. SHOCK HAZ	1	M92010000	ADD TO CART
DECAL: WARNING ELECT. SHOCK HAZ M9520100004 · qty on machine: 1 M92010000 view full part page → $5.95
30	M9504300004	DECAL: POISON/DANGER	1	M90430000	ADD TO CART
DECAL: POISON/DANGER M9504300004 · qty on machine: 1 M90430000 view full part page → $1.8
31	M0562100003	STRIPE: WHISPERWATT	1		ADD TO CART
STRIPE: WHISPERWATT M0562100003 · qty on machine: 1 view full part page → $7.95
32	M0561100804	STRIPE: MQ POWER	1		ADD TO CART
STRIPE: MQ POWER M0561100804 · qty on machine: 1 view full part page → $7.95
33	M0561101404	STRIPE	1		ADD TO CART
STRIPE M0561101404 · qty on machine: 1 view full part page → $12.95
34	M0561100304	STRIPE	1		ADD TO CART
STRIPE M0561100304 · qty on machine: 1 view full part page → $7.95
35	M0561100904	STRIPE	1		ADD TO CART
STRIPE M0561100904 · qty on machine: 1 view full part page → $7.95
36	M0561101304	STRIPE	1		ADD TO CART
STRIPE M0561101304 · qty on machine: 1 view full part page → $8.95
37	M0561101204	STRIPE	1		ADD TO CART
STRIPE M0561101204 · qty on machine: 1 view full part page → $7.95
38	M0561101504	STRIPE	1		ADD TO CART
STRIPE M0561101504 · qty on machine: 1 view full part page → $3.95
39	M0561100404	STRIPE	1		ADD TO CART
STRIPE M0561100404 · qty on machine: 1 view full part page → $45.95
40	M9503200104	DECAL: DANGER	1	M90320010	ADD TO CART
DECAL: DANGER M9503200104 · qty on machine: 1 M90320010 view full part page → $4.95
41	M9531100004	DECAL: DANGER ELECTROCUTION	1	M93110000	ADD TO CART
DECAL: DANGER ELECTROCUTION M9531100004 · qty on machine: 1 M93110000 view full part page → $1.8
42	M9503500004	DECAL: WARNING, FIRE	1	M90350000	ADD TO CART
DECAL: WARNING, FIRE M9503500004 · qty on machine: 1 M90350000 view full part page → $3.95

Page 36 — NAMEPLATE AND DECALS ASSY.

Parts list — exactly as printed9 rows

No.	Part No.	Part Name	Qty	Remarks
43	M9504000004	DECAL: WARNING, OIL REFUELING	1	M90400000	PARTS REQUEST
PHOTO COMING DECAL: WARNING, OIL REFUELING M9504000004 · qty on machine: 1 M90400000 PARTS REQUEST
44	M9504400004	DECAL: CAUTION	1	M90440000	ADD TO CART
DECAL: CAUTION M9504400004 · qty on machine: 1 M90440000 view full part page → $29.95
45	M9521000104	DECAL: GFCI	2	M92100010	ADD TO CART
DECAL: GFCI M9521000104 · qty on machine: 2 M92100010 view full part page → $1.8
46	M0551000304	DECAL: MAXIMUM CAPACITY OF LIFTING	1	M05100030	ADD TO CART
DECAL: MAXIMUM CAPACITY OF LIFTING M0551000304 · qty on machine: 1 M05100030 view full part page → $22.95
47	920214100	DECAL: WARNING START FIRES	1	M90420000 REPLACES P/N M9504200004	ADD TO CART
DECAL: WARNING START FIRES 920214100 · qty on machine: 1 M90420000 REPLACES P/N M9504200004 view full part page → $12.95
48	M0561000104	DECAL: MQ STICKER CONTROL PANEL	1	M06100010	ADD TO CART
DECAL: MQ STICKER CONTROL PANEL M0561000104 · qty on machine: 1 M06100010 view full part page → $5.95
49	M9511200103	TIER 4F	1	M91120010	ADD TO CART
TIER 4F M9511200103 · qty on machine: 1 M91120010 view full part page → $17.95
50	0600500092	EMBLEM	1		ADD TO CART
EMBLEM 0600500092 · qty on machine: 1 view full part page → $21.95
51	0021106015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021106015 · qty on machine: 4 view full part page → $0.17

The machine itself

Price by quote Get a quote

Tell us where the machine is headed and we'll quote it with freight. One call, no games.

The Multiquip DCA15SPXU4F is a generator built for portable jobsite power for tools, lighting, and equipment. It runs a Kubota D1503M Tier 4 engine. Factory-documented specs and parts support; priced by quote.

Keep-it-running spares

All listed parts →

Every part that fits this machine

0070506903 Multiquip 0070506903 Bearing 6903ZZ DENYO - OEM Replacement Part $34.95

0269200500 Multiquip 0269200500 Hose Drain Denyo - OEM Replacement Part for Super Silent Generators $49.95

0601800281 Multiquip 0601800281 Voltmeter AC BLW-400SSW - OEM Replacement Part $83.95

0601800455 Multiquip 0601800455 Frequency Meter Denyo - OEM Replacement Part $330.95

0601800682 Multiquip 0601800682 Hour Meter Denyo - OEM Replacement Part $116.95

0601801122 Multiquip 0601801122 Current Transformer Denyo - OEM Replacement Part $131.95

0601805746 Multiquip 0601805746 AC Ammeter Denyo - OEM Replacement Part for Generator Control Panel $123.95

0601808803 Multiquip 0601808803 Circuit Breaker 1P 20A - OEM Replacement Part for Super Silent Generators $46.95

0601808804 Multiquip 0601808804 Circuit Breaker 2P 50A - OEM Replacement Part for Super Silent Generators $98.95

0601808808 Multiquip 0601808808 Circuit Breaker Denyo - OEM Replacement Part $249.95

0601808831 Multiquip 0601808831 Breaker Denyo - OEM Replacement Part for Super Silent Generators $523.95

0601810523 Multiquip 0601810523 Indicator Assembly TLW-300SS - OEM Replacement Part $154.95

0601811033 Multiquip 0601811033 Receptacle Connector 30A/250V - OEM Replacement Part $61.95

0601814013 Multiquip 0601814013 Receptacle - OEM Replacement Part (Use Y0601814034) $118.95

0601814014 Multiquip 0601814014 GFCI Receptacle - OEM Replacement Part $90.95

0601815109 Multiquip 0601815109 Terminal Grounding - OEM Replacement Part for Super Silent Generators $39.95

0601815759 Multiquip 0601815759 Terminal Board BLW-400SSW - OEM Replacement Part $36.95

0601820663 Multiquip 0601820663 Regulator Auto Voltage TLG-12SPX - OEM Replacement Part $795.95

0601840073 Multiquip 0601840073 Rheostat Voltage Regulator for 150SSK and DCA Series Generators - OEM Replacement Part $90.95

0601842384 Multiquip 0601842384 Resistor Denyo - OEM Replacement Part $36.95

0602046335 Multiquip 0602046335 Air Cleaner Element - OEM Replacement Part for Denyo Super Silent Generators $57.95

0602220193 Multiquip 0602220193 Battery Denyo - OEM Replacement Part $291.95

1522143010 Multiquip 1522143010 Fuel Filter Assembly - OEM Replacement Part for Super Silent Generators $141.95

1628663602 Multiquip 1628663602 Switch Assembly D1403,BLW-400 - OEM Replacement Part $148.95

1G38297010 Multiquip 1G38297010 Fan Belt - OEM Replacement Part $47.95

1G38560601 Multiquip 1G38560601 Engine Control Unit - OEM Replacement Part $1,047.95

7671000102 Multiquip 7671000102 Rotor Assembly DCA-15SPX3 - OEM Replacement Part for Super Silent Generators $4,852.95

7961025004 Multiquip 7961025004 Rectifier - OEM Replacement Part for Super Silent Generators $147.95

8001070003 Multiquip 8001070003 Fan DCA-25SSI(II),25SSIU - OEM Replacement Part $162.95

8351315003 Multiquip 8351315003 Bracket End DCA-25SSI(II) - OEM Replacement Part $260.95

8351615003 Multiquip 8351615003 Plate Balancing - OEM Replacement Part for WhisperWatt Generators $82.95

A9924800024 Multiquip A9924800024 Cap & DLW-400ES,GAW-180HE - OEM Replacement Part $50.95

B0130101003 Multiquip B0130101003 DCA-10SPX3 Generator Assembly - OEM Replacement Part $4,071.95

B0155400204 Multiquip B0155400204 Cover Fan (JP) - OEM Replacement Part $88.95

B0155400504 Multiquip B0155400504 Cover Suction DCA-15SPX3 - OEM Replacement Part for Super Silent Generators $75.95

HBL5278C Multiquip HBL5278C Receptacle Inlet Flange 15Amp NEMA 125V - OEM Replacement Part $53.95

HBL5369C Multiquip HBL5369C Connector 20amp 125V - OEM Replacement Part $103.95

M0232700014 Multiquip M0232700014 Output Terminal Board Set - OEM Replacement Part for Denyo Generators $107.95

M0238100003 Multiquip M0238100003 Output Terminal Cover for 15SPX Generator - OEM Replacement Part $92.95

M0247700010 Multiquip M0247700010 Generator Wire Harness Denyo - OEM Replacement Part $535.95

M0311200004 Multiquip M0311200004 Radiator Bracket - OEM Replacement Part for Denyo Super Silent Generators $171.95

M0311300103 Multiquip M0311300103 Fan Guard Denyo - OEM Replacement Part for Super Silent Generators $119.95

M0311500303 Multiquip M0311500303 Radiator Hose - OEM Replacement Part for Super Silent Generators $92.95

M0331000003 Multiquip M0331000003 Muffler Denyo - OEM Replacement Part for Super Silent Generators $631.95

M0348200004 Multiquip M0348200004 Battery Cable (+) 10/15SPX - OEM Replacement Part $422.95

M0348200104 Multiquip M0348200104 Battery Cable - OEM Replacement Part for Denyo Generators $43.95

M0358200100 Multiquip M0358200100 Engine Wiring Harness Denyo - OEM Replacement Part $1,297.95

M0424000112 Multiquip M0424000112 Front Frame (White) Denyo - OEM Replacement Part for Super Silent Generators $507.95

M0444200003 Multiquip M0444200003 Door Rear Frame White Denyo - OEM Replacement Part $138.95

M0454000503 Multiquip M0454000503 Side Door - OEM Replacement Part for Super Silent Generator $181.95

M0454100203 Multiquip M0454100203 Side Panel DENYO - OEM Replacement Part for Super Silent Generators $307.95

M0454300604 Multiquip M0454300604 Duct Denyo - OEM Replacement Part for Super Silent Generators $84.95

M0464000202 Multiquip M0464000202 Roof Panel DENYO - OEM Replacement Part $622.95

M0494100514 Multiquip M0494100514 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $43.95

M0494402404 Multiquip M0494402404 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $282.95

M0494500604 Multiquip M0494500604 Acoustic Sheet Roof Denyo - OEM Replacement Part $42.95

M0561100404 Multiquip M0561100404 DENYO Component - OEM Replacement Part for Super Silent Generators $45.95

M0924200014 Multiquip M0924200014 D1503-M-E4BG-DNY Kubota Diesel Engine - OEM Replacement Part $16,057.95

M9200100904 Multiquip M9200100904 Plug Denyo - OEM Replacement Part $42.95

RP42153730 Multiquip RP42153730 Relay Assembly (JP) - OEM Replacement Part $281.95

0012312030 HEX. HEAD BOLT $6.95

0012410025 HEX. HEAD BOLT $1.95

0012412025 HEX HEAD BOLT

0012808035 HEX HEAD BOLT $2.95

0012810030 HEX HEAD BOLT

0016008045 HEX SOCKET HEAD CAP SCREW $3.95

0016906015 HEX HEAD BOLT $0.95

0016906016 ACOUSTIC SHEET $0.81

0016906020 HEX HEAD BOLT

0016908020 HEX HEAD BOLT

0017106016 HEX HEAD BOLT $1.51

0017108035 HEX HEAD BOLT $1.95

0019206015 HEX. HEAD BOLT $3.95

0019208020 HEX. HEAD BOLT $3.95

0021004070 MACHINE SCREW $2.95

0021106015 MACHINE SCREW $0.17

0021805015 MACHINE SCREW $0.58

0021806015 MACHINE SCREW $0.87

0021806030 MACHINE SCREW

0027103008 MACHINE SCREW $0.69

0027103010 MACHINE SCREW $0.44

0027104015 MACHINE SCREW $0.53

0027104020 MACHINE SCREW $0.40

0027105015 MACHINE SCREW $0.20

0027403010 MACHINE SCREW $0.79

0039508000 HEX NUT

0040005000 WASHER, LOCK

0040512000 TOOTHED WASHER $0.77

0041205000 WASHER, FLAT

0041206000 WASHER, FLAT

0041208000 WASHER, FLAT

0041408000 WASHER, FLAT $1.63

0042410000 WASHER, FLAT $2.93

0042508000 WASHER, LOCK $0.62

0042610000 WASHER, LOCK $0.53

0071906308 BEARING, 6308DDU

011008020 HEX. HEAD BOLT $2.68

011106015 HEX. HEAD BOLT $0.69

011206020 HEX. HEAD BOLT $0.95

011208030 HEX. HEAD BOLT $1.30

012212025 HEX. HEAD BOLT $1.95

0150000016 O-RING $1.63

0150000018 O-RING $1.87

0176060030 NUT, FLANGE 6MM $2.95

0199100215 HOSE $3.95

0199700250 RETURN HOSE $6.95

0199900200 SUCTION HOSE $6.95

0199900350 DRAIN HOSE $6.95

0199900500 DRAIN HOSE $11.95

0207003000 HEX NUT $0.21

0207004000 HEX NUT

0207006000 HEX NUT

0207010000 HEX NUT

0207110000 HEX NUT $7.95

021112140 HEX. NUT $0.46

0220300400 RUBBER SEAL $22.95

0221700695 RUBBER SEAL $10.95

0221700950 RUBBER SEAL $12.95

0222100120 RUBBER CUSHION $3.95

0222700050 RUBBER SEAL

0227500080 RUBBER SEAL $2.95

0227500380 RUBBER SEAL $10.95

0229200600 RUBBER SEAL

0229400250 RUBBER SEAL $8.95

0229400550 RUBBER SEAL $17.95

0229400660 RUBBER SEAL $18.95

0229400695 RUBBER SEAL $17.95

0235500004 RUBBER SEAL $6.95

0261200004 FUSE BOX

0261600004 BRACKET FITTING COVER

031112230 WASHER, FLAT $0.95

0314200380 RUBBER SEAL

0315900475 RUBBER SEAL $12.95

0341510040 HEX HEAD BOLT $8.95

0494000304 ACOUSTIC SHEET

0600500092 EMBLEM $21.95

0601000209 BALANCING WEIGHT KIT $9.95

0601806640 FUSE, 65A $11.95

0601806642 FUSE, 5A $2.77

0601806645 FUSE, 10A $2.90

0601806682 FUSE, 5A

0601810830 BULB $8.95

0601811035 RECEPTACLE, L5-30R

0601815000 NUT

0601815588 INSULATED FASTON TERMINAL

0601820038 RECTIFIER $18.95

0601820891 OVER CURRENT RELAY

0601822643 SURGE ABSORBER $17.95

0601830708 SPEED CONTROL SWITCH

0601831978 INSTALLATION RING

0601840121 KNOB, RHEOSTAT

0601850239 GROMMET $3.95

0601851613 STOPPER $2.95

0601870454 CIRCUIT BREAKER, 1P 30A

0602021193 PACKING $6.95

0602220920 BATTERY BOLT $5.95

0605000409 RUBBER SUSPENSION

0605010060 HINGE $19.95

0605515073 HOSE BAND $6.95

0605515147 HOSE BAND $3.95

0605515149 HOSE BAND $1.95

0605515170 HOSE BAND $5.95

0605515198 HOSE BAND $1.71

0605515199 HOSE BAND $2.95

0801832204 HEX HEAD BOLT $2.95

0802011104 PLUG $10.95

0802081104 CAP, RESERVE TANK $5.95

0845031504 CAP $2.95

0845041904 GROMMET $11.95

1502025103C DRAIN JOINT $29.95

1526312370 GASKET $13.95

23284-030 FUSE, 3 AMP $1.91

7538070 SCREW, PHILLIPS HD. $0.52

7812014003B DRAIN JOINT $25.95

8351312004 PACKING $21.95

8351611004 COUPLING DISK $21.95

8351612004 WASHER, COUPLING HUB $13.95

8431350003 FIELD ASSY.,EXCITER

920214100 DECAL: WARNING START FIRES $12.95

EE56557 CORD, CAROL 3/C 14 AWG $1.95

EE58070 CORD, CHARGE, STARTER SIDE

HOSE 1

LC125002 CHARGER, BATT., FLOAT TYPE, 3A, 12V

M0214000102 CONTROL BOX

M0224000023 CONTROL PANEL

M0235100014 OUTPUT TERMINAL BOLT

M0235400004 RUBBER SHEET $34.95

M0304200004 ENGINE FOOT

M0304200104 ENGINE FOOT

M0322200004 DRAIN JOINT $22.95

M0334000103 EXHAUST PIPE

M0344000103 BATTERY BASE

M0364000003 FUEL TANK

M0364300103 FUEL TANK BASE

M0364400004 RUBBER SEAL $9.95

M0365200004 TANK BAND

M0365400004 RUBBER SEAL $14.95

M0414000202 BASE

M0414000203 ACOUSTIC SHEET

M0414800004 COVER

From the guides desk

Guide · 2026-08-04

Ask ARIA about your machine.

Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.

Chat with ARIA

Multiquip DCA15SPXU4F Generator

The parts bench

The machine itself

Machine

Engine

Keep-it-running spares

Every part that fits this machine

Service notices & part changes

Take the factory book with you

Get the download pack

From the guides desk

Multiquip DCA Generator Fault Shutdown and Controller Reset Guide

Multiquip Generator No-Start and No-Power Fixes

Multiquip DCA Generator Fault Codes and Diagnostics Guide

Ask ARIA about your machine.

Your cart is empty

Your cart is empty
