Multiquip DCA180SSJU4F Generator

Name: Multiquip DCA180SSJU4F Generator
Brand: Multiquip

The parts bench

Need the PDF? ↓

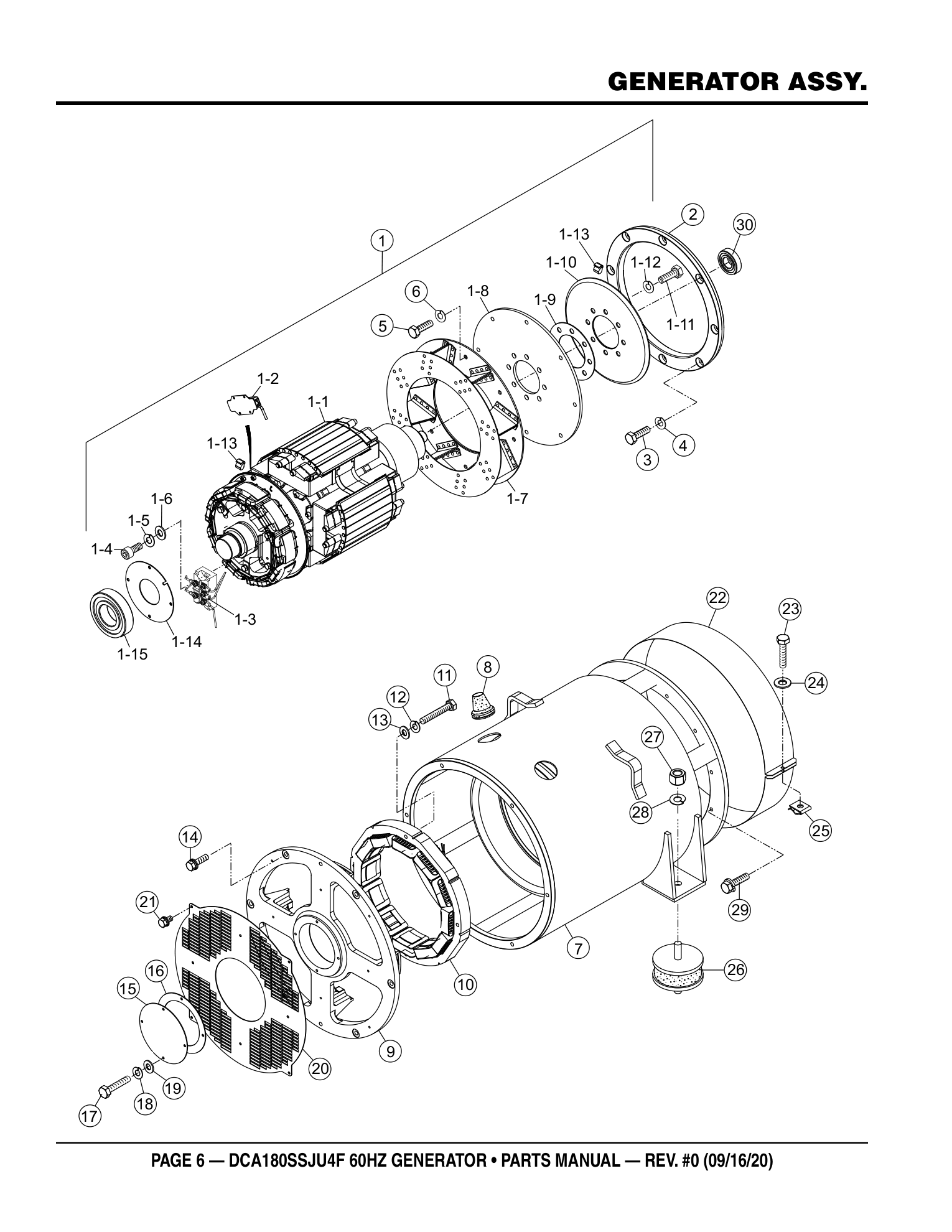

Page 6 — GENERATOR ASSY.

Multiquip DCA180SSJU4F Generator GENERATOR ASSY. parts diagram

Parts list — exactly as printed47 rows

No.	Part No.	Part Name	Qty	Remarks
1	C0110000602	ROTOR ASSEMBLY	1	INCLUDES ITEMS WITH $	ADD TO CART
ROTOR ASSEMBLY C0110000602 · qty on machine: 1 INCLUDES ITEMS WITH $ Kit includes: 1-1$, 1-2$, 1-3$, 1-4$, 1-5$, 1-6$, 1-7$, 1-8$, 1-9$, 1-10$, 1-11$, 1-12$, 1-13$, 1-14$, 1-15$ view full part page → $17630.95 IN A KIT + SOLD SOLO
1-1$		FIELD ASSEMBLY	1		INCLUDED IN KIT
PHOTO COMING FIELD ASSEMBLY · qty on machine: 1 Included in kit 1 - ROTOR ASSEMBLY (C0110000602) INCLUDED IN KIT
1-2$	0601842334	RESISTOR, 80W, 100 OHM	1		ADD TO CART
RESISTOR, 80W, 100 OHM 0601842334 · qty on machine: 1 Also included in kit 1 - ROTOR ASSEMBLY (C0110000602) view full part page → $343.95 IN A KIT + SOLD SOLO
1-3$	0601823282	RECTIFIER	1		NO LONGER AVAILABLE
PHOTO COMING RECTIFIER 0601823282 · qty on machine: 1 Also included in kit 1 - ROTOR ASSEMBLY (C0110000602) NO LONGER AVAILABLE
1-4$	0018205020	HEX. SOCKET HEAD CAP SCREW	2		ADD TO CART
HEX. SOCKET HEAD CAP SCREW 0018205020 · qty on machine: 2 Also included in kit 1 - ROTOR ASSEMBLY (C0110000602) view full part page → $1.55 IN A KIT + SOLD SOLO
1-5$	0032005000	WASHER, LOCK	2	REPLACE P/N 0040005000	ADD TO CART
WASHER, LOCK 0032005000 · qty on machine: 2 REPLACE P/N 0040005000 Also included in kit 1 - ROTOR ASSEMBLY (C0110000602) view full part page → $0.41 IN A KIT + SOLD SOLO
1-6$	0401450050	WASHER, FLAT	2	REPLACE P/N 0041205000	ADD TO CART
WASHER, FLAT 0401450050 · qty on machine: 2 REPLACE P/N 0041205000 Also included in kit 1 - ROTOR ASSEMBLY (C0110000602) view full part page → $0.41 IN A KIT + SOLD SOLO
1-7$	8171070002	FAN	1		ADD TO CART
FAN 8171070002 · qty on machine: 1 Also included in kit 1 - ROTOR ASSEMBLY (C0110000602) view full part page → $4003.95 IN A KIT + SOLD SOLO
1-8$	8171611003	COUPLING DISK	9		ADD TO CART
COUPLING DISK 8171611003 · qty on machine: 9 Also included in kit 1 - ROTOR ASSEMBLY (C0110000602) view full part page → $41.95 IN A KIT + SOLD SOLO
1-9$	C1164200004	WASHER, COUPLING HUB	1		ADD TO CART
WASHER, COUPLING HUB C1164200004 · qty on machine: 1 Also included in kit 1 - ROTOR ASSEMBLY (C0110000602) view full part page → $81.95 IN A KIT + SOLD SOLO
1-10$	8171015003	BALANCING PLATE	1	ITEM 1-13 MUST BE ORDERED WHEN REPLACING ITEM 1-10	ADD TO CART
BALANCING PLATE 8171015003 · qty on machine: 1 ITEM 1-13 MUST BE ORDERED WHEN REPLACING ITEM 1-10 Also included in kit 1 - ROTOR ASSEMBLY (C0110000602) view full part page → $300.95 IN A KIT + SOLD SOLO
1-11$	0012116045	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0012116045 · qty on machine: 8 Also included in kit 1 - ROTOR ASSEMBLY (C0110000602) view full part page → $6.95 IN A KIT + SOLD SOLO
1-12$	0042616000	WASHER, LOCK	8		ADD TO CART
WASHER, LOCK 0042616000 · qty on machine: 8 Also included in kit 1 - ROTOR ASSEMBLY (C0110000602) view full part page → $1.95 IN A KIT + SOLD SOLO
1-13$	0601000209	BALANCING WEIGHT KIT	2		ADD TO CART
BALANCING WEIGHT KIT 0601000209 · qty on machine: 2 Also included in kit 1 - ROTOR ASSEMBLY (C0110000602) view full part page → $9.95 IN A KIT + SOLD SOLO
1-14$	C1112500004	BEARING FLANGE	1		ADD TO CART
BEARING FLANGE C1112500004 · qty on machine: 1 Also included in kit 1 - ROTOR ASSEMBLY (C0110000602) view full part page → $101.95 IN A KIT + SOLD SOLO
1-15$	0071906314	BEARING	1		ADD TO CART
BEARING 0071906314 · qty on machine: 1 Also included in kit 1 - ROTOR ASSEMBLY (C0110000602) view full part page → $276.95 IN A KIT + SOLD SOLO
2	M4163400003	COUPLING RING	1		PARTS REQUEST
PHOTO COMING COUPLING RING M4163400003 · qty on machine: 1 PARTS REQUEST
3	0343206120	HEX. HEAD BOLT	8		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT 0343206120 · qty on machine: 8 PARTS REQUEST
4	0043606000	WASHER, LOCK	8		PARTS REQUEST
PHOTO COMING WASHER, LOCK 0043606000 · qty on machine: 8 PARTS REQUEST
5	0012112040	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0012112040 · qty on machine: 8 view full part page → $4.95
6	0040012000	WASHER, LOCK	8		ADD TO CART
WASHER, LOCK 0040012000 · qty on machine: 8 view full part page → $0.95
7	C0130000703	STATOR ASSEMBLY	1		PARTS REQUEST
PHOTO COMING STATOR ASSEMBLY C0130000703 · qty on machine: 1 PARTS REQUEST
8	0845041804	GROMMET	2		ADD TO CART
GROMMET 0845041804 · qty on machine: 2 view full part page → $16.95
9	C1154000002	END BRACKET	1		ADD TO CART
END BRACKET C1154000002 · qty on machine: 1 view full part page → $1970.95
10	C1138000003	FIELD ASSEMBLY, EXCITER	1		ADD TO CART
FIELD ASSEMBLY, EXCITER C1138000003 · qty on machine: 1 view full part page → $2313.95
11	0012110065	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0012110065 · qty on machine: 4 view full part page → $4.95
12	0042610000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0042610000 · qty on machine: 4 view full part page → $0.53
13	031110160	WASHER, FLAT	4	REPLACES P/N 0041210000	ADD TO CART
WASHER, FLAT 031110160 · qty on machine: 4 REPLACES P/N 0041210000 view full part page → $0.4
14	0017112045	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0017112045 · qty on machine: 6 view full part page → $1.76
15	C1154400004	COVER, BEARING	1		ADD TO CART
COVER, BEARING C1154400004 · qty on machine: 1 view full part page → $54.95
16	C1154300004	GASKET, BEARING	1		ADD TO CART
GASKET, BEARING C1154300004 · qty on machine: 1 view full part page → $44.95
17	0010106060	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0010106060 · qty on machine: 4 view full part page → $1.31
18	0040006000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0040006000 · qty on machine: 4 view full part page → $0.17
19	952404470	WASHER, FLAT	4	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 4 REPLACES P/N 0041206000 view full part page → $0.19
20	C1154400103	SUCTION COVER	1		ADD TO CART
SUCTION COVER C1154400103 · qty on machine: 1 view full part page → $95.95
21	011106015	HEX. HEAD BOLT	8	REPLACES P/N 0017106015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 8 REPLACES P/N 0017106015 view full part page → $0.69
22	C1132300114	COVER, FAN	1		ADD TO CART
COVER, FAN C1132300114 · qty on machine: 1 view full part page → $547.95
23	0010006030	HEX. HEAD BOLT	1	REPLACES P/N 0010106030	ADD TO CART
HEX. HEAD BOLT 0010006030 · qty on machine: 1 REPLACES P/N 0010106030 view full part page → $0.25
24	952404470	WASHER, FLAT	1	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 1 REPLACES P/N 0041206000 view full part page → $0.19
25	020106050	NUT	1	REPLACES P/N 0600815000	ADD TO CART
NUT 020106050 · qty on machine: 1 REPLACES P/N 0600815000 view full part page → $0.12
26	Y0605000463	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION Y0605000463 · qty on machine: 2 view full part page → $187.95
27	0030016000	HEX. NUT	2	S/N 8900402 AND BELOW	ADD TO CART
HEX. NUT 0030016000 · qty on machine: 2 S/N 8900402 AND BELOW view full part page → $1.9
27	0030016000	HEX. NUT	4	S/N 8900403 AND ABOVE	ADD TO CART
HEX. NUT 0030016000 · qty on machine: 4 S/N 8900403 AND ABOVE view full part page → $1.9
28	0040016000	WASHER, LOCK	2	S/N 8900402 AND BELOW	ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 2 S/N 8900402 AND BELOW view full part page → $4.95
28	0040016000	WASHER, LOCK	4	S/N 8900403 AND ABOVE	ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 4 S/N 8900403 AND ABOVE view full part page → $4.95
29	012010030	HEX. HEAD BOLT	12	REPLACES P/N 0012810030	ADD TO CART
HEX. HEAD BOLT 012010030 · qty on machine: 12 REPLACES P/N 0012810030 view full part page → $0.95
30	0070506307	BEARING	1		ADD TO CART
BEARING 0070506307 · qty on machine: 1 view full part page → $60.95

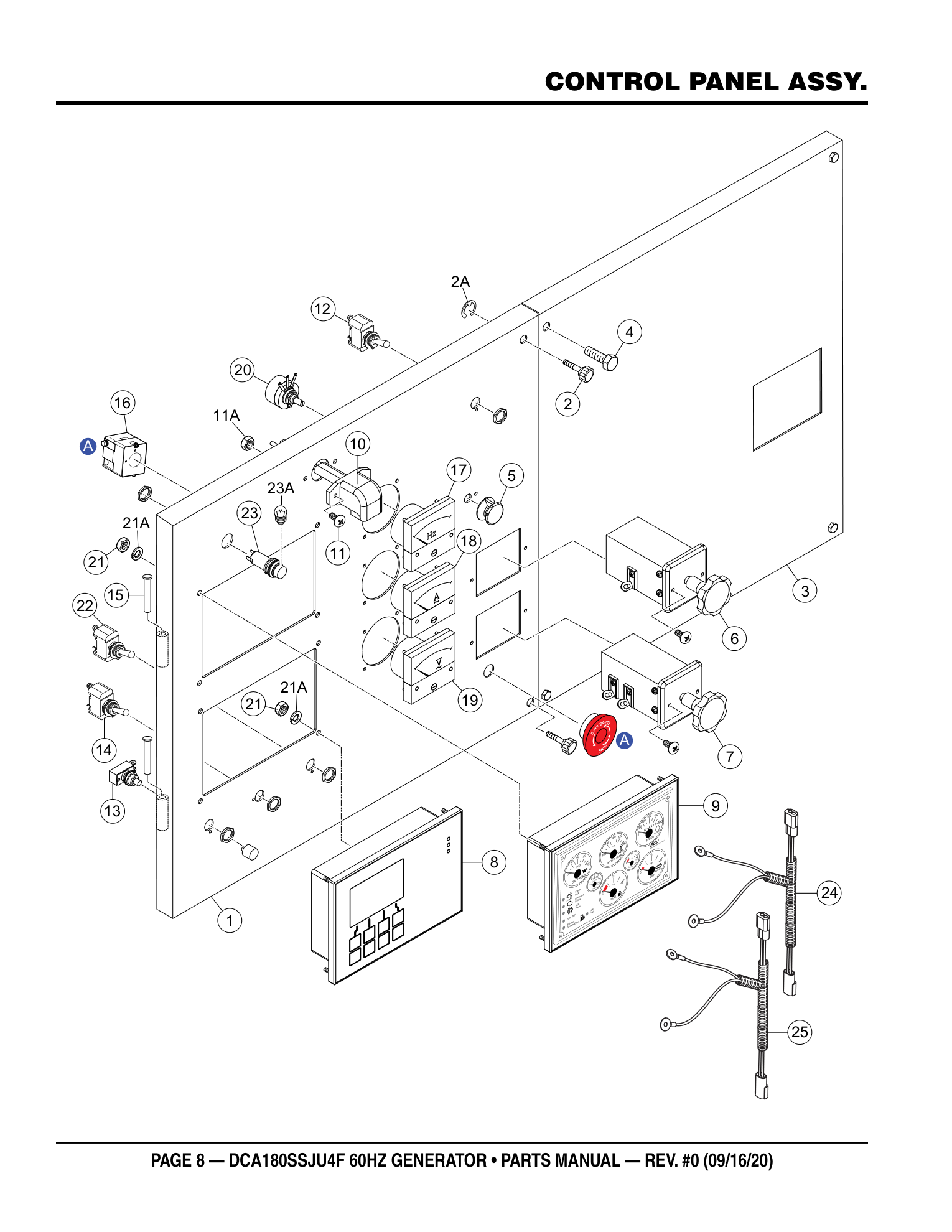

Page 8 — CONTROL PANEL ASSY.

Multiquip DCA180SSJU4F Generator CONTROL PANEL ASSY. parts diagram

Parts list — exactly as printed29 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3224000803	CONTROL PANEL	1		PARTS REQUEST
PHOTO COMING CONTROL PANEL M3224000803 · qty on machine: 1 PARTS REQUEST
2	M9220100004	SET SCREW	2		ADD TO CART
SET SCREW M9220100004 · qty on machine: 2 view full part page → $12.95
2A	0080200007	E-RING	2		ADD TO CART
E-RING 0080200007 · qty on machine: 2 view full part page → $1.39
3	M4223000604	CONTROL PANEL	1		ADD TO CART
CONTROL PANEL M4223000604 · qty on machine: 1 view full part page → $143.95
4	0016908040	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016908040 · qty on machine: 4 view full part page → $1.52
5	Y0601840121	KNOB	1		PARTS REQUEST
PHOTO COMING KNOB Y0601840121 · qty on machine: 1 PARTS REQUEST
6	0601801040	CHANGE-OVER SWITCH, AMMETER	1		ADD TO CART
CHANGE-OVER SWITCH, AMMETER 0601801040 · qty on machine: 1 view full part page → $95.95
7	0601801041	CHANGE-OVER SWITCH, VOLTMETER	1		ADD TO CART
CHANGE-OVER SWITCH, VOLTMETER 0601801041 · qty on machine: 1 view full part page → $157.95
8	Y0602203047	ECU CONTROLLER	1		NO LONGER AVAILABLE
PHOTO COMING ECU CONTROLLER Y0602203047 · qty on machine: 1 NO LONGER AVAILABLE
9	Y0602120568	GAUGE UNIT ASSEMBLY	1		ADD TO CART
GAUGE UNIT ASSEMBLY Y0602120568 · qty on machine: 1 view full part page → $947.95
10	Y0601810170	PANEL LIGHT, 12V	1		ADD TO CART
PANEL LIGHT, 12V Y0601810170 · qty on machine: 1 view full part page → $142.95
11	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
11A	OEMAA8	HEX. NUT	2	REPLACES P/N 0207004000	ADD TO CART
HEX. NUT OEMAA8 · qty on machine: 2 REPLACES P/N 0207004000 view full part page → $0.4
12	0601830710	PANEL LIGHT SWITCH	1		ADD TO CART
PANEL LIGHT SWITCH 0601830710 · qty on machine: 1 view full part page → $29.95
13	0601831205	PUSH BUTTON	1		ADD TO CART
PUSH BUTTON 0601831205 · qty on machine: 1 view full part page → $25.95
14	82608	TOGGLE SWITCH	1	REPLACES P/N 0601831340	ADD TO CART
TOGGLE SWITCH 82608 · qty on machine: 1 REPLACES P/N 0601831340 view full part page → $34.95
15	0605011211	PIN	2		ADD TO CART
PIN 0605011211 · qty on machine: 2 view full part page → $1.55
16	0601831557	EMERGENCY STOP BUTTON	1		ADD TO CART
EMERGENCY STOP BUTTON 0601831557 · qty on machine: 1 view full part page → $95.95
17	0601807642	FREQUENCY METER, 45-65HZ 240V	1		ADD TO CART
FREQUENCY METER, 45-65HZ 240V 0601807642 · qty on machine: 1 view full part page → $1023.95
18	0601817000	AC. AMMETER, 0-300A/600A:5A	1		ADD TO CART
AC. AMMETER, 0-300A/600A:5A 0601817000 · qty on machine: 1 view full part page → $492.95
19	0601800275	AC. VOLTMETER, 0-600V	1		ADD TO CART
AC. VOLTMETER, 0-600V 0601800275 · qty on machine: 1 view full part page → $146.95
20	0601840073	VOLTAGE REGULATOR, 20A 1K	1		ADD TO CART
VOLTAGE REGULATOR, 20A 1K 0601840073 · qty on machine: 1 view full part page → $90.95
21	Y0206707000	HEX. NUT	8		ADD TO CART
HEX. NUT Y0206707000 · qty on machine: 8 view full part page → $0.45
21A	Y0044807000	WASHER, LOCK	8		ADD TO CART
WASHER, LOCK Y0044807000 · qty on machine: 8 view full part page → $0.45
22	0601830710	ENGINE SPEED SWITCH	1		ADD TO CART
ENGINE SPEED SWITCH 0601830710 · qty on machine: 1 view full part page → $29.95
23	0602103092	ALARM LAMP, 18V	1	INCLUDES ITEMS W/%	ADD TO CART
ALARM LAMP, 18V 0602103092 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 23A% view full part page → $36.95 IN A KIT + SOLD SOLO
23A%	0602103092	BULB, 18V	1	REPLACES P/N 0601810277	ADD TO CART
BULB, 18V 0602103092 · qty on machine: 1 REPLACES P/N 0601810277 Also included in kit 23 - ALARM LAMP, 18V (0602103092) view full part page → $36.95 IN A KIT + SOLD SOLO
24	M3247702004	WIRE HARNESS, GENERATOR	1		ADD TO CART
WIRE HARNESS, GENERATOR M3247702004 · qty on machine: 1 view full part page → $1473.95
25	M3358201602	WIRE HARNESS, ENGINE	1		ADD TO CART
WIRE HARNESS, ENGINE M3358201602 · qty on machine: 1 view full part page → $1729.95

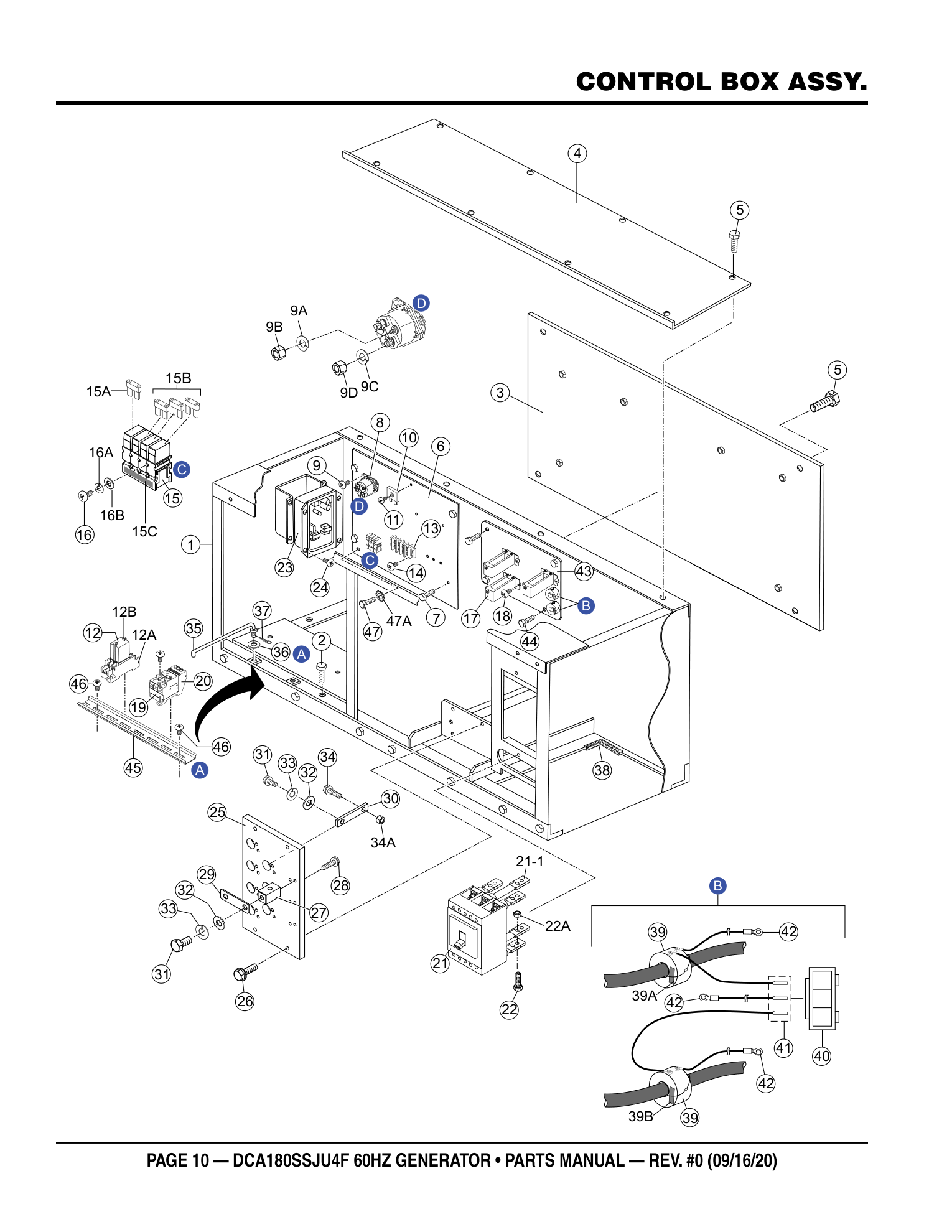

Page 10 — CONTROL BOX ASSY.

Multiquip DCA180SSJU4F Generator CONTROL BOX ASSY. parts diagram

Parts list — exactly as printed46 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3214000902	CONTROL BOX	1		PARTS REQUEST
PHOTO COMING CONTROL BOX M3214000902 · qty on machine: 1 PARTS REQUEST
2	011008020	HEX. HEAD BOLT	14	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 14 REPLACES P/N 0016908020 view full part page → $2.68
3	M5214400304	BACK PANEL	1		PARTS REQUEST
PHOTO COMING BACK PANEL M5214400304 · qty on machine: 1 PARTS REQUEST
4	M4213500104	UP PANEL	1		ADD TO CART
UP PANEL M4213500104 · qty on machine: 1 view full part page → $204.95
5	011008020	HEX. HEAD BOLT	16	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 16 REPLACES P/N 0016908020 view full part page → $2.68
6	M3261500304	SET PANEL	1		PARTS REQUEST
PHOTO COMING SET PANEL M3261500304 · qty on machine: 1 PARTS REQUEST
7	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
8	Y0602201458	STARTER RELAY	1		ADD TO CART
STARTER RELAY Y0602201458 · qty on machine: 1 view full part page → $116.95
9	011808015	MACHINE SCREW	2	REPLACES P/N 0027106015	ADD TO CART
MACHINE SCREW 011808015 · qty on machine: 2 REPLACES P/N 0027106015 view full part page → $6.95
9A	0044808000	WASHER, LOCK	2		PARTS REQUEST
PHOTO COMING WASHER, LOCK 0044808000 · qty on machine: 2 PARTS REQUEST
9B	Y0206508000	HEX. NUT	2		ADD TO CART
HEX. NUT Y0206508000 · qty on machine: 2 view full part page → $0.19
9C	0043003000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0043003000 · qty on machine: 2 view full part page → $0.39
9D	Y0206803000	HEX. NUT	2		ADD TO CART
HEX. NUT Y0206803000 · qty on machine: 2 view full part page → $0.26
10	0601821370	RECTIFIER DE-45	1	REPLACES P/N 0601823240	ADD TO CART
RECTIFIER DE-45 0601821370 · qty on machine: 1 REPLACES P/N 0601823240 view full part page → $28.95
11	0027104020	MACHINE SCREW	1		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 1 view full part page → $0.4
12	LY2DUS12VDC	RELAY, DC12V	1	REPLACES P/N 0601827656	ADD TO CART
RELAY, DC12V LY2DUS12VDC · qty on machine: 1 REPLACES P/N 0601827656 view full part page → $46.95
12A	PTF08A	RELAY BASE	1	REPLACES P/N 0601823109	ADD TO CART
RELAY BASE PTF08A · qty on machine: 1 REPLACES P/N 0601823109 view full part page → $47.95
12B	PYCA1	RELAY CLIP	2	REPLACES P/N 0601824400	ADD TO CART
RELAY CLIP PYCA1 · qty on machine: 2 REPLACES P/N 0601824400 view full part page → $1.71
13	0601815153	TERMINAL BLOCK	1		NO LONGER AVAILABLE
PHOTO COMING TERMINAL BLOCK 0601815153 · qty on machine: 1 NO LONGER AVAILABLE
14	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
15	M3214601504	FUSE HOLDER ASSEMBLY	1		PARTS REQUEST
PHOTO COMING FUSE HOLDER ASSEMBLY M3214601504 · qty on machine: 1 PARTS REQUEST
15A	0601806643	FUSE, 15A	1		ADD TO CART
FUSE, 15A 0601806643 · qty on machine: 1 view full part page → $5.95
15B	0601806647	FUSE, 25A	3		ADD TO CART
FUSE, 25A 0601806647 · qty on machine: 3 view full part page → $1.82
15C	M9501400904	DECAL: FUSE HOLDER	1		PARTS REQUEST
PHOTO COMING DECAL: FUSE HOLDER M9501400904 · qty on machine: 1 PARTS REQUEST
16	Y0027203035	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW Y0027203035 · qty on machine: 2 view full part page → $0.37
17	0601809666	CURRENT TRANSFORMER, 300/5A	3		ADD TO CART
CURRENT TRANSFORMER, 300/5A 0601809666 · qty on machine: 3 view full part page → $200.95
18	011206020	MACHINE SCREW	6	REPLACES P/N 0027106020	ADD TO CART
MACHINE SCREW 011206020 · qty on machine: 6 REPLACES P/N 0027106020 view full part page → $0.95
19	Y0601820843	OVER CURRENT RELAY	1		ADD TO CART
OVER CURRENT RELAY Y0601820843 · qty on machine: 1 view full part page → $114.95
20	Y0601820844	OVER CURRENT RELAY BASE	1		ADD TO CART
OVER CURRENT RELAY BASE Y0601820844 · qty on machine: 1 view full part page → $24.95
21	Y0601807533	CIRCUIT BREAKER 3P, 600A	1		NO LONGER AVAILABLE
PHOTO COMING CIRCUIT BREAKER 3P, 600A Y0601807533 · qty on machine: 1 NO LONGER AVAILABLE
21-1	Y0601827412	REAR TERMINAL BUSBAR (SET)	2		ADD TO CART
REAR TERMINAL BUSBAR (SET) Y0601827412 · qty on machine: 2 view full part page → $164.95
22	0017110040	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0017110040 · qty on machine: 6 Factory replaced this part - current number 014210040 view full part page → $1.95 IN A KIT + SOLD SOLO
22A	0207010000	SELF-LOCKING NUT	6		ADD TO CART
SELF-LOCKING NUT 0207010000 · qty on machine: 6 Factory replaced this part - current number 021112140 view full part page → $0.46 IN A KIT + SOLD SOLO
23	0601820601	AUTOMATIC VOLTAGE REGULATOR	1		ADD TO CART
AUTOMATIC VOLTAGE REGULATOR 0601820601 · qty on machine: 1 view full part page → $1389.95
24	0027105015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 4 view full part page → $0.2
25	C0274000003	TERMINAL BRD., VOLT. CHANGE-OVER	1	REPLACES P/N M3273000003	ADD TO CART
TERMINAL BRD., VOLT. CHANGE-OVER C0274000003 · qty on machine: 1 REPLACES P/N M3273000003 view full part page → $376.95
26	011208030	HEX. HEAD BOLT	4	REPLACES P/N 0016908030	ADD TO CART
HEX. HEAD BOLT 011208030 · qty on machine: 4 REPLACES P/N 0016908030 view full part page → $1.3
27	8131852104	CHANGE TERMINAL	10	REPLACES P/N M3276400004	ADD TO CART
CHANGE TERMINAL 8131852104 · qty on machine: 10 REPLACES P/N M3276400004 view full part page → $77.95
28	011606025	HEX. HEAD BOLT	20	REPLACES P/N 0016906025	ADD TO CART
HEX. HEAD BOLT 011606025 · qty on machine: 20 REPLACES P/N 0016906025 view full part page → $1.95
29	8131853104	CHANGE-OVER PLATE	6	REPLACES P/N M3276300004	ADD TO CART
CHANGE-OVER PLATE 8131853104 · qty on machine: 6 REPLACES P/N M3276300004 view full part page → $13.95
30	C0277200004	CHANGE PLATE	3	REPLACES P/N M4276200004	ADD TO CART
CHANGE PLATE C0277200004 · qty on machine: 3 REPLACES P/N M4276200004 view full part page → $100.95
31	012210020	TIE BOLT	20	REPLACES P/N M9220100104	ADD TO CART
TIE BOLT 012210020 · qty on machine: 20 REPLACES P/N M9220100104 view full part page → $0.95
32	0041410000	WASHER, FLAT	20		ADD TO CART
WASHER, FLAT 0041410000 · qty on machine: 20 view full part page → $0.89
33	0040010000	WASHER, LOCK	20		ADD TO CART
WASHER, LOCK 0040010000 · qty on machine: 20 view full part page → $0.39
34	014210040	HEX. HEAD BOLT	3	REPLACES P/N 0017110040	ADD TO CART
HEX. HEAD BOLT 014210040 · qty on machine: 3 REPLACES P/N 0017110040 view full part page → $1.95
34A	021112140	SELF-LOCKING NUT	3	REPLACES P/N 0207010000	ADD TO CART
SELF-LOCKING NUT 021112140 · qty on machine: 3 REPLACES P/N 0207010000 view full part page → $0.46

Page 12 — CONTROL BOX ASSY. (CONT'D.)

Multiquip DCA180SSJU4F Generator CONTROL BOX ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed16 rows

No.	Part No.	Part Name	Qty	Remarks
35	M4213600104	STOPPER, CONTROL PANEL	1		ADD TO CART
STOPPER, CONTROL PANEL M4213600104 · qty on machine: 1 view full part page → $63.95
36	952404470	WASHER, FLAT	1	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 1 REPLACES P/N 0041206000 view full part page → $0.19
37	505015300	SNAP PIN	1	REPLACES P/N 0605010502	ADD TO CART
SNAP PIN 505015300 · qty on machine: 1 REPLACES P/N 0605010502 view full part page → $0.95
38	Y0411100250	EDGING	1		PARTS REQUEST
PHOTO COMING EDGING Y0411100250 · qty on machine: 1 PARTS REQUEST
39	Y0601872911	CURRENT TRANSFORMER, 300/5A	2		PARTS REQUEST
PHOTO COMING CURRENT TRANSFORMER, 300/5A Y0601872911 · qty on machine: 2 PARTS REQUEST
39A	M9521001604	DECAL: CT4	1		ADD TO CART
DECAL: CT4 M9521001604 · qty on machine: 1 view full part page → $0.95
39B	M9521001704	DECAL: CT5	1		ADD TO CART
DECAL: CT5 M9521001704 · qty on machine: 1 view full part page → $0.95
40	Y0601813924	PLUG	1		PARTS REQUEST
PHOTO COMING PLUG Y0601813924 · qty on machine: 1 PARTS REQUEST
41	0601812711	PINS	3		ADD TO CART
PINS 0601812711 · qty on machine: 3 view full part page → $0.56
42	Y0601815587	ROUND TERMINAL	3		PARTS REQUEST
PHOTO COMING ROUND TERMINAL Y0601815587 · qty on machine: 3 PARTS REQUEST
43	M3261500404	SET PANEL	1		PARTS REQUEST
PHOTO COMING SET PANEL M3261500404 · qty on machine: 1 PARTS REQUEST
44	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95
45	Y0290000245	MOUNTING RAIL	1		PARTS REQUEST
PHOTO COMING MOUNTING RAIL Y0290000245 · qty on machine: 1 PARTS REQUEST
46	0027104015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 2 view full part page → $0.53
47	0016906015	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 1 view full part page → $0.95
47A	0040506000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040506000 · qty on machine: 1 view full part page → $0.77

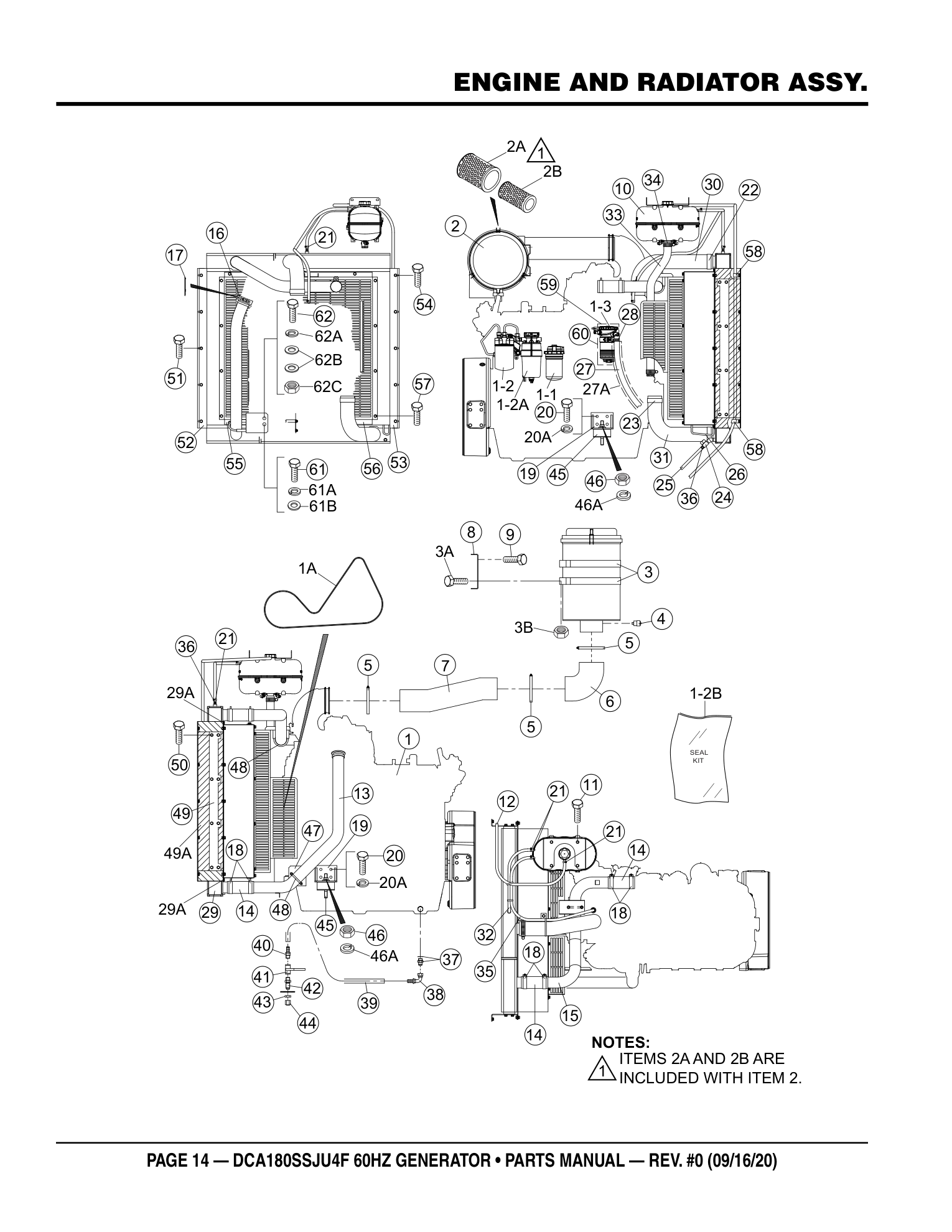

Page 14 — ENGINE AND RADIATOR ASSY.

Multiquip DCA180SSJU4F Generator ENGINE AND RADIATOR ASSY. parts diagram

Parts list — exactly as printed43 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3924200144	ENGINE, JOHN DEERE 6068HFG05	1		PARTS REQUEST
PHOTO COMING ENGINE, JOHN DEERE 6068HFG05 M3924200144 · qty on machine: 1 PARTS REQUEST
1A	R529382	FAN BELT	1	REPLACES P/N 0602015209	ADD TO CART
FAN BELT R529382 · qty on machine: 1 REPLACES P/N 0602015209 view full part page → $209.95
1-1	RE539279	CARTRIDGE, OIL FILTER	1	REPLACES P/N 0602041293	ADD TO CART
CARTRIDGE, OIL FILTER RE539279 · qty on machine: 1 REPLACES P/N 0602041293 view full part page → $93.95
1-2	RE551507	FUEL FILTER, PRIMARY	1	REPLACES P/N 0602042800	ADD TO CART
FUEL FILTER, PRIMARY RE551507 · qty on machine: 1 REPLACES P/N 0602042800 view full part page → $168.95
1-2A	RE560681	FUEL FILTER, SECONDARY	1	REPLACES P/N 0602042801	ADD TO CART
FUEL FILTER, SECONDARY RE560681 · qty on machine: 1 REPLACES P/N 0602042801 view full part page → $146.95
1-2B	RE562696	SEAL KIT, FUEL FILTER	2	REPLACES P/N 0602042603	ADD TO CART
SEAL KIT, FUEL FILTER RE562696 · qty on machine: 2 REPLACES P/N 0602042603 view full part page → $72.95
1-3	RE540710	BLOWBY FILTER	1	REPLACES P/N 0602044230	NO LONGER AVAILABLE
PHOTO COMING BLOWBY FILTER RE540710 · qty on machine: 1 REPLACES P/N 0602044230 NO LONGER AVAILABLE
2	0602046586	AIR CLEANER	1	INCLUDES ITEMS W/#	ADD TO CART
AIR CLEANER 0602046586 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 2A#, 2B# view full part page → $751.95 IN A KIT + SOLD SOLO
2A#	P537876	ELEMENT, AIR CLEANER (PRIMARY)	1	REPLACES P/N 0602046682	ADD TO CART
ELEMENT, AIR CLEANER (PRIMARY) P537876 · qty on machine: 1 REPLACES P/N 0602046682 Also included in kit 2 - AIR CLEANER (0602046586) view full part page → $161.95 IN A KIT + SOLD SOLO
2B#	P537877	ELEMENT, AIR CLEANER (SAFETY)	1	REPLACES P/N 0602046683	ADD TO CART
ELEMENT, AIR CLEANER (SAFETY) P537877 · qty on machine: 1 REPLACES P/N 0602046683 Also included in kit 2 - AIR CLEANER (0602046586) view full part page → $99.95 IN A KIT + SOLD SOLO
3	0602040558	AIR CLEANER BAND	2		ADD TO CART
AIR CLEANER BAND 0602040558 · qty on machine: 2 view full part page → $75.95
3A	011208025	HEX. HEAD BOLT	4	REPLACES P/N 0016908025	ADD TO CART
HEX. HEAD BOLT 011208025 · qty on machine: 4 REPLACES P/N 0016908025 view full part page → $0.41
3B	020108060	SELF-LOCKING NUT	4	REPLACES P/N 0207008000	ADD TO CART
SELF-LOCKING NUT 020108060 · qty on machine: 4 REPLACES P/N 0207008000 view full part page → $0.28
4	0602040650	AIR CLEANER INDICATOR	1		ADD TO CART
AIR CLEANER INDICATOR 0602040650 · qty on machine: 1 view full part page → $34.95
5	0605515202	HOSE BAND	3		ADD TO CART
HOSE BAND 0605515202 · qty on machine: 3 view full part page → $9.95
6	0602040365	90° ELBOW	1		ADD TO CART
90° ELBOW 0602040365 · qty on machine: 1 view full part page → $79.95
7	M3374000604	AIR CLEANER PIPE	1		PARTS REQUEST
PHOTO COMING AIR CLEANER PIPE M3374000604 · qty on machine: 1 PARTS REQUEST
8	M3374200004	AIR CLEANER BRACKET	1		PARTS REQUEST
PHOTO COMING AIR CLEANER BRACKET M3374200004 · qty on machine: 1 PARTS REQUEST
9	0016910025	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0016910025 · qty on machine: 2 view full part page → $1.56
10	RE549081	SURGE TANK	1	REPLACES P/N 0602010222	NO LONGER AVAILABLE
PHOTO COMING SURGE TANK RE549081 · qty on machine: 1 REPLACES P/N 0602010222 NO LONGER AVAILABLE
11	Y0016908015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT Y0016908015 · qty on machine: 4 view full part page → $1.95
12	Y0193602250	OVER FLOW HOSE	1		ADD TO CART
OVER FLOW HOSE Y0193602250 · qty on machine: 1 view full part page → $10.95
13	M3311400103	CAC PIPE (HOT SIDE)	1		PARTS REQUEST
PHOTO COMING CAC PIPE (HOT SIDE) M3311400103 · qty on machine: 1 PARTS REQUEST
14	Y0602015610	CAC HOSE	3		ADD TO CART
CAC HOSE Y0602015610 · qty on machine: 3 view full part page → $124.95
15	M3311400203	CAC PIPE (COLD SIDE)	1		PARTS REQUEST
PHOTO COMING CAC PIPE (COLD SIDE) M3311400203 · qty on machine: 1 PARTS REQUEST
16	RE292067	V-BAND CLAMP	1	REPLACES P/N 0602325033	ADD TO CART
V-BAND CLAMP RE292067 · qty on machine: 1 REPLACES P/N 0602325033 view full part page → $139.95
17	R529509	GASKET	1	REPLACES P/N 0602320206	ADD TO CART
GASKET R529509 · qty on machine: 1 REPLACES P/N 0602320206 view full part page → $49.95
18	0605515215	TEE BOLT CLAMP	6		ADD TO CART
TEE BOLT CLAMP 0605515215 · qty on machine: 6 view full part page → $28.95
19	M3303200404	ENGINE FOOT	2		ADD TO CART
ENGINE FOOT M3303200404 · qty on machine: 2 view full part page → $39.95
20	0012312030	HEX. HEAD BOLT	6	REPLACES P/N 0013612030	ADD TO CART
HEX. HEAD BOLT 0012312030 · qty on machine: 6 REPLACES P/N 0013612030 view full part page → $6.95
20A	0040012000	WASHER, LOCK	6		ADD TO CART
WASHER, LOCK 0040012000 · qty on machine: 6 view full part page → $0.95
21	0605515189	HOSE BAND	5		ADD TO CART
HOSE BAND 0605515189 · qty on machine: 5 view full part page → $1.85
22	0605515236	TEE BOLT CLAMP	2		ADD TO CART
TEE BOLT CLAMP 0605515236 · qty on machine: 2 view full part page → $46.95
23	0605515208	TEE BOLT CLAMP	2		ADD TO CART
TEE BOLT CLAMP 0605515208 · qty on machine: 2 view full part page → $61.95
24	Y0605511394	MINI BALL VALVE	1		ADD TO CART
MINI BALL VALVE Y0605511394 · qty on machine: 1 view full part page → $70.95
25	0193600400	DRAIN HOSE	1		ADD TO CART
DRAIN HOSE 0193600400 · qty on machine: 1 view full part page → $2.95
26	Y0603307520	45° ELBOW	1		PARTS REQUEST
PHOTO COMING 45° ELBOW Y0603307520 · qty on machine: 1 PARTS REQUEST
27	Y0191601135	BLOWBY HOSE	1		PARTS REQUEST
PHOTO COMING BLOWBY HOSE Y0191601135 · qty on machine: 1 PARTS REQUEST
27A	Y0377801060	AEROFLEX TUBE	1		PARTS REQUEST
PHOTO COMING AEROFLEX TUBE Y0377801060 · qty on machine: 1 PARTS REQUEST
28	0605515073	HOSE BAND	1		ADD TO CART
HOSE BAND 0605515073 · qty on machine: 1 view full part page → $6.95
29	Y0602012922	RADIATOR AND INTER COOLER	1		ADD TO CART
RADIATOR AND INTER COOLER Y0602012922 · qty on machine: 1 view full part page → $3580.95
29A	M3494110204	ACOUSTIC SHEET	2		ADD TO CART
ACOUSTIC SHEET M3494110204 · qty on machine: 2 view full part page → $188.95
30	M3311500503	RADIATOR HOSE, UPPER	1		ADD TO CART
RADIATOR HOSE, UPPER M3311500503 · qty on machine: 1 view full part page → $194.95

Page 16 — ENGINE AND RADIATOR ASSY. (CONT'D.)

Multiquip DCA180SSJU4F Generator ENGINE AND RADIATOR ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed39 rows

No.	Part No.	Part Name	Qty	Remarks
31	M3311500603	RADIATOR HOSE, LOWER	1		ADD TO CART
RADIATOR HOSE, LOWER M3311500603 · qty on machine: 1 view full part page → $197.95
32	Y0199900730	VENT HOSE	1		PARTS REQUEST
PHOTO COMING VENT HOSE Y0199900730 · qty on machine: 1 PARTS REQUEST
33	M5311501203	SURGE TANK HOSE	1		ADD TO CART
SURGE TANK HOSE M5311501203 · qty on machine: 1 view full part page → $225.97
34	0605515149	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515149 · qty on machine: 2 view full part page → $1.95
35	0199901200	VENT HOSE	1		ADD TO CART
VENT HOSE 0199901200 · qty on machine: 1 view full part page → $39.95
36	Y0605512192	HOSE JOINT	2		PARTS REQUEST
PHOTO COMING HOSE JOINT Y0605512192 · qty on machine: 2 PARTS REQUEST
37	0602022580	ADAPTER	1		ADD TO CART
ADAPTER 0602022580 · qty on machine: 1 view full part page → $37.95
38	0602022561	90° ELBOW	1		ADD TO CART
90° ELBOW 0602022561 · qty on machine: 1 view full part page → $76.95
39	Y0269201300	PUSH-LOCK HOSE	1		PARTS REQUEST
PHOTO COMING PUSH-LOCK HOSE Y0269201300 · qty on machine: 1 PARTS REQUEST
40	0603306395	MALE PIPE	1		ADD TO CART
MALE PIPE 0603306395 · qty on machine: 1 view full part page → $16.95
41	0605511395	BALL VALVE	1		ADD TO CART
BALL VALVE 0605511395 · qty on machine: 1 view full part page → $46.95
42	0603306590	MALE BULKHEAD CONNECTOR	1		ADD TO CART
MALE BULKHEAD CONNECTOR 0603306590 · qty on machine: 1 view full part page → $86.95
43	0603300285	BULKHEAD ROCKNUT	1		ADD TO CART
BULKHEAD ROCKNUT 0603300285 · qty on machine: 1 view full part page → $4.95
44	0602021070	CAP	1		ADD TO CART
CAP 0602021070 · qty on machine: 1 view full part page → $11.95
45	Y0605000620	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION Y0605000620 · qty on machine: 2 view full part page → $93.95
46	0030016000	HEX. NUT	2		ADD TO CART
HEX. NUT 0030016000 · qty on machine: 2 view full part page → $1.9
46A	0040016000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 2 view full part page → $4.95
47	M3314300104	CAC PIPE BRACKET	1		PARTS REQUEST
PHOTO COMING CAC PIPE BRACKET M3314300104 · qty on machine: 1 PARTS REQUEST
48	0602326063	U-BOLT	2		ADD TO CART
U-BOLT 0602326063 · qty on machine: 2 view full part page → $11.95
49	M3311201004	RADIATOR BRACKET	2		ADD TO CART
RADIATOR BRACKET M3311201004 · qty on machine: 2 view full part page → $129.95
49A	M3494110104	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494110104 · qty on machine: 1 view full part page → $551.95
50	Y0016908015	HEX. HEAD BOLT	16		ADD TO CART
HEX. HEAD BOLT Y0016908015 · qty on machine: 16 view full part page → $1.95
51	011008020	HEX. HEAD BOLT	10	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 10 REPLACES P/N 0016908020 view full part page → $2.68
52	M3311301903	FAN SHROUD	1		PARTS REQUEST
PHOTO COMING FAN SHROUD M3311301903 · qty on machine: 1 PARTS REQUEST
53	M3311302003	FAN SHROUD	1		PARTS REQUEST
PHOTO COMING FAN SHROUD M3311302003 · qty on machine: 1 PARTS REQUEST
54	011008020	HEX. HEAD BOLT	12	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 12 REPLACES P/N 0016908020 view full part page → $2.68
55	M3311300813	FAN GUARD	1		ADD TO CART
FAN GUARD M3311300813 · qty on machine: 1 view full part page → $158.95
56	M3311302103	FAN GUARD	1		PARTS REQUEST
PHOTO COMING FAN GUARD M3311302103 · qty on machine: 1 PARTS REQUEST
57	011008020	HEX. HEAD BOLT	17	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 17 REPLACES P/N 0016908020 view full part page → $2.68
58	0602220911	CLAMP	2		ADD TO CART
CLAMP 0602220911 · qty on machine: 2 view full part page → $1.85
59	Y0602044501	BLOWBY FILTER COVER, UPPER	1		ADD TO CART
BLOWBY FILTER COVER, UPPER Y0602044501 · qty on machine: 1 view full part page → $235.95
60	Y0602044503	BLOWBY FILTER COVER, LOWER	1		ADD TO CART
BLOWBY FILTER COVER, LOWER Y0602044503 · qty on machine: 1 view full part page → $306.95
61	Y0013616030	HEX. HEAD BOLT	1		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0013616030 · qty on machine: 1 PARTS REQUEST
61A	0040016000	WASHER, LOCK	1		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 1 view full part page → $4.95
61B	0041216000	WASHER, FLAT	1		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 1 view full part page → $1.95
62	0012116060	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0012116060 · qty on machine: 1 view full part page → $6.95
62A	0040016000	WASHER, LOCK	1		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 1 view full part page → $4.95
62B	0041216000	WASHER, FLAT	2		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 2 view full part page → $1.95
62C	0030016000	HEX. NUT	1		ADD TO CART
HEX. NUT 0030016000 · qty on machine: 1 view full part page → $1.9

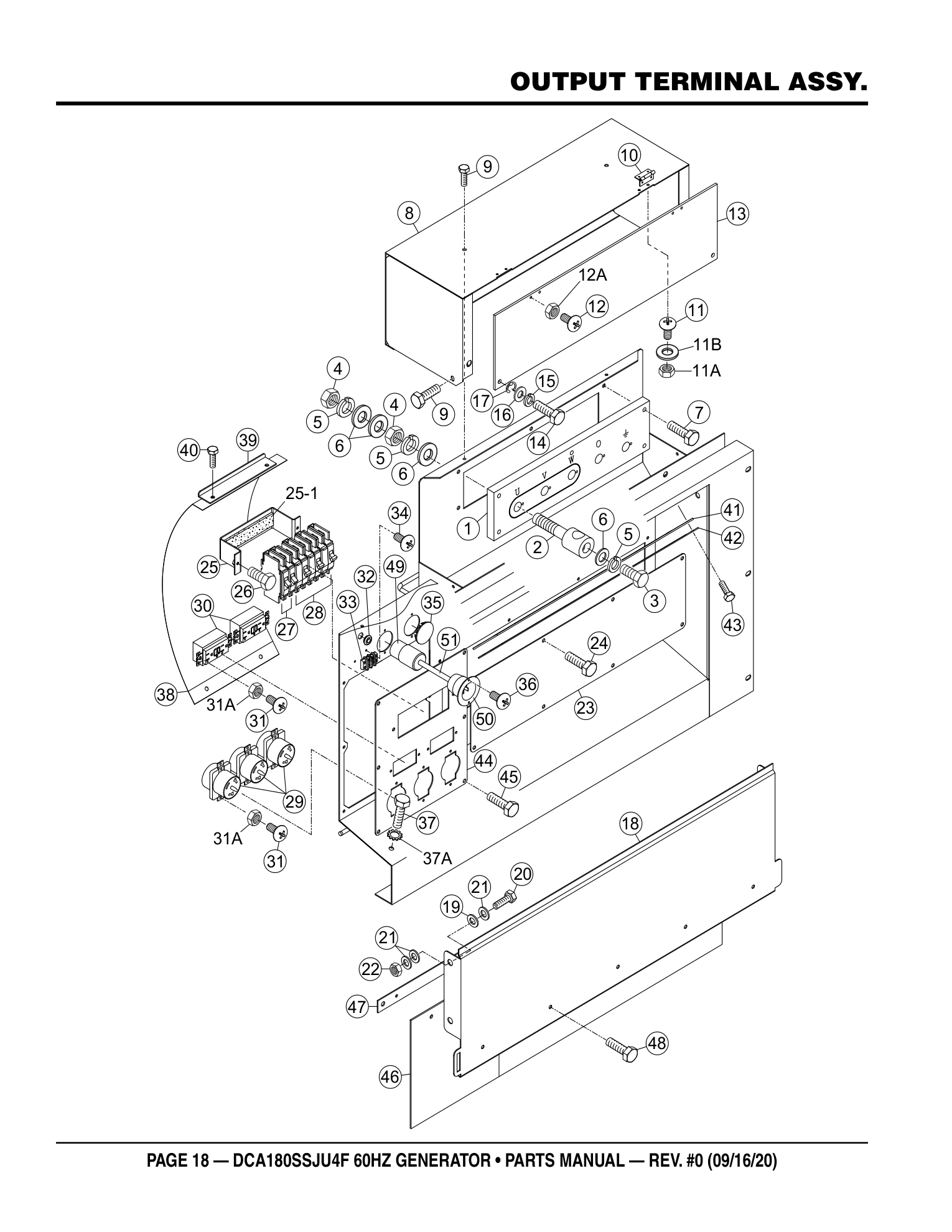

Page 18 — OUTPUT TERMINAL ASSY.

Multiquip DCA180SSJU4F Generator OUTPUT TERMINAL ASSY. parts diagram

Parts list — exactly as printed41 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3230700113	TERMINAL BOARD	1		ADD TO CART
TERMINAL BOARD M3230700113 · qty on machine: 1 view full part page → $399.95
2	M9220100914	OUTPUT TERMINAL BOLT	5		ADD TO CART
OUTPUT TERMINAL BOLT M9220100914 · qty on machine: 5 view full part page → $197.95
3	M9220101004	TIE BOLT	5		ADD TO CART
TIE BOLT M9220101004 · qty on machine: 5 view full part page → $41.95
4	0039320000	HEX. NUT	10		ADD TO CART
HEX. NUT 0039320000 · qty on machine: 10 view full part page → $16.95
5	030220510	WASHER, LOCK	15	REPLACES P/N 0040020000	ADD TO CART
WASHER, LOCK 030220510 · qty on machine: 15 REPLACES P/N 0040020000 view full part page → $1.95
6	0041420000	WASHER, FLAT	20		ADD TO CART
WASHER, FLAT 0041420000 · qty on machine: 20 view full part page → $5.95
7	0016908040	HEX. HEAD BOLT	5		ADD TO CART
HEX. HEAD BOLT 0016908040 · qty on machine: 5 view full part page → $1.52
8	M4236100403	TERMINAL COVER	1		ADD TO CART
TERMINAL COVER M4236100403 · qty on machine: 1 view full part page → $231.95
9	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95
10	0605010040	HINGE	2		ADD TO CART
HINGE 0605010040 · qty on machine: 2 view full part page → $4.95
11	0027103010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027103010 · qty on machine: 4 view full part page → $0.44
11A	0207003000	HEX. NUT	4	REPLACES P/N 0030003000	ADD TO CART
HEX. NUT 0207003000 · qty on machine: 4 REPLACES P/N 0030003000 view full part page → $0.21
11B	0041203000	WASHER, FLAT	4		ADD TO CART
WASHER, FLAT 0041203000 · qty on machine: 4 view full part page → $0.12
12	0027103015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027103015 · qty on machine: 4 view full part page → $0.64
12A	0207003000	HEX. NUT	4	REPLACES P/N 0030003000	ADD TO CART
HEX. NUT 0207003000 · qty on machine: 4 REPLACES P/N 0030003000 view full part page → $0.21
13	M4236100504	OUTPUT WINDOW	1		ADD TO CART
OUTPUT WINDOW M4236100504 · qty on machine: 1 view full part page → $102.95
14	M9220100804	SET SCREW	2		ADD TO CART
SET SCREW M9220100804 · qty on machine: 2 view full part page → $20.95
15	0040006000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040006000 · qty on machine: 2 view full part page → $0.17
16	952404470	WASHER, FLAT	2	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 2 REPLACES P/N 0041206000 view full part page → $0.19
17	0080200005	E RING	2		ADD TO CART
E RING 0080200005 · qty on machine: 2 view full part page → $0.25
18	M3237100503	TERMINAL COVER	1		ADD TO CART
TERMINAL COVER M3237100503 · qty on machine: 1 view full part page → $126.95
19	0605050060	CONICAL SPRING WASHER	2		ADD TO CART
CONICAL SPRING WASHER 0605050060 · qty on machine: 2 view full part page → $5.95
20	Y0013612045	HEX. HEAD BOLT	2		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0013612045 · qty on machine: 2 PARTS REQUEST
21	031112230	WASHER, FLAT	6	REPLACES P/N 0041212000	ADD TO CART
WASHER, FLAT 031112230 · qty on machine: 6 REPLACES P/N 0041212000 view full part page → $0.95
22	0030012000	HEX. NUT	2		ADD TO CART
HEX. NUT 0030012000 · qty on machine: 2 view full part page → $0.5
23	M4236400204	COVER	1		PARTS REQUEST
PHOTO COMING COVER M4236400204 · qty on machine: 1 PARTS REQUEST
24	0016906015	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 8 view full part page → $0.95
25	M4260600104	BRACKET, CIRCUIT BREAKER	1		ADD TO CART
BRACKET, CIRCUIT BREAKER M4260600104 · qty on machine: 1 view full part page → $57.95
25-1	0222100150	RUBBER CUSHION	1		ADD TO CART
RUBBER CUSHION 0222100150 · qty on machine: 1 view full part page → $6.95
26	011206020	HEX. HEAD BOLT	2	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 2 REPLACES P/N 0016906020 view full part page → $0.95
27	0601808803	CIRCUIT BREAKER, 1P 20A	2		ADD TO CART
CIRCUIT BREAKER, 1P 20A 0601808803 · qty on machine: 2 view full part page → $46.95
28	0601808804	CIRCUIT BREAKER, 2P 50A	3		ADD TO CART
CIRCUIT BREAKER, 2P 50A 0601808804 · qty on machine: 3 view full part page → $98.95
29	0601814014	RECEPTACLE, 50A	3		ADD TO CART
RECEPTACLE, 50A 0601814014 · qty on machine: 3 view full part page → $90.95
30	0601814024	RECEPTACLE, 20A	2		ADD TO CART
RECEPTACLE, 20A 0601814024 · qty on machine: 2 view full part page → $78.95
31	0027104015	MACHINE SCREW	10		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 10 view full part page → $0.53
31A	OEMAA8	SELF-LOCKING NUT	10	REPLACES P/N 0207004000	ADD TO CART
SELF-LOCKING NUT OEMAA8 · qty on machine: 10 REPLACES P/N 0207004000 view full part page → $0.4
32	0601850275	GROMMET	1		ADD TO CART
GROMMET 0601850275 · qty on machine: 1 view full part page → $2.68
33	0601815194	TERMINAL BLOCK	1		NO LONGER AVAILABLE
PHOTO COMING TERMINAL BLOCK 0601815194 · qty on machine: 1 NO LONGER AVAILABLE
34	0027104015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 2 view full part page → $0.53
35	0603306775	BLIND PLUG	2	S/N 8900417 AND BELOW	ADD TO CART
BLIND PLUG 0603306775 · qty on machine: 2 S/N 8900417 AND BELOW view full part page → $3.95
35	0603306775	BLIND PLUG	1	S/N 8900418 AND ABOVE	ADD TO CART
BLIND PLUG 0603306775 · qty on machine: 1 S/N 8900418 AND ABOVE view full part page → $3.95

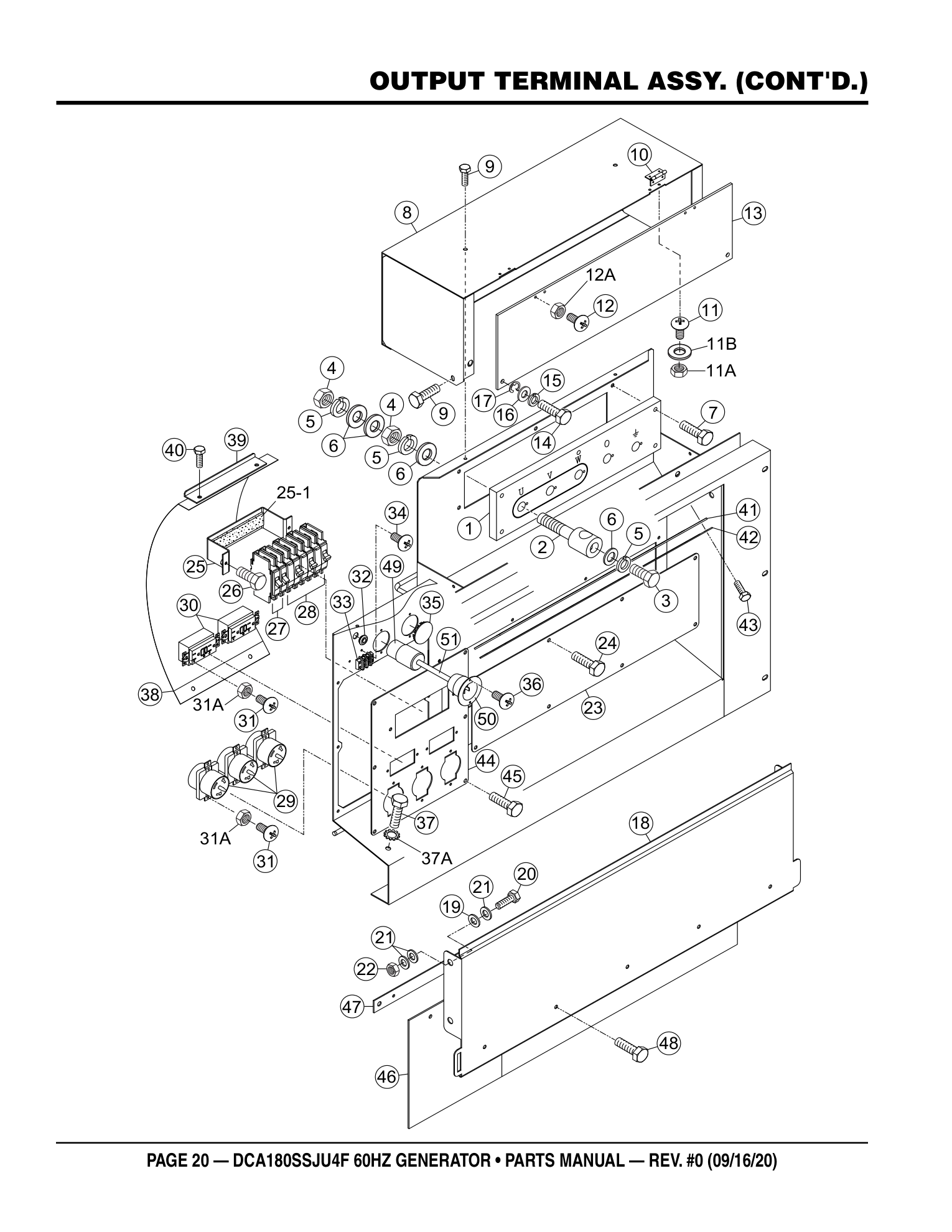

Page 20 — OUTPUT TERMINAL ASSY. (CONT'D.)

Multiquip DCA180SSJU4F Generator OUTPUT TERMINAL ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed17 rows

No.	Part No.	Part Name	Qty	Remarks
36	0027104015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 4 view full part page → $0.53
37	0019208020	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 1 view full part page → $3.95
37A	0040508000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040508000 · qty on machine: 1 view full part page → $0.35
38	M3237100404	INSULATING COVER	1		ADD TO CART
INSULATING COVER M3237100404 · qty on machine: 1 view full part page → $160.95
39	M4236400304	BRACKET	1		ADD TO CART
BRACKET M4236400304 · qty on machine: 1 view full part page → $19.95
40	0016906015	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 2 view full part page → $0.95
41	M4236400004	CABLE OUTLET COVER	1		ADD TO CART
CABLE OUTLET COVER M4236400004 · qty on machine: 1 view full part page → $9.95
42	M4236400104	SUPPORTER, CABLE OUTLET COVER	1		ADD TO CART
SUPPORTER, CABLE OUTLET COVER M4236400104 · qty on machine: 1 view full part page → $88.95
43	011206020	HEX. HEAD BOLT	8	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 8 REPLACES P/N 0016906020 view full part page → $0.95
44	M3454200904	RECEPTACLE BOARD	1		ADD TO CART
RECEPTACLE BOARD M3454200904 · qty on machine: 1 view full part page → $30.95
45	0016906015	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 6 view full part page → $0.95
46	M3454700404	RUBBER SHEET	1		ADD TO CART
RUBBER SHEET M3454700404 · qty on machine: 1 view full part page → $62.95
47	M3454700504	RUBBER SHEET HOLDER	1		PARTS REQUEST
PHOTO COMING RUBBER SHEET HOLDER M3454700504 · qty on machine: 1 PARTS REQUEST
48	011206020	HEX. HEAD BOLT	5	REPLACES P/N 0019206020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 5 REPLACES P/N 0019206020 view full part page → $0.95
49	0601812527	CONNECTOR	1	S/N 8900418 AND ABOVE	ADD TO CART
CONNECTOR 0601812527 · qty on machine: 1 S/N 8900418 AND ABOVE view full part page → $64.95
50	0601811177	RECEPTACLE	1	S/N 8900418 AND ABOVE	PARTS REQUEST
PHOTO COMING RECEPTACLE 0601811177 · qty on machine: 1 S/N 8900418 AND ABOVE PARTS REQUEST
51	M1358200804	WIRE HARNESS, WATER HEATER	1	S/N 8900418 AND ABOVE	PARTS REQUEST
PHOTO COMING WIRE HARNESS, WATER HEATER M1358200804 · qty on machine: 1 S/N 8900418 AND ABOVE PARTS REQUEST

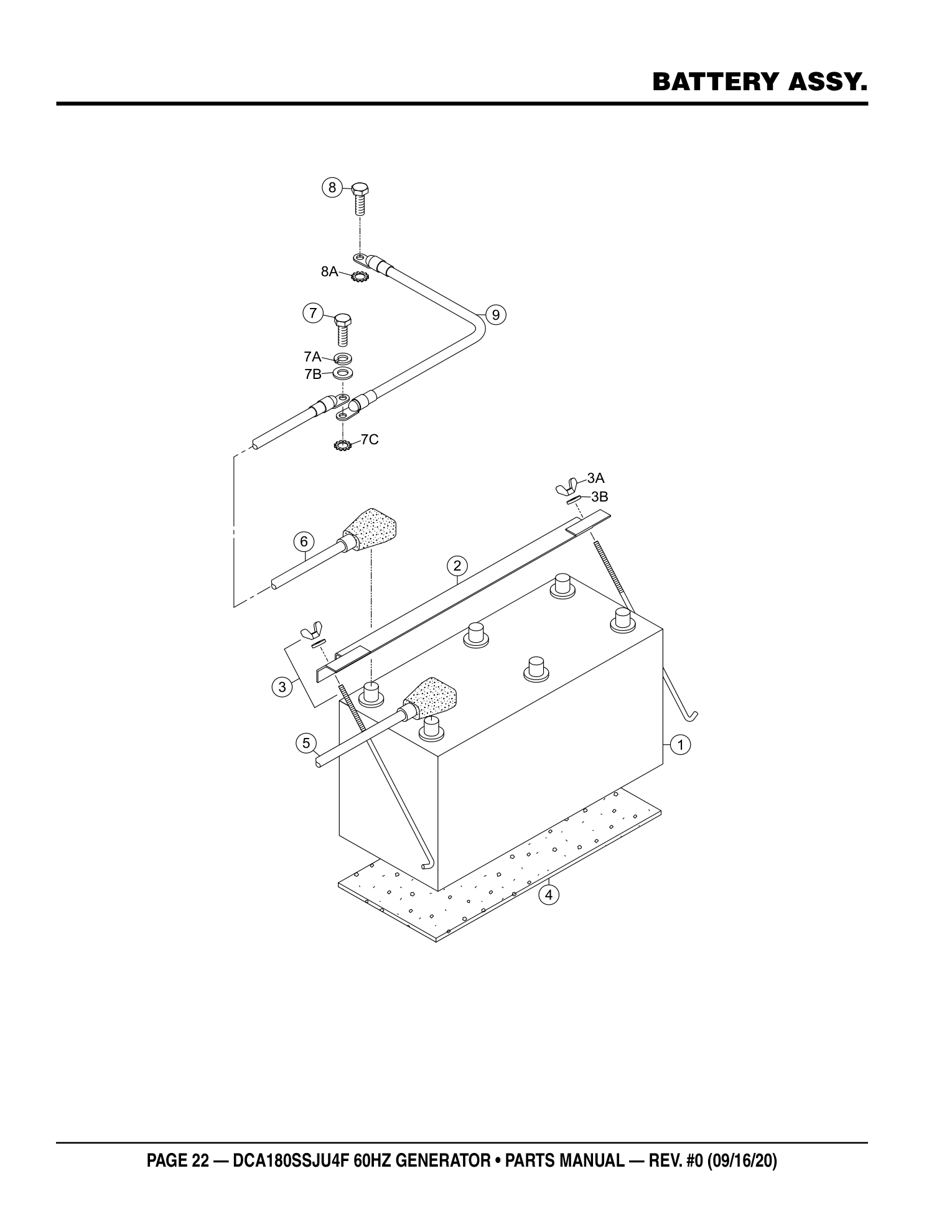

Page 22 — BATTERY ASSY.

Multiquip DCA180SSJU4F Generator BATTERY ASSY. parts diagram

Parts list — exactly as printed15 rows

No.	Part No.	Part Name	Qty	Remarks
1	0602220198	BATTERY	1		ADD TO CART
BATTERY 0602220198 · qty on machine: 1 view full part page → $500.95
2	M9103000504	BATTERY BAND	1		ADD TO CART
BATTERY BAND M9103000504 · qty on machine: 1 view full part page → $107.95
3	0602220921	BATTERY BOLT SET	2	INCLUDES ITEMS W/$	ADD TO CART
BATTERY BOLT SET 0602220921 · qty on machine: 2 INCLUDES ITEMS W/$ Kit includes: 3A$, 3B$ view full part page → $5.95 IN A KIT + SOLD SOLO
3A$		WING NUT	2		INCLUDED IN KIT
PHOTO COMING WING NUT · qty on machine: 2 Included in kit 3 - BATTERY BOLT SET (0602220921) INCLUDED IN KIT
3B$		PLASTIC WASHER	2		INCLUDED IN KIT
PHOTO COMING PLASTIC WASHER · qty on machine: 2 Included in kit 3 - BATTERY BOLT SET (0602220921) INCLUDED IN KIT
4	M9310500404	BATTERY SHEET	1		PARTS REQUEST
PHOTO COMING BATTERY SHEET M9310500404 · qty on machine: 1 PARTS REQUEST
5	M5347900504	BATTERY CABLE	1		ADD TO CART
BATTERY CABLE M5347900504 · qty on machine: 1 view full part page → $365.95
6	M5347900604	BATTERY CABLE	1		PARTS REQUEST
PHOTO COMING BATTERY CABLE M5347900604 · qty on machine: 1 PARTS REQUEST
7	Y0013616030	HEX. HEAD BOLT	1		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0013616030 · qty on machine: 1 PARTS REQUEST
7A	0040016000	WASHER, LOCK	1		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 1 view full part page → $4.95
7B	0041216000	WASHER, FLAT	1		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 1 view full part page → $1.95
7C	0040516000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040516000 · qty on machine: 1 view full part page → $1.39
8	0016910025	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0016910025 · qty on machine: 1 view full part page → $1.56
8A	0040510000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040510000 · qty on machine: 1 view full part page → $0.77
9		EARTH CABLE	1	MAKE LOCALLY	SEE REMARKS
PHOTO COMING EARTH CABLE · qty on machine: 1 MAKE LOCALLY SEE REMARKS

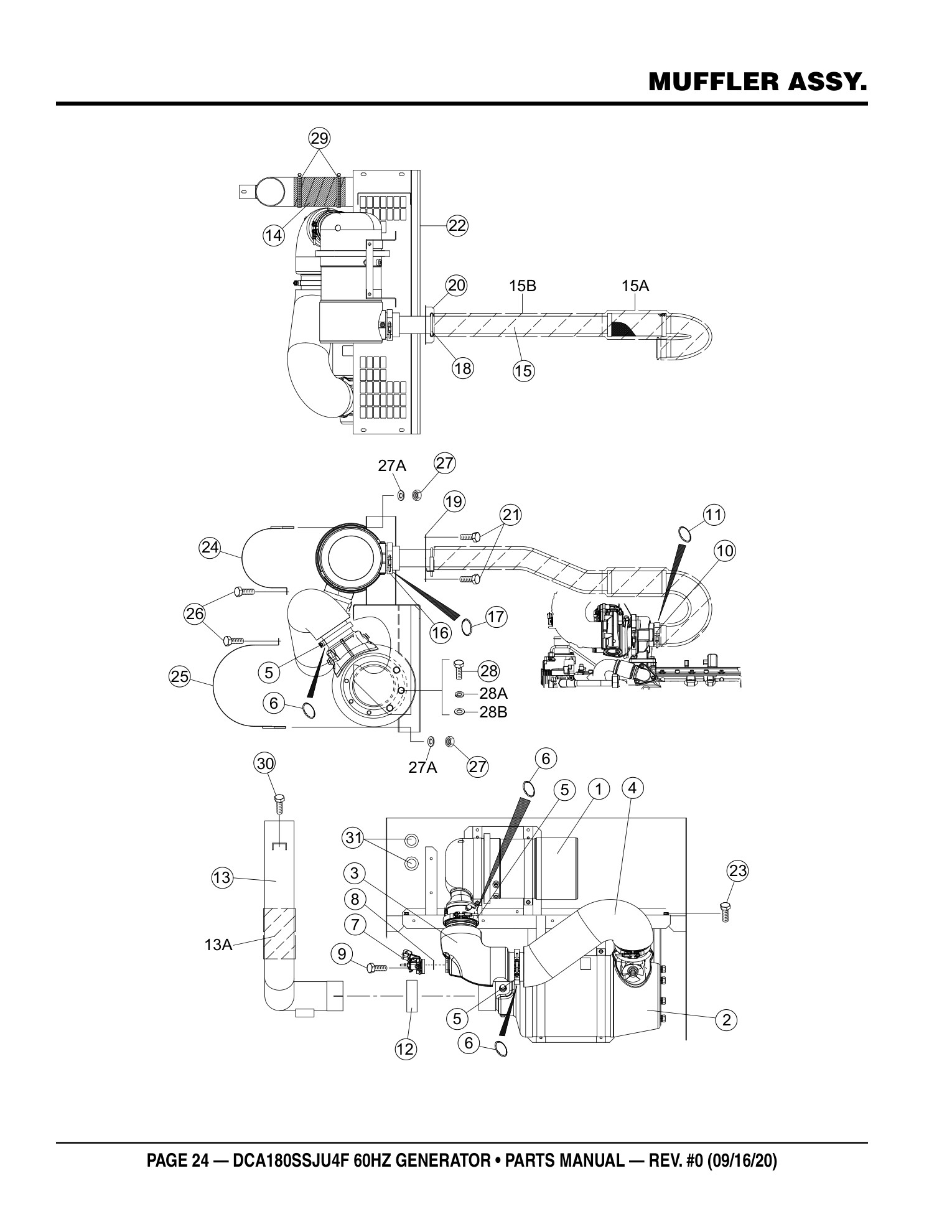

Page 24 — MUFFLER ASSY.

Multiquip DCA180SSJU4F Generator MUFFLER ASSY. parts diagram

Parts list — exactly as printed36 rows

No.	Part No.	Part Name	Qty	Remarks
1	DZ100501	DIESEL OXIDATION CATALYST	1	REPLACES P/N 0602330106	NO LONGER AVAILABLE
PHOTO COMING DIESEL OXIDATION CATALYST DZ100501 · qty on machine: 1 REPLACES P/N 0602330106 NO LONGER AVAILABLE
2	DZ100467	SCR CATALYST	1	REPLACES P/N 0602330304	ADD TO CART
SCR CATALYST DZ100467 · qty on machine: 1 REPLACES P/N 0602330304 view full part page → $16507.95
3	RE565074	DECOMPOSITION TUBE	1	REPLACES P/N 0602330403	ADD TO CART
DECOMPOSITION TUBE RE565074 · qty on machine: 1 REPLACES P/N 0602330403 view full part page → $2420.95
4	RE559456	DECOMPOSITION EXTENSION TUBE	1	REPLACES P/N 0602330404	PARTS REQUEST
PHOTO COMING DECOMPOSITION EXTENSION TUBE RE559456 · qty on machine: 1 REPLACES P/N 0602330404 PARTS REQUEST
5	RE540348	V-BAND CLAMP	3	REPLACES P/N 0602325034	ADD TO CART
V-BAND CLAMP RE540348 · qty on machine: 3 REPLACES P/N 0602325034 view full part page → $163.95
6	R529640	GASKET	3	REPLACES P/N 0602320205	ADD TO CART
GASKET R529640 · qty on machine: 3 REPLACES P/N 0602320205 view full part page → $97.95
7	RE560468	DEF INJECTOR	1	REPLACES P/N 0602330405	ADD TO CART
DEF INJECTOR RE560468 · qty on machine: 1 REPLACES P/N 0602330405 view full part page → $1355.95
8	RE556879	GASKET	1	REPLACES P/N 0602330406	ADD TO CART
GASKET RE556879 · qty on machine: 1 REPLACES P/N 0602330406 view full part page → $25.95
9	R537624	HEX. HEAD BOLT	3	REPLACES P/N 0602330407	ADD TO CART
HEX. HEAD BOLT R537624 · qty on machine: 3 REPLACES P/N 0602330407 view full part page → $4.95
10	RE289839	V-BAND CLAMP	1	REPLACES P/N 0602325037	ADD TO CART
V-BAND CLAMP RE289839 · qty on machine: 1 REPLACES P/N 0602325037 view full part page → $107.95
11	R528112	SEALING RING	1	REPLACES P/N 0602320201	ADD TO CART
SEALING RING R528112 · qty on machine: 1 REPLACES P/N 0602320201 view full part page → $116.95
12	Y0602325026	PIPE BAND	1		ADD TO CART
PIPE BAND Y0602325026 · qty on machine: 1 view full part page → $37.95
13	M3334100103	TAIL PIPE	1		ADD TO CART
TAIL PIPE M3334100103 · qty on machine: 1 view full part page → $1146.95
13A	Y0602311172	TAIL PIPE HEAT SHIELD	1		ADD TO CART
TAIL PIPE HEAT SHIELD Y0602311172 · qty on machine: 1 view full part page → $157.95
14	Y0400005400	EXHAUST INSULATING WRAP	1		ADD TO CART
EXHAUST INSULATING WRAP Y0400005400 · qty on machine: 1 view full part page → $136.95
15	M3334001203	EXHAUST PIPE	1		ADD TO CART
EXHAUST PIPE M3334001203 · qty on machine: 1 view full part page → $414.95
15A	Y0602311170	EXHAUST PIPE HEAT SHIELD	1		ADD TO CART
EXHAUST PIPE HEAT SHIELD Y0602311170 · qty on machine: 1 view full part page → $296.95
15B	Y0602311171	EXHAUST PIPE HEAT SHIELD	1		ADD TO CART
EXHAUST PIPE HEAT SHIELD Y0602311171 · qty on machine: 1 view full part page → $313.95
16	RE298757	V-BAND CLAMP	1	REPLACES P/N 0602325036	ADD TO CART
V-BAND CLAMP RE298757 · qty on machine: 1 REPLACES P/N 0602325036 view full part page → $162.95
17	R300529	SEAL RING	1	REPLACES P/N 0602320203	ADD TO CART
SEAL RING R300529 · qty on machine: 1 REPLACES P/N 0602320203 view full part page → $140.95
18	0602326060	U-BOLT	1		ADD TO CART
U-BOLT 0602326060 · qty on machine: 1 view full part page → $16.95
19	M3334300604	COVER, EXHAUST PIPE	1		PARTS REQUEST
PHOTO COMING COVER, EXHAUST PIPE M3334300604 · qty on machine: 1 PARTS REQUEST
20	M3334300503	BRACKET, EXHAUST PIPE	1		PARTS REQUEST
PHOTO COMING BRACKET, EXHAUST PIPE M3334300503 · qty on machine: 1 PARTS REQUEST
21	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
22	M3331200302	BRACKET, DOC & SCR	1		PARTS REQUEST
PHOTO COMING BRACKET, DOC & SCR M3331200302 · qty on machine: 1 PARTS REQUEST
23	0016910025	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016910025 · qty on machine: 4 view full part page → $1.56
24	M3331400604	DPF BAND	2		ADD TO CART
DPF BAND M3331400604 · qty on machine: 2 view full part page → $77.95
25	M3331400704	SCR BAND	2		ADD TO CART
SCR BAND M3331400704 · qty on machine: 2 view full part page → $17.95
26	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
27	020108060	U-NUT	4	REPLACES P/N 0037908000	ADD TO CART
U-NUT 020108060 · qty on machine: 4 REPLACES P/N 0037908000 view full part page → $0.28
27A	0401450080	WASHER, FLAT	4	REPLACES P/N 0041208000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 4 REPLACES P/N 0041208000 view full part page → $0.56
28	Y0013616030	HEX. HEAD BOLT	4		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0013616030 · qty on machine: 4 PARTS REQUEST
28A	0040016000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 4 view full part page → $4.95
28B	0041216000	WASHER, FLAT	4		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 4 view full part page → $1.95
29	0605515202	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515202 · qty on machine: 2 view full part page → $9.95
30	011008020	HEX. HEAD BOLT	1	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 1 REPLACES P/N 0016908020 view full part page → $2.68

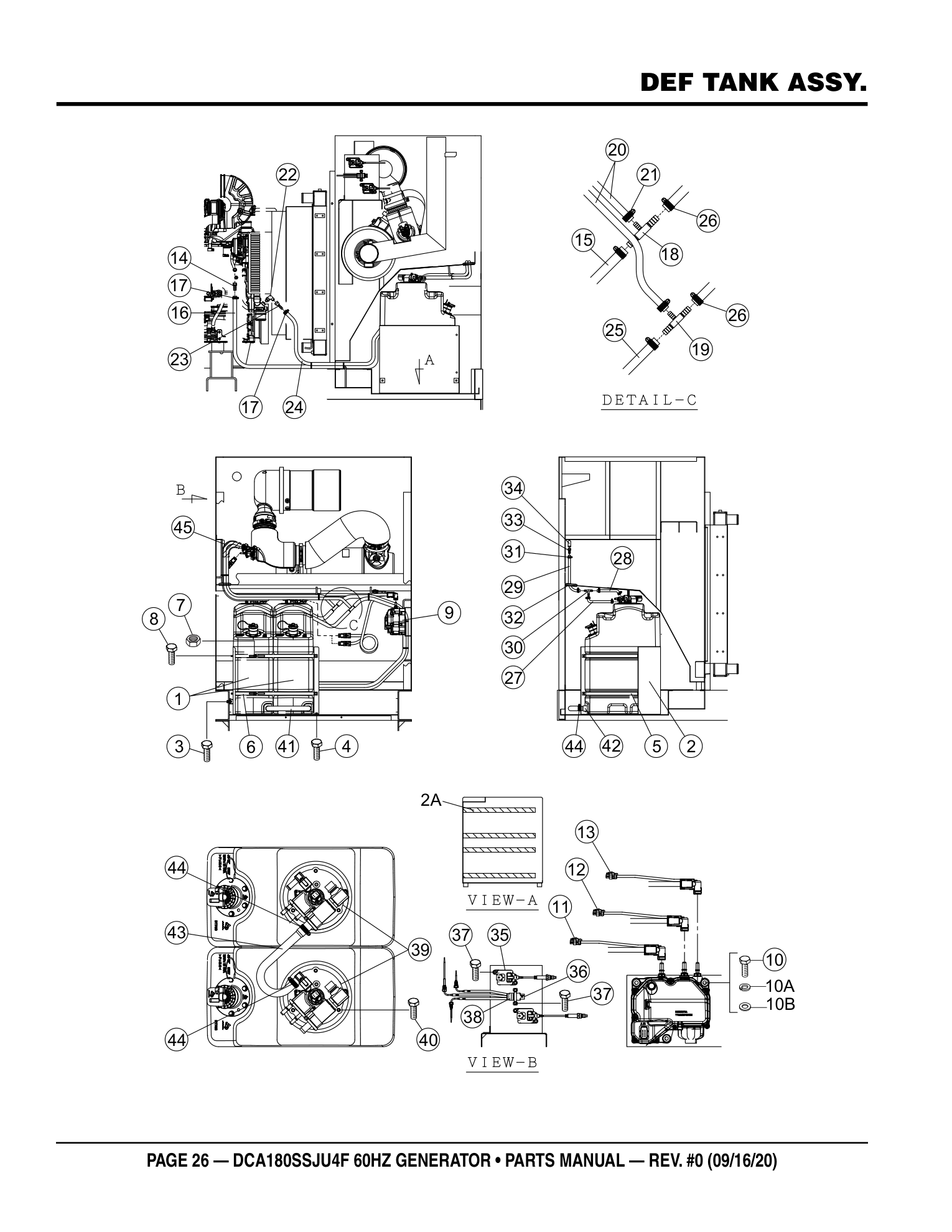

Page 26 — DEF TANK ASSY.

Multiquip DCA180SSJU4F Generator DEF TANK ASSY. parts diagram

Parts list — exactly as printed38 rows

No.	Part No.	Part Name	Qty	Remarks
1	DZ103067	DEF TANK	2	REPLACES P/N 0605500072	PARTS REQUEST
PHOTO COMING DEF TANK DZ103067 · qty on machine: 2 REPLACES P/N 0605500072 PARTS REQUEST
2	M3331402703	BRACKET, DEF TANK	1		PARTS REQUEST
PHOTO COMING BRACKET, DEF TANK M3331402703 · qty on machine: 1 PARTS REQUEST
2A	Y0222100480	SEAL, RUBBER	4		ADD TO CART
SEAL, RUBBER Y0222100480 · qty on machine: 4 view full part page → $6.95
3	011208025	HEX. HEAD BOLT	2	REPLACES P/N 0016908025	ADD TO CART
HEX. HEAD BOLT 011208025 · qty on machine: 2 REPLACES P/N 0016908025 view full part page → $0.41
4	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
5	M3331402804	DEF TANK BAND	2		ADD TO CART
DEF TANK BAND M3331402804 · qty on machine: 2 view full part page → $233.95
6	M5331402004	DEF TANK BAND	2		PARTS REQUEST
PHOTO COMING DEF TANK BAND M5331402004 · qty on machine: 2 PARTS REQUEST
7	020108060	SELF-LOCKING NUT	4	REPLACES P/N 0207008000	ADD TO CART
SELF-LOCKING NUT 020108060 · qty on machine: 4 REPLACES P/N 0207008000 view full part page → $0.28
8	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
9	RE552175	DEF SUPPLY MODULE	1		ADD TO CART
DEF SUPPLY MODULE RE552175 · qty on machine: 1 view full part page → $2050.95
10	Y0013608090	HEX. HEAD BOLT	3		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0013608090 · qty on machine: 3 PARTS REQUEST
10A	0040008000	WASHER, LOCK	3		ADD TO CART
WASHER, LOCK 0040008000 · qty on machine: 3 view full part page → $0.63
10B	0401450080	WASHER, FLAT	3	REPLACES P/N 0041208000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 3 REPLACES P/N 0041208000 view full part page → $0.56
11	RE560877	DEF SUCTION LINE	1		ADD TO CART
DEF SUCTION LINE RE560877 · qty on machine: 1 view full part page → $460.95
12	RE560893	DEF BACKFLOW LINE	1		ADD TO CART
DEF BACKFLOW LINE RE560893 · qty on machine: 1 view full part page → $441.95
13	RE560897	DEF PRESSURE LINE	1		ADD TO CART
DEF PRESSURE LINE RE560897 · qty on machine: 1 view full part page → $700.95
14	AT377287	HOSE BARB	1		ADD TO CART
HOSE BARB AT377287 · qty on machine: 1 view full part page → $49.95
15	Y0269300340	COOLANT HOSE	1		ADD TO CART
COOLANT HOSE Y0269300340 · qty on machine: 1 view full part page → $3.95
16	Y0269303200	COOLANT HOSE	1		ADD TO CART
COOLANT HOSE Y0269303200 · qty on machine: 1 view full part page → $36.95
17	0605515198	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515198 · qty on machine: 2 view full part page → $1.71
18	T317541	BLACK TEE-FITTING WITH ORIFICE	1	REPLACES P/N 0602022976	ADD TO CART
BLACK TEE-FITTING WITH ORIFICE T317541 · qty on machine: 1 REPLACES P/N 0602022976 view full part page → $17.95
19	T296925	WHITE TEE-FITTING	1	REPLACES P/N 0602022977	ADD TO CART
WHITE TEE-FITTING T296925 · qty on machine: 1 REPLACES P/N 0602022977 view full part page → $12.95
20	Y0379602350	COOLANT HOSE	2		ADD TO CART
COOLANT HOSE Y0379602350 · qty on machine: 2 view full part page → $39.95
21	Y0605515340	HOSE BAND	4		ADD TO CART
HOSE BAND Y0605515340 · qty on machine: 4 view full part page → $2.95
22	Y0602022559	90° ELBOW	1		PARTS REQUEST
PHOTO COMING 90° ELBOW Y0602022559 · qty on machine: 1 PARTS REQUEST
23	0602022980	HOSE JOINT	1		ADD TO CART
HOSE JOINT 0602022980 · qty on machine: 1 view full part page → $11.95
24	Y0379703250	COOLANT HOSE	1		ADD TO CART
COOLANT HOSE Y0379703250 · qty on machine: 1 view full part page → $36.95
25	Y0379700520	COOLANT HOSE	1		ADD TO CART
COOLANT HOSE Y0379700520 · qty on machine: 1 view full part page → $5.95
26	Y0605515341	HOSE BAND	6		ADD TO CART
HOSE BAND Y0605515341 · qty on machine: 6 view full part page → $2.95
27	0191300250	VENT HOSE	1		ADD TO CART
VENT HOSE 0191300250 · qty on machine: 1 view full part page → $2.86
28	0191300600	VENT HOSE	1		ADD TO CART
VENT HOSE 0191300600 · qty on machine: 1 view full part page → $14.95
29	0191300900	VENT HOSE	1		ADD TO CART
VENT HOSE 0191300900 · qty on machine: 1 view full part page → $40.95
30	Y0603306677	TEE-FITTING	1		ADD TO CART
TEE-FITTING Y0603306677 · qty on machine: 1 view full part page → $2.95
31	Y0605515340	HOSE BAND	6		ADD TO CART
HOSE BAND Y0605515340 · qty on machine: 6 view full part page → $2.95
32	0601851756	GROMMET	1		ADD TO CART
GROMMET 0601851756 · qty on machine: 1 view full part page → $15.95
33	H216170	DEF TANK VENT FITTING	1	REPLACES P/N 0602330402	ADD TO CART
DEF TANK VENT FITTING H216170 · qty on machine: 1 REPLACES P/N 0602330402 view full part page → $32.95
34	H216169	DEF TANK VENT FILTER	1	REPLACES P/N 0602330401	ADD TO CART
DEF TANK VENT FILTER H216169 · qty on machine: 1 REPLACES P/N 0602330401 view full part page → $54.95
35	RE575061	NOX SENSOR	2	REPLACES P/N 0602330427	PARTS REQUEST
PHOTO COMING NOX SENSOR RE575061 · qty on machine: 2 REPLACES P/N 0602330427 PARTS REQUEST

Page 28 — DEF TANK ASSY. (CONT'D.)

Multiquip DCA180SSJU4F Generator DEF TANK ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed10 rows

No.	Part No.	Part Name	Qty	Remarks
36	RE566739	SCR TEMP. SENSOR	1	REPLACES P/N 0602330426	ADD TO CART
SCR TEMP. SENSOR RE566739 · qty on machine: 1 REPLACES P/N 0602330426 view full part page → $1236.95
37	0016906015	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 6 view full part page → $0.95
38	RE542006	STRAP, TEMPERATURE SENSOR	1	REPLACES P/N 0602330205	ADD TO CART
STRAP, TEMPERATURE SENSOR RE542006 · qty on machine: 1 REPLACES P/N 0602330205 view full part page → $23.95
39	DZ103804	DEF HEADER	2	REPLACES P/N 0602330422	NO LONGER AVAILABLE
PHOTO COMING DEF HEADER DZ103804 · qty on machine: 2 REPLACES P/N 0602330422 NO LONGER AVAILABLE
40	19M10399	HEX. HEAD BOLT	6		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT 19M10399 · qty on machine: 6 PARTS REQUEST
41	M5331401804	DEF TANK HOSE	1		ADD TO CART
DEF TANK HOSE M5331401804 · qty on machine: 1 view full part page → $17.95
42	Y0602022528	HOSE ADAPTER	2		ADD TO CART
HOSE ADAPTER Y0602022528 · qty on machine: 2 view full part page → $92.95
43	M3331402604	DEF TANK HOSE	1		ADD TO CART
DEF TANK HOSE M3331402604 · qty on machine: 1 view full part page → $45.95
44	0605515198	HOSE BAND	4		ADD TO CART
HOSE BAND 0605515198 · qty on machine: 4 view full part page → $1.71
45	Y0602311190	HARNESS INSULATING SLEEVE	2		ADD TO CART
HARNESS INSULATING SLEEVE Y0602311190 · qty on machine: 2 view full part page → $37.95

Page 30 — FUEL TANK ASSY.

Multiquip DCA180SSJU4F Generator FUEL TANK ASSY. parts diagram

Parts list — exactly as printed19 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3364000513	FUEL TANK	1		ADD TO CART
FUEL TANK M3364000513 · qty on machine: 1 view full part page → $3695.95
1-1	0605505072	FUEL TANK CAP	1		ADD TO CART
FUEL TANK CAP 0605505072 · qty on machine: 1 view full part page → $231.95
2	M3364300704	BRACKET, FUEL TANK	2		PARTS REQUEST
PHOTO COMING BRACKET, FUEL TANK M3364300704 · qty on machine: 2 PARTS REQUEST
3	0016910025	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016910025 · qty on machine: 4 view full part page → $1.56
4	011008020	HEX. HEAD BOLT	8	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 8 REPLACES P/N 0016908020 view full part page → $2.68
5	Y0191300980	SUCTION HOSE	1		ADD TO CART
SUCTION HOSE Y0191300980 · qty on machine: 1 view full part page → $12.95
6	Y0191300980	RETURN HOSE	1		ADD TO CART
RETURN HOSE Y0191300980 · qty on machine: 1 view full part page → $12.95
7	0191302700	VENT HOSE	1		ADD TO CART
VENT HOSE 0191302700 · qty on machine: 1 view full part page → $30.95
8	Y0605515340	HOSE BAND	6		ADD TO CART
HOSE BAND Y0605515340 · qty on machine: 6 view full part page → $2.95
9	Y0602022577	90° ELBOW	1		ADD TO CART
90° ELBOW Y0602022577 · qty on machine: 1 view full part page → $39.95
10	Y0602022578	90° ELBOW	1		ADD TO CART
90° ELBOW Y0602022578 · qty on machine: 1 view full part page → $67.95
11	Y0602022985	HOSE JOINT	2		ADD TO CART
HOSE JOINT Y0602022985 · qty on machine: 2 view full part page → $6.95
12	Y0605501049	FUEL SENDER UNIT	1		ADD TO CART
FUEL SENDER UNIT Y0605501049 · qty on machine: 1 view full part page → $342.95
12A	0605516090	GASKET	1		NO LONGER AVAILABLE
PHOTO COMING GASKET 0605516090 · qty on machine: 1 NO LONGER AVAILABLE
13	Y0605053021	HEX. HEAD BOLT	5		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0605053021 · qty on machine: 5 PARTS REQUEST
14	0602022791	HOSE JOINT 1/2"	2		ADD TO CART
HOSE JOINT 1/2" 0602022791 · qty on machine: 2 view full part page → $35.95
15	0602022778	HOSE JOINT 3/8"	2		ADD TO CART
HOSE JOINT 3/8" 0602022778 · qty on machine: 2 view full part page → $3.95
16	M3364400504	PICK-UP TUBE	2		ADD TO CART
PICK-UP TUBE M3364400504 · qty on machine: 2 view full part page → $141.95
17	Y0603306729	SQUARE HEAD PIPE PLUG	1		ADD TO CART
SQUARE HEAD PIPE PLUG Y0603306729 · qty on machine: 1 view full part page → $28.95

Page 32 — ENCLOSURE 1 ASSY.

Multiquip DCA180SSJU4F Generator ENCLOSURE 1 ASSY. parts diagram

Parts list — exactly as printed44 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3414001102	BASE	1	S/N 8900402 AND BELOW	PARTS REQUEST
PHOTO COMING BASE M3414001102 · qty on machine: 1 S/N 8900402 AND BELOW PARTS REQUEST
1	M3414001402	BASE	1	S/N 8900403 AND ABOVE	ADD TO CART
BASE M3414001402 · qty on machine: 1 S/N 8900403 AND ABOVE view full part page → $11936.95
1A	Y0229200830	SEAL, RUBBER	1		ADD TO CART
SEAL, RUBBER Y0229200830 · qty on machine: 1 view full part page → $8.95
1B	0229200210	SEAL, RUBBER	1		ADD TO CART
SEAL, RUBBER 0229200210 · qty on machine: 1 view full part page → $2.95
2	M3414001002	BASE	1	S/N 8900402 AND BELOW	PARTS REQUEST
PHOTO COMING BASE M3414001002 · qty on machine: 1 S/N 8900402 AND BELOW PARTS REQUEST
2A	Y0222101080	SEAL, RUBBER	4	S/N 8900402 AND BELOW	PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0222101080 · qty on machine: 4 S/N 8900402 AND BELOW PARTS REQUEST
3	0013616040	HEX. HEAD BOLT	8	S/N 8900402 AND BELOW	ADD TO CART
HEX. HEAD BOLT 0013616040 · qty on machine: 8 S/N 8900402 AND BELOW view full part page → $5.95
3A	0040016000	WASHER, LOCK	8	S/N 8900402 AND BELOW	ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 8 S/N 8900402 AND BELOW view full part page → $4.95
3B	0041216000	WASHER, FLAT	8	S/N 8900402 AND BELOW	ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 8 S/N 8900402 AND BELOW view full part page → $1.95
4	011208025	HEX. HEAD BOLT	2	REPLACES P/N 0016908025 S/N 8900402 AND BELOW	ADD TO CART
HEX. HEAD BOLT 011208025 · qty on machine: 2 REPLACES P/N 0016908025 S/N 8900402 AND BELOW view full part page → $0.41
5	M3364300603	ENVIRONMENTAL TANK	1		PARTS REQUEST
PHOTO COMING ENVIRONMENTAL TANK M3364300603 · qty on machine: 1 PARTS REQUEST
6	0016910030	HEX. HEAD BOLT	12		ADD TO CART
HEX. HEAD BOLT 0016910030 · qty on machine: 12 view full part page → $2.95
7	0603306797	SQUARE HEAD PIPE PLUG 1-1/2"	1		ADD TO CART
SQUARE HEAD PIPE PLUG 1-1/2" 0603306797 · qty on machine: 1 view full part page → $12.95
8	Y0603306793	SQUARE HEAD PIPE PLUG 1/2"	1		ADD TO CART
SQUARE HEAD PIPE PLUG 1/2" Y0603306793 · qty on machine: 1 view full part page → $2.95
9	M3414400103	BASE COVER	1		ADD TO CART
BASE COVER M3414400103 · qty on machine: 1 view full part page → $615.95
10	0019108055	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0019108055 · qty on machine: 6 view full part page → $3.95
10A	0042308000	WASHER, LOCK	6		ADD TO CART
WASHER, LOCK 0042308000 · qty on machine: 6 view full part page → $0.83
10B	0401450080	WASHER, FLAT	6	REPLACES P/N 0042408000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 6 REPLACES P/N 0042408000 view full part page → $0.56
11	M2414800304	HOLE COVER	1		ADD TO CART
HOLE COVER M2414800304 · qty on machine: 1 view full part page → $74.95
12	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
13	M3424000802	FRONT FRAME	1		ADD TO CART
FRONT FRAME M3424000802 · qty on machine: 1 view full part page → $3904.95
13A	M3494112003	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494112003 · qty on machine: 1 view full part page → $714.95
14	0016910025	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0016910025 · qty on machine: 8 view full part page → $1.56
15	M3424100003	PANEL, FRONT FRAME	1		ADD TO CART
PANEL, FRONT FRAME M3424100003 · qty on machine: 1 view full part page → $779.95
15A	M3494113204	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494113204 · qty on machine: 1 view full part page → $160.95
16	M3424100103	PANEL, FRONT FRAME	1		PARTS REQUEST
PHOTO COMING PANEL, FRONT FRAME M3424100103 · qty on machine: 1 PARTS REQUEST
16A	M3494113504	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M3494113504 · qty on machine: 1 PARTS REQUEST
17	0019108055	HEX. HEAD BOLT	12		ADD TO CART
HEX. HEAD BOLT 0019108055 · qty on machine: 12 view full part page → $3.95
17A	0042308000	WASHER, LOCK	12		ADD TO CART
WASHER, LOCK 0042308000 · qty on machine: 12 view full part page → $0.83
17B	0401450080	WASHER, FLAT	12	REPLACES P/N 0042408000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 12 REPLACES P/N 0042408000 view full part page → $0.56
18	M3424600203	DOOR, FRONT FRAME	1		ADD TO CART
DOOR, FRONT FRAME M3424600203 · qty on machine: 1 view full part page → $470.95
18A	M3494113604	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494113604 · qty on machine: 1 view full part page → $35.95
19	M9110100204	HINGE	2		ADD TO CART
HINGE M9110100204 · qty on machine: 2 view full part page → $23.95
19A	M9116100004	WASHER	2		ADD TO CART
WASHER M9116100004 · qty on machine: 2 view full part page → $1.93
20	0019208020	HEX. HEAD BOLT	3		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 3 view full part page → $3.95
21	0845031504	CAP	2	REPLACES P/N M9310000004	ADD TO CART
CAP 0845031504 · qty on machine: 2 REPLACES P/N M9310000004 view full part page → $2.95
22	0605012309	DOOR HANDLE	1		ADD TO CART
DOOR HANDLE 0605012309 · qty on machine: 1 view full part page → $49.95
23	0176060030	SELF-LOCKING NUT	4	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 4 REPLACES P/N 0207006000 view full part page → $2.95
24	0601850097	STOPPER	1		ADD TO CART
STOPPER 0601850097 · qty on machine: 1 view full part page → $2.95
25	0027208025	MACHINE SCREW	1		ADD TO CART
MACHINE SCREW 0027208025 · qty on machine: 1 view full part page → $0.76
26	M3424201803	OVER COVER, FRONT FRAME	1		ADD TO CART
OVER COVER, FRONT FRAME M3424201803 · qty on machine: 1 view full part page → $544.95
27	0019208020	HEX. HEAD BOLT	17		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 17 view full part page → $3.95
28	M3434000602	CENTER FRAME	1		ADD TO CART
CENTER FRAME M3434000602 · qty on machine: 1 view full part page → $3479.95
29	Y0013614040	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT Y0013614040 · qty on machine: 4 view full part page → $2.95

Page 34 — ENCLOSURE 1 ASSY. (CONT'D.)

Multiquip DCA180SSJU4F Generator ENCLOSURE 1 ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed46 rows

No.	Part No.	Part Name	Qty	Remarks
29A	030214350	WASHER, LOCK	4	REPLACES P/N 0040014000	ADD TO CART
WASHER, LOCK 030214350 · qty on machine: 4 REPLACES P/N 0040014000 view full part page → $0.46
29B	031114260	WASHER, FLAT	8	REPLACES P/N 0041214000	ADD TO CART
WASHER, FLAT 031114260 · qty on machine: 8 REPLACES P/N 0041214000 view full part page → $0.69
29C	515455840	HEX. NUT	4	REPLACES P/N 0030014000	ADD TO CART
HEX. NUT 515455840 · qty on machine: 4 REPLACES P/N 0030014000 view full part page → $35.95
30	Y0013620050	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT Y0013620050 · qty on machine: 4 view full part page → $6.95
30A	030220510	WASHER, LOCK	4	REPLACES P/N 0040020000	ADD TO CART
WASHER, LOCK 030220510 · qty on machine: 4 REPLACES P/N 0040020000 view full part page → $1.95
30B	0041220000	WASHER, FLAT	8		ADD TO CART
WASHER, FLAT 0041220000 · qty on machine: 8 view full part page → $0.95
30C	0030020000	HEX. NUT	4		ADD TO CART
HEX. NUT 0030020000 · qty on machine: 4 view full part page → $1.82
31	M3444000702	REAR FRAME	1		ADD TO CART
REAR FRAME M3444000702 · qty on machine: 1 view full part page → $2450.95
31A	M3494302304	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494302304 · qty on machine: 1 view full part page → $118.95
32	0016910025	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016910025 · qty on machine: 4 view full part page → $1.56
33	M3444300904	COVER, REAR FRAME	1		ADD TO CART
COVER, REAR FRAME M3444300904 · qty on machine: 1 view full part page → $372.95
33A	M3494302404	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494302404 · qty on machine: 1 view full part page → $70.95
34	0019208020	HEX. HEAD BOLT	14		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 14 view full part page → $3.95
35	M4443300503	DUCT, REAR FRAME	1		ADD TO CART
DUCT, REAR FRAME M4443300503 · qty on machine: 1 view full part page → $469.95
35A	M4493303004	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M4493303004 · qty on machine: 1 view full part page → $58.95
36	020108060	SELF-LOCKING NUT	9	REPLACES P/N 0207008000	ADD TO CART
SELF-LOCKING NUT 020108060 · qty on machine: 9 REPLACES P/N 0207008000 view full part page → $0.28
37	M3444200303	DOOR, REAR FRAME	1		ADD TO CART
DOOR, REAR FRAME M3444200303 · qty on machine: 1 view full part page → $495.95
38	M9110100204	HINGE	2		ADD TO CART
HINGE M9110100204 · qty on machine: 2 view full part page → $23.95
38A	M9116100004	WASHER	2		ADD TO CART
WASHER M9116100004 · qty on machine: 2 view full part page → $1.93
39	0845031504	BLIND PLUG	2	REPLACES P/N M9310000004	ADD TO CART
BLIND PLUG 0845031504 · qty on machine: 2 REPLACES P/N M9310000004 view full part page → $2.95
40	0019208020	HEX. HEAD BOLT	3		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 3 view full part page → $3.95
41	0601850097	STOPPER	1		ADD TO CART
STOPPER 0601850097 · qty on machine: 1 view full part page → $2.95
42	0027208025	MACHINE SCREW	1		ADD TO CART
MACHINE SCREW 0027208025 · qty on machine: 1 view full part page → $0.76
43	M4443600004	WINDOW PLATE	1		ADD TO CART
WINDOW PLATE M4443600004 · qty on machine: 1 view full part page → $155.95
44	020106050	SELF-LOCKING U-NUT	8	REPLACES P/N 0037906000	ADD TO CART
SELF-LOCKING U-NUT 020106050 · qty on machine: 8 REPLACES P/N 0037906000 view full part page → $0.12
44A	952404470	WASHER, FLAT	8	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 8 REPLACES P/N 0041206000 view full part page → $0.19
45	0600800320	MANUAL PAK	1		ADD TO CART
MANUAL PAK 0600800320 · qty on machine: 1 view full part page → $43.95
46	0021806015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021806015 · qty on machine: 4 view full part page → $0.87
47	0605012309	DOOR HANDLE	1		ADD TO CART
DOOR HANDLE 0605012309 · qty on machine: 1 view full part page → $49.95
47A	C9312500004	SEAL, RUBBER	1		ADD TO CART
SEAL, RUBBER C9312500004 · qty on machine: 1 view full part page → $10.95
48	0176060030	SELF-LOCKING NUT	4	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 4 REPLACES P/N 0207006000 view full part page → $2.95
49	M3464100502	ROOF PANEL	1		ADD TO CART
ROOF PANEL M3464100502 · qty on machine: 1 view full part page → $552.95
49A	M3494504204	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494504204 · qty on machine: 1 view full part page → $196.95
50	Y0019208035	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT Y0019208035 · qty on machine: 6 view full part page → $5.95
51	M3310600004	COVER	1		ADD TO CART
COVER M3310600004 · qty on machine: 1 view full part page → $17.95
52	0019208020	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 4 view full part page → $3.95
53	0019210025	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0019210025 · qty on machine: 4 view full part page → $7.95
54	M3464200502	ROOF PANEL	1		ADD TO CART
ROOF PANEL M3464200502 · qty on machine: 1 view full part page → $632.95
54A	M3494504304	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494504304 · qty on machine: 1 view full part page → $282.95
55	Y0019208035	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT Y0019208035 · qty on machine: 6 view full part page → $5.95
56	0019208020	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 6 view full part page → $3.95
57	0019210025	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0019210025 · qty on machine: 4 view full part page → $7.95
58	M3464500104	GUTTER	2		ADD TO CART
GUTTER M3464500104 · qty on machine: 2 view full part page → $57.95
58A	Y0229200980	SEAL, RUBBER	2		ADD TO CART
SEAL, RUBBER Y0229200980 · qty on machine: 2 view full part page → $6.95
59	M3464500204	GUTTER	2		ADD TO CART
GUTTER M3464500204 · qty on machine: 2 view full part page → $41.95
59A	Y0229201210	SEAL, RUBBER	2		ADD TO CART
SEAL, RUBBER Y0229201210 · qty on machine: 2 view full part page → $8.95

Page 36 — ENCLOSURE 1 ASSY. (CONT'D.)

Parts list — exactly as printed13 rows

No.	Part No.	Part Name	Qty	Remarks
60	0019208020	HEX. HEAD BOLT	12		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 12 view full part page → $3.95
61	M3444800204	GUTTER	1		PARTS REQUEST
PHOTO COMING GUTTER M3444800204 · qty on machine: 1 PARTS REQUEST
62	M3317100004	BRACKET, SURGE TANK	1		ADD TO CART
BRACKET, SURGE TANK M3317100004 · qty on machine: 1 view full part page → $263.95
63	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
64	M3424700904	DEF TANK COVER	1		PARTS REQUEST
PHOTO COMING DEF TANK COVER M3424700904 · qty on machine: 1 PARTS REQUEST
64A	M3494114004	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494114004 · qty on machine: 1 view full part page → $85.95
64B	Y0229200665	SEAL, RUBBER	2		ADD TO CART
SEAL, RUBBER Y0229200665 · qty on machine: 2 view full part page → $5.95
64C	Y0229200215	SEAL, RUBBER	2		ADD TO CART
SEAL, RUBBER Y0229200215 · qty on machine: 2 view full part page → $1.95
65	011008020	HEX. HEAD BOLT	8	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 8 REPLACES P/N 0016908020 view full part page → $2.68
66	0601851736	GROMMET	1		ADD TO CART
GROMMET 0601851736 · qty on machine: 1 view full part page → $12.95
67	0605503062	FLOAT SWITCH	1		ADD TO CART
FLOAT SWITCH 0605503062 · qty on machine: 1 view full part page → $213.95
68	M3414800504	BRACKET, FLOAT SWITCH	1		PARTS REQUEST
PHOTO COMING BRACKET, FLOAT SWITCH M3414800504 · qty on machine: 1 PARTS REQUEST
69	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68

Page 38 — ENCLOSURE 2 ASSY.

Multiquip DCA180SSJU4F Generator ENCLOSURE 2 ASSY. parts diagram

Parts list — exactly as printed35 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3454200802	SPLASHER PANEL	1		PARTS REQUEST
PHOTO COMING SPLASHER PANEL M3454200802 · qty on machine: 1 PARTS REQUEST
1A	M3494421504	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494421504 · qty on machine: 1 view full part page → $348.95
2	0019108065	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0019108065 · qty on machine: 6 view full part page → $1.95
2A	0042308000	WASHER, LOCK	6		ADD TO CART
WASHER, LOCK 0042308000 · qty on machine: 6 view full part page → $0.83
2B	0401450080	WASHER, FLAT	6	REPLACES P/N 0042408000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 6 REPLACES P/N 0042408000 view full part page → $0.56
3	M3454002503	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M3454002503 · qty on machine: 1 PARTS REQUEST
3A	M3494420604	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494420604 · qty on machine: 1 view full part page → $715.95
4	M3454002603	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M3454002603 · qty on machine: 1 PARTS REQUEST
4A	M3494420704	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494420704 · qty on machine: 1 view full part page → $715.95
5	M3454002703	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M3454002703 · qty on machine: 1 PARTS REQUEST
5A	M3494420804	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494420804 · qty on machine: 1 view full part page → $577.95
6	M3454002803	SIDE DOOR	1		ADD TO CART
SIDE DOOR M3454002803 · qty on machine: 1 view full part page → $454.95
6A	M3494420904	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494420904 · qty on machine: 1 view full part page → $278.95
7	M3454301504	DUCT	2		PARTS REQUEST
PHOTO COMING DUCT M3454301504 · qty on machine: 2 PARTS REQUEST
7A	M3494421004	ACOUSTIC SHEET	2		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M3494421004 · qty on machine: 2 PARTS REQUEST
8	M3454301604	DUCT	2		PARTS REQUEST
PHOTO COMING DUCT M3454301604 · qty on machine: 2 PARTS REQUEST
8A	M3494421104	ACOUSTIC SHEET	2		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M3494421104 · qty on machine: 2 PARTS REQUEST
9	M3454301704	DUCT	1		PARTS REQUEST
PHOTO COMING DUCT M3454301704 · qty on machine: 1 PARTS REQUEST
9A	M3494421204	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M3494421204 · qty on machine: 1 PARTS REQUEST
10	M5454301004	DUCT	1		PARTS REQUEST
PHOTO COMING DUCT M5454301004 · qty on machine: 1 PARTS REQUEST
10A	M3494421304	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494421304 · qty on machine: 1 view full part page → $139.95
11	M3454301804	DUCT	1		ADD TO CART
DUCT M3454301804 · qty on machine: 1 view full part page → $71.95
11A	M3494421404	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494421404 · qty on machine: 1 view full part page → $511.95
12	Y0207008000	SELF-LOCKING NUT	49		ADD TO CART
SELF-LOCKING NUT Y0207008000 · qty on machine: 49 view full part page → $0.4
13	Y0605012309	DOOR HANDLE	7		ADD TO CART
DOOR HANDLE Y0605012309 · qty on machine: 7 view full part page → $49.95
13A	C9312500004	SEAL, RUBBER	7		ADD TO CART
SEAL, RUBBER C9312500004 · qty on machine: 7 view full part page → $10.95
14	0176060030	SELF-LOCKING NUT	28	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 28 REPLACES P/N 0207006000 view full part page → $2.95
15	M9110100804	HINGE	5		ADD TO CART
HINGE M9110100804 · qty on machine: 5 view full part page → $16.95
15A	M9116100004	WASHER	5		ADD TO CART
WASHER M9116100004 · qty on machine: 5 view full part page → $1.93
16	M9110100904	HINGE	6		ADD TO CART
HINGE M9110100904 · qty on machine: 6 view full part page → $19.95
16A	M9116100004	WASHER	6		ADD TO CART
WASHER M9116100004 · qty on machine: 6 view full part page → $1.93
17	0019208020	HEX. HEAD BOLT	25		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 25 view full part page → $3.95
18	0601850097	STOPPER	8		ADD TO CART
STOPPER 0601850097 · qty on machine: 8 view full part page → $2.95
19	0027208025	MACHINE SCREW	8		ADD TO CART
MACHINE SCREW 0027208025 · qty on machine: 8 view full part page → $0.76
20	0845031504	BLIND PLUG	11	REPLACES P/N M9310000004	ADD TO CART
BLIND PLUG 0845031504 · qty on machine: 11 REPLACES P/N M9310000004 view full part page → $2.95

Page 40 — RUBBER SEALS ASSY.

Multiquip DCA180SSJU4F Generator RUBBER SEALS ASSY. parts diagram

Parts list — exactly as printed20 rows

No.	Part No.	Part Name	Qty
1	0229201300	SEAL, RUBBER	4	ADD TO CART
SEAL, RUBBER 0229201300 · qty on machine: 4 view full part page → $31.95
2	0229201200	SEAL, RUBBER	1	ADD TO CART
SEAL, RUBBER 0229201200 · qty on machine: 1 view full part page → $26.95
3	0228901310	SEAL, RUBBER	3	ADD TO CART
SEAL, RUBBER 0228901310 · qty on machine: 3 view full part page → $44.95
4	0228900710	SEAL, RUBBER	1	ADD TO CART
SEAL, RUBBER 0228900710 · qty on machine: 1 view full part page → $18.95
5	0228900900	SEAL, RUBBER	4	ADD TO CART
SEAL, RUBBER 0228900900 · qty on machine: 4 view full part page → $25.95
6	0228901130	SEAL, RUBBER	4	ADD TO CART
SEAL, RUBBER 0228901130 · qty on machine: 4 view full part page → $56.95
7	0228901250	SEAL, RUBBER	3	ADD TO CART
SEAL, RUBBER 0228901250 · qty on machine: 3 view full part page → $38.95
8	0228900650	SEAL, RUBBER	1	ADD TO CART
SEAL, RUBBER 0228900650 · qty on machine: 1 view full part page → $17.95
9	0229400630	SEAL, RUBBER	1	ADD TO CART
SEAL, RUBBER 0229400630 · qty on machine: 1 view full part page → $13.95
10	0228801050	SEAL, RUBBER	2	ADD TO CART
SEAL, RUBBER 0228801050 · qty on machine: 2 view full part page → $27.95
11	0228800590	SEAL, RUBBER	1	ADD TO CART
SEAL, RUBBER 0228800590 · qty on machine: 1 view full part page → $15.95
12	0228100560	SEAL, RUBBER	2	ADD TO CART
SEAL, RUBBER 0228100560 · qty on machine: 2 view full part page → $5.95
13	0228100370	SEAL, RUBBER	2	ADD TO CART
SEAL, RUBBER 0228100370 · qty on machine: 2 view full part page → $2.95
14	Y0229200145	SEAL, RUBBER	2	ADD TO CART
SEAL, RUBBER Y0229200145 · qty on machine: 2 view full part page → $0.65
15	Y0229200100	SEAL, RUBBER	2	ADD TO CART
SEAL, RUBBER Y0229200100 · qty on machine: 2 view full part page → $0.67
16	Y0222101100	SEAL, RUBBER	6	PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0222101100 · qty on machine: 6 PARTS REQUEST
17	Y0229400740	SEAL, RUBBER	1	PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0229400740 · qty on machine: 1 PARTS REQUEST
18	Y0228801110	SEAL, RUBBER	2	PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0228801110 · qty on machine: 2 PARTS REQUEST
19	Y0228800700	SEAL, RUBBER	1	ADD TO CART
SEAL, RUBBER Y0228800700 · qty on machine: 1 view full part page → $9.95
20	Y0229400700	SEAL, RUBBER	1	PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0229400700 · qty on machine: 1 PARTS REQUEST

Page 42 — BATTERY CHARGER ASSY. (OPTION)

Multiquip DCA180SSJU4F Generator BATTERY CHARGER ASSY. (OPTION) parts diagram

Parts list — exactly as printed12 rows

No.	Part No.	Part Name	Qty	Remarks
1	MQPBCKIT-H	BATTERY CHARGER KIT	1	INCLUDES ITEMS W/#	ADD TO CART
BATTERY CHARGER KIT MQPBCKIT-H · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 2#, 3#, 7#, 8#, 11#, 12# view full part page → $2360.57 IN A KIT + SOLD SOLO
2#	EE57370	CHARGER, 10A 12/24V NRG BATTERY	1		ADD TO CART
CHARGER, 10A 12/24V NRG BATTERY EE57370 · qty on machine: 1 Also included in kit 1 - BATTERY CHARGER KIT (MQPBCKIT-H) view full part page → $2020.95 IN A KIT + SOLD SOLO
3#		GROMMET, 7/8" HOLE SIZE	1	OBTAIN LOCALLY	INCLUDED IN KIT
PHOTO COMING GROMMET, 7/8" HOLE SIZE · qty on machine: 1 OBTAIN LOCALLY Included in kit 1 - BATTERY CHARGER KIT (MQPBCKIT-H) INCLUDED IN KIT
4		WASHER, FLAT M4	4	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WASHER, FLAT M4 · qty on machine: 4 OBTAIN LOCALLY SEE REMARKS
5		WASHER, LOCK M4	4	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WASHER, LOCK M4 · qty on machine: 4 OBTAIN LOCALLY SEE REMARKS
6		SCREW, M4X10	4	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING SCREW, M4X10 · qty on machine: 4 OBTAIN LOCALLY SEE REMARKS
7#	HBL5369C	CONNECTOR, 20A, 125V	1		ADD TO CART
CONNECTOR, 20A, 125V HBL5369C · qty on machine: 1 Also included in kit 1 - BATTERY CHARGER KIT (MQPBCKIT-H) view full part page → $103.95 IN A KIT + SOLD SOLO
8#	EE56557	CORD, 3-CONDUCTOR, 14 AWG (10 FT.)	10	1 PC = 1 FT	ADD TO CART
CORD, 3-CONDUCTOR, 14 AWG (10 FT.) EE56557 · qty on machine: 10 1 PC = 1 FT Also included in kit 1 - BATTERY CHARGER KIT (MQPBCKIT-H) view full part page → $1.95 IN A KIT + SOLD SOLO
9		WIRE, 16 AWG GREEN		AR OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WIRE, 16 AWG GREEN AR OBTAIN LOCALLY SEE REMARKS
10		WIRE, 16 AWG RED		AR OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WIRE, 16 AWG RED AR OBTAIN LOCALLY SEE REMARKS
11#	HBL5278C	INLET FLANGE 15AMP NEMA, 125V	1		ADD TO CART
INLET FLANGE 15AMP NEMA, 125V HBL5278C · qty on machine: 1 Also included in kit 1 - BATTERY CHARGER KIT (MQPBCKIT-H) view full part page → $53.95 IN A KIT + SOLD SOLO
12#	M1940011014Q	DECAL, BATTERY CHARGER	1		ADD TO CART
DECAL, BATTERY CHARGER M1940011014Q · qty on machine: 1 Also included in kit 1 - BATTERY CHARGER KIT (MQPBCKIT-H) view full part page → $1.36 IN A KIT + SOLD SOLO

Page 44 — WATER HEATING ELEMENT ASSY. (OPTION)

Multiquip DCA180SSJU4F Generator WATER HEATING ELEMENT ASSY. (OPTION) parts diagram

Parts list — exactly as printed9 rows

No.	Part No.	Part Name	Qty	Remarks
1	AR50411	POWER CORD, 90°	1		ADD TO CART
POWER CORD, 90° AR50411 · qty on machine: 1 view full part page → $38.95
2	RE42139	HEATER, COOLANT 1000W	1	INCLUDES ITEMS W/#	ADD TO CART
HEATER, COOLANT 1000W RE42139 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 5#, 6#, 7#, 8#, 9# view full part page → $227.95 IN A KIT + SOLD SOLO
3	HBL5369C	CONNECTOR, 20A, 125V	1		ADD TO CART
CONNECTOR, 20A, 125V HBL5369C · qty on machine: 1 view full part page → $103.95
4	EE56557	CORD, CAROL 3/C 14AWG	10	1 PC = 1 FT	ADD TO CART
CORD, CAROL 3/C 14AWG EE56557 · qty on machine: 10 1 PC = 1 FT view full part page → $1.95
5#		NUT, CLAMPING	1		INCLUDED IN KIT
PHOTO COMING NUT, CLAMPING · qty on machine: 1 Included in kit 2 - HEATER, COOLANT 1000W (RE42139) INCLUDED IN KIT
6#		ADAPTER	1		INCLUDED IN KIT
PHOTO COMING ADAPTER · qty on machine: 1 Included in kit 2 - HEATER, COOLANT 1000W (RE42139) INCLUDED IN KIT
7#		O-RING	1		INCLUDED IN KIT
PHOTO COMING O-RING · qty on machine: 1 Included in kit 2 - HEATER, COOLANT 1000W (RE42139) INCLUDED IN KIT
8#		HEATER ELEMENT	1		INCLUDED IN KIT
PHOTO COMING HEATER ELEMENT · qty on machine: 1 Included in kit 2 - HEATER, COOLANT 1000W (RE42139) INCLUDED IN KIT
9#		GASKET	1		INCLUDED IN KIT
PHOTO COMING GASKET · qty on machine: 1 Included in kit 2 - HEATER, COOLANT 1000W (RE42139) INCLUDED IN KIT

Page 46 — POWER BALANCE ASSY.

Multiquip DCA180SSJU4F Generator POWER BALANCE ASSY. parts diagram

Parts list — exactly as printed42 rows

No.	Part No.	Part Name	Qty	Remarks
1	MQPPB180J4F	KIT, POWER BALANCE	1	INCLUDES ITEMS W/#	PARTS REQUEST
PHOTO COMING KIT, POWER BALANCE MQPPB180J4F · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 2#, 3#, 3A%#, 3B%#, 3C%#, 3D%#, 3E%#, 3F%#, 3G%#, 4#, 4A$#, 4B$#, 4C$#, 4D$#, 4E$#, 5#, 6#, 7#, 8#, 9#, 10#, 11#, 12@#, 13#, 14#, 15#, 16#, 17#, 18#, 19#, 20#, 21#, 22*#, 23#, 24#, 25#, 26#, 27#, 28#, 29#, 30# PARTS REQUEST
2#	EE60796	WORK INST, POWER BALANCE	1		PARTS REQUEST
PHOTO COMING WORK INST, POWER BALANCE EE60796 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) PARTS REQUEST
3#	EE60546	RESISTOR ASSY., 50 KW	1	INCLUDES ITEMS W/%	ADD TO CART
RESISTOR ASSY., 50 KW EE60546 · qty on machine: 1 INCLUDES ITEMS W/% Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $2745.95 IN A KIT + SOLD SOLO
3A%#	LBV-RE68	RESISTOR ELEMENT	12		PARTS REQUEST
PHOTO COMING RESISTOR ELEMENT LBV-RE68 · qty on machine: 12 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 3 - RESISTOR ASSY., 50 KW (EE60546) PARTS REQUEST
3B%#	LBD538/L1134-RA	ELEMENT ROD	12		ADD TO CART
ELEMENT ROD LBD538/L1134-RA · qty on machine: 12 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 3 - RESISTOR ASSY., 50 KW (EE60546) view full part page → $106.12 IN A KIT + SOLD SOLO
3C%#	P0267	CERAMIC INSULATOR THROUGH ROD	24		ADD TO CART
CERAMIC INSULATOR THROUGH ROD P0267 · qty on machine: 24 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 3 - RESISTOR ASSY., 50 KW (EE60546) view full part page → $2.57 IN A KIT + SOLD SOLO
3D%#	C0010-8	CERAMIC SPACER	48		ADD TO CART
CERAMIC SPACER C0010-8 · qty on machine: 48 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 3 - RESISTOR ASSY., 50 KW (EE60546) view full part page → $4.61 IN A KIT + SOLD SOLO
3E%#	P0273-4	INSULATOR, TERMINAL, 1/4	24		ADD TO CART
INSULATOR, TERMINAL, 1/4 P0273-4 · qty on machine: 24 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 3 - RESISTOR ASSY., 50 KW (EE60546) view full part page → $4.61 IN A KIT + SOLD SOLO
3F%#	P0073-516R	INSULATOR, L3 STEATITE EXTRUDED	96		ADD TO CART
INSULATOR, L3 STEATITE EXTRUDED P0073-516R · qty on machine: 96 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 3 - RESISTOR ASSY., 50 KW (EE60546) view full part page → $5.95 IN A KIT + SOLD SOLO
3G%#	LBD163	HARDWARE, PR END SPRING	24		ADD TO CART
HARDWARE, PR END SPRING LBD163 · qty on machine: 24 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 3 - RESISTOR ASSY., 50 KW (EE60546) view full part page → $0.72 IN A KIT + SOLD SOLO
4#	EE60569	CONTACTOR ASSY., 50 KW, 12V	1	INCLUDES ITEMS W/$	ADD TO CART
CONTACTOR ASSY., 50 KW, 12V EE60569 · qty on machine: 1 INCLUDES ITEMS W/$ Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $3569.95 IN A KIT + SOLD SOLO
4A$#	LBD1132	CONTACTOR, 3 POLE, 75A, 12VDC	2		PARTS REQUEST
PHOTO COMING CONTACTOR, 3 POLE, 75A, 12VDC LBD1132 · qty on machine: 2 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 4 - CONTACTOR ASSY., 50 KW, 12 (EE60569) PARTS REQUEST
4B$#	LBD1056	RELAY, VOLTAGE CONTROL, 460V	1		ADD TO CART
RELAY, VOLTAGE CONTROL, 460V LBD1056 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 4 - CONTACTOR ASSY., 50 KW, 12 (EE60569) view full part page → $525.95 IN A KIT + SOLD SOLO
4C$#	LBD707	RELAY, DPDT, 12VDC	1		ADD TO CART
RELAY, DPDT, 12VDC LBD707 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 4 - CONTACTOR ASSY., 50 KW, 12 (EE60569) view full part page → $51.95 IN A KIT + SOLD SOLO
4D$#	LBD560	FUSE HOLDER, 400A, 1000V	3		PARTS REQUEST
PHOTO COMING FUSE HOLDER, 400A, 1000V LBD560 · qty on machine: 3 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 4 - CONTACTOR ASSY., 50 KW, 12 (EE60569) PARTS REQUEST
4E$#	LBD132	FUSE, 150A, 600V	3		ADD TO CART
FUSE, 150A, 600V LBD132 · qty on machine: 3 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 4 - CONTACTOR ASSY., 50 KW, 12 (EE60569) view full part page → $71.08 IN A KIT + SOLD SOLO
5#	EE60789	HARNESS ASSY.	1		ADD TO CART
HARNESS ASSY. EE60789 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $1061.95 IN A KIT + SOLD SOLO
6#	EE60545	W/A RESISTOR COVER	1		ADD TO CART
W/A RESISTOR COVER EE60545 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $606.81 IN A KIT + SOLD SOLO
7#	EE58650	SIDE PLATE, RESISTOR COVER	2		ADD TO CART
SIDE PLATE, RESISTOR COVER EE58650 · qty on machine: 2 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $56.95 IN A KIT + SOLD SOLO
8#	EE58032	BRACKET CONTACTOR BOX	1		ADD TO CART
BRACKET CONTACTOR BOX EE58032 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $122.95 IN A KIT + SOLD SOLO
9#	EE60563	TAILPIPE EXT., 5"X13.5" LONG, SS	1		ADD TO CART
TAILPIPE EXT., 5"X13.5" LONG, SS EE60563 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $278.95 IN A KIT + SOLD SOLO
10#	EE16728	U-CLAMP, 5"X3/8", ZINC PLTD.	1		ADD TO CART
U-CLAMP, 5"X3/8", ZINC PLTD. EE16728 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $7.95 IN A KIT + SOLD SOLO
11#	303110	IN-LINE, FUSE HOLDER	1	INCLUDES ITEMS W/@	ADD TO CART
IN-LINE, FUSE HOLDER 303110 · qty on machine: 1 INCLUDES ITEMS W/@ Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $4.95 IN A KIT + SOLD SOLO
12@#		FUSE,10A (AGC10)	1		INCLUDED IN KIT
PHOTO COMING FUSE,10A (AGC10) · qty on machine: 1 Included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 11 - IN-LINE, FUSE HOLDER (303110) INCLUDED IN KIT
13#	EE61332	DECAL, POWERBALANCE	1		ADD TO CART
DECAL, POWERBALANCE EE61332 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $2.95 IN A KIT + SOLD SOLO
14#	EE58893	WIRE HARNESS, DC	1		ADD TO CART
WIRE HARNESS, DC EE58893 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $114.95 IN A KIT + SOLD SOLO
15#	EE58338	BUSHING, INSULATED W/ NUT	1		ADD TO CART
BUSHING, INSULATED W/ NUT EE58338 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $55.95 IN A KIT + SOLD SOLO
16#	EE60790	POWER WIRES, 50 KW	1		PARTS REQUEST
PHOTO COMING POWER WIRES, 50 KW EE60790 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) PARTS REQUEST
17#	EE60176	SENSING KIT HARNESS	1	INCLUDES ITEMS W/*	ADD TO CART
SENSING KIT HARNESS EE60176 · qty on machine: 1 INCLUDES ITEMS W/* Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $132.94 IN A KIT + SOLD SOLO
18*#	EE5759	FUSE BLOCK, 3 POLE	1		ADD TO CART
FUSE BLOCK, 3 POLE EE5759 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $8.95 IN A KIT + SOLD SOLO
19*#	EE5804	FUSE, GOULD SHAWMUT, 10A	2		ADD TO CART
FUSE, GOULD SHAWMUT, 10A EE5804 · qty on machine: 2 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $9.95 IN A KIT + SOLD SOLO
20*#	EE60164	HARNESS, AC SENSING 6' LONG	1		ADD TO CART
HARNESS, AC SENSING 6' LONG EE60164 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $28.95 IN A KIT + SOLD SOLO
21*#	EE60165	HARNESS, AC SENSING 2' LONG	1		PARTS REQUEST
PHOTO COMING HARNESS, AC SENSING 2' LONG EE60165 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) PARTS REQUEST
22*#		SCREW, 8-1/2" SELF TAPPING	2		INCLUDED IN KIT
PHOTO COMING SCREW, 8-1/2" SELF TAPPING · qty on machine: 2 Included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) INCLUDED IN KIT
23#		BUTT SPLICE,14-16 GA	1		INCLUDED IN KIT
PHOTO COMING BUTT SPLICE,14-16 GA · qty on machine: 1 Included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) INCLUDED IN KIT
24#		RING TERMINAL,14-16 GA X #10	1		INCLUDED IN KIT
PHOTO COMING RING TERMINAL,14-16 GA X #10 · qty on machine: 1 Included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) INCLUDED IN KIT
25#		TIE WRAP, #4	10		INCLUDED IN KIT
PHOTO COMING TIE WRAP, #4 · qty on machine: 10 Included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) INCLUDED IN KIT
26#		TIE WRAP, #6	10		INCLUDED IN KIT
PHOTO COMING TIE WRAP, #6 · qty on machine: 10 Included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) INCLUDED IN KIT
27#		TIE WRAP, #8	10		INCLUDED IN KIT
PHOTO COMING TIE WRAP, #8 · qty on machine: 10 Included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) INCLUDED IN KIT
28#		SCREW, M6X15MM, SS	22		INCLUDED IN KIT
PHOTO COMING SCREW, M6X15MM, SS · qty on machine: 22 Included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) INCLUDED IN KIT
29#		WASHER, FLAT, M6, SS	24		INCLUDED IN KIT
PHOTO COMING WASHER, FLAT, M6, SS · qty on machine: 24 Included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) INCLUDED IN KIT
30#		WASHER, LOCK, M6, SS	22		INCLUDED IN KIT
PHOTO COMING WASHER, LOCK, M6, SS · qty on machine: 22 Included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) INCLUDED IN KIT

Page 48 — POWER BALANCE ASSY. (CONT'D.)

Multiquip DCA180SSJU4F Generator POWER BALANCE ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed6 rows

No.	Part No.	Part Name	Qty
31#		SCREW, M8X15MM, SS	4	SEE REMARKS
PHOTO COMING SCREW, M8X15MM, SS · qty on machine: 4 SEE REMARKS
32#		WASHER, FLAT, M8, SS	4	SEE REMARKS
PHOTO COMING WASHER, FLAT, M8, SS · qty on machine: 4 SEE REMARKS
33#		WASHER, LOCK, M8, SS	4	SEE REMARKS
PHOTO COMING WASHER, LOCK, M8, SS · qty on machine: 4 SEE REMARKS
34#		G-CLAMP, #20 (1-1/4")X1/4" HOLE	2	SEE REMARKS
PHOTO COMING G-CLAMP, #20 (1-1/4")X1/4" HOLE · qty on machine: 2 SEE REMARKS
35#	EE62004	BAFFLE, POWER BALANCE RESISTOR	2	PARTS REQUEST
PHOTO COMING BAFFLE, POWER BALANCE RESISTOR EE62004 · qty on machine: 2 PARTS REQUEST
36#		RIVET, 3/16", ALUM.	4	SEE REMARKS
PHOTO COMING RIVET, 3/16", ALUM. · qty on machine: 4 SEE REMARKS

Page 50 — NAMEPLATE AND DECALS ASSY.

Multiquip DCA180SSJU4F Generator NAMEPLATE AND DECALS ASSY. parts diagram

Parts list — exactly as printed35 rows

No.	Part No.	Part Name	Qty	Remarks
1-1	M3551000103	DECAL: OPERATING PRECAUTIONS	1	M35100010	ADD TO CART
DECAL: OPERATING PRECAUTIONS M3551000103 · qty on machine: 1 M35100010 view full part page → $8.95
1-2	M9520100304	DECAL: SAFETY INSTRUCTIONS	1	M92010030	ADD TO CART
DECAL: SAFETY INSTRUCTIONS M9520100304 · qty on machine: 1 M92010030 view full part page → $3.95
1-3	M9520100603	DECAL: CAUTION CONTROL PANEL AND BOX GROUP	2	M92010060	ADD TO CART
DECAL: CAUTION CONTROL PANEL AND BOX GROUP M9520100603 · qty on machine: 2 M92010060 view full part page → $8.95
2-1	M3511002102	DECAL: CONTROL PANEL	1	M31100210	ADD TO CART
DECAL: CONTROL PANEL M3511002102 · qty on machine: 1 M31100210 Factory replaced this part - current number M3551002102 view full part page → $126.95 IN A KIT + SOLD SOLO
2-2	M9520000104	PLATE: AMMETER CHANGE-OVER SW	1	M92000010	ADD TO CART
PLATE: AMMETER CHANGE-OVER SW M9520000104 · qty on machine: 1 M92000010 view full part page → $11.95
2-3	M9520000204	PLATE: VOLTMETER CHANGE-OVER SW	1	M92000020	ADD TO CART
PLATE: VOLTMETER CHANGE-OVER SW M9520000204 · qty on machine: 1 M92000020 view full part page → $11.95
2-4	M9520100004	DECAL: WARNING: ELECT. SHCK. HAZARD	2	M92010000	ADD TO CART
DECAL: WARNING: ELECT. SHCK. HAZARD M9520100004 · qty on machine: 2 M92010000 view full part page → $5.95
2-5	M9520100704	DECAL: WARNING: ARC FLASH	1	M92010070	ADD TO CART
DECAL: WARNING: ARC FLASH M9520100704 · qty on machine: 1 M92010070 view full part page → $4.95
2-6	M9520200404	DECAL: O.C.R RESET	1	M92020040A	ADD TO CART
DECAL: O.C.R RESET M9520200404 · qty on machine: 1 M92020040A view full part page → $3.95
2-7	M9522000504	DECAL: CIRCUIT BREAKER	1	M92200050	ADD TO CART
DECAL: CIRCUIT BREAKER M9522000504 · qty on machine: 1 M92200050 view full part page → $25.95
2-8	M9520200303	DECAL: SETTING FOR OUTPUT VOLTAGE	1	M92020030	ADD TO CART
DECAL: SETTING FOR OUTPUT VOLTAGE M9520200303 · qty on machine: 1 M92020030 view full part page → $45.95
2-9	M9520200504	DECAL: SETTING FOR OUTPUT VOLTAGE(S).1 ENGINE AND RADIATOR GROUP		M92020050	ADD TO CART
DECAL: SETTING FOR OUTPUT VOLTAGE(S).1 ENGINE AND RADIATOR GROUP M9520200504 M92020050 view full part page → $17.95
3-1	M9500000004	DECAL: OIL DRAIN	1	M90000000	ADD TO CART
DECAL: OIL DRAIN M9500000004 · qty on machine: 1 M90000000 view full part page → $2.95
3-2	M9500100004	DECAL: WATER	1	M90010000	ADD TO CART
DECAL: WATER M9500100004 · qty on machine: 1 M90010000 view full part page → $1.95
3-3	M9503000004	DECAL: WARNING: ROTATING PART	2	M90300000	ADD TO CART
DECAL: WARNING: ROTATING PART M9503000004 · qty on machine: 2 M90300000 view full part page → $1.95
3-4	M9503000103	DECAL: WATER-OIL CHECK	1	M90300010	ADD TO CART
DECAL: WATER-OIL CHECK M9503000103 · qty on machine: 1 M90300010 view full part page → $7.95
3-5	M9503100004	DECAL: WARNING: HOT COOLANT	1	M90310000	ADD TO CART
DECAL: WARNING: HOT COOLANT M9503100004 · qty on machine: 1 M90310000 view full part page → $4.95
3-6	M9510100004	DECAL: CAUTION: HOT PARTS	1	M91010000	ADD TO CART
DECAL: CAUTION: HOT PARTS M9510100004 · qty on machine: 1 M91010000 view full part page → $68.95
3-7	M9501300004	DECAL: CAUTION: BATTERY CABLES OUTPUT TERMINAL GROUP	1	M90130000	ADD TO CART
DECAL: CAUTION: BATTERY CABLES OUTPUT TERMINAL GROUP M9501300004 · qty on machine: 1 M90130000 view full part page → $27.95
4-1	M3511002003	DECAL: AUXILIARY OUTPUT	1	M31100200	ADD TO CART
DECAL: AUXILIARY OUTPUT M3511002003 · qty on machine: 1 M31100200 Factory replaced this part - current number M35510020031 view full part page → $18.95 IN A KIT + SOLD SOLO
4-2	M9520000004	DECAL: GROUND	2	M92000000	ADD TO CART
DECAL: GROUND M9520000004 · qty on machine: 2 M92000000 view full part page → $1.95
4-3	M9520000504	DECAL: START CONTACT	1	M92000050	ADD TO CART
DECAL: START CONTACT M9520000504 · qty on machine: 1 M92000050 view full part page → $67.95
4-4	M9520000704	DECAL: 3-PHASE OUTPUT TERMINAL	1	M92000070	ADD TO CART
DECAL: 3-PHASE OUTPUT TERMINAL M9520000704 · qty on machine: 1 M92000070 view full part page → $59.95
4-5	M9520100404	DECAL: DANGER: HIGH VOLTAGE	1	M92010040	ADD TO CART
DECAL: DANGER: HIGH VOLTAGE M9520100404 · qty on machine: 1 M92010040 view full part page → $37.95
4-6	M9520100503	DECAL: WARNING	1	M92010050	ADD TO CART
DECAL: WARNING M9520100503 · qty on machine: 1 M92010050 view full part page → $1.95
4-7	M9521200604	DECAL: BONDED NEUTRAL	1	M92120060	ADD TO CART
DECAL: BONDED NEUTRAL M9521200604 · qty on machine: 1 M92120060 view full part page → $11.95
4-8	M9522000004	DECAL: WATER HEATER BATTERY GROUP	1	S/N 8900418 AND ABOVE	ADD TO CART
DECAL: WATER HEATER BATTERY GROUP M9522000004 · qty on machine: 1 S/N 8900418 AND ABOVE view full part page → $7.95
5-1	M9500300004	DECAL: –	1	M90030000	ADD TO CART
DECAL: – M9500300004 · qty on machine: 1 M90030000 view full part page → $1.95
5-2	M9500300104	DECAL: +	1	M90030010	ADD TO CART
DECAL: + M9500300104 · qty on machine: 1 M90030010 view full part page → $1.95
5-3	M9510100403	DECAL: CAUTION MUFFLER GROUP	1	M91010040	ADD TO CART
DECAL: CAUTION MUFFLER GROUP M9510100403 · qty on machine: 1 M91010040 view full part page → $16.95
6-1	M9503200004	DECAL: WARNING: ENGINE EXHAUST	1	M90320000	ADD TO CART
DECAL: WARNING: ENGINE EXHAUST M9503200004 · qty on machine: 1 M90320000 view full part page → $14.95
6-2	M9503200104	DECAL: DANGER: EXHAUST GAS (INDOOR).1		M90320010	ADD TO CART
DECAL: DANGER: EXHAUST GAS (INDOOR).1 M9503200104 M90320010 view full part page → $4.95
6-3	M9504200004	DECAL: WARNING: START FIRES	1	M90420000	ADD TO CART
DECAL: WARNING: START FIRES M9504200004 · qty on machine: 1 M90420000 view full part page → $3.95
6-4	M2551000703	DECAL: EX. FILTER CLEAN PROCEDURES	1	M25100070	ADD TO CART
DECAL: EX. FILTER CLEAN PROCEDURES M2551000703 · qty on machine: 1 M25100070 view full part page → $4.95
6-5	M9504200104	DECA: WARNING: PROPOSITION	65	1 M90420010 S/N 8900463 AND ABOVE	ADD TO CART
DECA: WARNING: PROPOSITION M9504200104 · qty on machine: 65 1 M90420010 S/N 8900463 AND ABOVE view full part page → $4.95

Page 52 — NAMEPLATE AND DECALS ASSY. (CONT'D.)

Multiquip DCA180SSJU4F Generator NAMEPLATE AND DECALS ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed20 rows

No.	Part No.	Part Name	Qty	Remarks
		FUEL TANK GROUP			SEE REMARKS
PHOTO COMING FUEL TANK GROUP SEE REMARKS
7-1	M9501500004	DECAL: DIESEL FUEL	2	M90150000	ADD TO CART
DECAL: DIESEL FUEL M9501500004 · qty on machine: 2 M90150000 view full part page → $3.95
7-2	M9541100004	DECAL: CAUTION: EXHAUST FLUID ONLY	1	M94110000	ADD TO CART
DECAL: CAUTION: EXHAUST FLUID ONLY M9541100004 · qty on machine: 1 M94110000 view full part page → $3.95
7-3	M9501500104	DECAL: DIESEL EXHAUST FLUID	1	M90150010	ADD TO CART
DECAL: DIESEL EXHAUST FLUID M9501500104 · qty on machine: 1 M90150010 view full part page → $14.95
7-4	M9504500004	DECAL: REFILL DEF AS WELL ENCLOSURE GROUP	1	M90450000	ADD TO CART
DECAL: REFILL DEF AS WELL ENCLOSURE GROUP M9504500004 · qty on machine: 1 M90450000 view full part page → $9.95
8-1	M9511200204	DECAL: MQ	1	M91120020	ADD TO CART
DECAL: MQ M9511200204 · qty on machine: 1 M91120020 view full part page → $5.95
8-2	0600500092	EMBLEM	1		ADD TO CART
EMBLEM 0600500092 · qty on machine: 1 view full part page → $21.95
8-2A	0021106015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021106015 · qty on machine: 4 view full part page → $0.17
8-3	M3561100904	STRIPE	2		ADD TO CART
STRIPE M3561100904 · qty on machine: 2 view full part page → $34.95
8-4	M5560101604	STRIPE	2		ADD TO CART
STRIPE M5560101604 · qty on machine: 2 view full part page → $20.95
8-5	M3561101004	STRIPE	1		ADD TO CART
STRIPE M3561101004 · qty on machine: 1 view full part page → $17.95
8-6	M3561101103	STRIPE	2		ADD TO CART
STRIPE M3561101103 · qty on machine: 2 view full part page → $33.95
8-7	M3561101303	STRIPE	1		ADD TO CART
STRIPE M3561101303 · qty on machine: 1 view full part page → $42.95
8-8	M3561101204	STRIPE	1		ADD TO CART
STRIPE M3561101204 · qty on machine: 1 view full part page → $21.95
8-9	M5550000004	DECAL: CAUTION	1	M55000000	ADD TO CART
DECAL: CAUTION M5550000004 · qty on machine: 1 M55000000 view full part page → $34.95
8-10	M9510000104	DECAL: DOCUMENT BOX LOCATED	1	M91000010	ADD TO CART
DECAL: DOCUMENT BOX LOCATED M9510000104 · qty on machine: 1 M91000010 view full part page → $4.95
8-11	M9511200103	DECAL: TIER 4F	1	M91120010	ADD TO CART
DECAL: TIER 4F M9511200103 · qty on machine: 1 M91120010 view full part page → $17.95
8-12	M9511100004	DECAL: WARNING: ENVIRONMENTAL	1	M91110000	ADD TO CART
DECAL: WARNING: ENVIRONMENTAL M9511100004 · qty on machine: 1 M91110000 view full part page → $6.95
8-13	M9510000004	DECAL: FLUID DRAIN	1	M91000000	ADD TO CART
DECAL: FLUID DRAIN M9510000004 · qty on machine: 1 M91000000 view full part page → $26.95
8-14	Y0600500094	DECAL: E-COAT MARK STICKER	1		ADD TO CART
DECAL: E-COAT MARK STICKER Y0600500094 · qty on machine: 1 view full part page → $1.36

The machine itself

Price by quote Get a quote

Tell us where the machine is headed and we'll quote it with freight. One call, no games.

The Multiquip DCA180SSJU4F is a generator built for portable jobsite power for tools, lighting, and equipment. Factory-documented specs and parts support; priced by quote.

Keep-it-running spares

All listed parts →

Every part that fits this machine

0071906314 Multiquip 0071906314 Bearing Denyo - OEM Replacement Part for Super Silent Generators $276.95

0191300900 Multiquip 0191300900 Hose Suction Denyo - OEM Replacement Part for Super Silent Generators $40.95

0199901200 Multiquip 0199901200 Hose Drain Denyo - OEM Replacement Part $39.95

0228901130 Multiquip 0228901130 Seal Rubber Denyo - OEM Replacement Part for Super Silent Generators $56.95

0228901250 Multiquip 0228901250 Seal Rubber Denyo - OEM Replacement Part for Super Silent Generators $38.95

0228901310 Multiquip 0228901310 Seal Rubber Denyo - OEM Replacement Part for Super Silent Generators $44.95

0600800320 Multiquip 0600800320 Manual Pak Denyo - OEM Replacement Part $43.95

0601800275 Multiquip 0601800275 AC Voltmeter Denyo - OEM Replacement Part $146.95

0601801040 Multiquip 0601801040 Switch C/Over Ammeter 25,40,85,125,150 - OEM Replacement Part $95.95

0601801041 Multiquip 0601801041 Change-Over Switch Voltmeter Denyo - OEM Replacement Part $157.95

0601807642 Multiquip 0601807642 Frequency Meter Denyo (JP) - OEM Replacement Part $1,023.95

0601808804 Multiquip 0601808804 Circuit Breaker 2P 50A - OEM Replacement Part for Super Silent Generators $98.95

0601809666 Multiquip 0601809666 Transformer Current Denyo (JP) - OEM Replacement Part $200.95

0601814014 Multiquip 0601814014 GFCI Receptacle - OEM Replacement Part $90.95

0601814024 Multiquip 0601814024 GFCI Receptacle - OEM Replacement Part $78.95

0601817000 Multiquip 0601817000 AC Ammeter Denyo - OEM Replacement Part $492.95

0601820601 Multiquip 0601820601 Automatic Voltage Regulator DENYO - OEM Replacement Part $1,389.95

0601831557 Multiquip 0601831557 Button Emergency Denyo - OEM Replacement Part $95.95

0601840073 Multiquip 0601840073 Rheostat Voltage Regulator for 150SSK and DCA Series Generators - OEM Replacement Part $90.95

0601842334 Multiquip 0601842334 Resistor Denyo - OEM Replacement Part for Super Silent Generators $343.95

0602022561 Multiquip 0602022561 90 Degree Elbow DENYO - OEM Replacement Part for Generator Systems $76.95

0602022580 Multiquip 0602022580 Adapter with Seal - OEM Replacement Part for DCA Super Silent Generators $37.95

0602022791 Multiquip 0602022791 Joint Hose Denyo - OEM Replacement Part for Super Silent Generators $35.95

0602040365 Multiquip 0602040365 90 Degree Elbow Denyo - OEM Replacement Part $79.95

0602040650 Multiquip 0602040650 Indicator A/C 2545SSIU/2 DENYO - OEM Replacement Part $34.95

0602046586 Multiquip 0602046586 Air Cleaner Denyo - OEM Replacement Part for Super Silent Generators $751.95

0602103092 Multiquip 0602103092 Lamp Alarm Charge Red - OEM Replacement Part $36.95

0602220198 Multiquip 0602220198 Battery Denyo - OEM Replacement Part for Super Silent Generators $500.95

0603306590 Multiquip 0603306590 Male Bulkhead Connector - OEM Replacement Part for Denyo Generators $86.95

0605012309 Multiquip 0605012309 Door Handle Black - OEM Replacement Part for Generator Enclosures $49.95

0605505072 Multiquip 0605505072 Fuel Tank Cap - OEM Replacement Part for DCA Generator Series $231.95

0605511395 Multiquip 0605511395 Ball Valve DENYO - OEM Replacement Part $46.95

0605515208 Multiquip 0605515208 Hose Band Clamp (Denyo) - OEM Replacement Part $61.95

0605515236 Multiquip 0605515236 Band Hose Denyo - OEM Replacement Part $46.95

515455840 Multiquip 515455840 Mount Nut (M14) Scraper - OEM Replacement Part $35.95

8131852104 Multiquip 8131852104 Change Terminal DCA-180SSK - OEM Replacement Part $77.95

8171015003 Multiquip 8171015003 Plate Balancing - OEM Replacement Part for Super Silent Generators $300.95

8171070002 Multiquip 8171070002 Fan - OEM Replacement Part for Super Silent Generators $4,003.95

8171611003 Multiquip 8171611003 Coupling Disk - OEM Replacement Part for WhisperWatt Generators $41.95

82608 Multiquip 82608 Toggle Switch Denyo Mods - OEM Replacement Part for Super Silent Generators $34.95

AR50411 Multiquip AR50411 Power Cord 90 Degree John Deere - OEM Replacement Part $38.95

AT377287 Multiquip AT377287 Fitting Hose Barb Brass 5/8" - OEM Replacement Part $49.95

C0110000602 Multiquip C0110000602 Rotor Assembly DCA-180SSJU - OEM Replacement Part $17,630.95

C0274000003 Multiquip C0274000003 Change-Over Board Voltage DCA-180SSK - OEM Replacement Part $376.95

C1112500004 Multiquip C1112500004 Bearing Flange 180SSI - OEM Replacement Part for Super Silent Generators $101.95

C1138000003 Multiquip C1138000003 Exciter Field Assembly - OEM Replacement Part $2,313.95

C1154000002 Multiquip C1154000002 Bracket End - OEM Replacement Part for Super Silent Generators $1,970.95

C1154300004 Multiquip C1154300004 Bearing Gasket - OEM Replacement Part for Super Silent Generators $44.95

C1154400004 Multiquip C1154400004 Bearing Cover - OEM Replacement Part for Super Silent Generators $54.95

C1164200004 Multiquip C1164200004 Washer Coupling Hub - OEM Replacement Part for 180SSI Generators $81.95

EE58032 Multiquip EE58032 Contactor Box Bracket Assembly White - OEM Replacement Part $122.95

EE58338 Multiquip EE58338 Insulated Bushing with Nut 2" UL CSA - OEM Replacement Part $55.95

EE58650 Multiquip EE58650 Resistor Cover Plate - OEM Replacement Part for Super Silent Generators $56.95

EE58893 Multiquip EE58893 Wire Harness DC Power Balance 16 AWG - OEM Replacement Part $114.95

EE60546 Multiquip EE60546 Resistor - OEM Replacement Part for Super Silent Generators $2,745.95

EE60563 Multiquip EE60563 Tailpipe Extension 5" x 13.5" Stainless Steel - OEM Replacement Part $278.95

EE60569 Multiquip EE60569 Contactor - OEM Replacement Part for Super Silent Generators $3,569.95

EE60789 Multiquip EE60789 Harness Assembly 50kW 6 AWG - OEM Replacement Part $1,061.95

HBL5278C Multiquip HBL5278C Receptacle Inlet Flange 15Amp NEMA 125V - OEM Replacement Part $53.95

HBL5369C Multiquip HBL5369C Connector 20amp 125V - OEM Replacement Part $103.95

LY2DUS12VDC Multiquip LY2DUS12VDC Relay with Diode - OEM Replacement Part for DCA Generators $46.95

M3230700113 Multiquip M3230700113 Terminal Board DENYO - OEM Replacement Part for Super Silent Generators $399.95

M3237100404 Multiquip M3237100404 Insulating Cover - OEM Replacement Part for Denyo Super Silent Generators $160.95

M3237100503 Multiquip M3237100503 Terminal Cover DENYO - OEM Replacement Part for Super Silent Generators $126.95

M3247702004 Multiquip M3247702004 Generator Harness (JP) - OEM Replacement Part $1,473.95

M3303200404 Multiquip M3303200404 Engine Foot - OEM Replacement Part for Denyo Super Silent Generators $39.95

M3311201004 Multiquip M3311201004 Radiator Bracket - OEM Replacement Part for Super Silent Generators $129.95

M3311500503 Multiquip M3311500503 Upper Radiator Hose DENYO - OEM Replacement Part $194.95

M3311500603 Multiquip M3311500603 Lower Radiator Hose DENYO - OEM Replacement Part $197.95

M3317100004 Multiquip M3317100004 Surge Tank Bracket - OEM Replacement Part for Super Silent Generators $263.95

M3331400604 Multiquip M3331400604 DPF Band Denyo - OEM Replacement Part $77.95

M3331402604 Multiquip M3331402604 DEF Tank Hose - OEM Replacement Part $45.95

M3331402804 Multiquip M3331402804 DEF Tank Band - OEM Replacement Part $233.95

M3334001203 Multiquip M3334001203 Exhaust Pipe - OEM Replacement Part for Super Silent Generators $414.95

M3334100103 Multiquip M3334100103 Tail Pipe (KY) - OEM Replacement Part for Super Silent Generators $1,146.95

M3358201602 Multiquip M3358201602 Wire Harness Engine Denyo - OEM Replacement Part $1,729.95

M3364000513 Multiquip M3364000513 Fuel Tank Denyo - OEM Replacement Part for Super Silent Generators $3,695.95

M3364400504 Multiquip M3364400504 Tube Pick Up KY - OEM Replacement Part for Super Silent Generators $141.95

M3414400103 Multiquip M3414400103 Base Cover (KY) - OEM Replacement Part for Super Silent Generators $615.95

M3424100003 Multiquip M3424100003 Front Frame Panel - OEM Replacement Part for Denyo Super Silent Generators $779.95

M3424201803 Multiquip M3424201803 Over Cover Front Frame Denyo - OEM Replacement Part $544.95

M3434000602 Multiquip M3434000602 Center Frame - OEM Replacement Part for Denyo Super Silent Generators $3,479.95

M3444000702 Multiquip M3444000702 Rear Frame - OEM Replacement Part $2,450.95

M3444300904 Multiquip M3444300904 Cover Rear Frame Denyo - OEM Replacement Part for Super Silent Generators $372.95

M3454002803 Multiquip M3454002803 Side Door Denyo - OEM Replacement Part for Super Silent Generators $454.95

M3454301804 Multiquip M3454301804 Acoustic Duct Denyo - OEM Replacement Part for Super Silent Generators $71.95

M3454700404 Multiquip M3454700404 Rubber Sheet - OEM Replacement Part for DENYO Super Silent Generators $62.95

M3464200502 Multiquip M3464200502 Roof Panel White Denyo - OEM Replacement Part $632.95

M3464500104 Multiquip M3464500104 Gutter (White) Denyo - OEM Replacement Part $57.95

M3464500204 Multiquip M3464500204 Gutter (White) - OEM Replacement Part for Denyo Super Silent Generators $41.95

M3494110104 Multiquip M3494110104 Radiator Bracket Assembly - OEM Replacement Part $551.95

M3494110204 Multiquip M3494110204 Radiator Assembly (2 Pieces) - OEM Replacement Part $188.95

M3494112003 Multiquip M3494112003 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $714.95

M3494113204 Multiquip M3494113204 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $160.95

M3494113604 Multiquip M3494113604 Acoustic Sheet Denyo - OEM Replacement Part $35.95

M3494114004 Multiquip M3494114004 DEF Tank Cover Assembly (2 Pieces) - OEM Replacement Part $85.95

M3494302304 Multiquip M3494302304 Acoustic Sheet Denyo (KY) - OEM Replacement Part $118.95

M3494302404 Multiquip M3494302404 Acoustic Sheet Denyo - OEM Replacement Part $70.95

M3494420604 Multiquip M3494420604 Front Side Door Left Assembly - OEM Replacement Part $715.95

M3494420704 Multiquip M3494420704 Front Side Door Right Assembly - OEM Replacement Part $715.95

M3494420804 Multiquip M3494420804 Side Door Assembly - OEM Replacement Part for Super Silent Generators $577.95

M3494420904 Multiquip M3494420904 Rear Side Door Right Assembly - OEM Replacement Part $278.95

M3494421304 Multiquip M3494421304 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $139.95

M3494421404 Multiquip M3494421404 Acoustic Sheet - OEM Replacement Part for WhisperWatt Super Silent Generators $511.95

M3494421504 Multiquip M3494421504 Rear Splasher Panel Assembly - OEM Replacement Part $348.95

M3494504204 Multiquip M3494504204 Acoustic Sheet Denyo - OEM Replacement Part $196.95

M3494504304 Multiquip M3494504304 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $282.95

M3561101303 Multiquip M3561101303 DENYO Component - OEM Replacement Part for Super Silent Generators $42.95

M4213500104 Multiquip M4213500104 Control Box Cover DENYO - OEM Replacement Part $204.95

M4213600104 Multiquip M4213600104 Control Panel DENYO - OEM Replacement Part for Super Silent Generators $63.95

M4223000604 Multiquip M4223000604 Control Panel Denyo (KY) - OEM Replacement Part $143.95

M4236100403 Multiquip M4236100403 Terminal Cover Denyo - OEM Replacement Part $231.95

M4236400104 Multiquip M4236400104 Supporter Cable Outlet Cover - OEM Replacement Part for Denyo Super Silent Generators $88.95

M4260600104 Multiquip M4260600104 Circuit Breaker Bracket - OEM Replacement Part for Denyo Super Silent Generators $57.95

M4443300503 Multiquip M4443300503 Duct Rear Frame Denyo - OEM Replacement Part $469.95

M4443600004 Multiquip M4443600004 Plate Window Denyo - OEM Replacement Part $155.95

M4493303004 Multiquip M4493303004 Acoustic Sheet Denyo - OEM Replacement Part $58.95

M5347900504 Multiquip M5347900504 Battery Cable Positive - OEM Replacement Part for Super Silent Generators $365.95

M9103000504 Multiquip M9103000504 Battery Band - OEM Replacement Part for Super Silent Generators $107.95

M9220100914 Multiquip M9220100914 Output Terminal Bolt Denyo - OEM Replacement Part $197.95

M9220101004 Multiquip M9220101004 Tie Bolt Denyo - OEM Replacement Part for Super Silent Generators $41.95

M9520000504 Multiquip M9520000504 Denyo Contact Information Decal - OEM Replacement Part $67.95

M9520100404 Multiquip M9520100404 Danger High Voltage Decal - OEM Replacement Part $37.95

P537877 Multiquip P537877 Air Cleaner Element - OEM Replacement Part $99.95

R528112 Multiquip R528112 Seal 70SSJU4i Muffler Assembly - OEM Replacement Part $116.95

R529382 Multiquip R529382 Fan Belt - OEM Replacement Part for Super Silent Generators $209.95

RE292067 Multiquip RE292067 V-Band Clamp - OEM Replacement Part $139.95

RE298757 Multiquip RE298757 V-Band Clamp - OEM Replacement Part $162.95

RE42139 Multiquip RE42139 Coolant Heater 1000W - OEM Replacement Part $227.95

RE540348 Multiquip RE540348 Clamp V Band - OEM Replacement Part for Super Silent Generators $163.95

RE551507 Multiquip RE551507 Fuel Filter Element (Primary) - OEM Replacement Part $168.95

RE552175 Multiquip RE552175 DEF Dosing Unit Pump - OEM Replacement Part $2,050.95

RE560468 Multiquip RE560468 DEF Dosing Injector John Deere - OEM Replacement Part $1,355.95

RE560681 Multiquip RE560681 Fuel Filter Element (Secondary) - OEM Replacement Part $146.95

RE560893 Multiquip RE560893 DEF Line Suction John Deere - OEM Replacement Part $441.95

RE560897 Multiquip RE560897 DEF Pressure Line - OEM Replacement Part for Super Silent Generators $700.95

RE562696 Multiquip RE562696 Seal Kit for Fuel Filter - OEM Replacement Part $72.95

RE565074 Multiquip RE565074 Decomposition Tube - OEM Replacement Part for Super Silent Generators $2,420.95

RE566739 Multiquip RE566739 Temp Sensor - OEM Replacement Part $1,236.95

Y0269303200 Multiquip Y0269303200 Coolant Hose - OEM Replacement Part $36.95

Y0379602350 Multiquip Y0379602350 Coolant Hose - OEM Replacement Part $39.95

Y0379703250 Multiquip Y0379703250 Coolant Hose - OEM Replacement Part $36.95

Y0400005400 Multiquip Y0400005400 Insulation Wrap Exhaust - OEM Replacement Part for Super Silent Generators $136.95

Y0601810170 Multiquip Y0601810170 Panel Light Denyo - OEM Replacement Part $142.95

Y0601827412 Multiquip Y0601827412 Rear Terminal Bus-Bar DENYO (KY) - OEM Replacement Part $164.95

Y0602012922 Multiquip Y0602012922 Radiator & Intercooler Assembly - OEM Replacement Part $3,580.95

Y0602015610 Multiquip Y0602015610 CAC Hose Denyo - OEM Replacement Part $124.95

Y0602022528 Multiquip Y0602022528 Hose Adapter (KY) - OEM Replacement Part $92.95

Y0602022577 Multiquip Y0602022577 90° Elbow KY - OEM Replacement Part for Super Silent Generators $39.95

Y0602022578 Multiquip Y0602022578 Elbow 90 Deg Denyo - OEM Replacement Part for Super Silent Generators $67.95

Y0602044503 Multiquip Y0602044503 Blowby Filter Cover Lower (KY) - OEM Replacement Part $306.95

Y0602120568 Multiquip Y0602120568 Gauge Unit Assembly - OEM Replacement Part $947.95

Y0602311170 Multiquip Y0602311170 Heat Shield Exhaust Pipe Short - OEM Replacement Part $296.95

Y0602311171 Multiquip Y0602311171 Heat Shield Exhaust Pipe Long - OEM Replacement Part $313.95

Y0602311172 Multiquip Y0602311172 Heat Shield Pipe - OEM Replacement Part $157.95

Y0602311190 Multiquip Y0602311190 Harness Insulation Sleeve - OEM Replacement Part $37.95

Y0605000620 Multiquip Y0605000620 Rubber Suspension (KY) - OEM Replacement Part $93.95

Y0605012309 Multiquip Y0605012309 Door Handle with Bolts - OEM Replacement Part $49.95

Y0605501049 Multiquip Y0605501049 Fuel Sender Unit KY - OEM Replacement Part for Super Silent Generators $342.95

Y0605511394 Multiquip Y0605511394 Mini Ball Valve Denyo - OEM Replacement Part $70.95

0010006030 HEX. HEAD BOLT $0.25

0010106060 HEX. HEAD BOLT $1.31

0012110065 HEX. HEAD BOLT $4.95

0012112040 HEX. HEAD BOLT $4.95

0012116045 HEX. HEAD BOLT $6.95

0012116060 HEX. HEAD BOLT $6.95

0012312030 HEX. HEAD BOLT $6.95

0013616040 HEX. HEAD BOLT $5.95

0016906015 HEX. HEAD BOLT $0.95

0016908040 HEX. HEAD BOLT $1.52

0016910025 HEX. HEAD BOLT $1.56

0016910030 HEX. HEAD BOLT $2.95

0017110040 HEX. HEAD BOLT

0018205020 HEX. SOCKET HEAD CAP SCREW $1.55

0019108055 HEX. HEAD BOLT $3.95

0019108065 HEX. HEAD BOLT $1.95

0019208020 HEX. HEAD BOLT $3.95

0019210025 HEX. HEAD BOLT $7.95

0021106015 MACHINE SCREW $0.17

0021806015 MACHINE SCREW $0.87

0027103010 MACHINE SCREW $0.44

0027103015 MACHINE SCREW $0.64

0027104015 MACHINE SCREW $0.53

0027104020 MACHINE SCREW $0.40

0027105015 MACHINE SCREW $0.20

0027208025 MACHINE SCREW $0.76

0030016000 HEX. NUT $1.90

0030020000 HEX. NUT $1.82

0032005000 WASHER, LOCK $0.41

0039320000 HEX. NUT $16.95

0040006000 WASHER, LOCK $0.17

0040008000 WASHER, LOCK $0.63

0040010000 WASHER, LOCK $0.39

0040012000 WASHER, LOCK $0.95

0040016000 WASHER, LOCK $4.95

0040506000 TOOTHED WASHER $0.77

0040508000 TOOTHED WASHER $0.35

0040510000 TOOTHED WASHER $0.77

0040516000 TOOTHED WASHER $1.39

0041216000 WASHER, FLAT $1.95

From the guides desk

Guide · 2026-08-04

Ask ARIA about your machine.

Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.

Chat with ARIA

Multiquip DCA180SSJU4F Generator

The parts bench

The machine itself

Machine

Engine

Keep-it-running spares

Every part that fits this machine

Service notices & part changes

Take the factory book with you

Get the download pack

From the guides desk

Multiquip DCA Generator Fault Shutdown and Controller Reset Guide

Multiquip Generator No-Start and No-Power Fixes

Multiquip DCA Generator Fault Codes and Diagnostics Guide

Ask ARIA about your machine.

Your cart is empty

Your cart is empty
