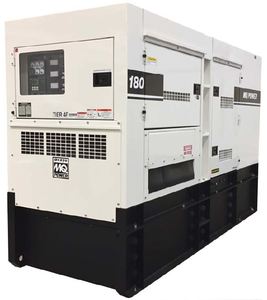

Multiquip DCA180SSJU4F3 Generator

Name: Multiquip DCA180SSJU4F3 Generator
Brand: Multiquip

The parts bench

Need the PDF? ↓

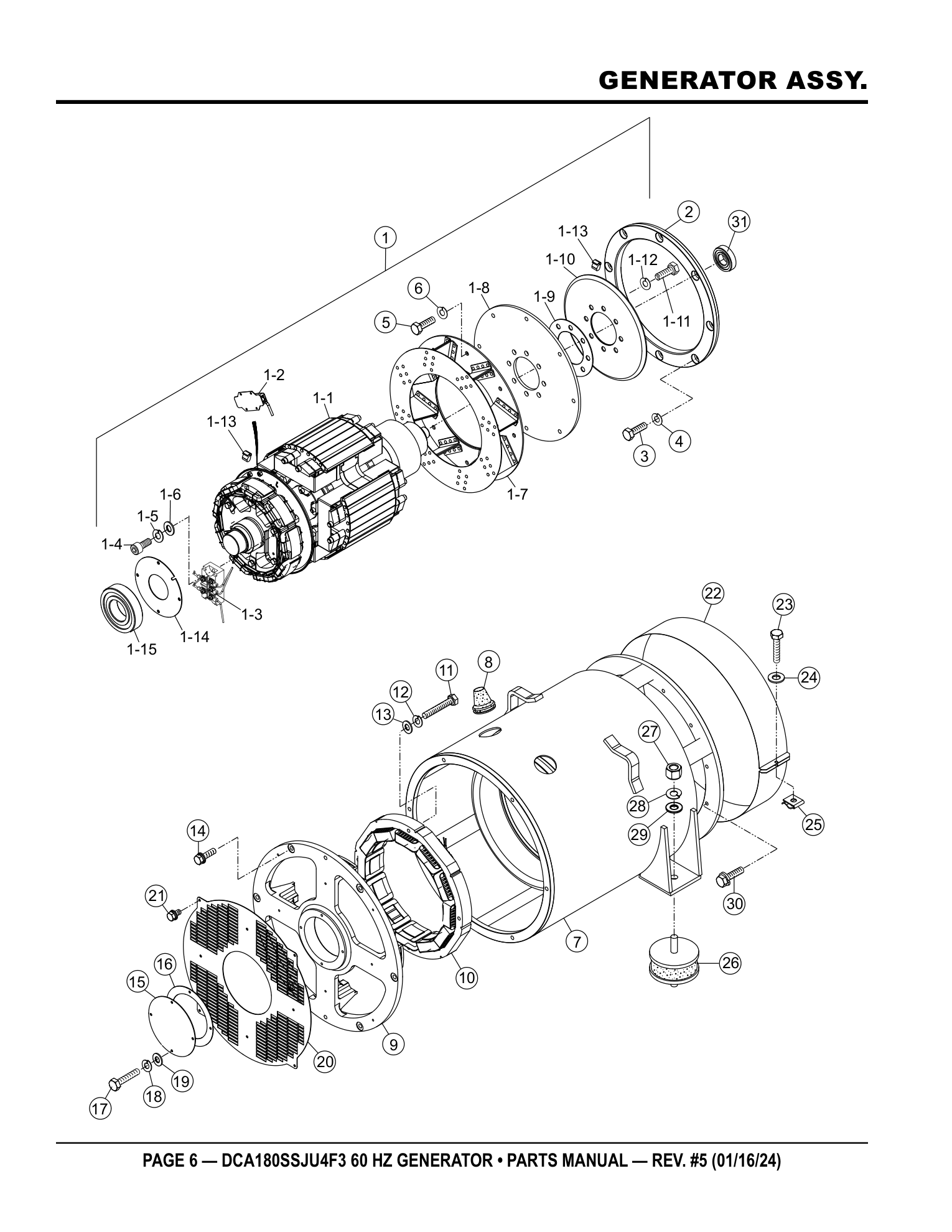

Page 6 — GENERATOR ASSY.

Multiquip DCA180SSJU4F3 Generator GENERATOR ASSY. parts diagram

Parts list — exactly as printed46 rows

No.	Part No.	Part Name	Qty	Remarks
1	C0110101802	ROTOR ASSY	1	INCLUDES ITEMS W/$	PARTS REQUEST
PHOTO COMING ROTOR ASSY C0110101802 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 1-1$, 1-2$, 1-3$, 1-4$, 1-5$, 1-6$, 1-7$, 1-8$, 1-9$, 1-10$, 1-11$, 1-12$, 1-13$, 1-14$, 1-15$ PARTS REQUEST
1-1$		FIELD ASSY.	1		INCLUDED IN KIT
PHOTO COMING FIELD ASSY. · qty on machine: 1 Included in kit 1 - ROTOR ASSY (C0110101802) INCLUDED IN KIT
1-2$	0601842334	RESISTOR, 80W 100K OHM	1		ADD TO CART
RESISTOR, 80W 100K OHM 0601842334 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (C0110101802) view full part page → $343.95 IN A KIT + SOLD SOLO
1-3$	0601823282	RECTIFIER	1		NO LONGER AVAILABLE
PHOTO COMING RECTIFIER 0601823282 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (C0110101802) NO LONGER AVAILABLE
1-4$	0018205020	HEX. SOCKET HEAD CAP SCREW	2		ADD TO CART
HEX. SOCKET HEAD CAP SCREW 0018205020 · qty on machine: 2 Also included in kit 1 - ROTOR ASSY (C0110101802) view full part page → $1.55 IN A KIT + SOLD SOLO
1-5$	0032005000	WASHER, LOCK	2	REPLACES P/N 0040005000	ADD TO CART
WASHER, LOCK 0032005000 · qty on machine: 2 REPLACES P/N 0040005000 Also included in kit 1 - ROTOR ASSY (C0110101802) view full part page → $0.41 IN A KIT + SOLD SOLO
1-6$	0401450050	WASHER, FLAT	2	REPLACES P/N 0041205000	ADD TO CART
WASHER, FLAT 0401450050 · qty on machine: 2 REPLACES P/N 0041205000 Also included in kit 1 - ROTOR ASSY (C0110101802) view full part page → $0.41 IN A KIT + SOLD SOLO
1-7$	8171070002	FAN	1		ADD TO CART
FAN 8171070002 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (C0110101802) view full part page → $4003.95 IN A KIT + SOLD SOLO
1-8$	8171611003	COUPLING DISK	9		ADD TO CART
COUPLING DISK 8171611003 · qty on machine: 9 Also included in kit 1 - ROTOR ASSY (C0110101802) view full part page → $41.95 IN A KIT + SOLD SOLO
1-9$	C1164200004	WASHER, COUPLING HUB	1		ADD TO CART
WASHER, COUPLING HUB C1164200004 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (C0110101802) view full part page → $81.95 IN A KIT + SOLD SOLO
1-10$	8171015003	BALANCING PLATE	1	PURCHASE SET OF ITEM 1-13$	ADD TO CART
BALANCING PLATE 8171015003 · qty on machine: 1 PURCHASE SET OF ITEM 1-13$ Also included in kit 1 - ROTOR ASSY (C0110101802) view full part page → $300.95 IN A KIT + SOLD SOLO
1-11$	0012116045	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0012116045 · qty on machine: 8 Also included in kit 1 - ROTOR ASSY (C0110101802) view full part page → $6.95 IN A KIT + SOLD SOLO
1-12$	0042616000	WASHER, LOCK	8		ADD TO CART
WASHER, LOCK 0042616000 · qty on machine: 8 Also included in kit 1 - ROTOR ASSY (C0110101802) view full part page → $1.95 IN A KIT + SOLD SOLO
1-13$	0601000209	BALANCING WEIGHT KIT	2		ADD TO CART
BALANCING WEIGHT KIT 0601000209 · qty on machine: 2 Also included in kit 1 - ROTOR ASSY (C0110101802) view full part page → $9.95 IN A KIT + SOLD SOLO
1-14$	C1112500004	BEARING, FLANGE	1		ADD TO CART
BEARING, FLANGE C1112500004 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (C0110101802) view full part page → $101.95 IN A KIT + SOLD SOLO
1-15$	0071906314	BEARING	1		ADD TO CART
BEARING 0071906314 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (C0110101802) view full part page → $276.95 IN A KIT + SOLD SOLO
2	M4163400003	COUPLING RING	1		PARTS REQUEST
PHOTO COMING COUPLING RING M4163400003 · qty on machine: 1 PARTS REQUEST
3	0343206120	HEX. HEAD BOLT	8		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT 0343206120 · qty on machine: 8 PARTS REQUEST
4	0043606000	WASHER, LOCK	8		PARTS REQUEST
PHOTO COMING WASHER, LOCK 0043606000 · qty on machine: 8 PARTS REQUEST
5	0012112040	HEX. HEAD BOLT 12X40	8		ADD TO CART
HEX. HEAD BOLT 12X40 0012112040 · qty on machine: 8 view full part page → $4.95
6	0040012000	WASHER, LOCK	8		ADD TO CART
WASHER, LOCK 0040012000 · qty on machine: 8 view full part page → $0.95
7	C0130103203	STATOR ASSY.	1		PARTS REQUEST
PHOTO COMING STATOR ASSY. C0130103203 · qty on machine: 1 PARTS REQUEST
8	0845041804	GROMMET	2	NO LONGER AVAILABLE	ADD TO CART
GROMMET 0845041804 · qty on machine: 2 NO LONGER AVAILABLE view full part page → $16.95
9	C1154000002	END BRACKET	1		ADD TO CART
END BRACKET C1154000002 · qty on machine: 1 view full part page → $1970.95
10	C1138000003	FIELD ASSY., EXCITER	1		ADD TO CART
FIELD ASSY., EXCITER C1138000003 · qty on machine: 1 view full part page → $2313.95
11	0012110065	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0012110065 · qty on machine: 4 view full part page → $4.95
12	0042610000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0042610000 · qty on machine: 4 view full part page → $0.53
13	Y0041210000	WASHER, FLAT	4		ADD TO CART
WASHER, FLAT Y0041210000 · qty on machine: 4 view full part page → $0.19
14	0017112045	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0017112045 · qty on machine: 6 view full part page → $1.76
15	C1154400004	COVER, BEARING	1		ADD TO CART
COVER, BEARING C1154400004 · qty on machine: 1 view full part page → $54.95
16	C1154300004	GASKET, BEARING	1		ADD TO CART
GASKET, BEARING C1154300004 · qty on machine: 1 view full part page → $44.95
17	0010106060	HEX. HEAD BOLT M6X60MM	4		ADD TO CART
HEX. HEAD BOLT M6X60MM 0010106060 · qty on machine: 4 view full part page → $1.31
18	0040006000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0040006000 · qty on machine: 4 view full part page → $0.17
19	952404470	WASHER, FLAT	4	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 4 REPLACES P/N 0041206000 view full part page → $0.19
20	C1154400103	SUCTION COVER	1		ADD TO CART
SUCTION COVER C1154400103 · qty on machine: 1 view full part page → $95.95
21	011106015	HEX. HEAD BOLT	8	REPLACES P/N 0017106015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 8 REPLACES P/N 0017106015 view full part page → $0.69
22	C1132300114	COVER, FAN	1		ADD TO CART
COVER, FAN C1132300114 · qty on machine: 1 view full part page → $547.95
23	0010006030	HEX. HEAD BOLT	1	REPLACES P/N 0010106030	ADD TO CART
HEX. HEAD BOLT 0010006030 · qty on machine: 1 REPLACES P/N 0010106030 view full part page → $0.25
24	952404470	WASHER, FLAT	1	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 1 REPLACES P/N 0041206000 view full part page → $0.19
25	020106050	NUT	1	REPLACES P/N 0600815000	ADD TO CART
NUT 020106050 · qty on machine: 1 REPLACES P/N 0600815000 view full part page → $0.12
26	Y0605000463	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION Y0605000463 · qty on machine: 2 view full part page → $187.95
27	0030016000	HEX. NUT	2		ADD TO CART
HEX. NUT 0030016000 · qty on machine: 2 view full part page → $1.9
28	0040016000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 2 view full part page → $4.95
29	0041216000	WASHER, FLAT	2		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 2 view full part page → $1.95
30	012010030	HEX. HEAD BOLT	12	REPLACES P/N 0012810030	ADD TO CART
HEX. HEAD BOLT 012010030 · qty on machine: 12 REPLACES P/N 0012810030 view full part page → $0.95
31	0070506307	BEARING	1		ADD TO CART
BEARING 0070506307 · qty on machine: 1 view full part page → $60.95

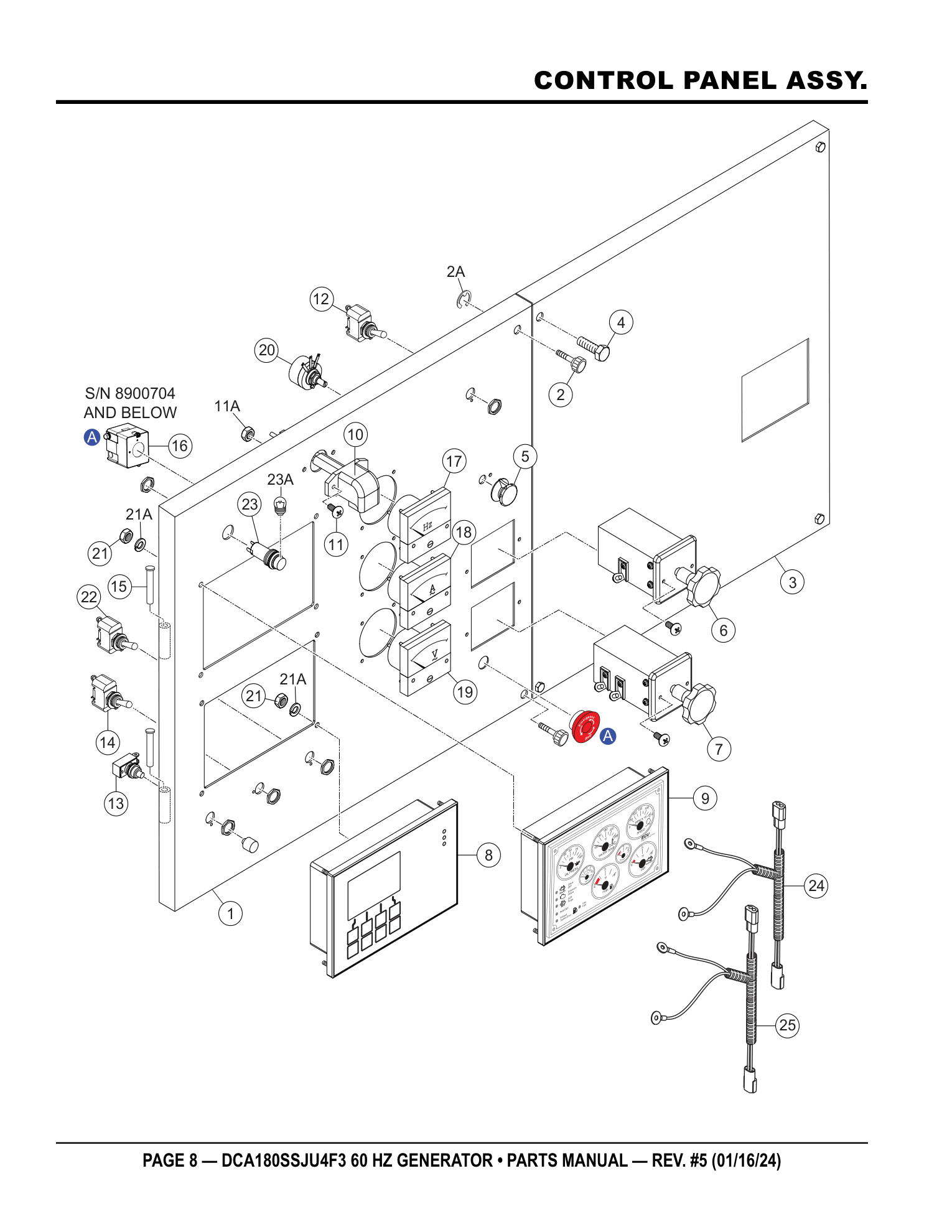

Page 8 — CONTROL PANEL ASSY.

Multiquip DCA180SSJU4F3 Generator CONTROL PANEL ASSY. parts diagram

Parts list — exactly as printed35 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3224001203	CONTROL PANEL	1		ADD TO CART
CONTROL PANEL M3224001203 · qty on machine: 1 view full part page → $1255.95
2	M9220100004	SET SCREW	2		ADD TO CART
SET SCREW M9220100004 · qty on machine: 2 view full part page → $12.95
2A	Y0080200007	E RING	2		ADD TO CART
E RING Y0080200007 · qty on machine: 2 view full part page → $4.95
3	M4223000604	CONTROL PANEL, RIGHT	1	S/N 8900806 AND BELOW	ADD TO CART
CONTROL PANEL, RIGHT M4223000604 · qty on machine: 1 S/N 8900806 AND BELOW view full part page → $143.95
3	M4224000304	CONTROL PANEL, RIGHT	1	S/N 8900807 AND ABOVE	ADD TO CART
CONTROL PANEL, RIGHT M4224000304 · qty on machine: 1 S/N 8900807 AND ABOVE view full part page → $229.95
4	0016908040	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016908040 · qty on machine: 4 view full part page → $1.52
5	0601840100	KNOB, 25 N	1	REPLACES P/N 0601840121	ADD TO CART
KNOB, 25 N 0601840100 · qty on machine: 1 REPLACES P/N 0601840121 view full part page → $30.95
6	0601801040	CHANGE-OVER SWITCH, AMMETER	1		ADD TO CART
CHANGE-OVER SWITCH, AMMETER 0601801040 · qty on machine: 1 view full part page → $95.95
7	0601801041	CHANGE-OVER SWITCH, VOLTMETER	1		ADD TO CART
CHANGE-OVER SWITCH, VOLTMETER 0601801041 · qty on machine: 1 view full part page → $157.95
8	Y0602203047A	ECU CONTROLLER, ECU (NON UL)	1	S/N 8900751 AND BELOW	PARTS REQUEST
PHOTO COMING ECU CONTROLLER, ECU (NON UL) Y0602203047A · qty on machine: 1 S/N 8900751 AND BELOW PARTS REQUEST
8	Y0602203079	ECU CONTROLLER, ECU (UL)	1	S/N 8900752 ~ 8900799	ADD TO CART
ECU CONTROLLER, ECU (UL) Y0602203079 · qty on machine: 1 S/N 8900752 ~ 8900799 view full part page → $1862.95
8	Y0602203079	ECU845 W/FIRMWARE	1	S/N 8900800 AND ABOVE	ADD TO CART
ECU845 W/FIRMWARE Y0602203079 · qty on machine: 1 S/N 8900800 AND ABOVE view full part page → $1862.95
9	Y0602120568	GAUGE UNIT ASSY., (NON UL)	1	S/N 8900755 AND BELOW	ADD TO CART
GAUGE UNIT ASSY., (NON UL) Y0602120568 · qty on machine: 1 S/N 8900755 AND BELOW view full part page → $947.95
9	Y0602120903	GAUGE UNIT ASSY., (UL)	1	S/N 8900756 AND ABOVE	ADD TO CART
GAUGE UNIT ASSY., (UL) Y0602120903 · qty on machine: 1 S/N 8900756 AND ABOVE view full part page → $757.95
10	Y0601810170	PANEL LIGHT, 12V	1		ADD TO CART
PANEL LIGHT, 12V Y0601810170 · qty on machine: 1 view full part page → $142.95
11	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
11A	OEMAA8	HEX. NUT	2	REPLACES P/N 0207004000	ADD TO CART
HEX. NUT OEMAA8 · qty on machine: 2 REPLACES P/N 0207004000 view full part page → $0.4
12	0601830710	SWITCH, PANEL LIGHT	1		ADD TO CART
SWITCH, PANEL LIGHT 0601830710 · qty on machine: 1 view full part page → $29.95
13	0601831205	PUSH BUTTON, RED	1		ADD TO CART
PUSH BUTTON, RED 0601831205 · qty on machine: 1 view full part page → $25.95
14	82608	SWITCH, TOGGLE	1	REPLACES P/N 0601831340 S/N 8900838 AND BELOW	ADD TO CART
SWITCH, TOGGLE 82608 · qty on machine: 1 REPLACES P/N 0601831340 S/N 8900838 AND BELOW view full part page → $34.95
14	Y0601831345	3-POLE SWITCH	1	S/N 8900839 AND ABOVE	ADD TO CART
3-POLE SWITCH Y0601831345 · qty on machine: 1 S/N 8900839 AND ABOVE view full part page → $49.95
15	0605011211	PIN	2		ADD TO CART
PIN 0605011211 · qty on machine: 2 view full part page → $1.55
16	0601831557	EMERGENCY STOP BUTTON	1	S/N 8900704 AND BELOW	ADD TO CART
EMERGENCY STOP BUTTON 0601831557 · qty on machine: 1 S/N 8900704 AND BELOW view full part page → $95.95
17	0601807642	FREQUENCY METER, 45~65HZ 240V	1		ADD TO CART
FREQUENCY METER, 45~65HZ 240V 0601807642 · qty on machine: 1 view full part page → $1023.95
18	0601817000	AC AMMETER, 0~300A/600A:5A	1		ADD TO CART
AC AMMETER, 0~300A/600A:5A 0601817000 · qty on machine: 1 view full part page → $492.95
19	0601800275	AC VOLTMETER, 0~600V	1		ADD TO CART
AC VOLTMETER, 0~600V 0601800275 · qty on machine: 1 view full part page → $146.95
20	0601840073	VOLTAGE REGULATOR, 1K Ω	1		ADD TO CART
VOLTAGE REGULATOR, 1K Ω 0601840073 · qty on machine: 1 view full part page → $90.95
21	Y0206707000	HEX. NUT	8		ADD TO CART
HEX. NUT Y0206707000 · qty on machine: 8 view full part page → $0.45
21A	Y0044807000	WASHER, LOCK	8		ADD TO CART
WASHER, LOCK Y0044807000 · qty on machine: 8 view full part page → $0.45
22	0601830710	SWITCH, ENGINE SPEED	1		ADD TO CART
SWITCH, ENGINE SPEED 0601830710 · qty on machine: 1 view full part page → $29.95
23	0602103092	ALARM LAMP, 18V RED	1	INCLUDES ITEMS W/$ S/N 8900662 AND BELOW	ADD TO CART
ALARM LAMP, 18V RED 0602103092 · qty on machine: 1 INCLUDES ITEMS W/$ S/N 8900662 AND BELOW Kit includes: 23A$ view full part page → $36.95 IN A KIT + SOLD SOLO
23	0601814453	LED LAMP	1	S/N 8900663 AND ABOVE	ADD TO CART
LED LAMP 0601814453 · qty on machine: 1 S/N 8900663 AND ABOVE Kit includes: 23A$ view full part page → $33.95 IN A KIT + SOLD SOLO
23A$		BULB, 18V	1	NOT SOLD SEPARATELY S/N 8900662 AND BELOW	INCLUDED IN KIT
PHOTO COMING BULB, 18V · qty on machine: 1 NOT SOLD SEPARATELY S/N 8900662 AND BELOW Included in kit 23 - ALARM LAMP, 18V RED (0602103092) INCLUDED IN KIT
24	M3247702004	WIRE HARNESS, GENERATOR	1		ADD TO CART
WIRE HARNESS, GENERATOR M3247702004 · qty on machine: 1 view full part page → $1473.95
25	M3358201602	WIRE HARNESS, ENGINE	1		ADD TO CART
WIRE HARNESS, ENGINE M3358201602 · qty on machine: 1 view full part page → $1729.95

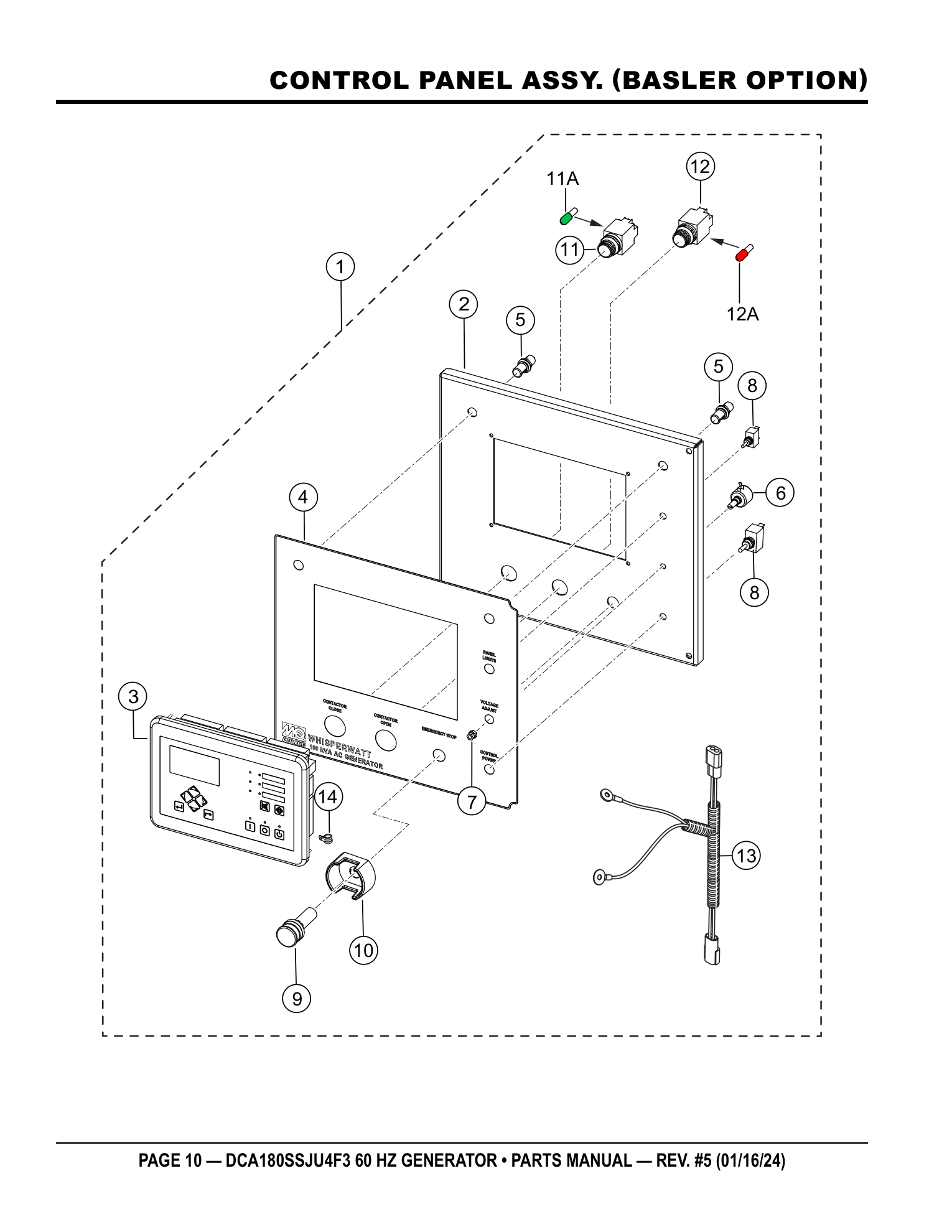

Page 10 — CONTROL PANEL ASSY. (BASLER OPTION)

Multiquip DCA180SSJU4F3 Generator CONTROL PANEL ASSY. (BASLER OPTION) parts diagram

Parts list — exactly as printed16 rows

No.	Part No.	Part Name	Qty	Remarks
1	EE60870	PANEL ASSY., PARALLELING	1	INCLUDES ITEMS W/#	PARTS REQUEST
PHOTO COMING PANEL ASSY., PARALLELING EE60870 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 2#, 3#, 4#, 5#, 6#, 7#, 8#, 9#, 10#, 11#, 11A#, 12#, 12A#, 13#, 14# PARTS REQUEST
2#	EE59122	PANEL, PARALLELING, BASLER HD	1		PARTS REQUEST
PHOTO COMING PANEL, PARALLELING, BASLER HD EE59122 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE60870) PARTS REQUEST
3#	EE59259-1	COLOR DISPLAY, CONTROLLER	1		ADD TO CART
COLOR DISPLAY, CONTROLLER EE59259-1 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE60870) view full part page → $5032.95 IN A KIT + SOLD SOLO
4#	EE60868	DECAL, PARALLELING, BASLER	1		PARTS REQUEST
PHOTO COMING DECAL, PARALLELING, BASLER EE60868 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE60870) PARTS REQUEST
5#	EE55761	LIGHT, PANEL, 12-36 VDC	2		ADD TO CART
LIGHT, PANEL, 12-36 VDC EE55761 · qty on machine: 2 Also included in kit 1 - PANEL ASSY., PARALLELING (EE60870) view full part page → $43.95 IN A KIT + SOLD SOLO
6#	EE2115	POTENTIOMETER, 5KOHM +/-5% TURN	1		ADD TO CART
POTENTIOMETER, 5KOHM +/-5% TURN EE2115 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE60870) view full part page → $70.95 IN A KIT + SOLD SOLO
7#	EE9949	NUT, SHAFT LOCK, POTENTIOMETER	1		ADD TO CART
NUT, SHAFT LOCK, POTENTIOMETER EE9949 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE60870) view full part page → $33.95 IN A KIT + SOLD SOLO
8#	EE2591	SWITCH, TOGGLE SINGLE POLE	2		ADD TO CART
SWITCH, TOGGLE SINGLE POLE EE2591 · qty on machine: 2 Also included in kit 1 - PANEL ASSY., PARALLELING (EE60870) view full part page → $11.95 IN A KIT + SOLD SOLO
9#	EE57855	SWITCH, E-STOP, RED, 24V LED	1		ADD TO CART
SWITCH, E-STOP, RED, 24V LED EE57855 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE60870) view full part page → $164.95 IN A KIT + SOLD SOLO
10#	EE52893	BEZEL, YELLOW PLASTIC	1		ADD TO CART
BEZEL, YELLOW PLASTIC EE52893 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE60870) view full part page → $34.95 IN A KIT + SOLD SOLO
11#	EE23374	PUSH-BUTTON, 24V GREEN	1		ADD TO CART
PUSH-BUTTON, 24V GREEN EE23374 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE60870) view full part page → $82.95 IN A KIT + SOLD SOLO
11A#	EE39554	LED LAMP, 12 VAC/VDC, GREEN	1		ADD TO CART
LED LAMP, 12 VAC/VDC, GREEN EE39554 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE60870) view full part page → $6.95 IN A KIT + SOLD SOLO
12#	EE23375	PUSH-BUTTON, 24V RED	1		ADD TO CART
PUSH-BUTTON, 24V RED EE23375 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE60870) view full part page → $82.95 IN A KIT + SOLD SOLO
12A#	EE5895	LED LAMP, 12 VAC/VDC, RED	1		ADD TO CART
LED LAMP, 12 VAC/VDC, RED EE5895 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE60870) view full part page → $6.95 IN A KIT + SOLD SOLO
13#	EE59200	HARNESS, UNIVERSAL	1		PARTS REQUEST
PHOTO COMING HARNESS, UNIVERSAL EE59200 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE60870) PARTS REQUEST
14#	21574	CLAMP, LOOP CUSHIONED #16 0.25 HOLE	1		ADD TO CART
CLAMP, LOOP CUSHIONED #16 0.25 HOLE 21574 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE60870) view full part page → $0.95 IN A KIT + SOLD SOLO

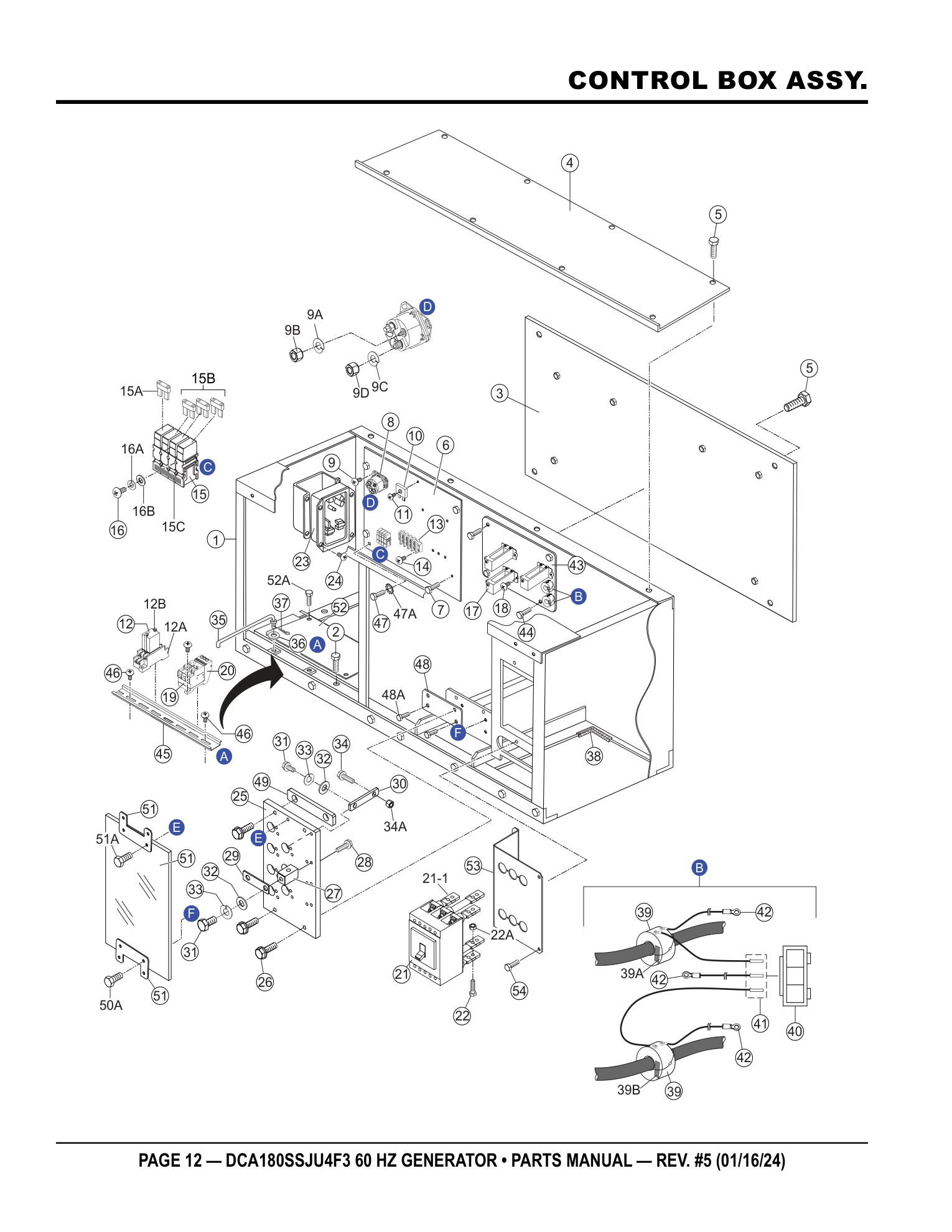

Page 12 — CONTROL BOX ASSY.

Multiquip DCA180SSJU4F3 Generator CONTROL BOX ASSY. parts diagram

Parts list — exactly as printed43 rows

No.	Part No.	Part Name	Qty	Remarks
1	M4214000102	CONTROL BOX	1	S/N 8900704 AND BELOW	PARTS REQUEST
PHOTO COMING CONTROL BOX M4214000102 · qty on machine: 1 S/N 8900704 AND BELOW PARTS REQUEST
1	M4214000212	CONTROL BOX	1	S/N 8900705 ~ 8900806	PARTS REQUEST
PHOTO COMING CONTROL BOX M4214000212 · qty on machine: 1 S/N 8900705 ~ 8900806 PARTS REQUEST
1	M4214000222	CONTROL BOX	1	S/N 8900807 AND ABOVE	ADD TO CART
CONTROL BOX M4214000222 · qty on machine: 1 S/N 8900807 AND ABOVE view full part page → $2063.95
2	011008020	HEX. HEAD BOLT 8X20	14	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 8X20 011008020 · qty on machine: 14 REPLACES P/N 0016908020 view full part page → $2.68
3	M5214400304	BACK PANEL	1	S/N 8900704 AND BELOW	PARTS REQUEST
PHOTO COMING BACK PANEL M5214400304 · qty on machine: 1 S/N 8900704 AND BELOW PARTS REQUEST
3	M5214400314	BACK PANEL	1	S/N 8900705 AND ABOVE	PARTS REQUEST
PHOTO COMING BACK PANEL M5214400314 · qty on machine: 1 S/N 8900705 AND ABOVE PARTS REQUEST
4	M4213500104	COVER, CONTROL BOX	1		ADD TO CART
COVER, CONTROL BOX M4213500104 · qty on machine: 1 view full part page → $204.95
5	011008020	HEX. HEAD BOLT 8X20	16	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 8X20 011008020 · qty on machine: 16 REPLACES P/N 0016908020 view full part page → $2.68
6	M4261500004	SET PANEL	1		PARTS REQUEST
PHOTO COMING SET PANEL M4261500004 · qty on machine: 1 PARTS REQUEST
7	011008020	HEX. HEAD BOLT 8X20	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 8X20 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
8	Y0602201458	STARTER RELAY, RE164448	1		ADD TO CART
STARTER RELAY, RE164448 Y0602201458 · qty on machine: 1 view full part page → $116.95
9	011808015	MACHINE SCREW	2	REPLACES P/N 0027106015	ADD TO CART
MACHINE SCREW 011808015 · qty on machine: 2 REPLACES P/N 0027106015 view full part page → $6.95
9A	0044808000	WASHER, LOCK	2		PARTS REQUEST
PHOTO COMING WASHER, LOCK 0044808000 · qty on machine: 2 PARTS REQUEST
9B	Y0206508000	HEX.NUT	2		ADD TO CART
HEX.NUT Y0206508000 · qty on machine: 2 view full part page → $0.19
9C	0043003000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0043003000 · qty on machine: 2 view full part page → $0.39
9D	Y0206803000	HEX.NUT	2		ADD TO CART
HEX.NUT Y0206803000 · qty on machine: 2 view full part page → $0.26
10	0601821370	RECTIFIER, DE-45	1	REPLACES P/N 0601823240	ADD TO CART
RECTIFIER, DE-45 0601821370 · qty on machine: 1 REPLACES P/N 0601823240 view full part page → $28.95
11	0027104020	MACHINE SCREW	1		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 1 view full part page → $0.4
12	LY2DUS12VDC	RELAY, LY-2D DC12V	1	REPLACES P/N 0601827656	ADD TO CART
RELAY, LY-2D DC12V LY2DUS12VDC · qty on machine: 1 REPLACES P/N 0601827656 view full part page → $46.95
12A	PTF08A	RELAY BASE, PTF08A-E	1	REPLACES P/N 0601823109	ADD TO CART
RELAY BASE, PTF08A-E PTF08A · qty on machine: 1 REPLACES P/N 0601823109 view full part page → $47.95
12B	PYCA1	RELAY CLIP, PYC-A1	2	REPLACES P/N 0601824400	ADD TO CART
RELAY CLIP, PYC-A1 PYCA1 · qty on machine: 2 REPLACES P/N 0601824400 view full part page → $1.71
13	Y0601816538	TERMINAL BLOCK	1	REPLACES P/N 0601815153	ADD TO CART
TERMINAL BLOCK Y0601816538 · qty on machine: 1 REPLACES P/N 0601815153 view full part page → $51.95
14	0027104020	MACHINE SCREW 4X20MM	2		ADD TO CART
MACHINE SCREW 4X20MM 0027104020 · qty on machine: 2 view full part page → $0.4
15	M3214601504	FUSE HOLDER ASSY.	1		PARTS REQUEST
PHOTO COMING FUSE HOLDER ASSY. M3214601504 · qty on machine: 1 PARTS REQUEST
15A	0601806643	FUSE, 15A	1		ADD TO CART
FUSE, 15A 0601806643 · qty on machine: 1 view full part page → $5.95
15B	Y0601806647	FUSE, 25A	3		ADD TO CART
FUSE, 25A Y0601806647 · qty on machine: 3 view full part page → $1.95
15C	M9501401104	DECAL: FUSE HOLDER	1		PARTS REQUEST
PHOTO COMING DECAL: FUSE HOLDER M9501401104 · qty on machine: 1 Factory replaced this part - current number HOLDER PARTS REQUEST
16	Y0021003035	MACHINE SCREW	2		PARTS REQUEST
PHOTO COMING MACHINE SCREW Y0021003035 · qty on machine: 2 PARTS REQUEST
16A	0040003000	WASHER, LOCK	2		PARTS REQUEST
PHOTO COMING WASHER, LOCK 0040003000 · qty on machine: 2 PARTS REQUEST
16B	Y0042103000	WASHER, FLAT	2		PARTS REQUEST
PHOTO COMING WASHER, FLAT Y0042103000 · qty on machine: 2 PARTS REQUEST
17	0601809666	CURRENT TRANSFORMER 300/5A	3		ADD TO CART
CURRENT TRANSFORMER 300/5A 0601809666 · qty on machine: 3 view full part page → $200.95
18	011206020	MACHINE SCREW 6MMX20MM	6	REPLACES P/N 0027106020	ADD TO CART
MACHINE SCREW 6MMX20MM 011206020 · qty on machine: 6 REPLACES P/N 0027106020 view full part page → $0.95
19	Y0601820843	OVER-CURRENT RELAY, T16-4.2	1		ADD TO CART
OVER-CURRENT RELAY, T16-4.2 Y0601820843 · qty on machine: 1 view full part page → $114.95
20	Y0601820844	OVER-CURRENT RELAY BASE, DB16	1		ADD TO CART
OVER-CURRENT RELAY BASE, DB16 Y0601820844 · qty on machine: 1 view full part page → $24.95
21	Y0601807533	CIRCUIT BREAKER, 3P 600A	1	S/N 8900806 AND BELOW	NO LONGER AVAILABLE
PHOTO COMING CIRCUIT BREAKER, 3P 600A Y0601807533 · qty on machine: 1 S/N 8900806 AND BELOW NO LONGER AVAILABLE
21	Y0601807565	CIRCUIT BREAKER	1	S/N 8900807 AND ABOVE	ADD TO CART
CIRCUIT BREAKER Y0601807565 · qty on machine: 1 S/N 8900807 AND ABOVE view full part page → $3859.95
21-1	Y0601827412	REAR TERMINAL BUSBAR	2	S/N 8900806 AND BELOW	ADD TO CART
REAR TERMINAL BUSBAR Y0601827412 · qty on machine: 2 S/N 8900806 AND BELOW view full part page → $164.95
21-1	Y0601827415	REAR TERMINAL BUSBAR	2	S/N 8900807 AND ABOVE	ADD TO CART
REAR TERMINAL BUSBAR Y0601827415 · qty on machine: 2 S/N 8900807 AND ABOVE view full part page → $218.95
22	014210040	HEX. HEAD BOLT	6	REPLACES P/N 0017110040	ADD TO CART
HEX. HEAD BOLT 014210040 · qty on machine: 6 REPLACES P/N 0017110040 view full part page → $1.95
22A	021112140	SELF-LOCKING NUT	6	REPLACES P/N 0207010000	ADD TO CART
SELF-LOCKING NUT 021112140 · qty on machine: 6 REPLACES P/N 0207010000 view full part page → $0.46
23	0601820601	AUTOMATIC VOLTAGE REGULATOR	1		ADD TO CART
AUTOMATIC VOLTAGE REGULATOR 0601820601 · qty on machine: 1 view full part page → $1389.95
24	0027105015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 4 view full part page → $0.2
25	C0274000003	TERMINAL BOARD, VOLT. CHANGE-OVR	1	REPLACES P/N M3273000003	ADD TO CART
TERMINAL BOARD, VOLT. CHANGE-OVR C0274000003 · qty on machine: 1 REPLACES P/N M3273000003 view full part page → $376.95

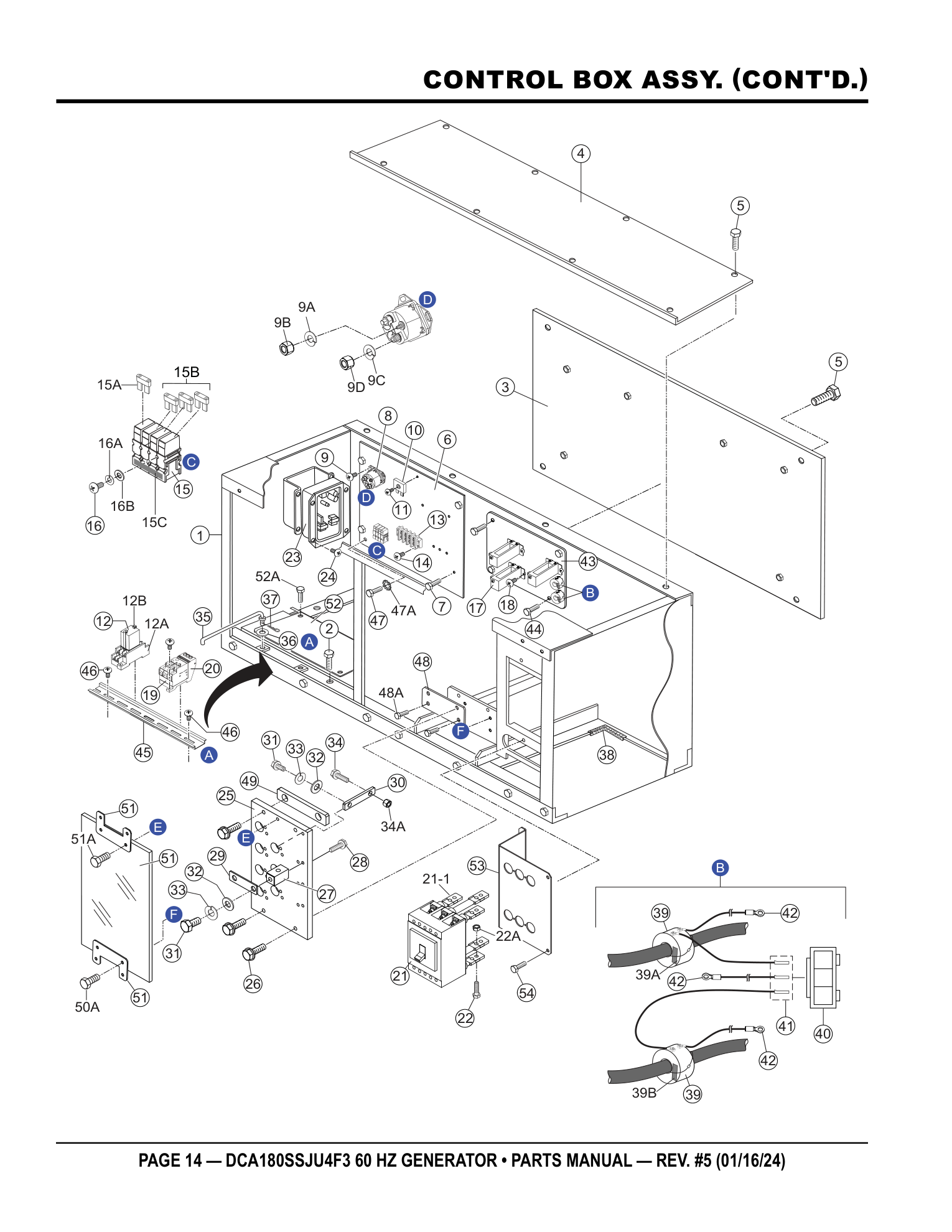

Page 14 — CONTROL BOX ASSY. (CONT'D.)

Multiquip DCA180SSJU4F3 Generator CONTROL BOX ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed38 rows

No.	Part No.	Part Name	Qty	Remarks
26	011208030	HEX. HEAD BOLT	4	REPLACES P/N 0016908030	ADD TO CART
HEX. HEAD BOLT 011208030 · qty on machine: 4 REPLACES P/N 0016908030 view full part page → $1.3
27	8131852104	CHANGE TERMINAL	10	REPLACES P/N M3276400004	ADD TO CART
CHANGE TERMINAL 8131852104 · qty on machine: 10 REPLACES P/N M3276400004 view full part page → $77.95
28	011606025	HEX. HEAD BOLT 6X25	20	REPLACES P/N 0016906025	ADD TO CART
HEX. HEAD BOLT 6X25 011606025 · qty on machine: 20 REPLACES P/N 0016906025 view full part page → $1.95
29	8131853104	CHANGE-OVER PLATE	6	REPLACES P/N M3276300004	ADD TO CART
CHANGE-OVER PLATE 8131853104 · qty on machine: 6 REPLACES P/N M3276300004 view full part page → $13.95
30	C0277200004	CHANGE PLATE	3	REPLACES P/N M4276200004	ADD TO CART
CHANGE PLATE C0277200004 · qty on machine: 3 REPLACES P/N M4276200004 view full part page → $100.95
31	012210020	TIE BOLT	20	REPLACES P/N M9220100104	ADD TO CART
TIE BOLT 012210020 · qty on machine: 20 REPLACES P/N M9220100104 view full part page → $0.95
32	0041410000	WASHER, FLAT	20		ADD TO CART
WASHER, FLAT 0041410000 · qty on machine: 20 view full part page → $0.89
33	0040010000	WASHER, LOCK	20		ADD TO CART
WASHER, LOCK 0040010000 · qty on machine: 20 view full part page → $0.39
34	014210040	HEX.HEAD BOLT	3	REPLACES P/N 0017110040	ADD TO CART
HEX.HEAD BOLT 014210040 · qty on machine: 3 REPLACES P/N 0017110040 view full part page → $1.95
34A	021112140	SELF-LOCKING NUT	3	REPLACES P/N 0207010000	ADD TO CART
SELF-LOCKING NUT 021112140 · qty on machine: 3 REPLACES P/N 0207010000 view full part page → $0.46
35	M4213600104	STOPPER, CONTROL PANEL	1		ADD TO CART
STOPPER, CONTROL PANEL M4213600104 · qty on machine: 1 view full part page → $63.95
36	952404470	WASHER, FLAT	1	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 1 REPLACES P/N 0041206000 view full part page → $0.19
37	505015300	SNAP PIN	1	REPLACES P/N 0605010502	ADD TO CART
SNAP PIN 505015300 · qty on machine: 1 REPLACES P/N 0605010502 view full part page → $0.95
38	Y0411100315	EDGING	1		PARTS REQUEST
PHOTO COMING EDGING Y0411100315 · qty on machine: 1 PARTS REQUEST
39	Y0601872911	CURRENT TRANSFORMER 300/5A	2		PARTS REQUEST
PHOTO COMING CURRENT TRANSFORMER 300/5A Y0601872911 · qty on machine: 2 PARTS REQUEST
39A	M9521001604	DECAL: CT4	1		ADD TO CART
DECAL: CT4 M9521001604 · qty on machine: 1 view full part page → $0.95
39B	M9521001704	DECAL: CT5	1		ADD TO CART
DECAL: CT5 M9521001704 · qty on machine: 1 view full part page → $0.95
40	Y0601813924	PLUG	1		PARTS REQUEST
PHOTO COMING PLUG Y0601813924 · qty on machine: 1 PARTS REQUEST
41	0601812711	PINS	3		ADD TO CART
PINS 0601812711 · qty on machine: 3 view full part page → $0.56
42	Y0601815586	ROUND TERMINAL	3		PARTS REQUEST
PHOTO COMING ROUND TERMINAL Y0601815586 · qty on machine: 3 PARTS REQUEST
43	M3261500404	SET PANEL	1		PARTS REQUEST
PHOTO COMING SET PANEL M3261500404 · qty on machine: 1 PARTS REQUEST
44	0016906015	HEX. HEAD BOLT 6X16	4		ADD TO CART
HEX. HEAD BOLT 6X16 0016906015 · qty on machine: 4 view full part page → $0.95
45	Y0290000245	MOUNTING RAIL	1		PARTS REQUEST
PHOTO COMING MOUNTING RAIL Y0290000245 · qty on machine: 1 PARTS REQUEST
46	0027104015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 2 view full part page → $0.53
47	0016906015	HEX. HEAD BOLT 6X16	1		ADD TO CART
HEX. HEAD BOLT 6X16 0016906015 · qty on machine: 1 view full part page → $0.95
47A	0040506000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040506000 · qty on machine: 1 view full part page → $0.77
48	M3214602104	BRACKET	1		PARTS REQUEST
PHOTO COMING BRACKET M3214602104 · qty on machine: 1 PARTS REQUEST
48A	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
49	M3214602204	SPACER	1		PARTS REQUEST
PHOTO COMING SPACER M3214602204 · qty on machine: 1 PARTS REQUEST
50	M3214602404	TERMINAL BOARD COVER	1	S/N 8900705 AND ABOVE	ADD TO CART
TERMINAL BOARD COVER M3214602404 · qty on machine: 1 S/N 8900705 AND ABOVE view full part page → $170.95
50A	011208025	HEX. HEAD BOLT	4	REPLACES P/N 0016908025 S/N 8900705 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 011208025 · qty on machine: 4 REPLACES P/N 0016908025 S/N 8900705 AND ABOVE view full part page → $0.41
51	M5214600704	TERMINAL BOARD COVER BRACKET	2	S/N 8900705 AND ABOVE	ADD TO CART
TERMINAL BOARD COVER BRACKET M5214600704 · qty on machine: 2 S/N 8900705 AND ABOVE view full part page → $75.95
51A	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020 S/N 8900705 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 S/N 8900705 AND ABOVE view full part page → $2.68
52	M3214602304	BLIND BOARD	1	S/N 8900705 AND ABOVE	PARTS REQUEST
PHOTO COMING BLIND BOARD M3214602304 · qty on machine: 1 S/N 8900705 AND ABOVE PARTS REQUEST
52A	0016906015	HEX. HEAD BOLT	4	S/N 8900705 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 S/N 8900705 AND ABOVE view full part page → $0.95
53	M4214600104	BRACKET	1	S/N 8900705 ~ 8900806	PARTS REQUEST
PHOTO COMING BRACKET M4214600104 · qty on machine: 1 S/N 8900705 ~ 8900806 PARTS REQUEST
53	M4214600114	BRACKET	1	S/N 8900807 AND ABOVE	ADD TO CART
BRACKET M4214600114 · qty on machine: 1 S/N 8900807 AND ABOVE view full part page → $95.95
54	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020 S/N 8900705 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 S/N 8900705 AND ABOVE view full part page → $2.68

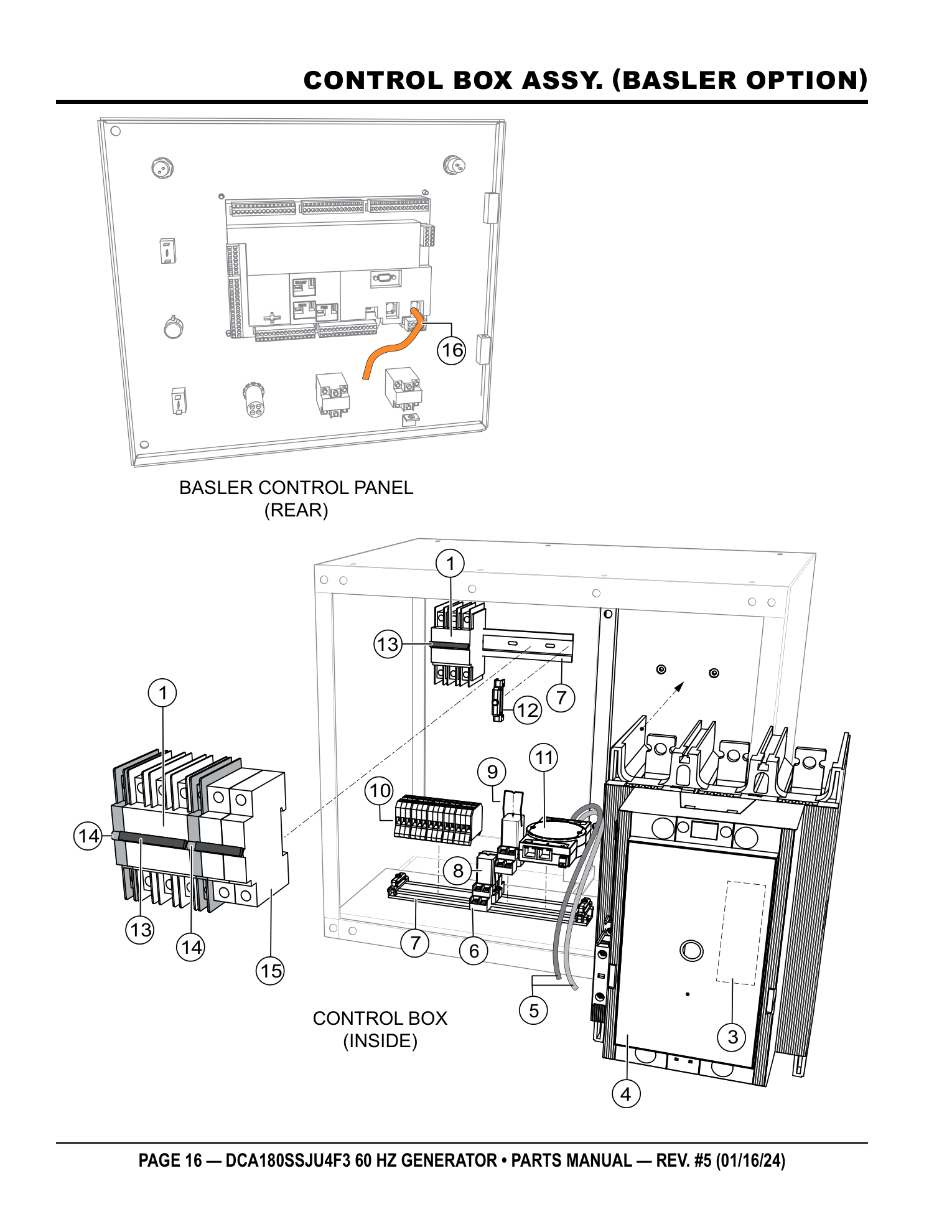

Page 16 — CONTROL BOX ASSY. (BASLER OPTION)

Multiquip DCA180SSJU4F3 Generator CONTROL BOX ASSY. (BASLER OPTION) parts diagram

Parts list — exactly as printed15 rows

No.	Part No.	Part Name	Qty
1	EE55784	CIRCUIT BREAKER (ABB), 3P, 10A, 480V	2	ADD TO CART
CIRCUIT BREAKER (ABB), 3P, 10A, 480V EE55784 · qty on machine: 2 view full part page → $349.95
3	EE56647	SWITCH (ABB), AUX/BELL	1	PARTS REQUEST
PHOTO COMING SWITCH (ABB), AUX/BELL EE56647 · qty on machine: 1 PARTS REQUEST
4	EE59127	CONTACTOR (ABB), 650A, 100-250V	1	ADD TO CART
CONTACTOR (ABB), 650A, 100-250V EE59127 · qty on machine: 1 view full part page → $3674.95
5	EE50312	CABLE, ETHERNET, 10FT	2	ADD TO CART
CABLE, ETHERNET, 10FT EE50312 · qty on machine: 2 view full part page → $10.95
6	EE26385	RELAY BASE	2	ADD TO CART
RELAY BASE EE26385 · qty on machine: 2 view full part page → $7.95
7	EE10071	RAIL, DIN, ALUM,.413" X 1.37" X 36"	1	ADD TO CART
RAIL, DIN, ALUM,.413" X 1.37" X 36" EE10071 · qty on machine: 1 view full part page → $12.95
8	EE58130	RELAY, DC12V	2	ADD TO CART
RELAY, DC12V EE58130 · qty on machine: 2 view full part page → $31.95
9	EE26135	RELAY CLIP	2	ADD TO CART
RELAY CLIP EE26135 · qty on machine: 2 view full part page → $0.37
10	EE26112	BLOCK, TERMINAL 14 POS.	14	ADD TO CART
BLOCK, TERMINAL 14 POS. EE26112 · qty on machine: 14 view full part page → $2.95
11	EE58065	ETHERNET SWITCH, 5 PORT 10-30VDC	1	ADD TO CART
ETHERNET SWITCH, 5 PORT 10-30VDC EE58065 · qty on machine: 1 view full part page → $453.95
12	EE2940	END STOP, DIN RAIL	4	ADD TO CART
END STOP, DIN RAIL EE2940 · qty on machine: 4 view full part page → $1.85
13	EE32611	JUMPER, 3-POLE	2	ADD TO CART
JUMPER, 3-POLE EE32611 · qty on machine: 2 view full part page → $12.95
14	EE55785	SWITCH (ABB), AUX	2	ADD TO CART
SWITCH (ABB), AUX EE55785 · qty on machine: 2 view full part page → $54.95
15	EE38585	CIRCUIT BREAKER (ABB), 2-POLE, 10A	1	ADD TO CART
CIRCUIT BREAKER (ABB), 2-POLE, 10A EE38585 · qty on machine: 1 view full part page → $60.95
16	EE56188	CABLE, ETHERNET, ORANGE, 3 FT	1	PARTS REQUEST
PHOTO COMING CABLE, ETHERNET, ORANGE, 3 FT EE56188 · qty on machine: 1 PARTS REQUEST

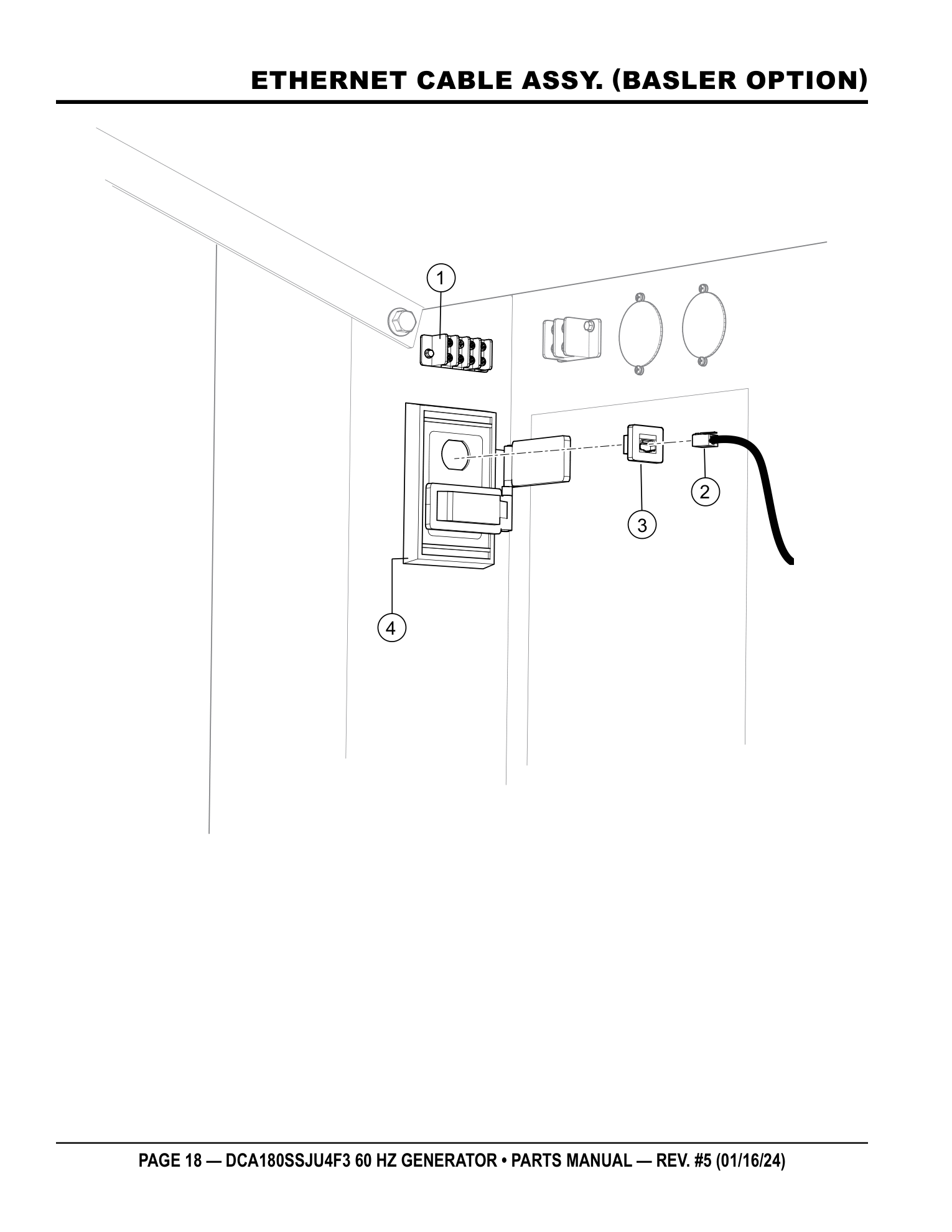

Page 18 — ETHERNET CABLE ASSY. (BASLER OPTION)

Multiquip DCA180SSJU4F3 Generator ETHERNET CABLE ASSY. (BASLER OPTION) parts diagram

Parts list — exactly as printed4 rows

No.	Part No.	Part Name	Qty
1	EE59027	TERMINAL BLOCK, 4-POS.	1	PARTS REQUEST
PHOTO COMING TERMINAL BLOCK, 4-POS. EE59027 · qty on machine: 1 PARTS REQUEST
2	EE55780	CABLE, ETHERNET CAT5E SHIELDED 50FT	1	ADD TO CART
CABLE, ETHERNET CAT5E SHIELDED 50FT EE55780 · qty on machine: 1 view full part page → $81.95
3	EE55760	JACK, FEEDTHROUGH, RJ45, CAT5E	2	ADD TO CART
JACK, FEEDTHROUGH, RJ45, CAT5E EE55760 · qty on machine: 2 view full part page → $43.95
4	EE58796	COVER, NONMETALLIC, WEATHERPROOF	1	PARTS REQUEST
PHOTO COMING COVER, NONMETALLIC, WEATHERPROOF EE58796 · qty on machine: 1 PARTS REQUEST

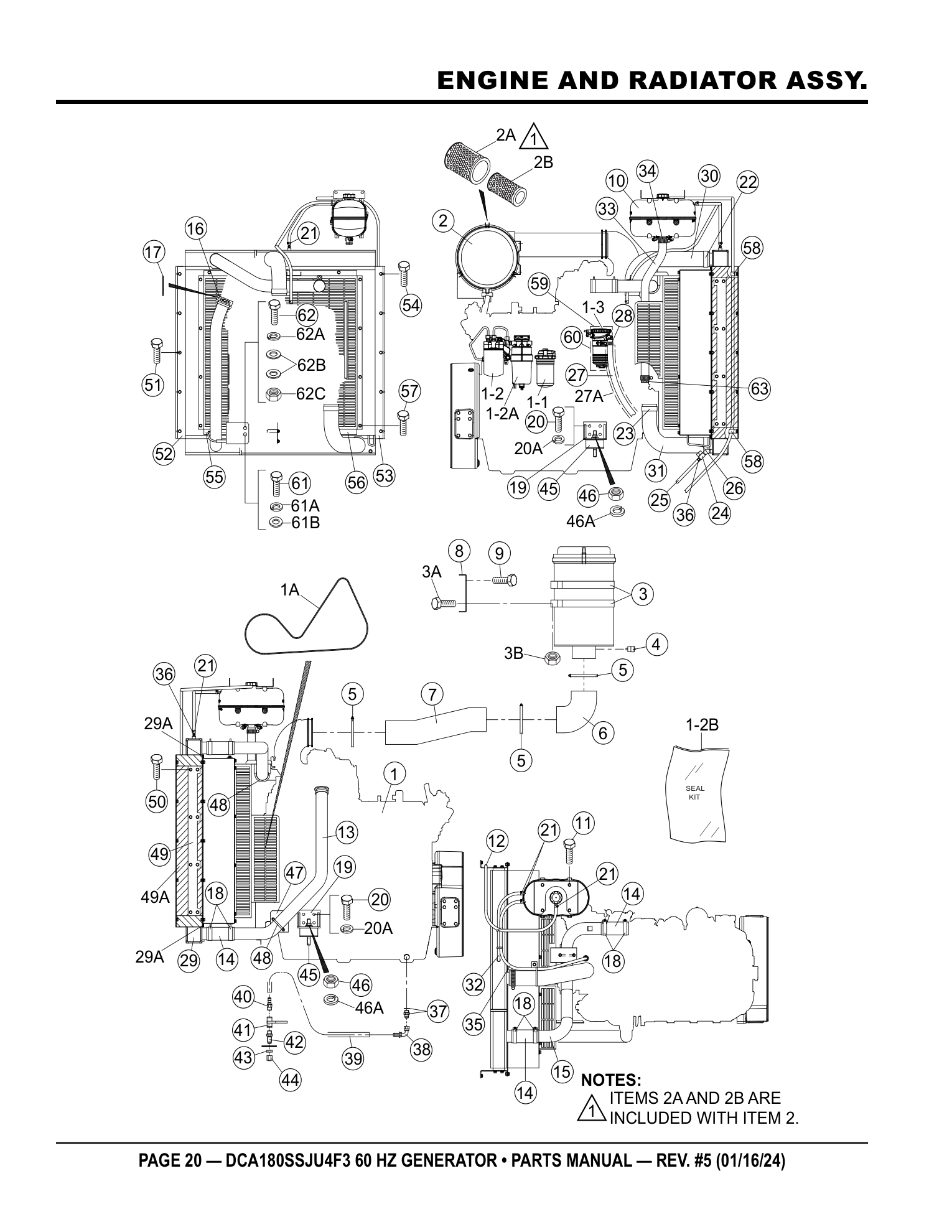

Page 20 — ENGINE AND RADIATOR ASSY.

Multiquip DCA180SSJU4F3 Generator ENGINE AND RADIATOR ASSY. parts diagram

Parts list — exactly as printed44 rows

No.	Part No.	Part Name	Qty	Remarks
1	6068HFG05	ENGINE, JOHN DEERE	1	REPLACES P/N M3924200144	ADD TO CART
ENGINE, JOHN DEERE 6068HFG05 · qty on machine: 1 REPLACES P/N M3924200144 view full part page → $63227.95
1A	R529382	FAN BELT	1	REPLACES P/N Y0602015209	ADD TO CART
FAN BELT R529382 · qty on machine: 1 REPLACES P/N Y0602015209 view full part page → $209.95
1-1	RE539279	CARTRIDGE, OIL FILTER	1	REPLACES P/N Y0602041293	ADD TO CART
CARTRIDGE, OIL FILTER RE539279 · qty on machine: 1 REPLACES P/N Y0602041293 view full part page → $93.95
1-2	RE551507	FUEL FILTER, PRIMARY	1	REPLACES P/N Y0602042800	ADD TO CART
FUEL FILTER, PRIMARY RE551507 · qty on machine: 1 REPLACES P/N Y0602042800 view full part page → $168.95
1-2A	RE560681	FUEL FILTER, SECONDARY	1	REPLACES P/N Y0602042801	ADD TO CART
FUEL FILTER, SECONDARY RE560681 · qty on machine: 1 REPLACES P/N Y0602042801 view full part page → $146.95
1-2B	RE562696	SEAL KIT, FUEL FILTER	2	REPLACES P/N Y0602042603	ADD TO CART
SEAL KIT, FUEL FILTER RE562696 · qty on machine: 2 REPLACES P/N Y0602042603 view full part page → $72.95
1-3	RE540710	BLOWBY FILTER	1	REPLACES P/N 0602044230	NO LONGER AVAILABLE
PHOTO COMING BLOWBY FILTER RE540710 · qty on machine: 1 REPLACES P/N 0602044230 NO LONGER AVAILABLE
2	0602046585	AIR CLEANER ASSEMBLY	1	INCLUDES ITEMS W/#	ADD TO CART
AIR CLEANER ASSEMBLY 0602046585 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 2A#, 2B# view full part page → $226.95 IN A KIT + SOLD SOLO
2A#	0602046682	ELEMENT, AIR CLEANER OUTER	1		ADD TO CART
ELEMENT, AIR CLEANER OUTER 0602046682 · qty on machine: 1 Also included in kit 2 - AIR CLEANER ASSEMBLY (0602046585) view full part page → $216.95 IN A KIT + SOLD SOLO
2B#	0602046683	ELEMENT, AIR CLEANER INNER	1		ADD TO CART
ELEMENT, AIR CLEANER INNER 0602046683 · qty on machine: 1 Also included in kit 2 - AIR CLEANER ASSEMBLY (0602046585) view full part page → $141.95 IN A KIT + SOLD SOLO
3	0602040558	AIR CLEANER BAND	2		ADD TO CART
AIR CLEANER BAND 0602040558 · qty on machine: 2 view full part page → $75.95
3A	011208025	HEX. HEAD BOLT, 8X25	4	REPLACES P/N 0016908025	ADD TO CART
HEX. HEAD BOLT, 8X25 011208025 · qty on machine: 4 REPLACES P/N 0016908025 view full part page → $0.41
3B	Y0207008000	SELF-LOCKING NUT	4		ADD TO CART
SELF-LOCKING NUT Y0207008000 · qty on machine: 4 view full part page → $0.4
4	0602040650	INDICATOR, AIR CLEANER	1	REPLACES P/N RBX002252	ADD TO CART
INDICATOR, AIR CLEANER 0602040650 · qty on machine: 1 REPLACES P/N RBX002252 view full part page → $34.95
5	0605515202	HOSE BAND	3		ADD TO CART
HOSE BAND 0605515202 · qty on machine: 3 view full part page → $9.95
6	0602040365	90° ELBOW	1		ADD TO CART
90° ELBOW 0602040365 · qty on machine: 1 view full part page → $79.95
7	M3374000604	AIR CLEANER PIPE	1		PARTS REQUEST
PHOTO COMING AIR CLEANER PIPE M3374000604 · qty on machine: 1 PARTS REQUEST
8	M3374200004	AIR CLEANER BRACKET	1		PARTS REQUEST
PHOTO COMING AIR CLEANER BRACKET M3374200004 · qty on machine: 1 PARTS REQUEST
9	0016910025	HEX. HEAD BOLT 10X25	2		ADD TO CART
HEX. HEAD BOLT 10X25 0016910025 · qty on machine: 2 view full part page → $1.56
10	RE549081	SURGE TANK	1	REPLACES P/N Y0602010222	NO LONGER AVAILABLE
PHOTO COMING SURGE TANK RE549081 · qty on machine: 1 REPLACES P/N Y0602010222 NO LONGER AVAILABLE
11	Y0016908015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT Y0016908015 · qty on machine: 4 view full part page → $1.95
12	Y0193602250	OVER FLOW HOSE	1		ADD TO CART
OVER FLOW HOSE Y0193602250 · qty on machine: 1 view full part page → $10.95
13	M3311400103	CAC PIPE, HOT SIDE	1		PARTS REQUEST
PHOTO COMING CAC PIPE, HOT SIDE M3311400103 · qty on machine: 1 PARTS REQUEST
14	Y0602015610	CAC HOSE	3		ADD TO CART
CAC HOSE Y0602015610 · qty on machine: 3 view full part page → $124.95
15	M4311400003	CAC PIPE, COLD SIDE	1		PARTS REQUEST
PHOTO COMING CAC PIPE, COLD SIDE M4311400003 · qty on machine: 1 PARTS REQUEST
16	RE292067	V-BAND CLAMP	1	REPLACES P/N Y0602325033	ADD TO CART
V-BAND CLAMP RE292067 · qty on machine: 1 REPLACES P/N Y0602325033 view full part page → $139.95
17	R529509	GASKET	1	REPLACES P/N Y0602320206	ADD TO CART
GASKET R529509 · qty on machine: 1 REPLACES P/N Y0602320206 view full part page → $49.95
18	0605515215	BAND, HOSE	6		ADD TO CART
BAND, HOSE 0605515215 · qty on machine: 6 view full part page → $28.95
19	M3303200404	ENGINE FOOT	2		ADD TO CART
ENGINE FOOT M3303200404 · qty on machine: 2 view full part page → $39.95
20	0012312030	HEX. HEAD BOLT	6	REPLACES P/N 0013612030	ADD TO CART
HEX. HEAD BOLT 0012312030 · qty on machine: 6 REPLACES P/N 0013612030 view full part page → $6.95
20A	0040012000	WASHER, LOCK	6		ADD TO CART
WASHER, LOCK 0040012000 · qty on machine: 6 view full part page → $0.95
21	0605515189	HOSE BAND	5		ADD TO CART
HOSE BAND 0605515189 · qty on machine: 5 view full part page → $1.85
22	0605515236	BAND, HOSE	2		ADD TO CART
BAND, HOSE 0605515236 · qty on machine: 2 view full part page → $46.95
23	0605515208	BAND, HOSE	2		ADD TO CART
BAND, HOSE 0605515208 · qty on machine: 2 view full part page → $61.95
24	Y0605511394	MINI BALL VALVE	1		ADD TO CART
MINI BALL VALVE Y0605511394 · qty on machine: 1 view full part page → $70.95
25	0193600400	HOSE, DRAIN	1		ADD TO CART
HOSE, DRAIN 0193600400 · qty on machine: 1 view full part page → $2.95
26	Y0603307520	45° ELBOW	1		PARTS REQUEST
PHOTO COMING 45° ELBOW Y0603307520 · qty on machine: 1 PARTS REQUEST
27	Y0191601135	BLOWBY HOSE	1		PARTS REQUEST
PHOTO COMING BLOWBY HOSE Y0191601135 · qty on machine: 1 PARTS REQUEST
27A	Y0377701060	AEROFLEX TUBE	1		PARTS REQUEST
PHOTO COMING AEROFLEX TUBE Y0377701060 · qty on machine: 1 PARTS REQUEST
28	0605515073	BAND, HOSE	1		ADD TO CART
BAND, HOSE 0605515073 · qty on machine: 1 view full part page → $6.95
29	Y0602012922	RADIATOR AND INTER-COOLER	1		ADD TO CART
RADIATOR AND INTER-COOLER Y0602012922 · qty on machine: 1 view full part page → $3580.95
29A	M3494110204	ACOUSTIC SHEET	2		ADD TO CART
ACOUSTIC SHEET M3494110204 · qty on machine: 2 view full part page → $188.95
30	M3311500503	RADIATOR HOSE, UPPER	1		ADD TO CART
RADIATOR HOSE, UPPER M3311500503 · qty on machine: 1 view full part page → $194.95
31	M3311500603	RADIATOR HOSE, LOWER	1		ADD TO CART
RADIATOR HOSE, LOWER M3311500603 · qty on machine: 1 view full part page → $197.95

Page 22 — ENGINE AND RADIATOR ASSY. (CONT'D.)

Multiquip DCA180SSJU4F3 Generator ENGINE AND RADIATOR ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed39 rows

No.	Part No.	Part Name	Qty	Remarks
32	Y0199900730	VENT HOSE	1		PARTS REQUEST
PHOTO COMING VENT HOSE Y0199900730 · qty on machine: 1 PARTS REQUEST
33	M3311501503	SURGE TANK HOSE	1		ADD TO CART
SURGE TANK HOSE M3311501503 · qty on machine: 1 view full part page → $62.95
34	0605515149	BAND, HOSE	2		ADD TO CART
BAND, HOSE 0605515149 · qty on machine: 2 view full part page → $1.95
35	0199901200	DRAIN, HOSE	1		ADD TO CART
DRAIN, HOSE 0199901200 · qty on machine: 1 view full part page → $39.95
36	Y0605512192	HOSE JOINT	2		PARTS REQUEST
PHOTO COMING HOSE JOINT Y0605512192 · qty on machine: 2 PARTS REQUEST
37	0602022580	ADAPTER W/SEAL	1		ADD TO CART
ADAPTER W/SEAL 0602022580 · qty on machine: 1 view full part page → $37.95
38	0602022561	90° ELBOW	1		ADD TO CART
90° ELBOW 0602022561 · qty on machine: 1 view full part page → $76.95
39	Y0269201300	PUSH-LOCK HOSE	1		PARTS REQUEST
PHOTO COMING PUSH-LOCK HOSE Y0269201300 · qty on machine: 1 PARTS REQUEST
40	0603306395	MALE PIPE	1		ADD TO CART
MALE PIPE 0603306395 · qty on machine: 1 view full part page → $16.95
41	0605511395	BALL VALVE	1		ADD TO CART
BALL VALVE 0605511395 · qty on machine: 1 view full part page → $46.95
42	0603306590	MALE BULKHEAD CONNECTOR	1		ADD TO CART
MALE BULKHEAD CONNECTOR 0603306590 · qty on machine: 1 view full part page → $86.95
43	0603300285	BULKHEAD LOCKNUT	1		ADD TO CART
BULKHEAD LOCKNUT 0603300285 · qty on machine: 1 view full part page → $4.95
44	Y0602021070	CAP	1		ADD TO CART
CAP Y0602021070 · qty on machine: 1 Factory replaced this part - current number 0602021070 view full part page → $11.95 IN A KIT + SOLD SOLO
45	Y0605000620	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION Y0605000620 · qty on machine: 2 view full part page → $93.95
46	0030016000	HEX. NUT	2		ADD TO CART
HEX. NUT 0030016000 · qty on machine: 2 view full part page → $1.9
46A	0040016000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 2 view full part page → $4.95
47	M3314300104	CAC PIPE BRACKET	1		PARTS REQUEST
PHOTO COMING CAC PIPE BRACKET M3314300104 · qty on machine: 1 PARTS REQUEST
48	0602326063	U-BOLT	2		ADD TO CART
U-BOLT 0602326063 · qty on machine: 2 view full part page → $11.95
49	M3311201004	RADIATOR BRACKET	2		ADD TO CART
RADIATOR BRACKET M3311201004 · qty on machine: 2 view full part page → $129.95
49A	M3494110104	ACOUSTIC SHEET	2		ADD TO CART
ACOUSTIC SHEET M3494110104 · qty on machine: 2 view full part page → $551.95
50	Y0016908015	HEX. HEAD BOLT	16		ADD TO CART
HEX. HEAD BOLT Y0016908015 · qty on machine: 16 view full part page → $1.95
51	011008020	HEX. HEAD BOLT	10	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 10 REPLACES P/N 0016908020 view full part page → $2.68
52	M3311301903	FAN SHROUD	1		PARTS REQUEST
PHOTO COMING FAN SHROUD M3311301903 · qty on machine: 1 PARTS REQUEST
53	M3311302003	FAN SHROUD	1		PARTS REQUEST
PHOTO COMING FAN SHROUD M3311302003 · qty on machine: 1 PARTS REQUEST
54	011008020	HEX. HEAD BOLT	12	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 12 REPLACES P/N 0016908020 view full part page → $2.68
55	M3311300813	FAN GUARD, RADIATOR	1		ADD TO CART
FAN GUARD, RADIATOR M3311300813 · qty on machine: 1 view full part page → $158.95
56	M3311302103	FAN GUARD	1		PARTS REQUEST
PHOTO COMING FAN GUARD M3311302103 · qty on machine: 1 PARTS REQUEST
57	011008020	HEX. HEAD BOLT	17	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 17 REPLACES P/N 0016908020 view full part page → $2.68
58	0602220911	CLAMP (L)	2		ADD TO CART
CLAMP (L) 0602220911 · qty on machine: 2 view full part page → $1.85
59	Y0602044509	BLOW-BY FILTER COVER, UPPER	1		ADD TO CART
BLOW-BY FILTER COVER, UPPER Y0602044509 · qty on machine: 1 view full part page → $608.95
60	Y0602044503	BLOW-BY FILTER COVER, LOWER	1		ADD TO CART
BLOW-BY FILTER COVER, LOWER Y0602044503 · qty on machine: 1 view full part page → $306.95
61	Y0013616030	HEX. HEAD BOLT	1		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0013616030 · qty on machine: 1 PARTS REQUEST
61A	0040016000	WASHER, LOCK	1		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 1 view full part page → $4.95
61B	0041216000	WASHER, FLAT	1		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 1 view full part page → $1.95
62	0012116060	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0012116060 · qty on machine: 1 view full part page → $6.95
62A	0040016000	WASHER, LOCK	1		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 1 view full part page → $4.95
62B	0041216000	WASHER, FLAT	2		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 2 view full part page → $1.95
62C	0030016000	HEX. NUT	1		ADD TO CART
HEX. NUT 0030016000 · qty on machine: 1 view full part page → $1.9
63	Y0602010226	WATER PUMP JOINT	1		NO LONGER AVAILABLE
PHOTO COMING WATER PUMP JOINT Y0602010226 · qty on machine: 1 NO LONGER AVAILABLE

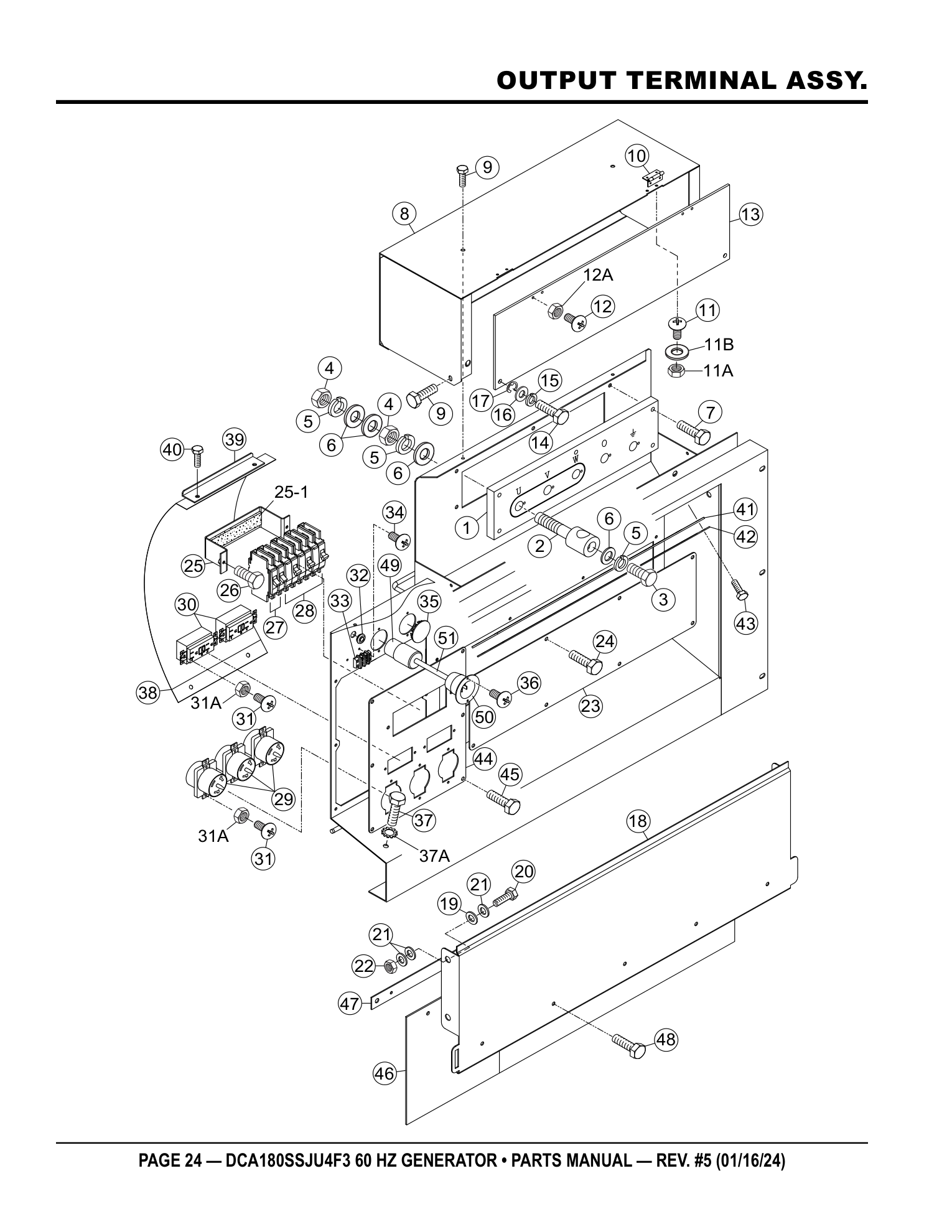

Page 24 — OUTPUT TERMINAL ASSY.

Multiquip DCA180SSJU4F3 Generator OUTPUT TERMINAL ASSY. parts diagram

Parts list — exactly as printed45 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3230700113	TERMINAL BOARD	1		ADD TO CART
TERMINAL BOARD M3230700113 · qty on machine: 1 view full part page → $399.95
2	M9220100914	OUTPUT TERMINAL BOLT	5		ADD TO CART
OUTPUT TERMINAL BOLT M9220100914 · qty on machine: 5 view full part page → $197.95
3	M9220101004	TIE BOLT	5		ADD TO CART
TIE BOLT M9220101004 · qty on machine: 5 view full part page → $41.95
4	0039320000	HEX. NUT	10		ADD TO CART
HEX. NUT 0039320000 · qty on machine: 10 view full part page → $16.95
5	0040020000	WASHER, LOCK	15		ADD TO CART
WASHER, LOCK 0040020000 · qty on machine: 15 Factory replaced this part - current number 030220510 view full part page → $1.95 IN A KIT + SOLD SOLO
6	0041420000	WASHER, FLAT	20		ADD TO CART
WASHER, FLAT 0041420000 · qty on machine: 20 view full part page → $5.95
7	0016908040	HEX. HEAD BOLT	5		ADD TO CART
HEX. HEAD BOLT 0016908040 · qty on machine: 5 view full part page → $1.52
8	M4236100403	TERMINAL COVER	1		ADD TO CART
TERMINAL COVER M4236100403 · qty on machine: 1 view full part page → $231.95
9	0016906015	HEX. HEAD BOLT 6X16	4		ADD TO CART
HEX. HEAD BOLT 6X16 0016906015 · qty on machine: 4 view full part page → $0.95
10	0605010040	HINGE	2		ADD TO CART
HINGE 0605010040 · qty on machine: 2 view full part page → $4.95
11	0027103010	MACHINE SCREW M3X10	4		ADD TO CART
MACHINE SCREW M3X10 0027103010 · qty on machine: 4 view full part page → $0.44
11A	0207003000	HEX. NUT	4	REPLACES P/N 0030003000	ADD TO CART
HEX. NUT 0207003000 · qty on machine: 4 REPLACES P/N 0030003000 view full part page → $0.21
11B	0041203000	WASHER, FLAT	4		ADD TO CART
WASHER, FLAT 0041203000 · qty on machine: 4 view full part page → $0.12
12	0027103015	MACHINE SCREW 3MM X 15MM	4		ADD TO CART
MACHINE SCREW 3MM X 15MM 0027103015 · qty on machine: 4 view full part page → $0.64
12A	0207003000	HEX. NUT	4	REPLACES P/N 0030003000	ADD TO CART
HEX. NUT 0207003000 · qty on machine: 4 REPLACES P/N 0030003000 view full part page → $0.21
13	M4236100504	OUTPUT WINDOW	1		ADD TO CART
OUTPUT WINDOW M4236100504 · qty on machine: 1 view full part page → $102.95
14	M9220100804	SET SCREW	2		ADD TO CART
SET SCREW M9220100804 · qty on machine: 2 view full part page → $20.95
15	0040006000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040006000 · qty on machine: 2 view full part page → $0.17
16	952404470	WASHER, FLAT	2	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 2 REPLACES P/N 0041206000 view full part page → $0.19
17	0080200005	E-RING	2		ADD TO CART
E-RING 0080200005 · qty on machine: 2 view full part page → $0.25
18	M3237100503	TERMINAL COVER	1		ADD TO CART
TERMINAL COVER M3237100503 · qty on machine: 1 view full part page → $126.95
19	0605050060	CONICAL SPRING WASHER	2		ADD TO CART
CONICAL SPRING WASHER 0605050060 · qty on machine: 2 view full part page → $5.95
20	Y0013612045	HEX. HEAD BOLT	2		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0013612045 · qty on machine: 2 PARTS REQUEST
21	031112230	WASHER, FLAT	6	REPLACES P/N 0041212000	ADD TO CART
WASHER, FLAT 031112230 · qty on machine: 6 REPLACES P/N 0041212000 view full part page → $0.95
22	0030012000	HEX NUT	2		ADD TO CART
HEX NUT 0030012000 · qty on machine: 2 view full part page → $0.5
23	M4236400204	COVER	1		PARTS REQUEST
PHOTO COMING COVER M4236400204 · qty on machine: 1 PARTS REQUEST
24	0016906015	HEX HEAD BOLT 6X16	8		ADD TO CART
HEX HEAD BOLT 6X16 0016906015 · qty on machine: 8 view full part page → $0.95
25	M4260600104	BRACKET, CIRCUIT BREAKER	1		ADD TO CART
BRACKET, CIRCUIT BREAKER M4260600104 · qty on machine: 1 view full part page → $57.95
25-1	0222100150	RUBBER CUSHION	1		ADD TO CART
RUBBER CUSHION 0222100150 · qty on machine: 1 view full part page → $6.95
26	Y0016906020	HEX HEAD BOLT	2		ADD TO CART
HEX HEAD BOLT Y0016906020 · qty on machine: 2 view full part page → $1.45
27	0601808803	CIRCUIT BREAKER, 1P 20A	2		ADD TO CART
CIRCUIT BREAKER, 1P 20A 0601808803 · qty on machine: 2 view full part page → $46.95
28	0601808804	CIRCUIT BREAKER, 2P 50A	3		ADD TO CART
CIRCUIT BREAKER, 2P 50A 0601808804 · qty on machine: 3 view full part page → $98.95
29	0601814014	RECEPTACLE, 50A	3	REPLACES P/N Y0601814014	ADD TO CART
RECEPTACLE, 50A 0601814014 · qty on machine: 3 REPLACES P/N Y0601814014 view full part page → $90.95
30	Y0601814034	RECEPTACLE, 20A	2	REPLACES P/N 0601814024	ADD TO CART
RECEPTACLE, 20A Y0601814034 · qty on machine: 2 REPLACES P/N 0601814024 view full part page → $91.95
31	0027104015	MACHINE SCREW	10		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 10 view full part page → $0.53
31A	OEMAA8	SELF-LOCKING NUT	10	REPLACES P/N 0207004000	ADD TO CART
SELF-LOCKING NUT OEMAA8 · qty on machine: 10 REPLACES P/N 0207004000 view full part page → $0.4
ADDTHE	FOLLOWINGDIGITS	AFTER THE PART			PARTS REQUEST
PHOTO COMING AFTER THE PART FOLLOWINGDIGITS PARTS REQUEST
NUMBER	WHENORDERING	ANY PAINTED PANEL TO			PARTS REQUEST
PHOTO COMING ANY PAINTED PANEL TO WHENORDERING PARTS REQUEST
INDICATE	COLOROFUNIT:				PARTS REQUEST
PHOTO COMING COLOROFUNIT: PARTS REQUEST
1-ORANGE		6-CATERPILLAR YELLOW			SEE REMARKS
PHOTO COMING 6-CATERPILLAR YELLOW SEE REMARKS
2-WHITE		7-CATO GOLD			SEE REMARKS
PHOTO COMING 7-CATO GOLD SEE REMARKS
3-SPECTRUM	GREY	8-RED			PARTS REQUEST
PHOTO COMING 8-RED GREY PARTS REQUEST
4-SUNBELT	GREEN	9-DESERT TAN			PARTS REQUEST
PHOTO COMING 9-DESERT TAN GREEN PARTS REQUEST
5-BLACK					SEE REMARKS
PHOTO COMING SEE REMARKS
THESERIAL	NUMBERMAY	BE REQUIRED.			PARTS REQUEST
PHOTO COMING BE REQUIRED. NUMBERMAY PARTS REQUEST

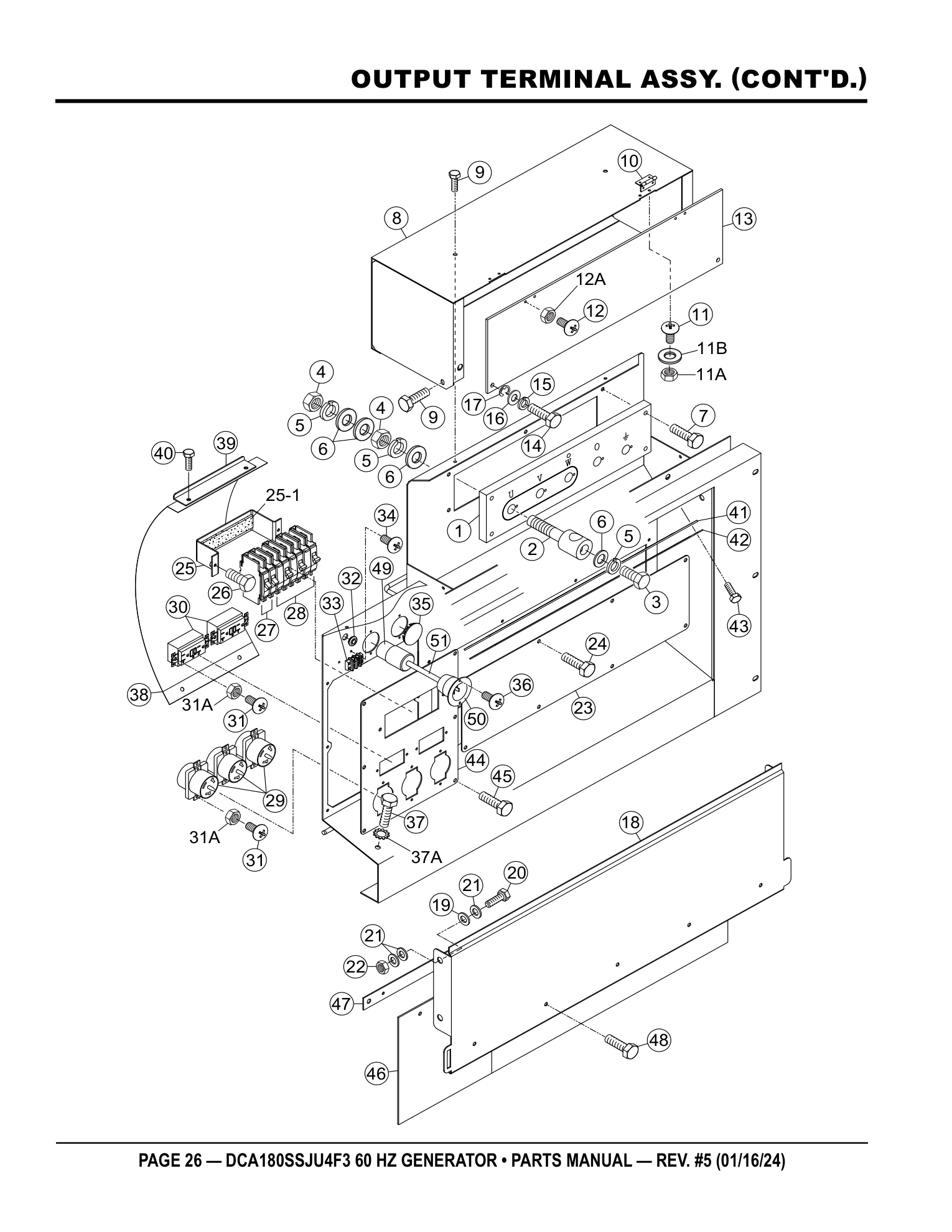

Page 26 — OUTPUT TERMINAL ASSY. (CONT'D.)

Multiquip DCA180SSJU4F3 Generator OUTPUT TERMINAL ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed33 rows

No.	Part No.	Part Name	Qty	Remarks
32	0601850275	GROMMET	1		ADD TO CART
GROMMET 0601850275 · qty on machine: 1 view full part page → $2.68
33	0601815194	TERMINAL BLOCK, 601-GP-02	1	S/N 8900751 AND BELOW	NO LONGER AVAILABLE
PHOTO COMING TERMINAL BLOCK, 601-GP-02 0601815194 · qty on machine: 1 S/N 8900751 AND BELOW NO LONGER AVAILABLE
33	Y0601816539	TERMINAL BLOCK, TB200-02	1	S/N 8900752 ~ 8900755 S/N 8900762 ~ 8900794	ADD TO CART
TERMINAL BLOCK, TB200-02 Y0601816539 · qty on machine: 1 S/N 8900752 ~ 8900755 S/N 8900762 ~ 8900794 view full part page → $15.95
33	0601815870	TERMINAL BLOCK, KT-20-2P	1	S/N 8900756 ~ 8900761 S/N 8900795 AND ABOVE	ADD TO CART
TERMINAL BLOCK, KT-20-2P 0601815870 · qty on machine: 1 S/N 8900756 ~ 8900761 S/N 8900795 AND ABOVE view full part page → $56.95
34	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
35	0603306775	BLIND PLUG	1		ADD TO CART
BLIND PLUG 0603306775 · qty on machine: 1 view full part page → $3.95
36	0027104015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 4 view full part page → $0.53
37	0019208020	HEX HEAD BOLT	1		ADD TO CART
HEX HEAD BOLT 0019208020 · qty on machine: 1 view full part page → $3.95
37A	0040508000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040508000 · qty on machine: 1 view full part page → $0.35
38	M3237100404	INSULATING COVER	1		ADD TO CART
INSULATING COVER M3237100404 · qty on machine: 1 view full part page → $160.95
39	M4236400304	BRACKET	1		ADD TO CART
BRACKET M4236400304 · qty on machine: 1 view full part page → $19.95
40	0016906015	HEX HEAD BOLT 6X16	2		ADD TO CART
HEX HEAD BOLT 6X16 0016906015 · qty on machine: 2 view full part page → $0.95
41	M4236400004	CABLE OUTLET COVER	1		ADD TO CART
CABLE OUTLET COVER M4236400004 · qty on machine: 1 view full part page → $9.95
42	M4236400104	SUPPORTER, CABLE OUTLET COVER	1		ADD TO CART
SUPPORTER, CABLE OUTLET COVER M4236400104 · qty on machine: 1 view full part page → $88.95
43	Y0016906020	HEX HEAD BOLT	8		ADD TO CART
HEX HEAD BOLT Y0016906020 · qty on machine: 8 view full part page → $1.45
44	M3454200904	RECEPTACLE BOARD	1		ADD TO CART
RECEPTACLE BOARD M3454200904 · qty on machine: 1 view full part page → $30.95
45	0016906015	HEX HEAD BOLT 6X16	6		ADD TO CART
HEX HEAD BOLT 6X16 0016906015 · qty on machine: 6 view full part page → $0.95
46	M3454700404	RUBBER SHEET	1		ADD TO CART
RUBBER SHEET M3454700404 · qty on machine: 1 view full part page → $62.95
47	M3454700504	RUBBER SHEET HOLDER	1		PARTS REQUEST
PHOTO COMING RUBBER SHEET HOLDER M3454700504 · qty on machine: 1 PARTS REQUEST
48	011206020	HEX HEAD BOLT 6X20	5	REPLACES P/N 0019206020	ADD TO CART
HEX HEAD BOLT 6X20 011206020 · qty on machine: 5 REPLACES P/N 0019206020 view full part page → $0.95
49	0601812527	CONNECTOR	1	S/N 8900714 AND BELOW	ADD TO CART
CONNECTOR 0601812527 · qty on machine: 1 S/N 8900714 AND BELOW view full part page → $64.95
50	Y0601811177	RECEPTACLE	1	S/N 8900714 AND BELOW	PARTS REQUEST
PHOTO COMING RECEPTACLE Y0601811177 · qty on machine: 1 S/N 8900714 AND BELOW PARTS REQUEST
51	Y0329101000	CABLE	1	S/N 8900714 AND BELOW	PARTS REQUEST
PHOTO COMING CABLE Y0329101000 · qty on machine: 1 S/N 8900714 AND BELOW PARTS REQUEST
51	Y0601813078	WATER HEATER CABLE	1	S/N 8900715 AND ABOVE	ADD TO CART
WATER HEATER CABLE Y0601813078 · qty on machine: 1 S/N 8900715 AND ABOVE view full part page → $105.95
ADDTHE	FOLLOWINGDIGITS	AFTER THE PART			PARTS REQUEST
PHOTO COMING AFTER THE PART FOLLOWINGDIGITS PARTS REQUEST
NUMBER	WHENORDERING	ANY PAINTED PANEL TO			PARTS REQUEST
PHOTO COMING ANY PAINTED PANEL TO WHENORDERING PARTS REQUEST
INDICATE	COLOROFUNIT:				PARTS REQUEST
PHOTO COMING COLOROFUNIT: PARTS REQUEST
1-ORANGE		6-CATERPILLAR YELLOW			SEE REMARKS
PHOTO COMING 6-CATERPILLAR YELLOW SEE REMARKS
2-WHITE		7-CATO GOLD			SEE REMARKS
PHOTO COMING 7-CATO GOLD SEE REMARKS
3-SPECTRUM	GREY	8-RED			PARTS REQUEST
PHOTO COMING 8-RED GREY PARTS REQUEST
4-SUNBELT	GREEN	9-DESERT TAN			PARTS REQUEST
PHOTO COMING 9-DESERT TAN GREEN PARTS REQUEST
5-BLACK					SEE REMARKS
PHOTO COMING SEE REMARKS
THESERIAL	NUMBERMAY	BE REQUIRED.			PARTS REQUEST
PHOTO COMING BE REQUIRED. NUMBERMAY PARTS REQUEST

Page 28 — CAMLOK PANEL ASSY. (OPTION)

Multiquip DCA180SSJU4F3 Generator CAMLOK PANEL ASSY. (OPTION) parts diagram

Parts list — exactly as printed15 rows

No.	Part No.	Part Name	Qty	Remarks
1	CAMLOK2KIT45H	CAMLOK 2 SET, 45°	1	INCLUDES ITEMS W/%	ADD TO CART
CAMLOK 2 SET, 45° CAMLOK2KIT45H · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 2%, 3%, 4%, 5%, 6%, 7%, 8%, 9%, 10%, 11%, 12%, 13%, 14%, 15% view full part page → $2098.41 IN A KIT + SOLD SOLO
2%	EE60030	CAMLOK, FEMALE, 45°, BLACK	2		ADD TO CART
CAMLOK, FEMALE, 45°, BLACK EE60030 · qty on machine: 2 Also included in kit 1 - CAMLOK 2 SET, 45° (CAMLOK2KIT45H) view full part page → $85.95 IN A KIT + SOLD SOLO
3%	EE60032	CAMLOK, FEMALE, 45°, RED	2		ADD TO CART
CAMLOK, FEMALE, 45°, RED EE60032 · qty on machine: 2 Also included in kit 1 - CAMLOK 2 SET, 45° (CAMLOK2KIT45H) view full part page → $85.95 IN A KIT + SOLD SOLO
4%	EE60033	CAMLOK, FEMALE, 45°, BLUE	2		ADD TO CART
CAMLOK, FEMALE, 45°, BLUE EE60033 · qty on machine: 2 Also included in kit 1 - CAMLOK 2 SET, 45° (CAMLOK2KIT45H) view full part page → $85.95 IN A KIT + SOLD SOLO
5%	EE60031	CAMLOK, FEMALE, 45°, WHITE	2		ADD TO CART
CAMLOK, FEMALE, 45°, WHITE EE60031 · qty on machine: 2 Also included in kit 1 - CAMLOK 2 SET, 45° (CAMLOK2KIT45H) view full part page → $85.95 IN A KIT + SOLD SOLO
6%	EE60034	CAMLOK, FEMALE, 45°, GREEN	2		ADD TO CART
CAMLOK, FEMALE, 45°, GREEN EE60034 · qty on machine: 2 Also included in kit 1 - CAMLOK 2 SET, 45° (CAMLOK2KIT45H) view full part page → $85.95 IN A KIT + SOLD SOLO
7%	EE60561	PANEL, 2 ROW CAMLOK, 45°	1		PARTS REQUEST
PHOTO COMING PANEL, 2 ROW CAMLOK, 45° EE60561 · qty on machine: 1 Also included in kit 1 - CAMLOK 2 SET, 45° (CAMLOK2KIT45H) PARTS REQUEST
8%	EE60055	BUS BAR, 2 SETS 45° CAMLOK, COP.	1		PARTS REQUEST
PHOTO COMING BUS BAR, 2 SETS 45° CAMLOK, COP. EE60055 · qty on machine: 1 Also included in kit 1 - CAMLOK 2 SET, 45° (CAMLOK2KIT45H) PARTS REQUEST
9%	EE59031	CAP, TERM. INSUL., 2/0-4/0 AWG	9		ADD TO CART
CAP, TERM. INSUL., 2/0-4/0 AWG EE59031 · qty on machine: 9 Also included in kit 1 - CAMLOK 2 SET, 45° (CAMLOK2KIT45H) view full part page → $8.95 IN A KIT + SOLD SOLO
10%	EE60797	CAMLOK CABLE KIT, DUAL,	1		PARTS REQUEST
PHOTO COMING CAMLOK CABLE KIT, DUAL, EE60797 · qty on machine: 1 Also included in kit 1 - CAMLOK 2 SET, 45° (CAMLOK2KIT45H) PARTS REQUEST
11%		SCREW, 10-32 X 3/4"	40		INCLUDED IN KIT
PHOTO COMING SCREW, 10-32 X 3/4" · qty on machine: 40 Included in kit 1 - CAMLOK 2 SET, 45° (CAMLOK2KIT45H) INCLUDED IN KIT
12%		NUT, EXT. TOOTH LOCK 10-32	40		INCLUDED IN KIT
PHOTO COMING NUT, EXT. TOOTH LOCK 10-32 · qty on machine: 40 Included in kit 1 - CAMLOK 2 SET, 45° (CAMLOK2KIT45H) INCLUDED IN KIT
13%		HEX. NUT, 4/2-13 BRASS	10		INCLUDED IN KIT
PHOTO COMING HEX. NUT, 4/2-13 BRASS · qty on machine: 10 Included in kit 1 - CAMLOK 2 SET, 45° (CAMLOK2KIT45H) INCLUDED IN KIT
14%		WASHER, PLAIN, SAE 1/2" BRASS	10		INCLUDED IN KIT
PHOTO COMING WASHER, PLAIN, SAE 1/2" BRASS · qty on machine: 10 Included in kit 1 - CAMLOK 2 SET, 45° (CAMLOK2KIT45H) INCLUDED IN KIT
15%		WASHER, LOCK, SAE 1/2" BRASS	10		INCLUDED IN KIT
PHOTO COMING WASHER, LOCK, SAE 1/2" BRASS · qty on machine: 10 Included in kit 1 - CAMLOK 2 SET, 45° (CAMLOK2KIT45H) INCLUDED IN KIT

Page 30 — BATTERY ASSY.

Multiquip DCA180SSJU4F3 Generator BATTERY ASSY. parts diagram

Parts list — exactly as printed15 rows

No.	Part No.	Part Name	Qty	Remarks
1	0602220198	BATTERY 904D	1		ADD TO CART
BATTERY 904D 0602220198 · qty on machine: 1 view full part page → $500.95
2	M9103000504	BATTERY BAND	1		ADD TO CART
BATTERY BAND M9103000504 · qty on machine: 1 view full part page → $107.95
3	0602220921	BATTERY BOLT SET BHB-12J 1/4-L12"	2	INCLUDES ITEMS W/#	ADD TO CART
BATTERY BOLT SET BHB-12J 1/4-L12" 0602220921 · qty on machine: 2 INCLUDES ITEMS W/# Kit includes: 3A#, 3B# view full part page → $5.95 IN A KIT + SOLD SOLO
3A#		WING NUT	2		INCLUDED IN KIT
PHOTO COMING WING NUT · qty on machine: 2 Included in kit 3 - BATTERY BOLT SET BHB-12J 1 (0602220921) INCLUDED IN KIT
3B#		WASHER, PLASTIC	2		INCLUDED IN KIT
PHOTO COMING WASHER, PLASTIC · qty on machine: 2 Included in kit 3 - BATTERY BOLT SET BHB-12J 1 (0602220921) INCLUDED IN KIT
4	M9310500404	BATTERY SHEET	1	NO LONGER AVAILABLE	PARTS REQUEST
PHOTO COMING BATTERY SHEET M9310500404 · qty on machine: 1 NO LONGER AVAILABLE PARTS REQUEST
5	M5347900504	BATTERY CABLE	1		ADD TO CART
BATTERY CABLE M5347900504 · qty on machine: 1 view full part page → $365.95
6	M5347900604	BATTERY CABLE	1		PARTS REQUEST
PHOTO COMING BATTERY CABLE M5347900604 · qty on machine: 1 PARTS REQUEST
7	Y0013616030	HEX. HEAD BOLT	1		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0013616030 · qty on machine: 1 PARTS REQUEST
7A	0040016000	WASHER, LOCK	1		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 1 view full part page → $4.95
7B	0041216000	WASHER, FLAT	1		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 1 view full part page → $1.95
7C	0040516000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040516000 · qty on machine: 1 view full part page → $1.39
8	0016910025	HEX. HEAD BOLT 10X25	1		ADD TO CART
HEX. HEAD BOLT 10X25 0016910025 · qty on machine: 1 view full part page → $1.56
8A	0040510000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040510000 · qty on machine: 1 view full part page → $0.77
9		EARTH CABLE	1	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING EARTH CABLE · qty on machine: 1 OBTAIN LOCALLY SEE REMARKS

Page 32 — MUFFLER ASSY.

Multiquip DCA180SSJU4F3 Generator MUFFLER ASSY. parts diagram

Parts list — exactly as printed37 rows

No.	Part No.	Part Name	Qty	Remarks
1	DZ100501	DIESEL OXIDATION CATALYST	1	REPLACES P/N 0602330106	NO LONGER AVAILABLE
PHOTO COMING DIESEL OXIDATION CATALYST DZ100501 · qty on machine: 1 REPLACES P/N 0602330106 NO LONGER AVAILABLE
2	DZ100467	SCR CATALYST	1	REPLACES P/N 0602330304	ADD TO CART
SCR CATALYST DZ100467 · qty on machine: 1 REPLACES P/N 0602330304 view full part page → $16507.95
3	RE565074	DECOMPOSITION TUBE	1	REPLACES P/N 0602330403	ADD TO CART
DECOMPOSITION TUBE RE565074 · qty on machine: 1 REPLACES P/N 0602330403 view full part page → $2420.95
4	RE559456	DECOMPOSITION EXTENTION TUBE	1	REPLACES P/N 0602330404	PARTS REQUEST
PHOTO COMING DECOMPOSITION EXTENTION TUBE RE559456 · qty on machine: 1 REPLACES P/N 0602330404 PARTS REQUEST
5	RE540348	CLAMP, V-BAND	3	REPLACES P/N 0602325034	ADD TO CART
CLAMP, V-BAND RE540348 · qty on machine: 3 REPLACES P/N 0602325034 view full part page → $163.95
6	R529640	GASKET	3	REPLACES P/N 0602320205	ADD TO CART
GASKET R529640 · qty on machine: 3 REPLACES P/N 0602320205 view full part page → $97.95
7	RE560468	DEF DOSING INJECTOR	1	REPLACES P/N 0602330405	ADD TO CART
DEF DOSING INJECTOR RE560468 · qty on machine: 1 REPLACES P/N 0602330405 view full part page → $1355.95
8	RE556879	GASKET	1	REPLACES P/N 0602330406	ADD TO CART
GASKET RE556879 · qty on machine: 1 REPLACES P/N 0602330406 view full part page → $25.95
9	R537624	HEX HEAD BOLT	3	REPLACES P/N 0602330407	ADD TO CART
HEX HEAD BOLT R537624 · qty on machine: 3 REPLACES P/N 0602330407 view full part page → $4.95
10	RE289839	CLAMP, V-BAND	1		ADD TO CART
CLAMP, V-BAND RE289839 · qty on machine: 1 view full part page → $107.95
11	R528112	SEALING RING	1		ADD TO CART
SEALING RING R528112 · qty on machine: 1 view full part page → $116.95
12	Y0602325026	PIPE BAND	1		ADD TO CART
PIPE BAND Y0602325026 · qty on machine: 1 view full part page → $37.95
13	M3334100103	TAIL PIPE	1		ADD TO CART
TAIL PIPE M3334100103 · qty on machine: 1 view full part page → $1146.95
13A	Y0602311172	INSULATING MAT, EXHAUST	1		ADD TO CART
INSULATING MAT, EXHAUST Y0602311172 · qty on machine: 1 view full part page → $157.95
14	0400005080	INSULATING WRAP, EXHAUST	1		ADD TO CART
INSULATING WRAP, EXHAUST 0400005080 · qty on machine: 1 view full part page → $140.95
15	M3334001203	PIPE, EXHAUST	1		ADD TO CART
PIPE, EXHAUST M3334001203 · qty on machine: 1 view full part page → $414.95
15A	0602311170	INSULATING MAT, EXHAUST	1		PARTS REQUEST
PHOTO COMING INSULATING MAT, EXHAUST 0602311170 · qty on machine: 1 PARTS REQUEST
15B	0602311171	INSULATING MAT, EXHAUST	1		PARTS REQUEST
PHOTO COMING INSULATING MAT, EXHAUST 0602311171 · qty on machine: 1 PARTS REQUEST
16	RE298757	V-BAND CLAMP	1		ADD TO CART
V-BAND CLAMP RE298757 · qty on machine: 1 view full part page → $162.95
17	R300529	SEALING RING	1		ADD TO CART
SEALING RING R300529 · qty on machine: 1 view full part page → $140.95
18	0602326060	U-BOLT	1		ADD TO CART
U-BOLT 0602326060 · qty on machine: 1 view full part page → $16.95
19	M3334300604	COVER, EXHAUST PIPE	1		PARTS REQUEST
PHOTO COMING COVER, EXHAUST PIPE M3334300604 · qty on machine: 1 PARTS REQUEST
20	M3334300503	BRACKET, EXHAUST PIPE	1		PARTS REQUEST
PHOTO COMING BRACKET, EXHAUST PIPE M3334300503 · qty on machine: 1 PARTS REQUEST
21	011008020	HEX. HEAD BOLT 8X20	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 8X20 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
22	M3331200302	BRACKET, DOC AND SCR	1		PARTS REQUEST
PHOTO COMING BRACKET, DOC AND SCR M3331200302 · qty on machine: 1 PARTS REQUEST
23	0016910025	HEX. HEAD BOLT 10X25	4		ADD TO CART
HEX. HEAD BOLT 10X25 0016910025 · qty on machine: 4 view full part page → $1.56
24	M3331400604	DPF BAND	2		ADD TO CART
DPF BAND M3331400604 · qty on machine: 2 view full part page → $77.95
25	M3331400704	SCR BAND	2		ADD TO CART
SCR BAND M3331400704 · qty on machine: 2 view full part page → $17.95
26	011008020	HEX. HEAD BOLT 8X20	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 8X20 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
27	020108060	U-NUT	4	REPLACES P/N 0037908000	ADD TO CART
U-NUT 020108060 · qty on machine: 4 REPLACES P/N 0037908000 view full part page → $0.28
27A	0401450080	WASHER, FLAT	4	REPLACES P/N 0041208000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 4 REPLACES P/N 0041208000 view full part page → $0.56
28	Y0013616030	HEX. HEAD BOLT	4		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0013616030 · qty on machine: 4 PARTS REQUEST
28A	0040016000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 4 view full part page → $4.95
28B	0041216000	WASHER, FLAT	4		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 4 view full part page → $1.95
29	0605515202	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515202 · qty on machine: 2 view full part page → $9.95
30	011008020	HEX. HEAD BOLT 8X20	1	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 8X20 011008020 · qty on machine: 1 REPLACES P/N 0016908020 view full part page → $2.68
31	0601851736	GROMMET	2		ADD TO CART
GROMMET 0601851736 · qty on machine: 2 view full part page → $12.95

Page 34 — DEF TANK ASSY.

Multiquip DCA180SSJU4F3 Generator DEF TANK ASSY. parts diagram

Parts list — exactly as printed46 rows

No.	Part No.	Part Name	Qty	Remarks
1	DZ113662	DEF TANK	1	REPLACES P/N 0605500074	ADD TO CART
DEF TANK DZ113662 · qty on machine: 1 REPLACES P/N 0605500074 view full part page → $2550.95
2	M5331402103	BRACKET, DEF TANK	1		PARTS REQUEST
PHOTO COMING BRACKET, DEF TANK M5331402103 · qty on machine: 1 PARTS REQUEST
2A	0222100480	SEAL, RUBBER	2		PARTS REQUEST
PHOTO COMING SEAL, RUBBER 0222100480 · qty on machine: 2 PARTS REQUEST
3	011208025	HEX HEAD BOLT 8X25	2	REPLACES P/N 0016908025	ADD TO CART
HEX HEAD BOLT 8X25 011208025 · qty on machine: 2 REPLACES P/N 0016908025 view full part page → $0.41
4	011008020	HEX HEAD BOLT 8X20	2	REPLACES P/N 0016908020	ADD TO CART
HEX HEAD BOLT 8X20 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
5	M3331402804	DEF TANK BAND	2		ADD TO CART
DEF TANK BAND M3331402804 · qty on machine: 2 view full part page → $233.95
6	M5331402004	DEF TANK BAND	2		PARTS REQUEST
PHOTO COMING DEF TANK BAND M5331402004 · qty on machine: 2 PARTS REQUEST
7	Y0207008000	SELF-LOCKING NUT	4		ADD TO CART
SELF-LOCKING NUT Y0207008000 · qty on machine: 4 view full part page → $0.4
8	011008020	HEX HEAD BOLT 8X25	4	REPLACES P/N 0016908020	ADD TO CART
HEX HEAD BOLT 8X25 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
9	RE552175	DEF SUPPLY MODULE	1	REPLACES P/N 0602330400	ADD TO CART
DEF SUPPLY MODULE RE552175 · qty on machine: 1 REPLACES P/N 0602330400 view full part page → $2050.95
9A	RE55498	FILTER KIT, DEF SUPPLY MODULE	1		ADD TO CART
FILTER KIT, DEF SUPPLY MODULE RE55498 · qty on machine: 1 view full part page → $373.95
9B	RE555351	COVER KIT, DEF SUPPLY MODULE	1		ADD TO CART
COVER KIT, DEF SUPPLY MODULE RE555351 · qty on machine: 1 view full part page → $34.95
10	0013608090	HEX HEAD BOLT	3		PARTS REQUEST
PHOTO COMING HEX HEAD BOLT 0013608090 · qty on machine: 3 PARTS REQUEST
10A	0040008000	WASHER, LOCK	3		ADD TO CART
WASHER, LOCK 0040008000 · qty on machine: 3 view full part page → $0.63
10B	0401450080	WASHER, FLAT	3	REPLACES P/N 0041208000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 3 REPLACES P/N 0041208000 view full part page → $0.56
11	RE560893	DEF SUCTION LINE	1	REPLACES P/N 0602330428 S/N 8900690 AND BELOW	ADD TO CART
DEF SUCTION LINE RE560893 · qty on machine: 1 REPLACES P/N 0602330428 S/N 8900690 AND BELOW view full part page → $441.95
11	0602330512	DEF SUCTION LINE	1	S/N 8900691 AND ABOVE	PARTS REQUEST
PHOTO COMING DEF SUCTION LINE 0602330512 · qty on machine: 1 S/N 8900691 AND ABOVE PARTS REQUEST
12	RE560877	DEF BACKFLOW LINE	1	REPLACES P/N 0602330429	ADD TO CART
DEF BACKFLOW LINE RE560877 · qty on machine: 1 REPLACES P/N 0602330429 view full part page → $460.95
13	RE560897	DEF PRESSURE LINE	1	REPLACES P/N 0602330423	ADD TO CART
DEF PRESSURE LINE RE560897 · qty on machine: 1 REPLACES P/N 0602330423 view full part page → $700.95
13A	Y0602311173	INSULATING SLEEVE	1	S/N 8900818 AND ABOVE	ADD TO CART
INSULATING SLEEVE Y0602311173 · qty on machine: 1 S/N 8900818 AND ABOVE view full part page → $48.95
14	AT377287	HOSE BARB	1	REPLACES P/N 0602022975	ADD TO CART
HOSE BARB AT377287 · qty on machine: 1 REPLACES P/N 0602022975 view full part page → $49.95
15	0269300520	COOLANT HOSE	1		PARTS REQUEST
PHOTO COMING COOLANT HOSE 0269300520 · qty on machine: 1 PARTS REQUEST
16	0269303200	COOLANT HOSE	1		ADD TO CART
COOLANT HOSE 0269303200 · qty on machine: 1 view full part page → $4.95
17	0605515341	HOSE BAND	2		PARTS REQUEST
PHOTO COMING HOSE BAND 0605515341 · qty on machine: 2 PARTS REQUEST
18	T317541	BLACK T-FITTING W/ORIFICE	1	REPLACES P/N 0602022976	ADD TO CART
BLACK T-FITTING W/ORIFICE T317541 · qty on machine: 1 REPLACES P/N 0602022976 view full part page → $17.95
19	T296925	WHITE T-FITTING	1	REPLACES P/N 0602022977	ADD TO CART
WHITE T-FITTING T296925 · qty on machine: 1 REPLACES P/N 0602022977 view full part page → $12.95
20	Y0379602130	COOLANT HOSE	2		PARTS REQUEST
PHOTO COMING COOLANT HOSE Y0379602130 · qty on machine: 2 PARTS REQUEST
20A	Y0602311173	INSULATING SLEEVE	1	S/N 8900818 AND ABOVE	ADD TO CART
INSULATING SLEEVE Y0602311173 · qty on machine: 1 S/N 8900818 AND ABOVE view full part page → $48.95
21	0605515340	HOSE BAND	4		PARTS REQUEST
PHOTO COMING HOSE BAND 0605515340 · qty on machine: 4 PARTS REQUEST
22	0602022559	90° ELBOW	1		PARTS REQUEST
PHOTO COMING 90° ELBOW 0602022559 · qty on machine: 1 PARTS REQUEST
23	0602022980	HOSE JOINT	1		ADD TO CART
HOSE JOINT 0602022980 · qty on machine: 1 view full part page → $11.95
24	0379703250	COOLANT HOSE	1	S/N 8900690 AND BELOW	ADD TO CART
COOLANT HOSE 0379703250 · qty on machine: 1 S/N 8900690 AND BELOW view full part page → $52.95
24	0379702680	COOLANT HOSE	1	S/N 8900691 AND ABOVE	PARTS REQUEST
PHOTO COMING COOLANT HOSE 0379702680 · qty on machine: 1 S/N 8900691 AND ABOVE PARTS REQUEST
25	0379700340	COOLANT HOSE	1	S/N 8900690 AND BELOW	PARTS REQUEST
PHOTO COMING COOLANT HOSE 0379700340 · qty on machine: 1 S/N 8900690 AND BELOW PARTS REQUEST
25	0379700220	COOLANT HOSE	1	S/N 8900691 AND ABOVE	PARTS REQUEST
PHOTO COMING COOLANT HOSE 0379700220 · qty on machine: 1 S/N 8900691 AND ABOVE PARTS REQUEST
26	0605515341	HOSE BAND, 62P08	6	S/N 8900794 AND BELOW	PARTS REQUEST
PHOTO COMING HOSE BAND, 62P08 0605515341 · qty on machine: 6 S/N 8900794 AND BELOW PARTS REQUEST
26	0605515198	HOSE BAND,	5008	6 S/N 8900795 AND ABOVE	ADD TO CART
HOSE BAND, 0605515198 · qty on machine: 5008 6 S/N 8900795 AND ABOVE view full part page → $1.71
27	0191301150	VENT HOSE	1		ADD TO CART
VENT HOSE 0191301150 · qty on machine: 1 view full part page → $47.95
28	0605515340	HOSE BAND	2		PARTS REQUEST
PHOTO COMING HOSE BAND 0605515340 · qty on machine: 2 PARTS REQUEST
29	0601851756	GROMMET	1		ADD TO CART
GROMMET 0601851756 · qty on machine: 1 view full part page → $15.95
30	H216170	FITTING, DEF TANK VENT	1	REPLACES P/N 0602330402	ADD TO CART
FITTING, DEF TANK VENT H216170 · qty on machine: 1 REPLACES P/N 0602330402 view full part page → $32.95
31	H216169	FILTER, DEF TANK VENT	1	REPLACES P/N 0602330401	ADD TO CART
FILTER, DEF TANK VENT H216169 · qty on machine: 1 REPLACES P/N 0602330401 view full part page → $54.95
32	RE575061	NOX SENSOR	2	REPLACES P/N 0602330427	PARTS REQUEST
PHOTO COMING NOX SENSOR RE575061 · qty on machine: 2 REPLACES P/N 0602330427 PARTS REQUEST
33	RE566739	SCR TEMP. SENSOR	1	REPLACES P/N 0602330426	ADD TO CART
SCR TEMP. SENSOR RE566739 · qty on machine: 1 REPLACES P/N 0602330426 view full part page → $1236.95
34	0016906015	HEX HEAD BOLT 6X16	6		ADD TO CART
HEX HEAD BOLT 6X16 0016906015 · qty on machine: 6 view full part page → $0.95
35	RE542006	STRAP TEMP. SENSOR	1	REPLACES P/N 0602330205	ADD TO CART
STRAP TEMP. SENSOR RE542006 · qty on machine: 1 REPLACES P/N 0602330205 view full part page → $23.95

Page 36 — DEF TANK ASSY. (CONT'D.)

Multiquip DCA180SSJU4F3 Generator DEF TANK ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed13 rows

No.	Part No.	Part Name	Qty	Remarks
36	DZ103804	DEF HEADER	1	REPLACES P/N 0602330422	NO LONGER AVAILABLE
PHOTO COMING DEF HEADER DZ103804 · qty on machine: 1 REPLACES P/N 0602330422 NO LONGER AVAILABLE
37	19M10399	HEX HEAD BOLT	3	REPLACES P/N 0602330420	PARTS REQUEST
PHOTO COMING HEX HEAD BOLT 19M10399 · qty on machine: 3 REPLACES P/N 0602330420 PARTS REQUEST
38	0602311190	SLEEVE, INSULATING, HARNESS	2	S/N 8900817 AND BELOW	PARTS REQUEST
PHOTO COMING SLEEVE, INSULATING, HARNESS 0602311190 · qty on machine: 2 S/N 8900817 AND BELOW PARTS REQUEST
38	Y0602311197	SLEEVE, INSULATING, HARNESS	1	S/N 8900818 AND ABOVE	ADD TO CART
SLEEVE, INSULATING, HARNESS Y0602311197 · qty on machine: 1 S/N 8900818 AND ABOVE view full part page → $37.95
39	0602330513	DEF SUCTION JUMPER LINE	1	S/N 8900691 AND ABOVE	PARTS REQUEST
PHOTO COMING DEF SUCTION JUMPER LINE 0602330513 · qty on machine: 1 S/N 8900691 AND ABOVE PARTS REQUEST
40	0602330510	DEF IN-LINE FILTER	1	S/N 8900691 AND ABOVE	PARTS REQUEST
PHOTO COMING DEF IN-LINE FILTER 0602330510 · qty on machine: 1 S/N 8900691 AND ABOVE PARTS REQUEST
40A	0602330511	DEF FILTER KIT	1	S/N 8900691 AND ABOVE	ADD TO CART
DEF FILTER KIT 0602330511 · qty on machine: 1 S/N 8900691 AND ABOVE view full part page → $199.95
41	M5331402204	DEF FILTER BRACKET	1	S/N 8900691 AND ABOVE	PARTS REQUEST
PHOTO COMING DEF FILTER BRACKET M5331402204 · qty on machine: 1 S/N 8900691 AND ABOVE PARTS REQUEST
42	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020 S/N 8900691 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 S/N 8900691 AND ABOVE view full part page → $2.68
43	011208030	HEX. HEAD BOLT	2	REPLACES P/N 0016908030 S/N 8900691 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 011208030 · qty on machine: 2 REPLACES P/N 0016908030 S/N 8900691 AND ABOVE view full part page → $1.3
44	0379700485	COOLANT HOSE	1	S/N 8900691 AND ABOVE	PARTS REQUEST
PHOTO COMING COOLANT HOSE 0379700485 · qty on machine: 1 S/N 8900691 AND ABOVE PARTS REQUEST
45	Y0605515341	HOSE BAND, 62P08	2	S/N 8900691 ~ 8900794	ADD TO CART
HOSE BAND, 62P08 Y0605515341 · qty on machine: 2 S/N 8900691 ~ 8900794 view full part page → $2.95
45	0605515198	HOSE BAND,	5008	2 S/N 8900795 AND ABOVE	ADD TO CART
HOSE BAND, 0605515198 · qty on machine: 5008 2 S/N 8900795 AND ABOVE view full part page → $1.71

Page 38 — FUEL TANK ASSY.

Multiquip DCA180SSJU4F3 Generator FUEL TANK ASSY. parts diagram

Parts list — exactly as printed19 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3364000513	FUEL TANK	1		ADD TO CART
FUEL TANK M3364000513 · qty on machine: 1 view full part page → $3695.95
1-1	0605505072	CAP, FUEL TANK	1		ADD TO CART
CAP, FUEL TANK 0605505072 · qty on machine: 1 view full part page → $231.95
2	M3364300704	BRACKET, FUEL TANK	2		PARTS REQUEST
PHOTO COMING BRACKET, FUEL TANK M3364300704 · qty on machine: 2 PARTS REQUEST
3	0016910025	HEX. HEAD BOLT 10X25	4		ADD TO CART
HEX. HEAD BOLT 10X25 0016910025 · qty on machine: 4 view full part page → $1.56
4	011208025	HEX. HEAD BOLT 8X25	8	REPLACES P/N 0016908025	ADD TO CART
HEX. HEAD BOLT 8X25 011208025 · qty on machine: 8 REPLACES P/N 0016908025 view full part page → $0.41
5	Y0191300980	HOSE, SUCTION	1		ADD TO CART
HOSE, SUCTION Y0191300980 · qty on machine: 1 view full part page → $12.95
6	Y0191300980	HOSE, RETURN	1		ADD TO CART
HOSE, RETURN Y0191300980 · qty on machine: 1 view full part page → $12.95
7	0191302700	HOSE, VENT	1		ADD TO CART
HOSE, VENT 0191302700 · qty on machine: 1 view full part page → $30.95
8	Y0605515340	BAND, HOSE	6		ADD TO CART
BAND, HOSE Y0605515340 · qty on machine: 6 view full part page → $2.95
9	Y0602022577	90° ELBOW	1		ADD TO CART
90° ELBOW Y0602022577 · qty on machine: 1 view full part page → $39.95
10	Y0602022578	90° ELBOW	1		ADD TO CART
90° ELBOW Y0602022578 · qty on machine: 1 view full part page → $67.95
11	Y0602022985	JOINT, HOSE	2		ADD TO CART
JOINT, HOSE Y0602022985 · qty on machine: 2 view full part page → $6.95
12	Y0605501049	FUEL SENDER UNIT	1		ADD TO CART
FUEL SENDER UNIT Y0605501049 · qty on machine: 1 view full part page → $342.95
12A	Y0605516090	GASKET	1		ADD TO CART
GASKET Y0605516090 · qty on machine: 1 view full part page → $27.95
13	Y0605053021	HEX. HEAD BOLT	5		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0605053021 · qty on machine: 5 PARTS REQUEST
14	0602022791	JOINT, 1/2" HOSE	2		ADD TO CART
JOINT, 1/2" HOSE 0602022791 · qty on machine: 2 view full part page → $35.95
15	0602022778	JOINT, 3/8" HOSE	2		ADD TO CART
JOINT, 3/8" HOSE 0602022778 · qty on machine: 2 view full part page → $3.95
16	M3364400504	TUBE, PICKUP	2		ADD TO CART
TUBE, PICKUP M3364400504 · qty on machine: 2 view full part page → $141.95
17	Y0603306729	PLUG, SQUARE HEAD PIPE	1		ADD TO CART
PLUG, SQUARE HEAD PIPE Y0603306729 · qty on machine: 1 view full part page → $28.95

Page 40 — ENCLOSURE 1 ASSY.

Multiquip DCA180SSJU4F3 Generator ENCLOSURE 1 ASSY. parts diagram

Parts list — exactly as printed45 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3414001702	BASE	1		ADD TO CART
BASE M3414001702 · qty on machine: 1 view full part page → $9523.95
1A	Y0229200830	SEAL, RUBBER	1		ADD TO CART
SEAL, RUBBER Y0229200830 · qty on machine: 1 view full part page → $8.95
1B	0229200210	SEAL, RUBBER	1		ADD TO CART
SEAL, RUBBER 0229200210 · qty on machine: 1 view full part page → $2.95
2	M3364301003	ENVIRONMENTAL TANK	1		ADD TO CART
ENVIRONMENTAL TANK M3364301003 · qty on machine: 1 view full part page → $4287.95
3	0016910030	HEX. HEAD BOLT	12		ADD TO CART
HEX. HEAD BOLT 0016910030 · qty on machine: 12 view full part page → $2.95
4	0603306797	PLUG, 1-1/2" SQUARE HEAD PIPE	1		ADD TO CART
PLUG, 1-1/2" SQUARE HEAD PIPE 0603306797 · qty on machine: 1 view full part page → $12.95
5	Y0603306793	PLUG, 1/2" SQUARE HEAD PIPE	1		ADD TO CART
PLUG, 1/2" SQUARE HEAD PIPE Y0603306793 · qty on machine: 1 view full part page → $2.95
6	M3414400303	BASE COVER	1		ADD TO CART
BASE COVER M3414400303 · qty on machine: 1 view full part page → $228.95
7	0019108055	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0019108055 · qty on machine: 6 view full part page → $3.95
7A	0042308000	WASHER, LOCK	6		ADD TO CART
WASHER, LOCK 0042308000 · qty on machine: 6 view full part page → $0.83
7B	0401450080	WASHER, FLAT	6	REPLACES P/N 0042408000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 6 REPLACES P/N 0042408000 view full part page → $0.56
8	M2414800304	HOLE COVER	1		ADD TO CART
HOLE COVER M2414800304 · qty on machine: 1 view full part page → $74.95
9	011008020	HEX. HEAD BOLT 8X20	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 8X20 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
10	M3424001102	FRONT FRAME	1		ADD TO CART
FRONT FRAME M3424001102 · qty on machine: 1 view full part page → $3705.95
10A	M3494112003	ACOUSTIC SHEET	1	S/N 8900690 AND BELOW	ADD TO CART
ACOUSTIC SHEET M3494112003 · qty on machine: 1 S/N 8900690 AND BELOW view full part page → $714.95
10A	M3494112013	ACOUSTIC SHEET	1	S/N 8900691 AND ABOVE	ADD TO CART
ACOUSTIC SHEET M3494112013 · qty on machine: 1 S/N 8900691 AND ABOVE view full part page → $636.95
11	0016910025	HEX. HEAD BOLT 10X25	8		ADD TO CART
HEX. HEAD BOLT 10X25 0016910025 · qty on machine: 8 view full part page → $1.56
12	M3424100003	PANEL, FRONT FRAME	1		ADD TO CART
PANEL, FRONT FRAME M3424100003 · qty on machine: 1 view full part page → $779.95
12A	M3494113204	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494113204 · qty on machine: 1 view full part page → $160.95
13	M3424100203	PANEL, FRONT FRAME	1		ADD TO CART
PANEL, FRONT FRAME M3424100203 · qty on machine: 1 view full part page → $1377.95
13A	M3494118804	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494118804 · qty on machine: 1 view full part page → $172.95
14	0019108055	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0019108055 · qty on machine: 8 view full part page → $3.95
14A	0042308000	WASHER, LOCK	16		ADD TO CART
WASHER, LOCK 0042308000 · qty on machine: 16 view full part page → $0.83
14B	0401450080	WASHER, FLAT	16	REPLACES P/N 0042408000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 16 REPLACES P/N 0042408000 view full part page → $0.56
15	M5424600004	DOOR, DEF SUPPLY	1		ADD TO CART
DOOR, DEF SUPPLY M5424600004 · qty on machine: 1 view full part page → $678.95
15A	M5494108204	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M5494108204 · qty on machine: 1 view full part page → $64.95
16	M9112100004	HINGE	2		ADD TO CART
HINGE M9112100004 · qty on machine: 2 view full part page → $12.95
16A	M9118000004	WASHER	2		ADD TO CART
WASHER M9118000004 · qty on machine: 2 view full part page → $0.88
17	011206020	HEX. HEAD BOLT	4	REPLACES P/N 0019206020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 4 REPLACES P/N 0019206020 view full part page → $0.95
18	0605010230	HANDLE, DOOR	1		ADD TO CART
HANDLE, DOOR 0605010230 · qty on machine: 1 view full part page → $121.95
19	0021805015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021805015 · qty on machine: 4 view full part page → $0.58
20	0601851613	STOPPER	1		ADD TO CART
STOPPER 0601851613 · qty on machine: 1 view full part page → $2.95
21	M3424201803	OVER COVER, FRONT FRAME	1		ADD TO CART
OVER COVER, FRONT FRAME M3424201803 · qty on machine: 1 view full part page → $544.95
22	0019208020	HEX. HEAD BOLT	17		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 17 view full part page → $3.95
23	M3434000602	CENTER FRAME	1		ADD TO CART
CENTER FRAME M3434000602 · qty on machine: 1 view full part page → $3479.95
24	Y0013614040	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT Y0013614040 · qty on machine: 4 view full part page → $2.95
ADDTHE	FOLLOWINGDIGITS	AFTER THE PART			PARTS REQUEST
PHOTO COMING AFTER THE PART FOLLOWINGDIGITS PARTS REQUEST
NUMBER	WHENORDERING	ANY PAINTED PANEL TO			PARTS REQUEST
PHOTO COMING ANY PAINTED PANEL TO WHENORDERING PARTS REQUEST
INDICATE	COLOROFUNIT:				PARTS REQUEST
PHOTO COMING COLOROFUNIT: PARTS REQUEST
1-ORANGE		6-CATERPILLAR YELLOW			SEE REMARKS
PHOTO COMING 6-CATERPILLAR YELLOW SEE REMARKS
2-WHITE		7-CATO GOLD			SEE REMARKS
PHOTO COMING 7-CATO GOLD SEE REMARKS
3-SPECTRUM	GREY	8-RED			PARTS REQUEST
PHOTO COMING 8-RED GREY PARTS REQUEST
4-SUNBELT	GREEN	9-DESERT TAN			PARTS REQUEST
PHOTO COMING 9-DESERT TAN GREEN PARTS REQUEST
5-BLACK					SEE REMARKS
PHOTO COMING SEE REMARKS
THESERIAL	NUMBERMAY	BE REQUIRED.			PARTS REQUEST
PHOTO COMING BE REQUIRED. NUMBERMAY PARTS REQUEST

Page 42 — ENCLOSURE 1 ASSY. (CONT'D.)

Multiquip DCA180SSJU4F3 Generator ENCLOSURE 1 ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed46 rows

No.	Part No.	Part Name	Qty	Remarks
24A	030214350	WASHER, LOCK	4	REPLACES P/N 0040014000	ADD TO CART
WASHER, LOCK 030214350 · qty on machine: 4 REPLACES P/N 0040014000 view full part page → $0.46
24B	031114260	WASHER, FLAT	8	REPLACES P/N 0041214000	ADD TO CART
WASHER, FLAT 031114260 · qty on machine: 8 REPLACES P/N 0041214000 view full part page → $0.69
24C	515455840	HEX. NUT	4	REPLACES P/N 0030014000	ADD TO CART
HEX. NUT 515455840 · qty on machine: 4 REPLACES P/N 0030014000 view full part page → $35.95
25	Y0013620050	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT Y0013620050 · qty on machine: 4 view full part page → $6.95
25A	030220510	WASHER, LOCK	4	REPLACES P/N 0040020000	ADD TO CART
WASHER, LOCK 030220510 · qty on machine: 4 REPLACES P/N 0040020000 view full part page → $1.95
25B	0041220000	WASHER, FLAT	8		ADD TO CART
WASHER, FLAT 0041220000 · qty on machine: 8 view full part page → $0.95
25C	0030020000	HEX. NUT	4		ADD TO CART
HEX. NUT 0030020000 · qty on machine: 4 view full part page → $1.82
26	M3444000702	REAR FRAME	1	S/N 8900704 AND BELOW	ADD TO CART
REAR FRAME M3444000702 · qty on machine: 1 S/N 8900704 AND BELOW view full part page → $2450.95
26	M3444000712	REAR FRAME	1	S/N 8900705 AND ABOVE	ADD TO CART
REAR FRAME M3444000712 · qty on machine: 1 S/N 8900705 AND ABOVE view full part page → $2809.95
26A	M3494302304	ACOUSTIC SHEET	1	S/N 8900704 AND BELOW	ADD TO CART
ACOUSTIC SHEET M3494302304 · qty on machine: 1 S/N 8900704 AND BELOW view full part page → $118.95
26A	M3494302314	ACOUSTIC SHEET	1	S/N 8900705 AND ABOVE	PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M3494302314 · qty on machine: 1 S/N 8900705 AND ABOVE PARTS REQUEST
27	0016910025	HEX. HEAD BOLT 10X25	4		ADD TO CART
HEX. HEAD BOLT 10X25 0016910025 · qty on machine: 4 view full part page → $1.56
28	M3444300904	COVER, REAR FRAME	1		ADD TO CART
COVER, REAR FRAME M3444300904 · qty on machine: 1 view full part page → $372.95
28A	M3494302404	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494302404 · qty on machine: 1 view full part page → $70.95
29	0019208020	HEX. HEAD BOLT	14		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 14 view full part page → $3.95
30	M4444300003	DUCT, REAR FRAME	1		ADD TO CART
DUCT, REAR FRAME M4444300003 · qty on machine: 1 view full part page → $998.95
30A	M4493303004	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M4493303004 · qty on machine: 1 view full part page → $58.95
31	Y0207008000	SELF-LOCKING NUT	9		ADD TO CART
SELF-LOCKING NUT Y0207008000 · qty on machine: 9 view full part page → $0.4
32	M3444200303	DOOR, REAR FRAME	1	S/N 8900726 AND BELOW	ADD TO CART
DOOR, REAR FRAME M3444200303 · qty on machine: 1 S/N 8900726 AND BELOW view full part page → $495.95
32	M3444200903	DOOR, REAR FRAME	1	S/N 8900727 AND ABOVE	ADD TO CART
DOOR, REAR FRAME M3444200903 · qty on machine: 1 S/N 8900727 AND ABOVE view full part page → $592.95
33	M9110100204	HINGE	2		ADD TO CART
HINGE M9110100204 · qty on machine: 2 view full part page → $23.95
33A	M9116100004	WASHER	2		ADD TO CART
WASHER M9116100004 · qty on machine: 2 view full part page → $1.93
34	0845031504	BLIND PLUG	2	REPLACES P/N M9310000004	ADD TO CART
BLIND PLUG 0845031504 · qty on machine: 2 REPLACES P/N M9310000004 view full part page → $2.95
35	0019208020	HEX. HEAD BOLT	3		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 3 view full part page → $3.95
36	0601850097	RUBBER CUSHION	1		ADD TO CART
RUBBER CUSHION 0601850097 · qty on machine: 1 view full part page → $2.95
37	0027208025	MACHINE SCREW	1		ADD TO CART
MACHINE SCREW 0027208025 · qty on machine: 1 view full part page → $0.76
38	M4443600004	PLATE, WINDOW	1		ADD TO CART
PLATE, WINDOW M4443600004 · qty on machine: 1 view full part page → $155.95
39	020106050	SELF-LOCKING U-NUT	8	REPLACES P/N 0037906000	ADD TO CART
SELF-LOCKING U-NUT 020106050 · qty on machine: 8 REPLACES P/N 0037906000 view full part page → $0.12
39A	952404470	WASHER, FLAT	8	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 8 REPLACES P/N 0041206000 view full part page → $0.19
40	0600800320	MANUAL PAK	1		ADD TO CART
MANUAL PAK 0600800320 · qty on machine: 1 view full part page → $43.95
41	0021806015	MACHINE SCREW	4	S/N 8900726 AND BELOW	ADD TO CART
MACHINE SCREW 0021806015 · qty on machine: 4 S/N 8900726 AND BELOW view full part page → $0.87
41A	0176060030	SELF-LOCKING NUT	4	S/N 8900727 AND ABOVE	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 4 S/N 8900727 AND ABOVE view full part page → $2.95
42	Y0605012318	DOOR HANDLE	1		ADD TO CART
DOOR HANDLE Y0605012318 · qty on machine: 1 view full part page → $75.95
42A	C9312500004	SEAL, RUBBER	1		ADD TO CART
SEAL, RUBBER C9312500004 · qty on machine: 1 view full part page → $10.95
43	Y0207006000	SELF-LOCKING NUT	4		ADD TO CART
SELF-LOCKING NUT Y0207006000 · qty on machine: 4 view full part page → $0.23
44	M3464100502	ROOF PANEL	1		ADD TO CART
ROOF PANEL M3464100502 · qty on machine: 1 view full part page → $552.95
44A	M3494504204	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494504204 · qty on machine: 1 view full part page → $196.95
ADDTHE	FOLLOWINGDIGITS	AFTER THE PART			PARTS REQUEST
PHOTO COMING AFTER THE PART FOLLOWINGDIGITS PARTS REQUEST
NUMBER	WHENORDERING	ANY PAINTED PANEL TO			PARTS REQUEST
PHOTO COMING ANY PAINTED PANEL TO WHENORDERING PARTS REQUEST
INDICATE	COLOROFUNIT:				PARTS REQUEST
PHOTO COMING COLOROFUNIT: PARTS REQUEST
1-ORANGE		6-CATERPILLAR YELLOW			SEE REMARKS
PHOTO COMING 6-CATERPILLAR YELLOW SEE REMARKS
2-WHITE		7-CATO GOLD			SEE REMARKS
PHOTO COMING 7-CATO GOLD SEE REMARKS
3-SPECTRUM	GREY	8-RED			PARTS REQUEST
PHOTO COMING 8-RED GREY PARTS REQUEST
4-SUNBELT	GREEN	9-DESERT TAN			PARTS REQUEST
PHOTO COMING 9-DESERT TAN GREEN PARTS REQUEST
5-BLACK					SEE REMARKS
PHOTO COMING SEE REMARKS
THESERIAL	NUMBERMAY	BE REQUIRED.			PARTS REQUEST
PHOTO COMING BE REQUIRED. NUMBERMAY PARTS REQUEST

Page 44 — ENCLOSURE 1 ASSY. (CONT'D.)

Parts list — exactly as printed37 rows

No.	Part No.	Part Name	Qty	Remarks
45	Y0019208035	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT Y0019208035 · qty on machine: 6 view full part page → $5.95
46	M3310600004	COVER, RADIATOR CAP	1		ADD TO CART
COVER, RADIATOR CAP M3310600004 · qty on machine: 1 view full part page → $17.95
47	0019208020	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 4 view full part page → $3.95
48	0019210025	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0019210025 · qty on machine: 4 view full part page → $7.95
49	M3464200502	ROOF PANEL	1		ADD TO CART
ROOF PANEL M3464200502 · qty on machine: 1 view full part page → $632.95
49A	M3494504304	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494504304 · qty on machine: 1 view full part page → $282.95
50	Y0019208035	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT Y0019208035 · qty on machine: 6 view full part page → $5.95
51	0019208020	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 6 view full part page → $3.95
52	0019210025	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0019210025 · qty on machine: 4 view full part page → $7.95
53	M3464500104	GUTTER	2		ADD TO CART
GUTTER M3464500104 · qty on machine: 2 view full part page → $57.95
53A	Y0229200980	SEAL, RUBBER	2		ADD TO CART
SEAL, RUBBER Y0229200980 · qty on machine: 2 view full part page → $6.95
54	M3464500204	GUTTER	2		ADD TO CART
GUTTER M3464500204 · qty on machine: 2 view full part page → $41.95
54A	Y0229201210	SEAL, RUBBER	2		ADD TO CART
SEAL, RUBBER Y0229201210 · qty on machine: 2 view full part page → $8.95
55	0019208020	HEX. HEAD BOLT	12		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 12 view full part page → $3.95
56	M3444800204	GUTTER	1		PARTS REQUEST
PHOTO COMING GUTTER M3444800204 · qty on machine: 1 PARTS REQUEST
57	M3317100004	BRACKET, SURGE TANK	1		ADD TO CART
BRACKET, SURGE TANK M3317100004 · qty on machine: 1 view full part page → $263.95
58	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
59	M3424700904	DEF TANK COVER	1		PARTS REQUEST
PHOTO COMING DEF TANK COVER M3424700904 · qty on machine: 1 PARTS REQUEST
59A	M3494114004	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494114004 · qty on machine: 1 view full part page → $85.95
59B	Y0229200665	SEAL, RUBBER	2		ADD TO CART
SEAL, RUBBER Y0229200665 · qty on machine: 2 view full part page → $5.95
59C	Y0229200215	SEAL, RUBBER	2		ADD TO CART
SEAL, RUBBER Y0229200215 · qty on machine: 2 view full part page → $1.95
60	011008020	HEX. HEAD BOLT	8	REPLACRES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 8 REPLACRES P/N 0016908020 view full part page → $2.68
61	0605503062	FLOAT SWITCH	1		ADD TO CART
FLOAT SWITCH 0605503062 · qty on machine: 1 view full part page → $213.95
62	M3414800504	BRACKET, FLOAT SWITCH	1		PARTS REQUEST
PHOTO COMING BRACKET, FLOAT SWITCH M3414800504 · qty on machine: 1 PARTS REQUEST
63	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
64	011008020	HEX. HEAD BOLT	1	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 1 REPLACES P/N 0016908020 view full part page → $2.68
64A	0040508000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040508000 · qty on machine: 1 view full part page → $0.35
65	M5414800204	COVER	1		PARTS REQUEST
PHOTO COMING COVER M5414800204 · qty on machine: 1 PARTS REQUEST
ADDTHE	FOLLOWINGDIGITS	AFTER THE PART			PARTS REQUEST
PHOTO COMING AFTER THE PART FOLLOWINGDIGITS PARTS REQUEST
NUMBER	WHENORDERING	ANY PAINTED PANEL TO			PARTS REQUEST
PHOTO COMING ANY PAINTED PANEL TO WHENORDERING PARTS REQUEST
INDICATE	COLOROFUNIT:				PARTS REQUEST
PHOTO COMING COLOROFUNIT: PARTS REQUEST
1-ORANGE		6-CATERPILLAR YELLOW			SEE REMARKS
PHOTO COMING 6-CATERPILLAR YELLOW SEE REMARKS
2-WHITE		7-CATO GOLD			SEE REMARKS
PHOTO COMING 7-CATO GOLD SEE REMARKS
3-SPECTRUM	GREY	8-RED			PARTS REQUEST
PHOTO COMING 8-RED GREY PARTS REQUEST
4-SUNBELT	GREEN	9-DESERT TAN			PARTS REQUEST
PHOTO COMING 9-DESERT TAN GREEN PARTS REQUEST
5-BLACK					SEE REMARKS
PHOTO COMING SEE REMARKS
THESERIAL	NUMBERMAY	BE REQUIRED.			PARTS REQUEST
PHOTO COMING BE REQUIRED. NUMBERMAY PARTS REQUEST

Page 46 — ENCLOSURE 1 ASSY. (CONT'D.)

Parts list — exactly as printed19 rows

No.	Part No.	Part Name	Qty	Remarks
66	Y0016906020	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT Y0016906020 · qty on machine: 2 view full part page → $1.45
67	0019108065	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0019108065 · qty on machine: 8 view full part page → $1.95
68	0019112030	HEX. HEAD BOLT	1	S/N 8900673 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 0019112030 · qty on machine: 1 S/N 8900673 AND ABOVE view full part page → $5.95
69	0605050040	SEALING WASHER	1	S/N 8900673 AND ABOVE	PARTS REQUEST
PHOTO COMING SEALING WASHER 0605050040 · qty on machine: 1 S/N 8900673 AND ABOVE PARTS REQUEST
70	0042312000	WASHER, LOCK	1	S/N 8900673 AND ABOVE	ADD TO CART
WASHER, LOCK 0042312000 · qty on machine: 1 S/N 8900673 AND ABOVE view full part page → $0.94
71	0042412000	WASHER, PLAIN	1	S/N 8900673 AND ABOVE	ADD TO CART
WASHER, PLAIN 0042412000 · qty on machine: 1 S/N 8900673 AND ABOVE view full part page → $1.63
72	0030012000	HEX. HEAD NUT	1	S/N 8900673 AND ABOVE	ADD TO CART
HEX. HEAD NUT 0030012000 · qty on machine: 1 S/N 8900673 AND ABOVE view full part page → $0.5
73	M5444800104	BLIND BOARD	1	S/N 8900705 AND ABOVE	ADD TO CART
BLIND BOARD M5444800104 · qty on machine: 1 S/N 8900705 AND ABOVE view full part page → $21.95
74	011206020	HEX. HEAD BOLT	2	REPLACES P/N 0016906020 S/N 8900705 ~ 8900794	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 2 REPLACES P/N 0016906020 S/N 8900705 ~ 8900794 view full part page → $0.95
75	0601831927	EMERGENCY STOP BUTTON	1	S/N 8900705 AND ABOVE	ADD TO CART
EMERGENCY STOP BUTTON 0601831927 · qty on machine: 1 S/N 8900705 AND ABOVE view full part page → $178.95
ADDTHE	FOLLOWINGDIGITS	AFTER THE PART			PARTS REQUEST
PHOTO COMING AFTER THE PART FOLLOWINGDIGITS PARTS REQUEST
NUMBER	WHENORDERING	ANY PAINTED PANEL TO			PARTS REQUEST
PHOTO COMING ANY PAINTED PANEL TO WHENORDERING PARTS REQUEST
INDICATE	COLOROFUNIT:				PARTS REQUEST
PHOTO COMING COLOROFUNIT: PARTS REQUEST
1-ORANGE		6-CATERPILLAR YELLOW			SEE REMARKS
PHOTO COMING 6-CATERPILLAR YELLOW SEE REMARKS
2-WHITE		7-CATO GOLD			SEE REMARKS
PHOTO COMING 7-CATO GOLD SEE REMARKS
3-SPECTRUM	GREY	8-RED			PARTS REQUEST
PHOTO COMING 8-RED GREY PARTS REQUEST
4-SUNBELT	GREEN	9-DESERT TAN			PARTS REQUEST
PHOTO COMING 9-DESERT TAN GREEN PARTS REQUEST
5-BLACK					SEE REMARKS
PHOTO COMING SEE REMARKS
THESERIAL	NUMBERMAY	BE REQUIRED.			PARTS REQUEST
PHOTO COMING BE REQUIRED. NUMBERMAY PARTS REQUEST

Page 48 — ENCLOSURE 2 ASSY.

Multiquip DCA180SSJU4F3 Generator ENCLOSURE 2 ASSY. parts diagram

Parts list — exactly as printed45 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3454200802	SPLASHER PANEL	1	S/N 8900755 AND BELOW S/N 8900762 ~ 8900794	PARTS REQUEST
PHOTO COMING SPLASHER PANEL M3454200802 · qty on machine: 1 S/N 8900755 AND BELOW S/N 8900762 ~ 8900794 PARTS REQUEST
1	M3454201802	SPLASHER PANEL	1	S/N 8900756 ~ 8900761 S/N 8900795 AND ABOVE	PARTS REQUEST
PHOTO COMING SPLASHER PANEL M3454201802 · qty on machine: 1 S/N 8900756 ~ 8900761 S/N 8900795 AND ABOVE PARTS REQUEST
1A	M3494421504	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494421504 · qty on machine: 1 view full part page → $348.95
2	0019108065	HEX. HEAD BOLT M8X65	6		ADD TO CART
HEX. HEAD BOLT M8X65 0019108065 · qty on machine: 6 view full part page → $1.95
2A	0042308000	WASHER, LOCK	6		ADD TO CART
WASHER, LOCK 0042308000 · qty on machine: 6 view full part page → $0.83
2B	0401450080	WASHER, FLAT	6	REPLACES P/N 0042408000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 6 REPLACES P/N 0042408000 view full part page → $0.56
3	M3454002503	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M3454002503 · qty on machine: 1 PARTS REQUEST
3A	M3494420604	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494420604 · qty on machine: 1 view full part page → $715.95
4	M3454002603	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M3454002603 · qty on machine: 1 PARTS REQUEST
4A	M3494420704	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494420704 · qty on machine: 1 view full part page → $715.95
5	M3454002703	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M3454002703 · qty on machine: 1 PARTS REQUEST
5A	M3494420804	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494420804 · qty on machine: 1 view full part page → $577.95
6	M3454002803	SIDE DOOR	1		ADD TO CART
SIDE DOOR M3454002803 · qty on machine: 1 view full part page → $454.95
6A	M3494420904	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494420904 · qty on machine: 1 view full part page → $278.95
7	M3454301504	DUCT	2		PARTS REQUEST
PHOTO COMING DUCT M3454301504 · qty on machine: 2 PARTS REQUEST
7A	M3494421004	ACOUSTIC SHEET	2		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M3494421004 · qty on machine: 2 PARTS REQUEST
8	M3454301604	DUCT	2		PARTS REQUEST
PHOTO COMING DUCT M3454301604 · qty on machine: 2 PARTS REQUEST
8A	M3494421104	ACOUSTIC SHEET	2		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M3494421104 · qty on machine: 2 PARTS REQUEST
9	M3454301704	DUCT	1		PARTS REQUEST
PHOTO COMING DUCT M3454301704 · qty on machine: 1 PARTS REQUEST
9A	M3494421204	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M3494421204 · qty on machine: 1 PARTS REQUEST
10	M5454301004	DUCT	1		PARTS REQUEST
PHOTO COMING DUCT M5454301004 · qty on machine: 1 PARTS REQUEST
10A	M3494421304	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494421304 · qty on machine: 1 view full part page → $139.95
11	M3454301804	DUCT	1		ADD TO CART
DUCT M3454301804 · qty on machine: 1 view full part page → $71.95
11A	M3494421404	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494421404 · qty on machine: 1 view full part page → $511.95
12	Y0207008000	SELF-LOCKING NUT	49		ADD TO CART
SELF-LOCKING NUT Y0207008000 · qty on machine: 49 view full part page → $0.4
13	Y0605012318	HANDLE, DOOR	7		ADD TO CART
HANDLE, DOOR Y0605012318 · qty on machine: 7 view full part page → $75.95
13A	C9312500004	SEAL RUBBER	7		ADD TO CART
SEAL RUBBER C9312500004 · qty on machine: 7 view full part page → $10.95
14	Y0207006000	SELF-LOCKING NUT	28		ADD TO CART
SELF-LOCKING NUT Y0207006000 · qty on machine: 28 view full part page → $0.23
15	M9110100804	HINGE	5		ADD TO CART
HINGE M9110100804 · qty on machine: 5 view full part page → $16.95
15A	M9116100004	WASHER	5		ADD TO CART
WASHER M9116100004 · qty on machine: 5 view full part page → $1.93
16	M9110100904	HINGE	6		ADD TO CART
HINGE M9110100904 · qty on machine: 6 view full part page → $19.95
16A	M9116100004	WASHER	6		ADD TO CART
WASHER M9116100004 · qty on machine: 6 view full part page → $1.93
17	0019208020	HEX. HEAD BOLT	25		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 25 view full part page → $3.95
18	0601850097	RUBBER CUSHION	8		ADD TO CART
RUBBER CUSHION 0601850097 · qty on machine: 8 view full part page → $2.95
19	0027208025	MACHINE SCREW	8		ADD TO CART
MACHINE SCREW 0027208025 · qty on machine: 8 view full part page → $0.76
20	0845031504	BLIND PLUG	11	REPLACES P/N M9310000004	ADD TO CART
BLIND PLUG 0845031504 · qty on machine: 11 REPLACES P/N M9310000004 view full part page → $2.95
ADDTHE	FOLLOWINGDIGITS	AFTER THE PART			PARTS REQUEST
PHOTO COMING AFTER THE PART FOLLOWINGDIGITS PARTS REQUEST
NUMBER	WHENORDERING	ANY PAINTED PANEL TO			PARTS REQUEST
PHOTO COMING ANY PAINTED PANEL TO WHENORDERING PARTS REQUEST
INDICATE	COLOROFUNIT:				PARTS REQUEST
PHOTO COMING COLOROFUNIT: PARTS REQUEST
1-ORANGE		6-CATERPILLAR YELLOW			SEE REMARKS
PHOTO COMING 6-CATERPILLAR YELLOW SEE REMARKS
2-WHITE		7-CATO GOLD			SEE REMARKS
PHOTO COMING 7-CATO GOLD SEE REMARKS
3-SPECTRUM	GREY	8-RED			PARTS REQUEST
PHOTO COMING 8-RED GREY PARTS REQUEST
4-SUNBELT	GREEN	9-DESERT TAN			PARTS REQUEST
PHOTO COMING 9-DESERT TAN GREEN PARTS REQUEST
5-BLACK					SEE REMARKS
PHOTO COMING SEE REMARKS
THESERIAL	NUMBERMAY	BE REQUIRED.			PARTS REQUEST
PHOTO COMING BE REQUIRED. NUMBERMAY PARTS REQUEST

Page 50 — RUBBER SEALS ASSY.

Multiquip DCA180SSJU4F3 Generator RUBBER SEALS ASSY. parts diagram

Parts list — exactly as printed25 rows

No.	Part No.	Part Name	Qty	Remarks
1	0229201300	SEAL, RUBBER	4		ADD TO CART
SEAL, RUBBER 0229201300 · qty on machine: 4 view full part page → $31.95
2	0229201200	SEAL, RUBBER	1		ADD TO CART
SEAL, RUBBER 0229201200 · qty on machine: 1 view full part page → $26.95
3	0228901310	SEAL, RUBBER	3		ADD TO CART
SEAL, RUBBER 0228901310 · qty on machine: 3 view full part page → $44.95
4	0228900710	SEAL, RUBBER	1		ADD TO CART
SEAL, RUBBER 0228900710 · qty on machine: 1 view full part page → $18.95
5	0228900900	SEAL, RUBBER	4		ADD TO CART
SEAL, RUBBER 0228900900 · qty on machine: 4 view full part page → $25.95
6	0228901130	SEAL, RUBBER	4		ADD TO CART
SEAL, RUBBER 0228901130 · qty on machine: 4 view full part page → $56.95
7	0228901250	SEAL, RUBBER	3		ADD TO CART
SEAL, RUBBER 0228901250 · qty on machine: 3 view full part page → $38.95
8	0228900650	SEAL, RUBBER	1		ADD TO CART
SEAL, RUBBER 0228900650 · qty on machine: 1 view full part page → $17.95
9	0229400630	SEAL, RUBBER	1		ADD TO CART
SEAL, RUBBER 0229400630 · qty on machine: 1 view full part page → $13.95
10	0228801050	SEAL, RUBBER	2		ADD TO CART
SEAL, RUBBER 0228801050 · qty on machine: 2 view full part page → $27.95
11	0228800590	SEAL, RUBBER	1		ADD TO CART
SEAL, RUBBER 0228800590 · qty on machine: 1 view full part page → $15.95
12	Y0228100560	SEAL, RUBBER	2		PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0228100560 · qty on machine: 2 PARTS REQUEST
13	Y0228100370	SEAL, RUBBER	2		PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0228100370 · qty on machine: 2 PARTS REQUEST
14	Y0229200145	SEAL, RUBBER	2		ADD TO CART
SEAL, RUBBER Y0229200145 · qty on machine: 2 view full part page → $0.65
15	Y0229200100	SEAL, RUBBER	2		ADD TO CART
SEAL, RUBBER Y0229200100 · qty on machine: 2 view full part page → $0.67
16	Y0222101100	SEAL, RUBBER	6		PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0222101100 · qty on machine: 6 PARTS REQUEST
17	Y0228801120	SEAL, RUBBER	2		ADD TO CART
SEAL, RUBBER Y0228801120 · qty on machine: 2 view full part page → $14.95
18	Y0228800700	SEAL, RUBBER	2		ADD TO CART
SEAL, RUBBER Y0228800700 · qty on machine: 2 view full part page → $9.95
19	Y0229400350	SEAL, RUBBER	1		ADD TO CART
SEAL, RUBBER Y0229400350 · qty on machine: 1 view full part page → $5.95
20	Y0228800300	SEAL, RUBBER	2		ADD TO CART
SEAL, RUBBER Y0228800300 · qty on machine: 2 view full part page → $4.95
21	Y0228800310	SEAL, RUBBER	1		ADD TO CART
SEAL, RUBBER Y0228800310 · qty on machine: 1 view full part page → $4.95
22	Y0229200175	SEAL, RUBBER	2		ADD TO CART
SEAL, RUBBER Y0229200175 · qty on machine: 2 view full part page → $2.95
23	Y0229200105	SEAL, RUBBER	2		ADD TO CART
SEAL, RUBBER Y0229200105 · qty on machine: 2 view full part page → $2.65
24	Y0222100128	RESTON	2	S/N 8900807 AND ABOVE	ADD TO CART
RESTON Y0222100128 · qty on machine: 2 S/N 8900807 AND ABOVE view full part page → $2.95
25	Y0222100092	RESTON	2	S/N 8900807 AND ABOVE	ADD TO CART
RESTON Y0222100092 · qty on machine: 2 S/N 8900807 AND ABOVE view full part page → $2.89

Page 52 — BATTERY CHARGER ASSY. (OPTION)

Multiquip DCA180SSJU4F3 Generator BATTERY CHARGER ASSY. (OPTION) parts diagram

Parts list — exactly as printed12 rows

No.	Part No.	Part Name	Qty	Remarks
1	MQPBCKIT-H	BATTERY CHARGER KIT	1	INCLUDES ITEMS W/#	ADD TO CART
BATTERY CHARGER KIT MQPBCKIT-H · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 2#, 3#, 7#, 8#, 11#, 12# view full part page → $2360.57 IN A KIT + SOLD SOLO
2#	EE57370	CHARGER, 10A 12/24V NRG BATTERY	1		ADD TO CART
CHARGER, 10A 12/24V NRG BATTERY EE57370 · qty on machine: 1 Also included in kit 1 - BATTERY CHARGER KIT (MQPBCKIT-H) view full part page → $2020.95 IN A KIT + SOLD SOLO
3#		GROMMET, 7/8" HOLE SIZE	1	OBTAIN LOCALLY	INCLUDED IN KIT
PHOTO COMING GROMMET, 7/8" HOLE SIZE · qty on machine: 1 OBTAIN LOCALLY Included in kit 1 - BATTERY CHARGER KIT (MQPBCKIT-H) INCLUDED IN KIT
4		WASHER, FLAT M4	4	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WASHER, FLAT M4 · qty on machine: 4 OBTAIN LOCALLY SEE REMARKS
5		WASHER, LOCK M4	4	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WASHER, LOCK M4 · qty on machine: 4 OBTAIN LOCALLY SEE REMARKS
6		SCREW, M4X10	4	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING SCREW, M4X10 · qty on machine: 4 OBTAIN LOCALLY SEE REMARKS
7#	HBL5369C	CONNECTOR, 20A, 125V	1		ADD TO CART
CONNECTOR, 20A, 125V HBL5369C · qty on machine: 1 Also included in kit 1 - BATTERY CHARGER KIT (MQPBCKIT-H) view full part page → $103.95 IN A KIT + SOLD SOLO
8#	EE56557	CORD, 3-CONDUCTOR, 14 AWG (10 FT.)	10	1PC = 1FT	ADD TO CART
CORD, 3-CONDUCTOR, 14 AWG (10 FT.) EE56557 · qty on machine: 10 1PC = 1FT Also included in kit 1 - BATTERY CHARGER KIT (MQPBCKIT-H) view full part page → $1.95 IN A KIT + SOLD SOLO
9		WIRE, 16 AWG GREEN		AR OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WIRE, 16 AWG GREEN AR OBTAIN LOCALLY SEE REMARKS
10		WIRE, 16 AWG RED		AR OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WIRE, 16 AWG RED AR OBTAIN LOCALLY SEE REMARKS
11#	HBL5278C	INLET FLANGE 15AMP NEMA, 125V	1		ADD TO CART
INLET FLANGE 15AMP NEMA, 125V HBL5278C · qty on machine: 1 Also included in kit 1 - BATTERY CHARGER KIT (MQPBCKIT-H) view full part page → $53.95 IN A KIT + SOLD SOLO
12#	M1940011014Q	DECAL, BATTERY CHARGER	1		ADD TO CART
DECAL, BATTERY CHARGER M1940011014Q · qty on machine: 1 Also included in kit 1 - BATTERY CHARGER KIT (MQPBCKIT-H) view full part page → $1.36 IN A KIT + SOLD SOLO

Page 54 — WATER HEATING ELEMENT ASSY. (OPTION)

Multiquip DCA180SSJU4F3 Generator WATER HEATING ELEMENT ASSY. (OPTION) parts diagram

Parts list — exactly as printed9 rows

No.	Part No.	Part Name	Qty	Remarks
1	AR50411	POWER CORD, 90°	1		ADD TO CART
POWER CORD, 90° AR50411 · qty on machine: 1 view full part page → $38.95
2	RE42139	HEATER, COOLANT 1000W	1	INCLUDES ITEMS W/#	ADD TO CART
HEATER, COOLANT 1000W RE42139 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 5#, 6#, 7#, 8#, 9# view full part page → $227.95 IN A KIT + SOLD SOLO
3	HBL5369C	CONNECTOR, 20A, 125V	1		ADD TO CART
CONNECTOR, 20A, 125V HBL5369C · qty on machine: 1 view full part page → $103.95
4	EE56557	CORD, CAROL 3/C 14AWG	10	1PC = 1FT	ADD TO CART
CORD, CAROL 3/C 14AWG EE56557 · qty on machine: 10 1PC = 1FT view full part page → $1.95
5#		NUT, CLAMPING	1		INCLUDED IN KIT
PHOTO COMING NUT, CLAMPING · qty on machine: 1 Included in kit 2 - HEATER, COOLANT 1000W (RE42139) INCLUDED IN KIT
6#		ADAPTER	1		INCLUDED IN KIT
PHOTO COMING ADAPTER · qty on machine: 1 Included in kit 2 - HEATER, COOLANT 1000W (RE42139) INCLUDED IN KIT
7#		O-RING	1		INCLUDED IN KIT
PHOTO COMING O-RING · qty on machine: 1 Included in kit 2 - HEATER, COOLANT 1000W (RE42139) INCLUDED IN KIT
8#		HEATER ELEMENT	1		INCLUDED IN KIT
PHOTO COMING HEATER ELEMENT · qty on machine: 1 Included in kit 2 - HEATER, COOLANT 1000W (RE42139) INCLUDED IN KIT
9#		GASKET	1		INCLUDED IN KIT
PHOTO COMING GASKET · qty on machine: 1 Included in kit 2 - HEATER, COOLANT 1000W (RE42139) INCLUDED IN KIT

Page 56 — POWER BALANCE ASSY.

Multiquip DCA180SSJU4F3 Generator POWER BALANCE ASSY. parts diagram

Parts list — exactly as printed42 rows

No.	Part No.	Part Name	Qty	Remarks
1	MQPPB180J4F	KIT, POWER BALANCE	1	INCLUDES ITEMS W/#	PARTS REQUEST
PHOTO COMING KIT, POWER BALANCE MQPPB180J4F · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 2#, 3#, 3A%#, 3B%#, 3C%#, 3D%#, 3E%#, 3F%#, 3G%#, 4#, 4A$#, 4B$#, 4C$#, 4D$#, 4E$#, 5#, 6#, 7#, 8#, 9#, 10#, 11#, 12@#, 13#, 14#, 15#, 16#, 17#, 18#, 19#, 20#, 21#, 22*#, 23#, 24#, 25#, 26#, 27#, 28#, 29#, 30# PARTS REQUEST
2#	EE60796	WORK INST, POWER BALANCE	1		PARTS REQUEST
PHOTO COMING WORK INST, POWER BALANCE EE60796 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) PARTS REQUEST
3#	EE60546	RESISTOR ASSY., 50 KW	1	INCLUDES ITEMS W/%	ADD TO CART
RESISTOR ASSY., 50 KW EE60546 · qty on machine: 1 INCLUDES ITEMS W/% Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $2745.95 IN A KIT + SOLD SOLO
3A%#	LBV-RE68	RESISTOR ELEMENT	12		PARTS REQUEST
PHOTO COMING RESISTOR ELEMENT LBV-RE68 · qty on machine: 12 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 3 - RESISTOR ASSY., 50 KW (EE60546) PARTS REQUEST
3B%#	LBD538/L1134-RA	ELEMENT ROD	12		ADD TO CART
ELEMENT ROD LBD538/L1134-RA · qty on machine: 12 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 3 - RESISTOR ASSY., 50 KW (EE60546) view full part page → $106.12 IN A KIT + SOLD SOLO
3C%#	P0267	CERAMIC INSULATOR THROUGH ROD	24		ADD TO CART
CERAMIC INSULATOR THROUGH ROD P0267 · qty on machine: 24 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 3 - RESISTOR ASSY., 50 KW (EE60546) view full part page → $2.57 IN A KIT + SOLD SOLO
3D%#	C0010-8	CERAMIC SPACER	48		ADD TO CART
CERAMIC SPACER C0010-8 · qty on machine: 48 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 3 - RESISTOR ASSY., 50 KW (EE60546) view full part page → $4.61 IN A KIT + SOLD SOLO
3E%#	P0273-4	INSULATOR, TERMINAL, 1/4	24		ADD TO CART
INSULATOR, TERMINAL, 1/4 P0273-4 · qty on machine: 24 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 3 - RESISTOR ASSY., 50 KW (EE60546) view full part page → $4.61 IN A KIT + SOLD SOLO
3F%#	P0073-516R	INSULATOR, L3 STEATITE EXTRUDED	96		ADD TO CART
INSULATOR, L3 STEATITE EXTRUDED P0073-516R · qty on machine: 96 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 3 - RESISTOR ASSY., 50 KW (EE60546) view full part page → $5.95 IN A KIT + SOLD SOLO
3G%#	LBD163	HARDWARE, PR END SPRING	24		ADD TO CART
HARDWARE, PR END SPRING LBD163 · qty on machine: 24 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 3 - RESISTOR ASSY., 50 KW (EE60546) view full part page → $0.72 IN A KIT + SOLD SOLO
4#	EE60569	CONTACTOR ASSY., 50 KW, 12V	1	INCLUDES ITEMS W/$	ADD TO CART
CONTACTOR ASSY., 50 KW, 12V EE60569 · qty on machine: 1 INCLUDES ITEMS W/$ Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $3569.95 IN A KIT + SOLD SOLO
4A$#	LBD1132	CONTACTOR, 3 POLE, 75A, 12VDC	2		PARTS REQUEST
PHOTO COMING CONTACTOR, 3 POLE, 75A, 12VDC LBD1132 · qty on machine: 2 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 4 - CONTACTOR ASSY., 50 KW, 12 (EE60569) PARTS REQUEST
4B$#	LBD1056	RELAY, VOLTAGE CONTROL, 460V	1		ADD TO CART
RELAY, VOLTAGE CONTROL, 460V LBD1056 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 4 - CONTACTOR ASSY., 50 KW, 12 (EE60569) view full part page → $525.95 IN A KIT + SOLD SOLO
4C$#	LBD707	RELAY, DPDT, 12VDC	1		ADD TO CART
RELAY, DPDT, 12VDC LBD707 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 4 - CONTACTOR ASSY., 50 KW, 12 (EE60569) view full part page → $51.95 IN A KIT + SOLD SOLO
4D$#	LBD560	FUSE HOLDER, 400A, 1000V	3		PARTS REQUEST
PHOTO COMING FUSE HOLDER, 400A, 1000V LBD560 · qty on machine: 3 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 4 - CONTACTOR ASSY., 50 KW, 12 (EE60569) PARTS REQUEST
4E$#	LBD132	FUSE, 150A, 600V	3		ADD TO CART
FUSE, 150A, 600V LBD132 · qty on machine: 3 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 4 - CONTACTOR ASSY., 50 KW, 12 (EE60569) view full part page → $71.08 IN A KIT + SOLD SOLO
5#	EE60789	HARNESS ASSY.	1		ADD TO CART
HARNESS ASSY. EE60789 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $1061.95 IN A KIT + SOLD SOLO
6#	EE60545	W/A RESISTOR COVER	1		ADD TO CART
W/A RESISTOR COVER EE60545 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $606.81 IN A KIT + SOLD SOLO
7#	EE58650	SIDE PLATE, RESISTOR COVER	2		ADD TO CART
SIDE PLATE, RESISTOR COVER EE58650 · qty on machine: 2 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $56.95 IN A KIT + SOLD SOLO
8#	EE58032	BRACKET CONTACTOR BOX	1		ADD TO CART
BRACKET CONTACTOR BOX EE58032 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $122.95 IN A KIT + SOLD SOLO
9#	EE60563	TAILPIPE EXT., 5"X13.5" LONG, SS	1		ADD TO CART
TAILPIPE EXT., 5"X13.5" LONG, SS EE60563 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $278.95 IN A KIT + SOLD SOLO
10#	EE16728	U-CLAMP, 5"X3/8", ZINC PLTD.	1		ADD TO CART
U-CLAMP, 5"X3/8", ZINC PLTD. EE16728 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $7.95 IN A KIT + SOLD SOLO
11#	303110	IN-LINE, FUSE HOLDER	1	INCLUDES ITEMS W/@	ADD TO CART
IN-LINE, FUSE HOLDER 303110 · qty on machine: 1 INCLUDES ITEMS W/@ Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $4.95 IN A KIT + SOLD SOLO
12@#		FUSE,10A (AGC10)	1		INCLUDED IN KIT
PHOTO COMING FUSE,10A (AGC10) · qty on machine: 1 Included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F); kit 11 - IN-LINE, FUSE HOLDER (303110) INCLUDED IN KIT
13#	EE61332	DECAL, POWERBALANCE	1		ADD TO CART
DECAL, POWERBALANCE EE61332 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $2.95 IN A KIT + SOLD SOLO
14#	EE58893	WIRE HARNESS, DC	1		ADD TO CART
WIRE HARNESS, DC EE58893 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $114.95 IN A KIT + SOLD SOLO
15#	EE58338	BUSHING, INSULATED W/ NUT	1		ADD TO CART
BUSHING, INSULATED W/ NUT EE58338 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $55.95 IN A KIT + SOLD SOLO
16#	EE60790	POWER WIRES, 50 KW	1		PARTS REQUEST
PHOTO COMING POWER WIRES, 50 KW EE60790 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) PARTS REQUEST
17#	EE60176	SENSING KIT HARNESS	1	INCLUDES ITEMS W/*	ADD TO CART
SENSING KIT HARNESS EE60176 · qty on machine: 1 INCLUDES ITEMS W/* Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $132.94 IN A KIT + SOLD SOLO
18*#	EE5759	FUSE BLOCK, 3 POLE	1		ADD TO CART
FUSE BLOCK, 3 POLE EE5759 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $8.95 IN A KIT + SOLD SOLO
19*#	EE5804	FUSE, GOULD SHAWMUT, 10A	2		ADD TO CART
FUSE, GOULD SHAWMUT, 10A EE5804 · qty on machine: 2 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $9.95 IN A KIT + SOLD SOLO
20*#	EE60164	HARNESS, AC SENSING 6' LONG	1		ADD TO CART
HARNESS, AC SENSING 6' LONG EE60164 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) view full part page → $28.95 IN A KIT + SOLD SOLO
21*#	EE60165	HARNESS, AC SENSING 2' LONG	1		PARTS REQUEST
PHOTO COMING HARNESS, AC SENSING 2' LONG EE60165 · qty on machine: 1 Also included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) PARTS REQUEST
22*#		SCREW, 8-1/2" SELF TAPPING	2		INCLUDED IN KIT
PHOTO COMING SCREW, 8-1/2" SELF TAPPING · qty on machine: 2 Included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) INCLUDED IN KIT
23#		BUTT SPLICE,14-16 GA	1		INCLUDED IN KIT
PHOTO COMING BUTT SPLICE,14-16 GA · qty on machine: 1 Included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) INCLUDED IN KIT
24#		RING TERMINAL,14-16 GA X #10	1		INCLUDED IN KIT
PHOTO COMING RING TERMINAL,14-16 GA X #10 · qty on machine: 1 Included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) INCLUDED IN KIT
25#		TIE WRAP, #4	10		INCLUDED IN KIT
PHOTO COMING TIE WRAP, #4 · qty on machine: 10 Included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) INCLUDED IN KIT
26#		TIE WRAP, #6	10		INCLUDED IN KIT
PHOTO COMING TIE WRAP, #6 · qty on machine: 10 Included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) INCLUDED IN KIT
27#		TIE WRAP, #8	10		INCLUDED IN KIT
PHOTO COMING TIE WRAP, #8 · qty on machine: 10 Included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) INCLUDED IN KIT
28#		SCREW, M6X15MM, SS	22		INCLUDED IN KIT
PHOTO COMING SCREW, M6X15MM, SS · qty on machine: 22 Included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) INCLUDED IN KIT
29#		WASHER, FLAT, M6, SS	24		INCLUDED IN KIT
PHOTO COMING WASHER, FLAT, M6, SS · qty on machine: 24 Included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) INCLUDED IN KIT
30#		WASHER, LOCK, M6, SS	22		INCLUDED IN KIT
PHOTO COMING WASHER, LOCK, M6, SS · qty on machine: 22 Included in kit 1 - KIT, POWER BALANCE (MQPPB180J4F) INCLUDED IN KIT

Page 58 — POWER BALANCE ASSY. (CONT'D.)

Multiquip DCA180SSJU4F3 Generator POWER BALANCE ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed6 rows

No.	Part No.	Part Name	Qty
31#		SCREW, M8X15MM, SS	4	SEE REMARKS
PHOTO COMING SCREW, M8X15MM, SS · qty on machine: 4 SEE REMARKS
32#		WASHER, FLAT, M8, SS	4	SEE REMARKS
PHOTO COMING WASHER, FLAT, M8, SS · qty on machine: 4 SEE REMARKS
33#		WASHER, LOCK, M8, SS	4	SEE REMARKS
PHOTO COMING WASHER, LOCK, M8, SS · qty on machine: 4 SEE REMARKS
34#		G-CLAMP, #20 (1-1/4")X1/4" HOLE	2	SEE REMARKS
PHOTO COMING G-CLAMP, #20 (1-1/4")X1/4" HOLE · qty on machine: 2 SEE REMARKS
35#	EE62004	BAFFLE, POWER BALANCE RESISTOR	2	PARTS REQUEST
PHOTO COMING BAFFLE, POWER BALANCE RESISTOR EE62004 · qty on machine: 2 PARTS REQUEST
36#		RIVET, 3/16", ALUM.	4	SEE REMARKS
PHOTO COMING RIVET, 3/16", ALUM. · qty on machine: 4 SEE REMARKS

Page 60 — NAMEPLATE AND DECALS ASSY.

Multiquip DCA180SSJU4F3 Generator NAMEPLATE AND DECALS ASSY. parts diagram

Parts list — exactly as printed33 rows

No.	Part No.	Part Name	Qty	Remarks
1-1	M3551000103	DECAL; OPERATING PRECAUTIONS	1	M35100010	ADD TO CART
DECAL; OPERATING PRECAUTIONS M3551000103 · qty on machine: 1 M35100010 view full part page → $8.95
1-2	M9520100304	DECAL; SAFETY INSTRUCTIONS	1	M92010030	ADD TO CART
DECAL; SAFETY INSTRUCTIONS M9520100304 · qty on machine: 1 M92010030 view full part page → $3.95
1-3	M9520100603	DECAL; CAUTION CONTROL PANEL AND BOX GROUP	2	M92010060	ADD TO CART
DECAL; CAUTION CONTROL PANEL AND BOX GROUP M9520100603 · qty on machine: 2 M92010060 view full part page → $8.95
2-1	M3551002102	DECAL; CONTROL PANEL	1	M35100210A S/N 8900704 AND BELOW	ADD TO CART
DECAL; CONTROL PANEL M3551002102 · qty on machine: 1 M35100210A S/N 8900704 AND BELOW view full part page → $126.95
2-1	M3551002112	DECAL; CONTROL PANEL	1	M35100210A S/N 8900705 AND ABOVE	PARTS REQUEST
PHOTO COMING DECAL; CONTROL PANEL M3551002112 · qty on machine: 1 M35100210A S/N 8900705 AND ABOVE PARTS REQUEST
2-2	M9520000104	PLATE; AMMETER CHANGE-OVER SW	1	M92000010	ADD TO CART
PLATE; AMMETER CHANGE-OVER SW M9520000104 · qty on machine: 1 M92000010 view full part page → $11.95
2-3	M9520000204	PLATE; VOLTMETER CHANGE-OVER SW	1	M92000020	ADD TO CART
PLATE; VOLTMETER CHANGE-OVER SW M9520000204 · qty on machine: 1 M92000020 view full part page → $11.95
2-4	M9520100004	DECAL; WARNING: ELEC. SHOCK HAZARD	2	M92010000	ADD TO CART
DECAL; WARNING: ELEC. SHOCK HAZARD M9520100004 · qty on machine: 2 M92010000 view full part page → $5.95
2-5	M9520100704	DECAL; WARNING: ARC FLASH	1	M92010070	ADD TO CART
DECAL; WARNING: ARC FLASH M9520100704 · qty on machine: 1 M92010070 view full part page → $4.95
2-6	M9520200404	DECAL; O.C.R. RESET	1	M92020040A	ADD TO CART
DECAL; O.C.R. RESET M9520200404 · qty on machine: 1 M92020040A view full part page → $3.95
2-7	M9522000504	DECAL; CIRCUIT BREAKER	1	M92200050	ADD TO CART
DECAL; CIRCUIT BREAKER M9522000504 · qty on machine: 1 M92200050 view full part page → $25.95
2-8	M9520200303	DECAL; SETTING FOR OUTPUT VOLTAGE	1	M92020030	ADD TO CART
DECAL; SETTING FOR OUTPUT VOLTAGE M9520200303 · qty on machine: 1 M92020030 view full part page → $45.95
2-9	M9520200504	DECAL; SETTING FOR OUTPUT VOLTAGE(S).1		M92020050	ADD TO CART
DECAL; SETTING FOR OUTPUT VOLTAGE(S).1 M9520200504 M92020050 view full part page → $17.95
2-10	M3551003104	DECAL; V. CHANGE OVER BRD. TORQUE ENGINE AND RADIATOR GROUP	1	M35100310 S/N 8900818 AND ABOVE	ADD TO CART
DECAL; V. CHANGE OVER BRD. TORQUE ENGINE AND RADIATOR GROUP M3551003104 · qty on machine: 1 M35100310 S/N 8900818 AND ABOVE view full part page → $4.95
3-1	M9500000004	DECAL; OIL DRAIN	1	M90000000	ADD TO CART
DECAL; OIL DRAIN M9500000004 · qty on machine: 1 M90000000 view full part page → $2.95
3-2	M9500100004	DECAL; WATER	1	M90010000	ADD TO CART
DECAL; WATER M9500100004 · qty on machine: 1 M90010000 view full part page → $1.95
3-3	M9503000004	DECAL; WARNING: ROTATING PART	2	M90300000	ADD TO CART
DECAL; WARNING: ROTATING PART M9503000004 · qty on machine: 2 M90300000 view full part page → $1.95
3-4	M9503000103	DECAL; WATER - OIL CHECK	1	M90300010	ADD TO CART
DECAL; WATER - OIL CHECK M9503000103 · qty on machine: 1 M90300010 view full part page → $7.95
3-5	M9503100004	DECAL; WARNING: HOT COOLANT	1	M90310000	ADD TO CART
DECAL; WARNING: HOT COOLANT M9503100004 · qty on machine: 1 M90310000 view full part page → $4.95
3-6	M9510100004	DECAL; CAUTION: HOT PARTS	1	M91010000	ADD TO CART
DECAL; CAUTION: HOT PARTS M9510100004 · qty on machine: 1 M91010000 view full part page → $68.95
3-7	M9501300004	DECAL; CAUTION: BATTERY CABLES OUTPUT TERMINAL GROUP	1	M90130000	ADD TO CART
DECAL; CAUTION: BATTERY CABLES OUTPUT TERMINAL GROUP M9501300004 · qty on machine: 1 M90130000 view full part page → $27.95
4-1	M35510020031	DECAL; AUXILIARY OUTPUT	1	REPLACES P/N M3551002003 M35100200	ADD TO CART
DECAL; AUXILIARY OUTPUT M35510020031 · qty on machine: 1 REPLACES P/N M3551002003 M35100200 view full part page → $18.95
4-2	M9520000004	DECAL; GROUND	2	M92000000	ADD TO CART
DECAL; GROUND M9520000004 · qty on machine: 2 M92000000 view full part page → $1.95
4-3	M9520000504	DECAL; START CONTACT	1	M92000050	ADD TO CART
DECAL; START CONTACT M9520000504 · qty on machine: 1 M92000050 view full part page → $67.95
4-4	M9520000704	DECAL; 3-PHASE OUTPUT TERMINAL	1	M92000070	ADD TO CART
DECAL; 3-PHASE OUTPUT TERMINAL M9520000704 · qty on machine: 1 M92000070 view full part page → $59.95
4-5	M9520100404	DECAL; DANGER: HIGH VOLTAGE	1	M92010040	ADD TO CART
DECAL; DANGER: HIGH VOLTAGE M9520100404 · qty on machine: 1 M92010040 view full part page → $37.95
4-6	M9520100503	DECAL; WARNING	1	M92010050	ADD TO CART
DECAL; WARNING M9520100503 · qty on machine: 1 M92010050 view full part page → $1.95
4-7	M9521200604	DECAL; BONDED NEUTRAL	1	M92120060	ADD TO CART
DECAL; BONDED NEUTRAL M9521200604 · qty on machine: 1 M92120060 view full part page → $11.95
4-8	M9522000004	DECAL; WATER HEATER	1		ADD TO CART
DECAL; WATER HEATER M9522000004 · qty on machine: 1 view full part page → $7.95
4-9	M3551003004	DECAL; OUTPUT TERM. BOLT TORQUE BATTERY GROUP	1	M35100300 S/N 8900818 AND ABOVE	PARTS REQUEST
PHOTO COMING DECAL; OUTPUT TERM. BOLT TORQUE BATTERY GROUP M3551003004 · qty on machine: 1 M35100300 S/N 8900818 AND ABOVE PARTS REQUEST
5-1	M9500300004	DECAL; −	1	M90030000	ADD TO CART
DECAL; − M9500300004 · qty on machine: 1 M90030000 view full part page → $1.95
5-2	M9500300104	DECAL; +	1	M90030010	ADD TO CART
DECAL; + M9500300104 · qty on machine: 1 M90030010 view full part page → $1.95
5-3	M9510100403	DECAL; CAUTION	1	M91010040	ADD TO CART
DECAL; CAUTION M9510100403 · qty on machine: 1 M91010040 view full part page → $16.95

Page 62 — NAMEPLATE AND DECALS ASSY. (CONT'D.)

Multiquip DCA180SSJU4F3 Generator NAMEPLATE AND DECALS ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed26 rows

No.	Part No.	Part Name	Qty	Remarks
		MUFFLER GROUP			SEE REMARKS
PHOTO COMING MUFFLER GROUP SEE REMARKS
6-1	M9503200004	DECAL; WARNING: ENGINE EXHAUST	1	M90320000	ADD TO CART
DECAL; WARNING: ENGINE EXHAUST M9503200004 · qty on machine: 1 M90320000 view full part page → $14.95
6-2	M9503200104	DECAL; DANGER: EXHAUST GAS (INDOOR).1		M90320010	ADD TO CART
DECAL; DANGER: EXHAUST GAS (INDOOR).1 M9503200104 M90320010 view full part page → $4.95
6-3	920214100	DECAL; WARNING: START FIRES	1	REPLACES P/N M9504200004 M90420000	ADD TO CART
DECAL; WARNING: START FIRES 920214100 · qty on machine: 1 REPLACES P/N M9504200004 M90420000 view full part page → $12.95
6-4	M2551000703	DECAL; EX. FILTER CLEAN PROCEDURES FUEL TANK GROUP	1	M25100070	ADD TO CART
DECAL; EX. FILTER CLEAN PROCEDURES FUEL TANK GROUP M2551000703 · qty on machine: 1 M25100070 view full part page → $4.95
7-1	M9501500004	DECAL; DIESEL FUEL	2	M90150000	ADD TO CART
DECAL; DIESEL FUEL M9501500004 · qty on machine: 2 M90150000 view full part page → $3.95
7-2	M9541100004	DECAL; CAUTION: EXHAUST FLUID ONLY	1	M94110000	ADD TO CART
DECAL; CAUTION: EXHAUST FLUID ONLY M9541100004 · qty on machine: 1 M94110000 view full part page → $3.95
7-3	M9501500104	DECAL; DIESEL EXHAUST FLUID	1	M90150010	ADD TO CART
DECAL; DIESEL EXHAUST FLUID M9501500104 · qty on machine: 1 M90150010 view full part page → $14.95
7-4	M9504500004	DECAL; REFILL DEF AS WELL ENCLOSURE GROUP	1	M90450000	ADD TO CART
DECAL; REFILL DEF AS WELL ENCLOSURE GROUP M9504500004 · qty on machine: 1 M90450000 view full part page → $9.95
8-1	M9511200204	DECAL; MQ	1	M91120020	ADD TO CART
DECAL; MQ M9511200204 · qty on machine: 1 M91120020 view full part page → $5.95
8-2	0600500092	EMBLEM	1	REPLACES P/N Y0600500092	ADD TO CART
EMBLEM 0600500092 · qty on machine: 1 REPLACES P/N Y0600500092 view full part page → $21.95
8-2A	0021106015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021106015 · qty on machine: 4 view full part page → $0.17
8-3	M3561100904	STRIPE	2		ADD TO CART
STRIPE M3561100904 · qty on machine: 2 view full part page → $34.95
8-4	M5560101604	STRIPE	2		ADD TO CART
STRIPE M5560101604 · qty on machine: 2 view full part page → $20.95
8-5	M3561101004	STRIPE	1		ADD TO CART
STRIPE M3561101004 · qty on machine: 1 view full part page → $17.95
8-6	M3561101103	STRIPE	2		ADD TO CART
STRIPE M3561101103 · qty on machine: 2 view full part page → $33.95
8-7	M3561101303	STRIPE	1		ADD TO CART
STRIPE M3561101303 · qty on machine: 1 view full part page → $42.95
8-8	M3561101204	STRIPE	1		ADD TO CART
STRIPE M3561101204 · qty on machine: 1 view full part page → $21.95
8-9	M5550000004	DECAL; CAUTION	1	M55000000	ADD TO CART
DECAL; CAUTION M5550000004 · qty on machine: 1 M55000000 view full part page → $34.95
8-10	M9510000104	DECAL; DOCUMENT BOX LOCATED	1	M91000010	ADD TO CART
DECAL; DOCUMENT BOX LOCATED M9510000104 · qty on machine: 1 M91000010 view full part page → $4.95
8-11	M9511200103	DECAL; TIER 4F	1	M91120010	ADD TO CART
DECAL; TIER 4F M9511200103 · qty on machine: 1 M91120010 view full part page → $17.95
8-12	M9511100004	DECAL; WARNING ENVIRONMENTAL	1	M91110000	ADD TO CART
DECAL; WARNING ENVIRONMENTAL M9511100004 · qty on machine: 1 M91110000 view full part page → $6.95
8-13	M9510000004	DECAL; FLUID DRAIN	1	M91000000	ADD TO CART
DECAL; FLUID DRAIN M9510000004 · qty on machine: 1 M91000000 view full part page → $26.95
8-14	M9504200104	DECAL; WARNING PROPOSITION	65	1 M90420010	ADD TO CART
DECAL; WARNING PROPOSITION M9504200104 · qty on machine: 65 1 M90420010 view full part page → $4.95
8-15	M9507200104	DECAL; DEF DRAIN	1	M90720010	ADD TO CART
DECAL; DEF DRAIN M9507200104 · qty on machine: 1 M90720010 view full part page → $4.95
8-16	M9521002804	DECAL; EMERGENCY STOP BUTTON	1	M92100280 S/N 8900705 AND ABOVE	ADD TO CART
DECAL; EMERGENCY STOP BUTTON M9521002804 · qty on machine: 1 M92100280 S/N 8900705 AND ABOVE view full part page → $3.95

The machine itself

Price by quote Get a quote

Tell us where the machine is headed and we'll quote it with freight. One call, no games.

The Multiquip DCA180SSJU4F3 is a generator built for portable jobsite power for tools, lighting, and equipment. Factory-documented specs and parts support; priced by quote.

Keep-it-running spares

All listed parts →

Every part that fits this machine

0071906314 Multiquip 0071906314 Bearing Denyo - OEM Replacement Part for Super Silent Generators $276.95

0191301150 Multiquip 0191301150 Hose Suction 85SSK - OEM Replacement Part for Super Silent Generators $47.95

0199901200 Multiquip 0199901200 Hose Drain Denyo - OEM Replacement Part $39.95

0228901130 Multiquip 0228901130 Seal Rubber Denyo - OEM Replacement Part for Super Silent Generators $56.95

0228901250 Multiquip 0228901250 Seal Rubber Denyo - OEM Replacement Part for Super Silent Generators $38.95

0228901310 Multiquip 0228901310 Seal Rubber Denyo - OEM Replacement Part for Super Silent Generators $44.95

0379703250 Multiquip 0379703250 Coolant Hose - OEM Replacement Part for Super Silent Generators $52.95

0400005080 Multiquip 0400005080 Insulation Wrap (KY) - OEM Replacement Part $140.95

0600800320 Multiquip 0600800320 Manual Pak Denyo - OEM Replacement Part $43.95

0601800275 Multiquip 0601800275 AC Voltmeter Denyo - OEM Replacement Part $146.95

0601801041 Multiquip 0601801041 Change-Over Switch Voltmeter Denyo - OEM Replacement Part $157.95

0601808803 Multiquip 0601808803 Circuit Breaker 1P 20A - OEM Replacement Part for Super Silent Generators $46.95

0601808804 Multiquip 0601808804 Circuit Breaker 2P 50A - OEM Replacement Part for Super Silent Generators $98.95

0601809666 Multiquip 0601809666 Transformer Current Denyo (JP) - OEM Replacement Part $200.95

0601814014 Multiquip 0601814014 GFCI Receptacle - OEM Replacement Part $90.95

0601814453 Multiquip 0601814453 Coolant Level Alarm Lamp - OEM Replacement Part $33.95

0601815870 Multiquip 0601815870 Board Terminal SGW-225SS - OEM Replacement Part $56.95

0601817000 Multiquip 0601817000 AC Ammeter Denyo - OEM Replacement Part $492.95

0601831557 Multiquip 0601831557 Button Emergency Denyo - OEM Replacement Part $95.95

0601831927 Multiquip 0601831927 Emergency Button Denyo - OEM Replacement Part $178.95

0601840073 Multiquip 0601840073 Rheostat Voltage Regulator for 150SSK and DCA Series Generators - OEM Replacement Part $90.95

0601842334 Multiquip 0601842334 Resistor Denyo - OEM Replacement Part for Super Silent Generators $343.95

0602022561 Multiquip 0602022561 90 Degree Elbow DENYO - OEM Replacement Part for Generator Systems $76.95

0602022580 Multiquip 0602022580 Adapter with Seal - OEM Replacement Part for DCA Super Silent Generators $37.95

0602022791 Multiquip 0602022791 Joint Hose Denyo - OEM Replacement Part for Super Silent Generators $35.95

0602040365 Multiquip 0602040365 90 Degree Elbow Denyo - OEM Replacement Part $79.95

0602040558 Multiquip 0602040558 Air Cleaner Band - OEM Replacement Part for DENYO Super Silent Generators $75.95

0602040650 Multiquip 0602040650 Indicator A/C 2545SSIU/2 DENYO - OEM Replacement Part $34.95

0602046585 Multiquip 0602046585 Air Cleaner Denyo - OEM Replacement Part $226.95

0602046683 Multiquip 0602046683 Inner Air Cleaner Element - OEM Replacement Part $141.95

0602103092 Multiquip 0602103092 Lamp Alarm Charge Red - OEM Replacement Part $36.95

0602220198 Multiquip 0602220198 Battery Denyo - OEM Replacement Part for Super Silent Generators $500.95

0602330511 Multiquip 0602330511 DEF Filter Kit - OEM Replacement Part for Super Silent Generators $199.95

0603306590 Multiquip 0603306590 Male Bulkhead Connector - OEM Replacement Part for Denyo Generators $86.95

0605505072 Multiquip 0605505072 Fuel Tank Cap - OEM Replacement Part for DCA Generator Series $231.95

0605511395 Multiquip 0605511395 Ball Valve DENYO - OEM Replacement Part $46.95

0605515208 Multiquip 0605515208 Hose Band Clamp (Denyo) - OEM Replacement Part $61.95

0605515236 Multiquip 0605515236 Band Hose Denyo - OEM Replacement Part $46.95

515455840 Multiquip 515455840 Mount Nut (M14) Scraper - OEM Replacement Part $35.95

6068HFG05 Multiquip 6068HFG05 Engine - OEM Replacement Part $63,227.95

8171015003 Multiquip 8171015003 Plate Balancing - OEM Replacement Part for Super Silent Generators $300.95

8171070002 Multiquip 8171070002 Fan - OEM Replacement Part for Super Silent Generators $4,003.95

8171611003 Multiquip 8171611003 Coupling Disk - OEM Replacement Part for WhisperWatt Generators $41.95

82608 Multiquip 82608 Toggle Switch Denyo Mods - OEM Replacement Part for Super Silent Generators $34.95

AR50411 Multiquip AR50411 Power Cord 90 Degree John Deere - OEM Replacement Part $38.95

AT377287 Multiquip AT377287 Fitting Hose Barb Brass 5/8" - OEM Replacement Part $49.95

C0274000003 Multiquip C0274000003 Change-Over Board Voltage DCA-180SSK - OEM Replacement Part $376.95

C0277200004 Multiquip C0277200004 Terminal Plate - OEM Replacement Part $100.95

C1112500004 Multiquip C1112500004 Bearing Flange 180SSI - OEM Replacement Part for Super Silent Generators $101.95

C1138000003 Multiquip C1138000003 Exciter Field Assembly - OEM Replacement Part $2,313.95

C1154300004 Multiquip C1154300004 Bearing Gasket - OEM Replacement Part for Super Silent Generators $44.95

C1154400004 Multiquip C1154400004 Bearing Cover - OEM Replacement Part for Super Silent Generators $54.95

C1164200004 Multiquip C1164200004 Washer Coupling Hub - OEM Replacement Part for 180SSI Generators $81.95

DZ113662 Multiquip DZ113662 DEF Tank - OEM Replacement Part for WhisperWatt Super Silent Generators $2,550.95

EE2115 Multiquip EE2115 Potentiometer 5Kohm 10 Turn 2 Watt - OEM Replacement Part $70.95

EE23374 Multiquip EE23374 Pushbutton 1 NO 1 NC Contact 24V Green - OEM Replacement Part $82.95

EE23375 Multiquip EE23375 Pushbutton 1 NO 1 NC Contact 24V Red - OEM Replacement Part $82.95

EE38585 Multiquip EE38585 ABB 2 Pole 10A Circuit Breaker - OEM Replacement Part $60.95

EE52893 Multiquip EE52893 Emergency Stop Bezel 22mm Yellow Plastic - OEM Replacement Part $34.95

EE55760 Multiquip EE55760 RJ45 Cat5E Shielded Panel Mount Jack - OEM Replacement Part $43.95

EE55761 Multiquip EE55761 LED Light Panel 12-36VDC - OEM Replacement Part $43.95

EE55780 Multiquip EE55780 Ethernet Cat5E Shielded Cable 50ft Grey - OEM Replacement Part $81.95

EE55784 Multiquip EE55784 ABB 3-Pole 10A Circuit Breaker UL@480V - OEM Replacement Part $349.95

EE55785 Multiquip EE55785 Contact Aux ABB S2C-H6RU Series - OEM Replacement Part $54.95

EE57855 Multiquip EE57855 Emergency Stop Switch XW1E - OEM Replacement Part $164.95

EE58032 Multiquip EE58032 Contactor Box Bracket Assembly White - OEM Replacement Part $122.95

EE58065 Multiquip EE58065 Ethernet Switch 5 Port 10-30VDC - OEM Replacement Part $453.95

EE58338 Multiquip EE58338 Insulated Bushing with Nut 2" UL CSA - OEM Replacement Part $55.95

EE58650 Multiquip EE58650 Resistor Cover Plate - OEM Replacement Part for Super Silent Generators $56.95

EE58893 Multiquip EE58893 Wire Harness DC Power Balance 16 AWG - OEM Replacement Part $114.95

EE59127 Multiquip EE59127 Contactor ABB 650A 100-250V Control - OEM Replacement Part $3,674.95

EE59259-1 Multiquip EE59259-1 Controller Color Display - OEM Replacement Part $5,032.95

EE60031 Multiquip EE60031 Camlock Female 45° White Santoprene - OEM Replacement Part $85.95

EE60032 Multiquip EE60032 Camlock Female 45° Red Santoprene - OEM Replacement Part $85.95

EE60033 Multiquip EE60033 Camlock Female 45° Blue Santoprene - OEM Replacement Part $85.95

EE60034 Multiquip EE60034 Camlock Female 45° Green Santoprene - OEM Replacement Part $85.95

EE60546 Multiquip EE60546 Resistor - OEM Replacement Part for Super Silent Generators $2,745.95

EE60563 Multiquip EE60563 Tailpipe Extension 5" x 13.5" Stainless Steel - OEM Replacement Part $278.95

EE60569 Multiquip EE60569 Contactor - OEM Replacement Part for Super Silent Generators $3,569.95

EE60789 Multiquip EE60789 Harness Assembly 50kW 6 AWG - OEM Replacement Part $1,061.95

EE9949 Multiquip EE9949 Nut Shaft Lock Potentiometer - OEM Replacement Part $33.95

HBL5278C Multiquip HBL5278C Receptacle Inlet Flange 15Amp NEMA 125V - OEM Replacement Part $53.95

HBL5369C Multiquip HBL5369C Connector 20amp 125V - OEM Replacement Part $103.95

LY2DUS12VDC Multiquip LY2DUS12VDC Relay with Diode - OEM Replacement Part for DCA Generators $46.95

M3214602404 Multiquip M3214602404 Terminal Board Cover (KY) - OEM Replacement Part for Super Silent Generators $170.95

M3224001203 Multiquip M3224001203 Control Panel DENYO - OEM Replacement Part $1,255.95

M3230700113 Multiquip M3230700113 Terminal Board DENYO - OEM Replacement Part for Super Silent Generators $399.95

M3237100404 Multiquip M3237100404 Insulating Cover - OEM Replacement Part for Denyo Super Silent Generators $160.95

M3247702004 Multiquip M3247702004 Generator Harness (JP) - OEM Replacement Part $1,473.95

M3303200404 Multiquip M3303200404 Engine Foot - OEM Replacement Part for Denyo Super Silent Generators $39.95

M3311201004 Multiquip M3311201004 Radiator Bracket - OEM Replacement Part for Super Silent Generators $129.95

M3311500503 Multiquip M3311500503 Upper Radiator Hose DENYO - OEM Replacement Part $194.95

M3311500603 Multiquip M3311500603 Lower Radiator Hose DENYO - OEM Replacement Part $197.95

M3311501503 Multiquip M3311501503 Surge Tank Hose - OEM Replacement Part for Super Silent Generators $62.95

M3317100004 Multiquip M3317100004 Surge Tank Bracket - OEM Replacement Part for Super Silent Generators $263.95

M3331400604 Multiquip M3331400604 DPF Band Denyo - OEM Replacement Part $77.95

M3331402804 Multiquip M3331402804 DEF Tank Band - OEM Replacement Part $233.95

M3334001203 Multiquip M3334001203 Exhaust Pipe - OEM Replacement Part for Super Silent Generators $414.95

M3334100103 Multiquip M3334100103 Tail Pipe (KY) - OEM Replacement Part for Super Silent Generators $1,146.95

M3358201602 Multiquip M3358201602 Wire Harness Engine Denyo - OEM Replacement Part $1,729.95

M3364000513 Multiquip M3364000513 Fuel Tank Denyo - OEM Replacement Part for Super Silent Generators $3,695.95

M3364301003 Multiquip M3364301003 Environmental Tank Denyo - OEM Replacement Part $4,287.95

M3364400504 Multiquip M3364400504 Tube Pick Up KY - OEM Replacement Part for Super Silent Generators $141.95

M3414001702 Multiquip M3414001702 Base Denyo - OEM Replacement Part for Super Silent Generators $9,523.95

M3414400303 Multiquip M3414400303 Base Cover DENYO - OEM Replacement Part for Super Silent Generators $228.95

M3424100003 Multiquip M3424100003 Front Frame Panel - OEM Replacement Part for Denyo Super Silent Generators $779.95

M3424100203 Multiquip M3424100203 Panel Front Frame Denyo - OEM Replacement Part $1,377.95

M3424201803 Multiquip M3424201803 Over Cover Front Frame Denyo - OEM Replacement Part $544.95

M3434000602 Multiquip M3434000602 Center Frame - OEM Replacement Part for Denyo Super Silent Generators $3,479.95

M3444000702 Multiquip M3444000702 Rear Frame - OEM Replacement Part $2,450.95

M3444200303 Multiquip M3444200303 Door (OP) DENYO - OEM Replacement Part for Super Silent Generators $495.95

M3444300904 Multiquip M3444300904 Cover Rear Frame Denyo - OEM Replacement Part for Super Silent Generators $372.95

M3454002803 Multiquip M3454002803 Side Door Denyo - OEM Replacement Part for Super Silent Generators $454.95

M3454301804 Multiquip M3454301804 Acoustic Duct Denyo - OEM Replacement Part for Super Silent Generators $71.95

M3454700404 Multiquip M3454700404 Rubber Sheet - OEM Replacement Part for DENYO Super Silent Generators $62.95

M3464100502 Multiquip M3464100502 Roof Panel White Denyo - OEM Replacement Part $552.95

M3464200502 Multiquip M3464200502 Roof Panel White Denyo - OEM Replacement Part $632.95

M3464500104 Multiquip M3464500104 Gutter (White) Denyo - OEM Replacement Part $57.95

M3464500204 Multiquip M3464500204 Gutter (White) - OEM Replacement Part for Denyo Super Silent Generators $41.95

M3494110104 Multiquip M3494110104 Radiator Bracket Assembly - OEM Replacement Part $551.95

M3494110204 Multiquip M3494110204 Radiator Assembly (2 Pieces) - OEM Replacement Part $188.95

M3494112003 Multiquip M3494112003 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $714.95

M3494113204 Multiquip M3494113204 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $160.95

M3494114004 Multiquip M3494114004 DEF Tank Cover Assembly (2 Pieces) - OEM Replacement Part $85.95

M3494118804 Multiquip M3494118804 Acoustic Sheet Denyo - OEM Replacement Part $172.95

M3494302304 Multiquip M3494302304 Acoustic Sheet Denyo (KY) - OEM Replacement Part $118.95

M3494302404 Multiquip M3494302404 Acoustic Sheet Denyo - OEM Replacement Part $70.95

M3494420604 Multiquip M3494420604 Front Side Door Left Assembly - OEM Replacement Part $715.95

M3494420704 Multiquip M3494420704 Front Side Door Right Assembly - OEM Replacement Part $715.95

M3494420804 Multiquip M3494420804 Side Door Assembly - OEM Replacement Part for Super Silent Generators $577.95

M3494420904 Multiquip M3494420904 Rear Side Door Right Assembly - OEM Replacement Part $278.95

M3494421304 Multiquip M3494421304 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $139.95

M3494421404 Multiquip M3494421404 Acoustic Sheet - OEM Replacement Part for WhisperWatt Super Silent Generators $511.95

M3494421504 Multiquip M3494421504 Rear Splasher Panel Assembly - OEM Replacement Part $348.95

M3494504204 Multiquip M3494504204 Acoustic Sheet Denyo - OEM Replacement Part $196.95

M3494504304 Multiquip M3494504304 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $282.95

M3551002102 Multiquip M3551002102 Control Panel Decal - OEM Replacement Part $126.95

M3561101303 Multiquip M3561101303 DENYO Component - OEM Replacement Part for Super Silent Generators $42.95

M4213500104 Multiquip M4213500104 Control Box Cover DENYO - OEM Replacement Part $204.95

M4213600104 Multiquip M4213600104 Control Panel DENYO - OEM Replacement Part for Super Silent Generators $63.95

M4214000222 Multiquip M4214000222 Control Box (KY) - OEM Replacement Part for Super Silent Generators $2,063.95

M4223000604 Multiquip M4223000604 Control Panel Denyo (KY) - OEM Replacement Part $143.95

M4236100403 Multiquip M4236100403 Terminal Cover Denyo - OEM Replacement Part $231.95

M4236400104 Multiquip M4236400104 Supporter Cable Outlet Cover - OEM Replacement Part for Denyo Super Silent Generators $88.95

M4260600104 Multiquip M4260600104 Circuit Breaker Bracket - OEM Replacement Part for Denyo Super Silent Generators $57.95

M4443600004 Multiquip M4443600004 Plate Window Denyo - OEM Replacement Part $155.95

M4444300003 Multiquip M4444300003 Duct Rear Frame Denyo - OEM Replacement Part $998.95

M4493303004 Multiquip M4493303004 Acoustic Sheet Denyo - OEM Replacement Part $58.95

M5214600704 Multiquip M5214600704 Terminal Board Cover Bracket - OEM Replacement Part $75.95

M5494108204 Multiquip M5494108204 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $64.95

M9103000504 Multiquip M9103000504 Battery Band - OEM Replacement Part for Super Silent Generators $107.95

M9220100914 Multiquip M9220100914 Output Terminal Bolt Denyo - OEM Replacement Part $197.95

M9220101004 Multiquip M9220101004 Tie Bolt Denyo - OEM Replacement Part for Super Silent Generators $41.95

M9520000704 Multiquip M9520000704 3-Phase Output Terminal Decal - OEM Replacement Part $59.95

M9520200303 Multiquip M9520200303 Output Volume Setting Decal - OEM Replacement Part $45.95

R300529 Multiquip R300529 Sealing Ring John Deere - OEM Replacement Part $140.95

R528112 Multiquip R528112 Seal 70SSJU4i Muffler Assembly - OEM Replacement Part $116.95

R529640 Multiquip R529640 Gasket - OEM Replacement Part for Super Silent Generators $97.95

RE289839 Multiquip RE289839 V-Band Clamp - OEM Replacement Part $107.95

RE292067 Multiquip RE292067 V-Band Clamp - OEM Replacement Part $139.95

RE298757 Multiquip RE298757 V-Band Clamp - OEM Replacement Part $162.95

RE42139 Multiquip RE42139 Coolant Heater 1000W - OEM Replacement Part $227.95

RE539279 Multiquip RE539279 Oil Filter Cartridge - OEM Replacement Part for Super Silent Generators $93.95

RE540348 Multiquip RE540348 Clamp V Band - OEM Replacement Part for Super Silent Generators $163.95

RE55498 Multiquip RE55498 DEF Supply Filter Kit - OEM Replacement Part for Super Silent Generators $373.95

RE560681 Multiquip RE560681 Fuel Filter Element (Secondary) - OEM Replacement Part $146.95

RE560897 Multiquip RE560897 DEF Pressure Line - OEM Replacement Part for Super Silent Generators $700.95

RE562696 Multiquip RE562696 Seal Kit for Fuel Filter - OEM Replacement Part $72.95

RE565074 Multiquip RE565074 Decomposition Tube - OEM Replacement Part for Super Silent Generators $2,420.95

Y0601813078 Multiquip Y0601813078 Receptacles Harness (DENYO) - OEM Replacement Part for Super Silent Generators $105.95

Y0601827412 Multiquip Y0601827412 Rear Terminal Bus-Bar DENYO (KY) - OEM Replacement Part $164.95

Y0601827415 Multiquip Y0601827415 Rear Terminal Busbar (KY) - OEM Replacement Part $218.95

Y0601831345 Multiquip Y0601831345 3-Pole Switch - OEM Replacement Part $49.95

Y0602012922 Multiquip Y0602012922 Radiator & Intercooler Assembly - OEM Replacement Part $3,580.95

Y0602015610 Multiquip Y0602015610 CAC Hose Denyo - OEM Replacement Part $124.95

Y0602022577 Multiquip Y0602022577 90° Elbow KY - OEM Replacement Part for Super Silent Generators $39.95

Y0602022578 Multiquip Y0602022578 Elbow 90 Deg Denyo - OEM Replacement Part for Super Silent Generators $67.95

Y0602044503 Multiquip Y0602044503 Blowby Filter Cover Lower (KY) - OEM Replacement Part $306.95

Y0602044509 Multiquip Y0602044509 Blow-By Filter Cover Upper (KY) - OEM Replacement Part $608.95

Y0602120903 Multiquip Y0602120903 ECU670 W/FIRMWARE - OEM Replacement Part $757.95

Y0602203079 Multiquip Y0602203079 ECU845 W/FIRMWARE - OEM Replacement Part $1,862.95

Y0602311172 Multiquip Y0602311172 Heat Shield Pipe - OEM Replacement Part $157.95

Y0602311173 Multiquip Y0602311173 Heat Shield Denyo - OEM Replacement Part $48.95

Y0602325026 Multiquip Y0602325026 Pipe Band - OEM Replacement Part for Denyo Super Silent Generators $37.95

Y0605000620 Multiquip Y0605000620 Rubber Suspension (KY) - OEM Replacement Part $93.95

Y0605012318 Multiquip Y0605012318 Door Handle (KY) - OEM Replacement Part $75.95

Y0605501049 Multiquip Y0605501049 Fuel Sender Unit KY - OEM Replacement Part for Super Silent Generators $342.95

Y0605511394 Multiquip Y0605511394 Mini Ball Valve Denyo - OEM Replacement Part $70.95

0010006030 HEX. HEAD BOLT $0.25

0010106060 HEX. HEAD BOLT M6X60MM $1.31

0012110065 HEX. HEAD BOLT $4.95

0012112040 HEX. HEAD BOLT 12X40 $4.95

0012116060 HEX. HEAD BOLT $6.95

0012312030 HEX. HEAD BOLT $6.95

0013608090 HEX HEAD BOLT

0016906015 HEX. HEAD BOLT 6X16 $0.95

0016908040 HEX. HEAD BOLT $1.52

0016910025 HEX. HEAD BOLT 10X25 $1.56

0016910030 HEX. HEAD BOLT $2.95

0017112045 HEX. HEAD BOLT $1.76

From the guides desk

Guide · 2026-08-04

Ask ARIA about your machine.

Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.

Chat with ARIA

Multiquip DCA180SSJU4F3 Generator

The parts bench

The machine itself

Machine

Engine

Keep-it-running spares

Every part that fits this machine

Service notices & part changes

Take the factory book with you

Get the download pack

From the guides desk

Multiquip DCA Generator Fault Shutdown and Controller Reset Guide

Multiquip Generator No-Start and No-Power Fixes

Multiquip DCA Generator Fault Codes and Diagnostics Guide

Ask ARIA about your machine.

Your cart is empty

Your cart is empty
