Multiquip DCA220SSJU4F3 Generator

Name: Multiquip DCA220SSJU4F3 Generator
Brand: Multiquip

The parts bench

Need the PDF? ↓

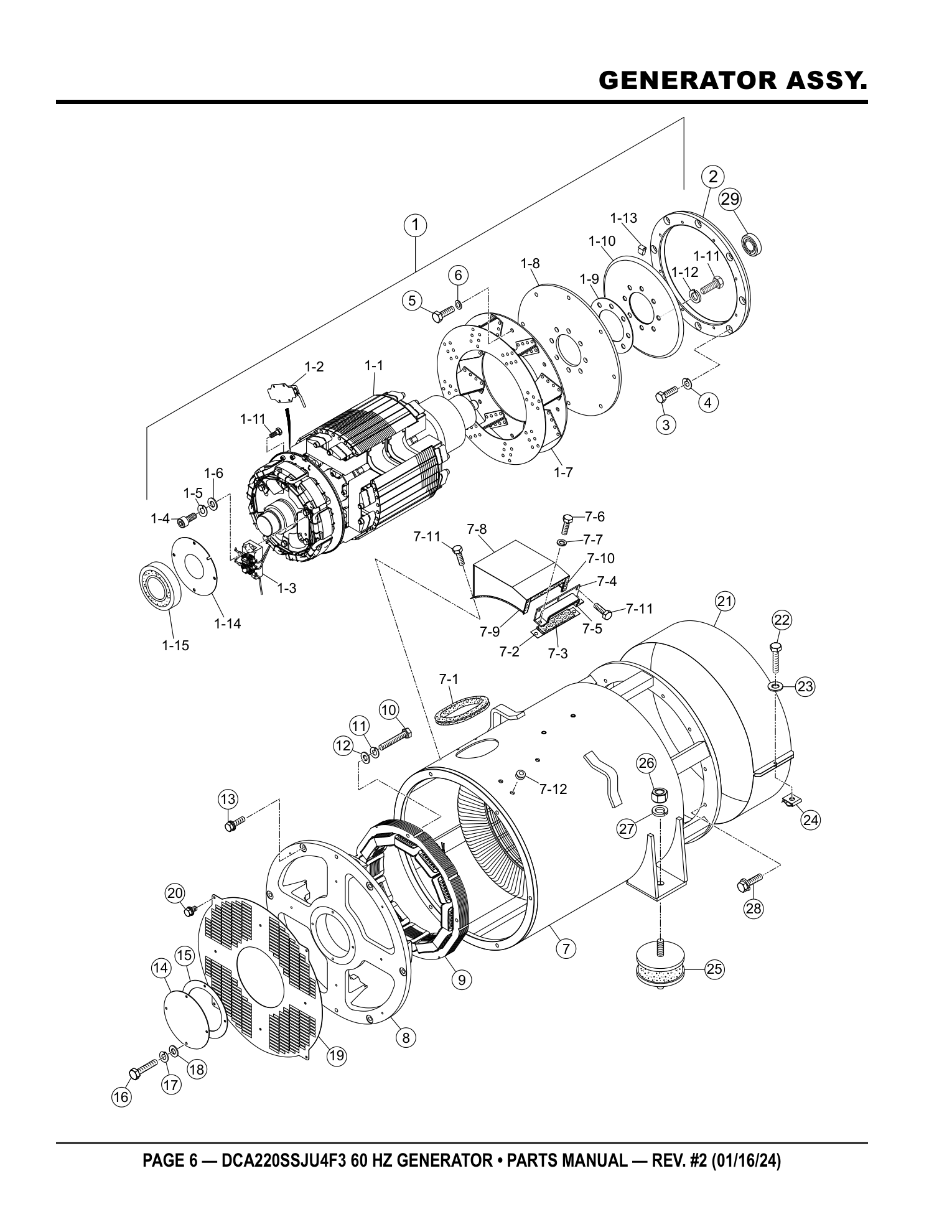

Page 6 — GENERATOR ASSY.

Multiquip DCA220SSJU4F3 Generator GENERATOR ASSY. parts diagram

Parts list — exactly as printed45 rows

No.	Part No.	Part Name	Qty	Remarks
1	C1110000602	ROTOR ASSY	1	INCLUDES ITEMS W/$	ADD TO CART
ROTOR ASSY C1110000602 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 1-1$, 1-2$, 1-3$, 1-4$, 1-5$, 1-6$, 1-7$, 1-8$, 1-9$, 1-10$, 1-11$, 1-12$, 1-13$, 1-14$, 1-15$ view full part page → $21038.95 IN A KIT + SOLD SOLO
1-1$		FIELD ASSY.	1		INCLUDED IN KIT
PHOTO COMING FIELD ASSY. · qty on machine: 1 Included in kit 1 - ROTOR ASSY (C1110000602) INCLUDED IN KIT
1-2$	0601842334	RESISTOR, 80W 100K OHM	1		ADD TO CART
RESISTOR, 80W 100K OHM 0601842334 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (C1110000602) view full part page → $343.95 IN A KIT + SOLD SOLO
1-3$	0601823282	RECTIFIER	1		NO LONGER AVAILABLE
PHOTO COMING RECTIFIER 0601823282 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (C1110000602) NO LONGER AVAILABLE
1-4$	0018205020	SCREW, HEX. SOCKET HEAD CAP	2		ADD TO CART
SCREW, HEX. SOCKET HEAD CAP 0018205020 · qty on machine: 2 Also included in kit 1 - ROTOR ASSY (C1110000602) view full part page → $1.55 IN A KIT + SOLD SOLO
1-5$	0032005000	WASHER, LOCK	2	REPLACES P/N 0040005000	ADD TO CART
WASHER, LOCK 0032005000 · qty on machine: 2 REPLACES P/N 0040005000 Also included in kit 1 - ROTOR ASSY (C1110000602) view full part page → $0.41 IN A KIT + SOLD SOLO
1-6$	0401450050	WASHER, FLAT	2	REPLACES P/N 0041205000	ADD TO CART
WASHER, FLAT 0401450050 · qty on machine: 2 REPLACES P/N 0041205000 Also included in kit 1 - ROTOR ASSY (C1110000602) view full part page → $0.41 IN A KIT + SOLD SOLO
1-7$	8171070002	FAN	1		ADD TO CART
FAN 8171070002 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (C1110000602) view full part page → $4003.95 IN A KIT + SOLD SOLO
1-8$	8171611003	COUPLING DISK	9		ADD TO CART
COUPLING DISK 8171611003 · qty on machine: 9 Also included in kit 1 - ROTOR ASSY (C1110000602) view full part page → $41.95 IN A KIT + SOLD SOLO
1-9$	C1164200004	WASHER, COUPLING HUB	1		ADD TO CART
WASHER, COUPLING HUB C1164200004 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (C1110000602) view full part page → $81.95 IN A KIT + SOLD SOLO
1-10$	8171015003	BALANCING PLATE	1	PURCHASE SET OF ITEM 1-13$	ADD TO CART
BALANCING PLATE 8171015003 · qty on machine: 1 PURCHASE SET OF ITEM 1-13$ Also included in kit 1 - ROTOR ASSY (C1110000602) view full part page → $300.95 IN A KIT + SOLD SOLO
1-11$	0012116045	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0012116045 · qty on machine: 8 Also included in kit 1 - ROTOR ASSY (C1110000602) view full part page → $6.95 IN A KIT + SOLD SOLO
1-12$	0042616000	WASHER, LOCK	8		ADD TO CART
WASHER, LOCK 0042616000 · qty on machine: 8 Also included in kit 1 - ROTOR ASSY (C1110000602) view full part page → $1.95 IN A KIT + SOLD SOLO
1-13$	0601000209	BALANCING WEIGHT KIT	1		ADD TO CART
BALANCING WEIGHT KIT 0601000209 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (C1110000602) view full part page → $9.95 IN A KIT + SOLD SOLO
1-14$	C1112500004	FLANGE, BEARING	1		ADD TO CART
FLANGE, BEARING C1112500004 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (C1110000602) view full part page → $101.95 IN A KIT + SOLD SOLO
1-15$	0071906314	BEARING	1		ADD TO CART
BEARING 0071906314 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (C1110000602) view full part page → $276.95 IN A KIT + SOLD SOLO
2	M4163400003	COUPLING RING	1		PARTS REQUEST
PHOTO COMING COUPLING RING M4163400003 · qty on machine: 1 PARTS REQUEST
3	0343206120	HEX. HEAD BOLT	8		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT 0343206120 · qty on machine: 8 PARTS REQUEST
4	0043606000	WASHER, LOCK	8		PARTS REQUEST
PHOTO COMING WASHER, LOCK 0043606000 · qty on machine: 8 PARTS REQUEST
5	0012112040	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0012112040 · qty on machine: 8 view full part page → $4.95
6	0040012000	WASHER, LOCK	8		ADD TO CART
WASHER, LOCK 0040012000 · qty on machine: 8 view full part page → $0.95
7	C1130100903	STATOR ASSY	1	INCLUDES ITEMS W/#	PARTS REQUEST
PHOTO COMING STATOR ASSY C1130100903 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 7-1#, 7-2#, 7-3#, 7-4#, 7-5#, 7-6#, 7-7#, 7-8#, 7-9#, 7-10#, 7-11#, 7-12# PARTS REQUEST
7-1#	0226100420	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL 0226100420 · qty on machine: 1 Also included in kit 7 - STATOR ASSY (C1130100903) view full part page → $19.95 IN A KIT + SOLD SOLO
7-2#	C1183300204	CLAMP	1		PARTS REQUEST
PHOTO COMING CLAMP C1183300204 · qty on machine: 1 Also included in kit 7 - STATOR ASSY (C1130100903) PARTS REQUEST
7-3#	0223300120	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL 0223300120 · qty on machine: 1 Also included in kit 7 - STATOR ASSY (C1130100903) view full part page → $13.95 IN A KIT + SOLD SOLO
7-4#	C1132200303	CLAMP	1		PARTS REQUEST
PHOTO COMING CLAMP C1132200303 · qty on machine: 1 Also included in kit 7 - STATOR ASSY (C1130100903) PARTS REQUEST
7-5#	0223100150	RUBBER SEAL	1		PARTS REQUEST
PHOTO COMING RUBBER SEAL 0223100150 · qty on machine: 1 Also included in kit 7 - STATOR ASSY (C1130100903) PARTS REQUEST
7-6#	0010110035	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0010110035 · qty on machine: 2 Also included in kit 7 - STATOR ASSY (C1130100903) view full part page → $0.95 IN A KIT + SOLD SOLO
7-7#	0041610000	WASHER, FLAT	2		ADD TO CART
WASHER, FLAT 0041610000 · qty on machine: 2 Also included in kit 7 - STATOR ASSY (C1130100903) view full part page → $0.24 IN A KIT + SOLD SOLO
7-8#	C1132200003	COVER	1		ADD TO CART
COVER C1132200003 · qty on machine: 1 Also included in kit 7 - STATOR ASSY (C1130100903) view full part page → $98.95 IN A KIT + SOLD SOLO
7-9#	0226000510	RUBBER SEAL	2		ADD TO CART
RUBBER SEAL 0226000510 · qty on machine: 2 Also included in kit 7 - STATOR ASSY (C1130100903) view full part page → $10.95 IN A KIT + SOLD SOLO
7-10#	0225000470	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL 0225000470 · qty on machine: 1 Also included in kit 7 - STATOR ASSY (C1130100903) view full part page → $10.95 IN A KIT + SOLD SOLO
7-11#	0017106016	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0017106016 · qty on machine: 6 Also included in kit 7 - STATOR ASSY (C1130100903) view full part page → $1.51 IN A KIT + SOLD SOLO
7-12#	0601850144	GROMMET	1		ADD TO CART
GROMMET 0601850144 · qty on machine: 1 Also included in kit 7 - STATOR ASSY (C1130100903) view full part page → $4.95 IN A KIT + SOLD SOLO
8	C1154000002	END BRACKET	1		ADD TO CART
END BRACKET C1154000002 · qty on machine: 1 view full part page → $1970.95
9	C1138000003	FIELD ASSY., EXCITER	1		ADD TO CART
FIELD ASSY., EXCITER C1138000003 · qty on machine: 1 view full part page → $2313.95
10	0012110065	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0012110065 · qty on machine: 4 view full part page → $4.95
11	0042610000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0042610000 · qty on machine: 4 view full part page → $0.53
12	0041210000	WASHER, FLAT	4		ADD TO CART
WASHER, FLAT 0041210000 · qty on machine: 4 Factory replaced this part - current number 031110160 view full part page → $0.4 IN A KIT + SOLD SOLO
13	0017112045	HEX. HEAD, BOLT	6		ADD TO CART
HEX. HEAD, BOLT 0017112045 · qty on machine: 6 view full part page → $1.76
14	C1154400004	COVER, BEARING	1		ADD TO CART
COVER, BEARING C1154400004 · qty on machine: 1 view full part page → $54.95
15	C1154300004	GASKET, BEARING	1		ADD TO CART
GASKET, BEARING C1154300004 · qty on machine: 1 view full part page → $44.95
16	0010106060	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0010106060 · qty on machine: 4 view full part page → $1.31
17	0040006000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0040006000 · qty on machine: 4 view full part page → $0.17
18	0041206000	WASHER, FLAT	4		ADD TO CART
WASHER, FLAT 0041206000 · qty on machine: 4 Factory replaced this part - current number 952404470 view full part page → $0.19 IN A KIT + SOLD SOLO

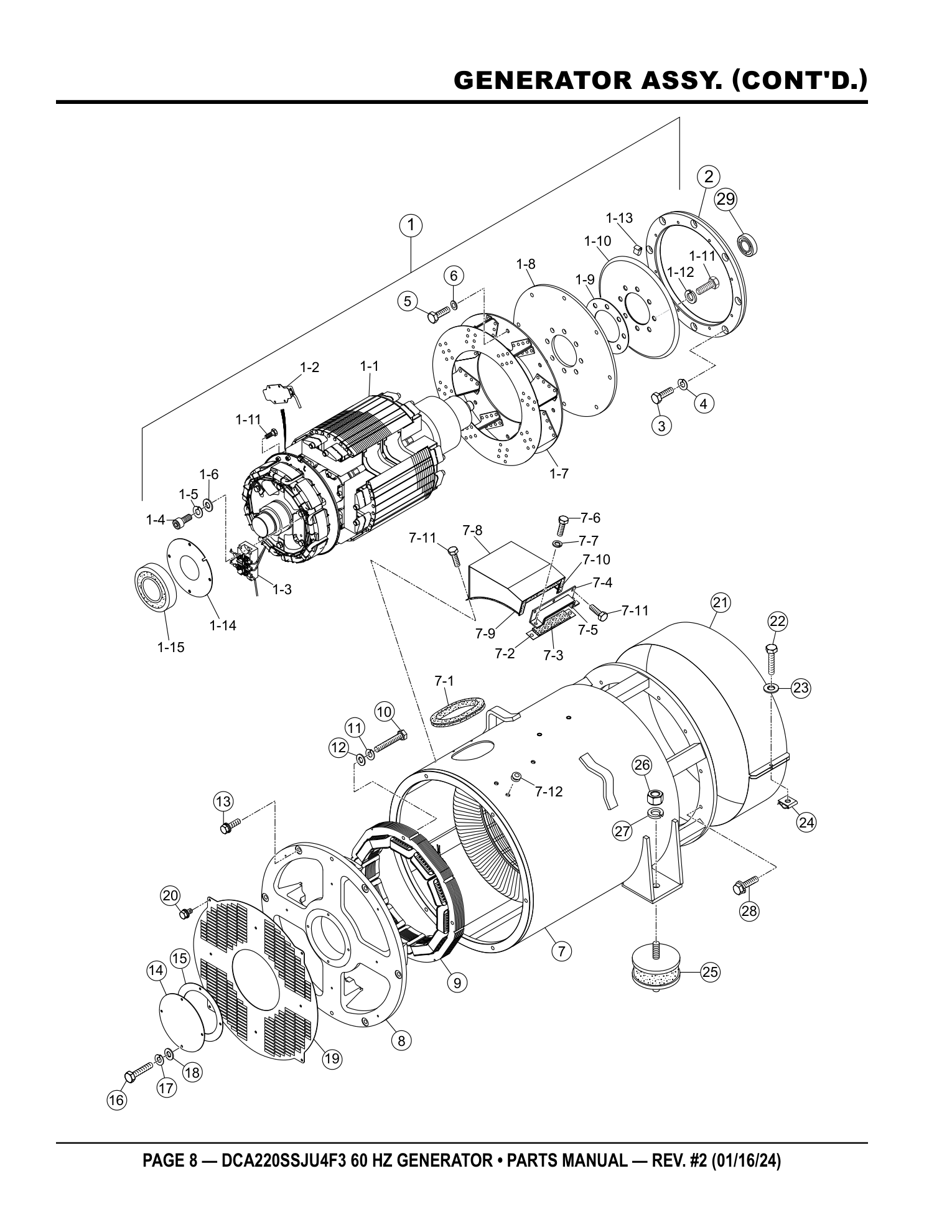

Page 8 — GENERATOR ASSY. (CONT'D.)

Multiquip DCA220SSJU4F3 Generator GENERATOR ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed11 rows

No.	Part No.	Part Name	Qty
19	C1154400103	SUCTION COVER	1	ADD TO CART
SUCTION COVER C1154400103 · qty on machine: 1 view full part page → $95.95
20	0017106016	HEX. HEAD BOLT	8	ADD TO CART
HEX. HEAD BOLT 0017106016 · qty on machine: 8 view full part page → $1.51
21	C1132300114	COVER, FAN	1	ADD TO CART
COVER, FAN C1132300114 · qty on machine: 1 view full part page → $547.95
22	0010106030	BOLT, HEX. HEAD	1	ADD TO CART
BOLT, HEX. HEAD 0010106030 · qty on machine: 1 Factory replaced this part - current number 0010006030 view full part page → $0.25 IN A KIT + SOLD SOLO
23	0041206000	WASHER, FLAT	1	ADD TO CART
WASHER, FLAT 0041206000 · qty on machine: 1 Factory replaced this part - current number 952404470 view full part page → $0.19 IN A KIT + SOLD SOLO
24	0600815000	NUT	1	ADD TO CART
NUT 0600815000 · qty on machine: 1 Factory replaced this part - current number 020106050 view full part page → $0.12 IN A KIT + SOLD SOLO
25	0605000463	RUBBER SUSPENSION	2	ADD TO CART
RUBBER SUSPENSION 0605000463 · qty on machine: 2 view full part page → $211.89
26	0030016000	NUT, HEX.	4	ADD TO CART
NUT, HEX. 0030016000 · qty on machine: 4 view full part page → $1.9
27	0040016000	WASHER, LOCK	4	ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 4 view full part page → $4.95
28	0012810030	HEX. HEAD BOLT	12	ADD TO CART
HEX. HEAD BOLT 0012810030 · qty on machine: 12 Factory replaced this part - current number 012010030 view full part page → $0.95 IN A KIT + SOLD SOLO
29	0070506307	BEARING	1	ADD TO CART
BEARING 0070506307 · qty on machine: 1 view full part page → $60.95

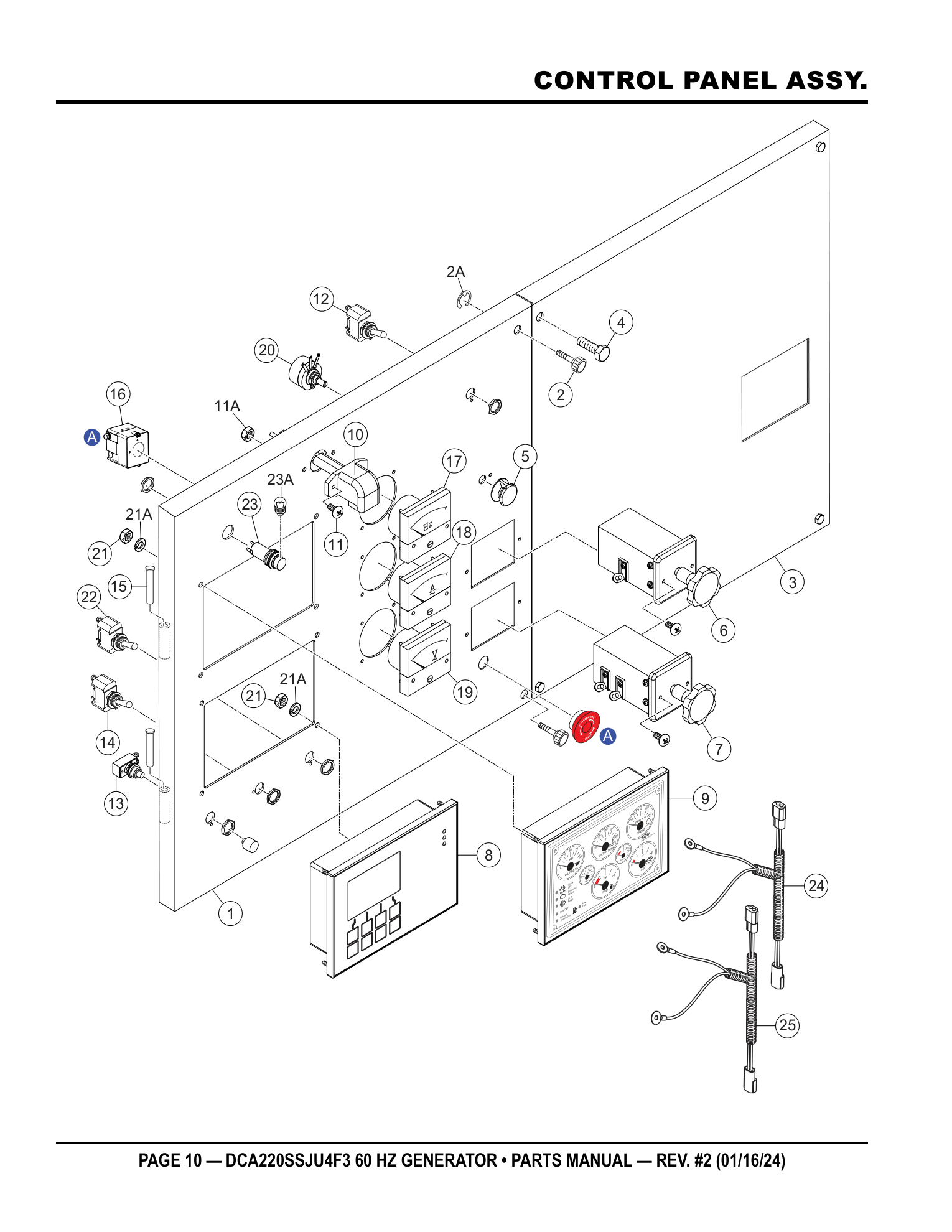

Page 10 — CONTROL PANEL ASSY.

Multiquip DCA220SSJU4F3 Generator CONTROL PANEL ASSY. parts diagram

Parts list — exactly as printed35 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3224001203	CONTROL PANEL	1		ADD TO CART
CONTROL PANEL M3224001203 · qty on machine: 1 view full part page → $1255.95
2	M9220100004	SET SCREW	2		ADD TO CART
SET SCREW M9220100004 · qty on machine: 2 view full part page → $12.95
2A	0080200007	E-RING	2		ADD TO CART
E-RING 0080200007 · qty on machine: 2 view full part page → $1.39
3	M4223000604	CONTROL PANEL, RIGHT	1	S/N 8011698 AND BELOW	ADD TO CART
CONTROL PANEL, RIGHT M4223000604 · qty on machine: 1 S/N 8011698 AND BELOW view full part page → $143.95
3	M4224000304	CONTROL PANEL, RIGHT	1	S/N 8011699 AND ABOVE	ADD TO CART
CONTROL PANEL, RIGHT M4224000304 · qty on machine: 1 S/N 8011699 AND ABOVE view full part page → $229.95
4	0016908040	HEX HEAD BOLT	4		ADD TO CART
HEX HEAD BOLT 0016908040 · qty on machine: 4 view full part page → $1.52
5	0601840121	KNOB	1		ADD TO CART
KNOB 0601840121 · qty on machine: 1 Factory replaced this part - current number 0601840100 view full part page → $30.95 IN A KIT + SOLD SOLO
6	0601801040	CHANGE-OVER SWITCH, AMMETER	1		ADD TO CART
CHANGE-OVER SWITCH, AMMETER 0601801040 · qty on machine: 1 view full part page → $95.95
7	0601801041	CHANGE-OVER SWITCH, VOLTMETER	1		ADD TO CART
CHANGE-OVER SWITCH, VOLTMETER 0601801041 · qty on machine: 1 view full part page → $157.95
8	Y0602203048	ECU CONTROLLER, NON-UL ECU	1	S/N 8011567 AND BELOW	NO LONGER AVAILABLE
PHOTO COMING ECU CONTROLLER, NON-UL ECU Y0602203048 · qty on machine: 1 S/N 8011567 AND BELOW NO LONGER AVAILABLE
8	Y0602203055	ECU CONTROLLER, UL ECU	1	S/N 8011567 ~ 8011696	ADD TO CART
ECU CONTROLLER, UL ECU Y0602203055 · qty on machine: 1 S/N 8011567 ~ 8011696 view full part page → $1862.95
8	Y0602203055	ECU CONTROLLER, ECU-845 W/FRMWRE	1	S/N 8011697 AND ABOVE	ADD TO CART
ECU CONTROLLER, ECU-845 W/FRMWRE Y0602203055 · qty on machine: 1 S/N 8011697 AND ABOVE view full part page → $1862.95
9	Y0602120568	GAUGE UNIT ASSEMBLY, NON-UL GAUGE	1	S/N 8011567 AND BELOW	ADD TO CART
GAUGE UNIT ASSEMBLY, NON-UL GAUGE Y0602120568 · qty on machine: 1 S/N 8011567 AND BELOW view full part page → $947.95
9	Y0602120903	GAUGE UNIT ASSEMBLY, UL GAUGE	1	S/N 8011568 AND ABOVE	ADD TO CART
GAUGE UNIT ASSEMBLY, UL GAUGE Y0602120903 · qty on machine: 1 S/N 8011568 AND ABOVE view full part page → $757.95
10	Y0601810170	PANEL LIGHT, 12V	1		ADD TO CART
PANEL LIGHT, 12V Y0601810170 · qty on machine: 1 view full part page → $142.95
11	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
11A	OEMAA8	HEX. NUT	2	REPLACES P/N 0207004000	ADD TO CART
HEX. NUT OEMAA8 · qty on machine: 2 REPLACES P/N 0207004000 view full part page → $0.4
12	0601830710	PANEL LIGHT SWITCH	1		ADD TO CART
PANEL LIGHT SWITCH 0601830710 · qty on machine: 1 view full part page → $29.95
13	0601831205	PUSH BUTTON, RED	1		ADD TO CART
PUSH BUTTON, RED 0601831205 · qty on machine: 1 view full part page → $25.95
14	82608	TOGGLE SWITCH	1	REPLACES P/N 0601831340 S/N 8011990 AND BELOW	ADD TO CART
TOGGLE SWITCH 82608 · qty on machine: 1 REPLACES P/N 0601831340 S/N 8011990 AND BELOW view full part page → $34.95
14	Y0601831345	3-POLE SWITCH	1	S/N 8011991 AND ABOVE	ADD TO CART
3-POLE SWITCH Y0601831345 · qty on machine: 1 S/N 8011991 AND ABOVE view full part page → $49.95
15	0605011211	PIN	2		ADD TO CART
PIN 0605011211 · qty on machine: 2 view full part page → $1.55
16	0601831557	EMERGENCY STOP BUTTON	1	S/N 8011416 AND BELOW	ADD TO CART
EMERGENCY STOP BUTTON 0601831557 · qty on machine: 1 S/N 8011416 AND BELOW view full part page → $95.95
17	0601807642	FREQUENCY METER, 45~65HZ 240V	1		ADD TO CART
FREQUENCY METER, 45~65HZ 240V 0601807642 · qty on machine: 1 view full part page → $1023.95
18	0601808992	AC AMMETER, 0~400A/800A:5A	1		ADD TO CART
AC AMMETER, 0~400A/800A:5A 0601808992 · qty on machine: 1 view full part page → $548.95
19	0601800275	AC VOLTMETER, 0~600V	1		ADD TO CART
AC VOLTMETER, 0~600V 0601800275 · qty on machine: 1 view full part page → $146.95
20	0601840073	VOLTAGE REGULATOR, 1K	1		ADD TO CART
VOLTAGE REGULATOR, 1K 0601840073 · qty on machine: 1 view full part page → $90.95
21	Y0206707000	HEX. NUT	8		ADD TO CART
HEX. NUT Y0206707000 · qty on machine: 8 view full part page → $0.45
21A	Y0044807000	WASHER, LOCK	8		ADD TO CART
WASHER, LOCK Y0044807000 · qty on machine: 8 view full part page → $0.45
22	0601830710	ENGINE SPEED SWITCH	1		ADD TO CART
ENGINE SPEED SWITCH 0601830710 · qty on machine: 1 view full part page → $29.95
23	0602103092	LAMP, ALARM 18V RED	1	INCLUDES ITEMS W/# S/N 8011353 AND BELOW	ADD TO CART
LAMP, ALARM 18V RED 0602103092 · qty on machine: 1 INCLUDES ITEMS W/# S/N 8011353 AND BELOW Kit includes: 23A# view full part page → $36.95 IN A KIT + SOLD SOLO
23	Y0601814453	LED LAMP	1	S/N 8011362 AND ABOVE	ADD TO CART
LED LAMP Y0601814453 · qty on machine: 1 S/N 8011362 AND ABOVE Kit includes: 23A# view full part page → $36.95 IN A KIT + SOLD SOLO
23A#	0601810277	BULB, 18V	1	S/N 8011353 AND BELOW	ADD TO CART
BULB, 18V 0601810277 · qty on machine: 1 S/N 8011353 AND BELOW Also included in kit 23 - LAMP, ALARM 18V RED (0602103092) view full part page → $36.95 IN A KIT + SOLD SOLO
24	M4247700004	WIRE HARNESS, GENERATOR	1		ADD TO CART
WIRE HARNESS, GENERATOR M4247700004 · qty on machine: 1 view full part page → $1210.95
25	M3358201602	WIRE HARNESS, ENGINE	1		ADD TO CART
WIRE HARNESS, ENGINE M3358201602 · qty on machine: 1 view full part page → $1729.95

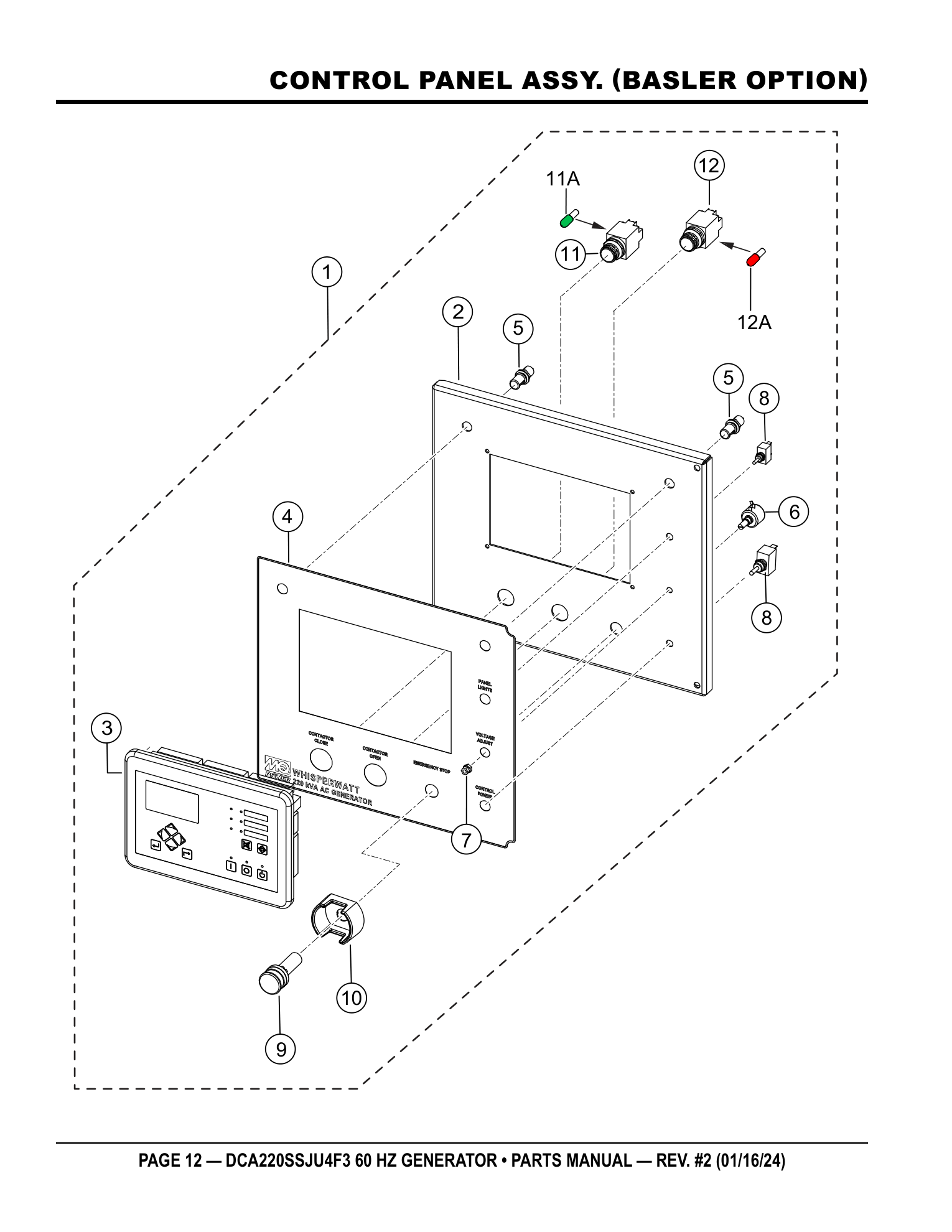

Page 12 — CONTROL PANEL ASSY. (BASLER OPTION)

Multiquip DCA220SSJU4F3 Generator CONTROL PANEL ASSY. (BASLER OPTION) parts diagram

Parts list — exactly as printed14 rows

No.	Part No.	Part Name	Qty	Remarks
1	EE59231	PANEL ASSY., PARALLELING	1	INCLUDES ITEMS W/%	ADD TO CART
PANEL ASSY., PARALLELING EE59231 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 2%, 3%, 4%, 5%, 6%, 8%, 9%, 10%, 11%, 11A%, 12%, 12A% view full part page → $5555.95 IN A KIT + SOLD SOLO
2%	EE59122	PANEL, PARALLEL, BASLER	1		PARTS REQUEST
PHOTO COMING PANEL, PARALLEL, BASLER EE59122 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE59231) PARTS REQUEST
3%	EE59259	CONTROLLER	1		ADD TO CART
CONTROLLER EE59259 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE59231) view full part page → $5217.95 IN A KIT + SOLD SOLO
4%	EE59123	DECAL, PARALLEL, BASLER	1		PARTS REQUEST
PHOTO COMING DECAL, PARALLEL, BASLER EE59123 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE59231) PARTS REQUEST
5%	EE55761	LIGHT, PANEL, LED POWERED, 12-36VDC	2		ADD TO CART
LIGHT, PANEL, LED POWERED, 12-36VDC EE55761 · qty on machine: 2 Also included in kit 1 - PANEL ASSY., PARALLELING (EE59231) view full part page → $43.95 IN A KIT + SOLD SOLO
6%	EE2115	POTENTIOMETER, 5K OHM	1		ADD TO CART
POTENTIOMETER, 5K OHM EE2115 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE59231) view full part page → $70.95 IN A KIT + SOLD SOLO
7&	EE9949	NUT, SHAFT LOCK, POTENTIOMETER	1		ADD TO CART
NUT, SHAFT LOCK, POTENTIOMETER EE9949 · qty on machine: 1 Also included in kit 6 - POTENTIOMETER, 5K OHM (EE2115) view full part page → $33.95 IN A KIT + SOLD SOLO
8%	EE2591	SWITCH, TOGGLE, SPST	2		ADD TO CART
SWITCH, TOGGLE, SPST EE2591 · qty on machine: 2 Also included in kit 1 - PANEL ASSY., PARALLELING (EE59231) view full part page → $11.95 IN A KIT + SOLD SOLO
9%	EE57855	SWITCH, E-STOP, RED, 24V LED	1		ADD TO CART
SWITCH, E-STOP, RED, 24V LED EE57855 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE59231) view full part page → $164.95 IN A KIT + SOLD SOLO
10%	EE52893	BEZEL EMERG. STOP YELLOW PLASTIC	1		ADD TO CART
BEZEL EMERG. STOP YELLOW PLASTIC EE52893 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE59231) view full part page → $34.95 IN A KIT + SOLD SOLO
11%	EE23374	PUSHBUTTON, SWITCH (GREEN)	1		ADD TO CART
PUSHBUTTON, SWITCH (GREEN) EE23374 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE59231) view full part page → $82.95 IN A KIT + SOLD SOLO
11A%	EE39554	LED, 12V, GREEN	1		ADD TO CART
LED, 12V, GREEN EE39554 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE59231) view full part page → $6.95 IN A KIT + SOLD SOLO
12%	EE23375	PUSHBUTTON, SWITCH (RED)	1		ADD TO CART
PUSHBUTTON, SWITCH (RED) EE23375 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE59231) view full part page → $82.95 IN A KIT + SOLD SOLO
12A%	EE5895	LED, 12V, RED	1		ADD TO CART
LED, 12V, RED EE5895 · qty on machine: 1 Also included in kit 1 - PANEL ASSY., PARALLELING (EE59231) view full part page → $6.95 IN A KIT + SOLD SOLO

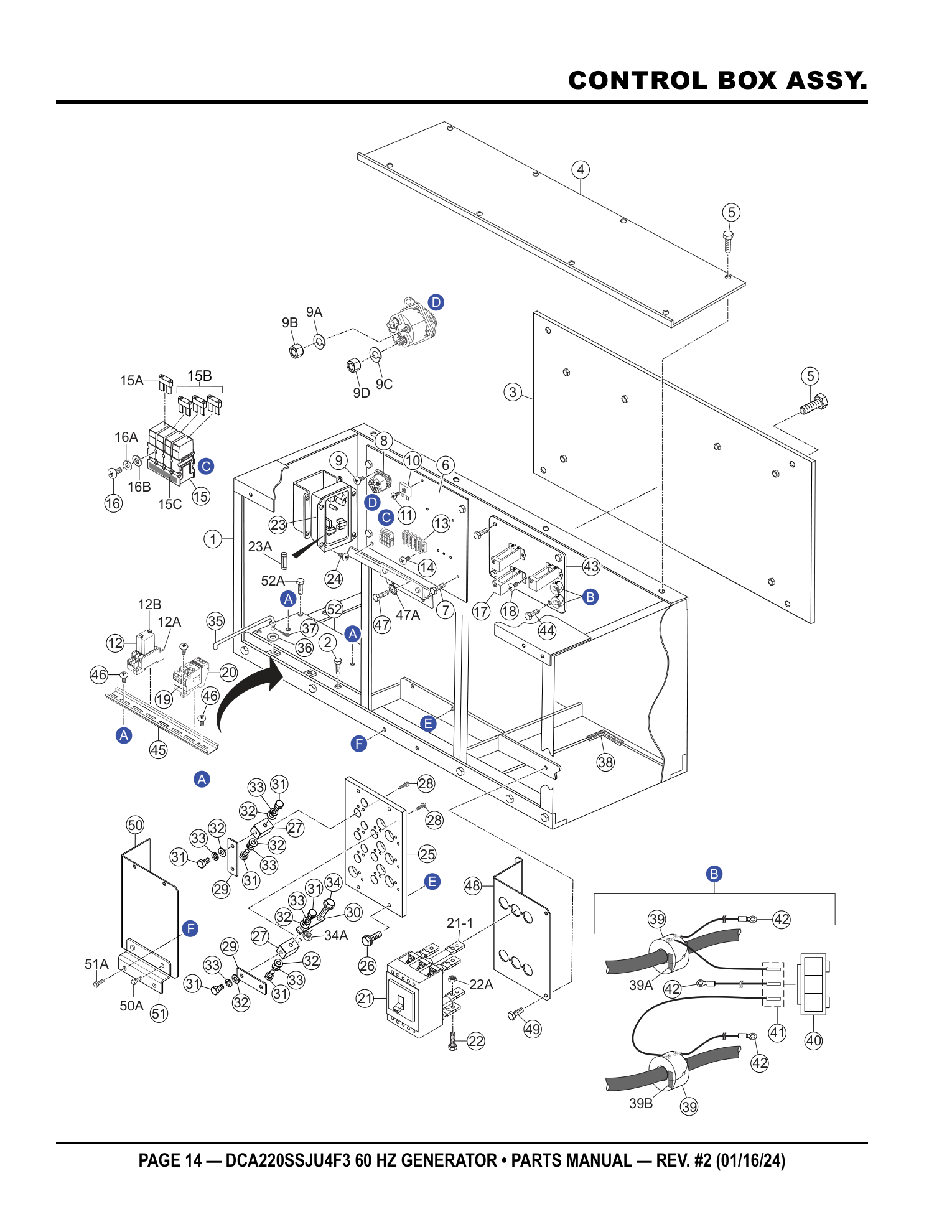

Page 14 — CONTROL BOX ASSY.

Multiquip DCA220SSJU4F3 Generator CONTROL BOX ASSY. parts diagram

Parts list — exactly as printed45 rows

No.	Part No.	Part Name	Qty	Remarks
1	M4214000102	CONTROL BOX	1	S/N 8011416 AND BELOW	PARTS REQUEST
PHOTO COMING CONTROL BOX M4214000102 · qty on machine: 1 S/N 8011416 AND BELOW PARTS REQUEST
1	M4214000212	CONTROL BOX	1	S/N 8011419 ~ 8011698	PARTS REQUEST
PHOTO COMING CONTROL BOX M4214000212 · qty on machine: 1 S/N 8011419 ~ 8011698 PARTS REQUEST
1	M4214000222	CONTROL BOX	1	S/N 8011699 AND ABOVE	ADD TO CART
CONTROL BOX M4214000222 · qty on machine: 1 S/N 8011699 AND ABOVE view full part page → $2063.95
2	011008020	HEX. HEAD BOLT	14	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 14 REPLACES P/N 0016908020 view full part page → $2.68
3	M5214400304	BACK PANEL	1	S/N 8011416 AND BELOW	PARTS REQUEST
PHOTO COMING BACK PANEL M5214400304 · qty on machine: 1 S/N 8011416 AND BELOW PARTS REQUEST
3	M5214400314	BACK PANEL	1	S/N 8011419 AND ABOVE	PARTS REQUEST
PHOTO COMING BACK PANEL M5214400314 · qty on machine: 1 S/N 8011419 AND ABOVE PARTS REQUEST
4	M4213500104	UP PANEL	1		ADD TO CART
UP PANEL M4213500104 · qty on machine: 1 view full part page → $204.95
5	011008020	HEX. HEAD BOLT	16	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 16 REPLACES P/N 0016908020 view full part page → $2.68
6	M4261500004	SET PANEL	1		PARTS REQUEST
PHOTO COMING SET PANEL M4261500004 · qty on machine: 1 PARTS REQUEST
7	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
8	Y0602201458	STARTER RELAY	1		ADD TO CART
STARTER RELAY Y0602201458 · qty on machine: 1 view full part page → $116.95
9	011808015	MACHINE SCREW	2	REPLACES P/N 0027106015	ADD TO CART
MACHINE SCREW 011808015 · qty on machine: 2 REPLACES P/N 0027106015 view full part page → $6.95
9A	0044808000	WASHER, LOCK	2		PARTS REQUEST
PHOTO COMING WASHER, LOCK 0044808000 · qty on machine: 2 PARTS REQUEST
9B	Y0206508000	HEX. NUT	2		ADD TO CART
HEX. NUT Y0206508000 · qty on machine: 2 view full part page → $0.19
9C	0043003000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0043003000 · qty on machine: 2 view full part page → $0.39
9D	Y0206803000	HEX. NUT	2		ADD TO CART
HEX. NUT Y0206803000 · qty on machine: 2 view full part page → $0.26
10	0601821370	RECTIFIER, DE-45	1	REPLACES P/N 0601823240	ADD TO CART
RECTIFIER, DE-45 0601821370 · qty on machine: 1 REPLACES P/N 0601823240 view full part page → $28.95
11	0027104020	MACHINE SCREW	1		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 1 view full part page → $0.4
12	LY2DUS12VDC	RELAY, DC12V	1	REPLACES P/N 0601827656	ADD TO CART
RELAY, DC12V LY2DUS12VDC · qty on machine: 1 REPLACES P/N 0601827656 view full part page → $46.95
12A	PTF08A	RELAY BASE	1	REPLACES P/N 0601823106	ADD TO CART
RELAY BASE PTF08A · qty on machine: 1 REPLACES P/N 0601823106 view full part page → $47.95
12B	PYCA1	RELAY CLIP	2	REPLACES P/N 0601824400	ADD TO CART
RELAY CLIP PYCA1 · qty on machine: 2 REPLACES P/N 0601824400 view full part page → $1.71
13	0601815153	TERMINAL BLOCK	1	S/N 8011562 AND BELOW	NO LONGER AVAILABLE
PHOTO COMING TERMINAL BLOCK 0601815153 · qty on machine: 1 S/N 8011562 AND BELOW NO LONGER AVAILABLE
13	Y0601816538	TERMINAL BLOCK	1	S/N 8011563 AND ABOVE	ADD TO CART
TERMINAL BLOCK Y0601816538 · qty on machine: 1 S/N 8011563 AND ABOVE view full part page → $51.95
14	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
15	M3214601504	FUSE HOLDER ASSY	1		PARTS REQUEST
PHOTO COMING FUSE HOLDER ASSY M3214601504 · qty on machine: 1 PARTS REQUEST
15A	0601806643	FUSE, 15A	1		ADD TO CART
FUSE, 15A 0601806643 · qty on machine: 1 view full part page → $5.95
15B	Y0601806647	FUSE, 25A	3		ADD TO CART
FUSE, 25A Y0601806647 · qty on machine: 3 view full part page → $1.95
15C	M9501401104	DECAL: FUSE HOLDER	1		PARTS REQUEST
PHOTO COMING DECAL: FUSE HOLDER M9501401104 · qty on machine: 1 Factory replaced this part - current number HOLDER PARTS REQUEST
16	Y0021003035	MACHINE SCREW	2		PARTS REQUEST
PHOTO COMING MACHINE SCREW Y0021003035 · qty on machine: 2 PARTS REQUEST
16A	0040003000	WASHER, LOCK	2		PARTS REQUEST
PHOTO COMING WASHER, LOCK 0040003000 · qty on machine: 2 PARTS REQUEST
16B	0042103000	WASHER, FLAT	2		PARTS REQUEST
PHOTO COMING WASHER, FLAT 0042103000 · qty on machine: 2 PARTS REQUEST
17	0601809667	CURRENT TRANSFORMER	3		ADD TO CART
CURRENT TRANSFORMER 0601809667 · qty on machine: 3 view full part page → $178.95
18	011206020	MACHINE SCREW	6	REPLACES P/N 0027106020	ADD TO CART
MACHINE SCREW 011206020 · qty on machine: 6 REPLACES P/N 0027106020 view full part page → $0.95
19	Y0601820843	OVER CURRENT RELAY	1		ADD TO CART
OVER CURRENT RELAY Y0601820843 · qty on machine: 1 view full part page → $114.95
20	Y0601820844	OVER CURRENT RELAY BASE	1		ADD TO CART
OVER CURRENT RELAY BASE Y0601820844 · qty on machine: 1 view full part page → $24.95
21	Y0601807533	CIRCUIT BREAKER 3P, 600A	1	S/N 8011698 AND BELOW	NO LONGER AVAILABLE
PHOTO COMING CIRCUIT BREAKER 3P, 600A Y0601807533 · qty on machine: 1 S/N 8011698 AND BELOW NO LONGER AVAILABLE
21	Y0601807565	CIRCUIT BREAKER	1	S/N 8011699 AND ABOVE	ADD TO CART
CIRCUIT BREAKER Y0601807565 · qty on machine: 1 S/N 8011699 AND ABOVE view full part page → $3859.95
21-1	Y0601827412	REAR TERMINAL BUSBAR (SET)	2	S/N 8011698 AND BELOW	ADD TO CART
REAR TERMINAL BUSBAR (SET) Y0601827412 · qty on machine: 2 S/N 8011698 AND BELOW view full part page → $164.95
21-1	Y0601827415	REAR TERMINAL BUSBAR, (SET)	2	S/N 8011699 AND ABOVE	ADD TO CART
REAR TERMINAL BUSBAR, (SET) Y0601827415 · qty on machine: 2 S/N 8011699 AND ABOVE view full part page → $218.95
22	014210040	HEX. HEAD BOLT	6	REPLACES P/N 0017110040	ADD TO CART
HEX. HEAD BOLT 014210040 · qty on machine: 6 REPLACES P/N 0017110040 view full part page → $1.95
22A	021112140	SELF-LOCKING NUT	6	REPLACES P/N 0207010000	ADD TO CART
SELF-LOCKING NUT 021112140 · qty on machine: 6 REPLACES P/N 0207010000 view full part page → $0.46
23	0601820601	AUTOMATIC VOLTAGE REGULATOR	1	INCLUDES ITEMS W/#	ADD TO CART
AUTOMATIC VOLTAGE REGULATOR 0601820601 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 23A# view full part page → $1389.95 IN A KIT + SOLD SOLO
23A#	Y0601806683	FUSE, 8A	1		NO LONGER AVAILABLE
PHOTO COMING FUSE, 8A Y0601806683 · qty on machine: 1 Also included in kit 23 - AUTOMATIC VOLTAGE REGULATO (0601820601) NO LONGER AVAILABLE
24	0027105015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 4 view full part page → $0.2
25	M4273000003	TERM. BRD., VOLTAGE CHANGE-OVER	1		ADD TO CART
TERM. BRD., VOLTAGE CHANGE-OVER M4273000003 · qty on machine: 1 view full part page → $399.95

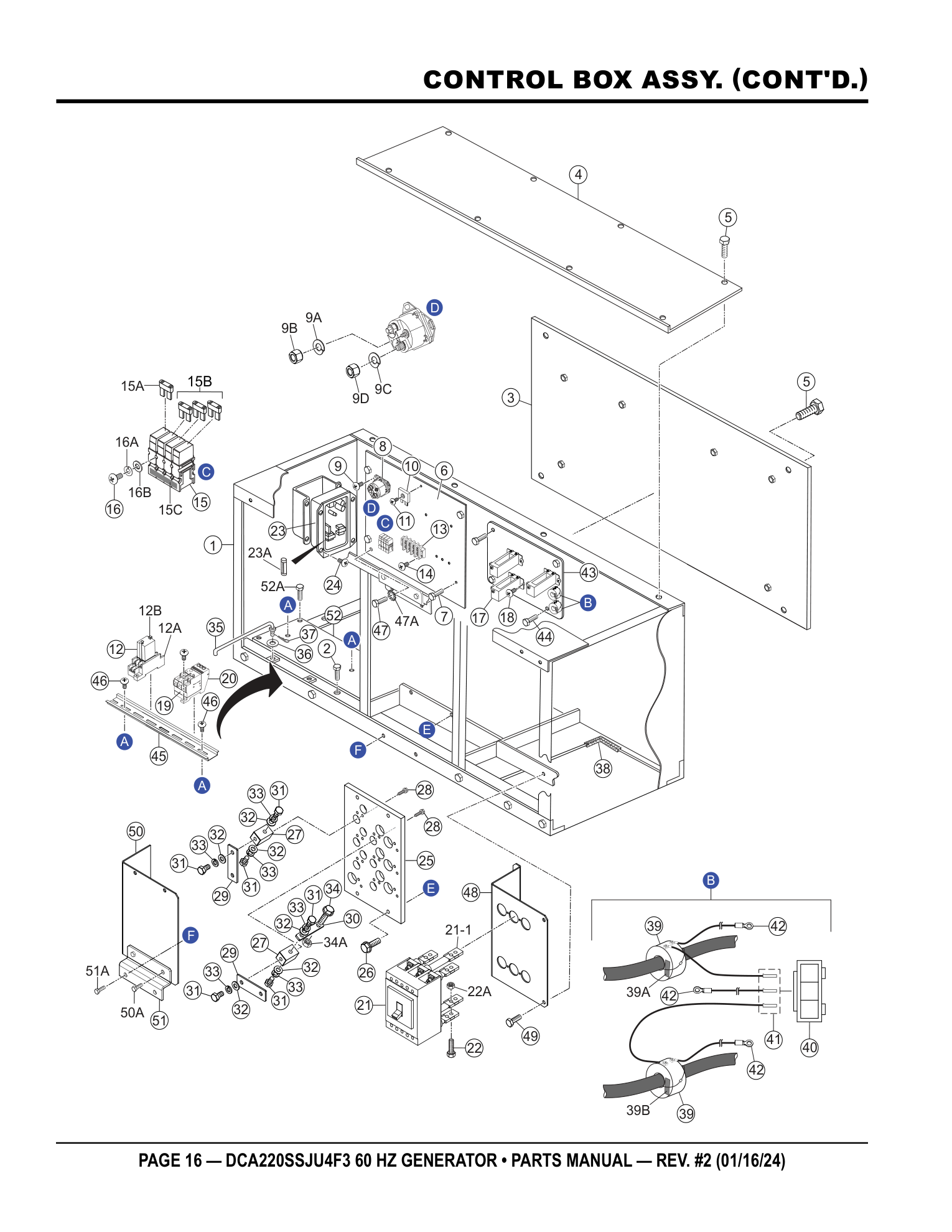

Page 16 — CONTROL BOX ASSY. (CONT'D.)

Multiquip DCA220SSJU4F3 Generator CONTROL BOX ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed35 rows

No.	Part No.	Part Name	Qty	Remarks
26	011208030	HEX. HEAD BOLT	4	REPLACES P/N 0016908030	ADD TO CART
HEX. HEAD BOLT 011208030 · qty on machine: 4 REPLACES P/N 0016908030 view full part page → $1.3
27	8181852104	CHANGE TERMINAL	10	REPLACES P/N M4276400004	ADD TO CART
CHANGE TERMINAL 8181852104 · qty on machine: 10 REPLACES P/N M4276400004 view full part page → $147.95
28	011606025	HEX. HEAD BOLT	20	REPLACES P/N 0016906025	ADD TO CART
HEX. HEAD BOLT 011606025 · qty on machine: 20 REPLACES P/N 0016906025 view full part page → $1.95
29	8181853104	CHANGE-OVER PLATE	6	REPLACES P/N M4276300004	ADD TO CART
CHANGE-OVER PLATE 8181853104 · qty on machine: 6 REPLACES P/N M4276300004 view full part page → $58.95
30	C0277200004	CHANGE PLATE	3	REPLACES P/N M4276200004	ADD TO CART
CHANGE PLATE C0277200004 · qty on machine: 3 REPLACES P/N M4276200004 view full part page → $100.95
31	012210020	TIE BOLT	26	REPLACES P/N M9220100104	ADD TO CART
TIE BOLT 012210020 · qty on machine: 26 REPLACES P/N M9220100104 view full part page → $0.95
32	0041410000	WASHER, FLAT	26		ADD TO CART
WASHER, FLAT 0041410000 · qty on machine: 26 view full part page → $0.89
33	0040010000	WASHER, LOCK	26		ADD TO CART
WASHER, LOCK 0040010000 · qty on machine: 26 view full part page → $0.39
34	014210040	HEX. HEAD BOLT	3	REPLACES P/N 0017110040	ADD TO CART
HEX. HEAD BOLT 014210040 · qty on machine: 3 REPLACES P/N 0017110040 view full part page → $1.95
34A	021112140	SELF-LOCKING NUT	3	REPLACES P/N 0207010000	ADD TO CART
SELF-LOCKING NUT 021112140 · qty on machine: 3 REPLACES P/N 0207010000 view full part page → $0.46
35	M4213600104	STOPPER, CONTROL PANEL	1		ADD TO CART
STOPPER, CONTROL PANEL M4213600104 · qty on machine: 1 view full part page → $63.95
36	952404470	WASHER, FLAT	1	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 1 REPLACES P/N 0041206000 view full part page → $0.19
37	505015300	SNAP PIN	1	REPLACES P/N 0605010502	ADD TO CART
SNAP PIN 505015300 · qty on machine: 1 REPLACES P/N 0605010502 view full part page → $0.95
38	Y0411100315	EDGE TRIM	1		PARTS REQUEST
PHOTO COMING EDGE TRIM Y0411100315 · qty on machine: 1 PARTS REQUEST
39	Y0601872913	CURRENT TRANSFORMER, 5A	2		PARTS REQUEST
PHOTO COMING CURRENT TRANSFORMER, 5A Y0601872913 · qty on machine: 2 PARTS REQUEST
39A	M9521001604	DECAL: CT4	1		ADD TO CART
DECAL: CT4 M9521001604 · qty on machine: 1 view full part page → $0.95
39B	M9521001704	DECAL: CT5	1		ADD TO CART
DECAL: CT5 M9521001704 · qty on machine: 1 view full part page → $0.95
40	Y0601813924	PLUG	1		PARTS REQUEST
PHOTO COMING PLUG Y0601813924 · qty on machine: 1 PARTS REQUEST
41	0601812711	PINS	3		ADD TO CART
PINS 0601812711 · qty on machine: 3 view full part page → $0.56
42	Y0601815586	ROUND TERMINAL	3		PARTS REQUEST
PHOTO COMING ROUND TERMINAL Y0601815586 · qty on machine: 3 PARTS REQUEST
43	M3261500404	SET PANEL	1		PARTS REQUEST
PHOTO COMING SET PANEL M3261500404 · qty on machine: 1 PARTS REQUEST
44	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95
45	Y0290000245	MOUNTING RAIL	1		PARTS REQUEST
PHOTO COMING MOUNTING RAIL Y0290000245 · qty on machine: 1 PARTS REQUEST
46	0027104015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 2 view full part page → $0.53
47	0016906015	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 1 view full part page → $0.95
47A	0040506000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040506000 · qty on machine: 1 view full part page → $0.77
48	M4214600104	CIRCUIT BREAKER BRACKET	1	S/N 8011698 AND BELOW	PARTS REQUEST
PHOTO COMING CIRCUIT BREAKER BRACKET M4214600104 · qty on machine: 1 S/N 8011698 AND BELOW PARTS REQUEST
48	M4214600114	CIRCUIT BREAKER BRACKET	1	S/N 8011699 AND ABOVE	ADD TO CART
CIRCUIT BREAKER BRACKET M4214600114 · qty on machine: 1 S/N 8011699 AND ABOVE view full part page → $95.95
49	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
50	M3214602404	TERMINAL BOARD COVER	1	S/N 8011419 AND ABOVE	ADD TO CART
TERMINAL BOARD COVER M3214602404 · qty on machine: 1 S/N 8011419 AND ABOVE view full part page → $170.95
50A	011208025	HEX. HEAD BOLT	4	REPLACES P/N 0016908025 S/N 8011419 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 011208025 · qty on machine: 4 REPLACES P/N 0016908025 S/N 8011419 AND ABOVE view full part page → $0.41
51	M5214600704	BRACKET, TERMINAL BOARD COVER	2	S/N 8011419 AND ABOVE	ADD TO CART
BRACKET, TERMINAL BOARD COVER M5214600704 · qty on machine: 2 S/N 8011419 AND ABOVE view full part page → $75.95
51A	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020 S/N 8011419 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 S/N 8011419 AND ABOVE view full part page → $2.68
52	M3214602304	BLIND BOARD	1	S/N 8011419 AND ABOVE	PARTS REQUEST
PHOTO COMING BLIND BOARD M3214602304 · qty on machine: 1 S/N 8011419 AND ABOVE PARTS REQUEST
52A	0016906015	HEX. HEAD BOLT	4	S/N 8011419 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 S/N 8011419 AND ABOVE view full part page → $0.95

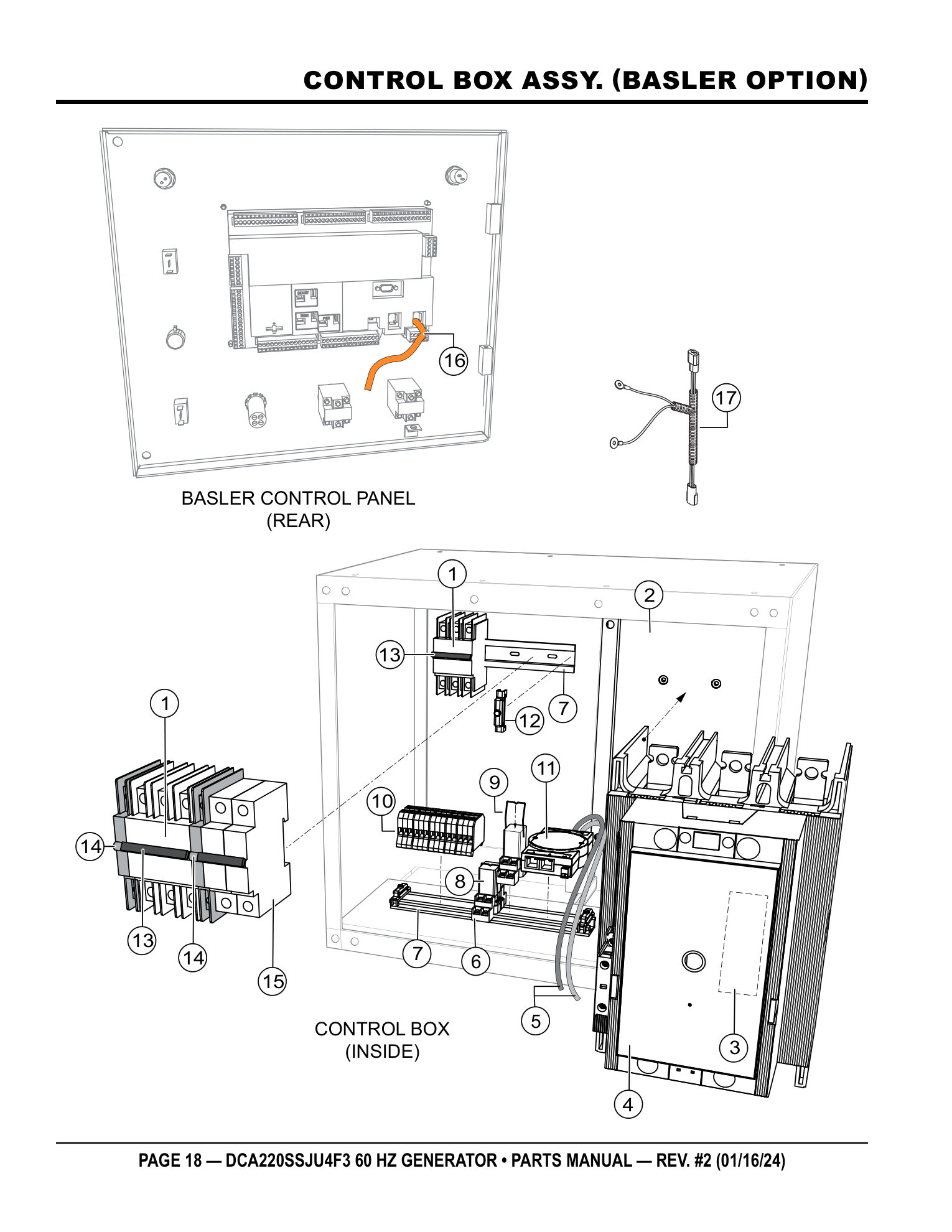

Page 18 — CONTROL BOX ASSY. (BASLER OPTION)

Multiquip DCA220SSJU4F3 Generator CONTROL BOX ASSY. (BASLER OPTION) parts diagram

Parts list — exactly as printed17 rows

No.	Part No.	Part Name	Qty
1	EE55784	CIRCUIT BREAKER (ABB), 3P, 10A, 480V	2	ADD TO CART
CIRCUIT BREAKER (ABB), 3P, 10A, 480V EE55784 · qty on machine: 2 view full part page → $349.95
2	EE59124	BRACKET, CONTACTOR	1	PARTS REQUEST
PHOTO COMING BRACKET, CONTACTOR EE59124 · qty on machine: 1 PARTS REQUEST
3	EE56647	SWITCH (ABB), AUX/BELL	1	PARTS REQUEST
PHOTO COMING SWITCH (ABB), AUX/BELL EE56647 · qty on machine: 1 PARTS REQUEST
4	EE59127	CONTACTOR (ABB), 650A, 100-250V	1	ADD TO CART
CONTACTOR (ABB), 650A, 100-250V EE59127 · qty on machine: 1 view full part page → $3674.95
5	EE50312	CABLE, ETHERNET, 10FT	2	ADD TO CART
CABLE, ETHERNET, 10FT EE50312 · qty on machine: 2 view full part page → $10.95
6	EE26385	RELAY BASE	2	ADD TO CART
RELAY BASE EE26385 · qty on machine: 2 view full part page → $7.95
7	EE10071	RAIL, DIN, ALUM,.413" X 1.37" X 36"	1	ADD TO CART
RAIL, DIN, ALUM,.413" X 1.37" X 36" EE10071 · qty on machine: 1 view full part page → $12.95
8	EE58130	RELAY, DC12V	2	ADD TO CART
RELAY, DC12V EE58130 · qty on machine: 2 view full part page → $31.95
9	EE26135	RELAY CLIP	2	ADD TO CART
RELAY CLIP EE26135 · qty on machine: 2 view full part page → $0.37
10	EE26112	BLOCK, TERMINAL 14 POS.	1	ADD TO CART
BLOCK, TERMINAL 14 POS. EE26112 · qty on machine: 1 view full part page → $2.95
11	EE58065	ETHERNET SWITCH, 5 PORT 10-30VDC	1	ADD TO CART
ETHERNET SWITCH, 5 PORT 10-30VDC EE58065 · qty on machine: 1 view full part page → $453.95
12	EE2940	END STOP, DIN RAIL	4	ADD TO CART
END STOP, DIN RAIL EE2940 · qty on machine: 4 view full part page → $1.85
13	EE32611	JUMPER, 3-POLE	2	ADD TO CART
JUMPER, 3-POLE EE32611 · qty on machine: 2 view full part page → $12.95
14	EE55785	SWITCH (ABB), AUX	2	ADD TO CART
SWITCH (ABB), AUX EE55785 · qty on machine: 2 view full part page → $54.95
15	EE38585	CIRCUIT BREAKER (ABB), 2-POLE, 10A	1	ADD TO CART
CIRCUIT BREAKER (ABB), 2-POLE, 10A EE38585 · qty on machine: 1 view full part page → $60.95
16	EE56188	CABLE, ETHERNET, ORANGE, 3 FT	1	PARTS REQUEST
PHOTO COMING CABLE, ETHERNET, ORANGE, 3 FT EE56188 · qty on machine: 1 PARTS REQUEST
17	EE59200	HARNESS, PARALLELING	1	PARTS REQUEST
PHOTO COMING HARNESS, PARALLELING EE59200 · qty on machine: 1 PARTS REQUEST

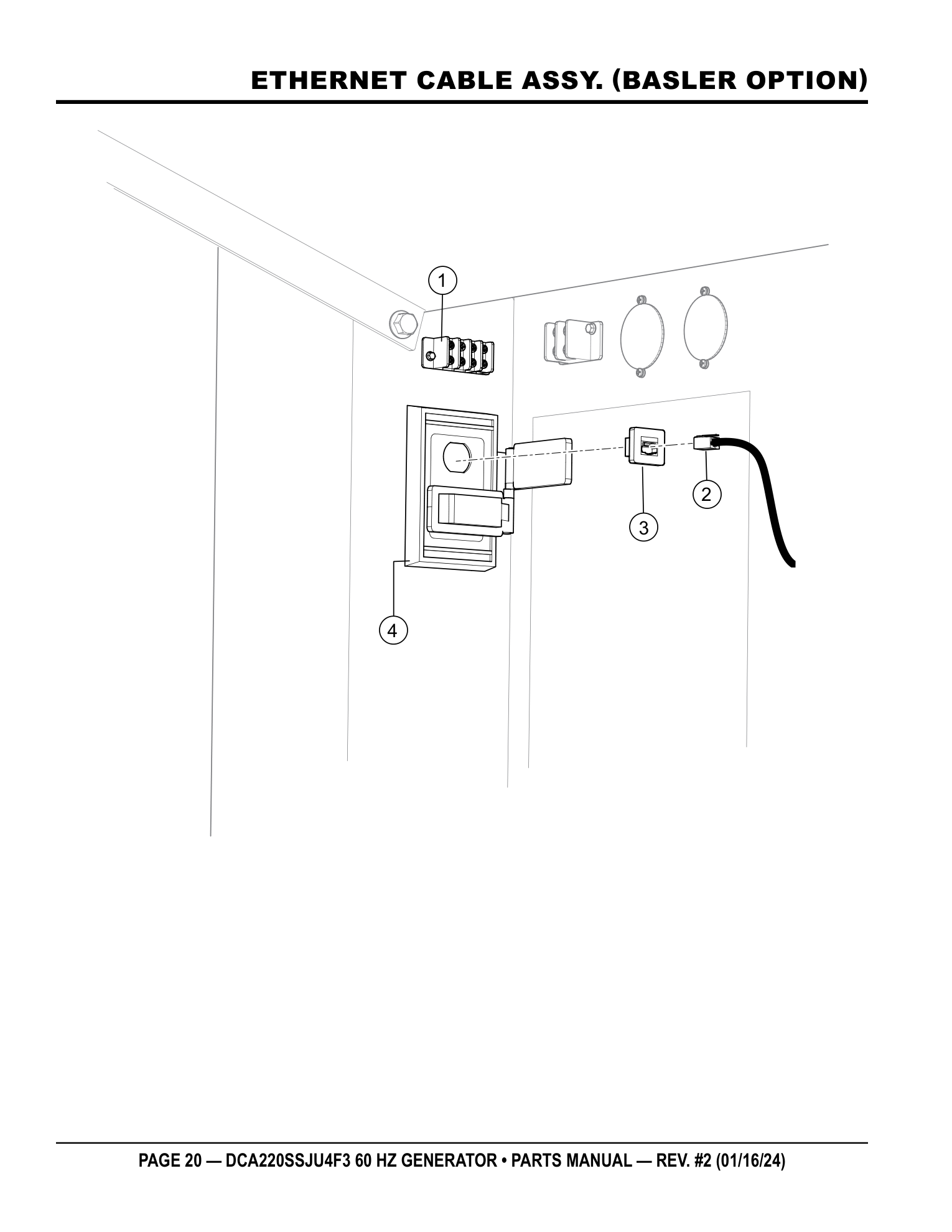

Page 20 — ETHERNET CABLE ASSY. (BASLER OPTION)

Multiquip DCA220SSJU4F3 Generator ETHERNET CABLE ASSY. (BASLER OPTION) parts diagram

Parts list — exactly as printed4 rows

No.	Part No.	Part Name	Qty
1	EE59027	TERMINAL BLOCK, 4-POS.	1	PARTS REQUEST
PHOTO COMING TERMINAL BLOCK, 4-POS. EE59027 · qty on machine: 1 PARTS REQUEST
2	EE55780	CABLE, ETHERNET CAT5E SHIELDED 50FT	1	ADD TO CART
CABLE, ETHERNET CAT5E SHIELDED 50FT EE55780 · qty on machine: 1 view full part page → $81.95
3	EE55760	JACK, FEEDTHROUGH, RJ45, CAT5E	2	ADD TO CART
JACK, FEEDTHROUGH, RJ45, CAT5E EE55760 · qty on machine: 2 view full part page → $43.95
4	EE58796	COVER, NONMETALLIC, WEATHERPROOF	1	PARTS REQUEST
PHOTO COMING COVER, NONMETALLIC, WEATHERPROOF EE58796 · qty on machine: 1 PARTS REQUEST

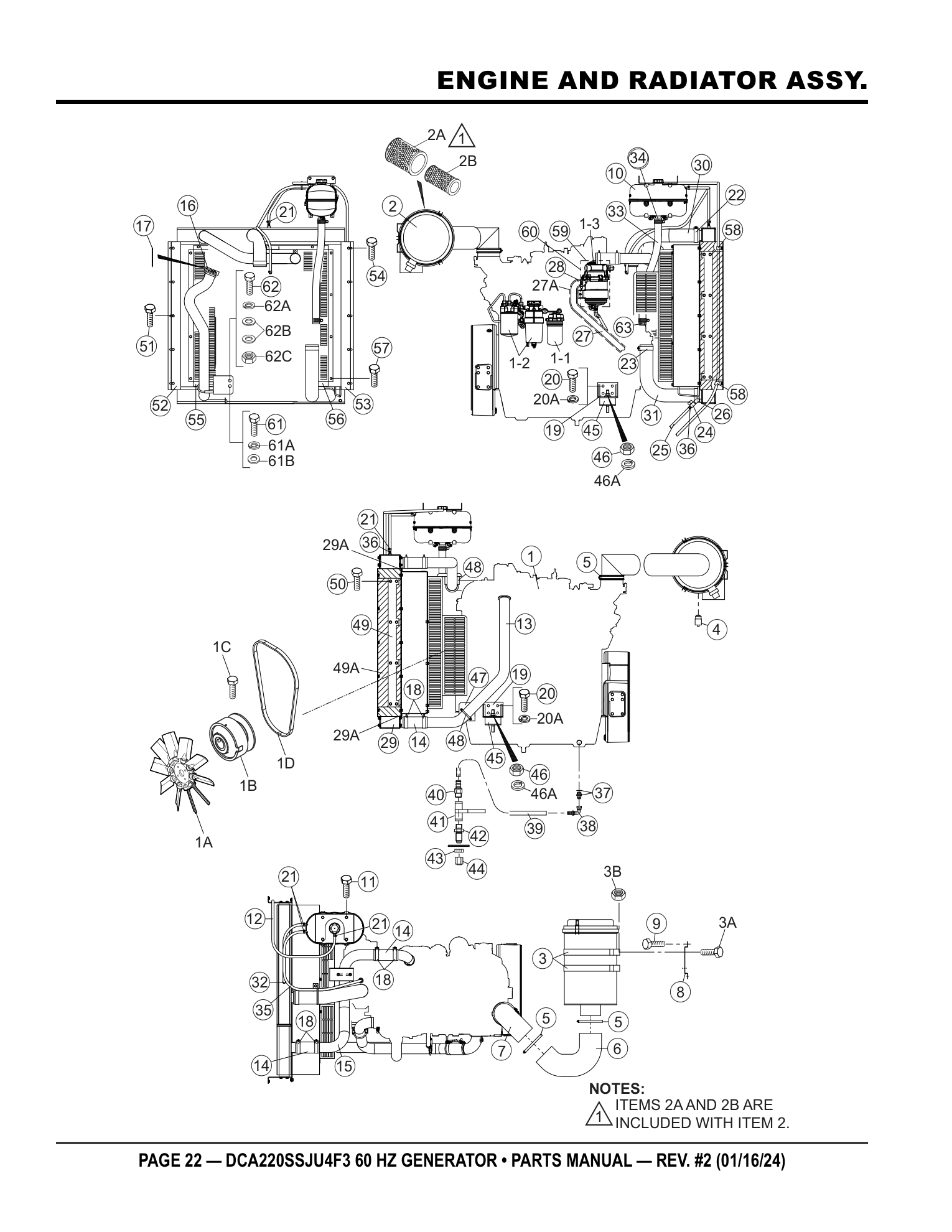

Page 22 — ENGINE AND RADIATOR ASSY.

Multiquip DCA220SSJU4F3 Generator ENGINE AND RADIATOR ASSY. parts diagram

Parts list — exactly as printed43 rows

No.	Part No.	Part Name	Qty	Remarks
1	M4924200014	ENGINE, JOHN DEERE 6068HFG06	1		PARTS REQUEST
PHOTO COMING ENGINE, JOHN DEERE 6068HFG06 M4924200014 · qty on machine: 1 Factory replaced this part - current number 6068HFG06 PARTS REQUEST
1A	RE555046	FAN, ENGINE	1	REPLACES P/N Y0602060030	ADD TO CART
FAN, ENGINE RE555046 · qty on machine: 1 REPLACES P/N Y0602060030 view full part page → $885.95
1B	RE544293	FAN CLUTCH, 12V	1	REPLACES P/N Y0602061100	ADD TO CART
FAN CLUTCH, 12V RE544293 · qty on machine: 1 REPLACES P/N Y0602061100 view full part page → $4208.95
1C	Y0602060501	CAP SCREW	1		PARTS REQUEST
PHOTO COMING CAP SCREW Y0602060501 · qty on machine: 1 PARTS REQUEST
1D	R529383	FAN BELT	1	REPLACES P/N Y0602015207	ADD TO CART
FAN BELT R529383 · qty on machine: 1 REPLACES P/N Y0602015207 view full part page → $207.95
1-1	RE539279	FILTER, OIL CARTRIDGE	1	REPLACES P/N Y0602041293	ADD TO CART
FILTER, OIL CARTRIDGE RE539279 · qty on machine: 1 REPLACES P/N Y0602041293 view full part page → $93.95
1-2	RE556406	FUEL FILTER KIT, PRIMARY, SECONDARY	1	REPLACES P/N Y0602042599	ADD TO CART
FUEL FILTER KIT, PRIMARY, SECONDARY RE556406 · qty on machine: 1 REPLACES P/N Y0602042599 view full part page → $334.95
1-3	RE553703	CARTRIDGE, BLOWBY FILTER	1	REPLACES P/N Y0602044231	ADD TO CART
CARTRIDGE, BLOWBY FILTER RE553703 · qty on machine: 1 REPLACES P/N Y0602044231 view full part page → $399.95
2	0602046586	AIR CLEANER ASSY	1	INCLUDES ITEMS W/#	ADD TO CART
AIR CLEANER ASSY 0602046586 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 2A#, 2B# view full part page → $751.95 IN A KIT + SOLD SOLO
2A#	P537876	ELEMENT, PRIMARY	1	REPLACES P/N 0602046682	ADD TO CART
ELEMENT, PRIMARY P537876 · qty on machine: 1 REPLACES P/N 0602046682 Also included in kit 2 - AIR CLEANER ASSY (0602046586) view full part page → $161.95 IN A KIT + SOLD SOLO
2B#	P537877	ELEMENT, SECONDARY	1	REPLACES P/N 0602046683	ADD TO CART
ELEMENT, SECONDARY P537877 · qty on machine: 1 REPLACES P/N 0602046683 Also included in kit 2 - AIR CLEANER ASSY (0602046586) view full part page → $99.95 IN A KIT + SOLD SOLO
3	0602040558	AIR CLEANER BAND	2		ADD TO CART
AIR CLEANER BAND 0602040558 · qty on machine: 2 view full part page → $75.95
3A	011208025	HEX. HEAD BOLT	4	REPLACES P/N 0016908025	ADD TO CART
HEX. HEAD BOLT 011208025 · qty on machine: 4 REPLACES P/N 0016908025 view full part page → $0.41
3B	Y0207008000	SELF-LOCKING NUT	4		ADD TO CART
SELF-LOCKING NUT Y0207008000 · qty on machine: 4 view full part page → $0.4
4	0602040650	AIR CLEANER INDICATOR	1	REPLACES P/N RBX002252	ADD TO CART
AIR CLEANER INDICATOR 0602040650 · qty on machine: 1 REPLACES P/N RBX002252 view full part page → $34.95
5	0605515202	HOSE BAND	3		ADD TO CART
HOSE BAND 0605515202 · qty on machine: 3 view full part page → $9.95
6	M5374100003	AIR CLEANER HOSE	1		ADD TO CART
AIR CLEANER HOSE M5374100003 · qty on machine: 1 view full part page → $441.95
7	M5374000404	AIR CLEANER PIPE	1		PARTS REQUEST
PHOTO COMING AIR CLEANER PIPE M5374000404 · qty on machine: 1 PARTS REQUEST
8	M4374200104	AIR CLEANER BRACKET	1		PARTS REQUEST
PHOTO COMING AIR CLEANER BRACKET M4374200104 · qty on machine: 1 PARTS REQUEST
9	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
10	DZ102101B	SURGE TANK	1	REPLACES P/N RE549081	ADD TO CART
SURGE TANK DZ102101B · qty on machine: 1 REPLACES P/N RE549081 view full part page → $631.95
11	Y0016908015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT Y0016908015 · qty on machine: 4 view full part page → $1.95
12	Y0193602250	OVER FLOW HOSE	1		ADD TO CART
OVER FLOW HOSE Y0193602250 · qty on machine: 1 view full part page → $10.95
13	M5311400103	CAC PIPE (HOT SIDE)	1		ADD TO CART
CAC PIPE (HOT SIDE) M5311400103 · qty on machine: 1 view full part page → $612.95
14	Y0602015610	HOSE, CAC	3		ADD TO CART
HOSE, CAC Y0602015610 · qty on machine: 3 view full part page → $124.95
15	M4311400003	CAC PIPE (COLD SIDE)	1	S/N 8011576 AND BELOW S/N 8011637 AND ABOVE	PARTS REQUEST
PHOTO COMING CAC PIPE (COLD SIDE) M4311400003 · qty on machine: 1 S/N 8011576 AND BELOW S/N 8011637 AND ABOVE PARTS REQUEST
15	M3311400203	CAC PIPE (COLD SIDE)	1	S/N 8011577 AND ABOVE S/N 8011636 AND BELOW	PARTS REQUEST
PHOTO COMING CAC PIPE (COLD SIDE) M3311400203 · qty on machine: 1 S/N 8011577 AND ABOVE S/N 8011636 AND BELOW PARTS REQUEST
16	RE292067	V-BAND CLAMP	1	REPLACES P/N Y0602325033	ADD TO CART
V-BAND CLAMP RE292067 · qty on machine: 1 REPLACES P/N Y0602325033 view full part page → $139.95
17	R529509	GASKET	1	REPLACES P/N Y0602320206	ADD TO CART
GASKET R529509 · qty on machine: 1 REPLACES P/N Y0602320206 view full part page → $49.95
18	0605515215	T-BOLT CLAMP	6		ADD TO CART
T-BOLT CLAMP 0605515215 · qty on machine: 6 view full part page → $28.95
19	M3303200404	ENGINE FOOT	2		ADD TO CART
ENGINE FOOT M3303200404 · qty on machine: 2 view full part page → $39.95
20	0012312030	HEX. HEAD BOLT	6	REPLACES P/N 0013612030	ADD TO CART
HEX. HEAD BOLT 0012312030 · qty on machine: 6 REPLACES P/N 0013612030 view full part page → $6.95
20A	0040012000	WASHER, LOCK	6		ADD TO CART
WASHER, LOCK 0040012000 · qty on machine: 6 view full part page → $0.95
21	0605515189	BAND, HOSE	5		ADD TO CART
BAND, HOSE 0605515189 · qty on machine: 5 view full part page → $1.85
22	0605515236	T-BOLT CLAMP	2		ADD TO CART
T-BOLT CLAMP 0605515236 · qty on machine: 2 view full part page → $46.95
23	0605515208	T-BOLT CLAMP	2		ADD TO CART
T-BOLT CLAMP 0605515208 · qty on machine: 2 view full part page → $61.95
24	Y0605511394	MINI BALL VALVE	1		ADD TO CART
MINI BALL VALVE Y0605511394 · qty on machine: 1 view full part page → $70.95
25	0193600400	DRAIN HOSE	1		ADD TO CART
DRAIN HOSE 0193600400 · qty on machine: 1 view full part page → $2.95
26	Y0603307520	45° ELBOW	1		PARTS REQUEST
PHOTO COMING 45° ELBOW Y0603307520 · qty on machine: 1 PARTS REQUEST
27	Y0191701650	BLOWBY HOSE	1		PARTS REQUEST
PHOTO COMING BLOWBY HOSE Y0191701650 · qty on machine: 1 PARTS REQUEST
27A	Y0377801600	AEROFLEX TUBE	1		PARTS REQUEST
PHOTO COMING AEROFLEX TUBE Y0377801600 · qty on machine: 1 PARTS REQUEST
28	0605515134	HOSE BAND	1		ADD TO CART
HOSE BAND 0605515134 · qty on machine: 1 view full part page → $4.95
29	Y0602012922	RADIATOR AND INTER-COOLER, 699-1333	1	S/N 8011576 AND BELOW S/N 8011637 AND ABOVE	ADD TO CART
RADIATOR AND INTER-COOLER, 699-1333 Y0602012922 · qty on machine: 1 S/N 8011576 AND BELOW S/N 8011637 AND ABOVE view full part page → $3580.95

Page 24 — ENGINE AND RADIATOR ASSY. (CONT'D.)

Multiquip DCA220SSJU4F3 Generator ENGINE AND RADIATOR ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed37 rows

No.	Part No.	Part Name	Qty	Remarks
29	Y0602012952	RADIATOR AND INTER-COOLER, RS-8125	1	S/N 8011577 AND ABOVE S/N 8011636 AND BELOW	ADD TO CART
RADIATOR AND INTER-COOLER, RS-8125 Y0602012952 · qty on machine: 1 S/N 8011577 AND ABOVE S/N 8011636 AND BELOW view full part page → $4526.95
29A	M3494110204	ACOUSTIC SHEET	2		ADD TO CART
ACOUSTIC SHEET M3494110204 · qty on machine: 2 view full part page → $188.95
30	M3311500503	RADIATOR HOSE, UPPER	1		ADD TO CART
RADIATOR HOSE, UPPER M3311500503 · qty on machine: 1 view full part page → $194.95
31	M3311500603	RADIATOR HOSE, LOWER	1		ADD TO CART
RADIATOR HOSE, LOWER M3311500603 · qty on machine: 1 view full part page → $197.95
32	Y0199900730	VENT HOSE	1		PARTS REQUEST
PHOTO COMING VENT HOSE Y0199900730 · qty on machine: 1 PARTS REQUEST
33	M3311501503	SURGE TANK HOSE	1		ADD TO CART
SURGE TANK HOSE M3311501503 · qty on machine: 1 view full part page → $62.95
34	0605515149	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515149 · qty on machine: 2 view full part page → $1.95
35	0199901200	VENT HOSE	1		ADD TO CART
VENT HOSE 0199901200 · qty on machine: 1 view full part page → $39.95
36	Y0605512192	HOSE JOINT	2		PARTS REQUEST
PHOTO COMING HOSE JOINT Y0605512192 · qty on machine: 2 PARTS REQUEST
37	0602022580	ADAPTER	1		ADD TO CART
ADAPTER 0602022580 · qty on machine: 1 view full part page → $37.95
38	0602022561	90° ELBOW	1		ADD TO CART
90° ELBOW 0602022561 · qty on machine: 1 view full part page → $76.95
39	Y0269201300	PUSH-LOCK HOSE	1		PARTS REQUEST
PHOTO COMING PUSH-LOCK HOSE Y0269201300 · qty on machine: 1 PARTS REQUEST
40	0603306395	MALE PIPE	1		ADD TO CART
MALE PIPE 0603306395 · qty on machine: 1 view full part page → $16.95
41	0605511395	BALL VALVE	1		ADD TO CART
BALL VALVE 0605511395 · qty on machine: 1 view full part page → $46.95
42	0603306590	BULKHEAD MALE CONNECTOR	1		ADD TO CART
BULKHEAD MALE CONNECTOR 0603306590 · qty on machine: 1 view full part page → $86.95
43	0603300285	BULKHEAD LOCK NUT	1		ADD TO CART
BULKHEAD LOCK NUT 0603300285 · qty on machine: 1 view full part page → $4.95
44	Y0602021070	CAP	1		ADD TO CART
CAP Y0602021070 · qty on machine: 1 Factory replaced this part - current number 0602021070 view full part page → $11.95 IN A KIT + SOLD SOLO
45	Y0605000620	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION Y0605000620 · qty on machine: 2 view full part page → $93.95
46	0030016000	HEX. NUT	2		ADD TO CART
HEX. NUT 0030016000 · qty on machine: 2 view full part page → $1.9
46A	0040016000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 2 view full part page → $4.95
47	M3314300104	CAC PIPE BRACKET	1		PARTS REQUEST
PHOTO COMING CAC PIPE BRACKET M3314300104 · qty on machine: 1 PARTS REQUEST
48	0602326063	U-BOLT	2		ADD TO CART
U-BOLT 0602326063 · qty on machine: 2 view full part page → $11.95
49	M3311201004	RADIATOR BRACKET	2	S/N 8011576 AND BELOW S/N 8011637 AND ABOVE	ADD TO CART
RADIATOR BRACKET M3311201004 · qty on machine: 2 S/N 8011576 AND BELOW S/N 8011637 AND ABOVE view full part page → $129.95
49	M4311200104	RADIATOR BRACKET	2	S/N 8011577 AND ABOVE S/N 8011636 AND BELOW	PARTS REQUEST
PHOTO COMING RADIATOR BRACKET M4311200104 · qty on machine: 2 S/N 8011577 AND ABOVE S/N 8011636 AND BELOW PARTS REQUEST
49A	M3494110104	ACOUSTIC SHEET	1	S/N 8011576 AND BELOW S/N 8011637 AND ABOVE	ADD TO CART
ACOUSTIC SHEET M3494110104 · qty on machine: 1 S/N 8011576 AND BELOW S/N 8011637 AND ABOVE view full part page → $551.95
49A	M3491110104	ACOUSTIC SHEET	1	S/N 8011577 AND ABOVE S/N 8011636 AND BELOW	PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M3491110104 · qty on machine: 1 S/N 8011577 AND ABOVE S/N 8011636 AND BELOW PARTS REQUEST
50	Y0016908015	HEX. HEAD BOLT	16		ADD TO CART
HEX. HEAD BOLT Y0016908015 · qty on machine: 16 view full part page → $1.95
51	011008020	HEX. HEAD BOLT	10	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 10 REPLACES P/N 0016908020 view full part page → $2.68
52	M4311300003	FAN SHROUD, LEFT	1	S/N 8011576 AND BELOW S/N 8011637 AND ABOVE	PARTS REQUEST
PHOTO COMING FAN SHROUD, LEFT M4311300003 · qty on machine: 1 S/N 8011576 AND BELOW S/N 8011637 AND ABOVE PARTS REQUEST
52	M4311300203	FAN SHROUD, LEFT	1	S/N 8011577 AND ABOVE S/N 8011636 AND BELOW	PARTS REQUEST
PHOTO COMING FAN SHROUD, LEFT M4311300203 · qty on machine: 1 S/N 8011577 AND ABOVE S/N 8011636 AND BELOW PARTS REQUEST
53	M4311300103	FAN SHROUD, RIGHT	1	S/N 8011576 AND BELOW S/N 8011637 AND ABOVE	PARTS REQUEST
PHOTO COMING FAN SHROUD, RIGHT M4311300103 · qty on machine: 1 S/N 8011576 AND BELOW S/N 8011637 AND ABOVE PARTS REQUEST
53	M4311300303	FAN SHROUD, RIGHT	1	S/N 8011577 AND ABOVE S/N 8011636 AND BELOW	PARTS REQUEST
PHOTO COMING FAN SHROUD, RIGHT M4311300303 · qty on machine: 1 S/N 8011577 AND ABOVE S/N 8011636 AND BELOW PARTS REQUEST
54	011008020	HEX. HEAD BOLT	12	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 12 REPLACES P/N 0016908020 view full part page → $2.68
55	M3311300813	FAN GUARD	1		ADD TO CART
FAN GUARD M3311300813 · qty on machine: 1 view full part page → $158.95
56	M3311302103	FAN GUARD	1		PARTS REQUEST
PHOTO COMING FAN GUARD M3311302103 · qty on machine: 1 PARTS REQUEST
57	011008020	HEX. HEAD BOLT	17	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 17 REPLACES P/N 0016908020 view full part page → $2.68
58	0602220911	CLAMP	2		ADD TO CART
CLAMP 0602220911 · qty on machine: 2 view full part page → $1.85

Page 26 — ENGINE AND RADIATOR ASSY. (CONT'D.)

Parts list — exactly as printed10 rows

No.	Part No.	Part Name	Qty
59	Y0602044505	BLOWBY FILTER COVER (UPPER)	1	PARTS REQUEST
PHOTO COMING BLOWBY FILTER COVER (UPPER) Y0602044505 · qty on machine: 1 PARTS REQUEST
60	Y0602044506	BLOWBY FILTER COVER (UPPER)	1	PARTS REQUEST
PHOTO COMING BLOWBY FILTER COVER (UPPER) Y0602044506 · qty on machine: 1 PARTS REQUEST
61	Y0013616030	HEX. HEAD BOLT	1	PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0013616030 · qty on machine: 1 PARTS REQUEST
61A	0040016000	WASHER, LOCK	1	ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 1 view full part page → $4.95
61B	0041216000	WASHER, FLAT	1	ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 1 view full part page → $1.95
62	0012116060	HEX. HEAD BOLT	1	ADD TO CART
HEX. HEAD BOLT 0012116060 · qty on machine: 1 view full part page → $6.95
62A	0040016000	WASHER, LOCK	1	ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 1 view full part page → $4.95
62B	0041216000	WASHER, FLAT	2	ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 2 view full part page → $1.95
62C	0030016000	HEX. NUT	1	ADD TO CART
HEX. NUT 0030016000 · qty on machine: 1 view full part page → $1.9
63	AT326597	ADAPTER FITTING, STRAIGHT	1	ADD TO CART
ADAPTER FITTING, STRAIGHT AT326597 · qty on machine: 1 view full part page → $77.95

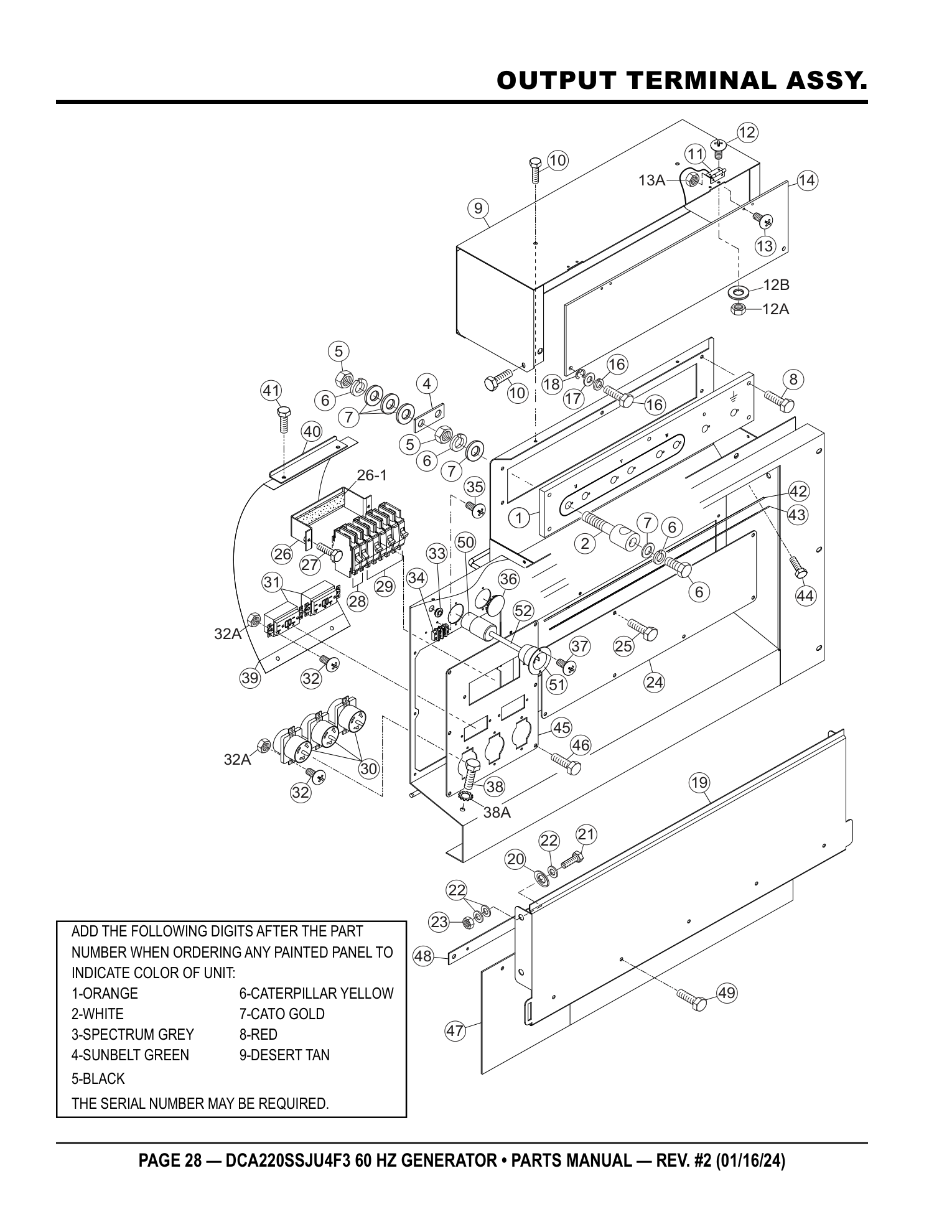

Page 28 — OUTPUT TERMINAL ASSY.

Multiquip DCA220SSJU4F3 Generator OUTPUT TERMINAL ASSY. parts diagram

Parts list — exactly as printed41 rows

No.	Part No.	Part Name	Qty	Remarks
1	C1231700003	TERMINAL BOARD	1	REPLACES P/N M4230700003	ADD TO CART
TERMINAL BOARD C1231700003 · qty on machine: 1 REPLACES P/N M4230700003 view full part page → $541.95
2	M9220100304	OUTPUT TERMINAL BOLT	8		ADD TO CART
OUTPUT TERMINAL BOLT M9220100304 · qty on machine: 8 view full part page → $118.95
3	0801830804	TIE BOLT	8	REPLACES P/N M9220100404	ADD TO CART
TIE BOLT 0801830804 · qty on machine: 8 REPLACES P/N M9220100404 view full part page → $19.95
4	3461860504	TERMINAL PLATE	3	REPLACES P/N M4233200004	ADD TO CART
TERMINAL PLATE 3461860504 · qty on machine: 3 REPLACES P/N M4233200004 view full part page → $29.95
5	0039316000	HEX. NUT	16		ADD TO CART
HEX. NUT 0039316000 · qty on machine: 16 view full part page → $5.95
6	0040016000	WASHER, LOCK	24		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 24 view full part page → $4.95
7	0401450160	WASHER, FLAT	32	REPLACES P/N 0041416000	ADD TO CART
WASHER, FLAT 0401450160 · qty on machine: 32 REPLACES P/N 0041416000 view full part page → $0.53
8	0016908040	HEX. HEAD BOLT	5		ADD TO CART
HEX. HEAD BOLT 0016908040 · qty on machine: 5 view full part page → $1.52
9	M4236100403	TERMINAL COVER	1		ADD TO CART
TERMINAL COVER M4236100403 · qty on machine: 1 view full part page → $231.95
10	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95
11	0605010040	HINGE	2		ADD TO CART
HINGE 0605010040 · qty on machine: 2 view full part page → $4.95
12	0027103010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027103010 · qty on machine: 4 view full part page → $0.44
12A	0207003000	HEX NUT	4	REPLACES P/N 0030003000	ADD TO CART
HEX NUT 0207003000 · qty on machine: 4 REPLACES P/N 0030003000 view full part page → $0.21
12B	0041203000	WASHER, FLAT	4		ADD TO CART
WASHER, FLAT 0041203000 · qty on machine: 4 view full part page → $0.12
13	0027103015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027103015 · qty on machine: 4 view full part page → $0.64
13A	0030003000	HEX. NUT	4		ADD TO CART
HEX. NUT 0030003000 · qty on machine: 4 Factory replaced this part - current number 0207003000 view full part page → $0.21 IN A KIT + SOLD SOLO
14	M4236100504	OUTPUT WINDOW	1		ADD TO CART
OUTPUT WINDOW M4236100504 · qty on machine: 1 view full part page → $102.95
15	M9220100804	SET SCREW	2		ADD TO CART
SET SCREW M9220100804 · qty on machine: 2 view full part page → $20.95
16	0040006000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040006000 · qty on machine: 2 view full part page → $0.17
17	952404470	WASHER, FLAT	2	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 2 REPLACES P/N 0041206000 view full part page → $0.19
18	0080200005	E RING	2		ADD TO CART
E RING 0080200005 · qty on machine: 2 view full part page → $0.25
19	M3237100503	TERMINAL COVER	1		ADD TO CART
TERMINAL COVER M3237100503 · qty on machine: 1 view full part page → $126.95
20	0605050060	CONICAL LOCK WASHER	2		ADD TO CART
CONICAL LOCK WASHER 0605050060 · qty on machine: 2 view full part page → $5.95
21	Y0013612045	HEX. HEAD BOLT	2		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0013612045 · qty on machine: 2 PARTS REQUEST
22	031112230	WASHER, FLAT	6	REPLACES P/N 0041212000	ADD TO CART
WASHER, FLAT 031112230 · qty on machine: 6 REPLACES P/N 0041212000 view full part page → $0.95
23	0030012000	HEX. NUT	2		ADD TO CART
HEX. NUT 0030012000 · qty on machine: 2 view full part page → $0.5
24	M4236400204	COVER	1		PARTS REQUEST
PHOTO COMING COVER M4236400204 · qty on machine: 1 PARTS REQUEST
25	0016906015	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 8 view full part page → $0.95
26	M4260600104	BRACKET, CIRCUIT BREAKER	1		ADD TO CART
BRACKET, CIRCUIT BREAKER M4260600104 · qty on machine: 1 view full part page → $57.95
26-1	0222100150	RUBBER CUSHION	1		ADD TO CART
RUBBER CUSHION 0222100150 · qty on machine: 1 view full part page → $6.95
27	Y0016906020	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT Y0016906020 · qty on machine: 2 view full part page → $1.45
28	0601808803	CIRCUIT BREAKER, 1P 20A	2		ADD TO CART
CIRCUIT BREAKER, 1P 20A 0601808803 · qty on machine: 2 view full part page → $46.95
29	0601808804	CIRCUIT BREAKER, 2P 50A	3		ADD TO CART
CIRCUIT BREAKER, 2P 50A 0601808804 · qty on machine: 3 view full part page → $98.95
30	0601814014	RECEPTACLE, 50A	3	REPLACES P/N Y0601814014	ADD TO CART
RECEPTACLE, 50A 0601814014 · qty on machine: 3 REPLACES P/N Y0601814014 view full part page → $90.95
31	Y0601814034	RECEPTACLE	2	REPLACES P/N 0601814024	ADD TO CART
RECEPTACLE Y0601814034 · qty on machine: 2 REPLACES P/N 0601814024 view full part page → $91.95
32	0027104015	MACHINE SCREW	10		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 10 view full part page → $0.53
32A	OEMAA8	SELF-LOCKING NUT	10	REPLACES P/N 0207004000	ADD TO CART
SELF-LOCKING NUT OEMAA8 · qty on machine: 10 REPLACES P/N 0207004000 view full part page → $0.4
33	0601850275	GROMMET	1		ADD TO CART
GROMMET 0601850275 · qty on machine: 1 view full part page → $2.68
34	0601815194	TERMINAL BLOCK, 601-GP-02	1	S/N 8011562 AND BELOW	NO LONGER AVAILABLE
PHOTO COMING TERMINAL BLOCK, 601-GP-02 0601815194 · qty on machine: 1 S/N 8011562 AND BELOW NO LONGER AVAILABLE
34	Y060186539	TERMINAL BLOCK, TB200-02	1	S/N 8011563~8011576 S/N 8011591~8011681	PARTS REQUEST
PHOTO COMING TERMINAL BLOCK, TB200-02 Y060186539 · qty on machine: 1 S/N 8011563~8011576 S/N 8011591~8011681 PARTS REQUEST
34	Y0601815870	TERMINAL BLOCK, KT-20-2P	1	S/N 8011577~8011590 S/N 8011682 AND ABOVE	ADD TO CART
TERMINAL BLOCK, KT-20-2P Y0601815870 · qty on machine: 1 S/N 8011577~8011590 S/N 8011682 AND ABOVE view full part page → $52.95

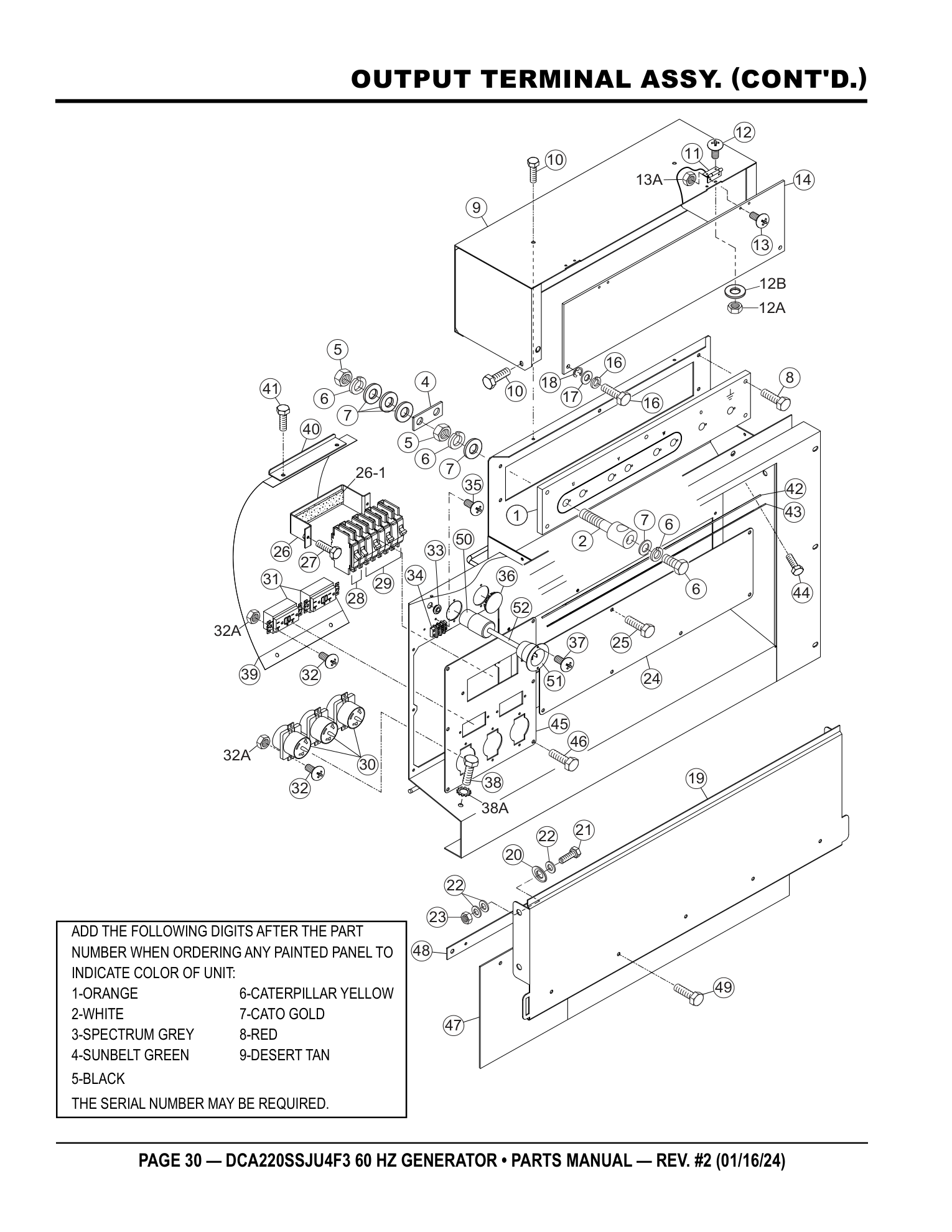

Page 30 — OUTPUT TERMINAL ASSY. (CONT'D.)

Multiquip DCA220SSJU4F3 Generator OUTPUT TERMINAL ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed20 rows

No.	Part No.	Part Name	Qty	Remarks
35	0027104015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 2 view full part page → $0.53
36	0603306775	BLIND PLUG	1		ADD TO CART
BLIND PLUG 0603306775 · qty on machine: 1 view full part page → $3.95
37	0027104015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 4 view full part page → $0.53
38	0019208020	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 1 view full part page → $3.95
38A	0040508000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040508000 · qty on machine: 1 view full part page → $0.35
39	M3237100404	INSULATING COVER	1		ADD TO CART
INSULATING COVER M3237100404 · qty on machine: 1 view full part page → $160.95
40	M4236400304	BRACKET	1		ADD TO CART
BRACKET M4236400304 · qty on machine: 1 view full part page → $19.95
41	0016906015	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 2 view full part page → $0.95
42	M4236400004	CABLE OUTLET COVER	1		ADD TO CART
CABLE OUTLET COVER M4236400004 · qty on machine: 1 view full part page → $9.95
43	M4236400104	SUPPORTER, CABLE OUTLET COVER	1		ADD TO CART
SUPPORTER, CABLE OUTLET COVER M4236400104 · qty on machine: 1 view full part page → $88.95
44	Y0016906020	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT Y0016906020 · qty on machine: 8 view full part page → $1.45
45	M3454200904	RECEPTACLE BOARD	1		ADD TO CART
RECEPTACLE BOARD M3454200904 · qty on machine: 1 view full part page → $30.95
46	0016906015	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 6 view full part page → $0.95
47	M3454700404	RUBBER SHEET	1		ADD TO CART
RUBBER SHEET M3454700404 · qty on machine: 1 view full part page → $62.95
48	M3454700504	RUBBER SHEET HOLDER	1		PARTS REQUEST
PHOTO COMING RUBBER SHEET HOLDER M3454700504 · qty on machine: 1 PARTS REQUEST
49	011206020	HEX. HEAD BOLT	4	REPLACES P/N 0019206020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 4 REPLACES P/N 0019206020 view full part page → $0.95
50	0601812527	CONNECTOR	1	S/N 8011416 AND BELOW	ADD TO CART
CONNECTOR 0601812527 · qty on machine: 1 S/N 8011416 AND BELOW view full part page → $64.95
51	Y0601811177	RECEPTACLE	1	S/N 8011416 AND BELOW	PARTS REQUEST
PHOTO COMING RECEPTACLE Y0601811177 · qty on machine: 1 S/N 8011416 AND BELOW PARTS REQUEST
52	Y0329101000	CABLE	1	S/N 8011416 AND BELOW	PARTS REQUEST
PHOTO COMING CABLE Y0329101000 · qty on machine: 1 S/N 8011416 AND BELOW PARTS REQUEST
52	Y0601813078	WATER HEATER CABLE	1	S/N 8011419 AND ABOVE	ADD TO CART
WATER HEATER CABLE Y0601813078 · qty on machine: 1 S/N 8011419 AND ABOVE view full part page → $105.95

Page 32 — CAMLOK PANEL ASSY. (OPTION)

Multiquip DCA220SSJU4F3 Generator CAMLOK PANEL ASSY. (OPTION) parts diagram

Parts list — exactly as printed13 rows

No.	Part No.	Part Name	Qty	Remarks
1	CAMLOK-2KITAL	CAMLOK 2 SETS	1	INCLUDES ITEMS W/%	PARTS REQUEST
PHOTO COMING CAMLOK 2 SETS CAMLOK-2KITAL · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 2%, 3%, 3%, 4%, 5%, 6%, 7%, 8%, 9%, 11% PARTS REQUEST
2%	EE6378	RECEPT, PANEL MNT., FEMALE, BLK, 4/0	2		ADD TO CART
RECEPT, PANEL MNT., FEMALE, BLK, 4/0 EE6378 · qty on machine: 2 Also included in kit 1 - CAMLOK 2 SETS (CAMLOK-2KITAL) view full part page → $69.95 IN A KIT + SOLD SOLO
3%	EE6380	RECEPT, PANEL MNT., FEMALE, RED, 4/0	2		ADD TO CART
RECEPT, PANEL MNT., FEMALE, RED, 4/0 EE6380 · qty on machine: 2 Also included in kit 1 - CAMLOK 2 SETS (CAMLOK-2KITAL) view full part page → $69.95 IN A KIT + SOLD SOLO
3%	EE6378	RECEPT, PANEL MNT., FEMALE, BLK, 4/0	2		ADD TO CART
RECEPT, PANEL MNT., FEMALE, BLK, 4/0 EE6378 · qty on machine: 2 Also included in kit 1 - CAMLOK 2 SETS (CAMLOK-2KITAL) view full part page → $69.95 IN A KIT + SOLD SOLO
4%	EE6381	RECEPT, PANEL MNT., FEMALE, BLUE, 4/0	2		ADD TO CART
RECEPT, PANEL MNT., FEMALE, BLUE, 4/0 EE6381 · qty on machine: 2 Also included in kit 1 - CAMLOK 2 SETS (CAMLOK-2KITAL) view full part page → $69.95 IN A KIT + SOLD SOLO
5%	EE6379	RECEPT, PANEL MNT., FEMALE, WHT, 4/0	2		ADD TO CART
RECEPT, PANEL MNT., FEMALE, WHT, 4/0 EE6379 · qty on machine: 2 Also included in kit 1 - CAMLOK 2 SETS (CAMLOK-2KITAL) view full part page → $69.95 IN A KIT + SOLD SOLO
6%	EE6382	RECEPT, PANEL MNT., FEMALE, GRN, 4/0	2		ADD TO CART
RECEPT, PANEL MNT., FEMALE, GRN, 4/0 EE6382 · qty on machine: 2 Also included in kit 1 - CAMLOK 2 SETS (CAMLOK-2KITAL) view full part page → $21.95 IN A KIT + SOLD SOLO
7%	EE56983	PANEL, TWO CONDUCT CAMLOK, ALU.	1		ADD TO CART
PANEL, TWO CONDUCT CAMLOK, ALU. EE56983 · qty on machine: 1 Also included in kit 1 - CAMLOK 2 SETS (CAMLOK-2KITAL) view full part page → $61.95 IN A KIT + SOLD SOLO
8%	CL40WTC-L-125-J	SNAP BACK PLASTIC COVER	10		ADD TO CART
SNAP BACK PLASTIC COVER CL40WTC-L-125-J · qty on machine: 10 Also included in kit 1 - CAMLOK 2 SETS (CAMLOK-2KITAL) view full part page → $44.95 IN A KIT + SOLD SOLO
9%	EE26643	TRANSFORMER, CURRENT,600:5	1		ADD TO CART
TRANSFORMER, CURRENT,600:5 EE26643 · qty on machine: 1 Also included in kit 1 - CAMLOK 2 SETS (CAMLOK-2KITAL) view full part page → $40.95 IN A KIT + SOLD SOLO
10	EE7342	BUS BAR, 2-INCH	5		ADD TO CART
BUS BAR, 2-INCH EE7342 · qty on machine: 5 view full part page → $34.95
11%	EE59031	CAP, TERMINAL INSULATOR, BLACK	8		ADD TO CART
CAP, TERMINAL INSULATOR, BLACK EE59031 · qty on machine: 8 Also included in kit 1 - CAMLOK 2 SETS (CAMLOK-2KITAL) view full part page → $8.95 IN A KIT + SOLD SOLO
12	CAMLOK-2KIT	4/0 SINGLE CONDUCTOR CABLE	1		ADD TO CART
4/0 SINGLE CONDUCTOR CABLE CAMLOK-2KIT · qty on machine: 1 view full part page → $1478.04

Page 34 — BATTERY ASSY.

Multiquip DCA220SSJU4F3 Generator BATTERY ASSY. parts diagram

Parts list — exactly as printed15 rows

No.	Part No.	Part Name	Qty	Remarks
1	0602220198	BATTERY	1		ADD TO CART
BATTERY 0602220198 · qty on machine: 1 view full part page → $500.95
2	M9103000504	BATTERY BAND	1		ADD TO CART
BATTERY BAND M9103000504 · qty on machine: 1 view full part page → $107.95
3	0602220921	BATTERY BOLT SET	2	INCLUDES ITEMS W/#	ADD TO CART
BATTERY BOLT SET 0602220921 · qty on machine: 2 INCLUDES ITEMS W/# Kit includes: 3A#, 3B# view full part page → $5.95 IN A KIT + SOLD SOLO
3A#		WING NUT	2		INCLUDED IN KIT
PHOTO COMING WING NUT · qty on machine: 2 Included in kit 3 - BATTERY BOLT SET (0602220921) INCLUDED IN KIT
3B#		PLASTIC WASHER	2		INCLUDED IN KIT
PHOTO COMING PLASTIC WASHER · qty on machine: 2 Included in kit 3 - BATTERY BOLT SET (0602220921) INCLUDED IN KIT
4	M9310500404	BATTERY SHEET	1	NO LONGER AVAILABLE	PARTS REQUEST
PHOTO COMING BATTERY SHEET M9310500404 · qty on machine: 1 NO LONGER AVAILABLE PARTS REQUEST
5	M5347900504	BATTERY CABLE, POSITIVE	1		ADD TO CART
BATTERY CABLE, POSITIVE M5347900504 · qty on machine: 1 view full part page → $365.95
6	M5347900604A	BATTERY CABLE, NEGATIVE	1		ADD TO CART
BATTERY CABLE, NEGATIVE M5347900604A · qty on machine: 1 view full part page → $295.95
7	Y0013616030	HEX. HEAD BOLT	1		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0013616030 · qty on machine: 1 PARTS REQUEST
7A	0040016000	WASHER, LOCK	1		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 1 view full part page → $4.95
7B	0041216000	WASHER, FLAT	1		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 1 view full part page → $1.95
7C	0040516000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040516000 · qty on machine: 1 view full part page → $1.39
8	0016910025	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0016910025 · qty on machine: 1 view full part page → $1.56
8A	0040510000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040510000 · qty on machine: 1 view full part page → $0.77
9		EARTH CABLE	1	MAKE LOCALLY	SEE REMARKS
PHOTO COMING EARTH CABLE · qty on machine: 1 MAKE LOCALLY SEE REMARKS

Page 36 — MUFFLER ASSY.

Multiquip DCA220SSJU4F3 Generator MUFFLER ASSY. parts diagram

Parts list — exactly as printed37 rows

No.	Part No.	Part Name	Qty	Remarks
1	DZ100501	DIESEL OXIDATION CATALYST	1	REPLACES P/N Y0602330106	NO LONGER AVAILABLE
PHOTO COMING DIESEL OXIDATION CATALYST DZ100501 · qty on machine: 1 REPLACES P/N Y0602330106 NO LONGER AVAILABLE
2	DZ100467	SCR CATALYST	1	REPLACES P/N Y0602330304	ADD TO CART
SCR CATALYST DZ100467 · qty on machine: 1 REPLACES P/N Y0602330304 view full part page → $16507.95
3	RE565074	DECOMPOSITION TUBE	1	REPLACES P/N Y0602330403	ADD TO CART
DECOMPOSITION TUBE RE565074 · qty on machine: 1 REPLACES P/N Y0602330403 view full part page → $2420.95
4	RE559456	DECOMPOSITION EXTENSION TUBE	1	REPLACES P/N Y0602330404	PARTS REQUEST
PHOTO COMING DECOMPOSITION EXTENSION TUBE RE559456 · qty on machine: 1 REPLACES P/N Y0602330404 PARTS REQUEST
5	RE540348	V-BAND CLAMP	3		ADD TO CART
V-BAND CLAMP RE540348 · qty on machine: 3 view full part page → $163.95
6	R529640	GASKET	3		ADD TO CART
GASKET R529640 · qty on machine: 3 view full part page → $97.95
7	RE560468	DEF DOSING INJECTOR	1		ADD TO CART
DEF DOSING INJECTOR RE560468 · qty on machine: 1 view full part page → $1355.95
8	RE556879	GASKET	1		ADD TO CART
GASKET RE556879 · qty on machine: 1 view full part page → $25.95
9	R537624	HEX. HEAD BOLT	3	REPLACES P/N Y0602330407	ADD TO CART
HEX. HEAD BOLT R537624 · qty on machine: 3 REPLACES P/N Y0602330407 view full part page → $4.95
10	RE304965	V-BAND CLAMP	1	REPLACES P/N Y0602325035	ADD TO CART
V-BAND CLAMP RE304965 · qty on machine: 1 REPLACES P/N Y0602325035 view full part page → $147.95
11	R529510	GASKET	1	REPLACES P/N Y0602320204	ADD TO CART
GASKET R529510 · qty on machine: 1 REPLACES P/N Y0602320204 view full part page → $86.95
12	Y0602325026	PIPE BAND	1		ADD TO CART
PIPE BAND Y0602325026 · qty on machine: 1 view full part page → $37.95
13	M3334100103	TAIL PIPE	1		ADD TO CART
TAIL PIPE M3334100103 · qty on machine: 1 view full part page → $1146.95
13A	Y0602311172	EXHAUST INSULATING MAT	1		ADD TO CART
EXHAUST INSULATING MAT Y0602311172 · qty on machine: 1 view full part page → $157.95
14	0400005080	EXHAUST INSULATING WRAP	1		ADD TO CART
EXHAUST INSULATING WRAP 0400005080 · qty on machine: 1 view full part page → $140.95
15	M4334000103	EXHAUST PIPE	1		ADD TO CART
EXHAUST PIPE M4334000103 · qty on machine: 1 view full part page → $2792.95
15A	Y0602311178	EXHAUST INSULATING MAT	1		ADD TO CART
EXHAUST INSULATING MAT Y0602311178 · qty on machine: 1 view full part page → $465.95
15B	Y0602311179	EXHAUST INSULATING MAT	1		ADD TO CART
EXHAUST INSULATING MAT Y0602311179 · qty on machine: 1 view full part page → $139.95
16	RE298757	V-BAND CLAMP	1	REPLACES P/N Y0602325036	ADD TO CART
V-BAND CLAMP RE298757 · qty on machine: 1 REPLACES P/N Y0602325036 view full part page → $162.95
17	R300529	GASKET	1	REPLACES P/N Y0602320203	ADD TO CART
GASKET R300529 · qty on machine: 1 REPLACES P/N Y0602320203 view full part page → $140.95
18	0602326061	U-BOLT	1		ADD TO CART
U-BOLT 0602326061 · qty on machine: 1 view full part page → $17.95
19	M4334300204	COVER, EXHAUST PIPE	1		ADD TO CART
COVER, EXHAUST PIPE M4334300204 · qty on machine: 1 view full part page → $18.95
20	M4334300304	BRACKET, EXHAUST PIPE	1		ADD TO CART
BRACKET, EXHAUST PIPE M4334300304 · qty on machine: 1 view full part page → $108.95
21	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
22	M3331200302	BRACKET, DOC AND SCR	1		PARTS REQUEST
PHOTO COMING BRACKET, DOC AND SCR M3331200302 · qty on machine: 1 PARTS REQUEST
23	0016910025	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016910025 · qty on machine: 4 view full part page → $1.56
24	M3331400604	DPF BAND	2		ADD TO CART
DPF BAND M3331400604 · qty on machine: 2 view full part page → $77.95
25	M3331400704	SCR BAND	2		ADD TO CART
SCR BAND M3331400704 · qty on machine: 2 view full part page → $17.95
26	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
27	020108060	U-NUT	4	REPLACES P/N 0037908000	ADD TO CART
U-NUT 020108060 · qty on machine: 4 REPLACES P/N 0037908000 view full part page → $0.28
27A	0401450080	WASHER, FLAT	4	REPLACES P/N 0041208000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 4 REPLACES P/N 0041208000 view full part page → $0.56
28	Y0013616030	HEX. HEAD BOLT	4		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0013616030 · qty on machine: 4 PARTS REQUEST
28A	0040016000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 4 view full part page → $4.95
28B	0041216000	WASHER, FLAT	4		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 4 view full part page → $1.95
29	0605515202	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515202 · qty on machine: 2 view full part page → $9.95
30	011008020	HEX. HEAD BOLT	1	REPALCES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 1 REPALCES P/N 0016908020 view full part page → $2.68
31	0601851736	GROMMET	2		ADD TO CART
GROMMET 0601851736 · qty on machine: 2 view full part page → $12.95

Page 38 — DEF TANK ASSY.

Multiquip DCA220SSJU4F3 Generator DEF TANK ASSY. parts diagram

Parts list — exactly as printed44 rows

No.	Part No.	Part Name	Qty	Remarks
1	DZ113662	DEF TANK	1	REPLACES P/N Y0605500074	ADD TO CART
DEF TANK DZ113662 · qty on machine: 1 REPLACES P/N Y0605500074 view full part page → $2550.95
2	M5331402103	BRACKET, DEF TANK	1		PARTS REQUEST
PHOTO COMING BRACKET, DEF TANK M5331402103 · qty on machine: 1 PARTS REQUEST
2A	Y0222100480	SEAL, RUBBER	2		ADD TO CART
SEAL, RUBBER Y0222100480 · qty on machine: 2 view full part page → $6.95
3	011208025	HEX. HEAD BOLT	2	REPLACES P/N 0016908025	ADD TO CART
HEX. HEAD BOLT 011208025 · qty on machine: 2 REPLACES P/N 0016908025 view full part page → $0.41
4	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
5	M3331402804	DEF TANK BAND	2		ADD TO CART
DEF TANK BAND M3331402804 · qty on machine: 2 view full part page → $233.95
6	M5331402004	DEF TANK BAND	2		PARTS REQUEST
PHOTO COMING DEF TANK BAND M5331402004 · qty on machine: 2 PARTS REQUEST
7	Y0207008000	SELF-LOCKING NUT	4		ADD TO CART
SELF-LOCKING NUT Y0207008000 · qty on machine: 4 view full part page → $0.4
8	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
9	RE552175	DEF SUPPLY MODULE	1		ADD TO CART
DEF SUPPLY MODULE RE552175 · qty on machine: 1 view full part page → $2050.95
10	Y0013608090	HEX. HEAD BOLT	3		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0013608090 · qty on machine: 3 PARTS REQUEST
10A	0040008000	WASHER, LOCK	3		ADD TO CART
WASHER, LOCK 0040008000 · qty on machine: 3 view full part page → $0.63
10B	0401450080	WASHER, FLAT	3	REPLACES P/N 0041208000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 3 REPLACES P/N 0041208000 view full part page → $0.56
11	RE560893	DEF SUCTION LINE	1	REPLACES P/N Y0602330428 S/N 8011414 AND BELOW	ADD TO CART
DEF SUCTION LINE RE560893 · qty on machine: 1 REPLACES P/N Y0602330428 S/N 8011414 AND BELOW view full part page → $441.95
11	Y0602330512	DEF SUCTION LINE	1	S/N 8011415 AND ABOVE	PARTS REQUEST
PHOTO COMING DEF SUCTION LINE Y0602330512 · qty on machine: 1 S/N 8011415 AND ABOVE PARTS REQUEST
12	RE560877	DEF BACKFLOW LINE	1	REPLACES P/N Y0602330429	ADD TO CART
DEF BACKFLOW LINE RE560877 · qty on machine: 1 REPLACES P/N Y0602330429 view full part page → $460.95
13	RE560897	DEF PRESSURE LINE	1	REPLACES P/N Y0602330423	ADD TO CART
DEF PRESSURE LINE RE560897 · qty on machine: 1 REPLACES P/N Y0602330423 view full part page → $700.95
13A	Y0602311173	INSULATING SLEEVE	1	S/N 8011738 AND ABOVE	ADD TO CART
INSULATING SLEEVE Y0602311173 · qty on machine: 1 S/N 8011738 AND ABOVE view full part page → $48.95
14	AT377287	FITTING, HOSE BARB	1	REPLACES P/N Y0602022975	ADD TO CART
FITTING, HOSE BARB AT377287 · qty on machine: 1 REPLACES P/N Y0602022975 view full part page → $49.95
15	Y0269300340	COOLANT HOSE	1		ADD TO CART
COOLANT HOSE Y0269300340 · qty on machine: 1 view full part page → $3.95
16	Y0269303200	COOLANT HOSE	1		ADD TO CART
COOLANT HOSE Y0269303200 · qty on machine: 1 view full part page → $36.95
17	0605515198	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515198 · qty on machine: 2 view full part page → $1.71
18	T317541	BLACK TEE-FITTING W/ORIFICE	1	REPLACES P/N Y0602022976	ADD TO CART
BLACK TEE-FITTING W/ORIFICE T317541 · qty on machine: 1 REPLACES P/N Y0602022976 view full part page → $17.95
19	T296925	WHITE TEE-FITTING	1	REPLACES P/N Y0602022977	ADD TO CART
WHITE TEE-FITTING T296925 · qty on machine: 1 REPLACES P/N Y0602022977 view full part page → $12.95
20	Y0379602350	COOLANT HOSE	2		ADD TO CART
COOLANT HOSE Y0379602350 · qty on machine: 2 view full part page → $39.95
20A	Y0602311173	INSULATING SLEEVE	1	S/N 8011738 AND ABOVE	ADD TO CART
INSULATING SLEEVE Y0602311173 · qty on machine: 1 S/N 8011738 AND ABOVE view full part page → $48.95
21	Y0605515340	HOSE BAND	4		ADD TO CART
HOSE BAND Y0605515340 · qty on machine: 4 view full part page → $2.95
22	Y0602022559	90° ELBOW	1		PARTS REQUEST
PHOTO COMING 90° ELBOW Y0602022559 · qty on machine: 1 PARTS REQUEST
23	0602022980	HOSE JOINT	1		ADD TO CART
HOSE JOINT 0602022980 · qty on machine: 1 view full part page → $11.95
24	Y0379703250	COOLANT HOSE	1	S/N 8011414 AND BELOW	ADD TO CART
COOLANT HOSE Y0379703250 · qty on machine: 1 S/N 8011414 AND BELOW view full part page → $36.95
24	Y0379702680	COOLANT HOSE	1	S/N 8011415 AND ABOVE	PARTS REQUEST
PHOTO COMING COOLANT HOSE Y0379702680 · qty on machine: 1 S/N 8011415 AND ABOVE PARTS REQUEST
25	Y0379700340	COOLANT HOSE	1	S/N 8011414 AND BELOW	PARTS REQUEST
PHOTO COMING COOLANT HOSE Y0379700340 · qty on machine: 1 S/N 8011414 AND BELOW PARTS REQUEST
25	Y0379700220	COOLANT HOSE	1	S/N 8011415 AND ABOVE	PARTS REQUEST
PHOTO COMING COOLANT HOSE Y0379700220 · qty on machine: 1 S/N 8011415 AND ABOVE PARTS REQUEST
26	Y0605515341	HOSE BAND	6	S/N 8011681 AND BELOW	ADD TO CART
HOSE BAND Y0605515341 · qty on machine: 6 S/N 8011681 AND BELOW view full part page → $2.95
26	0605515198	HOSE BAND	6	S/N 8011682 AND ABOVE	ADD TO CART
HOSE BAND 0605515198 · qty on machine: 6 S/N 8011682 AND ABOVE view full part page → $1.71
27	Y0191301150	VENT HOSE	1		ADD TO CART
VENT HOSE Y0191301150 · qty on machine: 1 view full part page → $17.95
28	Y0605515340	HOSE BAND	2		ADD TO CART
HOSE BAND Y0605515340 · qty on machine: 2 view full part page → $2.95
29	0601851756	GROMMET	1		ADD TO CART
GROMMET 0601851756 · qty on machine: 1 view full part page → $15.95
30	H216170	DEF TANK VENT FITTING	1	REPLACES P/N Y0602330402	ADD TO CART
DEF TANK VENT FITTING H216170 · qty on machine: 1 REPLACES P/N Y0602330402 view full part page → $32.95
31	H216169	DEF TANK VENT FILTER	1	REPLACES P/N Y0602330401	ADD TO CART
DEF TANK VENT FILTER H216169 · qty on machine: 1 REPLACES P/N Y0602330401 view full part page → $54.95
32	RE552182	NOX SENSOR	2	REPLACES P/N RE575061	ADD TO CART
NOX SENSOR RE552182 · qty on machine: 2 REPLACES P/N RE575061 view full part page → $1348.95
33	RE566739	SCR TEMP. SENSOR	1	REPLACES P/N Y0602330426	ADD TO CART
SCR TEMP. SENSOR RE566739 · qty on machine: 1 REPLACES P/N Y0602330426 view full part page → $1236.95
34	0016906015	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 6 view full part page → $0.95
35	RE542006	STRAP, TEMP. SENSOR	1	REPLACES P/N Y0602330205	ADD TO CART
STRAP, TEMP. SENSOR RE542006 · qty on machine: 1 REPLACES P/N Y0602330205 view full part page → $23.95

Page 40 — DEF TANK ASSY. (CONT'D.)

Multiquip DCA220SSJU4F3 Generator DEF TANK ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed13 rows

No.	Part No.	Part Name	Qty	Remarks
36	DZ118296	DEF TANK HEADER	1	REPLACES P/N DZ103804	ADD TO CART
DEF TANK HEADER DZ118296 · qty on machine: 1 REPLACES P/N DZ103804 view full part page → $3198.95
37	19M10399	HEX. HEAD BOLT	3	REPLACES P/N Y0602330420	PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT 19M10399 · qty on machine: 3 REPLACES P/N Y0602330420 PARTS REQUEST
38	Y0602311190	HARNESS INSULATING SLEEVE	2	S/N 8011737 AND BELOW	ADD TO CART
HARNESS INSULATING SLEEVE Y0602311190 · qty on machine: 2 S/N 8011737 AND BELOW view full part page → $37.95
38	Y0602311197	INSULATING SLEEVE	1	S/N 8011738 AND ABOVE	ADD TO CART
INSULATING SLEEVE Y0602311197 · qty on machine: 1 S/N 8011738 AND ABOVE view full part page → $37.95
39	Y0602330513	DEF SUCTION JUMPER LINE	1	S/N 8011415 AND ABOVE	NO LONGER AVAILABLE
PHOTO COMING DEF SUCTION JUMPER LINE Y0602330513 · qty on machine: 1 S/N 8011415 AND ABOVE NO LONGER AVAILABLE
40	Y0602330510	DEF IN-LINE FILTER	1	S/N 8011415 AND ABOVE	PARTS REQUEST
PHOTO COMING DEF IN-LINE FILTER Y0602330510 · qty on machine: 1 S/N 8011415 AND ABOVE PARTS REQUEST
40A	Y0602330511	DEF FILTER KIT	1	S/N 8011415 AND ABOVE	PARTS REQUEST
PHOTO COMING DEF FILTER KIT Y0602330511 · qty on machine: 1 S/N 8011415 AND ABOVE PARTS REQUEST
41	M5331402204	DEF FILTER BRACKET	1	S/N 8011415 AND ABOVE	PARTS REQUEST
PHOTO COMING DEF FILTER BRACKET M5331402204 · qty on machine: 1 S/N 8011415 AND ABOVE PARTS REQUEST
42	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020 S/N 8011415 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 S/N 8011415 AND ABOVE view full part page → $2.68
43	011208030	HEX. HEAD BOLT	2	REPLACES P/N 0016908030 S/N 8011415 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 011208030 · qty on machine: 2 REPLACES P/N 0016908030 S/N 8011415 AND ABOVE view full part page → $1.3
44	Y0379700485	COOLANT HOSE	1	S/N 8011415 AND ABOVE	PARTS REQUEST
PHOTO COMING COOLANT HOSE Y0379700485 · qty on machine: 1 S/N 8011415 AND ABOVE PARTS REQUEST
45	Y0605515341	HOSE BAND	2	S/N 8011415 ~ 8011681	ADD TO CART
HOSE BAND Y0605515341 · qty on machine: 2 S/N 8011415 ~ 8011681 view full part page → $2.95
45	0605515198	HOSE BAND	2	S/N 8011682 AND ABOVE	ADD TO CART
HOSE BAND 0605515198 · qty on machine: 2 S/N 8011682 AND ABOVE view full part page → $1.71

Page 42 — FUEL TANK ASSY.

Multiquip DCA220SSJU4F3 Generator FUEL TANK ASSY. parts diagram

Parts list — exactly as printed19 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3364000513	FUEL TANK	1		ADD TO CART
FUEL TANK M3364000513 · qty on machine: 1 view full part page → $3695.95
1-1	0605505072	CAP, FUEL TANK	1		ADD TO CART
CAP, FUEL TANK 0605505072 · qty on machine: 1 view full part page → $231.95
2	M3364300704	BRACKET, FUEL TANK	2		PARTS REQUEST
PHOTO COMING BRACKET, FUEL TANK M3364300704 · qty on machine: 2 PARTS REQUEST
3	0016910025	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016910025 · qty on machine: 4 view full part page → $1.56
4	011008020	HEX. HEAD BOLT	8	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 8 REPLACES P/N 0016908020 view full part page → $2.68
5	Y0191300980	SUCTION HOSE	1		ADD TO CART
SUCTION HOSE Y0191300980 · qty on machine: 1 view full part page → $12.95
6	Y0191300980	RETURN HOSE	1		ADD TO CART
RETURN HOSE Y0191300980 · qty on machine: 1 view full part page → $12.95
7	0191302700	VENT HOSE	1		ADD TO CART
VENT HOSE 0191302700 · qty on machine: 1 view full part page → $30.95
8	Y0605515340	HOSE BAND	6		ADD TO CART
HOSE BAND Y0605515340 · qty on machine: 6 view full part page → $2.95
9	Y0602022577	90° ELBOW	1		ADD TO CART
90° ELBOW Y0602022577 · qty on machine: 1 view full part page → $39.95
10	Y0602022578	90° ELBOW	1		ADD TO CART
90° ELBOW Y0602022578 · qty on machine: 1 view full part page → $67.95
11	Y0602022985	HOSE JOINT	2		ADD TO CART
HOSE JOINT Y0602022985 · qty on machine: 2 view full part page → $6.95
12	Y0605501049	FUEL SENDER UNIT	1		ADD TO CART
FUEL SENDER UNIT Y0605501049 · qty on machine: 1 view full part page → $342.95
12A	Y0605516090	GASKET	1		ADD TO CART
GASKET Y0605516090 · qty on machine: 1 view full part page → $27.95
13	Y0605053021	HEX. HEAD BOLT	5		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT Y0605053021 · qty on machine: 5 PARTS REQUEST
14	0602022791	HOSE JOINT 1/2"	2		ADD TO CART
HOSE JOINT 1/2" 0602022791 · qty on machine: 2 view full part page → $35.95
15	0602022778	HOSE JOINT 3/8"	2		ADD TO CART
HOSE JOINT 3/8" 0602022778 · qty on machine: 2 view full part page → $3.95
16	M3364400504	PICKUP TUBE	2		ADD TO CART
PICKUP TUBE M3364400504 · qty on machine: 2 view full part page → $141.95
17	Y0603306729	SQUARE HEAD PIPE PLUG	1		ADD TO CART
SQUARE HEAD PIPE PLUG Y0603306729 · qty on machine: 1 view full part page → $28.95

Page 44 — ENCLOSURE 1 ASSY.

Multiquip DCA220SSJU4F3 Generator ENCLOSURE 1 ASSY. parts diagram

Parts list — exactly as printed44 rows

No.	Part No.	Part Name	Qty	Remarks
1	M3414001702	BASE	1		ADD TO CART
BASE M3414001702 · qty on machine: 1 view full part page → $9523.95
1A	Y0229200830	SEAL, RUBBER	1		ADD TO CART
SEAL, RUBBER Y0229200830 · qty on machine: 1 view full part page → $8.95
1B	0229200210	SEAL, RUBBER	1		ADD TO CART
SEAL, RUBBER 0229200210 · qty on machine: 1 view full part page → $2.95
2	M3364301003	ENVIRONMENTAL TANK	1		ADD TO CART
ENVIRONMENTAL TANK M3364301003 · qty on machine: 1 view full part page → $4287.95
3	0016910030	BOLT, HEX. HEAD	12		ADD TO CART
BOLT, HEX. HEAD 0016910030 · qty on machine: 12 view full part page → $2.95
4	0603306797	SQUARE HEAD PIPE PLUG 1-1/2"	1		ADD TO CART
SQUARE HEAD PIPE PLUG 1-1/2" 0603306797 · qty on machine: 1 view full part page → $12.95
5	Y0603306793	SQUARE HEAD PIPE PLUG 1/2"	1		ADD TO CART
SQUARE HEAD PIPE PLUG 1/2" Y0603306793 · qty on machine: 1 view full part page → $2.95
6	M3414400303	BASE COVER	1		ADD TO CART
BASE COVER M3414400303 · qty on machine: 1 view full part page → $228.95
7	0019108055	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0019108055 · qty on machine: 6 view full part page → $3.95
7A	0042308000	WASHER, LOCK	6		ADD TO CART
WASHER, LOCK 0042308000 · qty on machine: 6 view full part page → $0.83
7B	0401450080	WASHER FLAT	6	REPLACES P/N 0042408000	ADD TO CART
WASHER FLAT 0401450080 · qty on machine: 6 REPLACES P/N 0042408000 view full part page → $0.56
8	M2414800304	HOLE COVER	1		ADD TO CART
HOLE COVER M2414800304 · qty on machine: 1 view full part page → $74.95
9	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
10	M3424001102	FRONT FRAME	1		ADD TO CART
FRONT FRAME M3424001102 · qty on machine: 1 view full part page → $3705.95
10A	M3494112003	ACOUSTIC SHEET	1	S/N 8011414 AND BELOW	ADD TO CART
ACOUSTIC SHEET M3494112003 · qty on machine: 1 S/N 8011414 AND BELOW view full part page → $714.95
10A	M3494112013	ACOUSTIC SHEET	1	S/N 8011415 ~ 8011576 S/N 8011637 AND ABOVE	ADD TO CART
ACOUSTIC SHEET M3494112013 · qty on machine: 1 S/N 8011415 ~ 8011576 S/N 8011637 AND ABOVE view full part page → $636.95
10A	M4494101403	ACOUSTIC SHEET	1	S/N 8011577 ~ 8011636	PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M4494101403 · qty on machine: 1 S/N 8011577 ~ 8011636 PARTS REQUEST
11	0016910025	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0016910025 · qty on machine: 8 view full part page → $1.56
12	M3424100003	PANEL, FRONT FRAME	1		ADD TO CART
PANEL, FRONT FRAME M3424100003 · qty on machine: 1 view full part page → $779.95
12A	M3494113204	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494113204 · qty on machine: 1 view full part page → $160.95
13	M3424100203	PANEL, FRONT FRAME	1		ADD TO CART
PANEL, FRONT FRAME M3424100203 · qty on machine: 1 view full part page → $1377.95
13A	M3494118804	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494118804 · qty on machine: 1 view full part page → $172.95
14	0019108055	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0019108055 · qty on machine: 8 view full part page → $3.95
14A	0042308000	WASHER, LOCK	16		ADD TO CART
WASHER, LOCK 0042308000 · qty on machine: 16 view full part page → $0.83
14B	0401450080	WASHER, FLAT	16	REPLACES P/N 0042408000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 16 REPLACES P/N 0042408000 view full part page → $0.56
15	M5424600004	DEF SUPPLY DOOR	1		ADD TO CART
DEF SUPPLY DOOR M5424600004 · qty on machine: 1 view full part page → $678.95
15A	M5494108204	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M5494108204 · qty on machine: 1 view full part page → $64.95
16	M9112100004	HINGE	2		ADD TO CART
HINGE M9112100004 · qty on machine: 2 view full part page → $12.95
16A	M9118000004	WASHER	2		ADD TO CART
WASHER M9118000004 · qty on machine: 2 view full part page → $0.88
17	011206020	HEX. HEAD BOLT	3	REPLACES P/N 0019206020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 3 REPLACES P/N 0019206020 view full part page → $0.95
18	0605010230	DOOR HANDLE	1		ADD TO CART
DOOR HANDLE 0605010230 · qty on machine: 1 view full part page → $121.95
19	0021805015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021805015 · qty on machine: 4 view full part page → $0.58
20	0601851613	STOPPER	1		ADD TO CART
STOPPER 0601851613 · qty on machine: 1 view full part page → $2.95
21	M3424201803	FRONT FRAME OVER COVER	1		ADD TO CART
FRONT FRAME OVER COVER M3424201803 · qty on machine: 1 view full part page → $544.95
22	0019208020	HEX. HEAD BOLT	17		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 17 view full part page → $3.95
23	M3434000602	CENTER FRAME	1		ADD TO CART
CENTER FRAME M3434000602 · qty on machine: 1 view full part page → $3479.95
24	Y0013614040	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT Y0013614040 · qty on machine: 4 view full part page → $2.95
24A	030214350	WASHER, LOCK	4	REPLACES P/N 0040014000	ADD TO CART
WASHER, LOCK 030214350 · qty on machine: 4 REPLACES P/N 0040014000 view full part page → $0.46
24B	031114260	WASHER, FLAT	8	REPLACES P/N 0041214000	ADD TO CART
WASHER, FLAT 031114260 · qty on machine: 8 REPLACES P/N 0041214000 view full part page → $0.69
24C	515455840	HEX. NUT	4	REPLACES P/N 0030014000	ADD TO CART
HEX. NUT 515455840 · qty on machine: 4 REPLACES P/N 0030014000 view full part page → $35.95
25	Y0013620050	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT Y0013620050 · qty on machine: 4 view full part page → $6.95
25A	030220510	WASHER, LOCK	4	REPLACES P/N 0040020000	ADD TO CART
WASHER, LOCK 030220510 · qty on machine: 4 REPLACES P/N 0040020000 view full part page → $1.95
25B	0041220000	WASHER, FLAT	8		ADD TO CART
WASHER, FLAT 0041220000 · qty on machine: 8 view full part page → $0.95
25C	0030020000	HEX. NUT	4		ADD TO CART
HEX. NUT 0030020000 · qty on machine: 4 view full part page → $1.82

Page 46 — ENCLOSURE 1 ASSY. (CONT'D.)

Multiquip DCA220SSJU4F3 Generator ENCLOSURE 1 ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed45 rows

No.	Part No.	Part Name	Qty	Remarks
26	M3444000702	REAR FRAME	1	S/N 8011418 AND BELOW	ADD TO CART
REAR FRAME M3444000702 · qty on machine: 1 S/N 8011418 AND BELOW view full part page → $2450.95
26	M3444000712	REAR FRAME	1	S/N 8011419 AND ABOVE	ADD TO CART
REAR FRAME M3444000712 · qty on machine: 1 S/N 8011419 AND ABOVE view full part page → $2809.95
26A	M3494302304	ACOUSTIC SHEET	1	S/N 8011418 AND BELOW	ADD TO CART
ACOUSTIC SHEET M3494302304 · qty on machine: 1 S/N 8011418 AND BELOW view full part page → $118.95
26A	M3494302314	ACOUSTIC SHEET	1	S/N 8011419 AND ABOVE	PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M3494302314 · qty on machine: 1 S/N 8011419 AND ABOVE PARTS REQUEST
27	0016910025	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016910025 · qty on machine: 4 view full part page → $1.56
28	M3444300904	REAR FRAME COVER	1		ADD TO CART
REAR FRAME COVER M3444300904 · qty on machine: 1 view full part page → $372.95
28A	M3494302404	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494302404 · qty on machine: 1 view full part page → $70.95
29	0019208020	HEX. HEAD BOLT	14		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 14 view full part page → $3.95
30	M4444300003	REAR FRAME DUCT	1		ADD TO CART
REAR FRAME DUCT M4444300003 · qty on machine: 1 view full part page → $998.95
30A	M4493303004	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M4493303004 · qty on machine: 1 view full part page → $58.95
31	Y0207008000	SELF-LOCKING NUT	9		ADD TO CART
SELF-LOCKING NUT Y0207008000 · qty on machine: 9 view full part page → $0.4
32	M3444200903	REAR FRAME DOOR	1		ADD TO CART
REAR FRAME DOOR M3444200903 · qty on machine: 1 view full part page → $592.95
33	M9110100204	HINGE MALE (L)	2		ADD TO CART
HINGE MALE (L) M9110100204 · qty on machine: 2 view full part page → $23.95
33A	M9116100004	WASHER	2		ADD TO CART
WASHER M9116100004 · qty on machine: 2 view full part page → $1.93
34	0845031504	BLIND PLUG	2	REPLACES P/N M9310000004	ADD TO CART
BLIND PLUG 0845031504 · qty on machine: 2 REPLACES P/N M9310000004 view full part page → $2.95
35	0019208020	HEX. HEAD BOLT	3		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 3 view full part page → $3.95
36	0601850097	RUBBER CUSHION	1		ADD TO CART
RUBBER CUSHION 0601850097 · qty on machine: 1 view full part page → $2.95
37	0027208025	MACHINE SCREW	1		ADD TO CART
MACHINE SCREW 0027208025 · qty on machine: 1 view full part page → $0.76
38	M4443600004	WINDOW PLATE	1		ADD TO CART
WINDOW PLATE M4443600004 · qty on machine: 1 view full part page → $155.95
39	020106050	U-NUT, SELF-LOCKING	8	REPLACES P/N 0037906000	ADD TO CART
U-NUT, SELF-LOCKING 020106050 · qty on machine: 8 REPLACES P/N 0037906000 view full part page → $0.12
39A	952404470	WASHER, FLAT	8	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 8 REPLACES P/N 0041206000 view full part page → $0.19
40	0600800320	HOLDER, MANUAL	1		ADD TO CART
HOLDER, MANUAL 0600800320 · qty on machine: 1 view full part page → $43.95
41	Y0207006000	SELF-LOCKING U-NUT	4		ADD TO CART
SELF-LOCKING U-NUT Y0207006000 · qty on machine: 4 view full part page → $0.23
42	Y0605012318	DOOR HANDLE, SS	1		ADD TO CART
DOOR HANDLE, SS Y0605012318 · qty on machine: 1 view full part page → $75.95
42A	C9312500004	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL C9312500004 · qty on machine: 1 view full part page → $10.95
43	Y0207006000	SELF-LOCKING NUT	4		ADD TO CART
SELF-LOCKING NUT Y0207006000 · qty on machine: 4 view full part page → $0.23
44	M3464100502	ROOF PANEL	1		ADD TO CART
ROOF PANEL M3464100502 · qty on machine: 1 view full part page → $552.95
44A	M3494504204	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494504204 · qty on machine: 1 view full part page → $196.95
45	Y0019208035	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT Y0019208035 · qty on machine: 6 view full part page → $5.95
46	M3310600004	RADIATOR CAP COVER	1		ADD TO CART
RADIATOR CAP COVER M3310600004 · qty on machine: 1 view full part page → $17.95
47	0019208020	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 4 view full part page → $3.95
48	0019210025	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0019210025 · qty on machine: 4 view full part page → $7.95
49	M3464200502	ROOF PANEL	1		ADD TO CART
ROOF PANEL M3464200502 · qty on machine: 1 view full part page → $632.95
49A	M3494504304	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494504304 · qty on machine: 1 view full part page → $282.95
50	Y0019208035	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT Y0019208035 · qty on machine: 6 view full part page → $5.95
51	0019208020	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 6 view full part page → $3.95
52	0019210025	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0019210025 · qty on machine: 4 view full part page → $7.95
53	M3464500104	GUTTER	2		ADD TO CART
GUTTER M3464500104 · qty on machine: 2 view full part page → $57.95
53A	Y0229200980	SEAL, RUBBER	2		ADD TO CART
SEAL, RUBBER Y0229200980 · qty on machine: 2 view full part page → $6.95
54	M3464500204	GUTTER	2		ADD TO CART
GUTTER M3464500204 · qty on machine: 2 view full part page → $41.95
54A	Y0229201210	SEAL, RUBBER	2		ADD TO CART
SEAL, RUBBER Y0229201210 · qty on machine: 2 view full part page → $8.95
55	0019208020	HEX. HEAD BOLT	12		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 12 view full part page → $3.95
56	M3444800204	GUTTER	1		PARTS REQUEST
PHOTO COMING GUTTER M3444800204 · qty on machine: 1 PARTS REQUEST
57	M3317100004	BRACKET, SURGE TANK	1		ADD TO CART
BRACKET, SURGE TANK M3317100004 · qty on machine: 1 view full part page → $263.95
58	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68

Page 48 — ENCLOSURE 1 ASSY. (CONT'D.)

Parts list — exactly as printed22 rows

No.	Part No.	Part Name	Qty	Remarks
59	M3424700904	DEF TANK COVER	1		PARTS REQUEST
PHOTO COMING DEF TANK COVER M3424700904 · qty on machine: 1 PARTS REQUEST
59A	M3494114004	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494114004 · qty on machine: 1 view full part page → $85.95
59B	Y0229200665	SEAL, RUBBER	2		ADD TO CART
SEAL, RUBBER Y0229200665 · qty on machine: 2 view full part page → $5.95
59C	Y0229200215	SEAL, RUBBER	2		ADD TO CART
SEAL, RUBBER Y0229200215 · qty on machine: 2 view full part page → $1.95
60	011008020	HEX. HEAD BOLT	8	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 8 REPLACES P/N 0016908020 view full part page → $2.68
61	0605503062	FLOAT SWITCH	1		ADD TO CART
FLOAT SWITCH 0605503062 · qty on machine: 1 view full part page → $213.95
62	M3414800504	BRACKET, FLOAT SWITCH	1		PARTS REQUEST
PHOTO COMING BRACKET, FLOAT SWITCH M3414800504 · qty on machine: 1 PARTS REQUEST
63	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
64	011008020	HEX. HEAD BOLT	1	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 1 REPLACES P/N 0016908020 view full part page → $2.68
64A	0040508000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040508000 · qty on machine: 1 view full part page → $0.35
65	M5414800104	COVER	1		PARTS REQUEST
PHOTO COMING COVER M5414800104 · qty on machine: 1 PARTS REQUEST
66	Y0016906020	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT Y0016906020 · qty on machine: 2 view full part page → $1.45
67	0019108065	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0019108065 · qty on machine: 8 view full part page → $1.95
68	0019112030	HEX. HEAD BOLT	1	S/N 8011396 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 0019112030 · qty on machine: 1 S/N 8011396 AND ABOVE view full part page → $5.95
69	Y0605050040	SEALING WASHER	1	S/N 8011396 AND ABOVE	ADD TO CART
SEALING WASHER Y0605050040 · qty on machine: 1 S/N 8011396 AND ABOVE view full part page → $1.95
70	0042312000	WASHER, LOCK	1	S/N 8011396 AND ABOVE	ADD TO CART
WASHER, LOCK 0042312000 · qty on machine: 1 S/N 8011396 AND ABOVE view full part page → $0.94
71	0042412000	WASHER, FLAT	1	S/N 8011396 AND ABOVE	ADD TO CART
WASHER, FLAT 0042412000 · qty on machine: 1 S/N 8011396 AND ABOVE view full part page → $1.63
72	0030012000	HEX. HEAD NUT	1	S/N 8011396 AND ABOVE	ADD TO CART
HEX. HEAD NUT 0030012000 · qty on machine: 1 S/N 8011396 AND ABOVE view full part page → $0.5
73	M5444800104	BLIND BOARD, REAR FRAME	1	S/N 8011419 ~ 8011681	ADD TO CART
BLIND BOARD, REAR FRAME M5444800104 · qty on machine: 1 S/N 8011419 ~ 8011681 view full part page → $21.95
74	011206020	HEX HEAD BOLT	2	REPLACES P/N 0016906020 S/N 8011419 ~ 8011681	ADD TO CART
HEX HEAD BOLT 011206020 · qty on machine: 2 REPLACES P/N 0016906020 S/N 8011419 ~ 8011681 view full part page → $0.95
75	0601831927	EMERGENCY STOP BUTTON	1	S/N 8011419 AND ABOVE	ADD TO CART
EMERGENCY STOP BUTTON 0601831927 · qty on machine: 1 S/N 8011419 AND ABOVE view full part page → $178.95
76	M3358202104	E-STOP WIRE HARNESS	1	S/N 8011419 AND ABOVE	ADD TO CART
E-STOP WIRE HARNESS M3358202104 · qty on machine: 1 S/N 8011419 AND ABOVE view full part page → $251.79

Page 50 — ENCLOSURE 2 ASSY.

Multiquip DCA220SSJU4F3 Generator ENCLOSURE 2 ASSY. parts diagram

Parts list — exactly as printed36 rows

No.	Part No.	Part Name	Qty	Remarks
1	M4454200002	SPLASHER PANEL, BUSSMAN	1	S/N 8011576 AND BELOW S/N 8011591 ~ 8011681	PARTS REQUEST
PHOTO COMING SPLASHER PANEL, BUSSMAN M4454200002 · qty on machine: 1 S/N 8011576 AND BELOW S/N 8011591 ~ 8011681 PARTS REQUEST
1	M4454200502	SPLASHER PANEL, KT-20-2P	1	S/N 8011577 ~ 8011590 S/N 8011682 AND ABOVE	ADD TO CART
SPLASHER PANEL, KT-20-2P M4454200502 · qty on machine: 1 S/N 8011577 ~ 8011590 S/N 8011682 AND ABOVE view full part page → $1671.95
1A	M3494421504	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494421504 · qty on machine: 1 view full part page → $348.95
2	0019108065	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0019108065 · qty on machine: 6 view full part page → $1.95
2A	0042308000	WASHER, LOCK	6		ADD TO CART
WASHER, LOCK 0042308000 · qty on machine: 6 view full part page → $0.83
2B	0401450080	WASHER, FLAT	6	REPLACES P/N 0042408000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 6 REPLACES P/N 0042408000 view full part page → $0.56
3	M3454002503	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M3454002503 · qty on machine: 1 PARTS REQUEST
3A	M3494420604	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494420604 · qty on machine: 1 view full part page → $715.95
4	M3454002603	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M3454002603 · qty on machine: 1 PARTS REQUEST
4A	M3494420704	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494420704 · qty on machine: 1 view full part page → $715.95
5	M3454002703	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M3454002703 · qty on machine: 1 PARTS REQUEST
5A	M3494420804	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494420804 · qty on machine: 1 view full part page → $577.95
6	M3454002803	SIDE DOOR	1		ADD TO CART
SIDE DOOR M3454002803 · qty on machine: 1 view full part page → $454.95
6A	M3494420904	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494420904 · qty on machine: 1 view full part page → $278.95
7	M3454301504	DUCT	2		PARTS REQUEST
PHOTO COMING DUCT M3454301504 · qty on machine: 2 PARTS REQUEST
7A	M3494421004	ACOUSTIC SHEET	2		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M3494421004 · qty on machine: 2 PARTS REQUEST
8	M3454301604	DUCT	2		PARTS REQUEST
PHOTO COMING DUCT M3454301604 · qty on machine: 2 PARTS REQUEST
8A	M3494421104	ACOUSTIC SHEET	2		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M3494421104 · qty on machine: 2 PARTS REQUEST
9	M3454301704	DUCT	1		PARTS REQUEST
PHOTO COMING DUCT M3454301704 · qty on machine: 1 PARTS REQUEST
9A	M3494421204	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M3494421204 · qty on machine: 1 PARTS REQUEST
10	M5454301004	DUCT	1		PARTS REQUEST
PHOTO COMING DUCT M5454301004 · qty on machine: 1 PARTS REQUEST
10A	M3494421304	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494421304 · qty on machine: 1 view full part page → $139.95
11	M3454301804	DUCT	1		ADD TO CART
DUCT M3454301804 · qty on machine: 1 view full part page → $71.95
11A	M3494421404	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M3494421404 · qty on machine: 1 view full part page → $511.95
12	Y0207008000	SELF-LOCKING NUT	49		ADD TO CART
SELF-LOCKING NUT Y0207008000 · qty on machine: 49 view full part page → $0.4
13	Y0605012318	DOOR HANDLE	7		ADD TO CART
DOOR HANDLE Y0605012318 · qty on machine: 7 view full part page → $75.95
13A	C9312500004	SEAL, RUBBER	7		ADD TO CART
SEAL, RUBBER C9312500004 · qty on machine: 7 view full part page → $10.95
14	Y0207006000	SELF-LOCKING NUT	28		ADD TO CART
SELF-LOCKING NUT Y0207006000 · qty on machine: 28 view full part page → $0.23
15	M9110100804	HINGE	5		ADD TO CART
HINGE M9110100804 · qty on machine: 5 view full part page → $16.95
15A	M9116100004	WASHER	5		ADD TO CART
WASHER M9116100004 · qty on machine: 5 view full part page → $1.93
16	M9110100904	HINGE	6		ADD TO CART
HINGE M9110100904 · qty on machine: 6 view full part page → $19.95
16A	M9116100004	WASHER	6		ADD TO CART
WASHER M9116100004 · qty on machine: 6 view full part page → $1.93
17	0019208020	HEX. HEAD BOLT	25		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 25 view full part page → $3.95
18	0601850097	STOPPER	8		ADD TO CART
STOPPER 0601850097 · qty on machine: 8 view full part page → $2.95
19	0027208025	MACHINE SCREW	8		ADD TO CART
MACHINE SCREW 0027208025 · qty on machine: 8 view full part page → $0.76
20	0845031504	BLIND PLUG	11	REPLACES P/N M9310000004	ADD TO CART
BLIND PLUG 0845031504 · qty on machine: 11 REPLACES P/N M9310000004 view full part page → $2.95

Page 52 — RUBBER SEALS ASSY.

Multiquip DCA220SSJU4F3 Generator RUBBER SEALS ASSY. parts diagram

Parts list — exactly as printed25 rows

No.	Part No.	Part Name	Qty	Remarks
1	0229201300	SEAL, RUBBER	4		ADD TO CART
SEAL, RUBBER 0229201300 · qty on machine: 4 view full part page → $31.95
2	0229201200	SEAL, RUBBER	1		ADD TO CART
SEAL, RUBBER 0229201200 · qty on machine: 1 view full part page → $26.95
3	0228901310	SEAL, RUBBER	3		ADD TO CART
SEAL, RUBBER 0228901310 · qty on machine: 3 view full part page → $44.95
4	0228900710	SEAL, RUBBER	1		ADD TO CART
SEAL, RUBBER 0228900710 · qty on machine: 1 view full part page → $18.95
5	0228900900	SEAL, RUBBER	4		ADD TO CART
SEAL, RUBBER 0228900900 · qty on machine: 4 view full part page → $25.95
6	0228901130	SEAL, RUBBER	4		ADD TO CART
SEAL, RUBBER 0228901130 · qty on machine: 4 view full part page → $56.95
7	0228901250	SEAL, RUBBER	3		ADD TO CART
SEAL, RUBBER 0228901250 · qty on machine: 3 view full part page → $38.95
8	0228900650	SEAL, RUBBER	1		ADD TO CART
SEAL, RUBBER 0228900650 · qty on machine: 1 view full part page → $17.95
9	0229400630	SEAL, RUBBER	1		ADD TO CART
SEAL, RUBBER 0229400630 · qty on machine: 1 view full part page → $13.95
10	0228801050	SEAL, RUBBER	2		ADD TO CART
SEAL, RUBBER 0228801050 · qty on machine: 2 view full part page → $27.95
11	0228800590	SEAL, RUBBER	1		ADD TO CART
SEAL, RUBBER 0228800590 · qty on machine: 1 view full part page → $15.95
12	Y0228100560	SEAL, RUBBER	2		PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0228100560 · qty on machine: 2 PARTS REQUEST
13	Y0228100370	SEAL, RUBBER	2		PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0228100370 · qty on machine: 2 PARTS REQUEST
14	Y0229200145	SEAL, RUBBER	2		ADD TO CART
SEAL, RUBBER Y0229200145 · qty on machine: 2 view full part page → $0.65
15	Y0229200100	SEAL, RUBBER	2		ADD TO CART
SEAL, RUBBER Y0229200100 · qty on machine: 2 view full part page → $0.67
16	Y0222101100	SEAL, RUBBER	6		PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0222101100 · qty on machine: 6 PARTS REQUEST
17	Y0228801120	SEAL, RUBBER	2		ADD TO CART
SEAL, RUBBER Y0228801120 · qty on machine: 2 view full part page → $14.95
18	Y0228800700	SEAL, RUBBER	2		ADD TO CART
SEAL, RUBBER Y0228800700 · qty on machine: 2 view full part page → $9.95
19	Y0229400350	SEAL, RUBBER	1		ADD TO CART
SEAL, RUBBER Y0229400350 · qty on machine: 1 view full part page → $5.95
20	Y0229400300	SEAL, RUBBER	2		PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0229400300 · qty on machine: 2 PARTS REQUEST
21	Y0229400310	SEAL, RUBBER	1		PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0229400310 · qty on machine: 1 PARTS REQUEST
22	Y0229200175	SEAL, RUBBER	2		ADD TO CART
SEAL, RUBBER Y0229200175 · qty on machine: 2 view full part page → $2.95
23	Y0229200105	SEAL, RUBBER	2		ADD TO CART
SEAL, RUBBER Y0229200105 · qty on machine: 2 view full part page → $2.65
24	Y0229100128	SEAL, RUBBER	2	S/N 8011699 AND ABOVE	PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0229100128 · qty on machine: 2 S/N 8011699 AND ABOVE PARTS REQUEST
25	Y0229100092	SEAL, RUBBER	2	S/N 8011699 AND ABOVE	PARTS REQUEST
PHOTO COMING SEAL, RUBBER Y0229100092 · qty on machine: 2 S/N 8011699 AND ABOVE PARTS REQUEST

Page 54 — WATER HEATING ELEMENT ASSY. (OPTION)

Multiquip DCA220SSJU4F3 Generator WATER HEATING ELEMENT ASSY. (OPTION) parts diagram

Parts list — exactly as printed9 rows

No.	Part No.	Part Name	Qty	Remarks
1	AR50411	CORD ASSY., 110 VOLTS	1		ADD TO CART
CORD ASSY., 110 VOLTS AR50411 · qty on machine: 1 view full part page → $38.95
2	EE54798	KIT, 110 VOLT, COOLANT HEATER	1	INCLUDES ITEMS W/$	ADD TO CART
KIT, 110 VOLT, COOLANT HEATER EE54798 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 5$, 6$, 7$, 8$, 9$ view full part page → $181.95 IN A KIT + SOLD SOLO
3	HBL5369C	CONNECTOR, 20 AMP, 125V	1		ADD TO CART
CONNECTOR, 20 AMP, 125V HBL5369C · qty on machine: 1 view full part page → $103.95
4	EE56557	CORD, CAROL 3/C 14 AWG	10	1PC=1FT	ADD TO CART
CORD, CAROL 3/C 14 AWG EE56557 · qty on machine: 10 1PC=1FT view full part page → $1.95
5$		NUT, CLAMPING	1		INCLUDED IN KIT
PHOTO COMING NUT, CLAMPING · qty on machine: 1 Included in kit 2 - KIT, 110 VOLT, COOLANT HEA (EE54798) INCLUDED IN KIT
6$		ADAPTER	1		INCLUDED IN KIT
PHOTO COMING ADAPTER · qty on machine: 1 Included in kit 2 - KIT, 110 VOLT, COOLANT HEA (EE54798) INCLUDED IN KIT
7$		O-RING	1		INCLUDED IN KIT
PHOTO COMING O-RING · qty on machine: 1 Included in kit 2 - KIT, 110 VOLT, COOLANT HEA (EE54798) INCLUDED IN KIT
8$		HEATER ELEMENT, 1000 WATT	1		INCLUDED IN KIT
PHOTO COMING HEATER ELEMENT, 1000 WATT · qty on machine: 1 Included in kit 2 - KIT, 110 VOLT, COOLANT HEA (EE54798) INCLUDED IN KIT
9$		GASKET	1		INCLUDED IN KIT
PHOTO COMING GASKET · qty on machine: 1 Included in kit 2 - KIT, 110 VOLT, COOLANT HEA (EE54798) INCLUDED IN KIT

Page 56 — BATTERY CHARGER ASSY. (OPTION)

Multiquip DCA220SSJU4F3 Generator BATTERY CHARGER ASSY. (OPTION) parts diagram

Parts list — exactly as printed8 rows

No.	Part No.	Part Name	Qty	Remarks
1	EE57370	CHARGER BATTERY, 10 AMP 12/24V	1		ADD TO CART
CHARGER BATTERY, 10 AMP 12/24V EE57370 · qty on machine: 1 view full part page → $2020.95
2		GROMMET, 7/8" HOLE SIZE	1	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING GROMMET, 7/8" HOLE SIZE · qty on machine: 1 OBTAIN LOCALLY SEE REMARKS
3	EE56557	CORD, 3-CONDUCTOR, 14 AWG FT	6	1PC=1FT	ADD TO CART
CORD, 3-CONDUCTOR, 14 AWG FT EE56557 · qty on machine: 6 1PC=1FT view full part page → $1.95
4		SCREW, M4X10	4	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING SCREW, M4X10 · qty on machine: 4 OBTAIN LOCALLY SEE REMARKS
5		WASHER, LOCK M4	4	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WASHER, LOCK M4 · qty on machine: 4 OBTAIN LOCALLY SEE REMARKS
6		WASHER, FLAT M4	4	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WASHER, FLAT M4 · qty on machine: 4 OBTAIN LOCALLY SEE REMARKS
7		WIRE, 16GA, RED FT	9	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WIRE, 16GA, RED FT · qty on machine: 9 OBTAIN LOCALLY SEE REMARKS
8		WIRE, 16GA, GREEN FT	9	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WIRE, 16GA, GREEN FT · qty on machine: 9 OBTAIN LOCALLY SEE REMARKS

Page 58 — NAMEPLATE AND DECALS ASSY.

Multiquip DCA220SSJU4F3 Generator NAMEPLATE AND DECALS ASSY. parts diagram

Parts list — exactly as printed33 rows

No.	Part No.	Part Name	Qty	Remarks
1-1	M3551000103	DECAL; OPERATING PRECAUTIONS	1	M35100010	ADD TO CART
DECAL; OPERATING PRECAUTIONS M3551000103 · qty on machine: 1 M35100010 view full part page → $8.95
1-2	M9520100304	DECAL; SAFETY INSTRUCTIONS	1	M92010030	ADD TO CART
DECAL; SAFETY INSTRUCTIONS M9520100304 · qty on machine: 1 M92010030 view full part page → $3.95
1-3	M9520100603	DECAL; CAUTION CONTROL PANEL AND BOX GROUP	2	M92010060	ADD TO CART
DECAL; CAUTION CONTROL PANEL AND BOX GROUP M9520100603 · qty on machine: 2 M92010060 view full part page → $8.95
2-1	M4551000002	DECAL; CONTROL PANEL	1	M45100000 S/N 8011416 AND BELOW	PARTS REQUEST
PHOTO COMING DECAL; CONTROL PANEL M4551000002 · qty on machine: 1 M45100000 S/N 8011416 AND BELOW PARTS REQUEST
2-1	M4551000012	DECAL; CONTROL PANEL	1	S/N 8011419 AND ABOVE	PARTS REQUEST
PHOTO COMING DECAL; CONTROL PANEL M4551000012 · qty on machine: 1 S/N 8011419 AND ABOVE PARTS REQUEST
2-2	M9520000104	PLATE; AMMETER CHANGE-OVER SW	1	M92000010	ADD TO CART
PLATE; AMMETER CHANGE-OVER SW M9520000104 · qty on machine: 1 M92000010 view full part page → $11.95
2-3	M9520000204	PLATE; VOLTMETER CHANGE-OVER SW	1	M92000020	ADD TO CART
PLATE; VOLTMETER CHANGE-OVER SW M9520000204 · qty on machine: 1 M92000020 view full part page → $11.95
2-4	M9520100004	DECAL; WARNING: ELEC. SHOCK HAZARD	2	M92010000	ADD TO CART
DECAL; WARNING: ELEC. SHOCK HAZARD M9520100004 · qty on machine: 2 M92010000 view full part page → $5.95
2-5	M9520100704	DECAL; WARNING: ARC FLASH	1	M92010070	ADD TO CART
DECAL; WARNING: ARC FLASH M9520100704 · qty on machine: 1 M92010070 view full part page → $4.95
2-6	M9520200404	DECAL; O.C.R. RESET	1	M92020040A	ADD TO CART
DECAL; O.C.R. RESET M9520200404 · qty on machine: 1 M92020040A view full part page → $3.95
2-7	M9522000504	DECAL; CIRCUIT BREAKER	1	M92200050	ADD TO CART
DECAL; CIRCUIT BREAKER M9522000504 · qty on machine: 1 M92200050 view full part page → $25.95
2-8	M9520200303	DECAL; SETTING FOR OUTPUT VOLTAGE	1	M92020030	ADD TO CART
DECAL; SETTING FOR OUTPUT VOLTAGE M9520200303 · qty on machine: 1 M92020030 view full part page → $45.95
2-9	M9520200504	DECAL; SETTING FOR OUTPUT VOLTAGE(S).1		M92020050	ADD TO CART
DECAL; SETTING FOR OUTPUT VOLTAGE(S).1 M9520200504 M92020050 view full part page → $17.95
2-10	M3551003104	DECAL; VOLT. CHG. OVER BRD. TRQ ENGINE AND RADIATOR GROUP	1	M35100310 S/N 8011770 AND ABOVE	ADD TO CART
DECAL; VOLT. CHG. OVER BRD. TRQ ENGINE AND RADIATOR GROUP M3551003104 · qty on machine: 1 M35100310 S/N 8011770 AND ABOVE view full part page → $4.95
3-1	M9500000004	DECAL; OIL DRAIN	1	M90000000	ADD TO CART
DECAL; OIL DRAIN M9500000004 · qty on machine: 1 M90000000 view full part page → $2.95
3-2	M9500100004	DECAL; WATER	1	M90010000	ADD TO CART
DECAL; WATER M9500100004 · qty on machine: 1 M90010000 view full part page → $1.95
3-3	M9503000004	DECAL; WARNING: ROTATING PART	2	M90300000	ADD TO CART
DECAL; WARNING: ROTATING PART M9503000004 · qty on machine: 2 M90300000 view full part page → $1.95
3-4	M9503000103	DECAL; WATER - OIL CHECK	1	M90300010	ADD TO CART
DECAL; WATER - OIL CHECK M9503000103 · qty on machine: 1 M90300010 view full part page → $7.95
3-5	M9503100004	DECAL; WARNING: HOT COOLANT	1	M90310000	ADD TO CART
DECAL; WARNING: HOT COOLANT M9503100004 · qty on machine: 1 M90310000 view full part page → $4.95
3-6	M9510100004	DECAL; CAUTION: HOT PARTS	1	M91010000	ADD TO CART
DECAL; CAUTION: HOT PARTS M9510100004 · qty on machine: 1 M91010000 view full part page → $68.95
3-7	M9501300004	DECAL; CAUTION: BATTERY CABLES OUTPUT TERMINAL GROUP	1	M90130000	ADD TO CART
DECAL; CAUTION: BATTERY CABLES OUTPUT TERMINAL GROUP M9501300004 · qty on machine: 1 M90130000 view full part page → $27.95
4-1	M35510020031	DECAL; AUXILIARY OUTPUT	1	REPLACES P/N M3551002003 M35100200	ADD TO CART
DECAL; AUXILIARY OUTPUT M35510020031 · qty on machine: 1 REPLACES P/N M3551002003 M35100200 view full part page → $18.95
4-2	M9520000004	DECAL; GROUND	2	M92000000	ADD TO CART
DECAL; GROUND M9520000004 · qty on machine: 2 M92000000 view full part page → $1.95
4-3	M9520000504	DECAL; START CONTACT	1	M92000050	ADD TO CART
DECAL; START CONTACT M9520000504 · qty on machine: 1 M92000050 view full part page → $67.95
4-4	M9520000704	DECAL; 3-PHASE OUTPUT TERMINAL	1	M92000070	ADD TO CART
DECAL; 3-PHASE OUTPUT TERMINAL M9520000704 · qty on machine: 1 M92000070 view full part page → $59.95
4-5	M9520100404	DECAL; DANGER: HIGH VOLTAGE	1	M92010040	ADD TO CART
DECAL; DANGER: HIGH VOLTAGE M9520100404 · qty on machine: 1 M92010040 view full part page → $37.95
4-6	M9520100503	DECAL; WARNING	1	M92010050	ADD TO CART
DECAL; WARNING M9520100503 · qty on machine: 1 M92010050 view full part page → $1.95
4-7	M9521200604	DECAL; BONDED NEUTRAL	1	M92120060	ADD TO CART
DECAL; BONDED NEUTRAL M9521200604 · qty on machine: 1 M92120060 view full part page → $11.95
4-8	M9522000004	DECAL; WATER HEATER	1		ADD TO CART
DECAL; WATER HEATER M9522000004 · qty on machine: 1 view full part page → $7.95
4-9	M4551000704	DECAL; OUTPUT TERM. BOLT TORQUE BATTERY GROUP	1	M45100070 S/N 8011770 AND ABOVE	PARTS REQUEST
PHOTO COMING DECAL; OUTPUT TERM. BOLT TORQUE BATTERY GROUP M4551000704 · qty on machine: 1 M45100070 S/N 8011770 AND ABOVE PARTS REQUEST
5-1	M9500300004	DECAL; −	1	M90030000	ADD TO CART
DECAL; − M9500300004 · qty on machine: 1 M90030000 view full part page → $1.95
5-2	M9500300104	DECAL; +	1	M90030010	ADD TO CART
DECAL; + M9500300104 · qty on machine: 1 M90030010 view full part page → $1.95
5-3	M9510100403	DECAL; CAUTION	1	M91010040A	ADD TO CART
DECAL; CAUTION M9510100403 · qty on machine: 1 M91010040A view full part page → $16.95

Page 60 — NAMEPLATE AND DECALS ASSY. (CONT'D.)

Multiquip DCA220SSJU4F3 Generator NAMEPLATE AND DECALS ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed26 rows

No.	Part No.	Part Name	Qty	Remarks
		MUFFLER GROUP			SEE REMARKS
PHOTO COMING MUFFLER GROUP SEE REMARKS
6-1	M9503200004	DECAL; WARNING: ENGINE EXHAUST	1	M90320000	ADD TO CART
DECAL; WARNING: ENGINE EXHAUST M9503200004 · qty on machine: 1 M90320000 view full part page → $14.95
6-2	M9503200104	DECAL; DANGER: EXHAUST GAS (INDOOR).1		M90320010	ADD TO CART
DECAL; DANGER: EXHAUST GAS (INDOOR).1 M9503200104 M90320010 view full part page → $4.95
6-3	920214100	DECAL; WARNING: START FIRES	1	M9504200004 M90420000	ADD TO CART
DECAL; WARNING: START FIRES 920214100 · qty on machine: 1 M9504200004 M90420000 view full part page → $12.95
6-4	M2551000703	DECAL; EX. FILTER CLEAN PROCEDURES FUEL TANK GROUP	1	M25100070	ADD TO CART
DECAL; EX. FILTER CLEAN PROCEDURES FUEL TANK GROUP M2551000703 · qty on machine: 1 M25100070 view full part page → $4.95
7-1	M9501500004	DECAL; DIESEL FUEL	2	M90150000	ADD TO CART
DECAL; DIESEL FUEL M9501500004 · qty on machine: 2 M90150000 view full part page → $3.95
7-2	M9541100004	DECAL; CAUTION: EXHAUST FLUID ONLY	1	M94110000	ADD TO CART
DECAL; CAUTION: EXHAUST FLUID ONLY M9541100004 · qty on machine: 1 M94110000 view full part page → $3.95
7-3	M9501500104	DECAL; DIESEL EXHAUST FLUID	1	M90150010	ADD TO CART
DECAL; DIESEL EXHAUST FLUID M9501500104 · qty on machine: 1 M90150010 view full part page → $14.95
7-4	M9504500004	DECAL; REFILL DEF AS WELL ENCLOSURE GROUP	1	M90450000	ADD TO CART
DECAL; REFILL DEF AS WELL ENCLOSURE GROUP M9504500004 · qty on machine: 1 M90450000 view full part page → $9.95
8-1	M9511200204	DECAL; MQ	1	M91120020	ADD TO CART
DECAL; MQ M9511200204 · qty on machine: 1 M91120020 view full part page → $5.95
8-2	0600500092	EMBLEM	1		ADD TO CART
EMBLEM 0600500092 · qty on machine: 1 view full part page → $21.95
8-2A	0021106015	SCREW, MACHINE	4		ADD TO CART
SCREW, MACHINE 0021106015 · qty on machine: 4 view full part page → $0.17
8-3	M4561100004	STRIPE	2		ADD TO CART
STRIPE M4561100004 · qty on machine: 2 view full part page → $26.95
8-4	M5560101604	STRIPE	2		ADD TO CART
STRIPE M5560101604 · qty on machine: 2 view full part page → $20.95
8-5	M3561101004	STRIPE	1		ADD TO CART
STRIPE M3561101004 · qty on machine: 1 view full part page → $17.95
8-6	M3561101103	STRIPE	2		ADD TO CART
STRIPE M3561101103 · qty on machine: 2 view full part page → $33.95
8-7	M3561101303	STRIPE	1		ADD TO CART
STRIPE M3561101303 · qty on machine: 1 view full part page → $42.95
8-8	M3561101204	STRIPE	1		ADD TO CART
STRIPE M3561101204 · qty on machine: 1 view full part page → $21.95
8-9	M5550000004	DECAL; CAUTION	1	M55000000	ADD TO CART
DECAL; CAUTION M5550000004 · qty on machine: 1 M55000000 view full part page → $34.95
8-10	M9510000104	DECAL; DOCUMENT BOX LOCATED	1	M91000010	ADD TO CART
DECAL; DOCUMENT BOX LOCATED M9510000104 · qty on machine: 1 M91000010 view full part page → $4.95
8-11	M9511200103	DECAL; TIER 4F	1	M91120010	ADD TO CART
DECAL; TIER 4F M9511200103 · qty on machine: 1 M91120010 view full part page → $17.95
8-12	M9511100004	DECAL; WARNING ENVIRONMENTAL	1	M91110000	ADD TO CART
DECAL; WARNING ENVIRONMENTAL M9511100004 · qty on machine: 1 M91110000 view full part page → $6.95
8-13	M9510000004	DECAL; FLUID DRAIN	1	M91000000	ADD TO CART
DECAL; FLUID DRAIN M9510000004 · qty on machine: 1 M91000000 view full part page → $26.95
8-14	M9504200104	DECAL; WARNING PROPOSITION	65	1 M90420010	ADD TO CART
DECAL; WARNING PROPOSITION M9504200104 · qty on machine: 65 1 M90420010 view full part page → $4.95
8-15	M9507200104	DECAL; DEF DRAIN	1	M90720010	ADD TO CART
DECAL; DEF DRAIN M9507200104 · qty on machine: 1 M90720010 view full part page → $4.95
8-16	M9521002804	DECAL; EMERGENCY STOP BUTTON	1	S/N 8011419 AND ABOVE	ADD TO CART
DECAL; EMERGENCY STOP BUTTON M9521002804 · qty on machine: 1 S/N 8011419 AND ABOVE view full part page → $3.95

The machine itself

Price by quote Get a quote

Tell us where the machine is headed and we'll quote it with freight. One call, no games.

The Multiquip DCA220SSJU4F3 is a generator built for portable jobsite power for tools, lighting, and equipment. Factory-documented specs and parts support; priced by quote.

Keep-it-running spares

All listed parts →

Every part that fits this machine

0070506307 Multiquip 0070506307 Bearing Denyo - OEM Replacement Part for Super Silent Generators $60.95

0071906314 Multiquip 0071906314 Bearing Denyo - OEM Replacement Part for Super Silent Generators $276.95

0199901200 Multiquip 0199901200 Hose Drain Denyo - OEM Replacement Part $39.95

0228901130 Multiquip 0228901130 Seal Rubber Denyo - OEM Replacement Part for Super Silent Generators $56.95

0228901250 Multiquip 0228901250 Seal Rubber Denyo - OEM Replacement Part for Super Silent Generators $38.95

0228901310 Multiquip 0228901310 Seal Rubber Denyo - OEM Replacement Part for Super Silent Generators $44.95

0400005080 Multiquip 0400005080 Insulation Wrap (KY) - OEM Replacement Part $140.95

0600800320 Multiquip 0600800320 Manual Pak Denyo - OEM Replacement Part $43.95

0601800275 Multiquip 0601800275 AC Voltmeter Denyo - OEM Replacement Part $146.95

0601801040 Multiquip 0601801040 Switch C/Over Ammeter 25,40,85,125,150 - OEM Replacement Part $95.95

0601801041 Multiquip 0601801041 Change-Over Switch Voltmeter Denyo - OEM Replacement Part $157.95

0601808803 Multiquip 0601808803 Circuit Breaker 1P 20A - OEM Replacement Part for Super Silent Generators $46.95

0601808804 Multiquip 0601808804 Circuit Breaker 2P 50A - OEM Replacement Part for Super Silent Generators $98.95

0601808992 Multiquip 0601808992 Ammeter AC Denyo - OEM Replacement Part for Super Silent Generators $548.95

0601809667 Multiquip 0601809667 Current Transformer 400/5A DENYO - OEM Replacement Part $178.95

0601814014 Multiquip 0601814014 GFCI Receptacle - OEM Replacement Part $90.95

0601831557 Multiquip 0601831557 Button Emergency Denyo - OEM Replacement Part $95.95

0601831927 Multiquip 0601831927 Emergency Button Denyo - OEM Replacement Part $178.95

0601840073 Multiquip 0601840073 Rheostat Voltage Regulator for 150SSK and DCA Series Generators - OEM Replacement Part $90.95

0601842334 Multiquip 0601842334 Resistor Denyo - OEM Replacement Part for Super Silent Generators $343.95

0602022561 Multiquip 0602022561 90 Degree Elbow DENYO - OEM Replacement Part for Generator Systems $76.95

0602022580 Multiquip 0602022580 Adapter with Seal - OEM Replacement Part for DCA Super Silent Generators $37.95

0602022791 Multiquip 0602022791 Joint Hose Denyo - OEM Replacement Part for Super Silent Generators $35.95

0602040650 Multiquip 0602040650 Indicator A/C 2545SSIU/2 DENYO - OEM Replacement Part $34.95

0602046586 Multiquip 0602046586 Air Cleaner Denyo - OEM Replacement Part for Super Silent Generators $751.95

0602103092 Multiquip 0602103092 Lamp Alarm Charge Red - OEM Replacement Part $36.95

0602220198 Multiquip 0602220198 Battery Denyo - OEM Replacement Part for Super Silent Generators $500.95

0603306590 Multiquip 0603306590 Male Bulkhead Connector - OEM Replacement Part for Denyo Generators $86.95

0605505072 Multiquip 0605505072 Fuel Tank Cap - OEM Replacement Part for DCA Generator Series $231.95

0605511395 Multiquip 0605511395 Ball Valve DENYO - OEM Replacement Part $46.95

0605515208 Multiquip 0605515208 Hose Band Clamp (Denyo) - OEM Replacement Part $61.95

0605515236 Multiquip 0605515236 Band Hose Denyo - OEM Replacement Part $46.95

515455840 Multiquip 515455840 Mount Nut (M14) Scraper - OEM Replacement Part $35.95

8171015003 Multiquip 8171015003 Plate Balancing - OEM Replacement Part for Super Silent Generators $300.95

8171070002 Multiquip 8171070002 Fan - OEM Replacement Part for Super Silent Generators $4,003.95

8171611003 Multiquip 8171611003 Coupling Disk - OEM Replacement Part for WhisperWatt Generators $41.95

82608 Multiquip 82608 Toggle Switch Denyo Mods - OEM Replacement Part for Super Silent Generators $34.95

AR50411 Multiquip AR50411 Power Cord 90 Degree John Deere - OEM Replacement Part $38.95

AT326597 Multiquip AT326597 Adapter Fitting - OEM Replacement Part for Super Silent Generators $77.95

AT377287 Multiquip AT377287 Fitting Hose Barb Brass 5/8" - OEM Replacement Part $49.95

C0277200004 Multiquip C0277200004 Terminal Plate - OEM Replacement Part $100.95

C1110000602 Multiquip C1110000602 Rotor Assembly (Jp) - OEM Replacement Part for Super Silent Generators $21,038.95

C1112500004 Multiquip C1112500004 Bearing Flange 180SSI - OEM Replacement Part for Super Silent Generators $101.95

C1132200003 Multiquip C1132200003 Cover - OEM Replacement Part for Super Silent Generators $98.95

C1132300114 Multiquip C1132300114 Cover Fan DCA-220SSVU - OEM Replacement Part $547.95

C1138000003 Multiquip C1138000003 Exciter Field Assembly - OEM Replacement Part $2,313.95

C1154000002 Multiquip C1154000002 Bracket End - OEM Replacement Part for Super Silent Generators $1,970.95

C1154300004 Multiquip C1154300004 Bearing Gasket - OEM Replacement Part for Super Silent Generators $44.95

C1154400004 Multiquip C1154400004 Bearing Cover - OEM Replacement Part for Super Silent Generators $54.95

C1154400103 Multiquip C1154400103 Cover Suction - OEM Replacement Part for Super Silent Generators $95.95

C1164200004 Multiquip C1164200004 Washer Coupling Hub - OEM Replacement Part for 180SSI Generators $81.95

C1231700003 Multiquip C1231700003 Set Board DCA 220SSK/SSV - OEM Replacement Part $541.95

CL40WTC-L-125-J Multiquip CL40WTC-L-125-J Snap Back Plastic Cover - OEM Replacement Part $44.95

DZ113662 Multiquip DZ113662 DEF Tank - OEM Replacement Part for WhisperWatt Super Silent Generators $2,550.95

DZ118296 Multiquip DZ118296 DEF Tank Header Assembly - OEM Replacement Part for Super Silent Generators $3,198.95

EE2115 Multiquip EE2115 Potentiometer 5Kohm 10 Turn 2 Watt - OEM Replacement Part $70.95

EE23374 Multiquip EE23374 Pushbutton 1 NO 1 NC Contact 24V Green - OEM Replacement Part $82.95

EE23375 Multiquip EE23375 Pushbutton 1 NO 1 NC Contact 24V Red - OEM Replacement Part $82.95

EE26643 Multiquip EE26643 Current Transformer 600:5 Ratio Medium - OEM Replacement Part $40.95

EE38585 Multiquip EE38585 ABB 2 Pole 10A Circuit Breaker - OEM Replacement Part $60.95

EE52893 Multiquip EE52893 Emergency Stop Bezel 22mm Yellow Plastic - OEM Replacement Part $34.95

EE54798 Multiquip EE54798 110V Coolant Heater Kit - OEM Replacement Part $181.95

EE55760 Multiquip EE55760 RJ45 Cat5E Shielded Panel Mount Jack - OEM Replacement Part $43.95

EE55761 Multiquip EE55761 LED Light Panel 12-36VDC - OEM Replacement Part $43.95

EE55780 Multiquip EE55780 Ethernet Cat5E Shielded Cable 50ft Grey - OEM Replacement Part $81.95

EE55784 Multiquip EE55784 ABB 3-Pole 10A Circuit Breaker UL@480V - OEM Replacement Part $349.95

EE55785 Multiquip EE55785 Contact Aux ABB S2C-H6RU Series - OEM Replacement Part $54.95

EE56983 Multiquip EE56983 Panel Two Conductors Camlok Aluminum - OEM Replacement Part $61.95

EE57370 Multiquip EE57370 Charger 10A 12/24V with 115V AC Input NRG - OEM Replacement Part $2,020.95

EE57855 Multiquip EE57855 Emergency Stop Switch XW1E - OEM Replacement Part $164.95

EE58065 Multiquip EE58065 Ethernet Switch 5 Port 10-30VDC - OEM Replacement Part $453.95

EE59127 Multiquip EE59127 Contactor ABB 650A 100-250V Control - OEM Replacement Part $3,674.95

EE59231 Multiquip EE59231 Panel Paralleling Assembly - OEM Replacement Part $5,555.95

EE59259 Multiquip EE59259 Controller w.Connector Kit - OEM Replacement Part $5,217.95

EE6378 Multiquip EE6378 Receptacle Panel Mount Female Black 4/0 - OEM Replacement Part $69.95

EE6379 Multiquip EE6379 Receptacle Panel Mount Female White 4/0 - OEM Replacement Part $69.95

EE6380 Multiquip EE6380 Receptacle Panel Mount Female Red 4/0 - OEM Replacement Part $69.95

EE6381 Multiquip EE6381 Receptacle Panel Mount Female Blue 4/0 - OEM Replacement Part $69.95

EE7342 Multiquip EE7342 Copper Fuse Bar 2in AC Bus Board Assembly - OEM Replacement Part $34.95

EE9949 Multiquip EE9949 Nut Shaft Lock Potentiometer - OEM Replacement Part $33.95

LY2DUS12VDC Multiquip LY2DUS12VDC Relay with Diode - OEM Replacement Part for DCA Generators $46.95

M3224001203 Multiquip M3224001203 Control Panel DENYO - OEM Replacement Part $1,255.95

M3237100404 Multiquip M3237100404 Insulating Cover - OEM Replacement Part for Denyo Super Silent Generators $160.95

M3237100503 Multiquip M3237100503 Terminal Cover DENYO - OEM Replacement Part for Super Silent Generators $126.95

M3303200404 Multiquip M3303200404 Engine Foot - OEM Replacement Part for Denyo Super Silent Generators $39.95

M3311201004 Multiquip M3311201004 Radiator Bracket - OEM Replacement Part for Super Silent Generators $129.95

M3311500503 Multiquip M3311500503 Upper Radiator Hose DENYO - OEM Replacement Part $194.95

M3311500603 Multiquip M3311500603 Lower Radiator Hose DENYO - OEM Replacement Part $197.95

M3311501503 Multiquip M3311501503 Surge Tank Hose - OEM Replacement Part for Super Silent Generators $62.95

M3317100004 Multiquip M3317100004 Surge Tank Bracket - OEM Replacement Part for Super Silent Generators $263.95

M3331400604 Multiquip M3331400604 DPF Band Denyo - OEM Replacement Part $77.95

M3331402804 Multiquip M3331402804 DEF Tank Band - OEM Replacement Part $233.95

M3334100103 Multiquip M3334100103 Tail Pipe (KY) - OEM Replacement Part for Super Silent Generators $1,146.95

M3358201602 Multiquip M3358201602 Wire Harness Engine Denyo - OEM Replacement Part $1,729.95

M3364000513 Multiquip M3364000513 Fuel Tank Denyo - OEM Replacement Part for Super Silent Generators $3,695.95

M3364301003 Multiquip M3364301003 Environmental Tank Denyo - OEM Replacement Part $4,287.95

M3364400504 Multiquip M3364400504 Tube Pick Up KY - OEM Replacement Part for Super Silent Generators $141.95

M3414001702 Multiquip M3414001702 Base Denyo - OEM Replacement Part for Super Silent Generators $9,523.95

M3414400303 Multiquip M3414400303 Base Cover DENYO - OEM Replacement Part for Super Silent Generators $228.95

M3424100003 Multiquip M3424100003 Front Frame Panel - OEM Replacement Part for Denyo Super Silent Generators $779.95

M3424100203 Multiquip M3424100203 Panel Front Frame Denyo - OEM Replacement Part $1,377.95

M3424201803 Multiquip M3424201803 Over Cover Front Frame Denyo - OEM Replacement Part $544.95

M3434000602 Multiquip M3434000602 Center Frame - OEM Replacement Part for Denyo Super Silent Generators $3,479.95

M3444000702 Multiquip M3444000702 Rear Frame - OEM Replacement Part $2,450.95

M3444200903 Multiquip M3444200903 Rear Frame Door White - OEM Replacement Part for Super Silent Generators $592.95

M3444300904 Multiquip M3444300904 Cover Rear Frame Denyo - OEM Replacement Part for Super Silent Generators $372.95

M3454002803 Multiquip M3454002803 Side Door Denyo - OEM Replacement Part for Super Silent Generators $454.95

M3454301804 Multiquip M3454301804 Acoustic Duct Denyo - OEM Replacement Part for Super Silent Generators $71.95

M3454700404 Multiquip M3454700404 Rubber Sheet - OEM Replacement Part for DENYO Super Silent Generators $62.95

M3464100502 Multiquip M3464100502 Roof Panel White Denyo - OEM Replacement Part $552.95

M3464200502 Multiquip M3464200502 Roof Panel White Denyo - OEM Replacement Part $632.95

M3464500104 Multiquip M3464500104 Gutter (White) Denyo - OEM Replacement Part $57.95

M3464500204 Multiquip M3464500204 Gutter (White) - OEM Replacement Part for Denyo Super Silent Generators $41.95

M3494110104 Multiquip M3494110104 Radiator Bracket Assembly - OEM Replacement Part $551.95

M3494110204 Multiquip M3494110204 Radiator Assembly (2 Pieces) - OEM Replacement Part $188.95

M3494112003 Multiquip M3494112003 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $714.95

M3494113204 Multiquip M3494113204 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $160.95

M3494114004 Multiquip M3494114004 DEF Tank Cover Assembly (2 Pieces) - OEM Replacement Part $85.95

M3494118804 Multiquip M3494118804 Acoustic Sheet Denyo - OEM Replacement Part $172.95

M3494302304 Multiquip M3494302304 Acoustic Sheet Denyo (KY) - OEM Replacement Part $118.95

M3494302404 Multiquip M3494302404 Acoustic Sheet Denyo - OEM Replacement Part $70.95

M3494420604 Multiquip M3494420604 Front Side Door Left Assembly - OEM Replacement Part $715.95

M3494420704 Multiquip M3494420704 Front Side Door Right Assembly - OEM Replacement Part $715.95

M3494420804 Multiquip M3494420804 Side Door Assembly - OEM Replacement Part for Super Silent Generators $577.95

M3494420904 Multiquip M3494420904 Rear Side Door Right Assembly - OEM Replacement Part $278.95

M3494421304 Multiquip M3494421304 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $139.95

M3494421404 Multiquip M3494421404 Acoustic Sheet - OEM Replacement Part for WhisperWatt Super Silent Generators $511.95

M3494421504 Multiquip M3494421504 Rear Splasher Panel Assembly - OEM Replacement Part $348.95

M3494504204 Multiquip M3494504204 Acoustic Sheet Denyo - OEM Replacement Part $196.95

M3494504304 Multiquip M3494504304 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $282.95

M3561101303 Multiquip M3561101303 DENYO Component - OEM Replacement Part for Super Silent Generators $42.95

M4213500104 Multiquip M4213500104 Control Box Cover DENYO - OEM Replacement Part $204.95

M4213600104 Multiquip M4213600104 Control Panel DENYO - OEM Replacement Part for Super Silent Generators $63.95

M4214000222 Multiquip M4214000222 Control Box (KY) - OEM Replacement Part for Super Silent Generators $2,063.95

M4223000604 Multiquip M4223000604 Control Panel Denyo (KY) - OEM Replacement Part $143.95

M4236100403 Multiquip M4236100403 Terminal Cover Denyo - OEM Replacement Part $231.95

M4236100504 Multiquip M4236100504 Output Window Denyo - OEM Replacement Part $102.95

M4236400104 Multiquip M4236400104 Supporter Cable Outlet Cover - OEM Replacement Part for Denyo Super Silent Generators $88.95

M4247700004 Multiquip M4247700004 Wire Harness Generator Denyo - OEM Replacement Part $1,210.95

M4260600104 Multiquip M4260600104 Circuit Breaker Bracket - OEM Replacement Part for Denyo Super Silent Generators $57.95

M4273000003 Multiquip M4273000003 Terminal Board (JP) - OEM Replacement Part for Super Silent Generators $399.95

M4334000103 Multiquip M4334000103 Exhaust Pipe (KY) - OEM Replacement Part for Super Silent Generators $2,792.95

M4334300304 Multiquip M4334300304 Bracket Exhaust (KY) - OEM Replacement Part $108.95

M4443600004 Multiquip M4443600004 Plate Window Denyo - OEM Replacement Part $155.95

M4444300003 Multiquip M4444300003 Duct Rear Frame Denyo - OEM Replacement Part $998.95

M4454200502 Multiquip M4454200502 Splasher Panel (KY) - OEM Replacement Part $1,671.95

M4493303004 Multiquip M4493303004 Acoustic Sheet Denyo - OEM Replacement Part $58.95

M5214600704 Multiquip M5214600704 Terminal Board Cover Bracket - OEM Replacement Part $75.95

M5311400103 Multiquip M5311400103 CAC Pipe (Hot Side) - OEM Replacement Part for Super Silent Generators $612.95

M5347900604A Multiquip M5347900604A Battery Cable Negative - OEM Replacement Part for Super Silent Generators $295.95

M5374100003 Multiquip M5374100003 Air Cleaner Hose (JP) - OEM Replacement Part for Super Silent Generators $441.95

M5494108204 Multiquip M5494108204 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $64.95

M9103000504 Multiquip M9103000504 Battery Band - OEM Replacement Part for Super Silent Generators $107.95

M9520000704 Multiquip M9520000704 3-Phase Output Terminal Decal - OEM Replacement Part $59.95

P537877 Multiquip P537877 Air Cleaner Element - OEM Replacement Part $99.95

R529383 Multiquip R529383 Fan Belt - OEM Replacement Part for Super Silent Generators $207.95

R529510 Multiquip R529510 Gasket - OEM Replacement Part for Super Silent Generators $86.95

R529640 Multiquip R529640 Gasket - OEM Replacement Part for Super Silent Generators $97.95

RE292067 Multiquip RE292067 V-Band Clamp - OEM Replacement Part $139.95

RE298757 Multiquip RE298757 V-Band Clamp - OEM Replacement Part $162.95

RE540348 Multiquip RE540348 Clamp V Band - OEM Replacement Part for Super Silent Generators $163.95

RE552182 Multiquip RE552182 NOx Sensor - OEM Replacement Part for Super Silent Generators $1,348.95

RE555046 Multiquip RE555046 Blower Fan John Deere - OEM Replacement Part $885.95

RE556406 Multiquip RE556406 Fuel Filter Kit (Primary, Secondary) DCA-150/220 - OEM Replacement Part $334.95

RE560468 Multiquip RE560468 DEF Dosing Injector John Deere - OEM Replacement Part $1,355.95

RE560897 Multiquip RE560897 DEF Pressure Line - OEM Replacement Part for Super Silent Generators $700.95

RE565074 Multiquip RE565074 Decomposition Tube - OEM Replacement Part for Super Silent Generators $2,420.95

Y0269303200 Multiquip Y0269303200 Coolant Hose - OEM Replacement Part $36.95

Y0379602350 Multiquip Y0379602350 Coolant Hose - OEM Replacement Part $39.95

Y0379703250 Multiquip Y0379703250 Coolant Hose - OEM Replacement Part $36.95

Y0601813078 Multiquip Y0601813078 Receptacles Harness (DENYO) - OEM Replacement Part for Super Silent Generators $105.95

Y0601814453 Multiquip Y0601814453 Preheat Lamp (JP) - OEM Replacement Part for Super Silent Generators $36.95

Y0601815870 Multiquip Y0601815870 Terminal Block DENYO - OEM Replacement Part $52.95

Y0601816538 Multiquip Y0601816538 Terminal Denyo - OEM Replacement Part for Super Silent Generators $51.95

Y0601827412 Multiquip Y0601827412 Rear Terminal Bus-Bar DENYO (KY) - OEM Replacement Part $164.95

Y0601827415 Multiquip Y0601827415 Rear Terminal Busbar (KY) - OEM Replacement Part $218.95

Y0601831345 Multiquip Y0601831345 3-Pole Switch - OEM Replacement Part $49.95

Y0602012922 Multiquip Y0602012922 Radiator & Intercooler Assembly - OEM Replacement Part $3,580.95

Y0602012952 Multiquip Y0602012952 Radiator/Intercooler Assembly - OEM Replacement Part $4,526.95

Y0602015610 Multiquip Y0602015610 CAC Hose Denyo - OEM Replacement Part $124.95

Y0602022577 Multiquip Y0602022577 90° Elbow KY - OEM Replacement Part for Super Silent Generators $39.95

Y0602022578 Multiquip Y0602022578 Elbow 90 Deg Denyo - OEM Replacement Part for Super Silent Generators $67.95

Y0602120903 Multiquip Y0602120903 ECU670 W/FIRMWARE - OEM Replacement Part $757.95

Y0602203055 Multiquip Y0602203055 ECU-845 Engine Control Unit with Firmware - OEM Replacement Part $1,862.95

Y0602311172 Multiquip Y0602311172 Heat Shield Pipe - OEM Replacement Part $157.95

Y0602311173 Multiquip Y0602311173 Heat Shield Denyo - OEM Replacement Part $48.95

Y0602311178 Multiquip Y0602311178 Exhaust Insulating Pipe (KY) - OEM Replacement Part $465.95

Y0602311179 Multiquip Y0602311179 Exhaust Insulating Mat (KY) - OEM Replacement Part $139.95

Y0602311190 Multiquip Y0602311190 Harness Insulation Sleeve - OEM Replacement Part $37.95

Y0605000620 Multiquip Y0605000620 Rubber Suspension (KY) - OEM Replacement Part $93.95

Y0605012318 Multiquip Y0605012318 Door Handle (KY) - OEM Replacement Part $75.95

Y0605501049 Multiquip Y0605501049 Fuel Sender Unit KY - OEM Replacement Part for Super Silent Generators $342.95

Y0605511394 Multiquip Y0605511394 Mini Ball Valve Denyo - OEM Replacement Part $70.95

0010106030 BOLT, HEX. HEAD

0010106060 HEX. HEAD BOLT $1.31

0010110035 HEX. HEAD BOLT $0.95

0012110065 HEX. HEAD BOLT $4.95

0012112040 HEX. HEAD BOLT $4.95

0012116060 HEX. HEAD BOLT $6.95

0012312030 HEX. HEAD BOLT $6.95

From the guides desk

Guide · 2026-08-04

Ask ARIA about your machine.

Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.

Chat with ARIA

Multiquip DCA220SSJU4F3 Generator

The parts bench

The machine itself

Machine

Engine

Keep-it-running spares

Every part that fits this machine

Service notices & part changes

Take the factory book with you

Get the download pack

From the guides desk

Multiquip DCA Generator Fault Shutdown and Controller Reset Guide

Multiquip Generator No-Start and No-Power Fixes

Multiquip DCA Generator Fault Codes and Diagnostics Guide

Ask ARIA about your machine.

Your cart is empty

Your cart is empty
