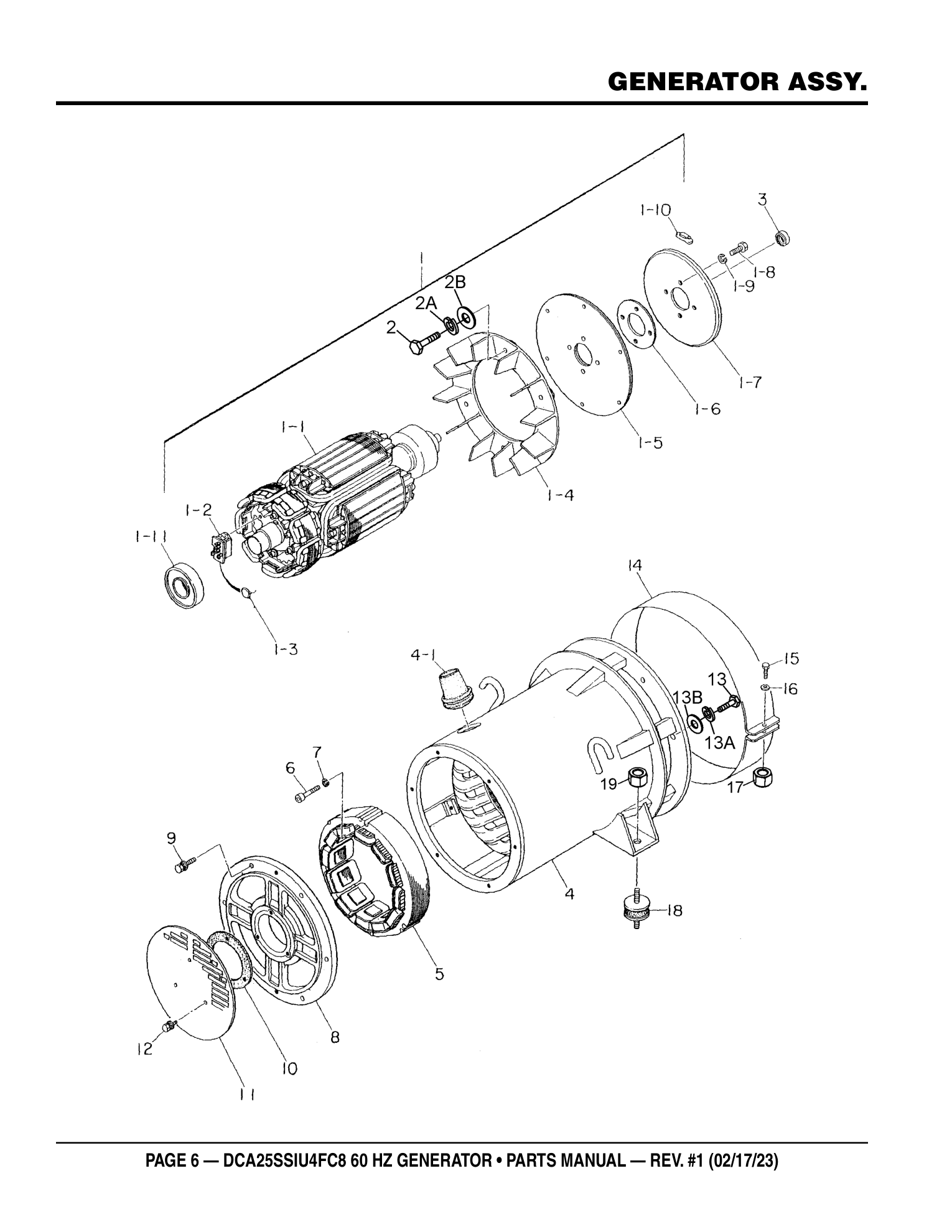

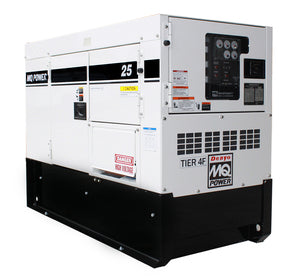

Page 6 — GENERATOR ASSY.

Multiquip DCA25SSIU4FC8 Generator GENERATOR ASSY. parts diagram

Parts list — exactly as printed35 rows

No.	Part No.	Part Name	Qty	Remarks
1	B1110200602	ROTOR ASSY	1	INCLUDES ITEMS W/#	ADD TO CART
ROTOR ASSY B1110200602 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 1-1#, 1-2#, 1-3#, 1-4#, 1-5#, 1-6#, 1-7#, 1-8#, 1-9#, 1-10#, 1-11# view full part page → $4988.95 IN A KIT + SOLD SOLO
1-1#		FIELD ASSY.	1		INCLUDED IN KIT
PHOTO COMING FIELD ASSY. · qty on machine: 1 Included in kit 1 - ROTOR ASSY (B1110200602) INCLUDED IN KIT
1-2#	7961025004	RECTIFIER	1		ADD TO CART
RECTIFIER 7961025004 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (B1110200602) view full part page → $147.95 IN A KIT + SOLD SOLO
1-3#	0601822630	SURGE ABSORBER	1		ADD TO CART
SURGE ABSORBER 0601822630 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (B1110200602) view full part page → $19.95 IN A KIT + SOLD SOLO
1-4#	8001070003	FAN	1		ADD TO CART
FAN 8001070003 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (B1110200602) view full part page → $162.95 IN A KIT + SOLD SOLO
1-5#	8351611004	COUPLING DISK	2		ADD TO CART
COUPLING DISK 8351611004 · qty on machine: 2 Also included in kit 1 - ROTOR ASSY (B1110200602) view full part page → $21.95 IN A KIT + SOLD SOLO
1-6#	8351612004	WASHER, COUPLING HUB	1		ADD TO CART
WASHER, COUPLING HUB 8351612004 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (B1110200602) view full part page → $13.95 IN A KIT + SOLD SOLO
1-7#	B1112300003	BALANCING PLATE	1	PURCHASE ITEM 1-10 AS A SET	ADD TO CART
BALANCING PLATE B1112300003 · qty on machine: 1 PURCHASE ITEM 1-10 AS A SET Also included in kit 1 - ROTOR ASSY (B1110200602) view full part page → $69.95 IN A KIT + SOLD SOLO
1-8#	0105091025	HEX. HEAD BOLT	4	REPLACES P/N 0010310025	ADD TO CART
HEX. HEAD BOLT 0105091025 · qty on machine: 4 REPLACES P/N 0010310025 Also included in kit 1 - ROTOR ASSY (B1110200602) view full part page → $0.68 IN A KIT + SOLD SOLO
1-9#	030210250	WASHER, LOCK	4	REPLACES P/N 0042510000	ADD TO CART
WASHER, LOCK 030210250 · qty on machine: 4 REPLACES P/N 0042510000 Also included in kit 1 - ROTOR ASSY (B1110200602) view full part page → $0.28 IN A KIT + SOLD SOLO
1-10#	0601000209	BALANCING WEIGHT KIT	1		ADD TO CART
BALANCING WEIGHT KIT 0601000209 · qty on machine: 1 Also included in kit 1 - ROTOR ASSY (B1110200602) view full part page → $9.95 IN A KIT + SOLD SOLO
1-11#	042006308	BEARING	1	REPLACES P/N 0071906308	ADD TO CART
BEARING 042006308 · qty on machine: 1 REPLACES P/N 0071906308 Also included in kit 1 - ROTOR ASSY (B1110200602) view full part page → $25.95 IN A KIT + SOLD SOLO
2	0010308035	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0010308035 · qty on machine: 6 Factory replaced this part - current number 0012108035 view full part page → $1.95 IN A KIT + SOLD SOLO
2A	0040008000	WASHER, LOCK	6		ADD TO CART
WASHER, LOCK 0040008000 · qty on machine: 6 view full part page → $0.63
2B	0401450080	WASHER, FLAT	6	REPLACES P/N 0041208000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 6 REPLACES P/N 0041208000 view full part page → $0.56
3	0070506803	BEARING	1		ADD TO CART
BEARING 0070506803 · qty on machine: 1 view full part page → $34.95
4	B1130201103	STATOR ASSY	1	INCLUDES ITEMS W/%	ADD TO CART
STATOR ASSY B1130201103 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 4-1% view full part page → $7423.95 IN A KIT + SOLD SOLO
4-1%	0845041904	GROMMET	1		ADD TO CART
GROMMET 0845041904 · qty on machine: 1 Also included in kit 4 - STATOR ASSY (B1130201103) view full part page → $11.95 IN A KIT + SOLD SOLO
5	B1138000003	FIELD ASSY., EXCITER	1		ADD TO CART
FIELD ASSY., EXCITER B1138000003 · qty on machine: 1 view full part page → $1295.95
6	0016008045	HEX. SOCKET HEAD CAP SCREW	3		ADD TO CART
HEX. SOCKET HEAD CAP SCREW 0016008045 · qty on machine: 3 view full part page → $3.95
7	0042508000	WASHER, LOCK	3		ADD TO CART
WASHER, LOCK 0042508000 · qty on machine: 3 view full part page → $0.62
8	8351315003	END BRACKET	1		ADD TO CART
END BRACKET 8351315003 · qty on machine: 1 view full part page → $260.95
9	0017108035	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0017108035 · qty on machine: 6 view full part page → $1.95
10	8351312004	PACKING	1		ADD TO CART
PACKING 8351312004 · qty on machine: 1 view full part page → $21.95
11	8351331004	COVER, SUCTION	1		ADD TO CART
COVER, SUCTION 8351331004 · qty on machine: 1 view full part page → $69.95
12	011106015	HEX. HEAD BOLT	3	REPLACES P/N 0017106015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 3 REPLACES P/N 0017106015 view full part page → $0.69
13	012010030	HEX. HEAD BOLT	6	REPLACES P/N 0010310030	ADD TO CART
HEX. HEAD BOLT 012010030 · qty on machine: 6 REPLACES P/N 0010310030 view full part page → $0.95
13A	0040010000	WASHER, LOCK	6		ADD TO CART
WASHER, LOCK 0040010000 · qty on machine: 6 view full part page → $0.39
13B	031110160	WASHER, FLAT	6	REPLACES P/N 0041210000	ADD TO CART
WASHER, FLAT 031110160 · qty on machine: 6 REPLACES P/N 0041210000 view full part page → $0.4
14	B0155400204	COVER, FAN	1		ADD TO CART
COVER, FAN B0155400204 · qty on machine: 1 view full part page → $88.95
15	0010006030	HEX. HEAD BOLT	1	REPLACES P/N 0010106030	ADD TO CART
HEX. HEAD BOLT 0010006030 · qty on machine: 1 REPLACES P/N 0010106030 view full part page → $0.25
16	952404470	WASHER, FLAT	1	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 1 REPLACES P/N 0041206000 view full part page → $0.19
17	020106050	NUT	1	REPLACES P/N 0600815000	ADD TO CART
NUT 020106050 · qty on machine: 1 REPLACES P/N 0600815000 view full part page → $0.12
18	Y0605000409	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION Y0605000409 · qty on machine: 2 view full part page → $19.95
19	021112140	SELF-LOCKING NUT	2	REPLACES P/N 0207010000	ADD TO CART
SELF-LOCKING NUT 021112140 · qty on machine: 2 REPLACES P/N 0207010000 view full part page → $0.46

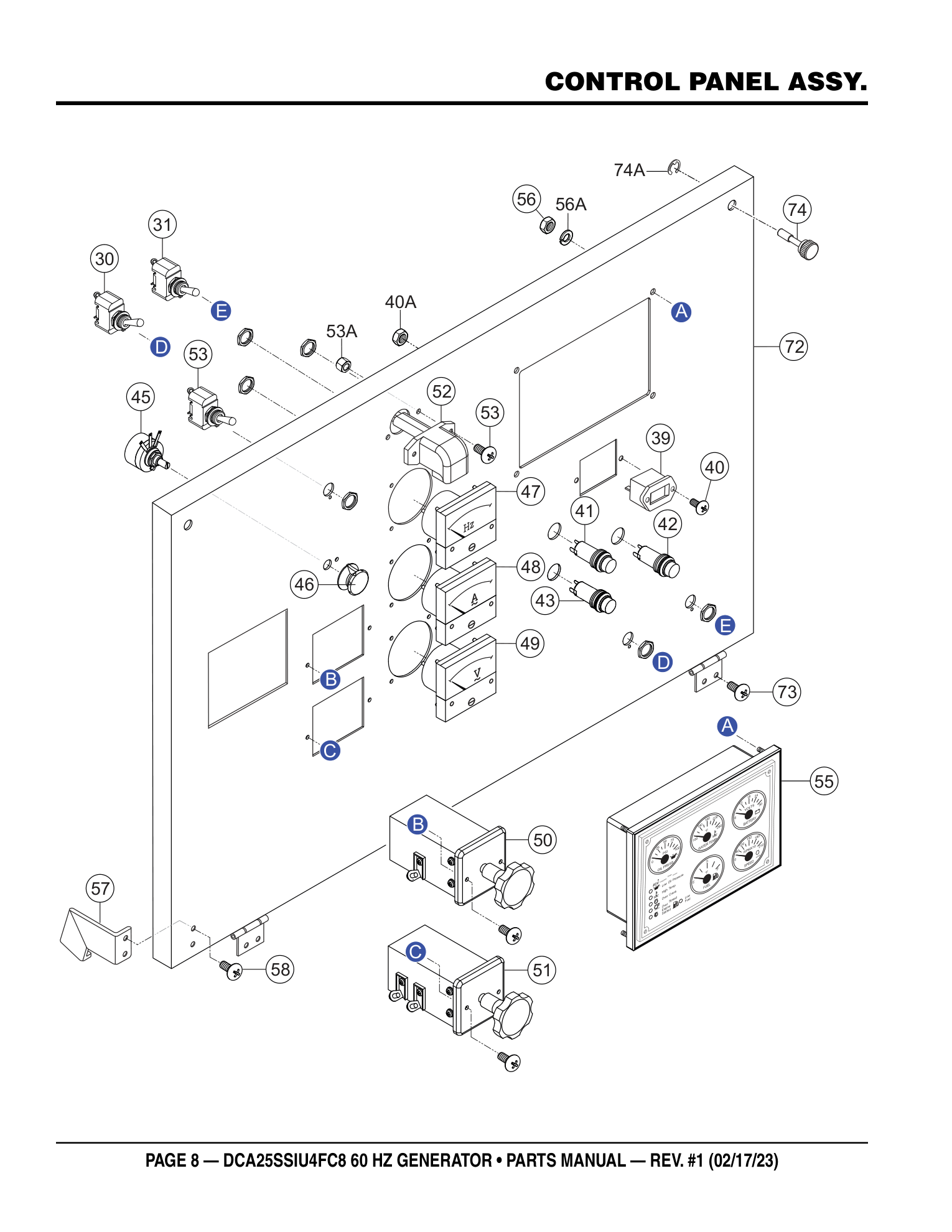

Page 8 — CONTROL PANEL ASSY.

Multiquip DCA25SSIU4FC8 Generator CONTROL PANEL ASSY. parts diagram

Parts list — exactly as printed28 rows

No.	Part No.	Part Name	Qty	Remarks
30	82608	AUTO START/STOP SWITCH	1	REPLACES P/N 0601831340	ADD TO CART
AUTO START/STOP SWITCH 82608 · qty on machine: 1 REPLACES P/N 0601831340 view full part page → $34.95
31	0601830710	ENGINE SPEED SWITCH	1		ADD TO CART
ENGINE SPEED SWITCH 0601830710 · qty on machine: 1 view full part page → $29.95
39	0601800682	HOUR METER	1		ADD TO CART
HOUR METER 0601800682 · qty on machine: 1 view full part page → $116.95
40	0027103015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027103015 · qty on machine: 2 view full part page → $0.64
40A	0207003000	SELF-LOCKING NUT	2		ADD TO CART
SELF-LOCKING NUT 0207003000 · qty on machine: 2 view full part page → $0.21
41	0601814453	FUEL LEAK DETECTED ALARM LAMP	1		ADD TO CART
FUEL LEAK DETECTED ALARM LAMP 0601814453 · qty on machine: 1 view full part page → $33.95
42	0601814453	PREHEAT LAMP	1		ADD TO CART
PREHEAT LAMP 0601814453 · qty on machine: 1 view full part page → $33.95
43	0601814453	WARNING LAMP	1		ADD TO CART
WARNING LAMP 0601814453 · qty on machine: 1 view full part page → $33.95
45	0601840073	RHEOSTAT (VR) 2W 1K OHM	1		ADD TO CART
RHEOSTAT (VR) 2W 1K OHM 0601840073 · qty on machine: 1 view full part page → $90.95
46	0601840100	KNOB	1	REPLACES P/N 0601840121	ADD TO CART
KNOB 0601840100 · qty on machine: 1 REPLACES P/N 0601840121 view full part page → $30.95
47	0601807641	FREQUENCY METER, 45~65HZ, 240V	1		ADD TO CART
FREQUENCY METER, 45~65HZ, 240V 0601807641 · qty on machine: 1 view full part page → $591.95
48	0601808985	AC AMMETER 0~50A, 0~100A/5A	1		ADD TO CART
AC AMMETER 0~50A, 0~100A/5A 0601808985 · qty on machine: 1 view full part page → $246.95
49	0601806859	AC VOLTMETER 0~600V	1		ADD TO CART
AC VOLTMETER 0~600V 0601806859 · qty on machine: 1 view full part page → $368.95
50	0601801040	CHANGE-OVER SWITCH, AMMETER	1		ADD TO CART
CHANGE-OVER SWITCH, AMMETER 0601801040 · qty on machine: 1 view full part page → $95.95
51	0601801041	CHANGE-OVER SWITCH, VOLTMETER	1		ADD TO CART
CHANGE-OVER SWITCH, VOLTMETER 0601801041 · qty on machine: 1 view full part page → $157.95
52	Y0601810170	PANEL LIGHT 12V	1		ADD TO CART
PANEL LIGHT 12V Y0601810170 · qty on machine: 1 view full part page → $142.95
53	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
53A	OEMAA8	SELF-LOCKING NUT	2	REPLACES P/N 0207004000	ADD TO CART
SELF-LOCKING NUT OEMAA8 · qty on machine: 2 REPLACES P/N 0207004000 view full part page → $0.4
54	0601830710	PANEL LIGHT SWITCH	1		ADD TO CART
PANEL LIGHT SWITCH 0601830710 · qty on machine: 1 view full part page → $29.95
55	ECU754	CONTROLLER	1	REPLACES P/N Y0602203074	ADD TO CART
CONTROLLER ECU754 · qty on machine: 1 REPLACES P/N Y0602203074 view full part page → $1043.95
56	Y0206707000	HEX. NUT	4		ADD TO CART
HEX. NUT Y0206707000 · qty on machine: 4 view full part page → $0.45
56A	Y0044807000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK Y0044807000 · qty on machine: 4 view full part page → $0.45
57	M1223100104	STOPPER	1		ADD TO CART
STOPPER M1223100104 · qty on machine: 1 view full part page → $42.95
58	0027105010	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027105010 · qty on machine: 2 view full part page → $0.56
72	M1224000103	CONTROL PANEL	1		ADD TO CART
CONTROL PANEL M1224000103 · qty on machine: 1 view full part page → $188.95
73	0027105010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105010 · qty on machine: 4 view full part page → $0.56
74	M9220100004	SET SCREW	2		ADD TO CART
SET SCREW M9220100004 · qty on machine: 2 view full part page → $12.95
74A	0080200007	E-SNAP RING	2		ADD TO CART
E-SNAP RING 0080200007 · qty on machine: 2 view full part page → $1.39

Page 10 — CONTROL BOX 1 ASSY.

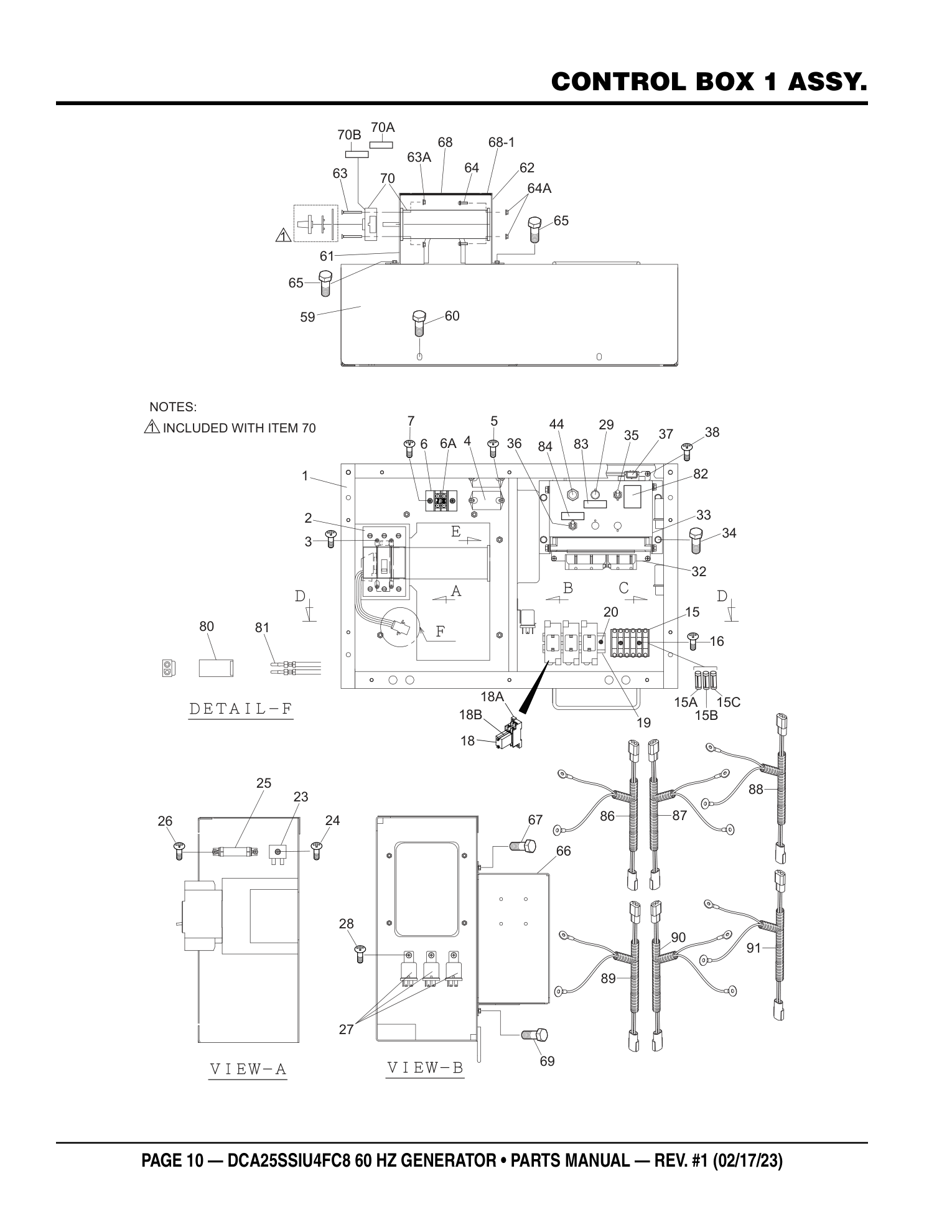

Multiquip DCA25SSIU4FC8 Generator CONTROL BOX 1 ASSY. parts diagram

Parts list — exactly as printed47 rows

No.	Part No.	Part Name	Qty	Remarks
1	M1214000312	CONTROL BOX	1		ADD TO CART
CONTROL BOX M1214000312 · qty on machine: 1 view full part page → $1018.95
2	0601870430	CIRCUIT BREAKER, 3P 60A	1		ADD TO CART
CIRCUIT BREAKER, 3P 60A 0601870430 · qty on machine: 1 view full part page → $585.95
3	0021004075	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021004075 · qty on machine: 4 view full part page → $0.95
4	0601823863	RELAY UNIT	2		ADD TO CART
RELAY UNIT 0601823863 · qty on machine: 2 view full part page → $159.95
5	7538070	MACHINE SCREW	4	REPLACES P/N 0027104015	ADD TO CART
MACHINE SCREW 7538070 · qty on machine: 4 REPLACES P/N 0027104015 view full part page → $0.52
6	0601815870	TERMINAL	1		ADD TO CART
TERMINAL 0601815870 · qty on machine: 1 view full part page → $56.95
6A	M9521000404	DECAL: TERMINAL	1		PARTS REQUEST
PHOTO COMING DECAL: TERMINAL M9521000404 · qty on machine: 1 PARTS REQUEST
7	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
15	Y0601802218	HOLDER, FUSE	2		PARTS REQUEST
PHOTO COMING HOLDER, FUSE Y0601802218 · qty on machine: 2 PARTS REQUEST
15A	0601806671	FUSE, 15A	2		ADD TO CART
FUSE, 15A 0601806671 · qty on machine: 2 view full part page → $3.95
15B	0601802149	FUSE, 10A	3		ADD TO CART
FUSE, 10A 0601802149 · qty on machine: 3 view full part page → $3.95
15C	0601802133	FUSE, 5A	1		ADD TO CART
FUSE, 5A 0601802133 · qty on machine: 1 view full part page → $1.95
16	0027103015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027103015 · qty on machine: 2 view full part page → $0.64
18	LY2DUS12VDC	RELAY	3	REPLACES P/N 0601827656	ADD TO CART
RELAY LY2DUS12VDC · qty on machine: 3 REPLACES P/N 0601827656 view full part page → $46.95
18A	PTF08A-E	BASE	3	REPLACES P/N 0601823109	PARTS REQUEST
PHOTO COMING BASE PTF08A-E · qty on machine: 3 REPLACES P/N 0601823109 PARTS REQUEST
18B	PYCA1	CLIP	6	REPLACES P/N 0601824400	ADD TO CART
CLIP PYCA1 · qty on machine: 6 REPLACES P/N 0601824400 view full part page → $1.71
19	Y0290000100	MOUNTING RAIL	1		ADD TO CART
MOUNTING RAIL Y0290000100 · qty on machine: 1 view full part page → $27.95
20	0027104010	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104010 · qty on machine: 2 view full part page → $0.33
23	0601823240	RECTIFIER, DE-45	3		ADD TO CART
RECTIFIER, DE-45 0601823240 · qty on machine: 3 Factory replaced this part - current number 0601821370 view full part page → $28.95 IN A KIT + SOLD SOLO
24	0027104030	MACHINE SCREW	1		ADD TO CART
MACHINE SCREW 0027104030 · qty on machine: 1 view full part page → $0.59
25	0601842384	RESISTOR, 20W 50Ω	1		ADD TO CART
RESISTOR, 20W 50Ω 0601842384 · qty on machine: 1 view full part page → $36.95
26	0027104010	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104010 · qty on machine: 2 view full part page → $0.33
27	5825500290	RELAY	3	REPLACES P/N 0602201400	ADD TO CART
RELAY 5825500290 · qty on machine: 3 REPLACES P/N 0602201400 view full part page → $65.95
28	0027105010	MACHINE SCREW	3		ADD TO CART
MACHINE SCREW 0027105010 · qty on machine: 3 view full part page → $0.56
29	0601831205	PUSH BUTTON SWITCH	1		ADD TO CART
PUSH BUTTON SWITCH 0601831205 · qty on machine: 1 view full part page → $25.95
32	8982460570	ENGINE CONTROLLER (ECM)	1	REPLACES P/N Y0602203050	NO LONGER AVAILABLE
PHOTO COMING ENGINE CONTROLLER (ECM) 8982460570 · qty on machine: 1 REPLACES P/N Y0602203050 NO LONGER AVAILABLE
33	M1214600204	CONTROLLER BRACKET	1		PARTS REQUEST
PHOTO COMING CONTROLLER BRACKET M1214600204 · qty on machine: 1 PARTS REQUEST
34	011106015	HEX. HEAD BOLT	8	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 8 REPLACES P/N 0016906015 view full part page → $0.69
35	0601830710	DIAGNOSTIC SWITCH	1		ADD TO CART
DIAGNOSTIC SWITCH 0601830710 · qty on machine: 1 view full part page → $29.95
36	0601830762	FUEL PUMP SWITCH	1		ADD TO CART
FUEL PUMP SWITCH 0601830762 · qty on machine: 1 view full part page → $36.95
37	8972177780	BAROMETRIC PRESSURE SENSOR	1	REPLACES P/N 0602130220	ADD TO CART
BAROMETRIC PRESSURE SENSOR 8972177780 · qty on machine: 1 REPLACES P/N 0602130220 view full part page → $174.95
38	0027105015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 2 view full part page → $0.2
44	0601814453	ALARM LAMP	1		ADD TO CART
ALARM LAMP 0601814453 · qty on machine: 1 view full part page → $33.95
59	M1214500004A4	CONTROL BOX COVER	1	REPLACES P/N M1214500004	ADD TO CART
CONTROL BOX COVER M1214500004A4 · qty on machine: 1 REPLACES P/N M1214500004 view full part page → $46.95
60	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0016906015 view full part page → $0.69
61	M1214600804	SWITCH BRACKET	1		ADD TO CART
SWITCH BRACKET M1214600804 · qty on machine: 1 view full part page → $48.95
62	M1214600904	SWITCH BRACKET	1		ADD TO CART
SWITCH BRACKET M1214600904 · qty on machine: 1 view full part page → $41.95
63	0021104035	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021104035 · qty on machine: 4 view full part page → $1.65
63A	OEMAA8	HEX. NUT	4	REPLACES P/N 0207004000	ADD TO CART
HEX. NUT OEMAA8 · qty on machine: 4 REPLACES P/N 0207004000 view full part page → $0.4
64	7538070	MACHINE SCREW	4	REPLACES P/N 0027104015	ADD TO CART
MACHINE SCREW 7538070 · qty on machine: 4 REPLACES P/N 0027104015 view full part page → $0.52
64A	OEMAA8	HEX. NUT	4	REPLACES P/N 0207004000	ADD TO CART
HEX. NUT OEMAA8 · qty on machine: 4 REPLACES P/N 0207004000 view full part page → $0.4
65	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0016906015 view full part page → $0.69
66	M1214600004	SWITCH COVER	1		PARTS REQUEST
PHOTO COMING SWITCH COVER M1214600004 · qty on machine: 1 PARTS REQUEST
67	011106015	HEX. HEAD BOLT	6	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 6 REPLACES P/N 0016906015 view full part page → $0.69
68	M1214600104	SWITCH COVER	1		PARTS REQUEST
PHOTO COMING SWITCH COVER M1214600104 · qty on machine: 1 PARTS REQUEST
68-1	0317700180	WEATHER STRIP	1		ADD TO CART
WEATHER STRIP 0317700180 · qty on machine: 1 view full part page → $13.95
69	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0016906015 view full part page → $0.69

Page 12 — CONTROL BOX 1 ASSY. (CONT'D.)

Multiquip DCA25SSIU4FC8 Generator CONTROL BOX 1 ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed14 rows

No.	Part No.	Part Name	Qty	Remarks
70	M1270100004	SELECTOR SWITCH	1		ADD TO CART
SELECTOR SWITCH M1270100004 · qty on machine: 1 view full part page → $788.95
70A	M1550002704	DECAL: SELECTOR SWITCH NUMBER (A)	1	M15000270	ADD TO CART
DECAL: SELECTOR SWITCH NUMBER (A) M1550002704 · qty on machine: 1 M15000270 view full part page → $5.95
70B	M1550002804	DECAL: SELECTOR SWITCH NUMBER (B)	1	M15000280	ADD TO CART
DECAL: SELECTOR SWITCH NUMBER (B) M1550002804 · qty on machine: 1 M15000280 view full part page → $5.95
80	0601812626	PLUG	1		ADD TO CART
PLUG 0601812626 · qty on machine: 1 view full part page → $1.88
81	0601812712	PINS (MALE)	2		ADD TO CART
PINS (MALE) 0601812712 · qty on machine: 2 view full part page → $0.77
82	M9520000904	DECAL: DIAGNOSTIC SWITCH	1	M92000090	ADD TO CART
DECAL: DIAGNOSTIC SWITCH M9520000904 · qty on machine: 1 M92000090 view full part page → $4.95
83	M9520001104	DECAL: DIAGNOSTIC BUTTON	1	M92000110	ADD TO CART
DECAL: DIAGNOSTIC BUTTON M9520001104 · qty on machine: 1 M92000110 view full part page → $1.84
84	M9520002104	DECAL: FUEL PUMP SWITCH	1	M92000210	ADD TO CART
DECAL: FUEL PUMP SWITCH M9520002104 · qty on machine: 1 M92000210 view full part page → $1.31
86	M1247700614	WIRE HARNESS, GENERATOR	1		ADD TO CART
WIRE HARNESS, GENERATOR M1247700614 · qty on machine: 1 view full part page → $816.95
87	M1358201612	WIRE HARNESS, ENGINE	1		PARTS REQUEST
PHOTO COMING WIRE HARNESS, ENGINE M1358201612 · qty on machine: 1 PARTS REQUEST
88	M1358200302	WIRE HARNESS, CONTROLLER	1		ADD TO CART
WIRE HARNESS, CONTROLLER M1358200302 · qty on machine: 1 view full part page → $2137.95
89	M1358202004	WIRE HARNESS, PRESSURE SWITCH	1		ADD TO CART
WIRE HARNESS, PRESSURE SWITCH M1358202004 · qty on machine: 1 view full part page → $59.95
90	8983346920	WIRE HARNESS, PCV HEATER	1	REPLACES P/N Y0602044310	ADD TO CART
WIRE HARNESS, PCV HEATER 8983346920 · qty on machine: 1 REPLACES P/N Y0602044310 view full part page → $173.95
91	M1358203404	WIRE HARNESS, FUEL LEAK/SENDER	1		PARTS REQUEST
PHOTO COMING WIRE HARNESS, FUEL LEAK/SENDER M1358203404 · qty on machine: 1 PARTS REQUEST

Page 14 — CONTROL BOX 2 ASSY.

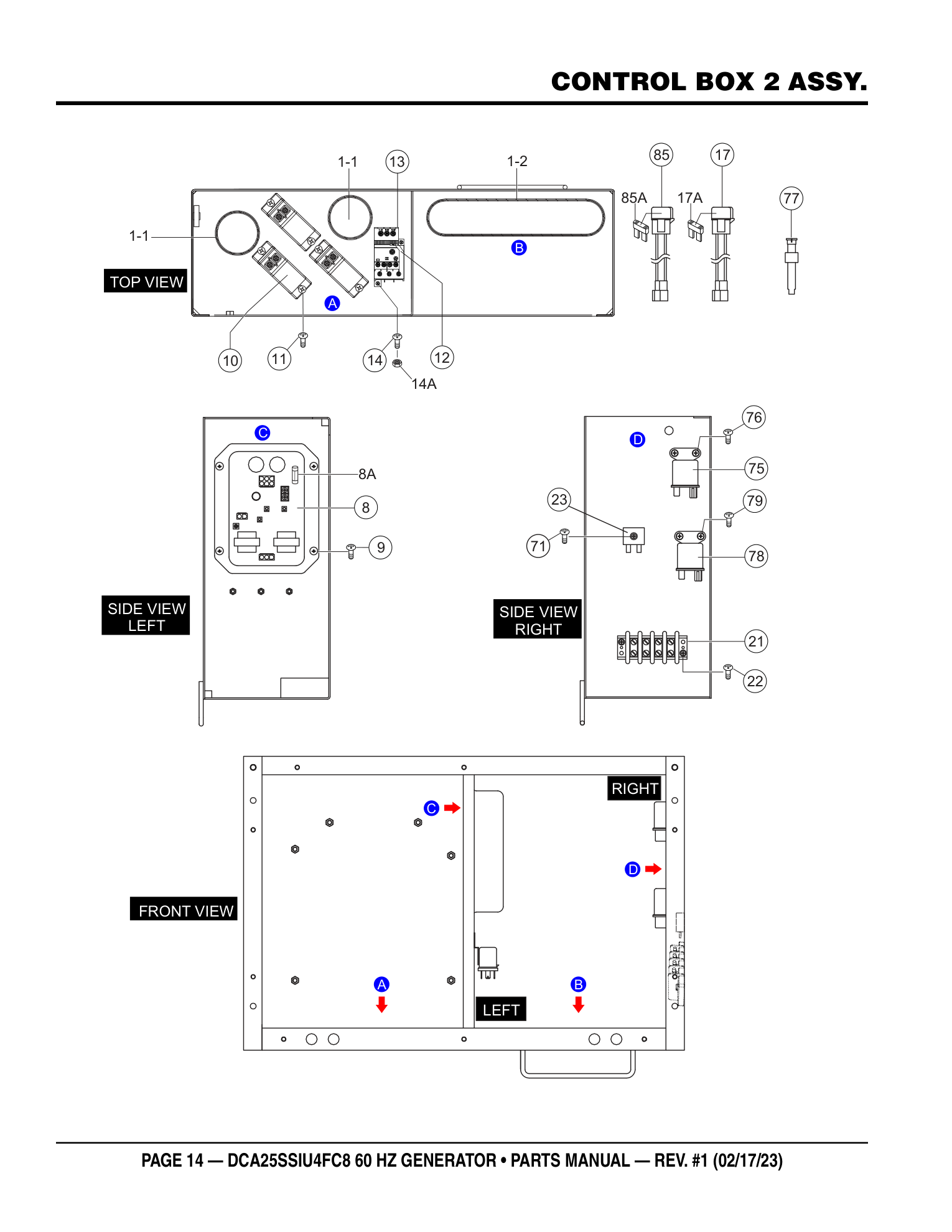

Multiquip DCA25SSIU4FC8 Generator CONTROL BOX 2 ASSY. parts diagram

Parts list — exactly as printed24 rows

No.	Part No.	Part Name	Qty	Remarks
1-1	0330000185	EDGE TRIM	2		ADD TO CART
EDGE TRIM 0330000185 · qty on machine: 2 view full part page → $3.95
1-2	Y0330000550	EDGE TRIM	1		PARTS REQUEST
PHOTO COMING EDGE TRIM Y0330000550 · qty on machine: 1 PARTS REQUEST
8	0601820608	AUTOMATIC VOLTAGE REGULATOR	1		ADD TO CART
AUTOMATIC VOLTAGE REGULATOR 0601820608 · qty on machine: 1 view full part page → $1591.95
8A	Y0601806683	FUSE, 250V 8A	1		NO LONGER AVAILABLE
PHOTO COMING FUSE, 250V 8A Y0601806683 · qty on machine: 1 NO LONGER AVAILABLE
9	0027105015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 4 view full part page → $0.2
10	0601801122	CURRENT TRANSFORMER	3		ADD TO CART
CURRENT TRANSFORMER 0601801122 · qty on machine: 3 view full part page → $131.95
11	011206020	MACHINE SCREW	6	REPLACES P/N 0027106020	ADD TO CART
MACHINE SCREW 011206020 · qty on machine: 6 REPLACES P/N 0027106020 view full part page → $0.95
12	Y0601820839	OVER CURRENT RELAY	1		ADD TO CART
OVER CURRENT RELAY Y0601820839 · qty on machine: 1 view full part page → $120.95
13	Y0601820844	OVER CURRENT RELAY BASE, 25A	1		ADD TO CART
OVER CURRENT RELAY BASE, 25A Y0601820844 · qty on machine: 1 view full part page → $24.95
14	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
14A	OEMAA8	SELF-LOCKING NUT	2	REPLACES P/N 0207004000	ADD TO CART
SELF-LOCKING NUT OEMAA8 · qty on machine: 2 REPLACES P/N 0207004000 view full part page → $0.4
17	C3558201704	HOLDER, FUSE	1	REPLACES P/N M2357202104	ADD TO CART
HOLDER, FUSE C3558201704 · qty on machine: 1 REPLACES P/N M2357202104 view full part page → $37.95
17A	0601806644	FUSE, 30A	1		ADD TO CART
FUSE, 30A 0601806644 · qty on machine: 1 view full part page → $1.43
21	0601815153	TERMINAL BLOCK	1		NO LONGER AVAILABLE
PHOTO COMING TERMINAL BLOCK 0601815153 · qty on machine: 1 NO LONGER AVAILABLE
22	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
23	0601823240	RECTIFIER	3		ADD TO CART
RECTIFIER 0601823240 · qty on machine: 3 Factory replaced this part - current number 0601821370 view full part page → $28.95 IN A KIT + SOLD SOLO
71	0027104030	MACHINE SCREW	1		ADD TO CART
MACHINE SCREW 0027104030 · qty on machine: 1 view full part page → $0.59
75	8944001061	RELAY, STARTER	1	REPLACES P/N 0602202502	ADD TO CART
RELAY, STARTER 8944001061 · qty on machine: 1 REPLACES P/N 0602202502 view full part page → $214.95
76	0027105010	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027105010 · qty on machine: 2 view full part page → $0.56
77	0601806640	FUSE, 65A	1		ADD TO CART
FUSE, 65A 0601806640 · qty on machine: 1 view full part page → $11.95
78	8970119490	GLOW PLUG RELAY	1	REPLACES P/N 0602202685	ADD TO CART
GLOW PLUG RELAY 8970119490 · qty on machine: 1 REPLACES P/N 0602202685 view full part page → $301.95
79	0027105010	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027105010 · qty on machine: 2 view full part page → $0.56
85	C3358201704	HOLDER, FUSE	1	REPLACES P/N M2357202104	ADD TO CART
HOLDER, FUSE C3358201704 · qty on machine: 1 REPLACES P/N M2357202104 view full part page → $41.95
85A	0601806645	FUSE, 10A	1		ADD TO CART
FUSE, 10A 0601806645 · qty on machine: 1 view full part page → $2.9

Page 16 — ENGINE AND RADIATOR ASSY.

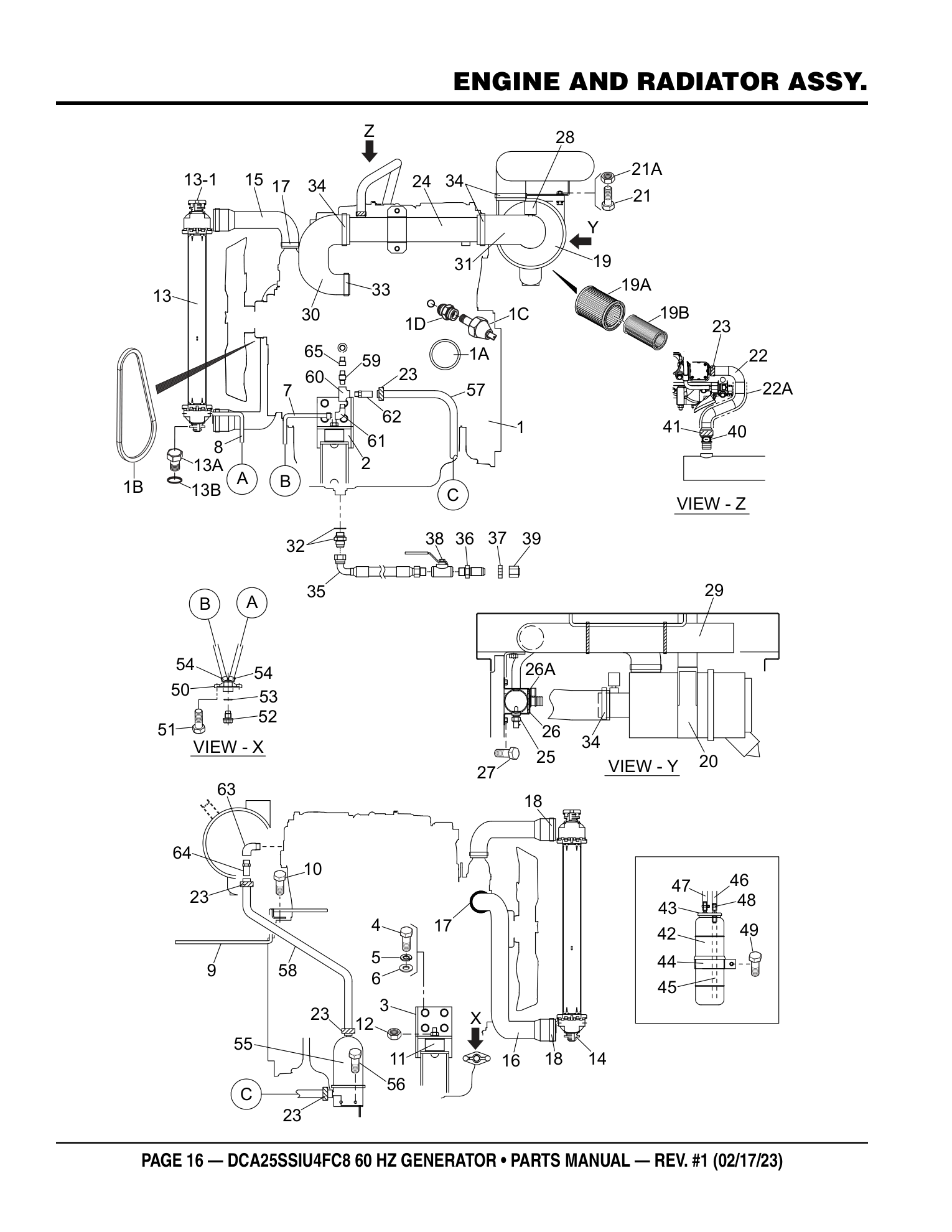

Multiquip DCA25SSIU4FC8 Generator ENGINE AND RADIATOR ASSY. parts diagram

Parts list — exactly as printed47 rows

No.	Part No.	Part Name	Qty	Remarks
1	M1924200074	ENGINE, ISUZU 4LE2T	1	INCLUDES ITEMS W/#	PARTS REQUEST
PHOTO COMING ENGINE, ISUZU 4LE2T M1924200074 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 1A# PARTS REQUEST
1A#	2944566410	ELEMENT, OIL FILTER	1	REPLACES P/N 8944567412	ADD TO CART
ELEMENT, OIL FILTER 2944566410 · qty on machine: 1 REPLACES P/N 8944567412 Also included in kit 1 - ENGINE, ISUZU 4LE2T (M1924200074) view full part page → $32.95 IN A KIT + SOLD SOLO
1B	8980490340	FAN BELT	1		ADD TO CART
FAN BELT 8980490340 · qty on machine: 1 view full part page → $44.95
1C	8983193760	PRESSURE SWITCH	1	REPLACES P/N Y0602210060	ADD TO CART
PRESSURE SWITCH 8983193760 · qty on machine: 1 REPLACES P/N Y0602210060 view full part page → $195.95
1D	8983377180	ADAPTER	1	REPLACES P/N Y0602211629	ADD TO CART
ADAPTER 8983377180 · qty on machine: 1 REPLACES P/N Y0602211629 view full part page → $53.95
2	M1303200304	ENGINE FOOT	1		ADD TO CART
ENGINE FOOT M1303200304 · qty on machine: 1 view full part page → $262.95
3	M1305200204	ENGINE FOOT	1		ADD TO CART
ENGINE FOOT M1305200204 · qty on machine: 1 view full part page → $392.95
4	0105091025	HEX. HEAD BOLT	8	REPLACES P/N 0010310025	ADD TO CART
HEX. HEAD BOLT 0105091025 · qty on machine: 8 REPLACES P/N 0010310025 view full part page → $0.68
5	0040010000	WASHER, LOCK	8		ADD TO CART
WASHER, LOCK 0040010000 · qty on machine: 8 view full part page → $0.39
6	031110160	WASHER, FLAT	8	REPLACES P/N 0041210000	ADD TO CART
WASHER, FLAT 031110160 · qty on machine: 8 REPLACES P/N 0041210000 view full part page → $0.4
7	0199900900	DRAIN HOSE	1		ADD TO CART
DRAIN HOSE 0199900900 · qty on machine: 1 view full part page → $18.95
8	Y0199900680	DRAIN HOSE	1		ADD TO CART
DRAIN HOSE Y0199900680 · qty on machine: 1 view full part page → $7.95
9	M1358300403	CLAMPER ROD	1		PARTS REQUEST
PHOTO COMING CLAMPER ROD M1358300403 · qty on machine: 1 PARTS REQUEST
10	012210020	HEX. HEAD BOLT	2	REPLACES P/N 0017110020	ADD TO CART
HEX. HEAD BOLT 012210020 · qty on machine: 2 REPLACES P/N 0017110020 view full part page → $0.95
11	Y0605000408	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION Y0605000408 · qty on machine: 2 view full part page → $21.95
12	021112140	HEX. NUT	2	REPLACES P/N 0207010000	ADD TO CART
HEX. NUT 021112140 · qty on machine: 2 REPLACES P/N 0207010000 view full part page → $0.46
13	M1924200164	RADIATOR	1	INCLUDES ITEMS W/%	ADD TO CART
RADIATOR M1924200164 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 13-1% view full part page → $456.95 IN A KIT + SOLD SOLO
13A	M9200100904	PLUG	1		ADD TO CART
PLUG M9200100904 · qty on machine: 1 view full part page → $42.95
13B	0150000016	O-RING	4		ADD TO CART
O-RING 0150000016 · qty on machine: 4 view full part page → $1.63
13-1%	Y0602015700	CAP	1		ADD TO CART
CAP Y0602015700 · qty on machine: 1 Also included in kit 13 - RADIATOR (M1924200164) view full part page → $27.95 IN A KIT + SOLD SOLO
14	M9312200104	MOUNT RUBBER	4		ADD TO CART
MOUNT RUBBER M9312200104 · qty on machine: 4 view full part page → $16.95
15	M1311500203	RADIATOR HOSE	1		ADD TO CART
RADIATOR HOSE M1311500203 · qty on machine: 1 view full part page → $25.95
16	M1311500303	RADIATOR HOSE	1		ADD TO CART
RADIATOR HOSE M1311500303 · qty on machine: 1 view full part page → $57.95
17	0605515149	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515149 · qty on machine: 2 view full part page → $1.95
18	0605515147	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515147 · qty on machine: 2 view full part page → $3.95
19	Y0602046590	AIR CLEANER	1	INCLUDES ITEMS W/$	ADD TO CART
AIR CLEANER Y0602046590 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 19A$, 19B$ view full part page → $248.95 IN A KIT + SOLD SOLO
19A$	PMAF25436	PRIMARY ELEMENT	1	REPLACES P/N 0602046309	ADD TO CART
PRIMARY ELEMENT PMAF25436 · qty on machine: 1 REPLACES P/N 0602046309 Also included in kit 19 - AIR CLEANER (Y0602046590) view full part page → $102.95 IN A KIT + SOLD SOLO
19B$	P822769	SAFETY ELEMENT	1	REPLACES P/N 0602046689	ADD TO CART
SAFETY ELEMENT P822769 · qty on machine: 1 REPLACES P/N 0602046689 Also included in kit 19 - AIR CLEANER (Y0602046590) view full part page → $100.95 IN A KIT + SOLD SOLO
20	Y0602040553	AIR CLEANER BAND	1		ADD TO CART
AIR CLEANER BAND Y0602040553 · qty on machine: 1 view full part page → $43.95
21	011208030	HEX. HEAD BOLT	2	REPLACES P/N 0016908030	ADD TO CART
HEX. HEAD BOLT 011208030 · qty on machine: 2 REPLACES P/N 0016908030 view full part page → $1.3
21A	020108060	SELF-LOCKING-NUT	2	REPLACES P/N 0207008000	ADD TO CART
SELF-LOCKING-NUT 020108060 · qty on machine: 2 REPLACES P/N 0207008000 view full part page → $0.28
22	M1327200004	BLOW-BY HOSE	1		ADD TO CART
BLOW-BY HOSE M1327200004 · qty on machine: 1 view full part page → $86.95
22A	Y0378400160	FOAM INSULATION 6.3 FT. (160 MM)	1		ADD TO CART
FOAM INSULATION 6.3 FT. (160 MM) Y0378400160 · qty on machine: 1 view full part page → $1.56
23	0605515198	HOSE BAND	5		ADD TO CART
HOSE BAND 0605515198 · qty on machine: 5 view full part page → $1.71
24	M1374000013	AIR CLEANER PIPE	1		ADD TO CART
AIR CLEANER PIPE M1374000013 · qty on machine: 1 view full part page → $130.95
25	8121468300	INLET AIR TEMPERATURE SENSOR	1	REPLACES P/N 0603210240	ADD TO CART
INLET AIR TEMPERATURE SENSOR 8121468300 · qty on machine: 1 REPLACES P/N 0603210240 view full part page → $215.95
26	M1374200404	BRACKET, AIR CLEANER PIPE	1		PARTS REQUEST
PHOTO COMING BRACKET, AIR CLEANER PIPE M1374200404 · qty on machine: 1 PARTS REQUEST
26A	Y0222100060	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL Y0222100060 · qty on machine: 1 view full part page → $456.95
27	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
28	0602040651	INDICATOR, AIR CLEANER	1		ADD TO CART
INDICATOR, AIR CLEANER 0602040651 · qty on machine: 1 view full part page → $52.95
29	M1374100203	AIR CLEANER HOSE	1		ADD TO CART
AIR CLEANER HOSE M1374100203 · qty on machine: 1 view full part page → $175.95
30	M1374100303	AIR CLEANER HOSE	1		ADD TO CART
AIR CLEANER HOSE M1374100303 · qty on machine: 1 view full part page → $60.95
31	M1374100403	AIR CLEANER HOSE	1		ADD TO CART
AIR CLEANER HOSE M1374100403 · qty on machine: 1 view full part page → $75.95
32	0602022581	ADAPTER 10M 24 X 2.0	1		ADD TO CART
ADAPTER 10M 24 X 2.0 0602022581 · qty on machine: 1 view full part page → $147.95
33	0605515147	HOSE BAND	1		ADD TO CART
HOSE BAND 0605515147 · qty on machine: 1 view full part page → $3.95
34	9500202080	HOSE BAND	4	REPLACES P/N 0605515178	ADD TO CART
HOSE BAND 9500202080 · qty on machine: 4 REPLACES P/N 0605515178 view full part page → $3.95
35	M1321100104	DRAIN HOSE	1		ADD TO CART
DRAIN HOSE M1321100104 · qty on machine: 1 view full part page → $440.95

Page 18 — ENGINE AND RADIATOR ASSY. (CONT'D.)

Multiquip DCA25SSIU4FC8 Generator ENGINE AND RADIATOR ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed30 rows

No.	Part No.	Part Name	Qty	Remarks
36	0603306590	CONNECTOR	1		ADD TO CART
CONNECTOR 0603306590 · qty on machine: 1 view full part page → $86.95
37	0603300285	LOCKNUT	1		ADD TO CART
LOCKNUT 0603300285 · qty on machine: 1 view full part page → $4.95
38	0605511395	VALVE	1		ADD TO CART
VALVE 0605511395 · qty on machine: 1 view full part page → $46.95
39	0602021070	CAP	1		ADD TO CART
CAP 0602021070 · qty on machine: 1 view full part page → $11.95
40	8981924670	PCV HEATER	1	REPLACES P/N Y0602044300	ADD TO CART
PCV HEATER 8981924670 · qty on machine: 1 REPLACES P/N Y0602044300 view full part page → $196.95
41	Y0605515321	HOSE BAND	1		PARTS REQUEST
PHOTO COMING HOSE BAND Y0605515321 · qty on machine: 1 PARTS REQUEST
42	0802081403D	RESERVE TANK	1	REPLACES P/N M9300000003	ADD TO CART
RESERVE TANK 0802081403D · qty on machine: 1 REPLACES P/N M9300000003 Factory replaced this part - current number 0802081403 view full part page → $29.95 IN A KIT + SOLD SOLO
43	0802081104	CAP, RESERVE TANK	1	REPLACES P/N M9300100003	ADD TO CART
CAP, RESERVE TANK 0802081104 · qty on machine: 1 REPLACES P/N M9300100003 view full part page → $5.95
44	M1317100004	BRACKET, RESERVE TANK	1		ADD TO CART
BRACKET, RESERVE TANK M1317100004 · qty on machine: 1 view full part page → $13.95
45	0199100215	HOSE	1		ADD TO CART
HOSE 0199100215 · qty on machine: 1 view full part page → $3.95
46	Y0199900520	OVER FLOW HOSE	1		ADD TO CART
OVER FLOW HOSE Y0199900520 · qty on machine: 1 view full part page → $6.95
47	0193601000	OVER FLOW HOSE	1		ADD TO CART
OVER FLOW HOSE 0193601000 · qty on machine: 1 view full part page → $12.95
48	0605515189	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515189 · qty on machine: 2 view full part page → $1.85
49	011008020	HEX. HEAD BOLT	1	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 1 REPLACES P/N 0016908020 view full part page → $2.68
50	1622014103	DRAIN JOINT	1	REPLACES P/N M9602000003	ADD TO CART
DRAIN JOINT 1622014103 · qty on machine: 1 REPLACES P/N M9602000003 view full part page → $23.95
51	011206020	HEX. HEAD BOLT	2	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 2 REPLACES P/N 0016906020 view full part page → $0.95
52	0802011104	DRAIN BOLT	1	REPLACES P/N M9200200004	ADD TO CART
DRAIN BOLT 0802011104 · qty on machine: 1 REPLACES P/N M9200200004 view full part page → $10.95
53	0150000018	O-RING	1		ADD TO CART
O-RING 0150000018 · qty on machine: 1 view full part page → $1.87
54	0605515189	HOSE BAND	4		ADD TO CART
HOSE BAND 0605515189 · qty on machine: 4 view full part page → $1.85
55	Y0602014270	WATER HEATER	1		PARTS REQUEST
PHOTO COMING WATER HEATER Y0602014270 · qty on machine: 1 PARTS REQUEST
56	011206020	HEX. HEAD BOLT	2	REPLACES P/N 0019206020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 2 REPLACES P/N 0019206020 view full part page → $0.95
57	Y0269301000	HOSE	1		PARTS REQUEST
PHOTO COMING HOSE Y0269301000 · qty on machine: 1 PARTS REQUEST
58	Y0269300570	HOSE	1		PARTS REQUEST
PHOTO COMING HOSE Y0269300570 · qty on machine: 1 PARTS REQUEST
59	0131502000	NIPPLE	1		ADD TO CART
NIPPLE 0131502000 · qty on machine: 1 view full part page → $15.95
60	Y0130402000	TEE	1		PARTS REQUEST
PHOTO COMING TEE Y0130402000 · qty on machine: 1 PARTS REQUEST
61	0130202000	STREET ELBOW	1		ADD TO CART
STREET ELBOW 0130202000 · qty on machine: 1 view full part page → $10.95
62	Y0602022939	HOSE JOINT	1		PARTS REQUEST
PHOTO COMING HOSE JOINT Y0602022939 · qty on machine: 1 PARTS REQUEST
63	0130204000	STREET ELBOW	1		ADD TO CART
STREET ELBOW 0130204000 · qty on machine: 1 view full part page → $6.95
64	0602022292	HOSE JOINT	1		ADD TO CART
HOSE JOINT 0602022292 · qty on machine: 1 view full part page → $22.95
65	Y0603307380	BUSHING	1		PARTS REQUEST
PHOTO COMING BUSHING Y0603307380 · qty on machine: 1 PARTS REQUEST

Page 20 — OUTPUT TERMINAL ASSY.

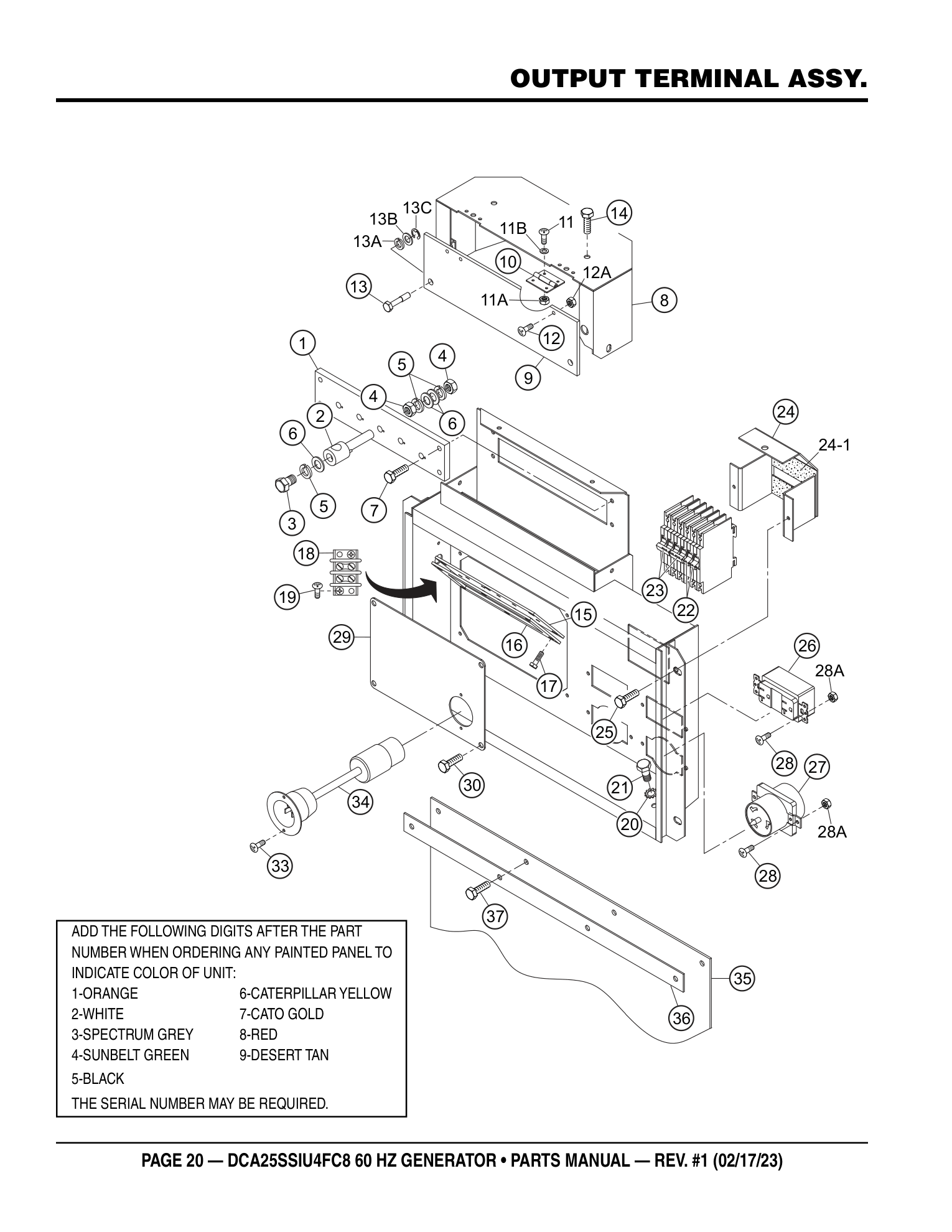

Multiquip DCA25SSIU4FC8 Generator OUTPUT TERMINAL ASSY. parts diagram

Parts list — exactly as printed46 rows

No.	Part No.	Part Name	Qty	Remarks
1	8091860103	TERMINAL PANEL	1	REPLACES P/N M1230700003	ADD TO CART
TERMINAL PANEL 8091860103 · qty on machine: 1 REPLACES P/N M1230700003 view full part page → $135.95
2	0801830104A	OUTPUT TERMINAL BOLT	5	REPLACES P/N M9220000004	ADD TO CART
OUTPUT TERMINAL BOLT 0801830104A · qty on machine: 5 REPLACES P/N M9220000004 view full part page → $37.95
3	0801832204	TIE BOLT	5	REPLACES P/N M9220000104	ADD TO CART
TIE BOLT 0801832204 · qty on machine: 5 REPLACES P/N M9220000104 view full part page → $2.95
4	0039308000	HEX. NUT	10		ADD TO CART
HEX. NUT 0039308000 · qty on machine: 10 view full part page → $1.28
5	0040008000	WASHER, LOCK	15		ADD TO CART
WASHER, LOCK 0040008000 · qty on machine: 15 view full part page → $0.63
6	0041408000	WASHER, FLAT	20		ADD TO CART
WASHER, FLAT 0041408000 · qty on machine: 20 view full part page → $1.63
7	Y0016906020	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT Y0016906020 · qty on machine: 4 view full part page → $1.45
8	M1237101103	3-PHASE OUTPUT TERMINAL COVER	1		PARTS REQUEST
PHOTO COMING 3-PHASE OUTPUT TERMINAL COVER M1237101103 · qty on machine: 1 PARTS REQUEST
9	M1236100404	OUTPUT WINDOW	1		ADD TO CART
OUTPUT WINDOW M1236100404 · qty on machine: 1 view full part page → $22.95
10	0605010040	HINGE	2		ADD TO CART
HINGE 0605010040 · qty on machine: 2 view full part page → $4.95
11	0027103010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027103010 · qty on machine: 4 view full part page → $0.44
11A	0207003000	HEX. NUT	4	REPLACES P/N 0030003000	ADD TO CART
HEX. NUT 0207003000 · qty on machine: 4 REPLACES P/N 0030003000 view full part page → $0.21
11B	0041203000	WASHER, FLAT	4		ADD TO CART
WASHER, FLAT 0041203000 · qty on machine: 4 view full part page → $0.12
12	0027103010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027103010 · qty on machine: 4 view full part page → $0.44
12A	0207003000	HEX. NUT	4	REPLACES P/N 0030003000	ADD TO CART
HEX. NUT 0207003000 · qty on machine: 4 REPLACES P/N 0030003000 view full part page → $0.21
13	M9220100804	SET SCREW	2		ADD TO CART
SET SCREW M9220100804 · qty on machine: 2 view full part page → $20.95
13A	0040006000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040006000 · qty on machine: 2 view full part page → $0.17
13B	952404470	WASHER, FLAT	2	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 2 REPLACES P/N 0041206000 view full part page → $0.19
13C	0080200005	E-SNAP RING	2		ADD TO CART
E-SNAP RING 0080200005 · qty on machine: 2 view full part page → $0.25
14	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95
15	M1236400004	CABLE OUTLET COVER	1		ADD TO CART
CABLE OUTLET COVER M1236400004 · qty on machine: 1 view full part page → $5.95
16	M1236300004	SUPPORTER, CABLE OUTLET COVER	1		ADD TO CART
SUPPORTER, CABLE OUTLET COVER M1236300004 · qty on machine: 1 view full part page → $18.95
17	Y0016906020	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT Y0016906020 · qty on machine: 6 view full part page → $1.45
18	0601815194	TERMINAL BLOCK	1		NO LONGER AVAILABLE
PHOTO COMING TERMINAL BLOCK 0601815194 · qty on machine: 1 NO LONGER AVAILABLE
19	0027104015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 2 view full part page → $0.53
20	0040508000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040508000 · qty on machine: 1 view full part page → $0.35
21	0019208020	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 1 view full part page → $3.95
22	0601870440	CIRCUIT BREAKER 1P 20A	2		ADD TO CART
CIRCUIT BREAKER 1P 20A 0601870440 · qty on machine: 2 view full part page → $34.95
23	0601870441	CIRCUIT BREAKER 2P 50A	2		ADD TO CART
CIRCUIT BREAKER 2P 50A 0601870441 · qty on machine: 2 view full part page → $77.95
24	M1260700404	BREAKER FITTING COVER	1		ADD TO CART
BREAKER FITTING COVER M1260700404 · qty on machine: 1 view full part page → $58.95
24-1	0222100080	CUSHION RUBBER	2		ADD TO CART
CUSHION RUBBER 0222100080 · qty on machine: 2 view full part page → $2.78
25	Y0016906020	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT Y0016906020 · qty on machine: 2 view full part page → $1.45
26	Y0601814034	RECEPTACLE 125V 20A X 2	2		ADD TO CART
RECEPTACLE 125V 20A X 2 Y0601814034 · qty on machine: 2 view full part page → $91.95
27	0601814014	RECEPTACLE 250V 50A	2		ADD TO CART
RECEPTACLE 250V 50A 0601814014 · qty on machine: 2 view full part page → $90.95
28	0027104015	MACHINE SCREW	8		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 8 view full part page → $0.53
28A	OEMAA8	HEX. NUT	8	REPLACES P/N 0207004000	ADD TO CART
HEX. NUT OEMAA8 · qty on machine: 8 REPLACES P/N 0207004000 view full part page → $0.4
29	M1454700304	COVER	1		ADD TO CART
COVER M1454700304 · qty on machine: 1 view full part page → $60.95
30	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95
31	0601812527	CONNECTOR	1	S/N 9800011 AND BELOW	ADD TO CART
CONNECTOR 0601812527 · qty on machine: 1 S/N 9800011 AND BELOW view full part page → $64.95
32	Y0601811177	RECEPTACLE	1	S/N 9800011 AND BELOW	PARTS REQUEST
PHOTO COMING RECEPTACLE Y0601811177 · qty on machine: 1 S/N 9800011 AND BELOW PARTS REQUEST
33	0027104015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 2 view full part page → $0.53
34	Y0329101000	HARNESS, WATER HEATER	1	S/N 9800011 AND BELOW	PARTS REQUEST
PHOTO COMING HARNESS, WATER HEATER Y0329101000 · qty on machine: 1 S/N 9800011 AND BELOW PARTS REQUEST
34A	Y0601813078	WATER HEATER CABLE	1	S/N 9800012 AND ABOVE	ADD TO CART
WATER HEATER CABLE Y0601813078 · qty on machine: 1 S/N 9800012 AND ABOVE view full part page → $105.95
35	M1454700914	RUBBER SHEET	1		PARTS REQUEST
PHOTO COMING RUBBER SHEET M1454700914 · qty on machine: 1 PARTS REQUEST
36	M1454701014	RUBBER SHEET HOLDER	1		PARTS REQUEST
PHOTO COMING RUBBER SHEET HOLDER M1454701014 · qty on machine: 1 PARTS REQUEST
37	011206020	HEX. HEAD BOLT	4	REPLACES P/N 0019206020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 4 REPLACES P/N 0019206020 view full part page → $0.95

Page 22 — BATTERY ASSY.

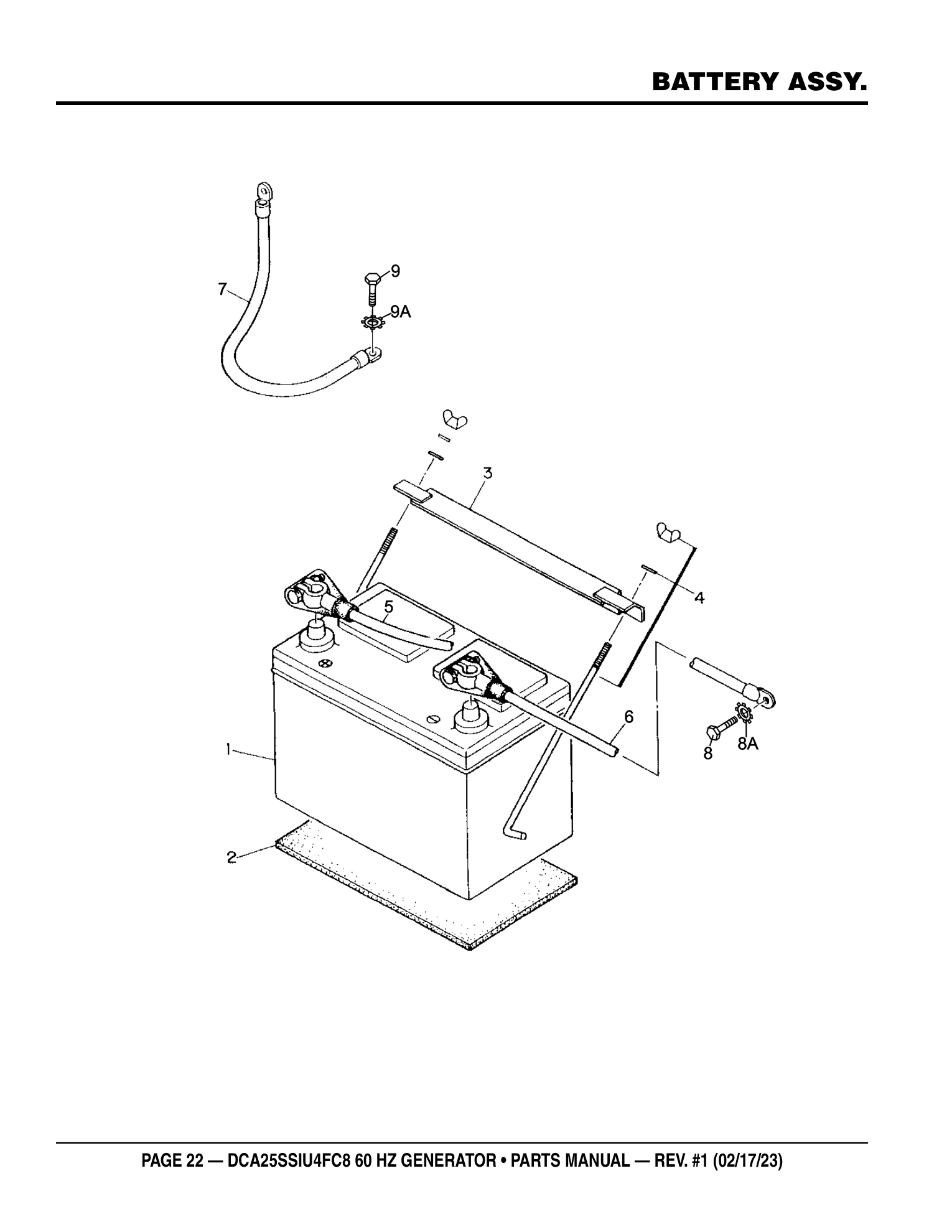

Multiquip DCA25SSIU4FC8 Generator BATTERY ASSY. parts diagram

Parts list — exactly as printed11 rows

No.	Part No.	Part Name	Qty	Remarks
1	0602220185	BATTERY	1		ADD TO CART
BATTERY 0602220185 · qty on machine: 1 view full part page → $292.95
2	M9310500014	BATTERY SHEET	1		ADD TO CART
BATTERY SHEET M9310500014 · qty on machine: 1 view full part page → $5.95
3	M91030003044	BATTERY BAND	1	REPLACES P/N M9103000304	ADD TO CART
BATTERY BAND M91030003044 · qty on machine: 1 REPLACES P/N M9103000304 view full part page → $72.95
4	0602220920	BATTERY BOLT SET 1/4-L10"	2		ADD TO CART
BATTERY BOLT SET 1/4-L10" 0602220920 · qty on machine: 2 view full part page → $5.95
5	M1346400004	BATTERY CABLE	1		ADD TO CART
BATTERY CABLE M1346400004 · qty on machine: 1 view full part page → $76.95
6	M2346900304	BATTERY CABLE	1		ADD TO CART
BATTERY CABLE M2346900304 · qty on machine: 1 view full part page → $149.95
7		CABLE	1	MAKE LOCALLY	SEE REMARKS
PHOTO COMING CABLE · qty on machine: 1 MAKE LOCALLY SEE REMARKS
8	0017110025	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0017110025 · qty on machine: 1 view full part page → $1.95
8A	0040510000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040510000 · qty on machine: 1 view full part page → $0.77
9	0019208025	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0019208025 · qty on machine: 1 view full part page → $3.95
9A	0040508000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040508000 · qty on machine: 1 view full part page → $0.35

Page 24 — MUFFLER ASSY.

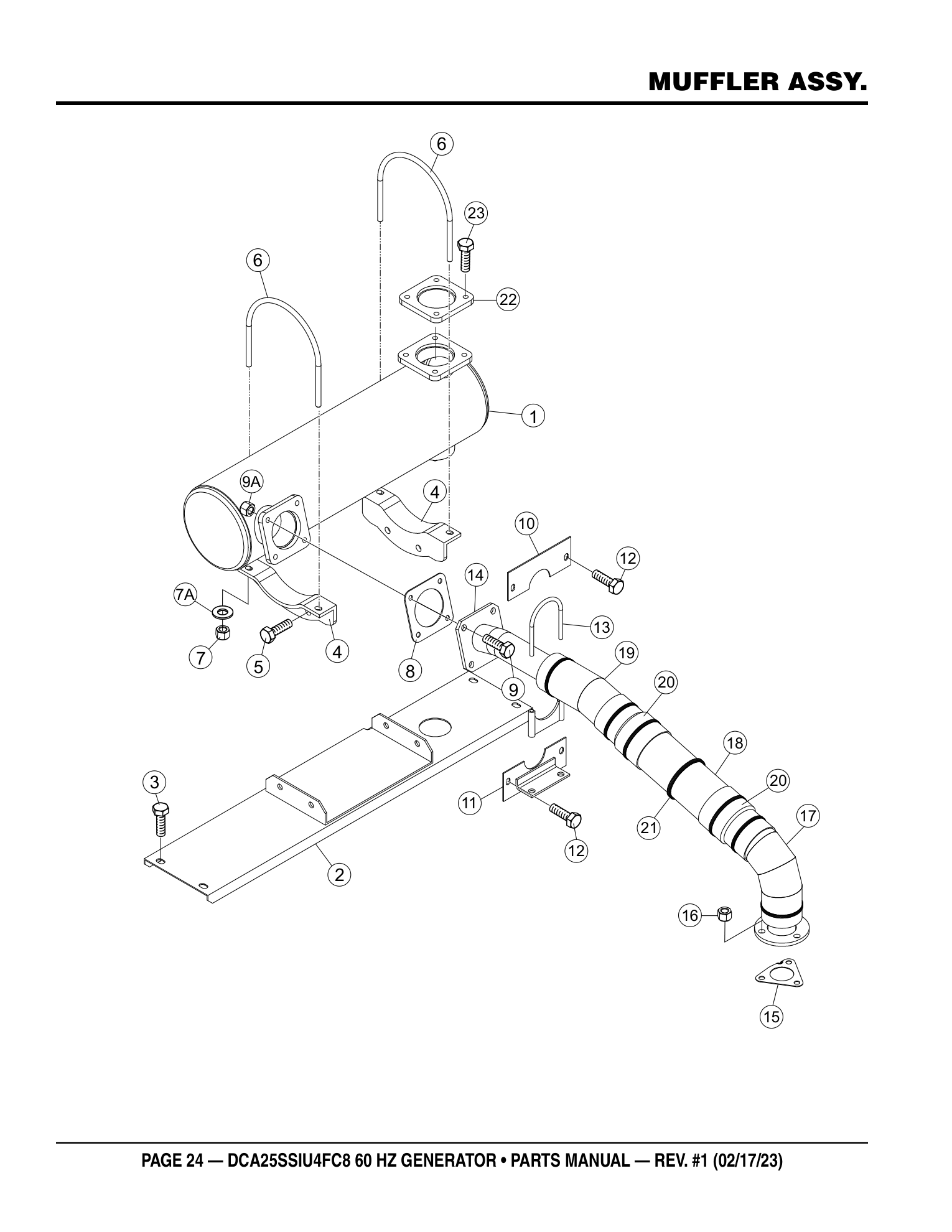

Multiquip DCA25SSIU4FC8 Generator MUFFLER ASSY. parts diagram

Parts list — exactly as printed25 rows

No.	Part No.	Part Name	Qty	Remarks
1	8982353890	DOC	1	REPLACES P/N Y0602330111	ADD TO CART
DOC 8982353890 · qty on machine: 1 REPLACES P/N Y0602330111 view full part page → $5850.95
2	M1331400103	DOC BRACKET	1		ADD TO CART
DOC BRACKET M1331400103 · qty on machine: 1 view full part page → $217.95
3	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
4	8982284330	DOC SUPPORT	2	REPLACES P/N Y0602330210	ADD TO CART
DOC SUPPORT 8982284330 · qty on machine: 2 REPLACES P/N Y0602330210 view full part page → $91.95
5	0016910025	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016910025 · qty on machine: 4 view full part page → $1.56
6	8982103230	U-BOLT	2	REPLACES P/N Y0602322091	ADD TO CART
U-BOLT 8982103230 · qty on machine: 2 REPLACES P/N Y0602322091 view full part page → $31.95
7	020108060	SELF-LOCKING NUT	4	REPLACES P/N 0037908000	ADD TO CART
SELF-LOCKING NUT 020108060 · qty on machine: 4 REPLACES P/N 0037908000 view full part page → $0.28
7A	0401450080	WASHER, FLAT	4	REPLACES P/N 0041208000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 4 REPLACES P/N 0041208000 view full part page → $0.56
8	8973731080	GASKET	1	REPLACES P/N Y0602320212	ADD TO CART
GASKET 8973731080 · qty on machine: 1 REPLACES P/N Y0602320212 view full part page → $24.95
9	8980435280	HEX. HEAD BOLT	4	REPLACES P/N Y0602322090	ADD TO CART
HEX. HEAD BOLT 8980435280 · qty on machine: 4 REPLACES P/N Y0602322090 view full part page → $15.95
9A	8971616070	HEX. NUT	4	REPLACES P/N Y0602323007	ADD TO CART
HEX. NUT 8971616070 · qty on machine: 4 REPLACES P/N Y0602323007 view full part page → $23.95
10	M1331400204	COVER, EXHAUST PIPE	1		ADD TO CART
COVER, EXHAUST PIPE M1331400204 · qty on machine: 1 view full part page → $7.95
11	M1331400304	BRACKET, EXHAUST PIPE	1		PARTS REQUEST
PHOTO COMING BRACKET, EXHAUST PIPE M1331400304 · qty on machine: 1 PARTS REQUEST
12	011106015	HEX. HEAD BOLT	4	REPLACES P/N 0016906015	ADD TO CART
HEX. HEAD BOLT 011106015 · qty on machine: 4 REPLACES P/N 0016906015 view full part page → $0.69
13	Y0602326066	U-BOLT	1		ADD TO CART
U-BOLT Y0602326066 · qty on machine: 1 view full part page → $9.95
14	M1334000703	EXHAUST PIPE	1		ADD TO CART
EXHAUST PIPE M1334000703 · qty on machine: 1 view full part page → $429.95
15	8973679180	GASKET	1	REPLACES P/N Y0602320211	ADD TO CART
GASKET 8973679180 · qty on machine: 1 REPLACES P/N Y0602320211 view full part page → $24.95
16	0207108000	SELF-LOCKING NUT	3		ADD TO CART
SELF-LOCKING NUT 0207108000 · qty on machine: 3 view full part page → $3.95
17	M1331400504	EXHAUST HEAT SHIELD (A)	1		ADD TO CART
EXHAUST HEAT SHIELD (A) M1331400504 · qty on machine: 1 view full part page → $280.95
18	M1331400904	EXHAUST HEAT SHIELD (B)	1		ADD TO CART
EXHAUST HEAT SHIELD (B) M1331400904 · qty on machine: 1 view full part page → $233.95
19	M1331401004	EXHAUST HEAT SHIELD (C)	1		ADD TO CART
EXHAUST HEAT SHIELD (C) M1331401004 · qty on machine: 1 view full part page → $233.95
20	Y0272100270	HEAT SHIELD TAPE	2		ADD TO CART
HEAT SHIELD TAPE Y0272100270 · qty on machine: 2 view full part page → $14.95
21	Y0602325051	METAL CABLE TIE	7		ADD TO CART
METAL CABLE TIE Y0602325051 · qty on machine: 7 view full part page → $4.95
22	M1334300504	FLANGE	1		ADD TO CART
FLANGE M1334300504 · qty on machine: 1 view full part page → $22.95
23	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68

Page 26 — FUEL TANK ASSY.

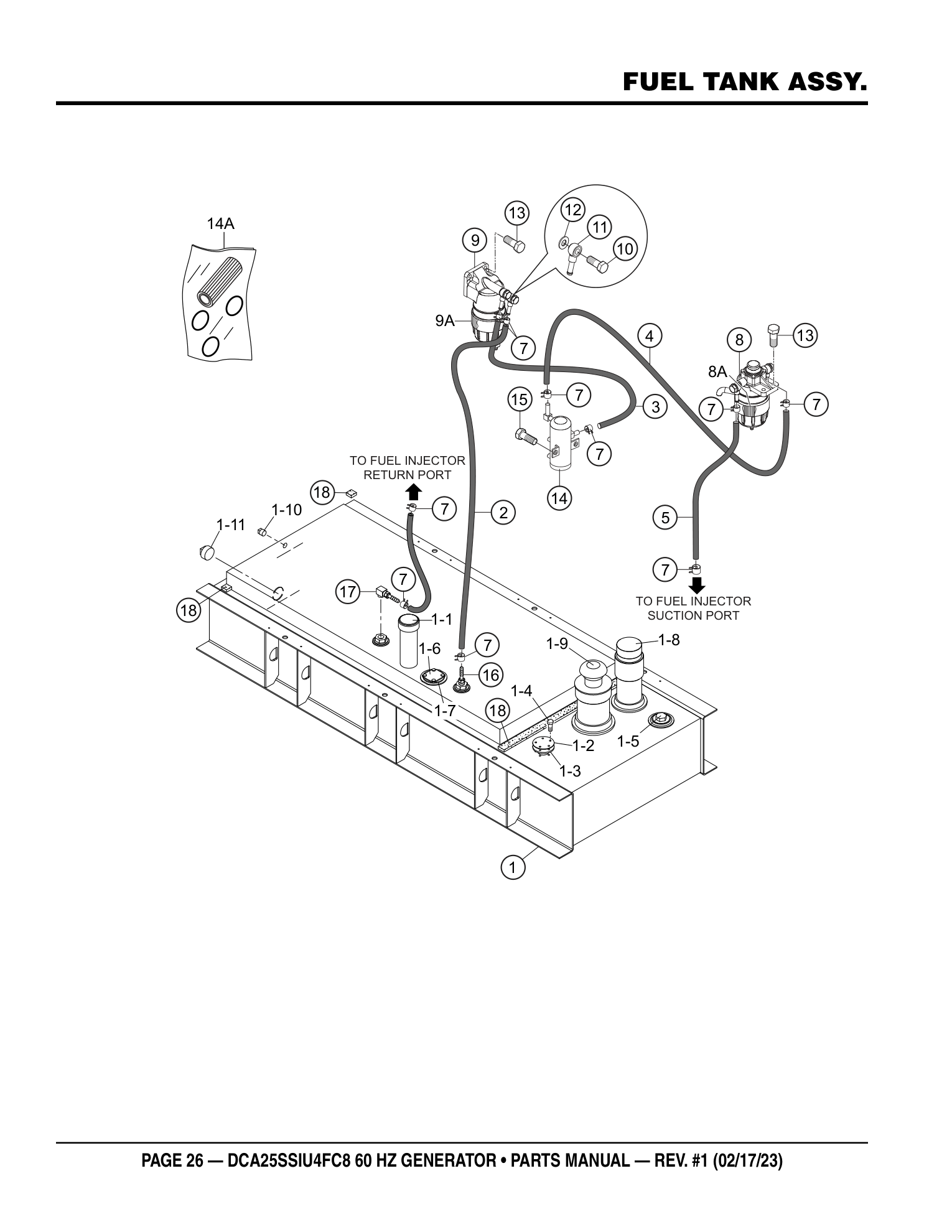

Multiquip DCA25SSIU4FC8 Generator FUEL TANK ASSY. parts diagram

Parts list — exactly as printed32 rows

No.	Part No.	Part Name	Qty	Remarks
1	Y0605500060	FUEL TANK	1	INCLUDES ITEMS W/#	PARTS REQUEST
PHOTO COMING FUEL TANK Y0605500060 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 1-1#, 1-2#, 1-3#, 1-4#, 1-5#, 1-6#, 1-7#, 1-8#, 1-9#, 1-10#, 1-11# PARTS REQUEST
1-1#	Y0605505050	CAP, FUEL TANK	1		PARTS REQUEST
PHOTO COMING CAP, FUEL TANK Y0605505050 · qty on machine: 1 Also included in kit 1 - FUEL TANK (Y0605500060) PARTS REQUEST
1-2#	Y0605501045	FUEL SENDER UNIT	1		PARTS REQUEST
PHOTO COMING FUEL SENDER UNIT Y0605501045 · qty on machine: 1 Also included in kit 1 - FUEL TANK (Y0605500060) PARTS REQUEST
1-3#	Y0605516092	GASKET	1		ADD TO CART
GASKET Y0605516092 · qty on machine: 1 Also included in kit 1 - FUEL TANK (Y0605500060) view full part page → $52.95 IN A KIT + SOLD SOLO
1-4#	Y0605553040	HEX. HEAD BOLT	5		ADD TO CART
HEX. HEAD BOLT Y0605553040 · qty on machine: 5 Also included in kit 1 - FUEL TANK (Y0605500060) view full part page → $1.95 IN A KIT + SOLD SOLO
1-5#	Y0605503220	FUEL LEAK DETECTED SW.	1		ADD TO CART
FUEL LEAK DETECTED SW. Y0605503220 · qty on machine: 1 Also included in kit 1 - FUEL TANK (Y0605500060) view full part page → $1000.95 IN A KIT + SOLD SOLO
1-6#	Y0605503230	VISUAL LEVEL GAUGE	1		PARTS REQUEST
PHOTO COMING VISUAL LEVEL GAUGE Y0605503230 · qty on machine: 1 Also included in kit 1 - FUEL TANK (Y0605500060) PARTS REQUEST
1-7#	Y0605516092	GASKET	1		ADD TO CART
GASKET Y0605516092 · qty on machine: 1 Also included in kit 1 - FUEL TANK (Y0605500060) view full part page → $52.95 IN A KIT + SOLD SOLO
1-8#	Y0605519000	E-VENT	1		PARTS REQUEST
PHOTO COMING E-VENT Y0605519000 · qty on machine: 1 Also included in kit 1 - FUEL TANK (Y0605500060) PARTS REQUEST
1-9#	Y0605519010	NORMAL VENT	1		PARTS REQUEST
PHOTO COMING NORMAL VENT Y0605519010 · qty on machine: 1 Also included in kit 1 - FUEL TANK (Y0605500060) PARTS REQUEST
1-10#	Y0605512610	DRAIN PLUG	1		PARTS REQUEST
PHOTO COMING DRAIN PLUG Y0605512610 · qty on machine: 1 Also included in kit 1 - FUEL TANK (Y0605500060) PARTS REQUEST
1-11#	Y0605512611	DRAIN PLUG	1		PARTS REQUEST
PHOTO COMING DRAIN PLUG Y0605512611 · qty on machine: 1 Also included in kit 1 - FUEL TANK (Y0605500060) PARTS REQUEST
2	Y0191300940	SUCTION HOSE	1		PARTS REQUEST
PHOTO COMING SUCTION HOSE Y0191300940 · qty on machine: 1 PARTS REQUEST
3	Y0191300850	SUCTION HOSE	1		ADD TO CART
SUCTION HOSE Y0191300850 · qty on machine: 1 view full part page → $14.95
4	Y0191301150	SUCTION HOSE	1		ADD TO CART
SUCTION HOSE Y0191301150 · qty on machine: 1 view full part page → $17.95
5	Y0191300900	SUCTION HOSE	1		ADD TO CART
SUCTION HOSE Y0191300900 · qty on machine: 1 view full part page → $9.95
6	Y0191300870	RETURN HOSE	1		PARTS REQUEST
PHOTO COMING RETURN HOSE Y0191300870 · qty on machine: 1 PARTS REQUEST
7	Y0605515361	HOSE BAND	10		ADD TO CART
HOSE BAND Y0605515361 · qty on machine: 10 view full part page → $2.61
8	8982369900	FUEL FILTER (MAIN)	1	REPLACES P/N 0602042428	ADD TO CART
FUEL FILTER (MAIN) 8982369900 · qty on machine: 1 REPLACES P/N 0602042428 view full part page → $317.95
8A	8982402790	ELEMENT, FUEL FILTER (MAIN)	1		ADD TO CART
ELEMENT, FUEL FILTER (MAIN) 8982402790 · qty on machine: 1 view full part page → $75.95
9	8982369910	FUEL FILTER (PRE)	1	REPLACES P/N 0602042429	ADD TO CART
FUEL FILTER (PRE) 8982369910 · qty on machine: 1 REPLACES P/N 0602042429 view full part page → $286.95
9A	8982402800	ELEMENT, FUEL FILTER (PRE)	1		ADD TO CART
ELEMENT, FUEL FILTER (PRE) 8982402800 · qty on machine: 1 view full part page → $70.95
10	8981263320	PIPE JOINT	4	REPLACES P/N Y0602042623	ADD TO CART
PIPE JOINT 8981263320 · qty on machine: 4 REPLACES P/N Y0602042623 view full part page → $46.95
11	1096751930	EYE BOLT	4		ADD TO CART
EYE BOLT 1096751930 · qty on machine: 4 view full part page → $27.95
12	1096300850	GASKET	8	REPLACES P/N Y0602021700	ADD TO CART
GASKET 1096300850 · qty on machine: 8 REPLACES P/N Y0602021700 view full part page → $0.95
13	012210035	HEX. HEAD BOLT	4	REPLACES P/N 0017110035	ADD TO CART
HEX. HEAD BOLT 012210035 · qty on machine: 4 REPLACES P/N 0017110035 view full part page → $1.95
14	8980682751	FUEL FEED, PUMP	1	REPLACES P/N 0602023240	ADD TO CART
FUEL FEED, PUMP 8980682751 · qty on machine: 1 REPLACES P/N 0602023240 view full part page → $624.95
14A	8981731650	KIT, FUEL PUMP	1		ADD TO CART
KIT, FUEL PUMP 8981731650 · qty on machine: 1 view full part page → $38.95
15	011606025	HEX. HEAD BOLT	1	REPLACES P/N 0016906025	ADD TO CART
HEX. HEAD BOLT 011606025 · qty on machine: 1 REPLACES P/N 0016906025 view full part page → $1.95
16	Y0602022988	HOSE JOINT	1		PARTS REQUEST
PHOTO COMING HOSE JOINT Y0602022988 · qty on machine: 1 PARTS REQUEST
17	0602022791	HOSE JOINT	1		ADD TO CART
HOSE JOINT 0602022791 · qty on machine: 1 view full part page → $35.95
18	M1494600104	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M1494600104 · qty on machine: 1 PARTS REQUEST

Page 28 — ENCLOSURE ASSY.

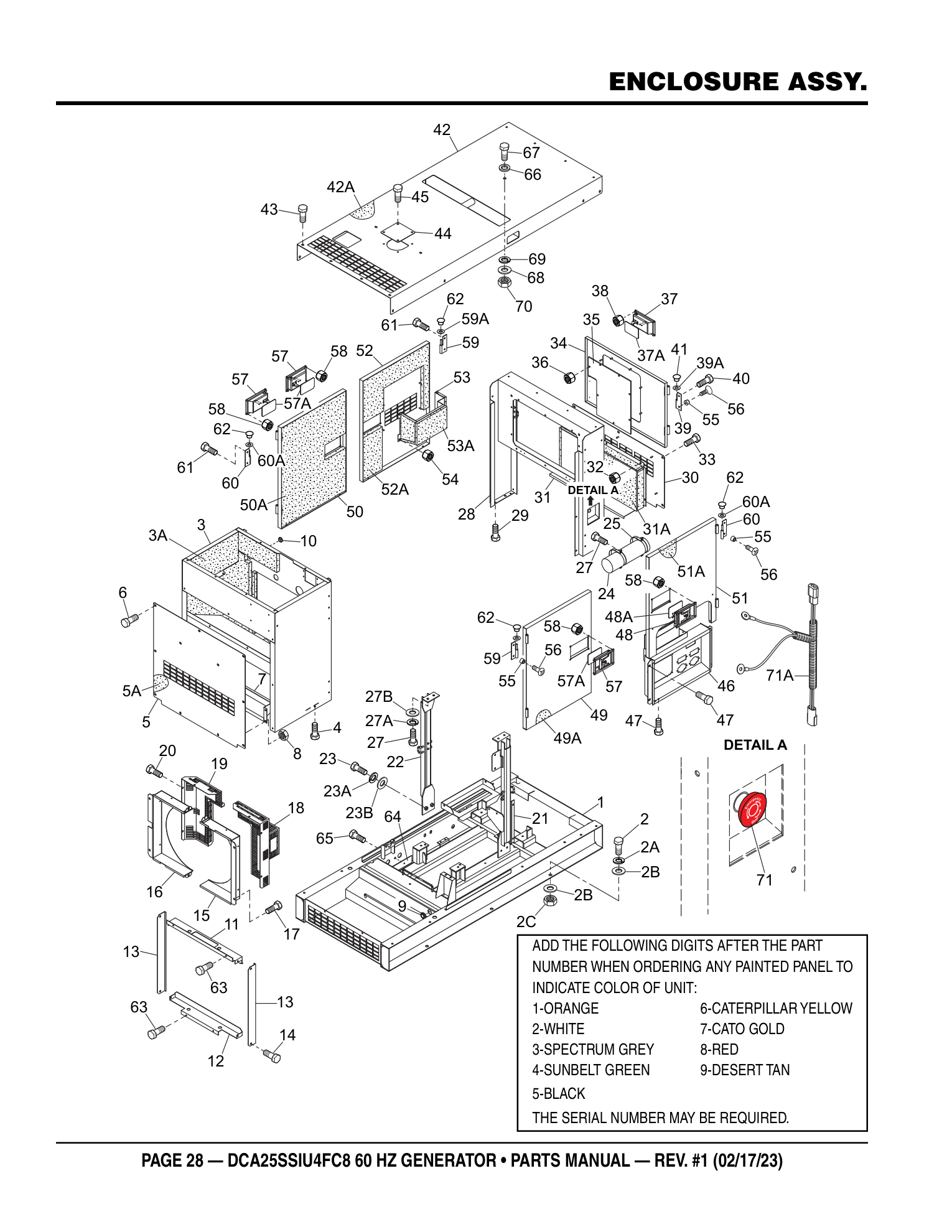

Multiquip DCA25SSIU4FC8 Generator ENCLOSURE ASSY. parts diagram

Parts list — exactly as printed49 rows

No.	Part No.	Part Name	Qty	Remarks
1	M1414001402	BASE	1		PARTS REQUEST
PHOTO COMING BASE M1414001402 · qty on machine: 1 PARTS REQUEST
2	0013616040	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0013616040 · qty on machine: 6 view full part page → $5.95
2A	0040016000	WASHER, LOCK	6		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 6 view full part page → $4.95
2B	0041216000	WASHER, FLAT	6		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 6 view full part page → $1.95
2C	0030016000	HEX. NUT	12		ADD TO CART
HEX. NUT 0030016000 · qty on machine: 12 view full part page → $1.9
3	M1424001402	FRONT FRAME	1		PARTS REQUEST
PHOTO COMING FRONT FRAME M1424001402 · qty on machine: 1 PARTS REQUEST
3A	M1494101703	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494101703 · qty on machine: 1 view full part page → $242.95
4	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
5	M1424201503	COVER, FRONT FRAME	1		ADD TO CART
COVER, FRONT FRAME M1424201503 · qty on machine: 1 view full part page → $189.95
5A	M1494107204	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M1494107204 · qty on machine: 1 PARTS REQUEST
6	0019208020	HEX. HEAD BOLT	11		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 11 view full part page → $3.95
7	M1424201604	DUCT	1		PARTS REQUEST
PHOTO COMING DUCT M1424201604 · qty on machine: 1 PARTS REQUEST
8	Y0207006000	HEX. NUT	5		ADD TO CART
HEX. NUT Y0207006000 · qty on machine: 5 view full part page → $0.23
9	0601851727	GROMMET	1		PARTS REQUEST
PHOTO COMING GROMMET 0601851727 · qty on machine: 1 PARTS REQUEST
10	0601850239	GROMMET	1		ADD TO CART
GROMMET 0601850239 · qty on machine: 1 view full part page → $3.95
11	M1311200004	RADIATOR BRACKET	1		ADD TO CART
RADIATOR BRACKET M1311200004 · qty on machine: 1 view full part page → $53.95
12	M1311200104	RADIATOR BRACKET	1		ADD TO CART
RADIATOR BRACKET M1311200104 · qty on machine: 1 view full part page → $45.95
13	M1311200204	RADIATOR BRACKET	2		ADD TO CART
RADIATOR BRACKET M1311200204 · qty on machine: 2 view full part page → $15.95
14	011008020	HEX. HEAD BOLT	6	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 6 REPLACES P/N 0016908020 view full part page → $2.68
15	M1311600203	FAN SHROUD	1		ADD TO CART
FAN SHROUD M1311600203 · qty on machine: 1 view full part page → $109.95
16	M1311600303	FAN SHROUD	1		ADD TO CART
FAN SHROUD M1311600303 · qty on machine: 1 view full part page → $109.95
17	011008020	HEX. HEAD BOLT	6	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 6 REPLACES P/N 0016908020 view full part page → $2.68
18	M1311300103	FAN GUARD	1		ADD TO CART
FAN GUARD M1311300103 · qty on machine: 1 view full part page → $131.95
19	M1311300203	FAN GUARD	1		ADD TO CART
FAN GUARD M1311300203 · qty on machine: 1 view full part page → $233.95
20	011008020	HEX. HEAD BOLT	6	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 6 REPLACES P/N 0016908020 view full part page → $2.68
21	M1434000603	CENTER FRAME	1		PARTS REQUEST
PHOTO COMING CENTER FRAME M1434000603 · qty on machine: 1 PARTS REQUEST
22	M1434000103	CENTER FRAME	1		PARTS REQUEST
PHOTO COMING CENTER FRAME M1434000103 · qty on machine: 1 PARTS REQUEST
23	0012312030	HEX. HEAD BOLT	4	REPLACES P/N 0013612030	ADD TO CART
HEX. HEAD BOLT 0012312030 · qty on machine: 4 REPLACES P/N 0013612030 view full part page → $6.95
23A	0040012000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0040012000 · qty on machine: 4 view full part page → $0.95
23B	031112230	WASHER, FLAT	4	REPLACES P/N 0041212000	ADD TO CART
WASHER, FLAT 031112230 · qty on machine: 4 REPLACES P/N 0041212000 view full part page → $0.95
24	0600800321	MANUAL PACK	1		ADD TO CART
MANUAL PACK 0600800321 · qty on machine: 1 view full part page → $33.95
25	M1483600804	CLAMP, MAUAL PACK	2		ADD TO CART
CLAMP, MAUAL PACK M1483600804 · qty on machine: 2 view full part page → $15.95
26	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95
27	0012312030	HEX. HEAD BOLT	4	REPLACES P/N 0013612030	ADD TO CART
HEX. HEAD BOLT 0012312030 · qty on machine: 4 REPLACES P/N 0013612030 view full part page → $6.95
27A	0040012000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0040012000 · qty on machine: 4 view full part page → $0.95
27B	031112230	WASHER, FLAT	4	REPLACES P/N 0041212000	ADD TO CART
WASHER, FLAT 031112230 · qty on machine: 4 REPLACES P/N 0041212000 view full part page → $0.95
28	M1444000602	REAR FRAME	1		PARTS REQUEST
PHOTO COMING REAR FRAME M1444000602 · qty on machine: 1 PARTS REQUEST
29	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
30	M1444300103	REAR COVER	1		ADD TO CART
REAR COVER M1444300103 · qty on machine: 1 view full part page → $90.95
31	M1444800303	DUCT, REAR COVER	1		ADD TO CART
DUCT, REAR COVER M1444800303 · qty on machine: 1 view full part page → $202.95
31A	M1494301103	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494301103 · qty on machine: 1 view full part page → $282.95
32	0176060030	SELF-LOCKING NUT	5	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 5 REPLACES P/N 0207006000 view full part page → $2.95
33	0019208020	HEX. HEAD BOLT	7		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 7 view full part page → $3.95
34	M1444200103	REAR DOOR	1		ADD TO CART
REAR DOOR M1444200103 · qty on machine: 1 view full part page → $181.95
35	M1444600104	WINDOW PLATE	1		ADD TO CART
WINDOW PLATE M1444600104 · qty on machine: 1 view full part page → $64.95
36	020106050	LOCK NUT	7	REPLACES P/N 0037906000	ADD TO CART
LOCK NUT 020106050 · qty on machine: 7 REPLACES P/N 0037906000 view full part page → $0.12
36A	952404470	WASHER, FLAT	7	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 7 REPLACES P/N 0041206000 view full part page → $0.19
37	Y0605012318	DOOR HANDLE ASSY.	1		ADD TO CART
DOOR HANDLE ASSY. Y0605012318 · qty on machine: 1 view full part page → $75.95
37A	C9312500004	SEAL RUBBER	1		ADD TO CART
SEAL RUBBER C9312500004 · qty on machine: 1 view full part page → $10.95

Page 30 — ENCLOSURE ASSY. (CONT'D.)

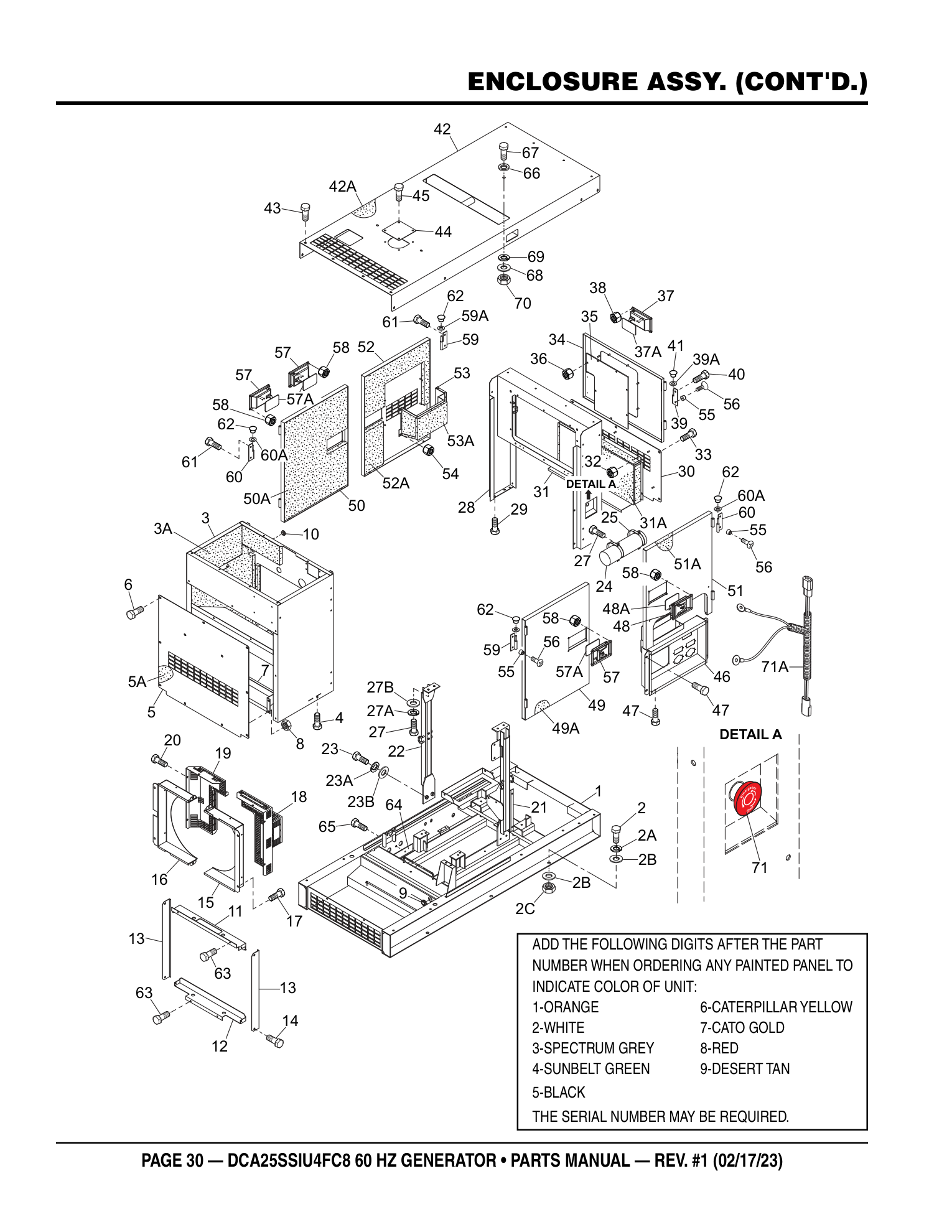

Multiquip DCA25SSIU4FC8 Generator ENCLOSURE ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed47 rows

No.	Part No.	Part Name	Qty	Remarks
38	0176060030	SELF-LOCKING NUT	4	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 4 REPLACES P/N 0207006000 view full part page → $2.95
39	M9110100204	HINGE, MALE (L)	2		ADD TO CART
HINGE, MALE (L) M9110100204 · qty on machine: 2 view full part page → $23.95
39A	M9116100004	WASHER	2		ADD TO CART
WASHER M9116100004 · qty on machine: 2 view full part page → $1.93
40	0019208020	HEX. HEAD BOLT	3		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 3 view full part page → $3.95
41	0845031504	BLIND PLUG	2	REPLACES P/N M9310000004	ADD TO CART
BLIND PLUG 0845031504 · qty on machine: 2 REPLACES P/N M9310000004 view full part page → $2.95
42	M1464000102	ROOF PANEL	1		PARTS REQUEST
PHOTO COMING ROOF PANEL M1464000102 · qty on machine: 1 PARTS REQUEST
42A	M1494500703	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494500703 · qty on machine: 1 view full part page → $328.95
43	0019208020	HEX. HEAD BOLT	18		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 18 view full part page → $3.95
44	M3310600004	COVER	1		ADD TO CART
COVER M3310600004 · qty on machine: 1 view full part page → $17.95
45	0019208020	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 4 view full part page → $3.95
46	M1454201402	SPLASHER PANEL	1		PARTS REQUEST
PHOTO COMING SPLASHER PANEL M1454201402 · qty on machine: 1 PARTS REQUEST
47	011008020	HEX. HEAD BOLT	6	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 6 REPLACES P/N 0016908020 view full part page → $2.68
48	Y0605012318	DOOR HANDLE ASSY.	1		ADD TO CART
DOOR HANDLE ASSY. Y0605012318 · qty on machine: 1 view full part page → $75.95
48A	C9312500004	SEAL, RUBBER	1		ADD TO CART
SEAL, RUBBER C9312500004 · qty on machine: 1 view full part page → $10.95
49	M1454002703	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M1454002703 · qty on machine: 1 PARTS REQUEST
49A	M1494400604	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494400604 · qty on machine: 1 view full part page → $15.95
50	M1454000703	SIDE DOOR	1		ADD TO CART
SIDE DOOR M1454000703 · qty on machine: 1 view full part page → $185.95
50A	M1494400704	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494400704 · qty on machine: 1 view full part page → $15.95
51	M1454002603	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M1454002603 · qty on machine: 1 PARTS REQUEST
51A	M1494409404	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M1494409404 · qty on machine: 1 PARTS REQUEST
52	M1454000903	SIDE DOOR	1		ADD TO CART
SIDE DOOR M1454000903 · qty on machine: 1 view full part page → $223.95
52A	M1494400904	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494400904 · qty on machine: 1 view full part page → $138.95
53	M1454300204	DUCT	1		ADD TO CART
DUCT M1454300204 · qty on machine: 1 view full part page → $115.95
53A	M1494401204	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494401204 · qty on machine: 1 view full part page → $64.95
54	0176060030	SELF-LOCKING NUT	5	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 5 REPLACES P/N 0207006000 view full part page → $2.95
55	Y0601850097	STOPPER, DOOR	9		ADD TO CART
STOPPER, DOOR Y0601850097 · qty on machine: 9 view full part page → $1.55
56	0027208025	MACHINE SCREW	9		ADD TO CART
MACHINE SCREW 0027208025 · qty on machine: 9 view full part page → $0.76
57	Y0605012318	DOOR HANDLE ASSY.	3		ADD TO CART
DOOR HANDLE ASSY. Y0605012318 · qty on machine: 3 view full part page → $75.95
57A	C9312500004	SEAL, RUBBER	3		ADD TO CART
SEAL, RUBBER C9312500004 · qty on machine: 3 view full part page → $10.95
58	0176060030	SELF-LOCKING NUT	12	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 12 REPLACES P/N 0207006000 view full part page → $2.95
59	M9110100204	HINGE, MALE (L)	4		ADD TO CART
HINGE, MALE (L) M9110100204 · qty on machine: 4 view full part page → $23.95
59A	M9116100004	WASHER	4		ADD TO CART
WASHER M9116100004 · qty on machine: 4 view full part page → $1.93
60	M9110100304	HINGE, MALE (R)	4		ADD TO CART
HINGE, MALE (R) M9110100304 · qty on machine: 4 view full part page → $19.95
60A	M9116100004	WASHER	4		ADD TO CART
WASHER M9116100004 · qty on machine: 4 view full part page → $1.93
61	0019208020	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 8 view full part page → $3.95
62	0845031504	BLIND PLUG	8	REPLACES P/N M9310000004	ADD TO CART
BLIND PLUG 0845031504 · qty on machine: 8 REPLACES P/N M9310000004 view full part page → $2.95
63	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
64	M2414800304	COVER, BASE	1		ADD TO CART
COVER, BASE M2414800304 · qty on machine: 1 view full part page → $74.95
65	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
66	0605050040	SEALING WASHER	1		PARTS REQUEST
PHOTO COMING SEALING WASHER 0605050040 · qty on machine: 1 PARTS REQUEST
67	0019112030	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0019112030 · qty on machine: 1 view full part page → $5.95
67	0019112030	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0019112030 · qty on machine: 1 view full part page → $5.95
68	0042412000	WASHER, FLAT	1		ADD TO CART
WASHER, FLAT 0042412000 · qty on machine: 1 view full part page → $1.63
69	0042312000	WASHER, LOCK	1		ADD TO CART
WASHER, LOCK 0042312000 · qty on machine: 1 view full part page → $0.94
70	0030012000	HEX. HEAD NUT	1		ADD TO CART
HEX. HEAD NUT 0030012000 · qty on machine: 1 view full part page → $0.5
71	Y0601831953	EMERGENCY STOP BUTTON	1		ADD TO CART
EMERGENCY STOP BUTTON Y0601831953 · qty on machine: 1 view full part page → $152.95
71A	M1358203004	WIRE HARNESS, EMERGENCY STOP	1		ADD TO CART
WIRE HARNESS, EMERGENCY STOP M1358203004 · qty on machine: 1 view full part page → $167.95

Page 32 — RUBBER SEALS ASSY.

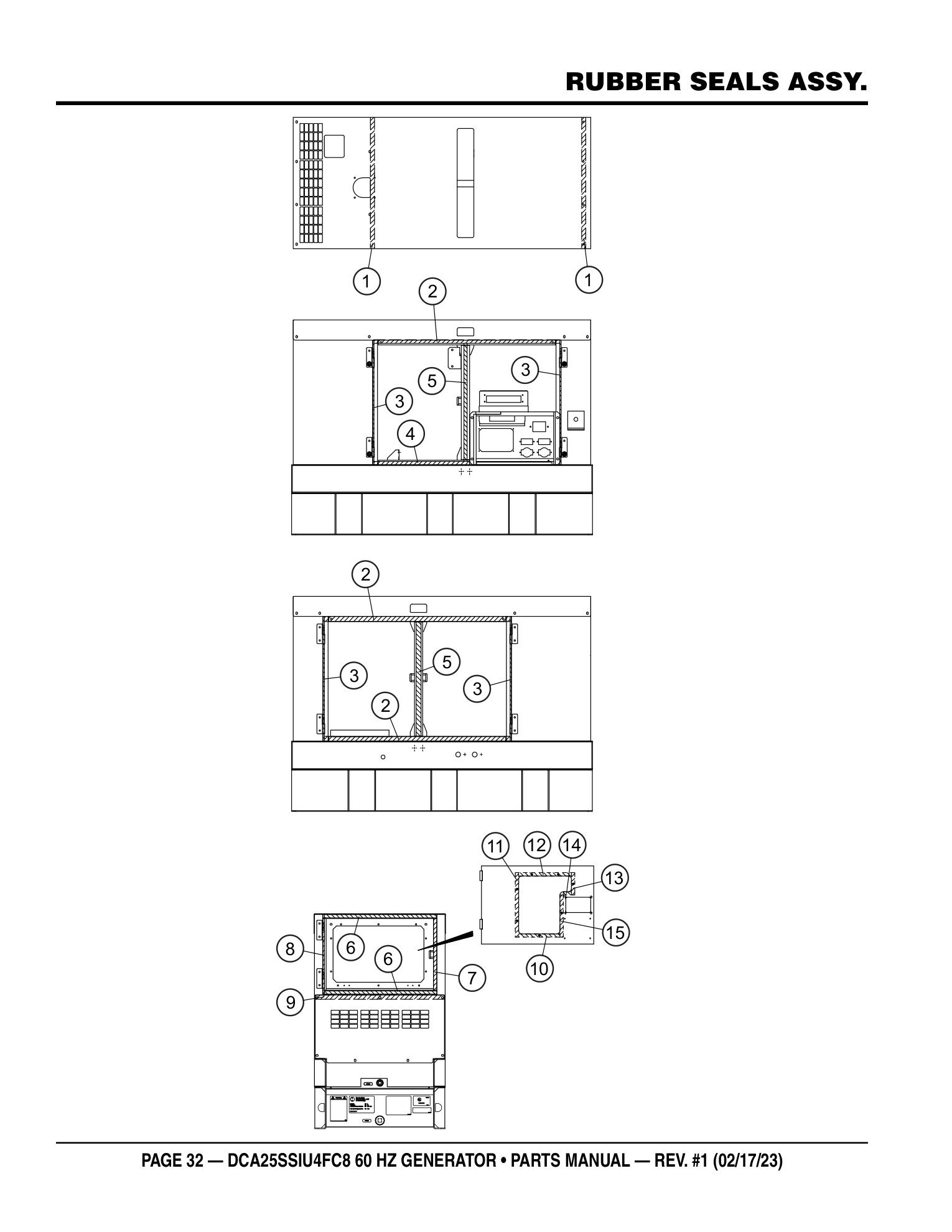

Multiquip DCA25SSIU4FC8 Generator RUBBER SEALS ASSY. parts diagram

Parts list — exactly as printed15 rows

No.	Part No.	Part Name	Qty
1	Y0229200790	RUBBER SEAL	2	ADD TO CART
RUBBER SEAL Y0229200790 · qty on machine: 2 view full part page → $5.95
2	Y0417001125	RUBBER SEAL	3	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0417001125 · qty on machine: 3 PARTS REQUEST
3	Y0417000755	RUBBER SEAL	4	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0417000755 · qty on machine: 4 PARTS REQUEST
4	Y0417000580	RUBBER SEAL	1	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0417000580 · qty on machine: 1 PARTS REQUEST
5	Y0417000715	RUBBER SEAL	2	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0417000715 · qty on machine: 2 PARTS REQUEST
6	Y0417000680	RUBBER SEAL	2	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0417000680 · qty on machine: 2 PARTS REQUEST
7	Y0417000440	RUBBER SEAL	1	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0417000440 · qty on machine: 1 PARTS REQUEST
8	Y0417000480	RUBBER SEAL	1	PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0417000480 · qty on machine: 1 PARTS REQUEST
9	Y0229200780	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL Y0229200780 · qty on machine: 1 view full part page → $5.95
10	Y0228100250	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL Y0228100250 · qty on machine: 1 view full part page → $0.41
11	0228100390	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL 0228100390 · qty on machine: 1 view full part page → $2.95
12	0228100320	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL 0228100320 · qty on machine: 1 view full part page → $11.95
13	Y0228100135	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL Y0228100135 · qty on machine: 1 view full part page → $1.95
14	Y0228100050	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL Y0228100050 · qty on machine: 1 view full part page → $1.95
15	Y0228100255	RUBBER SEAL	1	ADD TO CART
RUBBER SEAL Y0228100255 · qty on machine: 1 view full part page → $0.41

Page 34 — BATTERY CHARGER ASSY. (OPTION)

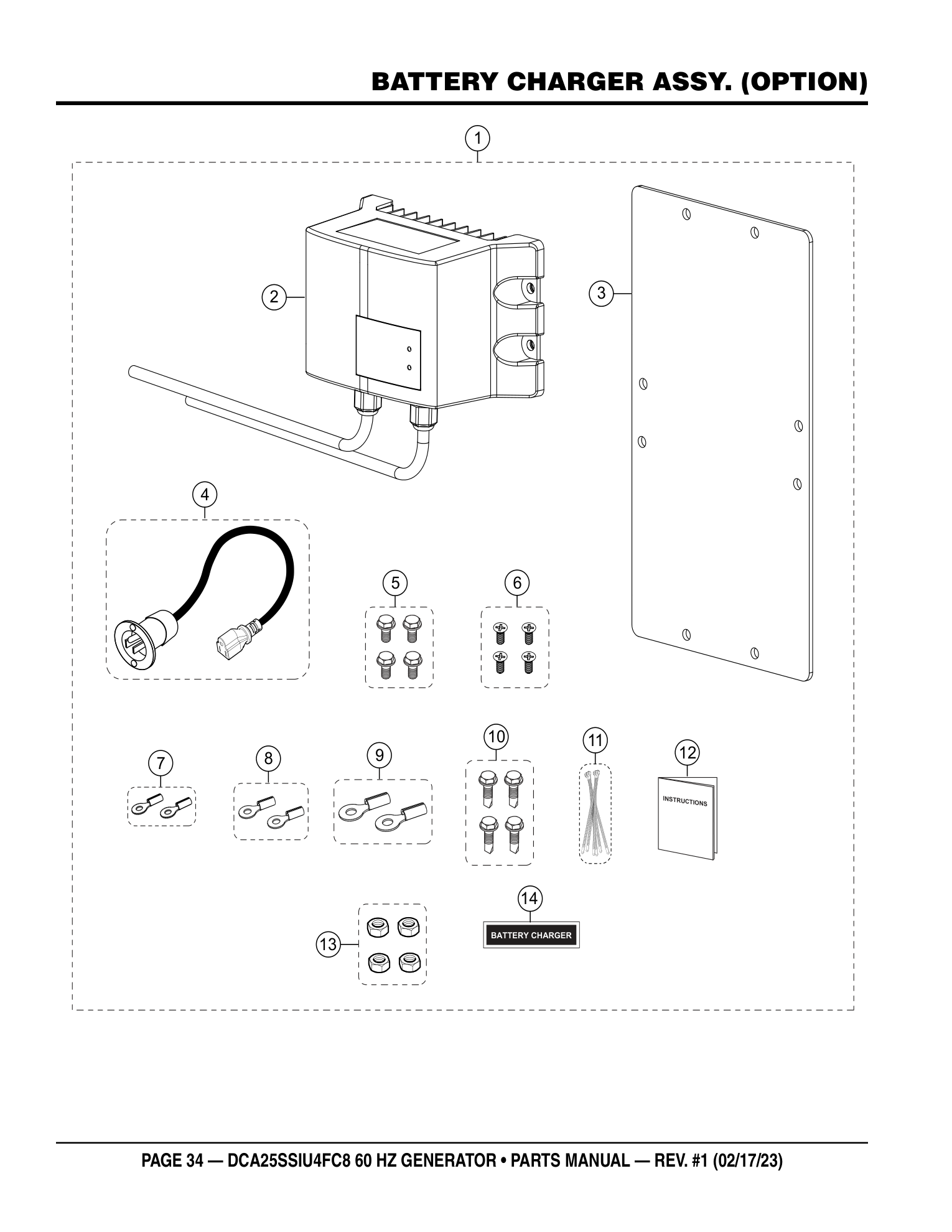

Multiquip DCA25SSIU4FC8 Generator BATTERY CHARGER ASSY. (OPTION) parts diagram

Parts list — exactly as printed14 rows

No.	Part No.	Part Name	Qty	Remarks
1	MQPBCKIT-J	BATTERY CHARGER ASSY	1	INCLUDES ITEMS W/#	ADD TO CART
BATTERY CHARGER ASSY MQPBCKIT-J · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 2#, 3#, 4#, 5#, 6#, 7#, 8#, 9#, 10#, 11#, 12#, 13#, 14# view full part page → $786.48 IN A KIT + SOLD SOLO
2#	EE62075	BATTERY CHARGER, 6A, 12V	1		ADD TO CART
BATTERY CHARGER, 6A, 12V EE62075 · qty on machine: 1 Also included in kit 1 - BATTERY CHARGER ASSY (MQPBCKIT-J) view full part page → $361.95 IN A KIT + SOLD SOLO
3#	EE62021	ADAPTER, BATTERY CHARGER, LE	1		ADD TO CART
ADAPTER, BATTERY CHARGER, LE EE62021 · qty on machine: 1 Also included in kit 1 - BATTERY CHARGER ASSY (MQPBCKIT-J) view full part page → $30.95 IN A KIT + SOLD SOLO
4#	EE62076	INLET REC. AND CORD, NEMA 5-15P	1		ADD TO CART
INLET REC. AND CORD, NEMA 5-15P EE62076 · qty on machine: 1 Also included in kit 1 - BATTERY CHARGER ASSY (MQPBCKIT-J) view full part page → $66.95 IN A KIT + SOLD SOLO
5#		HEX. HD. SCREW W/ WASHER, M4X12MM	1	OBTAIN LOCALLY	INCLUDED IN KIT
PHOTO COMING HEX. HD. SCREW W/ WASHER, M4X12MM · qty on machine: 1 OBTAIN LOCALLY Included in kit 1 - BATTERY CHARGER ASSY (MQPBCKIT-J) INCLUDED IN KIT
6#		FLAT HEAD SCREW, 10-32X1/2"	4	OBTAIN LOCALLY	INCLUDED IN KIT
PHOTO COMING FLAT HEAD SCREW, 10-32X1/2" · qty on machine: 4 OBTAIN LOCALLY Included in kit 1 - BATTERY CHARGER ASSY (MQPBCKIT-J) INCLUDED IN KIT
7#		RING TERMINAL, 5/16", 14-16AWG	2	OBTAIN LOCALLY	INCLUDED IN KIT
PHOTO COMING RING TERMINAL, 5/16", 14-16AWG · qty on machine: 2 OBTAIN LOCALLY Included in kit 1 - BATTERY CHARGER ASSY (MQPBCKIT-J) INCLUDED IN KIT
8#		RING TERMINAL, 3/8", 14-16AWG	2	OBTAIN LOCALLY	INCLUDED IN KIT
PHOTO COMING RING TERMINAL, 3/8", 14-16AWG · qty on machine: 2 OBTAIN LOCALLY Included in kit 1 - BATTERY CHARGER ASSY (MQPBCKIT-J) INCLUDED IN KIT
9#		RING TERMINAL, 1/2", 14-16AWG	2	OBTAIN LOCALLY	INCLUDED IN KIT
PHOTO COMING RING TERMINAL, 1/2", 14-16AWG · qty on machine: 2 OBTAIN LOCALLY Included in kit 1 - BATTERY CHARGER ASSY (MQPBCKIT-J) INCLUDED IN KIT
10#		SELF TAPPING HEX. SCREW, #8	4	OBTAIN LOCALLY	INCLUDED IN KIT
PHOTO COMING SELF TAPPING HEX. SCREW, #8 · qty on machine: 4 OBTAIN LOCALLY Included in kit 1 - BATTERY CHARGER ASSY (MQPBCKIT-J) INCLUDED IN KIT
11#		ZIP TIES, #6	20	OBTAIN LOCALLY	INCLUDED IN KIT
PHOTO COMING ZIP TIES, #6 · qty on machine: 20 OBTAIN LOCALLY Included in kit 1 - BATTERY CHARGER ASSY (MQPBCKIT-J) INCLUDED IN KIT
12#	EE60983	3A BATTERY CHARGER KIT, INST.	1		PARTS REQUEST
PHOTO COMING 3A BATTERY CHARGER KIT, INST. EE60983 · qty on machine: 1 Also included in kit 1 - BATTERY CHARGER ASSY (MQPBCKIT-J) PARTS REQUEST
13#		HEX. NUT, 10-32	4	OBTAIN LOCALLY	INCLUDED IN KIT
PHOTO COMING HEX. NUT, 10-32 · qty on machine: 4 OBTAIN LOCALLY Included in kit 1 - BATTERY CHARGER ASSY (MQPBCKIT-J) INCLUDED IN KIT
14#	M1940011014Q	DECAL, BATTERY CHARGER	1		ADD TO CART
DECAL, BATTERY CHARGER M1940011014Q · qty on machine: 1 Also included in kit 1 - BATTERY CHARGER ASSY (MQPBCKIT-J) view full part page → $1.36 IN A KIT + SOLD SOLO

Page 36 — ENGINE BLOCK HEATER ASSY. (OPTION)

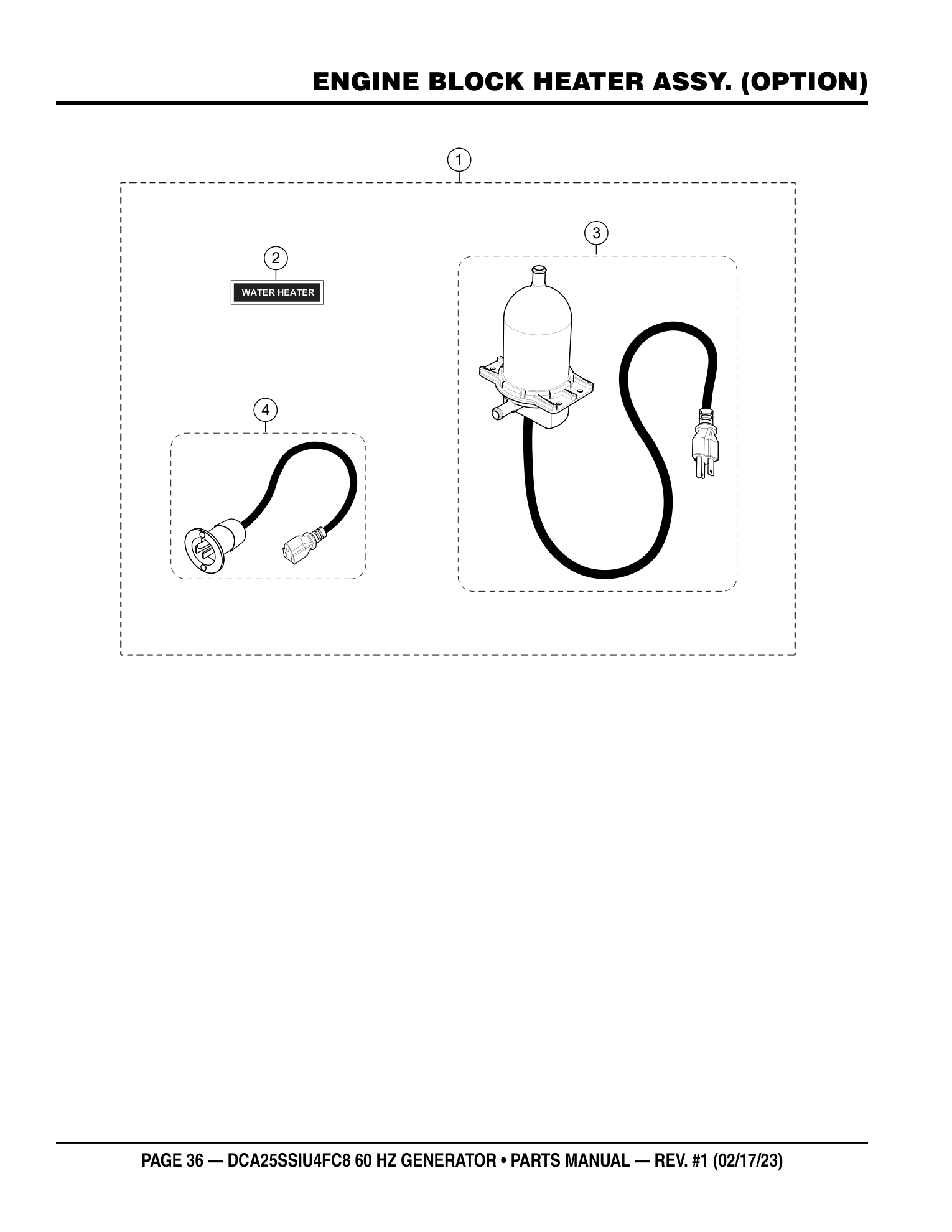

Multiquip DCA25SSIU4FC8 Generator ENGINE BLOCK HEATER ASSY. (OPTION) parts diagram

Parts list — exactly as printed4 rows

No.	Part No.	Part Name	Qty	Remarks
1	MQPHEATTKIT-A	BLOCK HEATER, 500W	1	INCLUDES ITEMS W/#	ADD TO CART
BLOCK HEATER, 500W MQPHEATTKIT-A · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 2#, 3#, 4# view full part page → $822.64 IN A KIT + SOLD SOLO
2#	M1940011005Q	DECAL, WATER HEATER	1		ADD TO CART
DECAL, WATER HEATER M1940011005Q · qty on machine: 1 Also included in kit 1 - BLOCK HEATER, 500W (MQPHEATTKIT-A) view full part page → $1.36 IN A KIT + SOLD SOLO
3#	TPS051GT10000	HEATER, TANK 500W	1		ADD TO CART
HEATER, TANK 500W TPS051GT10000 · qty on machine: 1 Also included in kit 1 - BLOCK HEATER, 500W (MQPHEATTKIT-A) view full part page → $209.95 IN A KIT + SOLD SOLO
4#	EE62076	INLET REC. AND CORD, NEMA 5-15P, 15A	1		ADD TO CART
INLET REC. AND CORD, NEMA 5-15P, 15A EE62076 · qty on machine: 1 Also included in kit 1 - BLOCK HEATER, 500W (MQPHEATTKIT-A) view full part page → $66.95 IN A KIT + SOLD SOLO

Page 38 — NAMEPLATE AND DECALS ASSY.

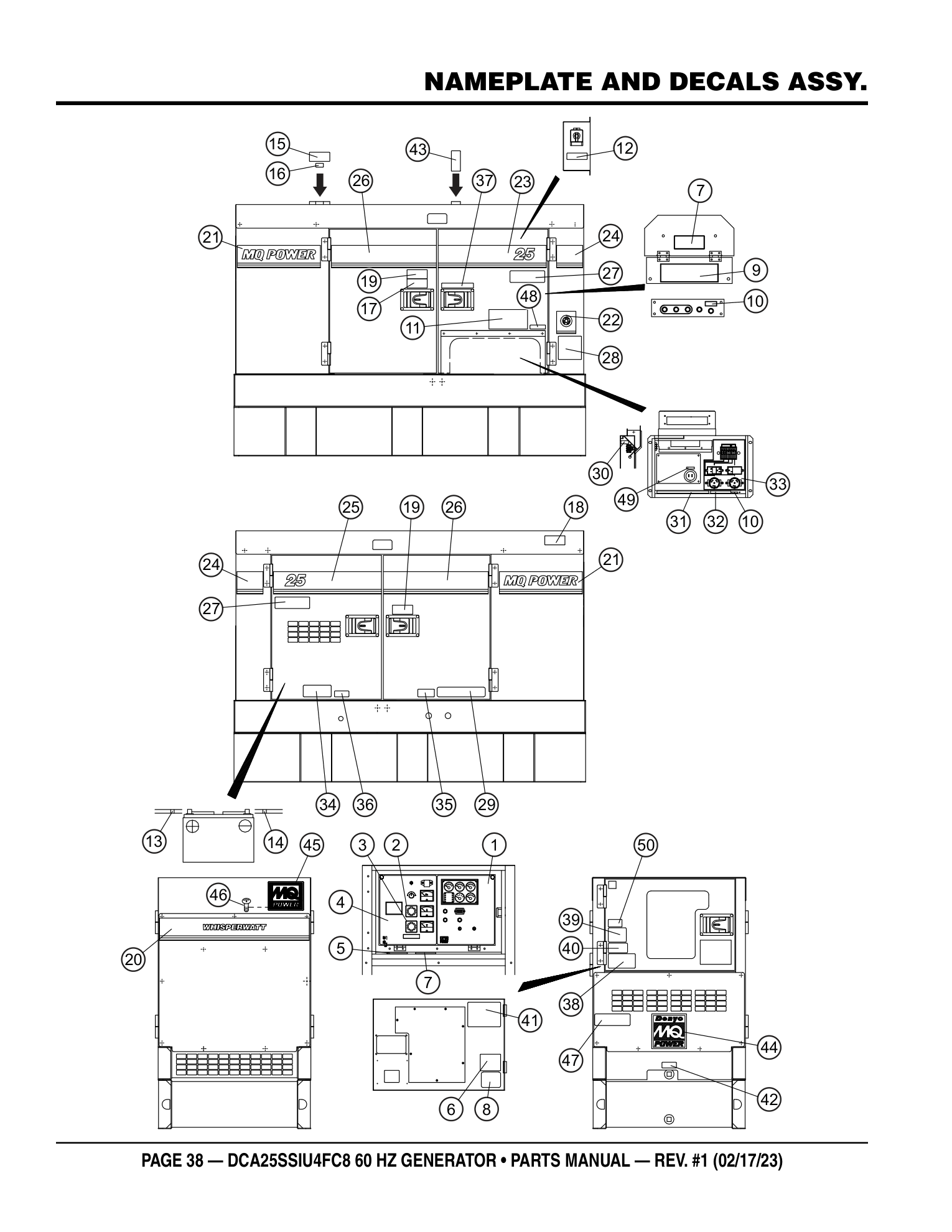

Multiquip DCA25SSIU4FC8 Generator NAMEPLATE AND DECALS ASSY. parts diagram

Parts list — exactly as printed50 rows

No.	Part No.	Part Name	Qty	Remarks
1	M1551000103	DECAL: ENGINE OPERATING	1	M15100010	ADD TO CART
DECAL: ENGINE OPERATING M1551000103 · qty on machine: 1 M15100010 view full part page → $20.95
2	M9520000104	DECAL: AMMETER CHANGE-OVER SW	1	M92000010	ADD TO CART
DECAL: AMMETER CHANGE-OVER SW M9520000104 · qty on machine: 1 M92000010 view full part page → $11.95
3	M9520000204	DECAL: VOLTMETER CHANGE-OVER SW	1	M92000020	ADD TO CART
DECAL: VOLTMETER CHANGE-OVER SW M9520000204 · qty on machine: 1 M92000020 view full part page → $11.95
4	M1551000003	DECAL: GENERATOR CONTROL	1	M15100000	ADD TO CART
DECAL: GENERATOR CONTROL M1551000003 · qty on machine: 1 M15100000 view full part page → $16.95
5	M9520100704	DECAL: WARNING ARC FLASH	1	M92010070	ADD TO CART
DECAL: WARNING ARC FLASH M9520100704 · qty on machine: 1 M92010070 view full part page → $4.95
6	M9520100304	DECAL: GENERAL CAUTIONS	1	M92010030	ADD TO CART
DECAL: GENERAL CAUTIONS M9520100304 · qty on machine: 1 M92010030 view full part page → $3.95
7	M9520100004	DECAL: WARNING ELECTRICAL SHOCK	2	M92010000	ADD TO CART
DECAL: WARNING ELECTRICAL SHOCK M9520100004 · qty on machine: 2 M92010000 view full part page → $5.95
8	M9520200404	DECAL: O.C.R. RESET	1	M92020040A	ADD TO CART
DECAL: O.C.R. RESET M9520200404 · qty on machine: 1 M92020040A view full part page → $3.95
9	M9520200003	DECAL: CONNECTION OF OUTPUT CABLE	1	M92020000	ADD TO CART
DECAL: CONNECTION OF OUTPUT CABLE M9520200003 · qty on machine: 1 M92020000 view full part page → $7.95
10	M9520000004	DECAL: GROUNDING	2	M92000000	ADD TO CART
DECAL: GROUNDING M9520000004 · qty on machine: 2 M92000000 view full part page → $1.95
11	M9520100404	DECAL: DANGER HIGH VOLTAGE	1	M92010040	ADD TO CART
DECAL: DANGER HIGH VOLTAGE M9520100404 · qty on machine: 1 M92010040 view full part page → $37.95
12	M9520100204	DECAL: CAUTION CHANGE-OVER SW	1	M92010020A	ADD TO CART
DECAL: CAUTION CHANGE-OVER SW M9520100204 · qty on machine: 1 M92010020A view full part page → $3.95
13	M9500300104	DECAL: +	1	M90030010	ADD TO CART
DECAL: + M9500300104 · qty on machine: 1 M90030010 view full part page → $1.95
14	M9500300004	DECAL: -	1	M90030000	ADD TO CART
DECAL: - M9500300004 · qty on machine: 1 M90030000 view full part page → $1.95
15	M9503100004	DECAL: WARNING RADIATOR CAP	1	M90310000	ADD TO CART
DECAL: WARNING RADIATOR CAP M9503100004 · qty on machine: 1 M90310000 view full part page → $4.95
16	M9500100004	DECAL: WATER	1	M90010000	ADD TO CART
DECAL: WATER M9500100004 · qty on machine: 1 M90010000 view full part page → $1.95
17	M9510100004	DECAL: CAUTION HIGH TEMP	1	M91010000	ADD TO CART
DECAL: CAUTION HIGH TEMP M9510100004 · qty on machine: 1 M91010000 view full part page → $68.95
18	M9503200004	DECAL: WARNING EXHAUST GAS	1	M90320000	ADD TO CART
DECAL: WARNING EXHAUST GAS M9503200004 · qty on machine: 1 M90320000 view full part page → $14.95
19	M9503000004	DECAL: WARNING ROTATING PART	2	M90300000	ADD TO CART
DECAL: WARNING ROTATING PART M9503000004 · qty on machine: 2 M90300000 view full part page → $1.95
20	M1561100703	STRIPE	1		ADD TO CART
STRIPE M1561100703 · qty on machine: 1 view full part page → $8.95
21	M1560101604	STRIPE	2		ADD TO CART
STRIPE M1560101604 · qty on machine: 2 view full part page → $9.95
22	M9521002804	DECAL: EMERGENCY STOP	1		ADD TO CART
DECAL: EMERGENCY STOP M9521002804 · qty on machine: 1 view full part page → $3.95
23	M1561103004	STRIPE	1		PARTS REQUEST
PHOTO COMING STRIPE M1561103004 · qty on machine: 1 PARTS REQUEST
24	M1561101004	STRIPE	2		ADD TO CART
STRIPE M1561101004 · qty on machine: 2 view full part page → $2.95
25	M1561101803	STRIPE	1		ADD TO CART
STRIPE M1561101803 · qty on machine: 1 view full part page → $5.95
26	M1561101904	STRIPE	2		ADD TO CART
STRIPE M1561101904 · qty on machine: 2 view full part page → $5.95
27	M9520100603	DECAL: WARNING AUTO START	2	M92010060	ADD TO CART
DECAL: WARNING AUTO START M9520100603 · qty on machine: 2 M92010060 view full part page → $8.95
28	M1551000404	DECAL: NOTE LOAD SHARING	1	M15100040	ADD TO CART
DECAL: NOTE LOAD SHARING M1551000404 · qty on machine: 1 M15100040 view full part page → $1.38
29	M9503000103	DECAL: DAILY CHECK WATER AND OIL	1	M90300010	ADD TO CART
DECAL: DAILY CHECK WATER AND OIL M9503000103 · qty on machine: 1 M90300010 view full part page → $7.95
30	M9520000504	DECAL: START CONTACT	1	M92000050	ADD TO CART
DECAL: START CONTACT M9520000504 · qty on machine: 1 M92000050 view full part page → $67.95
31	M9520100503	DECAL: WARNING	1	M92010050	ADD TO CART
DECAL: WARNING M9520100503 · qty on machine: 1 M92010050 view full part page → $1.95
32	M9511100104	DECAL: NOTE RECEPTACLE	1	M91110010	ADD TO CART
DECAL: NOTE RECEPTACLE M9511100104 · qty on machine: 1 M91110010 view full part page → $3.95
33	M1551001003	DECAL: AUXILIARY OUTPUT	1	M15100100A	ADD TO CART
DECAL: AUXILIARY OUTPUT M1551001003 · qty on machine: 1 M15100100A view full part page → $18.95
34	M9510100403	DECAL: WARNING BATTERY CONNECT	1	M91010040	ADD TO CART
DECAL: WARNING BATTERY CONNECT M9510100403 · qty on machine: 1 M91010040 view full part page → $16.95
35	M9501500004	DECAL: DIESEL FUEL	1	M90150000	ADD TO CART
DECAL: DIESEL FUEL M9501500004 · qty on machine: 1 M90150000 view full part page → $3.95
36	M9500000004	DECAL: OIL DRAIN	1	M90000000	ADD TO CART
DECAL: OIL DRAIN M9500000004 · qty on machine: 1 M90000000 view full part page → $2.95
37	M9510000104	DECAL: DOCUMENT BOX LOCATED	1	M91000010	ADD TO CART
DECAL: DOCUMENT BOX LOCATED M9510000104 · qty on machine: 1 M91000010 view full part page → $4.95
38	M9511100004	DECAL: WARNING ENVIRONMENTAL	1	M91110000	ADD TO CART
DECAL: WARNING ENVIRONMENTAL M9511100004 · qty on machine: 1 M91110000 view full part page → $6.95
39	M9503200104	DECAL: DANGER EX. GAS (INDOOR)	1	M90320010	ADD TO CART
DECAL: DANGER EX. GAS (INDOOR) M9503200104 · qty on machine: 1 M90320010 view full part page → $4.95
40	920214100	DECAL: WARNING START FIRES	1	REPLACES P/N M9504200004 M90420000	ADD TO CART
DECAL: WARNING START FIRES 920214100 · qty on machine: 1 REPLACES P/N M9504200004 M90420000 view full part page → $12.95
41	M2550002303	OPERATING PRECAUTIONS	1	M25000230	ADD TO CART
OPERATING PRECAUTIONS M2550002303 · qty on machine: 1 M25000230 view full part page → $11.95
42	M9510000004	DECAL: FLUID DRAIN	1	M91000000	ADD TO CART
DECAL: FLUID DRAIN M9510000004 · qty on machine: 1 M91000000 view full part page → $26.95
43	M1550001404	CAUTION: LIFTING CAPACITY	1	M15000140	ADD TO CART
CAUTION: LIFTING CAPACITY M1550001404 · qty on machine: 1 M15000140 view full part page → $8.95
44	M9510200002	STICKER: MQ	1	M91020000	ADD TO CART
STICKER: MQ M9510200002 · qty on machine: 1 M91020000 view full part page → $3.95
45	0600500092	EMBLEM	1		ADD TO CART
EMBLEM 0600500092 · qty on machine: 1 view full part page → $21.95
46	0021106015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021106015 · qty on machine: 4 view full part page → $0.17
47	M9511200103	TIER 4F	1	M91120010	ADD TO CART
TIER 4F M9511200103 · qty on machine: 1 M91120010 view full part page → $17.95
48	M9521200604	DECAL: BONDED NEUTRAL	1	M92120060	ADD TO CART
DECAL: BONDED NEUTRAL M9521200604 · qty on machine: 1 M92120060 view full part page → $11.95
49	M9522000004	DECAL: WATER HEATER	1		ADD TO CART
DECAL: WATER HEATER M9522000004 · qty on machine: 1 view full part page → $7.95
50	M9504200104	DECAL: WARNING PROPOSITION	65	1 M90420010	ADD TO CART
DECAL: WARNING PROPOSITION M9504200104 · qty on machine: 65 1 M90420010 view full part page → $4.95

The machine itself

Price by quote Get a quote

Tell us where the machine is headed and we'll quote it with freight. One call, no games.

The Multiquip DCA25SSIU4FC8 is a generator built for portable jobsite power for tools, lighting, and equipment. Factory-documented specs and parts support; priced by quote.

Keep-it-running spares

All listed parts →

Every part that fits this machine

0601800682 Multiquip 0601800682 Hour Meter Denyo - OEM Replacement Part $116.95

0601801040 Multiquip 0601801040 Switch C/Over Ammeter 25,40,85,125,150 - OEM Replacement Part $95.95

0601801041 Multiquip 0601801041 Change-Over Switch Voltmeter Denyo - OEM Replacement Part $157.95

0601801122 Multiquip 0601801122 Current Transformer Denyo - OEM Replacement Part $131.95

0601806859 Multiquip 0601806859 Voltmeter AC DENYO - OEM Replacement Part for Generator Control Panels $368.95

0601808985 Multiquip 0601808985 AC Ammeter (Denyo) - OEM Replacement Part for Super Silent Generators $246.95

0601812527 Multiquip 0601812527 Connector Denyo - OEM Replacement Part for Generator Control Systems $64.95

0601814014 Multiquip 0601814014 GFCI Receptacle - OEM Replacement Part $90.95

0601814453 Multiquip 0601814453 Coolant Level Alarm Lamp - OEM Replacement Part $33.95

0601820608 Multiquip 0601820608 Autovoltage Regulator Denyo - OEM Replacement Part $1,591.95

0601823863 Multiquip 0601823863 Relay Unit 12V DENYO - OEM Replacement Part $159.95

0601830762 Multiquip 0601830762 Switch Selector Auto/Manual - OEM Replacement Part $36.95

0601840073 Multiquip 0601840073 Rheostat Voltage Regulator for 150SSK and DCA Series Generators - OEM Replacement Part $90.95

0601842384 Multiquip 0601842384 Resistor Denyo - OEM Replacement Part $36.95

0601870430 Multiquip 0601870430 Circuit Breaker DENYO - OEM Replacement Part $585.95

0601870440 Multiquip 0601870440 Circuit Breaker DENYO - OEM Replacement Part $34.95

0601870441 Multiquip 0601870441 Circuit Breaker DENYO - OEM Replacement Part $77.95

0602022581 Multiquip 0602022581 Adapter Denyo - OEM Replacement Part for DCA Generators $147.95

0602022791 Multiquip 0602022791 Joint Hose Denyo - OEM Replacement Part for Super Silent Generators $35.95

0602220185 Multiquip 0602220185 DEKA 427MF Battery - OEM Replacement Part $292.95

0603306590 Multiquip 0603306590 Male Bulkhead Connector - OEM Replacement Part for Denyo Generators $86.95

0605511395 Multiquip 0605511395 Ball Valve DENYO - OEM Replacement Part $46.95

5825500290 Multiquip 5825500290 Relay Assembly Blower - OEM Replacement Part $65.95

7961025004 Multiquip 7961025004 Rectifier - OEM Replacement Part for Super Silent Generators $147.95

8001070003 Multiquip 8001070003 Fan DCA-25SSI(II),25SSIU - OEM Replacement Part $162.95

8091860103 Multiquip 8091860103 Panel Output Terminal - OEM Replacement Part for Super Silent Generators $135.95

8121468300 Multiquip 8121468300 Sensor DCA-400SSI,4HK1 - OEM Replacement Part $215.95

82608 Multiquip 82608 Toggle Switch Denyo Mods - OEM Replacement Part for Super Silent Generators $34.95

8351315003 Multiquip 8351315003 Bracket End DCA-25SSI(II) - OEM Replacement Part $260.95

8351331004 Multiquip 8351331004 Cover Suction DCA-25SSI(II) - OEM Replacement Part $69.95

8944001061 Multiquip 8944001061 Relay Glow TLG-12SPX - OEM Replacement Part $214.95

8970119490 Multiquip 8970119490 Relay Glow Plug DCA-125SSIU - OEM Replacement Part $301.95

8972177780 Multiquip 8972177780 Sensor DCA-400SSI - OEM Replacement Part $174.95

8980490340 Multiquip 8980490340 Belt Cooling Fan - OEM Replacement Part $44.95

8980682751 Multiquip 8980682751 Fuel Feed Pump - OEM Replacement Part for Super Silent Generators $624.95

8981263320 Multiquip 8981263320 Pipe Joint - OEM Replacement Part $46.95

8981924670 Multiquip 8981924670 HEATER PCV - OEM Replacement Part $196.95

8982353890 Multiquip 8982353890 DOC - OEM Replacement Part $5,850.95

8982369900 Multiquip 8982369900 Fuel Filter Main - OEM Replacement Part for DCA Generators $317.95

8982369910 Multiquip 8982369910 Fuel Filter Pre - OEM Replacement Part $286.95

8983193760 Multiquip 8983193760 Air Pressure Switch - OEM Replacement Part $195.95

8983346920 Multiquip 8983346920 PCV Heater Wire Harness - OEM Replacement Part $173.95

B1110200602 Multiquip B1110200602 Rotor Assy DCA-25USI - OEM Replacement Part $4,988.95

B1112300003 Multiquip B1112300003 Plate Balancing DCA-25USI - OEM Replacement Part $69.95

B1138000003 Multiquip B1138000003 Field Assembly Exciter DCA-25USI - OEM Replacement Part $1,295.95

C3358201704 Multiquip C3358201704 Fuse Holder Assembly - OEM Replacement Part $41.95

ECU754 Multiquip ECU754 Controller - OEM Replacement Part for Super Silent Generators $1,043.95

EE62076 Multiquip EE62076 Inlet Receptacle & Cord NEMA 5-15P 15A 125V - OEM Replacement Part $66.95

LY2DUS12VDC Multiquip LY2DUS12VDC Relay with Diode - OEM Replacement Part for DCA Generators $46.95

M1214000312 Multiquip M1214000312 Control Box (KY) - OEM Replacement Part $1,018.95

M1214500004A4 Multiquip M1214500004A4 Control Box Cover Green - OEM Replacement Part for Super Silent Generators $46.95

M1214600804 Multiquip M1214600804 Switch Bracket Denyo - OEM Replacement Part $48.95

M1214600904 Multiquip M1214600904 Switch Bracket Denyo - OEM Replacement Part $41.95

M1223100104 Multiquip M1223100104 DENYO Component - OEM Replacement Part for Super Silent Generators $42.95

M1224000103 Multiquip M1224000103 Control Panel 25SSIU4F - OEM Replacement Part for Super Silent Generators $188.95

M1260700404 Multiquip M1260700404 Cover Breaker Fitting (E-Coat) - OEM Replacement Part for Denyo Generators $58.95

M1270100004 Multiquip M1270100004 Switch Selector 25SSIU2 - OEM Replacement Part $788.95

M1303200304 Multiquip M1303200304 Engine Foot (Black Textured Paint) - OEM Replacement Part $262.95

M1305200204 Multiquip M1305200204 Foot Engine Denyo - OEM Replacement Part $392.95

M1311200004 Multiquip M1311200004 Radiator Bracket Denyo - OEM Replacement Part $53.95

M1311200104 Multiquip M1311200104 Radiator Bracket Denyo - OEM Replacement Part $45.95

M1311300203 Multiquip M1311300203 Fan Guard (E-Coat) DENYO - OEM Replacement Part $233.95

M1311500303 Multiquip M1311500303 Radiator Hose - OEM Replacement Part $57.95

M1311600303 Multiquip M1311600303 Fan Shroud E-Coat DENYO - OEM Replacement Part for Super Silent Generators $109.95

M1327200004 Multiquip M1327200004 Blow-By Hose (JPN) - OEM Replacement Part for Super Silent Generators $86.95

M1331400504 Multiquip M1331400504 Exhaust Heat Shield A DENYO - OEM Replacement Part $280.95

M1331400904 Multiquip M1331400904 Exhaust Heat Shield B Denyo - OEM Replacement Part $233.95

M1331401004 Multiquip M1331401004 Exhaust Heat Shield - OEM Replacement Part for Super Silent Generators $233.95

M1334000703 Multiquip M1334000703 Exhaust Pipe Denyo - OEM Replacement Part $429.95

M1346400004 Multiquip M1346400004 Battery Cable (+) with Cover - OEM Replacement Part $76.95

M1358200302 Multiquip M1358200302 Controller Wiring Harness Denyo - OEM Replacement Part $2,137.95

M1358202004 Multiquip M1358202004 Harness (JPN) - OEM Replacement Part for Super Silent Generators $59.95

M1358203004 Multiquip M1358203004 Wire Harness Emergency - OEM Replacement Part for Super Silent Generators $167.95

M1374000013 Multiquip M1374000013 Air Cleaner Pipe - OEM Replacement Part $130.95

M1374100203 Multiquip M1374100203 Air Cleaner Hose (In) - OEM Replacement Part $175.95

M1374100303 Multiquip M1374100303 Air Cleaner Hose - OEM Replacement Part for Denyo Generators $60.95

M1374100403 Multiquip M1374100403 Air Cleaner Hose - OEM Replacement Part $75.95

M1444200103 Multiquip M1444200103 Rear Door Denyo - OEM Replacement Part for Super Silent Generators $181.95

M1444600104 Multiquip M1444600104 Window Plate Denyo - OEM Replacement Part $64.95

M1444800303 Multiquip M1444800303 Rear Cover Duct (White) - OEM Replacement Part $202.95

M1454000703 Multiquip M1454000703 Side Door White Denyo - OEM Replacement Part for Super Silent Generators $185.95

M1454000903 Multiquip M1454000903 Side Door White Denyo - OEM Replacement Part for Super Silent Generators $223.95

M1454300204 Multiquip M1454300204 Duct Denyo - OEM Replacement Part for Super Silent Generators $115.95

M1494101703 Multiquip M1494101703 Acoustic Denyo Panel - OEM Replacement Part for Super Silent Generators $242.95

M1494301103 Multiquip M1494301103 Acoustic Denyo Panel - OEM Replacement Part for Super Silent Generators $282.95

M1494400904 Multiquip M1494400904 Acoustic Sheet Denyo - OEM Replacement Part $138.95

M1494401204 Multiquip M1494401204 Acoustic Sheet Denyo - OEM Replacement Part for Super Silent Generators $64.95

M1494500703 Multiquip M1494500703 Acoustic Sheet Roof Panel - OEM Replacement Part $328.95

M2346900304 Multiquip M2346900304 Battery Cable Negative Denyo - OEM Replacement Part $149.95

M2414800304 Multiquip M2414800304 Hole Cover Base (E-Coat) - OEM Replacement Part $74.95

M91030003044 Multiquip M91030003044 Band Battery E-Coat Black - OEM Replacement Part $72.95

M9200100904 Multiquip M9200100904 Plug Denyo - OEM Replacement Part $42.95

M9510100004 Multiquip M9510100004 Hot Parts Caution Safety Decal - OEM Replacement Part $68.95

M9520100404 Multiquip M9520100404 Danger High Voltage Decal - OEM Replacement Part $37.95

P822769 Multiquip P822769 Air Filter Safety Element - OEM Replacement Part $100.95

TPS051GT10000 Multiquip TPS051GT10000 Tank Heater 500W 120V - OEM Replacement Part $209.95

Y0222100060 Multiquip Y0222100060 Rubber Seal Denyo - OEM Replacement Part for Super Silent Generators $456.95

Y0601810170 Multiquip Y0601810170 Panel Light Denyo - OEM Replacement Part $142.95

Y0601814034 Multiquip Y0601814034 GFCI Receptacle 5-20R (KY) - OEM Replacement Part $91.95

Y0601831953 Multiquip Y0601831953 Emergency Denyo - OEM Replacement Part $152.95

Y0602046590 Multiquip Y0602046590 Air Cleaner Denyo - OEM Replacement Part $248.95

Y0605012318 Multiquip Y0605012318 Door Handle (KY) - OEM Replacement Part $75.95

Y0605503220 Multiquip Y0605503220 Fuel Leak Detected Switch - OEM Replacement Part $1,000.95

Y0605516092 Multiquip Y0605516092 Gasket - OEM Replacement Part $52.95

0010006030 HEX. HEAD BOLT $0.25

0012312030 HEX. HEAD BOLT $6.95

0013616040 HEX. HEAD BOLT $5.95

0016008045 HEX. SOCKET HEAD CAP SCREW $3.95

0016906015 HEX. HEAD BOLT $0.95

0016910025 HEX. HEAD BOLT $1.56

0017108035 HEX. HEAD BOLT $1.95

0017110025 HEX. HEAD BOLT $1.95

0019112030 HEX. HEAD BOLT $5.95

0019208020 HEX. HEAD BOLT $3.95

0019208025 HEX. HEAD BOLT $3.95

0021004075 MACHINE SCREW $0.95

0021104035 MACHINE SCREW $1.65

0021106015 MACHINE SCREW $0.17

0027103010 MACHINE SCREW $0.44

0027103015 MACHINE SCREW $0.64

0027104010 MACHINE SCREW $0.33

0027104015 MACHINE SCREW $0.53

0027104020 MACHINE SCREW $0.40

0027104030 MACHINE SCREW $0.59

0027105010 MACHINE SCREW $0.56

0027105015 MACHINE SCREW $0.20

0027208025 MACHINE SCREW $0.76

0030012000 HEX. HEAD NUT $0.50

0030016000 HEX. NUT $1.90

0040006000 WASHER, LOCK $0.17

0040008000 WASHER, LOCK $0.63

0040010000 WASHER, LOCK $0.39

0040016000 WASHER, LOCK $4.95

0040508000 TOOTHED WASHER $0.35

0040510000 TOOTHED WASHER $0.77

0041216000 WASHER, FLAT $1.95

0041408000 WASHER, FLAT $1.63

0042312000 WASHER, LOCK $0.94

0042412000 WASHER, FLAT $1.63

0042508000 WASHER, LOCK $0.62

0080200007 E-SNAP RING $1.39

0105091025 HEX. HEAD BOLT $0.68

011008020 HEX. HEAD BOLT $2.68

011106015 HEX. HEAD BOLT $0.69

011206020 MACHINE SCREW $0.95

011208030 HEX. HEAD BOLT $1.30

011606025 HEX. HEAD BOLT $1.95

012210020 HEX. HEAD BOLT $0.95

0130202000 STREET ELBOW $10.95

0130204000 STREET ELBOW $6.95

0131502000 NIPPLE $15.95

0150000016 O-RING $1.63

0150000018 O-RING $1.87

0176060030 SELF-LOCKING NUT $2.95

0193601000 OVER FLOW HOSE $12.95

0199100215 HOSE $3.95

020106050 NUT $0.12

0207003000 SELF-LOCKING NUT $0.21

021112140 SELF-LOCKING NUT $0.46

0222100080 CUSHION RUBBER $2.78

0228100320 RUBBER SEAL $11.95

0228100390 RUBBER SEAL $2.95

030210250 WASHER, LOCK $0.28

031110160 WASHER, FLAT $0.40

031112230 WASHER, FLAT $0.95

0330000185 EDGE TRIM $3.95

0401450080 WASHER, FLAT $0.56

042006308 BEARING $25.95

0600500092 EMBLEM $21.95

0601802133 FUSE, 5A $1.95

0601802149 FUSE, 10A $3.95

0601806640 FUSE, 65A $11.95

0601806644 FUSE, 30A $1.43

0601806671 FUSE, 15A $3.95

0601812626 PLUG $1.88

0601812712 PINS (MALE) $0.77

0601815153 TERMINAL BLOCK

0601815194 TERMINAL BLOCK

0601822630 SURGE ABSORBER $19.95

0601823240 RECTIFIER, DE-45

0601831205 PUSH BUTTON SWITCH $25.95

0601840100 KNOB $30.95

0601850239 GROMMET $3.95

0601851727 GROMMET

0602021070 CAP $11.95

0602022292 HOSE JOINT $22.95

0603300285 LOCKNUT $4.95

0605010040 HINGE $4.95

0605515147 HOSE BAND $3.95

0605515149 HOSE BAND $1.95

0605515189 HOSE BAND $1.85

0605515198 HOSE BAND $1.71

0801832204 TIE BOLT $2.95

0802081403D RESERVE TANK

0845031504 BLIND PLUG $2.95

0845041904 GROMMET $11.95

1096300850 GASKET $0.95

68-1 0317700180

7538070 MACHINE SCREW $0.52

8351312004 PACKING $21.95

From the guides desk

Guide · 2026-08-04

Ask ARIA about your machine.

Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.

Chat with ARIA

Multiquip DCA25SSIU4FC8 Generator

The parts bench

The machine itself

Machine

Engine

Keep-it-running spares

Every part that fits this machine

Service notices & part changes

Take the factory book with you

Get the download pack

From the guides desk

Multiquip DCA Generator Fault Shutdown and Controller Reset Guide

Multiquip Generator No-Start and No-Power Fixes

Multiquip DCA Generator Fault Codes and Diagnostics Guide

Ask ARIA about your machine.

Your cart is empty

Your cart is empty
