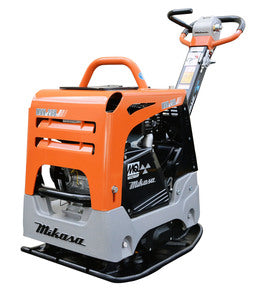

Multiquip MVH208 Reversible Plate Compactor

Name: Multiquip MVH208 Reversible Plate Compactor
Brand: Multiquip
SKU: MVH208GH
Price: 11428.0 USD
Availability: OutOfStock

The parts bench

Need the PDF? ↓

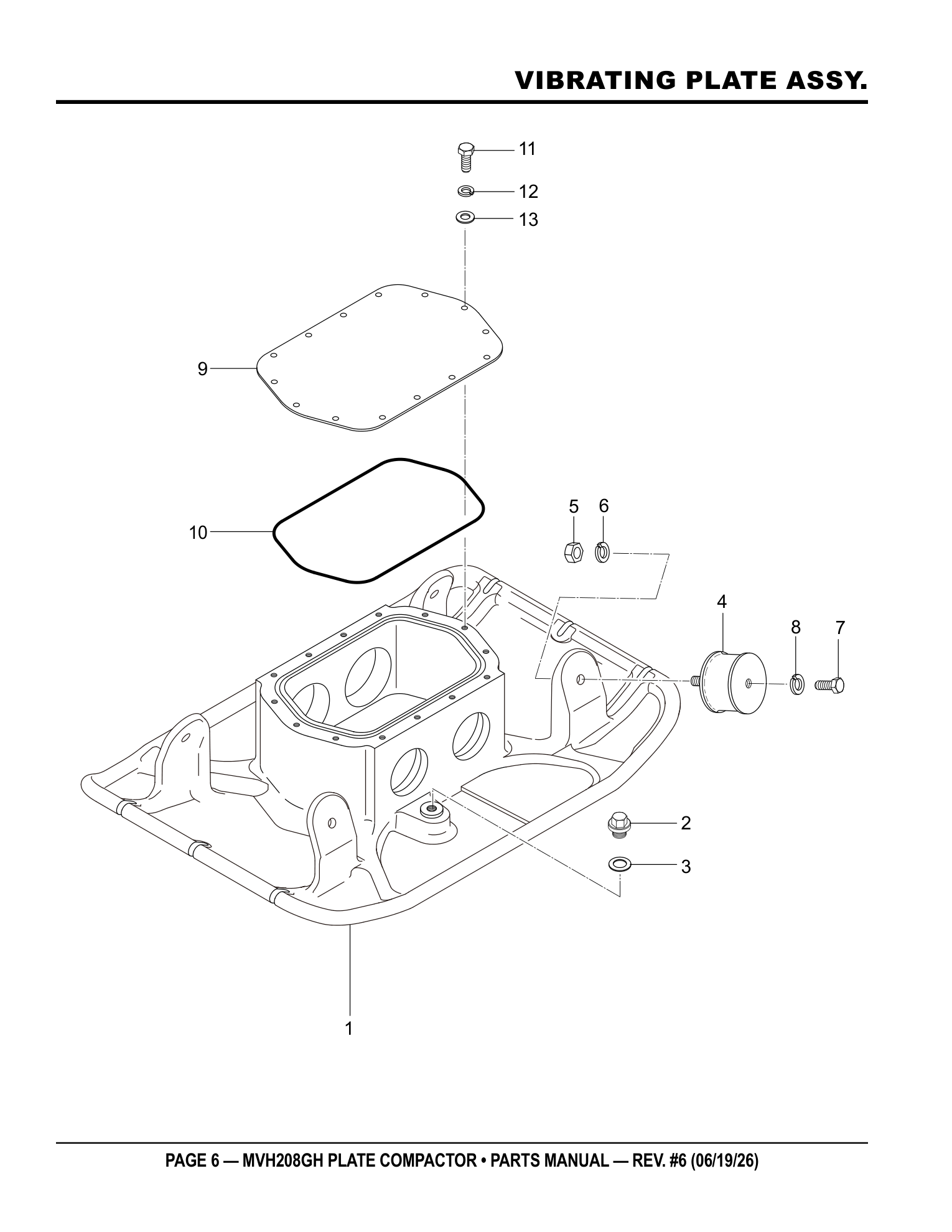

Page 6 — VIBRATING PLATE ASSY.

Multiquip MVH208 Reversible Plate Compactor VIBRATING PLATE ASSY. parts diagram

Parts list — exactly as printed13 rows

No.	Part No.	Part Name	Qty	Remarks
1	470121760	VIBRATING PLATE, 500MM	1		ADD TO CART
VIBRATING PLATE, 500MM 470121760 · qty on machine: 1 view full part page → $1391.95
2	953405270	PLUG 1/4X14 13L	1		ADD TO CART
PLUG 1/4X14 13L 953405270 · qty on machine: 1 view full part page → $16.95
3	953405260	PACKING 1/4 (CU)	1		ADD TO CART
PACKING 1/4 (CU) 953405260 · qty on machine: 1 view full part page → $7.95
4	939010480	SHOCK ABSORBER	4		ADD TO CART
SHOCK ABSORBER 939010480 · qty on machine: 4 view full part page → $74.95
5	0039312000	NUT M12	4	REPLACES P/N 020312100	ADD TO CART
NUT M12 0039312000 · qty on machine: 4 REPLACES P/N 020312100 view full part page → $0.46
6	030212300	WASHER, LOCK M12	4		ADD TO CART
WASHER, LOCK M12 030212300 · qty on machine: 4 view full part page → $0.15
7	012012030	BOLT 12X30	4	REPLACES P/N 001221230	ADD TO CART
BOLT 12X30 012012030 · qty on machine: 4 REPLACES P/N 001221230 view full part page → $2.95
8	030212300	WASHER, LOCK M12	4		ADD TO CART
WASHER, LOCK M12 030212300 · qty on machine: 4 view full part page → $0.15
9	470353610	COVER, VIBRATOR	1		ADD TO CART
COVER, VIBRATOR 470353610 · qty on machine: 1 view full part page → $42.95
10	050710150	O-RING	1		ADD TO CART
O-RING 050710150 · qty on machine: 1 view full part page → $23.95
11	014208020	BOLT 8X20	14	REPLACES P/N 001220820	ADD TO CART
BOLT 8X20 014208020 · qty on machine: 14 REPLACES P/N 001220820 view full part page → $0.77
12	030208200	WASHER, LOCK M8	14		ADD TO CART
WASHER, LOCK M8 030208200 · qty on machine: 14 view full part page → $0.23
13	0401450080	WASHER, FLAT M8	14	REPLACES P/N 031108160	ADD TO CART
WASHER, FLAT M8 0401450080 · qty on machine: 14 REPLACES P/N 031108160 view full part page → $0.56

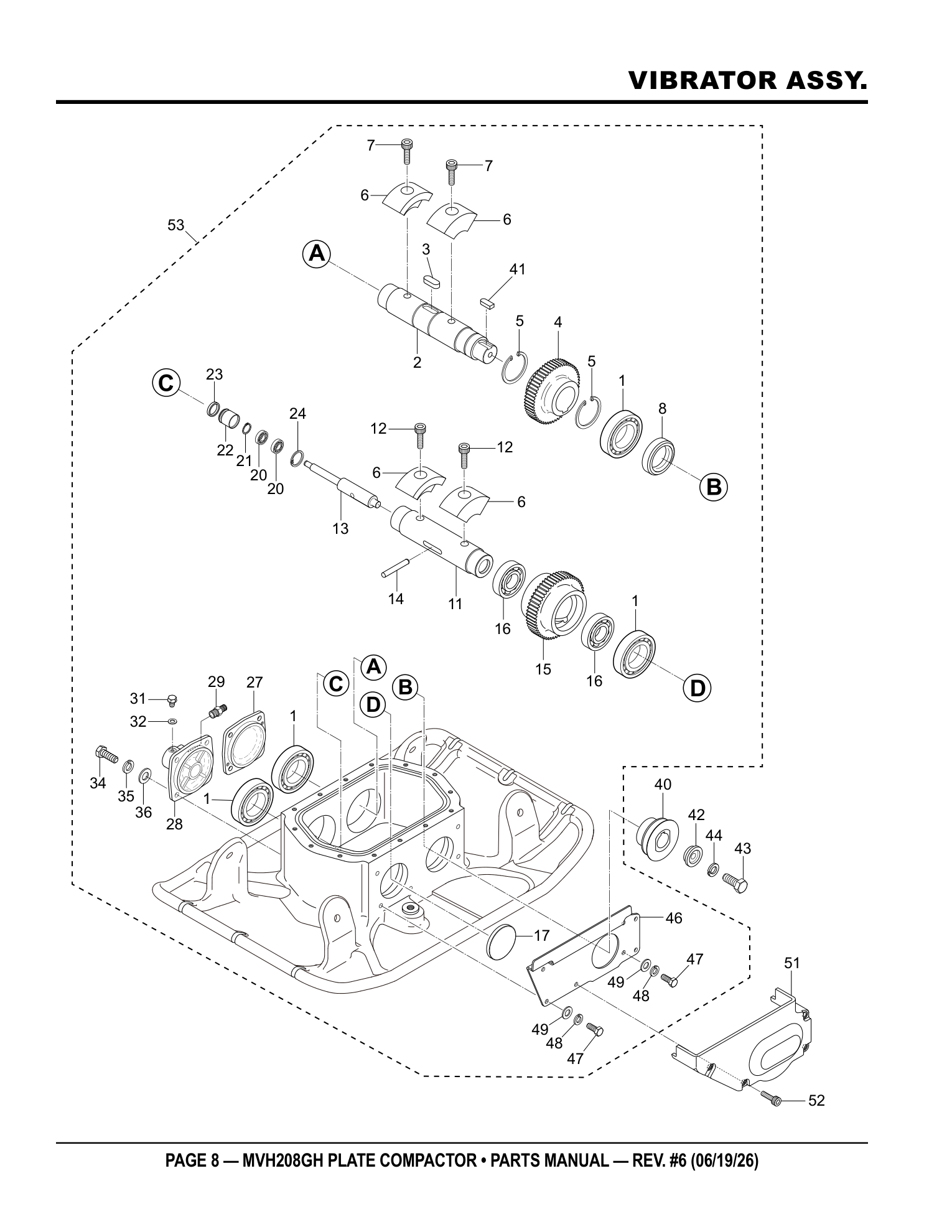

Page 8 — VIBRATOR ASSY.

Multiquip MVH208 Reversible Plate Compactor VIBRATOR ASSY. parts diagram

Parts list — exactly as printed40 rows

No.	Part No.	Part Name	Qty	Remarks
1#	047920130	ROLLER BEARING	4		ADD TO CART
ROLLER BEARING 047920130 · qty on machine: 4 Also included in kit 53 - VIBRATOR AND PLATE ASSY (470910100) view full part page → $178.95 IN A KIT + SOLD SOLO
2#	470353710	ROTARY SHAFT, DRIVE	1		ADD TO CART
ROTARY SHAFT, DRIVE 470353710 · qty on machine: 1 Also included in kit 53 - VIBRATOR AND PLATE ASSY (470910100) view full part page → $470.95 IN A KIT + SOLD SOLO
3#	951405370	KEY 15X10X39 RR	1		ADD TO CART
KEY 15X10X39 RR 951405370 · qty on machine: 1 Also included in kit 53 - VIBRATOR AND PLATE ASSY (470910100) view full part page → $17.95 IN A KIT + SOLD SOLO
4#	466347900	GEAR, DRIVE	1		ADD TO CART
GEAR, DRIVE 466347900 · qty on machine: 1 Also included in kit 53 - VIBRATOR AND PLATE ASSY (470910100) view full part page → $493.95 IN A KIT + SOLD SOLO
5#	080200500	STOP RING	2		ADD TO CART
STOP RING 080200500 · qty on machine: 2 Also included in kit 53 - VIBRATOR AND PLATE ASSY (470910100) view full part page → $4.95 IN A KIT + SOLD SOLO
6#	470353760	ECCENTRIC ROTATOR	4		ADD TO CART
ECCENTRIC ROTATOR 470353760 · qty on machine: 4 Also included in kit 53 - VIBRATOR AND PLATE ASSY (470910100) view full part page → $98.95 IN A KIT + SOLD SOLO
7#	009120309	SOCKET HEAD BOLT 12X40	2		ADD TO CART
SOCKET HEAD BOLT 12X40 009120309 · qty on machine: 2 Also included in kit 53 - VIBRATOR AND PLATE ASSY (470910100) view full part page → $5.95 IN A KIT + SOLD SOLO
8#	060104020	OIL SEAL	1		NO LONGER AVAILABLE
PHOTO COMING OIL SEAL 060104020 · qty on machine: 1 Also included in kit 53 - VIBRATOR AND PLATE ASSY (470910100) NO LONGER AVAILABLE
11#	466347790	ROTARY SHAFT, DRIVEN	1		ADD TO CART
ROTARY SHAFT, DRIVEN 466347790 · qty on machine: 1 Also included in kit 53 - VIBRATOR AND PLATE ASSY (470910100) view full part page → $555.95 IN A KIT + SOLD SOLO
12#	009120308	SOCKET HEAD BOLT 12X25	2		ADD TO CART
SOCKET HEAD BOLT 12X25 009120308 · qty on machine: 2 Also included in kit 53 - VIBRATOR AND PLATE ASSY (470910100) view full part page → $4.95 IN A KIT + SOLD SOLO
13#	466347860	PISTON ROD	1		ADD TO CART
PISTON ROD 466347860 · qty on machine: 1 Also included in kit 53 - VIBRATOR AND PLATE ASSY (470910100) view full part page → $200.95 IN A KIT + SOLD SOLO
14#	025510063	KNOCK PIN 10X63	1		ADD TO CART
KNOCK PIN 10X63 025510063 · qty on machine: 1 Also included in kit 53 - VIBRATOR AND PLATE ASSY (470910100) view full part page → $8.95 IN A KIT + SOLD SOLO
15#	470353720	GEAR, DRIVEN	1		ADD TO CART
GEAR, DRIVEN 470353720 · qty on machine: 1 Also included in kit 53 - VIBRATOR AND PLATE ASSY (470910100) view full part page → $818.95 IN A KIT + SOLD SOLO
16#	040006910	BEARING	2		ADD TO CART
BEARING 040006910 · qty on machine: 2 Also included in kit 53 - VIBRATOR AND PLATE ASSY (470910100) view full part page → $106.95 IN A KIT + SOLD SOLO
17#	953010040	SEAL CAP	1		ADD TO CART
SEAL CAP 953010040 · qty on machine: 1 Also included in kit 53 - VIBRATOR AND PLATE ASSY (470910100) view full part page → $9.95 IN A KIT + SOLD SOLO
20#	042506000	BEARING	2		ADD TO CART
BEARING 042506000 · qty on machine: 2 Also included in kit 53 - VIBRATOR AND PLATE ASSY (470910100) view full part page → $4.95 IN A KIT + SOLD SOLO
21#	0080000010	STOP RING	1	REPLACES P/N 080200100	ADD TO CART
STOP RING 0080000010 · qty on machine: 1 REPLACES P/N 080200100 Also included in kit 53 - VIBRATOR AND PLATE ASSY (470910100) view full part page → $0.65 IN A KIT + SOLD SOLO
22#	455435051	PISTON	1		ADD TO CART
PISTON 455435051 · qty on machine: 1 Also included in kit 53 - VIBRATOR AND PLATE ASSY (470910100) view full part page → $93.95 IN A KIT + SOLD SOLO
23#	455010070	PACKING	1		ADD TO CART
PACKING 455010070 · qty on machine: 1 Also included in kit 53 - VIBRATOR AND PLATE ASSY (470910100) view full part page → $17.95 IN A KIT + SOLD SOLO
24#	080100260	STOP RING	1		ADD TO CART
STOP RING 080100260 · qty on machine: 1 Also included in kit 53 - VIBRATOR AND PLATE ASSY (470910100) view full part page → $1.95 IN A KIT + SOLD SOLO
27#	470353730	BEARING COVER	1		ADD TO CART
BEARING COVER 470353730 · qty on machine: 1 Also included in kit 53 - VIBRATOR AND PLATE ASSY (470910100) view full part page → $60.95 IN A KIT + SOLD SOLO
28#	470353740	CYLINDER (R)	1		ADD TO CART
CYLINDER (R) 470353740 · qty on machine: 1 Also included in kit 53 - VIBRATOR AND PLATE ASSY (470910100) view full part page → $270.95 IN A KIT + SOLD SOLO
29#	954010020	CONNECTOR PT, PF1/4	1		ADD TO CART
CONNECTOR PT, PF1/4 954010020 · qty on machine: 1 Also included in kit 53 - VIBRATOR AND PLATE ASSY (470910100) view full part page → $11.95 IN A KIT + SOLD SOLO
31#	011008015	BOLT 8X12	1	REPLACES P/N 001220812	ADD TO CART
BOLT 8X12 011008015 · qty on machine: 1 REPLACES P/N 001220812 Also included in kit 53 - VIBRATOR AND PLATE ASSY (470910100) view full part page → $0.85 IN A KIT + SOLD SOLO
32#	953404600	COPPER PACKING 8.2X16X1.6	1		ADD TO CART
COPPER PACKING 8.2X16X1.6 953404600 · qty on machine: 1 Also included in kit 53 - VIBRATOR AND PLATE ASSY (470910100) view full part page → $4.95 IN A KIT + SOLD SOLO
34#	001220825	BOLT 8X25	8	REPLACES P/N 011208025	ADD TO CART
BOLT 8X25 001220825 · qty on machine: 8 REPLACES P/N 011208025 Also included in kit 53 - VIBRATOR AND PLATE ASSY (470910100) view full part page → $0.41 IN A KIT + SOLD SOLO
35#	030208200	WASHER, LOCK M8	8		ADD TO CART
WASHER, LOCK M8 030208200 · qty on machine: 8 Also included in kit 53 - VIBRATOR AND PLATE ASSY (470910100) view full part page → $0.23 IN A KIT + SOLD SOLO
36#	0401450080	WASHER, FLAT M8	8	REPLACES P/N 031108160	ADD TO CART
WASHER, FLAT M8 0401450080 · qty on machine: 8 REPLACES P/N 031108160 Also included in kit 53 - VIBRATOR AND PLATE ASSY (470910100) view full part page → $0.56 IN A KIT + SOLD SOLO
40	470353770	PULLEY	1		ADD TO CART
PULLEY 470353770 · qty on machine: 1 view full part page → $125.95
41#	951403610	KEY 10X8X30	1		ADD TO CART
KEY 10X8X30 951403610 · qty on machine: 1 Also included in kit 53 - VIBRATOR AND PLATE ASSY (470910100) view full part page → $6.95 IN A KIT + SOLD SOLO
42	470468730	WASHER	1		ADD TO CART
WASHER 470468730 · qty on machine: 1 view full part page → $29.95
43	012012030	BOLT 12X30	1	REPLACES P/N 001221230	ADD TO CART
BOLT 12X30 012012030 · qty on machine: 1 REPLACES P/N 001221230 view full part page → $2.95
44	030212300	WASHER, LOCK M12	1		ADD TO CART
WASHER, LOCK M12 030212300 · qty on machine: 1 view full part page → $0.15
46#	470353750	GUIDE, BELT COVER	1		ADD TO CART
GUIDE, BELT COVER 470353750 · qty on machine: 1 Also included in kit 53 - VIBRATOR AND PLATE ASSY (470910100) view full part page → $95.95 IN A KIT + SOLD SOLO
47#	014208020	BOLT 8X20	3	REPLACES P/N 001220820	ADD TO CART
BOLT 8X20 014208020 · qty on machine: 3 REPLACES P/N 001220820 Also included in kit 53 - VIBRATOR AND PLATE ASSY (470910100) view full part page → $0.77 IN A KIT + SOLD SOLO
48#	030208200	WASHER, LOCK M8	3		ADD TO CART
WASHER, LOCK M8 030208200 · qty on machine: 3 Also included in kit 53 - VIBRATOR AND PLATE ASSY (470910100) view full part page → $0.23 IN A KIT + SOLD SOLO
49#	031108160	WASHER, FLAT M8	3		ADD TO CART
WASHER, FLAT M8 031108160 · qty on machine: 3 Also included in kit 53 - VIBRATOR AND PLATE ASSY (470910100) view full part page → $0.56 IN A KIT + SOLD SOLO
51	470219540	BELT COVER, LOWER	1		ADD TO CART
BELT COVER, LOWER 470219540 · qty on machine: 1 view full part page → $215.95
52	001520854	SOCKET HEAD BOLT 8X70	4		ADD TO CART
SOCKET HEAD BOLT 8X70 001520854 · qty on machine: 4 view full part page → $1.95
53	470910100	VIBRATOR AND PLATE ASSY	1	INCLUDES ITEMS W/#	ADD TO CART
VIBRATOR AND PLATE ASSY 470910100 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 1#, 2#, 3#, 4#, 5#, 6#, 7#, 8#, 11#, 12#, 13#, 14#, 15#, 16#, 17#, 20#, 21#, 22#, 23#, 24#, 27#, 28#, 29#, 31#, 32#, 34#, 35#, 36#, 41#, 46#, 47#, 48#, 49# view full part page → $3422.95 IN A KIT + SOLD SOLO

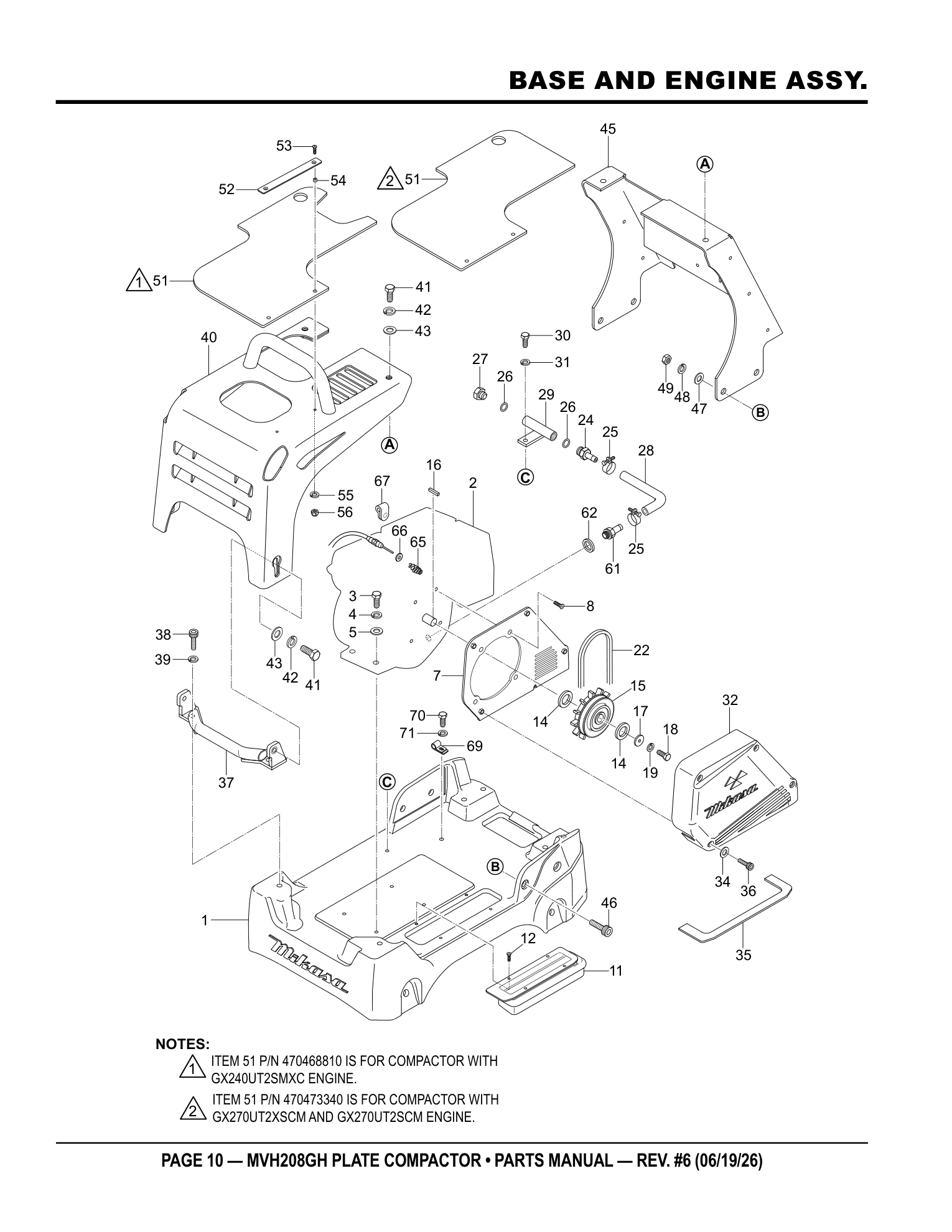

Page 10 — BASE AND ENGINE ASSY.

Multiquip MVH208 Reversible Plate Compactor BASE AND ENGINE ASSY. parts diagram

Parts list — exactly as printed33 rows

No.	Part No.	Part Name	Qty	Remarks
1	470121850	BASE	1		PARTS REQUEST
PHOTO COMING BASE 470121850 · qty on machine: 1 PARTS REQUEST
2	912227013	ENGINE ASSY., GX270UT2XSCM	1	S/N F2108 AND BELOW REPLACES P/N 912224006 GX240UT2SMXC ENGINE S/N F2115 AND ABOVE REPLACES P/N 912227009 GX270UT2SCM ENGINE	ADD TO CART
ENGINE ASSY., GX270UT2XSCM 912227013 · qty on machine: 1 S/N F2108 AND BELOW REPLACES P/N 912224006 GX240UT2SMXC ENGINE S/N F2115 AND ABOVE REPLACES P/N 912227009 GX270UT2SCM ENGINE view full part page → $1398.95
3	0105051045	BOLT 10X45	4	REPLACES P/N 001221045	ADD TO CART
BOLT 10X45 0105051045 · qty on machine: 4 REPLACES P/N 001221045 view full part page → $1.3
4	030210250	WASHER, LOCK M10	4		ADD TO CART
WASHER, LOCK M10 030210250 · qty on machine: 4 view full part page → $0.28
5	031110160	WASHER, FLAT M10	4		ADD TO CART
WASHER, FLAT M10 031110160 · qty on machine: 4 view full part page → $0.4
7	470353680	BELT COVER, IN	1		PARTS REQUEST
PHOTO COMING BELT COVER, IN 470353680 · qty on machine: 1 PARTS REQUEST
8	009110071	SOCKET HEAD BOLT 10X25	4		ADD TO CART
SOCKET HEAD BOLT 10X25 009110071 · qty on machine: 4 view full part page → $6.95
11	470219530	DUST COVER	1		ADD TO CART
DUST COVER 470219530 · qty on machine: 1 view full part page → $77.95
12	092006010	FLAT HEAD SCREW 6X10	4		ADD TO CART
FLAT HEAD SCREW 6X10 092006010 · qty on machine: 4 view full part page → $0.26
14	952409450	SPACER 25X40X5	2		ADD TO CART
SPACER 25X40X5 952409450 · qty on machine: 2 view full part page → $17.95
15	456343340	CLUTCH ASSY.	1		ADD TO CART
CLUTCH ASSY. 456343340 · qty on machine: 1 view full part page → $459.95
16	951400110	KEY 7X7X35	1		ADD TO CART
KEY 7X7X35 951400110 · qty on machine: 1 view full part page → $6.95
17	952400690	WASHER 9X35X4.5	1		ADD TO CART
WASHER 9X35X4.5 952400690 · qty on machine: 1 view full part page → $6.95
18	011208030	BOLT 8X30	1	REPLACES P/N 001220830	ADD TO CART
BOLT 8X30 011208030 · qty on machine: 1 REPLACES P/N 001220830 view full part page → $1.3
19	030208200	WASHER, LOCK M8	1		ADD TO CART
WASHER, LOCK M8 030208200 · qty on machine: 1 view full part page → $0.23
22	070200383	V-BELT B-38 GREEN	1		ADD TO CART
V-BELT B-38 GREEN 070200383 · qty on machine: 1 view full part page → $59.95
24	954407310	UNION, DRAIN	1		NO LONGER AVAILABLE
PHOTO COMING UNION, DRAIN 954407310 · qty on machine: 1 NO LONGER AVAILABLE
25	954010300	HOSE CLAMP	2	S/N F2108 AND BELOW WITH GX240UT2SMXC ENGINE REPLACES P/N 009172000	PARTS REQUEST
PHOTO COMING HOSE CLAMP 954010300 · qty on machine: 2 S/N F2108 AND BELOW WITH GX240UT2SMXC ENGINE REPLACES P/N 009172000 PARTS REQUEST
25	954410120	HOSE CLAMP	2	S/N F2108 AND BELOW WITH GX270UT2XSCM ENGINE S/N F2115 AND ABOVE WITH GX270UT2SCM ENGINE	ADD TO CART
HOSE CLAMP 954410120 · qty on machine: 2 S/N F2108 AND BELOW WITH GX270UT2XSCM ENGINE S/N F2115 AND ABOVE WITH GX270UT2SCM ENGINE view full part page → $6.95
26	0211140020	GASKET	2		NO LONGER AVAILABLE
PHOTO COMING GASKET 0211140020 · qty on machine: 2 NO LONGER AVAILABLE
27	0401140030	PLUG	1		ADD TO CART
PLUG 0401140030 · qty on machine: 1 view full part page → $3.95
28	465459390	DRAIN HOSE	1		ADD TO CART
DRAIN HOSE 465459390 · qty on machine: 1 view full part page → $18.95
29	464457380	DRAIN JOINT	1		ADD TO CART
DRAIN JOINT 464457380 · qty on machine: 1 view full part page → $67.95
30	014208020	BOLT 8X20	1	REPLACES P/N 001220820	ADD TO CART
BOLT 8X20 014208020 · qty on machine: 1 REPLACES P/N 001220820 view full part page → $0.77
31	030208200	WASHER, LOCK M8	1		ADD TO CART
WASHER, LOCK M8 030208200 · qty on machine: 1 view full part page → $0.23
32	470121780	BELT COVER (OUT)	1		ADD TO CART
BELT COVER (OUT) 470121780 · qty on machine: 1 view full part page → $184.95
34	033910220	WASHER 8.4X15.5X1.6	4		ADD TO CART
WASHER 8.4X15.5X1.6 033910220 · qty on machine: 4 view full part page → $0.95
35	470353640	DUST SPONGE (OUT)	1		ADD TO CART
DUST SPONGE (OUT) 470353640 · qty on machine: 1 view full part page → $21.95
36	001520854	SOCKET HEAD BOLT 8X70	4		ADD TO CART
SOCKET HEAD BOLT 8X70 001520854 · qty on machine: 4 view full part page → $1.95
37	470353650	FRONT BUMPER	1		ADD TO CART
FRONT BUMPER 470353650 · qty on machine: 1 view full part page → $172.95
38	014212035	SOCKET HEAD BOLT 12X35	2	REPLACES P/N 001521235	PARTS REQUEST
PHOTO COMING SOCKET HEAD BOLT 12X35 014212035 · qty on machine: 2 REPLACES P/N 001521235 PARTS REQUEST
39	030212300	WASHER, LOCK M12	2		ADD TO CART
WASHER, LOCK M12 030212300 · qty on machine: 2 view full part page → $0.15
40	470122870-OR	FRONT COVER	1		PARTS REQUEST
PHOTO COMING FRONT COVER 470122870-OR · qty on machine: 1 PARTS REQUEST

Page 12 — BASE AND ENGINE ASSY. (CONT'D.)

Multiquip MVH208 Reversible Plate Compactor BASE AND ENGINE ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed23 rows

No.	Part No.	Part Name	Qty	Remarks
41	012212035	BOLT 12X35	4	REPLACES P/N 001221235	ADD TO CART
BOLT 12X35 012212035 · qty on machine: 4 REPLACES P/N 001221235 view full part page → $2.95
42	030212300	WASHER, LOCK M12	4		ADD TO CART
WASHER, LOCK M12 030212300 · qty on machine: 4 view full part page → $0.15
43	031112230	WASHER, FLAT M12	4		ADD TO CART
WASHER, FLAT M12 031112230 · qty on machine: 4 view full part page → $0.95
45	470122880	CENTER COVER	1		ADD TO CART
CENTER COVER 470122880 · qty on machine: 1 view full part page → $348.95
46	014212035	SOCKET HEAD BOLT 12X35	4	REPLACES P/N 001521235	PARTS REQUEST
PHOTO COMING SOCKET HEAD BOLT 12X35 014212035 · qty on machine: 4 REPLACES P/N 001521235 PARTS REQUEST
47	031112230	WASHER, LOCK M12	4		ADD TO CART
WASHER, LOCK M12 031112230 · qty on machine: 4 view full part page → $0.95
48	030212300	WASHER, FLAT M12	4		ADD TO CART
WASHER, FLAT M12 030212300 · qty on machine: 4 view full part page → $0.15
49	0039312000	NUT M12	4	REPLACES P/N 020312100	ADD TO CART
NUT M12 0039312000 · qty on machine: 4 REPLACES P/N 020312100 view full part page → $0.46
51	470468810	RUBBER COVER, UPPER	1	S/N F2108 AND BELOW WITH GX240UT2SMXC ENGINE	ADD TO CART
RUBBER COVER, UPPER 470468810 · qty on machine: 1 S/N F2108 AND BELOW WITH GX240UT2SMXC ENGINE view full part page → $38.95
51	470473340	RUBBER COVER, UPPER	1	S/N F2108 AND BELOW WITH GX270UT2XSCM ENGINE S/N F2115 AND ABOVE WITH GX270UT2SCM	ADD TO CART
RUBBER COVER, UPPER 470473340 · qty on machine: 1 S/N F2108 AND BELOW WITH GX270UT2XSCM ENGINE S/N F2115 AND ABOVE WITH GX270UT2SCM view full part page → $52.95
52	467466810	STOPPER, COVER	1		ADD TO CART
STOPPER, COVER 467466810 · qty on machine: 1 view full part page → $50.95
53	009120424	SOCKET HEAD BOLT 6X25	2		ADD TO CART
SOCKET HEAD BOLT 6X25 009120424 · qty on machine: 2 view full part page → $2.95
54	617465130	COLLAR 6.2X7.8X4.5	2		ADD TO CART
COLLAR 6.2X7.8X4.5 617465130 · qty on machine: 2 view full part page → $1.82
55	030206150	WASHER, LOCK M6	2		ADD TO CART
WASHER, LOCK M6 030206150 · qty on machine: 2 view full part page → $0.07
56	022710607	NYLON NUT M6	2		ADD TO CART
NYLON NUT M6 022710607 · qty on machine: 2 view full part page → $0.87
61	90131ZE3790	DRAIN JOINT	1		ADD TO CART
DRAIN JOINT 90131ZE3790 · qty on machine: 1 view full part page → $20.95
62	031112230	WASHER, DRAIN PLUG M12	1	REPLACES P/N 9410912000	ADD TO CART
WASHER, DRAIN PLUG M12 031112230 · qty on machine: 1 REPLACES P/N 9410912000 view full part page → $0.95
65	402010110	COIL SPRING	1	REPLACES P/N 0830000010	ADD TO CART
COIL SPRING 402010110 · qty on machine: 1 REPLACES P/N 0830000010 view full part page → $2.95
66	58151	WASHER, FLAT M5	1	REPLACES P/N 031105080	ADD TO CART
WASHER, FLAT M5 58151 · qty on machine: 1 REPLACES P/N 031105080 view full part page → $0.41
67	2067550101	CLAMP COMPLETE	1		NO LONGER AVAILABLE
PHOTO COMING CLAMP COMPLETE 2067550101 · qty on machine: 1 NO LONGER AVAILABLE
69	959407260	CLIP D6	1		ADD TO CART
CLIP D6 959407260 · qty on machine: 1 view full part page → $1.95
70	012210015	BOLT 10X15	1	REPLACES P/N 001221015	NO LONGER AVAILABLE
PHOTO COMING BOLT 10X15 012210015 · qty on machine: 1 REPLACES P/N 001221015 NO LONGER AVAILABLE
71	030210250	WASHER, LOCK M10	1		ADD TO CART
WASHER, LOCK M10 030210250 · qty on machine: 1 view full part page → $0.28

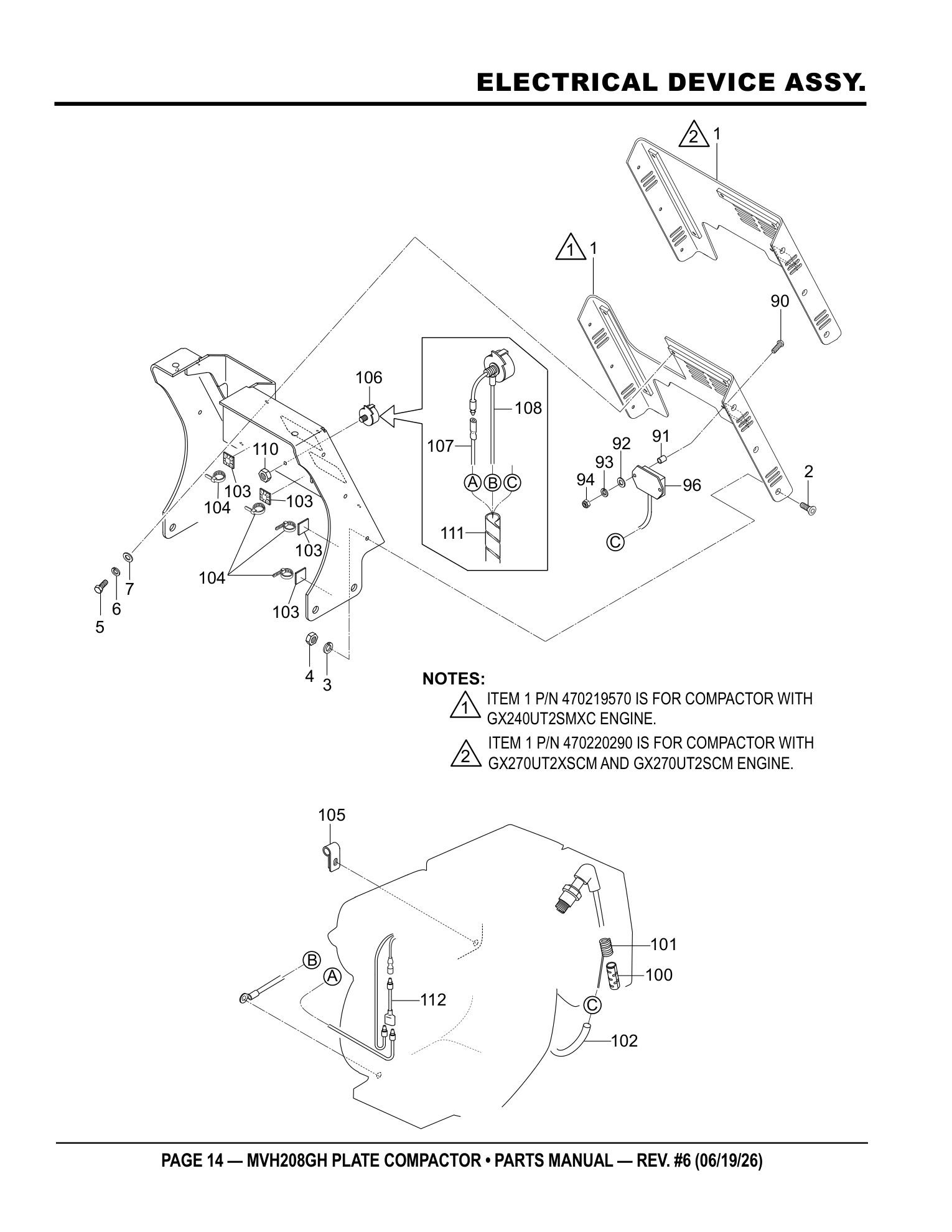

Page 14 — ELECTRICAL DEVICE ASSY.

Multiquip MVH208 Reversible Plate Compactor ELECTRICAL DEVICE ASSY. parts diagram

Parts list — exactly as printed26 rows

No.	Part No.	Part Name	Qty	Remarks
1	470219570	REAR COVER	1	S/N F2108 AND BELOW WITH GX240UT2SMXC ENGINE	ADD TO CART
REAR COVER 470219570 · qty on machine: 1 S/N F2108 AND BELOW WITH GX240UT2SMXC ENGINE view full part page → $273.95
1	470220290	REAR COVER	1	S/N F2108 AND BELOW WITH GX270UT2XSCM ENGINE S/N F2115 AND ABOVE WITH GX270UT2SCM ENGINE	ADD TO CART
REAR COVER 470220290 · qty on machine: 1 S/N F2108 AND BELOW WITH GX270UT2XSCM ENGINE S/N F2115 AND ABOVE WITH GX270UT2SCM ENGINE view full part page → $235.95
2	009120414	SUNK HEAD BOLT 6X20	6		PARTS REQUEST
PHOTO COMING SUNK HEAD BOLT 6X20 009120414 · qty on machine: 6 PARTS REQUEST
3	030206150	WASHER, LOCK M6	6		ADD TO CART
WASHER, LOCK M6 030206150 · qty on machine: 6 view full part page → $0.07
4	020106050	NUT M6	6	REPLACES P/N 020306050	ADD TO CART
NUT M6 020106050 · qty on machine: 6 REPLACES P/N 020306050 view full part page → $0.12
5	001220612	BOLT 6X12	5		NO LONGER AVAILABLE
PHOTO COMING BOLT 6X12 001220612 · qty on machine: 5 NO LONGER AVAILABLE
6	030206150	WASHER, LOCK M6	5		ADD TO CART
WASHER, LOCK M6 030206150 · qty on machine: 5 view full part page → $0.07
7	952404470	WASHER, FLAT M6	5	REPLACES P/N 031106100	ADD TO CART
WASHER, FLAT M6 952404470 · qty on machine: 5 REPLACES P/N 031106100 view full part page → $0.19
90	009110072	PAN HEAD SCREW 5X35	2		ADD TO CART
PAN HEAD SCREW 5X35 009110072 · qty on machine: 2 view full part page → $1.95
91	952407930	COLLAR 6X10X13.5	2		ADD TO CART
COLLAR 6X10X13.5 952407930 · qty on machine: 2 view full part page → $16.95
92	58151	WASHER, FLAT M5	2	REPLACES P/N 031105080	ADD TO CART
WASHER, FLAT M5 58151 · qty on machine: 2 REPLACES P/N 031105080 view full part page → $0.41
93	030205130	WASHER, FLAT M5	2		ADD TO CART
WASHER, FLAT M5 030205130 · qty on machine: 2 view full part page → $0.26
94	022710506	NYLON NUT M5	2		ADD TO CART
NYLON NUT M5 022710506 · qty on machine: 2 view full part page → $0.86
96	955010311	TACH/HOUR METER	1		ADD TO CART
TACH/HOUR METER 955010311 · qty on machine: 1 view full part page → $155.95
100	955010307	CLIP BELT	1		ADD TO CART
CLIP BELT 955010307 · qty on machine: 1 view full part page → $1.54
101	955010308	CURL CORD	1		ADD TO CART
CURL CORD 955010308 · qty on machine: 1 view full part page → $33.95
102	959026828	RUBBER TUBE	1		ADD TO CART
RUBBER TUBE 959026828 · qty on machine: 1 view full part page → $4.95
103	955407970	WIRING FIXED BASE	4		ADD TO CART
WIRING FIXED BASE 955407970 · qty on machine: 4 view full part page → $2.95
104	506010070	CLAMP	4		ADD TO CART
CLAMP 506010070 · qty on machine: 4 view full part page → $0.95
105	2067550101	CLAMP COMPLETE	1		NO LONGER AVAILABLE
PHOTO COMING CLAMP COMPLETE 2067550101 · qty on machine: 1 NO LONGER AVAILABLE
106	955301010	STOP SWITCH, ENGINE	1		ADD TO CART
STOP SWITCH, ENGINE 955301010 · qty on machine: 1 view full part page → $27.95
107	468467570	READ CORD	1		ADD TO CART
READ CORD 468467570 · qty on machine: 1 view full part page → $17.95
108	467466980	LEAD WIRE (SW-GROUND)	1		ADD TO CART
LEAD WIRE (SW-GROUND) 467466980 · qty on machine: 1 view full part page → $13.95
110	020108060	NUT M8	1	REPLACES P/N 020308060	ADD TO CART
NUT M8 020108060 · qty on machine: 1 REPLACES P/N 020308060 view full part page → $0.28
111	959021827	SPIRAL TUBE 6D-950L	1		ADD TO CART
SPIRAL TUBE 6D-950L 959021827 · qty on machine: 1 view full part page → $3.95
112	515450380	WIRE HARNESS	1		ADD TO CART
WIRE HARNESS 515450380 · qty on machine: 1 view full part page → $6.95

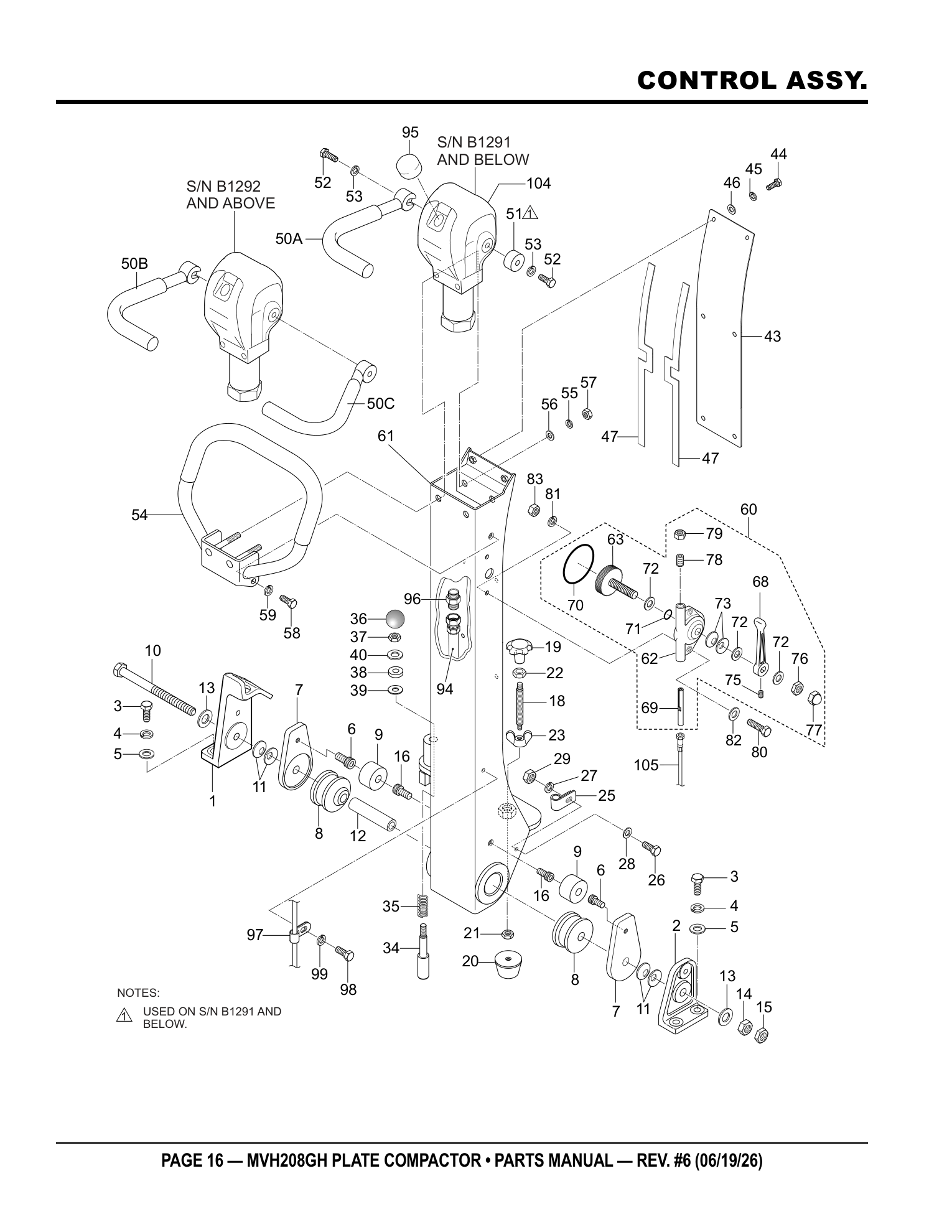

Page 16 — CONTROL ASSY.

Multiquip MVH208 Reversible Plate Compactor CONTROL ASSY. parts diagram

Parts list — exactly as printed43 rows

No.	Part No.	Part Name	Qty	Remarks
1	467351951	HANDLE BRACKET (R)	1		ADD TO CART
HANDLE BRACKET (R) 467351951 · qty on machine: 1 view full part page → $44.95
2	456336420	HANDLE BRACKET (R)	1		ADD TO CART
HANDLE BRACKET (R) 456336420 · qty on machine: 1 view full part page → $97.95
3	012212035	BOLT 12X35	4	REPLACES P/N 001221235	ADD TO CART
BOLT 12X35 012212035 · qty on machine: 4 REPLACES P/N 001221235 view full part page → $2.95
4	030212300	WASHER, LOCK M12	4		ADD TO CART
WASHER, LOCK M12 030212300 · qty on machine: 4 view full part page → $0.15
5	031112230	WASHER, FLAT M12	4		ADD TO CART
WASHER, FLAT M12 031112230 · qty on machine: 4 view full part page → $0.95
6	001521010	SOCKET HEAD BOLT 10X10	2		PARTS REQUEST
PHOTO COMING SOCKET HEAD BOLT 10X10 001521010 · qty on machine: 2 PARTS REQUEST
7	470468800	GUIDE, HANDLE	2		ADD TO CART
GUIDE, HANDLE 470468800 · qty on machine: 2 view full part page → $71.95
8	456449940	SHOCK ABSORBER	2		ADD TO CART
SHOCK ABSORBER 456449940 · qty on machine: 2 view full part page → $71.95
9	470468900	CUSHION RUBBER 16X50X30	2		ADD TO CART
CUSHION RUBBER 16X50X30 470468900 · qty on machine: 2 view full part page → $11.95
10	001221681	BOLT 16X250	1		ADD TO CART
BOLT 16X250 001221681 · qty on machine: 1 view full part page → $45.95
11	032216350	CONICAL WASHER, LOCK M16	4		ADD TO CART
CONICAL WASHER, LOCK M16 032216350 · qty on machine: 4 view full part page → $6.95
12	470469100	RUBBER TUBE 15.9X25X120L	1		ADD TO CART
RUBBER TUBE 15.9X25X120L 470469100 · qty on machine: 1 view full part page → $16.95
13	0401450160	WASHER, FLAT M16	2	REPLACES P/N 031116260	ADD TO CART
WASHER, FLAT M16 0401450160 · qty on machine: 2 REPLACES P/N 031116260 view full part page → $0.53
14	020316130	NUT M16	1		ADD TO CART
NUT M16 020316130 · qty on machine: 1 view full part page → $0.79
15	020416100	NUT M16	1		ADD TO CART
NUT M16 020416100 · qty on machine: 1 view full part page → $2.95
16	470468920	BOLT, CUSHION RUBBER	2		PARTS REQUEST
PHOTO COMING BOLT, CUSHION RUBBER 470468920 · qty on machine: 2 PARTS REQUEST
18	455434950	SPINDLE	1		ADD TO CART
SPINDLE 455434950 · qty on machine: 1 view full part page → $78.95
19	455010030	KNOB	1		ADD TO CART
KNOB 455010030 · qty on machine: 1 view full part page → $41.95
20	939009470	STOPPER RUBBER	1		ADD TO CART
STOPPER RUBBER 939009470 · qty on machine: 1 view full part page → $38.95
21	020310080	NUT M10	1	REPLACES P/N 020410060	ADD TO CART
NUT M10 020310080 · qty on machine: 1 REPLACES P/N 020410060 view full part page → $1.67
22	020412070	NUT M12	1		ADD TO CART
NUT M12 020412070 · qty on machine: 1 view full part page → $1.45
23	022411635	WING NUT M16	1		ADD TO CART
WING NUT M16 022411635 · qty on machine: 1 view full part page → $17.95
25	959408930	CLIP 15 (M6)	1		ADD TO CART
CLIP 15 (M6) 959408930 · qty on machine: 1 view full part page → $5.95
26	011206020	BOLT 6X20	1	REPLACES P/N 001220620	ADD TO CART
BOLT 6X20 011206020 · qty on machine: 1 REPLACES P/N 001220620 view full part page → $0.95
27	030206150	WASHER, LOCK M6	1		ADD TO CART
WASHER, LOCK M6 030206150 · qty on machine: 1 view full part page → $0.07
28	952404470	WASHER, FLAT M6	1	REPLACES P/N 031106100	ADD TO CART
WASHER, FLAT M6 952404470 · qty on machine: 1 REPLACES P/N 031106100 view full part page → $0.19
29	020106050	NUT M6	1	REPLACES P/N 020306050	ADD TO CART
NUT M6 020106050 · qty on machine: 1 REPLACES P/N 020306050 view full part page → $0.12
34	501402870	HANDLE STOPPER	1		ADD TO CART
HANDLE STOPPER 501402870 · qty on machine: 1 view full part page → $78.95
35	501402880	SPRING/HANDLE	1		ADD TO CART
SPRING/HANDLE 501402880 · qty on machine: 1 view full part page → $13.95
36	959403460	BALL GRIP	1		ADD TO CART
BALL GRIP 959403460 · qty on machine: 1 view full part page → $25.95
37	020310080	NUT M10	1	REPLACES P/N 020410060	ADD TO CART
NUT M10 020310080 · qty on machine: 1 REPLACES P/N 020410060 view full part page → $1.67
38	456449980	RUBBER PACKING	1		ADD TO CART
RUBBER PACKING 456449980 · qty on machine: 1 view full part page → $2.95
39	953405260	PACKING 1/4	1		ADD TO CART
PACKING 1/4 953405260 · qty on machine: 1 view full part page → $7.95
40	031110160	WASHER, FLAT M10	1		ADD TO CART
WASHER, FLAT M10 031110160 · qty on machine: 1 view full part page → $0.4
43	466217890	HANDLE COVER	1		ADD TO CART
HANDLE COVER 466217890 · qty on machine: 1 view full part page → $149.95
44	011206020	BOLT 6X20	6	REPLACES P/N 001220620	ADD TO CART
BOLT 6X20 011206020 · qty on machine: 6 REPLACES P/N 001220620 view full part page → $0.95
45	030206150	WASHER, LOCK M6	6		ADD TO CART
WASHER, LOCK M6 030206150 · qty on machine: 6 view full part page → $0.07
46	952404470	WASHER, FLAT M6	6	REPLACES P/N 031106100	ADD TO CART
WASHER, FLAT M6 952404470 · qty on machine: 6 REPLACES P/N 031106100 view full part page → $0.19
47	466462010	PACKING, HANDLE COVER	2		ADD TO CART
PACKING, HANDLE COVER 466462010 · qty on machine: 2 view full part page → $2.95
50A	464216630	TRAVEL LEVER, RIGHT	1	S/N B1291 AND BELOW	ADD TO CART
TRAVEL LEVER, RIGHT 464216630 · qty on machine: 1 S/N B1291 AND BELOW view full part page → $153.95
50B	464216820	TRAVEL LEVER, RIGHT	1	S/N B1292 AND ABOVE	NO LONGER AVAILABLE
PHOTO COMING TRAVEL LEVER, RIGHT 464216820 · qty on machine: 1 S/N B1292 AND ABOVE NO LONGER AVAILABLE
50C	464216830	TRAVEL LEVER, LEFT	1	S/N B1292 AND ABOVE	NO LONGER AVAILABLE
PHOTO COMING TRAVEL LEVER, LEFT 464216830 · qty on machine: 1 S/N B1292 AND ABOVE NO LONGER AVAILABLE
51	464457400	HANDLE BOSS	1	S/N B1291 AND BELOW	ADD TO CART
HANDLE BOSS 464457400 · qty on machine: 1 S/N B1291 AND BELOW view full part page → $17.95

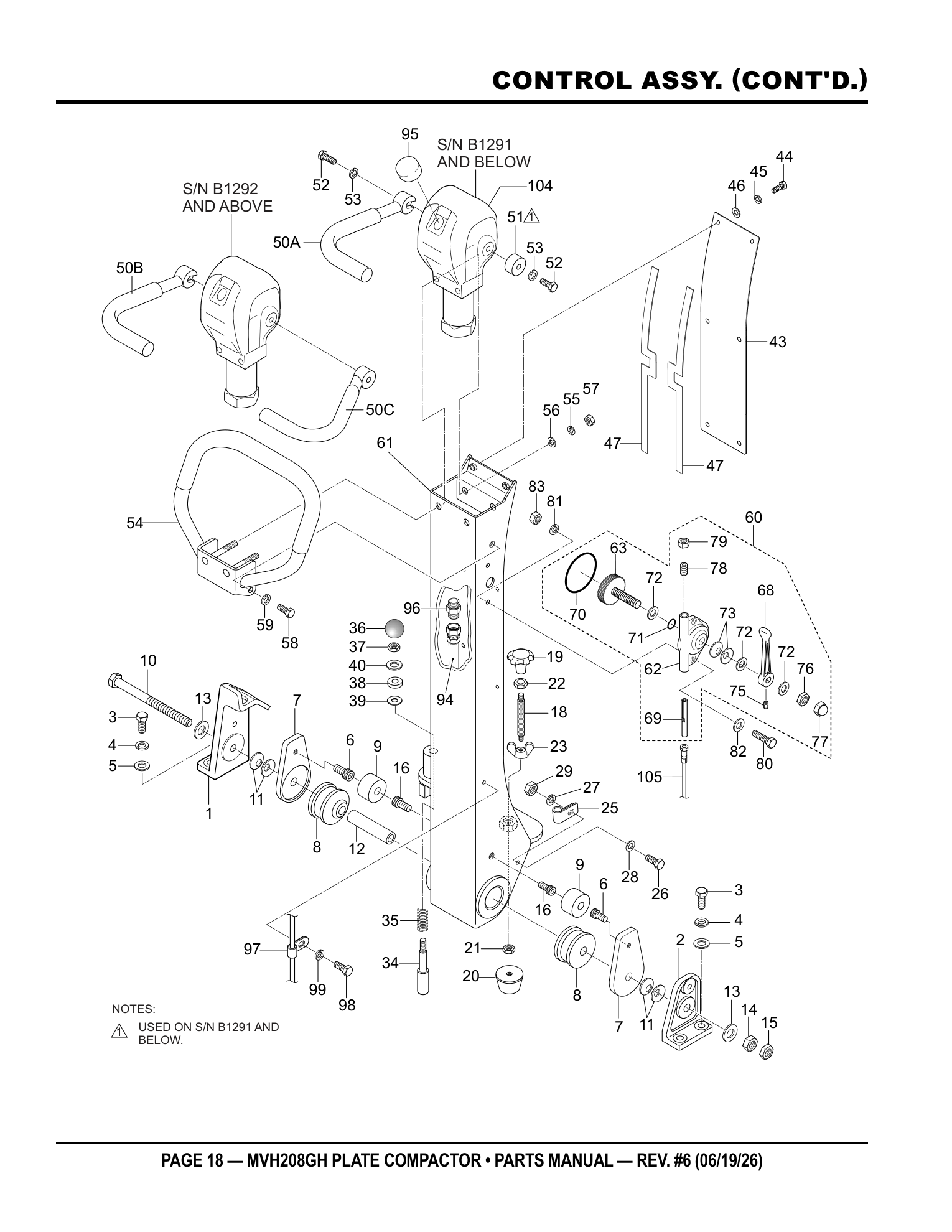

Page 18 — CONTROL ASSY. (CONT'D.)

Multiquip MVH208 Reversible Plate Compactor CONTROL ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed35 rows

No.	Part No.	Part Name	Qty	Remarks
52	012010030	BOLT 10X30	2	REPLACES P/N 001221030	ADD TO CART
BOLT 10X30 012010030 · qty on machine: 2 REPLACES P/N 001221030 view full part page → $0.95
53	030210250	WASHER, LOCK M10	2		ADD TO CART
WASHER, LOCK M10 030210250 · qty on machine: 2 view full part page → $0.28
54	467218900	GRIP	1		ADD TO CART
GRIP 467218900 · qty on machine: 1 view full part page → $357.95
55	030210250	WASHER, LOCK M10	2		ADD TO CART
WASHER, LOCK M10 030210250 · qty on machine: 2 view full part page → $0.28
56	031110160	WASHER, FLAT M10	2		ADD TO CART
WASHER, FLAT M10 031110160 · qty on machine: 2 view full part page → $0.4
57	020310080	NUT M10	2		ADD TO CART
NUT M10 020310080 · qty on machine: 2 view full part page → $1.67
58	0105091025	BOLT 10X25	2	REPLACES P/N 001221025	ADD TO CART
BOLT 10X25 0105091025 · qty on machine: 2 REPLACES P/N 001221025 view full part page → $0.68
59	030210250	WASHER, LOCK M10	2		ADD TO CART
WASHER, LOCK M10 030210250 · qty on machine: 2 view full part page → $0.28
60	466910050	THROTTLE LEVER ASSY	1	INCLUDES ITEMS W/#	ADD TO CART
THROTTLE LEVER ASSY 466910050 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 62#, 63#, 68#, 69#, 70#, 71#, 72#, 73#, 75#, 76#, 77#, 78#, 79# view full part page → $58.95 IN A KIT + SOLD SOLO
61	470121870	HANDLE BAR	1		ADD TO CART
HANDLE BAR 470121870 · qty on machine: 1 view full part page → $477.95
62#	362341550	THROTTLE BODY	1		ADD TO CART
THROTTLE BODY 362341550 · qty on machine: 1 Also included in kit 60 - THROTTLE LEVER ASSY (466910050) view full part page → $19.95 IN A KIT + SOLD SOLO
63#	362910090	THROTTLE, GEAR COMPLETE, W/BOLT	1		ADD TO CART
THROTTLE, GEAR COMPLETE, W/BOLT 362910090 · qty on machine: 1 Also included in kit 60 - THROTTLE LEVER ASSY (466910050) view full part page → $12.95 IN A KIT + SOLD SOLO
68#	362455630	THROTTLE LEVER	1		ADD TO CART
THROTTLE LEVER 362455630 · qty on machine: 1 Also included in kit 60 - THROTTLE LEVER ASSY (466910050) view full part page → $9.95 IN A KIT + SOLD SOLO
69#	362455620	SLIDER	1		ADD TO CART
SLIDER 362455620 · qty on machine: 1 Also included in kit 60 - THROTTLE LEVER ASSY (466910050) view full part page → $7.95 IN A KIT + SOLD SOLO
70#	050100450	O-RING	1		ADD TO CART
O-RING 050100450 · qty on machine: 1 Also included in kit 60 - THROTTLE LEVER ASSY (466910050) view full part page → $2.95 IN A KIT + SOLD SOLO
71#	050200100	O-RING	1		ADD TO CART
O-RING 050200100 · qty on machine: 1 Also included in kit 60 - THROTTLE LEVER ASSY (466910050) view full part page → $1.32 IN A KIT + SOLD SOLO
72#	031110160	WASHER, FLAT M10	3		ADD TO CART
WASHER, FLAT M10 031110160 · qty on machine: 3 Also included in kit 60 - THROTTLE LEVER ASSY (466910050) view full part page → $0.4 IN A KIT + SOLD SOLO
73#	032110180	CONICAL WASHER, LOCK M10	2		ADD TO CART
CONICAL WASHER, LOCK M10 032110180 · qty on machine: 2 Also included in kit 60 - THROTTLE LEVER ASSY (466910050) view full part page → $1.95 IN A KIT + SOLD SOLO
75#	096206006	SOCKET HEAD SCREW 6X6	1		ADD TO CART
SOCKET HEAD SCREW 6X6 096206006 · qty on machine: 1 Also included in kit 60 - THROTTLE LEVER ASSY (466910050) view full part page → $2.95 IN A KIT + SOLD SOLO
76#	020310080	NUT M10	1	REPLACES P/N 020410060	ADD TO CART
NUT M10 020310080 · qty on machine: 1 REPLACES P/N 020410060 Also included in kit 60 - THROTTLE LEVER ASSY (466910050) view full part page → $1.67 IN A KIT + SOLD SOLO
77#	022131008	CAP NUT M10	1		ADD TO CART
CAP NUT M10 022131008 · qty on machine: 1 Also included in kit 60 - THROTTLE LEVER ASSY (466910050) view full part page → $2.68 IN A KIT + SOLD SOLO
78#	014208020	SOCKET HEAD SCREW 8X20	1	REPLACES P/N 096208020	ADD TO CART
SOCKET HEAD SCREW 8X20 014208020 · qty on machine: 1 REPLACES P/N 096208020 Also included in kit 60 - THROTTLE LEVER ASSY (466910050) view full part page → $0.77 IN A KIT + SOLD SOLO
79#	020408050	NUT M8	1		ADD TO CART
NUT M8 020408050 · qty on machine: 1 Also included in kit 60 - THROTTLE LEVER ASSY (466910050) view full part page → $0.95 IN A KIT + SOLD SOLO
80	011606025	BOLT 6X25	1	REPLACES P/N 001220625	ADD TO CART
BOLT 6X25 011606025 · qty on machine: 1 REPLACES P/N 001220625 view full part page → $1.95
81	030206150	WASHER, LOCK M6	1		ADD TO CART
WASHER, LOCK M6 030206150 · qty on machine: 1 view full part page → $0.07
82	952404470	WASHER, FLAT M6	1	REPLACES P/N 031106100	ADD TO CART
WASHER, FLAT M6 952404470 · qty on machine: 1 REPLACES P/N 031106100 view full part page → $0.19
83	020106050	NUT M6	1	REPLACES P/N 020306050	ADD TO CART
NUT M6 020106050 · qty on machine: 1 REPLACES P/N 020306050 view full part page → $0.12
94	954003280	OIL HOSE 1100L	1		ADD TO CART
OIL HOSE 1100L 954003280 · qty on machine: 1 view full part page → $82.95
95	458451630	BREATHER CAP	1		ADD TO CART
BREATHER CAP 458451630 · qty on machine: 1 view full part page → $5.95
96	954003150	MALE CONNECTOR, O-RING 1/4	1		ADD TO CART
MALE CONNECTOR, O-RING 1/4 954003150 · qty on machine: 1 view full part page → $6.95
97	2067550101	CLAMP COMPLETE	1		NO LONGER AVAILABLE
PHOTO COMING CLAMP COMPLETE 2067550101 · qty on machine: 1 NO LONGER AVAILABLE
98	0105050616	BOLT 6X15	1	REPLACES P/N 001220615	ADD TO CART
BOLT 6X15 0105050616 · qty on machine: 1 REPLACES P/N 001220615 view full part page → $0.45
99	030206150	WASHER, LOCK M6	1		ADD TO CART
WASHER, LOCK M6 030206150 · qty on machine: 1 view full part page → $0.07
104	470219590	HAND PUMP	1		ADD TO CART
HAND PUMP 470219590 · qty on machine: 1 view full part page → $1113.95
105	956100074	THROTTLE WIRE 1540	1		ADD TO CART
THROTTLE WIRE 1540 956100074 · qty on machine: 1 view full part page → $37.95

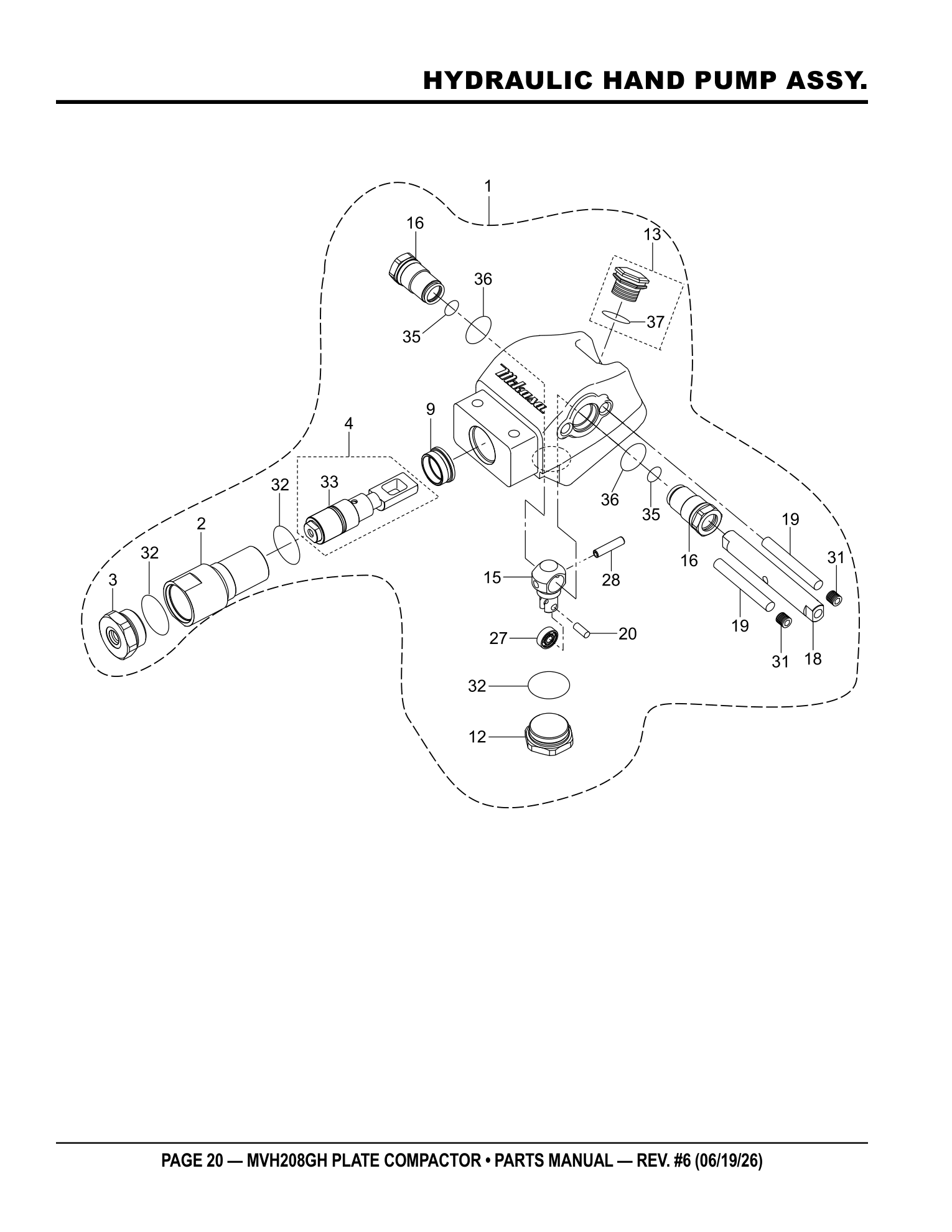

Page 20 — HYDRAULIC HAND PUMP ASSY.

Multiquip MVH208 Reversible Plate Compactor HYDRAULIC HAND PUMP ASSY. parts diagram

Parts list — exactly as printed20 rows

No.	Part No.	Part Name	Qty	Remarks
1	470219590	HAND PUMP ASSY	1	INCLUDES ITEMS W/#	ADD TO CART
HAND PUMP ASSY 470219590 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 2#, 3#, 4#, 9#, 12#, 13#, 15#, 16#, 18#, 19#, 20#, 27#, 28#, 31#, 32#, 33#$, 35#, 36#, 37#% view full part page → $1113.95 IN A KIT + SOLD SOLO
2#	470353850	CYLINDER	1		PARTS REQUEST
PHOTO COMING CYLINDER 470353850 · qty on machine: 1 Also included in kit 1 - HAND PUMP ASSY (470219590) PARTS REQUEST
3#	470469040	CYLINDER CAP	1		PARTS REQUEST
PHOTO COMING CYLINDER CAP 470469040 · qty on machine: 1 Also included in kit 1 - HAND PUMP ASSY (470219590) PARTS REQUEST
4#	470910020	VALVE ASSY	1	INCLUDES ITEMS W/$	NO LONGER AVAILABLE
PHOTO COMING VALVE ASSY 470910020 · qty on machine: 1 INCLUDES ITEMS W/$ Also included in kit 1 - HAND PUMP ASSY (470219590) NO LONGER AVAILABLE
9#	470469010	CYLINDER END	1		PARTS REQUEST
PHOTO COMING CYLINDER END 470469010 · qty on machine: 1 Also included in kit 1 - HAND PUMP ASSY (470219590) PARTS REQUEST
12#	470469000	PLUG, PUMP	1		PARTS REQUEST
PHOTO COMING PLUG, PUMP 470469000 · qty on machine: 1 Also included in kit 1 - HAND PUMP ASSY (470219590) PARTS REQUEST
13#	470910010	BREATHER ASSY	1	INCLUDES ITEMS W/%	ADD TO CART
BREATHER ASSY 470910010 · qty on machine: 1 INCLUDES ITEMS W/% Also included in kit 1 - HAND PUMP ASSY (470219590) view full part page → $147.95 IN A KIT + SOLD SOLO
15#	470468980	CONTROL ARM	1		ADD TO CART
CONTROL ARM 470468980 · qty on machine: 1 Also included in kit 1 - HAND PUMP ASSY (470219590) view full part page → $165.95 IN A KIT + SOLD SOLO
16#	470468970	BUSH, PUMP	2		ADD TO CART
BUSH, PUMP 470468970 · qty on machine: 2 Also included in kit 1 - HAND PUMP ASSY (470219590) view full part page → $98.95 IN A KIT + SOLD SOLO
18#	470468960	CONTROL SHAFT, PUMP	1		ADD TO CART
CONTROL SHAFT, PUMP 470468960 · qty on machine: 1 Also included in kit 1 - HAND PUMP ASSY (470219590) view full part page → $172.95 IN A KIT + SOLD SOLO
19#	470468950	STOPPER, PUMP	2		ADD TO CART
STOPPER, PUMP 470468950 · qty on machine: 2 Also included in kit 1 - HAND PUMP ASSY (470219590) view full part page → $34.95 IN A KIT + SOLD SOLO
20#	470468940	PIM 7X18, PUMP	1		ADD TO CART
PIM 7X18, PUMP 470468940 · qty on machine: 1 Also included in kit 1 - HAND PUMP ASSY (470219590) view full part page → $15.95 IN A KIT + SOLD SOLO
27#	040300627	BEARING	1		ADD TO CART
BEARING 040300627 · qty on machine: 1 Also included in kit 1 - HAND PUMP ASSY (470219590) view full part page → $9.95 IN A KIT + SOLD SOLO
28#	025408035	SPRING PIN 8X35	1		ADD TO CART
SPRING PIN 8X35 025408035 · qty on machine: 1 Also included in kit 1 - HAND PUMP ASSY (470219590) view full part page → $1.95 IN A KIT + SOLD SOLO
31#	505015380	PLUG PT1/4	2		PARTS REQUEST
PHOTO COMING PLUG PT1/4 505015380 · qty on machine: 2 Also included in kit 1 - HAND PUMP ASSY (470219590) PARTS REQUEST
32#	050200360	O-RING P-36	3		ADD TO CART
O-RING P-36 050200360 · qty on machine: 3 Also included in kit 1 - HAND PUMP ASSY (470219590) view full part page → $2.95 IN A KIT + SOLD SOLO
33#$	050200240	O-RING P-24	1		PARTS REQUEST
PHOTO COMING O-RING P-24 050200240 · qty on machine: 1 Also included in kit 1 - HAND PUMP ASSY (470219590); kit 4 - VALVE ASSY (470910020) PARTS REQUEST
35#	050210200	O-RING P-20-1B	2		ADD TO CART
O-RING P-20-1B 050210200 · qty on machine: 2 Also included in kit 1 - HAND PUMP ASSY (470219590) view full part page → $1.95 IN A KIT + SOLD SOLO
36#	050100250	O-RING G-25	2		ADD TO CART
O-RING G-25 050100250 · qty on machine: 2 Also included in kit 1 - HAND PUMP ASSY (470219590) view full part page → $1.43 IN A KIT + SOLD SOLO
37#%	050200180	O-RING P-18	1		ADD TO CART
O-RING P-18 050200180 · qty on machine: 1 Also included in kit 1 - HAND PUMP ASSY (470219590); kit 13 - BREATHER ASSY (470910010) view full part page → $6.95 IN A KIT + SOLD SOLO

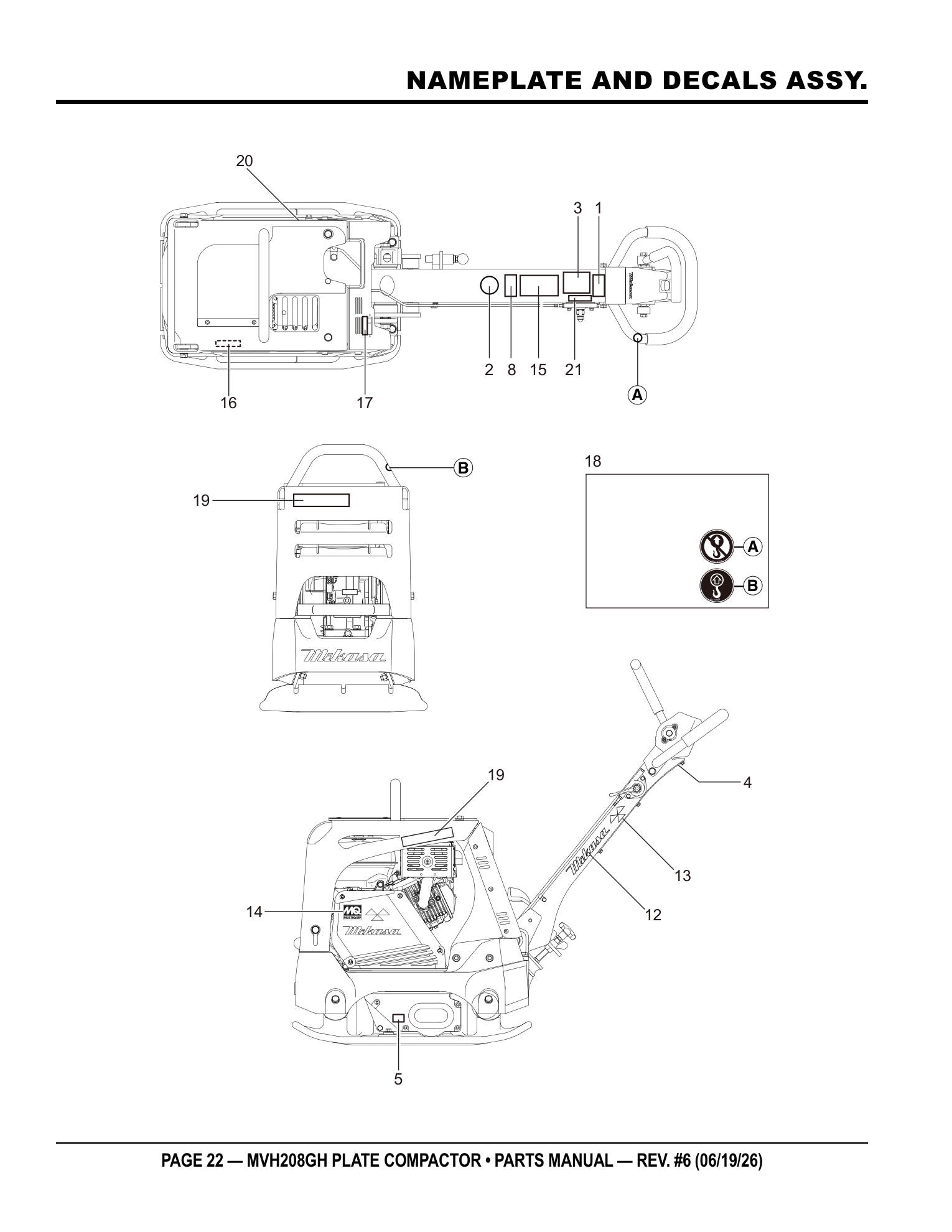

Page 22 — NAMEPLATE AND DECALS ASSY.

Multiquip MVH208 Reversible Plate Compactor NAMEPLATE AND DECALS ASSY. parts diagram

Parts list — exactly as printed16 rows

No.	Part No.	Part Name	Qty
1	920204580	DECAL: FULL THROTTLE	1	ADD TO CART
DECAL: FULL THROTTLE 920204580 · qty on machine: 1 view full part page → $8.95
2	920203330	EAR PROTECTION LABEL	1	ADD TO CART
EAR PROTECTION LABEL 920203330 · qty on machine: 1 view full part page → $1.95
3	920211060	DECAL: CAUTION (LEVER)	1	ADD TO CART
DECAL: CAUTION (LEVER) 920211060 · qty on machine: 1 view full part page → $6.95
4	920211090	DECAL: SHELL TELLUS OIL 32	1	ADD TO CART
DECAL: SHELL TELLUS OIL 32 920211090 · qty on machine: 1 view full part page → $1.95
5	920201950	DECAL: OIL SAE 10W-30	1	ADD TO CART
DECAL: OIL SAE 10W-30 920201950 · qty on machine: 1 view full part page → $0.95
8	920214100	DECAL: E/G FIRE WARNING	1	ADD TO CART
DECAL: E/G FIRE WARNING 920214100 · qty on machine: 1 view full part page → $12.95
12	920217130	DECAL: MIKASA MARK (W) 200L	2	ADD TO CART
DECAL: MIKASA MARK (W) 200L 920217130 · qty on machine: 2 view full part page → $18.95
13	920217110	DECAL: MIKASA MARK 35X70	2	ADD TO CART
DECAL: MIKASA MARK 35X70 920217110 · qty on machine: 2 view full part page → $4.95
14	920220220	DECAL: MQ MARK 72X57	1	ADD TO CART
DECAL: MQ MARK 72X57 920220220 · qty on machine: 1 view full part page → $4.95
15	920218390	DECAL: CAUTION	1	ADD TO CART
DECAL: CAUTION 920218390 · qty on machine: 1 view full part page → $13.95
16	920220140	DECAL: V-BELT HDPF-5380	1	ADD TO CART
DECAL: V-BELT HDPF-5380 920220140 · qty on machine: 1 view full part page → $4.95
17	920218140	DECAL: E/G RPM 3400	1	ADD TO CART
DECAL: E/G RPM 3400 920218140 · qty on machine: 1 view full part page → $2.95
18	920900090	DECAL: SET/MVC-MCD/EXP, EU	1	ADD TO CART
DECAL: SET/MVC-MCD/EXP, EU 920900090 · qty on machine: 1 view full part page → $7.95
19	920220080	DECAL: MODEL(R, OR)	2	ADD TO CART
DECAL: MODEL(R, OR) 920220080 · qty on machine: 2 view full part page → $12.95
20	920220090	DECAL: MODEL(L, OR)	1	ADD TO CART
DECAL: MODEL(L, OR) 920220090 · qty on machine: 1 view full part page → $12.95
21	920211690	DECAL: LEVER OPERATION	1	ADD TO CART
DECAL: LEVER OPERATION 920211690 · qty on machine: 1 view full part page → $0.69

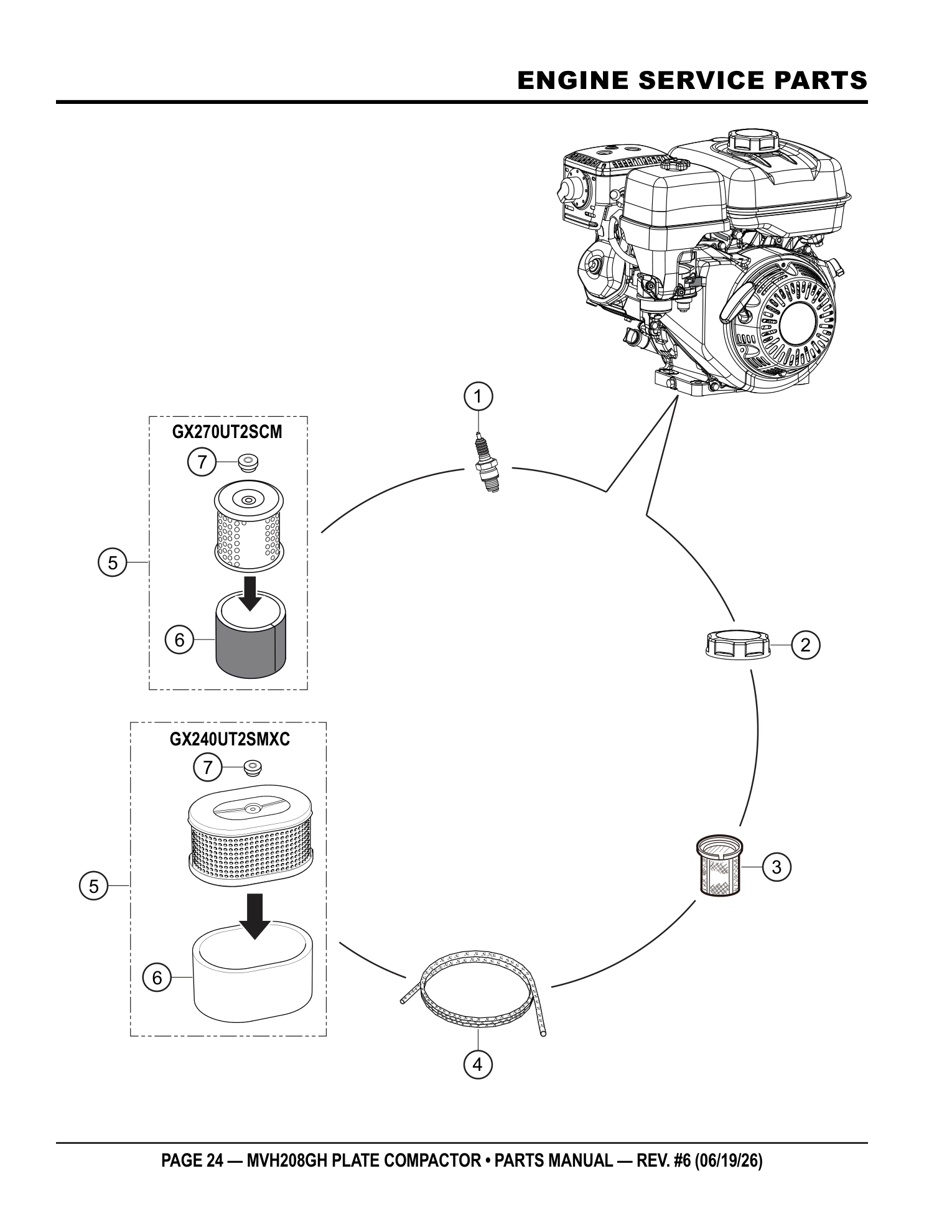

Page 24 — UNKNOWN

Multiquip MVH208 Reversible Plate Compactor UNKNOWN parts diagram

Parts list — exactly as printed14 rows

No.	Part No.	Part Name	Qty	Remarks
1♦	9807956855	SPARK PLUG	1		ADD TO CART
SPARK PLUG 9807956855 · qty on machine: 1 view full part page → $6.95
1◊	9807956846	SPARK PLUG	1		ADD TO CART
SPARK PLUG 9807956846 · qty on machine: 1 view full part page → $4.95
2	17620Z4H900	CAP, FUEL TANK	1		ADD TO CART
CAP, FUEL TANK 17620Z4H900 · qty on machine: 1 view full part page → $187.95
3	17672Z4H000	FILTER, FUEL TANK	1		ADD TO CART
FILTER, FUEL TANK 17672Z4H000 · qty on machine: 1 view full part page → $21.95
4	28462ZE2W11	ROPE, RECOIL STARTER	1		ADD TO CART
ROPE, RECOIL STARTER 28462ZE2W11 · qty on machine: 1 view full part page → $20.95
5♦	17210ZE3505	ELEMENT, AIR CLEANER	1	INCLUDES ITEMS W/#	ADD TO CART
ELEMENT, AIR CLEANER 17210ZE3505 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 6#, 7#% view full part page → $37.95 IN A KIT + SOLD SOLO
5◊	17210Z1C781	ELEMENT, AIR CLEANER	1	INCLUDES ITEMS W/%	ADD TO CART
ELEMENT, AIR CLEANER 17210Z1C781 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 6%, 7#% view full part page → $28.95 IN A KIT + SOLD SOLO
6#	17218ZE3505	FILTER, OUTER	1		ADD TO CART
FILTER, OUTER 17218ZE3505 · qty on machine: 1 Also included in kit 5♦ - ELEMENT, AIR CLEANER (17210ZE3505) view full part page → $26.95 IN A KIT + SOLD SOLO
6%	17218Z1C780	FILTER, OUTER	1		ADD TO CART
FILTER, OUTER 17218Z1C780 · qty on machine: 1 Also included in kit 5◊ - ELEMENT, AIR CLEANER (17210Z1C781) view full part page → $4.95 IN A KIT + SOLD SOLO
7#%	17232891000	GROMMET, AIR CLEANER	1		ADD TO CART
GROMMET, AIR CLEANER 17232891000 · qty on machine: 1 Also included in kit 5♦ - ELEMENT, AIR CLEANER (17210ZE3505); kit 5◊ - ELEMENT, AIR CLEANER (17210Z1C781) view full part page → $10.95 IN A KIT + SOLD SOLO
NOTICE					SEE REMARKS
PHOTO COMING SEE REMARKS
♦GX240UT2SMXC					SEE REMARKS
PHOTO COMING SEE REMARKS
GX270UT2SCM					SEE REMARKS
PHOTO COMING SEE REMARKS
◊					SEE REMARKS
PHOTO COMING SEE REMARKS

The machine itself

Multiquip MVH208 Reversible Plate Compactor

Price by quote Get a quote

Tell us where the machine is headed and we'll quote it with freight. One call, no games.

The Multiquip MVH208GH is a plate compactor built for compacting granular soils, gravel, and asphalt on grading, paving, and repair work. It weighs in at 463 lbs. (210 kg.). Factory-documented specs and parts support; priced by quote.

Keep-it-running spares

All listed parts →

Every part that fits this machine

001221681 Multiquip 001221681 Bolt 16x250 T - OEM Replacement Part for Plate Compactors $45.95

040006910 Multiquip 040006910 Bearing 6910 Open MVH-200 - OEM Replacement Part $106.95

047920130 Multiquip 047920130 Bearing Roller MVH-206 - OEM Replacement Part $178.95

070200383 Multiquip 070200383 V-Belt B-38 Green OEM Replacement Part $59.95

17620Z4H900 Multiquip 17620Z4H900 Fuel Tank Cap - OEM Replacement Part $187.95

455010030 Multiquip 455010030 Knob - OEM Replacement Part for MVH Plate Compactors $41.95

455434950 Multiquip 455434950 Spindle - OEM Replacement Part for MVH Plate Compactors $78.95

456336420 Multiquip 456336420 Handle Bracket (Right) - OEM Replacement Part for Plate Compactors $97.95

456449940 Multiquip 456449940 Shock Absorber - OEM Replacement Part for MVH Plate Compactors $71.95

464216630 Multiquip 464216630 Lever Travel - OEM Replacement Part for Plate Compactors $153.95

464457380 Multiquip 464457380 Drain Joint - OEM Replacement Part for Plate Compactors $67.95

466217890 Multiquip 466217890 Handle Cover MVH-206 - OEM Replacement Part for Plate Compactors $149.95

466347790 Multiquip 466347790 Rotary Shaft Driven MVH-206 - OEM Replacement Part $555.95

466347860 Multiquip 466347860 Rod Piston MVH-206 - OEM Replacement Part $200.95

466347900 Multiquip 466347900 Gear Drive MVH-206 - OEM Replacement Part $493.95

466910050 Multiquip 466910050 Throttle Lever Assembly - OEM Replacement Part for Plate Compactors $58.95

467218900 Multiquip 467218900 Handle with Rubber Grip - OEM Replacement Part $357.95

467351951 Multiquip 467351951 Handle Bracket (Right) - OEM Replacement Part for Plate Compactors $44.95

467466810 Multiquip 467466810 Cover - OEM Replacement Part for Plate Compactors $50.95

470121760 Multiquip 470121760 Vibrating Plate - OEM Replacement Part for Plate Compactors $1,391.95

470121780 Multiquip 470121780 Belt Cover (Out) - OEM Replacement Part for Plate Compactors $184.95

470219530 Multiquip 470219530 Dust Cover - OEM Replacement Part $77.95

470219540 Multiquip 470219540 Belt Cover Lower - OEM Replacement Part $215.95

470219570 Multiquip 470219570 Bush - OEM Replacement Part for Plate Compactors $273.95

470219590 Multiquip 470219590 Hand Pump - OEM Replacement Part $1,113.95

470353610 Multiquip 470353610 Vibrator Cover - OEM Replacement Part for Plate Compactors $42.95

470353650 Multiquip 470353650 Front Bumper - OEM Replacement Part for Plate Compactors $172.95

470353710 Multiquip 470353710 Rotary Shaft Drive - OEM Replacement Part $470.95

470353720 Multiquip 470353720 Gear, Driven - OEM Replacement Part for Plate Compactors $818.95

470353730 Multiquip 470353730 Bearing Cover - OEM Replacement Part $60.95

470353740 Multiquip 470353740 Cylinder (R) - OEM Replacement Part for Plate Compactors $270.95

470353750 Multiquip 470353750 Belt Cover Guide - OEM Replacement Part for Plate Compactors $95.95

470353760 Multiquip 470353760 Eccentric Rotor - OEM Replacement Part for Plate Compactors $98.95

470468800 Multiquip 470468800 Handle Guide (JP) - OEM Replacement Part for Plate Compactors $71.95

470468810 Multiquip 470468810 Rubber Cover Upper - OEM Replacement Part $38.95

470468950 Multiquip 470468950 Pin - OEM Replacement Part for Plate Compactors $34.95

470468960 Multiquip 470468960 Control Shaft - OEM Replacement Part for Plate Compactors $172.95

470468970 Multiquip 470468970 Bush Pump - OEM Replacement Part for Plate Compactors $98.95

470910010 Multiquip 470910010 Breather Assembly - OEM Replacement Part for Plate Compactors $147.95

470910100 Multiquip 470910100 Vibrator Case Assembly - OEM Replacement Part $3,422.95

501402870 Multiquip 501402870 Handle Bar Assembly - OEM Replacement Part $78.95

912224006 Multiquip 912224006 Replacement Engine - OEM Replacement Part $1,396.95

939009470 Multiquip 939009470 Rubber - OEM Replacement Part for Plate Compactors $38.95

939010480 Multiquip 939010480 Shock Absorber - OEM Replacement Part $74.95

954003280 Multiquip 954003280 Oil Hose - OEM Replacement Part for Plate Compactors $82.95

955010308 Multiquip 955010308 Curl Cord 1150L MVH-206 - OEM Replacement Part $33.95

955010311 Multiquip 955010311 Tachometer - OEM Replacement Part for Plate Compactors and Rammers $155.95

956100074 Multiquip 956100074 Throttle Wire - OEM Replacement Part for Plate Compactors $37.95

001220825 BOLT 8X25

001520854 SOCKET HEAD BOLT 8X70 $1.95

001521010 SOCKET HEAD BOLT 10X10

0039312000 NUT M12 $0.46

0080000010 STOP RING $0.65

009110071 SOCKET HEAD BOLT 10X25 $6.95

009120308 SOCKET HEAD BOLT 12X25 $4.95

009120309 SOCKET HEAD BOLT 12X40 $5.95

009120414 SUNK HEAD BOLT 6X20

009120424 SOCKET HEAD BOLT 6X25 $2.95

0091720000 HOSE, CLAMP $14.95

0105050616 BOLT 6X15 $0.45

0105051045 BOLT 10X45 $1.30

0105091025 BOLT 10X25 $0.68

011008015 BOLT 8X12 $0.85

011206020 BOLT 6X20 $0.95

011208030 BOLT 8X30 $1.30

011606025 BOLT 6X25 $1.95

012010030 BOLT 10X30 $0.95

012012030 BOLT 12X30 $2.95

012210015 BOLT 10X15

012212035 BOLT 12X35 $2.95

014208020 BOLT 8X20 $0.77

014212035 SOCKET HEAD BOLT 12X35

020106050 NUT M6 $0.12

020108060 NUT M8 $0.28

020310080 NUT M10 $1.67

020416100 NUT M16 $2.95

0211140020 GASKET

022411635 WING NUT M16 $17.95

022710506 NYLON NUT M5 $0.86

022710607 NYLON NUT M6 $0.87

025408035 SPRING PIN 8X35 $1.95

025510063 KNOCK PIN 10X63 $8.95

030206150 WASHER, LOCK M6 $0.07

030210250 WASHER, LOCK M10 $0.28

030212300 WASHER, FLAT M12 $0.15

031108160 WASHER, FLAT M8

031110160 WASHER, FLAT M10 $0.40

031112230 WASHER, FLAT M12 $0.95

032110180 CONICAL WASHER, LOCK M10 $1.95

032216350 CONICAL WASHER, LOCK M16 $6.95

033910220 WASHER 8.4X15.5X1.6 $0.95

0401140030 PLUG $3.95

0401450080 WASHER, FLAT M8 $0.56

0401450160 WASHER, FLAT M16 $0.53

040300627 BEARING $9.95

042506000 BEARING $4.95

050100250 O-RING G-25 $1.43

050100450 O-RING $2.95

050200100 O-RING $1.32

050200180 O-RING P-18 $6.95

050200240 O-RING P-24

050200360 O-RING P-36 $2.95

050210200 O-RING P-20-1B $1.95

050710150 O-RING $23.95

060104020 OIL SEAL

080200500 STOP RING $4.95

092006010 FLAT HEAD SCREW 6X10 $0.26

096206006 SOCKET HEAD SCREW 6X6 $2.95

17218Z1C780 FILTER, OUTER $4.95

17218ZE3505 FILTER, OUTER $26.95

17232891000 GROMMET, AIR CLEANER $10.95

17672Z4H000 FILTER, FUEL TANK $21.95

2067550101 CLAMP COMPLETE

28462ZE2W11 ROPE, RECOIL STARTER $20.95

362341550 THROTTLE BODY $19.95

362455620 SLIDER $7.95

362455630 THROTTLE LEVER $9.95

362910090 THROTTLE, GEAR COMPLETE, W/BOLT $12.95

456343340 Multiquip 456343340 Clutch Assembly - OEM Replacement Part for Plate Compactors $459.95

458451630 BREATHER CAP $5.95

464216830 TRAVEL LEVER, LEFT

465459390 DRAIN HOSE $18.95

467466980 LEAD WIRE (SW-GROUND) $13.95

468467570 READ CORD $17.95

470121830 FRONT COVER

470121840 CENTER COVER

470121850 BASE

470353640 DUST SPONGE (OUT) $21.95

470353680 BELT COVER, IN

470468730 WASHER $29.95

470468900 CUSHION RUBBER 16X50X30 $11.95

470468920 BOLT, CUSHION RUBBER

470468940 PIM 7X18, PUMP $15.95

470469000 PLUG, PUMP

470469100 RUBBER TUBE 15.9X25X120L $16.95

470910020 VALVE ASSY

501402880 SPRING/HANDLE $13.95

505015380 PLUG PT1/4

506010070 CLAMP $0.95

515450380 WIRE HARNESS $6.95

58151 WASHER, FLAT M5 $0.41

617465130 COLLAR 6.2X7.8X4.5 $1.82

90131ZE3790 DRAIN JOINT $20.95

920201950 DECAL: OIL SAE 10W-30 $0.95

920203330 EAR PROTECTION LABEL $1.95

920204580 DECAL: FULL THROTTLE $8.95

920211060 DECAL: CAUTION (LEVER) $6.95

920211090 DECAL: SHELL TELLUS OIL 32 $1.95

920211690 DECAL: LEVER OPERATION $0.69

920214100 DECAL: E/G FIRE WARNING $12.95

920217110 DECAL: MIKASA MARK 35X70 $4.95

920217130 DECAL: MIKASA MARK (W) 200L $18.95

920218140 DECAL: E/G RPM 3400 $2.95

920218390 DECAL: CAUTION $13.95

920220080 DECAL: MODEL(R, OR) $12.95

920220090 DECAL: MODEL(L, OR) $12.95

920220140 DECAL: V-BELT HDPF-5380 $4.95

920220220 DECAL: MQ MARK 72X57 $4.95

920900090 DECAL: SET/MVC-MCD/EXP, EU $7.95

951400110 KEY 7X7X35 $6.95

951405370 KEY 15X10X39 RR $17.95

952400690 WASHER 9X35X4.5 $6.95

952404470 WASHER, FLAT M6 $0.19

952407930 COLLAR 6X10X13.5 $16.95

952409450 SPACER 25X40X5 $17.95

953010040 SEAL CAP $9.95

953405260 PACKING 1/4 (CU) $7.95

953405270 PLUG 1/4X14 13L $16.95

954003150 MALE CONNECTOR, O-RING 1/4 $6.95

954010020 CONNECTOR PT, PF1/4 $11.95

954407310 UNION, DRAIN

955010307 CLIP BELT $1.54

955301010 STOP SWITCH, ENGINE $27.95

955407970 WIRING FIXED BASE $2.95

959026828 RUBBER TUBE $4.95

959403460 BALL GRIP $25.95

959407260 CLIP D6 $1.95

959408930 CLIP 15 (M6) $5.95

CYLINDER 1

PACKING 1

PISTON 1

PULLEY 1

From the guides desk

Guide · 2026-08-04

Multiquip Plate Compactor Maintenance Guide

Keep your Multiquip plate compactor running at full strength. Practical maintenance intervals, service specs, and storage steps for contr...

Read it →

Ask ARIA about your machine.

Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.

Chat with ARIA

Multiquip MVH208 Reversible Plate Compactor

The parts bench

The machine itself

Machine

Engine

Keep-it-running spares

Every part that fits this machine

Service notices & part changes

Take the factory book with you

Get the download pack

From the guides desk

Multiquip Plate Compactor Maintenance Guide

Ask ARIA about your machine.

Your cart is empty

Your cart is empty
