Multiquip G55 Vibrator Power Source
Factory parts book · interactive
Multiquip G55 Vibrator Power Source
The parts bench

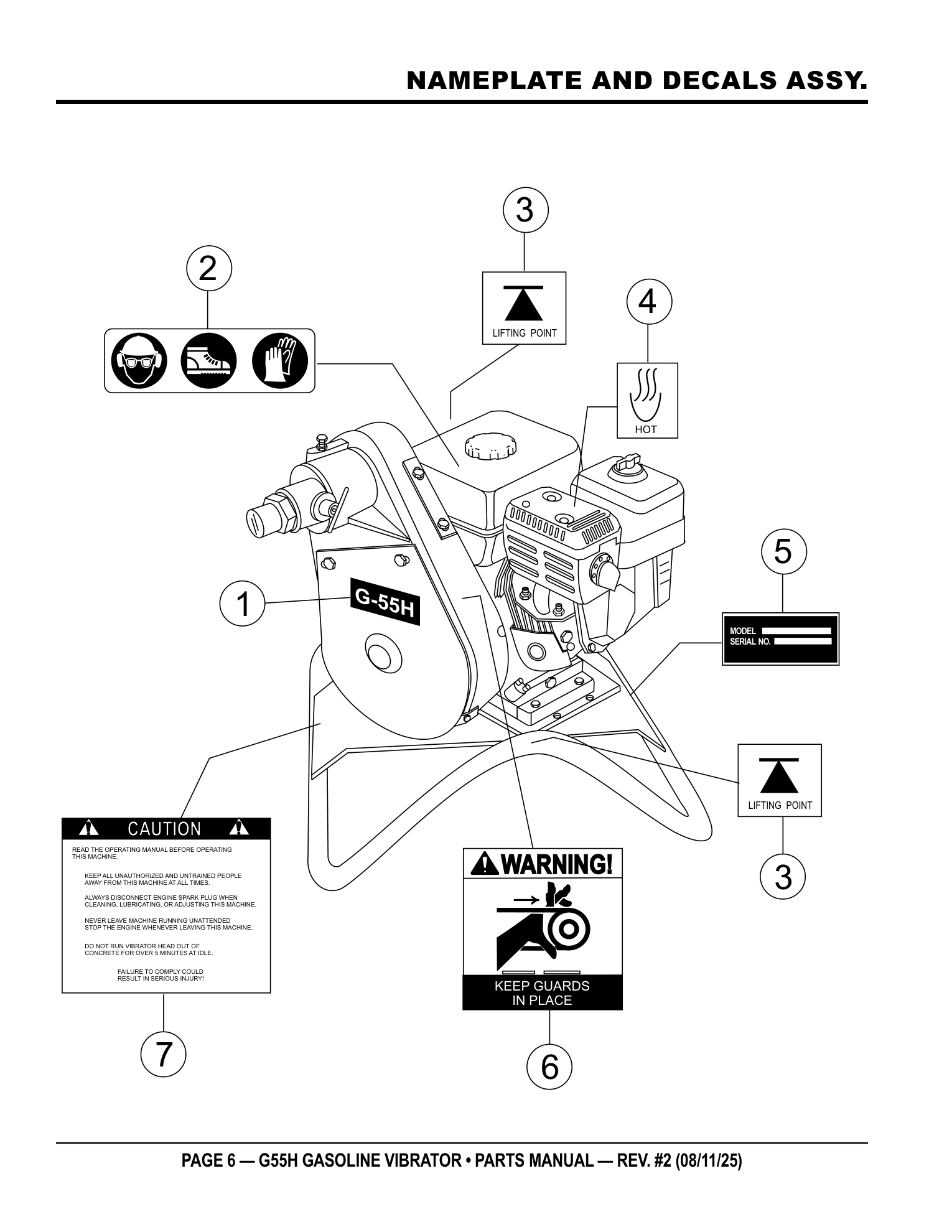

Need the PDF? ↓Page 6 — NAMEPLATE AND DECALS ASSY.
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 36521 | DECAL, G-55H | 1 | PARTS REQUEST | |
|
COMING DECAL, G-55H
36521 · qty on machine: 1 | |||||
| 2 | 11247 | DECAL, HELMET, BOOT, GLOVES (ISO BLACK) | 1 | ADD TO CART | |
| 3 | 11246 | DECAL, LIFT POINT | 2 | PART OF DECAL KIT 11246 | ADD TO CART |
| 4 | 11246 | DECAL, HOT SURFACE | 1 | PART OF DECAL KIT 11246 | ADD TO CART |
| 5 | NAMEPLATE | 1 | CONTACT MQ PARTS DEPT. | SEE REMARKS | |
|
COMING NAMEPLATE
· qty on machine: 1 CONTACT MQ PARTS DEPT. SEE REMARKS
| |||||
| 6 | 21665 | DECAL, WARNING, KEEP GUARDS IN PLACE | 2 | ADD TO CART | |
| 7 | 25883-001 | DECAL, CAUTION, READ MANUAL | 1 | PARTS REQUEST | |
|
COMING DECAL, CAUTION, READ MANUAL
25883-001 · qty on machine: 1 | |||||

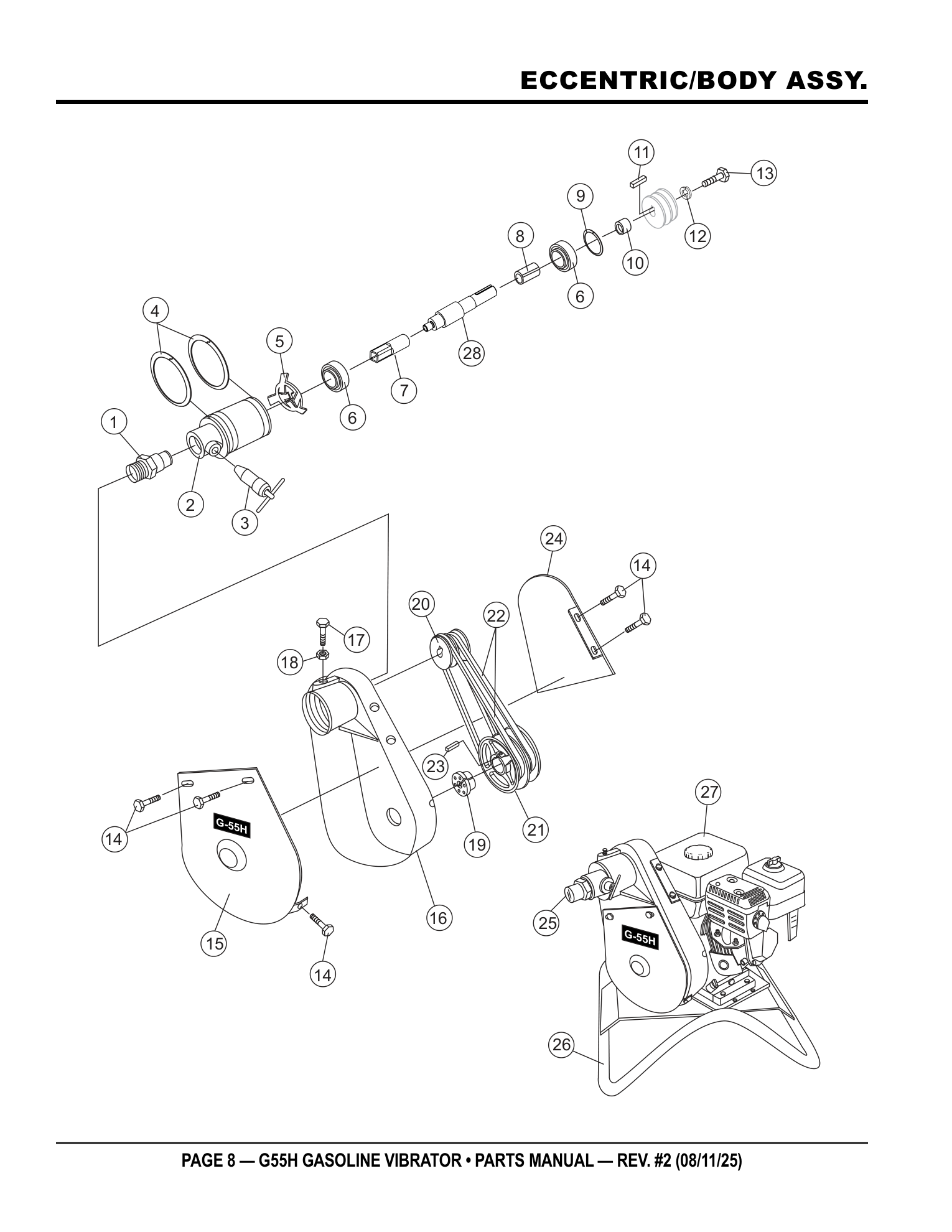

Page 8 — ECCENTRIC/BODY ASSY.
Parts list — exactly as printed28 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 36248 | COUPLING, SHAFT | 1 | ADD TO CART | |
| 2 | 18045-501 | ECCENTRIC ASSY | 1 | INCLUDES ITEMS W/# | ADD TO CART |
| 3# | 25015-501 | LOCK ASSEMBLY | 1 | ADD TO CART | |
| 4# | 08752-275 | SNAP RING | 2 | ADD TO CART | |
| 5# | 06330-002 | BEARING SPRING | 1 | ADD TO CART | |
| 6# | 14043-017 | BEARING | 2 | ADD TO CART | |
| 7# | 14546-001 | SPINDLE | 1 | ADD TO CART | |
| 8# | 08601-045 | SPACER, SPLIT | 1 | NO LONGER AVAILABLE | |
|
COMING SPACER, SPLIT
08601-045 · qty on machine: 1 Also included in kit 2 - ECCENTRIC ASSY (18045-501) NO LONGER AVAILABLE
| |||||
| 9# | 08751-156 | SNAP RING | 1 | ADD TO CART | |
| 10# | 06467-062 | SPACER | 1 | ADD TO CART | |
| 11# | 584013 | KEY 3/16"X3/16"X1" | 1 | ADD TO CART | |
| 12# | 2037 | LOCK WASHER 5/16" | 1 | ADD TO CART | |
| 13# | 20875 | CAP SCREW 5/16"-18 X 3/4" | 1 | ADD TO CART | |
| 14 | 22538-001 | SCREW-THREAD FORMING | 8 | ADD TO CART | |
| 15 | 25845-001 | BELT GUARD (FRONT) | 1 | ADD TO CART | |
| 16 | 18024-001 | HOUSING | 1 | ADD TO CART | |
| 17 | 0202 | SCREW, HHC 5/16"-18X1 | 1 | ADD TO CART | |
| 18 | 0106 | NUT, HEX JAM 5/16"-18 | 1 | ADD TO CART | |
| 19 | 36517 | QD BUSHING | 1 | ADD TO CART | |
| 20# | 18044-001 | PULLEY (UPPER) | 1 | ADD TO CART | |
| 21 | 36516 | PULLEY (LOWER) | 1 | ADD TO CART | |
| 22 | 16052 | BELT 3VX335 | 2 | ADD TO CART | |
| 23 | 0627 | KEY-3/16 SQ. X 1-1/4" | 1 | ADD TO CART | |
| 24 | 25846-001 | BELT GUARD (REAR) | 1 | ADD TO CART | |
| 25# | 11534-018 | CAP, DUST | 1 | ADD TO CART | |
| 26 | 27100-351 | FRAME ASSEMBLY | 1 | PARTS REQUEST | |
|
COMING FRAME ASSEMBLY
27100-351 · qty on machine: 1 | |||||
| 27 | 1386 | ENGINE-5.5 HP HONDA | 1 | ADD TO CART | |
| 28# | 23429-001 | ADAPTER FITTING 382 QD COUPLING | 1 | ADD TO CART | |

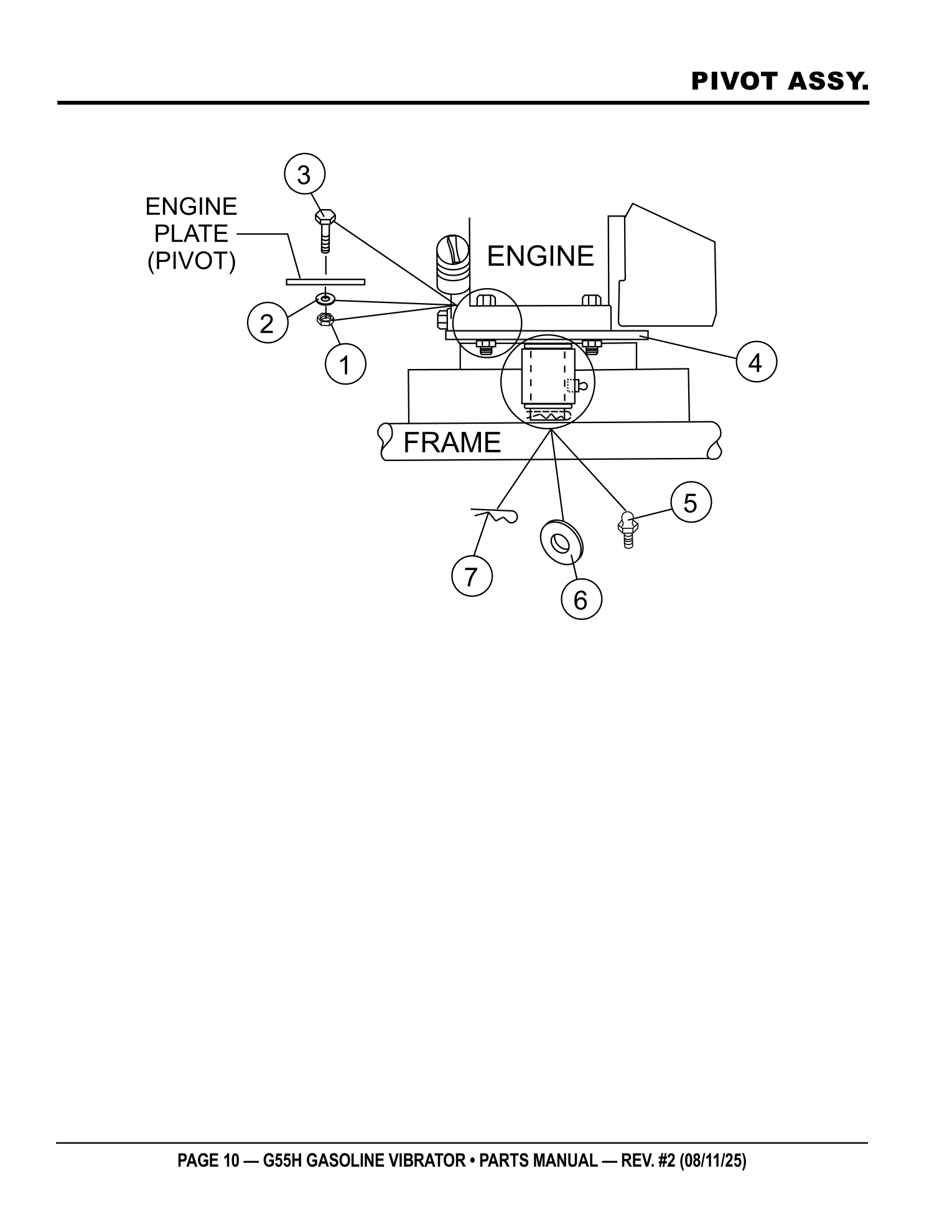

Page 10 — PIVOT ASSY.
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5283 | NUT-GRIPCO 5/16-18 | 4 | ADD TO CART | |
| 2 | 0300B | FLAT WASHER 5/16" | 4 | ADD TO CART | |
| 3 | 0105 | HHCS 5/16-18 X 1-1/2" | 4 | ADD TO CART | |
| 4 | 27108-351 | ENGINE PLATE-PIVOT | 1 | PARTS REQUEST | |
|
COMING ENGINE PLATE-PIVOT
27108-351 · qty on machine: 1 | |||||
| 5 | 2621 | GREASE FITTING | 1 | ADD TO CART | |
| 6 | 3264 | FLAT WASHER 1" | 2 | ADD TO CART | |
| 7 | 07028-057 | COTTER PIN 5/32" X 1-1/2" | 1 | ADD TO CART | |

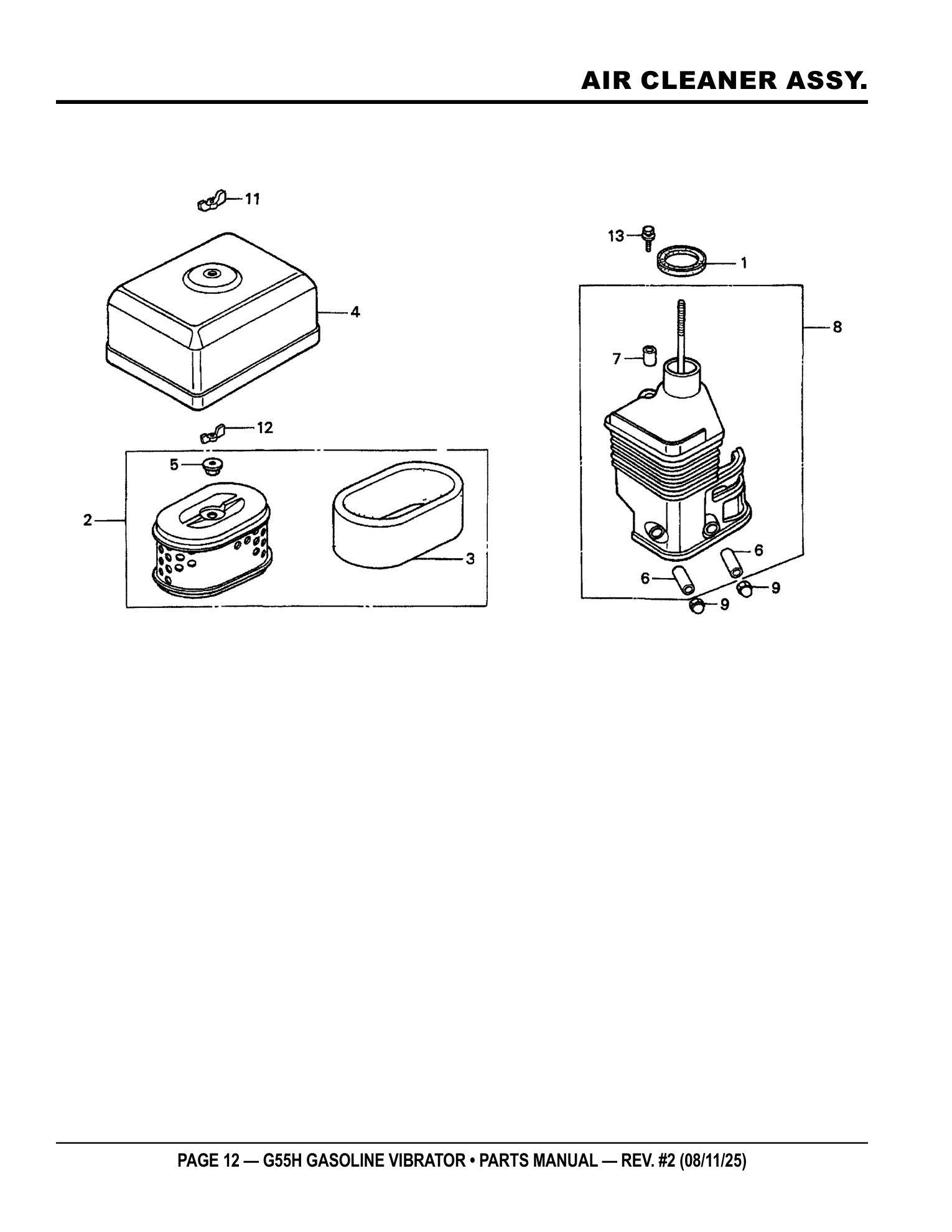

Page 12 — AIR CLEANER ASSY.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 16271ZE1000 | GASKET, ELBOW | 1 | ADD TO CART | |
| 2 | 17210ZE1505 | ELEMENT, AIR CLEANER (DUAL) | 1 | INCLUDES ITEMS W/$ | ADD TO CART |
| 3$ | 17218ZE1821 | FILTER, OUTER | 1 | PARTS REQUEST | |
|
COMING FILTER, OUTER
17218ZE1821 · qty on machine: 1 Also included in kit 2 - ELEMENT, AIR CLEANER (DUAL (17210ZE1505) | |||||
| 4 | 17230ZE1820 | COVER, AIR CLEANER (DUAL) | 1 | ADD TO CART | |
| 5$ | 17232891000 | GROMMET, AIR CLEANER | 1 | ADD TO CART | |
| 6@ | 17238ZE7010 | COLLAR, AIR CLEANER | 2 | ADD TO CART | |
| 7@ | 17239ZE1000 | COLLAR B, AIR CLEANER | 1 | ADD TO CART | |
| 8 | 17410ZE1020 | ELBOW, AIR CLEANER | 1 | INCLUDES ITEMS W/@ | ADD TO CART |
| 9 | 90201415000 | NUT, CAP 6MM | 2 | ADD TO CART | |
| 11 | 90325044000 | WINGNUT, TOOL BOX SETTING | 1 | ADD TO CART | |
| 12 | 90325044000 | WINGNUT, TOOL BOX SETTING | 1 | ADD TO CART | |
| 13 | 957010602000 | BOLT, FLANGE 6 X 20 | 1 | ADD TO CART | |

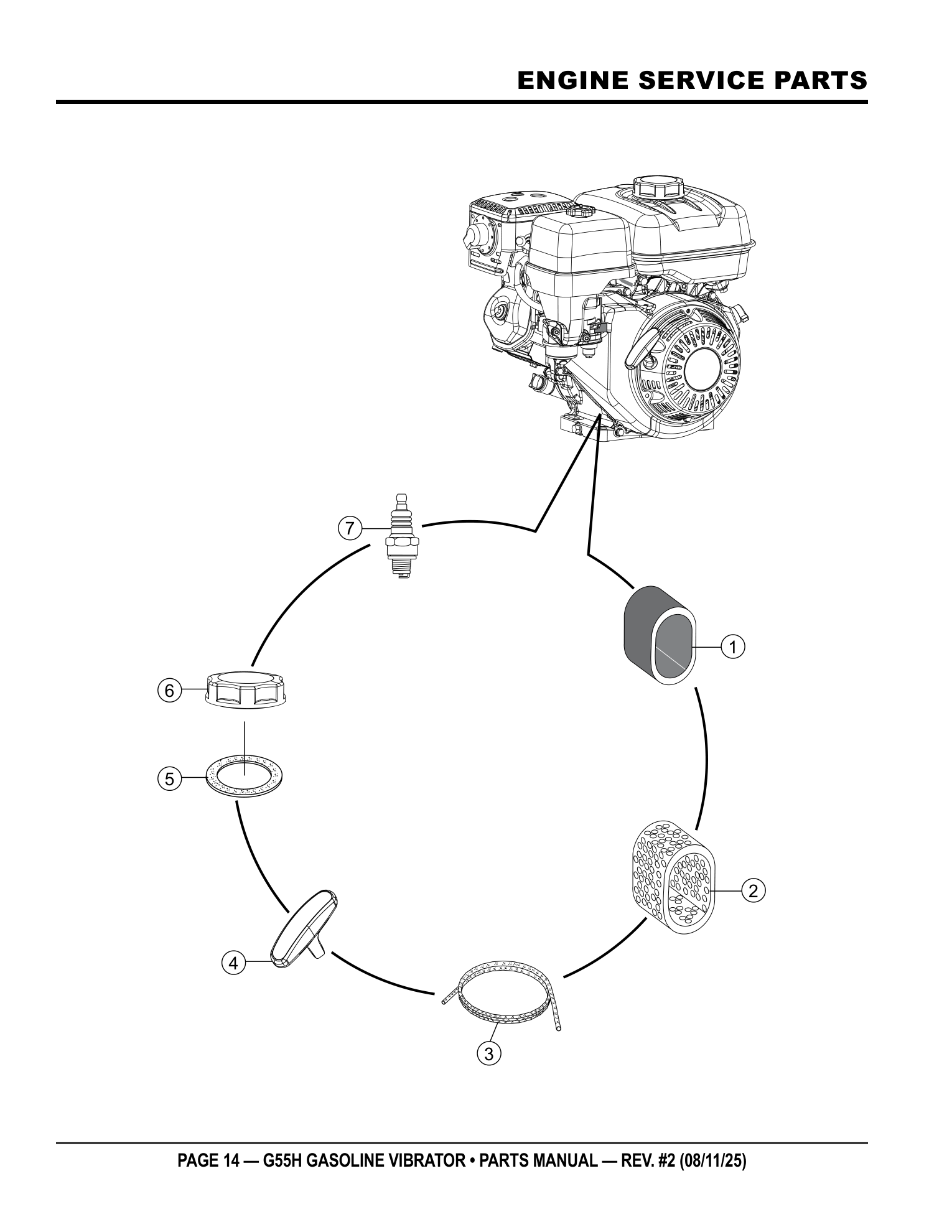

Page 14 — UNKNOWN
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 17218ZE1821 | FILTER, OUTER | 1 | PARTS REQUEST | |
|
COMING FILTER, OUTER
17218ZE1821 · qty on machine: 1 | |||||
| 2 | 17210ZE1505 | ELEMENT, AIR CLEANER (DUAL) | 1 | ADD TO CART | |
| 3 | 28462ZH8003 | ROPE, RECOIL STARTER | 1 | ADD TO CART | |
| 4 | 28461ZH8003 | GRIP, RECOIL STARTER | 1 | ADD TO CART | |
| 5# | 17631ZH7003 | GASKET, FUEL CAP | 1 | ADD TO CART | |
| 6 | 17620ZH7023 | CAP, FUEL TANK | 1 | INCLUDES ITEM W/# | ADD TO CART |
 CAP, FUEL TANK
17620ZH7023 · qty on machine: 1 INCLUDES ITEM W/# Kit includes: 5# view full part page → $34.95 IN A KIT + SOLD SOLO | |||||
| 7 | 9807956846 | SPARK PLUG BPR6ES (NGK) | 1 | ADD TO CART | |
The machine itself
Machine
Engine

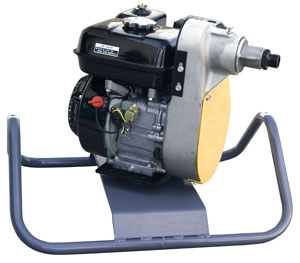

The Multiquip G55H is a concrete vibrator built for consolidating freshly poured concrete and driving trapped air out of forms, slabs, and walls. Factory-documented specs and parts support; priced by quote.
