Multiquip ST3050 Submersible Pump
Factory parts book · interactive

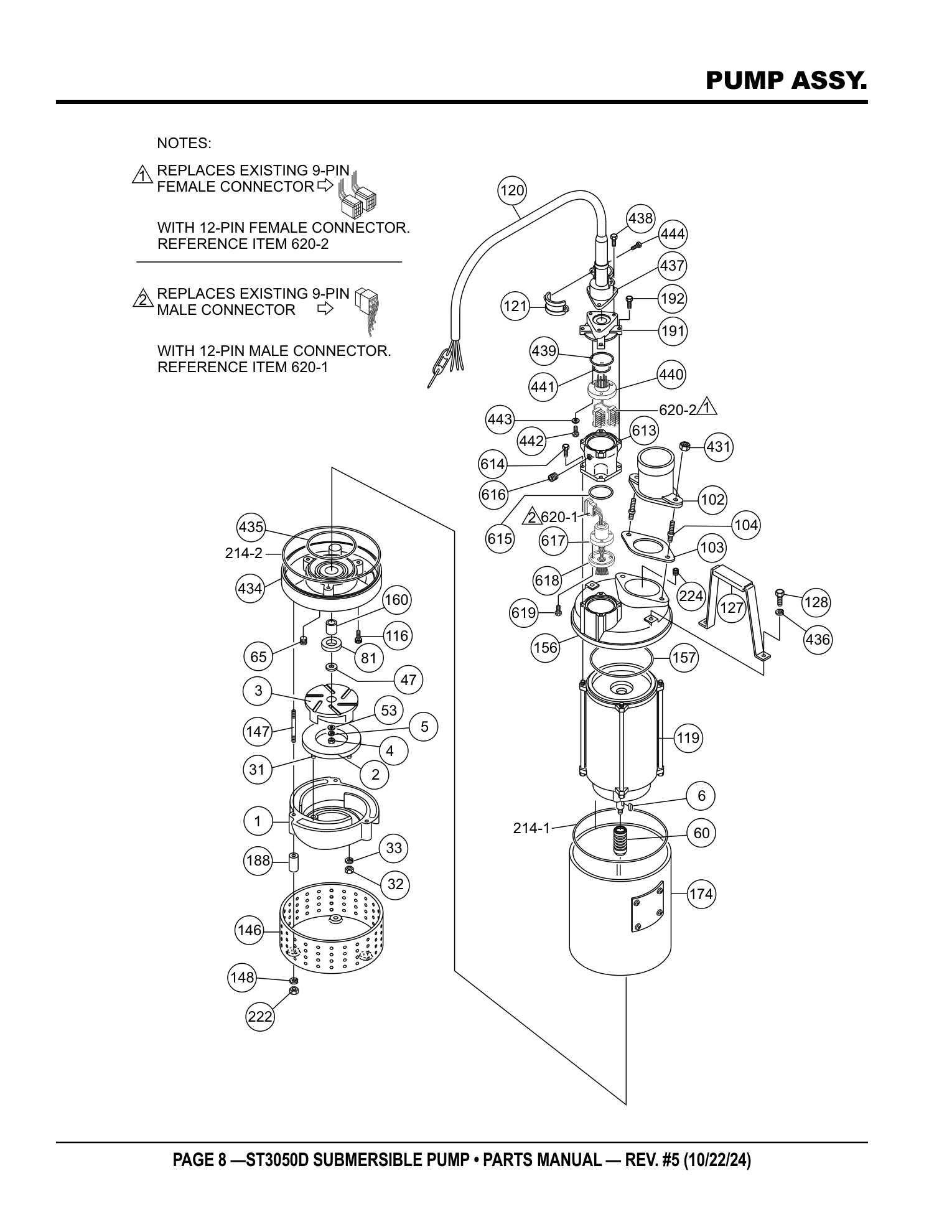

Multiquip ST3050 Submersible Pump
The parts bench
Need the PDF? ↓Page 6 — PUMP ASSY.
Parts list — exactly as printed35 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 0203050001 | CASING | 1 | ADD TO CART | |
| 2 | 0203050002 | FRICTION DISC. | 1 | ADD TO CART | |
| 3 | 0203050003 | IMPELLER | 1 | ADD TO CART | |
| 4 | 0202020004 | IMPELLER NUT | 1 | ADD TO CART | |
| 5 | 0202020005 | SPRING WASHER | 1 | ADD TO CART | |
| 6 | 0203050006 | IMPELLER KEY | 1 | PARTS REQUEST | |
|
COMING IMPELLER KEY
0203050006 · qty on machine: 1 Factory replaced this part - current number 0202020006 | |||||
| 31 | 0202020031 | STUD BOLT | 4 | ADD TO CART | |
| 32 | 0202020032 | NUT | 4 | ADD TO CART | |
| 33 | 0202020033 | WASHER | 4 | ADD TO CART | |
| 47 | 0203050047 | LINER | 1 | ADD TO CART | |
| 53 | 0202020053 | WASHER | 1 | ADD TO CART | |
| 60 | 0203050060 | MECHANICAL SEAL | 1 | ADD TO CART | |
| 65 | 0202020065 | PLUG | 1 | ADD TO CART | |
| 81 | 0203050081 | OIL SEAL | 1 | ADD TO CART | |
| 102 | 0203050102 | DISCHARGE PORT | 1 | ADD TO CART | |
| 103 | 0203050103 | PACKING | 1 | ADD TO CART | |
| 104 | 0203050104 | STUD BOLT | 2 | ADD TO CART | |
| 116 | 0202020116 | BOLT | 3 | ADD TO CART | |
| 119 | 0203050D119 | MOTOR | 1 | ADD TO CART | |
| 120 | 0203050120 | AC CORD W/CORD GLAND | 1 | ADD TO CART | |
| 121 | 0202020121 | CORD CLAMP | 1 | PARTS REQUEST | |
|
COMING CORD CLAMP
0202020121 · qty on machine: 1 Factory replaced this part - current number 0203050121 | |||||
| 127 | 0202020127 | CARRYING HANDLE | 1 | ADD TO CART | |
| 128 | 0202020128 | BOLT | 2 | PARTS REQUEST | |
|
COMING BOLT
0202020128 · qty on machine: 2 | |||||
| 146 | 0203050146 | STRAINER | 1 | ADD TO CART | |
| 147 | 0203050147 | STUD BOLT | 4 | ADD TO CART | |
| 148 | 0203050148 | SPRING WASHER | 4 | ADD TO CART | |
| 156 | 0203050156 | HEAD COVER | 1 | ADD TO CART | |
| 157 | 0202020157 | PACKING | 1 | ADD TO CART | |
| 160 | 0203050160 | SLEEVE | 1 | ADD TO CART | |
| 174 | 0203050174 | OUTER PIPE | 1 | ADD TO CART | |
| 188 | 0203050188 | STRAINER SET PIPE | 4 | ADD TO CART | |
| 191 | 0202020191 | POWER CORD GLAND CASE | 1 | ADD TO CART | |
| 192 | 0202020192 | BOLT | 4 | ADD TO CART | |
| 214-1 | 0203050214 | PACKING | 1 | PARTS REQUEST | |
|
COMING PACKING
0203050214 · qty on machine: 1 Factory replaced this part - current number 0203050214B | |||||
| 214-2 | 0203050214 | PACKING | 1 | PARTS REQUEST | |
|
COMING PACKING
0203050214 · qty on machine: 1 Factory replaced this part - current number 0203050214B | |||||
Page 8 — PUMP ASSY.
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 222 | 0203050222 | NUT | 4 | ADD TO CART | |
| 224 | 0202020224 | PLUG | 1 | ADD TO CART | |
| 431 | 0203050431 | NUT | 2 | ADD TO CART | |
| 434 | 0203050434 | STUFFING BOX | 1 | ADD TO CART | |
| 435 | 0202020435 | PACKING | 1 | ADD TO CART | |
| 436 | 0202020436 | SPRING WASHER | 2 | ADD TO CART | |
| 437 | 0202020437 | CORD GLAND CASE COVER | 1 | ADD TO CART | |
| 438 | 0202020438 | BOLT | 3 | ADD TO CART | |
| 439 | 0202020439 | PACKING | 1 | PARTS REQUEST | |
|
COMING PACKING
0202020439 · qty on machine: 1 Factory replaced this part - current number 0202020615 | |||||
| 440 | 0202020440 | CONNECTOR | 1 | PARTS REQUEST | |
|
COMING CONNECTOR
0202020440 · qty on machine: 1 Factory replaced this part - current number 0203050D620 | |||||
| 441 | 0202020441 | PACKING | 1 | ADD TO CART | |
| 442 | 0202020442 | BOLT | 3 | NO LONGER AVAILABLE | |
|
COMING BOLT
0202020442 · qty on machine: 3 Factory replaced this part - current number 0043504200 NO LONGER AVAILABLE
| |||||
| 443 | 0202020443 | WASHER | 3 | ADD TO CART | |
| 444 | 0202020444 | BOLT | 2 | ADD TO CART | |
| 613 | 0203050D613 | CONNECTOR CASE | 1 | ADD TO CART | |
| 614 | 0203050D614 | BOLT | 4 | ADD TO CART | |
| 615 | 0203050D615 | PACKING | 1 | ADD TO CART | |
| 616 | 0203050D616 | PLUG | 1 | ADD TO CART | |
| 617 | 0203050D617 | GLAND RUBBER | 1 | PARTS REQUEST | |
|
COMING GLAND RUBBER
0203050D617 · qty on machine: 1 | |||||
| 618 | 0203050D618 | GLAND METAL | 1 | PARTS REQUEST | |
|
COMING GLAND METAL
0203050D618 · qty on machine: 1 | |||||
| 619 | 0203050D619 | BOLT | 3 | ADD TO CART | |
| 620-1 | 0203050D620A | CONNECTOR 12-PIN, MALE | 1 | REPLACES 9-PIN MALE | PARTS REQUEST |
|
COMING CONNECTOR 12-PIN, MALE
0203050D620A · qty on machine: 1 REPLACES 9-PIN MALE Factory replaced this part - current number 0203050D620 | |||||
| 620-2 | 0203050D620B | CONNECTOR, 12-PIN, FEMALE | 1 | REPLACES 9-PIN FEMALE | PARTS REQUEST |
|
COMING CONNECTOR, 12-PIN, FEMALE
0203050D620B · qty on machine: 1 REPLACES 9-PIN FEMALE Factory replaced this part - current number 0203050D620 | |||||

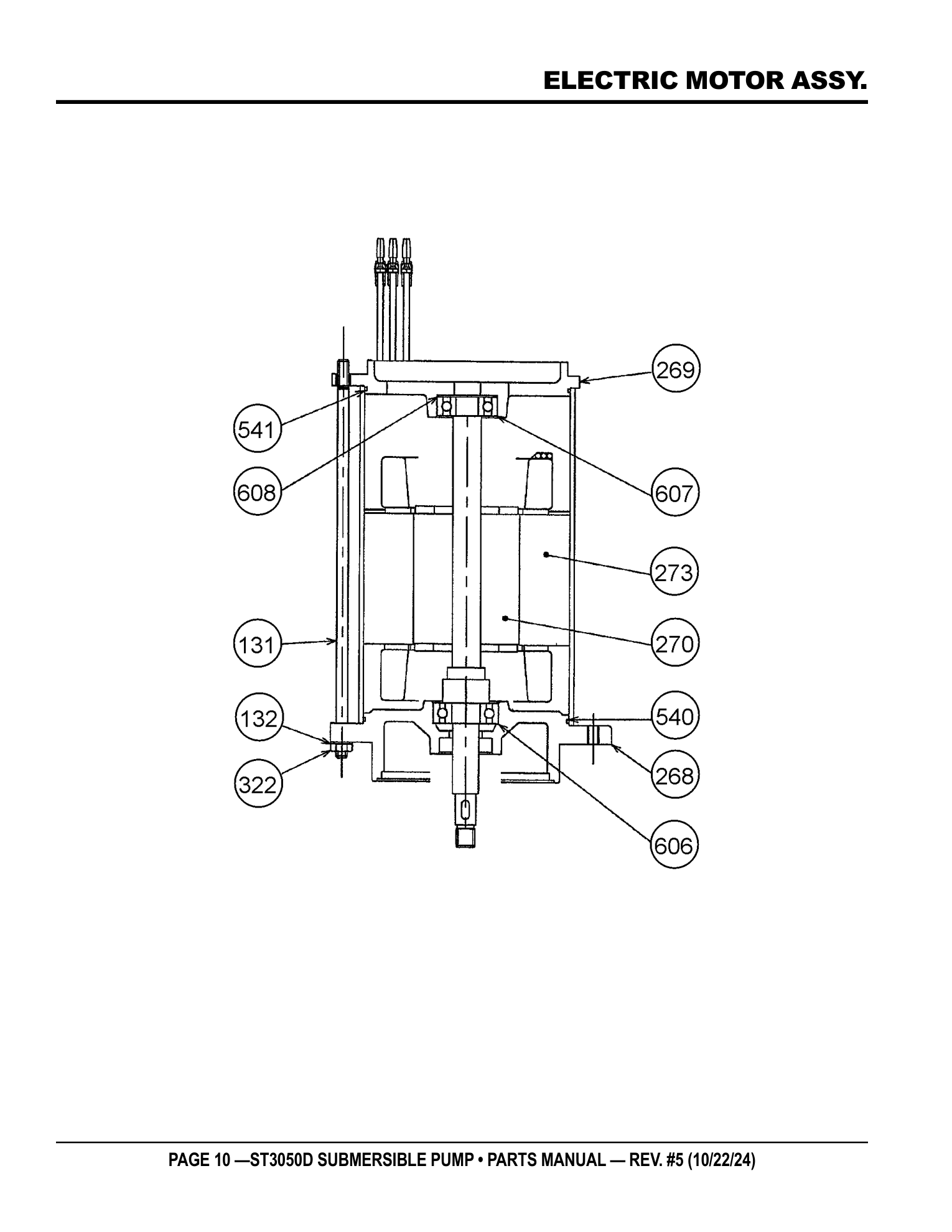

Page 10 — ELECTRIC MOTOR ASSY.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 131 | 0203050131 | BOLT | 4 | ADD TO CART | |
| 132 | 0202020B132 | WASHER, LOCK | 4 | ADD TO CART | |
| 268 | 0203050268 | MOTOR A BRACKET | 1 | ADD TO CART | |
| 269 | 0203050269 | MOTOR B BRACKET | 1 | ADD TO CART | |
| 270 | 0203050270 | MOTOR ROTOR | 1 | NO LONGER AVAILABLE | |
|
COMING MOTOR ROTOR
0203050270 · qty on machine: 1 NO LONGER AVAILABLE
| |||||
| 273 | 0203050D273 | MOTOR STATOR | 1 | ADD TO CART | |
| 322 | 0202020B322 | NUT | 4 | NO LONGER AVAILABLE | |
|
COMING NUT
0202020B322 · qty on machine: 4 NO LONGER AVAILABLE
| |||||
| 540 | 0203050540 | A PACKING | 1 | ADD TO CART | |
| 541 | 0203050541 | B PACKING | 1 | ADD TO CART | |
| 606 | 0203050606 | A BEARING, MOTOR | 1 | ADD TO CART | |
| 607 | 0203050607 | B BEARING, MOTOR | 1 | ADD TO CART | |
| 608 | 0202020B608 | WASHER, WAVE | 1 | ADD TO CART | |
