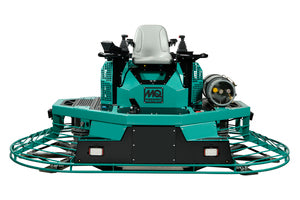

Multiquip Hydrostatic Drive Ride-On Trowel
Factory parts book · interactive
Multiquip Hydrostatic Drive Ride-On Trowel
The parts bench

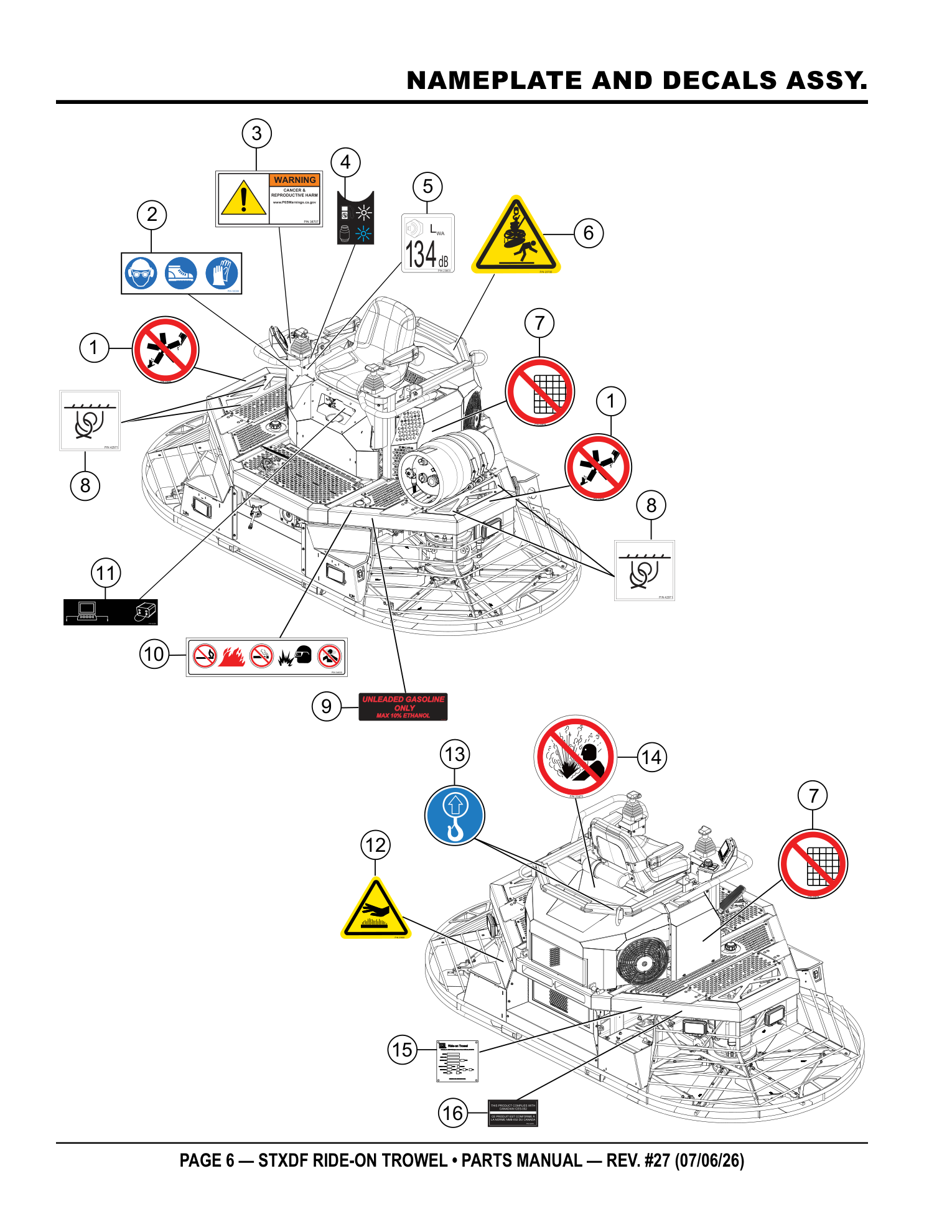

Need the PDF? ↓Page 6 — NAMEPLATE AND DECALS ASSY.
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 23698 | DECAL ISO, ROTATING BLADE HAZARD | 2 | ADD TO CART | |
| 2 | 36099 | DECAL ISO, PROTECTIVE CLOTHING, 3.50" X 1.13" | 1 | ADD TO CART | |
| 3 | 38707 | DECAL, CANCER AND REPRODUCTIVE HARM | 1 | ADD TO CART | |
| 4 | 43739 | DECAL, PUSH BUTTON FUEL SELECTOR | 1 | ADD TO CART | |
| 5 | 23803-134 | DECAL, GUARANTEED SOUND POWER LEVEL | 1 | PARTS REQUEST | |
|
COMING DECAL, GUARANTEED SOUND POWER LEVEL
23803-134 · qty on machine: 1 | |||||
| 6 | 23700 | DECAL ISO, LIFTING/CRUSH, 2.4" X 2.0" | 1 | ADD TO CART | |
| 7 | 23874 | DECAL ISO, DO NOT REMOVE GUARDS, HAZARD | 2 | ADD TO CART | |
| 8 | 42971 | DECAL ISO, TIE-DOWN | 4 | ADD TO CART | |
| 9 | 23587 | UNLEADED GASOLINE ONLY MAX 10% ETHANOL | 1 | ADD TO CART | |
| 10 | 34630 | DECAL ISO, FIRE, EXPLOSION, SMOKING HAZARD | 1 | ADD TO CART | |
| 11 | 42595 | DECAL, SERVICE TOOL, JUMPER | 1 | ADD TO CART | |
| 12 | 23808 | DECAL ISO, HOT SURFACE HAZARD | 1 | ADD TO CART | |
| 13 | 34626 | DECAL ISO, LIFTING POINT, 2.00" DIA. | 2 | ADD TO CART | |
| 14 | 23875 | DECAL ISO, HOT COOLANT, 2.00" DIA. | 1 | ADD TO CART | |
| 15 | 46245-2 | SN TAG, CE ROT | 1 | CONTACT MQ PARTS | PARTS REQUEST |
|
COMING SN TAG, CE ROT
46245-2 · qty on machine: 1 CONTACT MQ PARTS | |||||
| 16 | 32578 | DECAL, CANADIAN COMPLIANCE | 1 | PARTS REQUEST | |
|
COMING DECAL, CANADIAN COMPLIANCE
32578 · qty on machine: 1 | |||||

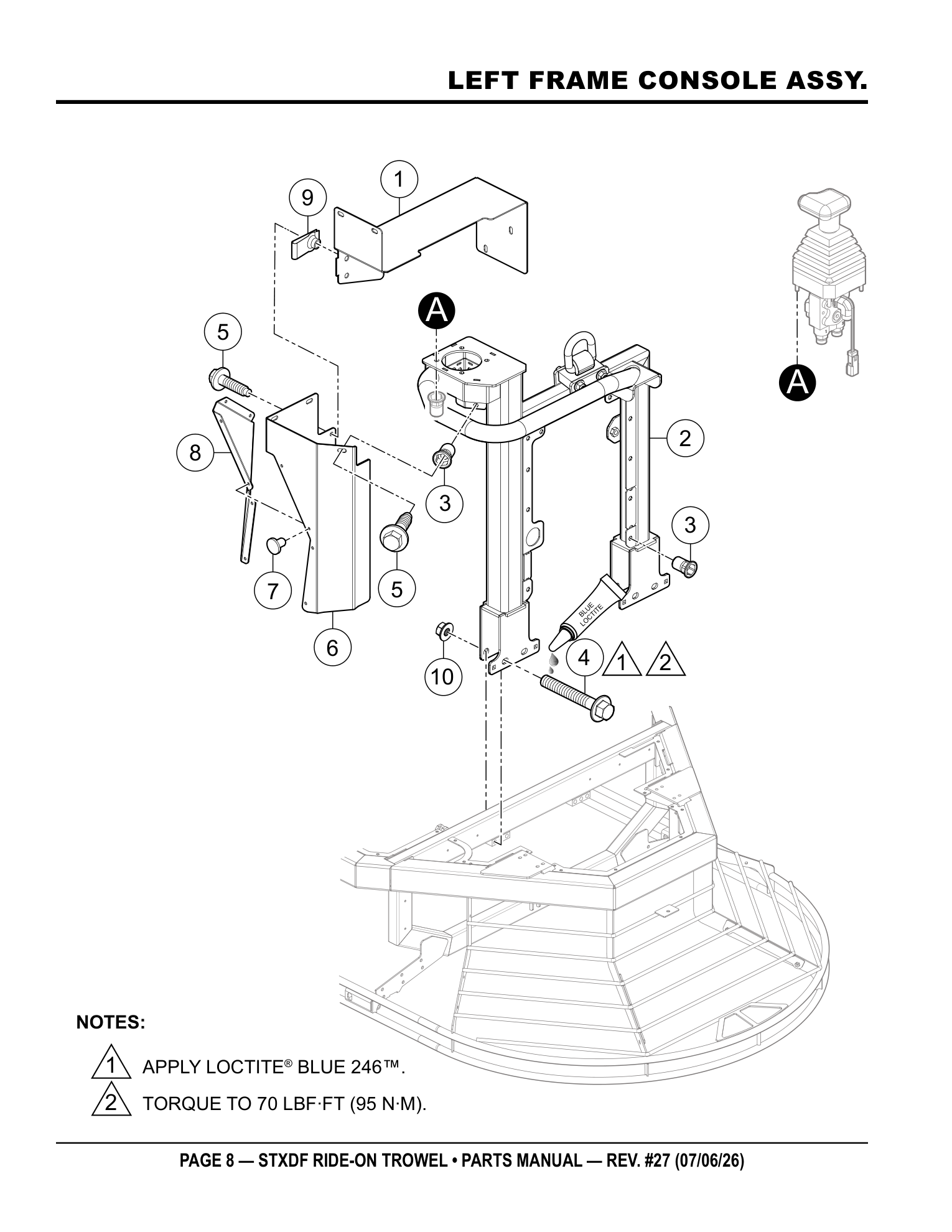

Page 8 — LEFT FRAME CONSOLE ASSY.
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 43633 | COVER, LEFT INTERIOR | 1 | ADD TO CART | |
| 2 | 43371 | FRAME, LIFT -L | 1 | ADD TO CART | |
| 3 | 42496 | NUT, BLIND HEX M6-1.0 | 15 | ADD TO CART | |
| 4 | 9176 | SCREW, HHF M12-1.75 X 80MM GR10.9 | 4 | ADD TO CART | |
| 5 | 42325 | SCREW, HHC, M6-1.0 X 20, CAPTIVE WASHER | 9 | ADD TO CART | |
| 6 | 43635 | COVER, LEFT JOYSTICK HOSE | 1 | ADD TO CART | |
| 7 | 19847 | RIVET, POP, ALUM, 3/16 X 1/8-1/4 | 6 | ADD TO CART | |
| 8 | 43637 | PANEL, LEFT JOYSTICK FILL | 1 | ADD TO CART | |
| 9 | 32916 | NUT, U-STYLE, M6-1 X 0.8 - 4MM, BK | 2 | ADD TO CART | |
| 10 | 42451 | NUT, HEX. SERRATED-FLANGE M12-1.75 | 4 | ADD TO CART | |

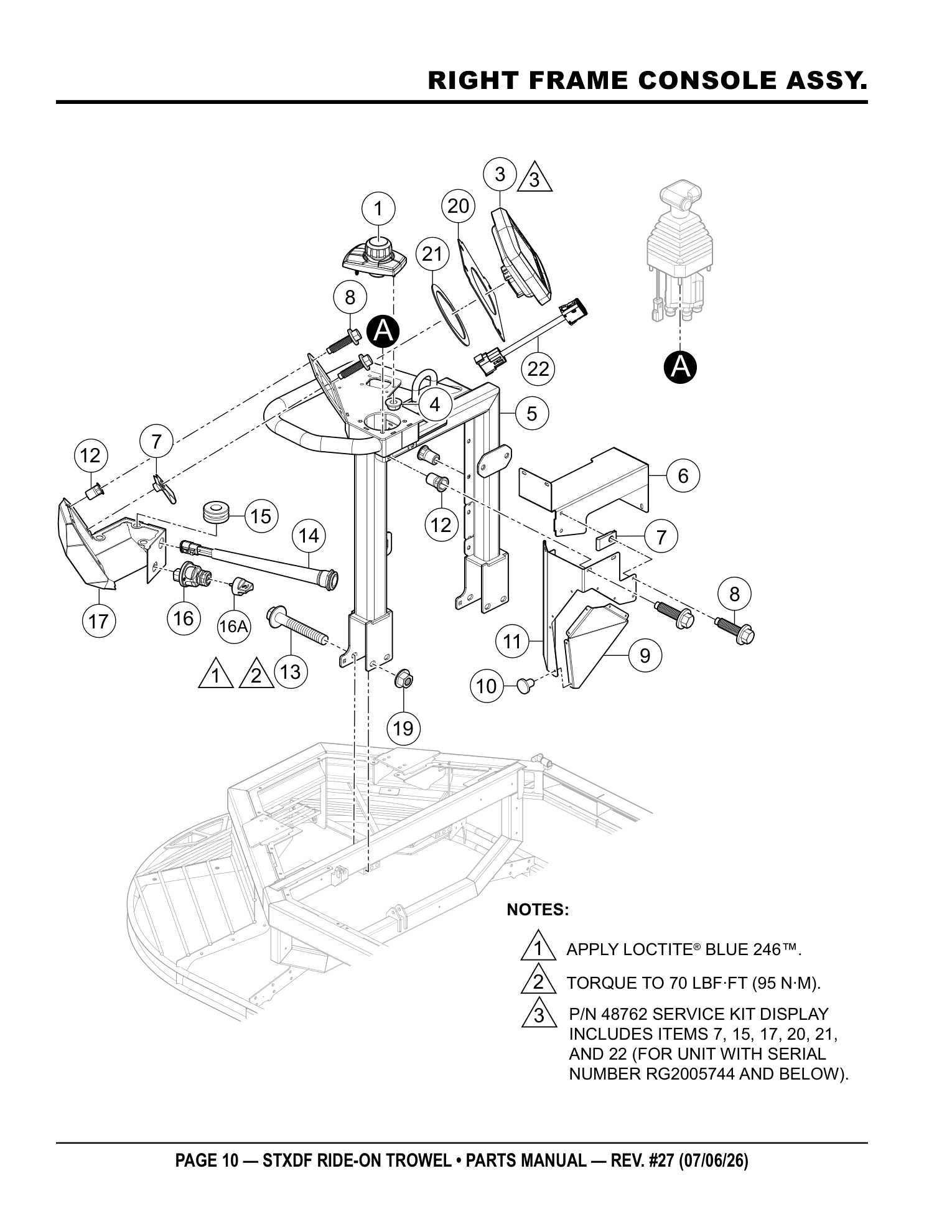

Page 10 — RIGHT FRAME CONSOLE ASSY.
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 43069 | SWITCH, MULTIFUNCTION, GRAYHILL | 1 | ADD TO CART | |
| 3 | 48762 | SERVICE KIT DISPLAY, DSEM835 | 1 | INCLUDES ITEMS W/# S/N RG2005744 AND BELOW | ADD TO CART |
| 3 | 48759 | DISPLAY, DEEP SEA DSEM835, PROG | 1 | S/N RG2005745 AND ABOVE | ADD TO CART |
| 4 | 42352 | NUT, HEX, SERRATED-FLANGE, M6-1.0 | 3 | ADD TO CART | |
| 5 | 43370 | FRAME, LIFT -R | 1 | ADD TO CART | |
| 6 | 43634 | COVER, RIGHT INTERIOR | 1 | ADD TO CART | |
| 7# | 32916 | NUT, U-STYLE, M6-1 X 0.8 - 4MM, BK | 2 | ADD TO CART | |
| 8 | 42325 | SCREW, HHC, M6-1.0 X 20, CAP. WASHER | 9 | ADD TO CART | |
| 9 | 43638 | PANEL, RIGHT JOYSTICK FILL | 1 | ADD TO CART | |
| 10 | 19847 | RIVET, POP, ALUM, 3/16 X 1/8-1/4 GRIP | 6 | ADD TO CART | |
| 11 | 43636 | COVER, RIGHT JOYSTICK HOSE | 1 | ADD TO CART | |
| 12% | 42496 | NUT, BLIND HEX M6-1.0 | 17 | ADD TO CART | |
| 13 | 9176 | SCREW, HHF M12-1.75 X 80MM GR10.9 | 4 | ADD TO CART | |
| 14 | 43756 | SWITCH ASSEMBLY, PUSHBUTTON | 1 | ADD TO CART | |
| 15# | 38191 | GROMMET, RUBBER, .375" ID X .875" OD | 3 | ADD TO CART | |
| 16 | 23959 | SWITCH, IGNITION | 1 | INCLUDES ITEMS W/$ | ADD TO CART |
 SWITCH, IGNITION
23959 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 16A$ view full part page → $46.95 IN A KIT + SOLD SOLO | |||||
| 16A$ | 23959-01 | KEY, IGNITION SWITCH | 1 | NO LONGER AVAILABLE | |
|
COMING KEY, IGNITION SWITCH
23959-01 · qty on machine: 1 Also included in kit 16 - SWITCH, IGNITION (23959) NO LONGER AVAILABLE
| |||||
| 17# | 43608 | COVER, OPERATOR CONTROLS | 1 | INCLUDES ITEMS W/% S/N RG2005744 AND BELOW | ADD TO CART |
| 18 | 43743 | SCREW, PT-WN1411 K40 X 16MM | 4 | ADD TO CART | |
| 19 | 42451 | NUT, HEX. SERRATED-FLANGE M6-1.0 | 4 | ADD TO CART | |
| 20# | 48754 | ADAPTOR PLATE, MD3 TO DSEM835 CONV | 1 | S/N RG2005744 AND BELOW | ADD TO CART |
| 21# | 48755 | SPACER, DSEM835 DISPLAY CONV | 1 | S/N RG2005744 AND BELOW | PARTS REQUEST |
|
COMING SPACER, DSEM835 DISPLAY CONV
48755 · qty on machine: 1 S/N RG2005744 AND BELOW Also included in kit 3 - SERVICE KIT DISPLAY, DSEM8 (48762) | |||||
| 22# | 48766 | HARNESS ADAPTER, 6 IN., DSEM835 | 1 | S/N RG2005744 AND BELOW | ADD TO CART |

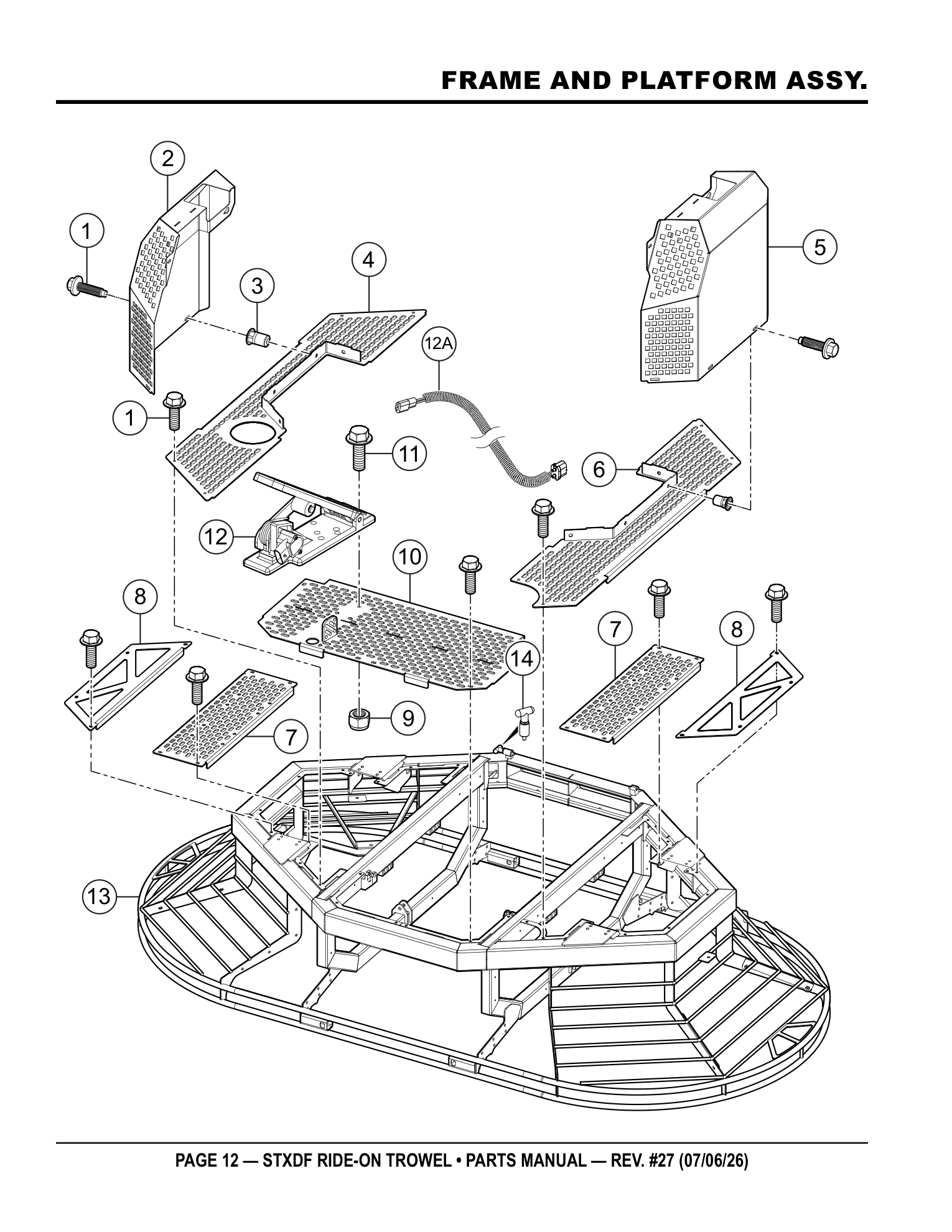

Page 12 — FRAME AND PLATFORM ASSY.
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 42325 | SCREW, HHC, M6-1.0 X 20, CAPTIVE WASHER | 48 | ADD TO CART | |
| 2 | 43518 | COVER, LEFT W/A | 1 | ADD TO CART | |
| 3 | 42496 | NUT, BLIND HEX M6-1.0 | 16 | ADD TO CART | |
| 4 | 43496 | PLATFORM, RIGHT, INNER W/A | 1 | ADD TO CART | |
| 5 | 43517 | COVER, RIGHT W/A | 1 | ADD TO CART | |
| 6 | 43495 | PLATFORM, LEFT, INNER W/A | 1 | ADD TO CART | |
| 7 | 43499 | PLATFORM, CENTER | 2 | ADD TO CART | |
| 8 | 43500 | PLATFORM, OUTSIDE | 2 | ADD TO CART | |
| 9 | 42344 | NUT, NYLOC, M8-1.25, CLASS 8.8 | 3 | ADD TO CART | |
| 10 | 43493 | PANEL, FOOT PEDAL, W/A | 1 | ADD TO CART | |
| 11 | 15226 | SCREW, HHC FLANGED M8-1.25 X 25MM | 3 | PARTS REQUEST | |
|
COMING SCREW, HHC FLANGED M8-1.25 X 25MM
15226 · qty on machine: 3 | |||||
| 12 | 43144 | FOOT PEDAL | 1 | ADD TO CART | |
| 12A | 43144-1 | HARNESS, FOOT PEDAL | 1 | ADD TO CART | |
| 13 | 43155-SK | MAIN FRAME KIT, STXDF | 1 | ADD TO CART | |
| 14 | 22947 | PULL-PIN, SPRING LOADED | 1 | ADD TO CART | |

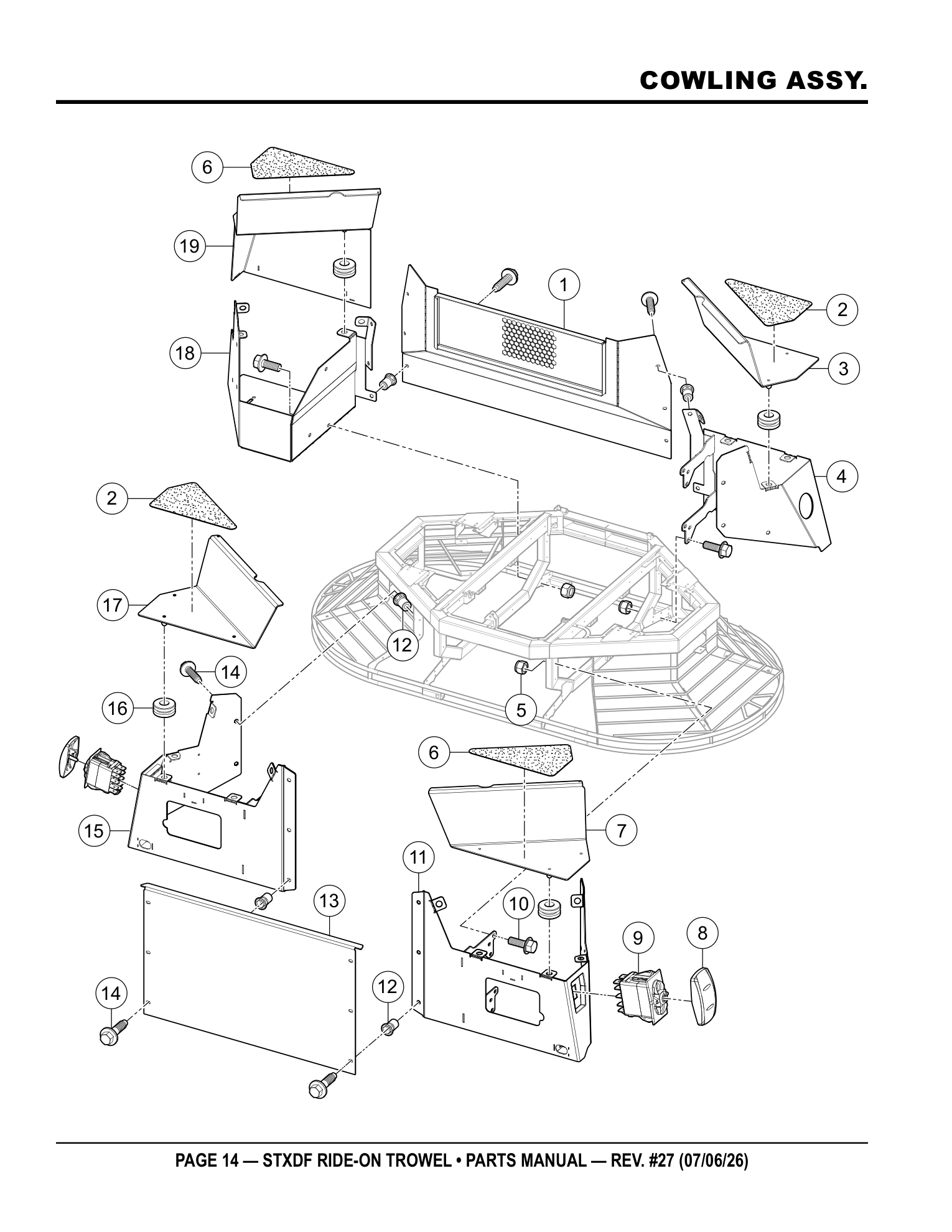

Page 14 — COWLING ASSY.
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 43522 | COWLING W/A, REAR MIDDLE | 1 | ADD TO CART | |
| 2 | 43603 | TREAD, STEP, RIGHT | 2 | ADD TO CART | |
| 3 | 43598 | STEP W/A, REAR, LEFT | 1 | ADD TO CART | |
| 4 | 43527 | COWLING W/A, REAR LEFT | 1 | ADD TO CART | |
| 5 | 42344 | NUT, NYLOC, M8-1.25, CLASS 8.8 | 8 | ADD TO CART | |
| 6 | 43591 | TREAD, STEP, LEFT | 2 | ADD TO CART | |
| 7 | 43534 | STEP W/A, FRONT LEFT | 1 | ADD TO CART | |
| 8 | 42179-001 | ACTUATOR, CARLING CONTURA V-SERIES | 2 | ADD TO CART | |
| 9 | 42178-003 | SWITCH BASE, CARLING CONTURA SERIES | 2 | ADD TO CART | |
| 10 | 42343 | SCREW, HFS, ZP, M8-1.25 X 20, CLASS 8.8 | 12 | ADD TO CART | |
| 11 | 43467 | COWLING W/A, FRONT LEFT | 1 | ADD TO CART | |
| 12 | 42496 | NUT, BLIND HEX M6-1.0 | 24 | ADD TO CART | |
| 13 | 43520 | COWLING, FRONT MIDDLE | 1 | ADD TO CART | |
| 14 | 42325 | SCREW, HHC, M6-1.0 X 20, CAPTIVE WASHER | 24 | ADD TO CART | |
| 15 | 43602 | COWLING W/A, FRONT RIGHT | 1 | ADD TO CART | |
| 16 | 38191 | GROMMET, RUBBER, .375" ID X .875" OD | 21 | ADD TO CART | |
| 17 | 43604 | STEP W/A, FRONT RIGHT | 1 | ADD TO CART | |
| 18 | 43596 | BOX W/A, BATTERY | 1 | ADD TO CART | |
| 19 | 43530 | STEP W/A, REAR RIGHT | 1 | ADD TO CART | |

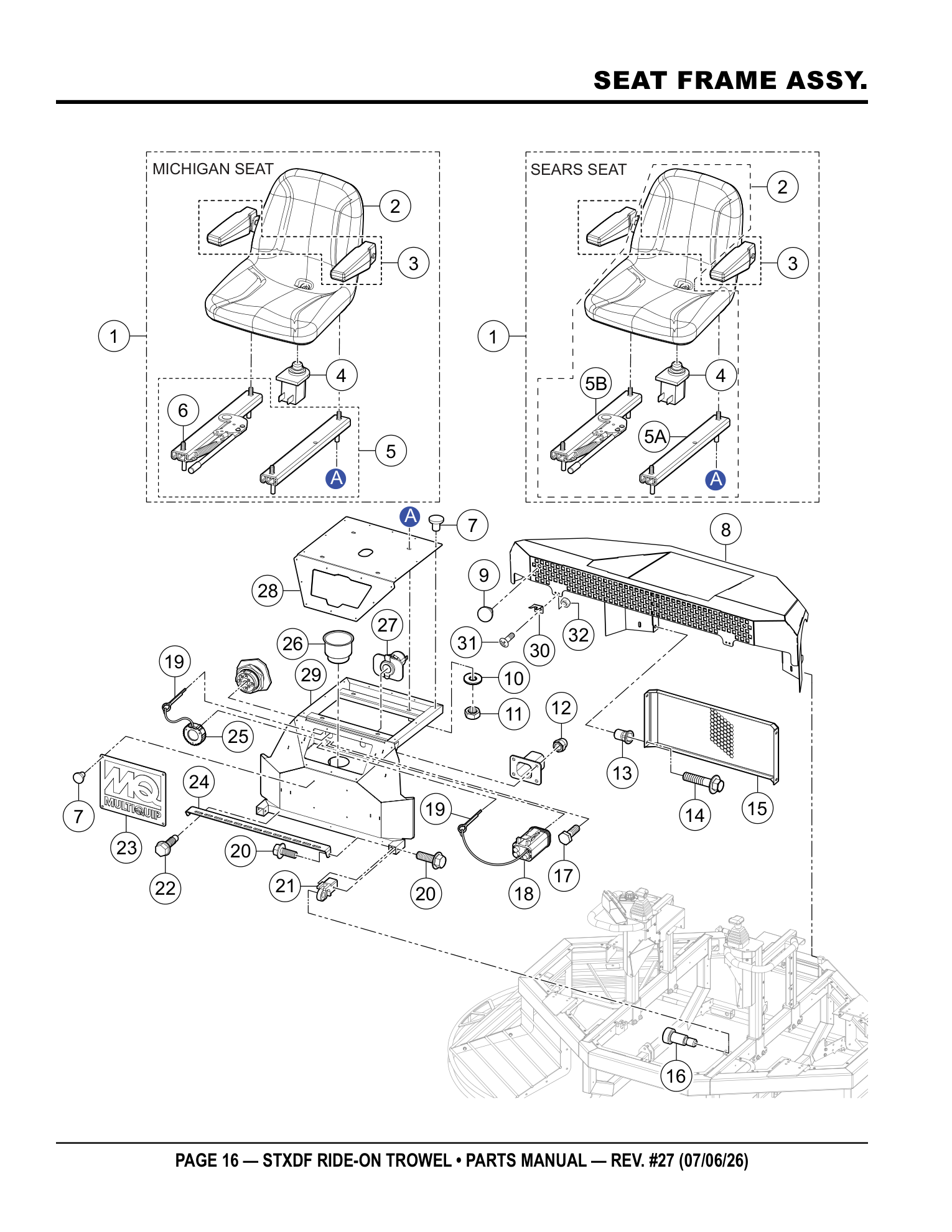

Page 16 — SEAT FRAME ASSY.
Parts list — exactly as printed38 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 21852-S | SEAT, MICHIGAN-ADJUSTABLE W/ ARMS | 1 | INCLUDES ITEMS W/$ NO LONGER AVAILABLE | NO LONGER AVAILABLE |
|
COMING SEAT, MICHIGAN-ADJUSTABLE W/ ARMS
21852-S · qty on machine: 1 INCLUDES ITEMS W/$ NO LONGER AVAILABLE Kit includes: 2$, 2#, 3$, 3#, 4$, 4#%, 5$, 5A#%, 5B#% NO LONGER AVAILABLE
| |||||
| 1 | 32960-SK | SEAT, SEARS-ADJUSTABLE W/ ARMS | 1 | INCLUDES ITEMS W/# | ADD TO CART |
| 2$ | 21860 | SEAT, BASIC MICHIGAN V-2805 SERIES | 1 | NO LONGER AVAILABLE | ADD TO CART |
| 2# | 32963-SK | SEAT, SEARS-ADJUSTABLE W/O ARMS | 1 | INCLUDES ITEMS W/% | ADD TO CART |
| 3$ | 21868 | ARMREST KIT, MICHIGAN V-2805 SEAT | 1 | ADD TO CART | |
| 3# | 34792 | ARMREST KIT, SEARS | 1 | ADD TO CART | |
| 4$ | 21870 | KILL SWITCH, DELTA SYSTEMS 6440-62 | 1 | ADD TO CART | |
| 4#% | 32962 | KILL SWITCH, SEARS | 1 | ADD TO CART | |
| 5$ | 21865 | SEAT ADJUSTER KIT, MICHIGAN V-2805 | 1 | ADD TO CART | |
| 5A#% | 32964 | SEAT ADJUSTER LH, SEARS | 1 | PARTS REQUEST | |
|
COMING SEAT ADJUSTER LH, SEARS
32964 · qty on machine: 1 Also included in kit 1 - SEAT, SEARS-ADJUSTABLE W/ (32960-SK); kit 2 - SEAT, SEARS-ADJUSTABLE W/O (32963-SK) | |||||
| 5B#% | 32965 | SEAT ADJUSTER RH, SEARS | 1 | PARTS REQUEST | |
|
COMING SEAT ADJUSTER RH, SEARS
32965 · qty on machine: 1 Also included in kit 1 - SEAT, SEARS-ADJUSTABLE W/ (32960-SK); kit 2 - SEAT, SEARS-ADJUSTABLE W/O (32963-SK) | |||||
| 6 | 0400B | SCREW, HHC 5/16-18 X 1/2 | 4 | PARTS REQUEST | |
|
COMING SCREW, HHC 5/16-18 X 1/2
0400B · qty on machine: 4 | |||||
| 7 | 19847 | RIVET, POP, ALUM, 3/16 X 1/8-1/4 GRIP | 22 | ADD TO CART | |
| 8 | 43620 | HOOD, STXDF | 1 | ADD TO CART | |
| 9 | 21597 | BUMPER, STEM 1.0"D X .5S X .31 | 2 | ADD TO CART | |
| 10 | 933241 | WASHER, FLAT SAE 5/16" GRD 9 YZ | 4 | ADD TO CART | |
| 11 | 5283 | NUT, NYLOC 5/16-18 | 4 | ADD TO CART | |
| 12 | 15518-004 | NUT, HHC, NYLOC, M4-0.7 | 4 | ADD TO CART | |
| 13 | 42496 | NUT, BLIND HEX M6-1.0 | 4 | ADD TO CART | |
| 14 | 43724 | SCREW, HHFS M6-1.0 X 25MM CLASS 8.8 | 4 | ADD TO CART | |
| 15 | 43628 | PANEL, HOOD MESH | 1 | ADD TO CART | |
| 16 | 9162 | SCREW, SHSLDR M16 X M25 M12-1.75 PATCH | 2 | ADD TO CART | |
| 17 | 28922-083 | SCREW, HHC M4-0.7 X 12MM | 4 | ADD TO CART | |
| 18 | 42440 | LANYARD, 4-WAY PLUG, DT SERIES | 1 | ADD TO CART | |
| 19 | 5117 | PIN, COTTER 1/16" X 1/2" | 2 | PARTS REQUEST | |
|
COMING PIN, COTTER 1/16" X 1/2"
5117 · qty on machine: 2 | |||||
| 20 | 42342 | SCREW, HHFS, M8-1.25 X 16 GR 8.8 | 4 | ADD TO CART | |
| 21 | 43484 | PIVOT, SEAT FRAME | 2 | ADD TO CART | |
| 22 | 9509 | SCREW, TEK 12 X 3/4 SELF TAP | 3 | ADD TO CART | |
| 23 | 43758 | BADGE, MQ RIVET | 1 | ADD TO CART | |
| 24 | 43686 | PANEL, FOOT PLATFORM HEEL | 1 | ADD TO CART | |
| 25 | 42442 | CON. CAP, DEUTSCH, HD10, 9 PIN W\LANYARD | 1 | ADD TO CART | |
| 26 | 43643 | CUP HOLDER, STAINLESS STEEL | 1 | ADD TO CART | |
| 27 | 42780 | ACCESSORY PORT, USB POWER | 1 | ADD TO CART | |
| 28 | 43486 | PANEL, OPERATOR CAB TOP | 1 | ADD TO CART | |
| 29 | 43474 | W/A FRAME TILT CAB | 1 | ADD TO CART | |
| 30 | 20673 | LATCH, RUBBER HOOD | 2 | ADD TO CART | |
| 31 | 1307 | SCREW, PHP 8-32 X 1/2 | 4 | PARTS REQUEST | |
|
COMING SCREW, PHP 8-32 X 1/2
1307 · qty on machine: 4 | |||||
| 32 | 13287 | NUT, NYLOC 8-32 | 4 | ADD TO CART | |

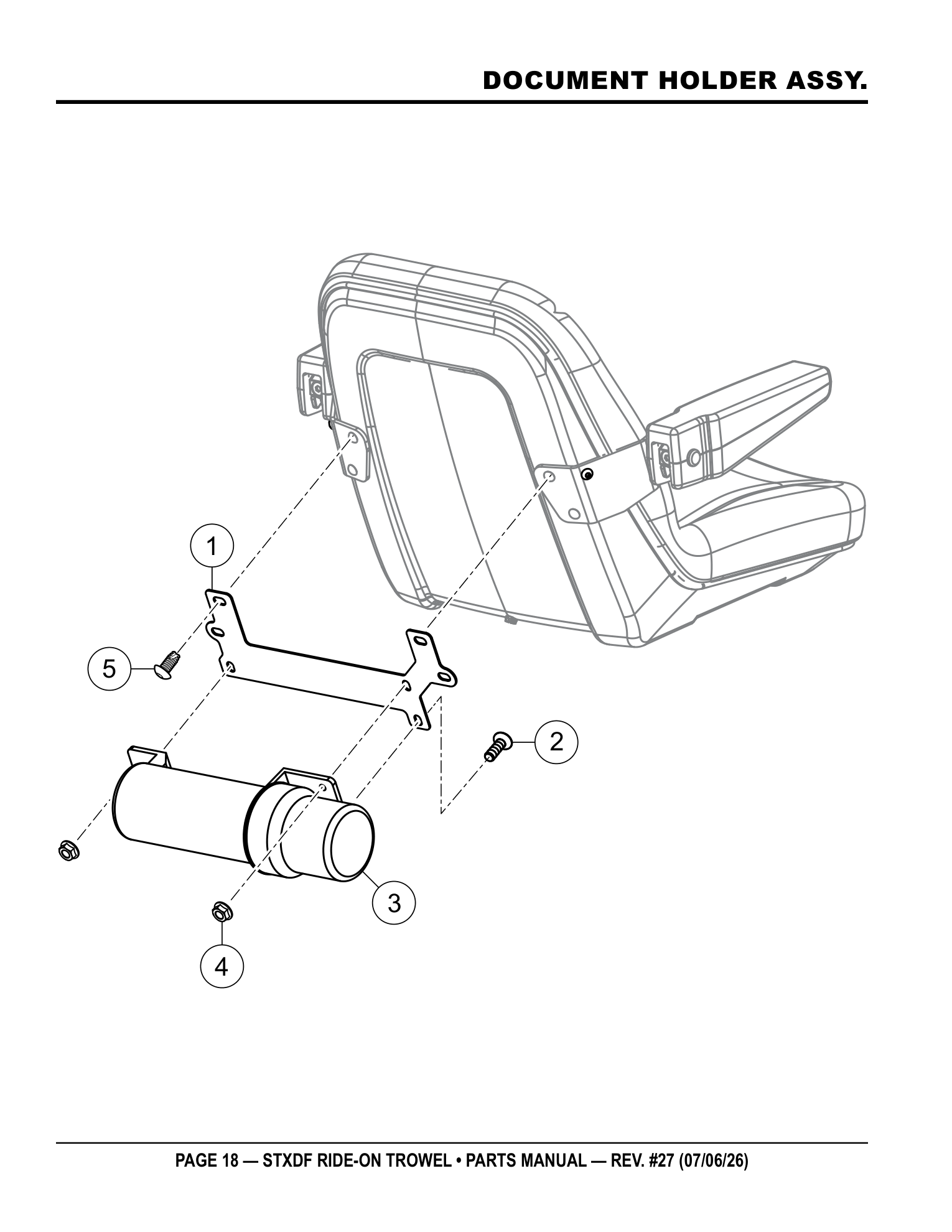

Page 18 — DOCUMENT HOLDER ASSY.
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 42541 | BRACKET, DOCUMENT HOLDER | 1 | ADD TO CART | |
| 2 | 49048 | SCREW, HHFS 1/4-20 X 3/4" GR5 | 3 | ADD TO CART | |
| 3 | 23297 | MANUAL HOLDER, PICTOGRAPH SAE J232 | 1 | ADD TO CART | |
| 4 | 49070 | NUT, HFS, 1/4-20 | 3 | ADD TO CART | |
| 5 | 21869 | SCREW, BHC 5/16-18 X 5/8" SELF TAP | 6 | ADD TO CART | |

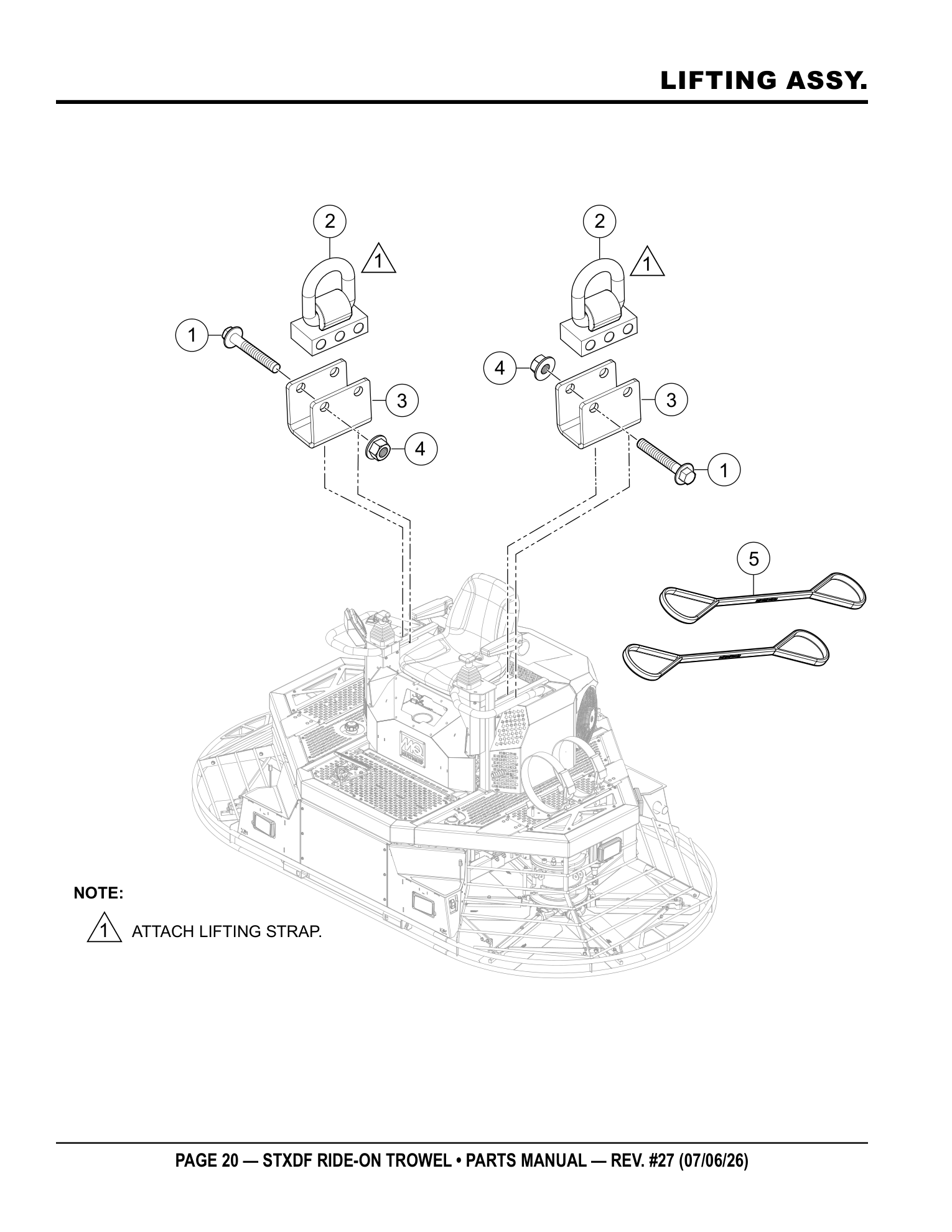

Page 20 — LIFTING ASSY.
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 9176 | SCREW, HHF M12-1.75 X 80 GR 10.9 | 4 | ADD TO CART | |
| 2 | 45169 | LIFTING D-RING W/A | 2 | ADD TO CART | |
| 3 | 45168 | CHANEL, LIFTING | 2 | ADD TO CART | |
| 4 | 42451 | NUT, HEX. SERRATED-FLANGE M6-1.0 | 4 | ADD TO CART | |
| 5 | 52078 | LIFTING STRAP, 3FT-6IN 6200LBS CAP. | 2 | ADD TO CART | |

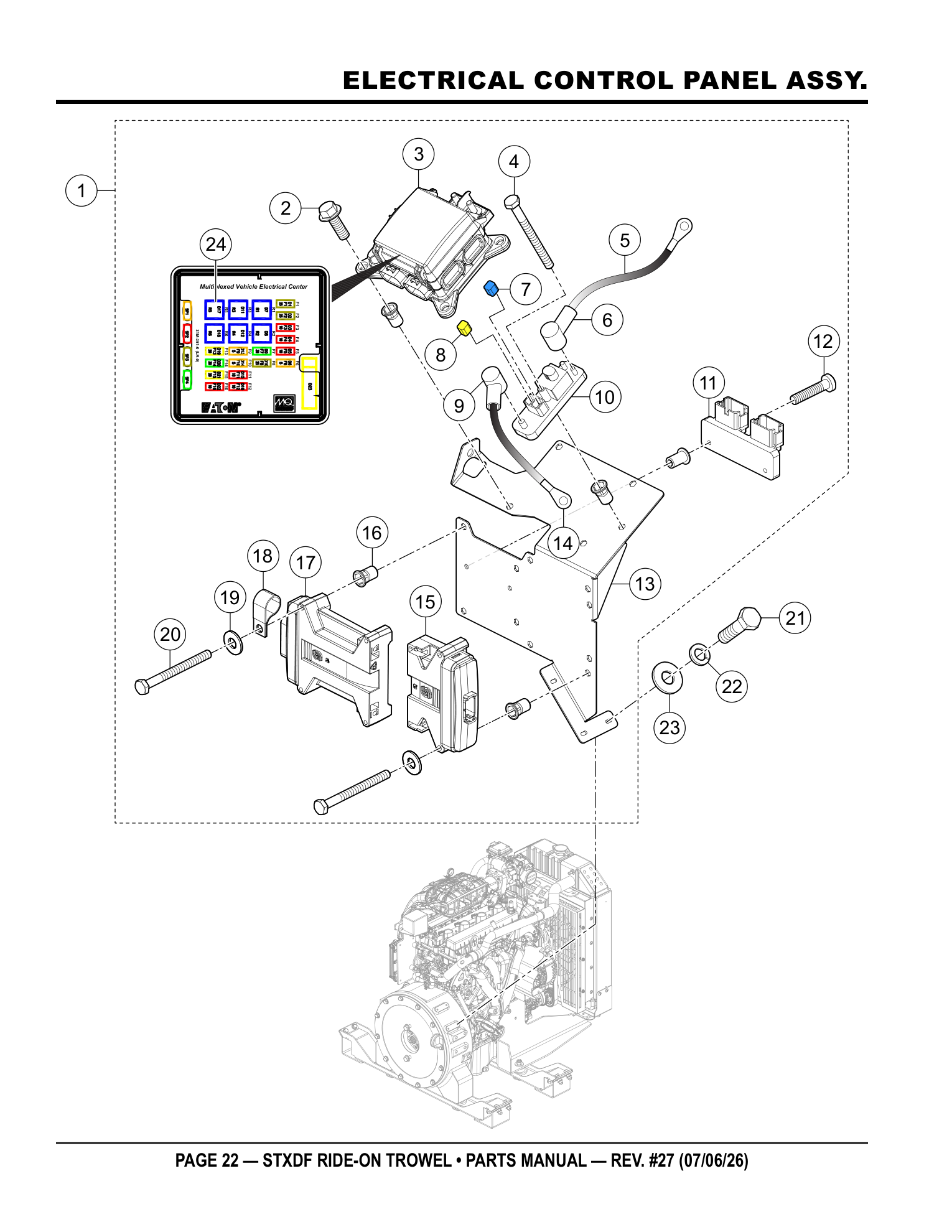

Page 22 — ELECTRICAL CONTROL PANEL ASSY.
Parts list — exactly as printed24 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 43399 | ELECTRICAL ASSEMBLY | 1 | INCLUDES ITEMS W/$ | ADD TO CART |
| 2$ | 42347 | SCREW, HFS, ZP, M6-1.0 X 30, CLASS 8.8 | 4 | ADD TO CART | |
| 3$ | 43142 | FUSE BOX | 1 | ADD TO CART | |
 FUSE BOX
43142 · qty on machine: 1 Also included in kit 1 - ELECTRICAL ASSEMBLY (43399) view full part page → $721.26 IN A KIT + SOLD SOLO | |||||
| 4$ | 25307 | SCREW, HHC M6-1.0 X 50MM | 1 | ADD TO CART | |
| 5$ | 42433 | CABLE, BAT POS, 8GA, 8" | 2 | ADD TO CART | |
| 6$ | 2762 | BOOT, TERMINAL | 2 | ADD TO CART | |
| 7$ | 22725-200 | FUSE, 20 AMP J CASE | 1 | ADD TO CART | |
| 8$ | 22725-600 | FUSE, 60 AMP J CASE | 1 | ADD TO CART | |
| 9$ | 42981 | BOOT, TERMINAL, 8-2GA, RED | 1 | ADD TO CART | |
| 10$ | 42140 | MODULE, POWER RELAY | 1 | ADD TO CART | |
| 11$ | 42713 | BUS BAR, DEUTSCH STYLE, 24 PIN | 1 | ADD TO CART | |
| 12$ | 35299 | SCREW, PHP M4-0.7 X 25MM | 2 | ADD TO CART | |
| 13$ | 43398 | PANEL, ELECTRICAL | 1 | ADD TO CART | |
| 14$ | 12675 | CABLE, BATTERY POS, 4 GA X 36" | 1 | ADD TO CART | |
| 15$ | 43362 | IO MODULE, PLUS 1 | 1 | ADD TO CART | |
| 16$ | 42496 | NUT, BLIND HEX M6-1.0 | 11 | ADD TO CART | |
| 17$ | 42072 | CONTROLLER, MC 050-120 | 1 | ADD TO CART | |
| 18$ | 32083 | CLAMP, LOOP-VINYL 1.0"DIA | 2 | NO LONGER AVAILABLE | |
|
COMING CLAMP, LOOP-VINYL 1.0"DIA
32083 · qty on machine: 2 Also included in kit 1 - ELECTRICAL ASSEMBLY (43399) NO LONGER AVAILABLE
| |||||
| 19$ | 0948 | WASHER, FLAT SAE 1/4" | 6 | PARTS REQUEST | |
|
COMING WASHER, FLAT SAE 1/4"
0948 · qty on machine: 6 Also included in kit 1 - ELECTRICAL ASSEMBLY (43399) | |||||
| 20$ | 43153 | SCREW, HHC, M6-1.0 X 65MM | 6 | ADD TO CART | |
| 21 | 32527 | SCREW, HHC 10-32 X 3/4" SS | 3 | ADD TO CART | |
| 22 | 19780 | WASHER, LOCK #10 MED | 3 | PARTS REQUEST | |
|
COMING WASHER, LOCK #10 MED
19780 · qty on machine: 3 | |||||
| 23 | 2203 | WASHER, FLAT, #10 | 3 | PARTS REQUEST | |
|
COMING WASHER, FLAT, #10
2203 · qty on machine: 3 | |||||
| 24$ | 43990 | RELAY, 12V, 20A 4-PIN MICRO | 6 | ADD TO CART | |

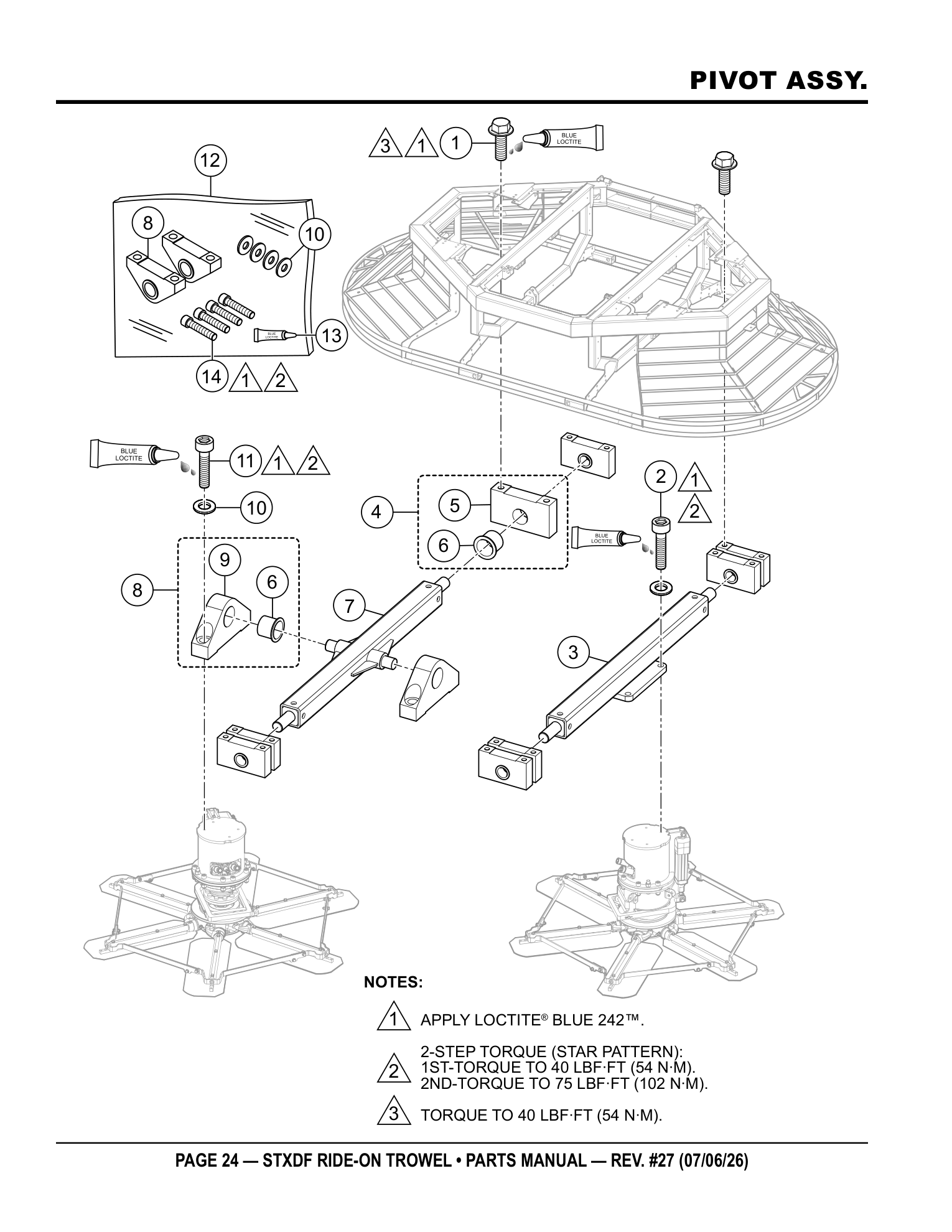

Page 24 — PIVOT ASSY.
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 32976 | SCREW, HHFS M10-1.5 X 25 GR 10.9 | 16 | ADD TO CART | |
| 2 | 939654 | SCREW, SHC M12-1.75 X 30MM 12.9 NP | 14 | ADD TO CART | |
| 3 | 43106 | TRUNNION W/A, SINGLE DOF | 1 | ADD TO CART | |
| 4 | 43152 | PIVOT BLOCK ASSEMBLY, MOTOR MT. W/BUSHING | 8 | INCLUDES ITEMS W/$ | ADD TO CART |
| 5$ | 43151 | PIVOT BLOCK, ROTOR MOUNT | 8 | PARTS REQUEST | |
|
COMING PIVOT BLOCK, ROTOR MOUNT
43151 · qty on machine: 8 Also included in kit 4 - PIVOT BLOCK ASSEMBLY, MOTO (43152) | |||||
| 6$#% | 10221 | BUSHING, GLIDE IGUS #TFI-1618-16 | 12 | ADD TO CART | |
| 7 | 43194 | TRUNNION, SQ DOUBLE DOF, W/A | 1 | ADD TO CART | |
| 8% | 42280 | BLOCK, MOTOR MT. 2 DOF PIVOT, ASSEMBLY | 4 | INCLUDES ITEMS W/# | ADD TO CART |
| 9# | 3942280 | PIVOT BLOCK, MOTOR MOUNT | 4 | PARTS REQUEST | |
|
COMING PIVOT BLOCK, MOTOR MOUNT
3942280 · qty on machine: 4 Also included in kit 8 - BLOCK, MOTOR MT. 2 DOF PIV (42280) | |||||
| 10% | 43180 | WASHER, FLAT M12, DIN 433 | 12 | PARTS REQUEST | |
|
COMING WASHER, FLAT M12, DIN 433
43180 · qty on machine: 12 Also included in kit 12 - SERVICE KIT, BLOCK MOTOR M (42280-SK) | |||||
| 11 | 32977 | SCREW, SHC M12-1.75 X 45 GR 12.9 | 4 | PARTS REQUEST | |
|
COMING SCREW, SHC M12-1.75 X 45 GR 12.9
32977 · qty on machine: 4 | |||||
| 12 | 42280-SK | SERVICE KIT, BLOCK MOTOR MT. 2 DOF PIVOT | 1 | INCLUDES ITEMS W/% | ADD TO CART |
| 13% | 1477 | LOCTITE 242 BLUE .5 CC | 1 | ADD TO CART | |
| 14% | 43181 | SCREW, SHC M12 X 60, DIN 912, GR 12.9 | 4 | PARTS REQUEST | |
|
COMING SCREW, SHC M12 X 60, DIN 912, GR 12.9
43181 · qty on machine: 4 Also included in kit 12 - SERVICE KIT, BLOCK MOTOR M (42280-SK) | |||||

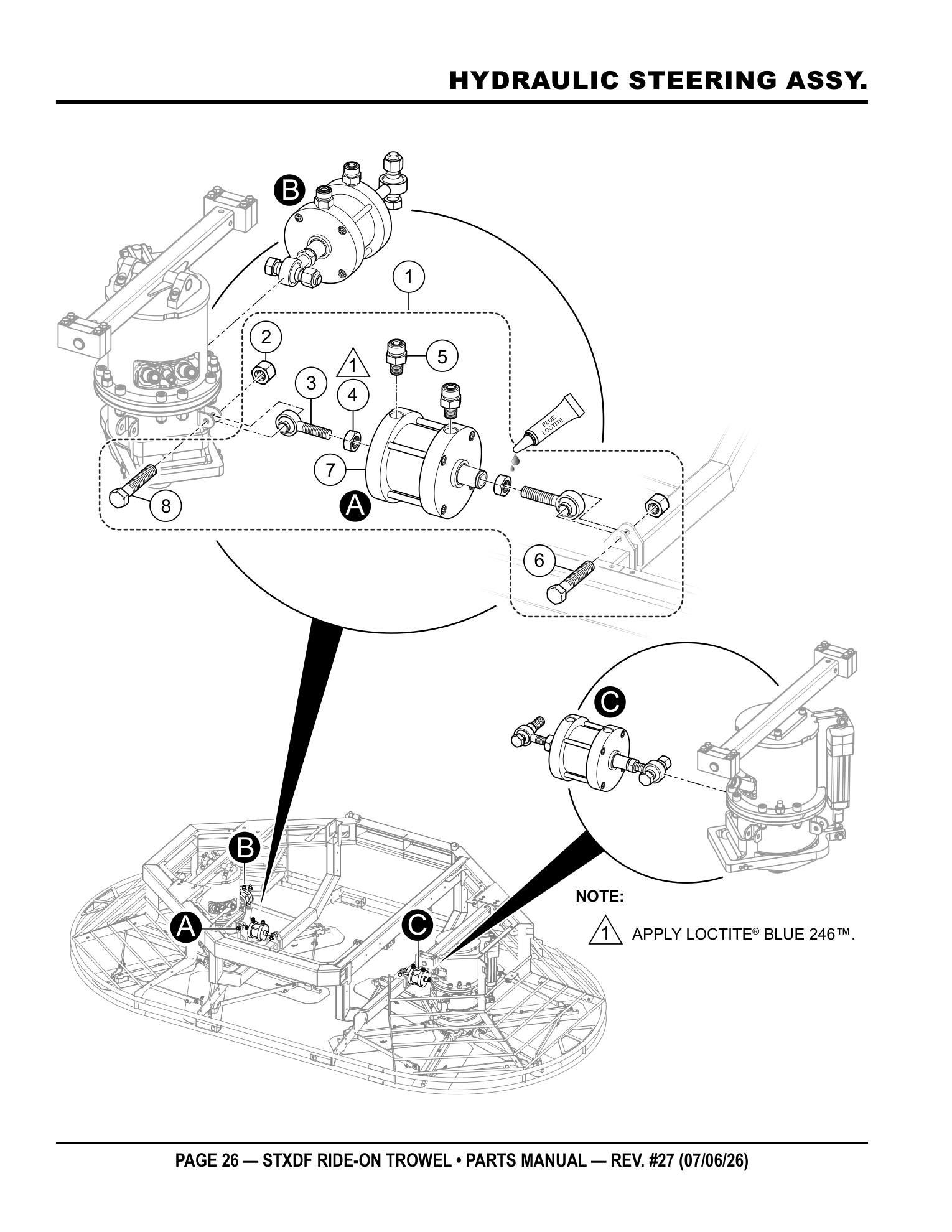

Page 26 — HYDRAULIC STEERING ASSY.
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 42226 | CYLINDER ASSEMBLY, HYD. STEERING | 3 | INCLUDES ITEMS W/# | ADD TO CART |
| 2# | 10176 | NUT, NYLOC 1/2-13 | 6 | ADD TO CART | |
| 3# | 21944 | ROD END, 1/2-20 M RH W/CUSTOM BALL | 6 | ADD TO CART | |
| 4# | 11146 | NUT, HEX JAM 1/2-20 PLATED | 6 | ADD TO CART | |
| 5# | 32350 | FITTING, 6MORFS X 04MP STR | 6 | ADD TO CART | |
| 6# | 13178 | SCREW, HHC 1/2-13 X 2 1/4 GR5 | 3 | ADD TO CART | |
| 7# | 12056 | CYLINDER, 2.5" BORE X 1.5" STR X .75" ROD | 3 | ADD TO CART | |
| 8# | 12318 | SCREW, HHC 1/2-13 X 2 3/4 | 3 | ADD TO CART | |

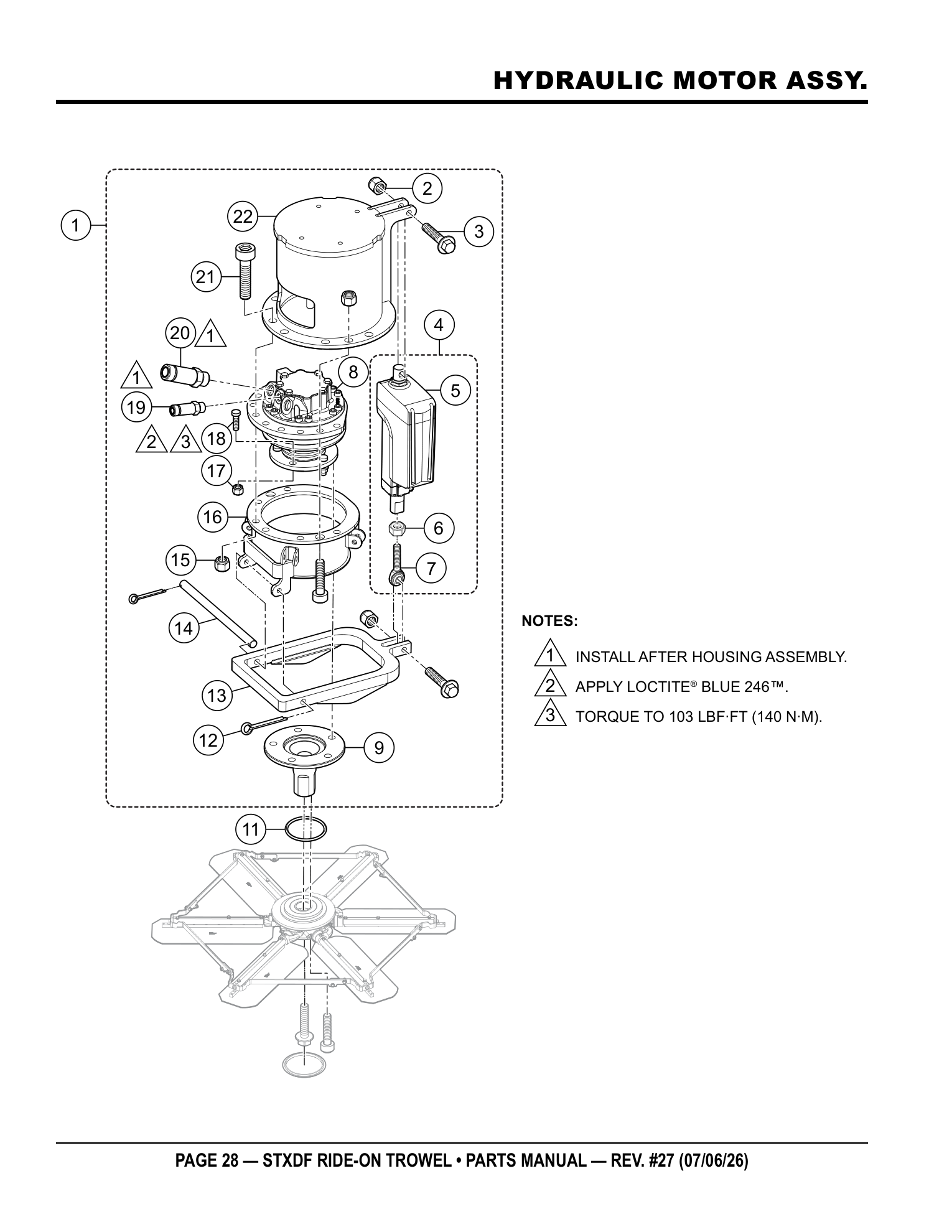

Page 28 — HYDRAULIC MOTOR ASSY.
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 43104 | MOTOR, RPM HOUSING ASSEMBLY | 2 | INCLUDES ITEMS W/# | ADD TO CART |
| 2# | 21112140 | NUT, HEX, NYLOC, M12-1.75 | 4 | PARTS REQUEST | |
|
COMING NUT, HEX, NYLOC, M12-1.75
21112140 · qty on machine: 4 Also included in kit 1 - MOTOR, RPM HOUSING ASSEMBL (43104) | |||||
| 3# | 9185 | SCREW, HHF M12-1.75 X 6 GR 10.9 PATCH | 4 | ADD TO CART | |
| 4# | 43789 | THOMSON ACTUATOR, ASSEMBLY | 2 | INCLUDES ITEMS W/$ | ADD TO CART |
| 5#$ | 43677 | ACTUATOR, LINEAR THOMSON | 2 | ADD TO CART | |
| 6#$ | 43725 | NUT, JAM, M12-1.75 | 2 | ADD TO CART | |
| 7#$ | 43231 | ROD END, M12 MALE SPHERICAL | 2 | ADD TO CART | |
| 8# | 43066 | MOTOR, HYDRAULIC, MCR5, 520CC | 2 | INCLUDES ITEMS W/% | ADD TO CART |
| 9# | 48181 | DRIVE ADAPTOR, M14 HYD. MOTOR | 2 | ADD TO CART | |
| 11 | 43186 | O-RING, SIZE 2-226 VITON | 2 | ADD TO CART | |
| 12# | 0183 | PIN, COTTER 1/8" X 1-1/4" | 4 | PARTS REQUEST | |
|
COMING PIN, COTTER 1/8" X 1-1/4"
0183 · qty on machine: 4 Also included in kit 1 - MOTOR, RPM HOUSING ASSEMBL (43104) | |||||
| 13# | 43092 | YOKE, W/A | 2 | PARTS REQUEST | |
|
COMING YOKE, W/A
43092 · qty on machine: 2 Also included in kit 1 - MOTOR, RPM HOUSING ASSEMBL (43104) | |||||
| 14# | 43075 | PIN, YOKE PIVOT | 2 | ADD TO CART | |
| 15# | 17097 | NUT, NYLOC M16-2.00, DIN 985 | 16 | ADD TO CART | |
| 16# | 43085 | HOUSING, LOWER RPM MOTOR, W/A | 2 | ADD TO CART | |
| 17#% | 43066-2 | NUT, REXROTH MOTOR M14-1.5 | 10 | ADD TO CART | |
| 18#% | 43066-1 | STUD, REXROTH MOTOR M14-1.5 | 10 | ADD TO CART | |
| 19# | 42997 | FITTING, STR LONG, 8MORFS X 8MOR | 2 | ADD TO CART | |
| 20# | 42996 | FITTING, STR LONG, 12MORFS X 12MOR | 4 | ADD TO CART | |
| 21# | 17107 | SCREW, SHC M16-2.00 X 60, DIN912 | 16 | ADD TO CART | |
| 22# | 43080 | HOUSING, UPPER RPM MOTOR, W/A | 2 | ADD TO CART | |
Page 30 — HEAT EXCHANGER ASSY. (LEFT AND RIGHT)
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 43463 | HEAT EXCHANGER ASSEMBLY, RH | 1 | INCLUDES ITEMS W/$ | ADD TO CART |
| 2$# | 23802 | NUT, HEX FLANGE M8-1.25 SERRATED | 8 | ADD TO CART | |
| 3$# | 368700 | FITTING, PLUG 8MO HEX SKT HD | 4 | ADD TO CART | |
| 4$# | 43580 | FITTING, -10 MORB TO -16MORFS | 2 | ADD TO CART | |
| 5$# | 5016B | FITTING, PLUG 3/8MP HEX SKT HD | 2 | PARTS REQUEST | |
|
COMING FITTING, PLUG 3/8MP HEX SKT HD
5016B · qty on machine: 2 Also included in kit 16 - HEAT EXCHANGER ASSEMBLY, L (43461); kit 1 - HEAT EXCHANGER ASSEMBLY, R (43463) | |||||
| 6$# | 32468 | FITTING, PLUG - ORING - 10 | 3 | ADD TO CART | |
| 7$# | 15226 | SCREW, HHC FLANGED M8-1.25 X 25MM | 8 | PARTS REQUEST | |
|
COMING SCREW, HHC FLANGED M8-1.25 X 25MM
15226 · qty on machine: 8 Also included in kit 16 - HEAT EXCHANGER ASSEMBLY, L (43461); kit 1 - HEAT EXCHANGER ASSEMBLY, R (43463) | |||||
| 8$# | 21597 | BUMPER, STEM 1.0"D X .5S X .31 | 4 | ADD TO CART | |
| 9$# | 42347 | SCREW, HFS, ZP, M6-1.0 X 30, CLASS 8.8 | 4 | ADD TO CART | |
| 10$ | 43462 | BRACKET, RH HEAT EXCHANGER | 1 | ADD TO CART | |
| 11$# | 42648 | HEAT EXCHANGER, HYDRAULIC, TIER 4 | 2 | NO LONGER AVAILABLE | |
|
COMING HEAT EXCHANGER, HYDRAULIC, TIER 4
42648 · qty on machine: 2 Also included in kit 16 - HEAT EXCHANGER ASSEMBLY, L (43461); kit 1 - HEAT EXCHANGER ASSEMBLY, R (43463) NO LONGER AVAILABLE
| |||||
| 12$# | 43479 | FITTING, PARKER -10MORB TO -16BARB | 2 | ADD TO CART | |
| 13$# | 22746 | SENSOR, TEMPERATURE-HYD OIL | 2 | ADD TO CART | |
| 14$# | 43464 | GUARD, WIREFORM | 2 | NO LONGER AVAILABLE | |
|
COMING GUARD, WIREFORM
43464 · qty on machine: 2 Also included in kit 16 - HEAT EXCHANGER ASSEMBLY, L (43461); kit 1 - HEAT EXCHANGER ASSEMBLY, R (43463) NO LONGER AVAILABLE
| |||||
| 15 | 43340 | HARDLINE, COOLER | 1 | ADD TO CART | |
| 16 | 43461 | HEAT EXCHANGER ASSEMBLY, LH | 1 | INCLUDES ITEMS W/# | ADD TO CART |
| 17# | 43460 | BRACKET, HEAT EXCHANGER | 1 | ADD TO CART | |
| 18# | 43667 | FITTING, STR, -10MORX-10FORB | 1 | ADD TO CART | |
| 19# | 43699 | FITTING, 90DEG, -10MORBX-16BARB | 1 | ADD TO CART | |

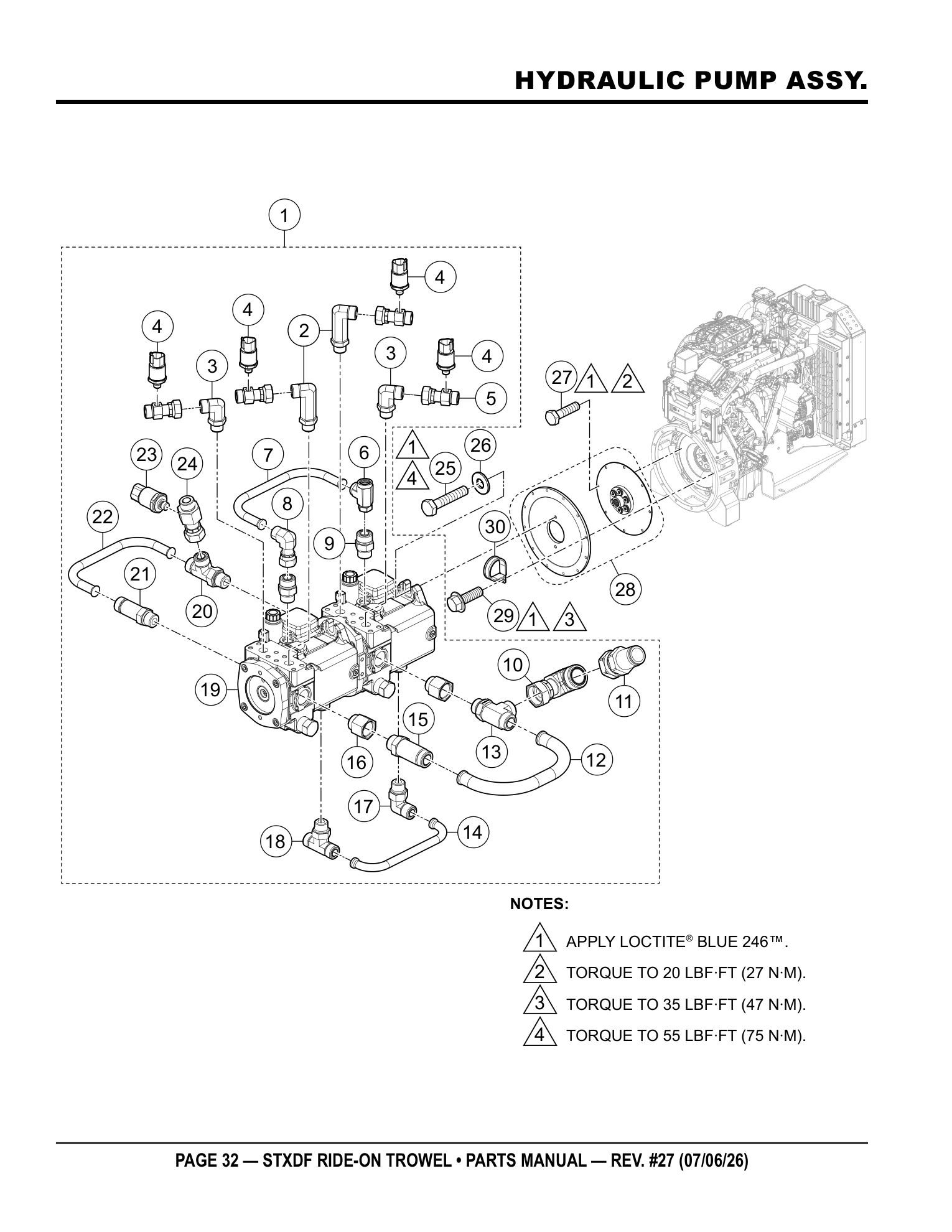

Page 32 — HYDRAULIC PUMP ASSY.
Parts list — exactly as printed30 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 43061 | PUMP ASSY., TANDEM 28 CC, EP CON | 1 | INCLUDES ITEMS W/$ | ADD TO CART |
| 2$ | 43330 | FITTING, 90° LONG, 12MORFS X 12MOR | 2 | ADD TO CART | |
| 3$ | 32362 | FITTING, 90° 12MOR X 12 MORFS | 2 | ADD TO CART | |
| 4$ | 43120 | PRESSURE TRANSDUCER, 0–400 BAR | 4 | ADD TO CART | |
| 5$ | 43352 | DIAGNOSTIC FITTING, -12, PUMP ASSY. | 4 | ADD TO CART | |
| 6$ | 43619 | FITTING, TEE, 5/8 MFS, FFS, MFS | 1 | ADD TO CART | |
| 7$ | 43341 | HARD LINE, CASE DRAIN, HYD PUMP | 1 | ADD TO CART | |
| 8$ | 43621 | FITTING, 90°, 5/8 FFS, 5/8 MFS | 1 | ADD TO CART | |
| 9$ | 32342 | FITTING, STR -10MORFS X -10MOR | 2 | ADD TO CART | |
| 10$ | 43465 | FITTING, 90° -16FORFS TO -20 MORFS | 1 | ADD TO CART | |
| 11$ | 43652 | FITTING, STR, 20FORFSX24BARB | 1 | ADD TO CART | |
| 12$ | 43343 | HARD LINE, S PORT, HYD PUMP | 1 | PARTS REQUEST | |
|
COMING HARD LINE, S PORT, HYD PUMP
43343 · qty on machine: 1 Also included in kit 1 - PUMP ASSY., TANDEM 28 CC, (43061) | |||||
| 13$ | 43060 | FITTING, TEE 16MO-16MORFS-16MORFS | 1 | ADD TO CART | |
| 14$ | 43344 | HARD LINE, G PORT, HYD PUMP | 1 | ADD TO CART | |
| 15$ | 43728 | FITTING, STR LONG -16MORBX-16MORFS | 1 | PARTS REQUEST | |
|
COMING FITTING, STR LONG -16MORBX-16MORFS
43728 · qty on machine: 1 Also included in kit 1 - PUMP ASSY., TANDEM 28 CC, (43061) | |||||
| 16$ | 43706 | FITTING, STR, -16MORBX-16FORB | 2 | PARTS REQUEST | |
|
COMING FITTING, STR, -16MORBX-16FORB
43706 · qty on machine: 2 Also included in kit 1 - PUMP ASSY., TANDEM 28 CC, (43061) | |||||
| 17$ | 32718 | FITTING, 90° 8MORFS X 8MOR | 1 | ADD TO CART | |
| 18$ | 32713 | FITTING, BRANCH TEE 8MORFS X 8MOR | 1 | ADD TO CART | |
| 19$ | 43057 | PUMP, TANDEM 28 CC, EP CONTROL | 1 | ADD TO CART | |
| 20$ | 32727 | FITTING, TEE 8 MO X 8 MORFS RUN | 1 | ADD TO CART | |
| 21$ | 42997 | FITTING, STR LONG, 8MORFS X 8MOR | 1 | ADD TO CART | |
| 22$ | 43342 | HARD LINE, FE PORT, HYD PUMP | 1 | PARTS REQUEST | |
|
COMING HARD LINE, FE PORT, HYD PUMP
43342 · qty on machine: 1 Also included in kit 1 - PUMP ASSY., TANDEM 28 CC, (43061) | |||||
| 23$ | 43119 | PRESSURE TRANSDUCER, 0–40 BAR | 1 | ADD TO CART | |
| 24$ | 43353 | DIAGNOSTIC FITTING, -8 PUMP ASSY. | 1 | PARTS REQUEST | |
|
COMING DIAGNOSTIC FITTING, -8 PUMP ASSY.
43353 · qty on machine: 1 Also included in kit 1 - PUMP ASSY., TANDEM 28 CC, (43061) | |||||
| 25 | 5218 | SCREW, HHC 1/2-13 X 1-1/2" | 2 | ADD TO CART | |
| 26 | 16630 | WASHER, FLAT SAE 1/2" HI STRENGTH | 2 | ADD TO CART | |
| 27 | 4196 | SCREW, HHC 3/8-16 X .75" | 8 | ADD TO CART | |
| 28 | 42219 | COUPLER, HAYES 15T -SAE 8 MOUNT | 1 | ADD TO CART | |
| 29 | 42340 | SCREW, HHFS M10-1.5 X 35 GR 8.8 | 12 | ADD TO CART | |
| 30 | 59005 | CLAMP, LOOP 2.0" X .53 HOLE | 1 | ADD TO CART | |

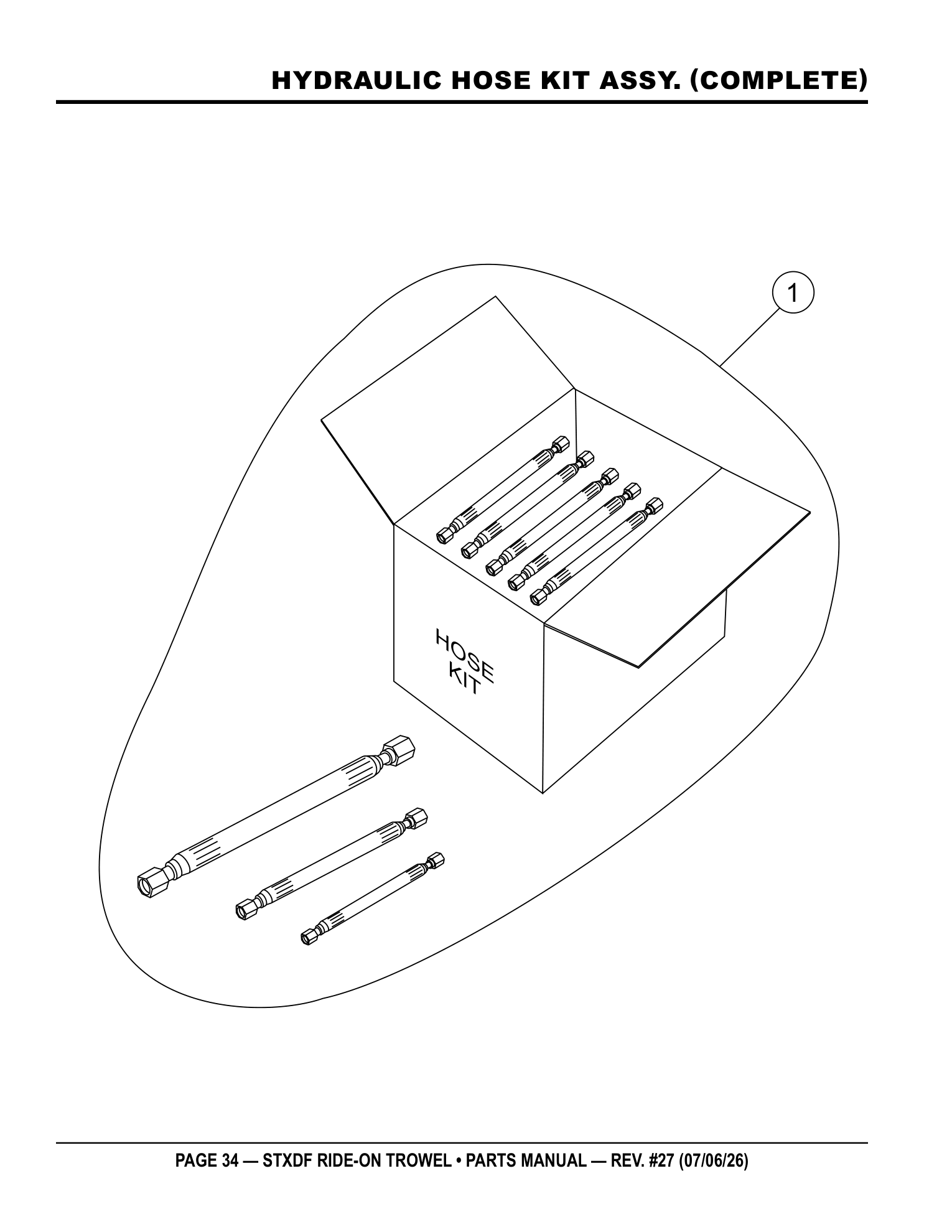

Page 34 — HYDRAULIC HOSE KIT ASSY. (COMPLETE)
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 43278 | HOSE KIT ASSEMBLY HOSE ASM, 3/8"x54 6FFORX45Sx6FFORX HOSE ASM, 3/8"x54 6FFORX45Sx6FFORX HOSE ASM, 3/8"x40 6FFORX45Sx6FFORX HOSE ASM, 3/8"x40 6FFORX45Sx6FFORX HOSE, 1"X37.50 E-Z FORM HOSE, 1.50"X16.75" E-Z FORM HOSE ASM, 1/2"x20 8FFORX90Sx8FFORX HOSE ASM, 3/8"x35.75 6FFORXx6FFORX HOSE ASM, 3/8"x27 6FFORXSx6FFORX HOSE ASM, 1/2"x17.5 8FFORX90Sx8FFORX HOSE ASM, 1/2"x24 8FFORX45Sx8FFORX HOSE ASM, 1/2"x50.5 8FFORX45Sx8FFORX HOSE ASM, 1/2"x40 68FFORX90Sx6FFORX HOSE ASM, 5/8"x24 10FFORX90Sx10FFORX HOSE ASM, 5/8"x74 10FFORX90Sx10FFORX HOSE ASM, 5/8"x63 6FFORXx6FFORX HOSE ASM, 3/4"x30 12FFORXx12FFORX-6K HOSE ASM, 3/4"x33 12FFORX45Sx12FFORX-6K HOSE ASM, 3/4"x27 12FFORX45Sx12FFORX-6K HOSE ASM, 3/4"x25.5 12FFORX45Sx12FFORX6K HOSE, 1"X23 E-Z FORM HOSE, 1.5"X17.0 E-Z FORM HOSE ASM, 3/8"x46.75 6FFORX45x6FFORX HOSE ASM, 3/8"x47.75 6FFORX45Sx6FFORX HOSE ASM, 3/8"x38 06FFORXSx06FFORX | 1 | INCLUDES ITEMS BELOW HOSE 1 HOSE 2 HOSE 3 HOSE 4 HOSE 5 HOSE 6 HOSE 7 HOSE 8 HOSE 9 HOSE 10 HOSE 11 HOSE 12 HOSE 13 HOSE 14 HOSE 15 HOSE 16 HOSE 17 HOSE 18 HOSE 19 HOSE 20 HOSE 21 HOSE 22 HOSE 23 HOSE 24 HOSE 25 | ADD TO CART |

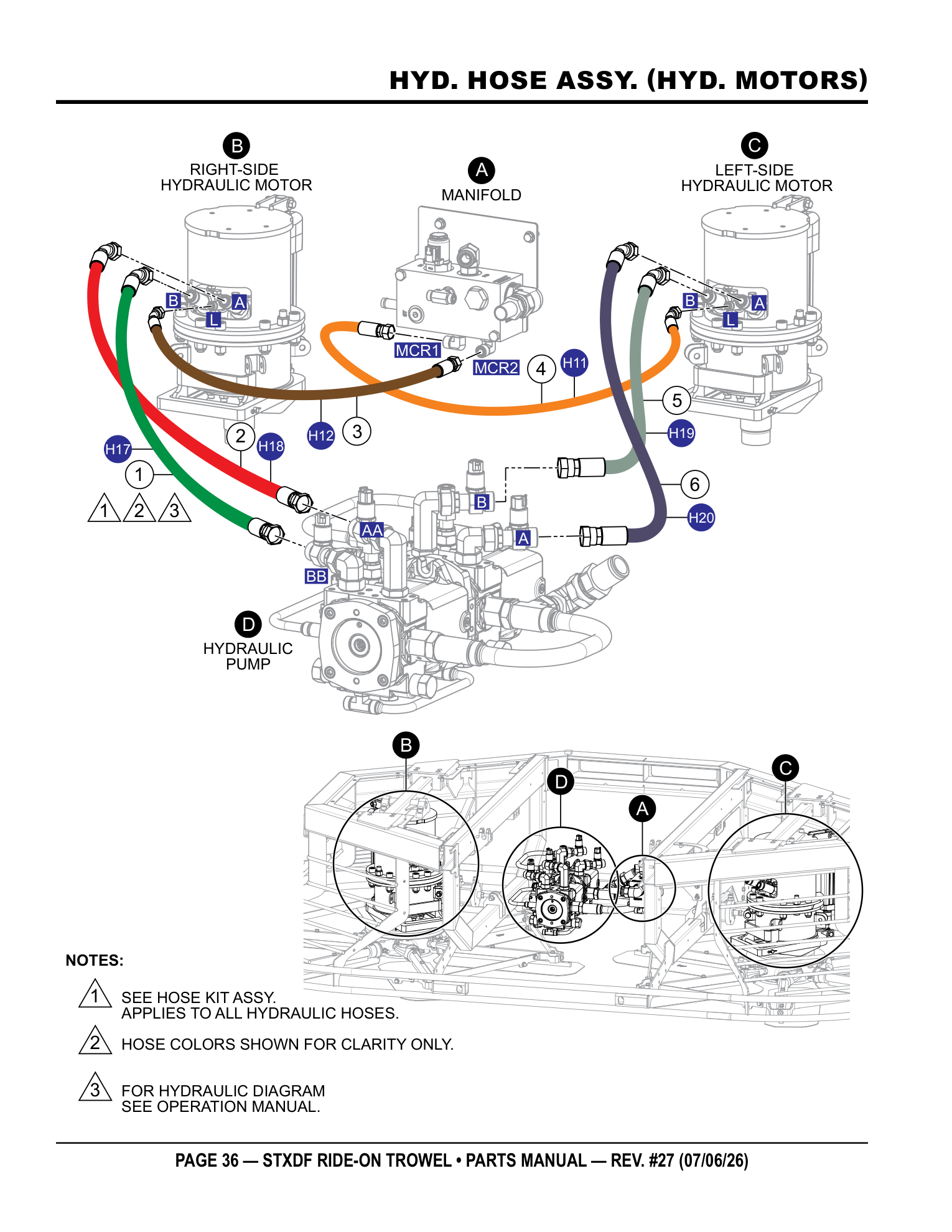

Page 36 — HYD. HOSE ASSY. (HYD. MOTORS)
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 43813 | HOSE ASM, 3/4"x30 12FFORXx12FFORX-6K | 1 | HOSE 17 | ADD TO CART |
| 2 | 43814 | HOSE ASM, 3/4"x33 12FFORX45Sx12FFORX-6K | 1 | HOSE 18 | ADD TO CART |
| 3 | 43808 | HOSE ASM, 1/2"x50.5 8FFORX45Sx8FFORX | 1 | HOSE 12 | ADD TO CART |
| 4 | 43807 | HOSE ASM, 1/2"x24 8FFORX45Sx8FFORX | 1 | HOSE 11 | ADD TO CART |
| 5 | 43815 | HOSE ASM, 3/4"x27 12FFORX45Sx12FFORX-6K | 1 | HOSE 19 | ADD TO CART |
| 6 | 43816 | HOSE ASM, 3/4"x25.5 12FFORX45Sx12FFORX6K | 1 | HOSE 20 | ADD TO CART |
Page 38 — HYD. HOSE ASSY. (HYD. STEERING VALVES #1)
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 43711 | HOSE ASM, 3/8"x54 6FFORX45Sx6FFORX | 1 | HOSE 2 | ADD TO CART |
| 2 | 43822 | HOSE ASM, 3/8"x46.75 6FFORX45x6FFORX | 1 | HOSE 23 | ADD TO CART |
| 3 | 43824 | HOSE ASM, 3/8"x47.75 6FFORX45Sx6FFORX | 1 | HOSE 24 | ADD TO CART |
| 4 | 43712 | HOSE ASM, 3/8"x40 6FFORX45Sx6FFORX | 1 | HOSE 3 | ADD TO CART |
| 5 | 43713 | HOSE ASM, 3/8"x40 6FFORX45Sx6FFORX | 1 | HOSE 4 | PARTS REQUEST |
|
COMING HOSE ASM, 3/8"x40 6FFORX45Sx6FFORX
43713 · qty on machine: 1 HOSE 4 | |||||
| 6 | 43710 | HOSE ASM, 3/8"x54 6FFORX45Sx6FFORX | 1 | HOSE 1 | ADD TO CART |
Page 40 — HYD. HOSE ASSY. (HYD. STEERING VALVES #2)
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 43809 | HOSE ASM, 1/2"x40 68FFORX90Sx6FFORX | 1 | HOSE 13 | ADD TO CART |
| 2 | 43804 | HOSE ASM, 3/8"x35.75 6FFORXx6FFORX | 1 | HOSE 8 | ADD TO CART |
| 3 | 43812 | HOSE ASM, 5/8"x63 6FFORXx6FFORX | 1 | HOSE 16 | ADD TO CART |
| 4 | 43825 | HOSE ASM, 3/8"x38 06FFORXSx06FFORX | 1 | HOSE 25 | ADD TO CART |
Page 42 — HYD. HOSE ASSY. (HYD. TANK AND COOLERS)
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 59796 | CLAMP, T-BOLT 1 3/8 - 1 9/16 IN | 6 | ADD TO CART | |
| 2 | 43714 | HOSE, 1"X37.50 E-Z FORM | 1 | HOSE 5 | PARTS REQUEST |
|
COMING HOSE, 1"X37.50 E-Z FORM
43714 · qty on machine: 1 HOSE 5 | |||||
| 3 | 43819 | HOSE, 1"X23 E-Z FORM | 1 | HOSE 21 | ADD TO CART |
| 4 | 42988 | CLAMP HOSE T-BOLT 1 7/8" - 2 1/8" | 2 | ADD TO CART | |
| 6 | 45645 | DRAIN CAP W/SPRING CLAMP | 1 | ADD TO CART | |
| 7 | 43821 | HOSE, 1.5"X17.0 E-Z FORM | 1 | HOSE 22 | ADD TO CART |
| 8 | 43810 | HOSE ASM, 5/8"x24 10FFORX90Sx10FFORX | 1 | HOSE 14 | PARTS REQUEST |
|
COMING HOSE ASM, 5/8"x24 10FFORX90Sx10FFORX
43810 · qty on machine: 1 HOSE 14 | |||||
| 9 | 43811 | HOSE ASM, 5/8"x74 10FFORX90Sx10FFORX | 1 | HOSE 15 | ADD TO CART |
Page 44 — HYD. HOSE ASSY. (HYD. FILTER/PRESSURE REGULATOR)
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 43805 | HOSE ASM, 3/8"x27 6FFORXSx6FFORX | 1 | HOSE 9 | PARTS REQUEST |
|
COMING HOSE ASM, 3/8"x27 6FFORXSx6FFORX
43805 · qty on machine: 1 HOSE 9 | |||||
| 2 | 43806 | HOSE ASM, 1/2"x17.5 8FFORX90Sx8FFORX | 1 | HOSE 10 | ADD TO CART |
| 3 | 43803 | HOSE ASM, 1/2"x20 8FFORX90Sx8FFORX | 1 | HOSE 7 | ADD TO CART |

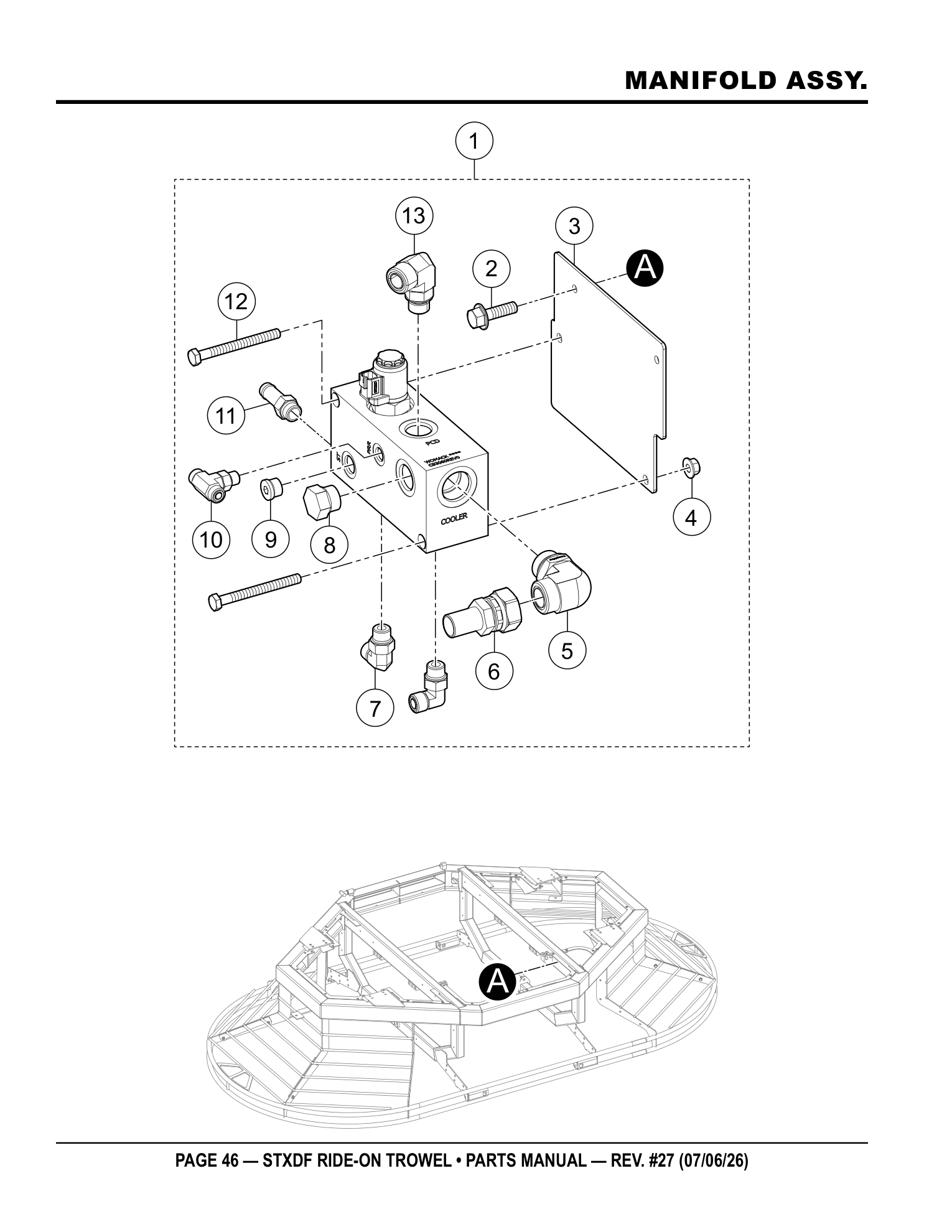

Page 46 — MANIFOLD ASSY.
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 43173 | MANIFOLD, CASE DRAIN | 1 | INCLUDES ITEMS W/$ | ADD TO CART |
| 2$ | 42436 | SCREW, HFS, ZP, M8-1.25 X 25, CLASS 8.8 | 2 | ADD TO CART | |
| 3$ | 43632 | BRACKET, UNLOADER VALVE | 1 | ADD TO CART | |
| 4$ | 42353 | NUT, HEX, SERRATED-FLANGE, M10-1.5 | 2 | ADD TO CART | |
| 5$ | 32424 | FITTING, 90° 16MORFS X 16MOR | 1 | NO LONGER AVAILABLE | |
|
COMING FITTING, 90° 16MORFS X 16MOR
32424 · qty on machine: 1 Also included in kit 1 - MANIFOLD, CASE DRAIN (43173) NO LONGER AVAILABLE
| |||||
| 6$ | 43350 | FITTING, STR, 16 BARB - 16 ORFS | 1 | ADD TO CART | |
| 7$ | 32718 | FITTING, 90° 8MORFS X 8MOR | 2 | ADD TO CART | |
| 8$ | 23271 | FITTING, PLUG 12MO MAG | 1 | NO LONGER AVAILABLE | |
|
COMING FITTING, PLUG 12MO MAG
23271 · qty on machine: 1 Also included in kit 1 - MANIFOLD, CASE DRAIN (43173) NO LONGER AVAILABLE
| |||||
| 9$ | 368700 | FITTING, PLUG 8MO HEX SKT HD | 1 | ADD TO CART | |
| 10$ | 42942 | FITTING, TEE 6MORFS X 6MOR | 1 | ADD TO CART | |
| 11$ | 43331 | FITTING, STR, -16MO, -16BARB | 1 | ADD TO CART | |
| 12$ | 43705 | SCREW, HHC, M10-1.5 X 100MM | 2 | ADD TO CART | |
| 13$ | 43657 | FITTING, 90DEG, -10MORFSX-12MORB | 1 | ADD TO CART | |

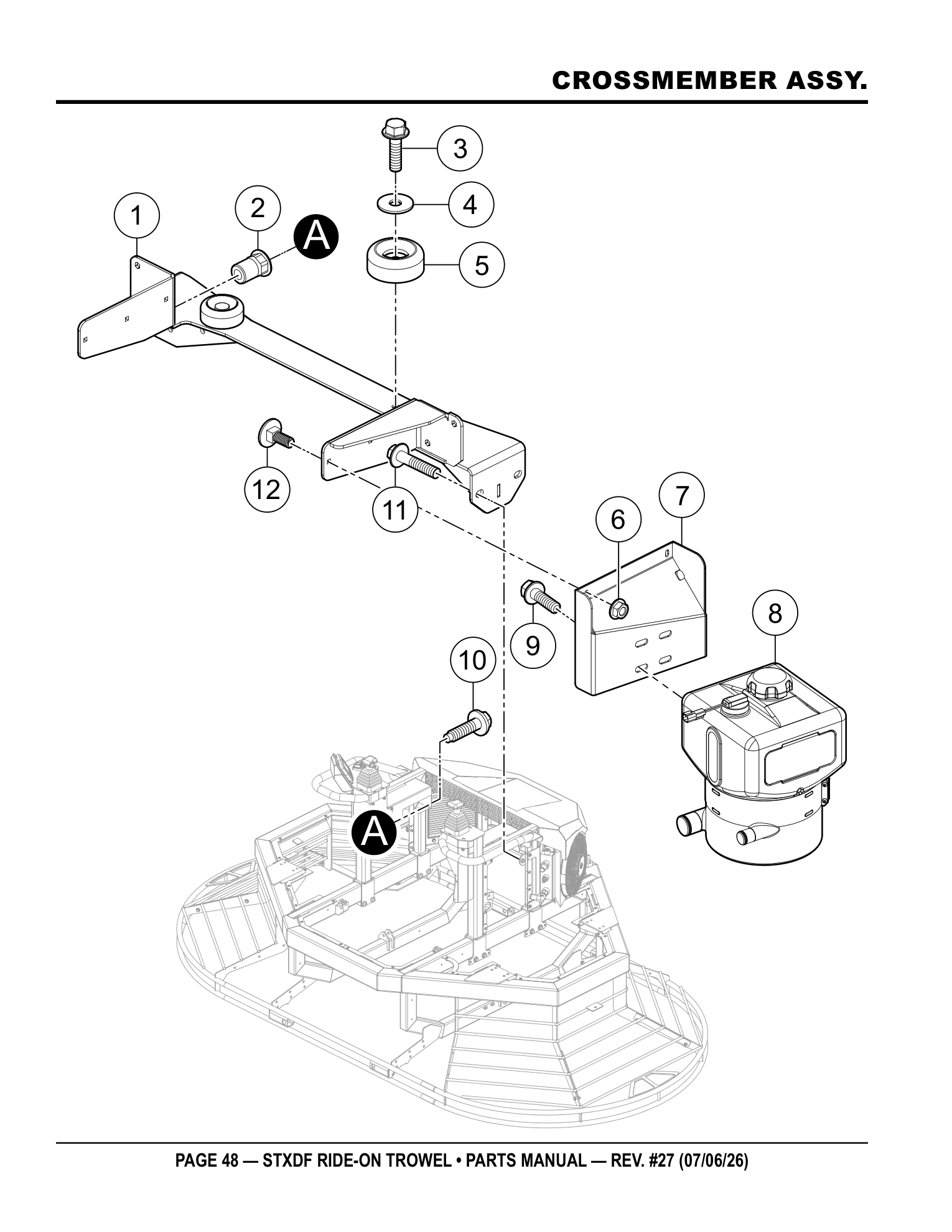

Page 48 — CROSSMEMBER ASSY.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 43402 | CROSSMEMBER, LIFT FRAME | 1 | ADD TO CART | |
| 2 | 42496 | NUT, BLIND HEX M6-1.0 | 4 | ADD TO CART | |
| 3 | 23792 | SCREW, HHFS M8-1.25 X 30 | 2 | ADD TO CART | |
| 4 | 25591 | WASHER, M8 | 2 | ADD TO CART | |
| 5 | 17336 | BUMPER, 2.5" DIA X 1" | 2 | ADD TO CART | |
| 6 | 42352 | NUT, HEX, SERRATED-FLANGE, M6-1.0 | 2 | ADD TO CART | |
| 7 | 43656 | BRACKET, MOUNT, HYDRAULIC TANK | 1 | PARTS REQUEST | |
|
COMING BRACKET, MOUNT, HYDRAULIC TANK
43656 · qty on machine: 1 Factory replaced this part - current number 8943656742 | |||||
| 8 | 43133 | CYCLONE, HYDRAULIC RESERVOIR, 2 GALLON | 1 | ADD TO CART | |
| 9 | 22106 | SCREW, HHFS 3/8-16 X 1.25 ZINC | 4 | ADD TO CART | |
| 10 | 42325 | SCREW, HHC, M6-1.0 X 20, CAPTIVE WASHER | 4 | ADD TO CART | |
| 11 | 42340 | SCREW, HHFS M10-1.5 X 35 GR 8.8 | 4 | ADD TO CART | |
| 12 | 42823 | BOLT, CARRIAGE, M6-1.00 X 16 | 2 | ADD TO CART | |
Page 50 — HYDRAULIC FILTER ASSY.
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 43506 | FILTER ASSEMBLY | 1 | INCLUDES ITEMS W/$ | ADD TO CART |
| 2$ | 42342 | SCREW, HHFS, M8-1.25 X 16 GR 8.8 | 2 | ADD TO CART | |
| 3$ | 43505 | BRACKET, HYD FILTER | 1 | ADD TO CART | |
| 4$ | 42352 | NUT, HEX, SERRATED-FLANGE, M6-1.0 | 2 | ADD TO CART | |
| 5$ | 22831 | VALVE, PRES REDUCING | 1 | ADD TO CART | |
| 6$ | 22832 | VALVE BODY | 1 | PARTS REQUEST | |
|
COMING VALVE BODY
22832 · qty on machine: 1 Also included in kit 1 - FILTER ASSEMBLY (43506) | |||||
| 7$ | 32353 | FITTING, TEE 6MORFSX6MOR | 2 | PARTS REQUEST | |
|
COMING FITTING, TEE 6MORFSX6MOR
32353 · qty on machine: 2 Also included in kit 1 - FILTER ASSEMBLY (43506) | |||||
| 8$ | 43119 | PRESSURE TRANSDUCER, 0 – 40 BAR | 1 | ADD TO CART | |
| 9$ | 43507 | FITTING, 6MFSX6FFSX4FOR | 1 | NO LONGER AVAILABLE | |
|
COMING FITTING, 6MFSX6FFSX4FOR
43507 · qty on machine: 1 Also included in kit 1 - FILTER ASSEMBLY (43506) NO LONGER AVAILABLE
| |||||
| 10$ | 32796 | SCREW, HHFS M6-1 X 50 | 2 | PARTS REQUEST | |
|
COMING SCREW, HHFS M6-1 X 50
32796 · qty on machine: 2 Also included in kit 1 - FILTER ASSEMBLY (43506) | |||||
| 11$ | 43703 | FITTING, STR, 8FORFSX6MORB | 1 | NO LONGER AVAILABLE | |
|
COMING FITTING, STR, 8FORFSX6MORB
43703 · qty on machine: 1 Also included in kit 1 - FILTER ASSEMBLY (43506) NO LONGER AVAILABLE
| |||||
| 12$ | 43502 | FITTING RUN TEE, 08 MFS 08 FFS 8 MFS | 1 | PARTS REQUEST | |
|
COMING FITTING RUN TEE, 08 MFS 08 FFS 8 MFS
43502 · qty on machine: 1 Also included in kit 1 - FILTER ASSEMBLY (43506) | |||||
| 13$ | 32804 | FITTING, 45° 8MORFS X 12MOR | 1 | ADD TO CART | |
| 14$ | 42616 | FILTER ASSEMBLY, MED, 10 MICRON | 1 | INCLUDES ITEMS W/# | ADD TO CART |
| 14A$# | 42616-1 | ELEMENT, MED, PRESSURE FILTER | 1 | ADD TO CART | |
| 15$ | 32712 | FITTING, 90° 8MORFS X 12MOR | 1 | ADD TO CART | |
| 16$ | 10136 | WASHER, FLAT SAE 3/8" | 4 | PARTS REQUEST | |
|
COMING WASHER, FLAT SAE 3/8"
10136 · qty on machine: 4 Also included in kit 1 - FILTER ASSEMBLY (43506) | |||||
| 17$ | 0166A | WASHER, LOCK, 3/8" MED. | 4 | ADD TO CART | |
| 18$ | 4196 | SCREW, HHC 3/8-16 X .75" | 4 | ADD TO CART | |

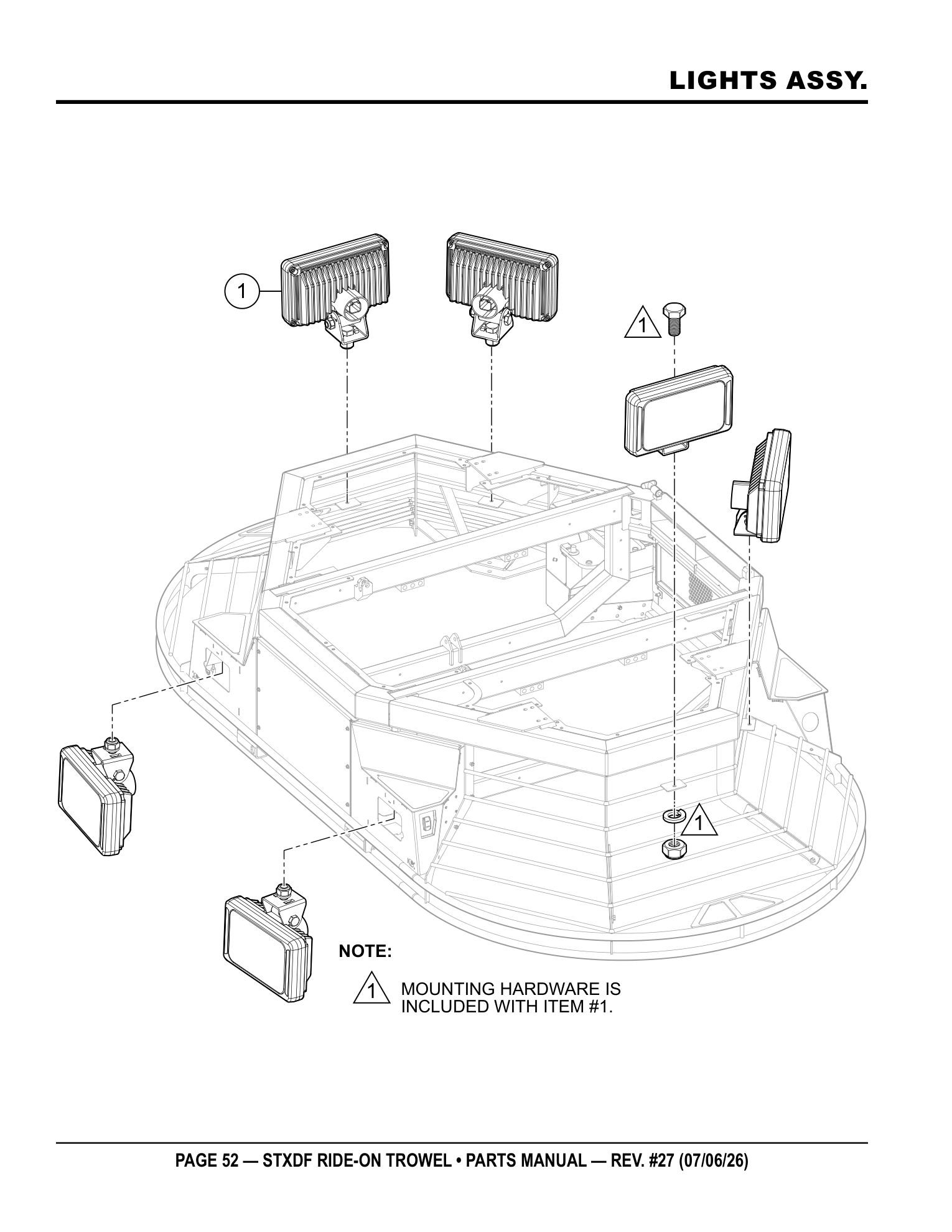

Page 52 — LIGHTS ASSY.
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 42263 | LIGHT, LED 20W 6 EMITTERS 60° | 6 | ADD TO CART | |

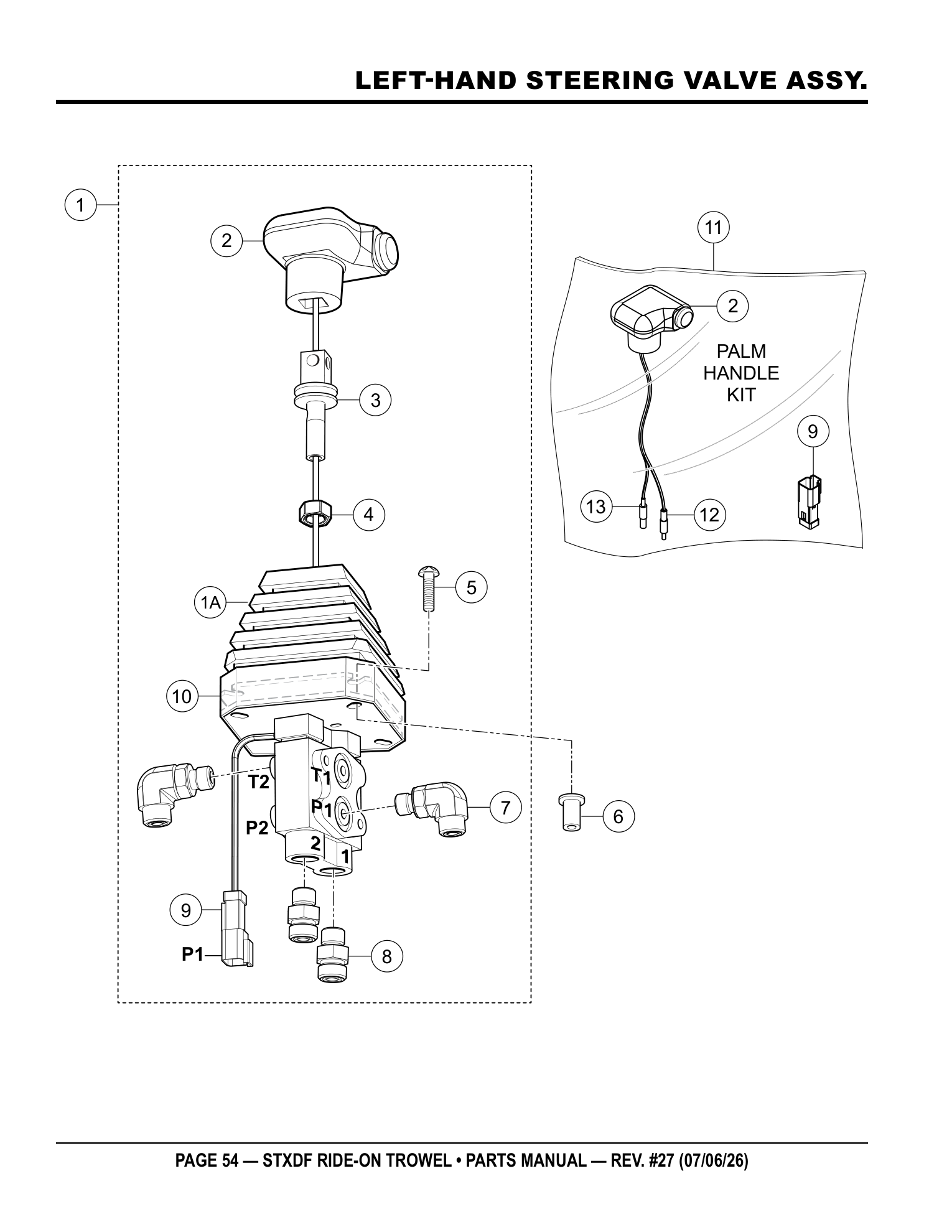

Page 54 — LEFT-HAND STEERING VALVE ASSY.
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 43740 | VALVE ASSY., LH STEERING W/SWITCH | 1 | INCLUDES ITEMS W/# | ADD TO CART |
| 1A# | 21631 | BOOT, STEERING HANDLE | 1 | ADD TO CART | |
| 2#% | 22001 | HANDLE, PALM W/SWITCH, LEFT | 2 | PARTS REQUEST | |
|
COMING HANDLE, PALM W/SWITCH, LEFT
22001 · qty on machine: 2 Also included in kit 1 - VALVE ASSY., LH STEERING W (43740); kit 11 - KIT, PALM HANDLE LEFT, W/S (20150) | |||||
| 3# | 21053 | ADAPTOR, LH PALM HANDLE | 1 | ADD TO CART | |
| 4# | 16083 | NUT, HEX M12-1.75 NO PLATE | 1 | ADD TO CART | |
| 5# | 42325 | SCREW, BHSC, M6-1.0 X 20, FLANGED | 4 | ADD TO CART | |
| 6 | 42496 | NUT, BLIND HEX M6-1.0 | 4 | ADD TO CART | |
| 7# | 32354 | FITTING, 90° -6MORFS X -6MOR | 2 | ADD TO CART | |
| 8# | 32341 | FITTING, STR -6MORFS X -6MOR | 2 | ADD TO CART | |
| 9#% | 37402 | CONNECTOR KIT, MALE 2 POSITION | 2 | ADD TO CART | |
| 10# | 20833 | VALVE, LH STEERING | 1 | ADD TO CART | |
| 11 | 20150 | KIT, PALM HANDLE LEFT, W/SWITCH | 1 | INCLUDES ITEMS W/% | ADD TO CART |
| 12% | 1318 | TERMINAL, BULLET, FEM, 18-22 | 2 | ADD TO CART | |
| 13% | 4692 | TERMINAL, BULLET, .156 MALE, 14-16 GA | 2 | ADD TO CART | |

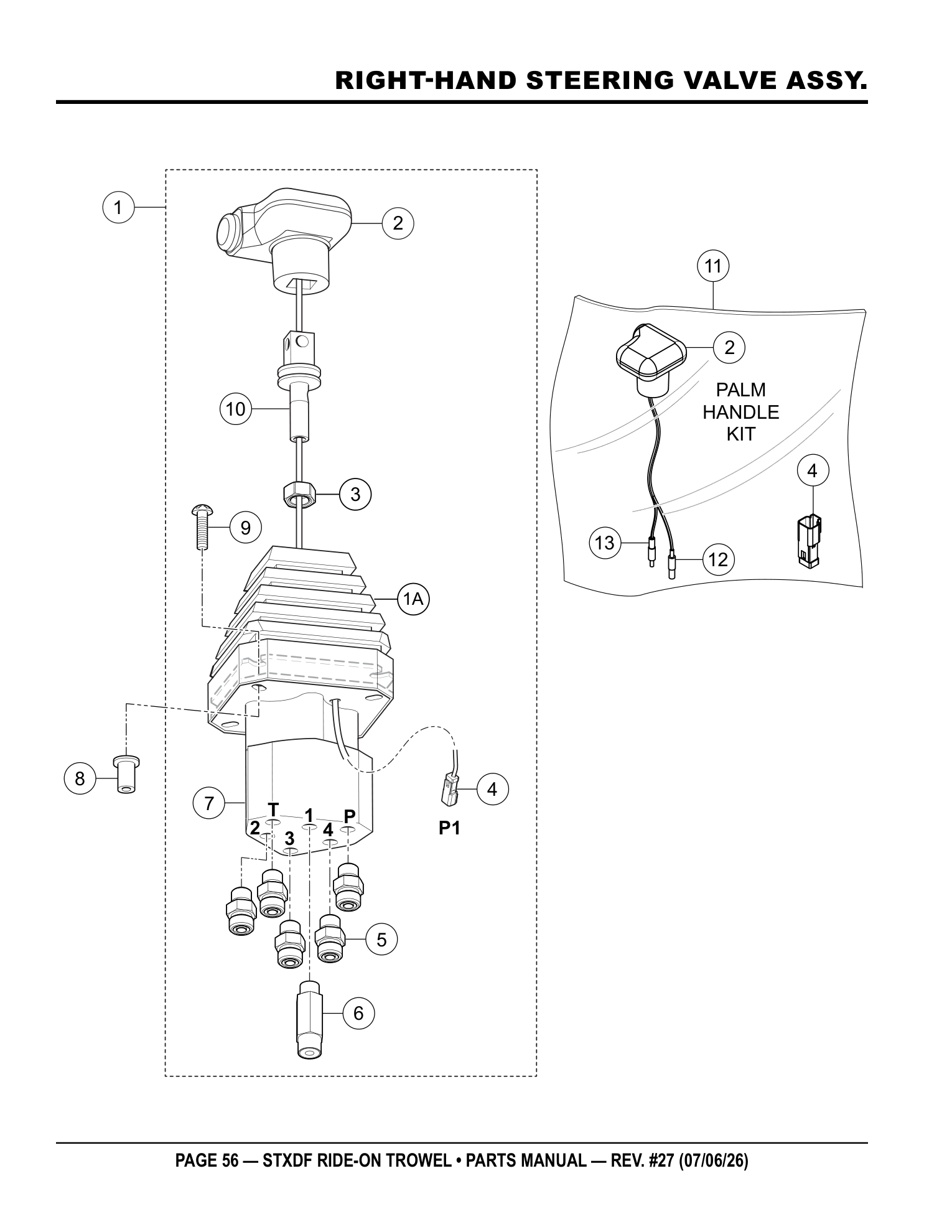

Page 56 — RIGHT-HAND STEERING VALVE ASSY.
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 43741 | VALVE ASSY., RH STEERING W/SWITCH | 1 | INCLUDES ITEMS W/# | ADD TO CART |
| 1A# | 21631 | BOOT, STEERING HANDLE | 1 | ADD TO CART | |
| 2#% | 12999 | HANDLE, PALM W/SWITCH, RIGHT | 2 | PARTS REQUEST | |
|
COMING HANDLE, PALM W/SWITCH, RIGHT
12999 · qty on machine: 2 Also included in kit 1 - VALVE ASSY., RH STEERING W (43741); kit 11 - KIT, PALM HANDLE RIGHT, W/ (20155) | |||||
| 3# | 16083 | NUT, HEX M12-1.75 NO PLATE | 1 | ADD TO CART | |
| 4#% | 37402 | CONNECTOR KIT, MALE 2 POSITION | 2 | ADD TO CART | |
| 5# | 32341 | FITTING, STR -6MORFS X -6MOR | 5 | ADD TO CART | |
| 6# | 32454 | FITTING, STR 6MOR X 6MORFS LONG | 1 | ADD TO CART | |
| 7# | 20832 | VALVE, RH STEERING | 1 | ADD TO CART | |
| 8 | 43655 | NUT, BLIND HEX M6-1.0 4.2MM-6.6MM | 4 | ADD TO CART | |
| 9# | 42325 | SCREW, HHC, M6-1.0 X 20, CAPTIVE WASHER | 4 | ADD TO CART | |
| 10# | 20834 | ADAPTOR, RH PALM HANDLE | 1 | ADD TO CART | |
| 11 | 20155 | KIT, PALM HANDLE RIGHT, W/SWITCH | 1 | INCLUDES ITEMS W/% | ADD TO CART |
| 12% | 1318 | TERMINAL, BULLET, FEM, 18-22 | 2 | ADD TO CART | |
| 13% | 4692 | TERMINAL, BULLET, .156 MALE, 14-16 GA | 2 | ADD TO CART | |

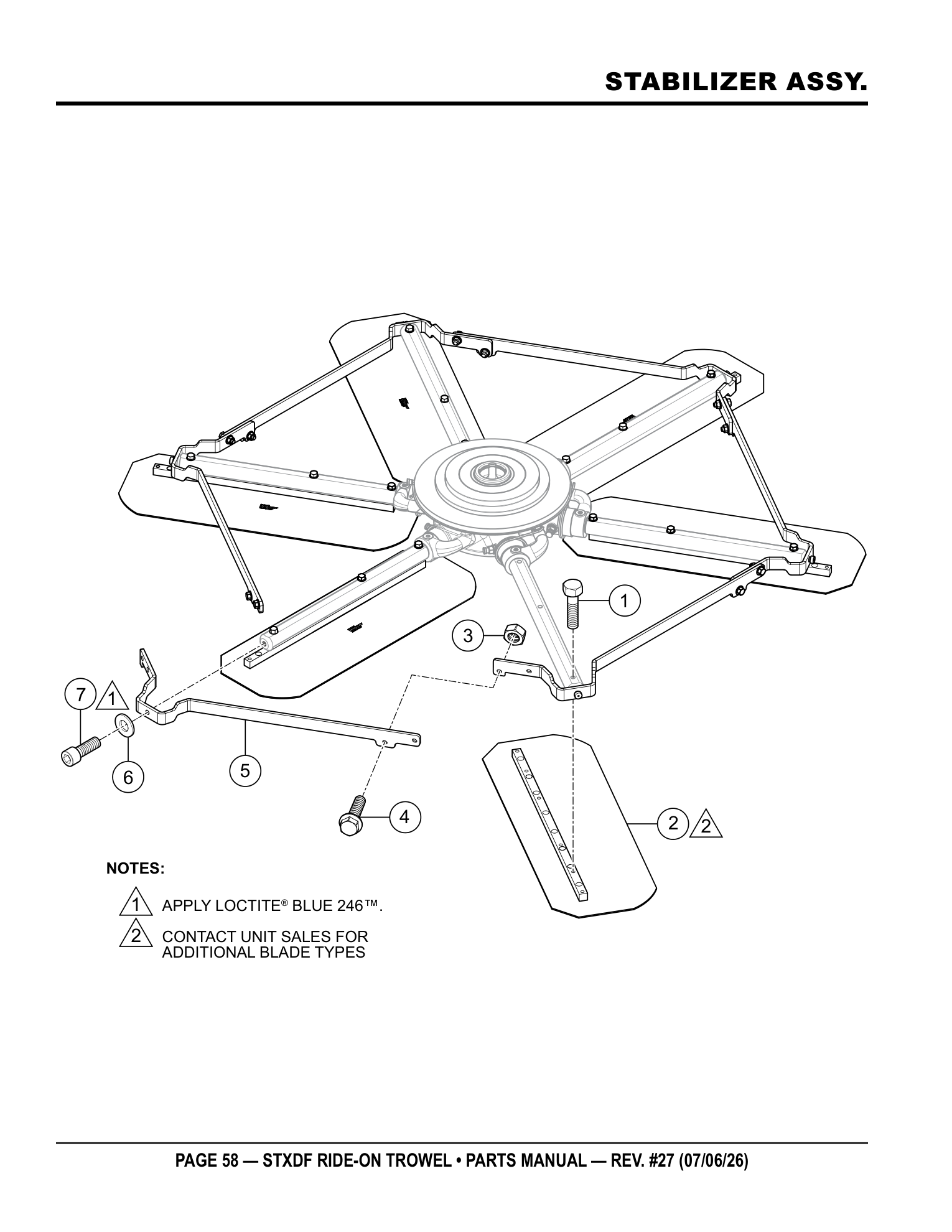

Page 58 — STABILIZER ASSY.
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 22174 | SCREW, HHFS 5/16-18 X 1.75 GR5 | 36 | ADD TO CART | |
| 2 | 11997 | BLADE ASSEMBLY, 8 X 23 STD STC | 12 | NO LONGER AVAILABLE | |
|
COMING BLADE ASSEMBLY, 8 X 23 STD STC
11997 · qty on machine: 12 Factory replaced this part - current number C11997 NO LONGER AVAILABLE
| |||||
| 3 | 23802 | NUT, HEX FLANGE M8-1.25 SERRATED | 24 | ADD TO CART | |
| 4 | 42436 | SCREW, HFS, ZP, M8-1.25 X 25, CLASS 8.8 | 24 | ADD TO CART | |
| 5 | 43195 | STRUT, STABILIZER GEN 4 | 12 | ADD TO CART | |
| 6 | 28275-001 | WASHER, FLAT, 5/16 USS HI-STRENGTH | 12 | ADD TO CART | |
| 7 | 3910382 | SCREW, SHDLR 3/8D X 3/8L, 5/16-1, SCKT HD | 12 | ADD TO CART | |

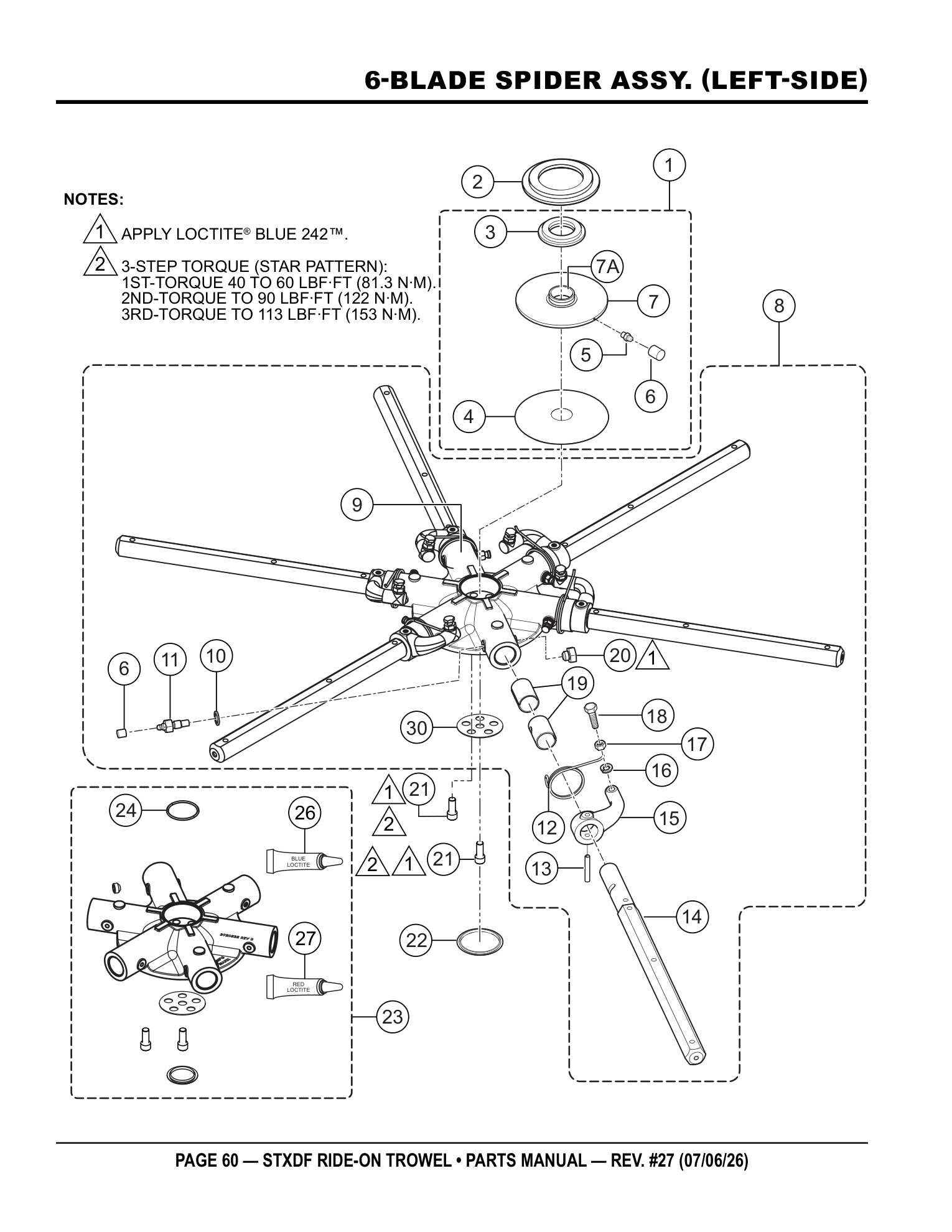

Page 60 — 6-BLADE SPIDER ASSY. (LEFT-SIDE)
Parts list — exactly as printed28 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 20939 | THRUST COLLAR ASSEMBLY | 1 | INCLUDES ITEMS W/@ | ADD TO CART |
| 2 | 43089 | COLLAR, BEARING EXTENDER | 1 | ADD TO CART | |
| 3@ | 12779 | BEARING, THRUST 6017 2RS WIFLANGE | 1 | ADD TO CART | |
| 4@ | 12250 | PLATE, WEAR | 1 | ADD TO CART | |
| 5@ | 2621 | ZERK, GREASE STR 114-28 | 1 | ADD TO CART | |
| 6@# | 1162A | CAP, GREASE ZERK #2 | 2 | ADD TO CART | |
| 7@ | 12315 | THRUST COLLAR W/ BUSHING | 1 | ADD TO CART | |
| 7A@ | 12316 | BUSHING, THRUST COLLAR W/ HOLE | 1 | ADD TO CART | |
| 8 | 48337 | SPIDER, 6 BLD HUB L.S. ASSEMBLY | 1 | INCLUDES ITEMS W/# | ADD TO CART |
| 9#$ | 43102 | SPIDER PLATE, RD HUB 6BLD | 1 | NO LONGER AVAILABLE | PARTS REQUEST |
|
COMING SPIDER PLATE, RD HUB 6BLD
43102 · qty on machine: 1 NO LONGER AVAILABLE Also included in kit 8 - SPIDER, 6 BLD HUB L.S. ASS (48337); kit 23 - SERVICE KIT, 6BLD SQR SPID (48182-SK) | |||||
| 10# | 1875 | WASHER, EXT. SHKP, 3/8" PLTD | 6 | ADD TO CART | |
| 11# | 1322 | SCREW ASSY., TROWEL ARM RETAINING | 6 | ADD TO CART | |
| 12# | 9111 | SPRING, LS H ARM RETURN STD BOSS | 6 | ADD TO CART | |
| 13# | 32045 | PIN, SPIRAL 5/16 X 2 NP | 6 | ADD TO CART | |
| 14# | 11991 | ARM, TROWEL, 6 BLADE | 6 | ADD TO CART | |
| 15# | 21049 | LEVER, TROWEL ARM HYD L.S. | 6 | ADD TO CART | |
| 16# | 2955 | WASHER, LOCK, 7/16" ZINC | 6 | ADD TO CART | |
| 17# | 07034-007 | NUT, HEX JAM 7/16-14 PLATED | 6 | ADD TO CART | |
| 18# | 21031 | SCREW, HHC ROUNDED 7/16-14 UNC SPCL | 6 | ADD TO CART | |
| 19# | 11039 | BUSHING, ARM | 12 | ADD TO CART | |
| 20#$ | 11602 | SCREW, SHS 3/8-16 X 1/4" | 6 | ADD TO CART | |
| 21$ | 48184 | SCREW, SHC M14-2.0 X 30, 12.9 | 6 | ADD TO CART | |
| 22$ | 43729 | CAP PLUG, SPIDER HUB | 1 | ADD TO CART | |
| 23 | 48182-SK | SERVICE KIT, 6BLD SQR SPIDER PLATE | 1 | INCLUDES ITEMS W/$ | ADD TO CART |
| 24$ | 43186 | O-RING, SIZE 2-226 VITON | 1 | ADD TO CART | |
| 26$ | 1477 | LOCTITE 242 BLUE .5CC | 1 | ADD TO CART | |
| 27$ | 19379-014 | LOCTITE, #271 ANAEROBIC | 1 | ADD TO CART | |
| 30$ | 48183 | WASHER, HARDEND M14, SPIDER HUB | 1 | ADD TO CART | |

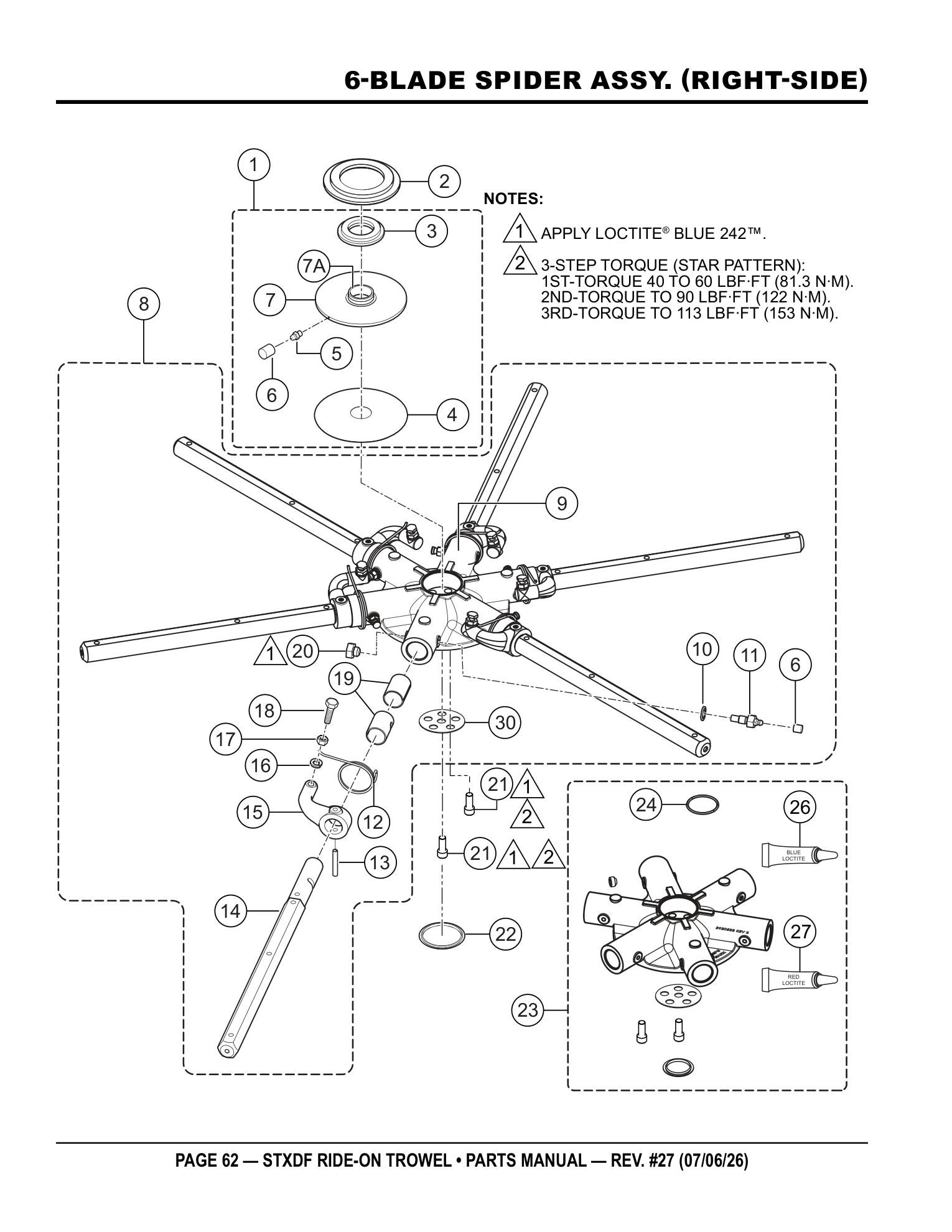

Page 62 — 6-BLADE SPIDER ASSY. (RIGHT-SIDE)
Parts list — exactly as printed28 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 20939 | THRUST COLLAR ASSEMBLY | 1 | INCLUDES ITEMS W/@ | ADD TO CART |
| 2 | 43089 | COLLAR, BEARING EXTENDER | 1 | ADD TO CART | |
| 3@ | 12779 | BEARING, 85MM X 130MM, FLANGED | 1 | ADD TO CART | |
| 4@ | 12250 | PLATE, WEAR | 1 | ADD TO CART | |
| 5@ | 2621 | FITTING, GREASE ZERK STR 1/4-28 | 1 | ADD TO CART | |
| 6@# | 1162A | CAP, GREASE ZERK, #2 YELLOW | 2 | ADD TO CART | |
| 7@ | 12315 | THRUST COLLAR W/BUSHING | 1 | ADD TO CART | |
| 7A@ | 12316 | BUSHING, THRUST COLLAR W/ HOLE | 1 | ADD TO CART | |
| 8 | 48336 | SPIDER, 6 BLD HUB R.S. ASM | 1 | INCLUDES ITEMS W/# | ADD TO CART |
| 9#$ | 43102 | SPIDER PLATE, RD HUB 6BLD | 1 | NO LONGER AVAILABLE | PARTS REQUEST |
|
COMING SPIDER PLATE, RD HUB 6BLD
43102 · qty on machine: 1 NO LONGER AVAILABLE Also included in kit 8 - SPIDER, 6 BLD HUB R.S. ASM (48336); kit 23 - SERVICE KIT, 6BLD SQR SPID (48182-SK) | |||||
| 10# | 1875 | WASHER, EXT. SHKP, 3/8 PLTD | 6 | ADD TO CART | |
| 11# | 1322 | SCREW ASM, TROWEL ARM RETAINING | 6 | ADD TO CART | |
| 12# | 2143 | SPRING, RS H ARM RETURN STD BOSS | 6 | ADD TO CART | |
| 13# | 32045 | PIN, SPIRAL 5/16 X 2 NP | 6 | ADD TO CART | |
| 14# | 11991 | ARM, TROWEL, 6 BLADE | 6 | ADD TO CART | |
| 15# | 21050 | LEVER, TROWEL ARM HYD R.S. | 6 | ADD TO CART | |
| 16# | 2955 | WASHER, LOCK, 7/16 ZINC | 6 | ADD TO CART | |
| 17# | 07034-007 | NUT, HEX JAM 7/16-14 PLATED | 6 | ADD TO CART | |
| 18# | 21031 | SCREW, HHC ROUNDED 7/16-14 UNC SPCL | 6 | ADD TO CART | |
| 19# | 11039 | BUSHING, ARM 2 PIECE | 12 | ADD TO CART | |
| 20#$ | 11602 | SCREW, SHS 3/8-16 X 1/4 | 6 | ADD TO CART | |
| 21$ | 48184 | SCREW, SHC M14-2.0 X 30, 12.9 | 6 | ADD TO CART | |
| 22$ | 43729 | CAP PLUG, SPIDER HUB | 2 | ADD TO CART | |
| 23 | 48182-SK | SERVICE KIT, 6BLD SQR SPIDER PLATE | 1 | INCLUDES ITEMS W/$ | ADD TO CART |
| 24$ | 43186 | O-RING, SIZE 2-226 VITON | 1 | ADD TO CART | |
| 26$ | 1477 | LOCTITE 242 BLUE .5CC | 1 | ADD TO CART | |
| 27$ | 19379-014 | LOCTITE, #271 ANAEROBIC | 1 | ADD TO CART | |
| 30$ | 48183 | WASHER, SPIDER | 1 | ADD TO CART | |

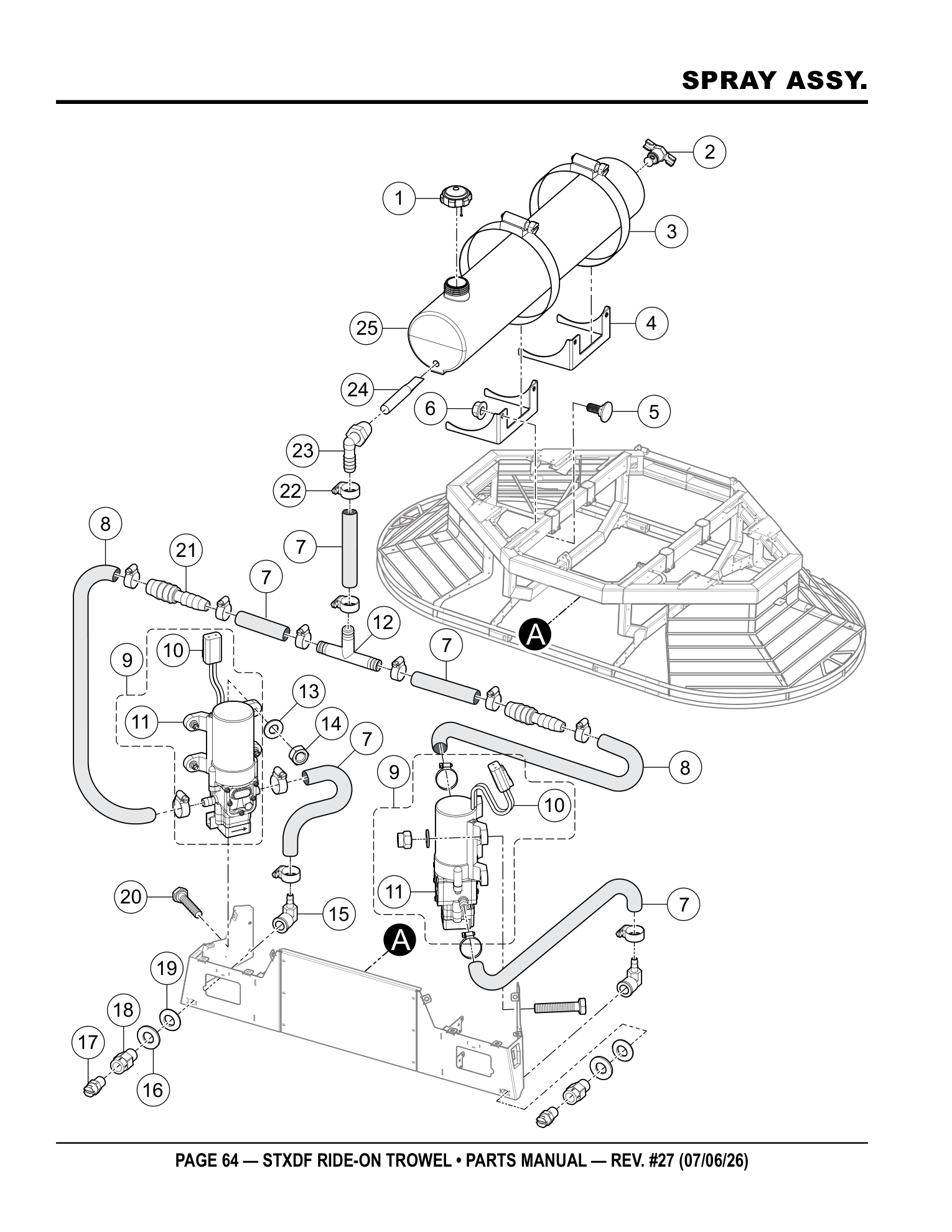

Page 64 — SPRAY ASSY.
Parts list — exactly as printed25 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 2108 | CAP, SPRAY TANK | 1 | ADD TO CART | |
| 2 | 2478 | FITTING, PETCOCK RAD DRAIN 1/4" MP | 1 | ADD TO CART | |
| 3 | 10463 | CLAMP, WORM #44 | 2 | ADD TO CART | |
| 4 | 43582 | HOLDER, RETARDANT TANK | 2 | ADD TO CART | |
| 5 | 42822 | BOLT, CARRIAGE M8-1.25 X 20 | 4 | ADD TO CART | |
| 6 | 23802 | NUT, HEX FLANGE M8-1.25 SERRATED | 4 | ADD TO CART | |
| 7 | 60021 | HOSE, 3/8" ID X 5/8" OD, BRAIDED PVC 7 FT | 7 | 1PC=1FT | ADD TO CART |
| 8 | 60067 | HOSE, 0.25" ID X 0.375" OD, BRAIDED PVC 18 IN | 2 | 1PC=1FT | ADD TO CART |
| 9 | 30547 | PUMP ASSEMBLY | 2 | INCLUDES ITEMS W/# | ADD TO CART |
 PUMP ASSEMBLY
30547 · qty on machine: 2 INCLUDES ITEMS W/# Kit includes: 10#, 11# view full part page → $53.95 IN A KIT + SOLD SOLO | |||||
| 10# | 37403 | CONNECTOR KIT, FEM DEUTSCH DT06-2S | 2 | ADD TO CART | |
| 11# | 30540 | PUMP, RETARDANT SPRAY | 2 | ADD TO CART | |
| 12 | 23307 | TEE, .375" PLASTIC BARB | 1 | ADD TO CART | |
| 13 | 28922-058 | WASHER M5 | 8 | PARTS REQUEST | |
|
COMING WASHER M5
28922-058 · qty on machine: 8 | |||||
| 14 | 15518-004 | NUT, HHC, NYLOC, M4-0.7 | 8 | ADD TO CART | |
| 15 | 2912 | FITTING, BRASS 90° 4BARB-1/4FP | 2 | ADD TO CART | |
| 16 | 16630 | WASHER, FLAT SAE 1/2" HI STRENGTH | 2 | ADD TO CART | |
| 17 | 392292 | NOZZLE, SPRAY | 2 | ADD TO CART | |
| 18 | 42637 | CHECK VALVE, 1/4" MNPT X 1/4" FNPT 3 PSI | 2 | ADD TO CART | |
| 19 | 2898 | WASHER, BONDED NEOPRENE 1" X 1/2" | 2 | ADD TO CART | |
| 20 | 42894 | SCREW, HHC M4-0.7 X 20MM | 8 | PARTS REQUEST | |
|
COMING SCREW, HHC M4-0.7 X 20MM
42894 · qty on machine: 8 | |||||
| 21 | 10022 | FITTING, PLASTIC 6 BARB-4 BARB | 2 | ADD TO CART | |
| 22 | 15538 | CLAMP, WORM #6 | 10 | ADD TO CART | |
| 23 | 2925 | ELBOW, 90° 3/8" BARB 3/8" NPT-M | 1 | ADD TO CART | |
| 24 | 2926 | SCREEN, STRAINER | 1 | ADD TO CART | |
| 25 | 2916 | 1/8" WALL POLY LINEAR OR CROSS LINK PLASTIC | 1 | ADD TO CART | |

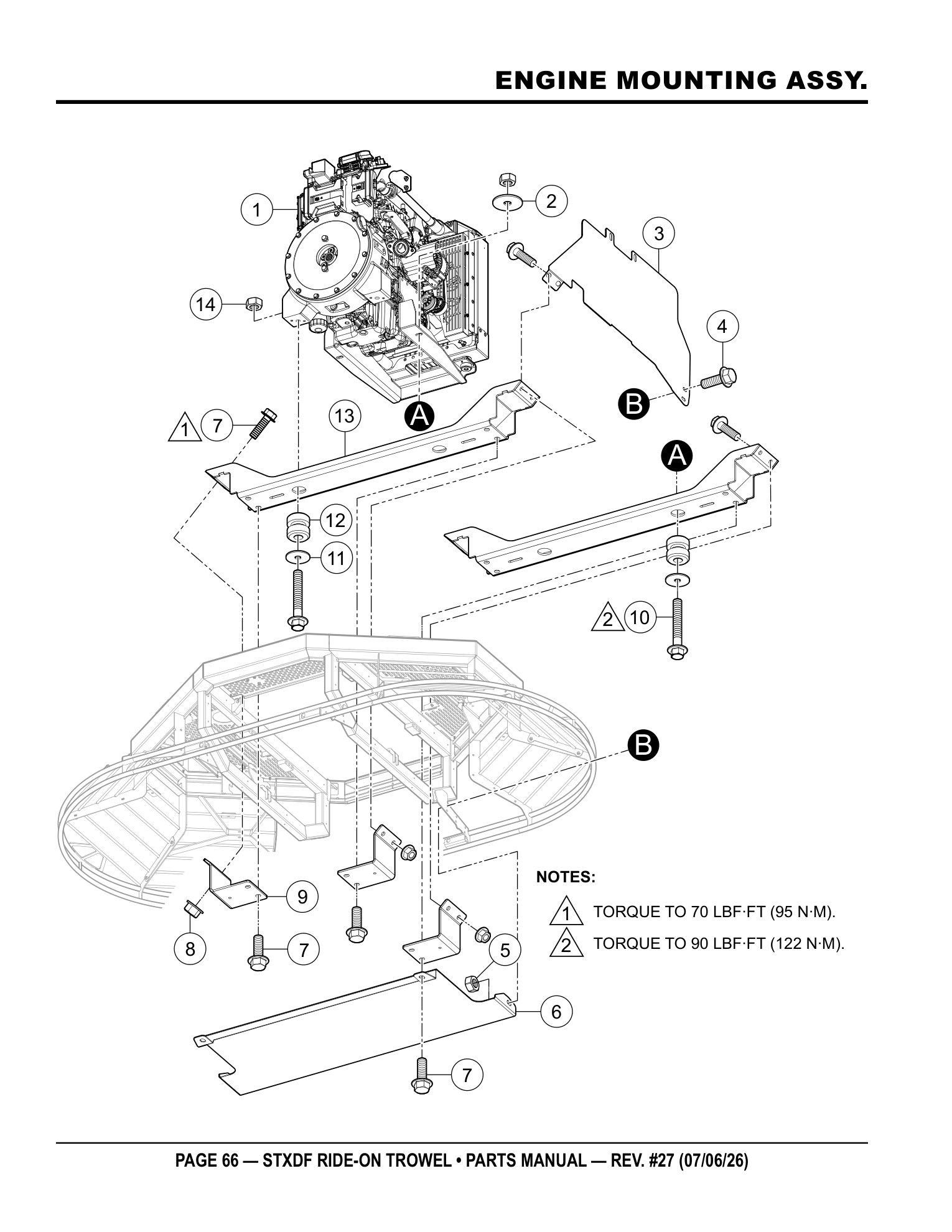

Page 66 — ENGINE MOUNTING ASSY.
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 43140 | FORD 425 ENGINE | 1 | ADD TO CART | |
| 2 | 58693 | WASHER, FENDER, 1/2" ID X 1-3/8" OD, GD 8 | 2 | PARTS REQUEST | |
|
COMING WASHER, FENDER, 1/2" ID X 1-3/8" OD, GD 8
58693 · qty on machine: 2 | |||||
| 3 | 43731 | PANEL, HEAT SHIELD, EXHAUST | 1 | ADD TO CART | |
| 4 | 42343 | SCREW, HFS, ZP, M8-1.25 X 20, CLASS 8.8 | 4 | ADD TO CART | |
| 5 | 42344 | NUT, NYLOC, M8-1.25, CLASS 8.8 | 2 | ADD TO CART | |
| 6 | 43827 | SHIELD, FORD 425 RADIATOR DEBRIS | 1 | ADD TO CART | |
| 7 | 42340 | SCREW, HHFS M10-1.5 X 35 GR 8.8 | 16 | ADD TO CART | |
| 8 | 42353 | NUT, HEX, SERRATED-FLANGE, M10-1.5 | 8 | ADD TO CART | |
| 9 | 43336 | CLAMP, GEN 4 DF ENGINE RAIL | 4 | ADD TO CART | |
| 10 | 9176 | SCREW, HHF M12-1.75 X 80MM GR10.9 PATCH | 4 | ADD TO CART | |
| 11 | 20743 | WASHER, ISO SNUB KROFUND DYN 148099-18 | 4 | ADD TO CART | |
| 12 | 20742 | ISOLATOR, ARMOR PLATED UNIVERSAL GREEN | 4 | ADD TO CART | |
| 13 | 43332 | RAILS, GEN 4 DF ENGINE CLAMP | 2 | PARTS REQUEST | |
|
COMING RAILS, GEN 4 DF ENGINE CLAMP
43332 · qty on machine: 2 | |||||
| 14 | 021112140 | NUT, HEX, NYLOC, M12-1.75 | 4 | ADD TO CART | |

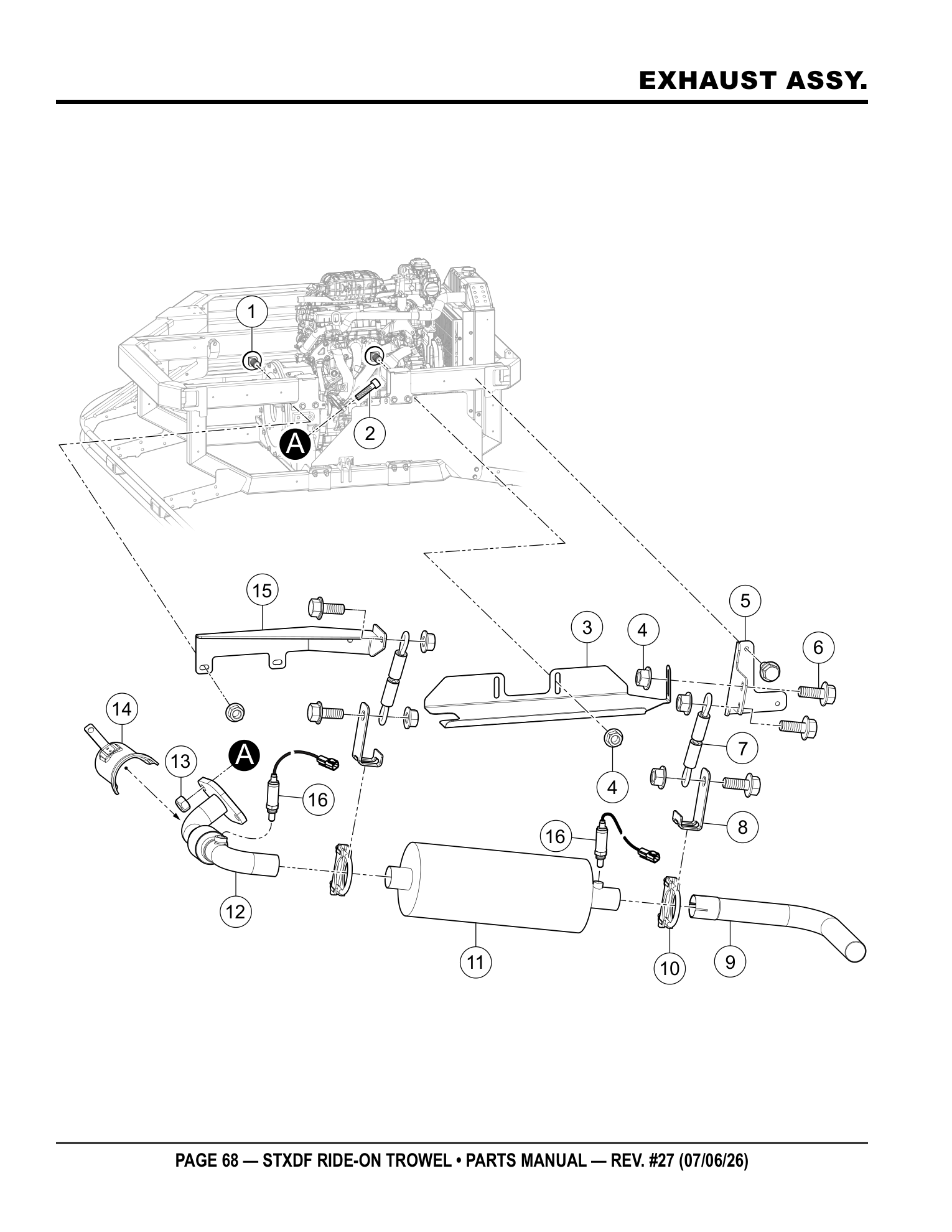

Page 68 — EXHAUST ASSY.
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 42822 | BOLT, CARRIAGE M8-1.25 X 20 | 4 | ADD TO CART | |
| 2 | 43754 | SCREW, SHC M10-1.5 X 40MM GR 12.9 | 2 | ADD TO CART | |
| 3 | 43732 | HEAT SHIELD, CATALYTIC CONVERTER | 1 | ADD TO CART | |
| 4 | 23802 | NUT, HEX FLANGE M8-1.25 SERRATED | 9 | ADD TO CART | |
| 5 | 43459 | BRACKET EXHAUST HANGER | 1 | PARTS REQUEST | |
|
COMING BRACKET EXHAUST HANGER
43459 · qty on machine: 1 | |||||
| 6 | 42343 | SCREW, HFS, ZP, M8-1.25 X 20, CLASS 8.8 | 7 | ADD TO CART | |
| 7 | 42323 | HANGER, STEEL ROPE EXHAUST | 2 | ADD TO CART | |
| 8 | 43738 | HANGER, EXHAUST | 2 | ADD TO CART | |
| 9 | 43359 | PIPE, ELBOW C EXHAUST | 1 | ADD TO CART | |
| 10 | 2534 | CLAMP, 1-3/4" MUFFLER | 2 | ADD TO CART | |
| 11 | 43140-23 | CATALYST MUFFLER | 1 | ADD TO CART | |
| 12 | 43356 | EXHAUST HEADER W/A | 1 | ADD TO CART | |
| 13 | 43755 | NUT, M10-1.5 DEFORMED THREAD | 2 | ADD TO CART | |
| 14 | 43733 | HEAT SHIELD, HEADER TUBE | 1 | ADD TO CART | |
| 15 | 43726 | BRACKET EXHAUST HANGER | 1 | ADD TO CART | |
| 16 | 43140-17 | EXHAUST O2 SENSOR | 2 | ADD TO CART | |

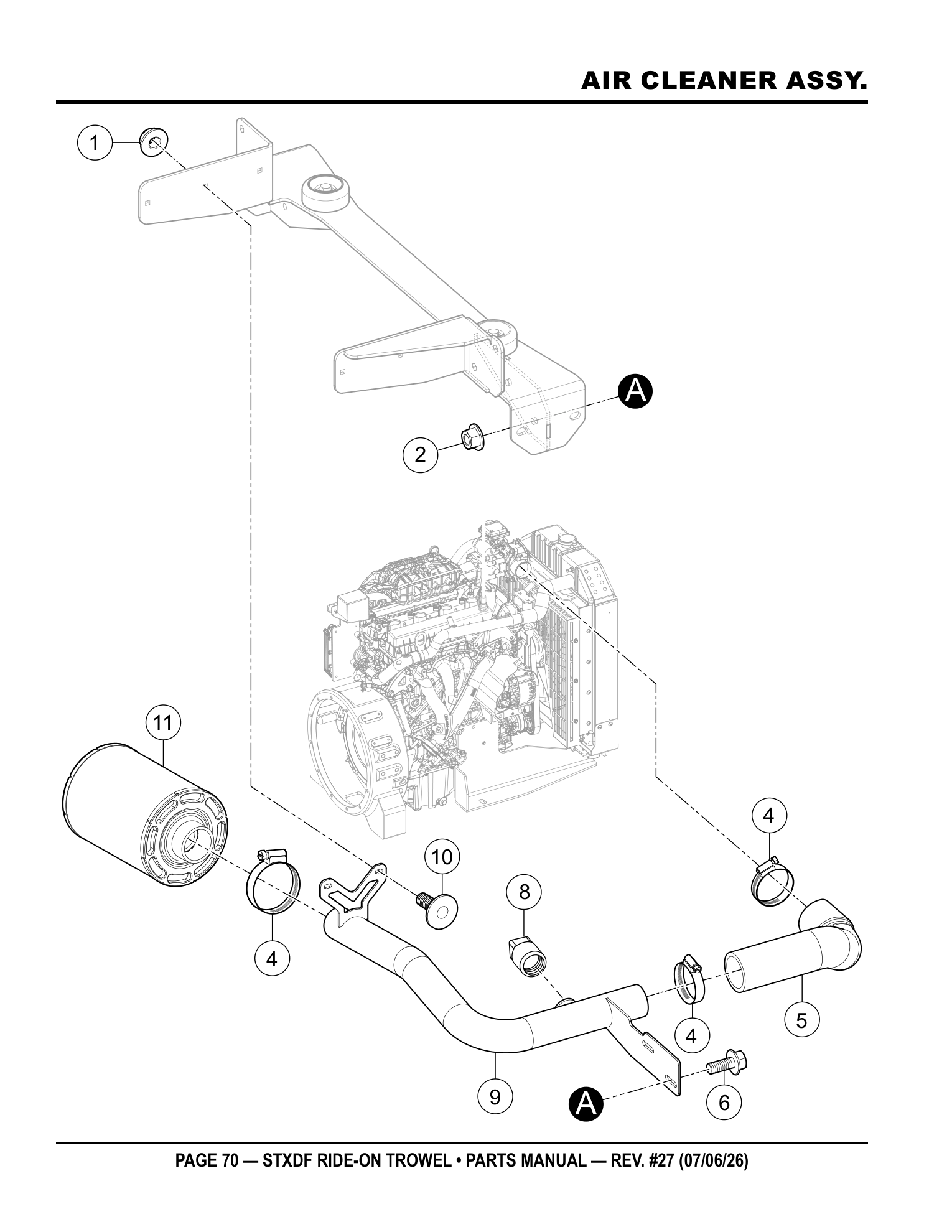

Page 70 — AIR CLEANER ASSY.
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 42352 | NUT, HEX, SERRATED-FLANGE, M6-1.0 | 2 | ADD TO CART | |
| 2 | 23802 | NUT, HEX FLANGE M8-1.25 SERRATED | 2 | ADD TO CART | |
| 4 | 29218 | CLAMP, WORM #48 | 3 | ADD TO CART | |
| 5 | 43453 | HOSE, AIR INTAKE | 1 | ADD TO CART | |
| 6 | 42343 | SCREW, HFS, ZP, M8-1.25 X 20, CLASS 8.8 | 2 | ADD TO CART | |
| 8 | 16185 | FITTING, PLUG 1/4 MP SQ HD | 1 | ADD TO CART | |
| 9 | 43456 | BRACKET, AIR FILTER | 1 | ADD TO CART | |
| 10 | 42823 | BOLT, CARRIAGE, M6-1.00 X 16 | 2 | ADD TO CART | |
| 11 | 42037 | AIR CLEANER, ENGINE INTAKE | 1 | ADD TO CART | |

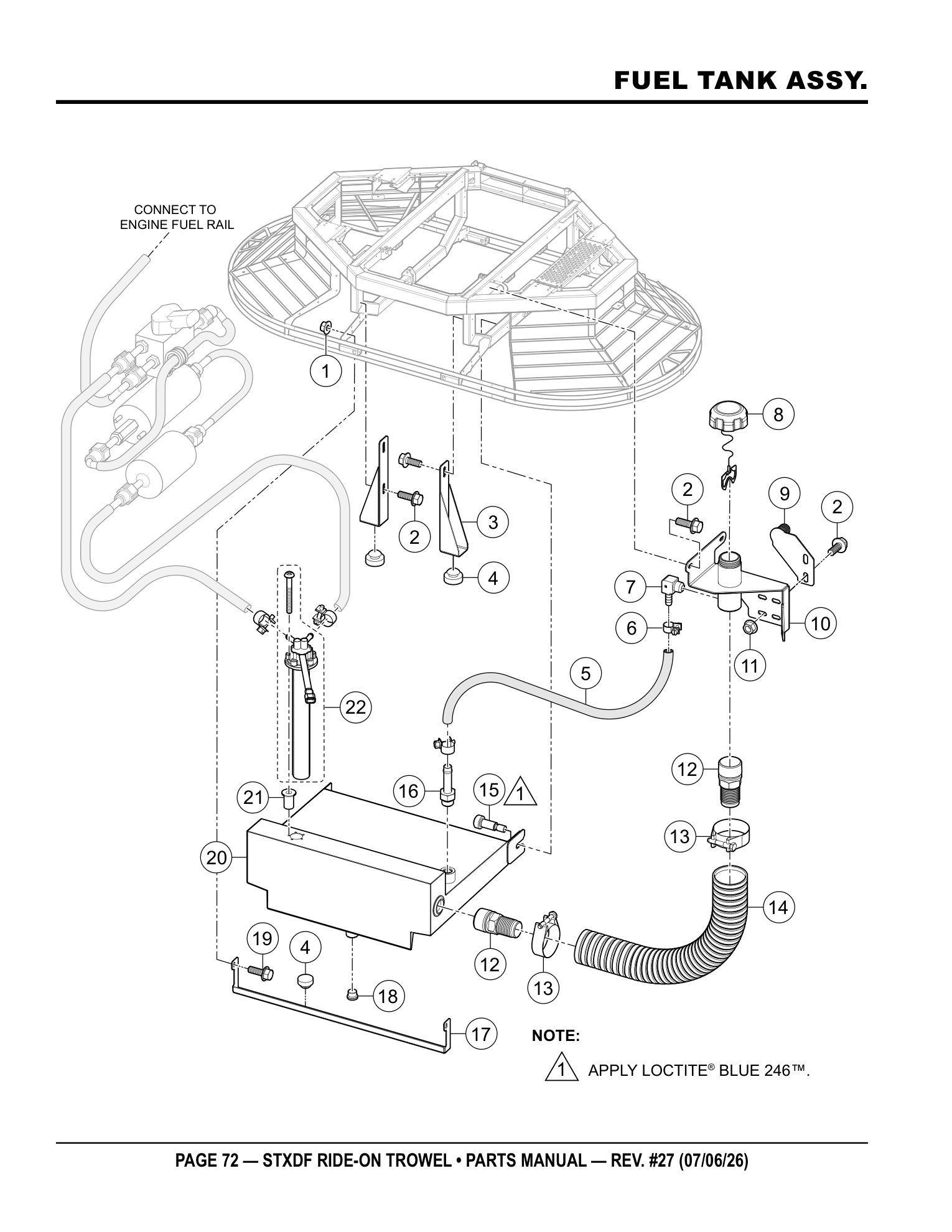

Page 72 — FUEL TANK ASSY.
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 42353 | NUT, HEX, SERRATED-FLANGE, M10-1.5 | 2 | ADD TO CART | |
| 2 | 42343 | SCREW, HFS, ZP, M8-1.25 X 20, CLASS 8.8 | 8 | ADD TO CART | |
| 3 | 43347 | STRAP, FUEL TANK TOP | 2 | ADD TO CART | |
| 4 | 21597 | BUMPER, STEM 1.0"D X .5S X .31 | 6 | ADD TO CART | |
| 5 | 42459 | HOSE, RUBBER, .3125, LOW PERM 145 PSI 16IN | 2 | 1PC=1FT | ADD TO CART |
| 6 | 19473 | CLAMP, WORM #2 | 4 | ADD TO CART | |
| 7 | 29301 | FITTING 90° 3/8 MP X 6BARB BRASS | 1 | ADD TO CART | |
| 8 | 42446 | CAP, FUEL | 1 | ADD TO CART | |
| 9 | 43723 | BRACKET, PROPANE HOSE STOW | 1 | ADD TO CART | |
| 10 | 43286 | BRACKET, FUEL FILL / HYD TANK | 1 | ADD TO CART | |
| 11 | 23802 | NUT, HEX FLANGE M8-1.25 SERRATED | 2 | ADD TO CART | |
| 12 | 43391 | FITTING, STR, -24 BARB X 1-1/2 MP | 2 | ADD TO CART | |
| 13 | 42988 | CLAMP, T-BOLT, 1 7/8" - 2 1/8" | 2 | ADD TO CART | |
| 14 | 43715 | HOSE, 1.50" X 16.75" E-Z FORM | 1 | ADD TO CART | |
| 15 | 43354 | SCREW, SHSLDR M10 X M20 X M8-1.25 | 2 | ADD TO CART | |
| 16 | 25671 | FITTING, STR 6BARB - 6MO | 1 | ADD TO CART | |
| 17 | 43348 | STRAP, FUEL TANK FRONT | 1 | ADD TO CART | |
| 18 | 43763 | FITTING, PLUG 9/16-18UNF X 1/4 SHH | 1 | ADD TO CART | |
| 19 | 32976 | SCREW, HHFS M10-1.5 X 25 GR 10.9 | 2 | ADD TO CART | |
| 20 | 43392-SK | TANK, FUEL | 1 | ADD TO CART | |
| 21 | 49163 | NUT, BLIND M4-1.0 X .020-.08 GRIP | 5 | ADD TO CART | |
| 22 | 43141 | SENDING UNIT, FUEL | 1 | ADD TO CART | |

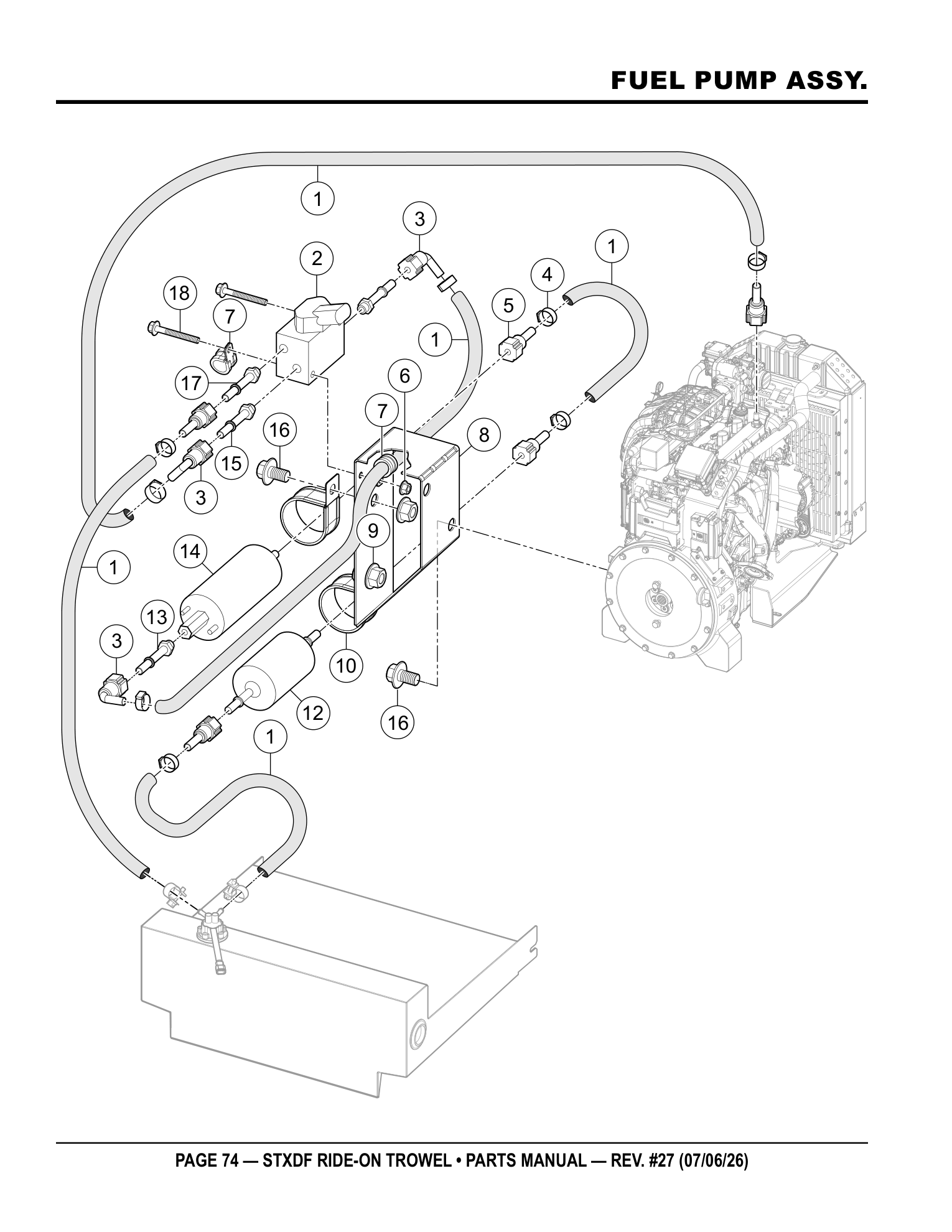

Page 74 — FUEL PUMP ASSY.
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 42459 | HOSE, RUBBER, .3125, LOW PERM 145 PSI 118IN | 10 | 1PC=1FT | ADD TO CART |
| 2 | 43140-05 | GASOLINE FUEL BLOCK | 1 | ADD TO CART | |
| 3 | 42458 | FITTING, FUEL .312, 90 DEG SAE J2044 | 3 | ADD TO CART | |
| 4 | 37822 | CLAMP, 15.3MM OETIKER STEPLESS EAR | 10 | ADD TO CART | |
| 5 | 42457 | FITTING, FUEL .312, STRAIGHT SAE J2044 | 5 | ADD TO CART | |
| 6 | 42352 | NUT, HEX, SERRATED-FLANGE, M6-1.0 | 2 | ADD TO CART | |
| 7 | 35023 | CLAMP, LOOM CUSHIONED #10 .263 HOLE | 2 | PARTS REQUEST | |
|
COMING CLAMP, LOOM CUSHIONED #10 .263 HOLE
35023 · qty on machine: 2 | |||||
| 8 | 43695 | BRACKET, FUEL COMPONENT | 1 | ADD TO CART | |
| 9 | 42451 | NUT, HEX, SERRATED-FLANGE, M12-1.75 | 2 | ADD TO CART | |
| 10 | 43140-06 | FUEL PUMP MOUNTING CLAMP | 2 | ADD TO CART | |
| 12 | 43140-04 | FILTER, FUEL | 1 | ADD TO CART | |
| 13 | 43140-62 | FITTING, FUEL PUMP, M10 | 1 | PARTS REQUEST | |
|
COMING FITTING, FUEL PUMP, M10
43140-62 · qty on machine: 1 | |||||
| 14 | 43140-02 | GASOLINE FUEL PUMP | 1 | ADD TO CART | |
| 15 | 43140-64 | FITTING, FUEL BLOCK, SAE 6 | 2 | PARTS REQUEST | |
|
COMING FITTING, FUEL BLOCK, SAE 6
43140-64 · qty on machine: 2 | |||||
| 16 | 34317 | SCREW, HHFS M12-1.75 X 20 | 4 | PARTS REQUEST | |
|
COMING SCREW, HHFS M12-1.75 X 20
34317 · qty on machine: 4 | |||||
| 17 | 43140-63 | FITTING, FUEL BLOCK, SAE 3 | 1 | PARTS REQUEST | |
|
COMING FITTING, FUEL BLOCK, SAE 3
43140-63 · qty on machine: 1 | |||||
| 18 | 32796 | SCREW, HHFS M6-1 X 50 | 2 | PARTS REQUEST | |
|
COMING SCREW, HHFS M6-1 X 50
32796 · qty on machine: 2 | |||||

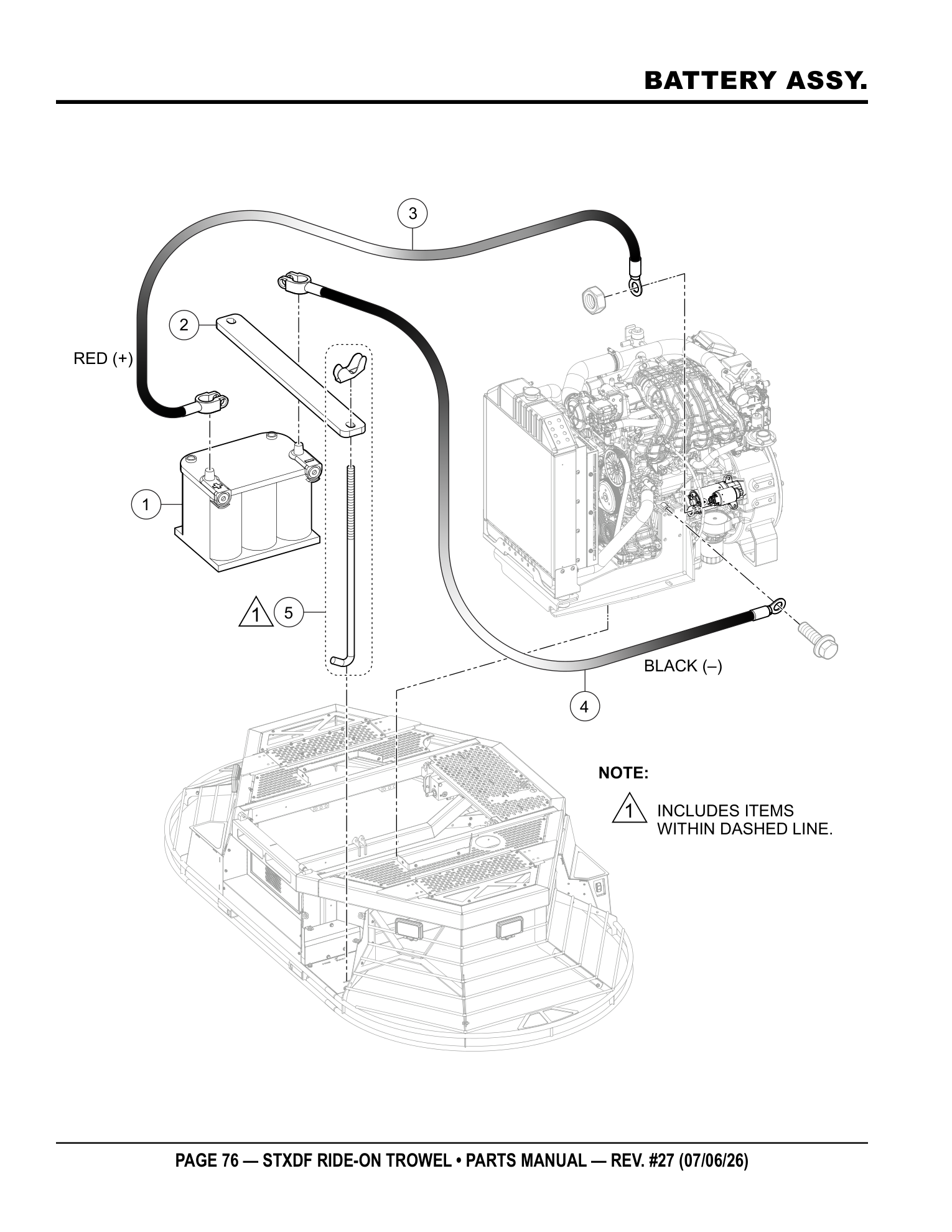

Page 76 — BATTERY ASSY.
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 404006 | BATTERY, SEALED, GROUP 34M STARTING | 1 | ADD TO CART | |
| 2 | 43618 | BRACKET, CLAMP, BATTERY | 1 | ADD TO CART | |
| 3 | 43366 | CABLE, BATTERY POS, 1 GA X 30" | 1 | ADD TO CART | |
| 4 | 43367 | CABLE, BATTERY NEG, 1 GA X 30" | 1 | ADD TO CART | |
| 5 | 20194 | KIT, BATTERY J-BOLTS, 8" | 1 | ADD TO CART | |

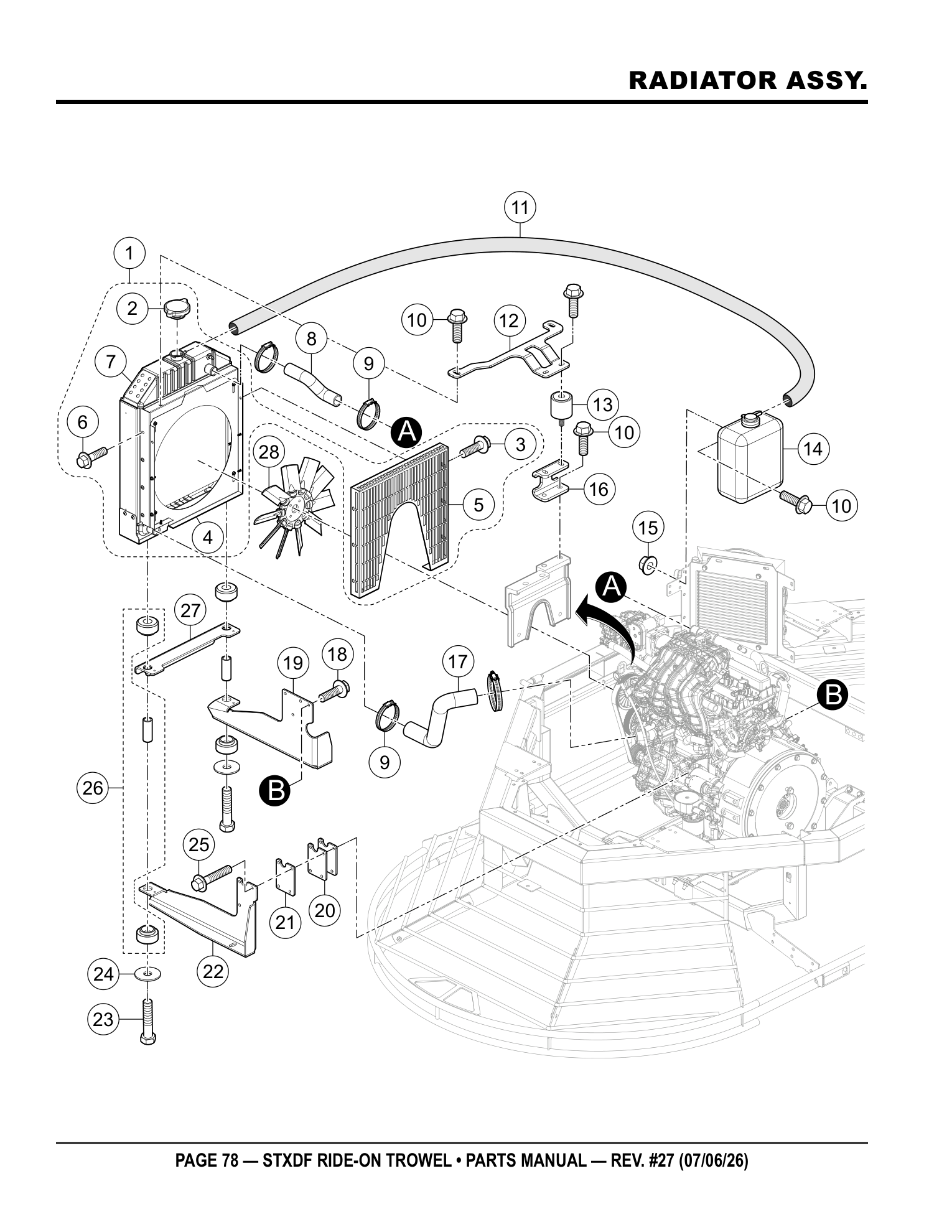

Page 78 — RADIATOR ASSY.
Parts list — exactly as printed28 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 43140-03 | ASSY., RADIATOR, RCP FORD MSG425 | 1 | INCLUDES ITEMS W/# | ADD TO CART |
| 2# | 43140-69 | RADIATOR CAP | 1 | ADD TO CART | |
| 3# | 42542 | HEX SERRATED FLANGE SCREW, M6-1 X 16 | 8 | ADD TO CART | |
| 4# | 43140-70 | SHROUD, FAN, ASSY., COMPLETE | 1 | ADD TO CART | |
| 5# | 43140-71 | GUARD, FAN | 1 | ADD TO CART | |
| 6# | 34364 | HEX SERRATED FLANGE SCREW, 1/4-20 X 0.5 | 8 | ADD TO CART | |
| 7# | 43140-21 | SUBASSEMBLY, RADIATOR | 1 | NO LONGER AVAILABLE | |
|
COMING SUBASSEMBLY, RADIATOR
43140-21 · qty on machine: 1 Also included in kit 1 - ASSY., RADIATOR, RCP FORD (43140-03) NO LONGER AVAILABLE
| |||||
| 8 | 43140-88 | HOSE, UPPER, 33.34 ID | 1 | ADD TO CART | |
| 9 | 43140-76 | CLAMP, HOSE, WORM-DRIVE, 21-44 OD | 4 | PARTS REQUEST | |
|
COMING CLAMP, HOSE, WORM-DRIVE, 21-44 OD
43140-76 · qty on machine: 4 | |||||
| 10 | 42342 | HEX SERRATED FLANGE SCREW, M8-1.25 X 16 | 10 | ADD TO CART | |
| 11 | 43140-80 | HOSE, OVERFLOW | 1 | PARTS REQUEST | |
|
COMING HOSE, OVERFLOW
43140-80 · qty on machine: 1 | |||||
| 12 | 43140-77 | SUPPORT, UPPER | 1 | ADD TO CART | |
| 13 | 43140-78 | ISOLATOR, 32 X 32, M8-1.25 | 2 | ADD TO CART | |
| 14 | 43140-79 | OVERFLOW BOTTLE | 1 | ADD TO CART | |
| 15 | 23802 | HEX SERRATED FLANGE NUT, M8-1.25 | 6 | ADD TO CART | |
| 16 | 43140-81 | MOUNT, UPPER | 1 | ADD TO CART | |
| 17 | 43140-82 | HOSE, LOWER, 33.34 ID | 1 | ADD TO CART | |
| 18 | 32976 | HEX SERRATED FLANGE SCREW, M10-1.5 X 25 | 4 | ADD TO CART | |
| 19 | 43140-83 | LEG, RIGHT FRONT | 1 | ADD TO CART | |
| 20 | 43140-84 | BRACKET, MISC., SPACER, 121.0 X 89.0 X 7.94 | 2 | ADD TO CART | |
| 21 | 43140-85 | BRACKET, MISC., SPACER | 1 | ADD TO CART | |
| 22 | 43140-86 | LEG, LEFT FRONT | 1 | ADD TO CART | |
| 23 | 12318 | HEX CAP SCREW, 1/2-13 X 2.75 | 2 | ADD TO CART | |
| 24 | 26872 | LARGE OD PLAIN WASHER, 0.500 X 2.00 X 0.125 | 2 | NO LONGER AVAILABLE | |
|
COMING LARGE OD PLAIN WASHER, 0.500 X 2.00 X 0.125
26872 · qty on machine: 2 NO LONGER AVAILABLE
| |||||
| 25 | 42341 | HEX SERRATED FLANGE SCREW, M10-1.5 X 40 | 4 | ADD TO CART | |
| 26 | 43140-68 | RADIATOR LOWER ISOLATOR MOUNTS | 2 | ADD TO CART | |
| 27 | 43140-87 | ASSY., BRACKET, CROSS | 1 | ADD TO CART | |
| 28 | 43140-58 | PUSHER FAN | 1 | ADD TO CART | |

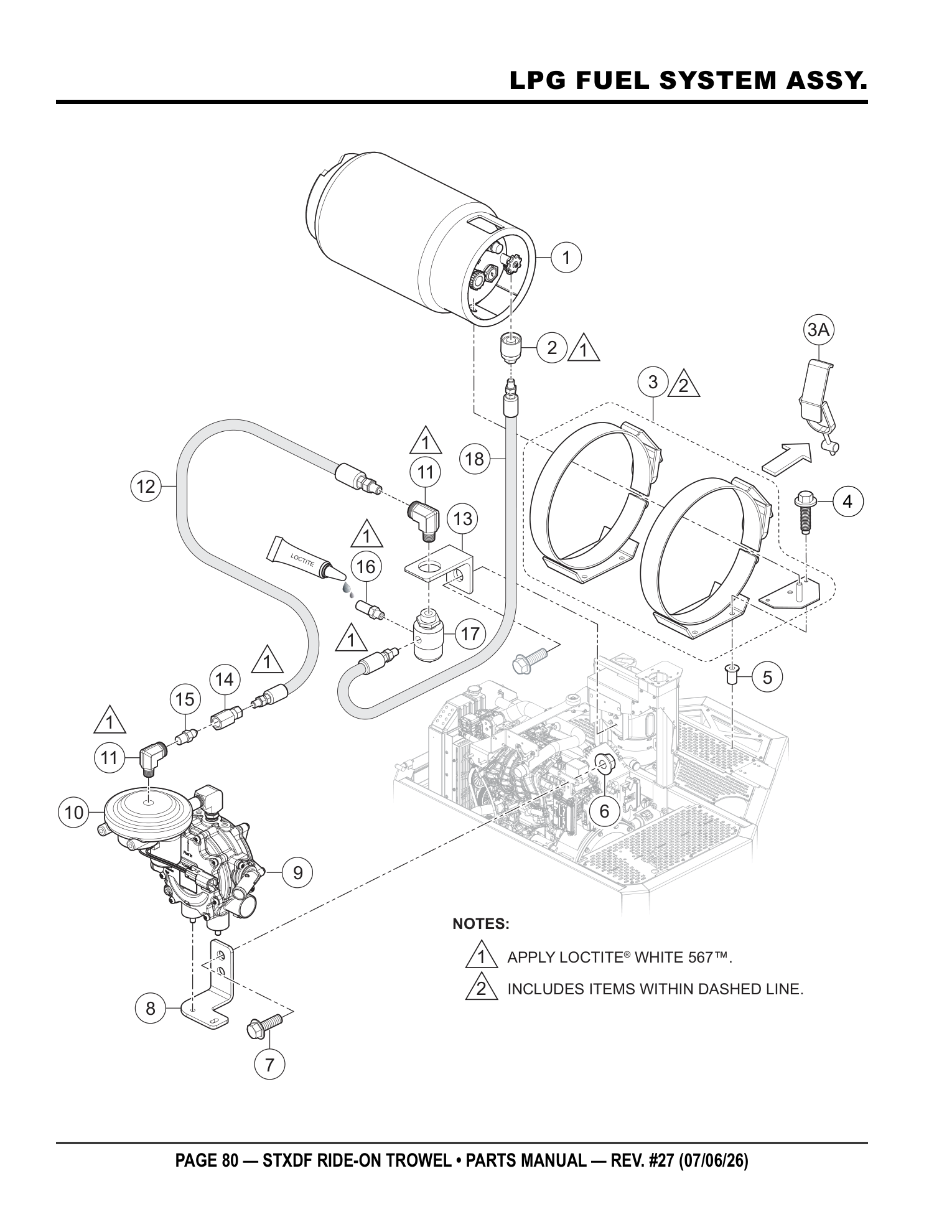

Page 80 — LPG FUEL SYSTEM ASSY.
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 30006 | TANK, PROPANE, 33.5 LB. | 1 | ADD TO CART | |
| 2 | 30007 | CONNECTOR, PROPANE TANK, FEMALE | 1 | ADD TO CART | |
| 3 | 30427 | BRACKET, PROPANE, LOW PROFILE | 1 | INCLUDES ITEMS W/# | NO LONGER AVAILABLE |
|
COMING BRACKET, PROPANE, LOW PROFILE
30427 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 3A# NO LONGER AVAILABLE
| |||||
| 3A# | 30427-01 | LATCH FOR PROPANE BRACKET | 2 | ADD TO CART | |
| 4 | 42325 | SCREW, HHC, M6-1.0 X 20, CAPTIVE WASHER | 8 | ADD TO CART | |
| 5 | 42496 | NUT, BLIND HEX M6-1.0 | 8 | ADD TO CART | |
| 6 | 42451 | NUT, HEX, SERRATED-FLANGE, M12-1.75 | 2 | ADD TO CART | |
| 7 | 42350 | SCREW, HFS, ZP, M12-1.75 X 30, CLASS 8.8 | 2 | ADD TO CART | |
| 8 | 43696 | BRACKET, VAPORIZER | 1 | PARTS REQUEST | |
|
COMING BRACKET, VAPORIZER
43696 · qty on machine: 1 | |||||
| 9 | 43140-09 | LPG VAPOR REGULATOR | 1 | ADD TO CART | |
| 10 | 43140-49 | 12V LPG SHUTOFF VALVE WITH FILTER | 1 | ADD TO CART | |
| 11 | 8053 | FITTING, 90° 1/4MP X 1/4FP | 2 | ADD TO CART | |
| 12 | 43046 | HOSE ASSEMBLY, 1/4"ID LPG X 30", 2X 1/4MP | 1 | ADD TO CART | |
| 13 | 42277 | MOUNT, PROPANE ASSEMBLY | 1 | ADD TO CART | |
| 14 | 32832 | FITTING, STR -4FJ X -4FP | 1 | ADD TO CART | |
| 15 | 366155 | FITTING, STR 4MJ-1/4MP | 1 | PARTS REQUEST | |
|
COMING FITTING, STR 4MJ-1/4MP
366155 · qty on machine: 1 | |||||
| 16 | 42200 | VALVE, PRESSURE RELIEF-LP | 1 | ADD TO CART | |
| 17 | 42322 | FILTER, PROPANE IN-LINE | 1 | ADD TO CART | |
| 18 | 43047 | HOSE ASSEMBLY, 1/4"ID LPG X 44.5", 2X 1/4MP | 1 | ADD TO CART | |

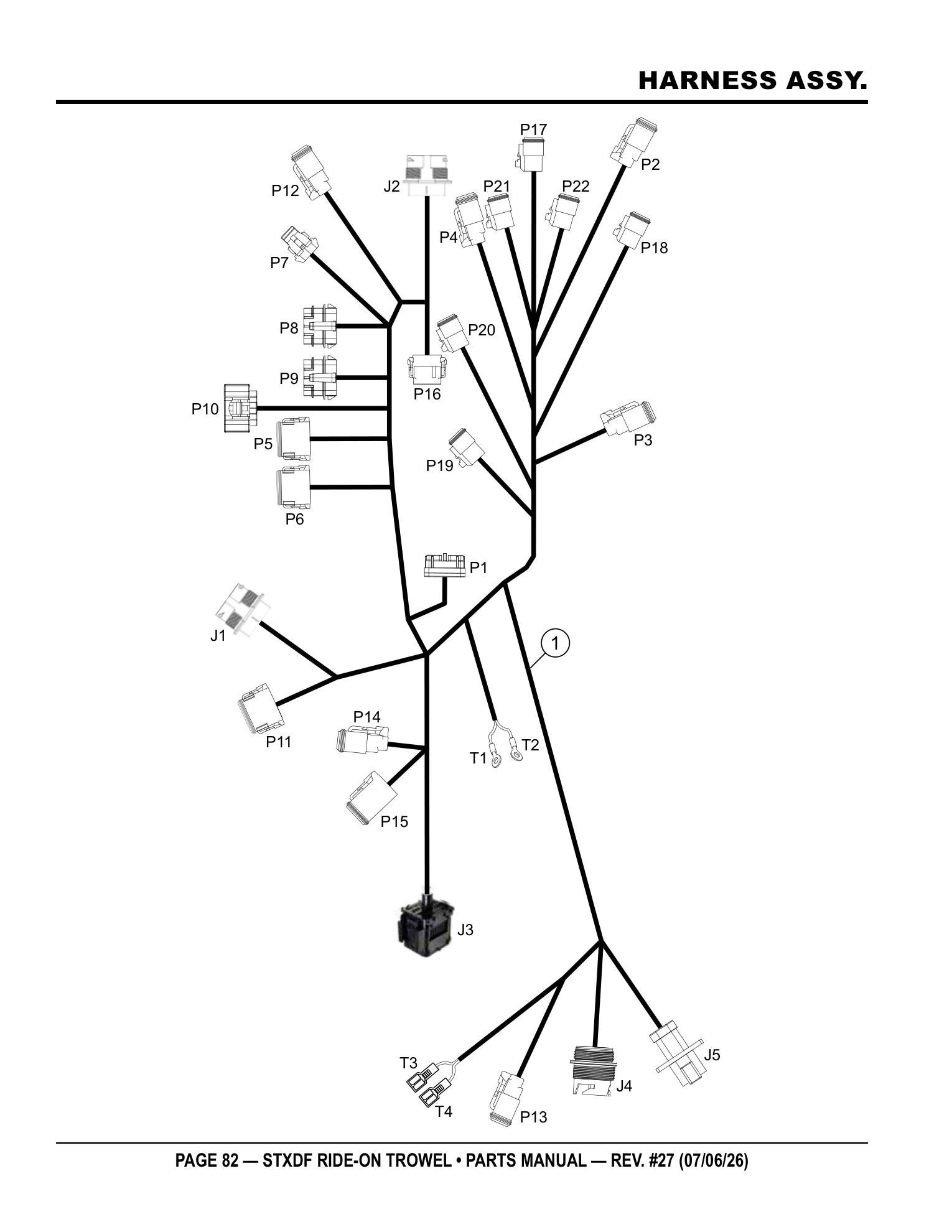

Page 82 — HARNESS ASSY.
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 43138 | HARNESS, MAIN | 1 | ADD TO CART | |

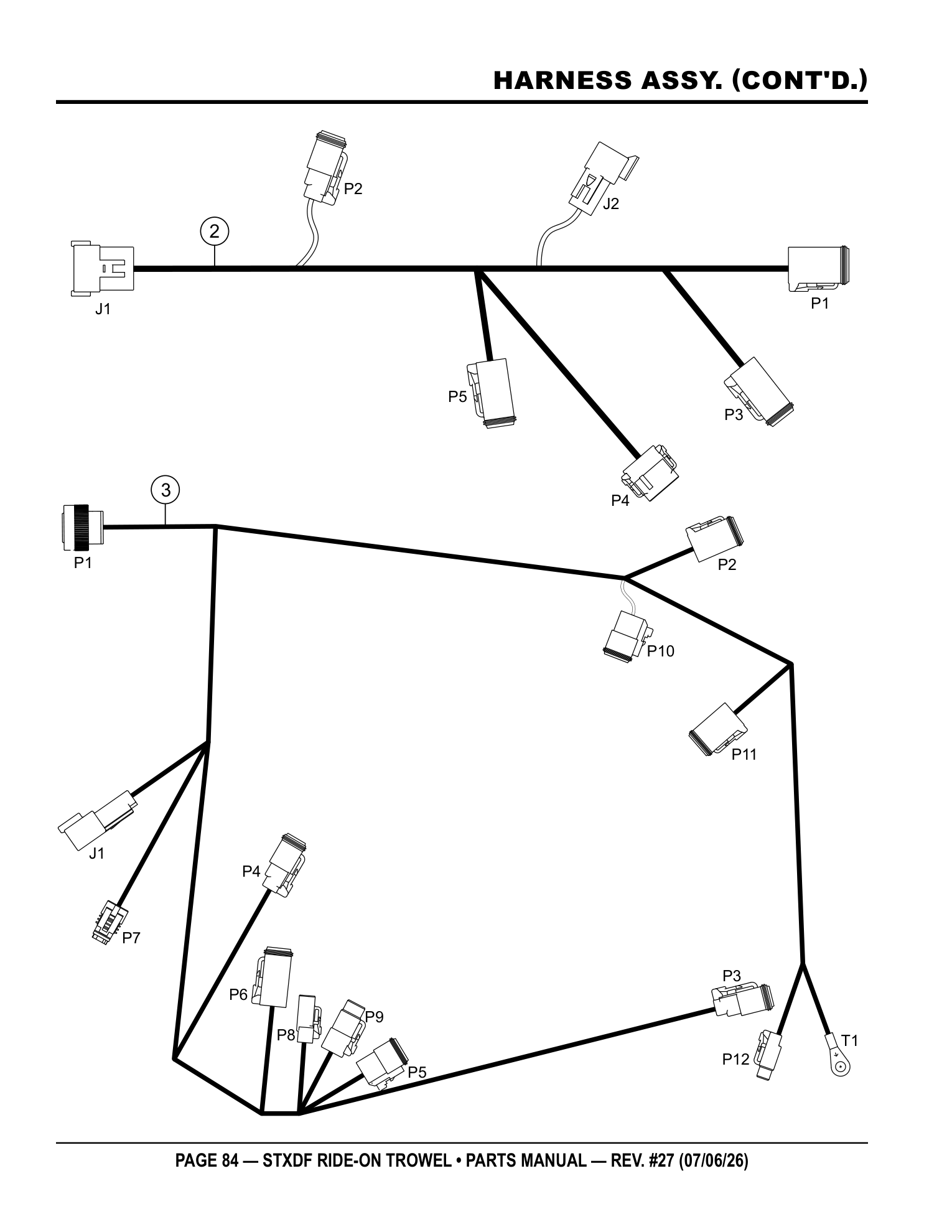

Page 84 — HARNESS ASSY. (CONT'D.)
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 43137 | HARNESS, CONSOLE | 1 | ADD TO CART | |
| 3 | 43363 | HARNESS, RIGHT | 1 | ADD TO CART | |

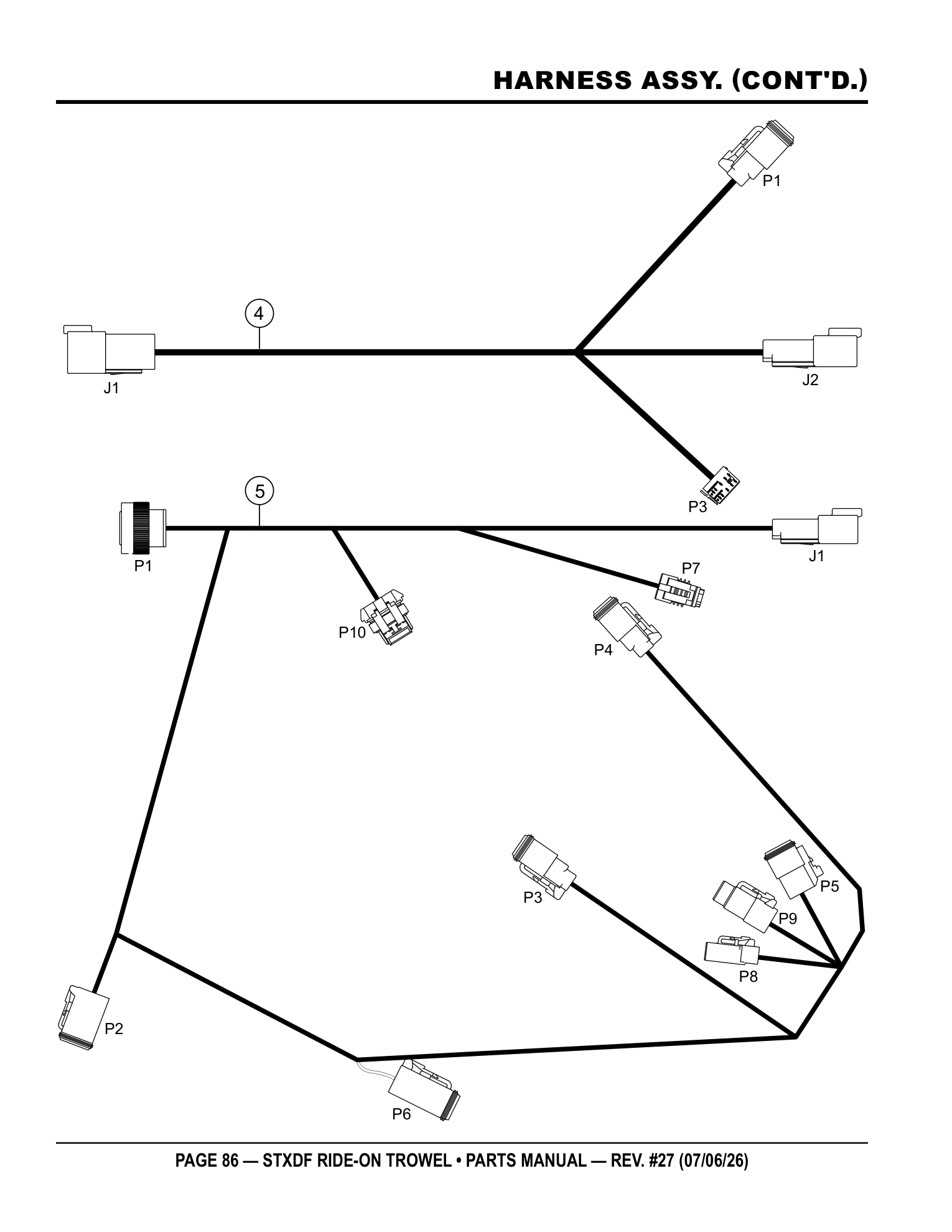

Page 86 — HARNESS ASSY. (CONT'D.)
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 4 | 43365 | HARNESS, STEP | 1 | ADD TO CART | |
| 5 | 43364 | HARNESS, LEFT | 1 | ADD TO CART | |
The machine itself
Price by quote
Get a quote
Tell us where the machine is headed and we'll quote it with freight. One call, no games.
Machine
Engine
The Multiquip STXDF is a power trowel built for finishing concrete slabs to a flat, dense, burnished surface. It weighs in at 2,769 lb. (1,256 kg). Factory-documented specs and parts support; priced by quote.
Keep-it-running spares
All listed parts →Every part that fits this machine
12056
Multiquip 12056 Hydraulic Cylinder 2.5" Bore x 1.5" Stroke - OEM Replacement Part
$390.95
12315
Multiquip 12315 Thrust Collar with Bushing - OEM Replacement Part for Power Trowels
$231.95
12316
Multiquip 12316 Thrust Collar Bushing with Hole - OEM Replacement Part for Power Trowels
$38.95
20150
Multiquip 20150 Palm Handle Kit Left with Switch - OEM Replacement Part
$240.95
20155
Multiquip 20155 Palm Handle Kit RH w/Switch - OEM Replacement Part
$258.95
20742
Multiquip 20742 Isolator Ring/Bushing - OEM Replacement Part
$37.95
20832
Multiquip 20832 Valve RH - OEM Replacement Part
$709.95
20833
Multiquip 20833 Valve LH - OEM Replacement Part
$552.95
20834
Multiquip 20834 Adaptor Palm Handle RH - OEM Replacement Part for Power Trowels
$59.95
21053
Multiquip 21053 Adaptor LH Palm Handle - OEM Replacement Part for Power Trowels
$77.95
21865
Multiquip 21865 Adjuster Kit Seat - OEM Replacement Part
$118.95
22831
Multiquip 22831 Pressure Reducing Valve - OEM Replacement Part
$111.95
22947
Multiquip 22947 Spring Loaded Pull-Pin - OEM Replacement Part
$37.95
23959
Multiquip 23959 Switch, Ign, Ip67 Rated - OEM Replacement Part
$46.95
2916
Multiquip 2916 Water Tank with NPT Bosses - OEM Replacement Part for Ride-On Power Trowels
$209.95
30006
Multiquip 30006 LPG Fuel Tank 33.5 lb - OEM Replacement Part
$499.95
30540
Multiquip 30540 Pump Retardant Spray - OEM Replacement Part
$52.95
30547
Multiquip 30547 Pump Assembly Right HHN - OEM Replacement Part
$53.95
32960-SK
Multiquip 32960-SK Adjustable Seat Kit with Arms - OEM Replacement Part for Ride-On Trowels
$515.95
32962
Multiquip 32962 Kill Switch Sears Delta - OEM Replacement Part for Trowels
$34.95
32963-SK
Multiquip 32963-SK Adjustable Seat Kit Without Arms - OEM Replacement Part
$403.95
34792
Multiquip 34792 Armrest Seat Kit - OEM Replacement Part for Ride-On Trowels
$158.95
404006
Multiquip 404006 Battery Sealed Group 34M - OEM Replacement Part
$492.95
42037
Multiquip 42037 Air Cleaner Engine Intake - OEM Replacement Part
$76.95
42072
Multiquip 42072 Controller - OEM Replacement Part
$1,492.95
42140
Multiquip 42140 Power Relay Module - OEM Replacement Part
$59.95
42219
Multiquip 42219 Coupler Hayes 15T B Mount - OEM Replacement Part
$528.95
42226
Multiquip 42226 Hydraulic Cylinder Assembly - OEM Replacement Part for Ride-On Trowels
$529.95
42263
Multiquip 42263 LED Light 20W 6 Emitters 60° - OEM Replacement Part
$165.95
42280
Multiquip 42280 Block Motor Mount 2 DOF Pivot Assembly - OEM Replacement Part
$63.95
42280-SK
Multiquip 42280-SK Motor Mount Block Assembly Kit - OEM Replacement Part
$136.95
42322
Multiquip 42322 Propane In-Line Filter - OEM Replacement Part
$78.95
42616
Multiquip 42616 Filter Assembly Medium 10 Micron Bypass - OEM Replacement Part
$515.95
42637
Multiquip 42637 Check Valve 1/4 MNPT X 1/4 FNPT 3 PSI - OEM Replacement Part
$43.95
42713
Multiquip 42713 Buss Bar Deutsch 24 PIN - OEM Replacement Part
$128.95
42988
Multiquip 42988 Hose Clamp T-Bolt 1 7/8" - 2 1/8" - OEM Replacement Part
$36.95
43061
Multiquip 43061 Tandem Pump Assembly 28 CC EP CON - OEM Replacement Part
$10,633.95
43066
Multiquip 43066 Hydraulic Motor MCR5 520CC - OEM Replacement Part
$4,926.95
43069
Multiquip 43069 Multifunction Switch Grayhill - OEM Replacement Part
$744.95
43080
Multiquip 43080 Housing Upper RPM Motor Assembly - OEM Replacement Part
$278.95
43085
Multiquip 43085 Lower Housing RPM Motor Assembly - OEM Replacement Part
$463.95
43106
Multiquip 43106 Trunnion Single DOF Assembly - OEM Replacement Part
$245.95
43119
Multiquip 43119 Pressure Transducer 0-40 Bar - OEM Replacement Part
$256.95
43120
Multiquip 43120 Pressure Transducer 0-400 BAR - OEM Replacement Part
$265.95
43133
Multiquip 43133 Cyclone Hydraulic Reservoir 2 Gallon - OEM Replacement Part
$1,679.95
43137
Multiquip 43137 Harness Right Console - OEM Replacement Part for Ride-On Trowels
$325.95
43138
Multiquip 43138 Main Wiring Harness - OEM Replacement Part for Ride-On Trowels
$1,732.95
43140
Multiquip 43140 MSG425 Ford Engine - OEM Replacement Part
$21,037.95
43140-02
Multiquip 43140-02 Gasoline Fuel Pump - OEM Replacement Part
$844.95
43140-03
Multiquip 43140-03 Radiator RCP Ford MSG425 - OEM Replacement Part
$1,880.95
43140-04
Multiquip 43140-04 Fuel Filter - OEM Replacement Part
$96.95
43140-09
Multiquip 43140-09 LPG Vapor Regulator - OEM Replacement Part for Dual Fuel Trowels
$581.95
43140-23
Multiquip 43140-23 Catalyst Muffler - OEM Replacement Part
$4,547.95
43140-49
Multiquip 43140-49 12V LPG Shutoff Valve with Filter - OEM Replacement Part
$241.95
43140-58
Multiquip 43140-58 Pusher Fan - OEM Replacement Part
$241.95
43140-68
Multiquip 43140-68 Radiator Lower Isolator Mounts - OEM Replacement Part
$53.95
43140-70
Multiquip 43140-70 Shroud Fan Assembly Complete - OEM Replacement Part
$368.95
43140-71
Multiquip 43140-71 Guard Fan - OEM Replacement Part
$504.95
43140-77
Multiquip 43140-77 Support Upper - OEM Replacement Part for Ride-On Trowels
$219.95
43140-79
Multiquip 43140-79 Overflow Engine Coolant - OEM Replacement Part
$54.95
43140-81
Multiquip 43140-81 Mount Upper - OEM Replacement Part for Ride-On Trowels
$35.95
43140-82
Multiquip 43140-82 Hose 33.34 ID Lower - OEM Replacement Part
$52.95
43140-83
Multiquip 43140-83 Right Front Leg - OEM Replacement Part for Ride-On Trowels
$125.95
43140-86
Multiquip 43140-86 Left Front Leg - OEM Replacement Part for Ride-On Trowels
$112.95
43141
Multiquip 43141 Fuel Sending Unit - OEM Replacement Part for Trowels
$205.95
43144
Multiquip 43144 Pedal Foot - OEM Replacement Part
$313.95
43144-1
Multiquip 43144-1 Foot Pedal Harness - OEM Replacement Part for Ride-On Trowels
$321.95
43152
Multiquip 43152 Pivot Block Motor Mount Assembly with Bushing - OEM Replacement Part
$55.95
43155-SK
Multiquip 43155-SK Main Frame Kit - OEM Replacement Part for Ride-On Trowels
$4,795.95
43194
Multiquip 43194 Trunnion Square Double DOF Assembly - OEM Replacement Part
$279.95
43340
Multiquip 43340 Hardline Cooler - OEM Replacement Part for Ride-On Trowels
$345.95
43347
Multiquip 43347 Fuel Tank Top - OEM Replacement Part for Ride-On Trowels
$92.95
43348
Multiquip 43348 Fuel Tank Front - OEM Replacement Part for Ride-On Trowels
$92.95
43356
Multiquip 43356 Exhaust Header Assembly - OEM Replacement Part for Trowels
$304.95
43359
Multiquip 43359 Pipe Elbow C Exhaust - OEM Replacement Part
$138.95
43363
Multiquip 43363 Harness Right - OEM Replacement Part for Ride-On Trowels
$693.95
43364
Multiquip 43364 Harness Left - OEM Replacement Part for Ride-On Trowels
$578.95
43365
Multiquip 43365 Harness - OEM Replacement Part for Ride-On Trowels
$117.95
43370
Multiquip 43370 Frame Lift Assembly Right - OEM Replacement Part
$593.95
43371
Multiquip 43371 Frame Lift Assembly - OEM Replacement Part for Hydraulic Ride-On Trowels
$554.95
43392-SK
Multiquip 43392-SK Fuel Tank Service Kit - OEM Replacement Part
$1,788.95
43402
Multiquip 43402 Crossmember Lift Frame Assembly - OEM Replacement Part
$228.95
43461
Multiquip 43461 Left Hand Heat Exchanger Assembly - OEM Replacement Part
$1,396.95
43463
Multiquip 43463 Right Hand Heat Exchanger Assembly - OEM Replacement Part
$1,342.95
43467
Multiquip 43467 Cowling Front Left - OEM Replacement Part for Ride-On Trowels
$217.95
43474
Multiquip 43474 Frame Tilt Cab Assembly - OEM Replacement Part
$831.95
43484
Multiquip 43484 Pivot Seat Frame Assembly - OEM Replacement Part
$132.95
43486
Multiquip 43486 Operator Cab Top Panel - OEM Replacement Part
$45.95
43500
Multiquip 43500 Platform Outside - OEM Replacement Part for Ride-On Trowels
$34.95
43517
Multiquip 43517 W/A Cover Left - OEM Replacement Part for Ride-On Trowels
$163.95
43518
Multiquip 43518 W/A Cover Right - OEM Replacement Part for Ride-On Trowels
$155.95
43520
Multiquip 43520 Cowling Front Middle - OEM Replacement Part
$65.95
43522
Multiquip 43522 Cowling Rear Middle Assembly - OEM Replacement Part for Trowels
$419.95
43527
Multiquip 43527 Cowling Rear Left Assembly - OEM Replacement Part for Ride-On Trowels
$139.95
43530
Multiquip 43530 Rear Right Step Assembly - OEM Replacement Part for Ride-On Trowels
$164.95
43534
Multiquip 43534 Front Left Weldment Assembly - OEM Replacement Part for Ride-On Trowels
$116.95
43596
Multiquip 43596 Battery Box Assembly - OEM Replacement Part for Ride-On Trowels
$218.95
43598
Multiquip 43598 Rear Left Step Assembly - OEM Replacement Part for Ride-On Trowels
$89.95
43602
Multiquip 43602 Cowling Front Right Assembly - OEM Replacement Part for Ride-On Trowels
$217.95
43608
Multiquip 43608 Operator Controls Cover Assembly - OEM Replacement Part for Ride-On Trowels
$295.95
43620
Multiquip 43620 Hood Assembly - OEM Replacement Part for Ride-On Trowels
$527.95
43628
Multiquip 43628 Hood Mesh Panel Assembly - OEM Replacement Part for Ride-On Trowels
$260.95
43633
Multiquip 43633 Cover Left Interior - OEM Replacement Part for Ride-On Trowels
$44.95
43634
Multiquip 43634 Cover Right Interior - OEM Replacement Part for Ride-On Trowels
$44.95
43686
Multiquip 43686 Heel Rest Foot Platform - OEM Replacement Part for Ride-On Trowels
$42.95
43715
Multiquip 43715 E-Z Form Hose 1.50X18.75 - OEM Replacement Part
$155.95
43732
Multiquip 43732 Catalytic Converter Heat Shield - OEM Replacement Part
$61.95
43733
Multiquip 43733 Tube Header Heat Shield - OEM Replacement Part
$52.95
43740
Multiquip 43740 Left Hand Valve Assembly with Switch - OEM Replacement Part
$692.95
43741
Multiquip 43741 Valve Assembly Right Hand with Switch - OEM Replacement Part
$784.95
43756
Multiquip 43756 ASM Switch PB - OEM Replacement Part for Power Trowels
$170.95
43789
Multiquip 43789 Pitch Activator Assembly - OEM Replacement Part
$1,233.95
43813
Multiquip 43813 Hose Assembly 3/4" 30" - OEM Replacement Part for Ride-On Trowels
$337.95
43815
Multiquip 43815 Hose Assembly 3/4" x 27" - OEM Replacement Part
$592.95
43821
Multiquip 43821 1.5" x 17.0" E-Z Form Hose - OEM Replacement Part
$118.95
43827
Multiquip 43827 Shield Ford 425 Radiator Debris - OEM Replacement Part
$93.95
45168
Multiquip 45168 Channel Lifting PRX - OEM Replacement Part for Trowels
$40.95
45169
Multiquip 45169 SEE BDT W/A Lifting D-Ring - OEM Replacement Part for Ride-On Trowels
$94.95
45645
Multiquip 45645 8GPM Cyclone Drain Cap - OEM Replacement Part
$36.95
48182-SK
Multiquip 48182-SK 14MM Wheel Flange Spider Kit - OEM Replacement Part
$575.95
48336
Multiquip 48336 Spider Assembly 6-Blade Right-Hand - OEM Replacement Part
$1,437.95
48337
Multiquip 48337 Spider Assembly 6 Blade Left Hand - OEM Replacement Part
$1,415.95
48762
Multiquip 48762 Service Kit DSEM835 - OEM Replacement Part for Ride-On Trowels
$1,480.95
52078
Multiquip 52078 Lifting 3FT-6IN 6200LBS Capacity - OEM Replacement Part
$89.95
0183
PIN, COTTER 1/8" X 1-1/4"
021112140
NUT, HEX, NYLOC, M12-1.75
$0.46
07034-007
NUT, HEX JAM 7/16-14 PLATED
$0.17
0948
WASHER, FLAT SAE 1/4"
10022
FITTING, PLASTIC 6 BARB-4 BARB
$0.95
10136
WASHER, FLAT SAE 3/8"
10463
CLAMP, WORM #44
$6.95
11039
BUSHING, ARM
$15.95
11146
NUT, HEX JAM 1/2-20 PLATED
$0.33
11602
SCREW, SHS 3/8-16 X 1/4"
$0.25
11991
Multiquip 11991 Trowel Blade Arm 22-1/2" - OEM Replacement Part
$59.95
11997
BLADE ASSEMBLY, 8 X 23 STD STC
12250
PLATE, WEAR
$8.95
12318
SCREW, HHC 1/2-13 X 2 3/4
$1.95
12675
CABLE, BATTERY POS, 4 GA X 36"
$30.95
12779
Multiquip 12779 Thrust Bearing 6017-2RS with Flange - OEM Replacement Part
$359.95
12999
HANDLE, PALM W/SWITCH, RIGHT
1307
SCREW, PHP 8-32 X 1/2
13178
SCREW, HHC 1/2-13 X 2 1/4 GR5
$0.89
1322
SCREW ASSY., TROWEL ARM RETAINING
$3.95
13287
NUT, NYLOC 8-32
$4.95
1477
LOCTITE 242 BLUE .5CC
$6.95
15226
SCREW, HHC FLANGED M8-1.25 X 25MM
15518-004
NUT, HHC, NYLOC, M4-0.7
$0.90
15538
CLAMP, WORM #6
$2.77
16083
NUT, HEX M12-1.75 NO PLATE
$0.34
16185
FITTING, PLUG 1/4 MP SQ HD
$0.36
16630
WASHER, FLAT SAE 1/2" HI STRENGTH
$0.22
17097
NUT, NYLOC M16-2.00, DIN 985
$0.89
17107
SCREW, SHC M16-2.00 X 60, DIN912
$2.95
17336
BUMPER, 2.5" DIA X 1"
$2.95
1875
WASHER, EXT. SHKP, 3/8" PLTD
$6.95
19379-014
LOCTITE, #271 ANAEROBIC
$4.95
19780
WASHER, LOCK #10 MED
19847
RIVET, POP, ALUM, 3/16 X 1/8-1/4
$0.18
20194
KIT, BATTERY J-BOLTS, 8"
$14.95
20673
LATCH, RUBBER HOOD
$7.95
20743
WASHER, ISO SNUB KROFUND DYN 148099-18
$1.95
20939
Multiquip 20939 Thrust Service Assembly - OEM Replacement Part for Ride-On Trowels
$605.95
21031
SCREW, HHC ROUNDED 7/16-14 UNC SPCL
$5.95
21049
LEVER, TROWEL ARM HYD L.S.
21050
LEVER, TROWEL ARM HYD R.S.
2108
CAP, SPRAY TANK
$15.95
2143
SPRING, RS H ARM RETURN STD BOSS
$2.95
21597
BUMPER, STEM 1.0"D X .5S X .31
$1.54
21852-S
SEAT, MICHIGAN-ADJUSTABLE W/ ARMS
21869
SCREW, BHC 5/16-18 X 5/8" SELF TAP
$2.95
21870
KILL SWITCH, DELTA SYSTEMS 6440-62
$15.95
21944
ROD END, 1/2-20 M RH W/CUSTOM BALL
$24.95
22001
HANDLE, PALM W/SWITCH, LEFT
2203
WASHER, FLAT, #10
22106
SCREW, HHFS 3/8-16 X 1.25 ZINC
$0.55
22174
SCREW, HHFS 5/16-18 X 1.75 GR5
$0.81
22725-200
FUSE, 20 AMP J CASE
$12.95
22725-600
FUSE, 60 AMP J CASE
$12.95
22832
VALVE BODY
23271
FITTING, PLUG 12MO MAG
23297
MANUAL HOLDER, PICTOGRAPH SAE J232
$22.95
23307
TEE, .375" PLASTIC BARB
$1.95
23587
UNLEADED GASOLINE ONLY MAX 10% ETHANOL
$3.95
23698
DECAL ISO, ROTATING BLADE HAZARD
$1.32
23700
DECAL ISO, LIFTING/CRUSH, 2.4" X 2.0"
$1.79
23792
SCREW, HHFS M8-1.25 X 30
$0.85
23802
NUT, HEX FLANGE M8-1.25 SERRATED
$0.41
23803-134
DECAL, GUARANTEED SOUND POWER LEVEL
23808
DECAL ISO, HOT SURFACE HAZARD
$3.95
23874
DECAL ISO, DO NOT REMOVE GUARDS, HAZARD
$0.88
23875
DECAL ISO, HOT COOLANT, 2.00" DIA.
$1.60
2478
FITTING, PETCOCK RAD DRAIN 1/4" MP
$7.95
25307
SCREW, HHC M6-1.0 X 50MM
$2.64
2534
CLAMP, 1-3/4" MUFFLER
$6.95
25591
WASHER, M8
$0.08
25671
FITTING, STR 6BARB - 6MO
$15.95
2621
ZERK, GREASE STR 114-28
$0.40
26872
LARGE OD PLAIN WASHER, 0.500 X 2.00 X 0.125
2762
BOOT, TERMINAL
$16.95
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
